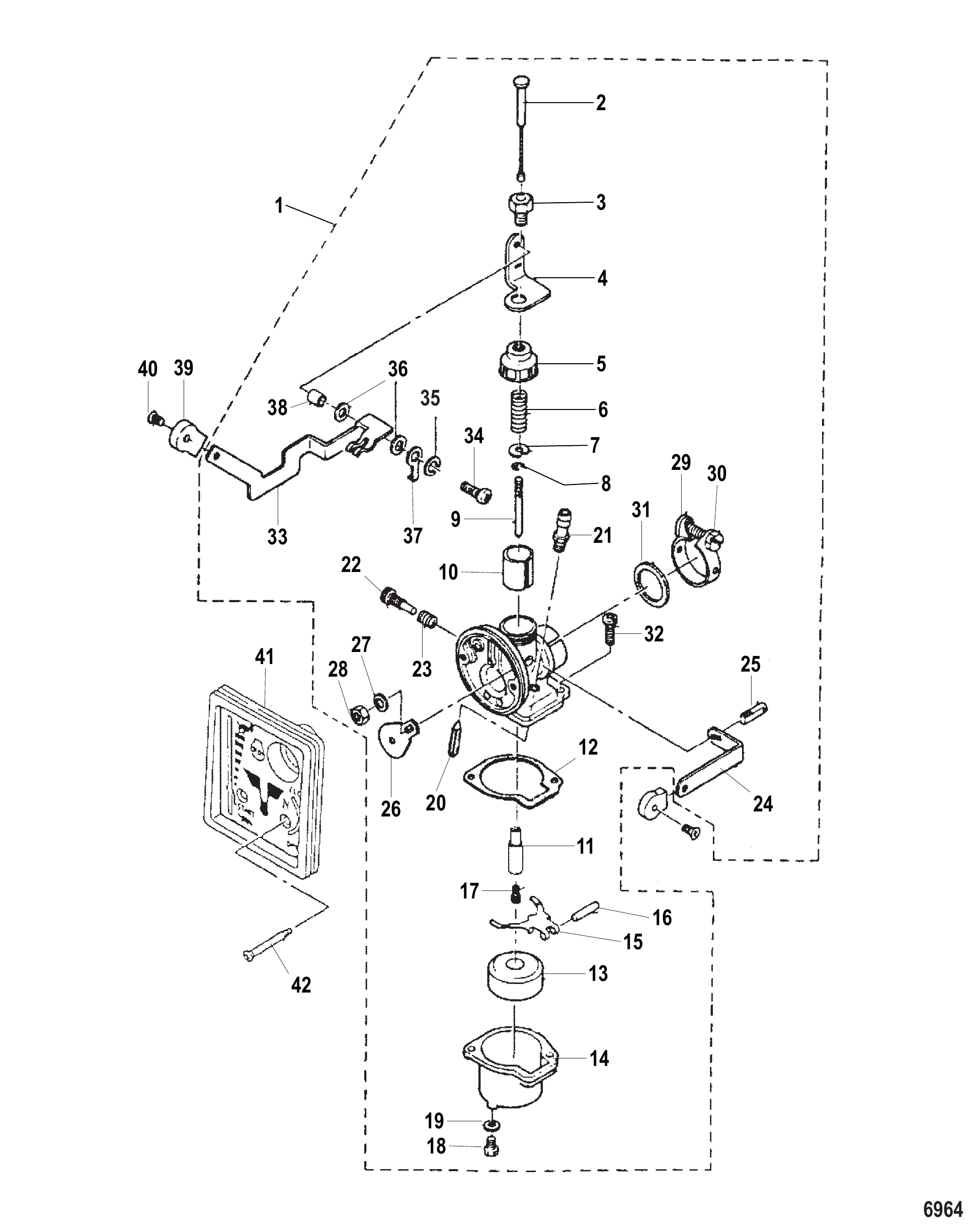

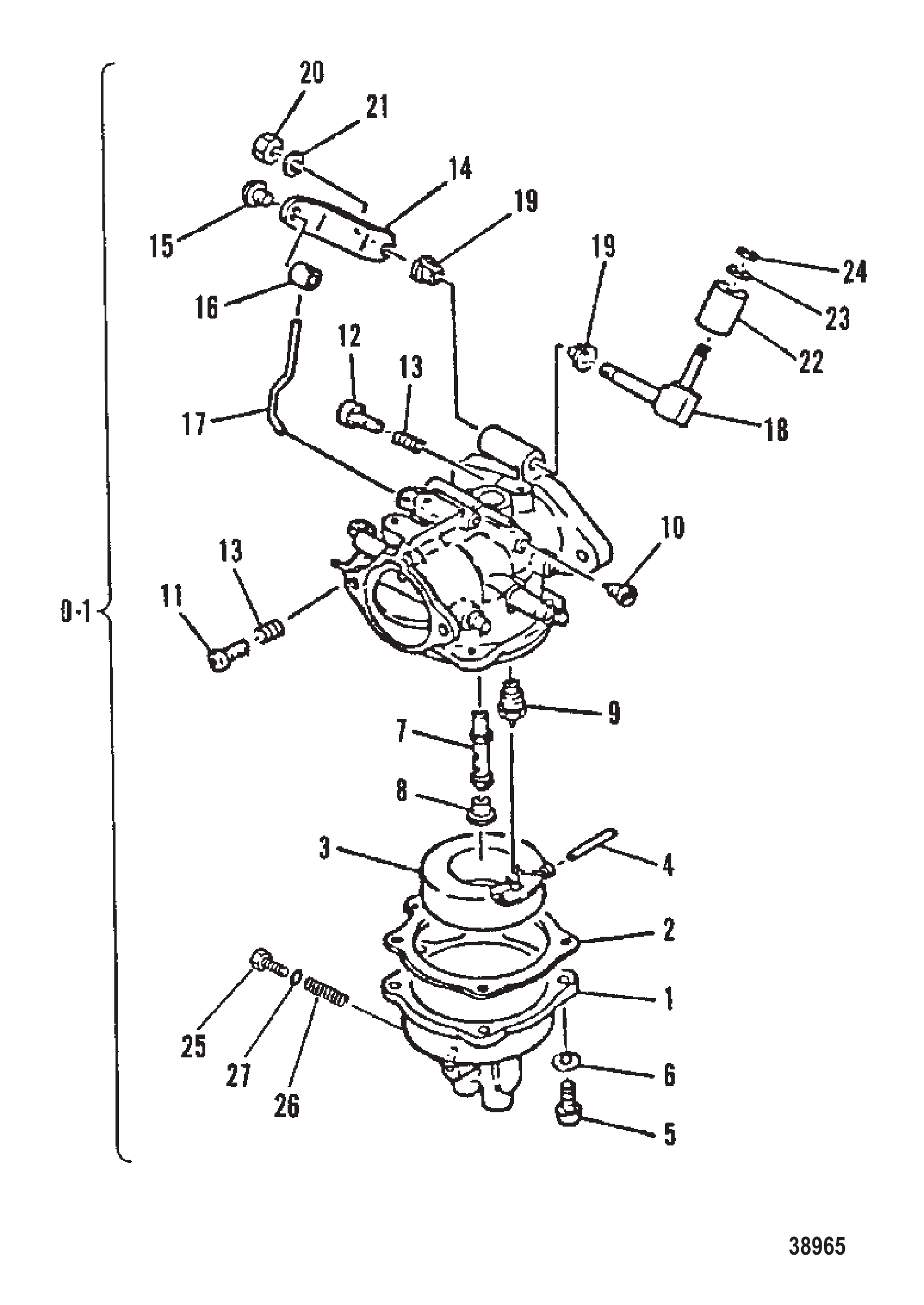

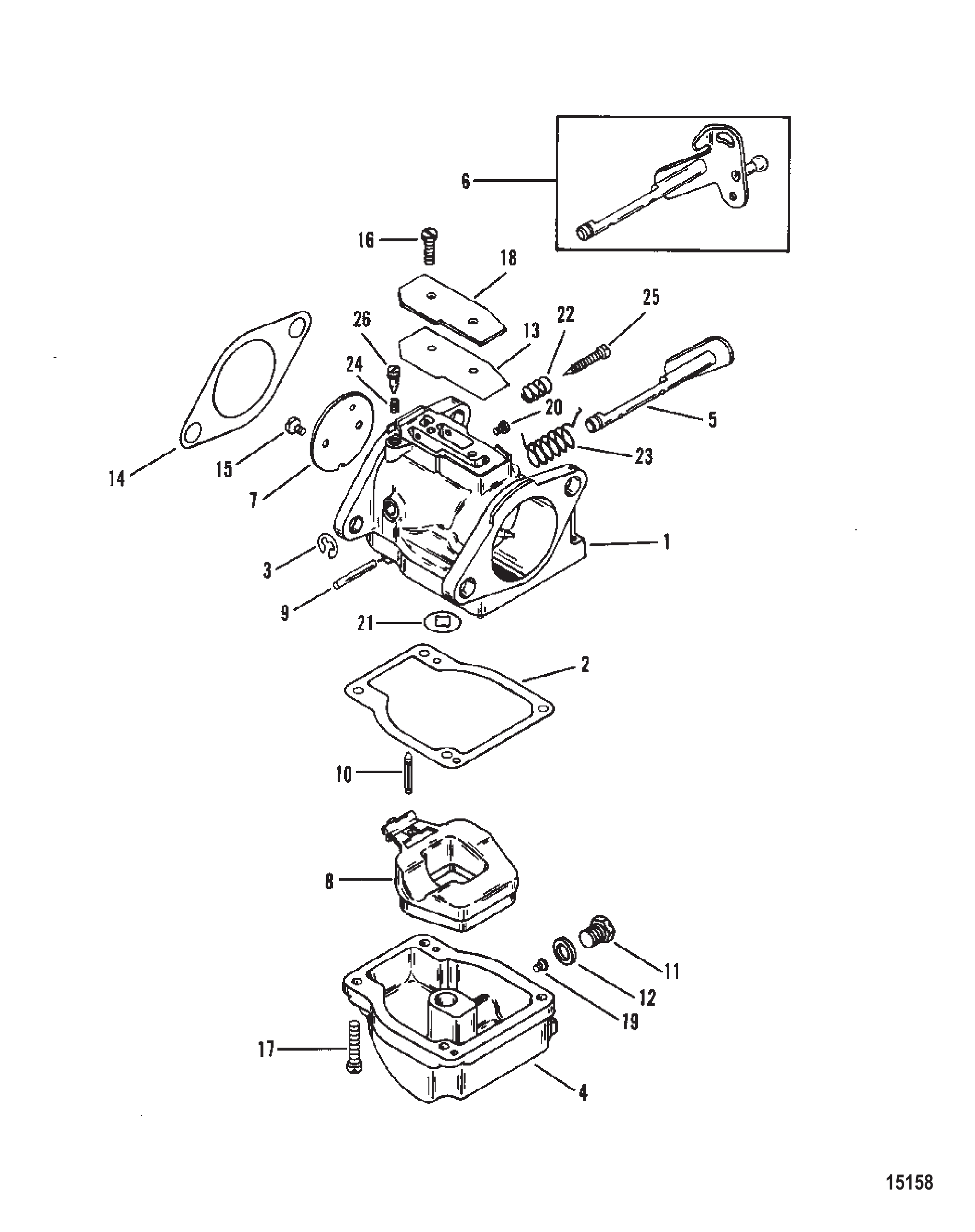

两冲程 化油器 · USA - Cat.# 90-803147001 · 共 122 个部位 · 4265 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9012A14 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A15 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A16 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A24 | 化油器 | CARBURETOR | 1 |
| 1 | 9012A25 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A26 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A5 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A6 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A7 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A17 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A18 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A19 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 2 | NSS | 不单独销售 燃油杯衬垫 | NOT SOLD SEPARATE GASKET-FUEL BOWL | 3 |
| 3 | NSS | 不单独销售 挡圈 | NOT SOLD SEPARATE RETAINING RING | 3 |
| 4 | 9589 | 燃油杯 | BOWL Fuel | 1 |
| 4 | 9590 | 燃油杯 | BOWL Fuel | 2 |
| 5 | 9591 | 油门轴 (上/下) | SHAFT Throttle (UPPER/LOWER) | 2 |
| 6 | 9592 | 油门轴 (中段) | SHAFT Throttle (MIDDLE) | 1 |
| 7 | 9593 | 油门阀 | VALVE Throttle | 3 |
| 7 | 9609 | 油门阀 | VALVE Throttle | 3 |
| 8 | 9594 | 浮子 | FLOAT | 3 |
| 9 | NSS | 不单独销售 浮子轴 | NOT SOLD SEPARATE FLOAT SHAFT | 3 |
| 10 | 9595 | 进油针阀 | VALVE Inlet Needle | 3 |
| 11 | 9596 | 主量孔塞 | PLUG MAIN JET | 3 |
| 12 | NSS | 不单独销售 塞衬垫 | NOT SOLD SEPARATE GASKET-PLUG | 3 |
| 13 | NSS | 不单独销售 盖板衬垫 | NOT SOLD SEPARATE GASKET-COVER PLATE | 3 |
| 14 | 15172 | 法兰衬垫 | GASKET FLANGE | 3 |
| 15 | NSS | 不单独销售 油门阀螺钉 | NOT SOLD SEPARATE SCREW-THROTTLE VALVE | 6 |
| 16 | 9597 | 盖板螺钉 | SCREW COVER PLATE | 6 |
| 17 | 5132 | 燃油杯螺钉 | SCREW FUEL BOWL | 12 |
| 18 | 9598 | 盖板 | COVER PLATE | 3 |
| 19 | 4216 | 主量孔 (.064) | JET (.064) MAIN FUEL | 3 |
| 19 | 6029 | 主量孔 (.068) | JET (.068) MAIN FUEL | 3 |
| 19 | 6207 | 主量孔 (.072) | JET (.072) MAIN FUEL | 3 |
| 20 | 8423 | 通气孔 (.094) | JET (.094) VENT (.094) | 3 |
| 21 | NSS | 不单独销售 喷油嘴衬垫 | NOT SOLD SEPARATE GASKET-NOZZLE WELL | 3 |
| 22 | NSS | 不单独销售 怠速针弹簧 | NOT SOLD SEPARATE SPRING-IDLE NEEDLE | 3 |
| 23 | NSS | 不单独销售 油门回位弹簧 | NOT SOLD SEPARATE SPRING-THROTTLE RETURN | 3 |
| 24 | NSS | 不单独销售 怠速空气弹簧 | NOT SOLD SEPARATE SPRING-IDLE AIR | 3 |
| 25 | NSS | 不单独销售 怠速针 | NOT SOLD SEPARATE IDLE NEEDLE | 3 |
| 26 | NSS | 不单独销售 怠速空气针 | NOT SOLD SEPARATE IDLE AIR NEEDLE | 3 |
| - | 9602 | 衬垫套件 | GASKET KIT | |
| - | 9599 | 维修套件 | REPAIR KIT |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

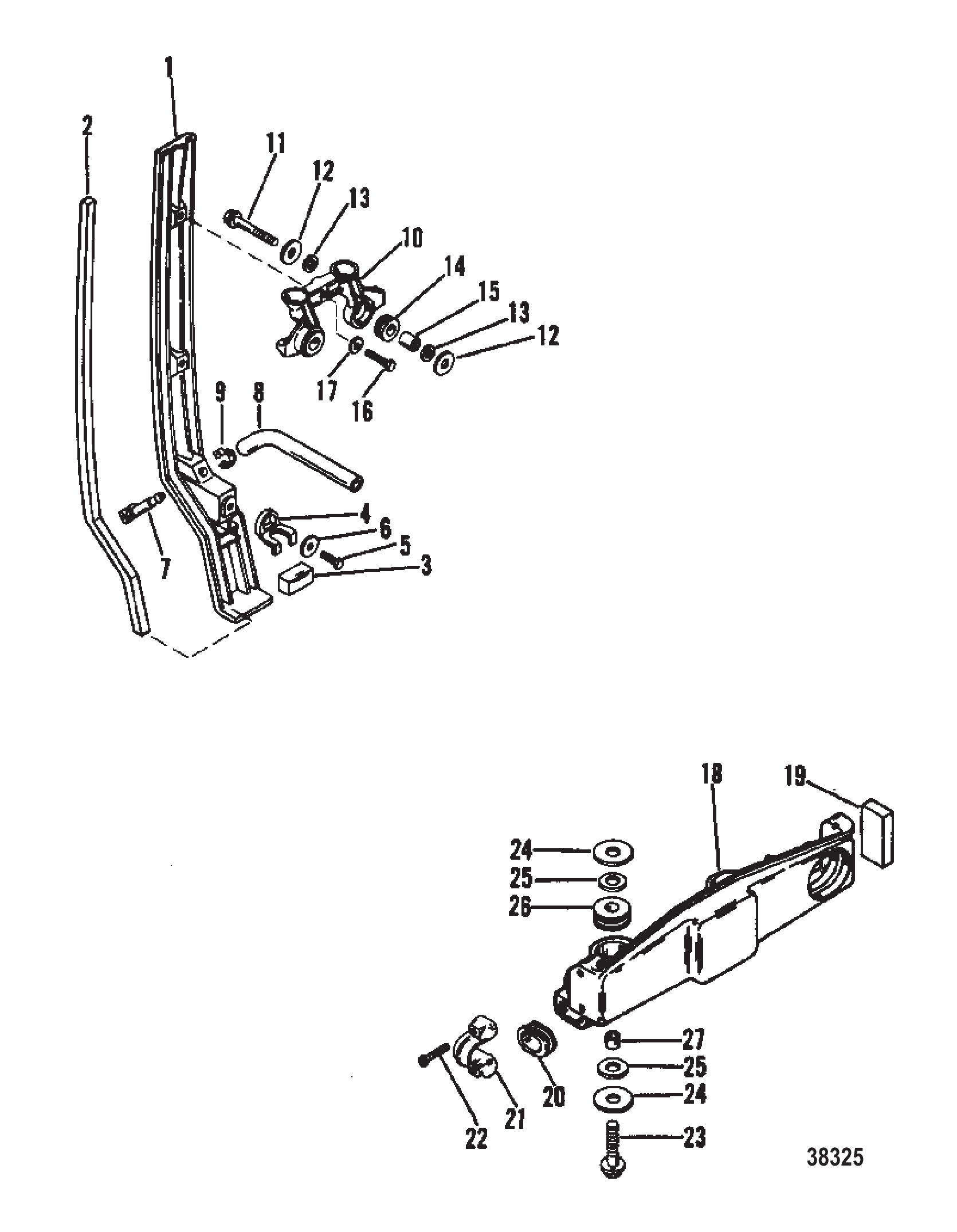

| 1 | 42965A1 | 盖密封支架总成 | BRACKET ASSEMBLY COWL SEAL | 1 |
| 1 | 42965A2 | 盖密封支架总成 | BRACKET ASSEMBLY COWL SEAL | 1 |
| 2 | 183061 | 支架密封条 | SEAL BRACKET | 2 |
| 3 | 42935 | 密封件 | SEAL | 1 |
| 4 | 42908 | 限位器 | RESTRAINT | 1 |
| 5 | 400015 | 限位器螺钉 (M5 x 10) | SCREW (M5 x 10) RESTRAINT | 1 |
| 6 | 43423 | 限位器螺钉垫圈 | WASHER RESTRAINT SCREW | 1 |
| 6 | 42118 | 垫圈 | WASHER | 1 |
| 7 | 42907 | 示警器接头 | CONNECTOR TELL TALE | 1 |
| 8 | 9912976 | 示警器软管 | TUBING TELL TALE | 1 |
| 8 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 9 | 73498 | 卡箍 | CLAMP | 1 |
| 9 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 10 | 932641 | 壳体铰链 | HOUSING HINGE | 2 |
| 10 | 932642 | 壳体 | HOUSING | 2 |
| 11 | 4009560 | 壳体螺钉 | SCREW HOUSING | 4 |
| 11 | 8M0103817 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 4 |
| 12 | 93853 | 壳体螺钉垫圈 | WASHER HOUSING SCREW | 8 |
| 12 | 814803 | 垫圈 | WASHER | 8 |
| 13 | 53705 | 壳体螺钉垫圈 | WASHER HOUSING SCREW | 8 |
| 13 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 8 |
| 14 | 88033 | 壳体螺钉衬套 | GROMMET HOUSING SCREW | 4 |
| 15 | 14395 | 壳体螺钉轴套 | BUSHING HOUSING SCREW | 4 |
| 16 | 4000120 | 壳体至支架螺钉 (M5 x 25) | SCREW (M5 x 25) HOUSING TO BRACKET | 2 |
| 17 | 43423 | 壳体螺钉垫圈 | WASHER HOUSING SCREW | 2 |
| 17 | 42118 | 垫圈 | WASHER | 2 |
| 18 | 42952T | 前支架支撑 | BRACKET SUPPORT (FRONT) | 1 |
| 18 | 42952T6 | 前支架支撑 | BRACKET SUPPORT (FRONT) | 1 |
| 19 | 67260 | 控制线密封套 | SEAL CONTROL CABLES | 1 |
| 20 | 67272 | 支架衬套 | GROMMET BRACKET | 2 |
| 21 | 88621 | 控制线固定座 | RETAINER CONTROL CABLES | 1 |
| 21 | 99447T | 控制线固定座 | RETAINER CONTROL CABLES | 1 |
| 21 | 99447 | 固定座 | RETAINER | 1 |
| 22 | 40057109 | 固定座螺钉 (M5 x 25) | SCREW (M5 x 25) RETAINER | 2 |
| 22 | 40011109 | 螺钉 (M5 x 25) 不锈钢 | SCREW (M5 x 25) Stainless Steel | 2 |
| 23 | 4011135 | 支架螺钉 (M8 x 1.25 x 35) | SCREW (M8 x 1.25 x 35) BRACKET | 2 |
| 23 | 82127335 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 24 | 93853 | 支架螺钉垫圈 | WASHER BRACKET SCREW | 4 |
| 24 | 814803 | 垫圈 | WASHER | 4 |
| 25 | 53705 | 支架螺钉垫圈 | WASHER BRACKET SCREW | 4 |
| 25 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 4 |
| 26 | 88033 | 支架衬套 | GROMMET BRACKET | 2 |
| 27 | 14395 | 支架螺钉轴套 | BUSHING BRACKET SCREW | 2 |

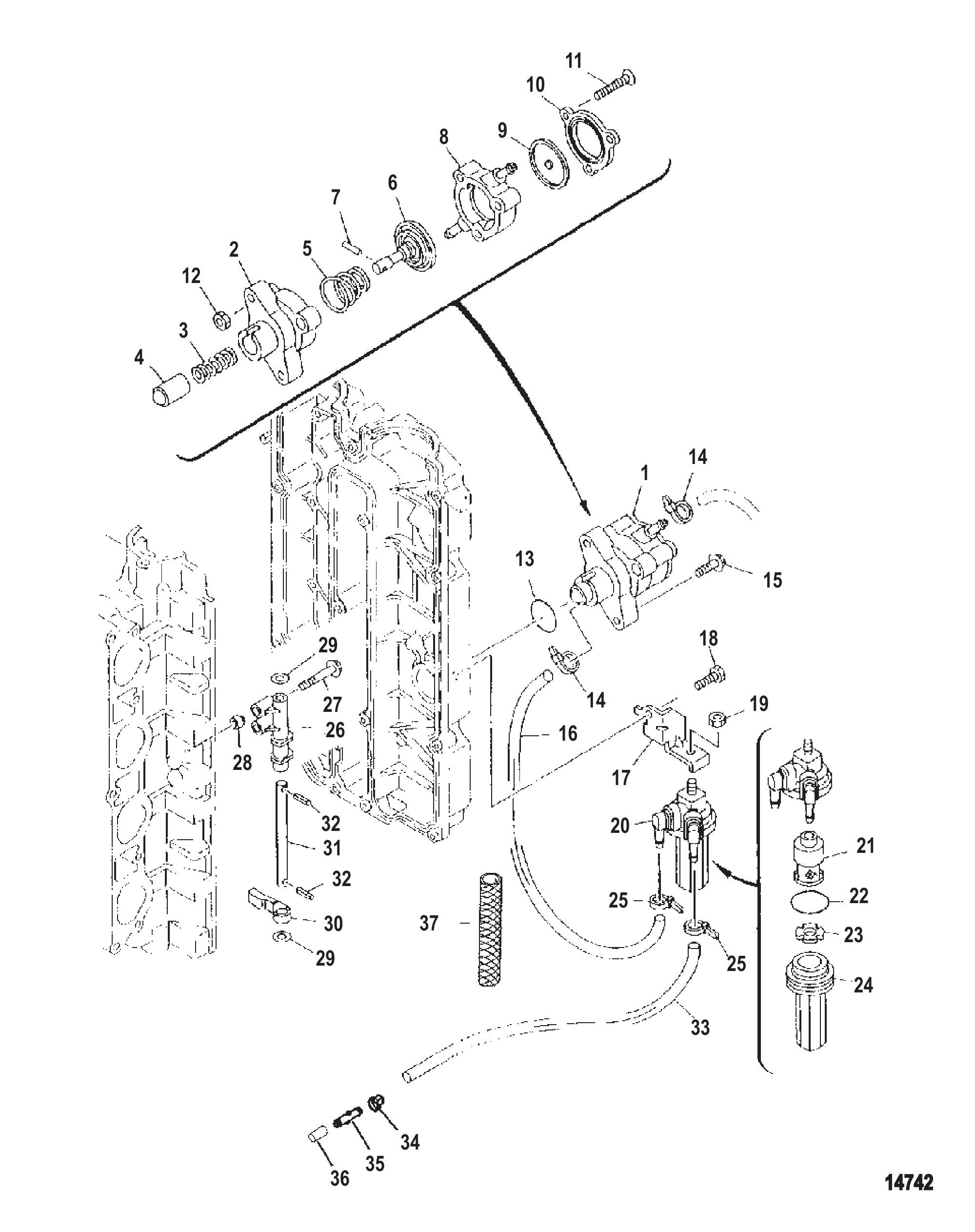

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880890T1 | 燃油泵 | PUMP Fuel | 1 |
| 2 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 3 | 881544 | 弹簧 | SPRING | 1 |
| 4 | 881545 | 柱塞 | PLUNGER | 1 |
| 5 | 881546 | 弹簧 | SPRING | 1 |
| 6 | 881547 | 隔膜 | DIAPHRAGM | 1 |
| 7 | 881548 | 销 | PIN | 1 |
| 8 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 9 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 1 |
| 10 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 11 | 881550 | 螺钉 | SCREW | 3 |
| 12 | 881333 | 螺母 | NUT | 3 |
| 13 | 804255 | O型圈 | O-RING | 1 |
| 13 | 8M0050719 | O型圈 | O-RING | 1 |
| 14 | 879650 | 卡箍 | CLAMP | 2 |
| 14 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| 15 | 804256 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 2 |
| 16 | 881543 | 软管 | HOSE | 1 |
| 16 | 881543002 | 油管 | TUBING | 1 |
| 17 | 881542 | 支架 | BRACKET | 1 |
| 18 | 8527768 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 1 |
| 18 | 811188T | 螺栓 | BOLT | 1 |
| 19 | 8528161 | 螺母 | NUT | 1 |
| 19 | 82382M | 螺母 | NUT | 1 |
| 20 | 881538T1 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 20 | 881538T02 | 燃油滤清器总成 | FILTER ASSY-FUEL | 1 |
| 21 | 881540 | 滤芯1.75英寸 | ELEMENT 1.75 Inches | 1 |
| 21 | 8M0168897 | 燃油滤清器 | FUEL FILTER | 1 |
| 21 | 8M0101436 | 滤芯1.50英寸 | ELEMENT 1.50 Inches | 1 |
| 21 | 8M0117705 | 燃油滤清器 | FILTER-FUEL | 1 |
| 22 | 826966M | O型圈 | O-RING | 1 |
| 22 | 826966T | O型圈 | O RING | 1 |
| 23 | 881541 | 浮子 | FLOAT | 1 |
| 24 | 881539 | 杯套 | CUP | 1 |
| 24 | 8M0101437 | 杯套 | CUP | 1 |
| 24 | 8M0137185 | 燃油杯 | CUP FUEL | 1 |
| 25 | 879650 | 卡箍 | CLAMP | 2 |
| 25 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| 26 | 804260 | 支架 | BRACKET | 1 |
| 27 | 804112 | 螺栓(M7 x 48) | BOLT (M7 x 48) | 2 |
| 28 | 804113 | 定位销 | PIN Dowel | 2 |
| 29 | 84292M | 垫圈 | WASHER | 2 |
| 30 | 804257 | 燃油转换杆 | LEVER Fuel Change | 1 |
| 31 | 881334 | 轴 | SHAFT | 1 |
| 32 | 804259 | 销 | PIN | 2 |
| 32 | 82738M | 滚销 | PIN-ROLL | 2 |
| 33 | 830757130 | 管材(.312)(70英寸整卷)裁切至55英寸长度 | TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length. | 1 |
| 33 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 34 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 35 | 822769 | 连接器 | CONNECTOR | 1 |
| 36 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 37 | 828547T1 | 导管(.500内径 x 3英尺整卷) | CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881310T1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| - | 881310T09 | 气缸盖 | HEAD-CYLINDER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 815366A3 | 电池隔离器套件 | ISOLATOR KIT Battery | 1 |
| - | 58222A1 | 百分表工具 | DIAL INDICATOR TOOL | 1 |
| - | 89045 | 适配器 | ADAPTER | 1 |
| - | 890451 | 直流电压适配工具 | ADAPTER TOOL Direct Voltage | 1 |
| - | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| - | 73687A2 | 飞轮拉拔器套件 | PULLER KIT Flywheel | 1 |
| - | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 99750A1 | 万用表 | MULTI METER | 1 |
| - | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| - | 52024A1 | 开关总成 | SWITCH ASSEMBLY | 1 |
| - | 59339 | 维修用转速表 | SERVICE TACHOMETER | 1 |
| - | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | 63998A1 | 单腔间隙工具 | GAP TOOL Single Chamber | 1 |
| - | 850439 | 火花测试器 | SPARK TESTER | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | 14443A1 | 测试线束总成 | HARNESS ASSEMBLY Test | 1 |
| - | 99379 | 正时灯 | TIMING LIGHT | 1 |
| - | 29287 | 量规工具 | GAUGE TOOL | 1 |
| - | 55919 | 驱动头 | DRIVER HEAD | 1 |
| - | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| - | 73687A2 | 飞轮拉拔器套件 | PULLER KIT Flywheel | 1 |
| - | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 90455 | 吊环 | LIFTING EYE | 1 |
| - | 904551 | 吊环 | LIFTING EYE | 1 |
| - | 77109A3 | 安装工具套件 | INSTALLER KIT | 1 |
| - | 52952A1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | 52952T1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | 74607A3 | 活塞销安装套件 | INSTALLER KIT Piston Pin | 1 |
| - | 65494 | 环压缩工具(2.0升) | COMPRESSOR TOOL Ring (2.0L) | 1 |
| - | 65494T | 环压缩工具 | COMPRESSOR TOOL Ring | 1 |
| - | 818773 | 活塞环压缩工具(2.5升) | COMPRESSOR TOOL Piston Ring (2.5L) | 1 |
| - | 818773T | 活塞环压缩工具(3.50) | COMPRESSOR TOOL Piston Ring (3.50) | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | 30591A1 | 动力头支架工具 | STAND TOOL Powerhead | 1 |
| - | 30591T1 | 支架工具 | STAND TOOL | 1 |
| - | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| - | 66274 | 扭矩扳手(0-150磅英寸) | TORQUE WRENCH (0-150 lb-in) | 1 |
| - | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| - | 112301 | 对正工具 | ALIGNMENT TOOL | 1 |
| - | 99750A1 | 万用表 | MULTI METER | 1 |
| - | 52915A6 | 测试仪表套件 | TEST GAUGE KIT | 1 |
| - | 74951 | 扳手 | SPANNER WRENCH | 1 |
| - | 63209 | 加热灯 | HEAT LAMP | 1 |
| - | 44487A1 | 调整杆导向器拆卸工具 | REMOVER TOOL Trim Rod Guide | 1 |
| - | 44487T1 | 调整杆导向器拆卸工具 | REMOVER TOOL Trim Rod Guide | 1 |
| - | 44486A1 | 调整杆拆卸工具 | REMOVAL TOOL Trim Rod | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NOPART | 无零件清单 | NO PARTS LIST | 1 |

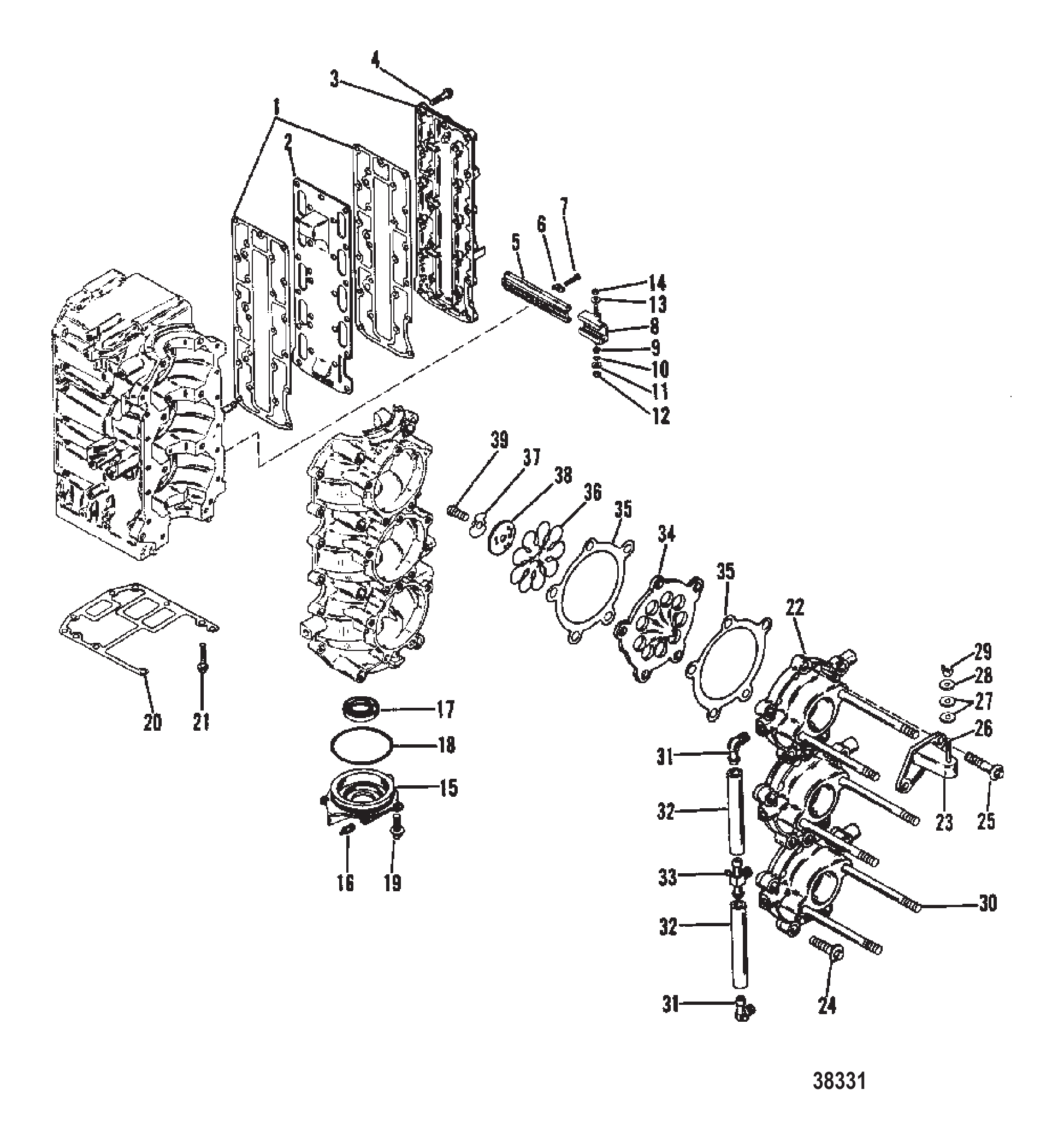

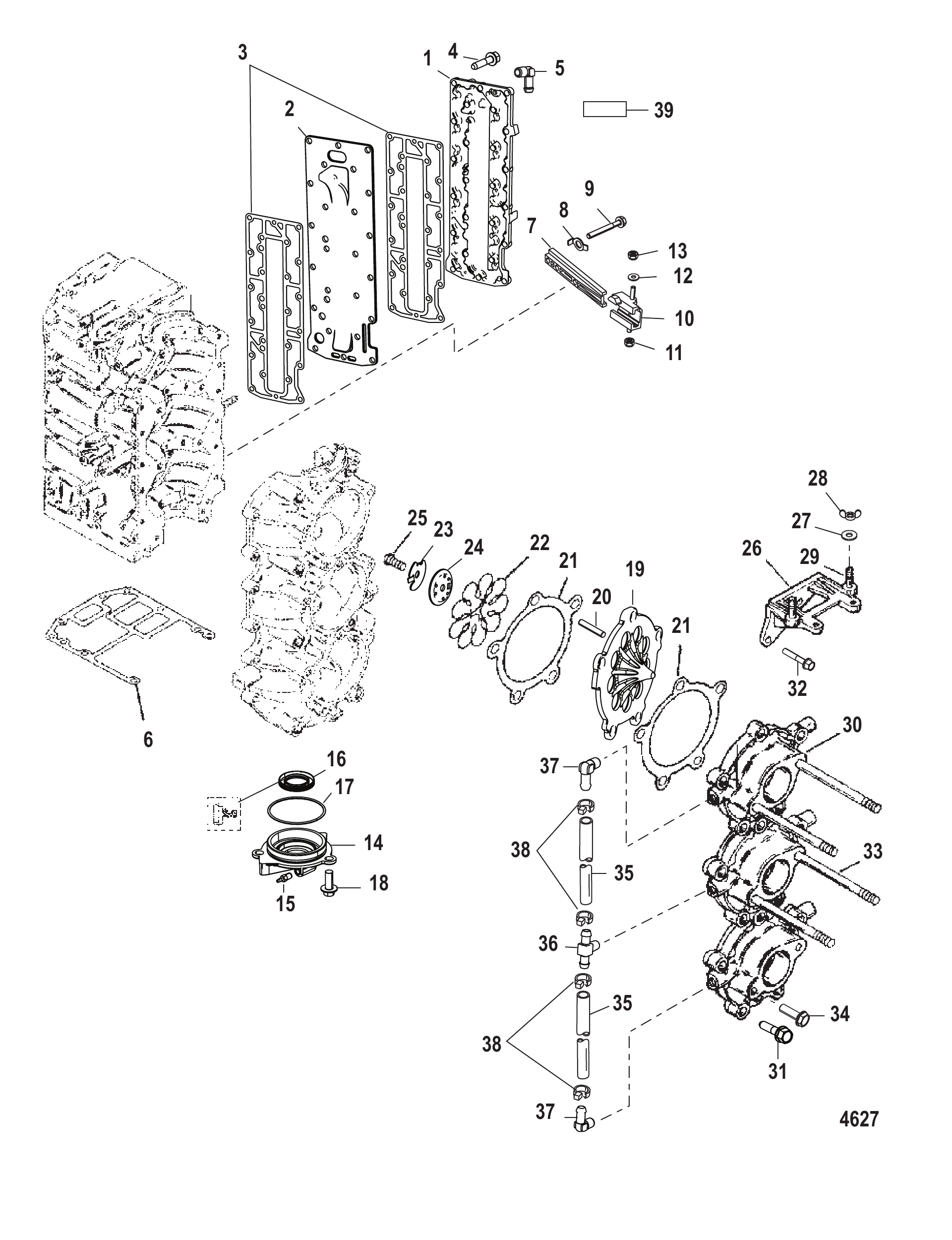

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 430042 | 衬垫 | GASKET | 2 |
| 2 | 42879T | 挡板 | PLATE Baffle | 1 |
| 3 | 42878T | 盖板 | COVER | 1 |
| 4 | 4011135 | 螺钉 (M8 x 1.25 x 35) | SCREW (M8 x 1.25 x 35) | 24 |
| 5 | 42881A1 | 换挡拨叉总成 | SHIFT RAIL ASSEMBLY | 1 |
| 6 | 42981 | 锁紧垫圈 | TAB WASHER | 2 |
| 7 | 40001134 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 2 |
| 8 | 98885 | 滑块 | SLIDE | 1 |
| 9 | 42994 | 衬套 | BUSHING | 1 |
| 10 | 29720 | 波形垫圈 | WAVE WASHER | 1 |
| 11 | 24664 | 垫圈 (M4 x 20) | WASHER (M4 x 20) | 1 |
| 12 | 400634 | 螺母 (M6) | NUT (M6) | 1 |
| 13 | 35459 | 垫圈 | WASHER | 1 |
| 14 | 400634 | 螺母 (M6) | NUT (M6) | 1 |
| 15 | 9004A1 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 16 | 42658 | 止回阀 | CHECK VALVE | 1 |
| 17 | 41953 | 密封件 | SEAL | 1 |
| 18 | 89224 | O型圈 | O-RING | 1 |
| 19 | 4009525 | 螺钉 | SCREW | 3 |
| 20 | 430073 | 衬垫 | GASKET | 1 |
| 21 | 40095120 | 动力头螺钉 | SCREW POWERHEAD | 8 |
| 22 | 42967 | 进气歧管 | MANIFOLD Induction | 3 |
| 23 | 42923 | 飞轮罩支架 | BRACKET FLYWHEEL COVER | 1 |
| 24 | 4011135 | 歧管螺钉 (M8 x 1.25 x 35) | SCREW (M8 x 1.25 x 35) MANIFOLD | 8 |
| 25 | 4009540 | 支架与歧管螺钉 | SCREW BRACKET AND MANIFOLD | 3 |
| 26 | 93419 | 飞轮罩螺柱 | STUD FLYWHEEL COVER | 1 |
| 27 | 492211 | 盖螺柱垫圈 | WASHER COVER STUD | 13 |
| 28 | 22887 | 盖螺柱垫圈 | WASHER COVER STUD | 2 |
| 29 | 90052 | 盖螺柱蝶形螺母 | WING NUT COVER STUD | 3 |
| 30 | 42985 | 化油器螺柱 | STUD CARBURETOR | 6 |
| 31 | 99664 | 弯头 | ELBOW | 3 |
| 32 | 9912976 | 油管 | TUBING | 3 |
| 33 | 43288 | 三通 | TEE | 6 |
| 34 | 42963A4 | 簧片阀总成 | REED BLOCK ASSEMBLY | 2 |
| 34 | 42963A5 | 簧片阀总成 | REED BLOCK ASSEMBLY | 2 |
| 35 | 13937 | 簧片阀衬垫 | GASKET REED BLOCK | 1 |
| 36 | 43018A2 | 簧片组 | REED SET | 3 |
| 36 | 43018A1 | 簧片组 | REED SET | 3 |
| 37 | 42924 | 簧片压板 | RETAINER REED | 3 |
| 39 | 4000171 | 簧片阀螺钉 (M6 x 16) | SCREW (M6 x 16) REED TO REED BLOCK | 3 |
| - | 43004A86 | 衬垫套件 | GASKET SET |

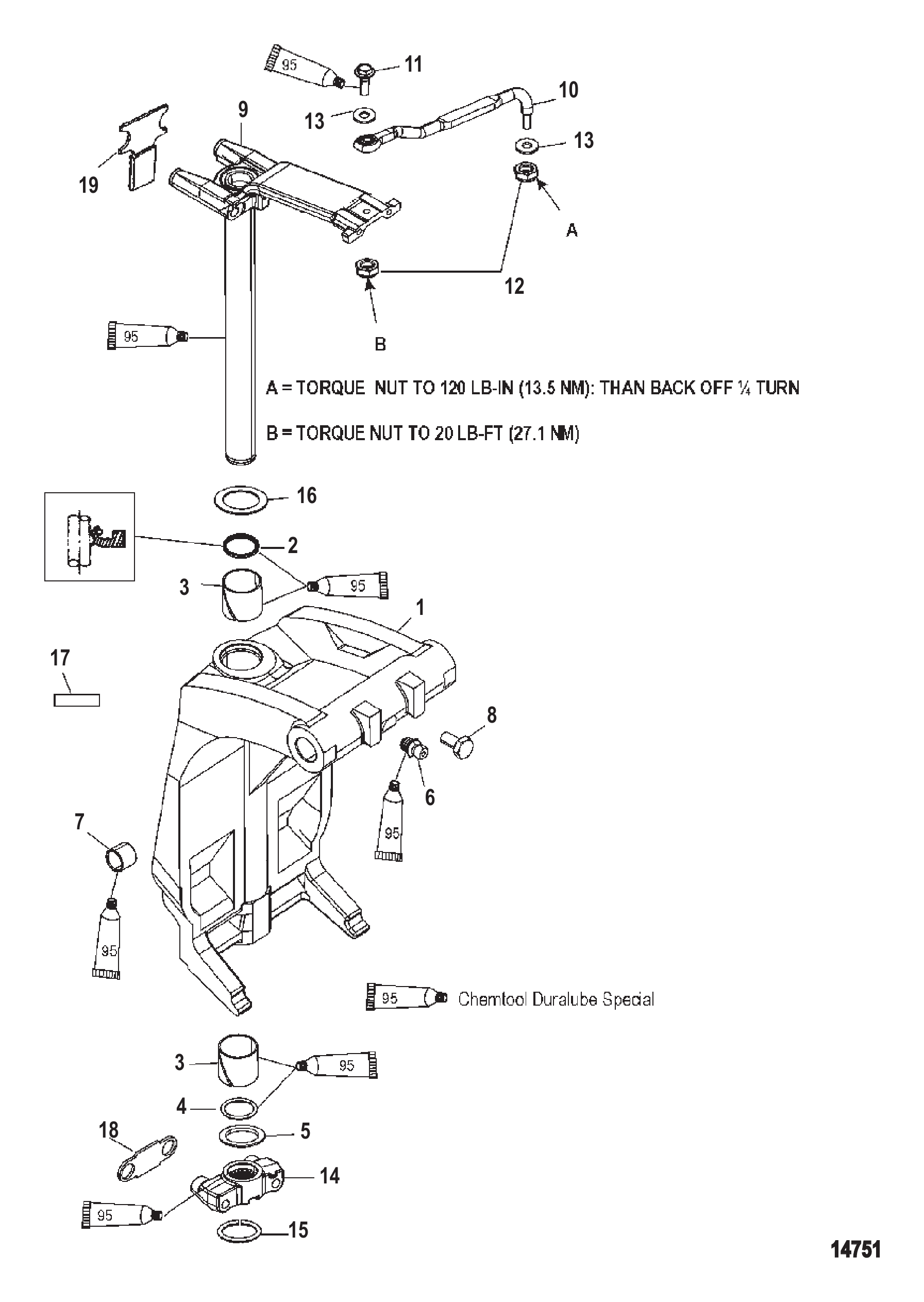

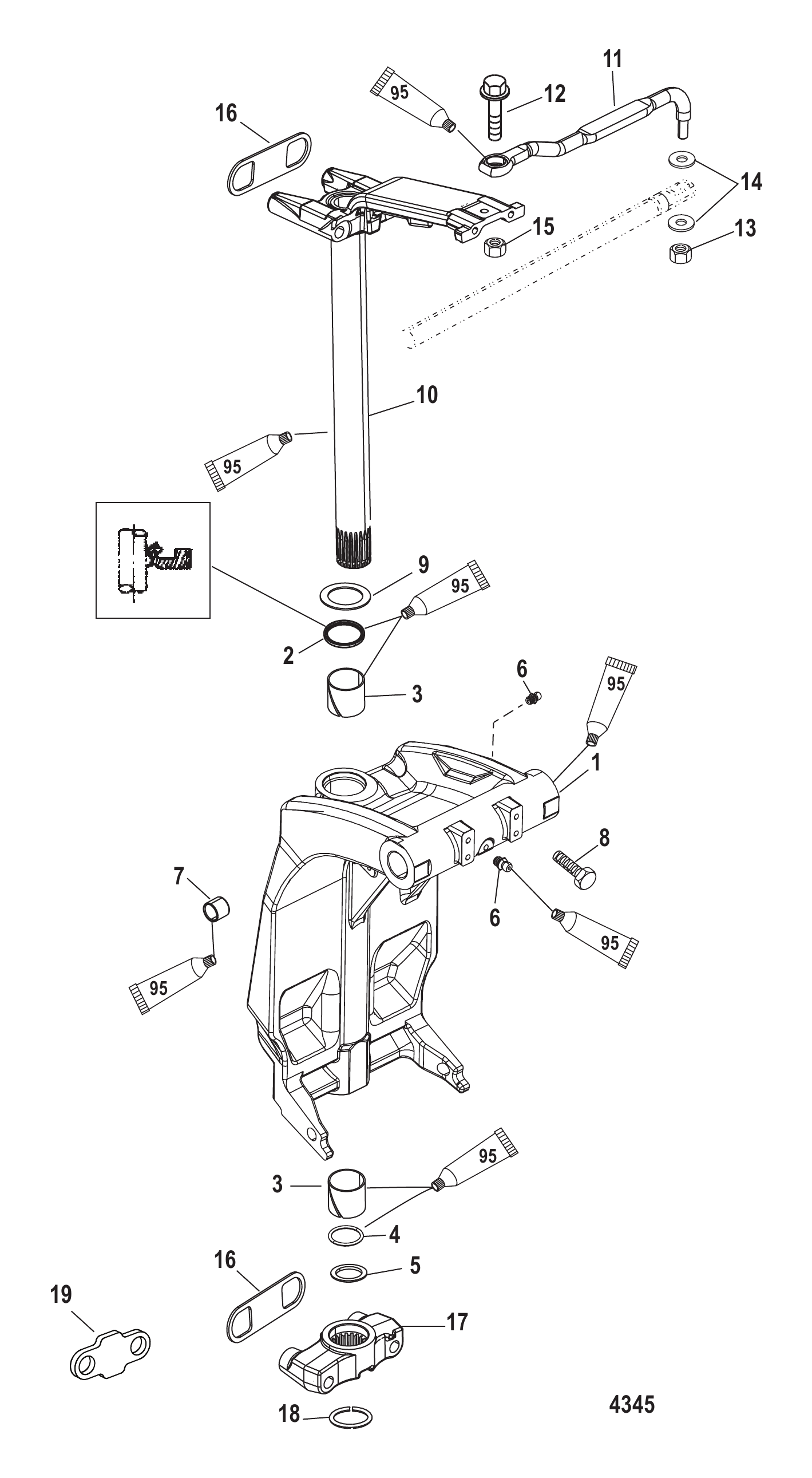

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 818904T1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 87735 | 下油封 | SEAL Oil Lower | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 4 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 99661A26 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 9 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 10 | 92876A10 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 10 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 11 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 12 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 2 |
| 12 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 13 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 14 | 42961A1 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 14 | 42961A06 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 15 | 67684 | 挡圈 | RING Retaining | 1 |
| 16 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 17 | NSS | 不单独销售 贴纸, 序列号覆膜 | NOT SOLD SEPARATE Decal, Serial Overlaminate | 1 |
| 18 | 11288 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 18 | 11288001 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 19 | 88882 | 上轭缓冲垫 | BUMPER Top Yoke | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

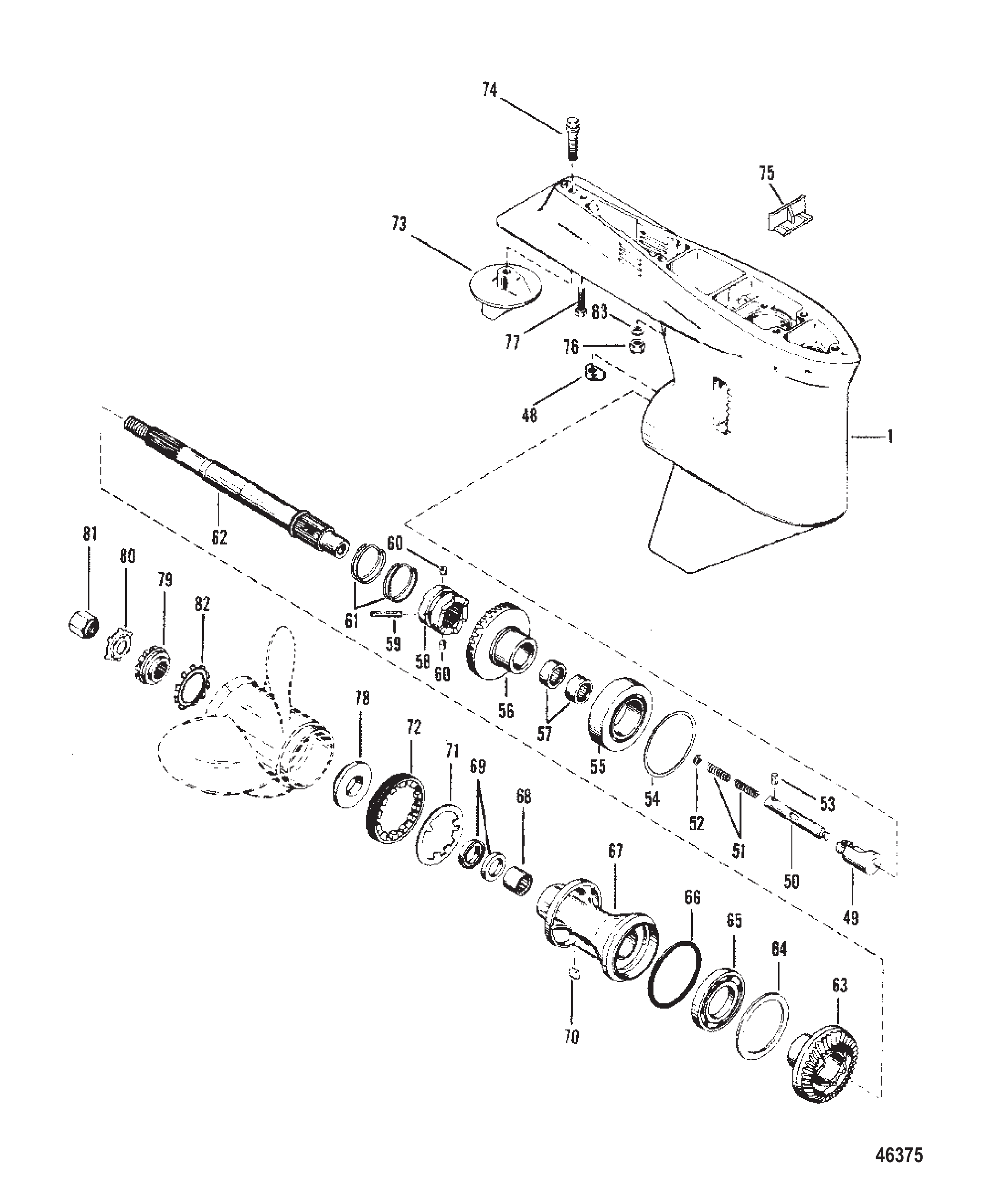

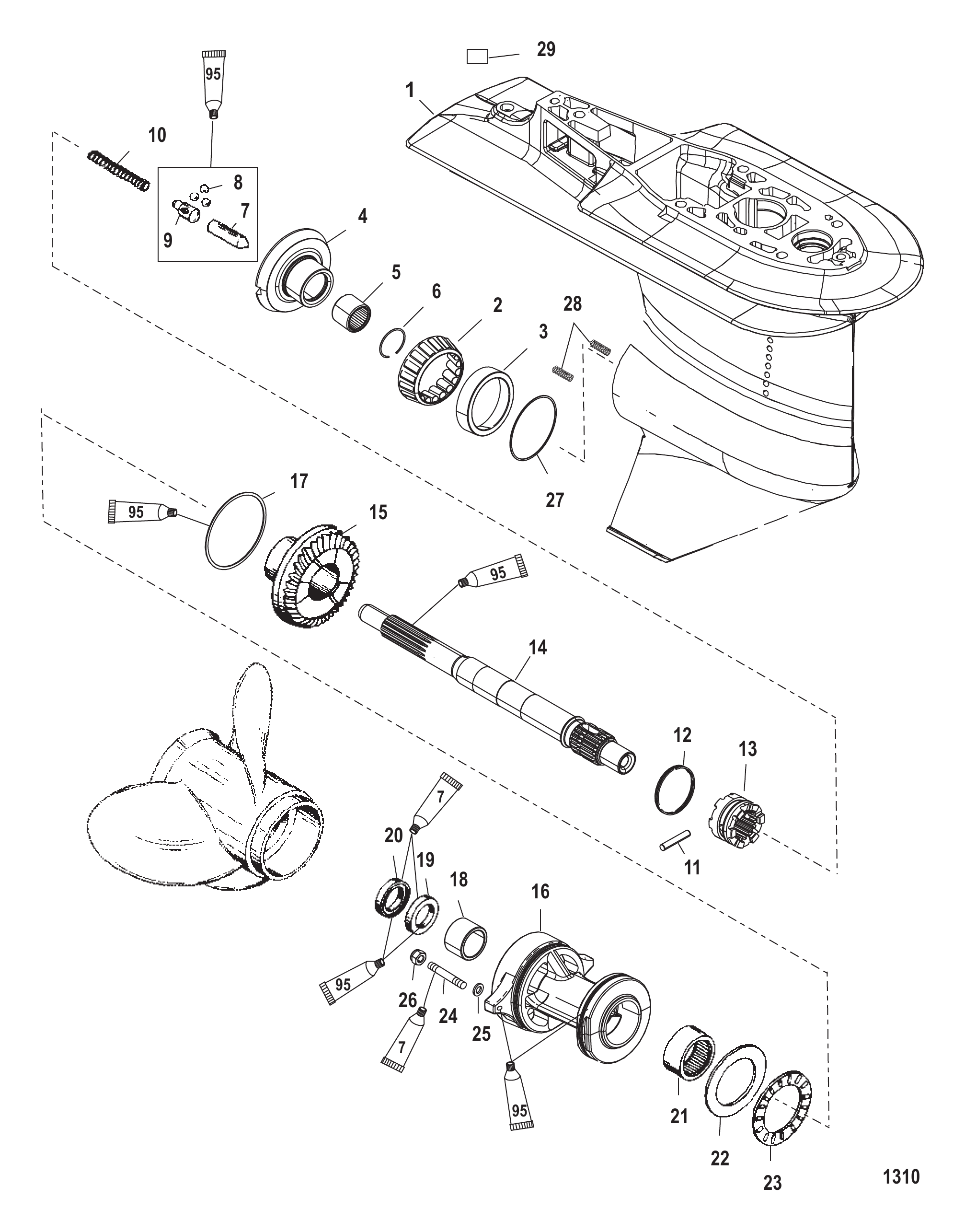

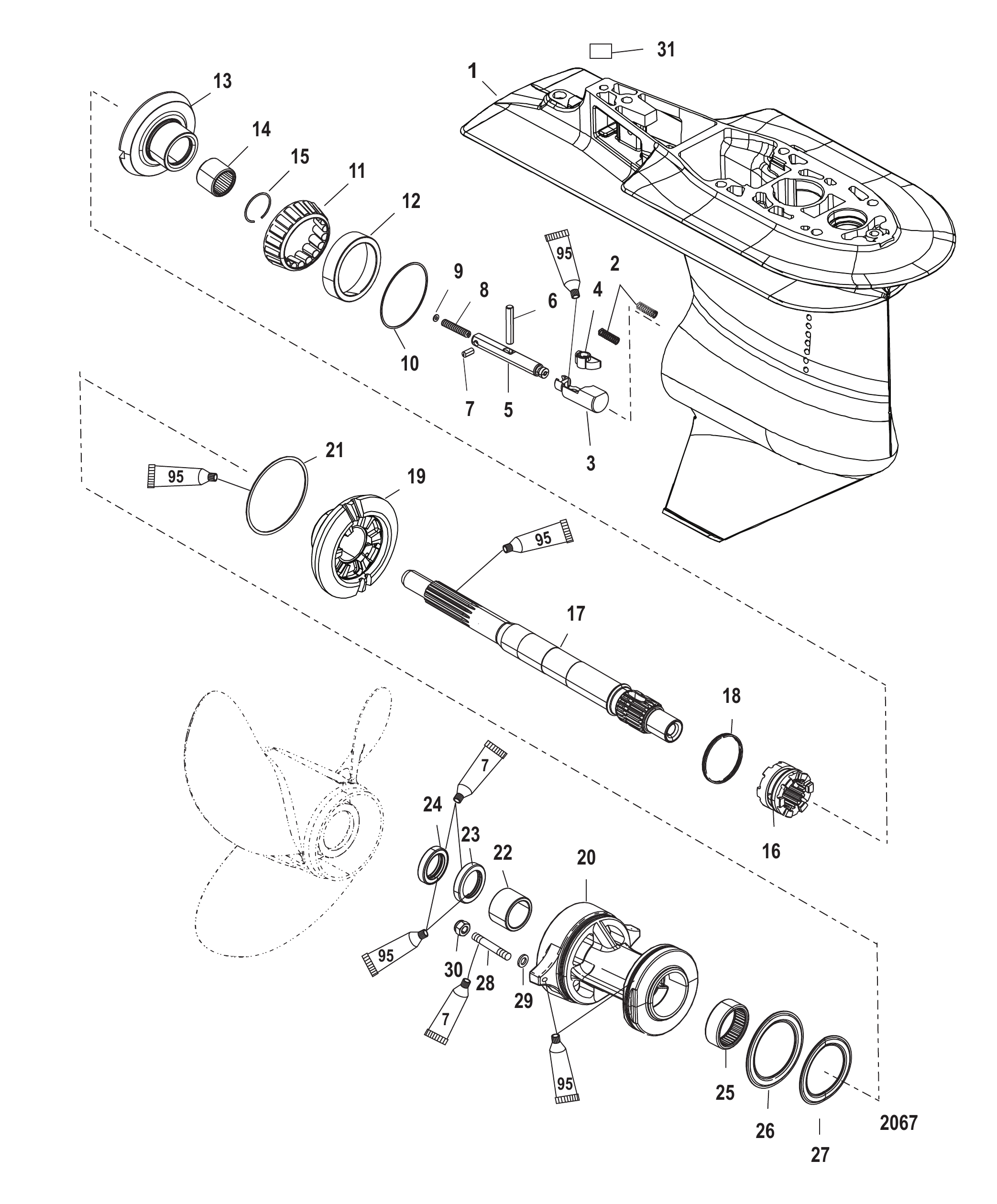

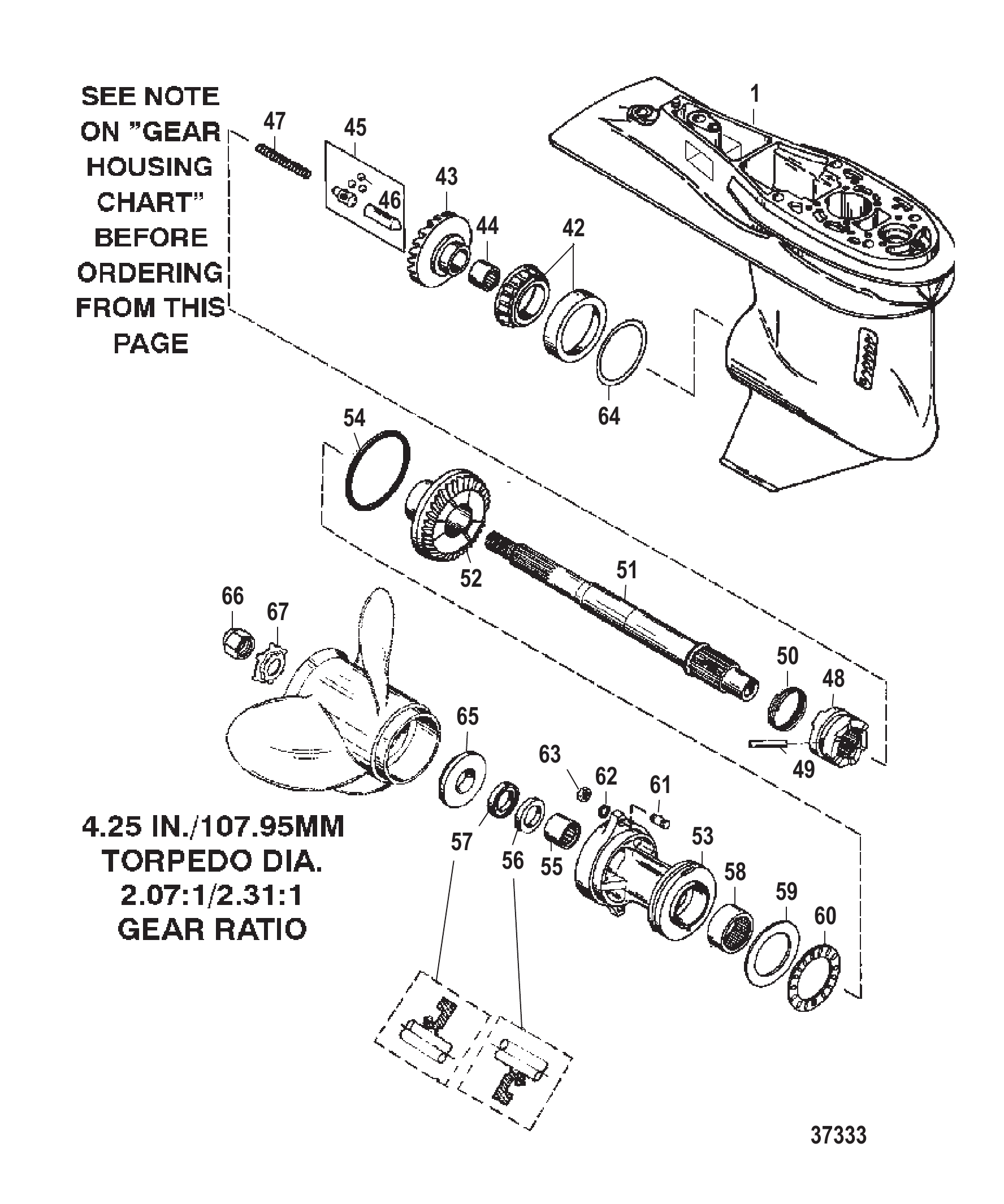

| - | 888845T06 | 齿轮箱总成-长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.07:1 | 1 |
| - | 888845T07 | 齿轮箱总成-加长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.07:1 | 1 |
| - | 888845T08 | 齿轮箱总成-长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.33:1 | 1 |
| - | 888845T09 | 齿轮箱总成-加长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.33:1 | 1 |
| 1 | 888845T | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 8227731 | 螺纹嵌件 | INSERT Threaded | 2 |
| 3 | 888807 | 凸轮从动件总成 | FOLLOWER ASSEMBLY Cam | 1 |
| 4 | 19917 | 换档凸轮 | CAM Shift | 1 |
| 4 | 8M4504018 | 换档凸轮 | CAM SHIFT | 1 |
| 5 | 888806 | 离合器作动杆 | ROD Clutch Actuator | 1 |
| 6 | 78905 | 十字销 | PIN Cross | 1 |
| 6 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 7 | 78906 | 弹簧定位销 | PIN Spring Locator | 1 |
| 7 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 8 | 79910 | 弹簧 | SPRING | 1 |
| 9 | 78910 | 垫圈 | WASHER | 1 |
| 10 | 44491A1 | 垫片组 | SHIM SET | 1 |
| 10 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 11 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 12 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 13 | 881260A3 | 前进齿轮-29齿 | GEAR Forward - 29 Teeth | 1 |
| 13 | 882813A3 | 前进齿轮与小齿轮套件(28齿) | GEAR KIT Forward And Pinion 28 Teeth | 1 |
| 14 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 15 | 856823 | 挡圈 | RING Retaining | 1 |
| 16 | 888805T | 离合器 | CLUTCH | 1 |
| 17 | 888804 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 17 | 8M0140444 | 螺旋桨轴 | SHAFT Propeller | 1 |
| 18 | 30893 | 弹簧 | SPRING | 1 |
| 19 | 889991T | 倒车齿轮(29齿) | GEAR Reverse (29 Teeth) | 1 |
| 19 | 889990T | 倒挡齿轮 | GEAR Reverse | 1 |
| 20 | 12596T2 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 20 | 8M0168901 | 轴承座总成 | CARRIER ASSY. | 1 |
| 21 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 21 | 8M0214974 | O型圈 | O RING | 1 |
| 22 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 23 | 70080 | 内部油封 | SEAL Oil Inner | 1 |
| 23 | 8M0205728 | 密封件 | SEAL | 1 |
| 24 | 70081 | 外油封 | SEAL Oil Outer | 1 |
| 24 | 8M0205729 | 密封件 | SEAL | 1 |
| 25 | 12578T | 滚柱轴承 | BEARING Roller | 1 |
| 26 | 12577 | 止推垫片 | THRUST WASHER | 1 |
| 27 | 12576 | 推力轴承 | BEARING Thrust | 1 |
| 28 | 429172 | 双头螺柱(M8×48) | STUD (M8 x 48) | 2 |
| 28 | 8M0034456 | 双头螺柱(M8×1.25×48) | STUD (M8 X 1.25 X 48) | 2 |
| 29 | 855941 | 垫圈(.323 x .590 x .112)不锈钢 | WASHER (.323 x .590 x .112) Stainless Steel | 2 |
| 30 | 401378 | 螺母 (M8) | NUT (M8) | 2 |
| 31 | NSS | 不单独销售贴纸-齿轮箱小齿轮标识 | NOT SOLD SEPARATE Decal-Gearcase Pinion Identification | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 881260A3 | 前进齿轮-29齿 | GEAR Forward - 29 Teeth | 1 |
| - | 882813A3 | 前进齿轮与小齿轮套件(28齿) | GEAR KIT Forward And Pinion 28 Teeth | 1 |
| - | 803496T2 | 轴承/油封套件 | BEARING/SEAL KIT | 1 |
| - | 888805A00 | 离合器与凸轮从动件维修套件 | REPAIR KIT Clutch And Cam Follower | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

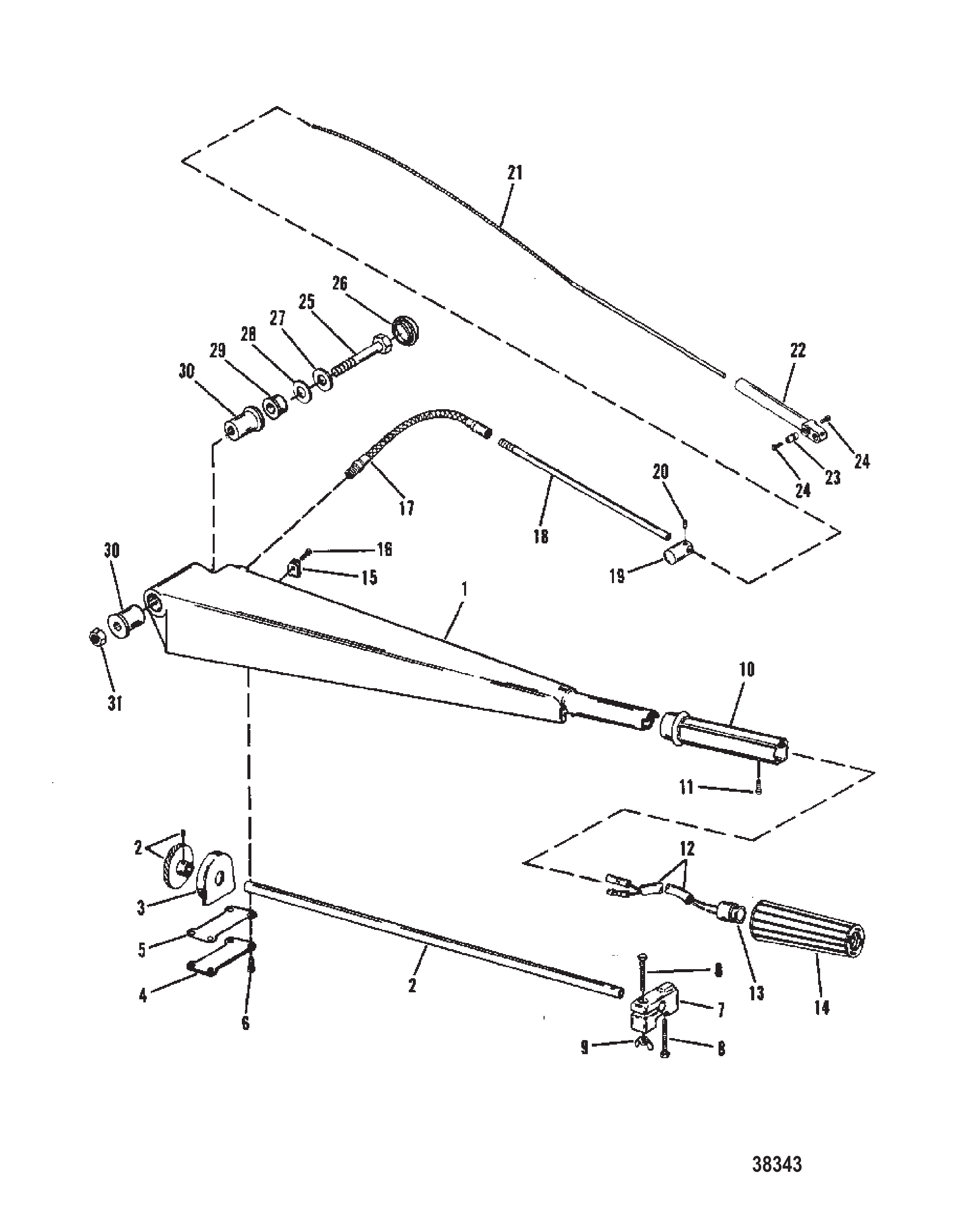

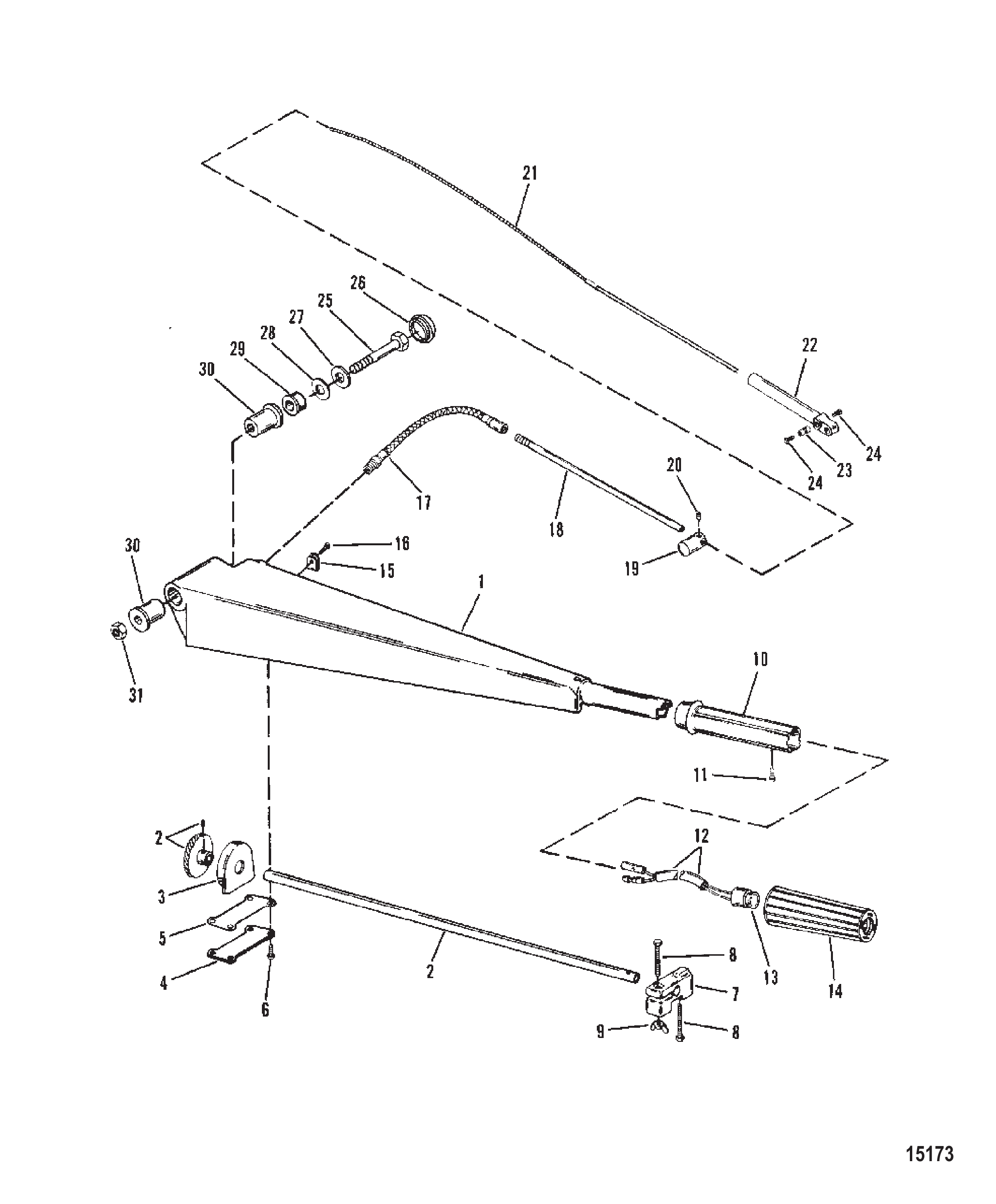

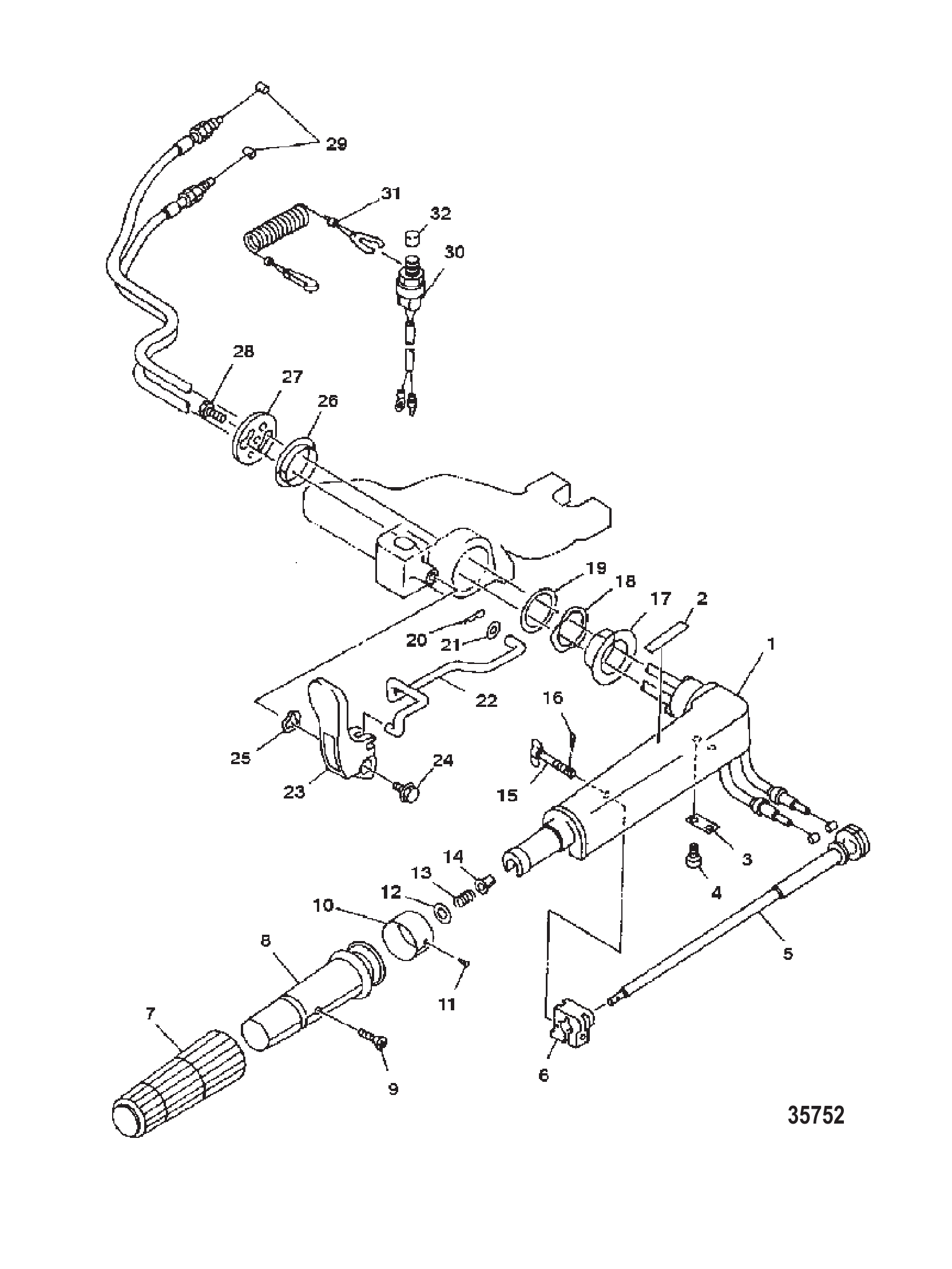

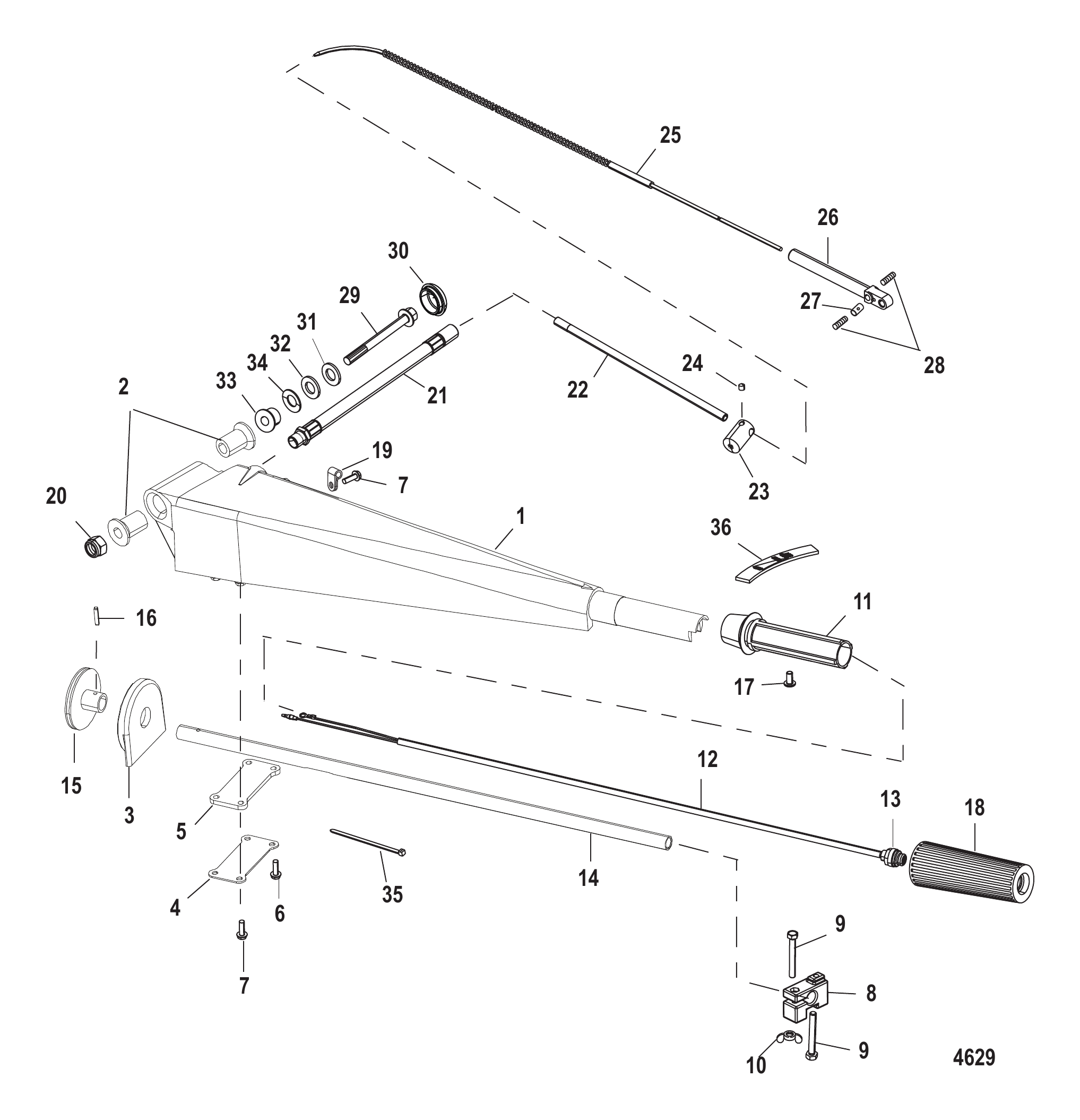

| 1 | 12020T | 转向臂 | ARM Steering | 1 |
| 1 | 12020T6 | 转向臂手柄总成 | HANDLE ASSEMBLY Steering Arm | 1 |
| 1 | 12020A4 | 转向臂手柄总成 | HANDLE ASSEMBLY Steering Arm | 1 |
| 2 | 12018A1 | 油门拉线管总成 | TUBE ASSEMBLY Throttle | 1 |
| 2 | 12018A4 | 油门拉线管总成 | TUBE ASSEMBLY Throttle | 1 |
| 3 | 48414 | 壳体 | HOUSING | 1 |
| 4 | 48519 | 安装板 | PLATE | 1 |
| 5 | 48518 | 衬垫 | GASKET | 1 |
| 6 | 72169 | 板用螺钉(#10-24 x 0.500) | SCREW (#10-24 x .500) PLATE | 4 |
| 7 | 12013 | 油门夹 | CLAMP THROTTLE | 1 |
| 7 | 889729 | 卡箍 | CLAMP | 1 |
| 8 | 40007112 | 油门夹螺钉(M5 x 40) | SCREW (M5 x 40) THROTTLE CLAMP | 2 |
| 9 | 90052 | 油门夹蝶形螺母 | WING NUT THROTTLE CLAMP SCREW | 1 |
| 9 | 816874 | 蝶形螺母 (#10-32) | WING NUT (#10-32) | 1 |
| 10 | 96495A2 | 油门手柄总成 | HANDLE ASSEMBLY Throttle | 1 |
| 10 | 823609A15 | 停机开关套件-油门手柄 | SWITCH KIT Stop - Throttle Handle | 1 |
| 11 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 12 | 15823A4 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 12 | 823609A15 | 停机开关套件-油门手柄 | SWITCH KIT Stop - Throttle Handle | 1 |
| 13 | 11099A1 | 护套总成 | BOOT ASSEMBLY | 1 |
| 14 | 99589 | 握把 | GRIP | 1 |
| 14 | 8M0221732 | 外握把 | GRIP OUTER | 1 |
| 15 | 26538 | 卡扣 | CLIP | 1 |
| 15 | 648552 | 卡扣 | CLIP | 1 |
| 16 | 72169 | 卡箍螺钉(#10-24 x 0.500) | SCREW (#10-24 x .500) CLIP | 1 |
| 17 | 785512 | 导管 | CONDUIT | 1 |
| 17 | 8885242 | 导管 | CONDUIT | 1 |
| 18 | 895661 | 导向管 | GUIDE TUBE | 1 |
| 18 | 8M0026078 | 导向管 | TUBE-GUIDE | 1 |
| 19 | 89578 | 套筒 | BARREL | 1 |
| 20 | 89601 | 螺钉 | SCREW | 1 |
| 20 | 824081 | 紧定螺钉(#10-32) | SET SCREW (#10-32) | 1 |
| 21 | 12019 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 22 | 29880 | 导向拉线 | GUIDE CABLE | 1 |
| 22 | 8M0204660 | 导套 | GUIDE | 1 |
| 23 | 20007 | 锚定件 | ANCHOR | 1 |
| 24 | 20518 | 紧定螺钉(#8-32) | SET SCREW (#8-32) | 2 |
| 24 | 8M0204644 | 螺钉组 | SCREW SET | 2 |
| 25 | 4000386 | 螺钉(M10 x 100) | SCREW (M10 x 100) | 1 |
| 26 | 48416 | 盖帽 | CAP | 1 |
| 27 | 4002319 | 垫圈 | WASHER | 1 |
| 28 | 12024 | 垫圈(0.402 x 0.787 x 0.039 贝氏) | WASHER (.402 x .787 x .039 Bellevi) | 1 |
| 29 | 14601 | 隔套 | SPACER | 1 |
| 29 | 146011 | 隔套 | SPACER | 1 |
| 30 | 42992 | 衬套 | BUSHING | 2 |
| 30 | 812930A1 | 衬套 | BUSHING | 2 |
| 31 | 400204 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
| 31 | 400214 | 螺母(M10不锈钢) | NUT (M10) Stainless Steel | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

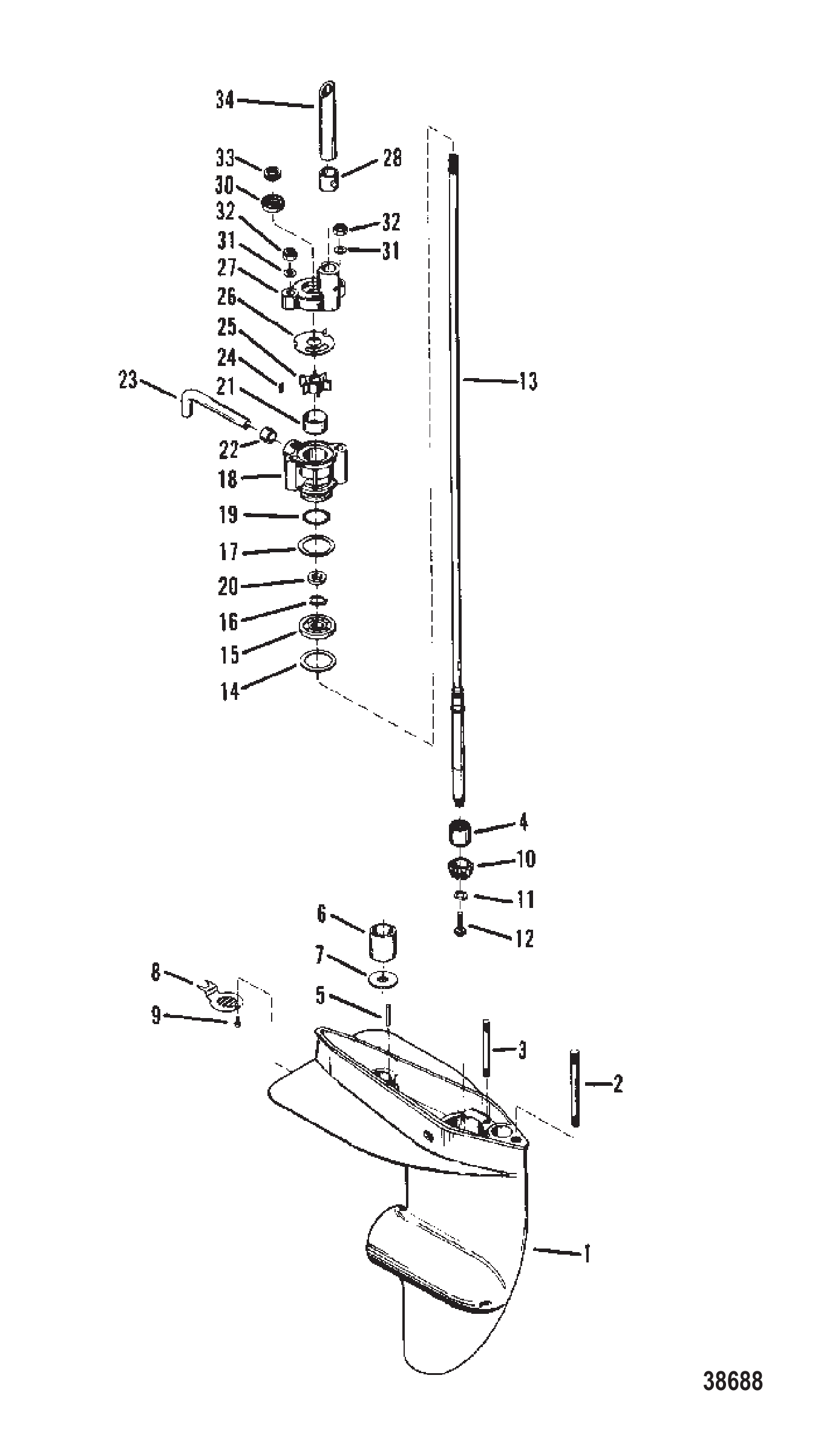

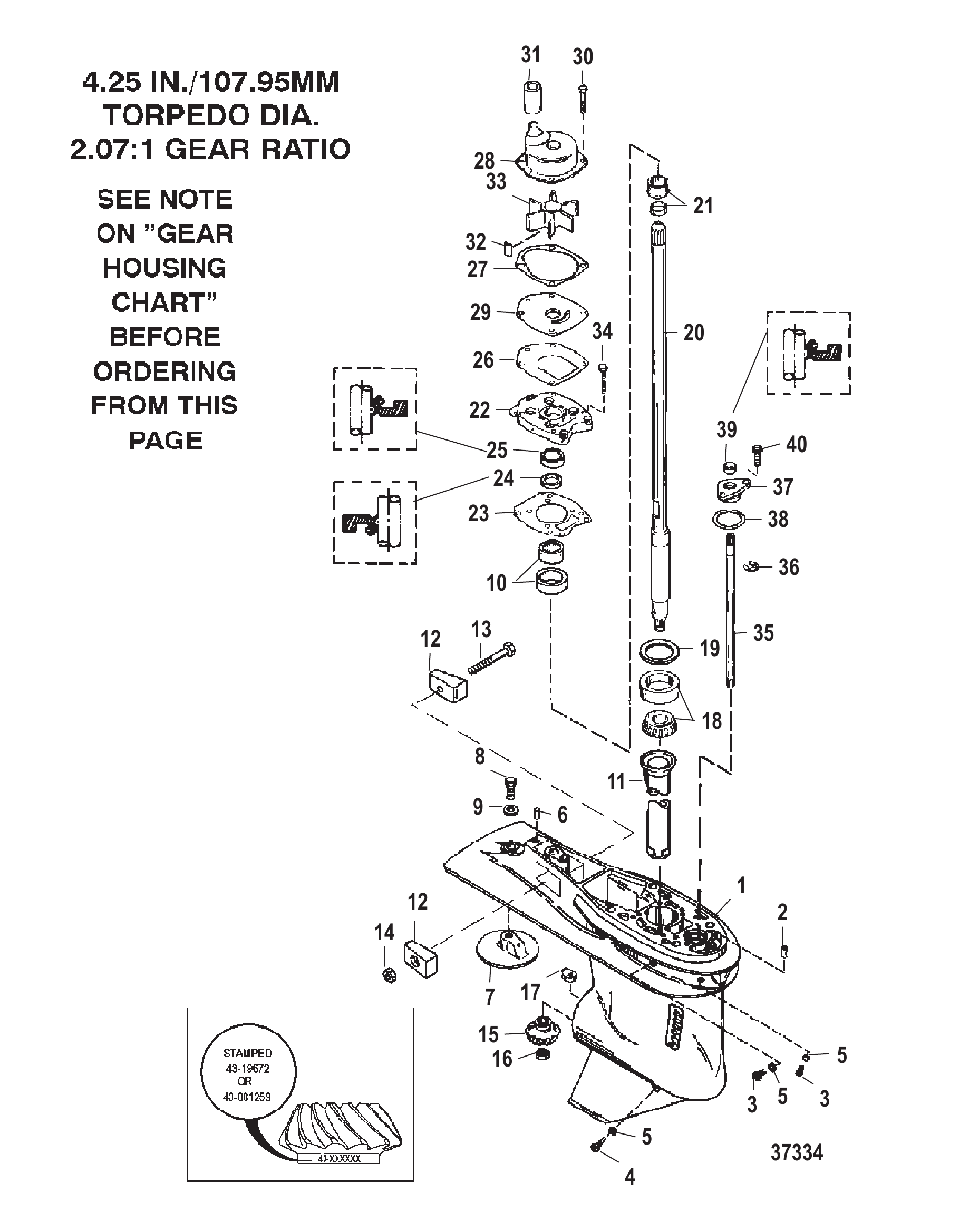

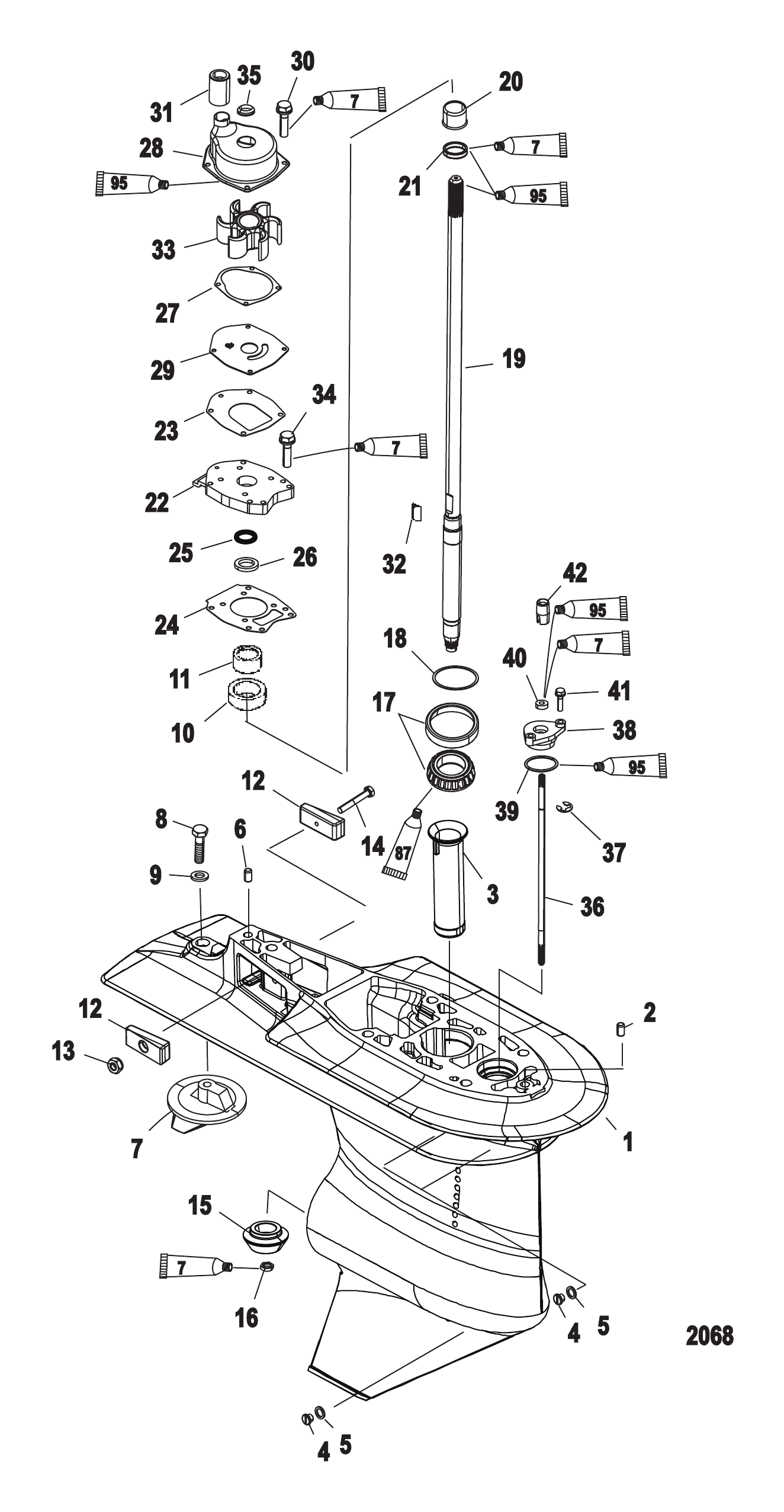

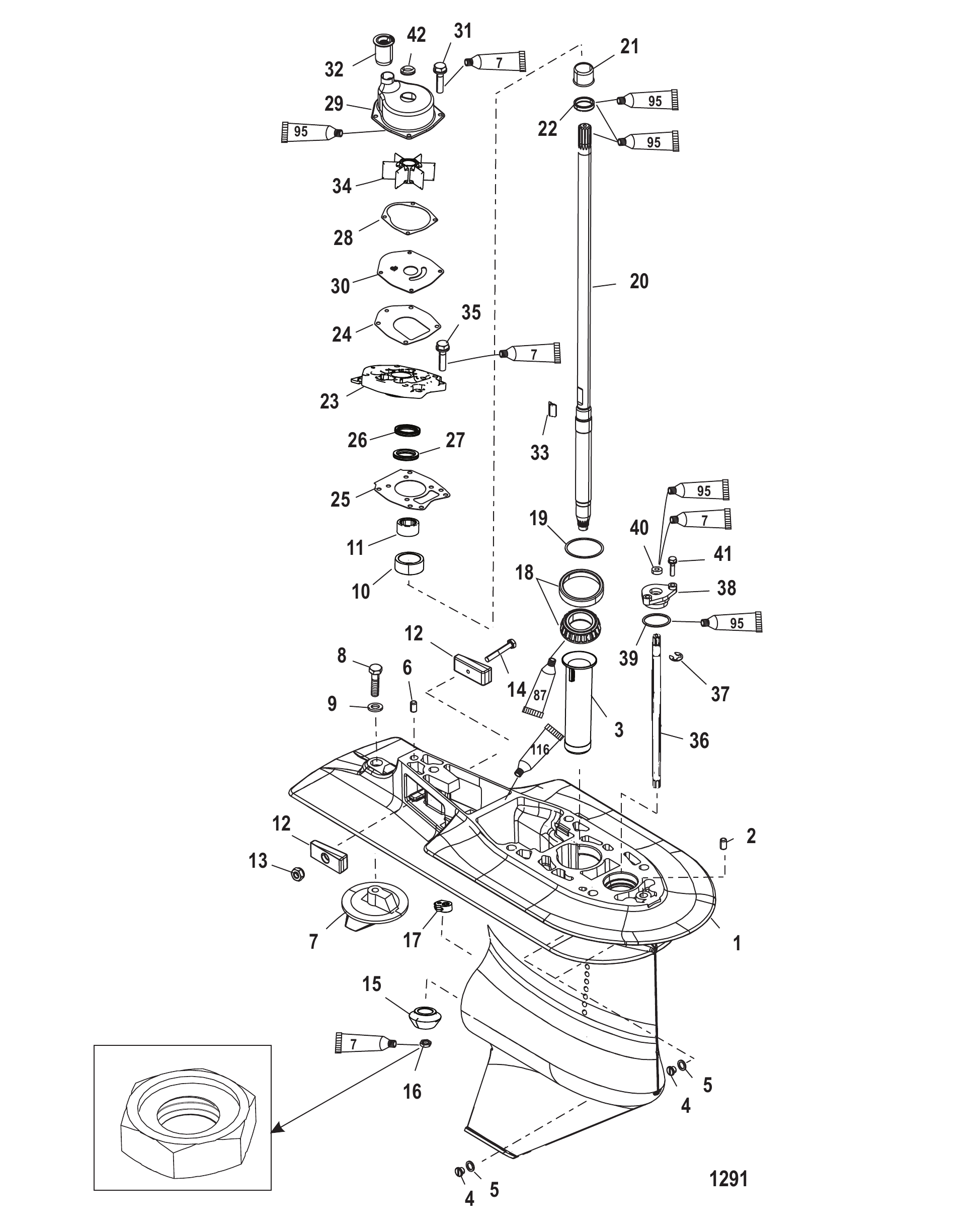

| - | 7360A29 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| - | 7360A30 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| 1 | 7360A11 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 2 | 58138 | 齿轮箱螺柱(3.5英寸) | STUD GEAR HOUSING (3-1/2") | 1 |
| 3 | 58136 | 水泵壳体螺柱(2.75英寸) | STUD WATER PUMP HOUSING (2-3/4") | 2 |
| 4 | 22756 | 驱动轴滚柱轴承 | BEARING Roller DRIVE SHAFT | 1 |
| 5 | 20032 | 定位销 | PIN Dowel LOCATING | 1 |
| 6 | 33613 | 进水管橡胶密封 | SEAL RUBBER - WATER INTAKE TUBE | 1 |
| 7 | 86215 | 进水管尼龙轴承密封 | BEARING NYLON - INTAKE TUBE SEAL | 1 |
| 8 | 33425 | 进水滤网 | SCREEN WATER INTAKE | 1 |
| 9 | 25612 | 进水滤网螺丝 | SCREW WATER INTAKE SCREEN | 1 |
| 10 | 98696 | 小齿轮 | GEAR Pinion | 1 |
| 11 | 30377 | 小齿轮螺钉锁紧垫圈 | TAB WASHER PINION GEAR SCREW | 1 |
| 12 | 30376 | 小齿轮驱动轴螺丝(#12-28x0.75) | SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT | 1 |
| 13 | 95873A1 | 驱动轴 | DRIVESHAFT | 1 |
| 13 | 95874A1 | 驱动轴 | DRIVESHAFT | 1 |
| 14 | 30527A1 | 滚珠轴承垫片组(0.002-3-5-10) | SHIM ASSEMBLY BALL BEARING (.002-3-5-10) | AR |
| 15 | 70944 | 驱动轴滚珠轴承 | BEARING Ball DRIVE SHAFT | 1 |
| 16 | 30523 | 球轴承挡圈 | RING Retaining BALL BEARING | 1 |
| 17 | 30527A1 | 滚珠轴承垫片组(0.002-3-5-10) | SHIM ASSEMBLY BALL BEARING (.002-3-5-10) | AR |
| 18 | 70941A1 | 水泵总成 | HOUSING ASSEMBLY Water Pump | 1 |
| 18 | 70941T01 | 壳体总成 | HOUSING ASY | 1 |
| 18 | 92970A1 | 水泵总成 | HOUSING ASSEMBLY Water Pump | 1 |
| 19 | 29439 | O型圈 | O-RING | 1 |
| 20 | 30900 | 油封 | SEAL Oil | 1 |
| 20 | 30900T | 密封件@2 | SEAL @2 | 1 |
| 20 | 96063 | 油封 | SEAL Oil | 1 |
| 20 | 897153 | 油封@3 | SEAL-OIL @3 | 1 |
| 21 | 70977 | 嵌件 | INSERT | 1 |
| 21 | 70977T | 嵌件 | INSERT | 1 |
| 22 | 33613 | 进水管密封 | SEAL WATER INTAKE TUBE | 1 |
| 23 | 34293 | 进水管道 | TUBE WATER INTAKE | 1 |
| 24 | 56655 | 叶轮驱动键 | KEY IMPELLER DRIVE | 1 |
| 24 | 8M0032835 | 键 | KEY | 1 |
| 25 | 89981 | 叶轮 | IMPELLER | 1 |
| 25 | 89980 | 叶轮 | IMPELLER | 1 |
| 26 | 46895 | 水泵面板 | FACE PLATE WATER PUMP | 1 |
| 27 | 93224A1 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 28 | 36558 | 水泵盖密封件 | SEAL WATER PUMP COVER | 1 |
| 30 | 30913 | 水泵盖油封 | SEAL Oil WATER PUMP COVER | 1 |
| 31 | 20533 | 垫圈 | WASHER | 2 |
| 32 | 13438 | 水泵壳体螺柱螺母(.250-28) | NUT (.250-28) WATER PUMP HOUSING STUD | 2 |
| 32 | 8267119 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 33 | 30526 | 橡胶环-离心甩水环 | RING RUBBER - CENTRIFUGAL SLINGER | 1 |
| 34 | 31792 | 进水管导向套 | SLEEVE GUIDE - INLET TUBE | 1 |
| 34 | 31792T | 套管@5 | SLEEVE @5 | 1 |
| - | 78139A80 | 衬垫套件 | GASKET SET | 1 |
| - | 70941A3 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 92970A5 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 77066A1 | 水泵密封套件 | SEAL KIT Water Pump | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

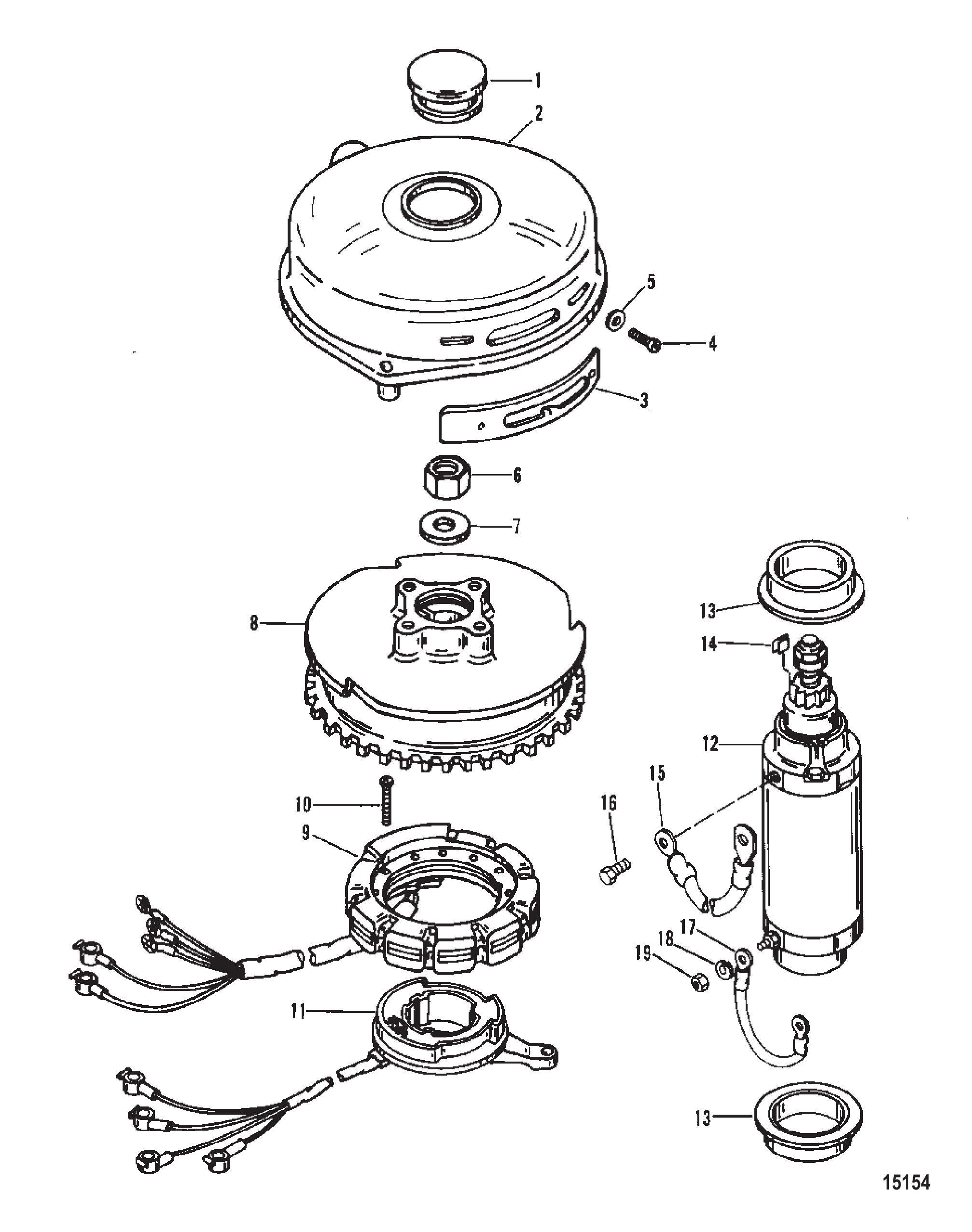

| 1 | 45907 | 飞轮黄色塞 | PLUG Yellow FLYWHEEL | 1 |
| 2 | 42956A1 | 飞轮盖总成 | COVER ASSEMBLY FLYWHEEL | 1 |
| 3 | 79022 | 正时标记 | MARKER TIMING | 1 |
| 4 | 37572 | 螺钉(0.190-32x0.380)正时标记 | SCREW (.190-32 x .380) TIMING MARKER | 2 |
| 5 | 72761 | 垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉 | WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW | 2 |
| 6 | 42979 | 螺母(M16)飞轮 | NUT (M16) FLYWHEEL | 1 |
| 7 | 68229 | 垫圈(0.641x1.250x0.190)飞轮 | WASHER (.641 x 1.250 x .190) FLYWHEEL | 1 |
| 8 | 9008A16 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 9 | 8778A10 | 定子总成 | STATOR ASSEMBLY | 1 |
| 10 | 4007325 | 螺钉(M5x25)定子 | SCREW (M5 x 25) STATOR | 4 |
| 11 | 99021A3 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 12 | 66015 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 13 | 56703 | 启动电机轴环 | COLLAR STARTER MOTOR | 2 |
| 14 | 57247 | 启动电机橡胶止动块 | STOP RUBBER-STARTER MOTOR | 2 |
| 15 | 93388A1 | 电缆总成(6.00英寸) 黑色 起动机至安装板 | CABLE ASSEMBLY (6.00 Inches) Black STARTER MOTOR TO PLATE | 1 |
| 16 | 69035 | 螺钉与锁紧垫圈(.250-20 x .625) 不锈钢 导线至起动机 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel WIRE TO STARTER MOTOR | 1 |
| 17 | 88439A20 | 起动机导线(黑色) | WIRE STARTER MOTOR (BLACK) | 1 |
| 18 | 26992 | 锁紧垫圈(.250) 不锈钢 起动机接线端 | LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL | 1 |
| 19 | 64015 | 螺母(.250-20) 起动机接线端 | NUT (.250-20) STARTER MOTOR TERMINAL | 1 |

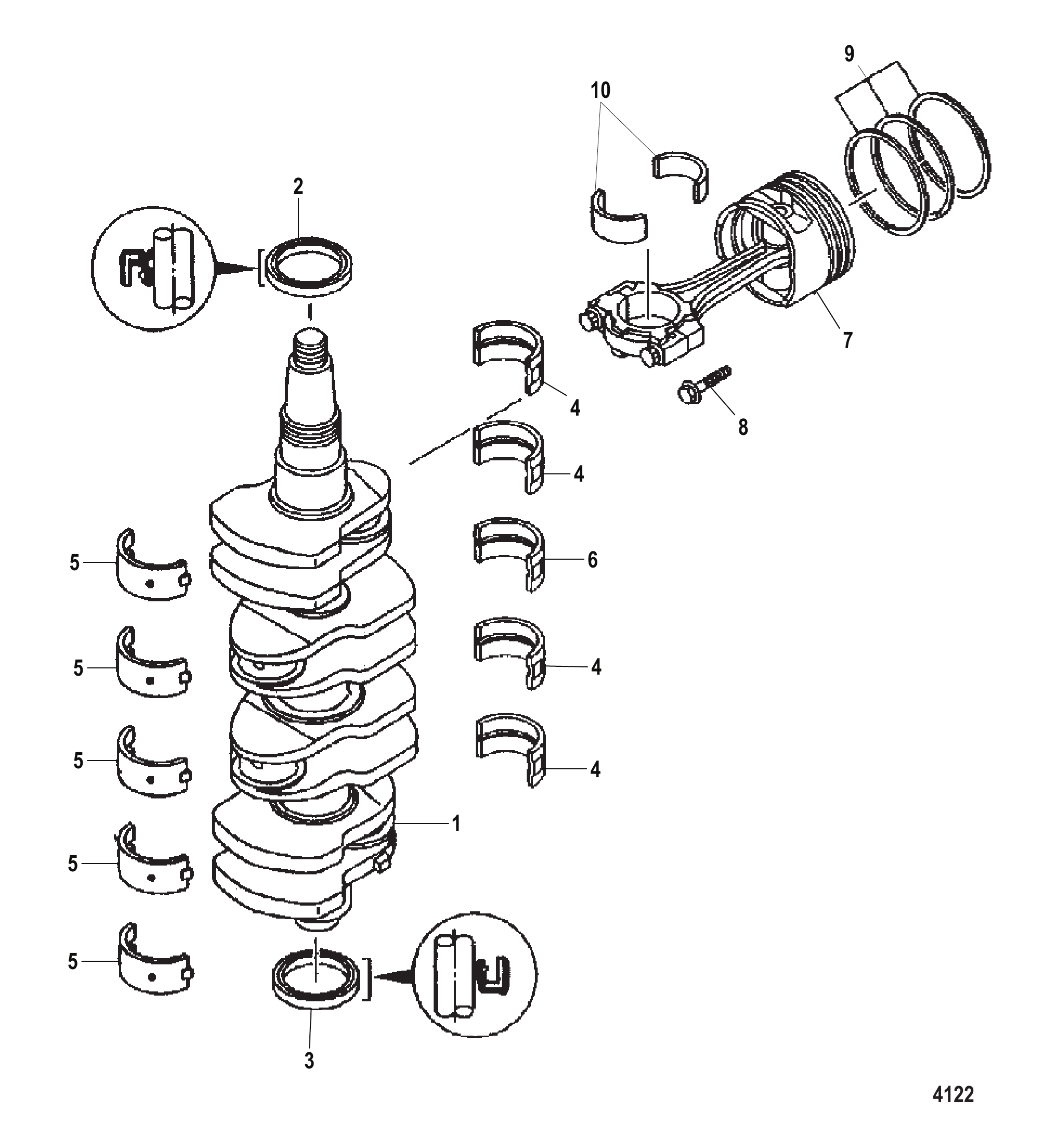

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

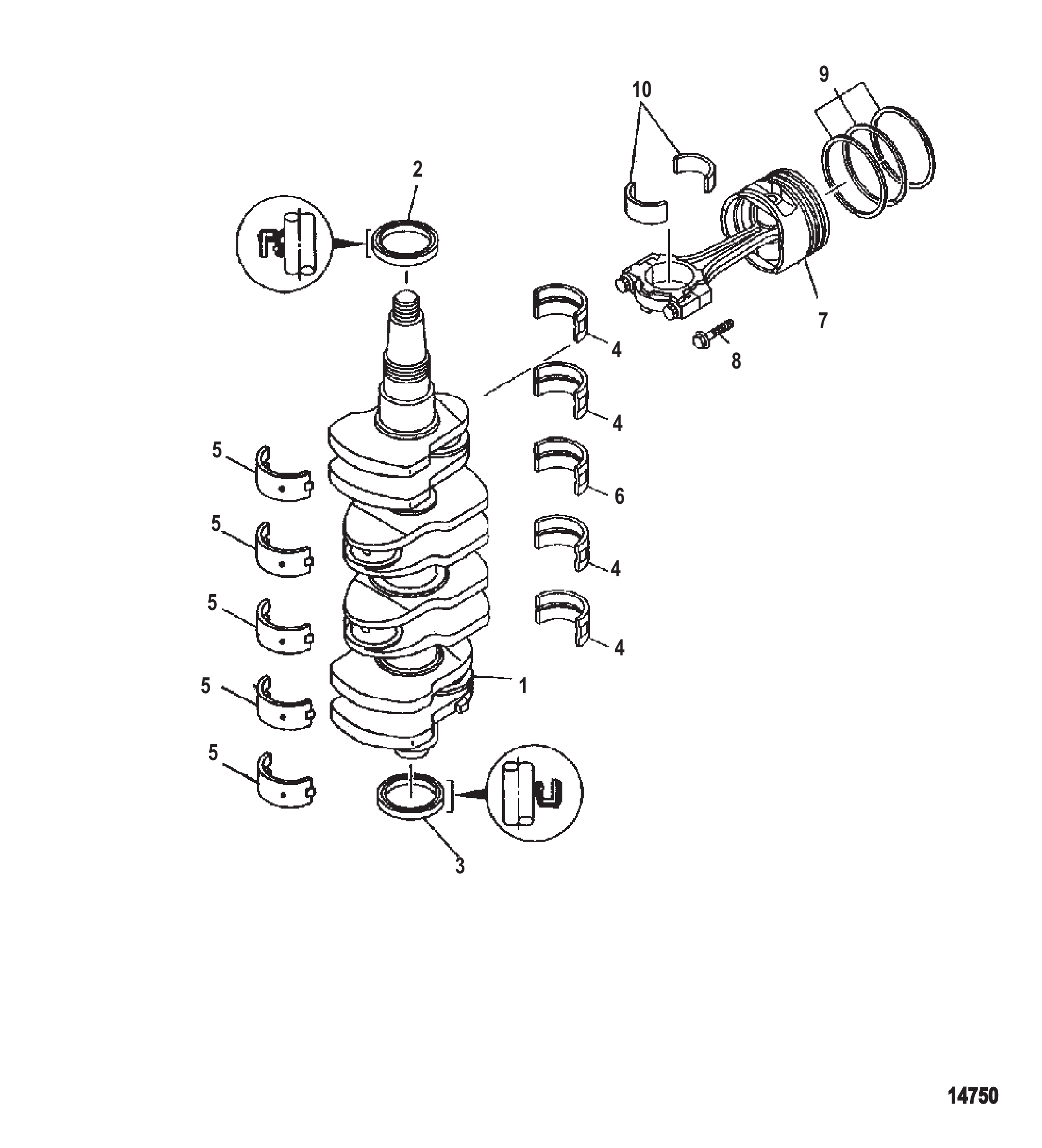

| 1 | 880894T | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8040992 | 油封 | SEAL Oil | 1 |
| 3 | 8041002 | 油封 | SEAL Oil | 1 |
| 4 | 804101T | 轴承 | BEARING | 4 |
| 4 | 804101T10 | 轴承 | BEARING | 4 |
| 4 | 804101T20 | 轴承 | BEARING | 4 |
| 5 | 804102T | 轴承 | BEARING | 5 |
| 5 | 804102T10 | 轴承 | BEARING | 5 |
| 5 | 804102T20 | 轴承 | BEARING | 5 |
| 5 | 804102T30 | 轴承 | BEARING | 5 |
| 6 | 804103T | 轴承 | BEARING | 1 |
| 6 | 804103T10 | 轴承 | BEARING | 1 |
| 6 | 804103T20 | 轴承 | BEARING | 1 |
| 7 | 880895T1 | 活塞总成 | PISTON ASSEMBLY | 4 |
| 7 | 880895A14 | 活塞/连杆总成 | PISTON/CONN ROD | 4 |
| 7 | 880895T10 | 活塞总成 | PISTON ASSEMBLY | AR |
| 7 | 880895A16 | 活塞/连杆总成 | PISTON/CONN ROD | AR |
| 8 | 880896 | 螺栓(M8 x 38) | BOLT (M8 x 38) | 8 |
| 9 | 880897T1 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880897T02 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880898T1 | 活塞环组 | RING SET Piston | AR |
| 9 | 880898T02 | 活塞环组 | RING SET Piston | AR |
| 10 | 880899T | 轴承 | BEARING | 8 |
| 10 | 880899T10 | 轴承 | BEARING | 8 |
| 10 | 880899T20 | 轴承 | BEARING | 8 |
| 10 | 880899T30 | 轴承 | BEARING | 8 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 823040T06 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 823040A5 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 8M0171812 | 化油器 | CARBURETOR | 1 |
| 1 | 823040A4 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 8M0203718 | 化油器 | CARBURETOR | 1 |
| 2 | 95252 | 油门拉线 | WIRE Throttle | 1 |
| 3 | 95321 | 螺栓 | BOLT | 1 |
| 4 | 95253 | 支架 | BRACKET | 1 |
| 5 | 95254 | 盖帽 | CAP | 1 |
| 6 | 95322 | 弹簧 | SPRING | 1 |
| 7 | 95255 | 安装板 | PLATE | 1 |
| 8 | 95323 | E型卡环 | E RING | 1 |
| 9 | 8151263 | 量孔针阀 | JET NEEDLE | 1 |
| 10 | 95257004 | 油门阀 | VALVE Throttle | 1 |
| 10 | 952573 | 油门阀 | VALVE Throttle | 1 |
| 10 | 952572 | 油门阀 | VALVE Throttle | 1 |
| 11 | 8151081 | 针阀喷嘴 | NEEDLE JET | 1 |
| 12 | 95324 | 衬垫 | GASKET | 1 |
| 13 | 95259 | 浮子 | FLOAT | 1 |
| 14 | 95260 | 浮子室 | FLOAT BOWL | 1 |
| 15 | 952621 | 铰链 | HINGE | 1 |
| 16 | 95327 | 铰链销 | PIN Hinge | 1 |
| 17 | 8150293 | 主喷嘴(#86) | MAIN JET (#86) | 1 |
| 18 | 953251 | 放油螺钉 | SCREW Drain | 1 |
| 19 | 95326 | 衬垫 | GASKET | 1 |
| 20 | 952631 | 针阀 | NEEDLE VALVE | 1 |
| 21 | 952641 | 针阀座 | SEAT Needle Valve | 1 |
| 21 | 8M0171808 | 阀座 | SEAT VALVE | 1 |
| 22 | 95328 | 螺钉 | SCREW | 1 |
| 23 | 95329 | 弹簧 | SPRING | 1 |
| 24 | 95266 | 阻风门杠杆 | LEVER Shutter | 1 |
| 25 | 95331 | 螺钉 | SCREW | 1 |
| 26 | 95265 | 阻风门板 | PLATE Choke | 1 |
| 27 | 400256 | 锁紧垫圈 (M6) | LOCKWASHER (M6) | 1 |
| 28 | 95330 | 螺母 | NUT | 1 |
| 29 | 95332 | 卡箍 | CLAMP | 1 |
| 30 | 95333 | 螺钉 | SCREW | 1 |
| 31 | 811601 | O型圈 | O-RING | 1 |
| 32 | 815071 | 螺钉 | SCREW | 2 |
| 33 | 95268 | 油门杆 | LEVER Throttle | 1 |
| 34 | 815072 | 螺钉 | SCREW | 1 |
| 35 | 95238 | 锁紧垫圈 | LOCKWASHER | 1 |
| 36 | 95336 | 衬垫 | GASKET | 2 |
| 37 | 952672 | 支架 | BRACKET | 1 |
| 38 | 952867 | 轴环 | COLLAR | 1 |
| 39 | 95269 | 旋钮 | KNOB | 2 |
| 40 | 95338 | 螺钉 | SCREW | 2 |
| 41 | 8150731 | 盖板 | COVER | 1 |
| 41 | 8150731 | 盖板 | COVER | 1 |
| 41 | 815073 | 盖板 | COVER | 1 |
| 42 | 95339 | 螺钉 | SCREW | 1 |
| - | 855546A4 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| - | 8M0171816 | 化油器修理包 | CARB REPAIR KIT | 1 |

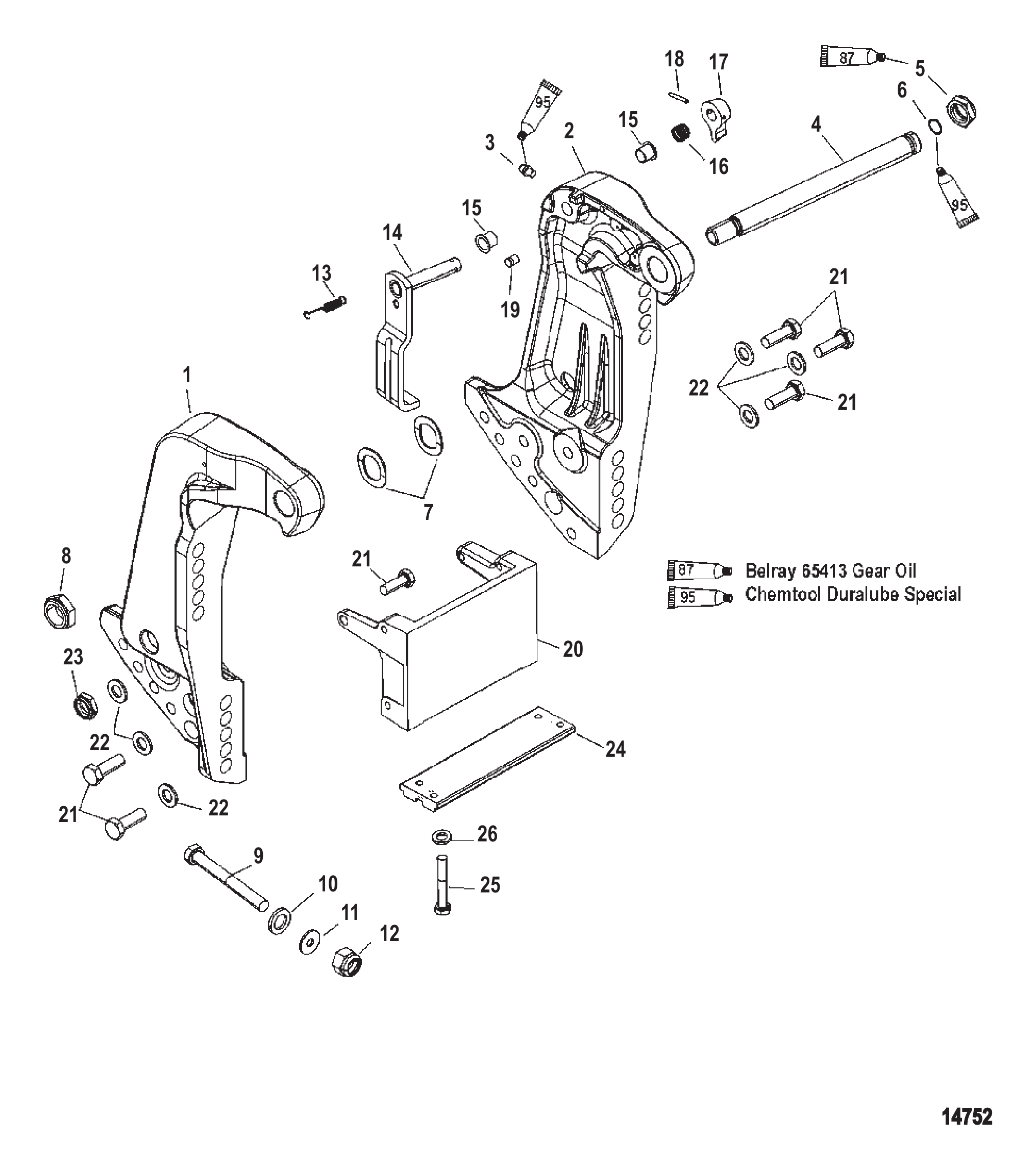

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

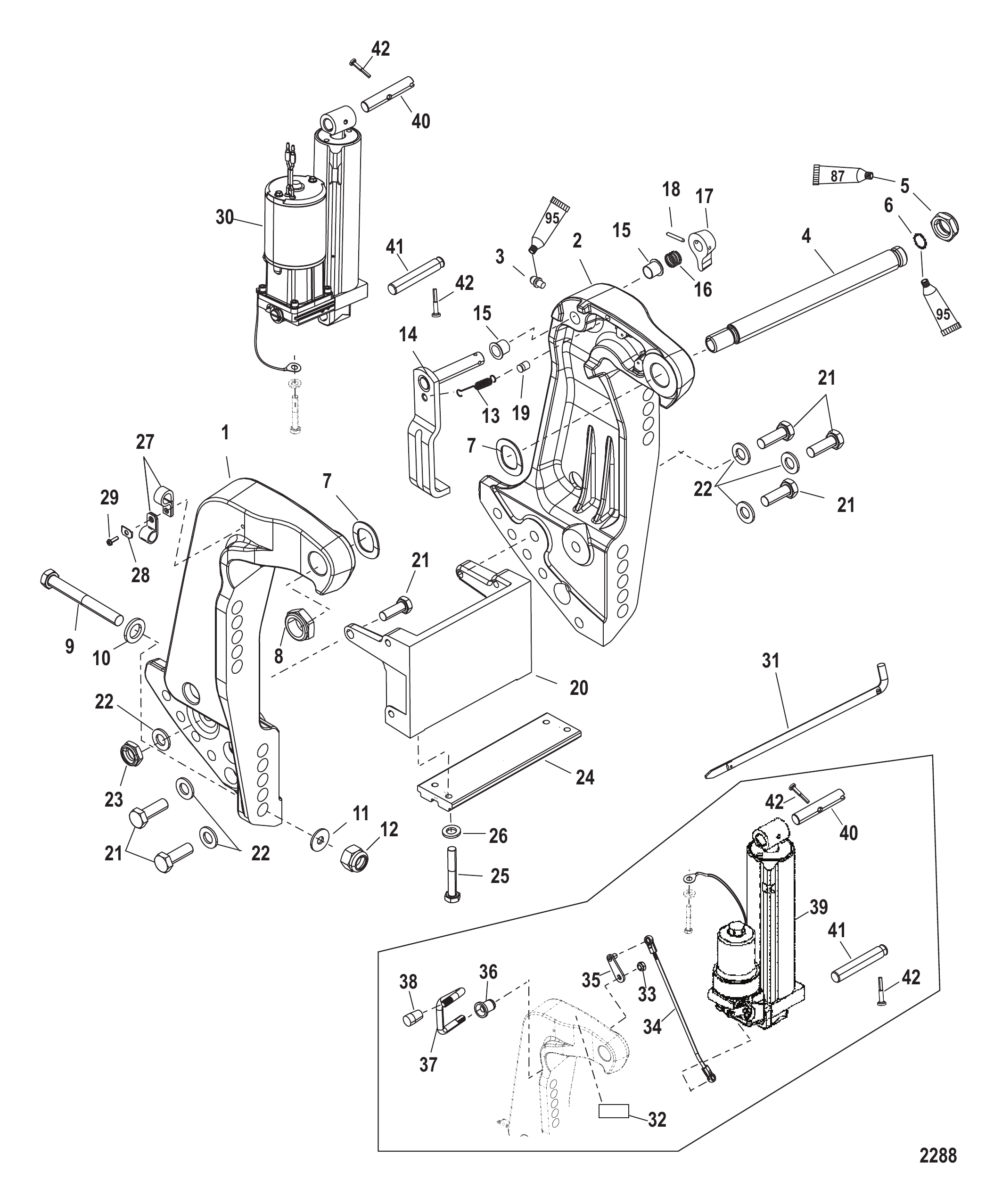

| 1 | 828334F1 | 艉板支架 | BRACKET Transom | 1 |
| 2 | 828333A3 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 828333T07 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom - Port | 1 |
| 3 | 98727 | 润滑脂接头 | FITTING Grease | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 99170A2 | 倾斜管套件 | TUBE KIT Tilt | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 5 | 82671327 | 螺母(1.0-14) | NUT (1.0-14) | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 7 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 8 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 54012 | 垫圈(0.530×0.870×0.105不锈钢) | WASHER (.530 x .870 x .105) Stainless Steel | 4 |
| 10 | 8M0204665 | 垫圈(0.530×0.880×0.104 630不锈钢) | WASHER (.530 x .880 x .104) 630 Stainless Steel | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 14 | 821176T1 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 8M0109798 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 15 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 16 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99617 | 销 | PIN | 1 |
| 19 | 893709 | 销 | PIN | 1 |
| 20 | 818771T1 | 锚支架 | BRACKET Anchor | 1 |
| 20 | 8M0086406 | 锚支架 | BRACKET Anchor | 1 |
| 21 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 22 | 4002319 | 垫圈 | WASHER | 6 |
| 23 | 40114 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
| 24 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 25 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 25 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 26 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 26 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

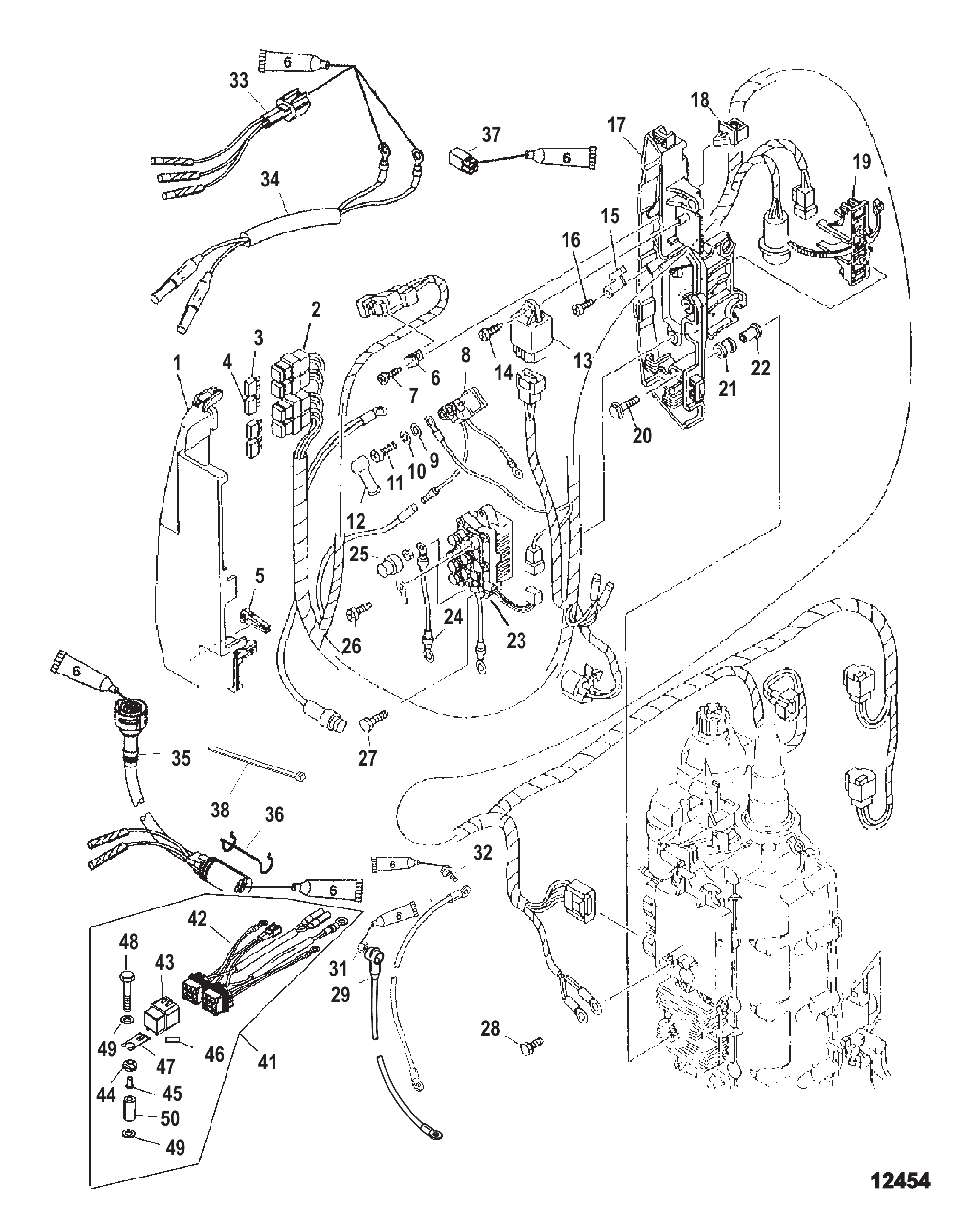

| 1 | 881363T | 盖板 | COVER | 1 |
| 2 | 881364T2 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 2 | 881364T04 | 线束 | HARNESS | 1 |
| 2 | 881364T1 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 2 | 881364T04 | 线束 | HARNESS | 1 |
| 3 | 804291 | 保险丝20安培 | FUSE 20 Ampere | 4 |
| 3 | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| 4 | 80429110 | 30安保险丝 | FUSE 30 Ampere | 4 |
| 4 | 8M0057159 | 30A保险丝 | FUSE-30A | 4 |
| 0 | 891824010 | 保险丝盖 | COVER Fuse | 4 |
| 0 | 891824020 | 保险丝盖 | COVER Fuse | 4 |
| 5 | 804289 | 保险丝拔取器 | PULLER Fuse | 1 |
| 6 | 881362 | 支架 | BRACKET | 1 |
| 7 | 8813511 | 螺钉 | SCREW | 1 |
| 8 | 881352T | 继电器 | RELAY | 1 |
| 8 | 8M0098898 | 继电器 | RELAY | 1 |
| 9 | 82214M | 垫圈 | WASHER | 2 |
| 10 | 881355 | 锁紧垫圈 | LOCKWASHER | 2 |
| 10 | 82212M | 锁紧垫圈 | LOCKWASHER | 2 |
| 11 | 881354 | 螺钉 | SCREW | 2 |
| 11 | 96671M | 螺钉 | SCREW | 2 |
| 12 | 804284 | 护套 | BOOT | 2 |
| 12 | 804284001 | 护套 | BOOT | 2 |
| 13 | 881350T | 继电器 | RELAY | 1 |
| 14 | 881351 | 螺钉 | SCREW | 1 |
| 15 | 881353 | 卡箍 | CLAMP | 1 |
| 16 | 8813511 | 螺钉 | SCREW | 1 |
| 17 | 881359T | 支架 | BRACKET | 1 |
| 17 | 881363A01 | 盖/支架套件 | COVER/BRACKET KIT | 1 |
| 18 | 881361 | 卡箍 | CLAMP | 1 |
| 19 | 881360 | 卡箍 | CLAMP | 1 |
| 20 | 804270 | 螺栓(M6×28) | BOLT (M6 x 28) | 5 |
| 21 | 881304 | 护孔环 | GROMMET | 5 |
| 22 | 82851M | 衬套 | BUSHING | 5 |
| 22 | 804344003 | 轴环 | COLLAR | 5 |
| 23 | 881356T1 | 继电器总成 | RELAY ASSEMBLY | 1 |
| 23 | 882751A3 | 升降继电器套件 | RELAY KIT Trim | 1 |
| 24 | 881357 | 引线 | LEAD WIRE | 1 |
| 25 | 881358 | 盖帽 | CAP | 1 |
| 26 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 27 | 825702 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 27 | 8257021 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 28 | 804604 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 29 | 88439A33 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 30 | 88439A10 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Negative - Battery | 1 |
| 31 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 32 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 32 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 1 |
| 33 | 858723T1 | 适配器/升降线束总成 | HARNESS ASSEMBLY Adapter/Trim | 1 |
| 34 | 858914T1 | 升降马达适配器线束总成 | HARNESS ASSEMBLY Trim Motor Adaptor | 1 |
| 35 | 858740T4 | 遥控适配器线束总成 | HARNESS ASSEMBLY Adapter Assembly Remote | 1 |
| 36 | 92753 | 固定座 | RETAINER | 1 |
| 37 | 859249T1 | 连接器 | CONNECTOR | 1 |
| 38 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 39 | 8272822 | 高压警告标贴 | DECAL Warning High Voltage | 1 |
| 40 | 881865 | 挂档启动警示标贴 | DECAL Caution-Start in Gear Start in Gear | 1 |
| 41 | 828151A2 | 升降继电器套件 | TRIM RELAY KIT | 1 |
| 41 | 882751A3 | 升降继电器套件 | RELAY KIT Trim | 1 |
| 42 | 826802A24 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 43 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 43 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 2 |
| 44 | 818967 | 护孔环 | GROMMET | 1 |
| 44 | 8M0207785 | 护孔环 | GROMMET | 1 |
| 45 | 818968 | 衬套 | BUSHING | 1 |
| 45 | 8M0214955 | 衬套 | BUSHING | 1 |
| 46 | NSS | 标贴(不单独销售) | NOT SOLD SEPARATE Decal | 1 |
| 47 | 828102 | 支架 | BRACKET | 1 |
| 47 | 8M0207771 | 安装支架 | BRACKET Mounting | 1 |
| 48 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 1 |
| 49 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 49 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 2 |
| 50 | 823807 | 衬套 | BUSHING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

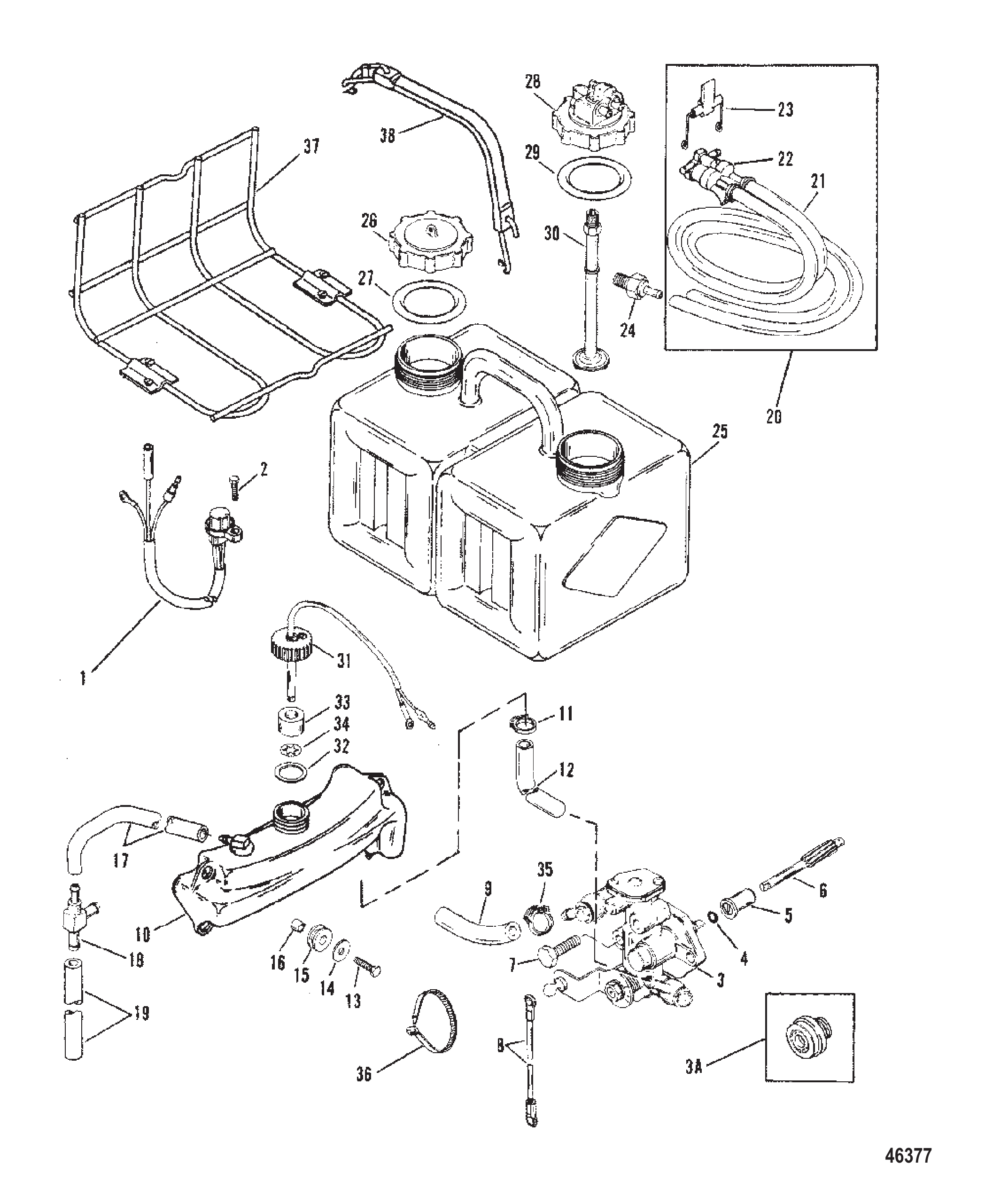

| 1 | 12430A4 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 2 | 48409 | 螺钉(#10-16 x .625)不锈钢传感器固定(5/8") | SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING (5/8") | 1 |
| 3 | 815699 | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 3 | 815699T | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 3A | 814103 | 轴承(带密封) | BEARING (W/SEAL) | 1 |
| 3A | 8141032 | 蜗杆衬套 | BUSHING Worm | 1 |
| 4 | 11379 | 油泵O型圈 | O-RING OIL PUMP | 1 |
| 5 | 41429A2 | 驱动齿轮轴承总成 | BEARING ASSEMBLY DRIVE GEAR | 1 |
| 6 | 12726 | 从动齿轮 | GEAR Driven | 1 |
| 6 | 14563 | 从动齿轮 | GEAR Driven | 1 |
| 7 | 32228 | 螺钉(#10-32 x .625)油泵至曲轴箱(5/8") | SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE (5/8") | 1 |
| 7 | 41507 | 螺钉(#10-32 x 1.120)油泵至曲轴箱(1-1/8") | SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE (1-1/8") | 1 |
| 8 | 1938512 | 油门连杆至油泵总成 | LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP | 1 |
| 9 | 4301619 | 油泵油管 | TUBING OIL PUMP | 1 |
| 9 | 82381335 | 油管(15.00英寸 散装) | TUBING (15.00 Inches Bulk) | 1 |
| 10 | 99443T | 油箱 | RESERVOIR Oil | 1 |
| 10 | 994436 | 储液罐 | RESERVOIR | 1 |
| 11 | 415823 | 油管卡箍(大) | CLAMP OIL HOSE (LARGE) | 2 |
| 12 | 4301736 | 油箱至油泵油管 | TUBING OIL RESERVOIR TO OIL PUMP | 1 |
| 12 | 82381455 | 油管（25.00英寸散装） | TUBING (25.00 Inches Bulk) | 1 |
| 13 | 69020 | 螺钉(#10-32 x .875)油箱固定(7/8") | SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING (7/8") | 3 |
| 13 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 3 |
| 14 | 42118 | 油箱螺钉垫圈 | WASHER OIL RESERVOIR SCREW | 6 |
| 15 | 42117 | 油箱螺钉衬套 | GROMMET OIL RESERVOIR SCREW | 3 |
| 16 | 42116 | 油箱螺钉轴套 | BUSHING OIL RESERVOIR SCREW | 3 |
| 17 | 99127109 | 油管(57.00英寸散装) | LINE (57.00 Inches Bulk) OIL | 1 |
| 17 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 18 | 42425 | 油管三通 | TEE OIL TUBING | 1 |
| 19 | 9072925 | 油管(6-3/4") | HOSE OIL (6-3/4") | 1 |
| 20 | NA | 不可用壳体总成 | NOT AVAILABLE HOUSING ASSEMBLY | 1 |
| 21 | 99439 | 油管(114.00英寸) | HOSE (114.00 Inches) OIL | 1 |
| 22 | 12540A3 | 壳体 | HOUSING | 1 |
| 23 | 12242A1 | 闩锁 | LATCH | 1 |
| 24 | 43278 | 止回阀接头(曲轴箱) | FITTING CHECK CALVE (CRANKCASE) | 1 |
| 24 | 8781051 | 止回阀 | CHECK VALVE | 1 |
| 25 | 87421 | 油箱 | TANK | 1 |
| 26 | 43298A2 | 油箱盖总成 | CAP ASSEMBLY OIL TANK | 1 |
| 27 | 11332 | O型圈(2.225 x .210)盖 | O-RING (2.225 x .210) CAP | 1 |
| 28 | 43295A5 | 壳体总成适配器 | HOUSING ASSEMBLY Adaptor | 1 |
| 28 | 816190A4 | 机油收集器总成(无传感器) | OIL PICK UP ASSEMBLY Without Sender | 1 |
| 29 | 11332 | O型圈(2.225 x .210)适配器壳体 | O-RING (2.225 x .210) ADAPTOR HOUSING | 1 |
| 30 | 99802 | 吸油管 | TUBE OIL PICK-UP | 1 |
| 31 | 43300A1 | 油箱盖总成 | CAP ASSEMBLY OIL RESERVOIR | 1 |
| 31 | 43300A9 | 盖总成 | CAP ASSEMBLY | 1 |
| 32 | 43307 | 油箱盖衬垫 | GASKET RESERVOIR CAP | 1 |
| 32 | 43307T | 衬垫 | GASKET | 1 |
| 33 | 99022A1 | 浮子总成 | FLOAT ASSEMBLY | 1 |
| 33 | 8M0187298 | 浮子总成 | FLOAT ASSY | 1 |
| 34 | 99265 | 压入式螺母 | PUSH NUT | 1 |
| 35 | 415824 | 油管卡箍(小) | CLAMP OIL HOSE (SMALL) | 2 |
| 36 | 90077 | 扎带 | TIE STRAP | AR |
| 36 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 37 | 12335A1 | 支架套件 | BRACKET KIT | 1 |
| 38 | 12323A1 | 绳索/挂钩套件 | CORD/HOOK KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

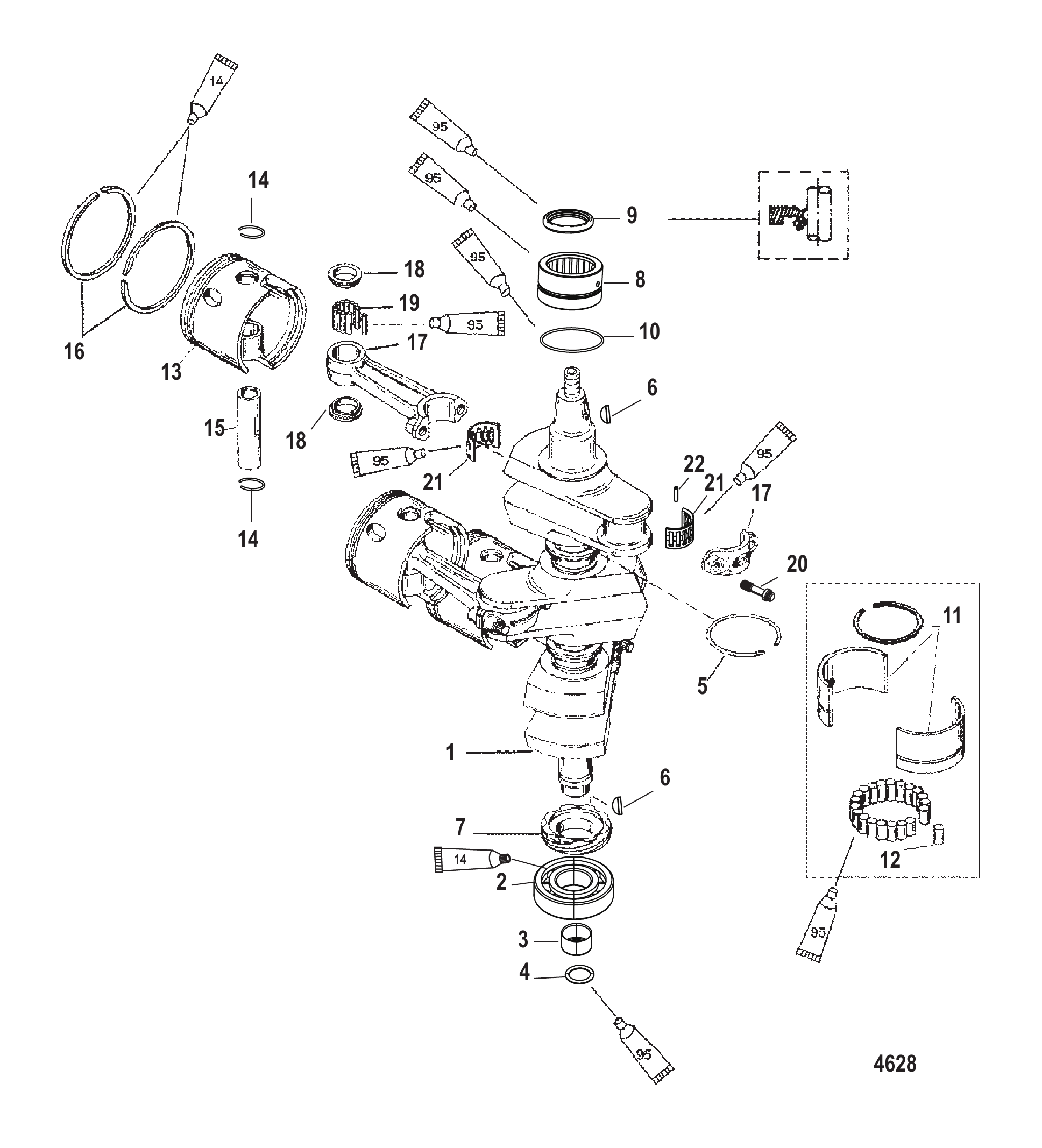

| 1 | 880894T | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8040992 | 油封 | SEAL Oil | 1 |
| 3 | 8041002 | 油封 | SEAL Oil | 1 |
| 4 | 804101T | 轴承 | BEARING | 4 |
| 4 | 804101T10 | 轴承 | BEARING | 4 |
| 4 | 804101T20 | 轴承 | BEARING | 4 |
| 5 | 804102T | 轴承 | BEARING | 5 |
| 5 | 804102T10 | 轴承 | BEARING | 5 |
| 5 | 804102T20 | 轴承 | BEARING | 5 |
| 5 | 804102T30 | 轴承 | BEARING | 5 |
| 6 | 804103T | 轴承 | BEARING | 1 |
| 6 | 804103T10 | 轴承 | BEARING | 1 |
| 6 | 804103T20 | 轴承 | BEARING | 1 |
| 7 | 880895A05 | 活塞总成 | PISTON ASSEMBLY | 4 |
| 7 | 880895A14 | 活塞/连杆总成 | PISTON/CONN ROD | 4 |
| 7 | 880895A12 | 活塞总成 | PISTON ASSEMBLY | AR |
| 7 | 880895A16 | 活塞/连杆总成 | PISTON/CONN ROD | AR |
| 8 | 880896 | 螺栓(M8 x 38) | BOLT (M8 x 38) | 8 |
| 9 | 880897T02 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880898T02 | 活塞环组 | RING SET Piston | AR |
| 10 | 880899T | 轴承 | BEARING | 8 |
| 10 | 880899T10 | 轴承 | BEARING | 8 |
| 10 | 880899T20 | 轴承 | BEARING | 8 |
| 10 | 880899T30 | 轴承 | BEARING | 8 |
| - | 858732A06 | 衬垫套件 | GASKET SET | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

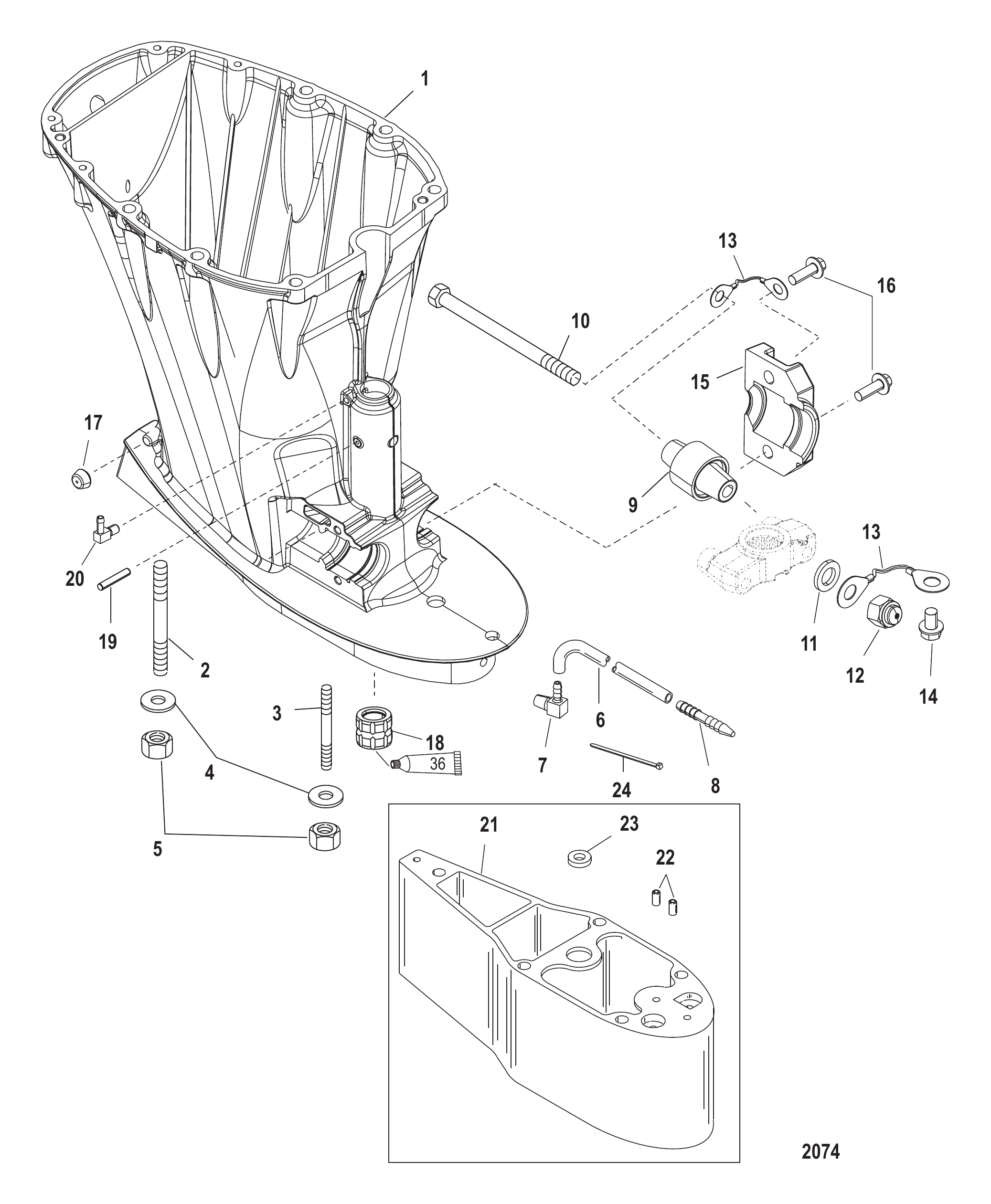

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

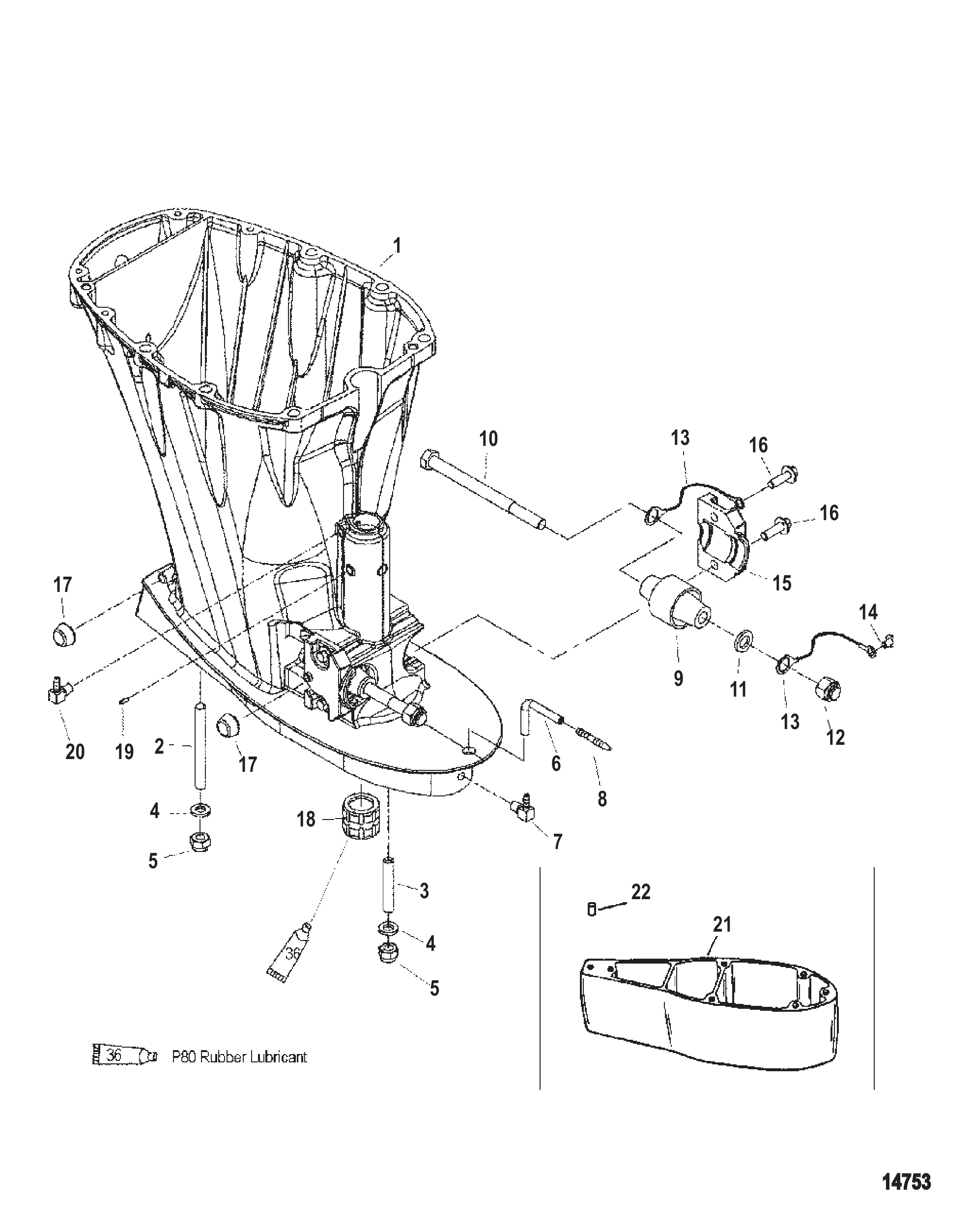

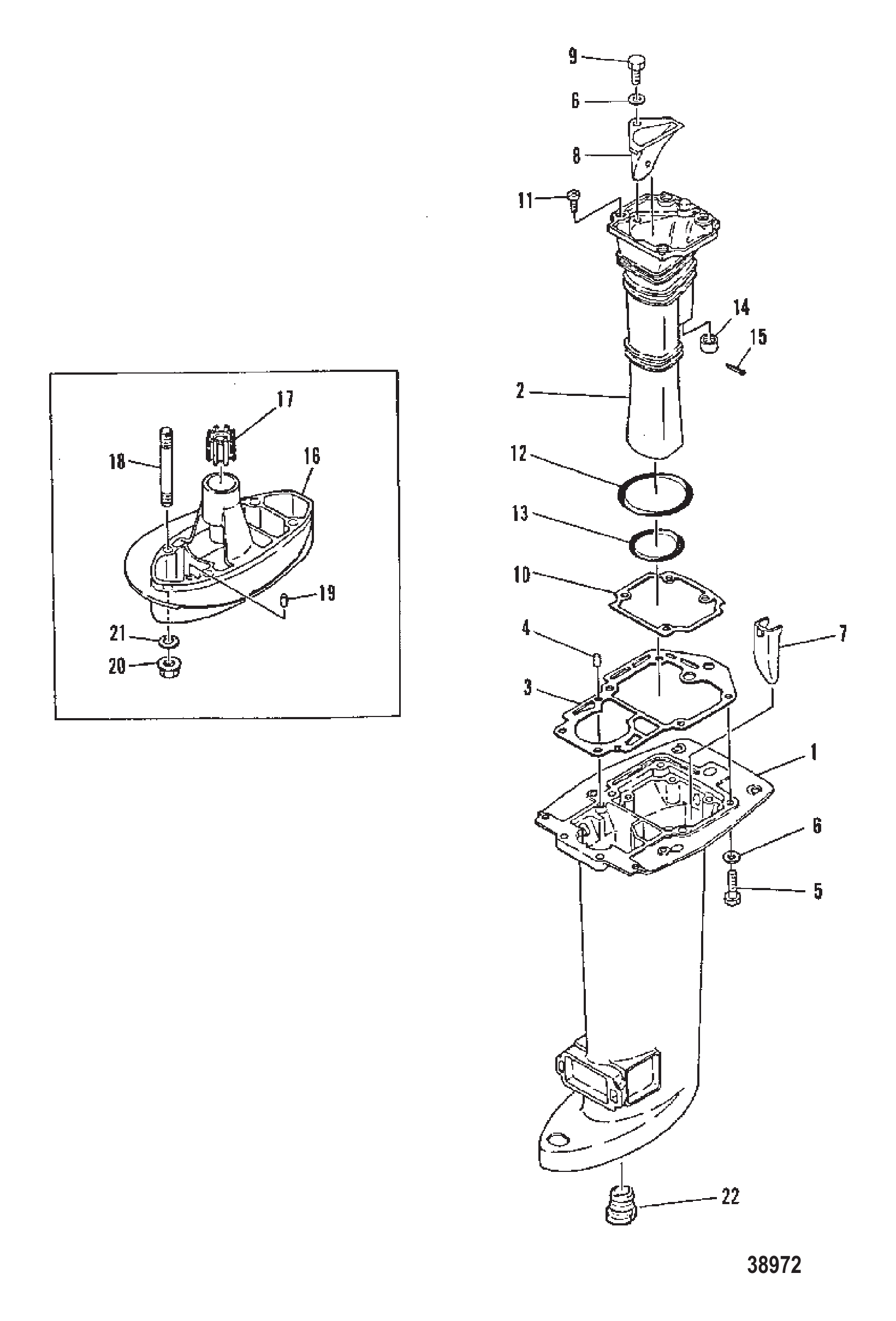

| 1 | 858576T2 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 2 | 903501 | 双头螺柱(M10×100) | STUD (M10 x 100) | 1 |
| 2 | 9035015 | 双头螺柱(M10×227) | STUD (M10 x 227) | 1 |
| 3 | 9035012 | 双头螺柱(M10×63) | STUD (M10 x 63) | 4 |
| 3 | 9035016 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 3 | 8M0034462 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 4 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 5 |
| 4 | 8M0214963 | 垫圈 | WASHER | 5 |
| 5 | 40140 | 螺母(M10) | NUT (M10) | 5 |
| 6 | 85822A13 | 速度计传感器总成 | PICK UP ASSEMBLY Speedometer | 1 |
| 7 | 43335 | 90度接头(.125-27)尼龙 | CONNECTOR 90 Degree (.125-27) Nylon | 1 |
| 7 | 433351 | 90度接头-带防振密封 | CONNECTOR 90 Degree - With Vibraseal | 1 |
| 8 | 85822 | 直通接头 | CONNECTOR Straight | 1 |
| 8 | 85822T | 直通接头 | CONNECTOR Straight | 1 |
| 9 | 44343T1 | 支架 | MOUNT | 2 |
| 10 | 42973 | 螺栓(M12×154) | BOLT (M12 x 154) | 2 |
| 10 | 898835001 | 螺钉(M12 x 154) | SCREW (M12 x 154) | 2 |
| 11 | 30119 | 垫圈(外径0.875英寸) | WASHER (.875 Inch Outside Diameter) | 2 |
| 12 | 43528 | 螺母(M12) | NUT (M12) | 2 |
| 12 | 8M0204662 | 螺母 | NUT | 2 |
| 13 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 2 |
| 14 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 15 | 858916T | 卡箍 | CLAMP | 2 |
| 16 | 4010725 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 4 |
| 17 | 858745 | 盖帽 | CAP | 4 |
| 17 | 8M0142713 | 支撑盖帽 | CAP Chap Support | 4 |
| 18 | 859550 | 衬套 | BUSHING | 1 |
| 19 | 24873 | 定位销 | PIN Alignment | 1 |
| 20 | 855622 | 接头 | FITTING | 1 |
| 21 | 12092A3 | 隔套套件 | SPACER KIT | 1 |
| 22 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 22 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 22 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |

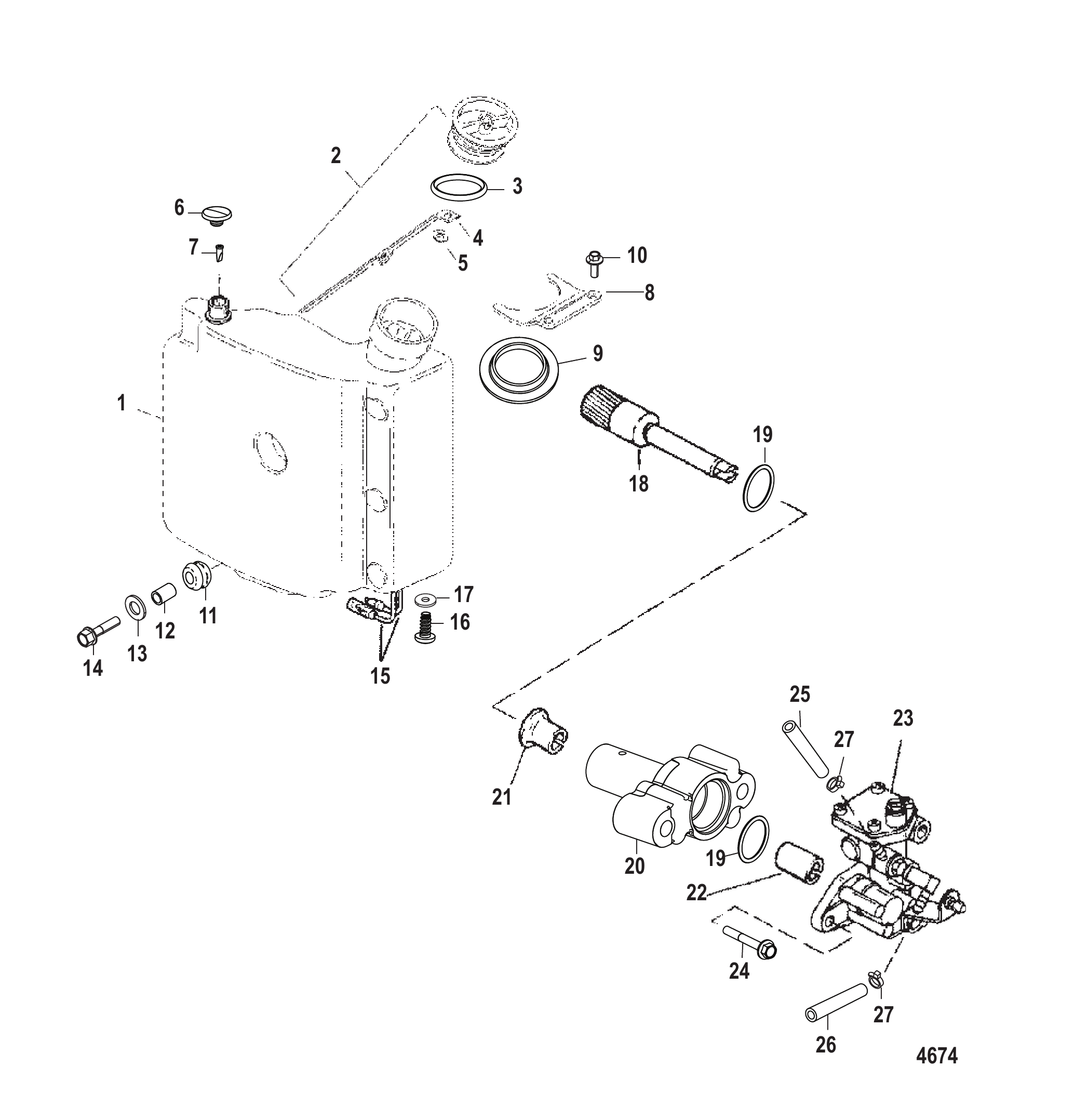

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 12430A4 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 2 | 48409 | 螺钉(#10-16 x .625)不锈钢传感器固定(5/8") | SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING (5/8") | 1 |
| 3 | 815699 | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 3 | 815699T | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 3A | 814103 | 轴承(带密封) | BEARING (W/SEAL) | 1 |
| 3A | 8141032 | 蜗杆衬套 | BUSHING Worm | 1 |
| 4 | 11379 | 油泵O型圈 | O-RING OIL PUMP | 1 |
| 5 | 41429A2 | 驱动齿轮轴承总成 | BEARING ASSEMBLY DRIVE GEAR | 1 |
| 6 | 12726 | 从动齿轮 | GEAR Driven | 1 |
| 6 | 14563 | 从动齿轮 | GEAR Driven | 1 |
| 7 | 32228 | 螺钉(#10-32 x .625)油泵至曲轴箱(5/8") | SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE (5/8") | 1 |
| 7 | 41507 | 螺钉(#10-32 x 1.120)油泵至曲轴箱(1-1/8") | SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE (1-1/8") | 1 |
| 8 | 1938512 | 油门连杆至油泵总成 | LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP | 1 |
| 9 | 4301619 | 油泵油管 | TUBING OIL PUMP | 1 |
| 9 | 82381335 | 油管(15.00英寸 散装) | TUBING (15.00 Inches Bulk) | 1 |
| 10 | 99443T | 油箱 | RESERVOIR Oil | 1 |
| 10 | 994436 | 储液罐 | RESERVOIR | 1 |
| 11 | 415823 | 油管卡箍(大) | CLAMP OIL HOSE (LARGE) | 2 |
| 12 | 4301736 | 油箱至油泵油管 | TUBING OIL RESERVOIR TO OIL PUMP | 1 |
| 12 | 82381455 | 油管（25.00英寸散装） | TUBING (25.00 Inches Bulk) | 1 |
| 13 | 69020 | 螺钉(#10-32 x .875)油箱固定(7/8") | SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING (7/8") | 3 |
| 13 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 3 |
| 14 | 42118 | 油箱螺钉垫圈 | WASHER OIL RESERVOIR SCREW | 6 |
| 15 | 42117 | 油箱螺钉衬套 | GROMMET OIL RESERVOIR SCREW | 3 |
| 16 | 42116 | 油箱螺钉轴套 | BUSHING OIL RESERVOIR SCREW | 3 |
| 17 | 99127109 | 油管(57.00英寸散装) | LINE (57.00 Inches Bulk) OIL | 1 |
| 17 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 18 | 42425 | 油管三通 | TEE OIL TUBING | 1 |
| 19 | 9072925 | 油管(6-3/4") | HOSE OIL (6-3/4") | 1 |
| 20 | NA | 不可用壳体总成 | NOT AVAILABLE HOUSING ASSEMBLY | 1 |
| 21 | 99439 | 油管(114.00英寸) | HOSE (114.00 Inches) OIL | 1 |
| 22 | 12540A3 | 壳体 | HOUSING | 1 |
| 23 | 12242A1 | 闩锁 | LATCH | 1 |
| 24 | 43278 | 止回阀接头(曲轴箱) | FITTING CHECK CALVE (CRANKCASE) | 1 |
| 24 | 8781051 | 止回阀 | CHECK VALVE | 1 |
| 25 | 87421 | 油箱 | TANK | 1 |
| 26 | 43298A2 | 油箱盖总成 | CAP ASSEMBLY OIL TANK | 1 |
| 27 | 11332 | O型圈(2.225 x .210)盖 | O-RING (2.225 x .210) CAP | 1 |
| 28 | 43295A5 | 壳体总成适配器 | HOUSING ASSEMBLY Adaptor | 1 |
| 28 | 816190A4 | 机油收集器总成(无传感器) | OIL PICK UP ASSEMBLY Without Sender | 1 |
| 29 | 11332 | O型圈(2.225 x .210)适配器壳体 | O-RING (2.225 x .210) ADAPTOR HOUSING | 1 |
| 30 | 99802 | 吸油管 | TUBE OIL PICK-UP | 1 |
| 31 | 43300A1 | 油箱盖总成 | CAP ASSEMBLY OIL RESERVOIR | 1 |
| 31 | 43300A9 | 盖总成 | CAP ASSEMBLY | 1 |
| 32 | 43307 | 油箱盖衬垫 | GASKET RESERVOIR CAP | 1 |
| 32 | 43307T | 衬垫 | GASKET | 1 |
| 33 | 99022A1 | 浮子总成 | FLOAT ASSEMBLY | 1 |
| 33 | 8M0187298 | 浮子总成 | FLOAT ASSY | 1 |
| 34 | 99265 | 压入式螺母 | PUSH NUT | 1 |
| 35 | 415824 | 油管卡箍(小) | CLAMP OIL HOSE (SMALL) | 2 |
| 36 | 90077 | 扎带 | TIE STRAP | AR |
| 36 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 37 | 12335A1 | 支架套件 | BRACKET KIT | 1 |
| 38 | 12323A1 | 绳索/挂钩套件 | CORD/HOOK KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

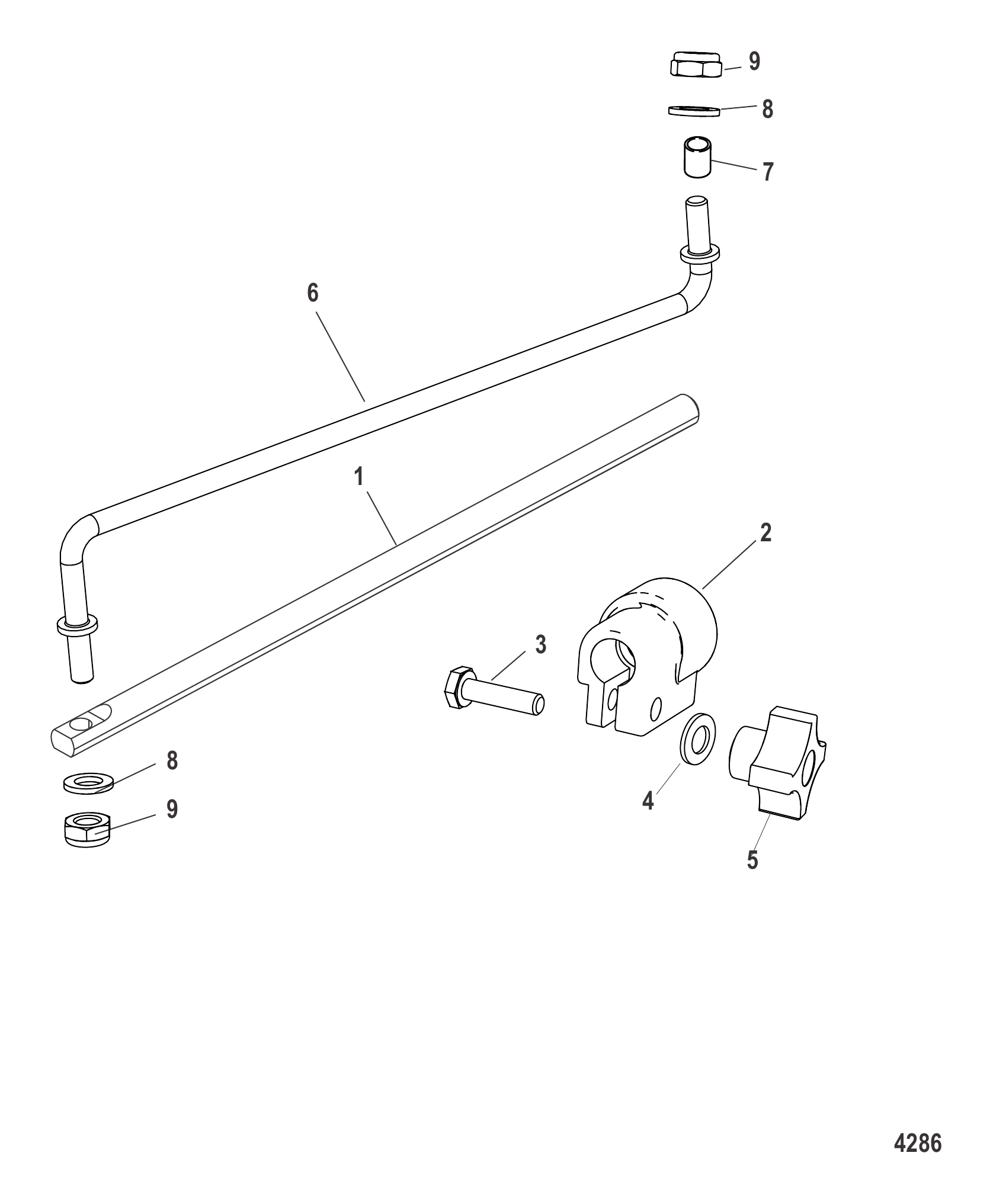

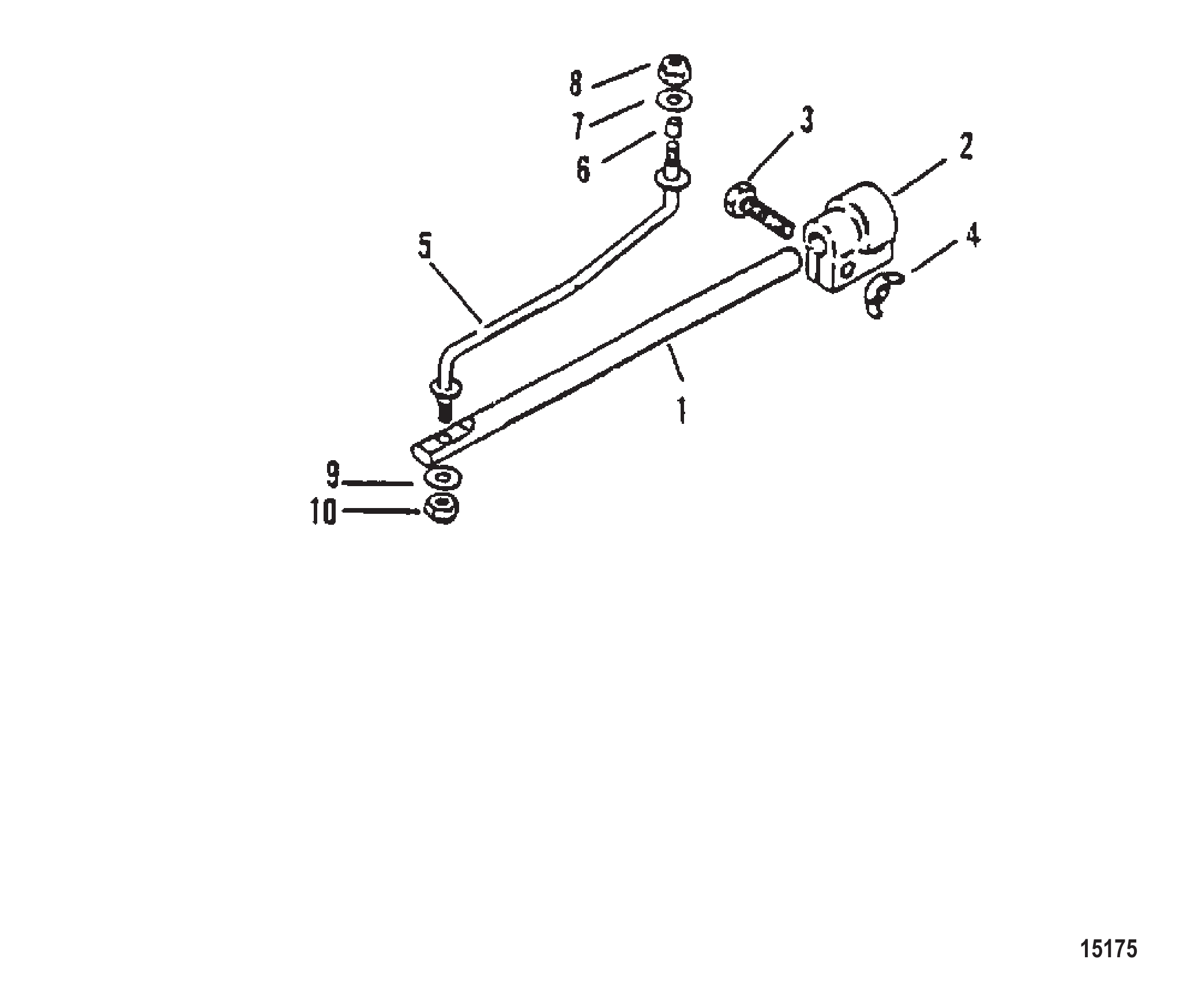

| - | 52148A3 | 副驾驶装置总成 | CO-PILOT ASSEMBLY | 1 |
| 1 | 52148 | 导向杆 | PILOT ROD | 1 |
| 2 | 52155A1 | 螺母总成 | NUT ASSEMBLY | 1 |
| 2 | 8M0103848 | 螺母总成 | NUT ASSEMBLY | 1 |
| 3 | 36154 | 螺钉(.250-28 x 1.380) | SCREW (.250-28 x 1.380) | 1 |
| 4 | 52152 | 蝶形螺母 | WING NUT | 1 |
| 5 | 873491 | 杆 | ROD | 1 |
| 6 | 52151 | 衬套 | BUSHING | 1 |
| 6 | 521512 | 衬套 | BUSHING | 1 |
| 7 | 20722 | 垫圈(.328 x .625 x .060) | WASHER (.328 x .625 x .060) | 1 |
| 8 | 45592 | 螺母(.312-24) | NUT (.312-24) | 1 |
| 8 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| 9 | 20722 | 垫圈(.328 x .625 x .060) | WASHER (.328 x .625 x .060) | 1 |
| 10 | 45592 | 螺母(.312-24) | NUT (.312-24) | 1 |
| 10 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |

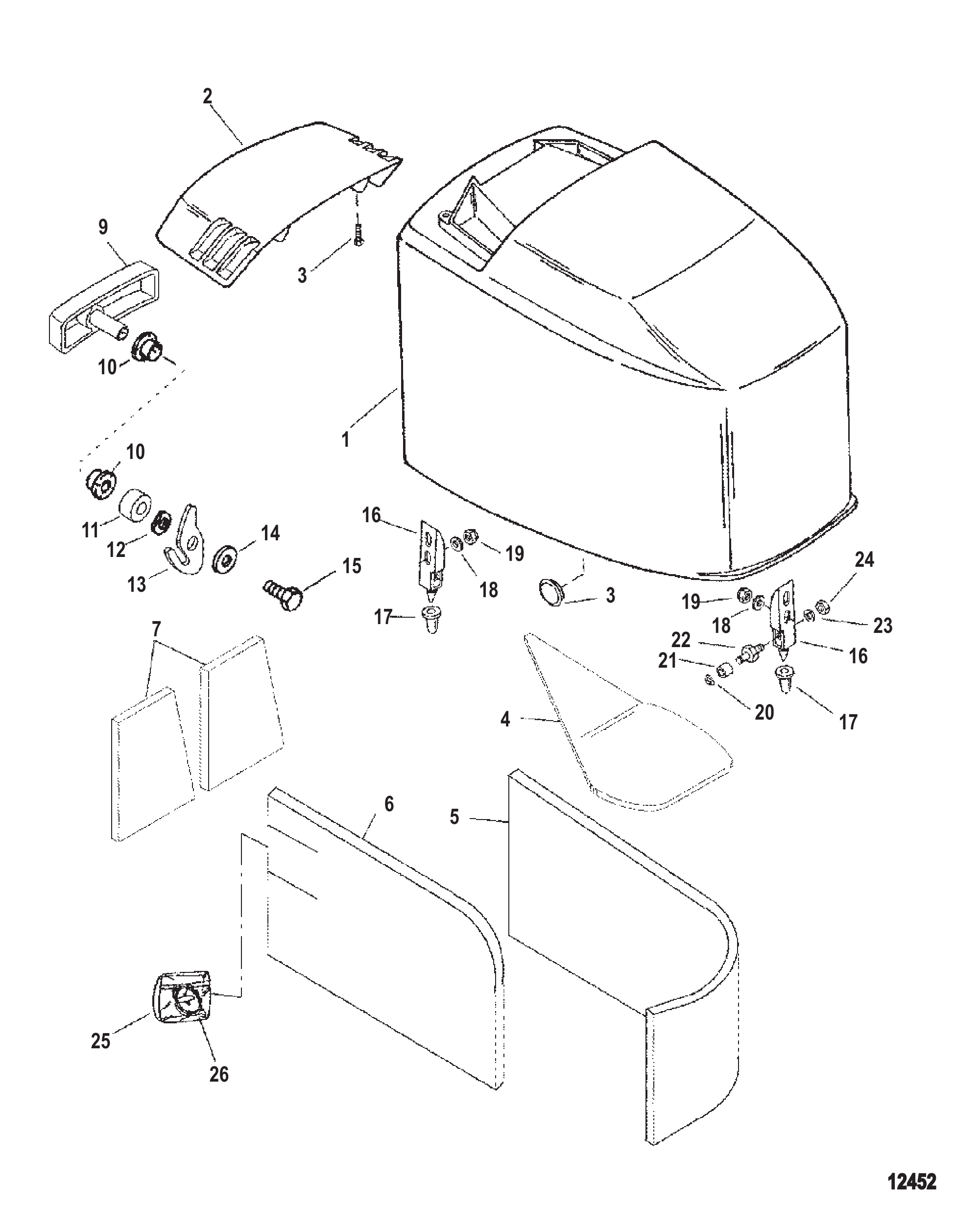

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

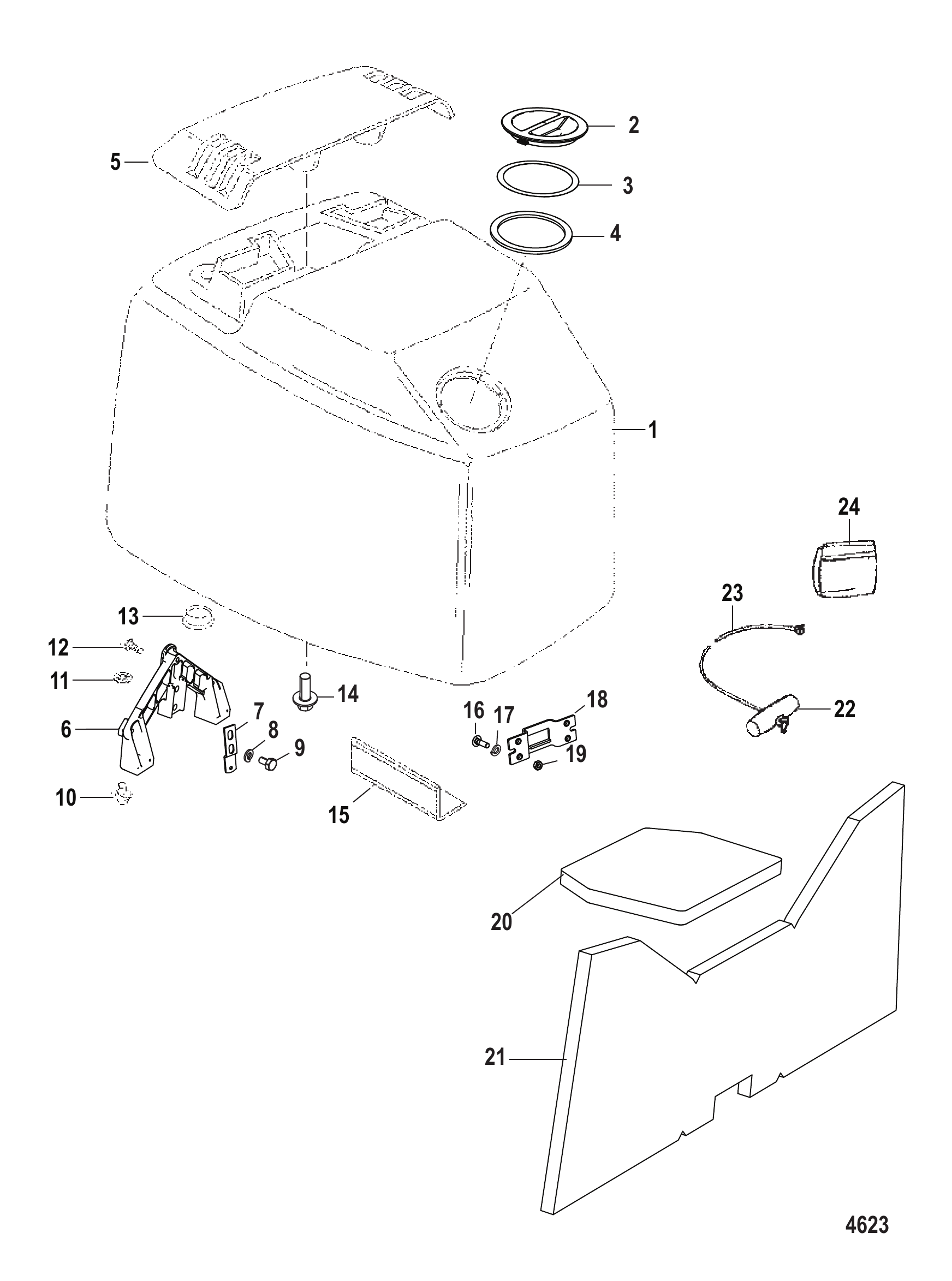

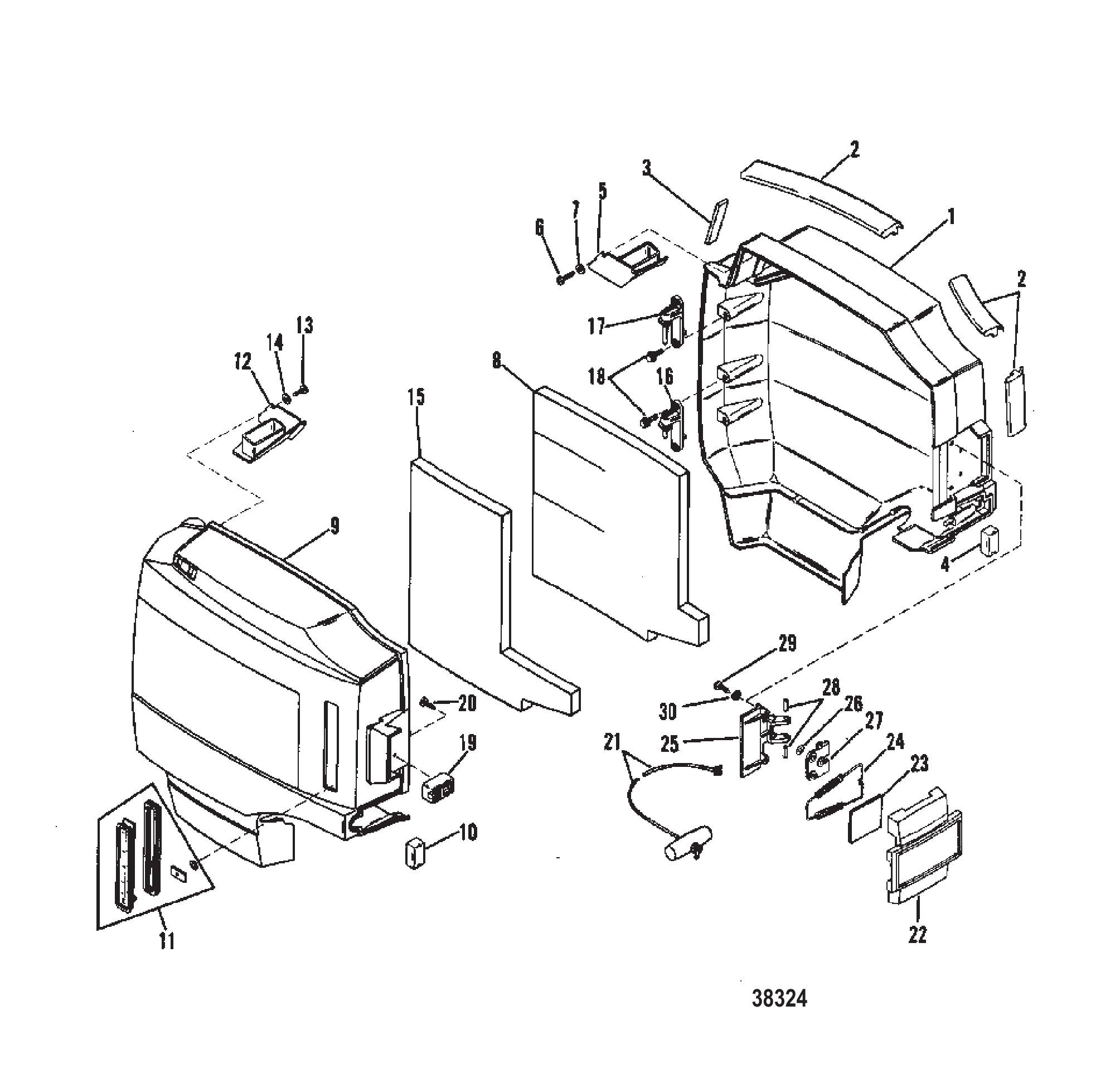

| 1 | 9006A2 | 左舷顶盖总成 | TOP COWL ASSEMBLY PORT | 1 |
| 1 | 9006A3 | 左舷顶盖总成 | TOP COWL ASSEMBLY PORT | 1 |
| 2 | 429404 | 上盖密封条 | SEAL UPPER COWL | 3 |
| 3 | 12401 | 后盖密封条 | SEAL COWL (REAR) | 1 |
| 4 | 90274 | 密封件 | SEAL | 1 |
| 5 | 42958 | 进气口护罩 | SHIELD AIR INLET | 1 |
| 6 | 48409 | 护罩螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel SHIELD | 3 |
| 7 | 4002213 | 护罩螺钉垫圈 | WASHER SHIELD SCREW | 3 |
| 7 | 4002313 | 垫圈 | WASHER | 3 |
| 8 | 435331 | 隔音毯 | SOUND BLANKET | 1 |
| 9 | 9070A1 | 右舷盖总成 | COWL ASSEMBLY STARBOARD | 1 |
| 9 | 9070A4 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 9 | 9070A2 | 右舷盖总成 | COWL ASSEMBLY STARBOARD | 1 |
| 9 | 9070A5 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 9 | 9005A1 | 右舷盖总成 | COWL ASSEMBLY STARBOARD | 1 |
| 9 | 9070A4 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 9 | 9005A2 | 右舷盖总成 | COWL ASSEMBLY STARBOARD | 1 |
| 9 | 9070A5 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 10 | 60297 | 密封件 | SEAL | 1 |
| 11 | 11315A1 | 油位计总成 | OIL LEVEL GAUGE ASSEMBLY | 1 |
| 12 | 42957 | 进气口护罩 | SHIELD AIR INLET | 1 |
| 13 | 48409 | 护罩螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel SHIELD | 3 |
| 14 | 4002213 | 护罩螺钉垫圈 | WASHER SHIELD SCREW | 3 |
| 14 | 4002313 | 垫圈 | WASHER | 3 |
| 15 | 435342 | 隔音毯 | SOUND BLANKET | 1 |
| 16 | 87985 | 下支架 | BRACKET (LOWER) | 2 |
| 16 | 879851 | 支架 | BRACKET | 2 |
| 17 | 87987 | 上支架 | BRACKET (UPPER) | 2 |
| 17 | 879871 | 支架 | BRACKET | 2 |
| 18 | 4009525 | 支架螺钉 | SCREW BRACKET | 8 |
| 18 | 40011149 | 螺钉 (M8 x 25) 不锈钢 | SCREW (M8 x 25) Stainless Steel | 8 |
| 19 | 12081 | 盖锁扣 | LATCH Cowl | 1 |
| 19 | 120811 | 盖锁扣 | LATCH Cowl | 1 |
| 20 | 48409 | 锁扣螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel LATCH | 3 |
| 21 | 47341A1 | 手动/应急启动绳柄套件 | ROPE AND HANDLE KIT Manual/Emergency Start (MANUAL STARTING) | 1 |
| 21 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 22 | 43138A2 | 水星盖总成 | COVER ASSEMBLY MERCURY | 1 |
| 22 | 43138A3 | 水手盖总成 | COVER ASSEMBLY MARINER | 1 |
| 23 | 12356 | 缓冲垫 | BUMPER | 1 |
| 24 | 17288 | 盖弹簧 | SPRING COVER | 1 |
| 25 | 43137A1 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 26 | 434181 | 快速螺母 | SPEED NUT | 3 |
| 27 | 15432 | 支架固定座 | RETAINER BRACKET | 1 |
| 28 | 43134 | 支架销 | PIN BRACKET | 2 |
| 29 | 48409 | 螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel | 4 |
| 30 | 53705 | 垫圈 | WASHER | 4 |
| 30 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 4 |

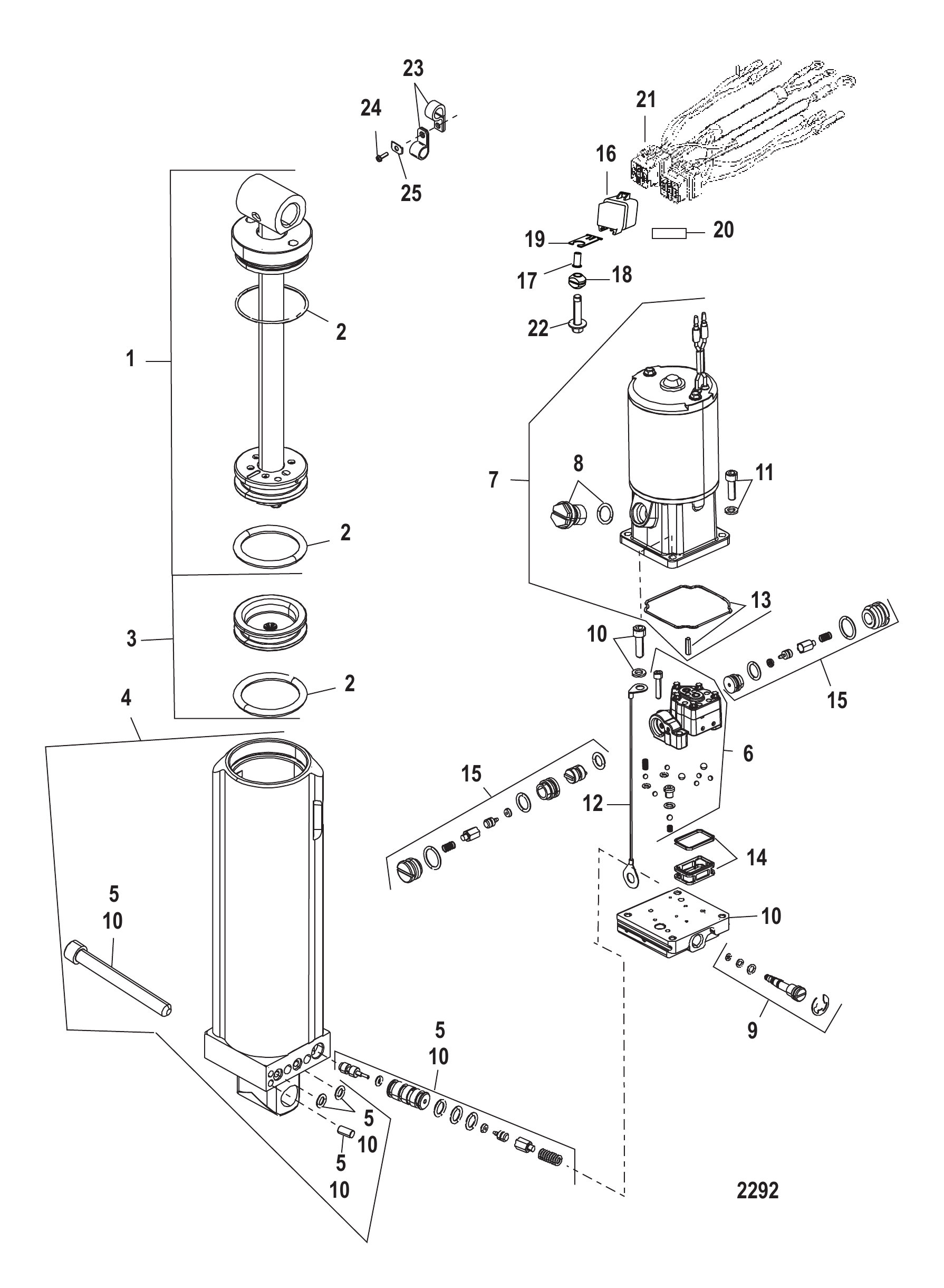

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

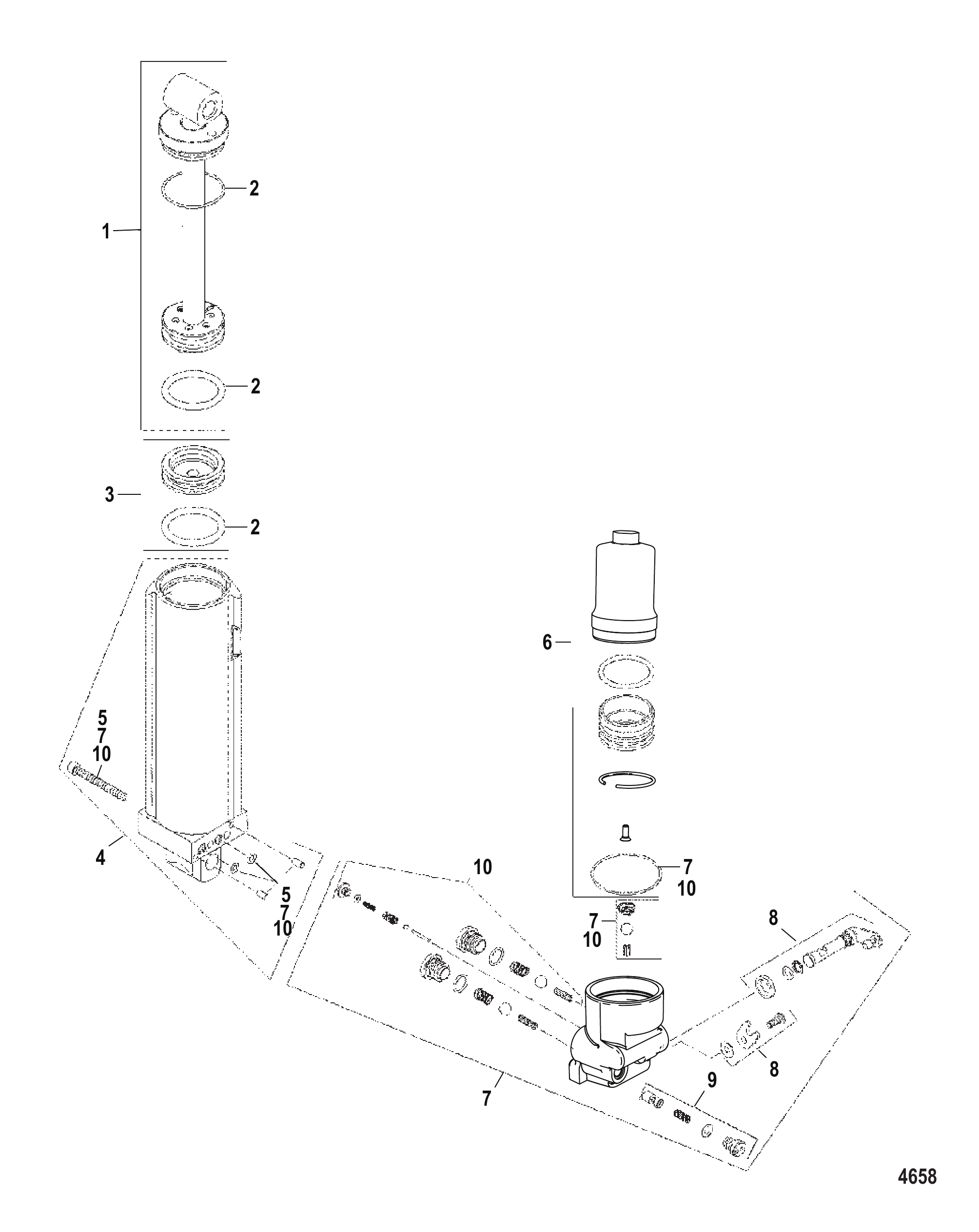

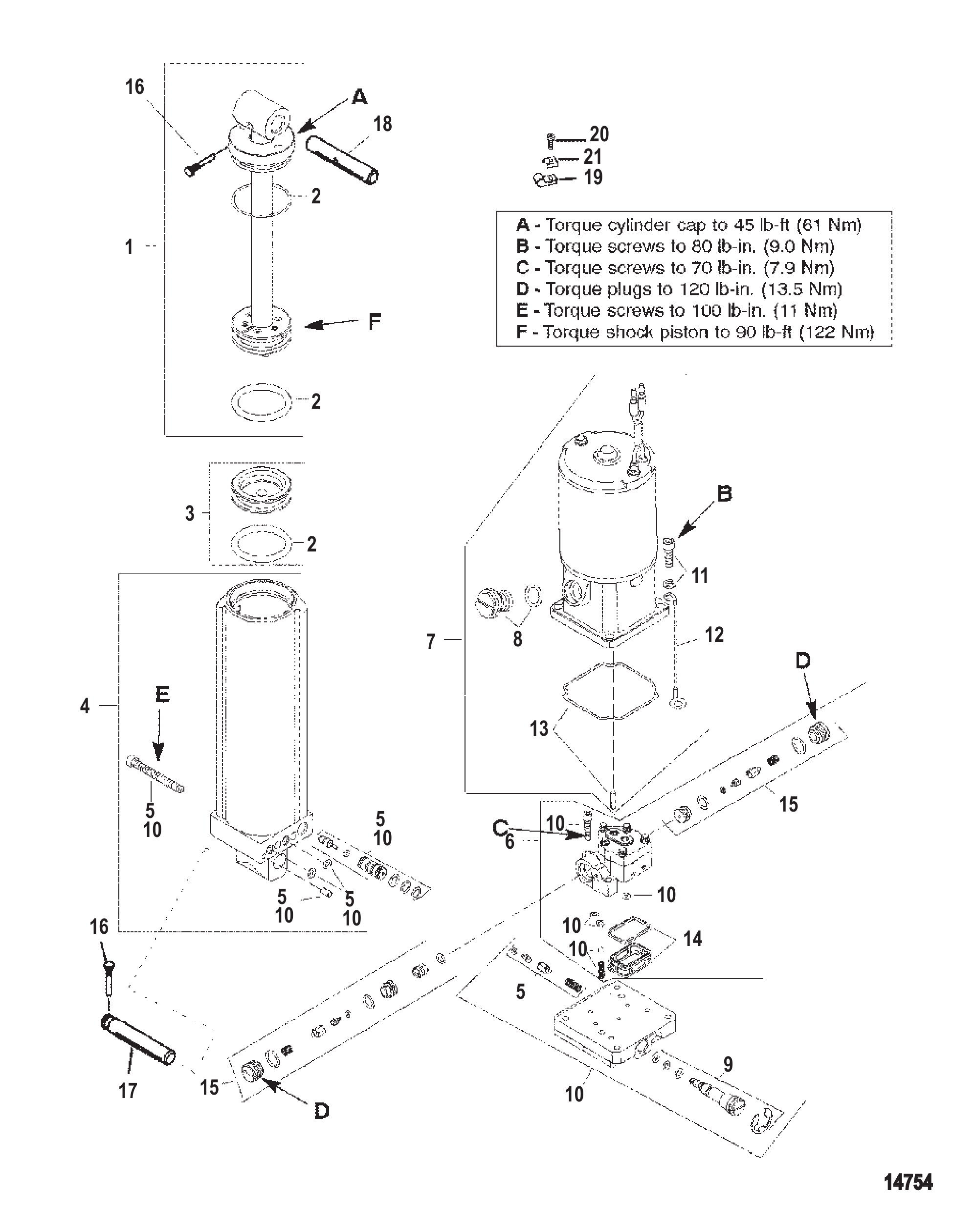

| - | 830250T3 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 1 | 811666A1 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 1 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 2 | 809872A2 | O型圈维修包 | O-RING KIT Rebuild | 1 |
| 2 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 3 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 3 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 4 | 811669A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893916A01 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 5 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 6 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 6 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | 809885A2 | 电机套件 | MOTOR KIT | 1 |
| 7 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 8 | 8134351 | 堵头 | PLUG | 1 |
| 9 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 9 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 10 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 10 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 11 | 809876A1 | 电机螺钉套件 | SCREW KIT Motor | 1 |
| 12 | 88238A18 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 13 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 14 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 14 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 15 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 15 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| - | 809880A1 | 完整配平O型圈套件 | O-RING KIT Complete Trim | 1 |
| - | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| 16 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 17 | 818898 | 锚销 | PIN Anchor | 1 |
| 18 | 996251 | 轴 | SHAFT | 1 |
| 18 | 99625002 | 轴 | SHAFT | 1 |
| 19 | 22740 | 卡扣 | CLIP | 2 |
| 20 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 21 | 69205 | C形垫圈 | C WASHER | 1 |
| 21 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

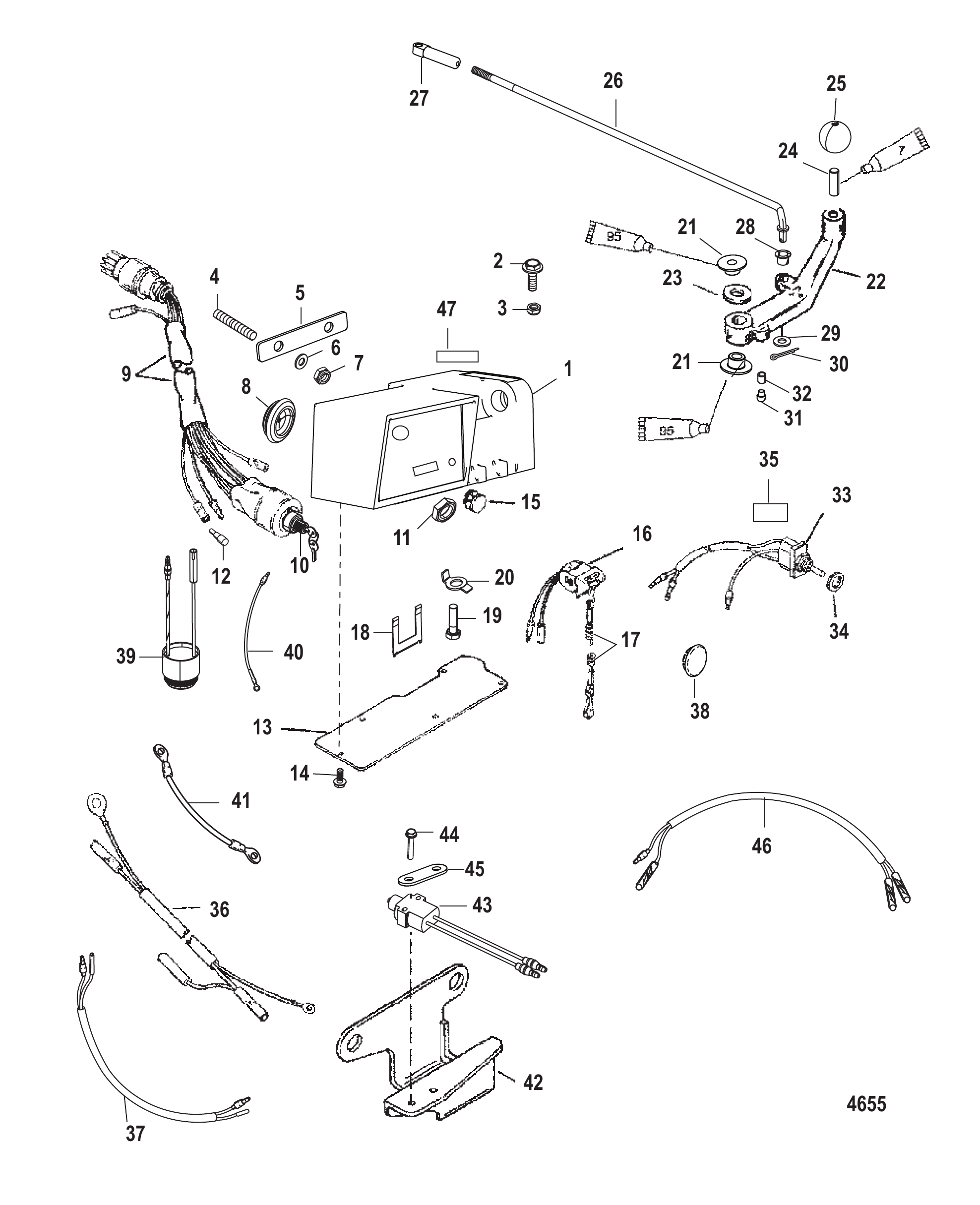

| 1 | 12020T | 转向臂 | ARM Steering | 1 |
| 1 | 12020T6 | 转向臂手柄总成 | HANDLE ASSEMBLY Steering Arm | 1 |
| 2 | 12018A1 | 油门拉线管总成 | TUBE ASSEMBLY Throttle | 1 |
| 3 | 48414 | 壳体 | HOUSING | 1 |
| 4 | 48519 | 安装板 | PLATE | 1 |
| 5 | 48518 | 衬垫 | GASKET | 1 |
| 6 | 72169 | 板用螺钉(#10-24 x 0.500) | SCREW (#10-24 x .500) PLATE | 4 |
| 7 | 12013 | 油门夹 | CLAMP THROTTLE | 1 |
| 8 | 40007112 | 油门夹螺钉(M5 x 40) | SCREW (M5 x 40) THROTTLE CLAMP | 2 |
| 9 | 90052 | 油门夹蝶形螺母 | WING NUT THROTTLE CLAMP SCREW | 1 |
| 10 | 96495A2 | 油门手柄总成 | HANDLE ASSEMBLY Throttle | 1 |
| 11 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 12 | 15823A4 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 13 | 11099A1 | 护套总成 | BOOT ASSEMBLY | 1 |
| 14 | 99589 | 握把 | GRIP | 1 |
| 15 | 26538 | 卡扣 | CLIP | 1 |
| 16 | 72169 | 卡箍螺钉(#10-24 x 0.500) | SCREW (#10-24 x .500) CLIP | 1 |
| 17 | 785512 | 导管 | CONDUIT | 1 |
| 18 | 895661 | 导向管 | GUIDE TUBE | 1 |
| 19 | 89578 | 套筒 | BARREL | 1 |
| 20 | 89601 | 螺钉 | SCREW | 1 |
| 21 | 12019 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 22 | 29880 | 导向拉线 | GUIDE CABLE | 1 |
| 23 | 20007 | 锚定件 | ANCHOR | 1 |
| 24 | 20518 | 紧定螺钉(#8-32) | SET SCREW (#8-32) | 2 |
| 25 | 4000386 | 螺钉(M10 x 100) | SCREW (M10 x 100) | 1 |
| 26 | 48416 | 盖帽 | CAP | 1 |
| 27 | 4002319 | 垫圈 | WASHER | 1 |
| 28 | 12024 | 垫圈(0.402 x 0.787 x 0.039 贝氏) | WASHER (.402 x .787 x .039 Bellevi) | 1 |
| 29 | 14601 | 隔套 | SPACER | 1 |
| 30 | 42992 | 衬套 | BUSHING | 2 |
| 31 | 400204 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8947A7 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8947A8 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8947A19 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 4009680 | 螺钉(M10 x 80)曲轴箱至气缸体 | SCREW (M10 x 80) CRANKCASE TO CYLINDER BLOCK | 8 |
| 3 | 67296 | 销(轴承座圈) | PIN (BEARING RACE) | 3 |
| 4 | 20033 | 定位销 | PIN Dowel LOCATING | 1 |
| 5 | 42884 | 启动器盖(顶部) | COVER STARTER (TOP) | 1 |
| 6 | 76867 | 启动器盖(底部) | COVER STARTER (BOTTOM) | 1 |
| 7 | 4009550 | 启动器盖螺钉 | SCREW STARTER COVER | 4 |
| 8 | 65848 | 提升阀座 | CARRIER POPPET VALVE | 1 |
| 9 | 64872 | 提升阀衬套 | GROMMET POPPET VALVE | 1 |
| 10 | 42657A1 | 曲轴箱止回阀 | CHECK VALVE CRANKCASE | 2 |
| 11 | 42978 | 调节螺钉 | SCREW ADUSTING | 1 |
| 12 | 400202 | 调节螺钉锁紧螺母 | NUT JAM - ADJUSTING SCREW | 1 |
| 13 | 42942 | 调节螺钉帽 | CAP ADJUSTING SCREW | 1 |
| 14 | 42623 | 止回阀(压入式) | CHECK VALVE (PRESS-IN) | 1 |
| 15 | 99130122 | 泄放管(20.00英尺散装) | TUBING (20.00 Feet Bulk) BLEED | 1 |
| 16 | 4011135 | 螺钉(M8 x 1.25 x 35)曲轴箱至气缸体 | SCREW (M8 x 1.25 x 35) CRANKCASE TO CYLINDER BLOCK | 12 |
| 17 | 99162 | 油箱护套 | BOOT OIL TANK | 1 |
| 18 | 9003T | 气缸体盖 | COVER CYLINDER BLOCK | 1 |
| 19 | 430052 | 气缸体盖衬垫 | GASKET CYLINDER BLOCK COVER | 1 |
| 20 | 4011135 | 螺钉(M8 x 1.25 x 35)气缸体盖 | SCREW (M8 x 1.25 x 35) CYLINDER BLOCK COVER | 14 |
| 21 | 47483 | J型夹气缸体盖螺钉 | J CLIP CYLINDER BLOCK COVER SCREW | 4 |
| 22 | 78799 | 温度传感器(19.50英寸) | SENDER Temperature (19.50 Inch) | 1 |
| 23 | 44290 | 温度传感器固定座 | RETAINER TEMPERATURE SENDER | 1 |
| 24 | 48409 | 螺钉(#10-16 x .625)不锈钢固定座 | SCREW (#10-16 x .625) Stainless Steel RETAINER | 2 |
| 25 | 56681 | 垫圈(.203 x .500 x .032)固定螺钉 | WASHER (.203 x .500 x .032) RETAINER SCREW | 2 |
| 26 | 86596 | 提升阀 | POPPET VALVE | 1 |
| 27 | 64877 | 隔膜 | DIAPHRAGM | 1 |
| 28 | 94182 | 垫圈 | WASHER | 1 |
| 29 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 30 | 42996 | 弹簧(不锈钢)压缩-提升阀 | SPRING (Stainless Steel) COMPRESSION - POPPET VALVE | 1 |
| 31 | 75692 | 节温器(143度) | THERMOSTAT (143 DEG.) | 1 |
| 32 | 62386 | 节温器衬垫 | GASKET THERMOSTAT | 1 |
| 33 | 430062 | 节温器盖衬垫 | GASKET THERMOSTAT COVER | 1 |
| 34 | 42885T | 节温器盖 | COVER THERMOSTAT | 1 |
| 35 | 4011135 | 螺钉(M8 x 1.25 x 35)节温器盖 | SCREW (M8 x 1.25 x 35) THERMOSTAT COVER | 5 |
| 36 | 12621 | 非喷油式油垫盖 | COVER OIL PAD NON OIL INJECTION | 1 |
| 37 | 12620 | 非喷油式盖衬垫 | GASKET COVER NON OIL INJECTION | 1 |
| 38 | 40007106 | 螺钉(M5 x 13)非喷油式盖 | SCREW (M5 x 13) COVER NON OIL INJECTION | 2 |
| 39 | 4002314 | 非喷油式盖螺钉垫圈 | WASHER COVER SCREW NON OIL INJECTION | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9011G8 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011G9 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011G60 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 41 | 850035A3 | 前进齿轮套件(29齿) | GEAR KIT Forward (29 TEETH) | 1 |
| 41 | 881260A5 | 小齿轮/前进齿轮总成 | GEAR ASSEMBLY Pinion/Forward | 1 |
| 41 | 850033A2 | 前进齿轮套件(30齿) | GEAR KIT Forward (30 TEETH) | 1 |
| 41 | 859472A3 | 前进齿轮总成-30齿 | GEAR ASSEMBLY Forward - 30 Teeth | 1 |
| 42 | 44491A1 | 垫片组 | SHIM SET | 1 |
| 42 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 43 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 44 | 30895 | 滚针轴承 | BEARING Needle | 1 |
| 44 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 45 | 850315A1 | 凸轮从动件套件 | FOLLOWER KIT Cam | 1 |
| 46 | 44530 | 钢球 | BALL | 3 |
| 47 | 850327 | 弹簧 | SPRING | 1 |
| 48 | 850048 | 离合器 | CLUTCH | 1 |
| 48 | 850048T | 离合器 | CLUTCH | 1 |
| 49 | 30632 | 十字销 | PIN Cross | 1 |
| 49 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 50 | 30893 | 弹簧 | SPRING | 1 |
| 51 | 850308 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 51 | 8M0140445 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 52 | 850036 | 倒车齿轮(29齿) | GEAR Reverse (29 Teeth) | 1 |
| 52 | 850036T | 倒车齿轮-29齿 | GEAR Reverse - 29 Teeth | 1 |
| 52 | 850034 | 倒车齿轮(30齿) | GEAR Reverse (30 Teeth) | 1 |
| 52 | 850034T | 倒车齿轮(30齿) | GEAR Reverse (30 Teeth) | 1 |
| 53 | 12596A2 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 53 | 8M0168901 | 轴承座总成 | CARRIER ASSY. | 1 |
| 54 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 54 | 8M0214974 | O型圈 | O RING | 1 |
| 55 | 30956 | 滚针轴承 | BEARING Needle | 1 |
| 55 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 56 | 70080 | 油封(内) | SEAL Oil (INNER) | 1 |
| 56 | 8M0205728 | 密封件 | SEAL | 1 |
| 57 | 70081 | 油封(外) | SEAL Oil (OUTER) | 1 |
| 57 | 8M0205729 | 密封件 | SEAL | 1 |
| 58 | 12578 | 滚针轴承 | BEARING Needle | 1 |
| 58 | 12578T | 滚柱轴承 | BEARING Roller | 1 |
| 59 | 12577 | 止推垫片 | THRUST WASHER | 1 |
| 60 | 12576 | 推力轴承 | BEARING Thrust | 1 |
| 61 | 429172 | 双头螺柱(M8×48) | STUD (M8 x 48) | 2 |
| 61 | 8M0034456 | 双头螺柱(M8×1.25×48) | STUD (M8 X 1.25 X 48) | 2 |
| 62 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 2 |
| 62 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 63 | 401198 | 螺母 (M8) | NUT (M8) | 2 |
| 63 | 401378 | 螺母 (M8) | NUT (M8) | 2 |
| 64 | 13191A1 | 止推垫片 | THRUST WASHER | 1 |
| 64 | 13191Q01 | 止推垫片 | THRUST WASHER | 1 |
| 65 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 65 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 66 | 816629 | 锁紧垫圈 | TAB WASHER | 1 |
| 66 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 13461A90 | 衬垫套件 | GASKET SET | 1 |
| - | 13461A99 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 88183801 | 零件手册-115EFI(四冲程) | PARTS MANUAL 115 EFI (4-Stroke) Parts Manual | 1 |
| 0 | 881980 | 维修手册 | SERVICE MANUAL | 1 |
| 0 | 881980R03 | SM O/B 115 EFI 4S | SM O/B 115 EFI 4S | 1 |
| 0 | 10225030 | 用户手册 | OWNERS MANUAL | 1 |
| 0 | 858610A31 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| 0 | 8M0038610 | 带注油球的燃油软管总成(9英尺) | HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb | 1 |
| 0 | 880177 | 组合扳手工具(10毫米) | SCRENCH TOOL (10 mm) | 1 |
| 0 | 881828 | 星形头工具套件 | STARBIT TOOL KIT | 1 |
| 0 | 881649A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881649A05 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A05 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881702A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881839A01 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 881839A02 | EPA标签信息贴花 | Decal EPA Label Information | 1 |
| 0 | 881839A03 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 816834A1 | 转速表 | TACHOMETER | 1 |
| 0 | 816932A1 | 温度表 | TEMPERATURE GAUGE | 1 |
| 0 | 86306 | 适配器 | ADAPTER | 1 |
| 0 | 86306A01 | 适配器 | ADAPTER | 1 |
| 0 | 817054A3 | 水压表总成 | GAUGE ASSEMBLY Water Pressure | 1 |
| 0 | 821400A2 | 动力升降倾斜传感器套件 | SENDER KIT Power Trim | 1 |
| 0 | 8M0074845 | ORD 8M0098264 | ORD 8M0098264 | 1 |
| 0 | 92876A8 | 转向安装套件 | ATTACHING KIT Steering | 1 |
| 0 | 92876A9 | 双机延长套件 | EXTENSION KIT Dual Engine | 1 |
| 0 | 883040A1 | 转速表模块套件 | TACH MODULE KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 878587A1 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 2 | 858743A2 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 2 | 8M0113913 | 右舷下罩B | COWL-LOWER STBD B | 1 |
| 3 | 8253181 | 罩盖密封条(41英寸) | SEAL Cowl (41.00 Inches) | 2 |
| 3 | 8M0109217 | 罩盖密封条 | SEAL-COWL | 2 |
| 4 | 878547T | 嵌件 | INSERT | 1 |
| 5 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 8 |
| 6 | 831209 | 固定座 | RETAINER | 1 |
| 7 | 858742 | 怠速排气套 | BOOT Idle Exhaust | 1 |
| 8 | 859251 | 护孔环 | GROMMET | 1 |
| 8 | 8M0039078 | 护孔环 | GROMMET | 1 |
| 9 | 827948 | 接头 | FITTING | 1 |
| 10 | 855576 | 垫圈 | WASHER | 1 |
| 11 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 6 |
| 12 | 830756109 | 软管(57英寸整卷)(裁切至5英寸长度) | HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length) | 1 |
| 12 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 13 | 881535 | 软管(32.00英寸) | HOSE (32.00 Inches) | 1 |
| 14 | 9912688 | 管材(36.00英寸散装)(26.00英寸) | TUBING (36.00 Inches Bulk) (26.00 Inch) | 1 |
| 15 | 817518 | 三通 | TEE | 1 |
| 16 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 2 |
| 17 | 8587411 | 护孔环 | GROMMET | 1 |
| 17 | 889724 | 护孔环 | GROMMET | 1 |
| 18 | 856990 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 18 | 8M0235192 | 微调开关 | SWITCH TRIM | 1 |
| 19 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 1 |
| 20 | 821253F1 | 前手柄黑色 | FRONT HANDLE Black | 1 |
| 20 | 889740A02 | 手柄套件 | HANDLE KIT | 1 |
| 21 | 33589 | 衬套 | BUSHING | 2 |
| 22 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 23 | 8219423 | 棘爪 | PAWL | 1 |
| 24 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 1 |
| 25 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 26 | 13541 | 公插头 | PLUG Male | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 894911 | 点火钥匙(1A) | KEY Ignition (1A) | 1 |
| 0 | 894912 | 点火钥匙(1B) | KEY Ignition (1B) | 1 |
| 0 | 894913 | 点火钥匙(1C) | KEY Ignition (1C) | 1 |
| 0 | 894914 | 点火钥匙(1D) | KEY Ignition (1D) | 1 |
| 0 | 894915 | 点火钥匙(1E) | KEY Ignition (1E) | 1 |
| 0 | 894916 | 点火钥匙(1F) | KEY Ignition (1F) | 1 |
| 0 | 894917 | 点火钥匙(2A) | KEY Ignition (2A) | 1 |
| 0 | 894918 | 点火钥匙(2B) | KEY Ignition (2B) | 1 |
| 0 | 894919 | 点火钥匙(2C) | KEY Ignition (2C) | 1 |
| 0 | 8949110 | 点火钥匙(2D) | KEY Ignition (2D) | 1 |
| 0 | 8949111 | 点火钥匙(2E) | KEY Ignition (2E) | 1 |
| 0 | 8949112 | 点火钥匙(2F) | KEY Ignition (2F) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9012A14 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A24 | 化油器 | CARBURETOR | 1 |
| 1 | 9012A71 | 化油器 | CARBURETOR | 1 |
| 1 | 9012A5 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A17 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 2 | 9012A15 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 2 | 9012A25 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 2 | 9012A72 | 化油器 | CARBURETOR | 1 |
| 2 | 9012A6 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 2 | 9012A18 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 3 | 9012A16 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 3 | 9012A26 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 3 | 9012A73 | 化油器 | CARBURETOR | 1 |
| 3 | 9012A7 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 3 | 9012A19 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 4/5 | 15172 | 化油器衬垫 | GASKET CARBURETOR | 6 |
| 4/5 | 151724 | 衬垫 | GASKET | 6 |
| 6 | 9912846 | 化油器间连接管 | TUBING CARBURETOR TO CARBURETOR | 2 |
| 6 | 9912878 | 软管 (.187) (26.00英寸散装) | HOSE (.187) (26.00 Inches Bulk) | 2 |
| 7 | 73498 | 卡箍 | CLAMP | 4 |
| 7 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 8 | 962558 | 连杆 | LINK ROD | 1 |
| 8 | 8M0084744 | 连接杆 | LINK | 1 |
| 9 | 11399A1 | 臂总成 | ARM ASSEMBLY | 1 |
| 10 | 40057103 | 螺丝(M5 x 6)臂 | SCREW (M5 x 6) ARM | 1 |
| 11 | 56681 | 垫圈(0.203 x 0.500 x 0.032)臂螺丝 | WASHER (.203 x .500 x .032) ARM SCREW | 1 |
| 11 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 12 | 67748 | 滚轮 | ROLLER | 1 |
| 13 | 988861 | 调节连杆 | LINK ADJUSTING | 2 |
| 13 | 98886T01 | 油门调节连杆 | LINK-THRTL ADJUST | 2 |
| 14 | 98887 | 油门连杆 | LINK Throttle | 1 |
| 14 | 98887T | 连接杆 | LINK | 1 |
| 15 | 48409 | 螺丝(#10-16 x 0.625)不锈钢连杆 | SCREW (#10-16 x .625) Stainless Steel LINK | 4 |
| 16 | 42970T | 消音器板总成 | PLATE ASSEMBLY SOUND ATTENUATOR | 1 |
| 16 | 42970A2 | 衰减器板总成 | PLATE ASSEMBLY Attenuator | 1 |
| 17 | 4002217 | 化油器双头螺栓垫圈 | WASHER CARBURETOR STUDS | 6 |
| 18 | 400645 | 化油器双头螺栓螺母 | NUT CARBURETOR STUDS | 6 |
| 18 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 6 |
| 19 | 39519 | 杯形固定器 | CUP RETAINER | 1 |
| 20 | 98889 | 控制线缆锁扣 | LATCH CONTROL CABLE | 1 |
| 21 | 42975 | 锁扣至板驱动螺丝 | DRIVE SCREW LATCH TO PLATE | 2 |
| 22 | 43000 | 消音器盖衬垫 | GASKET ATTENUATOR COVER | 1 |
| 22 | 430001 | 衬垫 | GASKET | 1 |
| 23 | 42969T | 消音器盖 | COVER ATTENUATOR | 1 |
| 23 | 42969A3 | 消音器盖总成 | COVER ASSEMBLY Attenuator | 1 |
| 24 | 48409 | 螺丝(#10-16 x 0.625)不锈钢消音器盖 | SCREW (#10-16 x .625) Stainless Steel ATTENUATOR COVER | 8 |
| 25 | 56681 | 垫圈(0.203 x 0.500 x 0.032)连杆螺丝 | WASHER (.203 x .500 x .032) LINK SCREW | 4 |
| 25 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 4 |
| - | 43004A86 | 衬垫套件 | GASKET SET | |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 99186T | 泵与电机总成 | PUMP AND MOTOR | 1 |
| 1 | 12659 | 机架与磁场套件 | FRAME AND FIELD KIT | 1 |
| 1 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 2 | 12665 | 电刷弹簧套件 | SPRING KIT Brush | 1 |
| 3 | 13506 | 电刷卡套件 | BRUSH CARD KIT | 1 |
| 3 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 4 | 12662 | 泵与端架套件 | PUMP AND END FRAME KIT | 1 |
| 4 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 5 | 12663 | 泵密封套件 | SEAL KIT Pump | 1 |
| 5 | 126631 | 泵密封套件 | SEAL KIT Pump | 1 |
| 6 | 12660 | 端架套件 | END FRAME KIT | 1 |
| 6 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 7 | 12661 | 电枢套件 | ARMATURE KIT | 1 |
| 7 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 8 | 12664 | 贯穿螺栓套件 | THRU BOLT KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 888845T06 | 齿轮箱总成-长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.07:1 | 1 |
| - | 888845T07 | 齿轮箱总成-加长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.07:1 | 1 |
| - | 888845T08 | 齿轮箱总成-长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.33:1 | 1 |
| - | 888845T09 | 齿轮箱总成-加长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.33:1 | 1 |
| 1 | 888845T | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 43043 | 定位销-带孔(0.375x0.625)前部 | PIN Dowel - With Hole (.375 x .625) Front | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 43046 | 注油管 | TUBE Oiler | 1 |
| 4 | 79953Q2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 3 |
| 4 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 3 |
| 5 | 191833 | 密封件 | SEAL | 3 |
| 5 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 3 |
| 6 | 43044 | 定位销-无孔(0.375x0.625)后部 | PIN Dowel - Without Hole (.375 x .625) Rear | 1 |
| 7 | 31640T5 | 平衡鳍板 | TRIM TAB | 1 |
| 7 | 8M0236553 | 平衡鳍板 | TRIM TAB | 1 |
| 8 | 825427 | 不锈钢螺钉(0.437-14x1.250) | SCREW (.437-14 x 1.250) Stainless Steel | 1 |
| 9 | 451761 | 垫圈(.453 x .812 x .105)黑色氧化 | WASHER (.453 x .812 x .105) Black Oxide | 1 |
| 10 | 43040T1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 11 | NSS | 滚针轴承(不单独销售) | NOT SOLD SEPARATE Needle Bearing | 1 |
| 12 | 826134Q | 阳极块 | ANODE | 2 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 15 | NSS | 小齿轮(不单独销售)-前进齿轮套件部件 | NOT SOLD SEPARATE Pinion Gear - Part of Forward Gear Kits | 1 |
| 16 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 17 | 883047A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 18 | 44492A1 | 垫片组 | SHIM SET | 1 |
| 18 | 8M0063265 | 垫片组 | SHIM SET | 1 |
| 19 | 897679T01 | 长型驱动轴总成 | DRIVESHAFT ASSEMBLY Long | 1 |
| 19 | 897680T01 | 驱动轴总成 X加长型 | DRIVESHAFT ASSEMBLY X-Long | 1 |
| 20 | 42461A1 | 套筒/环套件 | SLEEVE/RING KIT | 1 |
| 21 | NSS | 密封环(不单独销售) | NOT SOLD SEPARATE Seal Ring | 1 |
| 22 | 43055A4 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 22 | 8M0113262 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 23 | 430331 | 衬垫 | GASKET | 1 |
| 24 | 430472 | 衬垫 | GASKET | 1 |
| 24 | 8M0214931 | 衬垫 | GASKET | 1 |
| 25 | 43035 | 上部油封 | SEAL Oil Upper | 1 |
| 25 | 8M0245495 | 油封 | OIL SEAL | 1 |
| 26 | 43036 | 下油封 | SEAL Oil Lower | 1 |
| 27 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 28 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 29 | 8172761 | 面板 | FACEPLATE | 1 |
| 29 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 30 | 82684430 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 31 | 430232 | 密封件 | SEAL | 1 |
| 32 | 43037 | 键 | KEY | 1 |
| 32 | 8M0204723 | 键 | KEY | 1 |
| 33 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 34 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 6 |
| 35 | 861415 | 端面密封 | SEAL Face | 1 |
| 35 | 816575A2 | 密封套件 | SEAL KIT | 1 |
| 36 | 884563A00 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | 884565A00 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 37 | 29641 | E型卡环 | E RING | 1 |
| 38 | 43052A4 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 39 | 457101 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 39 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| 40 | 8164641 | 油封 | SEAL Oil | 1 |
| 40 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 41 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 42 | 891637 | 衬套 | BUSHING | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |
| - | 43026Q06 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| - | 881260A3 | 前进齿轮-29齿 | GEAR Forward - 29 Teeth | 1 |
| - | 882813A3 | 前进齿轮与小齿轮套件(28齿) | GEAR KIT Forward And Pinion 28 Teeth | 1 |
| - | 803496T2 | 轴承/油封套件 | BEARING/SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 19662 | 消音器 | ATTENUATOR Sound | 1 |
| 2 | 814776 | 调节螺钉(M6 x 55) | SCREW Adjusting (M6 x 55) | 4 |
| 3 | 815784 | 盖帽 | CAP | 1 |
| 4 | 812889 | 密封件 | SEAL | 3 |
| 5 | 812874 | 消音板 | PLATE Sound Attenuator | 2 |
| 6 | 4000363 | 螺丝(M8 x 100) | SCREW (M8 x 100) | 6 |
| 7 | 821145 | 油门连杆 | LINK Throttle | 1 |
| 7 | 825204T03 | 连接杆 | LINK | 1 |
| 8 | 812883 | 调节连杆 | LINK Adjusting | 2 |
| 9 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 4 |
| 10 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 4 |
| 10 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 4 |
| 11 | 11399A1 | 臂总成 | ARM ASSEMBLY | 1 |
| 12 | 67748 | 滚轮 | ROLLER | 1 |
| 13 | 40056103 | 螺钉 (M5 x 6) | SCREW (M5 x 6) | 1 |
| 14 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 14 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 15 | 9912878 | 软管(.187)(26.00英寸散装)(4-1/4") | HOSE (.187) (26.00 Inches Bulk) (4-1/4") | 2 |
| 16 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 17 | 8144461 | 法兰衬垫 | GASKET Flange | 3 |
| 18 | 8252043 | 油门连杆 | LINK Throttle | 1 |
| 18 | 825204T03 | 连接杆 | LINK | 1 |
| - | 812867A97 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881363T | 盖板 | COVER | 1 |
| 2 | 881364T2 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 2 | 881364T04 | 线束 | HARNESS | 1 |
| 2 | 881364T1 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 2 | 881364T04 | 线束 | HARNESS | 1 |
| 3 | 804291 | 保险丝20安培 | FUSE 20 Ampere | 4 |
| 3 | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| 4 | 80429110 | 30安保险丝 | FUSE 30 Ampere | 4 |
| 4 | 8M0057159 | 30A保险丝 | FUSE-30A | 4 |
| 0 | 891824010 | 保险丝盖 | COVER Fuse | 4 |
| 0 | 891824020 | 保险丝盖 | COVER Fuse | 4 |
| 5 | 804289 | 保险丝拔取器 | PULLER Fuse | 1 |
| 6 | 881362 | 支架 | BRACKET | 1 |
| 7 | 8813511 | 螺钉 | SCREW | 1 |
| 8 | 881352T | 继电器 | RELAY | 1 |
| 8 | 8M0098898 | 继电器 | RELAY | 1 |
| 9 | 82214M | 垫圈 | WASHER | 2 |
| 10 | 881355 | 锁紧垫圈 | LOCKWASHER | 2 |
| 10 | 82212M | 锁紧垫圈 | LOCKWASHER | 2 |
| 11 | 881354 | 螺钉 | SCREW | 2 |
| 11 | 96671M | 螺钉 | SCREW | 2 |
| 12 | 804284 | 护套 | BOOT | 2 |
| 12 | 804284001 | 护套 | BOOT | 2 |
| 13 | 881350T | 继电器 | RELAY | 1 |
| 14 | 881351 | 螺钉 | SCREW | 1 |
| 15 | 881353 | 卡箍 | CLAMP | 1 |
| 16 | 8813511 | 螺钉 | SCREW | 1 |
| 17 | 881359T | 支架 | BRACKET | 1 |
| 17 | 881363A01 | 盖/支架套件 | COVER/BRACKET KIT | 1 |
| 18 | 881361 | 卡箍 | CLAMP | 1 |
| 19 | 881360 | 卡箍 | CLAMP | 1 |
| 20 | 804270 | 螺栓(M6×28) | BOLT (M6 x 28) | 5 |
| 21 | 881304 | 护孔环 | GROMMET | 5 |
| 22 | 82851M | 衬套 | BUSHING | 5 |
| 22 | 804344003 | 轴环 | COLLAR | 5 |
| 23 | 881356T1 | 继电器总成 | RELAY ASSEMBLY | 1 |
| 23 | 882751A3 | 升降继电器套件 | RELAY KIT Trim | 1 |
| 24 | 881357 | 引线 | LEAD WIRE | 1 |
| 25 | 881358 | 盖帽 | CAP | 1 |
| 26 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 27 | 825702 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 27 | 8257021 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 28 | 804604 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 29 | 88439A33 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 30 | 88439A10 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Negative - Battery | 1 |
| 31 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 32 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 32 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 1 |
| 33 | 858723T1 | 适配器/升降线束总成 | HARNESS ASSEMBLY Adapter/Trim | 1 |
| 34 | 858914T1 | 升降马达适配器线束总成 | HARNESS ASSEMBLY Trim Motor Adaptor | 1 |
| 35 | 858740T4 | 遥控适配器线束总成 | HARNESS ASSEMBLY Adapter Assembly Remote | 1 |
| 36 | 92753 | 固定座 | RETAINER | 1 |
| 37 | 859249T1 | 连接器 | CONNECTOR | 1 |
| 38 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 39 | 8272822 | 高压警告标贴 | DECAL Warning High Voltage | 1 |
| 40 | 881865 | 挂档启动警示标贴 | DECAL Caution-Start in Gear Start in Gear | 1 |
| 41 | 828151A2 | 升降继电器套件 | TRIM RELAY KIT | 1 |
| 41 | 882751A3 | 升降继电器套件 | RELAY KIT Trim | 1 |
| 42 | 826802A24 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 43 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 43 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 2 |
| 44 | 818967 | 护孔环 | GROMMET | 1 |
| 44 | 8M0207785 | 护孔环 | GROMMET | 1 |
| 45 | 818968 | 衬套 | BUSHING | 1 |
| 45 | 8M0214955 | 衬套 | BUSHING | 1 |
| 46 | NSS | 标贴(不单独销售) | NOT SOLD SEPARATE Decal | 1 |
| 47 | 828102 | 支架 | BRACKET | 1 |
| 47 | 8M0207771 | 安装支架 | BRACKET Mounting | 1 |
| 48 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 1 |
| 49 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 49 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 2 |
| 50 | 823807 | 衬套 | BUSHING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 99130122 | 泄放管(20.00英尺散装) | TUBING (20.00 Feet Bulk) BLEED | 1 |
| 2 | 59169 | 接头 | FITTING | 4 |
| 2 | 59169003 | 三通接头 | FITTING Tee | 4 |
| 3 | 42698 | 止回阀 (压入式 - 13/16"长) | CHECK VALVE (PRESS-IN - 13/16" LONG) | 7 |
| 3 | 426982 | 止回阀 | CHECK VALVE | 7 |
| 4 | 42623 | 止回阀 (压入式 - 11/16"长) | CHECK VALVE (PRESS-IN - 11/16" LONG) | 1 |
| 4 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 5 | 15133 | 压入式接头 | FITTING (PRESS-IN) | 6 |
| 6 | 56759 | 压入式倒钩接头 | FITTING Barbed (PRESS-IN) | 4 |
| 7 | 15026 | 黄色弯头盖 | CAP ELBOW (YELLOW) | 4 |
| 8 | 18205 | 三通 | TEE | 1 |
| 9 | 9912688 | 管材 (36.00英寸散装) | TUBING (36.00 Inches Bulk) | 1 |
| 10 | 18206 | 滤清器 | FILTER | 1 |
| 10 | 8M0207786 | 滤清器 | FILTER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9001A2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 43011 | 曲轴下球轴承 | BEARING Ball CRANKSHAFT (LOWER) | 1 |
| 2 | 43011T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 93412 | 球轴承挡圈 | RING Retaining BALL BEARING | 1 |
| 4 | 54196A6 | 密封载体总成 | CARRIER ASSEMBLY SEAL | 1 |
| 5 | 65800 | 填料载体 | PACKING CARRIER | 1 |
| 6 | 91800 | 伍德鲁夫驱动键 | KEY Woodruff DRIVE | 2 |
| 7 | 43019A1 | 齿轮总成 | GEAR ASSEMBLY | 1 |
| 8 | 42079A4 | 密封环总成 | RING ASSEMBLY SEALING | 1 |
| 9 | 42943A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 10 | 9009A5 | 活塞总成 | PISTON ASSEMBLY | 3 |
| 10 | 9009T13 | 标准活塞总成 | PISTON ASSY-STD | 3 |
| 10 | 9009A6 | 活塞总成 | PISTON ASSEMBLY | AR |
| 10 | 9009A7 | 活塞总成 | PISTON ASSEMBLY | AR |
| 11 | 52035 | 锁环 | RING Lock | 6 |
| 11 | 857196 | 锁紧环 | LOCK RING | 6 |
| 12 | 96170A12 | 活塞环组 | RING SET Piston | 1 |
| 12 | 96170A3 | 活塞环组 | RING SET Piston | AR |
| 12 | 96170A4 | 活塞环组 | RING SET Piston | AR |
| 13 | 9002A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 13 | 9002A6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 14 | 47247 | 垫圈 | WASHER | 6 |
| 14 | 8M0032839 | 垫片@5 | WASHER @5 | 6 |
| 15 | 88258 | 滚针轴承 | NEEDLE Roller Bearing | 87 |
| 15 | 8M0204715 | 滚针@102 | NEEDLES-BRG @102 | 87 |
| 16 | 43813 | 螺钉 | SCREW | 6 |
| 16 | 94320 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 6 |
| 17 | 43012A1 | 轴承/保持架套件 | BEARING/CAGE KIT | 3 |
| 17 | 8M0235070 | 轴承保持架 | CAGE BEARING | 3 |
| 18 | 43013A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 18 | 43013T3 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 19 | 43993 | 油封 | SEAL Oil | 1 |
| 19 | 8M0214932 | 密封件 | SEAL | 1 |
| 20 | 64067 | O型圈 | O-RING | 1 |
| 20 | 823683 | O型圈(1.989 x .070) | O-RING (1.989 x .070) | 1 |
| - | 43004A86 | 衬垫套件 | GASKET SET | |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead | |
| 0000 | 1 | (70/75) | (70/75) | POWERHEAD ASSEMBLY |
| 0000 | 1 | POWERHEAD ASSEMBLY Complete | ||
| 0000 | 1 | (80) | (80) | POWERHEAD ASSEMBLY |
| 0000 | 1 | POWERHEAD ASSEMBLY Complete | ||
| 0000 | 1 | (90) | (90) | POWERHEAD ASSEMBLY |
| 0000 | 1 | POWERHEAD ASSEMBLY Complete |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 801400150 | 喷泵(黑色) | JET PUMP (BLACK) | 1 |
| - | 801401150 | 喷泵(灰色) | JET PUMP (GRAY) | 1 |
| - | 855766150 | 喷泵 | JET PUMP | 1 |
| 1 | 801411150 | 泵壳 | HOUSING Pump | 1 |
| 1A | 827490 | 润滑油管 | HOSE Lube | 1 |
| 2 | 801414150 | 叶轮 | IMPELLER | 1 |
| 2 | 803984T | 叶轮 | IMPELLER | 1 |
| 3 | 80141290 | 进气壳体 | HOUSING Intake | 1 |
| 3A | 8271883 | 衬套 | LINER | 1 |
| 4 | 801413150 | 驱动轴 | SHAFT Drive | 1 |
| 4A | 8271891 | 套筒 | SLEEVE | 1 |
| 4B | 8271901 | 螺母 | NUT | 1 |
| 5 | 801405875 | 键 | KEY | 1 |
| 6 | 801404875 | 叶轮垫片 | SHIM Impeller | 8 |
| 7 | 801403875 | 锁紧垫圈 | TAB WASHER | 1 |
| 8 | 847568 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 6 |
| 8 | 812618 | 不锈钢螺钉(.312-18 x 1.00)带尼龙垫 | SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch | 6 |
| 9 | 19923088 | 螺钉(.250-20 x .875) | SCREW (.250-20 x .875) | 4 |
| 10 | 19923062 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 2 |
| 11 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 1 |
| 12 | 801410 | 电缆支架 | BRACKET Cable Support | 1 |
| 13 | 67980 | 螺母(.312-18) | NUT (.312-18) | 1 |
| 13 | 82670910 | 不锈钢螺母(.312-18) | NUT (.312-18) Stainless Steel | 1 |
| 14 | 801407 | 定位销 | PIN Dowel | 2 |
| 15 | 78638 | 双头螺柱(.438 x 3.12) | STUD (.438 x 3.12) | 1 |
| 15 | 786382 | 螺柱(.437-14/.437-20 x 3.120) | STUD (.437-14/.437-20 x 3.120) | 1 |
| 16 | 579201 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 16 | 8M0133358 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 17 | 69064 | 螺栓(.312-18 x 2.750) | BOLT (.312-18 x 2.750) | 1 |
| 18 | 30667 | 双头螺栓(.250-20/.250-28×3.125) | STUD (.250-20/.250-28 x 3.125) | 2 |
| 18 | 306671 | 螺柱 | STUD | 2 |
| 19 | 68299 | 不锈钢螺钉(.375-16 x 3.00) | SCREW (.375-16 x 3.00) Stainless Steel | 1 |
| 20 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 1 |
| 20 | 8M0214963 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881422T1 | 气缸体 | CYLINDER BLOCK | 1 |
| 2 | 82364M | 定位销 | PIN Dowel | 10 |
| 3 | 8587321 | 衬垫 | GASKET | 1 |
| 3 | 858732002 | 气缸体衬垫 | GASKET Cylinder Block | 1 |
| 4 | 881423 | 螺栓(M8×55) | BOLT (M8 x 55) | 10 |
| 4 | 8M0101617 | 螺栓 | BOLT | 10 |
| 5 | 804072 | 螺栓 (M10 x 135) | BOLT (M10 x 135) | 10 |
| 6 | 855690 | 护孔环 | GROMMET | 1 |
| 7 | 804073 | 吊环 | LIFTING EYE | 2 |
| 8 | 8257021 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 4 |
| 9 | 825953 | 塞子 (M14 x 12) | PLUG (M14 x 12) | 1 |
| 10 | 81990M | 衬垫 | GASKET | 1 |
| 11 | 822626Q2 | 机油滤清器 | FILTER Oil | 1 |
| 11 | 8M0162830 | 机油滤清器 | FILTER OIL | 1 |
| 12 | 804097 | 螺栓 | BOLT | 1 |
| 13 | 881424T | 外排气罩 | COVER Outer Exhaust | 1 |
| 13 | 881424T02 | 排气盖 | COVER-EXHAUST | 1 |
| 14 | 804076 | 衬垫 | GASKET | 1 |
| 14 | 804076003 | 衬垫 | GASKET | 1 |
| 15 | 881427 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 18 |
| 16 | 881425 | 螺钉 | SCREW | 1 |
| 17 | 881426 | 衬垫 | GASKET | 1 |
| 18 | NSS | 阳极 (不单独销售) | NOT SOLD SEPARATE Anode | 1 |
| 19 | 804086 | 护孔环 | GROMMET | 1 |
| 20 | 804085 | 盖板 | COVER | 1 |
| 20 | 804085A01 | 罩盖/阳极套件 | COVER/ANODE KIT | 1 |
| 21 | 8524741 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 22 | 827207 | 螺栓 (M8 x 25) | BOLT (M8 x 25) | 2 |
| 23 | 804082 | 护孔环 | GROMMET | 1 |
| 24 | 804080 | 压力控制阀 | VALVE Pressure Control | 1 |
| 24 | 804080001 | 阀门 | VALVE | 1 |
| 25 | 804081 | 弹簧 | SPRING | 1 |
| 26 | 804084 | 衬垫 | GASKET | 1 |
| 27 | 804083 | 盖板 | COVER | 1 |
| 27 | 804083001 | 盖板 | COVER | 1 |
| 28 | 881428 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 3 |
| 29 | 804089 | 卡扣 | CLIP | 1 |
| 30 | 804088 | 软管 | HOSE | 1 |
| 31 | 879650 | 卡箍 | CLAMP | 1 |
| 31 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| 32 | 8587331 | 螺柱 | STUD | 6 |
| 33 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 6 |
| 33 | 8M0214963 | 垫圈 | WASHER | 6 |
| 34 | 40140 | 螺母(M10) | NUT (M10) | 6 |
| 35 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 2 |
| 35 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 36 | 881600 | 橡胶盖 | CAP Rubber | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 801400150 | 喷泵(黑色) | JET PUMP (BLACK) | 1 |
| - | 801401150 | 喷泵(灰色) | JET PUMP (GRAY) | 1 |
| - | 855766150 | 喷泵 | JET PUMP | 1 |
| 1 | 801411150 | 泵壳 | HOUSING Pump | 1 |
| 1A | 827490 | 润滑油管 | HOSE Lube | 1 |
| 2 | 801414150 | 叶轮 | IMPELLER | 1 |
| 2 | 803984T | 叶轮 | IMPELLER | 1 |
| 3 | 80141290 | 进气壳体 | HOUSING Intake | 1 |
| 3A | 8271883 | 衬套 | LINER | 1 |
| 4 | 801413150 | 驱动轴 | SHAFT Drive | 1 |
| 4A | 8271891 | 套筒 | SLEEVE | 1 |
| 4B | 8271901 | 螺母 | NUT | 1 |
| 5 | 801405875 | 键 | KEY | 1 |
| 6 | 801404875 | 叶轮垫片 | SHIM Impeller | 8 |
| 7 | 801403875 | 锁紧垫圈 | TAB WASHER | 1 |
| 8 | 847568 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 6 |
| 8 | 812618 | 不锈钢螺钉(.312-18 x 1.00)带尼龙垫 | SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch | 6 |
| 9 | 19923088 | 螺钉(.250-20 x .875) | SCREW (.250-20 x .875) | 4 |
| 10 | 19923062 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 2 |
| 11 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 1 |
| 12 | 801410 | 电缆支架 | BRACKET Cable Support | 1 |
| 13 | 67980 | 螺母(.312-18) | NUT (.312-18) | 1 |
| 13 | 82670910 | 不锈钢螺母(.312-18) | NUT (.312-18) Stainless Steel | 1 |
| 14 | 801407 | 定位销 | PIN Dowel | 2 |
| 15 | 78638 | 双头螺柱(.438 x 3.12) | STUD (.438 x 3.12) | 1 |
| 15 | 786382 | 螺柱(.437-14/.437-20 x 3.120) | STUD (.437-14/.437-20 x 3.120) | 1 |
| 16 | 579201 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 16 | 8M0133358 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 17 | 69064 | 螺栓(.312-18 x 2.750) | BOLT (.312-18 x 2.750) | 1 |
| 18 | 30667 | 双头螺栓(.250-20/.250-28×3.125) | STUD (.250-20/.250-28 x 3.125) | 2 |
| 18 | 306671 | 螺柱 | STUD | 2 |
| 19 | 68299 | 不锈钢螺钉(.375-16 x 3.00) | SCREW (.375-16 x 3.00) Stainless Steel | 1 |
| 20 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 1 |
| 20 | 8M0214963 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 881368T1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| - | 881368T2 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 804314T | 定子 | STATOR | 1 |
| 2 | 804313T | 电枢 | ARMATURE | 1 |
| 3 | 881369T1 | 电刷支架总成 | HOLDER ASSEMBLY Brush | 1 |
| 4 | 804316 | 电刷组 | BRUSH SET | 1 |
| 5 | 804317 | 弹簧 | SPRING | 4 |
| 6 | 881370T | 支架 | BRACKET | 1 |
| 7 | 804337 | 螺钉(M4×16) | SCREW (M4 x 16) | 2 |
| 8 | 804335 | 贯穿螺栓(M6×120) | THRU BOLT (M6 x 120) | 2 |
| 9 | 804321T1 | 齿轮套件 | GEAR KIT | 1 |
| 10 | 804322 | 离合器 | CLUTCH | 1 |
| 11 | 804330 | 垫圈套件 | WASHER KIT | 1 |
| 12 | 804324 | 支架 | BRACKET | 1 |
| 13 | 804326 | 齿圈 | RING GEAR | 1 |
| 14 | 804327 | 衬垫 | GASKET | 1 |
| 15 | 804325 | 轴承 | BEARING | 1 |
| 16 | 804323 | 小齿轮轴 | SHAFT Pinion | 1 |
| 17 | 804329 | 惰轮 | IDLER GEAR | 3 |
| 17 | 804329001 | 惰轮 | GEAR Idler | 3 |
| 18 | 804328 | 支架 | BRACKET | 1 |
| 19 | 804331T | 盖板 | COVER | 1 |
| 20 | 804336 | 螺栓(M6×52) | BOLT (M6 x 52) | 2 |
| 21 | 804319 | 小齿轮 | PINION | 1 |
| 22 | 804320 | 小齿轮止动组 | STOP SET Pinion | 1 |
| 23 | 804332 | 杠杆套件 | LEVER KIT | 1 |
| 24 | 804334 | 盖板 | COVER | 1 |
| 25 | 881371T | 启动继电器 | RELAY Starter | 1 |
| 25 | 881371T1 | 启动继电器 | RELAY Starter | 1 |
| 25 | 881371T1 | 启动继电器 | RELAY Starter | 1 |
| 26 | 804605 | 螺栓(M8×45) | BOLT (M8 x 45) | 3 |
| 27 | 881373 | 接线端子 | TERMINAL | 1 |
| 28 | 881377 | 锁紧垫圈 | LOCKWASHER | 1 |
| 29 | 82382M | 螺母 | NUT | 1 |
| 30 | 881372 | 螺母 | NUT | 1 |
| 31 | 881374 | 盖板 | COVER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9011G8 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 9011G9 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 9011G60 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 43043 | 定位销-带孔(.375 x .625)(前) | PIN Dowel - With Hole (.375 x .625) (FRONT) | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 79953A2 | 螺丝套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) | 2 |
| 3 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 2 |
| 4 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | 1 |
| 4 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 5 | 19183 | 纤维垫圈 | WASHER Fiber | 3 |
| 5 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 3 |
| 6 | 43044 | 定位销-无孔(.375 x .625)(后) | PIN Dowel - Without Hole (.375 x .625) (REAR) | 1 |
| 7 | 316405 | 平衡鳍板 | TRIM TAB | 1 |
| 7 | 8M0236553 | 平衡鳍板 | TRIM TAB | 1 |
| 8 | 825427 | 不锈钢螺钉(0.437-14x1.250) | SCREW (.437-14 x 1.250) Stainless Steel | 1 |
| 9 | 45176 | 垫圈(.453 x .812 x .105)不锈钢 | WASHER (.453 x .812 x .105) Stainless Steel | 1 |
| 10 | 43040A1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 10 | 43040T1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 11 | 43046 | 注油管 | TUBE Oiler | 1 |
| 12 | 826134 | 阳极块 | ANODE | 2 |
| 12 | 826134Q | 阳极块 | ANODE | 2 |
| 13 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 14 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 14 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 15 | 19672 | 小齿轮(同属43-850035A3)(14齿) | GEAR Pinion (ALSO PART OF 43-850035A3)(14 TEETH) | 1 |
| 15 | 881260A5 | 小齿轮/前进齿轮总成 | GEAR ASSEMBLY Pinion/Forward | 1 |
| 15 | 44484 | 小齿轮(13齿)(属43-850033A2) | GEAR Pinion (13 Teeth) (PART OF 43-850033A2) | 1 |
| 15 | 44484T | 小齿轮(13齿) | GEAR Pinion (13 Teeth) | 1 |
| 16 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 17 | 850307 | 换挡凸轮控制 | CAM Shift Control | 1 |
| 18 | 42677A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 18 | 883047A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 19 | 44492A1 | 垫片组 | SHIM SET | 1 |
| 19 | 8M0063265 | 垫片组 | SHIM SET | 1 |
| 20 | 43031A1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 20 | 43032A4 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 21 | 42461A1 | 套筒/环套件 | SLEEVE/RING KIT | 1 |
| 22 | 43055A4 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 22 | 8M0113262 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 23 | 430472 | 衬垫 | GASKET | 1 |
| 23 | 8M0214931 | 衬垫 | GASKET | 1 |
| 24 | 43036 | 油封(下) | SEAL Oil (LOWER) | 1 |
| 25 | 43035 | 油封(上) | SEAL Oil (UPPER) | 1 |
| 25 | 8M0245495 | 油封 | OIL SEAL | 1 |
| 26 | 430331 | 衬垫 | GASKET | 1 |
| 27 | 817277 | 衬垫 | GASKET | 1 |
| 27 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 28 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 29 | 817276 | 面板 | FACEPLATE | 1 |
| 29 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 30 | 8248327 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 30 | 8M0214957 | 螺钉 | SCREW | 4 |
| 31 | 430232 | 密封件 | SEAL | 1 |
| 32 | 43037 | 键 | KEY | 1 |
| 32 | 8M0204723 | 键 | KEY | 1 |
| 33 | 430262 | 叶轮 | IMPELLER | 1 |
| 33 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 34 | 8248326 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 6 |
| 35 | 853906A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 35 | 853908A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | 29641 | E型卡环 | E RING | 1 |
| 37 | 43052A4 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 38 | 45710 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 38 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| 39 | 8164641 | 油封 | SEAL Oil | 1 |
| 39 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 40 | 8248326 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |
| - | 13461A90 | 衬垫套件 | GASKET SET | 1 |
| - | 13461A99 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8947A7 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8947A8 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8947A19 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 4009680 | 螺钉(M10 x 80)曲轴箱至气缸体 | SCREW (M10 x 80) CRANKCASE TO CYLINDER BLOCK | 8 |
| 3 | 67296 | 销(轴承座圈) | PIN (BEARING RACE) | 3 |
| 4 | 20033 | 定位销 | PIN Dowel LOCATING | 1 |
| 5 | 42884 | 启动器盖(顶部) | COVER STARTER (TOP) | 1 |
| 6 | 76867 | 启动器盖(底部) | COVER STARTER (BOTTOM) | 1 |
| 7 | 4009550 | 启动器盖螺钉 | SCREW STARTER COVER | 4 |
| 8 | 65848 | 提升阀座 | CARRIER POPPET VALVE | 1 |
| 9 | 64872 | 提升阀衬套 | GROMMET POPPET VALVE | 1 |
| 10 | 42657A1 | 曲轴箱止回阀 | CHECK VALVE CRANKCASE | 2 |
| 11 | 42978 | 调节螺钉 | SCREW ADUSTING | 1 |
| 12 | 400202 | 调节螺钉锁紧螺母 | NUT JAM - ADJUSTING SCREW | 1 |
| 13 | 42942 | 调节螺钉帽 | CAP ADJUSTING SCREW | 1 |
| 14 | 42623 | 止回阀(压入式) | CHECK VALVE (PRESS-IN) | 1 |
| 15 | 99130122 | 泄放管(20.00英尺散装) | TUBING (20.00 Feet Bulk) BLEED | 1 |
| 16 | 4011135 | 螺钉(M8 x 1.25 x 35)曲轴箱至气缸体 | SCREW (M8 x 1.25 x 35) CRANKCASE TO CYLINDER BLOCK | 12 |
| 17 | 99162 | 油箱护套 | BOOT OIL TANK | 1 |
| 18 | 9003T | 气缸体盖 | COVER CYLINDER BLOCK | 1 |
| 19 | 430052 | 气缸体盖衬垫 | GASKET CYLINDER BLOCK COVER | 1 |
| 20 | 4011135 | 螺钉(M8 x 1.25 x 35)气缸体盖 | SCREW (M8 x 1.25 x 35) CYLINDER BLOCK COVER | 14 |
| 21 | 47483 | J型夹气缸体盖螺钉 | J CLIP CYLINDER BLOCK COVER SCREW | 4 |
| 22 | 78799 | 温度传感器(19.50英寸) | SENDER Temperature (19.50 Inch) | 1 |
| 23 | 44290 | 温度传感器固定座 | RETAINER TEMPERATURE SENDER | 1 |
| 24 | 48409 | 螺钉(#10-16 x .625)不锈钢固定座 | SCREW (#10-16 x .625) Stainless Steel RETAINER | 2 |
| 25 | 56681 | 垫圈(.203 x .500 x .032)固定螺钉 | WASHER (.203 x .500 x .032) RETAINER SCREW | 2 |
| 26 | 86596 | 提升阀 | POPPET VALVE | 1 |
| 27 | 64877 | 隔膜 | DIAPHRAGM | 1 |
| 28 | 94182 | 垫圈 | WASHER | 1 |
| 29 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 30 | 42996 | 弹簧(不锈钢)压缩-提升阀 | SPRING (Stainless Steel) COMPRESSION - POPPET VALVE | 1 |
| 31 | 75692 | 节温器(143度) | THERMOSTAT (143 DEG.) | 1 |
| 32 | 62386 | 节温器衬垫 | GASKET THERMOSTAT | 1 |
| 33 | 430062 | 节温器盖衬垫 | GASKET THERMOSTAT COVER | 1 |
| 34 | 42885T | 节温器盖 | COVER THERMOSTAT | 1 |
| 35 | 4011135 | 螺钉(M8 x 1.25 x 35)节温器盖 | SCREW (M8 x 1.25 x 35) THERMOSTAT COVER | 5 |
| 36 | 12621 | 非喷油式油垫盖 | COVER OIL PAD NON OIL INJECTION | 1 |
| 37 | 12620 | 非喷油式盖衬垫 | GASKET COVER NON OIL INJECTION | 1 |
| 38 | 40007106 | 螺钉(M5 x 13)非喷油式盖 | SCREW (M5 x 13) COVER NON OIL INJECTION | 2 |
| 39 | 4002314 | 非喷油式盖螺钉垫圈 | WASHER COVER SCREW NON OIL INJECTION | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 830250T3 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 1 | 811666A1 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 1 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 2 | 809872A2 | O型圈维修包 | O-RING KIT Rebuild | 1 |
| 2 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 3 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 3 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 4 | 811669A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893916A01 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 5 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 6 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 6 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | 809885A2 | 电机套件 | MOTOR KIT | 1 |
| 7 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 8 | 8134351 | 堵头 | PLUG | 1 |
| 9 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 9 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 10 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 10 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 11 | 809876A1 | 电机螺钉套件 | SCREW KIT Motor | 1 |
| 12 | 88238A18 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 13 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 14 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 14 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 15 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 15 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| - | 809880A1 | 完整配平O型圈套件 | O-RING KIT Complete Trim | 1 |
| - | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| 16 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 17 | 818898 | 锚销 | PIN Anchor | 1 |
| 18 | 996251 | 轴 | SHAFT | 1 |
| 18 | 99625002 | 轴 | SHAFT | 1 |
| 19 | 22740 | 卡扣 | CLIP | 2 |
| 20 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 21 | 69205 | C形垫圈 | C WASHER | 1 |
| 21 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 430042 | 衬垫 | GASKET | 2 |
| 2 | 42879T | 挡板 | PLATE Baffle | 1 |
| 3 | 42878T | 盖板 | COVER | 1 |
| 4 | 4011135 | 螺钉 (M8 x 1.25 x 35) | SCREW (M8 x 1.25 x 35) | 24 |
| 5 | 42881A1 | 换挡拨叉总成 | SHIFT RAIL ASSEMBLY | 1 |
| 6 | 42981 | 锁紧垫圈 | TAB WASHER | 2 |
| 7 | 40001134 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 2 |
| 8 | 98885 | 滑块 | SLIDE | 1 |
| 9 | 42994 | 衬套 | BUSHING | 1 |
| 10 | 29720 | 波形垫圈 | WAVE WASHER | 1 |
| 11 | 24664 | 垫圈 (M4 x 20) | WASHER (M4 x 20) | 1 |
| 12 | 400634 | 螺母 (M6) | NUT (M6) | 1 |
| 13 | 35459 | 垫圈 | WASHER | 1 |
| 14 | 400634 | 螺母 (M6) | NUT (M6) | 1 |
| 15 | 9004A1 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 16 | 42658 | 止回阀 | CHECK VALVE | 1 |
| 17 | 41953 | 密封件 | SEAL | 1 |
| 18 | 89224 | O型圈 | O-RING | 1 |
| 19 | 4009525 | 螺钉 | SCREW | 3 |
| 20 | 430073 | 衬垫 | GASKET | 1 |
| 21 | 40095120 | 动力头螺钉 | SCREW POWERHEAD | 8 |
| 22 | 42967 | 进气歧管 | MANIFOLD Induction | 3 |
| 23 | 42923 | 飞轮罩支架 | BRACKET FLYWHEEL COVER | 1 |
| 24 | 4011135 | 歧管螺钉 (M8 x 1.25 x 35) | SCREW (M8 x 1.25 x 35) MANIFOLD | 8 |
| 25 | 4009540 | 支架与歧管螺钉 | SCREW BRACKET AND MANIFOLD | 3 |
| 26 | 93419 | 飞轮罩螺柱 | STUD FLYWHEEL COVER | 1 |
| 27 | 492211 | 盖螺柱垫圈 | WASHER COVER STUD | 13 |
| 28 | 22887 | 盖螺柱垫圈 | WASHER COVER STUD | 2 |
| 29 | 90052 | 盖螺柱蝶形螺母 | WING NUT COVER STUD | 3 |
| 30 | 42985 | 化油器螺柱 | STUD CARBURETOR | 6 |
| 31 | 99664 | 弯头 | ELBOW | 3 |
| 32 | 9912976 | 油管 | TUBING | 3 |
| 33 | 43288 | 三通 | TEE | 6 |
| 34 | 42963A4 | 簧片阀总成 | REED BLOCK ASSEMBLY | 2 |
| 34 | 42963A5 | 簧片阀总成 | REED BLOCK ASSEMBLY | 2 |
| 35 | 13937 | 簧片阀衬垫 | GASKET REED BLOCK | 1 |
| 36 | 43018A2 | 簧片组 | REED SET | 3 |
| 36 | 43018A1 | 簧片组 | REED SET | 3 |
| 37 | 42924 | 簧片压板 | RETAINER REED | 3 |
| 39 | 4000171 | 簧片阀螺钉 (M6 x 16) | SCREW (M6 x 16) REED TO REED BLOCK | 3 |
| - | 43004A86 | 衬垫套件 | GASKET SET |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828334F1 | 艉板支架 | BRACKET Transom | 1 |
| 2 | 828333A3 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 828333T07 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom - Port | 1 |
| 3 | 98727 | 润滑脂接头 | FITTING Grease | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 99170A2 | 倾斜管套件 | TUBE KIT Tilt | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 5 | 82671327 | 螺母(1.0-14) | NUT (1.0-14) | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 7 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 8 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 54012 | 垫圈(0.530×0.870×0.105不锈钢) | WASHER (.530 x .870 x .105) Stainless Steel | 4 |
| 10 | 8M0204665 | 垫圈(0.530×0.880×0.104 630不锈钢) | WASHER (.530 x .880 x .104) 630 Stainless Steel | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 14 | 821176T1 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 8M0109798 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 15 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 16 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99617 | 销 | PIN | 1 |
| 19 | 893709 | 销 | PIN | 1 |
| 20 | 818771T1 | 锚支架 | BRACKET Anchor | 1 |
| 20 | 8M0086406 | 锚支架 | BRACKET Anchor | 1 |
| 21 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 22 | 4002319 | 垫圈 | WASHER | 6 |
| 23 | 40114 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
| 24 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 25 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 25 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 26 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 26 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9001A2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 43011 | 曲轴滚珠轴承(下) | BEARING Ball Crankshaft, Lower | 1 |
| 2 | 43011T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 93412 | RING Retaining Ball Bearing | 1 | |
| 4A | 54196A6 | 密封座总成(旧设计) | CARRIER ASSEMBLY Seal, Old Design | 1 |
| 5 | 65800 | 密封填料座(旧设计) | PACKING Carrier, Old Design | 1 |
| 4 | 35126 | O型圈(.859 x .139)新设计 | O-RING (.859 x .139) New Design | 1 |
| 6 | 91800 | KEY Woodruff Drive | 2 | |
| 7 | 43019A1 | 齿轮总成 | GEAR ASSEMBLY | 1 |
| 8 | 42079A4 | RING ASSEMBLY Sealing | 1 | |
| 9 | 42943A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 10 | 9009A13 | 活塞总成标准型 | PISTON ASSEMBLY Standard | 3 |
| 10 | 9009T13 | 标准活塞总成 | PISTON ASSY-STD | 3 |
| 10 | 9009A6 | 活塞总成(.015)加大尺寸 | PISTON ASSEMBLY (.015) Oversize | AR |
| 10 | 9009A7 | 活塞总成(.030)加大尺寸 | PISTON ASSEMBLY (.030) Oversize | AR |
| 11 | 52035 | 活塞锁环 | RING Lock Piston | 6 |
| 11 | 857196 | 锁紧环 | LOCK RING | 6 |
| 12 | 96170A12 | 活塞环组标准 | RING SET Piston Standard | 1 |
| 12 | 96170A3 | 活塞环组(.015)加大尺寸 | RING SET Piston (.015) Oversize | AR |
| 12 | 96170A4 | 活塞环组(.030)加大尺寸 | RING SET Piston (.030) Oversize | AR |
| 13 | 9002A4 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 13 | 9002A6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 14 | 47247 | 针阀定位垫圈 | WASHER Needle Locating | 6 |
| 14 | 8M0032839 | 垫片@5 | WASHER @5 | 6 |
| 15 | 88258 | 活塞端滚针轴承 | NEEDLE Roller Bearing Piston End | 87 |
| 15 | 8M0204715 | 滚针@102 | NEEDLES-BRG @102 | 87 |
| 16 | 43813 | 连杆螺钉 | SCREW Connecting Rod | 6 |
| 16 | 94320 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 6 |
| 17 | 43012A1 | 曲轴端轴承/保持架套件 | BEARING/CAGE KIT Crankshaft End | 3 |
| 17 | 8M0235070 | 轴承保持架 | CAGE BEARING | 3 |
| 18 | 43013A1 | 上滚柱轴承总成 | BEARING ASSEMBLY Roller Upper | 1 |
| 18 | 43013T3 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 19 | 43993 | 油封 | SEAL Oil | 1 |
| 19 | 8M0214932 | 密封件 | SEAL | 1 |
| 20 | 64067 | O型圈 | O-RING | 1 |
| 20 | 823683 | O型圈(1.989 x .070) | O-RING (1.989 x .070) | 1 |
| - | 43004A86 | 衬垫套件 | GASKET SET | 1 |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A8 | 齿轮箱总成-标准旋转1.87:1传动比(完整) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE) | 1 |
| 1 | 9148A11 | 齿轮箱总成(基础) | GEAR HOUSING ASSEMBLY (BASIC) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 48 | 78956 | 换挡凸轮 | SHIFT CAM | 1 |
| 48 | 789562 | 换挡凸轮 | SHIFT CAM | 1 |
| 49 | 89594A1 | 凸轮从动件总成 | FOLLOWER ASSEMBLY CAM | 1 |
| 50 | 79911 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 50 | 79911A1 | 杆 | ROD | 1 |
| 51 | 79910 | 压缩弹簧 | SPRING COMPRESSION | 2 |
| 52 | 78910 | 压缩弹簧垫圈 | WASHER COMPRESSION SPRING | 1 |
| 53 | 78906 | PIN SPRING LOCATOR | 1 | |
| 53 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 54 | 47397A1 | 轴承外圈垫片组(.002-3-5-10) | SHIM SET BEARING OUTER RACE (.002-3-5-10) | AR |
| 55 | 78172A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 56 | 44104A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 56 | 44104T2 | 齿轮组 | GEAR SET | 1 |
| 57 | 43999 | 滚子轴承(外径1.308) | BEARING Roller (1.308 O.D.) | 2 |
| 57 | 73363 | 滚子轴承(外径1.313) | BEARING Roller (1.313 O.D.) | 2 |
| 57 | 73363T | 轴承 | BEARING | 2 |
| 58 | 78959 | 棘轮滑动离合器 | RATCHET SLIDING CLUTCH | 1 |
| 58 | 823174T | ORD 8M0100493 | ORD 8M0100493 | 1 |
| 59 | 78905 | 棘轮到螺旋桨轴十字销 | PIN Cross RATCHET TO PROPELLER SHAFT | 1 |
| 59 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 60 | 78909 | 棘轮定位销 | PIN Detent RATCHET | 2 |
| 61 | 78962 | 十字销固定弹簧 | SPRING RETAINING-CROSS PIN | 2 |
| 62 | 94148 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 63 | N.S.S. | 不单独出售(43-44104A2部件) | Not Sold Separate (PART OF 43-44104A2) | 1 |
| 64 | 68100 | 止推环 | RING THRUST | 1 |
| 64 | 681001 | 止推环 | RING Thrust | 1 |
| 65 | 88957A1 | 滚珠轴承-倒档齿轮 | BEARING Ball BALL-REVERSE GEAR | 1 |
| 65 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 66 | 31534 | 轴承座O型圈 | O-RING BEARING CARRIER | 1 |
| 66 | 8M0214920 | O型圈 | O RING | 1 |
| 67 | 43567A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 67 | 43567T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 68 | 30956 | 滚针轴承-轴承座 | BEARING Needle BEARING CARRIER | 1 |
| 68 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 69 | 76868 | 轴承座密封 | SEAL BEARING CARRIER | 2 |
| 69 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 2 |
| 70 | 30281 | 轴承座定位键 | KEY LOCATING-BEARING CARRIER | 1 |
| 71 | 79447 | 齿轮箱盖锁紧垫圈 | TAB WASHER GEAR HOUSING COVER | 1 |
| 72 | 79448 | 齿轮箱固定座 | RETAINER GEAR HOUSING | 1 |
| 72 | 8M2011027 | 固定座 | RETAINER | 1 |
| 73 | 31640A1 | TRIM TAB ASSEMBLY GEAR HOUSING | 1 | |
| 73 | 31640Q4 | 平衡鳍板 | TRIM TAB | 1 |
| 74 | 66024 | 螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4") | SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4") | 1 |
| 75 | 67891 | 填充块 | FILLER BLOCK FILLER BLOCK | 1 |
| 75 | 8M0039169 | 填充块 | FILLER BLOCK | 1 |
| 76 | 34933 | 螺母(.437-20)不锈钢驱动轴壳体螺柱 | NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| 76 | 8M0204653 | 螺母 | NUT | 2 |
| 77 | 65210 | 螺钉(.375-16 x 1.00)齿轮箱 | SCREW (.375-16 x 1.00) GEAR HOUSING | 1 |
| 78 | 13171 | 推力毂 | THRUST HUB | 1 |
| 78 | 835467Q01 | 止推垫片套件 | THRUST WASHER KIT | 1 |
| 79 | 31211A2 | 花键垫圈-螺旋桨螺母 | WASHER Splined SPLINED-PROPELLER NUT | 1 |
| 79 | 31211Q03 | 垫圈总成 | WASHER ASSEMBLY | 1 |
| 80 | 31210 | 螺旋桨螺母锁紧垫圈 | TAB WASHER PROPELLER NUT | 1 |
| 80 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 81 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 81 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 82 | 423511 | 螺旋桨轴齿形锁紧垫圈 | LOCKWASHER Toothed PROPELLER SHAFT | 1 |
| 83 | 45176 | 垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱 | WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 14697A87 | 衬垫套件 | GASKET SET |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9001A3 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 43011 | 下滚珠轴承 | BEARING Ball Lower | 1 |
| 2 | 43011T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 786611 | 耐磨套 | WEAR SLEEVE | 1 |
| 4 | 35126 | O型圈(.859 x .139) | O-RING (.859 x .139) | 1 |
| 5 | 818412A4 | 环组件 | RING ASSEMBLY | 1 |
| 6 | 91800 | 半圆键 | KEY Woodruff | 2 |
| 7 | 43019A1 | 齿轮总成 | GEAR ASSEMBLY | 1 |
| 8 | 43013A1 | 上滚柱轴承总成 | BEARING ASSEMBLY Roller Upper | 1 |
| 8 | 43013T3 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 43993 | 油封 | SEAL Oil | 1 |
| 9 | 8M0214932 | 密封件 | SEAL | 1 |
| 10 | 823683 | O型圈(1.989 x .070) | O-RING (1.989 x .070) | 1 |
| 11 | 42943A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 12 | 815965A4 | 活塞总成标准型 | PISTON ASSEMBLY Standard | 3 |
| 12 | 815965T4 | 活塞总成 | PISTON ASSY | 3 |
| 12 | 815965A5 | 活塞总成(.015)加大尺寸 | PISTON ASSEMBLY (.015) Oversize | AR |
| 12 | 815965A6 | 活塞总成(.030)加大尺寸 | PISTON ASSEMBLY (.030) Oversize | AR |
| 13 | 52035 | 锁环 | RING Lock | 6 |
| 13 | 857196 | 锁紧环 | LOCK RING | 6 |
| 14 | 96170A12 | 活塞环组标准 | RING SET Piston Standard | 1 |
| 14 | 96170A3 | 活塞环组(.015)加大尺寸 | RING SET Piston (.015) Oversize | AR |
| 14 | 96170A4 | 活塞环组(.030)加大尺寸 | RING SET Piston (.030) Oversize | AR |
| 15 | 818846A3 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 15 | 818846T6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 16 | 812876 | 垫圈 | WASHER | 6 |
| 16 | 8M0012298 | 止推垫片 | THRUST WASHER | 6 |
| 17 | 818391 | 滚针轴承 | BEARING Needle | 87 |
| 17 | 8M0214954 | 滚针轴承@200 | BRG-NEEDLE @200 | 87 |
| 18 | 94320 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 6 |
| 19 | 816567A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 3 |
| 19 | 8M0235070 | 轴承保持架 | CAGE BEARING | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 858582T | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 2 | 23784 | 定位销 | PIN Dowel | 7 |
| 3 | 880090 | 接头 | FITTING | 1 |
| 4 | 817519A2 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 2 |
| 5 | 126021 | 护孔环 | GROMMET | 1 |
| 5 | 12602002 | 护孔环 | GROMMET | 1 |
| 6 | 8585831 | 衬垫 | GASKET | 1 |
| 7 | 858572T | 油底壳 | SUMP Oil | 1 |
| 7 | 858572T01 | 油底壳 | SUMP Oil | 1 |
| 8 | 858584A1 | 排气管总成 | TUBE ASSEMBLY Exhaust | 1 |
| 9 | 881295 | O型圈 | O-RING | 1 |
| 10 | 894171 | 护孔环 | GROMMET | 1 |
| 10 | 89417004 | 护孔环 | GROMMET | 1 |
| 11 | 858575 | 水管 | TUBE Water | 1 |
| 11 | 8M0026130 | 水管 | TUBE Water | 1 |
| 11 | 8585751 | 水管 | TUBE Water | 1 |
| 11 | 8M0026129 | 水管 | TUBE Water | 1 |
| 12 | 814080 | 上密封件 | SEAL Upper | 1 |
| 12 | 814080001 | 密封件 | SEAL | 1 |
| 13 | 858571T | 机油吸油管 | TUBE Oil Pick Up | 1 |
| 14 | 859082 | O型圈 | O-RING | 1 |
| 15 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 15 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 16 | 8248327 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 12 |
| 16 | 8M0214957 | 螺钉 | SCREW | 12 |
| 17 | 8596021 | 量油尺 | DIPSTICK | 1 |
| 18 | 48237 | 衬套 | BUSHING | 1 |
| 19 | 858577A2 | 换档轴 | SHIFT SHAFT | 1 |
| 19 | 858577A3 | 换档杆总成 | LEVER ASSY-SHIFT | 1 |
| 20 | 859177A3 | 换挡连杆 | SHIFT LINK | 1 |
| 21 | NSS | 不单独销售衬套 | NOT SOLD SEPARATE Bushing | 1 |
| 22 | 879997 | 换档滑块 | SHIFT SLIDER | 1 |
| 23 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 24 | 813745 | 隔套 | SPACER | 1 |
| 24 | 11289 | 隔套 | SPACER | 1 |
| 25 | 43585 | 联轴器 | COUPLING | 1 |
| 26 | 859746 | 开口销 | COTTER PIN | 2 |
| 27 | 858573 | 密封件 | SEAL | 1 |
| 27 | 8M0039073 | 密封件 | SEAL | 1 |
| 28 | 8288181 | 放油塞 | PLUG Drain | 1 |
| 29 | 828816 | 衬垫 | GASKET | 1 |
| 29 | 8M0204692 | 衬垫@5 | GASKET @5 | 1 |
| 30 | 82483213 | 螺钉(M6 x 60) | SCREW (M6 x 60) | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9012A14 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A24 | 化油器 | CARBURETOR | 1 |
| 1 | 9012A71 | 化油器 | CARBURETOR | 1 |
| 1 | 9012A5 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 9012A17 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 2 | 9012A15 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 2 | 9012A25 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 2 | 9012A72 | 化油器 | CARBURETOR | 1 |
| 2 | 9012A6 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 2 | 9012A18 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 3 | 9012A16 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 3 | 9012A26 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 3 | 9012A73 | 化油器 | CARBURETOR | 1 |
| 3 | 9012A7 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 3 | 9012A19 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 4/5 | 15172 | 化油器衬垫 | GASKET CARBURETOR | 6 |
| 4/5 | 151724 | 衬垫 | GASKET | 6 |
| 6 | 9912846 | 化油器间连接管 | TUBING CARBURETOR TO CARBURETOR | 2 |
| 6 | 9912878 | 软管 (.187) (26.00英寸散装) | HOSE (.187) (26.00 Inches Bulk) | 2 |
| 7 | 73498 | 卡箍 | CLAMP | 4 |
| 7 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 8 | 962558 | 连杆 | LINK ROD | 1 |
| 8 | 8M0084744 | 连接杆 | LINK | 1 |
| 9 | 11399A1 | 臂总成 | ARM ASSEMBLY | 1 |
| 10 | 40057103 | 螺丝(M5 x 6)臂 | SCREW (M5 x 6) ARM | 1 |
| 11 | 56681 | 垫圈(0.203 x 0.500 x 0.032)臂螺丝 | WASHER (.203 x .500 x .032) ARM SCREW | 1 |
| 11 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 12 | 67748 | 滚轮 | ROLLER | 1 |
| 13 | 988861 | 调节连杆 | LINK ADJUSTING | 2 |
| 13 | 98886T01 | 油门调节连杆 | LINK-THRTL ADJUST | 2 |
| 14 | 98887 | 油门连杆 | LINK Throttle | 1 |
| 14 | 98887T | 连接杆 | LINK | 1 |
| 15 | 48409 | 螺丝(#10-16 x 0.625)不锈钢连杆 | SCREW (#10-16 x .625) Stainless Steel LINK | 4 |
| 16 | 42970T | 消音器板总成 | PLATE ASSEMBLY SOUND ATTENUATOR | 1 |
| 16 | 42970A2 | 衰减器板总成 | PLATE ASSEMBLY Attenuator | 1 |
| 17 | 4002217 | 化油器双头螺栓垫圈 | WASHER CARBURETOR STUDS | 6 |
| 18 | 400645 | 化油器双头螺栓螺母 | NUT CARBURETOR STUDS | 6 |
| 18 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 6 |
| 19 | 39519 | 杯形固定器 | CUP RETAINER | 1 |
| 20 | 98889 | 控制线缆锁扣 | LATCH CONTROL CABLE | 1 |
| 21 | 42975 | 锁扣至板驱动螺丝 | DRIVE SCREW LATCH TO PLATE | 2 |
| 22 | 43000 | 消音器盖衬垫 | GASKET ATTENUATOR COVER | 1 |
| 22 | 430001 | 衬垫 | GASKET | 1 |
| 23 | 42969T | 消音器盖 | COVER ATTENUATOR | 1 |
| 23 | 42969A3 | 消音器盖总成 | COVER ASSEMBLY Attenuator | 1 |
| 24 | 48409 | 螺丝(#10-16 x 0.625)不锈钢消音器盖 | SCREW (#10-16 x .625) Stainless Steel ATTENUATOR COVER | 8 |
| 25 | 56681 | 垫圈(0.203 x 0.500 x 0.032)连杆螺丝 | WASHER (.203 x .500 x .032) LINK SCREW | 4 |
| 25 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 4 |
| - | 43004A86 | 衬垫套件 | GASKET SET | |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 878587A1 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 2 | 858743A2 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 2 | 8M0113913 | 右舷下罩B | COWL-LOWER STBD B | 1 |
| 3 | 8253181 | 罩盖密封条(41英寸) | SEAL Cowl (41.00 Inches) | 2 |
| 3 | 8M0109217 | 罩盖密封条 | SEAL-COWL | 2 |
| 4 | 878547T | 嵌件 | INSERT | 1 |
| 5 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 8 |
| 6 | 831209 | 固定座 | RETAINER | 1 |
| 7 | 858742 | 怠速排气套 | BOOT Idle Exhaust | 1 |
| 8 | 859251 | 护孔环 | GROMMET | 1 |
| 8 | 8M0039078 | 护孔环 | GROMMET | 1 |
| 9 | 827948 | 接头 | FITTING | 1 |
| 10 | 855576 | 垫圈 | WASHER | 1 |
| 11 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 6 |
| 12 | 830756109 | 软管(57英寸整卷)(裁切至5英寸长度) | HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length) | 1 |
| 12 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 13 | 881535 | 软管(32.00英寸) | HOSE (32.00 Inches) | 1 |
| 14 | 9912688 | 管材(36.00英寸散装)(26.00英寸) | TUBING (36.00 Inches Bulk) (26.00 Inch) | 1 |
| 15 | 817518 | 三通 | TEE | 1 |
| 16 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 2 |
| 17 | 8587411 | 护孔环 | GROMMET | 1 |
| 17 | 889724 | 护孔环 | GROMMET | 1 |
| 18 | 856990 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 18 | 8M0235192 | 微调开关 | SWITCH TRIM | 1 |
| 19 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 1 |
| 20 | 821253F1 | 前手柄黑色 | FRONT HANDLE Black | 1 |
| 20 | 889740A02 | 手柄套件 | HANDLE KIT | 1 |
| 21 | 33589 | 衬套 | BUSHING | 2 |
| 22 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 23 | 8219423 | 棘爪 | PAWL | 1 |
| 24 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 1 |
| 25 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 26 | 13541 | 公插头 | PLUG Male | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821889A51 | 转速限制器 | REV LIMITER | 1 |
| 2 | 823147A7 | 转速限制器线束总成 | HARNESS ASSEMBLY Rev Limiter | 1 |
| 3 | 11149A8 | 适配器线束总成 | HARNESS ASSEMBLY Adapter | 1 |
| 4 | 82130050 | 螺钉(M6 x 50) | SCREW (M6 x 50) | 2 |
| 5 | 30500A2 | 润滑脂套装 | GREASE KIT | 1 |
| 5 | 30500K2 | 注脂枪与润滑剂 | GUN AND LUBE | 1 |
| 6 | 430331 | 衬垫 | GASKET | 1 |
| 7 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 8 | 817277 | 衬垫 | GASKET | 1 |
| 8 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 9 | 817276 | 面板 | FACEPLATE | 1 |
| 9 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 10 | 82684430 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 11 | 430232 | 密封件 | SEAL | 1 |
| 12 | 43037 | 键 | KEY | 1 |
| 12 | 8M0204723 | 键 | KEY | 1 |
| 13 | 430262 | 叶轮 | IMPELLER | 1 |
| 13 | 43026T2 | 叶轮 | IMPELLER | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |
| - | 13461A90 | 衬垫套件 | GASKET SET | 1 |
| - | 13461A99 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 66015 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 90643 | 驱动套件 | DRIVE KIT | 1 |
| 2 | 68575 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 3 | 75660 | 驱动端板 | PLATE DRIVE END | 1 |
| 4 | 75385 | 贯穿螺栓 | BOLT THRU | 2 |
| 6 | 75386 | 电枢 | ARMATURE | 1 |
| 7 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 57387 | 绝缘衬套 | BUSHING INSULATING | 1 |
| 9 | 38013 | 输入柱垫圈 | WASHER INPUT STUD | 1 |
| 10 | 26992 | 不锈钢输入柱锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel INPUT STUD | 1 |
| 11 | 20890 | 输入柱螺母(.250-20) | NUT (.250-20) INPUT STUD | 1 |
| 12 | 61787 | 电刷架 | HOLDER BRUSH | 2 |
| 13 | 68586 | 电刷及支架螺钉 | SCREW BRUSH AND HOLDER | 2 |
| 14 | 75383 | 换向器端盖 | END CAP COMMUTATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 430042 | 衬垫 | GASKET | 2 |
| 2 | 42879T | 挡板 | PLATE Baffle | 1 |
| 3 | 42878T | 盖板 | COVER | 1 |
| 4 | 4011135 | 螺钉 (M8 x 1.25 x 35) | SCREW (M8 x 1.25 x 35) | 24 |
| 5 | 42881A1 | 换挡拨叉总成 | SHIFT RAIL ASSEMBLY | 1 |
| 6 | 42981 | 锁紧垫圈 | TAB WASHER | 2 |
| 7 | 40001134 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 2 |
| 8 | 98885 | 滑块 | SLIDE | 1 |
| 9 | 42994 | 衬套 | BUSHING | 1 |
| 10 | 29720 | 波形垫圈 | WAVE WASHER | 1 |
| 11 | 24664 | 垫圈 (M4 x 20) | WASHER (M4 x 20) | 1 |
| 12 | 400634 | 螺母 (M6) | NUT (M6) | 1 |
| 13 | 35459 | 垫圈 | WASHER | 1 |
| 14 | 400634 | 螺母 (M6) | NUT (M6) | 1 |
| 15 | 9004A1 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 16 | 42658 | 止回阀 | CHECK VALVE | 1 |
| 17 | 41953 | 密封件 | SEAL | 1 |
| 18 | 89224 | O型圈 | O-RING | 1 |
| 19 | 4009525 | 螺钉 | SCREW | 3 |
| 20 | 430073 | 衬垫 | GASKET | 1 |
| 21 | 40095120 | 动力头螺钉 | SCREW POWERHEAD | 8 |
| 22 | 42967 | 进气歧管 | MANIFOLD Induction | 3 |
| 23 | 42923 | 飞轮罩支架 | BRACKET FLYWHEEL COVER | 1 |
| 24 | 4011135 | 歧管螺钉 (M8 x 1.25 x 35) | SCREW (M8 x 1.25 x 35) MANIFOLD | 8 |
| 25 | 4009540 | 支架与歧管螺钉 | SCREW BRACKET AND MANIFOLD | 3 |
| 26 | 93419 | 飞轮罩螺柱 | STUD FLYWHEEL COVER | 1 |
| 27 | 492211 | 盖螺柱垫圈 | WASHER COVER STUD | 13 |
| 28 | 22887 | 盖螺柱垫圈 | WASHER COVER STUD | 2 |
| 29 | 90052 | 盖螺柱蝶形螺母 | WING NUT COVER STUD | 3 |
| 30 | 42985 | 化油器螺柱 | STUD CARBURETOR | 6 |
| 31 | 99664 | 弯头 | ELBOW | 3 |
| 32 | 9912976 | 油管 | TUBING | 3 |
| 33 | 43288 | 三通 | TEE | 6 |
| 34 | 42963A4 | 簧片阀总成 | REED BLOCK ASSEMBLY | 2 |
| 34 | 42963A5 | 簧片阀总成 | REED BLOCK ASSEMBLY | 2 |
| 35 | 13937 | 簧片阀衬垫 | GASKET REED BLOCK | 1 |
| 36 | 43018A2 | 簧片组 | REED SET | 3 |
| 36 | 43018A1 | 簧片组 | REED SET | 3 |
| 37 | 42924 | 簧片压板 | RETAINER REED | 3 |
| 39 | 4000171 | 簧片阀螺钉 (M6 x 16) | SCREW (M6 x 16) REED TO REED BLOCK | 3 |
| - | 43004A86 | 衬垫套件 | GASKET SET |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9006A2 | 左舷顶盖总成 | TOP COWL ASSEMBLY PORT | 1 |
| 1 | 9006A3 | 左舷顶盖总成 | TOP COWL ASSEMBLY PORT | 1 |
| 2 | 429404 | 上盖密封条 | SEAL UPPER COWL | 3 |
| 3 | 12401 | 后盖密封条 | SEAL COWL (REAR) | 1 |
| 4 | 90274 | 密封件 | SEAL | 1 |
| 5 | 42958 | 进气口护罩 | SHIELD AIR INLET | 1 |
| 6 | 48409 | 护罩螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel SHIELD | 3 |
| 7 | 4002213 | 护罩螺钉垫圈 | WASHER SHIELD SCREW | 3 |
| 7 | 4002313 | 垫圈 | WASHER | 3 |
| 8 | 435331 | 隔音毯 | SOUND BLANKET | 1 |
| 9 | 9070A1 | 右舷盖总成 | COWL ASSEMBLY STARBOARD | 1 |
| 9 | 9070A4 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 9 | 9070A2 | 右舷盖总成 | COWL ASSEMBLY STARBOARD | 1 |
| 9 | 9070A5 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 9 | 9005A1 | 右舷盖总成 | COWL ASSEMBLY STARBOARD | 1 |
| 9 | 9070A4 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 9 | 9005A2 | 右舷盖总成 | COWL ASSEMBLY STARBOARD | 1 |
| 9 | 9070A5 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 10 | 60297 | 密封件 | SEAL | 1 |
| 11 | 11315A1 | 油位计总成 | OIL LEVEL GAUGE ASSEMBLY | 1 |
| 12 | 42957 | 进气口护罩 | SHIELD AIR INLET | 1 |
| 13 | 48409 | 护罩螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel SHIELD | 3 |
| 14 | 4002213 | 护罩螺钉垫圈 | WASHER SHIELD SCREW | 3 |
| 14 | 4002313 | 垫圈 | WASHER | 3 |
| 15 | 435342 | 隔音毯 | SOUND BLANKET | 1 |
| 16 | 87985 | 下支架 | BRACKET (LOWER) | 2 |
| 16 | 879851 | 支架 | BRACKET | 2 |
| 17 | 87987 | 上支架 | BRACKET (UPPER) | 2 |
| 17 | 879871 | 支架 | BRACKET | 2 |
| 18 | 4009525 | 支架螺钉 | SCREW BRACKET | 8 |
| 18 | 40011149 | 螺钉 (M8 x 25) 不锈钢 | SCREW (M8 x 25) Stainless Steel | 8 |
| 19 | 12081 | 盖锁扣 | LATCH Cowl | 1 |
| 19 | 120811 | 盖锁扣 | LATCH Cowl | 1 |
| 20 | 48409 | 锁扣螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel LATCH | 3 |
| 21 | 47341A1 | 手动/应急启动绳柄套件 | ROPE AND HANDLE KIT Manual/Emergency Start (MANUAL STARTING) | 1 |
| 21 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 22 | 43138A2 | 水星盖总成 | COVER ASSEMBLY MERCURY | 1 |
| 22 | 43138A3 | 水手盖总成 | COVER ASSEMBLY MARINER | 1 |
| 23 | 12356 | 缓冲垫 | BUMPER | 1 |
| 24 | 17288 | 盖弹簧 | SPRING COVER | 1 |
| 25 | 43137A1 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 26 | 434181 | 快速螺母 | SPEED NUT | 3 |
| 27 | 15432 | 支架固定座 | RETAINER BRACKET | 1 |
| 28 | 43134 | 支架销 | PIN BRACKET | 2 |
| 29 | 48409 | 螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel | 4 |
| 30 | 53705 | 垫圈 | WASHER | 4 |
| 30 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 12020T | 黑色转向臂 | ARM Steering Black | 1 |
| 1 | 12020T6 | 灰色转向臂手柄总成 | HANDLE ASSEMBLY Steering Arm Gray | 1 |
| 2 | 12018A1 | 油门拉线管总成 | TUBE ASSEMBLY Throttle | 1 |
| 3 | 48414 | 壳体 | HOUSING | 1 |
| 4 | 48519 | 安装板 | PLATE | 1 |
| 5 | 48518 | 衬垫 | GASKET | 1 |
| 6 | 72169 | SCREW (#10-24 x .500) Plate | 4 | |
| 7 | 12013 | CLAMP Throttle | 1 | |
| 8 | 40007112 | SCREW (M5 x 40) Throttle Clamp | 2 | |
| 9 | 90052 | WING NUT Throttle Clamp Screw | 1 | |
| 10 | 96495A2 | 油门手柄总成 | HANDLE ASSEMBLY Throttle | 1 |
| 11 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 12 | 15823A4 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 13 | 11099A1 | 护套总成 | BOOT ASSEMBLY | 1 |
| 14 | 99589 | 握把 | GRIP | 1 |
| 15 | 26538 | 卡扣 | CLIP | 1 |
| 16 | 72169 | SCREW (#10-24 x .500) Clip | 1 | |
| 17 | 785512 | 导管 | CONDUIT | 1 |
| 18 | 895661 | 导向管 | GUIDE TUBE | 1 |
| 19 | 89578 | 套筒 | BARREL | 1 |
| 20 | 89601 | 螺钉 | SCREW | 1 |
| 21 | 12019 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 22 | 43433 | 电缆导向器 | GUIDE Cable | 1 |
| 23 | 20007 | 锚定件 | ANCHOR | 1 |
| 24 | 20518 | 紧定螺钉(#8-32) | SET SCREW (#8-32) | 2 |
| 25 | 4000386 | 螺钉(M10 x 100) | SCREW (M10 x 100) | 1 |
| 26 | 48416 | 盖帽 | CAP | 1 |
| 27 | 4002319 | 垫圈 | WASHER | 1 |
| 28 | 12024 | 垫圈(0.402 x 0.787 x 0.039 贝氏) | WASHER (.402 x .787 x .039 Bellevi) | 1 |
| 29 | 14601 | 隔套 | SPACER | 1 |
| 30 | 42992 | 衬套 | BUSHING | 2 |
| 31 | 400204 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9001A3 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 43011 | 球轴承(下部) | BEARING Ball (LOWER) | 1 |
| 2 | 43011T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 786611 | 耐磨套 | WEAR SLEEVE | 1 |
| 4 | 35126 | O型圈(.859 x .139) | O-RING (.859 x .139) | 1 |
| 5 | 818412A4 | 环组件 | RING ASSEMBLY | 1 |
| 6 | 91800 | 半圆键 | KEY Woodruff | 2 |
| 7 | 43019A1 | 齿轮总成 | GEAR ASSEMBLY | 1 |
| 8 | 43013A1 | 滚子轴承总成(上部) | BEARING ASSEMBLY Roller (UPPER) | 1 |
| 8 | 43013T3 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 43993 | 油封 | SEAL Oil | 1 |
| 9 | 8M0214932 | 密封件 | SEAL | 1 |
| 10 | 64067 | O型圈 | O-RING | 1 |
| 10 | 823683 | O型圈(1.989 x .070) | O-RING (1.989 x .070) | 1 |
| 11 | 42943A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 12 | 815965A4 | 活塞总成 | PISTON ASSEMBLY | 3 |
| 12 | 815965T4 | 活塞总成 | PISTON ASSY | 3 |
| 12 | 815965A5 | 活塞总成 | PISTON ASSEMBLY | AR |
| 12 | 815965A6 | 活塞总成 | PISTON ASSEMBLY | AR |
| 13 | 52035 | 锁环 | RING Lock | 6 |
| 13 | 857196 | 锁紧环 | LOCK RING | 6 |
| 14 | 96170A12 | 活塞环组 | RING SET Piston | 1 |
| 14 | 96170A3 | 活塞环组 | RING SET Piston | AR |
| 14 | 96170A4 | 活塞环组 | RING SET Piston | AR |
| 15 | 818846A3 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 15 | 818846T6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 16 | 812876 | 垫圈 | WASHER | 6 |
| 16 | 8M0012298 | 止推垫片 | THRUST WASHER | 6 |
| 17 | 818391 | 滚针轴承 | BEARING Needle | 87 |
| 17 | 8M0214954 | 滚针轴承@200 | BRG-NEEDLE @200 | 87 |
| 18 | 94320 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 6 |
| 19 | 816567A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 3 |
| 19 | 8M0235070 | 轴承保持架 | CAGE BEARING | 3 |
| 0000 | 1 | (70/75) | (70/75) | POWERHEAD ASSEMBLY |
| 0000 | 1 | POWERHEAD ASSEMBLY Complete | ||
| 0000 | 1 | (80) | (80) | POWERHEAD ASSEMBLY |
| 0000 | 1 | POWERHEAD ASSEMBLY Complete | ||
| 0000 | 1 | (90) | (90) | POWERHEAD ASSEMBLY |
| 0000 | 1 | POWERHEAD ASSEMBLY Complete |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 858582T | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 2 | 23784 | 定位销 | PIN Dowel | 7 |
| 3 | 880090 | 接头 | FITTING | 1 |
| 4 | 817519A2 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 2 |
| 5 | 126021 | 护孔环 | GROMMET | 1 |
| 5 | 12602002 | 护孔环 | GROMMET | 1 |
| 6 | 8585831 | 衬垫 | GASKET | 1 |
| 7 | 858572T | 油底壳 | SUMP Oil | 1 |
| 7 | 858572T01 | 油底壳 | SUMP Oil | 1 |
| 8 | 858584A1 | 排气管总成 | TUBE ASSEMBLY Exhaust | 1 |
| 9 | 881295 | O型圈 | O-RING | 1 |
| 10 | 894171 | 护孔环 | GROMMET | 1 |
| 10 | 89417004 | 护孔环 | GROMMET | 1 |
| 11 | 858575 | 水管 | TUBE Water | 1 |
| 11 | 8M0026130 | 水管 | TUBE Water | 1 |
| 11 | 8585751 | 水管 | TUBE Water | 1 |
| 11 | 8M0026129 | 水管 | TUBE Water | 1 |
| 12 | 814080 | 上密封件 | SEAL Upper | 1 |
| 12 | 814080001 | 密封件 | SEAL | 1 |
| 13 | 858571T | 机油吸油管 | TUBE Oil Pick Up | 1 |
| 14 | 859082 | O型圈 | O-RING | 1 |
| 15 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 15 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 16 | 8248327 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 12 |
| 16 | 8M0214957 | 螺钉 | SCREW | 12 |
| 17 | 8596021 | 量油尺 | DIPSTICK | 1 |
| 18 | 48237 | 衬套 | BUSHING | 1 |
| 19 | 858577A2 | 换档轴 | SHIFT SHAFT | 1 |
| 19 | 858577A3 | 换档杆总成 | LEVER ASSY-SHIFT | 1 |
| 20 | 859177A3 | 换挡连杆 | SHIFT LINK | 1 |
| 21 | NSS | 不单独销售衬套 | NOT SOLD SEPARATE Bushing | 1 |
| 22 | 879997 | 换档滑块 | SHIFT SLIDER | 1 |
| 23 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 24 | 813745 | 隔套 | SPACER | 1 |
| 24 | 11289 | 隔套 | SPACER | 1 |
| 25 | 43585 | 联轴器 | COUPLING | 1 |
| 26 | 859746 | 开口销 | COTTER PIN | 2 |
| 27 | 858573 | 密封件 | SEAL | 1 |
| 27 | 8M0039073 | 密封件 | SEAL | 1 |
| 28 | 8288181 | 放油塞 | PLUG Drain | 1 |
| 29 | 828816 | 衬垫 | GASKET | 1 |
| 29 | 8M0204692 | 衬垫@5 | GASKET @5 | 1 |
| 30 | 82483213 | 螺钉(M6 x 60) | SCREW (M6 x 60) | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 858576T03 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 2 | 903501 | 双头螺柱(M10×100) | STUD (M10 x 100) | 1 |
| 2 | 9035015 | 双头螺柱(M10×227) | STUD (M10 x 227) | 1 |
| 3 | 9035012 | 双头螺柱(M10×63) | STUD (M10 x 63) | 4 |
| 3 | 9035016 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 3 | 8M0034462 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 4 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 5 |
| 4 | 8M0214963 | 垫圈 | WASHER | 5 |
| 5 | 40140 | 螺母(M10) | NUT (M10) | 5 |
| 6 | 85822A15 | 速度计传感器总成 | PICKUP ASSEMBLY Speedometer | 1 |
| 7 | 43335 | 90度接头(.125-27)尼龙 | CONNECTOR 90 Degree (.125-27) Nylon | 1 |
| 7 | 433351 | 90度接头-带防振密封 | CONNECTOR 90 Degree - With Vibraseal | 1 |
| 8 | 85822 | 直通接头 | CONNECTOR Straight | 1 |
| 8 | 85822T | 直通接头 | CONNECTOR Straight | 1 |
| 9 | 44343T1 | 支架 | MOUNT | 2 |
| 10 | 42973 | 螺栓(M12×154) | BOLT (M12 x 154) | 2 |
| 10 | 898835001 | 螺钉(M12 x 154) | SCREW (M12 x 154) | 2 |
| 11 | 30119 | 垫圈(外径0.875英寸) | WASHER (.875 Inch Outside Diameter) | 2 |
| 12 | 43528 | 螺母(M12) | NUT (M12) | 2 |
| 12 | 8M0204662 | 螺母 | NUT | 2 |
| 13 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 2 |
| 14 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 15 | 858916T | 卡箍 | CLAMP | 2 |
| 16 | 4010725 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 4 |
| 17 | 858745 | 盖帽 | CAP | 4 |
| 17 | 8M0142713 | 支撑盖帽 | CAP Chap Support | 4 |
| 18 | 859550 | 衬套 | BUSHING | 1 |
| 19 | 24873 | 定位销 | PIN Alignment | 1 |
| 20 | 855622 | 接头 | FITTING | 1 |
| 21 | 12092A3 | 隔套套件 | SPACER KIT | 1 |
| 22 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 22 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 22 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 23 | 813745 | 隔套 | SPACER | 1 |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 45907 | 飞轮黄色塞 | PLUG Yellow FLYWHEEL | 1 |
| 2 | 42956A1 | 飞轮盖总成 | COVER ASSEMBLY FLYWHEEL | 1 |
| 3 | 79022 | 正时标记 | MARKER TIMING | 1 |
| 4 | 37572 | 螺钉(0.190-32x0.380)正时标记 | SCREW (.190-32 x .380) TIMING MARKER | 2 |
| 5 | 72761 | 垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉 | WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW | 2 |
| 6 | 42979 | 螺母(M16)飞轮 | NUT (M16) FLYWHEEL | 1 |
| 7 | 68229 | 垫圈(0.641x1.250x0.190)飞轮 | WASHER (.641 x 1.250 x .190) FLYWHEEL | 1 |
| 8 | 9008A16 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 9 | 8778A10 | 定子总成 | STATOR ASSEMBLY | 1 |
| 10 | 4007325 | 螺钉(M5x25)定子 | SCREW (M5 x 25) STATOR | 4 |
| 11 | 99021A3 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 12 | 66015 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 13 | 56703 | 启动电机轴环 | COLLAR STARTER MOTOR | 2 |
| 14 | 57247 | 启动电机橡胶止动块 | STOP RUBBER-STARTER MOTOR | 2 |
| 15 | 93388A1 | 电缆总成(6.00英寸) 黑色 起动机至安装板 | CABLE ASSEMBLY (6.00 Inches) Black STARTER MOTOR TO PLATE | 1 |
| 16 | 69035 | 螺钉与锁紧垫圈(.250-20 x .625) 不锈钢 导线至起动机 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel WIRE TO STARTER MOTOR | 1 |
| 17 | 88439A20 | 起动机导线(黑色) | WIRE STARTER MOTOR (BLACK) | 1 |
| 18 | 26992 | 锁紧垫圈(.250) 不锈钢 起动机接线端 | LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL | 1 |
| 19 | 64015 | 螺母(.250-20) 起动机接线端 | NUT (.250-20) STARTER MOTOR TERMINAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9011A73 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011A74 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011T74 | ORD 1667-9011T73 | ORD 1667-9011T73 | 1 |
| 1 | 9011A80 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011T80 | ORD 1667-9011T73 | ORD 1667-9011T73 | 1 |
| 2 | 43043 | 定位销-带孔(.375 x .625)(前)(X-LONG上2个) | PIN Dowel - With Hole (.375 x .625) (FRONT) (QTY. OF 2 ON X-LONG) | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 79953A2 | 螺丝套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) | 2 |
| 3 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 2 |
| 4 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | 1 |
| 4 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 5 | 19183 | 纤维垫圈 | WASHER Fiber | 3 |
| 5 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 3 |
| 6 | 43044 | 定位销-无孔(.375 x .625)(后) | PIN Dowel - Without Hole (.375 x .625) (REAR) | 1 |
| 7 | 316404 | 平衡鳍板 | TRIM TAB | 1 |
| 7 | 31640Q4 | 平衡鳍板 | TRIM TAB | 1 |
| 8 | 316405 | 平衡鳍板 | TRIM TAB | 1 |
| 8 | 8M0236553 | 平衡鳍板 | TRIM TAB | 1 |
| 9 | 825427 | 不锈钢螺钉(0.437-14x1.250) | SCREW (.437-14 x 1.250) Stainless Steel | 1 |
| 10 | 45176 | 垫圈(.453 x .812 x .105)不锈钢 | WASHER (.453 x .812 x .105) Stainless Steel | 1 |
| 11 | 43040A1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 11 | 43040T1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 12 | 43046 | 注油管 | TUBE Oiler | 1 |
| 13 | 826134 | 阳极块 | ANODE | 2 |
| 13 | 826134Q | 阳极块 | ANODE | 2 |
| 14 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 15 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 15 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 16 | 19672A1 | 小齿轮总成 | GEAR ASSEMBLY Pinion | 1 |
| 16 | 881259A1 | 齿轮组 | GEAR SET | 1 |
| 16 | 44484 | 小齿轮(13齿) | GEAR Pinion (13 Teeth) | 1 |
| 16 | 44484T | 小齿轮(13齿) | GEAR Pinion (13 Teeth) | 1 |
| 17 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 18 | 76039 | 换挡凸轮控制 | CAM Shift Control | 1 |
| 18 | 760394 | 换挡凸轮控制 | CAM Shift Control | 1 |
| 19 | 42677A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 20 | 44492A1 | 垫片组 | SHIM SET | 1 |
| 20 | 8M0063265 | 垫片组 | SHIM SET | 1 |
| 21 | 43031A1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 21 | 43032A4 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 22 | 42461A1 | 套筒/环套件 | SLEEVE/RING KIT | 1 |
| 23 | 43055A4 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 23 | 8M0113262 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 24 | 430472 | 衬垫 | GASKET | 1 |
| 24 | 8M0214931 | 衬垫 | GASKET | 1 |
| 25 | 43036 | 油封(下) | SEAL Oil (LOWER) | 1 |
| 26 | 43035 | 油封(上) | SEAL Oil (UPPER) | 1 |
| 26 | 8M0245495 | 油封 | OIL SEAL | 1 |
| 27 | 430331 | 衬垫 | GASKET | 1 |
| 28 | 817277 | 衬垫 | GASKET | 1 |
| 28 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 29 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 30 | 817276 | 面板 | FACEPLATE | 1 |
| 30 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 31 | 8248327 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 31 | 8M0214957 | 螺钉 | SCREW | 4 |
| 32 | 430232 | 密封件 | SEAL | 1 |
| 33 | 43037 | 键 | KEY | 1 |
| 33 | 8M0204723 | 键 | KEY | 1 |
| 34 | 430262 | 叶轮 | IMPELLER | 1 |
| 34 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 35 | 8248326 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 6 |
| 36 | 43048A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | 43049A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 37 | 29641 | E型卡环 | E RING | 1 |
| 38 | 43052A4 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 39 | 45710 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 39 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| 40 | 8164641 | 油封 | SEAL Oil | 1 |
| 40 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 41 | 8248326 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |
| - | 13461A90 | 衬垫套件 | GASKET SET | 1 |
| - | 13461A99 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42965A1 | 盖密封支架总成 | BRACKET ASSEMBLY COWL SEAL | 1 |
| 1 | 42965A2 | 盖密封支架总成 | BRACKET ASSEMBLY COWL SEAL | 1 |
| 2 | 183061 | 支架密封条 | SEAL BRACKET | 2 |
| 3 | 42935 | 密封件 | SEAL | 1 |
| 4 | 42908 | 限位器 | RESTRAINT | 1 |
| 5 | 400015 | 限位器螺钉 (M5 x 10) | SCREW (M5 x 10) RESTRAINT | 1 |
| 6 | 43423 | 限位器螺钉垫圈 | WASHER RESTRAINT SCREW | 1 |
| 6 | 42118 | 垫圈 | WASHER | 1 |
| 7 | 42907 | 示警器接头 | CONNECTOR TELL TALE | 1 |
| 8 | 9912976 | 示警器软管 | TUBING TELL TALE | 1 |
| 8 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 9 | 73498 | 卡箍 | CLAMP | 1 |
| 9 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 10 | 932641 | 壳体铰链 | HOUSING HINGE | 2 |
| 10 | 932642 | 壳体 | HOUSING | 2 |
| 11 | 4009560 | 壳体螺钉 | SCREW HOUSING | 4 |
| 11 | 8M0103817 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 4 |
| 12 | 93853 | 壳体螺钉垫圈 | WASHER HOUSING SCREW | 8 |
| 12 | 814803 | 垫圈 | WASHER | 8 |
| 13 | 53705 | 壳体螺钉垫圈 | WASHER HOUSING SCREW | 8 |
| 13 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 8 |
| 14 | 88033 | 壳体螺钉衬套 | GROMMET HOUSING SCREW | 4 |
| 15 | 14395 | 壳体螺钉轴套 | BUSHING HOUSING SCREW | 4 |
| 16 | 4000120 | 壳体至支架螺钉 (M5 x 25) | SCREW (M5 x 25) HOUSING TO BRACKET | 2 |
| 17 | 43423 | 壳体螺钉垫圈 | WASHER HOUSING SCREW | 2 |
| 17 | 42118 | 垫圈 | WASHER | 2 |
| 18 | 42952T | 前支架支撑 | BRACKET SUPPORT (FRONT) | 1 |
| 18 | 42952T6 | 前支架支撑 | BRACKET SUPPORT (FRONT) | 1 |
| 19 | 67260 | 控制线密封套 | SEAL CONTROL CABLES | 1 |
| 20 | 67272 | 支架衬套 | GROMMET BRACKET | 2 |
| 21 | 88621 | 控制线固定座 | RETAINER CONTROL CABLES | 1 |
| 21 | 99447T | 控制线固定座 | RETAINER CONTROL CABLES | 1 |
| 21 | 99447 | 固定座 | RETAINER | 1 |
| 22 | 40057109 | 固定座螺钉 (M5 x 25) | SCREW (M5 x 25) RETAINER | 2 |
| 22 | 40011109 | 螺钉 (M5 x 25) 不锈钢 | SCREW (M5 x 25) Stainless Steel | 2 |
| 23 | 4011135 | 支架螺钉 (M8 x 1.25 x 35) | SCREW (M8 x 1.25 x 35) BRACKET | 2 |
| 23 | 82127335 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 24 | 93853 | 支架螺钉垫圈 | WASHER BRACKET SCREW | 4 |
| 24 | 814803 | 垫圈 | WASHER | 4 |
| 25 | 53705 | 支架螺钉垫圈 | WASHER BRACKET SCREW | 4 |
| 25 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 4 |
| 26 | 88033 | 支架衬套 | GROMMET BRACKET | 2 |
| 27 | 14395 | 支架螺钉轴套 | BUSHING BRACKET SCREW | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 52148A3 | 副驾驶装置总成 | CO-PILOT ASSEMBLY | 1 |
| 1 | 52148 | 导向杆 | PILOT ROD | 1 |
| 2 | 52155A1 | 螺母总成 | NUT ASSEMBLY | 1 |
| 2 | 8M0103848 | 螺母总成 | NUT ASSEMBLY | 1 |
| 3 | 36154 | 螺钉(.250-28 x 1.380) | SCREW (.250-28 x 1.380) | 1 |
| 4 | 52152 | 蝶形螺母 | WING NUT | 1 |
| 5 | 873491 | 杆 | ROD | 1 |
| 6 | 52151 | 衬套 | BUSHING | 1 |
| 6 | 521512 | 衬套 | BUSHING | 1 |
| 7 | 20722 | 垫圈(.328 x .625 x .060) | WASHER (.328 x .625 x .060) | 1 |
| 8 | 45592 | 螺母(.312-24) | NUT (.312-24) | 1 |
| 8 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| 9 | 20722 | 垫圈(.328 x .625 x .060) | WASHER (.328 x .625 x .060) | 1 |
| 10 | 45592 | 螺母(.312-24) | NUT (.312-24) | 1 |
| 10 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880890T1 | 燃油泵 | PUMP Fuel | 1 |
| 2 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 3 | 881544 | 弹簧 | SPRING | 1 |
| 4 | 881545 | 柱塞 | PLUNGER | 1 |
| 5 | 881546 | 弹簧 | SPRING | 1 |
| 6 | 881547 | 隔膜 | DIAPHRAGM | 1 |
| 7 | 881548 | 销 | PIN | 1 |
| 8 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 9 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 1 |
| 10 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 11 | 881550 | 螺钉 | SCREW | 3 |
| 12 | 881333 | 螺母 | NUT | 3 |
| 13 | 804255 | O型圈 | O-RING | 1 |
| 13 | 8M0050719 | O型圈 | O-RING | 1 |
| 14 | 879650 | 卡箍 | CLAMP | 2 |
| 14 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| 15 | 804256 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 2 |
| 16 | 881543 | 软管 | HOSE | 1 |
| 16 | 881543002 | 油管 | TUBING | 1 |
| 17 | 881542 | 支架 | BRACKET | 1 |
| 18 | 8527768 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 1 |
| 18 | 811188T | 螺栓 | BOLT | 1 |
| 19 | 8528161 | 螺母 | NUT | 1 |
| 19 | 82382M | 螺母 | NUT | 1 |
| 20 | 881538T1 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 20 | 881538T02 | 燃油滤清器总成 | FILTER ASSY-FUEL | 1 |
| 21 | 881540 | 滤芯1.75英寸 | ELEMENT 1.75 Inches | 1 |
| 21 | 8M0168897 | 燃油滤清器 | FUEL FILTER | 1 |
| 21 | 8M0101436 | 滤芯1.50英寸 | ELEMENT 1.50 Inches | 1 |
| 21 | 8M0117705 | 燃油滤清器 | FILTER-FUEL | 1 |
| 22 | 826966M | O型圈 | O-RING | 1 |
| 22 | 826966T | O型圈 | O RING | 1 |
| 23 | 881541 | 浮子 | FLOAT | 1 |
| 24 | 881539 | 杯套 | CUP | 1 |
| 24 | 8M0101437 | 杯套 | CUP | 1 |
| 24 | 8M0137185 | 燃油杯 | CUP FUEL | 1 |
| 25 | 879650 | 卡箍 | CLAMP | 2 |
| 25 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| 26 | 804260 | 支架 | BRACKET | 1 |
| 27 | 804112 | 螺栓(M7 x 48) | BOLT (M7 x 48) | 2 |
| 28 | 804113 | 定位销 | PIN Dowel | 2 |
| 29 | 84292M | 垫圈 | WASHER | 2 |
| 30 | 804257 | 燃油转换杆 | LEVER Fuel Change | 1 |
| 31 | 881334 | 轴 | SHAFT | 1 |
| 32 | 804259 | 销 | PIN | 2 |
| 32 | 82738M | 滚销 | PIN-ROLL | 2 |
| 33 | 830757130 | 管材(.312)(70英寸整卷)裁切至55英寸长度 | TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length. | 1 |
| 33 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 34 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 35 | 822769 | 连接器 | CONNECTOR | 1 |
| 36 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 37 | 828547T1 | 导管(.500内径 x 3英尺整卷) | CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881310T1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| - | 881310T09 | 气缸盖 | HEAD-CYLINDER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 19662 | 消音器 | ATTENUATOR Sound | 1 |
| 2 | 814776 | 调节螺钉(M6 x 55) | SCREW Adjusting (M6 x 55) | 4 |
| 3 | 815784 | 盖帽 | CAP | 1 |
| 4 | 812889 | 密封件 | SEAL | 3 |
| 5 | 812874 | 消音板 | PLATE Sound Attenuator | 2 |
| 6 | 4000363 | 螺丝(M8 x 100) | SCREW (M8 x 100) | 6 |
| 7 | 821145 | 油门连杆 | LINK Throttle | 1 |
| 7 | 825204T03 | 连接杆 | LINK | 1 |
| 8 | 812883 | 调节连杆 | LINK Adjusting | 2 |
| 9 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 4 |
| 10 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 4 |
| 10 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 4 |
| 11 | 11399A1 | 臂总成 | ARM ASSEMBLY | 1 |
| 12 | 67748 | 滚轮 | ROLLER | 1 |
| 13 | 40056103 | 螺钉 (M5 x 6) | SCREW (M5 x 6) | 1 |
| 14 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 14 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 15 | 9912878 | 软管(.187)(26.00英寸散装)(4-1/4") | HOSE (.187) (26.00 Inches Bulk) (4-1/4") | 2 |
| 16 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 17 | 8144461 | 法兰衬垫 | GASKET Flange | 3 |
| 18 | 8252043 | 油门连杆 | LINK Throttle | 1 |
| 18 | 825204T03 | 连接杆 | LINK | 1 |
| - | 812867A97 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 815366A3 | 电池隔离器套件 | ISOLATOR KIT Battery | 1 |
| - | 58222A1 | 百分表工具 | DIAL INDICATOR TOOL | 1 |
| - | 89045 | 适配器 | ADAPTER | 1 |
| - | 890451 | 直流电压适配工具 | ADAPTER TOOL Direct Voltage | 1 |
| - | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| - | 73687A2 | 飞轮拉拔器套件 | PULLER KIT Flywheel | 1 |
| - | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 99750A1 | 万用表 | MULTI METER | 1 |
| - | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| - | 52024A1 | 开关总成 | SWITCH ASSEMBLY | 1 |
| - | 59339 | 维修用转速表 | SERVICE TACHOMETER | 1 |
| - | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | 63998A1 | 单腔间隙工具 | GAP TOOL Single Chamber | 1 |
| - | 850439 | 火花测试器 | SPARK TESTER | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | 14443A1 | 测试线束总成 | HARNESS ASSEMBLY Test | 1 |
| - | 99379 | 正时灯 | TIMING LIGHT | 1 |
| - | 29287 | 量规工具 | GAUGE TOOL | 1 |
| - | 55919 | 驱动头 | DRIVER HEAD | 1 |
| - | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| - | 73687A2 | 飞轮拉拔器套件 | PULLER KIT Flywheel | 1 |
| - | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 90455 | 吊环 | LIFTING EYE | 1 |
| - | 904551 | 吊环 | LIFTING EYE | 1 |
| - | 77109A3 | 安装工具套件 | INSTALLER KIT | 1 |
| - | 52952A1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | 52952T1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | 74607A3 | 活塞销安装套件 | INSTALLER KIT Piston Pin | 1 |
| - | 65494 | 环压缩工具(2.0升) | COMPRESSOR TOOL Ring (2.0L) | 1 |
| - | 65494T | 环压缩工具 | COMPRESSOR TOOL Ring | 1 |
| - | 818773 | 活塞环压缩工具(2.5升) | COMPRESSOR TOOL Piston Ring (2.5L) | 1 |
| - | 818773T | 活塞环压缩工具(3.50) | COMPRESSOR TOOL Piston Ring (3.50) | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | 30591A1 | 动力头支架工具 | STAND TOOL Powerhead | 1 |
| - | 30591T1 | 支架工具 | STAND TOOL | 1 |
| - | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| - | 66274 | 扭矩扳手(0-150磅英寸) | TORQUE WRENCH (0-150 lb-in) | 1 |
| - | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| - | 112301 | 对正工具 | ALIGNMENT TOOL | 1 |
| - | 99750A1 | 万用表 | MULTI METER | 1 |
| - | 52915A6 | 测试仪表套件 | TEST GAUGE KIT | 1 |
| - | 74951 | 扳手 | SPANNER WRENCH | 1 |
| - | 63209 | 加热灯 | HEAT LAMP | 1 |
| - | 44487A1 | 调整杆导向器拆卸工具 | REMOVER TOOL Trim Rod Guide | 1 |
| - | 44487T1 | 调整杆导向器拆卸工具 | REMOVER TOOL Trim Rod Guide | 1 |
| - | 44486A1 | 调整杆拆卸工具 | REMOVAL TOOL Trim Rod | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 45907 | 飞轮黄色塞 | PLUG Yellow FLYWHEEL | 1 |
| 2 | 42956A1 | 飞轮盖总成 | COVER ASSEMBLY FLYWHEEL | 1 |
| 3 | 79022 | 正时标记 | MARKER TIMING | 1 |
| 4 | 37572 | 螺钉(0.190-32x0.380)正时标记 | SCREW (.190-32 x .380) TIMING MARKER | 2 |
| 5 | 72761 | 垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉 | WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW | 2 |
| 6 | 42979 | 螺母(M16)飞轮 | NUT (M16) FLYWHEEL | 1 |
| 7 | 68229 | 垫圈(0.641x1.250x0.190)飞轮 | WASHER (.641 x 1.250 x .190) FLYWHEEL | 1 |
| 7 | 33001 | 垫圈 | WASHER | 1 |
| 8 | 9008A16 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 8 | 859234T30 | 飞轮总成 | FLYWHEEL ASSY | 1 |
| 9 | 8778A10 | 定子总成 | STATOR ASSEMBLY | 1 |
| 10 | 4007325 | 螺钉(M5x25)定子 | SCREW (M5 x 25) STATOR | 4 |
| 11 | 99021A3 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 12 | 66015 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 12 | 893891T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 13 | 56703 | 启动电机轴环 | COLLAR STARTER MOTOR | 2 |
| 13 | 8M0034918 | 轴环 | COLLAR | 2 |
| 14 | 57247 | 启动电机橡胶止动块 | STOP RUBBER-STARTER MOTOR | 2 |
| 14 | 8M0043376 | 停机开关 | STOP | 2 |
| 15 | 93388A1 | 电缆总成(6.00英寸) 黑色 起动机至安装板 | CABLE ASSEMBLY (6.00 Inches) Black STARTER MOTOR TO PLATE | 1 |
| 16 | 69035 | 螺钉与锁紧垫圈(.250-20 x .625) 不锈钢 导线至起动机 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel WIRE TO STARTER MOTOR | 1 |
| 17 | 88439A20 | 起动机导线(黑色) | WIRE STARTER MOTOR (BLACK) | 1 |
| 18 | 26992 | 锁紧垫圈(.250) 不锈钢 起动机接线端 | LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL | 1 |
| 19 | 64015 | 螺母(.250-20) 起动机接线端 | NUT (.250-20) STARTER MOTOR TERMINAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 99186T | 泵与电机总成 | PUMP AND MOTOR | 1 |
| 1 | 12659 | 机架与磁场套件 | FRAME AND FIELD KIT | 1 |
| 1 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 2 | 12665 | 电刷弹簧套件 | SPRING KIT Brush | 1 |
| 3 | 13506 | 电刷卡套件 | BRUSH CARD KIT | 1 |
| 3 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 4 | 12662 | 泵与端架套件 | PUMP AND END FRAME KIT | 1 |
| 4 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 5 | 12663 | 泵密封套件 | SEAL KIT Pump | 1 |
| 5 | 126631 | 泵密封套件 | SEAL KIT Pump | 1 |
| 6 | 12660 | 端架套件 | END FRAME KIT | 1 |
| 6 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 7 | 12661 | 电枢套件 | ARMATURE KIT | 1 |
| 7 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 8 | 12664 | 贯穿螺栓套件 | THRU BOLT KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 818904T1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 87735 | 下油封 | SEAL Oil Lower | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 4 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 99661A26 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 9 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 10 | 92876A10 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 10 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 11 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 12 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 2 |
| 12 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 13 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 14 | 42961A1 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 14 | 42961A06 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 15 | 67684 | 挡圈 | RING Retaining | 1 |
| 16 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 17 | NSS | 不单独销售 贴纸, 序列号覆膜 | NOT SOLD SEPARATE Decal, Serial Overlaminate | 1 |
| 18 | 11288 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 18 | 11288001 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 19 | 88882 | 上轭缓冲垫 | BUMPER Top Yoke | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8947A7 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8947A8 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8947A19 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 4009680 | 螺钉(M10 x 80)曲轴箱至气缸体 | SCREW (M10 x 80) CRANKCASE TO CYLINDER BLOCK | 8 |
| 3 | 67296 | 销(轴承座圈) | PIN (BEARING RACE) | 3 |
| 4 | 20033 | 定位销 | PIN Dowel LOCATING | 1 |
| 5 | 42884 | 启动器盖(顶部) | COVER STARTER (TOP) | 1 |
| 6 | 76867 | 启动器盖(底部) | COVER STARTER (BOTTOM) | 1 |
| 7 | 4009550 | 启动器盖螺钉 | SCREW STARTER COVER | 4 |
| 8 | 65848 | 提升阀座 | CARRIER POPPET VALVE | 1 |
| 9 | 64872 | 提升阀衬套 | GROMMET POPPET VALVE | 1 |
| 10 | 42657A1 | 曲轴箱止回阀 | CHECK VALVE CRANKCASE | 2 |
| 11 | 42978 | 调节螺钉 | SCREW ADUSTING | 1 |
| 12 | 400202 | 调节螺钉锁紧螺母 | NUT JAM - ADJUSTING SCREW | 1 |
| 13 | 42942 | 调节螺钉帽 | CAP ADJUSTING SCREW | 1 |
| 14 | 42623 | 止回阀(压入式) | CHECK VALVE (PRESS-IN) | 1 |
| 15 | 99130122 | 泄放管(20.00英尺散装) | TUBING (20.00 Feet Bulk) BLEED | 1 |
| 16 | 4011135 | 螺钉(M8 x 1.25 x 35)曲轴箱至气缸体 | SCREW (M8 x 1.25 x 35) CRANKCASE TO CYLINDER BLOCK | 12 |
| 17 | 99162 | 油箱护套 | BOOT OIL TANK | 1 |
| 18 | 9003T | 气缸体盖 | COVER CYLINDER BLOCK | 1 |
| 19 | 430052 | 气缸体盖衬垫 | GASKET CYLINDER BLOCK COVER | 1 |
| 20 | 4011135 | 螺钉(M8 x 1.25 x 35)气缸体盖 | SCREW (M8 x 1.25 x 35) CYLINDER BLOCK COVER | 14 |
| 21 | 47483 | J型夹气缸体盖螺钉 | J CLIP CYLINDER BLOCK COVER SCREW | 4 |
| 22 | 78799 | 温度传感器(19.50英寸) | SENDER Temperature (19.50 Inch) | 1 |
| 23 | 44290 | 温度传感器固定座 | RETAINER TEMPERATURE SENDER | 1 |
| 24 | 48409 | 螺钉(#10-16 x .625)不锈钢固定座 | SCREW (#10-16 x .625) Stainless Steel RETAINER | 2 |
| 25 | 56681 | 垫圈(.203 x .500 x .032)固定螺钉 | WASHER (.203 x .500 x .032) RETAINER SCREW | 2 |
| 26 | 86596 | 提升阀 | POPPET VALVE | 1 |
| 27 | 64877 | 隔膜 | DIAPHRAGM | 1 |
| 28 | 94182 | 垫圈 | WASHER | 1 |
| 29 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 30 | 42996 | 弹簧(不锈钢)压缩-提升阀 | SPRING (Stainless Steel) COMPRESSION - POPPET VALVE | 1 |
| 31 | 75692 | 节温器(143度) | THERMOSTAT (143 DEG.) | 1 |
| 32 | 62386 | 节温器衬垫 | GASKET THERMOSTAT | 1 |
| 33 | 430062 | 节温器盖衬垫 | GASKET THERMOSTAT COVER | 1 |
| 34 | 42885T | 节温器盖 | COVER THERMOSTAT | 1 |
| 35 | 4011135 | 螺钉(M8 x 1.25 x 35)节温器盖 | SCREW (M8 x 1.25 x 35) THERMOSTAT COVER | 5 |
| 36 | 12621 | 非喷油式油垫盖 | COVER OIL PAD NON OIL INJECTION | 1 |
| 37 | 12620 | 非喷油式盖衬垫 | GASKET COVER NON OIL INJECTION | 1 |
| 38 | 40007106 | 螺钉(M5 x 13)非喷油式盖 | SCREW (M5 x 13) COVER NON OIL INJECTION | 2 |
| 39 | 4002314 | 非喷油式盖螺钉垫圈 | WASHER COVER SCREW NON OIL INJECTION | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828354A8 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 828354A9 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 828354T9 | 银色顶罩总成 | TOP COWL ASSEMBLY Silver | 1 |
| 1 | 828354A10 | 银色顶罩与黑色盖总成 | TOP COWL ASSEMBLY Silver Cowl And Black Cap | 1 |
| 2 | 828716A2 | 盖帽 | CAP | 1 |
| 3 | 828352 | 密封件 | SEAL | 1 |
| 4 | 8283511 | 密封件 | SEAL | 1 |
| 5 | 821875F1 | 上盖 | CAP Upper | 1 |
| 5 | 8218751 | 上盖-黑色 | CAP-UPPER-BLACK | 1 |
| 5 | 821875F2 | 上盖 | CAP Upper | 1 |
| 5 | 821875F1 | 上盖 | CAP Upper | 1 |
| 6 | 8198131 | 盖板锁扣支架 | BRACKET Cover Latch | 1 |
| 6 | 819813T1 | 盖板锁扣支架 | BRACKET Cover Latch | 1 |
| 7 | 18173 | 锁扣滚轮支架总成 | BRACKET ASSEMBLY Latch Roller | 1 |
| 7 | 893763 | 滚轮锁扣支架 | BRACKET Roller Latch | 1 |
| 8 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 9 | 90285 | 螺钉 (.312-18 x .625) | SCREW (.312-18 x .625) | 2 |
| 10 | F481434 | 罩盖锁扣导架 | GUIDE Cowl Latch Bracket | 2 |
| 11 | 91925 | 压入式螺母 | PUSH NUT | 4 |
| 12 | 822512 | 螺钉 (.250-20 x 1.00) | SCREW (.250-20 x 1.00) | 3 |
| 13 | 823865 | 盖塞 | CAP PLUG | 2 |
| 14 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 15 | 823830 | 支架 | SUPPORT | 2 |
| 16 | 8231871 | 螺钉(M4×14.5) | SCREW (M4 x 14.5) | 2 |
| 17 | 26995 | 防松垫圈(#8不锈钢) | LOCKWASHER (#8) Stainless Steel | 2 |
| 18 | 8233941 | 支架 | BRACKET | 1 |
| 19 | 8237515 | 螺母(M4) | NUT (M4) | 2 |
| 20 | 823583A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 20 | 823583A02 | 隔音毯套装(预涂压敏胶) | SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive) | 1 |
| 21 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8104491 | 转向手柄 | HANDLE Steering | 1 |
| 2 | 852834 | 换挡贴花 | DECAL Shift | 1 |
| 3 | 18848M | 支架 | BRACKET | 1 |
| 4 | 8527875 | 螺钉 | SCREW | 2 |
| 4 | 14232M | 螺钉 | SCREW | 2 |
| 5 | 11558M | 杠杆 | LEVER | 1 |
| 6 | 11556M | 零件 | PIECE | 1 |
| 7 | 954971 | 橡胶手柄 | HANDLE RUBBER | 1 |
| 7 | 8M0080456 | 握把 | GRIP | 1 |
| 8 | 81585M | 握把 | GRIP | 1 |
| 9 | 811916M | 螺钉 | SCREW | 1 |
| 10 | 852832 | 油门指示器 | INDICATOR Throttle | 1 |
| 11 | 81907M | 铆钉 | RIVET | 1 |
| 12 | 82220M | 垫圈 | WASHER | 1 |
| 13 | 82095M | 弹簧 | SPRING | 1 |
| 14 | 81945M | 衬套 | BUSHING | 1 |
| 15 | 17363M | 螺栓 | BOLT | 1 |
| 16 | 82125M | 开口销 | COTTER PIN | 1 |
| 17 | 8528146 | 衬套 | BUSHING | 1 |
| 18 | 852831 | 波形垫圈 | WAVE WASHER | 1 |
| 19 | 8528035 | 垫圈 | WASHER | 1 |
| 20 | 82053M | 发夹销 | PIN Hair | 1 |
| 21 | 81844M | 垫圈 | WASHER | 1 |
| 22 | 852835 | 换挡杆连杆 | SHIFT ROD LINK | 1 |
| 23 | 804395 | 换挡手柄 | GEAR SHIFT HANDLE | 1 |
| 24 | 85277611 | 螺栓 | BOLT | 1 |
| 25 | 8528311 | 波形垫圈 | WAVE WASHER | 1 |
| 26 | 8528147 | 衬套 | BUSHING | 1 |
| 27 | 11554M | 盖板 | COVER | 1 |
| 28 | 84058M | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 29 | 8269851 | 油门拉索总成 | CABLE ASSEMBLY Throttle | 2 |
| 30 | 97757M | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 31 | 97756M | 止动器 | STOPPER | 1 |
| 32 | 852837 | 盖帽 | CAP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 66015 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 90643 | 驱动套件 | DRIVE KIT | 1 |
| 2 | 68575 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 2 | 685753 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 3 | 75660 | 驱动端板 | PLATE DRIVE END | 1 |
| 4 | 75385 | 贯穿螺栓 | BOLT THRU | 2 |
| 6 | 75386 | 电枢 | ARMATURE | 1 |
| 7 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 7 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 57387 | 绝缘衬套 | BUSHING INSULATING | 1 |
| 9 | 38013 | 输入柱垫圈 | WASHER INPUT STUD | 1 |
| 10 | 26992 | 不锈钢输入柱锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel INPUT STUD | 1 |
| 11 | 20890 | 输入柱螺母(.250-20) | NUT (.250-20) INPUT STUD | 1 |
| 12 | 61787 | 电刷架 | HOLDER BRUSH | 2 |
| 12 | 898265014 | 电刷支架 | HOLDER-BRUSH | 2 |
| 13 | 68586 | 电刷及支架螺钉 | SCREW BRUSH AND HOLDER | 2 |
| 14 | 75383 | 换向器端盖 | END CAP COMMUTATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 827328T9 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 827328T10 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 821256T1 | 黑色进气口 | INLET Air - Black | 1 |
| 2 | 821256T03 | 进气口 | INLET Air | 1 |
| 2 | 821256T2 | 银色进气口 | INLET Air - Silver | 1 |
| 3 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 4 | 859356A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 4 | 859356A02 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 5 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 1 |
| 6 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 1 |
| 7 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 2 |
| 8 | 823865 | 盖塞 | CAP PLUG | 2 |
| 9 | 831207T10 | 手柄 | HANDLE | 1 |
| 9 | 831207A16 | 罩盖锁手柄套件 | HANDLE KIT Cowl Latch | 1 |
| 10 | 812707 | 衬套 | BUSHING | 2 |
| 11 | 831214 | 隔套 | SPACER | 1 |
| 12 | 12134 | 波形垫圈 | WASHER Wave | 1 |
| 13 | F481777 | 凸轮锁轴 | CAM Latch Shaft | 1 |
| 13 | 8M0001081 | 凸轮 | CAM | 1 |
| 14 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 14 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 15 | 1993716 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 16 | 821249M2 | 前支架 | BRACKET Front | 3 |
| 16 | 8M0036792 | 支架 | BRACKET | 3 |
| 17 | 815477 | 缓冲器锁扣 | BUMPER Latch | 3 |
| 18 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 6 |
| 18 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 6 |
| 19 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 6 |
| 20 | 8237951 | 挡圈 | RING Retaining | 1 |
| 21 | 815263 | 滚轮 | ROLLER | 1 |
| 21 | 8M0207770 | 滚轮@3 | ROLLER @3 | 1 |
| 22 | 8155381 | 滚动销 | PIN Roll | 1 |
| 23 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 23 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 24 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 25 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 26 | 12066Q9 | 绳索 | ROPE | 1 |
| 26 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9011A73 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011A74 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011T74 | ORD 1667-9011T73 | ORD 1667-9011T73 | 1 |
| 1 | 9011A80 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011T80 | ORD 1667-9011T73 | ORD 1667-9011T73 | 1 |
| 42 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 43 | NSS | 前进齿轮(不单独销售/属于43-19672A1部件) | NOT SOLD SEPARATE Forward Gear(PART OF 43-19672A1) | 1 |
| 43 | 12634A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 43 | 12634T02 | 齿轮总成 | GEAR ASSEMBLY | 1 |
| 44 | 30895 | 滚针轴承 | BEARING Needle | 1 |
| 44 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 45 | 12239A1 | 凸轮从动件套件 | FOLLOWER KIT Cam | 1 |
| 45 | 850315A1 | 凸轮从动件套件 | FOLLOWER KIT Cam | 1 |
| 46 | 44530 | 钢球 | BALL | 3 |
| 47 | 30622 | 弹簧 | SPRING | 1 |
| 48 | 822539 | 离合器 | CLUTCH | 1 |
| 48 | 822539T | 离合器 | CLUTCH | 1 |
| 49 | 30632 | 十字销 | PIN Cross | 1 |
| 49 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 50 | 30893 | 弹簧 | SPRING | 1 |
| 51 | 12238T | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 52 | NSS | 倒车齿轮(不单独销售/属于43-19672A1部件) | NOT SOLD SEPARATE Reverse Gear (PART OF 43-19672A1) | 1 |
| 52 | 12635 | 倒挡齿轮 | GEAR Reverse | 1 |
| 52 | 12635T | 倒挡齿轮 | GEAR-REVERSE | 1 |
| 53 | 12596A2 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 53 | 8M0168901 | 轴承座总成 | CARRIER ASSY. | 1 |
| 54 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 54 | 8M0214974 | O型圈 | O RING | 1 |
| 55 | 30956 | 滚针轴承 | BEARING Needle | 1 |
| 55 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 56 | 76868 | 内密封件 | SEAL (INNER) | 1 |
| 56 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 1 |
| 57 | 70081 | 油封(外) | SEAL Oil (OUTER) | 1 |
| 57 | 8M0205729 | 密封件 | SEAL | 1 |
| 58 | 12578 | 滚针轴承 | BEARING Needle | 1 |
| 58 | 12578T | 滚柱轴承 | BEARING Roller | 1 |
| 59 | 12577 | 止推垫片 | THRUST WASHER | 1 |
| 60 | 12576 | 推力轴承 | BEARING Thrust | 1 |
| 61 | 429172 | 双头螺柱(M8×48) | STUD (M8 x 48) | 2 |
| 61 | 8M0034456 | 双头螺柱(M8×1.25×48) | STUD (M8 X 1.25 X 48) | 2 |
| 62 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 2 |
| 62 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 63 | 401198 | 螺母 (M8) | NUT (M8) | 2 |
| 63 | 401378 | 螺母 (M8) | NUT (M8) | 2 |
| 64 | 44491A1 | 垫片组 | SHIM SET | 1 |
| 64 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 65 | 13191A1 | 止推垫片 | THRUST WASHER | 1 |
| 65 | 13191Q01 | 止推垫片 | THRUST WASHER | 1 |
| 66 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 66 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 67 | 816629 | 锁紧垫圈 | TAB WASHER | 1 |
| 67 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 13461A90 | 衬垫套件 | GASKET SET | 1 |
| - | 13461A99 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 858576T03 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 2 | 903501 | 双头螺柱(M10×100) | STUD (M10 x 100) | 1 |
| 2 | 9035015 | 双头螺柱(M10×227) | STUD (M10 x 227) | 1 |
| 3 | 9035012 | 双头螺柱(M10×63) | STUD (M10 x 63) | 4 |
| 3 | 9035016 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 3 | 8M0034462 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 4 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 5 |
| 4 | 8M0214963 | 垫圈 | WASHER | 5 |
| 5 | 40140 | 螺母(M10) | NUT (M10) | 5 |
| 6 | 85822A15 | 速度计传感器总成 | PICKUP ASSEMBLY Speedometer | 1 |
| 7 | 43335 | 90度接头(.125-27)尼龙 | CONNECTOR 90 Degree (.125-27) Nylon | 1 |
| 7 | 433351 | 90度接头-带防振密封 | CONNECTOR 90 Degree - With Vibraseal | 1 |
| 8 | 85822 | 直通接头 | CONNECTOR Straight | 1 |
| 8 | 85822T | 直通接头 | CONNECTOR Straight | 1 |
| 9 | 44343T1 | 支架 | MOUNT | 2 |
| 10 | 42973 | 螺栓(M12×154) | BOLT (M12 x 154) | 2 |
| 10 | 898835001 | 螺钉(M12 x 154) | SCREW (M12 x 154) | 2 |
| 11 | 30119 | 垫圈(外径0.875英寸) | WASHER (.875 Inch Outside Diameter) | 2 |
| 12 | 43528 | 螺母(M12) | NUT (M12) | 2 |
| 12 | 8M0204662 | 螺母 | NUT | 2 |
| 13 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 2 |
| 14 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 15 | 858916T | 卡箍 | CLAMP | 2 |
| 16 | 4010725 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 4 |
| 17 | 858745 | 盖帽 | CAP | 4 |
| 17 | 8M0142713 | 支撑盖帽 | CAP Chap Support | 4 |
| 18 | 859550 | 衬套 | BUSHING | 1 |
| 19 | 24873 | 定位销 | PIN Alignment | 1 |
| 20 | 855622 | 接头 | FITTING | 1 |
| 21 | 12092A3 | 隔套套件 | SPACER KIT | 1 |
| 22 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 22 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 22 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 23 | 813745 | 隔套 | SPACER | 1 |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 828155A4 | 化油器防冰套件 | ANTI-ICING KIT Carburetor | 1 |
| - | 816696A8 | 延长套件(2.5)(2.50英寸黑色) | EXTENSION KIT (2.5) (2.50 Inch Black) | 1 |
| - | 816696A9 | 延长套件(2.5)(2.50英寸灰色) | EXTENSION KIT (2.5) (2.50 Inch Gray) | 1 |
| - | 816696A10 | 延长套件(2.5)(2.50英寸黑色) | EXTENSION KIT (2.5) (2.50 Inch Black) | 1 |
| - | 12092A13 | 延长套件(5英寸黑色) | EXTENSION KIT (5 Inches Black) | 1 |
| - | 12092A14 | 延长套件 | EXTENSION KIT | 1 |
| - | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 877680Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| - | 8M0044836 | 燃油软管总成(8英尺)Quicksilver品牌 | HOSE ASSEMBLY Fuel (8 Feet) Quicksilver Branded | 1 |
| - | 877680Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| - | 858109Q12 | 燃油软管总成(12英尺)-带快速接头 | HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect | 1 |
| - | 877681Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| - | 858104Q08 | 燃油软管总成(8英尺)-仅发动机端带快速接头 | HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect Engine End Only | 1 |
| - | 877681Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| - | 858106Q12 | 燃油软管总成(12英尺)-仅发动机端带快速接头 | HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect Engine End Only | 1 |
| - | 877683Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| - | 858108Q12 | 燃油软管总成(8英尺)-无接头 | HOSE ASSEMBLY Fuel (8 Feet) - No Fittings | 1 |
| - | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| - | 8M0180081 | 防腐电极套件 | MERCATHODE KIT | 1 |
| - | 18286A18 | SWITCH KIT Trim (10.00 Feet) (With or Without Tiller) | 1 | |
| - | 850000A3 | 舵柄适配器套件65 JET | TILLER HANDLE ADAPTER KIT 65 JET | 1 |
| - | 826729A4 | 配平倾斜套件 | TRIM AND TILT KIT | 1 |
| - | 826729A10 | ORD 8M0143217 | ORD 8M0143217 | 1 |
| - | 12022A18 | 舵柄套件 | TILLER HANDLE KIT | 1 |
| - | 12022A19 | 舵柄套件 | TILLER HANDLE KIT | 1 |
| - | 12022A18 | 舵柄套件 | TILLER HANDLE KIT | 1 |
| - | 12022A28 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 12022A40 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 12022A29 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 12022A40 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 17334A2 | 视觉警告系统 | VISUAL WARNING SYSTEM | 1 |
| - | 88825A6 | 电压调节器套件 | REGULATOR KIT Voltage | 1 |
| - | 858566A1 | 冲洗套件(海岸型) | FLUSH KIT Coastal | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42969A3 | 消音器盖总成 | COVER ASSEMBLY Attenuator | 1 |
| 2 | 815784 | 盖帽 | CAP | 3 |
| 3 | 828479 | 衬垫 | GASKET | 1 |
| 4 | NSS | 正时贴纸（不单独销售） | NOT SOLD SEPARATE Decal-Timing | 1 |
| 5 | NSS | 不单独销售 贴花-警示 | NOT SOLD SEPARATE Decal-Caution | 1 |
| 6 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 6 |
| 7 | 42970A2 | 衰减器板总成 | PLATE ASSEMBLY Attenuator | 1 |
| 8 | 4002217 | 垫圈 | WASHER | 2 |
| 9 | 823861 | 螺母 | NUT | 4 |
| 9 | 826365 | 螺母 (M8) | NUT (M8) | 4 |
| 10 | 39519 | 杯套 | CUP | 1 |
| 11 | 98889 | 闩锁 | LATCH | 1 |
| 12 | 151724 | 衬垫 | GASKET | 6 |
| 13 | 8252041 | 连接杆 | LINK | 1 |
| 14 | 67748 | 滚轮 | ROLLER | 1 |
| 15 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 16 | 193858 | 连杆 | LINK ROD | 1 |
| 16 | 8M0084744 | 连接杆 | LINK | 1 |
| 17 | 11399A1 | 臂总成 | ARM ASSEMBLY | 1 |
| 18 | 40056103 | 螺钉 (M5 x 6) | SCREW (M5 x 6) | 1 |
| 19 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 19 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 20 | 9912878 | 软管(.187)(26.00英寸整卷)(裁切1.50英寸) | HOSE (.187) (26.00 Inches Bulk) (Cut ot 1.50 Inch Length) | 1 |
| 21 | 9912878 | 软管(.187)(26.00英寸整卷)(裁切3.25英寸) | HOSE (.187) (26.00 Inches Bulk) (Cut ot 3.25 Inch Length) | 1 |
| 21 | 9912878 | 软管(.187)(26.00英寸整卷)(裁切5.25英寸) | HOSE (.187) (26.00 Inches Bulk) (Cut ot 5.25 Inch Length) | 1 |
| 22 | 9912878 | 软管(.187)(26.00英寸整卷)(裁切5.25英寸) | HOSE (.187) (26.00 Inches Bulk) (Cut ot 5.25 Inch Length) | 1 |
| 23 | 830285 | 接头 三通 | FITTING TEE | 1 |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 8236354 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| - | 855530T98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 809837T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892024122 | 管材（240英寸整卷，裁切为12.5英寸长度） | TUBING (240.00 Inches Bulk) (Cut to 12.50 Inch Length) | 1 |
| 2 | 892024122 | 管件(240.00英寸整卷)(裁切6.00英寸) | TUBING (240.00 Inches Bulk) (Cut to 6.00 Inch Length) | 1 |
| 3 | 892024122 | 管件(240.00英寸整卷)(裁切3.50英寸) | TUBING (240.00 Inches Bulk) (Cut to 3.50 Inch Length) | 3 |
| 4 | 892024122 | 管件(240.00英寸整卷)(裁切2.50英寸) | TUBING (240.00 Inches Bulk) (Cut to 2.50 Inch Length) | 3 |
| 5 | 59169003 | 三通接头 | FITTING Tee | 1 |
| 6 | 149126 | 止回阀 | CHECK VALVE | 3 |
| 7 | 15133 | 接头 | FITTING | 5 |
| - | 855530T98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 809837T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821873A1 | 右舷下罩总成 | BOTTOM COWL ASSEMBLY Starboard | 1 |
| 2 | 822556003 | 索环(右舷) | GROMMET (Starboard) | 1 |
| 3 | 8253182 | 密封条(36.00英寸) | SEAL (36.00 Inches) | 1 |
| 4 | 8842564 | 下罩密封条(44.75英寸) | SEAL Lower Cowl (44.75 Inches) | 1 |
| 5 | 821874A1 | 左舷下罩总成 | BOTTOM COWL ASSEMBLY Port | 1 |
| 6 | 822555001 | 索环(左舷) | GROMMET (Port) | 1 |
| 7 | 8253182 | 密封条(36.00英寸) | SEAL (36.00 Inches) | 1 |
| 8 | 856990 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 9 | 8124431 | 固定座 | RETAINER | 1 |
| 10 | 813613 | 接头 | FITTING | 1 |
| 11 | 830757130 | 管件(.312)(70.00英寸整卷)(裁切28.00英寸) | TUBING (.312) (70.00 Inches Bulk) (Cut to 28.00 Inch Length) | 1 |
| 12 | 817519A2 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 2 |
| 13 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 3 |
| 14 | 820000A2 | 手柄 | HANDLE | 1 |
| 15 | 812707 | 衬套 | BUSHING | 2 |
| 16 | F2047 | 波形垫圈 | WASHER Wave | 1 |
| 17 | 889566 | 凸轮 | CAM | 1 |
| 18 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 19 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 20 | 28635 | 不锈钢螺丝(.250-20 x .620) | SCREW (.250-20 x .620) Stainless Steel | 1 |
| 21 | 822363T1 | 固定座 | RETAINER | 1 |
| 22 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 23 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 24 | 8128301 | 堵头 | PLUG | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9516M | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| - | 9516T | 化油器 | CARBURETOR | 1 |
| - | 7841M | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 14237M | 浮子室 | FLOAT BOWL | 1 |
| 1 | 84764M | 浮子室 | FLOAT BOWL | 1 |
| 2 | 80590M | 浮子室衬垫 | GASKET FLOAT BOWL | 1 |
| 3 | 80591M | 浮子 | FLOAT | 1 |
| 4 | 11794M | 销 | PIN | 1 |
| 5 | 82515M | 螺钉 | SCREW | 4 |
| 6 | 82206M | 锁紧垫圈 | LOCKWASHER | 4 |
| 7 | 84766M | 主喷嘴 | NOZZLE MAIN | 1 |
| 8 | 84767M | 主量孔(#135) | JET MAIN ( # 135) | 1 |
| 9 | 80593M | 进油阀/阀座组件 | VALVE/SEAT KIT Inlet | 1 |
| 10 | 95550M | 喷气导流器 (#54) | JET PILOT ( #54) | 1 |
| 10 | 80577M | 喷气导流器 (#54) | JET PILOT (#54) | 1 |
| 10 | 95550M | 喷气口 | JET | 1 |
| 10 | 80578M | 喷气导流器 (#60) | JET PILOT (#60) | 1 |
| 11 | 82623M | 怠速调节螺钉 | SCREW IDLE SPEED | 1 |
| 11 | 83509M | 螺钉（M4×10） | SCREW (M4 x 10) | 1 |
| 12 | 80573M | 怠速混合气螺钉 | SCREW IDLE MIXTURE | 1 |
| 13 | 80329M | 弹簧 | SPRING | 2 |
| 13 | 814460M | 弹簧 | SPRING | 2 |
| 14 | 84768M | 节气门杆杠杆 | LEVER Throttle Rod | 1 |
| 15 | 80091M | 螺钉 | SCREW | 1 |
| 16 | 84770M | 节气门杆固定座 | RETAINER THROTTLE ROD | 1 |
| 17 | 84771M | 节气门杆 | ROD THROTTLE | 1 |
| 18 | 84772M | 节气门臂 | ARM Throttle | 1 |
| 18 | 811037M | 节气门摇臂 | THROTTLE ARM | 1 |
| 19 | 81941M | 衬套 | BUSHING | 2 |
| 20 | 82379M | 螺母 | NUT | 1 |
| 20 | 83763M | 螺母 | NUT | 1 |
| 21 | 82208M | 垫圈 | WASHER | 1 |
| 21 | 82186M | 垫圈 | WASHER | 1 |
| 22 | 84454M | 节气门臂衬套 | BUSHING THROTTLE ARM | 1 |
| 23 | 82209M | 垫圈 | WASHER | 1 |
| 24 | 82328M | 卡环 | RING Snap | 1 |
| 25 | 80349M | 放油螺丝 | SCREW DRAIN | 1 |
| 26 | 80331M | 排水阀弹簧 | SPRING DRAIN VALVE | 1 |
| 27 | 80350M | O型圈 | O-RING | 1 |
| - | 84773M | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| - | 811038M | 化油器修理包 | REPAIR KIT-CARB | 1 |
| - | 96658M | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 52148A7 | 副驾驶装置总成 | CO-PILOT ASSEMBLY | 1 |
| 1 | 521481 | 导向杆 | PILOT ROD | 1 |
| 2 | 8M0103848 | 螺母总成 | NUT ASSEMBLY | 1 |
| 3 | 56500 | 螺丝(.250-28 x 1.250) | SCREW (.250-28 x 1.250) | 1 |
| 4 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 5 | 821621 | 叉形旋钮 | KNOB Prong | 1 |
| 6 | 873491 | 杆 | ROD | 1 |
| 7 | 521512 | 衬套 | BUSHING | 1 |
| 8 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 2 |
| 8 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 9 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 827616T1 | 曲轴 | CRANKSHAFT | 1 |
| 2 | 43011T | 下滚珠轴承 | BEARING Ball Lower | 1 |
| 3 | 786611 | 耐磨套 | WEAR SLEEVE | 1 |
| 4 | 35126 | O型圈(.859 x .139) | O-RING (.859 x .139) | 1 |
| 5 | 818412A4 | 环组件 | RING ASSEMBLY | 1 |
| 6 | 91800 | 半圆键 | KEY Woodruff | 2 |
| 7 | 43019A1 | 齿轮总成 | GEAR ASSEMBLY | 1 |
| 8 | 43013T3 | 上滚柱轴承总成 | BEARING ASSEMBLY Roller Upper | 1 |
| 9 | 43993 | 油封 | SEAL Oil | 1 |
| 9 | 8M0214932 | 密封件 | SEAL | 1 |
| 10 | 858225 | O型圈 | O-RING | 1 |
| 10 | 823683 | O型圈(1.989 x .070) | O-RING (1.989 x .070) | 1 |
| 11 | 42943A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 12 | NSS | 不单独销售 滚柱轴承 | NOT SOLD SEPARATE Roller Bearing | 64 |
| 13 | 826191T4 | 活塞总成 | PISTON ASSEMBLY | 3 |
| 13 | 821896A3 | 活塞总成 | PISTON ASSEMBLY | AR |
| 13 | 821896A4 | 活塞总成 | PISTON ASSEMBLY | AR |
| 14 | 857196 | 锁紧环 | LOCK RING | 6 |
| 15 | NSS | 活塞环(不单独销售) | NOT SOLD SEPARATE Piston Ring | 3 |
| 16 | 822321A12 | 活塞环套件-标准 | RING KIT Piston - Standard | 1 |
| 16 | 822321A1 | 活塞环套件-加大0.015 | RING KIT Piston - .015 Oversize | AR |
| 16 | 822321A2 | 活塞环组 | RING SET Piston | AR |
| 17 | 818846T6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 18 | 812876 | 垫圈 | WASHER | 6 |
| 18 | 8M0012298 | 止推垫片 | THRUST WASHER | 6 |
| 19 | 818391001 | 滚针轴承 | BEARING Needle | 87 |
| 19 | 8M0214954 | 滚针轴承@200 | BRG-NEEDLE @200 | 87 |
| 20 | 94320 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 6 |
| 21 | 43012A1 | 轴承/保持架套件 | BEARING/CAGE KIT | 3 |
| 21 | 8M0235070 | 轴承保持架 | CAGE BEARING | 3 |
| 22 | NSS | 不单独销售 滚柱轴承 | NOT SOLD SEPARATE Roller Bearing | 48 |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 855530T98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 809837T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8947T57 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 898208A01 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 898208A01 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 898208A01 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 4009680 | 螺钉(M10×80) | SCREW (M10 x 80) | 8 |
| 3 | 814776 | 调节螺钉(M6 x 55) | SCREW Adjusting (M6 x 55) | 1 |
| 4 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 5 | 42942 | 盖帽 | CAP | 1 |
| 6 | 426233 | 止回阀 (压入式) | CHECK VALVE (Press-In) | 1 |
| 7 | 813801A1 | 托架总成 | CARRIER ASSEMBLY | 2 |
| 8 | 42657A3 | 止回阀 | CHECK VALVE | 2 |
| 9 | 67296 | 轴承座销 | PIN Bearing Race | 3 |
| 9 | 8M0036405 | 销 | PIN | 3 |
| 10 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 11 | 889607 | 螺柱 (M10 x 136) | STUD (M10 x 136) | 8 |
| 11 | 892561001 | 螺柱 | STUD | 8 |
| 12 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 4 |
| 12 | 8M0214963 | 垫圈 | WASHER | 4 |
| 13 | 40140 | 螺母(M10) | NUT (M10) | 8 |
| 14 | 76867 | 盖板 | COVER | 1 |
| 15 | 81742750 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 4 |
| 16 | 428842 | 上盖 | COVER Top | 1 |
| 17 | 65848 | 托架 | CARRIER | 1 |
| 18 | 64872 | 护孔环 | GROMMET | 1 |
| 19 | 86596T | 提升阀 | POPPET VALVE | 1 |
| 20 | 42996 | 不锈钢弹簧 | SPRING (Stainless Steel) | 1 |
| 21 | 824703A1 | 塞套件 | PLUG KIT | 2 |
| 22 | NSS | 不单独销售 塞 | NOT SOLD SEPARATE Plug | 1 |
| 23 | 82127335 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 12 |
| 24 | 12621 | 盖板 | COVER | 1 |
| 25 | 126201 | 衬垫 | GASKET | 1 |
| 26 | 82104512 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 27 | 8161949 | 双头螺柱(M6 x 44) | STUD (M6 x 44) | 2 |
| 28 | 49221 | 垫圈(0.187 x 0.500 x 0.062 氯丁橡胶) | WASHER (.187 x .500 x .062) Neoprene | 2 |
| 28 | 8M0204663 | 垫片@5 | WASHER @5 | 2 |
| 29 | 816872 | 蝶形螺母 | WING NUT | 2 |
| 30 | 9003A2 | 盖总成 | COVER ASSEMBLY | 1 |
| 31 | 430057 | 衬垫 | GASKET | 1 |
| 32 | 328022 | 黄铜管塞 (.125-27) | PLUG Pipe (.125-27) Brass | 1 |
| 33 | 823462 | 吊环 | LIFTING EYE | 1 |
| 34 | 475331 | 节温器垫片 | THERMOSTAT WASHER | 1 |
| 35 | 14586 | 节温器 | THERMOSTAT | 1 |
| 36 | 62386001 | 衬垫 | GASKET | 1 |
| 36 | 8M0204714 | 衬垫@4 | GASKET @4 | 1 |
| 37 | 430068 | 衬垫 | GASKET | 1 |
| 38 | 884297 | 盖板 | COVER | 1 |
| 38 | 8M0047619 | 盖板 | COVER | 1 |
| 39 | 82127335 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 5 |
| 40 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 41 | 94182 | 垫圈 | WASHER | 1 |
| 42 | 648771 | 隔膜 | DIAPHRAGM | 1 |
| 43 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 2 |
| 44 | 44290 | 固定座 | RETAINER | 1 |
| 44 | 44290T | 固定座 | RETAINER | 1 |
| 45 | 787992 | 温度传感器 | SENDER Temperature | 1 |
| 46 | 82127335 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 14 |
| 47 | 814634 | 卡箍 | CLAMP | 2 |
| 48 | 99162001 | 护套 | BOOT | 1 |
| 49 | 821889A51 | 转速限制器 | REV LIMITER | 1 |
| 49 | 821889A49 | 转速限制器 | REV LIMITER | 1 |
| 49 | 821889A50 | 转速限制器 | REV LIMITER | 1 |
| 50 | 82130030 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 51 | 855212A1 | 适配器线束总成 | HARNESS ASSEMBLY Adaptor | 1 |
| 52 | 13541 | 公插头 | PLUG Male | 1 |
| 53 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 53 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 54 | 857175 | 联轴器插芯 | COUPLING INSERT | 1 |
| 55 | 857176 | 联轴器主体 | COUPLING BODY | 1 |
| 56 | 858240 | 系绳盖 | CAP Tethered | 1 |
| 57 | 830757130 | 管材 (.312) (70.00英寸散装) | TUBING (.312) (70.00 Inches Bulk) | 1 |
| 57 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 58 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 59 | 857219 | 接头 | FITTING | 1 |
| 60 | 286241 | 接头 | FITTING | 1 |
| 61 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 1 |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 855530T98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 809837T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9244M | 驱动轴壳体 | HOUSING Driveshaft | 1 |
| 1 | 7843M | 驱动轴壳体 (ML, EL 和 SUL) | HOUSING Driveshaft (ML, EL AND SUL) | 1 |
| 2 | 84774M | 排气歧管 | MANIFOLD EXHAUST | 1 |
| 2 | 811170M | 排气歧管 | MANIFOLD-EXHAUST | 1 |
| 3 | 84775M | 驱动轴壳体衬垫 | GASKET DRIVESHAFT HOUSING | 1 |
| 3 | 84775 | 衬垫 | GASKET | 1 |
| 4 | 82364M | 定位销 | PIN Dowel | 2 |
| 5 | 95416M | 螺栓 | BOLT | 6 |
| 6 | 82217M | 垫圈 | WASHER | 7 |
| 7 | 84776M | 排气导流管 | GUIDE Exhaust | 1 |
| 7 | 84777M | 排气导管 (ML, EL 和 SUL) | GUIDE Exhaust (ML, EL AND SUL) | 1 |
| 8 | 84778M | 排气导流管 | GUIDE Exhaust | 1 |
| 9 | 95206M | 螺栓 | BOLT | 1 |
| 10 | 81573M | 排气歧管衬垫 | GASKET EXHAUST MANIFOLD | 1 |
| 10 | 826991M | 衬垫 | GASKET | 1 |
| 11 | 83870M | 螺钉 | SCREW | 4 |
| 12 | 84780M | 上部油封 | SEAL UPPER | 1 |
| 13 | 84781M | 下部油封 | SEAL LOWER | 1 |
| 14 | 97635M | 水管密封件 | SEAL WATER TUBE | 1 |
| 14 | 84782M | 水管密封件 (ML, EL 和 SUL) | SEAL WATER TUBE (ML, EL AND SUL) | 1 |
| 15 | 82131M | 开口销 | COTTER PIN | 1 |
| 15 | 82132M | 开口销 | COTTER PIN | 1 |
| 16 | 84783M | 延长件 | EXTENSION | 1 |
| 17 | 84784M | 传动轴衬套 | BUSHING DRIVESHAFT | 1 |
| 18 | 84785M | 螺柱 | STUD | 4 |
| 19 | 82364M | 定位销 | PIN Dowel | 2 |
| 20 | 84786M | 螺母 | NUT | 4 |
| 21 | 82220M | 垫圈 | WASHER | 4 |
| 22 | 43114M | 密封件 | SEAL | 1 |
| - | 96658M | 动力头衬垫套件 | GASKET SET Powerhead | |
| - | 95660M | 下部单元衬垫套件 | GASKET SET Lower Unit | 1 |
| - | 95660T | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8327531 | 电气板 | PLATE Electrical | 1 |
| 2 | 40011150 | 螺钉(M8×30)不锈钢 | SCREW (M8 x 30) Stainless Steel | 3 |
| 3 | 49436 | 垫圈 | WASHER | 3 |
| 4 | 8502341 | 衬套 | BUSHING | 3 |
| 5 | 833155 | 护孔环 | GROMMET | 3 |
| 6 | 82239312 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 4 |
| 7 | 8261151 | 连接器卡箍 | CLAMP Connector | 1 |
| 8 | 88807A44 | 电缆总成 (10英寸) | CABLE ASSEMBLY (10 Inch) | 1 |
| 9 | 82239312 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 10 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 11 | 850043A2 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| 12 | 812619 | 黄色保险丝-20安培 | FUSE Yellow - 20 Ampere | 1 |
| 13 | 850046A2 | 点火线束总成 | HARNESS ASSEMBLY Ignition | 1 |
| 14 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 15 | 830233 | 红色绝缘护套 | BOOT Insulator - Red | 1 |
| 16 | 827509A10 | CDM模块总成 | CDM MODULE ASSEMBLY | 3 |
| 17 | 821945A61 | 高压电缆总成 | CABLE ASSEMBLY Hi Tension | 3 |
| 18 | 63709A1 | 护套/端子套件 | BOOT/TERMINAL KIT | 3 |
| 19 | 97182 | 火花塞 | SPARK PLUG | 3 |
| 19 | 896329833 | SP #L78V @4 | SP #L78V @4 | 3 |
| 19 | 14103570 | 火花塞 | SPARK PLUG | 3 |
| 19 | 14103Q | ORD 896329838 | ORD 896329838 | 3 |
| 20 | 82129116 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 6 |
| 21 | 817109A2 | 电磁阀总成(#10-32/.3125-18端子) | SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) | 1 |
| 22 | 822179 | 护孔环 | GROMMET | 2 |
| 23 | 818968 | 衬套 | BUSHING | 2 |
| 23 | 8M0214955 | 衬套 | BUSHING | 2 |
| 24 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 25 | 88807A16 | 黑色电缆总成(4.00英寸) | CABLE ASSEMBLY (4.00 Inches) Black | 1 |
| 26 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 26 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 27 | 68292 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 27 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 28 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 29 | 883072T | 电压调节器 | REGULATOR Voltage | 1 |
| 29 | 8M0084173 | 电压调节器 | VOLTAGE REGULATOR | 1 |
| 30 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 31 | 82129135 | 螺钉(M6x35) | SCREW (M6 x 35) | 2 |
| 32 | 54457 | J型卡扣 | J CLIP | 1 |
| 33 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 34 | 13541 | 公插头 | PLUG Male | 4 |
| 35 | 834813 | 卡箍 | CLAMP | 2 |
| 36 | 850044A2 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| 37 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 38 | 36001 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881912T01 | 排气板 | PLATE Exhaust | 1 |
| 2 | 23784 | 定位销 | PIN Dowel | 4 |
| 3 | 881973 | 固定座 | RETAINER | 1 |
| 4 | 881915002 | 支架 | MOUNT | 2 |
| 5 | 881975 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 6 | 42974 | 螺栓(M12×175) | BOLT (M12 x 175) | 2 |
| 6 | 8M0238139 | 螺钉 | SCREW | 2 |
| 7 | 859129 | 螺母(M12) | NUT (M12) | 2 |
| 7 | 896963 | 螺母(M12) | NUT (M12) | 2 |
| 8 | 813745 | 垫片（长） | SPACER (Long) | 1 |
| 8 | 11289 | 垫片 (加长型) | SPACER (X-Long) | 1 |
| 9 | 43585 | 联轴器 | COUPLING | 1 |
| 10 | 430086 | 衬垫 | GASKET | 1 |
| 11 | 42966T07 | 排气管 | TUBE Exhaust | 1 |
| 12 | 40011151 | 不锈钢螺钉(M8×35) | SCREW (M8 x 35) Stainless Steel | 6 |
| 13 | 42962 | 密封件 | SEAL | 1 |
| 13 | 8M0039075 | 密封件 | SEAL | 1 |
| 14 | 89417004 | 护孔环 | GROMMET | 1 |
| 15 | 8812011 | 水管 - 长型 (13.21 英寸) | TUBE Water - Long (13.21 Inches) | 1 |
| 15 | 8M0042791 | 长型水管 | TUBE-WATER-LONG | 1 |
| 15 | 8812013 | 水管 (15.71英寸) 加长型 (75/90) | TUBE Water (15.71 Inches) X Long (75/90) | 1 |
| 15 | 8M0042793 | 水管-LL | TUBE-WATER-LL | 1 |
| 15 | 8812012 | 水管 - 加长型 (18.21 英寸) | TUBE Water - X Long (18.21 Inches) | 1 |
| 15 | 8M0042792 | 水管-XL | TUBE-WATER-XL | 1 |
| 16 | 824661 | 卡箍 | CLAMP | 1 |
| 17 | 814080001 | 上密封件 | SEAL Upper | 1 |
| 18 | 889833045 | 螺钉 (M8 x 45) | SCREW (M8 x 45) | 2 |
| 19 | 881918T | 上支架夹 | CLAMP Bracket, Upper Mount | 1 |
| 19 | 881918T03 | 卡箍 | CLAMP | 1 |
| 20 | 19565002 | 护孔环 | GROMMET | 1 |
| 20 | 19564 | 衬套 (手动型号) | GROMMET (Manual Models) | 1 |
| 20 | 8M0179867 | 护孔环 | GROMMET | 1 |
| 21 | 48237 | 衬套 | BUSHING | 1 |
| 22 | 79932A20 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 22 | 79932A23 | 换挡轴总成 (手动型号) | SHIFT SHAFT ASSEMBLY (Manual Models) | 1 |
| 23 | 42912A3 | 换挡连杆 | SHIFT LINK | 1 |
| 24 | 48475 | 衬套 | BUSHING | 2 |
| 25 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 26 | 40011151 | 不锈钢螺钉(M8×35) | SCREW (M8 x 35) Stainless Steel | 2 |
| 27 | 40011158 | 不锈钢螺钉(M8×70) | SCREW (M8 x 70) Stainless Steel | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 45907 | 黄色塞 | PLUG Yellow | 1 |
| 2 | 812777T1 | 盖总成 | COVER ASSEMBLY | 1 |
| 3 | 42979 | 螺母(M16) | NUT (M16) | 1 |
| 4 | 68229 | 垫圈(.641 x 1.250 x .190) | WASHER (.641 x 1.250 x .190) | 1 |
| 4 | 33001 | 垫圈 | WASHER | 1 |
| 5 | 878226T10 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 5 | 878226T16 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 6 | 878226T8 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 7 | 832075A21 | 定子总成 | STATOR ASSEMBLY | 1 |
| 7 | 832074A11 | 定子总成 | STATOR ASSEMBLY | 1 |
| - | 11149A27 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 8 | 4013930 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 4 |
| 9 | 854512T | 触发器 | TRIGGER | 1 |
| 10 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 3 |
| 11 | 93254 | 旋转底座 | SWIVEL BASE | 1 |
| 12 | 93421 | 旋转球头 | SWIVEL BALL | 1 |
| 13 | 66015T1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 13 | 893891T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 13 | 893891T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 14 | 56703 | 轴环 | COLLAR | 2 |
| 14 | 8M0034918 | 轴环 | COLLAR | 2 |
| 15 | 57247 | 停机开关 | STOP | 2 |
| 15 | 8M0043376 | 停机开关 | STOP | 2 |
| 16 | 93388A1 | 电缆总成(6.00英寸)黑色 | CABLE ASSEMBLY (6.00 Inches) Black | 1 |
| 17 | 69035 | 螺丝与锁紧垫圈(.250-20 x .625)不锈钢 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel | 1 |
| 18 | 93388A8 | 黑色电缆总成(12.5英寸) | CABLE ASSEMBLY (12.5 Inchs) Black | 1 |
| 19 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 20 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 21 | 8272822 | 高压警告标贴 | DECAL Warning High Voltage | 1 |
| 22 | 13541 | 公插头 | PLUG Male | 2 |
| 23 | 881865 | 警示贴纸-挂档启动 | DECAL Caution-Start in Gear | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 43113M | 燃油泵总成 | PUMP ASSEMBLY Fuel | 1 |
| 2 | 80606M | 隔膜 | DIAPHRAGM | 1 |
| 3 | 80611M | 板簧 | PLATE SPRING | 1 |
| 4 | 80610M | 弹簧 | SPRING | 1 |
| 5 | 80613M | 机体至底座衬垫 | GASKET BODY TO BASE | 1 |
| 5 | 80613 | 衬垫 | GASKET | 1 |
| 6 | 41888M | 止回阀 | CHECK VALVE | 2 |
| 7 | 80614M | 盖体衬垫 | GASKET COVER TO BODY | 1 |
| 7 | 80614 | 衬垫 | GASKET | 1 |
| 7 | 43095M | 盖体衬垫 | GASKET COVER TO BODY | 1 |
| 8 | 84141M | 隔膜 | DIAPHRAGM | 1 |
| 9 | 43096M | 盖板 | COVER | 1 |
| 9 | 80607M | 盖板 | COVER | 1 |
| 10 | 82522M | 螺钉 | SCREW | 3 |
| 11 | 82208M | 垫圈 | WASHER | 3 |
| 11 | 82186M | 垫圈 | WASHER | 3 |
| 12 | 41889M | 螺钉 (M3 x 5) | SCREW (M3 x 5) | 2 |
| 13 | 82537M | 螺母 | NUT | 2 |
| 14 | 80757M | 燃油泵垫片 | GASKET FUEL PUMP | 1 |
| 14 | 80757 | 衬垫 | GASKET | 1 |
| 15 | 82428M | 螺栓 | BOLT | 2 |
| 15 | 827043M | 螺栓 | BOLT | 2 |
| 16 | 82214M | 垫圈 | WASHER | 2 |
| - | 96658M | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 430047 | 排气歧管衬垫 | GASKET Exhaust Manifold | 2 |
| - | 43004009 | 衬垫 | GASKET | 2 |
| - | 89224 | O型圈 (2.862) | O-RING (2.862) | 1 |
| - | 823683 | O型圈 (1.989 x .070) (1.989) | O-RING (1.989 x .070) (1.989) | 1 |
| - | 430057 | 气缸体盖衬垫 | GASKET Cylinder Block Cover | 1 |
| - | 62386 | 节温器衬垫 | GASKET Thermostat | 1 |
| - | 8M0204714 | 衬垫@4 | GASKET @4 | 1 |
| - | 430068 | 节温器盖衬垫 | GASKET Thermostat Cover | 1 |
| - | NSS | 不单独销售 增压 | NOT SOLD SEPARATE Boost | 1 |
| - | NSS | 不单独销售 增压室 | NOT SOLD SEPARATE Boost Chamber | 1 |
| - | NSS | 不单独销售 燃油泵 | NOT SOLD SEPARATE Fuel Pump | 2 |
| - | NSS | 不单独销售 脉冲室 | NOT SOLD SEPARATE Pluse Chamber | 1 |
| - | 987691 | 燃油泵衬垫 | GASKET Fuel Pump | 1 |
| - | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| - | 139376 | 簧片阀/曲轴衬垫 | GASKET Reed Block/Crank | 6 |
| - | 62705 | O型圈(0.739) | O-RING (.739) | 2 |
| - | 8M0204667 | O型圈×2 | O RING @2 | 2 |
| - | 33466 | O型圈(1.362) | O-RING (1.362) | 1 |
| - | 42941 | 上水管密封件 | SEAL Water Tube Upper | 1 |
| - | 42941001 | 水管密封件 | SEAL Water Tube | 1 |
| - | 93221 | 衬套 水管 | GROMMET Water Tube | 1 |
| - | 93221002 | 护孔环 | GROMMET | 1 |
| - | 430075 | 气缸体至排气板衬垫 | GASKET Cylinder Block to Exhaust Plate | 1 |
| - | 65800 | 填料 | PACKING | 1 |
| - | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 1 |
| - | 97386 | O型圈 (3.609 x .139) (3.609) | O-RING (3.609 x .139) (3.609) | 1 |
| - | 8M0214974 | O型圈 | O RING | 1 |
| - | 430341 | 上水泵铝盖衬垫 | GASKET Aluminum Cover Water Pump, Upper | 1 |
| - | 191833 | 密封件 | SEAL | 3 |
| - | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 3 |
| - | 19643 | 密封件 | SEAL | 1 |
| - | 151724 | 化油器衬垫 | GASKET Carburetor | 3 |
| - | 430472 | 盖至齿轮箱衬垫 | GASKET Cover to Gearcase | 1 |
| - | 8M0214931 | 衬垫 | GASKET | 1 |
| - | 8172771 | 上水泵衬垫 | GASKET Water Pump, Upper Water Pump, Upper | 1 |
| - | 430331 | 面板至盖板衬垫 | GASKET Face Plate to Cover | 1 |
| - | 42998 | 压缩弹簧 | SPRING Compression | 1 |
| - | NSS | 弹簧端部(不单独销售) | NOT SOLD SEPARATE Spring End | 1 |
| - | NSS | 弹簧端部(不单独销售) | NOT SOLD SEPARATE Spring End | 1 |
| - | NSS | 止回阀(不单独销售) | NOT SOLD SEPARATE Check Valve | 2 |
| - | 17311 | 止回阀固定座 | RETAINER Check Valve | 2 |
| - | NSS | 增压压缩件(不单独销售) | NOT SOLD SEPARATE Compression, Boost | 1 |
| - | NSS | 弹簧端部(不单独销售) | NOT SOLD SEPARATE Spring End | 1 |
| - | 430086 | 排气板/排气管衬垫 | GASKET Exhaust Plate/Exhaust Tube | 1 |
| - | 858225 | O型圈 (2.112) | O-RING (2.112) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9011J15 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 9011J21 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 9011J23 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| 1 | 9011G59 | 齿轮箱总成(基本鱼雷直径4.25英寸/107.95毫米) | GEAR HOUSING ASSEMBLY Basic Torpedo Diameter - 4.25 Inch / 107.95 mm | 1 |
| 2 | 43043 | 定位销-带孔(0.375x0.625)前部 | PIN Dowel - With Hole (.375 x .625) Front | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 43046 | 注油管 | TUBE Oiler | 1 |
| 4 | 79953Q2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 3 |
| 4 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 3 |
| 4 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | OPT |
| 4 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | OPT |
| 5 | 191832 | 垫圈 | WASHER | 3 |
| 5 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 3 |
| 6 | 43044 | 定位销-无孔(0.375x0.625)后部 | PIN Dowel - Without Hole (.375 x .625) Rear | 1 |
| 7 | 31640T5 | 平衡鳍板 | TRIM TAB | 1 |
| 7 | 8M0236553 | 平衡鳍板 | TRIM TAB | 1 |
| 8 | 825427 | 不锈钢螺钉(0.437-14x1.250) | SCREW (.437-14 x 1.250) Stainless Steel | 1 |
| 9 | 451761 | 垫圈(.453 x .812 x .105)黑色氧化 | WASHER (.453 x .812 x .105) Black Oxide | 1 |
| 10 | 43040T1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 11 | NSS | 滚针轴承(不单独销售) | NOT SOLD SEPARATE Needle Bearing | 1 |
| 12 | 826134Q | 阳极块 | ANODE | 2 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 15 | NSS | 小齿轮(12齿)(不单独销售) | NOT SOLD SEPARATE Pinion Gear (12 Teeth) | 1 |
| 16 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 17 | 850307 | 换挡凸轮控制 | CAM Shift Control | 1 |
| 18 | 883047A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 19 | 44492A1 | 垫片组 | SHIM SET | 1 |
| 19 | 8M0063265 | 垫片组 | SHIM SET | 1 |
| 20 | 43031A1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 20 | 43032A6 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 20 | 43032A4 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 21 | 42461A1 | 套筒/环套件 | SLEEVE/RING KIT | 1 |
| 22 | NSS | 密封环(不单独销售) | NOT SOLD SEPARATE Seal Ring | 1 |
| 23 | 43055A4 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 23 | 8M0113262 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 24 | 430331 | 衬垫 | GASKET | 1 |
| 25 | 430472 | 衬垫 | GASKET | 1 |
| 25 | 8M0214931 | 衬垫 | GASKET | 1 |
| 26 | 43035 | 上部油封 | SEAL Oil Upper | 1 |
| 26 | 8M0245495 | 油封 | OIL SEAL | 1 |
| 27 | 43036 | 下油封 | SEAL Oil Lower | 1 |
| 28 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 29 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 30 | 8172761 | 面板 | FACEPLATE | 1 |
| 30 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 31 | 82684430 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 32 | 430232 | 密封件 | SEAL | 1 |
| 33 | 43037 | 键 | KEY | 1 |
| 33 | 8M0204723 | 键 | KEY | 1 |
| 34 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 35 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 6 |
| 36 | 853906A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | 853907A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | 853908A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 37 | 29641 | E型卡环 | E RING | 1 |
| 38 | 43052A4 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 39 | 45710 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 39 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| 40 | 8164641 | 油封 | SEAL Oil | 1 |
| 40 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 41 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 42 | 816575 | 端面密封 | FACE SEAL | 1 |
| 42 | 861415 | 端面密封 | SEAL Face | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |
| - | 13461A99 | 衬垫套件 | GASKET SET | 1 |
| - | 43026T11 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9011J15 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 9011J21 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 9011J23 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| 1 | 9011G59 | 齿轮箱总成(基本鱼雷直径4.25英寸/107.95毫米) | GEAR HOUSING ASSEMBLY Basic Torpedo Diameter - 4.25 Inch / 107.95 mm | 1 |
| 2 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 3 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 4 | 882813A3 | 前进齿轮与小齿轮套件(28齿) | GEAR KIT Forward And Pinion 28 Teeth | 1 |
| 5 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 6 | 856823 | 挡圈 | RING Retaining | 1 |
| 7 | 850315A1 | 凸轮从动件套件 | FOLLOWER KIT Cam | 1 |
| 8 | 44530 | 钢球 | BALL | 3 |
| 9 | NSS | 滑动件(不单独销售) | NOT SOLD SEPARATE Slide | 1 |
| 10 | 850327 | 弹簧 | SPRING | 1 |
| 11 | 30632 | 十字销 | PIN Cross | 1 |
| 11 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 12 | 30893 | 弹簧 | SPRING | 1 |
| 13 | 850048T | 离合器 | CLUTCH | 1 |
| 14 | 850308 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 14 | 8M0140445 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 15 | 882814T | 倒车齿轮-28齿 | GEAR Reverse - 28 Teeth | 1 |
| 16 | 12596T2 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 16 | 8M0168901 | 轴承座总成 | CARRIER ASSY. | 1 |
| 17 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 17 | 8M0214974 | O型圈 | O RING | 1 |
| 18 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 19 | 70080 | 内部油封 | SEAL Oil Inner | 1 |
| 19 | 8M0205728 | 密封件 | SEAL | 1 |
| 20 | 70081 | 外油封 | SEAL Oil Outer | 1 |
| 20 | 8M0205729 | 密封件 | SEAL | 1 |
| 21 | 12578T | 滚柱轴承 | BEARING Roller | 1 |
| 22 | 12577 | 止推垫片 | THRUST WASHER | 1 |
| 23 | 12576 | 推力轴承 | BEARING Thrust | 1 |
| 24 | 429172 | 双头螺柱(M8×48) | STUD (M8 x 48) | 2 |
| 24 | 8M0034456 | 双头螺柱(M8×1.25×48) | STUD (M8 X 1.25 X 48) | 2 |
| 25 | 855941 | 垫圈(.323 x .590 x .112)不锈钢 | WASHER (.323 x .590 x .112) Stainless Steel | 2 |
| 26 | 401378 | 螺母 (M8) | NUT (M8) | 2 |
| 27 | 44491A1 | 垫片组 | SHIM SET | 1 |
| 27 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 28 | 8227731 | 螺纹嵌件 | INSERT Threaded | 2 |
| 29 | NSS | 不单独销售 小齿轮识别贴纸 | NOT SOLD SEPARATE Decal-Pinion Indentification | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 13461A99 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42878A2 | 排气盖板套件 | COVER/PLATE KIT Exhaust | 1 |
| 2 | NSS | 挡板 (不单独销售) | NOT SOLD SEPARATE Baffle Plate | 1 |
| 3 | 430047 | 衬垫 | GASKET | 2 |
| 3 | 43004009 | 衬垫 | GASKET | 2 |
| 4 | 82127335 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 24 |
| 5 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 6 | 430075 | 衬垫 | GASKET | 1 |
| 7 | 42881A1 | 换挡拨叉总成 | SHIFT RAIL ASSEMBLY | 1 |
| 8 | 42981 | 锁紧垫圈 | TAB WASHER | 2 |
| 9 | 40001134 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 2 |
| 10 | 988851 | 滑块 | SLIDE | 1 |
| 11 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 12 | 35459 | 垫圈 | WASHER | 1 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 858552T2 | 下端盖总成 | CAP ASSEMBLY Lower End | 1 |
| 15 | 426585 | 止回阀 | CHECK VALVE | 1 |
| 16 | 419533 | 油封 | SEAL Oil | 1 |
| 17 | 89224 | O型圈 | O-RING | 1 |
| 18 | 4010825 | 螺丝(M10 x 25)六角法兰-不锈钢 | SCREW (M10 x 25) Hex Flange - Stainless Steel | 3 |
| 19 | 42963A11 | 簧片阀总成 | REED BLOCK ASSEMBLY | 3 |
| 19 | 8M0219198 | 簧片阀总成 | REED BLOCK ASSY | 3 |
| 20 | NSS | 定位销(不单独销售) | NOT SOLD SEPARATE Dowel Pin | 18 |
| 21 | 139376 | 衬垫 | GASKET | 6 |
| 22 | 43018A1 | 簧片组 | REED SET | 3 |
| 23 | 429821 | 锁紧垫圈 | TAB WASHER | 3 |
| 24 | 42924 | 固定座 | RETAINER | 3 |
| 25 | 88421471 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 3 |
| 26 | 8219441 | 支架 | BRACKET | 1 |
| 26 | 8M0039350 | 支架 | BRACKET | 1 |
| 26 | 827514 | 支架 | BRACKET | 1 |
| 27 | 49221 | 垫圈(0.187 x 0.500 x 0.062 氯丁橡胶) | WASHER (.187 x .500 x .062) Neoprene | 2 |
| 27 | 8M0204663 | 垫片@5 | WASHER @5 | 2 |
| 28 | 816872 | 蝶形螺母 | WING NUT | 2 |
| 29 | 8161949 | 双头螺柱(M6 x 44) | STUD (M6 x 44) | 2 |
| 30 | 884296T | 进气歧管 | MANIFOLD Induction | 3 |
| 31 | 82127335 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 13 |
| 32 | 81742740 | 螺钉 (M8 x 40) | SCREW (M8 x 40) | 2 |
| 33 | 824470 | 螺柱 (M8 x 1.25) | STUD (M8 x 1.25) | 4 |
| 34 | 40001167 | 螺钉 (M8 x 110) (#3 气缸) | SCREW (M8 x 110) (#3 CYLINDER) | 2 |
| 35 | 830757130 | 管材（0.312）（70英寸整卷）（裁切为4英寸长度） | TUBING (.312) (70.00 Inches Bulk) (Cut to 4.00 Inch Length) | 2 |
| 35 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 2 |
| 36 | 432881 | 三通接头 | TEE FITTING | 1 |
| 36 | 8585531 | 连接器 | CONNECTOR | 1 |
| 37 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 2 |
| 38 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 39 | 804666A05 | EPA信息标签（2005） | DECAL EPA Label Information (2005) | 1 |
| 39 | 804666A06 | EPA信息标签（2006） | DECAL EPA Label Information (2006) | 1 |
| 39 | 804666A07 | EPA标签贴纸 (2007) | DECAL EPA Label Information (2007) | 1 |
| 39 | 804666A08 | EPA标签贴纸 (2008) | DECAL EPA Label Information(2008) | 1 |
| 39 | NSS | 贴纸-EPA(2009年起)(不单独销售) | NOT SOLD SEPARATE DECAL, EPA (2009 & Up) | 1 |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 855530T98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 898208A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 809837T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 856143A1 | 喷泵总成 | JET PUMP ASSEMBLY | 1 |
| 1 | 855767T90 | 泵壳 | HOUSING Pump | 1 |
| 2 | 878377 | 换挡连杆套件 | SHIFT LINKAGE KIT | 1 |
| 3 | 878382 | 凸轮 | CAM | 1 |
| 4 | 878380 | 倒车挡板(带缓冲) | GATE Reverse - With Bumper | 1 |
| 5 | 827490 | 润滑油管 | HOSE Lube | 1 |
| 6 | 848497 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 4 |
| 7 | 855840 | 双头螺柱(.312-18 x 1.81) | STUD (.312-18 x 1.81) | 6 |
| 8 | 82670910 | 不锈钢螺母(.312-18) | NUT (.312-18) Stainless Steel | 6 |
| 9 | 855708115 | 叶轮 | IMPELLER | 1 |
| 10 | 85576890 | 进气壳体 | HOUSING Intake | 1 |
| 11 | 855771 | 衬套 | LINER | 1 |
| 12 | 85576990 | 驱动轴 | DRIVESHAFT | 1 |
| 13 | 8796522 | 止推垫片 | THRUST WASHER | 1 |
| 14 | 8796531 | 滚珠轴承 | BEARING Ball | 2 |
| 15 | 8271891 | 套筒 | SLEEVE | 1 |
| 16 | 8271901 | 螺母 | NUT | 1 |
| 17 | 808747 | 泵适配器 | ADAPTER Pump | 1 |
| 18 | 36001 | 垫圈 | WASHER | 6 |
| 19 | 801405875 | 键 | KEY | 1 |
| 20 | 801404875 | 叶轮垫片 | SHIM Impeller | 8 |
| 21 | 801403875 | 锁紧垫圈 | TAB WASHER | 1 |
| 22 | 801407 | 定位销 | PIN Dowel | 2 |
| 23 | 19923062 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 2 |
| 24 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 1 |
| 25 | 801410 | 电缆支架 | BRACKET Cable Support | 1 |
| 26 | 67980 | 螺母(.312-18) | NUT (.312-18) | 1 |
| 26 | 82670910 | 不锈钢螺母(.312-18) | NUT (.312-18) Stainless Steel | 1 |
| 27 | 4010860 | 不锈钢六角法兰螺钉(M10 x 60) | SCREW (M10 x 60) Hex Flange - Stainless Steel | 2 |
| 28 | 4010890 | 不锈钢六角法兰螺钉(M10 x 90) | SCREW (M10 x 90) Hex Flange - Stainless Steel | 1 |
| 29 | 4010870 | 不锈钢六角法兰螺钉(M10 x 70) | SCREW (M10 x 70) Hex Flange - Stainless Steel | 1 |
| 30 | 843575 | 螺丝(.375-16 x 4.00)不锈钢 | SCREW (.375-16 x 4.00) Stainless Steel | 1 |
| 31 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 1 |
| 31 | 8M0214963 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 2 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 3 | 8172761 | 面板 | FACEPLATE | 1 |
| 3 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 4 | 82684430 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 5 | 430232 | 密封件 | SEAL | 1 |
| 6 | 43037 | 键 | KEY | 1 |
| 6 | 8M0204723 | 键 | KEY | 1 |
| 7 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 8 | 821889A50 | 转速限制器 | REV LIMITER | 1 |
| 9 | 82130030 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 894911 | 点火钥匙(1A) | KEY Ignition (1A) | 1 |
| - | 894912 | 点火钥匙(1B) | KEY Ignition (1B) | 1 |
| - | 894913 | 点火钥匙(1C) | KEY Ignition (1C) | 1 |
| - | 894914 | 点火钥匙(1D) | KEY Ignition (1D) | 1 |
| - | 894915 | 点火钥匙(1E) | KEY Ignition (1E) | 1 |
| - | 894916 | 点火钥匙(1F) | KEY Ignition (1F) | 1 |
| - | 894917 | 点火钥匙(2A) | KEY Ignition (2A) | 1 |
| - | 894918 | 点火钥匙(2B) | KEY Ignition (2B) | 1 |
| - | 894919 | 点火钥匙(2C) | KEY Ignition (2C) | 1 |
| - | 8949110 | 点火钥匙(2D) | KEY Ignition (2D) | 1 |
| - | 8949111 | 点火钥匙(2E) | KEY Ignition (2E) | 1 |
| - | 8949112 | 点火钥匙(2F) | KEY Ignition (2F) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| NOPART | NO PARTS LIST |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 835249A1 | 手动倾斜装置总成 | MANUAL TILT ASSEMBLY | 1 |
| 1 | 853891A1 | 减震杆总成 | SHOCK ROD ASSEMBLY | 1 |
| 1 | 893932A01 | ORD 835249T 1 | ORD 835249T 1 | 1 |
| 2 | 809872A1 | 气缸O型圈套件 | O-RING KIT Cylinder | 1 |
| 2 | 893917A01 | O型圈修理包 | REBUILD KIT O-Ring | 1 |
| 3 | 813430A1 | 配平记忆活塞总成 | PISTON ASSEMBLY Trim Memory | 1 |
| 3 | 893903A01 | 活塞套件 | PISTON KIT | 1 |
| 4 | 835250A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893934A01 | 气缸套件 | CYLINDER KIT | 1 |
| 5 | 813433A2 | 螺钉与密封套件 | SCREW AND SEAL KIT | 1 |
| 5 | 893919A01 | 螺丝/密封套件 | SCREW/SEAL KIT | 1 |
| 6 | 835458A1 | 蓄能器总成 | ACCUMULATOR ASSEMBLY | 1 |
| 6 | 893933A01 | 蓄能器总成 | ACCUMULATOR ASSEMBLY | 1 |
| 7 | 813455A4 | 阀体总成 | VALVE BODY ASSEMBLY | 1 |
| 7 | 8M0118574 | 阀体总成 | VALVE BODY ASSEMBLY | 1 |
| 8 | 813457A3 | 凸轮套件 | CAM KIT | 1 |
| 8 | 893923A01 | 凸轮套件 | CAM KIT | 1 |
| 9 | 809881A1 | 速度阀套件 | VALVE KIT Velocity | 1 |
| 9 | 893924A01 | 阀套件 | VALVE KIT | 1 |
| 10 | 809882A1 | 维修套件 | REPAIR KIT | 1 |
| 10 | 893925A01 | 维修套件 | REPAIR KIT | 1 |
| - | 809880A2 | O型圈套件 | O-RING KIT | 1 |
| - | 893922A01 | O型圈套件 | O-RING KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828361A2 | 油箱总成 | TANK ASSEMBLY Oil | 1 |
| 1 | 8M0219216 | 油箱总成-机油 | TANK ASSY-OIL | 1 |
| 2 | 828475A1 | 盖帽 | CAP | 1 |
| 3 | 26318 | O型圈 | O-RING | 1 |
| 3 | 26318T | O型圈 | O-RING | 1 |
| 4 | 828793 | 量油尺 | DIPSTICK | 1 |
| 5 | 113161 | 螺母 | NUT | 1 |
| 5 | 65110 | 螺母 | NUT | 1 |
| 6 | 19299A1 | 通风组件 | VENT ASSEMBLY | 1 |
| 7 | 64871 | 阀门 | VALVE | 1 |
| 8 | 8287201 | 支架 | BRACKET | 1 |
| 9 | 99160001 | 护套 | BOOT | 1 |
| 10 | 4010620 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 2 |
| 11 | 825380001 | 护孔环 | GROMMET | 1 |
| 12 | 828350 | 衬套 | BUSHING | 1 |
| 13 | 4002318 | 垫圈 8.90 x 24.0x 2.4 不锈钢 | WASHER 8.90 x 24.0x 2.4 PL SS | 1 |
| 14 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 1 |
| 14 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 15 | 12886A6 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 16 | 58376 | 螺钉(.164-18 x .375) | SCREW (.164-18 x .375) | 1 |
| 17 | 72761 | 不锈钢垫圈(.203 x .562 x .060) | WASHER (.203 x .562 x .060) Stainless Steel | 1 |
| 18 | 430204 | 从动齿轮 | GEAR Driven | 1 |
| 19 | 62705 | O型圈 | O-RING | 2 |
| 19 | 8M0204667 | O型圈×2 | O RING @2 | 2 |
| 20 | 17335A3 | 适配器组件 | ADAPTER ASSEMBLY | 1 |
| 21 | 17597 | 衬套 | BUSHING | 1 |
| 22 | 17596 | 衬套 | BUSHING | 1 |
| 23 | 42959A2 | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 24 | 82104540 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 2 |
| 25 | 82381335 | 管材 (15.00英寸 散装) (切割至6.00英寸长度) | TUBING (15.00 Inches Bulk) (Cut to 6.00 Inch Length) | 1 |
| 26 | 82381455 | 管材 (25.00英寸 散装) (切割至11.00英寸长度) | TUBING (25.00 Inches Bulk) (Cut to 11.00 Inch Length) | 1 |
| 27 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 27 | 69355 | 扎带(5.50英寸) | TIE STRAP (5.50 Inches) | AR |
| 27 | 8M0214940 | 扎带 | TIE STRAP | AR |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0089943 | 歧管套件 | MANIFOLD KIT | 1 |
| 2 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 3 | 8M0089945 | 阀套件 | VALVE KIT | 1 |
| 4 | 8M0090404 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 833063 | O型圈 | O-RING | 2 |
| 6 | 8M0055260 | 定位销 | DOWEL PINS | 3 |
| 7 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 8 | 833047 | 螺钉(0.250-20×2.250) | SCREW (.250-20 x 2.250) | 2 |
| 9 | 8M0089941 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 10 | 88238A13 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 10 | 8M0207768 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 11 | 8M6002690 | 螺钉 | SCREW | 1 |
| 11 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 12 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 12 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 13 | 893902A01 | O型圈套件 | O-RING KIT | 1 |
| 13 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 14 | 8M0089942 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 14 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 15 | 8M0089946 | 螺钉套件(完整调整) | SCREW KIT Complete Trim | 1 |
| 16 | 8M0089940 | 电机套件 | MOTOR KIT | 1 |
| 16 | 8M0142591 | 电机套件 | MOTOR KIT | 1 |
| 17 | 8M0090403 | 驱动联轴器 | COUPLING Drive | 1 |
| 18 | 8M0089944 | 泵总成 | PUMP ASSEMBLY | 1 |
| - | 8M0089947 | O型圈套件(动力调整) | O-RING KIT Power Trim | 1 |
| - | 8M0171820 | O型圈套件 | O-RING KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0090335 | 动力调整装置总成(标准) | POWER TRIM ASSEMBLY Standard | 1 |
| 2 | 8M0094357 | 减震杆销 | PIN Shock Rod | 1 |
| 2 | 8M0161312 | 连杆销眼总成 | PIN ROD EYE ASSEMBLY | 1 |
| 3 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 4 | 818898 | 锚销 | PIN Anchor | 1 |
| 5 | 8M0092077 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 6 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 6 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 2 |
| 7 | 828102 | 支架 | BRACKET | 2 |
| 7 | 8M0207771 | 安装支架 | BRACKET Mounting | 2 |
| 8 | 818968 | 衬套 | BUSHING | 2 |
| 8 | 8M0214955 | 衬套 | BUSHING | 2 |
| 9 | 818967 | 护孔环 | GROMMET | 2 |
| 9 | 8M0207785 | 护孔环 | GROMMET | 2 |
| 10 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 830250T5 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| - | 830250T08 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| - | 8M0171818 | 动力调整总成 | POWER TRIM ASSY | 1 |
| 1 | 811666A1 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 1 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 2 | 809872A2 | O型圈维修包 | O-RING KIT Rebuild | 1 |
| 2 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 3 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 3 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 4 | 811669A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893916A01 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 5 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 6 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 6 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | 809885A2 | 电机套件 | MOTOR KIT | 1 |
| 7 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 8 | 8134351 | 堵头 | PLUG | 1 |
| 9 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 9 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 10 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 10 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 11 | 809876A1 | 电机螺钉套件 | SCREW KIT Motor | 1 |
| 12 | 88238A18 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 13 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 14 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 14 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 15 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 15 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| - | 809880A1 | O型圈套件(完整调整) | O-RING KIT (COMPLETE TRIM) | 1 |
| - | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| 16 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 16 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 2 |
| 17 | 818968 | 衬套 | BUSHING | 2 |
| 17 | 8M0214955 | 衬套 | BUSHING | 2 |
| 18 | 818967 | 护孔环 | GROMMET | 2 |
| 18 | 8M0207785 | 护孔环 | GROMMET | 2 |
| 19 | 828102 | 支架 | BRACKET | 2 |
| 19 | 8M0207771 | 安装支架 | BRACKET Mounting | 2 |
| 20 | NSS | 不单独销售(贴花,调整继电器) | NOT SOLD SEPARATE Decal, Trim Relay | 2 |
| 21 | 819514A15 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 21 | 8M0092077 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 22 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 23 | 22740 | 卡扣 | CLIP | 2 |
| 24 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 2 |
| 25 | 69205 | C形垫圈 | C WASHER | 2 |
| 25 | 8M0084613 | C形垫圈 | C-WASHER | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 13286 | 零件手册18/20/25马力(XD) | PARTS MANUAL 18/20/25 H.P. (XD) | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 43170A84 | 贴花套件 | DECAL SET | 1 |
| - | 43477A85 | 贴花套件 | DECAL SET | 1 |
| - | 13480A86 | 贴花套件 | DECAL SET | 1 |
| - | 43173A84 | 贴花套件 | DECAL SET | 1 |
| - | 13239A86 | 贴花套件 | DECAL SET | 1 |
| - | 13480A86 | 贴花套件 | DECAL SET | 1 |
| - | 13239A86 | 贴花套件 | DECAL SET | 1 |
| - | 11181A85 | 贴花套件 | DECAL SET | 1 |
| - | 810461A92 | 贴花套件 | DECAL SET | 1 |
| - | 11627A85 | 贴花套件 | DECAL SET | 1 |
| - | 810461A92 | 贴花套件 | DECAL SET | 1 |
| - | 11044870 | 用户指南 | OWNERS GUIDE | 1 |
| - | 11046870 | 用户指南 | OWNERS GUIDE | 1 |
| - | 11046871 | 用户手册 | MANUAL-OWNERS | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 85174A2 | 手柄总成 | HANDLE ASSEMBLY | 1 |
| 2 | NSS | 固定座(不单独销售) | NOT SOLD SEPARATE Retainer | 1 |
| 3 | 8220721 | 支架 | REST | 1 |
| 4 | 823241 | 密封件 | SEAL | 1 |
| 4 | 8M0043270 | 密封件 | SEAL | 1 |
| 5 | 82130050 | 螺钉(M6 x 50) | SCREW (M6 x 50) | 2 |
| 6 | 8217021 | 隔套 | SPACER | 2 |
| 7 | 816086 | 衬套 | BUSHING | 4 |
| 8 | 815795 | 护孔环 | GROMMET | 8 |
| 9 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 6 |
| 10 | 855596 | 支架 | BRACKET | 1 |
| 11 | 855597 | 支架 | BRACKET | 1 |
| 12 | 40011129 | 不锈钢螺钉(M6x25) | SCREW (M6 x 25) Stainless Steel | 2 |
| 13 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 1 |
| 14 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 6 |
| 15 | 11704A1 | 滑轮套件 | PULLEY KIT | 2 |
| 16 | NSS | NOT SOLD SEPARATE Spacer | 2 | |
| 17 | 67983 | 垫圈 | WASHER | 1 |
| 18 | 8567541 | 联锁电缆 | CABLE Interlock | 1 |
| 19 | 8214281 | 螺钉(#10-16x0.625) | SCREW (#10-16 x .625) | 1 |
| 20 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 1 |
| 21 | 26811 | 开口销 | COTTER PIN | 1 |
| 22 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 23 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 1 |
| 24 | 26811 | 开口销 | COTTER PIN | 1 |
| - | 816728T14 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 25 | 826791 | 弹簧 | SPRING | 1 |
| 26 | 8166903 | 杠杆 | LEVER | 1 |
| 27 | 8167121 | 凸轮 | CAM | 1 |
| 27 | 816712T01 | 凸轮 | CAM | 1 |
| 28 | 816711 | 固定座 | RETAINER | 1 |
| 29 | 8182491 | 螺钉(#10-16 x 1.00) | SCREW (#10-16 x 1.00) | 3 |
| 30 | 826229 | 锁紧垫圈 | LOCKWASHER | 1 |
| 31 | 868571 | 弹簧 | SPRING | 1 |
| 31 | 86857T01 | 弹簧 | SPRING | 1 |
| 32 | 825269A1 | 启动滑轮 | SHEAVE Starter | 1 |
| 32 | 825269T01 | 启动器滑轮总成 | SHEAVE STARTR ASU | 1 |
| 33 | 868512 | 弹簧 | SPRING | 2 |
| 33 | 86851T02 | 弹簧 @2 | SPRING @2 | 2 |
| 34 | 868501 | 凸轮 | CAM | 2 |
| 35 | 868491 | 挡圈 | RING Retaining | 2 |
| 35 | 86849T01 | 环 @2 | RING @2 | 2 |
| 36 | 12066Q9 | 绳索 | ROPE | 1 |
| 36 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| 37 | 8167285 | 壳体 | HOUSING | 1 |
| 37 | 816728T05 | 壳体 | HOUSING | 1 |
| 38 | 868523 | 弹簧 | SPRING | 1 |
| 39 | 868531 | 凸轮 | CAM | 1 |
| 39 | 86853T01 | 凸轮 | CAM | 1 |
| 40 | 826253 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 1 |
| 41 | 42690 | 衬套 | BUSHING | 1 |
| 41 | 8M0183792 | 绳索衬套 | ROPE BUSHING | 1 |
| 42 | 818853 | 挡圈 | RING Retaining | 1 |
| 43 | NSS | 不单独销售 贴花-手动启动 | NOT SOLD SEPARATE Decal-Manual Start | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 66015T1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| - | 893891T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 90643 | 驱动套件 | DRIVE KIT | 1 |
| 2 | 685753 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 3 | 75660 | 安装板 | PLATE | 1 |
| 4 | 75385 | 螺栓 | BOLT | 2 |
| 5 | 75386 | 电枢 | ARMATURE | 1 |
| 6 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 6 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 7 | 57387 | 衬套 | BUSHING | 1 |
| 8 | NSS | NOT SOLD SEPARATE Washer (AMER. BOSCH #WA-1728) | 1 | |
| 9 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 10 | 20890 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 11 | 61787 | 支架 | HOLDER | 2 |
| 11 | 898265014 | 电刷支架 | HOLDER-BRUSH | 2 |
| 12 | NSS | 不单独销售(AMER. BOSCH #02441-22-SC-30SM驱动紧固件) | NOT SOLD SEPARATE (AMER. BOSCH #02441-22-SC-30SM DRIVE TIGHT | 2 |
| 13 | 15386 | 端盖 | END CAP | 1 |
| 13 | 15386001 | 端盖 | END CAP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 12020A3 | 转向臂手柄总成 | HANDLE ASSEMBLY Steering Arm | 1 |
| NS | 74036 | 润滑脂接头 | FITTING Grease | 1 |
| NS | 8M0169589 | 润滑脂接头 | FITTING Grease | 1 |
| 2 | 429922 | 衬套 | BUSHING | 2 |
| 2 | 42992T02 | 衬套 | BUSHING | 2 |
| 3 | 48414 | 壳体 | HOUSING | 1 |
| 4 | 48519 | 安装板 | PLATE | 1 |
| 5 | 48518 | 衬垫 | GASKET | 1 |
| 6 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 7 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 4 |
| 8 | 889729 | 卡箍 | CLAMP | 1 |
| 9 | 40007112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 2 |
| 10 | 816874 | 蝶形螺母 (#10-32) | WING NUT (#10-32) | 1 |
| 11 | 964956 | 节气门手柄 | HANDLE Throttle | 1 |
| 12 | 823609A15 | 停机开关套件-油门手柄 | SWITCH KIT Stop - Throttle Handle | 1 |
| 13 | 823609A5 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 13 | 8M0104612 | 开关总成 | SWITCH ASSY | 1 |
| 14 | 12018A4 | 油门拉线管总成 | TUBE ASSEMBLY Throttle | 1 |
| 15 | NSS | 驱动轮(不单独销售) | NOT SOLD SEPARATE Drive Wheel | 1 |
| 16 | NSS | 弹性销(不单独销售) | NOT SOLD SEPARATE Roll Pin | 1 |
| 17 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 18 | 99589 | 握把 | GRIP | 1 |
| 18 | 8M0221732 | 外握把 | GRIP OUTER | 1 |
| 19 | 648551 | 卡箍 | CLAMP | 2 |
| 20 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 21 | 8885242 | 导管 | CONDUIT | 1 |
| 22 | 895661 | 导向管 | GUIDE TUBE | 1 |
| 22 | 8M0026078 | 导向管 | TUBE-GUIDE | 1 |
| 23 | 89578 | 套筒 | BARREL | 1 |
| 24 | 824081 | 紧定螺钉(#10-32) | SET SCREW (#10-32) | 1 |
| 25 | 12019 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 26 | 43433 | 导套 | GUIDE | 1 |
| 26 | 8M0204660 | 导套 | GUIDE | 1 |
| 27 | 20007 | 锚定件 | ANCHOR | 1 |
| 28 | 20518 | 紧定螺钉(#8-32) | SET SCREW (#8-32) | 2 |
| 28 | 8M0204644 | 螺钉组 | SCREW SET | 2 |
| 29 | 823567105 | 螺丝(M10 x 105)六角法兰-不锈钢 | SCREW (M10 x 105) Hex Flange - Stainless Steel | 1 |
| 30 | 48416 | 盖帽 | CAP | 1 |
| 31 | 4002319 | 垫圈 | WASHER | 1 |
| 32 | 12024 | 垫圈(0.402 x 0.787 x 0.039 贝氏) | WASHER (.402 x .787 x .039 Bellevi) | 1 |
| 33 | 146011 | 隔套 | SPACER | 1 |
| 34 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 1 |
| 34 | 8M0214963 | 垫圈 | WASHER | 1 |
| 35 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 36 | NSS | 节气门标识贴(不单独销售) | NOT SOLD SEPARATE Decal-Throttle | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 12022A22 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 2 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 3 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 1 |
| 3 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 4 | 822320 | 螺柱 (.3125 x 2.50) | STUD (.3125 x 2.50) | 2 |
| 4 | 8M0034421 | 螺柱 | STUD | 2 |
| 5 | 822263 | 隔套 | SPACER | 1 |
| 6 | 814806 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 2 |
| 6 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 2 |
| 7 | 82670911 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 2 |
| 8 | 121051 | 护孔环 | GROMMET | 1 |
| 9 | 12649A5 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 10 | 88107A5 | 钥匙开关套件 | SWITCH KIT Key | 1 |
| 11 | 879755 | 特殊螺母-黑色尼龙 | NUT Special - Black Nylon | 1 |
| 12 | 13541 | 公插头 | PLUG Male | 1 |
| 13 | 12015A1 | 盖板 | COVER | 1 |
| 13 | 120151 | 盖板 | COVER | 1 |
| 14 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 6 |
| 15 | 889730 | 堵头 | PLUG | 1 |
| 16 | 11083A4 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 17 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 18 | 120441 | 黄铜固定座 | RETAINER Brass | 1 |
| 18 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| 19 | 4000358 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 1 |
| 20 | 42981 | 锁紧垫圈 | TAB WASHER | 1 |
| 21 | 889732 | 衬套 | BUSHING | 2 |
| 22 | 12021A1 | 换挡杆总成 | LEVER ASSEMBLY Shift | 1 |
| 23 | 815351 | 垫圈 | WASHER | 1 |
| 24 | 58152 | 双头螺柱(0.375-24×1.125) | STUD (.375-24 x 1.125) | 1 |
| 24 | 8M0034452 | 螺柱 | STUD | 1 |
| 25 | 98530 | 旋钮 | KNOB | 1 |
| 26 | 495636 | 换挡连杆 | SHIFT ROD | 1 |
| 27 | 48419 | 拉杆端头 | ROD END | 1 |
| 27 | 48419T | 杆端-2.16英寸 | ROD END-2.16 IN | 1 |
| 28 | 26856 | 衬套 | BUSHING | 1 |
| 29 | 35950 | 垫圈 (.273 x .437 x .031) 不锈钢 | WASHER (.273 x .437 x .031) Stainless Steel | 1 |
| 30 | 25191 | 开口销 | COTTER PIN | 1 |
| 31 | 12016A2 | 定位弹簧套件 | DETENT/SPRING KIT | 1 |
| 32 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 33 | 14645A4 | 微调开关 | TRIM SWITCH | 1 |
| 34 | 49440 | 螺母(0.468-32) | NUT (.468-32) | 1 |
| 35 | NSS | 标贴(不单独销售) | NOT SOLD SEPARATE Decal | 1 |
| 36 | 815851A2 | 线束总成 停止 | HARNESS ASSEMBLY Stop | 1 |
| 37 | 821028A2 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 38 | 815803 | 堵头 | PLUG | 1 |
| 39 | 816051A2 | 喇叭总成 | HORN ASSEMBLY | 1 |
| 40 | 11149A3 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 41 | 86324A2 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 42 | 824930T2 | 支架 | BRACKET | 1 |
| 43 | 813960A3 | 开关 | SWITCH | 1 |
| 43 | 8M0052927 | 开关总成 | SWITCH ASSY | 1 |
| 44 | 88075020 | 螺丝(M3 x 20) | SCREW (M3 x 20) | 2 |
| 45 | 824923 | 安装板 | PLATE | 1 |
| 46 | 824934A3 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 47 | NSS | 不单独销售 贴纸-换挡 | NOT SOLD SEPARATE Decal-Shift | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881919T01 | 旋转支架 | SWIVEL BRACKET | 1 |
| 1 | 8M0220957 | 旋转支架总成 | SWIVEL BRKT ASSY | 1 |
| 2 | 87735 | 下油封 | SEAL Oil Lower | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 4 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 10 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 11 | 92876A10 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 11 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 12 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 13 | 8M0042636 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 13 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 14 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 15 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 1 |
| 15 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 16 | 881974 | 缓冲垫 | BUMPER | 2 |
| 16 | 8M0000519 | 缓冲垫 | BUMPER | 2 |
| 17 | 881914T01 | 下轭架 | YOKE Bottom | 1 |
| 18 | 67684 | 挡圈 | RING Retaining | 1 |
| 19 | 11288001 | 下轭缓冲垫 (加长型) | BUMPER Bottom Yoke (X-Long) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42946T1 | 油门杆 | LEVER Throttle | 1 |
| 2 | 827008 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 1 |
| 3 | 826264 | 盖帽 | CAP | 1 |
| 4 | 826382 | 弹簧 | SPRING | 1 |
| 5 | 429471 | 点火提前杆 | LEVER Spark Advance | 1 |
| 6 | 814776 | 调节螺钉(M6 x 55) | SCREW Adjusting (M6 x 55) | 2 |
| 7 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 8 | 42942 | 盖帽 | CAP | 2 |
| 9 | 93254 | 旋转底座 | SWIVEL BASE | 1 |
| 10 | 93421 | 旋转球头 | SWIVEL BALL | 1 |
| 11 | 878172 | 点火提前杆 | ROD Spark Advance | 1 |
| 12 | 812930A1 | 衬套 | BUSHING | 1 |
| 13 | NSS | 不单独销售嵌件 | NOT SOLD SEPARATE Insert | 1 |
| 14 | 4007180 | 螺丝(M10 x 45) | SCREW (M10 x 45) | 1 |
| 15 | 42980 | 垫圈 | WASHER | 1 |
| 16 | 55162 | 弹簧 | SPRING | 1 |
| 17 | 42927 | 嵌件 | INSERT | 1 |
| 18 | 35459 | 垫圈 | WASHER | 1 |
| 19 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 20 | 878420 | 杆 油门 | ROD Throttle | 1 |
| 20 | 878420T | 节气门控制杆 | ROD-THTL CONTROL | 1 |
| 21 | 932481 | 衬套 | BUSHING | 2 |
| 21 | 8M0215006 | 旋转衬套 | BUSHING Swivel | 2 |
| 22 | 42948A7 | 节气门凸轮总成 | CAM ASSEMBLY Throttle | 1 |
| 23 | 8161949 | 双头螺柱(M6 x 44) | STUD (M6 x 44) | 1 |
| 24 | 14159 | 弹簧 | SPRING | 1 |
| 25 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 26 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 27 | NSS | 贴纸-怠速螺丝-箭头向上 (不单独销售) | NOT SOLD SEPARATE (Decal-Idle Screw-Arrow up) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 850000A3 | 舵柄适配器套件65 JET | TILLER HANDLE ADAPTER KIT 65 JET | 1 |
| 1 | 832001A6 | 换挡线缆总成 | CABLE ASSEMBLY Shift | 1 |
| 2 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 3 | 988851 | 滑块 | SLIDE | 1 |
| 4 | 828095 | 支架 | BRACKET | 1 |
| 5 | 824930T2 | 支架 | BRACKET | 1 |
| 6 | 805444 | 卡扣 | CLIP | 1 |
| 6 | 8054441 | 卡扣 | CLIP | 1 |
| 7 | 40011126 | 不锈钢螺丝(M6 x 13) | SCREW (M6 x 13) Stainless Steel | 1 |
| 8 | 828096 | 换挡线缆固定块 | BLOCK Shift Cable-Retaining | 1 |
| 9 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 9 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 10 | 71958 | 螺丝(.250-28 x 1.75) | SCREW (.250-28 x 1.75) | 1 |
| 11 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 12 | 828094 | 换挡线缆固定块 | BLOCK Shift Cable-Retaining | 1 |
| 13 | 72734 | 紧定螺丝(#10-32 x .310) | SET SCREW (#10-32 x .310) | 1 |
| 14 | 35459 | 垫圈 | WASHER | 1 |
| 15 | 35888 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 16 | 813960A3 | 开关 | SWITCH | 1 |
| 16 | 8M0052927 | 开关总成 | SWITCH ASSY | 1 |
| 17 | 88075020 | 螺丝(M3 x 20) | SCREW (M3 x 20) | 2 |
| 18 | 824923 | 安装板 | PLATE | 1 |
| 19 | 824934A1 | 拉线总成 | CABLE ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 817383A1 | 工具包 | TOOL BAG | 1 |
| - | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| - | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 99750A1 | 万用表 | MULTI METER | 1 |
| - | 52024A1 | 开关总成 | SWITCH ASSEMBLY | 1 |
| - | 59339 | 维修用转速表 | SERVICE TACHOMETER | 1 |
| - | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| - | 830230T | 气隙工具(八腔) | AIR GAP TOOL Eight Chamber | 1 |
| - | 63998A1 | 单腔间隙工具 | GAP TOOL Single Chamber | 1 |
| - | 850439T | 检测仪 | TESTER | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | 99379 | 正时灯 | TIMING LIGHT | 1 |
| - | 825207A2 | 线束总成 | HARNESS ASSEMBLY | 1 |
| - | 112301 | 对正工具 | ALIGNMENT TOOL | 1 |
| - | NSS | 不单独销售 (卡扣式 - CG41-14) | NOT SOLD SEPARATE (SNAP ON - CG41-14) | 1 |
| - | NSS | 不单独销售 (卡扣式 - CG41-11) | NOT SOLD SEPARATE (SNAP ON - CG41-11) | 1 |
| - | 822778A3 | 下压力套件 | DOWN PRESSURE KIT | 1 |
| - | 74951 | 扳手 | SPANNER WRENCH | 1 |
| - | 63209 | 加热灯 | HEAT LAMP | 1 |
| - | 29287 | 量规工具 | GAUGE TOOL | 1 |
| - | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| - | 90455T | 吊环 | LIFTING EYE | 1 |
| - | 904551 | 吊环 | LIFTING EYE | 1 |
| - | 77109A3 | 安装工具套件 | INSTALLER KIT | 1 |
| - | 74607A3 | 活塞销安装套件 | INSTALLER KIT Piston Pin | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | 812549T | 动力头支架 | STAND Powerhead | 1 |
| - | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| - | 78473 | 背隙测量仪 | INDICATOR TOOL Backlash | 1 |
| - | 8M0053505 | 背隙指示工具 | TOOL Indicator, Backlash | 1 |
| - | 196601 | 背隙测量仪 | INDICATOR TOOL Backlash | 1 |
| - | 31106T | 轴承安装心轴杯 | MANDREL Bearing Driver Cup | 1 |
| - | 13945 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| - | 14309T1 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| - | 14309T02 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| - | 14311A2 | 轴承预紧工具 | PRE LOAD TOOL Bearing | 1 |
| - | 14311A04 | 预紧力工具 | TOOL Preload | 1 |
| - | 83165T | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 14308T1 | 轴承座圈工具 | RACE TOOL Bearing | 1 |
| - | 14308T02 | 轴承座圈驱动器 | BEARING RACE DRIVER | 1 |
| - | 31229A7 | 轴承拉拔器套件 | PULLER KIT Bearing | 1 |
| - | 24156 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| - | 15755T | 滚针轴承驱动器 | NEEDLE BEARING DRIVER | 1 |
| - | 36569T | 驱动头工具 | DRIVE HEAD TOOL | 1 |
| - | 37323 | 滚针轴承导杆工具 | DRIVER ROD TOOL Needle Bearings | 1 |
| - | 37350T | 导向心轴 | PILOT MANDREL | 1 |
| - | 43506T | 轴承固定工具 | RETAINING TOOL Bearing | 1 |
| - | 83155 | 千分表转接套件 | ADAPTER KIT Dial Indicator | 1 |
| - | 8M0237356 | 适配器套件 | ADAPTER KIT | 1 |
| - | 58222A1 | 百分表工具 | DIAL INDICATOR TOOL | 1 |
| - | 56775T | 传动轴固定工具 | HOLDING TOOL Driveshaft | 1 |
| - | 826872 | 轴承安装工具 | INSTALLER TOOL Bearing | 1 |
| - | 13949 | 油封安装工具 | DRIVER TOOL Oil Seal | 1 |
| - | 31108T | 油封驱动器 | DRIVER Oil Seal | 1 |
| - | 12349A2 | 小齿轮定位工具 | LOCATION TOOL Pinion | 1 |
| - | 12349A05 | 小齿轮定位工具 | TOOL Pinion Locating | 1 |
| - | 46086A1 | 拉拔器爪头总成 | PULLER JAW ASSEMBLY | 1 |
| - | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| - | 34569A1 | 滑动锤拉拔器总成 | PULLER ASSEMBLY Slide Hammer | 1 |
| - | 85560 | 推力轴承 | BEARING Thrust | 1 |
| - | 66274 | 扭矩扳手(0-150磅英寸) | TORQUE WRENCH (0-150 lb-in) | 1 |
| - | 14310T1 | 耐磨套驱动器 | WEAR SLEEVE DRIVER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828353T7 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 8M0107146 | 罩盖-顶部, 黑色 | COWL-TOP, BLACK | 1 |
| 1 | 828353T8 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 828354T6 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 828354A7 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 8M0107148 | 顶罩-MA型 | COWL-TOP, MA | 1 |
| 2 | 828716A2 | 盖帽 | CAP | 1 |
| 3 | 828352 | 密封件 | SEAL | 1 |
| 4 | 8283511 | 密封件 | SEAL | 1 |
| 5 | 821875F1 | 上盖 | CAP Upper | 1 |
| 5 | 8218751 | 上盖-黑色 | CAP-UPPER-BLACK | 1 |
| 5 | 821875F2 | 上盖 | CAP Upper | 1 |
| 5 | 821875F1 | 上盖 | CAP Upper | 1 |
| 6 | 819813T1 | 盖板锁扣支架 | BRACKET Cover Latch | 1 |
| 7 | 18173 | 锁扣滚轮支架总成 | BRACKET ASSEMBLY Latch Roller | 1 |
| 7 | 893763 | 滚轮锁扣支架 | BRACKET Roller Latch | 1 |
| 8 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 9 | 90285 | 螺钉 (.312-18 x .625) | SCREW (.312-18 x .625) | 2 |
| 10 | F481434 | 罩盖锁扣导架 | GUIDE Cowl Latch Bracket | 2 |
| 11 | 91925 | 压入式螺母 | PUSH NUT | 4 |
| 12 | 822512 | 螺钉 (.250-20 x 1.00) | SCREW (.250-20 x 1.00) | 3 |
| 13 | 823865 | 盖塞 | CAP PLUG | 2 |
| 14 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 15 | 823830 | 支架 | SUPPORT | 2 |
| 16 | 8231871 | 螺钉(M4×14.5) | SCREW (M4 x 14.5) | 4 |
| 17 | 26995 | 防松垫圈(#8不锈钢) | LOCKWASHER (#8) Stainless Steel | 4 |
| 18 | 8233941 | 支架 | BRACKET | 1 |
| 19 | 8237515 | 螺母(M4) | NUT (M4) | 4 |
| 20 | 823685A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 20 | 823685A02 | 隔音毯套装(预涂压敏胶) | SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive) | 1 |
| 20 | 823685A02 | 隔音毯套装(预涂压敏胶) | SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive) | 1 |
| 21 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 1 |
| 21 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 1 |
| 22 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 23 | NSS | 不单独销售(启动绳) | NOT SOLD SEPARATE Starter Rope | 1 |
| 24 | NSS | 不单独出售 信封袋 | NOT SOLD SEPARATE Envelope | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828334F1 | 艉板支架 | BRACKET Transom | 1 |
| 1 | 828334T02 | 艉板支架总成 - 右舷 | BRACKET ASSEMBLY Transom - Starboard | 1 |
| 2 | 828333A3 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 828333T07 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom - Port | 1 |
| 3 | 98727 | 润滑脂接头 | FITTING Grease | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 99170A2 | 倾斜管套件 | TUBE KIT Tilt | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 5 | 82671327 | 螺母(1.0-14) | NUT (1.0-14) | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 7 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 8 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 54012 | 垫圈(0.530×0.870×0.105不锈钢) | WASHER (.530 x .870 x .105) Stainless Steel | 4 |
| 10 | 8M0204665 | 垫圈(0.530×0.880×0.104 630不锈钢) | WASHER (.530 x .880 x .104) 630 Stainless Steel | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 14 | 821176T1 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 8M0109798 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 15 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 16 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99617 | 销 | PIN | 1 |
| 19 | 893709 | 销 | PIN | 1 |
| 20 | 818771T1 | 锚支架 | BRACKET Anchor | 1 |
| 20 | 8M0086406 | 锚支架 | BRACKET Anchor | 1 |
| 21 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 22 | 4002319 | 垫圈 | WASHER | 6 |
| 23 | 40114 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
| 24 | 8182981 | 阳极块 | ANODE | 1 |
| 24 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 25 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 25 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 26 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 26 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 27 | 22740 | 卡扣 | CLIP | 2 |
| 28 | 69205 | C形垫圈 | C WASHER | 1 |
| 28 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 29 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 30 | 830250T5 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 30 | 8M0171818 | 动力调整总成 | POWER TRIM ASSY | 1 |
| 31 | 49930A1 | 倾斜锁销总成 | PIN ASSEMBLY Tilt Lock | 1 |
| 31 | 8M0026068 | 倾斜锁销总成 | PIN ASSEMBLY Tilt Lock | 1 |
| 32 | 830253 | 倾斜锁止贴纸 | DECAL Tilt Lock | 1 |
| 33 | 826709110 | 不锈钢螺母(.312-18) | NUT (.312-18) Stainless Steel | 1 |
| 34 | 8353511 | 连杆 | LINK ROD | 1 |
| 35 | 832042 | 臂 | ARM | 1 |
| 36 | 832040 | 衬套 | BUSHING | 1 |
| 37 | 832039 | 倾斜杆 | LEVER Tilt | 1 |
| 38 | 19621 | 倾斜旋钮 | TILT KNOB | 1 |
| 38 | 8M0007469 | 倾斜旋钮 | KNOB Tilt | 1 |
| 39 | 835249T1 | 手动倾斜装置总成 | MANUAL TILT ASSEMBLY | 1 |
| 40 | 99625002 | 上轴 | SHAFT Upper | 1 |
| 41 | 818898 | 锚销 | PIN Anchor | 1 |
| 42 | 821539 | 三叶销 | PIN Trilobe | 2 |
