两冲程 化油器 · Australia - Cat.# 90-90647 · 共 53 个部位 · 2129 条零件

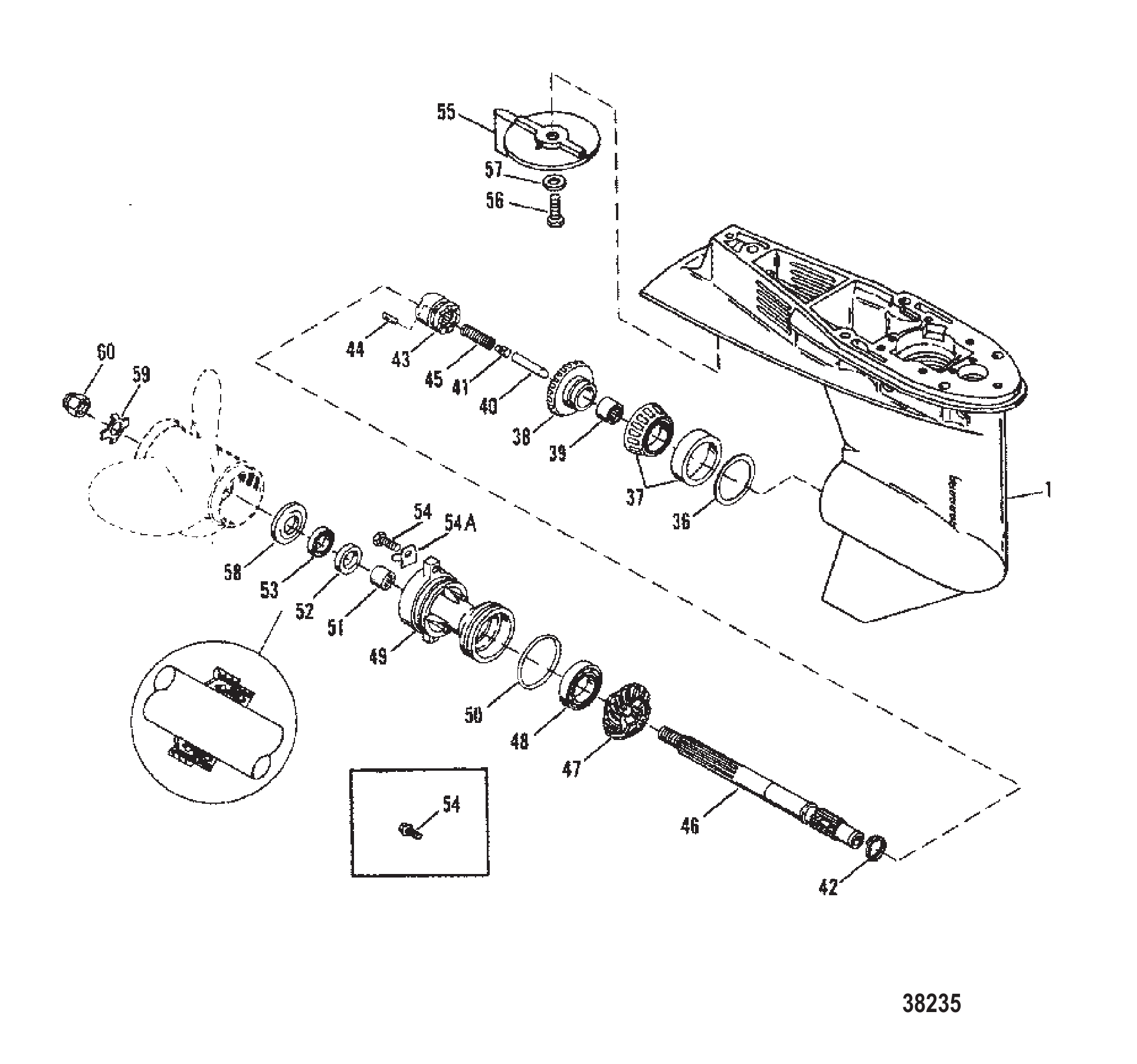

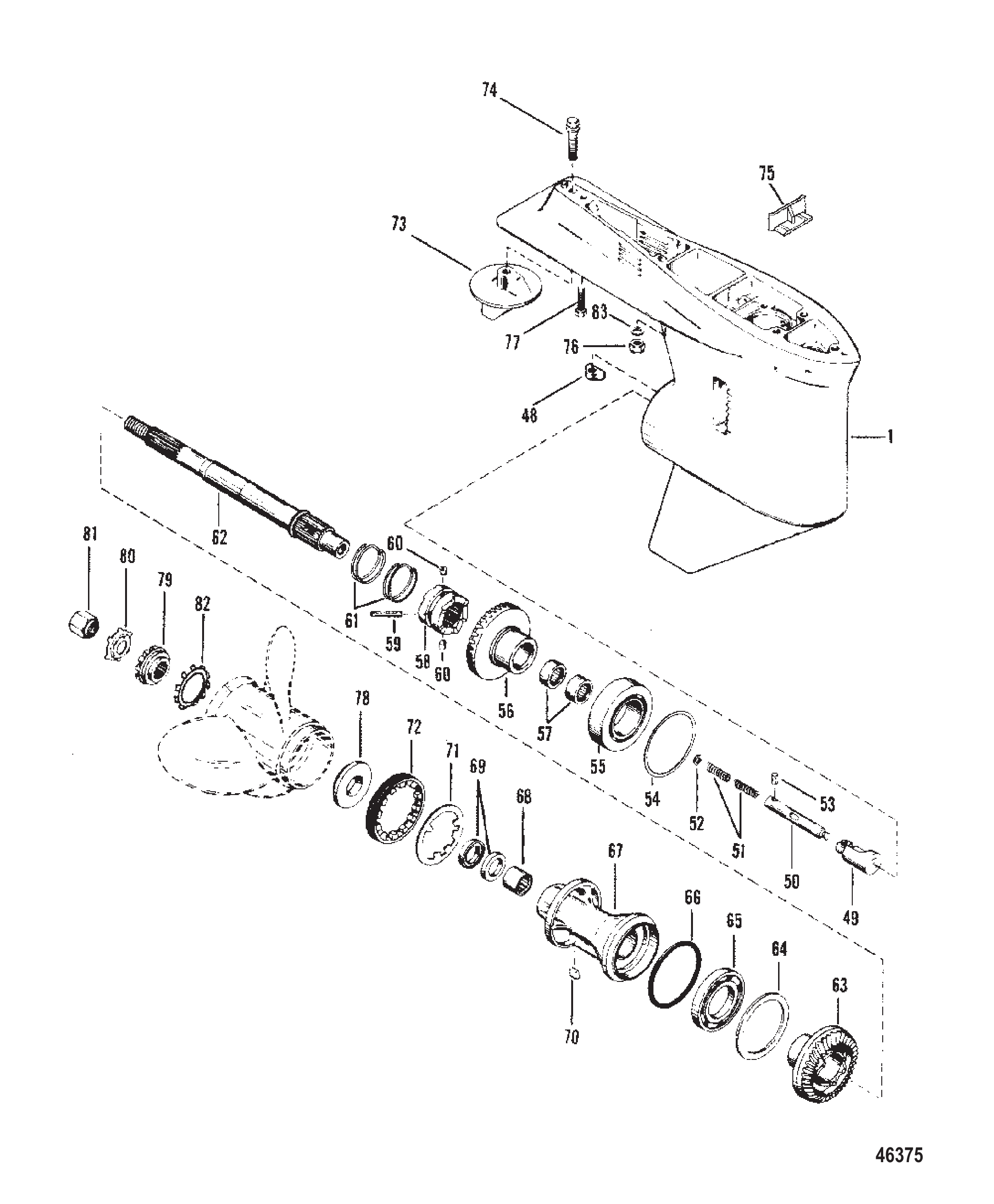

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9760A8 | 齿轮箱总成(短型)(黑色) | GEAR HOUSING ASSEMBLY (SHORT) (BLACK) | 1 |
| - | 9760A9 | 齿轮箱总成(短型)(灰色) | GEAR HOUSING ASSEMBLY (SHORT) (GRAY) | 1 |
| - | 9760A24 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A21 | 齿轮箱总成(长型)(追踪者系列) | GEAR HOUSING ASSEMBLY (LONG) (TRACKER) | 1 |
| - | 9760T27 | ORD1671-9760T25 | ORD1671- 9760T25 | 1 |
| - | 9760A12 | 齿轮箱总成(长型)(黑色) | GEAR HOUSING ASSEMBLY (LONG) (BLACK) | 1 |
| - | 9760T25 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A13 | 齿轮箱总成(长型)(灰色) | GEAR HOUSING ASSEMBLY (LONG) (GRAY) | 1 |
| - | 9760T26 | ORD 1671-9760T25 | ORD 1671-9760T25 | 1 |
| - | 9760A10 | 齿轮箱总成(加长)(黑色) | GEAR HOUSING ASSEMBLY (X-LONG) (BLACK) | 1 |
| - | 9760T28 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A11 | 齿轮箱总成(加长)(灰色) | GEAR HOUSING ASSEMBLY (X-LONG) (GRAY) | 1 |
| - | 9760T29 | 灰色齿轮箱 | GEAR HOUSING-GR | 1 |
| 1 | 9760A2 | 齿轮箱总成(基础款)(黑色) | GEAR HOUSING ASSEMBLY (BASIC)(BLACK) | 1 |
| 1 | 9760T42 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9760A3 | 齿轮箱总成(基础款)(灰色) | GEAR HOUSING ASSEMBLY (BASIC)(GRAY) | 1 |
| 1 | 9760T31 | ORD 1671-9760T30 | ORD 1671-9760T30 | 1 |
| 1 | 9760A20 | 齿轮箱总成(基础款)(TRACKER) | GEAR HOUSING ASSEMBLY (BASIC)(TRACKER) | 1 |
| 1 | 9760T32 | ORD 1671-9760T42 | ORD 1671-9760T42 | 1 |
| 36 | 812769A1 | 垫片组 | SHIM SET | AR |
| 36 | 8M0063263 | 垫片组 | SHIM SET | AR |
| 37 | 812767A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 37 | 8M0103476 | 轴承总成 | BEARING ASSY | 1 |
| 38 | 813693A1 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 38 | 813693T1 | 前进齿轮 | GEAR Forward | 1 |
| 39 | 21739 | 滚柱轴承 | BEARING Roller | 1 |
| 40 | 8129291 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 41 | 20843 | 滑块 | SLIDE | 1 |
| 42 | 38114 | 弹簧 | SPRING | 1 |
| 43 | 813697 | 离合器 | CLUTCH | 1 |
| 43 | 813697T | 离合器 | CLUTCH | 1 |
| 44 | 38113 | 十字销 | PIN Cross | 1 |
| 44 | 8M0020942 | 十字销@2 | PIN-CROSS @2 | 1 |
| 45 | 815418 | 弹簧 | SPRING | 1 |
| 46 | 14493 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 47 | 813695 | 倒挡齿轮 | GEAR Reverse | 1 |
| 47 | 813695T | 倒挡齿轮 | GEAR Reverse | 1 |
| 48 | 20839 | 滚珠轴承 | BEARING Ball | 1 |
| 48 | 20839T | 滚珠轴承 | BEARING Ball | 1 |
| 49 | 19291A3 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 49 | 8M0168900 | 轴承座 | BEARING CARRIER | 1 |
| 50 | 815460 | O型圈 | O-RING | 1 |
| 51 | 21700 | 滚针轴承 | BEARING Needle | 1 |
| 52 | 69188 | 油封 | SEAL Oil | 1 |
| 52 | 8M0205511 | 油封 | SEAL Oil | 1 |
| 53 | 69189 | 油封 | SEAL Oil | 1 |
| 53 | 8M0203757 | 油封 | SEAL Oil | 1 |
| 54 | 4000353 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 2 |
| 54A | 826613 | 锁紧垫圈 | TAB WASHER | 2 |
| 54 | 8136911 | 螺丝(M8×0.98) | SCREW (M8 x .98) | 2 |
| 55 | 17264T2 | 调整片 锌制 | TRIM TAB Zinc | 1 |
| 56 | 4000377 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 1 |
| 57 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 1 |
| 57 | 8M0214963 | 垫圈 | WASHER | 1 |
| 58 | 73345A1 | 止推垫片 | THRUST WASHER | 1 |
| 59 | 76281 | 锁紧垫圈 | TAB WASHER | 1 |
| 59 | 8M0214942 | 锁紧垫片 | WASHER Tab | 1 |
| 60 | 69578A1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| 60 | 69578Q1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| - | 812867A91 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 812867A97 | 衬垫套件 | GASKET SET | 1 |
| - | 814669A2 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

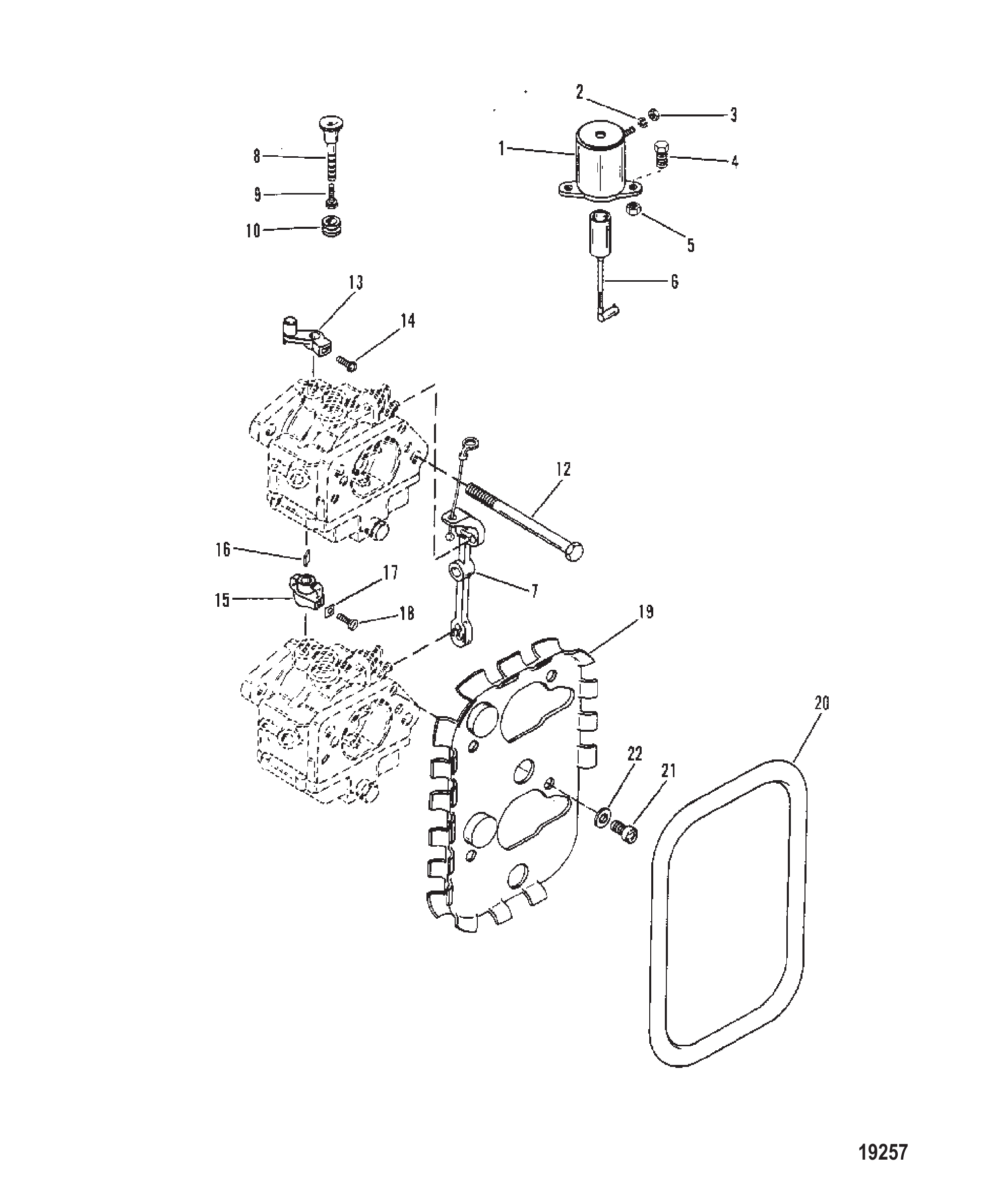

| 1 | 60549A7 | 阻风门电磁阀总成 | SOLENOID ASSEMBLY Choke | 1 |
| 2 | 26996 | 锁紧垫圈(#10)不锈钢阻风门电磁阀端子 | LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL | 1 |
| 3 | 68219 | 螺母(#10-32)不锈钢阻风门电磁阀端子 | NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL | 1 |
| 4 | 33524 | 螺钉(.312-24 x .620)阻风门电磁阀 | SCREW (.312-24 x .620) CHOKE SOLENOID | 1 |
| 5 | 29250 | 螺母(.312-24)阻风门电磁阀螺钉 | NUT (.312-24) CHOKE SOLENOID SCREWS | 2 |
| 6 | 89008A2 | 阻风门电磁阀柱塞总成 | PLUNGER ASSEMBLY CHOKE SOLENOID | 1 |
| 7 | 76076A1 | 阻风门拉杆总成 | ROD ASSEMBLY Choke | 1 |
| 8 | 90242A1 | 旋钮总成 | KNOB ASSEMBLY | 1 |
| 9 | 35519 | 螺钉(#10-16 x .500)阻风门旋钮线 | SCREW (#10-16 x .500) WIRE TO CHOKE KNOB | 1 |
| 10 | 20116 | 阻风门旋钮护圈 | GROMMET CHOKE KNOB | 1 |
| 12 | 52743 | 螺钉(.312-18 x 3.750)化油器至曲轴箱 | SCREW (.312-18 x 3.750) CARBURETOR TO CRANKCASE | 4 |
| 13 | 77583 | 节流阀杆 | LEVER THROTTLE | 1 |
| 14 | 60293 | 螺钉(#5-40 x .500)杆至化油器 | SCREW (#5-40 x .500) LEVER TO CARBURETOR | 1 |
| 15 | 60292A1 | 联轴器总成 | COUPLING ASSEMBLY | 1 |
| 16 | 89694 | 节流阀轴联轴器键 | KEY THROTTLE SHAFT COUPLING | 1 |
| 17 | 92500 | 推式螺母滚轮-联轴器 | PUSH NUT ROLLER - COUPLING | 1 |
| 18 | 60293 | 螺钉(#5-40 x .500)卷边垫圈至联轴器 | SCREW (#5-40 x .500) ROLLED WASHER TO COUPLING | 1 |
| 19 | 91996A1 | 化油器板总成 | PLATE ASSEMBLY CARBURETOR | 1 |
| 20 | 71090 | 化油器板密封件 | SEAL CARBURETOR PLATE | 1 |
| 21 | 20367 | 螺钉板至化油器(7/16") | SCREW PLATE TO CARBURETOR (7/16") | 4 |
| 22 | 29245 | 垫圈(.281 x .500 x .060)不锈钢板螺钉 | WASHER (.281 x .500 x .060) Stainless Steel PLATE SCREW | 4 |
| 22 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

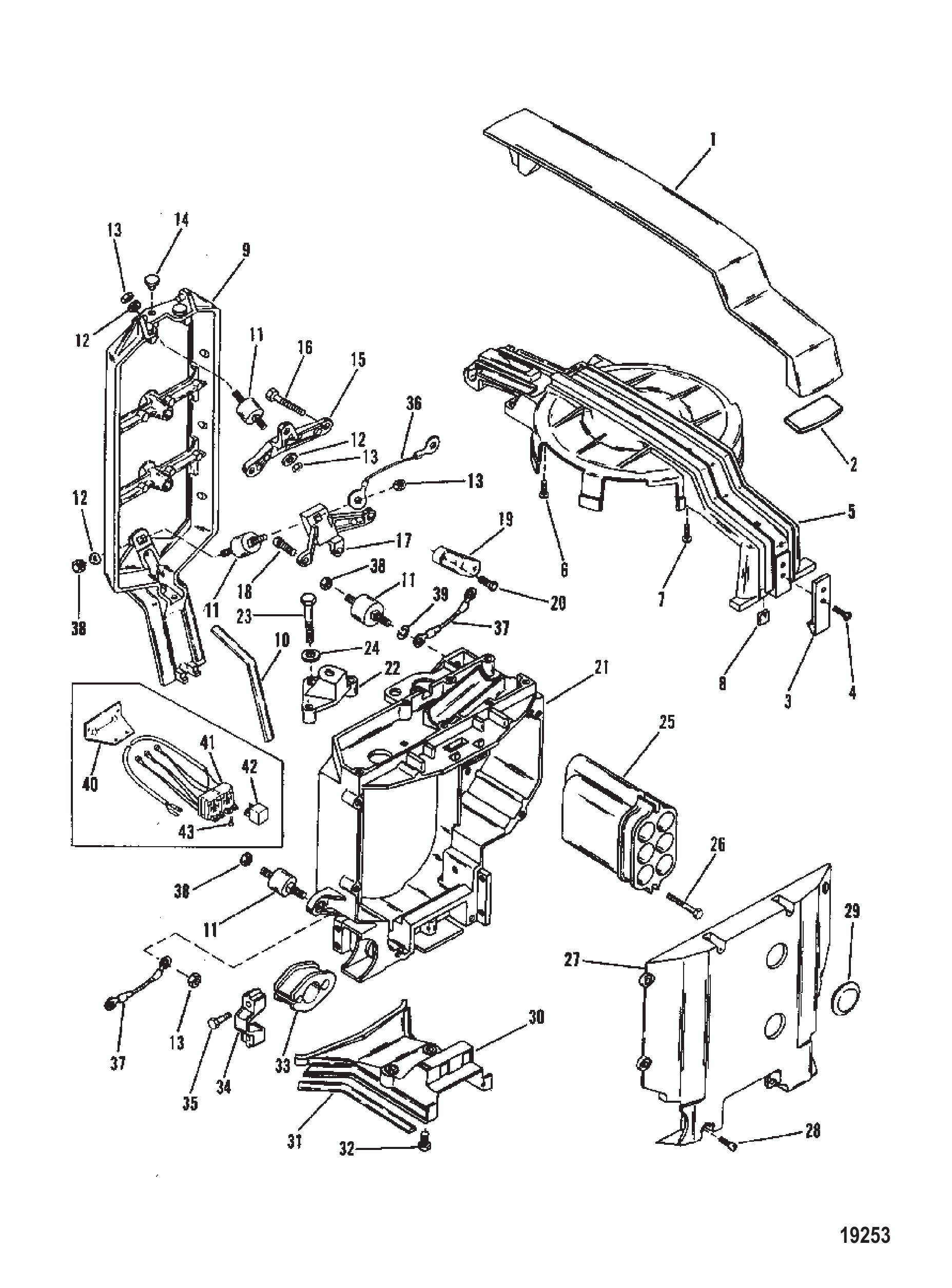

| 1 | 73641A1 | 黑色顶部支架 | BRACKET TOP (BLACK) | 1 |
| 1 | 73641A2 | 灰色顶部支架 | BRACKET TOP (GRAY) | 1 |
| 2 | 62444 | 顶部支架/安装板橡胶密封条 | SEAL RUBBER-TOP BRACKET/MOUNTING PLATE | 1 |
| 3 | 79652 | 支架固定夹 | CLIP SUPPORT BRACKET | 1 |
| 4 | 48409 | 支架固定夹用#10-16x0.625不锈钢螺钉 | SCREW (#10-16 x .625) Stainless Steel CLIP TO SUPPORT | 2 |
| 5 | 79490T | 飞轮护罩 | SHIELD FLYWHEEL | 1 |
| 5 | 79490 | 护罩 | SHIELD | 1 |
| 6 | 37656 | 护罩至支架用#10-32x0.620螺钉 | SCREW (#10-32 x .620) SHIELD TO SUPPORT BRACKET | 1 |
| 7 | 48408 | 螺钉（#10-16 x 0.500）护罩至支撑架 | SCREW (#10-16 x .500) SHIELD TO SUPPORT BRACKET | 3 |
| 8 | 91891 | 消音器耐磨板 | WEAR PLATE SOUND ATENUATOR | 2 |
| 9 | 74510A2 | 后罩支撑架 | BRACKET COWL SUPPORT-REAR | 1 |
| 10 | 698761 | 后支架与顶支架密封件 | SEAL REAR BRACKET AND TOP BRACKET | 2 |
| 11 | 90435 | 橡胶支座 | MOUNT RUBBER | 4 |
| 12 | 20346 | 橡胶安装垫圈 | WASHER RUBBER MOUNT | 3 |
| 12 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 3 |
| 13 | 20184 | 螺母 (1/4-28X7/32) 橡胶支座 | NUT (1/4-28X7/32) RUBBER MOUNT | 4 |
| 13 | 8M0207775 | 螺母 @5 | NUT @5 | 4 |
| 14 | 26901 | 后支撑架橡胶缓冲块 | BUMPER RUBBER-REAR SUPPORT BRACKET | 3 |
| 14 | 269011 | 橡胶缓冲垫 | BUMPER Rubber | 3 |
| 15 | 60116 | 顶罩支撑架加固件 | BRACE COWL SUPPORT BRACKET (TOP) | 1 |
| 16 | 76596 | 螺钉（0.250-20 x 1.250）支撑架 | SCREW (.250-20 x 1.250) SUPPORT BRACKET | 3 |
| 17 | 87764 | 后下部安装架 | BRACKET REAR LOWER MOUNT | 1 |
| 18 | 76596 | 螺钉（0.250-20 x 1.250）后支架固定 | SCREW (.250-20 x 1.250) REAR BRACKET ATTACHING | 3 |
| 19 | 71097 | 橡胶安装架 | BRACKET RUBBER MOUNT | 1 |
| 20 | 59645 | 螺钉（0.312-18 x 0.750）支架至曲轴箱（3/4英寸） | SCREW (.312-18 x .750) BRACKET TO CRANKCASE (3/4") | 1 |
| 20 | 824941 | 螺钉 (0.312-18 x 0.750) | SCREW (.312-18 x .750) | 1 |
| 21 | 97348T | 消音器 | ATTENUATOR SOUND | 1 |
| 21 | 973482 | 消音器 | SOUND ATTENUATOR | 1 |
| 22 | 88684 | 手动阻风门盖 | COVER MANUAL CHOKE | 1 |
| 23 | 32293 | 螺钉（0.312-24 x 1.75）盖至顶盖 | SCREW (.312-24 x 1.75) COVER TO TOP COVER | 1 |
| 24 | 53705 | 盖板螺丝垫圈 | WASHER COVER SCREW | 1 |
| 24 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 1 |
| 25 | 73986 | 空气歧管 | MANIFOLD Air | 1 |
| 26 | 69093 | 螺钉（0.250-20 x 1.50）空气歧管 | SCREW (.250-20 x 1.50) AIR MANIFOLD | 2 |
| 27 | 14915T | 前消音器盖 | COVER SOUND ATTENUATOR (FRONT) | 1 |
| 28 | 37655 | 螺钉（#10-32 x 0.500）前盖 | SCREW (#10-32 x .500) FRONT COVER | 8 |
| 29 | 73336 | 前盖塞 | PLUG FRONT COVER | 2 |
| 30 | 41128A1 | 隔板总成 | PLATE ASSEMBLY | 1 |
| 31 | 698761 | 密封板 | SEAL PLATE | 2 |
| 32 | 90198 | 盖板至支撑架螺钉 | SCREW COVER PLATE TO SUPPORT BRACKET | 2 |
| 32 | 20540 | 螺钉(.250-20 x .62) | SCREW (.250-20 x .62) | 2 |
| 33 | 14169 | 电缆护套 | GROMMET ELECTRICAL CABLES | 1 |
| 34 | 14160 | 固定盖 | CAP RETAINING | 1 |
| 35 | 14168 | 螺钉（0.250-20 x 1.00）盖 | SCREW (.250-20 x 1.00) CAP | 2 |
| 36 | 88238A3 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 37 | 65999A2 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 2 |
| 38 | 36069 | 螺母 | NUT | 3 |
| 39 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 40 | 19686 | 支架 | BRACKET | 1 |
| 41 | 19758A3 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 42 | 18211 | 继电器开关 | RELAY SWITCH | 1 |
| 43 | 20401 | 螺钉（0.190-24 x 0.38） | SCREW (.190-24 x .38) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

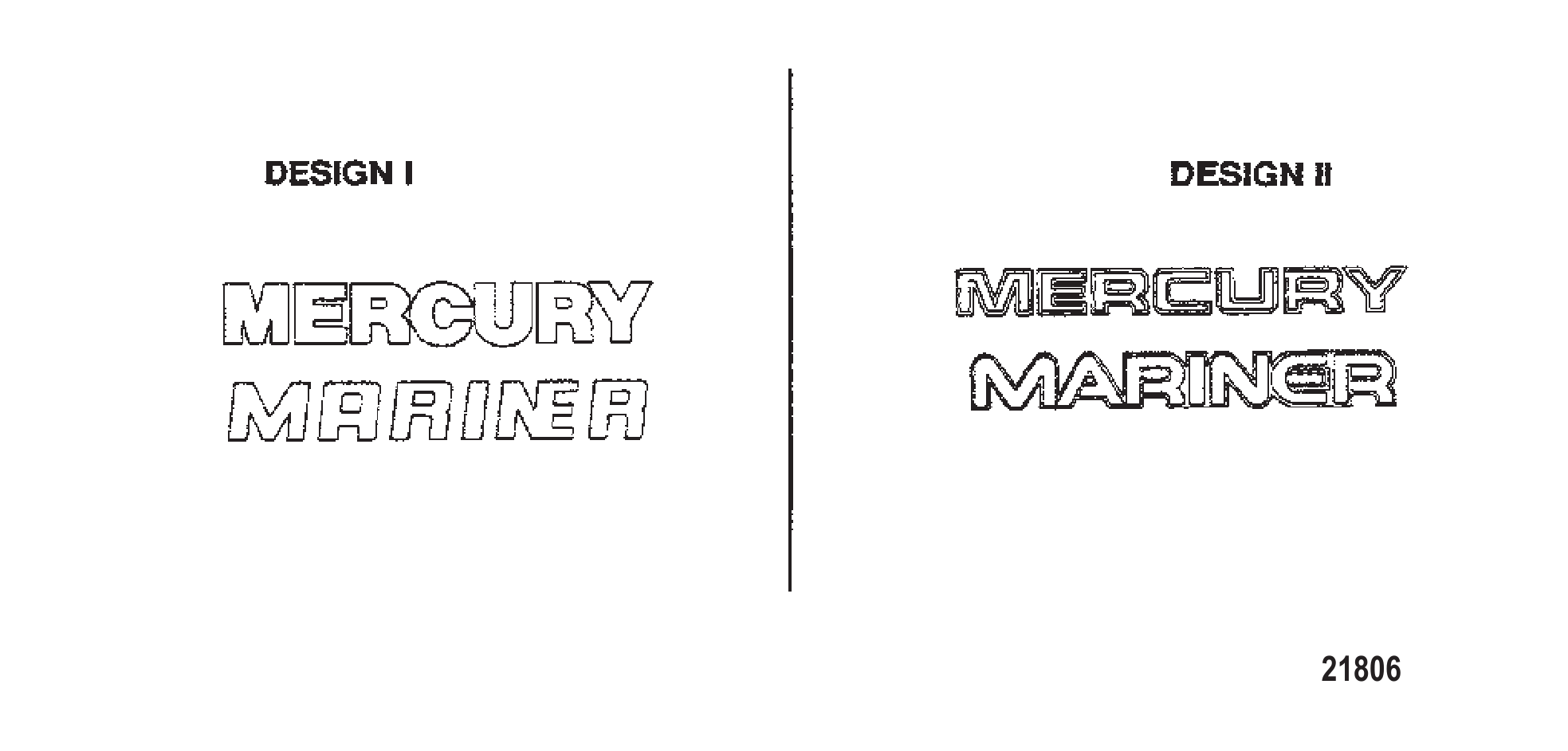

| - | 811286 | 零件手册(6/8/9.9/15马力) | PARTS MANUAL 6/8/9.9/15 Hp | |
| - | 12048930 | 用户指南(黑色) | OWNERS GUIDE (BLACK) | |
| - | 14138930 | 用户指南(灰色) | OWNERS GUIDE (GRAY) | |
| - | 14012A89 | 贴花套装(9.9/210帆动力) | DECAL SET (9.9/210 SAILPOWER) | |
| - | 12836A89 | 贴花套装(黑色-6至9.9马力) | DECAL SET (BLACK- 6 THRU 9.9) | |
| - | 13478A88 | 贴花套装(黑色-15马力) | DECAL SET (BLACK-15) | |
| - | 810458A92 | 贴花套装(灰色-6至15马力) | DECAL SET (GRAY- 6 THRU 15) | |
| - | 822787A93 | 贴花套装(灰色-8帆伴侣) | DECAL SET (GRAY 8 SAILMATE) | |
| - | 808560A03 | 贴花套件 | DECAL SET | |
| - | 808522A94 | 贴花套装(黑色-6马力) | DECAL SET (BLACK-6) | |
| - | 808522A00 | 贴花套件 | DECAL SET | |
| - | 808526A94 | 贴花套装(黑色-8马力) | DECAL SET (BLACK -8) | |
| - | 808526A00 | 贴花套件 | DECAL SET | |
| - | 12836A94 | 贴花套装(黑色-9.9马力) | DECAL SET (BLACK- 9.9) | |
| - | 12836A00 | 贴花套件 | DECAL SET | |
| - | 808523A94 | 贴花套装(9.9帆动力) | DECAL SET (9.9 SAILPOWER) | |
| - | 808523A96 | 贴花套件 | DECAL SET | |
| - | 13478A94 | 贴花套装(黑色-15马力) | DECAL SET (BLACK-15) | |
| - | 13478A00 | 贴花套件 | DECAL SET | |
| - | 808524A94 | 贴花套装(灰色-6马力) | DECAL SET (GRAY-6) | |
| - | 808524A03 | 贴花套件 | DECAL SET | |
| - | 808545A94 | 贴花套装(灰色-8马力) | DECAL SET (GRAY-8) | |
| - | 808545A03 | 贴花套件 | DECAL SET | |
| - | 808560A94 | 贴花套装(8帆伴侣) | DECAL SET (8 SAILMATE) | |
| - | 808560A03 | 贴花套件 | DECAL SET | |
| - | 808525A94 | 贴花套装(灰色-9.9马力) | DECAL SET (GRAY-9.9) | |
| - | 808525A03 | 贴花套件 | DECAL SET | |
| - | 808546A94 | 贴花套装(灰色-15马力) | DECAL SET (GRAY-15) | |
| - | 808546A03 | 贴花套件 | DECAL SET |

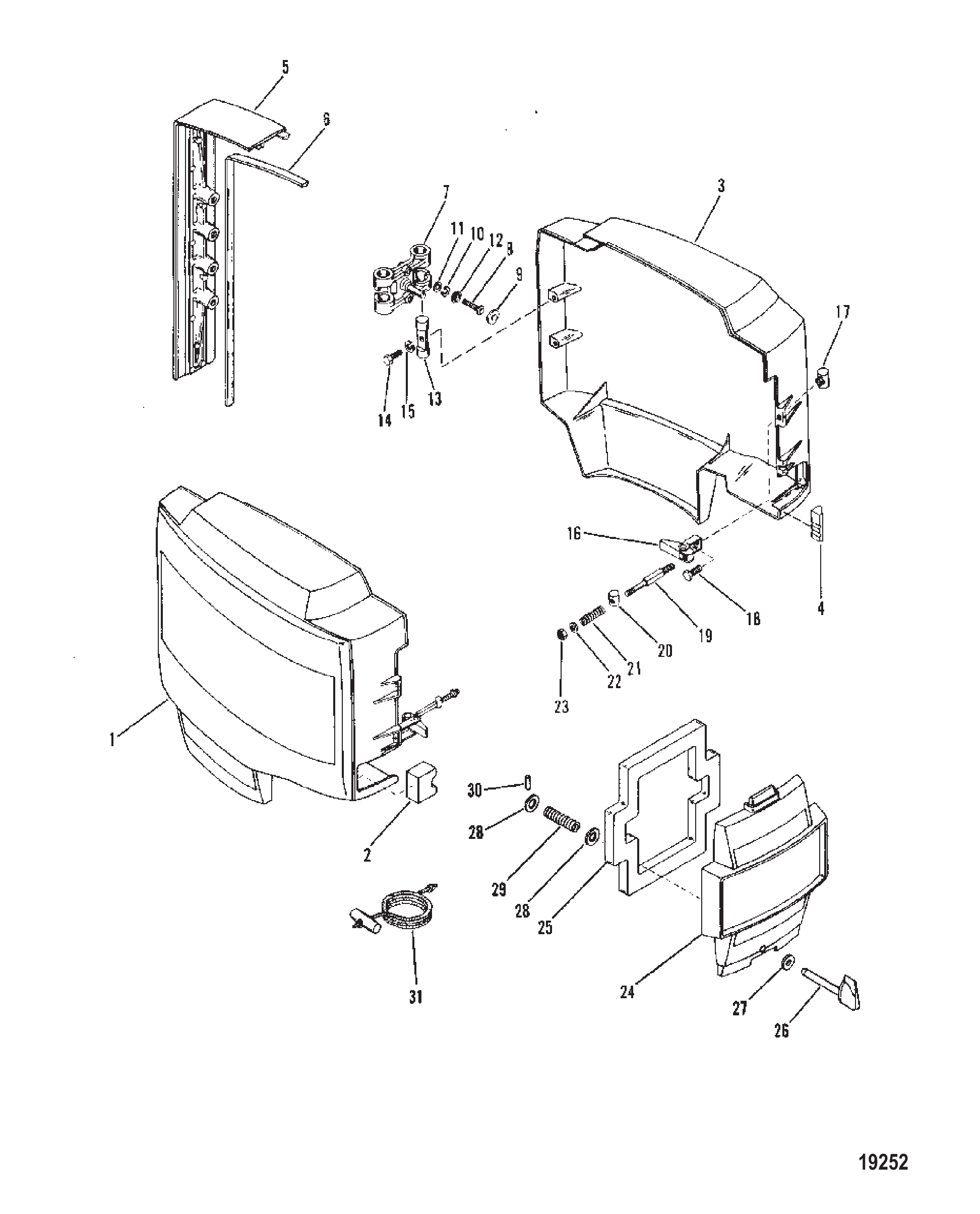

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6228A1 | 顶罩总成(右舷黑色) | TOP COWL ASSEMBLY (STARBOARD BLACK) | 1 |
| 1 | 6228A3 | 顶罩总成(右舷灰色) | TOP COWL ASSEMBLY (STARBOARD GRAY) | 1 |
| 2 | 60297 | 燃油接头密封圈-罩 | SEAL FUEL CONNECTOR -COWL | 1 |
| 3 | 6227A1 | 顶罩总成(左舷黑色) | TOP COWL ASSEMBLY (PORT BLACK) | 1 |
| 3 | 6227A17 | 顶罩总成(左舷灰色) | TOP COWL ASSEMBLY (PORT GRAY) | 1 |
| 4 | 60298 | 控制电缆密封圈-罩 | SEAL CONTROL CABLES-COWL | 1 |
| 5 | 89717T | 罩体密封后支架 | BRACKET COWL SEALING-REAR | 1 |
| 6 | 698761 | 后支架密封圈 | SEAL REAR BRACKET | 2 |
| 7 | 90980 | 罩体铰链支架 | BRACKET COWL HINGE | 2 |
| 8 | 45561 | 铰链支架下部螺钉(.250-20 x 1.12) | SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER | 2 |
| 8 | 455611 | 螺钉(.250-20 x 1.120) | SCREW (.250-20 x 1.120) | 2 |
| 8 | 75794 | 铰链支架上部螺钉(1-1/8英寸) | SCREW HINGE BRACKET-UPPER (1-1/8") | 2 |
| 9 | 75805 | 铰链支架螺钉帽(上部) | CAP HINGE BRACKET SCREW (UPPER) | 2 |
| 10 | 26992 | 铰链支架螺钉不锈钢锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW | 4 |
| 11 | 37998 | 铰链支架螺钉垫圈 | WASHER HINGE BRACKET SCREW | 4 |
| 12 | 75806 | 铰链支架螺钉垫圈(上部) | WASHER HINGE BRACKET SCREW (UPPER) | 2 |
| 13 | 90979 | 机罩铰链销 | PIN COWL HINGE | 4 |
| 14 | 28782 | 螺钉(.312-18 x .880)不锈钢 铰链销至机罩 | SCREW (.312-18 x .880) Stainless Steel PIN TO COWL | 4 |
| 15 | 26993 | 锁紧垫圈(.312)铰链销固定螺钉 | LOCKWASHER (.312) PIN ATTACHING SCREW | 4 |
| 15 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 16 | 46785A5 | 罩壳锁扣总成 | LATCH ASSEMBLY Cowl | 2 |
| 17 | 62628 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 18 | 31312 | 螺钉(#10-32 x 0.875)锁扣总成至筒体 | SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL | 2 |
| 19 | 15222 | 机罩锁扣调节杆 | BAR ADJUSTMENT-COWL LATCH | 2 |
| 20 | 62629 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 21 | 62624 | 机罩锁扣张力弹簧 | SPRING TENSION-COWL LATCH | 2 |
| 22 | 30164 | 垫圈(.192 x .375 x .0312)不锈钢 调节杆至筒体 | WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 45812 | 螺母(#10-32)不锈钢 调节杆至筒体 | NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 859124 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 24 | 8774A6 | 前盖(黑色) | FRONT COVER (BLACK) | 1 |
| 24 | 8774A7 | 前盖(灰色) | FRONT COVER (GRAY) | 1 |
| 25 | 795511 | 隔音毯 | BLANKET SOUND ABSORBING | 1 |
| 26 | 14333 | 旋钮 | KNOB | 1 |
| 27 | 30771 | 垫圈 | WASHER | 2 |
| 28 | 75246 | 垫圈 | WASHER | 2 |
| 29 | 30772 | 弹簧 | SPRING | 1 |
| 30 | 29077 | 滚动销 | PIN Roll | 1 |
| 31 | 47341A1 | 拉绳与手柄套件 手动/应急启动(仅限手动启动) | ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY) | 1 |
| 31 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |

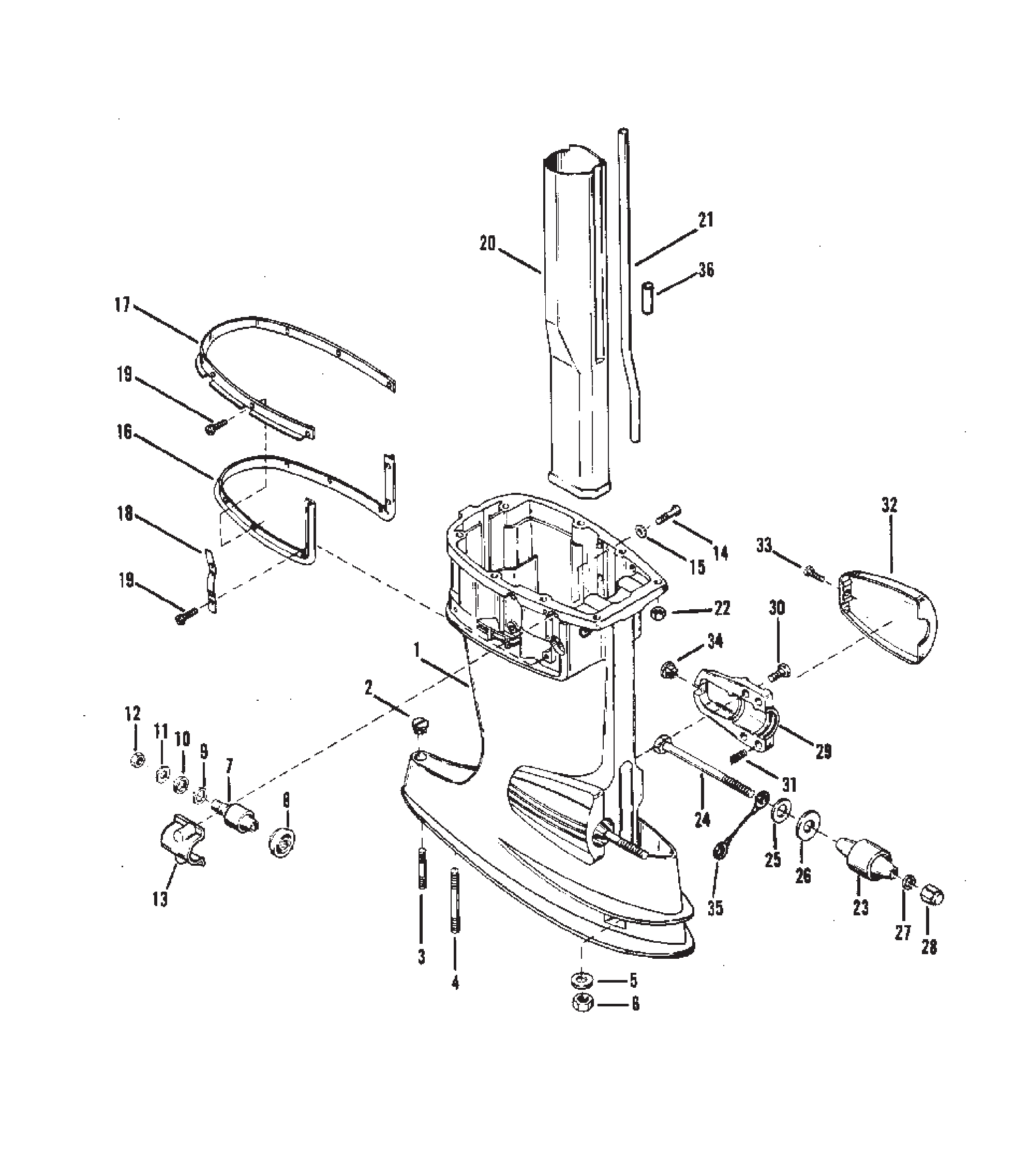

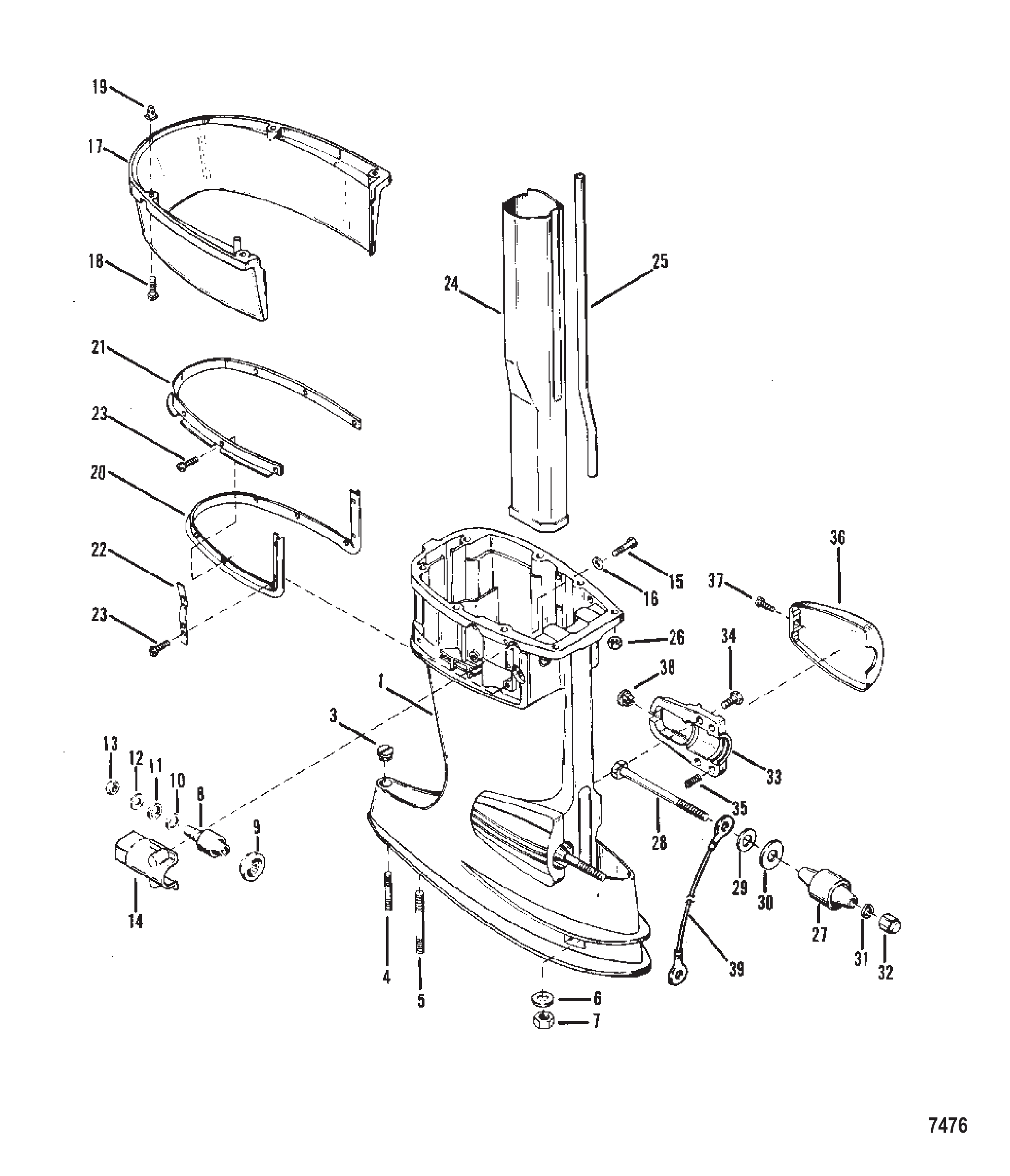

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 7512A10 | 驱动轴壳体总成(短轴) | HOUSING ASSEMBLY Driveshaft (Short Shaft) | 1 |
| 1 | 7513A12 | 驱动轴壳体总成(长轴) | HOUSING ASSEMBLY Driveshaft (Long Shaft) | 1 |
| 1 | 8189A10 | 黑色传动轴壳体总成 | HOUSING ASSEMBLY Driveshaft Black | 1 |
| 1 | 8189A11 | 灰色传动轴壳体总成 | HOUSING ASSEMBLY Driveshaft Gray | 1 |
| 3 | 64649 | 塑料螺塞-调整片螺钉孔 | PLUG Plastic - Trim Tab Screw Hole | 1 |
| 4 | 57932 | STUD (.375-16/.375-24 x 1.750) Driveshaft Housing | 1 | |
| 4 | 8M0022145 | 螺柱(.375-16/.375-24 x 1.750) | STUD (.375-16/.375-24 x 1.750) | 1 |
| 5 | 57935 | 驱动轴壳体双头螺柱(3英寸) | STUD Driveshaft Housing (3 Inch) | 1 |
| 6 | 65791 | 齿轮箱壳体螺柱垫圈(0.438英寸) | WASHER Gear Housing Studs (0.438 Inch) | 2 |
| 7 | 34933 | NUT (.437-20) Stainless Steel Gear Housing Studs | 2 | |
| 7 | 8M0204653 | 螺母 | NUT | 2 |
| 8 | 93445 | 橡胶上支架 | MOUNT Rubber - Upper | 2 |
| 8 | 923373 | 支架 | MOUNT | 2 |
| 9 | 96401 | 上支架密封件 | SEAL Upper Mount | 2 |
| 10 | 27727 | WASHER Upper Mount Bolt (37/64 I.D.) | 2 | |
| 11 | 66966 | WASHER Rubber - Upper Mount Bolt | 2 | |
| 12 | 30514 | WASHER Upper Mount Bolt | 2 | |
| 13 | 34933 | NUT (.437-20) Stainless Steel Upper Mount Bolt | 2 | |
| 13 | 8M0204653 | 螺母 | NUT | 2 |
| 14 | 87883T | 上减震座盖 | COVER Upper Mount | 2 |
| 14 | 87883 | 盖板 | COVER | 2 |
| 15 | 76630 | SCREW (.250-20 x 1.00) Upper Mount Cover | 4 | |
| 15 | 8M0214943 | 螺钉 | SCREW | 4 |
| 16 | 29245 | WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw | 4 | |
| 16 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 17 | 37687 | 驱动轴壳体调整盖 | COVER Trim - Driveshaft Housing | 1 |
| 17 | 37687F2 | 驱动轴壳体调整盖 | COVER Trim - Driveshaft Housing | 1 |
| 18 | 57807 | SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing | 4 | |
| 19 | 92012 | GROMMET Trim Cover Screw | 4 | |
| 19 | 8M0079730 | 密封圈套件 | GROMMET KIT | 4 |
| 20 | 38157 | 调整盖至驱动轴壳体密封件 | SEAL Trim Cover to Driveshaft Housing | 1 |
| 21 | 38158 | 调整盖密封条(后) | STRIP Retaining - Trim Cover Seal (Rear) | 1 |
| 22 | 38154 | 调整盖密封条(侧) | STRIP Retaining - Trim Cover Seal (Side) | 2 |
| 23 | 48408 | 固定条螺钉(#10-16 x .500) | SCREW (#10-16 x .500) Retaining Strip | 8 |
| 24 | 695431 | 排气管 | TUBE Exhaust | 1 |
| 24 | 695441 | 排气管 | TUBE Exhaust | 1 |
| 25 | 37727 | 进水口管 | TUBE Water Inlet | 1 |
| 25 | 45679 | 进水口管 | TUBE Water Inlet | 1 |
| 26 | 64809 | 动力头螺柱螺母(0.313英寸) | NUT Powerhead Studs (0.313 Inch) | 8 |
| 27 | 75304 | 下橡胶支座 | MOUNT Rubber - Lower | 2 |
| 27 | 75304T1 | 支架 | MOUNT | 2 |
| 28 | 75284 | SCREW (.500-20 x 5.500) Lower Mount Screw | 2 | |
| 28 | 43426 | 下支座螺丝 | SCREW Lower Mount Screw | 2 |
| 29 | 28051 | WASHER Lower Mount Screw | 2 | |
| 30 | 28053 | 下支座螺丝橡胶垫圈 | WASHER Rubber - Lower Mount Screw | 2 |
| 31 | 30119 | WASHER (.875 Inch Outside Diameter) Lower Mount Screw | 2 | |
| 32 | 25096 | NUT Lower Mount Screw | 2 | |
| 33 | 69592 | 下支座夹箍 | CLAMP Lower Mount | 2 |
| 33 | 69592F1 | 卡箍 | CLAMP | 2 |
| 34 | 29256 | SCREW (.312-18 x .875) Lower Mount Clamp | 4 | |
| 35 | 35522 | SPRING Tension - Lower Mount Clamp | 4 | |
| 36 | 35474T | 下安装夹盖 | COVER Lower Mount Clamp | 2 |
| 36 | 35474F2 | 下支座夹箍盖 | COVER Lower Mount Clamp Lower Mount Clamp | 2 |
| 37 | 87884 | 盖至下支座夹箍螺丝(#12-14 x 0.920) | SCREW (#12-14 x .920) Cover to Lower Mount Clamp | 2 |
| 38 | 35521 | NUT Lower Mount Clamp Cover | 2 | |

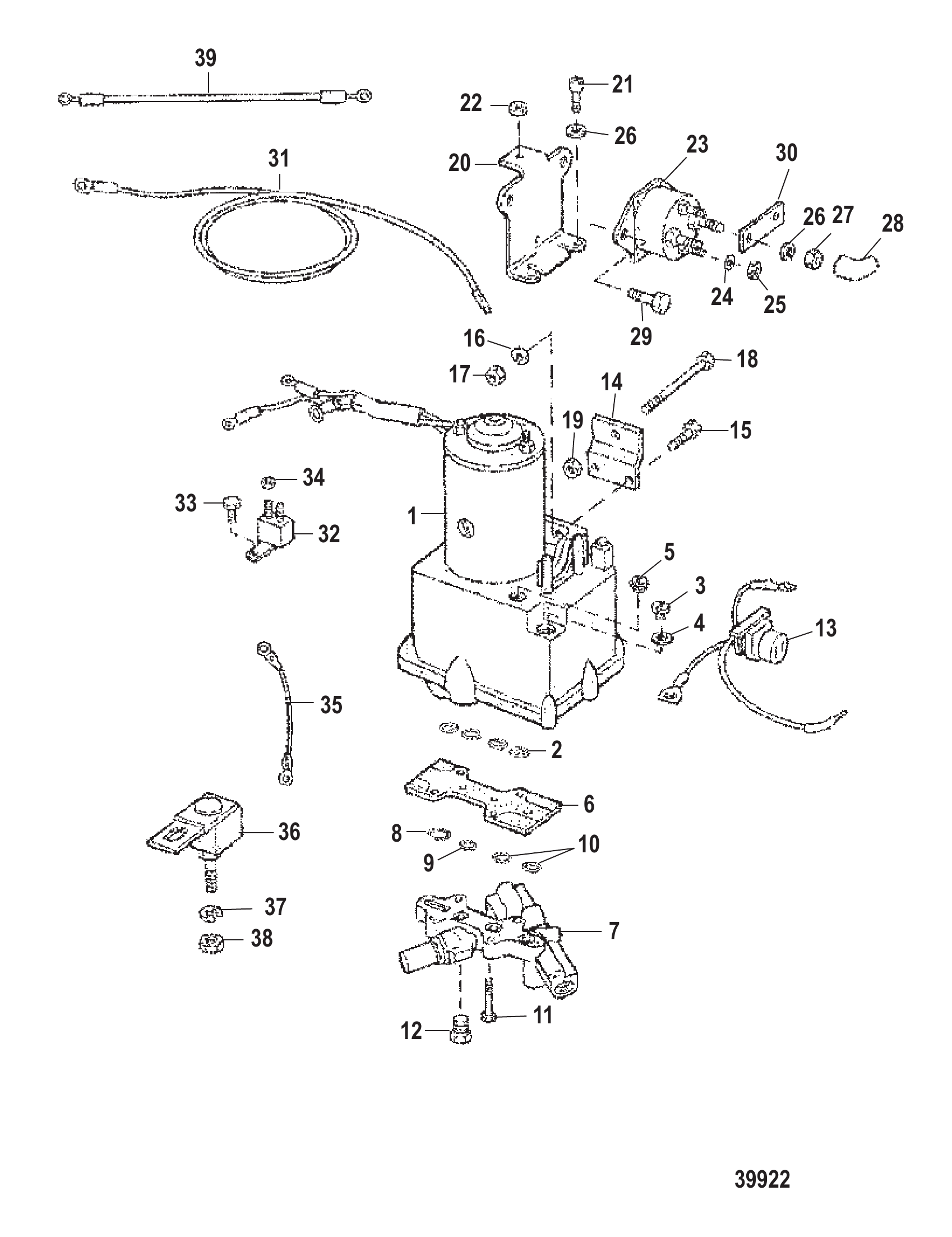

| 39 | 88238A2 | 动力升降接地线组件(2根) | CABLE ASSEMBLY Ground Quanity of Two on Power Trim | 1 |
| 39 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

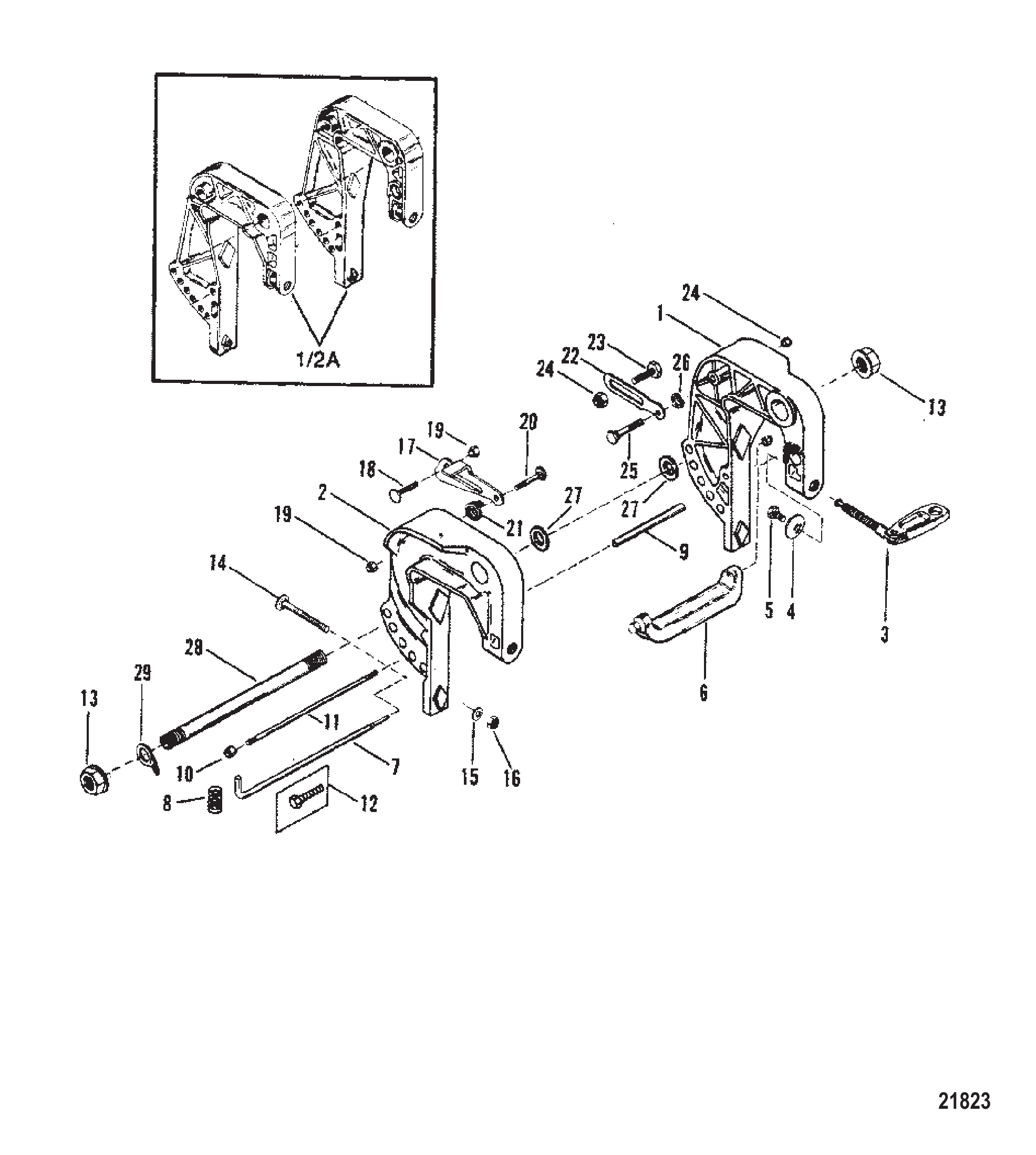

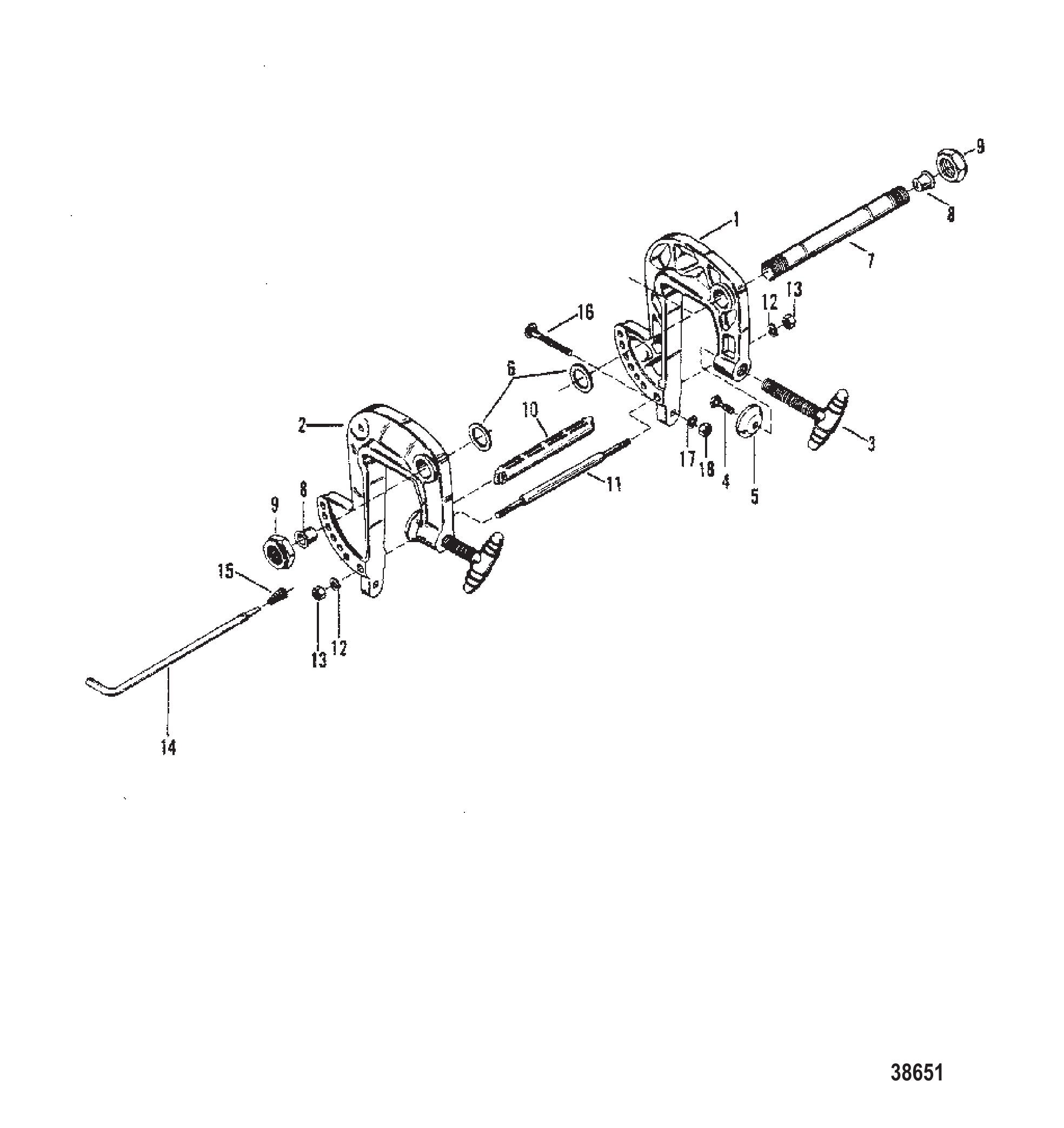

| 1 | 5570A3 | 夹紧支架总成(左舷) | CLAMP BRACKET ASSEMBLY (PORT) | 1 |
| 2 | 5571A3 | 夹紧支架总成(右舷) | CLAMP BRACKET ASSEMBLY (STARBOARD) | 1 |
| 3 | 77190A3 | 蝶形螺钉总成 | THUMB SCREW ASSEMBLY | 2 |
| 4 | 76804 | 蝶形螺钉 | SCREW THUMB SCREW | 2 |
| 4 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 5 | 73719 | 蝶形螺丝垫圈 | WASHER THUMB SCREW | 2 |
| 5 | 818884 | 垫圈 | WASHER | 2 |
| 6 | 71421 | 倾斜管尼龙垫圈-夹紧至旋转支架 | WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET | 2 |
| 7 | 96962 | 倾斜管夹紧至旋转支架 | TILT TUBE CLAMP TO SWIVEL BRACKET | 1 |
| 8 | 39333 | 倾斜管塞 | PLUG TILT TUBE | 2 |
| 9 | 93164 | 倾斜管紧固螺母(.875) | NUT (.875) TILT TUBE FASTENING | 2 |
| 10 | 71420 | 提手 | HANDLE CARRYING | 1 |
| 11 | 71417 | 夹紧支架螺柱 | STUD CLAMP BRACKET | 1 |
| 12 | 26992 | 夹紧支架螺柱不锈钢锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD | 2 |
| 13 | 29598 | 夹紧支架螺柱不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel CLAMP BRACKET STUD | 2 |
| 14 | 71418A2 | 倾斜锁销总成 | PIN ASSEMBLY Tilt Lock | 1 |
| 15 | 62143 | 倾斜锁止销弹簧 | SPRING TILT LOCK PIN | 1 |
| 16 | 67982 | 夹紧支架至船体螺栓 | BOLT CLAMP BRACKET TO BOAT | 2 |
| 17 | 67983 | 夹紧支架螺钉垫圈 | WASHER CLAMP BRACKET SCREW | 2 |
| 18 | 56374 | 夹紧支架螺钉螺母(.250-20) | NUT (.250-20) CLAMP BRACKET SCREW | 2 |
| 18 | 8267098 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 2 |

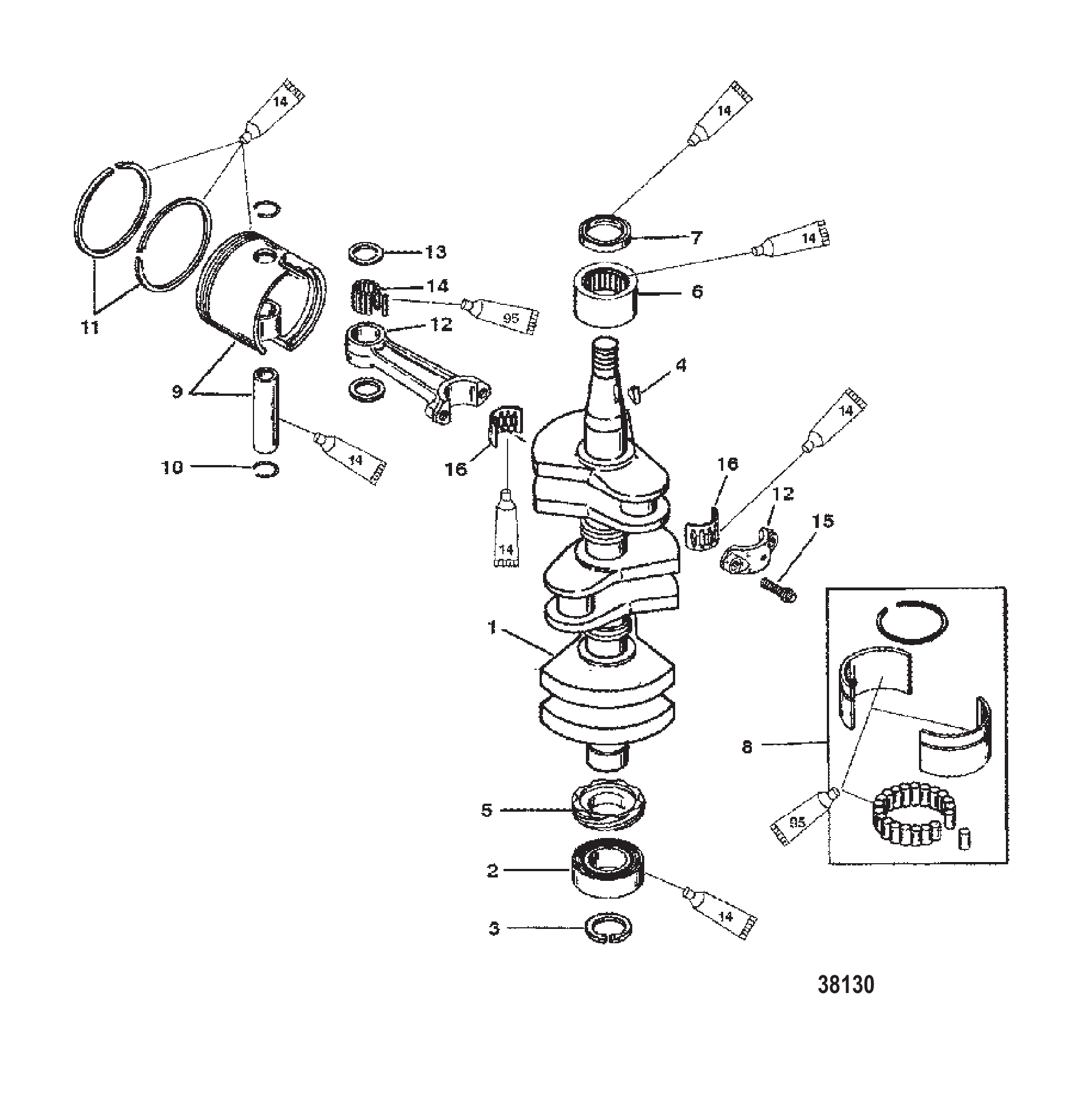

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9611A1 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 63742 | 滚珠轴承 | BEARING Ball | 1 |
| 2 | 63742T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 812877 | 挡圈 | RING Retaining | 1 |
| 4 | 91800 | 半圆键 | KEY Woodruff | 2 |
| 5 | 43019A2 | 齿轮总成 | GEAR ASSEMBLY | 1 |
| 6 | 812873A1 | 滚子轴承总成(顶部) | BEARING ASSEMBLY Roller (TOP) | 1 |
| 7 | 419531 | 油封 | SEAL Oil | 1 |
| 8 | 812881A1 | 滚子轴承总成(中部) | BEARING ASSEMBLY Roller (CENTER) | 2 |
| 9 | 9613A1 | 活塞总成 | PISTON ASSEMBLY | 3 |
| 9 | 9613T1 | 活塞 | PISTON | 3 |
| 9 | 9613A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 9 | 9613T2 | 活塞总成0.015 | PISTON ASSY .015 | AR |
| 9 | 9613A3 | 活塞总成 | PISTON ASSEMBLY | AR |
| 9 | 9613T3 | 活塞 | PISTON | AR |
| 10 | 52035 | 锁环 | RING Lock | 6 |
| 10 | 857196 | 锁紧环 | LOCK RING | 6 |
| 11 | 19721A6 | 活塞环组 | RING SET Piston | 1 |
| 11 | 19721A1 | 活塞环组 | RING SET Piston | AR |
| 11 | 19721A2 | 活塞环组 | RING SET Piston | AR |
| 12 | 9612A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 12 | 9612A6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 13 | 812876 | 垫圈 | WASHER | 6 |
| 13 | 8M0012298 | 止推垫片 | THRUST WASHER | 6 |
| 14 | 47270 | 轴承 | BEARING | 8 |
| 14 | 8M0214934 | 滚针轴承@200 | BRG-NEEDLE @200 | 8 |
| 15 | 91012 | 螺钉(0.250-28特殊) | SCREW (.250-28 Special) | 6 |
| 16 | 17514A1 | 轴承套件 | BEARING KIT | 3 |
| 16 | 8M0234886 | 轴承保持架 | CAGE BEARING | 3 |
| - | 811208T91 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 821744T92 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 811209T91 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 811209T93 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |

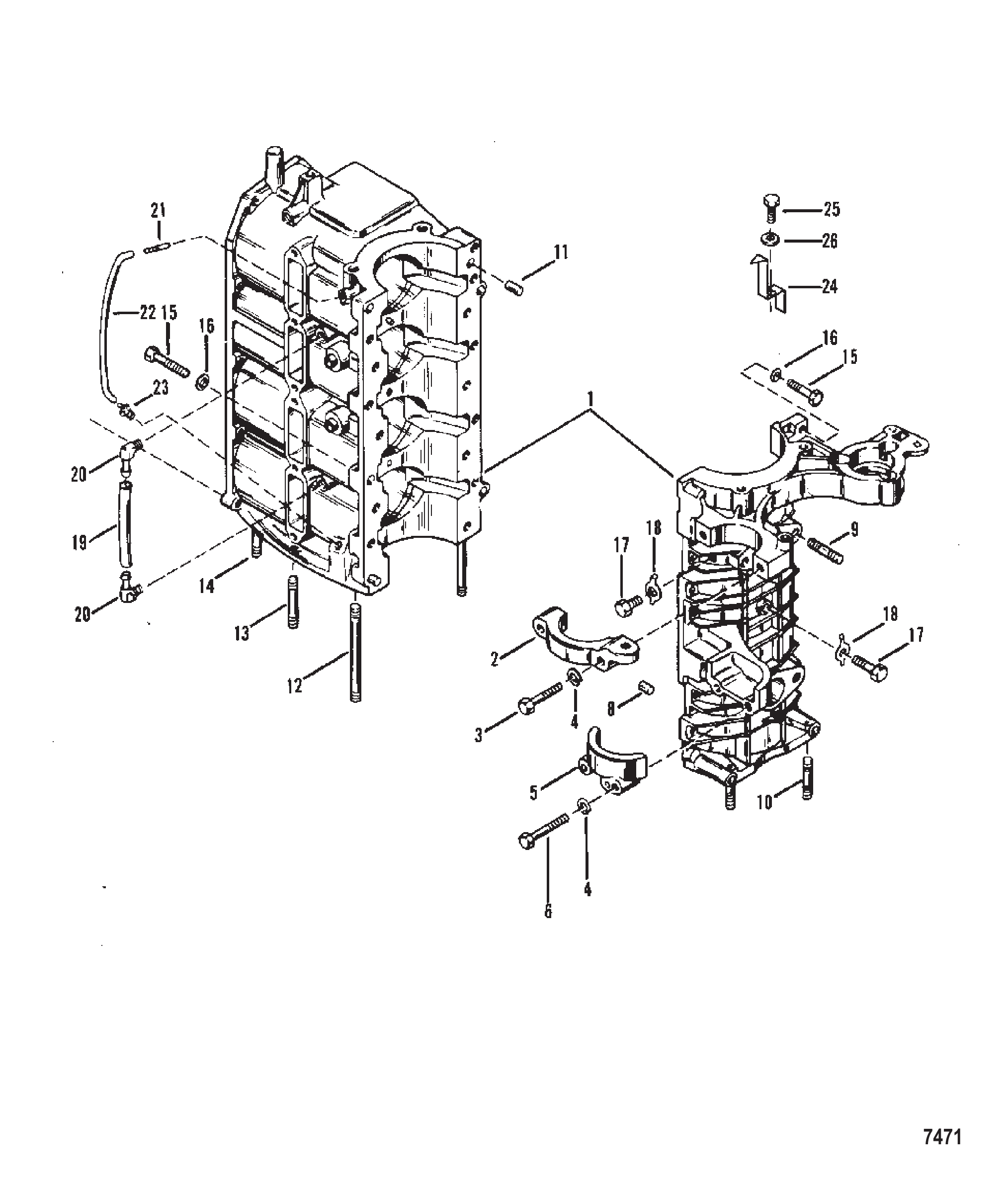

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8981A6 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 72038 | 启动电机上支架 | BRACKET Upper Starter Motor | 1 |
| 3 | 73279 | 支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch) | 2 |
| 4 | 26993 | 支架螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Bracket Screw | 4 |
| 4 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 5 | 76867 | 启动电机下盖 | COVER Lower Starter Motor | 1 |
| 6 | 73279 | 盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch) | 2 |
| 8 | 20032 | 缸体至主轴承定位销 | PIN Dowel Cylinder block to main bearing | 2 |
| 9 | 68164 | 化油器双头螺柱(1.25英寸) | STUD Carburetor (1.25 Inch) | 4 |
| 9 | 64936 | 螺柱 | STUD | 4 |
| 10 | 68165 | 曲轴箱至驱动轴壳体双头螺柱(1.625英寸) | STUD Crankcase to Driveshaft Housing (1.625 Inch) | 2 |
| 11 | 20033 | 曲轴箱至缸体定位销 | PIN Dowel Crankcase to Cylinder Block | 2 |
| 11 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 12 | 87901 | 缸体至驱动轴壳体双头螺柱(4英寸) | STUD Cylinder block to drive shaft housing (4 Inch) | 2 |
| 13 | 68166 | 缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸) | STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch) | 2 |
| 14 | 68167 | 缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸) | STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch) | 2 |
| 15 | 73657 | 曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸) | SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch) | 13 |
| 15 | 31984 | 曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸) | SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch) | 3 |
| 15 | 73275 | 曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸) | SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch) | 2 |
| 16 | 70132 | 曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063) | WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw | 17 |
| 16 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 17 |
| 17 | 20359 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 1 |
| 17 | 98260 | 螺钉(.375-16 x .620) | SCREW (.375-16 x .620) | 2 |
| 18 | 20091 | 中央轴承锁紧螺钉止动垫圈 | TAB WASHER Center Bearing Locking Screw | 3 |
| 19 | 99127109 | 平衡管(57英寸散装)-主轴承(5.50英寸) | LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch) | 1 |
| 19 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 20 | 99664 | 平衡管至缸体弯头 | ELBOW Balance Tube to Cylinder Block | 2 |
| 20 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 2 |
| 21 | 65857 | 上部泄放软管接头 | CONNECTOR Upper Bleed Hose | 1 |
| 21 | 56759 | 倒钩接头 | FITTING Barbed | 1 |
| 22 | 9938779 | 气缸泄放软管(11英寸) | HOSE Cylinder Bleed (11 Inch) | 1 |
| 23 | 42867 | 下部泄放软管止回阀 | CHECK VALVE Lower Bleed Hose | 1 |
| 23 | 428671 | 止回阀 | CHECK VALVE | 1 |
| 24 | 99156 | 正时指示器 | INDICATOR Timing | 1 |
| 25 | 39349 | 指示器至曲轴箱不锈钢螺钉(.312-18 x .750) | SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase | 1 |
| 26 | 26993 | 指示器螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Indicator Screw | 1 |
| 26 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| - | 97469A87 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 97469T87 | 船用动力头 | POWERHEAD MARINE | 1 |

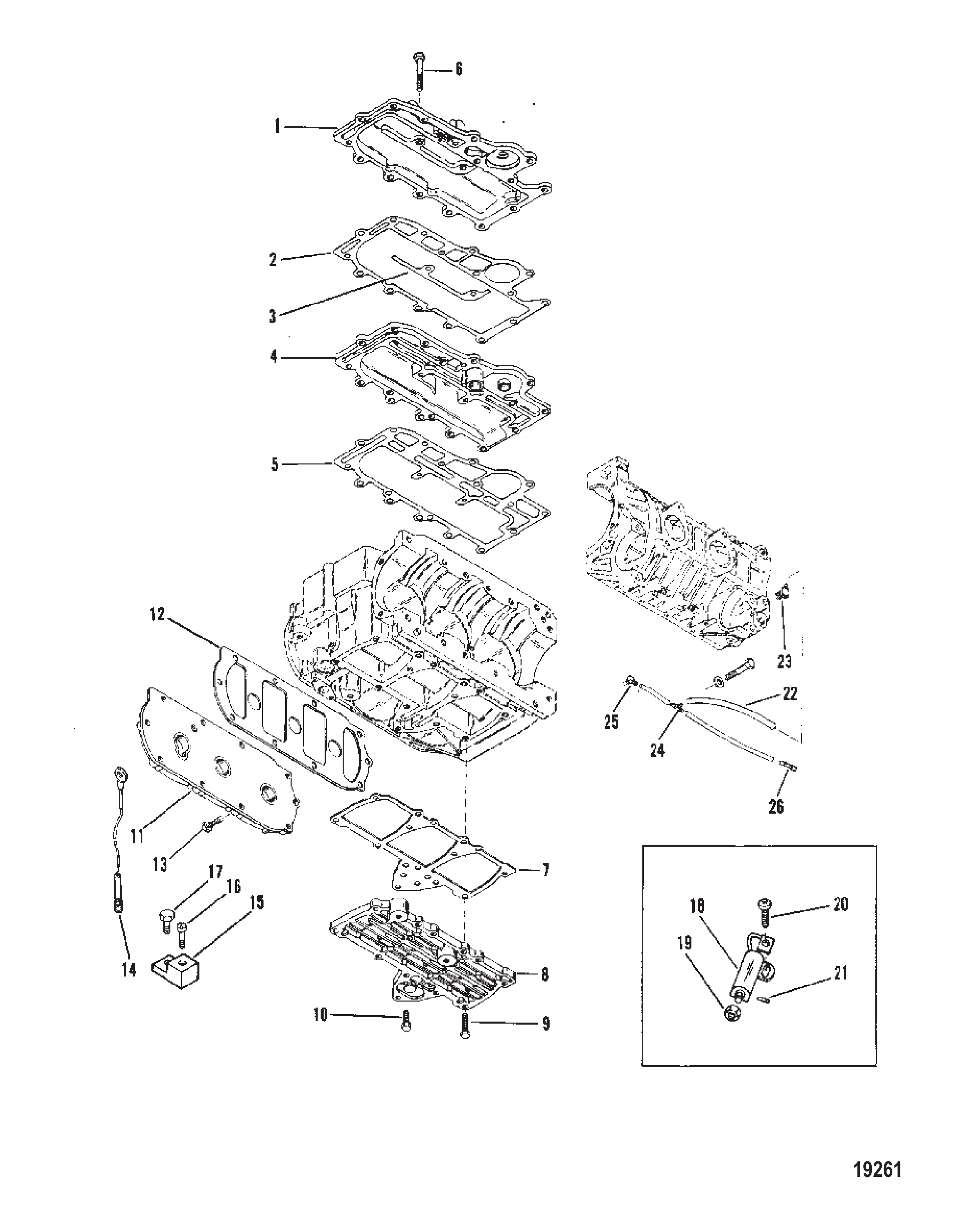

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 78529 | 排气歧管盖 | COVER EXHAUST MANIFOLD | 1 |
| 2 | 695242 | 板至排气歧管盖衬垫 | GASKET PLATE TO EXHAUST MANIFOLD COVER | 1 |
| 3 | 703351 | 挡板至盖衬垫 | GASKET BAFFLE PLATE TO COVER | 1 |
| 4 | 69579 | 排气歧管挡板 | PLATE BAFFLE-EXHAUST MANIFOLD | 1 |
| 5 | 695252 | 挡板至气缸体衬垫 | GASKET BAFFLE PLATE TO CYLINDER BLOCK | 1 |
| 6 | 38837 | 螺钉（0.312-18 x 1.12）板与歧管盖 | SCREW (.312-18 x 1.12) PLATE AND MANIFOLD COVER | 1 |
| 6 | 74824 | 螺钉（0.312-18 x 1.250）板与歧管盖 | SCREW (.312-18 x 1.250) PLATE AND MANIFOLD COVER | 15 |
| 6 | 70602 | 螺钉（0.250-20 x 2.00）板/歧管盖 | SCREW (.250-20 x 2.00) PLATE/MANIFOLD COVER | 2 |
| 7 | 76862 | 转换盖衬垫 | GASKET TRANSFER COVER | 1 |
| 7 | 768621 | 衬垫 | GASKET | 1 |
| 8 | 14428A1 | 转换盖总成 | COVER ASSEMBLY TRANSFER | 1 |
| 9 | 37562 | 不锈钢螺钉（0.312-18 x 1.00）转换盖 | SCREW (.312-18 x 1.00) Stainless Steel TRANSFER COVER | 11 |
| 10 | 28668 | 不锈钢螺钉（0.250-20 x 0.875）盖与燃油泵 | SCREW (.250-20 x .875) Stainless Steel COVER AND FUEL PUMP | 2 |
| 11 | 8364A1 | 气缸体盖 | COVER CYLINDER BLCOK | 1 |
| 12 | 437792 | 气缸体盖衬垫 | GASKET CYLINDER BLOCK COVER | 1 |
| 13 | 69100 | 气缸体盖螺钉（1英寸） | SCREW CYLINDER BLCOK COVER (1") | 4 |
| 13 | 8M0214943 | 螺钉 | SCREW | 4 |
| 14 | 96829A1 | 温度开关总成（260度） | SWITCH ASSEMBLY Temperature (260 DEGREES) | 1 |
| 14 | 19541A2 | 温度开关套件（285度） | TEMPERATURE SWITCH KIT (285 DEGREES) | 1 |
| 15 | 45915 | 接线端子排（电气） | TERMINAL BLOCK (ELECTRIC) | 1 |
| 16 | 69079 | 螺钉 (#10-16 x .440) 接线端子(电气) | SCREW (#10-16 x .440) TERMINAL BLOCK (ELECTRIC) | 1 |
| 17 | 28192 | 螺钉 (#10-24 x .50) 接线端子(电气) | SCREW (#10-24 x .50) TERMINAL BLOCK (ELECTRIC) | 1 |
| 17 | 72169 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 1 |
| 18 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 19 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 20 | 37655 | 螺钉 (#10-32 x .500) 水银开关至曲轴箱(1/2") | SCREW (#10-32 x .500) MERCURY SWITCH TO CRANKCASE (1/2") | 1 |
| 21 | 36242 | PIN Roll MERCURY SWITCH | 2 | |
| 22 | 99130122 | 管材 (20.00英尺散装) 曲轴箱通气 | TUBING (20.00 Feet Bulk) CRANKCASE BLEED | 3 |
| 22 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 3 |
| 23 | 42864 | 接头 曲轴箱通气 | FITTING CRANKCASE BLEED | 1 |
| 23 | 428641 | 止回阀接头 | FITTING Check Valve | 1 |
| 24 | 59169 | 接头 曲轴箱通气管 | FITTING CRANKCASEE BLEED HOSE | 1 |
| 24 | 59169003 | 三通接头 | FITTING Tee | 1 |
| 25 | 15133 | 接头 曲轴箱 | FITTING CRANKCASE | 1 |
| 26 | 42865 | 连接器 消音器 | CONNECTOR ATTENUATOR | 1 |
| 26 | 428651 | 止回阀 | VALVE-CHECK | 1 |
| - | 43779A87 | 衬垫套件 | GASKET SET | 1 |

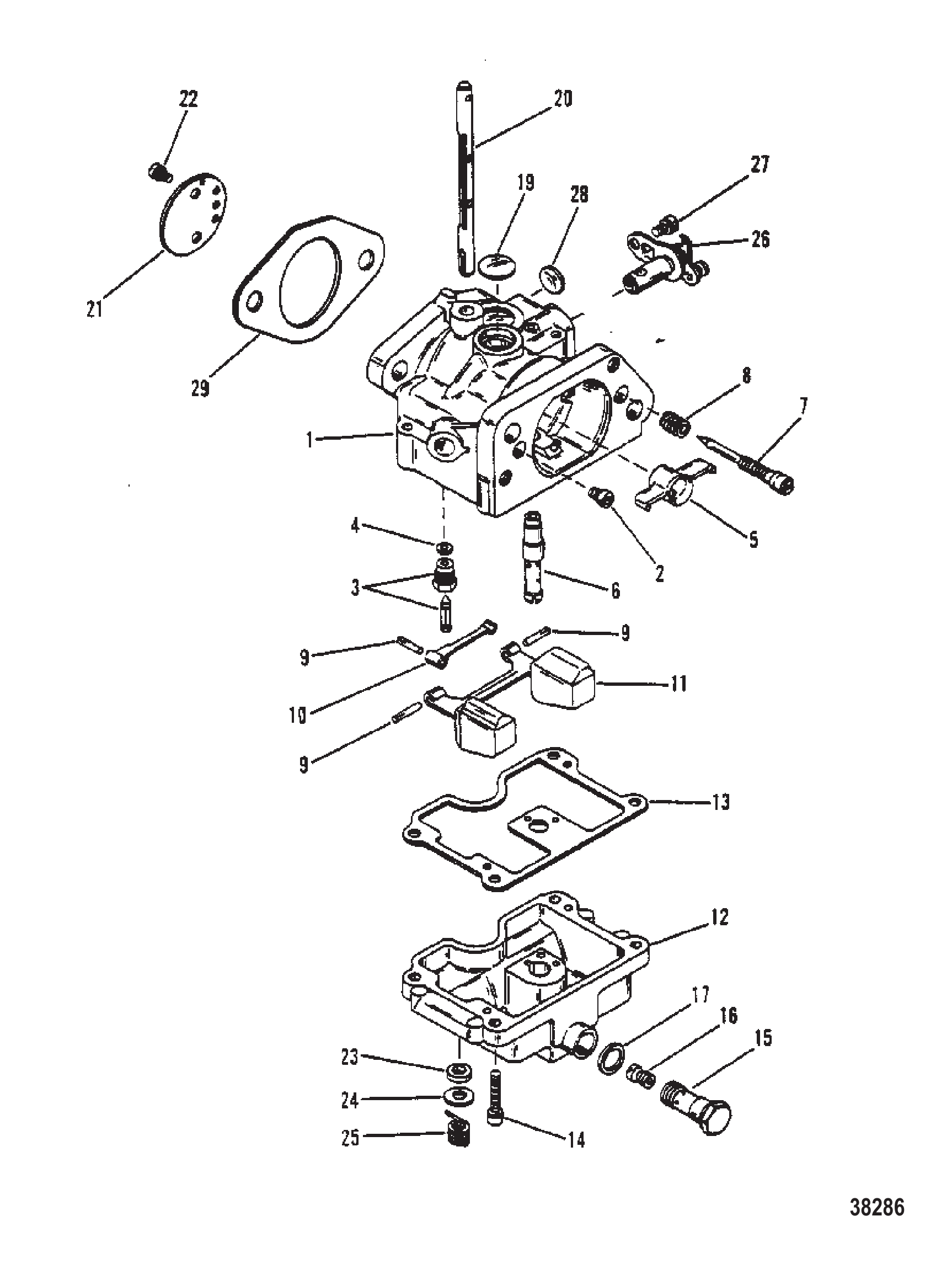

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6517A33 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 6517A34 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 6517A64 | 化油器KT-底置 | CARBURETOR KT-BOT | 1 |
| 2 | NSS | 大型主体通道(不单独销售) | NOT SOLD SEPARATE Large Body Channel | 2 |
| 3 | NSS | 主体通道(不单独销售) | NOT SOLD SEPARATE Body Channel | 6 |
| 4 | 96773A1 | 阻风门轴总成 | SHAFT ASSEMBLY Choke | 2 |
| 4 | 9296A1 | 阻风门轴套件 | CHOKE SHAFT KIT | 2 |
| 5 | NSS | 回位-节气门轴(不单独销售) | NOT SOLD SEPARATE Return-Throttle Shaft | 2 |
| 6 | 7211A1 | 燃油杯挡板 | BAFFLE Fuel Bowl | 2 |
| 6 | 814483 | 燃油杯挡板 | BAFFLE Fuel Bowl | 2 |
| 7 | 9293 | 浮子 | FLOAT | 2 |
| 8 | NSS | 浮子固定件(不单独销售) | NOT SOLD SEPARATE Float Retaining | 2 |
| 9 | 5127 | 燃油杯 | BOWL Fuel | 2 |
| 10 | NSS | 燃油杯(不单独销售) | NOT SOLD SEPARATE Fuel Bowl | 2 |
| 11 | 9652 | 燃油杯至化油器螺钉 | SCREW Fuel Bowl to Carburetor | 2 |
| 12 | NSS | 燃油杯螺钉(不单独销售) | NOT SOLD SEPARATE Fuel Bowl Screw | 4 |
| 13 | 9022 | 进油针阀及弹簧 | NEEDLE AND SPRING Inlet | 2 |
| 14 | 1457 | 主量孔(.057) | JET Main Fuel (.057) | 2 |
| 15 | 7335 | 省油量孔(.098) | JET (.098) Economizer (.098) | 2 |
| 16 | 64677 | 喉管 | VENTURI | 2 |
| 17 | 8665 | 阻风门片 | SHUTTER Choke | 2 |
| 18 | NSS | 阻风门片至轴连接件(不单独销售) | NOT SOLD SEPARATE Choke Shutter to Choke Shaft | 4 |
| 19 | NSS | 怠速混合气调节件(不单独销售) | NOT SOLD SEPARATE Idle Mixture | 2 |
| 20 | NSS | 怠速混合气螺钉(不单独销售) | NOT SOLD SEPARATE Idle Mixture Screw | 2 |
| 21 | NSS | 不单独销售 燃油泵 | NOT SOLD SEPARATE Fuel Pump | 2 |
| 22 | 9653 | 盖板(上化油器) | COVER Plate (Upper Carburetor) | 1 |
| 23 | 9654 | 盖板(下化油器) | COVER Plate (Lower Carburetor) | 1 |
| 24 | 5132 | 滤清器体至化油器螺钉 | SCREW Strainer Body to Carburetor | 8 |
| 24 | 808612 | 螺钉及垫圈 (#8-32 x .750) | SCREW AND WASHER (#8-32 x .750) | 8 |
| 25 | 9020 | 油门轴 | SHAFT Throttle | 1 |
| 25 | 9656 | 油门轴 | SHAFT Throttle | 1 |
| 26 | 92880 | 节气门杠杆(上化油器) | LEVER Throttle (Upper Carburetor) | 1 |
| 27 | 20847 | 节气门杠杆螺钉(上化油器) | SCREW Throttle Lever (Upper Carburetor) | 2 |
| 27 | 6027 | 螺钉 | SCREW | 2 |
| 28 | 97 | 节气门杠杆(下化油器) | LEVER Throttle (Lower Carburetor) | 1 |
| 28 | 8146791 | 油门杆 | LEVER Throttle | 1 |
| 29 | 6027 | 节气门杠杆螺钉(下化油器) | SCREW Throttle Lever (Lower Carburetor) | 1 |
| 30 | 9649 | 节气门片 | SHUTTER Throttle | 2 |
| 31 | NSS | 节气门片至轴连接件(不单独销售) | NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft | 4 |
| 32 | 757911 | 化油器法兰衬垫 | GASKET Carburetor Flange | 2 |
| 33 | 64809 | 化油器安装柱螺母 | NUT Carburetor Mounting Stud | 4 |
| -- | 9650 | 维修套件 | REPAIR KIT | 2 |
| -- | 9651 | 衬垫套件 | GASKET SET | 2 |

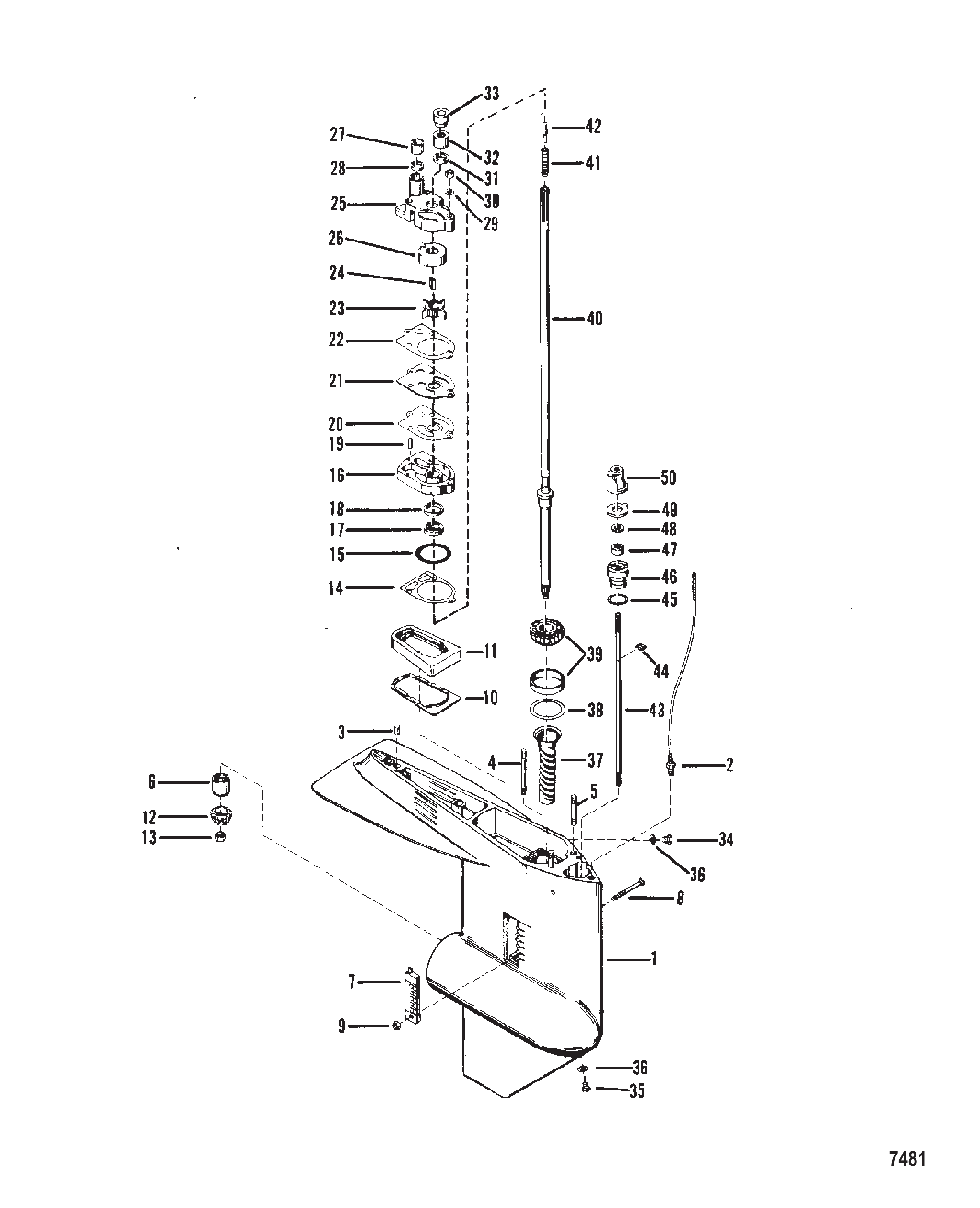

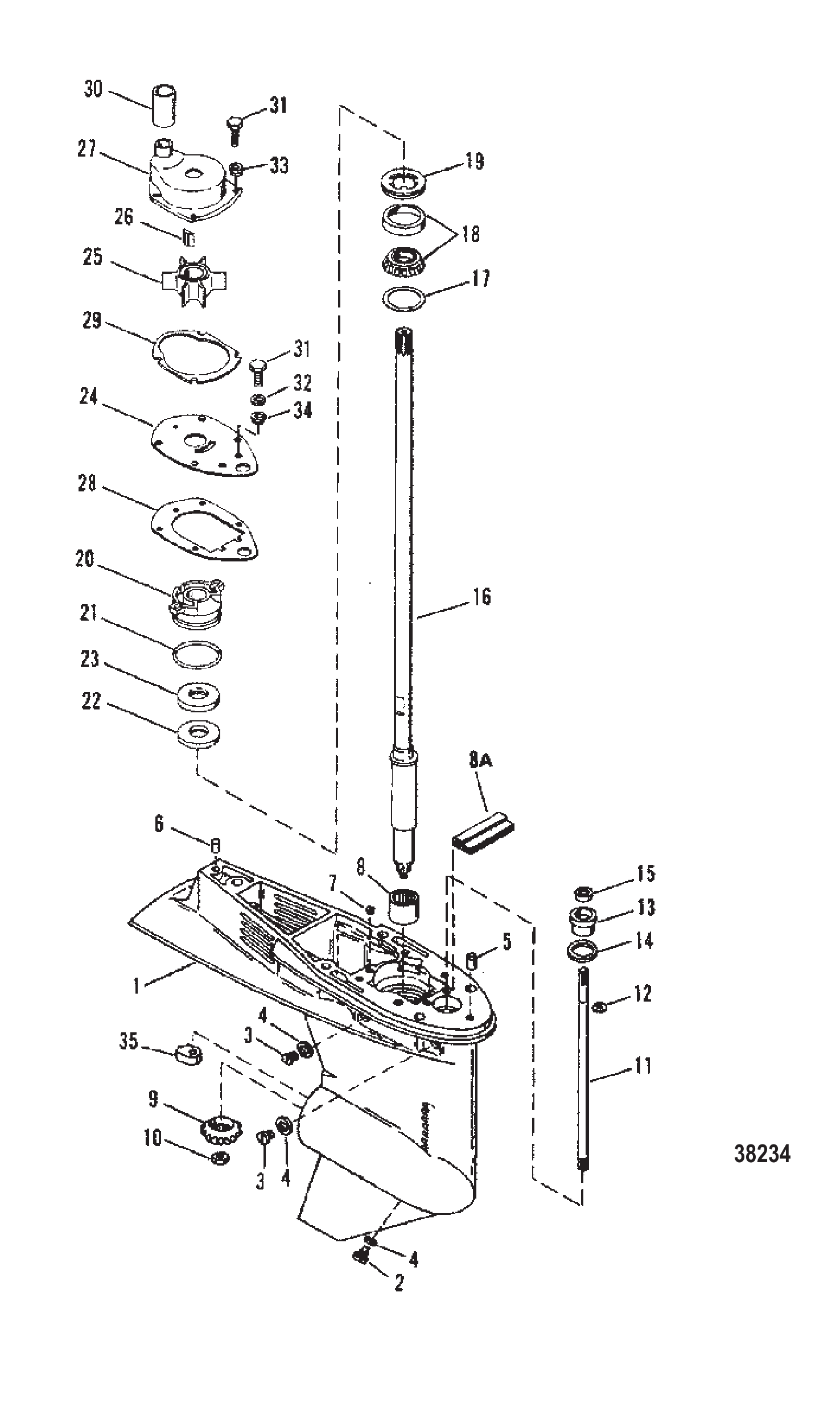

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9539A4 | 齿轮箱总成短轴-黑色 | GEAR HOUSING ASSEMBLY Short Shaft - Black | 1 |
| - | 9539A5 | 齿轮箱总成长轴-黑色 | GEAR HOUSING ASSEMBLY Long Shaft - Black | 1 |
| - | 9539A6 | 齿轮箱总成短轴-灰色 | GEAR HUSING ASSEMBLY Short Shaft - Gray | 1 |
| - | 9539A7 | 齿轮箱总成长轴-灰色 | GEAR HOUSING ASSEMBLY Long Shaft - Gray | 1 |
| 1 | 9539A1 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 9539T1 | 齿轮箱 | GEAR HOUSING | 1 |
| 1 | 9539A8 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 9539T8 | ORD 1643-9539T 1 | ORD 1643-9539T 1 | 1 |
| 2 | 85822A1 | 速度表连接器总成 | CONNECTOR ASSEMBLY Speedometer | 1 |
| 2 | 85822A10 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 3 | 85500 | 定位销(.187 x .530)齿轮箱 | PIN Dowel (.187 x .530) Gear Housing | 2 |
| 3 | 8M0084726 | 定位销 | PIN Dowel | 2 |
| 4 | 33778 | 水泵/底座柱螺栓(2.625英寸) | STUD Water Pump/Base (2.625 Inch) | 3 |
| 5 | 57933 | 柱螺栓(.437-14/.437-20 x 2.190)齿轮箱 | STUD (.437-14/.437-20 x 2.190) Gear Housing | 2 |
| 5 | 8M0034453 | 柱螺栓(7/16 x 2.19) | STUD (7/16 x 2.19) | 2 |
| 6 | 62091 | 传动轴滚柱轴承 | BEARING Roller Driveshaft | 1 |
| 6 | 62091T | 轴承 | BEARING | 1 |
| 7 | 72849A1 | 进水滤网总成 | SCREEN ASSEMBLY Water Intake | 1 |
| 8 | 36070 | 螺钉(#10-32 x 1.250)进水滤网至齿轮箱 | SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing | 1 |
| 9 | 45812 | 螺母(#10-32)不锈钢进水滤网螺钉 | NUT (#10-32) Stainless Steel Water Intake Screen Screw | 1 |
| 9 | 859124 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 1 |
| 10 | 92815 | 排气管支撑板 | PLATE Support - Exhaust Tube | 1 |
| 11 | 37721 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| 11 | 37721001 | 密封件@2 | SEAL @2 | 1 |
| 12 | 98097 | 传动轴小齿轮 | GEAR Pinion Driveshaft | 1 |
| 12 | 98097T | 小齿轮 | GEAR-PINION | 1 |
| 13 | 55910 | 螺母(.437-20)小齿轮至传动轴 | NUT (.437-20) Pinion Gear to Driveshaft | 1 |
| 14 | 19552 | 水泵底座衬垫 | GASKET Water Pump Base | 1 |
| 15 | 26722 | O型圈 | O-RING | 1 |
| 16 | 77177A1 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 17 | 90562 | 密封件(1.254 x .312) | SEAL (1.254 x .312) | 1 |
| 18 | 79831 | 油封 | SEAL Oil | 1 |
| 19 | 35973 | 定位销 | PIN Dowel | 2 |
| 20 | 19553 | 下衬垫 | GASKET Lower | 1 |
| 21 | 54705 | 面板 | FACE PLATE | 1 |
| 21 | 32768 | 面板 | FACEPLATE | 1 |
| 22 | 19551 | 上衬垫 | GASKET Upper | 1 |
| 23 | 89983 | 叶轮 | IMPELLER | 1 |
| 23 | 89983T | 叶轮 | IMPELLER | 1 |
| 24 | 56662 | 叶轮驱动键 | KEY Impeller Drive | 1 |
| 24 | 8M0032837 | 键@5 | KEY @5 | 1 |
| 25 | 77822A1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 26 | 48753 | 嵌件 | INSERT | 1 |
| 27 | 38452 | 橡胶密封件 | SEAL Rubber | 1 |
| 28 | 38453 | 尼龙垫圈 | WASHER Nylon | 1 |
| 29 | 29245 | 垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓 | WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs | 3 |
| 29 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 30 | 13438 | 螺母(.250-28)水泵体与底座柱螺栓 | NUT (.250-28) Water Pump Body and Base Studs | 3 |
| 30 | 8267119 | 螺母(.250-28) | NUT (.250-28) | 3 |
| 31 | 20273 | 橡胶O型圈 | O-RING Rubber | 1 |
| 32 | 78654A1 | 传动轴座总成 | SEAT ASSEMBLY Driveshaft | 1 |
| 33 | 86304 | 花键密封件-传动轴 | SEAL Splined - Driveshaft | 1 |
| 34 | 79953 | 螺钉(.375-16 x .250)润滑脂加注口 | SCREW (.375-16 x .250) Grease Filler | 1 |
| 34 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 35 | 67892 | 磁性放油螺钉 | SCREW Magnetic Drain | 1 |
| 35 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 36 | 19183 | 纤维垫圈(加注/放油螺钉) | WASHER Fiber Filler/Drain Screw | 2 |
| 36 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| 37 | 88181 | 润滑套筒-传动轴 | SLEEVE Lubrication - Driveshaft | 1 |
| 38 | 92881A1 | 轴承垫片组(齿轮箱用)(.002-3-5-10-20) | SHIM SET Bearing to Gear Housing(.002-3-5-10-20) | AR |
| 39 | 77420A1 | 圆锥滚子轴承总成-传动轴 | BEARING ASSEMBLY Roller Tapered - Driveshaft | 1 |
| 39 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 40 | 88025A2 | 驱动轴总成 | DRIVESHAFT ASSEMLBY | 1 |
| 40 | 98179 | 驱动轴 | DRIVESHAFT | 1 |
| 40 | 88024A2 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 40 | 98180 | 驱动轴 | DRIVESHAFT | 1 |
| 41 | 20254 | 驱动轴压缩弹簧 | SPRING Compression - Driveshaft | 1 |
| 42 | 30545 | 驱动轴销 | PIN Driveshaft | 1 |
| 43 | 76063A1 | 换挡轴总成 | SHAFT ASSEMBLY Shift | 1 |
| 44 | 29641 | 换挡轴E型卡环 | E RING Shift Shaft | 1 |
| 45 | 25439 | O型圈(.862 x .103)换挡轴衬套 | O-RING (.862 x .103) Shift Shaft Bushing | 1 |
| 46 | 77631A2 | 换挡轴衬套总成 | BUSHING ASSEMBLY Shift Shaft | 1 |
| 47 | 76384 | 换挡轴衬套油封 | SEAL Oil Shift Shaft Bushing | 1 |
| 47 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 48 | 77674 | 橡胶垫圈(.35 x .75 x .12)换挡轴衬套 | WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing | 1 |
| 49 | 78036 | 倒挡锁定底座 | BASE Reverse Locking | 1 |
| 50 | 433081 | 倒挡锁定凸轮 | CAM Reverse Locking | 1 |
| 50 | 43308T1 | 凸轮 | CAM | 1 |
| - | 77177A3 | 水泵套件 | WATER PUMP KIT | 1 |
| - | 79831A1 | 密封套件 | SEAL KIT | 1 |
| - | 85491A87 | 衬垫套件 | GASKET SET | 1 |
| - | 85491A90 | 衬垫套件 | GASKET SET | 1 |

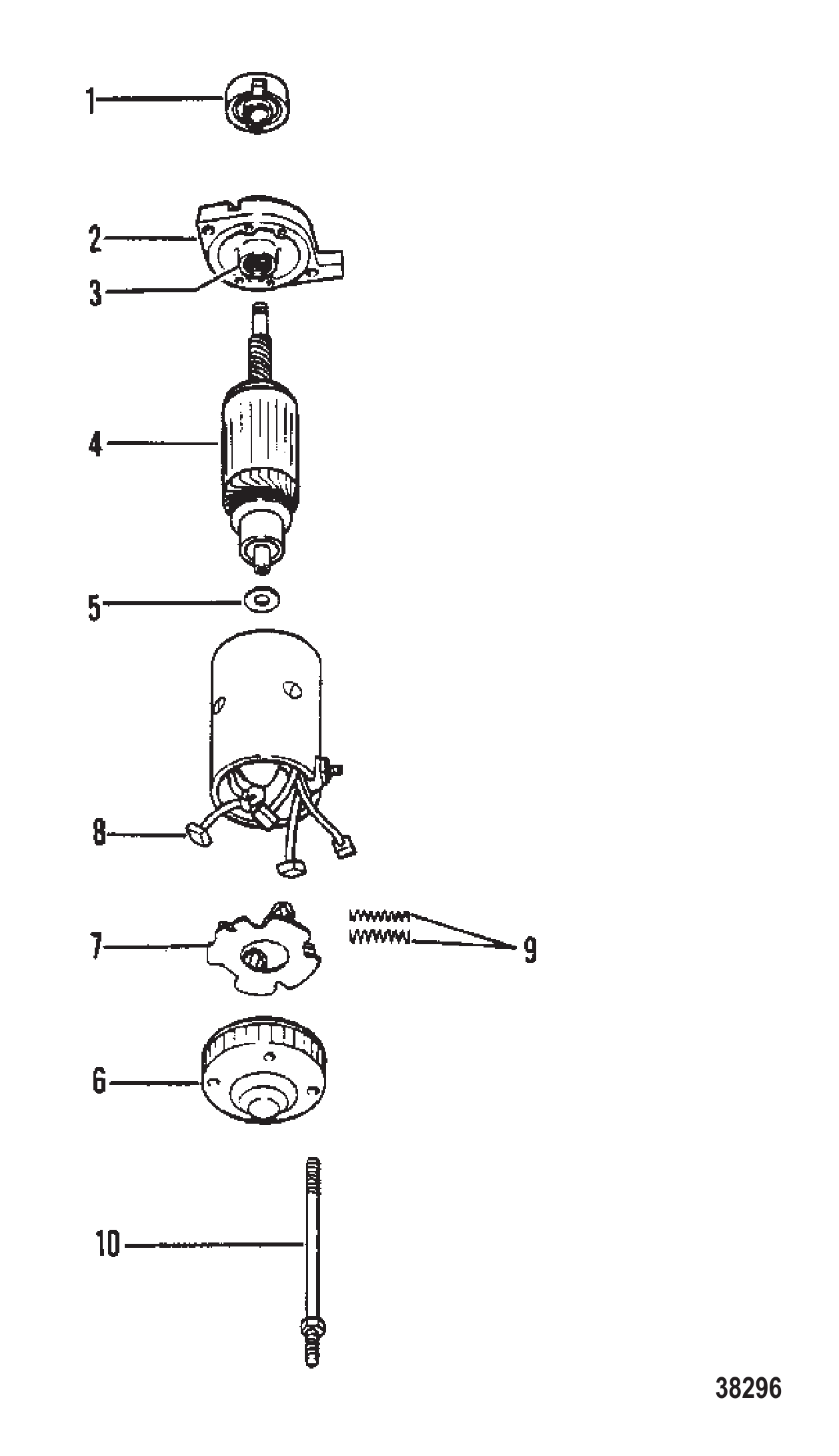

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8848 | 驱动电机 | MOTOR DRIVE | 1 |
| 2 | 8852 | 驱动端板总成 | PLATE ASSEMBLY DRIVE END | 1 |
| 3 | 8853 | 驱动端板衬套 | BUSHING DRIVE END PLATE | 1 |
| 4 | 8857 | 电枢 | ARMATURE | 1 |
| 5 | 8856 | 电枢止推垫片组件 | PACKAGE ARMATURE THRUST WASHER | 1 |
| 6 | 8849 | 换向器端盖总成 | END CAP ASSEMBLY COMMUTATOR | 1 |
| 7 | 8850 | 电刷板/支架总成 | PLATE/HOLDER ASSEMBLY Brush | 1 |
| 8 | 8851 | 电刷与端子套装 | BRUSH AND TERMINAL SET | 1 |
| 9 | 8854 | 电刷弹簧组 (每套2弹簧) | SPRING SET BRUSH (2 SPRINGS PER SET) | 2 |
| 10 | 8855 | 贯穿螺栓 - 端盖至端板 (1/4-28) | BOLT THRU - END CAP TO END PLATE (1/4-28) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1/2A | 8794A5 | 艉板支架总成（左/右舷）（黑色） | BRACKET ASSEMBLY Transom (PORT/STBD.) (BLACK) | 1 |
| 1/2A | 8794A6 | 艉板支架总成（左/右舷）（灰色） | BRACKET ASSEMBLY Transom (PORT/STBD.) (GRAY) | 1 |
| 1 | 8794A7 | 艉板支架总成(左舷)(黑色) | BRACKET ASSEMBLY Transom (PORT) (BLACK) | 1 |
| 2 | 8796A5 | 艉板支架总成（右舷）（黑色） | BRACKET ASSEMBLY Transom (STBD.) (BLACK) | 1 |
| 1 | 8794A8 | 艉板支架总成（左舷）（灰色） | BRACKET ASSEMBLY Transom (PORT)(GRAY) | 1 |
| 1 | 8794A7 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 8796A6 | 艉板支架总成（右舷）（灰色） | BRACKET ASSEMBLY Transom (STBD.)(GRAY) | 1 |
| 1 | 8794A9 | 艉板支架总成(左舷)(黑色) | BRACKET ASSEMBLY Transom (PORT) (BLACK) | 1 |
| 2 | 8796A7 | 艉板支架总成（右舷）（黑色） | BRACKET ASSEMBLY Transom (STBD.) (BLACK) | 1 |
| 1 | 8794A10 | 艉板支架总成（左舷）（灰色） | BRACKET ASSEMBLY Transom (PORT)(GRAY) | 1 |
| 1 | 8794A9 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 8796A8 | 艉板支架总成（右舷）（灰色） | BRACKET ASSEMBLY Transom (STBD.)(GRAY) | 1 |
| 2 | 8796A7 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 1 | 8794A11 | 艉板支架总成(左舷)(追踪者) | BRACKET ASSEMBLY Transom (PORT) (TRACKER) | 1 |
| 1 | 8794A9 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 8796A9 | 艉板支架总成（右舷）（TRACKER） | BRACKET ASSEMBLY Transom (STBD.) (TRACKER) | 1 |
| 2 | 8796A7 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 3 | 92767A1 | 蝶形螺丝总成 (14 mm) | THUMB SCREW ASSEMBLY (14 mm) | 2 |
| 3 | 92767A3 | 蝶形螺丝总成 (16 mm) | THUMB SCREW ASSEMBLY (16 mm) | 2 |
| 4 | 73719 | 蝶形螺丝垫圈 | WASHER THUMB SCREW | 2 |
| 4 | 818884 | 垫圈 | WASHER | 2 |
| 5 | 768041 | 垫圈固定螺丝 | SCREW WASHER ATTACHING | 2 |
| 5 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 6 | 41042 | 提手 | HANDLE CARRYING | 1 |
| 7 | 99929A1 | 倾斜销总成 | PIN ASSEMBLY Tilt | 1 |
| 7 | 56373A2 | 倾斜销总成 | PIN ASSEMBLY Tilt | 1 |
| 8 | 92995 | 弹簧 | SPRING | 1 |
| 9 | 41041 | 隔套 | SPACER | 1 |
| 10 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| 11 | 99928 | 螺柱 | STUD | 1 |
| 9 | 818538 | 隔套 | SPACER | 1 |
| 12 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 2 |
| 13 | 93164 | 倾斜管螺母(.875) | NUT (.875) TILT TUBE | 2 |
| 14 | 814945 | 螺钉 (.312-18 x 3.500) 不锈钢 夹紧支架至艉板 | SCREW (.312-18 x 3.500) Stainless Steel CLAMP BRACKET TO TRANSOM | 2 |
| 15 | 67981 | 夹紧支架螺栓垫圈 | WASHER CLAMP BRACKET BOLT | 2 |
| 16 | 815848 | 螺母 (.312) 夹紧支架螺栓 | NUT (.312) CLAMP BRACKET BOLT | 2 |
| 17 | 96965 | 倾斜止动杆-右舷 | LEVER TILT STOP - STARBOARD STAR | 1 |
| 18 | 41523 | 螺钉(.250-28 x 1.00)杆至旋转支架 | SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET | 1 |
| 19 | 35045 | 螺母(.250-28)倾斜止动杆螺钉 | NUT (.250-28) TILT STOP LEVER SCREW | 2 |
| 19 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 2 |
| 20 | 41524 | 螺钉(.250-28 x 1.75)杆至夹紧支架 | SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET | 1 |
| 21 | 44581 | 倾斜止动杆螺钉弹簧 | SPRING TILT STOP LEVER SCREW | 1 |
| 22 | 90901 | 倾斜限位带-左舷侧 | STRAP TILT STOP - PORT SIDE | 1 |
| 23 | 41523 | 螺钉 (.250-28 x 1.00) 带至旋转支架 | SCREW (.250-28 x 1.00) STRAP TO SWIVEL BRACKET | 1 |
| 24 | 35045 | 螺母 (.250-28) 倾斜止动带螺钉 | NUT (.250-28) TILT STOP STRAP SCREW | 2 |
| 24 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 2 |
| 25 | 41524 | 螺钉 (.250-28 x 1.75) 带至夹紧支架 | SCREW (.250-28 x 1.75) STRAP TO CLAMP BRACKET | 1 |
| 26 | 31030 | WAVE WASHER TILT STOP STRAP SCREW | 1 | |
| 27 | 71421 | 尼龙垫圈 倾斜管（尼龙） | WASHER Nylon TILT TUBE (NYLON) | 2 |
| 28 | 41171 | 倾斜管 | TILT TUBE | 1 |
| 28 | 8M0035075 | 倾斜管 | TILT TUBE | 1 |
| 29 | 30954 | 安全卡扣 | CLIP SAFETY | 1 |
| 29 | 8M0085928 | 卡扣 | CLIP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0142417 | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8M0147976 | 主轴承绿色 | BEARING MAIN Green | AR |
| 2 | 8M0147977 | 主轴承蓝色 | BEARING MAIN Blue | AR |
| 2 | 8M0147978 | 主轴承白色 | BEARING MAIN White | AR |
| 2 | 8M0147979 | 主轴承橙色 | BEARING MAIN Orange | AR |
| 3 | 8M0142386 | 挡圈 | RING RETAINING | 1 |
| 4 | 8M0142379 | 主轴承油封 | SEAL Main Bearing | 1 |
| 4 | 8M0168880 | 主轴承油封 | SEAL Main Bearing | 1 |
| 5 | 8M0142385 | 隔套 | SPACER | 1 |
| 6 | 8M0034912 | O型圈 3.78×21.32 | O-RING 3.78 X 21.32 | 1 |
| 7 | 8M0142424 | 止推垫圈 | WASHER THRUST | 2 |
| 8 | 8M0148077 | 连杆轴承(绿色) | BEARING Connecting Rod, Green | AR |
| 8 | 8M0217817 | 连杆轴承(绿色) | BEARING Connecting Rod, Green | AR |
| 8 | 8M0148078 | 连杆轴承(蓝色) | BEARING Connecting Rod, Blue | AR |
| 8 | 8M0217818 | 连杆轴承(蓝色) | BEARING Connecting Rod, Blue | AR |
| 8 | 8M0148079 | 连杆轴承(白色) | BEARING Connecting Rod, White | AR |
| 8 | 8M0217819 | 连杆轴承(白色) | BEARING Connecting Rod, White | AR |
| 9 | 8M0142575 | 活塞总成 | PISTON ASSEMBLY | 8 |
| 9 | 8M0200040 | 活塞总成 | PISTON ASSEMBLY | 8 |
| 10 | 8M0142381 | 活塞环组件 | PISTON RING ASSEMBLY | 8 |
| 11 | 8M0142383 | 卡簧 | CIRCLIP | 16 |
| 12 | 8M0142418 | 连杆 | CONNECTING ROD | 8 |
| 12 | 8M0159647 | 连杆 | CONNECTING ROD | 8 |
| 13 | 8M6002637 | 连杆螺栓 | BOLT Connecting Rod | 16 |
| 13 | 8M0159648 | 连杆螺栓 | BOLT, CONNECTING ROD | 16 |
| - | 8M0142279 | 长缸体总成 | LONG BLOCK | 1 |
| - | 8M0171851 | 翻新动力头总成(不含电控模块) | REMAN POWERHEAD ASSEMBLY Dressed without PCM | 1 |
| - | 8M0206534 | 翻新动力头总成(不含电控模块) | REMAN POWERHEAD ASSEMBLY Dressed without PCM | 1 |
| - | 8M0147117 | 动力头垫片套装 | POWERHEAD GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6517A33 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 6517A34 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 6517A64 | 化油器KT-底置 | CARBURETOR KT-BOT | 1 |
| 2 | NSS | 大型主体通道(不单独销售) | NOT SOLD SEPARATE Large Body Channel | 2 |
| 3 | NSS | 主体通道(不单独销售) | NOT SOLD SEPARATE Body Channel | 6 |
| 4 | 96773A1 | 阻风门轴总成 | SHAFT ASSEMBLY Choke | 2 |
| 4 | 9296A1 | 阻风门轴套件 | CHOKE SHAFT KIT | 2 |
| 5 | NSS | 回位-节气门轴(不单独销售) | NOT SOLD SEPARATE Return-Throttle Shaft | 2 |
| 6 | 7211A1 | 燃油杯挡板 | BAFFLE Fuel Bowl | 2 |
| 6 | 814483 | 燃油杯挡板 | BAFFLE Fuel Bowl | 2 |
| 7 | 9293 | 浮子 | FLOAT | 2 |
| 8 | NSS | 浮子固定件(不单独销售) | NOT SOLD SEPARATE Float Retaining | 2 |
| 9 | 5127 | 燃油杯 | BOWL Fuel | 2 |
| 10 | NSS | 燃油杯(不单独销售) | NOT SOLD SEPARATE Fuel Bowl | 2 |
| 11 | 9652 | 燃油杯至化油器螺钉 | SCREW Fuel Bowl to Carburetor | 2 |
| 12 | NSS | 燃油杯螺钉(不单独销售) | NOT SOLD SEPARATE Fuel Bowl Screw | 4 |
| 13 | 9022 | 进油针阀及弹簧 | NEEDLE AND SPRING Inlet | 2 |
| 14 | 1457 | 主量孔(.057) | JET Main Fuel (.057) | 2 |
| 15 | 7335 | 省油量孔(.098) | JET (.098) Economizer (.098) | 2 |
| 16 | 64677 | 喉管 | VENTURI | 2 |
| 17 | 8665 | 阻风门片 | SHUTTER Choke | 2 |
| 18 | NSS | 阻风门片至轴连接件(不单独销售) | NOT SOLD SEPARATE Choke Shutter to Choke Shaft | 4 |
| 19 | NSS | 怠速混合气调节件(不单独销售) | NOT SOLD SEPARATE Idle Mixture | 2 |
| 20 | NSS | 怠速混合气螺钉(不单独销售) | NOT SOLD SEPARATE Idle Mixture Screw | 2 |
| 21 | NSS | 不单独销售 燃油泵 | NOT SOLD SEPARATE Fuel Pump | 2 |
| 22 | 9653 | 盖板(上化油器) | COVER Plate (Upper Carburetor) | 1 |
| 23 | 9654 | 盖板(下化油器) | COVER Plate (Lower Carburetor) | 1 |
| 24 | 5132 | 滤清器体至化油器螺钉 | SCREW Strainer Body to Carburetor | 8 |
| 24 | 808612 | 螺钉及垫圈 (#8-32 x .750) | SCREW AND WASHER (#8-32 x .750) | 8 |
| 25 | 9020 | 油门轴 | SHAFT Throttle | 1 |
| 25 | 9656 | 油门轴 | SHAFT Throttle | 1 |
| 26 | 92880 | 节气门杠杆(上化油器) | LEVER Throttle (Upper Carburetor) | 1 |
| 27 | 20847 | 节气门杠杆螺钉(上化油器) | SCREW Throttle Lever (Upper Carburetor) | 2 |
| 27 | 6027 | 螺钉 | SCREW | 2 |
| 28 | 97 | 节气门杠杆(下化油器) | LEVER Throttle (Lower Carburetor) | 1 |
| 28 | 8146791 | 油门杆 | LEVER Throttle | 1 |
| 29 | 6027 | 节气门杠杆螺钉(下化油器) | SCREW Throttle Lever (Lower Carburetor) | 1 |
| 30 | 9649 | 节气门片 | SHUTTER Throttle | 2 |
| 31 | NSS | 节气门片至轴连接件(不单独销售) | NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft | 4 |
| 32 | 757911 | 化油器法兰衬垫 | GASKET Carburetor Flange | 2 |
| 33 | 64809 | 化油器安装柱螺母 | NUT Carburetor Mounting Stud | 4 |
| -- | 9650 | 维修套件 | REPAIR KIT | 2 |
| -- | 9651 | 衬垫套件 | GASKET SET | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8981A6 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 72038 | 启动电机上支架 | BRACKET Upper Starter Motor | 1 |
| 3 | 73279 | 支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch) | 2 |
| 4 | 26993 | 支架螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Bracket Screw | 4 |
| 4 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 5 | 76867 | 启动电机下盖 | COVER Lower Starter Motor | 1 |
| 6 | 73279 | 盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch) | 2 |
| 8 | 20032 | 缸体至主轴承定位销 | PIN Dowel Cylinder block to main bearing | 2 |
| 9 | 68164 | 化油器双头螺柱(1.25英寸) | STUD Carburetor (1.25 Inch) | 4 |
| 9 | 64936 | 螺柱 | STUD | 4 |
| 10 | 68165 | 曲轴箱至驱动轴壳体双头螺柱(1.625英寸) | STUD Crankcase to Driveshaft Housing (1.625 Inch) | 2 |
| 11 | 20033 | 曲轴箱至缸体定位销 | PIN Dowel Crankcase to Cylinder Block | 2 |
| 11 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 12 | 87901 | 缸体至驱动轴壳体双头螺柱(4英寸) | STUD Cylinder block to drive shaft housing (4 Inch) | 2 |
| 13 | 68166 | 缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸) | STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch) | 2 |
| 14 | 68167 | 缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸) | STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch) | 2 |
| 15 | 73657 | 曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸) | SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch) | 13 |
| 15 | 31984 | 曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸) | SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch) | 3 |
| 15 | 73275 | 曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸) | SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch) | 2 |
| 16 | 70132 | 曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063) | WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw | 17 |
| 16 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 17 |
| 17 | 20359 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 1 |
| 17 | 98260 | 螺钉(.375-16 x .620) | SCREW (.375-16 x .620) | 2 |
| 18 | 20091 | 中央轴承锁紧螺钉止动垫圈 | TAB WASHER Center Bearing Locking Screw | 3 |
| 19 | 99127109 | 平衡管(57英寸散装)-主轴承(5.50英寸) | LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch) | 1 |
| 19 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 20 | 99664 | 平衡管至缸体弯头 | ELBOW Balance Tube to Cylinder Block | 2 |
| 20 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 2 |
| 21 | 65857 | 上部泄放软管接头 | CONNECTOR Upper Bleed Hose | 1 |
| 21 | 56759 | 倒钩接头 | FITTING Barbed | 1 |
| 22 | 9938779 | 气缸泄放软管(11英寸) | HOSE Cylinder Bleed (11 Inch) | 1 |
| 23 | 42867 | 下部泄放软管止回阀 | CHECK VALVE Lower Bleed Hose | 1 |
| 23 | 428671 | 止回阀 | CHECK VALVE | 1 |
| 24 | 99156 | 正时指示器 | INDICATOR Timing | 1 |
| 25 | 39349 | 指示器至曲轴箱不锈钢螺钉(.312-18 x .750) | SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase | 1 |
| 26 | 26993 | 指示器螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Indicator Screw | 1 |
| 26 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| - | 97469A87 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 97469T87 | 船用动力头 | POWERHEAD MARINE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 60549A7 | 阻风门电磁阀总成 | SOLENOID ASSEMBLY Choke | 1 |
| 2 | 26996 | 锁紧垫圈(#10)不锈钢阻风门电磁阀端子 | LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL | 1 |
| 3 | 68219 | 螺母(#10-32)不锈钢阻风门电磁阀端子 | NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL | 1 |
| 4 | 33524 | 螺钉(.312-24 x .620)阻风门电磁阀 | SCREW (.312-24 x .620) CHOKE SOLENOID | 1 |
| 5 | 29250 | 螺母(.312-24)阻风门电磁阀螺钉 | NUT (.312-24) CHOKE SOLENOID SCREWS | 2 |
| 6 | 89008A2 | 阻风门电磁阀柱塞总成 | PLUNGER ASSEMBLY CHOKE SOLENOID | 1 |
| 7 | 76076A1 | 阻风门拉杆总成 | ROD ASSEMBLY Choke | 1 |
| 8 | 90242A1 | 旋钮总成 | KNOB ASSEMBLY | 1 |
| 9 | 35519 | 螺钉(#10-16 x .500)阻风门旋钮线 | SCREW (#10-16 x .500) WIRE TO CHOKE KNOB | 1 |
| 10 | 20116 | 阻风门旋钮护圈 | GROMMET CHOKE KNOB | 1 |
| 12 | 52743 | 螺钉(.312-18 x 3.750)化油器至曲轴箱 | SCREW (.312-18 x 3.750) CARBURETOR TO CRANKCASE | 4 |
| 13 | 77583 | 节流阀杆 | LEVER THROTTLE | 1 |
| 14 | 60293 | 螺钉(#5-40 x .500)杆至化油器 | SCREW (#5-40 x .500) LEVER TO CARBURETOR | 1 |
| 15 | 60292A1 | 联轴器总成 | COUPLING ASSEMBLY | 1 |
| 16 | 89694 | 节流阀轴联轴器键 | KEY THROTTLE SHAFT COUPLING | 1 |
| 17 | 92500 | 推式螺母滚轮-联轴器 | PUSH NUT ROLLER - COUPLING | 1 |
| 18 | 60293 | 螺钉(#5-40 x .500)卷边垫圈至联轴器 | SCREW (#5-40 x .500) ROLLED WASHER TO COUPLING | 1 |
| 19 | 91996A1 | 化油器板总成 | PLATE ASSEMBLY CARBURETOR | 1 |
| 20 | 71090 | 化油器板密封件 | SEAL CARBURETOR PLATE | 1 |
| 21 | 20367 | 螺钉板至化油器(7/16") | SCREW PLATE TO CARBURETOR (7/16") | 4 |
| 22 | 29245 | 垫圈(.281 x .500 x .060)不锈钢板螺钉 | WASHER (.281 x .500 x .060) Stainless Steel PLATE SCREW | 4 |
| 22 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 78529 | 排气歧管盖 | COVER EXHAUST MANIFOLD | 1 |
| 2 | 695242 | 板至排气歧管盖衬垫 | GASKET PLATE TO EXHAUST MANIFOLD COVER | 1 |
| 3 | 703351 | 挡板至盖衬垫 | GASKET BAFFLE PLATE TO COVER | 1 |
| 4 | 69579 | 排气歧管挡板 | PLATE BAFFLE-EXHAUST MANIFOLD | 1 |
| 5 | 695252 | 挡板至气缸体衬垫 | GASKET BAFFLE PLATE TO CYLINDER BLOCK | 1 |
| 6 | 38837 | 螺钉（0.312-18 x 1.12）板与歧管盖 | SCREW (.312-18 x 1.12) PLATE AND MANIFOLD COVER | 1 |
| 6 | 74824 | 螺钉（0.312-18 x 1.250）板与歧管盖 | SCREW (.312-18 x 1.250) PLATE AND MANIFOLD COVER | 15 |
| 6 | 70602 | 螺钉（0.250-20 x 2.00）板/歧管盖 | SCREW (.250-20 x 2.00) PLATE/MANIFOLD COVER | 2 |
| 7 | 76862 | 转换盖衬垫 | GASKET TRANSFER COVER | 1 |
| 7 | 768621 | 衬垫 | GASKET | 1 |
| 8 | 14428A1 | 转换盖总成 | COVER ASSEMBLY TRANSFER | 1 |
| 9 | 37562 | 不锈钢螺钉（0.312-18 x 1.00）转换盖 | SCREW (.312-18 x 1.00) Stainless Steel TRANSFER COVER | 11 |
| 10 | 28668 | 不锈钢螺钉（0.250-20 x 0.875）盖与燃油泵 | SCREW (.250-20 x .875) Stainless Steel COVER AND FUEL PUMP | 2 |
| 11 | 8364A1 | 气缸体盖 | COVER CYLINDER BLCOK | 1 |
| 12 | 437792 | 气缸体盖衬垫 | GASKET CYLINDER BLOCK COVER | 1 |
| 13 | 69100 | 气缸体盖螺钉（1英寸） | SCREW CYLINDER BLCOK COVER (1") | 4 |
| 13 | 8M0214943 | 螺钉 | SCREW | 4 |
| 14 | 96829A1 | 温度开关总成（260度） | SWITCH ASSEMBLY Temperature (260 DEGREES) | 1 |
| 14 | 19541A2 | 温度开关套件（285度） | TEMPERATURE SWITCH KIT (285 DEGREES) | 1 |
| 15 | 45915 | 接线端子排（电气） | TERMINAL BLOCK (ELECTRIC) | 1 |
| 16 | 69079 | 螺钉 (#10-16 x .440) 接线端子(电气) | SCREW (#10-16 x .440) TERMINAL BLOCK (ELECTRIC) | 1 |
| 17 | 28192 | 螺钉 (#10-24 x .50) 接线端子(电气) | SCREW (#10-24 x .50) TERMINAL BLOCK (ELECTRIC) | 1 |
| 17 | 72169 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 1 |
| 18 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 19 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 20 | 37655 | 螺钉 (#10-32 x .500) 水银开关至曲轴箱(1/2") | SCREW (#10-32 x .500) MERCURY SWITCH TO CRANKCASE (1/2") | 1 |
| 21 | 36242 | PIN Roll MERCURY SWITCH | 2 | |
| 22 | 99130122 | 管材 (20.00英尺散装) 曲轴箱通气 | TUBING (20.00 Feet Bulk) CRANKCASE BLEED | 3 |
| 22 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 3 |
| 23 | 42864 | 接头 曲轴箱通气 | FITTING CRANKCASE BLEED | 1 |
| 23 | 428641 | 止回阀接头 | FITTING Check Valve | 1 |
| 24 | 59169 | 接头 曲轴箱通气管 | FITTING CRANKCASEE BLEED HOSE | 1 |
| 24 | 59169003 | 三通接头 | FITTING Tee | 1 |
| 25 | 15133 | 接头 曲轴箱 | FITTING CRANKCASE | 1 |
| 26 | 42865 | 连接器 消音器 | CONNECTOR ATTENUATOR | 1 |
| 26 | 428651 | 止回阀 | VALVE-CHECK | 1 |
| - | 43779A87 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6228A1 | 顶罩总成(右舷黑色) | TOP COWL ASSEMBLY (STARBOARD BLACK) | 1 |
| 1 | 6228A3 | 顶罩总成(右舷灰色) | TOP COWL ASSEMBLY (STARBOARD GRAY) | 1 |
| 2 | 60297 | 燃油接头密封圈-罩 | SEAL FUEL CONNECTOR -COWL | 1 |
| 3 | 6227A1 | 顶罩总成(左舷黑色) | TOP COWL ASSEMBLY (PORT BLACK) | 1 |
| 3 | 6227A17 | 顶罩总成(左舷灰色) | TOP COWL ASSEMBLY (PORT GRAY) | 1 |
| 4 | 60298 | 控制电缆密封圈-罩 | SEAL CONTROL CABLES-COWL | 1 |
| 5 | 89717T | 罩体密封后支架 | BRACKET COWL SEALING-REAR | 1 |
| 6 | 698761 | 后支架密封圈 | SEAL REAR BRACKET | 2 |
| 7 | 90980 | 罩体铰链支架 | BRACKET COWL HINGE | 2 |
| 8 | 45561 | 铰链支架下部螺钉(.250-20 x 1.12) | SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER | 2 |
| 8 | 455611 | 螺钉(.250-20 x 1.120) | SCREW (.250-20 x 1.120) | 2 |
| 8 | 75794 | 铰链支架上部螺钉(1-1/8英寸) | SCREW HINGE BRACKET-UPPER (1-1/8") | 2 |
| 9 | 75805 | 铰链支架螺钉帽(上部) | CAP HINGE BRACKET SCREW (UPPER) | 2 |
| 10 | 26992 | 铰链支架螺钉不锈钢锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW | 4 |
| 11 | 37998 | 铰链支架螺钉垫圈 | WASHER HINGE BRACKET SCREW | 4 |
| 12 | 75806 | 铰链支架螺钉垫圈(上部) | WASHER HINGE BRACKET SCREW (UPPER) | 2 |
| 13 | 90979 | 机罩铰链销 | PIN COWL HINGE | 4 |
| 14 | 28782 | 螺钉(.312-18 x .880)不锈钢 铰链销至机罩 | SCREW (.312-18 x .880) Stainless Steel PIN TO COWL | 4 |
| 15 | 26993 | 锁紧垫圈(.312)铰链销固定螺钉 | LOCKWASHER (.312) PIN ATTACHING SCREW | 4 |
| 15 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 16 | 46785A5 | 罩壳锁扣总成 | LATCH ASSEMBLY Cowl | 2 |
| 17 | 62628 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 18 | 31312 | 螺钉(#10-32 x 0.875)锁扣总成至筒体 | SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL | 2 |
| 19 | 15222 | 机罩锁扣调节杆 | BAR ADJUSTMENT-COWL LATCH | 2 |
| 20 | 62629 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 21 | 62624 | 机罩锁扣张力弹簧 | SPRING TENSION-COWL LATCH | 2 |
| 22 | 30164 | 垫圈(.192 x .375 x .0312)不锈钢 调节杆至筒体 | WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 45812 | 螺母(#10-32)不锈钢 调节杆至筒体 | NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 859124 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 24 | 8774A6 | 前盖(黑色) | FRONT COVER (BLACK) | 1 |
| 24 | 8774A7 | 前盖(灰色) | FRONT COVER (GRAY) | 1 |
| 25 | 795511 | 隔音毯 | BLANKET SOUND ABSORBING | 1 |
| 26 | 14333 | 旋钮 | KNOB | 1 |
| 27 | 30771 | 垫圈 | WASHER | 2 |
| 28 | 75246 | 垫圈 | WASHER | 2 |
| 29 | 30772 | 弹簧 | SPRING | 1 |
| 30 | 29077 | 滚动销 | PIN Roll | 1 |
| 31 | 47341A1 | 拉绳与手柄套件 手动/应急启动(仅限手动启动) | ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY) | 1 |
| 31 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 73641A1 | 黑色顶部支架 | BRACKET TOP (BLACK) | 1 |
| 1 | 73641A2 | 灰色顶部支架 | BRACKET TOP (GRAY) | 1 |
| 2 | 62444 | 顶部支架/安装板橡胶密封条 | SEAL RUBBER-TOP BRACKET/MOUNTING PLATE | 1 |
| 3 | 79652 | 支架固定夹 | CLIP SUPPORT BRACKET | 1 |
| 4 | 48409 | 支架固定夹用#10-16x0.625不锈钢螺钉 | SCREW (#10-16 x .625) Stainless Steel CLIP TO SUPPORT | 2 |
| 5 | 79490T | 飞轮护罩 | SHIELD FLYWHEEL | 1 |
| 5 | 79490 | 护罩 | SHIELD | 1 |
| 6 | 37656 | 护罩至支架用#10-32x0.620螺钉 | SCREW (#10-32 x .620) SHIELD TO SUPPORT BRACKET | 1 |
| 7 | 48408 | 螺钉（#10-16 x 0.500）护罩至支撑架 | SCREW (#10-16 x .500) SHIELD TO SUPPORT BRACKET | 3 |
| 8 | 91891 | 消音器耐磨板 | WEAR PLATE SOUND ATENUATOR | 2 |
| 9 | 74510A2 | 后罩支撑架 | BRACKET COWL SUPPORT-REAR | 1 |
| 10 | 698761 | 后支架与顶支架密封件 | SEAL REAR BRACKET AND TOP BRACKET | 2 |
| 11 | 90435 | 橡胶支座 | MOUNT RUBBER | 4 |
| 12 | 20346 | 橡胶安装垫圈 | WASHER RUBBER MOUNT | 3 |
| 12 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 3 |
| 13 | 20184 | 螺母 (1/4-28X7/32) 橡胶支座 | NUT (1/4-28X7/32) RUBBER MOUNT | 4 |
| 13 | 8M0207775 | 螺母 @5 | NUT @5 | 4 |
| 14 | 26901 | 后支撑架橡胶缓冲块 | BUMPER RUBBER-REAR SUPPORT BRACKET | 3 |
| 14 | 269011 | 橡胶缓冲垫 | BUMPER Rubber | 3 |
| 15 | 60116 | 顶罩支撑架加固件 | BRACE COWL SUPPORT BRACKET (TOP) | 1 |
| 16 | 76596 | 螺钉（0.250-20 x 1.250）支撑架 | SCREW (.250-20 x 1.250) SUPPORT BRACKET | 3 |
| 17 | 87764 | 后下部安装架 | BRACKET REAR LOWER MOUNT | 1 |
| 18 | 76596 | 螺钉（0.250-20 x 1.250）后支架固定 | SCREW (.250-20 x 1.250) REAR BRACKET ATTACHING | 3 |
| 19 | 71097 | 橡胶安装架 | BRACKET RUBBER MOUNT | 1 |
| 20 | 59645 | 螺钉（0.312-18 x 0.750）支架至曲轴箱（3/4英寸） | SCREW (.312-18 x .750) BRACKET TO CRANKCASE (3/4") | 1 |
| 20 | 824941 | 螺钉 (0.312-18 x 0.750) | SCREW (.312-18 x .750) | 1 |
| 21 | 97348T | 消音器 | ATTENUATOR SOUND | 1 |
| 21 | 973482 | 消音器 | SOUND ATTENUATOR | 1 |
| 22 | 88684 | 手动阻风门盖 | COVER MANUAL CHOKE | 1 |
| 23 | 32293 | 螺钉（0.312-24 x 1.75）盖至顶盖 | SCREW (.312-24 x 1.75) COVER TO TOP COVER | 1 |
| 24 | 53705 | 盖板螺丝垫圈 | WASHER COVER SCREW | 1 |
| 24 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 1 |
| 25 | 73986 | 空气歧管 | MANIFOLD Air | 1 |
| 26 | 69093 | 螺钉（0.250-20 x 1.50）空气歧管 | SCREW (.250-20 x 1.50) AIR MANIFOLD | 2 |
| 27 | 14915T | 前消音器盖 | COVER SOUND ATTENUATOR (FRONT) | 1 |
| 28 | 37655 | 螺钉（#10-32 x 0.500）前盖 | SCREW (#10-32 x .500) FRONT COVER | 8 |
| 29 | 73336 | 前盖塞 | PLUG FRONT COVER | 2 |
| 30 | 41128A1 | 隔板总成 | PLATE ASSEMBLY | 1 |
| 31 | 698761 | 密封板 | SEAL PLATE | 2 |
| 32 | 90198 | 盖板至支撑架螺钉 | SCREW COVER PLATE TO SUPPORT BRACKET | 2 |
| 32 | 20540 | 螺钉(.250-20 x .62) | SCREW (.250-20 x .62) | 2 |
| 33 | 14169 | 电缆护套 | GROMMET ELECTRICAL CABLES | 1 |
| 34 | 14160 | 固定盖 | CAP RETAINING | 1 |
| 35 | 14168 | 螺钉（0.250-20 x 1.00）盖 | SCREW (.250-20 x 1.00) CAP | 2 |
| 36 | 88238A3 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 37 | 65999A2 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 2 |
| 38 | 36069 | 螺母 | NUT | 3 |
| 39 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 40 | 19686 | 支架 | BRACKET | 1 |
| 41 | 19758A3 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 42 | 18211 | 继电器开关 | RELAY SWITCH | 1 |
| 43 | 20401 | 螺钉（0.190-24 x 0.38） | SCREW (.190-24 x .38) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 400035 | 螺丝 M5×16(配合参考号20使用) | SCREW (M5 x 16) (Use W/Reference #20) | 2 |
| 1 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 2 | 96248A1 | 水管壳体总成 | HOUSING ASSEMBLY WATER TUBE | 1 |
| 3 | 25329 | 水管密封件 | SEAL WATER TUBE | 1 |
| 4 | 96247 | 水管隔套 | SPACER WATER TUBE | 1 |
| 4 | 889715 | 水管隔套 | SPACER Water Tube | 1 |
| 5 | 99702A6 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 5 | 99702A7 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 6 | 416704 | 适配板垫片 | GASKET ADAPTOR PLATE | 1 |
| 6 | 41670006 | 适配板垫片 | GASKET Adaptor Plate | 1 |
| 7 | 158662 | 适配板密封件 | SEAL ADAPTOR PLATE | 1 |
| 8 | 41211 | 上支架托架 | BRACKET UPPER MOUNT | 2 |
| 9 | 40011128 | 螺丝 M6×20不锈钢(不配合参考号10使用) | SCREW (M6 x 20) Stainless Steel (Use Without Reference #10) | 2 |
| 9 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 9 | 40007128 | 螺丝 M6×20(配合参考号10使用) | SCREW (M6 x 20) (Use With Reference #10) | 2 |
| 10 | 29245 | 垫圈（0.281 x 0.500 x 0.060）不锈钢（适用处使用） | WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE) | 2 |
| 10 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 11 | 85116 | 水管(短轴) | TUBE Water (SHORT SHAFT) | 1 |
| 11 | 86292 | 水管(长轴) | TUBE Water (LONG SHAFT) | 1 |
| 12 | 9097A2 | 驱动轴壳体总成(短轴)(黑色) | HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (BLACK) | 1 |
| 12 | 9097T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9098A2 | 驱动轴壳体总成(长轴)(黑色) | HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (BLACK) | 1 |
| 12 | 9098T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097A3 | 驱动轴壳体总成(短轴)(灰色) | HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (GRAY) | 1 |
| 12 | 9097T6 | 驱动轴壳体-灰色 | DRIVESHAFT HSG-GR | 1 |
| 12 | 9098A3 | 驱动轴壳体总成(长轴)(灰色) | HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (GRAY) | 1 |
| 12 | 9098A6 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097A4 | 驱动轴壳体总成(短轴)(TRACKER) | HOUSING ASSEMBLY Driveshaft (SHORT) (TRACKER) | 1 |
| 12 | 9098A4 | 驱动轴壳体总成(长轴)(TRACKER) | HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER) | 1 |
| 12 | 9098T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 13 | 433373 | 驱动轴壳体垫片 | GASKET DRIVE SHAFT HOUSING | 1 |
| 13 | 433374 | 驱动轴壳体垫片 | GASKET Drive Shaft Housing | 1 |
| 14 | 14534 | 怠速泄压盖 | COVER IDLE RELIEF | 1 |
| 15 | 14621 | 盖衬垫 | GASKET COVER | 1 |
| 16 | 14742 | 盖螺钉(.250-20 x 1.25) | SCREW (.250-20 x 1.25) COVER | 1 |
| 17 | 4000360 | 驱动轴壳体至缸体螺钉(60mm) | SCREW DRIVE SHAFT HOUSING TO BLOCK (60 MM) | 6 |
| 17 | 1993870 | 螺钉(M8 x 70) | SCREW (M8 x 70) | 6 |
| 18 | 4002317 | 驱动轴壳体螺钉垫圈(8.90 X 17.0 X 1.9不锈钢) | WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW | 6 |
| 19 | 19583 | 衬垫(按需使用) | GASKET (USE WHERE APPLICABLE) | 1 |
| 19 | 433373 | 衬垫 | GASKET | 1 |
| 20 | 30164 | 壳体螺钉垫圈(.192 x .375 x .0312不锈钢) | WASHER (.192 x .375 x .0312) Stainless Steel HOUSING SCREW | 2 |
| 21 | 17258T | 配平盖(黑色) | TRIM COVER (BLACK) | 1 |
| 21 | 17258T6 | 配平盖(灰色) | TRIM COVER (GRAY) | 1 |
| 21 | 17258T | 配平盖 | TRIM COVER | 1 |
| 21 | 17258F4 | 配平盖(追踪器型) | TRIM COVER (TRACKER) | 1 |
| 21 | 17258T | 配平盖 | TRIM COVER | 1 |
| 22 | 40011128 | 配平盖螺钉(M6 x 20不锈钢) | SCREW (M6 x 20) Stainless Steel TRIM COVER | 4 |
| 22 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 23 | 401196 | 配平盖螺钉螺母(M6) | NUT (M6) TRIM COVER SCREW | 4 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A8 | 齿轮箱总成-标准旋转1.87:1传动比(完整) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE) | 1 |
| 1 | 9148A11 | 齿轮箱总成(基础) | GEAR HOUSING ASSEMBLY (BASIC) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 48 | 78956 | 换挡凸轮 | SHIFT CAM | 1 |
| 48 | 789562 | 换挡凸轮 | SHIFT CAM | 1 |
| 49 | 89594A1 | 凸轮从动件总成 | FOLLOWER ASSEMBLY CAM | 1 |
| 50 | 79911 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 50 | 79911A1 | 杆 | ROD | 1 |
| 51 | 79910 | 压缩弹簧 | SPRING COMPRESSION | 2 |
| 52 | 78910 | 压缩弹簧垫圈 | WASHER COMPRESSION SPRING | 1 |
| 53 | 78906 | PIN SPRING LOCATOR | 1 | |
| 53 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 54 | 47397A1 | 轴承外圈垫片组(.002-3-5-10) | SHIM SET BEARING OUTER RACE (.002-3-5-10) | AR |
| 55 | 78172A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 56 | 44104A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 56 | 44104T2 | 齿轮组 | GEAR SET | 1 |
| 57 | 43999 | 滚子轴承(外径1.308) | BEARING Roller (1.308 O.D.) | 2 |
| 57 | 73363 | 滚子轴承(外径1.313) | BEARING Roller (1.313 O.D.) | 2 |
| 57 | 73363T | 轴承 | BEARING | 2 |
| 58 | 78959 | 棘轮滑动离合器 | RATCHET SLIDING CLUTCH | 1 |
| 58 | 823174T | ORD 8M0100493 | ORD 8M0100493 | 1 |
| 59 | 78905 | 棘轮到螺旋桨轴十字销 | PIN Cross RATCHET TO PROPELLER SHAFT | 1 |
| 59 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 60 | 78909 | 棘轮定位销 | PIN Detent RATCHET | 2 |
| 61 | 78962 | 十字销固定弹簧 | SPRING RETAINING-CROSS PIN | 2 |
| 62 | 94148 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 63 | N.S.S. | 不单独出售(43-44104A2部件) | Not Sold Separate (PART OF 43-44104A2) | 1 |
| 64 | 68100 | 止推环 | RING THRUST | 1 |
| 64 | 681001 | 止推环 | RING Thrust | 1 |
| 65 | 88957A1 | 滚珠轴承-倒档齿轮 | BEARING Ball BALL-REVERSE GEAR | 1 |
| 65 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 66 | 31534 | 轴承座O型圈 | O-RING BEARING CARRIER | 1 |
| 66 | 8M0214920 | O型圈 | O RING | 1 |
| 67 | 43567A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 67 | 43567T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 68 | 30956 | 滚针轴承-轴承座 | BEARING Needle BEARING CARRIER | 1 |
| 68 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 69 | 76868 | 轴承座密封 | SEAL BEARING CARRIER | 2 |
| 69 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 2 |
| 70 | 30281 | 轴承座定位键 | KEY LOCATING-BEARING CARRIER | 1 |
| 71 | 79447 | 齿轮箱盖锁紧垫圈 | TAB WASHER GEAR HOUSING COVER | 1 |
| 72 | 79448 | 齿轮箱固定座 | RETAINER GEAR HOUSING | 1 |
| 72 | 8M2011027 | 固定座 | RETAINER | 1 |
| 73 | 31640A1 | TRIM TAB ASSEMBLY GEAR HOUSING | 1 | |
| 73 | 31640Q4 | 平衡鳍板 | TRIM TAB | 1 |
| 74 | 66024 | 螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4") | SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4") | 1 |
| 75 | 67891 | 填充块 | FILLER BLOCK FILLER BLOCK | 1 |
| 75 | 8M0039169 | 填充块 | FILLER BLOCK | 1 |
| 76 | 34933 | 螺母(.437-20)不锈钢驱动轴壳体螺柱 | NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| 76 | 8M0204653 | 螺母 | NUT | 2 |
| 77 | 65210 | 螺钉(.375-16 x 1.00)齿轮箱 | SCREW (.375-16 x 1.00) GEAR HOUSING | 1 |
| 78 | 13171 | 推力毂 | THRUST HUB | 1 |
| 78 | 835467Q01 | 止推垫片套件 | THRUST WASHER KIT | 1 |
| 79 | 31211A2 | 花键垫圈-螺旋桨螺母 | WASHER Splined SPLINED-PROPELLER NUT | 1 |
| 79 | 31211Q03 | 垫圈总成 | WASHER ASSEMBLY | 1 |
| 80 | 31210 | 螺旋桨螺母锁紧垫圈 | TAB WASHER PROPELLER NUT | 1 |
| 80 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 81 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 81 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 82 | 423511 | 螺旋桨轴齿形锁紧垫圈 | LOCKWASHER Toothed PROPELLER SHAFT | 1 |
| 83 | 45176 | 垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱 | WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 14697A87 | 衬垫套件 | GASKET SET |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8669A13 | 齿轮箱总成(短型)(黑色) | GEAR HOUSING ASSEMBLY (SHORT) (BLACK) | 1 |
| - | 8669T13 | 齿轮箱外壳SH-BLK | GEAR HSG. SH-BLK | 1 |
| - | 8669A14 | 齿轮箱总成(长型)(黑色) | GEAR HOUSING ASSEMBLY (LONG) (BLACK) | 1 |
| - | 8669T14 | GC 20/25 2S LG | GC 20/25 2S LG | 1 |
| - | 8669A15 | 齿轮箱总成(短型)(灰色) | GEAR HOUSING ASSEMBLY (SHORT) (GRAY) | 1 |
| - | 8669T13 | 齿轮箱外壳SH-BLK | GEAR HSG. SH-BLK | 1 |
| - | 8669A16 | 齿轮箱总成(长型)(灰色) | GEAR HOUSING ASSEMBLY (LONG) (GRAY) | 1 |
| - | 8669T16 | ORD 1665-8669T14 | ORD 1665-8669T14 | 1 |
| - | 8669A23 | 齿轮箱总成(短型)(追踪者系列) | GEAR HOUSING ASSEMBLY (SHORT) (TRACKER) | 1 |
| - | 8669A24 | 齿轮箱总成(长型)(追踪者系列) | GEAR HOUSING ASSEMBLY (LONG) (TRACKER) | 1 |
| 1 | 8669A21 | 齿轮箱总成(基础黑色) | GEAR HOUSING ASSEMBLY Basic-Black (BLACK) | 1 |
| 1 | 8M0083538 | GC BASIC 25 2S | GC BASIC 25 2S | 1 |
| 1 | 8669A22 | 齿轮箱总成(基础灰色) | GEAR HOUSING ASSEMBLY Basic-Gray (GRAY) | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8669A25 | 齿轮箱总成(追踪者系列) | GEAR HOUSING ASSEMBLY (TRACKER) | 1 |
| 1 | 8669A39 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 2 | 41134 | 右舷进水口滤网 | SCREEN WATER INLET-STARBOARD | 1 |
| 2 | 41133 | 进水口滤网 | SCREEN Water Inlet Port | 1 |
| 3 | 40031112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 1 |
| 4 | 400263 | 螺母(M5)滤网螺钉 | NUT (M5) SCREEN SCREW | 1 |
| 5 | 41326 | 滚柱轴承上 | BEARING Roller UPPER | 1 |
| 6 | 99325 | 齿轮箱密封件 | SEAL GEAR HOUSING | 2 |
| 7 | 85500 | PIN Dowel (.187 x .530) GEAR HOUSING | 2 | |
| 7 | 8M0084726 | 定位销 | PIN Dowel | 2 |
| 8 | 98294A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 98302 | 小齿轮 | GEAR Pinion | 1 |
| 10 | 49908 | 小齿轮螺钉(0.250-28x0.75英寸) | SCREW (.250-28 x .750) PINION GEAR | 1 |
| 11 | 99199 | 驱动轴(短轴) | DRIVESHAFT (SHORT SHAFT) | 1 |
| 11 | 99198 | 驱动轴(长轴) | DRIVESHAFT (LONG SHAFT) | 1 |
| 13 | 14834A1 | 磁性放油螺钉 | SCREW DRAIN - MAGNETIC | 1 |
| 13 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 14 | 28634A1 | 润滑脂加注螺钉套件 | SCREW KIT GREASE FILLER | 1 |
| 14 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 15 | 805726 | O型圈(放油/加注螺钉用) | O-RING Rubber DRAIN AND FILLER SCREW | 2 |
| 15 | 8M0204684 | 橡胶O型圈 | O-RING Rubber | 2 |
| 16 | 85562A1 | 凸轮总成(无钢印) | CAM ASSEMBLY (NO STAMPING) | 1 |
| 16 | 85562A2 | 换挡凸轮(钢印85662--1) | SHIFT CAM (STAMPED 85662--1) | 1 |
| 17 | 85096 | 驱动销 | PIN Drive | 1 |
| 18 | 85593 | 销(.078 x .437) | PIN (.078 x .437) | 1 |
| 19 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 19 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 20 | 93007 | 弹簧 | SPRING | 1 |
| 21 | 85091 | 垫圈 | WASHER | 1 |
| 22 | 85594 | O型圈(.239 x .174) | O-RING (.239 x .174) | 1 |
| 23 | 35276 | O型圈(.734 x .139) | O-RING (.734 x .139) | 1 |
| 24 | 93878 | 固定座 | RETAINER | 1 |
| 25 | 85552 | 换档轴防尘罩 | BOOT SHIFT SHAFT | 1 |
| 25 | 85552001 | 护套 | BOOT | 1 |
| 26 | 85126 | 换挡轴(短轴) | SHIFT SHAFT (SHORT SHAFT) | 1 |
| 26 | 86293 | 换挡轴(长轴) | SHIFT SHAFT (LONG SHAFT) | 1 |
| 27 | 993261 | 水泵衬垫 | GASKET WATER PUMP | 1 |
| 28 | 85083 | 面板 | FACE PLATE | 1 |
| 29 | 86645 | 叶轮垫圈 | WASHER IMPELLER | 2 |
| 29 | 8M0204722 | 垫圈 | WASHER | 2 |
| 30 | 85119 | 叶轮驱动键 | KEY IMPELLER DRIVE | 1 |
| 30 | 8M0214993 | 键@5 | KEY @5 | 1 |
| 31 | 850893 | 叶轮 | IMPELLER | 1 |
| 31 | 8M0204712 | 叶轮 | IMPELLER | 1 |
| 32 | 69202 | 水泵O型圈 | O-RING WATER PUMP | 1 |
| 33 | 99157A1 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 33 | 99157A02 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 34 | 90883 | 螺钉(M5×16)(16毫米)-与参考号36配套使用 | SCREW (M5 x 16) (16MM)- Use with Reference #36 | 4 |
| 35 | 89302 | 垫圈(0.203×0.406×0.040)-与参考号36配套使用 | WASHER (.203 x .406 x .040) Use with Reference #36 | 4 |
| 36 | 85095 | 衬套-与参考号36配套使用 | BUSHING Use with Reference #36 | 4 |
| 36 | 8M0214959 | 衬套@5 | BUSHING @5 | 4 |
| 34 | 4000328 | 螺钉(M6×16)-不与参考号36配套使用 | SCREW (M6 x 16) Use without Reference #36 | 4 |
| 34 | 8M0214928 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 35 | 29245 | 不锈钢垫圈(0.281×0.500×0.060)-不与参考号36配套使用 | WASHER (.281 x .500 x .060) Stainless Steel Use without Reference #36 | 4 |
| 35 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 37 | 85090 | 水管密封件 | SEAL WATER TUBE | 1 |
| 37 | 85090001 | 密封件 | SEAL | 1 |
| 38 | 86203 | 橡胶传动轴O型圈 | O-RING DRIVE SHAFT - RUBBER | 1 |
| - | 99157A2 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 99157T2 | 水泵套件 | PUMP KIT Water | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6071A47 | 化油器总成 | CARBURETOR ASSEMBLY | 2 |
| 1 | 6071A39 | 化油器总成 | CARBURETOR ASSEMBLY | 2 |
| 2 | 6249 | 主量孔(.096)通风碗 | JET Main (.096) VENT BOWL | 2 |
| 3 | 19271 | 进油针阀组件 | NEEDLE/SEAT KIT Inlet | 2 |
| 3 | 192711 | 进油针阀组件 | NEEDLE AND SEAT Inlet | 2 |
| 4 | NSS | 不单独出售-进油针阀与阀座垫片 | NOT SOLD SEPARATE GASKET-INLET NEEDLE AND SEAT | 2 |
| 5 | 52106A1 | 塑料喉管 | VENTURI Plastic | 2 |
| 6 | NSS | NOT SOLD SEPARATE NOZZLE | 2 | |
| 7 | NSS | NOT SOLD SEPARATE INLET NEEDLE | 2 | |
| 8 | NSS | NOT SOLD SEPARATE SPRING-IDLE MIXTURE | 2 | |
| 9 | NSS | 不单独出售-浮子销 | NOT SOLD SEPARATE PIN-FLOAT | 6 |
| 10 | NSS | 不单独出售-浮子杆 | NOT SOLD SEPARATE LEVER-FLOAT | 2 |
| 11 | 6197 | 浮子 | FLOAT | 2 |
| 11 | 19273 | 浮子 | FLOAT | 2 |
| 12 | 9483 | 燃油杯 | BOWL Fuel | 2 |
| 12 | 7835 | 燃油杯 | BOWL Fuel | 2 |
| 13 | NSS | 不单独销售 燃油杯衬垫 | NOT SOLD SEPARATE GASKET-FUEL BOWL | 2 |
| 14 | NSS | NOT SOLD SEPARATE SCREW-FUEL BOWL | 2 | |
| 15 | 6199 | 主量孔塞 | PLUG MAIN JET | 2 |
| 16 | 7831 | 主燃油喷嘴 (.058) | JET Main Fuel (.058) | 2 |
| 16 | 6207 | 主量孔(.072) | JET (.072) MAIN | 2 |
| 17 | NSS | NOT SOLD SEPARATE GASKET-MAIN JET PLUG | 2 | |
| 19 | NSS | 不单独出售-韦氏塞(9/16英寸) | NOT SOLD SEPARATE WELCH PLUG (9/16") | 4 |
| 20 | 4807 | 油门轴 | SHAFT Throttle | 2 |
| 21 | 9484 | 油门阀 | VALVE Throttle | 2 |
| 21 | 7833 | 油门阀 | VALVE Throttle | 2 |
| 22 | NSS | NOT SOLD SEPARATE SCREW-VALVE TO THROTTLE SHAFT | 4 | |
| 23 | 6204 | 节气门轴密封 | SEAL THROTTLE SHAFT | 2 |
| 24 | 6203 | 节气门轴垫圈 | WASHER THROTTLE SHAFT | 2 |
| 25 | NSS | 不单独销售 油门回位弹簧 | NOT SOLD SEPARATE SPRING-THROTTLE RETURN | 2 |
| 26 | 6198 | 加浓阀总成 | VALVE ASSEMBLY ENRICHMENT | 2 |
| 27 | NSS | NOT SOLD SEPARATE SCREW-ENRICHMENT BRACKET | 2 | |
| 28 | NSS | 不单独出售-韦氏塞(7/16英寸) | NOT SOLD SEPARATE WELCH PLUG (7/16") | 2 |
| 29 | 73377 | 化油器衬垫 | GASKET CARBURETOR | 2 |
| 29 | 733771 | 衬垫 | GASKET | 2 |
| -- | 6200 | 衬垫套件 | GASKET KIT | 2 |
| -- | 8982 | 维修零件包 | REPAIR PARTS KIT | 2 |
| -- | 812953 | 化油器维修套件 | REPAIR KIT - CARB | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 60549A7 | 阻风门电磁阀总成 | SOLENOID ASSEMBLY Choke | 1 |
| 2 | 26996 | 锁紧垫圈(#10)不锈钢阻风门电磁阀端子 | LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL | 1 |
| 3 | 68219 | 螺母(#10-32)不锈钢阻风门电磁阀端子 | NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL | 1 |
| 4 | 33524 | 螺钉(.312-24 x .620)阻风门电磁阀 | SCREW (.312-24 x .620) CHOKE SOLENOID | 1 |
| 5 | 29250 | 螺母(.312-24)阻风门电磁阀螺钉 | NUT (.312-24) CHOKE SOLENOID SCREWS | 2 |
| 6 | 89008A2 | 阻风门电磁阀柱塞总成 | PLUNGER ASSEMBLY CHOKE SOLENOID | 1 |
| 7 | 76076A1 | 阻风门拉杆总成 | ROD ASSEMBLY Choke | 1 |
| 8 | 90242A1 | 旋钮总成 | KNOB ASSEMBLY | 1 |
| 9 | 35519 | 螺钉(#10-16 x .500)阻风门旋钮线 | SCREW (#10-16 x .500) WIRE TO CHOKE KNOB | 1 |
| 10 | 20116 | 阻风门旋钮护圈 | GROMMET CHOKE KNOB | 1 |
| 12 | 52743 | 螺钉(.312-18 x 3.750)化油器至曲轴箱 | SCREW (.312-18 x 3.750) CARBURETOR TO CRANKCASE | 4 |
| 13 | 77583 | 节流阀杆 | LEVER THROTTLE | 1 |
| 14 | 60293 | 螺钉(#5-40 x .500)杆至化油器 | SCREW (#5-40 x .500) LEVER TO CARBURETOR | 1 |
| 15 | 60292A1 | 联轴器总成 | COUPLING ASSEMBLY | 1 |
| 16 | 89694 | 节流阀轴联轴器键 | KEY THROTTLE SHAFT COUPLING | 1 |
| 17 | 92500 | 推式螺母滚轮-联轴器 | PUSH NUT ROLLER - COUPLING | 1 |
| 18 | 60293 | 螺钉(#5-40 x .500)卷边垫圈至联轴器 | SCREW (#5-40 x .500) ROLLED WASHER TO COUPLING | 1 |
| 19 | 91996A1 | 化油器板总成 | PLATE ASSEMBLY CARBURETOR | 1 |
| 20 | 71090 | 化油器板密封件 | SEAL CARBURETOR PLATE | 1 |
| 21 | 20367 | 螺钉板至化油器(7/16") | SCREW PLATE TO CARBURETOR (7/16") | 4 |
| 22 | 29245 | 垫圈(.281 x .500 x .060)不锈钢板螺钉 | WASHER (.281 x .500 x .060) Stainless Steel PLATE SCREW | 4 |
| 22 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8394A1 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 2 |
| 1 | 8394A3 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 2 |
| 2 | 78492A1 | 蝶形螺钉总成 | THUMB SCREW ASSEMBLY | 2 |
| 3 | 78493 | 蝶形螺丝垫圈 | WASHER THUMB SCREW | 2 |
| 4 | 784951 | 垫片至拇指螺钉 | SCREW WASHER TO THUMB SCREW | 2 |
| 4 | 78495 | 螺钉（.312-24 x .680） | SCREW (.312-24 x .680) | 2 |
| 5 | 75043 | 拇指螺丝帽 | CAP THUMB SCREW | 2 |
| 6 | 74528 | 倾斜管 | TILT TUBE | 1 |
| 6 | 8M0041936 | 倾斜管 | TILT TUBE | 1 |
| 7 | 52864 | 倾斜管垫圈 | WASHER TILT TUBE | 2 |
| 8 | 56041 | 螺母(.875-14)倾斜管 | NUT (.875-14) TILT TUBE | 2 |
| 8 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 9 | 53078 | 倾斜管塑料盖 | CAP PLASTIC - TILT TUBE | 2 |
| 10 | 98877 | 上减震座 | SHOCK MOUNT Upper | 1 |
| 10A | 28416 | 动力升降销 | PIN (POWER TRIM) | 1 |
| 11 | 73203 | 夹紧支架衬套 | BUSHING CLAMP BRACKET | 2 |
| 12 | 59623 | 夹紧支架螺柱隔套 | SPACER CLAMP BRACKET STUD | 2 |
| 13 | 59625 | 夹紧支架螺柱 | STUD CLAMP BRACKET | 1 |
| 14 | 26993 | 锁紧垫圈(.312)夹支架螺柱 | LOCKWASHER (.312) CLAMP BRACKET STUD | 2 |
| 14 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 15 | 28770 | 螺母(.312-24)不锈钢-夹支架螺柱 | NUT (.312-24) Stainless Steel CLAMP BRACKET STUD | 2 |
| 16 | 49930A1 | 倾斜锁销总成 | PIN ASSEMBLY Tilt Lock | 1 |
| 16 | 8M0026068 | 倾斜锁销总成 | PIN ASSEMBLY Tilt Lock | 1 |
| 17 | 28052 | 倾斜锁销橡胶套 | SLEEVE RUBBER - TILT LOCK PIN | 1 |
| 18 | 68298 | 夹紧支架固定螺栓（0.375-16 x 3.250） | BOLT (.375-16 x 3.250) CLAMP BRACKET TO TRANSOM | 2 |
| 18 | 89673 | 夹紧支架固定螺钉（0.375-16 x 5.00） | SCREW (.375-16 x 5.00) CLAMP BRACKET TO TRANSOM | 2 |
| 19 | 68410 | 夹紧支架螺栓垫圈 | WASHER CLAMP BRACKET BOLT | 2 |
| 19 | 46765 | 垫圈 (.390 x 1.50 x .120) | WASHER (.390 x 1.50 x .120) | 2 |
| 19 | 28420 | 垫圈 (1-1/4 x 25/64 x 0.125 不锈钢) 夹紧支架螺栓 | WASHER (1-1/ 4 x 25/64 x .125 SS) CLAMP BRACKET BOLT | 2 |
| 19 | 68300 | WASHER (..88 x .39 x .06) CLAMP BRACKET BOLT | 2 | |
| 20 | 99405 | 夹紧支架螺栓螺母 | NUT CLAMP BRACKET BOLT | 4 |
| 20 | 82671112 | 螺母（.375-16） | NUT (.375-16) | 4 |
| 21 | 69375A1 | 上下减震销螺钉（0.500-20 x 0.625） | SCREW (.500-20 x .625) UPPER AND LOWER SHOCK PIN | 2 |
| 22 | 98876 | STRAP TILT STOP | 1 | |
| 23 | 98878 | 下部安装销 | PIN LOWER MOUNT | 1 |
| 24 | 98875 | 弹簧 | SPRING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6228A1 | 顶罩总成(右舷黑色) | TOP COWL ASSEMBLY (STARBOARD BLACK) | 1 |
| 1 | 6228A3 | 顶罩总成(右舷灰色) | TOP COWL ASSEMBLY (STARBOARD GRAY) | 1 |
| 2 | 60297 | 燃油接头密封圈-罩 | SEAL FUEL CONNECTOR -COWL | 1 |
| 3 | 6227A1 | 顶罩总成(左舷黑色) | TOP COWL ASSEMBLY (PORT BLACK) | 1 |
| 3 | 6227A17 | 顶罩总成(左舷灰色) | TOP COWL ASSEMBLY (PORT GRAY) | 1 |
| 4 | 60298 | 控制电缆密封圈-罩 | SEAL CONTROL CABLES-COWL | 1 |
| 5 | 89717T | 罩体密封后支架 | BRACKET COWL SEALING-REAR | 1 |
| 6 | 698761 | 后支架密封圈 | SEAL REAR BRACKET | 2 |
| 7 | 90980 | 罩体铰链支架 | BRACKET COWL HINGE | 2 |
| 8 | 45561 | 铰链支架下部螺钉(.250-20 x 1.12) | SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER | 2 |
| 8 | 455611 | 螺钉(.250-20 x 1.120) | SCREW (.250-20 x 1.120) | 2 |
| 8 | 75794 | 铰链支架上部螺钉(1-1/8英寸) | SCREW HINGE BRACKET-UPPER (1-1/8") | 2 |
| 9 | 75805 | 铰链支架螺钉帽(上部) | CAP HINGE BRACKET SCREW (UPPER) | 2 |
| 10 | 26992 | 铰链支架螺钉不锈钢锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW | 4 |
| 11 | 37998 | 铰链支架螺钉垫圈 | WASHER HINGE BRACKET SCREW | 4 |
| 12 | 75806 | 铰链支架螺钉垫圈(上部) | WASHER HINGE BRACKET SCREW (UPPER) | 2 |
| 13 | 90979 | 机罩铰链销 | PIN COWL HINGE | 4 |
| 14 | 28782 | 螺钉(.312-18 x .880)不锈钢 铰链销至机罩 | SCREW (.312-18 x .880) Stainless Steel PIN TO COWL | 4 |
| 15 | 26993 | 锁紧垫圈(.312)铰链销固定螺钉 | LOCKWASHER (.312) PIN ATTACHING SCREW | 4 |
| 15 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 16 | 46785A5 | 罩壳锁扣总成 | LATCH ASSEMBLY Cowl | 2 |
| 17 | 62628 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 18 | 31312 | 螺钉(#10-32 x 0.875)锁扣总成至筒体 | SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL | 2 |
| 19 | 15222 | 机罩锁扣调节杆 | BAR ADJUSTMENT-COWL LATCH | 2 |
| 20 | 62629 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 21 | 62624 | 机罩锁扣张力弹簧 | SPRING TENSION-COWL LATCH | 2 |
| 22 | 30164 | 垫圈(.192 x .375 x .0312)不锈钢 调节杆至筒体 | WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 45812 | 螺母(#10-32)不锈钢 调节杆至筒体 | NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 859124 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 24 | 8774A6 | 前盖(黑色) | FRONT COVER (BLACK) | 1 |
| 24 | 8774A7 | 前盖(灰色) | FRONT COVER (GRAY) | 1 |
| 25 | 795511 | 隔音毯 | BLANKET SOUND ABSORBING | 1 |
| 26 | 14333 | 旋钮 | KNOB | 1 |
| 27 | 30771 | 垫圈 | WASHER | 2 |
| 28 | 75246 | 垫圈 | WASHER | 2 |
| 29 | 30772 | 弹簧 | SPRING | 1 |
| 30 | 29077 | 滚动销 | PIN Roll | 1 |
| 31 | 47341A1 | 拉绳与手柄套件 手动/应急启动(仅限手动启动) | ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY) | 1 |
| 31 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 73641A1 | 黑色顶部支架 | BRACKET TOP (BLACK) | 1 |
| 1 | 73641A2 | 灰色顶部支架 | BRACKET TOP (GRAY) | 1 |
| 2 | 62444 | 顶部支架/安装板橡胶密封条 | SEAL RUBBER-TOP BRACKET/MOUNTING PLATE | 1 |
| 3 | 79652 | 支架固定夹 | CLIP SUPPORT BRACKET | 1 |
| 4 | 48409 | 支架固定夹用#10-16x0.625不锈钢螺钉 | SCREW (#10-16 x .625) Stainless Steel CLIP TO SUPPORT | 2 |
| 5 | 79490T | 飞轮护罩 | SHIELD FLYWHEEL | 1 |
| 5 | 79490 | 护罩 | SHIELD | 1 |
| 6 | 37656 | 护罩至支架用#10-32x0.620螺钉 | SCREW (#10-32 x .620) SHIELD TO SUPPORT BRACKET | 1 |
| 7 | 48408 | 螺钉（#10-16 x 0.500）护罩至支撑架 | SCREW (#10-16 x .500) SHIELD TO SUPPORT BRACKET | 3 |
| 8 | 91891 | 消音器耐磨板 | WEAR PLATE SOUND ATENUATOR | 2 |
| 9 | 74510A2 | 后罩支撑架 | BRACKET COWL SUPPORT-REAR | 1 |
| 10 | 698761 | 后支架与顶支架密封件 | SEAL REAR BRACKET AND TOP BRACKET | 2 |
| 11 | 90435 | 橡胶支座 | MOUNT RUBBER | 4 |
| 12 | 20346 | 橡胶安装垫圈 | WASHER RUBBER MOUNT | 3 |
| 12 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 3 |
| 13 | 20184 | 螺母 (1/4-28X7/32) 橡胶支座 | NUT (1/4-28X7/32) RUBBER MOUNT | 4 |
| 13 | 8M0207775 | 螺母 @5 | NUT @5 | 4 |
| 14 | 26901 | 后支撑架橡胶缓冲块 | BUMPER RUBBER-REAR SUPPORT BRACKET | 3 |
| 14 | 269011 | 橡胶缓冲垫 | BUMPER Rubber | 3 |
| 15 | 60116 | 顶罩支撑架加固件 | BRACE COWL SUPPORT BRACKET (TOP) | 1 |
| 16 | 76596 | 螺钉（0.250-20 x 1.250）支撑架 | SCREW (.250-20 x 1.250) SUPPORT BRACKET | 3 |
| 17 | 87764 | 后下部安装架 | BRACKET REAR LOWER MOUNT | 1 |
| 18 | 76596 | 螺钉（0.250-20 x 1.250）后支架固定 | SCREW (.250-20 x 1.250) REAR BRACKET ATTACHING | 3 |
| 19 | 71097 | 橡胶安装架 | BRACKET RUBBER MOUNT | 1 |
| 20 | 59645 | 螺钉（0.312-18 x 0.750）支架至曲轴箱（3/4英寸） | SCREW (.312-18 x .750) BRACKET TO CRANKCASE (3/4") | 1 |
| 20 | 824941 | 螺钉 (0.312-18 x 0.750) | SCREW (.312-18 x .750) | 1 |
| 21 | 97348T | 消音器 | ATTENUATOR SOUND | 1 |
| 21 | 973482 | 消音器 | SOUND ATTENUATOR | 1 |
| 22 | 88684 | 手动阻风门盖 | COVER MANUAL CHOKE | 1 |
| 23 | 32293 | 螺钉（0.312-24 x 1.75）盖至顶盖 | SCREW (.312-24 x 1.75) COVER TO TOP COVER | 1 |
| 24 | 53705 | 盖板螺丝垫圈 | WASHER COVER SCREW | 1 |
| 24 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 1 |
| 25 | 73986 | 空气歧管 | MANIFOLD Air | 1 |
| 26 | 69093 | 螺钉（0.250-20 x 1.50）空气歧管 | SCREW (.250-20 x 1.50) AIR MANIFOLD | 2 |
| 27 | 14915T | 前消音器盖 | COVER SOUND ATTENUATOR (FRONT) | 1 |
| 28 | 37655 | 螺钉（#10-32 x 0.500）前盖 | SCREW (#10-32 x .500) FRONT COVER | 8 |
| 29 | 73336 | 前盖塞 | PLUG FRONT COVER | 2 |
| 30 | 41128A1 | 隔板总成 | PLATE ASSEMBLY | 1 |
| 31 | 698761 | 密封板 | SEAL PLATE | 2 |
| 32 | 90198 | 盖板至支撑架螺钉 | SCREW COVER PLATE TO SUPPORT BRACKET | 2 |
| 32 | 20540 | 螺钉(.250-20 x .62) | SCREW (.250-20 x .62) | 2 |
| 33 | 14169 | 电缆护套 | GROMMET ELECTRICAL CABLES | 1 |
| 34 | 14160 | 固定盖 | CAP RETAINING | 1 |
| 35 | 14168 | 螺钉（0.250-20 x 1.00）盖 | SCREW (.250-20 x 1.00) CAP | 2 |
| 36 | 88238A3 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 37 | 65999A2 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 2 |
| 38 | 36069 | 螺母 | NUT | 3 |
| 39 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 40 | 19686 | 支架 | BRACKET | 1 |
| 41 | 19758A3 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 42 | 18211 | 继电器开关 | RELAY SWITCH | 1 |
| 43 | 20401 | 螺钉（0.190-24 x 0.38） | SCREW (.190-24 x .38) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9611A1 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 63742 | 滚珠轴承 | BEARING Ball | 1 |
| 2 | 63742T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 812877 | 挡圈 | RING Retaining | 1 |
| 4 | 91800 | 半圆键 | KEY Woodruff | 2 |
| 5 | 43019A2 | 齿轮总成 | GEAR ASSEMBLY | 1 |
| 6 | 812873A1 | 滚子轴承总成(顶部) | BEARING ASSEMBLY Roller (TOP) | 1 |
| 7 | 419531 | 油封 | SEAL Oil | 1 |
| 8 | 812881A1 | 滚子轴承总成(中部) | BEARING ASSEMBLY Roller (CENTER) | 2 |
| 9 | 9613A1 | 活塞总成 | PISTON ASSEMBLY | 3 |
| 9 | 9613T1 | 活塞 | PISTON | 3 |
| 9 | 9613A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 9 | 9613T2 | 活塞总成0.015 | PISTON ASSY .015 | AR |
| 9 | 9613A3 | 活塞总成 | PISTON ASSEMBLY | AR |
| 9 | 9613T3 | 活塞 | PISTON | AR |
| 10 | 52035 | 锁环 | RING Lock | 6 |
| 10 | 857196 | 锁紧环 | LOCK RING | 6 |
| 11 | 19721A6 | 活塞环组 | RING SET Piston | 1 |
| 11 | 19721A1 | 活塞环组 | RING SET Piston | AR |
| 11 | 19721A2 | 活塞环组 | RING SET Piston | AR |
| 12 | 9612A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 12 | 9612A6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 13 | 812876 | 垫圈 | WASHER | 6 |
| 13 | 8M0012298 | 止推垫片 | THRUST WASHER | 6 |
| 14 | 47270 | 轴承 | BEARING | 8 |
| 14 | 8M0214934 | 滚针轴承@200 | BRG-NEEDLE @200 | 8 |
| 15 | 91012 | 螺钉(0.250-28特殊) | SCREW (.250-28 Special) | 6 |
| 16 | 17514A1 | 轴承套件 | BEARING KIT | 3 |
| 16 | 8M0234886 | 轴承保持架 | CAGE BEARING | 3 |
| - | 811208T91 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 821744T92 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 811209T91 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 811209T93 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8362A7 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8362A4 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8362A11 | 气缸体总成 | CYLINDER BLOCK ASSMEBLY | 1 |
| 2 | 66517 | 曲轴箱通气限流器 | RESTRICTOR CRANKCASE BLEED | 2 |
| 3 | 60286 | 曲轴箱至气缸体衬垫 | GASKET CRANKCASE TO CYLINDER BLOCK | 2 |
| 4 | 68201 | 曲轴箱至驱动轴壳体螺柱(2-1/4英寸) | STUD CRANKCASE TO DRIVE SHAFT HOUSING (2-1/4") | 2 |
| 5 | 20033 | 定位销曲轴箱至气缸体 | PIN Dowel CRANKCASE TO CYLINDER BLOCK | 2 |
| 5 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 6 | 20323 | 气缸体至主轴承定位销 | PIN Dowel CYLINDER BLOCK TO MAIN BEARING | 2 |
| 7 | 92345 | 气缸体螺柱(4-3/8英寸) | STUD CYLINDER BLOCK (4-3/8") | 2 |
| 8 | 68202 | 气缸体排气侧螺柱(0.312-24x3.00) | STUD (.312-24 x 3.00) CYLINDER BLOCK - EXHAUST SIDE | 1 |
| 8 | 68167 | 缸体-换气侧双头螺柱(.312-18/.312-24 x 2.560) | STUD (.312-18/.312-24 x 2.560) CYLINDER BLOCK - TRANSFER SIDE | 1 |
| 9 | 77636 | 启动马达下盖 | COVER STARTER MOTOR (BOTTOM) | 1 |
| 9 | 76975 | 盖板 | COVER | 1 |
| 10 | 77065 | 启动马达盖螺钉(0.312-18x2) | SCREW (.312-18 x 2) STARTER MOTOR COVER | 2 |
| 10 | 815549 | 螺钉(.312-18 x 2.00) | SCREW (.312-18 x 2.00) | 2 |
| 11 | 26993 | 启动马达盖螺钉锁紧垫圈(0.312) | LOCKWASHER (.312) STARTER MOTOR COVER SCREW | 4 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 12 | 79735A1 | 启动马达上盖 | COVER STARTER MOTOR (TOP) | 1 |
| 13 | 58414 | 启动马达盖螺钉(2-1/2英寸) | SCREW STARTER MOTOR COVER (2-1/2") | 1 |
| 13 | 35385 | 启动马达盖螺钉(.312-18 x 1-3/4) | SCREW (.312-18 x 1-3/4) STARTER MOTOR COVER | 1 |
| 14 | 35385 | 曲轴箱至气缸体螺钉(0.312-18x1-3/4) | SCREW (.312-18 x 1-3/4) CRANKCASE TO CYLINDER BLOCK | 10 |
| 14 | 73657 | 曲轴箱至气缸体螺丝(.312-18 x 1.50) | SCREW (.312-18 x 1.50) CRANKCASE TO CYLINDER BLOCK | 2 |
| 14 | 22039 | 曲轴箱至气缸体螺钉(0.312-24x2.75) | SCREW (.312-24 x 2.75) CRANKCASE TO CYLINDER BLOCK | 2 |
| 15 | 26020 | 曲轴箱底部螺钉垫圈 | WASHER CRANKCASE SCREW (BOTTOM) | 14 |
| 16 | 29250 | 曲轴箱底部螺钉螺母(0.312-24) | NUT (.312-24) CRANKCASE SCREW (BOTTOM) | 2 |
| 17 | 79736 | 正时指示器 | INDICATOR TIMING | 1 |
| 18 | 58414 | 指示器至启动器盖螺钉 | SCREW INDICATOR TO STARTER COVER | 1 |
| 19 | 56720 | 不锈钢指示器螺钉垫圈(0.330x0.750x0.060) | WASHER (.330 x .750 x .060) Stainless Steel INDICATOR SCREW | 1 |
| 20 | 6357A1 | 上端盖总成 | END CAP ASSEMBLY UPPER | 1 |
| 21 | 64966 | 端盖O型圈(3.739x0.070) | O-RING (3.739 x .070) END CAP | 1 |
| 22 | 41953 | 端盖密封件 | SEAL END CAP | 1 |
| 23 | 73169 | 上端盖安装螺钉(1英寸) | SCREW UPPER END CAP MOUNTING (1") | 4 |
| 23 | 812618 | 不锈钢螺钉(.312-18 x 1.00)带尼龙垫 | SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch | 4 |
| 24 | 73644A1 | 上端盖垫片(0.006-8-10) | SHIM UPPER END CAP (.006-8-10) | AR |
| 25 | 6691A1 | 下端盖总成 | END CAP ASSEMBLY LOWER | 1 |
| 26 | 32546 | 端盖O型圈 | O-RING END CAP | 1 |
| 27 | 41953 | 端盖密封件 | SEAL END CAP | 2 |
| 28 | 69034 | 下端盖安装螺钉及锁紧垫圈(0.312-18x1.00) | SCREW AND LOCKWASHER (.312-18 x 1.00) LOWER END CAP MOUNTING | 3 |
| 28 | 30225 | 螺钉带锁紧垫圈(.312-18 x 1.00) | SCREW WITH LOCKWASHER (.312-18 x 1.00) | 3 |
| 29 | 20085A1 | 下端盖垫片组(0.002-3-5-10) | SHIM SET LOWER END CAP (.002-3-5-10) | AR |
| 30 | 29111 | 气缸体软管接头 | CONNECTOR HOSE TO CYLINDER BLOCK | 1 |
| 30 | 291112 | 接头 | FITTING | 1 |
| 31 | 774572 | 排水指示软管(48英寸整卷)(裁切15英寸) | HOSE (48.00 Inches Bulk) TELL TALE (15") | 1 |
| 32 | 90882 | 示流软管套管 | SLEEVE TELL TALE HOSE | 1 |
| 33 | 69555 | 示流喷嘴-后支撑架 | NOZZLE TELL TALE - REAR SUPPORT BRACKET | 1 |
| 33 | 69555001 | 喷嘴 | NOZZLE | 1 |
| 34 | 70705 | 示流喷嘴卡箍 | CLAMP TELL TALE NOZZLE | 1 |
| 35 | 48408 | 示流卡箍螺钉(#10-16x0.500) | SCREW (#10-16 x .500) TELL TALE CLAMP | 1 |
| - | 88449A32 | 衬垫套件 | GASKET SET | 1 |
| - | 13713A86 | 动力头 | POWERHEAD | 1 |
| - | 13713A87 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 97470A32 | 动力头 | POWERHEAD | 1 |
| - | 97470T87 | 船用动力头 | POWERHEAD MARINE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 7512A10 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 1 | 7513A12 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 2 | 64649 | 平衡板螺钉孔塞 | PLUG TRIM TAB SCREW HOLE | 1 |
| 3 | 57932 | 螺柱（0.375-16/0.375-24 x 1.750）驱动轴壳体 | STUD (.375-16/.375-24 x 1.750) DRIVE SHAFT HOUSING | 1 |
| 3 | 8M0022145 | 螺柱(.375-16/.375-24 x 1.750) | STUD (.375-16/.375-24 x 1.750) | 1 |
| 4 | 57935 | 驱动轴壳体螺柱（3英寸） | STUD DRIVE SHAFT HOUSING (3") | 1 |
| 5 | 65791 | 齿轮箱螺柱垫圈（7/16英寸） | WASHER GEAR HOUSING STUDS (7/16") | 2 |
| 6 | 34933 | 齿轮箱壳体双头螺栓不锈钢螺母(.437-20) | NUT (.437-20) Stainless Steel GEAR HOUSING STUDS | 2 |
| 6 | 8M0204653 | 螺母 | NUT | 2 |
| 7 | 93445 | 橡胶安装座-上部 | MOUNT RUBBER - UPPER | 2 |
| 7 | 923373 | 支架 | MOUNT | 2 |
| 8 | 96401 | SEAL UPPER MOUNT | 2 | |
| 9 | 27727 | 垫圈上部安装螺栓（内径37/64） | WASHER UPPER MOUNT BOLT (37/64 I.D.) | 2 |
| 10 | 66966 | 橡胶垫圈-上部安装螺栓 | WASHER RUBBER - UPPER MOUNT BOLT | 2 |
| 11 | 30514 | 上支座螺栓垫圈 | WASHER UPPER MOUNT BOLT | 2 |
| 12 | 34933 | 螺母（0.437-20）不锈钢上部安装螺栓 | NUT (.437-20) Stainless Steel UPPER MOUNT BOLT | 2 |
| 12 | 8M0204653 | 螺母 | NUT | 2 |
| 13 | 87883 | 上支座盖 | COVER UPPER MOUNT | 2 |
| 14 | 76630 | 螺丝（0.250-20 x 1.00）上部安装盖 | SCREW (.250-20 x 1.00) UPPER MOUNT COVER | 4 |
| 14 | 8M0214943 | 螺钉 | SCREW | 4 |
| 15 | 29245 | 上支座盖螺丝不锈钢垫圈(.281 x .500 x .060) | WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT COVER SCREW | 4 |
| 15 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 16 | 38157 | 饰盖至驱动轴壳体密封件 | SEAL TRIM COVER TO DRIVE SHAFT HOUSING | 1 |
| 17 | 38158 | STRIP RETAINING - TRIM COVER SEAL (REAR) | 1 | |
| 18 | 38154 | STRIP RETAINING - TRIM COVER SEAL (SIDE) | 2 | |
| 19 | 48408 | 固定条螺钉(#10-16 x .500) | SCREW (#10-16 x .500) RETAING STRIP | 8 |
| 20 | 69543 | 排气管 | TUBE EXHAUST | 1 |
| 20 | 695431 | 管 | TUBE | 1 |
| 20 | 69544 | 排气管 | TUBE EXHAUST | 1 |
| 20 | 695441 | 管 | TUBE | 1 |
| 21 | 37727 | 进水口管 | TUBE WATER INLET | 1 |
| 21 | 45679 | 进水口管 | TUBE WATER INLET | 1 |
| 22 | 64809 | 动力头螺柱螺母（5/16英寸） | NUT POWERHEAD STUDS (5/16") | 8 |
| 23 | 75304 | 下橡胶支座 | MOUNT RUBBER - LOWER | 2 |
| 23 | 75304T1 | 支架 | MOUNT | 2 |
| 24 | 75284 | 下支座螺丝(.500-20 x 5.500) | SCREW (.500-20 x 5.500) LOWER MOUNT SCREW | 2 |
| 25 | 28051 | 下支座螺丝垫圈 | WASHER LOWER MOUNT SCREW | 2 |
| 26 | 28053 | WASHER RUBBER - LOWER MOUNT SCREW | 2 | |
| 27 | 61709 | 下支座螺丝垫圈 | WASHER LOWER MOUNT SCREW | 2 |
| 28 | 25096 | 下安装螺丝螺母 | NUT LOWER MOUNT SCREW | 2 |
| 29 | 69592 | 下安装夹 | CLAMP LOWER MOUNT | 2 |
| 29 | 69592F1 | 卡箍 | CLAMP | 2 |
| 30 | 29256 | 螺丝（0.312-18 x 0.875）下安装夹 | SCREW (.312-18 x .875) LOWER MOUNT CLAMP | 4 |
| 31 | 35522 | 弹簧张力-下安装夹 | SPRING TENSION - LOWER MOUNT CLAMP | 4 |
| 32 | 35474 | 下安装夹盖 | COVER LOWER MOUNT CLAMP | 2 |
| 32 | 35474T | 盖板 | COVER | 2 |
| 32 | 35474F2 | 下安装夹盖 | COVER Lower Mount Clamp | 2 |
| 33 | 87884 | SCREW (#12-14 x .920) COVER TO LOWER MOUNT CLAMP | 2 | |
| 34 | 35521 | 下安装夹盖螺母 | NUT LOWER MOUNT CLAMP COVER | 2 |
| 35 | 88238A2 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 35 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 36 | 23651 | 进水套管（1.625英寸） | SLEEVE (1.625) WATER INLET TUBE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 78529 | 排气歧管盖 | COVER EXHAUST MANIFOLD | 1 |
| 2 | 695242 | 板至排气歧管盖衬垫 | GASKET PLATE TO EXHAUST MANIFOLD COVER | 1 |
| 3 | 703351 | 挡板至盖衬垫 | GASKET BAFFLE PLATE TO COVER | 1 |
| 4 | 69579 | 排气歧管挡板 | PLATE BAFFLE-EXHAUST MANIFOLD | 1 |
| 5 | 695252 | 挡板至气缸体衬垫 | GASKET BAFFLE PLATE TO CYLINDER BLOCK | 1 |
| 6 | 38837 | 螺钉（0.312-18 x 1.12）板与歧管盖 | SCREW (.312-18 x 1.12) PLATE AND MANIFOLD COVER | 1 |
| 6 | 74824 | 螺钉（0.312-18 x 1.250）板与歧管盖 | SCREW (.312-18 x 1.250) PLATE AND MANIFOLD COVER | 15 |
| 6 | 70602 | 螺钉（0.250-20 x 2.00）板/歧管盖 | SCREW (.250-20 x 2.00) PLATE/MANIFOLD COVER | 2 |
| 7 | 76862 | 转换盖衬垫 | GASKET TRANSFER COVER | 1 |
| 7 | 768621 | 衬垫 | GASKET | 1 |
| 8 | 14428A1 | 转换盖总成 | COVER ASSEMBLY TRANSFER | 1 |
| 9 | 37562 | 不锈钢螺钉（0.312-18 x 1.00）转换盖 | SCREW (.312-18 x 1.00) Stainless Steel TRANSFER COVER | 11 |
| 10 | 28668 | 不锈钢螺钉（0.250-20 x 0.875）盖与燃油泵 | SCREW (.250-20 x .875) Stainless Steel COVER AND FUEL PUMP | 2 |
| 11 | 8364A1 | 气缸体盖 | COVER CYLINDER BLCOK | 1 |
| 12 | 437792 | 气缸体盖衬垫 | GASKET CYLINDER BLOCK COVER | 1 |
| 13 | 69100 | 气缸体盖螺钉（1英寸） | SCREW CYLINDER BLCOK COVER (1") | 4 |
| 13 | 8M0214943 | 螺钉 | SCREW | 4 |
| 14 | 96829A1 | 温度开关总成（260度） | SWITCH ASSEMBLY Temperature (260 DEGREES) | 1 |
| 14 | 19541A2 | 温度开关套件（285度） | TEMPERATURE SWITCH KIT (285 DEGREES) | 1 |
| 15 | 45915 | 接线端子排（电气） | TERMINAL BLOCK (ELECTRIC) | 1 |
| 16 | 69079 | 螺钉 (#10-16 x .440) 接线端子(电气) | SCREW (#10-16 x .440) TERMINAL BLOCK (ELECTRIC) | 1 |
| 17 | 28192 | 螺钉 (#10-24 x .50) 接线端子(电气) | SCREW (#10-24 x .50) TERMINAL BLOCK (ELECTRIC) | 1 |
| 17 | 72169 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 1 |
| 18 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 19 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 20 | 37655 | 螺钉 (#10-32 x .500) 水银开关至曲轴箱(1/2") | SCREW (#10-32 x .500) MERCURY SWITCH TO CRANKCASE (1/2") | 1 |
| 21 | 36242 | PIN Roll MERCURY SWITCH | 2 | |
| 22 | 99130122 | 管材 (20.00英尺散装) 曲轴箱通气 | TUBING (20.00 Feet Bulk) CRANKCASE BLEED | 3 |
| 22 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 3 |
| 23 | 42864 | 接头 曲轴箱通气 | FITTING CRANKCASE BLEED | 1 |
| 23 | 428641 | 止回阀接头 | FITTING Check Valve | 1 |
| 24 | 59169 | 接头 曲轴箱通气管 | FITTING CRANKCASEE BLEED HOSE | 1 |
| 24 | 59169003 | 三通接头 | FITTING Tee | 1 |
| 25 | 15133 | 接头 曲轴箱 | FITTING CRANKCASE | 1 |
| 26 | 42865 | 连接器 消音器 | CONNECTOR ATTENUATOR | 1 |
| 26 | 428651 | 止回阀 | VALVE-CHECK | 1 |
| - | 43779A87 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 52901 | 螺母(.625-18)飞轮 | NUT (.625-18) FLYWHEEL | 1 |
| 2 | 68229 | 垫圈（0.641 x 1.250 x 0.190）飞轮螺母 | WASHER (.641 x 1.250 x .190) FLYWHEEL NUT | 1 |
| 2 | 33001 | 垫圈 | WASHER | 1 |
| 3 | 45907 | 塞子 黄色 飞轮拉拔器螺纹 | PLUG Yellow FLYWHEEL PULLER THREADS | 1 |
| 4 | 5977A25 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 4 | 8722A5 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 4 | 8722A5 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 5 | 68997 | 螺钉 (.312-24 x .750) 板/轮毂 | SCREW (.312-24 x .750) PLATE/HUB | 8 |
| 6 | 32417 | SCREW (.250-28 x .625) FLEXIBLE PLATE TO FLYWHEEL | 8 | |
| 7 | 88935 | 开关盒安装板 | PLATE SWITCH BOX | 1 |
| 7 | 889351 | 安装板 | PLATE | 1 |
| 8 | 59645 | 螺钉 (.312-18 x .750) 开关盒板 | SCREW (.312-18 x .750) SWITCH BOX PLATE | 3 |
| 8 | 824941 | 螺钉 (0.312-18 x 0.750) | SCREW (.312-18 x .750) | 3 |
| 9 | 7778A3 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 9 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 10 | 20619 | 螺钉 (#12-24 x 1.25) 开关盒至板 | SCREW (#12-24 x 1.25) SWITCH BOX TO PLATE | 2 |
| 11 | 60466A8 | 黑色开关盒螺丝线缆总成 | CABLE ASSEMBLY Black SWITCH BOX SCREW | 2 |
| 12 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 1 |
| 13 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 10 |
| 14 | 60443A3 | 线束总成 开关盒至线圈 | WIRE ASSEMBLY SWITCH BOX TO COIL | 1 |
| 14 | 62822A1 | 线束总成 开关盒至线圈 | WIRE ASSEMBLY SWITCH BOX TO COIL | 1 |
| 14 | 68896A4 | 线束总成 开关盒至线圈 | WIRE ASSEMBLY SWITCH BOX TO COIL | 1 |
| 15 | 60466A1 | 黑色线缆总成(2.50英寸)开关盒至线圈 | CABLE ASSEMBLY Black (2.50 Inches) SWITCH BOX TO COIL | 3 |
| 16 | 73439 | 板 安装-点火线圈 | PLATE MOUNTING-IGNITION COIL | 1 |
| 17 | 7370A8 | 点火线圈总成 | COIL ASSEMBLY Ignition | 3 |
| 17 | 8M0230859 | 点火线圈总成 | COIL IGNITION ASY | 3 |
| 18 | 45076 | 螺母(#10-32)黄铜点火线圈端子 | NUT (#10-32) Brass IGNITION COIL TERMINAL | 6 |
| 19 | 73218 | 点火线圈盖 | COVER INGITION COIL | 1 |
| 19 | 43542 | 盖板 | COVER | 1 |
| 20 | 92399 | 螺钉 (.190-32 x 2.250) 盖至安装板 | SCREW (.190-32 x 2.250) COVER TO MOUNTING PLATE | 6 |
| 21 | 5704A7 | 定子总成 | STATOR ASSEMBLY | 1 |
| 22 | 63136 | 螺丝(#10-24 x 0.880)定子至上端盖 | SCREW (#10-24 x .880) STATOP TO UPPER END CAP | 4 |
| 23 | 96455A1 | 触发板总成 | TRIGGER PLATE ASSEMBLY | 1 |
| 23 | 96455A8 | 触发板总成 | PLATE ASSEMBLY Trigger | 1 |
| 24 | 93475A25 | 火花塞导线总成 | LEAD ASSEMBLY SPARK PLUG | 3 |
| 24 | 813715A1 | 引线 | LEAD WIRE | 3 |
| 25 | 2854 | 点火线圈端护套 | BOOT IGNITION COIL END | 3 |
| 25 | 2854T01 | 护套@3 | BOOT @3 | 3 |
| 26 | 63709A1 | 护套/端子套件 | BOOT/TERMINAL KIT | 3 |
| 27 | 57451 | 火花塞(AC#V40FFM) | SPARK PLUG (AC#V40FFM) | 3 |
| 27 | 896329827 | SP #L76V @4 | SP #L76V @4 | 3 |
| 27 | 68098 | 火花塞(CHAMPION#QL-76V) | SPARK PLUG (CHAMPION#QL-76V) | 3 |
| 27 | 14103550 | 火花塞 (NGK-BUZHW) | SPARK PLUG (NGK-BUZHW) | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 76575A9 | 燃油泵总成 | PUMP ASSEMBLY Fuel | 1 |
| 2 | 13424A1 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 2 | 8M0084275 | 止回阀套件 | CHECK VALVE KIT | 1 |
| 3 | 55278A3 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 3 | 55278A4 | 隔膜 KT@5 | DIAPHRAGM KT@5 | 1 |
| 4 | NSS | 止回阀至壳体衬垫 (不单独销售) | NOT SOLD SEPARATE GASKET-CHECK VALVE TO HOUSING | 2 |
| 5 | NSS | 不单独销售 燃油泵垫片 | NOT SOLD SEPARATE GASKET-FUEL PUMP | 2 |
| 6 | 23004 | 止回阀固定座 | RETAINER CHECK VALVE | 1 |
| 7 | 43725 | 螺钉 (#6-32 x .380) 固定架至壳体 | SCREW (#6-32 x .380) RETAINER TO HOUSING | 2 |
| 8 | 86026 | 固定弹簧 | RETAINER SPRING | 1 |
| 9 | 86207 | 压缩弹簧 | SPRING COMPRESSION | 1 |
| 10 | 86252 | 弹簧端帽 | CAP SPRING END | 1 |
| 11 | 35581 | 水泵安装螺钉 (1-5/8英寸) | SCREW PUMP MOUNTING (1-5/8") | 3 |
| 11 | 86885 | 螺钉（0.250-20 x 1.500）不锈钢 | SCREW (.250-20 x 1.500) Stainless Steel | 3 |
| 12 | 32802 | 管塞 (.125-27) 燃油泵 | PLUG Pipe (.125-27) FUEL PUMP | 1 |
| 12 | 328022 | 黄铜管塞 (.125-27) | PLUG Pipe (.125-27) Brass | 1 |
| 13 | 774572 | 燃油泵至排气板软管 (散装48英寸/裁切9.5英寸) | HOSE (48.00 Inches Bulk) FUEL PUMP TO EXHAUST PLATE (9-1/2") | 2 |
| 14 | 99664 | 排气板弯头 | ELBOW EXHAUST PLATE | 1 |
| 14 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 15 | 70007 | 燃油泵45度接头 | FITTING 45 Degree FUEL PUMP | 1 |
| 16 | 99127109 | 燃油泵油管 (散装57英寸/裁切3.5英寸) | LINE (57.00 Inches Bulk) FUEL PUMP (3-1/2") | 1 |
| 16 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 17 | 88627 | 燃油滤清器支架 | BRACKET FUEL FILTER | 1 |
| 18 | 69092 | 支架固定螺钉 (1.25英寸) | SCREW (1.25) BRACKET ATTACHING | 1 |
| 18 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 1 |
| 19 | 87946A13 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 19 | 889527A07 | 滤清器套件 | FILTER KIT | 1 |
| 20 | 87946A3 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 20 | 87946Q04 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 21 | 98277 | 燃油滤清器密封件 | SEAL FUEL FILTER | 1 |
| 21 | 897536 | 密封件 | SEAL | 1 |
| 22 | 20346 | 燃油滤清器双头螺栓垫片 | WASHER FUEL FILTER STUD | 1 |
| 22 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 1 |
| 23 | 400212 | 螺母 (M6) 不锈钢燃油滤清器双头螺栓 | NUT (M6) Stainless Steel FUEL FILTER STUD | 1 |
| 24 | 99127109 | 适配器至燃油泵油管 (散装57英寸/裁切7.5英寸) | LINE (57.00 Inches Bulk) ADAPTOR TO FUEL PUMP (7-1/2") | 1 |
| 24 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 25 | 68424 | 燃油管固定夹 | CLAMP FUEL LINE ATTACHING | 10 |
| 26 | 63187 | 倒刺接头 (.250-18) 燃油管至适配器 | FITTING Barb (.250-18) FUEL LINE TO ADAPTOR | 1 |
| 27 | 22833 | 适配器止回单元 (燃油泵) | ADAPTER CHECK UNIT (FUEL PUMP) | 1 |
| 28 | 23069 | 适配器阀杆止回单元 | STEM CHECK UNIT ADAPTOR | 1 |
| 29 | 20415 | 适配器阀杆O型圈 | O-RING ADAPTOR STEM | 1 |
| 29 | 16524 | 燃油接头O型圈 | O-RING Fuel Connector | 1 |
| 30 | 23067 | 适配器杆弹簧 | SPRING ADAPTRO STEM | 1 |
| 30 | 23067T | 弹簧 | SPRING | 1 |
| 31 | 30188 | 适配器垫片 | WASHER ADAPTOR | 1 |
| 32 | 76596 | 螺钉 (.250-20 x 1.250) 适配器至消音器 | SCREW (.250-20 x 1.250) ADAPTOR TO SOUND ATTENUTATOR | 2 |
| 33 | 99127109 | 至下部化油器油管 (散装57英寸/裁切15英寸) | LINE (57.00 Inches Bulk) TO LOWER CARBURETOR (15") | 1 |
| 33 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 34 | 64706 | 下部化油器三通 | TEE LOWER CARBURETOR | 1 |
| 34 | 64706001 | 三通接头 | FITTING Tee | 1 |
| 35 | 99127109 | 化油器间连接油管 (散装57英寸/裁切3英寸) | LINE (57.00 Inches Bulk) CARBURETOR TO CARBURETOR (3") | 1 |
| 35 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 36 | 64704 | 上部化油器接头 | FITTING UPPER CARBURETOR | 1 |
| 36 | 19688 | 接头 | FITTING | 1 |
| 37 | 64705 | 燃油泵直通接头 | FITTING FUEL PUMP (STRAIGHT) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9760A8 | 齿轮箱总成(短型)(黑色) | GEAR HOUSING ASSEMBLY (SHORT) (BLACK) | 1 |
| - | 9760A9 | 齿轮箱总成(短型)(灰色) | GEAR HOUSING ASSEMBLY (SHORT) (GRAY) | 1 |
| - | 9760A24 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A21 | 齿轮箱总成(长型)(追踪者系列) | GEAR HOUSING ASSEMBLY (LONG) (TRACKER) | 1 |
| - | 9760T27 | ORD1671-9760T25 | ORD1671- 9760T25 | 1 |
| - | 9760A12 | 齿轮箱总成(长型)(黑色) | GEAR HOUSING ASSEMBLY (LONG) (BLACK) | 1 |
| - | 9760T25 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A13 | 齿轮箱总成(长型)(灰色) | GEAR HOUSING ASSEMBLY (LONG) (GRAY) | 1 |
| - | 9760T26 | ORD 1671-9760T25 | ORD 1671-9760T25 | 1 |
| - | 9760A10 | 齿轮箱总成(加长)(黑色) | GEAR HOUSING ASSEMBLY (X-LONG) (BLACK) | 1 |
| - | 9760T28 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A11 | 齿轮箱总成(加长)(灰色) | GEAR HOUSING ASSEMBLY (X-LONG) (GRAY) | 1 |
| - | 9760T29 | 灰色齿轮箱 | GEAR HOUSING-GR | 1 |
| 1 | 9760A2 | 齿轮箱总成(基础款)(黑色) | GEAR HOUSING ASSEMBLY (BASIC)(BLACK) | 1 |
| 1 | 9760T42 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9760A3 | 齿轮箱总成(基础款)(灰色) | GEAR HOUSING ASSEMBLY (BASIC)(GRAY) | 1 |
| 1 | 9760T31 | ORD 1671-9760T30 | ORD 1671-9760T30 | 1 |
| 1 | 9760A20 | 齿轮箱总成(基础款)(TRACKER) | GEAR HOUSING ASSEMBLY (BASIC)(TRACKER) | 1 |
| 1 | 9760T32 | ORD 1671-9760T42 | ORD 1671-9760T42 | 1 |
| 2 | 67892 | 磁性螺钉 | SCREW Magnetic | 1 |
| 2 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 3 | 79953 | 螺钉(0.375-16x0.250) | SCREW (.375-16 x .250) | 2 |
| 3 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 2 |
| 4 | 19183 | 纤维垫圈 | WASHER Fiber | 3 |
| 4 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 3 |
| 5 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 5 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 6 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 7 | 56800 | 管塞 (.0625-27) | PLUG Pipe (.0625-27) | 1 |
| 8 | 812768 | 滚柱轴承 | BEARING Roller | 1 |
| 8A | 818226A1 | 密封/板套件 | SEAL/PLATE KIT | 1 |
| 9 | 813694 | 小齿轮 | GEAR Pinion | 1 |
| 9 | 813694T | 小齿轮 | GEAR Pinion | 1 |
| 10 | 55910 | 螺母(.437-20) | NUT (.437-20) | 1 |
| 11 | 812732A1 | 换挡轴总成(短/长) | SHIFT SHAFT ASSEMBLY (SHORT/LONG) | 1 |
| 11 | 815420 | 换挡轴(加长型) | SHIFT SHAFT (X-LONG) | 1 |
| 12 | 29641 | E型卡环 | E RING | 1 |
| 13 | 813696A2 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 14 | 45258 | O型圈 (.987 x .103) | O-RING (.987 x .103) | 1 |
| 15 | 8164641 | 油封 | SEAL Oil | 1 |
| 15 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 16 | 815422 | 驱动轴(短) | DRIVESHAFT (SHORT) | 1 |
| 16 | 812731 | 驱动轴(长型) | DRIVESHAFT (LONG) | 1 |
| 16 | 815421 | 驱动轴(加长型) | DRIVESHAFT (X-LONG) | 1 |
| 17 | 812770A1 | 垫片组 | SHIM SET | AR |
| 17 | 8M0063262 | 垫片组 | SHIM SET | AR |
| 18 | 77420A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 18 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 19 | 812820 | 螺母 | NUT | 1 |
| 19 | 8128201 | 螺母 | NUT | 1 |
| 20 | 812966A3 | 底座总成 | BASE ASSEMBLY | 1 |
| 20 | 8M0245488 | 水泵底座 | BASE WATER PUMP | 1 |
| 21 | 30224 | O型圈 (1.859 x .139) | O-RING (1.859 x .139) | 1 |
| 21 | 8M0204651 | O型圈 | O-RING | 1 |
| 22 | 814669 | 油封 | SEAL Oil | 1 |
| 22 | 8M0245489 | 油封 | SEAL OIL | 1 |
| 23 | 814670 | 油封 | SEAL Oil | 1 |
| 24 | 197001 | 面板 | FACE PLATE | 1 |
| 24 | 19700A2 | 面板 | FACE PLATE | 1 |
| 25 | 19453 | 叶轮 | IMPELLER | 1 |
| 25 | 19453T | 叶轮 | IMPELLER | 1 |
| 26 | 19699 | 键 | KEY | 1 |
| 26 | 8M0032831 | 叶轮键 | KEY Impeller | 1 |
| 27 | 14334A1 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 27 | 14334A3 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 28 | 19701 | 衬垫(下部) | GASKET (LOWER) | 1 |
| 28 | 8M0224241 | 衬垫 | GASKET | 1 |
| 29 | 194541 | 衬垫(上部) | GASKET (UPPER) | 1 |
| 30 | 43023 | 油封(短/长) | SEAL (SHORT/LONG) | 1 |
| 30 | 8M0204658 | 密封件 | SEAL | 1 |
| 31 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 6 |
| 33 | 43045 | 绝缘体 | INSULATOR | 4 |
| 33 | 8M0204659 | 绝缘体@4 | INSULATOR @4 | 4 |
| 34 | 19452 | 绝缘体 | INSULATOR | 2 |
| 35 | 76039 | 换挡凸轮控制 | CAM Shift Control | 1 |
| 35 | 760394 | 换挡凸轮控制 | CAM Shift Control | 1 |
| - | 812867A97 | 衬垫套件 | GASKET SET | 1 |
| - | 812966A11 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 812966A12 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 814669A2 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9760A8 | 齿轮箱总成(短型)(黑色) | GEAR HOUSING ASSEMBLY (SHORT) (BLACK) | 1 |
| - | 9760A9 | 齿轮箱总成(短型)(灰色) | GEAR HOUSING ASSEMBLY (SHORT) (GRAY) | 1 |
| - | 9760A24 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A21 | 齿轮箱总成(长型)(追踪者系列) | GEAR HOUSING ASSEMBLY (LONG) (TRACKER) | 1 |
| - | 9760T27 | ORD1671-9760T25 | ORD1671- 9760T25 | 1 |
| - | 9760A12 | 齿轮箱总成(长型)(黑色) | GEAR HOUSING ASSEMBLY (LONG) (BLACK) | 1 |
| - | 9760T25 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A13 | 齿轮箱总成(长型)(灰色) | GEAR HOUSING ASSEMBLY (LONG) (GRAY) | 1 |
| - | 9760T26 | ORD 1671-9760T25 | ORD 1671-9760T25 | 1 |
| - | 9760A10 | 齿轮箱总成(加长)(黑色) | GEAR HOUSING ASSEMBLY (X-LONG) (BLACK) | 1 |
| - | 9760T28 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A11 | 齿轮箱总成(加长)(灰色) | GEAR HOUSING ASSEMBLY (X-LONG) (GRAY) | 1 |
| - | 9760T29 | 灰色齿轮箱 | GEAR HOUSING-GR | 1 |
| 1 | 9760A2 | 齿轮箱总成(基础款)(黑色) | GEAR HOUSING ASSEMBLY (BASIC)(BLACK) | 1 |
| 1 | 9760T42 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9760A3 | 齿轮箱总成(基础款)(灰色) | GEAR HOUSING ASSEMBLY (BASIC)(GRAY) | 1 |
| 1 | 9760T31 | ORD 1671-9760T30 | ORD 1671-9760T30 | 1 |
| 1 | 9760A20 | 齿轮箱总成(基础款)(TRACKER) | GEAR HOUSING ASSEMBLY (BASIC)(TRACKER) | 1 |
| 1 | 9760T32 | ORD 1671-9760T42 | ORD 1671-9760T42 | 1 |
| 36 | 812769A1 | 垫片组 | SHIM SET | AR |
| 36 | 8M0063263 | 垫片组 | SHIM SET | AR |
| 37 | 812767A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 37 | 8M0103476 | 轴承总成 | BEARING ASSY | 1 |
| 38 | 813693A1 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 38 | 813693T1 | 前进齿轮 | GEAR Forward | 1 |
| 39 | 21739 | 滚柱轴承 | BEARING Roller | 1 |
| 40 | 8129291 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 41 | 20843 | 滑块 | SLIDE | 1 |
| 42 | 38114 | 弹簧 | SPRING | 1 |
| 43 | 813697 | 离合器 | CLUTCH | 1 |
| 43 | 813697T | 离合器 | CLUTCH | 1 |
| 44 | 38113 | 十字销 | PIN Cross | 1 |
| 44 | 8M0020942 | 十字销@2 | PIN-CROSS @2 | 1 |
| 45 | 815418 | 弹簧 | SPRING | 1 |
| 46 | 14493 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 47 | 813695 | 倒挡齿轮 | GEAR Reverse | 1 |
| 47 | 813695T | 倒挡齿轮 | GEAR Reverse | 1 |
| 48 | 20839 | 滚珠轴承 | BEARING Ball | 1 |
| 48 | 20839T | 滚珠轴承 | BEARING Ball | 1 |
| 49 | 19291A3 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 49 | 8M0168900 | 轴承座 | BEARING CARRIER | 1 |
| 50 | 815460 | O型圈 | O-RING | 1 |
| 51 | 21700 | 滚针轴承 | BEARING Needle | 1 |
| 52 | 69188 | 油封 | SEAL Oil | 1 |
| 52 | 8M0205511 | 油封 | SEAL Oil | 1 |
| 53 | 69189 | 油封 | SEAL Oil | 1 |
| 53 | 8M0203757 | 油封 | SEAL Oil | 1 |
| 54 | 4000353 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 2 |
| 54A | 826613 | 锁紧垫圈 | TAB WASHER | 2 |
| 54 | 8136911 | 螺丝(M8×0.98) | SCREW (M8 x .98) | 2 |
| 55 | 17264T2 | 调整片 锌制 | TRIM TAB Zinc | 1 |
| 56 | 4000377 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 1 |
| 57 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 1 |
| 57 | 8M0214963 | 垫圈 | WASHER | 1 |
| 58 | 73345A1 | 止推垫片 | THRUST WASHER | 1 |
| 59 | 76281 | 锁紧垫圈 | TAB WASHER | 1 |
| 59 | 8M0214942 | 锁紧垫片 | WASHER Tab | 1 |
| 60 | 69578A1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| 60 | 69578Q1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| - | 812867A91 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 812867A97 | 衬垫套件 | GASKET SET | 1 |
| - | 814669A2 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 76395A5 | 液压泵总成（完整） | PUMP ASSEMBLY Hydraulic COMLETE | 1 |
| 1 | 48171 | O型圈(0.364 x 0.070) | O-RING (.364. x .070) | 4 |
| 2 | 7734 | 阀体与齿轮总成 | VALVE BODY AND GEAR ASSEMBLY | 1 |
| 3 | 20411 | 螺钉（.190-24 x .62）阀体至油箱 | SCREW (.190-24 x .62) VALVE BODY TO RESERVOIR | 8 |
| 4 | 2937 | 密封件（油箱至阀体及齿轮） | SEAL RESEROVIR TO VALVE BODY AND GEAR | 1 |
| 4 | 7735 | 密封件 | SEAL | 1 |
| 5 | 2939 | 储液罐总成 | RESERVOIR ASSEMBLY | 1 |
| 6 | 62269 | 螺钉 (#10-32 x 0.437) 通气口-液压泵 | SCREW (#10-32 x .437) VENT - HYDRAULIC PUMP | 1 |
| 7 | 79953 | 螺钉（.375-16 x .250）液压泵注油口 | SCREW (.375-16 x .250) FILLER - HYDRUALIC PUMP | 1 |
| 7 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 8 | 20260 | 垫圈 | WASHER | 1 |
| 8 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 9 | 2623 | 止推垫圈-电枢 | WASHER THRUST - ARMATURE | AR |
| 10 | 2943 | 电枢磁场与框架 | ARMATURE FIELD AND FRAME | 1 |
| 11 | 2942 | 磁场框架总成 | FIELD AND FRAME ASSEMBLY | 1 |
| 12 | 2944 | 换向器端板滚珠 | BALL COMMUTATOR END PLATE | 1 |
| 13 | 2940 | 换向器端板总成 | PLATE ASSEMBLY COMMUTATOR END | 1 |
| 14 | 2941 | 换向器端板电刷组 | BRUSH SET COMMUTATOR END PLATE | 1 |
| 14 | 8989 | 电刷套件 | BRUSH KIT | 1 |
| 15 | 2529 | 电刷张力弹簧组 | SPRING SET BRUSH TENSION | 1 |
| 16 | 2938 | 螺栓套件 | BOLT SET | 1 |
| 17 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 92975A6 | 液压泵总成 | PUMP ASSEMBLY Hydraulic | 1 |
| 1 | 48171 | O型圈 (.364 x 0.070) 液压泵 | O-RING (.364. x .070) HYDRAULIC PUMP | 4 |
| 2 | 8317 | 阀体与齿轮总成 | VALVE BODY AND GEAR ASSEMBLY | 1 |
| 2 | 92975A32 | 泵套件-微调 | PUMP KIT-TRIM | 1 |
| 3 | 69570 | 螺钉 (#10-16 x 0.750) 阀体至储液罐 | SCREW (#10-16 x .750) VALVE BODY TO RESERVOIR | 8 |
| 4 | 7727 | 联轴器与轴 | COUPLER AND SHAFT | 1 |
| 5 | 7735 | 储液罐至阀体与齿轮密封件 | SEAL RESERVOIR TO VALVE BODY AND GEAR | 1 |
| 6 | 7731 | 储液罐总成 (塑料) | RESEROVIR ASSEMBLY (PLASTIC) | 1 |
| 7 | 7732 | 止推垫圈-电枢 | WASHER THRUST - ARMATURE | AR |
| 8 | 7729 | 电枢磁场与框架 | ARMATURE FIELD AND FRAME | 1 |
| 9 | 8261 | 磁场框架总成 | FIELD AND FRAME ASSEMBLY | 1 |
| 10 | 7730 | 换向器端板滚珠 | BALL COMMUTATOR END PLATE | 1 |
| 11 | 8262 | 换向器端板总成 | PLATE ASSEMBLY COMMUTATOR END | 1 |
| 12 | 2941 | 换向器端板电刷组 | BRUSH SET COMMUTATOR END PLATE | 1 |
| 12 | 8989 | 电刷套件 | BRUSH KIT | 1 |
| 13 | 2529 | 电刷张力弹簧组 | SPRING SET BRUSH TENSION | 1 |
| 14 | 7733 | 贯穿螺栓组 板与框架至储液罐 | BOLT SET Thru- Plate and Frame to Reservoir | 1 |
| 15 | 7728 | 储液罐注油塞 | FILL PLUG RESERVOIR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 81735291 | 零件手册50/55/60/JET 45 | PARTS MANUAL 50/55/60/JET 45 | 1 |
| - | 817383A1 | 工具包(55) | TOOL BAG (55) | 1 |
| - | 816939A94 | 贴花套件(50)(黑色) | DECAL SET (50) (BLACK) | 1 |
| - | 816939A96 | 贴花套件 | DECAL SET | 1 |
| - | 811212A94 | 贴花套件(60)(黑色) | DECAL SET (60) (BLACK) | 1 |
| - | 811212A00 | 贴花套件(黑色60电动) | DECAL SET (Black 60 Electric) | 1 |
| - | 826313A95 | 贴花套件(60)(黑色)(SEAPRO) | DECAL SET (60) (BLACK) (SEAPRO) | 1 |
| - | 826313A01 | 贴花套件(黑色60 SeaPro) | DECAL SET (Black 60 SeaPro) | 1 |
| - | 830163A96 | 贴花套件(黑色60浮筒/大脚) | DECAL SET (BLACK 60 PONTOON/BIG FOOT) | 1 |
| - | 804704A00 | 贴花套件(黑色60 Bigfoot) | DECAL SET (Black 60 Bigfoot) | 1 |
| - | 824097A95 | 贴花套件(60)(黑色)(FORMULA) | DECAL SET (60) (BLACK) (FORMULA) | 1 |
| - | 816940A94 | 贴花套件(50)(灰色) | DECAL SET (50) (GRAY) | 1 |
| - | 816940A97 | 贴花套件 | DECAL SET | 1 |
| - | 811211A94 | 贴花套件(60)(灰色) | DECAL SET (60) (GRAY) | 1 |
| - | 811211A03 | 贴花套件(灰色60电动) | DECAL SET (Gray 60 Electric) | 1 |
| - | 824098A95 | 贴花套件(60 MAGNUM III)(灰色)(北美不销售) | DECAL SET (60 MAGNUM III) (GRAY) Not sold in North America | 1 |
| - | 821573A95 | 贴花套件(55)(黑色) | DECAL SET (55) (BLACK) | 1 |
| - | 821573A01 | 贴花套件(黑色55 SeaPro) | DECAL SET (Black 55 SeaPro) | 1 |
| - | 821424A95 | 贴花套件(55)(灰色) | DECAL SET (55) (GRAY) | 1 |
| - | 8588371 | 贴花套件(灰色Marathon 55) | DECAL SET (Gray Marathon 55) | 1 |
| - | 824733A94 | 贴花套件(TRACKER) | DECAL SET (TRACKER) | 1 |
| - | 13361A95 | 贴花套件(MARATHON 60) | DECAL SET (MARATHON 60) | 1 |
| - | 8588372 | 贴花套件(灰色Marathon 60) | DECAL SET (Gray Marathon 60) | 1 |
| - | 826325A95 | 贴花套装(JET 45)(黑色) | DECAL SET (JET 45) (BLACK) | 1 |
| - | 826325A00 | 贴花套件 | DECAL SET | 1 |
| - | 826326A95 | 贴花套装(JET 45)(灰色) | DECAL SET (JET 45) (GRAY) | 1 |
| - | 826326A01 | 贴花套装(灰色Jet 40) | DECAL SET (Gray Jet 40) | 1 |
| - | 814319950 | 用户手册(50/60)(黑色) | OWNERS MANUAL (50/60) (BLACK) | 1 |
| - | 821732950 | 用户手册(55)(黑色) | OWNERS MANUAL (55) (BLACK) | 1 |
| - | 816763950 | 用户手册(50/60)(灰色) | OWNERS MANUAL (50/60) (GRAY) | 1 |
| - | 821733950 | 用户手册(55)(灰色) | OWNERS MANUAL (55) (GRAY) | 1 |
| - | 826596950 | 用户手册(JET 45) | OWNERS MANUAL (JET 45) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 76395A5 | 液压泵总成（金属油箱） | PUMP ASSEMBLY Hydraulic (METAL RESERVOIR) | 1 |
| 1 | 92975A32 | 泵套件-微调 | PUMP KIT-TRIM | 1 |
| 1 | 92975A6 | 液压泵总成 (塑料储液罐) | PUMP ASSEMBLY Hydraulic (PLASTIC RESERVOIR) | 1 |
| 1 | 92975A32 | 泵套件-微调 | PUMP KIT-TRIM | 1 |
| 2 | 48171 | O型圈 (.364 x 0.070) 歧管板 | O-RING (.364. x .070) MANIFOLD PLATE | 4 |
| 3 | 79953 | 螺钉（.375-16 x .250）液压泵注油口 | SCREW (.375-16 x .250) FILLER - HYDRUALIC PUMP | 1 |
| 3 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 4 | 20260 | 垫圈 | WASHER | 1 |
| 4 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 5 | 62269 | 螺钉 (#10-32 x 0.437) 通气口-液压泵 | SCREW (#10-32 x .437) VENT - HYDRAULIC PUMP | 1 |
| 6 | 32979 | 电池导线（正极） | LEAD Battery (POSITIVE) | 1 |
| 6 | 32988 | 电池导线（负极） | LEAD Battery (NEGATIVE) | 1 |
| 7 | 45336 | 歧管板 | PLATE MANIFOLD | 1 |
| 8 | 45197A2 | 控制阀总成 | VALVE ASSEMBLY Control | 1 |
| -- | 48171 | O型圈（.364 x .070）（参见编号#2） | O-RING (.364. x .070) (SEE REF. #2) | 4 |
| 9 | 45254 | O型圈 控制阀 (3/4英寸外径) | O-RING CONTROL VALVE (3/4" O.D.) | 1 |
| 10 | 48171 | O型圈（.364 x .070）控制阀（1/2"外径） | O-RING (.364. x .070) CONTROL VALVE (1/2" O.D.) | 1 |
| 11 | 45253 | O型圈 控制阀 (5/8英寸外径) | O-RING CONTROL VALVE (5/8" O.D.) | 2 |
| 12 | 56500 | 螺丝(.250-28 x 1.250) | SCREW (.250-28 x 1.250) | 4 |
| 13 | 46008 | 控制阀堵头（1/2-20"） | PLUG CONTROL VALVE (1/2-20") | 2 |
| 14 | 74023A1 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 15 | 45377 | 安装支架 | BRACKET MOUNTING | 2 |
| 15 | 45377T | 支架 | BRACKET | 2 |
| 16 | 35386 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 4 |
| 17 | 39107 | 锁紧垫圈(0.312-24) | LOCKWASHER (.312-24) | 4 |
| 18 | 21908 | 螺母（.312-18）镀镉 | NUT (.312-18) Cad Plated | 4 |
| 19 | 68298 | 螺栓（.375-16 x 3.250）液压泵至船体 | BOLT (.375-16 x 3.250) HYDRUALIC PUMP TO BOAT | 2 |
| 20 | 99405 | 螺母 | NUT | 2 |
| 20 | 82671112 | 螺母（.375-16） | NUT (.375-16) | 2 |
| 21 | 68258 | 启动电磁阀 | SOLENOID Starter | 2 |
| 21 | 853654A1 | 电磁阀 | SOLENOID | 2 |
| 22 | 26996 | 锁紧垫圈（#10）不锈钢电磁阀端子 | LOCKWASHER (#10) Stainless Steel SOLENOID TERMINAL | 4 |
| 23 | 68219 | 螺母（#10-32）不锈钢电磁阀端子 | NUT (#10-32) Stainless Steel SOLENOID TERMINAL | 4 |
| 24 | 26993 | 锁紧垫圈（.312）电磁阀端子 | LOCKWASHER (.312) SOLENOID TERMINAL | 4 |
| 24 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 25 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINAL | 4 |
| 25 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 4 |
| 26 | 46265 | 橡胶护套-启动电磁阀端子 | BOOT RUBBER - STARTER SOLENOID TERMINAL | 4 |
| 27 | 74407 | 安装支架-启动电磁阀 | BRACKET MOUNTING - STARTER SOLENOID | 1 |
| 27 | 74407T | 支架 | BRACKET | 1 |
| 28 | 21140 | 螺钉（.250-28 x .50） | SCREW (.250-28 x .50) | 2 |
| 29 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 30 | 24656 | 螺母 | NUT | 1 |
| 31 | 26901 | 橡胶缓冲垫-电磁阀支架 | BUMPER RUBBER - SOLENOID BRACKET | 1 |
| 31 | 269011 | 橡胶缓冲垫 | BUMPER Rubber | 1 |
| 32 | 79139A2 | 跳线总成（正极） | WIRE ASSEMBLY Jumper (POSITIVE) | 1 |
| 32 | 55992 | 跳线（负极） | WIRE Jumper (NEGATIVE) | 1 |
| 33 | 74406 | 安装支架-启动电磁阀 | BRACKET MOUNTING - STARTER SOLENOID | 1 |
| 34 | 69028 | 螺钉（.250-28 x .750）不锈钢 | SCREW (.250-28 x .750) Stainless Steel | 2 |
| 35 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 36 | 32417 | 螺钉(.250-28 x .625) | SCREW (.250-28 x .625) | 2 |
| 37 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 38 | 21825 | 螺母(.250-28) | NUT (.250-28) | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 92975A6 | 液压泵总成 (塑料储液罐) | PUMP ASSEMBLY Hydraulic (PLASTIC RESERVOIR) | 1 |
| 2 | 48171 | O型圈 (.364 x 0.070) 歧管板 | O-RING (.364. x .070) MANIFOLD PLATE | 4 |
| 3 | 79953 | 螺钉 (.375-16 x 0.250) 注油口-液压泵 | SCREW (.375-16 x .250) FILLER - HYDRAULIC PUMP | 1 |
| 3 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 4 | 20260 | 密封垫圈-注油螺钉 | WASHER SEALING - FILLER SCREW | 1 |
| 4 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 5 | 38257 | 液压泵通气螺丝 | SCREW VENT - HYDRAULIC PUMP | 1 |
| 5 | 62269 | 螺丝(#10-32 x .437) | SCREW (#10-32 x .437) | 1 |
| 6 | 45336 | 歧管板 | PLATE MANIFOLD | 1 |
| 7 | 45197A2 | 控制阀总成 | VALVE ASSEMBLY Control | 1 |
| -- | 48171 | O型圈 (.364 x 0.070) 歧管板 (参见编号#2) | O-RING (.364. x .070) MANIFOLD PLATE (SEE REF. #2) | 4 |
| 8 | 45254 | O型圈 控制阀 (3/4英寸外径) | O-RING CONTROL VALVE (3/4" O.D.) | 1 |
| 9 | 48171 | O型圈（.364 x .070）控制阀（1/2"外径） | O-RING (.364. x .070) CONTROL VALVE (1/2" O.D.) | 1 |
| 10 | 45253 | O型圈 控制阀 (5/8英寸外径) | O-RING CONTROL VALVE (5/8" O.D.) | 2 |
| 11 | 56500 | SCREW (.250-28 x 1.250) VALVE AND MANIFOLD PLATE TO PUMP | 4 | |
| 12 | 46008 | 控制阀堵头（1/2-20"） | PLUG CONTROL VALVE (1/2-20") | 2 |
| 13 | 79147A1 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 13 | 79147A3 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 14 | 45377 | 安装支架 | BRACKET MOUNTING | 2 |
| 14 | 45377T | 支架 | BRACKET | 2 |
| 15 | 24234 | 螺丝(0.312-18 x 1.00)安装支架至液压泵 | SCREW (.312-18 x 1.00) MOUNTING BRACKET TO HYDRAULIC PUMP | 4 |
| 15 | 35386 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 4 |
| 16 | 39107 | 锁紧垫圈（.312-24）安装支架螺钉 | LOCKWASHER (.312-24) MOUNTING BRACKET SCREW | 4 |
| 17 | 21908 | 螺母 (.312-18) 镀镉安装支架螺钉 | NUT (.312-18) Cad Plated MOUNTING BRACKET SCREW | 4 |
| 18 | 68298 | 螺栓(0.375-16 x 3.250)液压泵至船体 | BOLT (.375-16 x 3.250) HYDRAULIC PUMP TO BOAT | 2 |
| 19 | 99405 | 液压泵螺栓螺母 | NUT HYDRAULIC PUMP BOLT | 2 |
| 19 | 82671112 | 螺母（.375-16） | NUT (.375-16) | 2 |
| 20 | 94279 | 启动电磁阀安装支架 | BRACKET MOUNTING, STARTER SOLENOID | 1 |
| 21 | 48063 | 安装支架至液压泵螺丝 | SCREW MOUNTING BRACKET TO HYDRAULIC PUMP | 2 |
| 21 | 28638 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 2 |
| 22 | 24656 | 安装支架至液压泵贯穿螺栓螺母 | NUT MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT | 1 |
| 23 | 96158 | 启动电磁阀 | SOLENOID Starter | 2 |
| 23 | 8M0185622 | 电磁阀 | SOLENOID | 2 |
| 24 | 26995 | 锁紧垫圈 (#8) 不锈钢电磁阀端子 | LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL | 4 |
| 25 | 26419 | 螺母(#8-32)-黄铜电磁阀端子 | NUT (#8-32) Brass SOLENOID TERMINAL | 4 |
| 26 | 26992 | 锁紧垫圈 (.250) 不锈钢电磁阀端子 | LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL | 4 |
| 27 | 94330 | 螺母 (.250-20) 黄铜电磁阀端子 | NUT (.250-20) Brass SOLENOID TERMINAL | 4 |
| 28 | 96535 | 橡胶护套-启动电磁阀端子 | BOOT RUBBER - STARTER SOLENOID TERMINAL | 4 |
| 28 | 861680 | 绝缘体 | INSULATOR | 4 |
| 29 | 91026 | 启动电磁阀至安装支架螺丝 | SCREW STARTER SOLENOID TO MOUNTING BRACKET | 2 |
| 29 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 2 |
| 30 | 94275 | 电磁阀间连杆 | LINK SOLENOID TO SOLENOID | 1 |
| 31 | 79139A13 | 电缆总成 蓄电池 (正极) | CABLE ASSEMBLY Battery (POSITIVE) | 1 |
| 31 | 79138A1 | 负极电缆总成 | CABLE ASSEMBLY (NEGATIVE) | 1 |
| 32 | 79149 | 20安培电路断路器 | BREAKER Circuit - 20 Ampere | 1 |
| 32 | 8M0085705 | 20安培电路断路器 | BREAKER Circuit - 20 Ampere | 1 |
| 33 | 30009 | 断路器螺丝 | SCREW CIRCUIT BREAKER | 2 |
| 33 | 8M0113176 | 螺钉 | SCREW | 2 |
| 34 | 45076 | 螺母(#10-32)黄铜断路器端子 | NUT (#10-32) Brass CIRCUIT BREAKER TERMINAL | 2 |
| 35 | 87379A5 | 电磁阀至断路器导线(红色) | WIRE SOLENOID TO CIRCUIT BREAKER (RED) | 1 |
| 36 | 79023A90 | 90安培保险丝总成 | FUSE ASSEMBLY 90 Ampere | 1 |
| 36 | 79023T90 | 90安培保险丝总成 | FUSE ASSEMBLY 90 Ampere | 1 |
| 37 | 96457 | 酚醛垫圈(0.27x0.81x0.062)保险丝端子 | WASHER Phenolic (.27 x .81 x .062) FUSE TERMINAL | 1 |
| 38 | 21825 | 螺母(0.250-28)保险丝端子 | NUT (.250-28) FUSE TERMINAL | 1 |
| 39 | 61600A9 | 启动电磁阀导线(黑色) | WIRE STARTER SOLENOID (BLACK) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 64507A1 | 维修套件(见下方备注) | REPAIR KIT (SEE NOTE BELOW) | 1 |
| 1 | N.S.S. | Not Sold Separate O-RING (1-1/2" X 1-5/8" X 1/16") | 1 | |
| 2 | N.S.S. | 不单独销售(3/4" X 15/16" X 1/8") | Not Sold Separate (3/4" X 15/16" X 1/8") | 1 |
| 3 | N.S.S. | 不单独销售O型圈(5/8" X 3/4" X 1/16") | Not Sold Separate O-RING (5/8" X 3/4" X 1/16") | 1 |
| 4 | N.S.S. | Not Sold Separate O-RING (1-1/4" X 1-7/16" X 1/16") | 1 | |
| 5 | N.S.S. | Not Sold Separate O-RING (7/32" X 11/32" X 1/16") | 2 | |
| 6 | N.S.S. | Not Sold Separate O-RING (1-5/8" X 1-13/16" X 1/8") | 1 | |
| 7 | N.S.S. | Not Sold Separate O-RING (1-5/16" X 1-1/2" X 1/8") | 1 | |
| 8 | N.S.S. | Not Sold Separate O-RING (1-7/8" X 2" X 1/8") | 1 | |
| 9 | N.S.S. | Not Sold Separate O-RING (1-3/4" X 1-15/16" X 1/8") | 1 | |
| 10 | N.S.S. | 不单独销售 密封件-活塞滑块 | Not Sold Separate SEAL, SLIPPER - PISTON | 1 |
| 11 | N.S.S. | 不单独销售 活塞杆-重型 | Not Sold Separate PISTON, ROD - HEAVY DUTY | 1 |
| 12 | 64505A1 | 活塞固定环总成 | RETAINER ASSEMBLY PISTON | 1 |
| 13 | N.S.S. | 不单独销售 刮杆 | Not Sold Separate ROD, SCRAPER | 1 |
| 14 | N.S.S. | 不单独销售 刮片固定环 | Not Sold Separate RETAINER, SCRAPER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 92188A2 | 维修套件(见备注) | REPAIR KIT (SEE NOTE) | 1 |
| 1 | N.S.S. | 气缸盖不单独销售 | Not Sold Separate Cylinder Cap | 1 |
| 2 | N.S.S. | O型圈(1-1/4"x1-1/2"x1/8")不单独销售 | Not Sold Separate O-Ring (1-1/4" x 1-1/2" x 1/8") | 1 |
| 3 | N.S.S. | 垫片不单独销售 | Not Sold Separate Spacer | 1 |
| 4 | N.S.S. | O型圈(1-7/8"x2-1/16"x3/32")不单独销售 | Not Sold Separate O-Ring (1-7/8" x 2-1/16" x 3/32") | 1 |
| 5 | N.S.S. | O型圈(3/4"x15/16"x3/32")不单独销售 | Not Sold Separate O-Ring (3/4" x 15/16" x 3/32") | 1 |
| 6 | N.S.S. | O型圈(1-1/2"x1-3/4"x3/32")不单独销售 | Not Sold Separate O-Ring (1-1/2" x 1-3/4" x 3/32") | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 73132A4 | 螺旋桨 (螺距10")(铝制) | PROPELLER (PITCH 10")(ALUMINUM) | 1 |
| - | 73134A4 | 螺旋桨 (螺距12")(铝制) | PROPELLER (PITCH 12")(ALUMINUM) | 1 |
| - | 73134A45 | BLMX 10.6X12 | BLMX 10.6X12 | 1 |
| - | 73136A4 | 螺旋桨 (螺距13")(铝制) | PROPELLER (PITCH 13")(ALUMINUM) | 1 |
| - | 73136A45 | BLMX 10.4X13 | BLMX 10.4X13 | 1 |
| - | 73138A4 | 螺旋桨 (螺距14")(铝制) | PROPELLER (PITCH 14")(ALUMINUM) | 1 |
| - | 73138A45 | BLMX 10.3X14 | BLMX 10.3X14 | 1 |
| - | 73140A4 | 螺旋桨 (螺距15")(铝制) | PROPELLER (PITCH 15")(ALUMINUM) | 1 |
| - | 73140A45 | BLMX 10.1X15 | BLMX 10.1X15 | 1 |
| - | 73144A4 | 螺旋桨 (螺距17")(铝制) | PROPELLER (PITCH 17")(ALUMINUM) | 1 |
| - | 73144A45 | BLMX 10X17 | BLMX 10X17 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 91951 | 控制线缆锚定支架 | BRACKET ANCHOR - CONTROL CABLES | 1 |
| 2 | 60283A1 | 换挡轴连杆总成 | LINK ASSEMBLY SHIFT SHAFT | 1 |
| 3 | 20099 | 连杆至锚定支架弹簧 | SPRING LINK TO ANCHOR BRACKET | 1 |
| 4 | 37896 | 连杆导向块 | GUIDE BLOCK LINK | 1 |
| 5 | 52100 | 尼龙耐磨板 - 连杆 | WEAR PLATE NYLON - LINK | 1 |
| 6 | 38279 | 连杆至锚定支架锁扣 | LATCH LINK TO ANCHOR BRACKET | 1 |
| 6 | 8M0036768 | 闩锁 | LATCH | 1 |
| 7 | 35462 | 垫片 (.2656 x .625 x .0625) 不锈钢连杆锁扣 | WASHER (.2656 x .625 x .0625) Stainless Steel LINK LATCH | 1 |
| 8 | 36069 | 连杆固定螺母 | NUT LINK ATTACHING | 2 |
| 9 | 75355A30 | 上部换挡轴总成 | SHIFT SHAFT ASSEMBLY UPPER | 1 |
| 9 | 75355A32 | 上部换挡轴总成 | SHIFT SHAFT ASSEMBLY UPPER | 1 |
| 10 | 29720 | 换挡轴至连杆波形垫片 | WAVE WASHER SHIFT SHAFT TO LINK | 1 |
| 11 | 26856 | 尼龙衬套 - 换挡轴至连杆 | BUSHING NYLON - SHIFT SHAFT TO LINK | 1 |
| 12 | 35462 | 垫片 (.2656 x .625 x .0625) 不锈钢连杆 (换挡轴端) | WASHER (.2656 x .625 x .0625) Stainless Steel LINK (SHIFT SHAFT END) | 1 |
| 13 | 39519 | 锚定支架杯形固定器 | CUP RETAINER - ANCHOR BRACKET | 1 |
| 14 | 39618 | 尼龙杆-换挡拉线锁定 | LEVER NYLON - SHIFT CABLE LOCKING | 1 |
| 14 | 87609A1 | 杠杆套件 | LEVER KIT | 1 |
| 15 | 47175 | 锁定杆与盖销 | PIN LOCKING LEVER AND COVER | 3 |
| 16 | 65799 | 连杆-锁定杆到盖板 | LINK LOCKING LEVER TO COVER | 1 |
| 16 | 87609A1 | 杠杆套件 | LEVER KIT | 1 |
| 17 | 90211 | 尼龙盖-换挡拉线 | COVER NYLON - SHIFT CABLE | 1 |
| 18 | 69101 | 锚定支架螺钉 (7/8英寸) | SCREW ANCHOR BRACKET (7/8") | 3 |
| 19 | 88451 | 动力头衬垫 | GASKET POWERHEAD | 1 |
| 19 | 884511 | 衬垫 | GASKET | 1 |
| 20 | 42869A2 | 排气板总成 | PLATE ASSEMBLY Exhaust | 1 |
| 21 | 27132 | 排气板尼龙衬套 | BUSHING NYLON - EXHAUST PLATE | 1 |
| 22 | 69058 | 双头螺柱 (.312-18/.312-24 x 1.690) 排气板 | STUD (.312-18/.312-24 x 1.690) EXHAUST PLATE | 1 |
| 22 | 8M0034449 | 双头螺柱 (.312 x 1.69) | STUD (.312 x 1.69) | 1 |
| 23 | 68166 | 双头螺柱 (.312 x 2.125) 排气板 | STUD (.312 x 2.125) EXHAUST PLATE | 1 |
| 24 | 38452 | 进水管密封件 | SEAL WATER INLET TUBE | 1 |
| 25 | 38453 | 尼龙垫片 - 水封 | WASHER NYLON - WATER SEAL | 1 |
| 26 | 79799 | 水封壳体 | HOUSING WATER SEAL | 1 |
| 27 | 79797 | 壳体衬垫 | GASKET HOUSING | 1 |
| 27 | 797971 | 衬垫 | GASKET | 1 |
| 28 | 79798 | 螺钉 (#10-32 x 1.380) 壳体至排气板 | SCREW (#10-32 x 1.380) HOUSING TO EXHAUST PLATE | 2 |
| 29 | 60307 | 排气板密封件 | SEAL EXHAUST PLATE | 1 |
| 30 | 60306 | 排气板密封条 | STRIP RETAINING - EXHAUST PLATE SEAL | 1 |
| 31 | 62568 | 固定条螺钉 (#10-16 x .375) | SCREW (#10-16 x .375) RETAINING STRIP | 4 |
| 32 | 22411 | 排气板螺钉 (.190-24 x 1.00) | SCREW (.190-24 x 1.00) EXHAUST PLATE | 4 |
| 32 | 68918 | 螺丝（#10-24 x 1.00） | SCREW (#10-24 x 1.00) | 4 |
| 32 | 28668 | 不锈钢排气板螺钉 (.250-20 x .875) | SCREW (.250-20 x .875) Stainless Steel EXHAUST PLATE | 1 |
| 33 | 38501 | 适配板垫片 | GASKET ADAPTOR PLATE | 1 |
| 33 | 385011 | 衬垫 | GASKET | 1 |
| 34 | 58911 | 排气管转接器 | TUBE Exhaust ADAPTOR | 1 |
| 34 | 42718 | 排气管转接器 | TUBE Exhaust ADAPTOR | 1 |
| 35 | 60280 | 排气管衬垫 | GASKET EXHAUST TUBE | 1 |
| 35 | 602801 | 衬垫 | GASKET | 1 |
| 36 | 28636 | 排气管螺钉 (.250-20 x .750) | SCREW (.250-20 x .750) EXHAUST TUBE | 3 |
| - | 88449A32 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 62351A1 | 整流器 | RECTIFIER | 1 |
| 2 | 20646 | 整流器至板螺钉 (.190-32 x .62) | SCREW (.190-32 x .62) RECTIFIER TO PLATE | 2 |
| 2 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 3 | 26996 | 不锈钢整流器螺钉锁紧垫圈 (#10) | LOCKWASHER (#10) Stainless Steel RECTIFIER SCREW | 2 |
| 4 | 94304 | 整流器螺钉隔套 | SPACER RECTIFIER SCREW | 2 |
| 5 | 45076 | 螺母(#10-32)黄铜整流器端子 | NUT (#10-32) Brass RECTIFIER TERMINAL | 3 |
| 6 | 96054 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 6 | 8M0185149 | 启动电磁阀 | SOLENOID START | 1 |
| 7 | 26995 | 锁紧垫圈 (#8) 不锈钢电磁阀端子 | LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL | 2 |
| 8 | 26419 | 螺母(#8-32)-黄铜电磁阀端子 | NUT (#8-32) Brass SOLENOID TERMINAL | 2 |
| 9 | 26992 | 锁紧垫圈 (.250) 不锈钢电磁阀端子 | LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL | 2 |
| 10 | 94330 | 螺母 (.250-20) 黄铜电磁阀端子 | NUT (.250-20) Brass SOLENOID TERMINAL | 2 |
| 11 | 97861 | 绝缘体-启动电磁阀 | INSULATOR STARTER SOLENOID | 1 |
| 12 | 69054 | 电磁阀至缓冲器螺钉 (.250-20 x .620) | SCREW (.250-20 x .620) SOLENOID TO ATTENUATOR | 2 |
| 13 | 26992 | 锁紧垫圈 (.250) 不锈钢 电磁阀螺钉 | LOCKWASHER (.250) Stainless Steel SOLENOID SCREW | 2 |
| 14 | 65436 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 14 | 44369A1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 14 | 44369A1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 15 | 44368 | 适配器 | ADAPTER | 1 |
| 16 | 57247 | 止动橡胶 - 启动马达 | STOP RUBBER - STARTER MOTOR | 2 |
| 16 | 8M0043376 | 停机开关 | STOP | 2 |
| 17 | 93388A1 | 电缆总成 (6.00英寸) 黑色 启动器至消音器 | CABLE ASSEMBLY (6.00 Inches) Black STARTER TO SOUND ATTENUATOR | 1 |
| 18 | 69035 | 螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR | 1 |
| 19 | 93389A6 | 电缆总成 (9-1/2 英寸)(电磁阀至启动马达) | CABLE ASSEMBLY (9-1/2 Inches)(Solenoid to Starter Motor | 1 |
| 20 | 26992 | 锁紧垫圈(.250) 不锈钢 起动机接线端 | LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL | 1 |
| 21 | 20890 | 螺母(.250-20) 起动机接线端 | NUT (.250-20) STARTER MOTOR TERMINAL | 1 |
| 22 | 56703 | 橡胶套环 - 启动器安装 | COLLAR RUBBER - STARTER MOUNT | 2 |
| 22 | 8M0034918 | 轴环 | COLLAR | 2 |
| 23 | 56774 | 垫片 套环至安装支架 | SPACER COLLAR TO MOUNTING BRACKETS | AR |
| 24 | 96271A2 | 线束总成 (内部) | HARNESS ASSEMBLY (INTERNAL) | 1 |
| 25 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 26 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 26 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 27 | 88751 | 线束夹 | CLAMP WIRING HARNESS | 1 |
| 28 | 23702 | 螺钉(0.190-32x1.12)线束卡箍 | SCREW (.190-32 x 1.12) WIRING HARNESS CLAMP | 1 |
| 29 | 72761 | 垫圈(0.203x0.562x0.060)-不锈钢线束夹螺钉 | WASHER (.203 x .562 x .060) Stainless Steel WIRING HARNESS CLAMP SCREW | 1 |
| 30 | 28357 | 弹簧 线束 | SPRING WIRING HARNESS | 1 |
| 31 | 88439A7 | 电缆总成 蓄电池 (正极) | CABLE ASSEMBLY Battery (POSITIVE) | 1 |
| 31 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 32 | 88683 | 线束支架 | BRACKET WIRING HARNESS SUPPORT | 1 |
| 33 | 23015 | 支架固定螺钉 (.190-32 x 1.00) | SCREW (.190-32 x 1.00) BRACKET ATTACHING | 2 |
| 34 | 30164 | 不锈钢支架螺钉垫圈 (.192 x .375 x .0312) | WASHER (.192 x .375 x .0312) Stainless Steel BRACKET SCREW | 2 |
| 35 | 88682 | 盖板-线束支撑架 | COVER HARNESS SUPPORT BRACKET | 1 |
| 36 | 25158 | 盖板至支架螺钉 (.190-32 x 1.75) | SCREW (.190-32 x 1.75) COVER TO BRACKET | 2 |
| 37 | 60925 | 线束支架密封件 | SEAL WIRING HARNESS BRACKET | 1 |
| 38 | 28700 | 线束夹 | CLAMP WIRING HARNESS | 1 |
| 39 | 73286 | 螺钉 (.250-20 x .500) 不锈钢 线束夹 | SCREW (.250-20 x .500) Stainless Steel WIRING HARNESS CLAMP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8848 | 驱动电机 | MOTOR DRIVE | 1 |
| 2 | 8852 | 驱动端板总成 | PLATE ASSEMBLY DRIVE END | 1 |
| 3 | 8853 | 驱动端板衬套 | BUSHING DRIVE END PLATE | 1 |
| 4 | 8847 | 电枢 | ARMATURE | 1 |
| 5 | 8856 | 电枢止推垫片组件 | PACKAGE ARMATURE THRUST WASHER | 1 |
| 6 | 8849 | 换向器端盖总成 | END CAP ASSEMBLY COMMUTATOR | 1 |
| 7 | 8850 | 电刷板/支架总成 | PLATE/HOLDER ASSEMBLY Brush | 1 |
| 8 | 8851 | 电刷与端子套装 | BRUSH AND TERMINAL SET | 1 |
| 9 | 8854 | 电刷弹簧组 (每套2弹簧) | SPRING SET BRUSH (2 SPRINGS PER SET) | 2 |
| 10 | 8855 | 贯穿螺栓 - 端盖至端板 (1/4-28) | BOLT THRU - END CAP TO END PLATE (1/4-28) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 65436 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 90643 | 驱动套件 | DRIVE KIT | 1 |
| 2 | 68575 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 2 | 685753 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 3 | N.S.S. | 不单独销售驱动端板 | Not Sold Separate PLATE, DRIVE END | 1 |
| 4 | 68576 | 贯穿板至端盖螺栓 | BOLT THRU-PLATE TO END CAP | 2 |
| 5 | 61789 | 贯穿螺栓锁紧垫圈 | LOCKWASHER THRU BOLT | 2 |
| 6 | 68578 | 电枢 | ARMATURE | 1 |
| 7 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 7 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 57387 | 绝缘输入螺柱衬套 | BUSHING INSULATING-INPUT STUD | 1 |
| 9 | 38013 | 输入柱垫圈 | WASHER INPUT STUD | 1 |
| 10 | 26992 | 不锈钢输入柱锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel INPUT STUD | 1 |
| 11 | 20890 | 输入柱螺母(.250-20) | NUT (.250-20) INPUT STUD | 1 |
| 12 | 61787 | 电刷架 | HOLDER BRUSH | 2 |
| 12 | 898265014 | 电刷支架 | HOLDER-BRUSH | 2 |
| 13 | 68586 | 电刷及支架至端盖螺钉 | SCREW BRUSH AND HOLDER TO CAP | 2 |
| 14 | 79215 | 换向器端盖 | END CAP COMMUTATOR | 1 |
| 14 | 15386001 | 端盖 | END CAP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8597A4 | 旋转支架 | SWIVEL BRACKET | 1 |
| 1 | 8599A6 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 32911 | 旋转支架油封 | SEAL Oil SWIVEL BRACKET | 2 |
| 3 | 74036 | 润滑脂接头 | FITTING Grease | 4 |
| 3 | 8M0169589 | 润滑脂接头 | FITTING Grease | 4 |
| 4 | 22734 | 旋转支架油封 | SEAL Oil SWIVEL BRACKET | 2 |
| 5 | 69540A3 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 5 | 69540A4 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 6 | 30711 | 转向臂缓冲器 | BUMPER STEERING ARM | 1 |
| 7 | 66897 | 螺栓 (.437-20 x 5.250) 上部安装至旋转销 | BOLT (.437-20 x 5.250) UPPER MOUNT TO SWIVEL PIN | 2 |
| 8 | 25176 | 旋转销至底部轭架垫圈（0.060英寸） | WASHER SWIVEL PIN TO BOTTOM YOKE (.060) | 1 |
| 9 | 77416 | 下轭架 | YOKE Bottom | 1 |
| 9 | 77416T1 | 黑色下轭架 | YOKE-BOTTOM-BLACK | 1 |
| 10 | 77415 | 底部轭架挡圈 | RETAINING RING BOTTOM YOKE | 1 |
| 11/12 | 89105 | 倾斜锁定右舷/左舷 | TILT LOCK STARBOARD/PORT | 2 |
| 13 | 62702 | O-RING (.301 x .070) TILT LOCK | 2 | |
| 13 | 627021 | O型圈(.301 x .070) | O-RING (.301 x .070) | 2 |
| 14 | 79659 | 倾斜锁定联轴器 | COUPLING TILT LOCK | 1 |
| 15 | 47959 | 倾斜锁定管开口销 | COTTER PIN TILT LOCK TUBE | 2 |
| 16 | 56349 | SHAFT REVERSE LOCK PIVOT | 1 | |
| 17 | 69132 | BUSHING REVERSE PIVOT SHAFT | 2 | |
| 18 | 45882 | 倒挡锁定至轴开口销 | COTTER PIN REVERSE LOCK TO SHAFT | 1 |
| 19 | 78203A2 | 倒挡锁定张力弹簧 | SPRING REVERSE LOCK TENSION | 1 |
| 20 | 43410 | 倒挡锁定总成 | LOCK ASSEMBLY Reverse | 1 |
| 20 | 14664A3 | 倒车锁 | REVERESE LOCK | 1 |
| 21 | 43415 | PUSH ROD REVERSE LOCK | 1 | |
| 21 | 43416 | PUSH ROD REVERSE LOCK | 1 | |
| 22 | 70132 | 不锈钢推杆垫圈（0.323 x 0.563 x 0.063英寸） | WASHER (.323 x .563 x .063) Stainless Steel PUSH ROD | 1 |
| 22 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 1 |
| 23 | 44297 | 推杆弹簧 | SPRING PUSH ROD | 1 |
| 24 | 89813 | 推杆端头 | ROD END PUSH ROD | 1 |
| 25 | 35814 | 推杆螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel PUSH ROD | 1 |
| 25 | 82670911 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| 26 | 93336 | 推杆导套 | GUIDE PUSH ROD | 1 |
| 26 | 933361 | 换挡轴导套 | GUIDE Shift Shaft | 1 |
| - | 88449A32 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 76864 | 节流阀执行器尼龙壳体 | HOUSING NYLON-THROTTLE ACTUATOR | 1 |
| 2 | 77025 | 节流阀执行器尼龙凸轮 | CAM NYLON-THROTTLE ACTUATOR | 1 |
| 3 | 37571 | 壳体螺钉(0.190-32x0.500) | SCREW (.190-32 x .500) HOUSING | 1 |
| 4 | 26996 | 锁紧垫圈(#10)不锈钢外壳螺丝 | LOCKWASHER (#10) Stainless Steel HOUSING SCREW | 1 |
| 5 | 60570 | 执行器壳体固定板 | PLATE RETAINER-ACTUATOR HOUSING | 1 |
| 6 | 74213 | 节流连杆尼龙套筒 | BARREL NYLON-THROTTLE LINK ROD | 1 |
| 7 | 74164 | 节流连杆 | ROD LINK-THROTTLE | 1 |
| 8 | 77013A1 | 节流控制杆万向连杆 | SWIVEL LINK ROD TO THROTTLE CONTROL LEVER | 1 |
| 8A | 29402 | 连杆万向接头波形垫圈 | WAVE WASHER LINK ROD SWIVEL | 2 |
| 9 | 26856 | 连杆万向衬套 | BUSHING LIINK ROD SWIVEL | 2 |
| 10 | 33786 | WASHER LINK ROD SWIVEL | 2 | |
| 10 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 2 |
| 11 | 45774 | NUT LINK ROD SWIVEL | 2 | |
| 12 | 77032A2 | 节流控制杆总成 | LEVER ASSEMBLY THROTTLE CONTROL | 1 |
| 13 | 73655 | 节流杆调节螺丝(2英寸) | SCREW THROTTLE LEVER ADJUSTINE (2") | 2 |
| 13 | 67916 | 螺钉(0.250-28x2.00) | SCREW (.250-28 x 2.00) | 2 |
| 14 | 29598 | 调节螺钉用0.250-28不锈钢防松螺母 | NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW | 2 |
| 15 | 52023 | 调节螺钉帽 | CAP ADJUSTING SCREW | 2 |
| 16 | 55337 | 节流控制杆螺钉(0.375-16x1.75) | SCREW (.375-16 x 1.75) THROTTLE CONTROL LEVER | 1 |
| 16 | 818165 | 螺钉 (.375-16 x 1.75) | SCREW (.375-16 x 1.75) | 1 |
| 17 | 55164 | 节气门控制杆螺钉衬套 | BUSHING THROTTLE CONTROL LEVER SCREW | 1 |
| 18 | 55171 | 节气门控制杆螺钉衬套 | BUSHING THROTTLE CONTROL LEVER SCREW | 1 |
| 19 | 55162 | 火花提前杆回位弹簧 | SPRING RETURN-SPARK ADVANCE LEVER | 1 |
| 20 | 77031A2 | 点火提前杆总成 | LEVER ASSEMBLY SPARK ADVANCE | 1 |
| 21 | 68410 | 节气门控制杆螺钉垫圈 | WASHER THROTTLE CONTROL LEVER SCREW | 1 |
| 21 | 46765 | 垫圈 (.390 x 1.50 x .120) | WASHER (.390 x 1.50 x .120) | 1 |
| 22 | 73656 | 火花提前调节螺丝(1-1/2英寸) | SCREW SPARK ADVANCE ADJUSTING (1-1/2") | 1 |
| 23 | 68219 | NUT (#10-32) Stainless Steel ADJUSTING SCREW | 1 | |
| 24 | 48039 | 调节螺钉帽 | CAP ADJUSTING SCREW | 1 |
| 25 | 77650 | 火花提前杆调节螺丝(2-1/4英寸) | SCREW SPARK ADVANCE LEVER ADJUSTING (2-1/4") | 1 |
| 26 | 29598 | 调节螺钉用0.250-28不锈钢防松螺母 | NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW | 1 |
| 27 | 52023 | 调节螺钉帽 | CAP ADJUSTING SCREW | 1 |
| 28 | 39483 | 节流控制杆锁扣(节流拉线) | LATCH THROTTLE CONTROL LEVER (THROTTLE CABLE) | 1 |
| 29 | 22486 | 节流控制杆锁扣螺钉(0.250-28x0.880) | SCREW (.250-28 x .880) LATCH TO THROTTLE CONTROL LEVER | 1 |
| 29 | 69026 | 螺钉 (.250-28 x .880) | SCREW (.250-28 x .880) | 1 |
| 30 | 20099 | 锁扣螺钉压缩弹簧 | SPRING COMPRESSION-LATCH SCREW | 1 |
| 31 | 20586 | 锁扣安装螺钉用0.250-28螺母 | NUT (.250-28) LATCH ATTACHING SCREW | 1 |
| 31 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 32 | 74897 | 定子连杆枢轴 | PIVOT LINK ROD TO STATOR | 1 |
| 32 | 74897T | 枢轴 | PIVOT | 1 |
| 33 | 74212 | 点火提前连杆 | ROD LINK-SPARK ADVANCE | 1 |
| 34 | 77013A1 | SWIVEL LINK ROD TO SPARK ADVANCE LEVER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 92194A14 | 配平油缸 | TRIM CYLINDER | 2 |
| 1 | 92194A20 | 配平油缸 | TRIM CYLINDER | 2 |
| 2 | 74036 | 润滑脂接头-配平油缸 | FITTING Grease TRIM CYLINDER | 2 |
| 2 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 3 | 45265 | 螺钉(#10-32x0.3125)放气 | SCREW (#10-32 x .3125) BLEED | 4 |
| 4 | 45016 | O型圈-放气螺钉 | O-RING BLEED SCREW | 4 |
| 5 | 45264 | 螺钉(.500-20 x 1.500) | SCREW (.500-20 x 1.500) | 2 |
| 5 | 92050 | 螺钉(.500-20 x 1.500) | SCREW (.500-20 x 1.500) | 2 |
| 6 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢配平油缸螺栓 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRIM CYLINDER BOLT | 4 |
| 6 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 7 | 45280 | 垫片-配平油缸下部 | SPACER TRIM CYLINDER - LOWER | 2 |
| 8 | 94907A1 | 橡胶衬套-配平油缸 | BUSHING RUBBER - TRIM CYLINDER | 2 |
| 9 | 89108A3 | 支架-配平油缸(左舷) | BRACKET TRIM CYLINDER (PORT) | 1 |
| 10 | 70608 | 油封-左舷支架 | SEAL Oil PORT BRACKET | 1 |
| 11 | 89290 | 柱塞-限位开关驱动 | PLUNGER LIMIT SWITCH ACTUATING | 1 |
| 12 | 95881 | 张力弹簧-限位开关柱塞 | SPRING TENSION - LIMIT SWITCH PLUNGER | 1 |
| 13 | 45282 | STUD (.312-24 x 16.620) MOUNTING BRACKET | 1 | |
| 14 | 26993 | 锁紧垫圈(0.312)安装支架双头螺栓 | LOCKWASHER (.312) MOUNTING BRACKET STUD | 2 |
| 14 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 15 | 28770 | 螺母(0.312-24)不锈钢安装支架双头螺栓 | NUT (.312-24) Stainless Steel MOUNTING BRACKET STUD | 2 |
| 16 | 45263 | 螺钉(0.500-20x2.250)安装支架 | SCREW (.500-20 x .2.250) MOUNTING BRACKET | 2 |
| 17 | 68298 | 螺栓（0.375英寸-16牙 x 3.250英寸） | BOLT (.375-16 x 3.250) | 6 |
| 17 | 89673 | 螺钉（0.375英寸-16牙 x 5.00英寸） | SCREW (.375-16 x 5.00) | 2 |
| 18 | 68410 | 垫圈-安装支架螺栓 | WASHER MOUNTING BRACKET BOLT | 6 |
| 18 | 46765 | 垫圈 (.390 x 1.50 x .120) | WASHER (.390 x 1.50 x .120) | 6 |
| 19 | 99405 | 螺母-安装支架螺栓 | NUT MOUNTING BRACKET BOLT | 8 |
| 19 | 82671112 | 螺母（.375-16） | NUT (.375-16) | 8 |
| 20 | 89111 | 支架-配平油缸(右舷) | BRACKET TRIM CYLINDER (STARBOARD) | 1 |
| 20 | 89111T | 支架 | BRACKET | 1 |
| 21 | 45328 | 螺钉(0.437-20x3.560) | SCREW (.437-20 x 3.560) | 2 |
| 22 | 37807 | 垫圈 | WASHER | 1 |
| 23 | 35053 | 螺母(0.437-20)配平油缸螺钉 | NUT (.437-20) TRIM CYLINDER SCREW | 2 |
| 23 | 8M0143423 | 尼龙螺母 | NUT Nylon | 2 |
| 24 | 24390 | 张力弹簧-调节螺栓 | SPRING TENSION - ADJUSTING STUD | 1 |
| 25 | 21085 | 双头螺栓(#10-32x0.930)调节-切断限位开关 | STUD (#10-32 x .930) ADJUSTING - CUT-OUT LIMIT SWITCH | 1 |
| 25 | 8M0034461 | 螺柱 | STUD | 1 |
| 26 | 45812 | 螺母(#10-32)不锈钢锁紧-限位开关调节螺栓 | NUT (#10-32) Stainless Steel JAM - LIMIT SWITCH ADJUSTING STUD | 1 |
| 26 | 859124 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 1 |
| 27 | 99897 | 凸轮-限位开关调节螺栓 | CAM LIMIT SWITCH ADJUSTING STUD | 1 |
| 28 | 86967 | 挡板-限位开关凸轮 | PLATE RETAINING - LIMIT SWITCH CAM | 1 |
| 29 | 68513 | 螺钉(#10-32x0.375)不锈钢挡板与凸轮 | SCREW (#10-32 x .375) Stainless Steel RETAINING PLATE AND CAM | 1 |
| 30 | 26996 | 锁紧垫圈(#10)不锈钢挡板与凸轮螺钉 | LOCKWASHER (#10) Stainless Steel RETAINING PLATE AND CAM SCREW | 1 |
| 31 | 45326A2 | 切断限位开关总成 | SWITCH ASSEMBLY CUT-OUT LIMIT | 1 |
| 32 | 45354 | 橡胶衬套-切断限位开关 | BUSHING RUBBER - CUT-OUT LIMIT SWITCH | 1 |
| 33 | 47255 | 螺钉 (#4-40 x .625) 切断限位开关 | SCREW (#4-40 x .625) CUT-OUT LIMIT SWITCH | 2 |
| 34 | 89272 | 限位开关盖 | COVER LIMIT SWITCH | 1 |
| 35 | 89273 | 限位开关盖衬垫 | GASKET LIMIT SWITCH COVER | 1 |
| 35 | 892731 | 衬垫 | GASKET | 1 |
| 36 | 34994 | 螺钉 (#10-32 x 1.00) 不锈钢 限位开关盖 | SCREW (#10-32 x 1.00) Stainless Steel LIMIT SWITCH COVER | 4 |
| 37 | 38833 | 限位开关盖螺钉垫圈 | WASHER LIMIT SWITCH COVER SCREW | 4 |
| 38 | 87774A1 | 艉板进水口盖 | COVER INLET - TRANSOM | 1 |
| 39 | 87775 | 进水口盖衬垫 | GASKET INLET COVER | 1 |
| 40 | 45507 | 橡胶衬套 - 进水口盖 | GROMMET RUBBER - INLET COVER | 1 |
| 41 | 36070 | 螺钉 (#10-32 x 1.250) 进水口盖至船体 | SCREW (#10-32 x 1.250) INLET COVER TO BOAT | 4 |
| 42 | 26996 | 锁紧垫圈 (#10) 不锈钢 进水口盖螺钉 | LOCKWASHER (#10) Stainless Steel INLET COVER SCREW | 4 |
| 43 | 68219 | 螺母 (#10-32) 不锈钢 进水口盖螺钉 | NUT (#10-32) Stainless Steel INLET COVER SCREW | 4 |
| 44 | 88005 | 微调软管 | HOSE TRIM | 2 |
| 45 | 88006 | 升降软管 | HOSE LIFT | 2 |
| 46 | 35977 | 橡胶护圈 | GROMMET RUBBER | 4 |
| 46 | 97191 | 橡胶护圈 | GROMMET RUBBER | 2 |
| 46 | 35977 | 护孔环 | GROMMET | 2 |
| 46 | 97000 | 橡胶护圈 | GROMMET RUBBER | 2 |
| 46 | 12602002 | 护孔环 | GROMMET | 2 |
| 47 | 73519A1 | 拉带 倾斜止动 | STRAP Tilt Stop | 1 |
| 48 | 69259 | 安装管 - 倾斜止动 | TUBE MOUNTING - TILT STOP | 1 |
| 49 | 77669 | 安装管销 | PIN MOUNTING TUBE | 1 |
| 50 | 63473 | 缓冲管 | TUBE CUSHION | 1 |
| 51 | 36391 | 开口销 安装管销 | COTTER PIN MOUNTING TUBE PIN | 1 |
| 51 | 36002 | 开口销 | COTTER PIN | 1 |
| 52 | 45882 | COTTER PIN TILT PIN RETAINING | 1 | |
| 53 | 39304 | 倾斜销垫片 | WASHER TILT PIN | 1 |
| 54 | 89112 | 安装支架衬套 | BUSHING MOUNTING BRACKET | 2 |
