水星 Mercury 70 3 CYL 0B240451 THRU 0C221999 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-18520 · 共 78 个部位 · 3100 条零件

1喷油组件 2进气歧管与簧片阀组 3曲轴、活塞与连杆(#646-818846)4旋转支架与转向臂 5化油器与衰减板 6启动电机（博世）7齿轮箱(螺旋桨轴)8化油器 9动力升降组件 10罩壳安装支架 11转向手柄组件 12驱动轴壳体 13曲轴活塞/连杆(#646-818846)14动力升降泵 15燃油泵 16排气板 17燃油泵 18气缸体与曲轴箱 19杂项零件/附件 20艉板支架 21艉板支架 22电气组件 23旋转支架与转向臂 24动力升降倾斜组件 25进气歧管与簧片阀组 26电气组件 27机油喷射组件 28油门杆与联动装置 29飞轮与启动电机 30气缸体与曲轴箱 31油门杆与连杆 32化油器 33转向手柄组件 34齿轮箱螺旋桨轴 35化油器与衰减板 36罩壳与前盖 37曲轴、活塞与连杆(#638-8532--1)38齿轮箱驱动轴 39驱动轴壳体 40曲轴活塞/连杆(#638-8532--1)41齿轮箱（驱动轴）42转向手柄组件(含转向臂)43转速表 44副驾驶装置 45外罩安装支架 46动力升降倾斜泵 47启动马达(BOSCH)48排气板 49飞轮与启动马达 50杂项零件/附件 51罩壳与前盖 52化油器 53化油器与衰减板 54副驾驶装置 55罩壳与前盖 56外罩安装支架 57曲轴活塞/连杆(#638-8532--1)58曲轴活塞/连杆(#646-818846)59气缸体与曲轴箱 60驱动轴壳体 61电气组件 62排气板 63飞轮与启动电机 64燃油泵 65齿轮箱驱动轴 66齿轮箱螺旋桨轴 67进气歧管与簧片阀组 68杂项零件/附件 69机油喷射组件 70动力升降倾斜组件 71动力升降倾斜泵 72启动电机（博世）73转向手柄组件 74转向手柄组件(含转向臂)75旋转支架与转向臂 76转速表 77油门杆与连杆 78艉板支架

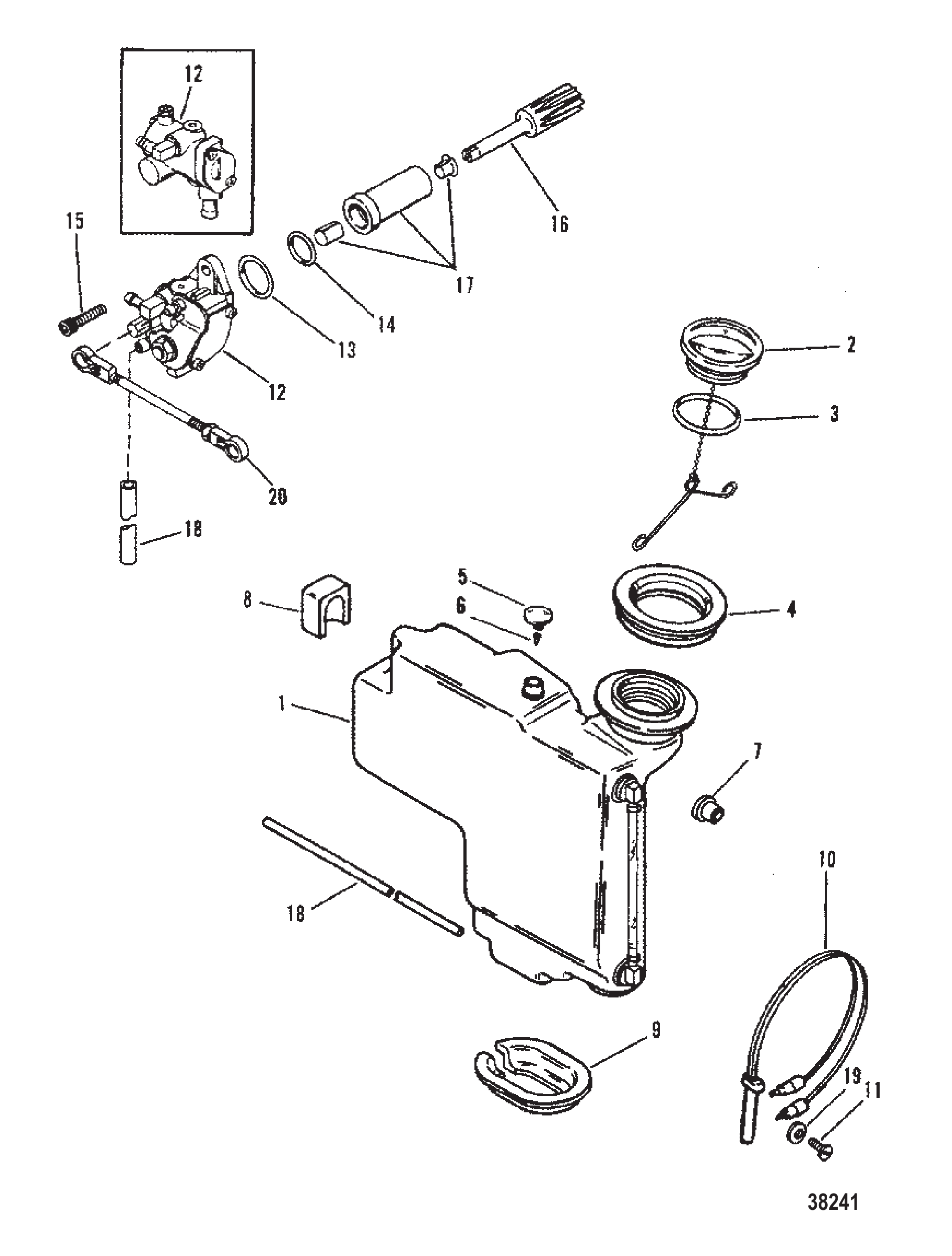

图 1喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	830889A4	油箱总成	TANK ASSEMBLY	1
2	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
3	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
5	814449A3	盖总成	CAP ASSEMBLY	1
6	42999	衬垫	GASKET	1
6	42999T	衬垫	GASKET	1
7	856156A2	开关总成	SWITCH ASSEMBLY	1
7	856156T02	开关总成	SWITCH ASSEMBLY	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
8	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
9	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
10	855362	护孔环	GROMMET	3
10	855362001	护孔环	GROMMET	3
11	855364	衬套	BUSHING	3
-	8742A20	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
-	8742A22	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
12	87421	油箱	TANK	1
13	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
13	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
14	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
15	43298A2	盖总成	CAP ASSEMBLY	2
16	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
17	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
18	99802	管	TUBE	1
19	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
20	12335A1	支架套件	BRACKET KIT	1
21	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

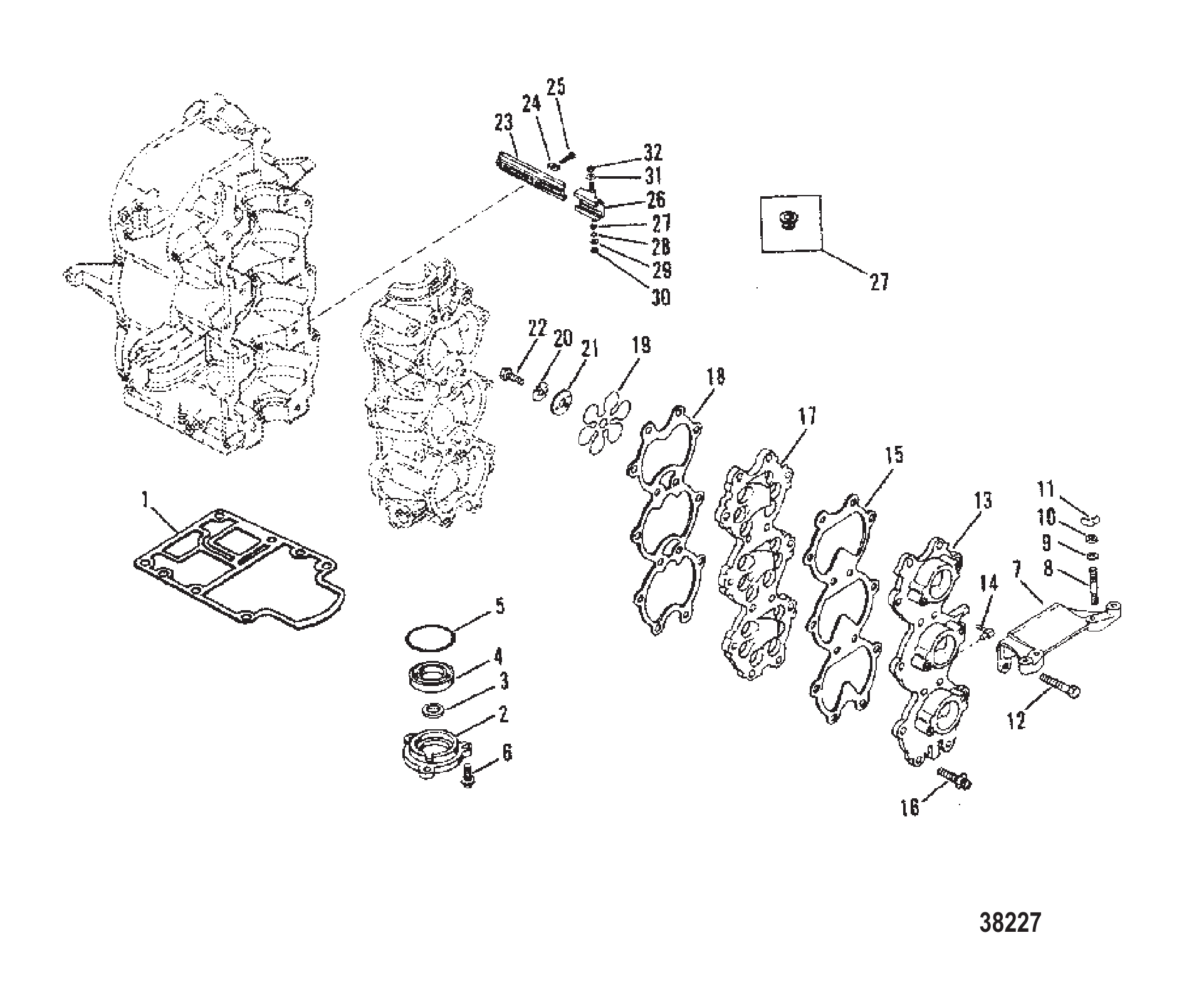

图 2进气歧管与簧片阀组 Induction Manifold and Reed Block

REF	零件编号	中文名称	英文名称	数量
1	812865	衬垫	GASKET	1
2	9812A9	下端盖总成	END CAP ASSEMBLY Lower	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A2	支架总成	BRACKET ASSEMBLY	1
7	19077A3	支架总成	BRACKET ASSEMBLY	1
8	8161941	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	19076A3	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
14	19725	弯头(55号件含2个)	ELBOW (QTY. OF 2 ON 55)	1
15	812869	衬垫	GASKET	1
16	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
17	19075A2	簧片阀总成	REED BLOCK ASSEMBLY	1
17	8M0219197	簧片阀总成	REED BLOCK ASSY	1
18	812868	衬垫	GASKET	1
19	812880A1	簧片组(0.008厚度)	REED SET (0.008 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
19	812880A2	簧片组件(0.010厚度)	REED ASSEMBLY (0.010 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
20	42982	锁紧垫圈	TAB WASHER	3
20	429821	锁紧垫圈	TAB WASHER	3
21	812879	固定座	RETAINER	3
21	812879002	簧片压板	RETAINER Reed	3
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
23	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
24	42981	锁紧垫圈	TAB WASHER	2
25	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
26	988851	滑块	SLIDE	1
27	48475	衬套(II型)	BUSHING (DESIGN II)	1
27	42994	衬套	BUSHING	1
28	29720	波形垫圈	WAVE WASHER	1
29	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
30	400634	螺母 (M6)	NUT (M6)	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	400634	螺母 (M6)	NUT (M6)	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	15026	进气歧管盖	CAP (FOR USE ON INDUCTION MANIFOLD)	3
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

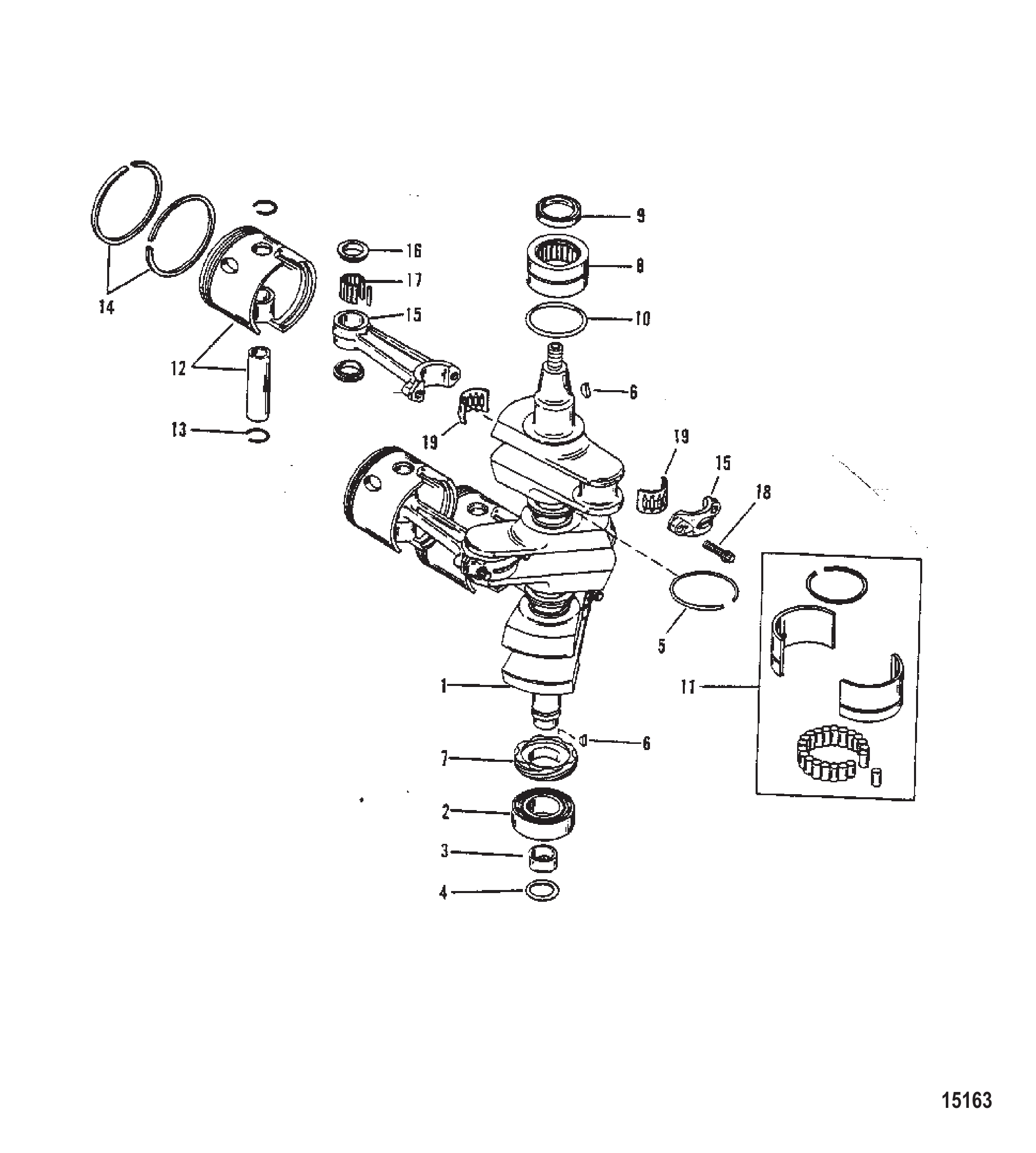

图 3曲轴、活塞与连杆(#646-818846) CRANKSHAFT, PISTONS AND CONNECTING RODS (#646-818846)

REF	零件编号	中文名称	英文名称	数量
1	9001A3	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43011	球轴承(下部)	BEARING Ball (LOWER)	1
2	43011T	滚珠轴承	BEARING Ball	1
3	786611	耐磨套	WEAR SLEEVE	1
4	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
5	818412A4	环组件	RING ASSEMBLY	1
6	91800	半圆键	KEY Woodruff	2
7	43019A1	齿轮总成	GEAR ASSEMBLY	1
8	43013A1	滚子轴承总成(上部)	BEARING ASSEMBLY Roller (UPPER)	1
8	43013T3	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43993	油封	SEAL Oil	1
9	8M0214932	密封件	SEAL	1
10	64067	O型圈	O-RING	1
10	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
11	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
12	815965A4	活塞总成	PISTON ASSEMBLY	3
12	815965T4	活塞总成	PISTON ASSY	3
12	815965A5	活塞总成	PISTON ASSEMBLY	AR
12	815965A6	活塞总成	PISTON ASSEMBLY	AR
13	52035	锁环	RING Lock	6
13	857196	锁紧环	LOCK RING	6
14	96170A12	活塞环组	RING SET Piston	1
14	96170A3	活塞环组	RING SET Piston	AR
14	96170A4	活塞环组	RING SET Piston	AR
15	818846A3	连杆总成	CONNECTING ROD ASSEMBLY	3
15	818846T6	连杆总成	CONNECTING ROD ASSEMBLY	3
16	812876	垫圈	WASHER	6
16	8M0012298	止推垫片	THRUST WASHER	6
17	818391	滚针轴承	BEARING Needle	87
17	8M0214954	滚针轴承@200	BRG-NEEDLE @200	87
18	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	6
19	816567A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
19	8M0235070	轴承保持架	CAGE BEARING	3
0000	1	(70/75)	(70/75)	POWERHEAD ASSEMBLY
0000	1			POWERHEAD ASSEMBLY Complete
0000	1	(80)	(80)	POWERHEAD ASSEMBLY
0000	1			POWERHEAD ASSEMBLY Complete
0000	1	(90)	(90)	POWERHEAD ASSEMBLY
0000	1			POWERHEAD ASSEMBLY Complete

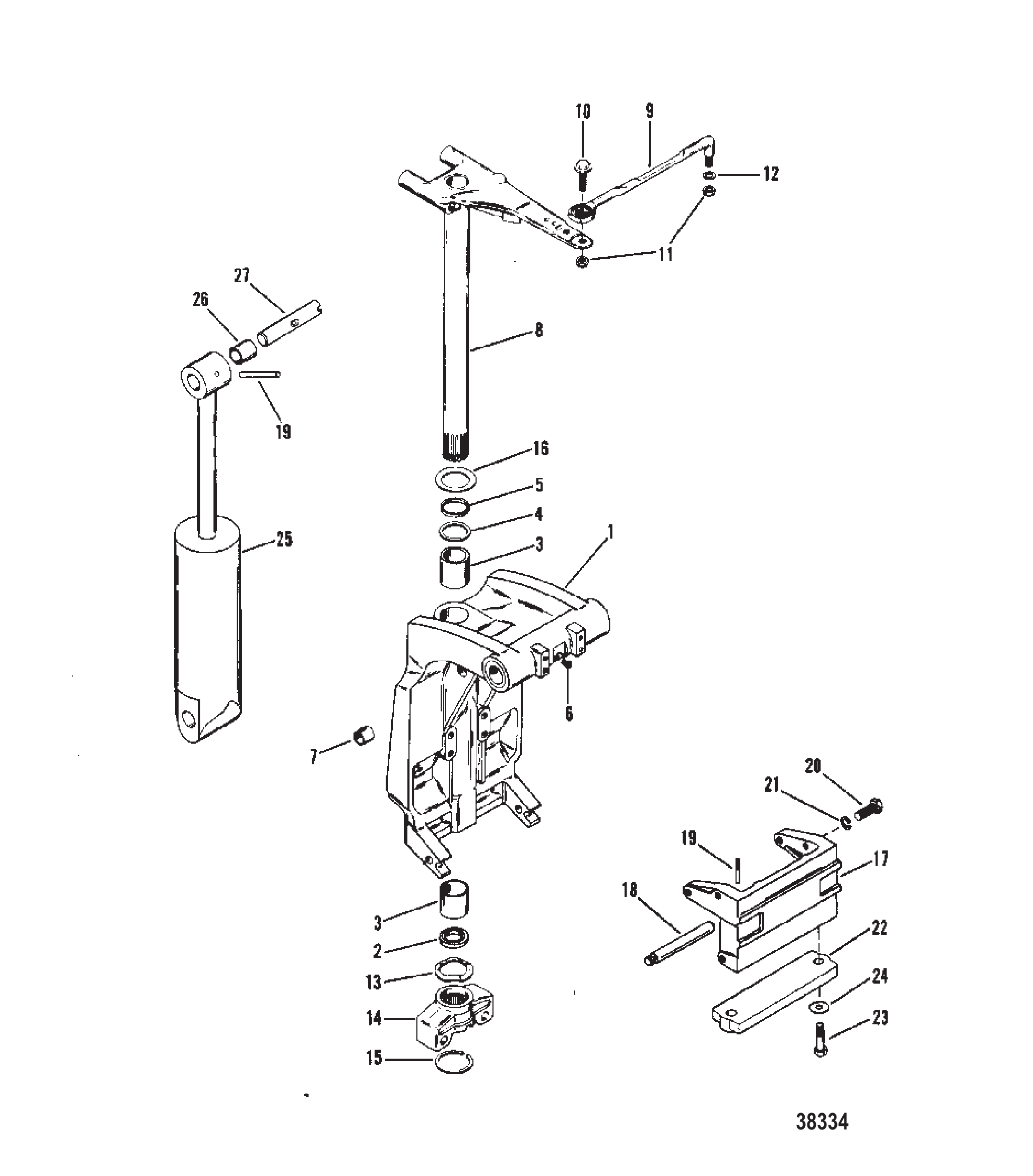

图 4旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

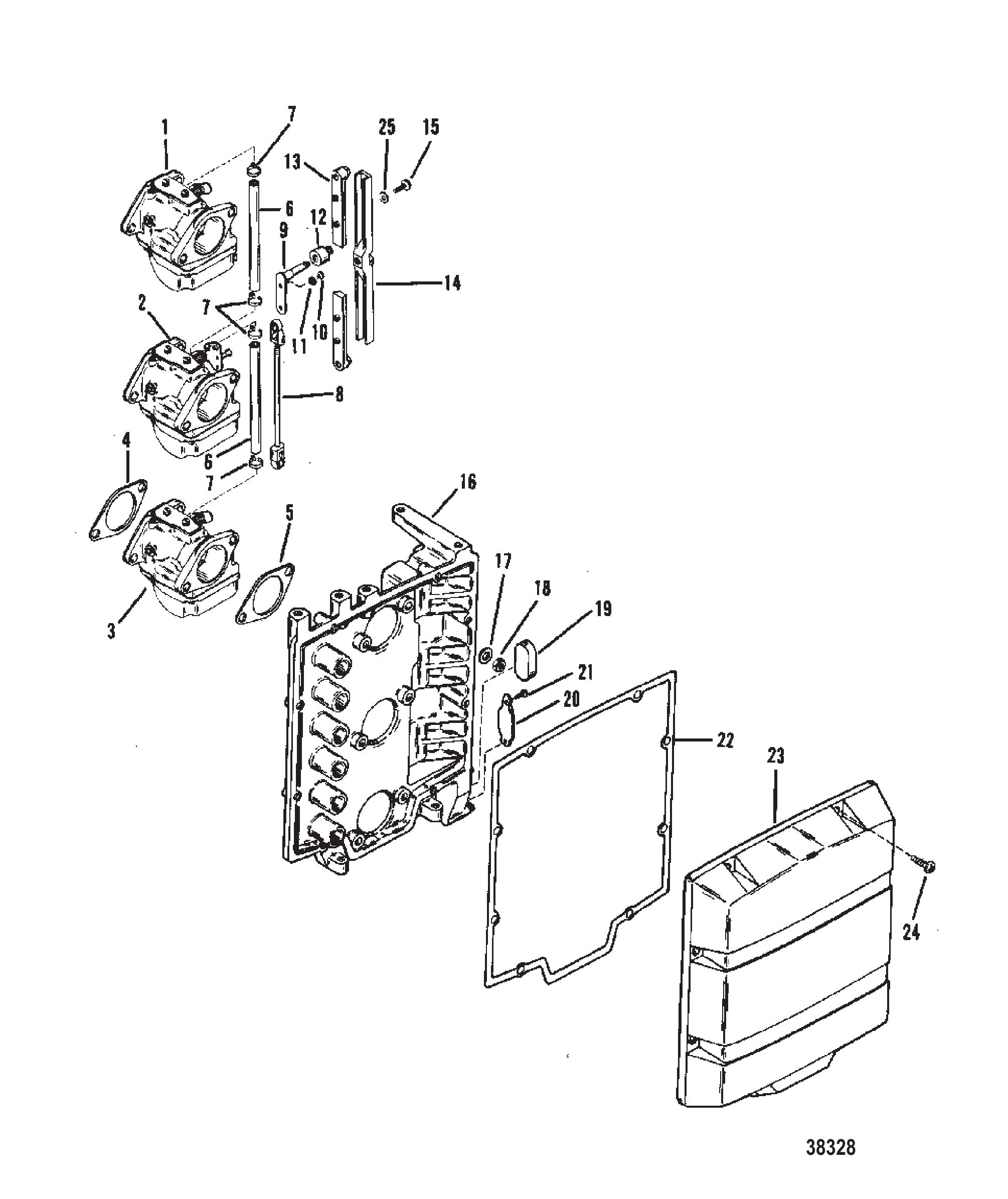

图 5化油器与衰减板 CARBURETOR AND ATTENUATOR PLATE

REF	零件编号	中文名称	英文名称	数量
1	9012A14	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A24	化油器	CARBURETOR	1
1	9012A71	化油器	CARBURETOR	1
1	9012A5	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A17	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A15	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A25	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A72	化油器	CARBURETOR	1
2	9012A6	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A18	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A16	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A26	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A73	化油器	CARBURETOR	1
3	9012A7	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A19	化油器总成	CARBURETOR ASSEMBLY	1
4/5	15172	化油器衬垫	GASKET CARBURETOR	6
4/5	151724	衬垫	GASKET	6
6	9912846	化油器间连接管	TUBING CARBURETOR TO CARBURETOR	2
6	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	2
7	73498	卡箍	CLAMP	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	962558	连杆	LINK ROD	1
8	8M0084744	连接杆	LINK	1
9	11399A1	臂总成	ARM ASSEMBLY	1
10	40057103	螺丝(M5 x 6)臂	SCREW (M5 x 6) ARM	1
11	56681	垫圈(0.203 x 0.500 x 0.032)臂螺丝	WASHER (.203 x .500 x .032) ARM SCREW	1
11	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
12	67748	滚轮	ROLLER	1
13	988861	调节连杆	LINK ADJUSTING	2
13	98886T01	油门调节连杆	LINK-THRTL ADJUST	2
14	98887	油门连杆	LINK Throttle	1
14	98887T	连接杆	LINK	1
15	48409	螺丝(#10-16 x 0.625)不锈钢连杆	SCREW (#10-16 x .625) Stainless Steel LINK	4
16	42970T	消音器板总成	PLATE ASSEMBLY SOUND ATTENUATOR	1
16	42970A2	衰减器板总成	PLATE ASSEMBLY Attenuator	1
17	4002217	化油器双头螺栓垫圈	WASHER CARBURETOR STUDS	6
18	400645	化油器双头螺栓螺母	NUT CARBURETOR STUDS	6
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	6
19	39519	杯形固定器	CUP RETAINER	1
20	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
21	42975	锁扣至板驱动螺丝	DRIVE SCREW LATCH TO PLATE	2
22	43000	消音器盖衬垫	GASKET ATTENUATOR COVER	1
22	430001	衬垫	GASKET	1
23	42969T	消音器盖	COVER ATTENUATOR	1
23	42969A3	消音器盖总成	COVER ASSEMBLY Attenuator	1
24	48409	螺丝(#10-16 x 0.625)不锈钢消音器盖	SCREW (#10-16 x .625) Stainless Steel ATTENUATOR COVER	8
25	56681	垫圈(0.203 x 0.500 x 0.032)连杆螺丝	WASHER (.203 x .500 x .032) LINK SCREW	4
25	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
-	43004A86	衬垫套件	GASKET SET
-	43004A99	动力头衬垫套件	GASKET SET Powerhead

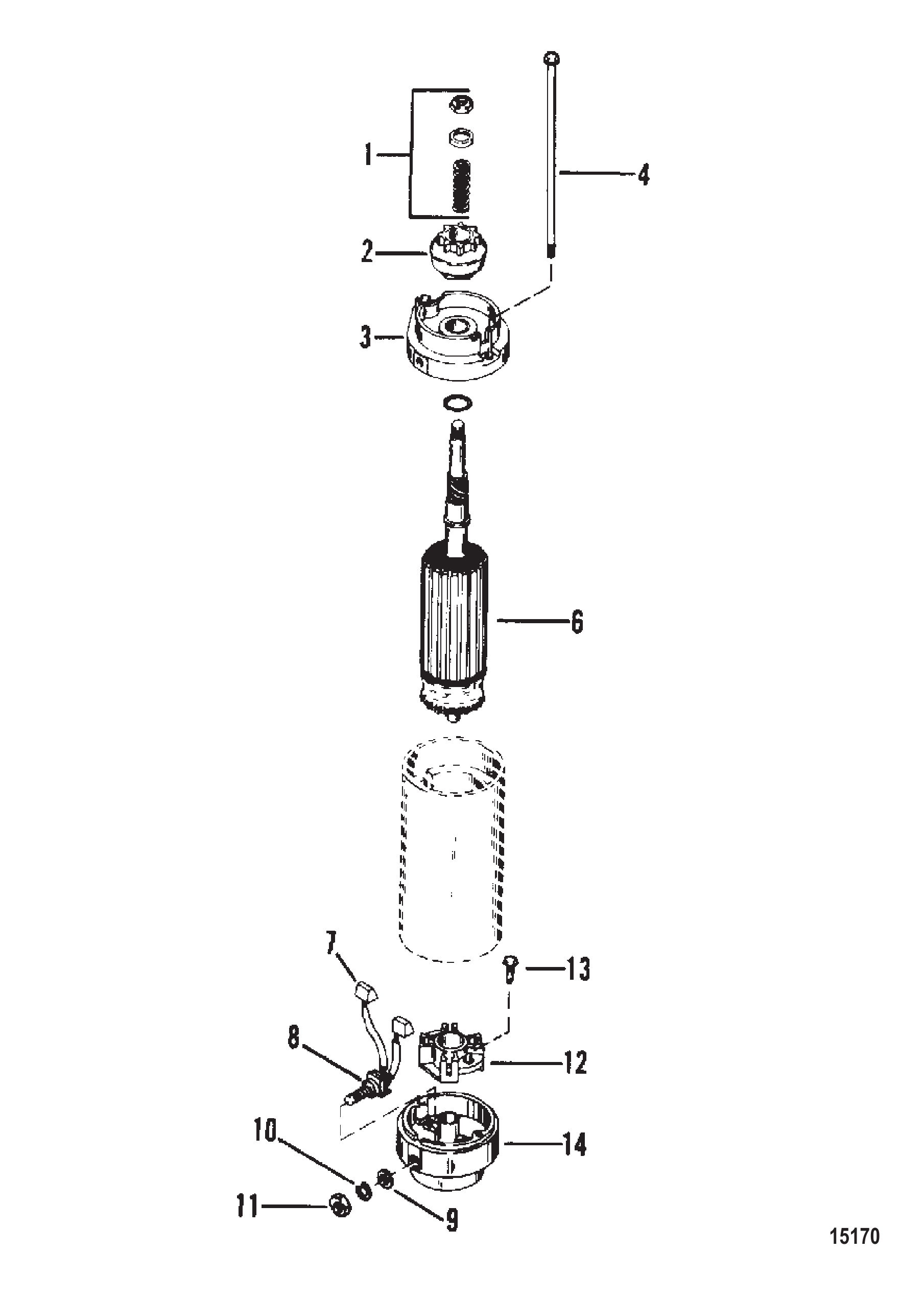

图 6启动电机（博世） Starter Motor (Bosch)

REF	零件编号	中文名称	英文名称	数量
-	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	75385	贯穿螺栓	BOLT THRU	2
6	75386	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387	绝缘衬套	BUSHING INSULATING	1
9	38013	输入柱垫圈	WASHER INPUT STUD	1
10	26992	不锈钢输入柱锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel INPUT STUD	1
11	20890	输入柱螺母(.250-20)	NUT (.250-20) INPUT STUD	1
12	61787	电刷架	HOLDER BRUSH	2
13	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
14	75383	换向器端盖	END CAP COMMUTATOR	1

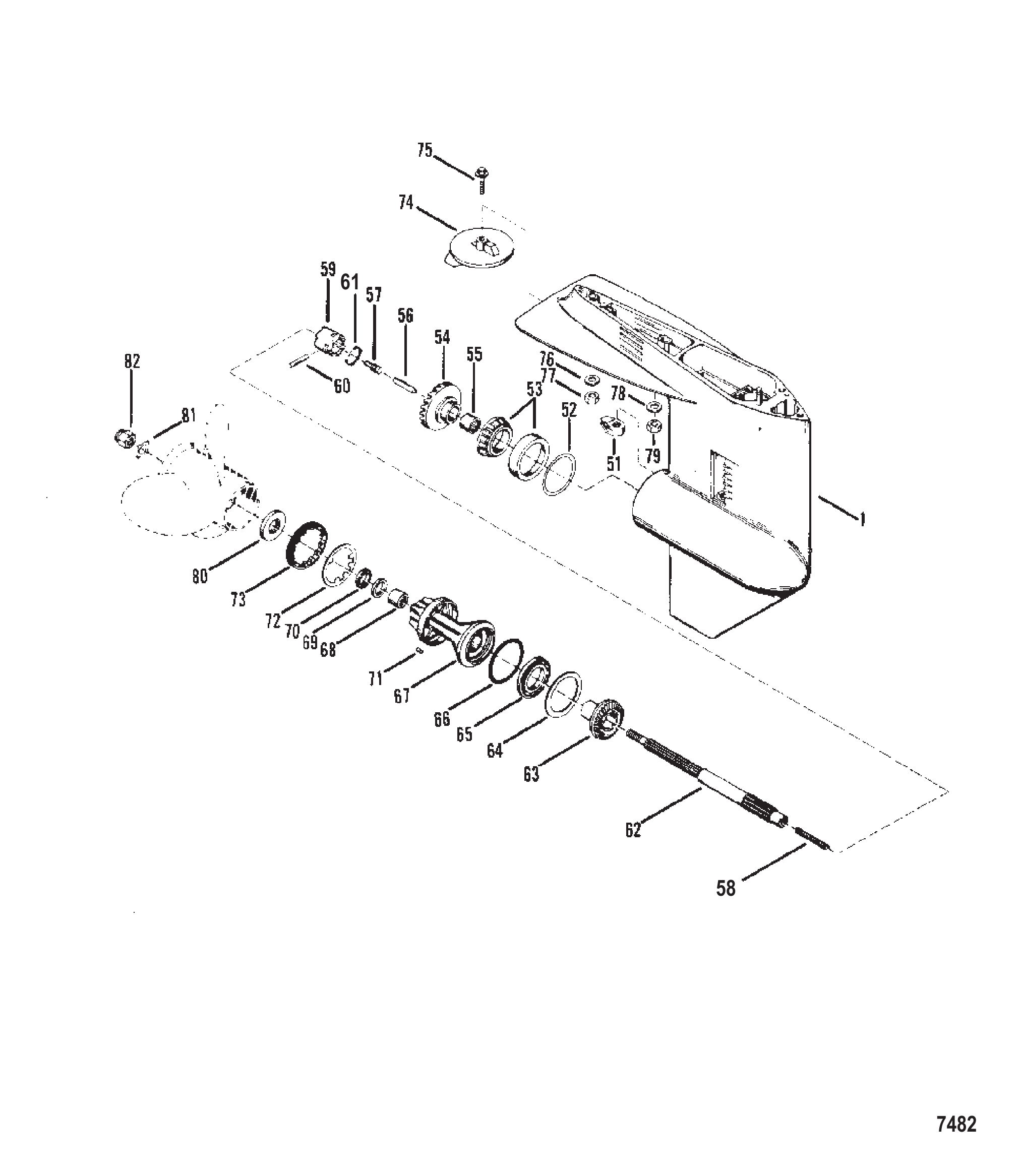

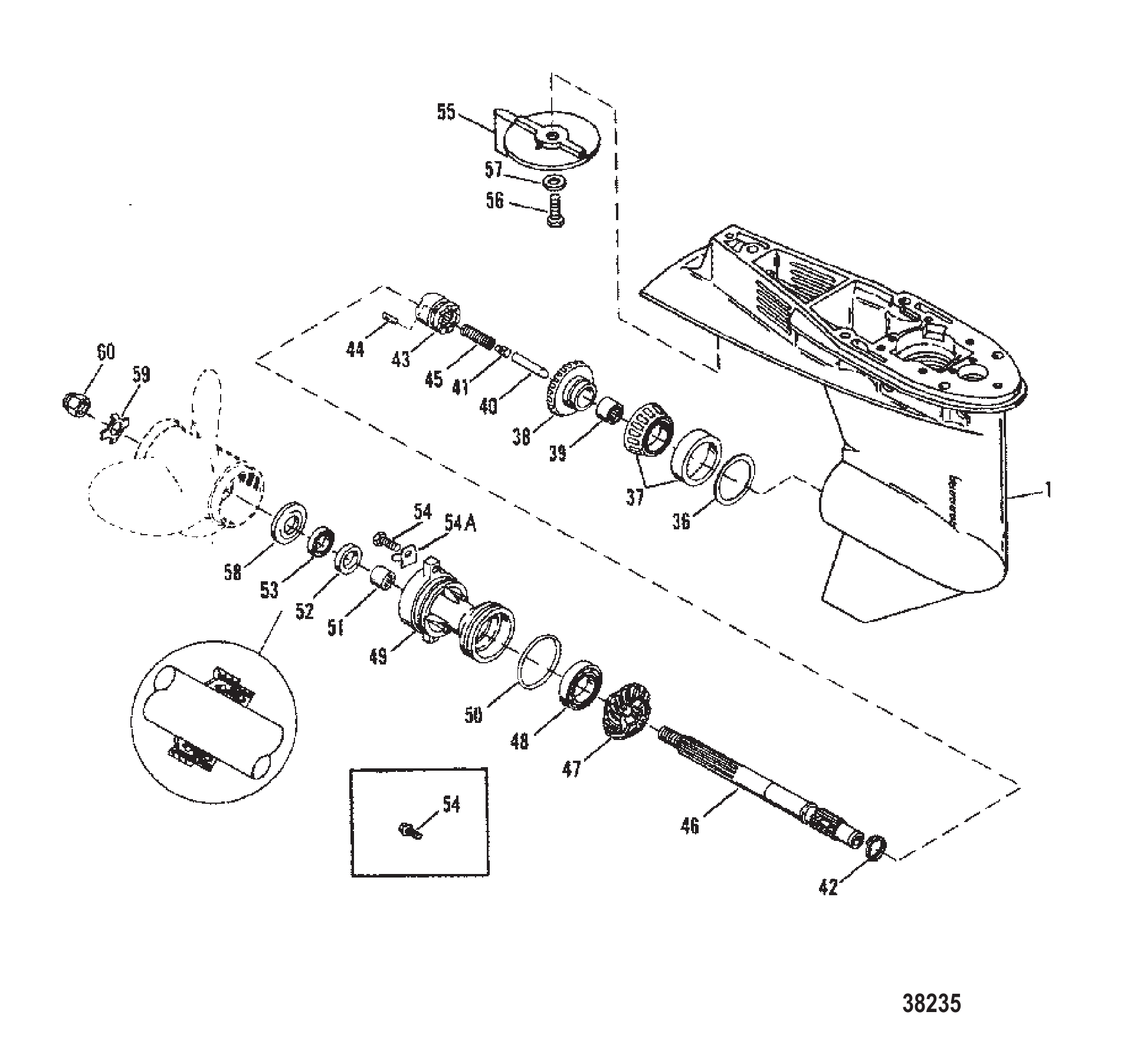

图 7齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9760A8	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	9760A9	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A21	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A12	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A13	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A10	齿轮箱总成(加长)(黑色)	GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A11	齿轮箱总成(加长)(灰色)	GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A2	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A3	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A20	齿轮箱总成(基础款)(TRACKER)	GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
36	812769A1	垫片组	SHIM SET	AR
36	8M0063263	垫片组	SHIM SET	AR
37	812767A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
37	8M0103476	轴承总成	BEARING ASSY	1
38	813693A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
38	813693T1	前进齿轮	GEAR Forward	1
39	21739	滚柱轴承	BEARING Roller	1
40	8129291	凸轮从动件	FOLLOWER Cam	1
41	20843	滑块	SLIDE	1
42	38114	弹簧	SPRING	1
43	813697	离合器	CLUTCH	1
43	813697T	离合器	CLUTCH	1
44	38113	十字销	PIN Cross	1
44	8M0020942	十字销@2	PIN-CROSS @2	1
45	815418	弹簧	SPRING	1
46	14493	螺旋桨轴	PROPELLER SHAFT	1
47	813695	倒挡齿轮	GEAR Reverse	1
47	813695T	倒挡齿轮	GEAR Reverse	1
48	20839	滚珠轴承	BEARING Ball	1
48	20839T	滚珠轴承	BEARING Ball	1
49	19291A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
49	8M0168900	轴承座	BEARING CARRIER	1
50	815460	O型圈	O-RING	1
51	21700	滚针轴承	BEARING Needle	1
52	69188	油封	SEAL Oil	1
52	8M0205511	油封	SEAL Oil	1
53	69189	油封	SEAL Oil	1
53	8M0203757	油封	SEAL Oil	1
54	4000353	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
54A	826613	锁紧垫圈	TAB WASHER	2
54	8136911	螺丝(M8×0.98)	SCREW (M8 x .98)	2
55	17264T2	调整片锌制	TRIM TAB Zinc	1
56	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
57	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
57	8M0214963	垫圈	WASHER	1
58	73345A1	止推垫片	THRUST WASHER	1
59	76281	锁紧垫圈	TAB WASHER	1
59	8M0214942	锁紧垫片	WASHER Tab	1
60	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
60	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	812867A91	发动机垫片组	GASKET SET Engine	1
-	812867A97	衬垫套件	GASKET SET	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

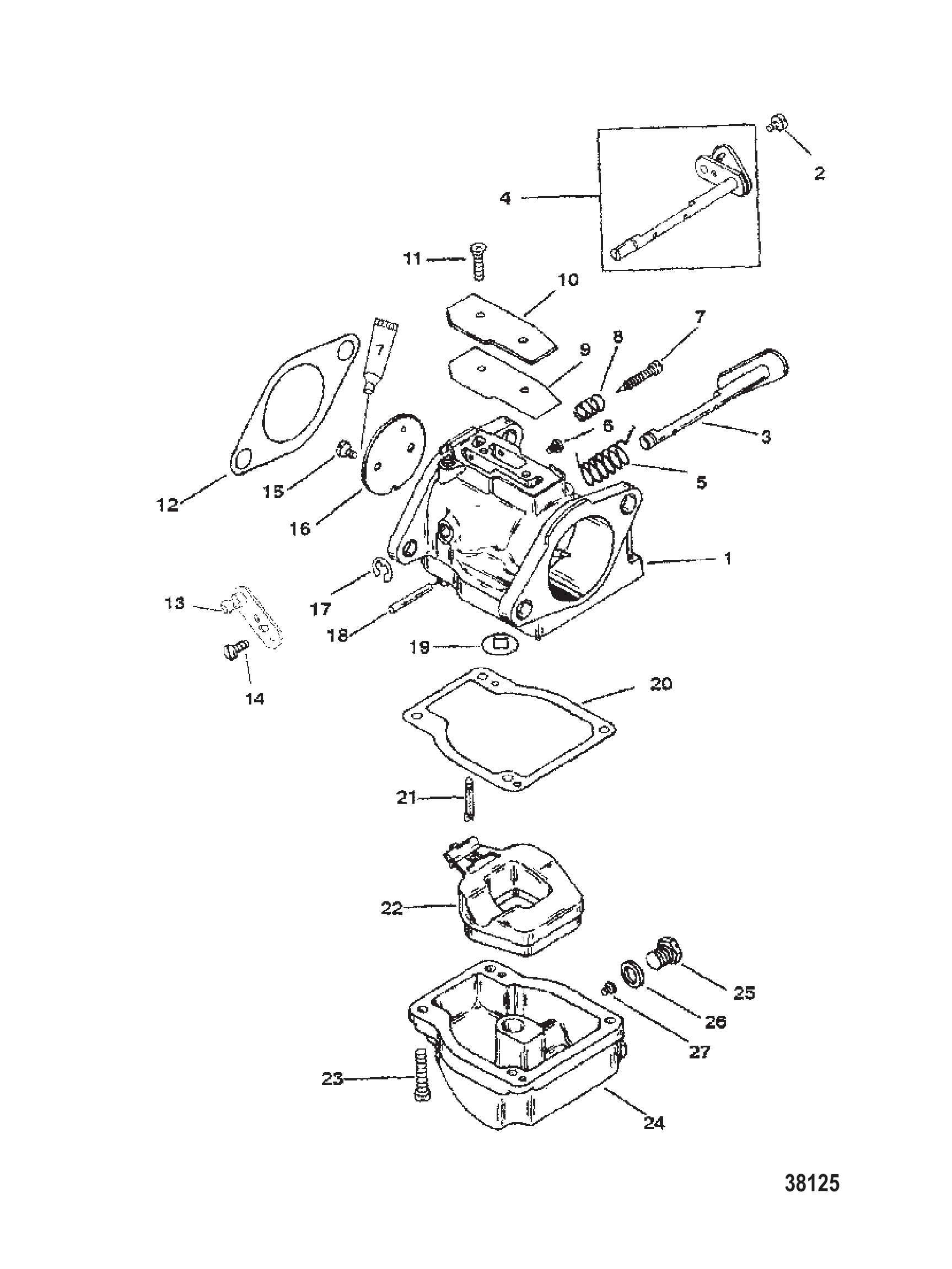

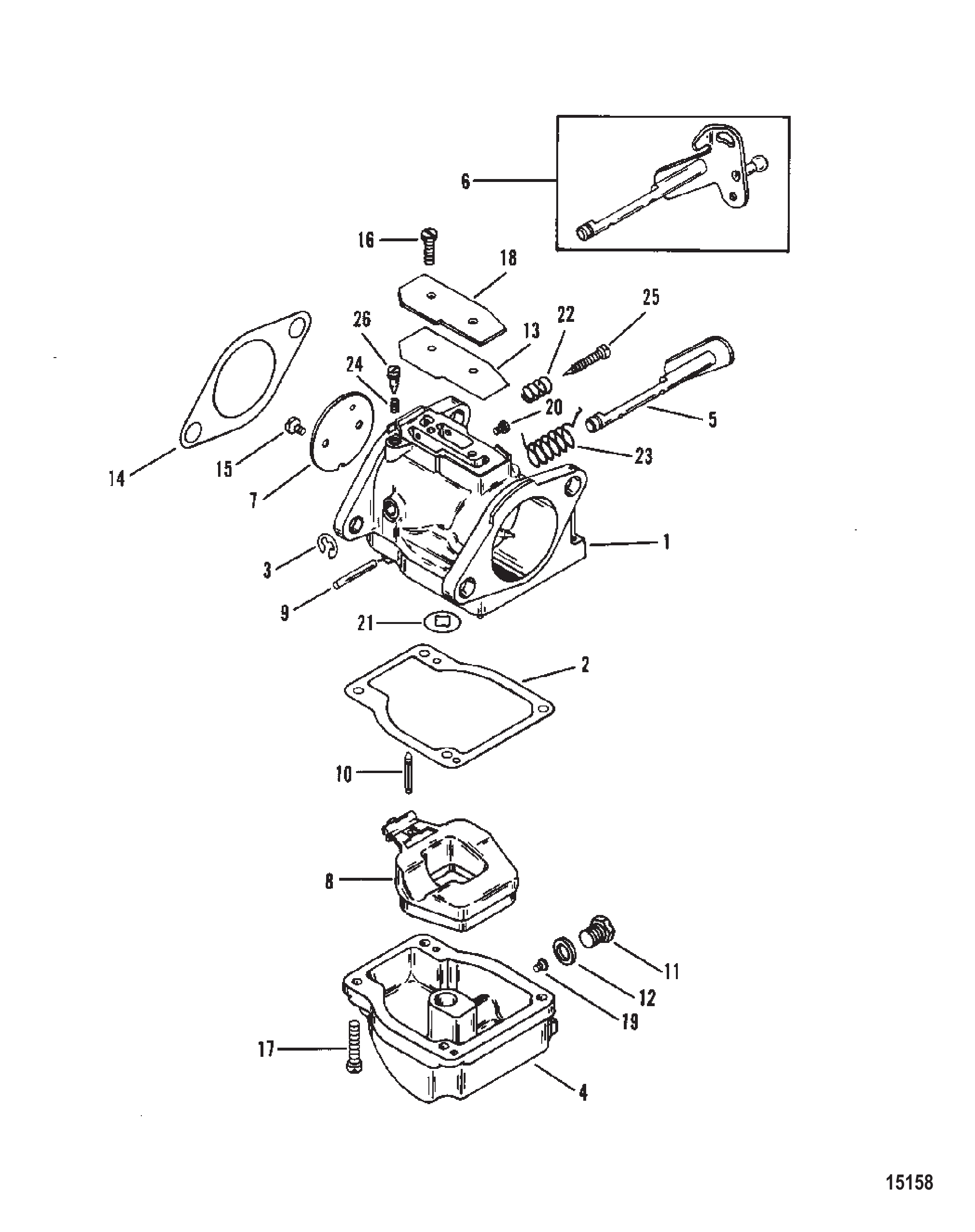

图 8化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	821679A17	化油器	CARBURETOR	1
1	821679A18	化油器	CARBURETOR	1
1	821679T18	化油器	CARBURETOR	1
1	821679A19	化油器	CARBURETOR	1
1	821679T19	化油器	CARBURETOR	1
1	821946A24	化油器	CARBURETOR	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A25	化油器	CARBURETOR	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A26	化油器	CARBURETOR	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A27	化油器	CARBURETOR	1
1	821946T42	化油器	CARBURETOR	1
1	821946A28	化油器	CARBURETOR	1
1	821946T43	化油器	CARBURETOR	1
1	821946A29	化油器	CARBURETOR	1
1	821946T44	化油器	CARBURETOR	1
2	823634	螺丝(上/下部)	SCREW (UPPER/BOTTOM)	2
3	823632	油门轴	SHAFT Throttle	1
4	823633	油门轴	SHAFT Throttle	1
4	823636	油门轴	SHAFT Throttle	1
3	823632	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
5	NSS	不单独销售油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	3
6	6247	主量孔(0.090)	JET Main (.090)	3
7	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
8	NSS	不单独销售怠速针弹簧	NOT SOLD SEPARATE SPRING-IDLE NEEDLE	3
9	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杠杆(WME43/45-底部)	LEVER Oil Pump (WME43/45 - BOTTOM)	1
14	8086121	杠杆固定螺钉(WME43/45-底部)	SCREW Lever Retainer (WME43/45 - BOTTOM)	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	879194023	节气门阀	VALVE-THROTTLE	3
17	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
18	F10064	轴	SHAFT	3
19	NSS	不单独销售喷油嘴衬垫	NOT SOLD SEPARATE GASKET-NOZZLE WELL	3
20	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
24	811695	燃油杯	BOWL Fuel	1
24	811693	燃油杯	BOWL Fuel	2
25	811694	塞套件	PLUG KIT	3
26	NSS	排水碗密封件(不单独销售)	NOT SOLD SEPARATE SEAL-BOWL DRAIN	3
27	6246	量孔(.048)	JET (.048)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
27	4217	主量孔(.062)	JET Main (.062)	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

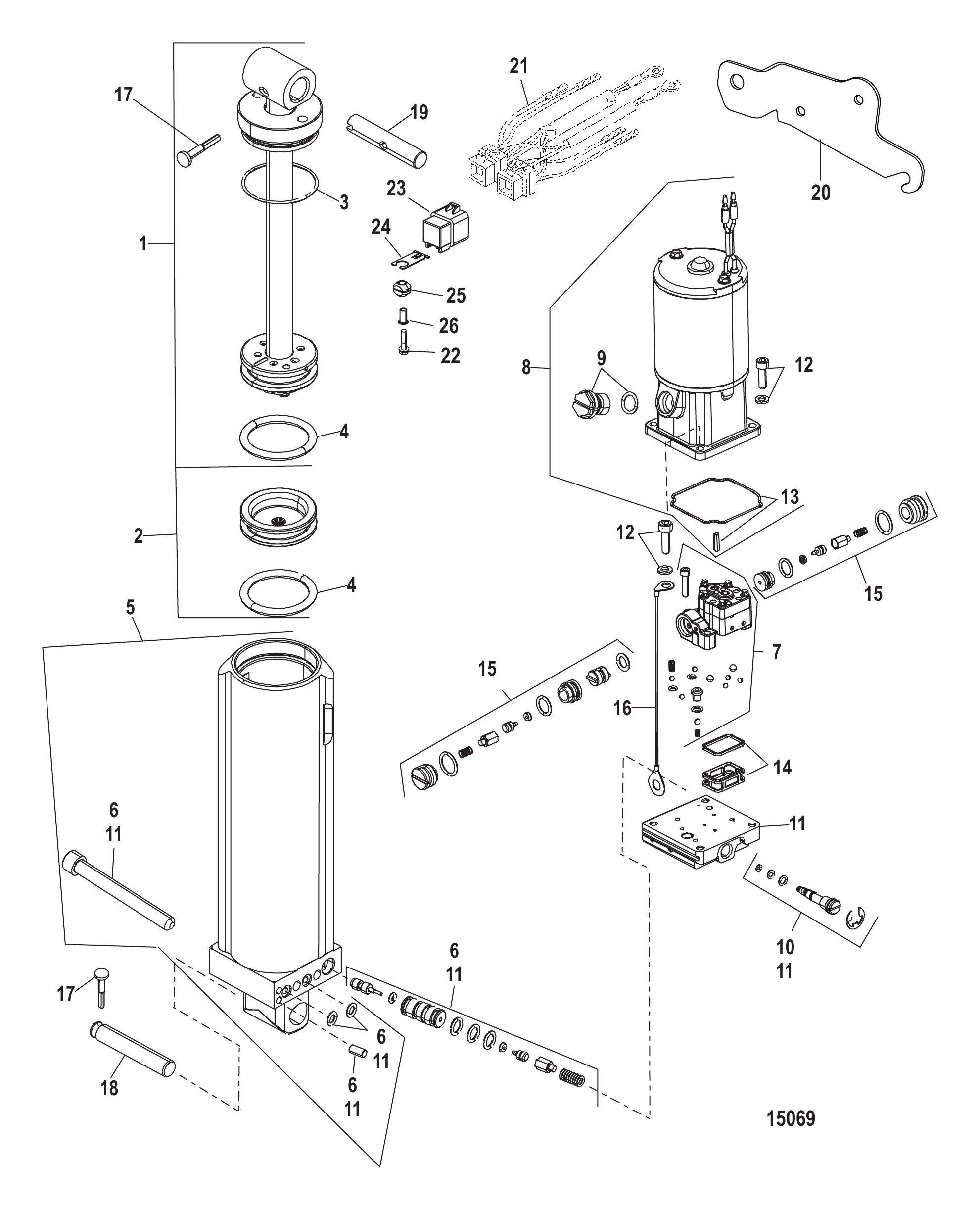

图 9动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

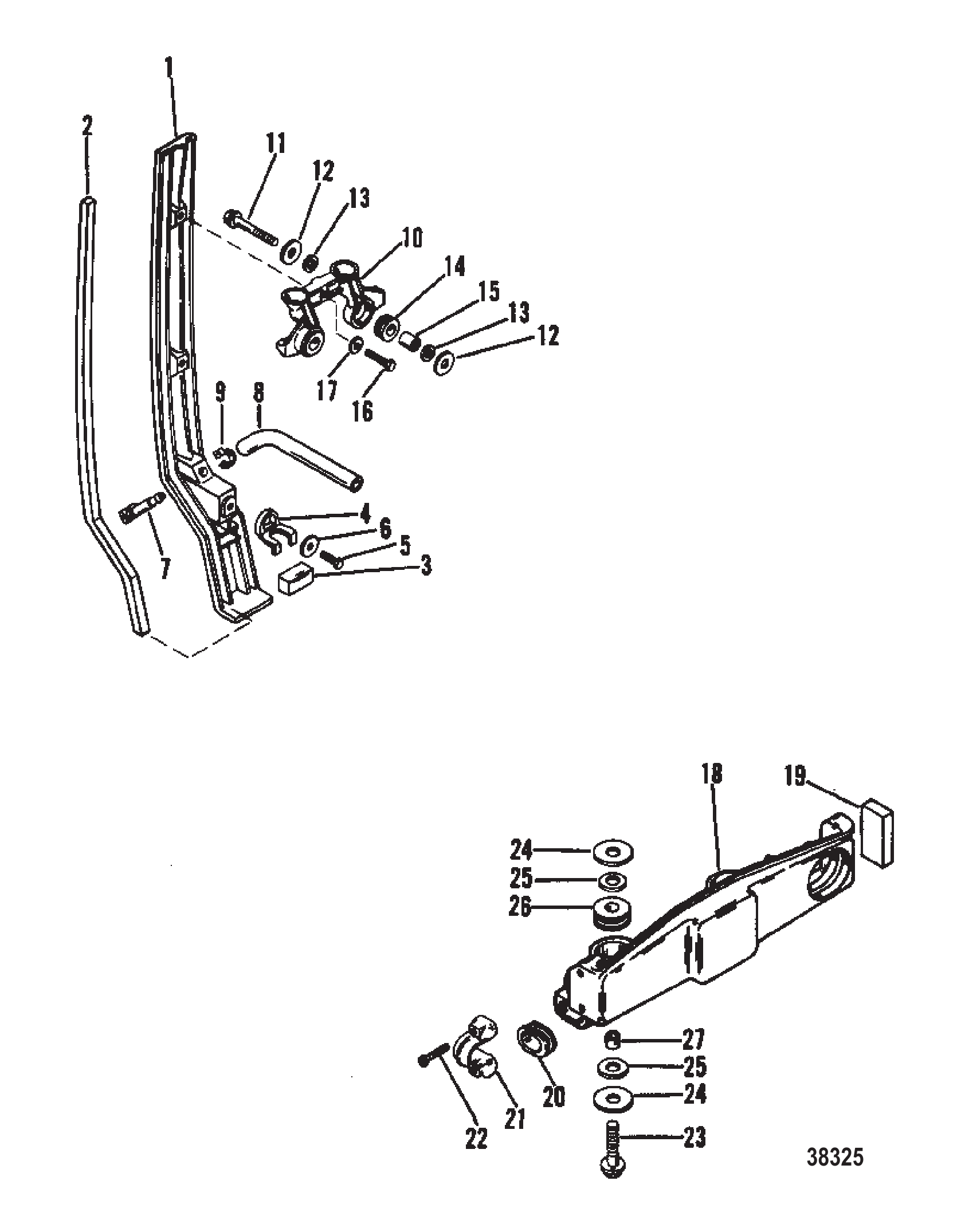

图 10罩壳安装支架 COWL MOUNTING BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	42965A1	盖密封支架总成	BRACKET ASSEMBLY COWL SEAL	1
1	42965A2	盖密封支架总成	BRACKET ASSEMBLY COWL SEAL	1
2	183061	支架密封条	SEAL BRACKET	2
3	42935	密封件	SEAL	1
4	42908	限位器	RESTRAINT	1
5	400015	限位器螺钉 (M5 x 10)	SCREW (M5 x 10) RESTRAINT	1
6	43423	限位器螺钉垫圈	WASHER RESTRAINT SCREW	1
6	42118	垫圈	WASHER	1
7	42907	示警器接头	CONNECTOR TELL TALE	1
8	9912976	示警器软管	TUBING TELL TALE	1
8	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
9	73498	卡箍	CLAMP	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
10	932641	壳体铰链	HOUSING HINGE	2
10	932642	壳体	HOUSING	2
11	4009560	壳体螺钉	SCREW HOUSING	4
11	8M0103817	螺钉 (M8 x 60)	SCREW (M8 x 60)	4
12	93853	壳体螺钉垫圈	WASHER HOUSING SCREW	8
12	814803	垫圈	WASHER	8
13	53705	壳体螺钉垫圈	WASHER HOUSING SCREW	8
13	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	8
14	88033	壳体螺钉衬套	GROMMET HOUSING SCREW	4
15	14395	壳体螺钉轴套	BUSHING HOUSING SCREW	4
16	4000120	壳体至支架螺钉 (M5 x 25)	SCREW (M5 x 25) HOUSING TO BRACKET	2
17	43423	壳体螺钉垫圈	WASHER HOUSING SCREW	2
17	42118	垫圈	WASHER	2
18	42952T	前支架支撑	BRACKET SUPPORT (FRONT)	1
18	42952T6	前支架支撑	BRACKET SUPPORT (FRONT)	1
19	67260	控制线密封套	SEAL CONTROL CABLES	1
20	67272	支架衬套	GROMMET BRACKET	2
21	88621	控制线固定座	RETAINER CONTROL CABLES	1
21	99447T	控制线固定座	RETAINER CONTROL CABLES	1
21	99447	固定座	RETAINER	1
22	40057109	固定座螺钉 (M5 x 25)	SCREW (M5 x 25) RETAINER	2
22	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
23	4011135	支架螺钉 (M8 x 1.25 x 35)	SCREW (M8 x 1.25 x 35) BRACKET	2
23	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
24	93853	支架螺钉垫圈	WASHER BRACKET SCREW	4
24	814803	垫圈	WASHER	4
25	53705	支架螺钉垫圈	WASHER BRACKET SCREW	4
25	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4
26	88033	支架衬套	GROMMET BRACKET	2
27	14395	支架螺钉轴套	BUSHING BRACKET SCREW	2

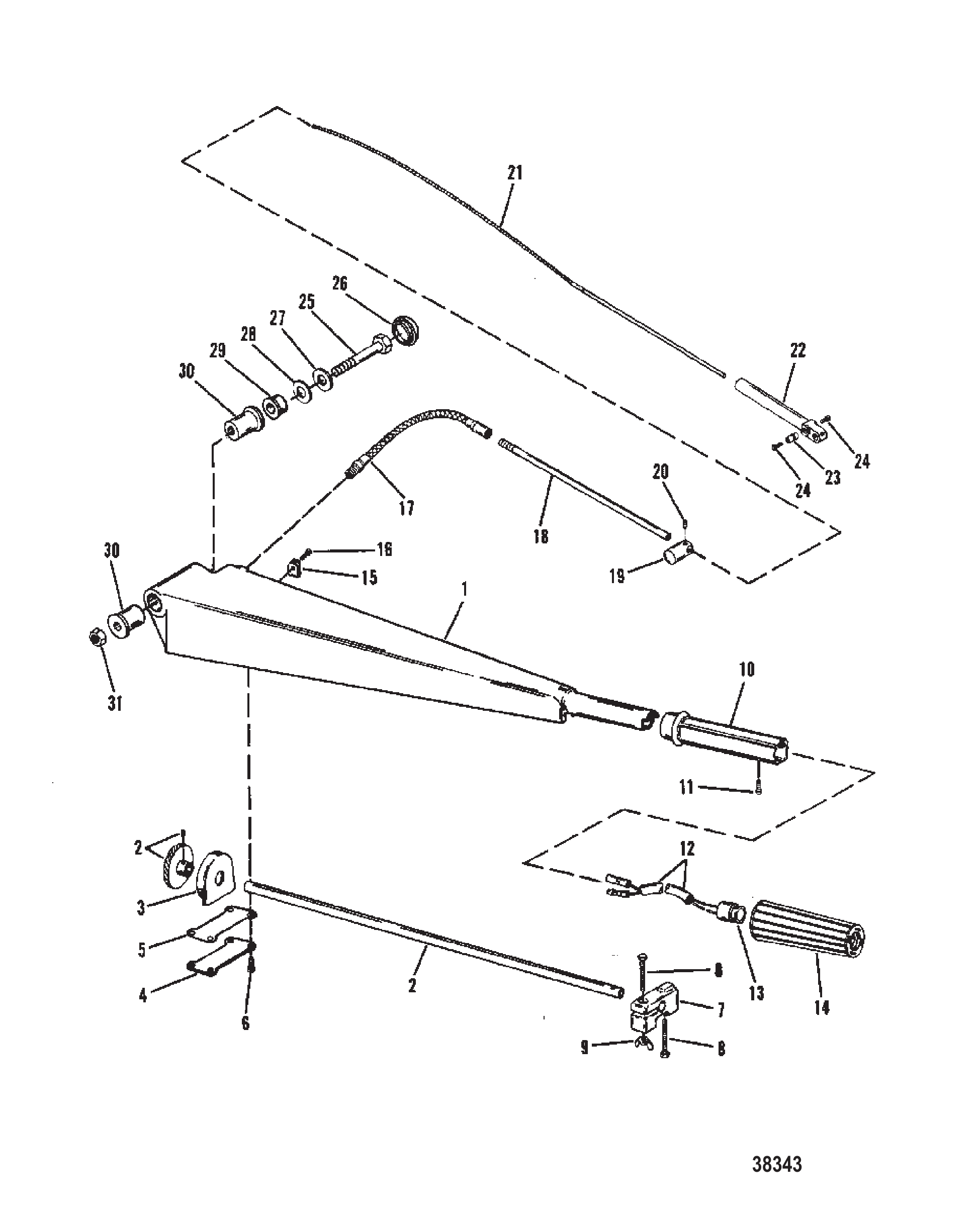

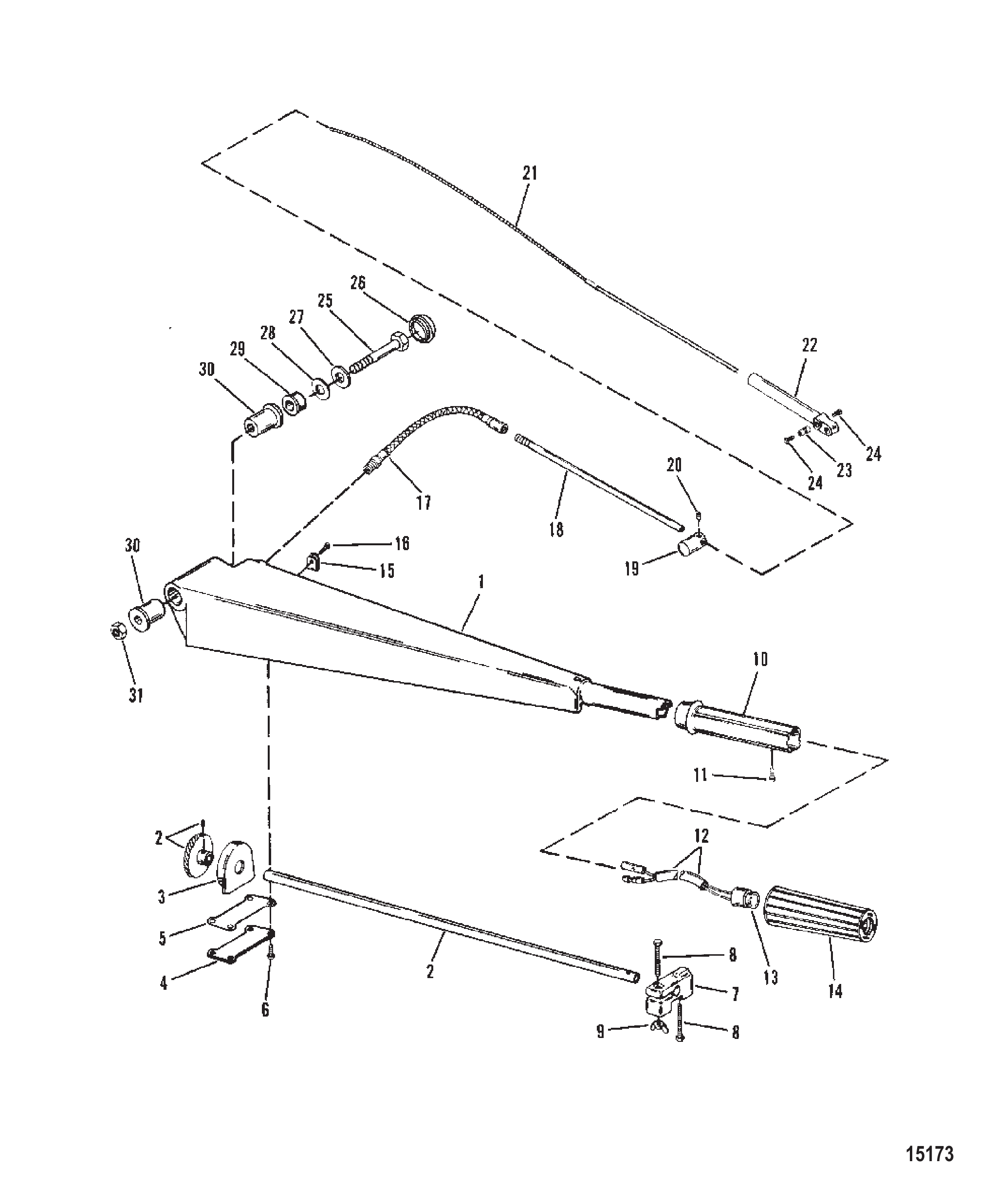

图 11转向手柄组件 Steering Handle Components

REF	零件编号	中文名称	英文名称	数量
1	12020T	转向臂	ARM Steering	1
1	12020T6	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
2	12018A1	油门拉线管总成	TUBE ASSEMBLY Throttle	1
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	72169	板用螺钉(#10-24 x 0.500)	SCREW (#10-24 x .500) PLATE	4
7	12013	油门夹	CLAMP THROTTLE	1
8	40007112	油门夹螺钉(M5 x 40)	SCREW (M5 x 40) THROTTLE CLAMP	2
9	90052	油门夹蝶形螺母	WING NUT THROTTLE CLAMP SCREW	1
10	96495A2	油门手柄总成	HANDLE ASSEMBLY Throttle	1
11	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
12	15823A4	停机开关总成	SWITCH ASSEMBLY Stop	1
13	11099A1	护套总成	BOOT ASSEMBLY	1
14	99589	握把	GRIP	1
15	26538	卡扣	CLIP	1
16	72169	卡箍螺钉(#10-24 x 0.500)	SCREW (#10-24 x .500) CLIP	1
17	785512	导管	CONDUIT	1
18	895661	导向管	GUIDE TUBE	1
19	89578	套筒	BARREL	1
20	89601	螺钉	SCREW	1
21	12019	拉线总成	CABLE ASSEMBLY	1
22	29880	导向拉线	GUIDE CABLE	1
23	20007	锚定件	ANCHOR	1
24	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
25	4000386	螺钉(M10 x 100)	SCREW (M10 x 100)	1
26	48416	盖帽	CAP	1
27	4002319	垫圈	WASHER	1
28	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
29	14601	隔套	SPACER	1
30	42992	衬套	BUSHING	2
31	400204	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1

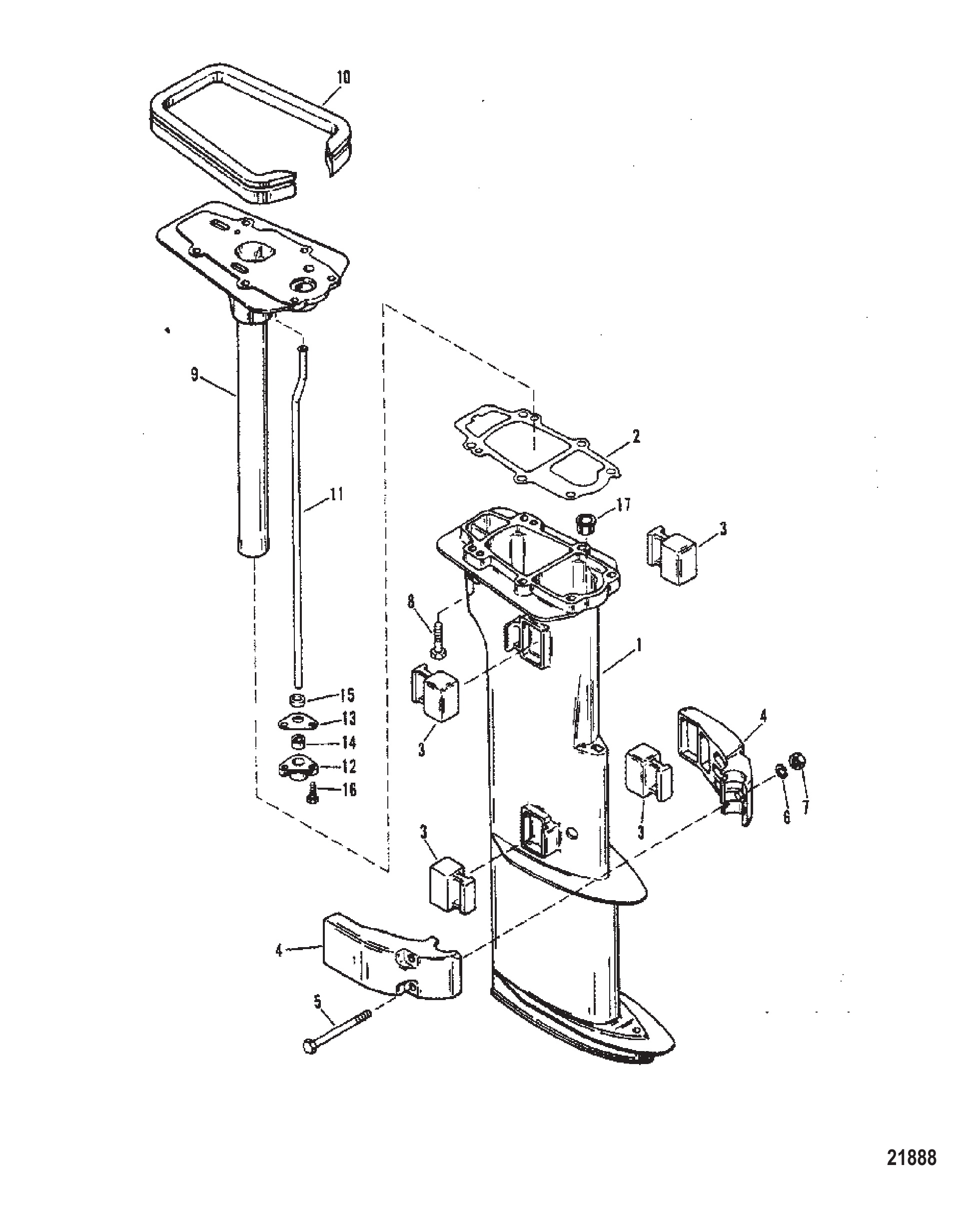

图 12驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	858576T03	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
3	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
3	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	8M0214963	垫圈	WASHER	5
5	40140	螺母(M10)	NUT (M10)	5
6	85822A15	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
7	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
8	85822	直通接头	CONNECTOR Straight	1
8	85822T	直通接头	CONNECTOR Straight	1
9	44343T1	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
10	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
11	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
12	43528	螺母(M12)	NUT (M12)	2
12	8M0204662	螺母	NUT	2
13	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
14	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
15	858916T	卡箍	CLAMP	2
16	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
17	858745	盖帽	CAP	4
17	8M0142713	支撑盖帽	CAP Chap Support	4
18	859550	衬套	BUSHING	1
19	24873	定位销	PIN Alignment	1
20	855622	接头	FITTING	1
21	12092A3	隔套套件	SPACER KIT	1
22	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
22	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
23	813745	隔套	SPACER	1
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

图 13曲轴活塞/连杆(#646-818846) Crankshaft Pistons/Connecting Rods (#646-818846)

REF	零件编号	中文名称	英文名称	数量
1	9001A3	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43011	下滚珠轴承	BEARING Ball Lower	1
2	43011T	滚珠轴承	BEARING Ball	1
3	786611	耐磨套	WEAR SLEEVE	1
4	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
5	818412A4	环组件	RING ASSEMBLY	1
6	91800	半圆键	KEY Woodruff	2
7	43019A1	齿轮总成	GEAR ASSEMBLY	1
8	43013A1	上滚柱轴承总成	BEARING ASSEMBLY Roller Upper	1
8	43013T3	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43993	油封	SEAL Oil	1
9	8M0214932	密封件	SEAL	1
10	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
11	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
12	815965A4	活塞总成标准型	PISTON ASSEMBLY Standard	3
12	815965T4	活塞总成	PISTON ASSY	3
12	815965A5	活塞总成(.015)加大尺寸	PISTON ASSEMBLY (.015) Oversize	AR
12	815965A6	活塞总成(.030)加大尺寸	PISTON ASSEMBLY (.030) Oversize	AR
13	52035	锁环	RING Lock	6
13	857196	锁紧环	LOCK RING	6
14	96170A12	活塞环组标准	RING SET Piston Standard	1
14	96170A3	活塞环组(.015)加大尺寸	RING SET Piston (.015) Oversize	AR
14	96170A4	活塞环组(.030)加大尺寸	RING SET Piston (.030) Oversize	AR
15	818846A3	连杆总成	CONNECTING ROD ASSEMBLY	3
15	818846T6	连杆总成	CONNECTING ROD ASSEMBLY	3
16	812876	垫圈	WASHER	6
16	8M0012298	止推垫片	THRUST WASHER	6
17	818391	滚针轴承	BEARING Needle	87
17	8M0214954	滚针轴承@200	BRG-NEEDLE @200	87
18	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	6
19	816567A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
19	8M0235070	轴承保持架	CAGE BEARING	3

图 14动力升降泵 POWER TRIM PUMP

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
5	12663	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
7	12661	电枢套件	ARMATURE KIT	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

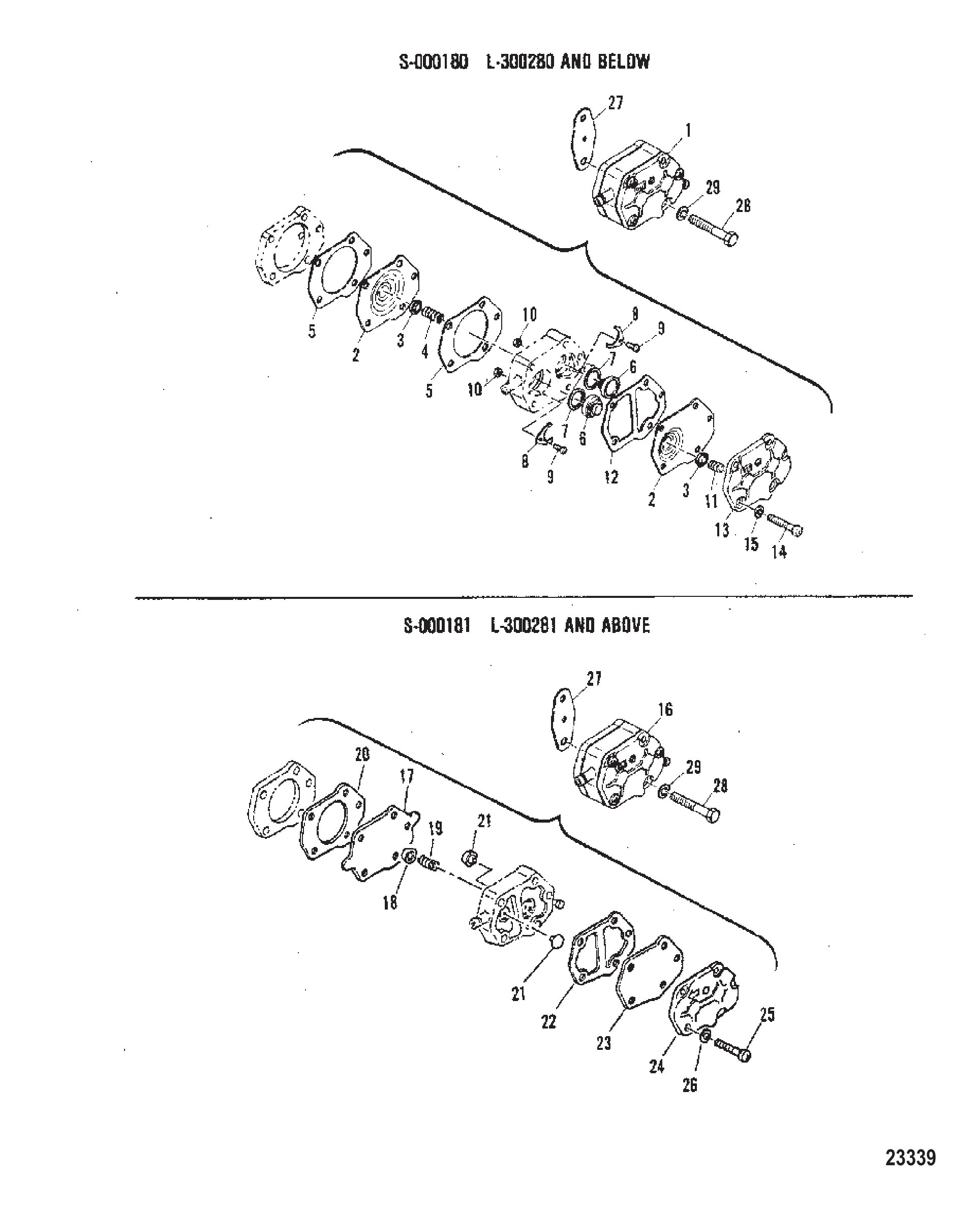

图 15燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

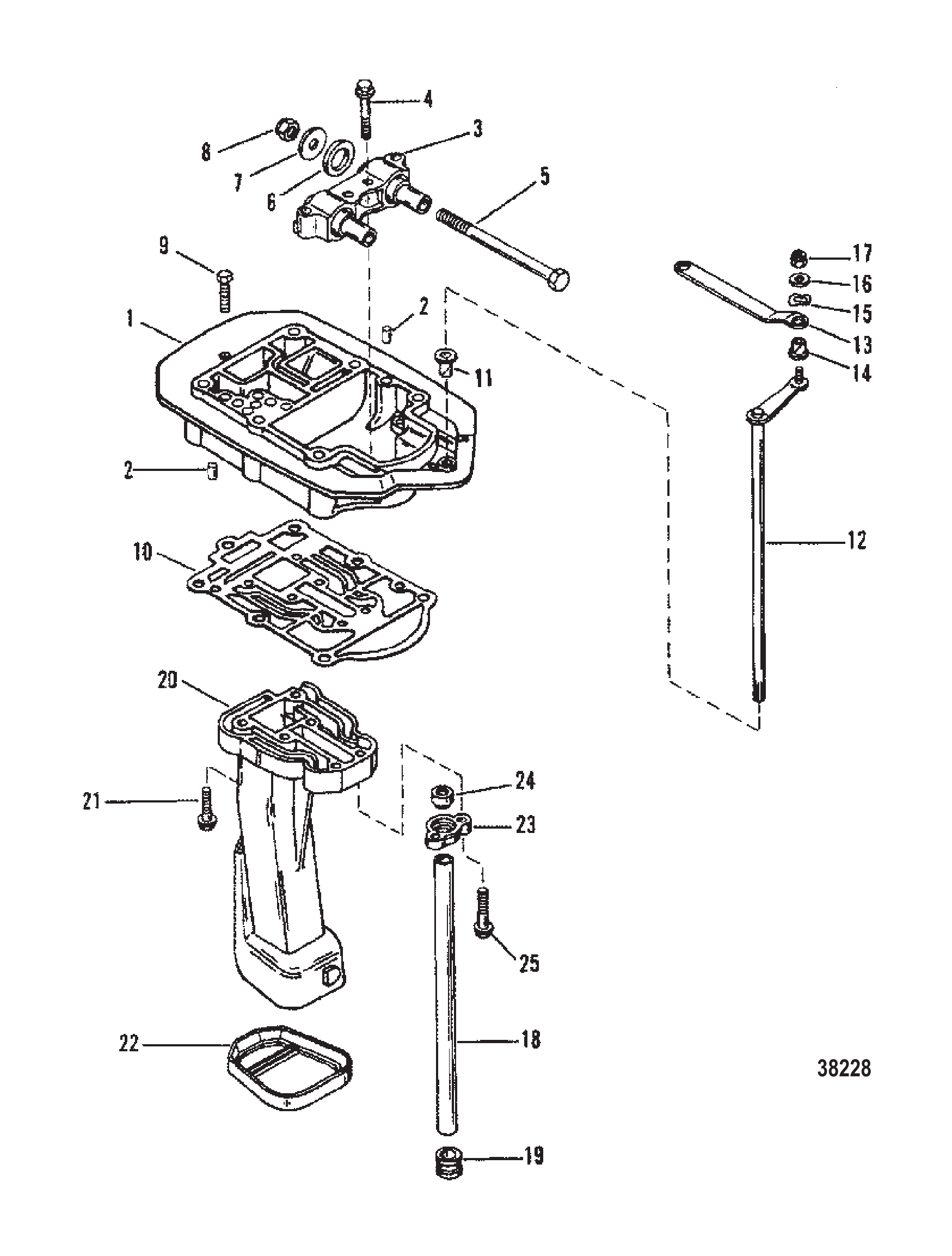

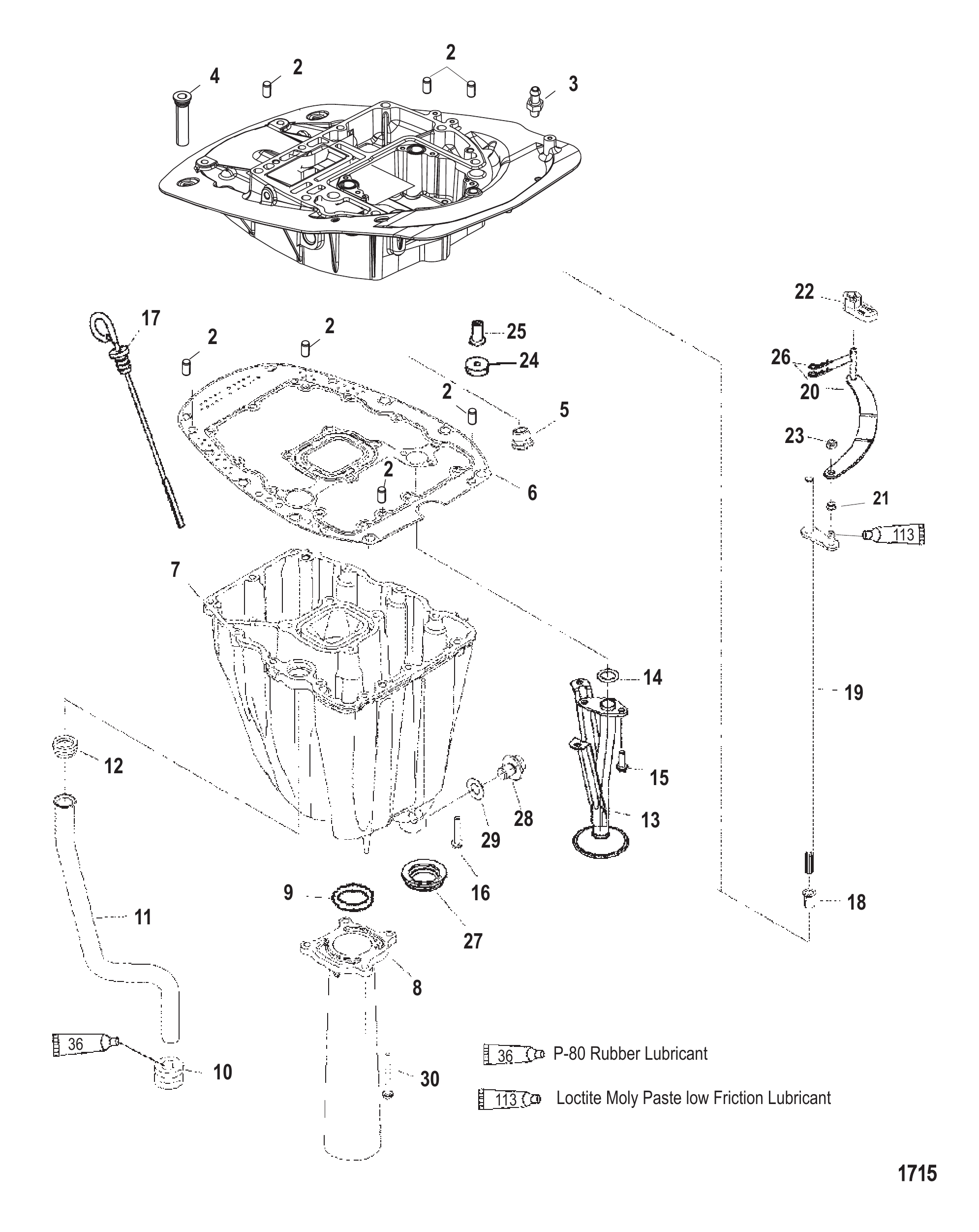

图 16排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	858582T	适配板总成	ADAPTER PLATE ASSEMBLY	1
2	23784	定位销	PIN Dowel	7
3	880090	接头	FITTING	1
4	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
5	126021	护孔环	GROMMET	1
5	12602002	护孔环	GROMMET	1
6	8585831	衬垫	GASKET	1
7	858572T	油底壳	SUMP Oil	1
7	858572T01	油底壳	SUMP Oil	1
8	858584A1	排气管总成	TUBE ASSEMBLY Exhaust	1
9	881295	O型圈	O-RING	1
10	894171	护孔环	GROMMET	1
10	89417004	护孔环	GROMMET	1
11	858575	水管	TUBE Water	1
11	8M0026130	水管	TUBE Water	1
11	8585751	水管	TUBE Water	1
11	8M0026129	水管	TUBE Water	1
12	814080	上密封件	SEAL Upper	1
12	814080001	密封件	SEAL	1
13	858571T	机油吸油管	TUBE Oil Pick Up	1
14	859082	O型圈	O-RING	1
15	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
15	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
16	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	12
16	8M0214957	螺钉	SCREW	12
17	8596021	量油尺	DIPSTICK	1
18	48237	衬套	BUSHING	1
19	858577A2	换档轴	SHIFT SHAFT	1
19	858577A3	换档杆总成	LEVER ASSY-SHIFT	1
20	859177A3	换挡连杆	SHIFT LINK	1
21	NSS	不单独销售衬套	NOT SOLD SEPARATE Bushing	1
22	879997	换档滑块	SHIFT SLIDER	1
23	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
24	813745	隔套	SPACER	1
24	11289	隔套	SPACER	1
25	43585	联轴器	COUPLING	1
26	859746	开口销	COTTER PIN	2
27	858573	密封件	SEAL	1
27	8M0039073	密封件	SEAL	1
28	8288181	放油塞	PLUG Drain	1
29	828816	衬垫	GASKET	1
29	8M0204692	衬垫@5	GASKET @5	1
30	82483213	螺钉(M6 x 60)	SCREW (M6 x 60)	4

图 17燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

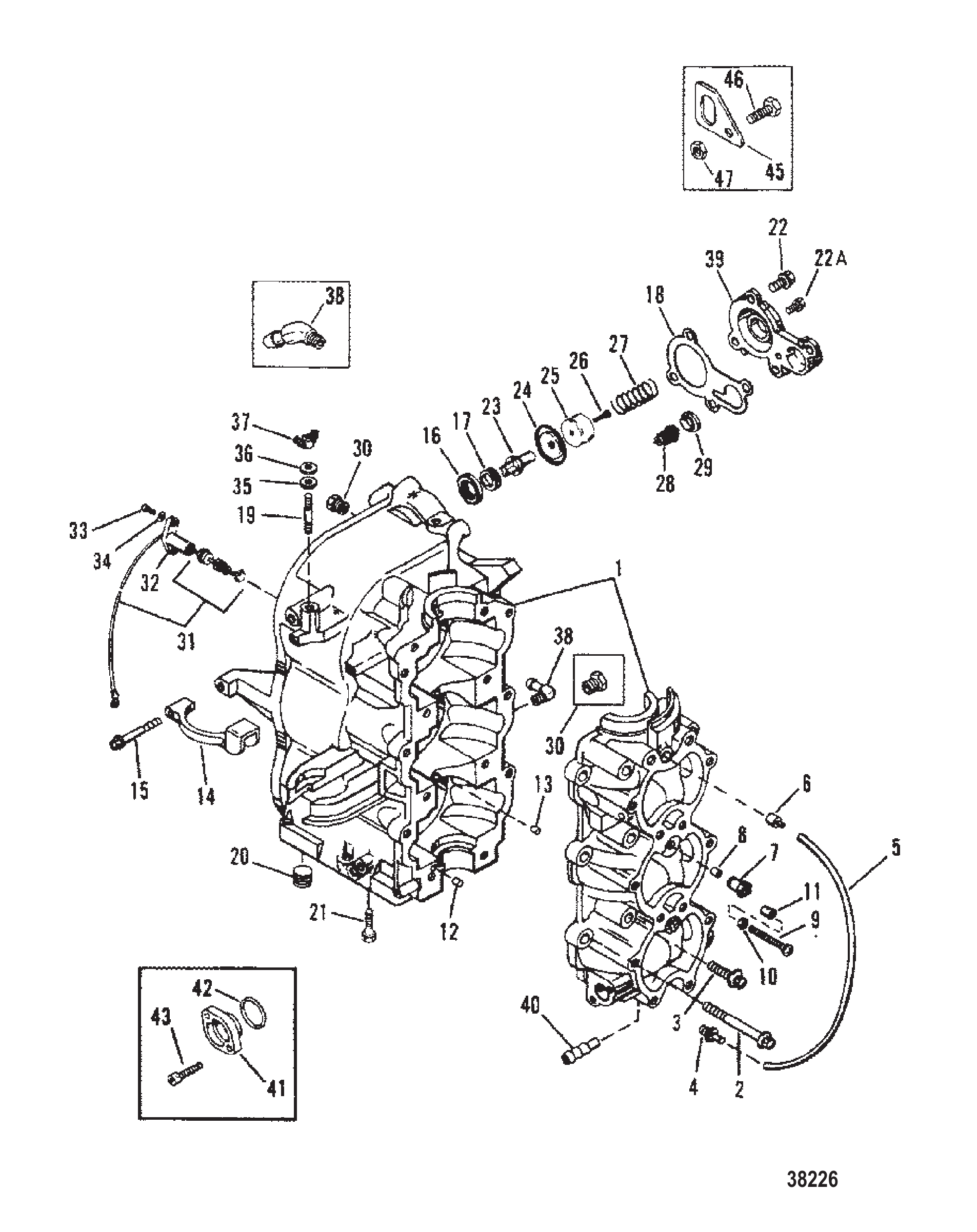

图 18气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE

REF	零件编号	中文名称	英文名称	数量
1	9755A9	气缸体	CYLINDER BLOCK	1
1	9755A14	气缸体	CYLINDER BLOCK	1
1	9755T14	气缸体	CYLINDER BLOCK	1
1	9755A10	气缸体	CYLINDER BLOCK	1
1	9755T10	气缸体	CYLINDER BLOCK	1
1	9755A15	气缸体	CYLINDER BLOCK	1
1	9755T15	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	42658	止回阀	CHECK VALVE	1
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材(20英尺散装)(16英寸)	TUBING (20.00 Feet Bulk) (16")	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
6	426233	止回阀	CHECK VALVE	1
7	812888A1	托架总成	CARRIER ASSEMBLY	2
8	42657A1	止回阀	CHECK VALVE	2
8	42657A3	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	20033	定位销	PIN Dowel (LOCATING)	1
12	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
13	812870	主轴承座中心销	PIN Center Main (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	18597	盖板	COVER	1
15	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
16	65848	托架	CARRIER	1
17	64872	护孔环	GROMMET	1
18	8128671	衬垫	GASKET	1
18	8128672	衬垫	GASKET	1
19	8161941	螺柱	STUD	2
19	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
20	18598	管塞	PIPE PLUG	4
20	185981	管塞(.375-18)	PLUG Pipe (.375-18)	4
21	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
22	81742720	螺钉(M8 x 20)(55号件用3个)	SCREW (M8 x 20) (QTY. OF 3 ON 55)	4
22	40011149	不锈钢螺钉(M8 x 25)(55号件用3个)	SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)	4
22A	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
23	8128821	提动阀	POPPET	1
24	812887	隔膜	DIAPHRAGM	1
24	8128871	隔膜	DIAPHRAGM	1
24	812887002	隔膜	DIAPHRAGM	1
25	94182	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	90392	弹簧	SPRING	1
27	18336	弹簧	SPRING	1
27	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
28	75692	节温器	THERMOSTAT	1
28	14586	节温器	THERMOSTAT	1
29	62386	衬垫	GASKET	1
29	8M0204714	衬垫@4	GASKET @4	1
30	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
30	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	99664	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	78279	弯头	ELBOW	1
38	8M0207781	弯头	ELBOW	1
39	19074	盖板	COVER	1
39	190741	盖板	COVER	1
39	8M0036859	盖板	COVER	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129961	盖板	COVER	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
45	821595	吊环	LIFTING EYE	1
46	821616	螺钉	SCREW	1
46	821606	螺钉	SCREW	1
47	400265	螺母 (M8)	NUT (M8)	1
47	401368	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 19杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

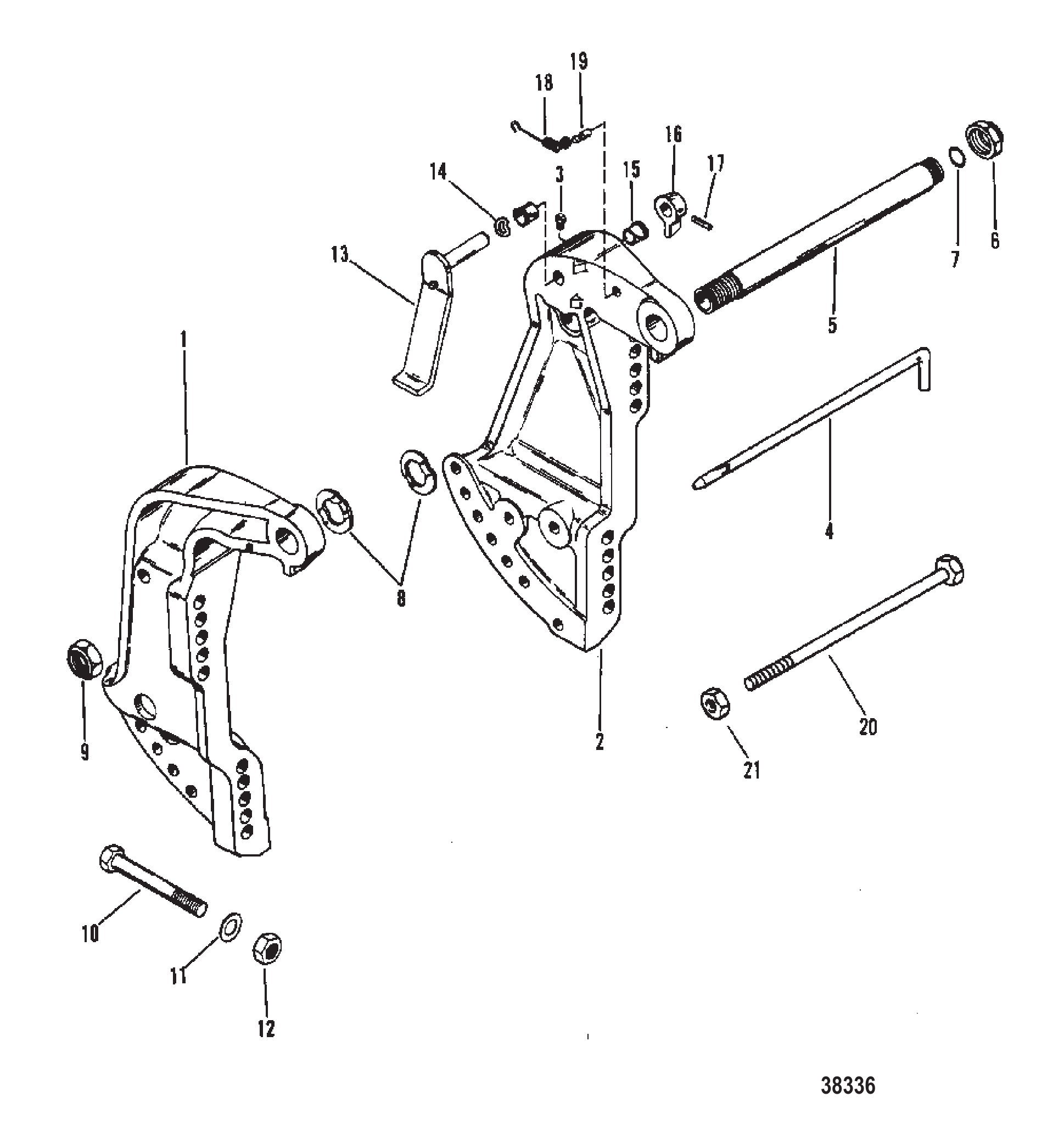

图 20艉板支架 Transom Bracket

REF	零件编号	中文名称	英文名称	数量
1	828334F1	艉板支架	BRACKET Transom	1
2	828333A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	828333T07	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
4	826125A1	倾斜管	TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
5	82671327	螺母(1.0-14)	NUT (1.0-14)	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	830899	张力弹簧	SPRING Tension	1
14	821176T1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1
20	818771T1	锚支架	BRACKET Anchor	1
20	8M0086406	锚支架	BRACKET Anchor	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2

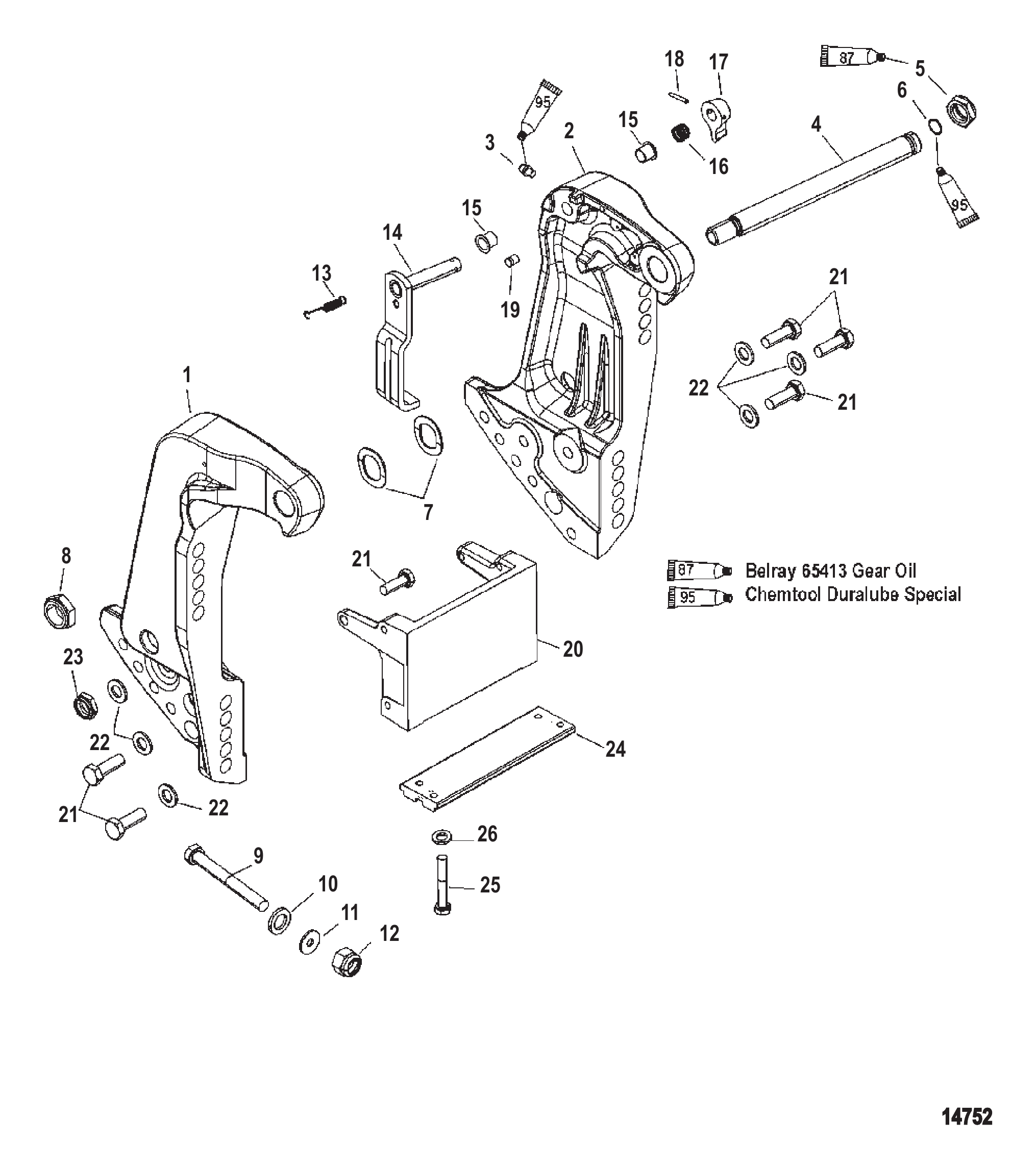

图 21艉板支架 TRANSOM BRACKET

REF	零件编号	中文名称	英文名称	数量
1	828334F1	艉板支架	BRACKET Transom	1
2	828333A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	828333T07	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
4	826125A1	倾斜管	TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
5	82671327	螺母(1.0-14)	NUT (1.0-14)	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	830899	张力弹簧	SPRING Tension	1
14	821176T1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1
20	818771T1	锚支架	BRACKET Anchor	1
20	8M0086406	锚支架	BRACKET Anchor	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2

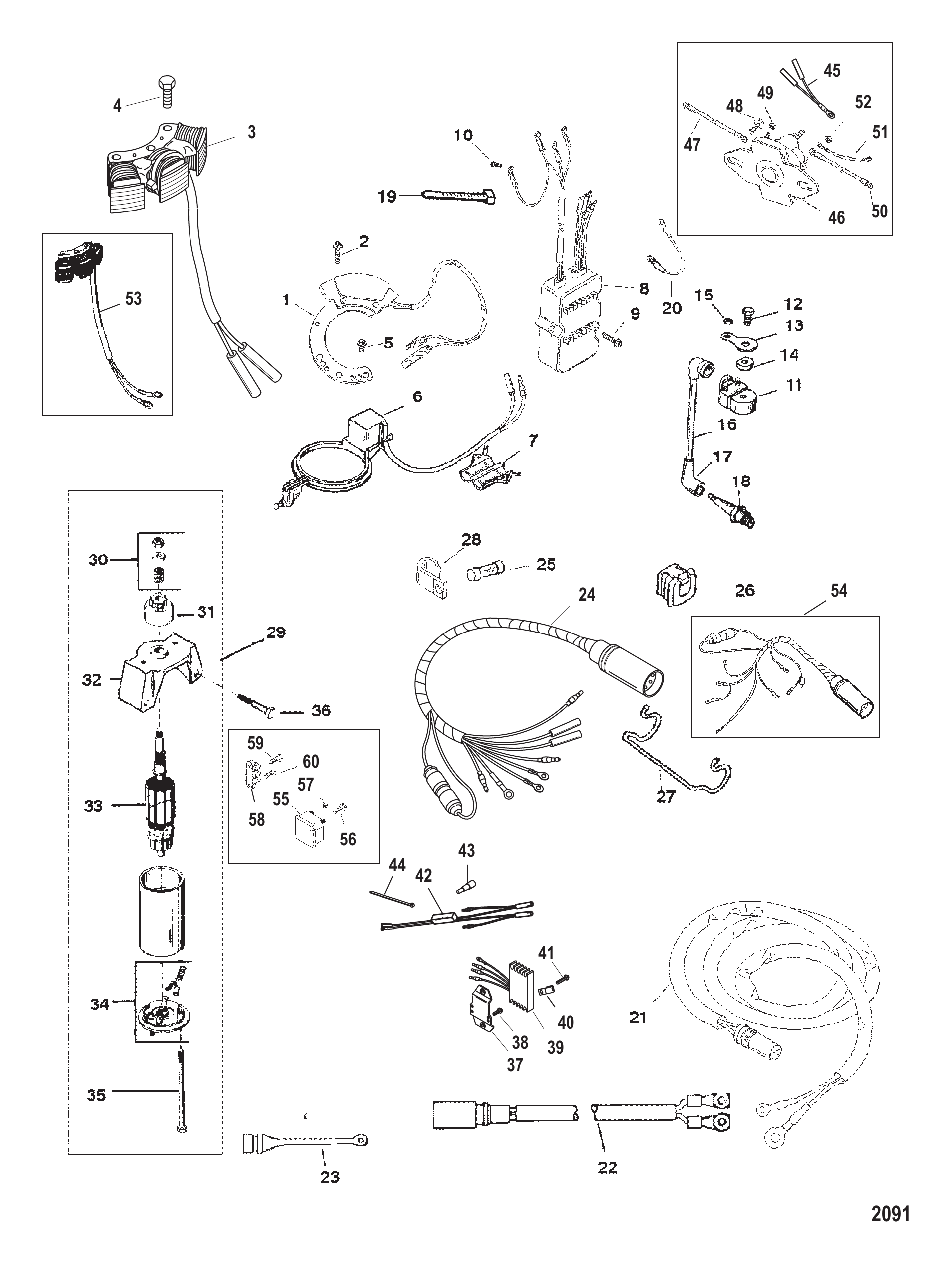

图 22电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	881363T	盖板	COVER	1
2	881364T2	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
2	881364T1	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
3	804291	保险丝20安培	FUSE 20 Ampere	4
3	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
4	80429110	30安保险丝	FUSE 30 Ampere	4
4	8M0057159	30A保险丝	FUSE-30A	4
0	891824010	保险丝盖	COVER Fuse	4
0	891824020	保险丝盖	COVER Fuse	4
5	804289	保险丝拔取器	PULLER Fuse	1
6	881362	支架	BRACKET	1
7	8813511	螺钉	SCREW	1
8	881352T	继电器	RELAY	1
8	8M0098898	继电器	RELAY	1
9	82214M	垫圈	WASHER	2
10	881355	锁紧垫圈	LOCKWASHER	2
10	82212M	锁紧垫圈	LOCKWASHER	2
11	881354	螺钉	SCREW	2
11	96671M	螺钉	SCREW	2
12	804284	护套	BOOT	2
12	804284001	护套	BOOT	2
13	881350T	继电器	RELAY	1
14	881351	螺钉	SCREW	1
15	881353	卡箍	CLAMP	1
16	8813511	螺钉	SCREW	1
17	881359T	支架	BRACKET	1
17	881363A01	盖/支架套件	COVER/BRACKET KIT	1
18	881361	卡箍	CLAMP	1
19	881360	卡箍	CLAMP	1
20	804270	螺栓(M6×28)	BOLT (M6 x 28)	5
21	881304	护孔环	GROMMET	5
22	82851M	衬套	BUSHING	5
22	804344003	轴环	COLLAR	5
23	881356T1	继电器总成	RELAY ASSEMBLY	1
23	882751A3	升降继电器套件	RELAY KIT Trim	1
24	881357	引线	LEAD WIRE	1
25	881358	盖帽	CAP	1
26	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	825702	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
27	8257021	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
28	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
29	88439A33	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
30	88439A10	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
31	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
32	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
32	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
33	858723T1	适配器/升降线束总成	HARNESS ASSEMBLY Adapter/Trim	1
34	858914T1	升降马达适配器线束总成	HARNESS ASSEMBLY Trim Motor Adaptor	1
35	858740T4	遥控适配器线束总成	HARNESS ASSEMBLY Adapter Assembly Remote	1
36	92753	固定座	RETAINER	1
37	859249T1	连接器	CONNECTOR	1
38	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
39	8272822	高压警告标贴	DECAL Warning High Voltage	1
40	881865	挂档启动警示标贴	DECAL Caution-Start in Gear Start in Gear	1
41	828151A2	升降继电器套件	TRIM RELAY KIT	1
41	882751A3	升降继电器套件	RELAY KIT Trim	1
42	826802A24	升降线束总成	HARNESS ASSEMBLY Trim	1
43	828151A1	继电器总成	RELAY ASSEMBLY	2
43	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
44	818967	护孔环	GROMMET	1
44	8M0207785	护孔环	GROMMET	1
45	818968	衬套	BUSHING	1
45	8M0214955	衬套	BUSHING	1
46	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
47	828102	支架	BRACKET	1
47	8M0207771	安装支架	BRACKET Mounting	1
48	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
49	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
49	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
50	823807	衬套	BUSHING	1

图 23旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

图 24动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

图 25进气歧管与簧片阀组 INDUCTION MANIFOLD AND REED BLOCK

REF	零件编号	中文名称	英文名称	数量
1	812865	衬垫	GASKET	1
2	9812A9	下端盖总成	END CAP ASSEMBLY Lower	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A2	支架总成	BRACKET ASSEMBLY	1
7	19077A3	支架总成	BRACKET ASSEMBLY	1
8	8161941	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	19076A3	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
14	19725	弯头(55号件含2个)	ELBOW (QTY. OF 2 ON 55)	1
15	812869	衬垫	GASKET	1
16	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
17	19075A2	簧片阀总成	REED BLOCK ASSEMBLY	1
17	8M0219197	簧片阀总成	REED BLOCK ASSY	1
18	812868	衬垫	GASKET	1
19	812880A1	簧片组(0.008厚度)	REED SET (0.008 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
19	812880A2	簧片组件(0.010厚度)	REED ASSEMBLY (0.010 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
20	42982	锁紧垫圈	TAB WASHER	3
20	429821	锁紧垫圈	TAB WASHER	3
21	812879	固定座	RETAINER	3
21	812879002	簧片压板	RETAINER Reed	3
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
23	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
24	42981	锁紧垫圈	TAB WASHER	2
25	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
26	988851	滑块	SLIDE	1
27	48475	衬套(II型)	BUSHING (DESIGN II)	1
27	42994	衬套	BUSHING	1
28	29720	波形垫圈	WAVE WASHER	1
29	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
30	400634	螺母 (M6)	NUT (M6)	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	400634	螺母 (M6)	NUT (M6)	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	15026	进气歧管盖	CAP (FOR USE ON INDUCTION MANIFOLD)	3
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

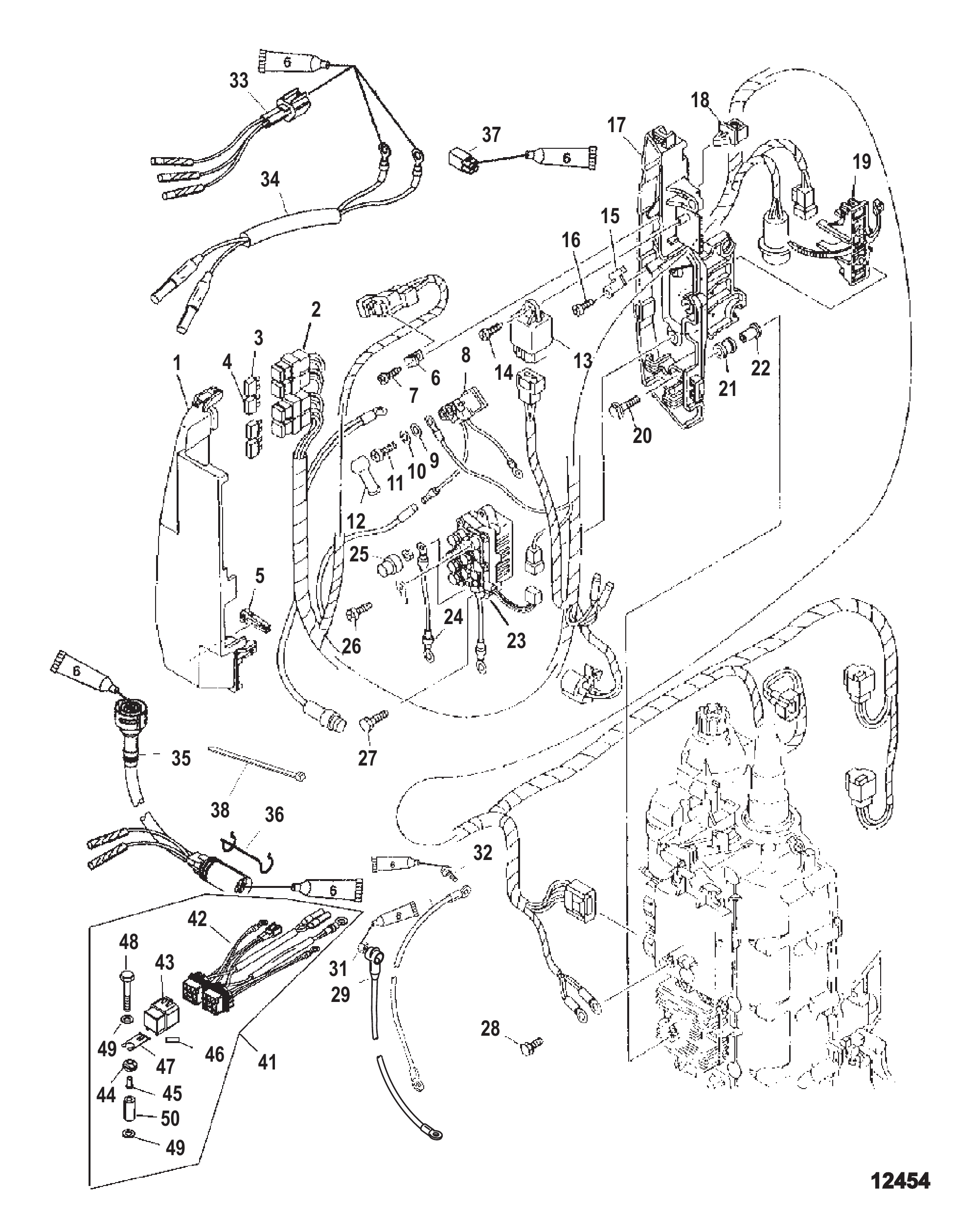

图 26电气组件 ELECTRICAL COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	881363T	盖板	COVER	1
2	881364T2	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
2	881364T1	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
3	804291	保险丝20安培	FUSE 20 Ampere	4
3	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
4	80429110	30安保险丝	FUSE 30 Ampere	4
4	8M0057159	30A保险丝	FUSE-30A	4
0	891824010	保险丝盖	COVER Fuse	4
0	891824020	保险丝盖	COVER Fuse	4
5	804289	保险丝拔取器	PULLER Fuse	1
6	881362	支架	BRACKET	1
7	8813511	螺钉	SCREW	1
8	881352T	继电器	RELAY	1
8	8M0098898	继电器	RELAY	1
9	82214M	垫圈	WASHER	2
10	881355	锁紧垫圈	LOCKWASHER	2
10	82212M	锁紧垫圈	LOCKWASHER	2
11	881354	螺钉	SCREW	2
11	96671M	螺钉	SCREW	2
12	804284	护套	BOOT	2
12	804284001	护套	BOOT	2
13	881350T	继电器	RELAY	1
14	881351	螺钉	SCREW	1
15	881353	卡箍	CLAMP	1
16	8813511	螺钉	SCREW	1
17	881359T	支架	BRACKET	1
17	881363A01	盖/支架套件	COVER/BRACKET KIT	1
18	881361	卡箍	CLAMP	1
19	881360	卡箍	CLAMP	1
20	804270	螺栓(M6×28)	BOLT (M6 x 28)	5
21	881304	护孔环	GROMMET	5
22	82851M	衬套	BUSHING	5
22	804344003	轴环	COLLAR	5
23	881356T1	继电器总成	RELAY ASSEMBLY	1
23	882751A3	升降继电器套件	RELAY KIT Trim	1
24	881357	引线	LEAD WIRE	1
25	881358	盖帽	CAP	1
26	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	825702	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
27	8257021	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
28	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
29	88439A33	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
30	88439A10	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
31	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
32	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
32	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
33	858723T1	适配器/升降线束总成	HARNESS ASSEMBLY Adapter/Trim	1
34	858914T1	升降马达适配器线束总成	HARNESS ASSEMBLY Trim Motor Adaptor	1
35	858740T4	遥控适配器线束总成	HARNESS ASSEMBLY Adapter Assembly Remote	1
36	92753	固定座	RETAINER	1
37	859249T1	连接器	CONNECTOR	1
38	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
39	8272822	高压警告标贴	DECAL Warning High Voltage	1
40	881865	挂档启动警示标贴	DECAL Caution-Start in Gear Start in Gear	1
41	828151A2	升降继电器套件	TRIM RELAY KIT	1
41	882751A3	升降继电器套件	RELAY KIT Trim	1
42	826802A24	升降线束总成	HARNESS ASSEMBLY Trim	1
43	828151A1	继电器总成	RELAY ASSEMBLY	2
43	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
44	818967	护孔环	GROMMET	1
44	8M0207785	护孔环	GROMMET	1
45	818968	衬套	BUSHING	1
45	8M0214955	衬套	BUSHING	1
46	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
47	828102	支架	BRACKET	1
47	8M0207771	安装支架	BRACKET Mounting	1
48	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
49	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
49	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
50	823807	衬套	BUSHING	1

图 27机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	830889A4	油箱总成	TANK ASSEMBLY	1
2	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
3	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
5	814449A3	盖总成	CAP ASSEMBLY	1
6	42999	衬垫	GASKET	1
6	42999T	衬垫	GASKET	1
7	856156A2	开关总成	SWITCH ASSEMBLY	1
7	856156T02	开关总成	SWITCH ASSEMBLY	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
8	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
9	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
10	855362	护孔环	GROMMET	3
10	855362001	护孔环	GROMMET	3
11	855364	衬套	BUSHING	3
-	8742A20	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
-	8742A22	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
12	87421	油箱	TANK	1
13	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
13	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
14	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
15	43298A2	盖总成	CAP ASSEMBLY	2
16	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
17	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
18	99802	管	TUBE	1
19	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
20	12335A1	支架套件	BRACKET KIT	1
21	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

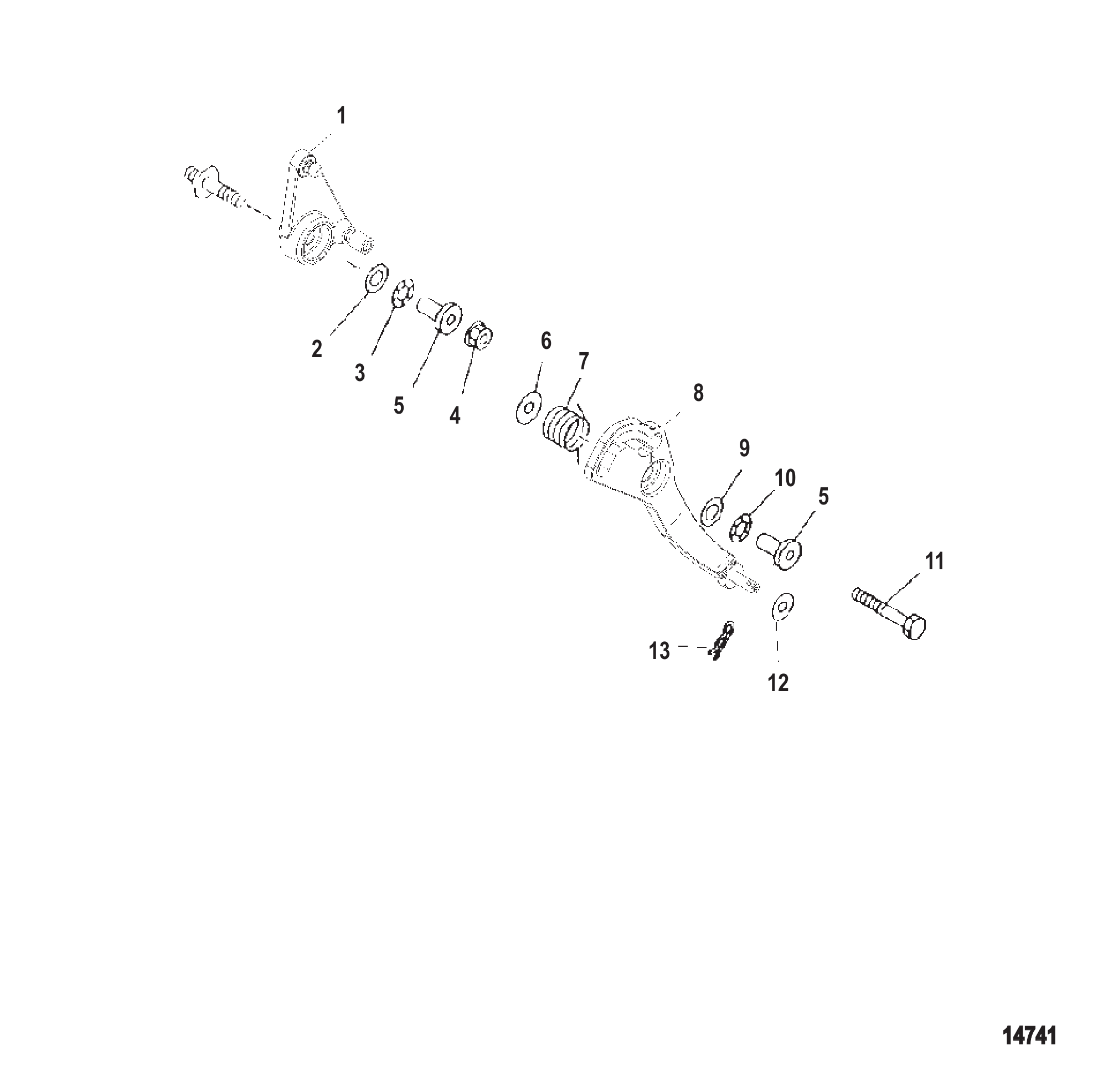

图 28油门杆与联动装置 THROTTLE LEVER AND LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	878550	油门杆	LEVER Throttle	1
2	84974M	垫圈	WASHER	1
3	81868M	波形垫圈	WAVE WASHER	1
4	8528162	螺母	NUT	1
5	881378	轴环	COLLAR	2
6	94524M	垫圈	WASHER	1
7	804343	弹簧	SPRING	1
8	878548	节气门控制杆	LEVER Throttle Control	1
9	84974M	垫圈	WASHER	1
10	81868M	波形垫圈	WAVE WASHER	1
11	881375	螺栓 (M6 x 30)	BOLT (M6 x 30)	1
12	35459	垫圈	WASHER	1
13	859746	开口销	COTTER PIN	1

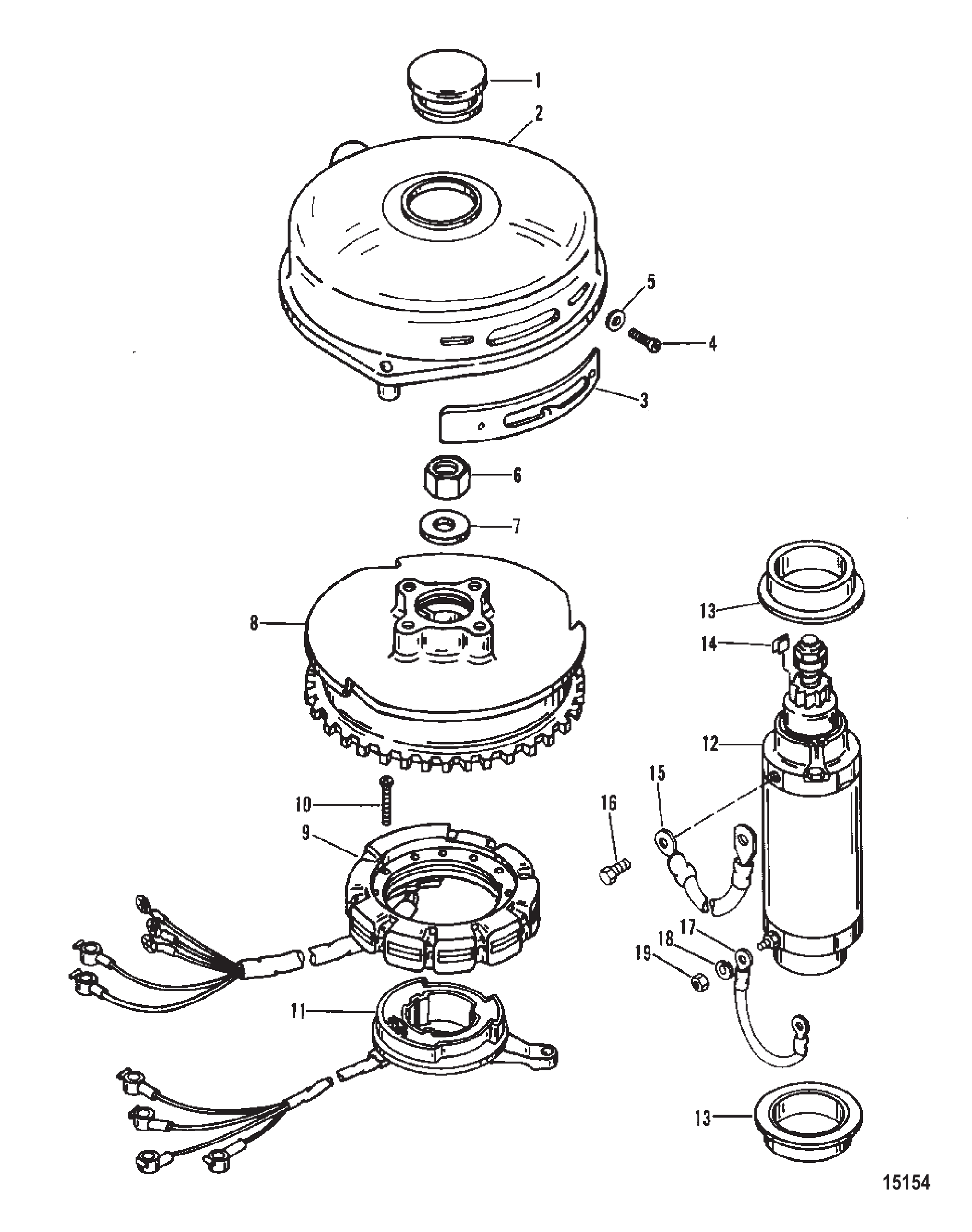

图 29飞轮与启动电机 Flywheel and Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
2	42956A1	飞轮盖总成	COVER ASSEMBLY FLYWHEEL	1
3	79022	正时标记	MARKER TIMING	1
4	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
5	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
6	42979	螺母(M16)飞轮	NUT (M16) FLYWHEEL	1
7	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	9008A16	飞轮总成	FLYWHEEL ASSEMBLY	1
9	8778A10	定子总成	STATOR ASSEMBLY	1
10	4007325	螺钉(M5x25)定子	SCREW (M5 x 25) STATOR	4
11	99021A3	触发器总成	TRIGGER ASSEMBLY	1
12	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	56703	启动电机轴环	COLLAR STARTER MOTOR	2
14	57247	启动电机橡胶止动块	STOP RUBBER-STARTER MOTOR	2
15	93388A1	电缆总成(6.00英寸) 黑色起动机至安装板	CABLE ASSEMBLY (6.00 Inches) Black STARTER MOTOR TO PLATE	1
16	69035	螺钉与锁紧垫圈(.250-20 x .625) 不锈钢导线至起动机	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel WIRE TO STARTER MOTOR	1
17	88439A20	起动机导线(黑色)	WIRE STARTER MOTOR (BLACK)	1
18	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
19	64015	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1

图 30气缸体与曲轴箱 Cylinder Block and Crankcase

REF	零件编号	中文名称	英文名称	数量
1	9755A9	气缸体	CYLINDER BLOCK	1
1	9755A14	气缸体	CYLINDER BLOCK	1
1	9755T14	气缸体	CYLINDER BLOCK	1
1	9755A10	气缸体	CYLINDER BLOCK	1
1	9755T10	气缸体	CYLINDER BLOCK	1
1	9755A15	气缸体	CYLINDER BLOCK	1
1	9755T15	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	42658	止回阀	CHECK VALVE	1
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材(20英尺散装)(16英寸)	TUBING (20.00 Feet Bulk) (16")	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
6	426233	止回阀	CHECK VALVE	1
7	812888A1	托架总成	CARRIER ASSEMBLY	2
8	42657A1	止回阀	CHECK VALVE	2
8	42657A3	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	20033	定位销	PIN Dowel (LOCATING)	1
12	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
13	812870	主轴承座中心销	PIN Center Main (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	18597	盖板	COVER	1
15	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
16	65848	托架	CARRIER	1
17	64872	护孔环	GROMMET	1
18	8128671	衬垫	GASKET	1
18	8128672	衬垫	GASKET	1
19	8161941	螺柱	STUD	2
19	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
20	18598	管塞	PIPE PLUG	4
20	185981	管塞(.375-18)	PLUG Pipe (.375-18)	4
21	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
22	81742720	螺钉(M8 x 20)(55号件用3个)	SCREW (M8 x 20) (QTY. OF 3 ON 55)	4
22	40011149	不锈钢螺钉(M8 x 25)(55号件用3个)	SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)	4
22A	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
23	8128821	提动阀	POPPET	1
24	812887	隔膜	DIAPHRAGM	1
24	8128871	隔膜	DIAPHRAGM	1
24	812887002	隔膜	DIAPHRAGM	1
25	94182	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	90392	弹簧	SPRING	1
27	18336	弹簧	SPRING	1
27	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
28	75692	节温器	THERMOSTAT	1
28	14586	节温器	THERMOSTAT	1
29	62386	衬垫	GASKET	1
29	8M0204714	衬垫@4	GASKET @4	1
30	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
30	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	99664	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	78279	弯头	ELBOW	1
38	8M0207781	弯头	ELBOW	1
39	19074	盖板	COVER	1
39	190741	盖板	COVER	1
39	8M0036859	盖板	COVER	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129961	盖板	COVER	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
45	821595	吊环	LIFTING EYE	1
46	821616	螺钉	SCREW	1
46	821606	螺钉	SCREW	1
47	400265	螺母 (M8)	NUT (M8)	1
47	401368	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

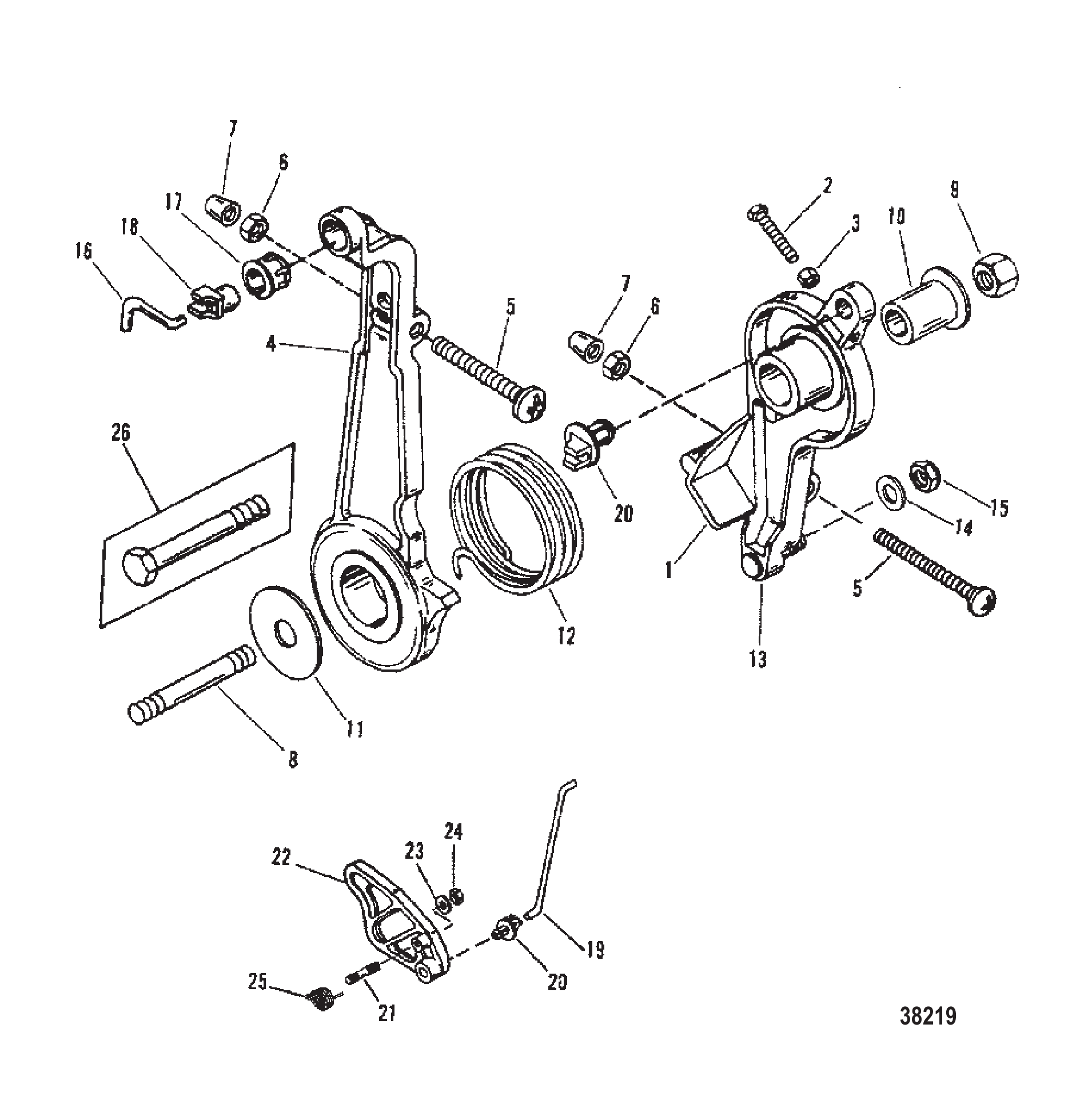

图 31油门杆与连杆 Throttle Lever And Linkage

REF	零件编号	中文名称	英文名称	数量
1	878550	油门杆	LEVER Throttle	1
2	84974M	垫圈	WASHER	1
3	81868M	波形垫圈	WAVE WASHER	1
4	8528162	螺母	NUT	1
5	881378	轴环	COLLAR	2
6	94524M	垫圈	WASHER	1
7	804343	弹簧	SPRING	1
8	878548	节气门控制杆	LEVER Throttle Control	1
9	84974M	垫圈	WASHER	1
10	81868M	波形垫圈	WAVE WASHER	1
11	881375	螺栓 (M6 x 30)	BOLT (M6 x 30)	1
12	35459	垫圈	WASHER	1
13	859746	开口销	COTTER PIN	1

图 32化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	9012A14	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A15	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A16	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A24	化油器	CARBURETOR	1
1	9012A25	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A26	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A5	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A6	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A7	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A17	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A18	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A19	化油器总成	CARBURETOR ASSEMBLY	1
2	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
3	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
4	9589	燃油杯	BOWL Fuel	1
4	9590	燃油杯	BOWL Fuel	2
5	9591	油门轴 (上/下)	SHAFT Throttle (UPPER/LOWER)	2
6	9592	油门轴 (中段)	SHAFT Throttle (MIDDLE)	1
7	9593	油门阀	VALVE Throttle	3
7	9609	油门阀	VALVE Throttle	3
8	9594	浮子	FLOAT	3
9	NSS	不单独销售浮子轴	NOT SOLD SEPARATE FLOAT SHAFT	3
10	9595	进油针阀	VALVE Inlet Needle	3
11	9596	主量孔塞	PLUG MAIN JET	3
12	NSS	不单独销售塞衬垫	NOT SOLD SEPARATE GASKET-PLUG	3
13	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
14	15172	法兰衬垫	GASKET FLANGE	3
15	NSS	不单独销售油门阀螺钉	NOT SOLD SEPARATE SCREW-THROTTLE VALVE	6
16	9597	盖板螺钉	SCREW COVER PLATE	6
17	5132	燃油杯螺钉	SCREW FUEL BOWL	12
18	9598	盖板	COVER PLATE	3
19	4216	主量孔 (.064)	JET (.064) MAIN FUEL	3
19	6029	主量孔 (.068)	JET (.068) MAIN FUEL	3
19	6207	主量孔 (.072)	JET (.072) MAIN FUEL	3
20	8423	通气孔 (.094)	JET (.094) VENT (.094)	3
21	NSS	不单独销售喷油嘴衬垫	NOT SOLD SEPARATE GASKET-NOZZLE WELL	3
22	NSS	不单独销售怠速针弹簧	NOT SOLD SEPARATE SPRING-IDLE NEEDLE	3
23	NSS	不单独销售油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	3
24	NSS	不单独销售怠速空气弹簧	NOT SOLD SEPARATE SPRING-IDLE AIR	3
25	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
26	NSS	不单独销售怠速空气针	NOT SOLD SEPARATE IDLE AIR NEEDLE	3
-	9602	衬垫套件	GASKET KIT
-	9599	维修套件	REPAIR KIT

图 33转向手柄组件 STEERING HANDLE COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12020T	转向臂	ARM Steering	1
1	12020T6	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A4	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
2	12018A1	油门拉线管总成	TUBE ASSEMBLY Throttle	1
2	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	72169	板用螺钉(#10-24 x 0.500)	SCREW (#10-24 x .500) PLATE	4
7	12013	油门夹	CLAMP THROTTLE	1
7	889729	卡箍	CLAMP	1
8	40007112	油门夹螺钉(M5 x 40)	SCREW (M5 x 40) THROTTLE CLAMP	2
9	90052	油门夹蝶形螺母	WING NUT THROTTLE CLAMP SCREW	1
9	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
10	96495A2	油门手柄总成	HANDLE ASSEMBLY Throttle	1
10	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
11	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
12	15823A4	停机开关总成	SWITCH ASSEMBLY Stop	1
12	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
13	11099A1	护套总成	BOOT ASSEMBLY	1
14	99589	握把	GRIP	1
14	8M0221732	外握把	GRIP OUTER	1
15	26538	卡扣	CLIP	1
15	648552	卡扣	CLIP	1
16	72169	卡箍螺钉(#10-24 x 0.500)	SCREW (#10-24 x .500) CLIP	1
17	785512	导管	CONDUIT	1
17	8885242	导管	CONDUIT	1
18	895661	导向管	GUIDE TUBE	1
18	8M0026078	导向管	TUBE-GUIDE	1
19	89578	套筒	BARREL	1
20	89601	螺钉	SCREW	1
20	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
21	12019	拉线总成	CABLE ASSEMBLY	1
22	29880	导向拉线	GUIDE CABLE	1
22	8M0204660	导套	GUIDE	1
23	20007	锚定件	ANCHOR	1
24	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
24	8M0204644	螺钉组	SCREW SET	2
25	4000386	螺钉(M10 x 100)	SCREW (M10 x 100)	1
26	48416	盖帽	CAP	1
27	4002319	垫圈	WASHER	1
28	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
29	14601	隔套	SPACER	1
29	146011	隔套	SPACER	1
30	42992	衬套	BUSHING	2
30	812930A1	衬套	BUSHING	2
31	400204	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
31	400214	螺母(M10不锈钢)	NUT (M10) Stainless Steel	1

图 34齿轮箱螺旋桨轴 Gear Housing Propeller Shaft

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
51	76039	换挡凸轮控制	CAM Shift Control	1
51	760394	换挡凸轮控制	CAM Shift Control	1
52	38374A1	轴承杯与齿轮箱调整垫片组(.002-3-5-10)	SHIM SET Bearing Cup to Gear Housing (.002-3-5-10)	AR
53	38356A1	轴承套件	BEARING SET	1
54	55608A4	前进齿轮总成	GEAR ASSEMBLY Forward	1
54	55608T4	前进齿轮总成	GEAR ASSY-FORWARD	1
55	21739	前进齿轮滚柱轴承	BEARING Roller Foward Gear	1
56	38441	凸轮从动件	FOLLOWER Cam	1
57	20843	十字销滑套	SLIDE Cross Pin	1
58	38114	十字销固定弹簧	SPRING Retaining - Cross Pin	1
59	92911	滑动离合器棘轮	RATCHET Sliding Clutch	1
59	92911T	离合器	CLUTCH	1
60	38113	棘轮到螺旋桨轴十字销	PIN Cross Ratchet to Propeller Shaft	1
60	8M0020942	十字销@2	PIN-CROSS @2	1
61	39845	凸轮从动件压缩弹簧	SPRING Compression - Cam Follower	1
62	75365	螺旋桨轴	PROPELLER SHAFT	1
63	79158	倒挡齿轮	GEAR Reverse	1
63	79158T	倒挡齿轮	GEAR-REVERSE	1
64	32004	倒档齿轮止推垫片	WASHER Thrust - Reverse Gear	1
65	20839	倒档齿轮滚珠轴承	BEARING Ball Reverse Gear	1
65	20839T	滚珠轴承	BEARING Ball	1
66	31986	轴承座O型圈	O-RING Bearing Carrier	1
67	69386A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	69386T1	轴承座总成	CARRIER ASSY-BRG	1
68	21700	轴承座滚针轴承	BEARING Needle Bearing Carrier	1
69	69188	轴承座油封	SEAL Oil Bearing Carrier	1
69	8M0205511	油封	SEAL Oil	1
70	69189	轴承座油封	SEAL Oil Bearing Carrier	1
70	8M0203757	油封	SEAL Oil	1
71	30281	轴承座定位键	KEY Locating - Bearing Carrier	1
72	53012	齿轮箱盖锁紧垫片	TAB WASHER Gear Housing Cover	1
73	87763	齿轮箱螺母	NUT Gear Housing	1
74	31640A1	齿轮箱平衡片总成	TRIM TAB ASSEMBLY Gear Housing	1
74	31640Q4	平衡鳍板	TRIM TAB	1
75	66024	平衡片固定螺丝(.437-14 x 1.75)	SCREW (.437-14 x 1.75) Trim Tab to Gear Housing	1
76	45175	驱动轴壳体螺柱垫片(.406 x .750 x .104)(0.375英寸)	WASHER (.406 x .750 x .104) Driveshaft Housing Stud (0.375 Inch)	1
76	8M0214963	垫圈	WASHER	1
77	34863	驱动轴壳体螺柱螺母(.375-24)	NUT (.375-24) Driveshaft Housing Stud	1
77	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
78	65791	壳体与螺柱垫片(0.437英寸)	WASHER Housing to Stud (0.437 Inch)	1
79	34933	不锈钢螺柱螺母(.437-20)	NUT (.437-20) Stainless Steel Stud	1
79	8M0204653	螺母	NUT	1
80	73345A1	前止推垫片	THRUST WASHER Front	1
81	76281	螺旋桨螺母锁紧垫片	TAB WASHER Propeller Nut	1
81	8M0214942	锁紧垫片	WASHER Tab	1
82	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
82	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 35化油器与衰减板 Carburetor And Attenuator Plate

REF	零件编号	中文名称	英文名称	数量
1	9012A14	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A24	化油器	CARBURETOR	1
1	9012A71	化油器	CARBURETOR	1
1	9012A5	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A17	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A15	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A25	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A72	化油器	CARBURETOR	1
2	9012A6	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A18	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A16	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A26	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A73	化油器	CARBURETOR	1
3	9012A7	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A19	化油器总成	CARBURETOR ASSEMBLY	1
4/5	15172	化油器衬垫	GASKET CARBURETOR	6
4/5	151724	衬垫	GASKET	6
6	9912846	化油器间连接管	TUBING CARBURETOR TO CARBURETOR	2
6	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	2
7	73498	卡箍	CLAMP	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	962558	连杆	LINK ROD	1
8	8M0084744	连接杆	LINK	1
9	11399A1	臂总成	ARM ASSEMBLY	1
10	40057103	螺丝(M5 x 6)臂	SCREW (M5 x 6) ARM	1
11	56681	垫圈(0.203 x 0.500 x 0.032)臂螺丝	WASHER (.203 x .500 x .032) ARM SCREW	1
11	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
12	67748	滚轮	ROLLER	1
13	988861	调节连杆	LINK ADJUSTING	2
13	98886T01	油门调节连杆	LINK-THRTL ADJUST	2
14	98887	油门连杆	LINK Throttle	1
14	98887T	连接杆	LINK	1
15	48409	螺丝(#10-16 x 0.625)不锈钢连杆	SCREW (#10-16 x .625) Stainless Steel LINK	4
16	42970T	消音器板总成	PLATE ASSEMBLY SOUND ATTENUATOR	1
16	42970A2	衰减器板总成	PLATE ASSEMBLY Attenuator	1
17	4002217	化油器双头螺栓垫圈	WASHER CARBURETOR STUDS	6
18	400645	化油器双头螺栓螺母	NUT CARBURETOR STUDS	6
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	6
19	39519	杯形固定器	CUP RETAINER	1
20	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
21	42975	锁扣至板驱动螺丝	DRIVE SCREW LATCH TO PLATE	2
22	43000	消音器盖衬垫	GASKET ATTENUATOR COVER	1
22	430001	衬垫	GASKET	1
23	42969T	消音器盖	COVER ATTENUATOR	1
23	42969A3	消音器盖总成	COVER ASSEMBLY Attenuator	1
24	48409	螺丝(#10-16 x 0.625)不锈钢消音器盖	SCREW (#10-16 x .625) Stainless Steel ATTENUATOR COVER	8
25	56681	垫圈(0.203 x 0.500 x 0.032)连杆螺丝	WASHER (.203 x .500 x .032) LINK SCREW	4
25	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
-	43004A86	衬垫套件	GASKET SET
-	43004A99	动力头衬垫套件	GASKET SET Powerhead

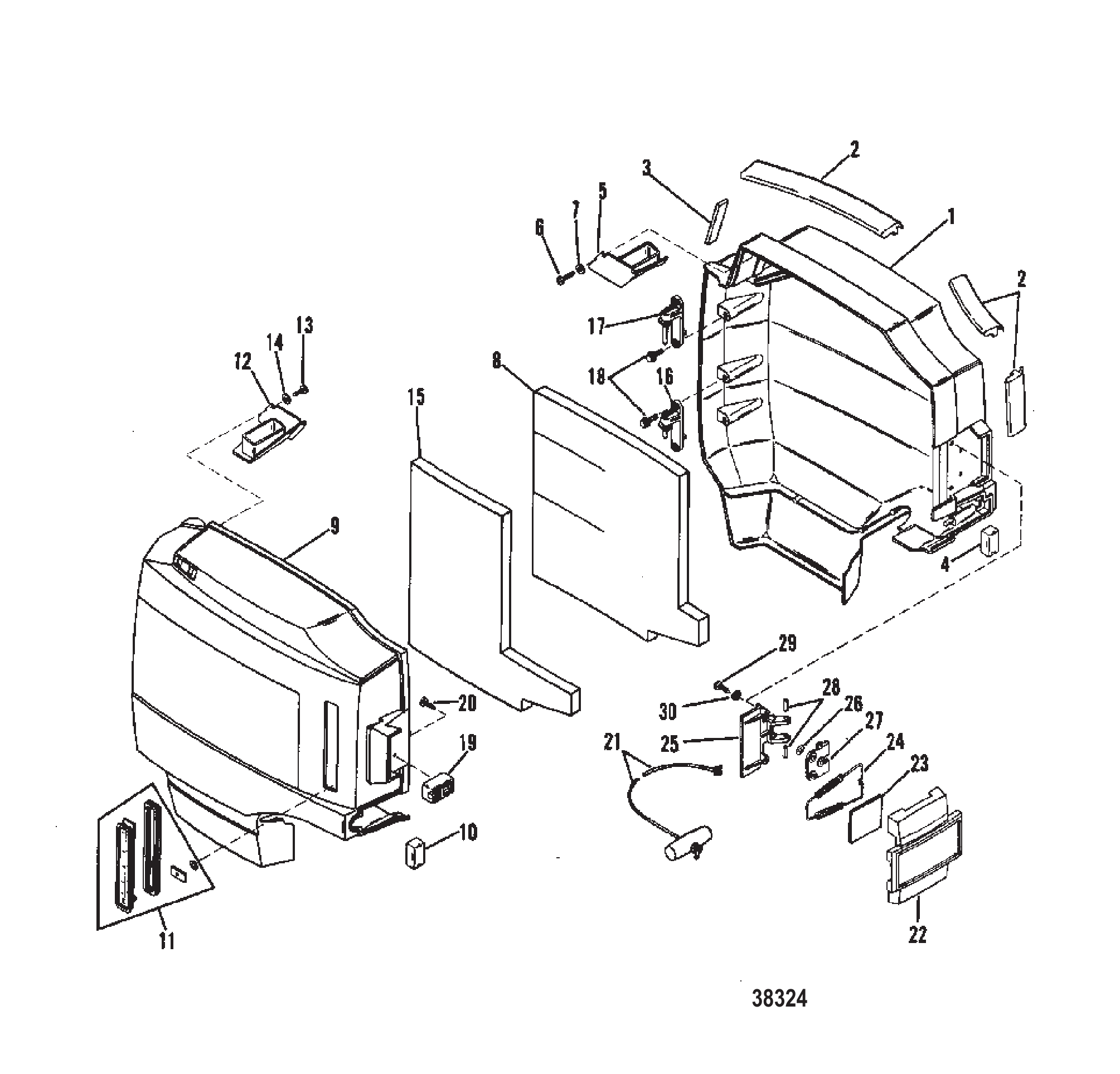

图 36罩壳与前盖 Cowls and Front Cover

REF	零件编号	中文名称	英文名称	数量
1	9006A2	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
1	9006A3	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
2	429404	上盖密封条	SEAL UPPER COWL	3
3	12401	后盖密封条	SEAL COWL (REAR)	1
4	90274	密封件	SEAL	1
5	42958	进气口护罩	SHIELD AIR INLET	1
6	48409	护罩螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel SHIELD	3
7	4002213	护罩螺钉垫圈	WASHER SHIELD SCREW	3
7	4002313	垫圈	WASHER	3
8	435331	隔音毯	SOUND BLANKET	1
9	9070A1	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A4	顶盖总成	TOP COWL ASSEMBLY	1
9	9070A2	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A5	顶盖总成	TOP COWL ASSEMBLY	1
9	9005A1	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A4	顶盖总成	TOP COWL ASSEMBLY	1
9	9005A2	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A5	顶盖总成	TOP COWL ASSEMBLY	1
10	60297	密封件	SEAL	1
11	11315A1	油位计总成	OIL LEVEL GAUGE ASSEMBLY	1
12	42957	进气口护罩	SHIELD AIR INLET	1
13	48409	护罩螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel SHIELD	3
14	4002213	护罩螺钉垫圈	WASHER SHIELD SCREW	3
14	4002313	垫圈	WASHER	3
15	435342	隔音毯	SOUND BLANKET	1
16	87985	下支架	BRACKET (LOWER)	2
16	879851	支架	BRACKET	2
17	87987	上支架	BRACKET (UPPER)	2
17	879871	支架	BRACKET	2
18	4009525	支架螺钉	SCREW BRACKET	8
18	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	8
19	12081	盖锁扣	LATCH Cowl	1
19	120811	盖锁扣	LATCH Cowl	1
20	48409	锁扣螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel LATCH	3
21	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start (MANUAL STARTING)	1
21	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
22	43138A2	水星盖总成	COVER ASSEMBLY MERCURY	1
22	43138A3	水手盖总成	COVER ASSEMBLY MARINER	1
23	12356	缓冲垫	BUMPER	1
24	17288	盖弹簧	SPRING COVER	1
25	43137A1	支架总成	BRACKET ASSEMBLY	1
26	434181	快速螺母	SPEED NUT	3
27	15432	支架固定座	RETAINER BRACKET	1
28	43134	支架销	PIN BRACKET	2
29	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	4
30	53705	垫圈	WASHER	4
30	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4

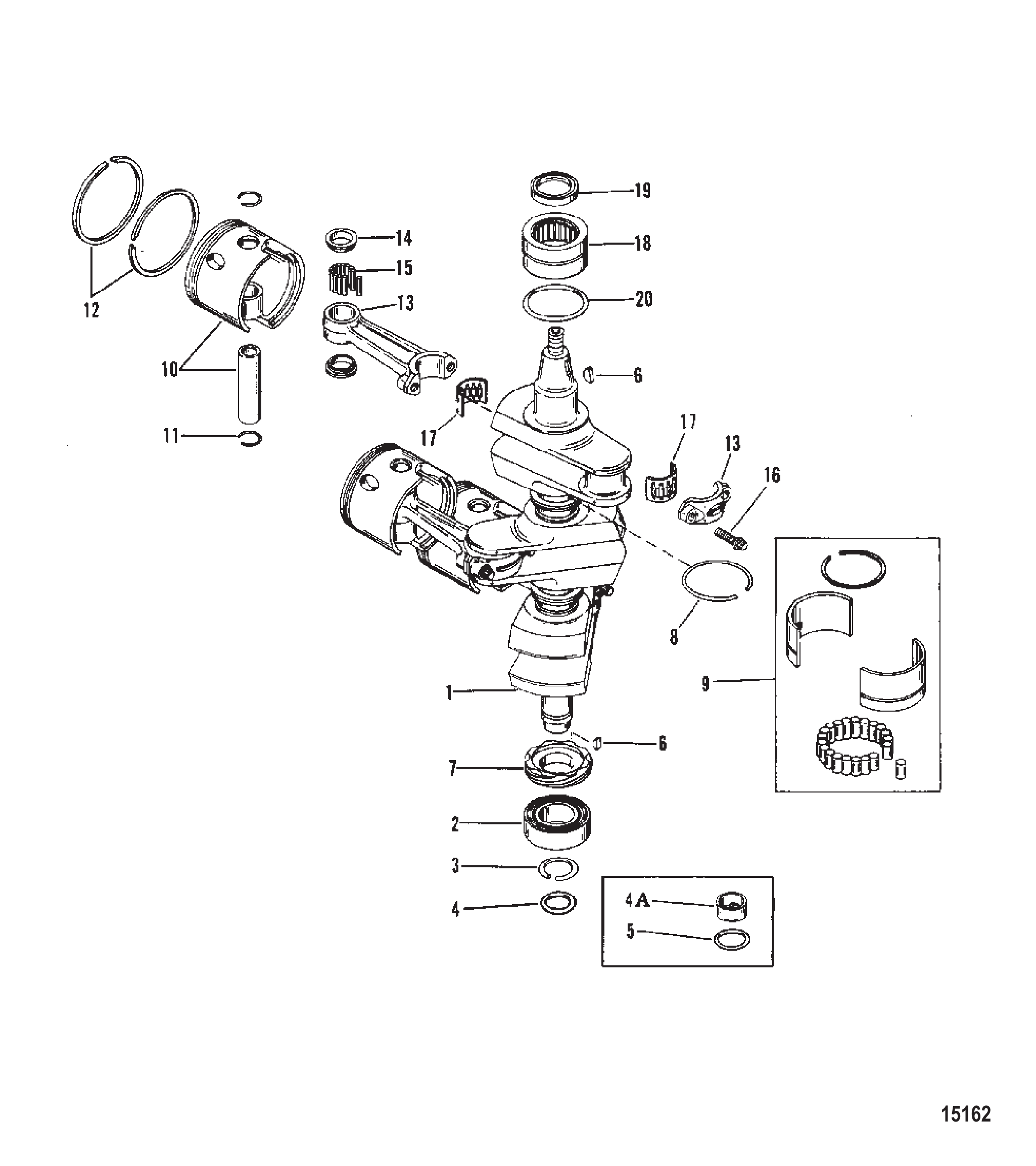

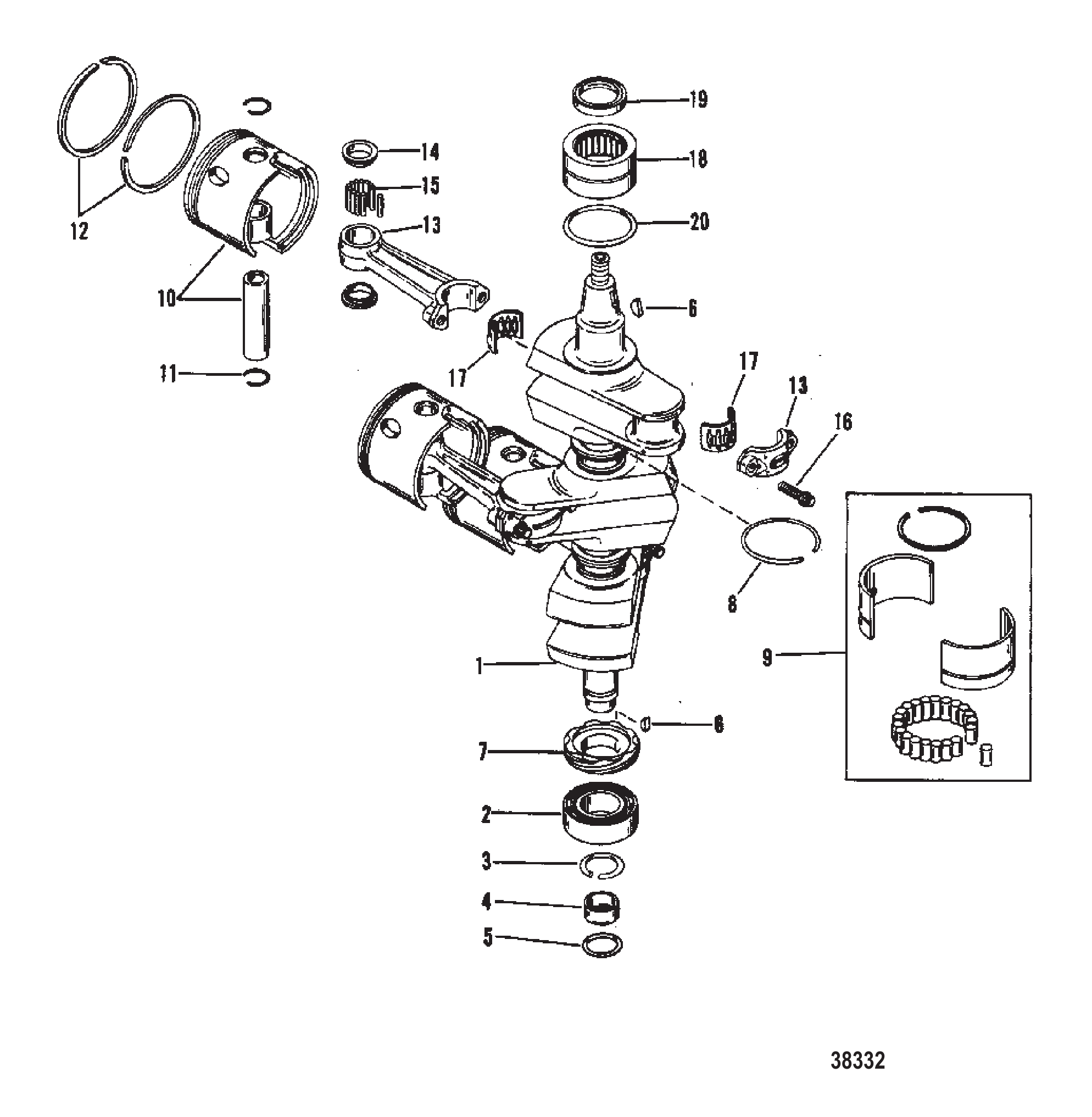

图 37曲轴、活塞与连杆(#638-8532--1) CRANKSHAFT, PISTONS AND CONNECTING RODS (#638-8532--1)

REF	零件编号	中文名称	英文名称	数量
1	9001A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43011	曲轴下球轴承	BEARING Ball CRANKSHAFT (LOWER)	1
2	43011T	滚珠轴承	BEARING Ball	1
3	93412	球轴承挡圈	RING Retaining BALL BEARING	1
4	54196A6	密封载体总成	CARRIER ASSEMBLY SEAL	1
5	65800	填料载体	PACKING CARRIER	1
6	91800	伍德鲁夫驱动键	KEY Woodruff DRIVE	2
7	43019A1	齿轮总成	GEAR ASSEMBLY	1
8	42079A4	密封环总成	RING ASSEMBLY SEALING	1
9	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
10	9009A5	活塞总成	PISTON ASSEMBLY	3
10	9009T13	标准活塞总成	PISTON ASSY-STD	3
10	9009A6	活塞总成	PISTON ASSEMBLY	AR
10	9009A7	活塞总成	PISTON ASSEMBLY	AR
11	52035	锁环	RING Lock	6
11	857196	锁紧环	LOCK RING	6
12	96170A12	活塞环组	RING SET Piston	1
12	96170A3	活塞环组	RING SET Piston	AR
12	96170A4	活塞环组	RING SET Piston	AR
13	9002A2	连杆总成	CONNECTING ROD ASSEMBLY	3
13	9002A6	连杆总成	CONNECTING ROD ASSEMBLY	3
14	47247	垫圈	WASHER	6
14	8M0032839	垫片@5	WASHER @5	6
15	88258	滚针轴承	NEEDLE Roller Bearing	87
15	8M0204715	滚针@102	NEEDLES-BRG @102	87
16	43813	螺钉	SCREW	6
16	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	6
17	43012A1	轴承/保持架套件	BEARING/CAGE KIT	3
17	8M0235070	轴承保持架	CAGE BEARING	3
18	43013A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
18	43013T3	滚柱轴承总成	BEARING ASSEMBLY Roller	1
19	43993	油封	SEAL Oil	1
19	8M0214932	密封件	SEAL	1
20	64067	O型圈	O-RING	1
20	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	43004A86	衬垫套件	GASKET SET
-	43004A99	动力头衬垫套件	GASKET SET Powerhead
0000	1	(70/75)	(70/75)	POWERHEAD ASSEMBLY
0000	1			POWERHEAD ASSEMBLY Complete
0000	1	(80)	(80)	POWERHEAD ASSEMBLY
0000	1			POWERHEAD ASSEMBLY Complete
0000	1	(90)	(90)	POWERHEAD ASSEMBLY
0000	1			POWERHEAD ASSEMBLY Complete

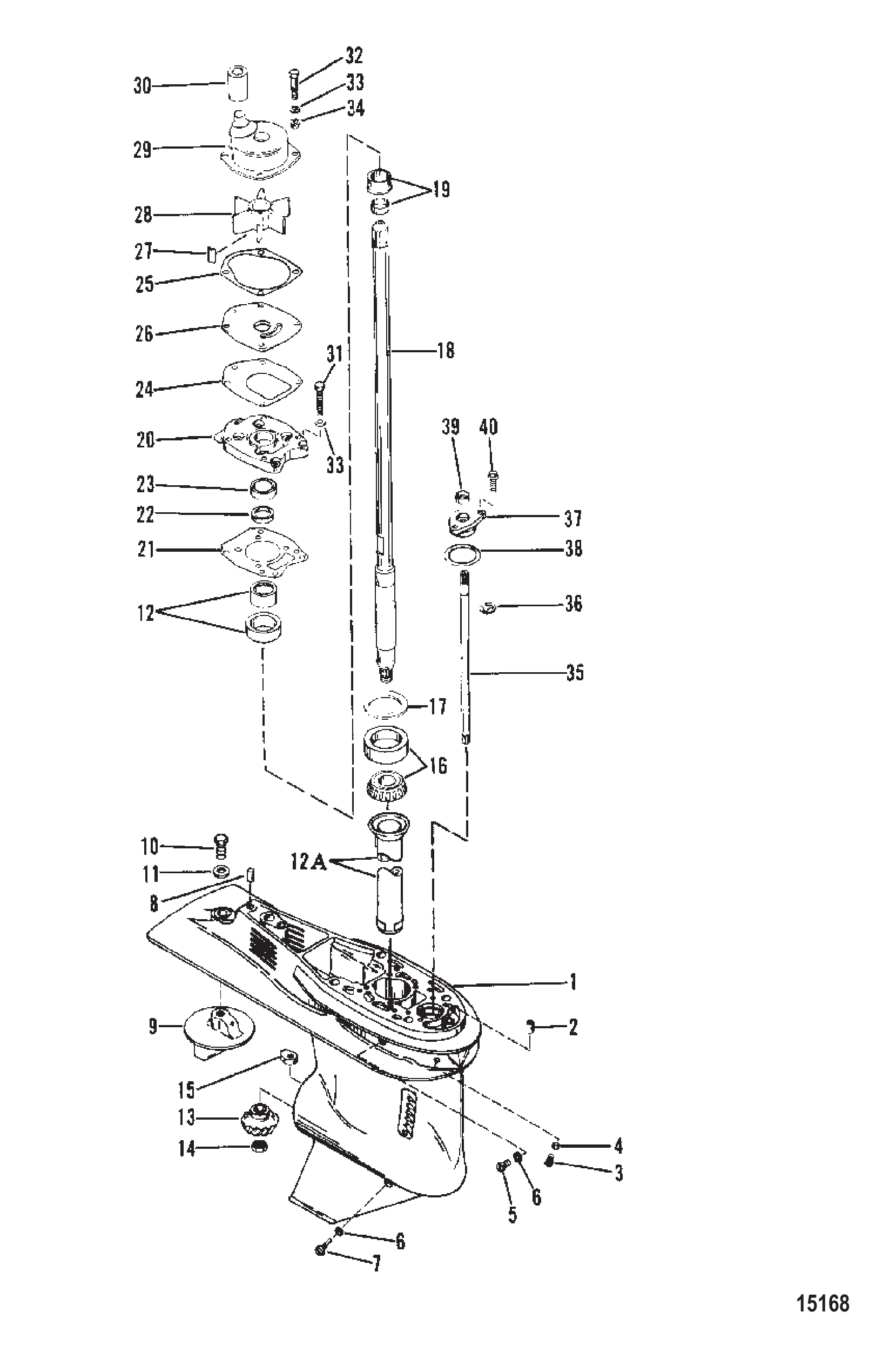

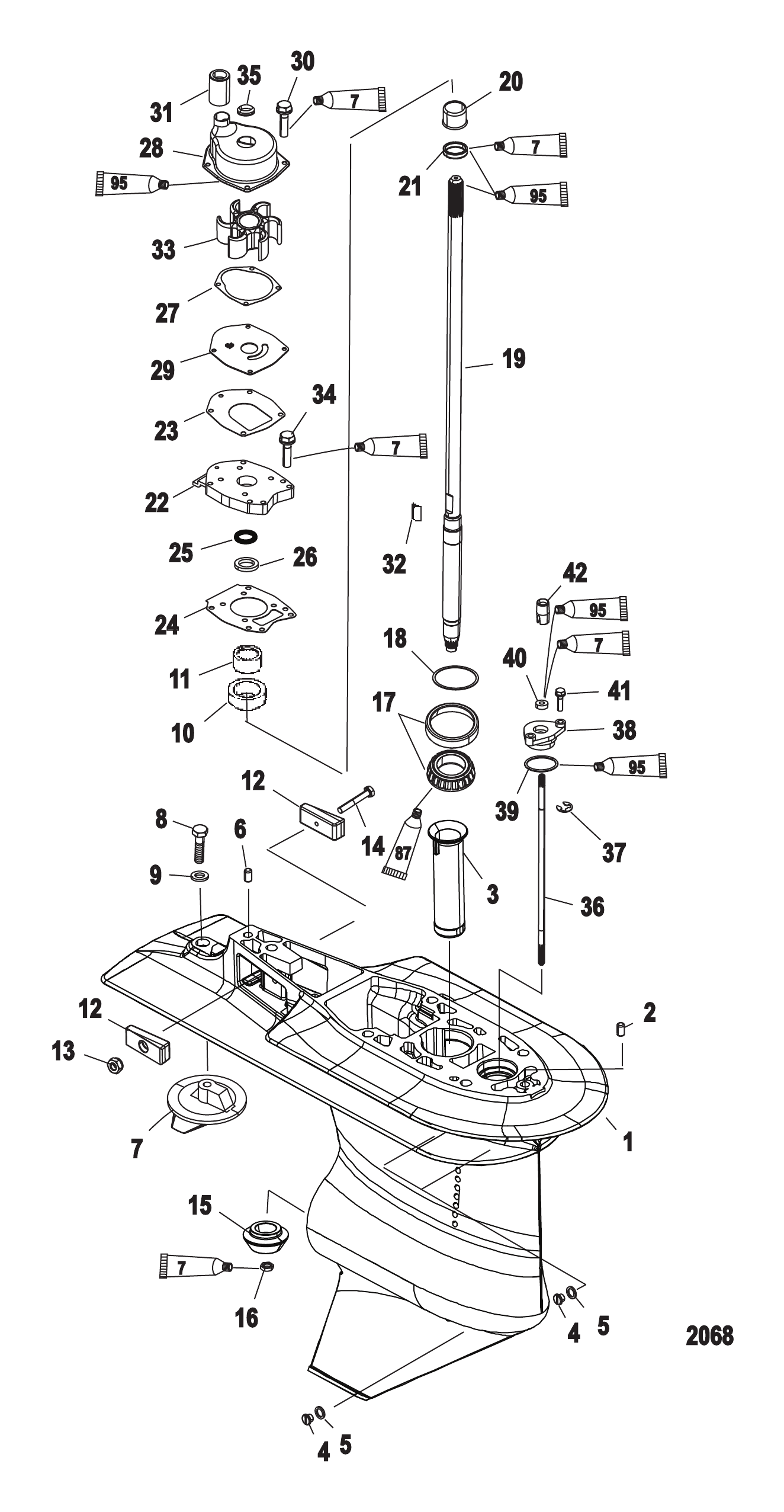

图 38齿轮箱驱动轴 Gear Housing Driveshaft

REF	零件编号	中文名称	英文名称	数量
-	888845T06	齿轮箱总成-长型-2.07:1	GEAR HOUSING ASSEMBLY Complete - Long - 2.07:1	1
-	888845T07	齿轮箱总成-加长型-2.07:1	GEAR HOUSING ASSEMBLY Complete - X-Long - 2.07:1	1
-	888845T08	齿轮箱总成-长型-2.33:1	GEAR HOUSING ASSEMBLY Complete - Long - 2.33:1	1
-	888845T09	齿轮箱总成-加长型-2.33:1	GEAR HOUSING ASSEMBLY Complete - X-Long - 2.33:1	1
1	888845T	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043	定位销-带孔(0.375x0.625)前部	PIN Dowel - With Hole (.375 x .625) Front	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	3
4	79953Q04	放油螺钉套件	SCREW KIT Drain	3
5	191833	密封件	SEAL	3
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
6	43044	定位销-无孔(0.375x0.625)后部	PIN Dowel - Without Hole (.375 x .625) Rear	1
7	31640T5	平衡鳍板	TRIM TAB	1
7	8M0236553	平衡鳍板	TRIM TAB	1
8	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
9	451761	垫圈(.453 x .812 x .105)黑色氧化	WASHER (.453 x .812 x .105) Black Oxide	1
10	43040T1	托架总成	CARRIER ASSEMBLY	1
11	NSS	滚针轴承(不单独销售)	NOT SOLD SEPARATE Needle Bearing	1
12	826134Q	阳极块	ANODE	2
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	NSS	小齿轮(不单独销售)-前进齿轮套件部件	NOT SOLD SEPARATE Pinion Gear - Part of Forward Gear Kits	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	883047A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
18	44492A1	垫片组	SHIM SET	1
18	8M0063265	垫片组	SHIM SET	1
19	897679T01	长型驱动轴总成	DRIVESHAFT ASSEMBLY Long	1
19	897680T01	驱动轴总成 X加长型	DRIVESHAFT ASSEMBLY X-Long	1
20	42461A1	套筒/环套件	SLEEVE/RING KIT	1
21	NSS	密封环(不单独销售)	NOT SOLD SEPARATE Seal Ring	1
22	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
22	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	430331	衬垫	GASKET	1
24	430472	衬垫	GASKET	1
24	8M0214931	衬垫	GASKET	1
25	43035	上部油封	SEAL Oil Upper	1
25	8M0245495	油封	OIL SEAL	1
26	43036	下油封	SEAL Oil Lower	1
27	8172771	水泵上垫片	GASKET Water Pump, Upper	1
28	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
29	8172761	面板	FACEPLATE	1
29	8M0204709	面板	FACEPLATE	1
30	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
31	430232	密封件	SEAL	1
32	43037	键	KEY	1
32	8M0204723	键	KEY	1
33	43026T2	叶轮	IMPELLER	1
34	82684425	螺钉(M6x25)	SCREW (M6 x 25)	6
35	861415	端面密封	SEAL Face	1
35	816575A2	密封套件	SEAL KIT	1
36	884563A00	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	884565A00	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	457101	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	82684425	螺钉(M6x25)	SCREW (M6 x 25)	2
42	891637	衬套	BUSHING	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	43026Q06	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
-	881260A3	前进齿轮-29齿	GEAR Forward - 29 Teeth	1
-	882813A3	前进齿轮与小齿轮套件(28齿)	GEAR KIT Forward And Pinion 28 Teeth	1
-	803496T2	轴承/油封套件	BEARING/SEAL KIT	1

图 39驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	858576T03	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
3	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
3	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	8M0214963	垫圈	WASHER	5
5	40140	螺母(M10)	NUT (M10)	5
6	85822A15	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
7	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
8	85822	直通接头	CONNECTOR Straight	1
8	85822T	直通接头	CONNECTOR Straight	1
9	44343T1	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
10	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
11	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
12	43528	螺母(M12)	NUT (M12)	2
12	8M0204662	螺母	NUT	2
13	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
14	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
15	858916T	卡箍	CLAMP	2
16	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
17	858745	盖帽	CAP	4
17	8M0142713	支撑盖帽	CAP Chap Support	4
18	859550	衬套	BUSHING	1
19	24873	定位销	PIN Alignment	1
20	855622	接头	FITTING	1
21	12092A3	隔套套件	SPACER KIT	1
22	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
22	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
23	813745	隔套	SPACER	1
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

图 40曲轴活塞/连杆(#638-8532--1) Crankshaft Pistons/Connecting Rods (#638-8532--1)

REF	零件编号	中文名称	英文名称	数量
1	9001A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43011	曲轴滚珠轴承(下)	BEARING Ball Crankshaft, Lower	1
2	43011T	滚珠轴承	BEARING Ball	1
3	93412		RING Retaining Ball Bearing	1
4A	54196A6	密封座总成(旧设计)	CARRIER ASSEMBLY Seal, Old Design	1
5	65800	密封填料座(旧设计)	PACKING Carrier, Old Design	1
4	35126	O型圈(.859 x .139)新设计	O-RING (.859 x .139) New Design	1
6	91800		KEY Woodruff Drive	2
7	43019A1	齿轮总成	GEAR ASSEMBLY	1
8	42079A4		RING ASSEMBLY Sealing	1
9	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
10	9009A13	活塞总成标准型	PISTON ASSEMBLY Standard	3
10	9009T13	标准活塞总成	PISTON ASSY-STD	3
10	9009A6	活塞总成(.015)加大尺寸	PISTON ASSEMBLY (.015) Oversize	AR
10	9009A7	活塞总成(.030)加大尺寸	PISTON ASSEMBLY (.030) Oversize	AR
11	52035	活塞锁环	RING Lock Piston	6
11	857196	锁紧环	LOCK RING	6
12	96170A12	活塞环组标准	RING SET Piston Standard	1
12	96170A3	活塞环组(.015)加大尺寸	RING SET Piston (.015) Oversize	AR
12	96170A4	活塞环组(.030)加大尺寸	RING SET Piston (.030) Oversize	AR
13	9002A4	连杆总成	CONNECTING ROD ASSEMBLY	3
13	9002A6	连杆总成	CONNECTING ROD ASSEMBLY	3
14	47247	针阀定位垫圈	WASHER Needle Locating	6
14	8M0032839	垫片@5	WASHER @5	6
15	88258	活塞端滚针轴承	NEEDLE Roller Bearing Piston End	87
15	8M0204715	滚针@102	NEEDLES-BRG @102	87
16	43813	连杆螺钉	SCREW Connecting Rod	6
16	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	6
17	43012A1	曲轴端轴承/保持架套件	BEARING/CAGE KIT Crankshaft End	3
17	8M0235070	轴承保持架	CAGE BEARING	3
18	43013A1	上滚柱轴承总成	BEARING ASSEMBLY Roller Upper	1
18	43013T3	滚柱轴承总成	BEARING ASSEMBLY Roller	1
19	43993	油封	SEAL Oil	1
19	8M0214932	密封件	SEAL	1
20	64067	O型圈	O-RING	1
20	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	43004A86	衬垫套件	GASKET SET	1
-	43004A99	动力头衬垫套件	GASKET SET Powerhead	1

图 41齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
2	85822A1	速度表连接器总成	CONNECTOR ASSEMBLY Speedometer	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	85500	定位销(.187 x .530)齿轮箱	PIN Dowel (.187 x .530) Gear Housing	2
3	8M0084726	定位销	PIN Dowel	2
4	33778	水泵/底座柱螺栓(2.625英寸)	STUD Water Pump/Base (2.625 Inch)	3
5	57933	柱螺栓(.437-14/.437-20 x 2.190)齿轮箱	STUD (.437-14/.437-20 x 2.190) Gear Housing	2
5	8M0034453	柱螺栓(7/16 x 2.19)	STUD (7/16 x 2.19)	2
6	62091	传动轴滚柱轴承	BEARING Roller Driveshaft	1
6	62091T	轴承	BEARING	1
7	72849A1	进水滤网总成	SCREEN ASSEMBLY Water Intake	1
8	36070	螺钉(#10-32 x 1.250)进水滤网至齿轮箱	SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing	1
9	45812	螺母(#10-32)不锈钢进水滤网螺钉	NUT (#10-32) Stainless Steel Water Intake Screen Screw	1
9	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
10	92815	排气管支撑板	PLATE Support - Exhaust Tube	1
11	37721	排气管密封件	SEAL Exhaust Tube	1
11	37721001	密封件@2	SEAL @2	1
12	98097	传动轴小齿轮	GEAR Pinion Driveshaft	1
12	98097T	小齿轮	GEAR-PINION	1
13	55910	螺母(.437-20)小齿轮至传动轴	NUT (.437-20) Pinion Gear to Driveshaft	1
14	19552	水泵底座衬垫	GASKET Water Pump Base	1
15	26722	O型圈	O-RING	1
16	77177A1	水泵底座总成	BASE ASSEMBLY Water Pump	1
17	90562	密封件(1.254 x .312)	SEAL (1.254 x .312)	1
18	79831	油封	SEAL Oil	1
19	35973	定位销	PIN Dowel	2
20	19553	下衬垫	GASKET Lower	1
21	54705	面板	FACE PLATE	1
21	32768	面板	FACEPLATE	1
22	19551	上衬垫	GASKET Upper	1
23	89983	叶轮	IMPELLER	1
23	89983T	叶轮	IMPELLER	1
24	56662	叶轮驱动键	KEY Impeller Drive	1
24	8M0032837	键@5	KEY @5	1
25	77822A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	48753	嵌件	INSERT	1
27	38452	橡胶密封件	SEAL Rubber	1
28	38453	尼龙垫圈	WASHER Nylon	1
29	29245	垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓	WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs	3
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
30	13438	螺母(.250-28)水泵体与底座柱螺栓	NUT (.250-28) Water Pump Body and Base Studs	3
30	8267119	螺母(.250-28)	NUT (.250-28)	3
31	20273	橡胶O型圈	O-RING Rubber	1
32	78654A1	传动轴座总成	SEAT ASSEMBLY Driveshaft	1
33	86304	花键密封件-传动轴	SEAL Splined - Driveshaft	1
34	79953	螺钉(.375-16 x .250)润滑脂加注口	SCREW (.375-16 x .250) Grease Filler	1
34	79953Q04	放油螺钉套件	SCREW KIT Drain	1
35	67892	磁性放油螺钉	SCREW Magnetic Drain	1
35	8M0058389	放油螺钉套件	SCREW KIT Drain	1
36	19183	纤维垫圈(加注/放油螺钉)	WASHER Fiber Filler/Drain Screw	2
36	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
37	88181	润滑套筒-传动轴	SLEEVE Lubrication - Driveshaft	1
38	92881A1	轴承垫片组(齿轮箱用)(.002-3-5-10-20)	SHIM SET Bearing to Gear Housing(.002-3-5-10-20)	AR
39	77420A1	圆锥滚子轴承总成-传动轴	BEARING ASSEMBLY Roller Tapered - Driveshaft	1
39	8M0166756	轴承总成	BEARING ASSEMBLY	1
40	88025A2	驱动轴总成	DRIVESHAFT ASSEMLBY	1
40	98179	驱动轴	DRIVESHAFT	1
40	88024A2	驱动轴总成	DRIVESHAFT ASSEMBLY	1
40	98180	驱动轴	DRIVESHAFT	1
41	20254	驱动轴压缩弹簧	SPRING Compression - Driveshaft	1
42	30545	驱动轴销	PIN Driveshaft	1
43	76063A1	换挡轴总成	SHAFT ASSEMBLY Shift	1
44	29641	换挡轴E型卡环	E RING Shift Shaft	1
45	25439	O型圈(.862 x .103)换挡轴衬套	O-RING (.862 x .103) Shift Shaft Bushing	1
46	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
47	76384	换挡轴衬套油封	SEAL Oil Shift Shaft Bushing	1
47	8M0246145	油封	OIL SEAL	1
48	77674	橡胶垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing	1
49	78036	倒挡锁定底座	BASE Reverse Locking	1
50	433081	倒挡锁定凸轮	CAM Reverse Locking	1
50	43308T1	凸轮	CAM	1
-	77177A3	水泵套件	WATER PUMP KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 42转向手柄组件(含转向臂) Steering Handle Components (With Steering Arm)

REF	零件编号	中文名称	英文名称	数量
1	12020T	黑色转向臂	ARM Steering Black	1
1	12020T6	灰色转向臂手柄总成	HANDLE ASSEMBLY Steering Arm Gray	1
2	12018A1	油门拉线管总成	TUBE ASSEMBLY Throttle	1
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	72169		SCREW (#10-24 x .500) Plate	4
7	12013		CLAMP Throttle	1
8	40007112		SCREW (M5 x 40) Throttle Clamp	2
9	90052		WING NUT Throttle Clamp Screw	1
10	96495A2	油门手柄总成	HANDLE ASSEMBLY Throttle	1
11	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
12	15823A4	停机开关总成	SWITCH ASSEMBLY Stop	1
13	11099A1	护套总成	BOOT ASSEMBLY	1
14	99589	握把	GRIP	1
15	26538	卡扣	CLIP	1
16	72169		SCREW (#10-24 x .500) Clip	1
17	785512	导管	CONDUIT	1
18	895661	导向管	GUIDE TUBE	1
19	89578	套筒	BARREL	1
20	89601	螺钉	SCREW	1
21	12019	拉线总成	CABLE ASSEMBLY	1
22	43433	电缆导向器	GUIDE Cable	1
23	20007	锚定件	ANCHOR	1
24	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
25	4000386	螺钉(M10 x 100)	SCREW (M10 x 100)	1
26	48416	盖帽	CAP	1
27	4002319	垫圈	WASHER	1
28	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
29	14601	隔套	SPACER	1
30	42992	衬套	BUSHING	2
31	400204	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1

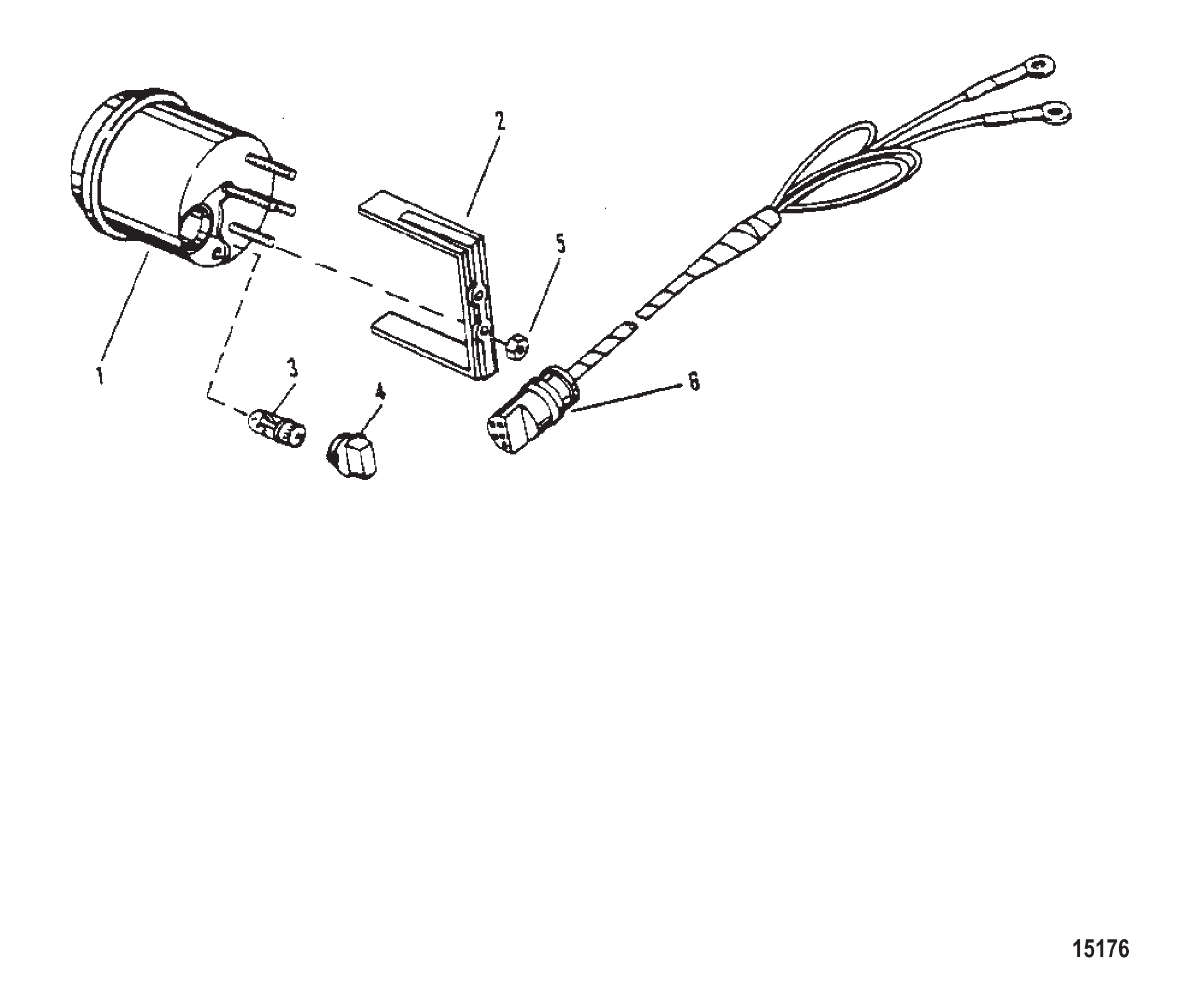

图 43转速表 Tachometer

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表6K	TACHOMETER 6K	1
2	79101T	安装支架	BRACKET Mounting	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
6	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1

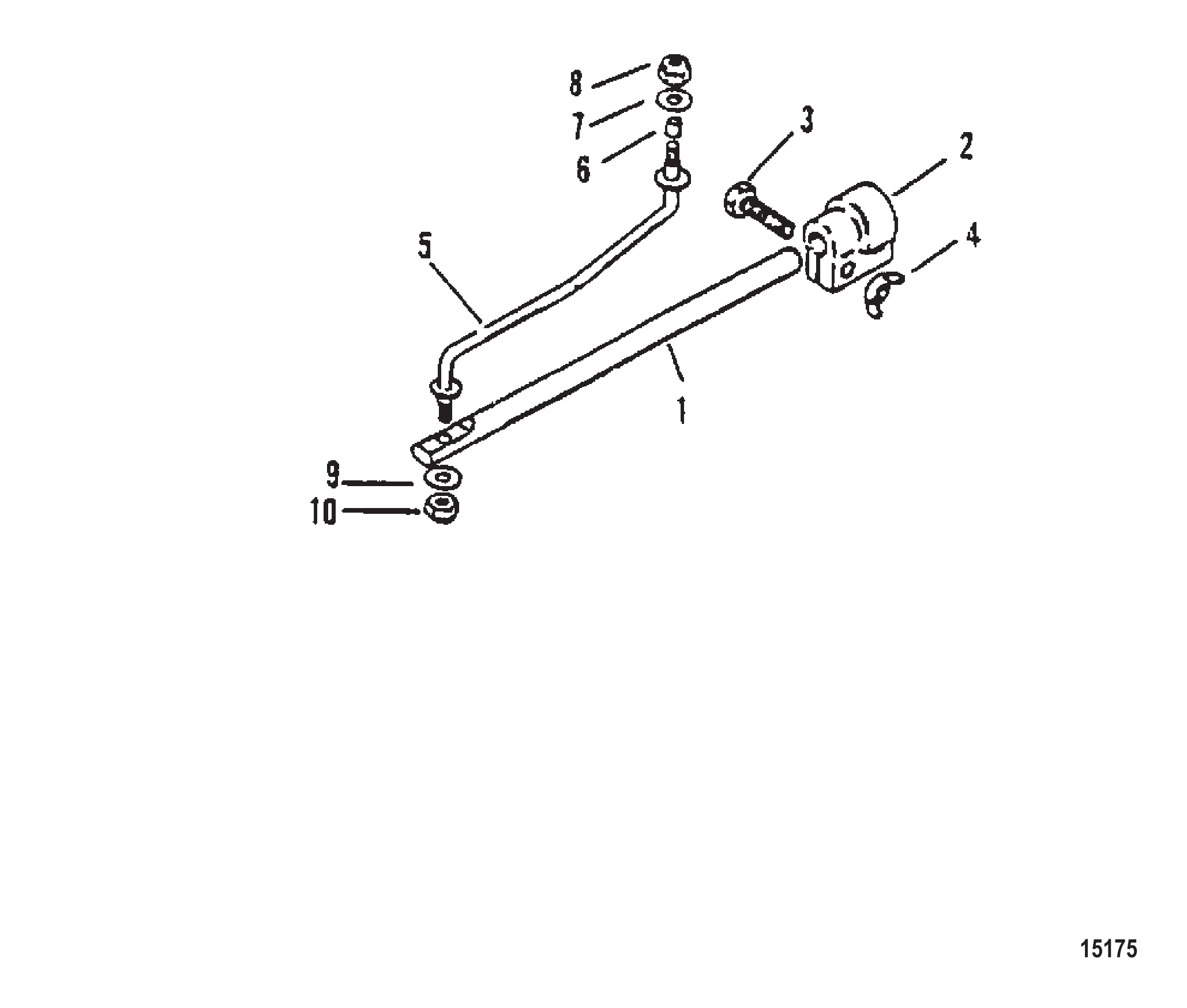

图 44副驾驶装置 Co-Pilot

REF	零件编号	中文名称	英文名称	数量
-	52148A3	副驾驶装置总成	CO-PILOT ASSEMBLY	1
1	52148	导向杆	PILOT ROD	1
2	52155A1	螺母总成	NUT ASSEMBLY	1
2	8M0103848	螺母总成	NUT ASSEMBLY	1
3	36154	螺钉(.250-28 x 1.380)	SCREW (.250-28 x 1.380)	1
4	52152	蝶形螺母	WING NUT	1
5	873491	杆	ROD	1
6	52151	衬套	BUSHING	1
6	521512	衬套	BUSHING	1
7	20722	垫圈(.328 x .625 x .060)	WASHER (.328 x .625 x .060)	1
8	45592	螺母(.312-24)	NUT (.312-24)	1
8	826709111	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
9	20722	垫圈(.328 x .625 x .060)	WASHER (.328 x .625 x .060)	1
10	45592	螺母(.312-24)	NUT (.312-24)	1
10	826709111	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1

图 45外罩安装支架 Cowl Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
1	42965A1	盖密封支架总成	BRACKET ASSEMBLY COWL SEAL	1
1	42965A2	盖密封支架总成	BRACKET ASSEMBLY COWL SEAL	1
2	183061	支架密封条	SEAL BRACKET	2
3	42935	密封件	SEAL	1
4	42908	限位器	RESTRAINT	1
5	400015	限位器螺钉 (M5 x 10)	SCREW (M5 x 10) RESTRAINT	1
6	43423	限位器螺钉垫圈	WASHER RESTRAINT SCREW	1
6	42118	垫圈	WASHER	1
7	42907	示警器接头	CONNECTOR TELL TALE	1
8	9912976	示警器软管	TUBING TELL TALE	1
8	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
9	73498	卡箍	CLAMP	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
10	932641	壳体铰链	HOUSING HINGE	2
10	932642	壳体	HOUSING	2
11	4009560	壳体螺钉	SCREW HOUSING	4
11	8M0103817	螺钉 (M8 x 60)	SCREW (M8 x 60)	4
12	93853	壳体螺钉垫圈	WASHER HOUSING SCREW	8
12	814803	垫圈	WASHER	8
13	53705	壳体螺钉垫圈	WASHER HOUSING SCREW	8
13	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	8
14	88033	壳体螺钉衬套	GROMMET HOUSING SCREW	4
15	14395	壳体螺钉轴套	BUSHING HOUSING SCREW	4
16	4000120	壳体至支架螺钉 (M5 x 25)	SCREW (M5 x 25) HOUSING TO BRACKET	2
17	43423	壳体螺钉垫圈	WASHER HOUSING SCREW	2
17	42118	垫圈	WASHER	2
18	42952T	前支架支撑	BRACKET SUPPORT (FRONT)	1
18	42952T6	前支架支撑	BRACKET SUPPORT (FRONT)	1
19	67260	控制线密封套	SEAL CONTROL CABLES	1
20	67272	支架衬套	GROMMET BRACKET	2
21	88621	控制线固定座	RETAINER CONTROL CABLES	1
21	99447T	控制线固定座	RETAINER CONTROL CABLES	1
21	99447	固定座	RETAINER	1
22	40057109	固定座螺钉 (M5 x 25)	SCREW (M5 x 25) RETAINER	2
22	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
23	4011135	支架螺钉 (M8 x 1.25 x 35)	SCREW (M8 x 1.25 x 35) BRACKET	2
23	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
24	93853	支架螺钉垫圈	WASHER BRACKET SCREW	4
24	814803	垫圈	WASHER	4
25	53705	支架螺钉垫圈	WASHER BRACKET SCREW	4
25	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4
26	88033	支架衬套	GROMMET BRACKET	2
27	14395	支架螺钉轴套	BUSHING BRACKET SCREW	2

图 46动力升降倾斜泵 Power Trim Pump

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
5	12663	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
7	12661	电枢套件	ARMATURE KIT	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 47启动马达(BOSCH) STARTER MOTOR (BOSCH)

REF	零件编号	中文名称	英文名称	数量
-	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	75385	贯穿螺栓	BOLT THRU	2
6	75386	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387	绝缘衬套	BUSHING INSULATING	1
9	38013	输入柱垫圈	WASHER INPUT STUD	1
10	26992	不锈钢输入柱锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel INPUT STUD	1
11	20890	输入柱螺母(.250-20)	NUT (.250-20) INPUT STUD	1
12	61787	电刷架	HOLDER BRUSH	2
12	898265014	电刷支架	HOLDER-BRUSH	2
13	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
14	75383	换向器端盖	END CAP COMMUTATOR	1

图 48排气板 EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	858582T	适配板总成	ADAPTER PLATE ASSEMBLY	1
2	23784	定位销	PIN Dowel	7
3	880090	接头	FITTING	1
4	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
5	126021	护孔环	GROMMET	1
5	12602002	护孔环	GROMMET	1
6	8585831	衬垫	GASKET	1
7	858572T	油底壳	SUMP Oil	1
7	858572T01	油底壳	SUMP Oil	1
8	858584A1	排气管总成	TUBE ASSEMBLY Exhaust	1
9	881295	O型圈	O-RING	1
10	894171	护孔环	GROMMET	1
10	89417004	护孔环	GROMMET	1
11	858575	水管	TUBE Water	1
11	8M0026130	水管	TUBE Water	1
11	8585751	水管	TUBE Water	1
11	8M0026129	水管	TUBE Water	1
12	814080	上密封件	SEAL Upper	1
12	814080001	密封件	SEAL	1
13	858571T	机油吸油管	TUBE Oil Pick Up	1
14	859082	O型圈	O-RING	1
15	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
15	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
16	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	12
16	8M0214957	螺钉	SCREW	12
17	8596021	量油尺	DIPSTICK	1
18	48237	衬套	BUSHING	1
19	858577A2	换档轴	SHIFT SHAFT	1
19	858577A3	换档杆总成	LEVER ASSY-SHIFT	1
20	859177A3	换挡连杆	SHIFT LINK	1
21	NSS	不单独销售衬套	NOT SOLD SEPARATE Bushing	1
22	879997	换档滑块	SHIFT SLIDER	1
23	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
24	813745	隔套	SPACER	1
24	11289	隔套	SPACER	1
25	43585	联轴器	COUPLING	1
26	859746	开口销	COTTER PIN	2
27	858573	密封件	SEAL	1
27	8M0039073	密封件	SEAL	1
28	8288181	放油塞	PLUG Drain	1
29	828816	衬垫	GASKET	1
29	8M0204692	衬垫@5	GASKET @5	1
30	82483213	螺钉(M6 x 60)	SCREW (M6 x 60)	4

图 49飞轮与启动马达 FLYWHEEL AND STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
2	42956A1	飞轮盖总成	COVER ASSEMBLY FLYWHEEL	1
3	79022	正时标记	MARKER TIMING	1
4	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
5	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
6	42979	螺母(M16)飞轮	NUT (M16) FLYWHEEL	1
7	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
7	33001	垫圈	WASHER	1
8	9008A16	飞轮总成	FLYWHEEL ASSEMBLY	1
8	859234T30	飞轮总成	FLYWHEEL ASSY	1
9	8778A10	定子总成	STATOR ASSEMBLY	1
10	4007325	螺钉(M5x25)定子	SCREW (M5 x 25) STATOR	4
11	99021A3	触发器总成	TRIGGER ASSEMBLY	1
12	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
12	893891T	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	56703	启动电机轴环	COLLAR STARTER MOTOR	2
13	8M0034918	轴环	COLLAR	2
14	57247	启动电机橡胶止动块	STOP RUBBER-STARTER MOTOR	2
14	8M0043376	停机开关	STOP	2
15	93388A1	电缆总成(6.00英寸) 黑色起动机至安装板	CABLE ASSEMBLY (6.00 Inches) Black STARTER MOTOR TO PLATE	1
16	69035	螺钉与锁紧垫圈(.250-20 x .625) 不锈钢导线至起动机	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel WIRE TO STARTER MOTOR	1
17	88439A20	起动机导线(黑色)	WIRE STARTER MOTOR (BLACK)	1
18	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
19	64015	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1

图 50杂项零件/附件 Miscellaneous Parts/Accessories

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

图 51罩壳与前盖 COWLS AND FRONT COVER

REF	零件编号	中文名称	英文名称	数量
1	9006A2	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
1	9006A3	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
2	429404	上盖密封条	SEAL UPPER COWL	3
3	12401	后盖密封条	SEAL COWL (REAR)	1
4	90274	密封件	SEAL	1
5	42958	进气口护罩	SHIELD AIR INLET	1
6	48409	护罩螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel SHIELD	3
7	4002213	护罩螺钉垫圈	WASHER SHIELD SCREW	3
7	4002313	垫圈	WASHER	3
8	435331	隔音毯	SOUND BLANKET	1
9	9070A1	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A4	顶盖总成	TOP COWL ASSEMBLY	1
9	9070A2	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A5	顶盖总成	TOP COWL ASSEMBLY	1
9	9005A1	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A4	顶盖总成	TOP COWL ASSEMBLY	1
9	9005A2	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A5	顶盖总成	TOP COWL ASSEMBLY	1
10	60297	密封件	SEAL	1
11	11315A1	油位计总成	OIL LEVEL GAUGE ASSEMBLY	1
12	42957	进气口护罩	SHIELD AIR INLET	1
13	48409	护罩螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel SHIELD	3
14	4002213	护罩螺钉垫圈	WASHER SHIELD SCREW	3
14	4002313	垫圈	WASHER	3
15	435342	隔音毯	SOUND BLANKET	1
16	87985	下支架	BRACKET (LOWER)	2
16	879851	支架	BRACKET	2
17	87987	上支架	BRACKET (UPPER)	2
17	879871	支架	BRACKET	2
18	4009525	支架螺钉	SCREW BRACKET	8
18	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	8
19	12081	盖锁扣	LATCH Cowl	1
19	120811	盖锁扣	LATCH Cowl	1
20	48409	锁扣螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel LATCH	3
21	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start (MANUAL STARTING)	1
21	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
22	43138A2	水星盖总成	COVER ASSEMBLY MERCURY	1
22	43138A3	水手盖总成	COVER ASSEMBLY MARINER	1
23	12356	缓冲垫	BUMPER	1
24	17288	盖弹簧	SPRING COVER	1
25	43137A1	支架总成	BRACKET ASSEMBLY	1
26	434181	快速螺母	SPEED NUT	3
27	15432	支架固定座	RETAINER BRACKET	1
28	43134	支架销	PIN BRACKET	2
29	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	4
30	53705	垫圈	WASHER	4
30	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4

图 52化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	821679A17	化油器	CARBURETOR	1
1	821679A18	化油器	CARBURETOR	1
1	821679T18	化油器	CARBURETOR	1
1	821679A19	化油器	CARBURETOR	1
1	821679T19	化油器	CARBURETOR	1
1	821946A24	化油器	CARBURETOR	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A25	化油器	CARBURETOR	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A26	化油器	CARBURETOR	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A27	化油器	CARBURETOR	1
1	821946T42	化油器	CARBURETOR	1
1	821946A28	化油器	CARBURETOR	1
1	821946T43	化油器	CARBURETOR	1
1	821946A29	化油器	CARBURETOR	1
1	821946T44	化油器	CARBURETOR	1
2	823634	螺丝(上/下部)	SCREW (UPPER/BOTTOM)	2
3	823632	油门轴	SHAFT Throttle	1
4	823633	油门轴	SHAFT Throttle	1
4	823636	油门轴	SHAFT Throttle	1
3	823632	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
5	NSS	不单独销售油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	3
6	6247	主量孔(0.090)	JET Main (.090)	3
7	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
8	NSS	不单独销售怠速针弹簧	NOT SOLD SEPARATE SPRING-IDLE NEEDLE	3
9	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杠杆(WME43/45-底部)	LEVER Oil Pump (WME43/45 - BOTTOM)	1
14	8086121	杠杆固定螺钉(WME43/45-底部)	SCREW Lever Retainer (WME43/45 - BOTTOM)	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	879194023	节气门阀	VALVE-THROTTLE	3
17	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
18	F10064	轴	SHAFT	3
19	NSS	不单独销售喷油嘴衬垫	NOT SOLD SEPARATE GASKET-NOZZLE WELL	3
20	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
24	811695	燃油杯	BOWL Fuel	1
24	811693	燃油杯	BOWL Fuel	2
25	811694	塞套件	PLUG KIT	3
26	NSS	排水碗密封件(不单独销售)	NOT SOLD SEPARATE SEAL-BOWL DRAIN	3
27	6246	量孔(.048)	JET (.048)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
27	4217	主量孔(.062)	JET Main (.062)	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

图 53化油器与衰减板 Carburetor And Attenuator Plate

REF	零件编号	中文名称	英文名称	数量
1	9012A14	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A24	化油器	CARBURETOR	1
1	9012A71	化油器	CARBURETOR	1
1	9012A5	化油器总成	CARBURETOR ASSEMBLY	1
1	9012A17	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A15	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A25	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A72	化油器	CARBURETOR	1
2	9012A6	化油器总成	CARBURETOR ASSEMBLY	1
2	9012A18	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A16	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A26	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A73	化油器	CARBURETOR	1
3	9012A7	化油器总成	CARBURETOR ASSEMBLY	1
3	9012A19	化油器总成	CARBURETOR ASSEMBLY	1
4/5	15172	化油器衬垫	GASKET CARBURETOR	6
4/5	151724	衬垫	GASKET	6
6	9912846	化油器间连接管	TUBING CARBURETOR TO CARBURETOR	2
6	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	2
7	73498	卡箍	CLAMP	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	962558	连杆	LINK ROD	1
8	8M0084744	连接杆	LINK	1
9	11399A1	臂总成	ARM ASSEMBLY	1
10	40057103	螺丝(M5 x 6)臂	SCREW (M5 x 6) ARM	1
11	56681	垫圈(0.203 x 0.500 x 0.032)臂螺丝	WASHER (.203 x .500 x .032) ARM SCREW	1
11	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
12	67748	滚轮	ROLLER	1
13	988861	调节连杆	LINK ADJUSTING	2
13	98886T01	油门调节连杆	LINK-THRTL ADJUST	2
14	98887	油门连杆	LINK Throttle	1
14	98887T	连接杆	LINK	1
15	48409	螺丝(#10-16 x 0.625)不锈钢连杆	SCREW (#10-16 x .625) Stainless Steel LINK	4
16	42970T	消音器板总成	PLATE ASSEMBLY SOUND ATTENUATOR	1
16	42970A2	衰减器板总成	PLATE ASSEMBLY Attenuator	1
17	4002217	化油器双头螺栓垫圈	WASHER CARBURETOR STUDS	6
18	400645	化油器双头螺栓螺母	NUT CARBURETOR STUDS	6
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	6
19	39519	杯形固定器	CUP RETAINER	1
20	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
21	42975	锁扣至板驱动螺丝	DRIVE SCREW LATCH TO PLATE	2
22	43000	消音器盖衬垫	GASKET ATTENUATOR COVER	1
22	430001	衬垫	GASKET	1
23	42969T	消音器盖	COVER ATTENUATOR	1
23	42969A3	消音器盖总成	COVER ASSEMBLY Attenuator	1
24	48409	螺丝(#10-16 x 0.625)不锈钢消音器盖	SCREW (#10-16 x .625) Stainless Steel ATTENUATOR COVER	8
25	56681	垫圈(0.203 x 0.500 x 0.032)连杆螺丝	WASHER (.203 x .500 x .032) LINK SCREW	4
25	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
-	43004A86	衬垫套件	GASKET SET
-	43004A99	动力头衬垫套件	GASKET SET Powerhead

图 54副驾驶装置 Co-Pilot

REF	零件编号	中文名称	英文名称	数量
-	52148A3	副驾驶装置总成	CO-PILOT ASSEMBLY	1
1	52148	导向杆	PILOT ROD	1
2	52155A1	螺母总成	NUT ASSEMBLY	1
2	8M0103848	螺母总成	NUT ASSEMBLY	1
3	36154	螺钉(.250-28 x 1.380)	SCREW (.250-28 x 1.380)	1
4	52152	蝶形螺母	WING NUT	1
5	873491	杆	ROD	1
6	52151	衬套	BUSHING	1
6	521512	衬套	BUSHING	1
7	20722	垫圈(.328 x .625 x .060)	WASHER (.328 x .625 x .060)	1
8	45592	螺母(.312-24)	NUT (.312-24)	1
8	826709111	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
9	20722	垫圈(.328 x .625 x .060)	WASHER (.328 x .625 x .060)	1
10	45592	螺母(.312-24)	NUT (.312-24)	1
10	826709111	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1

图 55罩壳与前盖 Cowls and Front Cover

REF	零件编号	中文名称	英文名称	数量
1	9006A2	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
1	9006A3	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
2	429404	上盖密封条	SEAL UPPER COWL	3
3	12401	后盖密封条	SEAL COWL (REAR)	1
4	90274	密封件	SEAL	1
5	42958	进气口护罩	SHIELD AIR INLET	1
6	48409	护罩螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel SHIELD	3
7	4002213	护罩螺钉垫圈	WASHER SHIELD SCREW	3
7	4002313	垫圈	WASHER	3
8	435331	隔音毯	SOUND BLANKET	1
9	9070A1	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A4	顶盖总成	TOP COWL ASSEMBLY	1
9	9070A2	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A5	顶盖总成	TOP COWL ASSEMBLY	1
9	9005A1	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A4	顶盖总成	TOP COWL ASSEMBLY	1
9	9005A2	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A5	顶盖总成	TOP COWL ASSEMBLY	1
10	60297	密封件	SEAL	1
11	11315A1	油位计总成	OIL LEVEL GAUGE ASSEMBLY	1
12	42957	进气口护罩	SHIELD AIR INLET	1
13	48409	护罩螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel SHIELD	3
14	4002213	护罩螺钉垫圈	WASHER SHIELD SCREW	3
14	4002313	垫圈	WASHER	3
15	435342	隔音毯	SOUND BLANKET	1
16	87985	下支架	BRACKET (LOWER)	2
16	879851	支架	BRACKET	2
17	87987	上支架	BRACKET (UPPER)	2
17	879871	支架	BRACKET	2
18	4009525	支架螺钉	SCREW BRACKET	8
18	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	8
19	12081	盖锁扣	LATCH Cowl	1
19	120811	盖锁扣	LATCH Cowl	1
20	48409	锁扣螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel LATCH	3
21	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start (MANUAL STARTING)	1
21	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
22	43138A2	水星盖总成	COVER ASSEMBLY MERCURY	1
22	43138A3	水手盖总成	COVER ASSEMBLY MARINER	1
23	12356	缓冲垫	BUMPER	1
24	17288	盖弹簧	SPRING COVER	1
25	43137A1	支架总成	BRACKET ASSEMBLY	1
26	434181	快速螺母	SPEED NUT	3
27	15432	支架固定座	RETAINER BRACKET	1
28	43134	支架销	PIN BRACKET	2
29	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	4
30	53705	垫圈	WASHER	4
30	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4

图 56外罩安装支架 Cowl Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
1	42965A1	盖密封支架总成	BRACKET ASSEMBLY COWL SEAL	1
1	42965A2	盖密封支架总成	BRACKET ASSEMBLY COWL SEAL	1
2	183061	支架密封条	SEAL BRACKET	2
3	42935	密封件	SEAL	1
4	42908	限位器	RESTRAINT	1
5	400015	限位器螺钉 (M5 x 10)	SCREW (M5 x 10) RESTRAINT	1
6	43423	限位器螺钉垫圈	WASHER RESTRAINT SCREW	1
6	42118	垫圈	WASHER	1
7	42907	示警器接头	CONNECTOR TELL TALE	1
8	9912976	示警器软管	TUBING TELL TALE	1
8	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
9	73498	卡箍	CLAMP	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
10	932641	壳体铰链	HOUSING HINGE	2
10	932642	壳体	HOUSING	2
11	4009560	壳体螺钉	SCREW HOUSING	4
11	8M0103817	螺钉 (M8 x 60)	SCREW (M8 x 60)	4
12	93853	壳体螺钉垫圈	WASHER HOUSING SCREW	8
12	814803	垫圈	WASHER	8
13	53705	壳体螺钉垫圈	WASHER HOUSING SCREW	8
13	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	8
14	88033	壳体螺钉衬套	GROMMET HOUSING SCREW	4
15	14395	壳体螺钉轴套	BUSHING HOUSING SCREW	4
16	4000120	壳体至支架螺钉 (M5 x 25)	SCREW (M5 x 25) HOUSING TO BRACKET	2
17	43423	壳体螺钉垫圈	WASHER HOUSING SCREW	2
17	42118	垫圈	WASHER	2
18	42952T	前支架支撑	BRACKET SUPPORT (FRONT)	1
18	42952T6	前支架支撑	BRACKET SUPPORT (FRONT)	1
19	67260	控制线密封套	SEAL CONTROL CABLES	1
20	67272	支架衬套	GROMMET BRACKET	2
21	88621	控制线固定座	RETAINER CONTROL CABLES	1
21	99447T	控制线固定座	RETAINER CONTROL CABLES	1
21	99447	固定座	RETAINER	1
22	40057109	固定座螺钉 (M5 x 25)	SCREW (M5 x 25) RETAINER	2
22	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
23	4011135	支架螺钉 (M8 x 1.25 x 35)	SCREW (M8 x 1.25 x 35) BRACKET	2
23	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
24	93853	支架螺钉垫圈	WASHER BRACKET SCREW	4
24	814803	垫圈	WASHER	4
25	53705	支架螺钉垫圈	WASHER BRACKET SCREW	4
25	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4
26	88033	支架衬套	GROMMET BRACKET	2
27	14395	支架螺钉轴套	BUSHING BRACKET SCREW	2

图 57曲轴活塞/连杆(#638-8532--1) Crankshaft Pistons/Connecting Rods (#638-8532--1)

REF	零件编号	中文名称	英文名称	数量
1	9001A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43011	曲轴滚珠轴承(下)	BEARING Ball Crankshaft, Lower	1
2	43011T	滚珠轴承	BEARING Ball	1
3	93412		RING Retaining Ball Bearing	1
4A	54196A6	密封座总成(旧设计)	CARRIER ASSEMBLY Seal, Old Design	1
5	65800	密封填料座(旧设计)	PACKING Carrier, Old Design	1
4	35126	O型圈(.859 x .139)新设计	O-RING (.859 x .139) New Design	1
6	91800		KEY Woodruff Drive	2
7	43019A1	齿轮总成	GEAR ASSEMBLY	1
8	42079A4		RING ASSEMBLY Sealing	1
9	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
10	9009A13	活塞总成标准型	PISTON ASSEMBLY Standard	3
10	9009T13	标准活塞总成	PISTON ASSY-STD	3
10	9009A6	活塞总成(.015)加大尺寸	PISTON ASSEMBLY (.015) Oversize	AR
10	9009A7	活塞总成(.030)加大尺寸	PISTON ASSEMBLY (.030) Oversize	AR
11	52035	活塞锁环	RING Lock Piston	6
11	857196	锁紧环	LOCK RING	6
12	96170A12	活塞环组标准	RING SET Piston Standard	1
12	96170A3	活塞环组(.015)加大尺寸	RING SET Piston (.015) Oversize	AR
12	96170A4	活塞环组(.030)加大尺寸	RING SET Piston (.030) Oversize	AR
13	9002A4	连杆总成	CONNECTING ROD ASSEMBLY	3
13	9002A6	连杆总成	CONNECTING ROD ASSEMBLY	3
14	47247	针阀定位垫圈	WASHER Needle Locating	6
14	8M0032839	垫片@5	WASHER @5	6
15	88258	活塞端滚针轴承	NEEDLE Roller Bearing Piston End	87
15	8M0204715	滚针@102	NEEDLES-BRG @102	87
16	43813	连杆螺钉	SCREW Connecting Rod	6
16	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	6
17	43012A1	曲轴端轴承/保持架套件	BEARING/CAGE KIT Crankshaft End	3
17	8M0235070	轴承保持架	CAGE BEARING	3
18	43013A1	上滚柱轴承总成	BEARING ASSEMBLY Roller Upper	1
18	43013T3	滚柱轴承总成	BEARING ASSEMBLY Roller	1
19	43993	油封	SEAL Oil	1
19	8M0214932	密封件	SEAL	1
20	64067	O型圈	O-RING	1
20	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	43004A86	衬垫套件	GASKET SET	1
-	43004A99	动力头衬垫套件	GASKET SET Powerhead	1

图 58曲轴活塞/连杆(#646-818846) Crankshaft Pistons/Connecting Rods (#646-818846)

REF	零件编号	中文名称	英文名称	数量
1	9001A3	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43011	下滚珠轴承	BEARING Ball Lower	1
2	43011T	滚珠轴承	BEARING Ball	1
3	786611	耐磨套	WEAR SLEEVE	1
4	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
5	818412A4	环组件	RING ASSEMBLY	1
6	91800	半圆键	KEY Woodruff	2
7	43019A1	齿轮总成	GEAR ASSEMBLY	1
8	43013A1	上滚柱轴承总成	BEARING ASSEMBLY Roller Upper	1
8	43013T3	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43993	油封	SEAL Oil	1
9	8M0214932	密封件	SEAL	1
10	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
11	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
12	815965A4	活塞总成标准型	PISTON ASSEMBLY Standard	3
12	815965T4	活塞总成	PISTON ASSY	3
12	815965A5	活塞总成(.015)加大尺寸	PISTON ASSEMBLY (.015) Oversize	AR
12	815965A6	活塞总成(.030)加大尺寸	PISTON ASSEMBLY (.030) Oversize	AR
13	52035	锁环	RING Lock	6
13	857196	锁紧环	LOCK RING	6
14	96170A12	活塞环组标准	RING SET Piston Standard	1
14	96170A3	活塞环组(.015)加大尺寸	RING SET Piston (.015) Oversize	AR
14	96170A4	活塞环组(.030)加大尺寸	RING SET Piston (.030) Oversize	AR
15	818846A3	连杆总成	CONNECTING ROD ASSEMBLY	3
15	818846T6	连杆总成	CONNECTING ROD ASSEMBLY	3
16	812876	垫圈	WASHER	6
16	8M0012298	止推垫片	THRUST WASHER	6
17	818391	滚针轴承	BEARING Needle	87
17	8M0214954	滚针轴承@200	BRG-NEEDLE @200	87
18	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	6
19	816567A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
19	8M0235070	轴承保持架	CAGE BEARING	3

图 59气缸体与曲轴箱 Cylinder Block and Crankcase

REF	零件编号	中文名称	英文名称	数量
1	9755A9	气缸体	CYLINDER BLOCK	1
1	9755A14	气缸体	CYLINDER BLOCK	1
1	9755T14	气缸体	CYLINDER BLOCK	1
1	9755A10	气缸体	CYLINDER BLOCK	1
1	9755T10	气缸体	CYLINDER BLOCK	1
1	9755A15	气缸体	CYLINDER BLOCK	1
1	9755T15	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	42658	止回阀	CHECK VALVE	1
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材(20英尺散装)(16英寸)	TUBING (20.00 Feet Bulk) (16")	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
6	426233	止回阀	CHECK VALVE	1
7	812888A1	托架总成	CARRIER ASSEMBLY	2
8	42657A1	止回阀	CHECK VALVE	2
8	42657A3	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	20033	定位销	PIN Dowel (LOCATING)	1
12	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
13	812870	主轴承座中心销	PIN Center Main (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	18597	盖板	COVER	1
15	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
16	65848	托架	CARRIER	1
17	64872	护孔环	GROMMET	1
18	8128671	衬垫	GASKET	1
18	8128672	衬垫	GASKET	1
19	8161941	螺柱	STUD	2
19	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
20	18598	管塞	PIPE PLUG	4
20	185981	管塞(.375-18)	PLUG Pipe (.375-18)	4
21	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
22	81742720	螺钉(M8 x 20)(55号件用3个)	SCREW (M8 x 20) (QTY. OF 3 ON 55)	4
22	40011149	不锈钢螺钉(M8 x 25)(55号件用3个)	SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)	4
22A	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
23	8128821	提动阀	POPPET	1
24	812887	隔膜	DIAPHRAGM	1
24	8128871	隔膜	DIAPHRAGM	1
24	812887002	隔膜	DIAPHRAGM	1
25	94182	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	90392	弹簧	SPRING	1
27	18336	弹簧	SPRING	1
27	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
28	75692	节温器	THERMOSTAT	1
28	14586	节温器	THERMOSTAT	1
29	62386	衬垫	GASKET	1
29	8M0204714	衬垫@4	GASKET @4	1
30	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
30	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	99664	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	78279	弯头	ELBOW	1
38	8M0207781	弯头	ELBOW	1
39	19074	盖板	COVER	1
39	190741	盖板	COVER	1
39	8M0036859	盖板	COVER	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129961	盖板	COVER	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
45	821595	吊环	LIFTING EYE	1
46	821616	螺钉	SCREW	1
46	821606	螺钉	SCREW	1
47	400265	螺母 (M8)	NUT (M8)	1
47	401368	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 60驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	822154A1	壳体总成 (短) 黑色	HOUSING ASSEMBLY (SHORT) BLACK	1
1	822155A1	壳体总成 (长) 黑色	HOUSING ASSEMBLY (LONG) BLACK	1
1	822154A2	壳体总成 (短) 灰色	HOUSING ASSEMBLY (SHORT) GRAY	1
1	822155A2	壳体总成 (长) 灰色	HOUSING ASSEMBLY (LONG) GRAY	1
2	195992	驱动轴壳体衬垫	GASKET Driveshaft Housing	1
3	421891	支架	MOUNT	4
3	8M0039074	支架	MOUNT	4
4	42374F6	安装盖	COVER Mount	2
4	42374F5	安装盖	COVER Mount	2
4	42374F6	安装盖	COVER Mount	2
5	4009238	螺钉(M6x80)安装盖	SCREW (M6 x 80) MOUNT COVER	2
6	400256	锁紧垫圈 (M6) 盖螺钉	LOCKWASHER (M6) COVER SCREW	2
7	400212	螺母(M6)不锈钢盖螺钉	NUT (M6) Stainless Steel COVER SCREW	2
8	40011131	螺钉 (M6 x 35) 不锈钢驱动轴壳体至板	SCREW (M6 x 35) Stainless Steel DRIVE SHAFT HOUSING TO PLATE	4
9	413448	适配板 (无管)	ADAPTER PLATE (NO TUBE)	1
9	41344A3	适配板总成 (1-1/8"内径管)	ADAPTER PLATE ASSEMBLY (1-1/8"I.D.TUBE)	1
10	11287	适配板密封件	SEAL Adapter Plate	1
10	11287001	适配板密封件	SEAL Adapter Plate	1
11	42123	水管(短型)	TUBE Water (SHORT)	1
11	42122	水管(长型)	TUBE Water (LONG)	1
12	42371	水管固定座	HOLDER WATER TUBE	1
13	192012	衬垫	GASKET	1
14	42380	密封件	SEAL	1
14	42380001	水管密封件	SEAL Water Tube	1
15	42465	水管隔套	SPACER WATER TUBE	1
16	400035	螺钉 (M5 x 16) 壳体至适配板	SCREW (M5 x 16) HOUSING TO ADAPTOR PLATE	2
17	445551	轴承座(长型)	BLOCK Bearing (LONG)	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 61电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	855721A4	定子总成	STATOR ASSEMBLY	1
2	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	2
3	86704T11	辅助定子	STATOR AUXILIARY	1
4	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	3
5	4013910	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
6	98450A10	触发器总成	TRIGGER ASSEMBLY	1
7	11100	卡扣	CLIP	1
8	855713A3	开关盒总成	SWITCHBOX ASSEMBLY	1
8	855713A4	开关盒总成	SWITCHBOX ASSEMBLY	1
9	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	3
10	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
11	832757A4	线圈套件	COIL KIT	2
11	8M0230859	点火线圈总成	COIL IGNITION ASY	2
12	40112	螺钉（M6 x 45）	SCREW (M6 x 45)	2
13	88173	锁紧垫圈	TAB WASHER	2
14	88171	衬套	BUSHING	2
15	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
16	813715A2	高压电缆组（5和8.25英寸）	CABLE SET High Tension (5 and 8.25 Inch)	1
16	NSS	不单独销售（高压引线总成）	NOT SOLD SEPARATE (Lead Assembly-High Tension)	1
17	63709A1	护套/端子套件	BOOT/TERMINAL KIT	2
18	19424	火花塞 (NGK#BP8HS-15)	SPARK PLUG (NGK#BP8HS-15)	2
18	8M0114746	SP BP8HS-15 @4	SP BP8HS-15 @4	2
18	14814568	火花塞（NGK#BPZ-8HS-15）	SPARK PLUG (NGK#BPZ-8HS-15)	2
19	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
19	8M0214940	扎带	TIE STRAP	AR
20	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
21	65017A10	线束总成电池端（62英寸-黑/红）	HARNESS ASSEMBLY Battery End (62 Inch - Black/Red)	1
22	74725A2	线束总成（20英寸-黑/红）	HARNESS ASSEMBLY (20 Inch _ Black/Red)	1
23	71663	堵头	PLUG	1
24	12334A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
25	79091	保险丝20安培	FUSE 20 Ampere	1
25	8M0207796	保险丝20安培	FUSE 20 AMP	1
26	12152	固定座	RETAINER	1
27	92753	固定座	RETAINER	1
28	55098	J型卡扣	J CLIP	1
28	8M0024808	J型夹	J-CLIP	1
29	90983T1	启动电机总成	STARTER MOTOR ASSEMBLY	1
29	8M0033984	启动马达	STARTER MOTOR	1
30	96561	驱动套件	DRIVE KIT	1
31	96562	驱动器	DRIVE	1
32	96563T	端盖	END CAP	1
33	96565	电枢	ARMATURE	1
34	96564T	端盖	END CAP	1
35	96566	贯穿螺栓	THRU BOLT	2
36	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
36	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
37	883073	安装板	PLATE Mounting	1
38	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
39	853358T1	整流器	RECTIFIER	1
40	54457	J型卡扣	J CLIP	1
41	82129130	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
42	17461T11	转速表适配器模块套件	MODULE KIT Tachometer Adaptor	1
43	13541	公插头	PLUG Male	AR
44	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
45	11149A54	适配器线束总成	HARNESS ASSEMBLY Adaptor	1
46	850189T	启动电磁阀	SOLENOID Starter	1
46	8M0185143	启动电磁阀	SOLENOID START	1
47	88439A28	电缆总成电池-黑色（负极）	CABLE ASSEMBLY Battery - Black (Negative)	1
48	4000328	螺钉(M6 x 16)	SCREW (M6 x 16)	2
48	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	2
49	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
50	88439A27	电缆总成红色-电池（正极）	CABLE ASSEMBLY Red - Battery (Positive)	1
51	88809A5		WIRE ASSEMBLY (Yellow)	1
52	64015	螺母 (.250-20)	NUT (.250-20)	2
53	86704A10	辅助定子	STATOR Auxiliary	1
54	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
55	816770T	整流器	RECTIFIER	1
55	8M0058226	整流器	RECTIFIER	1
56	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
57	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
58	638131	端子排	TERMINAL BLOCK	1
59	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
60	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2

图 62排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	19653A2	排气板总成	PLATE ASSEMBLY Exhaust	1
-	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	1
2	23784	定位销	PIN Dowel	4
3	812893	上部支架	MOUNT Upper	1
3	8M4501491	上部安装总成	MOUNT UPPER ASM	1
4	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
5	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
5	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
6	93416	垫圈	WASHER	2
6	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
7	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
7	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	90099	螺母(M12)	NUT (M12)	2
8	896963	螺母(M12)	NUT (M12)	2
9	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1
10	812866	衬垫	GASKET	1
10	8M0000820	衬垫	GASKET	1
11	48237	衬套	BUSHING	1
12	815639A2	换挡轴(上)(短)	SHIFT SHAFT (UPPER)(SHORT)	1
12	812891A1	换挡轴(上)(长-50/60)	SHIFT SHAFT (UPPER)(LONG - 50/60)	1
12	815639A1	换挡轴(上)(长-55)	SHIFT SHAFT (UPPER)(LONG - 55)	1
12	812891A3	换挡轴(60浮筒型-电动)	SHIFT SHAFT (60 PONTOON - ELECTRIC)	1
12	815639A3	换挡轴(60海程/马拉松型-手动)	SHIFT SHAFT (60 SEAPRO/MARATHON - MANUAL)	1
13	812872	换挡连杆	SHIFT LINK	1
13	812872A1	换挡连杆	SHIFT LINK	1
13	812872A1	换挡连杆	SHIFT LINK	1
14	48475	衬套	BUSHING	1
14	42994	衬套	BUSHING	1
15	29720	波形垫圈	WAVE WASHER	1
16	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
17	400634	螺母 (M6)	NUT (M6)	1
17	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
18	430144	水管(短型)	TUBE Water (SHORT)	1
18	8M0042795	短型水管	TUBE-WATER-SHORT	1
18	430143	水管(长型)	TUBE Water (LONG)	1
18	8M0042794	大型水管	TUBE-WATER-LG	1
19	93221	护孔环	GROMMET	1
19	93221002	护孔环	GROMMET	1
20	196551	排气管	TUBE Exhaust	1
20	8M0045214	排气管	TUBE-EXHAUST	1
21	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
22	812886	密封件	SEAL	1
22	812886001	密封件	SEAL	1
23	99019	卡箍	CLAMP	1
24	42941	水管密封件(上部)	SEAL Water Tube (UPPER)	1
24	42941001	水管密封件	SEAL Water Tube	1
25	40011155	不锈钢螺钉(M8x55)	SCREW (M8 x 55) Stainless Steel	2
-	812867A97	衬垫套件	GASKET SET	1

图 63飞轮与启动电机 Flywheel and Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
2	42956A1	飞轮盖总成	COVER ASSEMBLY FLYWHEEL	1
3	79022	正时标记	MARKER TIMING	1
4	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
5	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
6	42979	螺母(M16)飞轮	NUT (M16) FLYWHEEL	1
7	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	9008A16	飞轮总成	FLYWHEEL ASSEMBLY	1
9	8778A10	定子总成	STATOR ASSEMBLY	1
10	4007325	螺钉(M5x25)定子	SCREW (M5 x 25) STATOR	4
11	99021A3	触发器总成	TRIGGER ASSEMBLY	1
12	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	56703	启动电机轴环	COLLAR STARTER MOTOR	2
14	57247	启动电机橡胶止动块	STOP RUBBER-STARTER MOTOR	2
15	93388A1	电缆总成(6.00英寸) 黑色起动机至安装板	CABLE ASSEMBLY (6.00 Inches) Black STARTER MOTOR TO PLATE	1
16	69035	螺钉与锁紧垫圈(.250-20 x .625) 不锈钢导线至起动机	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel WIRE TO STARTER MOTOR	1
17	88439A20	起动机导线(黑色)	WIRE STARTER MOTOR (BLACK)	1
18	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
19	64015	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1

图 64燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	81328M	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	43113T	燃油泵	FUEL PUMP	1
2	80606M	隔膜	DIAPHRAGM	2
3	80611M	板簧导板	PLATE SPRING GUIDE	2
4	80610M	弹簧	SPRING	1
5	80613M	机体至底座衬垫	GASKET BODY TO BASE	2
5	80613	衬垫	GASKET	2
6	80608M	止回阀	CHECK VALVE	2
7	80612M	止回阀衬垫	GASKET CHECK VALVE	2
8	80609M	止回阀固定座	RETAINER CHECK VALVE	2
9	82511M	螺钉	SCREW	2
9	82511M	螺钉	SCREW	2
11	82373M	螺母	NUT	1
11	82537M	螺母	NUT	1
11	80615M	弹簧	SPRING	1
12	80614M	机体至盖板衬垫	GASKET BODY TO COVER	1
12	80614	衬垫	GASKET	1
13	80607M	盖板	COVER	1
14	82522M	螺钉	SCREW	3
15	82208M	锁紧垫圈	WASHER LOCK	3
15	82186M	垫圈	WASHER	3
16	84139M	燃油泵总成	PUMP ASSEMBLY Fuel	1
16	43113T	燃油泵	FUEL PUMP	1
17	80606M	隔膜	DIAPHRAGM	1
18	80611M	板簧导板	PLATE SPRING GUIDE	1
19	80610M	弹簧	SPRING	1
20	80613M	机体至底座衬垫	GASKET BODY TO BASE	1
20	80613	衬垫	GASKET	1
21	84140M	止回阀	CHECK VALVE	2
21	84650M	止回阀	CHECK VALVE	2
22	80614M	机体至盖板衬垫	GASKET BODY TO COVER	1
22	80614	衬垫	GASKET	1
23	84141M	隔膜	DIAPHRAGM	1
24	80607M	盖板	COVER	1
25	82522M	螺钉	SCREW	3
26	82208M	锁紧垫圈	WASHER LOCK	3
26	82186M	垫圈	WASHER	3
27	80757M	燃油泵至曲轴箱衬垫	GASKET FUEL PUMP TO CRANKCASE	1
27	80757	衬垫	GASKET	1
28	82428M	螺栓	BOLT	2
28	827043M	螺栓	BOLT	2
29	82198M	垫圈	WASHER	2
29	82213M	垫圈	WASHER	2
-	84168M	衬垫套件	GASKET SET	1

图 65齿轮箱驱动轴 Gear Housing Driveshaft

REF	零件编号	中文名称	英文名称	数量
-	9011A7	黑色长型齿轮箱总成	GEAR HOUSING ASSEMBLY Long, Black	1
-	9011A13	黑色加长型齿轮箱总成	GEAR HOUSING ASSEMBLY X-Long, Black	1
-	9011A9	灰色长型齿轮箱总成	GEAR HOUSING ASSEMBLY Long, Gray	1
-	9011A14	灰色加长型齿轮箱总成	GEAR HOUSING ASSEMBLY X-Long, Gray	1
-	9011A31	牡蛎色长型齿轮箱总成	GEAR HOUSING ASSEMBLY Long, Oyster	1
1	9011A6	齿轮箱总成黑色	GEAR HOUSING ASSEMBLY Black	1
1	9011A8	齿轮箱总成灰色	GEAR HOUSING ASSEMBLY Gray	1
1	9011A29	牡蛎色齿轮箱总成	GEAR HOUSING ASSEMBLY Oyster	1
2	43043	定位销-带孔(.375 x .625)前部(加长型用2个)	PIN Dowel - With Hole (.375 x .625) Front, Quanitity Of Two On X-Long	1
3	28653	通气螺钉(#10-32 x 0.25)	SCREW (#10-32 x 0.25) Vent	1
4	19643	通气螺钉密封	SEAL Vent Screw	1
5	79953	螺钉(.375-16 x .250)润滑脂加注口	SCREW (.375-16 x .250) Grease Filler	1
6	19183	放油/注油螺钉纤维垫圈	WASHER Fiber Drain/Filler Screw	2
7	67892	磁性放油螺钉	SCREW Magnetic Drain	1
8	43044	无孔定位销(.375×.625)后部-X长型用2件	PIN Dowel - Without Hole (.375 x .625) Rear, Quantity Of Two On X-Long	1
9	31640A1	平衡板总成	TRIM TAB ASSEMBLY	1
10	15942	平衡板螺钉(.437-14 x 1.250)	SCREW (.437-14 x 1.250) Trim Tab	1
11	45176	平衡板螺钉垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel Trim Tab Screw	1
12	43040A1	滚子轴承座总成	CARRIER ASSEMBLY Roller Bearing	1
12A	43046	注油管	TUBE Oiler	1
13	44484	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
14	35921	小齿轮至驱动轴螺母(.625-18)	NUT (.625-18) Pinion GearTo Drive Shaft	1
15	76039	换挡凸轮控制	CAM Shift Control	1
16	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
17	44492A1	垫片组	SHIM SET	1
18	43031A1	长型驱动轴总成	DRIVESHAFT ASSEMBLY Long	1
18	43032A4	驱动轴总成 X加长型	DRIVESHAFT ASSEMBLY X-Long	1
19	42461A1	套筒/环套件	SLEEVE/RING KIT	1
20	43055A2	铝制盖总成	COVER ASSEMBLY Alluminum Cover	1
21	430471	铝制盖衬垫	GASKET Cover, Alluminum Cover	1
22	43036	铝制盖下部油封	SEAL Oil Lower, Alluminun Cover	1
23	43035	铝制盖上部油封	SEAL Oil Upper, Alluminum Cover	1
24	430331	铝制盖衬垫	GASKET Cover, Alluminum Cover	1
25	430341	铝制盖水泵衬垫(铝制盖)	GASKET Aluminum Cover Water Pump, Alluminun Cover	1
20	19282A1	塑料盖总成	COVER ASSEMBLY Plastic Cover	1
20	19282A2	铝盖总成	COVER ASSEMBLY Aluminum Cover	1
22	43036	下油封-塑料盖	SEAL Oil Lower, Plastic Cover	1
23	43035	上油封-塑料盖	SEAL Oil Upper, Plastic Cover	1
25	430341	铝制盖水泵衬垫(塑料盖)	GASKET Aluminum Cover Water Pump, Plastic Cover	1
26	43050	面板	FACE PLATE	1
27	43037	叶轮驱动键	KEY Impeller Drive	1
28	430261	叶轮	IMPELLER	1
29	43024A3	水泵总成	PUMP ASSEMBLY Water	1
30	43023	水管密封件	SEAL Water Tube	1
31	4000330	盖螺钉(M6 x 25)	SCREW (M6 x 25) Cover	6
32	4000332	水泵螺钉(M6 x 35)	SCREW (M6 x 35) Water Pump	4
33	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	10
34	43045	水泵螺钉绝缘垫	INSULATOR Water Pump Screw	4
35	43048A1	换挡轴总成长型	SHIFT SHAFT ASSEMBLY Long	1
35	43049A1	换挡轴总成 X加长型	SHIFT SHAFT ASSEMBLY X-Long	1
36	29641	换挡轴E型卡环	E RING Shift Shaft	1
37	43052A1	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
38	45710	衬套O型圈(1.424 x .103)	O-RING (1.424 x .103) Bushing	1
39	76384	衬套油封	SEAL Oil Bushing	1
40	40011128	衬套螺钉(M6 x 20)不锈钢	SCREW (M6 x 20) Stainless Steel Bushing	2
-	43035A1	齿轮箱密封套件	SEAL KIT Gear Housing
-	43024A4	水泵维修套件	REPAIR KIT Water Pump
-	43004A86	衬垫套件	GASKET SET	1

图 66齿轮箱螺旋桨轴 Gear Housing Propeller Shaft

REF	零件编号	中文名称	英文名称	数量
-	9539A2	齿轮箱总成(短轴)(黑色)	GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK)	1
-	9539A3	齿轮箱总成(长轴)(黑色)	GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK)	1
-	9539A9	齿轮箱总成(长轴)(灰色)	GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY)	1
1	9539A1	齿轮箱总成(黑色-基础款)	GEAR HOUSING ASSEMBLY (BLACK-BASIC)	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成(灰色-基础款)	GEAR HOUSING ASSEMBLY (GRAY-BASIC)	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
51	76039	换挡凸轮控制	CAM Shift Control	1
51	760394	换挡凸轮控制	CAM Shift Control	1
52	38374A1	轴承杯垫片组(.002-3-5-10)	SHIM SET BEARING CUP (.002-3-5-10)	AR
53	38356A1	轴承套件	BEARING SET	1
54	88018A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
54	88018T1	前进齿轮总成	GEAR ASSY-FORWARD	1
55	21739	前进档滚柱轴承	BEARING Roller FORWARD GEAR	1
56	38441	凸轮从动件	FOLLOWER Cam	1
57	20843		SLIDE CROSS PIN	1
58	39845	压缩弹簧-凸轮随动件	SPRING COMPRESSION-CAM FOLLOWER	1
59	92911	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
59	92911T	离合器	CLUTCH	1
60	38113	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
60	8M0020942	十字销@2	PIN-CROSS @2	1
61	38114	十字销固定弹簧	SPRING RETAINING-CROSS PIN	1
62	75365	螺旋桨轴	PROPELLER SHAFT	1
63	88017	倒挡齿轮	GEAR Reverse	1
63	88017T	倒档齿轮	REVERSE GEAR	1
64	32004	倒档齿轮垫圈	WASHER REVERSE GEAR	1
65	20839	倒档齿轮滚珠轴承	BEARING Ball REVERSE GEAR	1
65	20839T	滚珠轴承	BEARING Ball	1
66	31986	轴承座O型圈	O-RING BEARING CARRIER	1
67	69386A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	69386T1	轴承座总成	CARRIER ASSY-BRG	1
68	21700	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
69	69188	轴承座油封	SEAL Oil BEARING CARRIER	1
69	8M0205511	油封	SEAL Oil	1
70	69189	轴承座油封	SEAL Oil BEARING CARRIER	1
70	8M0203757	油封	SEAL Oil	1
71	30281	轴承座定位键	KEY LOCATING, BEARING CARRIER	1
72	53012	齿轮箱螺母止动垫圈	TAB WASHER GEAR HOUSING NUT	1
73	87763		NUT GEAR HOUSING	1
74	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
74	31640Q4	平衡鳍板	TRIM TAB	1
75	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
76	45175	驱动轴壳体螺柱垫圈(0.406x0.750x0.104)	WASHER (.406 x .750 x .104) DRIVE SHAFT HOUSING STUD	1
76	8M0214963	垫圈	WASHER	1
77	34863	驱动轴壳体螺柱螺母(0.375-24)	NUT (.375-24) DRIVE SHAFT HOUSING STUD	1
77	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
78	65791	驱动轴壳体螺柱垫圈	WASHER DRIVE SHAFT HOUSING STUD	1
79	34933	不锈钢驱动轴壳体螺柱螺母(0.437-20)	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUD	1
79	8M0204653	螺母	NUT	1
80	73345A1		THRUST WASHER FRONT	1
81	76281	螺旋桨止动垫圈	TAB WASHER PROPELLER	1
81	8M0214942	锁紧垫片	WASHER Tab	1
82	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
82	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	43779A87	衬垫套件	GASKET SET	1

图 67进气歧管与簧片阀组 Induction Manifold and Reed Block

REF	零件编号	中文名称	英文名称	数量
1	812865	衬垫	GASKET	1
2	9812A9	下端盖总成	END CAP ASSEMBLY Lower	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A2	支架总成	BRACKET ASSEMBLY	1
7	19077A3	支架总成	BRACKET ASSEMBLY	1
8	8161941	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	19076A3	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
14	19725	弯头(55号件含2个)	ELBOW (QTY. OF 2 ON 55)	1
15	812869	衬垫	GASKET	1
16	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
17	19075A2	簧片阀总成	REED BLOCK ASSEMBLY	1
17	8M0219197	簧片阀总成	REED BLOCK ASSY	1
18	812868	衬垫	GASKET	1
19	812880A1	簧片组(0.008厚度)	REED SET (0.008 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
19	812880A2	簧片组件(0.010厚度)	REED ASSEMBLY (0.010 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
20	42982	锁紧垫圈	TAB WASHER	3
20	429821	锁紧垫圈	TAB WASHER	3
21	812879	固定座	RETAINER	3
21	812879002	簧片压板	RETAINER Reed	3
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
23	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
24	42981	锁紧垫圈	TAB WASHER	2
25	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
26	988851	滑块	SLIDE	1
27	48475	衬套(II型)	BUSHING (DESIGN II)	1
27	42994	衬套	BUSHING	1
28	29720	波形垫圈	WAVE WASHER	1
29	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
30	400634	螺母 (M6)	NUT (M6)	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	400634	螺母 (M6)	NUT (M6)	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	15026	进气歧管盖	CAP (FOR USE ON INDUCTION MANIFOLD)	3
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 68杂项零件/附件 Miscellaneous Parts/Accessories

REF	零件编号	中文名称	英文名称	数量
-	81735291	零件手册50/55/60/JET 45	PARTS MANUAL 50/55/60/JET 45	1
-	817383A1	工具包(55)	TOOL BAG (55)	1
-	816939A94	贴花套件(50)(黑色)	DECAL SET (50) (BLACK)	1
-	816939A96	贴花套件	DECAL SET	1
-	811212A94	贴花套件(60)(黑色)	DECAL SET (60) (BLACK)	1
-	811212A00	贴花套件(黑色60电动)	DECAL SET (Black 60 Electric)	1
-	826313A95	贴花套件(60)(黑色)(SEAPRO)	DECAL SET (60) (BLACK) (SEAPRO)	1
-	826313A01	贴花套件(黑色60 SeaPro)	DECAL SET (Black 60 SeaPro)	1
-	830163A96	贴花套件(黑色60浮筒/大脚)	DECAL SET (BLACK 60 PONTOON/BIG FOOT)	1
-	804704A00	贴花套件(黑色60 Bigfoot)	DECAL SET (Black 60 Bigfoot)	1
-	824097A95	贴花套件(60)(黑色)(FORMULA)	DECAL SET (60) (BLACK) (FORMULA)	1
-	816940A94	贴花套件(50)(灰色)	DECAL SET (50) (GRAY)	1
-	816940A97	贴花套件	DECAL SET	1
-	811211A94	贴花套件(60)(灰色)	DECAL SET (60) (GRAY)	1
-	811211A03	贴花套件(灰色60电动)	DECAL SET (Gray 60 Electric)	1
-	824098A95	贴花套件(60 MAGNUM III)(灰色)(北美不销售)	DECAL SET (60 MAGNUM III) (GRAY) Not sold in North America	1
-	821573A95	贴花套件(55)(黑色)	DECAL SET (55) (BLACK)	1
-	821573A01	贴花套件(黑色55 SeaPro)	DECAL SET (Black 55 SeaPro)	1
-	821424A95	贴花套件(55)(灰色)	DECAL SET (55) (GRAY)	1
-	8588371	贴花套件(灰色Marathon 55)	DECAL SET (Gray Marathon 55)	1
-	824733A94	贴花套件(TRACKER)	DECAL SET (TRACKER)	1
-	13361A95	贴花套件(MARATHON 60)	DECAL SET (MARATHON 60)	1
-	8588372	贴花套件(灰色Marathon 60)	DECAL SET (Gray Marathon 60)	1
-	826325A95	贴花套装(JET 45)(黑色)	DECAL SET (JET 45) (BLACK)	1
-	826325A00	贴花套件	DECAL SET	1
-	826326A95	贴花套装(JET 45)(灰色)	DECAL SET (JET 45) (GRAY)	1
-	826326A01	贴花套装(灰色Jet 40)	DECAL SET (Gray Jet 40)	1
-	814319950	用户手册(50/60)(黑色)	OWNERS MANUAL (50/60) (BLACK)	1
-	821732950	用户手册(55)(黑色)	OWNERS MANUAL (55) (BLACK)	1
-	816763950	用户手册(50/60)(灰色)	OWNERS MANUAL (50/60) (GRAY)	1
-	821733950	用户手册(55)(灰色)	OWNERS MANUAL (55) (GRAY)	1
-	826596950	用户手册(JET 45)	OWNERS MANUAL (JET 45)	1

图 69机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	8127181	机油箱	TANK Oil	1
1	812718T1	油箱总成	TANK ASSEMBLY Oil	1
2	19070A2	盖总成	CAP ASSEMBLY	1
3	90186	O型圈	O-RING	1
4	8160661	密封件	SEAL	1
1	812718A1	油箱总成	TANK ASSEMBLY Oil	1
1	812718T1	油箱总成	TANK ASSEMBLY Oil	1
2	828765A2	盖总成	CAP ASSEMBLY	1
4	8160662	密封件	SEAL	1
4	8M0039080	密封件-油箱	SEAL-OIL TANK	1
5	19299A1	通风组件	VENT ASSEMBLY	1
6	64871	阀门	VALVE	1
7	813644	护孔环	GROMMET	1
8	813649	护套	BOOT	1
9	812890	护套	BOOT	1
9	8M0039085	护套	BOOT	1
10	12886A6	开关总成	SWITCH ASSEMBLY	1
11	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
12	812690A1	机油喷射泵总成	PUMP ASSEMBLY Oil Injection	1
12	818902A1	机油喷射泵总成	PUMP ASSEMBLY Oil Injection	1
13	62705	O型圈	O-RING	1
13	8M0204667	O型圈×2	O RING @2	1
14	36390	O型圈	O-RING	1
15	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
16	19277	从动齿轮	GEAR Driven	1
17	19278A2	轴承总成	BEARING ASSEMBLY	1
18	82381325	管材(10.00英寸散装)	TUBING (10.00 Inches Bulk)	2
18	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	2
19	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
20	821287	连接杆	LINK	1

图 70动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830150A2	泵总成	PUMP ASSEMBLY	1
1	813427A3	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
2	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
3	809872A2	O型圈维修包	O-RING KIT Rebuild	1
3	8M0171819	O型圈套件	O-RING KIT	1
4	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	2
5	811228A1	气缸总成	CYLINDER ASSEMBLY	1
5	893904T01	气缸总成	CYLINDER ASSEMBLY	1
6	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
6	893905A02	阀套件	VALVE KIT	1
7	809874A1	泵总成	PUMP ASSEMBLY	1
7	893906A02	泵总成	PUMP ASSEMBLY	1
8	809885A2	电机套件	MOTOR KIT	1
8	893907A02	电机套件	MOTOR KIT	1
9	8134351	堵头	PLUG	1
10	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
10	893929A01	安全阀套件	VALVE KIT Relief	1
11	809875A1	歧管套件	MANIFOLD KIT	1
11	893909A02	歧管套件	MANIFOLD KIT	1
12	809876A1	螺丝套件(电机)	SCREW KIT (MOTOR)	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
16	88238A18	拉线总成	CABLE ASSEMBLY	1
-	809880A1	O型圈套件(完整调整)	O-RING KIT (COMPLETE TRIM)	1
-	893914A02	O型圈套件	O-RING KIT	1
17	821539	三叶销	PIN Trilobe	2
18	19607	销	PIN	1
19	822869	销	PIN	1
19	822869001	锚销	PIN Anchor	1
20	831276T	支架	BRACKET	1
21	826802A12	线束总成	HARNESS ASSEMBLY	1
22	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
23	828151A1	继电器总成	RELAY ASSEMBLY	2
23	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
24	828102	支架	BRACKET	2
24	8M0207771	安装支架	BRACKET Mounting	2
25	818967	护孔环	GROMMET	2
25	8M0207785	护孔环	GROMMET	2
26	818968	衬套	BUSHING	2
26	8M0214955	衬套	BUSHING	2

图 71动力升降倾斜泵 Power Trim Pump

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
5	12663	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
7	12661	电枢套件	ARMATURE KIT	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 72启动电机（博世） Starter Motor (Bosch)

REF	零件编号	中文名称	英文名称	数量
-	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	75385	贯穿螺栓	BOLT THRU	2
6	75386	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387	绝缘衬套	BUSHING INSULATING	1
9	38013	输入柱垫圈	WASHER INPUT STUD	1
10	26992	不锈钢输入柱锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel INPUT STUD	1
11	20890	输入柱螺母(.250-20)	NUT (.250-20) INPUT STUD	1
12	61787	电刷架	HOLDER BRUSH	2
13	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
14	75383	换向器端盖	END CAP COMMUTATOR	1

图 73转向手柄组件 Steering Handle Components

REF	零件编号	中文名称	英文名称	数量
1	12020T	转向臂	ARM Steering	1
1	12020T6	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
2	12018A1	油门拉线管总成	TUBE ASSEMBLY Throttle	1
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	72169	板用螺钉(#10-24 x 0.500)	SCREW (#10-24 x .500) PLATE	4
7	12013	油门夹	CLAMP THROTTLE	1
8	40007112	油门夹螺钉(M5 x 40)	SCREW (M5 x 40) THROTTLE CLAMP	2
9	90052	油门夹蝶形螺母	WING NUT THROTTLE CLAMP SCREW	1
10	96495A2	油门手柄总成	HANDLE ASSEMBLY Throttle	1
11	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
12	15823A4	停机开关总成	SWITCH ASSEMBLY Stop	1
13	11099A1	护套总成	BOOT ASSEMBLY	1
14	99589	握把	GRIP	1
15	26538	卡扣	CLIP	1
16	72169	卡箍螺钉(#10-24 x 0.500)	SCREW (#10-24 x .500) CLIP	1
17	785512	导管	CONDUIT	1
18	895661	导向管	GUIDE TUBE	1
19	89578	套筒	BARREL	1
20	89601	螺钉	SCREW	1
21	12019	拉线总成	CABLE ASSEMBLY	1
22	29880	导向拉线	GUIDE CABLE	1
23	20007	锚定件	ANCHOR	1
24	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
25	4000386	螺钉(M10 x 100)	SCREW (M10 x 100)	1
26	48416	盖帽	CAP	1
27	4002319	垫圈	WASHER	1
28	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
29	14601	隔套	SPACER	1
30	42992	衬套	BUSHING	2
31	400204	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1

图 74转向手柄组件(含转向臂) Steering Handle Components (With Steering Arm)

REF	零件编号	中文名称	英文名称	数量
1	12020T	黑色转向臂	ARM Steering Black	1
1	12020T6	灰色转向臂手柄总成	HANDLE ASSEMBLY Steering Arm Gray	1
2	12018A1	油门拉线管总成	TUBE ASSEMBLY Throttle	1
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	72169		SCREW (#10-24 x .500) Plate	4
7	12013		CLAMP Throttle	1
8	40007112		SCREW (M5 x 40) Throttle Clamp	2
9	90052		WING NUT Throttle Clamp Screw	1
10	96495A2	油门手柄总成	HANDLE ASSEMBLY Throttle	1
11	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
12	15823A4	停机开关总成	SWITCH ASSEMBLY Stop	1
13	11099A1	护套总成	BOOT ASSEMBLY	1
14	99589	握把	GRIP	1
15	26538	卡扣	CLIP	1
16	72169		SCREW (#10-24 x .500) Clip	1
17	785512	导管	CONDUIT	1
18	895661	导向管	GUIDE TUBE	1
19	89578	套筒	BARREL	1
20	89601	螺钉	SCREW	1
21	12019	拉线总成	CABLE ASSEMBLY	1
22	43433	电缆导向器	GUIDE Cable	1
23	20007	锚定件	ANCHOR	1
24	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
25	4000386	螺钉(M10 x 100)	SCREW (M10 x 100)	1
26	48416	盖帽	CAP	1
27	4002319	垫圈	WASHER	1
28	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
29	14601	隔套	SPACER	1
30	42992	衬套	BUSHING	2
31	400204	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1

图 75旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710A4	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710A13	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	87735		SEAL Oil SWIVEL BRACKET (LOWER)	1
3	67669	衬套旋转支架 - 下部和上部	BUSHING SWIVEL BRACKET - LOWER AND UPPER	2
4	33466	O形环旋转支架 - 上部	O-RING SWIVEL BRACKET - UPPER	1
5	67668	垫片旋转支架 - 上部	SPACER SWIVEL BRACKET - UPPER	1
6	74036	润滑脂接头	FITTING Grease	2
7	99608	转轴支架衬套	BUSHING SWIVEL BRACKET	2
8	99661A2	旋转销总成	SWIVEL PIN ASSEMBLY	1
8	99661A4	水手型万向销总成	SWIVEL PIN ASSEMBLY Mariner	1
8	12079A2	旋转销总成	SWIVEL PIN ASSEMBLY	1
8	12079A3	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
10	14000		SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM	1
11	34863		NUT (.375-24) STEERING LINK SCREW	2
12	34931		WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM	2
13	78854		WAVE WASHER BOTTOM YOKE	1
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	卡环-底部轭架	RING Retaining BOTTOM YOKE	1
16	67670		WASHER THRUST - SWIVEL BRACKET	1
17	99653	减震器支架	BRACKET SHOCK ABSORBER	1
18	99619	减震器轴(下)	SHAFT SHOCK ABSORBER (LOWER)	1
19	13794	减震器槽销	PIN Groove SHOCK ABSORBER	2
20	4000377	支架螺钉(M10 x 30)	SCREW (M10 x 30) BRACKET	6
21	400258	支架螺钉锁紧垫圈(M10)不锈钢	LOCKWASHER (M10) Stainless Steel BRACKET SCREW	6
22	43396A1	阳极总成	ANODE ASSEMBLY	1
23	4000332	螺钉(M6x35)-阳极	SCREW (M6 x 35) ANODE	2
24	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
25	99724A2	减震器	SHOCK ABSORBER	1
25	99724A3	减震器	SHOCK ABSORBER	1
-	41760A2	减震器维修包	REPAIR KIT Shock Absorber	1
26	99608	减震器衬套	BUSHING SHOCK ABSORBER	2
27	99625	减震器轴(上)	SHAFT SHOCK ABSORBER (UPPER)	1
-	43004A86	衬垫套件	GASKET SET

图 76转速表 Tachometer

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表6K	TACHOMETER 6K	1
2	79101T	安装支架	BRACKET Mounting	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
6	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1

图 77油门杆与连杆 Throttle Lever And Linkage

REF	零件编号	中文名称	英文名称	数量
1	42946T1	油门杆	LEVER Throttle	1
2	817582	调节螺钉(M5 x 35)	SCREW Adjusting (M5 x 35)	1
3	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
4	196632	点火提前杆	LEVER Spark Advance	1
4	19663T02	杠杆	LEVER	1
5	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	2
6	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
7	42942	盖帽	CAP	2
8	42986	螺柱	STUD	1
9	90517	螺母(M10)	NUT (M10)	1
10	812930A1	衬套	BUSHING	1
11	42980	垫圈	WASHER	1
12	55162	弹簧	SPRING	1
13	42927	嵌件	INSERT	1
14	35459	垫圈	WASHER	1
15	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
16	42918	杆	ROD	1
16	878172	点火提前杆	ROD Spark Advance	1
17	93254	旋转底座	SWIVEL BASE	2
18	93421	旋转球头	SWIVEL BALL	2
19	812871	杆油门	ROD Throttle	1
20	932481	衬套	BUSHING	2
20	8M0215006	旋转衬套	BUSHING Swivel	2
21	42984	螺柱	STUD	1
21	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
22	8128852	节气门凸轮	CAM Throttle	1
23	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
24	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	817702	弹簧	SPRING	1
26	4007180	螺丝(M10 x 45)	SCREW (M10 x 45)	1

图 78艉板支架 Transom Bracket

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成(右舷)	BRACKET ASSEMBLY Transom (STARBOARD)	1
1	8718A2	艉板支架总成(右舷)	BRACKET ASSEMBLY Transom (STARBOARD)	1
2	8716A1	艉板支架总成(左舷)	BRACKET ASSEMBLY Transom (PORT)	1
2	8716A2	艉板支架总成(左舷)	BRACKET ASSEMBLY Transom (PORT)	1
3	98727	润滑配件左舷艉板支架	FITTING Grease PORT TRANSOM BRACKET	1
4	49930A1	倾斜锁销总成(非动力配平)	PIN ASSEMBLY Tilt Lock (NON-POWER TRIM)	1
5	99170A1	倾斜管	TILT TUBE	1
6	34862	螺母(1.00-14)倾斜管	NUT (1.00-14) TILT TUBE	1
7	45711		O-RING (.612 x .103) TILT TUBE	2
8	88750	波形垫圈(1.62 x 1.05)倾斜管	WASHER Wave (1.62 x 1.05) TILT TUBE	2
9	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	1
10	677551	螺钉(.500-20 x 4.500)艉板支架至艉板	SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM	4
11	28421	垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓	WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT	4
12	8M0027784	艉板支架螺栓螺母	NUT TRANSOM BRACKET BOLT	4
13	99629A2	倾斜锁杆总成	LEVER ASSEMBLY TILT LOCK	1
14	99611	倾斜杆波形垫圈	WAVE WASHER TILT LEVER	1
15	65830	倾斜杆尼龙衬套	NYLINER TILT LEVER	2
16	99633	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
16	99633T6	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
