水星 Mercury 7.5, 75 HP ARCHIVE CAT 52325 - 爆炸图零件明细

两冲程化油器 · ARCHIVE CAT 52325 · 共 12 个部位 · 455 条零件

1气缸体与曲轴箱 2飞轮与点火组件 3旋转支架总成 4夹具支架总成 5顶罩与启动器总成 6曲轴、活塞与连杆 7底罩与换挡连杆 8杂项零件与附件 9电气组件 10驱动轴外壳总成 11齿轮箱（驱动轴）12齿轮箱(螺旋桨轴)

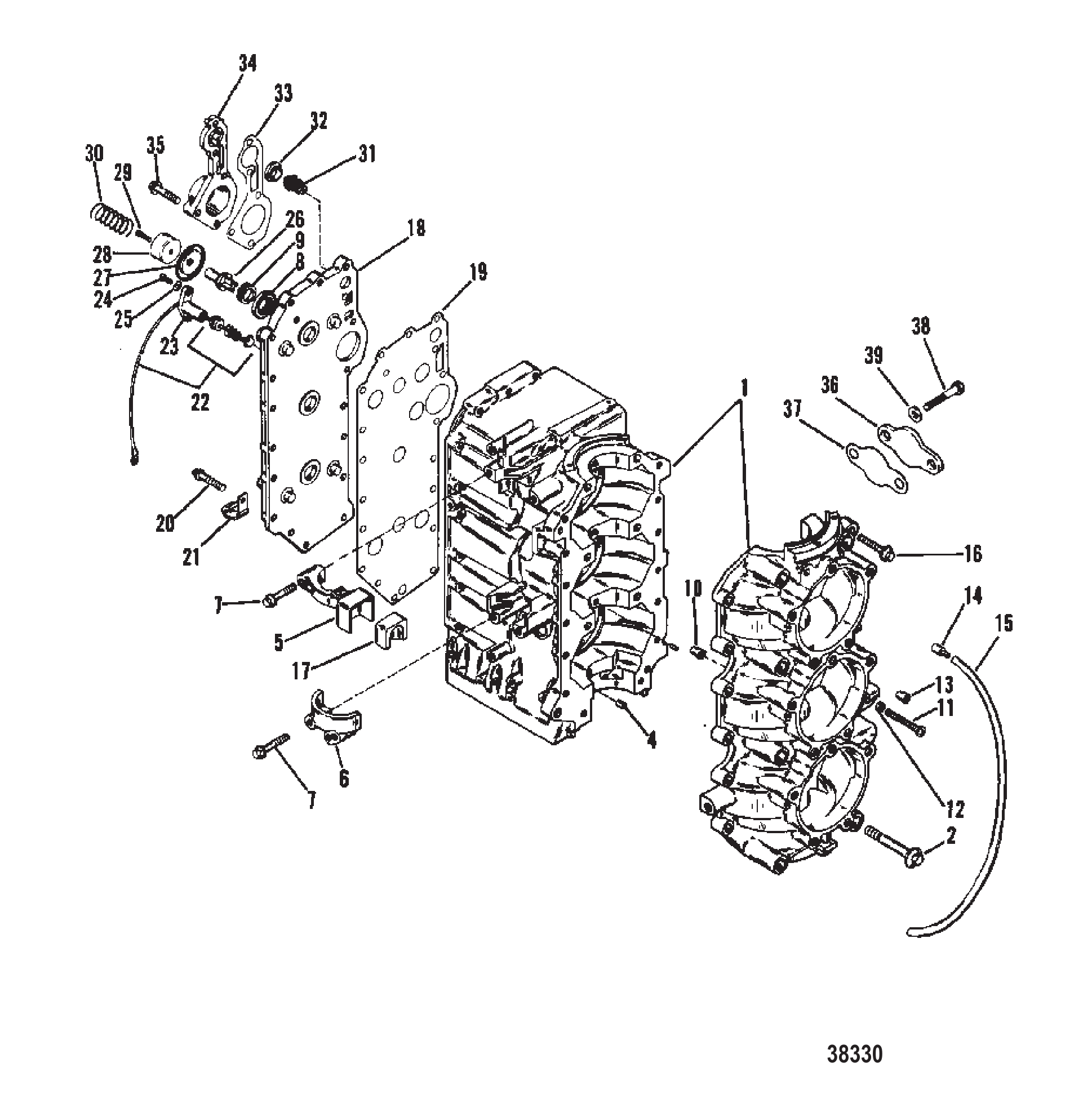

图 1气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE

REF	零件编号	中文名称	英文名称	数量
1	8947A7	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8947A8	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8947A19	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	4009680	螺钉(M10 x 80)曲轴箱至气缸体	SCREW (M10 x 80) CRANKCASE TO CYLINDER BLOCK	8
3	67296	销(轴承座圈)	PIN (BEARING RACE)	3
4	20033	定位销	PIN Dowel LOCATING	1
5	42884	启动器盖(顶部)	COVER STARTER (TOP)	1
6	76867	启动器盖(底部)	COVER STARTER (BOTTOM)	1
7	4009550	启动器盖螺钉	SCREW STARTER COVER	4
8	65848	提升阀座	CARRIER POPPET VALVE	1
9	64872	提升阀衬套	GROMMET POPPET VALVE	1
10	42657A1	曲轴箱止回阀	CHECK VALVE CRANKCASE	2
11	42978	调节螺钉	SCREW ADUSTING	1
12	400202	调节螺钉锁紧螺母	NUT JAM - ADJUSTING SCREW	1
13	42942	调节螺钉帽	CAP ADJUSTING SCREW	1
14	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
15	99130122	泄放管(20.00英尺散装)	TUBING (20.00 Feet Bulk) BLEED	1
16	4011135	螺钉(M8 x 1.25 x 35)曲轴箱至气缸体	SCREW (M8 x 1.25 x 35) CRANKCASE TO CYLINDER BLOCK	12
17	99162	油箱护套	BOOT OIL TANK	1
18	9003T	气缸体盖	COVER CYLINDER BLOCK	1
19	430052	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
20	4011135	螺钉(M8 x 1.25 x 35)气缸体盖	SCREW (M8 x 1.25 x 35) CYLINDER BLOCK COVER	14
21	47483	J型夹气缸体盖螺钉	J CLIP CYLINDER BLOCK COVER SCREW	4
22	78799	温度传感器(19.50英寸)	SENDER Temperature (19.50 Inch)	1
23	44290	温度传感器固定座	RETAINER TEMPERATURE SENDER	1
24	48409	螺钉(#10-16 x .625)不锈钢固定座	SCREW (#10-16 x .625) Stainless Steel RETAINER	2
25	56681	垫圈(.203 x .500 x .032)固定螺钉	WASHER (.203 x .500 x .032) RETAINER SCREW	2
26	86596	提升阀	POPPET VALVE	1
27	64877	隔膜	DIAPHRAGM	1
28	94182	垫圈	WASHER	1
29	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
30	42996	弹簧(不锈钢)压缩-提升阀	SPRING (Stainless Steel) COMPRESSION - POPPET VALVE	1
31	75692	节温器(143度)	THERMOSTAT (143 DEG.)	1
32	62386	节温器衬垫	GASKET THERMOSTAT	1
33	430062	节温器盖衬垫	GASKET THERMOSTAT COVER	1
34	42885T	节温器盖	COVER THERMOSTAT	1
35	4011135	螺钉(M8 x 1.25 x 35)节温器盖	SCREW (M8 x 1.25 x 35) THERMOSTAT COVER	5
36	12621	非喷油式油垫盖	COVER OIL PAD NON OIL INJECTION	1
37	12620	非喷油式盖衬垫	GASKET COVER NON OIL INJECTION	1
38	40007106	螺钉(M5 x 13)非喷油式盖	SCREW (M5 x 13) COVER NON OIL INJECTION	2
39	4002314	非喷油式盖螺钉垫圈	WASHER COVER SCREW NON OIL INJECTION	2

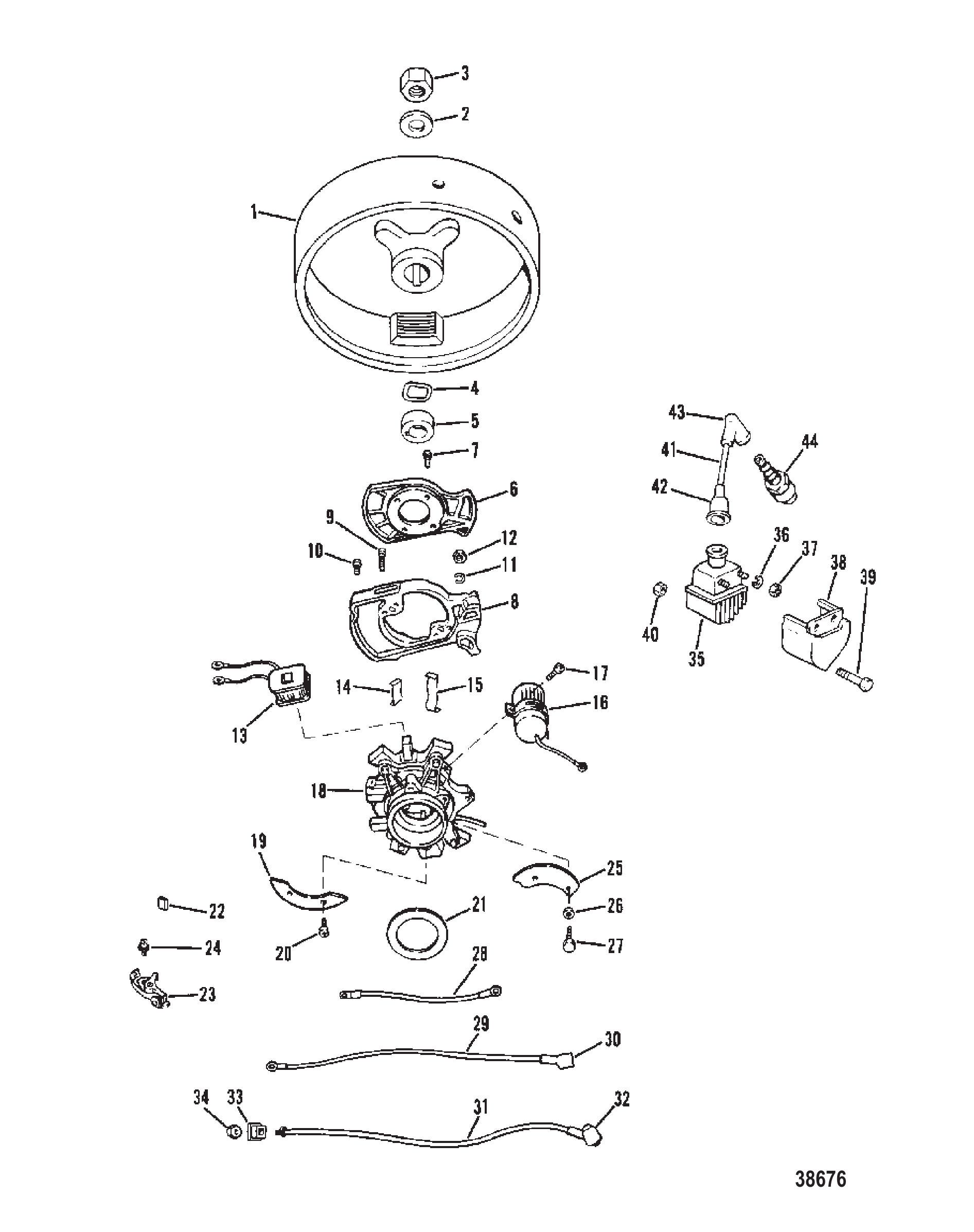

图 2飞轮与点火组件 FLYWHEEL AND IGNITION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	4475A1	飞轮总成	FLYWHEEL ASSEMBLY	1
2	36245	垫圈飞轮螺母	WASHER FLYWHEEL NUT	1
3	20696	飞轮螺母	NUT FLYWHEEL	1
4	35629	垫片-波形凸轮张紧	WASHER WAVE-CAM TENSION	1
5	4465	凸轮	CAM	1
6	4524A1	盖总成	COVER ASSEMBLY	1
7	60491	螺钉(#8-32 x 0.620)-盖板至模块	SCREW (#8-32 x .620) COVER TO MODULE	2
8	4516A2	点火模块总成	IGNITION MODULE ASSEMBLY	1
9	59800	螺钉(9/16")-模块至定子	SCREW MODULE TO STATOR (9/16")	2
10	36046	螺钉(1/4")-模块至线圈引线	SCREW MODULE-COIL LEAD (1/4")	3
11	26996	锁紧垫圈(#10)-不锈钢模块端子	LOCKWASHER (#10) Stainless Steel MODUEL TERMINALS	2
12	45076	螺母(#10-32)-黄铜模块端子	NUT (#10-32) Brass MODULE TERMINALS	2
13	4470A1	线圈总成	COIL ASSEMBLY	1
13	4469A1	线圈总成	COIL ASSEMBLY	1
14	59538	卡箍线圈固定	CLIP COIL RETAINING	2
14	59538T	卡箍@2	CLIP @2	2
15	59539	卡箍线圈固定	CLIP COIL RETAINING	2
16	4463	电容器总成	CONDENSER ASSEMBLY	1
17	62269	螺钉(#10-32 x 0.437)-电容器固定	SCREW (#10-32 x .437) CONDENSER ATTACHING	2
18	4476A1	定子总成	STATOR ASSEMBLY	1
18	4476A6	定子总成	STATOR ASSY	1
19	4458	定子压板	PLATE STATOR HOLD DOWN	2
20	35400	螺钉(7/16")-压板至定子	SCREW HOLD DOWN PLATE TO STATOR (7/16")	4
21	33910015	垫片-定子板至上端盖	SHIM STATOR PLATE TO UPPER END CAP	1
22	3989	油绳凸轮刮片	WICK CAM WIPER	1
23	4318A2	定子壳体标记组件	MAKER ASSEMBLY STATOR HOUSING	1
24	56266	螺钉(3/8")-标记器至定子壳体	SCREW MAKER TO STATOR HOUSING (3/8")	2
25	56520	凸轮	CAM	1
26	69054	螺钉(0.250-20 x 0.620)-节气门凸轮至接触壳体	SCREW (.250-20 x .620) THROTTLE CAM TO CONTACT HOUSING	2
27	37998	垫片-节气门凸轮固定螺钉	WASHER THROTTLE CAM ATTACHING SCREW	1
28	56757A5	线束总成-跳线(黑色-4-1/4")	WIRE ASSEMBLY Jumper (BLACK-4-1/4")	1
29	56318A11	引线总成(绿色-12-1/4")	LEAD ASSEMBLY (GREEN-12-1/4")	1
30	38938	引线护套总成	BOOT LEAD ASSEMBLY	1
31	56316A4	定子壳体线缆总成(白色-103/4")	CABLE ASSEMBLY STATOR HOUSING (WHITE-103/4")	1
32	38938	线缆护套	BOOT CABLE	1
33	4460	接触壳体电缆绝缘体	INSULATOR CABLE TO CONTACT HOUSING	1
34	56325	电缆绝缘体螺母	NUT CABLE INSULATOR	1
35	4528A3	点火线圈总成	COIL ASSEMBLY Ignition	1
35	4528T2	点火线圈	IGNITION COIL	1
36	26996	锁紧垫圈(#10)不锈钢点火线圈端子	LOCKWASHER (#10) Stainless Steel IGNITION COIL TERMINAL	2
37	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	2
38	66355	盖板	COVER	1
39	61530	螺钉	SCREW	3
40	27164	螺母及锁紧垫圈(#10-32)线圈盖螺钉	NUT AND LOCKWASHER (#10-32) COIL COVER SCREW	3
41	99215A25	高压导线总成	LEAD ASSEMBLY HIGH TENSION	1
41	813715A1	引线	LEAD WIRE	1
42	2854	点火线圈护套	BOOT IGNITION COIL	1
42	2854T01	护套@3	BOOT @3	1
43	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	1
44	97182	火花塞（NGK #BUHW-2）	SPARK PLUG (NGK #BUHW-2)	1
44	896329833	SP #L78V @4	SP #L78V @4	1
44	75739	火花塞	SPARK PLUG	1
44	14103Q	ORD 896329838	ORD 896329838	1

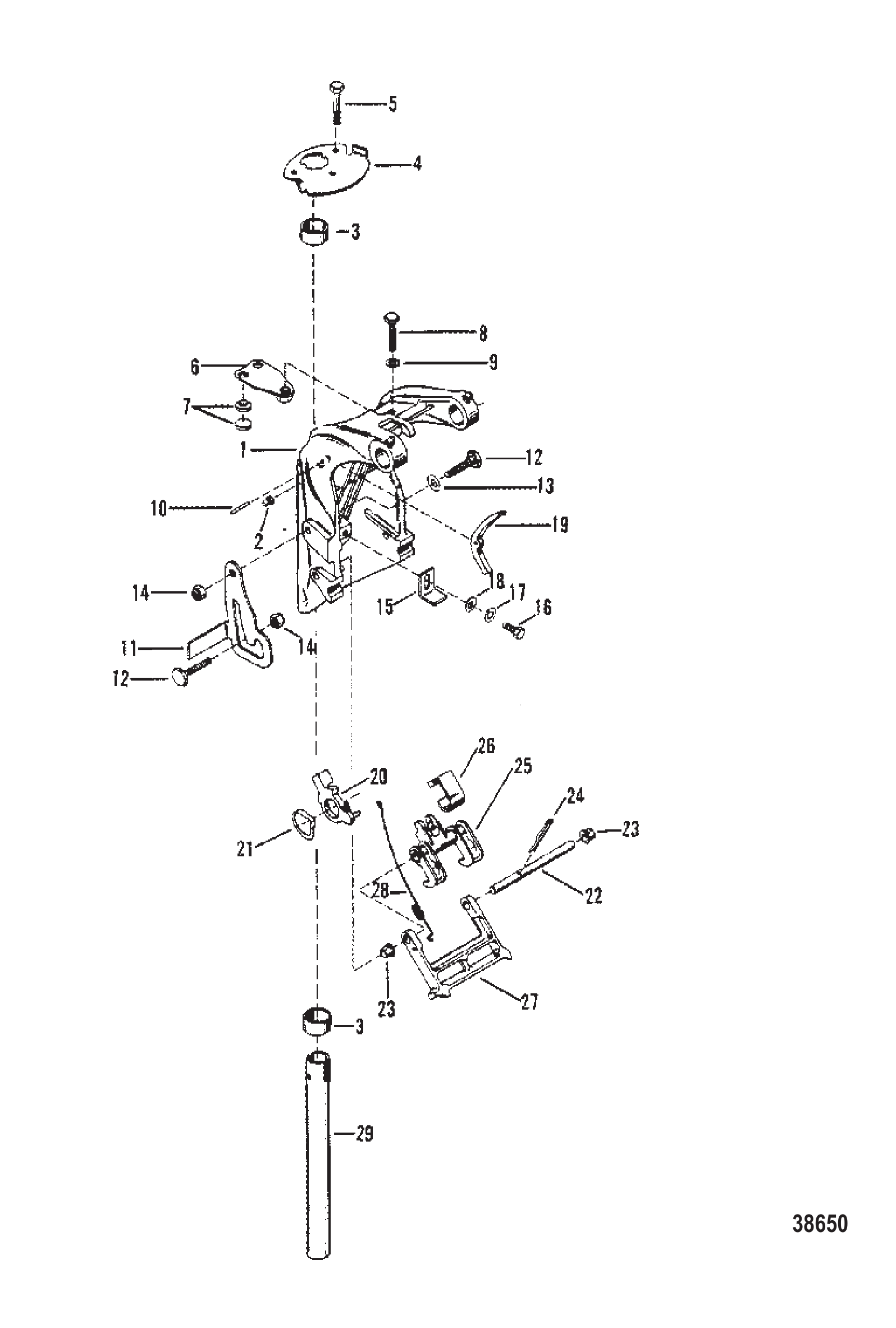

图 3旋转支架总成 SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7324A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	旋转支架润滑接头	FITTING Grease SWIVEL BRACKET	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	64028	转轴支架衬套	BUSHING SWIVEL BRACKET	2
4	77334	副驾驶板	PLATE CO-PILOT	1
5	78038	副驾驶盘至鞍座螺钉(.250-20x1.75)	SCREW (.250-20 x 1.75) CO-PILOT DISC TO SADDLE	3
6	72845A1	副驾驶夹板总成	PLATE ASSEMBLY CLAMP - CO-PILOT	1
7	20203	摩擦盘	DISC FRICTION	4
8	36154	夹板调节螺钉(.250-28x1.380)	SCREW (.250-28 x 1.380) CLAMP PLATE ADJUSTING	1
9	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
10	25319	弹簧导向销(0.125x0.75英寸)	PIN (.125 x 0.75 Inches) SPRING GUIDE	1
11	879841	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
11	87984A1	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
12	41433	倾斜止动杆螺钉(.250-28x1.00)	SCREW (.250-28 x 1.00) TILT STOP LEVER	2
13	31030	杠杆锚定螺钉波形垫圈	WAVE WASHER LEVER ANCHOR SCREW	1
14	35888	倾斜止动杆螺钉不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel TILT STOP LEVER SCREW	2
15	72794	倒挡锁止块	STOP REVERSE LOCK	1
16	71056	螺丝(.250-28 x .560)倒车挡块至旋转支架	SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET	1
17	26992	锁紧垫圈(.250)不锈钢倒车挡块螺丝	LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW	1
18	71055	垫圈倒车挡块螺丝	WASHER REVERSE STOP SCREW	1
19	63554	导向弹簧	GUIDE SPRING	1
20	79744	拖钓支架控制杆	LEVER CONTROL - TROLL BRACKET	1
21	63631	拖钓支架杠杆波形垫圈	WAVE WASHER TROLL BRACKET LEVER	1
22	71419	倒挡锁止杆至开关支架	ROD REVERSE LOCK TO SWITCH BRACKET	1
23	26841	尼龙衬套-倒挡锁止杆连杆	BUSHING NYLON - REVERSE LOCK LEVER ROD	2
24	45882	倒挡锁止杆至连杆开口销	COTTER PIN REVERSE LOCK LEVER TO ROD	1
25	63628	倒挡锁止杆	LEVER REVERSE LOCK	1
25	63628T	杠杆	LEVER	1
26	61007	固定座-倒挡锁止杆	RETAINER ROD - REVERSE LOCK	1
27	63559	拖钓支架	BRACKET TROLL	1
27	63559T	支架	BRACKET	1
28	63630	拖钓支架延伸弹簧	SPRING EXTENSION - TROLL BRACKET	1
29	66559	旋转支架至鞍座管道	TUBE SWIVEL BRACKET TO SADDLE	1

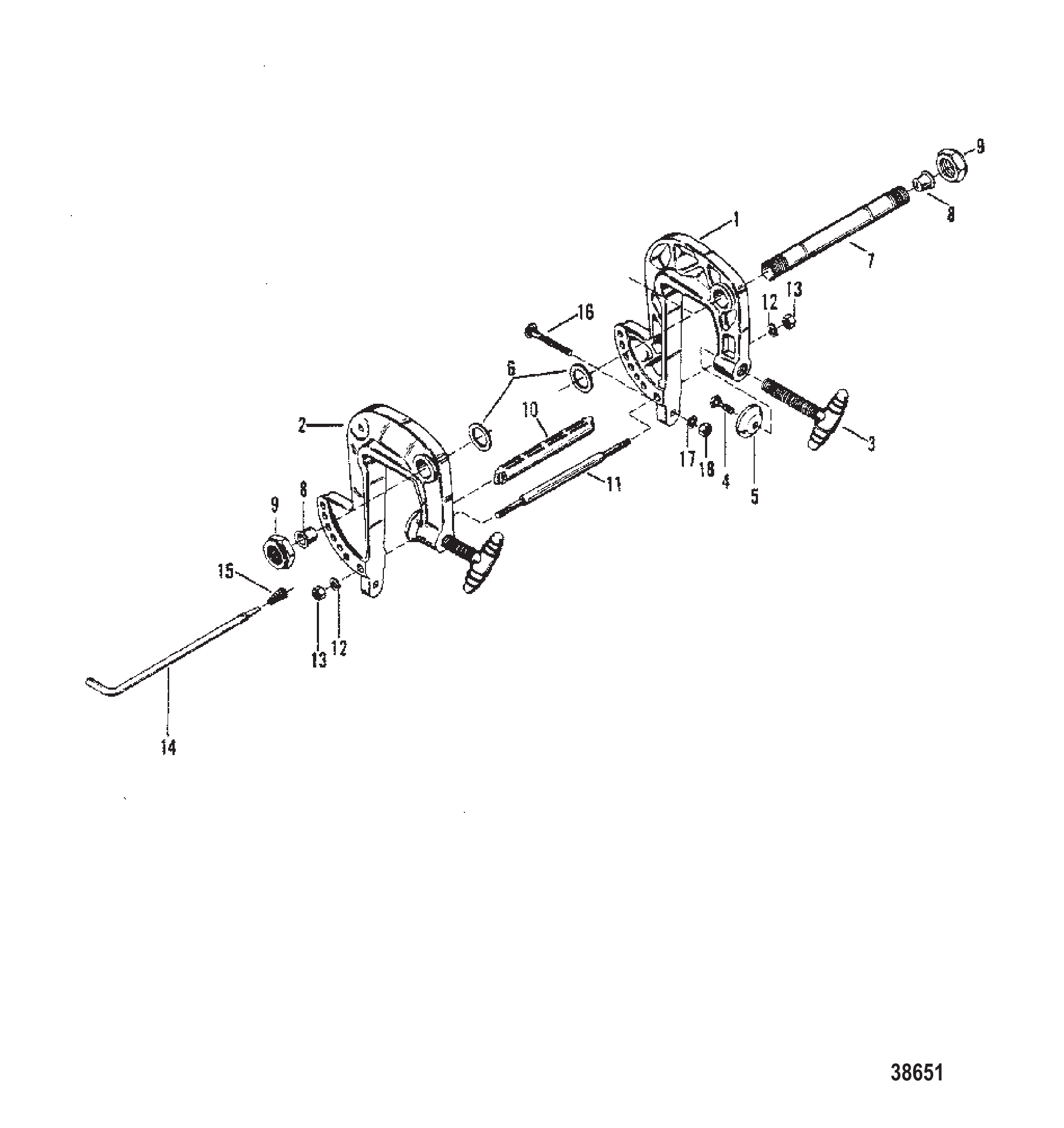

图 4夹具支架总成 CLAMP BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	5570A3	夹紧支架总成(左舷)	CLAMP BRACKET ASSEMBLY (PORT)	1
2	5571A3	夹紧支架总成(右舷)	CLAMP BRACKET ASSEMBLY (STARBOARD)	1
3	77190A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	76804	蝶形螺钉	SCREW THUMB SCREW	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
5	818884	垫圈	WASHER	2
6	71421	倾斜管尼龙垫圈-夹紧至旋转支架	WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET	2
7	96962	倾斜管夹紧至旋转支架	TILT TUBE CLAMP TO SWIVEL BRACKET	1
8	39333	倾斜管塞	PLUG TILT TUBE	2
9	93164	倾斜管紧固螺母(.875)	NUT (.875) TILT TUBE FASTENING	2
10	71420	提手	HANDLE CARRYING	1
11	71417	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	71418A2	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
15	62143	倾斜锁止销弹簧	SPRING TILT LOCK PIN	1
16	67982	夹紧支架至船体螺栓	BOLT CLAMP BRACKET TO BOAT	2
17	67983	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
18	56374	夹紧支架螺钉螺母(.250-20)	NUT (.250-20) CLAMP BRACKET SCREW	2
18	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2

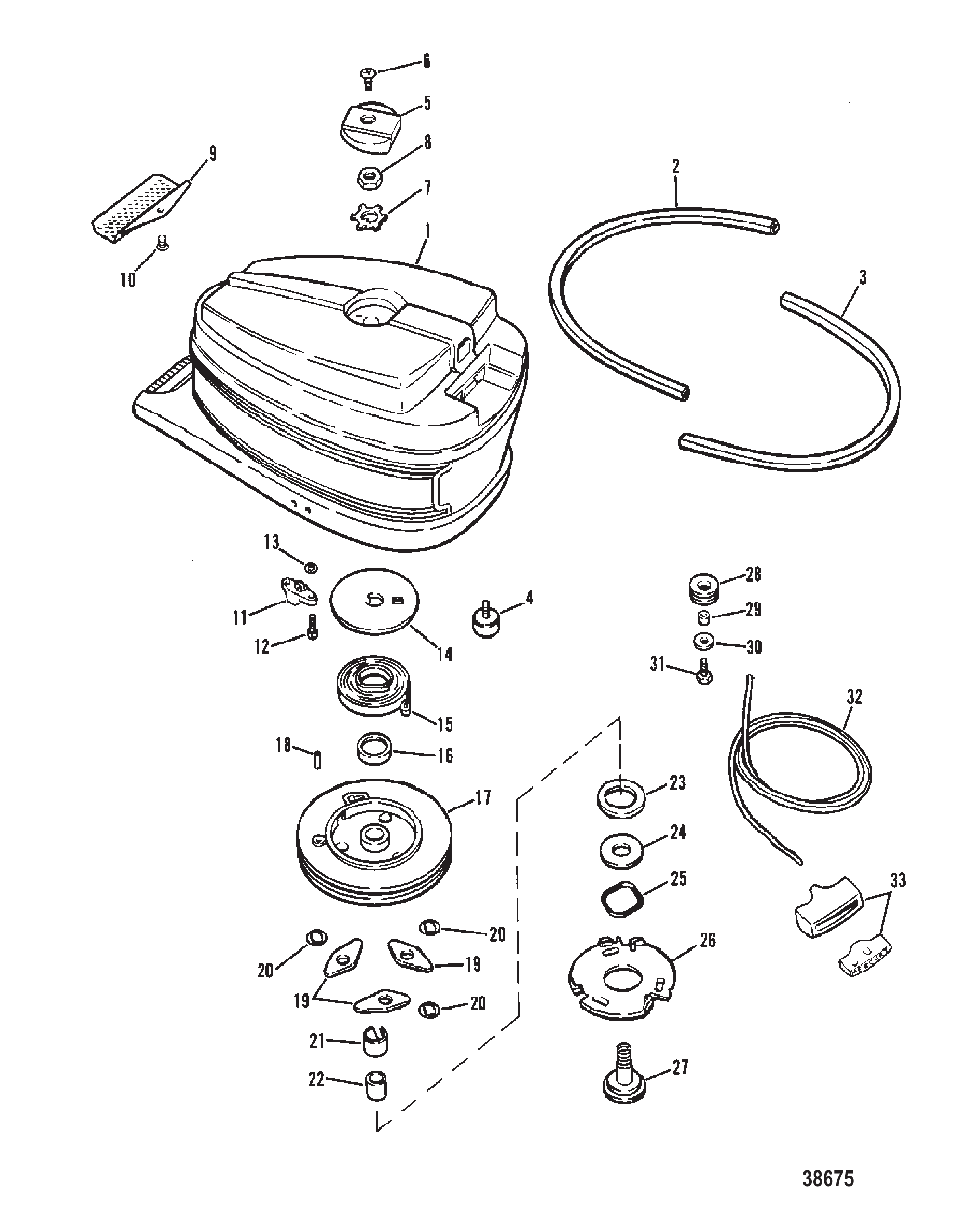

图 5顶罩与启动器总成 TOP COWL AND STARTER ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7668A2	顶盖总成	TOP COWL ASSEMBLY	1
2	39538	后部隔音条	STRIP SOUND SEAL-REAR	1
3	39537	前部隔音条	STRIP SOUND SEAL-FORWARD	1
4	66018	顶罩橡胶支架	MOUNT RUBBER-TOP COWL	2
5	89096	顶罩装饰盖	TRIM COVER TOP COWL	1
6	64652	装饰盖至顶罩螺钉	SCREW TRIM COVER TO TOP COWL	1
7	20165	滑轮轴螺母锁紧垫圈	TAB WASHER SHEAVE SHAFT NUT	1
8	20166	滑轮轴螺母(左旋螺纹)	NUT SHEAVE SHAFT (LEFT HAND THREAD)	1
9	64601	顶罩通风盖	COVER VENT-TOP COWL	1
10	35519	螺钉(#10-16 x .500)通风网至顶罩	SCREW (#10-16 x .500) VENT SCREEN TO TOP COWL	2
11	39257	顶罩固定支架	BRACKET TOP COWL FASTENING	1
11	39258	顶罩固定支架	BRACKET TOP COWL FASTENING	1
12	39514	支架至顶罩螺钉(1-1/8")	SCREW BRACKET TO TOP COWL (1-1/8")	4
13	39143	垫圈(.253 x .625 x .0937)支架螺钉	WASHER (.253 x .625 x .0937) BRACKET SCREW	4
14	20155	启动器弹簧固定座	RETAINER STARTER SPRING	1
15	29340A1	启动器回位弹簧	SPRING STARTER REWIND	1
15	29340T02	回卷弹簧	SPRING-RECOIL	1
16	28912	弹簧导套	BUSHING SPRING GUIDE	1
17	93696A2	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
18	22896	启动线缆定位销	PIN RETAINER, STARTER CABLE	1
19	30596	启动器棘爪	PAWL STARTER	3
20	36206	启动棘爪波形垫圈	WAVE WASHER STARTER PAWL	3
21	28919	尼龙衬套-滑轮轴隔套	BUSHING NYLON-SHEAVE SHAFT SPACER	1
22	61005	滑轮轴间隔套	SPACER SHEAVE SHAFT	1
23	26179	滑轮轴至启动滑轮固定器	RETAINER SHEAVE SHAFT TO STARTER SHEAVE	1
24	35559	滑轮轴固定器垫圈	WASHER SHEAVE SHAFT RETAINER	1
25	20160	张力固定器波形垫圈	WAVE WASHER RETAINER TENSION	1
26	30595	启动棘爪固定板	PLATE RETAINER-STARTER PAWL	1
27	35558	滑轮轴	SHAFT Sheave	1
28	93695	启动器拉索滑轮	PULLEY STARTER CABLE	1
29	30977	线缆滑轮隔套	SPACER CALBE PULLEY	1
29	309772	隔套	SPACER	1
30	22887	滑轮紧固螺钉垫圈	WASHER PULLEY FASTENING SCREW	1
31	28789	螺钉(.190-24 x .750)滑轮至顶罩	SCREW (.190-24 x .750) PULLEY TO TOP COWL	1
32	12066A9	绳索	ROPE	1
32	12066Q10	启动绳@2	ROPE-STARTER@2	1
33	79470A1	绳索固定组件	RETAINER KIT Rope	1

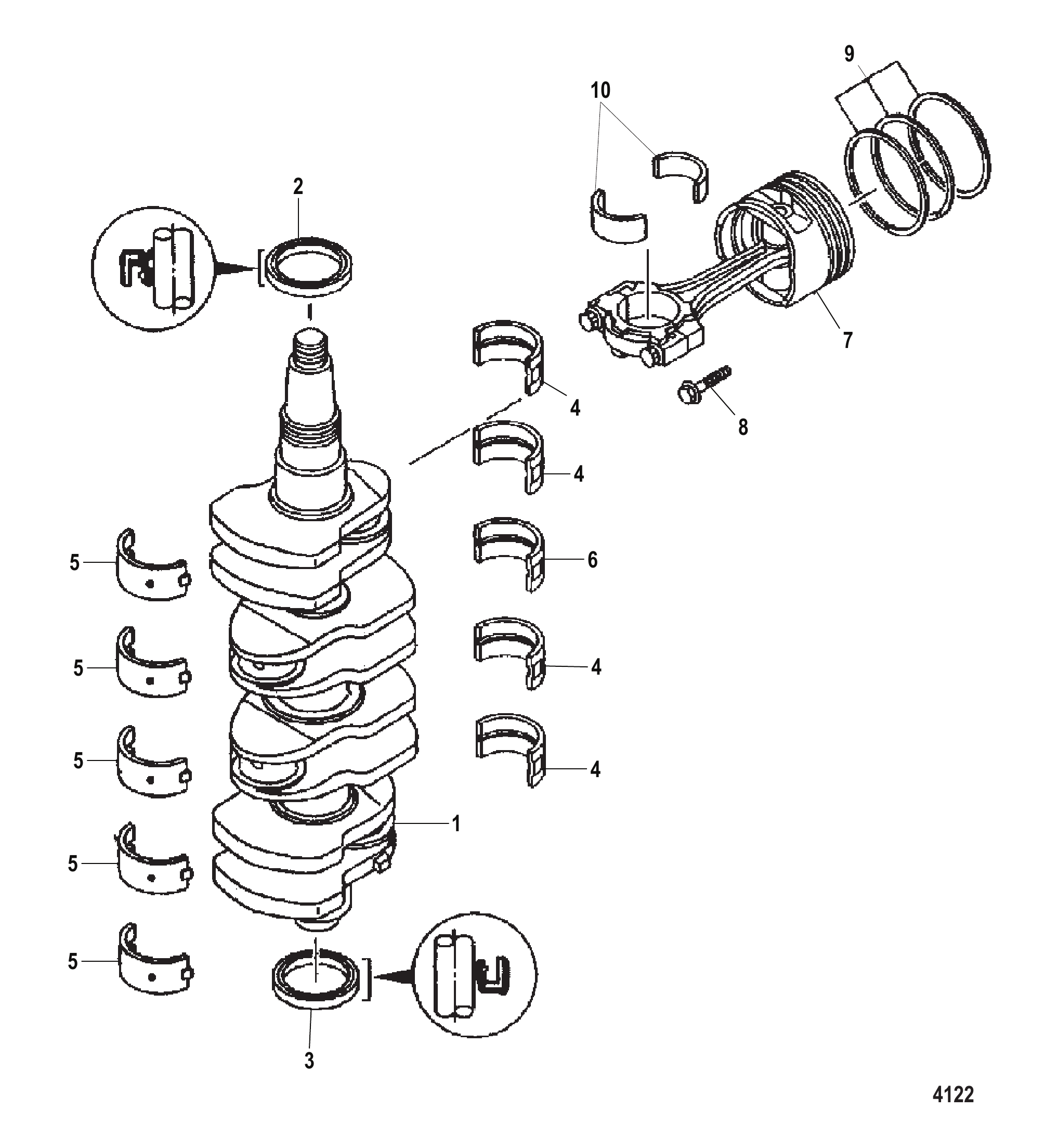

图 6曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	880894T	曲轴	CRANKSHAFT	1
2	8040992	油封	SEAL Oil	1
3	8041002	油封	SEAL Oil	1
4	804101T	轴承	BEARING	4
4	804101T10	轴承	BEARING	4
4	804101T20	轴承	BEARING	4
5	804102T	轴承	BEARING	5
5	804102T10	轴承	BEARING	5
5	804102T20	轴承	BEARING	5
5	804102T30	轴承	BEARING	5
6	804103T	轴承	BEARING	1
6	804103T10	轴承	BEARING	1
6	804103T20	轴承	BEARING	1
7	880895A05	活塞总成	PISTON ASSEMBLY	4
7	880895A14	活塞/连杆总成	PISTON/CONN ROD	4
7	880895A12	活塞总成	PISTON ASSEMBLY	AR
7	880895A16	活塞/连杆总成	PISTON/CONN ROD	AR
8	880896	螺栓(M8 x 38)	BOLT (M8 x 38)	8
9	880897T02	活塞环组	RING SET Piston	4
9	880898T02	活塞环组	RING SET Piston	AR
10	880899T	轴承	BEARING	8
10	880899T10	轴承	BEARING	8
10	880899T20	轴承	BEARING	8
10	880899T30	轴承	BEARING	8
-	858732A06	衬垫套件	GASKET SET	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

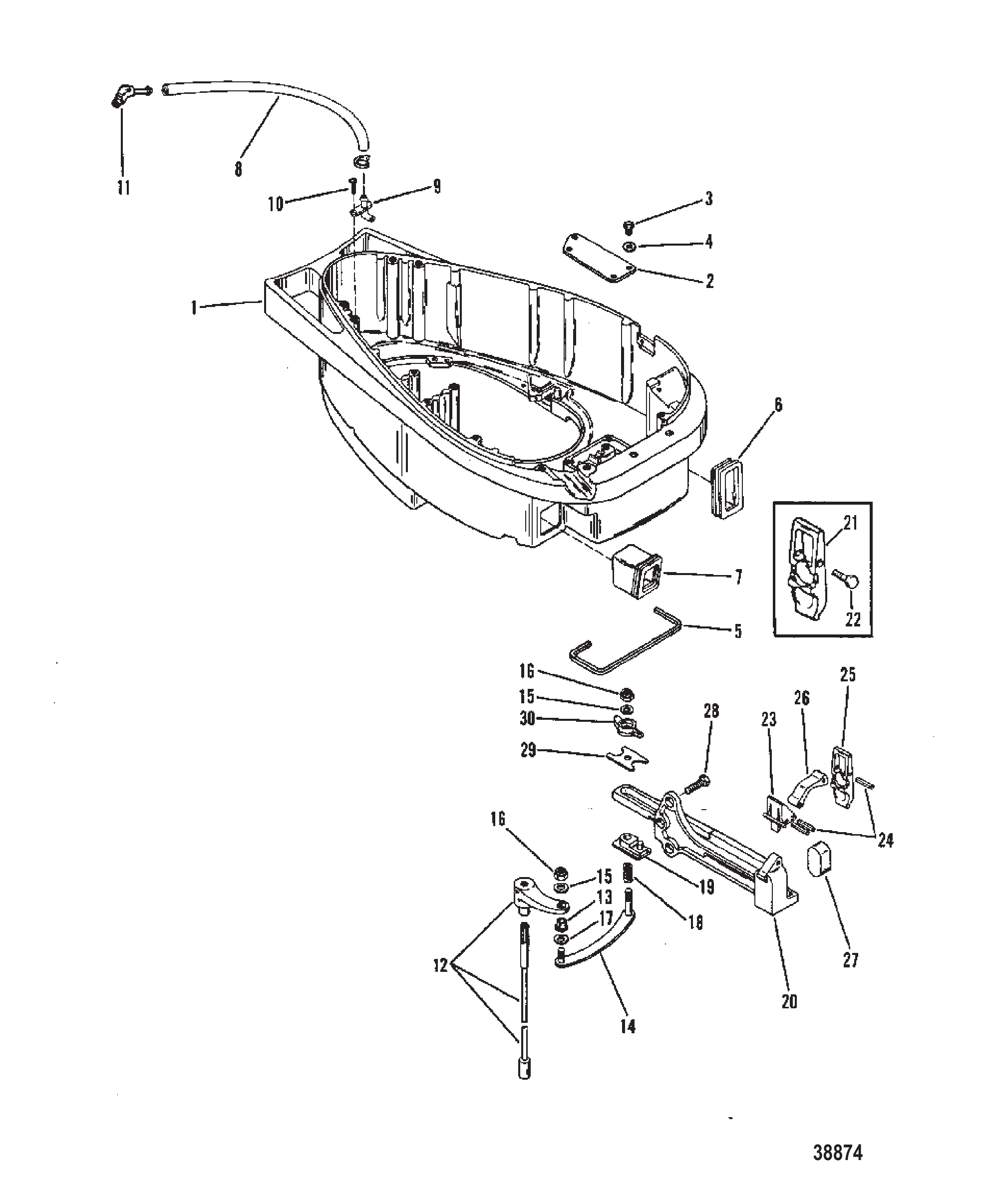

图 7底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	87081	底罩	COWL BOTTOM	1
1	8708T6	底罩	COWL BOTTOM	1
2	74303	进气口盖	COVER AIR INLET	1
3	62568	螺钉(#10-16 x .375)盖至底罩	SCREW (#10-16 x .375) COVER TO BOTTOM COWL	4
4	30164	垫圈(.192 x .375 x .0312)不锈钢盖螺钉	WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW	4
5	73646	底罩衬垫	GASKET BOTTOM COWL	1
6	39616	底罩控制线缆护套	BOOT CONTROL CABLES-BOTTOM COWL	1
7	37637	底罩燃油接头护套	BOOT FUEL CONNECTOR-BOTTOM COWL	1
8	99127109	管线(57.00英寸散装)示警管(14-3/4")	LINE (57.00 Inches Bulk) TELL TALE (14-3/4")	1
8	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
9	52889	示警软管至底罩喷嘴	NOZZLE TELL TALE HOSE TO BOTTOM COWL	1
10	48408	示流喷嘴至下罩盖螺钉(#10-16x0.500)	SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL	1
11	78279	示警软管至气缸体弯头	ELBOW TELL TALE HOSE TO CYLINDER BLOCK	1
11	8M0207781	弯头	ELBOW	1
12	60304A54	上部换挡轴总成	SHIFT SHAFT ASSEMBLY UPPER	1
13	26856	换挡轴衬套	BUSHING SHIFT SHAFT	1
14	73402	换挡连杆	SHIFT LINK	1
15	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	2
16	36069	连杆螺母	NUT LINK ROD	2
17	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
18	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
19	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
20	52732A6	控制线缆锚定支架	BRACKET ANCHOR-CONTROL CABLES	1
21	98889	闩锁	LATCH	1
22	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
23	39618	尼龙换挡线缆锁定杆	LEVER NYLON-SHIFT CABLE LOCKING	1
23	87609A1	杠杆套件	LEVER KIT	1
24	47175	锁定杆及盖固定销	PIN LOCKING LEVER AND COVER FASTENING	3
25	90211	尼龙换挡线缆盖	COVER NYLON-SHIFT CABLE	1
26	65799T	连杆-锁定杆到盖板	LINK LOCKING LEVER TO COVER	1
26	87609A1	杠杆套件	LEVER KIT	1
27	39519	锚定杯形保持器	CUP BARREL RETAINER-ANCHOR	1
28	35386	螺钉(.312-18 x 1.00)锚定支架至气缸体	SCREW (.312-18 x 1.00) ANCHOR BRACKET TO CYLINDER BLOCK	3
29	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
30	38279	控制线缆闩锁紧固件	LATCH CONTROL CABLE FASTENING	1
30	8M0036768	闩锁	LATCH	1
-	73645A87	衬垫套件	GASKET SET	1

图 8杂项零件与附件 MISCELLANEOUS PARTS AND ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	814180	零件手册200马力(V-6)	PARTS MANUAL 200 H.P. (V-6)	1
-	8140981	维修手册	SERVICE MANUAL	1
-	89221A88	衬垫套件	GASKET SET	1
-	11143900	用户指南	OWNERS GUIDE	1
-	11142900	用户指南	OWNERS GUIDE	1
-	812563A94	贴花套件	DECAL SET	1
-	808562A94	贴花套件	DECAL SET	1
-	813038A89	贴花套装(红/橙)	DECAL SET (RED/ORANGE)	1
-	813038A90	贴花套装(银色)	DECAL SET (SILVER)	1

图 9电气组件 ELECTRIC COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	95815	上盖	COVER (TOP)	1
2	95828	下盖	COVER (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
4	55741001	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1
10	95814	绑带	STRAP	1
11	95813	紧固件	FASTENER	1
12	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
12	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
13	4005727	螺钉	SCREW	2
14	45771	垫圈	WASHER	2
15	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
16	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
17	816770	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
19	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
20	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
20	8M0185149	启动电磁阀	SOLENOID START	1
21	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	64015	螺母 (.250-20)	NUT (.250-20)	2
24	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
25	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
25	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
25	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
25	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
26	92439	支架(旧设计)	BRACKET (OLD DESIGN)	1
27	4000327	螺钉(M6×14)(旧设计)	SCREW (M6 x 14) (OLD DESIGN)	1
28	35044	垫圈(0.281×0.625×0.065)不锈钢(旧设计)	WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)	1
29	400212	螺母(M6)不锈钢(旧设计)	NUT (M6) Stainless Steel (OLD DESIGN)	1
30	815504310	蜗轮卡箍(旧设计)	CLAMP Worm Gear (OLD DESIGN)	1
31	86704A2	定子总成	STATOR ASSEMBLY	1
31	86704A10	辅助定子	STATOR Auxiliary	1
32	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3
33	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
33	8M0033984	启动马达	STARTER MOTOR	1
34	96561	驱动套件	DRIVE KIT	1
35	96562	驱动器	DRIVE	1
36	96563	端盖	END CAP	1
36	96563T	端盖	END CAP	1
37	96565	电枢	ARMATURE	1
38	96564	端盖	END CAP	1
38	96564T	端盖	END CAP	1
39	96566	贯穿螺栓	THRU BOLT	1
40	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
40	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
41	424291	固定座	RETAINER	1
42	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
43	79091	保险丝20安培	FUSE 20 Ampere	1
43	8M0207796	保险丝20安培	FUSE 20 AMP	1
44	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1
45	12152	固定座	RETAINER	1
46	92753	固定座	RETAINER	1
47	55098	J型卡扣	J CLIP	1
47	8M0024808	J型夹	J-CLIP	1

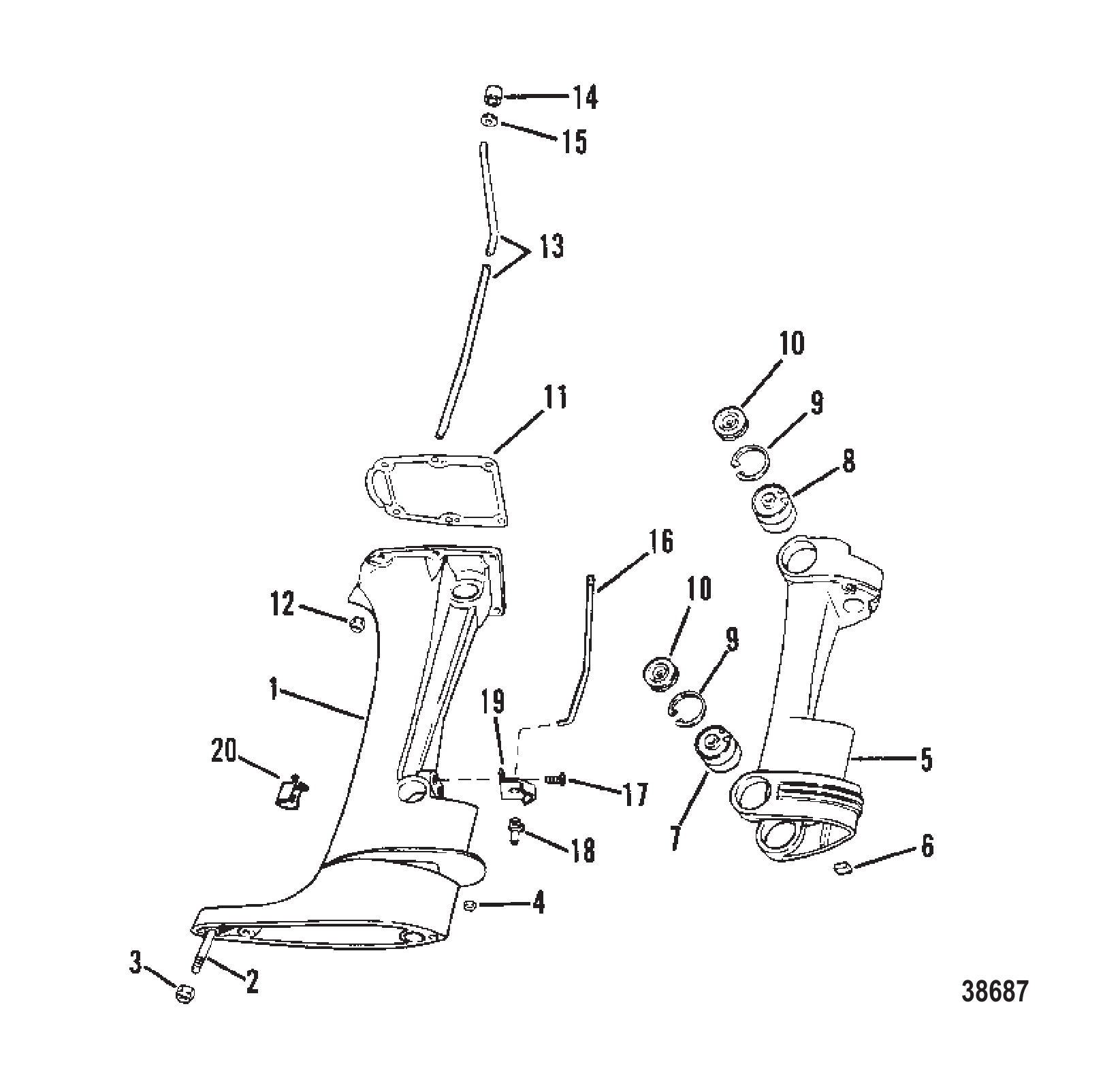

图 10驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8456A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8452A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	66373	驱动轴壳体至齿轮箱螺柱	STUD DRIVE SHAFT HOUSING TO GEAR HOUSING	1
3	35814	驱动轴壳体螺柱不锈钢螺母(.312-24)	NUT (.312-24) Stainless Steel DRIVE SHAFT HOUSING STUD	1
3	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
4	34863	齿轮箱螺柱螺母(.375-24)	NUT (.375-24) GEAR HOUSING STUD	1
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
5	8450A1	鞍座	SADDLE	1
6	64076	推力缓冲器-鞍座	BUMPER THRUST - SADDLE	1
7	79896A1	下支架	MOUNT LOWER	2
7	79896A1	下支架	MOUNT LOWER	2
8	79985A1	上部安装总成	MOUNT ASSEMBLY UPPER	2
8	79896A1	上支架	MOUNT UPPER	2
9	26406	上下安装环	RING UPPER AND LOWER MOUNT	4
10	79907	上下安装盖	COVER UPPER AND LOWER MOUNT	4
11	59079	衬垫	GASKET	1
12	24652	螺母(.250-28)	NUT (.250-28)	6
13	31940	出水管道	TUBE WATER OUTLET	1
13	32077	出水管道	TUBE WATER OUTLET	1
14	36556	出水管橡胶密封件(外径0.5英寸)	SEAL (.500 Inch Outside Diameter) RUBBER - WATER OUTLET TUBE	1
15	13127	出水管密封尼龙垫片	SPACER NYLON - OUTLET TUBE SEAL	1
16	71057	倒挡锁连杆	LINK ROD REVERSE LOCK	1
17	65414	螺钉	SCREW	2
18	65216	倒挡锁凸轮	CAM REVERSE LOCK	1
19	72007	倒挡锁凸轮固定座	RETAINER REVERSE LOCK CAM	1
20	93145	驱动轴挡块	BLOCK DRIVESHAFT	1
-	78139A80	衬垫套件	GASKET SET	1

图 11齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7360A29	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7360A30	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7360A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	58138	齿轮箱螺柱(3.5英寸)	STUD GEAR HOUSING (3-1/2")	1
3	58136	水泵壳体螺柱(2.75英寸)	STUD WATER PUMP HOUSING (2-3/4")	2
4	22756	驱动轴滚柱轴承	BEARING Roller DRIVE SHAFT	1
5	20032	定位销	PIN Dowel LOCATING	1
6	33613	进水管橡胶密封	SEAL RUBBER - WATER INTAKE TUBE	1
7	86215	进水管尼龙轴承密封	BEARING NYLON - INTAKE TUBE SEAL	1
8	33425	进水滤网	SCREEN WATER INTAKE	1
9	25612	进水滤网螺丝	SCREW WATER INTAKE SCREEN	1
10	98696	小齿轮	GEAR Pinion	1
11	30377	小齿轮螺钉锁紧垫圈	TAB WASHER PINION GEAR SCREW	1
12	30376	小齿轮驱动轴螺丝(#12-28x0.75)	SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT	1
13	95873A1	驱动轴	DRIVESHAFT	1
13	95874A1	驱动轴	DRIVESHAFT	1
14	30527A1	滚珠轴承垫片组(0.002-3-5-10)	SHIM ASSEMBLY BALL BEARING (.002-3-5-10)	AR
15	70944	驱动轴滚珠轴承	BEARING Ball DRIVE SHAFT	1
16	30523	球轴承挡圈	RING Retaining BALL BEARING	1
17	30527A1	滚珠轴承垫片组(0.002-3-5-10)	SHIM ASSEMBLY BALL BEARING (.002-3-5-10)	AR
18	70941A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
18	70941T01	壳体总成	HOUSING ASY	1
18	92970A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
19	29439	O型圈	O-RING	1
20	30900	油封	SEAL Oil	1
20	30900T	密封件@2	SEAL @2	1
20	96063	油封	SEAL Oil	1
20	897153	油封@3	SEAL-OIL @3	1
21	70977	嵌件	INSERT	1
21	70977T	嵌件	INSERT	1
22	33613	进水管密封	SEAL WATER INTAKE TUBE	1
23	34293	进水管道	TUBE WATER INTAKE	1
24	56655	叶轮驱动键	KEY IMPELLER DRIVE	1
24	8M0032835	键	KEY	1
25	89981	叶轮	IMPELLER	1
25	89980	叶轮	IMPELLER	1
26	46895	水泵面板	FACE PLATE WATER PUMP	1
27	93224A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
28	36558	水泵盖密封件	SEAL WATER PUMP COVER	1
30	30913	水泵盖油封	SEAL Oil WATER PUMP COVER	1
31	20533	垫圈	WASHER	2
32	13438	水泵壳体螺柱螺母(.250-28)	NUT (.250-28) WATER PUMP HOUSING STUD	2
32	8267119	螺母(.250-28)	NUT (.250-28)	2
33	30526	橡胶环-离心甩水环	RING RUBBER - CENTRIFUGAL SLINGER	1
34	31792	进水管导向套	SLEEVE GUIDE - INLET TUBE	1
34	31792T	套管@5	SLEEVE @5	1
-	78139A80	衬垫套件	GASKET SET	1
-	70941A3	水泵维修套件	REPAIR KIT Water Pump	1
-	92970A5	水泵维修套件	REPAIR KIT Water Pump	1
-	77066A1	水泵密封套件	SEAL KIT Water Pump	1

图 12齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成-标准旋转1.87:1传动比(完整)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)	1
1	9148A11	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	1
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	43999	滚子轴承(外径1.308)	BEARING Roller (1.308 O.D.)	2
57	73363	滚子轴承(外径1.313)	BEARING Roller (1.313 O.D.)	2
57	73363T	轴承	BEARING	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独出售(43-44104A2部件)	Not Sold Separate (PART OF 43-44104A2)	1
64	68100	止推环	RING THRUST	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承-倒档齿轮	BEARING Ball BALL-REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	轴承座定位键	KEY LOCATING-BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024	螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")	SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")	1
75	67891	填充块	FILLER BLOCK FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈-螺旋桨螺母	WASHER Splined SPLINED-PROPELLER NUT	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
83	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
-	89238A2	密封套件	SEAL KIT	1
-	14697A87	衬垫套件	GASKET SET
