水星 Mercury 7.5, 75 HP 9217756 THRU 0A197113 - 爆炸图零件明细

两冲程 化油器 · Belgium - Cat.# 90-13716 · 共 28 个部位 · 1171 条零件

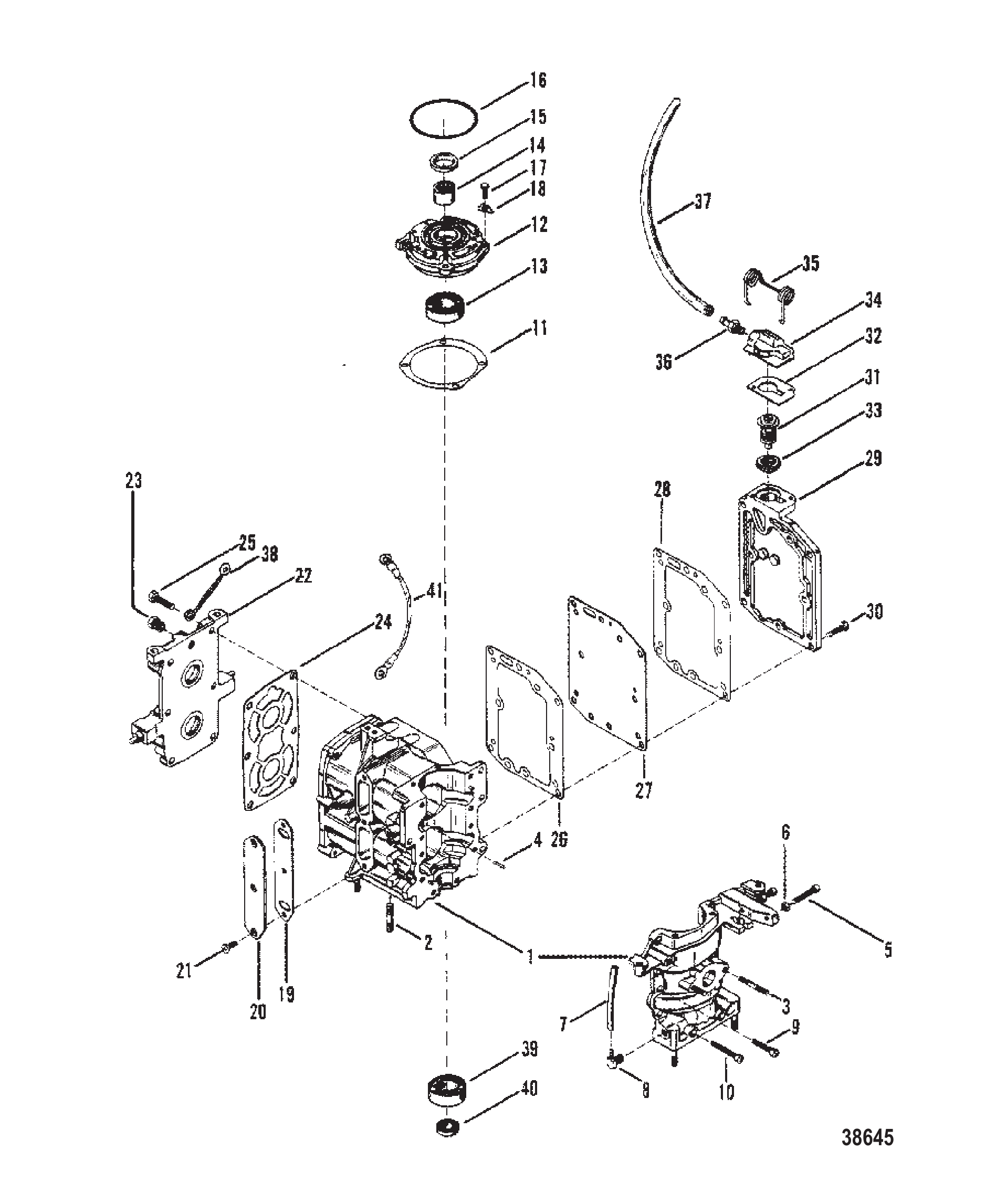

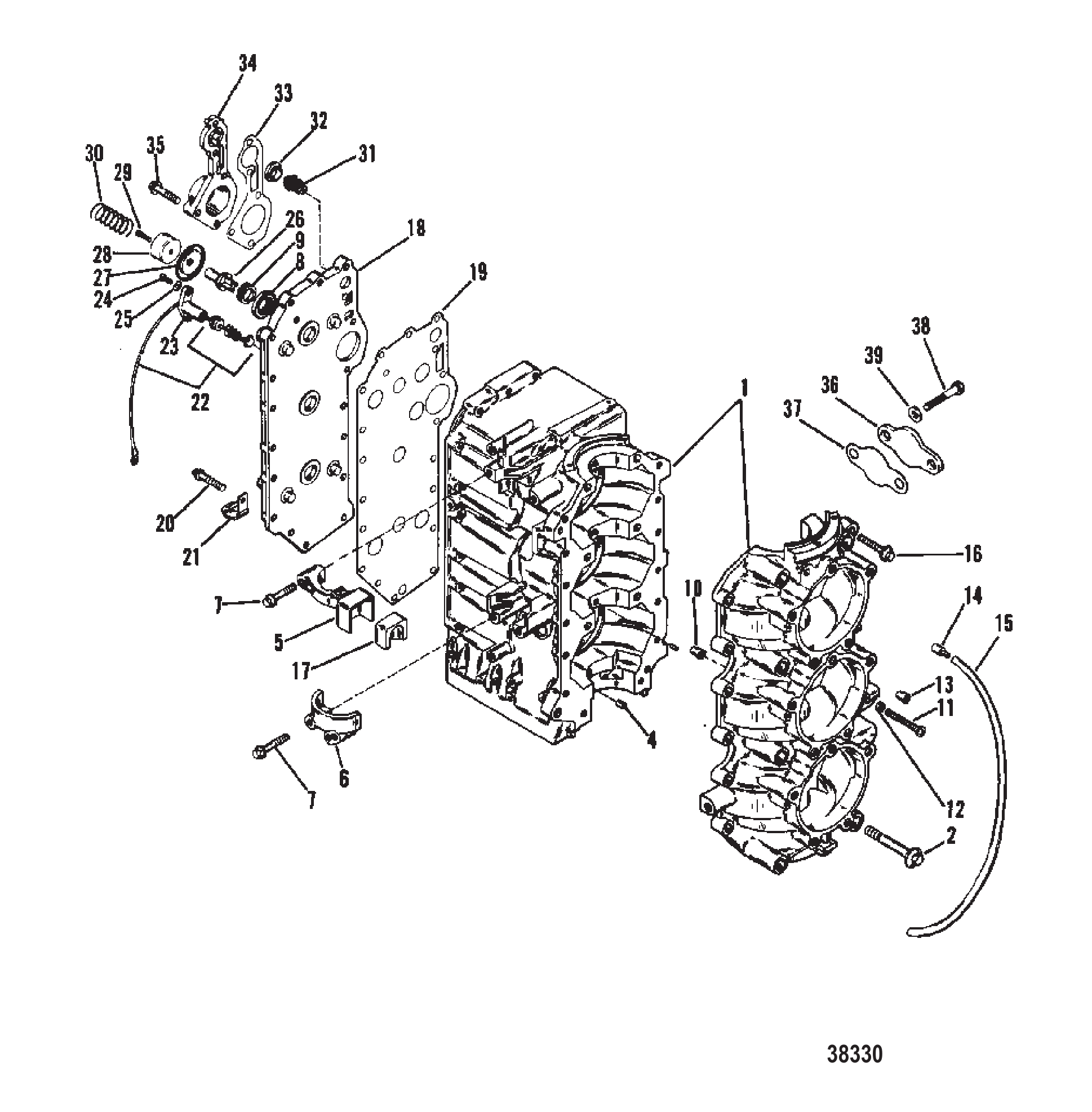

图 1气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE

REF	零件编号	中文名称	英文名称	数量
1	8947A7	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8947A8	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8947A19	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	4009680	螺钉(M10 x 80)曲轴箱至气缸体	SCREW (M10 x 80) CRANKCASE TO CYLINDER BLOCK	8
3	67296	销(轴承座圈)	PIN (BEARING RACE)	3
4	20033	定位销	PIN Dowel LOCATING	1
5	42884	启动器盖(顶部)	COVER STARTER (TOP)	1
6	76867	启动器盖(底部)	COVER STARTER (BOTTOM)	1
7	4009550	启动器盖螺钉	SCREW STARTER COVER	4
8	65848	提升阀座	CARRIER POPPET VALVE	1
9	64872	提升阀衬套	GROMMET POPPET VALVE	1
10	42657A1	曲轴箱止回阀	CHECK VALVE CRANKCASE	2
11	42978	调节螺钉	SCREW ADUSTING	1
12	400202	调节螺钉锁紧螺母	NUT JAM - ADJUSTING SCREW	1
13	42942	调节螺钉帽	CAP ADJUSTING SCREW	1
14	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
15	99130122	泄放管(20.00英尺散装)	TUBING (20.00 Feet Bulk) BLEED	1
16	4011135	螺钉(M8 x 1.25 x 35)曲轴箱至气缸体	SCREW (M8 x 1.25 x 35) CRANKCASE TO CYLINDER BLOCK	12
17	99162	油箱护套	BOOT OIL TANK	1
18	9003T	气缸体盖	COVER CYLINDER BLOCK	1
19	430052	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
20	4011135	螺钉(M8 x 1.25 x 35)气缸体盖	SCREW (M8 x 1.25 x 35) CYLINDER BLOCK COVER	14
21	47483	J型夹气缸体盖螺钉	J CLIP CYLINDER BLOCK COVER SCREW	4
22	78799	温度传感器(19.50英寸)	SENDER Temperature (19.50 Inch)	1
23	44290	温度传感器固定座	RETAINER TEMPERATURE SENDER	1
24	48409	螺钉(#10-16 x .625)不锈钢固定座	SCREW (#10-16 x .625) Stainless Steel RETAINER	2
25	56681	垫圈(.203 x .500 x .032)固定螺钉	WASHER (.203 x .500 x .032) RETAINER SCREW	2
26	86596	提升阀	POPPET VALVE	1
27	64877	隔膜	DIAPHRAGM	1
28	94182	垫圈	WASHER	1
29	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
30	42996	弹簧(不锈钢)压缩-提升阀	SPRING (Stainless Steel) COMPRESSION - POPPET VALVE	1
31	75692	节温器(143度)	THERMOSTAT (143 DEG.)	1
32	62386	节温器衬垫	GASKET THERMOSTAT	1
33	430062	节温器盖衬垫	GASKET THERMOSTAT COVER	1
34	42885T	节温器盖	COVER THERMOSTAT	1
35	4011135	螺钉(M8 x 1.25 x 35)节温器盖	SCREW (M8 x 1.25 x 35) THERMOSTAT COVER	5
36	12621	非喷油式油垫盖	COVER OIL PAD NON OIL INJECTION	1
37	12620	非喷油式盖衬垫	GASKET COVER NON OIL INJECTION	1
38	40007106	螺钉(M5 x 13)非喷油式盖	SCREW (M5 x 13) COVER NON OIL INJECTION	2
39	4002314	非喷油式盖螺钉垫圈	WASHER COVER SCREW NON OIL INJECTION	2

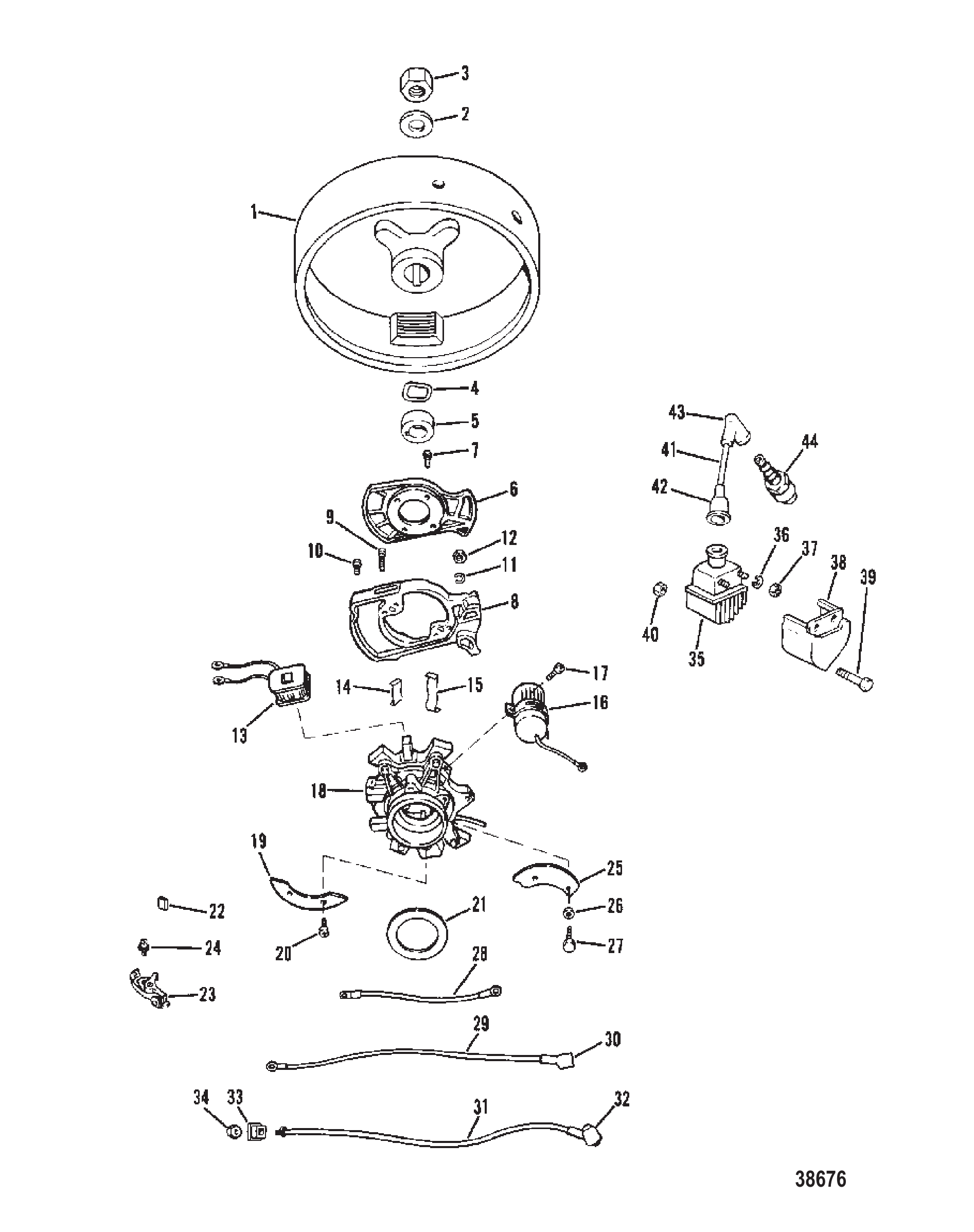

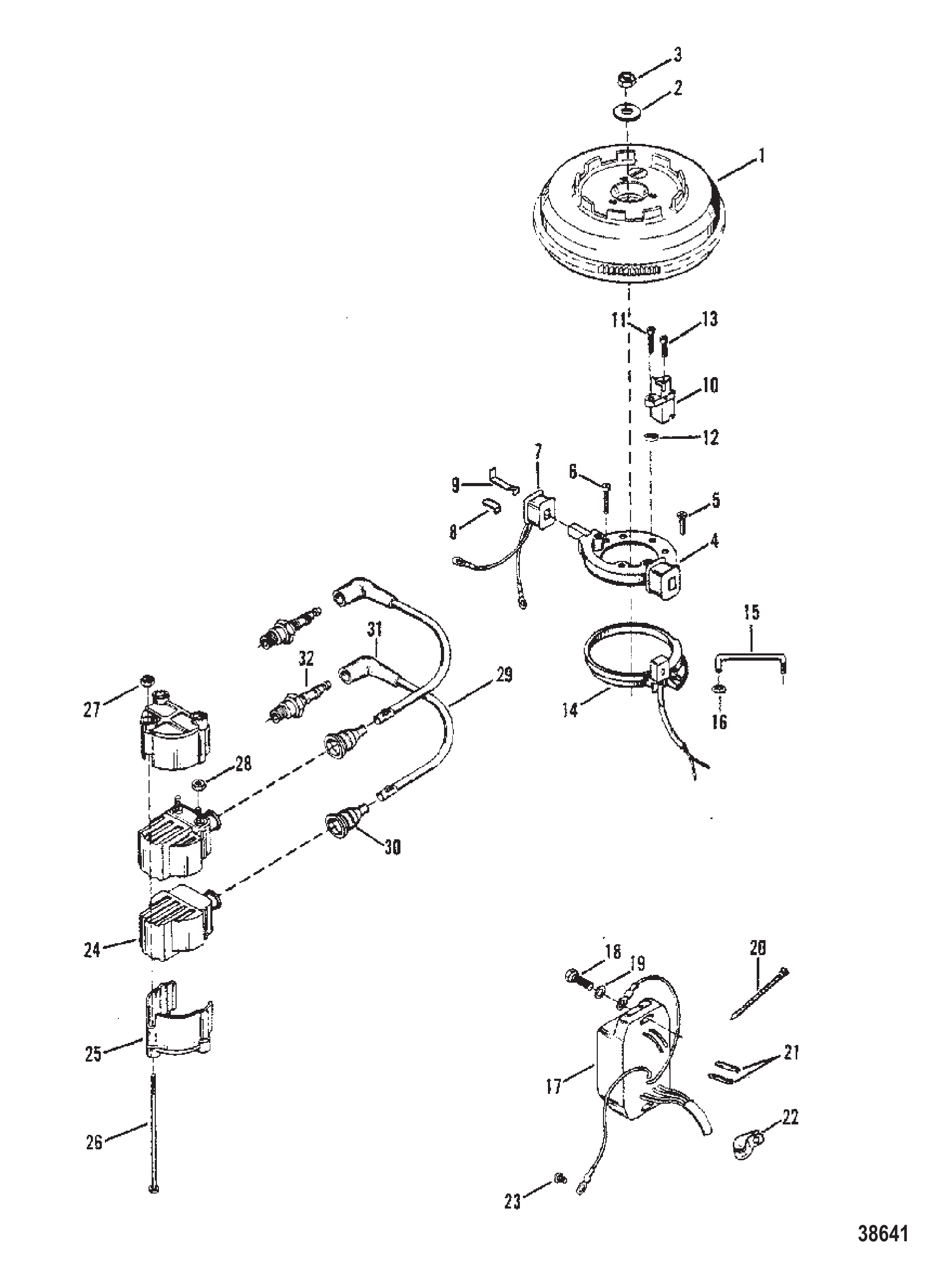

图 2飞轮与点火组件 FLYWHEEL AND IGNITION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	4475A1	飞轮总成	FLYWHEEL ASSEMBLY	1
2	36245	垫圈飞轮螺母	WASHER FLYWHEEL NUT	1
3	20696	飞轮螺母	NUT FLYWHEEL	1
4	35629	垫片-波形凸轮张紧	WASHER WAVE-CAM TENSION	1
5	4465	凸轮	CAM	1
6	4524A1	盖总成	COVER ASSEMBLY	1
7	60491	螺钉(#8-32 x 0.620)-盖板至模块	SCREW (#8-32 x .620) COVER TO MODULE	2
8	4516A2	点火模块总成	IGNITION MODULE ASSEMBLY	1
9	59800	螺钉(9/16")-模块至定子	SCREW MODULE TO STATOR (9/16")	2
10	36046	螺钉(1/4")-模块至线圈引线	SCREW MODULE-COIL LEAD (1/4")	3
11	26996	锁紧垫圈(#10)-不锈钢模块端子	LOCKWASHER (#10) Stainless Steel MODUEL TERMINALS	2
12	45076	螺母(#10-32)-黄铜模块端子	NUT (#10-32) Brass MODULE TERMINALS	2
13	4470A1	线圈总成	COIL ASSEMBLY	1
13	4469A1	线圈总成	COIL ASSEMBLY	1
14	59538	卡箍线圈固定	CLIP COIL RETAINING	2
14	59538T	卡箍@2	CLIP @2	2
15	59539	卡箍线圈固定	CLIP COIL RETAINING	2
16	4463	电容器总成	CONDENSER ASSEMBLY	1
17	62269	螺钉(#10-32 x 0.437)-电容器固定	SCREW (#10-32 x .437) CONDENSER ATTACHING	2
18	4476A1	定子总成	STATOR ASSEMBLY	1
18	4476A6	定子总成	STATOR ASSY	1
19	4458	定子压板	PLATE STATOR HOLD DOWN	2
20	35400	螺钉(7/16")-压板至定子	SCREW HOLD DOWN PLATE TO STATOR (7/16")	4
21	33910015	垫片-定子板至上端盖	SHIM STATOR PLATE TO UPPER END CAP	1
22	3989	油绳凸轮刮片	WICK CAM WIPER	1
23	4318A2	定子壳体标记组件	MAKER ASSEMBLY STATOR HOUSING	1
24	56266	螺钉(3/8")-标记器至定子壳体	SCREW MAKER TO STATOR HOUSING (3/8")	2
25	56520	凸轮	CAM	1
26	69054	螺钉(0.250-20 x 0.620)-节气门凸轮至接触壳体	SCREW (.250-20 x .620) THROTTLE CAM TO CONTACT HOUSING	2
27	37998	垫片-节气门凸轮固定螺钉	WASHER THROTTLE CAM ATTACHING SCREW	1
28	56757A5	线束总成-跳线(黑色-4-1/4")	WIRE ASSEMBLY Jumper (BLACK-4-1/4")	1
29	56318A11	引线总成(绿色-12-1/4")	LEAD ASSEMBLY (GREEN-12-1/4")	1
30	38938	引线护套总成	BOOT LEAD ASSEMBLY	1
31	56316A4	定子壳体线缆总成(白色-103/4")	CABLE ASSEMBLY STATOR HOUSING (WHITE-103/4")	1
32	38938	线缆护套	BOOT CABLE	1
33	4460	接触壳体电缆绝缘体	INSULATOR CABLE TO CONTACT HOUSING	1
34	56325	电缆绝缘体螺母	NUT CABLE INSULATOR	1
35	4528A3	点火线圈总成	COIL ASSEMBLY Ignition	1
35	4528T2	点火线圈	IGNITION COIL	1
36	26996	锁紧垫圈(#10)不锈钢点火线圈端子	LOCKWASHER (#10) Stainless Steel IGNITION COIL TERMINAL	2
37	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	2
38	66355	盖板	COVER	1
39	61530	螺钉	SCREW	3
40	27164	螺母及锁紧垫圈(#10-32)线圈盖螺钉	NUT AND LOCKWASHER (#10-32) COIL COVER SCREW	3
41	99215A25	高压导线总成	LEAD ASSEMBLY HIGH TENSION	1
41	813715A1	引线	LEAD WIRE	1
42	2854	点火线圈护套	BOOT IGNITION COIL	1
42	2854T01	护套@3	BOOT @3	1
43	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	1
44	97182	火花塞（NGK #BUHW-2）	SPARK PLUG (NGK #BUHW-2)	1
44	896329833	SP #L78V @4	SP #L78V @4	1
44	75739	火花塞	SPARK PLUG	1
44	14103Q	ORD 896329838	ORD 896329838	1

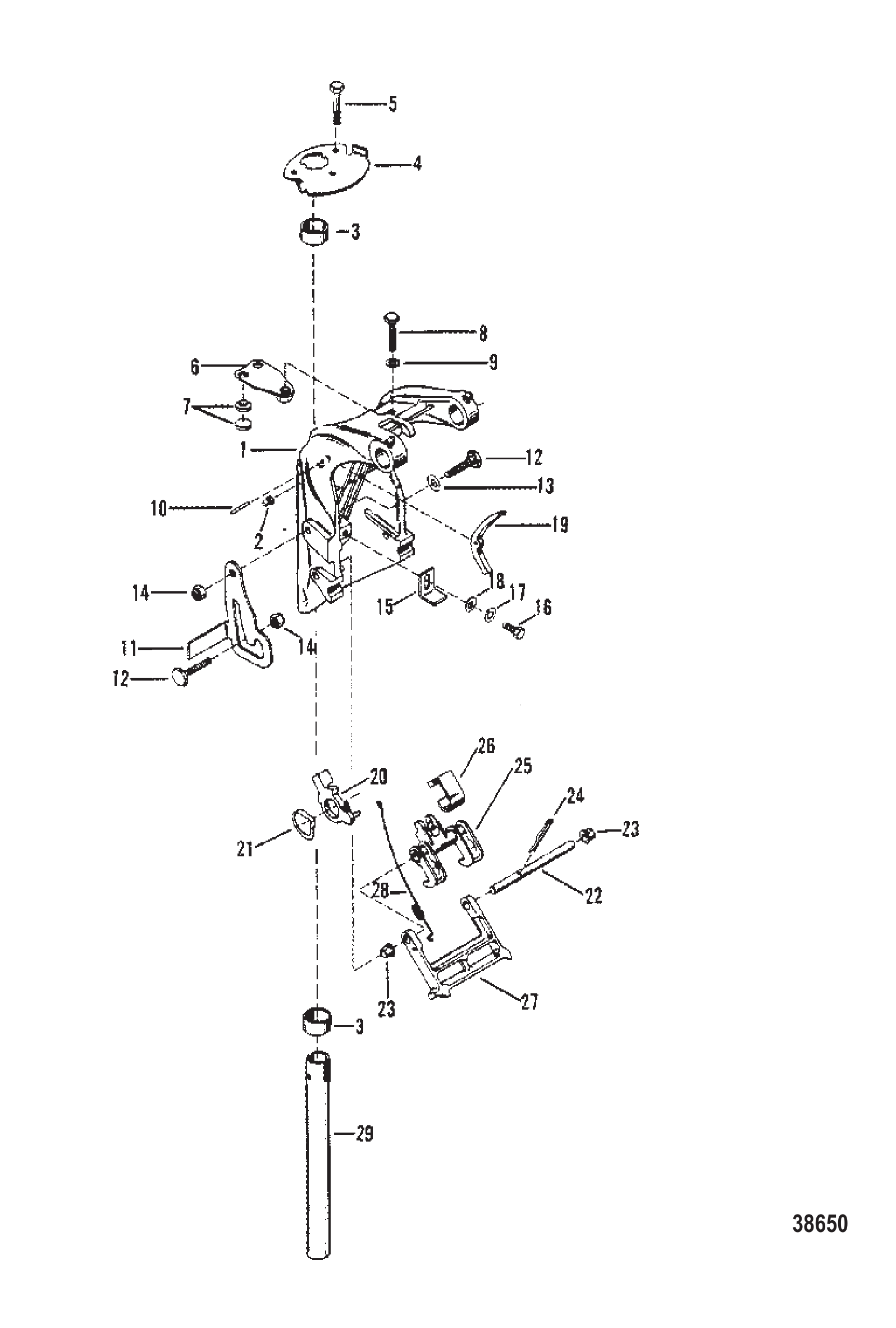

图 3旋转支架总成 SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7324A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	旋转支架润滑接头	FITTING Grease SWIVEL BRACKET	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	64028	转轴支架衬套	BUSHING SWIVEL BRACKET	2
4	77334	副驾驶板	PLATE CO-PILOT	1
5	78038	副驾驶盘至鞍座螺钉(.250-20x1.75)	SCREW (.250-20 x 1.75) CO-PILOT DISC TO SADDLE	3
6	72845A1	副驾驶夹板总成	PLATE ASSEMBLY CLAMP - CO-PILOT	1
7	20203	摩擦盘	DISC FRICTION	4
8	36154	夹板调节螺钉(.250-28x1.380)	SCREW (.250-28 x 1.380) CLAMP PLATE ADJUSTING	1
9	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
10	25319	弹簧导向销(0.125x0.75英寸)	PIN (.125 x 0.75 Inches) SPRING GUIDE	1
11	879841	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
11	87984A1	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
12	41433	倾斜止动杆螺钉(.250-28x1.00)	SCREW (.250-28 x 1.00) TILT STOP LEVER	2
13	31030	杠杆锚定螺钉波形垫圈	WAVE WASHER LEVER ANCHOR SCREW	1
14	35888	倾斜止动杆螺钉不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel TILT STOP LEVER SCREW	2
15	72794	倒挡锁止块	STOP REVERSE LOCK	1
16	71056	螺丝(.250-28 x .560)倒车挡块至旋转支架	SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET	1
17	26992	锁紧垫圈(.250)不锈钢倒车挡块螺丝	LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW	1
18	71055	垫圈倒车挡块螺丝	WASHER REVERSE STOP SCREW	1
19	63554	导向弹簧	GUIDE SPRING	1
20	79744	拖钓支架控制杆	LEVER CONTROL - TROLL BRACKET	1
21	63631	拖钓支架杠杆波形垫圈	WAVE WASHER TROLL BRACKET LEVER	1
22	71419	倒挡锁止杆至开关支架	ROD REVERSE LOCK TO SWITCH BRACKET	1
23	26841	尼龙衬套-倒挡锁止杆连杆	BUSHING NYLON - REVERSE LOCK LEVER ROD	2
24	45882	倒挡锁止杆至连杆开口销	COTTER PIN REVERSE LOCK LEVER TO ROD	1
25	63628	倒挡锁止杆	LEVER REVERSE LOCK	1
25	63628T	杠杆	LEVER	1
26	61007	固定座-倒挡锁止杆	RETAINER ROD - REVERSE LOCK	1
27	63559	拖钓支架	BRACKET TROLL	1
27	63559T	支架	BRACKET	1
28	63630	拖钓支架延伸弹簧	SPRING EXTENSION - TROLL BRACKET	1
29	66559	旋转支架至鞍座管道	TUBE SWIVEL BRACKET TO SADDLE	1

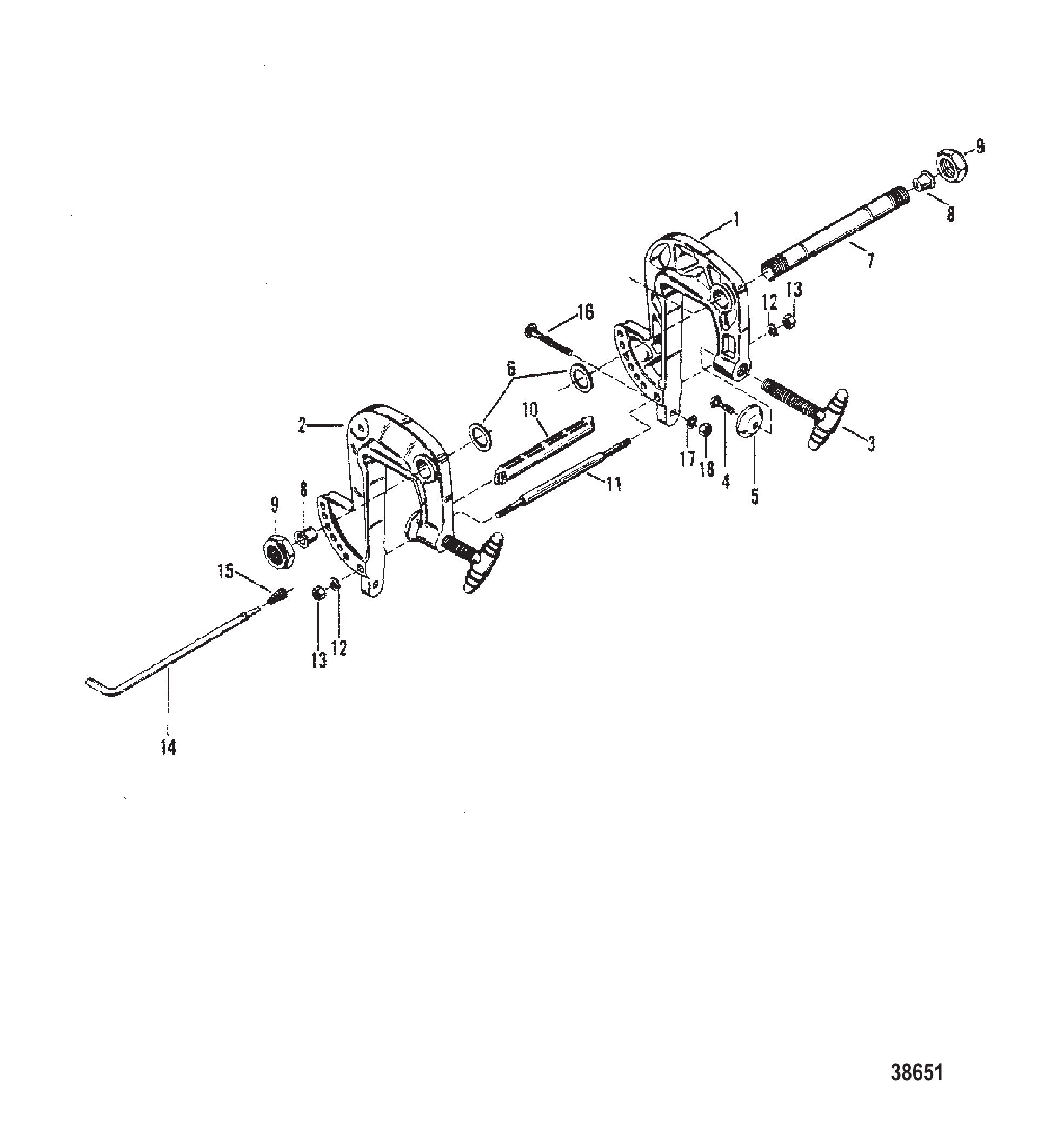

图 4夹具支架总成 CLAMP BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	5570A3	夹紧支架总成(左舷)	CLAMP BRACKET ASSEMBLY (PORT)	1
2	5571A3	夹紧支架总成(右舷)	CLAMP BRACKET ASSEMBLY (STARBOARD)	1
3	77190A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	76804	蝶形螺钉	SCREW THUMB SCREW	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
5	818884	垫圈	WASHER	2
6	71421	倾斜管尼龙垫圈-夹紧至旋转支架	WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET	2
7	96962	倾斜管夹紧至旋转支架	TILT TUBE CLAMP TO SWIVEL BRACKET	1
8	39333	倾斜管塞	PLUG TILT TUBE	2
9	93164	倾斜管紧固螺母(.875)	NUT (.875) TILT TUBE FASTENING	2
10	71420	提手	HANDLE CARRYING	1
11	71417	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	71418A2	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
15	62143	倾斜锁止销弹簧	SPRING TILT LOCK PIN	1
16	67982	夹紧支架至船体螺栓	BOLT CLAMP BRACKET TO BOAT	2
17	67983	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
18	56374	夹紧支架螺钉螺母(.250-20)	NUT (.250-20) CLAMP BRACKET SCREW	2
18	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2

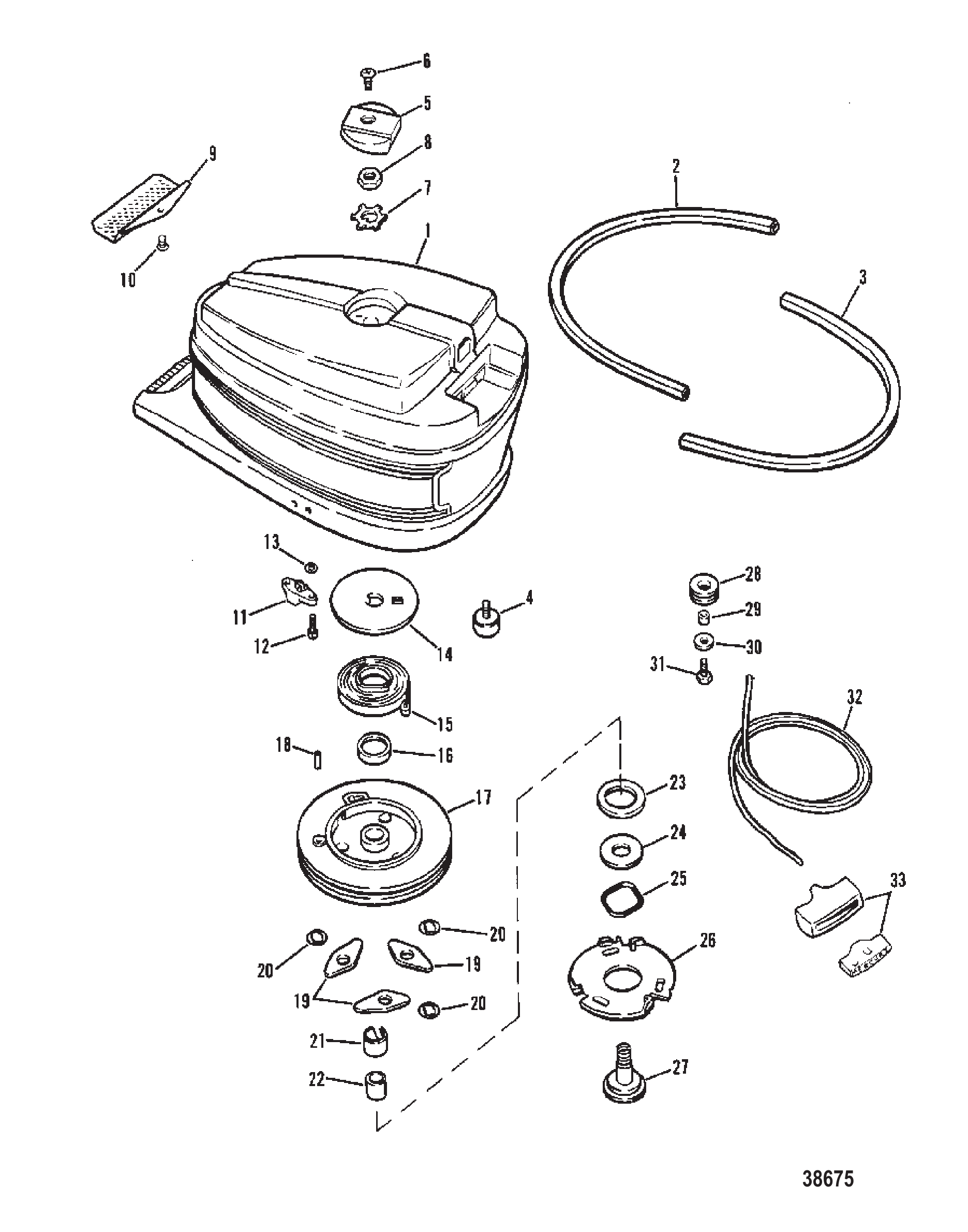

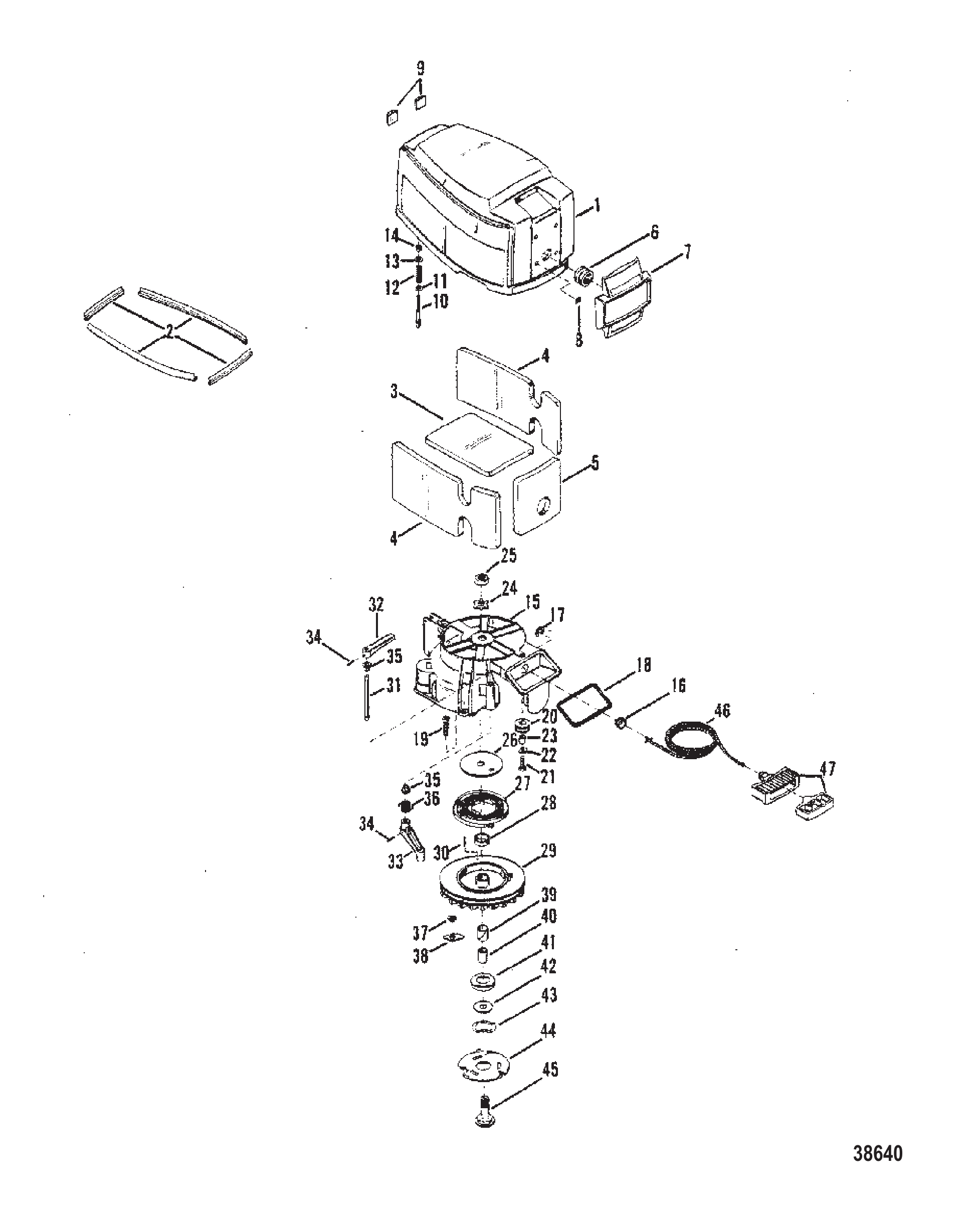

图 5顶罩与启动器总成 TOP COWL AND STARTER ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7668A2	顶盖总成	TOP COWL ASSEMBLY	1
2	39538	后部隔音条	STRIP SOUND SEAL-REAR	1
3	39537	前部隔音条	STRIP SOUND SEAL-FORWARD	1
4	66018	顶罩橡胶支架	MOUNT RUBBER-TOP COWL	2
5	89096	顶罩装饰盖	TRIM COVER TOP COWL	1
6	64652	装饰盖至顶罩螺钉	SCREW TRIM COVER TO TOP COWL	1
7	20165	滑轮轴螺母锁紧垫圈	TAB WASHER SHEAVE SHAFT NUT	1
8	20166	滑轮轴螺母(左旋螺纹)	NUT SHEAVE SHAFT (LEFT HAND THREAD)	1
9	64601	顶罩通风盖	COVER VENT-TOP COWL	1
10	35519	螺钉(#10-16 x .500)通风网至顶罩	SCREW (#10-16 x .500) VENT SCREEN TO TOP COWL	2
11	39257	顶罩固定支架	BRACKET TOP COWL FASTENING	1
11	39258	顶罩固定支架	BRACKET TOP COWL FASTENING	1
12	39514	支架至顶罩螺钉(1-1/8")	SCREW BRACKET TO TOP COWL (1-1/8")	4
13	39143	垫圈(.253 x .625 x .0937)支架螺钉	WASHER (.253 x .625 x .0937) BRACKET SCREW	4
14	20155	启动器弹簧固定座	RETAINER STARTER SPRING	1
15	29340A1	启动器回位弹簧	SPRING STARTER REWIND	1
15	29340T02	回卷弹簧	SPRING-RECOIL	1
16	28912	弹簧导套	BUSHING SPRING GUIDE	1
17	93696A2	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
18	22896	启动线缆定位销	PIN RETAINER, STARTER CABLE	1
19	30596	启动器棘爪	PAWL STARTER	3
20	36206	启动棘爪波形垫圈	WAVE WASHER STARTER PAWL	3
21	28919	尼龙衬套-滑轮轴隔套	BUSHING NYLON-SHEAVE SHAFT SPACER	1
22	61005	滑轮轴间隔套	SPACER SHEAVE SHAFT	1
23	26179	滑轮轴至启动滑轮固定器	RETAINER SHEAVE SHAFT TO STARTER SHEAVE	1
24	35559	滑轮轴固定器垫圈	WASHER SHEAVE SHAFT RETAINER	1
25	20160	张力固定器波形垫圈	WAVE WASHER RETAINER TENSION	1
26	30595	启动棘爪固定板	PLATE RETAINER-STARTER PAWL	1
27	35558	滑轮轴	SHAFT Sheave	1
28	93695	启动器拉索滑轮	PULLEY STARTER CABLE	1
29	30977	线缆滑轮隔套	SPACER CALBE PULLEY	1
29	309772	隔套	SPACER	1
30	22887	滑轮紧固螺钉垫圈	WASHER PULLEY FASTENING SCREW	1
31	28789	螺钉(.190-24 x .750)滑轮至顶罩	SCREW (.190-24 x .750) PULLEY TO TOP COWL	1
32	12066A9	绳索	ROPE	1
32	12066Q10	启动绳@2	ROPE-STARTER@2	1
33	79470A1	绳索固定组件	RETAINER KIT Rope	1

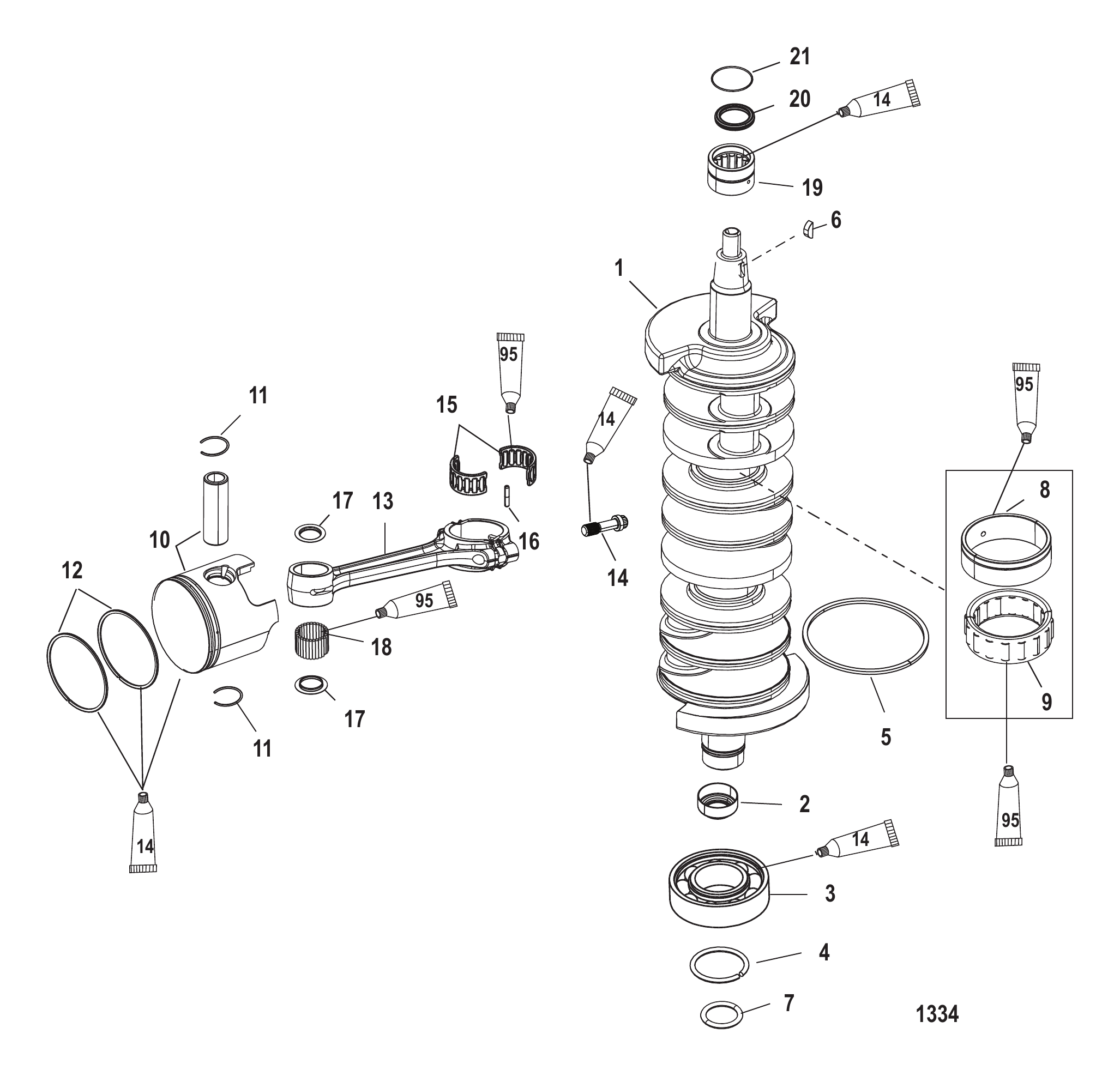

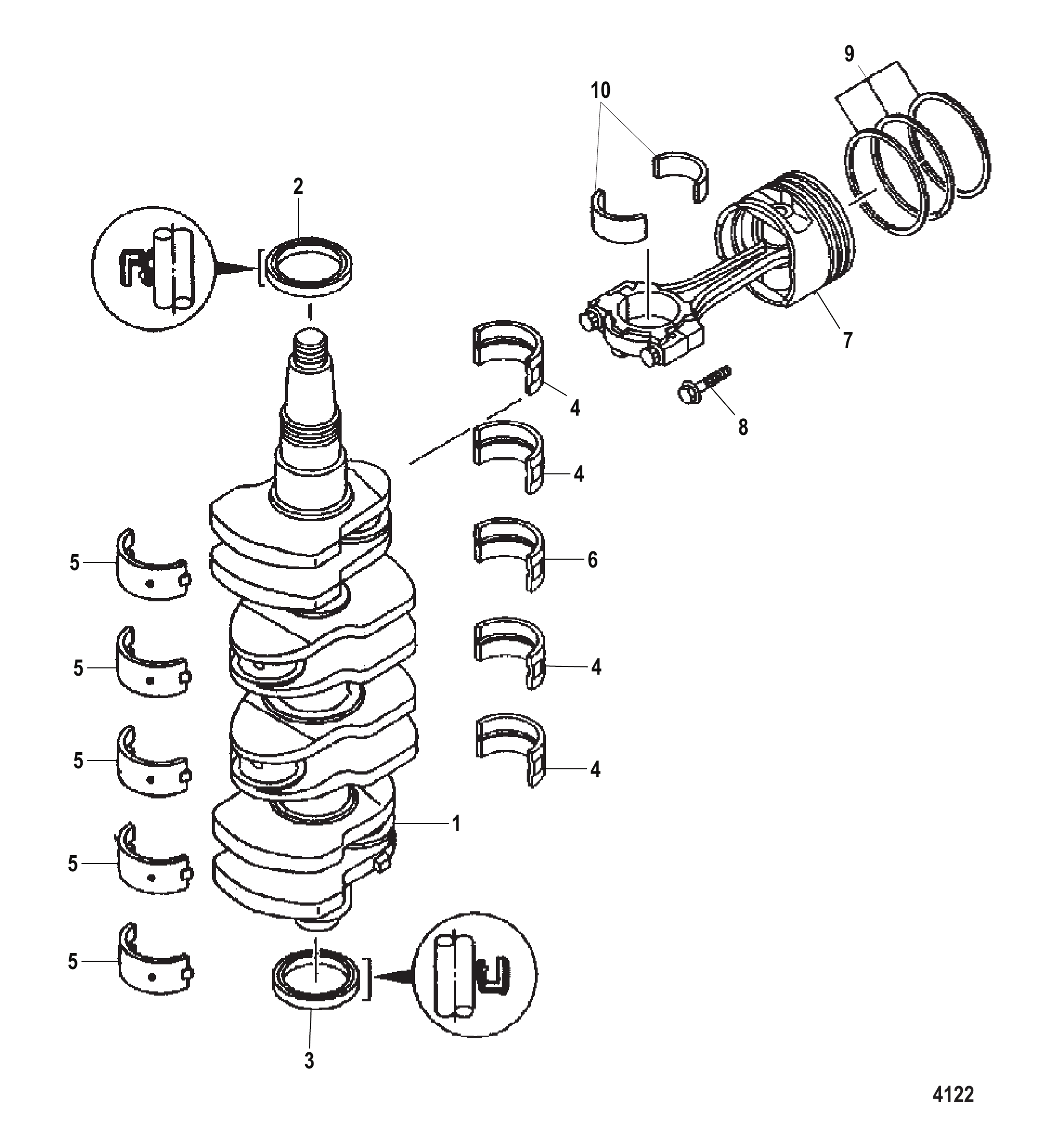

图 6曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	880894T	曲轴	CRANKSHAFT	1
2	8040992	油封	SEAL Oil	1
3	8041002	油封	SEAL Oil	1
4	804101T	轴承	BEARING	4
4	804101T10	轴承	BEARING	4
4	804101T20	轴承	BEARING	4
5	804102T	轴承	BEARING	5
5	804102T10	轴承	BEARING	5
5	804102T20	轴承	BEARING	5
5	804102T30	轴承	BEARING	5
6	804103T	轴承	BEARING	1
6	804103T10	轴承	BEARING	1
6	804103T20	轴承	BEARING	1
7	880895A05	活塞总成	PISTON ASSEMBLY	4
7	880895A14	活塞/连杆总成	PISTON/CONN ROD	4
7	880895A12	活塞总成	PISTON ASSEMBLY	AR
7	880895A16	活塞/连杆总成	PISTON/CONN ROD	AR
8	880896	螺栓(M8 x 38)	BOLT (M8 x 38)	8
9	880897T02	活塞环组	RING SET Piston	4
9	880898T02	活塞环组	RING SET Piston	AR
10	880899T	轴承	BEARING	8
10	880899T10	轴承	BEARING	8
10	880899T20	轴承	BEARING	8
10	880899T30	轴承	BEARING	8
-	858732A06	衬垫套件	GASKET SET	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

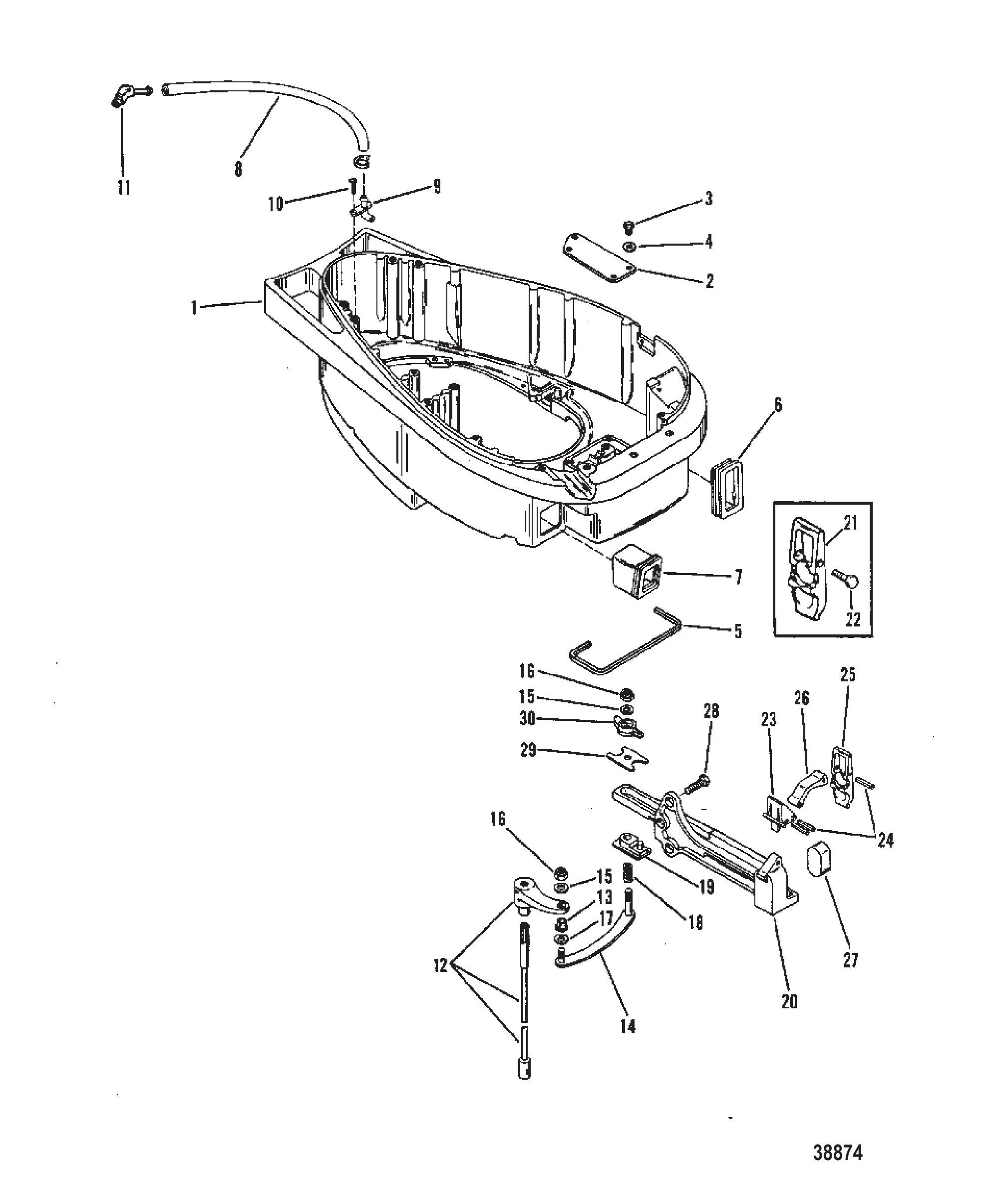

图 7底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	87081	底罩	COWL BOTTOM	1
1	8708T6	底罩	COWL BOTTOM	1
2	74303	进气口盖	COVER AIR INLET	1
3	62568	螺钉(#10-16 x .375)盖至底罩	SCREW (#10-16 x .375) COVER TO BOTTOM COWL	4
4	30164	垫圈(.192 x .375 x .0312)不锈钢盖螺钉	WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW	4
5	73646	底罩衬垫	GASKET BOTTOM COWL	1
6	39616	底罩控制线缆护套	BOOT CONTROL CABLES-BOTTOM COWL	1
7	37637	底罩燃油接头护套	BOOT FUEL CONNECTOR-BOTTOM COWL	1
8	99127109	管线(57.00英寸散装)示警管(14-3/4")	LINE (57.00 Inches Bulk) TELL TALE (14-3/4")	1
8	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
9	52889	示警软管至底罩喷嘴	NOZZLE TELL TALE HOSE TO BOTTOM COWL	1
10	48408	示流喷嘴至下罩盖螺钉(#10-16x0.500)	SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL	1
11	78279	示警软管至气缸体弯头	ELBOW TELL TALE HOSE TO CYLINDER BLOCK	1
11	8M0207781	弯头	ELBOW	1
12	60304A54	上部换挡轴总成	SHIFT SHAFT ASSEMBLY UPPER	1
13	26856	换挡轴衬套	BUSHING SHIFT SHAFT	1
14	73402	换挡连杆	SHIFT LINK	1
15	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	2
16	36069	连杆螺母	NUT LINK ROD	2
17	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
18	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
19	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
20	52732A6	控制线缆锚定支架	BRACKET ANCHOR-CONTROL CABLES	1
21	98889	闩锁	LATCH	1
22	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
23	39618	尼龙换挡线缆锁定杆	LEVER NYLON-SHIFT CABLE LOCKING	1
23	87609A1	杠杆套件	LEVER KIT	1
24	47175	锁定杆及盖固定销	PIN LOCKING LEVER AND COVER FASTENING	3
25	90211	尼龙换挡线缆盖	COVER NYLON-SHIFT CABLE	1
26	65799T	连杆-锁定杆到盖板	LINK LOCKING LEVER TO COVER	1
26	87609A1	杠杆套件	LEVER KIT	1
27	39519	锚定杯形保持器	CUP BARREL RETAINER-ANCHOR	1
28	35386	螺钉(.312-18 x 1.00)锚定支架至气缸体	SCREW (.312-18 x 1.00) ANCHOR BRACKET TO CYLINDER BLOCK	3
29	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
30	38279	控制线缆闩锁紧固件	LATCH CONTROL CABLE FASTENING	1
30	8M0036768	闩锁	LATCH	1
-	73645A87	衬垫套件	GASKET SET	1

图 8杂项零件与附件 MISCELLANEOUS PARTS AND ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	814180	零件手册200马力(V-6)	PARTS MANUAL 200 H.P. (V-6)	1
-	8140981	维修手册	SERVICE MANUAL	1
-	89221A88	衬垫套件	GASKET SET	1
-	11143900	用户指南	OWNERS GUIDE	1
-	11142900	用户指南	OWNERS GUIDE	1
-	812563A94	贴花套件	DECAL SET	1
-	808562A94	贴花套件	DECAL SET	1
-	813038A89	贴花套装(红/橙)	DECAL SET (RED/ORANGE)	1
-	813038A90	贴花套装(银色)	DECAL SET (SILVER)	1

图 9电气组件 ELECTRIC COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	95815	上盖	COVER (TOP)	1
2	95828	下盖	COVER (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
4	55741001	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1
10	95814	绑带	STRAP	1
11	95813	紧固件	FASTENER	1
12	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
12	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
13	4005727	螺钉	SCREW	2
14	45771	垫圈	WASHER	2
15	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
16	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
17	816770	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
19	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
20	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
20	8M0185149	启动电磁阀	SOLENOID START	1
21	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	64015	螺母 (.250-20)	NUT (.250-20)	2
24	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
25	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
25	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
25	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
25	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
26	92439	支架(旧设计)	BRACKET (OLD DESIGN)	1
27	4000327	螺钉(M6×14)(旧设计)	SCREW (M6 x 14) (OLD DESIGN)	1
28	35044	垫圈(0.281×0.625×0.065)不锈钢(旧设计)	WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)	1
29	400212	螺母(M6)不锈钢(旧设计)	NUT (M6) Stainless Steel (OLD DESIGN)	1
30	815504310	蜗轮卡箍(旧设计)	CLAMP Worm Gear (OLD DESIGN)	1
31	86704A2	定子总成	STATOR ASSEMBLY	1
31	86704A10	辅助定子	STATOR Auxiliary	1
32	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3
33	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
33	8M0033984	启动马达	STARTER MOTOR	1
34	96561	驱动套件	DRIVE KIT	1
35	96562	驱动器	DRIVE	1
36	96563	端盖	END CAP	1
36	96563T	端盖	END CAP	1
37	96565	电枢	ARMATURE	1
38	96564	端盖	END CAP	1
38	96564T	端盖	END CAP	1
39	96566	贯穿螺栓	THRU BOLT	1
40	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
40	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
41	424291	固定座	RETAINER	1
42	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
43	79091	保险丝20安培	FUSE 20 Ampere	1
43	8M0207796	保险丝20安培	FUSE 20 AMP	1
44	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1
45	12152	固定座	RETAINER	1
46	92753	固定座	RETAINER	1
47	55098	J型卡扣	J CLIP	1
47	8M0024808	J型夹	J-CLIP	1

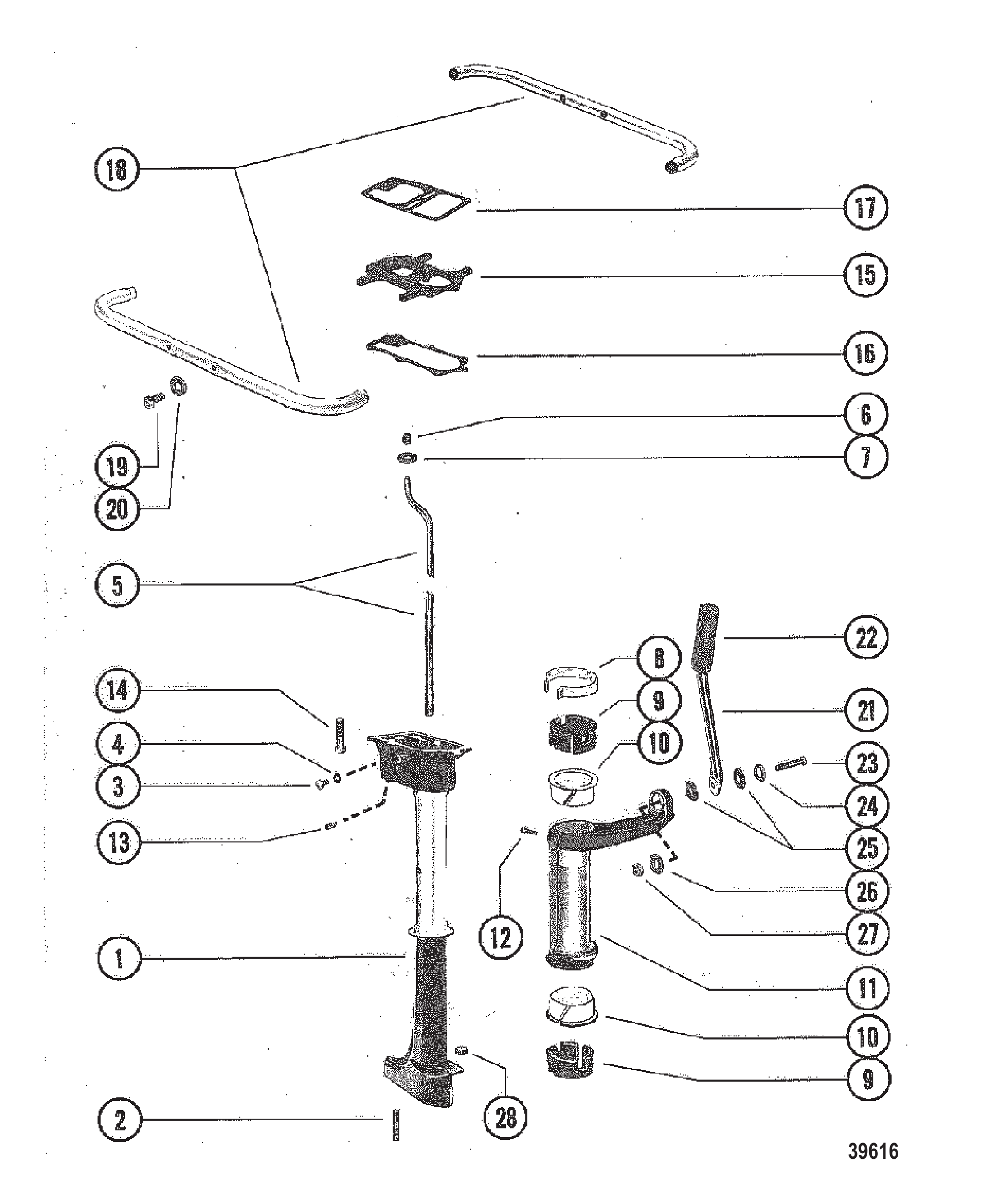

图 10驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8456A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8452A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	66373	驱动轴壳体至齿轮箱螺柱	STUD DRIVE SHAFT HOUSING TO GEAR HOUSING	1
3	35814	驱动轴壳体螺柱不锈钢螺母(.312-24)	NUT (.312-24) Stainless Steel DRIVE SHAFT HOUSING STUD	1
3	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
4	34863	齿轮箱螺柱螺母(.375-24)	NUT (.375-24) GEAR HOUSING STUD	1
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
5	8450A1	鞍座	SADDLE	1
6	64076	推力缓冲器-鞍座	BUMPER THRUST - SADDLE	1
7	79896A1	下支架	MOUNT LOWER	2
7	79896A1	下支架	MOUNT LOWER	2
8	79985A1	上部安装总成	MOUNT ASSEMBLY UPPER	2
8	79896A1	上支架	MOUNT UPPER	2
9	26406	上下安装环	RING UPPER AND LOWER MOUNT	4
10	79907	上下安装盖	COVER UPPER AND LOWER MOUNT	4
11	59079	衬垫	GASKET	1
12	24652	螺母(.250-28)	NUT (.250-28)	6
13	31940	出水管道	TUBE WATER OUTLET	1
13	32077	出水管道	TUBE WATER OUTLET	1
14	36556	出水管橡胶密封件(外径0.5英寸)	SEAL (.500 Inch Outside Diameter) RUBBER - WATER OUTLET TUBE	1
15	13127	出水管密封尼龙垫片	SPACER NYLON - OUTLET TUBE SEAL	1
16	71057	倒挡锁连杆	LINK ROD REVERSE LOCK	1
17	65414	螺钉	SCREW	2
18	65216	倒挡锁凸轮	CAM REVERSE LOCK	1
19	72007	倒挡锁凸轮固定座	RETAINER REVERSE LOCK CAM	1
20	93145	驱动轴挡块	BLOCK DRIVESHAFT	1
-	78139A80	衬垫套件	GASKET SET	1

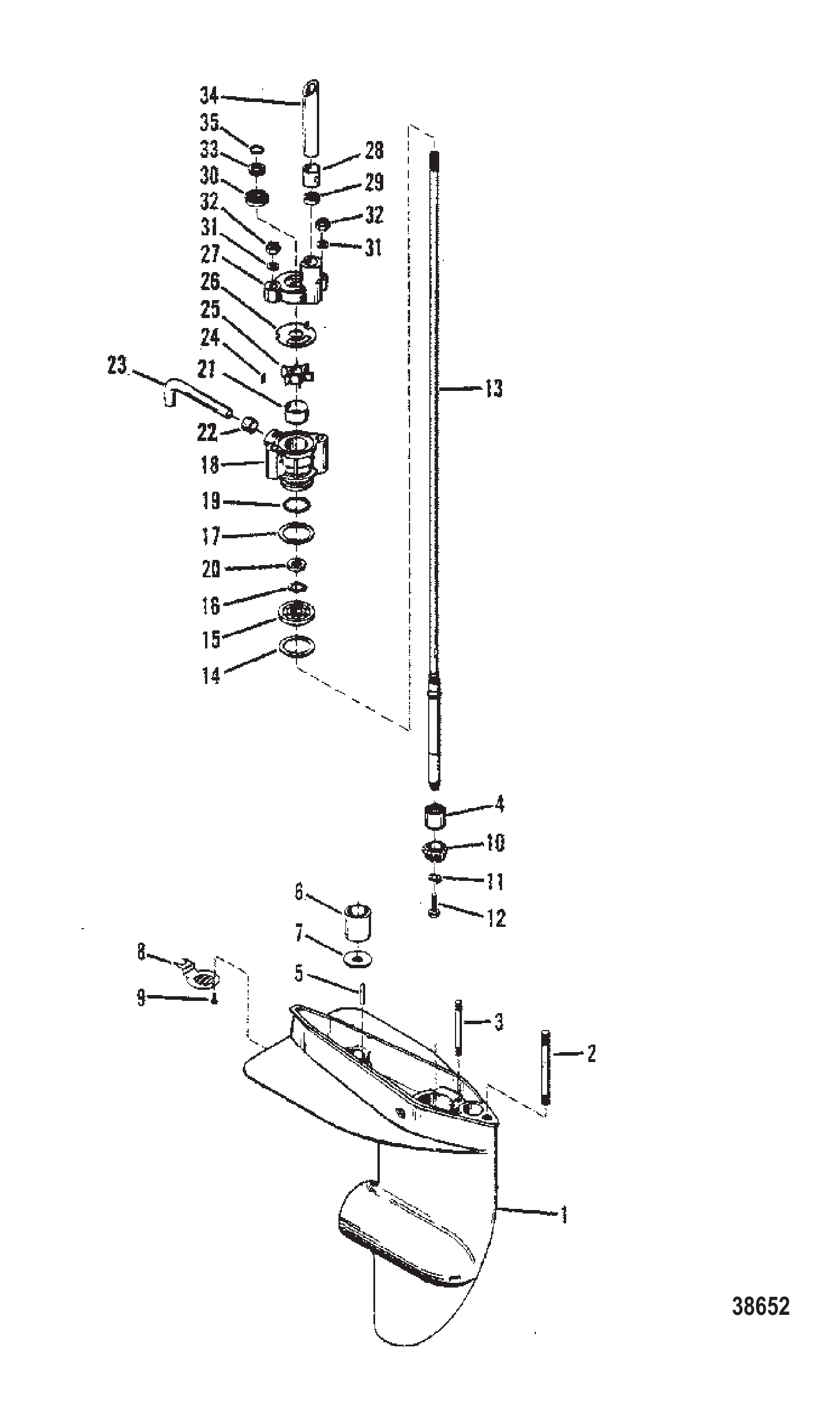

图 11齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7360A29	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7360A30	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7360A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	58138	齿轮箱螺柱(3.5英寸)	STUD GEAR HOUSING (3-1/2")	1
3	58136	水泵壳体螺柱(2.75英寸)	STUD WATER PUMP HOUSING (2-3/4")	2
4	22756	驱动轴滚柱轴承	BEARING Roller DRIVE SHAFT	1
5	20032	定位销	PIN Dowel LOCATING	1
6	33613	进水管橡胶密封	SEAL RUBBER - WATER INTAKE TUBE	1
7	86215	进水管尼龙轴承密封	BEARING NYLON - INTAKE TUBE SEAL	1
8	33425	进水滤网	SCREEN WATER INTAKE	1
9	25612	进水滤网螺丝	SCREW WATER INTAKE SCREEN	1
10	98696	小齿轮	GEAR Pinion	1
11	30377	小齿轮螺钉锁紧垫圈	TAB WASHER PINION GEAR SCREW	1
12	30376	小齿轮驱动轴螺丝(#12-28x0.75)	SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT	1
13	95873A1	驱动轴	DRIVESHAFT	1
13	95874A1	驱动轴	DRIVESHAFT	1
14	30527A1	滚珠轴承垫片组(0.002-3-5-10)	SHIM ASSEMBLY BALL BEARING (.002-3-5-10)	AR
15	70944	驱动轴滚珠轴承	BEARING Ball DRIVE SHAFT	1
16	30523	球轴承挡圈	RING Retaining BALL BEARING	1
17	30527A1	滚珠轴承垫片组(0.002-3-5-10)	SHIM ASSEMBLY BALL BEARING (.002-3-5-10)	AR
18	70941A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
18	70941T01	壳体总成	HOUSING ASY	1
18	92970A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
19	29439	O型圈	O-RING	1
20	30900	油封	SEAL Oil	1
20	30900T	密封件@2	SEAL @2	1
20	96063	油封	SEAL Oil	1
20	897153	油封@3	SEAL-OIL @3	1
21	70977	嵌件	INSERT	1
21	70977T	嵌件	INSERT	1
22	33613	进水管密封	SEAL WATER INTAKE TUBE	1
23	34293	进水管道	TUBE WATER INTAKE	1
24	56655	叶轮驱动键	KEY IMPELLER DRIVE	1
24	8M0032835	键	KEY	1
25	89981	叶轮	IMPELLER	1
25	89980	叶轮	IMPELLER	1
26	46895	水泵面板	FACE PLATE WATER PUMP	1
27	93224A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
28	36558	水泵盖密封件	SEAL WATER PUMP COVER	1
30	30913	水泵盖油封	SEAL Oil WATER PUMP COVER	1
31	20533	垫圈	WASHER	2
32	13438	水泵壳体螺柱螺母(.250-28)	NUT (.250-28) WATER PUMP HOUSING STUD	2
32	8267119	螺母(.250-28)	NUT (.250-28)	2
33	30526	橡胶环-离心甩水环	RING RUBBER - CENTRIFUGAL SLINGER	1
34	31792	进水管导向套	SLEEVE GUIDE - INLET TUBE	1
34	31792T	套管@5	SLEEVE @5	1
-	78139A80	衬垫套件	GASKET SET	1
-	70941A3	水泵维修套件	REPAIR KIT Water Pump	1
-	92970A5	水泵维修套件	REPAIR KIT Water Pump	1
-	77066A1	水泵密封套件	SEAL KIT Water Pump	1

图 12齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成-标准旋转1.87:1传动比(完整)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)	1
1	9148A11	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	1
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	43999	滚子轴承(外径1.308)	BEARING Roller (1.308 O.D.)	2
57	73363	滚子轴承(外径1.313)	BEARING Roller (1.313 O.D.)	2
57	73363T	轴承	BEARING	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独出售(43-44104A2部件)	Not Sold Separate (PART OF 43-44104A2)	1
64	68100	止推环	RING THRUST	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承-倒档齿轮	BEARING Ball BALL-REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	轴承座定位键	KEY LOCATING-BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024	螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")	SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")	1
75	67891	填充块	FILLER BLOCK FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈-螺旋桨螺母	WASHER Splined SPLINED-PROPELLER NUT	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
83	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
-	89238A2	密封套件	SEAL KIT	1
-	14697A87	衬垫套件	GASKET SET

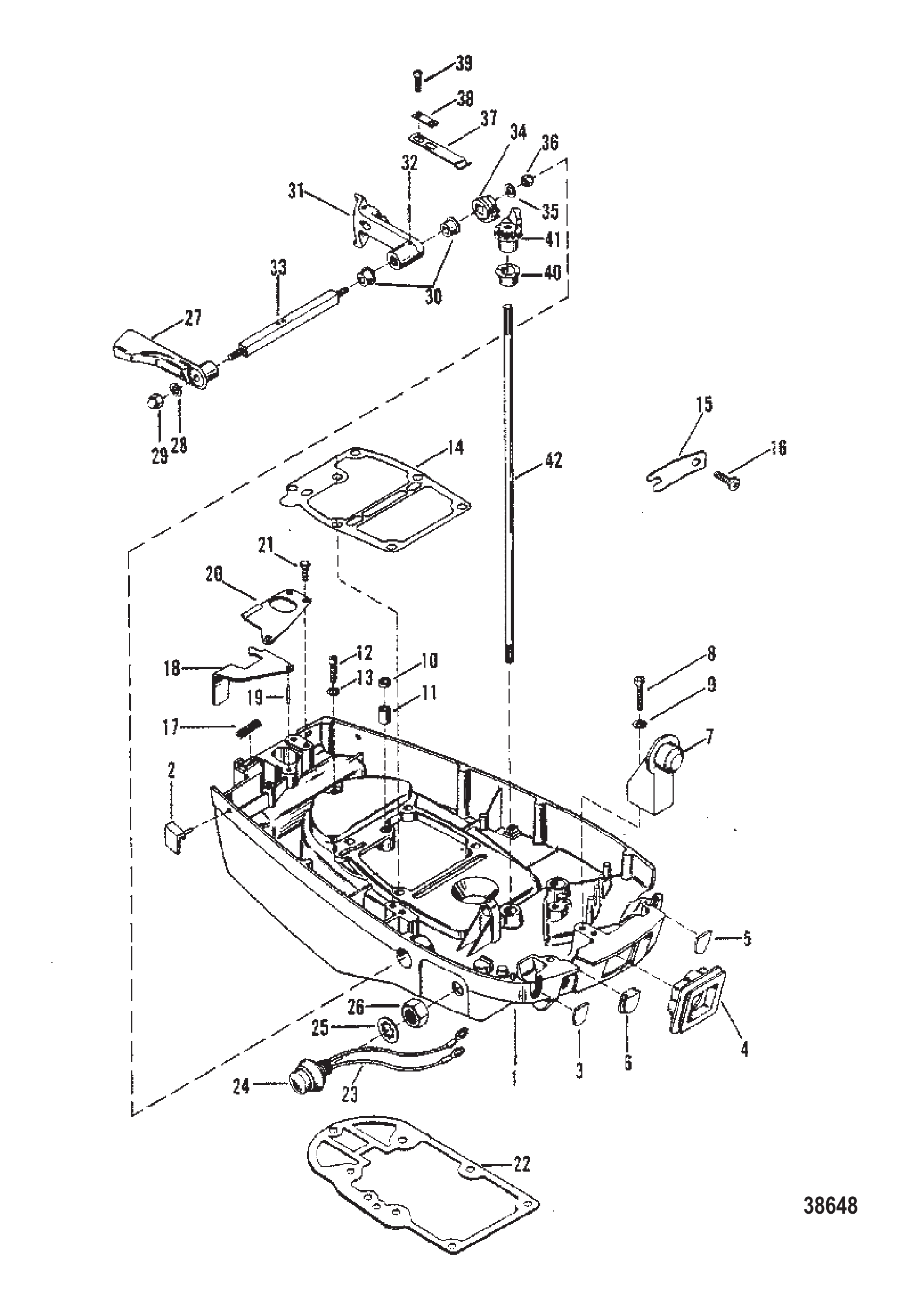

图 13底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	6587A5	底罩总成	COWL ASSEMBLY BOTTOM	1
2	95925	下机罩塞	PLUG BOTTOM COWL	3
3	74360	下机罩塞	PLUG BOTTOM COWL	1
4	39778	阻风门轴衬套-底罩	GROMMET CHOKE SHAFT - BOTTOM COWL	1
5	66353	检修孔盖	COVER ACCESS HOLE	1
6	65479	检修孔盖	COVER ACCESS HOLE	1
7	39474	底罩锚定闩锁	ANCHOR LATCH - BOTTOM COWL	1
8	22483	螺钉(.250-28 x 1.12)闩锁锚定	SCREW (.250-28 x 1.12) LATCH ANCHOR	2
9	26992	锁紧垫圈(.250)不锈钢闩锁锚定螺钉	LOCKWASHER (.250) Stainless Steel LATCH ANCHOR SCREW	2
10	86214	尼龙轴承-出水管	BEARING NYLON - WATER OUTLET TUBE	1
10	13127	隔套	SPACER	1
11	36556	出水管橡胶密封件(外径0.5英寸)	SEAL (.500 Inch Outside Diameter) RUBBER - WATER OUTLET TUBE	1
12	38111	底罩螺丝(3/4英寸)	SCREW BOTTOM COWL (3/4")	1
13	26992	锁紧垫圈(0.250英寸)不锈钢底罩螺丝	LOCKWASHER (.250) Stainless Steel BOTTOM COWL SCREW	1
14	89937	动力头至适配板衬垫	GASKET POWERHEAD TO ADOPTOR PLATE	1
15	74354	固定座	RETAINER	1
16	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
17	78810	拉线弹簧至锁臂	SPRING CALBE TO ARM LATCH	1
18	78809	锁臂-底罩	LATCH ARM - BOTTOM COWL	1
19	71422	定位滚针轴承	BEARING Needle ARM LOCATING	1
19	714221	轴承	BEARING	1
20	78808	锁体-底罩	LATCH BODY - BOTTOM COWL	1
21	32228	螺丝(#10-32 x 0.625英寸)锁至底罩	SCREW (#10-32 x .625) LATCH TO BOTTOM COWL	3
22	39050	衬垫	GASKET	1
23	69508A31	停机开关总成	SWITCH ASSEMBLY Stop	1
24	99525A1	停止开关盖总成	COVER ASSEMBLY STOP SWITCH	1
25	69845	停止开关锁紧垫圈	LOCKWASHER STOP SWITCH	1
26	69844	停机开关螺母	NUT STOP SWITCH	1
27	66376	换挡控制手柄	HANDLE SHIFT CONTROL	1
27	93730T	手柄	HANDLE	1
27	93730	换挡控制手柄	HANDLE SHIFT CONTROL	1
27	93730T	手柄	HANDLE	1
28	29245	垫圈(0.281x0.500x0.060英寸)不锈钢换挡控制轴	WASHER (.281 x .500 x .060) Stainless Steel SHIFT CONTROL SHAFT	1
28	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
29	39305	换挡手柄螺母至换挡控制轴	NUT SHIFT HANDLE TO SHIFT CONTROL SHAFT	1
29	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
30	66375	尼龙衬套-换挡控制轴	BUSHING NYLON - SHIFT CONTROL SHAFT	2
31	74350	换挡控制杆(遥控)	LEVER SHIFT CONTROL (REMOTE)	1
32	25905	换挡杆销至换挡控制轴	PIN SHIFT LEVER TO SHIFT CONTROL SHAFT	1
33	66379	换挡控制轴	SHAFT SHIFT CONTROL	1
34	66377	扇形齿轮	SECTOR GEAR	1
35	29245	垫圈(0.281x0.500x0.060英寸)不锈钢换挡控制轴	WASHER (.281 x .500 x .060) Stainless Steel SHIFT CONTROL SHAFT	1
35	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
36	20361	螺母(0.250-28牙)扇形齿轮至换挡控制轴	NUT (.250-28) SECTOR GEAR TO SHIFT CONTROL SHAFT	1
36	8267089	螺母(.250-28)	NUT (.250-28)	1
37	39627	定位弹簧-换挡控制杆	SPRING DETENT - SHIFT CONTROL LEVER	1
38	39601	定位弹簧板	PLATE DETENT SPRING	1
39	25764	螺钉(.190-32 x .50)	SCREW (.190-32 x .50)	2
40	27132	尼龙衬套-上换挡轴	BUSHING NYLON - UPPER SHIFT SHAFT	1
41	86686A1	扇形齿轮换挡轴	SECTOR GEAR SHIFT SHAFT	1
42	71660	换档轴	SHIFT SHAFT	1
-	89014A80	衬垫套件	GASKET SET

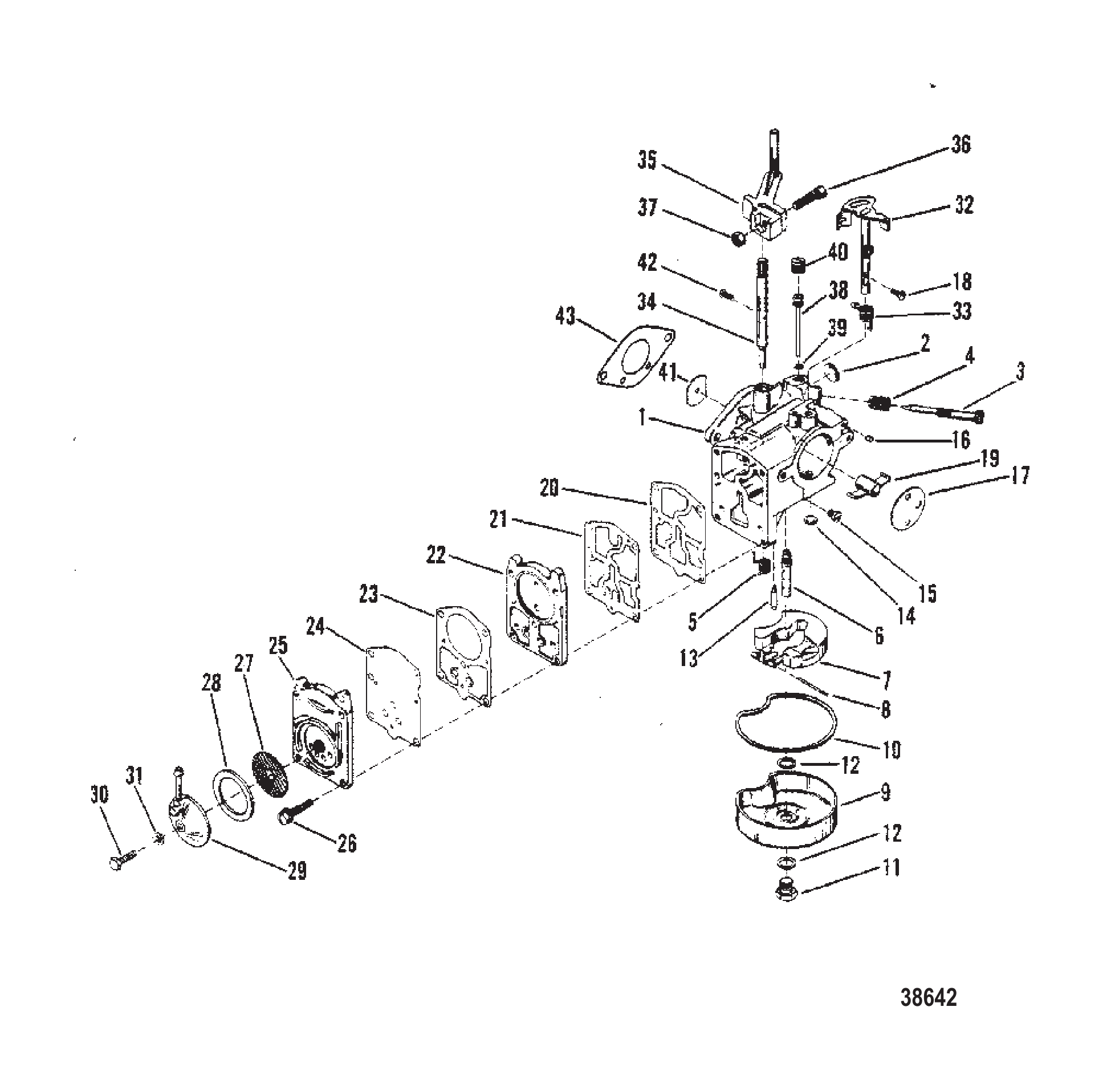

图 14化油器(TILLOTSON标1364-7902或1364-7909) CARBURETOR (TILLOTSON STAMPED 1364-7902 or 1364-7909)

REF	零件编号	中文名称	英文名称	数量
1	7902	化油器总成(完整)	CARBURETOR ASSEMBLY COMPLETE	1
1	8783A14	化油器	CARBURETOR	1
1	7909	化油器总成(完整)	CARBURETOR ASSEMBLY COMPLETE	1
1	8782A13	化油器	CARBURETOR	1
2	NSS	不单独销售 水道闷塞(大)	NOT SOLD SEPARATE WELCH PLUG, BODY CHANNEL (LARGE)	1
3	NSS	不单独销售 ISCREW, DLE混合气	NOT SOLD SEPARATE ISCREW, DLE MIXTURE	1
4	NSS	怠速混合螺钉弹簧（不单独销售）	NOT SOLD SEPARATE SPRING, IDLE MIXTURE SCREW	1
5	NSS	不单独销售 节气门轴回位弹簧	NOT SOLD SEPARATE SPRING, RETURN - THROTTLE SHAFT	1
6	NSS	主喷嘴(不单独销售)	NOT SOLD SEPARATE MAIN NOZZLE	1
7	9293	浮子	FLOAT	1
8	NSS	不单独销售 浮子销	NOT SOLD SEPARATE PIN, FLOAT	1
9	5127	燃油杯	BOWL Fuel	1
10	NSS	燃油碗垫片(不单独销售)	NOT SOLD SEPARATE GASKET, FUEL BOWL	1
11	5128	燃油杯螺钉	SCREW FUEL BOWL	1
12	NSS	油杯螺钉衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL BOWL SCREW	2
13	6141	进油针阀	NEEDLE Inlet	1
14	NSS	不单独销售 韦尔奇塞,主体通道(小)	NOT SOLD SEPARATE WELCH PLUG, BODY CHANNEL (SMALL)	1
15	7570	主喷油嘴0.040	JET .040 MAIN FUEL	1
15	2407	主量孔(.039)	JET Main Fuel (.039)	1
16	NSS	不单独销售 水道闷塞	NOT SOLD SEPARATE PLUG, BODY CHANNEL	2
17	7274	阻风门片	SHUTTER Choke	1
18	NSS	不单独销售 阻风门螺丝	NOT SOLD SEPARATE SCREW, CHOKE SHUTTER	2
19	69764	喉管	VENTURI	1
20	NSS	燃油泵膜片衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM	1
21	NSS	燃油泵膜片（不单独销售）	NOT SOLD SEPARATE DIAPHRAGM, FUEL PUMP	1
22	5129	燃油泵体	BODY FUEL PUMP	1
23	NSS	燃油泵膜片衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM	1
24	NSS	燃油泵膜片（不单独销售）	NOT SOLD SEPARATE DIAPHRAGM, FUEL PUMP	1
25	5131	滤清器壳体	BODY STRAINER	1
26	5132	滤清器体螺丝	SCREW STRAINER BODY	4
26	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	4
27	5758	滤网	SCREEN STRAINER	1
28	5207	滤清器盖衬垫	GASKET STRAINER COVER	1
29	8149	滤清器盖(进口)	COVER STRAINER (INLET)	1
29	99941	盖板	COVER	1
30	NSS	不单独销售 滤清器盖螺丝	NOT SOLD SEPARATE SCREW, STRAINER COVER	1
31	NSS		NOT SOLD SEPARATE GASKET, STRAINER COVER SCREW	1
32	7273	阻风门轴	SHAFT Choke	1
33	NSS	不单独销售 回位弹簧-阻风门轴	NOT SOLD SEPARATE SPRING, RETURN - CHOKE SHAFT	1
34	7571	油门轴	SHAFT Throttle	1
35	44425	节流阀杆	LEVER THROTTLE	1
36	20646	螺丝(0.190-32牙x0.62英寸)节气门杆	SCREW (.190-32 x .62) THROTTLE LEVER	1
36	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	1
37	87599	节气门杆螺丝螺母	NUT THROTTLE LEVER SCREW	1
38	NSS	怠速管 (不单独销售)	NOT SOLD SEPARATE IDLE TUBE	1
39	NSS		NOT SOLD SEPARATE GASKET, IDLE TUBE	1
40	23178	螺丝塞-怠速管	SCREW PLUG - IDLE TUBE	1
41	7572	节气门片	SHUTTER Throttle	1
42	NSS	螺钉-节气门 (不单独销售)	NOT SOLD SEPARATE SCREW, THROTTLE SHUTTER	2
43	63309	化油器法兰衬垫	GASKET CARBURETOR FLANGE	1
-	5135	衬垫套件	GASKET SET	1
-	5137	膜片/衬垫套件	DIAPHRAGM/GASKET KIT	1
-	7569	维修零件包	REPAIR PARTS KIT	1
-	879194026	化油器修理包	REPAIR KIT-CARB	1
-	7573	维修零件包	REPAIR PARTS KIT	1
-	879194026	化油器修理包	REPAIR KIT-CARB	1
-	89014A80	衬垫套件	GASKET SET	1

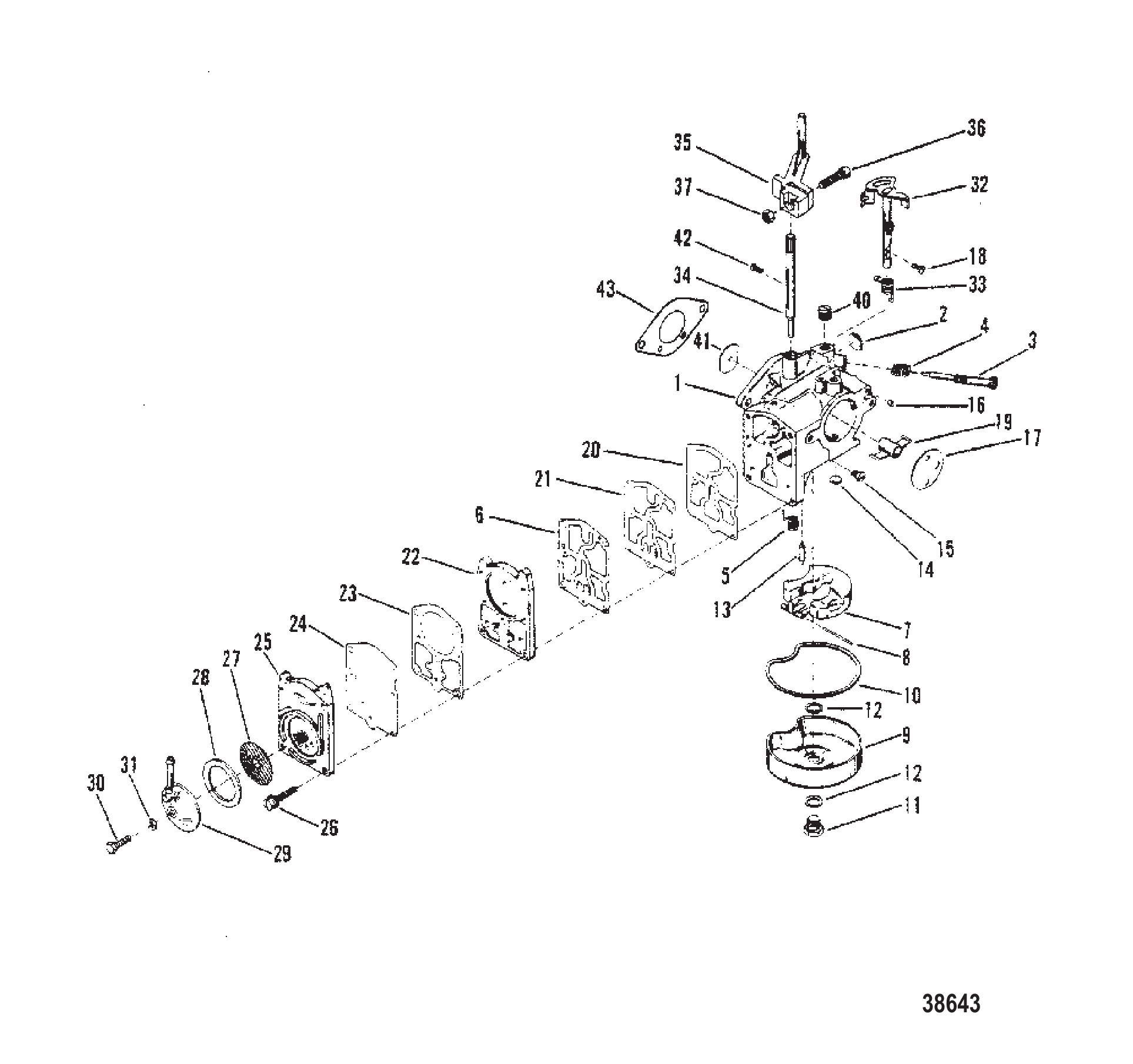

图 15化油器(WALBRO标WMB-1/WMB-2/WMB-3/WMB-4) CARBURETOR (WALBRO STAMPED WMB-1/WMB-2 /WMB-3/WMB-4

REF	零件编号	中文名称	英文名称	数量
1	8783A4	化油器总成(完整)	CARBURETOR ASSEMBLY COMPLETE	1
1	8783A14	化油器	CARBURETOR	1
1	8782A3	化油器总成(完整)	CARBURETOR ASSEMBLY COMPLETE	1
1	8782A13	化油器	CARBURETOR	1
2	NSS	不单独销售 WLECH塞,主体通道(大)	NOT SOLD SEPARATE WLECH PLUG, BODY CHANNEL (LARGE)	1
3	NSS	怠速混合螺钉（不单独销售）	NOT SOLD SEPARATE SCREW, IDLE MIXTURE	1
4	NSS	怠速混合螺钉弹簧（不单独销售）	NOT SOLD SEPARATE SPRING, IDLE MIXTURE SCREW	1
5	NSS	不单独销售 节气门轴回位弹簧	NOT SOLD SEPARATE SPRING, RETURN - THROTTLE SHAFT	1
6	NSS	燃油泵膜片衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM	1
7	9293	浮子	FLOAT	1
8	NSS	不单独销售 浮子销	NOT SOLD SEPARATE PIN, FLOAT	1
9	5127	燃油杯	BOWL Fuel	1
10	NSS	燃油碗垫片(不单独销售)	NOT SOLD SEPARATE GASKET, FUEL BOWL	1
11	9025	燃油杯螺钉	SCREW FUEL BOWL	1
12	NSS	油杯螺钉衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL BOWL SCREW	2
13	9022	进油针阀及弹簧	NEEDLE AND SPRING Inlet	1
14	NSS	不单独销售 韦尔奇塞,主体通道(小)	NOT SOLD SEPARATE WELCH PLUG, BODY CHANNEL (SMALL)	1
15	7570	主喷油嘴0.040	JET .040 MAIN FUEL	1
15	2407	主量孔(.039)	JET Main Fuel (.039)	1
16	NSS	不单独销售 水道闷塞	NOT SOLD SEPARATE PLUG, BODY CHANNEL	2
17	7274	阻风门片	SHUTTER Choke	1
18	NSS	不单独销售 阻风门螺丝	NOT SOLD SEPARATE SCREW, CHOKE SHUTTER	2
19	NSS	不单独销售 喉管	NOT SOLD SEPARATE VENTURI	1
20	NSS	燃油泵膜片衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM	1
21	NSS	燃油泵膜片（不单独销售）	NOT SOLD SEPARATE DIAPHRAGM, FUEL PUMP	1
22	5129	燃油泵体	BODY FUEL PUMP	1
23	NSS	燃油泵膜片衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM	1
24	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
25	5131	滤清器壳体	BODY STRAINER	1
26	5132	滤清器体螺丝	SCREW STRAINER BODY	4
26	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	4
27	5758	滤网	SCREEN STRAINER	1
28	5207	滤清器盖衬垫	GASKET STRAINER COVER	1
29	8149	滤清器盖(进口)	COVER STRAINER (INLET)	1
29	99941	盖板	COVER	1
30	NSS	不单独销售 滤清器盖螺丝	NOT SOLD SEPARATE SCREW, STRAINER COVER	1
31	NSS		NOT SOLD SEPARATE GASKET, STRAINER COVER SCREW	1
32	7273	阻风门轴	SHAFT Choke	1
33	NSS	不单独销售 回位弹簧-阻风门轴	NOT SOLD SEPARATE SPRING, RETURN - CHOKE SHAFT	1
34	7571	油门轴	SHAFT Throttle	1
35	44425	节流阀杆	LEVER THROTTLE	1
36	20646	螺丝(0.190-32牙x0.62英寸)节气门杆	SCREW (.190-32 x .62) THROTTLE LEVER	1
36	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	1
37	87599	节气门杆螺丝螺母	NUT THROTTLE LEVER SCREW	1
40	23178	螺丝塞-怠速管	SCREW PLUG - IDLE TUBE	1
41	7572	节气门片	SHUTTER Throttle	1
42	NSS	螺钉-节气门 (不单独销售)	NOT SOLD SEPARATE SCREW, THROTTLE SHUTTER	2
43	63309	化油器法兰衬垫	GASKET CARBURETOR FLANGE	1
-	9026	维修零件包	REPAIR PARTS KIT	1
-	9027	膜片/衬垫套件	DIAPHRAGM/GASKET KIT	1
-	89014A80	衬垫套件	GASKET SET	1

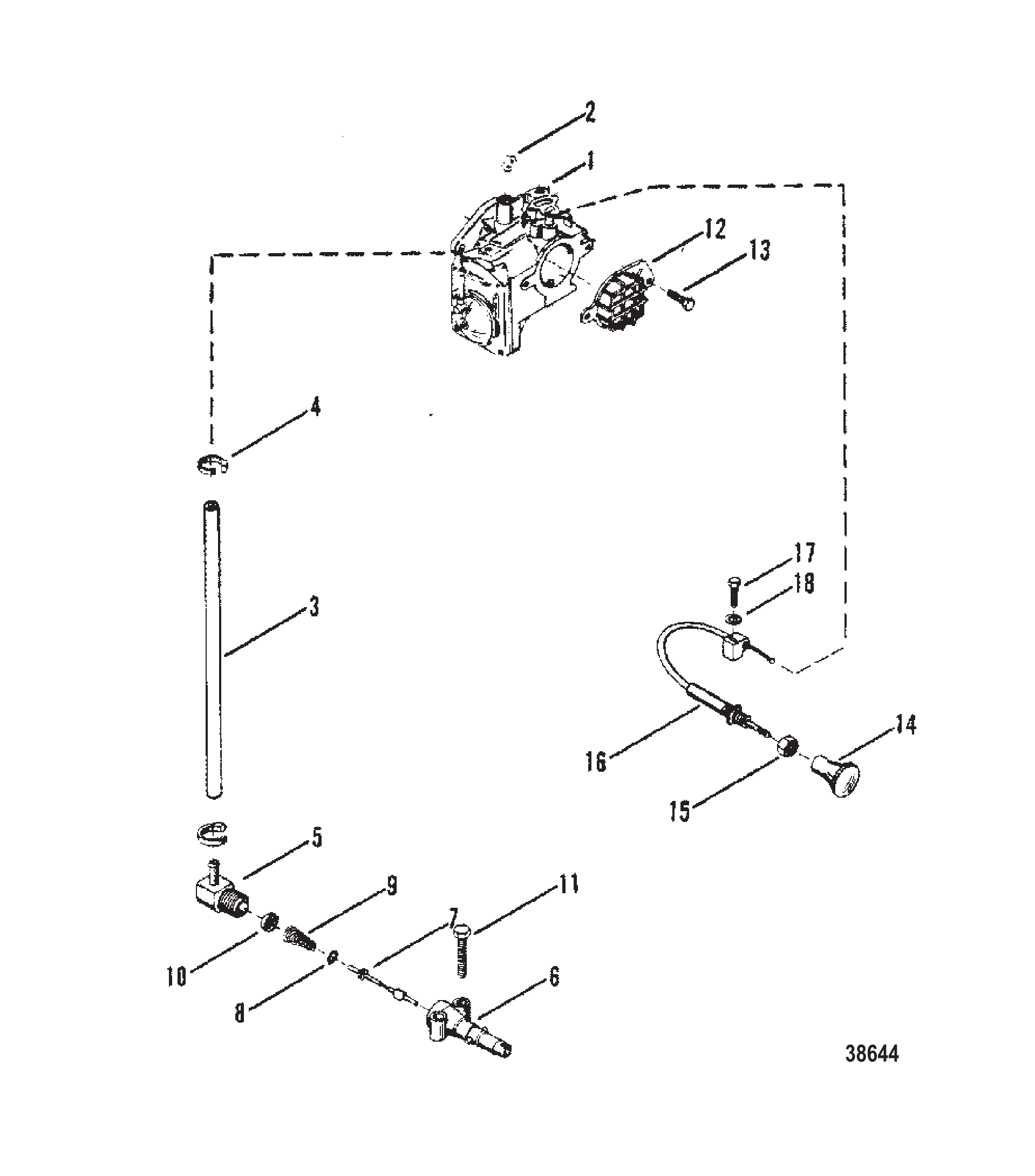

图 16化油器和阻风门总成 CARBURETOR AND CHOKE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7902	化油器总成	CARBURETOR ASSEMBLY	1
1	8783A14	化油器	CARBURETOR	1
1	8783A4	化油器总成	CARBURETOR ASSEMBLY	1
1	8783A14	化油器	CARBURETOR	1
1	7909	化油器总成	CARBURETOR ASSEMBLY	1
1	8782A13	化油器	CARBURETOR	1
1	8782A3	化油器总成	CARBURETOR ASSEMBLY	1
1	8782A13	化油器	CARBURETOR	1
2	24652	化油器安装螺母(.250-28)	NUT (.250-28) CARBURETOR ATTACHING	2
3	99127109	适配器至化油器管路(57英寸散装)	LINE (57.00 Inches Bulk) ADAPTOR TO CARBURETOR	1
3	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
4	68424	燃油管固定夹	CLAMP FUEL LINE ATTACHING	2
5	63981	燃油管转接头	FITTING FUEL LINE TO ADAPTOR	1
6	22833	适配器止回单元(燃油管)	ADAPTER CHECK UNIT (FUEL LINE)	1
7	23069	适配器阀杆止回单元	STEM CHECK UNIT ADAPTOR	1
8	20415	适配器阀杆O型圈	O-RING ADAPTOR STEM	1
8	16524	燃油接头O型圈	O-RING Fuel Connector	1
9	23067	适配器阀杆弹簧	SPRING ADAPTOR STEM	1
9	23067T	弹簧	SPRING	1
10	30188	适配器垫片	WASHER ADAPTOR	1
11	37923	适配器至下罩盖螺钉(.250-28x1.250)	SCREW (.250-28 x 1.250) ADAPTOR TO BOTTOM COWL	1
12	65552	化油器滤网	SCREEN CARBURETOR	1
13	69022	滤网至化油器不锈钢螺钉(#10-32x0.500)	SCREW (#10-32 x .500) Stainless Steel SCREEN TO CARBURETOR	2
14	86381	阻风门旋钮	KNOB CHOKE	1
15	73710	阻风门拉索至下罩盖螺母	NUT CHOKE CABLE TO BOTTOM COWL	1
16	72465	阻风门拉索	CABLE Choke	1
17	45862	阻风门拉索至化油器螺钉(#10-32x0.875)	SCREW (#10-32 x .875) CHOKE CABLE TO CARBURETOR	1
18	34680	阻风门拉索螺钉垫片	WASHER CHOKE CABLE SCREW	1
-	89014A80	衬垫套件	GASKET SET

图 17夹具支架总成 CLAMP BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	5570A3	夹紧支架总成(左舷)	CLAMP BRACKET ASSEMBLY (PORT)	1
2	5571A3	夹紧支架总成(右舷)	CLAMP BRACKET ASSEMBLY (STARBOARD)	1
3	77190A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	76804	蝶形螺钉	SCREW THUMB SCREW	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
5	818884	垫圈	WASHER	2
6	71421	倾斜管尼龙垫圈-夹紧至旋转支架	WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET	2
7	96962	倾斜管夹紧至旋转支架	TILT TUBE CLAMP TO SWIVEL BRACKET	1
8	39333	倾斜管塞	PLUG TILT TUBE	2
9	93164	倾斜管紧固螺母(.875)	NUT (.875) TILT TUBE FASTENING	2
10	71420	提手	HANDLE CARRYING	1
11	71417	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	71418A2	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
15	62143	倾斜锁止销弹簧	SPRING TILT LOCK PIN	1
16	67982	夹紧支架至船体螺栓	BOLT CLAMP BRACKET TO BOAT	2
17	67983	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
18	56374	夹紧支架螺钉螺母(.250-20)	NUT (.250-20) CLAMP BRACKET SCREW	2
18	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2

图 18曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	842753A02	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	NSS	磨损套筒(不单独销售)	NOT SOLD SEPARATE Wear Sleeve	1
3	67923T	滚珠轴承(下)	BEARING Ball (Lower)	1
4	67446	环	RING	1
5	843198001	密封环	RING Seal	7
5	843198T01	密封环	RING Seal	7
6	91800	半圆键	KEY Woodruff	1
7	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
8	88270A1	轴承座圈总成	RACE ASSEMBLY	2
8	88270A02	轴承/座圈套件	BEARING/RACE KIT	2
9	88269T	轴承总成	BEARING ASSEMBLY	2
10	843200T03	活塞总成	PISTON ASSEMBLY	3
10	842986T03	活塞总成	PISTON ASSEMBLY	3
10	843200T13	活塞总成	PISTON ASSEMBLY	3
10	842986T03	活塞总成	PISTON ASSEMBLY	3
10	843199T03	活塞总成	PISTON ASSEMBLY	3
10	843199T13	活塞总成	PISTON ASSEMBLY	3
10	843199T13	活塞总成	PISTON ASSEMBLY	3
11	841202	环	RING	12
12	858772A02	活塞环组	RING SET Piston	1
13	822373A09	连杆总成	CONNECTING ROD ASSEMBLY	6
13	8M0125869	连杆套件	CONN ROD KIT	6
14	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	12
15	43012A1	轴承/保持架套件	BEARING/CAGE KIT	12
15	8M0235070	轴承保持架	CAGE BEARING	12
16	NSS	不单独销售 滚针轴承	NOT SOLD SEPARATE Needle Roller Bearing	96
17	88263	止推垫片	THRUST WASHER	12
18	88258001	滚针轴承	BEARING Needle	204
18	8M0204715	滚针@102	NEEDLES-BRG @102	204
19	816773A2		BEARING ASSEMBLY (Upper)	1
20	859093	密封件	SEAL	1
21	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	843034A05	动力头总成	POWERHEAD ASSEMBLY	1
-	843034A07	动力头总成	POWERHEAD ASSEMBLY	1
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1

图 19气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE

REF	零件编号	中文名称	英文名称	数量
1	7693A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	7694A2	气缸体总成	CYLINDER BLOCK ASSEMLBY	1
2	72809	双头螺柱(0.250-20/0.250-28牙x1.620英寸)缸体曲轴箱至驱动轴壳体	STUD (.250-20/.250-28 x 1.620) BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING	6
2	728091	螺柱 (.250 x 1.620)	STUD (.250 x 1.620)	6
3	66357	双头螺柱(0.250-28牙x1.00英寸)化油器安装	STUD (.250-28 x 1.00) CARBURETOR MOUNTING	2
3	657461	螺丝及锁紧垫圈(0.250-20牙x0.625英寸)	SCREW AND LOCKWASHER (.250-20 x .625)	2
4	85500	曲轴箱至气缸体定位销(.187 x .530)	PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK	2
4	8M0084726	定位销	PIN Dowel	2
5	54467	调节螺丝-节气门控制(1-1/4英寸)	SCREW ADJ - THROTTLE CONTROL (1-1/4")	2
5	69560	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	2
6	68219	螺母(#10-32牙)不锈钢节气门控制调节螺丝	NUT (#10-32) Stainless Steel THROTTLE CONTROL ADJUSTING SCREW	2
7	99130122	管材(20英尺散装)泄放管(4英寸)	TUBING (20.00 Feet Bulk) BLEED DRAIN (4")	1
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
8	42863	止回阀泄放-曲轴箱(底部)	CHECK VALVE BLEED - CRANKCASE (BOTTOM)	1
9	76621	曲轴箱至气缸体螺丝	SCREW CRANKCASE TO CYLINDER BLOCK	8
10	73280	曲轴箱至气缸体螺丝	SCREW CRANKCASE TO CYLINDER BLOCK	2
11	31412A1	垫片	SHIM	AR
12	6413A1	上轴承壳体总成	HOUSING ASSEMBLY Bearing UPPER	1
13	72961	上轴承壳体滚珠轴承	BEARING Ball UPPER BEARING HOUSING	1
14	31410	上轴承壳体滚柱轴承	BEARING Roller UPPER BEARING HOUSING	1
15	66301	上轴承壳体油封	SEAL Oil UPPER BEARING HOUSING	1
16	20863	上轴承壳体O型圈	O-RING UPPER BEARING HOUSING	1
17	76611	螺丝(0.216-24牙x0.500英寸)上轴承座	SCREW (.216-24 x .500) UPPER BEARING HOUSING	4
18	78102	锁紧垫圈	TAB WASHER	4
19	78032	进气盖衬垫	GASKET INTAKE COVER	1
19	780321	衬垫	GASKET	1
19	43336	进气盖衬垫	GASKET INTAKE COVER	1
20	78033	进气盖	COVER INTAKE	1
21	26537	螺丝(#10-24牙x0.500英寸)进气盖至气缸体	SCREW (#10-24 x .500) INTAKE COVER TO CYLINDER BLOCK	3
22	7465A1	气缸体盖总成	COVER ASSEMBLY CYLINDER BLOCK	1
23	32802	管塞(0.125-27牙)气缸盖	PLUG Pipe (.125-27) CYLINDER COVER	1
23	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
23	99664	气缸盖弯头	ELBOW CYLINDER COVER	1
23	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
24	41382	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
25	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	6
25	8M0214943	螺钉	SCREW	6
26	41383	气缸体至挡板衬垫	GASKET CYLINDER BLOCK TO BAFFLE PLATE	1
27	85935	挡板-排气歧管	PLATE BAFFLE - EXHAUST MANIFOLD	1
28	41383	挡板衬垫	GASKET BAFFLE PLATE	1
29	74919	排气歧管盖	COVER EXHAUST MANIFOLD	1
29	74919T	盖板	COVER	1
28	89014	挡板衬垫	GASKET BAFFLE PLATE	1
29	89013A1	排气歧管盖	COVER EXHAUST MANIFOLD	1
30	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
31	75692	节温器	THERMOSTAT	1
32	88346	节温器盖衬垫	GASKET THERMOSTAT COVER	1
33	62386	节温器衬垫	GASKET THERMOSTAT	1
33	8M0204714	衬垫@4	GASKET @4	1
34	85920	节温器盖	COVER THERMOSTAT	1
35	88464	弹簧固定座-节温器盖	SPRING RETAINER - THERMOSTAT COVER	1
36	29111	节温器盖连接器	CONNECTOR THERMOSTAT COVER	1
36	291112	接头	FITTING	1
37	34395A1	示警软管	HOSE TELL-TALE	1
37	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
38	46933A1	接地线	GROUND WIRE	1
39	72961	球轴承(下部)	BEARING Ball (LOWER)	1
40	66301	曲轴箱油封(下)	SEAL Oil CRANKCASE (LOWER)	1
41	63415A6	电线总成黑色(电气)	WIRE ASSEMBLY BLACK (ELECTRIC)	1

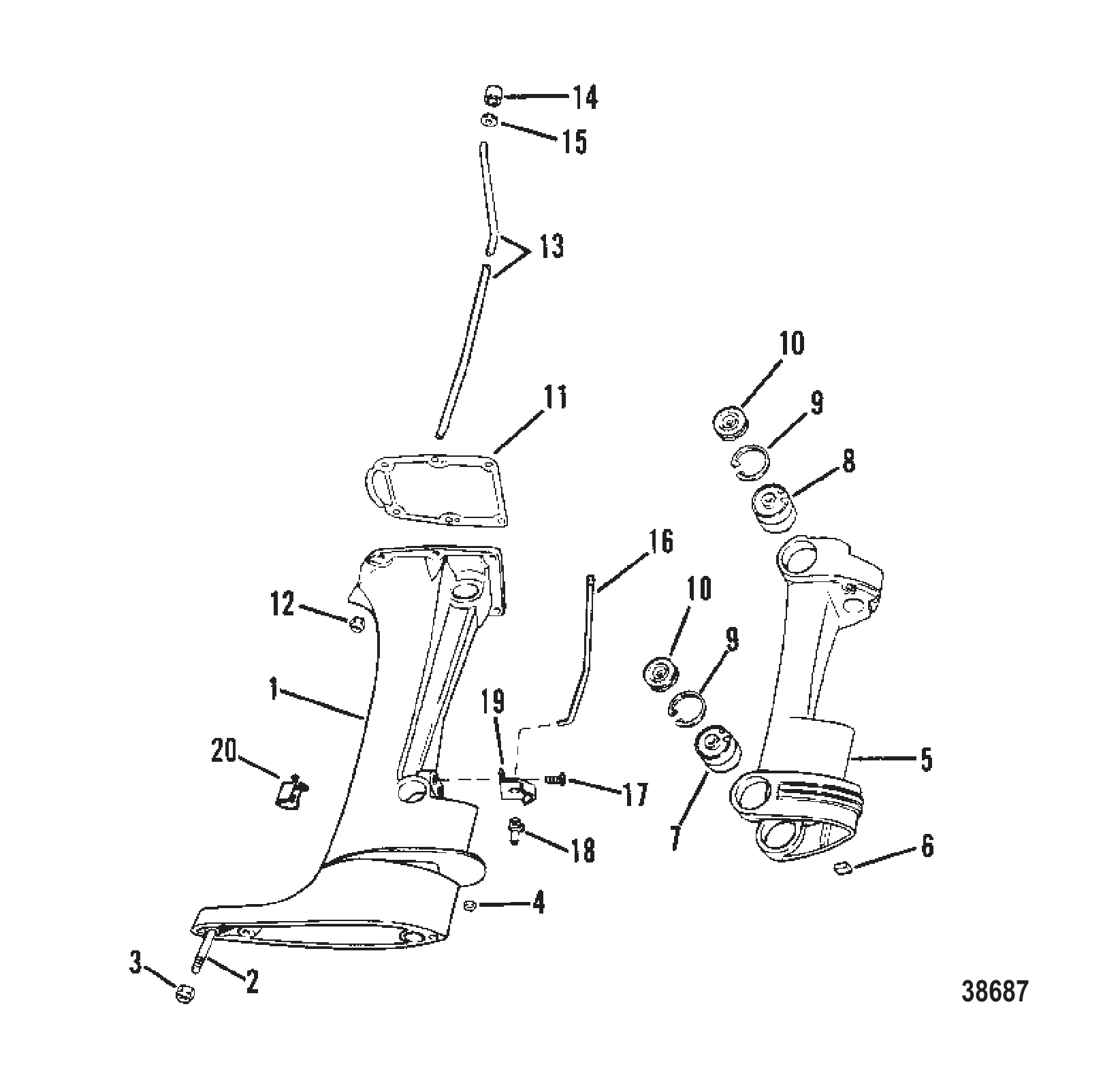

图 20驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7601A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8526A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	7723A4	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8526A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	68927	驱动轴壳体螺柱	STUD DRIVESHAFT HOUSING	1
2	75321	驱动轴壳体螺柱	STUD DRIVE SHAFT HOUSING	1
3	79953		SCREW (.375-16 x .250) GREASE FILLER	1
3	79953Q04	放油螺钉套件	SCREW KIT Drain	1
4	20260	润滑脂加注螺钉垫圈	WASHER GREASE FILLER SCREW	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	88996	水管	TUBE Water	1
5	88997	水管	TUBE Water	1
6	36556	水封（外径0.5英寸）水管	SEAL (.500 Inch Outside Diameter) WATER TUBE	1
7	86214		BEARING Water Tube Seal	1
7	13127	隔套	SPACER	1
8	79791	副驾驶夹箍	CLAMP CO-PILOT	1
9	88669	驱动轴壳体橡胶支座	MOUNT RUBBER-DRIVESHAFT HOUSING	2
10	74308	橡胶安装衬套	BUSHING RUBBER MOUNT	2
11	68990A3	转向臂支架总成	BRACKET ASSEMBLY STEERING ARM	1
11	98168A1	支架总成	BRACKET ASSEMBLY	1
11	89744A1	转向臂支架总成	BRACKET ASSEMBLY STEERING ARM	1
11	98168A1	支架总成	BRACKET ASSEMBLY	1
12	75840	螺钉（#10-24 x .880）转向臂支架	SCREW (#10-24 x .880) STEERING ARM BRACKET	4
13	88184	驱动轴壳体塞	PLUG DRIVESHAFT HOUSING	1
14	69067	螺钉（.250-20 x 1.375）驱动轴壳体至动力头	SCREW (.250-20 x 1.375) DRIVESHAFT HOUSING TO POWERHEAD	6
15	90253	适配板	PLATE ADAPTOR	1
15	98319	安装板	PLATE	1
16	88138	驱动轴壳体衬垫	GASKET PLATE TO DRIVESHAFT HOUSING	1
16	41631	衬垫	GASKET	1
16	90254	驱动轴壳体衬垫	GASKET PLATE TO DRIVESHAFT HOUSING	1
16	41631	衬垫	GASKET	1
17	88139	动力头衬垫	GASKET PLATE TO POWERHEAD	1
17	41632	衬垫	GASKET	1
17	92875	动力头衬垫	GASKET PLATE TO POWERHEAD	1
17	41632	衬垫	GASKET	1
18	87664	提手	HANDLE CARRYING	1
19	54615	手柄至适配板螺钉(0.250-20 x 0.625)	SCREW (.250-20 x .625) HANDLE TO ADAPTOR PLATE	4
20	21249	手柄螺钉垫圈	WASHER HANDLE SCREW	4
21	87667	转向手柄	HANDLE STEERING	1
21	87667T	舵柄	TILLER HANDLE	1
22	87668	转向手柄握把	GRIP STEERING HANDLE	1
23	63327	转向手柄支架螺钉(1.5英寸)	SCREW STEERING HANDLE TO BRACKET (1 1/2")	1
23	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	1
24	53166	转向手柄螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STEERING HANDLE SCREW	1
25	56720	转向手柄螺钉不锈钢垫圈(0.330x0.750x0.060)	WASHER (.330 x .750 x .060) Stainless Steel STEERING HANDLE SCREW	2
26	26825	转向手柄螺钉垫圈(0.328x0.750x0.06)	WASHER (.328 x .750 x .06) STEERING HANDLE SCREW	1
27	68292	转向手柄螺钉螺母(0.312-18)	NUT (.312-18) STEERING HANDLE SCREW	1
27	8M0204668	螺母(.312-18)	NUT (.312-18)	1
28	35814	螺母（.312-24）不锈钢齿轮箱螺柱	NUT (.312-24) Stainless Steel GEAR HOUSING STUD	1
28	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
-	75311	驱动轴壳体适配器	ADAPTER DRIVESHAFT HOUSING	1
-	75311T	适配器	ADAPTOR	1
-	76265	传动轴轴承座	BLOCK Bearing DRIVESHAFT	1
-	94909	轴承座	BLOCK Bearing	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1

图 21电气组件 ELECTRIC COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	95815	上盖	COVER (TOP)	1
2	95828	下盖	COVER (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
4	55741001	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1
10	95814	绑带	STRAP	1
11	95813	紧固件	FASTENER	1
12	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
12	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
13	4005727	螺钉	SCREW	2
14	45771	垫圈	WASHER	2
15	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
16	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
17	816770	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
19	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
20	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
20	8M0185149	启动电磁阀	SOLENOID START	1
21	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	64015	螺母 (.250-20)	NUT (.250-20)	2
24	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
25	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
25	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
25	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
25	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
26	92439	支架(旧设计)	BRACKET (OLD DESIGN)	1
27	4000327	螺钉(M6×14)(旧设计)	SCREW (M6 x 14) (OLD DESIGN)	1
28	35044	垫圈(0.281×0.625×0.065)不锈钢(旧设计)	WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)	1
29	400212	螺母(M6)不锈钢(旧设计)	NUT (M6) Stainless Steel (OLD DESIGN)	1
30	815504310	蜗轮卡箍(旧设计)	CLAMP Worm Gear (OLD DESIGN)	1
31	86704A2	定子总成	STATOR ASSEMBLY	1
31	86704A10	辅助定子	STATOR Auxiliary	1
32	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3
33	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
33	8M0033984	启动马达	STARTER MOTOR	1
34	96561	驱动套件	DRIVE KIT	1
35	96562	驱动器	DRIVE	1
36	96563	端盖	END CAP	1
36	96563T	端盖	END CAP	1
37	96565	电枢	ARMATURE	1
38	96564	端盖	END CAP	1
38	96564T	端盖	END CAP	1
39	96566	贯穿螺栓	THRU BOLT	1
40	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
40	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
41	424291	固定座	RETAINER	1
42	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
43	79091	保险丝20安培	FUSE 20 Ampere	1
43	8M0207796	保险丝20安培	FUSE 20 AMP	1
44	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1
45	12152	固定座	RETAINER	1
46	92753	固定座	RETAINER	1
47	55098	J型卡扣	J CLIP	1
47	8M0024808	J型夹	J-CLIP	1

图 22飞轮与点火组件 FLYWHEEL AND IGNITION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	6105A9	飞轮总成	FLYWHEEL ASSEMBLY	1
2	36245	垫圈飞轮螺母	WASHER FLYWHEEL NUT	1
3	20696	飞轮螺母	NUT FLYWHEEL	1
4	5209A3	定子总成	STATOR ASSEMBLY	1
4	5209A9	叠片总成	LAMINATION ASSY	1
5	35400	螺丝定子至端盖(3/8")	SCREW STATOR TO END CAP (3/8")	1
6	66707	定子至端盖螺丝(7/8英寸)	SCREW STATOR TO END CAP(7/8")	3
7	6119A1	线圈总成(5-1/2"和6-3/8"引线)	COIL ASSEMBLY (5-1/2" AND 6-3/8" LEADS)	1
7	6120A1	线圈总成(1-3/4"和3-1/2"引线)	COIL ASSEMBLY (1-3/4" AND 3-1/2" LEADS)	1
8	59538	卡箍线圈固定	CLIP COIL RETAINING	2
8	59538T	卡箍@2	CLIP @2	2
9	85446	卡箍线圈固定	CLIP COIL RETAINING	2
10	85365	接线端子排定子	TERMINAL BLOCK STATOR	1
11	20646	螺丝(.190-32 x .62)接线端子排至定子	SCREW (.190-32 x .62) TERMINAL BLOCK TO STATOR	1
11	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	1
12	46438	螺母(#10-32)接线端子排螺丝	NUT (#10-32) TERMINAL BLOCK SCREW	1
13	22654	螺丝(.190-32 x .38)引线至接线端子排	SCREW (.190-32 x .38) LEADS TO TERMINAL BLOCK	1
14	7283A2	触发器壳体总成	HOUSING ASSEMBLY Trigger	1
14	7283A3	触发板	TRIGGER PLATE	1
15	42501	连杆触发器壳体至节气门杆	LINK TRIGGER HOUSING TO THROTTLE LEVER	1
16	65110	推螺母-连杆至触发器壳体	NUT PUSH - LINK TO TRIGGER HOUSING	1
17	6222A10	开关盒总成	SWITCHBOX ASSEMBLY	1
17	899883229	开关盒总成	SWITCH BOX ASSY	1
18	20189	螺丝(0.190-32牙x0.75英寸)开关盒固定	SCREW (.190-32 x .75) SWITCH BOX ATTACHING	2
19	56681	垫圈(0.203x0.500x0.032英寸)开关盒固定螺丝	WASHER (.203 x .500 x .032) SWITCH BOX ATTACHING SCREW	2
19	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
20	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	5
21	5790811	套管(10英寸散装)开关盒引线	SLEEVE (10.00 Inches Bulk) SWITCH BOX LEADS	2
22	53883	开关盒引线夹	CLIP SWITCH BOX LEADS	1
23	45218	螺丝(#10-32牙x0.380英寸)接地线至气缸体	SCREW (#10-32 x .380) GROUND LEAD TO CYLINDER BLOCK	1
24	5288A2	点火线圈总成	COIL ASSEMBLY Ignition	2
24	8M0166172	点火线圈	IGNITION COIL	2
25	66355	点火线圈盖	COVER IGNITION COIL	2
26	72074	线圈盖至后支架螺钉(4-5/8")	SCREW COIL COVER TO REAR BRACKET (4-5/8")	3
27	20110	线圈盖螺钉螺母(#10-32)	NUT (#10-32) COIL COVER SCREW	3
28	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	4
29	99215A25	高压导线总成	LEAD ASSEMBLY HIGH TENSION	2
29	813715A1	引线	LEAD WIRE	2
30	2854	点火线圈护套	BOOT IGNITION COIL	2
30	2854T01	护套@3	BOOT @3	2
31	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
32	97186	火花塞(NGK #B9HS-10)	SPARK PLUG (NGK #B9HS-10)	2
32	813418	NGK BR9HS @10	NGK BR9HS @10	2
32	86866	火花塞	SPARK PLUG
32	896329828	SP #QL77JC4 @4	SP #QL77JC4 @4

图 23齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7360A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7360A13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7360A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7360A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	7360A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	58138	齿轮箱螺柱(3-7/16")	STUD GEAR HOUSING (3-7/16")	1
3	58136	水泵螺柱(2-3/4")	STUD WATER PUMP (2-3/4")	2
4	22756	滚柱轴承	BEARING Roller	1
5	20032	定位销	PIN Dowel	1
6	33613	橡胶密封件	SEAL RUBBER	1
7	86215	尼龙轴承	BEARING NYLON	1
8	33425	进气滤网	SCREEN INTAKE	1
9	28642	进气滤网螺钉(#2 x 0.25)	SCREW (#2 x 0.25) INTAKE SCREEN	1
10	98696	小齿轮	GEAR Pinion	1
11	30377	小齿轮螺钉锁紧垫圈	TAB WASHER PINION GEAR SCREW	1
12	30376	小齿轮驱动轴螺丝(#12-28x0.75)	SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT	1
13	75034	驱动轴	DRIVESHAFT	1
13	75033	驱动轴	DRIVESHAFT	1
13	95873A1	驱动轴	DRIVESHAFT	1
13	95874A1	驱动轴	DRIVESHAFT	1
14	30527A1	滚珠轴承垫片组(0.002-3-5-10)	SHIM ASSEMBLY BALL BEARING (.002-3-5-10)	AR
15	70944	驱动轴滚珠轴承	BEARING Ball DRIVE SHAFT	1
16	30523	驱动轴球轴承挡圈	RING Retaining BALL BEARING TO DRIVE SHAFT	1
17	30527A1	球轴承垫片组(.002-2-5-10)	SHIM ASSEMBLY BALL BEARING (.002-2-5-10)	AR
18	70941A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
18	70941T01	壳体总成	HOUSING ASY	1
18	92970A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
19	29439	O型圈	O-RING	1
20	30900	油封	SEAL Oil	1
20	30900T	密封件@2	SEAL @2	1
20	96063	油封	SEAL Oil	1
20	897153	油封@3	SEAL-OIL @3	1
21	70977	嵌件	INSERT	1
21	70977T	嵌件	INSERT	1
22	33613	进水管密封	SEAL WATER INTAKE TUBE	1
23	34293	进水管道	TUBE WATER INTAKE	1
24	56655	叶轮驱动键	KEY IMPELLER DRIVE	1
24	8M0032835	键	KEY	1
25	89981	叶轮	IMPELLER	1
25	89980	叶轮	IMPELLER	1
26	46895	水泵面板	FACE PLATE WATER PUMP	1
27	93224A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
28	36558	水泵盖密封件	SEAL WATER PUMP COVER	1
29	86214	水泵盖尼龙轴承	BEARING NYLON - WATER PUMP COVER	1
29	13127	隔套	SPACER	1
30	30913	水泵盖油封	SEAL Oil WATER PUMP COVER	1
31	20533	水泵双头螺栓垫圈	WASHER WATER PUMP STUDS	2
32	20361	水泵螺柱螺母(.250-28)	NUT (.250-28) WATER PUMP STUDS	2
32	8267089	螺母(.250-28)	NUT (.250-28)	2
33	30526	橡胶环	RING RUBBER	1
34	31792	进水管导向套	SLEEVE GUIDE - WATER INLET TUBE	1
34	31792T	套管@5	SLEEVE @5	1
35	62704	驱动轴O型圈(.362 x .103)	O-RING (.362 x .103) DRIVE SHAFT	1
-	89014A80	衬垫套件	GASKET SET	1
-	77066A1	水泵密封套件	SEAL KIT Water Pump	1
-	70941A3	水泵维修套件	REPAIR KIT Water Pump	1
-	92970A5	水泵维修套件	REPAIR KIT Water Pump	1

图 24齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成-标准旋转1.87:1传动比(完整)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)	1
1	9148A11	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	1
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	43999	滚子轴承(外径1.308)	BEARING Roller (1.308 O.D.)	2
57	73363	滚子轴承(外径1.313)	BEARING Roller (1.313 O.D.)	2
57	73363T	轴承	BEARING	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独出售(43-44104A2部件)	Not Sold Separate (PART OF 43-44104A2)	1
64	68100	止推环	RING THRUST	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承-倒档齿轮	BEARING Ball BALL-REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	轴承座定位键	KEY LOCATING-BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024	螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")	SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")	1
75	67891	填充块	FILLER BLOCK FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈-螺旋桨螺母	WASHER Splined SPLINED-PROPELLER NUT	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
83	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
-	89238A2	密封套件	SEAL KIT	1
-	14697A87	衬垫套件	GASKET SET

图 25杂项零件与附件 MISCELLANEOUS PARTS AND ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	13716	零件手册7.5/9.8马力	PARTS MANUAL 7.5 /9.8 H.P.	1
-	110853	操作手册	OPERATION MANUAL	1
-	89569A80	贴花套件	DECAL SET	AR
-	13479A86	贴花套件	DECAL SET	AR
-	43162A84	贴花套件	DECAL SET	AR
-	13479A86	贴花套件	DECAL SET	AR
-	13479A86	贴花套件	DECAL SET	AR
-	89571A80	贴花套件	DECAL SET	AR
-	13053A86	贴花套件	DECAL SET	AR
-	43166A84	贴花套件	DECAL SET	AR
-	13053A86	贴花套件	DECAL SET	AR
-	13053A86	贴花套件	DECAL SET	AR
-	89014A80	发动机大修垫片套装	GASKET SET (MOTOR OVERHAUL)	AR

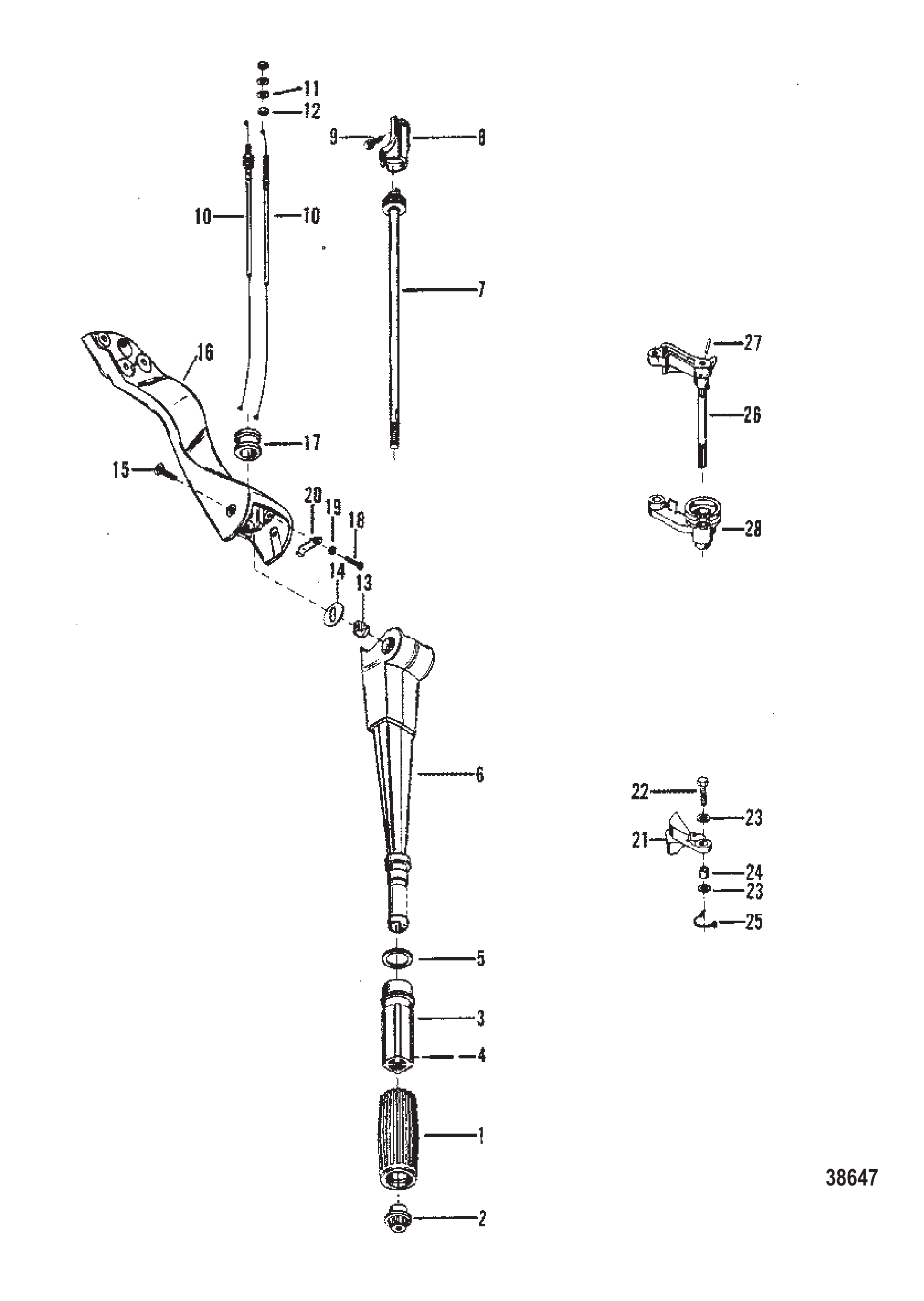

图 26转向手柄与油门连杆 STEERING HANDLE AND THROTTLE LINKAGE

REF	零件编号	中文名称	英文名称	数量
-	77194A2	转向手柄总成	HANDLE ASSEMBLY Steering	1
1	60854	握柄	GRIP HANDLE	1
2	77237	手柄盖	CAP HANDLE	1
3	77238A1	节流阀轴手柄	HANDLE THROTTLE SHAFT	1
4	31656	转向手柄销	PIN STEERING HANDLE	1
5	62252	垫圈	WASHER	1
6	77194	转向手柄臂	ARM STEERING HANDLE	1
7	97379	节流阀轴	SHAFT THROTTLE	1
7	973791	油门轴	SHAFT Throttle
8	77203	线缆导块	BLOCK CABLE GUIDE	1
9	69069	导块至转向臂螺钉(.250-28 x .750)	SCREW (.250-28 x .750) BLOCK TO STEERING ARM	1
10	86210	油门拉线	CABLE THROTTLE	2
11	37998	油门拉线垫圈	WASHER THROTTLE CABLE	4
12	21825	螺母(.250-28)油门拉线	NUT (.250-28) THROTTLE CABLE	4
13	48003	转向手柄支架枢轴	PIVOT STEERING HANDLE TO BRACKET	2
14	48002015	垫片(.015)	SHIM (.015)	AR
15	96138	螺钉(.250-28 x .620)	SCREW (.250-28 x .620)	2
16	96432	转向臂支架	BRACKET STEERING ARM	1
16	96432F1	转向支架	STEERING BRACKET	1
17	67272	转向臂支架衬套	GROMMET STEERING ARM BRACKET	1
18	62233	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	2
19	30164	不锈钢止动弹簧垫圈(.192 x .375 x .0312)	WASHER (.192 x .375 x .0312) Stainless Steel DETENT SPRING	4
20	72847	定位弹簧-转向手柄	SPRING DETENT - STEERING HANDLE	2
21	86212	限速器从动件	FOLLOWER OVER - SPEED LIMITER	1
22	20653	螺钉(.250-28 x 1.00)	SCREW (.250-28 x 1.00)	1
23	29245	限速器从动件螺钉不锈钢垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel SPEED LIMITER FOLLOWER SCREW	2
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
24	63320	限速器从动件螺钉衬套	BUSHING SPEED LIMITER FOLLOWER SCREW	1
25	39042	空档限速器从动件弹簧	SPRING NEUTRAL SPEED LIMITER FOLLOWER	1
26	66374A2	节流控制杆总成	LEVER ASSEMBLY THROTTLE CONTROL	1
27	76207	节流控制杆滚销	PIN Roll THROTTLE CONTROL LEVER	1
28	86070	节流阀卷轴	SPOOL THROTTLE	1
