水星 Mercury 65 JET 3 CYL 0T980000 THRU 1B214111 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-803147001 · 共 37 个部位 · 1527 条零件

图 1附件 Accessories

零件编号	中文名称	英文名称	数量
62351A10		CHARGING KIT Battery RECTIFIER	1
828155A3	化油器防冰套件	ANTI-ICING KIT Carburetor	1
43393A1	提手	CARRYING HANDLE	1
44369A3	电动起动机套件	STARTER MOTOR KIT Electric	1
822462A2	起动机转换套件	CONVERSION KIT Starter Motor	1
812432A1	发动机安装套件	MOUNTING KIT Engine	1
816696A1	延长套件 (2.5 英寸/64毫米)	EXTENSION KIT (2.5 Inches/64mm)	1
816696A2	延长套件 (2.5 英寸/64毫米)	EXTENSION KIT (2.5 Inches/64mm)	1
816696A6	延长套件 (2.5 英寸/64毫米)	EXTENSION KIT (2.5 Inches/64mm)	1
816696A7	延长套件 (2.5 英寸/64毫米)	EXTENSION KIT (2.5 Inches/64mm)	1
44357A2	冲洗附件	FLUSHING ATTACHMENT	1
44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
9873A35	高输出交流发电机套件	HIGH OUTPUT ALTERNATOR KIT	1
95845A5	照明调节器套件	REGULATOR KIT Lighting	1
88334A2	防腐电极套件	MERCATHODE KIT	1
8M0180081	防腐电极套件	MERCATHODE KIT	1
86300A5	防腐电极监测器	MERCATHODE MONITOR	1
822870A2	动力调整套件	POWER TRIM KIT	1
8M0054999	动力调整套件	POWER TRIM KIT	1
14645A4		TRIM SWITCH (TILLER MOUNTED)	1
812718A2	油箱套件外置机油	TANK KIT Remote Oil	1
18286A18	升降开关套件(10.00英尺)	SWITCH KIT Trim (10.00 Feet)	1
815548A4	35马力限速套件	35 HP HORSE POWER RESTRICTOR KIT	1
815548A5	35马力限速套件	35 HP HORSE POWER RESTRICTOR KIT	1
850000A2	转接套件 45号喷口	ADAPTER KIT 45 JET	1
14586A4	节温器套件 (120华氏度)	THERMOSTAT KIT (120 DEGREES F)	1
850055A2	节温器套件(55/60)	THERMOSTAT KIT (55/60)	1
816366A22	转向手柄套件	STEERING HANDLE KIT	1
816366A40	转向手柄套件	STEERING HANDLE KIT	1
816366A23	转向手柄套件	STEERING HANDLE KIT	1
17334A2	视觉警告系统(低油位/过热)	VISUAL WARNING SYSTEM (LOW OIL/OVERHEAT)	1
88825A6	电压调节器套件	REGULATOR KIT Voltage	1
807172	燃油/水分离器	FILTER Fuel/Water Separator	1
802893Q01	燃油水分分离器	FILTER Fuel/Water Separating	1

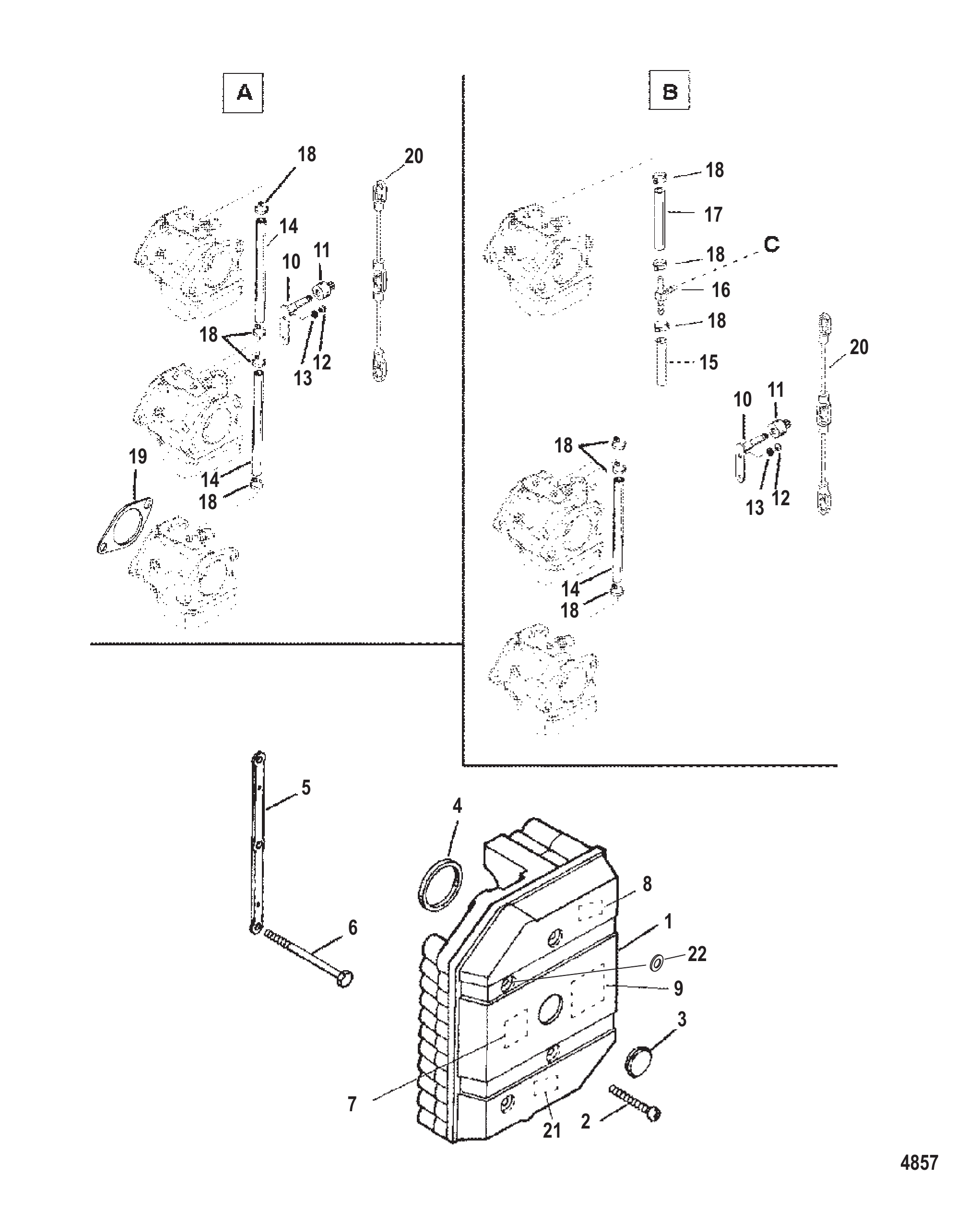

图 2衰减板 Attenuator Plate

REF	零件编号	中文名称	英文名称	数量
1	19662	消音器	ATTENUATOR Sound	1
2	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	4
3	815784	盖帽	CAP	1
4	812889	密封件	SEAL	3
5	812874	消音板	PLATE Sound Attenuator	2
6	4000363	螺丝(M8 x 100)	SCREW (M8 x 100)	6
7	NSS	警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Warning	1
8	NSS	不单独销售贴花-警示	NOT SOLD SEPARATE Decal-Caution	1
9	NSS	不单独出售贴纸-全油门正时	NOT SOLD SEPARATE Decal-Full Throttle Timing	1
10	11399A1	臂总成	ARM ASSEMBLY	1
11	67748	滚轮	ROLLER	1
12	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
13	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
13	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
14	9912878	软管 (.187) (26.00英寸散装) (裁切至4.25英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)	2
14	9912878	软管 (.187) (26.00英寸散装) (裁切至4.25英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)	1
15	9912878	软管 (.187) (26.00英寸散装) (裁切至3.00英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 3.00 Inch Length)	1
16	830285	接头三通	FITTING TEE	1
17	9912878	软管 (.187) (26.00英寸散装) (裁切至1.00英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 1.00 Inch Length)	1
18	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	8144461	法兰衬垫	GASKET Flange	3
20	8252043	油门连杆	LINK Throttle	1
20	825204T03	连接杆	LINK	1
21	NSS	空档怠速警告贴纸（不单独销售）	NOT SOLD SEPARATE Decal-Caution in Gear Idle	1
22	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1

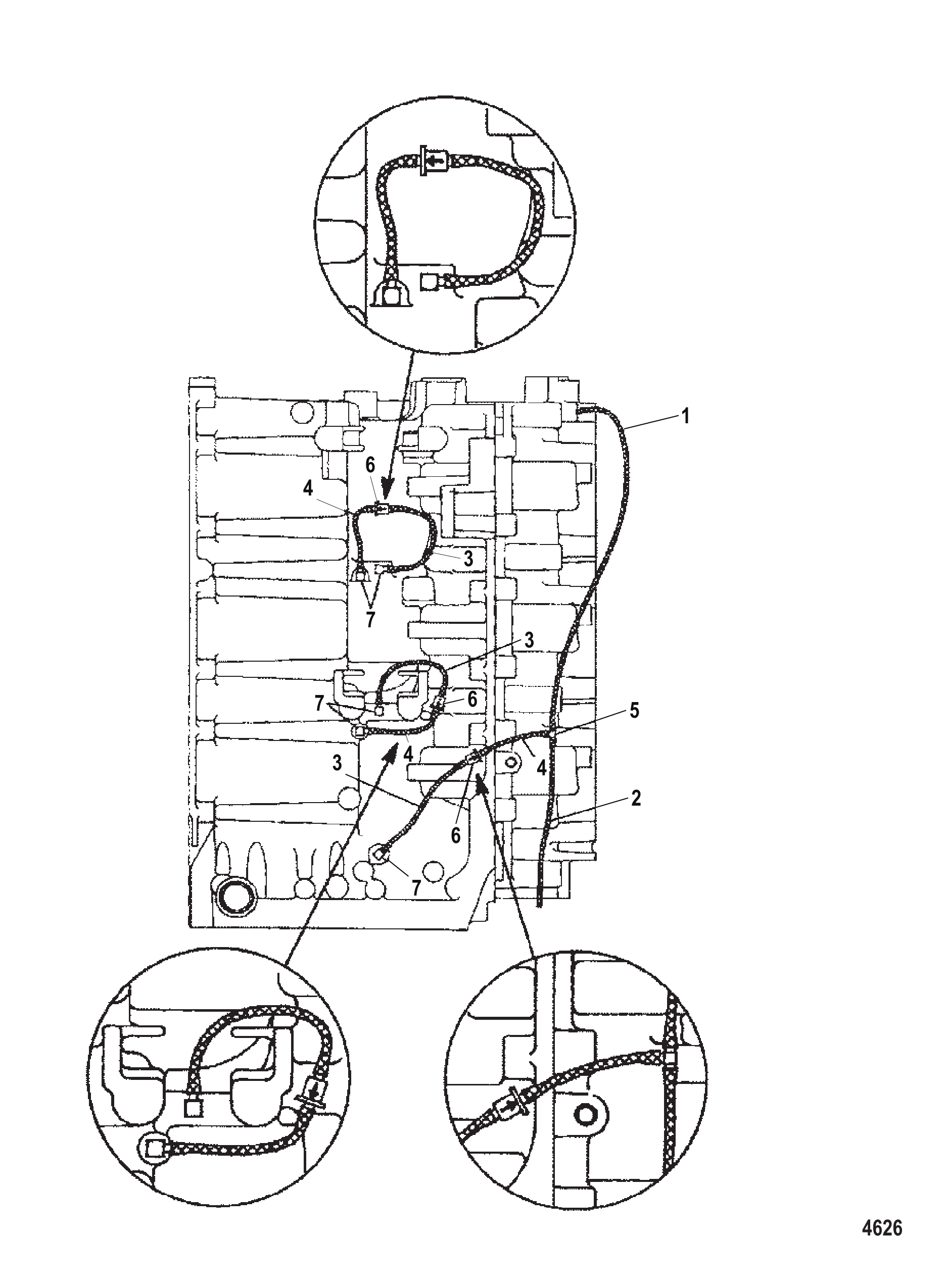

图 3泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	99130122	管材(20英尺整卷)(裁切12.50英寸)	TUBING (20.00 Feet Bulk) (Cut to 12.50 Inches Length)	1
2	99130122	管材(20英尺整卷)(裁切6.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 6.00 Inches Length)	1
2	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
3	99130122	管材(20英尺整卷)(裁切3.50英寸)	TUBING (20.00 Feet Bulk) (Cut to 3.50 Inches Length)	3
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
4	99130122	管材(20英尺整卷)(裁切2.50英寸)	TUBING (20.00 Feet Bulk) (Cut to 2.50 Inches Length)	3
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
5	591692	三通接头	FITTING Tee	1
5	59169003	三通接头	FITTING Tee	1
6	149126	止回阀	CHECK VALVE	3
7	15133	接头	FITTING	5
-	855530T98	动力头总成	POWERHEAD ASSEMBLY	1
-	898208A02	动力头总成	POWERHEAD ASSEMBLY	1
-	809837T97	动力头总成	POWERHEAD ASSEMBLY	1

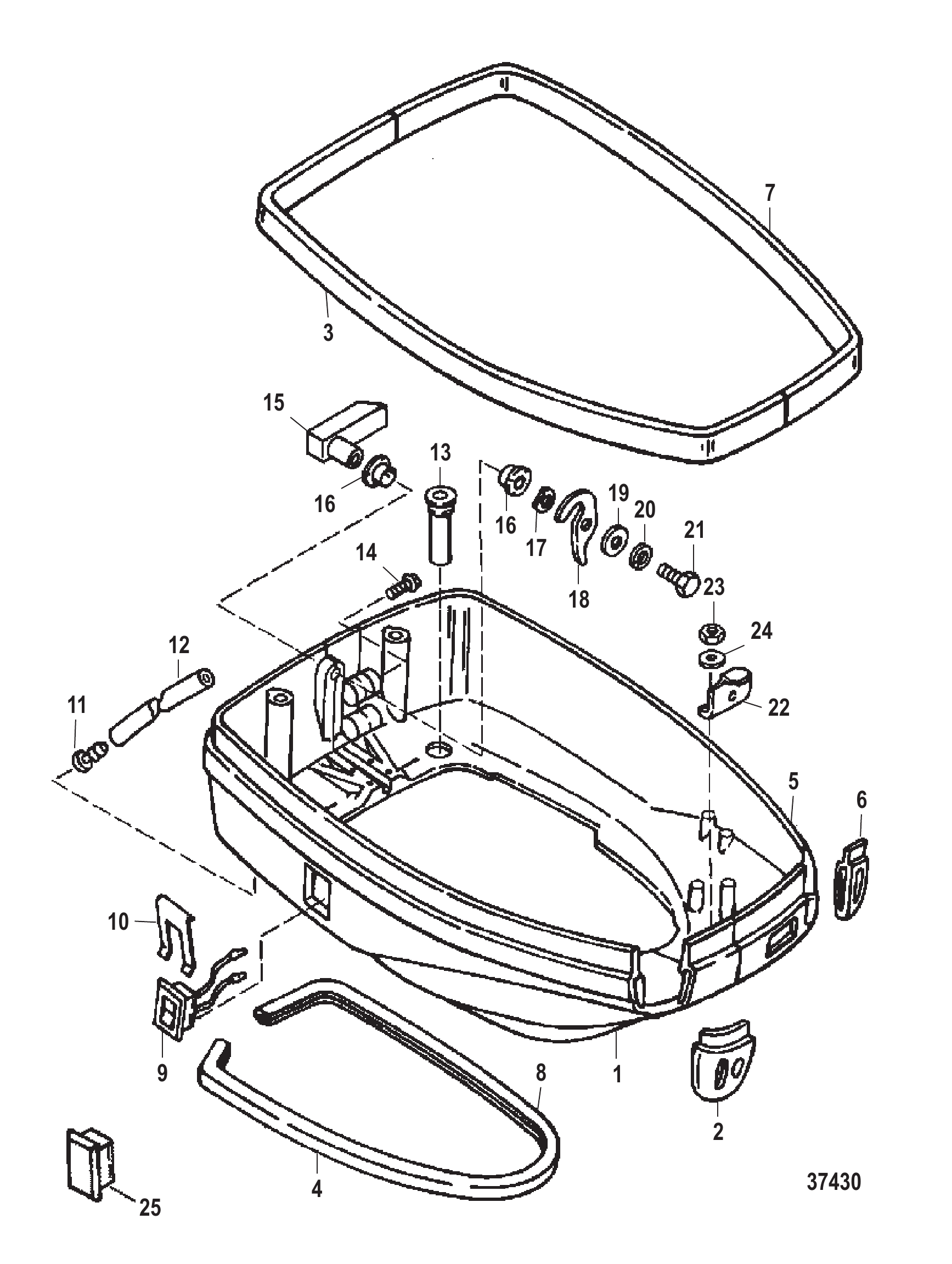

图 4下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	821873A1	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
1	821873A2	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
1	821873A3	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
2	822556	护孔环	GROMMET	1
2	822556003	护孔环	GROMMET	1
3	8253182	密封条(36.00英寸)	SEAL (36.00 Inches)	1
3	8M0109216	罩盖密封	SEAL- COWL	1
4	8238052	下罩密封条	SEAL Lower Cowl	1
5	821874A1	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
5	8M0107328	底部罩盖-左舷	COWL-BOTTOM, PORT	1
5	821874A2	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
5	821874A3	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
6	822555	护孔环	GROMMET	1
6	822555001	护孔环	GROMMET	1
7	8253182	密封条(36.00英寸)	SEAL (36.00 Inches)	1
7	8M0109216	罩盖密封	SEAL- COWL	1
8	8238052	下罩密封条	SEAL Lower Cowl	1
9	850691	开关	SWITCH	1
9	8M0235192	微调开关	SWITCH TRIM	1
10	8124431	固定座	RETAINER	1
10	8M0032848	开关固定座	RETAINER Switch	1
11	813613	接头	FITTING	1
12	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
12	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
13	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	3
15	820000A2	手柄	HANDLE	1
15	8M0041366	手柄总成-黑色	HANDLE ASSY-BLACK	1
15	820000A3	手柄	HANDLE	1
15	820000A2	手柄	HANDLE	1
15	820000A6	手柄	HANDLE	1
15	820000A2	手柄	HANDLE	1
16	812707	衬套	BUSHING	2
17	F2047	波形垫圈	WASHER Wave	1
18	F481777	凸轮锁轴	CAM Latch Shaft	1
18	8M0001081	凸轮	CAM	1
19	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
19	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
22	8223631	固定座	RETAINER	1
22	822363T1	固定座	RETAINER	1
23	8268336	螺母 (M6)	NUT (M6)	2
23	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
24	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
24	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
25	8128301	堵头	PLUG	1
25	812830T01	堵头	PLUG	1

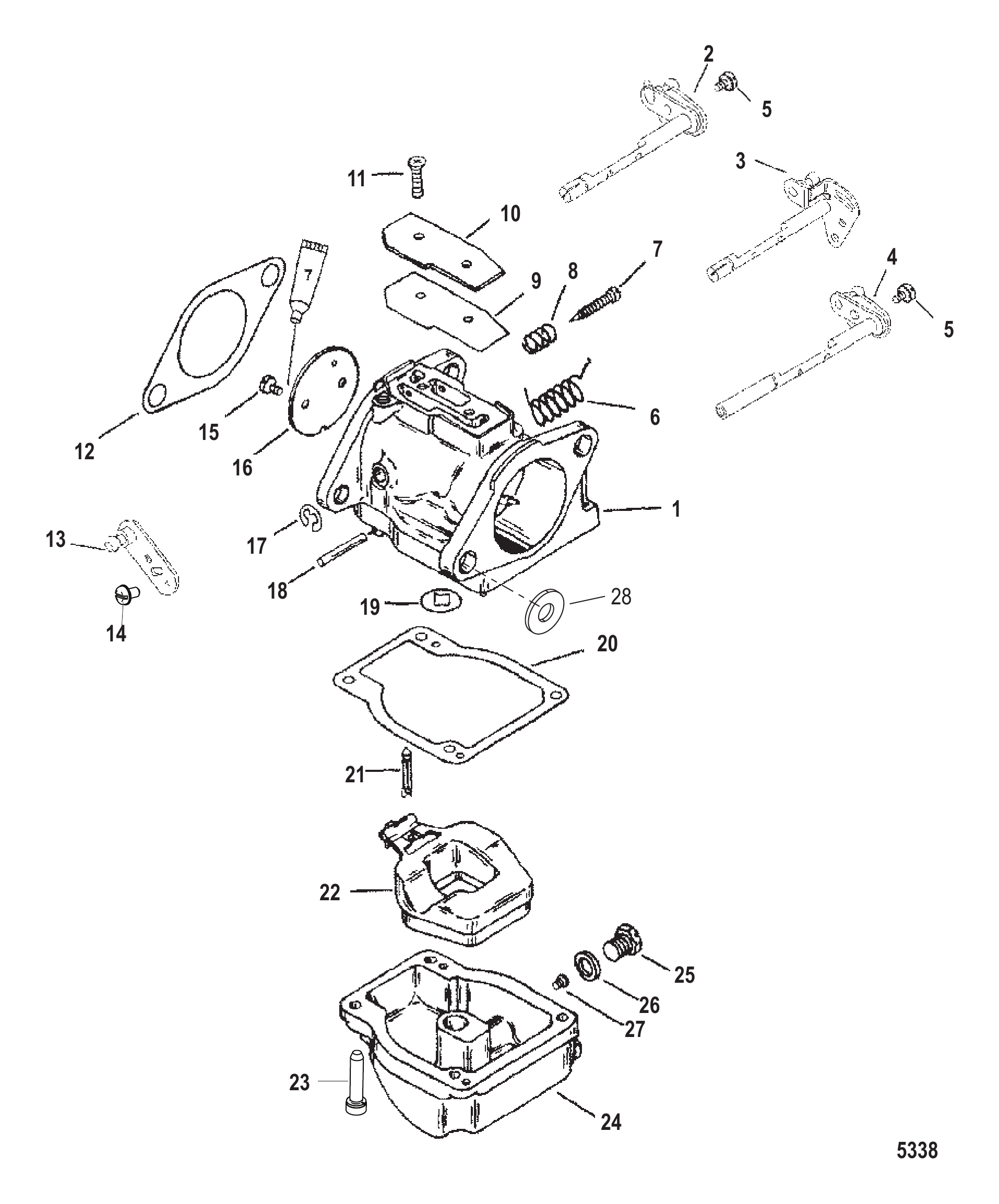

图 5化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	821854A7	化油器	CARBURETOR	1
1	821854T22	化油器 (WME 95-1)	CARBURETOR (WME 95-1)	1
1	821854A8	化油器	CARBURETOR	1
1	821854T23	化油器 (WME 95-2)	CARBURETOR (WME 95-2)	1
1	821854A9	化油器	CARBURETOR	1
1	821854T24	化油器 (WME 95-3)	CARBURETOR (WME 95-3)	1
1	821854A4	化油器	CARBURETOR	1
1	821854T19	化油器 (WME 94-1)	CARBURETOR (WME 94-1)	1
1	821854A5	化油器	CARBURETOR	1
1	821854T20	化油器 (WME 94-2)	CARBURETOR (WME 94-2)	1
1	821854A6	化油器	CARBURETOR	1
1	821854T21	化油器 (WME 94-3)	CARBURETOR (WME 94-3)	1
2	823632	油门轴	SHAFT Throttle	1
3	823633	油门轴	SHAFT Throttle	1
4	823636	油门轴	SHAFT Throttle	1
2	823632	油门轴	SHAFT Throttle	2
3	823633	油门轴	SHAFT Throttle	1
5	823634	螺钉	SCREW	2
6	NSS		NOT SOLD SEPARATE Spring-Throttle Return	3
7	NSS		NOT SOLD SEPARATE Idle Needle	3
8	NSS		NOT SOLD SEPARATE Spring-Idle Needle	3
9	NSS		NOT SOLD SEPARATE Gasket-cover Plate	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杆	LEVER Oil Pump	1
14	8086121	杆固定螺钉	SCREW Lever Retainer	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	879194025	节气门阀	VALVE-THROTTLE	3
17	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	3
18	F10064	轴	SHAFT	3
19	808738	衬垫	GASKET	3
20	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
24	811695	燃油杯	BOWL Fuel	1
24	811693	燃油杯	BOWL Fuel	2
24	811693	燃油杯	BOWL Fuel	3
25	811694	塞套件	PLUG KIT	3
26	802731	油封组(含4个油封)	SEAL (CONSISTS OF 4 SEALS)	1
27	7831	主燃油喷嘴 (.058)	JET Main Fuel (.058)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

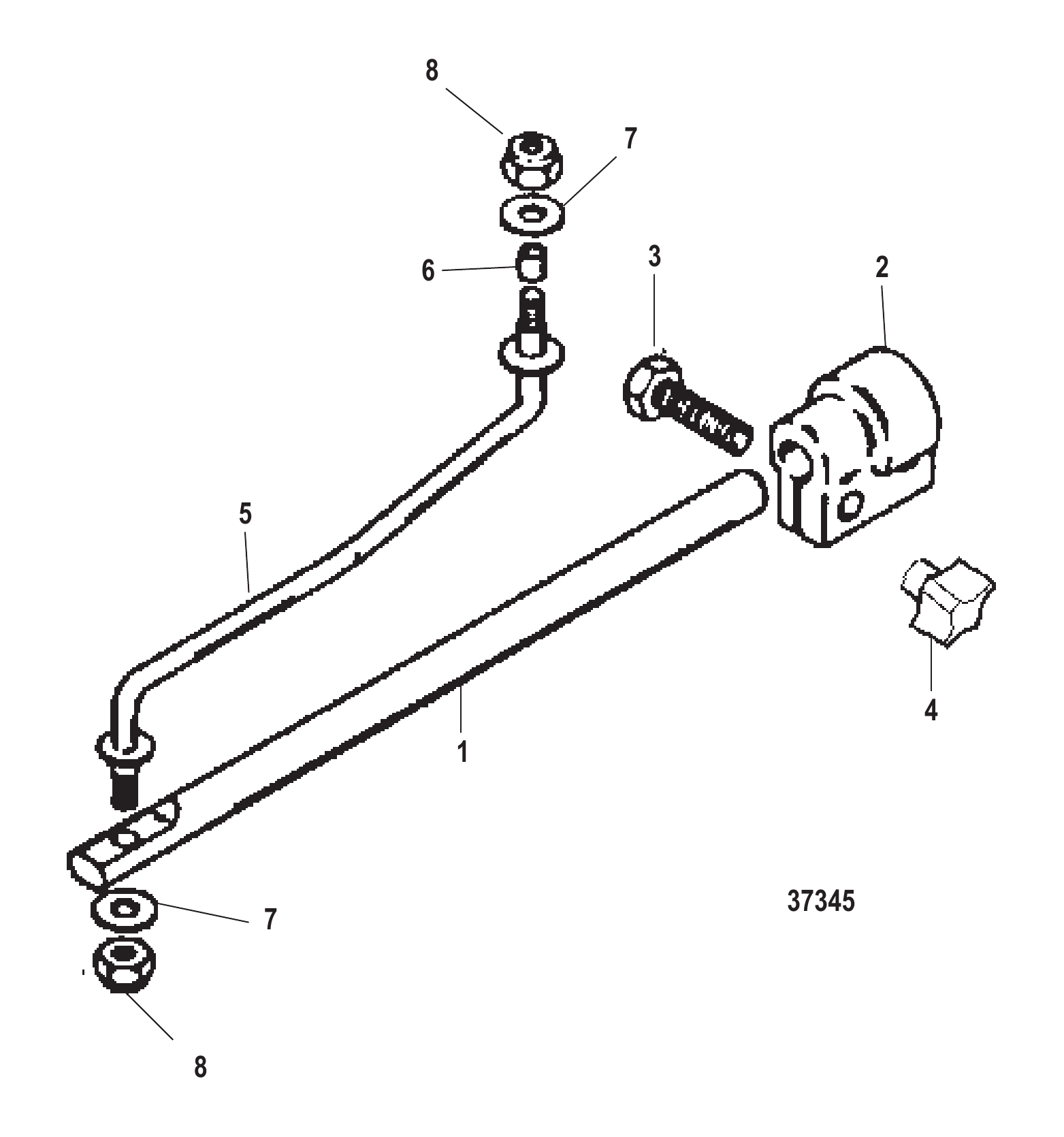

图 6副驾驶装置 Co-Pilot

REF	零件编号	中文名称	英文名称	数量
-	52148A6	副驾驶装置总成	CO-PILOT ASSEMBLY	1
-	52148A7	副驾驶装置总成	CO-PILOT ASSEMBLY	1
-	52148A7	副驾驶装置总成	CO-PILOT ASSEMBLY	1
1	52148	导向杆	PILOT ROD	1
1	521481	导向杆	PILOT ROD	1
2	52155A1	螺母总成	NUT ASSEMBLY	1
2	8M0103848	螺母总成	NUT ASSEMBLY	1
3	36137	螺钉(.250-28 x 1.00)	SCREW (.250-28 x 1.00)	1
4	821621	叉形旋钮	KNOB Prong	1
5	873491	杆	ROD	1
6	521512	衬套	BUSHING	1
7	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
7	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
8	45592	螺母(.312-24)	NUT (.312-24)	2
8	826709111	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	2

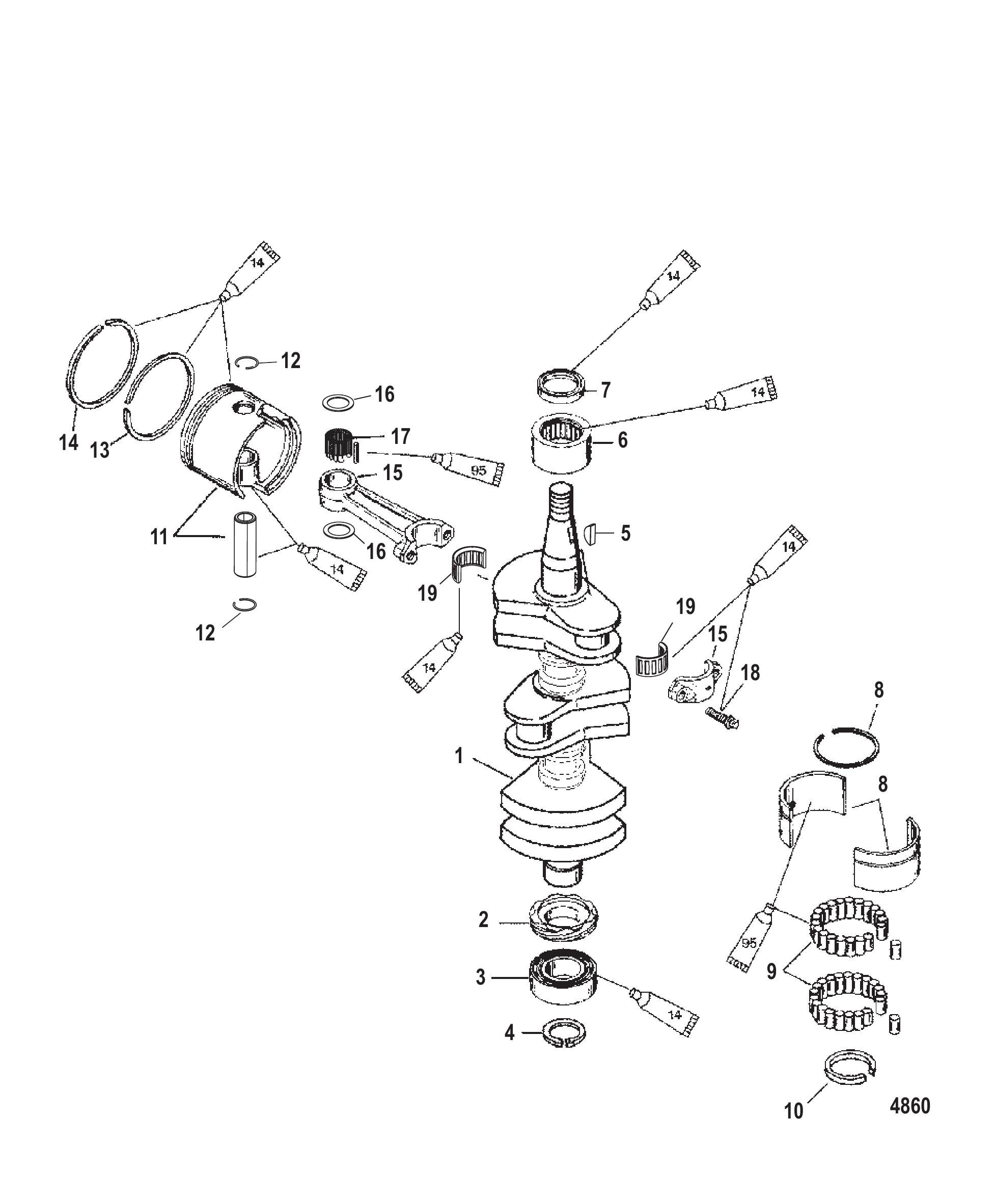

图 7曲轴、活塞与连杆 Crankshaft Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	827954T2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43019A2	齿轮总成	GEAR ASSEMBLY	1
3	63742T	滚珠轴承	BEARING Ball	1
4	812877	挡圈	RING Retaining	1
5	91800	半圆键	KEY Woodruff	2
6	818889A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	8173971	油封	SEAL Oil	1
8	827955A2	轴承总成	BEARING ASSEMBLY	2
9	NSS	滚轮(不单独销售)	NOT SOLD SEPARATE Roller	56
10	NSS	密封环（不单独销售）	NOT SOLD SEPARATE Ring-Seal	2
11	850026T1	活塞总成	PISTON ASSEMBLY	3
11	850026T2	活塞	PISTON	3
12	857196	锁紧环	LOCK RING	6
13	831255A6	活塞环组	RING SET Piston	1
13	821695A6	活塞环组	RING SET Piston	3
14	NSS	活塞环(不单独销售)	NOT SOLD SEPARATE Piston Ring	3
15	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
16	812876	垫圈	WASHER	6
16	8M0012298	止推垫片	THRUST WASHER	6
17	47270	轴承	BEARING	87
17	8M0214934	滚针轴承@200	BRG-NEEDLE @200	87
18	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
19	17514A1	轴承套件	BEARING KIT	6
19	8M0234886	轴承保持架	CAGE BEARING	6
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1

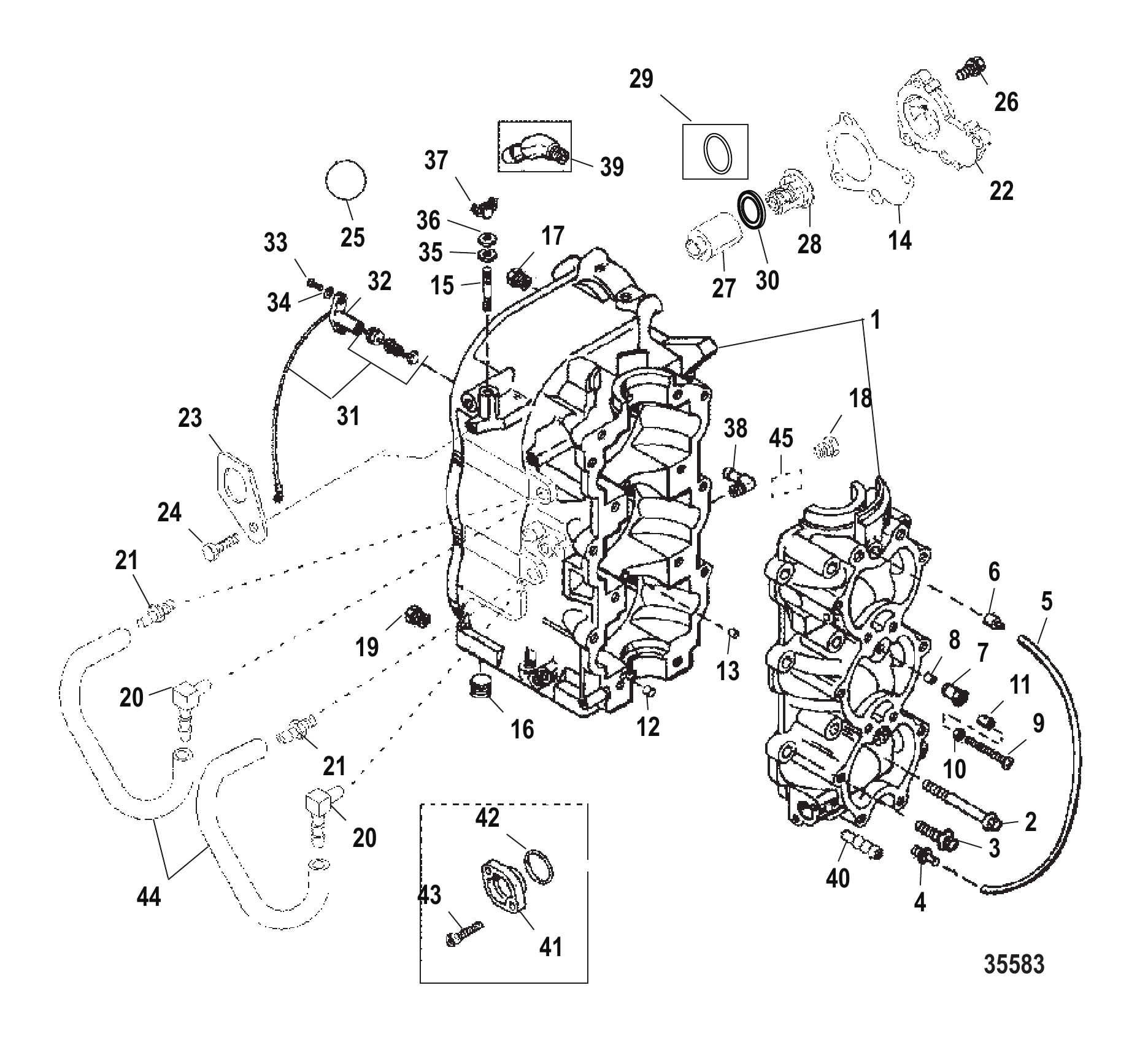

图 8气缸体 Cylinder Block

REF	零件编号	中文名称	英文名称	数量
1	827953A4	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材 (20.00英尺散装) (15英寸)	TUBING (20.00 Feet Bulk) (15 IN.)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	426232	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
7	812888A2	托架总成	CARRIER ASSEMBLY	2
8	42657A4	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	43044	定位销 - 无孔 (0.375 x 0.625)	PIN Dowel - Without Hole (.375 x .625) (LOCATING)	1
13	8128701	销(轴承座圈)	PIN (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	827284	衬垫	GASKET	1
15	8161946	螺柱	STUD	2
15	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
16	185981	管塞(.375-18)	PLUG Pipe (.375-18)	1
17	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
18	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
19	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
20	19725	弯头	ELBOW	2
21	426585	止回阀	CHECK VALVE	2
22	827251A1	盖板	COVER	1
23	850897	吊环	LIFTING EYE	1
24	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	1
25	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
26	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	4
27	827365	托架	CARRIER	1
27	889735	托架	CARRIER	1
28	850055	节温器 43°C (110°F)	THERMOSTAT 43°C (110°F)	1
28	850055001	节温器 43°C (110°F)	THERMOSTAT 43°C (110°F)	1
29	62701	O型圈	O-RING	1
30	854639	密封件	SEAL	1
30	854639001	密封件	SEAL	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	996641	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
39	78279	弯头	ELBOW	1
39	8M0207781	弯头	ELBOW	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
44	99130122	管材 (20.00英尺散装) (5-1/2英寸)	TUBING (20.00 Feet Bulk) (5-1/2 IN.)	2
44	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
45	825064	贴花-挂档启动警告(电动-无手柄)	DECAL Caution Start In Gear, (ELECTRIC-NON-HANDLE)	1
45	881865	警示贴纸-挂档启动	DECAL Caution-Start in Gear	1
-	852071A97	动力头总成	POWERHEAD ASSEMBLY	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812867A97	衬垫套件	GASKET SET	1

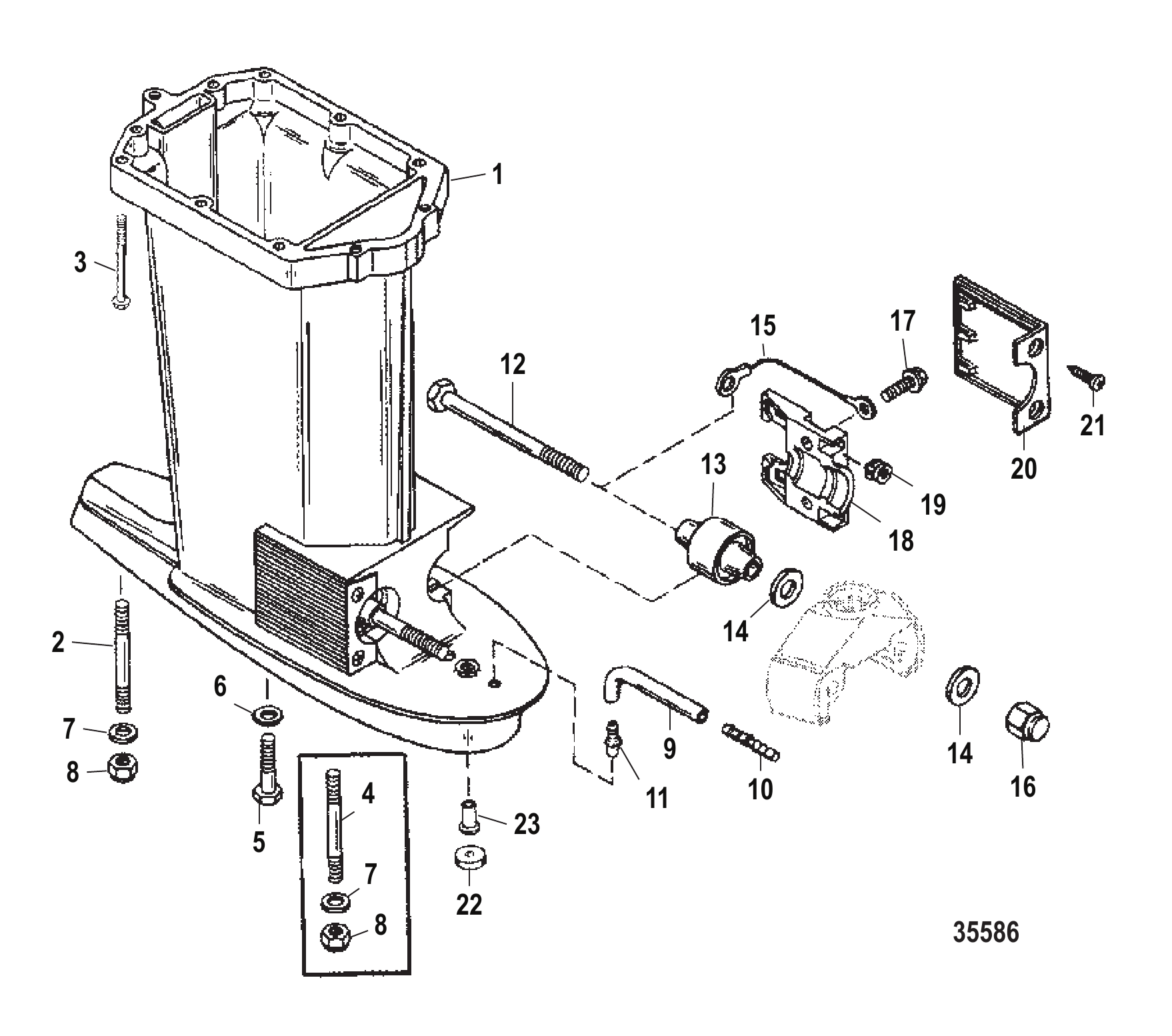

图 9驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	816528A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	816528A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	816528T2	驱动轴壳体-灰色	HSG-D SHAFT-GRAY	1
1	9864A6	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9864T6	驱动轴壳体	HOUSING Driveshaft	1
1	9864A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9864T7	ORD 3510-9864T6	ORD 3510-9864T 6	1
1	816528A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	816528A4	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903507	双头螺栓(M10×60)	STUD (M10 x 60)	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	8168664	双头螺柱(M10 x 166)	STUD (M10 x 166)	1
2	8M0034445	STUD-M10X1.5-160	STUD-M10X1.5-160	1
3	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
4	8168663	双头螺柱(M10 x 124)	STUD (M10 x 124)	4
4	8M0034446	STUD-M10X15-124	STUD-M10 X 15-124	4
4	8168661	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5
4	8M0034425	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5
5	4000380	螺丝(M10 x 45)	SCREW (M10 x 45)	4
6	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
6	8M0214963	垫圈	WASHER	4
7	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1
7	8M0214963	垫圈	WASHER	1
8	13914	螺母(M10)	NUT (M10)	1
8	40140	螺母(M10)	NUT (M10)	1
6	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
6	8M0214963	垫圈	WASHER	4
7	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
7	8M0214963	垫圈	WASHER	5
8	13914	螺母(M10)	NUT (M10)	5
8	40140	螺母(M10)	NUT (M10)	5
9	85822A7	速度计传感器	SPEEDOMETER PICK UP	1
10	85822	直通接头	CONNECTOR Straight	1
10	85822T	直通接头	CONNECTOR Straight	1
11	13035	接头	FITTING	1
11	8M0181450	接头	FITTING	1
12	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
12	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
13	42930A1	下支架总成	MOUNT ASSEMBLY Lower	2
14	20959	垫圈	WASHER	4
15	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
16	43528	螺母(M12)	NUT (M12)	2
16	8M0204662	螺母	NUT	2
17	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	4
18	93192	卡箍	CLAMP	2
18	8M0036730	卡箍	CLAMP	2
19	35521	螺母	NUT	4
20	67077T	黑色盖	COVER Black	2
20	8M4500752	盖板	COVER	2
20	67077F1	灰色盖板	COVER Gray	2
20	67077T	黑色盖	COVER Black	2
21	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
22	813745	隔套	SPACER	1
22	8137451	隔套	SPACER	1
23	43585	联轴器	COUPLING	1

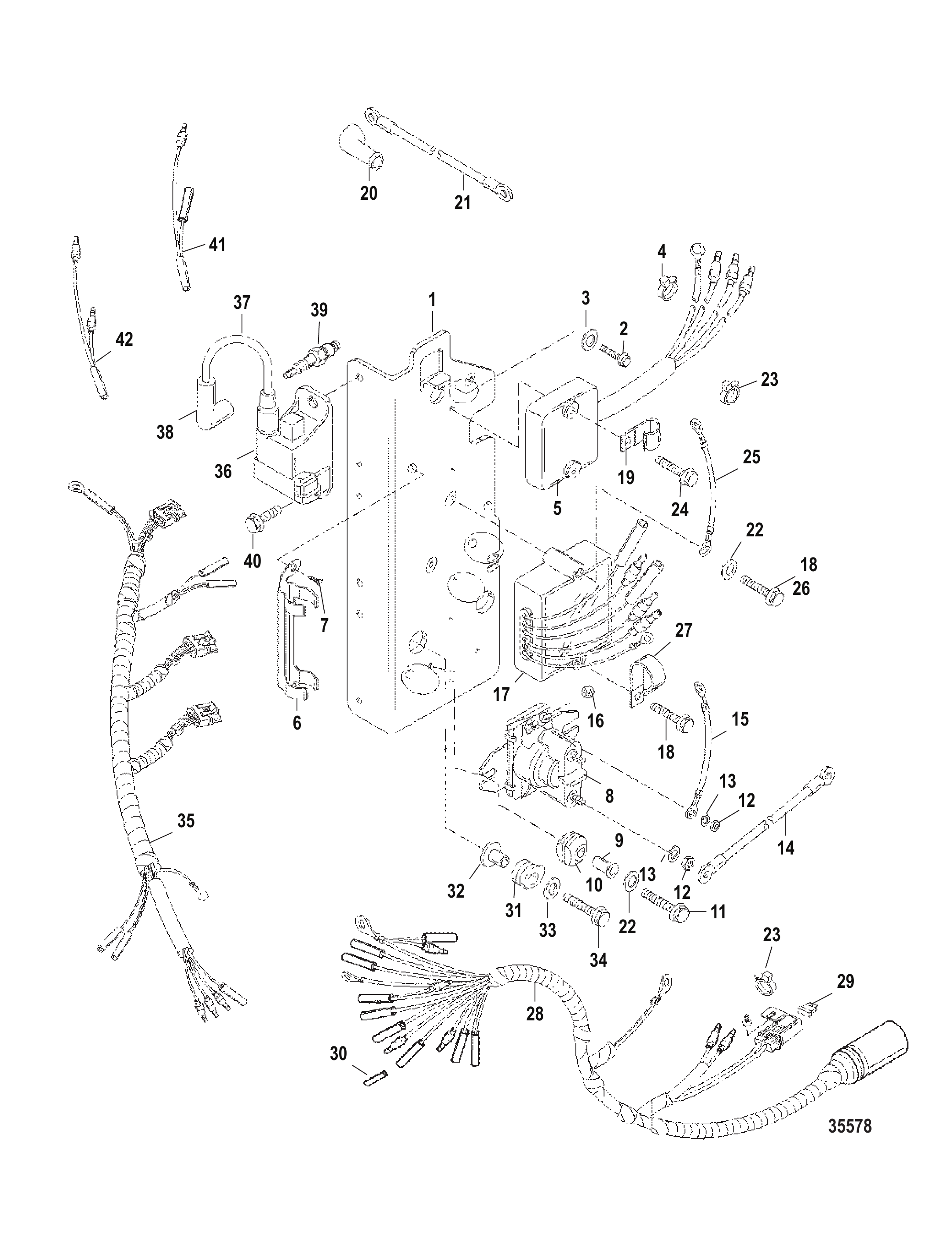

图 10电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	8302351	电气板	PLATE Electrical	1
2	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	1
3	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
4	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
5	821889A49	转速限制器	REV LIMITER	1
5	821889A50	转速限制器	REV LIMITER	1
6	8266241	卡箍	CLAMP	1
7	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	3
8	850187A1	电磁阀总成	SOLENOID ASSEMBLY	1
8	8M0185146	电磁阀总成	SOLENOID ASSEMBLY	1
9	818968	衬套	BUSHING	2
9	8M0214955	衬套	BUSHING	2
10	818967	护孔环	GROMMET	2
10	8M0207785	护孔环	GROMMET	2
11	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
12	64015	螺母 (.250-20)	NUT (.250-20)	2
13	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
14	88807A33	拉线总成	CABLE ASSEMBLY	1
15	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
16	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
17	854515	电压调节器	REGULATOR Voltage	1
17	8M0084173	电压调节器	VOLTAGE REGULATOR	1
18	82129135	螺钉(M6x35)	SCREW (M6 x 35)	2
19	55098	J型卡扣	J CLIP	1
19	8M0024808	J型夹	J-CLIP	1
20	830233	红色绝缘护套	BOOT Insulator - Red	1
21	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
22	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
23	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
25	88807A31	拉线总成	CABLE ASSEMBLY	1
26	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
27	54457	J型卡扣(手动需2个)	J CLIP (QTY. OF 2 REQUIRED ON MANUAL)	3
28	850220A2	发动机线束总成	HARNESS ASSEMBLY Engine	1
29	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
30	13541	公插头	PLUG Male	1
31	822002	护孔环	GROMMET	3
32	822003	衬套	BUSHING	3
33	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
33	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	3
34	40011129	不锈钢螺钉(M6x25)	SCREW (M6 x 25) Stainless Steel	3
35	850221A2	点火线束总成	HARNESS ASSEMBLY Ignition	1
36	827509A7	CDM总成	CDM ASSEMBLY	3
36	827509T7	CDM模块总成	CDM MODULE ASSEMBLY	3
37	821945A61	高压电缆总成	CABLE ASSEMBLY Hi Tension	3
38	63709A1	护套/端子套件	BOOT/TERMINAL KIT	3
39	8167372	火花塞(NGK# BP8H-N-10)	SPARK PLUG (NGK# BP8H-N-10)	3
39	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	3
39	8168372	火花塞(NGK#BPZ-8H-N-10)	SPARK PLUG (NGK#BPZ-8H-N-10)	3
39	938	SP #QL78YC @4	SP #QL78YC @4	3
39	14103568	火花塞(NGK#BUZ8H)	SPARK PLUG (NGK#BUZ8H)	3
39	896329885	SP #L6VC @4	SP #L6VC @4	3
39	12343	火花塞(NGK#BP8HS-10)	SPARK PLUG (NGK#BP8HS-10)	3
39	8M0114745	SP BP8HS-10 @4	SP BP8HS-10 @4	3
40	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	6
41	850052A1	电源线束总成	HARNESS ASSEMBLY Power	1
42	11149A31	线束总成	HARNESS ASSEMBLY	1
42	11149T31	线束总成	HARNESS ASSY	1

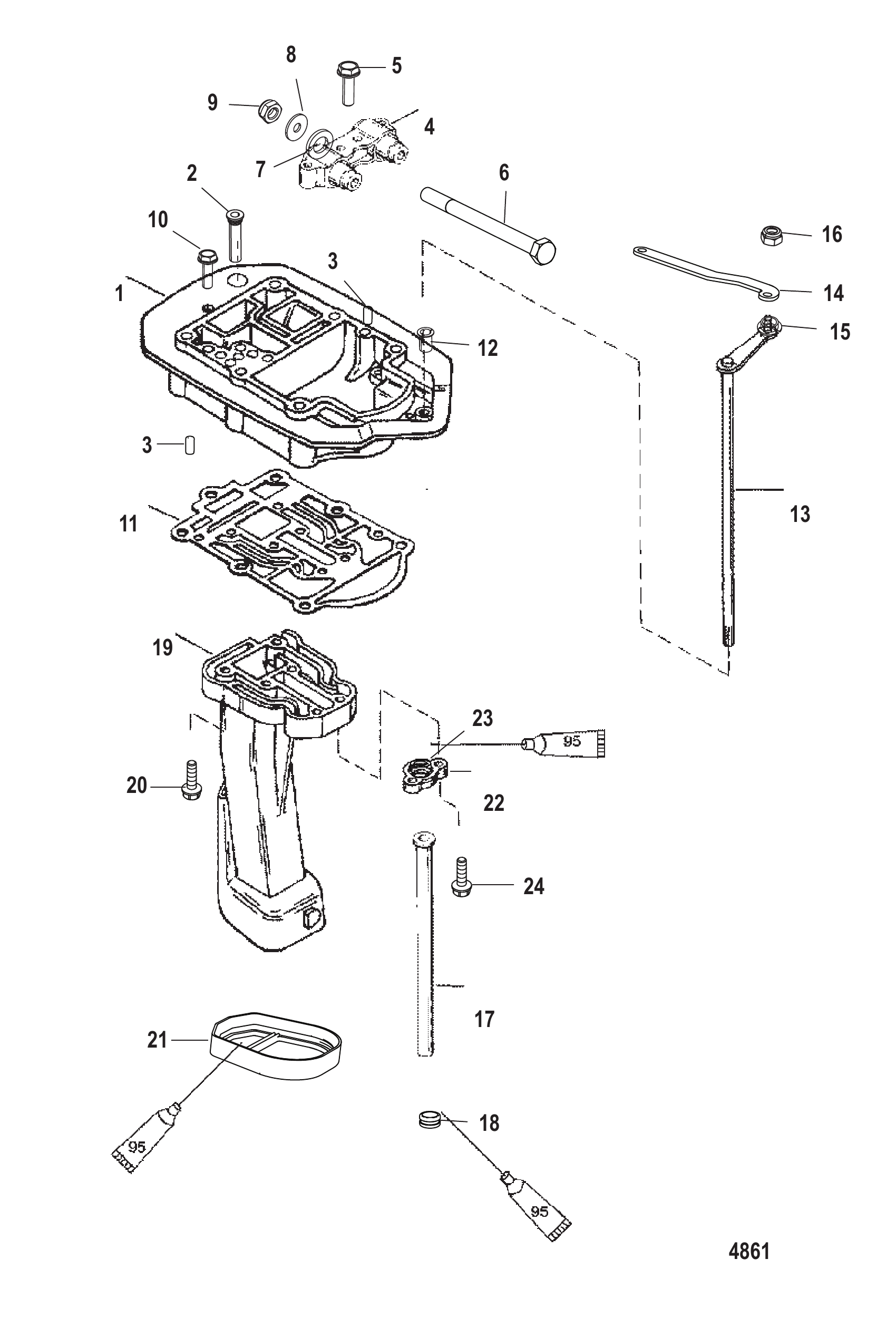

图 11排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	19653A3	排气板总成	PLATE ASSEMBLY Exhaust	1
2	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	1
3	23784	定位销	PIN Dowel	4
4	812893	上部支架	MOUNT Upper	1
4	8M4501491	上部安装总成	MOUNT UPPER ASM	1
5	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
6	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
6	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
7	934161	氯丁橡胶垫圈	WASHER Neoprene	2
7	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
8	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
9	90099	螺母(M12)	NUT (M12)	2
9	896963	螺母(M12)	NUT (M12)	2
10	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1
11	812866	衬垫	GASKET	1
11	8M0000820	衬垫	GASKET	1
12	48237	衬套	BUSHING	1
13	815639A8	换档轴	SHIFT SHAFT	1
13	815639A10	换档轴	SHIFT SHAFT	1
13	812891A6	换档轴	SHIFT SHAFT	1
13	812891A7	换档轴	SHIFT SHAFT	1
13	815639A7	换档轴	SHIFT SHAFT	1
13	815639A9	换档轴	SHIFT SHAFT	1
14	812872A1	换挡连杆	SHIFT LINK	1
14	812872A2	换挡连杆	SHIFT LINK	1
15	48475	衬套	BUSHING	1
16	8268336	螺母 (M6)	NUT (M6)	1
16	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
17	430144	水管	TUBE Water	1
17	8M0042795	短型水管	TUBE-WATER-SHORT	1
17	430143	水管	TUBE Water	1
17	8M0042794	大型水管	TUBE-WATER-LG	1
18	93221	护孔环	GROMMET	1
18	93221002	护孔环	GROMMET	1
19	196551	排气管	TUBE Exhaust	1
19	8M0045214	排气管	TUBE-EXHAUST	1
20	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
21	812886	密封件	SEAL	1
21	812886001	密封件	SEAL	1
22	99019	卡箍	CLAMP	1
23	42941	水管密封件(上部)	SEAL Water Tube (UPPER)	1
23	42941001	水管密封件	SEAL Water Tube	1
24	40011155	不锈钢螺钉(M8x55)	SCREW (M8 x 55) Stainless Steel	2
-	812867A97	衬垫套件	GASKET SET	1

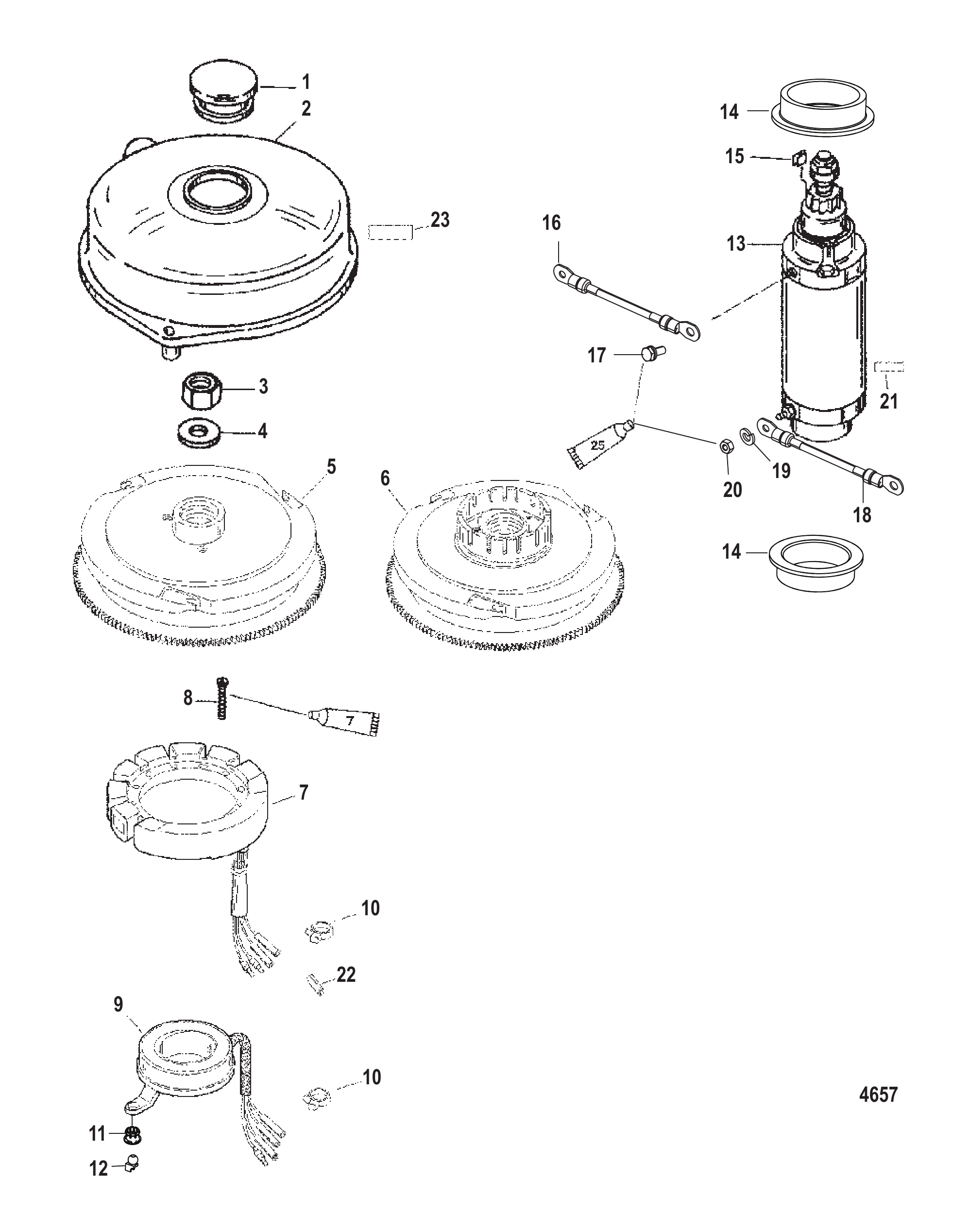

图 12飞轮与启动电机 Flywheel and Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	45907	黄色塞	PLUG Yellow	1
2	812777T1	盖总成	COVER ASSEMBLY	1
3	42979	螺母(M16)	NUT (M16)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	878226T10	飞轮总成	FLYWHEEL ASSEMBLY	1
5	878226T16	飞轮总成	FLYWHEEL ASSEMBLY	1
6	878226T8	飞轮总成	FLYWHEEL ASSEMBLY	1
7	832075A4	点火定子套件	IGNITION STATOR KIT	1
7	832075A21	定子总成	STATOR ASSEMBLY	1
7	832074A5	定子	STATOR	1
7	832074A11	定子总成	STATOR ASSEMBLY	1
8	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
9	854512T	触发器	TRIGGER	1
10	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	3
11	93254	旋转底座	SWIVEL BASE	1
12	93421	旋转球头	SWIVEL BALL	1
13	66015T1	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	893891T	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	56703	轴环	COLLAR	2
14	8M0034918	轴环	COLLAR	2
15	57247	停机开关	STOP	2
15	8M0043376	停机开关	STOP	2
16	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A8	黑色电缆总成(12.5英寸)	CABLE ASSEMBLY (12.5 Inchs) Black	1
19	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
20	64015	螺母 (.250-20)	NUT (.250-20)	1
21	8272822	高压警告标贴	DECAL Warning High Voltage	1
22	13541	公插头	PLUG Male	2
23	881865	警示贴纸-挂档启动	DECAL Caution-Start in Gear	1

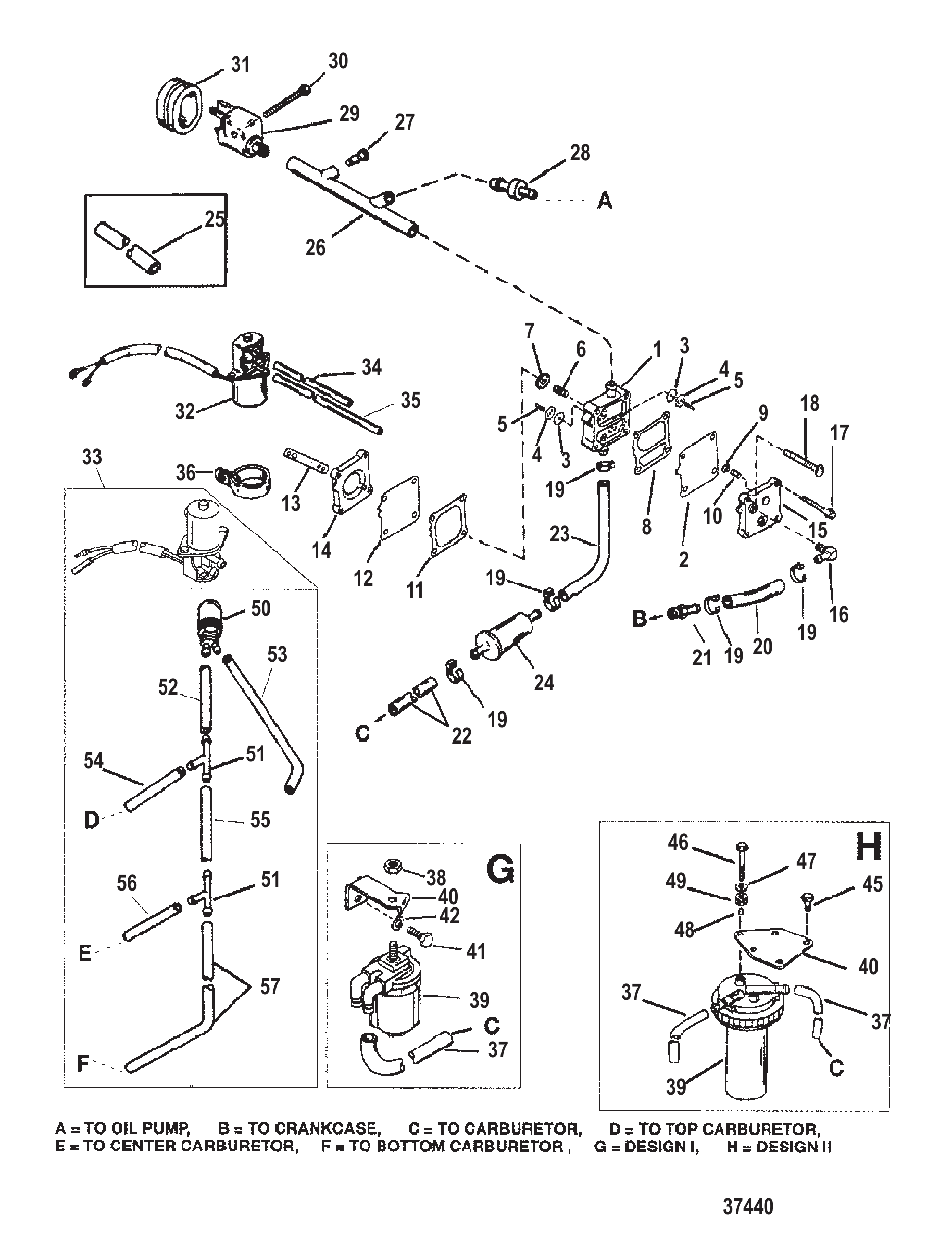

图 13燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
4	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
5	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
6	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
9	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
10	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
11	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
12	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
13	987691	衬垫	GASKET	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303	底座	BASE	1
15	987752	安装板	PLATE	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
18	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
19	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	83075780	管材(28英寸整卷)(2-1/2英寸)	TUBING (28.00 Inches Bulk) (2-1/2 IN.)	1
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
21	29111	连接器	CONNECTOR	1
21	291112	接头	FITTING	1
22	83075780	管材(28英寸整卷)(2英寸)	TUBING (28.00 Inches Bulk) (2 IN.)	1
22	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
23	19017A1	燃油管路总成	LINE ASSEMBLY Fuel	1
24	8162961	燃油滤清器	FILTER Fuel	1
24	816296Q2	燃油滤清器	FILTER Fuel	1
25	83075780	管材(28英寸整卷)(6英寸)	TUBING (28.00 Inches Bulk) (6 IN.)	1
25	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
26	822554	成型软管	MOLDED HOSE	1
27	822772	非商用发动机塞	PLUG Non Commercial Engines	1
28	8189941	止回阀	CHECK VALVE	1
29	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
29	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
-	16524	燃油接头O型圈	O-RING Fuel Connector	1
30	4010635	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	1
31	145091	护孔环	GROMMET	1
32	43739	加浓阀	VALVE Enrichner	1
32	819503A2	电磁阀组件	SOLENOID KIT	1
33	437391	加浓阀	VALVE Enrichiner	1
33	819503A1	电磁阀总成-加浓阀	SOLENOID ASSEMBLY Enrichner Valve	1
34	1430165	管材(38英寸整卷)(15英寸)	TUBING (38.00 Inches Bulk) (15 IN.)	1
35	1430165	管材(38.00英寸散装)(8英寸)	TUBING (38.00 Inches Bulk) (8 IN.)	1
35	9912688	管材(36.00英寸散装)(11-1/2英寸)	TUBING (36.00 Inches Bulk) (11-1/2 IN.)	1
36	18887	卡箍	CLAMP	1
36	188871	卡箍	CLAMP	1
37	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
37	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
37	83075780	管材(28.00英寸散装)(17英寸)	TUBING (28.00 Inches Bulk) (17 IN.)	1
37	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
38	8268336	螺母 (M6)	NUT (M6)	1
38	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
39	87946A16	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
39	891642T03	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
39	826634	燃油滤清器	FILTER Fuel	1
39	826634T01	燃油滤清器	FILTER-FUEL	1
40	821698	支架	BRACKET	1
40	827961	支架	BRACKET	1
41	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	1
42	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
42	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
43	83476463	管材(32.00英寸散装)(13英寸)(产品改进型)	TUBING (32.00 Inches Bulk) (13 IN.)(A PRODUCT IMPROVEMENT)	1
44	83312531	绝缘套管	INSULATING SLEEVE	1
45	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
46	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	2
47	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
47	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
48	42116	衬套	BUSHING	2
49	42117	护孔环	GROMMET	2
50	8168773	注油球	PRIMER BULB	1
50	858763	注油球	PRIMER BULB	1
51	59169	接头	FITTING	2
51	59169003	三通接头	FITTING Tee	2
52	99130122	管材(20英尺整卷)(6英寸)	TUBING (20.00 Feet Bulk) (6 IN.)	1
52	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
53	99130122	管材(20英尺散装)(9-1/2英寸)	TUBING (20.00 Feet Bulk) (9-1/2 IN.)	1
53	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
54	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
54	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
55	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
55	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
56	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
56	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
57	99130122	管材(20英尺整卷)(6英寸)	TUBING (20.00 Feet Bulk) (6 IN.)	1
57	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
-	43004A90	衬垫套件	GASKET SET	1
-	43004A99	动力头衬垫套件	GASKET SET Powerhead	1
-	809837A97	动力头总成	POWERHEAD ASSEMBLY	1
-	809837T97	动力头总成	POWERHEAD ASSEMBLY	1

图 14动力头大修衬垫组件 Gasket Set Components Powerhead Overhaul

REF	零件编号	中文名称	英文名称	数量
-	43004A99	动力头衬垫套件	GASKET SET Powerhead	1
0	430047	排气歧管衬垫	GASKET Exhaust Manifold	2
0	43004009	衬垫	GASKET	2
0	89224	O型圈(内径2.862)	O-RING (2.862 Inside Diameter)	1
0	823683	O型圈(1.989×0.070)(内径1.989)	O-RING (1.989 x .070) (1.989 Inside Diameter)	1
0	430057	气缸体盖衬垫	GASKET Cylinder Block Cover	1
0	62386	节温器衬垫	GASKET Thermostat	1
0	8M0204714	衬垫@4	GASKET @4	1
0	430068	节温器盖衬垫	GASKET Thermostat Cover	1
0	NSS	不单独销售增压	NOT SOLD SEPARATE Boost	1
0	NSS	不单独销售增压室	NOT SOLD SEPARATE Boost Chamber	1
0	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	2
0	NSS	不单独销售脉冲室	NOT SOLD SEPARATE Pluse Chamber	1
0	987691	燃油泵衬垫	GASKET Fuel Pump	1
0	8M0204705	衬垫@2	GASKET @2	1
0	139376	簧片阀/曲轴衬垫	GASKET Reed Block/Crank	6
0	62705	O型圈(0.739)	O-RING (.739)	2
0	8M0204667	O型圈×2	O RING @2	2
0	33466	O型圈(1.362)	O-RING (1.362)	1
0	42941	上水管密封件	SEAL Water Tube Upper	1
0	42941001	水管密封件	SEAL Water Tube	1
0	93221	衬套水管	GROMMET Water Tube	1
0	93221002	护孔环	GROMMET	1
0	430075	气缸体至排气板衬垫	GASKET Cylinder Block to Exhaust Plate	1
0	65800	填料	PACKING Packing	1
0	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	1
0	97386	O型圈(3.609×0.139)(内径3.609)	O-RING (3.609 x .139) (3.609 Inside Diameter)	1
0	8M0214974	O型圈	O RING	1
0	430341	上水泵铝盖衬垫	GASKET Aluminum Cover Water Pump, Upper	1
0	191833	密封件	SEAL	3
0	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
0	19643	密封件	SEAL Sealing	1
0	151724	化油器衬垫	GASKET Carburetor	3
0	430472	盖至齿轮箱衬垫	GASKET Cover to Gearcase	1
0	8M0214931	衬垫	GASKET	1
0	8172771	上水泵衬垫	GASKET Water Pump, Upper Water Pump, Upper	1
0	430331	面板至盖板衬垫	GASKET Face Plate to Cover	1
0	42998	压缩弹簧	SPRING Compression	1
0	NSS	弹簧端部(不单独销售)	NOT SOLD SEPARATE Spring End	1
0	NSS	弹簧端部(不单独销售)	NOT SOLD SEPARATE Spring End	1
0	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
0	17311	止回阀固定座	RETAINER Check Valve	2
0	NSS	增压压缩件(不单独销售)	NOT SOLD SEPARATE Compression, Boost	1
0	NSS	弹簧端部(不单独销售)	NOT SOLD SEPARATE Spring End	1
0	430086	排气板/排气管衬垫	GASKET Exhaust Plate/Exhaust Tube	1
0	858225	O型圈(内径2.112)	O-RING (2.112 Inside Diameter)	1

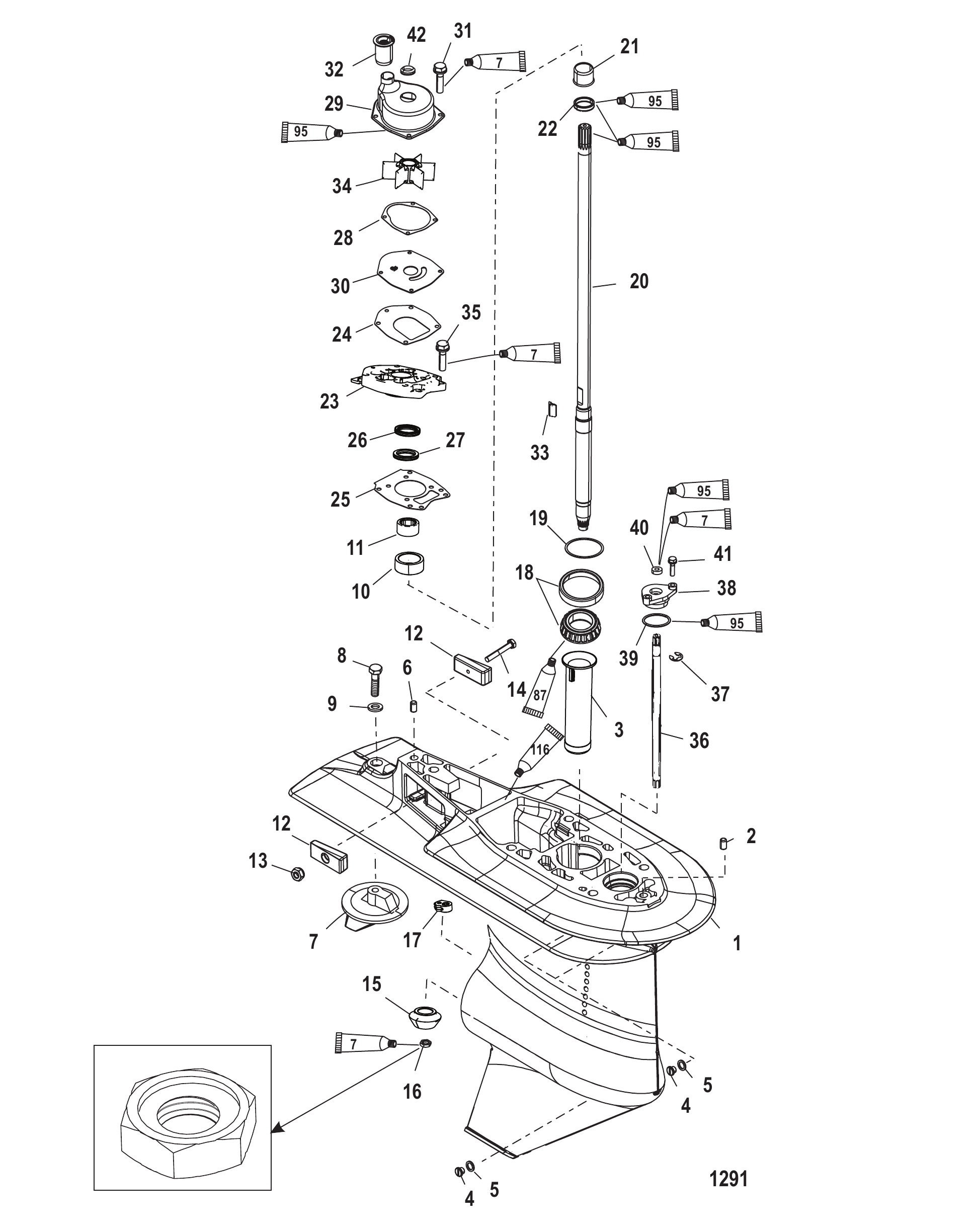

图 15齿轮箱（驱动轴速比2.31:1） Gear Housing (Driveshaft 2.31:1)

REF	零件编号	中文名称	英文名称	数量
-	9011J15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	9011J21	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	9011J23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011G59	齿轮箱总成(基本鱼雷直径4.25英寸/107.95毫米)	GEAR HOUSING ASSEMBLY Basic Torpedo Diameter - 4.25 Inch / 107.95 mm	1
2	43043	定位销-带孔(0.375x0.625)前部	PIN Dowel - With Hole (.375 x .625) Front	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	3
4	79953Q04	放油螺钉套件	SCREW KIT Drain	3
4	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	OPT
4	8M0058389	放油螺钉套件	SCREW KIT Drain	OPT
5	191832	垫圈	WASHER	3
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
6	43044	定位销-无孔(0.375x0.625)后部	PIN Dowel - Without Hole (.375 x .625) Rear	1
7	31640T5	平衡鳍板	TRIM TAB	1
7	8M0236553	平衡鳍板	TRIM TAB	1
8	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
9	451761	垫圈(.453 x .812 x .105)黑色氧化	WASHER (.453 x .812 x .105) Black Oxide	1
10	43040T1	托架总成	CARRIER ASSEMBLY	1
11	NSS	滚针轴承(不单独销售)	NOT SOLD SEPARATE Needle Bearing	1
12	826134Q	阳极块	ANODE	2
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	NSS	小齿轮(12齿)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (12 Teeth)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	850307	换挡凸轮控制	CAM Shift Control	1
18	883047A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
19	44492A1	垫片组	SHIM SET	1
19	8M0063265	垫片组	SHIM SET	1
20	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	43032A6	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	NSS	密封环(不单独销售)	NOT SOLD SEPARATE Seal Ring	1
23	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
24	430331	衬垫	GASKET	1
25	430472	衬垫	GASKET	1
25	8M0214931	衬垫	GASKET	1
26	43035	上部油封	SEAL Oil Upper	1
26	8M0245495	油封	OIL SEAL	1
27	43036	下油封	SEAL Oil Lower	1
28	8172771	水泵上垫片	GASKET Water Pump, Upper	1
29	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
30	8172761	面板	FACEPLATE	1
30	8M0204709	面板	FACEPLATE	1
31	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
32	430232	密封件	SEAL	1
33	43037	键	KEY	1
33	8M0204723	键	KEY	1
34	43026T2	叶轮	IMPELLER	1
35	82684425	螺钉(M6x25)	SCREW (M6 x 25)	6
36	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	853907A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	853908A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	82684425	螺钉(M6x25)	SCREW (M6 x 25)	2
42	816575	端面密封	FACE SEAL	1
42	861415	端面密封	SEAL Face	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A99	衬垫套件	GASKET SET	1
-	43026T11	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1

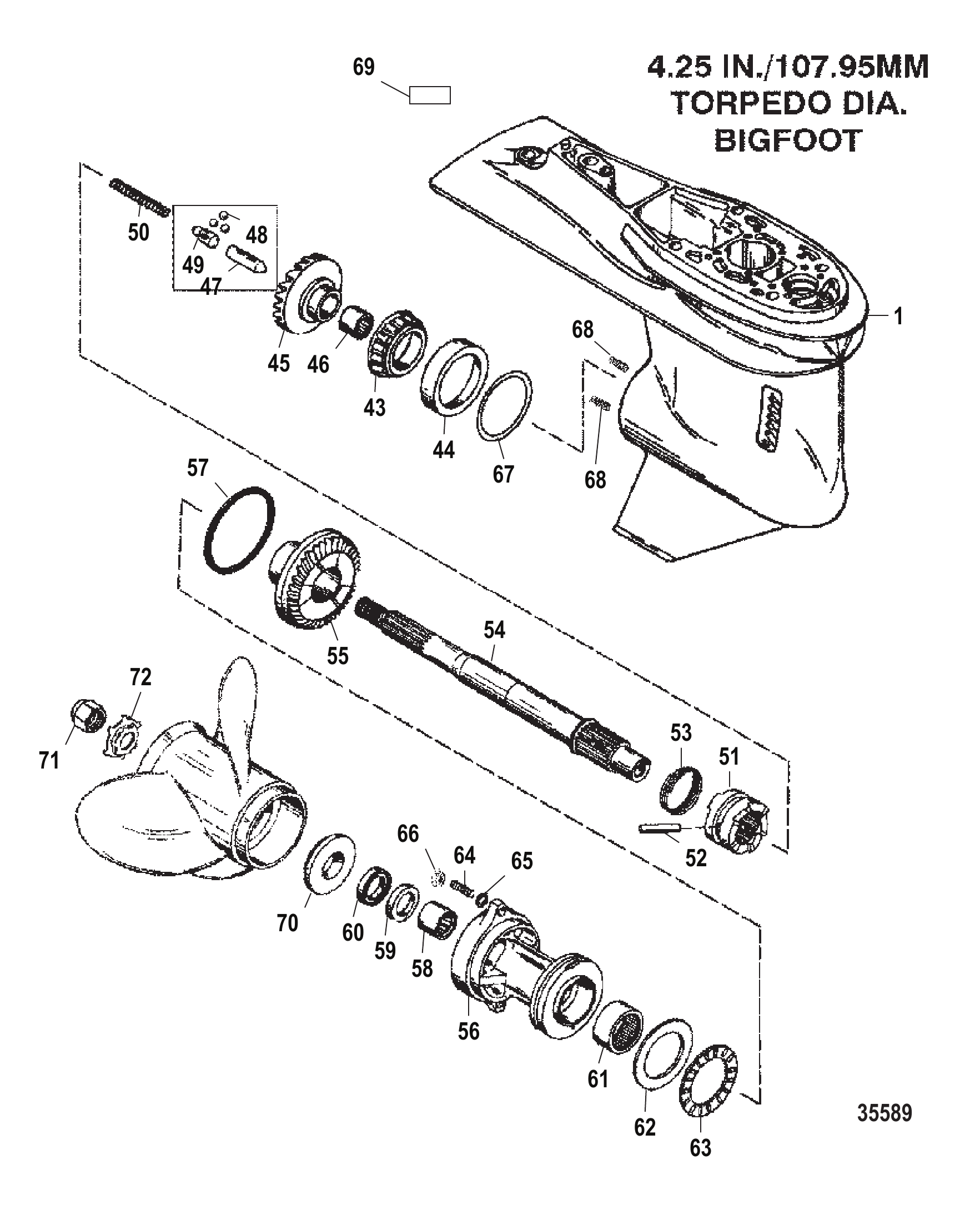

图 16齿轮箱螺旋桨轴-2.31:1传动比 Gear Housing Propeller Shaft - 2.31:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	9011G16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G17	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011G15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011G8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G60	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
43	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
44	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
45	850033A2	前进齿轮套件(30齿)	GEAR KIT Forward (30 TEETH)	1
45	859472A3	前进齿轮总成-30齿	GEAR ASSEMBLY Forward - 30 Teeth	1
46	30895	滚针轴承	BEARING Needle	1
46	30895T	滚针轴承	BEARING Needle	1
47	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
48	44530	钢球	BALL	3
49	NSS	滑动件(不单独销售)	NOT SOLD SEPARATE Slide	1
50	850327	弹簧	SPRING	1
51	850048	离合器	CLUTCH	1
51	850048T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	850308	螺旋桨轴	PROPELLER SHAFT	1
54	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
55	850034	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
55	850034T	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
56	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
56	8M0168901	轴承座总成	CARRIER ASSY.	1
57	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
57	8M0214974	O型圈	O RING	1
58	30956	滚针轴承	BEARING Needle	1
58	30956T	滚针轴承	BEARING Needle	1
59	70080	油封	SEAL Oil	1
59	8M0205728	密封件	SEAL	1
60	70081	油封	SEAL Oil	1
60	8M0205729	密封件	SEAL	1
61	12578	滚针轴承	BEARING Needle	1
61	12578T	滚柱轴承	BEARING Roller	1
62	12577	止推垫片	THRUST WASHER	1
63	12576	推力轴承	BEARING Thrust	1
64	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
64	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
65	855941	垫圈(.323 x .590 x .112)不锈钢	WASHER (.323 x .590 x .112) Stainless Steel	2
66	401198	螺母 (M8)	NUT (M8)	2
66	401378	螺母 (M8)	NUT (M8)	2
67	44491A1	垫片组	SHIM SET	1
67	8M0063266	垫片组	SHIM SET	1
68	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	2
69	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
70	13191A1	止推垫片	THRUST WASHER	1
70	13191Q01	止推垫片	THRUST WASHER	1
71	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
71	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
72	816629	锁紧垫圈	TAB WASHER	1
72	816629Q	锁紧垫圈	TAB WASHER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

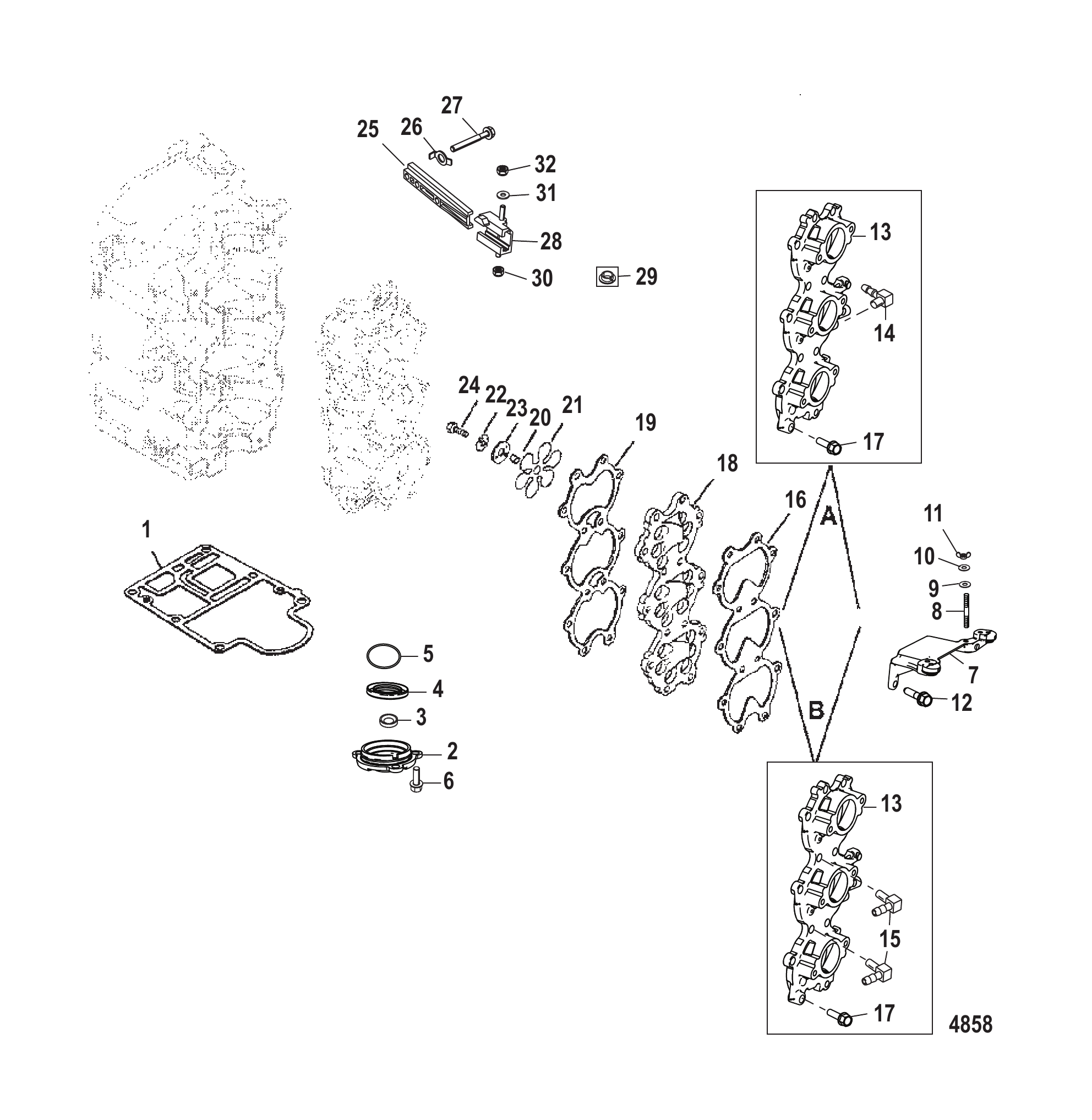

图 17进气歧管与簧片阀组 Induction Manifold and Reed Block

REF	零件编号	中文名称	英文名称	数量
1	828553	衬垫	GASKET	1
2	9812A9	下端盖总成	END CAP ASSEMBLY Lower	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A5	支架总成	BRACKET ASSEMBLY	1
7	19077A07	支架总成	BRACKET ASSEMBLY	1
8	8161946	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	827998A1	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
14	19725	弯头	ELBOW	1
15	19725	弯头	ELBOW	2
16	812869	衬垫	GASKET	1
17	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
18	19075A3	簧片阀总成	REED BLOCK ASSEMBLY	1
18	8M0219197	簧片阀总成	REED BLOCK ASSY	1
19	812868	衬垫	GASKET	1
20	NSS	定位销(不单独销售)	NOT SOLD SEPARATE Dowel Pin	6
21	812880A2	簧片组件	REED ASSEMBLY	3
21	812880A03	簧片组件	REED ASSEMBLY	3
22	42982	锁紧垫圈	TAB WASHER	3
22	429821	锁紧垫圈	TAB WASHER	3
23	8128791	簧片压板	RETAINER Reed	3
23	812879002	簧片压板	RETAINER Reed	3
24	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
25	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
26	42981	锁紧垫圈	TAB WASHER	2
27	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
28	988851	滑块	SLIDE	1
29	48475	衬套	BUSHING	1
30	8268336	螺母 (M6)	NUT (M6)	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	8268336	螺母 (M6)	NUT (M6)	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	15026	盖帽	CAP	3
-	812867A97	衬垫套件	GASKET SET	1
-	852071A97	动力头总成	POWERHEAD ASSEMBLY	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1

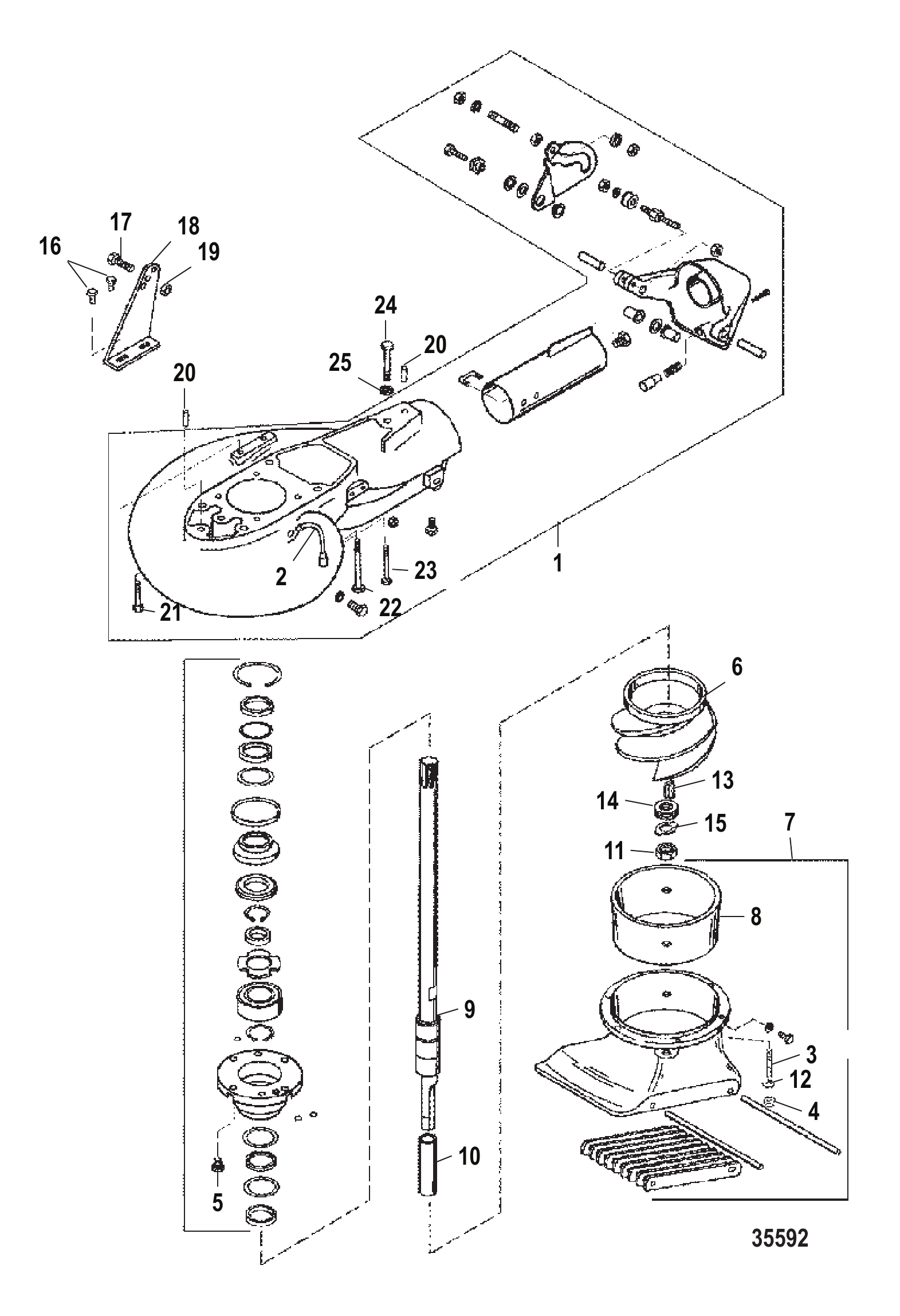

图 18喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	85576660	喷泵总成	JET PUMP ASSEMBLY	1
1	85576760	泵壳	HOUSING Pump	1
1	855767T60	泵壳	HOUSING Pump	1
2	827490	润滑油管	HOSE Lube	1
3	855840	双头螺柱(.312-18 x 1.81)	STUD (.312-18 x 1.81)	6
4	67980	螺母(.312-18)	NUT (.312-18)	6
4	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	6
5	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
6	80141460	叶轮	IMPELLER	1
6	8M0230713	叶轮	IMPELLER	1
7	80141260	进气壳体	HOUSING Intake	1
8	8271882	衬套	LINER	1
9	85576960	驱动轴	DRIVESHAFT	1
10	8271891	套筒	SLEEVE	1
11	8271901	螺母	NUT	1
12	36001	垫圈	WASHER	6
13	801405875	键	KEY	1
14	801404875	叶轮垫片	SHIM Impeller	8
15	801403875	锁紧垫圈	TAB WASHER	1
16	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
17	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
18	801410	电缆支架	BRACKET Cable Support	1
19	67980	螺母(.312-18)	NUT (.312-18)	1
19	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
20	801407	定位销	PIN Dowel	2
21	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
22	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
23	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
24	95802	不锈钢螺钉(.375-16 x 2.750)	SCREW (.375-16 x 2.750) Stainless Steel	1
25	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
25	8M0214963	垫圈	WASHER	1

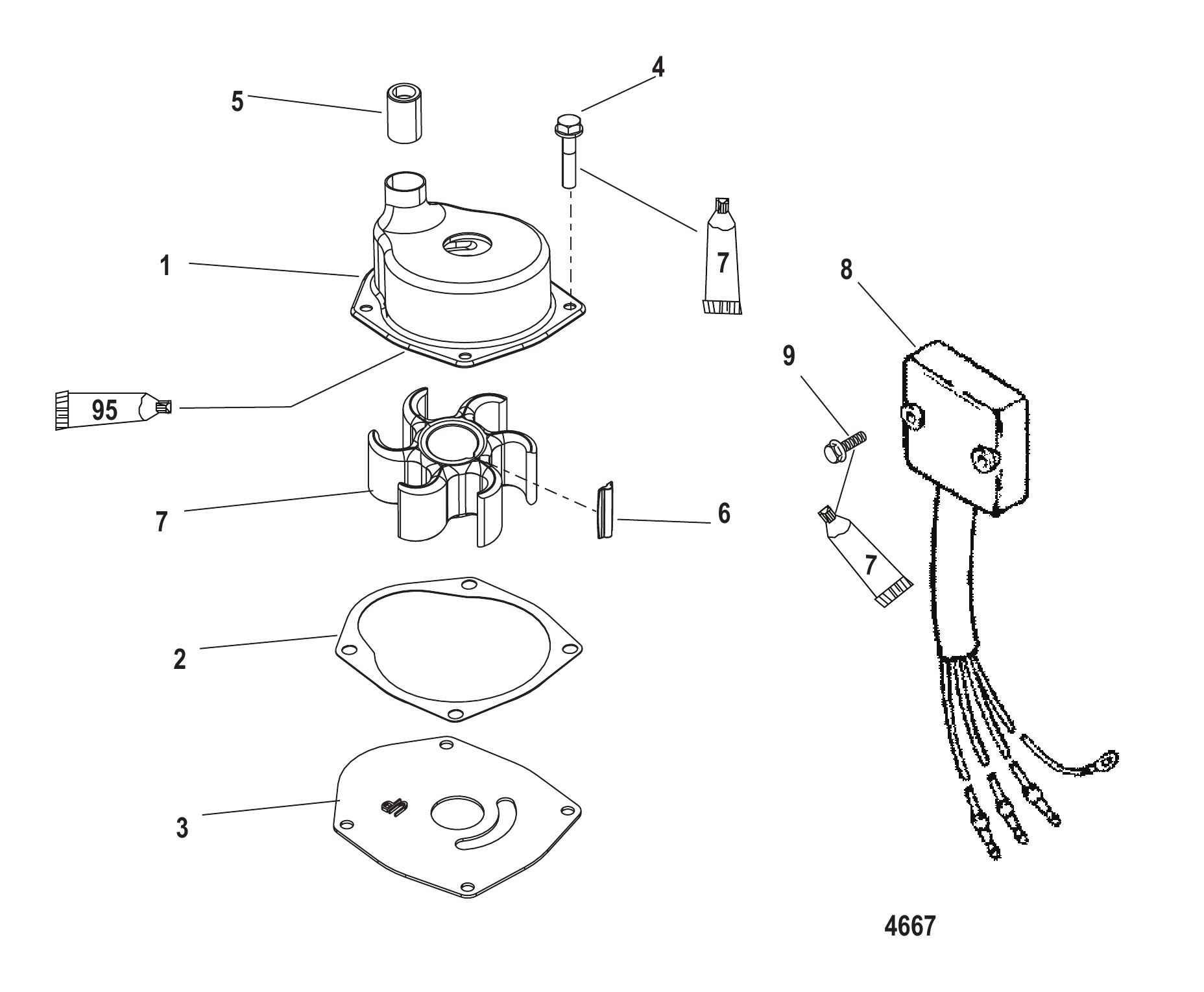

图 19喷泵组件 Jet Pump Componets

REF	零件编号	中文名称	英文名称	数量
1	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
2	8172771	水泵上垫片	GASKET Water Pump, Upper	1
3	8172761	面板	FACEPLATE	1
3	8M0204709	面板	FACEPLATE	1
4	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
5	430232	密封件	SEAL	1
6	43037	键	KEY	1
6	8M0204723	键	KEY	1
7	43026T2	叶轮	IMPELLER	1
8	821889A50	转速限制器	REV LIMITER	1
9	82130030	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	43004A99	动力头衬垫套件	GASKET SET Powerhead	1

图 20钥匙对照表 Key Chart

零件编号	中文名称	英文名称	数量
894911	点火钥匙(1A)	KEY Ignition (1A)	1
894912	点火钥匙(1B)	KEY Ignition (1B)	1
894913	点火钥匙(1C)	KEY Ignition (1C)	1
894914	点火钥匙(1D)	KEY Ignition (1D)	1
894915	点火钥匙(1E)	KEY Ignition (1E)	1
894916	点火钥匙(1F)	KEY Ignition (1F)	1
894917	点火钥匙(2A)	KEY Ignition (2A)	1
894918	点火钥匙(2B)	KEY Ignition (2B)	1
894919	点火钥匙(2C)	KEY Ignition (2C)	1
8949110	点火钥匙(2D)	KEY Ignition (2D)	1
8949111	点火钥匙(2E)	KEY Ignition (2E)	1
8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 21润滑图表 Lube Chart

REF	零件编号	中文名称	英文名称	数量
-	NOPART	无零件清单	NO PARTS LIST

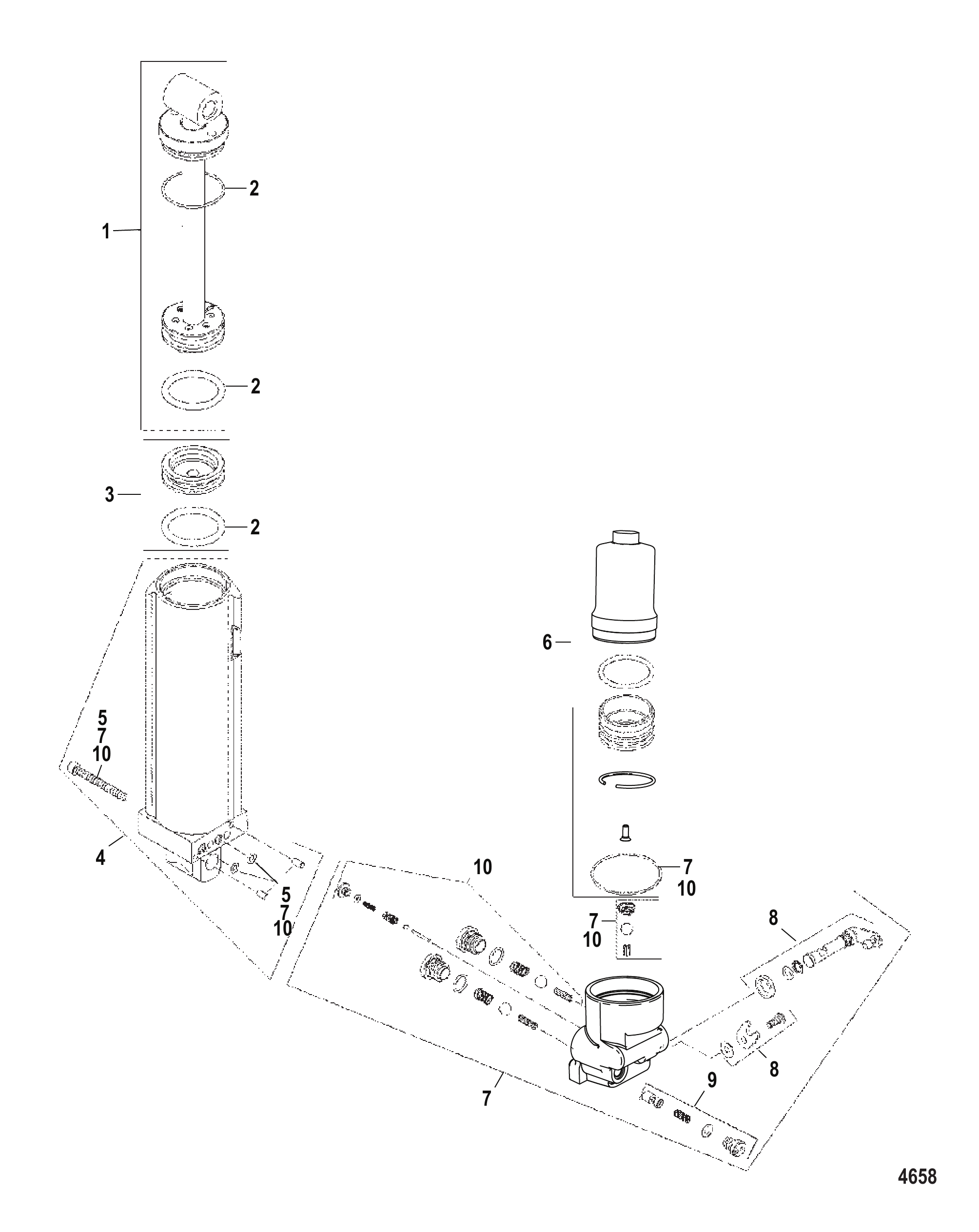

图 22手动倾斜辅助组件 Manual Tilt Assist Components

REF	零件编号	中文名称	英文名称	数量
-	835249A1	手动倾斜装置总成	MANUAL TILT ASSEMBLY	1
1	853891A1	减震杆总成	SHOCK ROD ASSEMBLY	1
1	893932A01	ORD 835249T 1	ORD 835249T 1	1
2	809872A1	气缸O型圈套件	O-RING KIT Cylinder	1
2	893917A01	O型圈修理包	REBUILD KIT O-Ring	1
3	813430A1	配平记忆活塞总成	PISTON ASSEMBLY Trim Memory	1
3	893903A01	活塞套件	PISTON KIT	1
4	835250A1	气缸总成	CYLINDER ASSEMBLY	1
4	893934A01	气缸套件	CYLINDER KIT	1
5	813433A2	螺钉与密封套件	SCREW AND SEAL KIT	1
5	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
6	835458A1	蓄能器总成	ACCUMULATOR ASSEMBLY	1
6	893933A01	蓄能器总成	ACCUMULATOR ASSEMBLY	1
7	813455A4	阀体总成	VALVE BODY ASSEMBLY	1
7	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
8	813457A3	凸轮套件	CAM KIT	1
8	893923A01	凸轮套件	CAM KIT	1
9	809881A1	速度阀套件	VALVE KIT Velocity	1
9	893924A01	阀套件	VALVE KIT	1
10	809882A1	维修套件	REPAIR KIT	1
10	893925A01	维修套件	REPAIR KIT	1
-	809880A2	O型圈套件	O-RING KIT	1
-	893922A01	O型圈套件	O-RING KIT	1

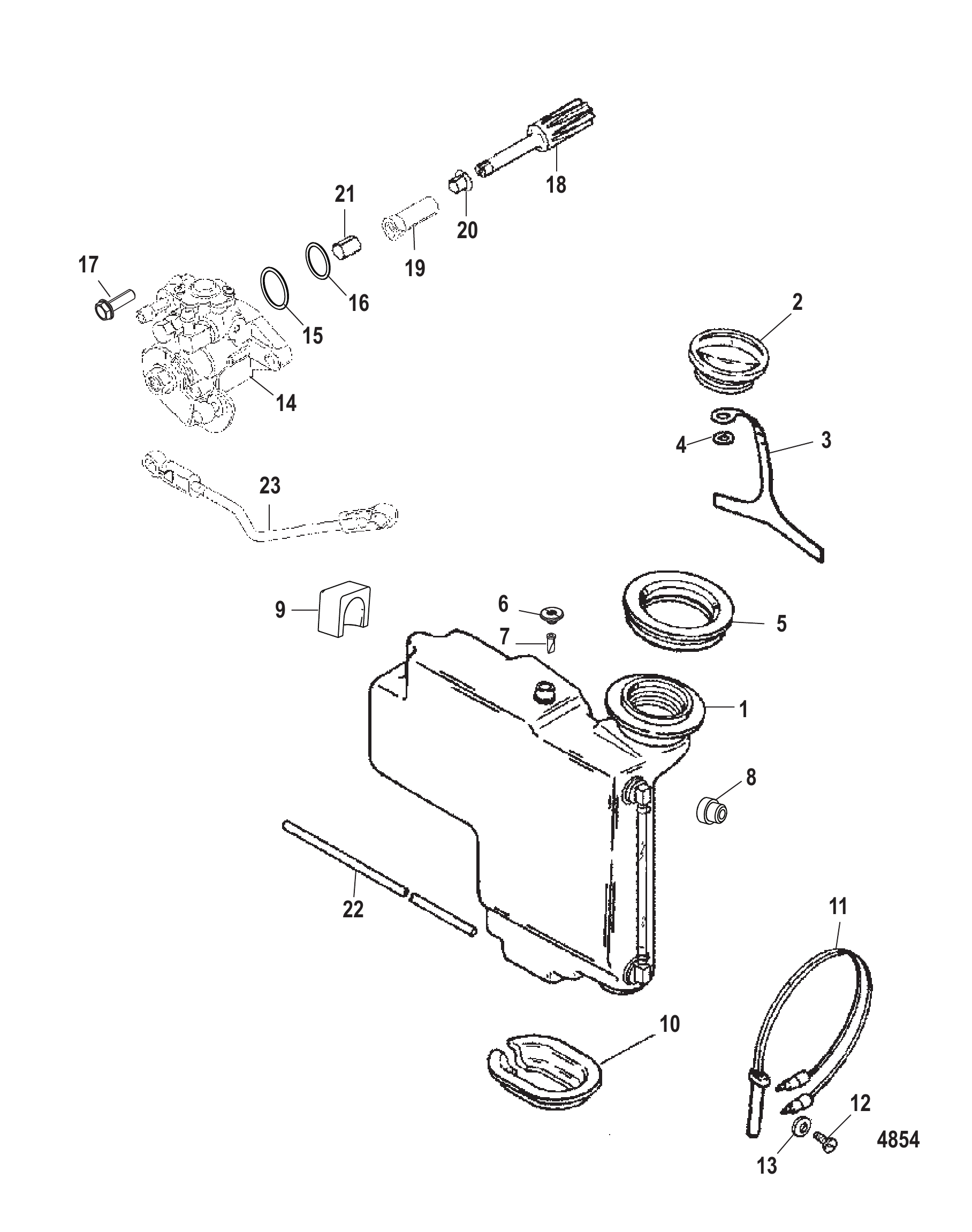

图 23机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	812718A1	油箱总成	TANK ASSEMBLY Oil	1
2	828765A2	盖总成	CAP ASSEMBLY	1
3	NSS	不单独销售系绳	NOT SOLD SEPARATE Tether	1
4	821285	压入式螺母	PUSH NUT	1
5	8160662	密封件	SEAL	1
5	8M0039080	密封件-油箱	SEAL-OIL TANK	1
6	19299A1	通风组件	VENT ASSEMBLY	1
7	64871	阀门	VALVE	1
8	8136441	护孔环	GROMMET	1
8	813644002	护孔环	GROMMET	1
9	99162	护套	BOOT	1
9	99162001	护套	BOOT	1
10	812890	护套	BOOT	1
10	8M0039085	护套	BOOT	1
11	12886A6	开关总成	SWITCH ASSEMBLY	1
12	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
13	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
14	818902A1	机油喷射泵总成	PUMP ASSEMBLY Oil Injection	1
15	62705	O型圈	O-RING	1
15	8M0204667	O型圈×2	O RING @2	1
16	36390	O型圈	O-RING	1
17	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
18	19277	从动齿轮	GEAR Driven	1
19	19278A2	轴承总成	BEARING ASSEMBLY	1
20	17597	衬套（带法兰）	BUSHING (FLANGED)	1
21	17596	衬套	BUSHING	1
22	82381335	管材(15英寸散装)(6英寸)	TUBING (15.00 Inches Bulk) (6 IN.)	1
23	826581A2	连接杆	LINK	1
23	8M0084729	连杆-油泵总成	LINK-OIL PUMP ASY	1

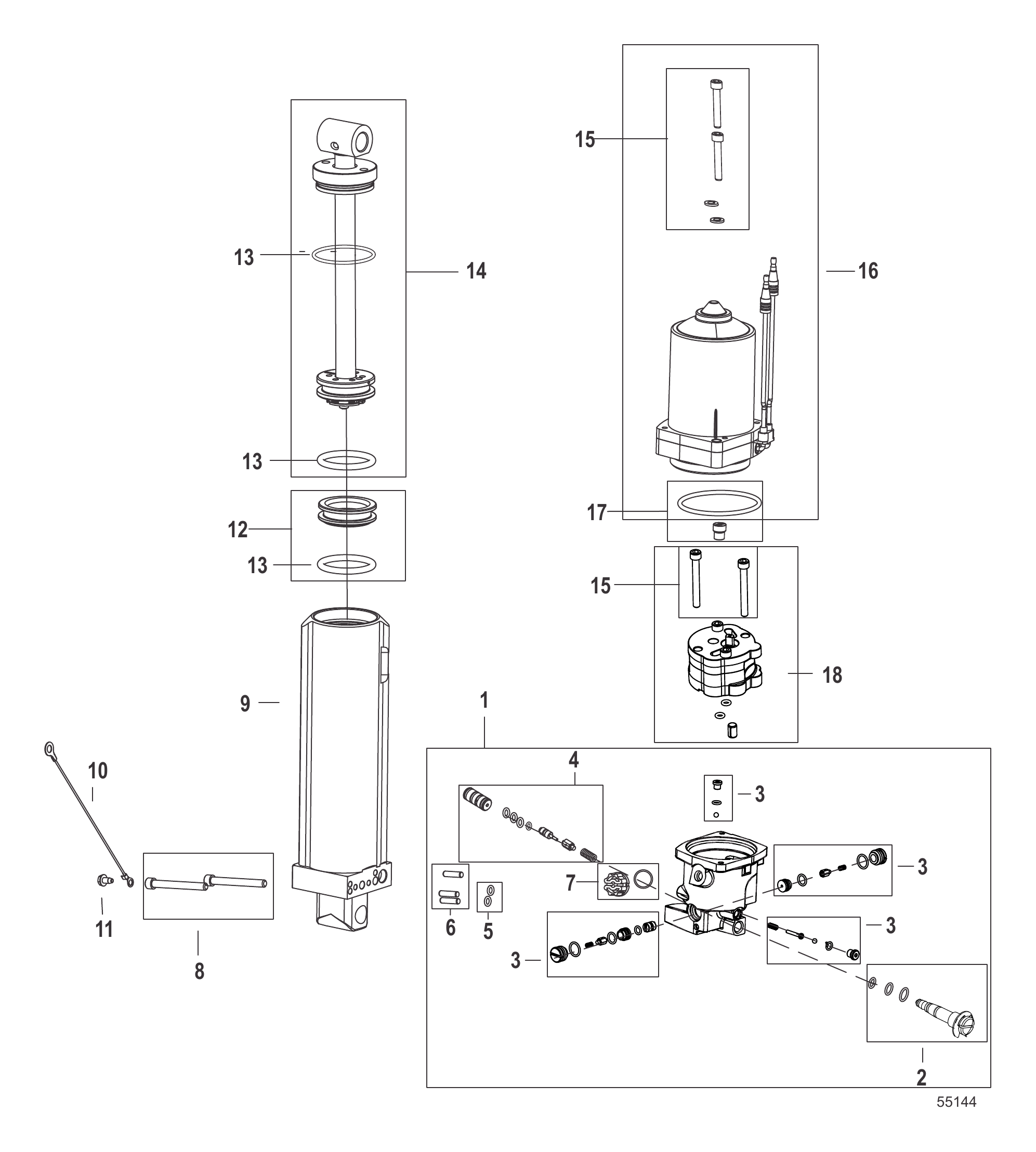

图 24动力配平总成-组件2B092563及以上 Power Trim Assembly - Components 2B092563 and Up

REF	零件编号	中文名称	英文名称	数量
1	8M0089943	歧管套件	MANIFOLD KIT	1
2	893929A01	安全阀套件	VALVE KIT Relief	1
3	8M0089945	阀套件	VALVE KIT	1
4	8M0090404	配平限位阀套件	VALVE KIT Trim Limit	1
5	833063	O型圈	O-RING	2
6	8M0055260	定位销	DOWEL PINS	3
7	811613	塞子总成	PLUG ASSEMBLY	1
8	833047	螺钉(0.250-20×2.250)	SCREW (.250-20 x 2.250)	2
9	8M0089941	气缸总成	CYLINDER ASSEMBLY	1
10	88238A13	拉线总成	CABLE ASSEMBLY	1
10	8M0207768	拉线总成	CABLE ASSEMBLY	1
11	8M6002690	螺钉	SCREW	1
11	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
12	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
12	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
13	893902A01	O型圈套件	O-RING KIT	1
13	8M0171819	O型圈套件	O-RING KIT	1
14	8M0089942	减震杆套件	SHOCK ROD KIT	1
14	8M0171821	减震杆套件	SHOCK ROD KIT	1
15	8M0089946	螺钉套件(完整调整)	SCREW KIT Complete Trim	1
16	8M0089940	电机套件	MOTOR KIT	1
16	8M0142591	电机套件	MOTOR KIT	1
17	8M0090403	驱动联轴器	COUPLING Drive	1
18	8M0089944	泵总成	PUMP ASSEMBLY	1
-	8M0089947	O型圈套件(动力调整)	O-RING KIT Power Trim	1
-	8M0171820	O型圈套件	O-RING KIT	1

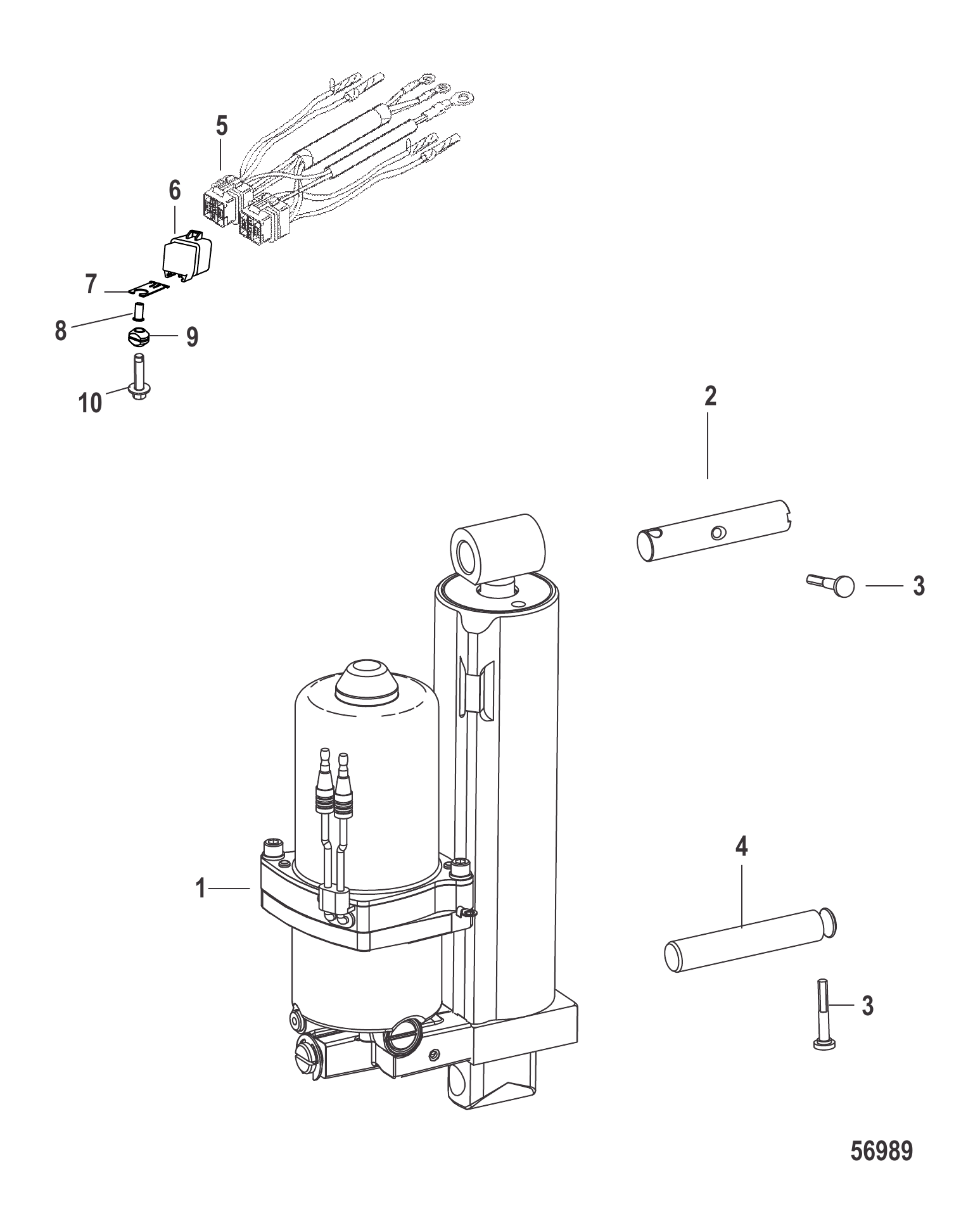

图 25动力配平总成2B092563及以上 Power Trim Assembly 2B092563 and Up

REF	零件编号	中文名称	英文名称	数量
1	8M0090335	动力调整装置总成(标准)	POWER TRIM ASSEMBLY Standard	1
2	8M0094357	减震杆销	PIN Shock Rod	1
2	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
3	821539	三叶销	PIN Trilobe	2
4	818898	锚销	PIN Anchor	1
5	8M0092077	升降线束总成	HARNESS ASSEMBLY Trim	1
6	828151A1	继电器总成	RELAY ASSEMBLY	2
6	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
7	828102	支架	BRACKET	2
7	8M0207771	安装支架	BRACKET Mounting	2
8	818968	衬套	BUSHING	2
8	8M0214955	衬套	BUSHING	2
9	818967	护孔环	GROMMET	2
9	8M0207785	护孔环	GROMMET	2
10	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2

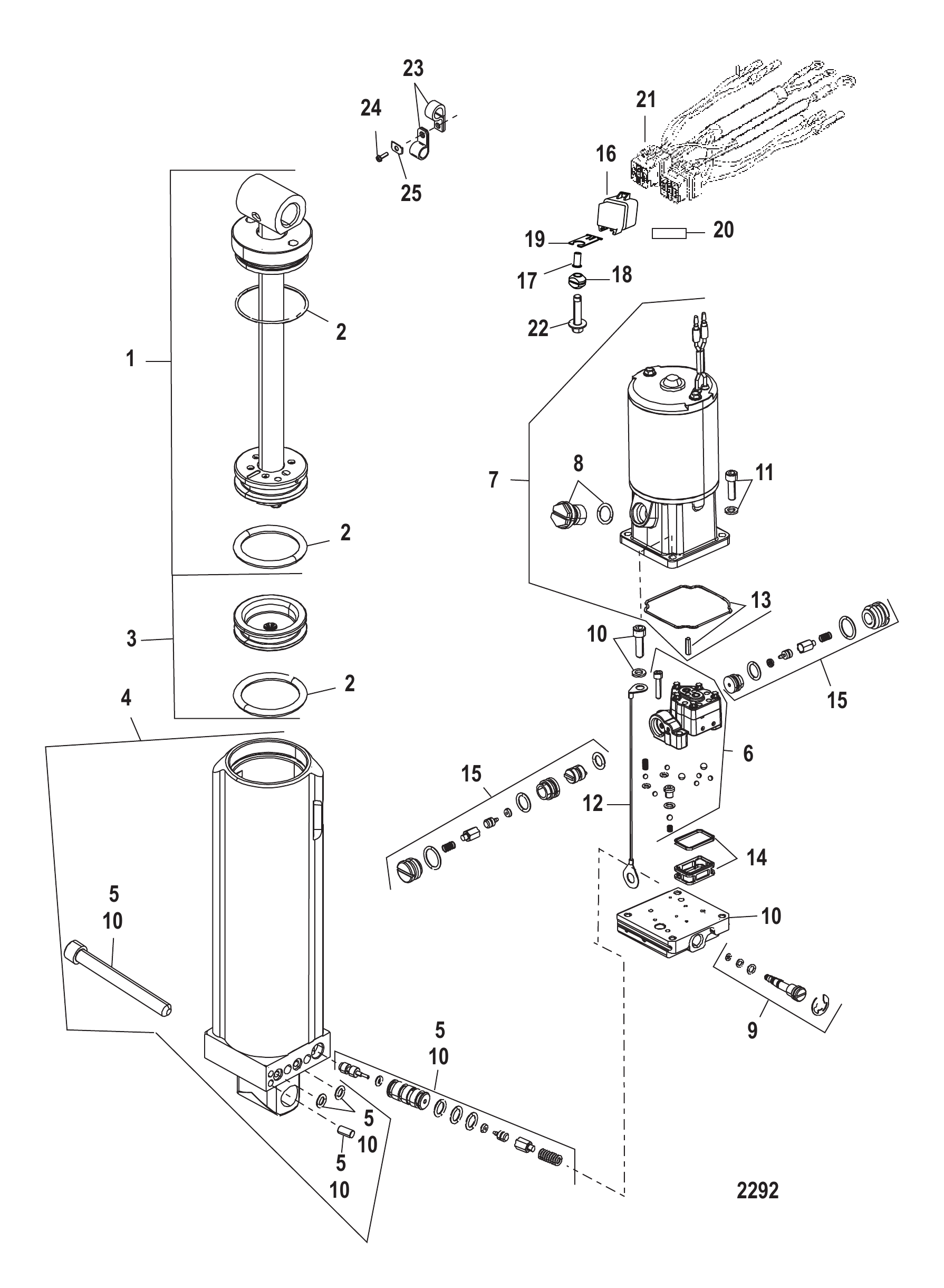

图 26动力配平组件2B092562及以下 Power Trim Components 2B092562 and Below

REF	零件编号	中文名称	英文名称	数量
-	830250T5	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
-	830250T08	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
-	8M0171818	动力调整总成	POWER TRIM ASSY	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	O型圈套件(完整调整)	O-RING KIT (COMPLETE TRIM)	1
-	893914A02	O型圈套件	O-RING KIT	1
16	828151A1	继电器总成	RELAY ASSEMBLY	2
16	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
17	818968	衬套	BUSHING	2
17	8M0214955	衬套	BUSHING	2
18	818967	护孔环	GROMMET	2
18	8M0207785	护孔环	GROMMET	2
19	828102	支架	BRACKET	2
19	8M0207771	安装支架	BRACKET Mounting	2
20	NSS	不单独销售(贴花,调整继电器)	NOT SOLD SEPARATE Decal, Trim Relay	2
21	819514A15	升降线束总成	HARNESS ASSEMBLY Trim	1
21	8M0092077	升降线束总成	HARNESS ASSEMBLY Trim	1
22	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
23	22740	卡扣	CLIP	2
24	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	2
25	69205	C形垫圈	C WASHER	2
25	8M0084613	C形垫圈	C-WASHER	2

图 27维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
85207297	零件手册 55/60/45 JET/60 BIGFOOT (二冲程)	PARTS MANUAL 55/60/45 JET/60 BIGFOOT (2-Stroke)	1
852572	维修手册	SERVICE MANUAL	1
8M0110565	维修手册	MANUAL-SERVICE	1
10150980	用户手册	OWNERS MANUAL	1
10122980	用户手册	OWNERS MANUAL	1
10136980	用户手册	OWNERS MANUAL	1
10161980	用户手册	OWNERS MANUAL	1
821573A95	贴花套件	DECAL SET	1
821573A01	贴花套件(黑色55 SeaPro)	DECAL SET (Black 55 SeaPro)	1
826313A95	贴花套件	DECAL SET	1
826313A01	贴花套件(黑色60 SeaPro)	DECAL SET (Black 60 SeaPro)	1
811212A96	贴花套件	DECAL SET	1
811212A00	贴花套件(黑色60电动)	DECAL SET (Black 60 Electric)	1
830163A96	贴花套件	DECAL SET	1
804704A00	贴花套件(黑色60 Bigfoot)	DECAL SET (Black 60 Bigfoot)	1
826325A96	贴花套件	DECAL SET	1
826325A00	贴花套件	DECAL SET	1
824733A96	贴花套装(Tracker 60)	DECAL SET (Tracker 60)	1
831846A97	贴花套装(Tracker Bigfoot 60)	DECAL SET (Tracker Bigfoot 60)	1
821424A95	贴花套件	DECAL SET	1
8588371	贴花套件(灰色Marathon 55)	DECAL SET (Gray Marathon 55)	1
13361A95	贴花套件	DECAL SET	1
8588372	贴花套件(灰色Marathon 60)	DECAL SET (Gray Marathon 60)	1
811211A97	贴花套件	DECAL SET	1
811211A03	贴花套件(灰色60电动)	DECAL SET (Gray 60 Electric)	1
852081A97	贴花套件	DECAL SET	1
852081A03	贴花套装 (灰色60电动Bigfoot)	DECAL SET (Gray 60 Electric Bigfoot)	1
826326A97	贴花套件	DECAL SET	1
826326A01	贴花套装(灰色Jet 40)	DECAL SET (Gray Jet 40)	1
8555778	EPA标签信息贴花	DECAL EPA Label Information	1
855577A8	REF SOB 09-18	REF SOB 09-18	1

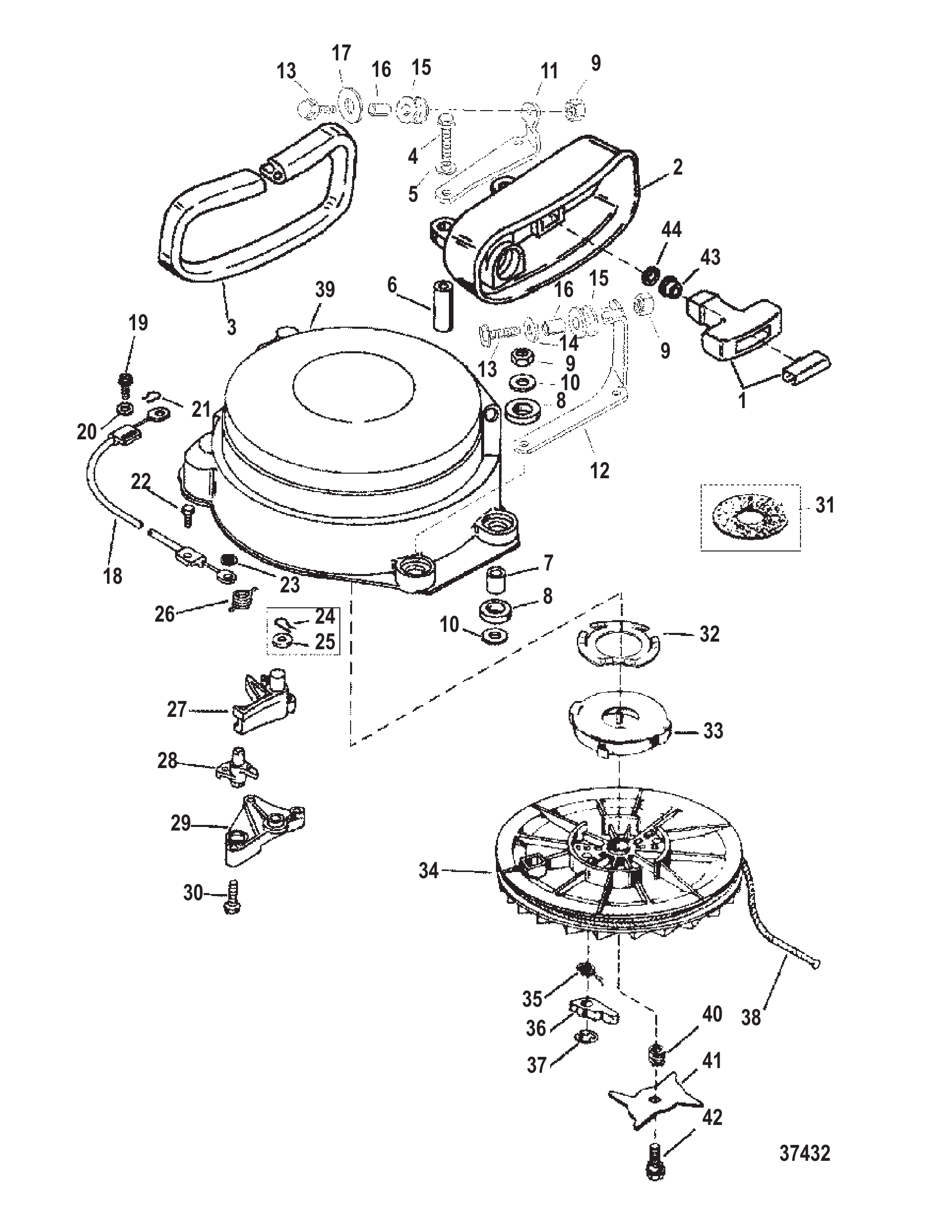

图 28启动器总成（手动） Starter Assembly (Manual)

REF	零件编号	中文名称	英文名称	数量
1	85174A2	手柄总成	HANDLE ASSEMBLY	1
2	8220721	支架	REST	1
3	823241	密封件	SEAL	1
3	8M0043270	密封件	SEAL	1
4	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
5	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	2
6	8217021	隔套	SPACER	2
7	816086	衬套	BUSHING	4
8	815795	护孔环	GROMMET	8
9	400264	螺母 (M6)	NUT (M6)	4
9	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	4
9	8268336	螺母 (M6)	NUT (M6)	6
9	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
10	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	8
10	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	6
11	855596	支架	BRACKET	1
12	855597	支架	BRACKET	1
13	40011129	不锈钢螺钉(M6x25)	SCREW (M6 x 25) Stainless Steel	2
14	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
15	11704A1	滑轮套件	PULLEY KIT	2
16	NSS		NOT SOLD SEPARATE Spacer	2
17	67983	垫圈	WASHER	1
18	8167485	联锁电缆	CABLE Interlock	1
18	8567541	联锁电缆	CABLE Interlock	1
19	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
20	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
21	26811	开口销	COTTER PIN	1
22	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
22	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	821027	压入式螺母	PUSH NUT	1
24	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
25	26811	开口销	COTTER PIN	1
-	816728A14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
26	826791	弹簧	SPRING	1
27	8166902	杠杆	LEVER	1
27	8166903	杠杆	LEVER	1
28	8167121	凸轮	CAM	1
28	816712T01	凸轮	CAM	1
29	816711	固定座	RETAINER	1
30	8182491	螺钉(#10-16 x 1.00)	SCREW (#10-16 x 1.00)	3
31	90478	垫	PAD	1
31	833161T	毛毡垫	PAD-FELT	1
32	826229	锁紧垫圈	LOCKWASHER	1
33	868571	弹簧	SPRING	1
33	86857T01	弹簧	SPRING	1
34	825269A1	启动滑轮	SHEAVE Starter	1
34	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
35	868511	弹簧	SPRING	2
35	86851T02	弹簧 @2	SPRING @2	2
36	868501	凸轮	CAM	2
37	868491	挡圈	RING Retaining	2
37	86849T01	环 @2	RING @2	2
38	12066A9	绳索	ROPE	1
38	12066Q10	启动绳@2	ROPE-STARTER@2	1
39	8167285	壳体	HOUSING	1
39	816728T05	壳体	HOUSING	1
40	868521	凸轮弹簧	SPRING Cam	1
40	868523	弹簧	SPRING	1
41	868531	凸轮	CAM	1
41	86853T01	凸轮	CAM	1
42	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
43	42690	衬套	BUSHING	1
43	8M0183792	绳索衬套	ROPE BUSHING	1
44	818853	挡圈	RING Retaining	1

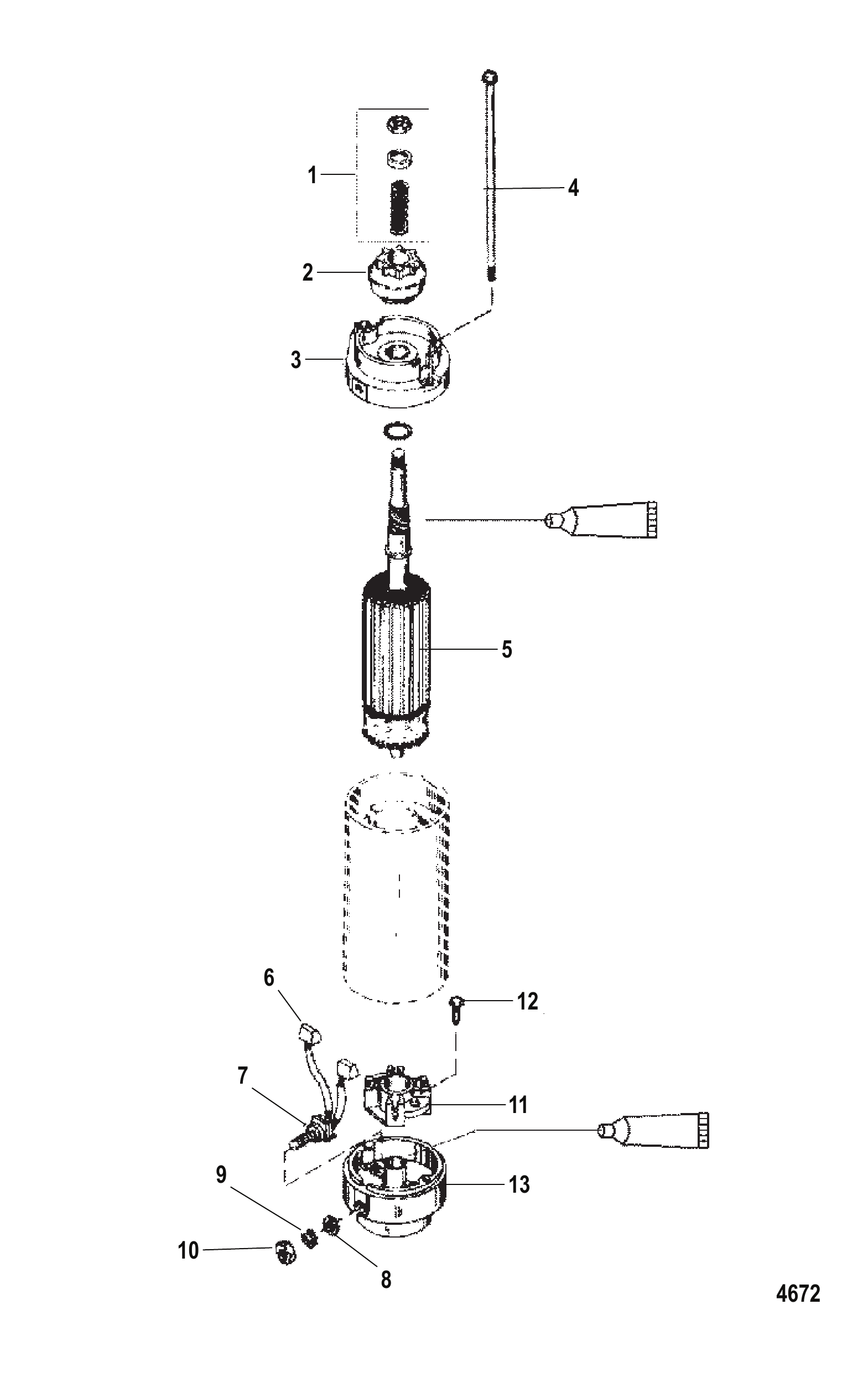

图 29启动电机维修 Starter Motor Service

REF	零件编号	中文名称	英文名称	数量
-	66015T1	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	893891T	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660	安装板	PLATE	1
4	75385	螺栓	BOLT	2
5	75386	电枢	ARMATURE	1
6	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
6	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	57387	衬套	BUSHING	1
8	NSS		NOT SOLD SEPARATE Washer (AMER. BOSCH #WA-1728)	1
9	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
10	20890	螺母 (.250-20)	NUT (.250-20)	1
11	61787	支架	HOLDER	2
11	898265014	电刷支架	HOLDER-BRUSH	2
12	NSS	不单独销售(AMER. BOSCH #02441-22-SC-30SM驱动紧固件)	NOT SOLD SEPARATE (AMER. BOSCH #02441-22-SC-30SM DRIVE TIGHT	2
13	15386	端盖	END CAP	1
13	15386001	端盖	END CAP	1

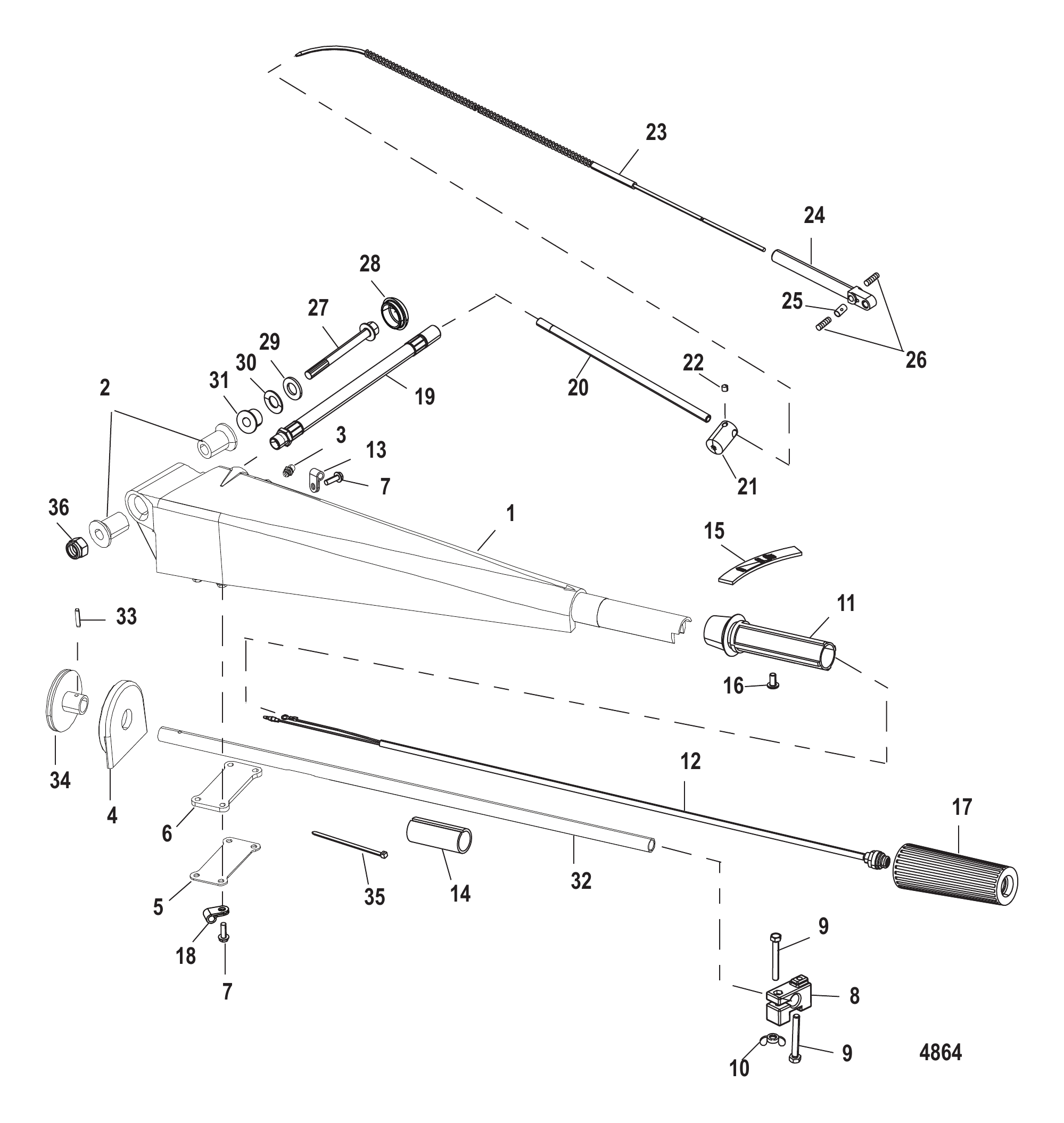

图 30转向手柄 Steering Handle

REF	零件编号	中文名称	英文名称	数量
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
2	429922	衬套	BUSHING	2
2	42992T02	衬套	BUSHING	2
3	74036	润滑脂接头	FITTING Grease	1
3	8M0169589	润滑脂接头	FITTING Grease	1
4	48414	壳体	HOUSING	1
5	48519	安装板	PLATE	1
6	48518	衬垫	GASKET	1
7	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	6
7	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
8	12013	卡箍	CLAMP	1
8	889729	卡箍	CLAMP	1
9	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
10	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
11	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	823609A5	停机开关总成	SWITCH ASSEMBLY Stop	1
12	8M0104612	开关总成	SWITCH ASSY	1
13	648551	卡箍	CLAMP	1
14	NSS	绝缘件(不单独销售)	NOT SOLD SEPARATE Insulator	1
15	NSS	节气门标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Throttle	1
16	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
17	99589	握把	GRIP	1
17	8M0221732	外握把	GRIP OUTER	1
18	648552	卡扣	CLIP	1
-	12019A1	节流阀电缆套件	CABLE KIT Throttle	1
19	785512	导管	CONDUIT	1
19	8885242	导管	CONDUIT	1
20	895661	导向管	GUIDE TUBE	1
20	8M0026078	导向管	TUBE-GUIDE	1
21	89578	套筒	BARREL	1
22	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
23	12019	拉线总成	CABLE ASSEMBLY	1
24	43433	导套	GUIDE	1
24	8M0204660	导套	GUIDE	1
25	20007	锚定件	ANCHOR	1
26	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
26	8M0204644	螺钉组	SCREW SET	2
27	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
28	48416	盖帽	CAP	1
29	4002319	垫圈	WASHER	1
30	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
31	146011	隔套	SPACER	1
32	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
33	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
34	NSS	驱动轮(不单独销售)	NOT SOLD SEPARATE Drive Wheel	1
35	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
36	40140	螺母(M10)	NUT (M10)	1

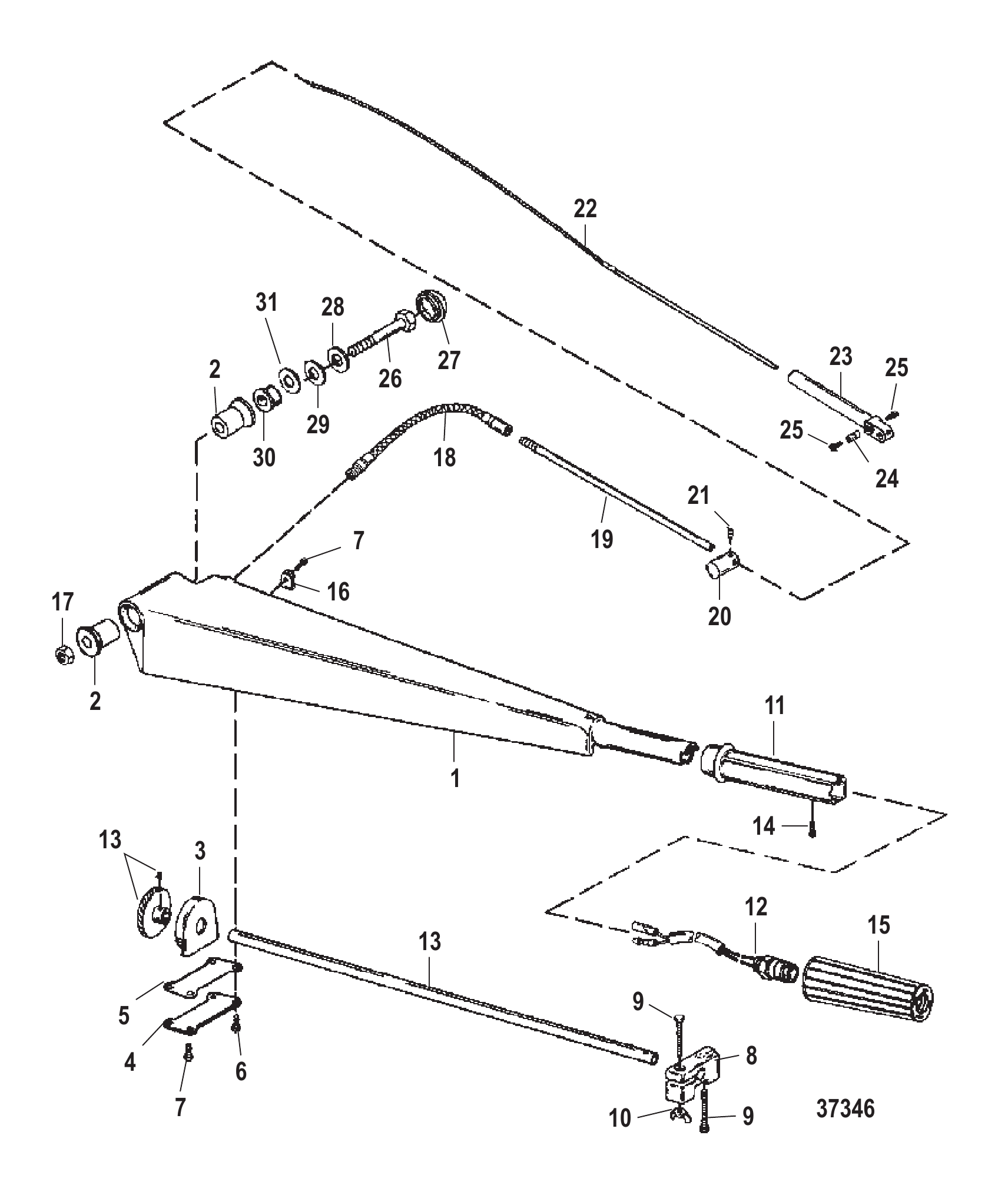

图 31转向手柄组件 Steering Handle Components

REF	零件编号	中文名称	英文名称	数量
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A4	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
-	74036	润滑脂接头	FITTING Grease	1
-	8M0169589	润滑脂接头	FITTING Grease	1
2	429922	衬套	BUSHING	2
2	42992T02	衬套	BUSHING	2
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
6	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
7	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
7	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
8	12013	卡箍	CLAMP	1
8	889729	卡箍	CLAMP	1
9	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
10	816873	蝶形螺母	WING NUT	1
10	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
11	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	823609A5	停机开关总成	SWITCH ASSEMBLY Stop	1
12	8M0104612	开关总成	SWITCH ASSY	1
13	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
14	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
15	99589	握把	GRIP	1
15	8M0221732	外握把	GRIP OUTER	1
16	648551	卡箍	CLAMP	2
17	13914	螺母(M10)	NUT (M10)	1
17	40140	螺母(M10)	NUT (M10)	1
18	785512	导管	CONDUIT	1
18	8885242	导管	CONDUIT	1
19	895661	导向管	GUIDE TUBE	1
19	8M0026078	导向管	TUBE-GUIDE	1
20	89578	套筒	BARREL	1
21	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
22	12019	拉线总成	CABLE ASSEMBLY	1
23	43433	导套	GUIDE	1
23	8M0204660	导套	GUIDE	1
24	20007	锚定件	ANCHOR	1
25	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
25	8M0204644	螺钉组	SCREW SET	2
26	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
27	48416	盖帽	CAP	1
28	4002319	垫圈	WASHER	1
29	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
30	14601	隔套	SPACER	1
30	146011	隔套	SPACER	1
31	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
31	8M0214963	垫圈	WASHER	1

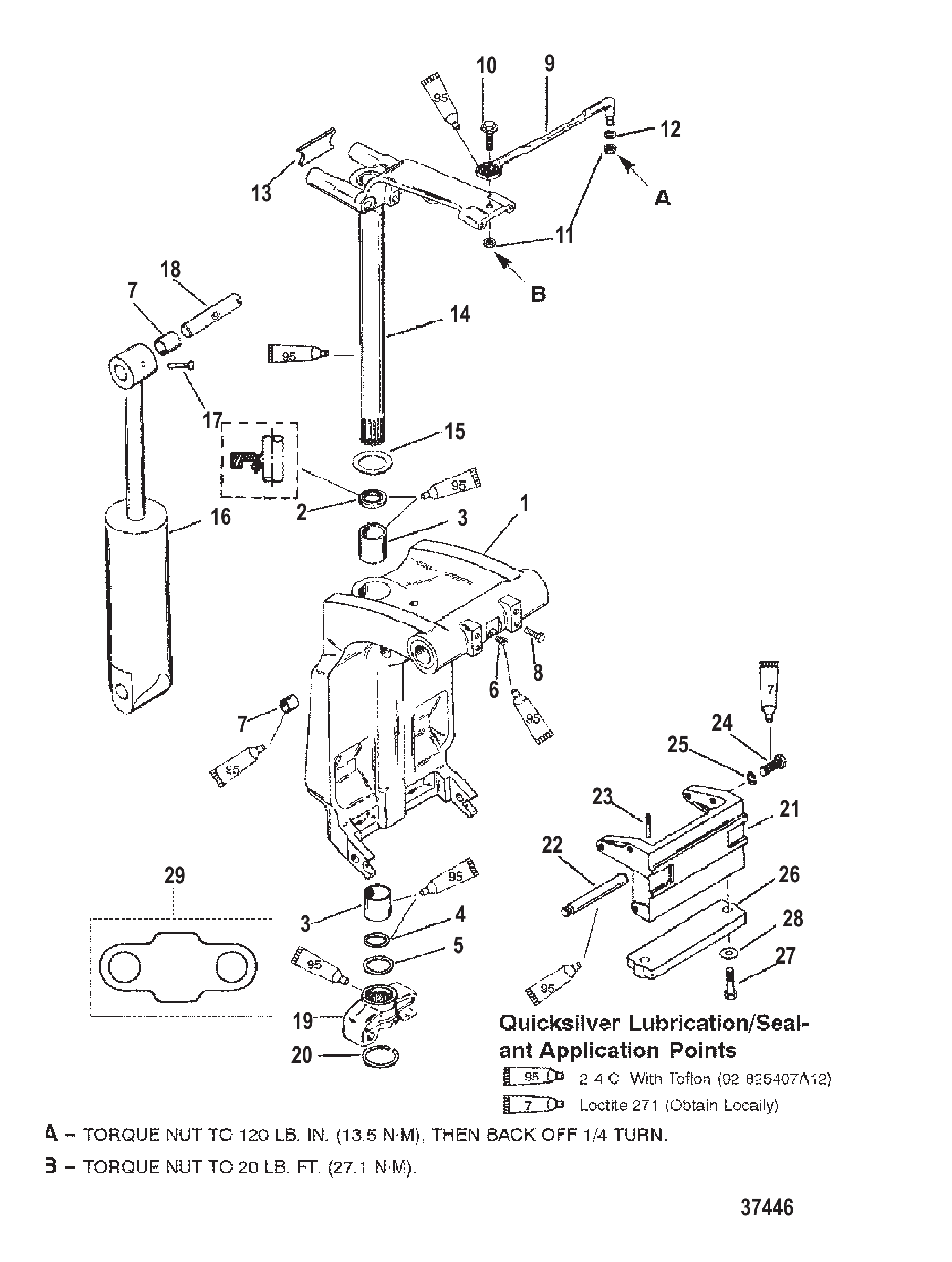

图 32旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710A20	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710A21	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
1	818904A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8M0220957	旋转支架总成	SWIVEL BRKT ASSY	1
1	818904A2	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	818904T2	支架总成-灰色	BRACKET ASY-GRAY	1
1	818904A3	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	818904T4	支架总成-钢/灰色	BRKT ASY-STEEL/GR	1
2	87735	油封(下)	SEAL Oil (LOWER)	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
9	92876A12	连杆总成	LINK ROD ASSEMBLY	1
10	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
10	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
11	34863	螺母 (.375-24)	NUT (.375-24)	2
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
12	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
13	888821	缓冲垫	BUMPER	1
13	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
14	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
14	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
14	99661A27	旋转销总成	SWIVEL PIN ASSEMBLY	1
14	99661A36	ORD 99661A35	ORD 99661A35	1
14	99661A28	旋转销总成	SWIVEL PIN ASSEMBLY	1
14	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
15	816432	止推垫片	THRUST WASHER	1
16	99724A2	减震器	SHOCK ABSORBER	1
16	99724T15	减震器-黑色	SHOCK ABSORBER-BL	1
16	99724A3	减震器	SHOCK ABSORBER	1
16	99724T15	减震器-黑色	SHOCK ABSORBER-BL	1
16	99724A15	减震器冲压件A12	SHOCK STAMPED A12	1
16	99724T15	减震器-黑色	SHOCK ABSORBER-BL	1
16	99724A16	减震器冲压件A12	SHOCK STAMPED A12	1
16	99724T15	减震器-黑色	SHOCK ABSORBER-BL	1
17	821539	三叶销	PIN Trilobe	1
18	996251	轴(上部)	SHAFT (UPPER)	1
18	99625002	轴	SHAFT	1
19	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
19	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
19	42961A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
19	42961T2	ORD 42961A06	ORD 42961A06	1
19	42961A4	底部轭架总成	YOKE ASSEMBLY Bottom	1
19	42961A5	轭架总成	YOKE ASSEMBLY	1
20	67684	挡圈	RING Retaining	1
21	99653	支架	BRACKET	1
22	99619	轴(下部)	SHAFT (LOWER)	1
23	821539	三叶销	PIN Trilobe	1
24	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
25	4002319	垫圈	WASHER	6
25	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	6
26	818298A1	阳极套件	ANODE KIT	1
26	818298Q1	阳极套件	ANODE KIT	1
27	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
27	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
28	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
28	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
29	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1

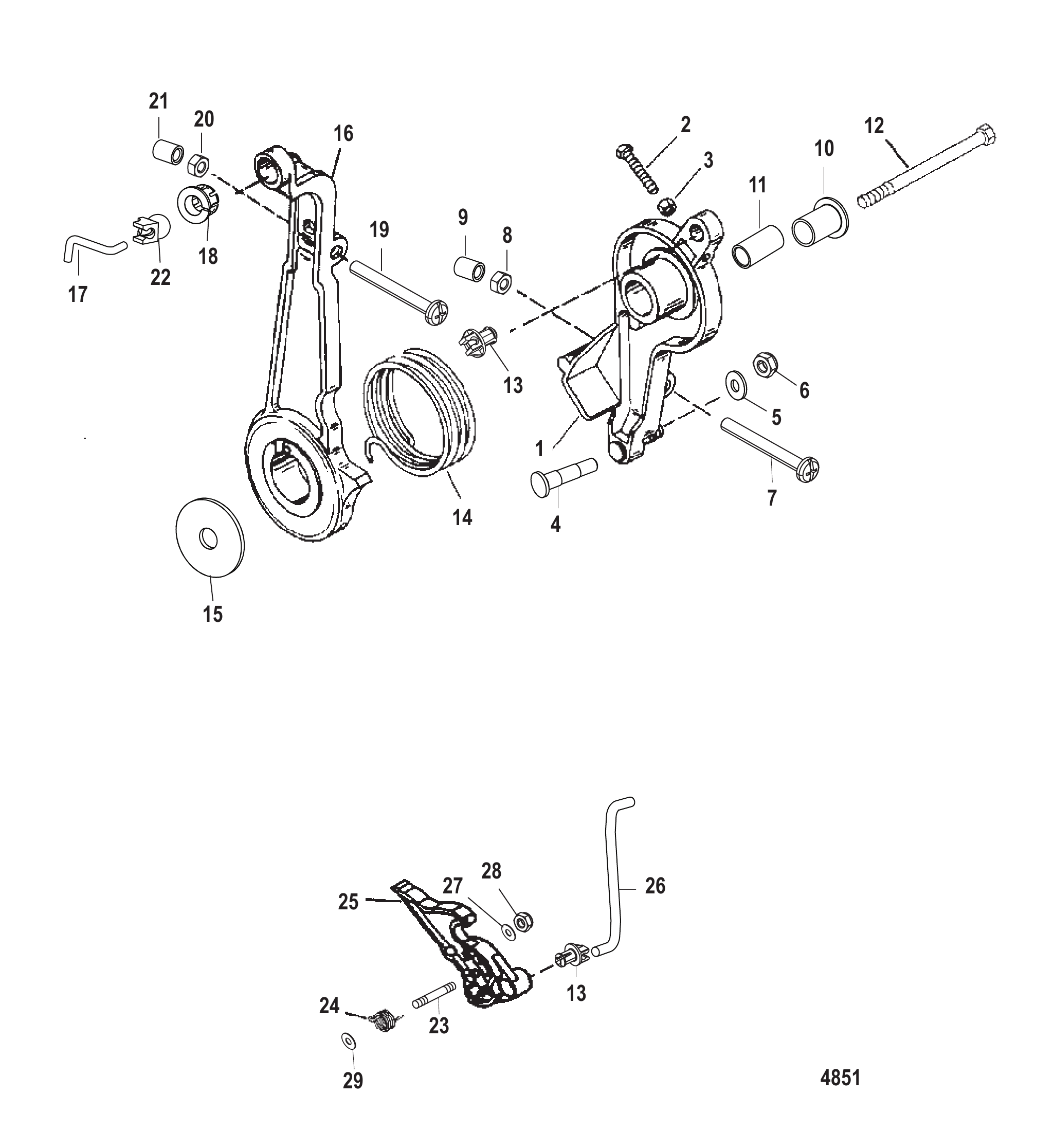

图 33油门杆及联动装置 Throttle Lever and Linkage

REF	零件编号	中文名称	英文名称	数量
1	429461	油门杆	LEVER Throttle	1
2	817582	调节螺钉(M5 x 35)	SCREW Adjusting (M5 x 35)	1
3	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
4	42927	嵌件	INSERT	1
5	35459	垫圈	WASHER	1
6	8268336	螺母 (M6)	NUT (M6)	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
8	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
9	42942	盖帽	CAP	1
10	812930A1	衬套	BUSHING	1
11	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
12	4007180	螺丝(M10 x 45)	SCREW (M10 x 45)	1
13	932481	衬套	BUSHING	2
13	8M0215006	旋转衬套	BUSHING Swivel	2
14	55162	弹簧	SPRING	1
15	42980	垫圈	WASHER	1
-	NSS	不单独销售提前点火杆总成	NOT SOLD SEPARATE Spart Advance Lever Assembly	1
16	196632	点火提前杆	LEVER Spark Advance	1
16	19663T02	杠杆	LEVER	1
17	42918	杆	ROD	1
17	878172	点火提前杆	ROD Spark Advance	1
18	93254	旋转底座	SWIVEL BASE	1
19	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
20	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
21	42942	盖帽	CAP	1
22	93421	旋转球头	SWIVEL BALL	1
23	42984	螺柱	STUD	1
23	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
24	817702	弹簧	SPRING	1
25	828160A1	节气门凸轮总成	CAM ASSEMBLY Throttle	1
25	828160A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
26	828159	杆油门	ROD Throttle	1
26	878174	杆油门	ROD Throttle	1
27	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
28	8268336	螺母 (M6)	NUT (M6)	1
28	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
29	828494	垫圈	WASHER	1

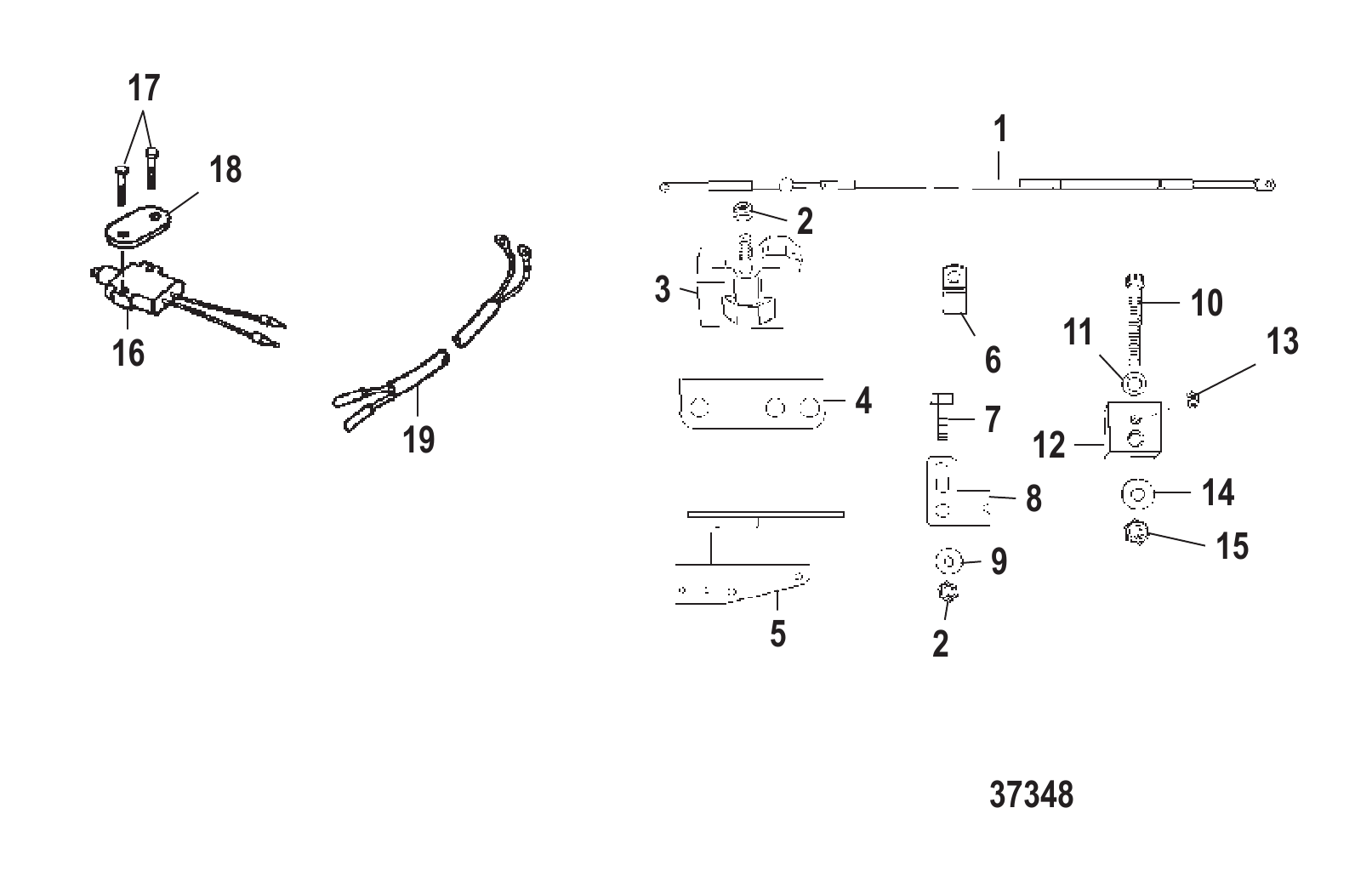

图 34舵柄适配器套件（Jet 65） Tiller Handle Adaptor Kit (Jet 65)

REF	零件编号	中文名称	英文名称	数量
-	850000A3	舵柄适配器套件65 JET	TILLER HANDLE ADAPTER KIT 65 JET	1
1	832001A6	换挡线缆总成	CABLE ASSEMBLY Shift	1
2	8268336	螺母 (M6)	NUT (M6)	2
2	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
3	988851	滑块	SLIDE	1
4	828095	支架	BRACKET	1
5	8249302	支架	BRACKET	1
5	824930T2	支架	BRACKET	1
6	64646	卡扣	CLIP	1
7	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
8	828096	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
10	71958	螺丝(.250-28 x 1.75)	SCREW (.250-28 x 1.75)	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	828094	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
13	72734	紧定螺丝(#10-32 x .310)	SET SCREW (#10-32 x .310)	1
14	35459	垫圈	WASHER	1
15	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
16	813960A3	开关	SWITCH	1
16	8M0052927	开关总成	SWITCH ASSY	1
17	4001168	不锈钢螺丝(M3.5 x 20)	SCREW (M3.5 x 20) Stainless Steel	2
17	88075020	螺丝(M3 x 20)	SCREW (M3 x 20)	2
18	824923	安装板	PLATE	1
19	824934A1	拉线总成	CABLE ASSEMBLY	1

图 35专用工具 Tools SPECIAL

REF	零件编号	中文名称	英文名称	数量
-	36392	化油器量具	GAUGE TOOL Carburetor	1
-	89045	适配器	ADAPTER	1
-	890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	99379	正时灯	TIMING LIGHT	1
-	825207A1	TPI/CDM测试线束总成	HARNESS ASSEMBLY TPI/CDM Test	1
-	NSS	夹头(不单独销售)(SNAP ON - CG41-14)	NOT SOLD SEPARATE Collet (SNAP ON - CG41-14)	1
-	NSS	膨胀杆(不单独销售)(SNAP ON - CG41-11)	NOT SOLD SEPARATE Expanding Rod (SNAP ON - CG41-11)	1
-	822778A3	下压力套件	DOWN PRESSURE KIT	1
-	99750A1	万用表	MULTI METER	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	29287	量规工具	GAUGE TOOL	1
-	55919	驱动头	DRIVER HEAD	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	52952A1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	24283	卡簧钳	PLIERS Snap Ring	1
-	25821A1	动力头支架工具	STAND TOOL Powerhead	1
-	25821T1	动力头支架工具	STAND TOOL Powerhead	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	78473	背隙测量仪	INDICATOR TOOL Backlash	1
-	8M0053505	背隙指示工具	TOOL Indicator, Backlash	1
-	196601	背隙测量仪	INDICATOR TOOL Backlash	1
-	817007	轴承座密封安装工具	INSTALLER TOOL Bearing Carrier Seal	1
-	817007T	密封安装工具	INSTALLER TOOL Seal	1
-	825199	导向器	PILOT	1
-	13945	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14309A1	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14309T02	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14311A2	轴承预紧工具	PRE LOAD TOOL Bearing	1
-	14311A04	预紧力工具	TOOL Preload	1
-	83165M	轴承拉拔器总成	PULLER ASSEMBLY Bearing	1
-	83165T	拉拔器总成	PULLER ASSEMBLY	1
-	14308A1	轴承座圈工具	RACE TOOL Bearing	1
-	14308T02	轴承座圈驱动器	BEARING RACE DRIVER	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	24156	螺母(0.625-18)	NUT (.625-18)	1
-	15755	心轴	MANDREL	1
-	15755T	滚针轴承驱动器	NEEDLE BEARING DRIVER	1
-	36569	驱动头工具	DRIVE HEAD TOOL	1
-	36569T	驱动头工具	DRIVE HEAD TOOL	1
-	37312	驱动头工具	DRIVER HEAD TOOL	1
-	37312T	传动轴轴承驱动器	DRIVESHAFT BEARING DRIVER	1
-	37323	滚针轴承导杆工具	DRIVER ROD TOOL Needle Bearings	1
-	36571	导向垫圈	PILOT WASHER	1
-	36571T	导向垫圈	PILOT WASHER	1
-	37350	导向垫圈	PILOT WASHER	1
-	37350T	导向心轴	PILOT MANDREL	1
-	29310	安装板	PLATE	1
-	34961	垫圈	WASHER	1
-	43506	轴承保持器扳手	WRENCH Bearing Retainer	1
-	43506T	轴承固定工具	RETAINING TOOL Bearing	1
-	825200A1	弹簧钩具	HOOK TOOL Spring	1
-	83155	千分表转接套件	ADAPTER KIT Dial Indicator	1
-	8M0237356	适配器套件	ADAPTER KIT	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	13779	轴承拆卸工具	REMOVER TOOL Bearing	1
-	817009	杯形驱动器	DRIVER CUP	1
-	817009T	轴承杯驱动器工具	DRIVER TOOL Bearing Cup	1
-	817070	传动轴固定工具	HOLDING TOOL Driveshaft	1
-	825196	传动轴固定工具	HOLDING TOOL Driveshaft	1
-	817005	轴承安装工具	INSTALLER TOOL Bearing	1
-	826872	轴承安装工具	INSTALLER TOOL Bearing	1
-	817058A1	轴承驱动器工具	DRIVER TOOL Bearing	1
-	817011	滚针轴承安装工具	INSTALLER TOOL Needle Bearing	1
-	817011T	滚针轴承安装工具	INSTALLER TOOL Needle Bearing	1
-	13949	油封安装工具	DRIVER TOOL Oil Seal	1
-	31108	油封安装工具	DRIVER TOOL Oil Seal	1
-	31108T	油封驱动器	DRIVER Oil Seal	1
-	825197	心轴	MANDREL	1
-	825197T	油封安装工具	INSTALLER TOOL Oil Seal	1
-	825198	心轴	MANDREL	1
-	817008A2	小齿轮定位工具	LOCATION TOOL Pinion Gear	1
-	12349A2	小齿轮定位工具	LOCATION TOOL Pinion	1
-	12349A05	小齿轮定位工具	TOOL Pinion Locating	1
-	27780	拉拔器	PULLER	1
-	46086A1	拉拔器爪头总成	PULLER JAW ASSEMBLY	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	85560	推力轴承	BEARING Thrust	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	817006	水泵底座密封安装工具	INSTALLER TOOL Water Pump Base Seal	1
-	14310A1	磨损套筒安装工具	INSTALLATION TOOL Wear Sleeve	1
-	14310T1	耐磨套驱动器	WEAR SLEEVE DRIVER	1

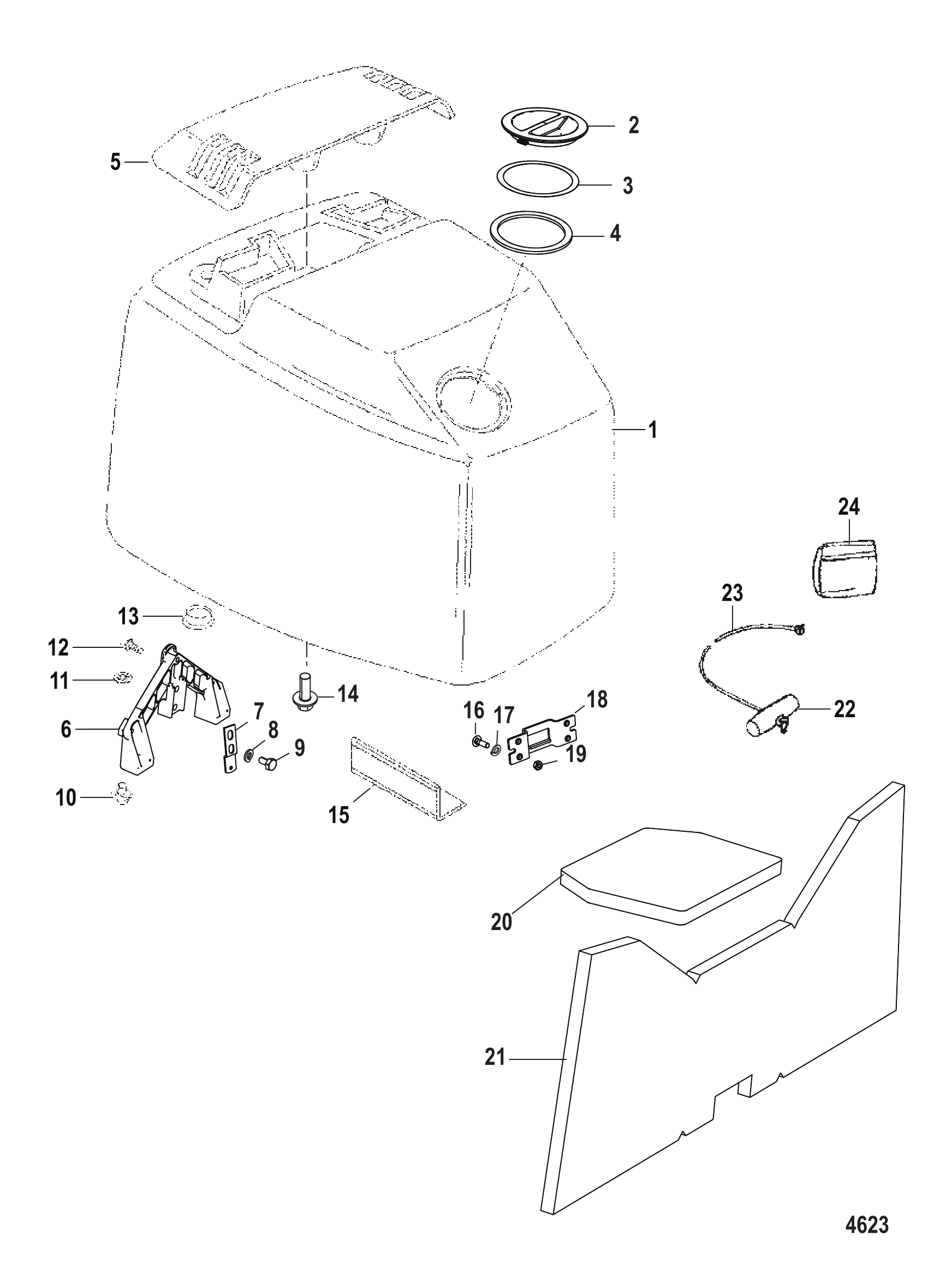

图 36顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	828353T7	顶罩总成(黑色-电动)	TOP COWL ASSEMBLY (Black-Electric)	1
1	828353T8	顶罩总成(银色-电动)	TOP COWL ASSEMBLY (Silver-Electric)	1
1	828354T6	顶罩总成(黑色-手动)	TOP COWL ASSEMBLY (Black-Manual)	1
1	828354A7	顶罩总成(银色-手动)	TOP COWL ASSEMBLY (Silver-Manual)	1
1	8M0107148	顶罩-MA型	COWL-TOP, MA	1
2	828716A2	盖帽	CAP	1
3	828352	密封件	SEAL	1
4	8283511	密封件	SEAL	1
5	821875F1	上盖(黑色)	CAP Upper (Black)	1
5	8218751	上盖-黑色	CAP-UPPER-BLACK	1
5	821875F2	上盖(银色)	CAP Upper (Silver)	1
5	821875F1	上盖	CAP Upper	1
6	819813T1	盖板锁扣支架	BRACKET Cover Latch	1
7	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
7	893763	滚轮锁扣支架	BRACKET Roller Latch	1
8	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
9	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
10	F481434	罩盖锁扣导架	GUIDE Cowl Latch Bracket	2
11	91925	压入式螺母	PUSH NUT	4
12	822512	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
13	823865	盖塞	CAP PLUG	2
14	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
15	823830	支架	SUPPORT	2
16	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	4
17	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	4
18	8233941	支架	BRACKET	1
19	8237515	螺母(M4)	NUT (M4)	4
20	823685A1	隔音毯套装	SOUND BLANKET KIT	1
20	823685A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
21	NSS	不单独销售(隔音垫-手动)	NOT SOLD SEPARATE Sound Blanket (Manual)	1
21	NSS	不单独销售(隔音垫-电动)	NOT SOLD SEPARATE Sound Blanket (Electric)	1
22	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
23	NSS	不单独销售(启动绳)	NOT SOLD SEPARATE Starter Rope	1
24	NSS	不单独出售信封袋	NOT SOLD SEPARATE Envelope	1

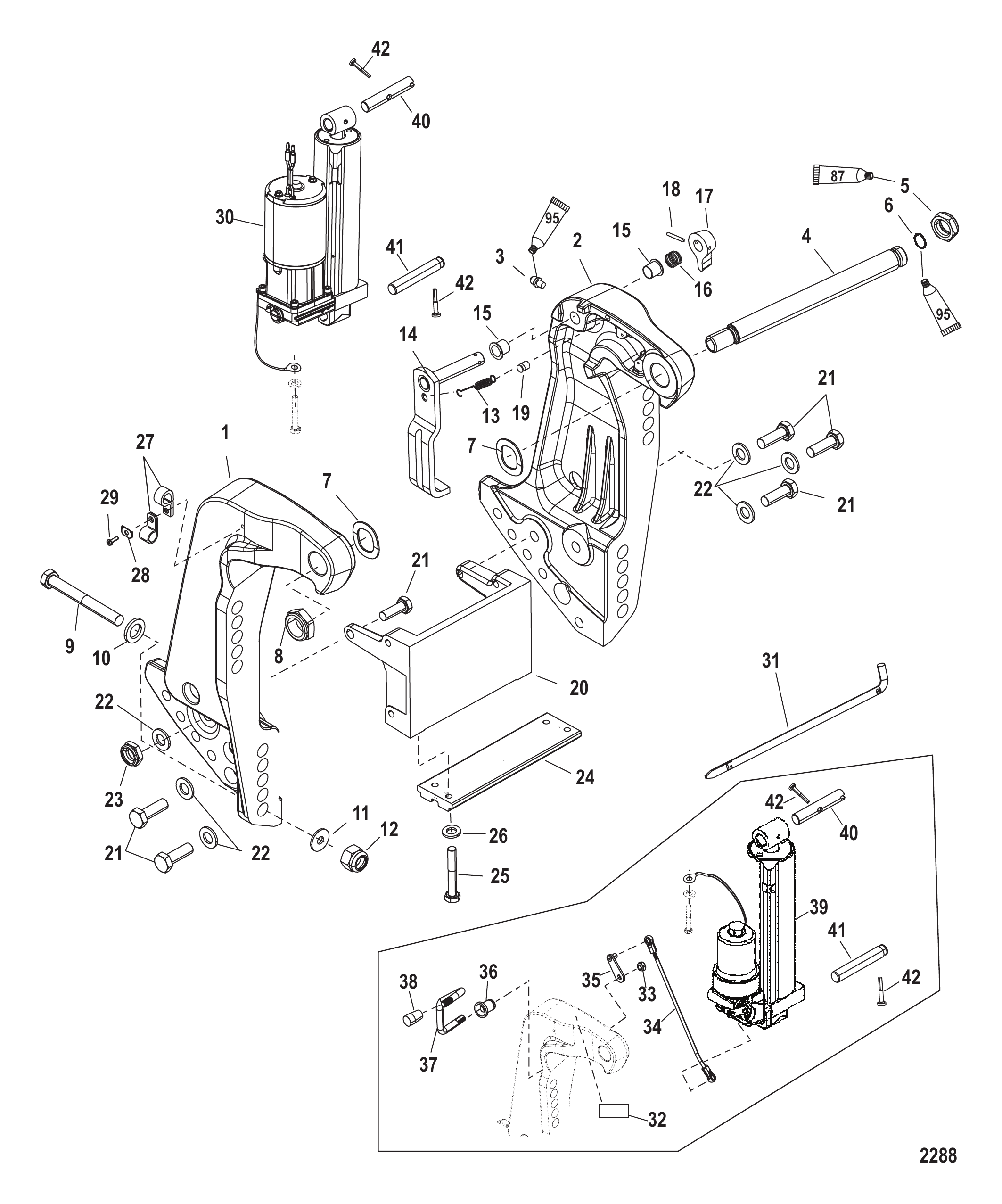

图 37艉板支架 Transom Bracket

REF	零件编号	中文名称	英文名称	数量
1	828334F1	艉板支架	BRACKET Transom	1
1	828334T02	艉板支架总成 - 右舷	BRACKET ASSEMBLY Transom - Starboard	1
2	828333A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	828333T07	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
4	826125A1	倾斜管	TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
5	82671327	螺母(1.0-14)	NUT (1.0-14)	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	830899	张力弹簧	SPRING Tension	1
14	821176T1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1
20	818771T1	锚支架	BRACKET Anchor	1
20	8M0086406	锚支架	BRACKET Anchor	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
24	8182981	阳极块	ANODE	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	22740	卡扣	CLIP	2
28	69205	C形垫圈	C WASHER	1
28	8M0084613	C形垫圈	C-WASHER	1
29	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
30	830250T5	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
30	8M0171818	动力调整总成	POWER TRIM ASSY	1
31	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
31	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
32	830253	倾斜锁止贴纸	DECAL Tilt Lock	1
33	826709110	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
34	8353511	连杆	LINK ROD	1
35	832042	臂	ARM	1
36	832040	衬套	BUSHING	1
37	832039	倾斜杆	LEVER Tilt	1
38	19621	倾斜旋钮	TILT KNOB	1
38	8M0007469	倾斜旋钮	KNOB Tilt	1
39	835249T1	手动倾斜装置总成	MANUAL TILT ASSEMBLY	1
40	99625002	上轴	SHAFT Upper	1
41	818898	锚销	PIN Anchor	1
42	821539	三叶销	PIN Trilobe	2
