水星 Mercury 60 3 CYL BIGFOOT 9973100 THRU 0P016999 - 爆炸图零件明细

两冲程化油器 · Belgium - Cat.# 90-85207297 · 共 34 个部位 · 1565 条零件

图 1附件 Accessories

零件编号	中文名称	英文名称	数量
62351A10		CHARGING KIT Battery RECTIFIER	1
828155A3	化油器防冰套件	ANTI-ICING KIT Carburetor	1
43393A1	提手	CARRYING HANDLE	1
44369A3	电动起动机套件	STARTER MOTOR KIT Electric	1
822462A2	起动机转换套件	CONVERSION KIT Starter Motor	1
812432A1	发动机安装套件	MOUNTING KIT Engine	1
816696A1	延长套件 (2.5 英寸/64毫米)	EXTENSION KIT (2.5 Inches/64mm)	1
816696A2	延长套件 (2.5 英寸/64毫米)	EXTENSION KIT (2.5 Inches/64mm)	1
816696A6	延长套件 (2.5 英寸/64毫米)	EXTENSION KIT (2.5 Inches/64mm)	1
816696A7	延长套件 (2.5 英寸/64毫米)	EXTENSION KIT (2.5 Inches/64mm)	1
44357A2	冲洗附件	FLUSHING ATTACHMENT	1
44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
9873A35	高输出交流发电机套件	HIGH OUTPUT ALTERNATOR KIT	1
95845A5	照明调节器套件	REGULATOR KIT Lighting	1
88334A2	防腐电极套件	MERCATHODE KIT	1
8M0180081	防腐电极套件	MERCATHODE KIT	1
86300A5	防腐电极监测器	MERCATHODE MONITOR	1
822870A2	动力调整套件	POWER TRIM KIT	1
8M0054999	动力调整套件	POWER TRIM KIT	1
14645A4		TRIM SWITCH (TILLER MOUNTED)	1
812718A2	油箱套件外置机油	TANK KIT Remote Oil	1
18286A18	升降开关套件(10.00英尺)	SWITCH KIT Trim (10.00 Feet)	1
815548A4	35马力限速套件	35 HP HORSE POWER RESTRICTOR KIT	1
815548A5	35马力限速套件	35 HP HORSE POWER RESTRICTOR KIT	1
850000A2	转接套件 45号喷口	ADAPTER KIT 45 JET	1
14586A4	节温器套件 (120华氏度)	THERMOSTAT KIT (120 DEGREES F)	1
850055A2	节温器套件(55/60)	THERMOSTAT KIT (55/60)	1
816366A22	转向手柄套件	STEERING HANDLE KIT	1
816366A40	转向手柄套件	STEERING HANDLE KIT	1
816366A23	转向手柄套件	STEERING HANDLE KIT	1
17334A2	视觉警告系统(低油位/过热)	VISUAL WARNING SYSTEM (LOW OIL/OVERHEAT)	1
88825A6	电压调节器套件	REGULATOR KIT Voltage	1
807172	燃油/水分离器	FILTER Fuel/Water Separator	1
802893Q01	燃油水分分离器	FILTER Fuel/Water Separating	1

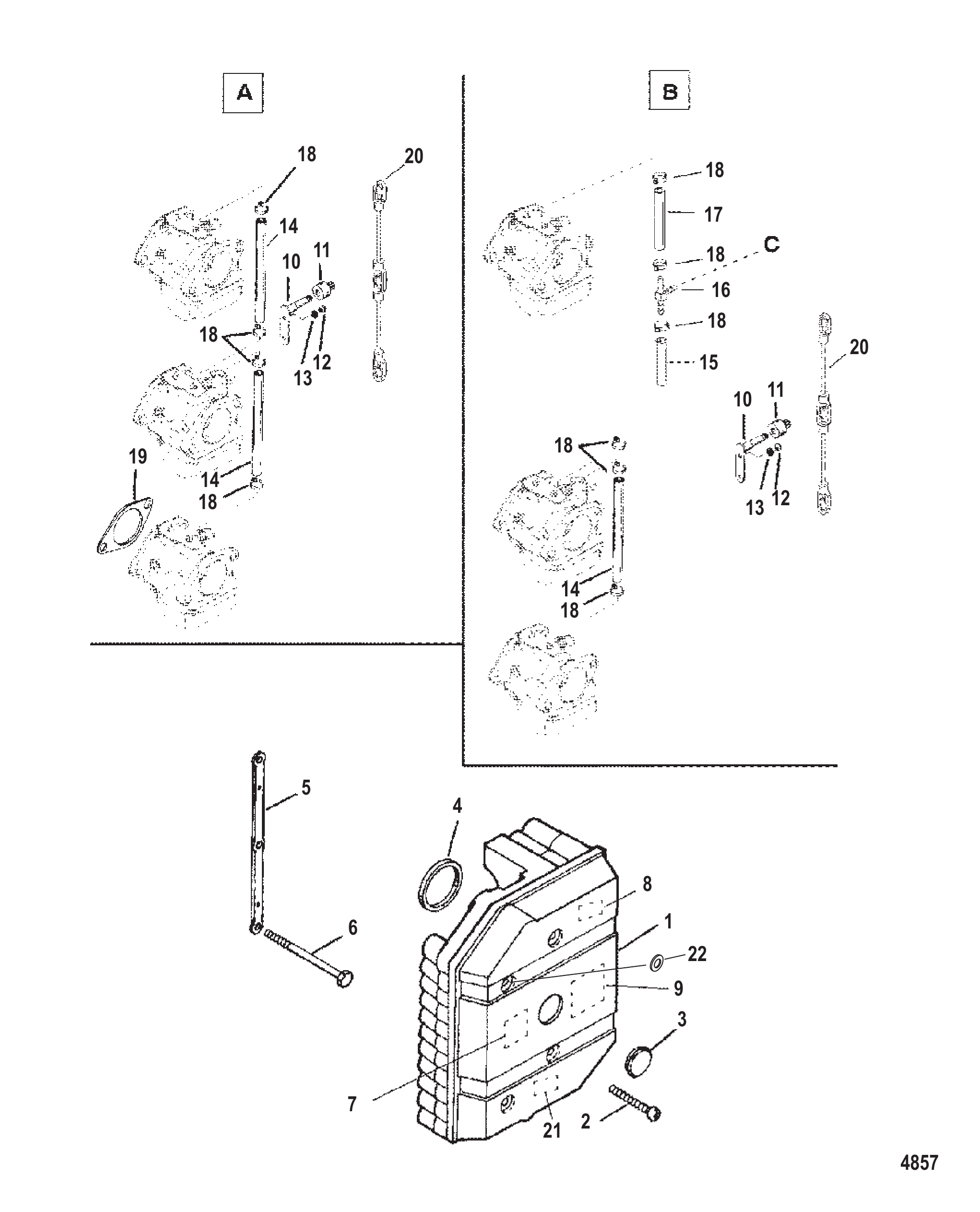

图 2衰减板 Attenuator Plate

REF	零件编号	中文名称	英文名称	数量
1	19662	消音器	ATTENUATOR Sound	1
2	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	4
3	815784	盖帽	CAP	1
4	812889	密封件	SEAL	3
5	812874	消音板	PLATE Sound Attenuator	2
6	4000363	螺丝(M8 x 100)	SCREW (M8 x 100)	6
7	NSS	警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Warning	1
8	NSS	不单独销售贴花-警示	NOT SOLD SEPARATE Decal-Caution	1
9	NSS	不单独出售贴纸-全油门正时	NOT SOLD SEPARATE Decal-Full Throttle Timing	1
10	11399A1	臂总成	ARM ASSEMBLY	1
11	67748	滚轮	ROLLER	1
12	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
13	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
13	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
14	9912878	软管 (.187) (26.00英寸散装) (裁切至4.25英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)	2
14	9912878	软管 (.187) (26.00英寸散装) (裁切至4.25英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)	1
15	9912878	软管 (.187) (26.00英寸散装) (裁切至3.00英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 3.00 Inch Length)	1
16	830285	接头三通	FITTING TEE	1
17	9912878	软管 (.187) (26.00英寸散装) (裁切至1.00英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 1.00 Inch Length)	1
18	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	8144461	法兰衬垫	GASKET Flange	3
20	8252043	油门连杆	LINK Throttle	1
20	825204T03	连接杆	LINK	1
21	NSS	空档怠速警告贴纸（不单独销售）	NOT SOLD SEPARATE Decal-Caution in Gear Idle	1
22	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1

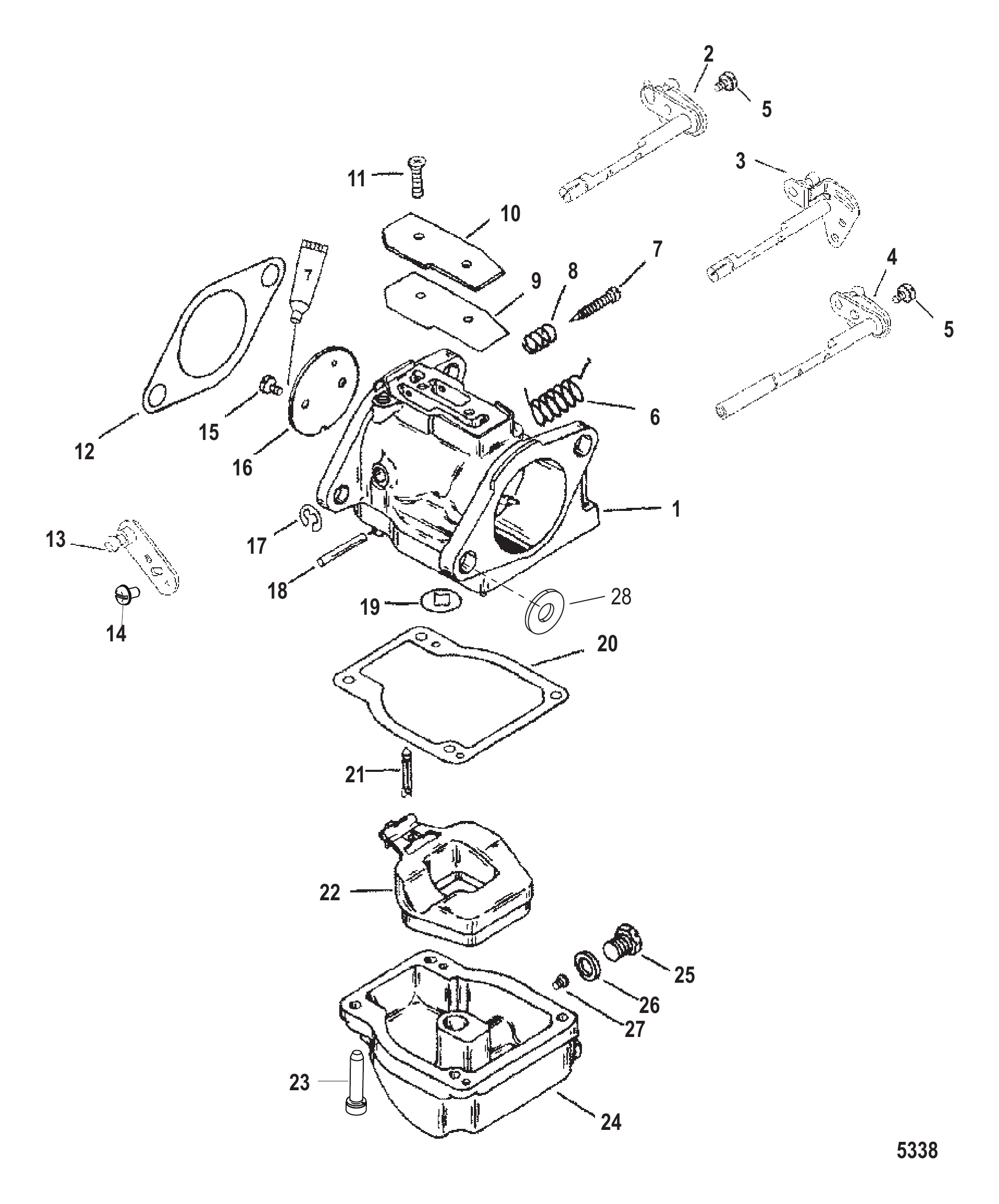

图 3化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	821854A7	化油器	CARBURETOR	1
1	821854T22	化油器 (WME 95-1)	CARBURETOR (WME 95-1)	1
1	821854A8	化油器	CARBURETOR	1
1	821854T23	化油器 (WME 95-2)	CARBURETOR (WME 95-2)	1
1	821854A9	化油器	CARBURETOR	1
1	821854T24	化油器 (WME 95-3)	CARBURETOR (WME 95-3)	1
1	821854A4	化油器	CARBURETOR	1
1	821854T19	化油器 (WME 94-1)	CARBURETOR (WME 94-1)	1
1	821854A5	化油器	CARBURETOR	1
1	821854T20	化油器 (WME 94-2)	CARBURETOR (WME 94-2)	1
1	821854A6	化油器	CARBURETOR	1
1	821854T21	化油器 (WME 94-3)	CARBURETOR (WME 94-3)	1
2	823632	油门轴	SHAFT Throttle	1
3	823633	油门轴	SHAFT Throttle	1
4	823636	油门轴	SHAFT Throttle	1
2	823632	油门轴	SHAFT Throttle	2
3	823633	油门轴	SHAFT Throttle	1
5	823634	螺钉	SCREW	2
6	NSS		NOT SOLD SEPARATE Spring-Throttle Return	3
7	NSS		NOT SOLD SEPARATE Idle Needle	3
8	NSS		NOT SOLD SEPARATE Spring-Idle Needle	3
9	NSS		NOT SOLD SEPARATE Gasket-cover Plate	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杆	LEVER Oil Pump	1
14	8086121	杆固定螺钉	SCREW Lever Retainer	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	879194025	节气门阀	VALVE-THROTTLE	3
17	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	3
18	F10064	轴	SHAFT	3
19	808738	衬垫	GASKET	3
20	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
24	811695	燃油杯	BOWL Fuel	1
24	811693	燃油杯	BOWL Fuel	2
24	811693	燃油杯	BOWL Fuel	3
25	811694	塞套件	PLUG KIT	3
26	802731	油封组(含4个油封)	SEAL (CONSISTS OF 4 SEALS)	1
27	7831	主燃油喷嘴 (.058)	JET Main Fuel (.058)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

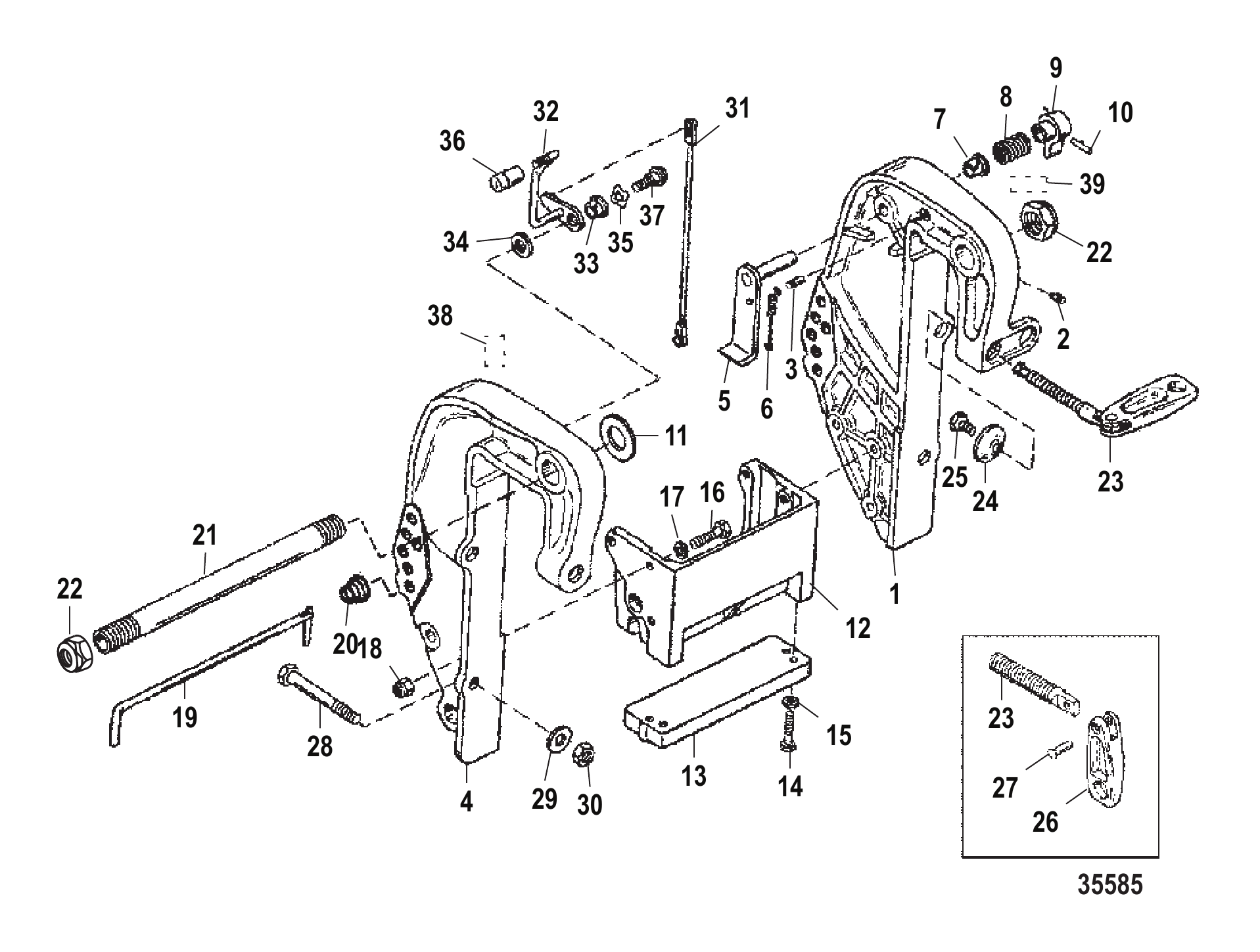

图 4夹紧支架(手动) Clamp Bracket Manual

REF	零件编号	中文名称	英文名称	数量
1	822868A1	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	822868A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822867F1	夹箍支架	CLAMP BRACKET	1
4	822867F2	夹箍支架	CLAMP BRACKET	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	821461	弹簧	SPRING	1
21	19614	倾斜管	TILT TUBE	1
21	8M0041938	倾斜管	TILT TUBE	1
22	30499	螺母(7/8-14)	NUT (7/8-14)	2
22	858869	螺母 (.875-14)	NUT (.875-14)	2
23	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
24	818884	垫圈	WASHER	2
25	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
26	NSS	不单独销售手柄	NOT SOLD SEPARATE Handle	1
27	NSS	不单独销售铆钉	NOT SOLD SEPARATE Rivet	1
28	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
29	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
29	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
30	8M0027784	螺母	NUT	4
30	82671117	螺母(.500-20)	NUT (.500-20)	4
31	1938525	连接杆	LINK	1
31	8M0084737	连接杆	LINK	1
32	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
32	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
33	812707	衬套	BUSHING	1
34	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
34	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
35	99611	波形垫圈	WAVE WASHER	1
36	19621	倾斜旋钮	TILT KNOB	1
36	8M0007469	倾斜旋钮	KNOB Tilt	1
37	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
38	NSS	非单独销售贴花-倾斜锁	NOT SOLD SEPARATE Decal-Tilt Lock	1
39	NSS	警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Warning	1

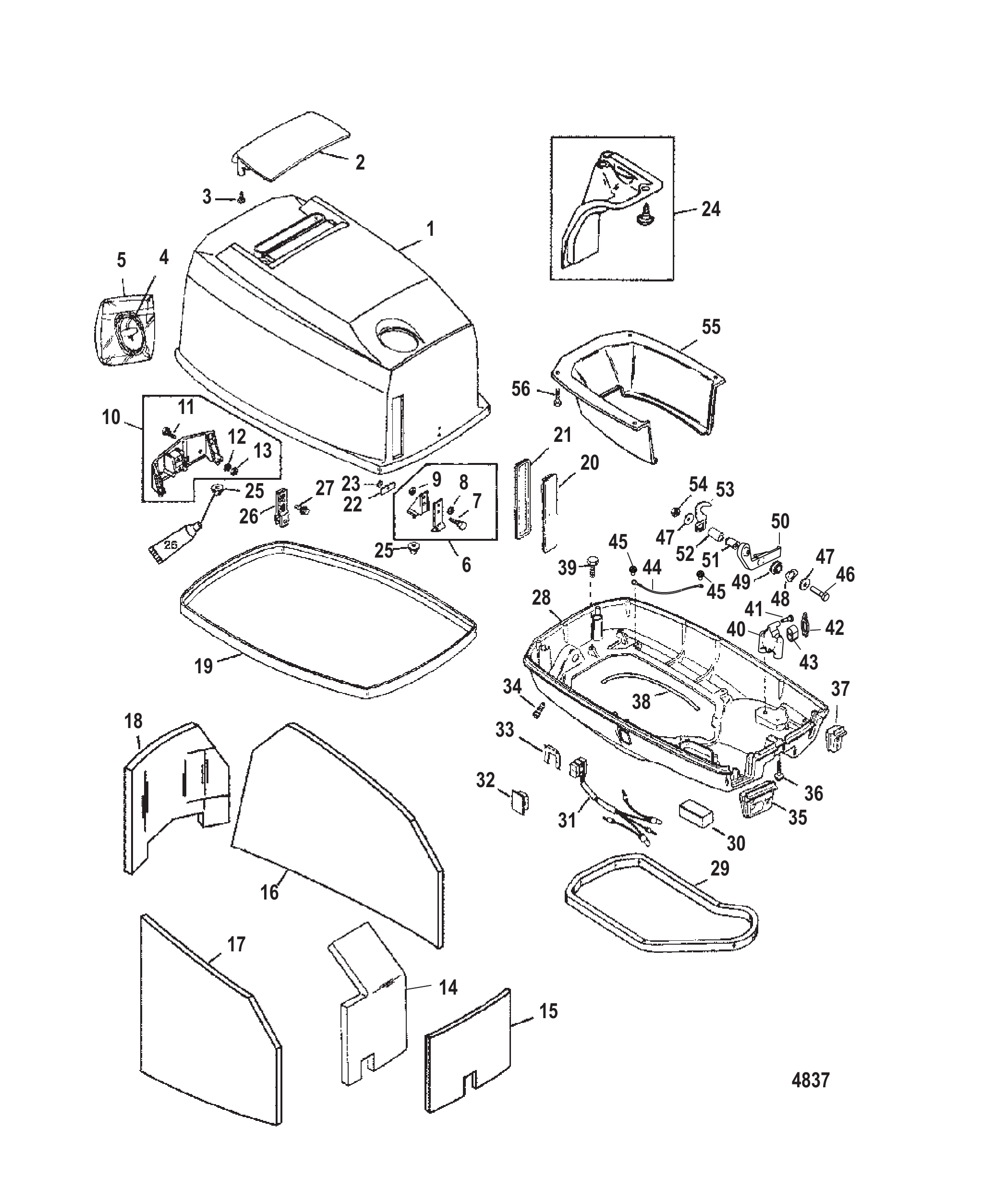

图 5外罩 Cowling

REF	零件编号	中文名称	英文名称	数量
1	813010A8	顶盖总成 (无贴花)	TOP COWL ASSEMBLY Without Decals	1
1	813010A14	顶盖总成 (无贴花)	TOP COWL ASSEMBLY Without Decals	1
1	813010T14	顶罩总成银色-电动型	TOP COWL ASSEMBLY Silver-Electric	1
1	816534A8	顶盖总成 (无贴花)	TOP COWL ASSEMBLY Without Decals	1
1	8M0107142	罩盖-顶部, 黑色	COWL-TOP, BLACK	1
1	816534A14	顶盖总成 (无贴花)	TOP COWL ASSEMBLY Without Decals	1
1	816534T14	顶罩总成银色-手动型	TOP COWL ASSEMBLY Silver-Manual	1
2	824666	进气口护罩	SHIELD Air Inlet	1
3	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
5	NSS	不单独出售信封袋	NOT SOLD SEPARATE Envelope	1
6	813548A3	支架罩盖支撑-黑色	BRACKET Cowl Support - Black	1
6	813548A6	支架罩盖支撑-银色	BRACKET Cowl Support - Silver	1
6	813548A3	支架罩盖支撑-黑色	BRACKET Cowl Support - Black	1
7	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	2
8	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
9	8237515	螺母(M4)	NUT (M4)	2
10	813549A2	后盖支撑支架	BRACKET Cowl Support Rear	1
11	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	3
12	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
13	8237515	螺母(M4)	NUT (M4)	3
14	814336A1	隔音毯套装	SOUND BLANKET KIT	1
14	814336A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
15	NSS	不单独销售前部隔音毯-手动	NOT SOLD SEPARATE Sound Blanket-Front-Manual	1
16	NSS	不单独销售右舷侧隔音毯	NOT SOLD SEPARATE Sound Blanket-Side-Starboard	1
17	NSS	不单独销售左舷侧隔音毯	NOT SOLD SEPARATE Sound Blanket-Side-Port	1
18	NSS	不单独销售隔音垫-后部	NOT SOLD SEPARATE Sound Blanket-Rear	1
19	444622	密封件	SEAL	1
19	8M0043150	罩盖密封条	SEAL-COWL	1
20	813504A1	油位表套件	GAUGE KIT Oil Level	1
21	813505	护孔环	GROMMET	1
22	113171	固定座	RETAINER	1
23	113161	螺母	NUT	1
23	65110	螺母	NUT	1
24	823593A1	导流板套件空气	DEFLECTOR KIT Air	1
25	8135462	支架	MOUNT	3
25	813546003	支架	MOUNT	3
26	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
26	893763	滚轮锁扣支架	BRACKET Roller Latch	1
27	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
28	812512A8	下机罩	BOTTOM COWL	1
28	812512A9	下罩总成	BOTTOM COWL ASSEMBLY	1
29	813607	密封件	SEAL	1
29	8M0043162	密封件	SEAL	1
30	828465	缓冲垫	BUMPER	2
30	8M0043169	缓冲垫	BUMPER	2
31	850691	开关	SWITCH	1
31	8M0235192	微调开关	SWITCH TRIM	1
32	8128301	堵头	PLUG	1
32	812830T01	堵头	PLUG	1
33	8124431	固定座	RETAINER	1
33	8M0032848	开关固定座	RETAINER Switch	1
34	813613	接头	FITTING	1
35	8136061	密封件	SEAL	1
35	813606003	密封件	SEAL	1
36	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	2
37	8136052	密封件	SEAL	1
37	813605003	密封件	SEAL	1
38	7568058	软管 (15.00英寸)	HOSE (15.00 Inches)	1
39	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
40	19812A1	支架电缆固定器	BRACKET Cable Retainer	1
40	19812T03	支架总成	BRACKET ASSEMBLY	1
41	42975	传动螺钉	DRIVE SCREW	2
42	98889	闩锁	LATCH	1
43	39519	杯套	CUP	1
44	88807A28	拉线总成	CABLE ASSEMBLY	1
45	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
45	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
46	4000335	螺钉(M6 x 50)	SCREW (M6 x 50)	1
47	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
48	37642	波形垫圈	WAVE WASHER	2
49	19428	衬套	BUSHING	1
50	813547T	罩壳锁杆	LEVER Cowl Latch	1
50	813547F1	杠杆	LEVER	1
50	813547T6	罩壳锁杆	LEVER Cowl Latch	1
50	813547F1	杠杆	LEVER	1
51	826354A1	衬套套件罩盖锁扣	BUSHING KIT Cowl Latch	1
52	NSS	不单独销售衬套	NOT SOLD SEPARATE Bushing	1
53	813604	锁扣凸轮	LATCH CAM	1
54	8268336	螺母 (M6)	NUT (M6)	1
54	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
55	812717T	配平盖	TRIM COVER	1
55	812717T1	配平盖	TRIM COVER	1
55	812717T6	配平盖	TRIM COVER	1
55	812717T	配平盖	TRIM COVER	1
56	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
56	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4

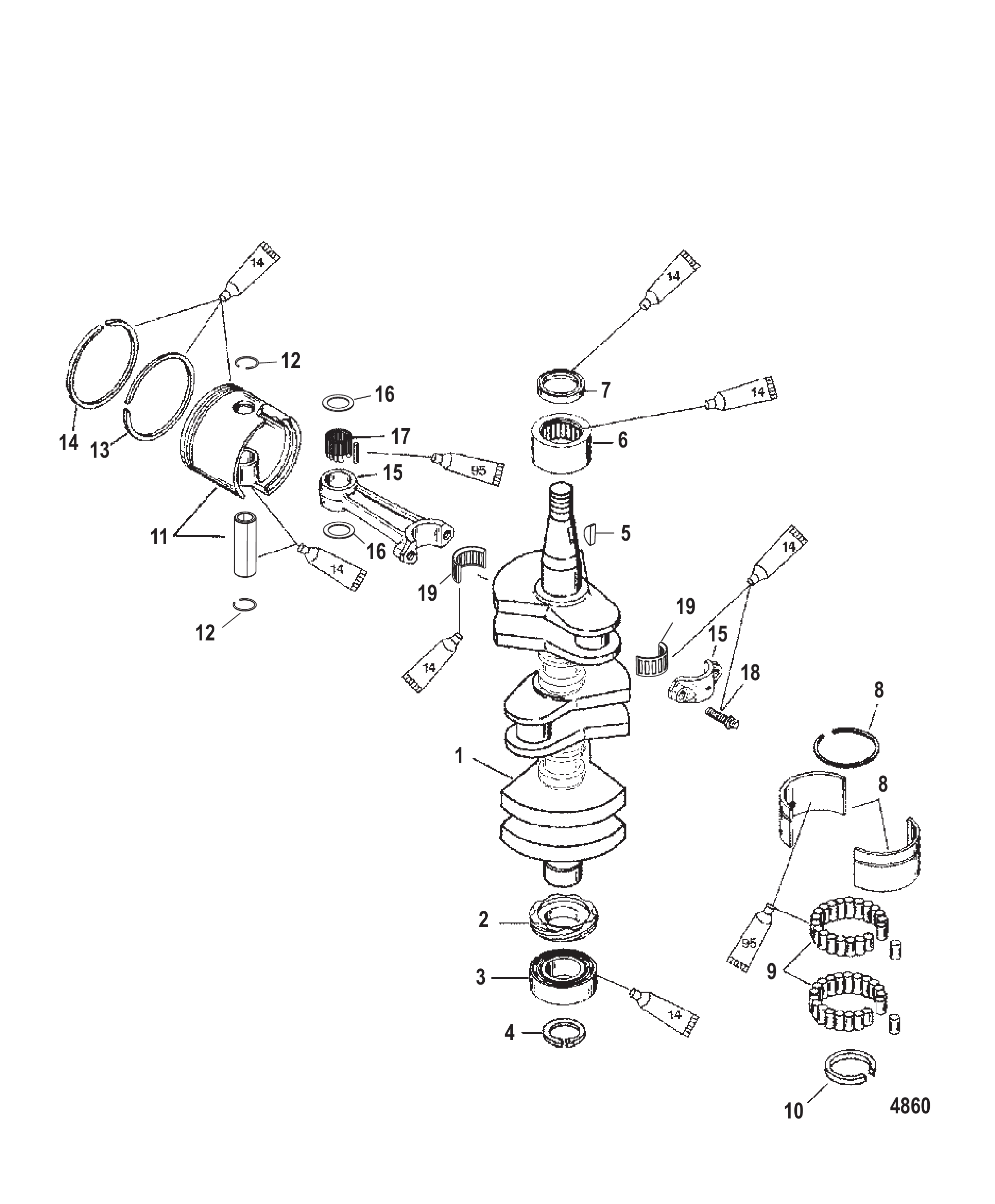

图 6曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	827954A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43019A2	齿轮总成	GEAR ASSEMBLY	1
3	63742	滚珠轴承	BEARING Ball	1
3	63742T	滚珠轴承	BEARING Ball	1
4	812877	挡圈	RING Retaining	1
5	91800	半圆键	KEY Woodruff	2
6	818889A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	8173971	油封	SEAL Oil	1
8	827955A2	轴承总成	BEARING ASSEMBLY	2
9	NSS	滚轮(不单独销售)	NOT SOLD SEPARATE Roller	56
10	NSS	密封环（不单独销售）	NOT SOLD SEPARATE Ring-Seal	2
11	850026A1	活塞总成	PISTON ASSEMBLY	3
11	850026T1	活塞总成	PISTON ASSEMBLY	3
11	850026A2	活塞总成	PISTON ASSEMBLY	3
11	850026T2	活塞	PISTON	3
12	52035	锁环	RING Lock	6
12	857196	锁紧环	LOCK RING	6
13	831255A6	活塞环组	RING SET Piston	1
13	821695A6	活塞环组	RING SET Piston	3
14	NSS	活塞环(不单独销售)	NOT SOLD SEPARATE Piston Ring	3
15	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
16	812876	垫圈	WASHER	6
16	8M0012298	止推垫片	THRUST WASHER	6
17	47270	轴承	BEARING	87
17	8M0214934	滚针轴承@200	BRG-NEEDLE @200	87
18	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
19	17514A1	轴承套件	BEARING KIT	3
19	8M0234886	轴承保持架	CAGE BEARING	3
-	852071A97	动力头总成	POWERHEAD ASSEMBLY	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1

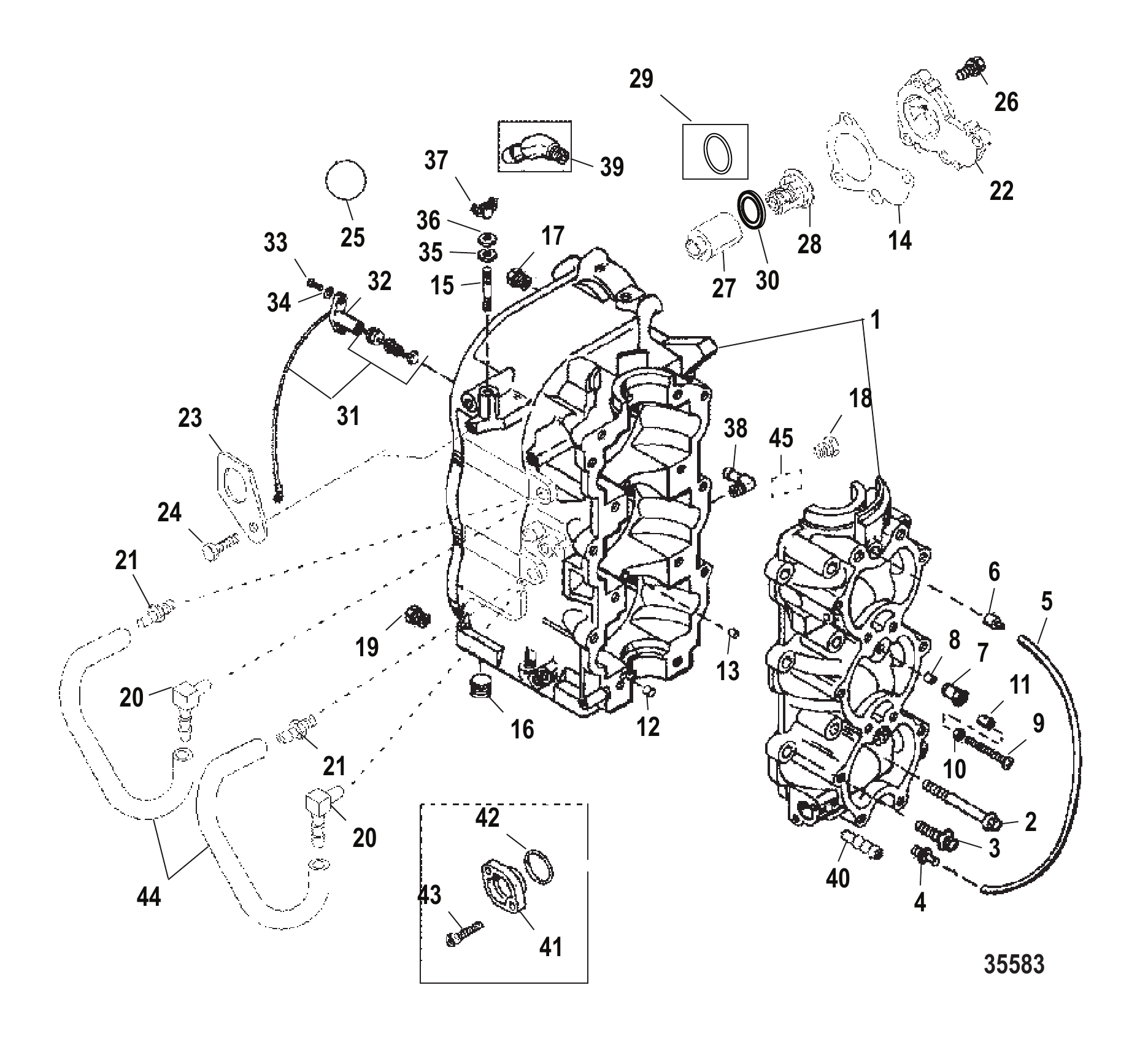

图 7气缸体 Cylinder Block

REF	零件编号	中文名称	英文名称	数量
1	827953A4	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材 (20.00英尺散装) (15英寸)	TUBING (20.00 Feet Bulk) (15 IN.)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	426232	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
7	812888A2	托架总成	CARRIER ASSEMBLY	2
8	42657A4	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	43044	定位销 - 无孔 (0.375 x 0.625)	PIN Dowel - Without Hole (.375 x .625) (LOCATING)	1
13	8128701	销(轴承座圈)	PIN (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	827284	衬垫	GASKET	1
15	8161946	螺柱	STUD	2
15	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
16	185981	管塞(.375-18)	PLUG Pipe (.375-18)	1
17	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
18	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
19	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
20	19725	弯头	ELBOW	2
21	426585	止回阀	CHECK VALVE	2
22	827251A1	盖板	COVER	1
23	850897	吊环	LIFTING EYE	1
24	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	1
25	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
26	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	4
27	827365	托架	CARRIER	1
27	889735	托架	CARRIER	1
28	850055	节温器 43°C (110°F)	THERMOSTAT 43°C (110°F)	1
28	850055001	节温器 43°C (110°F)	THERMOSTAT 43°C (110°F)	1
29	62701	O型圈	O-RING	1
30	854639	密封件	SEAL	1
30	854639001	密封件	SEAL	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	996641	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
39	78279	弯头	ELBOW	1
39	8M0207781	弯头	ELBOW	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
44	99130122	管材 (20.00英尺散装) (5-1/2英寸)	TUBING (20.00 Feet Bulk) (5-1/2 IN.)	2
44	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
45	825064	贴花-挂档启动警告(电动-无手柄)	DECAL Caution Start In Gear, (ELECTRIC-NON-HANDLE)	1
45	881865	警示贴纸-挂档启动	DECAL Caution-Start in Gear	1
-	852071A97	动力头总成	POWERHEAD ASSEMBLY	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812867A97	衬垫套件	GASKET SET	1

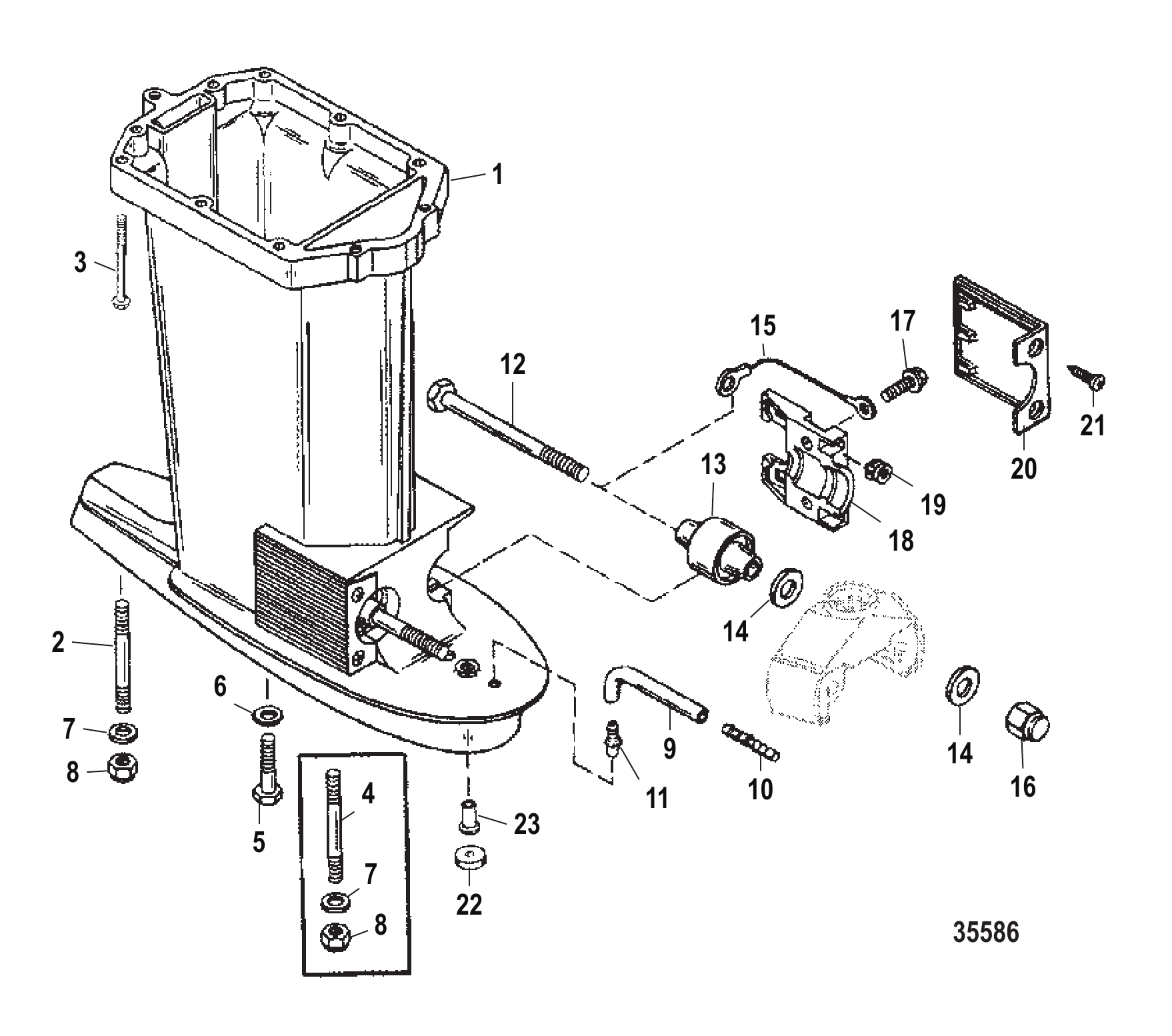

图 8驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	816528A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	816528A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	816528T2	驱动轴壳体-灰色	HSG-D SHAFT-GRAY	1
1	9864A6	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9864T6	驱动轴壳体	HOUSING Driveshaft	1
1	9864A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9864T7	ORD 3510-9864T6	ORD 3510-9864T 6	1
1	816528A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	816528A4	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903507	双头螺栓(M10×60)	STUD (M10 x 60)	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	8168664	双头螺柱(M10 x 166)	STUD (M10 x 166)	1
2	8M0034445	STUD-M10X1.5-160	STUD-M10X1.5-160	1
3	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
4	8168663	双头螺柱(M10 x 124)	STUD (M10 x 124)	4
4	8M0034446	STUD-M10X15-124	STUD-M10 X 15-124	4
4	8168661	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5
4	8M0034425	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5
5	4000380	螺丝(M10 x 45)	SCREW (M10 x 45)	4
6	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
6	8M0214963	垫圈	WASHER	4
7	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1
7	8M0214963	垫圈	WASHER	1
8	13914	螺母(M10)	NUT (M10)	1
8	40140	螺母(M10)	NUT (M10)	1
6	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
6	8M0214963	垫圈	WASHER	4
7	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
7	8M0214963	垫圈	WASHER	5
8	13914	螺母(M10)	NUT (M10)	5
8	40140	螺母(M10)	NUT (M10)	5
9	85822A7	速度计传感器	SPEEDOMETER PICK UP	1
10	85822	直通接头	CONNECTOR Straight	1
10	85822T	直通接头	CONNECTOR Straight	1
11	13035	接头	FITTING	1
11	8M0181450	接头	FITTING	1
12	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
12	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
13	42930A1	下支架总成	MOUNT ASSEMBLY Lower	2
14	20959	垫圈	WASHER	4
15	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
16	43528	螺母(M12)	NUT (M12)	2
16	8M0204662	螺母	NUT	2
17	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	4
18	93192	卡箍	CLAMP	2
18	8M0036730	卡箍	CLAMP	2
19	35521	螺母	NUT	4
20	67077T	黑色盖	COVER Black	2
20	8M4500752	盖板	COVER	2
20	67077F1	灰色盖板	COVER Gray	2
20	67077T	黑色盖	COVER Black	2
21	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
22	813745	隔套	SPACER	1
22	8137451	隔套	SPACER	1
23	43585	联轴器	COUPLING	1

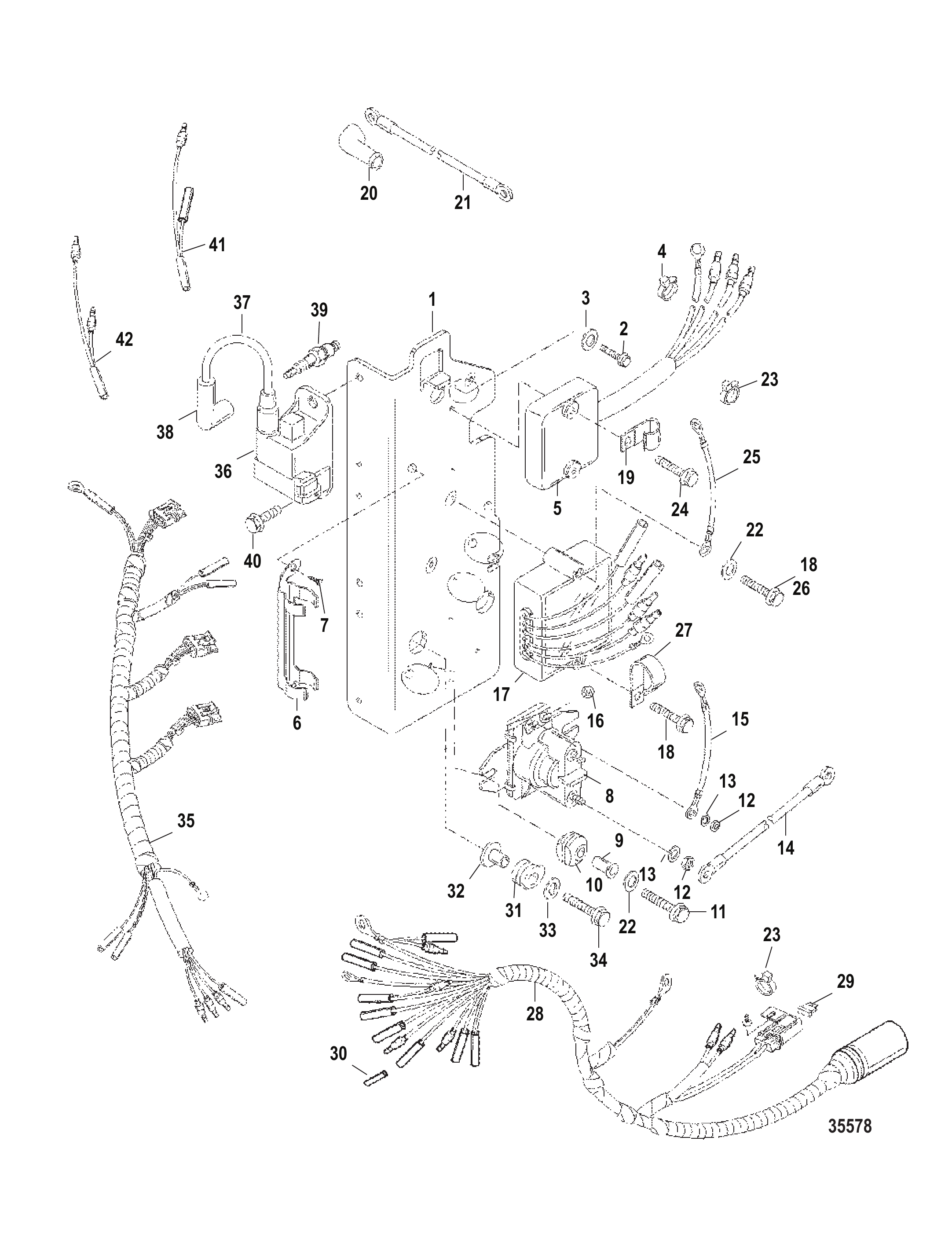

图 9电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	8302351	电气板	PLATE Electrical	1
2	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	1
3	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
4	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
5	821889A49	转速限制器	REV LIMITER	1
5	821889A50	转速限制器	REV LIMITER	1
6	8266241	卡箍	CLAMP	1
7	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	3
8	850187A1	电磁阀总成	SOLENOID ASSEMBLY	1
8	8M0185146	电磁阀总成	SOLENOID ASSEMBLY	1
9	818968	衬套	BUSHING	2
9	8M0214955	衬套	BUSHING	2
10	818967	护孔环	GROMMET	2
10	8M0207785	护孔环	GROMMET	2
11	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
12	64015	螺母 (.250-20)	NUT (.250-20)	2
13	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
14	88807A33	拉线总成	CABLE ASSEMBLY	1
15	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
16	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
17	854515	电压调节器	REGULATOR Voltage	1
17	8M0084173	电压调节器	VOLTAGE REGULATOR	1
18	82129135	螺钉(M6x35)	SCREW (M6 x 35)	2
19	55098	J型卡扣	J CLIP	1
19	8M0024808	J型夹	J-CLIP	1
20	830233	红色绝缘护套	BOOT Insulator - Red	1
21	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
22	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
23	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
25	88807A31	拉线总成	CABLE ASSEMBLY	1
26	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
27	54457	J型卡扣(手动需2个)	J CLIP (QTY. OF 2 REQUIRED ON MANUAL)	3
28	850220A2	发动机线束总成	HARNESS ASSEMBLY Engine	1
29	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
30	13541	公插头	PLUG Male	1
31	822002	护孔环	GROMMET	3
32	822003	衬套	BUSHING	3
33	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
33	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	3
34	40011129	不锈钢螺钉(M6x25)	SCREW (M6 x 25) Stainless Steel	3
35	850221A2	点火线束总成	HARNESS ASSEMBLY Ignition	1
36	827509A7	CDM总成	CDM ASSEMBLY	3
36	827509T7	CDM模块总成	CDM MODULE ASSEMBLY	3
37	821945A61	高压电缆总成	CABLE ASSEMBLY Hi Tension	3
38	63709A1	护套/端子套件	BOOT/TERMINAL KIT	3
39	8167372	火花塞(NGK# BP8H-N-10)	SPARK PLUG (NGK# BP8H-N-10)	3
39	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	3
39	8168372	火花塞(NGK#BPZ-8H-N-10)	SPARK PLUG (NGK#BPZ-8H-N-10)	3
39	938	SP #QL78YC @4	SP #QL78YC @4	3
39	14103568	火花塞(NGK#BUZ8H)	SPARK PLUG (NGK#BUZ8H)	3
39	896329885	SP #L6VC @4	SP #L6VC @4	3
39	12343	火花塞(NGK#BP8HS-10)	SPARK PLUG (NGK#BP8HS-10)	3
39	8M0114745	SP BP8HS-10 @4	SP BP8HS-10 @4	3
40	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	6
41	850052A1	电源线束总成	HARNESS ASSEMBLY Power	1
42	11149A31	线束总成	HARNESS ASSEMBLY	1
42	11149T31	线束总成	HARNESS ASSY	1

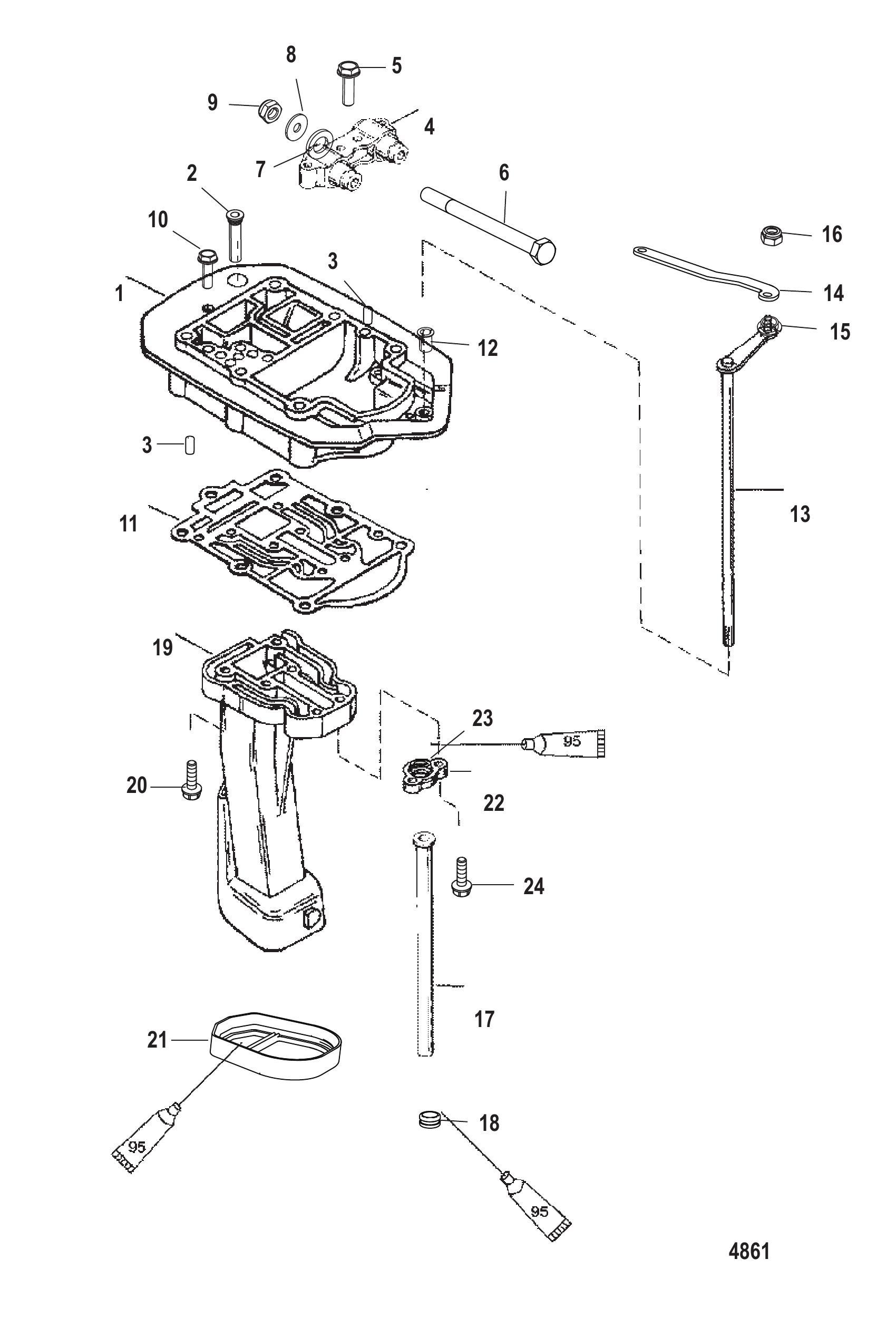

图 10排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	19653A3	排气板总成	PLATE ASSEMBLY Exhaust	1
2	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	1
3	23784	定位销	PIN Dowel	4
4	812893	上部支架	MOUNT Upper	1
4	8M4501491	上部安装总成	MOUNT UPPER ASM	1
5	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
6	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
6	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
7	934161	氯丁橡胶垫圈	WASHER Neoprene	2
7	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
8	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
9	90099	螺母(M12)	NUT (M12)	2
9	896963	螺母(M12)	NUT (M12)	2
10	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1
11	812866	衬垫	GASKET	1
11	8M0000820	衬垫	GASKET	1
12	48237	衬套	BUSHING	1
13	815639A8	换档轴	SHIFT SHAFT	1
13	815639A10	换档轴	SHIFT SHAFT	1
13	812891A6	换档轴	SHIFT SHAFT	1
13	812891A7	换档轴	SHIFT SHAFT	1
13	815639A7	换档轴	SHIFT SHAFT	1
13	815639A9	换档轴	SHIFT SHAFT	1
14	812872A1	换挡连杆	SHIFT LINK	1
14	812872A2	换挡连杆	SHIFT LINK	1
15	48475	衬套	BUSHING	1
16	8268336	螺母 (M6)	NUT (M6)	1
16	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
17	430144	水管	TUBE Water	1
17	8M0042795	短型水管	TUBE-WATER-SHORT	1
17	430143	水管	TUBE Water	1
17	8M0042794	大型水管	TUBE-WATER-LG	1
18	93221	护孔环	GROMMET	1
18	93221002	护孔环	GROMMET	1
19	196551	排气管	TUBE Exhaust	1
19	8M0045214	排气管	TUBE-EXHAUST	1
20	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
21	812886	密封件	SEAL	1
21	812886001	密封件	SEAL	1
22	99019	卡箍	CLAMP	1
23	42941	水管密封件(上部)	SEAL Water Tube (UPPER)	1
23	42941001	水管密封件	SEAL Water Tube	1
24	40011155	不锈钢螺钉(M8x55)	SCREW (M8 x 55) Stainless Steel	2
-	812867A97	衬垫套件	GASKET SET	1

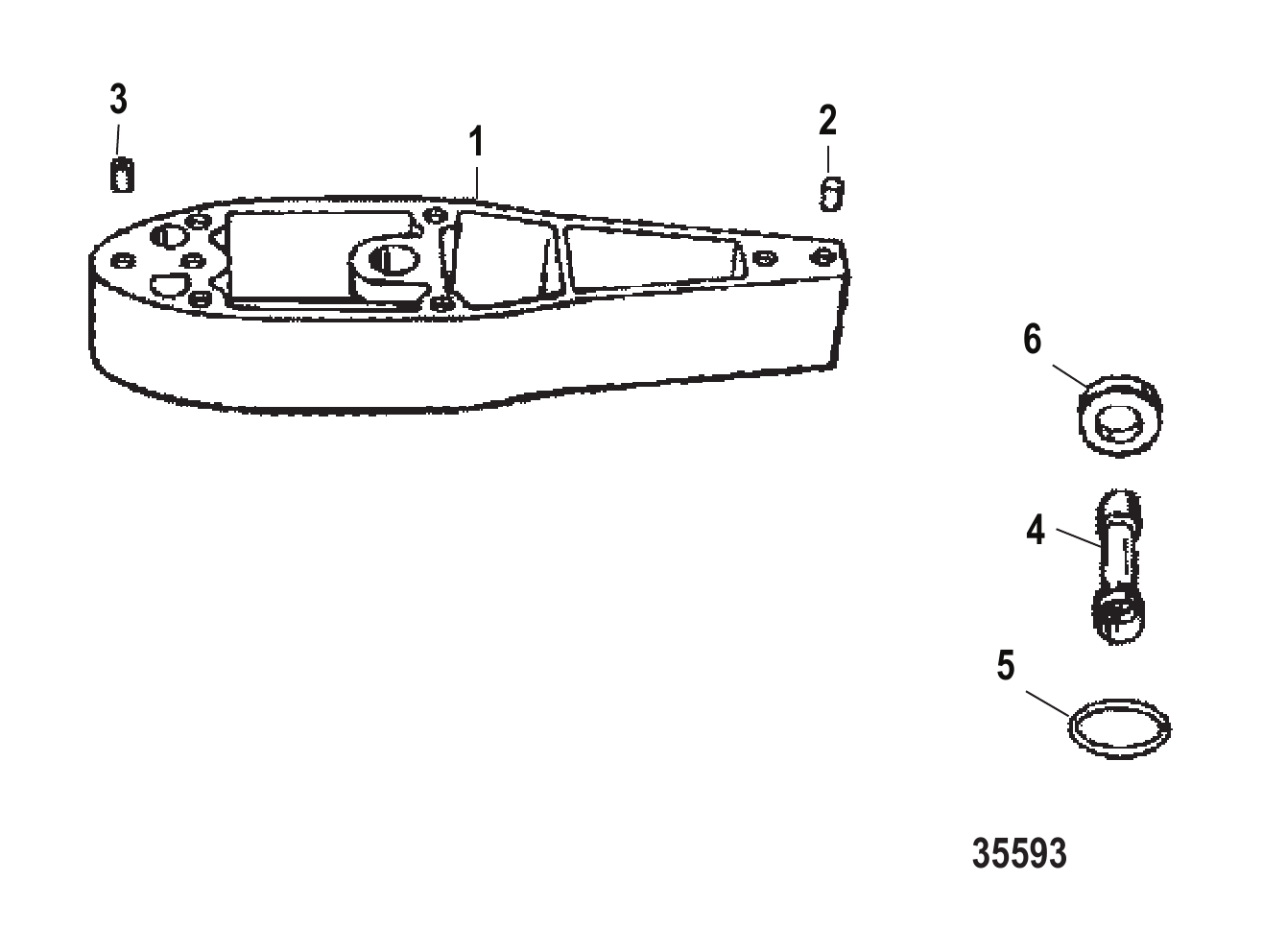

图 11延伸组件 Extension Components

REF	零件编号	中文名称	英文名称	数量
1	816696A3	隔套	SPACER	1
1	816696A4	隔套	SPACER	1
1	816696F5	隔套	SPACER	1
1	816696T5	隔套	SPACER	1
1	816696F6	隔套	SPACER	1
1	816696T6	ORD 816696T5	ORD 816696T 5	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
3	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
3	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
4	817401A1	水管总成	TUBE ASSEMBLY Water	1
5	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
5	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
6	821093	密封件	SEAL	1

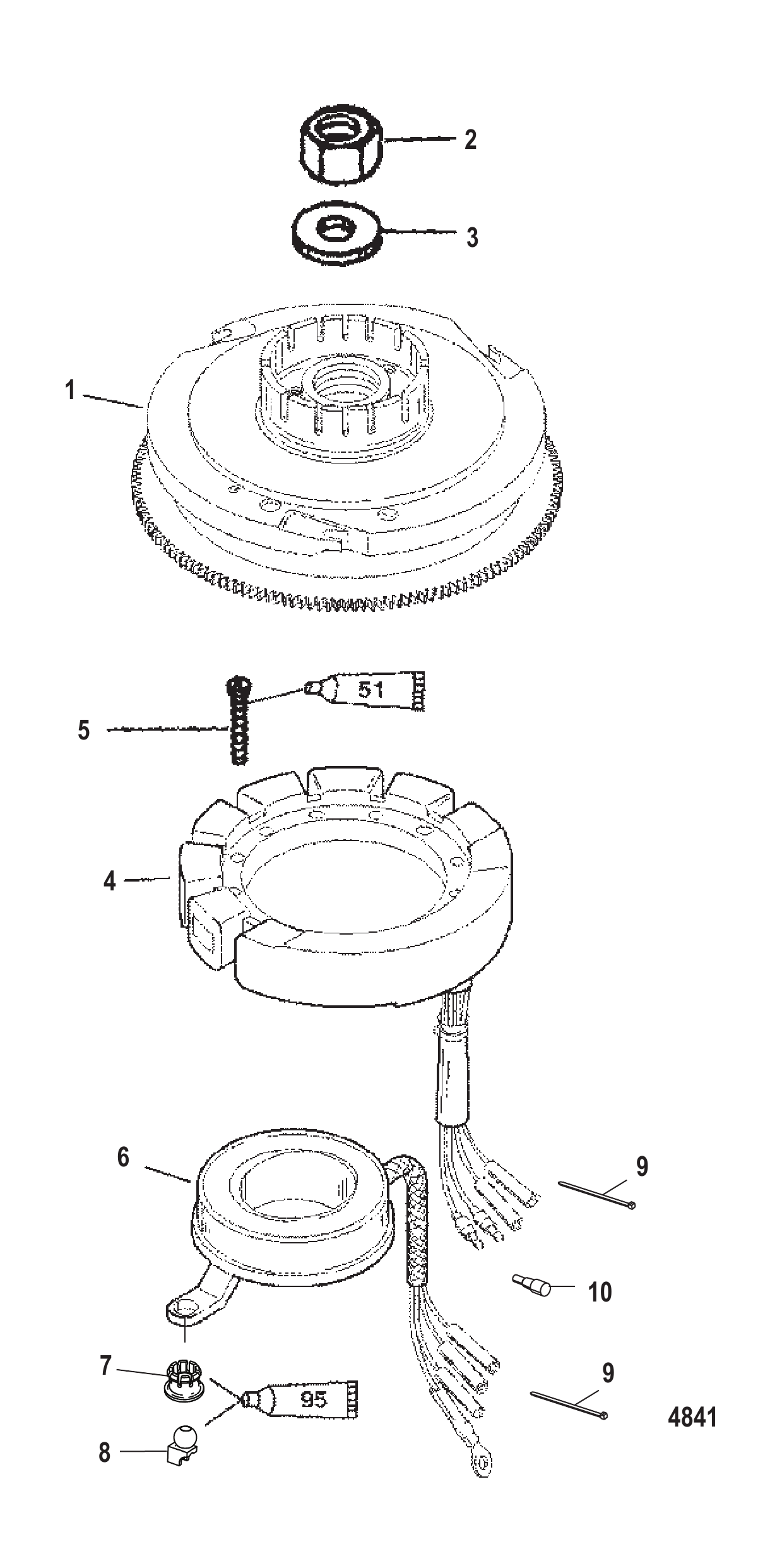

图 12飞轮和定子(手动) Flwheel and Stator Manual

REF	零件编号	中文名称	英文名称	数量
1	9008A80	飞轮	FLYWHEEL	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	832074A5	定子	STATOR	1
4	832074A11	定子总成	STATOR ASSEMBLY	1
5	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
5	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
6	854512T	触发器	TRIGGER	1
7	93421	旋转球头	SWIVEL BALL	1
8	93254	旋转底座	SWIVEL BASE	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	13541	公插头	PLUG Male	2

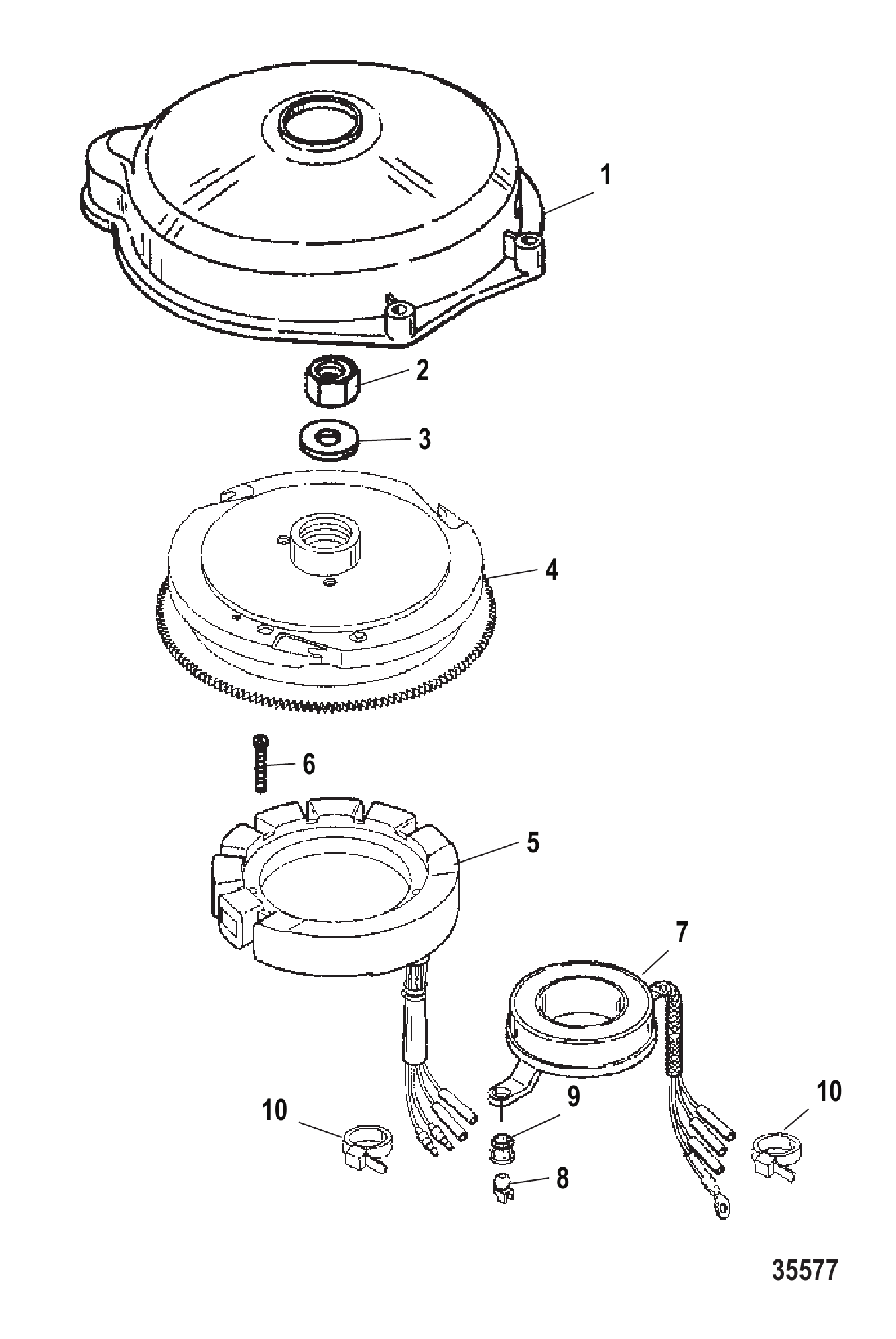

图 13飞轮与定子(电动) Flywheel and Stator Electric

REF	零件编号	中文名称	英文名称	数量
1	812777T1	盖总成	COVER ASSEMBLY	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	9008A44	飞轮	FLYWHEEL	1
4	859234T24	飞轮	FLYWHEEL	1
5	832075A4	点火定子套件	IGNITION STATOR KIT	1
5	832075A21	定子总成	STATOR ASSEMBLY	1
6	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
6	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
7	854512T	触发器	TRIGGER	1
8	93421	旋转球头	SWIVEL BALL	1
9	93254	旋转底座	SWIVEL BASE	1
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

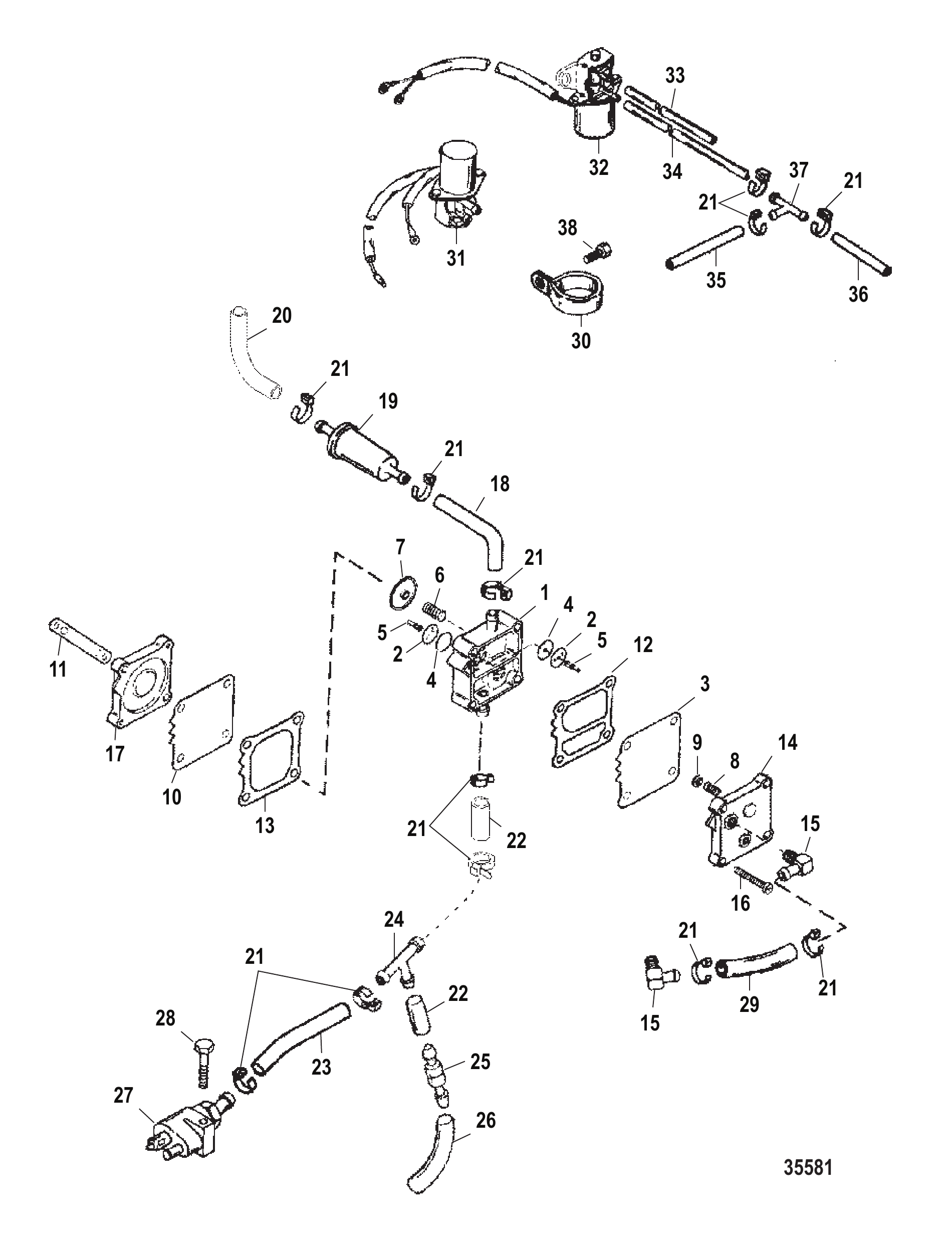

图 14电动燃油泵 Fuel Pump Electric

REF	零件编号	中文名称	英文名称	数量
-	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	42990A10	膜片组件	DIAPHAGM KIT	2
2	857005A1	膜片组件	DIAPHRAGM KIT	2
3	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
4	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
5	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
6	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
9	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
10	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
13	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
16	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
16	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
17	144303	底座	BASE	1
18	831949	软管	HOSE	1
19	8162961	燃油滤清器	FILTER Fuel	1
19	816296Q2	燃油滤清器	FILTER Fuel	1
20	830761	燃油管	LINE Fuel	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	83075780	管材(28.00英寸散装)(1-1/4英寸)	TUBING (28.00 Inches Bulk) (1-1/4 IN.)	2
22	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
23	83075780	管材(28英寸散装)(14-1/4英寸)	TUBING (28.00 Inches Bulk) (14-1/4 IN.)	1
23	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
24	818993	三通接头	CONNECTOR Tee	1
25	8189941	止回阀	CHECK VALVE	1
26	82381335	管材(15.00英寸散装)(1-1/2英寸)	TUBING (15.00 Inches Bulk) (1-1/2 IN.)	1
27	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
27	816856T01	燃油接头	CONNECTOR-FUEL	1
28	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
29	9912878	软管 (0.187) (26.00英寸散装) (4-1/4英寸)	HOSE (.187) (26.00 Inches Bulk) (4-1/4 IN.)	1
30	633001	卡箍	CLAMP	1
30	633003	卡箍	CLAMP	1
31	428593	电磁阀	SOLENOID VALVE	1
31	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
32	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
33	9912688	管材(36.00英寸散装)(9-1/2英寸)	TUBING (36.00 Inches Bulk) (9-1/2 IN.)	1
33	9912688	管材(36.00英寸散装)(8英寸)	TUBING (36.00 Inches Bulk) (8 IN.)	1
34	9912688	管材(36.00英寸散装)(3-1/4英寸)	TUBING (36.00 Inches Bulk) (3-1/4 IN.)	1
34	9912688	管材(36.00英寸散装)(4英寸)	TUBING (36.00 Inches Bulk) (4 IN.)	1
35	99130122	管材（20英尺卷装）（16英寸）	TUBING (20.00 Feet Bulk) (16 IN.)	1
35	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
35	99130122	管材(20.00英尺散装)(14英寸)	TUBING (20.00 Feet Bulk) (14 IN.)	1
35	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
36	9912688	管材(36.00英寸散装)(2英寸)	TUBING (36.00 Inches Bulk) (2 IN.)	1
37	59169	接头	FITTING	1
37	59169003	三通接头	FITTING Tee	1
38	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
-	812867A97	衬垫套件	GASKET SET	1
-	852071A97	动力头总成	POWERHEAD ASSEMBLY	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1

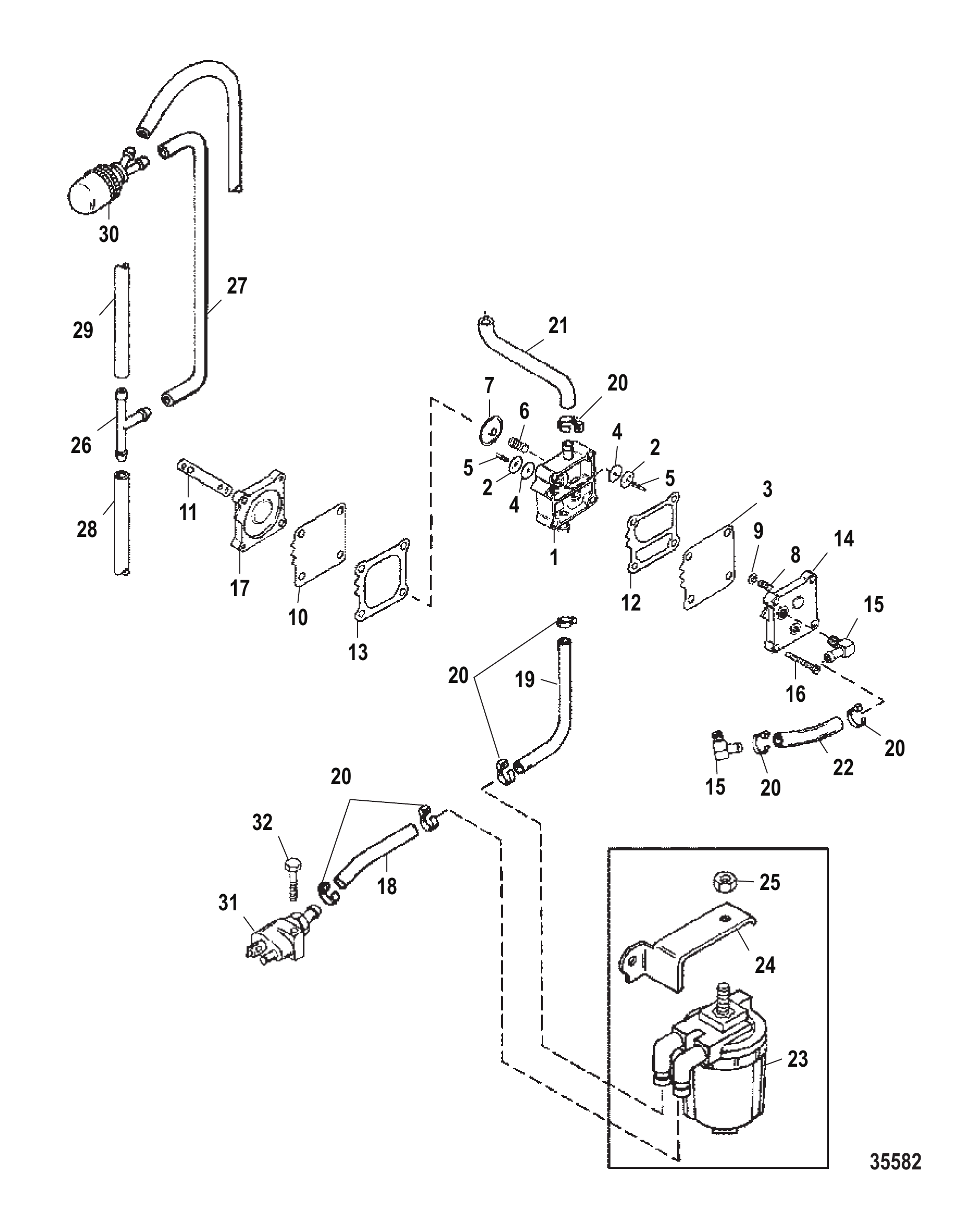

图 15手动燃油泵 Fuel Pump Manual

REF	零件编号	中文名称	英文名称	数量
-	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	42990A10	膜片组件	DIAPHAGM KIT	2
2	857005A1	膜片组件	DIAPHRAGM KIT	2
3	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
4	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
5	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
6	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
9	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
10	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
13	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
16	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
16	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
17	144303	底座	BASE	1
18	83075780	管材(28英寸散装)(10英寸)	TUBING (28.00 Inches Bulk) (10 IN.)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83075780	管材(28英寸散装)(14-1/4英寸)	TUBING (28.00 Inches Bulk) (14-1/4 IN.)	1
19	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	830768	软管	HOSE	1
22	9912878	软管 (0.187) (26.00英寸散装) (4-1/4英寸)	HOSE (.187) (26.00 Inches Bulk) (4-1/4 IN.)	1
23	87946A14	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
23	891642T03	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
24	8170281	支架	BRACKET	1
25	401196	螺母 (M6)	NUT (M6)	1
26	59169	接头	FITTING	1
26	59169003	三通接头	FITTING Tee	1
27	99130122	管材(20英尺散装)(9-1/2英寸)	TUBING (20.00 Feet Bulk) (9-1/2 IN.)	2
27	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
28	99130122	管材 (20.00英尺散装) (5-1/2英寸)	TUBING (20.00 Feet Bulk) (5-1/2 IN.)	1
28	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
29	99130122	管材(20英尺整卷)(1.5英寸)	TUBING (20.00 Feet Bulk) (1-1/2 IN.)	1
29	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
30	8168773	注油球	PRIMER BULB	1
30	858763	注油球	PRIMER BULB	1
31	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
31	816856T01	燃油接头	CONNECTOR-FUEL	1
32	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
-	812867A97	衬垫套件	GASKET SET	1
-	852071A97	动力头总成	POWERHEAD ASSEMBLY	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1

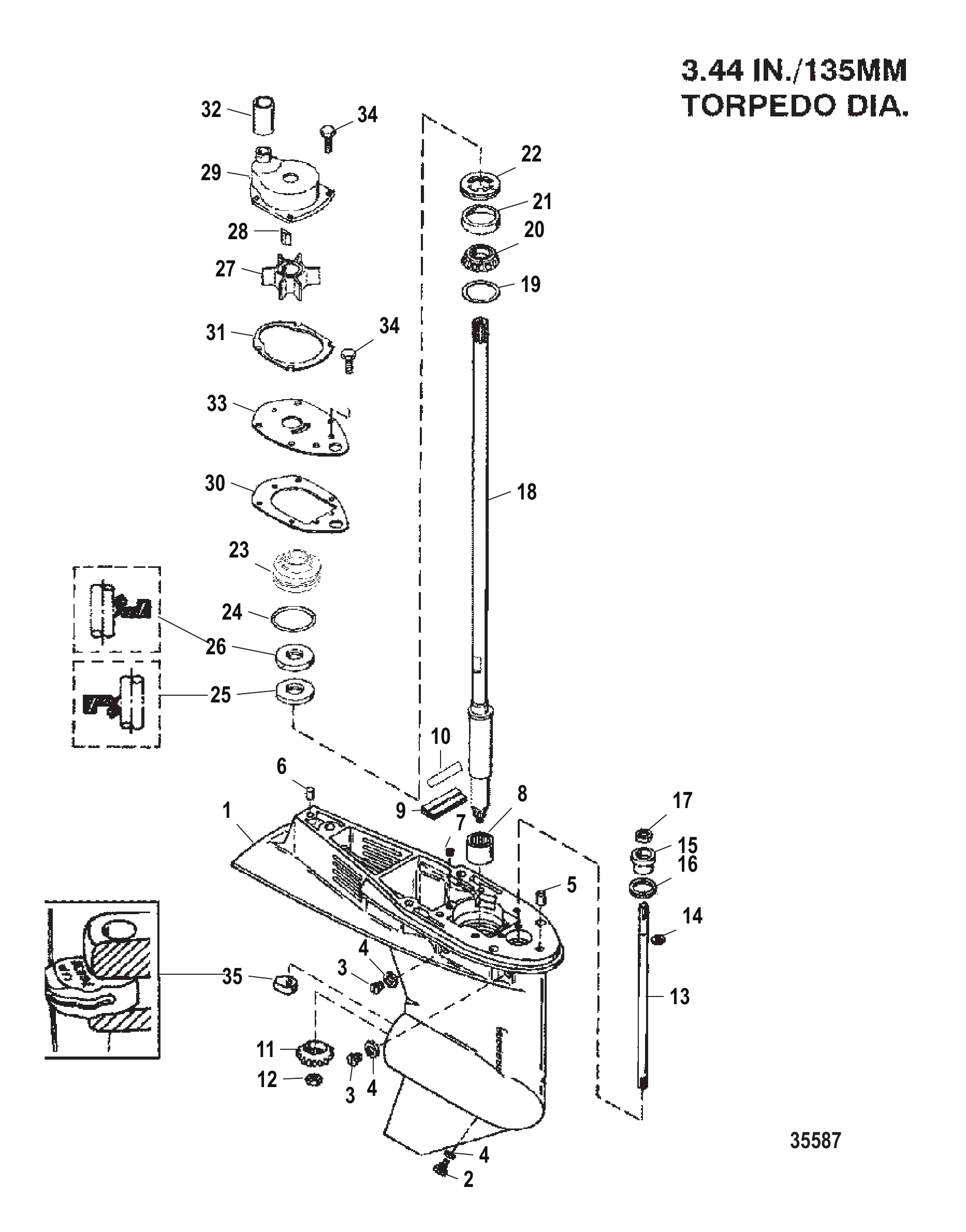

图 16齿轮箱驱动轴-1.64:1传动比 Gear Housing Driveshaft - 1.64:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	9760A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
2	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
2	8M0058389	放油螺钉套件	SCREW KIT Drain	1
3	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
3	79953Q04	放油螺钉套件	SCREW KIT Drain	2
4	19183	纤维垫圈	WASHER Fiber	3
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
5	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
5	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
7	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
8	812768	滚柱轴承	BEARING Roller	1
9	818226A1	密封/板套件	SEAL/PLATE KIT	1
10	NSS	不单独销售填充板	NOT SOLD SEPARATE Filler Plate	1
11	813694	小齿轮(14齿)	GEAR Pinion (14 TEETH)	1
11	813694T	小齿轮	GEAR Pinion	1
12	55910	螺母(.437-20)	NUT (.437-20)	1
13	812732A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
13	815420	换档轴	SHIFT SHAFT	1
14	29641	E型卡环	E RING	1
15	813696A2	衬套总成	BUSHING ASSEMBLY	1
16	45258	O型圈 (.987 x .103)	O-RING (.987 x .103)	1
17	8164641	油封	SEAL Oil	1
17	8M0246145	油封	OIL SEAL	1
18	815422	驱动轴	DRIVESHAFT	1
18	812731	驱动轴	DRIVESHAFT	1
18	815421	驱动轴	DRIVESHAFT	1
18	812731	驱动轴	DRIVESHAFT	1
19	812770A1	垫片组	SHIM SET	AR
19	8M0063262	垫片组	SHIM SET	AR
20	77420A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
20	8M0166756	轴承总成	BEARING ASSEMBLY	1
21	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
22	8128201	螺母	NUT	1
23	812966A9	水泵底座总成	BASE ASSEMBLY Water Pump	1
23	8M0245488	水泵底座	BASE WATER PUMP	1
24	30224	O型圈 (1.859 x .139)	O-RING (1.859 x .139)	1
24	8M0204651	O型圈	O-RING	1
25	814669	油封	SEAL Oil	1
25	8M0245489	油封	SEAL OIL	1
26	814670	油封	SEAL Oil	1
27	19453	叶轮	IMPELLER	1
27	19453T	叶轮	IMPELLER	1
28	19699	键	KEY	1
28	8M0032831	叶轮键	KEY Impeller	1
29	14334A2	水泵总成	PUMP ASSEMBLY Water	1
29	14334A3	水泵总成	PUMP ASSEMBLY Water	1
30	19701	衬垫	GASKET	1
30	8M0224241	衬垫	GASKET	1
30	197011	衬垫	GASKET	1
30	8M0224241	衬垫	GASKET	1
31	822189	水泵上衬垫	GASKET Upper Water Pump	1
32	43023	密封件	SEAL	1
32	8M0204658	密封件	SEAL	1
33	19700A1	面板	FACE PLATE	1
33	19700A2	面板	FACE PLATE	1
34	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
35	76039	换挡凸轮控制	CAM Shift Control	1
35	760394	换挡凸轮控制	CAM Shift Control	1
-	812867A97	衬垫套件	GASKET SET	1
-	812966A10	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

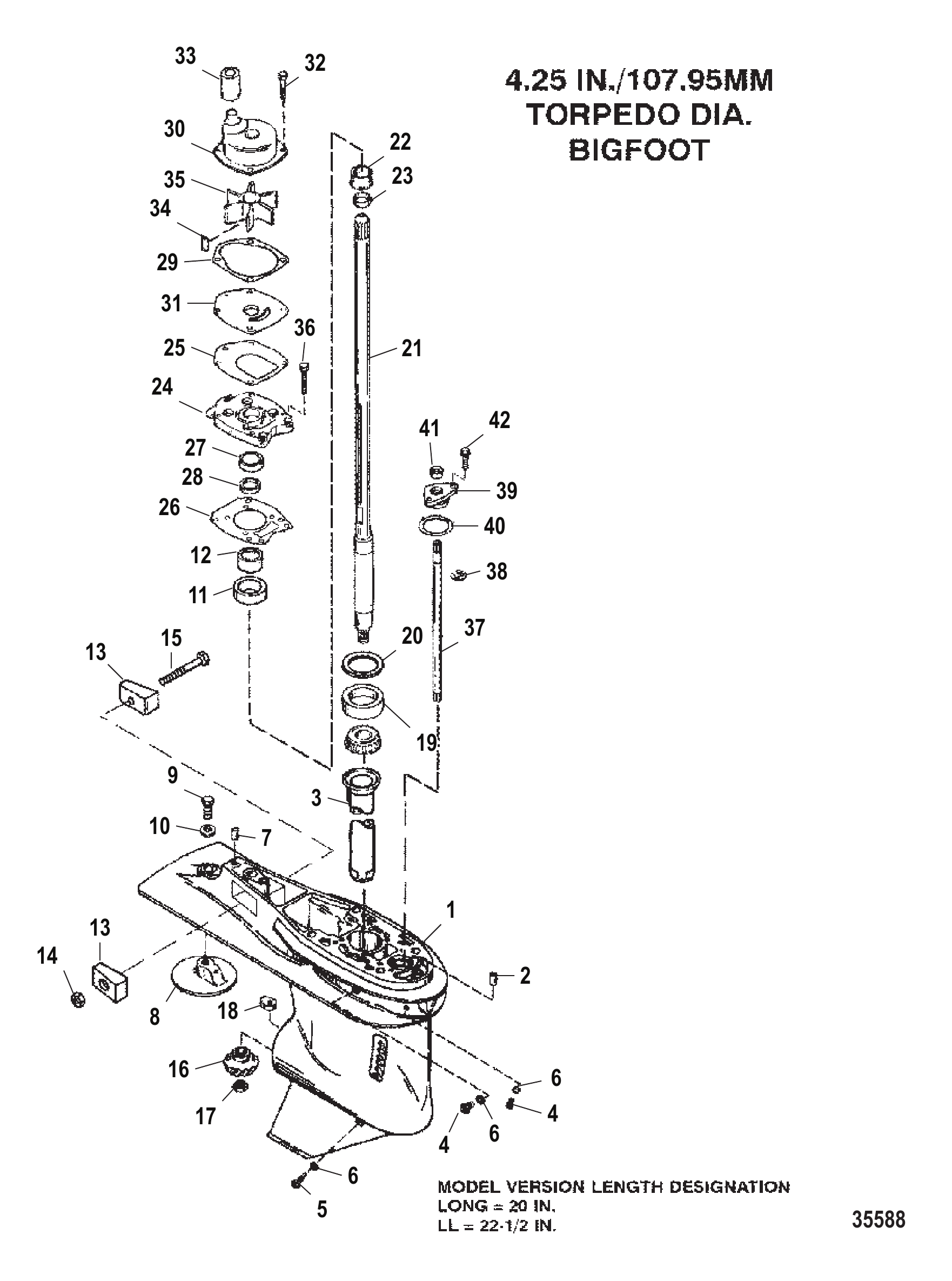

图 17齿轮箱驱动轴-2.31:1传动比 Gear Housing Driveshaft - 2.31:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	9011G16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G17	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011G15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011G8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G60	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
4	79953Q04	放油螺钉套件	SCREW KIT Drain	2
5	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
5	8M0058389	放油螺钉套件	SCREW KIT Drain	1
6	19183	纤维垫圈	WASHER Fiber	3
6	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
7	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
8	316405	平衡鳍板	TRIM TAB	1
8	8M0236553	平衡鳍板	TRIM TAB	1
9	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
11	43040A1	托架总成	CARRIER ASSEMBLY	1
11	43040T1	托架总成	CARRIER ASSEMBLY	1
12	NSS	滚针轴承(不单独销售)	NOT SOLD SEPARATE Needle Bearing	1
13	826134	阳极块	ANODE	2
13	826134Q	阳极块	ANODE	2
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
16	44484	小齿轮(13齿)(也属于43-850033A2)	GEAR Pinion (13 Teeth) (ALSO PART OF 43-850033A2)	1
16	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	850307	换挡凸轮控制	CAM Shift Control	1
19	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
20	44492A1	垫片组	SHIM SET	AR
20	8M0063265	垫片组	SHIM SET	AR
21	826736A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	826737A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
22	42461A1	套筒/环套件	SLEEVE/RING KIT	1
23	NSS	不单独销售环形密封件	NOT SOLD SEPARATE Ring Seal	1
24	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
24	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
25	430331	衬垫	GASKET	1
26	430472	衬垫	GASKET	1
26	8M0214931	衬垫	GASKET	1
27	43035	油封	SEAL Oil	1
27	8M0245495	油封	OIL SEAL	1
28	43036	油封	SEAL Oil	1
29	817277	衬垫	GASKET	1
29	8172771	水泵上垫片	GASKET Water Pump, Upper	1
30	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
31	817276	面板	FACEPLATE	1
31	8M0204709	面板	FACEPLATE	1
32	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
32	8M0214957	螺钉	SCREW	4
33	826763A1	联轴器	COUPLING	1
33	826762A1	联轴器	COUPLING	1
34	43037	键	KEY	1
34	8M0204723	键	KEY	1
35	430262	叶轮	IMPELLER	1
35	43026T2	叶轮	IMPELLER	1
36	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
37	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
37	853907A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
38	29641	E型卡环	E RING	1
39	43052A4	衬套总成	BUSHING ASSEMBLY	1
40	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
40	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
41	8164641	油封	SEAL Oil	1
41	8M0246145	油封	OIL SEAL	1
42	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

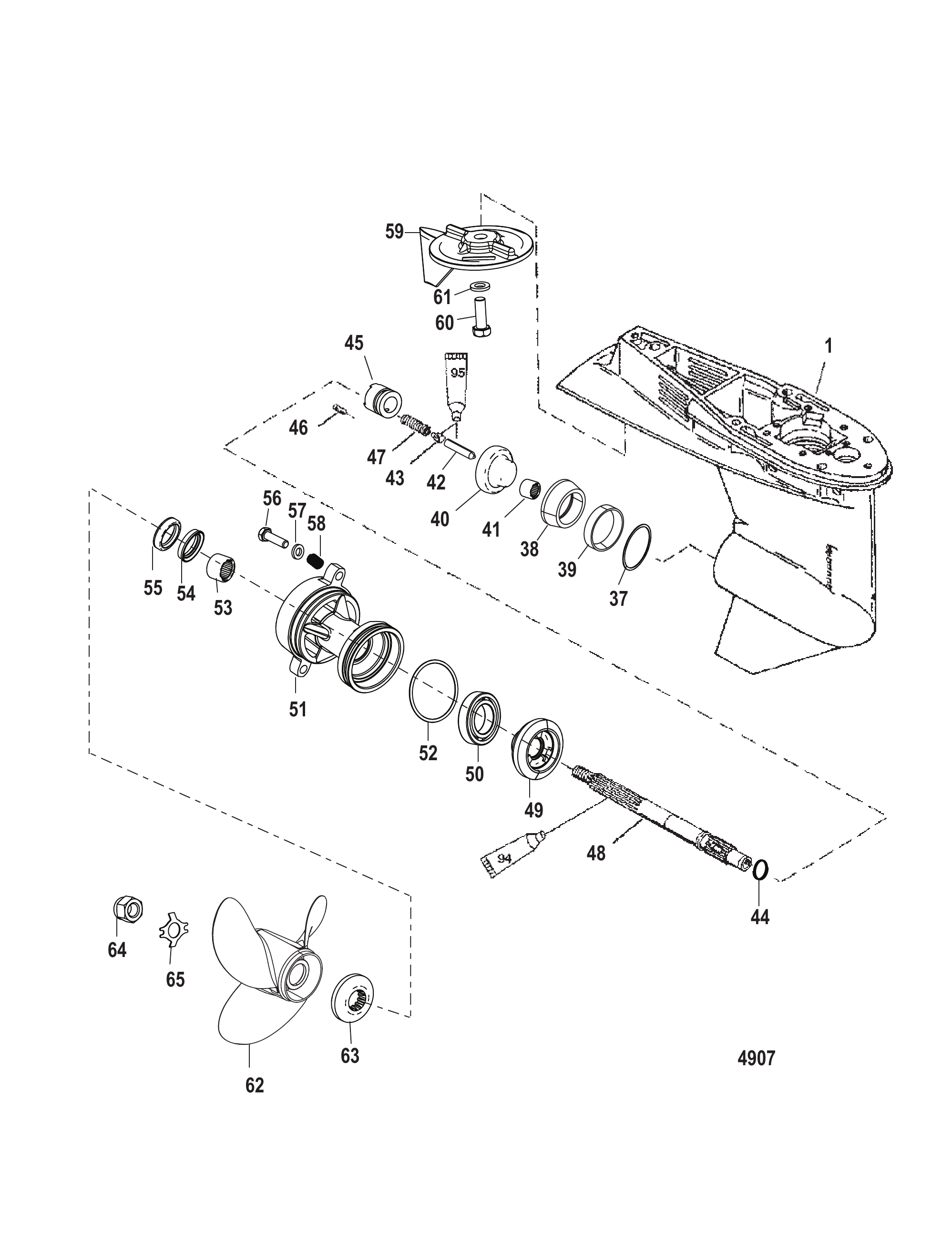

图 18齿轮箱螺旋桨轴 1.64:1 传动比 Gear Housing Propeller Shaft - 1.64:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	9760A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
37	812769A1	垫片组	SHIM SET	AR
37	8M0063263	垫片组	SHIM SET	AR
38	812767A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
38	8M0103476	轴承总成	BEARING ASSY	1
39	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
40	813693A1	前进齿轮总成(23齿)	GEAR ASSEMBLY Forward (23 TEETH)	1
40	813693T1	前进齿轮	GEAR Forward	1
41	21739	滚柱轴承	BEARING Roller	1
42	812929	凸轮从动件	FOLLOWER Cam	1
42	8129291	凸轮从动件	FOLLOWER Cam	1
43	20843	滑块	SLIDE	1
44	38114	弹簧	SPRING	1
45	813697	离合器	CLUTCH	1
45	813697T	离合器	CLUTCH	1
46	38113	十字销	PIN Cross	1
46	8M0020942	十字销@2	PIN-CROSS @2	1
47	815418	弹簧	SPRING	1
48	14493	螺旋桨轴	PROPELLER SHAFT	1
49	813695	倒档齿轮(23齿)	GEAR Reverse (23 TEETH)	1
49	813695T	倒挡齿轮	GEAR Reverse	1
50	20839	滚珠轴承	BEARING Ball	1
50	20839T	滚珠轴承	BEARING Ball	1
51	19291A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
51	8M0168900	轴承座	BEARING CARRIER	1
52	815460	O型圈	O-RING	1
53	21700	滚针轴承	BEARING Needle	1
54	69188	油封	SEAL Oil	1
54	8M0205511	油封	SEAL Oil	1
55	69189	油封	SEAL Oil	1
55	8M0203757	油封	SEAL Oil	1
56	4000353	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
56	85594030	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
57	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
57	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
57	855941	垫圈(.323 x .590 x .112)不锈钢	WASHER (.323 x .590 x .112) Stainless Steel	2
58	8227731	螺纹嵌件	INSERT Threaded	2
59	17264T2	调整片锌制	TRIM TAB Zinc	1
60	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
61	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
61	8M0214963	垫圈	WASHER	1
62	816704A40	螺旋桨套件	PROPELLER KIT	1
62	816704A45	BLMX 10.5X13	BLMX 10.5X13	1
63	73345A1	止推垫片	THRUST WASHER	1
64	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
64	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
65	76281	锁紧垫圈	TAB WASHER	1
65	8M0214942	锁紧垫片	WASHER Tab	1
-	812867A97	衬垫套件	GASKET SET	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

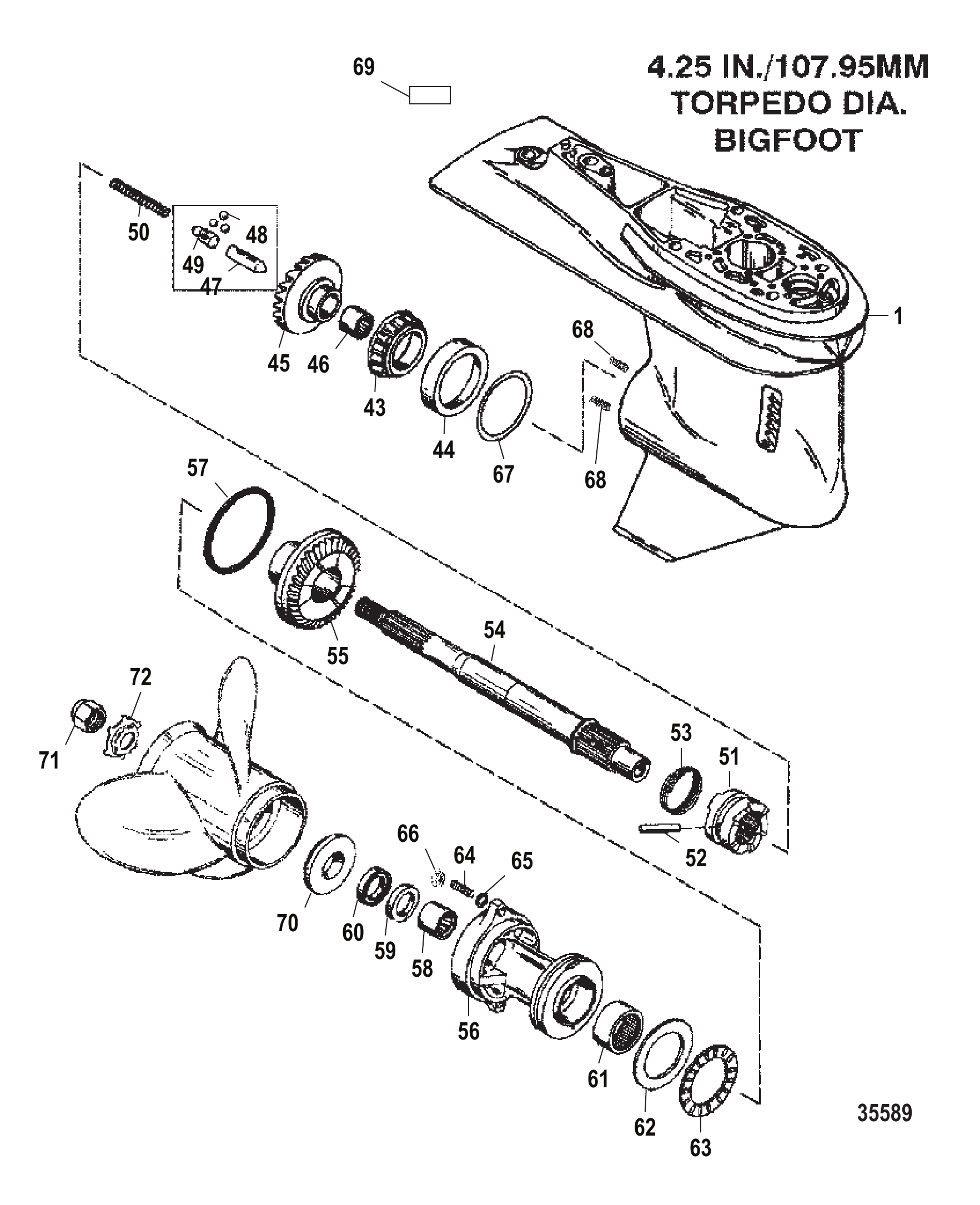

图 19齿轮箱螺旋桨轴-2.31:1传动比 Gear Housing Propeller Shaft - 2.31:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	9011G16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G17	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011G15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011G8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G60	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
43	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
44	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
45	850033A2	前进齿轮套件(30齿)	GEAR KIT Forward (30 TEETH)	1
45	859472A3	前进齿轮总成-30齿	GEAR ASSEMBLY Forward - 30 Teeth	1
46	30895	滚针轴承	BEARING Needle	1
46	30895T	滚针轴承	BEARING Needle	1
47	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
48	44530	钢球	BALL	3
49	NSS	滑动件(不单独销售)	NOT SOLD SEPARATE Slide	1
50	850327	弹簧	SPRING	1
51	850048	离合器	CLUTCH	1
51	850048T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	850308	螺旋桨轴	PROPELLER SHAFT	1
54	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
55	850034	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
55	850034T	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
56	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
56	8M0168901	轴承座总成	CARRIER ASSY.	1
57	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
57	8M0214974	O型圈	O RING	1
58	30956	滚针轴承	BEARING Needle	1
58	30956T	滚针轴承	BEARING Needle	1
59	70080	油封	SEAL Oil	1
59	8M0205728	密封件	SEAL	1
60	70081	油封	SEAL Oil	1
60	8M0205729	密封件	SEAL	1
61	12578	滚针轴承	BEARING Needle	1
61	12578T	滚柱轴承	BEARING Roller	1
62	12577	止推垫片	THRUST WASHER	1
63	12576	推力轴承	BEARING Thrust	1
64	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
64	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
65	855941	垫圈(.323 x .590 x .112)不锈钢	WASHER (.323 x .590 x .112) Stainless Steel	2
66	401198	螺母 (M8)	NUT (M8)	2
66	401378	螺母 (M8)	NUT (M8)	2
67	44491A1	垫片组	SHIM SET	1
67	8M0063266	垫片组	SHIM SET	1
68	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	2
69	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
70	13191A1	止推垫片	THRUST WASHER	1
70	13191Q01	止推垫片	THRUST WASHER	1
71	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
71	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
72	816629	锁紧垫圈	TAB WASHER	1
72	816629Q	锁紧垫圈	TAB WASHER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

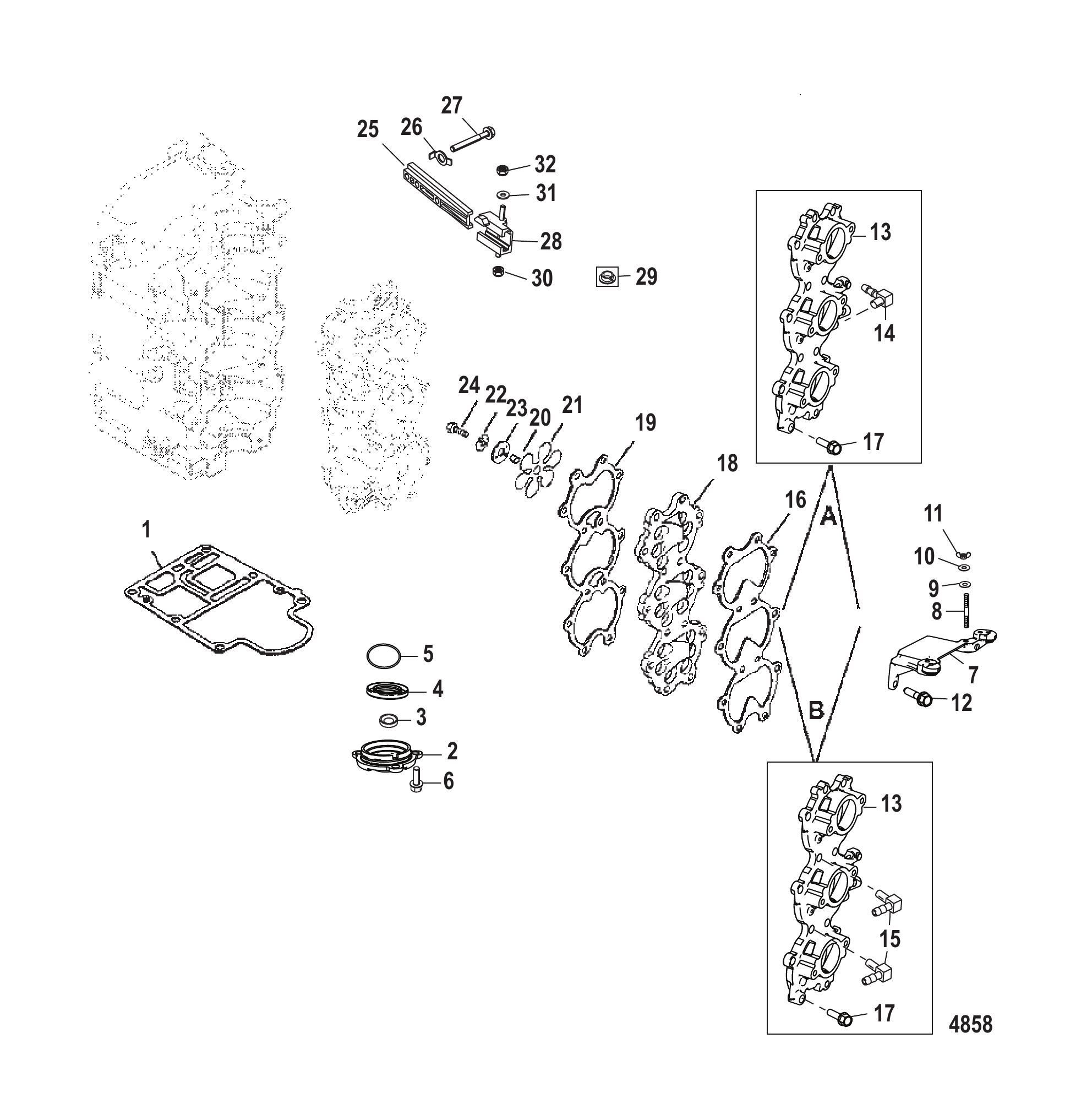

图 20进气歧管与簧片阀组 Induction Manifold and Reed Block

REF	零件编号	中文名称	英文名称	数量
1	828553	衬垫	GASKET	1
2	9812A9	下端盖总成	END CAP ASSEMBLY Lower	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A5	支架总成	BRACKET ASSEMBLY	1
7	19077A07	支架总成	BRACKET ASSEMBLY	1
8	8161946	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	827998A1	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
14	19725	弯头	ELBOW	1
15	19725	弯头	ELBOW	2
16	812869	衬垫	GASKET	1
17	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
18	19075A3	簧片阀总成	REED BLOCK ASSEMBLY	1
18	8M0219197	簧片阀总成	REED BLOCK ASSY	1
19	812868	衬垫	GASKET	1
20	NSS	定位销(不单独销售)	NOT SOLD SEPARATE Dowel Pin	6
21	812880A2	簧片组件	REED ASSEMBLY	3
21	812880A03	簧片组件	REED ASSEMBLY	3
22	42982	锁紧垫圈	TAB WASHER	3
22	429821	锁紧垫圈	TAB WASHER	3
23	8128791	簧片压板	RETAINER Reed	3
23	812879002	簧片压板	RETAINER Reed	3
24	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
25	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
26	42981	锁紧垫圈	TAB WASHER	2
27	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
28	988851	滑块	SLIDE	1
29	48475	衬套	BUSHING	1
30	8268336	螺母 (M6)	NUT (M6)	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	8268336	螺母 (M6)	NUT (M6)	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	15026	盖帽	CAP	3
-	812867A97	衬垫套件	GASKET SET	1
-	852071A97	动力头总成	POWERHEAD ASSEMBLY	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1

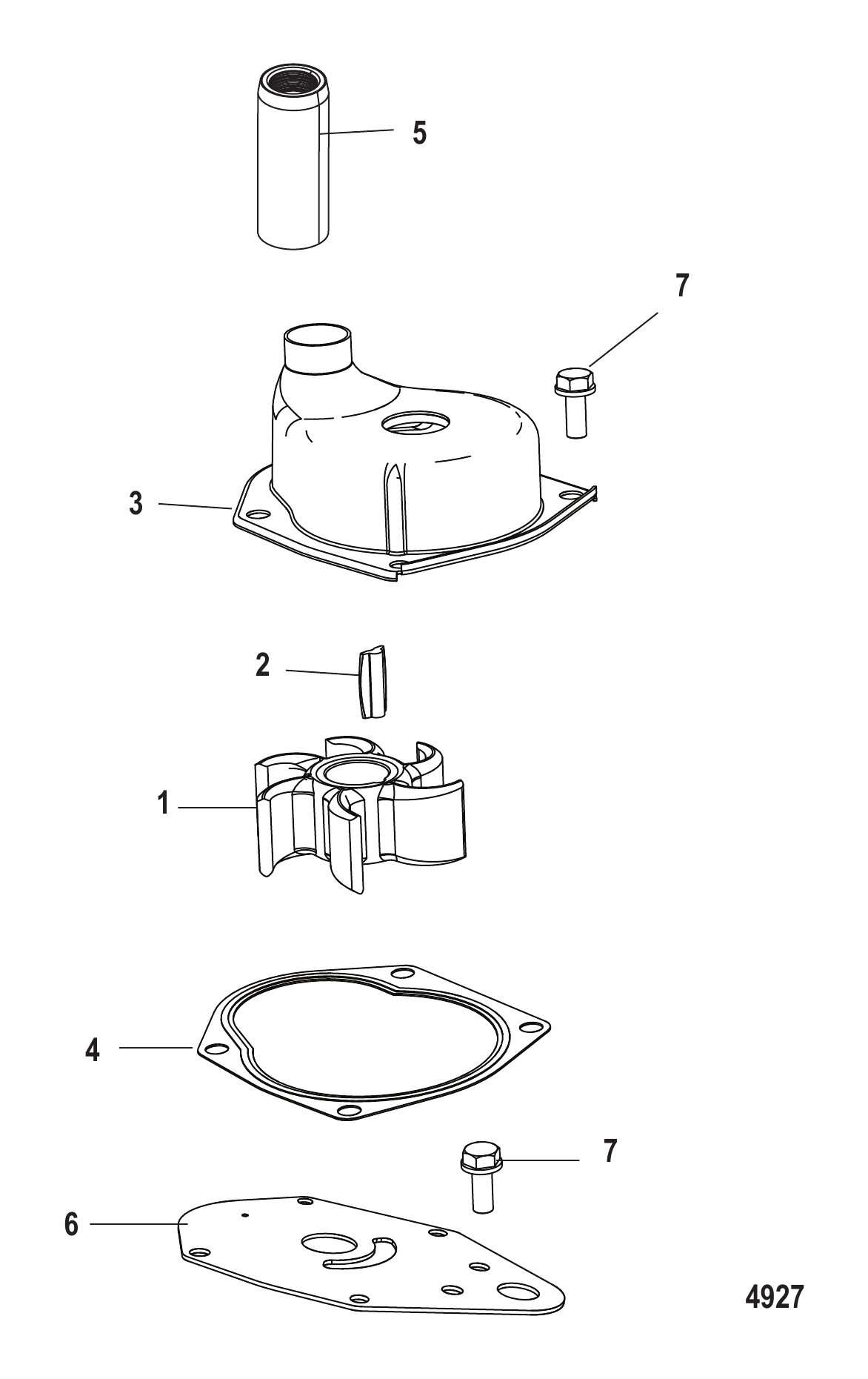

图 21喷射组件 Jet Components

REF	零件编号	中文名称	英文名称	数量
1	19453	叶轮	IMPELLER	1
2	19699	键	KEY	1
2	8M0032831	叶轮键	KEY Impeller	1
3	14334A2	水泵总成	PUMP ASSEMBLY Water	1
3	14334A3	水泵总成	PUMP ASSEMBLY Water	1
4	822189	水泵上衬垫	GASKET Upper Water Pump	1
5	43023	密封件	SEAL	1
5	8M0204658	密封件	SEAL	1
6	19700A1	面板	FACE PLATE	1
6	19700A2	面板	FACE PLATE	1
7	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
-	812966A10	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

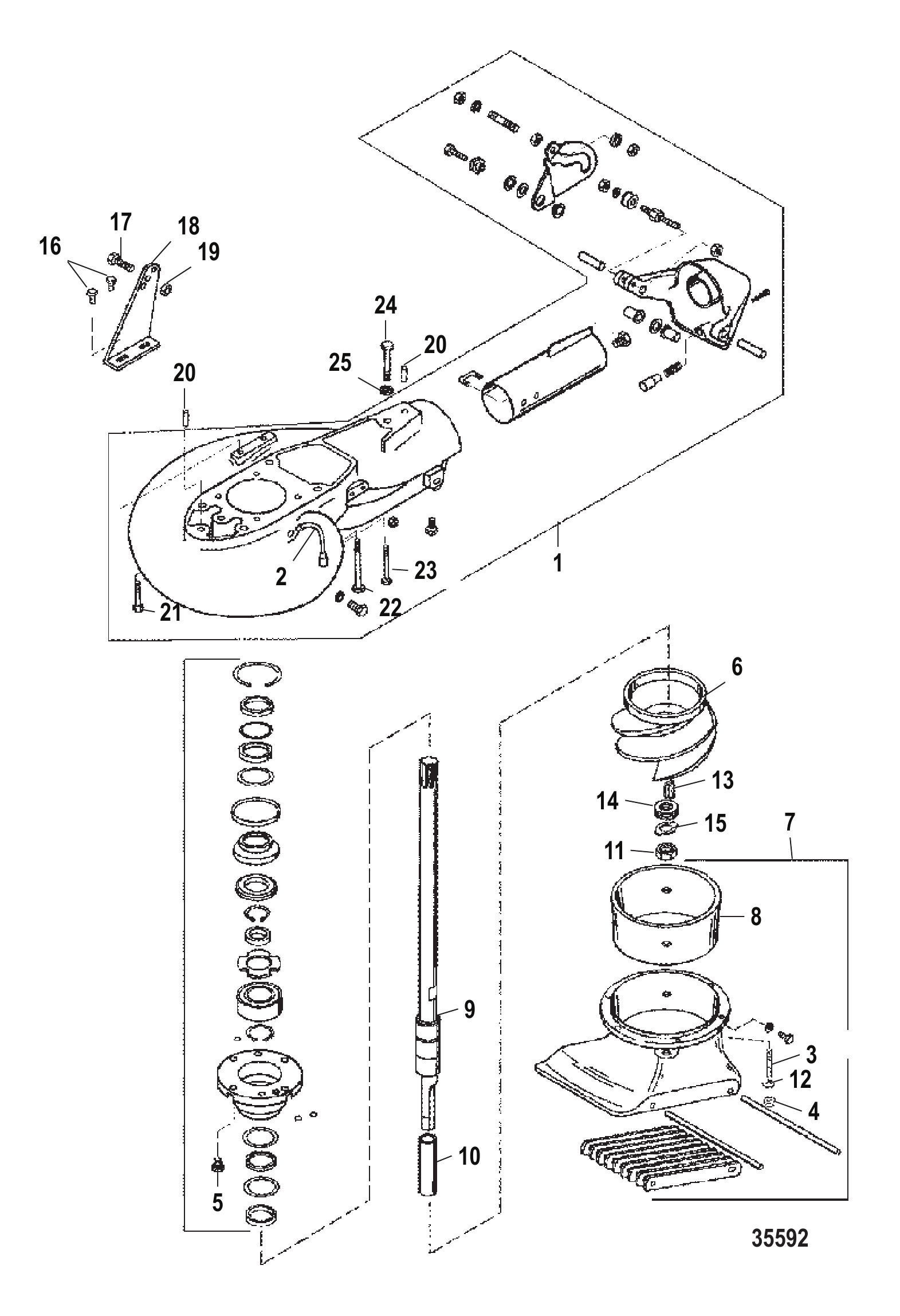

图 22喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	85576660	喷泵总成	JET PUMP ASSEMBLY	1
1	85576760	泵壳	HOUSING Pump	1
1	855767T60	泵壳	HOUSING Pump	1
2	827490	润滑油管	HOSE Lube	1
3	855840	双头螺柱(.312-18 x 1.81)	STUD (.312-18 x 1.81)	6
4	67980	螺母(.312-18)	NUT (.312-18)	6
4	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	6
5	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
6	80141460	叶轮	IMPELLER	1
6	8M0230713	叶轮	IMPELLER	1
7	80141260	进气壳体	HOUSING Intake	1
8	8271882	衬套	LINER	1
9	85576960	驱动轴	DRIVESHAFT	1
10	8271891	套筒	SLEEVE	1
11	8271901	螺母	NUT	1
12	36001	垫圈	WASHER	6
13	801405875	键	KEY	1
14	801404875	叶轮垫片	SHIM Impeller	8
15	801403875	锁紧垫圈	TAB WASHER	1
16	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
17	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
18	801410	电缆支架	BRACKET Cable Support	1
19	67980	螺母(.312-18)	NUT (.312-18)	1
19	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
20	801407	定位销	PIN Dowel	2
21	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
22	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
23	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
24	95802	不锈钢螺钉(.375-16 x 2.750)	SCREW (.375-16 x 2.750) Stainless Steel	1
25	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
25	8M0214963	垫圈	WASHER	1

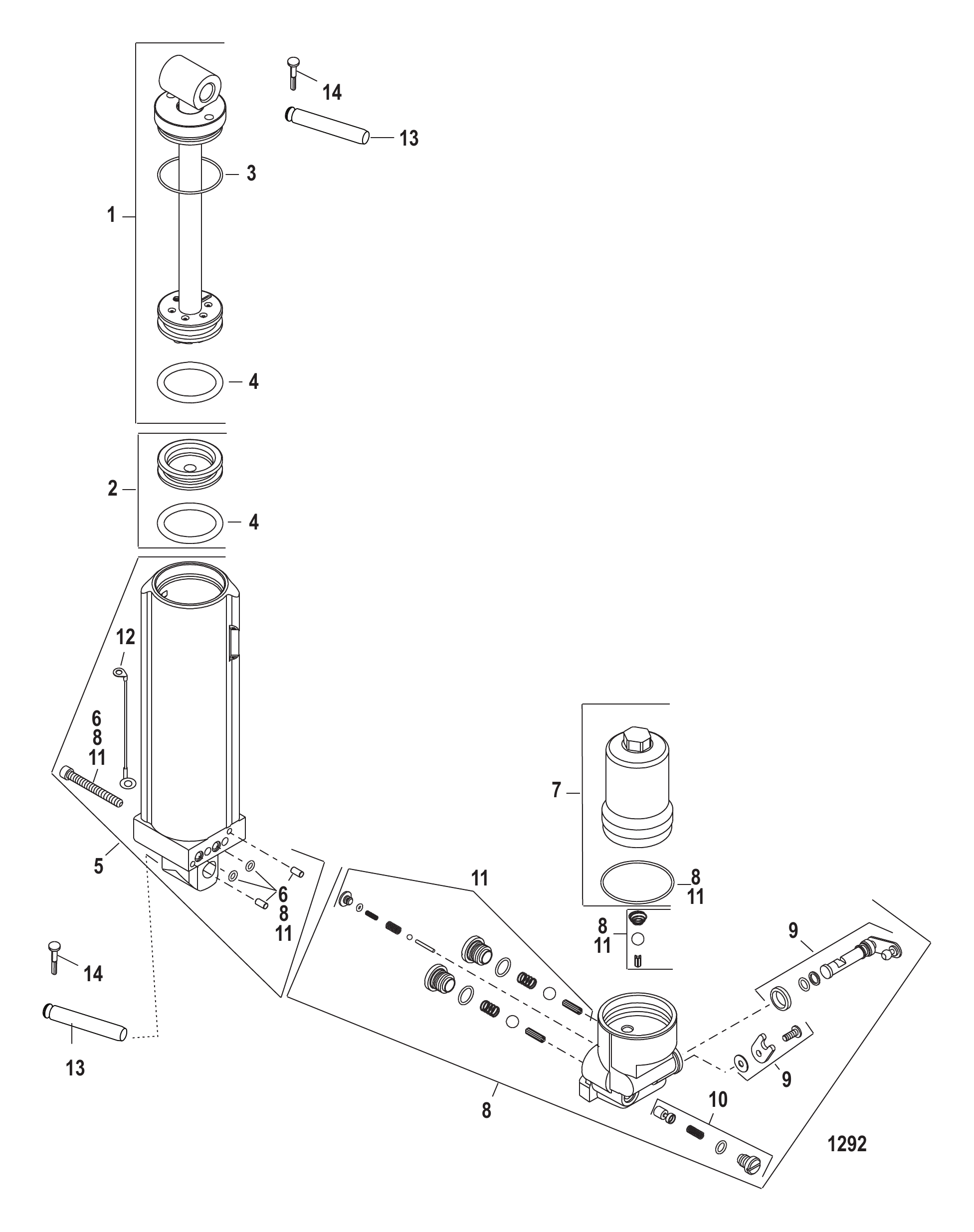

图 23手动倾斜装置组件 Manual Tilt Components

REF	零件编号	中文名称	英文名称	数量
-	830050A2	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	832020A2	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	832020T3	手动调整	MANUAL TRIM	1
1	813427A1	减震杆总成	SHOCK ROD ASSEMBLY	1
1	8M0118572	减震杆套件	SHOCK ROD KIT	1
1	813427A2	减震杆总成	SHOCK ROD ASSEMBLY	1
1	893942A01	减震杆套件	SHOCK ROD KIT	1
2	813430A1	配平记忆活塞总成	PISTON ASSEMBLY Trim Memory	1
2	893903A01	活塞套件	PISTON KIT	1
3	809872A1	气缸O型圈套件	O-RING KIT Cylinder	1
3	893917A01	O型圈修理包	REBUILD KIT O-Ring	1
4	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	2
5	811224A1	气缸总成	CYLINDER ASSEMBLY	1
5	893918A01	气缸套件	CYLINDER KIT	1
6	813433A2	螺钉与密封套件	SCREW AND SEAL KIT	1
6	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
7	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
7	893920A01	蓄能器套件	ACCUMULATOR KIT	1
8	813455A4	阀体总成	VALVE BODY ASSEMBLY	1
8	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
9	813457A3	凸轮套件	CAM KIT	1
9	893923A01	凸轮套件	CAM KIT	1
10	809881A1	速度阀套件	VALVE KIT Velocity	1
10	893924A01	阀套件	VALVE KIT	1
11	809882A1	维修套件	REPAIR KIT	1
11	893925A01	维修套件	REPAIR KIT	1
12	88238A13	拉线总成	CABLE ASSEMBLY	1
12	8M0207768	拉线总成	CABLE ASSEMBLY	1
-	809880A2	O型圈套件	O-RING KIT	1
-	893922A01	O型圈套件	O-RING KIT	1
13	19607	销	PIN	2
14	821539	三叶销	PIN Trilobe	2

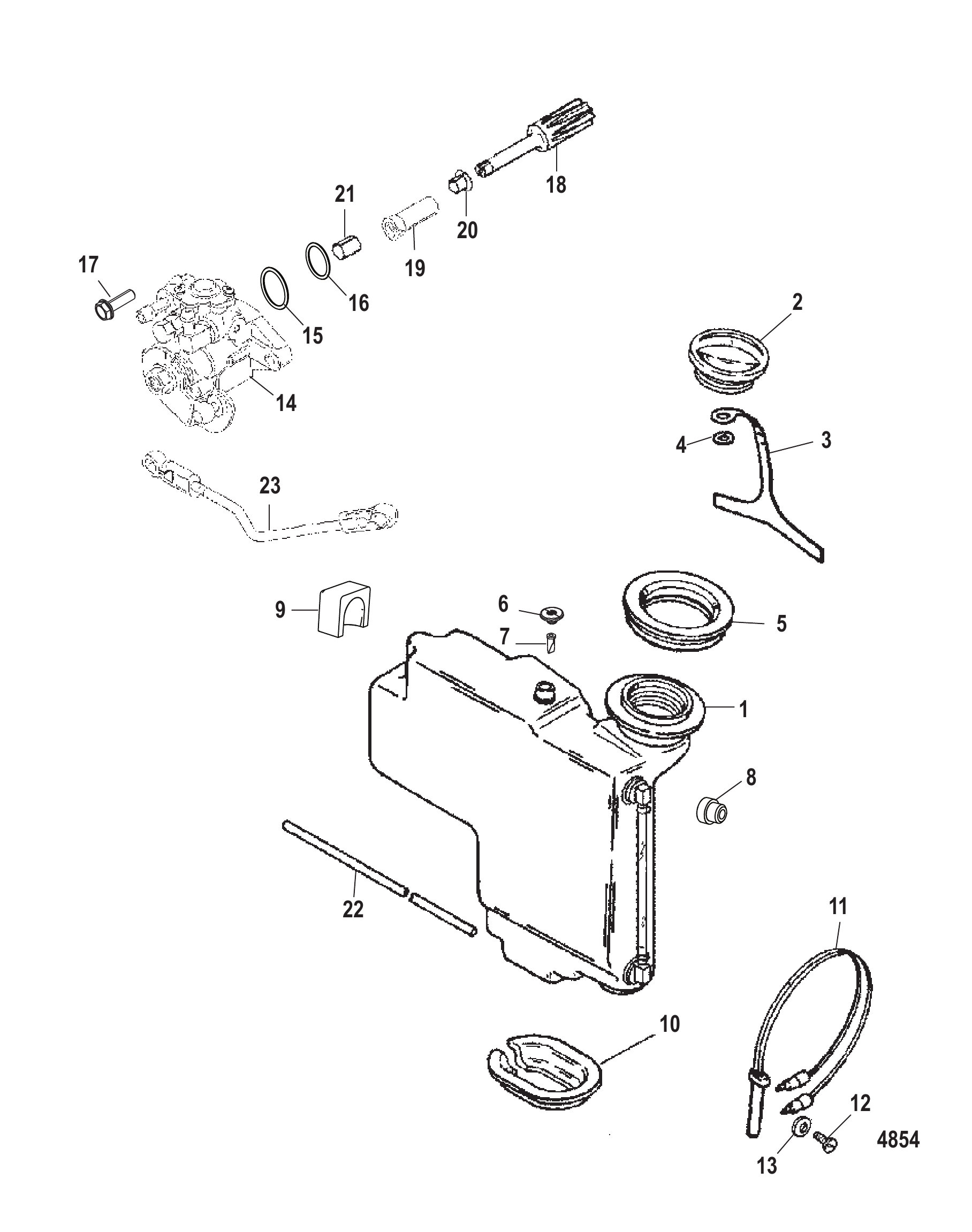

图 24机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	812718A1	油箱总成	TANK ASSEMBLY Oil	1
2	828765A2	盖总成	CAP ASSEMBLY	1
3	NSS	不单独销售系绳	NOT SOLD SEPARATE Tether	1
4	821285	压入式螺母	PUSH NUT	1
5	8160662	密封件	SEAL	1
5	8M0039080	密封件-油箱	SEAL-OIL TANK	1
6	19299A1	通风组件	VENT ASSEMBLY	1
7	64871	阀门	VALVE	1
8	8136441	护孔环	GROMMET	1
8	813644002	护孔环	GROMMET	1
9	99162	护套	BOOT	1
9	99162001	护套	BOOT	1
10	812890	护套	BOOT	1
10	8M0039085	护套	BOOT	1
11	12886A6	开关总成	SWITCH ASSEMBLY	1
12	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
13	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
14	818902A1	机油喷射泵总成	PUMP ASSEMBLY Oil Injection	1
15	62705	O型圈	O-RING	1
15	8M0204667	O型圈×2	O RING @2	1
16	36390	O型圈	O-RING	1
17	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
18	19277	从动齿轮	GEAR Driven	1
19	19278A2	轴承总成	BEARING ASSEMBLY	1
20	17597	衬套（带法兰）	BUSHING (FLANGED)	1
21	17596	衬套	BUSHING	1
22	82381335	管材(15英寸散装)(6英寸)	TUBING (15.00 Inches Bulk) (6 IN.)	1
23	826581A2	连接杆	LINK	1
23	8M0084729	连杆-油泵总成	LINK-OIL PUMP ASY	1

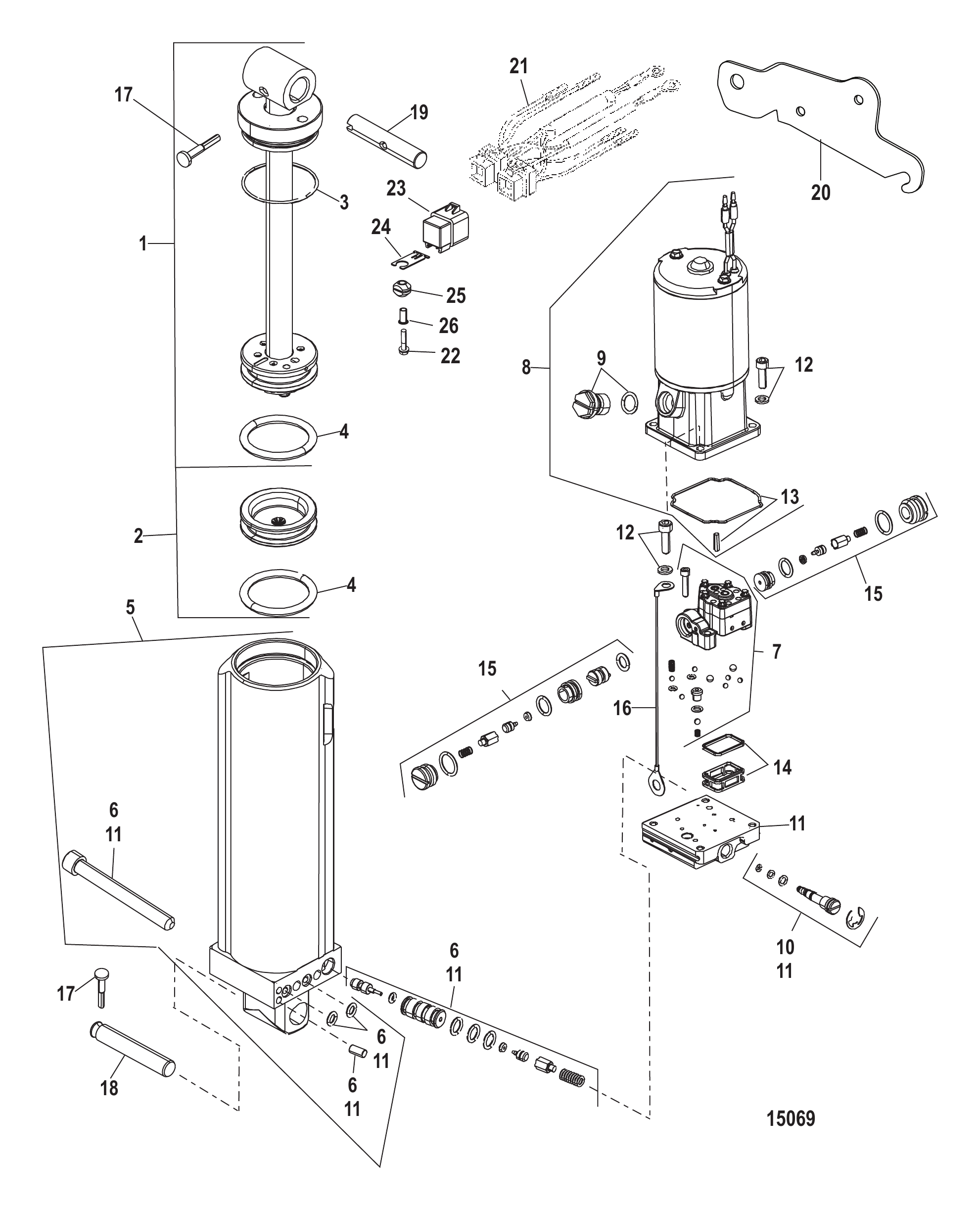

图 25动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830150A2	泵总成	PUMP ASSEMBLY	1
1	813427A3	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
2	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
3	809872A2	O型圈维修包	O-RING KIT Rebuild	1
3	8M0171819	O型圈套件	O-RING KIT	1
4	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	2
5	811228A1	气缸总成	CYLINDER ASSEMBLY	1
5	893904T01	气缸总成	CYLINDER ASSEMBLY	1
6	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
6	893905A02	阀套件	VALVE KIT	1
7	809874A1	泵总成	PUMP ASSEMBLY	1
7	893906A02	泵总成	PUMP ASSEMBLY	1
8	809885A2	电机套件	MOTOR KIT	1
8	893907A02	电机套件	MOTOR KIT	1
9	8134351	堵头	PLUG	1
10	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
10	893929A01	安全阀套件	VALVE KIT Relief	1
11	809875A1	歧管套件	MANIFOLD KIT	1
11	893909A02	歧管套件	MANIFOLD KIT	1
12	809876A1	螺丝套件(电机)	SCREW KIT (MOTOR)	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
16	88238A18	拉线总成	CABLE ASSEMBLY	1
-	809880A1	O型圈套件(完整调整)	O-RING KIT (COMPLETE TRIM)	1
-	893914A02	O型圈套件	O-RING KIT	1
17	821539	三叶销	PIN Trilobe	2
18	19607	销	PIN	1
19	822869	销	PIN	1
19	822869001	锚销	PIN Anchor	1
20	831276T	支架	BRACKET	1
21	826802A12	线束总成	HARNESS ASSEMBLY	1
22	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
23	828151A1	继电器总成	RELAY ASSEMBLY	2
23	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
24	828102	支架	BRACKET	2
24	8M0207771	安装支架	BRACKET Mounting	2
25	818967	护孔环	GROMMET	2
25	8M0207785	护孔环	GROMMET	2
26	818968	衬套	BUSHING	2
26	8M0214955	衬套	BUSHING	2

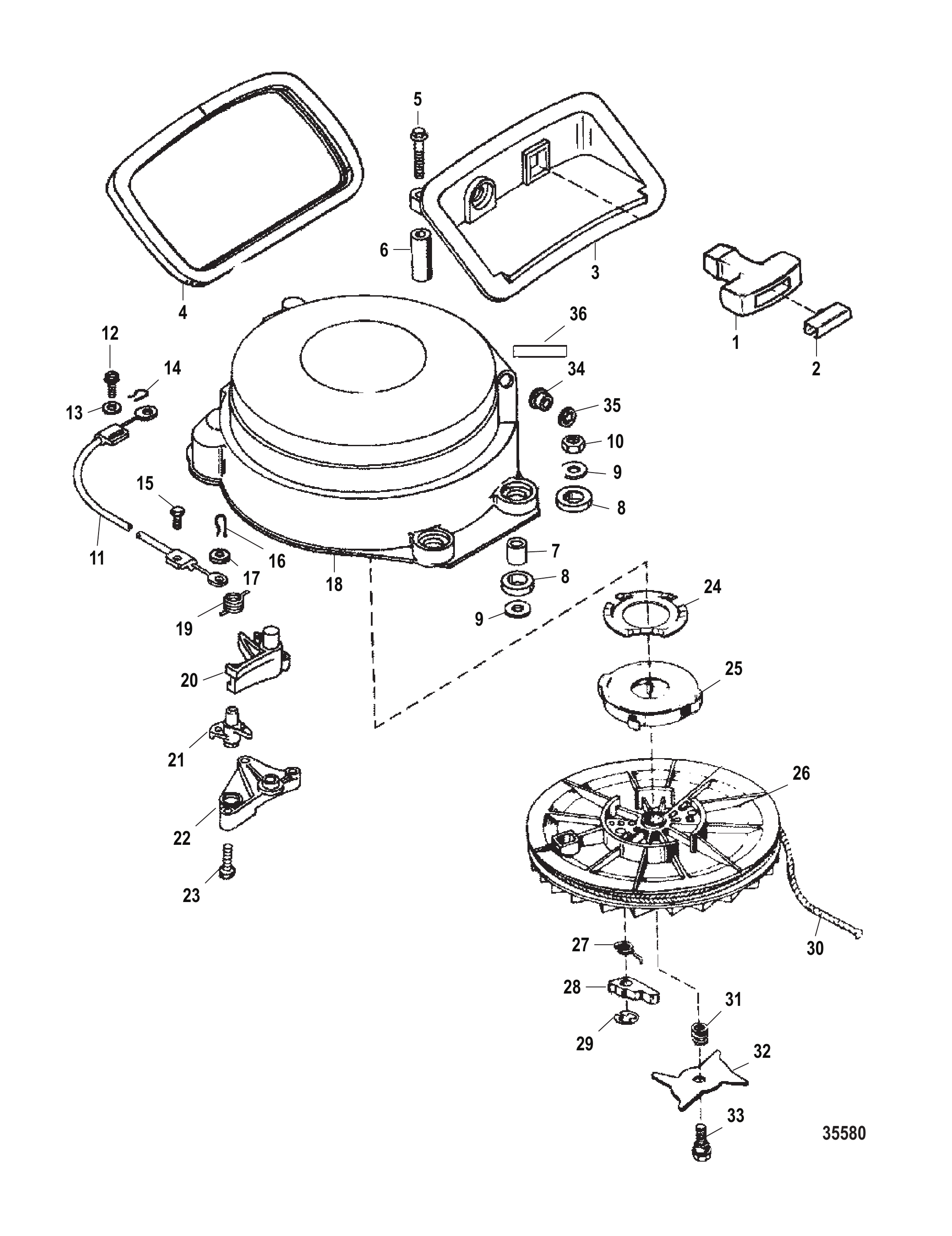

图 26反冲启动器(手动) Recoil Starter Manual

REF	零件编号	中文名称	英文名称	数量
1	85174A1	手柄总成	HANDLE ASSEMBLY	1
2	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	1
3	8167652	支架	REST	1
4	8136072	密封件	SEAL	1
4	8M0043161	密封件	SEAL	1
5	82170475	螺钉(M6×75)	SCREW (M6 x 75)	2
6	821702	隔套	SPACER	2
7	816086	衬套	BUSHING	4
8	815795	护孔环	GROMMET	8
9	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	8
10	401196	螺母 (M6)	NUT (M6)	4
11	8167485	联锁电缆	CABLE Interlock	1
11	8567541	联锁电缆	CABLE Interlock	1
12	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
13	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
14	26811	开口销	COTTER PIN	1
15	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
15	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
16	26811	开口销	COTTER PIN	1
17	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
-	816728A14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
18	8167285	壳体	HOUSING	1
18	816728T05	壳体	HOUSING	1
19	826791	弹簧	SPRING	1
20	8166903	杠杆	LEVER	1
21	8167121	凸轮	CAM	1
21	816712T01	凸轮	CAM	1
22	816711	固定座	RETAINER	1
23	8182491	螺钉(#10-16 x 1.00)	SCREW (#10-16 x 1.00)	3
24	826229	弹簧锁紧垫圈	LOCKWASHER SPRING	1
25	868571	弹簧	SPRING	1
25	86857T01	弹簧	SPRING	1
26	825269A1	启动滑轮	SHEAVE Starter	1
26	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
27	868511	弹簧	SPRING	2
27	86851T02	弹簧 @2	SPRING @2	2
28	868501	凸轮	CAM	2
29	868491	挡圈	RING Retaining	2
29	86849T01	环 @2	RING @2	2
30	12066A9	绳索	ROPE	1
30	12066Q10	启动绳@2	ROPE-STARTER@2	1
31	868521	凸轮弹簧	SPRING Cam	1
31	868523	弹簧	SPRING	1
32	868531	凸轮	CAM	1
32	86853T01	凸轮	CAM	1
33	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
34	42690	衬套	BUSHING	1
34	8M0183792	绳索衬套	ROPE BUSHING	1
35	818853	挡圈	RING Retaining	1
36	NSS	不单独出售贴纸-全油门正时	NOT SOLD SEPARATE Decal-Full Throttle Timing	1

图 27骑导转向系统 Rideguide Steering

零件编号	中文名称	英文名称	数量
19608A11	转向安装套件	ATTACHING KIT Steering	1
19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
19609A5	转向安装套件	ATTACHING KIT Steering	1
19609A6	转向安装套件	ATTACHING KIT Steering	1
97933A6	转向套件	STEERING KIT	1
816667A2	转向支架总成（舵柄转遥控转向）	BRACKET ASSEMBLY Steering (CONVERTING TILLER TO REMOTE STRG.)	1

图 28维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
85207297	零件手册 55/60/45 JET/60 BIGFOOT (二冲程)	PARTS MANUAL 55/60/45 JET/60 BIGFOOT (2-Stroke)	1
852572	维修手册	SERVICE MANUAL	1
8M0110565	维修手册	MANUAL-SERVICE	1
10150980	用户手册	OWNERS MANUAL	1
10122980	用户手册	OWNERS MANUAL	1
10136980	用户手册	OWNERS MANUAL	1
10161980	用户手册	OWNERS MANUAL	1
821573A95	贴花套件	DECAL SET	1
821573A01	贴花套件(黑色55 SeaPro)	DECAL SET (Black 55 SeaPro)	1
826313A95	贴花套件	DECAL SET	1
826313A01	贴花套件(黑色60 SeaPro)	DECAL SET (Black 60 SeaPro)	1
811212A96	贴花套件	DECAL SET	1
811212A00	贴花套件(黑色60电动)	DECAL SET (Black 60 Electric)	1
830163A96	贴花套件	DECAL SET	1
804704A00	贴花套件(黑色60 Bigfoot)	DECAL SET (Black 60 Bigfoot)	1
826325A96	贴花套件	DECAL SET	1
826325A00	贴花套件	DECAL SET	1
824733A96	贴花套装(Tracker 60)	DECAL SET (Tracker 60)	1
831846A97	贴花套装(Tracker Bigfoot 60)	DECAL SET (Tracker Bigfoot 60)	1
821424A95	贴花套件	DECAL SET	1
8588371	贴花套件(灰色Marathon 55)	DECAL SET (Gray Marathon 55)	1
13361A95	贴花套件	DECAL SET	1
8588372	贴花套件(灰色Marathon 60)	DECAL SET (Gray Marathon 60)	1
811211A97	贴花套件	DECAL SET	1
811211A03	贴花套件(灰色60电动)	DECAL SET (Gray 60 Electric)	1
852081A97	贴花套件	DECAL SET	1
852081A03	贴花套装 (灰色60电动Bigfoot)	DECAL SET (Gray 60 Electric Bigfoot)	1
826326A97	贴花套件	DECAL SET	1
826326A01	贴花套装(灰色Jet 40)	DECAL SET (Gray Jet 40)	1
8555778	EPA标签信息贴花	DECAL EPA Label Information	1
855577A8	REF SOB 09-18	REF SOB 09-18	1

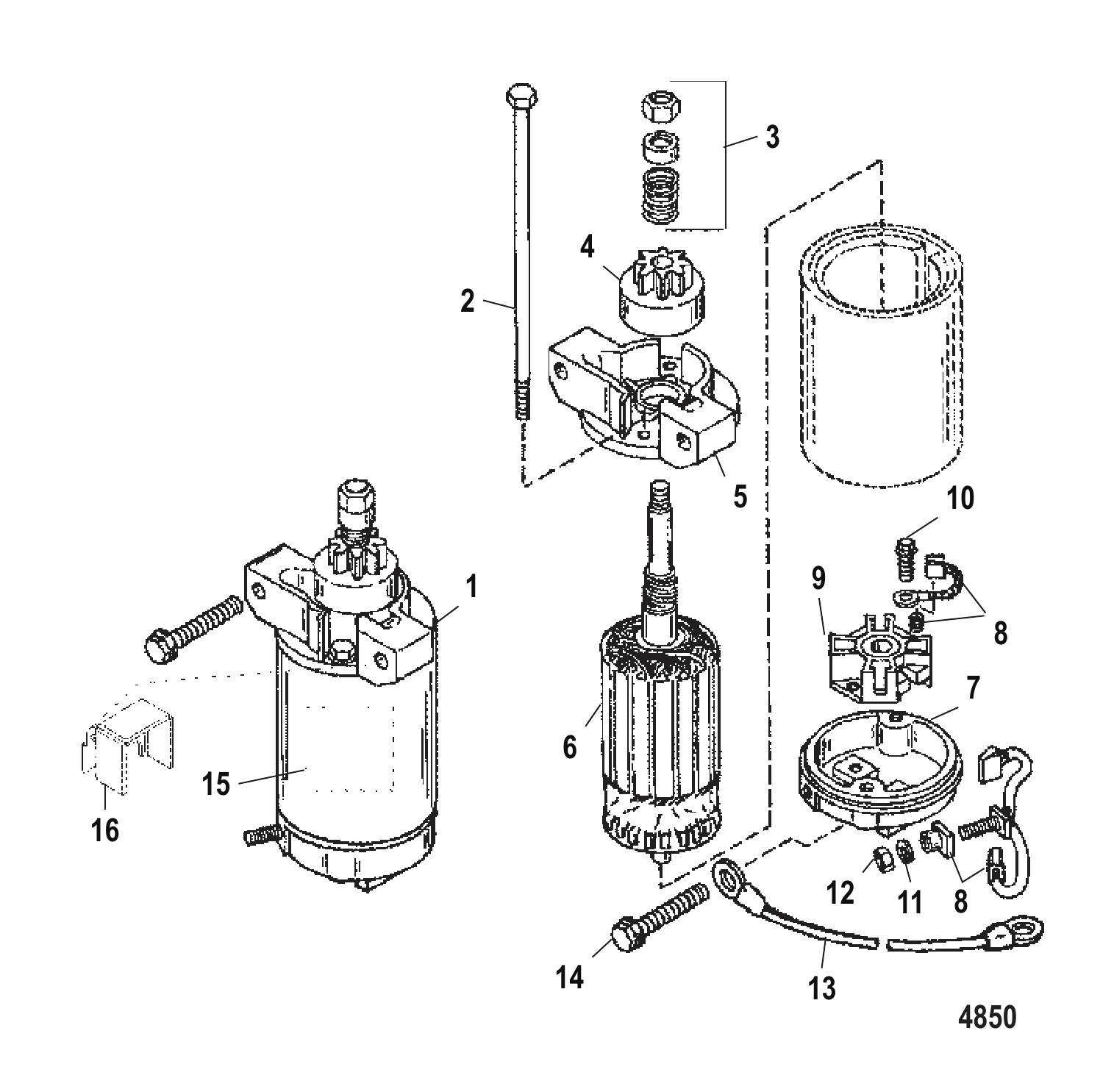

图 29启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	822462	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	965661	贯穿螺栓	THRU BOLT	1
3	90643	驱动套件	DRIVE KIT	1
4	68575	驱动总成	DRIVE ASSEMBLY	1
4	685753	驱动总成	DRIVE ASSEMBLY	1
5	823639	驱动端盖	DRIVE CAP	1
5	8236392	驱动端盖	DRIVE CAP	1
6	965651	电枢	ARMATURE	1
7	8119011	换向器端盖	CAP Commutator	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	支架	HOLDER	1
9	898265014	电刷支架	HOLDER-BRUSH	1
10	F15158	螺钉	SCREW	2
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	64015	螺母 (.250-20)	NUT (.250-20)	1
13	88439A9	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
14	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	3
15	NSS	警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Warning	1
16	823989	油箱支架	BRACKET Oil Tank	1

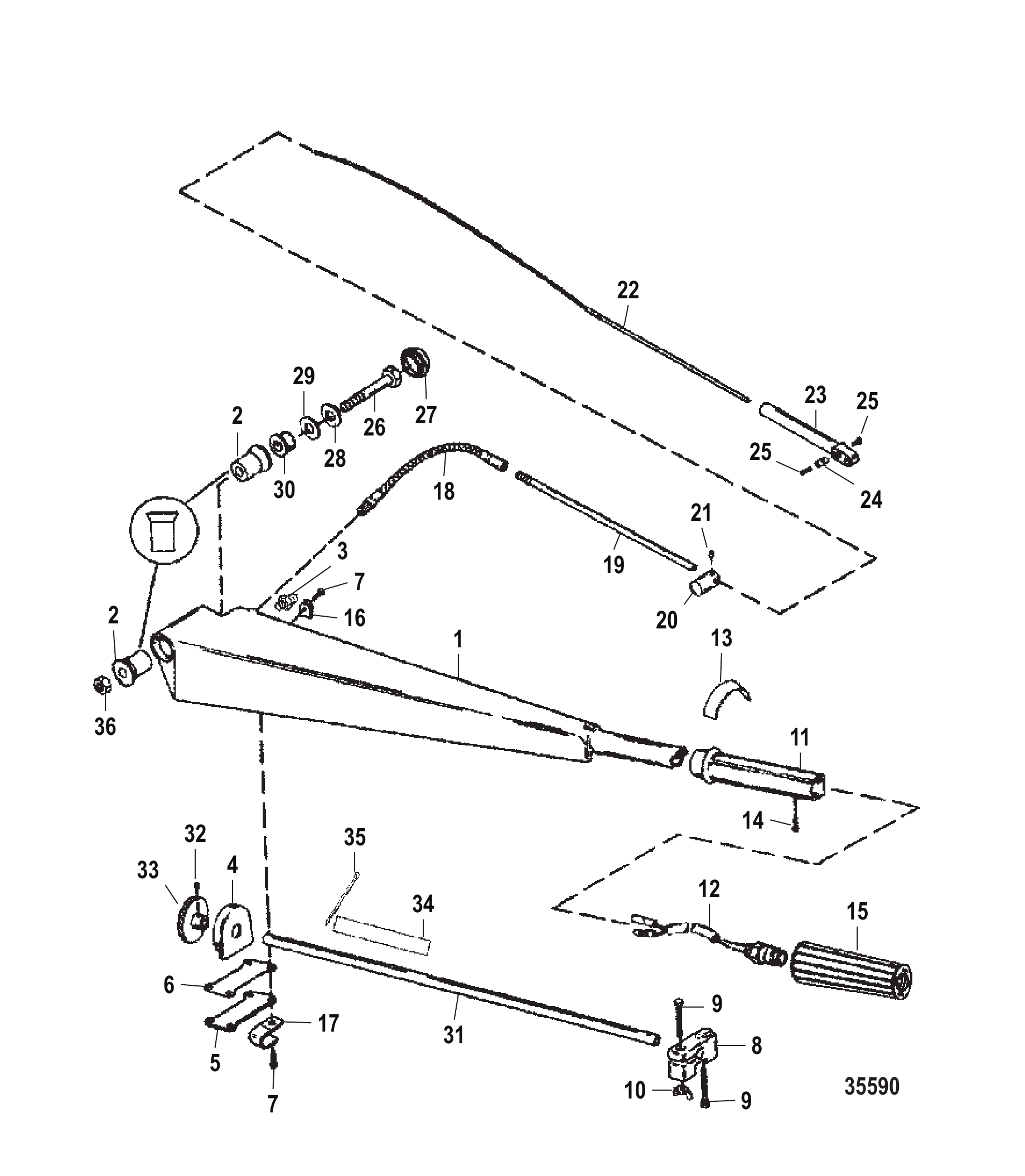

图 30转向手柄套件 Steering Handle Kit

REF	零件编号	中文名称	英文名称	数量
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A4	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
2	429922	衬套	BUSHING	2
2	42992T02	衬套	BUSHING	2
3	74036	润滑脂接头	FITTING Grease	1
3	8M0169589	润滑脂接头	FITTING Grease	1
4	48414	壳体	HOUSING	1
5	48519	安装板	PLATE	1
6	48518	衬垫	GASKET	1
7	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	6
7	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	6
7	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
7	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
8	12013	卡箍	CLAMP	1
8	889729	卡箍	CLAMP	1
9	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
10	816873	蝶形螺母	WING NUT	1
10	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
11	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	823609A5	停机开关总成	SWITCH ASSEMBLY Stop	1
12	8M0104612	开关总成	SWITCH ASSY	1
13	NSS	节气门标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Throttle	1
14	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
15	99589	握把	GRIP	1
15	8M0221732	外握把	GRIP OUTER	1
16	648551	卡箍	CLAMP	1
17	648551	卡箍	CLAMP	1
-	12019A1	节流阀电缆套件	CABLE KIT Throttle	1
18	785512	导管	CONDUIT	1
18	8885242	导管	CONDUIT	1
19	895661	导向管	GUIDE TUBE	1
19	8M0026078	导向管	TUBE-GUIDE	1
20	89578	套筒	BARREL	1
21	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
22	12019	拉线总成	CABLE ASSEMBLY	1
23	43433	导套	GUIDE	1
23	8M0204660	导套	GUIDE	1
24	20007	锚定件	ANCHOR	1
25	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
25	8M0204644	螺钉组	SCREW SET	2
26	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
27	48416	盖帽	CAP	1
28	4002319	垫圈	WASHER	1
29	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
30	14601	隔套	SPACER	1
30	146011	隔套	SPACER	1
31	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
32	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
33	NSS	驱动轮(不单独销售)	NOT SOLD SEPARATE Drive Wheel	1
34	NSS	绝缘件(不单独销售)	NOT SOLD SEPARATE Insulator	1
35	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
35	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
36	13914	螺母(M10)	NUT (M10)	1
36	40140	螺母(M10)	NUT (M10)	1

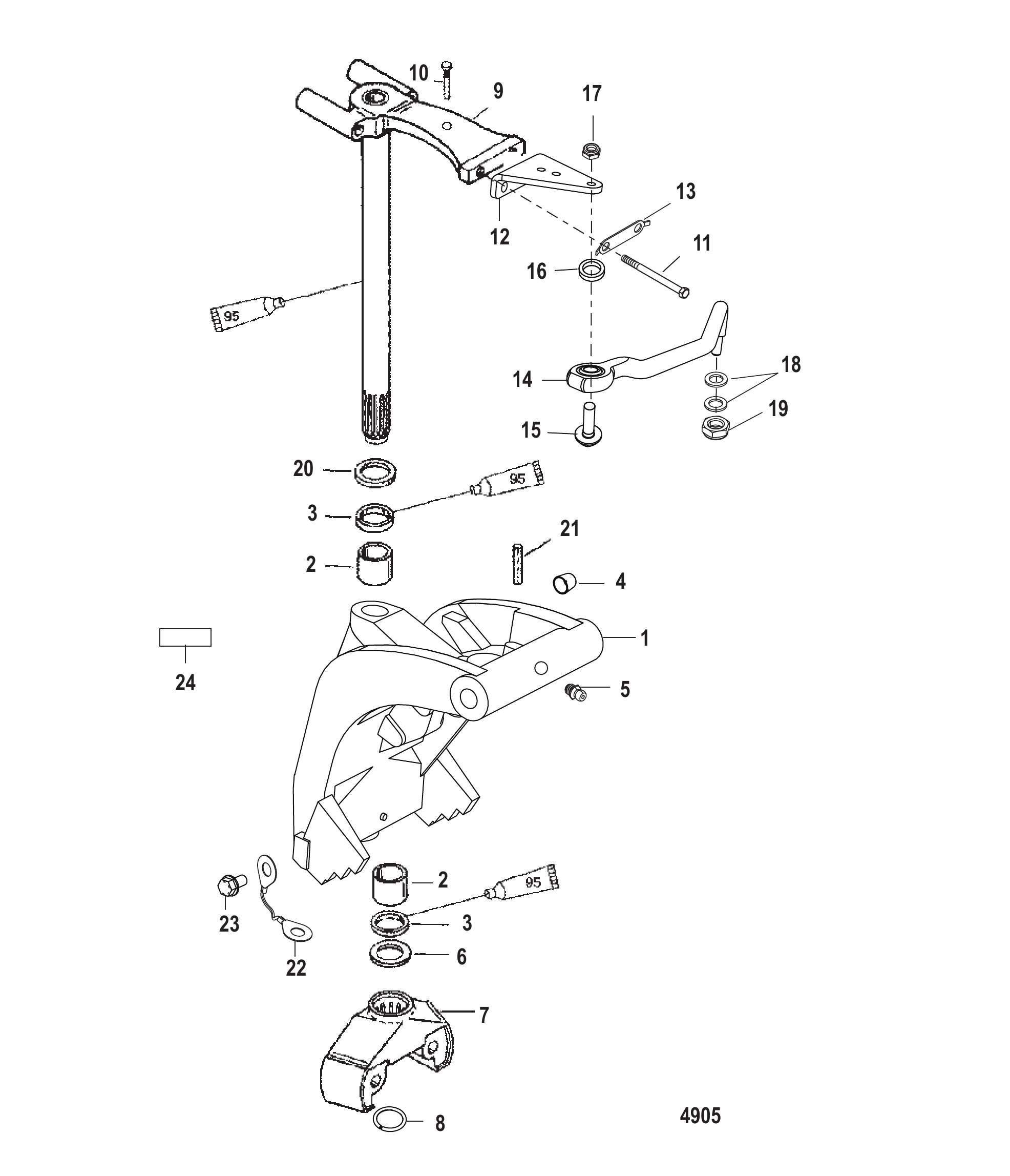

图 31旋转支架 Swivel Bracket

REF	零件编号	中文名称	英文名称	数量
1	822864A1	旋转支架	SWIVEL BRACKET	1
1	822864A2	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	822864A1	旋转支架	SWIVEL BRACKET	1
1	822863A1	旋转支架	SWIVEL BRACKET	1
1	822863A2	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	821124	轴承	BEARING	2
3	32911	油封	SEAL Oil	2
4	19606	轴承	BEARING	2
5	74036	润滑脂接头	FITTING Grease	3
5	8M0169589	润滑脂接头	FITTING Grease	3
6	52865	垫圈	WASHER	1
7	19654T	下轭架	YOKE Bottom	1
7	19654T1	下轭架	YOKE Bottom	1
7	19654T6	下轭架	YOKE Bottom	1
7	19654T7	ORD 19654T 1	ORD 19654T 1	1
8	77415	挡圈	RETAINING RING	1
9	812897A7	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812897A19	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812897A8	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812897A20	ORD 17-812897A19	ORD 17-812897A19	1
9	812896A14	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812896A22	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812896A15	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812896A23	旋转销-GR-LG	SWIVEL PIN-GR-LG	1
10	8219871	联动销	PIN Co-Pilot	1
11	816667F3	支架	BRACKET	1
11	8M0184092	支架	BRACKET	1
12	816669F1	锁紧垫圈	TAB WASHER	1
12	8M0009820	锁紧垫圈	TAB WASHER	1
13	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
14	196081	连杆(右舷)	LINK ROD (STARBOARD)	1
14	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
14	196091	连杆(左舷)	LINK ROD (PORT)	1
14	19609A6	转向安装套件	ATTACHING KIT Steering	1
15	823919	螺钉（0.375-24 x 1.500）	SCREW (.375-24 x 1.500)	1
16	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
16	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
17	34863	螺母 (.375-24)	NUT (.375-24)	1
17	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
18	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
19	34863	螺母 (.375-24)	NUT (.375-24)	1
19	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
20	52865	垫圈	WASHER	1
21	823876	销	PIN	1
22	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
23	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
24	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1

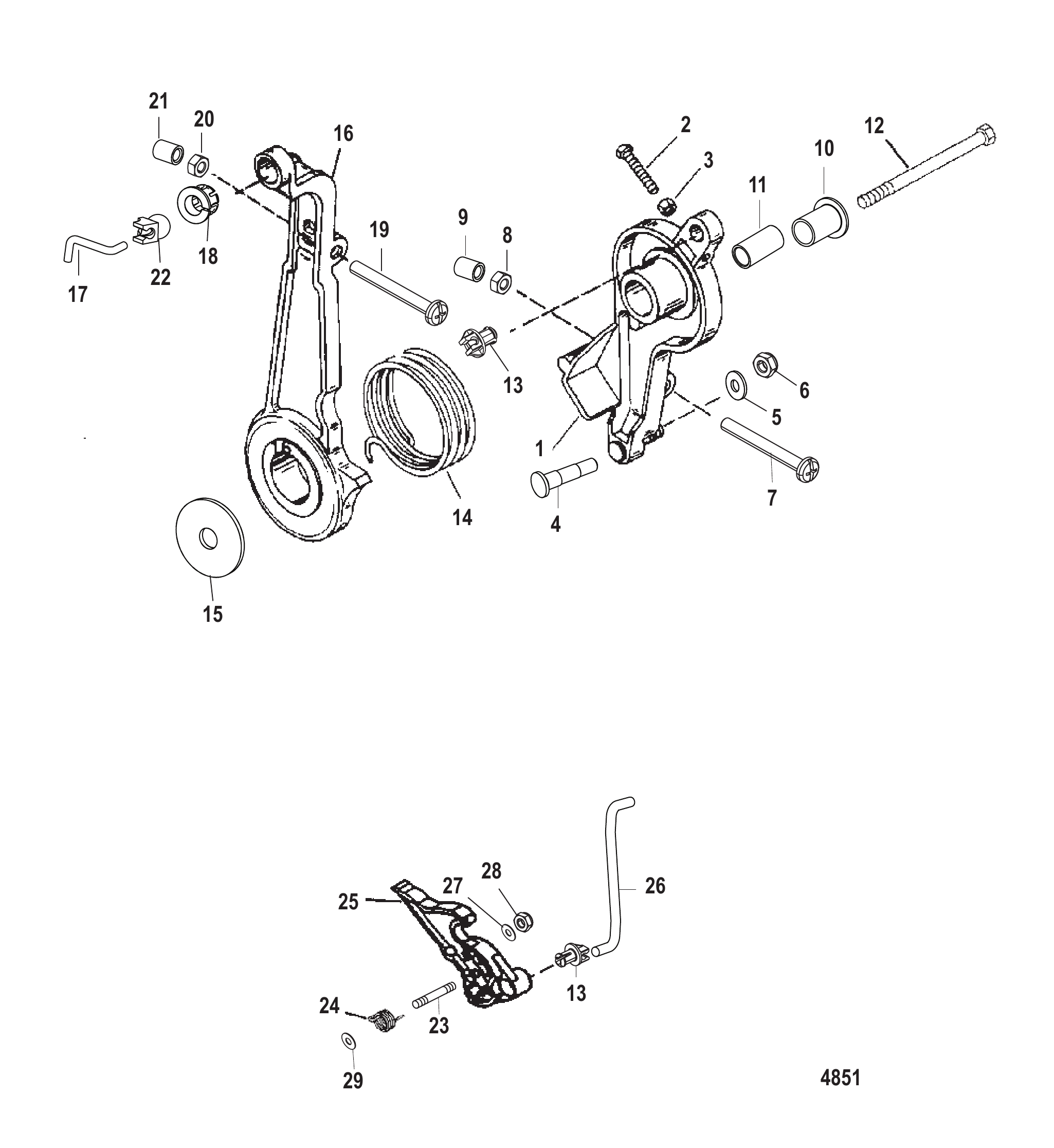

图 32油门杆及联动装置 Throttle Lever and Linkage

REF	零件编号	中文名称	英文名称	数量
1	429461	油门杆	LEVER Throttle	1
2	817582	调节螺钉(M5 x 35)	SCREW Adjusting (M5 x 35)	1
3	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
4	42927	嵌件	INSERT	1
5	35459	垫圈	WASHER	1
6	8268336	螺母 (M6)	NUT (M6)	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
8	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
9	42942	盖帽	CAP	1
10	812930A1	衬套	BUSHING	1
11	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
12	4007180	螺丝(M10 x 45)	SCREW (M10 x 45)	1
13	932481	衬套	BUSHING	2
13	8M0215006	旋转衬套	BUSHING Swivel	2
14	55162	弹簧	SPRING	1
15	42980	垫圈	WASHER	1
-	NSS	不单独销售提前点火杆总成	NOT SOLD SEPARATE Spart Advance Lever Assembly	1
16	196632	点火提前杆	LEVER Spark Advance	1
16	19663T02	杠杆	LEVER	1
17	42918	杆	ROD	1
17	878172	点火提前杆	ROD Spark Advance	1
18	93254	旋转底座	SWIVEL BASE	1
19	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
20	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
21	42942	盖帽	CAP	1
22	93421	旋转球头	SWIVEL BALL	1
23	42984	螺柱	STUD	1
23	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
24	817702	弹簧	SPRING	1
25	828160A1	节气门凸轮总成	CAM ASSEMBLY Throttle	1
25	828160A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
26	828159	杆油门	ROD Throttle	1
26	878174	杆油门	ROD Throttle	1
27	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
28	8268336	螺母 (M6)	NUT (M6)	1
28	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
29	828494	垫圈	WASHER	1

图 33专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量
-	36392	化油器量具	GAUGE TOOL Carburetor	1
-	89045	适配器	ADAPTER	1
-	890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	99379	正时灯	TIMING LIGHT	1
-	825207A1	TPI/CDM测试线束总成	HARNESS ASSEMBLY TPI/CDM Test	1
-	NSS	夹头(不单独销售)(SNAP ON - CG41-14)	NOT SOLD SEPARATE Collet (SNAP ON - CG41-14)	1
-	NSS	膨胀杆(不单独销售)(SNAP ON - CG41-11)	NOT SOLD SEPARATE Expanding Rod (SNAP ON - CG41-11)	1
-	822778A3	下压力套件	DOWN PRESSURE KIT	1
-	99750A1	万用表	MULTI METER	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	29287	量规工具	GAUGE TOOL	1
-	55919	驱动头	DRIVER HEAD	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	52952A1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	24283	卡簧钳	PLIERS Snap Ring	1
-	25821A1	动力头支架工具	STAND TOOL Powerhead	1
-	25821T1	动力头支架工具	STAND TOOL Powerhead	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	78473	背隙测量仪	INDICATOR TOOL Backlash	1
-	8M0053505	背隙指示工具	TOOL Indicator, Backlash	1
-	196601	背隙测量仪	INDICATOR TOOL Backlash	1
-	817007	轴承座密封安装工具	INSTALLER TOOL Bearing Carrier Seal	1
-	817007T	密封安装工具	INSTALLER TOOL Seal	1
-	825199	导向器	PILOT	1
-	13945	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14309A1	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14309T02	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14311A2	轴承预紧工具	PRE LOAD TOOL Bearing	1
-	14311A04	预紧力工具	TOOL Preload	1
-	83165M	轴承拉拔器总成	PULLER ASSEMBLY Bearing	1
-	83165T	拉拔器总成	PULLER ASSEMBLY	1
-	14308A1	轴承座圈工具	RACE TOOL Bearing	1
-	14308T02	轴承座圈驱动器	BEARING RACE DRIVER	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	24156	螺母(0.625-18)	NUT (.625-18)	1
-	15755	心轴	MANDREL	1
-	15755T	滚针轴承驱动器	NEEDLE BEARING DRIVER	1
-	36569	驱动头工具	DRIVE HEAD TOOL	1
-	36569T	驱动头工具	DRIVE HEAD TOOL	1
-	37312	驱动头工具	DRIVER HEAD TOOL	1
-	37312T	传动轴轴承驱动器	DRIVESHAFT BEARING DRIVER	1
-	37323	滚针轴承导杆工具	DRIVER ROD TOOL Needle Bearings	1
-	36571	导向垫圈	PILOT WASHER	1
-	36571T	导向垫圈	PILOT WASHER	1
-	37350	导向垫圈	PILOT WASHER	1
-	37350T	导向心轴	PILOT MANDREL	1
-	29310	安装板	PLATE	1
-	34961	垫圈	WASHER	1
-	43506	轴承保持器扳手	WRENCH Bearing Retainer	1
-	43506T	轴承固定工具	RETAINING TOOL Bearing	1
-	825200A1	弹簧钩具	HOOK TOOL Spring	1
-	83155	千分表转接套件	ADAPTER KIT Dial Indicator	1
-	8M0237356	适配器套件	ADAPTER KIT	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	13779	轴承拆卸工具	REMOVER TOOL Bearing	1
-	817009	杯形驱动器	DRIVER CUP	1
-	817009T	轴承杯驱动器工具	DRIVER TOOL Bearing Cup	1
-	817070	传动轴固定工具	HOLDING TOOL Driveshaft	1
-	825196	传动轴固定工具	HOLDING TOOL Driveshaft	1
-	817005	轴承安装工具	INSTALLER TOOL Bearing	1
-	826872	轴承安装工具	INSTALLER TOOL Bearing	1
-	817058A1	轴承驱动器工具	DRIVER TOOL Bearing	1
-	817011	滚针轴承安装工具	INSTALLER TOOL Needle Bearing	1
-	817011T	滚针轴承安装工具	INSTALLER TOOL Needle Bearing	1
-	13949	油封安装工具	DRIVER TOOL Oil Seal	1
-	31108	油封安装工具	DRIVER TOOL Oil Seal	1
-	31108T	油封驱动器	DRIVER Oil Seal	1
-	825197	心轴	MANDREL	1
-	825197T	油封安装工具	INSTALLER TOOL Oil Seal	1
-	825198	心轴	MANDREL	1
-	817008A2	小齿轮定位工具	LOCATION TOOL Pinion Gear	1
-	12349A2	小齿轮定位工具	LOCATION TOOL Pinion	1
-	12349A05	小齿轮定位工具	TOOL Pinion Locating	1
-	27780	拉拔器	PULLER	1
-	46086A1	拉拔器爪头总成	PULLER JAW ASSEMBLY	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	85560	推力轴承	BEARING Thrust	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	817006	水泵底座密封安装工具	INSTALLER TOOL Water Pump Base Seal	1
-	14310A1	磨损套筒安装工具	INSTALLATION TOOL Wear Sleeve	1
-	14310T1	耐磨套驱动器	WEAR SLEEVE DRIVER	1

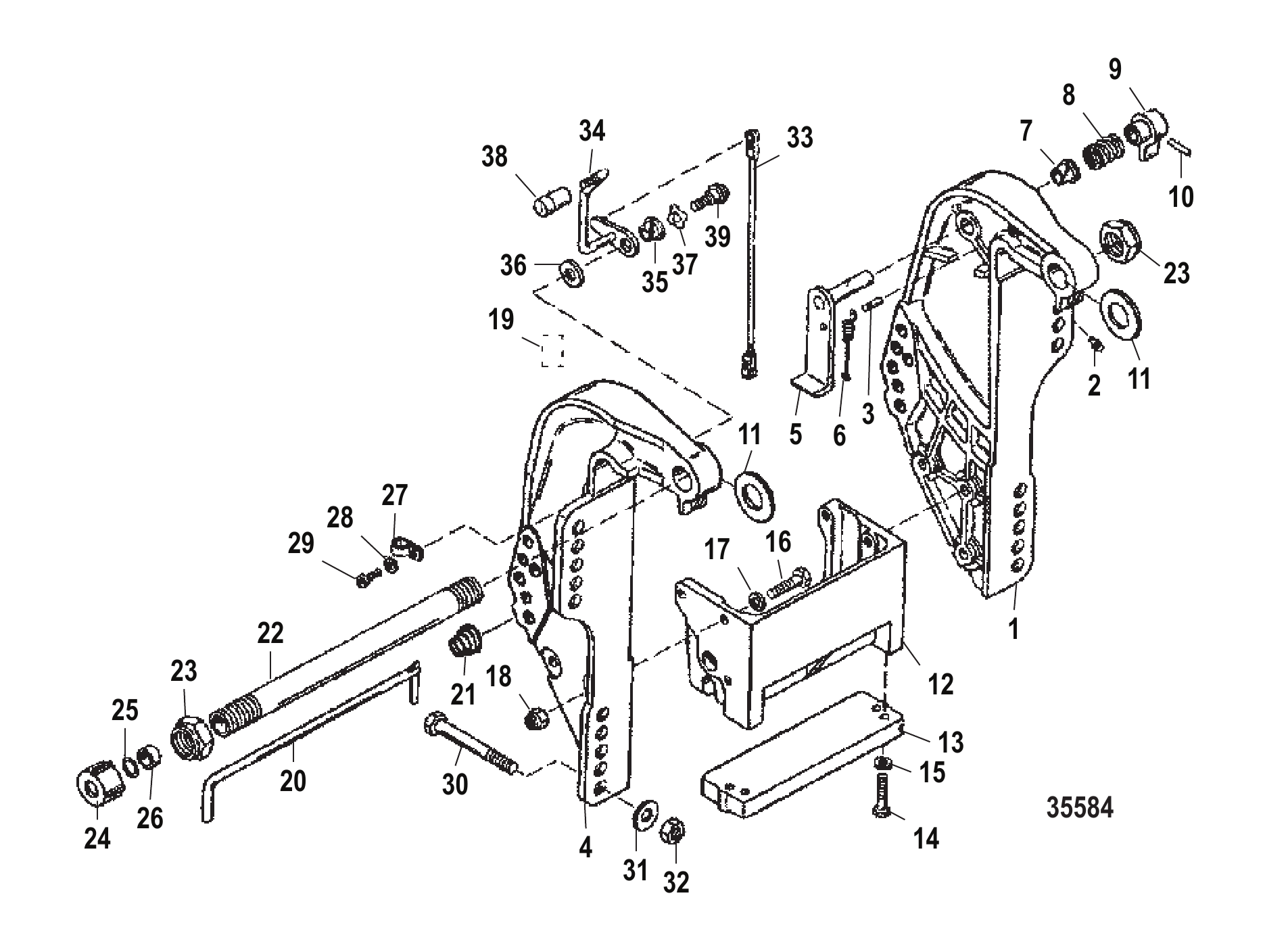

图 34艉板支架(电动) Transom Bracket Electric

REF	零件编号	中文名称	英文名称	数量
1	822866A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	822866A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822865F2	艉板支架	BRACKET Transom	1
4	822865T05	艉板支架-右舷	BRACKET Transom - Starboard	1
4	822865F3	艉板支架	BRACKET Transom	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	NSS	非单独销售贴花-倾斜锁	NOT SOLD SEPARATE Decal-Tilt Lock	1
20	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
21	821461	弹簧	SPRING	1
22	19614	倾斜管	TILT TUBE	1
22	8M0041938	倾斜管	TILT TUBE	1
23	30499	螺母(7/8-14)	NUT (7/8-14)	2
23	858869	螺母 (.875-14)	NUT (.875-14)	2
24	19624A1	密封套件	SEAL KIT	1
25	29619	O型圈(0.583×0.103)	O-RING (.583 x .103)	1
26	78861	隔套	SPACER	1
27	22740	卡扣	CLIP	1
28	69205	C形垫圈	C WASHER	1
28	8M0084613	C形垫圈	C-WASHER	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
30	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
31	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
31	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
32	8M0027784	螺母	NUT	4
32	82671117	螺母(.500-20)	NUT (.500-20)	4
33	1938525	连接杆	LINK	1
33	8M0084737	连接杆	LINK	1
34	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
34	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
35	812707	衬套	BUSHING	1
36	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
36	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
37	99611	波形垫圈	WAVE WASHER	1
38	19621	倾斜旋钮	TILT KNOB	1
38	8M0007469	倾斜旋钮	KNOB Tilt	1
39	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
