水星 Mercury 55 3 CYL 9741042 THRU 9885344 - 爆炸图零件明细

两冲程化油器 · Belgium - Cat.# 90-81735291 · 共 126 个部位 · 5369 条零件

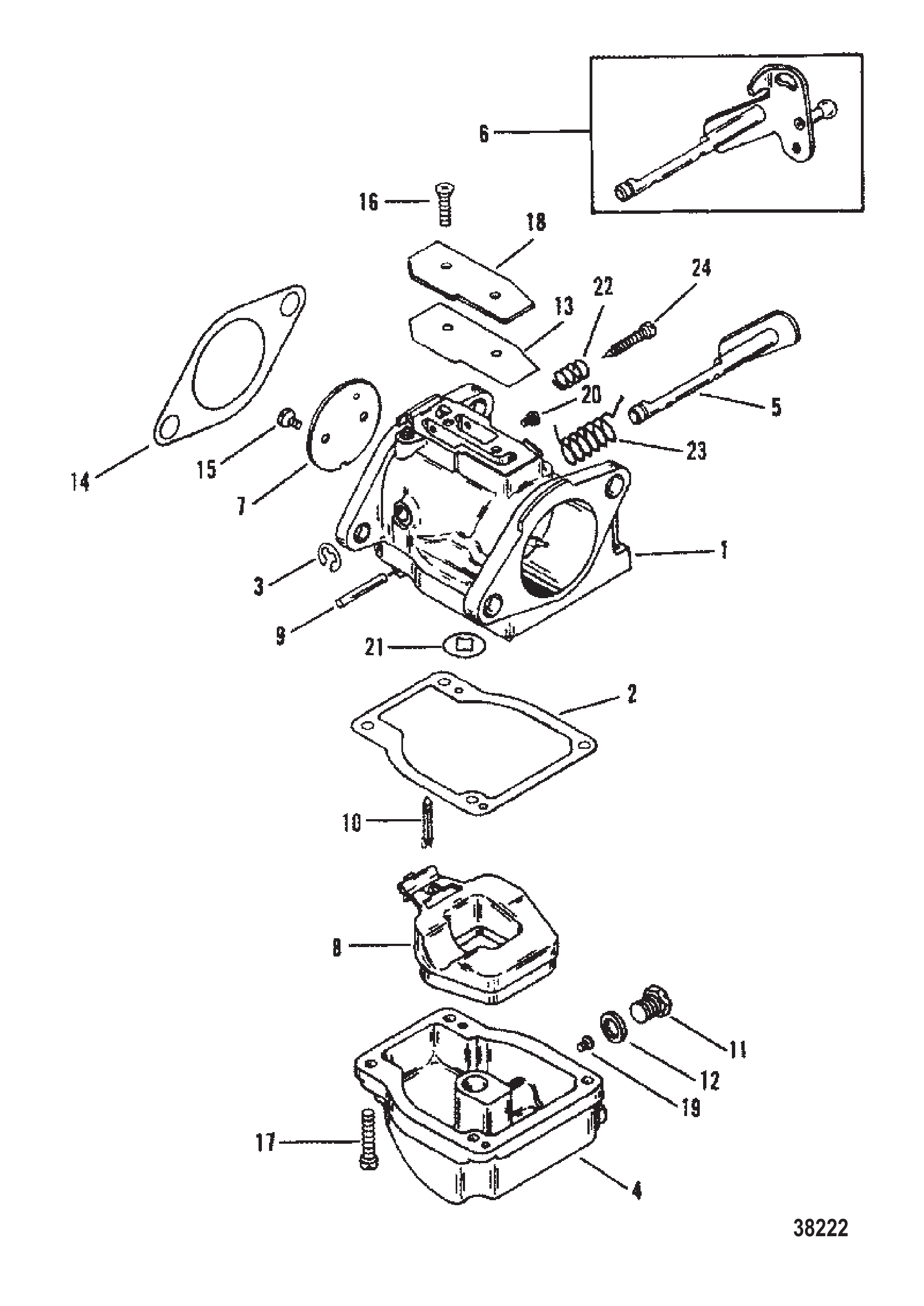

图 1化油器(WME-22/22B/23/24/35) CARBURETOR (WME-22/22B/23/24/35)

REF	零件编号	中文名称	英文名称	数量
1	815406A1	化油器(上)	CARBURETOR (TOP)	1
1	815406A2	化油器(中)	CARBURETOR (CENTER)	1
1	815406A3	化油器(下)	CARBURETOR (BOTTOM)	1
1	817714A4	化油器(上)	CARBURETOR (TOP)	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	817714A5	化油器(中)	CARBURETOR (CENTER)	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	817714A6	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	815405A4	化油器(上)	CARBURETOR (TOP)	1
1	815405A5	化油器(中)	CARBURETOR (CENTER)	1
1	815405A6	化油器(下)	CARBURETOR (BOTTOM)	1
2	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
3	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
4	811695	燃油杯(上)	BOWL Fuel (UPPER)	1
4	9590	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
4	811693	燃油杯	BOWL Fuel	2
4	811695	燃油杯(上)	BOWL Fuel (UPPER)	1
4	811693	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
5	811218	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
6	811219	节气门轴(中央)	SHAFT Throttle (CENTER)	1
7	811216	油门阀	VALVE Throttle	3
7	9593	油门阀	VALVE Throttle	3
8	9594	浮子	FLOAT	3
9	NSS	不单独销售浮子轴	NOT SOLD SEPARATE FLOAT SHAFT	3
10	9595	进油针阀	VALVE Inlet Needle	3
10	879194011	进油阀	VALVE Inlet	3
11	9596	堵头	PLUG	3
11	95961	油杯放油塞	PLUG Bowl Drain	3
11	811694	塞套件	PLUG KIT	3
12	NSS	不单独销售塞衬垫	NOT SOLD SEPARATE GASKET-PLUG	3
13	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
14	8144461	法兰衬垫	GASKET Flange	3
15	NSS	不单独销售油门阀螺钉	NOT SOLD SEPARATE SCREW-THROTTLE VALVE	6
16	811220	盖板螺丝	SCREW Cover Plate	6
17	5132	燃油杯螺钉	SCREW FUEL BOWL	12
17	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
18	811221	盖板	COVER PLATE	3
19	6359	量孔(.052)	JET (.052)	3
19	6029	量孔(.068)	JET (.068)	3
19	6030	量孔(.070)	JET (.070)	3
20	6247	主量孔(0.090)	JET Main (.090)	3
21	NSS		NOT SOLD SEPARATE GASKET	3
22	NSS		NOT SOLD SEPARATE SPRING	3
23	NSS		NOT SOLD SEPARATE SPRING	3
24	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236353	化油器维修套件	REPAIR KIT Carburetor	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

图 2杂项信息 MISCELLANEOUS INFORMATION

零件编号	中文名称	英文名称	数量
81735296	零件手册50/55/60/JET 45	PARTS MANUAL 50/55/60/JET 45	1
817383A1	工具包	TOOL BAG	1
816939A96	贴花套件	DECAL SET	1
811212A96	贴花套件	DECAL SET	1
811212A00	贴花套件(黑色60电动)	DECAL SET (Black 60 Electric)	1
830163A96	贴花套件	DECAL SET	1
804704A00	贴花套件(黑色60 Bigfoot)	DECAL SET (Black 60 Bigfoot)	1
826313A95	贴花套件	DECAL SET	1
826313A01	贴花套件(黑色60 SeaPro)	DECAL SET (Black 60 SeaPro)	1
824097A95	贴花套件	DECAL SET	1
816940A94	贴花套件	DECAL SET	1
816940A97	贴花套件	DECAL SET	1
816940A97	贴花套件	DECAL SET	1
811211A94	贴花套件	DECAL SET	1
811211A03	贴花套件(灰色60电动)	DECAL SET (Gray 60 Electric)	1
811211A97	贴花套件	DECAL SET	1
811211A03	贴花套件(灰色60电动)	DECAL SET (Gray 60 Electric)	1
826326A95	贴花套件	DECAL SET	1
826326A01	贴花套装(灰色Jet 40)	DECAL SET (Gray Jet 40)	1
826326A97	贴花套件	DECAL SET	1
826326A01	贴花套装(灰色Jet 40)	DECAL SET (Gray Jet 40)	1
13361A95	贴花套件	DECAL SET	1
8588372	贴花套件(灰色Marathon 60)	DECAL SET (Gray Marathon 60)	1
824098A95	贴花套件	DECAL SET	1
821573A95	贴花套件	DECAL SET	1
821573A01	贴花套件(黑色55 SeaPro)	DECAL SET (Black 55 SeaPro)	1
821424A95	贴花套件	DECAL SET	1
8588371	贴花套件(灰色Marathon 55)	DECAL SET (Gray Marathon 55)	1
824733A94	贴花套件	DECAL SET	1
824733A96	贴花套装(Tracker 60)	DECAL SET (Tracker 60)	1
831846A97	贴花套装(Tracker Bigfoot 60)	DECAL SET (Tracker Bigfoot 60)	1
826325A96	贴花套件	DECAL SET	1
826325A00	贴花套件	DECAL SET	1
10171970	用户手册	OWNERS MANUAL	1
10173970	用户手册	OWNERS MANUAL	1
10172970	用户手册	OWNERS MANUAL	1
10176970	用户手册	OWNERS MANUAL	1

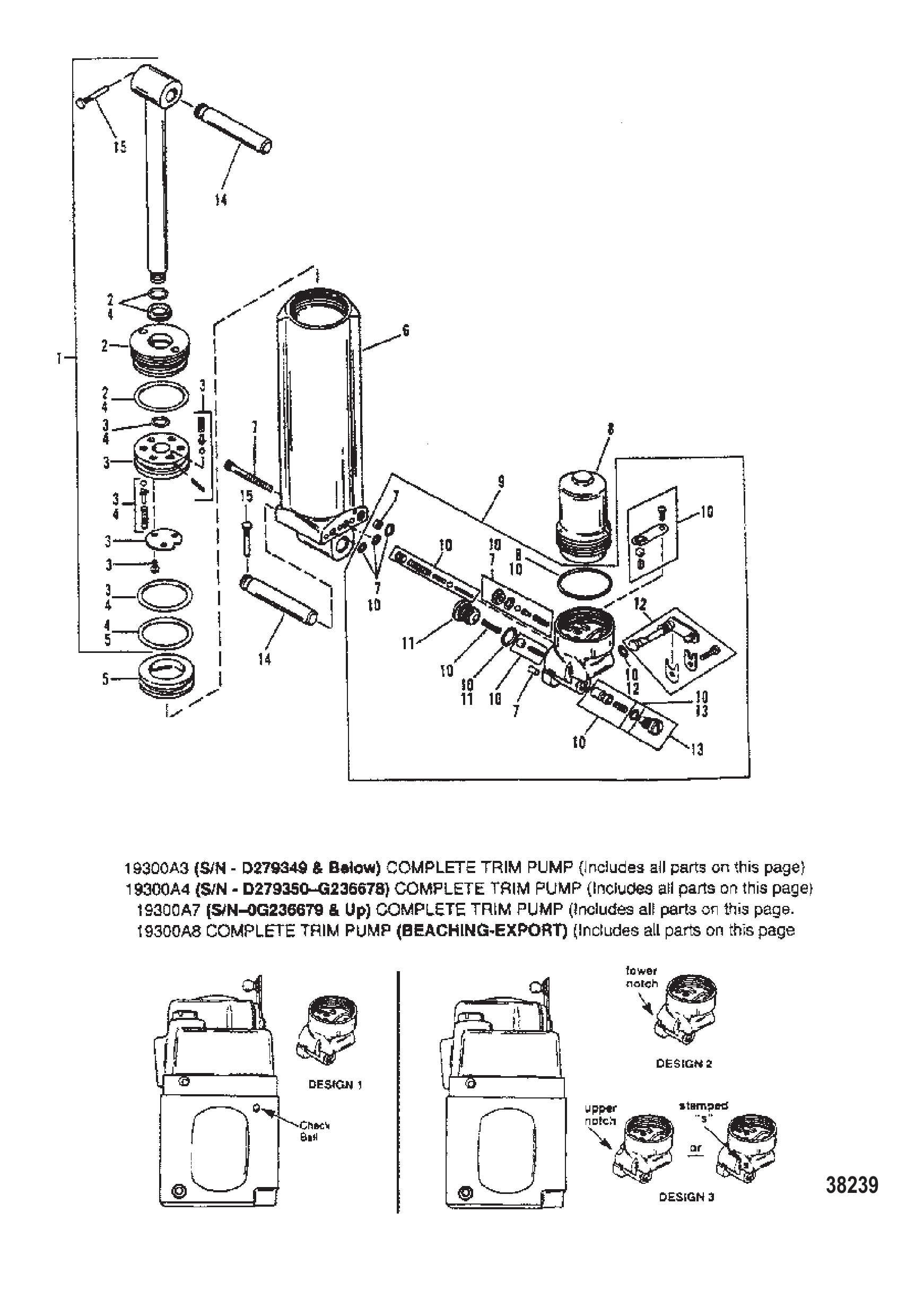

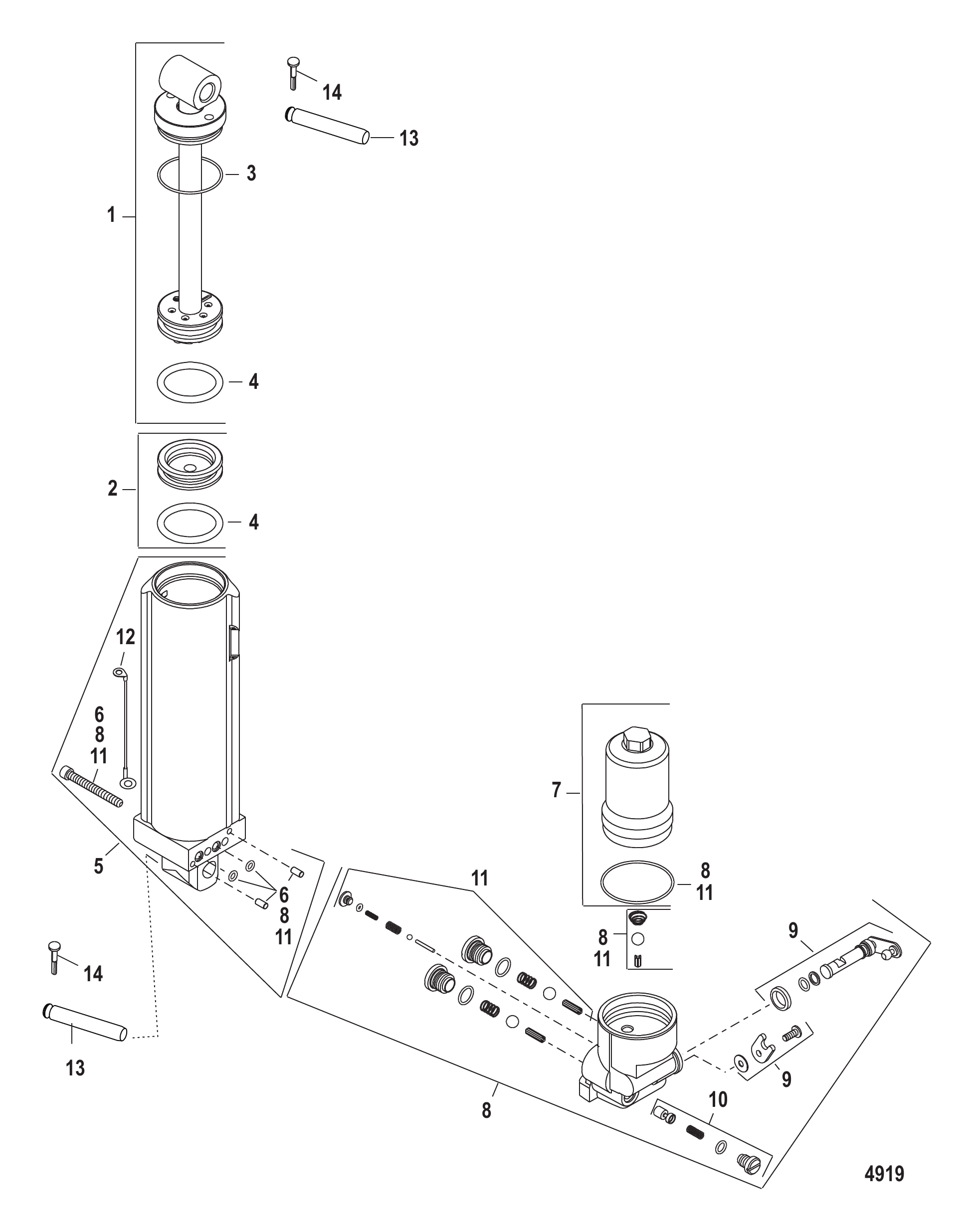

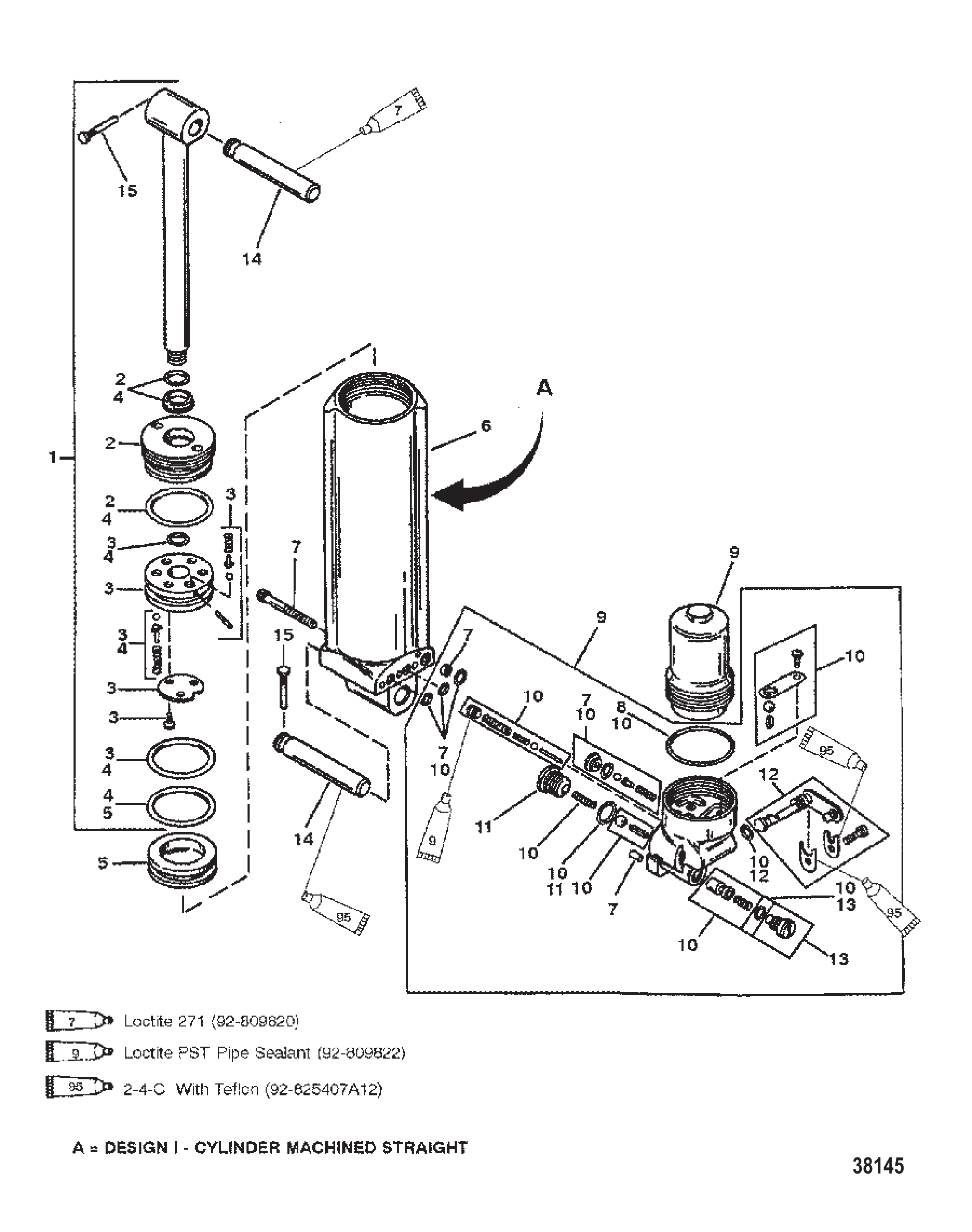

图 3手动倾斜装置组件(设计I型) MANUAL TILT COMPONENTS (DESIGN I)

REF	零件编号	中文名称	英文名称	数量
-	19300A7	配平泵总成	PUMP ASSEMBLY Trim	1
-	19300A8	配平泵总成-完整	PUMP ASSEMBLY Trim - Complete	1
-	832020T3	手动调整	MANUAL TRIM	1
1	8134272	减震杆套件	SHOCK ROD KIT	1
1	8M0118572	减震杆套件	SHOCK ROD KIT	1
1	826416A1	减震杆套件	SHOCK ROD KIT	1
1	893942A01	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	8134291	减震活塞	PISTON Shock	1
3	NSS	活塞减震器(不单独销售)	NOT SOLD SEPARATE PISTON-SHOCK	1
4	813432A2	气缸修理包	CYLINDER REBUILD KIT	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	8112241	气缸套件	CYLINDER KIT	1
6	893918A01	气缸套件	CYLINDER KIT	1
7	813433A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813454A1	蓄能器	ACCUMULATOR	1
8	893920A01	蓄能器套件	ACCUMULATOR KIT	1
9	813455A3	阀块总成	VALVE BLOCK ASSEMBLY	1
9	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
10	813456A4	维修套件	REPAIR KIT	1
11	813458A2	塞套件	PLUG KIT	1
12	813457A2	凸轮套件	CAM KIT	1
12	813455A4	阀体总成	VALVE BODY ASSEMBLY	1
13	813459	塞套件	PLUG KIT	1
14	19607	销	PIN	2
15	821539	三叶销	PIN Trilobe	2
-	826417A1	弹簧套件	SPRING KIT	1
-	826417A2	搁浅套件-手动	BEACHING KT-MANUA	1

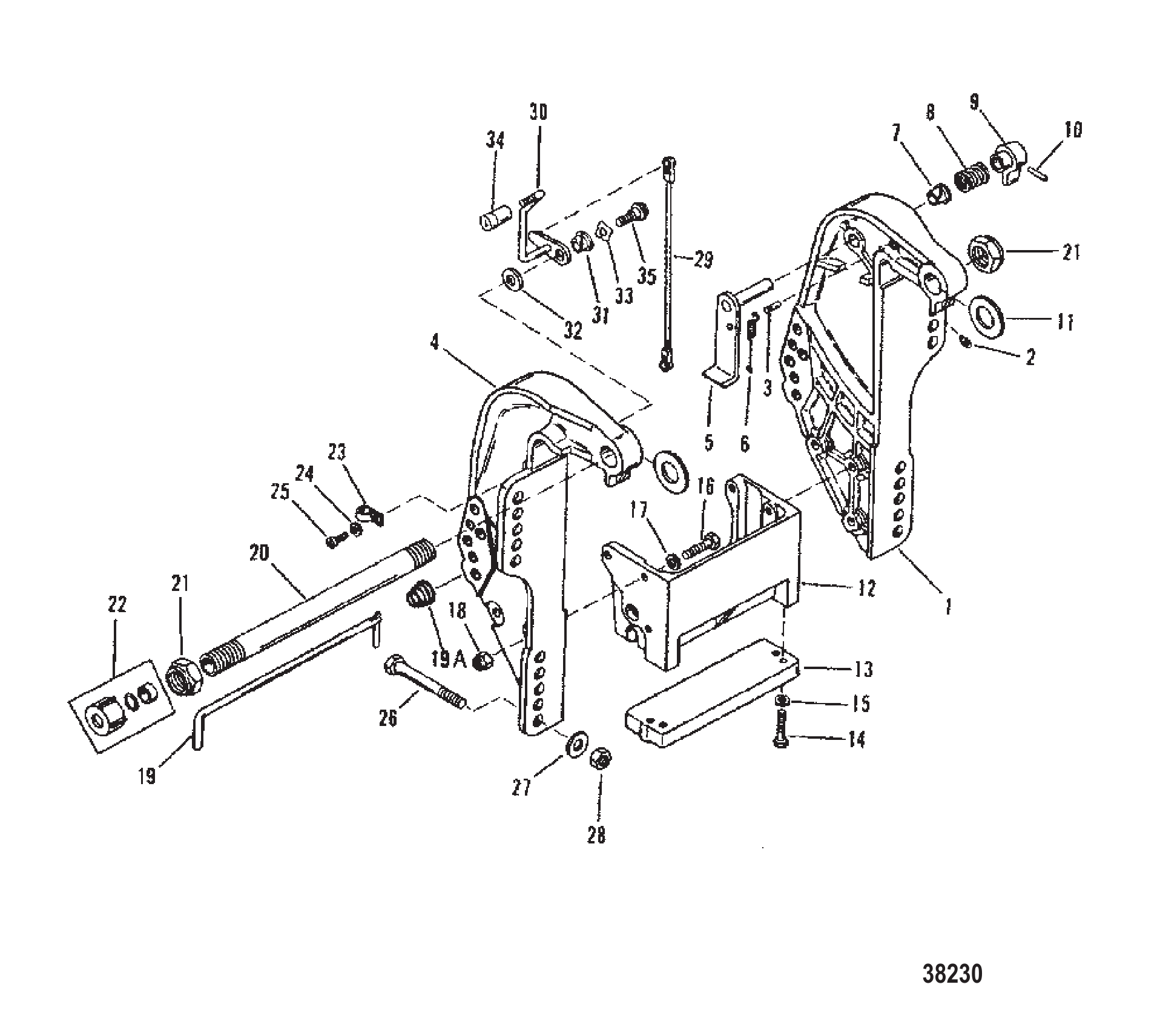

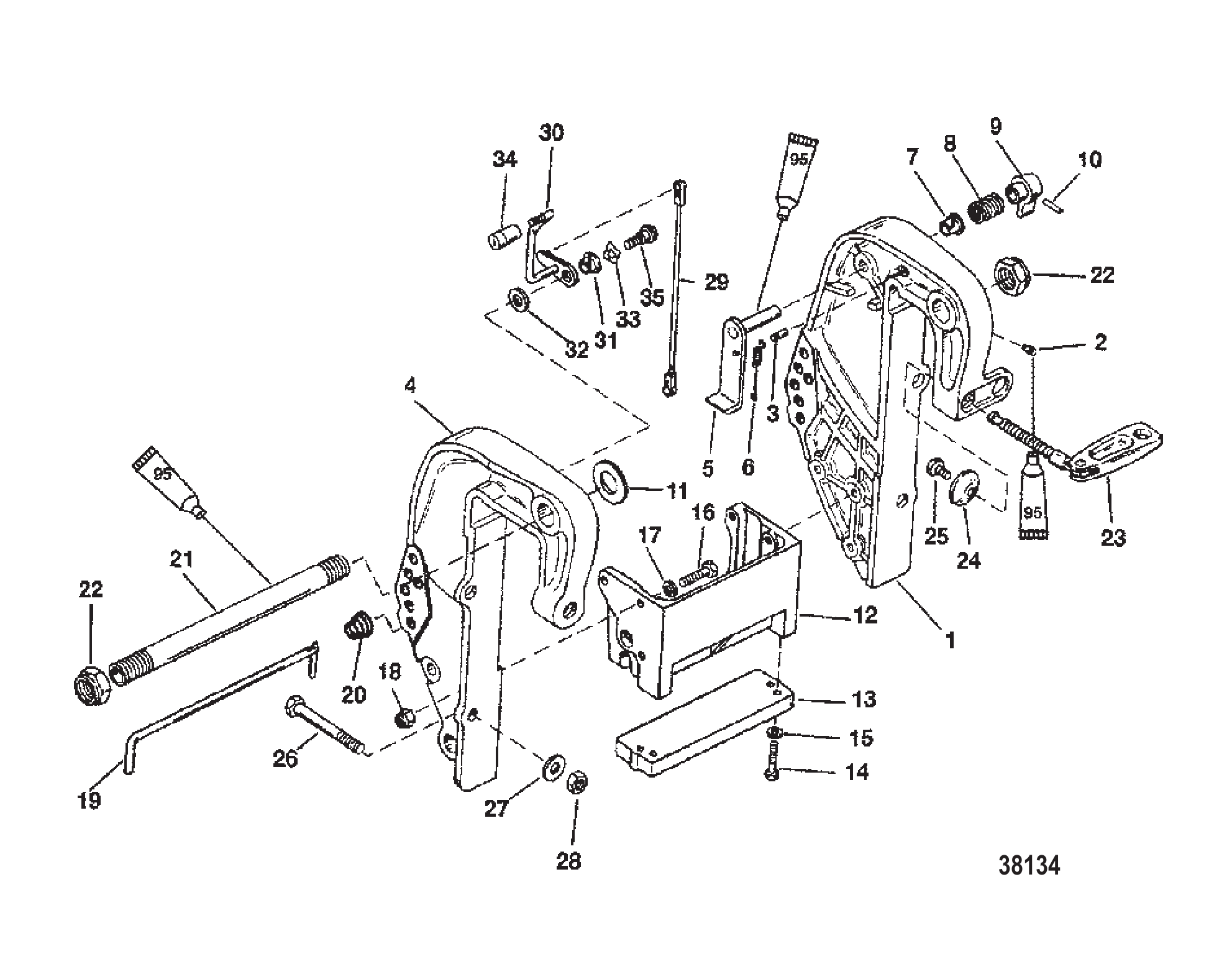

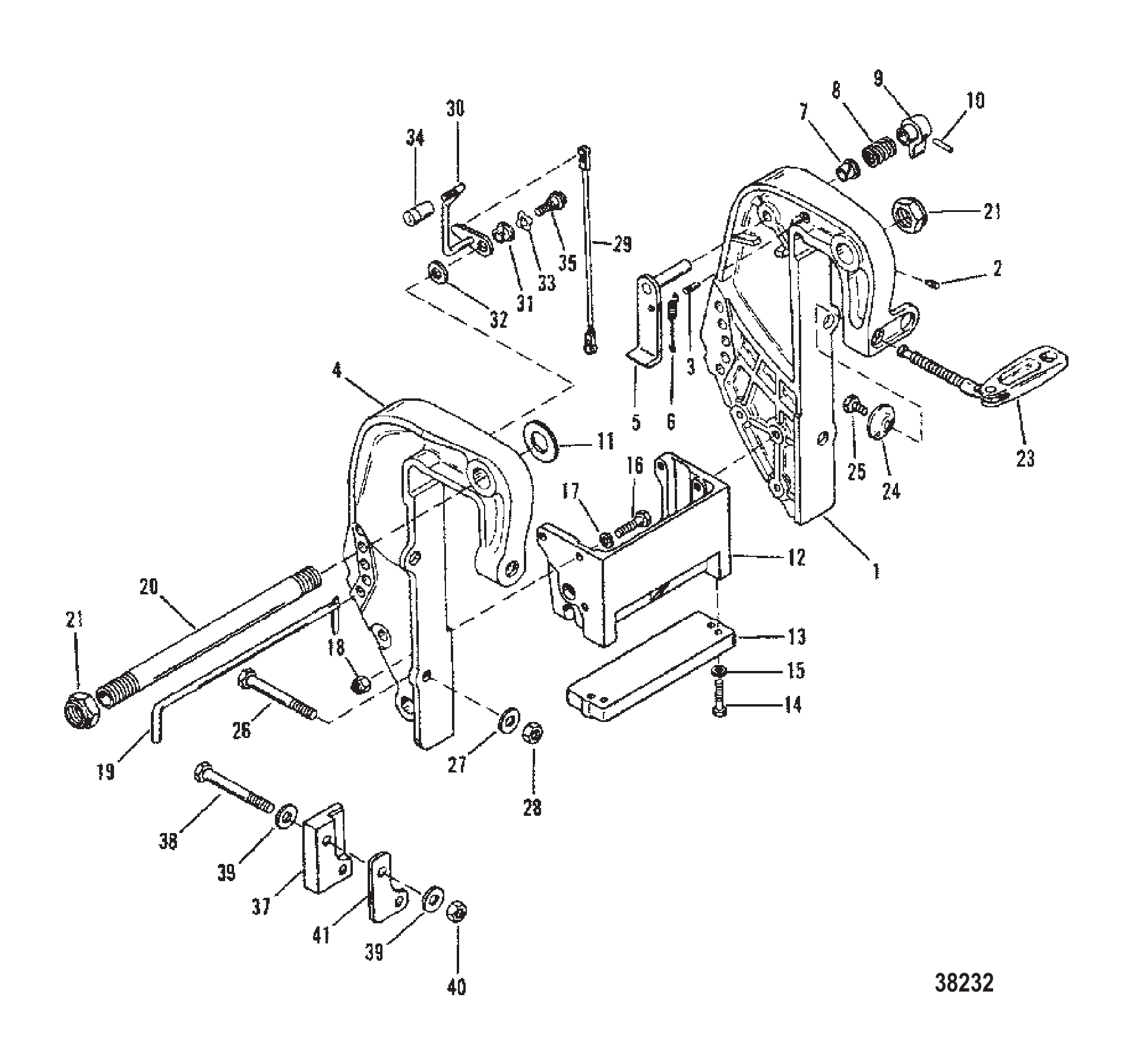

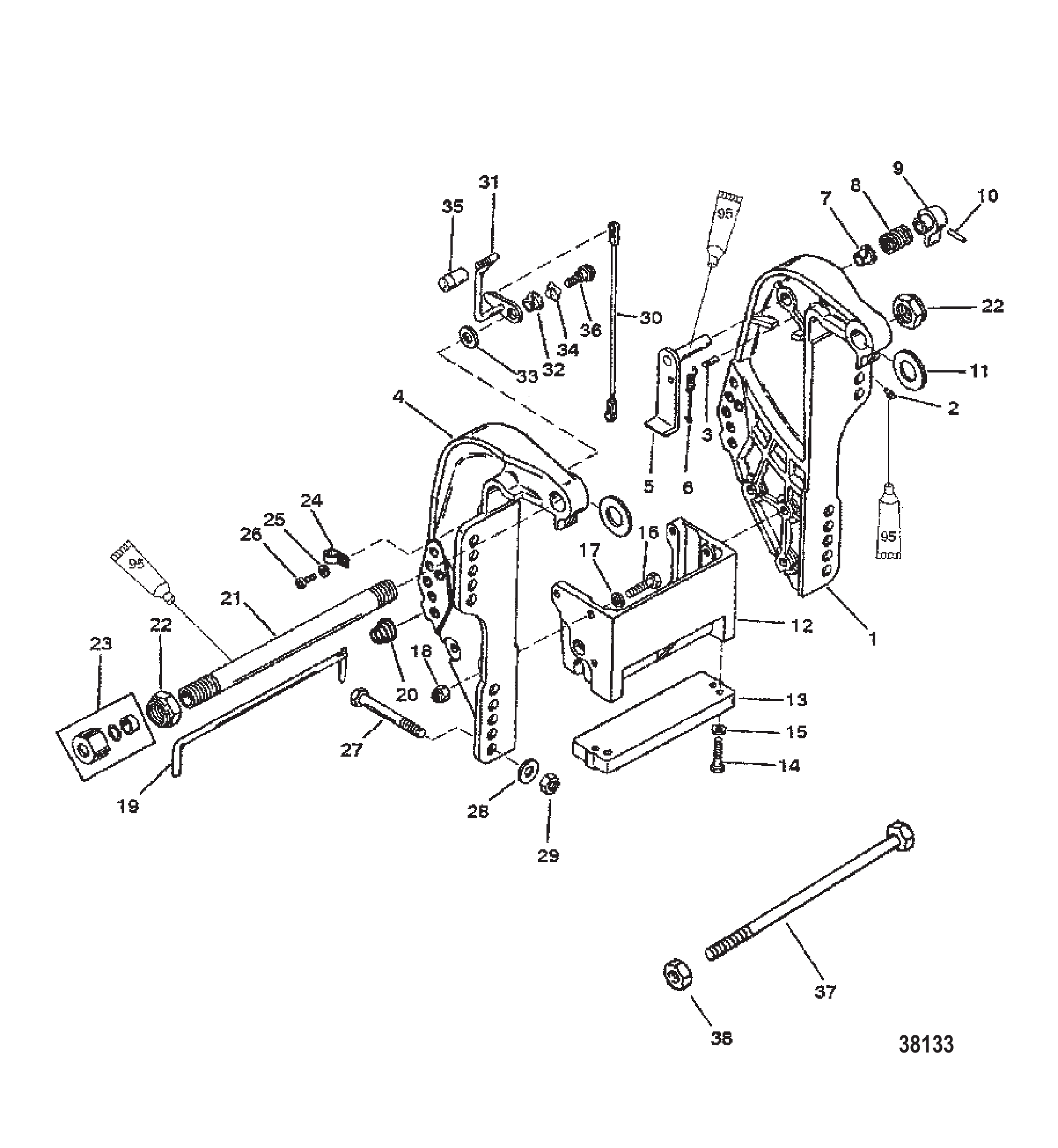

图 4夹紧支架(55)(序列号:0D181999及以下) CLAMP BRACKET (55) (S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	818881A2	艉板支架总成(黑色)	BRACKET ASSEMBLY Transom (BLACK)	1
1	818881A3	艉板支架总成(灰色)	BRACKET ASSEMBLY Transom (GRAY)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	818880F1	艉板支架(黑色)	BRACKET Transom (BLACK)	1
4	818880F2	艉板支架(灰色)	BRACKET Transom (GRAY)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮(黑色)	KNOB (BLACK)	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮(灰色)	KNOB (GRAY)	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486T6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486F6	锚支架	BRACKET Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
23	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
24	818884	垫圈	WASHER	2
25	768041	螺钉	SCREW	2
25	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	815796	垫圈	WASHER	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
37	812432F2	安装支架(右舷)	MOUNTING BRACKET (STARBOARD)	1
37	812432F5	安装支架	MOUNTING BRACKET	1
37	812433F3	安装支架(左舷)	MOUNTING BRACKET (PORT)	1
37	812433F5	安装支架	MOUNTING BRACKET	1
38	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
39	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
39	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	134371	螺母 (.375-24)	NUT (.375-24)	4
40	862903	螺母 (.375-24)	NUT (.375-24)	4
41	821722	垫片	SHIM	4

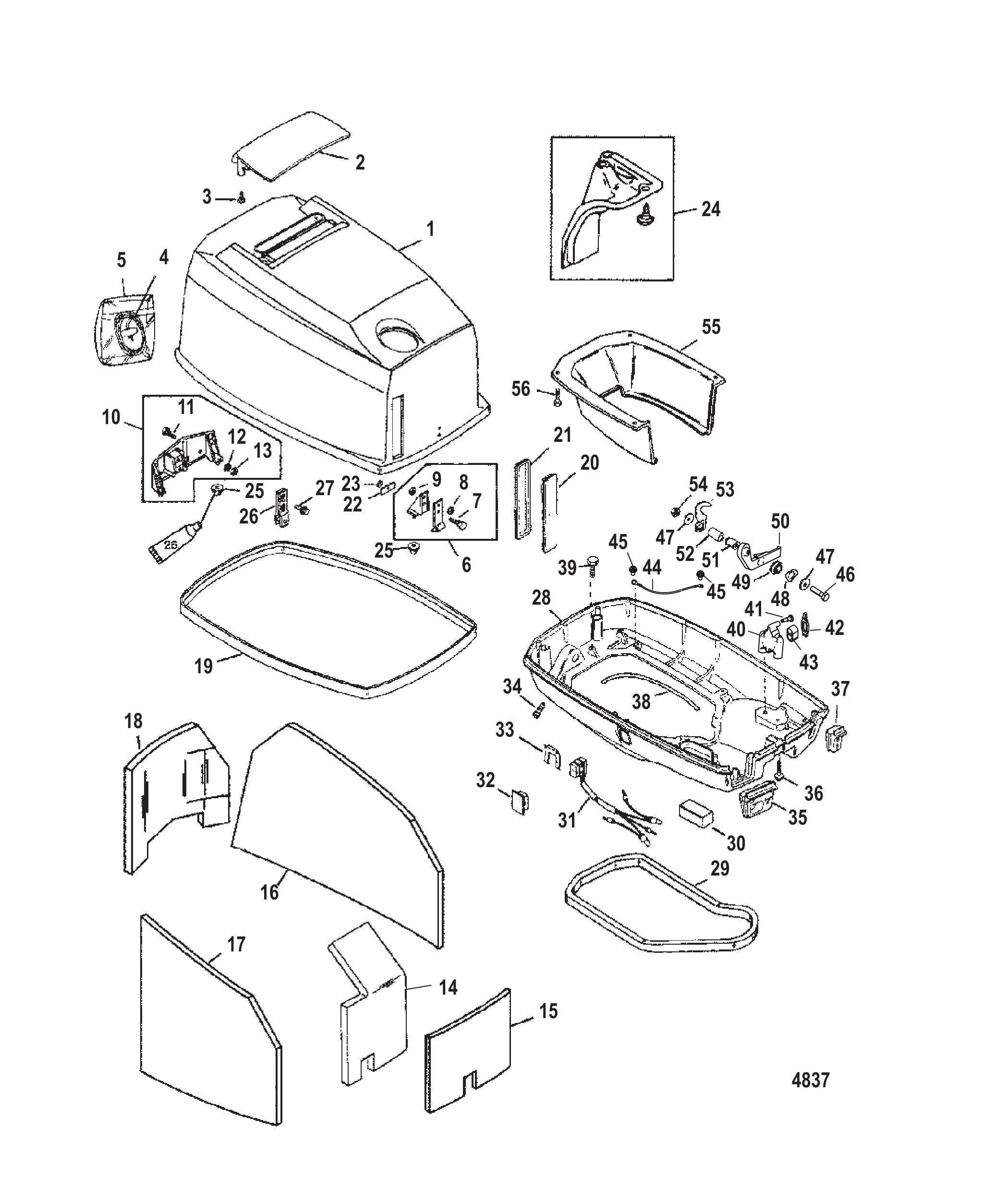

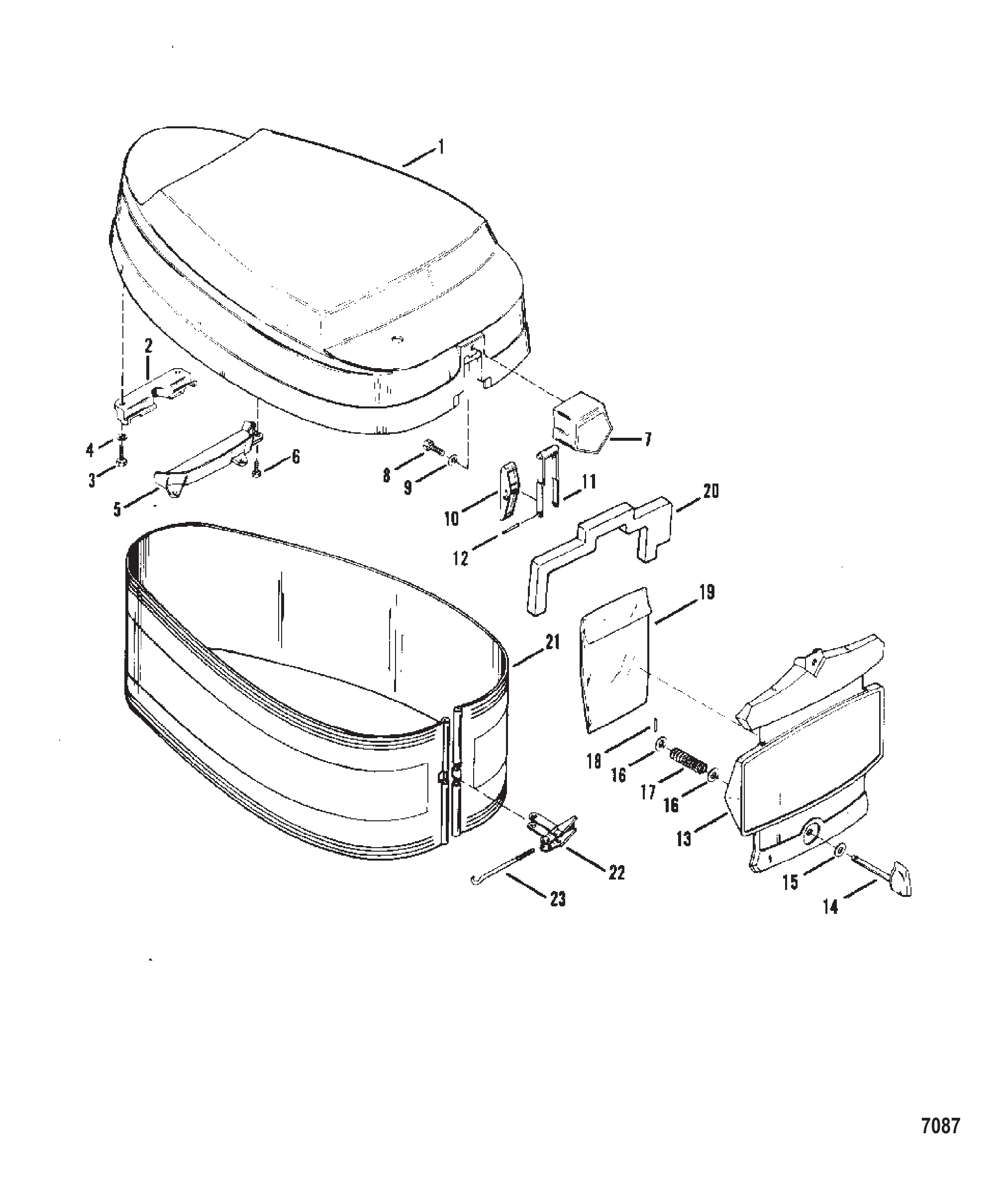

图 5外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	7938	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7937A8	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7938F4	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7937F4	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
2	55455		HOOK Top Cowl Latch - Rear	1
3	22956		SCREW (.250-28 x .880) Rear Hook to Top Cowl	2
4	26992		LOCKWASHER (.250) Stainless Steel Rear Hook Screw	2
5	37690	顶罩后护板	SHIELD Rear - Top Cowl	1
6	48409		SCREW (#10-16 x .625) Stainless Steel Rear Shield to Top Cowl	3
7	97447A1	顶罩固定架总成	RETAINER ASSEMBLY Top Cowl	1
8	53167	顶罩固定架螺丝(.312-18 x .880)	SCREW (.312-18 x .880) Retainer to Top Cowl	1
8	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	1
9	39107	固定架螺丝锁紧垫圈(.312-24)	LOCKWASHER (.312-24) Retainer Screw	1
10	94918T	罩盖锁扣铰链杆	LEVER Cowl Latch Hinge	1
10	94918F1	杠杆	LEVER	1
11	52739T	顶罩锁扣铰链	HINGE Cowl Latch-Top Cowl	1
11	52739	铰链	HINGE	1
12	58998	罩盖锁扣杆铰链销	PIN Cowl Latch Lever to Hinge	1
13	7927A5	水星前盖板(无标贴)	FRONT COVER MERCURY Without Decal	1
13	7927A19	马琳前盖板(无标贴)	FRONT COVER MARINER Without Decal	1
14	56849	前盖板旋钮	KNOB Cowl Front Cover	1
15	30771	盖板旋钮垫圈	WASHER Cover Knob	1
16	59572	盖板旋钮垫圈	WASHER Cover Knob	2
17	30772	盖板旋钮张力弹簧	SPRING Tension - Cover Knob	1
18	29077	旋钮张力弹簧销	PIN Roll Tension Spring to Knob	1
19	38674	隔音毯	BLANKET Sound	1
20	94923	隔音垫	PAD Sound	2
21	3247A3	水星环绕式顶罩总成(无标贴)	TOP COWL ASSEMBLY Wrap Around - Mercury Without Decal	1
21	8181A4	马琳环绕式顶罩总成(无标贴)	TOP COWL ASSEMBLY Wrap Around - Mariner Without Decal	1
22	46785A1	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
23	30413	罩盖锁钩	HOOK Cowl Latch	2

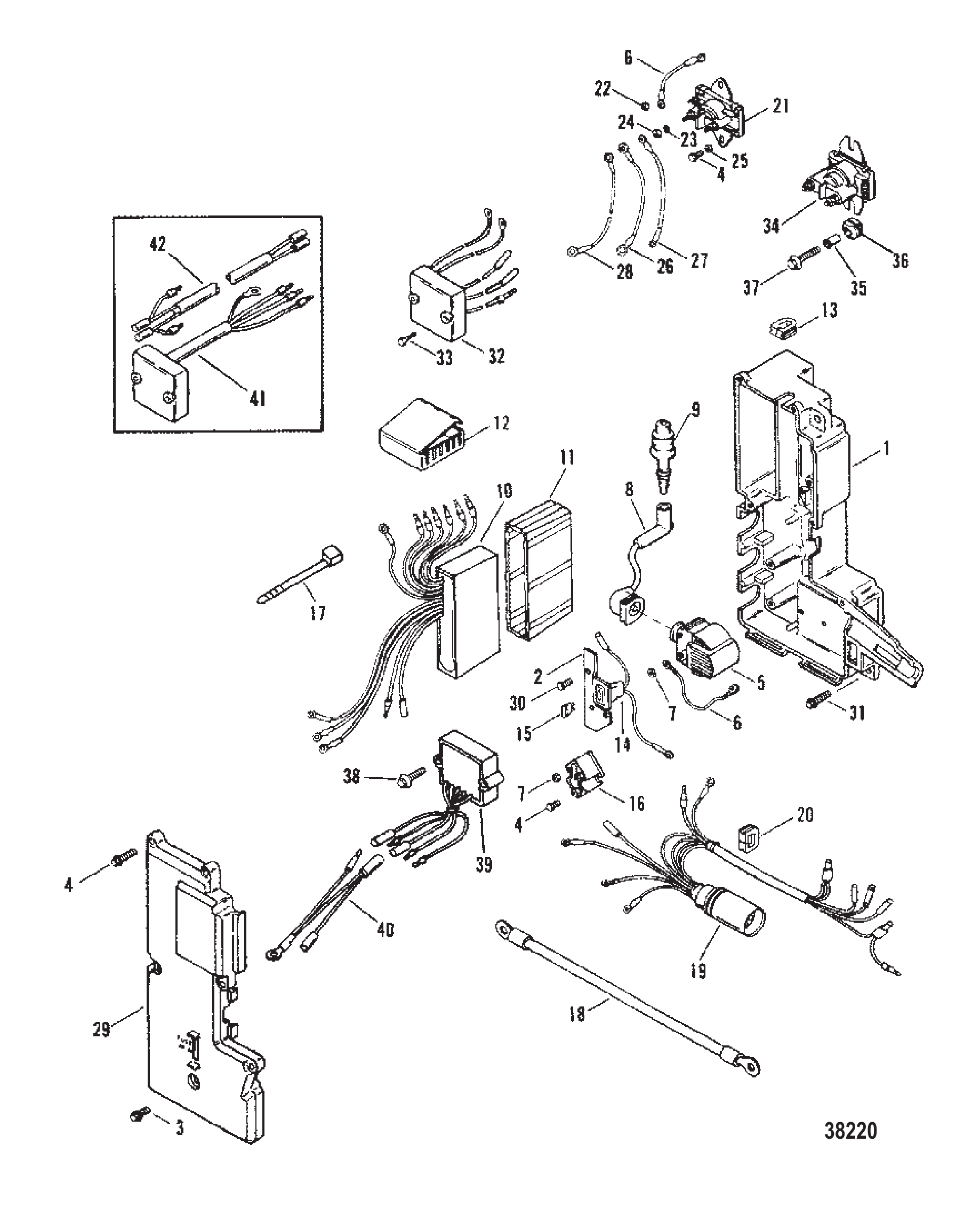

图 6电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	881363T	盖板	COVER	1
2	881364T2	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
2	881364T1	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
3	804291	保险丝20安培	FUSE 20 Ampere	4
3	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
4	80429110	30安保险丝	FUSE 30 Ampere	4
4	8M0057159	30A保险丝	FUSE-30A	4
0	891824010	保险丝盖	COVER Fuse	4
0	891824020	保险丝盖	COVER Fuse	4
5	804289	保险丝拔取器	PULLER Fuse	1
6	881362	支架	BRACKET	1
7	8813511	螺钉	SCREW	1
8	881352T	继电器	RELAY	1
8	8M0098898	继电器	RELAY	1
9	82214M	垫圈	WASHER	2
10	881355	锁紧垫圈	LOCKWASHER	2
10	82212M	锁紧垫圈	LOCKWASHER	2
11	881354	螺钉	SCREW	2
11	96671M	螺钉	SCREW	2
12	804284	护套	BOOT	2
12	804284001	护套	BOOT	2
13	881350T	继电器	RELAY	1
14	881351	螺钉	SCREW	1
15	881353	卡箍	CLAMP	1
16	8813511	螺钉	SCREW	1
17	881359T	支架	BRACKET	1
17	881363A01	盖/支架套件	COVER/BRACKET KIT	1
18	881361	卡箍	CLAMP	1
19	881360	卡箍	CLAMP	1
20	804270	螺栓(M6×28)	BOLT (M6 x 28)	5
21	881304	护孔环	GROMMET	5
22	82851M	衬套	BUSHING	5
22	804344003	轴环	COLLAR	5
23	881356T1	继电器总成	RELAY ASSEMBLY	1
23	882751A3	升降继电器套件	RELAY KIT Trim	1
24	881357	引线	LEAD WIRE	1
25	881358	盖帽	CAP	1
26	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	825702	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
27	8257021	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
28	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
29	88439A33	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
30	88439A10	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
31	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
32	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
32	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
33	858723T1	适配器/升降线束总成	HARNESS ASSEMBLY Adapter/Trim	1
34	858914T1	升降马达适配器线束总成	HARNESS ASSEMBLY Trim Motor Adaptor	1
35	858740T4	遥控适配器线束总成	HARNESS ASSEMBLY Adapter Assembly Remote	1
36	92753	固定座	RETAINER	1
37	859249T1	连接器	CONNECTOR	1
38	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
39	8272822	高压警告标贴	DECAL Warning High Voltage	1
40	881865	挂档启动警示标贴	DECAL Caution-Start in Gear Start in Gear	1
41	828151A2	升降继电器套件	TRIM RELAY KIT	1
41	882751A3	升降继电器套件	RELAY KIT Trim	1
42	826802A24	升降线束总成	HARNESS ASSEMBLY Trim	1
43	828151A1	继电器总成	RELAY ASSEMBLY	2
43	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
44	818967	护孔环	GROMMET	1
44	8M0207785	护孔环	GROMMET	1
45	818968	衬套	BUSHING	1
45	8M0214955	衬套	BUSHING	1
46	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
47	828102	支架	BRACKET	1
47	8M0207771	安装支架	BRACKET Mounting	1
48	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
49	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
49	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
50	823807	衬套	BUSHING	1

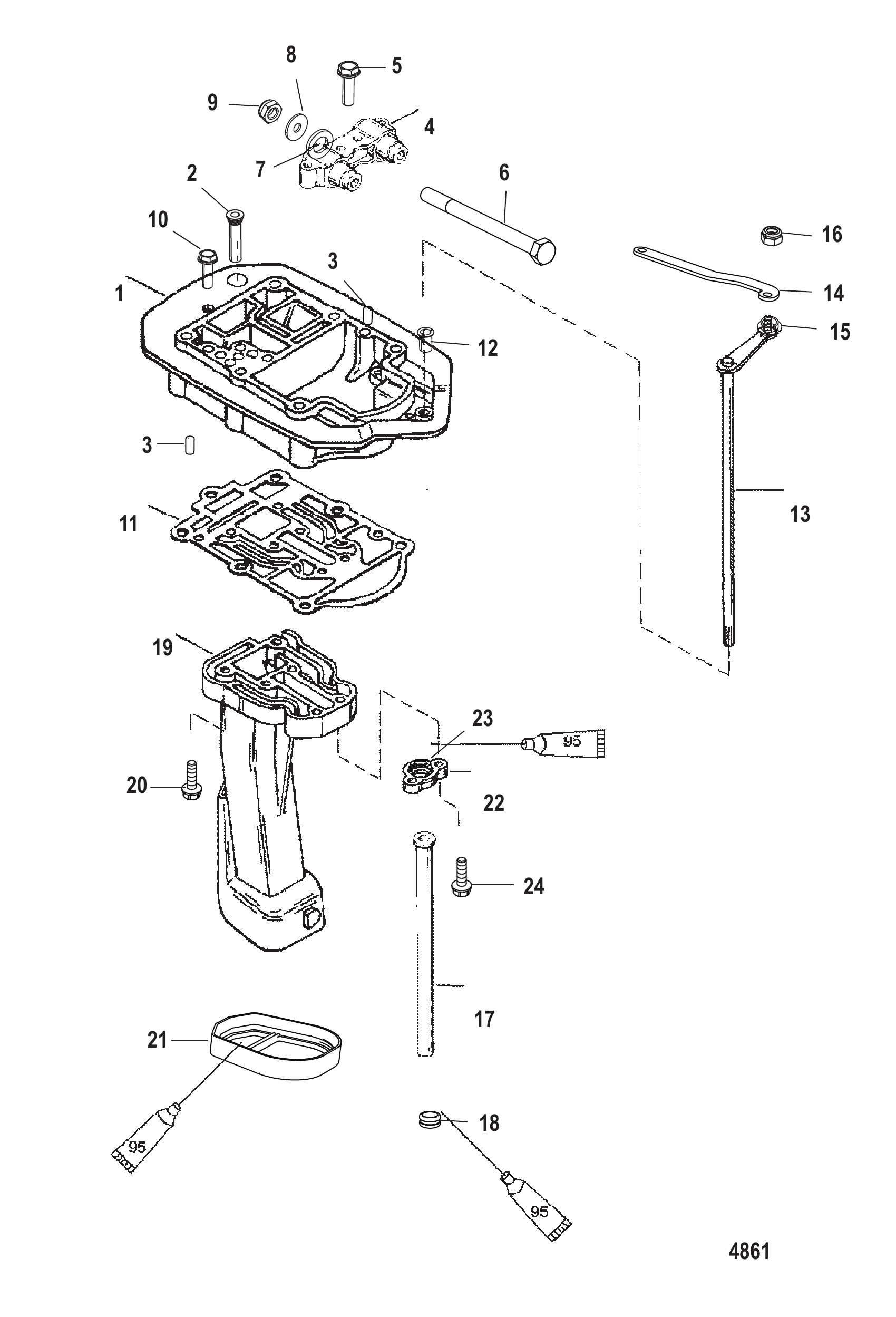

图 7排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	858582T	适配板总成	ADAPTER PLATE ASSEMBLY	1
2	23784	定位销	PIN Dowel	7
3	880090	接头	FITTING	1
4	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
5	126021	护孔环	GROMMET	1
5	12602002	护孔环	GROMMET	1
6	8585831	衬垫	GASKET	1
7	858572T	油底壳	SUMP Oil	1
7	858572T01	油底壳	SUMP Oil	1
8	858584A1	排气管总成	TUBE ASSEMBLY Exhaust	1
9	881295	O型圈	O-RING	1
10	894171	护孔环	GROMMET	1
10	89417004	护孔环	GROMMET	1
11	858575	水管	TUBE Water	1
11	8M0026130	水管	TUBE Water	1
11	8585751	水管	TUBE Water	1
11	8M0026129	水管	TUBE Water	1
12	814080	上密封件	SEAL Upper	1
12	814080001	密封件	SEAL	1
13	858571T	机油吸油管	TUBE Oil Pick Up	1
14	859082	O型圈	O-RING	1
15	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
15	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
16	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	12
16	8M0214957	螺钉	SCREW	12
17	8596021	量油尺	DIPSTICK	1
18	48237	衬套	BUSHING	1
19	858577A2	换档轴	SHIFT SHAFT	1
19	858577A3	换档杆总成	LEVER ASSY-SHIFT	1
20	859177A3	换挡连杆	SHIFT LINK	1
21	NSS	不单独销售衬套	NOT SOLD SEPARATE Bushing	1
22	879997	换档滑块	SHIFT SLIDER	1
23	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
24	813745	隔套	SPACER	1
24	11289	隔套	SPACER	1
25	43585	联轴器	COUPLING	1
26	859746	开口销	COTTER PIN	2
27	858573	密封件	SEAL	1
27	8M0039073	密封件	SEAL	1
28	8288181	放油塞	PLUG Drain	1
29	828816	衬垫	GASKET	1
29	8M0204692	衬垫@5	GASKET @5	1
30	82483213	螺钉(M6 x 60)	SCREW (M6 x 60)	4

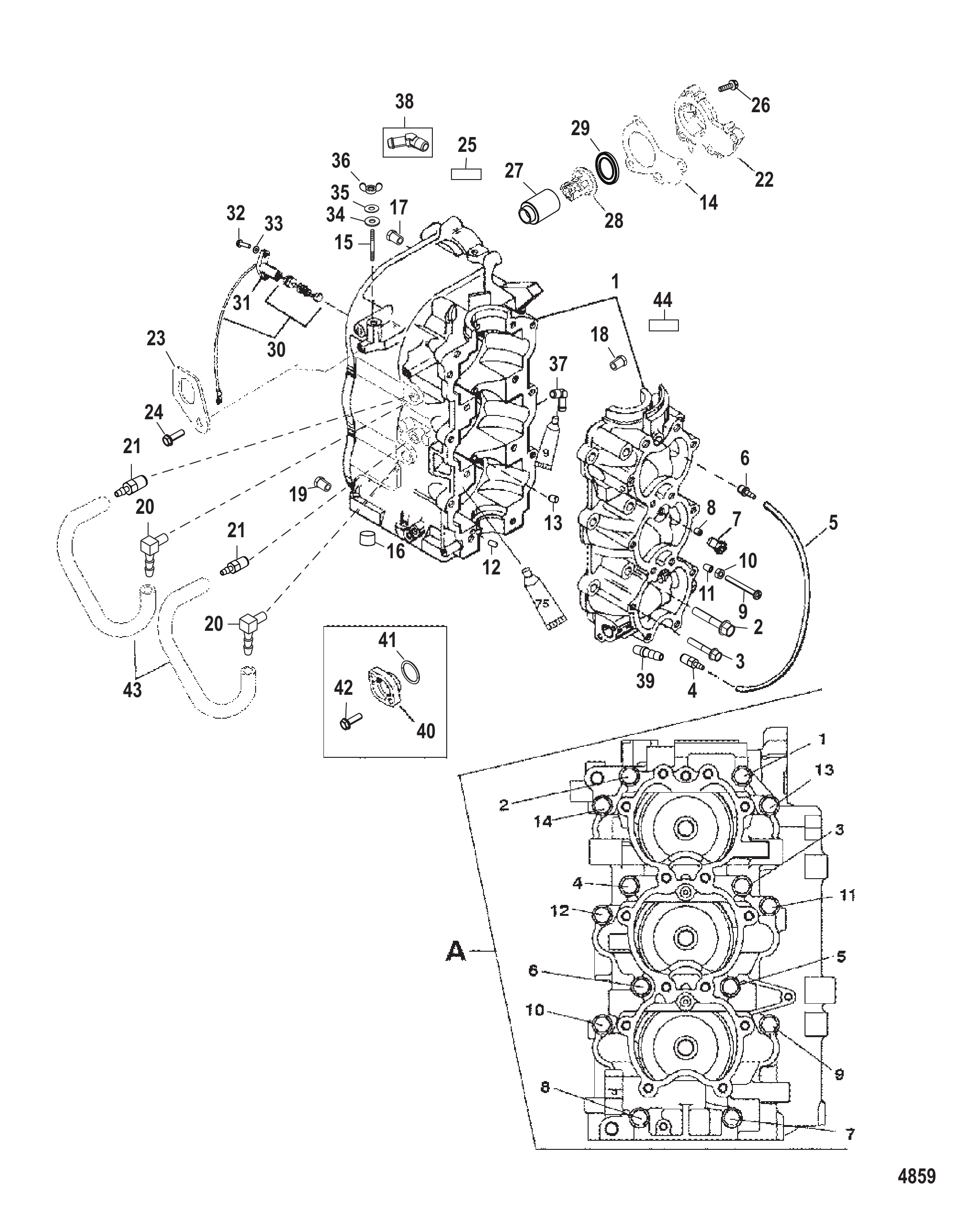

图 8气缸体与曲轴箱 Cylinder Block and Crankcase

REF	零件编号	中文名称	英文名称	数量
1	9755A9	气缸体	CYLINDER BLOCK	1
1	9755A14	气缸体	CYLINDER BLOCK	1
1	9755T14	气缸体	CYLINDER BLOCK	1
1	9755A10	气缸体	CYLINDER BLOCK	1
1	9755T10	气缸体	CYLINDER BLOCK	1
1	9755A15	气缸体	CYLINDER BLOCK	1
1	9755T15	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	42658	止回阀	CHECK VALVE	1
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材(20英尺散装)(16英寸)	TUBING (20.00 Feet Bulk) (16")	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
6	426233	止回阀	CHECK VALVE	1
7	812888A1	托架总成	CARRIER ASSEMBLY	2
8	42657A1	止回阀	CHECK VALVE	2
8	42657A3	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	20033	定位销	PIN Dowel (LOCATING)	1
12	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
13	812870	主轴承座中心销	PIN Center Main (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	18597	盖板	COVER	1
15	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
16	65848	托架	CARRIER	1
17	64872	护孔环	GROMMET	1
18	8128671	衬垫	GASKET	1
18	8128672	衬垫	GASKET	1
19	8161941	螺柱	STUD	2
19	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
20	18598	管塞	PIPE PLUG	4
20	185981	管塞(.375-18)	PLUG Pipe (.375-18)	4
21	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
22	81742720	螺钉(M8 x 20)(55号件用3个)	SCREW (M8 x 20) (QTY. OF 3 ON 55)	4
22	40011149	不锈钢螺钉(M8 x 25)(55号件用3个)	SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)	4
22A	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
23	8128821	提动阀	POPPET	1
24	812887	隔膜	DIAPHRAGM	1
24	8128871	隔膜	DIAPHRAGM	1
24	812887002	隔膜	DIAPHRAGM	1
25	94182	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	90392	弹簧	SPRING	1
27	18336	弹簧	SPRING	1
27	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
28	75692	节温器	THERMOSTAT	1
28	14586	节温器	THERMOSTAT	1
29	62386	衬垫	GASKET	1
29	8M0204714	衬垫@4	GASKET @4	1
30	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
30	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	99664	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	78279	弯头	ELBOW	1
38	8M0207781	弯头	ELBOW	1
39	19074	盖板	COVER	1
39	190741	盖板	COVER	1
39	8M0036859	盖板	COVER	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129961	盖板	COVER	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
45	821595	吊环	LIFTING EYE	1
46	821616	螺钉	SCREW	1
46	821606	螺钉	SCREW	1
47	400265	螺母 (M8)	NUT (M8)	1
47	401368	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

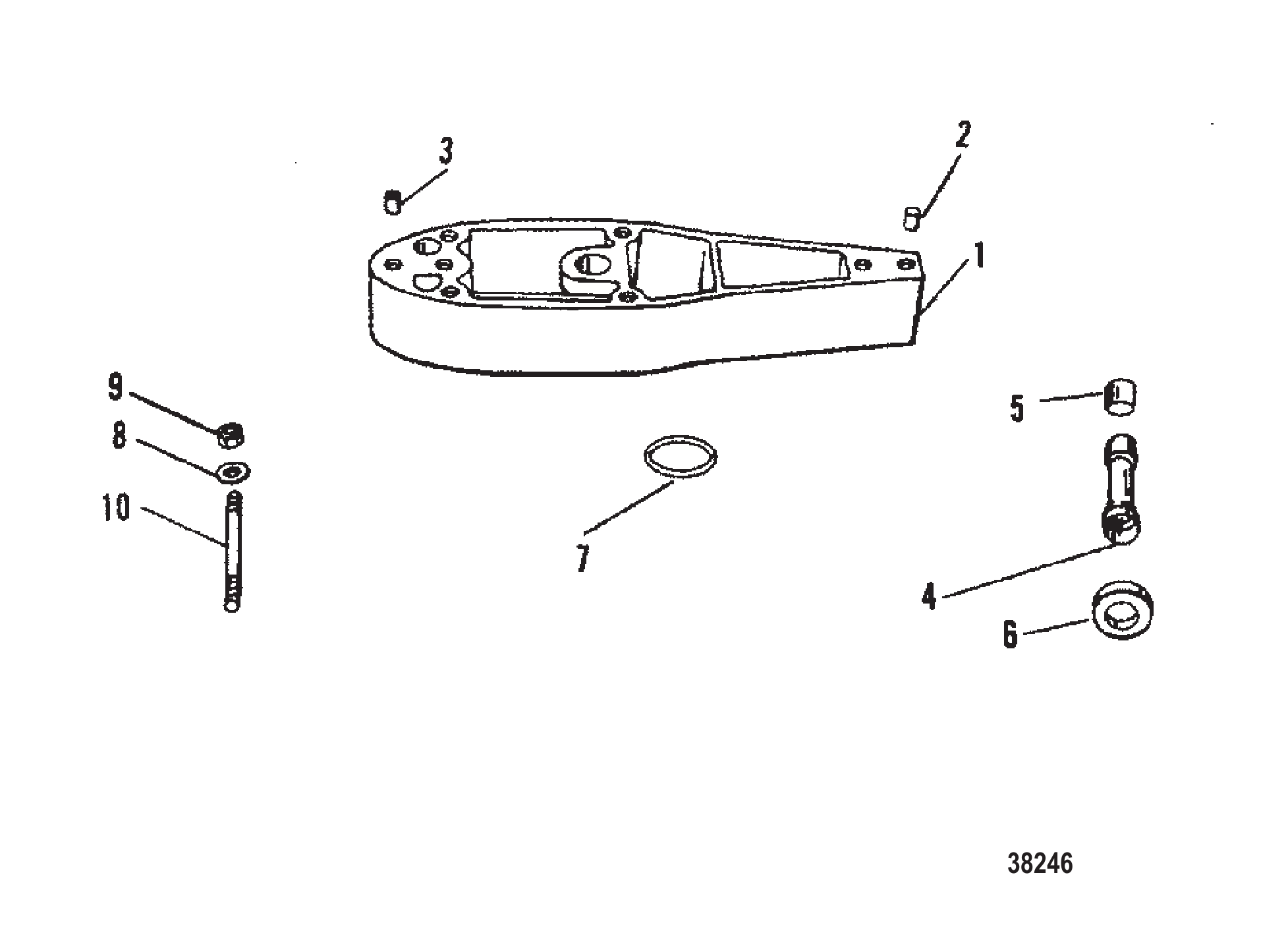

图 9延伸组件 Extension Components

REF	零件编号	中文名称	英文名称	数量
1	816696A3	垫片(黑色)	SPACER (BLACK)	1
1	816696A4	垫片(灰色)	SPACER (GRAY)	1
1	816696A5	垫片(追踪者型)	SPACER (TRACKER)	1
1	816696F5	垫片(黑色)	SPACER (BLACK)	1
1	816696T5	隔套	SPACER	1
1	816696F6	垫片(灰色)	SPACER (GRAY)	1
1	816696T6	ORD 816696T5	ORD 816696T 5	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
3	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
3	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
4	817401A1	水管总成	TUBE ASSEMBLY Water	1
5	38970	油封(旧款)	SEAL (OLD DESIGN)	1
6	821093	密封件	SEAL	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	4
8	8M0214963	垫圈	WASHER	4
9	13914	螺母(M10)	NUT (M10)	5
9	40140	螺母(M10)	NUT (M10)	5
10	8168661	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5
10	8M0034425	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5

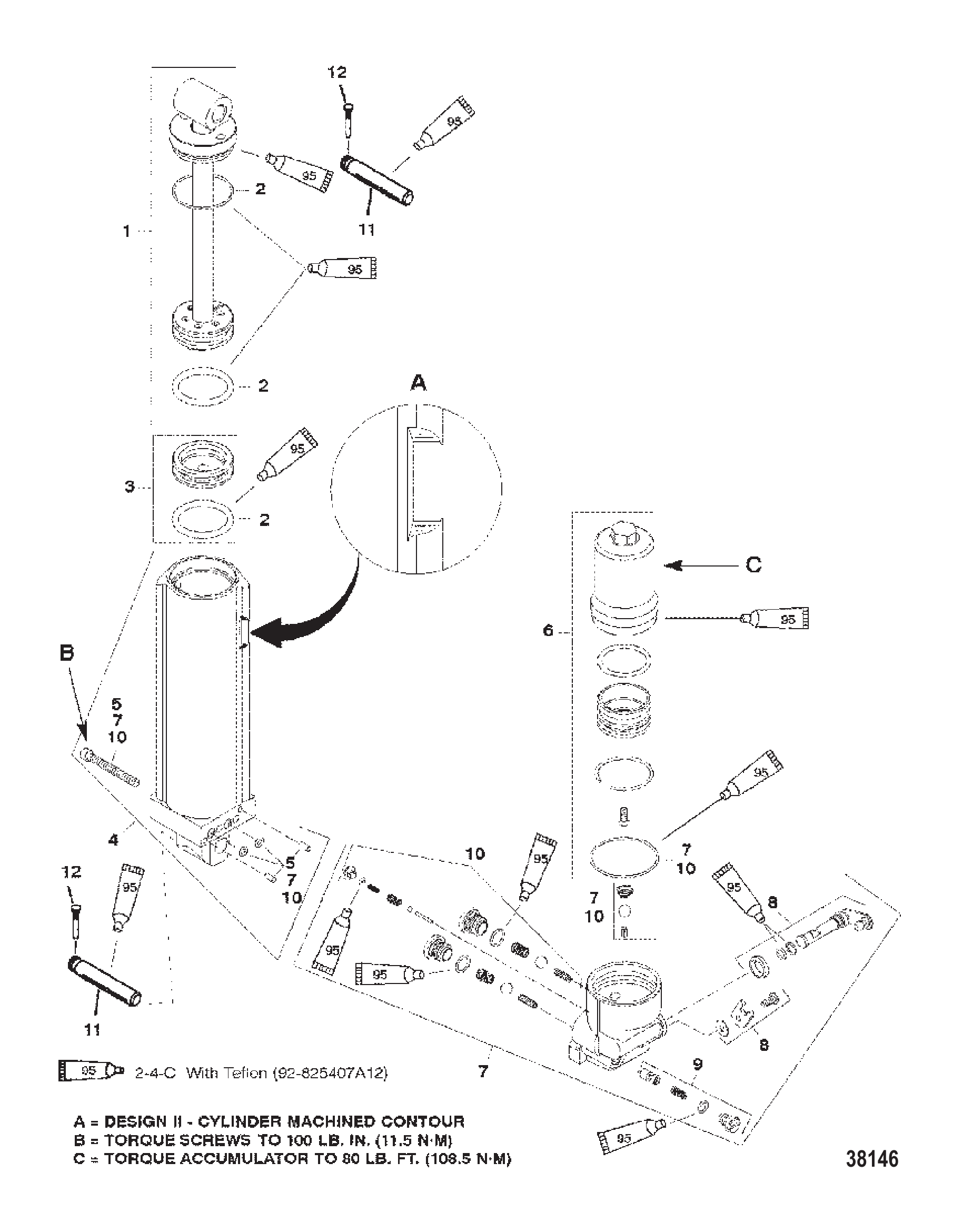

图 10手动倾斜组件(设计II型) MANUAL TILT COMPONENTS (DESIGN II)

REF	零件编号	中文名称	英文名称	数量
-	830050A2	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	832020A2	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	832020T3	手动调整	MANUAL TRIM	1
1	813427A1	减震杆总成	SHOCK ROD ASSEMBLY	1
1	8M0118572	减震杆套件	SHOCK ROD KIT	1
1	813427A2	减震杆总成	SHOCK ROD ASSEMBLY	1
1	893942A01	减震杆套件	SHOCK ROD KIT	1
2	809872A1	气缸O型圈套件	O-RING KIT Cylinder	1
2	893917A01	O型圈修理包	REBUILD KIT O-Ring	1
3	813430A1	配平记忆活塞总成	PISTON ASSEMBLY Trim Memory	1
3	893903A01	活塞套件	PISTON KIT	1
4	811224A1	气缸总成	CYLINDER ASSEMBLY	1
4	893918A01	气缸套件	CYLINDER KIT	1
5	813433A2	螺钉与密封套件	SCREW AND SEAL KIT	1
5	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
6	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
6	893920A01	蓄能器套件	ACCUMULATOR KIT	1
7	813455A4	阀体总成	VALVE BODY ASSEMBLY	1
7	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
8	813457A3	凸轮套件	CAM KIT	1
8	893923A01	凸轮套件	CAM KIT	1
9	809881A1	速度阀套件	VALVE KIT Velocity	1
9	893924A01	阀套件	VALVE KIT	1
10	809882A1	维修套件	REPAIR KIT	1
10	893925A01	维修套件	REPAIR KIT	1
-	809880A2	O型圈套件	O-RING KIT	1
-	893922A01	O型圈套件	O-RING KIT	1
11	19607	销	PIN	2
12	821539	三叶销	PIN Trilobe	2

图 11骑导转向系统 RIDEGUIDE STEERING

零件编号	中文名称	英文名称	数量
19608A11	转向安装套件	ATTACHING KIT Steering	1
19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
19609A5	转向安装套件	ATTACHING KIT Steering	1
19609A6	转向安装套件	ATTACHING KIT Steering	1
97933A6	转向套件双机安装套件	STEERING KIT Duel Engine Attaching Kit	1
816667A2	转向支架总成	BRACKET ASSEMBLY Steering	1

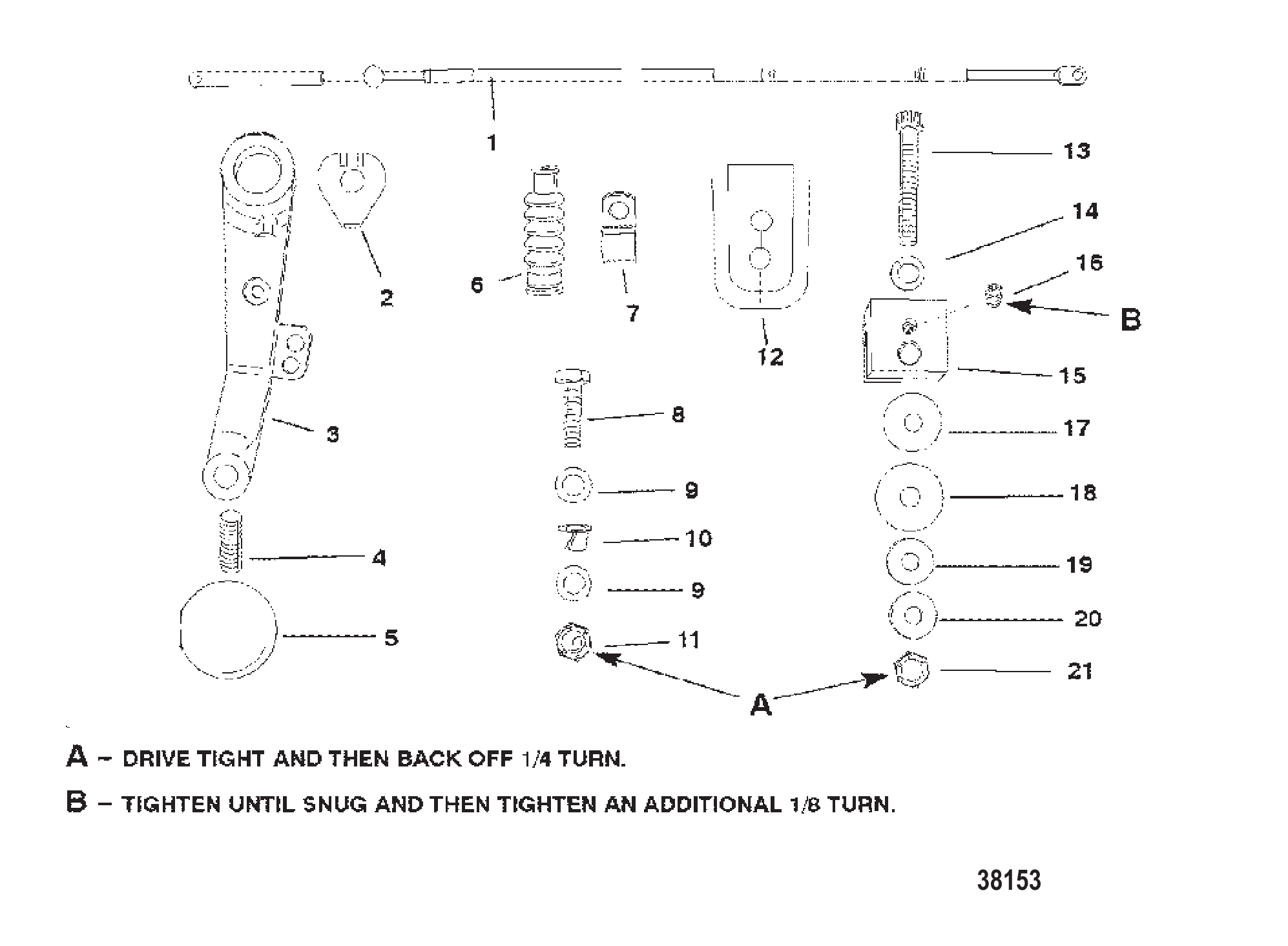

图 12舵柄适配器套件(JET 45) TILLER HANDLE ADAPTOR KIT (JET 45)

REF	零件编号	中文名称	英文名称	数量
-	850000A2	转接套件 45号喷口	ADAPTER KIT 45 JET	1
1	832001A6	换挡线缆总成	CABLE ASSEMBLY Shift	1
2	8158051	锁紧垫圈	TAB WASHER	1
3	816367F5	杠杆	LEVER	1
3	816367F6	杠杆	LEVER	1
4	58152	双头螺柱(0.375-24×1.125)	STUD (.375-24 x 1.125)	1
4	8M0034452	螺柱	STUD	1
5	98530	旋钮	KNOB	1
6	85552	护套	BOOT	1
6	85552001	护套	BOOT	1
7	805444	卡扣	CLIP	1
7	8054441	卡扣	CLIP	1
8	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	1
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
10	26856	衬套	BUSHING	1
11	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
11	8M0207776	螺母	NUT	1
12	8136052	密封件	SEAL	1
12	813605003	密封件	SEAL	1
13	71958	螺丝(.250-28 x 1.75)	SCREW (.250-28 x 1.75)	1
14	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
15	828094	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
16	72734	紧定螺丝(#10-32 x .310)	SET SCREW (#10-32 x .310)	1
17	37905	垫圈	WASHER	1
18	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
19	35459	垫圈	WASHER	1
20	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
20	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
21	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1

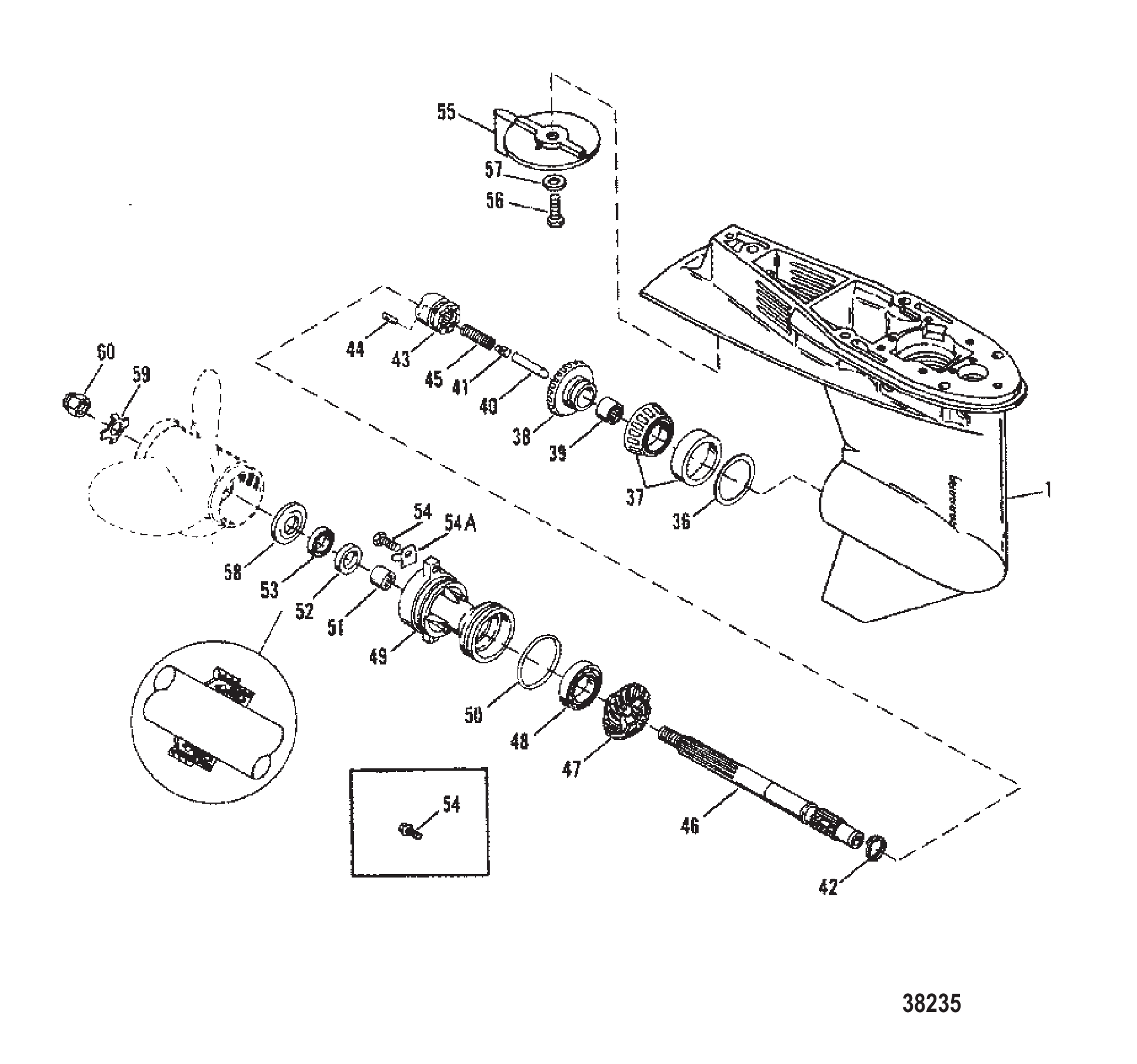

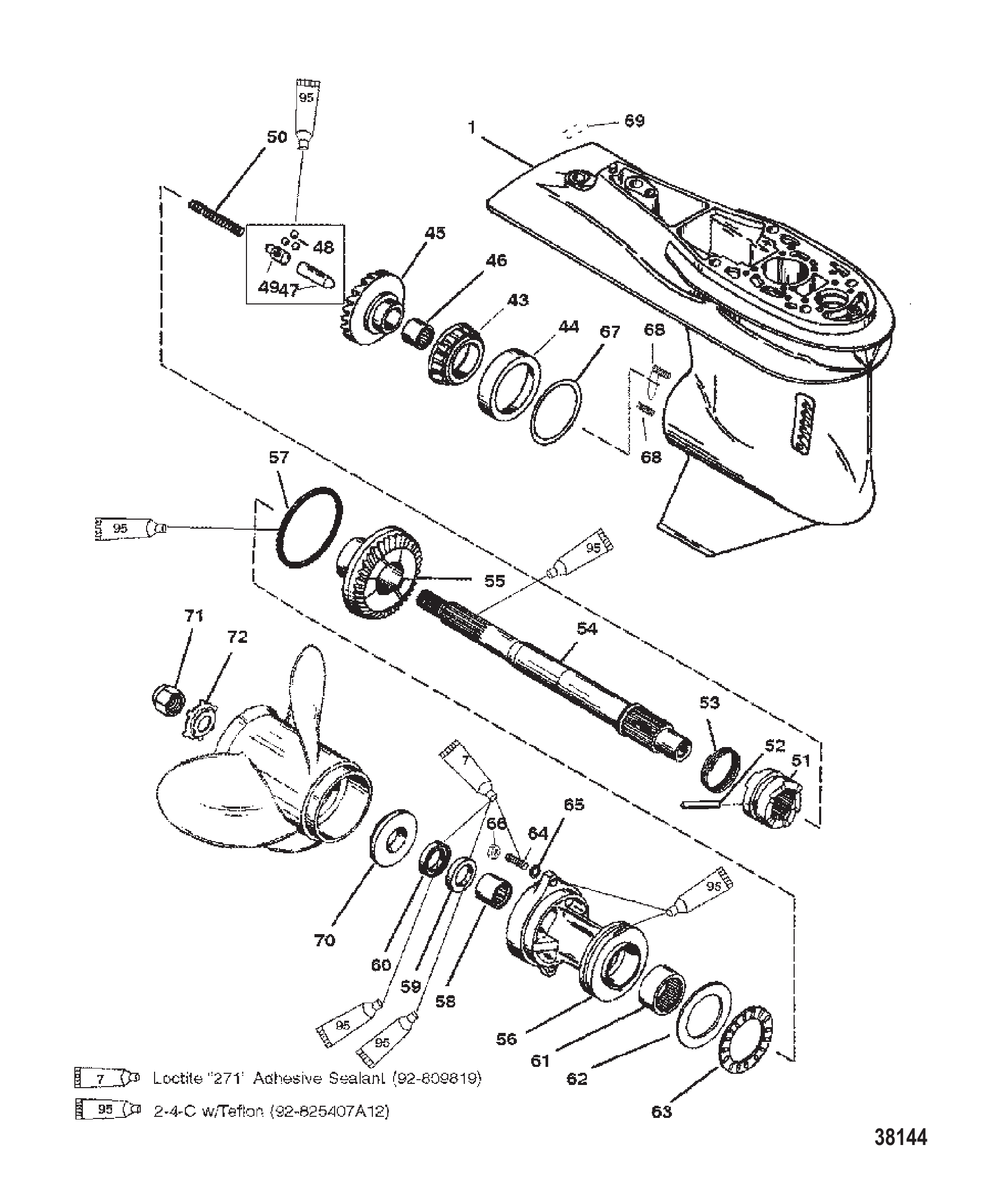

图 13齿轮箱螺旋桨轴-60海宝/马拉松/大脚-6爪倒车离合器 GEAR HSG PROPSHAFT-60 SEA/MARA/BIG FOOT-6 JAW REV. CLUTCH

REF	零件编号	中文名称	英文名称	数量
-	9011G16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G17	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011G15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011G8	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011G60	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
43	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
44	NSS		NOT SOLD SEPARATE CUP	1
45	850033A2	前进齿轮套件	GEAR KIT Forward	1
45	859472A3	前进齿轮总成-30齿	GEAR ASSEMBLY Forward - 30 Teeth	1
46	30895	滚针轴承	BEARING Needle	1
46	30895T	滚针轴承	BEARING Needle	1
47	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
48	44530	钢球	BALL	3
49	NSS		NOT SOLD SEPARATE SLIDE	1
50	850327	弹簧	SPRING	1
51	850048	离合器	CLUTCH	1
51	850048T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	850308	螺旋桨轴	PROPELLER SHAFT	1
54	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
55	850034	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
55	850034T	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
56	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
56	8M0168901	轴承座总成	CARRIER ASSY.	1
57	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
57	8M0214974	O型圈	O RING	1
58	30956	滚针轴承	BEARING Needle	1
58	30956T	滚针轴承	BEARING Needle	1
59	70080	油封	SEAL Oil	1
59	8M0205728	密封件	SEAL	1
60	70081	油封	SEAL Oil	1
60	8M0205729	密封件	SEAL	1
61	12578	滚针轴承	BEARING Needle	1
61	12578T	滚柱轴承	BEARING Roller	1
62	12577	止推垫片	THRUST WASHER	1
63	12576	推力轴承	BEARING Thrust	1
64	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
64	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
65	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
65	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
66	401198	螺母 (M8)	NUT (M8)	2
66	401378	螺母 (M8)	NUT (M8)	2
67	44491A1	垫片组	SHIM SET	1
67	8M0063266	垫片组	SHIM SET	1
68	NSS	螺纹嵌件(不单独销售)	NOT SOLD SEPARATE THREAD INSERT	2
69	NSS		NOT SOLD SEPARATE DECAL	1
70	13191A1	止推垫片	THRUST WASHER	1
70	13191Q01	止推垫片	THRUST WASHER	1
71	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
71	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
72	816629	锁紧垫圈	TAB WASHER	1
72	816629Q	锁紧垫圈	TAB WASHER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

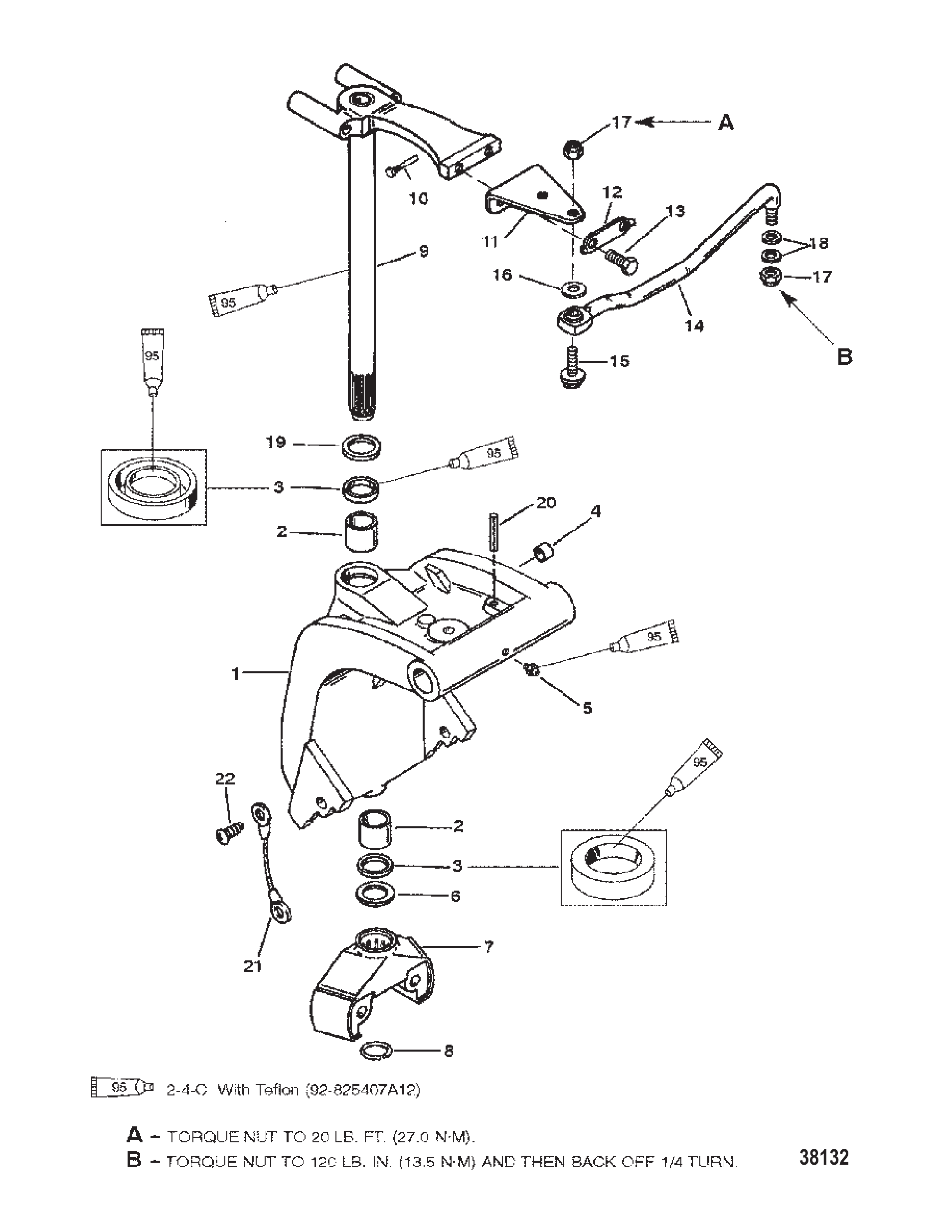

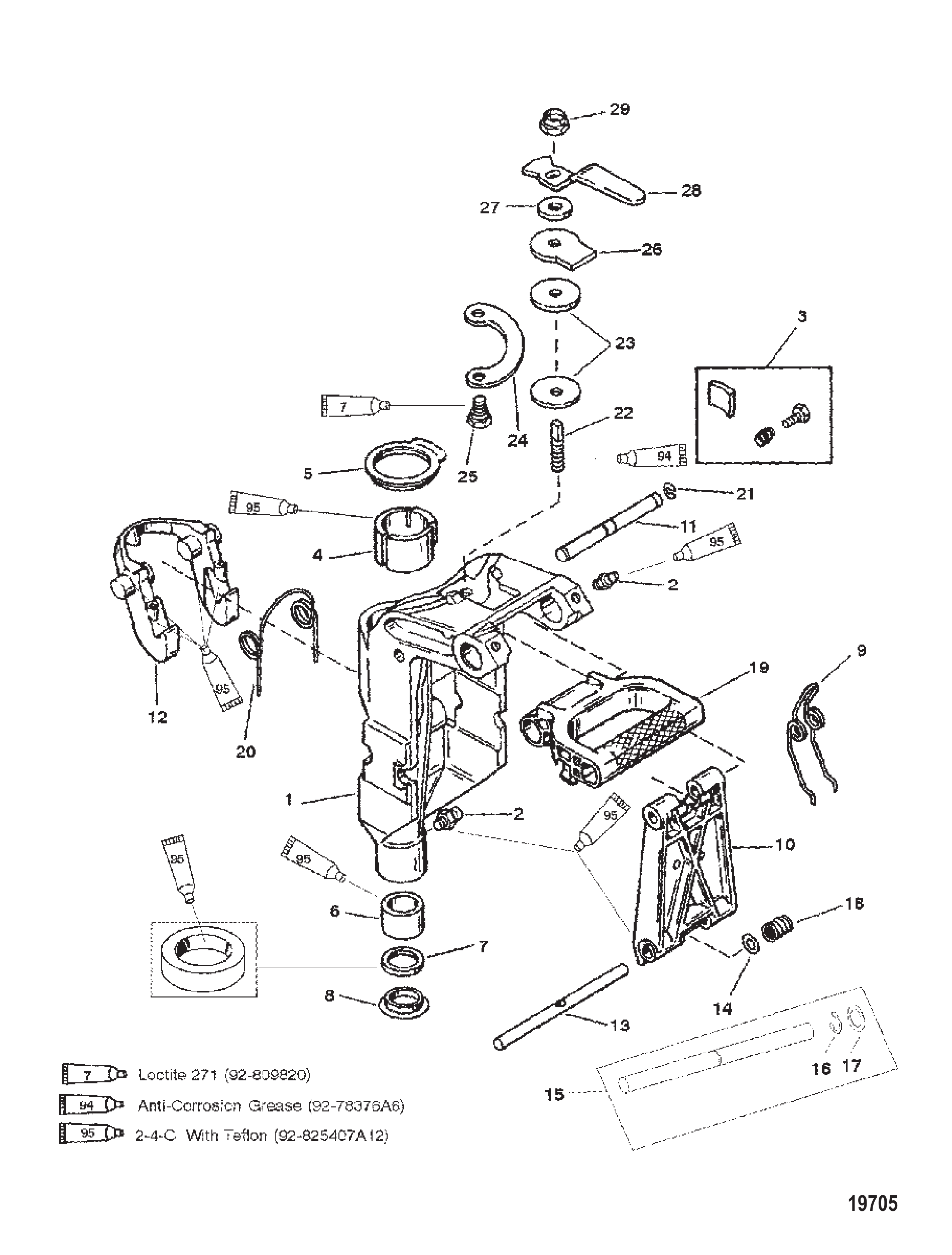

图 14旋转支架 SWIVEL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	8831A6	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A7	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A14	ORD 3402-8831A13	ORD 3402-8831A13	1
1	8831A5	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831T08	旋转支架-黑色	BRKT-SWIVEL-BLACK	1
1	8831A9	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A10	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	润滑脂接头	FITTING Grease	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	42124A2	副驾驶板总成	PLATE ASSEMBLY Co-Pilot	1
4	421402	轴承	BEARING	1
5	420801	推力轴承-上	BEARING Thrust - Upper	1
5	42080T01	轴承	BEARING	1
6	42139	衬套	BUSHING	1
7	42077	密封件	SEAL	1
8	42373	止推垫片	THRUST WASHER	1
9	421301	弹簧	SPRING	1
10	420824	支架	BRACKET	1
10	42082T04	支架	BRACKET	1
11	420811	销	PIN	1
12	421411	倒挡锁钩	HOOK Reverse Lock	1
12	8M0075731	倒挡钩	HOOK Reverse	1
13	42083	枢轴销	PIN Pivot	1
13	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
14	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
15	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
16	NSS	不单独销售	NOT SOLD SEPARATE	1
17	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
18	42128	弹簧	SPRING	1
19	42085F4	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
19	42085F2	提手	CARRYING HANDLE	1
19	42085F5	提手	CARRYING HANDLE	1
19	42085F3	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
20	42127	弹簧	SPRING	1
21	13194	挡圈	RING Retaining	2
22	821961	杆	ROD	1
23	8165621	圆盘	DISC	2
24	821958A1	板组件套件	PLATE KIT	1
25	82130014	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
26	821957	制动板	BRAKE PLATE	1
27	29330	垫圈	WASHER	1
28	821959	手柄	HANDLE	1
29	34863	螺母 (.375-24)	NUT (.375-24)	1
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
-	8237011	副驾驶贴花	DECAL Co-Pilot	1

图 15排气板 EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	858582T	适配板总成	ADAPTER PLATE ASSEMBLY	1
2	23784	定位销	PIN Dowel	7
3	880090	接头	FITTING	1
4	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
5	126021	护孔环	GROMMET	1
5	12602002	护孔环	GROMMET	1
6	8585831	衬垫	GASKET	1
7	858572T	油底壳	SUMP Oil	1
7	858572T01	油底壳	SUMP Oil	1
8	858584A1	排气管总成	TUBE ASSEMBLY Exhaust	1
9	881295	O型圈	O-RING	1
10	894171	护孔环	GROMMET	1
10	89417004	护孔环	GROMMET	1
11	858575	水管	TUBE Water	1
11	8M0026130	水管	TUBE Water	1
11	8585751	水管	TUBE Water	1
11	8M0026129	水管	TUBE Water	1
12	814080	上密封件	SEAL Upper	1
12	814080001	密封件	SEAL	1
13	858571T	机油吸油管	TUBE Oil Pick Up	1
14	859082	O型圈	O-RING	1
15	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
15	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
16	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	12
16	8M0214957	螺钉	SCREW	12
17	8596021	量油尺	DIPSTICK	1
18	48237	衬套	BUSHING	1
19	858577A2	换档轴	SHIFT SHAFT	1
19	858577A3	换档杆总成	LEVER ASSY-SHIFT	1
20	859177A3	换挡连杆	SHIFT LINK	1
21	NSS	不单独销售衬套	NOT SOLD SEPARATE Bushing	1
22	879997	换档滑块	SHIFT SLIDER	1
23	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
24	813745	隔套	SPACER	1
24	11289	隔套	SPACER	1
25	43585	联轴器	COUPLING	1
26	859746	开口销	COTTER PIN	2
27	858573	密封件	SEAL	1
27	8M0039073	密封件	SEAL	1
28	8288181	放油塞	PLUG Drain	1
29	828816	衬垫	GASKET	1
29	8M0204692	衬垫@5	GASKET @5	1
30	82483213	螺钉(M6 x 60)	SCREW (M6 x 60)	4

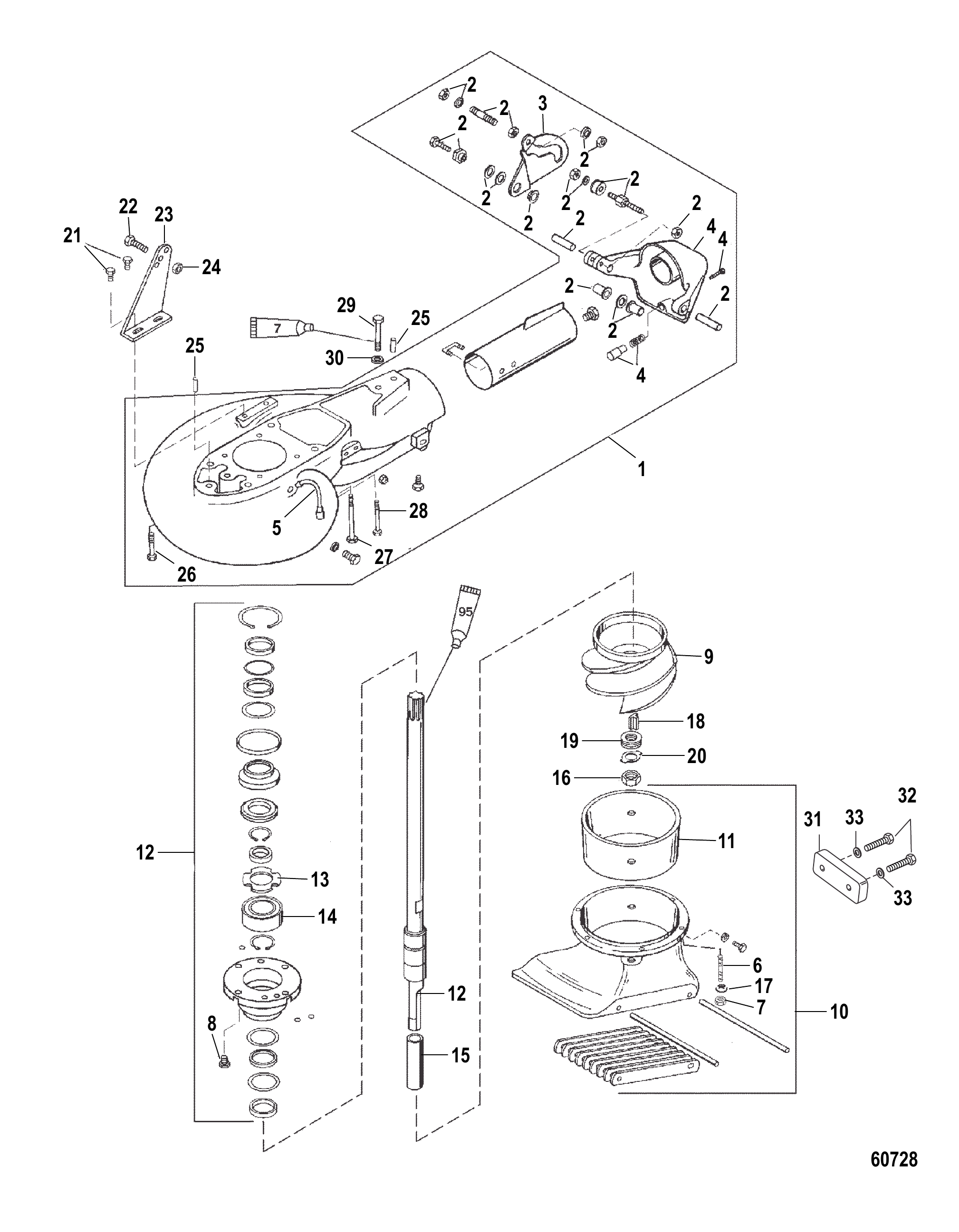

图 16喷泵总成 JET PUMP ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	80140060	喷射泵组件(黑色)	JET PUMP ASSEMBLY (BLACK)	1
-	80140160	喷射泵组件(灰色)	JET PUMP ASSEMBLY (GRAY)	1
-	8M0230714	喷射泵总成	JET PUMP ASSY	1
1	80141160	泵壳	HOUSING Pump	1
1	801411T60	泵壳体	HOUSING PUMP	1
1A	827490	润滑油管	HOSE Lube	1
2	80141460	叶轮	IMPELLER	1
2	8M0230713	叶轮	IMPELLER	1
3	80141260	进气壳体	HOUSING Intake	1
3A	8271882	衬套	LINER	1
4	80141360	驱动轴	DRIVESHAFT	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	818146	螺钉(.312-18 X .88)	SCREW (.312-18 X .88)	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
16	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
17	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
18	95802	不锈钢螺钉(.375-16 x 2.750)	SCREW (.375-16 x 2.750) Stainless Steel	1
19	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
19	8M0214963	垫圈	WASHER	1

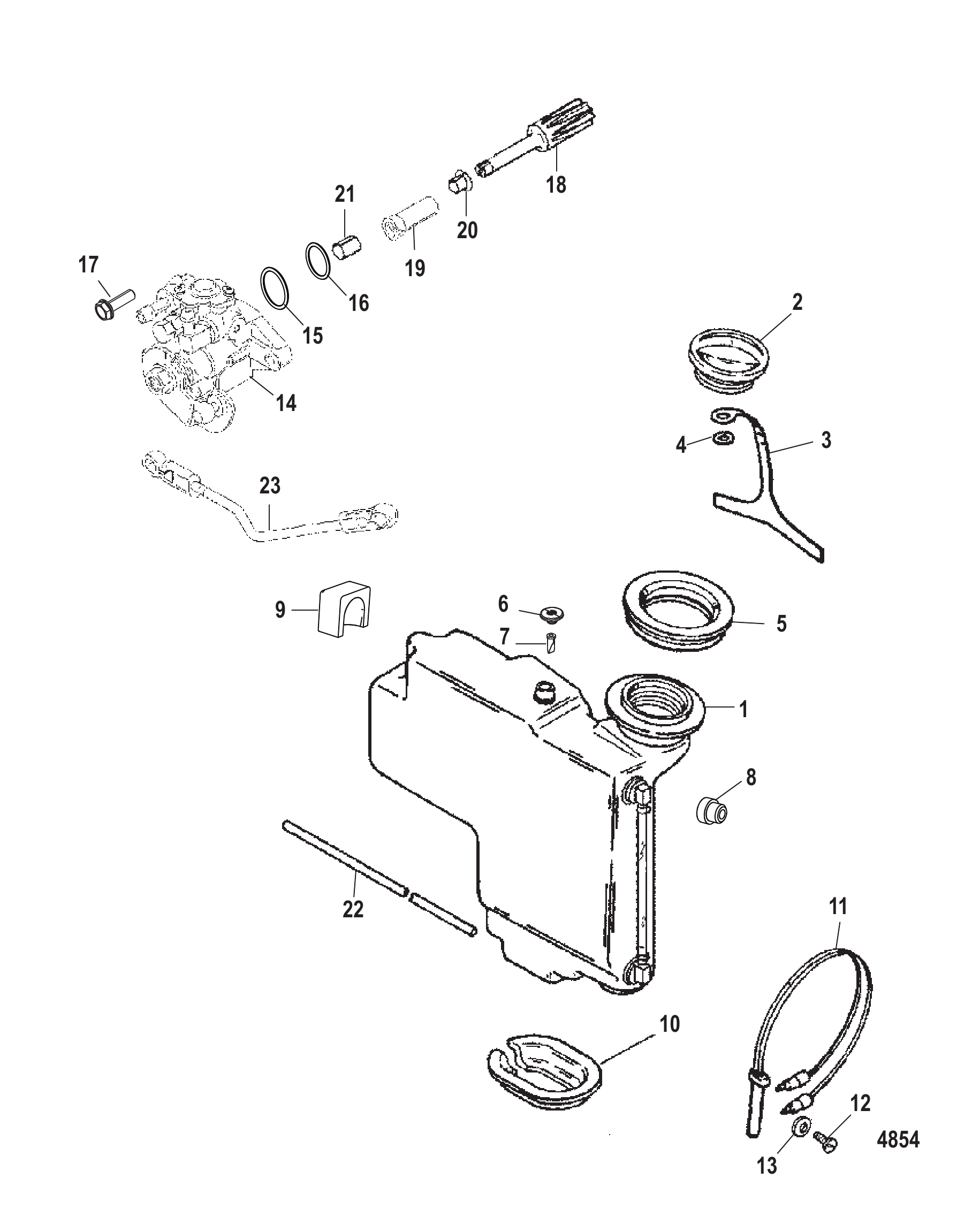

图 17机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	830889A4	油箱总成	TANK ASSEMBLY	1
2	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
3	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
5	814449A3	盖总成	CAP ASSEMBLY	1
6	42999	衬垫	GASKET	1
6	42999T	衬垫	GASKET	1
7	856156A2	开关总成	SWITCH ASSEMBLY	1
7	856156T02	开关总成	SWITCH ASSEMBLY	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
8	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
9	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
10	855362	护孔环	GROMMET	3
10	855362001	护孔环	GROMMET	3
11	855364	衬套	BUSHING	3
-	8742A20	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
-	8742A22	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
12	87421	油箱	TANK	1
13	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
13	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
14	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
15	43298A2	盖总成	CAP ASSEMBLY	2
16	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
17	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
18	99802	管	TUBE	1
19	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
20	12335A1	支架套件	BRACKET KIT	1
21	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

图 18旋转支架 Swivel Bracket

REF	零件编号	中文名称	英文名称	数量
1	8831A6	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A7	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A14	ORD 3402-8831A13	ORD 3402-8831A13	1
1	8831A5	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831T08	旋转支架-黑色	BRKT-SWIVEL-BLACK	1
1	8831A9	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A10	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	润滑脂接头	FITTING Grease	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	42124A2	副驾驶板总成	PLATE ASSEMBLY Co-Pilot	1
4	421402	轴承	BEARING	1
5	420801	推力轴承-上	BEARING Thrust - Upper	1
5	42080T01	轴承	BEARING	1
6	42139	衬套	BUSHING	1
7	42077	密封件	SEAL	1
8	42373	止推垫片	THRUST WASHER	1
9	421301	弹簧	SPRING	1
10	420824	支架	BRACKET	1
10	42082T04	支架	BRACKET	1
11	420811	销	PIN	1
12	421411	倒挡锁钩	HOOK Reverse Lock	1
12	8M0075731	倒挡钩	HOOK Reverse	1
13	42083	枢轴销	PIN Pivot	1
13	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
14	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
15	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
16	NSS	不单独销售	NOT SOLD SEPARATE	1
17	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
18	42128	弹簧	SPRING	1
19	42085F4	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
19	42085F2	提手	CARRYING HANDLE	1
19	42085F5	提手	CARRYING HANDLE	1
19	42085F3	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
20	42127	弹簧	SPRING	1
21	13194	挡圈	RING Retaining	2
22	821961	杆	ROD	1
23	8165621	圆盘	DISC	2
24	821958A1	板组件套件	PLATE KIT	1
25	82130014	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
26	821957	制动板	BRAKE PLATE	1
27	29330	垫圈	WASHER	1
28	821959	手柄	HANDLE	1
29	34863	螺母 (.375-24)	NUT (.375-24)	1
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
-	8237011	副驾驶贴花	DECAL Co-Pilot	1

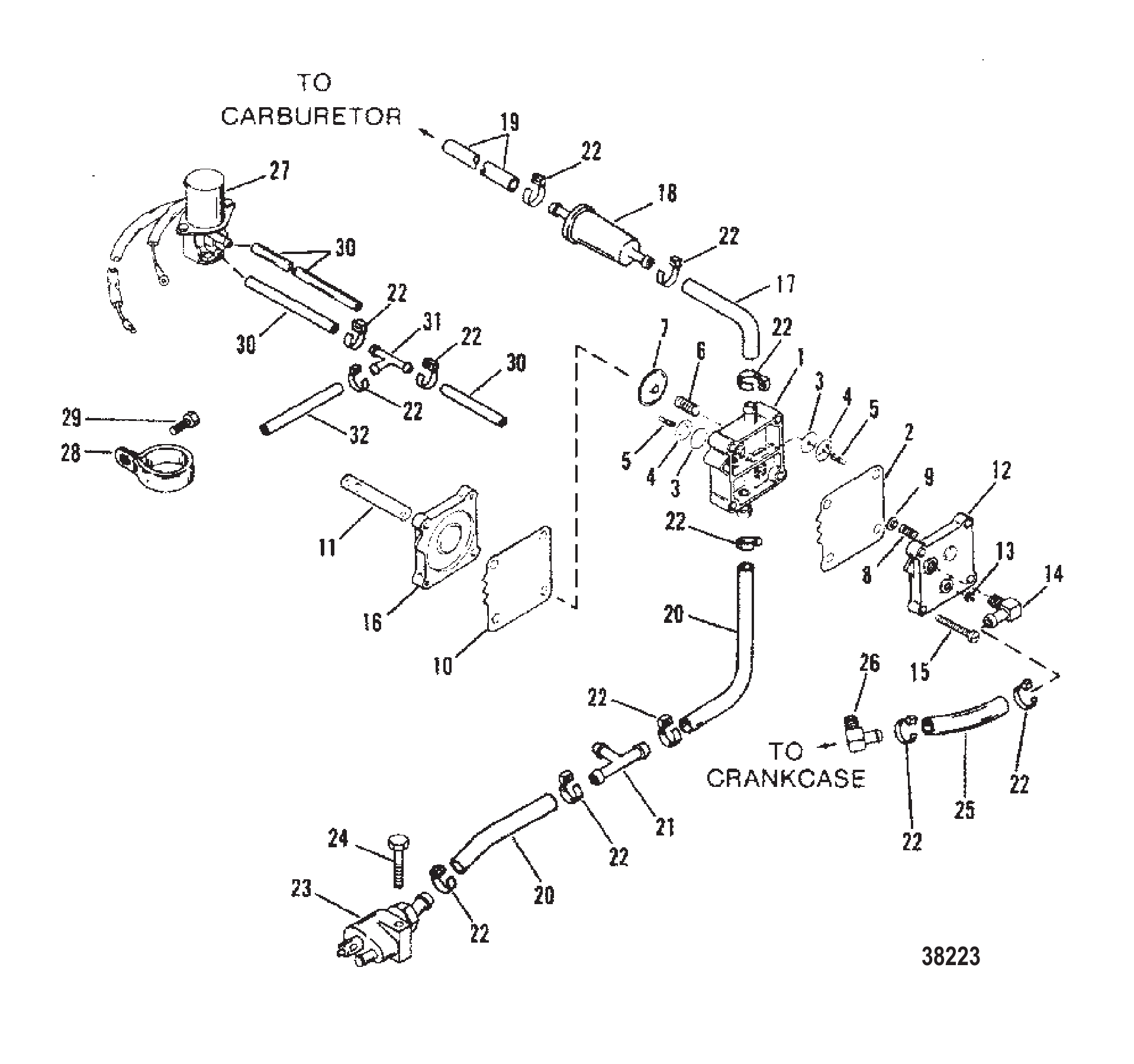

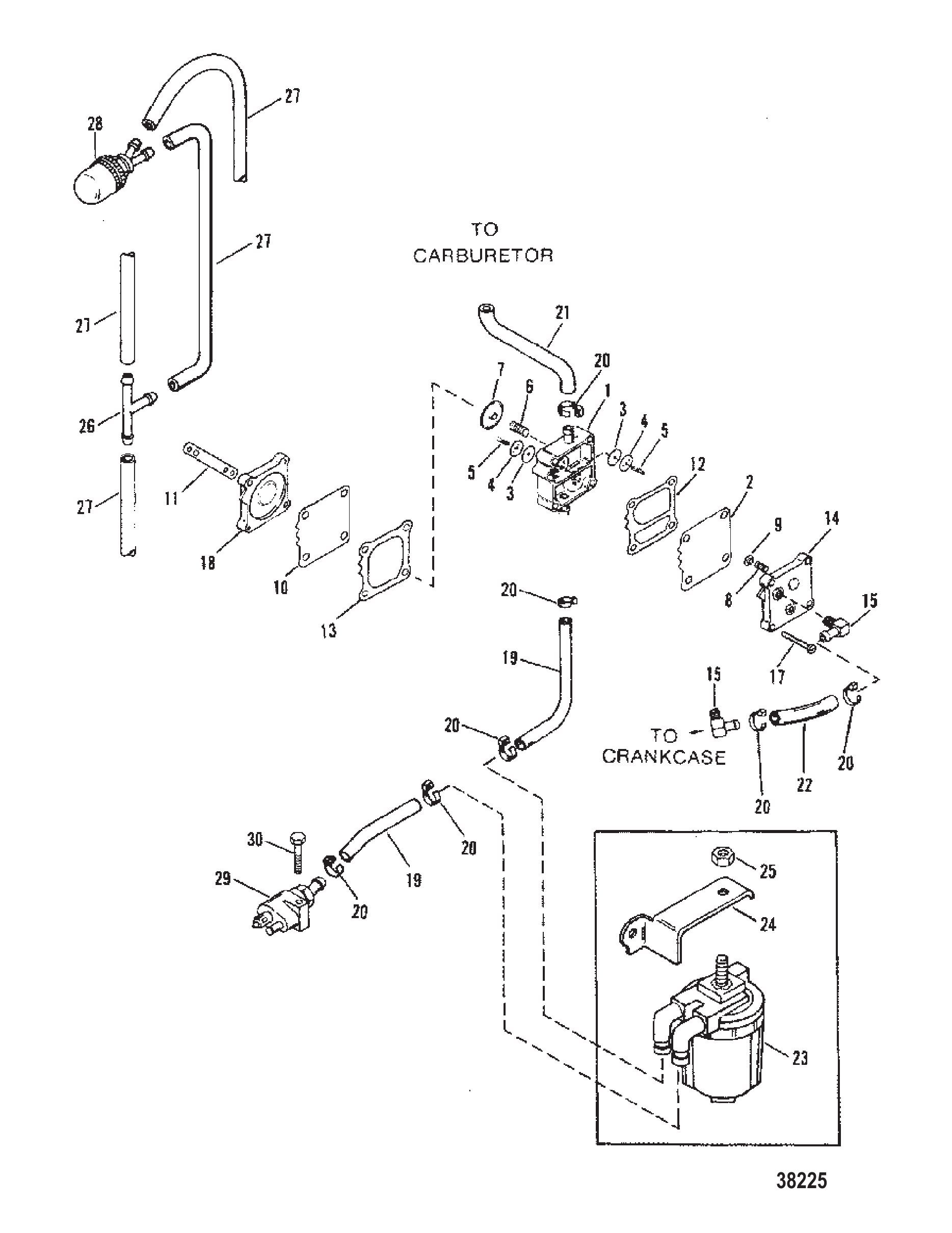

图 19燃油泵(55/60 SEAPRO/MARATHON) FUEL PUMP (55/60 SEAPRO/MARATHON)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE SPRING	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS		NOT SOLD SEPARATE SPRING	1
9	NSS		NOT SOLD SEPARATE CAP	1
10	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS		NOT SOLD SEPARATE GASKET-BOOST	1
13	NSS		NOT SOLD SEPARATE GASKET-PULSE	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
17	4009340	燃油泵螺钉	SCREW FUEL PUMP	2
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
17	81754150	燃油泵至曲轴箱螺钉	SCREW FUEL PUMP TO CRANKCASE	2
18	144303	底座	BASE	1
19	9912980	软管	HOSE	AR
19	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	AR
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	818984	软管	HOSE	1
21	830768	软管	HOSE	1
22	9912878	软管(.187)(26.00英寸散装)(4-1/4")	HOSE (.187) (26.00 Inches Bulk) (4-1/4")	1
23	87946A14	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
23	891642T03	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
24	8170281	支架	BRACKET	1
25	401196	螺母 (M6)	NUT (M6)	1
26	59169	接头	FITTING	1
26	59169003	三通接头	FITTING Tee	1
27	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
27	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
28	8168771	注油球	PRIMER BULB	1
28	858763	注油球	PRIMER BULB	1
29	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	816856T01	燃油接头	CONNECTOR-FUEL	1
30	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
-	812867A97	衬垫套件	GASKET SET	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1

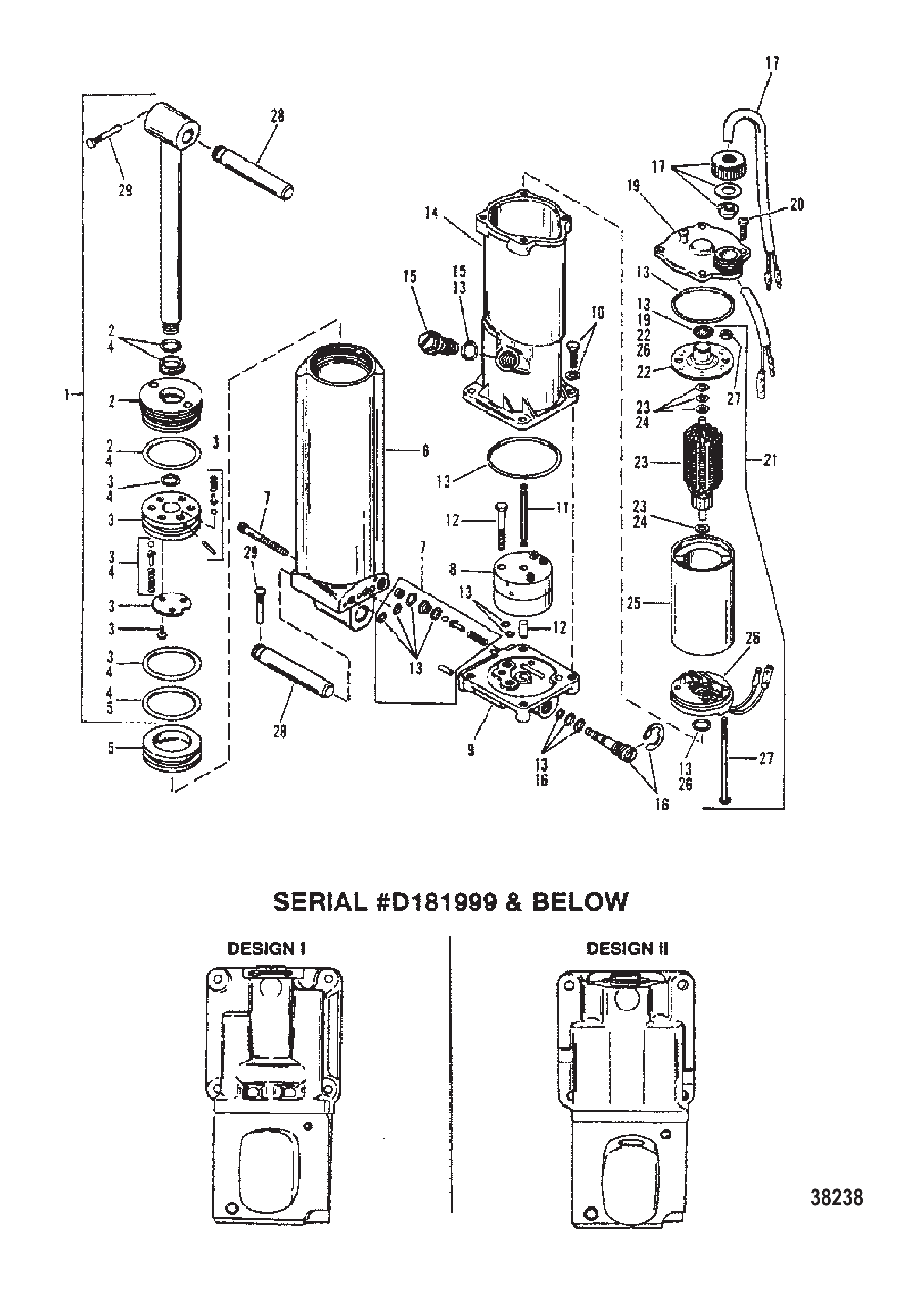

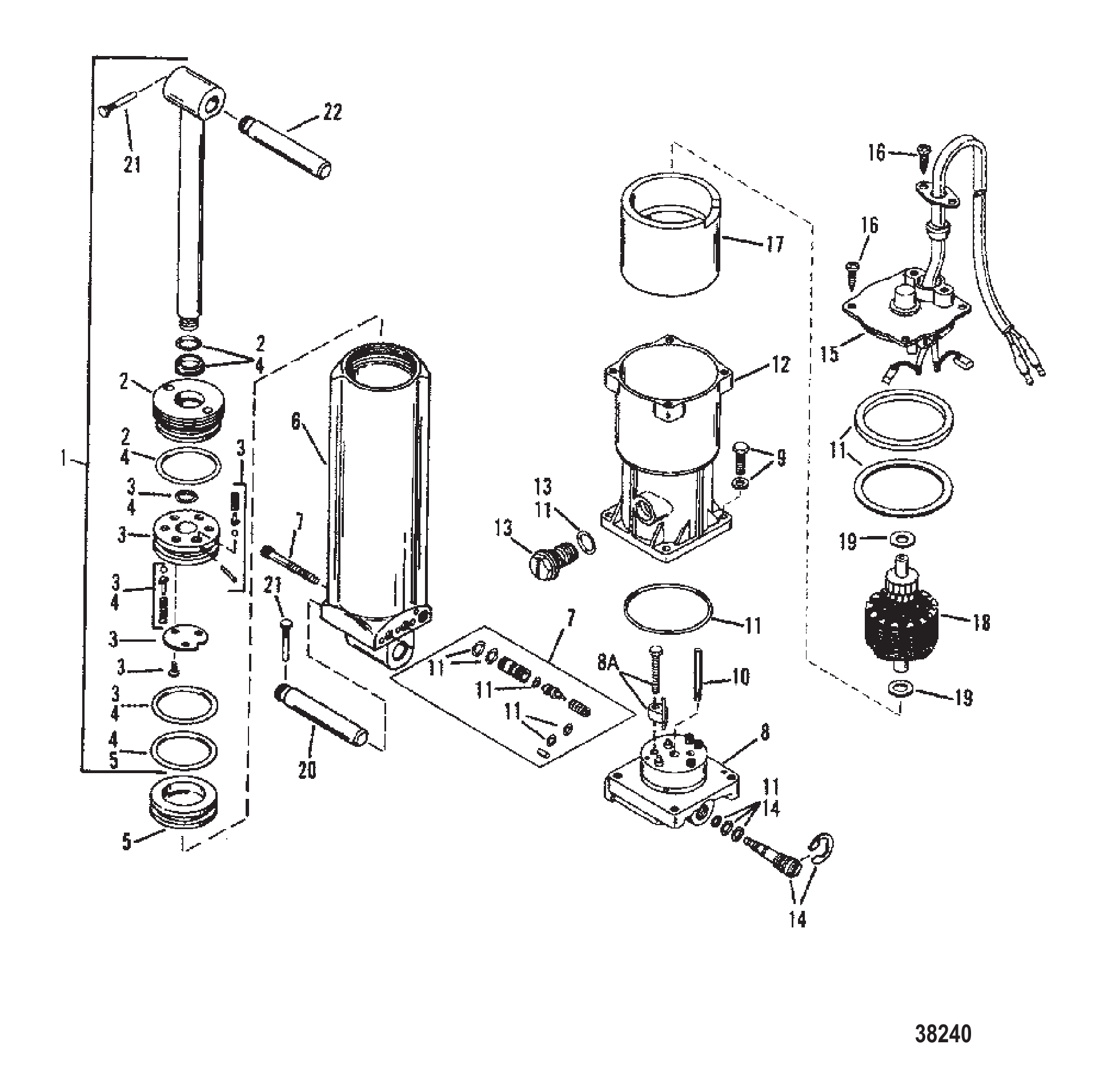

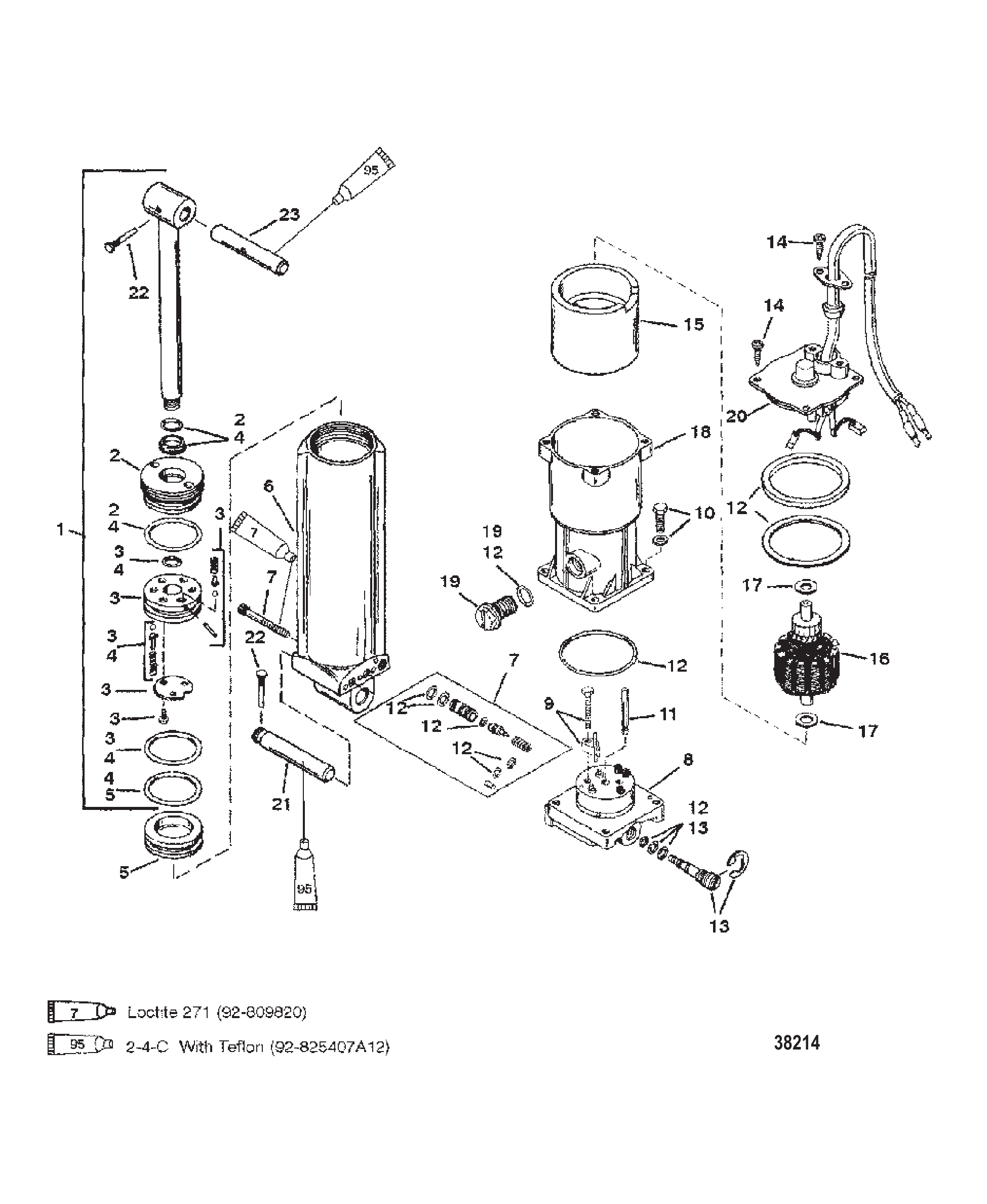

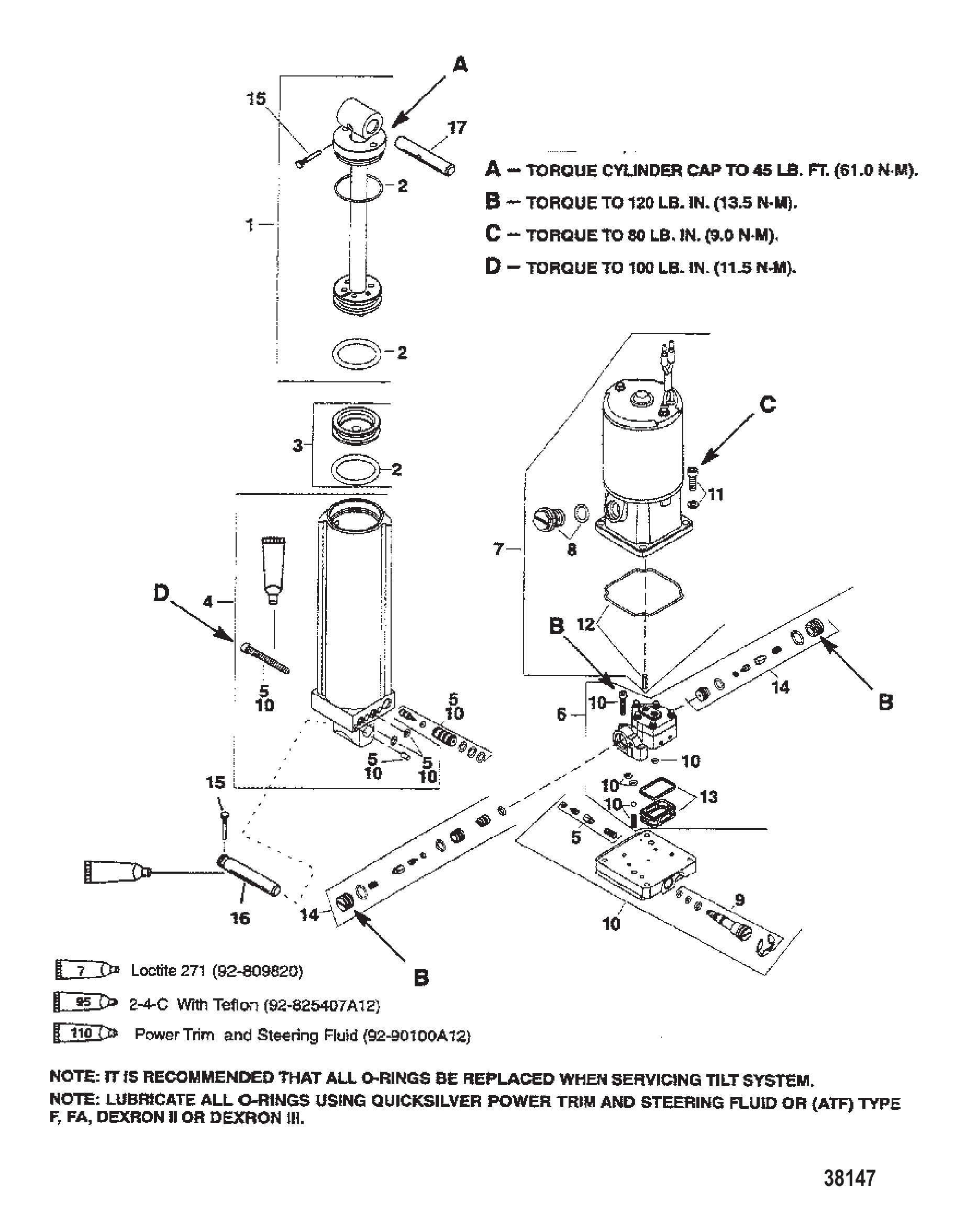

图 20动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

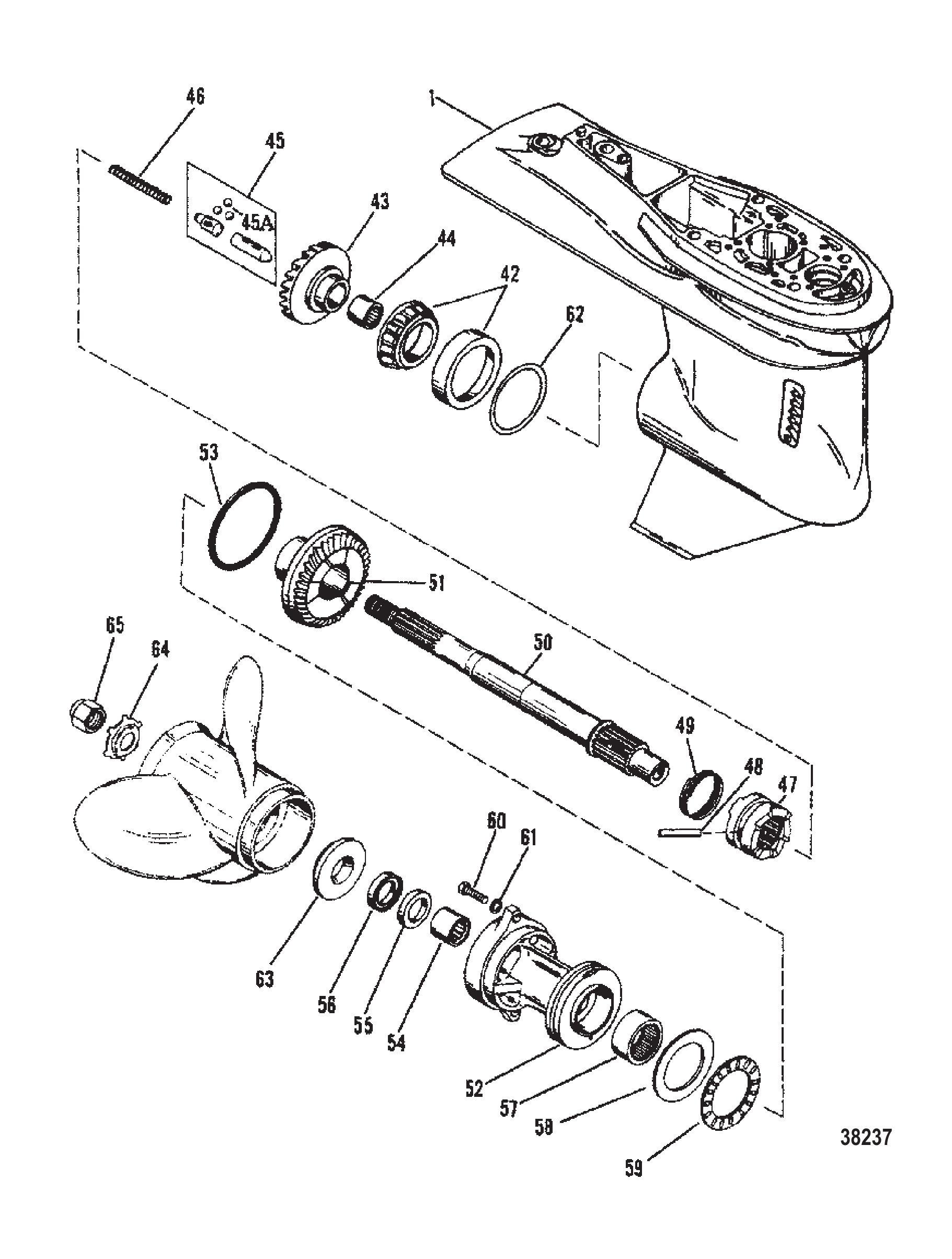

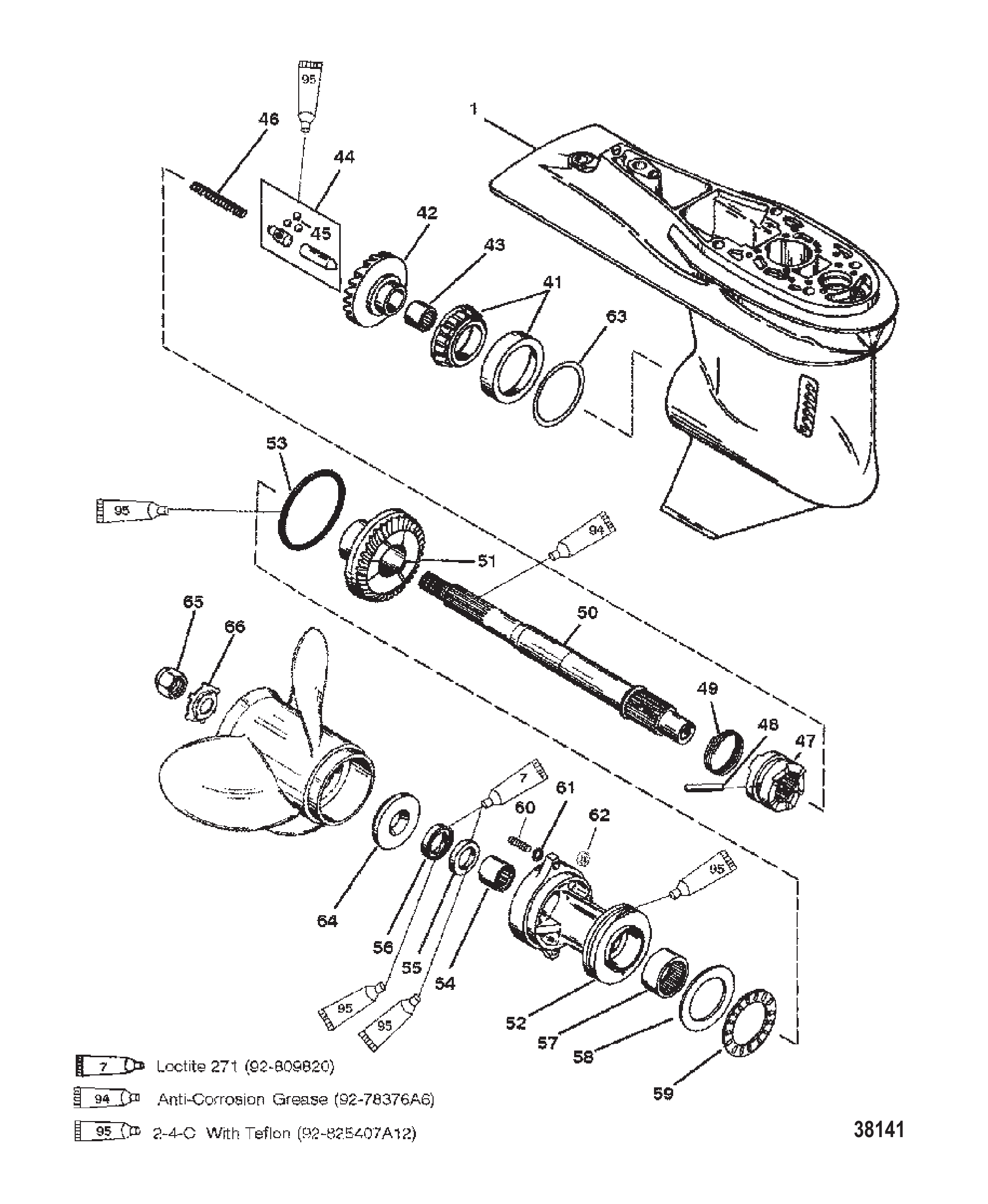

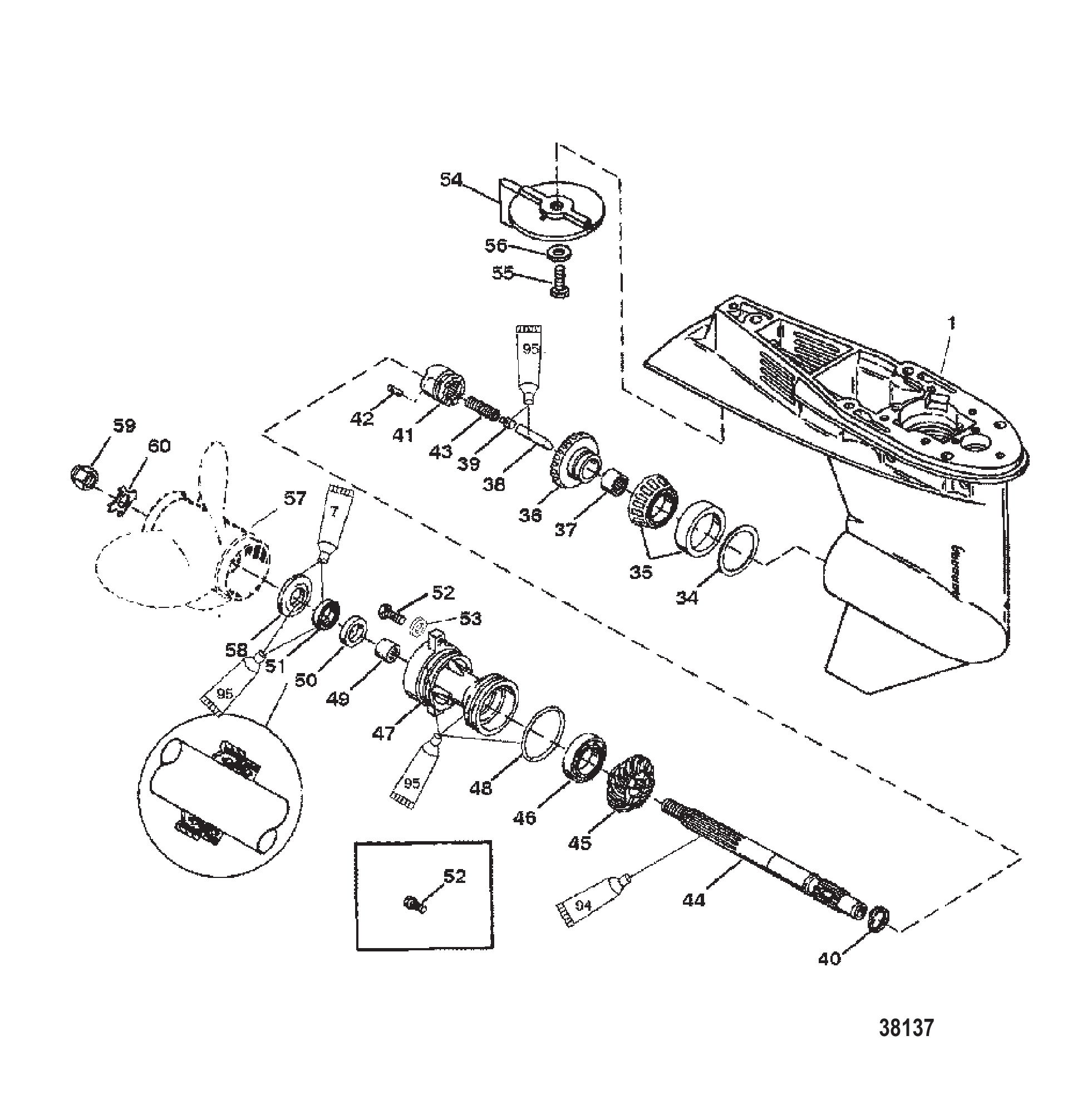

图 21齿轮箱(螺旋桨轴)(50/55/60) GEAR HOUSING (PROPELLER SHAFT)(50/55/60)

REF	零件编号	中文名称	英文名称	数量
-	9760A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A32	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
34	812769A1	垫片组	SHIM SET	AR
34	8M0063263	垫片组	SHIM SET	AR
35	812767A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
35	8M0103476	轴承总成	BEARING ASSY	1
36	813693A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
36	813693T1	前进齿轮	GEAR Forward	1
37	21739	滚柱轴承	BEARING Roller	1
38	812929	凸轮从动件	FOLLOWER Cam	1
38	8129291	凸轮从动件	FOLLOWER Cam	1
39	20843	滑块	SLIDE	1
40	38114	弹簧	SPRING	1
41	813697	离合器	CLUTCH	1
41	813697T	离合器	CLUTCH	1
42	38113	十字销	PIN Cross	1
42	8M0020942	十字销@2	PIN-CROSS @2	1
43	815418	弹簧	SPRING	1
44	14493	螺旋桨轴	PROPELLER SHAFT	1
45	813695	倒挡齿轮	GEAR Reverse	1
45	813695T	倒挡齿轮	GEAR Reverse	1
46	20839	滚珠轴承	BEARING Ball	1
46	20839T	滚珠轴承	BEARING Ball	1
47	19291A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
47	8M0168900	轴承座	BEARING CARRIER	1
48	815460	O型圈	O-RING	1
49	21700	滚针轴承	BEARING Needle	1
50	69188	油封	SEAL Oil	1
50	8M0205511	油封	SEAL Oil	1
51	69189	油封	SEAL Oil	1
51	8M0203757	油封	SEAL Oil	1
52	4000353	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
53	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
53	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
54	17264T2	调整片锌制	TRIM TAB Zinc	1
55	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
56	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
56	8M0214963	垫圈	WASHER	1
57	824389A1	螺旋桨套件	PROPELLER KIT	1
58	62124A1	推力毂总成	THRUST HUB ASSEMBLY	1
58	73345A1	止推垫片	THRUST WASHER	1
59	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
59	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
60	76281	锁紧垫圈	TAB WASHER	1
60	8M0214942	锁紧垫片	WASHER Tab	1
-	812867A97	衬垫套件	GASKET SET	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

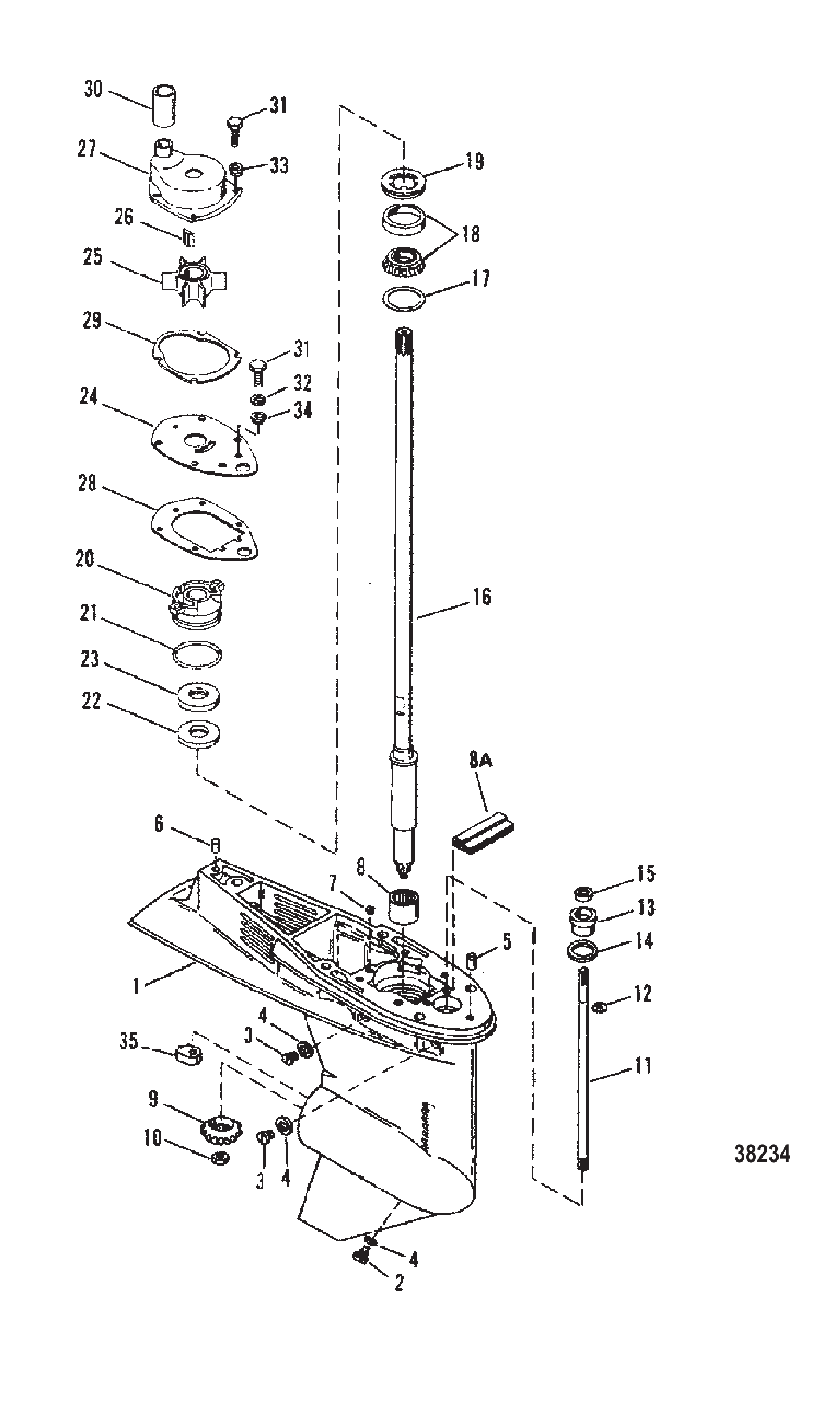

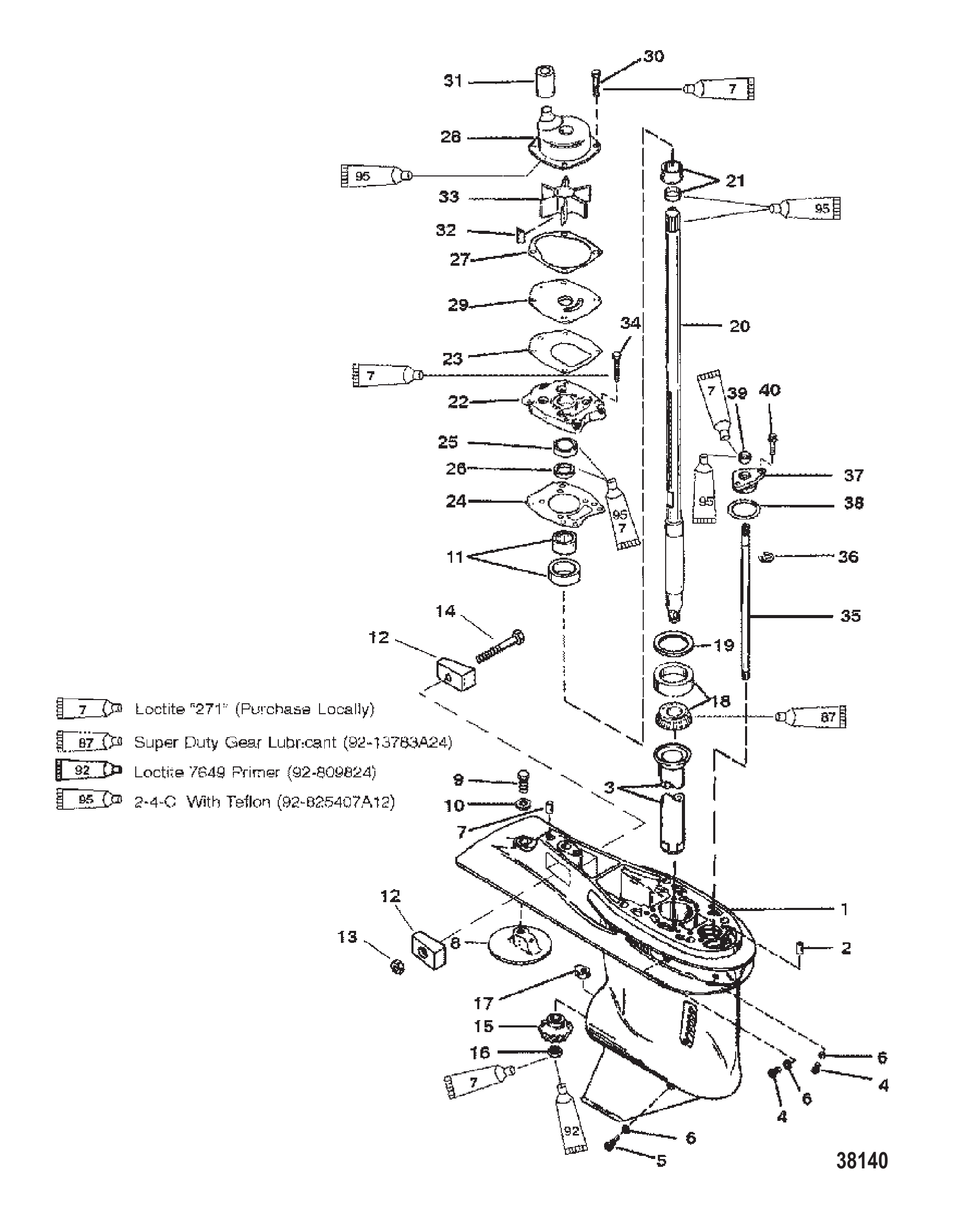

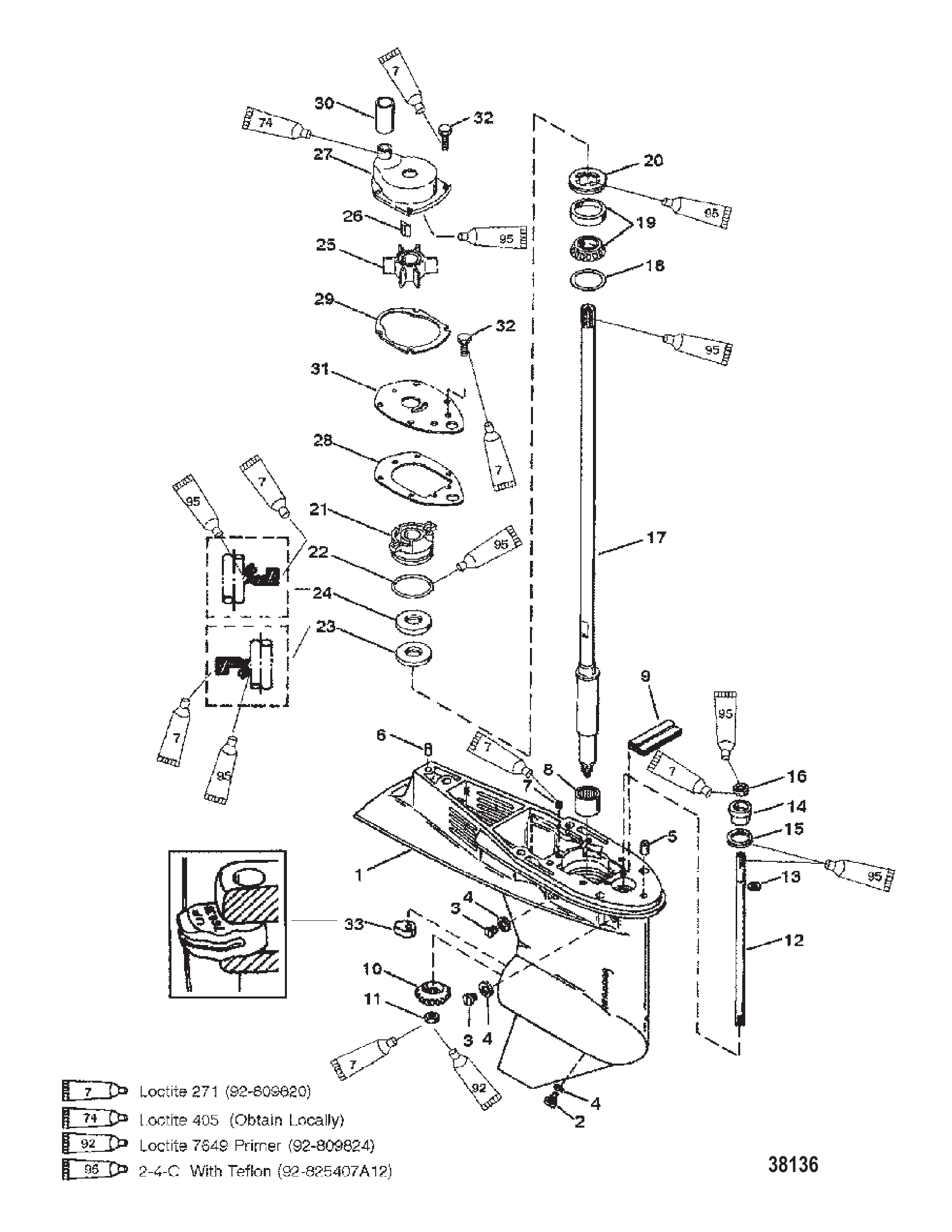

图 22齿轮箱壳体(驱动轴-大脚/海宝/马拉松/浮筒型) GEAR HSG (DRIVE-BIGFOOT/SEAPRO/MARATHON/PONTOON)

REF	零件编号	中文名称	英文名称	数量
-	9011A69	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9011A71	齿轮箱总成(LL)(黑色)	GEAR HOUSING ASSEMBLY (LL) (BLACK)	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A70	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011A72	齿轮箱总成(LL)(灰色)	GEAR HOUSING ASSEMBLY (LL) (GRAY)	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011A73	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A74	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
5	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	2
5	79953Q04	放油螺钉套件	SCREW KIT Drain	2
6	67892	磁性螺钉	SCREW Magnetic	1
6	8M0058389	放油螺钉套件	SCREW KIT Drain	1
7	19183	纤维垫圈	WASHER Fiber	3
7	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
8	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
9	316404	平衡鳍板	TRIM TAB	1
9	31640Q4	平衡鳍板	TRIM TAB	1
10	15942	螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250)	1
10	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
11	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
12	43040A1	托架总成	CARRIER ASSEMBLY	1
12	43040T1	托架总成	CARRIER ASSEMBLY	1
12A	826134	阳极块	ANODE	2
12A	826134Q	阳极块	ANODE	2
12B	400634	螺母 (M6)	NUT (M6)	1
12B	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12C	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
13	44484	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
13	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	76039	换挡凸轮控制	CAM Shift Control	1
15	760394	换挡凸轮控制	CAM Shift Control	1
16	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
17	44492A1	垫片组	SHIM SET	1
17	8M0063265	垫片组	SHIM SET	1
18	826736A1	驱动轴总成(长)	DRIVESHAFT ASSEMBLY (LONG)	1
18	826737A1	驱动轴总成(加长)	DRIVESHAFT ASSEMBLY (X-LONG)	1
19	42461A1	套筒/环套件	SLEEVE/RING KIT	1
20	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
20	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
21	430331	衬垫	GASKET	1
22	430472	衬垫	GASKET	1
22	8M0214931	衬垫	GASKET	1
23	43035	油封(上)	SEAL Oil (UPPER)	1
23	8M0245495	油封	OIL SEAL	1
24	43036	油封(下)	SEAL Oil (LOWER)	1
25	817277	衬垫	GASKET	1
25	8172771	水泵上垫片	GASKET Water Pump, Upper	1
26	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
27	817276	面板	FACEPLATE	1
27	8M0204709	面板	FACEPLATE	1
28	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
28	8M0214957	螺钉	SCREW	4
29	826763A1	联轴器(长)	COUPLING (LONG)	1
29	826762A1	联轴器(LL)	COUPLING (LL)	1
32	43037	键	KEY	1
32	8M0204723	键	KEY	1
33	430262	叶轮	IMPELLER	1
33	43026T2	叶轮	IMPELLER	1
34	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
36	43048A1	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
36	430482	换挡轴总成(LL)	SHIFT SHAFT ASSEMBLY (LL)	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 23喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	80140060	喷射泵组件(黑色)	JET PUMP ASSEMBLY (BLACK)	1
-	80140160	喷射泵组件(灰色)	JET PUMP ASSEMBLY (GRAY)	1
-	8M0230714	喷射泵总成	JET PUMP ASSY	1
1	80141160	泵壳	HOUSING Pump	1
1	801411T60	泵壳体	HOUSING PUMP	1
1A	827490	润滑油管	HOSE Lube	1
2	80141460	叶轮	IMPELLER	1
2	8M0230713	叶轮	IMPELLER	1
3	80141260	进气壳体	HOUSING Intake	1
3A	8271882	衬套	LINER	1
4	80141360	驱动轴	DRIVESHAFT	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	818146	螺钉(.312-18 X .88)	SCREW (.312-18 X .88)	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
16	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
17	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
18	95802	不锈钢螺钉(.375-16 x 2.750)	SCREW (.375-16 x 2.750) Stainless Steel	1
19	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
19	8M0214963	垫圈	WASHER	1

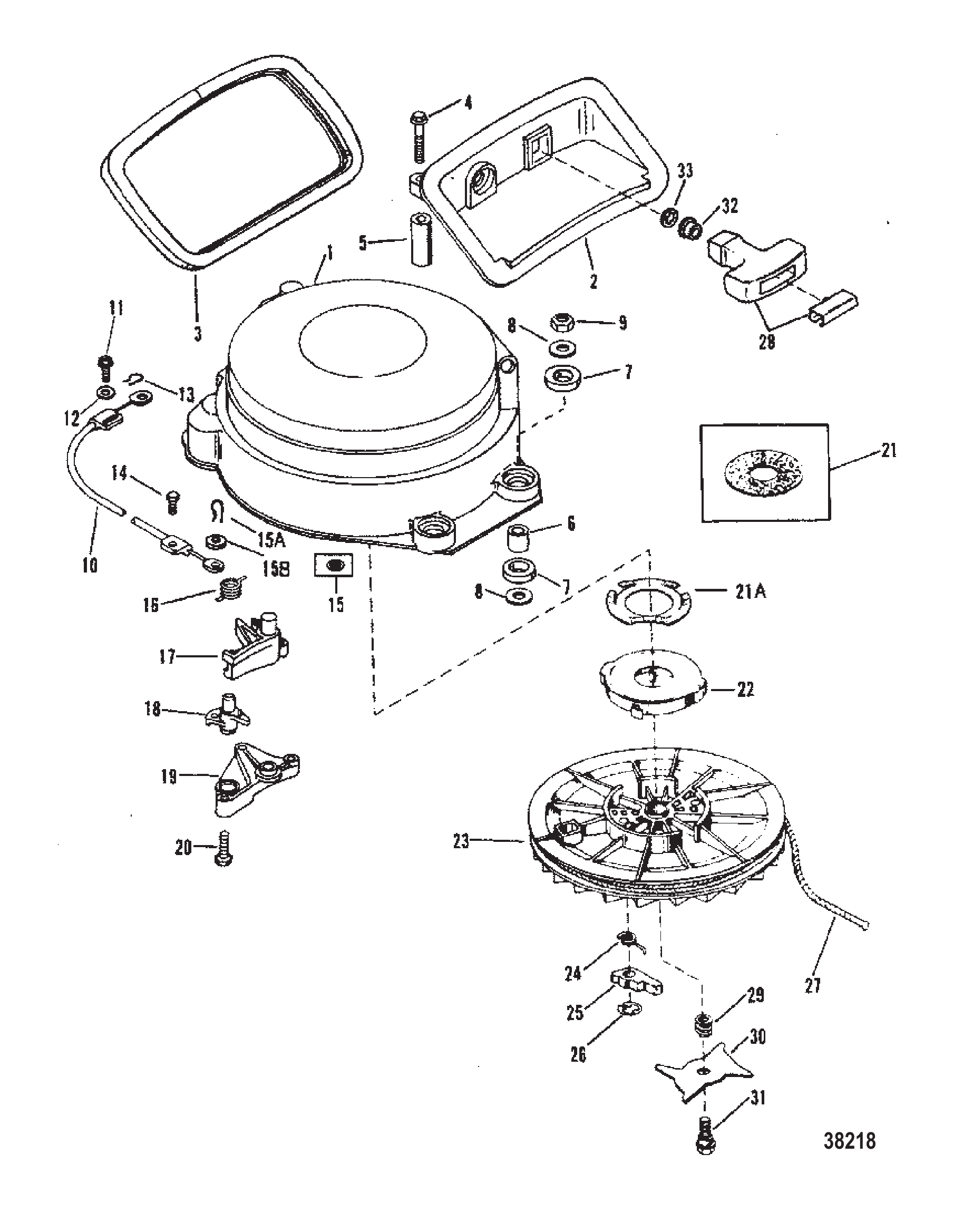

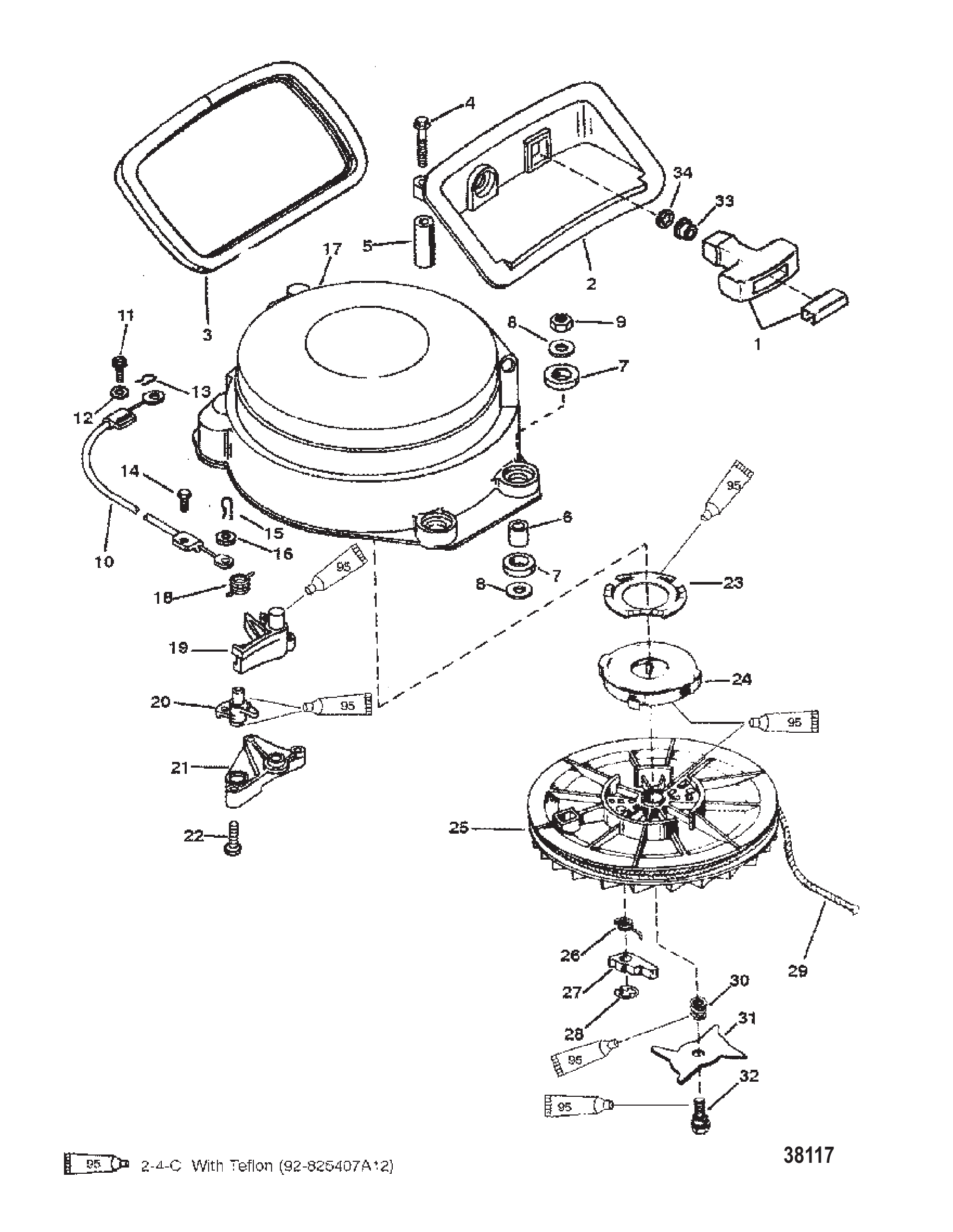

图 24启动器总成(手动-55) STARTER ASSEMBLY (MANUAL - 55)

REF	零件编号	中文名称	英文名称	数量
1	85174A1	手柄总成	HANDLE ASSEMBLY	1
2	8167652	支架	REST	1
3	8136072	密封件	SEAL	1
3	8M0043161	密封件	SEAL	1
4	82170475	螺钉(M6×75)	SCREW (M6 x 75)	2
5	821702	隔套	SPACER	2
6	816086	衬套	BUSHING	4
7	815795	护孔环	GROMMET	8
8	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	8
9	401196	螺母 (M6)	NUT (M6)	4
10	8167485	联锁电缆	CABLE Interlock	1
10	8567541	联锁电缆	CABLE Interlock	1
11	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
12	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
13	27769	开口销	COTTER PIN	1
13	26811	开口销	COTTER PIN	1
14	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
14	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
15	27769	开口销	COTTER PIN	1
15	26811	开口销	COTTER PIN	1
16	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
-	816728A12	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
17	8167285	壳体	HOUSING	1
17	816728T05	壳体	HOUSING	1
18	826791	弹簧	SPRING	1
19	8166903	杠杆	LEVER	1
20	8167121	凸轮	CAM	1
20	816712T01	凸轮	CAM	1
21	816711	固定座	RETAINER	1
22	8182491	螺钉(#10-16 x 1.00)	SCREW (#10-16 x 1.00)	3
23	826229	弹簧锁紧垫圈	LOCKWASHER SPRING	1
24	868571	弹簧	SPRING	1
24	86857T01	弹簧	SPRING	1
25	825269A1	启动滑轮	SHEAVE Starter	1
25	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
26	86851	弹簧	SPRING	2
26	86851T02	弹簧 @2	SPRING @2	2
27	86850	凸轮	CAM	2
27	868501	凸轮	CAM	2
28	868491	挡圈	RING Retaining	2
28	86849T01	环 @2	RING @2	2
29	12066A9	绳索	ROPE	1
29	12066Q10	启动绳@2	ROPE-STARTER@2	1
30	86852	弹簧	SPRING	1
30	868523	弹簧	SPRING	1
31	86853	凸轮	CAM	1
31	86853T01	凸轮	CAM	1
32	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
33	42690	衬套	BUSHING	1
33	8M0183792	绳索衬套	ROPE BUSHING	1
34	818853	挡圈	RING Retaining	1

图 25附件 Accessories

零件编号	中文名称	英文名称	数量
86306A01	适配器	ADAPTER	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

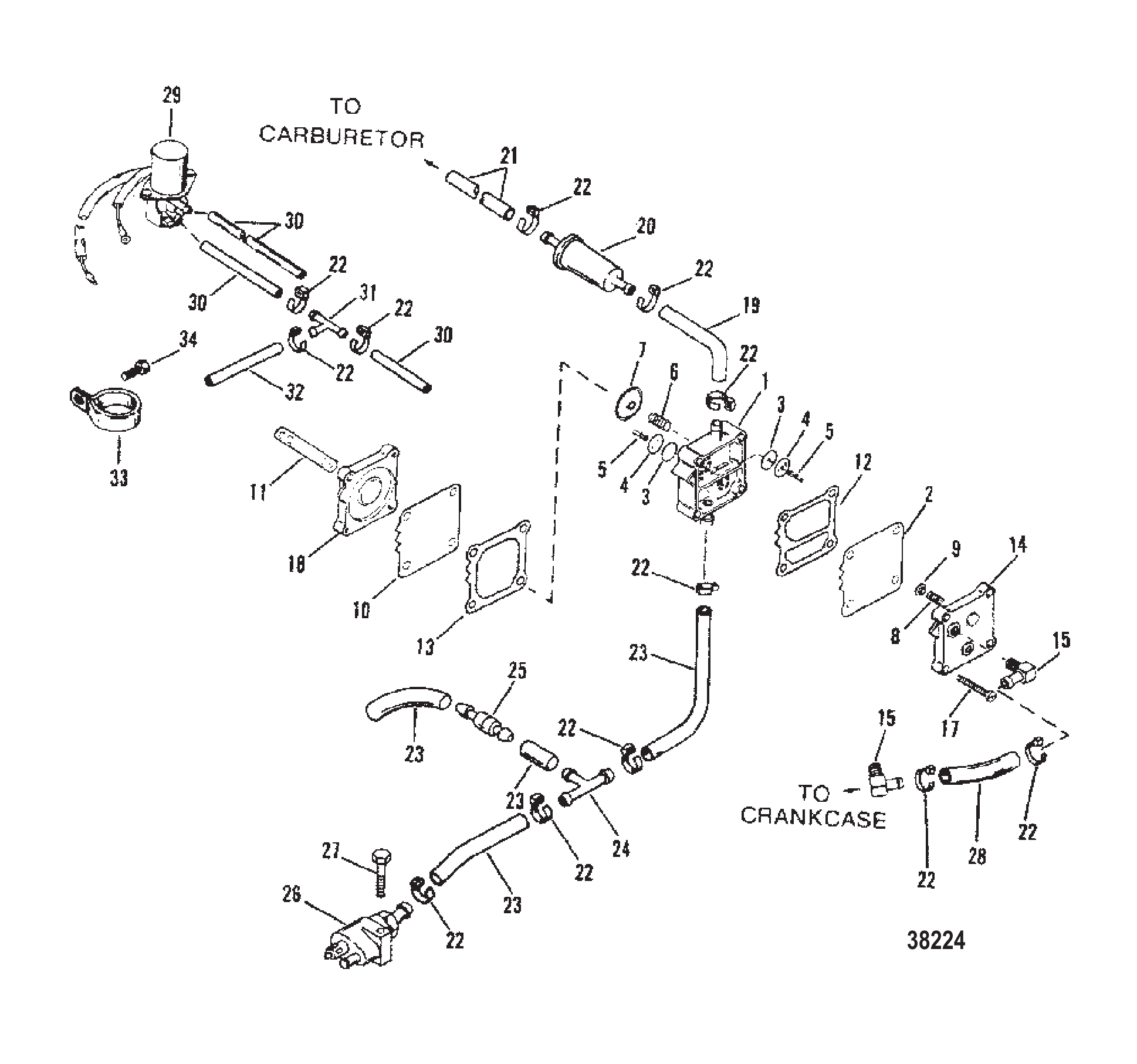

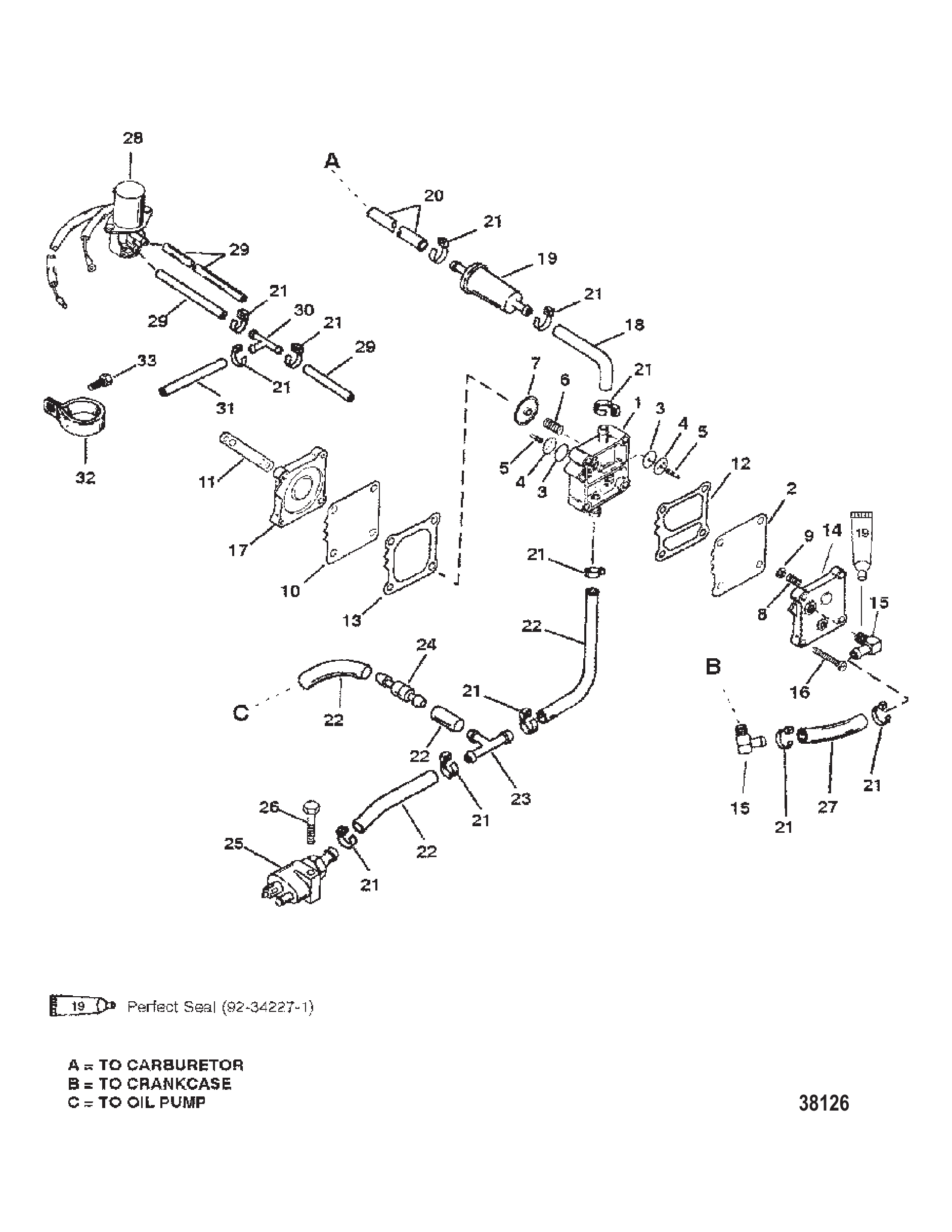

图 26燃油泵(黑色 50/60) FUEL PUMP (BLACK 50/60)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE SPRING	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS		NOT SOLD SEPARATE SPRING	1
9	NSS		NOT SOLD SEPARATE CAP	1
10	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS		NOT SOLD SEPARATE GASKET-BOOST	1
13	NSS		NOT SOLD SEPARATE GASKET-PULSE	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
17	82104540	螺钉(M5 x 40)燃油泵	SCREW (M5 x 40) FUEL PUMP	2
17	82130050	螺钉(M6 x 50)燃油泵至曲轴箱	SCREW (M6 x 50) FUEL PUMP TO CRANKCASE	2
18	144303	底座	BASE	1
19	816865	软管	HOSE	1
19	830767	软管	HOSE	1
20	8162961	燃油滤清器	FILTER Fuel	1
20	816296Q2	燃油滤清器	FILTER Fuel	1
21	19723	燃油管	LINE Fuel	1
21	830761	燃油管	LINE Fuel	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	9912980	软管	HOSE	3
23	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	3
24	818993	三通接头	CONNECTOR Tee	1
25	818994	止回阀	CHECK VALVE	1
25	8189941	止回阀	CHECK VALVE	1
26	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
26	816856T01	燃油接头	CONNECTOR-FUEL	1
27	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
28	9912878	软管(.187)(26.00英寸散装)(4-1/4")	HOSE (.187) (26.00 Inches Bulk) (4-1/4")	1
29	428593	电磁阀	SOLENOID VALVE	1
29	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
30	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	3
31	59169	接头	FITTING	1
31	59169003	三通接头	FITTING Tee	1
32	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
33	633001	卡箍	CLAMP	1
34	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
-	812867A97	衬垫套件	GASKET SET	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1

图 27外罩 Cowling

REF	零件编号	中文名称	英文名称	数量
1	7938	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7937A8	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7938F4	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7937F4	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
2	55455		HOOK Top Cowl Latch - Rear	1
3	22956		SCREW (.250-28 x .880) Rear Hook to Top Cowl	2
4	26992		LOCKWASHER (.250) Stainless Steel Rear Hook Screw	2
5	37690	顶罩后护板	SHIELD Rear - Top Cowl	1
6	48409		SCREW (#10-16 x .625) Stainless Steel Rear Shield to Top Cowl	3
7	97447A1	顶罩固定架总成	RETAINER ASSEMBLY Top Cowl	1
8	53167	顶罩固定架螺丝(.312-18 x .880)	SCREW (.312-18 x .880) Retainer to Top Cowl	1
8	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	1
9	39107	固定架螺丝锁紧垫圈(.312-24)	LOCKWASHER (.312-24) Retainer Screw	1
10	94918T	罩盖锁扣铰链杆	LEVER Cowl Latch Hinge	1
10	94918F1	杠杆	LEVER	1
11	52739T	顶罩锁扣铰链	HINGE Cowl Latch-Top Cowl	1
11	52739	铰链	HINGE	1
12	58998	罩盖锁扣杆铰链销	PIN Cowl Latch Lever to Hinge	1
13	7927A5	水星前盖板(无标贴)	FRONT COVER MERCURY Without Decal	1
13	7927A19	马琳前盖板(无标贴)	FRONT COVER MARINER Without Decal	1
14	56849	前盖板旋钮	KNOB Cowl Front Cover	1
15	30771	盖板旋钮垫圈	WASHER Cover Knob	1
16	59572	盖板旋钮垫圈	WASHER Cover Knob	2
17	30772	盖板旋钮张力弹簧	SPRING Tension - Cover Knob	1
18	29077	旋钮张力弹簧销	PIN Roll Tension Spring to Knob	1
19	38674	隔音毯	BLANKET Sound	1
20	94923	隔音垫	PAD Sound	2
21	3247A3	水星环绕式顶罩总成(无标贴)	TOP COWL ASSEMBLY Wrap Around - Mercury Without Decal	1
21	8181A4	马琳环绕式顶罩总成(无标贴)	TOP COWL ASSEMBLY Wrap Around - Mariner Without Decal	1
22	46785A1	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
23	30413	罩盖锁钩	HOOK Cowl Latch	2

图 28旋转支架(序列号:0D182000及以上) SWIVEL BRACKET (S/N: 0D182000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	822864A1	旋转支架(短)(黑色)	SWIVEL BRACKET (SHORT) (BLACK)	1
1	822864A2	旋转支架总成(短)(灰色)	SWIVEL BRACKET ASSEMBLY (SHORT) (GRAY)	1
1	822864A1	旋转支架	SWIVEL BRACKET	1
1	822863A1	旋转支架(长)(黑色)	SWIVEL BRACKET (LONG) (BLACK)	1
1	822863A2	旋转支架总成(长)(灰色)	SWIVEL BRACKET ASSEMBLY (LONG) (GRAY)	1
1	822863A3	旋转支架总成(长)(TRACKER)	SWIVEL BRACKET ASSEMBLY (LONG) (TRACKER)	1
2	821124	轴承	BEARING	2
3	32911	油封	SEAL Oil	2
4	19606	轴承	BEARING	2
5	74036	润滑脂接头	FITTING Grease	3
5	8M0169589	润滑脂接头	FITTING Grease	3
6	25176	垫圈	WASHER	1
7	19654T	底部轭架(黑色)	YOKE Bottom (BLACK)	1
7	19654T1	下轭架	YOKE Bottom	1
7	19654T6	底部轭架(灰色)	YOKE Bottom (GRAY)	1
7	19654T7	ORD 19654T 1	ORD 19654T 1	1
7	19654F1	底部轭架（追踪者）	YOKE Bottom (TRACKER)	1
8	77415	挡圈	RETAINING RING	1
9	812897A7	旋转销总成(短)(黑色)	SWIVEL PIN ASSEMBLY (SHORT) (BLACK)	1
9	812897A19	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812897A8	旋转销总成(短)(灰色)	SWIVEL PIN ASSEMBLY (SHORT) (GRAY)	1
9	812897A20	ORD 17-812897A19	ORD 17-812897A19	1
9	812896A14	旋转销总成(长)(黑色)	SWIVEL PIN ASSEMBLY (LONG) (BLACK)	1
9	812896A22	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812896A15	旋转销总成(长)(灰色)	SWIVEL PIN ASSEMBLY (LONG) (GRAY)	1
9	812896A23	旋转销-GR-LG	SWIVEL PIN-GR-LG	1
9	812896A16	旋转销总成(长)(TRACKER)	SWIVEL PIN ASSEMBLY (LONG) (TRACKER)	1
10	8219871	联动销	PIN Co-Pilot	1
11	816667T	支架（黑色）	BRACKET (BLACK)	1
11	8M0184092	支架	BRACKET	1
11	816667F3	支架（灰色）	BRACKET (GRAY)	1
11	8M0184092	支架	BRACKET	1
11	816667F2	支架(TRACKER)	BRACKET (TRACKER)	1
11	8M0184092	支架	BRACKET	1
12	816669	锁紧垫圈	TAB WASHER	1
12	8M0009820	锁紧垫圈	TAB WASHER	1
13	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
14	196081	连杆(右舷)	LINK ROD (STARBOARD)	1
14	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
14	196091	连杆(左舷)	LINK ROD (PORT)	1
14	19609A6	转向安装套件	ATTACHING KIT Steering	1
15	90041	螺钉(.375-24 x 1.620)	SCREW (.375-24 x 1.620)	1
15	856680	螺钉(.375-24 x 1.62)	SCREW (.375-24 x 1.62)	1
16	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
16	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
17	34863	螺母 (.375-24)	NUT (.375-24)	2
17	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
18	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
19	52865	垫圈	WASHER	1
20	823876	销(手柄)	PIN (HANDLE)	1
21	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
21	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
22	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1

图 29燃油泵(50/60) FUEL PUMP (50/60)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE SPRING	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS	不单独销售	NOT SOLD SEPARATE	1
9	NSS		NOT SOLD SEPARATE CAP	1
10	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS		NOT SOLD SEPARATE GASKET-BOOST	1
13	NSS		NOT SOLD SEPARATE GASKET-PULSE	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
16	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
16	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
17	144303	底座	BASE	1
18	830767	软管	HOSE	1
19	8162961	燃油滤清器	FILTER Fuel	1
19	816296Q2	燃油滤清器	FILTER Fuel	1
20	830761	燃油管	LINE Fuel	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	83075780	管材(28.00英寸散装)(1-1/4英寸)(1-1/4英寸)(14-1/4英寸)	TUBING (28.00 Inches Bulk) (1-1/4 IN.)(1-1/4 IN.)(14-1/4 IN.)	3
22	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	3
23	818993	三通接头	CONNECTOR Tee	1
24	8189941	止回阀	CHECK VALVE	1
25	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
25	816856T01	燃油接头	CONNECTOR-FUEL	1
26	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
27	9912878	软管 (0.187) (26.00英寸散装) (4-1/4英寸)	HOSE (.187) (26.00 Inches Bulk) (4-1/4 IN.)	1
28	428593	电磁阀	SOLENOID VALVE	1
28	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
29	9912688	管材(36.00英寸散装)(1-3/4英寸)(3-1/4英寸)(11-1/2英寸)	TUBING (36.00 Inches Bulk) (1-3/4 IN.)(3-1/4 IN.)(11-1/2 IN.)	3
30	59169	接头	FITTING	1
30	59169003	三通接头	FITTING Tee	1
31	99130122	管材（20英尺卷装）（16英寸）	TUBING (20.00 Feet Bulk) (16 IN.)	1
31	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
32	633001	卡箍	CLAMP	1
33	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
-	812867A97	衬垫套件	GASKET SET	1
-	811209A93	动力头总成	POWERHEAD ASSEMBLY	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 30润滑图表 Lube Chart

REF	零件编号	中文名称	英文名称	数量
-	NOPART	无零件清单	NO PARTS LIST	1

图 31手动倾斜装置组件 MANUAL TILT COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	813427A4	减震杆总成	SHOCK ROD ASSEMBLY	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	8134291	减震活塞	PISTON Shock	1
4	813432A2	气缸修理包	CYLINDER REBUILD KIT	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	810777	气缸套件	CYLINDER KIT	1
6	811224A1	气缸总成	CYLINDER ASSEMBLY	1
6	893918A01	气缸套件	CYLINDER KIT	1
7	813433A1	螺丝和密封套件气缸	SCREW AND SEAL KIT CYLINDER	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
8	893920A01	蓄能器套件	ACCUMULATOR KIT	1
9	813455T4	阀体总成	VALVE BODY ASSEMBLY	1
9	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
10	813456A4	维修套件	REPAIR KIT	1
10	813456A4	维修套件	REPAIR KIT	1
11	813458	塞套件	PLUG KIT	1
11	813458A2	塞套件	PLUG KIT	1
12	813457A1	凸轮总成套件	CAM ASSEMBLY KIT	1
13	813459	塞套件	PLUG KIT	1
14	19607	销	PIN	2
15	821539	三叶销	PIN Trilobe	2
-	830050T3	手动配平总成(完整)	MANUAL TRIM ASSEMBLY COMPLETE	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1

图 32喷射组件 Jet Components

REF	零件编号	中文名称	英文名称	数量
1	821889A18	转速限制器	REV LIMITER	1
2	823147A4	转速限制器线束总成	HARNESS ASSEMBLY Rev Limiter	1
3	826579	支架	BRACKET	1
4	40011127	螺钉 (M6 x 16) 不锈钢	SCREW (M6 x 16) Stainless Steel	2
4	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
5	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
6	801402	润滑脂套装	GREASE KIT	1
6	30500A2	润滑脂套装	GREASE KIT	1
24	197001	面板	FACE PLATE	1
24	19700A2	面板	FACE PLATE	1
25	19453	叶轮	IMPELLER	1
25	19453T	叶轮	IMPELLER	1
26	19699	键	KEY	1
26	8M0032831	叶轮键	KEY Impeller	1
27	14334A1	水泵总成	PUMP ASSEMBLY Water	1
27	14334A3	水泵总成	PUMP ASSEMBLY Water	1
29	194541	衬垫(上部)	GASKET (UPPER)	1
30	43023	密封件	SEAL	1
30	8M0204658	密封件	SEAL	1
31	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
33	43045	绝缘体	INSULATOR	4
33	8M0204659	绝缘体@4	INSULATOR @4	4
34	19452	绝缘体	INSULATOR	2
-	812966A11	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 33动力配平组件(序列号:0D181999及以下) POWER TRIM COMPONENTS (S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	813427	减震杆总成套件	SHOCK ROD ASSEMBLY KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A3	气缸密封套件	SEAL KIT Cylinder	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	810777	气缸套件	CYLINDER KIT	1
6	811228	气缸套件	CYLINDER KIT	1
6	893904T01	气缸总成	CYLINDER ASSEMBLY	1
7	813433A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
7	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	811227	泵	PUMP	1
8	811227	泵	PUMP	1
9	813441	歧管总成	MANIFOLD ASSEMBLY	1
9	811225	歧管总成	MANIFOLD ASSEMBLY	1
10	813436	螺钉套件	SCREW KIT	1
11	813437	驱动轴	DRIVESHAFT	1
12	813438	螺丝和销钉套件	SCREW AND PIN KIT	1
13	813439A2	密封套件	SEAL KIT	1
13	813439A3	O型圈套件	O RING KIT	1
14	813434A1	储液罐	RESERVOIR	1
15	813435	塞套件	PLUG KIT	1
15	8134351	堵头	PLUG	1
16	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
16	893929A01	安全阀套件	VALVE KIT Relief	1
17	811698	线束总成	HARNESS ASSEMBLY	1
19	813445	储液罐盖套件	CAP KIT Reservoir	1
20	813446	螺钉	SCREW	1
21	813447	电机套件	MOTOR KIT	1
22	813448	端盖	END CAP	1
23	813449A1	电枢	ARMATURE	1
24	813450	止推垫片套件	THRUST WASHER KIT	1
25	813451	外壳和磁铁套件	SHELL AND MAGNET KIT	1
26	813452	端架套件	END FRAME KIT	1
27	813453	螺栓螺母套件	BOLT AND NUT KIT	1
28	19607	销	PIN	2
29	821539	三叶销	PIN Trilobe	2
-	19217A5	完整配平泵总成	PUMP ASSEMBLY Trim COMPLETE	1
-	854472A3	动力调整套件	POWER TRIM KIT	1

图 34转向手柄套件 STEERING HANDLE KIT

REF	零件编号	中文名称	英文名称	数量
-	816366A31	转向手柄套件	STEERING HANDLE KIT	1
-	816366A42	转向手柄套件	STEERING HANDLE KIT	1
-	816366A32	转向手柄套件	STEERING HANDLE KIT	1
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
NS	74036	润滑脂接头	FITTING Grease	1
NS	8M0169589	润滑脂接头	FITTING Grease	1
2	429922	衬套	BUSHING	2
2	42992T02	衬套	BUSHING	2
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	2
7	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	3
8	12013	卡箍	CLAMP	1
8	889729	卡箍	CLAMP	1
9	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
10	816874	蝶形螺母 (#10-32)	WING NUT (#10-32) Wing	1
11	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	823609A5	停机开关总成	SWITCH ASSEMBLY Stop	1
12	8M0104612	开关总成	SWITCH ASSY	1
13	NSS	绝缘件(不单独销售)	NOT SOLD SEPARATE Insulator	1
14	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
15	NSS	驱动轮(不单独销售)	NOT SOLD SEPARATE Drive Wheel	1
16	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
17	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
18	99589	握把	GRIP	1
18	8M0221732	外握把	GRIP OUTER	1
19	648552	卡扣	CLIP	2
20	40140	螺母(M10)	NUT (M10)	1
21	8885241	导管 (9.03 英寸)	CONDUIT (9.03 Inches)	1
22	895665	导向管	GUIDE TUBE	1
23	89578	节流阀执行器筒	BARREL Throttle Actuator	1
24	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
25	12019003	拉线总成	CABLE ASSEMBLY	1
26	43433	电缆导向器	GUIDE Cable	1
26	8M0204660	导套	GUIDE	1
27	20007	电缆端锚	ANCHOR Cable End	1
28	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
28	8M0204644	螺钉组	SCREW SET	2
29	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
30	48416	盖帽	CAP	1
31	4002319	垫圈	WASHER	1
32	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
33	146011	隔套	SPACER	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
35	NSS	不单独出售节流阀贴花	NOT SOLD SEPARATE Decal, Throttle	1
36	889724	软管电缆护圈	GROMMET Hose Cable	1

图 35电气组件(55) ELECTRICAL COMPONENTS (55)

REF	零件编号	中文名称	英文名称	数量
1	19745A8	电器板总成	PLATE ASSEMBLY Electrical	1
2	814674A1	固定板总成	PLATE ASSEMBLY Retaining	1
3	8240631	螺钉	SCREW	1
4	824063	螺钉	SCREW	5
3	40011106	不锈钢螺钉(M5x13)	SCREW (M5 x 13) Stainless Steel	1
4	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	5 OR 6
5	814795T	盖板	COVER	1
6	40007107	螺钉(M5×16)	SCREW (M5 x 16)	4
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	8
8	17602A2	端子排	TERMINAL BLOCK	1
8	17602T02	接线端子总成	TERMINAL BLOCK ASSEMBLY	1
9	816031	堵头	PLUG	1
10	40007106	螺钉 (M5 x 13)	SCREW (M5 x 13)	1
11	19052A5	开关盒总成	SWITCHBOX ASSEMBLY	1
11	19052A8	开关盒总成	SWITCHBOX ASSEMBLY	1
12	813643	护套	BOOT	1
13	821889A12	限速器	SPEED LIMITER	1
13	821889A31	转速限制器	REV LIMITER	1
-	11149A10	适配器线束总成(3.5英寸)	HARNESS ASSEMBLY Adapter (3-1/2")	1
-	823147A6	限速器线束总成(15英寸)	HARNESS ASSEMBLY Speed Limiter (15")	1
14	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
15	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	3
15	13686Q	NGK BU8H @10	NGK BU8H @10	3
15	14103568	火花塞(NGK #BUZ8H-加拿大/比利时)	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)	3
15	896329885	SP #L6VC @4	SP #L6VC @4	3
15	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	3
15	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	3
15	8168372	火花塞(NGK #BPZ8H-N-10-加拿大)	SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)	3
15	938	SP #QL78YC @4	SP #QL78YC @4	3
16	821945A52	火花塞导线套件	SPARK PLUG LEAD KIT	1
17	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	3
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	3
18	8M0230859	点火线圈总成	COIL IGNITION ASY	3
18	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	3
18	8M0230859	点火线圈总成	COIL IGNITION ASY	3
19	813741	护孔环	GROMMET	1
20	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	3
21	813742	护孔环	GROMMET	1

图 36化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	821679A17	化油器	CARBURETOR	1
1	821679A18	化油器	CARBURETOR	1
1	821679T18	化油器	CARBURETOR	1
1	821679A19	化油器	CARBURETOR	1
1	821679T19	化油器	CARBURETOR	1
1	821946A24	化油器	CARBURETOR	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A25	化油器	CARBURETOR	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A26	化油器	CARBURETOR	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A27	化油器	CARBURETOR	1
1	821946T42	化油器	CARBURETOR	1
1	821946A28	化油器	CARBURETOR	1
1	821946T43	化油器	CARBURETOR	1
1	821946A29	化油器	CARBURETOR	1
1	821946T44	化油器	CARBURETOR	1
2	823634	螺丝(上/下部)	SCREW (UPPER/BOTTOM)	2
3	823632	油门轴	SHAFT Throttle	1
4	823633	油门轴	SHAFT Throttle	1
4	823636	油门轴	SHAFT Throttle	1
3	823632	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
5	NSS	不单独销售油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	3
6	6247	主量孔(0.090)	JET Main (.090)	3
7	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
8	NSS	不单独销售怠速针弹簧	NOT SOLD SEPARATE SPRING-IDLE NEEDLE	3
9	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杠杆(WME43/45-底部)	LEVER Oil Pump (WME43/45 - BOTTOM)	1
14	8086121	杠杆固定螺钉(WME43/45-底部)	SCREW Lever Retainer (WME43/45 - BOTTOM)	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	879194023	节气门阀	VALVE-THROTTLE	3
17	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
18	F10064	轴	SHAFT	3
19	NSS	不单独销售喷油嘴衬垫	NOT SOLD SEPARATE GASKET-NOZZLE WELL	3
20	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
24	811695	燃油杯	BOWL Fuel	1
24	811693	燃油杯	BOWL Fuel	2
25	811694	塞套件	PLUG KIT	3
26	NSS	排水碗密封件(不单独销售)	NOT SOLD SEPARATE SEAL-BOWL DRAIN	3
27	6246	量孔(.048)	JET (.048)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
27	4217	主量孔(.062)	JET Main (.062)	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

图 37喷射组件 JET COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	821889A18	转速限制器	REV LIMITER	1
2	823147A4	转速限制器线束总成	HARNESS ASSEMBLY Rev Limiter	1
3	826579	支架	BRACKET	1
4	40011127	螺钉 (M6 x 16) 不锈钢	SCREW (M6 x 16) Stainless Steel	2
4	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
5	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
6	801402	润滑脂套装	GREASE KIT	1
6	30500A2	润滑脂套装	GREASE KIT	1
24	197001	面板	FACE PLATE	1
24	19700A2	面板	FACE PLATE	1
25	19453	叶轮	IMPELLER	1
25	19453T	叶轮	IMPELLER	1
26	19699	键	KEY	1
26	8M0032831	叶轮键	KEY Impeller	1
27	14334A1	水泵总成	PUMP ASSEMBLY Water	1
27	14334A3	水泵总成	PUMP ASSEMBLY Water	1
29	194541	衬垫(上部)	GASKET (UPPER)	1
30	43023	密封件	SEAL	1
30	8M0204658	密封件	SEAL	1
31	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
33	43045	绝缘体	INSULATOR	4
33	8M0204659	绝缘体@4	INSULATOR @4	4
34	19452	绝缘体	INSULATOR	2
-	812966A11	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 38齿轮箱螺旋桨轴-60海宝/马拉松/大脚-3爪倒车离合器 GEAR HSG PROPSHAFT-60 SEA/MARA/BIG FOOT-3 JAW REV. CLUTCH

REF	零件编号	中文名称	英文名称	数量
-	9011A69	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A71	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A70	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011A72	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011A73	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A74	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
41	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
42	12634A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
42	12634T02	齿轮总成	GEAR ASSEMBLY	1
43	30895	滚针轴承	BEARING Needle	1
43	30895T	滚针轴承	BEARING Needle	1
44	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
44	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	44530	钢球	BALL	3
46	30622	弹簧	SPRING	1
47	822539	离合器	CLUTCH	1
47	822539T	离合器	CLUTCH	1
48	30632	十字销	PIN Cross	1
48	8M0100263	十字销	PIN Cross	1
49	30893	弹簧	SPRING	1
50	12238T	螺旋桨轴	PROPELLER SHAFT	1
51	12635	倒挡齿轮	GEAR Reverse	1
51	12635T	倒挡齿轮	GEAR-REVERSE	1
52	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	8M0168901	轴承座总成	CARRIER ASSY.	1
53	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
53	8M0214974	O型圈	O RING	1
54	30956	滚针轴承	BEARING Needle	1
54	30956T	滚针轴承	BEARING Needle	1
55	76868	内密封件	SEAL (INNER)	1
55	8M0248882	油封@5	SEAL-OIL @5	1
56	70081	油封(外)	SEAL Oil (OUTER)	1
56	8M0205729	密封件	SEAL	1
57	12578	滚针轴承	BEARING Needle	1
57	12578T	滚柱轴承	BEARING Roller	1
58	12577	止推垫片	THRUST WASHER	1
59	12576	推力轴承	BEARING Thrust	1
60	429174	双头螺栓(M8 x 1.25 x 48)	STUD (M8 x 1.25 x 48)	2
60	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
61	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
61	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
62	401198	螺母 (M8)	NUT (M8)	2
62	401378	螺母 (M8)	NUT (M8)	2
63	44491A1	垫片组	SHIM SET	1
63	8M0063266	垫片组	SHIM SET	1
64	13191A1	止推垫片	THRUST WASHER	1
64	13191Q01	止推垫片	THRUST WASHER	1
65	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
65	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
66	816629	锁紧垫圈	TAB WASHER	1
66	816629Q	锁紧垫圈	TAB WASHER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 39驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	858576T03	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
3	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
3	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	8M0214963	垫圈	WASHER	5
5	40140	螺母(M10)	NUT (M10)	5
6	85822A15	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
7	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
8	85822	直通接头	CONNECTOR Straight	1
8	85822T	直通接头	CONNECTOR Straight	1
9	44343T1	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
10	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
11	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
12	43528	螺母(M12)	NUT (M12)	2
12	8M0204662	螺母	NUT	2
13	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
14	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
15	858916T	卡箍	CLAMP	2
16	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
17	858745	盖帽	CAP	4
17	8M0142713	支撑盖帽	CAP Chap Support	4
18	859550	衬套	BUSHING	1
19	24873	定位销	PIN Alignment	1
20	855622	接头	FITTING	1
21	12092A3	隔套套件	SPACER KIT	1
22	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
22	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
23	813745	隔套	SPACER	1
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

图 40动力配平组件(序列号:0D182000及以上) POWER TRIM COMPONENTS (S/N: 0D182000 AND UP)

REF	零件编号	中文名称	英文名称	数量
-	822870A1	泵总成	PUMP ASSEMBLY	1
1	8134271	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A3	气缸密封套件	SEAL KIT Cylinder	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	811228	气缸套件	CYLINDER KIT	1
6	893904T01	气缸总成	CYLINDER ASSEMBLY	1
7	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	8116706	泵/歧管套件	PUMP/MANIFOLD KIT	1
8	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
8A	823180A1	摇臂套件	ROCKER ARM KIT	1
8A	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
9	813436	螺钉套件	SCREW KIT	1
10	811671	驱动轴	DRIVESHAFT	1
11	811672A3	O型圈套件	O-RING KIT	1
11	811672A4	O型圈套件	O RING KIT	1
12	811673	储液罐	RESERVOIR	1
12	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
13	813435	塞套件	PLUG KIT	1
13	8134351	堵头	PLUG	1
14	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
14	893929A01	安全阀套件	VALVE KIT Relief	1
15	811677	储液罐盖套件	CAP KIT Reservoir	1
15	809885A1	电机套件	MOTOR KIT	1
16	813446	螺钉	SCREW	1
17	811674	储液罐/马达	RESERVOIR/MOTOR	1
17	809885A1	电机套件	MOTOR KIT	1
18	811675	电枢	ARMATURE	1
19	811676	止推垫片套件	THRUST WASHER KIT	1
20	19607	销	PIN	1
21	821539	三叶销	PIN Trilobe	2
22	822869	销	PIN	1
22	822869001	锚销	PIN Anchor	1

图 41手动倾斜装置组件 Manual Tilt Components

REF	零件编号	中文名称	英文名称	数量
1	813427A4	减震杆总成	SHOCK ROD ASSEMBLY	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	8134291	减震活塞	PISTON Shock	1
4	813432A2	气缸修理包	CYLINDER REBUILD KIT	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	810777	气缸套件	CYLINDER KIT	1
6	811224A1	气缸总成	CYLINDER ASSEMBLY	1
6	893918A01	气缸套件	CYLINDER KIT	1
7	813433A1	螺丝和密封套件气缸	SCREW AND SEAL KIT CYLINDER	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
8	893920A01	蓄能器套件	ACCUMULATOR KIT	1
9	813455T4	阀体总成	VALVE BODY ASSEMBLY	1
9	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
10	813456A4	维修套件	REPAIR KIT	1
10	813456A4	维修套件	REPAIR KIT	1
11	813458	塞套件	PLUG KIT	1
11	813458A2	塞套件	PLUG KIT	1
12	813457A1	凸轮总成套件	CAM ASSEMBLY KIT	1
13	813459	塞套件	PLUG KIT	1
14	19607	销	PIN	2
15	821539	三叶销	PIN Trilobe	2
-	830050T3	手动配平总成(完整)	MANUAL TRIM ASSEMBLY COMPLETE	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1

图 42曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9611A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	63742	滚珠轴承	BEARING Ball	1
2	63742T	滚珠轴承	BEARING Ball	1
3	812877	挡圈	RING Retaining	1
4	91800	半圆键	KEY Woodruff	2
5	43019A2	齿轮总成	GEAR ASSEMBLY	1
6	812873A1	滚子轴承总成(顶部)	BEARING ASSEMBLY Roller (TOP)	1
7	419531	油封	SEAL Oil	1
8	812881A1	滚子轴承总成(中部)	BEARING ASSEMBLY Roller (CENTER)	2
9	9613A1	活塞总成	PISTON ASSEMBLY	3
9	9613T1	活塞	PISTON	3
9	9613A2	活塞总成	PISTON ASSEMBLY	AR
9	9613T2	活塞总成0.015	PISTON ASSY .015	AR
9	9613A3	活塞总成	PISTON ASSEMBLY	AR
9	9613T3	活塞	PISTON	AR
10	52035	锁环	RING Lock	6
10	857196	锁紧环	LOCK RING	6
11	19721A6	活塞环组	RING SET Piston	1
11	19721A1	活塞环组	RING SET Piston	AR
11	19721A2	活塞环组	RING SET Piston	AR
12	9612A2	连杆总成	CONNECTING ROD ASSEMBLY	3
12	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
13	812876	垫圈	WASHER	6
13	8M0012298	止推垫片	THRUST WASHER	6
14	47270	轴承	BEARING	8
14	8M0214934	滚针轴承@200	BRG-NEEDLE @200	8
15	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
16	17514A1	轴承套件	BEARING KIT	3
16	8M0234886	轴承保持架	CAGE BEARING	3
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 43驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	858576T03	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
3	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
3	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	8M0214963	垫圈	WASHER	5
5	40140	螺母(M10)	NUT (M10)	5
6	85822A15	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
7	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
8	85822	直通接头	CONNECTOR Straight	1
8	85822T	直通接头	CONNECTOR Straight	1
9	44343T1	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
10	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
11	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
12	43528	螺母(M12)	NUT (M12)	2
12	8M0204662	螺母	NUT	2
13	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
14	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
15	858916T	卡箍	CLAMP	2
16	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
17	858745	盖帽	CAP	4
17	8M0142713	支撑盖帽	CAP Chap Support	4
18	859550	衬套	BUSHING	1
19	24873	定位销	PIN Alignment	1
20	855622	接头	FITTING	1
21	12092A3	隔套套件	SPACER KIT	1
22	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
22	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
23	813745	隔套	SPACER	1
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

图 44启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量

图 45齿轮箱驱动轴-60海宝/马拉松/大脚-3爪倒车离合器 GEAR HSG DRIVESHAFT-60 SEA/MARA/BIG FOOT-3 JAW REV. CLUTCH

REF	零件编号	中文名称	英文名称	数量
-	9011A69	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A71	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A70	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011A72	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011A73	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A74	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
4	79953Q04	放油螺钉套件	SCREW KIT Drain	2
5	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
5	8M0058389	放油螺钉套件	SCREW KIT Drain	1
6	19183	纤维垫圈	WASHER Fiber	3
6	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
7	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
8	316405	平衡鳍板	TRIM TAB	1
8	8M0236553	平衡鳍板	TRIM TAB	1
9	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
11	43040A1	托架总成	CARRIER ASSEMBLY	1
11	43040T1	托架总成	CARRIER ASSEMBLY	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	8268336	螺母 (M6)	NUT (M6)	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	44484	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
15	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	76039	换挡凸轮控制	CAM Shift Control	1
17	760394	换挡凸轮控制	CAM Shift Control	1
18	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
19	44492A1	垫片组	SHIM SET	1
19	8M0063265	垫片组	SHIM SET	1
20	826736A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	826737A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
22	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	430331	衬垫	GASKET	1
24	430472	衬垫	GASKET	1
24	8M0214931	衬垫	GASKET	1
25	43035	油封(上)	SEAL Oil (UPPER)	1
25	8M0245495	油封	OIL SEAL	1
26	43036	油封(下)	SEAL Oil (LOWER)	1
27	817277	衬垫	GASKET	1
27	8172771	水泵上垫片	GASKET Water Pump, Upper	1
28	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
29	817276	面板	FACEPLATE	1
29	8M0204709	面板	FACEPLATE	1
30	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
30	8M0214957	螺钉	SCREW	4
31	826763A1	联轴器	COUPLING	1
31	826762A1	联轴器	COUPLING	1
32	43037	键	KEY	1
32	8M0204723	键	KEY	1
33	430262	叶轮	IMPELLER	1
33	43026T2	叶轮	IMPELLER	1
34	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
35	43048A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	430482	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	29641	E型卡环	E RING	1
37	43052A4	衬套总成	BUSHING ASSEMBLY	1
38	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
38	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
39	8164641	油封	SEAL Oil	1
39	8M0246145	油封	OIL SEAL	1
40	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 46油门杆及联动装置 Throttle Lever and Linkage

REF	零件编号	中文名称	英文名称	数量
1	878550	油门杆	LEVER Throttle	1
2	84974M	垫圈	WASHER	1
3	81868M	波形垫圈	WAVE WASHER	1
4	8528162	螺母	NUT	1
5	881378	轴环	COLLAR	2
6	94524M	垫圈	WASHER	1
7	804343	弹簧	SPRING	1
8	878548	节气门控制杆	LEVER Throttle Control	1
9	84974M	垫圈	WASHER	1
10	81868M	波形垫圈	WAVE WASHER	1
11	881375	螺栓 (M6 x 30)	BOLT (M6 x 30)	1
12	35459	垫圈	WASHER	1
13	859746	开口销	COTTER PIN	1

图 47启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	73521	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660		PLATE Drive End	1
4	75379	贯穿螺栓	BOLT Through	2
6	75382	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387		BUSHING Insulating	1
9	38013		WASHER Input Stud	1
10	26992		LOCKWASHER (.250) Stainless Steel Input Stud	1
11	20890		NUT (.250-20) Input Stud	1
12	61787	电刷架	HOLDER Brush	2
12	898265014	电刷支架	HOLDER-BRUSH	2
13	68586		SCREW Brush and Holder	2
14	75383		END CAP Commutator	1

图 48飞轮(55/60海宝/马拉松) FLYWHEEL (55/60 SEAPRO/MARATHON)

REF	零件编号	中文名称	英文名称	数量
1	9008A48	飞轮	FLYWHEEL	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	832074A4	定子	STATOR	1
5	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
5	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
6	99021A16	触发器	TRIGGER	1

图 49缓冲板 ATTENUATOR PLATE

REF	零件编号	中文名称	英文名称	数量
1	19662	消音器	ATTENUATOR Sound	1
2	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	4
3	815784	盖帽	CAP	1
4	812889	密封件	SEAL	3
5	812874	消音板	PLATE Sound Attenuator	2
6	4000363	螺丝(M8 x 100)	SCREW (M8 x 100)	6
7	821145	油门连杆	LINK Throttle	1
7	825204T03	连接杆	LINK	1
8	812883	调节连杆	LINK Adjusting	2
9	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
10	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
10	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
11	11399A1	臂总成	ARM ASSEMBLY	1
12	67748	滚轮	ROLLER	1
13	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
14	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
14	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
15	9912878	软管(.187)(26.00英寸散装)(4-1/4")	HOSE (.187) (26.00 Inches Bulk) (4-1/4")	2
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	8144461	法兰衬垫	GASKET Flange	3
18	8252043	油门连杆	LINK Throttle	1
18	825204T03	连接杆	LINK	1
-	812867A97	衬垫套件	GASKET SET	1

图 50气缸体 Cylinder Block

REF	零件编号	中文名称	英文名称	数量
1	881422T1	气缸体	CYLINDER BLOCK	1
2	82364M	定位销	PIN Dowel	10
3	8587321	衬垫	GASKET	1
3	858732002	气缸体衬垫	GASKET Cylinder Block	1
4	881423	螺栓(M8×55)	BOLT (M8 x 55)	10
4	8M0101617	螺栓	BOLT	10
5	804072	螺栓 (M10 x 135)	BOLT (M10 x 135)	10
6	855690	护孔环	GROMMET	1
7	804073	吊环	LIFTING EYE	2
8	8257021	螺栓 (M6 x 20)	BOLT (M6 x 20)	4
9	825953	塞子 (M14 x 12)	PLUG (M14 x 12)	1
10	81990M	衬垫	GASKET	1
11	822626Q2	机油滤清器	FILTER Oil	1
11	8M0162830	机油滤清器	FILTER OIL	1
12	804097	螺栓	BOLT	1
13	881424T	外排气罩	COVER Outer Exhaust	1
13	881424T02	排气盖	COVER-EXHAUST	1
14	804076	衬垫	GASKET	1
14	804076003	衬垫	GASKET	1
15	881427	螺栓 (M6 x 30)	BOLT (M6 x 30)	18
16	881425	螺钉	SCREW	1
17	881426	衬垫	GASKET	1
18	NSS	阳极 (不单独销售)	NOT SOLD SEPARATE Anode	1
19	804086	护孔环	GROMMET	1
20	804085	盖板	COVER	1
20	804085A01	罩盖/阳极套件	COVER/ANODE KIT	1
21	8524741	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
22	827207	螺栓 (M8 x 25)	BOLT (M8 x 25)	2
23	804082	护孔环	GROMMET	1
24	804080	压力控制阀	VALVE Pressure Control	1
24	804080001	阀门	VALVE	1
25	804081	弹簧	SPRING	1
26	804084	衬垫	GASKET	1
27	804083	盖板	COVER	1
27	804083001	盖板	COVER	1
28	881428	螺栓(M6 x 16)	BOLT (M6 x 16)	3
29	804089	卡扣	CLIP	1
30	804088	软管	HOSE	1
31	879650	卡箍	CLAMP	1
31	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
32	8587331	螺柱	STUD	6
33	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	6
33	8M0214963	垫圈	WASHER	6
34	40140	螺母(M10)	NUT (M10)	6
35	81893435	螺钉(M8×35)	SCREW (M8 x 35)	2
35	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
36	881600	橡胶盖	CAP Rubber	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881421T01	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T02	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

图 51电气组件(50/60) ELECTRICAL COMPONENTS (50/60)

REF	零件编号	中文名称	英文名称	数量
1	19745A8	电器板总成	PLATE ASSEMBLY Electrical	1
2	814674A1	固定板总成	PLATE ASSEMBLY Retaining	1
3	8240631	螺钉	SCREW	1
4	824063	螺钉	SCREW	5
3	40011106	螺钉(M5x13)不锈钢(配合参考号#39使用)	SCREW (M5 x 13) Stainless Steel (USE W/REF. #39)	1
4	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	5 OR 6
5	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	3
5	8M0230859	点火线圈总成	COIL IGNITION ASY	3
5	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	3
5	8M0230859	点火线圈总成	COIL IGNITION ASY	3
6	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	4
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	9
8	821945A52	火花塞导线套件	SPARK PLUG LEAD KIT	1
9	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	3
9	13686Q	NGK BU8H @10	NGK BU8H @10	3
9	14103568	火花塞(NGK #BUZ8H-加拿大/比利时)	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)	3
9	896329885	SP #L6VC @4	SP #L6VC @4	3
9	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	3
9	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	3
9	8168372	火花塞(NGK #BPZ8H-N-10-加拿大)	SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)	3
9	938	SP #QL78YC @4	SP #QL78YC @4	3
10	19052A5	开关盒总成	SWITCHBOX ASSEMBLY	1
10	19052A8	开关盒总成	SWITCHBOX ASSEMBLY	1
11	813643	护套	BOOT	1
12	814760	固定座(旧款)	RETAINER (OLD DESIGN)	1
13	813742	护孔环	GROMMET	1
14	19637A2	保险丝插座总成(1环形/1子弹头连接器)	SOCKET ASSEMBLY Fuse (1 RING/1 BULLET CONNECTOR)	1
14	19637A3	保险丝插座总成(2子弹头连接器)	SOCKET ASSEMBLY Fuse (2 BULLET CONNECTORS)	1
15	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
16	816770	整流器(旧款)	RECTIFIER (OLD DESIGN)	1
16	8M0058226	整流器	RECTIFIER	1
17	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
18	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
19	19061A2	线束总成(导线带环形端子)(灰色)	HARNESS ASSEMBLY ( LEAD HAS RING TERMINAL) (GRAY)	1
19	19061A4	线束总成	HARNESS ASSEMBLY	1
19	19061A4	线束总成(导线带子弹头连接器)(灰色)	HARNESS ASSEMBLY ( LEAD HAS BULLET CONNECTOR) (GRAY)	1
20	813741	护孔环	GROMMET	1
21	96054	启动电磁阀总成(设计I型)	SOLENOID ASSEMBLY Starter (DESIGN I)	1
21	8M0185149	启动电磁阀	SOLENOID START	1
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
24	64015	螺母 (.250-20)	NUT (.250-20)	2
25	4002314	垫圈	WASHER	2
26	79139A24	电缆总成(9-1/4")	CABLE ASSEMBLY (9-1/4")	1
27	88807A31	电缆总成(7")	CABLE ASSEMBLY (7")	2
28	88439A9	蓄电池正极电缆总成(96英寸)	CABLE ASSEMBLY Battery - Positive (96")	1
29	814795T	盖板	COVER	1
30	40007107	螺钉(M5×16)	SCREW (M5 x 16)	4 OR 6
31	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	3
32	14857A6	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
32	14857A16	机油报警模块	MODULE-OILWARNING	1
32	14857A10	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
32	14857A16	机油报警模块	MODULE-OILWARNING	1
33	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
34	850188T1	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
34	8M0185147	电磁阀总成	SOLENOID ASSY	1
35	818968	衬套	BUSHING	2
35	8M0214955	衬套	BUSHING	2
36	818967	护孔环	GROMMET	2
36	8M0207785	护孔环	GROMMET	2
37	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	2
38	400039	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
39	815279T	电压调节器	REGULATOR Voltage	1
39	8M0084173	电压调节器	VOLTAGE REGULATOR	1
40	813524A2	拉线总成	CABLE ASSEMBLY	1
41	821889A12	限速器	SPEED LIMITER	1
41	821889A31	转速限制器	REV LIMITER	1
42	823147A6	限速器线束总成	HARNESS ASSEMBLY Speed Limiter	1

图 52气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE

REF	零件编号	中文名称	英文名称	数量
1	9755A9	气缸体	CYLINDER BLOCK	1
1	9755A14	气缸体	CYLINDER BLOCK	1
1	9755T14	气缸体	CYLINDER BLOCK	1
1	9755A10	气缸体	CYLINDER BLOCK	1
1	9755T10	气缸体	CYLINDER BLOCK	1
1	9755A15	气缸体	CYLINDER BLOCK	1
1	9755T15	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	42658	止回阀	CHECK VALVE	1
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材(20英尺散装)(16英寸)	TUBING (20.00 Feet Bulk) (16")	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
6	426233	止回阀	CHECK VALVE	1
7	812888A1	托架总成	CARRIER ASSEMBLY	2
8	42657A1	止回阀	CHECK VALVE	2
8	42657A3	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	20033	定位销	PIN Dowel (LOCATING)	1
12	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
13	812870	主轴承座中心销	PIN Center Main (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	18597	盖板	COVER	1
15	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
16	65848	托架	CARRIER	1
17	64872	护孔环	GROMMET	1
18	8128671	衬垫	GASKET	1
18	8128672	衬垫	GASKET	1
19	8161941	螺柱	STUD	2
19	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
20	18598	管塞	PIPE PLUG	4
20	185981	管塞(.375-18)	PLUG Pipe (.375-18)	4
21	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
22	81742720	螺钉(M8 x 20)(55号件用3个)	SCREW (M8 x 20) (QTY. OF 3 ON 55)	4
22	40011149	不锈钢螺钉(M8 x 25)(55号件用3个)	SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)	4
22A	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
23	8128821	提动阀	POPPET	1
24	812887	隔膜	DIAPHRAGM	1
24	8128871	隔膜	DIAPHRAGM	1
24	812887002	隔膜	DIAPHRAGM	1
25	94182	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	90392	弹簧	SPRING	1
27	18336	弹簧	SPRING	1
27	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
28	75692	节温器	THERMOSTAT	1
28	14586	节温器	THERMOSTAT	1
29	62386	衬垫	GASKET	1
29	8M0204714	衬垫@4	GASKET @4	1
30	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
30	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	99664	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	78279	弯头	ELBOW	1
38	8M0207781	弯头	ELBOW	1
39	19074	盖板	COVER	1
39	190741	盖板	COVER	1
39	8M0036859	盖板	COVER	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129961	盖板	COVER	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
45	821595	吊环	LIFTING EYE	1
46	821616	螺钉	SCREW	1
46	821606	螺钉	SCREW	1
47	400265	螺母 (M8)	NUT (M8)	1
47	401368	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 53艉板支架(50/60) TRANSOM BRACKET (50/60)

REF	零件编号	中文名称	英文名称	数量
1	822866A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	822866A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	822866A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822865F2	艉板支架	BRACKET Transom	1
4	822865T05	艉板支架-右舷	BRACKET Transom - Starboard	1
4	822865F3	艉板支架	BRACKET Transom	1
4	822865F4	艉板支架	BRACKET Transom	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A5	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709F1	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F7	锚支架	BRACKET Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	821461	弹簧	SPRING	1
21	19614	倾斜管	TILT TUBE	1
21	8M0041938	倾斜管	TILT TUBE	1
22	826164	螺母 (.875-14)	NUT (.875-14)	2
22	8M0231351	锁紧螺母	NUT Lock	2
23	19624A1	密封套件	SEAL KIT	1
24	26550	卡箍	CLAMP	1
24	22740	卡扣	CLIP	1
25	69205	C形垫圈	C WASHER	1
25	8M0084613	C形垫圈	C-WASHER	1
26	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
26	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
27	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
28	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
29	8M0027784	螺母	NUT	4
29	82671117	螺母(.500-20)	NUT (.500-20)	4
30	1938525	连接杆	LINK	1
30	8M0084737	连接杆	LINK	1
31	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
32	812707	衬套	BUSHING	1
33	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
33	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
34	99611	波形垫圈	WAVE WASHER	1
35	19621	倾斜旋钮	TILT KNOB	1
35	8M0007469	倾斜旋钮	KNOB Tilt	1
36	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
37	96930A1	螺栓总成	BOLT ASSEMBLY	1
38	23161	螺母 (.375-24)	NUT (.375-24)	1

图 54齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9760A8	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	9760A9	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A21	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A12	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A13	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A10	齿轮箱总成(加长)(黑色)	GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A11	齿轮箱总成(加长)(灰色)	GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A2	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A3	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A20	齿轮箱总成(基础款)(TRACKER)	GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
36	812769A1	垫片组	SHIM SET	AR
36	8M0063263	垫片组	SHIM SET	AR
37	812767A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
37	8M0103476	轴承总成	BEARING ASSY	1
38	813693A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
38	813693T1	前进齿轮	GEAR Forward	1
39	21739	滚柱轴承	BEARING Roller	1
40	8129291	凸轮从动件	FOLLOWER Cam	1
41	20843	滑块	SLIDE	1
42	38114	弹簧	SPRING	1
43	813697	离合器	CLUTCH	1
43	813697T	离合器	CLUTCH	1
44	38113	十字销	PIN Cross	1
44	8M0020942	十字销@2	PIN-CROSS @2	1
45	815418	弹簧	SPRING	1
46	14493	螺旋桨轴	PROPELLER SHAFT	1
47	813695	倒挡齿轮	GEAR Reverse	1
47	813695T	倒挡齿轮	GEAR Reverse	1
48	20839	滚珠轴承	BEARING Ball	1
48	20839T	滚珠轴承	BEARING Ball	1
49	19291A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
49	8M0168900	轴承座	BEARING CARRIER	1
50	815460	O型圈	O-RING	1
51	21700	滚针轴承	BEARING Needle	1
52	69188	油封	SEAL Oil	1
52	8M0205511	油封	SEAL Oil	1
53	69189	油封	SEAL Oil	1
53	8M0203757	油封	SEAL Oil	1
54	4000353	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
54A	826613	锁紧垫圈	TAB WASHER	2
54	8136911	螺丝(M8×0.98)	SCREW (M8 x .98)	2
55	17264T2	调整片锌制	TRIM TAB Zinc	1
56	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
57	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
57	8M0214963	垫圈	WASHER	1
58	73345A1	止推垫片	THRUST WASHER	1
59	76281	锁紧垫圈	TAB WASHER	1
59	8M0214942	锁紧垫片	WASHER Tab	1
60	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
60	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	812867A91	发动机垫片组	GASKET SET Engine	1
-	812867A97	衬垫套件	GASKET SET	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 55化油器(WME-26/27/28/28/43/44/45) CARBURETOR (WME-26/27/28/28/43/44/45)

REF	零件编号	中文名称	英文名称	数量
1	821679A1	化油器(上)	CARBURETOR (TOP)	1
1	821679A2	化油器(中)	CARBURETOR (CENTER)	1
1	821679T18	化油器	CARBURETOR	1
1	821679A3	化油器(下)	CARBURETOR (BOTTOM)	1
1	821679T19	化油器	CARBURETOR	1
1	821946A1	化油器(上)	CARBURETOR (TOP)	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A2	化油器(中)	CARBURETOR (CENTER)	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A3	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A4	化油器(上)	CARBURETOR (TOP)	1
1	821946T42	化油器	CARBURETOR	1
1	821946A5	化油器(中)	CARBURETOR (CENTER)	1
1	821946T43	化油器	CARBURETOR	1
1	821946A6	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946T44	化油器	CARBURETOR	1
1	821679A17	化油器(上)	CARBURETOR (TOP)	1
1	821679T17	化油器	CARBURETOR	1
1	821679A18	化油器(中)	CARBURETOR (CENTER)	1
1	821679T18	化油器	CARBURETOR	1
1	821679A19	化油器(下)	CARBURETOR (BOTTOM)	1
1	821679T19	化油器	CARBURETOR	1
1	821946A24	化油器(上)	CARBURETOR (TOP)	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A25	化油器(中)	CARBURETOR (CENTER)	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A26	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A27	化油器(上)	CARBURETOR (TOP)	1
1	821946T42	化油器	CARBURETOR	1
1	821946A28	化油器(中)	CARBURETOR (CENTER)	1
1	821946T43	化油器	CARBURETOR	1
1	821946A29	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946T44	化油器	CARBURETOR	1
2	823634	节气门调节螺钉(上/下)	SCREW THROTTLE ADJUSTMENT (UPPER/BOTTOM)	2
3	823632	节气门轴(上)	SHAFT Throttle (UPPER)	1
3	823632	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
4	823636	节气门轴(下)	SHAFT Throttle (BOTTOM)	1
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
5	NSS	不单独销售油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	3
6	6247	主量孔(0.090)	JET Main (.090)	3
7	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
8	NSS	不单独销售怠速针弹簧	NOT SOLD SEPARATE SPRING-IDLE NEEDLE	3
9	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杆	LEVER Oil Pump	1
14	8086121	杆固定螺钉	SCREW Lever Retainer	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	823637	油门阀	VALVE Throttle	3
16	9593	油门阀	VALVE Throttle	3
16	879194023	节气门阀	VALVE-THROTTLE	3
17	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
18	F10064	轴	SHAFT	3
19	NSS	不单独销售喷油嘴衬垫	NOT SOLD SEPARATE GASKET-NOZZLE WELL	3
20	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
21	9595	进油针阀	VALVE Inlet Needle	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	5132	燃油杯螺钉	SCREW FUEL BOWL	12
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
23	808612	燃油杯螺钉及垫圈(#8-32x.750)	SCREW AND WASHER (#8-32 x .750) FUEL BOWL	12
24	811695	燃油杯(上)	BOWL Fuel (UPPER)	1
24	811693	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
25	811694	塞套件	PLUG KIT	3
26	NSS	排水碗密封件(不单独销售)	NOT SOLD SEPARATE SEAL-BOWL DRAIN	3
27	6246	量孔(.048)	JET (.048)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
27	4217	主量孔(.062)	JET Main (.062)	3
-	8236353	化油器维修套件	REPAIR KIT Carburetor	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	812867A97	衬垫套件	GASKET SET	1

图 56进气歧管与簧片阀组 Induction Manifold and Reed Block

REF	零件编号	中文名称	英文名称	数量
1	812865	衬垫	GASKET	1
2	9812A9	下端盖总成	END CAP ASSEMBLY Lower	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A2	支架总成	BRACKET ASSEMBLY	1
7	19077A3	支架总成	BRACKET ASSEMBLY	1
8	8161941	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	19076A3	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
14	19725	弯头(55号件含2个)	ELBOW (QTY. OF 2 ON 55)	1
15	812869	衬垫	GASKET	1
16	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
17	19075A2	簧片阀总成	REED BLOCK ASSEMBLY	1
17	8M0219197	簧片阀总成	REED BLOCK ASSY	1
18	812868	衬垫	GASKET	1
19	812880A1	簧片组(0.008厚度)	REED SET (0.008 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
19	812880A2	簧片组件(0.010厚度)	REED ASSEMBLY (0.010 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
20	42982	锁紧垫圈	TAB WASHER	3
20	429821	锁紧垫圈	TAB WASHER	3
21	812879	固定座	RETAINER	3
21	812879002	簧片压板	RETAINER Reed	3
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
23	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
24	42981	锁紧垫圈	TAB WASHER	2
25	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
26	988851	滑块	SLIDE	1
27	48475	衬套(II型)	BUSHING (DESIGN II)	1
27	42994	衬套	BUSHING	1
28	29720	波形垫圈	WAVE WASHER	1
29	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
30	400634	螺母 (M6)	NUT (M6)	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	400634	螺母 (M6)	NUT (M6)	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	15026	进气歧管盖	CAP (FOR USE ON INDUCTION MANIFOLD)	3
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 57附件 ACCESSORIES

REF	零件编号	中文名称	英文名称	数量

图 58齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
2	85822A1	速度表连接器总成	CONNECTOR ASSEMBLY Speedometer	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	85500	定位销(.187 x .530)齿轮箱	PIN Dowel (.187 x .530) Gear Housing	2
3	8M0084726	定位销	PIN Dowel	2
4	33778	水泵/底座柱螺栓(2.625英寸)	STUD Water Pump/Base (2.625 Inch)	3
5	57933	柱螺栓(.437-14/.437-20 x 2.190)齿轮箱	STUD (.437-14/.437-20 x 2.190) Gear Housing	2
5	8M0034453	柱螺栓(7/16 x 2.19)	STUD (7/16 x 2.19)	2
6	62091	传动轴滚柱轴承	BEARING Roller Driveshaft	1
6	62091T	轴承	BEARING	1
7	72849A1	进水滤网总成	SCREEN ASSEMBLY Water Intake	1
8	36070	螺钉(#10-32 x 1.250)进水滤网至齿轮箱	SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing	1
9	45812	螺母(#10-32)不锈钢进水滤网螺钉	NUT (#10-32) Stainless Steel Water Intake Screen Screw	1
9	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
10	92815	排气管支撑板	PLATE Support - Exhaust Tube	1
11	37721	排气管密封件	SEAL Exhaust Tube	1
11	37721001	密封件@2	SEAL @2	1
12	98097	传动轴小齿轮	GEAR Pinion Driveshaft	1
12	98097T	小齿轮	GEAR-PINION	1
13	55910	螺母(.437-20)小齿轮至传动轴	NUT (.437-20) Pinion Gear to Driveshaft	1
14	19552	水泵底座衬垫	GASKET Water Pump Base	1
15	26722	O型圈	O-RING	1
16	77177A1	水泵底座总成	BASE ASSEMBLY Water Pump	1
17	90562	密封件(1.254 x .312)	SEAL (1.254 x .312)	1
18	79831	油封	SEAL Oil	1
19	35973	定位销	PIN Dowel	2
20	19553	下衬垫	GASKET Lower	1
21	54705	面板	FACE PLATE	1
21	32768	面板	FACEPLATE	1
22	19551	上衬垫	GASKET Upper	1
23	89983	叶轮	IMPELLER	1
23	89983T	叶轮	IMPELLER	1
24	56662	叶轮驱动键	KEY Impeller Drive	1
24	8M0032837	键@5	KEY @5	1
25	77822A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	48753	嵌件	INSERT	1
27	38452	橡胶密封件	SEAL Rubber	1
28	38453	尼龙垫圈	WASHER Nylon	1
29	29245	垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓	WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs	3
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
30	13438	螺母(.250-28)水泵体与底座柱螺栓	NUT (.250-28) Water Pump Body and Base Studs	3
30	8267119	螺母(.250-28)	NUT (.250-28)	3
31	20273	橡胶O型圈	O-RING Rubber	1
32	78654A1	传动轴座总成	SEAT ASSEMBLY Driveshaft	1
33	86304	花键密封件-传动轴	SEAL Splined - Driveshaft	1
34	79953	螺钉(.375-16 x .250)润滑脂加注口	SCREW (.375-16 x .250) Grease Filler	1
34	79953Q04	放油螺钉套件	SCREW KIT Drain	1
35	67892	磁性放油螺钉	SCREW Magnetic Drain	1
35	8M0058389	放油螺钉套件	SCREW KIT Drain	1
36	19183	纤维垫圈(加注/放油螺钉)	WASHER Fiber Filler/Drain Screw	2
36	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
37	88181	润滑套筒-传动轴	SLEEVE Lubrication - Driveshaft	1
38	92881A1	轴承垫片组(齿轮箱用)(.002-3-5-10-20)	SHIM SET Bearing to Gear Housing(.002-3-5-10-20)	AR
39	77420A1	圆锥滚子轴承总成-传动轴	BEARING ASSEMBLY Roller Tapered - Driveshaft	1
39	8M0166756	轴承总成	BEARING ASSEMBLY	1
40	88025A2	驱动轴总成	DRIVESHAFT ASSEMLBY	1
40	98179	驱动轴	DRIVESHAFT	1
40	88024A2	驱动轴总成	DRIVESHAFT ASSEMBLY	1
40	98180	驱动轴	DRIVESHAFT	1
41	20254	驱动轴压缩弹簧	SPRING Compression - Driveshaft	1
42	30545	驱动轴销	PIN Driveshaft	1
43	76063A1	换挡轴总成	SHAFT ASSEMBLY Shift	1
44	29641	换挡轴E型卡环	E RING Shift Shaft	1
45	25439	O型圈(.862 x .103)换挡轴衬套	O-RING (.862 x .103) Shift Shaft Bushing	1
46	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
47	76384	换挡轴衬套油封	SEAL Oil Shift Shaft Bushing	1
47	8M0246145	油封	OIL SEAL	1
48	77674	橡胶垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing	1
49	78036	倒挡锁定底座	BASE Reverse Locking	1
50	433081	倒挡锁定凸轮	CAM Reverse Locking	1
50	43308T1	凸轮	CAM	1
-	77177A3	水泵套件	WATER PUMP KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 59维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
881980	维修手册	SERVICE MANUAL	1
881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
10225030	用户手册	OWNERS MANUAL	1
858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
881828	星形头工具套件	STARBIT TOOL KIT	1
881649A01	贴花套件	DECAL SET	1
881649A05	贴花套件	DECAL SET	1
881840A01	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A05	贴花套件	DECAL SET	1
881650A01	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881702A01	贴花套件	DECAL SET	1
881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
881839A02	EPA标签信息贴花	Decal EPA Label Information	1
881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
816834A1	转速表	TACHOMETER	1
816932A1	温度表	TEMPERATURE GAUGE	1
86306	适配器	ADAPTER	1
86306A01	适配器	ADAPTER	1
817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

图 60齿轮箱壳体(螺旋桨轴-大脚/海宝/马拉松/浮筒型) GEAR HSG (PROP-BIGFOOT/SEAPRO/MARATHON/PONTOON)

REF	零件编号	中文名称	英文名称	数量
-	9011A69	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9011A71	齿轮箱总成(加长)(黑色)	GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A70	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011A72	齿轮箱总成(加长)(灰色)	GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011A73	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A74	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
42	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
43	12634A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
43	12634T02	齿轮总成	GEAR ASSEMBLY	1
44	30895	滚针轴承	BEARING Needle	1
44	30895T	滚针轴承	BEARING Needle	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45A	44530	钢球	BALL	3
46	30622	弹簧	SPRING	1
47	822539	离合器	CLUTCH	1
47	822539T	离合器	CLUTCH	1
48	30632	十字销	PIN Cross	1
48	8M0100263	十字销	PIN Cross	1
49	30893	弹簧	SPRING	1
50	12238T	螺旋桨轴	PROPELLER SHAFT	1
51	12635	倒挡齿轮	GEAR Reverse	1
51	12635T	倒挡齿轮	GEAR-REVERSE	1
52	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	8M0168901	轴承座总成	CARRIER ASSY.	1
53	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
53	8M0214974	O型圈	O RING	1
54	30956	滚针轴承	BEARING Needle	1
54	30956T	滚针轴承	BEARING Needle	1
55	76868	内密封件	SEAL (INNER)	1
55	8M0248882	油封@5	SEAL-OIL @5	1
56	70081	油封(外)	SEAL Oil (OUTER)	1
56	8M0205729	密封件	SEAL	1
57	12578	滚针轴承	BEARING Needle	1
57	12578T	滚柱轴承	BEARING Roller	1
58	12577	止推垫片	THRUST WASHER	1
59	12576	推力轴承	BEARING Thrust	1
60	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
61	4002317	垫圈 (8.90 X 17.0 X 1.9SS)	WASHER (8.90 X 17.0 X 1.9SS)	2
62	44491A1	垫片组	SHIM SET	1
62	8M0063266	垫片组	SHIM SET	1
63	13191A1	止推垫片	THRUST WASHER	1
63	13191Q01	止推垫片	THRUST WASHER	1
64	816629	锁紧垫圈	TAB WASHER	1
64	816629Q	锁紧垫圈	TAB WASHER	1
65	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
65	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 61夹紧支架(手动) CLAMP BRACKET (MANUAL)

REF	零件编号	中文名称	英文名称	数量
1	822868A1	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	822868A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822867F1	夹箍支架	CLAMP BRACKET	1
4	822867F2	夹箍支架	CLAMP BRACKET	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	821461	弹簧	SPRING	1
21	19614	倾斜管	TILT TUBE	1
21	8M0041938	倾斜管	TILT TUBE	1
22	826164	螺母 (.875-14)	NUT (.875-14)	2
22	8M0231351	锁紧螺母	NUT Lock	2
23	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
24	818884	垫圈	WASHER	2
25	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1

图 62转向手柄套件 Steering Handle Kit

REF	零件编号	中文名称	英文名称	数量
-	816366A31	转向手柄套件	STEERING HANDLE KIT	1
-	816366A42	转向手柄套件	STEERING HANDLE KIT	1
-	816366A32	转向手柄套件	STEERING HANDLE KIT	1
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
NS	74036	润滑脂接头	FITTING Grease	1
NS	8M0169589	润滑脂接头	FITTING Grease	1
2	429922	衬套	BUSHING	2
2	42992T02	衬套	BUSHING	2
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	2
7	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	3
8	12013	卡箍	CLAMP	1
8	889729	卡箍	CLAMP	1
9	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
10	816874	蝶形螺母 (#10-32)	WING NUT (#10-32) Wing	1
11	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	823609A5	停机开关总成	SWITCH ASSEMBLY Stop	1
12	8M0104612	开关总成	SWITCH ASSY	1
13	NSS	绝缘件(不单独销售)	NOT SOLD SEPARATE Insulator	1
14	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
15	NSS	驱动轮(不单独销售)	NOT SOLD SEPARATE Drive Wheel	1
16	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
17	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
18	99589	握把	GRIP	1
18	8M0221732	外握把	GRIP OUTER	1
19	648552	卡扣	CLIP	2
20	40140	螺母(M10)	NUT (M10)	1
21	8885241	导管 (9.03 英寸)	CONDUIT (9.03 Inches)	1
22	895665	导向管	GUIDE TUBE	1
23	89578	节流阀执行器筒	BARREL Throttle Actuator	1
24	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
25	12019003	拉线总成	CABLE ASSEMBLY	1
26	43433	电缆导向器	GUIDE Cable	1
26	8M0204660	导套	GUIDE	1
27	20007	电缆端锚	ANCHOR Cable End	1
28	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
28	8M0204644	螺钉组	SCREW SET	2
29	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
30	48416	盖帽	CAP	1
31	4002319	垫圈	WASHER	1
32	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
33	146011	隔套	SPACER	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
35	NSS	不单独出售节流阀贴花	NOT SOLD SEPARATE Decal, Throttle	1
36	889724	软管电缆护圈	GROMMET Hose Cable	1

图 63骑导转向系统 Rideguide Steering

零件编号	中文名称	英文名称	数量
19608A11	转向安装套件	ATTACHING KIT Steering	1
19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
19609A5	转向安装套件	ATTACHING KIT Steering	1
19609A6	转向安装套件	ATTACHING KIT Steering	1
97933A6	转向套件双机安装套件	STEERING KIT Duel Engine Attaching Kit	1
816667A2	转向支架总成	BRACKET ASSEMBLY Steering	1

图 64飞轮(55) FLYWHEEL (55)

REF	零件编号	中文名称	英文名称	数量
1	9008A48	飞轮	FLYWHEEL	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	832074A4	定子	STATOR	1
5	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
5	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
6	99021A16	触发器	TRIGGER	1

图 65衰减板 Attenuator Plate

REF	零件编号	中文名称	英文名称	数量
1	19662	消音器	ATTENUATOR Sound	1
2	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	4
3	815784	盖帽	CAP	1
4	812889	密封件	SEAL	3
5	812874	消音板	PLATE Sound Attenuator	2
6	4000363	螺丝(M8 x 100)	SCREW (M8 x 100)	6
7	821145	油门连杆	LINK Throttle	1
7	825204T03	连接杆	LINK	1
8	812883	调节连杆	LINK Adjusting	2
9	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
10	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
10	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
11	11399A1	臂总成	ARM ASSEMBLY	1
12	67748	滚轮	ROLLER	1
13	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
14	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
14	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
15	9912878	软管(.187)(26.00英寸散装)(4-1/4")	HOSE (.187) (26.00 Inches Bulk) (4-1/4")	2
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	8144461	法兰衬垫	GASKET Flange	3
18	8252043	油门连杆	LINK Throttle	1
18	825204T03	连接杆	LINK	1
-	812867A97	衬垫套件	GASKET SET	1

图 66齿轮箱驱动轴-60海宝/马拉松/大脚-6爪倒车离合器 GEAR HSG DRIVESHAFT-60 SEA/MARA/BIG FOOT-6 JAW REV. CLUTCH

REF	零件编号	中文名称	英文名称	数量
-	9011G16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G17	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011G15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011G8	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011G60	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
4	79953Q04	放油螺钉套件	SCREW KIT Drain	2
5	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
5	8M0058389	放油螺钉套件	SCREW KIT Drain	1
6	19183	纤维垫圈	WASHER Fiber	3
6	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
7	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
8	316405	平衡鳍板	TRIM TAB	1
8	8M0236553	平衡鳍板	TRIM TAB	1
9	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
11	43040A1	托架总成	CARRIER ASSEMBLY	1
11	43040T1	托架总成	CARRIER ASSEMBLY	1
12	NSS		NOT SOLD SEPARATE NEEDLE BEARING	1
13	826134	阳极块	ANODE	2
13	826134Q	阳极块	ANODE	2
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
16	44484	小齿轮(13齿)(也属于43-850033A2)	GEAR Pinion (13 Teeth) (ALSO PART OF 43-850033A2)	1
16	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	850307	换挡凸轮控制	CAM Shift Control	1
19	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
20	44492A1	垫片组	SHIM SET	AR
20	8M0063265	垫片组	SHIM SET	AR
21	826736A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	826737A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
22	42461A1	套筒/环套件	SLEEVE/RING KIT	1
23	NSS		NOT SOLD SEPARATE RING SEAL	1
24	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
24	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
25	430331	衬垫	GASKET	1
26	430472	衬垫	GASKET	1
26	8M0214931	衬垫	GASKET	1
27	43035	油封	SEAL Oil	1
27	8M0245495	油封	OIL SEAL	1
28	43036	油封	SEAL Oil	1
29	817277	衬垫	GASKET	1
29	8172771	水泵上垫片	GASKET Water Pump, Upper	1
30	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
31	817276	面板	FACEPLATE	1
31	8M0204709	面板	FACEPLATE	1
32	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
32	8M0214957	螺钉	SCREW	4
33	826763A1	联轴器	COUPLING	1
33	826762A1	联轴器	COUPLING	1
34	43037	键	KEY	1
34	8M0204723	键	KEY	1
35	430262	叶轮	IMPELLER	1
35	43026T2	叶轮	IMPELLER	1
36	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
37	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
37	853907A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
38	29641	E型卡环	E RING	1
39	43052A4	衬套总成	BUSHING ASSEMBLY	1
40	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
40	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
41	8164641	油封	SEAL Oil	1
41	8M0246145	油封	OIL SEAL	1
42	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 67夹紧支架(手动)(序列号:0D1812000及以上) CLAMP BRACKET (MANUAL) (S/N: 0D1812000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	822868A1	夹紧支架总成(黑色)	CLAMP BRACKET ASSEMBLY (BLACK)	1
1	822868A2	夹紧支架总成(灰色)	CLAMP BRACKET ASSEMBLY (GRAY)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822867F1	夹紧支架(黑色)	CLAMP BRACKET (BLACK)	1
4	822867F2	夹紧支架(灰色)	CLAMP BRACKET (GRAY)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮(黑色)	KNOB (BLACK)	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮(灰色)	KNOB (GRAY)	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19A	821461	弹簧	SPRING	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
23	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
24	818884	垫圈	WASHER	2
25	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
37	812432F2	安装支架(右舷)	MOUNTING BRACKET (STARBOARD)	1
37	812432F5	安装支架	MOUNTING BRACKET	1
37	812433F3	安装支架(左舷)	MOUNTING BRACKET (PORT)	1
37	812433F5	安装支架	MOUNTING BRACKET	1
38	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
39	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
39	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	134371	螺母 (.375-24)	NUT (.375-24)	4
40	862903	螺母 (.375-24)	NUT (.375-24)	4
41	821722	垫片	SHIM	4

图 68夹紧支架(手动) Clamp Bracket (Manual)

REF	零件编号	中文名称	英文名称	数量
1	822868A1	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	822868A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822867F1	夹箍支架	CLAMP BRACKET	1
4	822867F2	夹箍支架	CLAMP BRACKET	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	821461	弹簧	SPRING	1
21	19614	倾斜管	TILT TUBE	1
21	8M0041938	倾斜管	TILT TUBE	1
22	826164	螺母 (.875-14)	NUT (.875-14)	2
22	8M0231351	锁紧螺母	NUT Lock	2
23	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
24	818884	垫圈	WASHER	2
25	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1

图 69动力配平(序列号0G357069及以下-黑色注油塞) POWER TRIM (S/# 0G357069 and BELOW-BLACK FILL PLUG)

REF	零件编号	中文名称	英文名称	数量
-	822870A1	泵总成	PUMP ASSEMBLY	1
1	8134271	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A3	气缸密封套件	SEAL KIT Cylinder	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	811228	气缸套件	CYLINDER KIT	1
6	893904T01	气缸总成	CYLINDER ASSEMBLY	1
7	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	8116706	泵/歧管套件	PUMP/MANIFOLD KIT	1
8	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
9	823180A1	摇臂套件	ROCKER ARM KIT	1
9	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
10	813436	螺钉套件	SCREW KIT	1
11	811671	驱动轴	DRIVESHAFT	1
12	811672A3	O型圈套件	O-RING KIT	1
12	811672A4	O型圈套件	O RING KIT	1
13	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
13	893929A01	安全阀套件	VALVE KIT Relief	1
14	813446	螺钉	SCREW	1
15	811674	储液罐/马达	RESERVOIR/MOTOR	1
15	809885A1	电机套件	MOTOR KIT	1
16	811675	电枢	ARMATURE	1
17	811676	止推垫片套件	THRUST WASHER KIT	1
18	811673	储液罐	RESERVOIR	1
18	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
19	813435	塞套件	PLUG KIT	1
19	8134351	堵头	PLUG	1
20	811677	储液罐盖套件	CAP KIT Reservoir	1
20	809885A1	电机套件	MOTOR KIT	1
21	19607	销	PIN	1
22	821539	三叶销	PIN Trilobe	2
23	822869	销	PIN	1
23	822869001	锚销	PIN Anchor	1

图 70艉板支架(50/60)(序列号:0D182000及以上) TRANSOM BRACKET (50/60)(S/N: 0D182000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	822866A1	艉板支架总成(黑色)	BRACKET ASSEMBLY Transom (BLACK)	1
1	822866A2	艉板支架总成(灰色)	BRACKET ASSEMBLY Transom (GRAY)	1
1	822866A3	艉板支架总成(TRACKER)	BRACKET ASSEMBLY Transom (TRACKER)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822865F2	艉板支架(黑色)	BRACKET Transom (BLACK)	1
4	822865T05	艉板支架-右舷	BRACKET Transom - Starboard	1
4	822865F3	艉板支架(灰色)	BRACKET Transom (GRAY)	1
4	822865F4	艉板支架(TRACKER)	BRACKET Transom (TRACKER)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A5	倾斜锁定杆总成(TRACKER)	LEVER ASSEMBLY Tilt Lock (TRACKER)	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮(黑色)	KNOB (BLACK)	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮(灰色)	KNOB (GRAY)	1
9	812709	旋钮	KNOB	1
9	812709F1	旋钮(TRACKER)	KNOB (TRACKER)	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F7	锚支架(TRACKER)	BRACKET Anchor (TRACKER)	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19A	821461	弹簧	SPRING	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
22	19624A1	密封套件	SEAL KIT	1
23	26550	卡箍	CLAMP	1
24	69205	C形垫圈	C WASHER	1
24	8M0084613	C形垫圈	C-WASHER	1
25	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
25	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1

图 71杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

图 72齿轮箱图表(60海宝/马拉松/大脚) GEAR HOUSING CHART (60 SEAPRO/MARATHON/BIG FOOT)

REF	零件编号	中文名称	英文名称	数量
-	NSS	齿轮箱体(不单独销售)	NOT SOLD SEPARATE Gear Housing

图 73动力配平(序列号0G357070及以上-黄色注油塞) POWER TRIM (S/# 0G357070 and UP-YELLOW FILL PLUG)

REF	零件编号	中文名称	英文名称	数量
-	830150A2	泵总成	PUMP ASSEMBLY	1
1	813427A3	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811228A1	气缸总成	CYLINDER ASSEMBLY	1
4	893904T01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A1	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	螺丝套件(电机)	SCREW KIT (MOTOR)	1
12	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
13	809878A1	滤清器套件	FILTER KIT	1
13	893912A02	滤清器套件	FILTER KIT	1
14	809879A1	提升阀套件	POPPET KIT	1
14	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	O型圈套件(完整调整)	O-RING KIT (COMPLETE TRIM)	1
-	893914A02	O型圈套件	O-RING KIT	1
15	821539	三叶销	PIN Trilobe	2
16	19607	销	PIN	1
17	822869	销	PIN	1
17	822869001	锚销	PIN Anchor	1

图 74艉板支架(50/60)(序列号:0D181999及以下) TRANSOM BRACKET (50/60)(S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	9751A1	艉板支架总成(黑色)	BRACKET ASSEMBLY Transom (BLACK)	1
1	9751A2	艉板支架总成(灰色)	BRACKET ASSEMBLY Transom (GRAY)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	9750T	艉板支架(黑色)	BRACKET Transom (BLACK)	1
4	9750T6	艉板支架(灰色)	BRACKET Transom (GRAY)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486T6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486F6	锚支架	BRACKET Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	19613A1	倾斜销总成	PIN ASSEMBLY Tilt	1
19A	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19A	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
22	19624A1	密封套件	SEAL KIT	1
23	22740	卡扣	CLIP	1
24	69205	C形垫圈	C WASHER	1
24	8M0084613	C形垫圈	C-WASHER	1
25	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
25	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	815796	垫圈	WASHER	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1

图 75油门杆与联动装置 THROTTLE LEVER AND LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	878550	油门杆	LEVER Throttle	1
2	84974M	垫圈	WASHER	1
3	81868M	波形垫圈	WAVE WASHER	1
4	8528162	螺母	NUT	1
5	881378	轴环	COLLAR	2
6	94524M	垫圈	WASHER	1
7	804343	弹簧	SPRING	1
8	878548	节气门控制杆	LEVER Throttle Control	1
9	84974M	垫圈	WASHER	1
10	81868M	波形垫圈	WAVE WASHER	1
11	881375	螺栓 (M6 x 30)	BOLT (M6 x 30)	1
12	35459	垫圈	WASHER	1
13	859746	开口销	COTTER PIN	1

图 76旋转支架(序列号:0D181999及以下) SWIVEL BRACKET (S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	814690A1	旋转支架(短)(黑色)	SWIVEL BRACKET (SHORT) (BLACK)	1
1	814690A2	旋转支架(短)(灰色)	SWIVEL BRACKET (SHORT) (GRAY)	1
1	815556A1	旋转支架(长)(黑色)	SWIVEL BRACKET (LONG) (BLACK)	1
1	815556A2	旋转支架(长)(灰色)	SWIVEL BRACKET (LONG) (GRAY)	1
2	821124	轴承	BEARING	2
3	32911	油封	SEAL Oil	2
4	19606	轴承	BEARING	2
5	74036	润滑脂接头	FITTING Grease	3
5	8M0169589	润滑脂接头	FITTING Grease	3
6	52865	垫圈	WASHER	1
7	19654T	底部轭架(黑色)	YOKE Bottom (BLACK)	1
7	19654T1	下轭架	YOKE Bottom	1
7	19654T6	底部轭架(灰色)	YOKE Bottom (GRAY)	1
7	19654T7	ORD 19654T 1	ORD 19654T 1	1
8	77415	挡圈	RETAINING RING	1
9	NLA	已停产旋转销(黑色-被2件式#10替代)	No Longer Available SWIVEL PIN (BLACK-REPLACED BY 2 PIECE REF #10)	1
9	NLA	已停产旋转销(灰色-被2件式#10替代)	No Longer Available SWIVEL PIN (GRAY-REPLACED BY 2 PIECE REF #10)	1
10	812897A7	旋转销总成(短)(黑色)	SWIVEL PIN ASSEMBLY (SHORT) (BLACK)	1
10	812897A19	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	812897A8	旋转销总成(短)(灰色)	SWIVEL PIN ASSEMBLY (SHORT) (GRAY)	1
10	812897A20	ORD 17-812897A19	ORD 17-812897A19	1
10	812896A14	旋转销总成(黑色)	SWIVEL PIN ASSEMBLY (BLACK)	1
10	812896A22	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	812896A15	旋转销总成(灰色)	SWIVEL PIN ASSEMBLY (GRAY)	1
10	812896A23	旋转销-GR-LG	SWIVEL PIN-GR-LG	1
11	816667T	支架（黑色）	BRACKET (BLACK)	1
11	8M0184092	支架	BRACKET	1
11	816667F3	支架（灰色）	BRACKET (GRAY)	1
11	8M0184092	支架	BRACKET	1
12	816669	锁紧垫圈	TAB WASHER	1
12	8M0009820	锁紧垫圈	TAB WASHER	1
13	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
14	196081	连杆(右舷)	LINK ROD (STARBOARD)	1
14	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
14	196091	连杆(左舷)	LINK ROD (PORT)	1
14	19609A6	转向安装套件	ATTACHING KIT Steering	1
15	90041	螺钉(.375-24 x 1.620)	SCREW (.375-24 x 1.620)	1
15	856680	螺钉(.375-24 x 1.62)	SCREW (.375-24 x 1.62)	1
16	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
16	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
17	34863	螺母 (.375-24)	NUT (.375-24)	2
17	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
18	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
19	52865	垫圈	WASHER	1
20	823876	销	PIN	1

图 77转向手柄 Steering Handle

REF	零件编号	中文名称	英文名称	数量
1	83093M	转向手柄	HANDLE Steering	1
2	82895M	摩擦片	FRICTION PIECE	1
3	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
4	83056M	螺母	NUT	1
5	80504M	握把	GRIP	1
6	811916M	螺钉	SCREW	1
7	80509M	橡胶件	RUBBER	1
8	95606M	指示器	INDICATOR	1
9	82220M	垫圈	WASHER	1
10	82095M	弹簧	SPRING	1
11	81945M	衬套	BUSHING	1
12	81280M	杠杆	LEVER	1
13	95614M	盖帽	CAP	1
14	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
15	881379	垫圈	WASHER	2
15	82214M	垫圈	WASHER	2
16	80506M	隔套	SPACER	1
16	80507M	隔套	SPACER	1
16	898103217	垫片 @5	SPACER @5	1
16	80508M	隔套	SPACER	1
17	82118M	隔套	SPACER	1
18	82121M	隔套	SPACER	1
19	82272M	O型圈	O-RING	1
20	95405M	油门拉索总成	CABLE ASSEMBLY Throttle	2
21	81778M	螺母	NUT	2
22	81761M	螺母	NUT	6
23	81037M	撑杆	STAY	1
24	81373M	护孔环	GROMMET	1
25	81054M	转向支架	BRACKET Steering	1
26	80510M	隔套	SPACER	2
27	80515M	护孔环	GROMMET	4
28	804159	螺栓 (M8 x 35)	BOLT (M8 x 35)	2
29	82956M	衬套	BUSHING	2
30	827043M	螺栓	BOLT	1

图 78齿轮箱(驱动轴)(50/55/60) GEAR HOUSING (DRIVESHAFT)(50/55/60)

REF	零件编号	中文名称	英文名称	数量
-	9760A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A32	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
2	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
2	8M0058389	放油螺钉套件	SCREW KIT Drain	1
3	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
3	79953Q04	放油螺钉套件	SCREW KIT Drain	2
4	19183	纤维垫圈	WASHER Fiber	3
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
5	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
5	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
7	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
8	812768	滚柱轴承	BEARING Roller	1
9	818226A1	密封/板套件	SEAL/PLATE KIT	1
10	813694	小齿轮	GEAR Pinion	1
10	813694T	小齿轮	GEAR Pinion	1
11	55910	螺母(.437-20)	NUT (.437-20)	1
12	812732A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
12	815420	换档轴	SHIFT SHAFT	1
13	29641	E型卡环	E RING	1
14	813696A2	衬套总成	BUSHING ASSEMBLY	1
15	45258	O型圈 (.987 x .103)	O-RING (.987 x .103)	1
16	8164641	油封	SEAL Oil	1
16	8M0246145	油封	OIL SEAL	1
17	815422	驱动轴	DRIVESHAFT	1
17	812731	驱动轴	DRIVESHAFT	1
17	815421	驱动轴	DRIVESHAFT	1
18	812770A1	垫片组	SHIM SET	AR
18	8M0063262	垫片组	SHIM SET	AR
19	77420A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
19	8M0166756	轴承总成	BEARING ASSEMBLY	1
20	8128201	螺母	NUT	1
21	812966A3	底座总成	BASE ASSEMBLY	1
21	8M0245488	水泵底座	BASE WATER PUMP	1
22	30224	O型圈 (1.859 x .139)	O-RING (1.859 x .139)	1
22	8M0204651	O型圈	O-RING	1
23	814669	油封	SEAL Oil	1
23	8M0245489	油封	SEAL OIL	1
24	814670	油封	SEAL Oil	1
25	19453	叶轮	IMPELLER	1
25	19453T	叶轮	IMPELLER	1
26	19699	键	KEY	1
26	8M0032831	叶轮键	KEY Impeller	1
27	14334A2	水泵总成	PUMP ASSEMBLY Water	1
27	14334A3	水泵总成	PUMP ASSEMBLY Water	1
28	19701	衬垫(下部)	GASKET (LOWER)	1
28	8M0224241	衬垫	GASKET	1
29	822189	水泵上衬垫	GASKET Upper Water Pump	1
30	43023	油封(短/长)	SEAL (SHORT/LONG)	1
30	8M0204658	密封件	SEAL	1
31	19700A1	面板	FACE PLATE	1
31	19700A2	面板	FACE PLATE	1
32	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
33	76039	换挡凸轮控制	CAM Shift Control	1
33	760394	换挡凸轮控制	CAM Shift Control	1
-	812867A97	衬垫套件	GASKET SET	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	812966A6	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1

图 79燃油泵(白色或红色) FUEL PUMP (WHITE OR RED)

REF	零件编号	中文名称	英文名称	数量
1	14360A41	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE SPRING	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS		NOT SOLD SEPARATE SPRING	1
9	NSS		NOT SOLD SEPARATE CAP	1
10	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	98775A7	安装板	PLATE	1
13	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
14	19688A1	接头	FITTING	1
15	4009340	螺钉(40毫米)	SCREW (40MM)	2
15	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
15	40057134	螺钉(M6 x 50)	SCREW (M6 x 50)	2
16	144303	底座	BASE	1
17	816865	软管	HOSE	1
17	830767	软管	HOSE	1
18	8162961	燃油滤清器	FILTER Fuel	1
18	816296Q2	燃油滤清器	FILTER Fuel	1
19	19723	燃油管	LINE Fuel	1
19	830761	燃油管	LINE Fuel	1
20	9912980	软管	HOSE	2
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
21	13773	三通	TEE	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
23	816856T01	燃油接头	CONNECTOR-FUEL	1
24	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
25	99127109	管路(57英寸散装)(4.75英寸)	LINE (57.00 Inches Bulk) (4-3/4")	1
25	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
26	19688	接头	FITTING	1
27	428593	电磁阀	SOLENOID VALVE	1
27	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
28	633001	卡箍	CLAMP	1
29	40011127	螺钉 (M6 x 16) 不锈钢	SCREW (M6 x 16) Stainless Steel	1
29	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
30	1430165	油管(38.00英寸散装)	TUBING (38.00 Inches Bulk)	3
31	59169	接头	FITTING	1
31	59169003	三通接头	FITTING Tee	1
32	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
-	812867A97	衬垫套件	GASKET SET	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1

图 80曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9611A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	63742	滚珠轴承	BEARING Ball	1
2	63742T	滚珠轴承	BEARING Ball	1
3	812877	挡圈	RING Retaining	1
4	91800	半圆键	KEY Woodruff	2
5	43019A2	齿轮总成	GEAR ASSEMBLY	1
6	812873A1	滚子轴承总成(顶部)	BEARING ASSEMBLY Roller (TOP)	1
7	419531	油封	SEAL Oil	1
8	812881A1	滚子轴承总成(中部)	BEARING ASSEMBLY Roller (CENTER)	2
9	9613A1	活塞总成	PISTON ASSEMBLY	3
9	9613T1	活塞	PISTON	3
9	9613A2	活塞总成	PISTON ASSEMBLY	AR
9	9613T2	活塞总成0.015	PISTON ASSY .015	AR
9	9613A3	活塞总成	PISTON ASSEMBLY	AR
9	9613T3	活塞	PISTON	AR
10	52035	锁环	RING Lock	6
10	857196	锁紧环	LOCK RING	6
11	19721A6	活塞环组	RING SET Piston	1
11	19721A1	活塞环组	RING SET Piston	AR
11	19721A2	活塞环组	RING SET Piston	AR
12	9612A2	连杆总成	CONNECTING ROD ASSEMBLY	3
12	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
13	812876	垫圈	WASHER	6
13	8M0012298	止推垫片	THRUST WASHER	6
14	47270	轴承	BEARING	8
14	8M0214934	滚针轴承@200	BRG-NEEDLE @200	8
15	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
16	17514A1	轴承套件	BEARING KIT	3
16	8M0234886	轴承保持架	CAGE BEARING	3
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 81喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	830889A4	油箱总成	TANK ASSEMBLY	1
2	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
3	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
5	814449A3	盖总成	CAP ASSEMBLY	1
6	42999	衬垫	GASKET	1
6	42999T	衬垫	GASKET	1
7	856156A2	开关总成	SWITCH ASSEMBLY	1
7	856156T02	开关总成	SWITCH ASSEMBLY	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
8	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
9	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
10	855362	护孔环	GROMMET	3
10	855362001	护孔环	GROMMET	3
11	855364	衬套	BUSHING	3
-	8742A20	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
-	8742A22	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
12	87421	油箱	TANK	1
13	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
13	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
14	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
15	43298A2	盖总成	CAP ASSEMBLY	2
16	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
17	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
18	99802	管	TUBE	1
19	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
20	12335A1	支架套件	BRACKET KIT	1
21	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

图 82飞轮与启动电机(50/60) FLYWHEEL AND STARTER MOTOR (50/60)

REF	零件编号	中文名称	英文名称	数量
1	89219	堵头	PLUG	1
2	812777T	飞轮盖	FLYWHEEL COVER	1
2	812777T1	盖总成	COVER ASSEMBLY	1
3	79022	标记	MARKER	1
4	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
5	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
6	42979	螺母(M16)	NUT (M16)	1
7	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
7	33001	垫圈	WASHER	1
8	9008A19	飞轮	FLYWHEEL	1
8	9008A50	飞轮	FLYWHEEL	1
9	9710A26	定子(冲压398-9710A22)	STATOR (STAMPED 398-9710A22)	1
9	9873A38	定子套件	STATOR KIT	1
9	9710A23	定子(冲压398-9710A23)	STATOR (STAMPED 398-9710A23)	1
9	9873A35	高输出交流发电机套件	HIGH OUTPUT ALTERNATOR KIT	1
9	9710A36	定子(冲压398-9710A34)	STATOR (STAMPED 398-9710A34)	1
9	832075A19	点火定子套件	IGNITION STATOR KIT	1
10	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
10	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
11	99021A16	触发器	TRIGGER	1
12	44369A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	57247	停机开关	STOP	2
14	8M0043376	停机开关	STOP	2
15	88807A31	拉线总成	CABLE ASSEMBLY	1
16	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
17	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
18	64015	螺母 (.250-20)	NUT (.250-20)	1

图 83延伸组件 EXTENSION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	816696A3	垫片(黑色)	SPACER (BLACK)	1
1	816696A4	垫片(灰色)	SPACER (GRAY)	1
1	816696A5	垫片(追踪者型)	SPACER (TRACKER)	1
1	816696F5	垫片(黑色)	SPACER (BLACK)	1
1	816696T5	隔套	SPACER	1
1	816696F6	垫片(灰色)	SPACER (GRAY)	1
1	816696T6	ORD 816696T5	ORD 816696T 5	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
3	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
3	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
4	817401A1	水管总成	TUBE ASSEMBLY Water	1
5	38970	油封(旧款)	SEAL (OLD DESIGN)	1
6	821093	密封件	SEAL	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	4
8	8M0214963	垫圈	WASHER	4
9	13914	螺母(M10)	NUT (M10)	5
9	40140	螺母(M10)	NUT (M10)	5
10	8168661	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5
10	8M0034425	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5

图 84曲轴、活塞与连杆 Crankshaft Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	880894T	曲轴	CRANKSHAFT	1
2	8040992	油封	SEAL Oil	1
3	8041002	油封	SEAL Oil	1
4	804101T	轴承	BEARING	4
4	804101T10	轴承	BEARING	4
4	804101T20	轴承	BEARING	4
5	804102T	轴承	BEARING	5
5	804102T10	轴承	BEARING	5
5	804102T20	轴承	BEARING	5
5	804102T30	轴承	BEARING	5
6	804103T	轴承	BEARING	1
6	804103T10	轴承	BEARING	1
6	804103T20	轴承	BEARING	1
7	880895T1	活塞总成	PISTON ASSEMBLY	4
7	880895A14	活塞/连杆总成	PISTON/CONN ROD	4
7	880895T10	活塞总成	PISTON ASSEMBLY	AR
7	880895A16	活塞/连杆总成	PISTON/CONN ROD	AR
8	880896	螺栓(M8 x 38)	BOLT (M8 x 38)	8
9	880897T1	活塞环组	RING SET Piston	4
9	880897T02	活塞环组	RING SET Piston	4
9	880898T1	活塞环组	RING SET Piston	AR
9	880898T02	活塞环组	RING SET Piston	AR
10	880899T	轴承	BEARING	8
10	880899T10	轴承	BEARING	8
10	880899T20	轴承	BEARING	8
10	880899T30	轴承	BEARING	8
-	881421T01	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T02	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

图 85进气歧管与簧片阀组 INDUCTION MANIFOLD AND REED BLOCK

REF	零件编号	中文名称	英文名称	数量
1	812865	衬垫	GASKET	1
2	9812A9	下端盖总成	END CAP ASSEMBLY Lower	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A2	支架总成	BRACKET ASSEMBLY	1
7	19077A3	支架总成	BRACKET ASSEMBLY	1
8	8161941	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	19076A3	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
14	19725	弯头(55号件含2个)	ELBOW (QTY. OF 2 ON 55)	1
15	812869	衬垫	GASKET	1
16	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
17	19075A2	簧片阀总成	REED BLOCK ASSEMBLY	1
17	8M0219197	簧片阀总成	REED BLOCK ASSY	1
18	812868	衬垫	GASKET	1
19	812880A1	簧片组(0.008厚度)	REED SET (0.008 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
19	812880A2	簧片组件(0.010厚度)	REED ASSEMBLY (0.010 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
20	42982	锁紧垫圈	TAB WASHER	3
20	429821	锁紧垫圈	TAB WASHER	3
21	812879	固定座	RETAINER	3
21	812879002	簧片压板	RETAINER Reed	3
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
23	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
24	42981	锁紧垫圈	TAB WASHER	2
25	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
26	988851	滑块	SLIDE	1
27	48475	衬套(II型)	BUSHING (DESIGN II)	1
27	42994	衬套	BUSHING	1
28	29720	波形垫圈	WAVE WASHER	1
29	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
30	400634	螺母 (M6)	NUT (M6)	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	400634	螺母 (M6)	NUT (M6)	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	15026	进气歧管盖	CAP (FOR USE ON INDUCTION MANIFOLD)	3
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 86专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量

图 87化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	821679A17	化油器	CARBURETOR	1
1	821679A18	化油器	CARBURETOR	1
1	821679T18	化油器	CARBURETOR	1
1	821679A19	化油器	CARBURETOR	1
1	821679T19	化油器	CARBURETOR	1
1	821946A24	化油器	CARBURETOR	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A25	化油器	CARBURETOR	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A26	化油器	CARBURETOR	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A27	化油器	CARBURETOR	1
1	821946T42	化油器	CARBURETOR	1
1	821946A28	化油器	CARBURETOR	1
1	821946T43	化油器	CARBURETOR	1
1	821946A29	化油器	CARBURETOR	1
1	821946T44	化油器	CARBURETOR	1
2	823634	螺丝(上/下部)	SCREW (UPPER/BOTTOM)	2
3	823632	油门轴	SHAFT Throttle	1
4	823633	油门轴	SHAFT Throttle	1
4	823636	油门轴	SHAFT Throttle	1
3	823632	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
5	NSS	不单独销售油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	3
6	6247	主量孔(0.090)	JET Main (.090)	3
7	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
8	NSS	不单独销售怠速针弹簧	NOT SOLD SEPARATE SPRING-IDLE NEEDLE	3
9	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杠杆(WME43/45-底部)	LEVER Oil Pump (WME43/45 - BOTTOM)	1
14	8086121	杠杆固定螺钉(WME43/45-底部)	SCREW Lever Retainer (WME43/45 - BOTTOM)	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	879194023	节气门阀	VALVE-THROTTLE	3
17	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
18	F10064	轴	SHAFT	3
19	NSS	不单独销售喷油嘴衬垫	NOT SOLD SEPARATE GASKET-NOZZLE WELL	3
20	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
24	811695	燃油杯	BOWL Fuel	1
24	811693	燃油杯	BOWL Fuel	2
25	811694	塞套件	PLUG KIT	3
26	NSS	排水碗密封件(不单独销售)	NOT SOLD SEPARATE SEAL-BOWL DRAIN	3
27	6246	量孔(.048)	JET (.048)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
27	4217	主量孔(.062)	JET Main (.062)	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

图 88启动器总成(手动)(55) STARTER ASSEMBLY (MANUAL)(55)

REF	零件编号	中文名称	英文名称	数量
1	8167285	壳体	HOUSING	1
2	816765	支架	REST	1
2	8167652	支架	REST	1
3	8136072	密封件	SEAL	1
3	8M0043161	密封件	SEAL	1
4	82170475	螺钉(M6×75)	SCREW (M6 x 75)	2
5	821702	隔套	SPACER	2
6	816086	衬套	BUSHING	4
7	815795	护孔环	GROMMET	8
8	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	8
9	401196	螺母 (M6)	NUT (M6)	4
10	8167481	联锁电缆	CABLE Interlock	1
10	8567541	联锁电缆	CABLE Interlock	1
11	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
12	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
13	27769	开口销	COTTER PIN	1
13	26811	开口销	COTTER PIN	1
14	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
14	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
15	821027	推入式螺母(设计I)	PUSH NUT (DESIGN I)	1
15A	27769	开口销(设计II)	COTTER PIN (DESIGN II)	1
15A	26811	开口销	COTTER PIN	1
15B	35462	不锈钢垫圈(0.2656x0.625x0.0625)(设计II)	WASHER (.2656 x .625 x .0625) Stainless Steel (DESIGN II)	1
-	816728A9	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728A10	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
16	826791	弹簧	SPRING	1
17	8166902	杠杆	LEVER	1
18	8167121	凸轮	CAM	1
18	816712T01	凸轮	CAM	1
19	816711	固定座	RETAINER	1
20	8182491	螺钉(#10-16 x 1.00)	SCREW (#10-16 x 1.00)	3
21	90478	垫块(设计I)	PAD (DESIGN I)	1
21	833161T	毛毡垫	PAD-FELT	1
21A	826229	弹簧锁紧垫圈(设计II)	LOCKWASHER SPRING (DESIGN II)	1
22	86857	弹簧	SPRING	1
22	86857T01	弹簧	SPRING	1
23	825269	滑轮	SHEAVE	1
23	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
24	86851	弹簧	SPRING	2
24	86851T02	弹簧 @2	SPRING @2	2
25	86850	凸轮	CAM	2
25	868501	凸轮	CAM	2
26	86849	挡圈	RING Retaining	2
26	86849T01	环 @2	RING @2	2
27	12066A9	绳索	ROPE	1
27	12066Q10	启动绳@2	ROPE-STARTER@2	1
28	85174A1	手柄总成	HANDLE ASSEMBLY	1
29	86852	弹簧	SPRING	1
29	868523	弹簧	SPRING	1
30	86853	凸轮	CAM	1
30	86853T01	凸轮	CAM	1
31	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
32	42690	衬套	BUSHING	1
32	8M0183792	绳索衬套	ROPE BUSHING	1
33	818853	挡圈	RING Retaining	1

图 89缓冲板 ATTENUATOR PLATE

REF	零件编号	中文名称	英文名称	数量
1	19662	消音器	ATTENUATOR Sound	1
2	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	4
3	815784	盖帽	CAP	1
4	812889	密封件	SEAL	3
5	812874	消音板	PLATE Sound Attenuator	2
6	4000363	螺丝(M8 x 100)	SCREW (M8 x 100)	6
7	NSS	警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Warning	1
8	NSS	不单独销售贴花-警示	NOT SOLD SEPARATE Decal-Caution	1
9	NSS	不单独出售贴纸-全油门正时	NOT SOLD SEPARATE Decal-Full Throttle Timing	1
10	11399A1	臂总成	ARM ASSEMBLY	1
11	67748	滚轮	ROLLER	1
12	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
13	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
13	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
14	9912878	软管 (.187) (26.00英寸散装) (裁切至4.25英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)	2
14	9912878	软管 (.187) (26.00英寸散装) (裁切至4.25英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)	1
15	9912878	软管 (.187) (26.00英寸散装) (裁切至3.00英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 3.00 Inch Length)	1
16	830285	接头三通	FITTING TEE	1
17	9912878	软管 (.187) (26.00英寸散装) (裁切至1.00英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 1.00 Inch Length)	1
18	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	8144461	法兰衬垫	GASKET Flange	3
20	8252043	油门连杆	LINK Throttle	1
20	825204T03	连接杆	LINK	1
21	NSS	空档怠速警告贴纸（不单独销售）	NOT SOLD SEPARATE Decal-Caution in Gear Idle	1
22	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1

图 90化油器(WME-22/22B/23/24/35) CARBURETOR (WME-22/22B/23/24/35)

REF	零件编号	中文名称	英文名称	数量
1	815406A1	化油器(上)	CARBURETOR (TOP)	1
1	815406A2	化油器(中)	CARBURETOR (CENTER)	1
1	815406A3	化油器(下)	CARBURETOR (BOTTOM)	1
1	817714A4	化油器(上)	CARBURETOR (TOP)	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	817714A5	化油器(中)	CARBURETOR (CENTER)	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	817714A6	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	815405A4	化油器(上)	CARBURETOR (TOP)	1
1	815405A5	化油器(中)	CARBURETOR (CENTER)	1
1	815405A6	化油器(下)	CARBURETOR (BOTTOM)	1
2	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
3	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
4	811695	燃油杯(上)	BOWL Fuel (UPPER)	1
4	9590	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
4	811693	燃油杯	BOWL Fuel	2
4	811695	燃油杯(上)	BOWL Fuel (UPPER)	1
4	811693	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
5	811218	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
6	811219	节气门轴(中央)	SHAFT Throttle (CENTER)	1
7	811216	油门阀	VALVE Throttle	3
7	9593	油门阀	VALVE Throttle	3
8	9594	浮子	FLOAT	3
9	NSS	不单独销售浮子轴	NOT SOLD SEPARATE FLOAT SHAFT	3
10	9595	进油针阀	VALVE Inlet Needle	3
10	879194011	进油阀	VALVE Inlet	3
11	9596	堵头	PLUG	3
11	95961	油杯放油塞	PLUG Bowl Drain	3
11	811694	塞套件	PLUG KIT	3
12	NSS	不单独销售塞衬垫	NOT SOLD SEPARATE GASKET-PLUG	3
13	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
14	8144461	法兰衬垫	GASKET Flange	3
15	NSS	不单独销售油门阀螺钉	NOT SOLD SEPARATE SCREW-THROTTLE VALVE	6
16	811220	盖板螺丝	SCREW Cover Plate	6
17	5132	燃油杯螺钉	SCREW FUEL BOWL	12
17	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
18	811221	盖板	COVER PLATE	3
19	6359	量孔(.052)	JET (.052)	3
19	6029	量孔(.068)	JET (.068)	3
19	6030	量孔(.070)	JET (.070)	3
20	6247	主量孔(0.090)	JET Main (.090)	3
21	NSS		NOT SOLD SEPARATE GASKET	3
22	NSS		NOT SOLD SEPARATE SPRING	3
23	NSS		NOT SOLD SEPARATE SPRING	3
24	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236353	化油器维修套件	REPAIR KIT Carburetor	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

图 91化油器(WME-26/27/28/28/43/44/45) CARBURETOR (WME-26/27/28/28/43/44/45)

REF	零件编号	中文名称	英文名称	数量
1	821679A1	化油器(上)	CARBURETOR (TOP)	1
1	821679A2	化油器(中)	CARBURETOR (CENTER)	1
1	821679T18	化油器	CARBURETOR	1
1	821679A3	化油器(下)	CARBURETOR (BOTTOM)	1
1	821679T19	化油器	CARBURETOR	1
1	821946A1	化油器(上)	CARBURETOR (TOP)	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A2	化油器(中)	CARBURETOR (CENTER)	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A3	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A4	化油器(上)	CARBURETOR (TOP)	1
1	821946T42	化油器	CARBURETOR	1
1	821946A5	化油器(中)	CARBURETOR (CENTER)	1
1	821946T43	化油器	CARBURETOR	1
1	821946A6	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946T44	化油器	CARBURETOR	1
1	821679A17	化油器(上)	CARBURETOR (TOP)	1
1	821679T17	化油器	CARBURETOR	1
1	821679A18	化油器(中)	CARBURETOR (CENTER)	1
1	821679T18	化油器	CARBURETOR	1
1	821679A19	化油器(下)	CARBURETOR (BOTTOM)	1
1	821679T19	化油器	CARBURETOR	1
1	821946A24	化油器(上)	CARBURETOR (TOP)	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A25	化油器(中)	CARBURETOR (CENTER)	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A26	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A27	化油器(上)	CARBURETOR (TOP)	1
1	821946T42	化油器	CARBURETOR	1
1	821946A28	化油器(中)	CARBURETOR (CENTER)	1
1	821946T43	化油器	CARBURETOR	1
1	821946A29	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946T44	化油器	CARBURETOR	1
2	823634	节气门调节螺钉(上/下)	SCREW THROTTLE ADJUSTMENT (UPPER/BOTTOM)	2
3	823632	节气门轴(上)	SHAFT Throttle (UPPER)	1
3	823632	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
4	823636	节气门轴(下)	SHAFT Throttle (BOTTOM)	1
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
5	NSS	不单独销售油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	3
6	6247	主量孔(0.090)	JET Main (.090)	3
7	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
8	NSS	不单独销售怠速针弹簧	NOT SOLD SEPARATE SPRING-IDLE NEEDLE	3
9	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杆	LEVER Oil Pump	1
14	8086121	杆固定螺钉	SCREW Lever Retainer	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	823637	油门阀	VALVE Throttle	3
16	9593	油门阀	VALVE Throttle	3
16	879194023	节气门阀	VALVE-THROTTLE	3
17	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
18	F10064	轴	SHAFT	3
19	NSS	不单独销售喷油嘴衬垫	NOT SOLD SEPARATE GASKET-NOZZLE WELL	3
20	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
21	9595	进油针阀	VALVE Inlet Needle	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	5132	燃油杯螺钉	SCREW FUEL BOWL	12
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
23	808612	燃油杯螺钉及垫圈(#8-32x.750)	SCREW AND WASHER (#8-32 x .750) FUEL BOWL	12
24	811695	燃油杯(上)	BOWL Fuel (UPPER)	1
24	811693	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
25	811694	塞套件	PLUG KIT	3
26	NSS	排水碗密封件(不单独销售)	NOT SOLD SEPARATE SEAL-BOWL DRAIN	3
27	6246	量孔(.048)	JET (.048)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
27	4217	主量孔(.062)	JET Main (.062)	3
-	8236353	化油器维修套件	REPAIR KIT Carburetor	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	812867A97	衬垫套件	GASKET SET	1

图 92夹紧支架(55)(序列号:0D181999及以下) CLAMP BRACKET (55) (S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	818881A2	艉板支架总成(黑色)	BRACKET ASSEMBLY Transom (BLACK)	1
1	818881A3	艉板支架总成(灰色)	BRACKET ASSEMBLY Transom (GRAY)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	818880F1	艉板支架(黑色)	BRACKET Transom (BLACK)	1
4	818880F2	艉板支架(灰色)	BRACKET Transom (GRAY)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮(黑色)	KNOB (BLACK)	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮(灰色)	KNOB (GRAY)	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486T6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486F6	锚支架	BRACKET Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
23	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
24	818884	垫圈	WASHER	2
25	768041	螺钉	SCREW	2
25	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	815796	垫圈	WASHER	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
37	812432F2	安装支架(右舷)	MOUNTING BRACKET (STARBOARD)	1
37	812432F5	安装支架	MOUNTING BRACKET	1
37	812433F3	安装支架(左舷)	MOUNTING BRACKET (PORT)	1
37	812433F5	安装支架	MOUNTING BRACKET	1
38	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
39	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
39	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	134371	螺母 (.375-24)	NUT (.375-24)	4
40	862903	螺母 (.375-24)	NUT (.375-24)	4
41	821722	垫片	SHIM	4

图 93夹紧支架(手动)(序列号:0D1812000及以上) CLAMP BRACKET (MANUAL) (S/N: 0D1812000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	822868A1	夹紧支架总成(黑色)	CLAMP BRACKET ASSEMBLY (BLACK)	1
1	822868A2	夹紧支架总成(灰色)	CLAMP BRACKET ASSEMBLY (GRAY)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822867F1	夹紧支架(黑色)	CLAMP BRACKET (BLACK)	1
4	822867F2	夹紧支架(灰色)	CLAMP BRACKET (GRAY)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮(黑色)	KNOB (BLACK)	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮(灰色)	KNOB (GRAY)	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19A	821461	弹簧	SPRING	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
23	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
24	818884	垫圈	WASHER	2
25	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
37	812432F2	安装支架(右舷)	MOUNTING BRACKET (STARBOARD)	1
37	812432F5	安装支架	MOUNTING BRACKET	1
37	812433F3	安装支架(左舷)	MOUNTING BRACKET (PORT)	1
37	812433F5	安装支架	MOUNTING BRACKET	1
38	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
39	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
39	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	134371	螺母 (.375-24)	NUT (.375-24)	4
40	862903	螺母 (.375-24)	NUT (.375-24)	4
41	821722	垫片	SHIM	4

图 94外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	813010T8	顶罩总成黑色-电动型	TOP COWL ASSEMBLY Black-Electric	1
1	813010T14	顶罩总成银色-电动型	TOP COWL ASSEMBLY Silver-Electric	1
1	816534T8	顶罩总成黑色-手动型	TOP COWL ASSEMBLY Black-Manual	1
1	8M0107142	罩盖-顶部, 黑色	COWL-TOP, BLACK	1
1	816534T14	顶罩总成银色-手动型	TOP COWL ASSEMBLY Silver-Manual	1
2	824666	进气口护罩	SHIELD Air Inlet	1
3	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
5	NSS	不单独出售信封袋	NOT SOLD SEPARATE Envelope	1
6	813548A3	支架罩盖支撑-黑色	BRACKET Cowl Support - Black	1
6	813548A6	支架罩盖支撑-银色	BRACKET Cowl Support - Silver	1
6	813548A3	支架罩盖支撑-黑色	BRACKET Cowl Support - Black	1
7	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	2
8	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
9	8237515	螺母(M4)	NUT (M4)	2
10	813549A2	支架罩盖支撑	BRACKET Cowl Support	1
11	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	3
12	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
13	8237515	螺母(M4)	NUT (M4)	3
14	814336A1	隔音毯套装	SOUND BLANKET KIT	1
14	814336A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
15	NSS	不单独销售隔音垫-手动型	NOT SOLD SEPARATE Sound Blanket-Manual	1
16	NSS	不单独销售隔音垫-右舷	NOT SOLD SEPARATE Sound Blanket-Starboard	1
17	NSS	不单独销售隔音垫-左舷	NOT SOLD SEPARATE Sound Blanket-Port	1
18	NSS	不单独销售隔音垫-后部	NOT SOLD SEPARATE Sound Blanket-Rear	1
19	444622	密封件	SEAL	1
19	8M0043150	罩盖密封条	SEAL-COWL	1
20	813504A1	油位表套件	GAUGE KIT Oil Level	1
21	813505	护孔环	GROMMET	1
22	113171	固定座	RETAINER	1
23	113161	螺母	NUT	1
23	65110	螺母	NUT	1
24	823593A1	导流板套件空气	DEFLECTOR KIT Air	1
25	8135462	支架	MOUNT	3
25	813546003	支架	MOUNT	3
26	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
26	893763	滚轮锁扣支架	BRACKET Roller Latch	1
27	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
28	812512A8	下机罩	BOTTOM COWL	1
29	813607	密封件	SEAL	1
29	8M0043162	密封件	SEAL	1
30	828465	缓冲垫	BUMPER	2
30	8M0043169	缓冲垫	BUMPER	2
31	856990	开关总成	SWITCH ASSEMBLY	1
31	8M0235192	微调开关	SWITCH TRIM	1
32	8128301	堵头	PLUG	1
32	812830T01	堵头	PLUG	1
33	8124431	固定座	RETAINER	1
33	8M0032848	开关固定座	RETAINER Switch	1
34	813613	接头	FITTING	1
35	8136062	密封件	SEAL	1
35	813606003	密封件	SEAL	1
36	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	2
37	8136052	密封件	SEAL	1
37	813605003	密封件	SEAL	1
38	7568058	软管 (15.00英寸)	HOSE (15.00 Inches)	1
39	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
40	19812A1	支架电缆固定器	BRACKET Cable Retainer	1
40	19812T03	支架总成	BRACKET ASSEMBLY	1
41	42975	传动螺钉	DRIVE SCREW	2
42	98889	闩锁	LATCH	1
43	39519	杯套	CUP	1
44	88807A28	拉线总成	CABLE ASSEMBLY	1
45	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
46	4000335	螺钉(M6 x 50)	SCREW (M6 x 50)	1
47	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
48	37642	波形垫圈	WAVE WASHER	2
49	19428	衬套	BUSHING	1
50	813547T	罩壳锁杆	LEVER Cowl Latch	1
50	813547F1	杠杆	LEVER	1
51	826354A1	衬套套件罩盖锁扣	BUSHING KIT Cowl Latch	1
52	NSS	不单独销售衬套	NOT SOLD SEPARATE Bushing	1
53	813604	锁扣凸轮	LATCH CAM	1
54	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
55	812717T1	配平盖	TRIM COVER	1
56	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
56	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4

图 95曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9611A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	63742	滚珠轴承	BEARING Ball	1
2	63742T	滚珠轴承	BEARING Ball	1
3	812877	挡圈	RING Retaining	1
4	91800	半圆键	KEY Woodruff	2
5	43019A2	齿轮总成	GEAR ASSEMBLY	1
6	812873A1	滚子轴承总成(顶部)	BEARING ASSEMBLY Roller (TOP)	1
7	419531	油封	SEAL Oil	1
8	812881A1	滚子轴承总成(中部)	BEARING ASSEMBLY Roller (CENTER)	2
9	9613A1	活塞总成	PISTON ASSEMBLY	3
9	9613T1	活塞	PISTON	3
9	9613A2	活塞总成	PISTON ASSEMBLY	AR
9	9613T2	活塞总成0.015	PISTON ASSY .015	AR
9	9613A3	活塞总成	PISTON ASSEMBLY	AR
9	9613T3	活塞	PISTON	AR
10	52035	锁环	RING Lock	6
10	857196	锁紧环	LOCK RING	6
11	19721A6	活塞环组	RING SET Piston	1
11	19721A1	活塞环组	RING SET Piston	AR
11	19721A2	活塞环组	RING SET Piston	AR
12	9612A2	连杆总成	CONNECTING ROD ASSEMBLY	3
12	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
13	812876	垫圈	WASHER	6
13	8M0012298	止推垫片	THRUST WASHER	6
14	47270	轴承	BEARING	8
14	8M0214934	滚针轴承@200	BRG-NEEDLE @200	8
15	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
16	17514A1	轴承套件	BEARING KIT	3
16	8M0234886	轴承保持架	CAGE BEARING	3
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 96气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE

REF	零件编号	中文名称	英文名称	数量
1	827953T4	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材 (20.00英尺散装) (裁切至15.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 15.00 Inch Length)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	426232	止回阀 (压入式)	CHECK VALVE (Press-In)	1
7	812888A2	托架总成	CARRIER ASSEMBLY	2
8	42657A4	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	43044		PIN Dowel - Without Hole (.375 x .625) (Locating)	1
13	8128701		PIN (Bearing Race)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	827284	衬垫	GASKET	1
15	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
16	185981	管塞(.375-18)	PLUG Pipe (.375-18)	1
17	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
18	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
19	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
20	19725	弯头	ELBOW	2
21	426585	止回阀	CHECK VALVE	2
22	827251A1	盖板	COVER	1
23	850897	吊环	LIFTING EYE	1
24	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	1
25	NSS	不单独销售铭牌-序列号	NOT SOLD SEPARATE Decal-Serialization	1
26	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	4
27	827365	托架	CARRIER	1
27	889735	托架	CARRIER	1
28	850055	节温器 43°C (110°F) 110度	THERMOSTAT 43°C (110°F) 110 Degree	1
28	850055001	节温器 43°C (110°F)	THERMOSTAT 43°C (110°F)	1
29	854639	密封件	SEAL	1
29	854639001	密封件	SEAL	1
30	787992	温度传感器	SENDER Temperature	1
31	44552	固定座	RETAINER	1
31	889733	固定座	RETAINER	1
32	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
33	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
34	8M0204663	垫片@5	WASHER @5	2
35	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
36	816872	蝶形螺母	WING NUT	2
37	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	782792	45度弯头接头(1.25)	FITTING Elbow 45 Degree (1.25)	1
38	8M0207781	弯头	ELBOW	1
39	56759	倒钩接头	FITTING Barbed	1
40	8129962	盖板	COVER	1
41	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
42	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
43	99130122	管材 (20.00英尺散装) (裁切至5.50英寸)	TUBING (20.00 Feet Bulk) (Cut to 5.50 Inch Length)	2
43	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
44	881865	警示贴纸-挂档启动	DECAL Caution-Start in Gear	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812867A97	衬垫套件	GASKET SET	1

图 97驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	822154A1	壳体总成 (短) 黑色	HOUSING ASSEMBLY (SHORT) BLACK	1
1	822155A1	壳体总成 (长) 黑色	HOUSING ASSEMBLY (LONG) BLACK	1
1	822154A2	壳体总成 (短) 灰色	HOUSING ASSEMBLY (SHORT) GRAY	1
1	822155A2	壳体总成 (长) 灰色	HOUSING ASSEMBLY (LONG) GRAY	1
2	195992	驱动轴壳体衬垫	GASKET Driveshaft Housing	1
3	421891	支架	MOUNT	4
4	42374F6	安装盖	COVER Mount	2
4	42374F5	安装盖	COVER Mount	2
5	4009238	螺钉(M6x80)安装盖	SCREW (M6 x 80) MOUNT COVER	2
6	400256	锁紧垫圈 (M6) 盖螺钉	LOCKWASHER (M6) COVER SCREW	2
7	400212	螺母(M6)不锈钢盖螺钉	NUT (M6) Stainless Steel COVER SCREW	2
8	40011131	螺钉 (M6 x 35) 不锈钢驱动轴壳体至板	SCREW (M6 x 35) Stainless Steel DRIVE SHAFT HOUSING TO PLATE	4
9	413448	适配板 (无管)	ADAPTER PLATE (NO TUBE)	1
9	41344A3	适配板总成 (1-1/8"内径管)	ADAPTER PLATE ASSEMBLY (1-1/8"I.D.TUBE)	1
10	11287	适配板密封件	SEAL Adapter Plate	1
11	42123	水管(短型)	TUBE Water (SHORT)	1
11	42122	水管(长型)	TUBE Water (LONG)	1
12	42371	水管固定座	HOLDER WATER TUBE	1
13	192012	衬垫	GASKET	1
14	42380	密封件	SEAL	1
15	42465	水管隔套	SPACER WATER TUBE	1
16	400035	螺钉 (M5 x 16) 壳体至适配板	SCREW (M5 x 16) HOUSING TO ADAPTOR PLATE	2
17	445551	轴承座(长型)	BLOCK Bearing (LONG)	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 98电气组件(50/60) ELECTRICAL COMPONENTS (50/60)

REF	零件编号	中文名称	英文名称	数量
1	19745A8	电器板总成	PLATE ASSEMBLY Electrical	1
2	814674A1	固定板总成	PLATE ASSEMBLY Retaining	1
3	8240631	螺钉	SCREW	1
4	824063	螺钉	SCREW	5
3	40011106	螺钉(M5x13)不锈钢(配合参考号#39使用)	SCREW (M5 x 13) Stainless Steel (USE W/REF. #39)	1
4	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	5 OR 6
5	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	3
5	8M0230859	点火线圈总成	COIL IGNITION ASY	3
5	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	3
5	8M0230859	点火线圈总成	COIL IGNITION ASY	3
6	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	4
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	9
8	821945A52	火花塞导线套件	SPARK PLUG LEAD KIT	1
9	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	3
9	13686Q	NGK BU8H @10	NGK BU8H @10	3
9	14103568	火花塞(NGK #BUZ8H-加拿大/比利时)	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)	3
9	896329885	SP #L6VC @4	SP #L6VC @4	3
9	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	3
9	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	3
9	8168372	火花塞(NGK #BPZ8H-N-10-加拿大)	SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)	3
9	938	SP #QL78YC @4	SP #QL78YC @4	3
10	19052A5	开关盒总成	SWITCHBOX ASSEMBLY	1
10	19052A8	开关盒总成	SWITCHBOX ASSEMBLY	1
11	813643	护套	BOOT	1
12	814760	固定座(旧款)	RETAINER (OLD DESIGN)	1
13	813742	护孔环	GROMMET	1
14	19637A2	保险丝插座总成(1环形/1子弹头连接器)	SOCKET ASSEMBLY Fuse (1 RING/1 BULLET CONNECTOR)	1
14	19637A3	保险丝插座总成(2子弹头连接器)	SOCKET ASSEMBLY Fuse (2 BULLET CONNECTORS)	1
15	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
16	816770	整流器(旧款)	RECTIFIER (OLD DESIGN)	1
16	8M0058226	整流器	RECTIFIER	1
17	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
18	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
19	19061A2	线束总成(导线带环形端子)(灰色)	HARNESS ASSEMBLY ( LEAD HAS RING TERMINAL) (GRAY)	1
19	19061A4	线束总成	HARNESS ASSEMBLY	1
19	19061A4	线束总成(导线带子弹头连接器)(灰色)	HARNESS ASSEMBLY ( LEAD HAS BULLET CONNECTOR) (GRAY)	1
20	813741	护孔环	GROMMET	1
21	96054	启动电磁阀总成(设计I型)	SOLENOID ASSEMBLY Starter (DESIGN I)	1
21	8M0185149	启动电磁阀	SOLENOID START	1
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
24	64015	螺母 (.250-20)	NUT (.250-20)	2
25	4002314	垫圈	WASHER	2
26	79139A24	电缆总成(9-1/4")	CABLE ASSEMBLY (9-1/4")	1
27	88807A31	电缆总成(7")	CABLE ASSEMBLY (7")	2
28	88439A9	蓄电池正极电缆总成(96英寸)	CABLE ASSEMBLY Battery - Positive (96")	1
29	814795T	盖板	COVER	1
30	40007107	螺钉(M5×16)	SCREW (M5 x 16)	4 OR 6
31	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	3
32	14857A6	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
32	14857A16	机油报警模块	MODULE-OILWARNING	1
32	14857A10	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
32	14857A16	机油报警模块	MODULE-OILWARNING	1
33	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
34	850188T1	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
34	8M0185147	电磁阀总成	SOLENOID ASSY	1
35	818968	衬套	BUSHING	2
35	8M0214955	衬套	BUSHING	2
36	818967	护孔环	GROMMET	2
36	8M0207785	护孔环	GROMMET	2
37	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	2
38	400039	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
39	815279T	电压调节器	REGULATOR Voltage	1
39	8M0084173	电压调节器	VOLTAGE REGULATOR	1
40	813524A2	拉线总成	CABLE ASSEMBLY	1
41	821889A12	限速器	SPEED LIMITER	1
41	821889A31	转速限制器	REV LIMITER	1
42	823147A6	限速器线束总成	HARNESS ASSEMBLY Speed Limiter	1

图 99电气组件(55) ELECTRICAL COMPONENTS (55)

REF	零件编号	中文名称	英文名称	数量
1	19745A8	电器板总成	PLATE ASSEMBLY Electrical	1
2	814674A1	固定板总成	PLATE ASSEMBLY Retaining	1
3	8240631	螺钉	SCREW	1
4	824063	螺钉	SCREW	5
3	40011106	不锈钢螺钉(M5x13)	SCREW (M5 x 13) Stainless Steel	1
4	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	5 OR 6
5	814795T	盖板	COVER	1
6	40007107	螺钉(M5×16)	SCREW (M5 x 16)	4
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	8
8	17602A2	端子排	TERMINAL BLOCK	1
8	17602T02	接线端子总成	TERMINAL BLOCK ASSEMBLY	1
9	816031	堵头	PLUG	1
10	40007106	螺钉 (M5 x 13)	SCREW (M5 x 13)	1
11	19052A5	开关盒总成	SWITCHBOX ASSEMBLY	1
11	19052A8	开关盒总成	SWITCHBOX ASSEMBLY	1
12	813643	护套	BOOT	1
13	821889A12	限速器	SPEED LIMITER	1
13	821889A31	转速限制器	REV LIMITER	1
-	11149A10	适配器线束总成(3.5英寸)	HARNESS ASSEMBLY Adapter (3-1/2")	1
-	823147A6	限速器线束总成(15英寸)	HARNESS ASSEMBLY Speed Limiter (15")	1
14	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
15	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	3
15	13686Q	NGK BU8H @10	NGK BU8H @10	3
15	14103568	火花塞(NGK #BUZ8H-加拿大/比利时)	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)	3
15	896329885	SP #L6VC @4	SP #L6VC @4	3
15	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	3
15	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	3
15	8168372	火花塞(NGK #BPZ8H-N-10-加拿大)	SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)	3
15	938	SP #QL78YC @4	SP #QL78YC @4	3
16	821945A52	火花塞导线套件	SPARK PLUG LEAD KIT	1
17	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	3
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	3
18	8M0230859	点火线圈总成	COIL IGNITION ASY	3
18	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	3
18	8M0230859	点火线圈总成	COIL IGNITION ASY	3
19	813741	护孔环	GROMMET	1
20	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	3
21	813742	护孔环	GROMMET	1

图 100排气板 EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	19653T3	排气板总成	PLATE ASSEMBLY Exhaust	1
2	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	1
3	23784	定位销	PIN Dowel	4
4	881899	上部支架	MOUNT Upper	1
4	8M4501491	上部安装总成	MOUNT UPPER ASM	1
5	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
6	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
6	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
7	934161	氯丁橡胶垫圈	WASHER Neoprene	2
7	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
8	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
9	859129	螺母(M12)	NUT (M12)	2
9	896963	螺母(M12)	NUT (M12)	2
10	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1
11	812866	衬垫	GASKET	1
11	8M0000820	衬垫	GASKET	1
12	48237	衬套	BUSHING	1
13	815639A10	换档轴	SHIFT SHAFT	1
13	812891A7	换档轴	SHIFT SHAFT	1
13	815639A9	换档轴	SHIFT SHAFT	1
14	812872A2	换挡连杆	SHIFT LINK	1
15	48475	衬套	BUSHING	1
16	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
17	8812002	水管	TUBE Water	1
17	8M0042795	短型水管	TUBE-WATER-SHORT	1
17	8812001	水管	TUBE Water	1
17	8M0042794	大型水管	TUBE-WATER-LG	1
18	93221	护孔环	GROMMET	1
18	93221002	护孔环	GROMMET	1
19	196551	排气管	TUBE Exhaust	1
19	8M0045214	排气管	TUBE-EXHAUST	1
20	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
21	812886	密封件	SEAL	1
21	812886001	密封件	SEAL	1
22	99019	卡箍	CLAMP	1
23	42941	水管密封件	SEAL Water Tube	1
23	42941001	水管密封件	SEAL Water Tube	1
24	40011155	不锈钢螺钉(M8x55)	SCREW (M8 x 55) Stainless Steel	2
-	812867A97	衬垫套件	GASKET SET	1

图 101延伸组件 EXTENSION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	816696A3	垫片(黑色)	SPACER (BLACK)	1
1	816696A4	垫片(灰色)	SPACER (GRAY)	1
1	816696A5	垫片(追踪者型)	SPACER (TRACKER)	1
1	816696F5	垫片(黑色)	SPACER (BLACK)	1
1	816696T5	隔套	SPACER	1
1	816696F6	垫片(灰色)	SPACER (GRAY)	1
1	816696T6	ORD 816696T5	ORD 816696T 5	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
3	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
3	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
4	817401A1	水管总成	TUBE ASSEMBLY Water	1
5	38970	油封(旧款)	SEAL (OLD DESIGN)	1
6	821093	密封件	SEAL	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	4
8	8M0214963	垫圈	WASHER	4
9	13914	螺母(M10)	NUT (M10)	5
9	40140	螺母(M10)	NUT (M10)	5
10	8168661	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5
10	8M0034425	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5

图 102飞轮(55) FLYWHEEL (55)

REF	零件编号	中文名称	英文名称	数量
1	9008A48	飞轮	FLYWHEEL	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	832074A4	定子	STATOR	1
5	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
5	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
6	99021A16	触发器	TRIGGER	1

图 103飞轮与启动电机(50/60) FLYWHEEL AND STARTER MOTOR (50/60)

REF	零件编号	中文名称	英文名称	数量
1	89219	堵头	PLUG	1
2	812777T	飞轮盖	FLYWHEEL COVER	1
2	812777T1	盖总成	COVER ASSEMBLY	1
3	79022	标记	MARKER	1
4	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
5	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
6	42979	螺母(M16)	NUT (M16)	1
7	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
7	33001	垫圈	WASHER	1
8	9008A19	飞轮	FLYWHEEL	1
8	9008A50	飞轮	FLYWHEEL	1
9	9710A26	定子(冲压398-9710A22)	STATOR (STAMPED 398-9710A22)	1
9	9873A38	定子套件	STATOR KIT	1
9	9710A23	定子(冲压398-9710A23)	STATOR (STAMPED 398-9710A23)	1
9	9873A35	高输出交流发电机套件	HIGH OUTPUT ALTERNATOR KIT	1
9	9710A36	定子(冲压398-9710A34)	STATOR (STAMPED 398-9710A34)	1
9	832075A19	点火定子套件	IGNITION STATOR KIT	1
10	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
10	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
11	99021A16	触发器	TRIGGER	1
12	44369A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	57247	停机开关	STOP	2
14	8M0043376	停机开关	STOP	2
15	88807A31	拉线总成	CABLE ASSEMBLY	1
16	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
17	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
18	64015	螺母 (.250-20)	NUT (.250-20)	1

图 104燃油泵(55/60 SEAPRO/MARATHON) FUEL PUMP (55/60 SEAPRO/MARATHON)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE SPRING	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS		NOT SOLD SEPARATE SPRING	1
9	NSS		NOT SOLD SEPARATE CAP	1
10	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS		NOT SOLD SEPARATE GASKET-BOOST	1
13	NSS		NOT SOLD SEPARATE GASKET-PULSE	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
17	4009340	燃油泵螺钉	SCREW FUEL PUMP	2
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
17	81754150	燃油泵至曲轴箱螺钉	SCREW FUEL PUMP TO CRANKCASE	2
18	144303	底座	BASE	1
19	9912980	软管	HOSE	AR
19	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	AR
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	818984	软管	HOSE	1
21	830768	软管	HOSE	1
22	9912878	软管(.187)(26.00英寸散装)(4-1/4")	HOSE (.187) (26.00 Inches Bulk) (4-1/4")	1
23	87946A14	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
23	891642T03	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
24	8170281	支架	BRACKET	1
25	401196	螺母 (M6)	NUT (M6)	1
26	59169	接头	FITTING	1
26	59169003	三通接头	FITTING Tee	1
27	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
27	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
28	8168771	注油球	PRIMER BULB	1
28	858763	注油球	PRIMER BULB	1
29	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	816856T01	燃油接头	CONNECTOR-FUEL	1
30	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
-	812867A97	衬垫套件	GASKET SET	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1

图 105燃油泵(黑色 50/60) FUEL PUMP (BLACK 50/60)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE SPRING	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS		NOT SOLD SEPARATE SPRING	1
9	NSS		NOT SOLD SEPARATE CAP	1
10	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS		NOT SOLD SEPARATE GASKET-BOOST	1
13	NSS		NOT SOLD SEPARATE GASKET-PULSE	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
17	82104540	螺钉(M5 x 40)燃油泵	SCREW (M5 x 40) FUEL PUMP	2
17	82130050	螺钉(M6 x 50)燃油泵至曲轴箱	SCREW (M6 x 50) FUEL PUMP TO CRANKCASE	2
18	144303	底座	BASE	1
19	816865	软管	HOSE	1
19	830767	软管	HOSE	1
20	8162961	燃油滤清器	FILTER Fuel	1
20	816296Q2	燃油滤清器	FILTER Fuel	1
21	19723	燃油管	LINE Fuel	1
21	830761	燃油管	LINE Fuel	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	9912980	软管	HOSE	3
23	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	3
24	818993	三通接头	CONNECTOR Tee	1
25	818994	止回阀	CHECK VALVE	1
25	8189941	止回阀	CHECK VALVE	1
26	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
26	816856T01	燃油接头	CONNECTOR-FUEL	1
27	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
28	9912878	软管(.187)(26.00英寸散装)(4-1/4")	HOSE (.187) (26.00 Inches Bulk) (4-1/4")	1
29	428593	电磁阀	SOLENOID VALVE	1
29	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
30	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	3
31	59169	接头	FITTING	1
31	59169003	三通接头	FITTING Tee	1
32	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
33	633001	卡箍	CLAMP	1
34	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
-	812867A97	衬垫套件	GASKET SET	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1

图 106燃油泵(白色或红色) FUEL PUMP (WHITE OR RED)

REF	零件编号	中文名称	英文名称	数量
1	14360A41	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE SPRING	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS		NOT SOLD SEPARATE SPRING	1
9	NSS		NOT SOLD SEPARATE CAP	1
10	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	98775A7	安装板	PLATE	1
13	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
14	19688A1	接头	FITTING	1
15	4009340	螺钉(40毫米)	SCREW (40MM)	2
15	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
15	40057134	螺钉(M6 x 50)	SCREW (M6 x 50)	2
16	144303	底座	BASE	1
17	816865	软管	HOSE	1
17	830767	软管	HOSE	1
18	8162961	燃油滤清器	FILTER Fuel	1
18	816296Q2	燃油滤清器	FILTER Fuel	1
19	19723	燃油管	LINE Fuel	1
19	830761	燃油管	LINE Fuel	1
20	9912980	软管	HOSE	2
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
21	13773	三通	TEE	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
23	816856T01	燃油接头	CONNECTOR-FUEL	1
24	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
25	99127109	管路(57英寸散装)(4.75英寸)	LINE (57.00 Inches Bulk) (4-3/4")	1
25	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
26	19688	接头	FITTING	1
27	428593	电磁阀	SOLENOID VALVE	1
27	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
28	633001	卡箍	CLAMP	1
29	40011127	螺钉 (M6 x 16) 不锈钢	SCREW (M6 x 16) Stainless Steel	1
29	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
30	1430165	油管(38.00英寸散装)	TUBING (38.00 Inches Bulk)	3
31	59169	接头	FITTING	1
31	59169003	三通接头	FITTING Tee	1
32	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
-	812867A97	衬垫套件	GASKET SET	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1

图 107齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9760A8	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	9760A9	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A21	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A12	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A13	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A10	齿轮箱总成(加长)(黑色)	GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A11	齿轮箱总成(加长)(灰色)	GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A2	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A3	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A20	齿轮箱总成(基础款)(TRACKER)	GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
2	67892	磁性螺钉	SCREW Magnetic	1
2	8M0058389	放油螺钉套件	SCREW KIT Drain	1
3	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	2
3	79953Q04	放油螺钉套件	SCREW KIT Drain	2
4	19183	纤维垫圈	WASHER Fiber	3
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
5	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
5	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
7	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
8	812768	滚柱轴承	BEARING Roller	1
8A	818226A1	密封/板套件	SEAL/PLATE KIT	1
9	813694	小齿轮	GEAR Pinion	1
9	813694T	小齿轮	GEAR Pinion	1
10	55910	螺母(.437-20)	NUT (.437-20)	1
11	812732A1	换挡轴总成(短/长)	SHIFT SHAFT ASSEMBLY (SHORT/LONG)	1
11	815420	换挡轴(加长型)	SHIFT SHAFT (X-LONG)	1
12	29641	E型卡环	E RING	1
13	813696A2	衬套总成	BUSHING ASSEMBLY	1
14	45258	O型圈 (.987 x .103)	O-RING (.987 x .103)	1
15	8164641	油封	SEAL Oil	1
15	8M0246145	油封	OIL SEAL	1
16	815422	驱动轴(短)	DRIVESHAFT (SHORT)	1
16	812731	驱动轴(长型)	DRIVESHAFT (LONG)	1
16	815421	驱动轴(加长型)	DRIVESHAFT (X-LONG)	1
17	812770A1	垫片组	SHIM SET	AR
17	8M0063262	垫片组	SHIM SET	AR
18	77420A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
18	8M0166756	轴承总成	BEARING ASSEMBLY	1
19	812820	螺母	NUT	1
19	8128201	螺母	NUT	1
20	812966A3	底座总成	BASE ASSEMBLY	1
20	8M0245488	水泵底座	BASE WATER PUMP	1
21	30224	O型圈 (1.859 x .139)	O-RING (1.859 x .139)	1
21	8M0204651	O型圈	O-RING	1
22	814669	油封	SEAL Oil	1
22	8M0245489	油封	SEAL OIL	1
23	814670	油封	SEAL Oil	1
24	197001	面板	FACE PLATE	1
24	19700A2	面板	FACE PLATE	1
25	19453	叶轮	IMPELLER	1
25	19453T	叶轮	IMPELLER	1
26	19699	键	KEY	1
26	8M0032831	叶轮键	KEY Impeller	1
27	14334A1	水泵总成	PUMP ASSEMBLY Water	1
27	14334A3	水泵总成	PUMP ASSEMBLY Water	1
28	19701	衬垫(下部)	GASKET (LOWER)	1
28	8M0224241	衬垫	GASKET	1
29	194541	衬垫(上部)	GASKET (UPPER)	1
30	43023	油封(短/长)	SEAL (SHORT/LONG)	1
30	8M0204658	密封件	SEAL	1
31	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
33	43045	绝缘体	INSULATOR	4
33	8M0204659	绝缘体@4	INSULATOR @4	4
34	19452	绝缘体	INSULATOR	2
35	76039	换挡凸轮控制	CAM Shift Control	1
35	760394	换挡凸轮控制	CAM Shift Control	1
-	812867A97	衬垫套件	GASKET SET	1
-	812966A11	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 108齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9760A8	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	9760A9	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A21	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A12	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A13	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A10	齿轮箱总成(加长)(黑色)	GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A11	齿轮箱总成(加长)(灰色)	GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A2	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A3	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A20	齿轮箱总成(基础款)(TRACKER)	GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
36	812769A1	垫片组	SHIM SET	AR
36	8M0063263	垫片组	SHIM SET	AR
37	812767A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
37	8M0103476	轴承总成	BEARING ASSY	1
38	813693A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
38	813693T1	前进齿轮	GEAR Forward	1
39	21739	滚柱轴承	BEARING Roller	1
40	8129291	凸轮从动件	FOLLOWER Cam	1
41	20843	滑块	SLIDE	1
42	38114	弹簧	SPRING	1
43	813697	离合器	CLUTCH	1
43	813697T	离合器	CLUTCH	1
44	38113	十字销	PIN Cross	1
44	8M0020942	十字销@2	PIN-CROSS @2	1
45	815418	弹簧	SPRING	1
46	14493	螺旋桨轴	PROPELLER SHAFT	1
47	813695	倒挡齿轮	GEAR Reverse	1
47	813695T	倒挡齿轮	GEAR Reverse	1
48	20839	滚珠轴承	BEARING Ball	1
48	20839T	滚珠轴承	BEARING Ball	1
49	19291A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
49	8M0168900	轴承座	BEARING CARRIER	1
50	815460	O型圈	O-RING	1
51	21700	滚针轴承	BEARING Needle	1
52	69188	油封	SEAL Oil	1
52	8M0205511	油封	SEAL Oil	1
53	69189	油封	SEAL Oil	1
53	8M0203757	油封	SEAL Oil	1
54	4000353	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
54A	826613	锁紧垫圈	TAB WASHER	2
54	8136911	螺丝(M8×0.98)	SCREW (M8 x .98)	2
55	17264T2	调整片锌制	TRIM TAB Zinc	1
56	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
57	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
57	8M0214963	垫圈	WASHER	1
58	73345A1	止推垫片	THRUST WASHER	1
59	76281	锁紧垫圈	TAB WASHER	1
59	8M0214942	锁紧垫片	WASHER Tab	1
60	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
60	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	812867A91	发动机垫片组	GASKET SET Engine	1
-	812867A97	衬垫套件	GASKET SET	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 109齿轮箱壳体(驱动轴-大脚/海宝/马拉松/浮筒型) GEAR HSG (DRIVE-BIGFOOT/SEAPRO/MARATHON/PONTOON)

REF	零件编号	中文名称	英文名称	数量
-	9011A69	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9011A71	齿轮箱总成(LL)(黑色)	GEAR HOUSING ASSEMBLY (LL) (BLACK)	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A70	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011A72	齿轮箱总成(LL)(灰色)	GEAR HOUSING ASSEMBLY (LL) (GRAY)	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011A73	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A74	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
5	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	2
5	79953Q04	放油螺钉套件	SCREW KIT Drain	2
6	67892	磁性螺钉	SCREW Magnetic	1
6	8M0058389	放油螺钉套件	SCREW KIT Drain	1
7	19183	纤维垫圈	WASHER Fiber	3
7	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
8	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
9	316404	平衡鳍板	TRIM TAB	1
9	31640Q4	平衡鳍板	TRIM TAB	1
10	15942	螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250)	1
10	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
11	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
12	43040A1	托架总成	CARRIER ASSEMBLY	1
12	43040T1	托架总成	CARRIER ASSEMBLY	1
12A	826134	阳极块	ANODE	2
12A	826134Q	阳极块	ANODE	2
12B	400634	螺母 (M6)	NUT (M6)	1
12B	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12C	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
13	44484	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
13	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	76039	换挡凸轮控制	CAM Shift Control	1
15	760394	换挡凸轮控制	CAM Shift Control	1
16	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
17	44492A1	垫片组	SHIM SET	1
17	8M0063265	垫片组	SHIM SET	1
18	826736A1	驱动轴总成(长)	DRIVESHAFT ASSEMBLY (LONG)	1
18	826737A1	驱动轴总成(加长)	DRIVESHAFT ASSEMBLY (X-LONG)	1
19	42461A1	套筒/环套件	SLEEVE/RING KIT	1
20	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
20	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
21	430331	衬垫	GASKET	1
22	430472	衬垫	GASKET	1
22	8M0214931	衬垫	GASKET	1
23	43035	油封(上)	SEAL Oil (UPPER)	1
23	8M0245495	油封	OIL SEAL	1
24	43036	油封(下)	SEAL Oil (LOWER)	1
25	817277	衬垫	GASKET	1
25	8172771	水泵上垫片	GASKET Water Pump, Upper	1
26	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
27	817276	面板	FACEPLATE	1
27	8M0204709	面板	FACEPLATE	1
28	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
28	8M0214957	螺钉	SCREW	4
29	826763A1	联轴器(长)	COUPLING (LONG)	1
29	826762A1	联轴器(LL)	COUPLING (LL)	1
32	43037	键	KEY	1
32	8M0204723	键	KEY	1
33	430262	叶轮	IMPELLER	1
33	43026T2	叶轮	IMPELLER	1
34	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
36	43048A1	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
36	430482	换挡轴总成(LL)	SHIFT SHAFT ASSEMBLY (LL)	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 110齿轮箱壳体(螺旋桨轴-大脚/海宝/马拉松/浮筒型) GEAR HSG (PROP-BIGFOOT/SEAPRO/MARATHON/PONTOON)

REF	零件编号	中文名称	英文名称	数量
-	9011A69	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9011A71	齿轮箱总成(加长)(黑色)	GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A70	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011A72	齿轮箱总成(加长)(灰色)	GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011A73	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A74	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
42	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
43	12634A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
43	12634T02	齿轮总成	GEAR ASSEMBLY	1
44	30895	滚针轴承	BEARING Needle	1
44	30895T	滚针轴承	BEARING Needle	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45A	44530	钢球	BALL	3
46	30622	弹簧	SPRING	1
47	822539	离合器	CLUTCH	1
47	822539T	离合器	CLUTCH	1
48	30632	十字销	PIN Cross	1
48	8M0100263	十字销	PIN Cross	1
49	30893	弹簧	SPRING	1
50	12238T	螺旋桨轴	PROPELLER SHAFT	1
51	12635	倒挡齿轮	GEAR Reverse	1
51	12635T	倒挡齿轮	GEAR-REVERSE	1
52	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	8M0168901	轴承座总成	CARRIER ASSY.	1
53	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
53	8M0214974	O型圈	O RING	1
54	30956	滚针轴承	BEARING Needle	1
54	30956T	滚针轴承	BEARING Needle	1
55	76868	内密封件	SEAL (INNER)	1
55	8M0248882	油封@5	SEAL-OIL @5	1
56	70081	油封(外)	SEAL Oil (OUTER)	1
56	8M0205729	密封件	SEAL	1
57	12578	滚针轴承	BEARING Needle	1
57	12578T	滚柱轴承	BEARING Roller	1
58	12577	止推垫片	THRUST WASHER	1
59	12576	推力轴承	BEARING Thrust	1
60	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
61	4002317	垫圈 (8.90 X 17.0 X 1.9SS)	WASHER (8.90 X 17.0 X 1.9SS)	2
62	44491A1	垫片组	SHIM SET	1
62	8M0063266	垫片组	SHIM SET	1
63	13191A1	止推垫片	THRUST WASHER	1
63	13191Q01	止推垫片	THRUST WASHER	1
64	816629	锁紧垫圈	TAB WASHER	1
64	816629Q	锁紧垫圈	TAB WASHER	1
65	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
65	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 111进气歧管与簧片阀组 INDUCTION MANIFOLD AND REED BLOCK

REF	零件编号	中文名称	英文名称	数量
1	828553	衬垫	GASKET	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A5	支架总成	BRACKET ASSEMBLY	1
7	19077A07	支架总成	BRACKET ASSEMBLY	1
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
13	827998A1	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
-	15026	盖帽	CAP	3
14	19725	弯头	ELBOW	1
15	19725	弯头	ELBOW	2
16	812869	衬垫	GASKET	1
17	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
18	19075A3	簧片阀总成	REED BLOCK ASSEMBLY	1
18	8M0219197	簧片阀总成	REED BLOCK ASSY	1
19	812868	衬垫	GASKET	1
20	NSS	定位销(不单独销售)	NOT SOLD SEPARATE Dowel Pin	6
21	812880A2	簧片组件	REED ASSEMBLY	3
21	812880A03	簧片组件	REED ASSEMBLY	3
22	429821	锁紧垫圈	TAB WASHER	3
23	8128791	簧片压板	RETAINER Reed	3
23	812879002	簧片压板	RETAINER Reed	3
24	88421471	螺钉(M6 x 16)	SCREW (M6 x 16)	3
25	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
26	42981	锁紧垫圈	TAB WASHER	2
27	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
28	988851	滑块	SLIDE	1
29	48475	衬套	BUSHING	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1

图 112喷射组件 JET COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	19453T	叶轮	IMPELLER	1
2	19699	键	KEY	1
2	8M0032831	叶轮键	KEY Impeller	1
-	14334A3	水泵总成	PUMP ASSEMBLY Water	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
3	8M0242489	水泵	WATER PUMP	1
4	822189	水泵上衬垫	GASKET Upper Water Pump	1
5	43023	密封件	SEAL	1
5	8M0204658	密封件	SEAL	1
6	19700A2	面板	FACE PLATE	1
7	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
-	812966A11	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 113喷泵总成 JET PUMP ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	856143A6	喷泵总成	JET PUMP ASSEMBLY	1
1	855767T60	泵壳	HOUSING Pump	1
2	878377	换挡连杆套件	SHIFT LINKAGE KIT	1
3	878382	凸轮	CAM	1
4	878380	倒车挡板(带缓冲)	GATE Reverse - With Bumper	1
5	827490	润滑油管	HOSE Lube	1
6	855840	双头螺柱(.312-18 x 1.81)	STUD (.312-18 x 1.81)	6
7	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	6
8	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	855708T60	叶轮	IMPELLER	1
9	8M0230713	叶轮	IMPELLER	1
10	80141260	进气壳体	HOUSING Intake	1
11	8271882	衬套	LINER	1
12	85576960	驱动轴	DRIVESHAFT	1
13	8796521	止推垫片	THRUST WASHER	1
14	8796531	滚珠轴承	BEARING Ball	1
15	8271891	套筒	SLEEVE	1
16	8271901	螺母	NUT	1
17	36001	垫圈	WASHER	6
18	801405875	键	KEY	1
19	801404875	叶轮垫片	SHIM Impeller	8
20	801403875	锁紧垫圈	TAB WASHER	1
21	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
22	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
23	801410	电缆支架	BRACKET Cable Support	1
24	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
25	801407	定位销	PIN Dowel	2
26	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
27	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
28	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
29	95802	不锈钢螺钉(.375-16 x 2.750)	SCREW (.375-16 x 2.750) Stainless Steel	1
30	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1
30	8M0214963	垫圈	WASHER	1
31	889246A72	阳极套件	ANODE KIT	1
32	801432001	螺栓(M6x25)	BOLT (M6 x 25)	2
33	879652003	垫圈	WASHER	2

图 114手动倾斜装置组件 MANUAL TILT COMPONENTS

REF	零件编号	中文名称	英文名称	数量
-	830050T3	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	832020T3	手动调整	MANUAL TRIM	1
1	813427A4	减震杆总成	SHOCK ROD ASSEMBLY	1
1	8M0118572	减震杆套件	SHOCK ROD KIT	1
1	813427A2	减震杆总成	SHOCK ROD ASSEMBLY	1
1	893942A01	减震杆套件	SHOCK ROD KIT	1
2	813430A1	配平记忆活塞总成	PISTON ASSEMBLY Trim Memory	1
2	893903A01	活塞套件	PISTON KIT	1
3	809872A1	气缸O型圈套件	O-RING KIT Cylinder	1
3	893917A01	O型圈修理包	REBUILD KIT O-Ring	1
4	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	2
5	811224A1	气缸总成	CYLINDER ASSEMBLY	1
5	893918A01	气缸套件	CYLINDER KIT	1
6	813433A2	螺钉与密封套件	SCREW AND SEAL KIT	1
6	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
7	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
7	893920A01	蓄能器套件	ACCUMULATOR KIT	1
8	813455T4	阀体总成	VALVE BODY ASSEMBLY	1
8	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
9	813457A3	凸轮套件	CAM KIT	1
9	893923A01	凸轮套件	CAM KIT	1
10	809881A1	速度阀套件	VALVE KIT Velocity	1
10	893924A01	阀套件	VALVE KIT	1
11	809882A1	维修套件	REPAIR KIT	1
11	893925A01	维修套件	REPAIR KIT	1
12	88238A13	拉线总成	CABLE ASSEMBLY	1
12	8M0207768	拉线总成	CABLE ASSEMBLY	1
-	809880A2	O型圈套件	O-RING KIT	1
-	893922A01	O型圈套件	O-RING KIT	1
13	19607	销	PIN	2
14	821539	三叶销	PIN Trilobe	2

图 115杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	81735291	零件手册50/55/60/JET 45	PARTS MANUAL 50/55/60/JET 45	1
-	817383A1	工具包(55)	TOOL BAG (55)	1
-	816939A94	贴花套件(50)(黑色)	DECAL SET (50) (BLACK)	1
-	816939A96	贴花套件	DECAL SET	1
-	811212A94	贴花套件(60)(黑色)	DECAL SET (60) (BLACK)	1
-	811212A00	贴花套件(黑色60电动)	DECAL SET (Black 60 Electric)	1
-	826313A95	贴花套件(60)(黑色)(SEAPRO)	DECAL SET (60) (BLACK) (SEAPRO)	1
-	826313A01	贴花套件(黑色60 SeaPro)	DECAL SET (Black 60 SeaPro)	1
-	830163A96	贴花套件(黑色60浮筒/大脚)	DECAL SET (BLACK 60 PONTOON/BIG FOOT)	1
-	804704A00	贴花套件(黑色60 Bigfoot)	DECAL SET (Black 60 Bigfoot)	1
-	824097A95	贴花套件(60)(黑色)(FORMULA)	DECAL SET (60) (BLACK) (FORMULA)	1
-	816940A94	贴花套件(50)(灰色)	DECAL SET (50) (GRAY)	1
-	816940A97	贴花套件	DECAL SET	1
-	811211A94	贴花套件(60)(灰色)	DECAL SET (60) (GRAY)	1
-	811211A03	贴花套件(灰色60电动)	DECAL SET (Gray 60 Electric)	1
-	824098A95	贴花套件(60 MAGNUM III)(灰色)(北美不销售)	DECAL SET (60 MAGNUM III) (GRAY) Not sold in North America	1
-	821573A95	贴花套件(55)(黑色)	DECAL SET (55) (BLACK)	1
-	821573A01	贴花套件(黑色55 SeaPro)	DECAL SET (Black 55 SeaPro)	1
-	821424A95	贴花套件(55)(灰色)	DECAL SET (55) (GRAY)	1
-	8588371	贴花套件(灰色Marathon 55)	DECAL SET (Gray Marathon 55)	1
-	824733A94	贴花套件(TRACKER)	DECAL SET (TRACKER)	1
-	13361A95	贴花套件(MARATHON 60)	DECAL SET (MARATHON 60)	1
-	8588372	贴花套件(灰色Marathon 60)	DECAL SET (Gray Marathon 60)	1
-	826325A95	贴花套装(JET 45)(黑色)	DECAL SET (JET 45) (BLACK)	1
-	826325A00	贴花套件	DECAL SET	1
-	826326A95	贴花套装(JET 45)(灰色)	DECAL SET (JET 45) (GRAY)	1
-	826326A01	贴花套装(灰色Jet 40)	DECAL SET (Gray Jet 40)	1
-	814319950	用户手册(50/60)(黑色)	OWNERS MANUAL (50/60) (BLACK)	1
-	821732950	用户手册(55)(黑色)	OWNERS MANUAL (55) (BLACK)	1
-	816763950	用户手册(50/60)(灰色)	OWNERS MANUAL (50/60) (GRAY)	1
-	821733950	用户手册(55)(灰色)	OWNERS MANUAL (55) (GRAY)	1
-	826596950	用户手册(JET 45)	OWNERS MANUAL (JET 45)	1

图 116喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	812718T1	油箱总成	TANK ASSEMBLY Oil	1
2	828765A2	盖总成	CAP ASSEMBLY	1
3	NSS	不单独销售系绳	NOT SOLD SEPARATE Tether	1
4	821285	压入式螺母	PUSH NUT	1
5	8160662	密封件	SEAL	1
5	8M0039080	密封件-油箱	SEAL-OIL TANK	1
6	19299A1	通风组件	VENT ASSEMBLY	1
7	64871	阀门	VALVE	1
8	8136441	护孔环	GROMMET	1
8	813644002	护孔环	GROMMET	1
9	99162	护套	BOOT	1
9	99162001	护套	BOOT	1
10	812890	护套	BOOT	1
10	8M0039085	护套	BOOT	1
11	12886A6	开关总成	SWITCH ASSEMBLY	1
12	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
13	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
14	818902A1	机油喷射泵总成	PUMP ASSEMBLY Oil Injection	1
15	62705	O型圈	O-RING	1
15	8M0204667	O型圈×2	O RING @2	1
16	36390	O型圈	O-RING	1
17	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
18	19277	从动齿轮	GEAR Driven	1
19	19278A2	轴承总成	BEARING ASSEMBLY	1
20	17597		BUSHING (Flanged)	1
21	17596	衬套	BUSHING	1
22	82381335	管材 (15.00英寸散装) (裁切至6.00英寸)	TUBING (15.00 Inches Bulk) (Cut to 6.00 Inch Lengh)	1
23	826581A2	连接杆	LINK	1
23	8M0084729	连杆-油泵总成	LINK-OIL PUMP ASY	1

图 117动力配平组件(序列号:0D181999及以下) POWER TRIM COMPONENTS (S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	813427	减震杆总成套件	SHOCK ROD ASSEMBLY KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A3	气缸密封套件	SEAL KIT Cylinder	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	810777	气缸套件	CYLINDER KIT	1
6	811228	气缸套件	CYLINDER KIT	1
6	893904T01	气缸总成	CYLINDER ASSEMBLY	1
7	813433A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
7	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	811227	泵	PUMP	1
8	811227	泵	PUMP	1
9	813441	歧管总成	MANIFOLD ASSEMBLY	1
9	811225	歧管总成	MANIFOLD ASSEMBLY	1
10	813436	螺钉套件	SCREW KIT	1
11	813437	驱动轴	DRIVESHAFT	1
12	813438	螺丝和销钉套件	SCREW AND PIN KIT	1
13	813439A2	密封套件	SEAL KIT	1
13	813439A3	O型圈套件	O RING KIT	1
14	813434A1	储液罐	RESERVOIR	1
15	813435	塞套件	PLUG KIT	1
15	8134351	堵头	PLUG	1
16	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
16	893929A01	安全阀套件	VALVE KIT Relief	1
17	811698	线束总成	HARNESS ASSEMBLY	1
19	813445	储液罐盖套件	CAP KIT Reservoir	1
20	813446	螺钉	SCREW	1
21	813447	电机套件	MOTOR KIT	1
22	813448	端盖	END CAP	1
23	813449A1	电枢	ARMATURE	1
24	813450	止推垫片套件	THRUST WASHER KIT	1
25	813451	外壳和磁铁套件	SHELL AND MAGNET KIT	1
26	813452	端架套件	END FRAME KIT	1
27	813453	螺栓螺母套件	BOLT AND NUT KIT	1
28	19607	销	PIN	2
29	821539	三叶销	PIN Trilobe	2
-	19217A5	完整配平泵总成	PUMP ASSEMBLY Trim COMPLETE	1
-	854472A3	动力调整套件	POWER TRIM KIT	1

图 118动力配平组件(序列号:0D182000及以上) POWER TRIM COMPONENTS (S/N: 0D182000 AND UP)

REF	零件编号	中文名称	英文名称	数量
-	822870A1	泵总成	PUMP ASSEMBLY	1
1	8134271	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A3	气缸密封套件	SEAL KIT Cylinder	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	811228	气缸套件	CYLINDER KIT	1
6	893904T01	气缸总成	CYLINDER ASSEMBLY	1
7	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	8116706	泵/歧管套件	PUMP/MANIFOLD KIT	1
8	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
8A	823180A1	摇臂套件	ROCKER ARM KIT	1
8A	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
9	813436	螺钉套件	SCREW KIT	1
10	811671	驱动轴	DRIVESHAFT	1
11	811672A3	O型圈套件	O-RING KIT	1
11	811672A4	O型圈套件	O RING KIT	1
12	811673	储液罐	RESERVOIR	1
12	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
13	813435	塞套件	PLUG KIT	1
13	8134351	堵头	PLUG	1
14	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
14	893929A01	安全阀套件	VALVE KIT Relief	1
15	811677	储液罐盖套件	CAP KIT Reservoir	1
15	809885A1	电机套件	MOTOR KIT	1
16	813446	螺钉	SCREW	1
17	811674	储液罐/马达	RESERVOIR/MOTOR	1
17	809885A1	电机套件	MOTOR KIT	1
18	811675	电枢	ARMATURE	1
19	811676	止推垫片套件	THRUST WASHER KIT	1
20	19607	销	PIN	1
21	821539	三叶销	PIN Trilobe	2
22	822869	销	PIN	1
22	822869001	锚销	PIN Anchor	1

图 119启动器总成(手动)(55) STARTER ASSEMBLY (MANUAL)(55)

REF	零件编号	中文名称	英文名称	数量
1	8167285	壳体	HOUSING	1
2	816765	支架	REST	1
2	8167652	支架	REST	1
3	8136072	密封件	SEAL	1
3	8M0043161	密封件	SEAL	1
4	82170475	螺钉(M6×75)	SCREW (M6 x 75)	2
5	821702	隔套	SPACER	2
6	816086	衬套	BUSHING	4
7	815795	护孔环	GROMMET	8
8	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	8
9	401196	螺母 (M6)	NUT (M6)	4
10	8167481	联锁电缆	CABLE Interlock	1
10	8567541	联锁电缆	CABLE Interlock	1
11	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
12	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
13	27769	开口销	COTTER PIN	1
13	26811	开口销	COTTER PIN	1
14	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
14	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
15	821027	推入式螺母(设计I)	PUSH NUT (DESIGN I)	1
15A	27769	开口销(设计II)	COTTER PIN (DESIGN II)	1
15A	26811	开口销	COTTER PIN	1
15B	35462	不锈钢垫圈(0.2656x0.625x0.0625)(设计II)	WASHER (.2656 x .625 x .0625) Stainless Steel (DESIGN II)	1
-	816728A9	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728A10	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
16	826791	弹簧	SPRING	1
17	8166902	杠杆	LEVER	1
18	8167121	凸轮	CAM	1
18	816712T01	凸轮	CAM	1
19	816711	固定座	RETAINER	1
20	8182491	螺钉(#10-16 x 1.00)	SCREW (#10-16 x 1.00)	3
21	90478	垫块(设计I)	PAD (DESIGN I)	1
21	833161T	毛毡垫	PAD-FELT	1
21A	826229	弹簧锁紧垫圈(设计II)	LOCKWASHER SPRING (DESIGN II)	1
22	86857	弹簧	SPRING	1
22	86857T01	弹簧	SPRING	1
23	825269	滑轮	SHEAVE	1
23	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
24	86851	弹簧	SPRING	2
24	86851T02	弹簧 @2	SPRING @2	2
25	86850	凸轮	CAM	2
25	868501	凸轮	CAM	2
26	86849	挡圈	RING Retaining	2
26	86849T01	环 @2	RING @2	2
27	12066A9	绳索	ROPE	1
27	12066Q10	启动绳@2	ROPE-STARTER@2	1
28	85174A1	手柄总成	HANDLE ASSEMBLY	1
29	86852	弹簧	SPRING	1
29	868523	弹簧	SPRING	1
30	86853	凸轮	CAM	1
30	86853T01	凸轮	CAM	1
31	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
32	42690	衬套	BUSHING	1
32	8M0183792	绳索衬套	ROPE BUSHING	1
33	818853	挡圈	RING Retaining	1

图 120启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	44369A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660	安装板	PLATE	1
4	95686	螺栓	BOLT	2
5	75383	端盖	END CAP	1
6	11957	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387	衬套	BUSHING	1
9	NSS	非单独销售垫片(AMER.BOSCH #WA-1728)	NOT SOLD SEPARATE WASHER (AMER. BOSCH #WA-1728)	1
10	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
11	20890	螺母 (.250-20)	NUT (.250-20)	1
12	61787	支架	HOLDER	2
12	898265014	电刷支架	HOLDER-BRUSH	2
13	NSS	不单独销售螺丝(AMER. BOSCH #02441-22-SC-30SM)	NOT SOLD SEPARATE SCREW (AMER. BOSCH #02441-22-SC-30SM)	2

图 121转向手柄套件 STEERING HANDLE KIT

REF	零件编号	中文名称	英文名称	数量
1	12020A1	转向臂手柄总成(黑色)	HANDLE ASSEMBLY Steering Arm (BLACK)	1
1	12020A2	转向臂总成(灰色)	ARM ASSEMBLY Steering (GRAY)	1
1	12020A4	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
2	812930A1	衬套	BUSHING	2
1A	12020A3	转向臂手柄总成(黑色)	HANDLE ASSEMBLY Steering Arm (BLACK)	1
1A	12020A4	转向臂手柄总成(灰色)	HANDLE ASSEMBLY Steering Arm (GRAY)	1
1A	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
2A	429922	衬套	BUSHING	2
2A	42992T02	衬套	BUSHING	2
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	AR
6	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	AR
6	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	AR
6	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	AR
7	12013	卡箍	CLAMP	1
7	889729	卡箍	CLAMP	1
8	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
9	816873	蝶形螺母	WING NUT	1
9	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
10	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
11	823609A5	停止开关总成(设计II-带金属锁环)	SWITCH ASSEMBLY Stop (DESIGN II - W/METAL LOCK RING)	1
11	8M0104612	开关总成	SWITCH ASSY	1
12	NLA	已停产停止开关(设计I-订购套件87-823609A15)	No Longer Available STOP SWITCH (DESIGN I - ORDER KIT 87-823609A15)	1
13	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
14	99589	握把	GRIP	1
14	8M0221732	外握把	GRIP OUTER	1
15	648551	卡箍	CLAMP	1
16	648551	卡箍	CLAMP	1
17	785512	导管	CONDUIT	1
17	8885242	导管	CONDUIT	1
18	895661	导向管	GUIDE TUBE	1
18	8M0026078	导向管	TUBE-GUIDE	1
19	89578	套筒	BARREL	1
20	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
21	12019	拉线总成	CABLE ASSEMBLY	1
22	43433	导套	GUIDE	1
22	8M0204660	导套	GUIDE	1
23	20007	锚定件	ANCHOR	1
24	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
24	8M0204644	螺钉组	SCREW SET	2
25	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
26	48416	盖帽	CAP	1
27	4002319	垫圈	WASHER	1
28	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
29	14601	隔套	SPACER	1
29	146011	隔套	SPACER	1
30	12018A2	管总成	TUBE ASSEMBLY	1
30	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
31	13914	螺母(M10)	NUT (M10)	1
31	40140	螺母(M10)	NUT (M10)	1

图 122旋转支架(序列号:0D181999及以下) SWIVEL BRACKET (S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	814690A1	旋转支架(短)(黑色)	SWIVEL BRACKET (SHORT) (BLACK)	1
1	814690A2	旋转支架(短)(灰色)	SWIVEL BRACKET (SHORT) (GRAY)	1
1	815556A1	旋转支架(长)(黑色)	SWIVEL BRACKET (LONG) (BLACK)	1
1	815556A2	旋转支架(长)(灰色)	SWIVEL BRACKET (LONG) (GRAY)	1
2	821124	轴承	BEARING	2
3	32911	油封	SEAL Oil	2
4	19606	轴承	BEARING	2
5	74036	润滑脂接头	FITTING Grease	3
5	8M0169589	润滑脂接头	FITTING Grease	3
6	52865	垫圈	WASHER	1
7	19654T	底部轭架(黑色)	YOKE Bottom (BLACK)	1
7	19654T1	下轭架	YOKE Bottom	1
7	19654T6	底部轭架(灰色)	YOKE Bottom (GRAY)	1
7	19654T7	ORD 19654T 1	ORD 19654T 1	1
8	77415	挡圈	RETAINING RING	1
9	NLA	已停产旋转销(黑色-被2件式#10替代)	No Longer Available SWIVEL PIN (BLACK-REPLACED BY 2 PIECE REF #10)	1
9	NLA	已停产旋转销(灰色-被2件式#10替代)	No Longer Available SWIVEL PIN (GRAY-REPLACED BY 2 PIECE REF #10)	1
10	812897A7	旋转销总成(短)(黑色)	SWIVEL PIN ASSEMBLY (SHORT) (BLACK)	1
10	812897A19	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	812897A8	旋转销总成(短)(灰色)	SWIVEL PIN ASSEMBLY (SHORT) (GRAY)	1
10	812897A20	ORD 17-812897A19	ORD 17-812897A19	1
10	812896A14	旋转销总成(黑色)	SWIVEL PIN ASSEMBLY (BLACK)	1
10	812896A22	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	812896A15	旋转销总成(灰色)	SWIVEL PIN ASSEMBLY (GRAY)	1
10	812896A23	旋转销-GR-LG	SWIVEL PIN-GR-LG	1
11	816667T	支架（黑色）	BRACKET (BLACK)	1
11	8M0184092	支架	BRACKET	1
11	816667F3	支架（灰色）	BRACKET (GRAY)	1
11	8M0184092	支架	BRACKET	1
12	816669	锁紧垫圈	TAB WASHER	1
12	8M0009820	锁紧垫圈	TAB WASHER	1
13	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
14	196081	连杆(右舷)	LINK ROD (STARBOARD)	1
14	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
14	196091	连杆(左舷)	LINK ROD (PORT)	1
14	19609A6	转向安装套件	ATTACHING KIT Steering	1
15	90041	螺钉(.375-24 x 1.620)	SCREW (.375-24 x 1.620)	1
15	856680	螺钉(.375-24 x 1.62)	SCREW (.375-24 x 1.62)	1
16	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
16	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
17	34863	螺母 (.375-24)	NUT (.375-24)	2
17	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
18	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
19	52865	垫圈	WASHER	1
20	823876	销	PIN	1

图 123旋转支架(序列号:0D182000及以上) SWIVEL BRACKET (S/N: 0D182000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	822864A1	旋转支架(短)(黑色)	SWIVEL BRACKET (SHORT) (BLACK)	1
1	822864A2	旋转支架总成(短)(灰色)	SWIVEL BRACKET ASSEMBLY (SHORT) (GRAY)	1
1	822864A1	旋转支架	SWIVEL BRACKET	1
1	822863A1	旋转支架(长)(黑色)	SWIVEL BRACKET (LONG) (BLACK)	1
1	822863A2	旋转支架总成(长)(灰色)	SWIVEL BRACKET ASSEMBLY (LONG) (GRAY)	1
1	822863A3	旋转支架总成(长)(TRACKER)	SWIVEL BRACKET ASSEMBLY (LONG) (TRACKER)	1
2	821124	轴承	BEARING	2
3	32911	油封	SEAL Oil	2
4	19606	轴承	BEARING	2
5	74036	润滑脂接头	FITTING Grease	3
5	8M0169589	润滑脂接头	FITTING Grease	3
6	25176	垫圈	WASHER	1
7	19654T	底部轭架(黑色)	YOKE Bottom (BLACK)	1
7	19654T1	下轭架	YOKE Bottom	1
7	19654T6	底部轭架(灰色)	YOKE Bottom (GRAY)	1
7	19654T7	ORD 19654T 1	ORD 19654T 1	1
7	19654F1	底部轭架（追踪者）	YOKE Bottom (TRACKER)	1
8	77415	挡圈	RETAINING RING	1
9	812897A7	旋转销总成(短)(黑色)	SWIVEL PIN ASSEMBLY (SHORT) (BLACK)	1
9	812897A19	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812897A8	旋转销总成(短)(灰色)	SWIVEL PIN ASSEMBLY (SHORT) (GRAY)	1
9	812897A20	ORD 17-812897A19	ORD 17-812897A19	1
9	812896A14	旋转销总成(长)(黑色)	SWIVEL PIN ASSEMBLY (LONG) (BLACK)	1
9	812896A22	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812896A15	旋转销总成(长)(灰色)	SWIVEL PIN ASSEMBLY (LONG) (GRAY)	1
9	812896A23	旋转销-GR-LG	SWIVEL PIN-GR-LG	1
9	812896A16	旋转销总成(长)(TRACKER)	SWIVEL PIN ASSEMBLY (LONG) (TRACKER)	1
10	8219871	联动销	PIN Co-Pilot	1
11	816667T	支架（黑色）	BRACKET (BLACK)	1
11	8M0184092	支架	BRACKET	1
11	816667F3	支架（灰色）	BRACKET (GRAY)	1
11	8M0184092	支架	BRACKET	1
11	816667F2	支架(TRACKER)	BRACKET (TRACKER)	1
11	8M0184092	支架	BRACKET	1
12	816669	锁紧垫圈	TAB WASHER	1
12	8M0009820	锁紧垫圈	TAB WASHER	1
13	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
14	196081	连杆(右舷)	LINK ROD (STARBOARD)	1
14	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
14	196091	连杆(左舷)	LINK ROD (PORT)	1
14	19609A6	转向安装套件	ATTACHING KIT Steering	1
15	90041	螺钉(.375-24 x 1.620)	SCREW (.375-24 x 1.620)	1
15	856680	螺钉(.375-24 x 1.62)	SCREW (.375-24 x 1.62)	1
16	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
16	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
17	34863	螺母 (.375-24)	NUT (.375-24)	2
17	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
18	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
19	52865	垫圈	WASHER	1
20	823876	销(手柄)	PIN (HANDLE)	1
21	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
21	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
22	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1

图 124油门杆与联动装置 THROTTLE LEVER AND LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	42946T1	油门杆	LEVER Throttle	1
2	817582	调节螺钉(M5 x 35)	SCREW Adjusting (M5 x 35)	1
3	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
4	42927	嵌件	INSERT	1
5	35459	垫圈	WASHER	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
8	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
9	42942	盖帽	CAP	1
10	812930A1	衬套	BUSHING	1
11	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
12	4007180	螺丝(M10 x 45)	SCREW (M10 x 45)	1
13	932481	衬套	BUSHING	2
13	8M0215006	旋转衬套	BUSHING Swivel	2
14	55162	弹簧	SPRING	1
15	42980	垫圈	WASHER	1
16	196632	点火提前杆	LEVER Spark Advance	1
16	19663T02	杠杆	LEVER	1
17	878172	点火提前杆	ROD Spark Advance	1
18	93254	旋转底座	SWIVEL BASE	1
19	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
20	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
21	42942	盖帽	CAP	1
22	93421	旋转球头	SWIVEL BALL	1
23	42984	螺柱	STUD	1
23	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
24	817702	弹簧	SPRING	1
25	828160A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
26	878174	杆油门	ROD Throttle	1
27	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
28	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
29	828494	垫圈	WASHER	1

图 125艉板支架(50/60)(序列号:0D181999及以下) TRANSOM BRACKET (50/60)(S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	9751A1	艉板支架总成(黑色)	BRACKET ASSEMBLY Transom (BLACK)	1
1	9751A2	艉板支架总成(灰色)	BRACKET ASSEMBLY Transom (GRAY)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	9750T	艉板支架(黑色)	BRACKET Transom (BLACK)	1
4	9750T6	艉板支架(灰色)	BRACKET Transom (GRAY)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486T6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486F6	锚支架	BRACKET Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	19613A1	倾斜销总成	PIN ASSEMBLY Tilt	1
19A	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19A	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
22	19624A1	密封套件	SEAL KIT	1
23	22740	卡扣	CLIP	1
24	69205	C形垫圈	C WASHER	1
24	8M0084613	C形垫圈	C-WASHER	1
25	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
25	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	815796	垫圈	WASHER	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1

图 126艉板支架(50/60)(序列号:0D182000及以上) TRANSOM BRACKET (50/60)(S/N: 0D182000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	822866A1	艉板支架总成(黑色)	BRACKET ASSEMBLY Transom (BLACK)	1
1	822866A2	艉板支架总成(灰色)	BRACKET ASSEMBLY Transom (GRAY)	1
1	822866A3	艉板支架总成(TRACKER)	BRACKET ASSEMBLY Transom (TRACKER)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822865F2	艉板支架(黑色)	BRACKET Transom (BLACK)	1
4	822865T05	艉板支架-右舷	BRACKET Transom - Starboard	1
4	822865F3	艉板支架(灰色)	BRACKET Transom (GRAY)	1
4	822865F4	艉板支架(TRACKER)	BRACKET Transom (TRACKER)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A5	倾斜锁定杆总成(TRACKER)	LEVER ASSEMBLY Tilt Lock (TRACKER)	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮(黑色)	KNOB (BLACK)	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮(灰色)	KNOB (GRAY)	1
9	812709	旋钮	KNOB	1
9	812709F1	旋钮(TRACKER)	KNOB (TRACKER)	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F7	锚支架(TRACKER)	BRACKET Anchor (TRACKER)	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19A	821461	弹簧	SPRING	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
22	19624A1	密封套件	SEAL KIT	1
23	26550	卡箍	CLAMP	1
24	69205	C形垫圈	C WASHER	1
24	8M0084613	C形垫圈	C-WASHER	1
25	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
25	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
