两冲程 化油器 · ARCHIVE CAT 71732 · 共 17 个部位 · 778 条零件

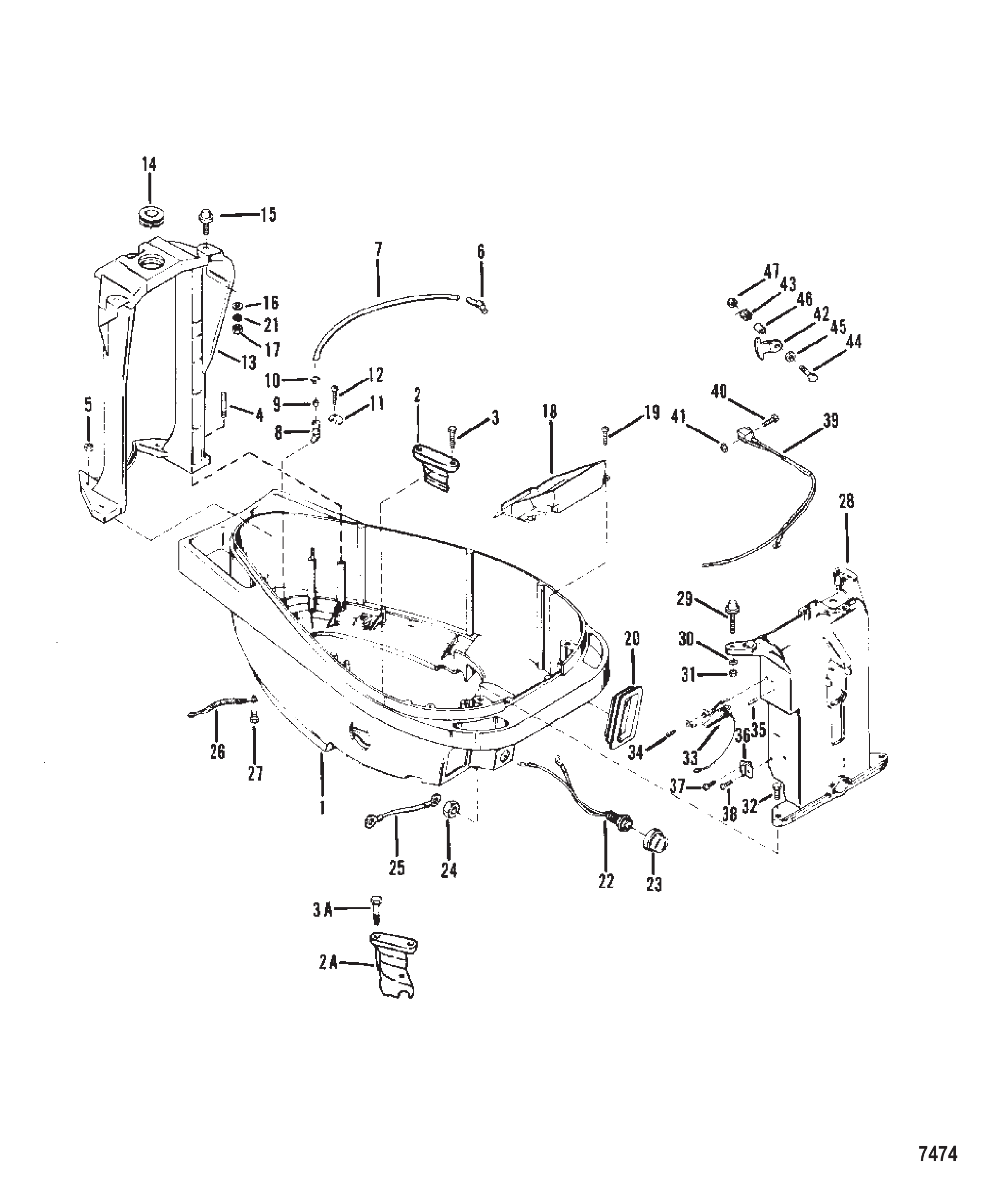

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 7715A4 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 1 | 7715A5 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 2 | 88926T | 下机罩盖 | COVER Bottom Cowl | 1 |
| 2 | 88926F1 | 盖板 | COVER | 1 |
| 3 | 28636 | 螺钉（.250-20 x .750）下机罩盖塞 | SCREW (.250-20 x .750) Plug to Bottom Cowl | 2 |
| 2A | 948801 | 下机罩盖塞 | PLUG Bottom Cowl | 1 |
| 3A | 28636 | 螺钉（.250-20 x .750）下机罩盖塞 | SCREW (.250-20 x .750) Plug to Bottom Cowl | 2 |
| 4 | 56766 | 螺柱（.250-20/.250-28 x 1.380）下机罩 | STUD (.250-20/.250-28 x 1.380) Bottom Cowl | 4 |
| 5 | 20184 | 螺母（1/4-28X7/32）下机罩螺柱 | NUT (1/4-28X7/32) Bottom Cowl Stud | 4 |
| 5 | 8M0207775 | 螺母 @5 | NUT @5 | 4 |
| 6 | 78279 | 示流管弯头-气缸体 | ELBOW Tell Tale Hose - Cylinder Block | 1 |
| 6 | 8M0207781 | 弯头 | ELBOW | 1 |
| 7 | 7568054 | 示流软管至下机罩（14英寸） | HOSE Tell Tale Hose to Bottom Cowl (14 Inch) | 1 |
| 7 | 7568058 | 软管 (15.00英寸) | HOSE (15.00 Inches) | 1 |
| 8 | 69791 | 示流管喷嘴至下机罩 | NOZZLE Tell Tale Hose to Bottom Cowl | 1 |
| 9 | 90882 | 示流喷嘴套管 | SLEEVE Tell Tale Nozzle | 1 |
| 10 | 90077 | 示流喷嘴扎带 | TIE STRAP Tell Nozzle | AR |
| 10 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 11 | 66849 | 喷嘴卡箍-示流管 | CLAMP Nozzle - Tell Tale | 1 |
| 12 | 48408 | 螺钉（#10-16 x .500）喷嘴卡箍至下机罩 | SCREW (#10-16 x .500) Nozzle Clamp to Bottom Cowl | 1 |
| 13 | 720201 | 后支撑支架 | BRACKET Rear Support | 1 |
| 14 | 52723 | 后支撑支架衬套 | GROMMET Rear Support Bracket | 1 |
| 15 | 60577 | MOUNT Rubber - Rear Support Bracket | 2 | |
| 16 | 21631 | WASHER (.255 x .625 x .0312) Rubber Mount | AR | |
| 16 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | AR |
| 17 | 29598 | 螺母（.250-28）不锈钢橡胶座 | NUT (.250-28) Stainless Steel Rubber Mount | 2 |
| 18 | 72466 | 滴水盘 | DRIP TRAY | 1 |
| 19 | 48409 | 螺钉（#10-16 x .625）不锈钢滴水盘至下机罩 | SCREW (#10-16 x .625) Stainless Steel Drip Tray to Bottom Cowl | 3 |
| 20 | 37695 | 控制电缆护套 | BOOT Control Cable | 1 |
| 21 | 26992 | LOCKWASHER (.250) Stainless Steel Rubber Mount | 2 | |
| 22 | 69508A31 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 23 | 99525A1 | 顶部开关盖总成 | COVER ASSEMBLY Top Switch | 1 |
| 24 | 69844 | NUT Stop Switch | 1 | |
| 25 | 62190A8 | 橙色停机开关线束总成 | WIRE ASSEMBLY Orange Stop Switch | 1 |
| 26 | 88238A4 | 电缆总成（3.375英寸） | CABLE ASSEMBLY (3.375 Inch) | 2 |
| 26 | 88238T01 | 拉线总成 | CABLE ASSEMBLY | 2 |
| 27 | 62568 | 螺钉（#10-16 x .375）接地带 | SCREW (#10-16 x .375) Ground Strap | 2 |
| 28 | 42660A1 | 前支撑支架总成 | BRACKET ASSEMBLY Front Support | 1 |
| 29 | 31014 | MOUNT Rubber - Front Support Bracket | 2 | |
| 30 | 26992 | LOCKWASHER (.250) Stainless Steel Rubber Mount | 2 | |
| 31 | 29598 | 螺母（.250-28）不锈钢橡胶座 | NUT (.250-28) Stainless Steel Rubber Mount | 2 |
| 32 | 37562 | 螺钉（.312-18 x 1.00）不锈钢前支撑支架至下机罩 | SCREW (.312-18 x 1.00) Stainless Steel Front Support Bracket to Bottom Cowl | 2 |
| 33 | 58124A20 | 水银开关总成 | SWITCH ASSEMBLY Mercury | 1 |
| 33 | 33386A3 | 水银开关总成 | SWITCH ASSEMLBY Mercury | 1 |
| 34 | 69235 | 螺钉（.190-24 x .500）开关至前支架（0.50英寸） | SCREW (.190-24 x .500) Switch to Front Bracket (0.50 Inch) | 1 |
| 35 | 36242 | 水银开关滚针 | PIN Roll Mercury Switch | 2 |
| 36 | 45915 | 端子排 | TERMINAL BLOCK | 1 |
| 37 | 20411 | 螺钉（.190-24 x .62）端子排至前支架 | SCREW (.190-24 x .62) Terminal Block to Front Bracket | 1 |
| 38 | 69079 | 螺钉（#10-16 x .440）线束引线 | SCREW (#10-16 x .440) Harness Leads | 1 |
| 39 | 74605A4 | 空挡启动开关总成 | SWITCH ASSEMBLY Neutral Start | 1 |
| 40 | 64332 | 螺钉（#4-40 x .750） | SCREW (#4-40 x .750) | 2 |
| 41 | 24832 | 螺母（#4-40）开关螺钉 | NUT (#4-40) Switch Screw | 2 |
| 42 | 97411 | 执行器 | ACTUATOR | 1 |
| 43 | 88099 | 联锁执行器弹簧 | SPRING Interlock Actuator | 1 |
| 44 | 37892 | 执行器至前支架螺钉(.190-32 x 1.00) | SCREW (.190-32 x 1.00) Actuator to Front Bracket | 1 |
| 45 | 22887 | 执行器螺钉垫圈 | WASHER Actuator Screw | 1 |
| 46 | 88100 | 执行器螺钉隔套 | SPACER Actuator Screw | 1 |
| 47 | 45812 | 执行器螺钉不锈钢螺母(#10-32) | NUT (#10-32) Stainless Steel Actuator Screw | 1 |
| 47 | 859124 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 1 |

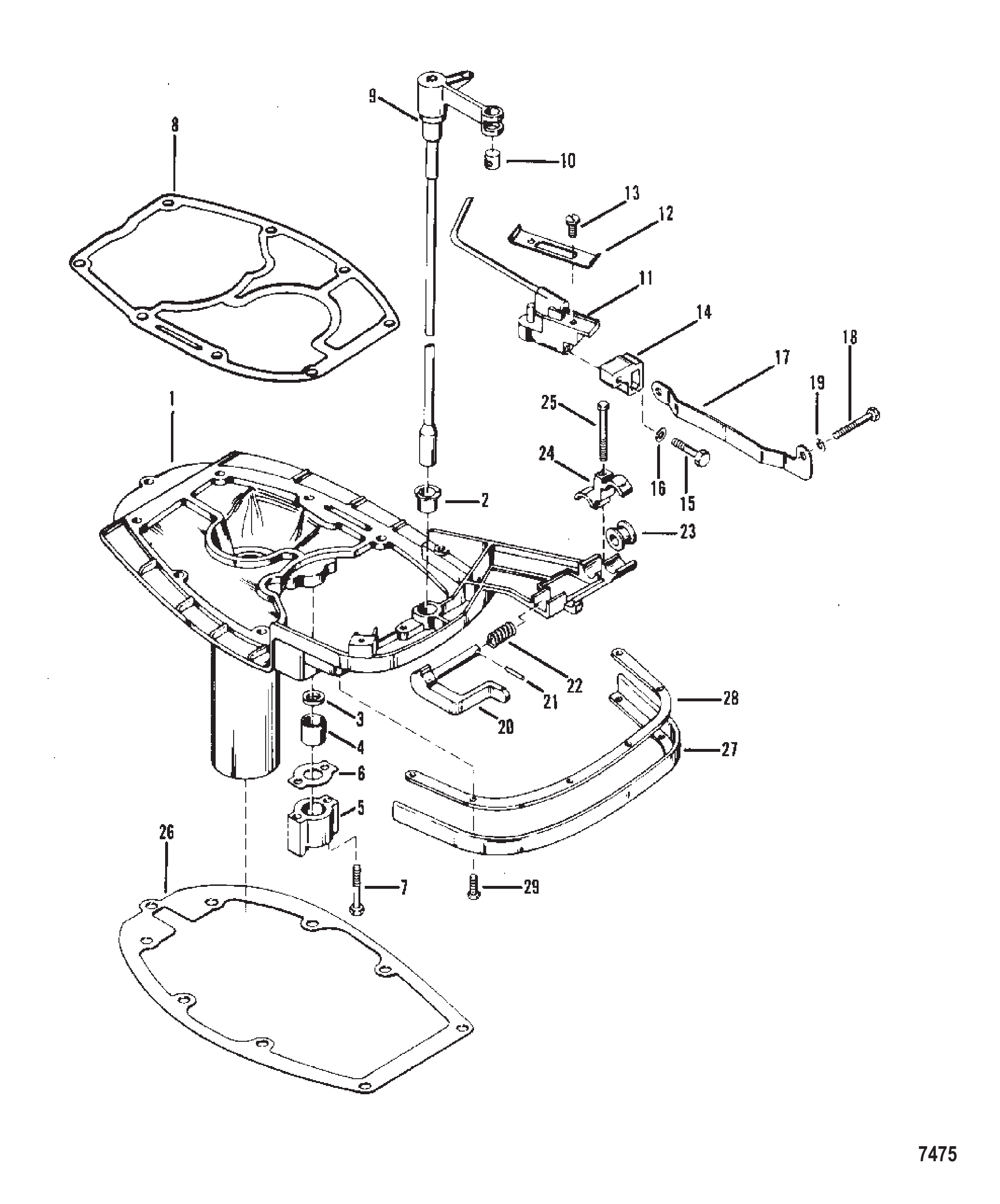

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42819A2 | 排气延伸板总成 | PLATE ASSEMLBY Exhaust Extension | 1 |
| 2 | 27132 | 排气延伸板衬套 | BUSHING Exhaust Extension Plate | 1 |
| 3 | 38453 | 进水口管尼龙垫圈 | WASHER Nylon - Water Inlet Tube | 1 |
| 4 | 38452 | 水管橡胶密封件 | SEAL Rubber - Water Tube | 1 |
| 5 | 79799 | HOUSING Water Inlet Tube Seal | 1 | |
| 6 | 797971 | 壳体衬垫 | GASKET Housing | 1 |
| 7 | 79798 | 壳体至排气板螺丝(#10-32 x 1.380)(1.375英寸) | SCREW (#10-32 x 1.380) Housing to Exhaust Plate (1.375 Inch) | 2 |
| 8 | 796501 | 动力头衬垫 | GASKET Powerhead | 1 |
| 9 | 76632A3 | 上短换挡轴总成 | SHIFT SHAFT ASSEMBLY Upper Short Shaft | 1 |
| 9 | 76632A4 | 上长换挡轴总成 | SHIFT SHAFT ASSEMBLY Upper Long Shaft | 1 |
| 10 | 60572 | 上换挡轴尼龙套筒 | BARREL Nylon - Upper Shift Shaft | 1 |
| 10 | 8M0221994 | 筒形接头 | BARREL FITTING | 1 |
| 11 | 74739A3 | 换挡控制执行器总成 | ACTUATOR ASSEMBLY Shift Control | 1 |
| 12 | 37934 | 换挡拉索弹簧 | SPRING Shift Cable | 1 |
| 13 | 38069 | 弹簧至执行器螺丝 | SCREW Spring to Actuator | 1 |
| 14 | 37932 | 换挡控制执行器尼龙轴承 | BEARING Nylon - Shift Control Actuator | 1 |
| 15 | 36137 | 轴承至换挡控制执行器螺丝(.250-28 x 1.00) | SCREW (.250-28 x 1.00) Bearing to Shift Control Actuator | 1 |
| 16 | 21272 | 轴承螺丝锁紧垫圈(.250) | LOCKWASHER (.250) Bearing Screw | 1 |
| 17 | 37935 | 换挡控制轴承导轨 | RAIL Shift Control Bearing | 1 |
| 18 | 69028 | 不锈钢导轨至排气歧管盖螺丝(.250-28 x 0.750) | SCREW (.250-28 x .750) Stainless Steel Rail to Exhaust Manifold Cover | 1 |
| 19 | 26992 | 不锈钢导轨螺丝锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel Rail Screw | 1 |
| 20 | 59037A2 | 油门和换挡拉索杆 | LEVER Throttle and Shift Cables | 1 |
| 21 | 23928 | 快拆杆滚销 | PIN Roll - Quick Disconnect Lever | 2 |
| 21 | 239281 | 滚动销 | PIN Roll | 2 |
| 22 | 38005 | 快拆杆弹簧 | SPRING Quick Disconnect Lever | 2 |
| 23 | 37927 | 快拆杆尼龙衬套 | BUSHING Nylon Nylon - Quick Disconnect Lever | 2 |
| 24 | 37926 | 尼龙轴承保持架 | RETAINER Nylon Bearing | 1 |
| 25 | 37923 | 轴承保持架螺丝(.250-28 x 1.250) | SCREW (.250-28 x 1.250) Bearing Retainer | 1 |
| 26 | 385011 | 排气延伸板衬垫 | GASKET Exhaust Extension Plate | 1 |
| 27 | 38156 | 排气延伸板橡胶密封件 | SEAL Rubber - Exhaust Extension Plate | 1 |
| 28 | 99136 | 橡胶密封条 | STRIP Rubber Seal | 1 |
| 29 | 37571 | 固定条螺丝(.190-32 x 0.500) | SCREW (.190-32 x .500) Retaining Strip | 6 |
| - | 85491A87 | 衬垫套件 | GASKET SET | 1 |
| - | 85491A90 | 衬垫套件 | GASKET SET | 1 |

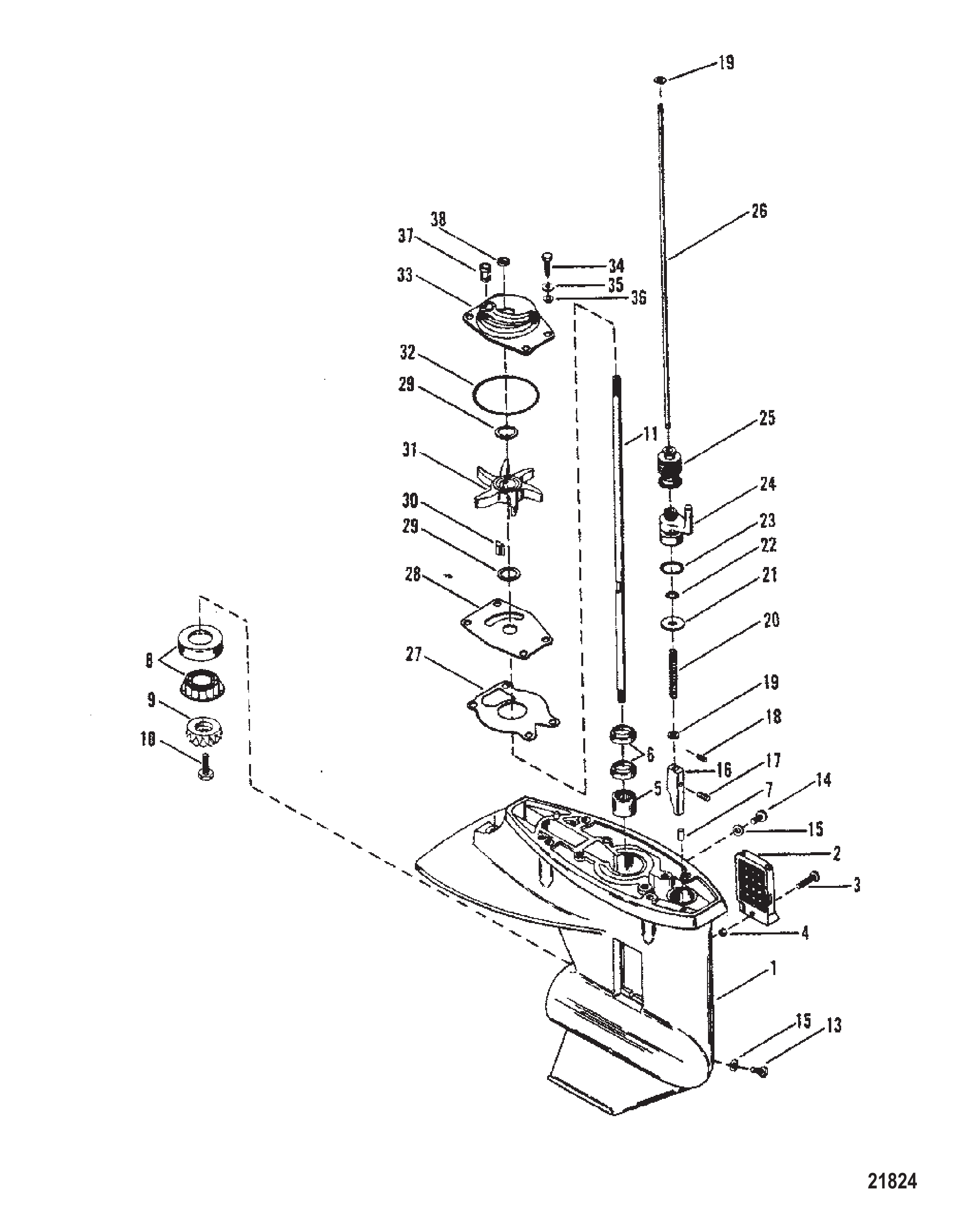

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8669A13 | 齿轮箱总成(短型)(黑色) | GEAR HOUSING ASSEMBLY (SHORT) (BLACK) | 1 |
| - | 8669T13 | 齿轮箱外壳SH-BLK | GEAR HSG. SH-BLK | 1 |
| - | 8669A14 | 齿轮箱总成(长型)(黑色) | GEAR HOUSING ASSEMBLY (LONG) (BLACK) | 1 |
| - | 8669T14 | GC 20/25 2S LG | GC 20/25 2S LG | 1 |
| - | 8669A15 | 齿轮箱总成(短型)(灰色) | GEAR HOUSING ASSEMBLY (SHORT) (GRAY) | 1 |
| - | 8669T13 | 齿轮箱外壳SH-BLK | GEAR HSG. SH-BLK | 1 |
| - | 8669A16 | 齿轮箱总成(长型)(灰色) | GEAR HOUSING ASSEMBLY (LONG) (GRAY) | 1 |
| - | 8669T16 | ORD 1665-8669T14 | ORD 1665-8669T14 | 1 |
| - | 8669A23 | 齿轮箱总成(短型)(追踪者系列) | GEAR HOUSING ASSEMBLY (SHORT) (TRACKER) | 1 |
| - | 8669A24 | 齿轮箱总成(长型)(追踪者系列) | GEAR HOUSING ASSEMBLY (LONG) (TRACKER) | 1 |
| 1 | 8669A21 | 齿轮箱总成(基础黑色) | GEAR HOUSING ASSEMBLY Basic-Black (BLACK) | 1 |
| 1 | 8M0083538 | GC BASIC 25 2S | GC BASIC 25 2S | 1 |
| 1 | 8669A22 | 齿轮箱总成(基础灰色) | GEAR HOUSING ASSEMBLY Basic-Gray (GRAY) | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8669A25 | 齿轮箱总成(追踪者系列) | GEAR HOUSING ASSEMBLY (TRACKER) | 1 |
| 1 | 8669A39 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 2 | 41134 | 右舷进水口滤网 | SCREEN WATER INLET-STARBOARD | 1 |
| 2 | 41133 | 进水口滤网 | SCREEN Water Inlet Port | 1 |
| 3 | 40031112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 1 |
| 4 | 400263 | 螺母(M5)滤网螺钉 | NUT (M5) SCREEN SCREW | 1 |
| 5 | 41326 | 滚柱轴承上 | BEARING Roller UPPER | 1 |
| 6 | 99325 | 齿轮箱密封件 | SEAL GEAR HOUSING | 2 |
| 7 | 85500 | PIN Dowel (.187 x .530) GEAR HOUSING | 2 | |
| 7 | 8M0084726 | 定位销 | PIN Dowel | 2 |
| 8 | 98294A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 98302 | 小齿轮 | GEAR Pinion | 1 |
| 10 | 49908 | 小齿轮螺钉(0.250-28x0.75英寸) | SCREW (.250-28 x .750) PINION GEAR | 1 |
| 11 | 99199 | 驱动轴(短轴) | DRIVESHAFT (SHORT SHAFT) | 1 |
| 11 | 99198 | 驱动轴(长轴) | DRIVESHAFT (LONG SHAFT) | 1 |
| 13 | 14834A1 | 磁性放油螺钉 | SCREW DRAIN - MAGNETIC | 1 |
| 13 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 14 | 28634A1 | 润滑脂加注螺钉套件 | SCREW KIT GREASE FILLER | 1 |
| 14 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 15 | 805726 | O型圈(放油/加注螺钉用) | O-RING Rubber DRAIN AND FILLER SCREW | 2 |
| 15 | 8M0204684 | 橡胶O型圈 | O-RING Rubber | 2 |
| 16 | 85562A1 | 凸轮总成(无钢印) | CAM ASSEMBLY (NO STAMPING) | 1 |
| 16 | 85562A2 | 换挡凸轮(钢印85662--1) | SHIFT CAM (STAMPED 85662--1) | 1 |
| 17 | 85096 | 驱动销 | PIN Drive | 1 |
| 18 | 85593 | 销(.078 x .437) | PIN (.078 x .437) | 1 |
| 19 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 19 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 20 | 93007 | 弹簧 | SPRING | 1 |
| 21 | 85091 | 垫圈 | WASHER | 1 |
| 22 | 85594 | O型圈(.239 x .174) | O-RING (.239 x .174) | 1 |
| 23 | 35276 | O型圈(.734 x .139) | O-RING (.734 x .139) | 1 |
| 24 | 93878 | 固定座 | RETAINER | 1 |
| 25 | 85552 | 换档轴防尘罩 | BOOT SHIFT SHAFT | 1 |
| 25 | 85552001 | 护套 | BOOT | 1 |
| 26 | 85126 | 换挡轴(短轴) | SHIFT SHAFT (SHORT SHAFT) | 1 |
| 26 | 86293 | 换挡轴(长轴) | SHIFT SHAFT (LONG SHAFT) | 1 |
| 27 | 993261 | 水泵衬垫 | GASKET WATER PUMP | 1 |
| 28 | 85083 | 面板 | FACE PLATE | 1 |
| 29 | 86645 | 叶轮垫圈 | WASHER IMPELLER | 2 |
| 29 | 8M0204722 | 垫圈 | WASHER | 2 |
| 30 | 85119 | 叶轮驱动键 | KEY IMPELLER DRIVE | 1 |
| 30 | 8M0214993 | 键@5 | KEY @5 | 1 |
| 31 | 850893 | 叶轮 | IMPELLER | 1 |
| 31 | 8M0204712 | 叶轮 | IMPELLER | 1 |
| 32 | 69202 | 水泵O型圈 | O-RING WATER PUMP | 1 |
| 33 | 99157A1 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 33 | 99157A02 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 34 | 90883 | 螺钉(M5×16)(16毫米)-与参考号36配套使用 | SCREW (M5 x 16) (16MM)- Use with Reference #36 | 4 |
| 35 | 89302 | 垫圈(0.203×0.406×0.040)-与参考号36配套使用 | WASHER (.203 x .406 x .040) Use with Reference #36 | 4 |
| 36 | 85095 | 衬套-与参考号36配套使用 | BUSHING Use with Reference #36 | 4 |
| 36 | 8M0214959 | 衬套@5 | BUSHING @5 | 4 |
| 34 | 4000328 | 螺钉(M6×16)-不与参考号36配套使用 | SCREW (M6 x 16) Use without Reference #36 | 4 |
| 34 | 8M0214928 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 35 | 29245 | 不锈钢垫圈(0.281×0.500×0.060)-不与参考号36配套使用 | WASHER (.281 x .500 x .060) Stainless Steel Use without Reference #36 | 4 |
| 35 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 37 | 85090 | 水管密封件 | SEAL WATER TUBE | 1 |
| 37 | 85090001 | 密封件 | SEAL | 1 |
| 38 | 86203 | 橡胶传动轴O型圈 | O-RING DRIVE SHAFT - RUBBER | 1 |
| - | 99157A2 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 99157T2 | 水泵套件 | PUMP KIT Water | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |

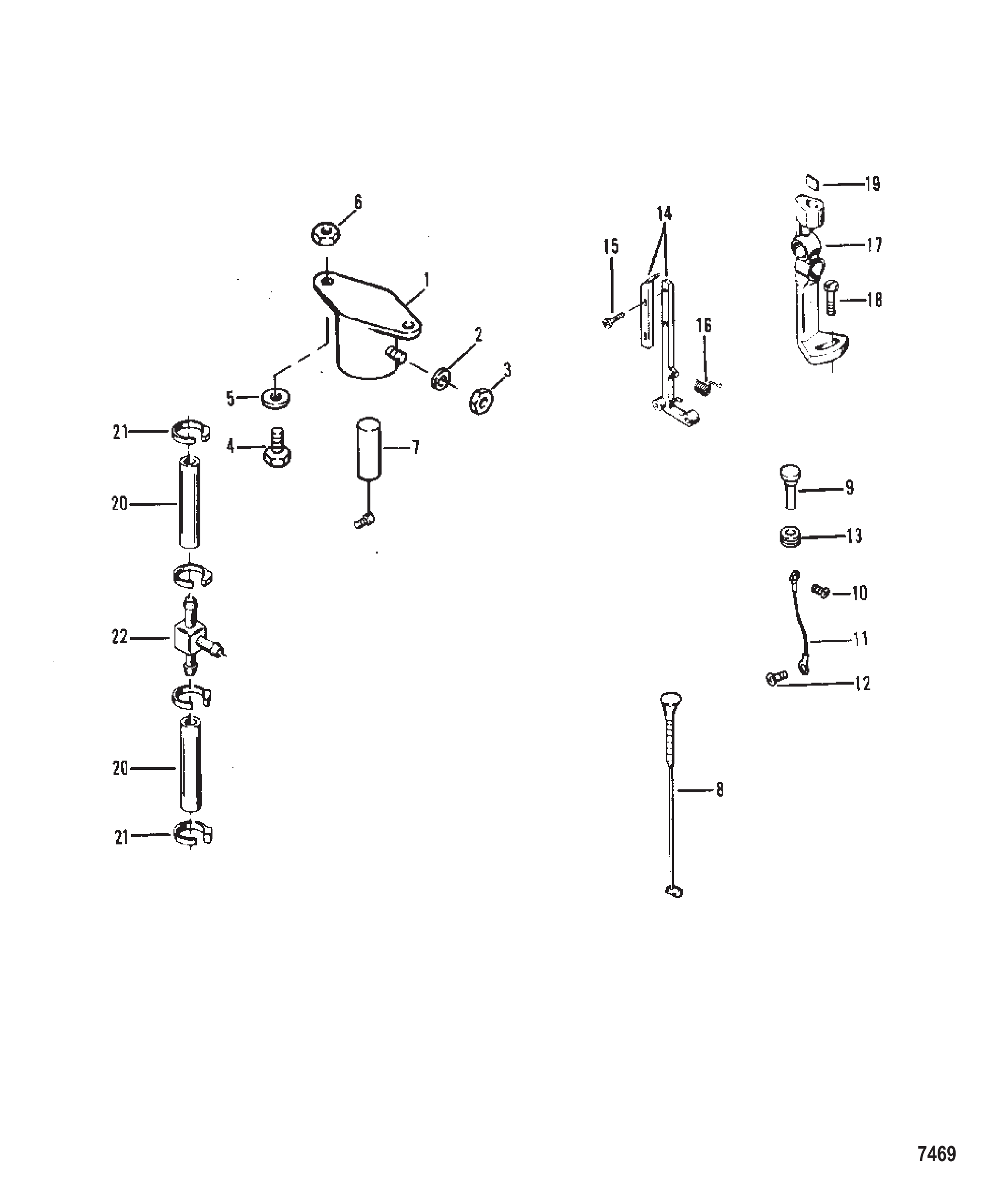

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 54293A11 | 阻风门电磁阀总成 | SOLENOID ASSEMBLY Choke | 1 |
| 2 | 26996 | LOCKWASHER (#10) Stainless Steel Choke Solenoid Terminal | 1 | |
| 3 | 45076 | NUT (#10-32) Brass Choke Solenoid Terminal | 1 | |
| 4 | 26066 | 阻风门电磁阀至前支架螺钉(.312-24 x 1.75) | SCREW (.312-24 x 1.75) Choke Solenoid to Front Bracket | 2 |
| 5 | 26993 | 阻风门电磁阀螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Choke Solenoid Screw | 2 |
| 5 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 6 | 22053 | 阻风门电磁阀螺钉螺母(.312-24) | NUT (.312-24) Choke Solenoid Screw | 2 |
| 7 | 56074A8 | 阻风门电磁阀柱塞总成 | PLUNGER ASSEMBLY Choke Solenoid | 1 |
| 8 | 90241 | 阻风门旋钮 | KNOB Choke | 1 |
| 9 | 90242A1 | 旋钮总成 | KNOB ASSEMBLY | 1 |
| 10 | 35519 | 拉带至阻风门旋钮螺钉(#10-16 x .500) | SCREW (#10-16 x .500) Strap to Choke Knob | 1 |
| 11 | 49589 | 阻风门旋钮至拉杆拉带 | STRAP Choke Knob to Choke Rod | 1 |
| 12 | 62568 | 拉带至阻风门拉杆螺钉(#10-16 x .375) | SCREW (#10-16 x .375) Strap to Choke Rod | 1 |
| 13 | 20116 | GROMMET Choke Knob | 1 | |
| 14 | 85966A1 | 阻风门拉杆总成 | ROD ASSEMBLY Choke | 1 |
| 15 | 86042 | 阻风门拉杆螺钉 | SCREW Choke Rod | 2 |
| 15 | 77614A1 | 螺钉套件 | SCREW KIT | 2 |
| 16 | 60288 | 阻风门拉杆弹簧 | SPRING Choke Rod | 1 |
| 17 | 53719A2 | 拾取支架总成 | BRACKET ASSEMBLY Pick Up | 1 |
| 18 | 66104 | 拾取支架螺钉(#8-32 x .790) | SCREW (#8-32 x .790) Pick-Up Bracket | 1 |
| 19 | 89694 | 联轴器键 | KEY Coupling | 1 |
| 20 | 99127109 | 化油器三通燃油管(57.00英寸散装) | LINE (57.00 Inches Bulk) Carburetor to Tee to Carburetor | 2 |
| 20 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 2 |
| 21 | 90077 | 燃油管束带 | TIE STRAP Fuel Line | AR |
| 21 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 22 | 73318 | 塑料燃油三通 | TEE Plastic Fuel Line | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

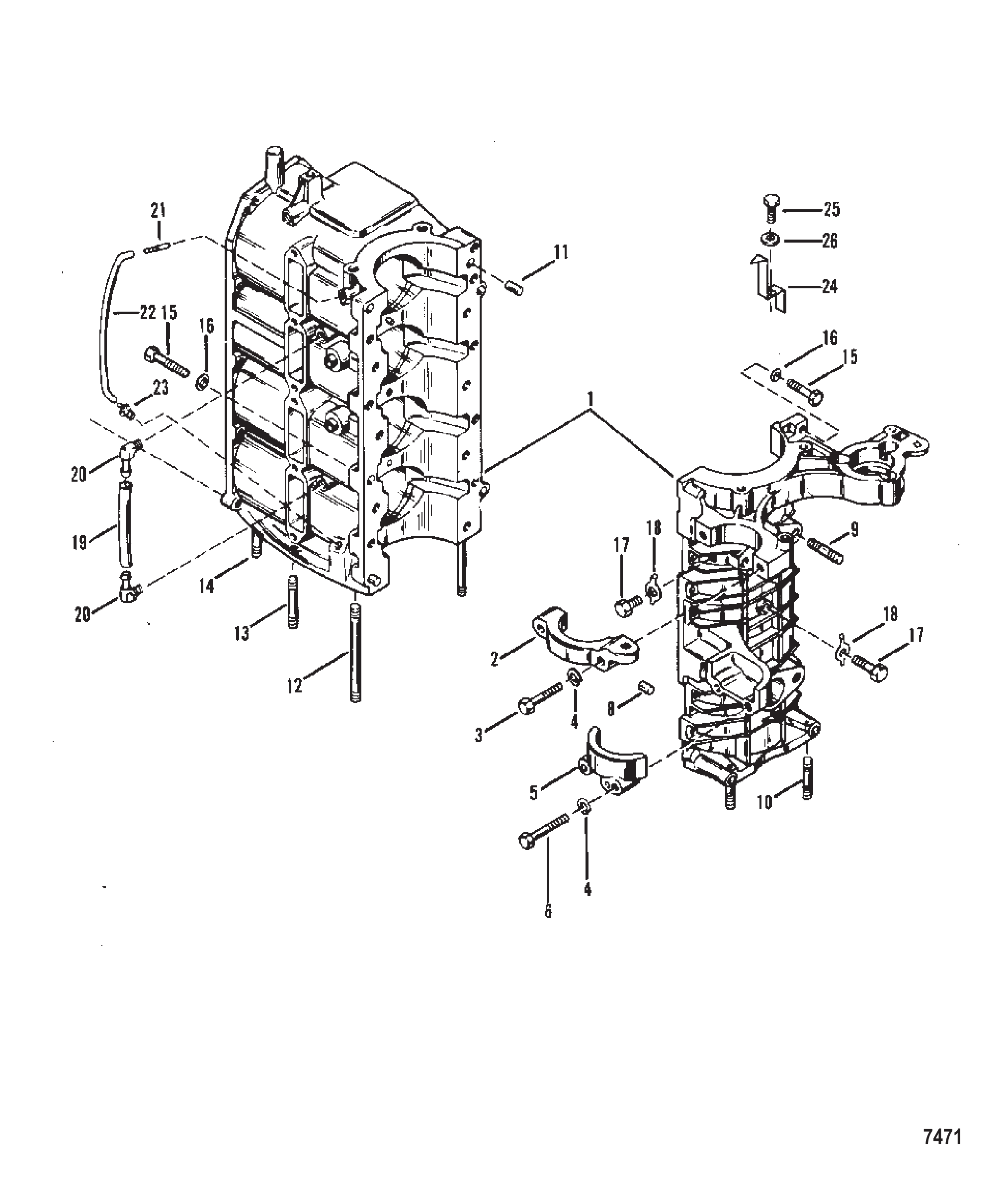

| 1 | 8981A6 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 72038 | 启动电机上支架 | BRACKET Upper Starter Motor | 1 |
| 3 | 73279 | 支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch) | 2 |
| 4 | 26993 | 支架螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Bracket Screw | 4 |
| 4 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 5 | 76867 | 启动电机下盖 | COVER Lower Starter Motor | 1 |
| 6 | 73279 | 盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch) | 2 |
| 8 | 20032 | 缸体至主轴承定位销 | PIN Dowel Cylinder block to main bearing | 2 |
| 9 | 68164 | 化油器双头螺柱(1.25英寸) | STUD Carburetor (1.25 Inch) | 4 |
| 9 | 64936 | 螺柱 | STUD | 4 |
| 10 | 68165 | 曲轴箱至驱动轴壳体双头螺柱(1.625英寸) | STUD Crankcase to Driveshaft Housing (1.625 Inch) | 2 |
| 11 | 20033 | 曲轴箱至缸体定位销 | PIN Dowel Crankcase to Cylinder Block | 2 |
| 11 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 12 | 87901 | 缸体至驱动轴壳体双头螺柱(4英寸) | STUD Cylinder block to drive shaft housing (4 Inch) | 2 |
| 13 | 68166 | 缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸) | STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch) | 2 |
| 14 | 68167 | 缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸) | STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch) | 2 |
| 15 | 73657 | 曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸) | SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch) | 13 |
| 15 | 31984 | 曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸) | SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch) | 3 |
| 15 | 73275 | 曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸) | SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch) | 2 |
| 16 | 70132 | 曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063) | WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw | 17 |
| 16 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 17 |
| 17 | 20359 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 1 |
| 17 | 98260 | 螺钉(.375-16 x .620) | SCREW (.375-16 x .620) | 2 |
| 18 | 20091 | 中央轴承锁紧螺钉止动垫圈 | TAB WASHER Center Bearing Locking Screw | 3 |
| 19 | 99127109 | 平衡管(57英寸散装)-主轴承(5.50英寸) | LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch) | 1 |
| 19 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 20 | 99664 | 平衡管至缸体弯头 | ELBOW Balance Tube to Cylinder Block | 2 |
| 20 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 2 |
| 21 | 65857 | 上部泄放软管接头 | CONNECTOR Upper Bleed Hose | 1 |
| 21 | 56759 | 倒钩接头 | FITTING Barbed | 1 |
| 22 | 9938779 | 气缸泄放软管(11英寸) | HOSE Cylinder Bleed (11 Inch) | 1 |
| 23 | 42867 | 下部泄放软管止回阀 | CHECK VALVE Lower Bleed Hose | 1 |
| 23 | 428671 | 止回阀 | CHECK VALVE | 1 |
| 24 | 99156 | 正时指示器 | INDICATOR Timing | 1 |
| 25 | 39349 | 指示器至曲轴箱不锈钢螺钉(.312-18 x .750) | SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase | 1 |
| 26 | 26993 | 指示器螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Indicator Screw | 1 |
| 26 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| - | 97469A87 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 97469T87 | 船用动力头 | POWERHEAD MARINE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

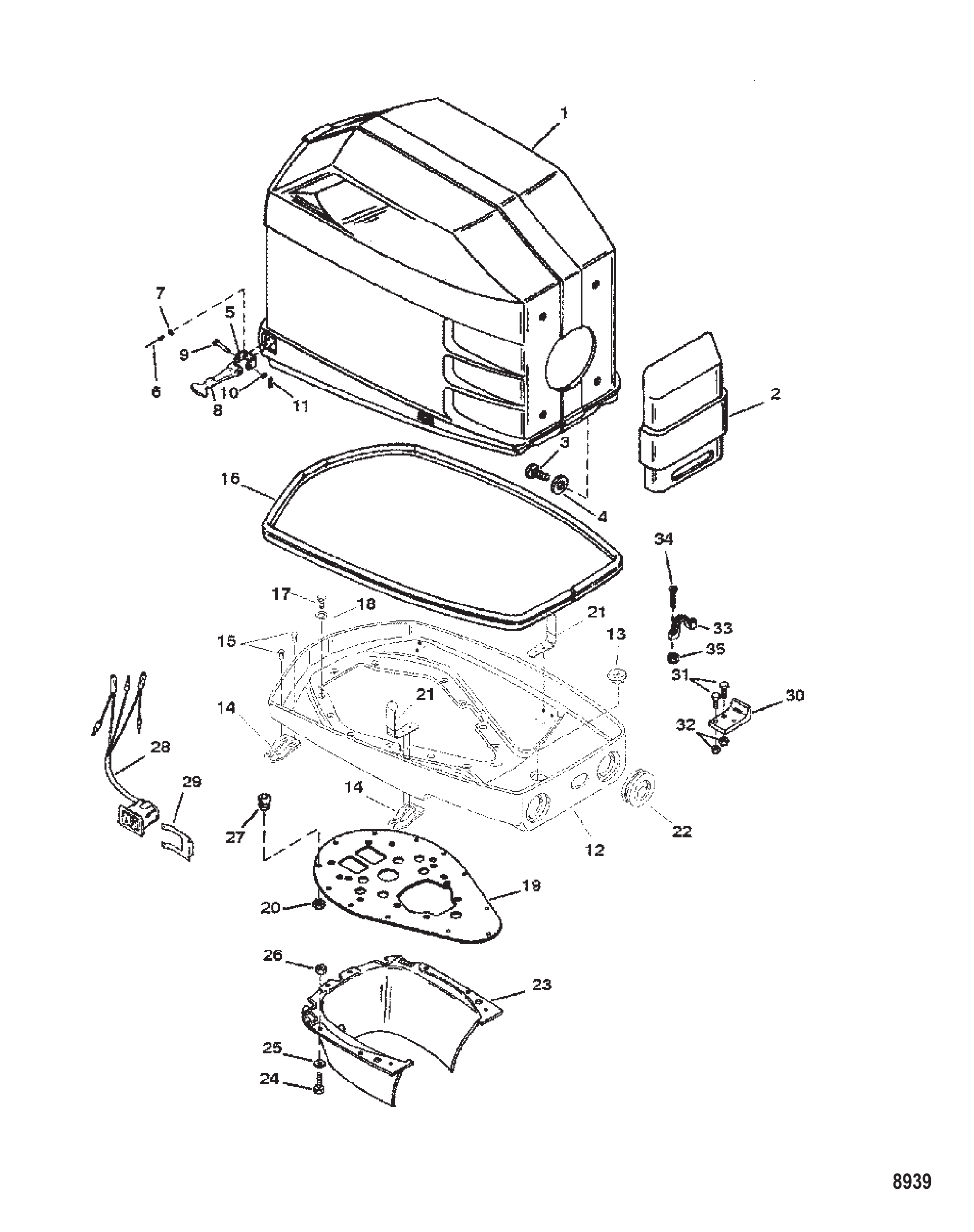

| 1 | 817704A22 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 817704A23 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 817704T23 | 灰色顶罩 | COWL-TOP-GRAY | 1 |
| 2 | 817706A3 | 前盖 | FRONT COVER | 1 |
| 2 | 817706A4 | 前盖 | FRONT COVER | 1 |
| 3 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 4 |
| 4 | 22887 | 垫圈 | WASHER | 4 |
| 5 | 71602 | 轭架 | YOKE | 4 |
| 5 | 8M0192198 | 轭架 | YOKE | 4 |
| 5 | 716021 | 轭架 | YOKE | 4 |
| 6 | 816771 | 铆钉 | RIVET | 12 |
| 7 | 847883 | 垫圈(0.192x0.375x0.033) | WASHER (.192 x .375 x .033) | 12 |
| 8 | 817708 | 压紧件 | HOLD DOWN | 4 |
| 9 | 58712 | U型销 | PIN Clevis | 4 |
| 10 | 847883 | 垫圈(0.192x0.375x0.033) | WASHER (.192 x .375 x .033) | 4 |
| 11 | 21071 | 开口销 | COTTER PIN | 4 |
| 11 | 210711 | 开口销 | COTTER PIN | 4 |
| 12 | 848164A7 | 底壳 | BOTTOM PAN | 1 |
| 12 | 848164T7 | 黑色底罩 | COWL-BOTTOM-BLACK | 1 |
| 12 | 817709A13 | 底壳 | BOTTOM PAN | 1 |
| 12 | 848164T8 | 灰色底罩 | COWL-BOTTOM-GRAY | 1 |
| 13 | 815784 | 盖帽 | CAP | 2 |
| 14 | 13734 | 固定座 | RETAINER | 4 |
| 14 | 8M0192190 | 固定座 | RETAINER | 4 |
| 14 | 137341 | 固定座 | RETAINER | 4 |
| 15 | 848172 | 开口铆钉 | RIVET (POP-OPEN) | 16 |
| 16 | 8177121 | 密封条(6.79英尺大卷) | SEAL (6.79 Feet Bulk) | 1 |
| 16 | 817712003 | 密封条(6.79英尺) | SEAL (6.79 Feet) | 1 |
| 17 | 38601 | 螺丝(.250-28 x 1.250) | SCREW (.250-28 x 1.250) | 11 |
| 18 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 11 |
| 18 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 11 |
| 19 | 8221882 | 安装板 | PLATE | 1 |
| 19 | 822188T2 | 安装板 | PLATE | 1 |
| 20 | 35045 | 螺母(.250-28) | NUT (.250-28) | 11 |
| 20 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 11 |
| 21 | 848165 | 支撑架 | BRACE | 2 |
| 22 | 8177131 | 护孔环 | GROMMET | 2 |
| 22 | 8177133 | 护孔环 | GROMMET | 2 |
| 23 | 847894A1 | 围板 | SKIRT | 1 |
| 23 | 847894T1 | 黑色围板 | SKIRT-BLACK | 1 |
| 23 | 847894A2 | 围板 | SKIRT | 1 |
| 24 | 69028 | 螺钉（.250-28 x .750）不锈钢 | SCREW (.250-28 x .750) Stainless Steel | 8 |
| 25 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 16 |
| 26 | 35045 | 螺母(.250-28) | NUT (.250-28) | 8 |
| 26 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 8 |
| 27 | 126021 | 护孔环 | GROMMET | 1 |
| 27 | 12602002 | 护孔环 | GROMMET | 1 |
| 28 | 18286A40 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 28 | 8M0235192 | 微调开关 | SWITCH TRIM | 1 |
| 29 | 8124431 | 固定座 | RETAINER | 1 |
| 29 | 8M0032848 | 开关固定座 | RETAINER Switch | 1 |
| 30 | 847897 | 燃油接头支架 | BRACKET Fuel Connector | 1 |
| 31 | 28668 | 螺钉 (.250-20 x .875) 不锈钢 | SCREW (.250-20 x .875) Stainless Steel | 2 |
| 32 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 2 |
| 32 | 8M0207776 | 螺母 | NUT | 2 |
| 33 | 88621 | 固定座(按需使用) | RETAINER (Use where Applicable) | 1 |
| 34 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 2 |
| 34 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 2 |
| 35 | 29488 | 螺母 (#10-32) | NUT (#10-32) | 2 |
| 35 | 8M0204718 | 螺母 | NUT | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

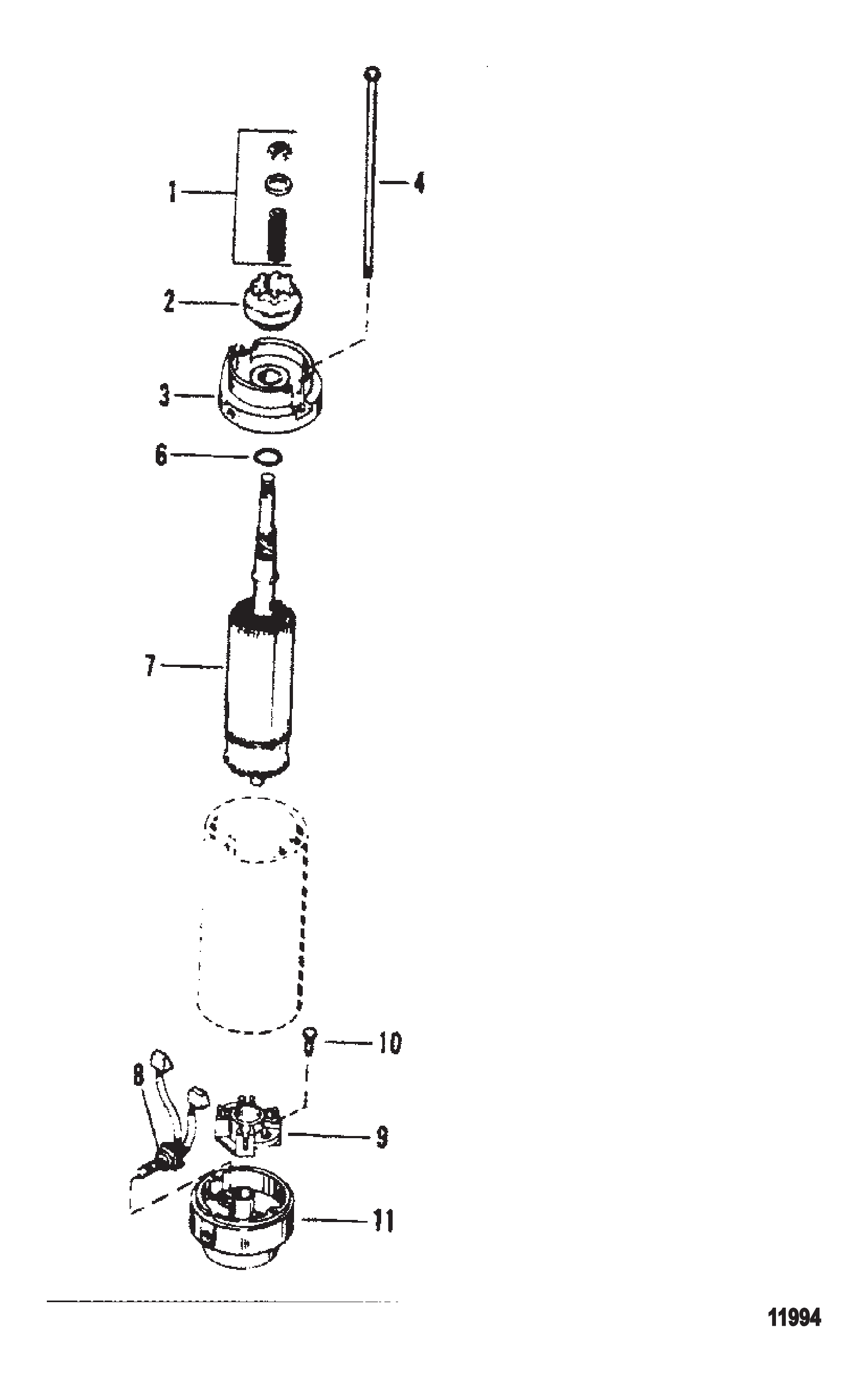

| - | 79472 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| - | 893893 | 启动马达 | STARTER MOTOR | 1 |
| 1 | 90645 | 驱动套件 | DRIVE KIT | 1 |
| 2 | 75661 | 驱动小齿轮总成 | PINION ASSEMBLY Drive | 1 |
| 2 | 13310T1 | 小齿轮总成 | PINION ASSEMBLY | 1 |
| 3 | 75660 | 驱动端板 | PLATE DRIVE END | 1 |
| 4 | 74968 | 贯穿螺栓 | BOLT THRU | 2 |
| 6 | N.S.S. | 不单独出售垫圈 | Not Sold Separate Washer | 1 |
| 7 | 79216 | 电枢 | ARMATURE | 1 |
| 8 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 9 | 61787 | 电刷架 | HOLDER BRUSH | 2 |
| 9 | 898265014 | 电刷支架 | HOLDER-BRUSH | 2 |
| 10 | N.S.S. | 不单独出售螺钉 | Not Sold Separate Screw | 2 |
| 11 | 15386 | 换向器端盖 | END CAP COMMUTATOR | 1 |
| 11 | 15386001 | 端盖 | END CAP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

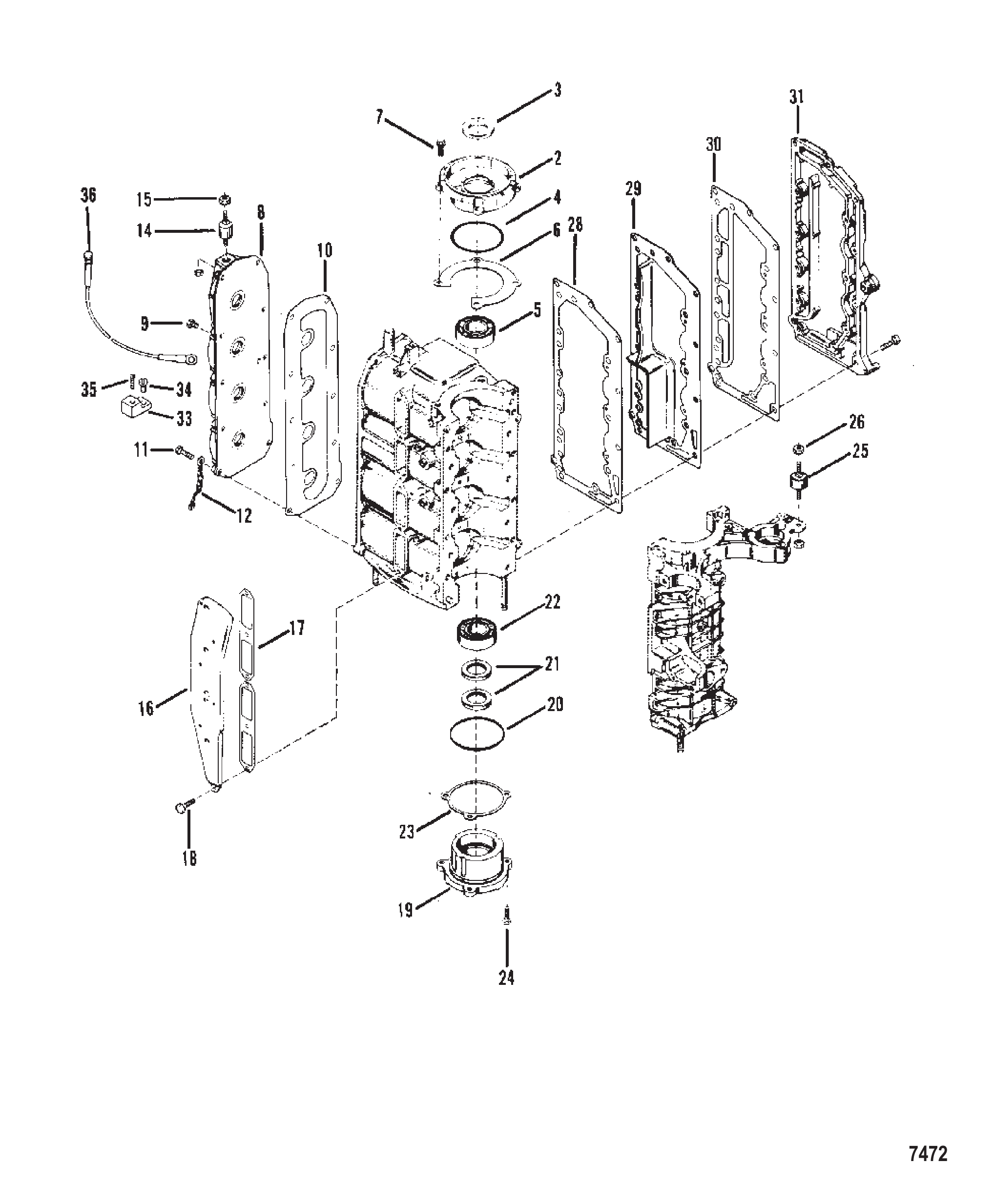

| 2 | 5826A2 | 上端盖总成 | END CAP ASSEMBLY Upper | 1 |
| 3 | 41953 | SEAL Upper End Cap | 1 | |
| 4 | 20081 | 上端盖O型圈 | O-RING Upper End Cap | 1 |
| 5 | 63742 | 上端盖滚珠轴承 | BEARING Ball Upper End Cap | 1 |
| 5 | 63742T | 滚珠轴承 | BEARING Ball | 1 |
| 6 | 72538A1 | 上端盖垫片(.005-10) | SHIM Upper End Cap (.005-10) | AR |
| 7 | 73274 | 上端盖螺丝(0.75英寸) | SCREW Upper End Cap (0.75 Inch) | 4 |
| 7 | 824941 | 螺钉 (0.312-18 x 0.750) | SCREW (.312-18 x .750) | 4 |
| 8 | 8360A1 | 气缸体盖总成 | COVER ASSEMBLY Cylinder Block | 1 |
| 9 | 32802 | PLUG Pipe (.125-27) Cylinder Block Cover | 1 | |
| 9 | 328022 | 黄铜管塞 (.125-27) | PLUG Pipe (.125-27) Brass | 1 |
| 10 | 437772 | 气缸体盖衬垫 | GASHET Cylinder Block Cover | 1 |
| 11 | 69100 | 气缸体盖螺丝(1英寸) | SCREW Cylinder Block Cover (1 Inch) | 10 |
| 11 | 8M0214943 | 螺钉 | SCREW | 10 |
| 12 | 46933A7 | 拉线总成 | CABLE ASSEMBLY | 2 |
| 14 | 90435 | 气缸体盖橡胶支座 | MOUNT Rubber - Cylinder Block Cover | 1 |
| 15 | 20184 | NUT (1/4-28X7/32) Rubber Mount | 2 | |
| 15 | 8M0207775 | 螺母 @5 | NUT @5 | 2 |
| 16 | 18827A1 | 换气口盖总成 | COVER ASSEMBLY Transfer Port | 1 |
| 17 | 279361 | 换气口盖垫片 | GASKET Transfer Port Cover | 2 |
| 18 | 90198 | 换气口盖螺丝(0.625英寸) | SCREW Transfer Port Cover (0.625 Inch) | 6 |
| 18 | 20540 | 螺钉(.250-20 x .62) | SCREW (.250-20 x .62) | 6 |
| 19 | 6635A1 | 下端盖总成 | END CAP ASSEMBLY Lower | 1 |
| 19 | 6635T1 | 端盖 | END CAP | 1 |
| 20 | 20081 | 下端盖O型圈 | O-RING Lower End Cap | 1 |
| 21 | 41953 | SEAL Lower End Cap | 2 | |
| 22 | 63742 | 下端盖滚珠轴承 | BEARING Ball Lower End Cap | 1 |
| 22 | 63742T | 滚珠轴承 | BEARING Ball | 1 |
| 23 | 20085A1 | 下端盖垫片组(.005-10) | SHIM SET Lower End Cap (.005-10) | AR |
| 24 | 29256 | 下端盖螺丝(.312-18 x 0.875) | SCREW (.312-18 x .875) Lower End Cap | 3 |
| 25 | 90435 | 曲轴箱橡胶支座 | MOUNT Rubber - Crankcase | 2 |
| 26 | 20184 | NUT (1/4-28X7/32) Rubber Mount | 4 | |
| 26 | 8M0207775 | 螺母 @5 | NUT @5 | 4 |
| 28 | 854912 | 气缸体至隔板衬垫 | GASKET Cylinder Block to Baffle Plate | 1 |
| 28 | 854913 | 衬垫 | GASKET | 1 |
| 29 | 90421 | 挡板 - 排气歧管 | PLATE Baffle - Exhaust Manifold | 1 |
| 29 | 90421T01 | 挡板 | PLATE-BAFFLE | 1 |
| 30 | 854922 | 隔板至排气盖衬垫 | GASKET Baffle Plate to Exhaust Cover | 1 |
| 30 | 854924 | 衬垫 | GASKET | 1 |
| 31 | 77381 | 排气歧管盖 | COVER Exhaust Manifold | 1 |
| 32 | 37562 | 不锈钢歧管盖至气缸体螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) Stainless Steel Manifold Cover to Cylinder Block | 14 |
| 32 | 38837 | 歧管盖至气缸体螺丝(.312-18 x 1.12) | SCREW (.312-18 x 1.12) Manifold Cover to Cylinder Block | 1 |
| 33 | 45915 | 端子排 | TERMINAL BLOCK | 1 |
| 34 | 62568 | 接线端子螺丝(#10-16 x 0.375) | SCREW (#10-16 x .375) Terminal Block | 1 |
| 35 | 28192 | 接线端子螺丝(#10-24 x 0.50) | SCREW (#10-24 x .50) Terminal Block | 1 |
| 35 | 72169 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 1 |
| 36 | 96829A1 | 温度开关总成260棕 | SWITCH ASSEMBLY Temperature 260 Tan | 1 |
| 36 | 16775A2 | 温度开关300棕绿 | TEMPERATURE SWITCH 300 Tan and Green | 1 |
| 36 | 16775A1 | 温度开关总成 | SWITCH ASSY-TEMP | 1 |
| - | 85491A87 | 衬垫套件 | GASKET SET | 1 |
| - | 85491A90 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

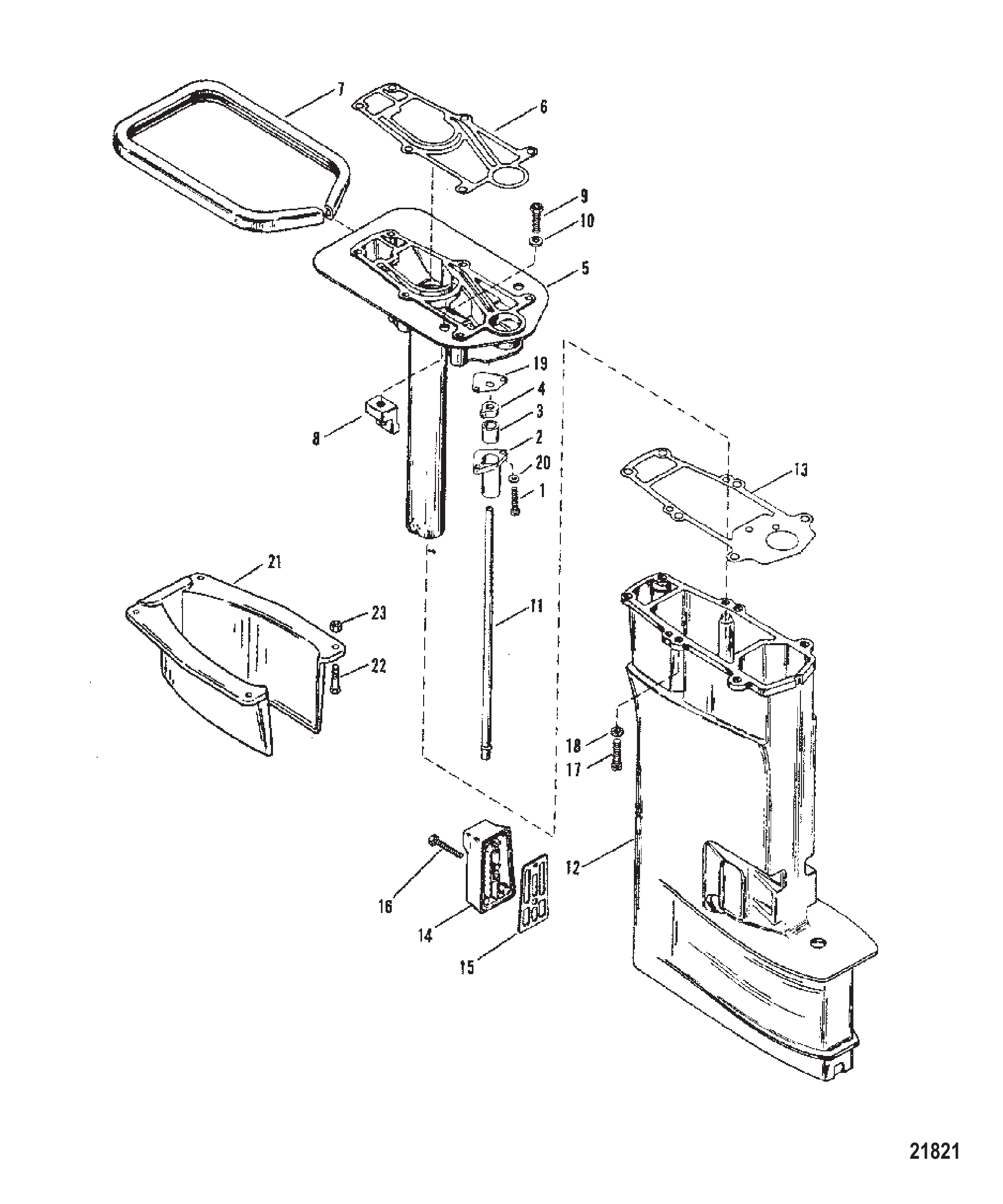

| 1 | 400035 | 螺丝 M5×16(配合参考号20使用) | SCREW (M5 x 16) (Use W/Reference #20) | 2 |
| 1 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 2 | 96248A1 | 水管壳体总成 | HOUSING ASSEMBLY WATER TUBE | 1 |
| 3 | 25329 | 水管密封件 | SEAL WATER TUBE | 1 |
| 4 | 96247 | 水管隔套 | SPACER WATER TUBE | 1 |
| 4 | 889715 | 水管隔套 | SPACER Water Tube | 1 |
| 5 | 99702A6 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 5 | 99702A7 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 6 | 416704 | 适配板垫片 | GASKET ADAPTOR PLATE | 1 |
| 6 | 41670006 | 适配板垫片 | GASKET Adaptor Plate | 1 |
| 7 | 158662 | 适配板密封件 | SEAL ADAPTOR PLATE | 1 |
| 8 | 41211 | 上支架托架 | BRACKET UPPER MOUNT | 2 |
| 9 | 40011128 | 螺丝 M6×20不锈钢(不配合参考号10使用) | SCREW (M6 x 20) Stainless Steel (Use Without Reference #10) | 2 |
| 9 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 9 | 40007128 | 螺丝 M6×20(配合参考号10使用) | SCREW (M6 x 20) (Use With Reference #10) | 2 |
| 10 | 29245 | 垫圈（0.281 x 0.500 x 0.060）不锈钢（适用处使用） | WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE) | 2 |
| 10 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 11 | 85116 | 水管(短轴) | TUBE Water (SHORT SHAFT) | 1 |
| 11 | 86292 | 水管(长轴) | TUBE Water (LONG SHAFT) | 1 |
| 12 | 9097A2 | 驱动轴壳体总成(短轴)(黑色) | HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (BLACK) | 1 |
| 12 | 9097T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9098A2 | 驱动轴壳体总成(长轴)(黑色) | HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (BLACK) | 1 |
| 12 | 9098T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097A3 | 驱动轴壳体总成(短轴)(灰色) | HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (GRAY) | 1 |
| 12 | 9097T6 | 驱动轴壳体-灰色 | DRIVESHAFT HSG-GR | 1 |
| 12 | 9098A3 | 驱动轴壳体总成(长轴)(灰色) | HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (GRAY) | 1 |
| 12 | 9098A6 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097A4 | 驱动轴壳体总成(短轴)(TRACKER) | HOUSING ASSEMBLY Driveshaft (SHORT) (TRACKER) | 1 |
| 12 | 9098A4 | 驱动轴壳体总成(长轴)(TRACKER) | HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER) | 1 |
| 12 | 9098T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 13 | 433373 | 驱动轴壳体垫片 | GASKET DRIVE SHAFT HOUSING | 1 |
| 13 | 433374 | 驱动轴壳体垫片 | GASKET Drive Shaft Housing | 1 |
| 14 | 14534 | 怠速泄压盖 | COVER IDLE RELIEF | 1 |
| 15 | 14621 | 盖衬垫 | GASKET COVER | 1 |
| 16 | 14742 | 盖螺钉(.250-20 x 1.25) | SCREW (.250-20 x 1.25) COVER | 1 |
| 17 | 4000360 | 驱动轴壳体至缸体螺钉(60mm) | SCREW DRIVE SHAFT HOUSING TO BLOCK (60 MM) | 6 |
| 17 | 1993870 | 螺钉(M8 x 70) | SCREW (M8 x 70) | 6 |
| 18 | 4002317 | 驱动轴壳体螺钉垫圈(8.90 X 17.0 X 1.9不锈钢) | WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW | 6 |
| 19 | 19583 | 衬垫(按需使用) | GASKET (USE WHERE APPLICABLE) | 1 |
| 19 | 433373 | 衬垫 | GASKET | 1 |
| 20 | 30164 | 壳体螺钉垫圈(.192 x .375 x .0312不锈钢) | WASHER (.192 x .375 x .0312) Stainless Steel HOUSING SCREW | 2 |
| 21 | 17258T | 配平盖(黑色) | TRIM COVER (BLACK) | 1 |
| 21 | 17258T6 | 配平盖(灰色) | TRIM COVER (GRAY) | 1 |
| 21 | 17258T | 配平盖 | TRIM COVER | 1 |
| 21 | 17258F4 | 配平盖(追踪器型) | TRIM COVER (TRACKER) | 1 |
| 21 | 17258T | 配平盖 | TRIM COVER | 1 |
| 22 | 40011128 | 配平盖螺钉(M6 x 20不锈钢) | SCREW (M6 x 20) Stainless Steel TRIM COVER | 4 |
| 22 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 23 | 401196 | 配平盖螺钉螺母(M6) | NUT (M6) TRIM COVER SCREW | 4 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |

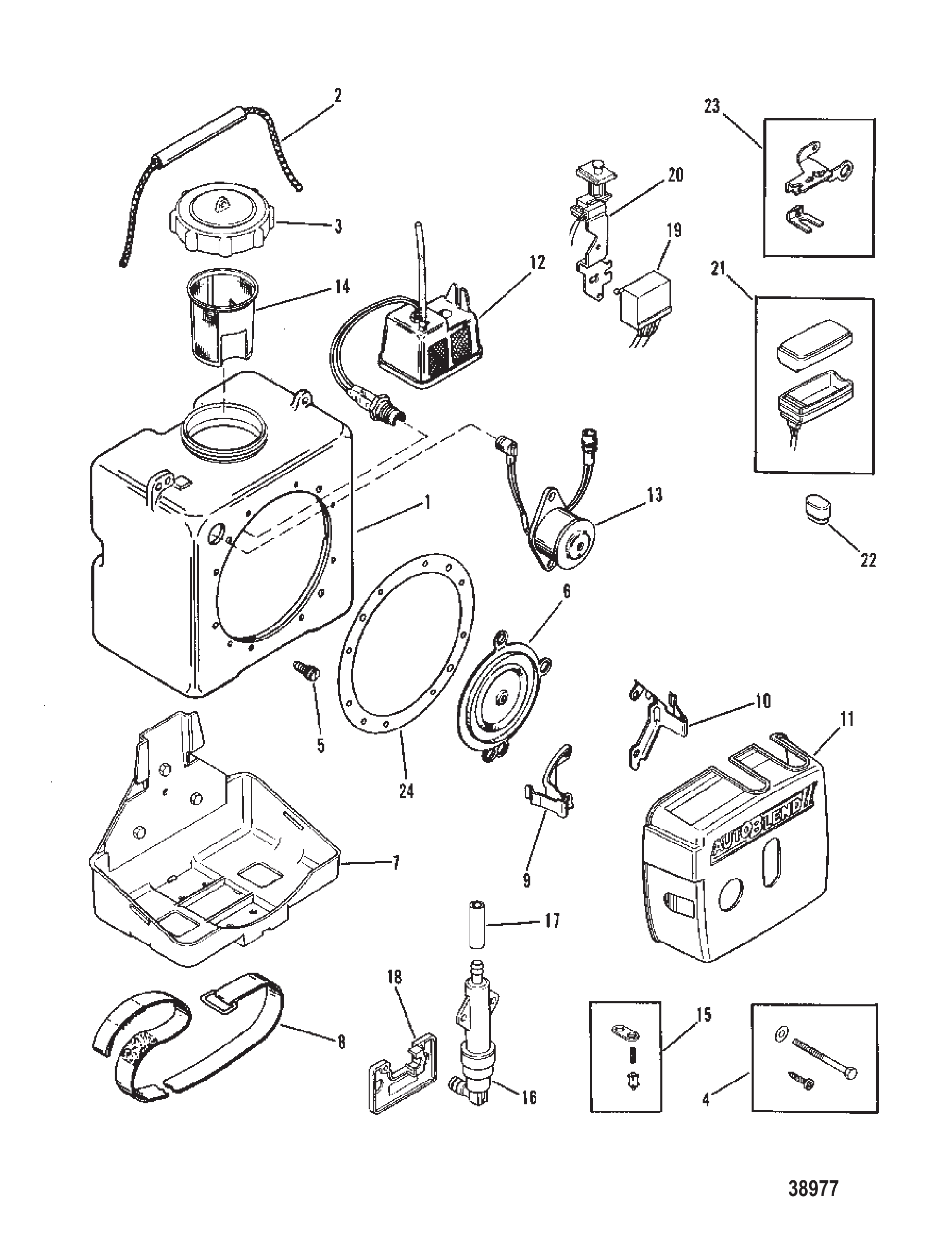

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 130195 | 自动混合装置 | AUTO BLEND ASSEMBLY | 1 |
| 1 | 16612 | 油箱套件 机油 | TANK KIT Oil | 1 |
| 2 | 13996 | 手柄套件 | HANDLE KIT | 1 |
| 3 | 16619 | 机油箱盖 | CAP OIL TANK | 1 |
| 4 | 16614 | 五金件套件 | HARDWARE KIT | 1 |
| 5 | 13979 | 放油塞套件 | PLUG KIT Drain | 1 |
| 6 | 16611 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 7 | 16620 | 安装支架套件 | BRACKET KIT Mounting | 1 |
| 8 | 13993 | 箍带 | BAND | 1 |
| 9 | 13983 | 支架(左) | BRACKET (LEFT) | 1 |
| 10 | 13984 | 支架(右) | BRACKET (RIGHT) | 1 |
| 11 | 16626 | 盖板 | COVER | 1 |
| 12 | 16624 | 机油滤清器及液位传感器套件 | SENSOR KIT Oil Filter And Level | 1 |
| 13 | 16625 | 喇叭套件 | HORN KIT | 1 |
| 14 | 16618 | 机油滤网 | STRAINER Oil | 1 |
| 15 | 16615 | 止回阀套件 | CHECK VALVE KIT | 1 |
| 16 | 18576 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 17 | 13992 | 乙烯基软管 | VINYL TUBE | 1 |
| 18 | 16621 | 安装板 | PLATE | 1 |
| 19 | 16627 | 模块套件 | MODULE KIT | 1 |
| 20 | 16628 | 测试按钮套件 | TEST BUTTON KIT | 1 |
| 21 | 16629 | 电池盒套件(使用9伏电池) | CASE KIT Battery (USE 9 VOLT BATTERY) | 1 |
| 22 | 16630 | 密封圈套件 | GROMMET KIT | 1 |
| 23 | 16631 | 支架套件 | BRACKET KIT | 1 |
| 24 | 16616 | 衬垫套件 | GASKET KIT | 1 |

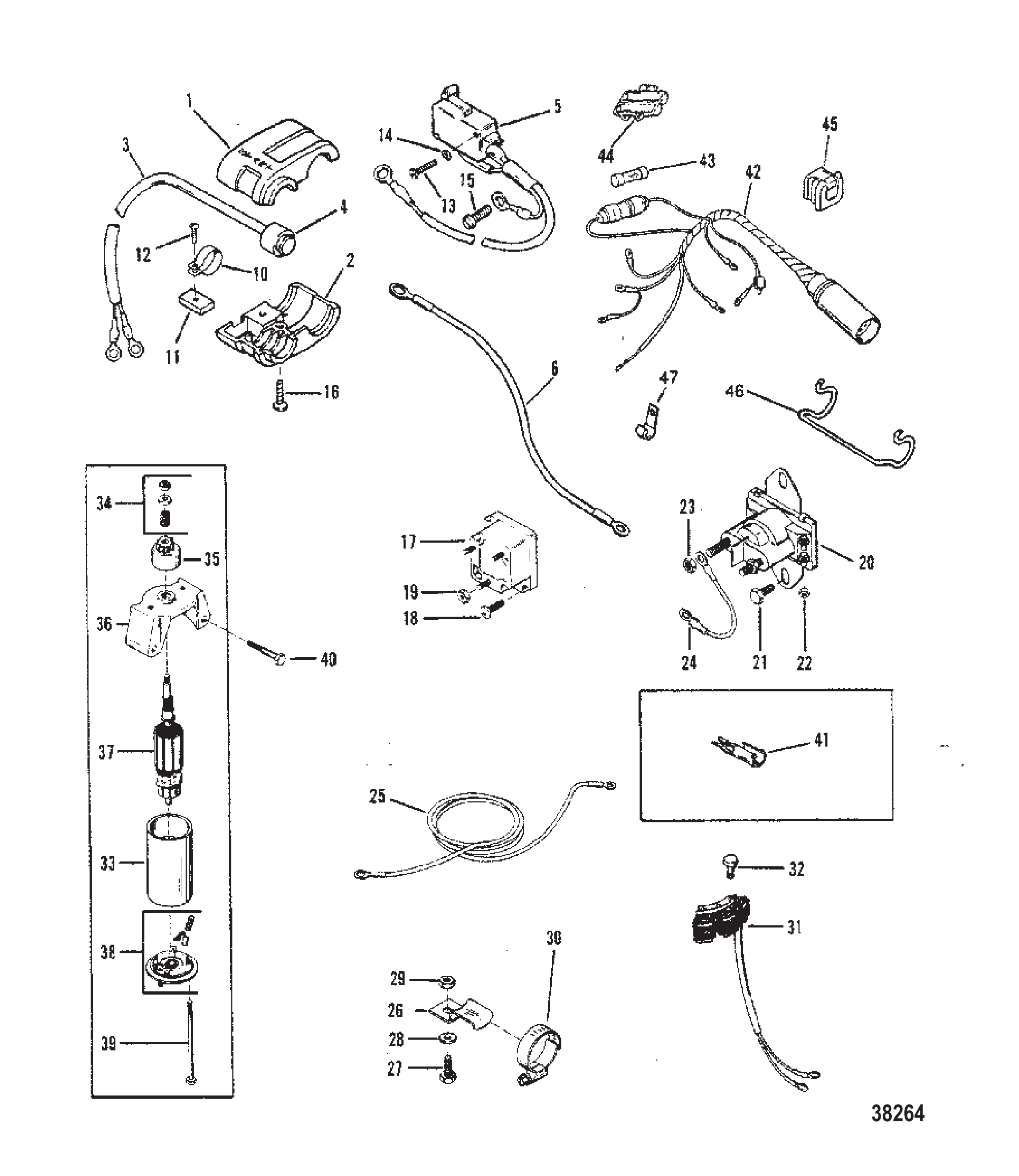

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 95815 | 上盖 | COVER (TOP) | 1 |
| 2 | 95828 | 下盖 | COVER (BOTTOM) | 1 |
| 3 | 95810A1 | 启动开关总成 | SWITCH ASSEMBLY Start | 1 |
| 4 | 55741 | 护套 | BOOT | 1 |
| 4 | 55741001 | 护套 | BOOT | 1 |
| 5 | 88890A2 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 6 | 79139A20 | 电缆总成（红色） | CABLE ASSEMBLY (RED) | 1 |
| 10 | 95814 | 绑带 | STRAP | 1 |
| 11 | 95813 | 紧固件 | FASTENER | 1 |
| 12 | 40056108 | 螺钉（M5×20） | SCREW (M5 x 20) | 1 |
| 12 | 40019108 | 螺钉（M5×20） | SCREW (M5 x 20) | 1 |
| 13 | 4005727 | 螺钉 | SCREW | 2 |
| 14 | 45771 | 垫圈 | WASHER | 2 |
| 15 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 16 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 17 | 816770 | 整流器 | RECTIFIER | 1 |
| 17 | 8M0058226 | 整流器 | RECTIFIER | 1 |
| 18 | 48409 | 螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel | 2 |
| 19 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 3 |
| 20 | 96054 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 20 | 8M0185149 | 启动电磁阀 | SOLENOID START | 1 |
| 21 | 4000327 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 2 |
| 22 | 26419 | 黄铜螺母 (#8-32) | NUT (#8-32) Brass | 2 |
| 23 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 2 |
| 24 | 88809A5 | 电线总成（黄色） | WIRE ASSEMBLY (YELLOW) | 1 |
| 25 | 88439A8 | 电池电缆总成(红色) | CABLE ASSEMBLY Battery (RED) | 1 |
| 25 | 88439A27 | 电缆总成红色-电池 | CABLE ASSEMBLY Red - Battery | 1 |
| 25 | 88439A6 | 电池电缆总成(黑色) | CABLE ASSEMBLY Battery (BLACK) | 1 |
| 25 | 88439A28 | 电缆总成电池-黑色 | CABLE ASSEMBLY Battery - Black | 1 |
| 26 | 92439 | 支架(旧设计) | BRACKET (OLD DESIGN) | 1 |
| 27 | 4000327 | 螺钉(M6×14)(旧设计) | SCREW (M6 x 14) (OLD DESIGN) | 1 |
| 28 | 35044 | 垫圈(0.281×0.625×0.065)不锈钢(旧设计) | WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN) | 1 |
| 29 | 400212 | 螺母(M6)不锈钢(旧设计) | NUT (M6) Stainless Steel (OLD DESIGN) | 1 |
| 30 | 815504310 | 蜗轮卡箍(旧设计) | CLAMP Worm Gear (OLD DESIGN) | 1 |
| 31 | 86704A2 | 定子总成 | STATOR ASSEMBLY | 1 |
| 31 | 86704A10 | 辅助定子 | STATOR Auxiliary | 1 |
| 32 | 4000123 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 3 |
| 33 | 90983A1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 33 | 8M0033984 | 启动马达 | STARTER MOTOR | 1 |
| 34 | 96561 | 驱动套件 | DRIVE KIT | 1 |
| 35 | 96562 | 驱动器 | DRIVE | 1 |
| 36 | 96563 | 端盖 | END CAP | 1 |
| 36 | 96563T | 端盖 | END CAP | 1 |
| 37 | 96565 | 电枢 | ARMATURE | 1 |
| 38 | 96564 | 端盖 | END CAP | 1 |
| 38 | 96564T | 端盖 | END CAP | 1 |
| 39 | 96566 | 贯穿螺栓 | THRU BOLT | 1 |
| 40 | 421251 | 螺钉(M8x55) | SCREW (M8 x 55) | 2 |
| 40 | 42125 | 螺钉(M8x55) | SCREW (M8 x 55) | 2 |
| 41 | 424291 | 固定座 | RETAINER | 1 |
| 42 | 12334A2 | 发动机线束总成 | HARNESS ASSEMBLY Engine Wiring | 1 |
| 43 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 43 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 44 | 134731 | 保险丝座(旧设计) | HOLDER Fuse (OLD DESIGN) | 1 |
| 45 | 12152 | 固定座 | RETAINER | 1 |
| 46 | 92753 | 固定座 | RETAINER | 1 |
| 47 | 55098 | J型卡扣 | J CLIP | 1 |
| 47 | 8M0024808 | J型夹 | J-CLIP | 1 |

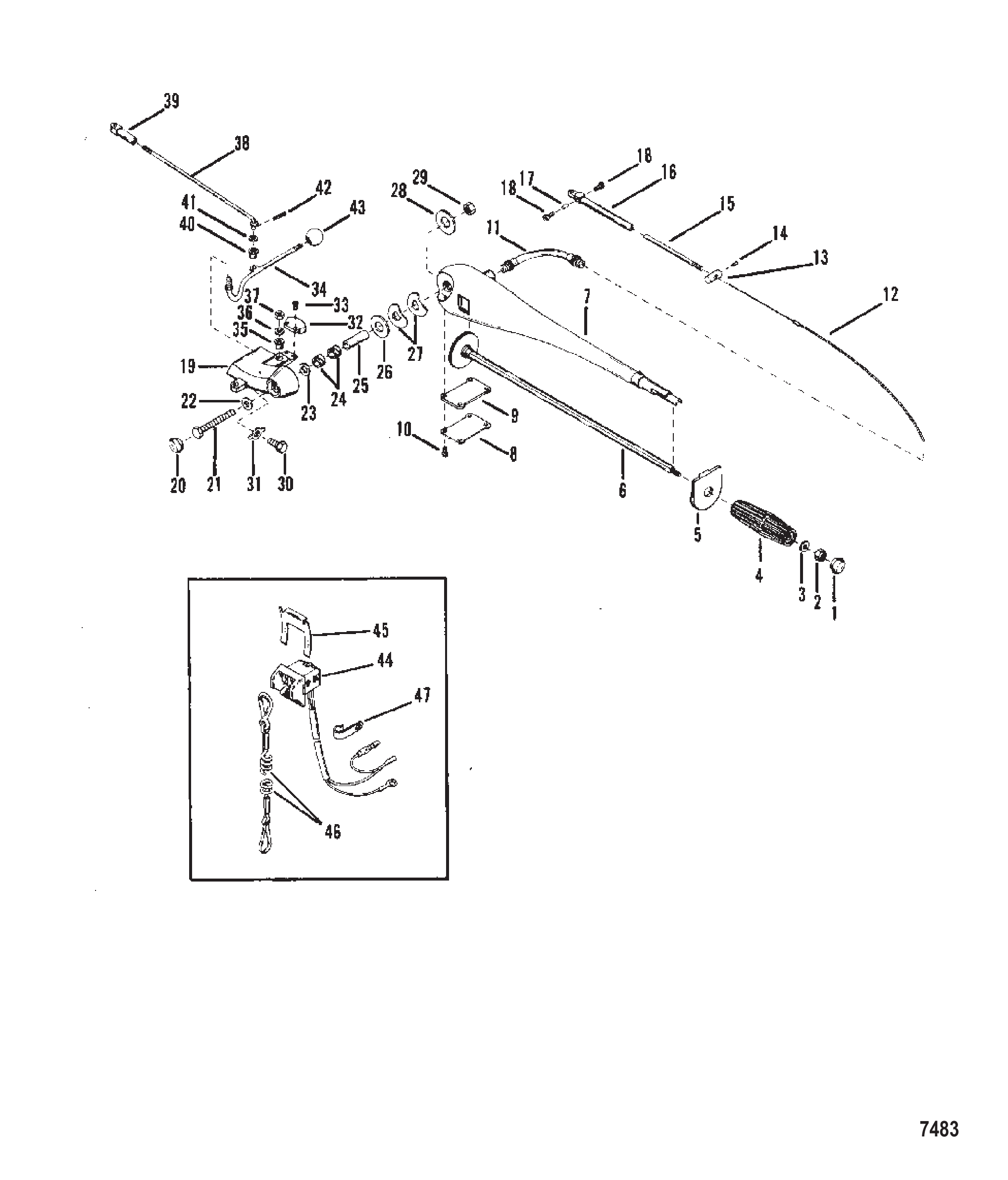

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 48416 | CAP Steering Handle Grip | 1 | |
| 2 | 20586 | NUT (.250-28) Steering Handle Arm | 1 | |
| 2 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 3 | 21631 | WASHER (.255 x .625 x .0312) Steering Handle Arm | 1 | |
| 3 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 4 | 58192A1 | GRIP Steering Handle Arm | 1 | |
| 5 | 48414 | 驱动轮外壳 | HOUSING Drive Wheel | 1 |
| 6 | 48516A1 | 驱动轮/杆总成 | DRIVE WHEEL/ROD ASSEMBLY | 1 |
| 7 | 48405A2 | 臂总成 | ARM ASSEMBLY | 1 |
| 8 | 48519 | PLATE Cover - Drive Wheel | 1 | |
| 9 | 48518 | 盖板垫片 | GASKET Cover Plate | 1 |
| 10 | 28192 | 螺钉 (#10-24 x .50) 驱动轮盖板 | SCREW (#10-24 x .50) Drive Wheel Cover Plate | 4 |
| 10 | 72169 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 4 |
| 11 | 785511 | 电缆导管 | CONDUIT Cable | 1 |
| 12 | 48520 | 节气门拉索 | CABLE Throttle | 1 |
| 13 | 89613 | 控制连杆接头 | CONNECTOR Control Linkage | 1 |
| 14 | 89601 | SCREW Set - Throttle Cable Guide Tube | 1 | |
| 14 | 824081 | 紧定螺钉(#10-32) | SET SCREW (#10-32) | 1 |
| 15 | 895661 | 节气门电缆导向管 | GUIDE TUBE Throttle Cable Guide | 1 |
| 15 | 8M0026078 | 导向管 | TUBE-GUIDE | 1 |
| 16 | 43433 | 节气门电缆导向器 | GUIDE Throttle Cable | 1 |
| 16 | 8M0204660 | 导套 | GUIDE | 1 |
| 17 | 20007 | ANCHOR Throttle Cable | 1 | |
| 18 | 20518 | SET SCREW (#8-32) Throttle Cable Anchor | 2 | |
| 18 | 8M0204644 | 螺钉组 | SCREW SET | 2 |
| 19 | 48404T | 手柄支架 | BRACKET Handle | 1 |
| 19 | 48404T8 | 支架 | BRACKET | 1 |
| 20 | 48416 | 手柄支架盖 | CAP Handle Bracket | 1 |
| 21 | 48476 | 手柄支架螺钉 | SCREW Handle Bracket | 1 |
| 21 | 823597 | 螺丝(.500-20 x 2.50) | SCREW (.500-20 x 2.50) | 1 |
| 22 | 48477 | 手柄支架垫圈 | WASHER Handle Bracket | 1 |
| 23 | 48526 | 尼龙垫圈-手柄支架 | WASHER Nylon - Handle Bracket | 1 |
| 24 | 28919 | 尼龙衬套-手柄支架 | BUSHING Nylon - Handle Bracket | 2 |
| 25 | 48525 | 手柄支架隔套 | SPACER Handle Bracket | 1 |
| 26 | 48527 | 尼龙垫圈-手柄支架 | WASHER Nylon - Handle Bracket | 1 |
| 26 | 38000 | 垫圈 | WASHER | 1 |
| 27 | 48478 | 手柄支架波形垫圈 | WAVE WASHER Handle Bracket | 2 |
| 28 | 49636 | 尼龙垫圈-手柄支架 | WASHER Nylon - Handle Bracket | 1 |
| 29 | 20220 | 螺母(.500-20)-手柄支架螺钉 | NUT (.500-20) Handle Bracket Screw | 1 |
| 29 | 82671317 | 螺母(.500-20) | NUT (.500-20) | 1 |
| 30 | 35786 | SCREW (.375-24 x 1.00) Bracket to Engine | 2 | |
| 31 | 43589 | 支架螺钉锁紧垫圈 | TAB WASHER Bracket Screw | 2 |
| 32 | 78812A1 | DETENT Shift Lever | 1 | |
| 33 | 48409 | 不锈钢换挡杆定位螺钉(#10-16 x .625) | SCREW (#10-16 x .625) Stainless Steel Shift Lever Detent | 2 |
| 34 | 485681 | 换挡杆 | SHIFT LEVVER | 1 |
| 35 | 48237 | 尼龙衬套-换挡杆 | BUSHING Nylong - Shift Lever | 1 |
| 36 | 34931 | WASHER (.406 x .734 x .063) Stainless Steel Shift Lever | 1 | |
| 37 | 34863 | 螺母(.375-24)-换挡杆 | NUT (.375-24) Shift Lever | 1 |
| 37 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 38 | 49563 | 换挡连杆 | SHIFT ROD | 1 |
| 38 | 8128061 | 杆 | ROD | 1 |
| 39 | 48419 | ROD END Shift Rod | 1 | |
| 39 | 48419T | 杆端-2.16英寸 | ROD END-2.16 IN | 1 |
| 40 | 48475 | 尼龙衬套-换挡杆 | BUSHING Nylon - Shift Rod | 1 |
| 41 | 35950 | WASHER (.273 x .437 x .031) Stainless Steel Shift Rod | 1 | |
| 42 | 25191 | COTTER PIN Shift Rod | 1 | |
| 43 | 98530 | KNOB Shift Lever | 1 | |
| 44 | 11083A11 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 45 | 12044 | RETANER Stop Switch | 1 | |
| 45 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| 46 | 15920A54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 46 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 47 | 64855 | 停止开关夹 | CLAMP Stop Switch | 1 |
| 47 | 648552 | 卡扣 | CLIP | 1 |
| -- | 52148A1 | 副驾驶套件 | CO-PILOT KIT | 1 |

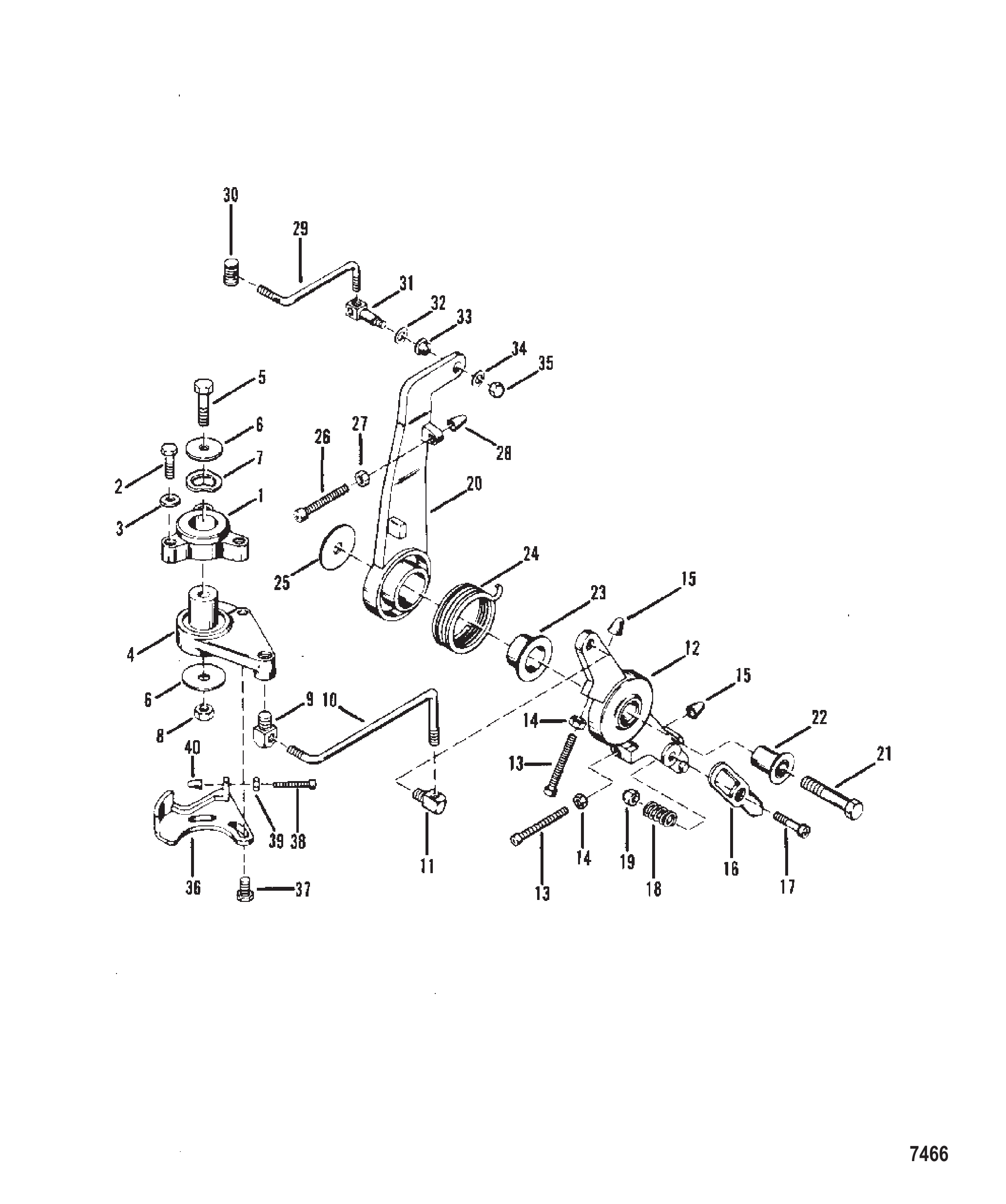

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 72040 | 油门执行器支架 | BRACKET Throttle Actuator | 1 |
| 2 | 53576 | 节气门执行器支架螺钉(.312-18 x 1.125) | SCREW (.312-18 x 1.125) Throttle Actuator Bracket | 3 |
| 3 | 26993 | 节气门执行器支架螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Throttle Actuator Bracket Screw | 3 |
| 3 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 4 | 72032 | 节气门执行器 | ACTUATOR Throttle | 1 |
| 4 | 815603A1 | 油门执行器总成 | ACTUATOR ASSEMBLY Throttle | 1 |
| 5 | 21449 | 支架至节气门执行器螺钉(.312-24 x 2.00) | SCREW (.312-24 x 2.00) Bracket to Throttle Actuator | 1 |
| 6 | 25893 | 支架螺钉垫圈 | WASHER Bracket Screw | 2 |
| 7 | 62172 | 支架螺钉波形垫圈 | WAVE WASHER Bracket Screw | 1 |
| 8 | 29250 | 支架螺钉螺母(.312-24) | NUT (.312-24) Bracket Screw | 1 |
| 9 | 57440 | 连杆至节气门执行器旋转接头 | SWIVEL Link Rod to Throttle Actuator | 1 |
| 10 | 72043 | 连杆 | LINK ROD | 1 |
| 11 | 57440 | 连杆至节气门臂旋转接头 | SWIVEL Link Rod to Throttle Arm | 1 |
| 12 | 76560 | 节气门臂 | ARM Throttle | 1 |
| 12 | 815603A1 | 油门执行器总成 | ACTUATOR ASSEMBLY Throttle | 1 |
| 13 | 55903 | 节气门臂调节螺钉 | SCREW Adjusting - Throttle Arm | 1 |
| 13 | 89778 | 螺钉 | SCREW | 1 |
| 13 | 25158 | 节气门臂调节螺钉(.190-32 x 1.75) | SCREW (.190-32 x 1.75) Adjusting - Throttle Arm | 1 |
| 14 | 68219 | 不锈钢调节螺钉螺母(#10-32) | NUT (#10-32) Stainless Steel Adjusting Screw | 2 |
| 15 | 48039 | CAP Adjusting Screw | 2 | |
| 16 | 39483 | 节气门臂锁扣 | LATCH Throttle Arm | 1 |
| 17 | 22486 | 锁扣至节气门臂螺钉(.250-28 x .880) | SCREW (.250-28 x .880) Latch to Throttle Arm | 1 |
| 17 | 69026 | 螺钉 (.250-28 x .880) | SCREW (.250-28 x .880) | 1 |
| 18 | 20099 | SPRING Compression - Latch Screw | 1 | |
| 19 | 20586 | NUT (.250-28) Latch Screw | 1 | |
| 19 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 20 | 76559A1 | 点火提前杆 | LEVER Spark Advance | 1 |
| 20 | 815607A1 | 点火提前杆总成 | LEVER ASSEMBLY Spark Advance | 1 |
| 21 | 55337 | 杠杆和臂至气缸体螺钉(.375-16 x 1.75) | SCREW (.375-16 x 1.75) Lever and Arm to Cylinder Block | 1 |
| 21 | 818165 | 螺钉 (.375-16 x 1.75) | SCREW (.375-16 x 1.75) | 1 |
| 22 | 55164 | 杠杆臂螺钉衬套 | BUSHING Lever and Arm Screw | 1 |
| 23 | 55171 | 杠杆臂螺钉衬套 | BUSHING Lever and Arm Screw | 1 |
| 24 | 55162 | SPRING Return - Spark Advance Lever | 1 | |
| 25 | 68410 | 杠杆臂螺钉垫圈 | WASHER Lever and Arm Screw | 1 |
| 25 | 46765 | 垫圈 (.390 x 1.50 x .120) | WASHER (.390 x 1.50 x .120) | 1 |
| 26 | 25158 | 调节螺钉(.190-32 x 1.75)-火花提前杠杆 | SCREW (.190-32 x 1.75) Adjusting - Spark Advance Lever | 1 |
| 27 | 68219 | 不锈钢调节螺钉螺母(#10-32) | NUT (#10-32) Stainless Steel Adjusting Screw | 1 |
| 28 | 48039 | CAP Adjusting Screw | 1 | |
| 29 | 76056 | 火花提前连杆 | LINK ROD Spark Advance | 1 |
| 30 | 74897 | 螺纹枢轴-连杆至触发器 | PIVOT Threaded - Link Rod to Trigger | 1 |
| 30 | 74897T | 枢轴 | PIVOT | 1 |
| 31 | 77013A1 | 连杆旋转接头-火花提前杠杆 | SWIVEL Link Rod to Spark Advance Lever | 1 |
| 32 | 29402 | 旋转接头波形垫圈 | WAVE WASHER Swivel | 1 |
| 33 | 26856 | 连杆旋转接头衬套 | BUSHING Link Rod Swivel | 1 |
| 34 | 33786 | 连杆旋转接头垫圈 | WASHER Link Rod Swivel | 1 |
| 34 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 1 |
| 35 | 45774 | 连杆旋转接头螺母 | NUT Link Rod Swivel | 1 |
| 36 | 66778 | 节流阀执行器板 | PLATE Throttle Actuator | 1 |
| 36 | 66778T | 油门板 | PLATE-THROTTLE | 1 |
| 37 | 46420 | 螺钉(#10-24 x .500)-板至节流阀执行器 | SCREW (#10-24 x .500) Plate to Throttle Actuator | 2 |
| 38 | 23015 | 调节螺钉(.190-32 x 1.00)-板 | SCREW (.190-32 x 1.00) Adjusting - Plate | 1 |
| 39 | 68219 | 不锈钢调节螺钉螺母(#10-32) | NUT (#10-32) Stainless Steel Adjusting Screw | 1 |
| 40 | 48039 | CAP Adjusting Screw | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A8 | 齿轮箱总成-标准旋转1.87:1传动比(完整) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE) | 1 |
| 1 | 9148A11 | 齿轮箱总成(基础) | GEAR HOUSING ASSEMBLY (BASIC) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 48 | 78956 | 换挡凸轮 | SHIFT CAM | 1 |
| 48 | 789562 | 换挡凸轮 | SHIFT CAM | 1 |
| 49 | 89594A1 | 凸轮从动件总成 | FOLLOWER ASSEMBLY CAM | 1 |
| 50 | 79911 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 50 | 79911A1 | 杆 | ROD | 1 |
| 51 | 79910 | 压缩弹簧 | SPRING COMPRESSION | 2 |
| 52 | 78910 | 压缩弹簧垫圈 | WASHER COMPRESSION SPRING | 1 |
| 53 | 78906 | PIN SPRING LOCATOR | 1 | |
| 53 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 54 | 47397A1 | 轴承外圈垫片组(.002-3-5-10) | SHIM SET BEARING OUTER RACE (.002-3-5-10) | AR |
| 55 | 78172A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 56 | 44104A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 56 | 44104T2 | 齿轮组 | GEAR SET | 1 |
| 57 | 43999 | 滚子轴承(外径1.308) | BEARING Roller (1.308 O.D.) | 2 |
| 57 | 73363 | 滚子轴承(外径1.313) | BEARING Roller (1.313 O.D.) | 2 |
| 57 | 73363T | 轴承 | BEARING | 2 |
| 58 | 78959 | 棘轮滑动离合器 | RATCHET SLIDING CLUTCH | 1 |
| 58 | 823174T | ORD 8M0100493 | ORD 8M0100493 | 1 |
| 59 | 78905 | 棘轮到螺旋桨轴十字销 | PIN Cross RATCHET TO PROPELLER SHAFT | 1 |
| 59 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 60 | 78909 | 棘轮定位销 | PIN Detent RATCHET | 2 |
| 61 | 78962 | 十字销固定弹簧 | SPRING RETAINING-CROSS PIN | 2 |
| 62 | 94148 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 63 | N.S.S. | 不单独出售(43-44104A2部件) | Not Sold Separate (PART OF 43-44104A2) | 1 |
| 64 | 68100 | 止推环 | RING THRUST | 1 |
| 64 | 681001 | 止推环 | RING Thrust | 1 |
| 65 | 88957A1 | 滚珠轴承-倒档齿轮 | BEARING Ball BALL-REVERSE GEAR | 1 |
| 65 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 66 | 31534 | 轴承座O型圈 | O-RING BEARING CARRIER | 1 |
| 66 | 8M0214920 | O型圈 | O RING | 1 |
| 67 | 43567A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 67 | 43567T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 68 | 30956 | 滚针轴承-轴承座 | BEARING Needle BEARING CARRIER | 1 |
| 68 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 69 | 76868 | 轴承座密封 | SEAL BEARING CARRIER | 2 |
| 69 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 2 |
| 70 | 30281 | 轴承座定位键 | KEY LOCATING-BEARING CARRIER | 1 |
| 71 | 79447 | 齿轮箱盖锁紧垫圈 | TAB WASHER GEAR HOUSING COVER | 1 |
| 72 | 79448 | 齿轮箱固定座 | RETAINER GEAR HOUSING | 1 |
| 72 | 8M2011027 | 固定座 | RETAINER | 1 |
| 73 | 31640A1 | TRIM TAB ASSEMBLY GEAR HOUSING | 1 | |
| 73 | 31640Q4 | 平衡鳍板 | TRIM TAB | 1 |
| 74 | 66024 | 螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4") | SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4") | 1 |
| 75 | 67891 | 填充块 | FILLER BLOCK FILLER BLOCK | 1 |
| 75 | 8M0039169 | 填充块 | FILLER BLOCK | 1 |
| 76 | 34933 | 螺母(.437-20)不锈钢驱动轴壳体螺柱 | NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| 76 | 8M0204653 | 螺母 | NUT | 2 |
| 77 | 65210 | 螺钉(.375-16 x 1.00)齿轮箱 | SCREW (.375-16 x 1.00) GEAR HOUSING | 1 |
| 78 | 13171 | 推力毂 | THRUST HUB | 1 |
| 78 | 835467Q01 | 止推垫片套件 | THRUST WASHER KIT | 1 |
| 79 | 31211A2 | 花键垫圈-螺旋桨螺母 | WASHER Splined SPLINED-PROPELLER NUT | 1 |
| 79 | 31211Q03 | 垫圈总成 | WASHER ASSEMBLY | 1 |
| 80 | 31210 | 螺旋桨螺母锁紧垫圈 | TAB WASHER PROPELLER NUT | 1 |
| 80 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 81 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 81 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 82 | 423511 | 螺旋桨轴齿形锁紧垫圈 | LOCKWASHER Toothed PROPELLER SHAFT | 1 |
| 83 | 45176 | 垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱 | WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 14697A87 | 衬垫套件 | GASKET SET |

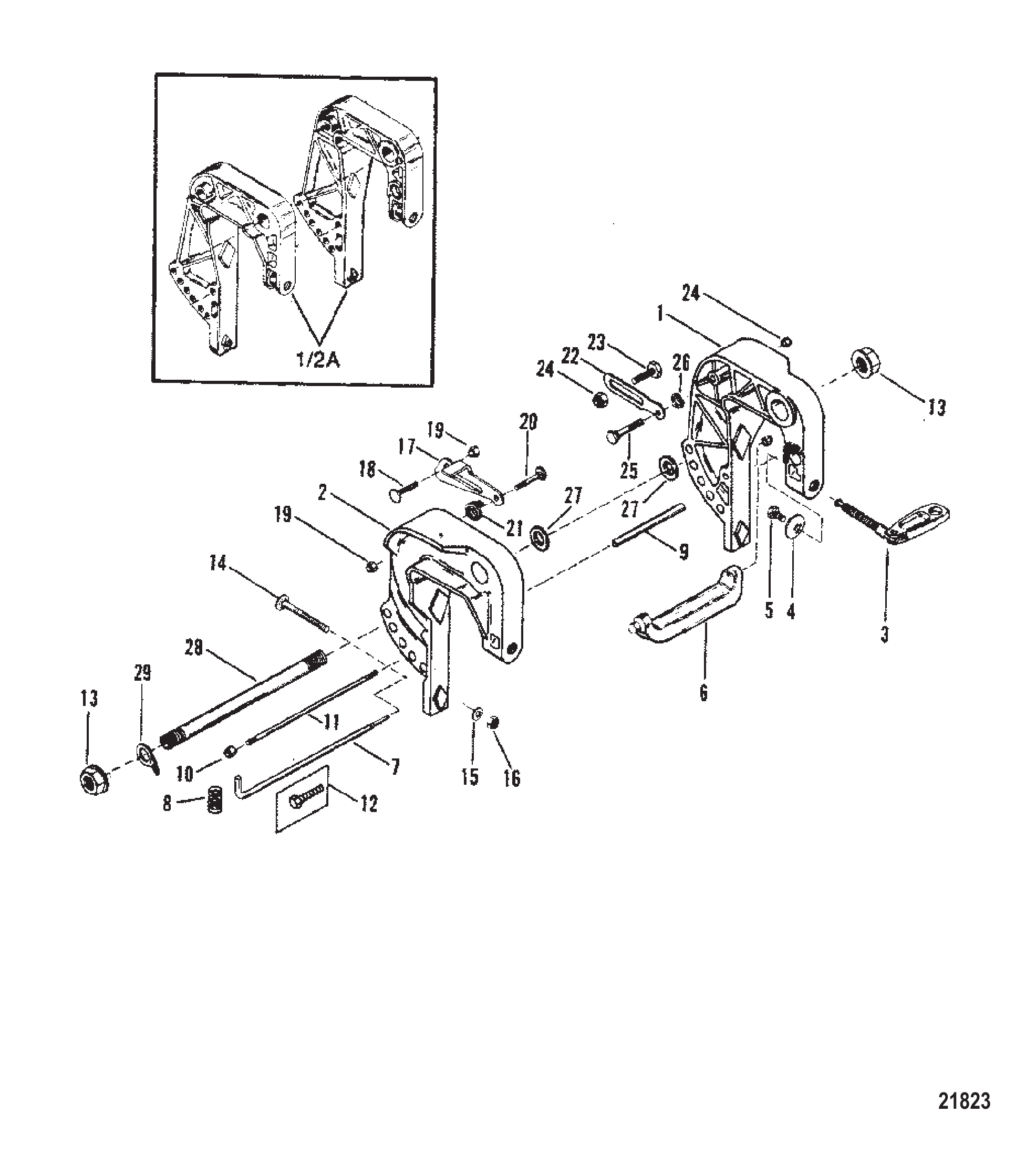

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1/2A | 8794A5 | 艉板支架总成（左/右舷）（黑色） | BRACKET ASSEMBLY Transom (PORT/STBD.) (BLACK) | 1 |
| 1/2A | 8794A6 | 艉板支架总成（左/右舷）（灰色） | BRACKET ASSEMBLY Transom (PORT/STBD.) (GRAY) | 1 |
| 1 | 8794A7 | 艉板支架总成(左舷)(黑色) | BRACKET ASSEMBLY Transom (PORT) (BLACK) | 1 |
| 2 | 8796A5 | 艉板支架总成（右舷）（黑色） | BRACKET ASSEMBLY Transom (STBD.) (BLACK) | 1 |
| 1 | 8794A8 | 艉板支架总成（左舷）（灰色） | BRACKET ASSEMBLY Transom (PORT)(GRAY) | 1 |
| 1 | 8794A7 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 8796A6 | 艉板支架总成（右舷）（灰色） | BRACKET ASSEMBLY Transom (STBD.)(GRAY) | 1 |
| 1 | 8794A9 | 艉板支架总成(左舷)(黑色) | BRACKET ASSEMBLY Transom (PORT) (BLACK) | 1 |
| 2 | 8796A7 | 艉板支架总成（右舷）（黑色） | BRACKET ASSEMBLY Transom (STBD.) (BLACK) | 1 |
| 1 | 8794A10 | 艉板支架总成（左舷）（灰色） | BRACKET ASSEMBLY Transom (PORT)(GRAY) | 1 |
| 1 | 8794A9 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 8796A8 | 艉板支架总成（右舷）（灰色） | BRACKET ASSEMBLY Transom (STBD.)(GRAY) | 1 |
| 2 | 8796A7 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 1 | 8794A11 | 艉板支架总成(左舷)(追踪者) | BRACKET ASSEMBLY Transom (PORT) (TRACKER) | 1 |
| 1 | 8794A9 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 8796A9 | 艉板支架总成（右舷）（TRACKER） | BRACKET ASSEMBLY Transom (STBD.) (TRACKER) | 1 |
| 2 | 8796A7 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 3 | 92767A1 | 蝶形螺丝总成 (14 mm) | THUMB SCREW ASSEMBLY (14 mm) | 2 |
| 3 | 92767A3 | 蝶形螺丝总成 (16 mm) | THUMB SCREW ASSEMBLY (16 mm) | 2 |
| 4 | 73719 | 蝶形螺丝垫圈 | WASHER THUMB SCREW | 2 |
| 4 | 818884 | 垫圈 | WASHER | 2 |
| 5 | 768041 | 垫圈固定螺丝 | SCREW WASHER ATTACHING | 2 |
| 5 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 6 | 41042 | 提手 | HANDLE CARRYING | 1 |
| 7 | 99929A1 | 倾斜销总成 | PIN ASSEMBLY Tilt | 1 |
| 7 | 56373A2 | 倾斜销总成 | PIN ASSEMBLY Tilt | 1 |
| 8 | 92995 | 弹簧 | SPRING | 1 |
| 9 | 41041 | 隔套 | SPACER | 1 |
| 10 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| 11 | 99928 | 螺柱 | STUD | 1 |
| 9 | 818538 | 隔套 | SPACER | 1 |
| 12 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 2 |
| 13 | 93164 | 倾斜管螺母(.875) | NUT (.875) TILT TUBE | 2 |
| 14 | 814945 | 螺钉 (.312-18 x 3.500) 不锈钢 夹紧支架至艉板 | SCREW (.312-18 x 3.500) Stainless Steel CLAMP BRACKET TO TRANSOM | 2 |
| 15 | 67981 | 夹紧支架螺栓垫圈 | WASHER CLAMP BRACKET BOLT | 2 |
| 16 | 815848 | 螺母 (.312) 夹紧支架螺栓 | NUT (.312) CLAMP BRACKET BOLT | 2 |
| 17 | 96965 | 倾斜止动杆-右舷 | LEVER TILT STOP - STARBOARD STAR | 1 |
| 18 | 41523 | 螺钉(.250-28 x 1.00)杆至旋转支架 | SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET | 1 |
| 19 | 35045 | 螺母(.250-28)倾斜止动杆螺钉 | NUT (.250-28) TILT STOP LEVER SCREW | 2 |
| 19 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 2 |
| 20 | 41524 | 螺钉(.250-28 x 1.75)杆至夹紧支架 | SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET | 1 |
| 21 | 44581 | 倾斜止动杆螺钉弹簧 | SPRING TILT STOP LEVER SCREW | 1 |
| 22 | 90901 | 倾斜限位带-左舷侧 | STRAP TILT STOP - PORT SIDE | 1 |
| 23 | 41523 | 螺钉 (.250-28 x 1.00) 带至旋转支架 | SCREW (.250-28 x 1.00) STRAP TO SWIVEL BRACKET | 1 |
| 24 | 35045 | 螺母 (.250-28) 倾斜止动带螺钉 | NUT (.250-28) TILT STOP STRAP SCREW | 2 |
| 24 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 2 |
| 25 | 41524 | 螺钉 (.250-28 x 1.75) 带至夹紧支架 | SCREW (.250-28 x 1.75) STRAP TO CLAMP BRACKET | 1 |
| 26 | 31030 | WAVE WASHER TILT STOP STRAP SCREW | 1 | |
| 27 | 71421 | 尼龙垫圈 倾斜管（尼龙） | WASHER Nylon TILT TUBE (NYLON) | 2 |
| 28 | 41171 | 倾斜管 | TILT TUBE | 1 |
| 28 | 8M0035075 | 倾斜管 | TILT TUBE | 1 |
| 29 | 30954 | 安全卡扣 | CLIP SAFETY | 1 |
| 29 | 8M0085928 | 卡扣 | CLIP | 1 |

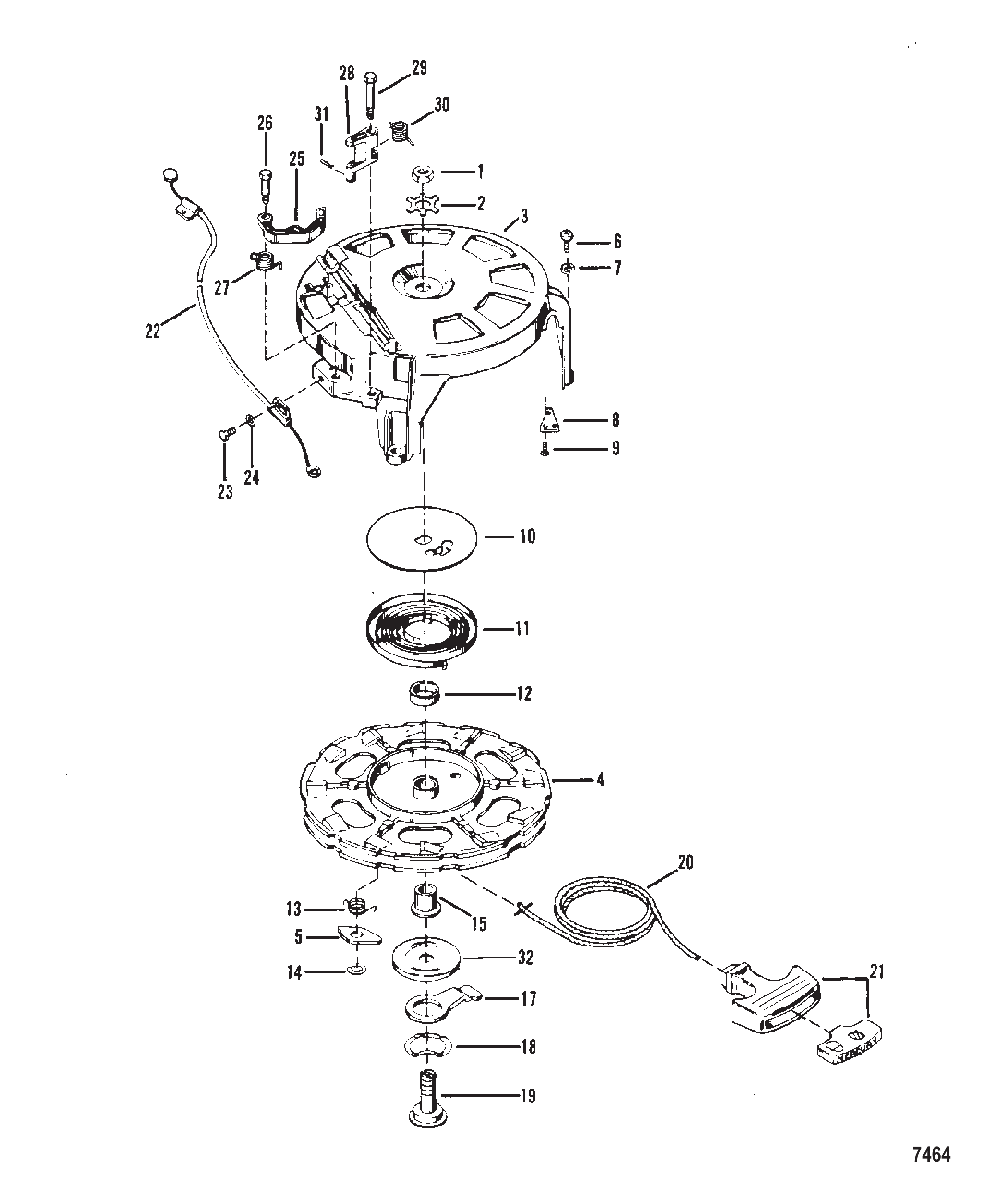

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 20166 | NUT Sheave Shaft (Left Hand Thread) | 1 | |
| 2 | 61004 | TAB WASHER Sheave Shaft Nut | 1 | |
| 3 | 890162 | 启动器壳体 | HOUSING Starter | 1 |
| 4 | 44255A1 | 启动器滑轮总成 | SHEAVE ASSEMBLY Starter | 1 |
| 5 | 44508 | 启动棘爪 | PAWL Starter | 1 |
| 6 | 54523 | 螺钉 (.312-18 x 1.00) 启动器外壳 | SCREW (.312-18 x 1.00) Starter Housing | 3 |
| 7 | 20202 | 锁紧垫圈 启动器外壳螺钉 | LOCKWASHER Starter Housing Screw | 3 |
| 8 | 37691 | 电缆导板 | PLATE Cable Guide | 1 |
| 9 | 35881 | 螺钉 (#6-32 x .250) 驱动-电缆导板 | SCREW (#6-32 x .250) Drive - Cable Guide Plate | 3 |
| 9 | 358811 | 螺丝(#6-32 x .250) | SCREW (#6-32 x .250) | 3 |
| 10 | 61002 | PLATE Starter Rewind | 1 | |
| 11 | 39502A1 | 弹簧 | SPRING | 1 |
| 11 | 39502T02 | 回卷弹簧 | SPRING-RECOIL | 1 |
| 12 | 87649 | BUSHING Spring Guide | 1 | |
| 13 | 87651 | SPRING Starter Pawl | 1 | |
| 14 | 87706 | E RING Starter Pawl | 1 | |
| 15 | 63061 | SPACER Sheave Shaft | 1 | |
| 17 | 94962 | 杠杆 | LEVER | 1 |
| 18 | 20160 | 波形垫圈 | WAVE WASHER | 1 |
| 19 | 87656 | 滑轮轴 | SHEAVE SHAFT | 1 |
| 20 | 12066A9 | 绳索 | ROPE | 1 |
| 20 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| 20 | 47341A1 | 绳索与手柄套件 手动/应急启动 | ROPE AND HANDLE KIT Manual/Emergency Start For Manual Starting | 1 |
| 20 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 21 | 85174A1 | 手柄总成 | HANDLE ASSEMBLY | 1 |
| 22 | 76568 | 联锁电缆 | CABLE Interlock | 1 |
| 23 | 69022 | 螺钉 (#10-32 x .500) 不锈钢联锁电缆固定 | SCREW (#10-32 x .500) Stainless Steel Interlock Cable Attaching | 2 |
| 24 | 33786 | 联锁电缆螺钉垫圈 | WASHER Interlock Cable Screw | 2 |
| 24 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 2 |
| 25 | 42820 | CAM Interlock | 1 | |
| 25 | 428201 | 凸轮 | CAM | 1 |
| 26 | 76138 | 螺钉 (.312-18 x 1.120) 联锁凸轮(1.125英寸) | SCREW (.312-18 x 1.120) Interlock Cam (1.125 Inch) | 1 |
| 27 | 76140 | 联锁凸轮螺钉弹簧 | SPRING Interlock Cam Screw | 1 |
| 27 | 761401 | 弹簧 | SPRING | 1 |
| 28 | 79371 | ACTUATOR Interlock | 1 | |
| 29 | 76137 | 联锁执行器螺钉(1.625英寸) | SCREW Interlock Actuator (1.625 Inch) | 1 |
| 30 | 76139 | 联锁执行器螺钉弹簧 | SPRING Interlock Actuator Screw | 1 |
| 31 | 27769 | COTTER PIN Interlock Cable to Actuator | 1 | |
| 31 | 26811 | 开口销 | COTTER PIN | 1 |
| 32 | 35559 | WASHER Starter Rewind | 1 | |
| - | 89016A3 | 起动机总成回绕式 | STARTER ASSEMBLY Rewind | 1 |
