水星 Mercury 50 3 CYL 9469200 THRU 9683054 - 爆炸图零件明细

两冲程化油器 · Belgium - Cat.# 90-16404 · 共 156 个部位 · 6432 条零件

1化油器 2齿轮箱(螺旋桨轴)3动力配平(序列号0G357070及以上-黄色注油塞)4动力配平组件(序列号:0D182000及以上)5气缸体与曲轴箱总成 6附件 7机油喷射组件 8杂项零件/附件 9节气门联动装置 10燃油泵(白色或红色)11骑导转向系统 12化油器 13艉板支架（长轴-序列号0C160936及以上）14润滑图表 15自动混合器 16喷射组件 17升降开关套件 18齿轮箱驱动轴-60海宝/马拉松/大脚-3爪倒车离合器 19驱动轴壳体（长型-0C160936及以上）(60EL NOI)(NPT)20旋转支架（短型）(长序列号0C160935及以下)(60EL NOI)(NPT)21维修/支撑材料 22齿轮箱(驱动轴)(50/55/60)23飞轮(55)24整流罩与前盖 25艉板支架（动力配平）(序列号0C160935及以下)26排气板 27启动马达 28手动倾斜装置组件 29启动电机总成 30齿轮箱螺旋桨轴 31化油器连杆与阻风门电磁阀 32启动电机、电磁阀与整流器 33衰减板 34舵柄手柄 35齿轮箱图表(60海宝/马拉松/大脚)36延伸组件 37夹紧支架(短型)(长型-0C160935及以下)(60EL NOI)(NPT)38气缸体 39飞轮(55/60海宝/马拉松)40气缸体与曲轴箱 41化油器联动机构与阻风门电磁阀 42启动器总成(手动)(55)43旋转支架（动力配平）(序列号0C160935及以下)44驱动轴壳体 45附件 46夹紧支架(55)(序列号:0D181999及以下)47夹紧支架 48油门杆及联动装置 49手动倾斜组件(设计II型)50旋转支架(序列号:0D182000及以上)51启动电机 52自动混合装置 53电气组件(55)54动力升降泵(Eaton矩形电机)55顶罩 56动力升降 57动力配平组件（序列号-0C160935及以下）58燃油泵(55/60 SEAPRO/MARATHON)59缓冲板 60旋转支架（长轴-序列号0C160936及以上）61手动倾斜装置组件(设计I型)62旋转支架 63整流罩支撑支架 64下机罩 65排气与歧管盖 66气缸体与曲轴箱 67旋转支架(序列号:0D181999及以下)68齿轮箱（驱动轴）69齿轮箱螺旋桨轴-60海宝/马拉松/大脚-6爪倒车离合器 70排气与歧管盖 71齿轮箱螺旋桨轴-60海宝/马拉松/大脚-3爪倒车离合器 72喷泵总成 73齿轮箱(螺旋桨轴)(50/55/60)74喷射组件 75电气组件 76杂项信息 77齿轮箱驱动轴-60海宝/马拉松/大脚-6爪倒车离合器 78化油器总成 79燃油泵(黑色 50/60)80进气歧管与簧片阀组 81化油器(WME-22/22B/23/24/35)82启动器总成(手动-55)83动力升降组件 84下罩 85电动配平组件（长序列号-0C160936及以上）86夹紧支架(手动)(序列号:0D1812000及以上)87艉板支架(50/60)(序列号:0D181999及以下)88动力配平(序列号0G357069及以下-黑色注油塞)89舵柄适配器套件(JET 45)90外罩 91燃油泵(50/60)92燃油泵 93专用工具 94喷泵总成 95排气板 96齿轮箱壳体(螺旋桨轴-大脚/海宝/马拉松/浮筒型)97顶罩 98齿轮箱（驱动轴）99外罩支撑架 100艉板支架(50/60)(序列号:0D182000及以上)101齿轮箱壳体(驱动轴-大脚/海宝/马拉松/浮筒型)102夹紧支架(手动)103飞轮、开关盒、点火线圈与定子 104飞轮与启动电机(50/60)105手动倾斜装置组件 106电气组件 107曲轴、活塞及连杆 108驱动轴外壳总成 109夹箍支架 110喷油组件 111外罩与前盖 112旋转支架 113启动电机总成（博世）114专用工具 115油门杆与联动装置 116动力配平组件(序列号:0D181999及以下)117启动电机总成（普雷斯特olite）118进气歧管与簧片阀组 119夹具支架总成 120曲轴、活塞与连杆 121驱动轴壳体（短型）(长序列号-0C160935及以下)122化油器(WME-26/27/28/28/43/44/45)123艉板支架(50/60)124动力微调 125转向手柄套件 126舵柄 127电气组件(50/60)128自动混合装置 129化油器 130化油器连杆与阻风门电磁阀 131夹紧支架(短型)(长型-0C160935及以下)(60EL NOI)(NPT)132整流罩与前盖 133整流罩支撑支架 134曲轴、活塞及连杆 135气缸体 136驱动轴壳体（长型-0C160936及以上）(60EL NOI)(NPT)137驱动轴壳体（短型）(长序列号-0C160935及以下)138电动配平组件（长序列号-0C160936及以上）139排气与歧管盖 140排气板 141飞轮、开关盒、点火线圈与定子 142燃油泵 143齿轮箱（驱动轴）144齿轮箱螺旋桨轴 145手动倾斜装置组件 146动力配平组件（序列号-0C160935及以下）147动力升降泵(Eaton矩形电机)148维修/支撑材料 149启动电机、电磁阀与整流器 150启动电机 151旋转支架（长轴-序列号0C160936及以上）152旋转支架（动力配平）(序列号0C160935及以下)153旋转支架（短型）(长序列号0C160935及以下)(60EL NOI)(NPT)154节气门联动装置 155艉板支架（长轴-序列号0C160936及以上）156艉板支架（动力配平）(序列号0C160935及以下)

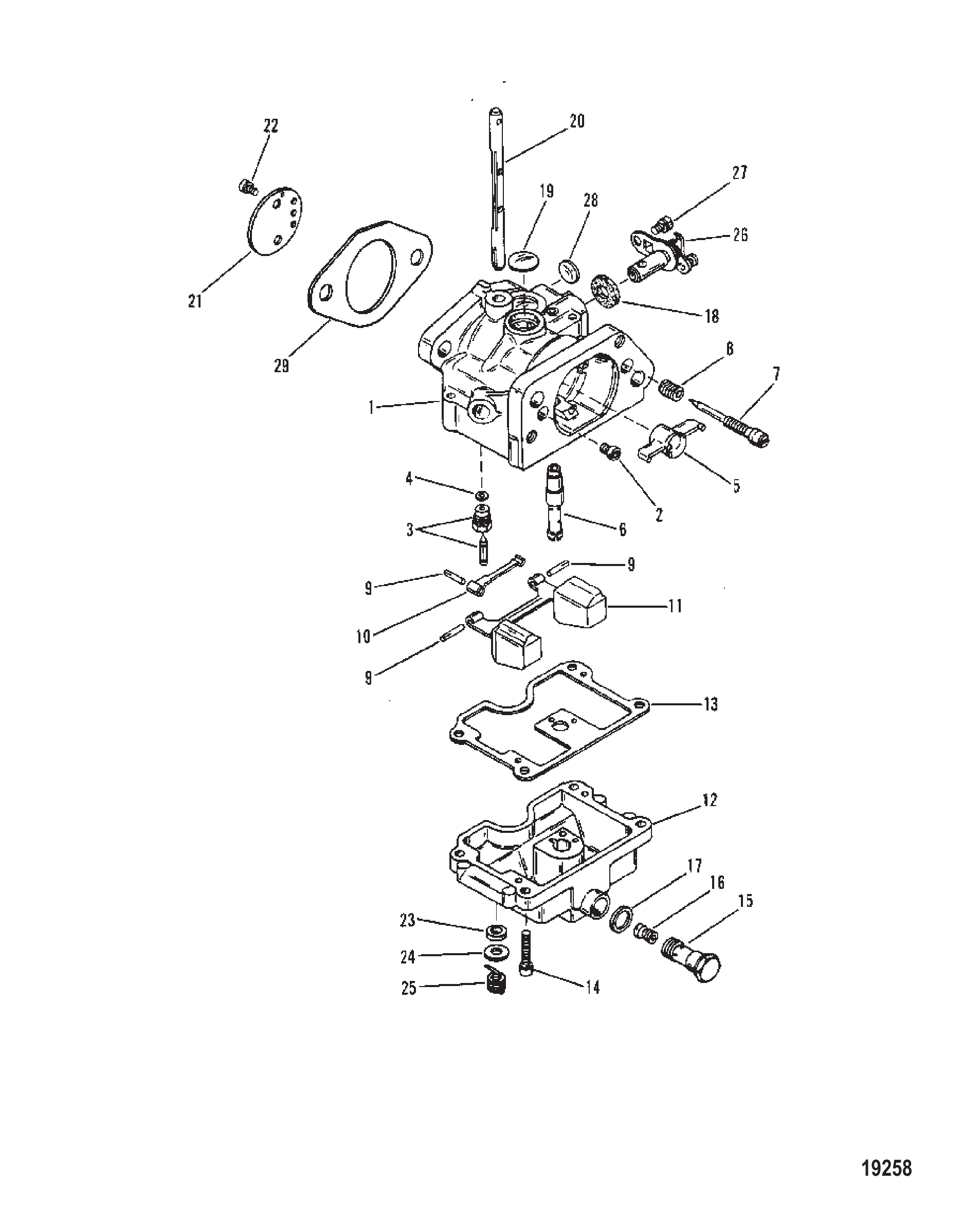

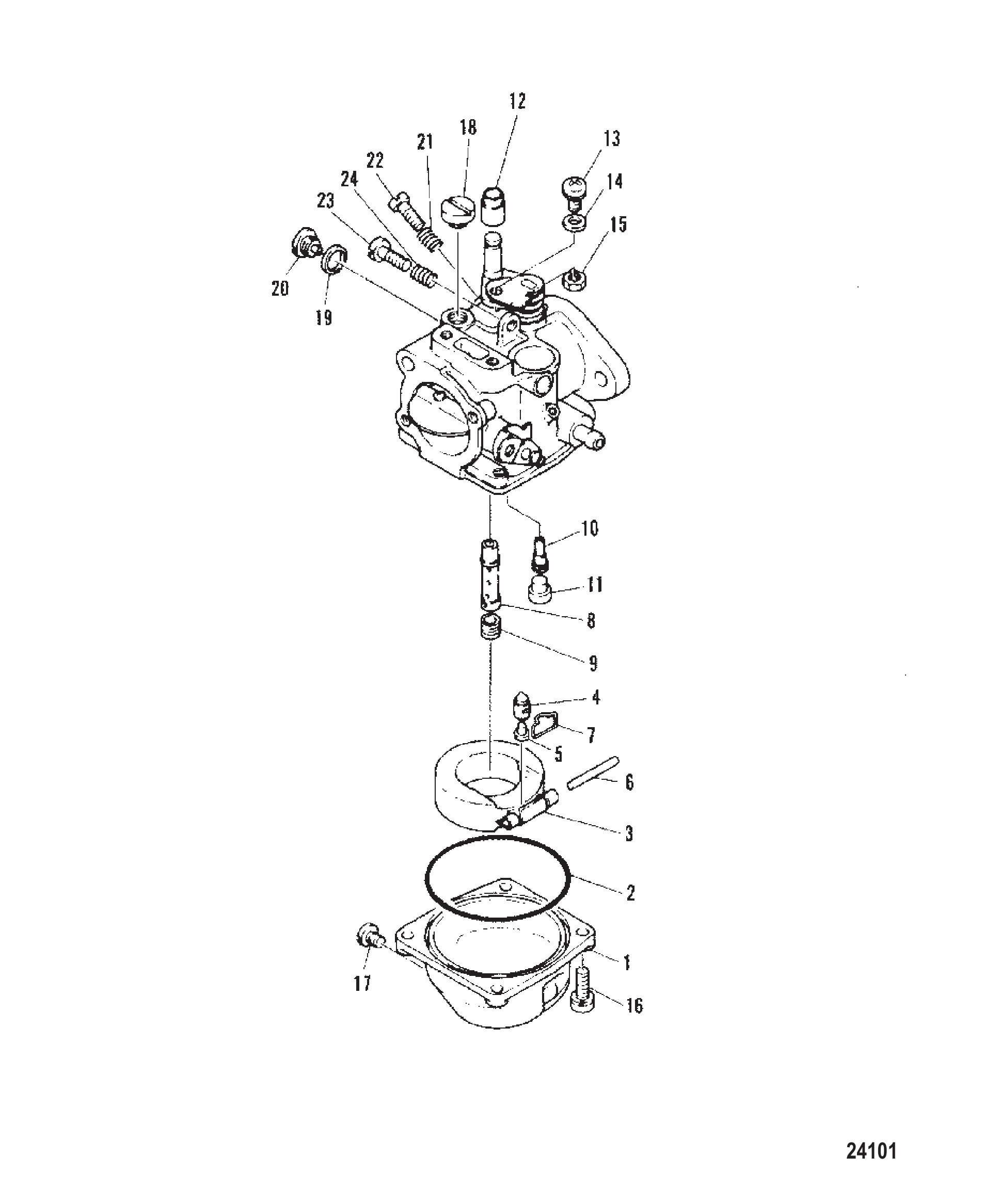

图 1化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	6071A47	化油器总成(上部-50)(WM15)	CARBURETOR ASSEMBLY (TOP - 50) (WM15)	1
1	6071A53	化油器总成	CARBURETOR ASSEMBLY	1
1	6071A48	化油器总成(下部-50)(WM15)	CARBURETOR ASSEMBLY (BOTTOM - 50) (WM15)	1
1	6071A54	化油器总成	CARBURETOR ASSEMBLY	1
1	6071A50	化油器总成(上部-60)(WM13A)	CARBURETOR ASSEMBLY (TOP - 60) (WM13A)	1
1	6071A59	化油器总成	CARBURETOR ASSEMBLY	1
1	6071A40	化油器总成(下部-60)(WM13A)	CARBURETOR ASSEMBLY (BOTTOM - 60) (WM13A)	1
1	6071A56	化油器总成	CARBURETOR ASSEMBLY	1
1	6071A53	化油器总成(上部-50)(WM-18)	CARBURETOR ASSEMBLY (TOP - 50) (WM-18)	1
1	6071A54	化油器总成(下部-50)(WM-18)	CARBURETOR ASSEMBLY (BOTTOM - 50) (WM-18)	1
1	6071A59	化油器总成(上部-60)(WM-16A)	CARBURETOR ASSEMBLY (TOP - 60) (WM-16A)	1
1	6071A56	化油器总成(下部-60)(WM-16A)	CARBURETOR ASSEMBLY (BOTTOM - 60) (WM-16A)	1
2	6249	主量孔(.096)通风碗	JET Main (.096) VENT BOWL	2
3	8318	进油针阀(WM 13/15)	NEEDLE Inlet (WM 13/15)	2
3	83181	阀座套件	VALVE SEAT KIT	2
3	19271	进油针阀/阀座套件(WM 13A/16A/18)	NEEDLE/SEAT KIT Inlet (WM 13A/16A/18)	2
3	192711	进油针阀组件	NEEDLE AND SEAT Inlet	2
4	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	2
5	52106A1	塑料喉管	VENTURI Plastic	2
6	NSS	喷嘴(不单独销售)	NOT SOLD SEPARATE Nozzle	2
7	NSS	进油针(不单独销售)	NOT SOLD SEPARATE Inlet Needle	2
8	NSS	怠速混合弹簧(不单独销售)	NOT SOLD SEPARATE Spring-Idle Mixture	2
9	NSS		NOT SOLD SEPARATE Float Pin	6
10	NSS		NOT SOLD SEPARATE Float Lever	2
11	19273	浮子	FLOAT	2
12	9483	燃油碗(WM 15/16A/18)	BOWL Fuel (WM 15/16A/18)	2
12	7835	燃油碗(WM 13/13A)	BOWL Fuel (WM 13/13A)	2
13	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	2
14	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	2
15	6199	主量孔塞	PLUG MAIN JET	2
16	7831	主燃油量孔(.058)(.058)	JET Main Fuel (.058) (.058)	2
16	6207	量孔(.072)	JET (.072)	2
16	6680	量孔（0.078）	JET (.078)	2
16	3794	量孔(.074)	JET (.074)	1
16	6207	量孔(.072)	JET (.072)	1
17	NSS	主量孔塞垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Main Jet Plug	2
18	NSS	燃油入口滤网(不单独销售)	NOT SOLD SEPARATE Screen, Fuel Inlet	2
19	NSS	韦尔奇塞(9/16英寸)(不单独销售)	NOT SOLD SEPARATE Welch Plug (9/16 Inch)	4
20	4807	油门轴	SHAFT Throttle	2
21	9484	油门阀	VALVE Throttle	2
21	7833	油门阀	VALVE Throttle	2
22	NSS	阀至节气门轴螺丝(不单独销售)	NOT SOLD SEPARATE Screw-Valve to Throttle Shaft	4
23	6204	节气门轴密封	SEAL THROTTLE SHAFT	2
24	6203	节气门轴垫圈	WASHER THROTTLE SHAFT	2
25	NSS		NOT SOLD SEPARATE Spring-Throttle Return	2
26	6198	加浓阀总成	VALVE ASSEMBLY ENRICHMENT	2
27	NSS	加浓支架螺丝(不单独销售)	NOT SOLD SEPARATE Screw-Enrichment Bracket	2
28	NSS	韦尔奇塞(7/16英寸)(不单独销售)	NOT SOLD SEPARATE Welch Plug (7/16 Inch)	2
29	733771	化油器衬垫	GASKET CARBURETOR	2
-	6200	化油器垫片套件	GASKET KIT Carburetor	2
-	19274	维修套件	REPAIR KIT	2
-	812953	化油器维修套件	REPAIR KIT - CARB	2
-	19272	维修套件	REPAIR KIT	1
-	812953	化油器维修套件	REPAIR KIT - CARB	1
-	43779A87	动力头衬垫套件	GASKET SET Powerhead	1

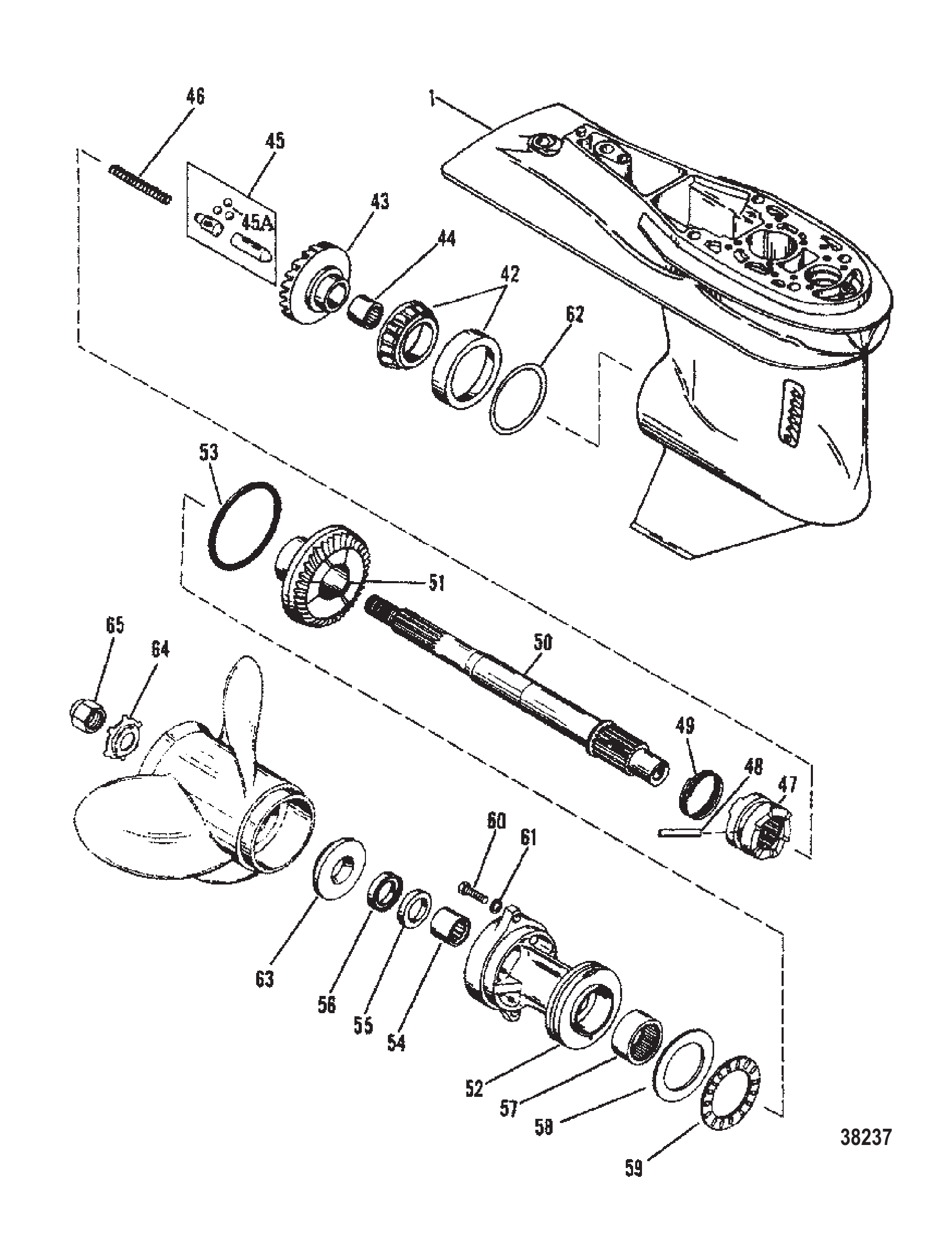

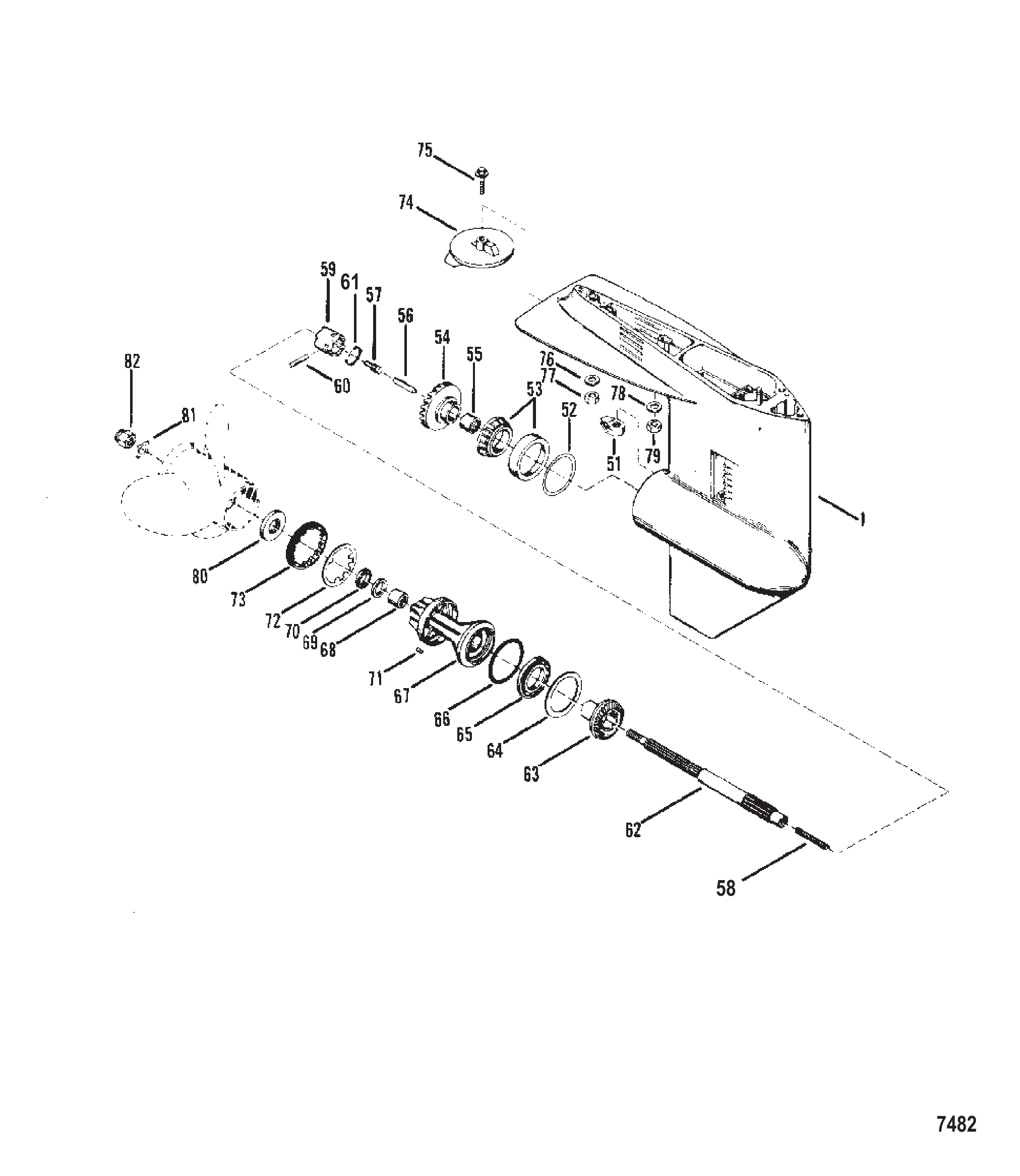

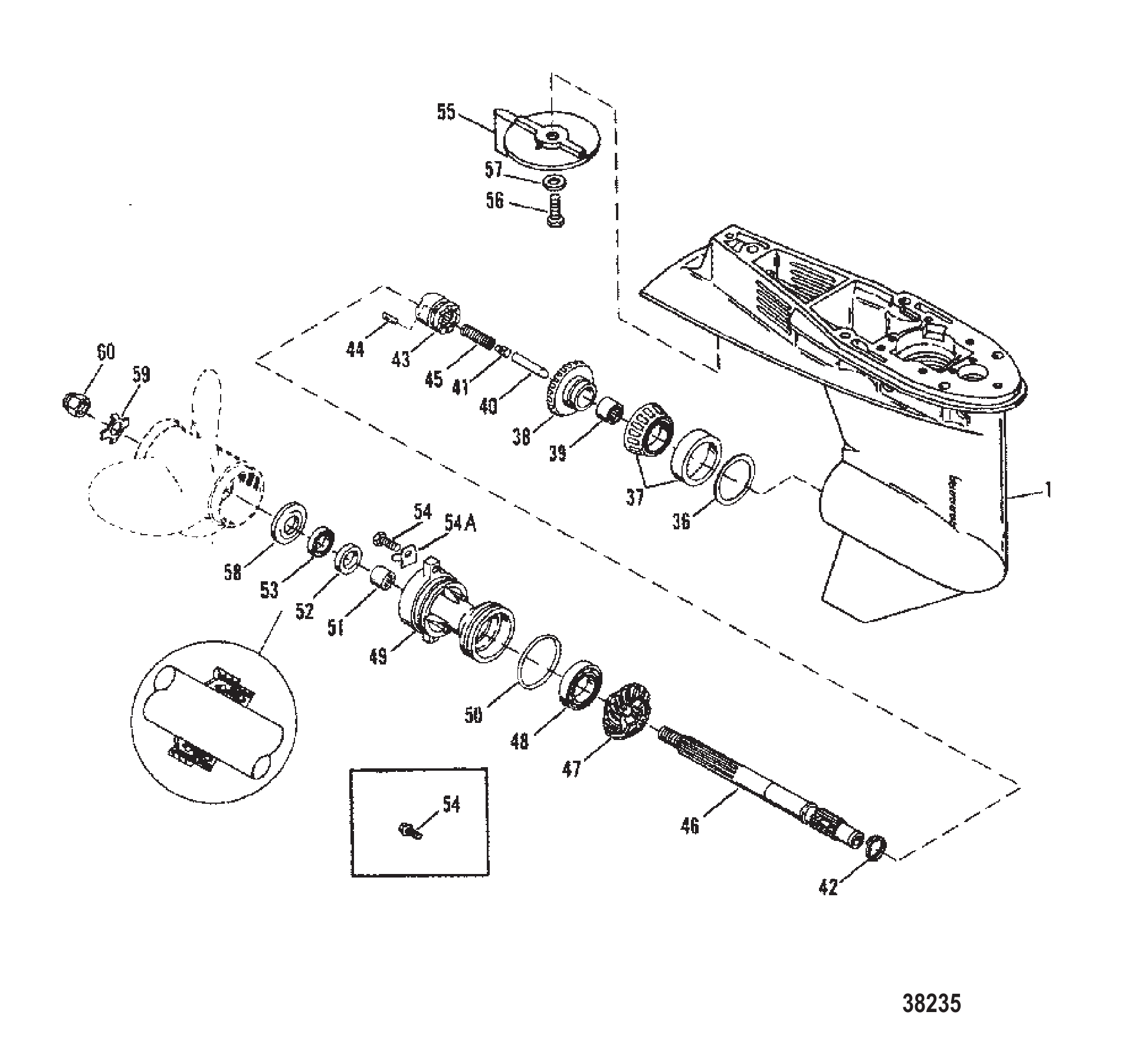

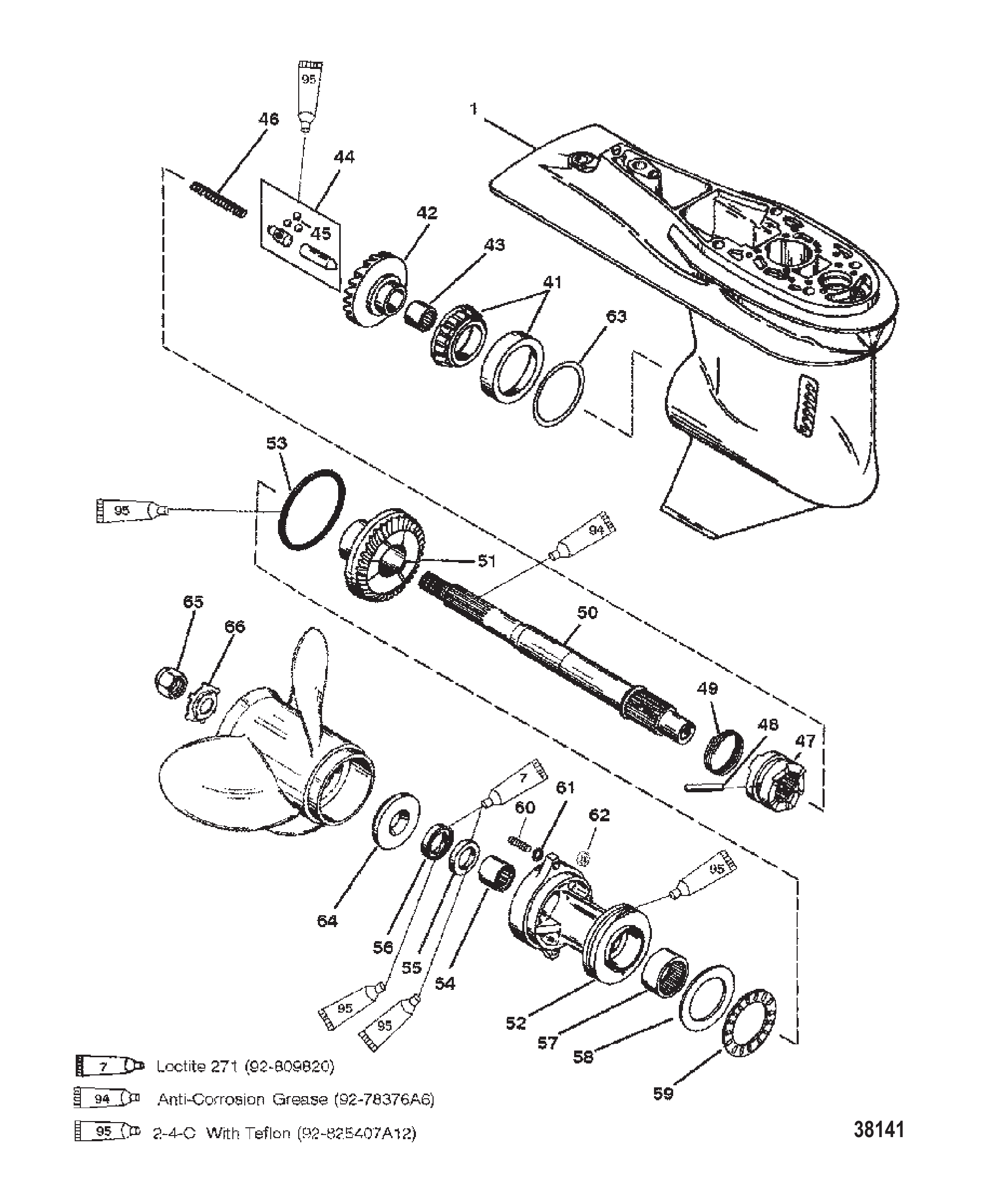

图 2齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9760A8	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	9760A9	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A21	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A12	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A13	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A10	齿轮箱总成(加长)(黑色)	GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A11	齿轮箱总成(加长)(灰色)	GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A2	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A3	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A20	齿轮箱总成(基础款)(TRACKER)	GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
36	812769A1	垫片组	SHIM SET	AR
36	8M0063263	垫片组	SHIM SET	AR
37	812767A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
37	8M0103476	轴承总成	BEARING ASSY	1
38	813693A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
38	813693T1	前进齿轮	GEAR Forward	1
39	21739	滚柱轴承	BEARING Roller	1
40	8129291	凸轮从动件	FOLLOWER Cam	1
41	20843	滑块	SLIDE	1
42	38114	弹簧	SPRING	1
43	813697	离合器	CLUTCH	1
43	813697T	离合器	CLUTCH	1
44	38113	十字销	PIN Cross	1
44	8M0020942	十字销@2	PIN-CROSS @2	1
45	815418	弹簧	SPRING	1
46	14493	螺旋桨轴	PROPELLER SHAFT	1
47	813695	倒挡齿轮	GEAR Reverse	1
47	813695T	倒挡齿轮	GEAR Reverse	1
48	20839	滚珠轴承	BEARING Ball	1
48	20839T	滚珠轴承	BEARING Ball	1
49	19291A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
49	8M0168900	轴承座	BEARING CARRIER	1
50	815460	O型圈	O-RING	1
51	21700	滚针轴承	BEARING Needle	1
52	69188	油封	SEAL Oil	1
52	8M0205511	油封	SEAL Oil	1
53	69189	油封	SEAL Oil	1
53	8M0203757	油封	SEAL Oil	1
54	4000353	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
54A	826613	锁紧垫圈	TAB WASHER	2
54	8136911	螺丝(M8×0.98)	SCREW (M8 x .98)	2
55	17264T2	调整片锌制	TRIM TAB Zinc	1
56	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
57	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
57	8M0214963	垫圈	WASHER	1
58	73345A1	止推垫片	THRUST WASHER	1
59	76281	锁紧垫圈	TAB WASHER	1
59	8M0214942	锁紧垫片	WASHER Tab	1
60	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
60	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	812867A91	发动机垫片组	GASKET SET Engine	1
-	812867A97	衬垫套件	GASKET SET	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

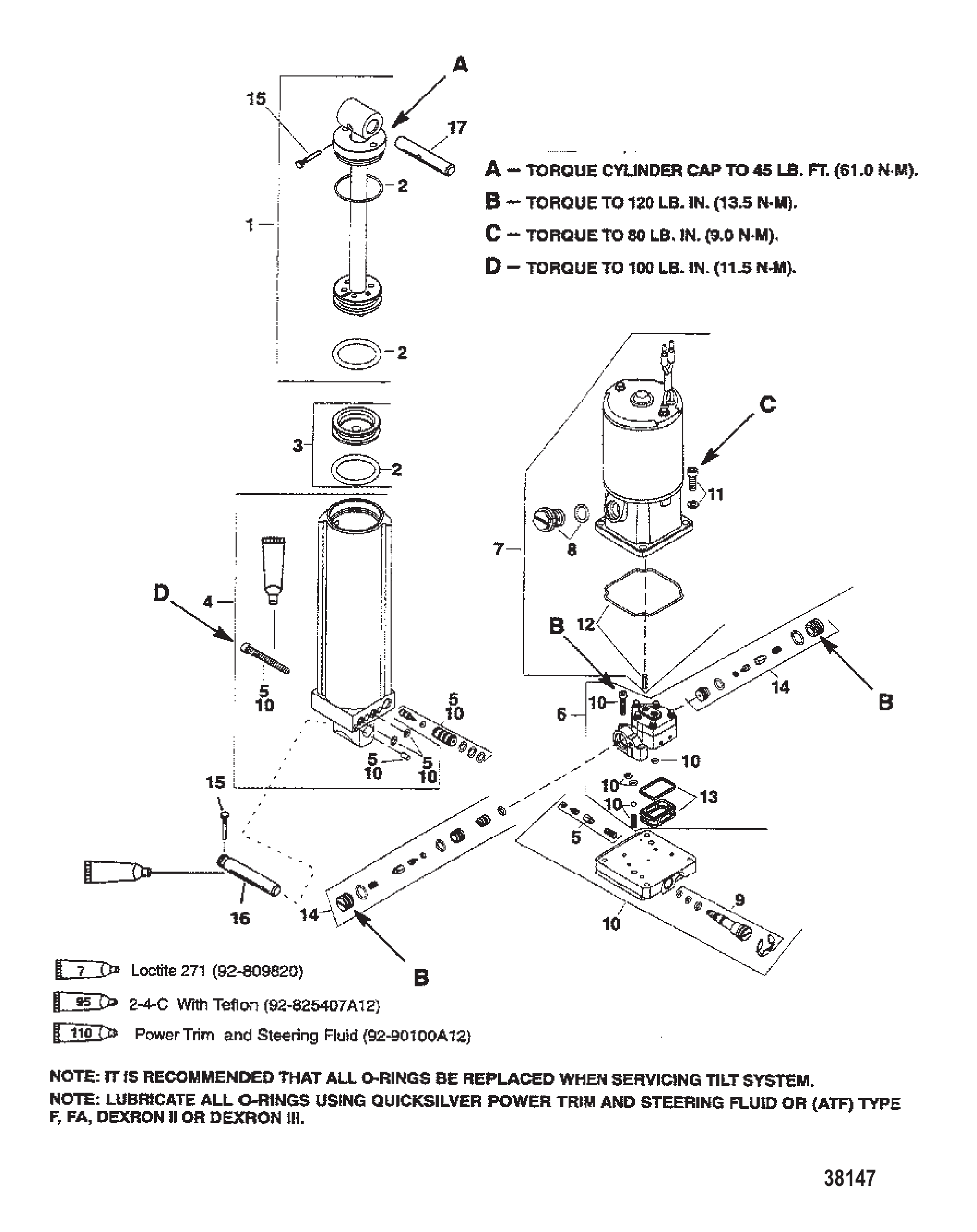

图 3动力配平(序列号0G357070及以上-黄色注油塞) POWER TRIM (S/# 0G357070 and UP-YELLOW FILL PLUG)

REF	零件编号	中文名称	英文名称	数量
-	830150A2	泵总成	PUMP ASSEMBLY	1
1	813427A3	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811228A1	气缸总成	CYLINDER ASSEMBLY	1
4	893904T01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A1	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	螺丝套件(电机)	SCREW KIT (MOTOR)	1
12	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
13	809878A1	滤清器套件	FILTER KIT	1
13	893912A02	滤清器套件	FILTER KIT	1
14	809879A1	提升阀套件	POPPET KIT	1
14	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	O型圈套件(完整调整)	O-RING KIT (COMPLETE TRIM)	1
-	893914A02	O型圈套件	O-RING KIT	1
15	821539	三叶销	PIN Trilobe	2
16	19607	销	PIN	1
17	822869	销	PIN	1
17	822869001	锚销	PIN Anchor	1

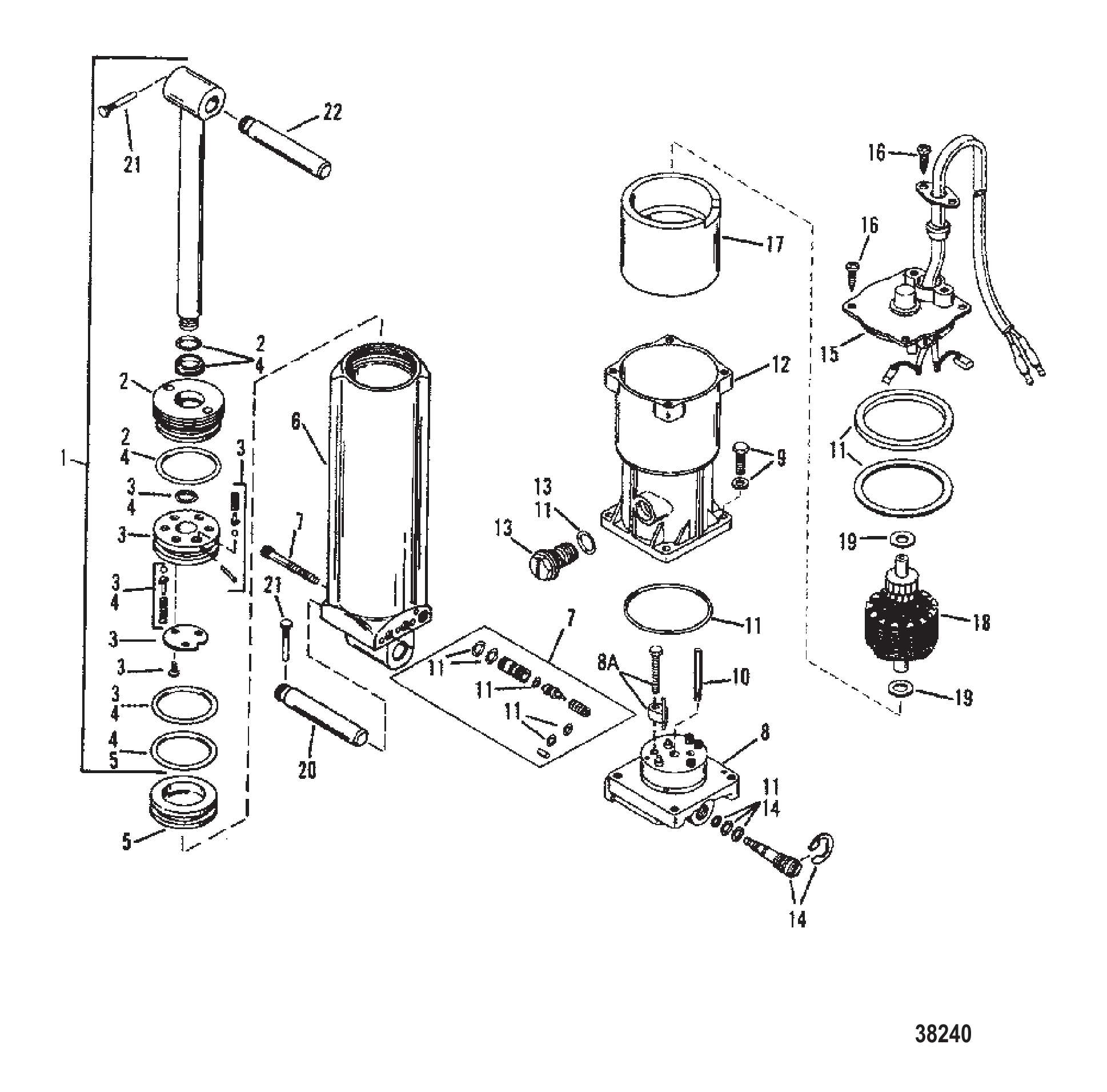

图 4动力配平组件(序列号:0D182000及以上) POWER TRIM COMPONENTS (S/N: 0D182000 AND UP)

REF	零件编号	中文名称	英文名称	数量
-	822870A1	泵总成	PUMP ASSEMBLY	1
1	8134271	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A3	气缸密封套件	SEAL KIT Cylinder	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	811228	气缸套件	CYLINDER KIT	1
6	893904T01	气缸总成	CYLINDER ASSEMBLY	1
7	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	8116706	泵/歧管套件	PUMP/MANIFOLD KIT	1
8	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
8A	823180A1	摇臂套件	ROCKER ARM KIT	1
8A	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
9	813436	螺钉套件	SCREW KIT	1
10	811671	驱动轴	DRIVESHAFT	1
11	811672A3	O型圈套件	O-RING KIT	1
11	811672A4	O型圈套件	O RING KIT	1
12	811673	储液罐	RESERVOIR	1
12	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
13	813435	塞套件	PLUG KIT	1
13	8134351	堵头	PLUG	1
14	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
14	893929A01	安全阀套件	VALVE KIT Relief	1
15	811677	储液罐盖套件	CAP KIT Reservoir	1
15	809885A1	电机套件	MOTOR KIT	1
16	813446	螺钉	SCREW	1
17	811674	储液罐/马达	RESERVOIR/MOTOR	1
17	809885A1	电机套件	MOTOR KIT	1
18	811675	电枢	ARMATURE	1
19	811676	止推垫片套件	THRUST WASHER KIT	1
20	19607	销	PIN	1
21	821539	三叶销	PIN Trilobe	2
22	822869	销	PIN	1
22	822869001	锚销	PIN Anchor	1

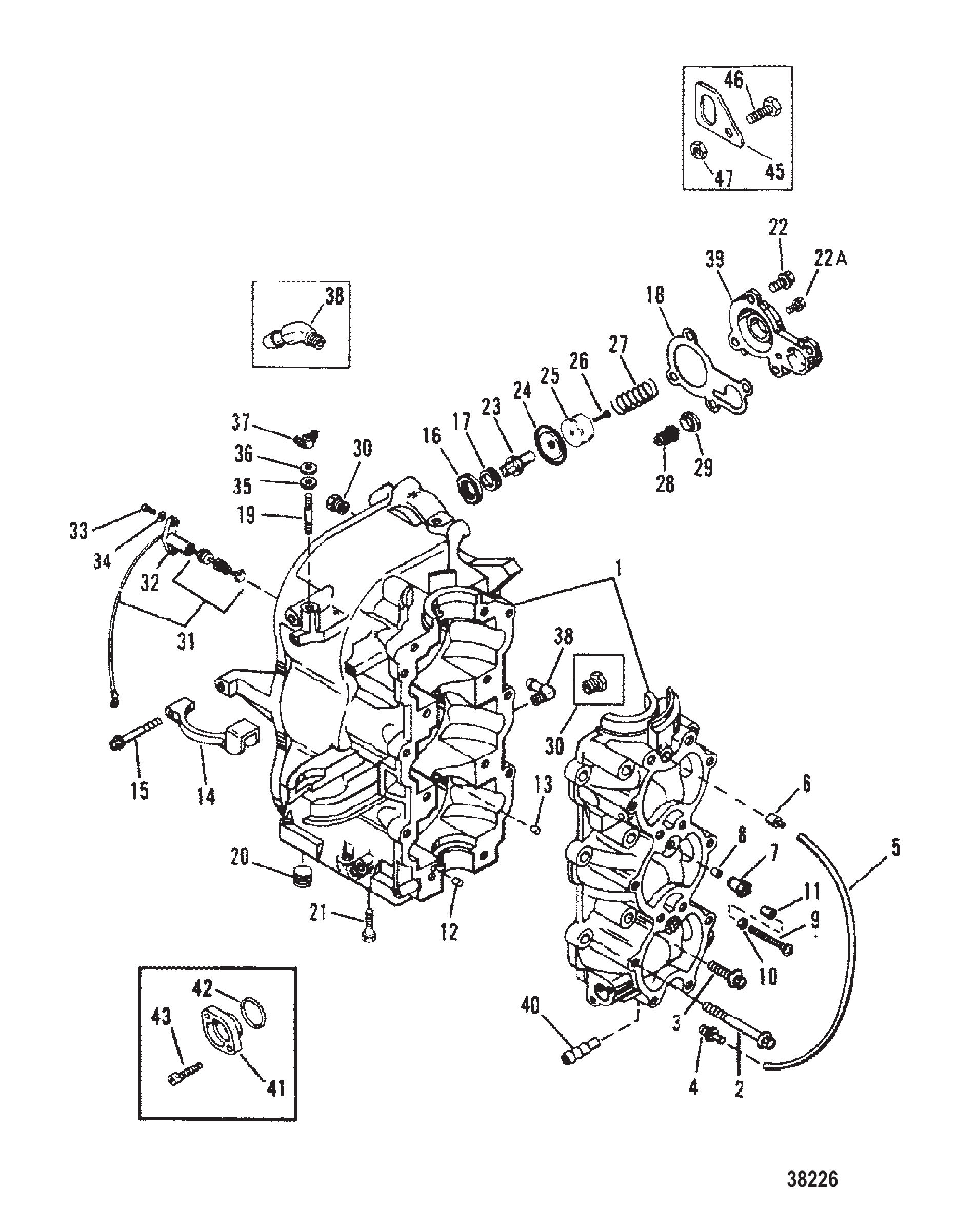

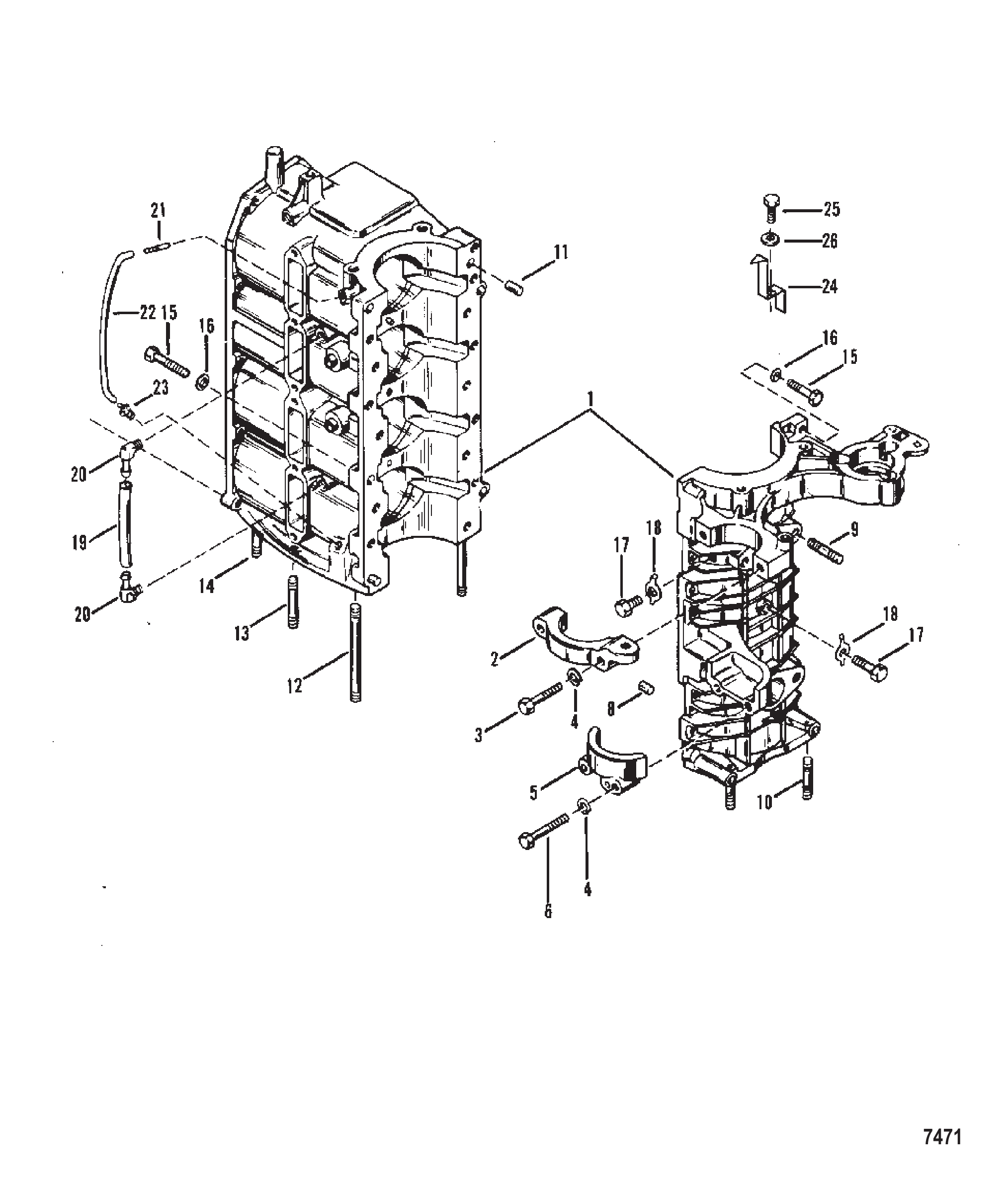

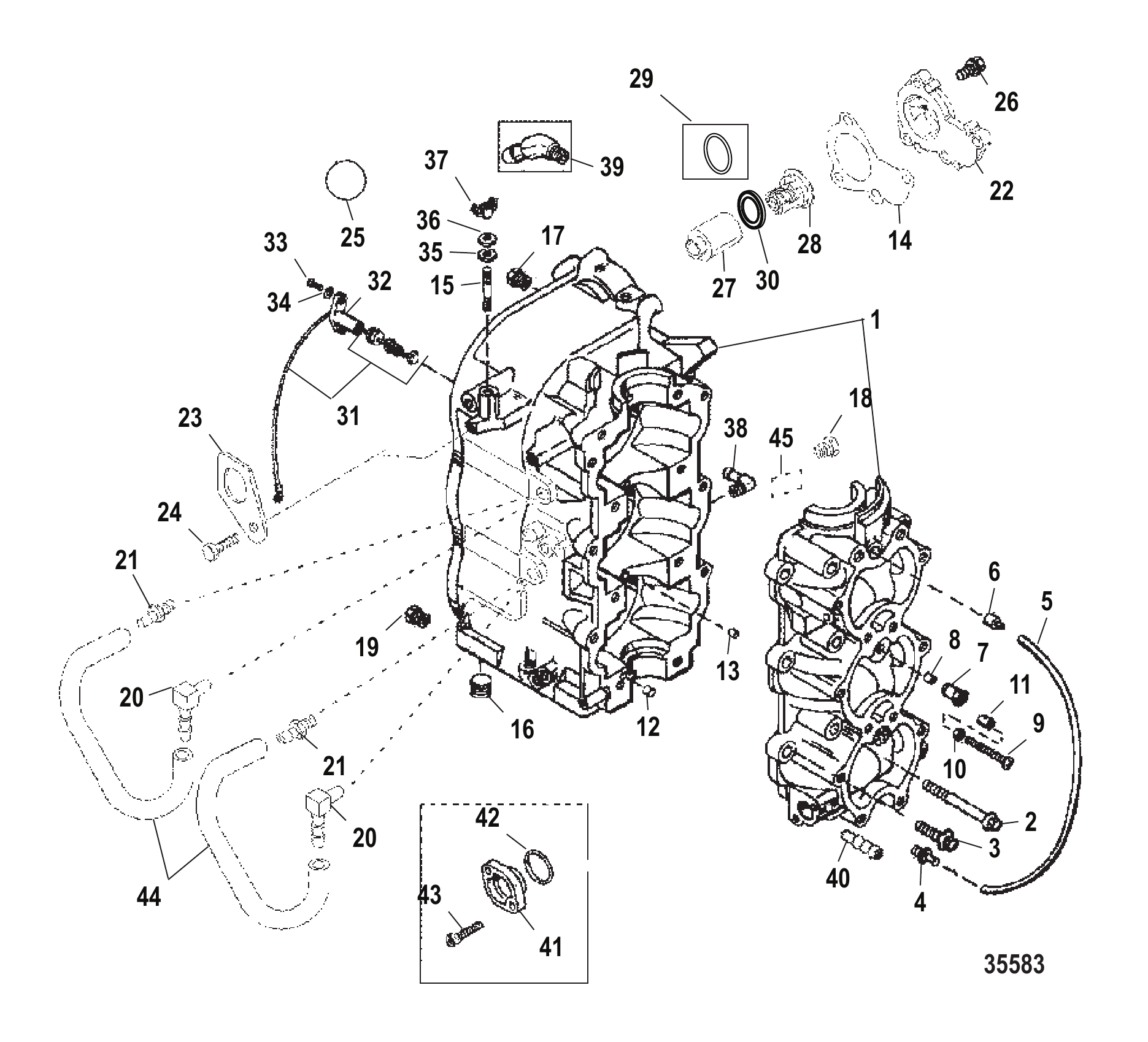

图 5气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8981A6	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	72038	启动电机上支架	BRACKET Upper Starter Motor	1
3	73279	支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)	SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch)	2
4	26993	支架螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Bracket Screw	4
4	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
5	76867	启动电机下盖	COVER Lower Starter Motor	1
6	73279	盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)	SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch)	2
8	20032	缸体至主轴承定位销	PIN Dowel Cylinder block to main bearing	2
9	68164	化油器双头螺柱(1.25英寸)	STUD Carburetor (1.25 Inch)	4
9	64936	螺柱	STUD	4
10	68165	曲轴箱至驱动轴壳体双头螺柱(1.625英寸)	STUD Crankcase to Driveshaft Housing (1.625 Inch)	2
11	20033	曲轴箱至缸体定位销	PIN Dowel Crankcase to Cylinder Block	2
11	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
12	87901	缸体至驱动轴壳体双头螺柱(4英寸)	STUD Cylinder block to drive shaft housing (4 Inch)	2
13	68166	缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸)	STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch)	2
14	68167	缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸)	STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch)	2
15	73657	曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸)	SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch)	13
15	31984	曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸)	SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch)	3
15	73275	曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸)	SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch)	2
16	70132	曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063)	WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw	17
16	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	17
17	20359	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
17	98260	螺钉(.375-16 x .620)	SCREW (.375-16 x .620)	2
18	20091	中央轴承锁紧螺钉止动垫圈	TAB WASHER Center Bearing Locking Screw	3
19	99127109	平衡管(57英寸散装)-主轴承(5.50英寸)	LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	99664	平衡管至缸体弯头	ELBOW Balance Tube to Cylinder Block	2
20	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
21	65857	上部泄放软管接头	CONNECTOR Upper Bleed Hose	1
21	56759	倒钩接头	FITTING Barbed	1
22	9938779	气缸泄放软管(11英寸)	HOSE Cylinder Bleed (11 Inch)	1
23	42867	下部泄放软管止回阀	CHECK VALVE Lower Bleed Hose	1
23	428671	止回阀	CHECK VALVE	1
24	99156	正时指示器	INDICATOR Timing	1
25	39349	指示器至曲轴箱不锈钢螺钉(.312-18 x .750)	SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase	1
26	26993	指示器螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Indicator Screw	1
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
-	97469A87	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	97469T87	船用动力头	POWERHEAD MARINE	1

图 6附件 ACCESSORIES

REF	零件编号	中文名称	英文名称	数量

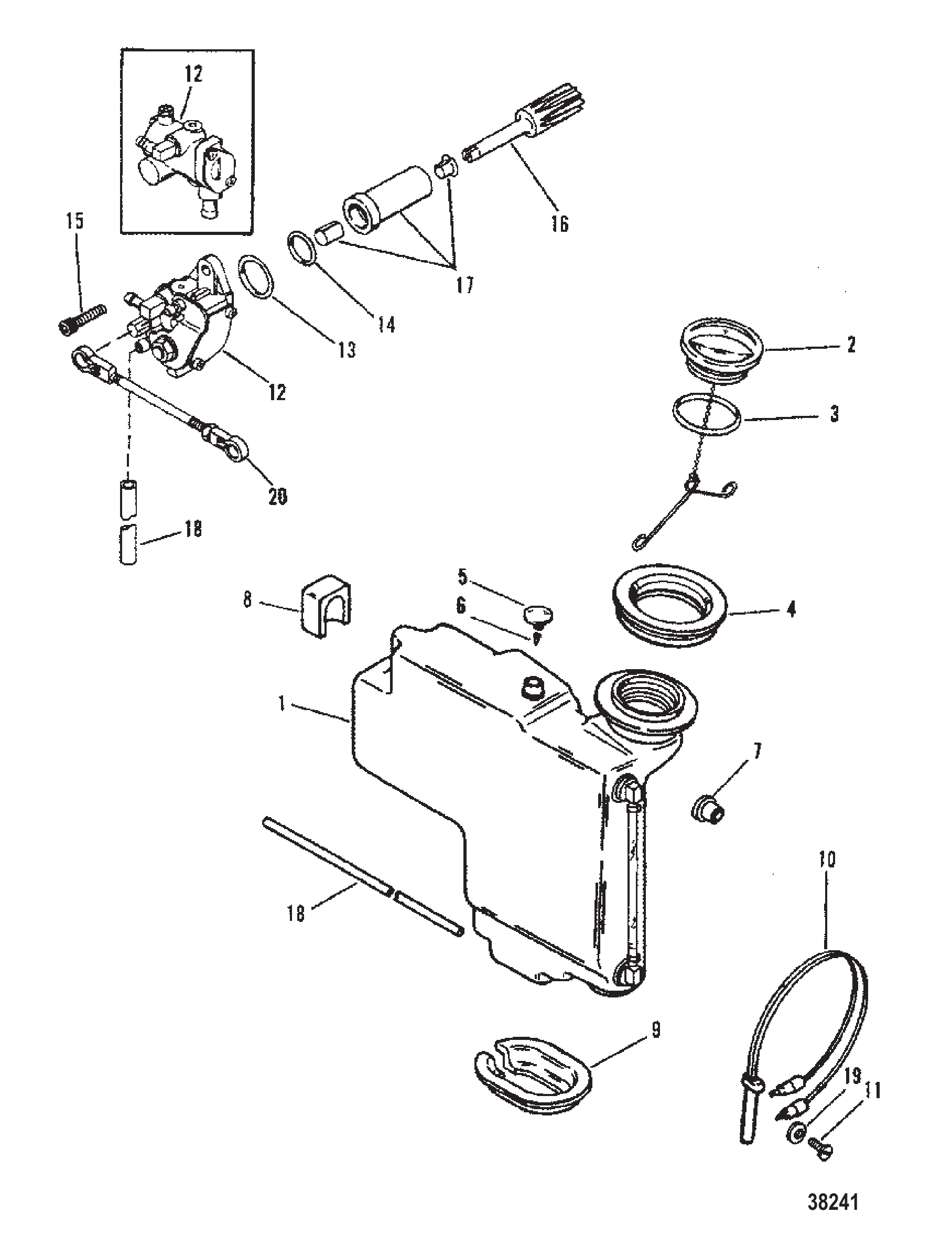

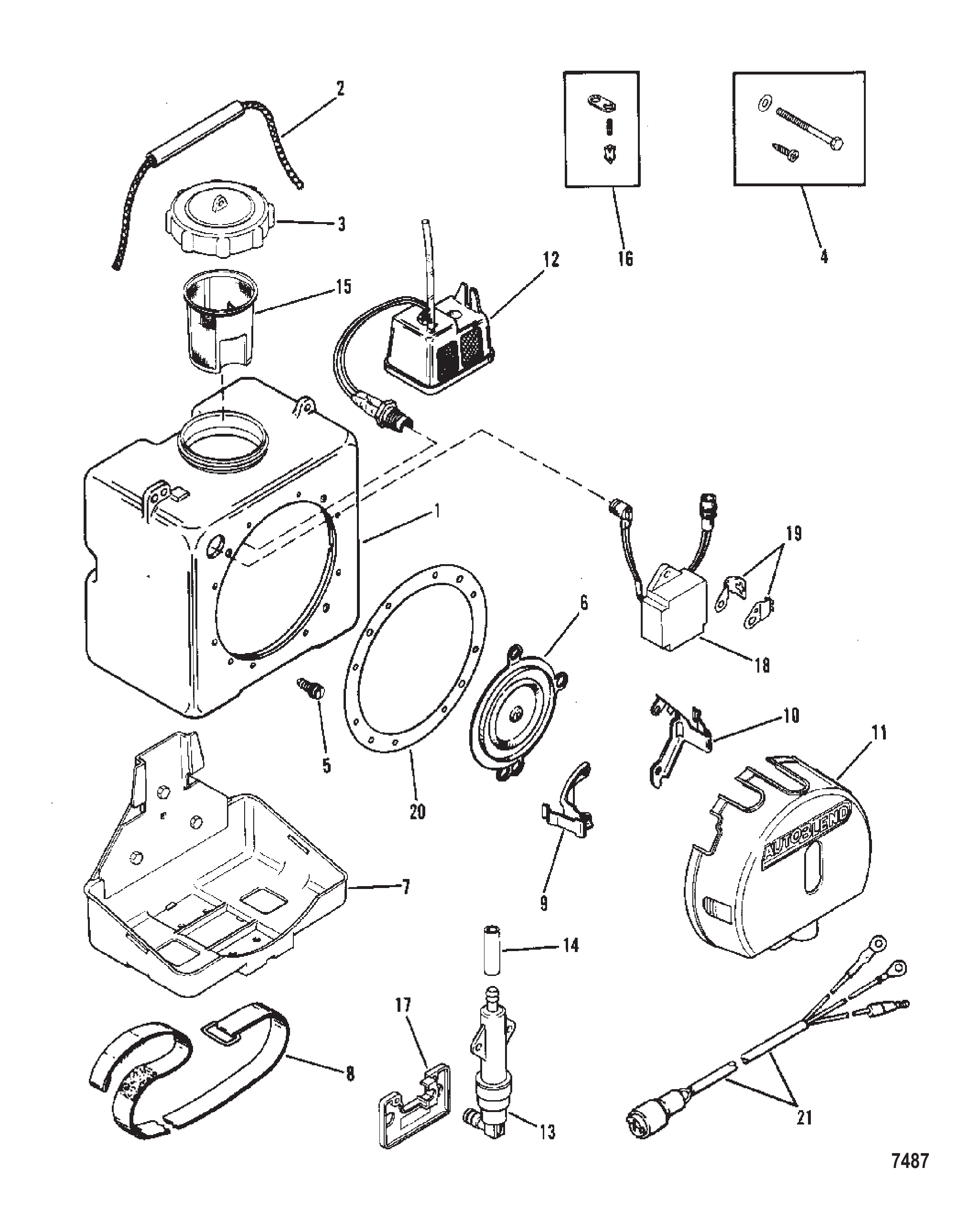

图 7机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	830889A4	油箱总成	TANK ASSEMBLY	1
2	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
3	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
5	814449A3	盖总成	CAP ASSEMBLY	1
6	42999	衬垫	GASKET	1
6	42999T	衬垫	GASKET	1
7	856156A2	开关总成	SWITCH ASSEMBLY	1
7	856156T02	开关总成	SWITCH ASSEMBLY	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
8	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
9	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
10	855362	护孔环	GROMMET	3
10	855362001	护孔环	GROMMET	3
11	855364	衬套	BUSHING	3
-	8742A20	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
-	8742A22	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
12	87421	油箱	TANK	1
13	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
13	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
14	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
15	43298A2	盖总成	CAP ASSEMBLY	2
16	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
17	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
18	99802	管	TUBE	1
19	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
20	12335A1	支架套件	BRACKET KIT	1
21	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

图 8杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	81735291	零件手册50/55/60/JET 45	PARTS MANUAL 50/55/60/JET 45	1
-	817383A1	工具包(55)	TOOL BAG (55)	1
-	816939A94	贴花套件(50)(黑色)	DECAL SET (50) (BLACK)	1
-	816939A96	贴花套件	DECAL SET	1
-	811212A94	贴花套件(60)(黑色)	DECAL SET (60) (BLACK)	1
-	811212A00	贴花套件(黑色60电动)	DECAL SET (Black 60 Electric)	1
-	826313A95	贴花套件(60)(黑色)(SEAPRO)	DECAL SET (60) (BLACK) (SEAPRO)	1
-	826313A01	贴花套件(黑色60 SeaPro)	DECAL SET (Black 60 SeaPro)	1
-	830163A96	贴花套件(黑色60浮筒/大脚)	DECAL SET (BLACK 60 PONTOON/BIG FOOT)	1
-	804704A00	贴花套件(黑色60 Bigfoot)	DECAL SET (Black 60 Bigfoot)	1
-	824097A95	贴花套件(60)(黑色)(FORMULA)	DECAL SET (60) (BLACK) (FORMULA)	1
-	816940A94	贴花套件(50)(灰色)	DECAL SET (50) (GRAY)	1
-	816940A97	贴花套件	DECAL SET	1
-	811211A94	贴花套件(60)(灰色)	DECAL SET (60) (GRAY)	1
-	811211A03	贴花套件(灰色60电动)	DECAL SET (Gray 60 Electric)	1
-	824098A95	贴花套件(60 MAGNUM III)(灰色)(北美不销售)	DECAL SET (60 MAGNUM III) (GRAY) Not sold in North America	1
-	821573A95	贴花套件(55)(黑色)	DECAL SET (55) (BLACK)	1
-	821573A01	贴花套件(黑色55 SeaPro)	DECAL SET (Black 55 SeaPro)	1
-	821424A95	贴花套件(55)(灰色)	DECAL SET (55) (GRAY)	1
-	8588371	贴花套件(灰色Marathon 55)	DECAL SET (Gray Marathon 55)	1
-	824733A94	贴花套件(TRACKER)	DECAL SET (TRACKER)	1
-	13361A95	贴花套件(MARATHON 60)	DECAL SET (MARATHON 60)	1
-	8588372	贴花套件(灰色Marathon 60)	DECAL SET (Gray Marathon 60)	1
-	826325A95	贴花套装(JET 45)(黑色)	DECAL SET (JET 45) (BLACK)	1
-	826325A00	贴花套件	DECAL SET	1
-	826326A95	贴花套装(JET 45)(灰色)	DECAL SET (JET 45) (GRAY)	1
-	826326A01	贴花套装(灰色Jet 40)	DECAL SET (Gray Jet 40)	1
-	814319950	用户手册(50/60)(黑色)	OWNERS MANUAL (50/60) (BLACK)	1
-	821732950	用户手册(55)(黑色)	OWNERS MANUAL (55) (BLACK)	1
-	816763950	用户手册(50/60)(灰色)	OWNERS MANUAL (50/60) (GRAY)	1
-	821733950	用户手册(55)(灰色)	OWNERS MANUAL (55) (GRAY)	1
-	826596950	用户手册(JET 45)	OWNERS MANUAL (JET 45)	1

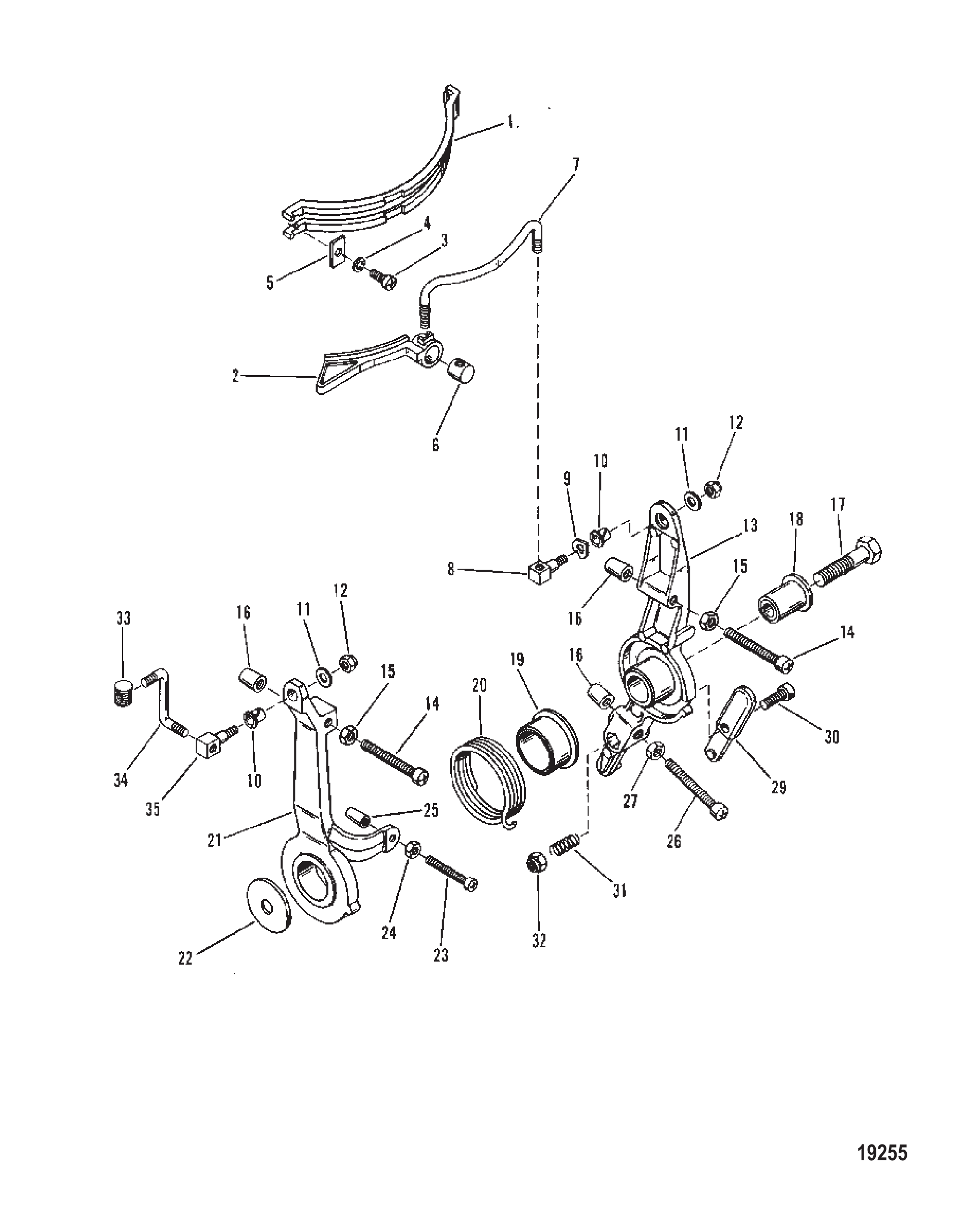

图 9节气门联动装置 Throttle Linkage

REF	零件编号	中文名称	英文名称	数量
1	76864	节流阀执行器尼龙壳体	HOUSING NYLON-THROTTLE ACTUATOR	1
2	77025	节流阀执行器尼龙凸轮	CAM NYLON-THROTTLE ACTUATOR	1
3	37571	壳体螺钉(0.190-32x0.500)	SCREW (.190-32 x .500) HOUSING	1
4	26996	壳体螺钉用#10不锈钢锁紧垫圈	LOCKWASHER (#10) Stainless Steel HOUSING SREW	1
5	60570	执行器壳体固定板	PLATE RETAINER-ACTUATOR HOUSING	1
6	74213	节流连杆尼龙套筒	BARREL NYLON-THROTTLE LINK ROD	1
7	74164	节流连杆	ROD LINK-THROTTLE	1
8	77013A1	节流控制杆万向接头	SWIVEL LINK TO THROTTLE CONTROL LEVER	1
9	29402	连杆万向接头波形垫圈	WAVE WASHER LINK ROD SWIVEL	2
10	26856		BUSHING LINK ROD SWIVEL	2
11	33786		WASHER LINK ROD SWIVEL	2
11	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	2
12	45774		NUT LINK ROD SWIVEL	2
13	77032A2	节流控制杆总成	LEVER ASSEMBLY THROTTLE CONTROL	1
14	73655	节流杆调节螺钉(2英寸)	SCREW THROTTLE LEVER ADJUSTING (2")	2
14	67916	螺钉(0.250-28x2.00)	SCREW (.250-28 x 2.00)	2
15	29598	调节螺钉用0.250-28不锈钢防松螺母	NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW	3
16	52023	调节螺钉帽	CAP ADJUSTINTG SCREW	3
17	55337	节流控制杆螺钉(0.375-16x1.75)	SCREW (.375-16 x 1.75) THROTTLE CONTROL LEVER	1
17	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
18	55164	节气门控制杆螺钉衬套	BUSHING THROTTLE CONTROL LEVER SCREW	1
19	55171	节气门控制杆螺钉衬套	BUSHING THROTTLE CONTROL LEVER SCREW	1
20	55162	弹簧	SPRING	1
21	77031A2	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
22	68410	节气门控制杆螺钉垫圈	WASHER THROTTLE CONTROL LEVER SCREW	1
22	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
23	32627	点火提前调节螺钉(0.190-32x1.50)	SCREW (.190-32 x 1.50) SPARK ADVANCE ADJUSTING	1
24	68219		NUT (#10-32) Stainless Steel ADJUSTING SCREW	1
25	48039	调节螺钉帽	CAP ADJUSTING SCREW	1
26	77650	点火提前杆调节螺钉	SCREW SPARK ADVANCE LEVER ADJUSTING	1
27	29598	调节螺钉用0.250-28不锈钢防松螺母	NUT (.250-28) Stainless Steel JAM-ADUSTING SCREW	1
28	52023	调节螺钉帽	CAP ADJUSTING SCREW	1
29	39483	节气门控制杆锁扣	LATCH THROTTLE CONTROL LEVER	1
30	22486	节流控制杆锁扣螺钉(0.250-28x0.880)	SCREW (.250-28 x .880) LATCH TO THROTTLE CONTROL LEVER	1
30	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
31	20099	锁扣螺钉压缩弹簧	SPRING COMPRESSION-LATCH SCREW	1
32	20586	锁扣安装螺钉用0.250-28螺母	NUT (.250-28) LATCH ATTACHING SCREW	1
32	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
33	74897	定子连杆枢轴	PIVOT LINK ROD TO STATOR	1
33	74897T	枢轴	PIVOT	1
34	74212	点火提前连杆	ROD LINK-SPARK ADVANCE	1
35	77013A1		SWIVEL LINK ROD TO SPARK ADVANCE LEVER	1

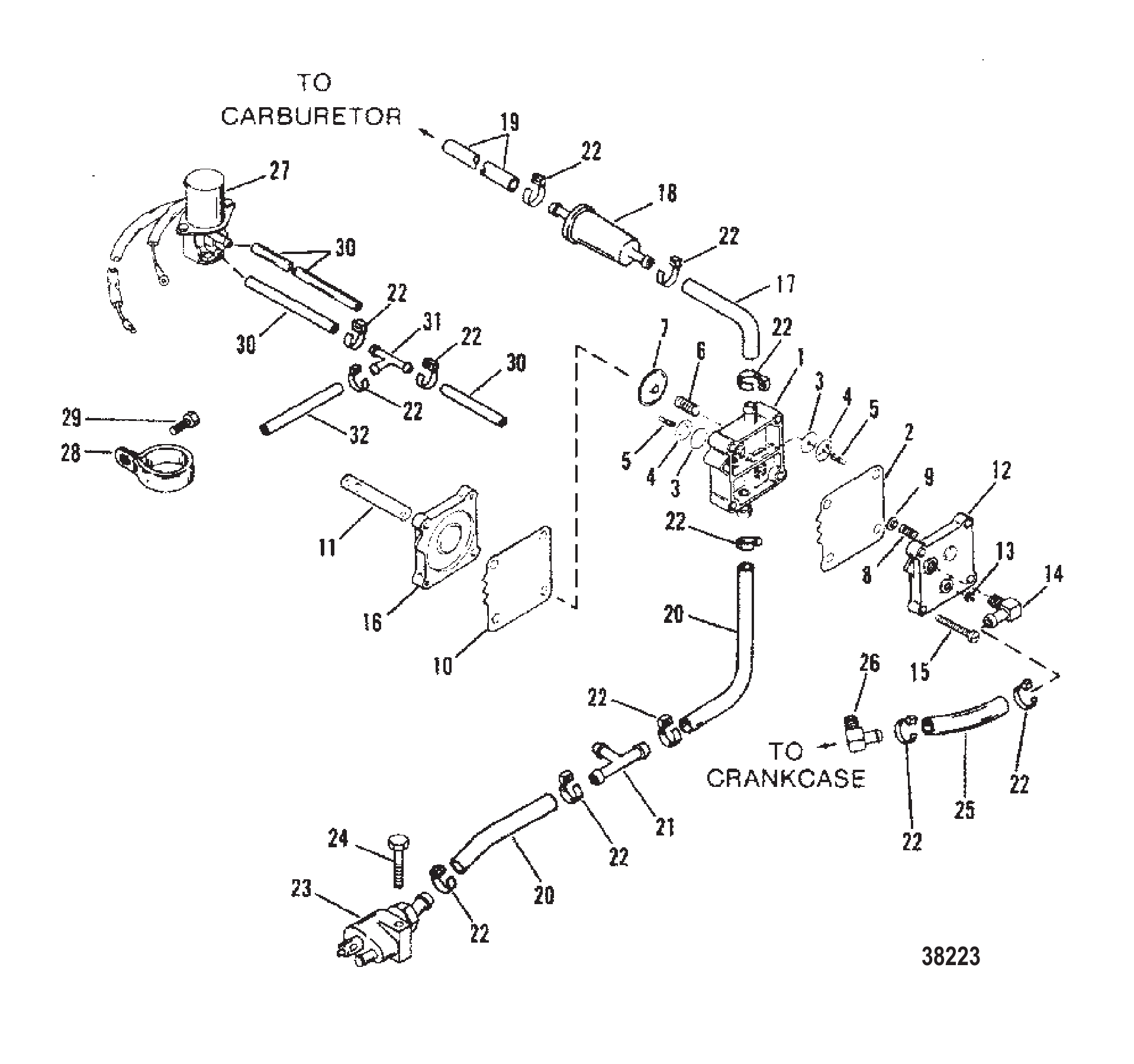

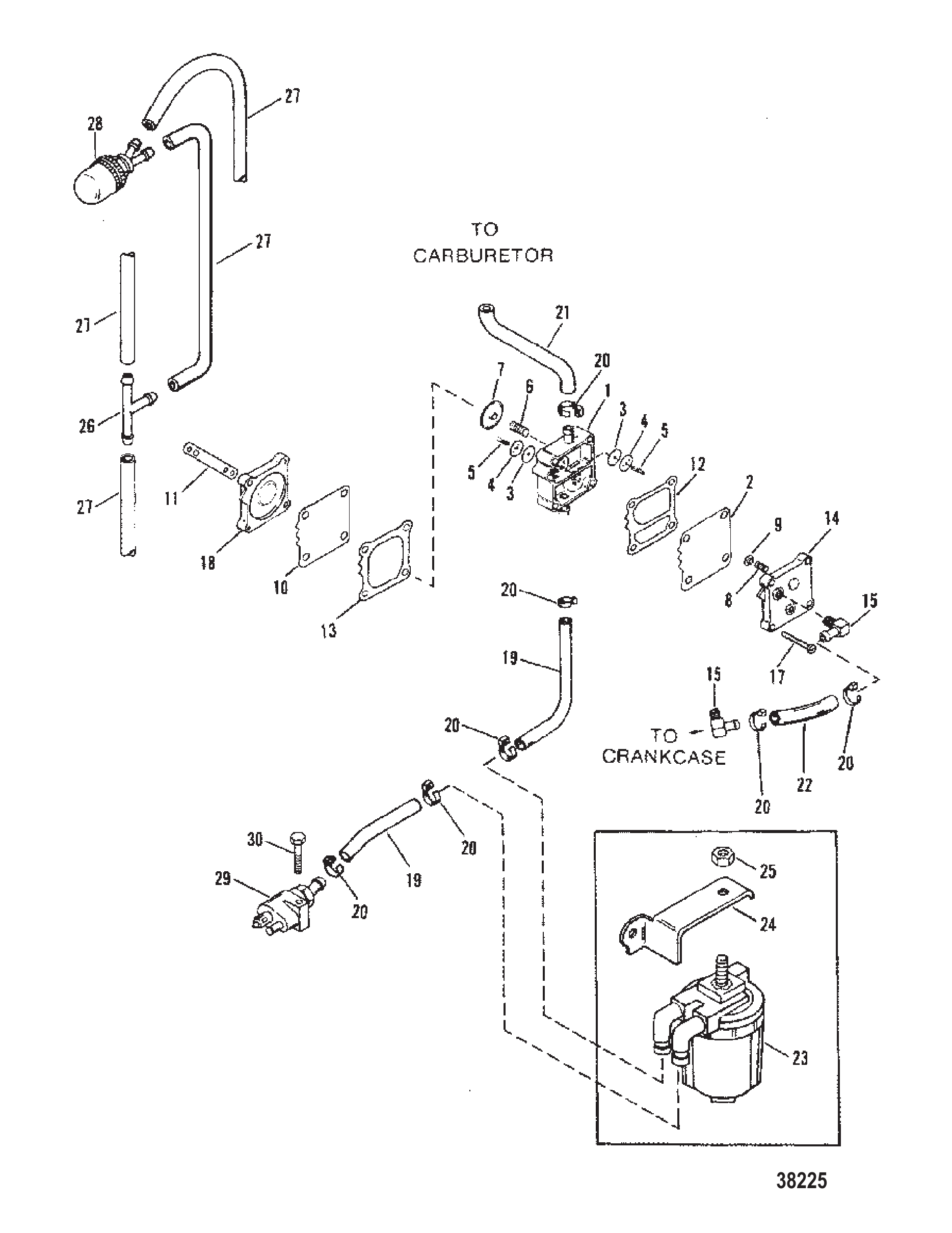

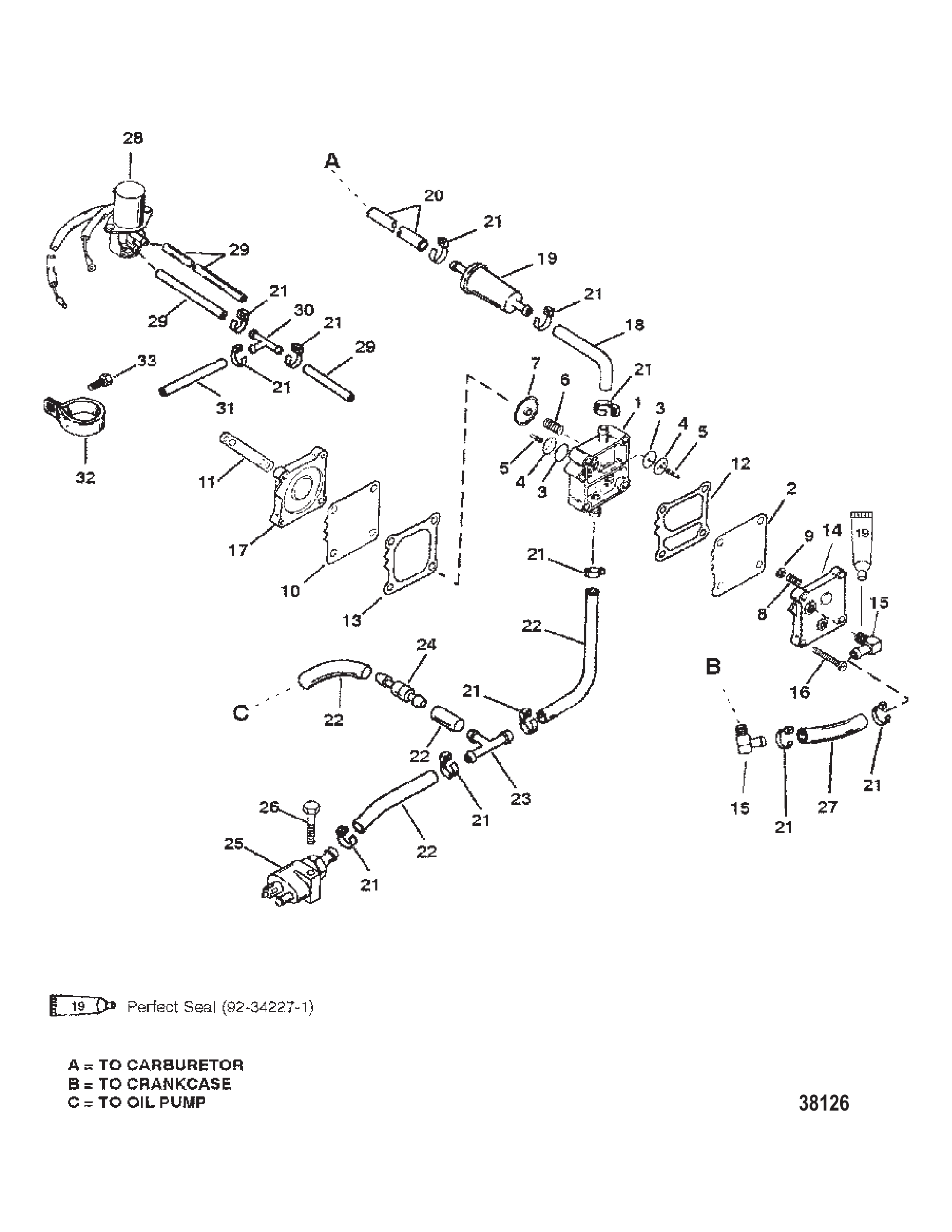

图 10燃油泵(白色或红色) FUEL PUMP (WHITE OR RED)

REF	零件编号	中文名称	英文名称	数量
1	14360A41	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE SPRING	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS		NOT SOLD SEPARATE SPRING	1
9	NSS		NOT SOLD SEPARATE CAP	1
10	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	98775A7	安装板	PLATE	1
13	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
14	19688A1	接头	FITTING	1
15	4009340	螺钉(40毫米)	SCREW (40MM)	2
15	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
15	40057134	螺钉(M6 x 50)	SCREW (M6 x 50)	2
16	144303	底座	BASE	1
17	816865	软管	HOSE	1
17	830767	软管	HOSE	1
18	8162961	燃油滤清器	FILTER Fuel	1
18	816296Q2	燃油滤清器	FILTER Fuel	1
19	19723	燃油管	LINE Fuel	1
19	830761	燃油管	LINE Fuel	1
20	9912980	软管	HOSE	2
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
21	13773	三通	TEE	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
23	816856T01	燃油接头	CONNECTOR-FUEL	1
24	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
25	99127109	管路(57英寸散装)(4.75英寸)	LINE (57.00 Inches Bulk) (4-3/4")	1
25	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
26	19688	接头	FITTING	1
27	428593	电磁阀	SOLENOID VALVE	1
27	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
28	633001	卡箍	CLAMP	1
29	40011127	螺钉 (M6 x 16) 不锈钢	SCREW (M6 x 16) Stainless Steel	1
29	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
30	1430165	油管(38.00英寸散装)	TUBING (38.00 Inches Bulk)	3
31	59169	接头	FITTING	1
31	59169003	三通接头	FITTING Tee	1
32	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
-	812867A97	衬垫套件	GASKET SET	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1

图 11骑导转向系统 RIDEGUIDE STEERING

零件编号	中文名称	英文名称	数量
19608A11	转向安装套件	ATTACHING KIT Steering	1
19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
19609A5	转向安装套件	ATTACHING KIT Steering	1
19609A6	转向安装套件	ATTACHING KIT Steering	1
97933A6	转向套件双机安装套件	STEERING KIT Duel Engine Attaching Kit	1
816667A2	转向支架总成	BRACKET ASSEMBLY Steering	1

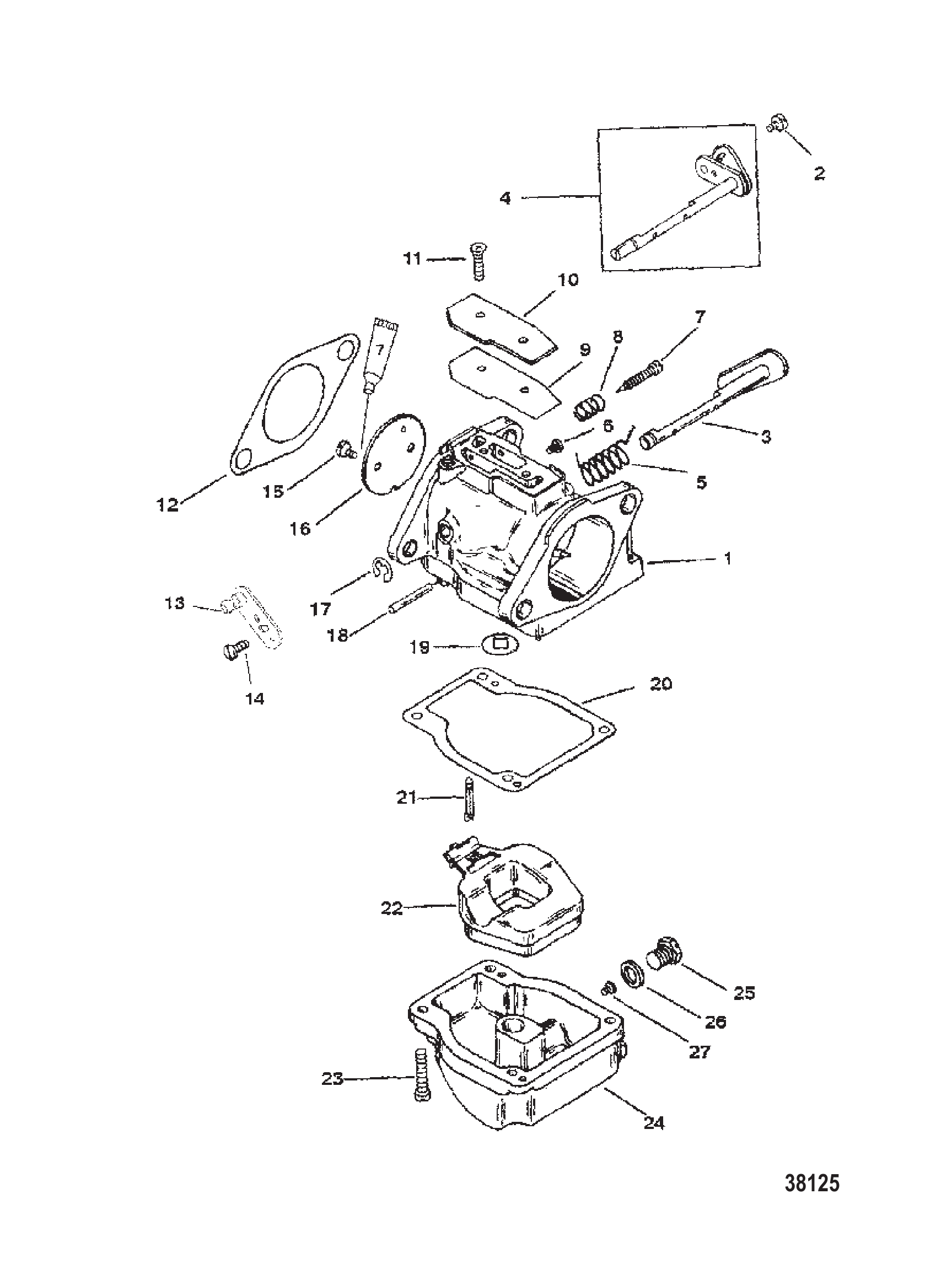

图 12化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	821679A17	化油器	CARBURETOR	1
1	821679A18	化油器	CARBURETOR	1
1	821679T18	化油器	CARBURETOR	1
1	821679A19	化油器	CARBURETOR	1
1	821679T19	化油器	CARBURETOR	1
1	821946A24	化油器	CARBURETOR	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A25	化油器	CARBURETOR	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A26	化油器	CARBURETOR	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A27	化油器	CARBURETOR	1
1	821946T42	化油器	CARBURETOR	1
1	821946A28	化油器	CARBURETOR	1
1	821946T43	化油器	CARBURETOR	1
1	821946A29	化油器	CARBURETOR	1
1	821946T44	化油器	CARBURETOR	1
2	823634	螺丝(上/下部)	SCREW (UPPER/BOTTOM)	2
3	823632	油门轴	SHAFT Throttle	1
4	823633	油门轴	SHAFT Throttle	1
4	823636	油门轴	SHAFT Throttle	1
3	823632	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
5	NSS	不单独销售油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	3
6	6247	主量孔(0.090)	JET Main (.090)	3
7	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
8	NSS	不单独销售怠速针弹簧	NOT SOLD SEPARATE SPRING-IDLE NEEDLE	3
9	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杠杆(WME43/45-底部)	LEVER Oil Pump (WME43/45 - BOTTOM)	1
14	8086121	杠杆固定螺钉(WME43/45-底部)	SCREW Lever Retainer (WME43/45 - BOTTOM)	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	879194023	节气门阀	VALVE-THROTTLE	3
17	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
18	F10064	轴	SHAFT	3
19	NSS	不单独销售喷油嘴衬垫	NOT SOLD SEPARATE GASKET-NOZZLE WELL	3
20	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
24	811695	燃油杯	BOWL Fuel	1
24	811693	燃油杯	BOWL Fuel	2
25	811694	塞套件	PLUG KIT	3
26	NSS	排水碗密封件(不单独销售)	NOT SOLD SEPARATE SEAL-BOWL DRAIN	3
27	6246	量孔(.048)	JET (.048)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
27	4217	主量孔(.062)	JET Main (.062)	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

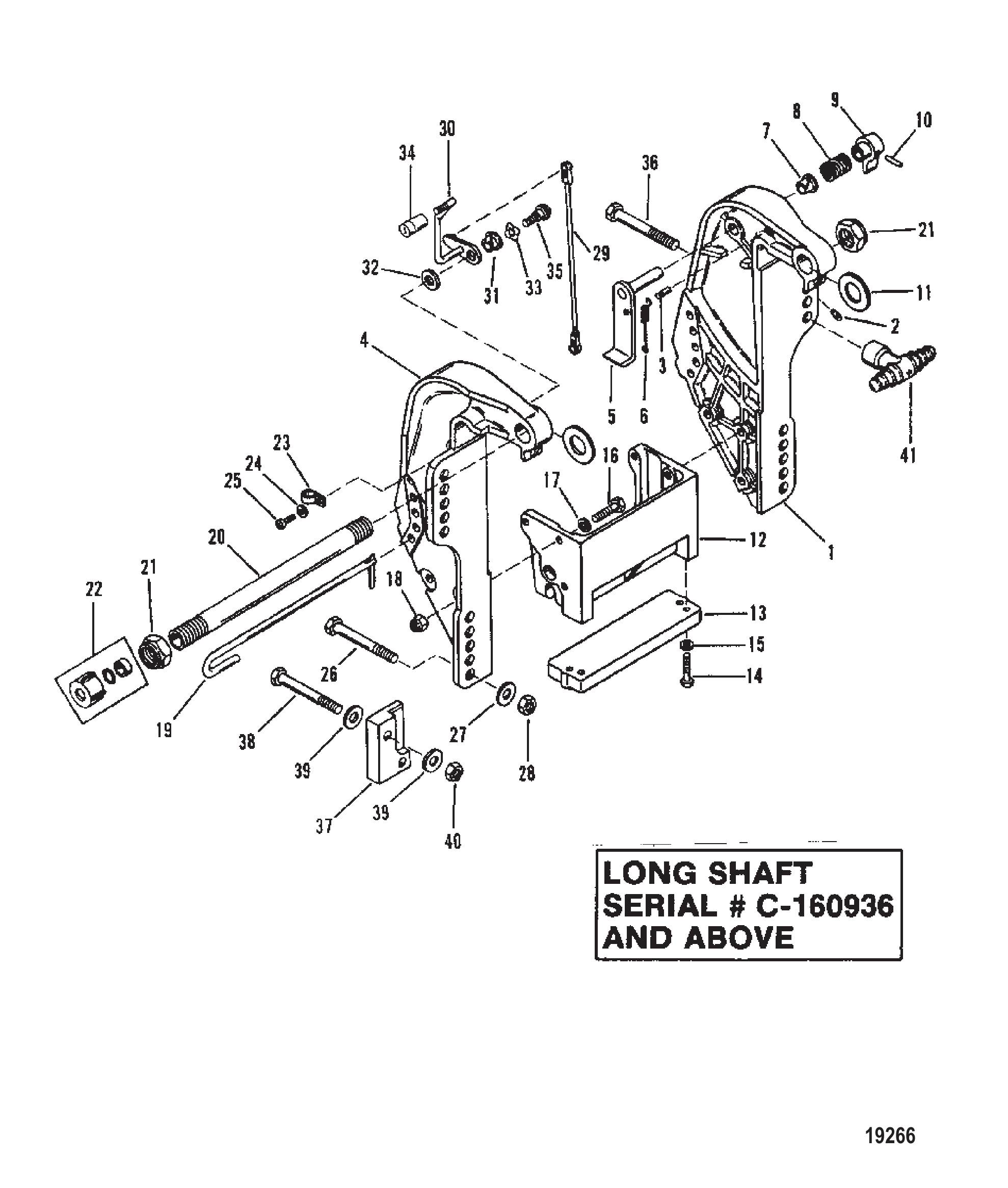

图 13艉板支架（长轴-序列号0C160936及以上） Transom Bracket (Long Shaft S/N-0C160936 & Up)

REF	零件编号	中文名称	英文名称	数量
1	9751A1	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
1	9751A2	艉板支架总成(左舷)(灰色)	BRACKET ASSEMBLY Transom (PORT) (GRAY)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	9750T	艉板支架 (右舷) (黑色)	BRACKET Transom (STARBOARD) (BLACK)	1
4	9750T6	艉板支架(右舷)(灰色)	BRACKET Transom (STARBOARD) (GRAY)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮(黑色)	KNOB (BLACK)	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮(灰色)	KNOB (GRAY)	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486T	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486F5	锚支架	BRACKET Anchor	1
12	18486T6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486F6	锚支架	BRACKET Anchor	1
13	43396A2	阳极总成	ANODE ASSEMBLY	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000332	螺钉(M6x35)	SCREW (M6 x 35)	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	19613A1	倾斜销总成	PIN ASSEMBLY Tilt	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	56041	螺母 (.875-14)	NUT (.875-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
22	19624A1	密封套件	SEAL KIT	1
23	22740	卡箍 (动力配平)	CLIP (POWER TRIM)	1
24	69205	C形垫圈 (动力配平)	C WASHER (POWER TRIM)	1
24	8M0084613	C形垫圈	C-WASHER	1
25	812832	螺钉 (#10-16 x .500) (动力配平)	SCREW (#10-16 x .500) (POWER TRIM)	1
25	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938521	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	杆总成倾斜 (非动力配平)	LEVER ASSEMBLY Tilt (NON POWER TRIM)	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套 (非动力配平)	BUSHING (NON POWER TRIM)	1
32	815796	垫圈 (.030")(非动力配平)	WASHER (.030")(NON POWER TRIM)	AR
32	19605	垫圈 (.520 x .850 x .060) 尼龙 - 黑色 (非动力配平)	WASHER (.520 x .850 x .060) Nylon - Black (NON POWER TRIM)	AR
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	AR
33	99611	波形垫圈 (非动力配平)	WAVE WASHER (NON POWER TRIM)	1
34	19621	倾斜旋钮(非动力升降)	TILT KNOB (NON POWER TRIM)	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺丝(.375-16 x .62)(非动力升降)	SCREW (.375-16 x .62) (NON POWER TRIM)	1
-	812432A1	发动机安装套件(附件)	MOUNTING KIT Engine (ACCESSORY)	1
36	76841	螺丝(.500-20 x 3.500)(附件)	SCREW (.500-20 x 3.500) (ACCESSORY)	2
37	812432T	安装支架(右舷)(附件)	BRACKET Mounting (STARBOARD)(ACCESSORY)	1
37	812432F5	安装支架	MOUNTING BRACKET	1
37	812433T	安装支架(左舷)(附件)	BRACKET Mounting (PORT)(ACCESSORY)	1
37	812433F5	安装支架	MOUNTING BRACKET	1
38	88432	螺丝(.375-24 x 4.00)(附件)	SCREW (.375-24 x 4.00) (ACCESSORY)	4
39	29395	垫圈(.390 x 1.00 x .06)(附件)	WASHER (.390 x 1.00 x .06) (ACCESSORY)	8
39	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	134371	螺母(.375-24)(附件)	NUT (.375-24) (ACCESSORY)	4
40	862903	螺母 (.375-24)	NUT (.375-24)	4
41	812434A2	T型手柄螺母(附件)	NUT T Handle (ACCESSORY)	2

图 14润滑图表 Lube Chart

REF	零件编号	中文名称	英文名称	数量
-	NOPART	无零件清单	NO PARTS LIST	1

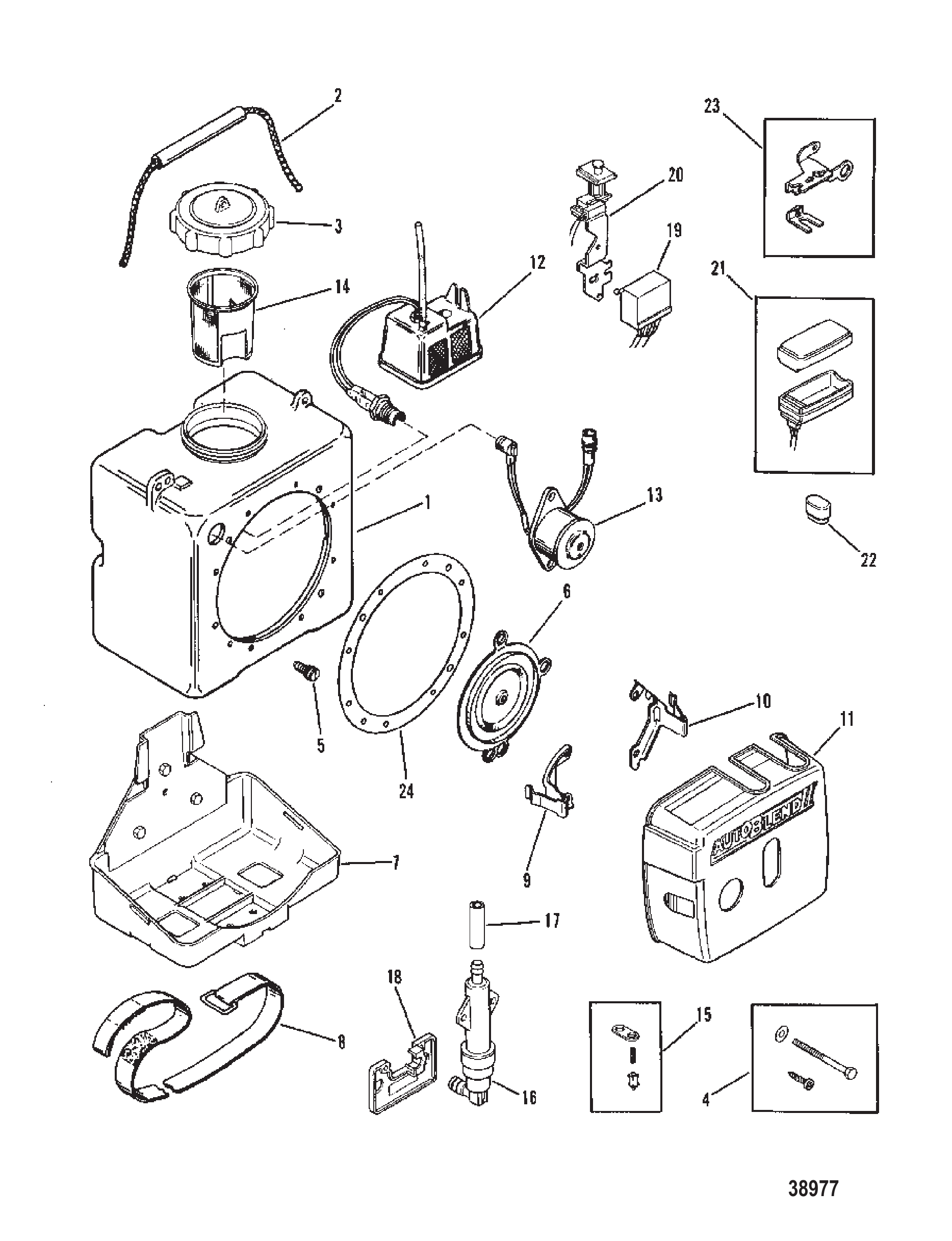

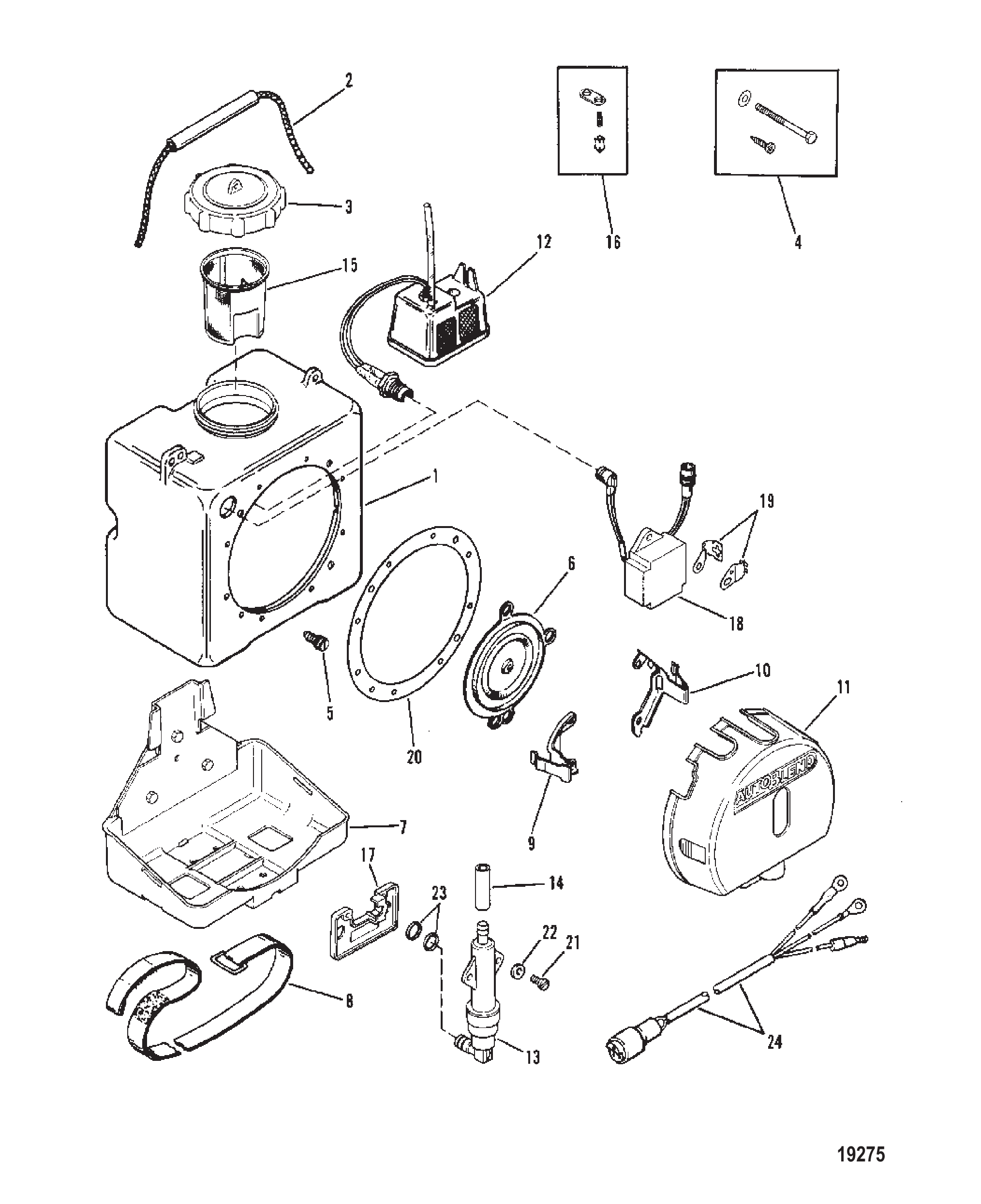

图 15自动混合器 AUTO-BLEND

REF	零件编号	中文名称	英文名称	数量
-	130194	自动混合装置	AUTO BLEND ASSEMBLY	1
1	16612	油箱套件机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	16619		CAP Oil Tank	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	16620	安装支架套件	BRACKET KIT Mounting	1
8	13993	箍带	BAND	1
9	13983	左支架	BRACKET Left	1
10	13984	右支架	BRACKET Right	1
11	16613	盖板	COVER	1
12	13985	机油滤清器/传感器套件	FILTER/SENSOR KIT Oil	1
13	18576	燃油滤清器套件	FILTER KIT Fuel	1
14	13992	乙烯基软管	VINYL TUBE	1
15	16618	机油滤网	STRAINER Oil	1
16	16615	止回阀套件	CHECK VALVE KIT	1
17	16621	安装板	PLATE	1
18	19265	模块套件	MODULE KIT	1
19	16623	支架套件	BRACKET KIT	1
20	16616	衬垫套件	GASKET KIT	1
21	14585A1	自动混合线束总成	HARNESS ASSEMBLY Auto Blend	1

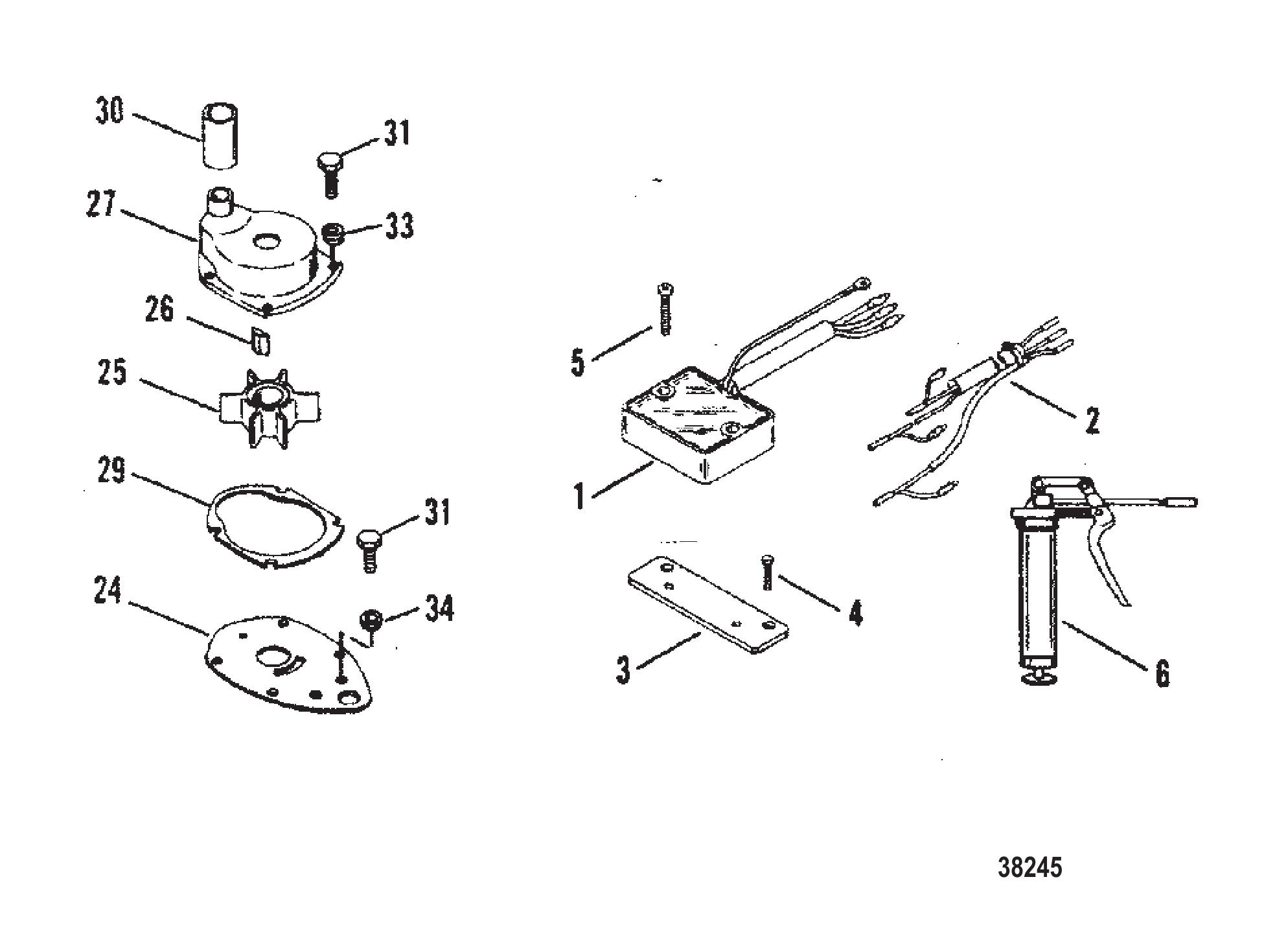

图 16喷射组件 JET COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	821889A18	转速限制器	REV LIMITER	1
2	823147A4	转速限制器线束总成	HARNESS ASSEMBLY Rev Limiter	1
3	826579	支架	BRACKET	1
4	40011127	螺钉 (M6 x 16) 不锈钢	SCREW (M6 x 16) Stainless Steel	2
4	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
5	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
6	801402	润滑脂套装	GREASE KIT	1
6	30500A2	润滑脂套装	GREASE KIT	1
24	197001	面板	FACE PLATE	1
24	19700A2	面板	FACE PLATE	1
25	19453	叶轮	IMPELLER	1
25	19453T	叶轮	IMPELLER	1
26	19699	键	KEY	1
26	8M0032831	叶轮键	KEY Impeller	1
27	14334A1	水泵总成	PUMP ASSEMBLY Water	1
27	14334A3	水泵总成	PUMP ASSEMBLY Water	1
29	194541	衬垫(上部)	GASKET (UPPER)	1
30	43023	密封件	SEAL	1
30	8M0204658	密封件	SEAL	1
31	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
33	43045	绝缘体	INSULATOR	4
33	8M0204659	绝缘体@4	INSULATOR @4	4
34	19452	绝缘体	INSULATOR	2
-	812966A11	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

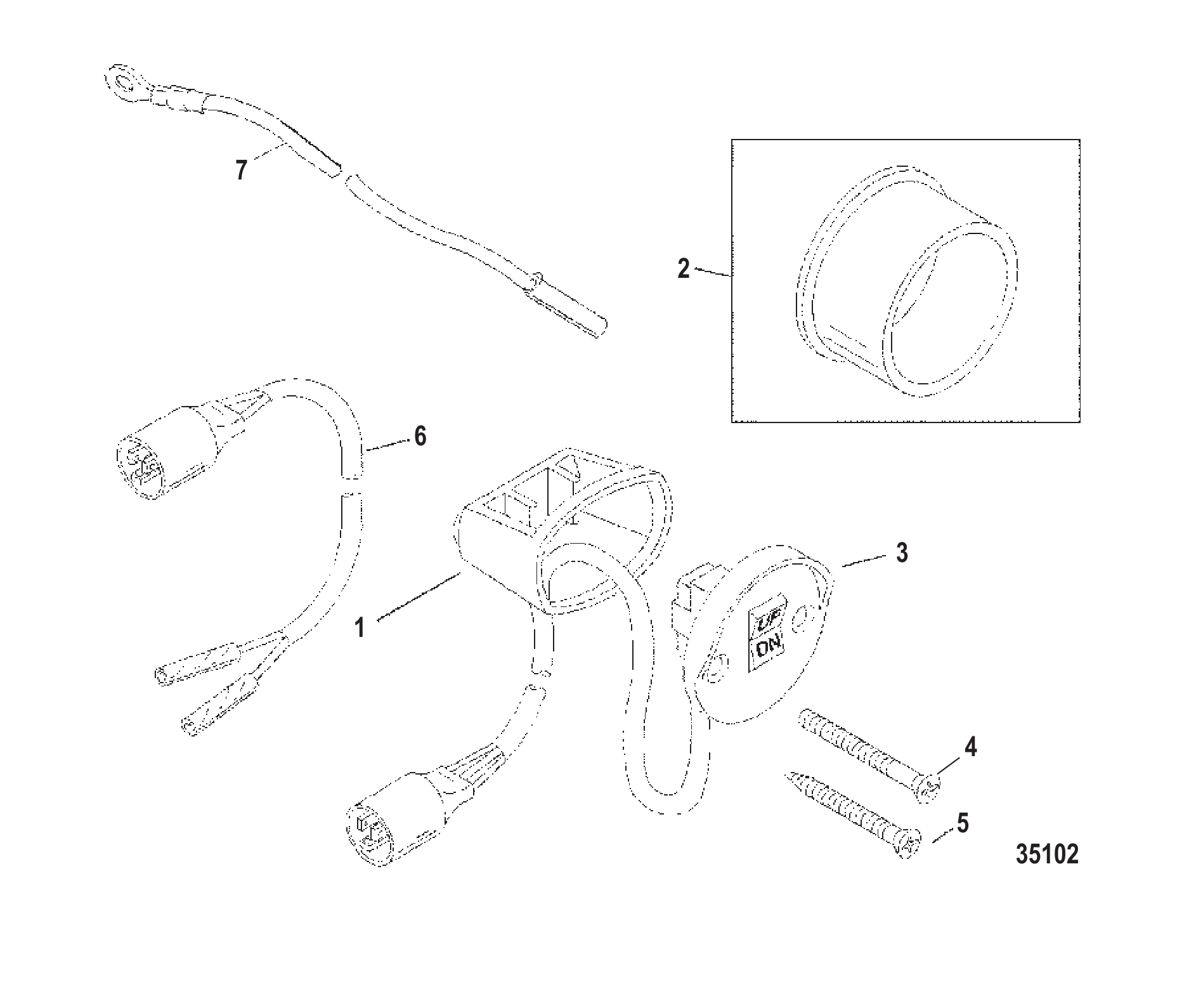

图 17升降开关套件 Trim Switch Kit

REF	零件编号	中文名称	英文名称	数量
-	18286A17	配平开关套件	SWITCH KIT Trim	1
1	18861	固定座	RETAINER	1
2	814820	适配器	ADAPTER	1
3	18286A28	开关	SWITCH	1
4	19209	螺钉(#10-32 x 2.25)	SCREW (#10-32 x 2.25)	2
5	813523	螺钉(#10-16 x 2.25)	SCREW (#10-16 x 2.25)	2
6	848017A2	升降线束总成	HARNESS ASSEMBLY Trim	1
7	849614A2	配平开关线束总成	HARNESS ASSEMBLY Trim Switch	1

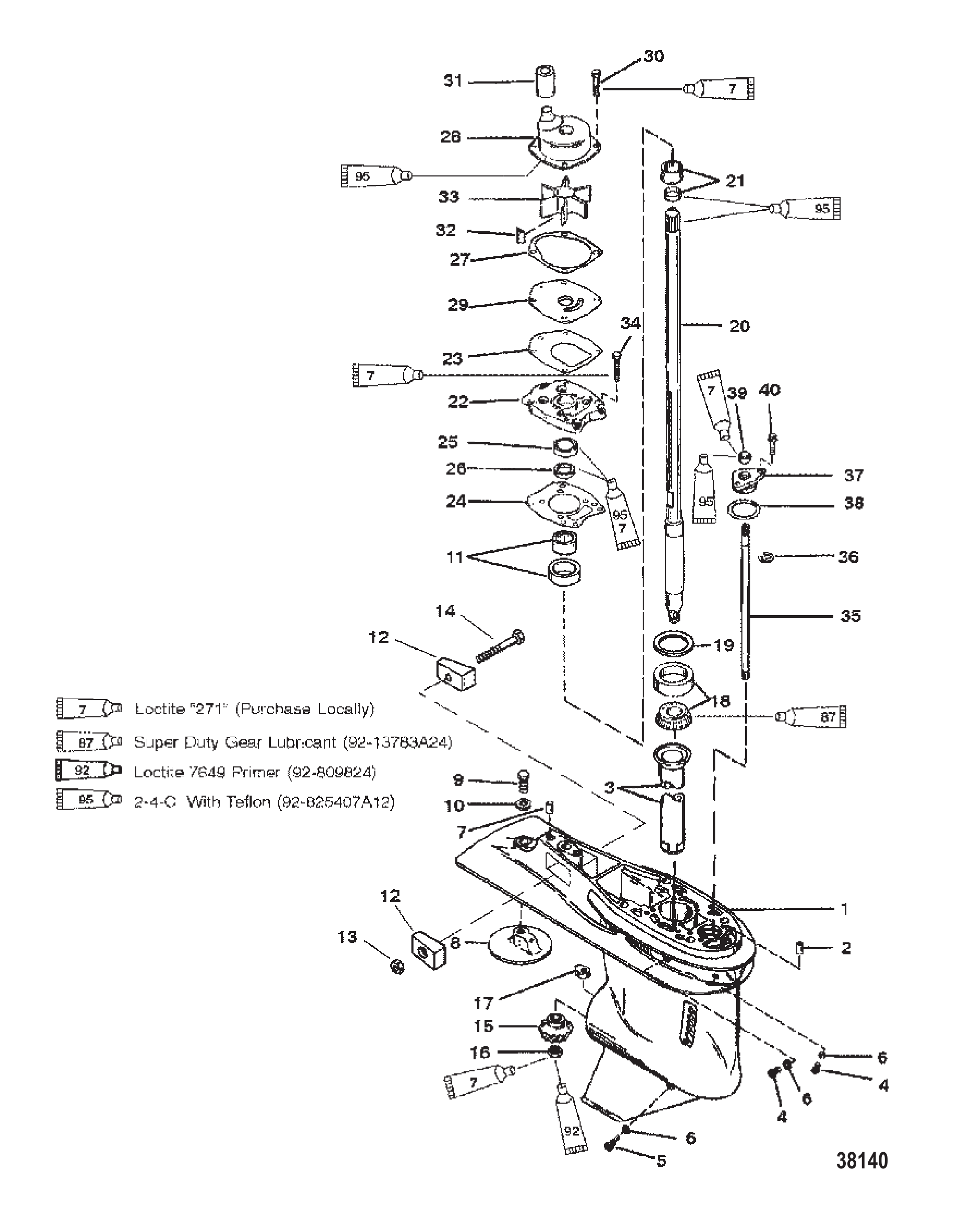

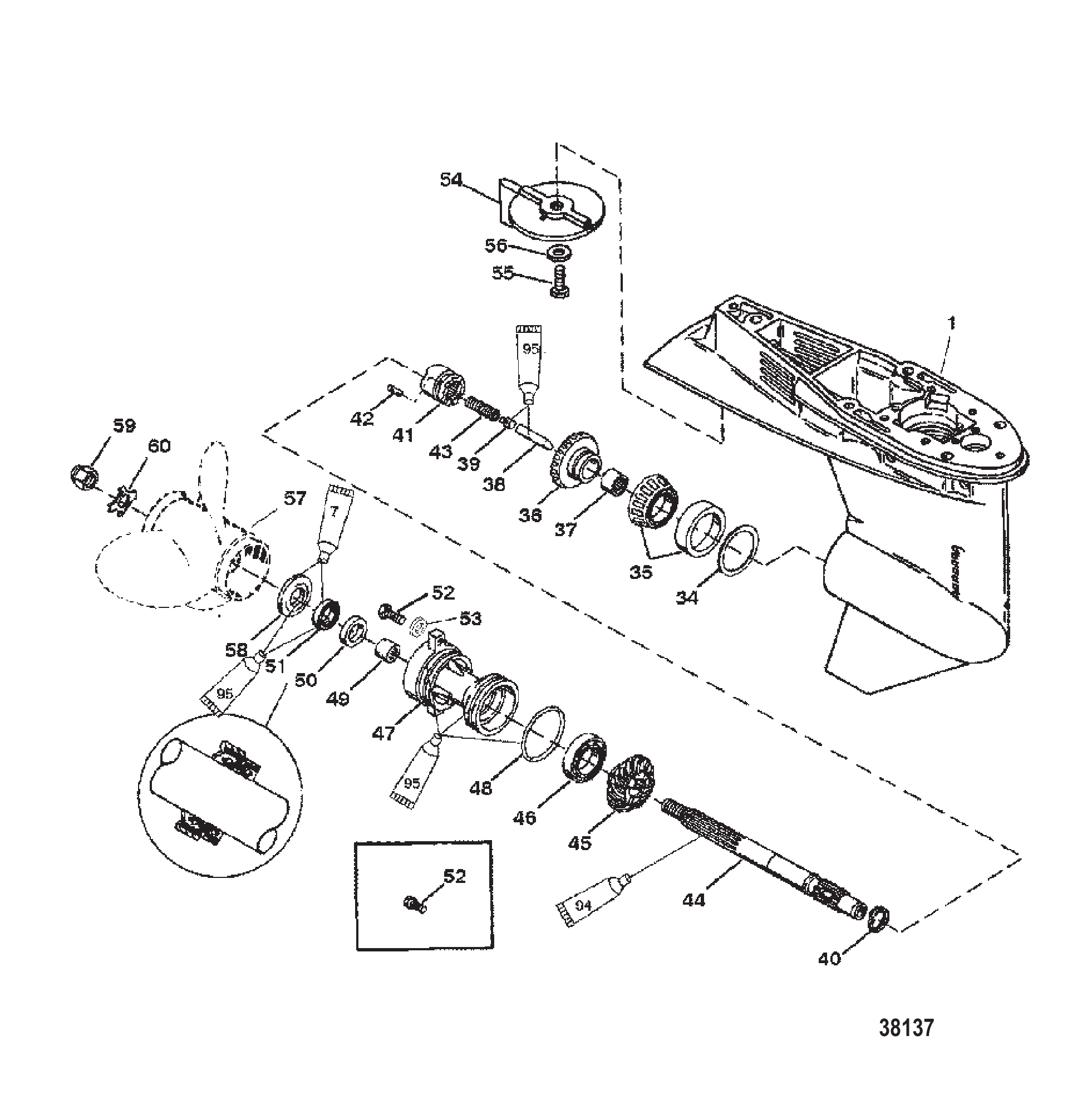

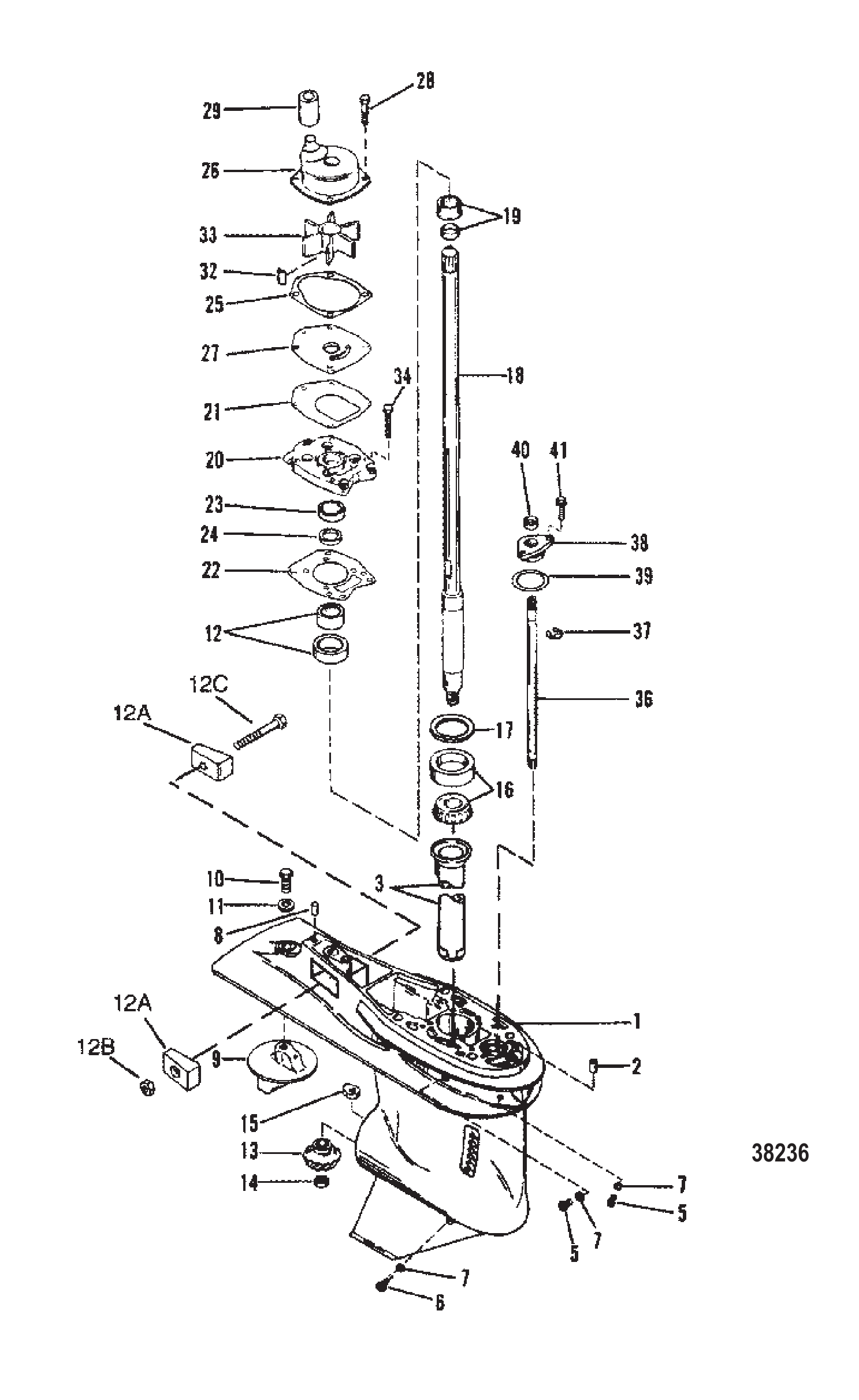

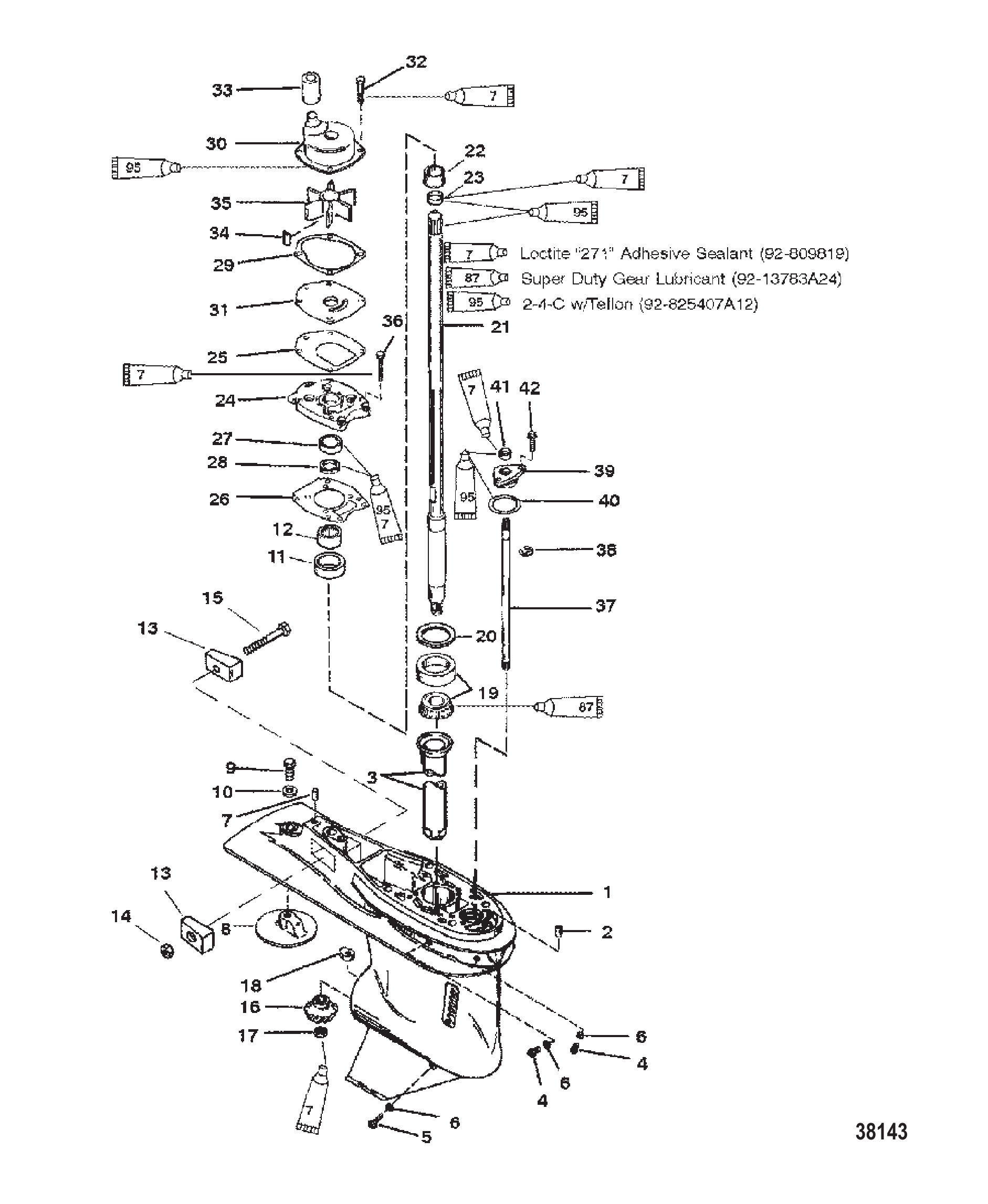

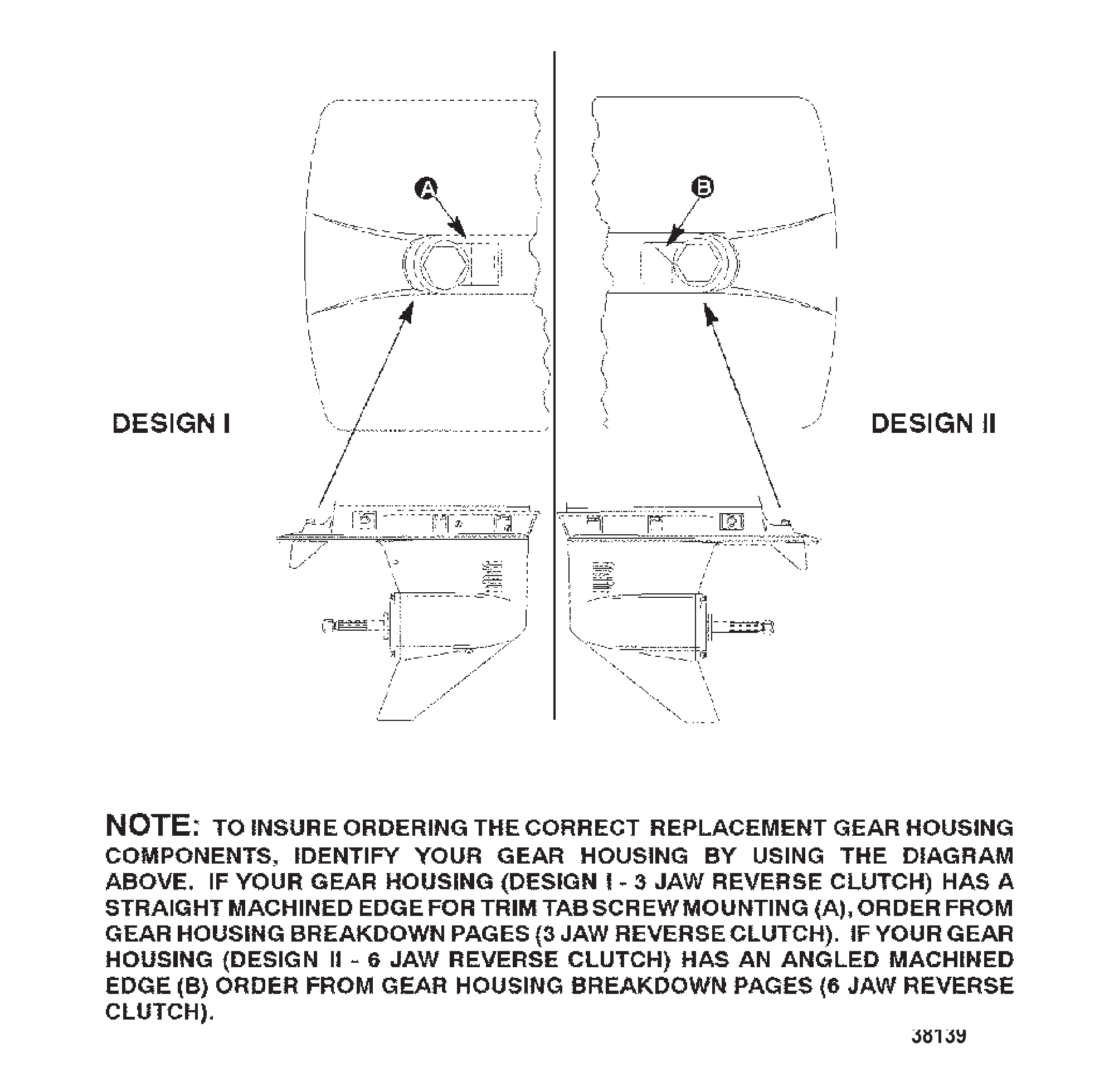

图 18齿轮箱驱动轴-60海宝/马拉松/大脚-3爪倒车离合器 GEAR HSG DRIVESHAFT-60 SEA/MARA/BIG FOOT-3 JAW REV. CLUTCH

REF	零件编号	中文名称	英文名称	数量
-	9011A69	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A71	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A70	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011A72	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011A73	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A74	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
4	79953Q04	放油螺钉套件	SCREW KIT Drain	2
5	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
5	8M0058389	放油螺钉套件	SCREW KIT Drain	1
6	19183	纤维垫圈	WASHER Fiber	3
6	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
7	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
8	316405	平衡鳍板	TRIM TAB	1
8	8M0236553	平衡鳍板	TRIM TAB	1
9	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
11	43040A1	托架总成	CARRIER ASSEMBLY	1
11	43040T1	托架总成	CARRIER ASSEMBLY	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	8268336	螺母 (M6)	NUT (M6)	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	44484	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
15	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	76039	换挡凸轮控制	CAM Shift Control	1
17	760394	换挡凸轮控制	CAM Shift Control	1
18	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
19	44492A1	垫片组	SHIM SET	1
19	8M0063265	垫片组	SHIM SET	1
20	826736A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	826737A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
22	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	430331	衬垫	GASKET	1
24	430472	衬垫	GASKET	1
24	8M0214931	衬垫	GASKET	1
25	43035	油封(上)	SEAL Oil (UPPER)	1
25	8M0245495	油封	OIL SEAL	1
26	43036	油封(下)	SEAL Oil (LOWER)	1
27	817277	衬垫	GASKET	1
27	8172771	水泵上垫片	GASKET Water Pump, Upper	1
28	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
29	817276	面板	FACEPLATE	1
29	8M0204709	面板	FACEPLATE	1
30	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
30	8M0214957	螺钉	SCREW	4
31	826763A1	联轴器	COUPLING	1
31	826762A1	联轴器	COUPLING	1
32	43037	键	KEY	1
32	8M0204723	键	KEY	1
33	430262	叶轮	IMPELLER	1
33	43026T2	叶轮	IMPELLER	1
34	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
35	43048A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	430482	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	29641	E型卡环	E RING	1
37	43052A4	衬套总成	BUSHING ASSEMBLY	1
38	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
38	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
39	8164641	油封	SEAL Oil	1
39	8M0246145	油封	OIL SEAL	1
40	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

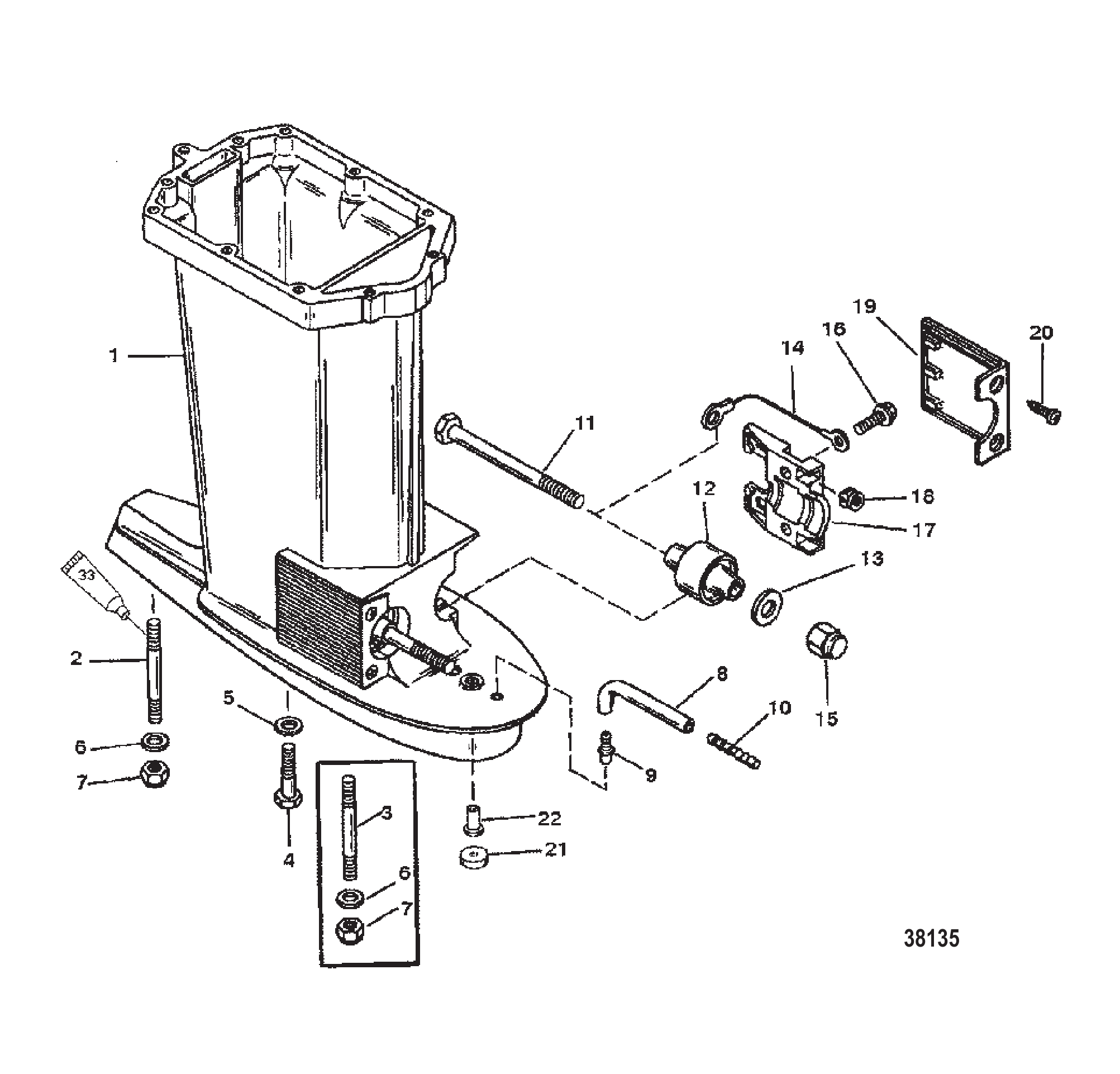

图 19驱动轴壳体（长型-0C160936及以上）(60EL NOI)(NPT) Driveshaft Housing (Long-0C160936 & Up)(60EL NOI)(NPT)

REF	零件编号	中文名称	英文名称	数量
1	8189A12	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	8189A13	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
2	64649		PLUG PLASTIC - TRIM TAB SCREW HOLE	1
3	57932	传动轴壳体双头螺栓(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750) DRIVESHAFT HOUSING	1
3	8M0022145	螺柱(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750)	1
4	57935	传动轴壳体双头螺栓(3")	STUD DRIVESHAFT HOUSING (3")	1
5	65791	齿轮箱螺柱垫圈（7/16英寸）	WASHER GEAR HOUSING STUDS (7/16")	2
6	34933	齿轮箱壳体双头螺栓不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUDS	2
6	8M0204653	螺母	NUT	2
7	93445	橡胶安装座-上部	MOUNT RUBBER - UPPER	2
7	923373	支架	MOUNT	2
7	923371	重型支座	MOUNT (HEAVY DUTY)	2
7	923373	支架	MOUNT	2
8	96401		SEAL UPPER MOUNT	2
9	27727	垫圈上部安装螺栓（内径37/64）	WASHER UPPER MOUNT BOLT (37/64 I.D.)	2
10	66966	橡胶垫圈-上部安装螺栓	WASHER RUBBER - UPPER MOUNT BOLT	2
11	30514	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
12	8M0204653	螺母	NUT	2
13	87883T	上支座盖	COVER UPPER MOUNT	2
13	87883	盖板	COVER	2
14	76630	螺丝（0.250-20 x 1.00）上部安装盖	SCREW (.250-20 x 1.00) UPPER MOUNT COVER	4
14	8M0214943	螺钉	SCREW	4
15	29245	上支座盖螺丝不锈钢垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT COVER SCREW	4
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
16	38157		SEAL TRIM COVER TO DRIVESHAFT HOUSING	1
17	38158		STRIP RETAINING - TRIM COVER SEAL (REAR)	1
18	38154	侧饰盖固定条	STRIP RETAINING - TRIM COVER (SIDE)	2
19	48408		SCREW (#10-16 x .500) RETAINING STRIP	8
20	695441	排气管	TUBE EXHAUST	1
21	45679	进水口管	TUBE WATER INLET	1
22	64809	动力头螺柱螺母（5/16英寸）	NUT POWERHEAD STUDS (5/16")	8
23	75304	下橡胶支座	MOUNT RUBBER - LOWER	2
23	75304T1	支架	MOUNT	2
24	75284	下支座螺丝(.500-20 x 5.500)	SCREW (.500-20 x 5.500) LOWER MOUNT SCREW	2
25	28051	下部安装螺钉垫圈（适用处使用）	WASHER LOWER MOUNT SCREW (Use where Applicable)	2
26	28053	橡胶垫圈-下部安装螺钉（适用处使用）	WASHER RUBBER - LOWER MOUNT SCREW (Use where Applicable)	2
27	30119	垫圈（外径0.875英寸）下安装螺丝	WASHER (.875 Inch Outside Diameter) LOWER MOUNT SCREW	2
28	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
29	69592T	下安装夹	CLAMP LOWER MOUNT	2
29	69592F1	卡箍	CLAMP	2
30	29256	螺丝（0.312-18 x 0.875）下安装夹	SCREW (.312-18 x .875) LOWER MOUNT CLAMP	4
31	35522	弹簧张力-下安装夹	SPRING TENSION - LOWER MOUNT CLAMP	4
32	35474T	下部安装夹盖（黑色）	COVER LOWER MOUNT CLAMP (BLACK)	2
32	35474F2	下部安装夹盖（灰色）	COVER Lower Mount Clamp LOWER MOUNT CLAMP (GRAY)	2
33	87884		SCREW (#12-14 x .920) COVER TO LOWER MOUNT CLAMP	2
34	35521	下安装夹盖螺母	NUT LOWER MOUNT CLAMP COVER	2
35	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
35	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
36	23651	进水套管（1.625英寸）	SLEEVE (1.625) WATER INLET TUBE	1

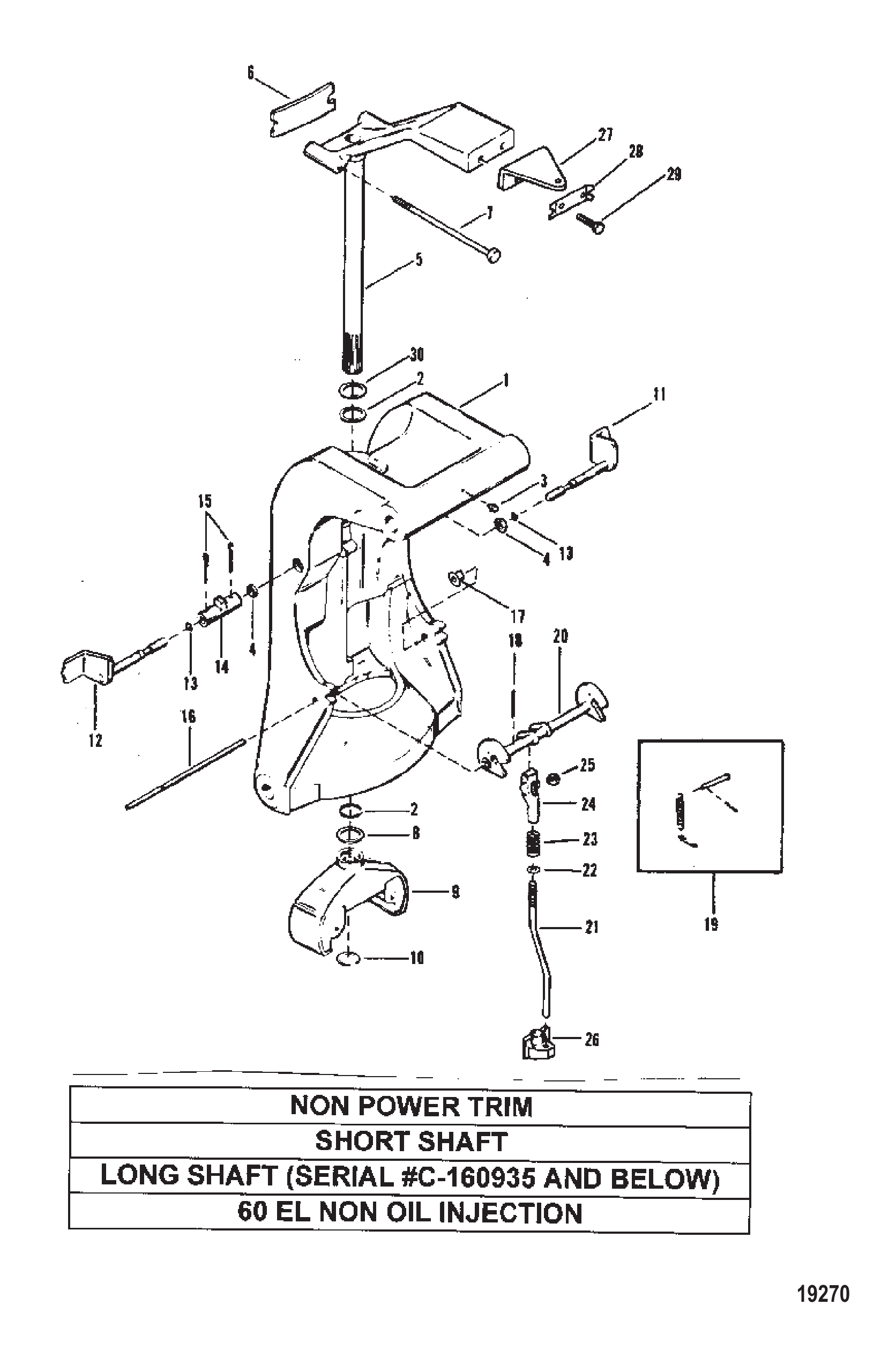

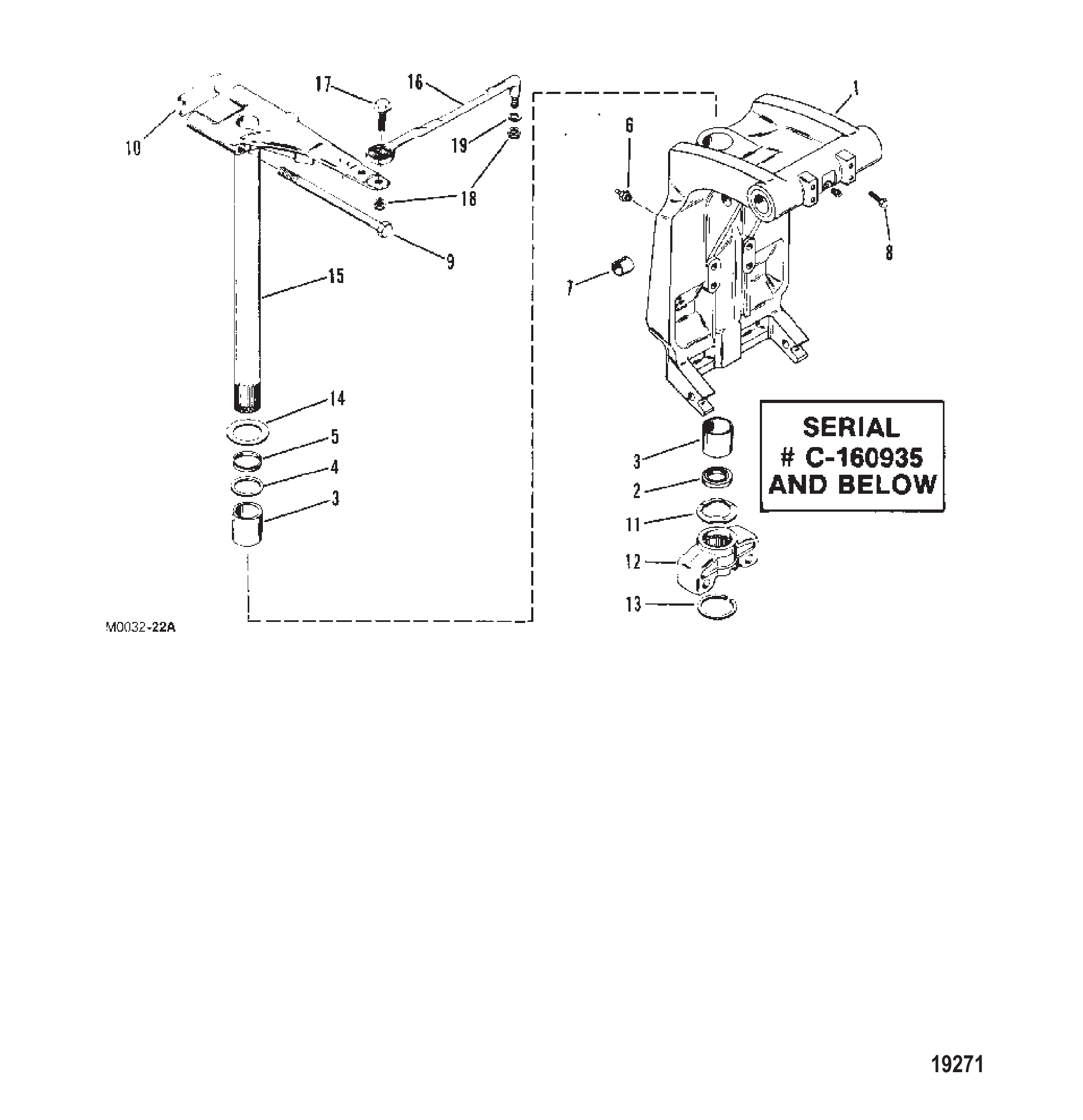

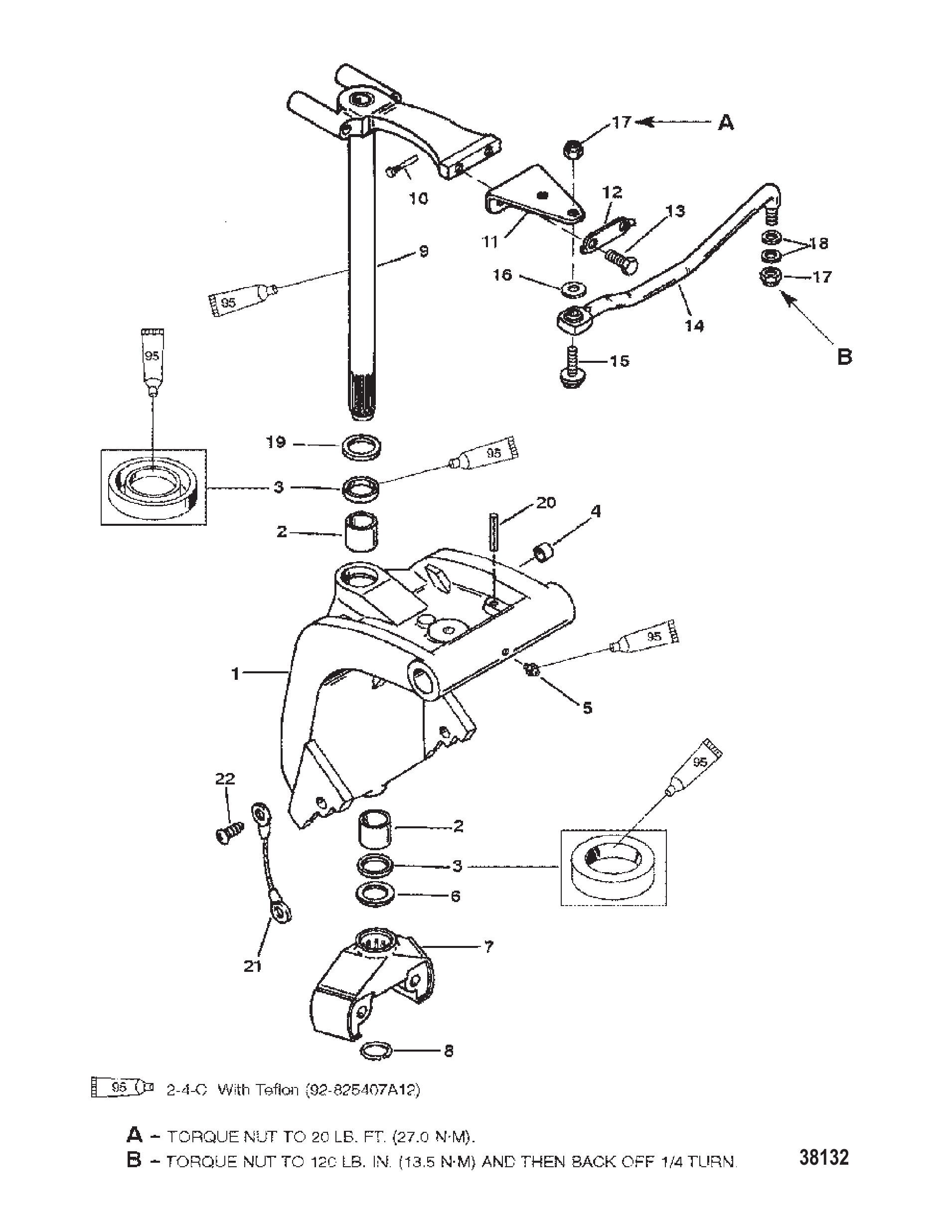

图 20旋转支架（短型）(长序列号0C160935及以下)(60EL NOI)(NPT) Swivel Bracket (Short)(Long-0C160935 & Below)(60EL NOI)(NPT)

REF	零件编号	中文名称	英文名称	数量
1	8597A4	旋转支架	SWIVEL BRACKET	1
1	8599A6	旋转支架	SWIVEL BRACKET	1
2	32911	旋转支架油封	SEAL Oil SWIVEL BRACKET	2
3	74036	润滑脂接头	FITTING Grease	4
3	8M0169589	润滑脂接头	FITTING Grease	4
4	22734	旋转支架油封	SEAL Oil SWIVEL BRACKET	2
5	88798A1	旋转销总成	SWIVEL PIN ASSEMBLY	1
5	88798A23	短型旋转销总成	SWIVEL PIN ASY SH	1
5	88798A2	旋转销总成	SWIVEL PIN ASSEMBLY	1
5	88798A24	长型旋转销总成	SWIVEL PIN ASY LG	1
6	30711	转向臂缓冲器	BUMPER STEERING ARM	1
7	66897	螺栓 (.437-20 x 5.250) 上部安装至旋转销	BOLT (.437-20 x 5.250) UPPER MOUNT TO SWIVEL PIN	2
8	25176	垫圈旋转销至底部轭	WASHER SWIVEL PIN TO BOTTOM YOKE	1
9	77416T	下轭架	YOKE Bottom	1
9	77416T1	黑色下轭架	YOKE-BOTTOM-BLACK	1
9	77416T6	下轭架	YOKE Bottom	1
10	77415	底部轭架挡圈	RETAINING RING BOTTOM YOKE	1
11/12	89105	倾斜锁定右舷/左舷	TILT LOCK STARBOARD/PORT	2
13	62702		O-RING (.301 x .070) TILT LOCK	2
13	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	2
14	79659	倾斜锁定联轴器	COUPLING TILT LOCK	1
15	47959	倾斜锁定管开口销	COTTER PIN TILT LOCK TUBE	2
16	56349		SHAFT REVERSE LOCK PIVOT	1
17	69132		BUSHING REVERSE PIVOT SHAFT	2
18	45882	倒挡锁定至轴开口销	COTTER PIN REVERSE LOCK TO SHAFT	1
19	78203A2	倒挡锁定张力弹簧	SPRING REVERSE LOCK TENSION	1
20	14664A3	倒车锁	REVERESE LOCK	1
21	43415		PUSH ROD REVERSE LOCK	1
21	43416		PUSH ROD REVERSE LOCK	1
22	70132	不锈钢推杆垫圈（0.323 x 0.563 x 0.063英寸）	WASHER (.323 x .563 x .063) Stainless Steel PUSH ROD	1
22	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	1
23	44297	推杆弹簧	SPRING PUSH ROD	1
24	89813	推杆端头	ROD END PUSH ROD	1
25	35814	推杆螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel PUSH ROD	1
25	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
26	93336	推杆导套	GUIDE PUSH ROD	1
26	933361	换挡轴导套	GUIDE Shift Shaft	1
27	765351	支架行驶导板	BRACKET RIDE GUIDE	1
28	76533	带式支架螺钉	STRAP BRACKET SCREW	1
29	34352		SCREW (.375-24 x .875) BRACKET	2
30	47606	止推垫圈	WASHER THRUST	1
-	43779A87	衬垫套件	GASKET SET	1

图 21维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称
-	16404	零件手册50/60马力(3缸)	PARTS MANUAL 50/60 Hp (3 Cylinder)
-	43779A87	衬垫套件	GASKET SET
-	43538A89	贴花套装(黑色50)	DECAL SET (BLACK 50)
-	11622A87	贴花套装(灰色50)(红/橙)	DECAL SET (GRAY 50)(RED/ORANGE)
-	810463A90	贴花套件	DECAL SET
-	810463A90	贴花套装(灰色50)(银色)	DECAL SET (GRAY 50)(SILVER)
-	13483A89	贴花套装(黑色60)	DECAL SET (BLACK 60)
-	816116A90	贴花套装(黑色60 EL)(红/白)	DECAL SET (BLACK 60 EL)(RED/WHITE)
-	13483A89	贴花套件	DECAL SET
-	43598A87	贴花套装(灰色60)(红/橙)	DECAL SET (GRAY 60)(RED/ORANGE)
-	810464A90	贴花套件	DECAL SET
-	810464A90	贴花套装(灰色60)(银色)	DECAL SET (GRAY 60)(SILVER)
-	816117A90	贴花套装(灰色60 EL)(橙/白)	DECAL SET (GRAY 60 EL)(ORANGE/WHITE)
-	810464A90	贴花套件	DECAL SET
-	812811900	用户指南(黑色50/60)	OWNERS GUIDE (BLACK 50/60)
-	812811901	用户手册	MANUAL-OWNERS
-	812813900	用户指南(灰色50/60)	OWNERS GUIDE (GRAY 50/60)
-	812813901	用户手册	MANUAL-OWNERS
-	815824900	用户指南(黑色60 EL)	OWNERS GUIDE (BLACK 60 EL)
-	812811901	用户手册	MANUAL-OWNERS
-	815827900	用户指南(灰色60 EL)	OWNERS GUIDE (GRAY 60 EL)
-	812813901	用户手册	MANUAL-OWNERS

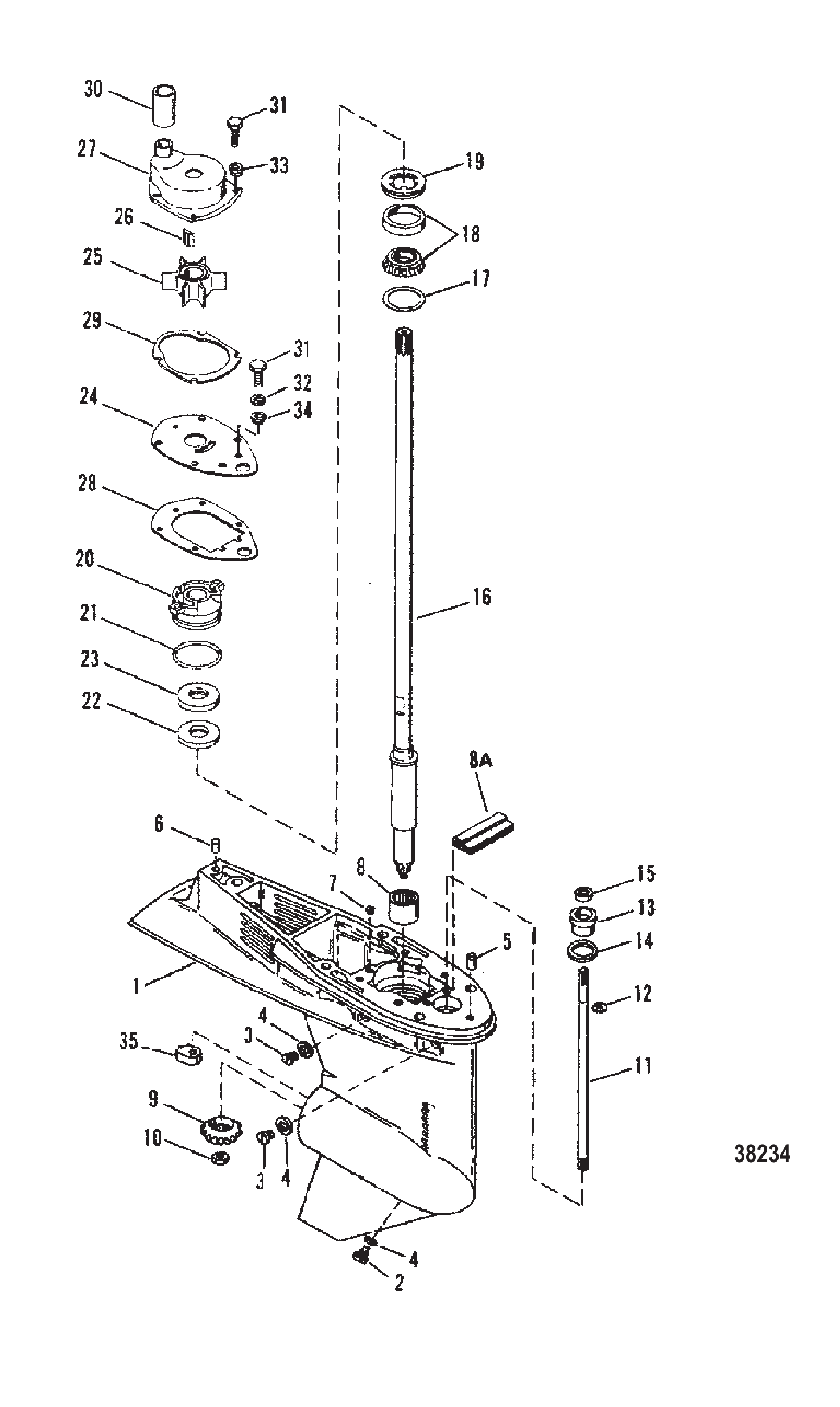

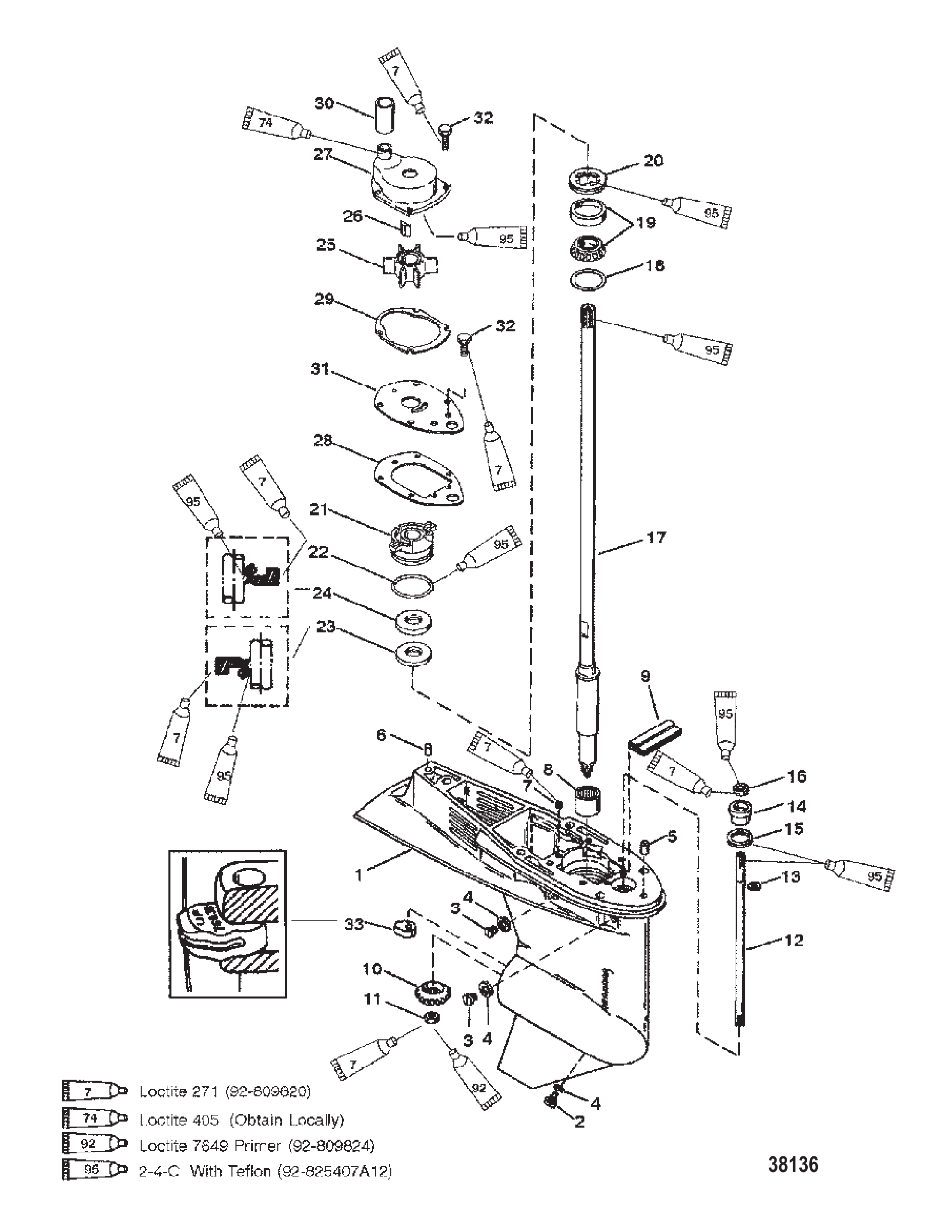

图 22齿轮箱(驱动轴)(50/55/60) GEAR HOUSING (DRIVESHAFT)(50/55/60)

REF	零件编号	中文名称	英文名称	数量
-	9760A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A32	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
2	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
2	8M0058389	放油螺钉套件	SCREW KIT Drain	1
3	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
3	79953Q04	放油螺钉套件	SCREW KIT Drain	2
4	19183	纤维垫圈	WASHER Fiber	3
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
5	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
5	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
7	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
8	812768	滚柱轴承	BEARING Roller	1
9	818226A1	密封/板套件	SEAL/PLATE KIT	1
10	813694	小齿轮	GEAR Pinion	1
10	813694T	小齿轮	GEAR Pinion	1
11	55910	螺母(.437-20)	NUT (.437-20)	1
12	812732A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
12	815420	换档轴	SHIFT SHAFT	1
13	29641	E型卡环	E RING	1
14	813696A2	衬套总成	BUSHING ASSEMBLY	1
15	45258	O型圈 (.987 x .103)	O-RING (.987 x .103)	1
16	8164641	油封	SEAL Oil	1
16	8M0246145	油封	OIL SEAL	1
17	815422	驱动轴	DRIVESHAFT	1
17	812731	驱动轴	DRIVESHAFT	1
17	815421	驱动轴	DRIVESHAFT	1
18	812770A1	垫片组	SHIM SET	AR
18	8M0063262	垫片组	SHIM SET	AR
19	77420A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
19	8M0166756	轴承总成	BEARING ASSEMBLY	1
20	8128201	螺母	NUT	1
21	812966A3	底座总成	BASE ASSEMBLY	1
21	8M0245488	水泵底座	BASE WATER PUMP	1
22	30224	O型圈 (1.859 x .139)	O-RING (1.859 x .139)	1
22	8M0204651	O型圈	O-RING	1
23	814669	油封	SEAL Oil	1
23	8M0245489	油封	SEAL OIL	1
24	814670	油封	SEAL Oil	1
25	19453	叶轮	IMPELLER	1
25	19453T	叶轮	IMPELLER	1
26	19699	键	KEY	1
26	8M0032831	叶轮键	KEY Impeller	1
27	14334A2	水泵总成	PUMP ASSEMBLY Water	1
27	14334A3	水泵总成	PUMP ASSEMBLY Water	1
28	19701	衬垫(下部)	GASKET (LOWER)	1
28	8M0224241	衬垫	GASKET	1
29	822189	水泵上衬垫	GASKET Upper Water Pump	1
30	43023	油封(短/长)	SEAL (SHORT/LONG)	1
30	8M0204658	密封件	SEAL	1
31	19700A1	面板	FACE PLATE	1
31	19700A2	面板	FACE PLATE	1
32	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
33	76039	换挡凸轮控制	CAM Shift Control	1
33	760394	换挡凸轮控制	CAM Shift Control	1
-	812867A97	衬垫套件	GASKET SET	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	812966A6	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1

图 23飞轮(55) FLYWHEEL (55)

REF	零件编号	中文名称	英文名称	数量
1	9008A48	飞轮	FLYWHEEL	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	832074A4	定子	STATOR	1
5	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
5	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
6	99021A16	触发器	TRIGGER	1

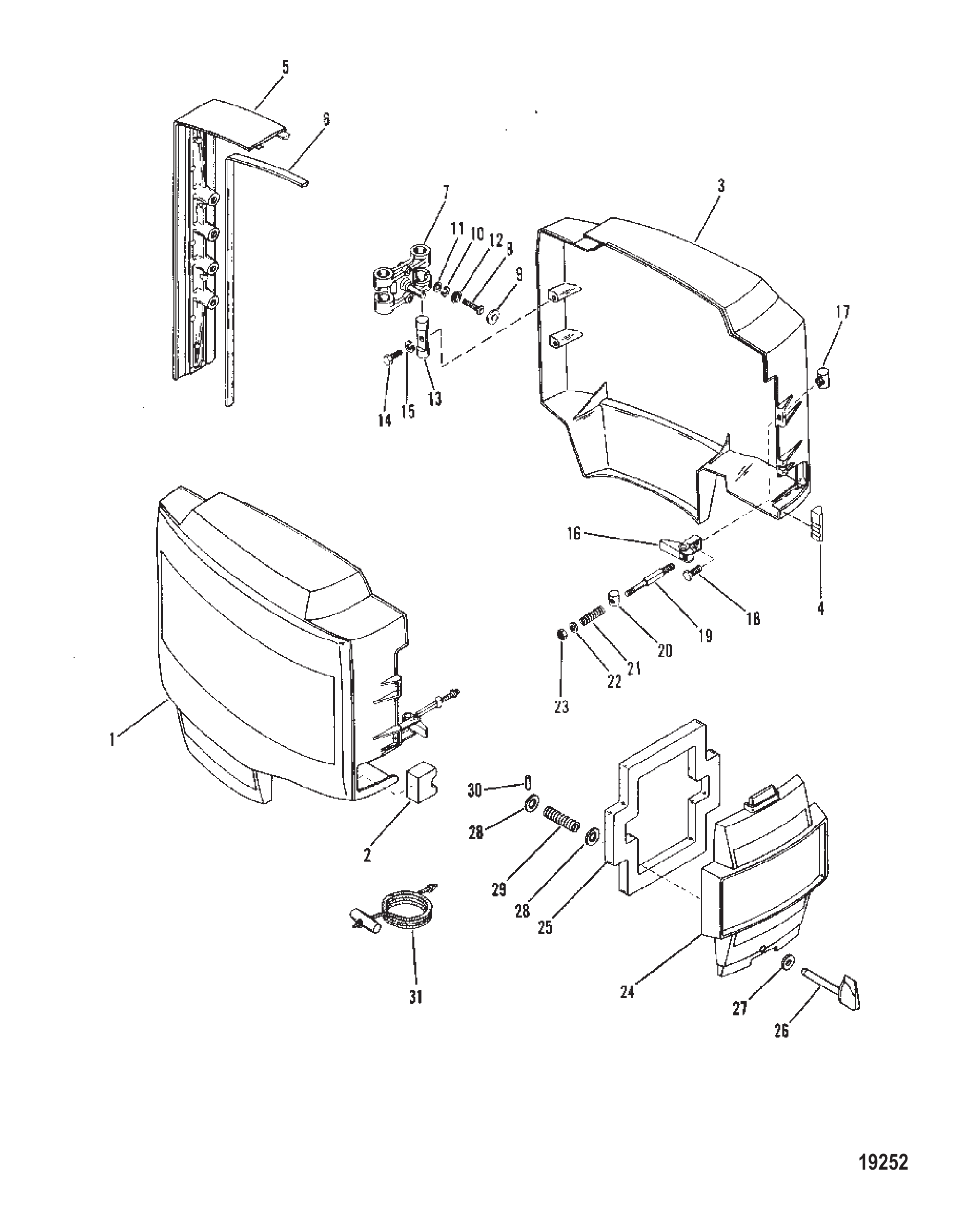

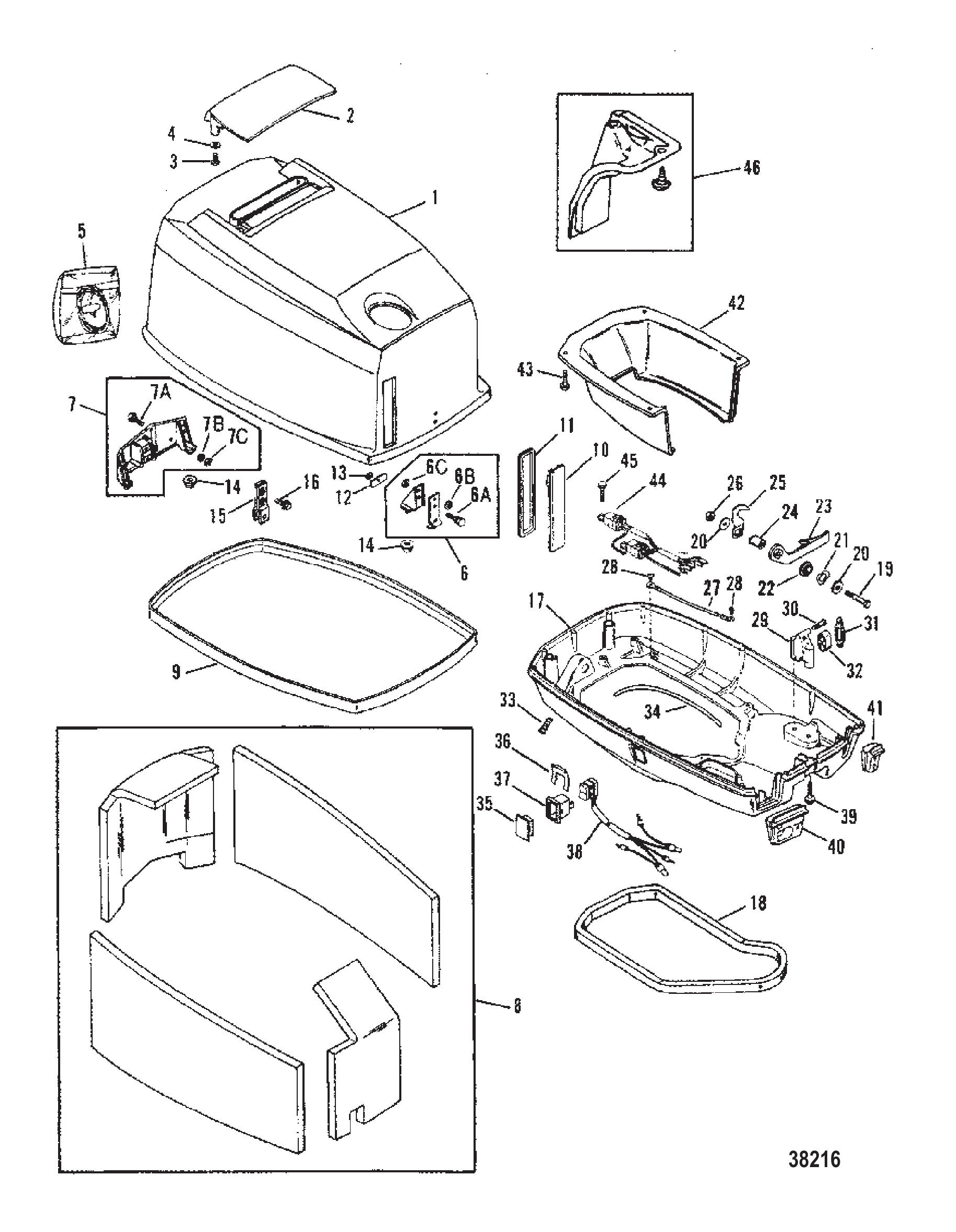

图 24整流罩与前盖 Cowling and Front Cover

REF	零件编号	中文名称	英文名称	数量
1	6228A1	顶罩总成(右舷黑色)	TOP COWL ASSEMBLY (STARBOARD BLACK)	1
1	6228A3	顶罩总成(右舷灰色)	TOP COWL ASSEMBLY (STARBOARD GRAY)	1
2	60297	燃油接头密封圈-罩	SEAL FUEL CONNECTOR -COWL	1
3	6227A1	顶罩总成(左舷黑色)	TOP COWL ASSEMBLY (PORT BLACK)	1
3	6227A17	顶罩总成(左舷灰色)	TOP COWL ASSEMBLY (PORT GRAY)	1
4	60298	控制电缆密封圈-罩	SEAL CONTROL CABLES-COWL	1
5	89717T	罩体密封后支架	BRACKET COWL SEALING-REAR	1
6	698761	后支架密封圈	SEAL REAR BRACKET	2
7	90980	罩体铰链支架	BRACKET COWL HINGE	2
8	45561	铰链支架下部螺钉(.250-20 x 1.12)	SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER	2
8	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
8	75794	铰链支架上部螺钉(1-1/8英寸)	SCREW HINGE BRACKET-UPPER (1-1/8")	2
9	75805	铰链支架螺钉帽(上部)	CAP HINGE BRACKET SCREW (UPPER)	2
10	26992	铰链支架螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW	4
11	37998	铰链支架螺钉垫圈	WASHER HINGE BRACKET SCREW	4
12	75806	铰链支架螺钉垫圈(上部)	WASHER HINGE BRACKET SCREW (UPPER)	2
13	90979	机罩铰链销	PIN COWL HINGE	4
14	28782	螺钉(.312-18 x .880)不锈钢铰链销至机罩	SCREW (.312-18 x .880) Stainless Steel PIN TO COWL	4
15	26993	锁紧垫圈(.312)铰链销固定螺钉	LOCKWASHER (.312) PIN ATTACHING SCREW	4
15	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
16	46785A5	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
17	62628	机罩锁扣筒	BARREL COWL LATCH	2
18	31312	螺钉(#10-32 x 0.875)锁扣总成至筒体	SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL	2
19	15222	机罩锁扣调节杆	BAR ADJUSTMENT-COWL LATCH	2
20	62629	机罩锁扣筒	BARREL COWL LATCH	2
21	62624	机罩锁扣张力弹簧	SPRING TENSION-COWL LATCH	2
22	30164	垫圈(.192 x .375 x .0312)不锈钢调节杆至筒体	WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL	2
23	45812	螺母(#10-32)不锈钢调节杆至筒体	NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL	2
23	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
24	8774A6	前盖(黑色)	FRONT COVER (BLACK)	1
24	8774A7	前盖(灰色)	FRONT COVER (GRAY)	1
25	795511	隔音毯	BLANKET SOUND ABSORBING	1
26	14333	旋钮	KNOB	1
27	30771	垫圈	WASHER	2
28	75246	垫圈	WASHER	2
29	30772	弹簧	SPRING	1
30	29077	滚动销	PIN Roll	1
31	47341A1	拉绳与手柄套件手动/应急启动(仅限手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY)	1
31	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

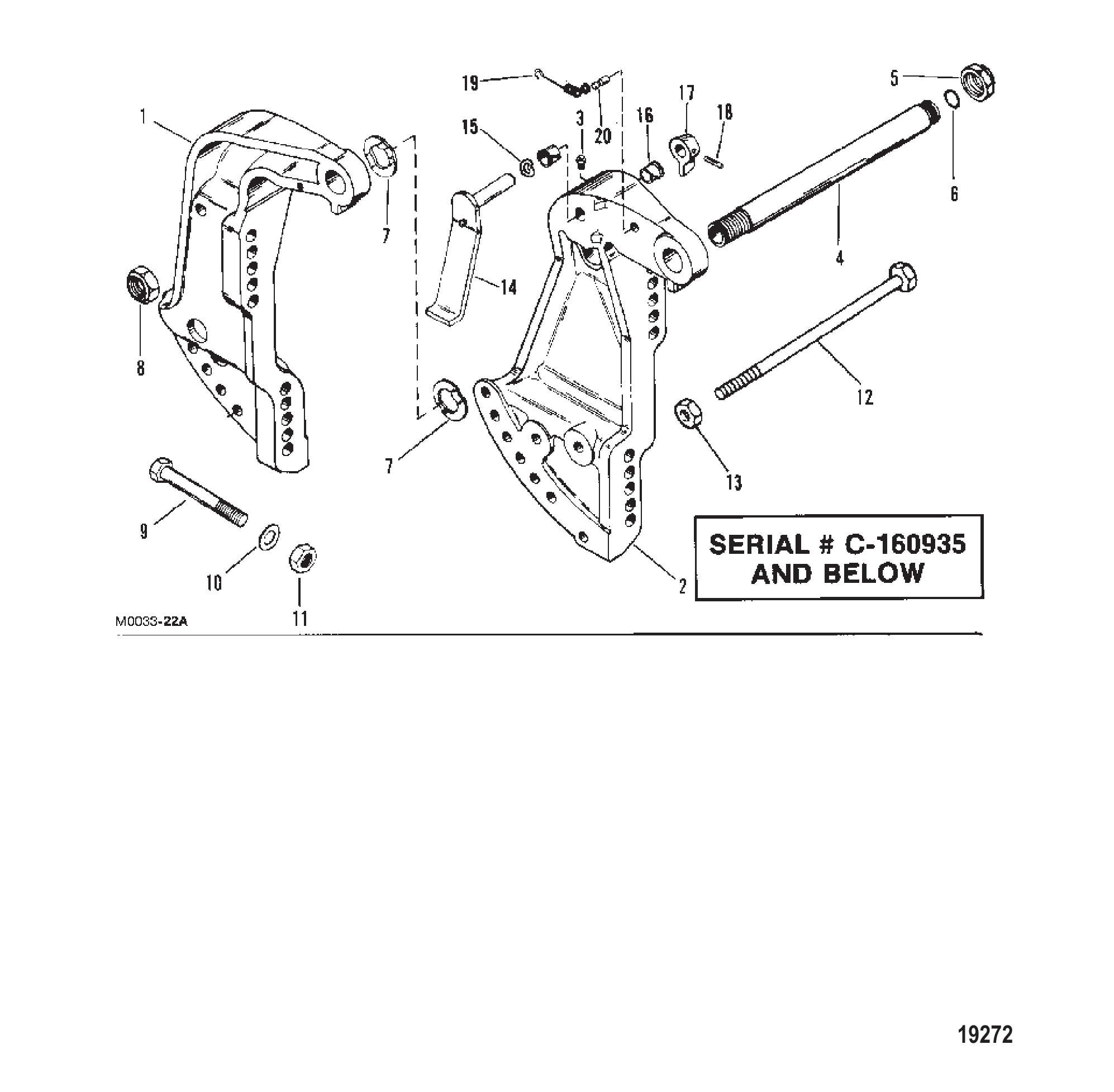

图 25艉板支架（动力配平）(序列号0C160935及以下) Transom Bracket (Power Trim)(S/N-0C160935 & Below)

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成(右舷)(黑色)	BRACKET ASSEMBLY Transom (STARBOARD) (BLACK)	1
1	8718A2	艉板支架总成(右舷)(灰色)	BRACKET ASSEMBLY Transom (STARBOARD) (GRAY)	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A5	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A6	艉板支架总成(左舷)(灰色)	BRACKET ASSEMBLY Transom (PORT) (GRAY)	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑配件左舷艉板支架	FITTING Grease PORT TRANSOM BRACKET	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A1	倾斜管	TILT TUBE	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
5	90068T		NUT TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
5	90068T6		NUT TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	45711		O-RING (.612 x .103) TILT TUBE	1
7	88750	波形垫圈(1.62 x 1.05)倾斜管	WASHER Wave (1.62 x 1.05) TILT TUBE	2
8	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	1
8	858869	螺母 (.875-14)	NUT (.875-14)	1
9	677551	螺丝(.500-20 x 4.500)支架固定艉板	SCREW (.500-20 x 4.500) MOUNTING BRACKET TO TRANSOM	4
9	8M0149747	螺钉	SCREW	4
10	28421		WASHER (1.5 x 3.05 x 0.13) Stainless Steel MOUNTING BRACKET BOLT	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母-安装支架螺栓	NUT MOUNTING BRACKET BOLT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
13	23161	螺栓螺母（3/8英寸-24牙）	NUT (.375-24) BOLT	1
14	99629A2	倾斜锁杆总成	LEVER ASSEMBLY TILT LOCK	1
14	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	99611	倾斜杆波形垫圈	WAVE WASHER TILT LEVER	1
16	65830	倾斜杆尼龙衬套	NYLINER TILT LEVER	2
17	99633	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
17	99633T6	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99622	弹簧	SPRING	1
20	99604	槽销	PIN Groove	1

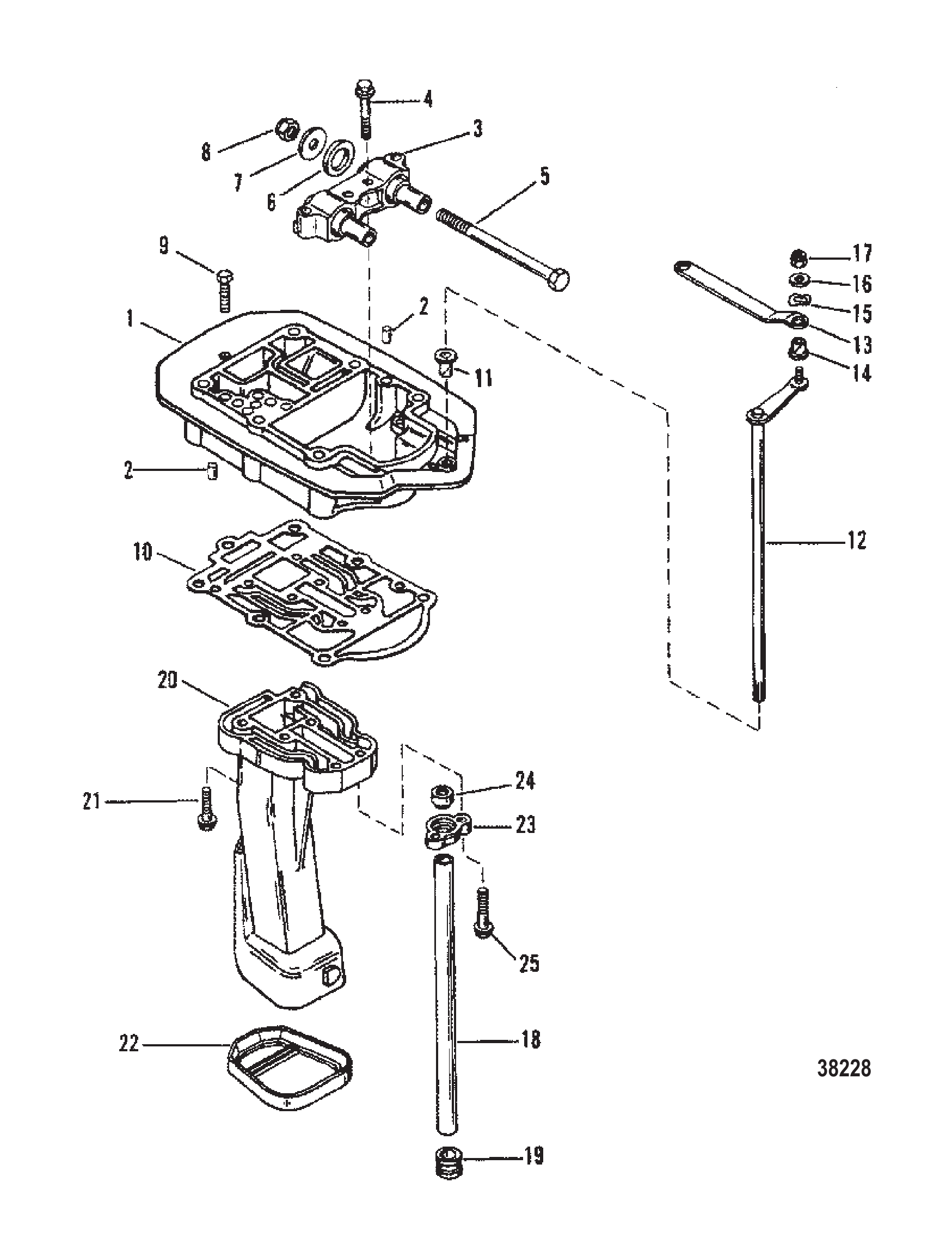

图 26排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	19653A2	排气板总成	PLATE ASSEMBLY Exhaust	1
-	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	1
2	23784	定位销	PIN Dowel	4
3	812893	上部支架	MOUNT Upper	1
3	8M4501491	上部安装总成	MOUNT UPPER ASM	1
4	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
5	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
5	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
6	93416	垫圈	WASHER	2
6	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
7	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
7	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	90099	螺母(M12)	NUT (M12)	2
8	896963	螺母(M12)	NUT (M12)	2
9	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1
10	812866	衬垫	GASKET	1
10	8M0000820	衬垫	GASKET	1
11	48237	衬套	BUSHING	1
12	815639A2	换挡轴(上)(短)	SHIFT SHAFT (UPPER)(SHORT)	1
12	812891A1	换挡轴(上)(长-50/60)	SHIFT SHAFT (UPPER)(LONG - 50/60)	1
12	815639A1	换挡轴(上)(长-55)	SHIFT SHAFT (UPPER)(LONG - 55)	1
12	812891A3	换挡轴(60浮筒型-电动)	SHIFT SHAFT (60 PONTOON - ELECTRIC)	1
12	815639A3	换挡轴(60海程/马拉松型-手动)	SHIFT SHAFT (60 SEAPRO/MARATHON - MANUAL)	1
13	812872	换挡连杆	SHIFT LINK	1
13	812872A1	换挡连杆	SHIFT LINK	1
13	812872A1	换挡连杆	SHIFT LINK	1
14	48475	衬套	BUSHING	1
14	42994	衬套	BUSHING	1
15	29720	波形垫圈	WAVE WASHER	1
16	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
17	400634	螺母 (M6)	NUT (M6)	1
17	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
18	430144	水管(短型)	TUBE Water (SHORT)	1
18	8M0042795	短型水管	TUBE-WATER-SHORT	1
18	430143	水管(长型)	TUBE Water (LONG)	1
18	8M0042794	大型水管	TUBE-WATER-LG	1
19	93221	护孔环	GROMMET	1
19	93221002	护孔环	GROMMET	1
20	196551	排气管	TUBE Exhaust	1
20	8M0045214	排气管	TUBE-EXHAUST	1
21	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
22	812886	密封件	SEAL	1
22	812886001	密封件	SEAL	1
23	99019	卡箍	CLAMP	1
24	42941	水管密封件(上部)	SEAL Water Tube (UPPER)	1
24	42941001	水管密封件	SEAL Water Tube	1
25	40011155	不锈钢螺钉(M8x55)	SCREW (M8 x 55) Stainless Steel	2
-	812867A97	衬垫套件	GASKET SET	1

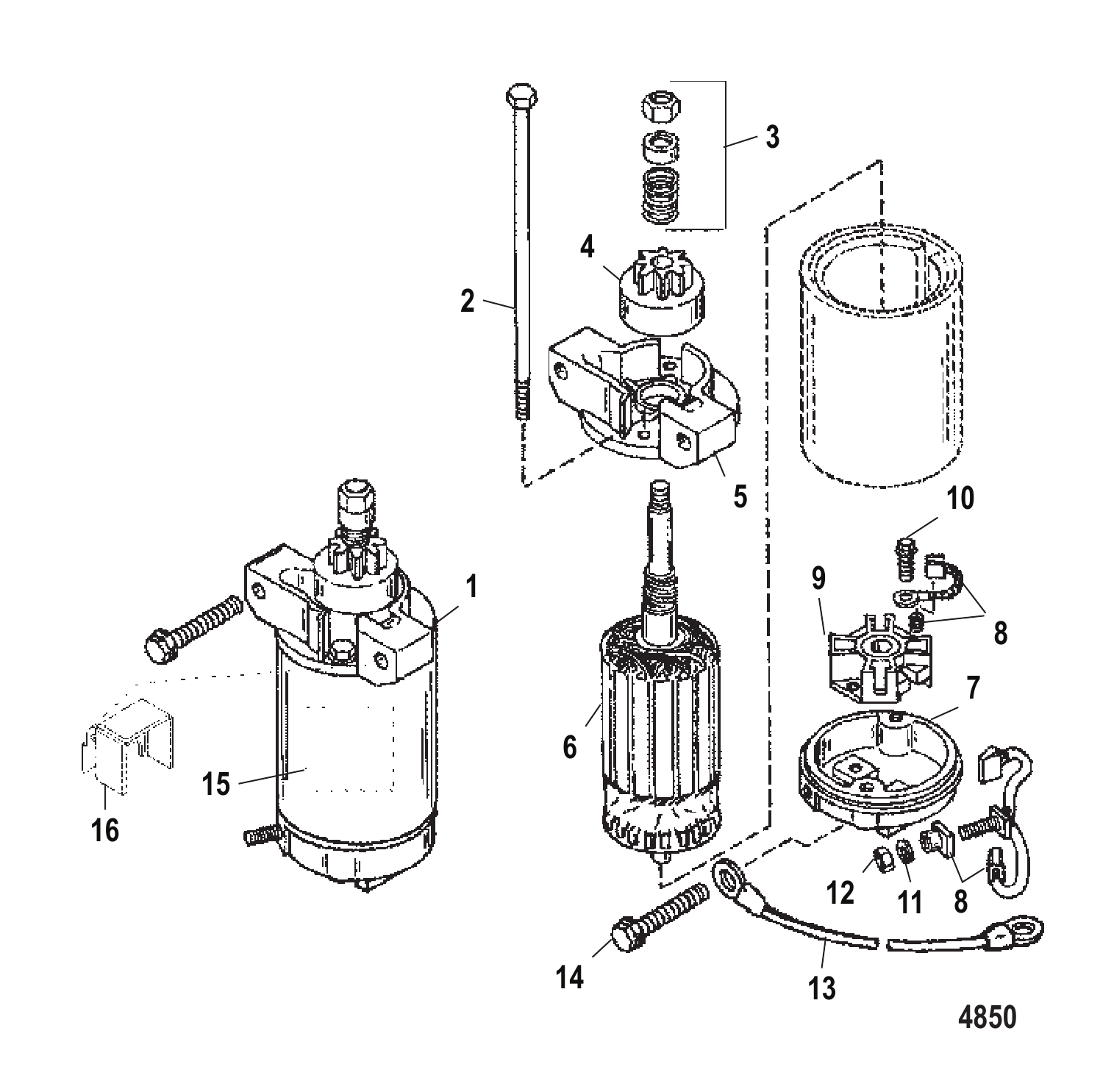

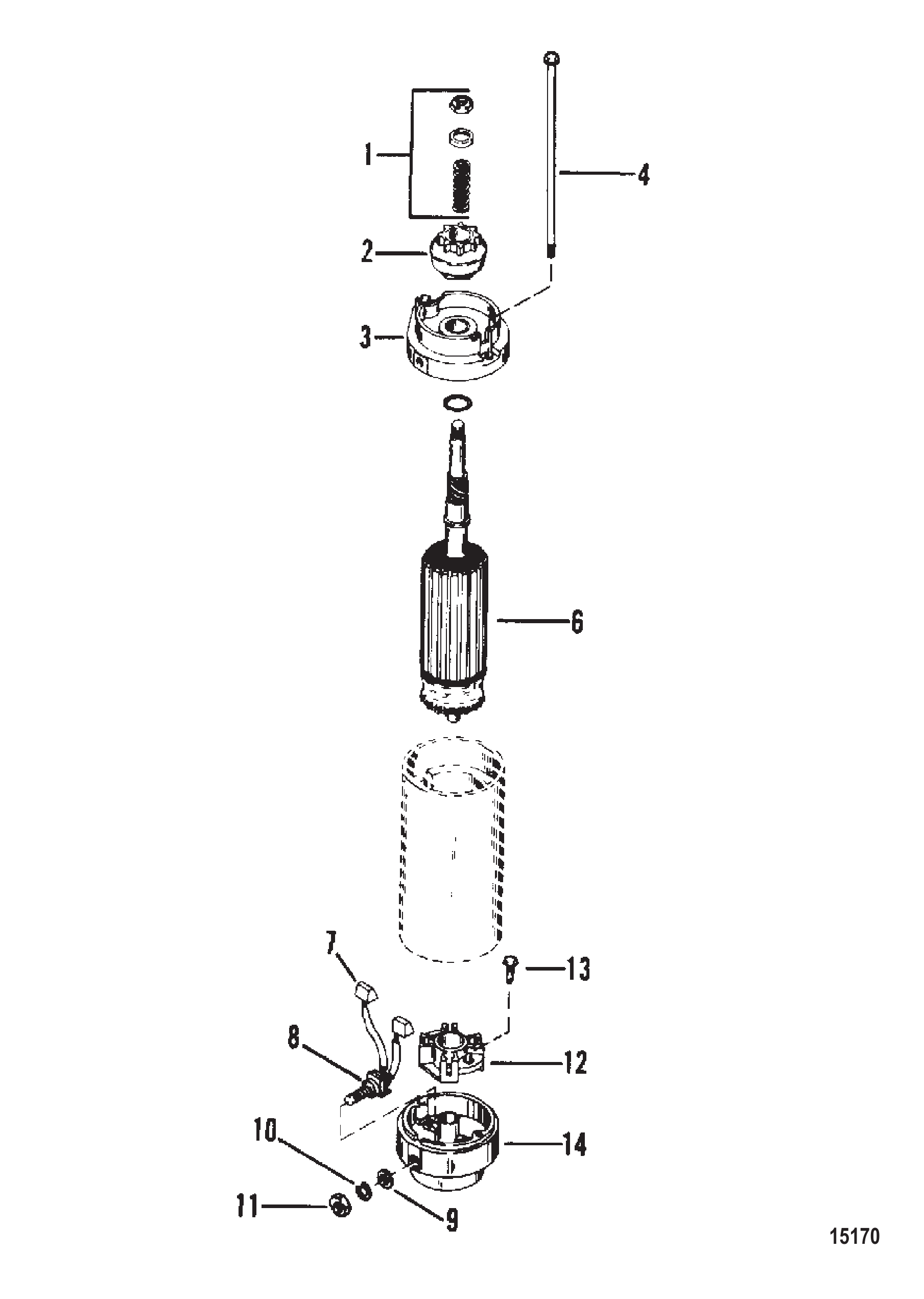

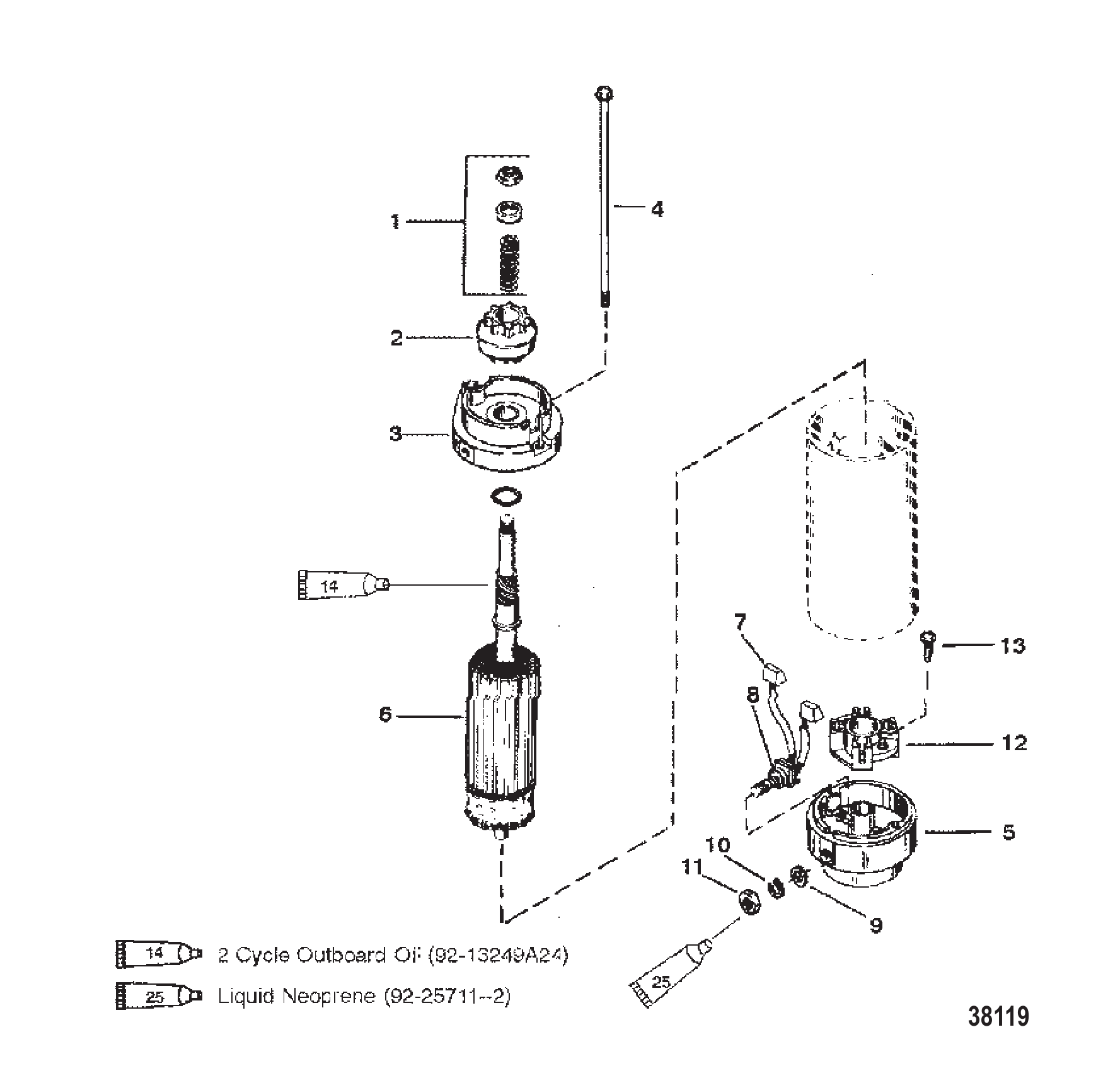

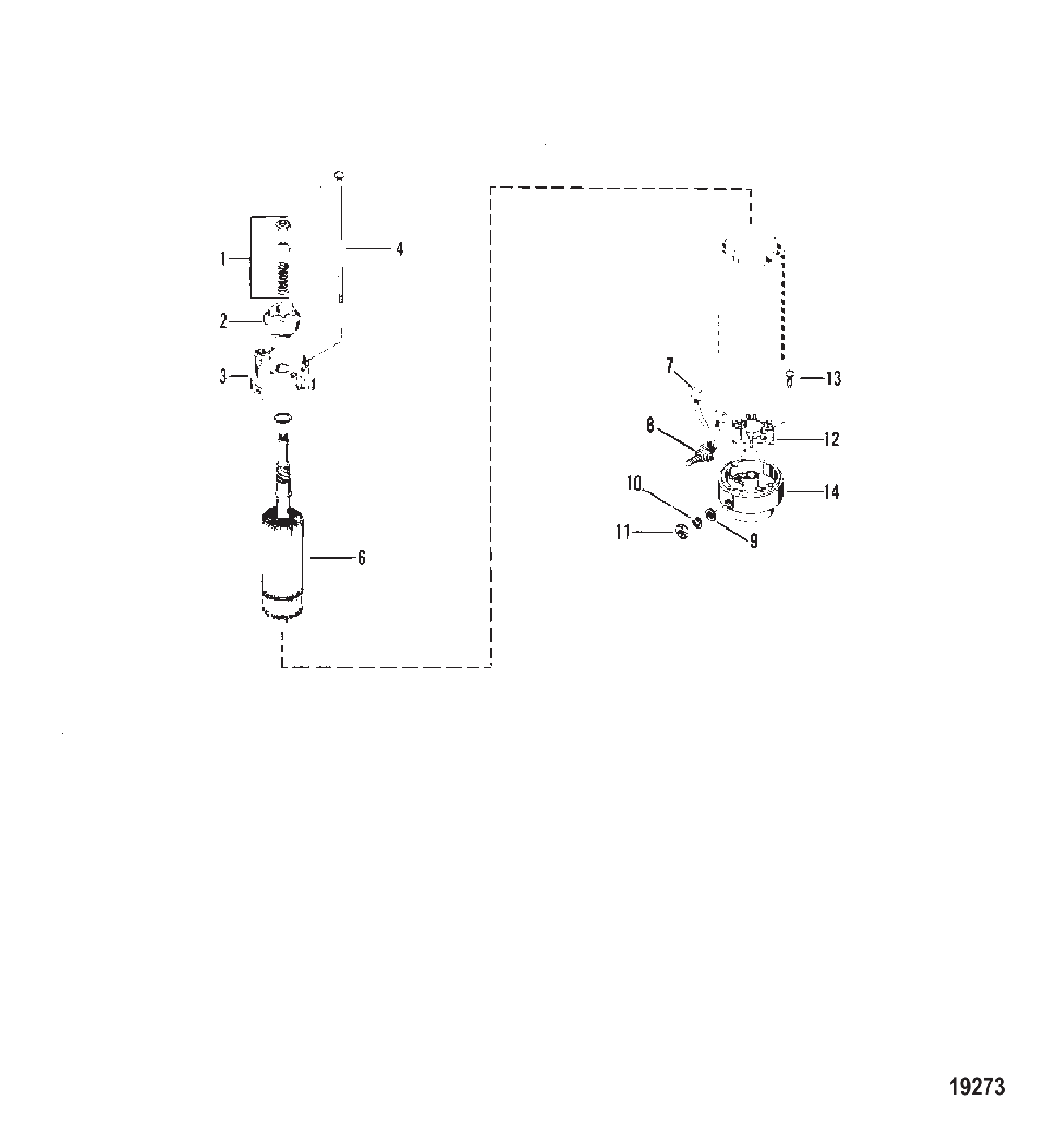

图 27启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
-	881368T1	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	881368T2	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	804314T	定子	STATOR	1
2	804313T	电枢	ARMATURE	1
3	881369T1	电刷支架总成	HOLDER ASSEMBLY Brush	1
4	804316	电刷组	BRUSH SET	1
5	804317	弹簧	SPRING	4
6	881370T	支架	BRACKET	1
7	804337	螺钉(M4×16)	SCREW (M4 x 16)	2
8	804335	贯穿螺栓(M6×120)	THRU BOLT (M6 x 120)	2
9	804321T1	齿轮套件	GEAR KIT	1
10	804322	离合器	CLUTCH	1
11	804330	垫圈套件	WASHER KIT	1
12	804324	支架	BRACKET	1
13	804326	齿圈	RING GEAR	1
14	804327	衬垫	GASKET	1
15	804325	轴承	BEARING	1
16	804323	小齿轮轴	SHAFT Pinion	1
17	804329	惰轮	IDLER GEAR	3
17	804329001	惰轮	GEAR Idler	3
18	804328	支架	BRACKET	1
19	804331T	盖板	COVER	1
20	804336	螺栓(M6×52)	BOLT (M6 x 52)	2
21	804319	小齿轮	PINION	1
22	804320	小齿轮止动组	STOP SET Pinion	1
23	804332	杠杆套件	LEVER KIT	1
24	804334	盖板	COVER	1
25	881371T	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
26	804605	螺栓(M8×45)	BOLT (M8 x 45)	3
27	881373	接线端子	TERMINAL	1
28	881377	锁紧垫圈	LOCKWASHER	1
29	82382M	螺母	NUT	1
30	881372	螺母	NUT	1
31	881374	盖板	COVER	1

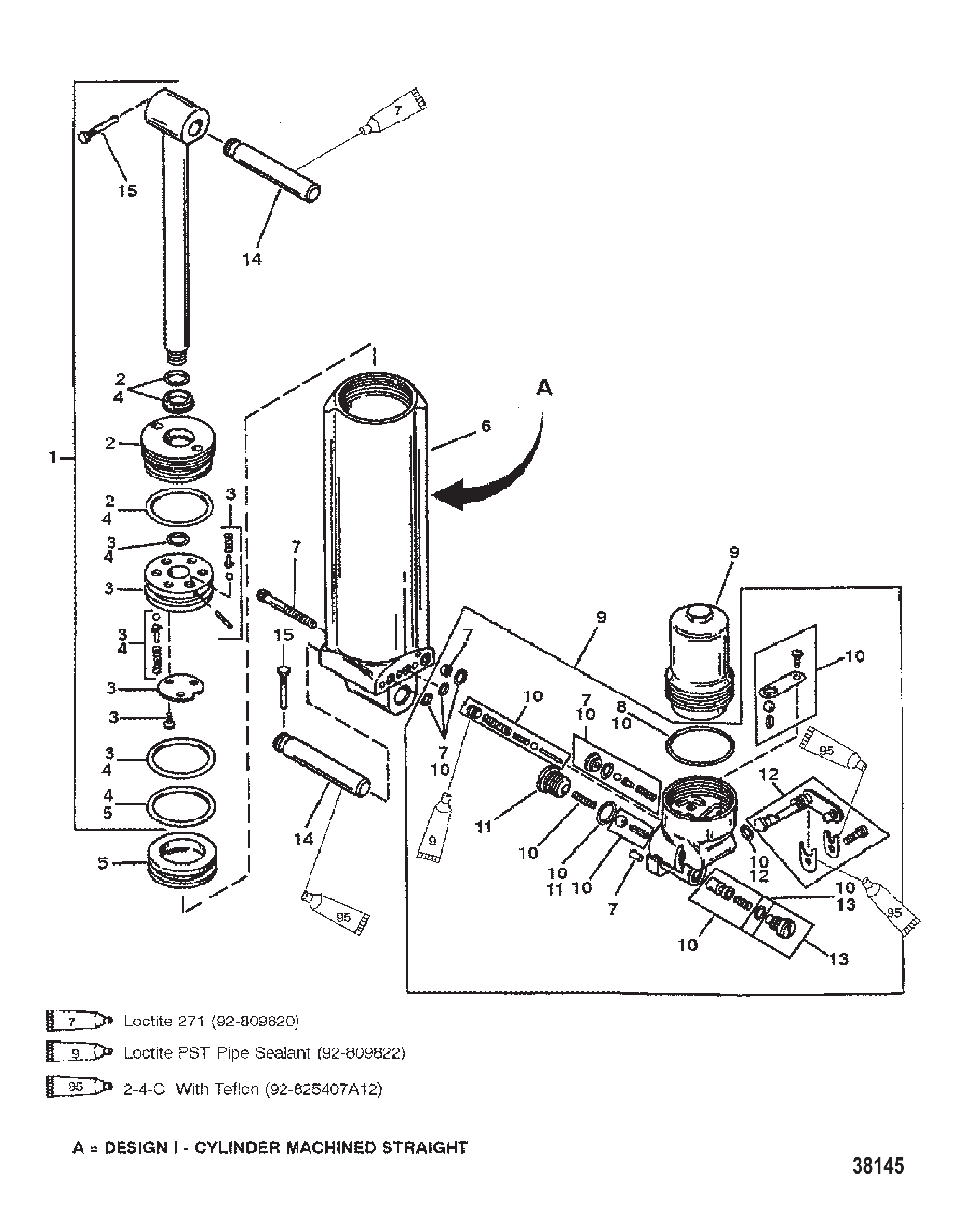

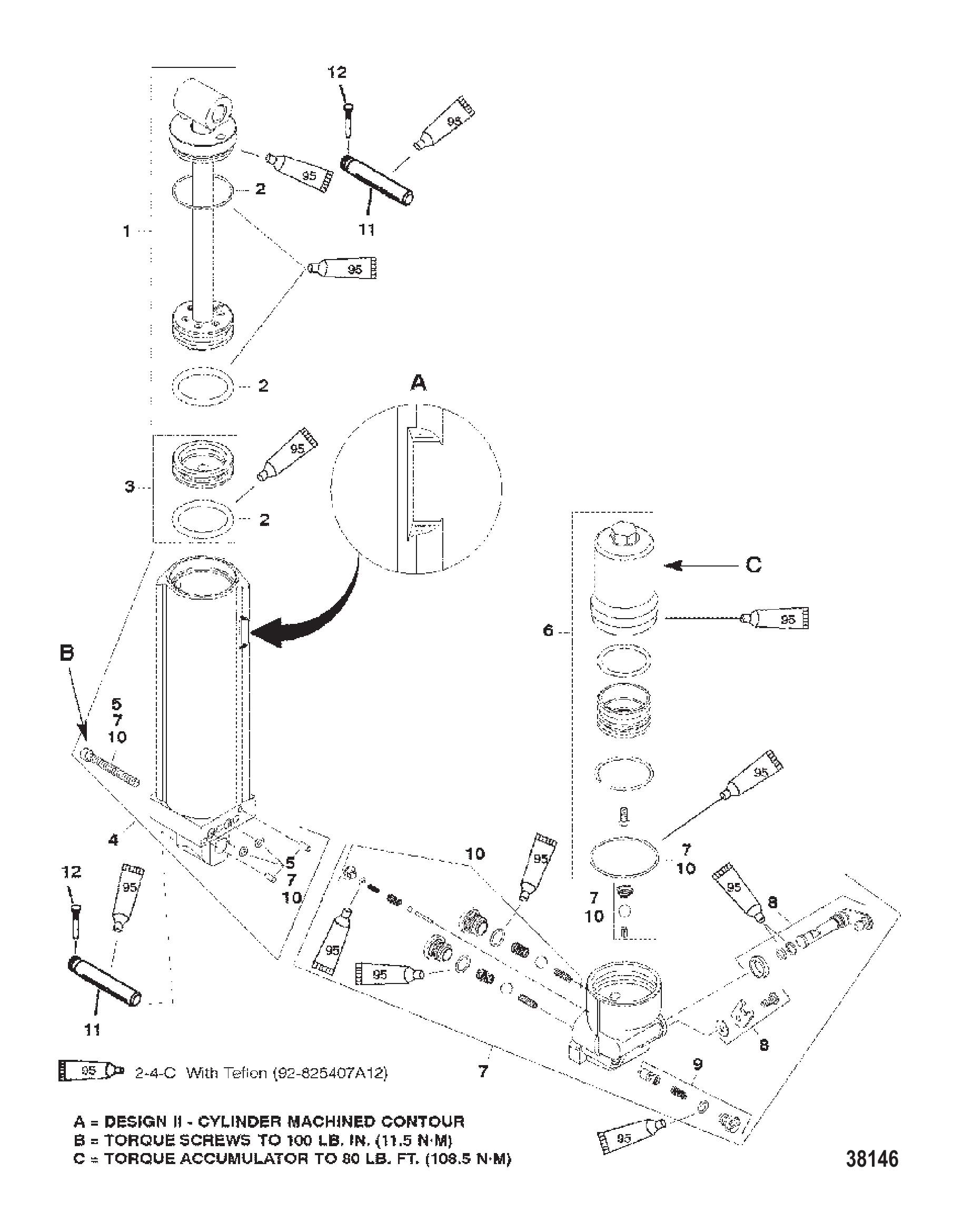

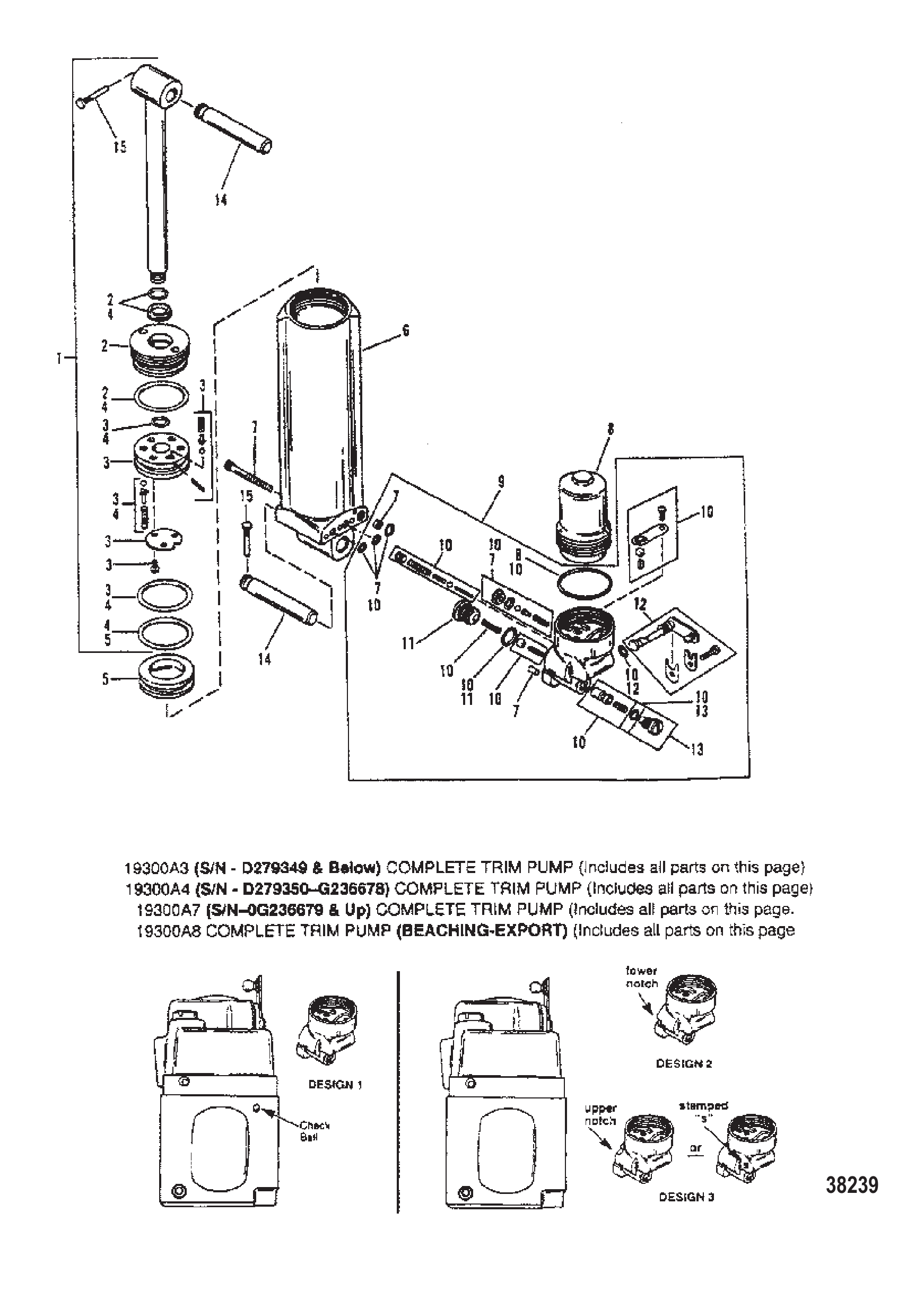

图 28手动倾斜装置组件 MANUAL TILT COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	813427A4	减震杆总成	SHOCK ROD ASSEMBLY	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	8134291	减震活塞	PISTON Shock	1
4	813432A2	气缸修理包	CYLINDER REBUILD KIT	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	810777	气缸套件	CYLINDER KIT	1
6	811224A1	气缸总成	CYLINDER ASSEMBLY	1
6	893918A01	气缸套件	CYLINDER KIT	1
7	813433A1	螺丝和密封套件气缸	SCREW AND SEAL KIT CYLINDER	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
8	893920A01	蓄能器套件	ACCUMULATOR KIT	1
9	813455T4	阀体总成	VALVE BODY ASSEMBLY	1
9	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
10	813456A4	维修套件	REPAIR KIT	1
10	813456A4	维修套件	REPAIR KIT	1
11	813458	塞套件	PLUG KIT	1
11	813458A2	塞套件	PLUG KIT	1
12	813457A1	凸轮总成套件	CAM ASSEMBLY KIT	1
13	813459	塞套件	PLUG KIT	1
14	19607	销	PIN	2
15	821539	三叶销	PIN Trilobe	2
-	830050T3	手动配平总成(完整)	MANUAL TRIM ASSEMBLY COMPLETE	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1

图 29启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	44369A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660	安装板	PLATE	1
4	95686	螺栓	BOLT	2
5	75383	端盖	END CAP	1
6	11957	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387	衬套	BUSHING	1
9	NSS	非单独销售垫片(AMER.BOSCH #WA-1728)	NOT SOLD SEPARATE WASHER (AMER. BOSCH #WA-1728)	1
10	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
11	20890	螺母 (.250-20)	NUT (.250-20)	1
12	61787	支架	HOLDER	2
12	898265014	电刷支架	HOLDER-BRUSH	2
13	NSS	不单独销售螺丝(AMER. BOSCH #02441-22-SC-30SM)	NOT SOLD SEPARATE SCREW (AMER. BOSCH #02441-22-SC-30SM)	2

图 30齿轮箱螺旋桨轴 Gear Housing Propeller Shaft

REF	零件编号	中文名称	英文名称	数量
-	9539A2	齿轮箱总成(短轴)(黑色)	GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK)	1
-	9539A3	齿轮箱总成(长轴)(黑色)	GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK)	1
-	9539A9	齿轮箱总成(长轴)(灰色)	GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY)	1
1	9539A1	齿轮箱总成(黑色-基础款)	GEAR HOUSING ASSEMBLY (BLACK-BASIC)	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成(灰色-基础款)	GEAR HOUSING ASSEMBLY (GRAY-BASIC)	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
51	76039	换挡凸轮控制	CAM Shift Control	1
51	760394	换挡凸轮控制	CAM Shift Control	1
52	38374A1	轴承杯垫片组(.002-3-5-10)	SHIM SET BEARING CUP (.002-3-5-10)	AR
53	38356A1	轴承套件	BEARING SET	1
54	88018A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
54	88018T1	前进齿轮总成	GEAR ASSY-FORWARD	1
55	21739	前进档滚柱轴承	BEARING Roller FORWARD GEAR	1
56	38441	凸轮从动件	FOLLOWER Cam	1
57	20843		SLIDE CROSS PIN	1
58	39845	压缩弹簧-凸轮随动件	SPRING COMPRESSION-CAM FOLLOWER	1
59	92911	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
59	92911T	离合器	CLUTCH	1
60	38113	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
60	8M0020942	十字销@2	PIN-CROSS @2	1
61	38114	十字销固定弹簧	SPRING RETAINING-CROSS PIN	1
62	75365	螺旋桨轴	PROPELLER SHAFT	1
63	88017	倒挡齿轮	GEAR Reverse	1
63	88017T	倒档齿轮	REVERSE GEAR	1
64	32004	倒档齿轮垫圈	WASHER REVERSE GEAR	1
65	20839	倒档齿轮滚珠轴承	BEARING Ball REVERSE GEAR	1
65	20839T	滚珠轴承	BEARING Ball	1
66	31986	轴承座O型圈	O-RING BEARING CARRIER	1
67	69386A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	69386T1	轴承座总成	CARRIER ASSY-BRG	1
68	21700	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
69	69188	轴承座油封	SEAL Oil BEARING CARRIER	1
69	8M0205511	油封	SEAL Oil	1
70	69189	轴承座油封	SEAL Oil BEARING CARRIER	1
70	8M0203757	油封	SEAL Oil	1
71	30281	轴承座定位键	KEY LOCATING, BEARING CARRIER	1
72	53012	齿轮箱螺母止动垫圈	TAB WASHER GEAR HOUSING NUT	1
73	87763		NUT GEAR HOUSING	1
74	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
74	31640Q4	平衡鳍板	TRIM TAB	1
75	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
76	45175	驱动轴壳体螺柱垫圈(0.406x0.750x0.104)	WASHER (.406 x .750 x .104) DRIVE SHAFT HOUSING STUD	1
76	8M0214963	垫圈	WASHER	1
77	34863	驱动轴壳体螺柱螺母(0.375-24)	NUT (.375-24) DRIVE SHAFT HOUSING STUD	1
77	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
78	65791	驱动轴壳体螺柱垫圈	WASHER DRIVE SHAFT HOUSING STUD	1
79	34933	不锈钢驱动轴壳体螺柱螺母(0.437-20)	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUD	1
79	8M0204653	螺母	NUT	1
80	73345A1		THRUST WASHER FRONT	1
81	76281	螺旋桨止动垫圈	TAB WASHER PROPELLER	1
81	8M0214942	锁紧垫片	WASHER Tab	1
82	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
82	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	43779A87	衬垫套件	GASKET SET	1

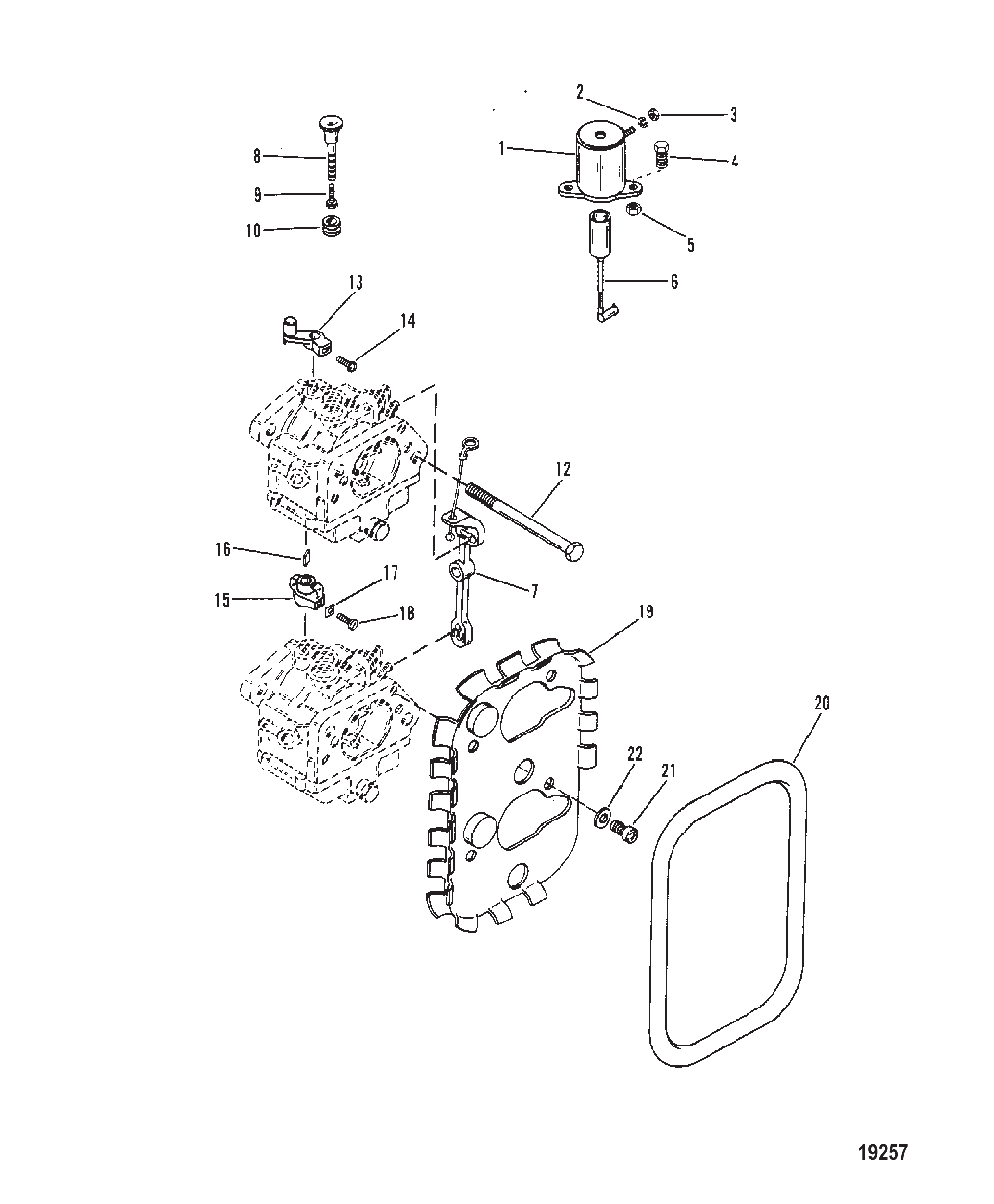

图 31化油器连杆与阻风门电磁阀 Carburetor Linkage and Choke Solenoid

REF	零件编号	中文名称	英文名称	数量
1	60549A7	阻风门电磁阀总成	SOLENOID ASSEMBLY Choke	1
2	26996	锁紧垫圈(#10)不锈钢阻风门电磁阀端子	LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL	1
3	68219	螺母(#10-32)不锈钢阻风门电磁阀端子	NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL	1
4	33524	螺钉(.312-24 x .620)阻风门电磁阀	SCREW (.312-24 x .620) CHOKE SOLENOID	1
5	29250	螺母(.312-24)阻风门电磁阀螺钉	NUT (.312-24) CHOKE SOLENOID SCREWS	2
6	89008A2	阻风门电磁阀柱塞总成	PLUNGER ASSEMBLY CHOKE SOLENOID	1
7	76076A1	阻风门拉杆总成	ROD ASSEMBLY Choke	1
8	90242A1	旋钮总成	KNOB ASSEMBLY	1
9	35519	螺钉(#10-16 x .500)阻风门旋钮线	SCREW (#10-16 x .500) WIRE TO CHOKE KNOB	1
10	20116	阻风门旋钮护圈	GROMMET CHOKE KNOB	1
12	52743	螺钉(.312-18 x 3.750)化油器至曲轴箱	SCREW (.312-18 x 3.750) CARBURETOR TO CRANKCASE	4
13	77583	节流阀杆	LEVER THROTTLE	1
14	60293	螺钉(#5-40 x .500)杆至化油器	SCREW (#5-40 x .500) LEVER TO CARBURETOR	1
15	60292A1	联轴器总成	COUPLING ASSEMBLY	1
16	89694	节流阀轴联轴器键	KEY THROTTLE SHAFT COUPLING	1
17	92500	推式螺母滚轮-联轴器	PUSH NUT ROLLER - COUPLING	1
18	60293	螺钉(#5-40 x .500)卷边垫圈至联轴器	SCREW (#5-40 x .500) ROLLED WASHER TO COUPLING	1
19	91996A1	化油器板总成	PLATE ASSEMBLY CARBURETOR	1
20	71090	化油器板密封件	SEAL CARBURETOR PLATE	1
21	20367	螺钉板至化油器(7/16")	SCREW PLATE TO CARBURETOR (7/16")	4
22	29245	垫圈(.281 x .500 x .060)不锈钢板螺钉	WASHER (.281 x .500 x .060) Stainless Steel PLATE SCREW	4
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4

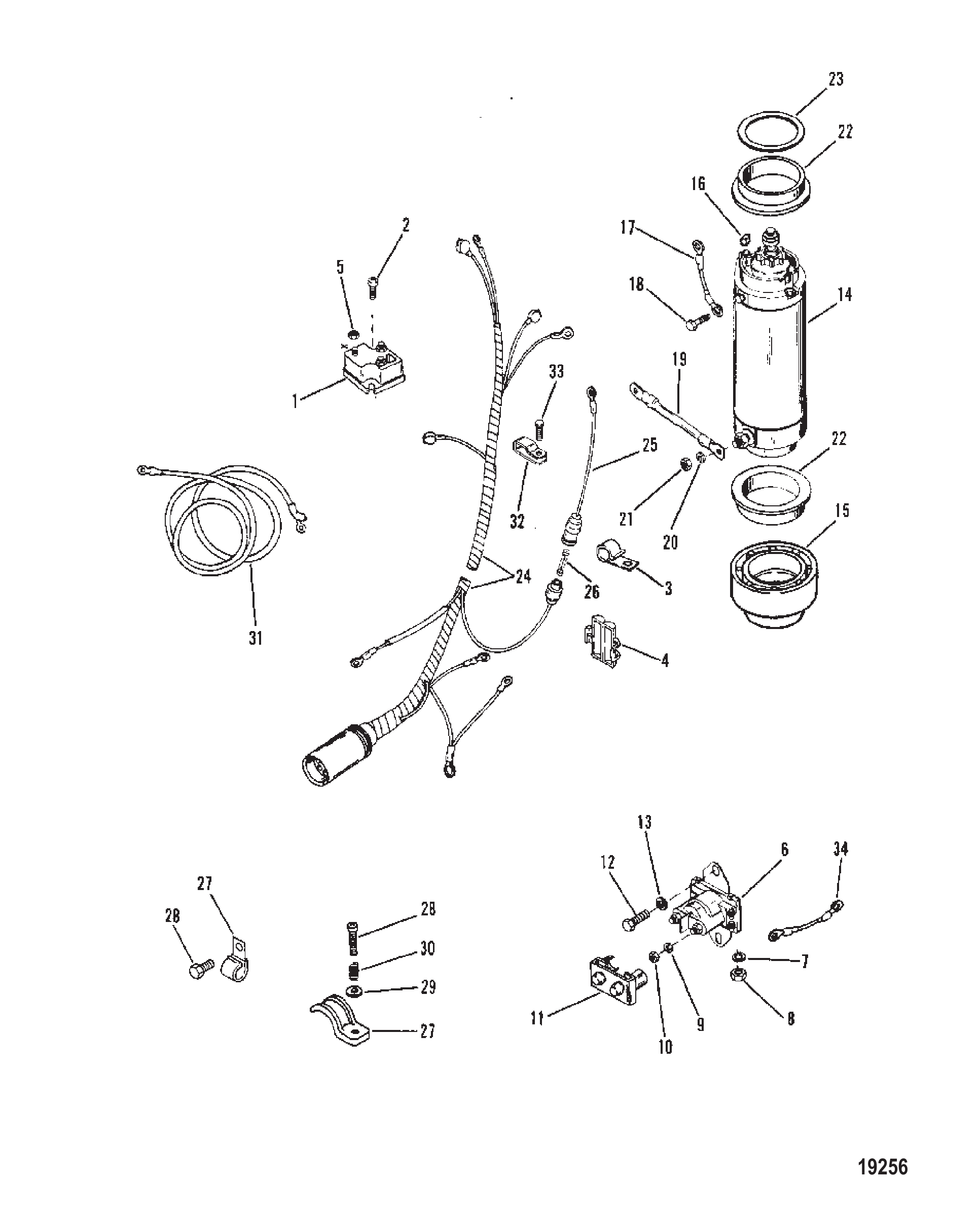

图 32启动电机、电磁阀与整流器 Starter Motor, Solenoid and Rectifier

REF	零件编号	中文名称	英文名称	数量
1	62351A1	整流器	RECTIFIER	1
2	38055	螺钉 (.190-32 x .620) 整流器至板	SCREW (.190-32 x .620) RECTIFIER TO PLATE	2
3	47483	J型卡扣	J CLIP	1
4	134731	保险丝座	HOLDER Fuse	1
5	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINAL	3
6	96158	启动电磁阀	SOLENOID Starter	1
6	8M0185622	电磁阀	SOLENOID	1
7	26996	锁紧垫圈（#10）不锈钢电磁阀端子	LOCKWASHER (#10) Stainless Steel SOLENOID TERMINAL	2
8	26419	螺母(#8-32)-黄铜电磁阀端子	NUT (#8-32) Brass SOLENOID TERMINAL	2
9	26992	锁紧垫圈 (.250) 不锈钢电磁阀端子	LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL	2
10	94330	螺母 (.250-20) 黄铜电磁阀端子	NUT (.250-20) Brass SOLENOID TERMINAL	2
11	97861	绝缘体-启动电磁阀	INSULATOR STARTER SOLENOID	1
12	41508	螺钉 (.250-20 x .500) 不锈钢电磁阀至消音器	SCREW (.250-20 x .500) Stainless Steel SOLENOID TO ATTENUATOR	2
12	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	2
13	26992	锁紧垫圈 (.250) 不锈钢电磁阀螺钉	LOCKWASHER (.250) Stainless Steel SOLENOID SCREW	2
14	44369A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
15	44368	适配器启动马达	ADAPTER STARTER MOTOR	1
16	57247	止动橡胶 - 启动马达	STOP RUBBER - STARTER MOTOR	2
16	8M0043376	停机开关	STOP	2
17	93388A1	电缆总成 (6.00英寸) 黑色启动器至消音器	CABLE ASSEMBLY (6.00 Inches) Black STARTER TO SOUND ATTENUATOR	1
18	69035	螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢电缆至启动马达	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR	1
19	93389A6	电缆总成电磁阀至启动马达 - 9-1/2"	CABLE ASSEMBLY SOLENOID TO STARTER MOTOR - 9-1/2"	1
20	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
21	64015	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
22	56703	橡胶套环 - 启动器安装	COLLAR RUBBER - STARTER MOUNT	2
22	8M0034918	轴环	COLLAR	2
23	56774	垫片套环至安装支架	SPACER COLLAR TO MOUNTING BRACKETS	AR
24	14614A1	线束总成 (内部)	HARNESS ASSEMBLY (INTERNAL)	1
25	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
26	79091	保险丝20安培	FUSE 20 Ampere	1
26	8M0207796	保险丝20安培	FUSE 20 AMP	1
27	88751	线束夹	CLAMP WIRING HARNESS	1
28	23702	螺钉(0.190-32x1.12)线束卡箍	SCREW (.190-32 x 1.12) WIRING HARNESS CLAMP	1
29	72761	垫圈(0.203x0.562x0.060)-不锈钢线束夹螺钉	WASHER (.203 x .562 x .060) Stainless Steel WIRING HARNESS CLAMP SCREW	1
30	28357	弹簧线束	SPRING WIRING HARNESS	1
27	63153	J型线束夹	J CLIP WIRING HARNESS	1
28	62568	螺钉 (#10-16 x .375) 夹子	SCREW (#10-16 x .375) CLAMP	1
31	88439A7	电缆总成蓄电池 (正极)	CABLE ASSEMBLY Battery (POSITIVE)	1
31	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
32	28700	线束夹	CLAMP WIRING HARNESS	1
33	73286	螺钉 (.250-20 x .500) 不锈钢线束夹	SCREW (.250-20 x .500) Stainless Steel WIRING HARNESS CLAMP	1
34	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1

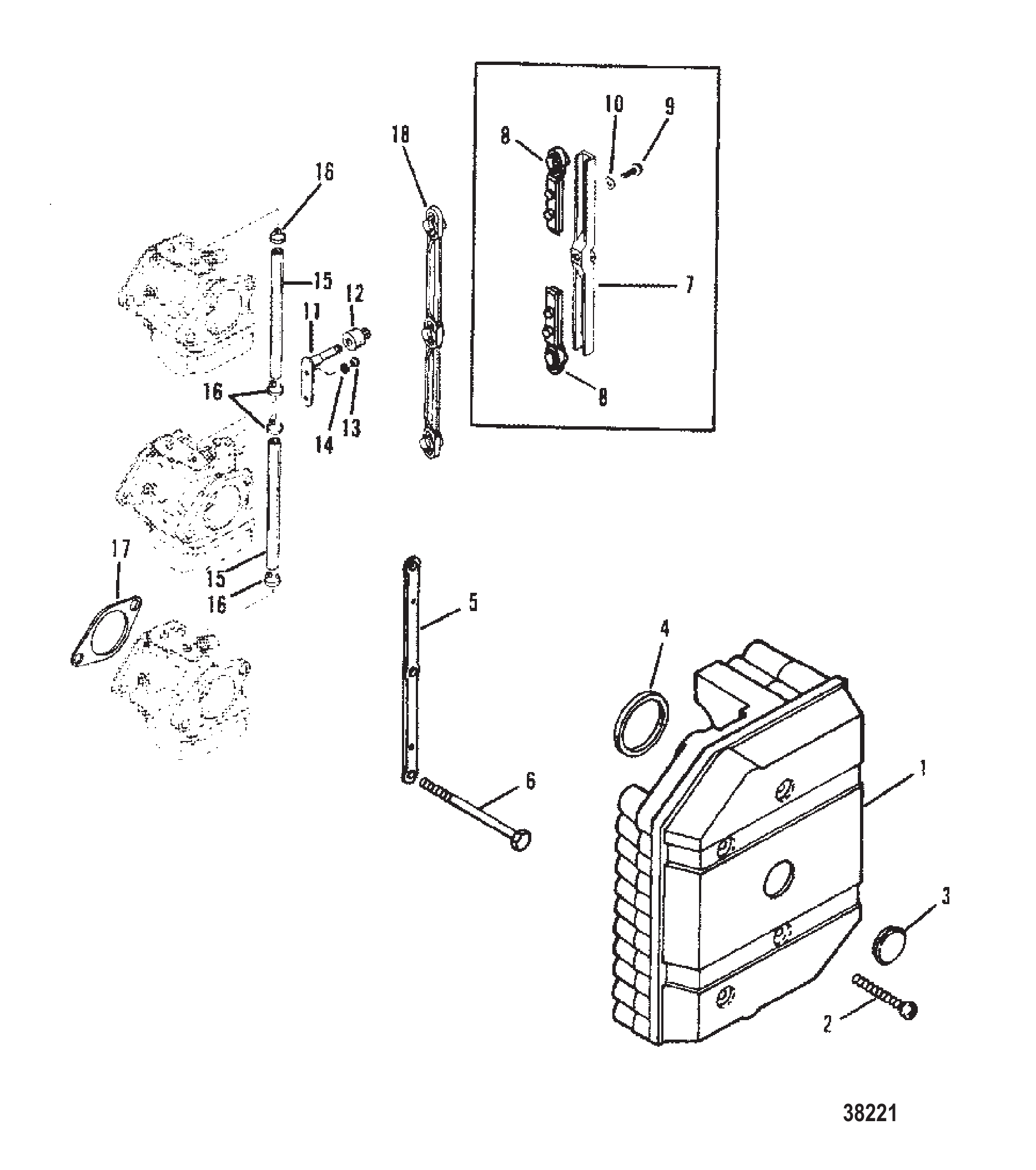

图 33衰减板 Attenuator Plate

REF	零件编号	中文名称	英文名称	数量
1	19662	消音器	ATTENUATOR Sound	1
2	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	4
3	815784	盖帽	CAP	1
4	812889	密封件	SEAL	3
5	812874	消音板	PLATE Sound Attenuator	2
6	4000363	螺丝(M8 x 100)	SCREW (M8 x 100)	6
7	821145	油门连杆	LINK Throttle	1
7	825204T03	连接杆	LINK	1
8	812883	调节连杆	LINK Adjusting	2
9	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
10	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
10	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
11	11399A1	臂总成	ARM ASSEMBLY	1
12	67748	滚轮	ROLLER	1
13	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
14	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
14	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
15	9912878	软管(.187)(26.00英寸散装)(4-1/4")	HOSE (.187) (26.00 Inches Bulk) (4-1/4")	2
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	8144461	法兰衬垫	GASKET Flange	3
18	8252043	油门连杆	LINK Throttle	1
18	825204T03	连接杆	LINK	1
-	812867A97	衬垫套件	GASKET SET	1

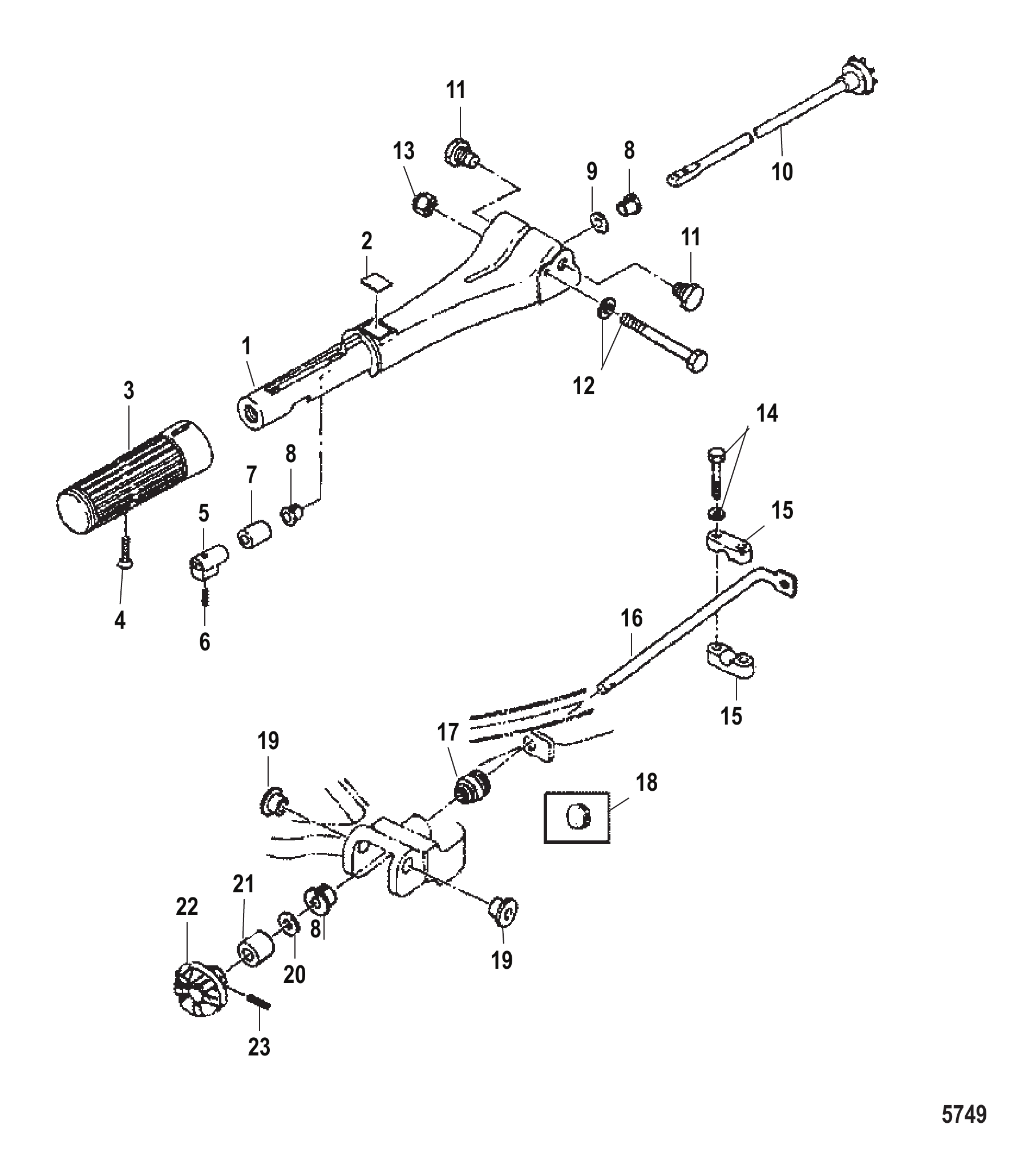

图 34舵柄手柄 Tiller Handle

REF	零件编号	中文名称	英文名称	数量
1	160752	转向手柄	HANDLE Steering	1
2	16090	贴花	DECAL	1
2	8M0097201	舵柄贴花	DECAL Tiller	1
3	160861	握把	GRIP	1
4	8150461	螺钉	SCREW	1
5	8537152	隔套	SPACER	1
6	8150263	开口销	COTTER PIN	1
7	16191	隔套	SPACER	1
8	16336	衬套	BUSHING	3
9	8537232	波形垫圈	WAVE WASHER	1
10	160931	油门轴	SHAFT Throttle	1
11	8129352	螺栓	BOLT	2
11	8M0111108	螺栓	BOLT	2
12	8230422	螺栓	BOLT	1
12	8M0050498	螺栓	BOLT	1
13	8537227	尼龙螺母	NUT Nylon	1
14	168302	螺栓	BOLT	2
14	879194264	螺栓	BOLT	2
15	853752	支架	BRACKET	2
16	160932	油门轴	SHAFT Throttle	1
17	16823	护孔环	GROMMET	1
18	16226	电线护圈	GROMMET (Electric)	1
19	952869	轴环	COLLAR	2
20	16192	垫圈	WASHER	1
21	9528610	轴环	COLLAR	1
22	853751	小齿轮	GEAR Pinion	1
23	952186	滚动销	PIN Roll	1

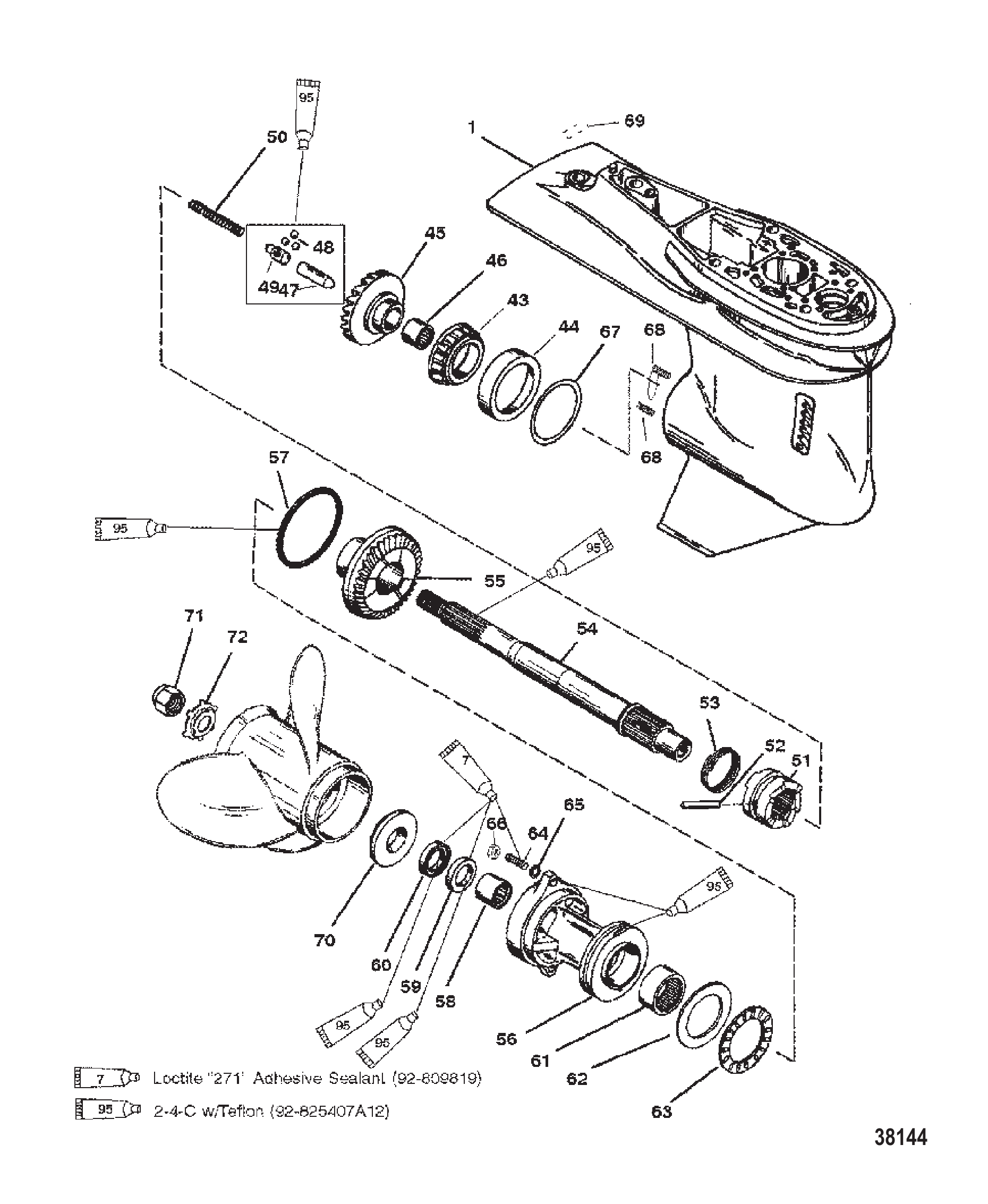

图 35齿轮箱图表(60海宝/马拉松/大脚) GEAR HOUSING CHART (60 SEAPRO/MARATHON/BIG FOOT)

REF	零件编号	中文名称	英文名称	数量
-	NSS	齿轮箱体(不单独销售)	NOT SOLD SEPARATE Gear Housing

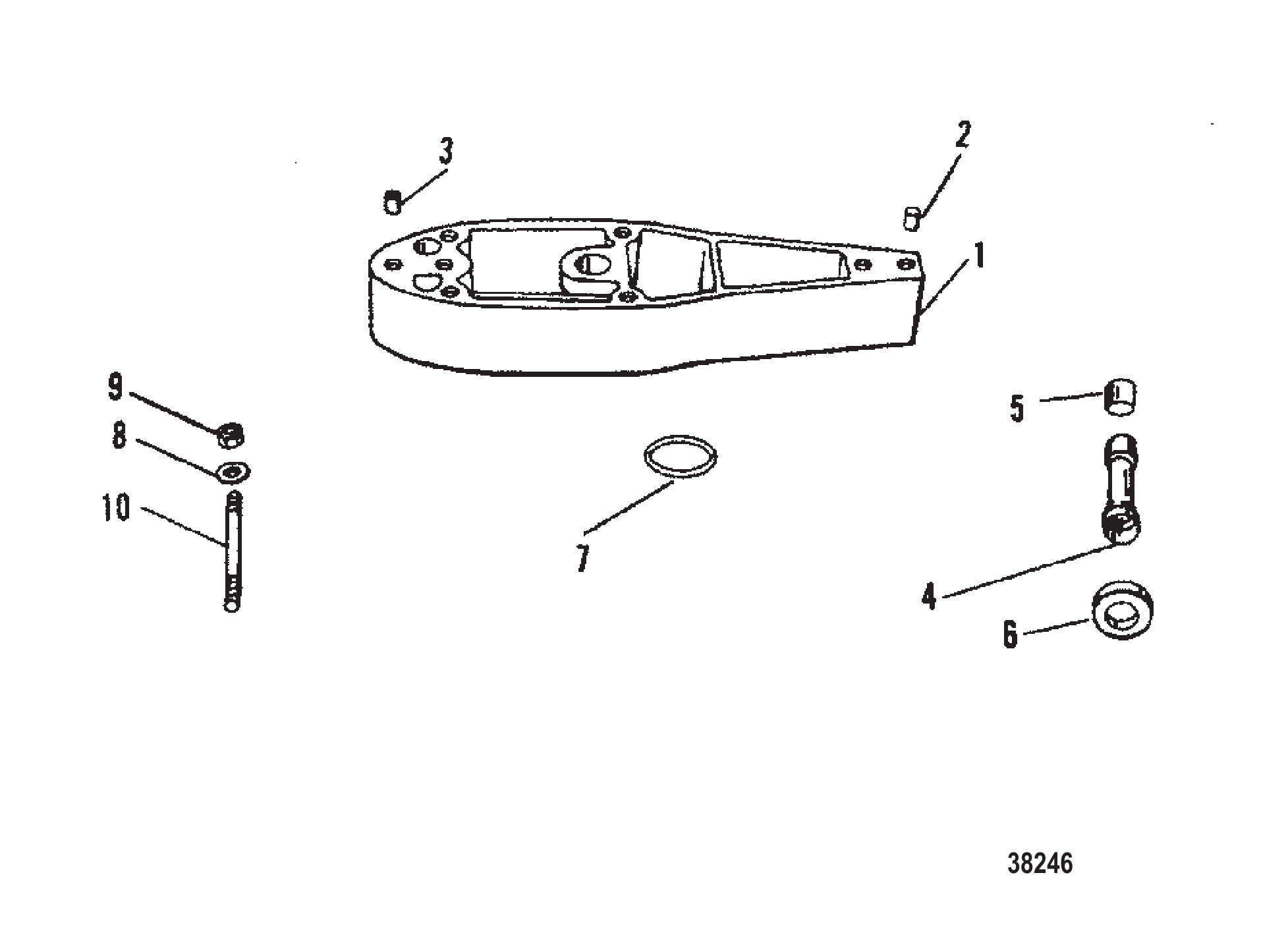

图 36延伸组件 EXTENSION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	816696A3	垫片(黑色)	SPACER (BLACK)	1
1	816696A4	垫片(灰色)	SPACER (GRAY)	1
1	816696A5	垫片(追踪者型)	SPACER (TRACKER)	1
1	816696F5	垫片(黑色)	SPACER (BLACK)	1
1	816696T5	隔套	SPACER	1
1	816696F6	垫片(灰色)	SPACER (GRAY)	1
1	816696T6	ORD 816696T5	ORD 816696T 5	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
3	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
3	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
4	817401A1	水管总成	TUBE ASSEMBLY Water	1
5	38970	油封(旧款)	SEAL (OLD DESIGN)	1
6	821093	密封件	SEAL	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	4
8	8M0214963	垫圈	WASHER	4
9	13914	螺母(M10)	NUT (M10)	5
9	40140	螺母(M10)	NUT (M10)	5
10	8168661	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5
10	8M0034425	双头螺柱 (M10 x 120)	STUD (M10 x 120)	5

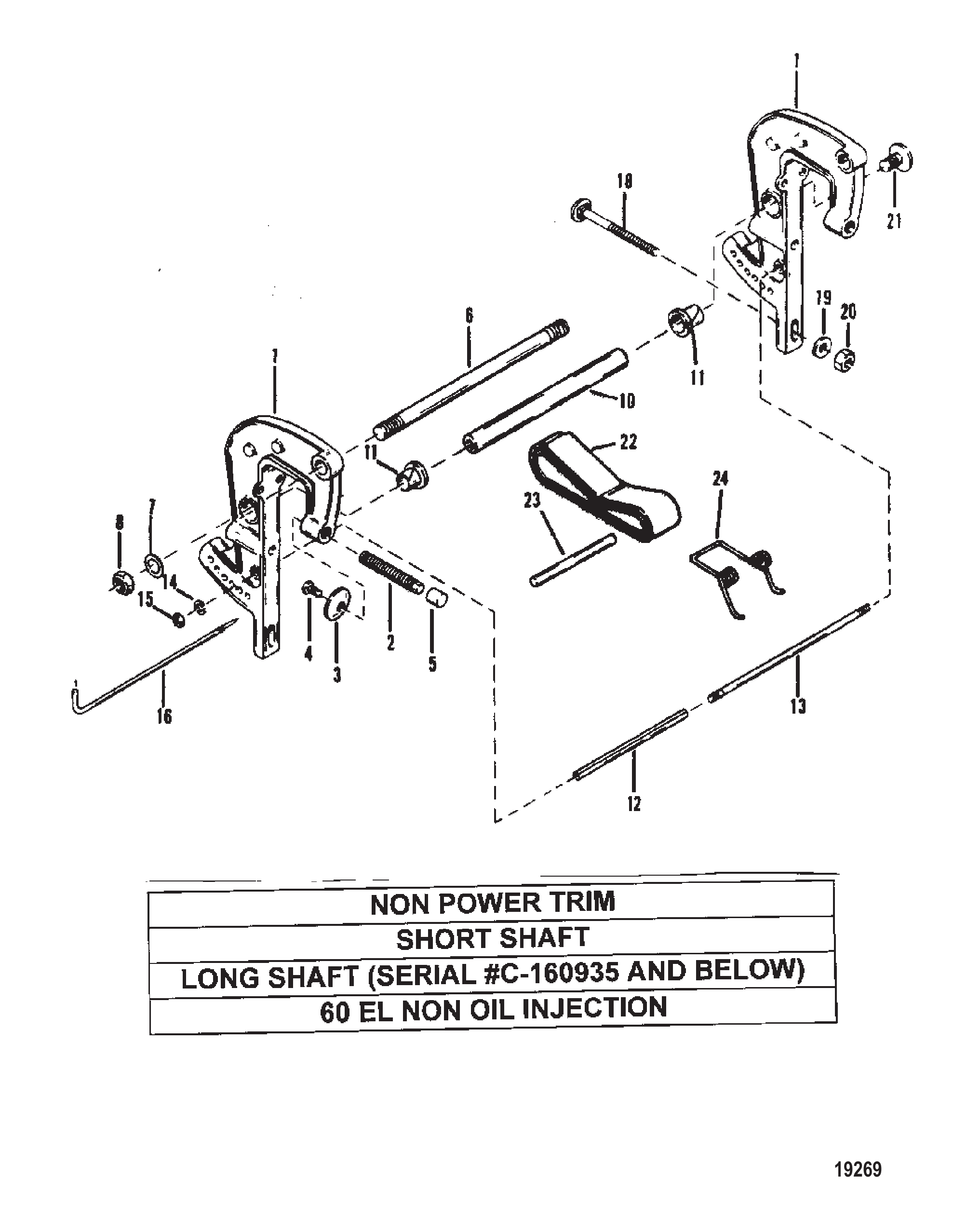

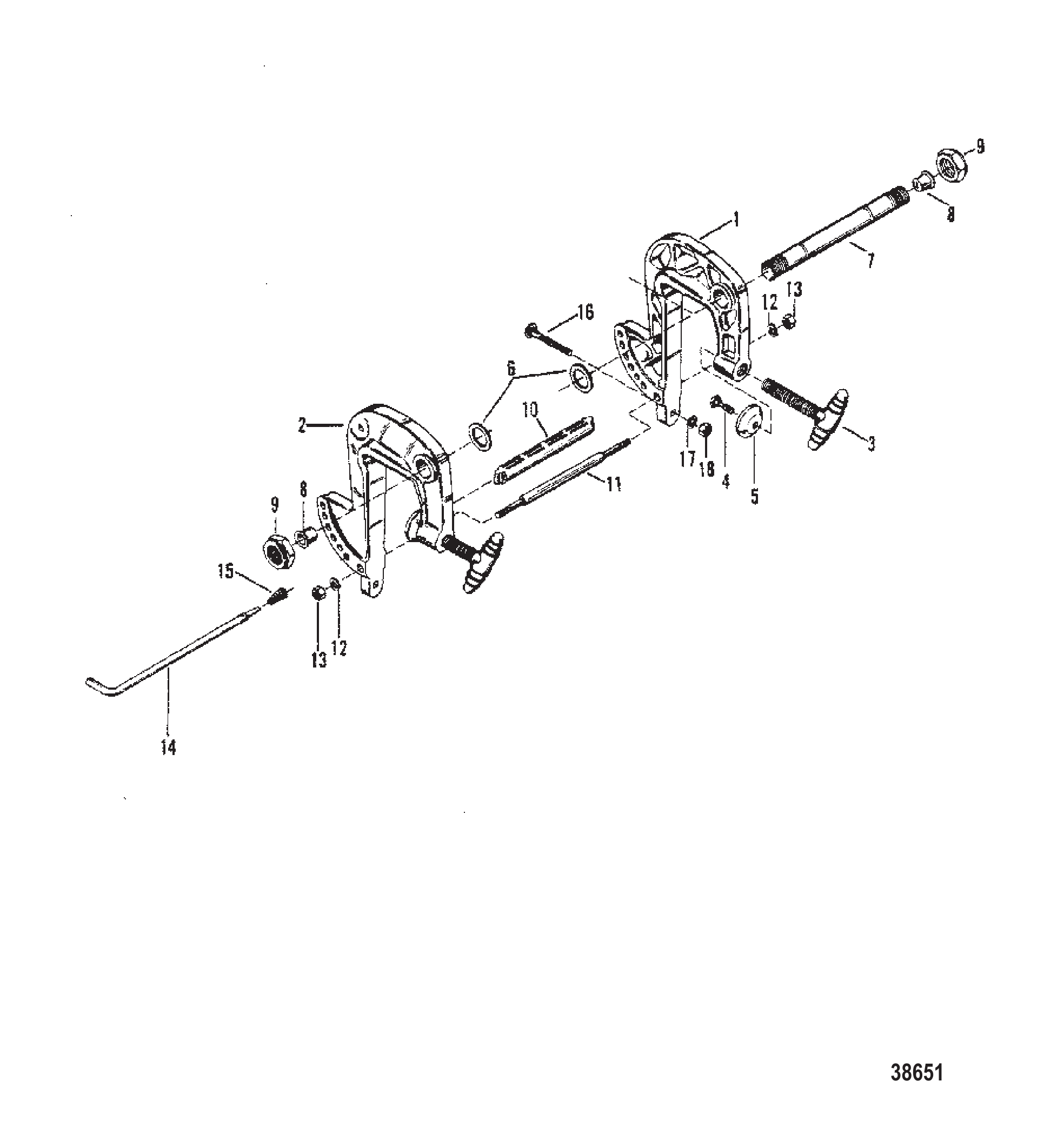

图 37夹紧支架(短型)(长型-0C160935及以下)(60EL NOI)(NPT) Clamp Bracket (Short)(Long-0C160935 & Below)(60EL NOI)(NPT)

REF	零件编号	中文名称	英文名称	数量
1	8394A1	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
1	8394A3	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
2	78492A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
3	78493	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	784951	垫片至拇指螺钉	SCREW WASHER TO THUMB SCREW	2
4	78495	螺钉（.312-24 x .680）	SCREW (.312-24 x .680)	2
5	75043	拇指螺丝帽	CAP THUMB SCREW	2
6	74528	倾斜管	TILT TUBE	1
6	8M0041936	倾斜管	TILT TUBE	1
7	52864	倾斜管垫圈	WASHER TILT TUBE	2
8	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	2
8	858869	螺母 (.875-14)	NUT (.875-14)	2
10	98877	上部减震支架	SHOCK MOUNT Upper UPPER MOUNT	1
11	73203	夹紧支架衬套	BUSHING CLAMP BRACKET	2
12	59623	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	2
13	59625	夹紧支架螺柱	STUD CLAMP BRACKET	1
14	26993	锁紧垫圈(.312)夹支架螺柱	LOCKWASHER (.312) CLAMP BRACKET STUD	2
14	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
15	28770	螺母(.312-24)不锈钢-夹支架螺柱	NUT (.312-24) Stainless Steel CLAMP BRACKET STUD	2
16	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
16	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
18	68298	夹紧支架固定螺栓（0.375-16 x 3.250）	BOLT (.375-16 x 3.250) CLAMP BRACKET TO TRANSOM	2
19	68410	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
19	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	2
18	89673	夹紧支架固定螺钉（0.375-16 x 5.00）	SCREW (.375-16 x 5.00) CLAMP BRACKET TO TRANSOM	2
19	28420	垫圈 (1-1/4 x 25/64 x 0.125 不锈钢) 夹紧支架螺栓	WASHER (1-1/ 4 x 25/64 x .125 SS) CLAMP BRACKET BOLT	2
19	68300		WASHER (..88 x .39 x .06) CLAMP BRACKET BOLT	2
20	99405	夹紧支架螺栓螺母	NUT CLAMP BRACKET BOLT	4
20	82671112	螺母（.375-16）	NUT (.375-16)	4
21	69375A1	上下减震销螺钉（0.500-20 x 0.625）	SCREW (.500-20 x .625) UPPER AND LOWER SHOCK PIN	2
22	98876		STRAP TILT STOP	1
23	98878	下部安装销	PIN LOWER MOUNT	1
24	98875	弹簧	SPRING	1

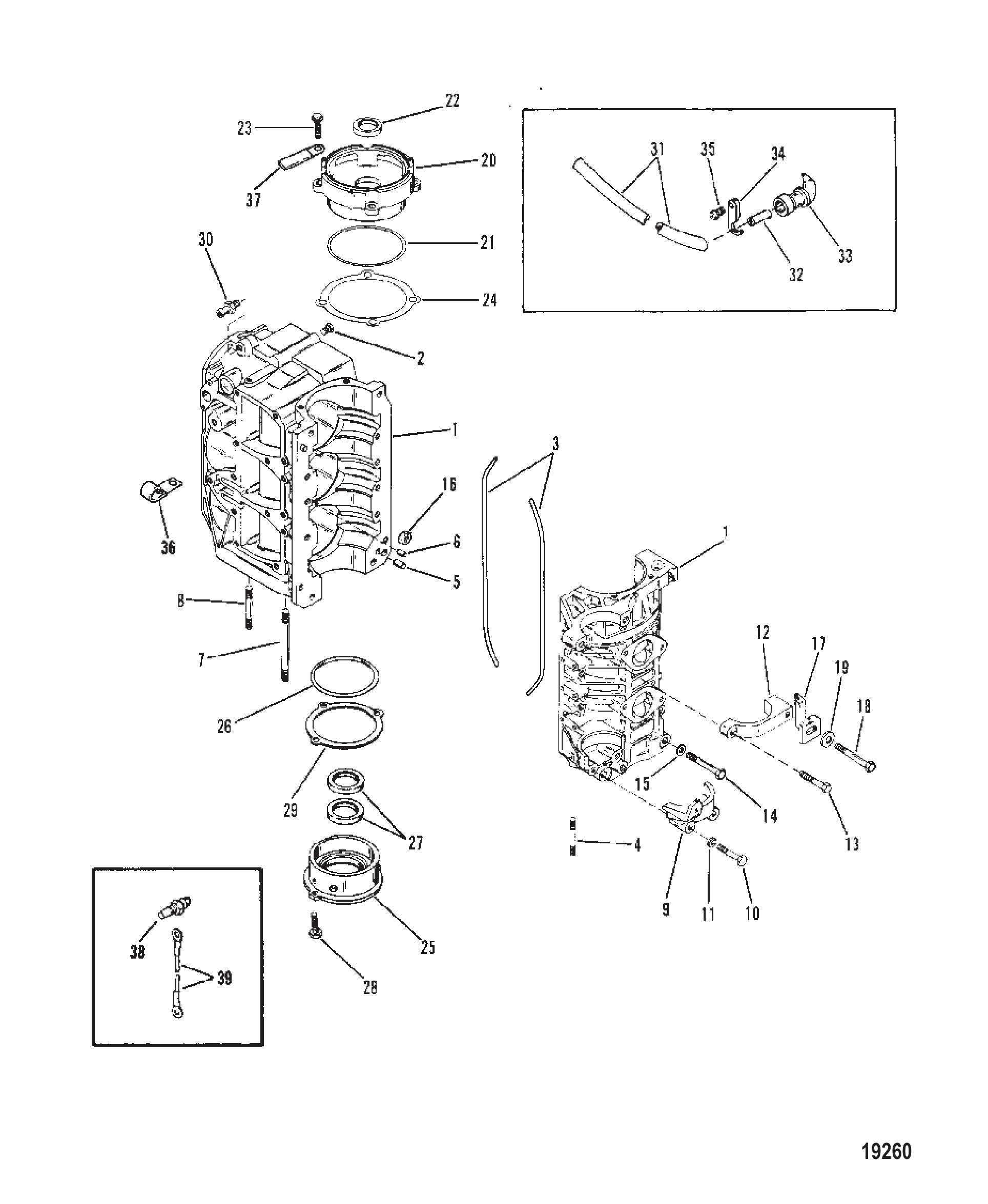

图 38气缸体 Cylinder Block

REF	零件编号	中文名称	英文名称	数量
1	8362A10	气缸体总成	CYLINDER BLOCK ASSMEBLY	1
1	8362A11	气缸体总成	CYLINDER BLOCK ASSMEBLY	1
2	66517	曲轴箱通气限流器	RESTRICTOR CRANKCASE BLEED	2
3	60286	曲轴箱至气缸体衬垫	GASKET CRANKCASE TO CYLINDER BLOCK	2
4	68201	曲轴箱至驱动轴壳体螺柱(2-1/4英寸)	STUD CRANKCASE TO DRIVE SHAFT HOUSING (2-1/4")	2
5	20033	定位销曲轴箱至气缸体	PIN Dowel CRANKCASE TO CYLINDER BLOCK	2
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	20323	气缸体至主轴承定位销	PIN Dowel CYLINDER BLOCK TO MAIN BEARING	2
7	92345	气缸体螺柱(4-3/8英寸)	STUD CYLINDER BLOCK (4-3/8")	2
8	68202	气缸体排气侧螺柱(0.312-24x3.00)	STUD (.312-24 x 3.00) CYLINDER BLOCK - EXHAUST SIDE	1
8	68167	气缸体传输侧螺柱(0.312-18/0.312-24x2.560)(2-9/16英寸)	STUD (.312-18/.312-24 x 2.560) CYLINDER BLOCK - TRANSFER SIDE (2-9/16")	1
9	76975	启动马达下盖	COVER STARTER MOTOR (BOTTOM)	1
10	77065	启动马达盖螺钉(0.312-18x2)	SCREW (.312-18 x 2) STARTER MOTOR COVER	2
10	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11	26993	启动马达盖螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STARTER MOTOR COVER SCREW	4
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
12	79735A1	启动马达上盖	COVER STARTER MOTOR (TOP)	1
13	35385	启动马达气缸体螺钉(0.312-18x1-3/4)	SCREW (.312-18 x 1-3/4) STARTER MOTOR CYLINDER BLOCK	1
14	35385	曲轴箱至气缸体螺钉(0.312-18x1-3/4)	SCREW (.312-18 x 1-3/4) CRANKCASE TO CYLINDER BLOCK	11
14	73657	曲轴箱至气缸体螺丝(.312-18 x 1.50)	SCREW (.312-18 x 1.50) CRANKCASE TO CYLINDER BLOCK	2
14	22039	曲轴箱至气缸体螺钉(0.312-24x2.75)	SCREW (.312-24 x 2.75) CRANKCASE TO CYLINDER BLOCK	2
15	26020	曲轴箱底部螺钉垫圈	WASHER CRANKCASE SCREW (BOTTOM)	13
16	29250	曲轴箱底部螺钉螺母(0.312-24)	NUT (.312-24) CRANKCASE SCREW (BOTTOM)	2
17	79736	正时指示器	INDICATOR TIMING	1
18	58414	指示器与启动器盖螺钉	SCREW INDICATOR AND STARTER COVER	1
19	56720	不锈钢指示器螺钉垫圈(0.330x0.750x0.060)	WASHER (.330 x .750 x .060) Stainless Steel INDICATOR SCREW	1
20	6357A1	上端盖总成	END CAP ASSEMBLY UPPER	1
21	64966	端盖O型圈(3.739x0.070)	O-RING (3.739 x .070) END CAP	1
22	41953	端盖密封件	SEAL END CAP	1
23	73169	上端盖安装螺钉(1英寸)	SCREW UPPER END CAP MOUNTING (1")	4
23	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	4
24	73644A1	上端盖垫片(0.006-8-10)	SHIM UPPER END CAP (.006-8-10)	AR
25	6691A1	下端盖总成	END CAP ASSEMBLY LOWER	1
26	32546	端盖O型圈	O-RING END CAP	1
27	41953	端盖密封件	SEAL END CAP	2
28	69034	下端盖安装螺钉及锁紧垫圈(0.312-18x1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00) LOWER END CAP MOUNTING	3
28	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	3
29	20085A1	下端盖垫片组(0.002-3-5-10)	SHIM SET LOWER END CAP (.002-3-5-10)	AR
30	29111	气缸体软管接头	CONNECTOR HOSE TO CYLINDER BLOCK	1
30	291112	接头	FITTING	1
31	774572	示流软管(48英寸散装)	HOSE (48.00 Inches Bulk) TELL TALE	1
32	90882	示流软管套管	SLEEVE TELL TALE HOSE	1
33	69555	示流喷嘴-后支撑架	NOZZLE TELL TALE - REAR SUPPORT BRACKET	1
33	69555001	喷嘴	NOZZLE	1
34	70705	示流喷嘴卡箍	CLAMP TELL TALE NOZZLE	1
35	48408	示流卡箍螺钉(#10-16x0.500)	SCREW (#10-16 x .500) TELL TALE CLAMP	1
36	55098	J型卡扣	J CLIP	3
36	8M0024808	J型夹	J-CLIP	3
37	92041	卡扣	CLIP	1
38	12415	温度传感器(动力艇)	SENDER Temperature (POWERBOAT)	1
39	88824A7	线束总成(31.50英寸)棕褐色(动力艇)	CABLE ASSEMBLY (31.50 Inches) Tan (POWERBOAT)	1
-	13713A87	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	97470A87	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	97470T87	船用动力头	POWERHEAD MARINE	1
-	43779A87	衬垫套件	GASKET SET	1

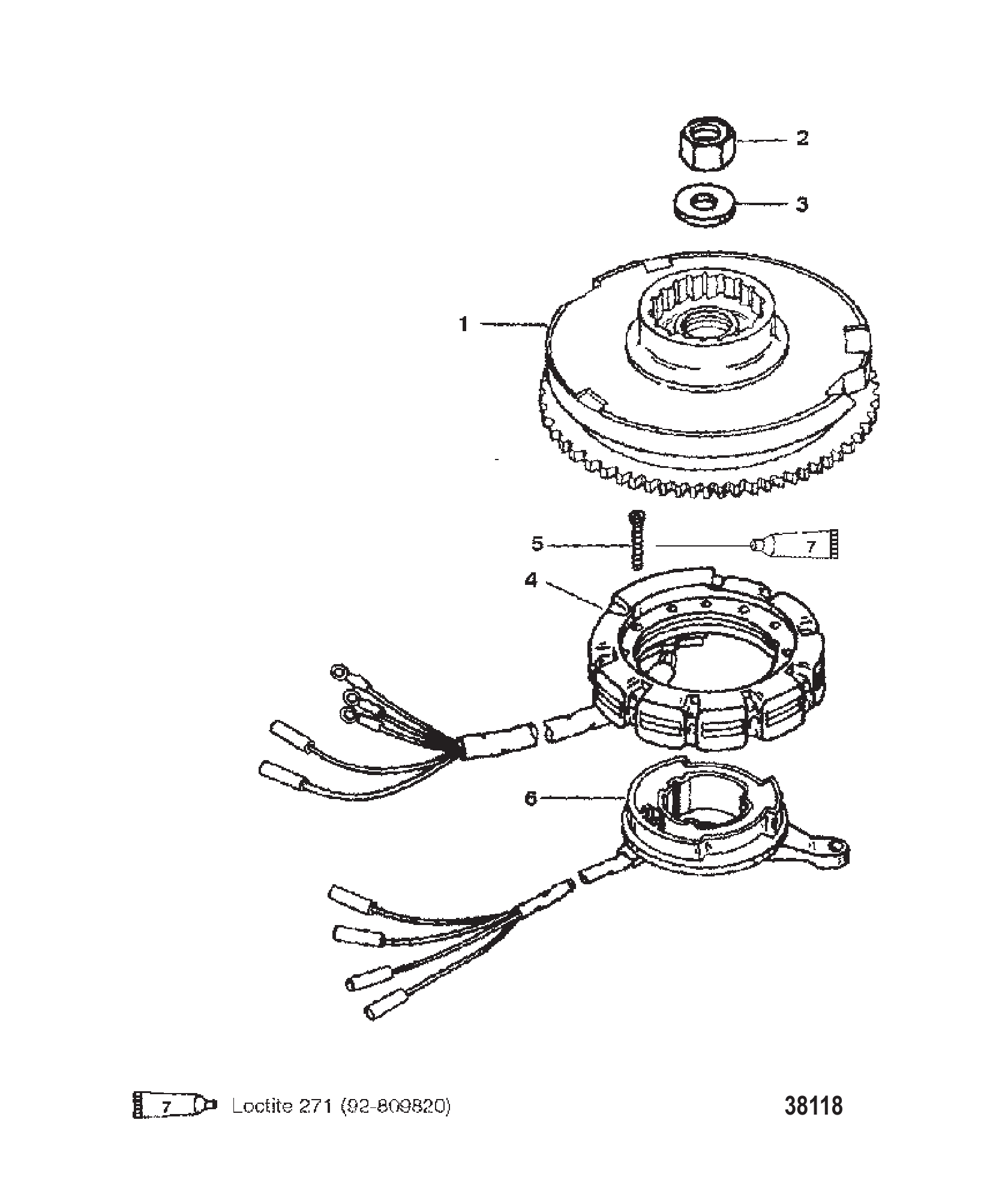

图 39飞轮(55/60海宝/马拉松) FLYWHEEL (55/60 SEAPRO/MARATHON)

REF	零件编号	中文名称	英文名称	数量
1	9008A48	飞轮	FLYWHEEL	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	832074A4	定子	STATOR	1
5	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
5	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
6	99021A16	触发器	TRIGGER	1

图 40气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE

REF	零件编号	中文名称	英文名称	数量
1	9755A9	气缸体	CYLINDER BLOCK	1
1	9755A14	气缸体	CYLINDER BLOCK	1
1	9755T14	气缸体	CYLINDER BLOCK	1
1	9755A10	气缸体	CYLINDER BLOCK	1
1	9755T10	气缸体	CYLINDER BLOCK	1
1	9755A15	气缸体	CYLINDER BLOCK	1
1	9755T15	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	42658	止回阀	CHECK VALVE	1
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材(20英尺散装)(16英寸)	TUBING (20.00 Feet Bulk) (16")	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
6	426233	止回阀	CHECK VALVE	1
7	812888A1	托架总成	CARRIER ASSEMBLY	2
8	42657A1	止回阀	CHECK VALVE	2
8	42657A3	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	20033	定位销	PIN Dowel (LOCATING)	1
12	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
13	812870	主轴承座中心销	PIN Center Main (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	18597	盖板	COVER	1
15	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
16	65848	托架	CARRIER	1
17	64872	护孔环	GROMMET	1
18	8128671	衬垫	GASKET	1
18	8128672	衬垫	GASKET	1
19	8161941	螺柱	STUD	2
19	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
20	18598	管塞	PIPE PLUG	4
20	185981	管塞(.375-18)	PLUG Pipe (.375-18)	4
21	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
22	81742720	螺钉(M8 x 20)(55号件用3个)	SCREW (M8 x 20) (QTY. OF 3 ON 55)	4
22	40011149	不锈钢螺钉(M8 x 25)(55号件用3个)	SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)	4
22A	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
23	8128821	提动阀	POPPET	1
24	812887	隔膜	DIAPHRAGM	1
24	8128871	隔膜	DIAPHRAGM	1
24	812887002	隔膜	DIAPHRAGM	1
25	94182	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	90392	弹簧	SPRING	1
27	18336	弹簧	SPRING	1
27	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
28	75692	节温器	THERMOSTAT	1
28	14586	节温器	THERMOSTAT	1
29	62386	衬垫	GASKET	1
29	8M0204714	衬垫@4	GASKET @4	1
30	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
30	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	99664	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	78279	弯头	ELBOW	1
38	8M0207781	弯头	ELBOW	1
39	19074	盖板	COVER	1
39	190741	盖板	COVER	1
39	8M0036859	盖板	COVER	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129961	盖板	COVER	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
45	821595	吊环	LIFTING EYE	1
46	821616	螺钉	SCREW	1
46	821606	螺钉	SCREW	1
47	400265	螺母 (M8)	NUT (M8)	1
47	401368	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 41化油器联动机构与阻风门电磁阀 CARBURETOR LINKAGE AND CHOKE SOLENOID

REF	零件编号	中文名称	英文名称	数量
1	60549A7	阻风门电磁阀总成	SOLENOID ASSEMBLY Choke	1
2	26996	锁紧垫圈(#10)不锈钢阻风门电磁阀端子	LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL	1
3	68219	螺母(#10-32)不锈钢阻风门电磁阀端子	NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL	1
4	33524	螺钉(.312-24 x .620)阻风门电磁阀	SCREW (.312-24 x .620) CHOKE SOLENOID	1
5	29250	螺母(.312-24)阻风门电磁阀螺钉	NUT (.312-24) CHOKE SOLENOID SCREWS	2
6	89008A2	阻风门电磁阀柱塞总成	PLUNGER ASSEMBLY CHOKE SOLENOID	1
7	76076A1	阻风门拉杆总成	ROD ASSEMBLY Choke	1
8	90242A1	旋钮总成	KNOB ASSEMBLY	1
9	35519	螺钉(#10-16 x .500)阻风门旋钮线	SCREW (#10-16 x .500) WIRE TO CHOKE KNOB	1
10	20116	阻风门旋钮护圈	GROMMET CHOKE KNOB	1
12	52743	螺钉(.312-18 x 3.750)化油器至曲轴箱	SCREW (.312-18 x 3.750) CARBURETOR TO CRANKCASE	4
13	77583	节流阀杆	LEVER THROTTLE	1
14	60293	螺钉(#5-40 x .500)杆至化油器	SCREW (#5-40 x .500) LEVER TO CARBURETOR	1
15	60292A1	联轴器总成	COUPLING ASSEMBLY	1
16	89694	节流阀轴联轴器键	KEY THROTTLE SHAFT COUPLING	1
17	92500	推式螺母滚轮-联轴器	PUSH NUT ROLLER - COUPLING	1
18	60293	螺钉(#5-40 x .500)卷边垫圈至联轴器	SCREW (#5-40 x .500) ROLLED WASHER TO COUPLING	1
19	91996A1	化油器板总成	PLATE ASSEMBLY CARBURETOR	1
20	71090	化油器板密封件	SEAL CARBURETOR PLATE	1
21	20367	螺钉板至化油器(7/16")	SCREW PLATE TO CARBURETOR (7/16")	4
22	29245	垫圈(.281 x .500 x .060)不锈钢板螺钉	WASHER (.281 x .500 x .060) Stainless Steel PLATE SCREW	4
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4

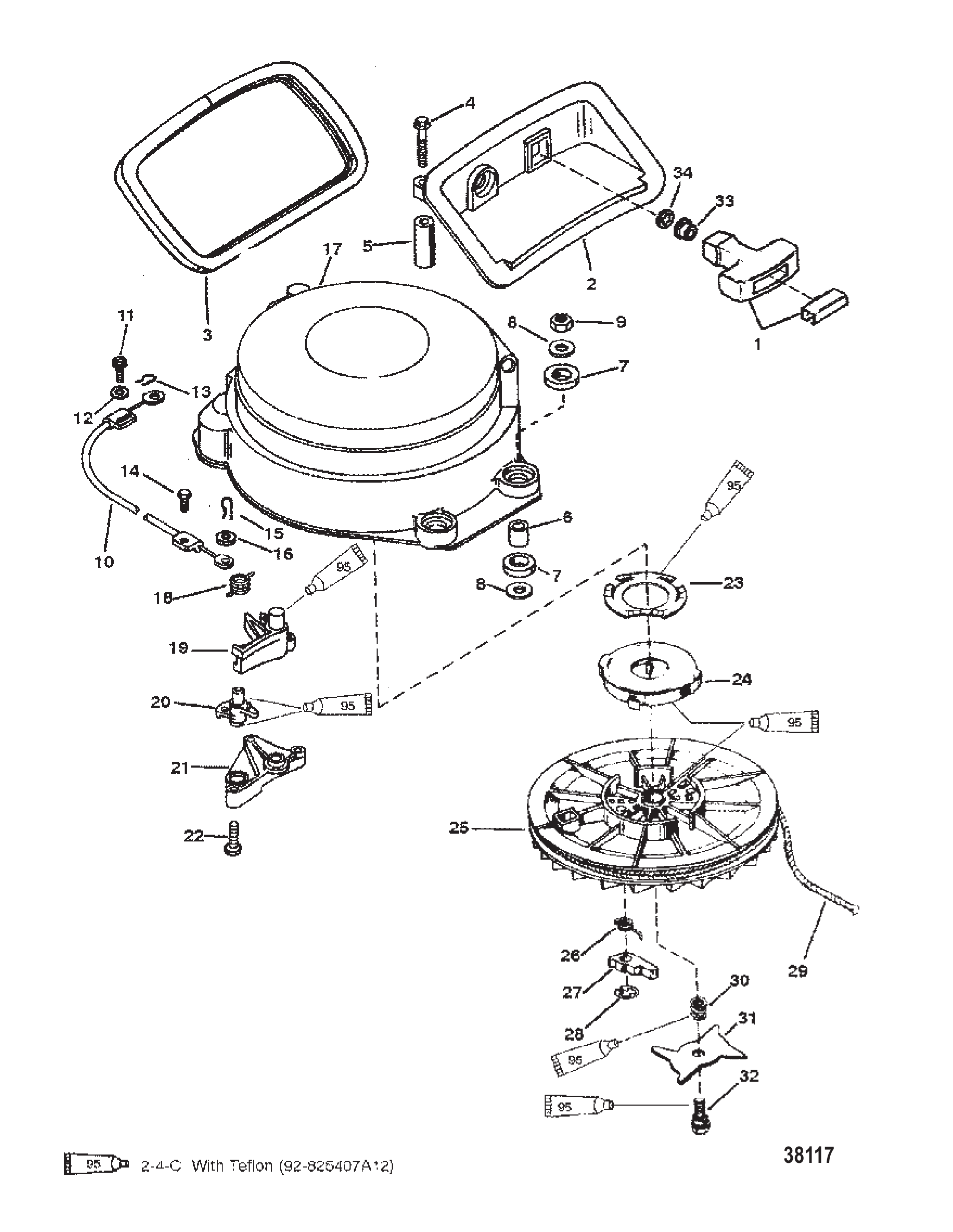

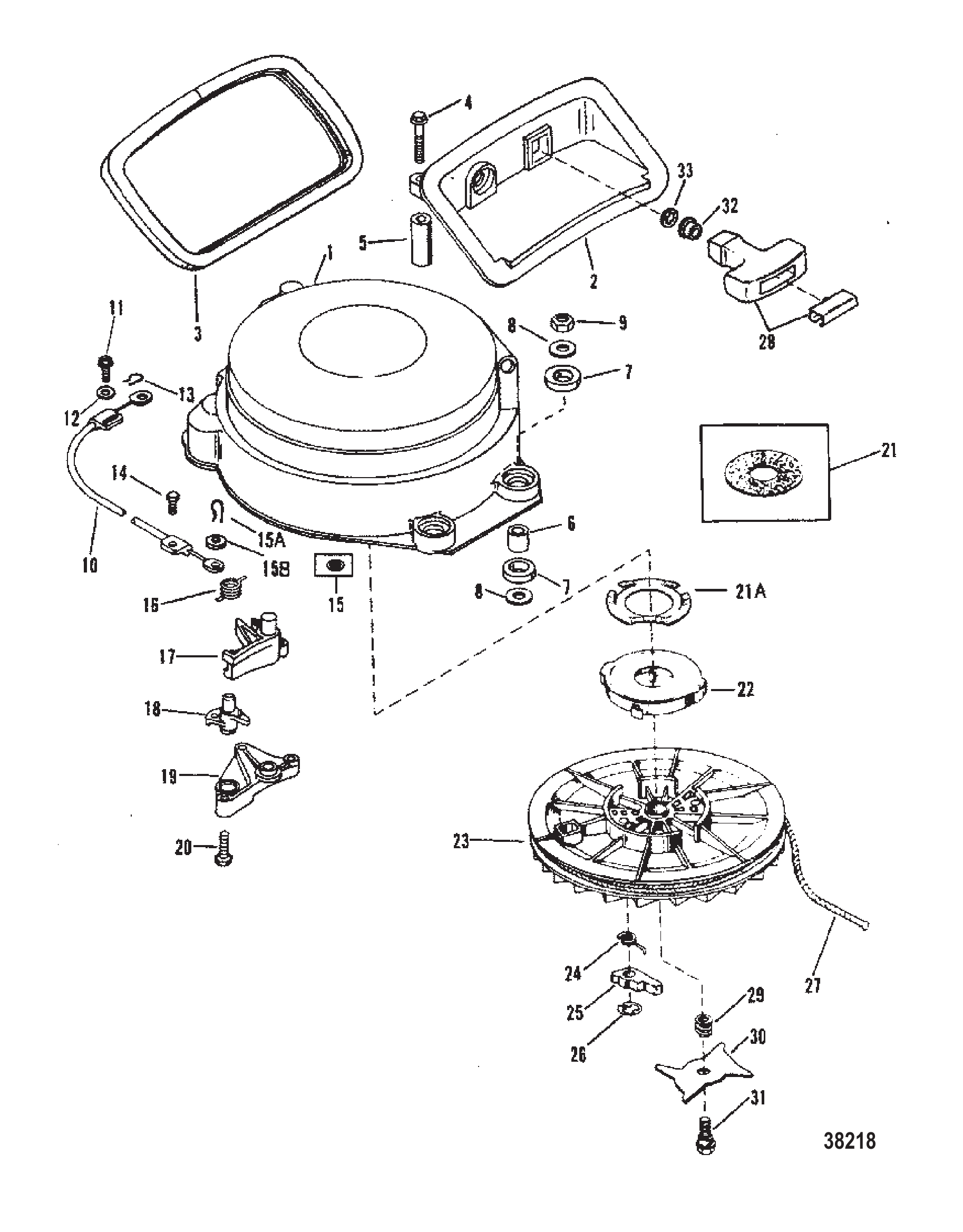

图 42启动器总成(手动)(55) STARTER ASSEMBLY (MANUAL)(55)

REF	零件编号	中文名称	英文名称	数量
1	8167285	壳体	HOUSING	1
2	816765	支架	REST	1
2	8167652	支架	REST	1
3	8136072	密封件	SEAL	1
3	8M0043161	密封件	SEAL	1
4	82170475	螺钉(M6×75)	SCREW (M6 x 75)	2
5	821702	隔套	SPACER	2
6	816086	衬套	BUSHING	4
7	815795	护孔环	GROMMET	8
8	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	8
9	401196	螺母 (M6)	NUT (M6)	4
10	8167481	联锁电缆	CABLE Interlock	1
10	8567541	联锁电缆	CABLE Interlock	1
11	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
12	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
13	27769	开口销	COTTER PIN	1
13	26811	开口销	COTTER PIN	1
14	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
14	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
15	821027	推入式螺母(设计I)	PUSH NUT (DESIGN I)	1
15A	27769	开口销(设计II)	COTTER PIN (DESIGN II)	1
15A	26811	开口销	COTTER PIN	1
15B	35462	不锈钢垫圈(0.2656x0.625x0.0625)(设计II)	WASHER (.2656 x .625 x .0625) Stainless Steel (DESIGN II)	1
-	816728A9	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728A10	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
16	826791	弹簧	SPRING	1
17	8166902	杠杆	LEVER	1
18	8167121	凸轮	CAM	1
18	816712T01	凸轮	CAM	1
19	816711	固定座	RETAINER	1
20	8182491	螺钉(#10-16 x 1.00)	SCREW (#10-16 x 1.00)	3
21	90478	垫块(设计I)	PAD (DESIGN I)	1
21	833161T	毛毡垫	PAD-FELT	1
21A	826229	弹簧锁紧垫圈(设计II)	LOCKWASHER SPRING (DESIGN II)	1
22	86857	弹簧	SPRING	1
22	86857T01	弹簧	SPRING	1
23	825269	滑轮	SHEAVE	1
23	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
24	86851	弹簧	SPRING	2
24	86851T02	弹簧 @2	SPRING @2	2
25	86850	凸轮	CAM	2
25	868501	凸轮	CAM	2
26	86849	挡圈	RING Retaining	2
26	86849T01	环 @2	RING @2	2
27	12066A9	绳索	ROPE	1
27	12066Q10	启动绳@2	ROPE-STARTER@2	1
28	85174A1	手柄总成	HANDLE ASSEMBLY	1
29	86852	弹簧	SPRING	1
29	868523	弹簧	SPRING	1
30	86853	凸轮	CAM	1
30	86853T01	凸轮	CAM	1
31	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
32	42690	衬套	BUSHING	1
32	8M0183792	绳索衬套	ROPE BUSHING	1
33	818853	挡圈	RING Retaining	1

图 43旋转支架（动力配平）(序列号0C160935及以下) Swivel Bracket (Power Trim)(S/N-0C160935 & Below)

REF	零件编号	中文名称	英文名称	数量
1	8710A4	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710A18	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735		SEAL Oil SWIVEL BRACKET (LOWER)	1
3	67669	衬套旋转支架 - 下部和上部	BUSHING SWIVEL BRACKET - LOWER AND UPPER	2
3	818764	衬套	BUSHING	2
4	33466	O形环旋转支架 - 上部	O-RING SWIVEL BRACKET - UPPER	1
5	67668	垫片旋转支架 - 上部	SPACER SWIVEL BRACKET - UPPER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	99608	转轴支架衬套	BUSHING SWIVEL BRACKET	2
7	821207	衬套	BUSHING	2
8	64014		SCREW (.250-28 x .500) SWIVEL BRACKET	2
9	99621		SCREW (.437-20 x 6.620) STEERING ARM TO UPPER MOUNT	2
10	28203		BUMPER TOP YOKE	1
11	78854		WAVE WASHER BOTTOM YOKE	1
12	42961T	下轭架	YOKE Bottom	1
12	42961T6	下轭架	YOKE Bottom	1
13	67684	卡环-底部轭架	RING Retaining BOTTOM YOKE	1
14	67670		WASHER THRUST - SWIVEL BRACKET	1
15	99661A2	旋转销总成	SWIVEL PIN ASSEMBLY	1
16	17432A6	连杆总成	LINK ROD ASSEMBLY	1
16	17432A5	连杆总成	LINK ROD ASSEMBLY	1
17	14000		SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM	1
17	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
18	34863		NUT (.375-24) STEERING LINK SCREW	2
18	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
19	34931		WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM	2

图 44驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	816528A1	驱动轴壳体总成(短)(黑色)	HOUSING ASSEMBLY Driveshaft (SHORT) (BLACK)	1
1	816528A2	驱动轴壳体总成(短)(灰色)	HOUSING ASSEMBLY Driveshaft (SHORT) (GRAY)	1
1	816528T2	驱动轴壳体-灰色	HSG-D SHAFT-GRAY	1
1	9864A6	驱动轴壳体总成(长)(黑色)	HOUSING ASSEMBLY Driveshaft (LONG) (BLACK)	1
1	9864T6	驱动轴壳体	HOUSING Driveshaft	1
1	9864A7	驱动轴壳体总成(长)(灰色)	HOUSING ASSEMBLY Driveshaft (LONG) (GRAY)	1
1	9864T7	ORD 3510-9864T6	ORD 3510-9864T 6	1
1	9864A5	驱动轴壳体总成(长轴)(TRACKER)	HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER)	1
1	9864T6	驱动轴壳体	HOUSING Driveshaft	1
1	816528A3	驱动轴壳体总成(JET 45)(黑色)	HOUSING ASSEMBLY Driveshaft (JET 45) (BLACK)	1
1	816528A4	驱动轴壳体总成(JET 45)(灰色)	HOUSING ASSEMBLY Driveshaft (JET 45) (GRAY)	1
2	903507	双头螺栓(M10×60)	STUD (M10 x 60)	1
2	903501	双头螺栓(M10×100)(60浮筒-长型)	STUD (M10 x 100) (60 PONTOON - LONG)	1
2	8168664	双头螺栓(M10×166)(60浮筒-加长型)	STUD (M10 x 166) (60 PONTOON - LL)	1
2	8M0034445	STUD-M10X1.5-160	STUD-M10X1.5-160	1
3	8168663	双头螺栓(M10×124)(60浮筒-加长型)	STUD (M10 x 124) (60 PONTOON - LL)	4
3	8M0034446	STUD-M10X15-124	STUD-M10 X 15-124	4
4	4000380	螺丝(M10 x 45)	SCREW (M10 x 45)	4
5	43042	垫圈	WASHER	4
5	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	4
6	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
6	8M0214963	垫圈	WASHER	1
7	13914	螺母(M10)	NUT (M10)	1
7	40140	螺母(M10)	NUT (M10)	1
8	85822A7	速度计传感器	SPEEDOMETER PICK UP	1
9	13035	接头	FITTING	1
9	8M0181450	接头	FITTING	1
10	85822	直通接头	CONNECTOR Straight	1
10	85822T	直通接头	CONNECTOR Straight	1
11	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
11	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
12	812892	下支架	MOUNT Lower	2
12	42930A1	下支架总成	MOUNT ASSEMBLY Lower	2
13	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
14	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	43528	螺母(M12)	NUT (M12)	2
15	8M0204662	螺母	NUT	2
16	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	4
17	93192	卡箍	CLAMP	2
17	8M0036730	卡箍	CLAMP	2
18	35521	螺母	NUT	4
19	67077T	黑色盖	COVER Black	2
19	8M4500752	盖板	COVER	2
19	67077T6	盖(灰色)	COVER (GRAY)	2
19	67077F1	灰色盖板	COVER Gray	2
19	67077F2	盖(TRACKER)	COVER (TRACKER)	2
19	8M4500752	盖板	COVER	2
20	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
21	813745	隔套	SPACER	1
21	8137451	垫片(60浮筒-加长型)	SPACER (60 PONTOON - LL)	1
22	43585	联轴器	COUPLING	1

图 45附件 Accessories

零件编号	中文名称	英文名称	数量
86306A01	适配器	ADAPTER	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

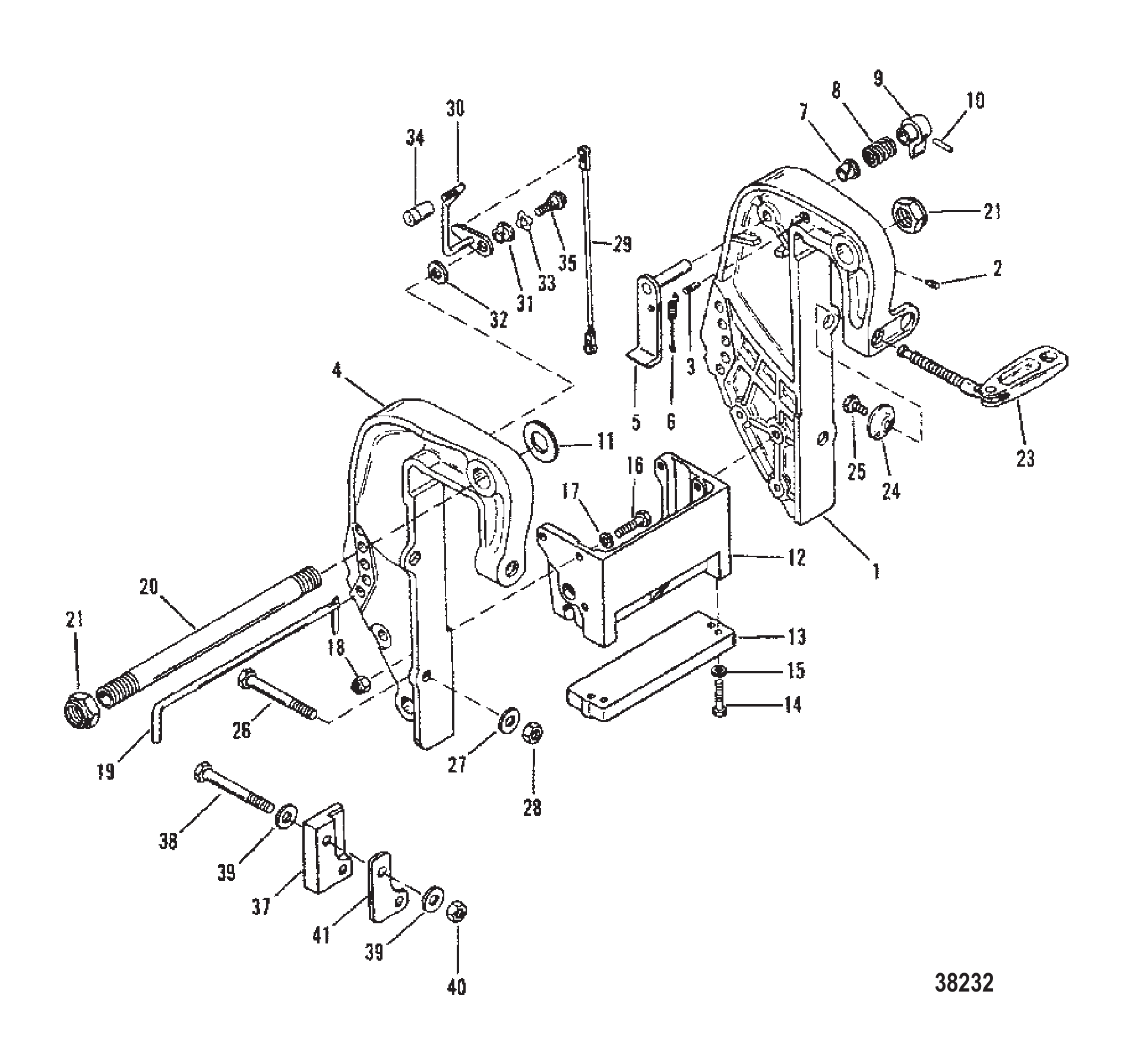

图 46夹紧支架(55)(序列号:0D181999及以下) CLAMP BRACKET (55) (S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	818881A2	艉板支架总成(黑色)	BRACKET ASSEMBLY Transom (BLACK)	1
1	818881A3	艉板支架总成(灰色)	BRACKET ASSEMBLY Transom (GRAY)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	818880F1	艉板支架(黑色)	BRACKET Transom (BLACK)	1
4	818880F2	艉板支架(灰色)	BRACKET Transom (GRAY)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮(黑色)	KNOB (BLACK)	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮(灰色)	KNOB (GRAY)	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486T6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486F6	锚支架	BRACKET Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
23	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
24	818884	垫圈	WASHER	2
25	768041	螺钉	SCREW	2
25	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	815796	垫圈	WASHER	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
37	812432F2	安装支架(右舷)	MOUNTING BRACKET (STARBOARD)	1
37	812432F5	安装支架	MOUNTING BRACKET	1
37	812433F3	安装支架(左舷)	MOUNTING BRACKET (PORT)	1
37	812433F5	安装支架	MOUNTING BRACKET	1
38	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
39	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
39	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	134371	螺母 (.375-24)	NUT (.375-24)	4
40	862903	螺母 (.375-24)	NUT (.375-24)	4
41	821722	垫片	SHIM	4

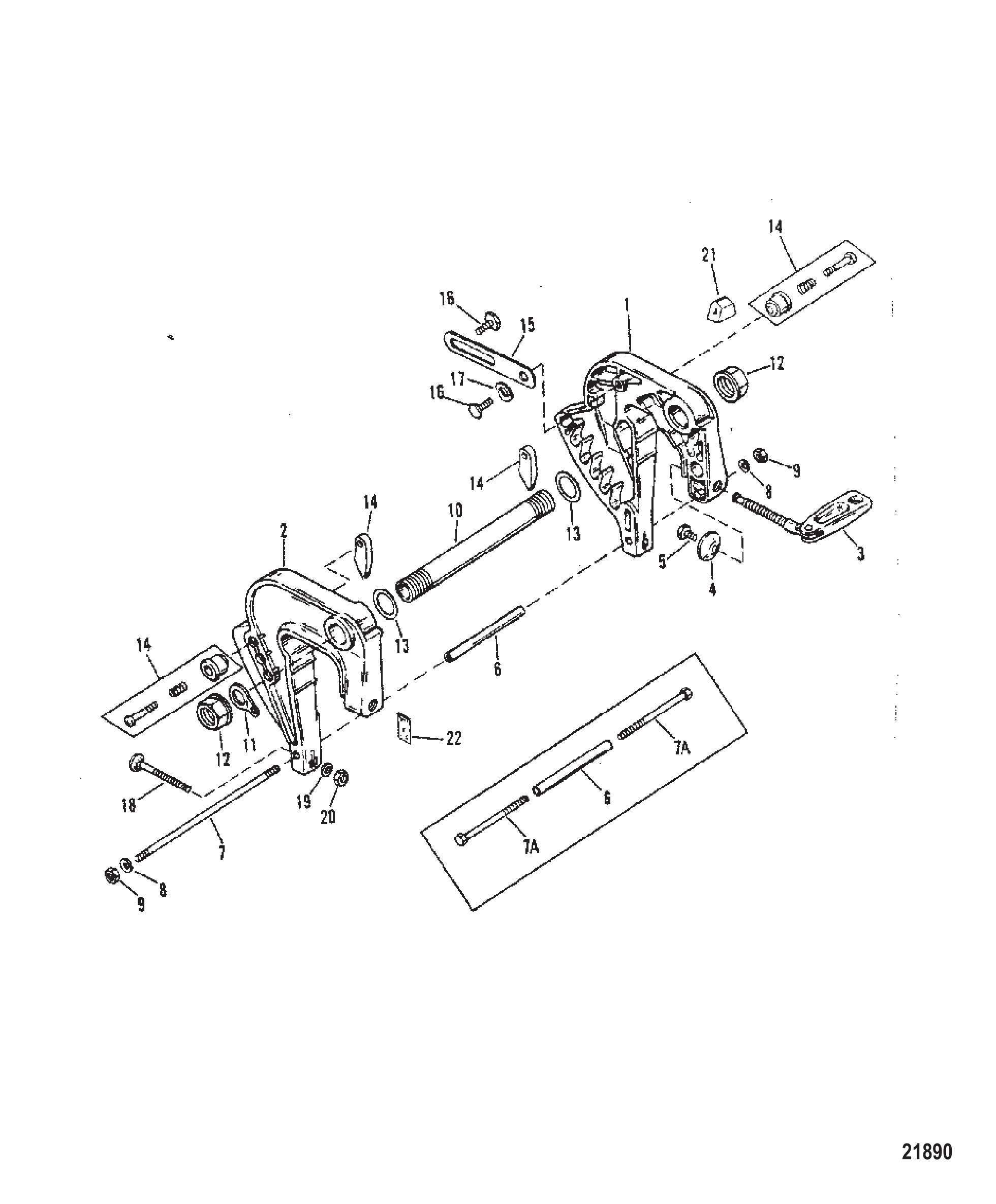

图 47夹紧支架 Clamp Bracket

REF	零件编号	中文名称	英文名称	数量
1	8894A5	夹具支架总成 (左舷) (黑色)	CLAMP BRACKET ASSEMBLY (PORT) (BLACK)	1
1	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	8894A6	夹具支架总成 (左舷) (灰色)	CLAMP BRACKET ASSEMBLY (PORT) (GRAY)	1
1	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A3	夹具支架总成 (右舷) (黑色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)	1
2	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A4	夹具支架总成 (右舷) (灰色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)	1
2	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
3	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	92767A3	蝶形螺丝总成 (16 mm)	THUMB SCREW ASSEMBLY (16 mm)	2
4	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	818884	垫圈	WASHER	2
5	768041	垫圈固定螺丝	SCREW WASHER ATTACHING	2
5	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
6	43431	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
6	818539	隔套	SPACER	1
6	8M0084719	隔套	SPACER	1
7	42129	夹紧支架螺柱	STUD CLAMP BRACKET	1
7A	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
8	400256	夹紧支架螺柱防松垫圈(M6)	LOCKWASHER (M6) CLAMP BRACKET STUD	2
9	400212	夹紧支架螺柱不锈钢螺母(M6)	NUT (M6) Stainless Steel CLAMP BRACKET STUD	2
10	42078	倾斜管	TILT TUBE	1
11	30954	安全卡扣	CLIP SAFETY	1
11	8M0085928	卡扣	CLIP	1
12	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
13	71421	倾斜管尼龙垫圈	WASHER Nylon TILT TUBE	2
14	42390A1	倾斜回位杆总成	LEVER ASSEMBLY Tilt Return	2
15	90901	倾斜限位带-左舷侧	STRAP TILT STOP - PORT SIDE	1
16	42498	限位带至夹紧支架螺钉(M6x1.0)	SCREW (M6 x 1.0) STRAP TO CLAMP BRACKET	2
17	31030	倾斜限位带螺钉波形垫圈	WAVE WASHER TILT STOP STRAT SCREW	1
18	43216	夹紧支架至艉板螺栓(.250-20x3.50)	BOLT (.250-20 x 3.50) CLAMP TO TRANSOM	2
19	67983	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
21	814427	倾斜锁定滑块(新设计)	SHUTTLE TILT LOCK (NEW DESIGN)	1
22	12869	倾斜位置标贴	DECAL Tilt Position	1

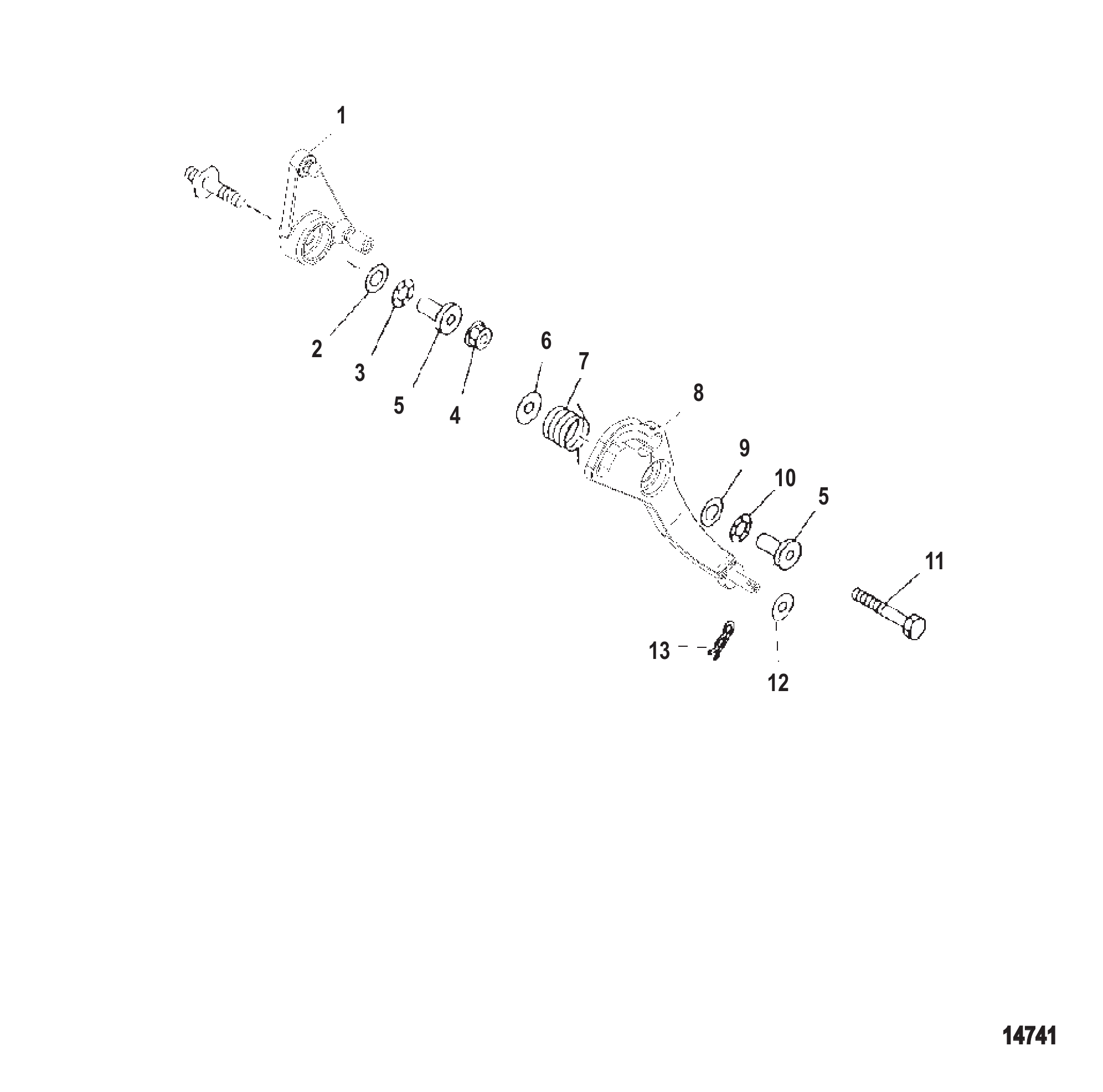

图 48油门杆及联动装置 Throttle Lever and Linkage

REF	零件编号	中文名称	英文名称	数量
1	878550	油门杆	LEVER Throttle	1
2	84974M	垫圈	WASHER	1
3	81868M	波形垫圈	WAVE WASHER	1
4	8528162	螺母	NUT	1
5	881378	轴环	COLLAR	2
6	94524M	垫圈	WASHER	1
7	804343	弹簧	SPRING	1
8	878548	节气门控制杆	LEVER Throttle Control	1
9	84974M	垫圈	WASHER	1
10	81868M	波形垫圈	WAVE WASHER	1
11	881375	螺栓 (M6 x 30)	BOLT (M6 x 30)	1
12	35459	垫圈	WASHER	1
13	859746	开口销	COTTER PIN	1

图 49手动倾斜组件(设计II型) MANUAL TILT COMPONENTS (DESIGN II)

REF	零件编号	中文名称	英文名称	数量
-	830050A2	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	832020A2	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	832020T3	手动调整	MANUAL TRIM	1
1	813427A1	减震杆总成	SHOCK ROD ASSEMBLY	1
1	8M0118572	减震杆套件	SHOCK ROD KIT	1
1	813427A2	减震杆总成	SHOCK ROD ASSEMBLY	1
1	893942A01	减震杆套件	SHOCK ROD KIT	1
2	809872A1	气缸O型圈套件	O-RING KIT Cylinder	1
2	893917A01	O型圈修理包	REBUILD KIT O-Ring	1
3	813430A1	配平记忆活塞总成	PISTON ASSEMBLY Trim Memory	1
3	893903A01	活塞套件	PISTON KIT	1
4	811224A1	气缸总成	CYLINDER ASSEMBLY	1
4	893918A01	气缸套件	CYLINDER KIT	1
5	813433A2	螺钉与密封套件	SCREW AND SEAL KIT	1
5	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
6	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
6	893920A01	蓄能器套件	ACCUMULATOR KIT	1
7	813455A4	阀体总成	VALVE BODY ASSEMBLY	1
7	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
8	813457A3	凸轮套件	CAM KIT	1
8	893923A01	凸轮套件	CAM KIT	1
9	809881A1	速度阀套件	VALVE KIT Velocity	1
9	893924A01	阀套件	VALVE KIT	1
10	809882A1	维修套件	REPAIR KIT	1
10	893925A01	维修套件	REPAIR KIT	1
-	809880A2	O型圈套件	O-RING KIT	1
-	893922A01	O型圈套件	O-RING KIT	1
11	19607	销	PIN	2
12	821539	三叶销	PIN Trilobe	2

图 50旋转支架(序列号:0D182000及以上) SWIVEL BRACKET (S/N: 0D182000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	822864A1	旋转支架(短)(黑色)	SWIVEL BRACKET (SHORT) (BLACK)	1
1	822864A2	旋转支架总成(短)(灰色)	SWIVEL BRACKET ASSEMBLY (SHORT) (GRAY)	1
1	822864A1	旋转支架	SWIVEL BRACKET	1
1	822863A1	旋转支架(长)(黑色)	SWIVEL BRACKET (LONG) (BLACK)	1
1	822863A2	旋转支架总成(长)(灰色)	SWIVEL BRACKET ASSEMBLY (LONG) (GRAY)	1
1	822863A3	旋转支架总成(长)(TRACKER)	SWIVEL BRACKET ASSEMBLY (LONG) (TRACKER)	1
2	821124	轴承	BEARING	2
3	32911	油封	SEAL Oil	2
4	19606	轴承	BEARING	2
5	74036	润滑脂接头	FITTING Grease	3
5	8M0169589	润滑脂接头	FITTING Grease	3
6	25176	垫圈	WASHER	1
7	19654T	底部轭架(黑色)	YOKE Bottom (BLACK)	1
7	19654T1	下轭架	YOKE Bottom	1
7	19654T6	底部轭架(灰色)	YOKE Bottom (GRAY)	1
7	19654T7	ORD 19654T 1	ORD 19654T 1	1
7	19654F1	底部轭架（追踪者）	YOKE Bottom (TRACKER)	1
8	77415	挡圈	RETAINING RING	1
9	812897A7	旋转销总成(短)(黑色)	SWIVEL PIN ASSEMBLY (SHORT) (BLACK)	1
9	812897A19	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812897A8	旋转销总成(短)(灰色)	SWIVEL PIN ASSEMBLY (SHORT) (GRAY)	1
9	812897A20	ORD 17-812897A19	ORD 17-812897A19	1
9	812896A14	旋转销总成(长)(黑色)	SWIVEL PIN ASSEMBLY (LONG) (BLACK)	1
9	812896A22	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812896A15	旋转销总成(长)(灰色)	SWIVEL PIN ASSEMBLY (LONG) (GRAY)	1
9	812896A23	旋转销-GR-LG	SWIVEL PIN-GR-LG	1
9	812896A16	旋转销总成(长)(TRACKER)	SWIVEL PIN ASSEMBLY (LONG) (TRACKER)	1
10	8219871	联动销	PIN Co-Pilot	1
11	816667T	支架（黑色）	BRACKET (BLACK)	1
11	8M0184092	支架	BRACKET	1
11	816667F3	支架（灰色）	BRACKET (GRAY)	1
11	8M0184092	支架	BRACKET	1
11	816667F2	支架(TRACKER)	BRACKET (TRACKER)	1
11	8M0184092	支架	BRACKET	1
12	816669	锁紧垫圈	TAB WASHER	1
12	8M0009820	锁紧垫圈	TAB WASHER	1
13	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
14	196081	连杆(右舷)	LINK ROD (STARBOARD)	1
14	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
14	196091	连杆(左舷)	LINK ROD (PORT)	1
14	19609A6	转向安装套件	ATTACHING KIT Steering	1
15	90041	螺钉(.375-24 x 1.620)	SCREW (.375-24 x 1.620)	1
15	856680	螺钉(.375-24 x 1.62)	SCREW (.375-24 x 1.62)	1
16	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
16	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
17	34863	螺母 (.375-24)	NUT (.375-24)	2
17	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
18	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
19	52865	垫圈	WASHER	1
20	823876	销(手柄)	PIN (HANDLE)	1
21	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
21	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
22	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1

图 51启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	44369A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	95686	贯穿螺栓	BOLT THRU	2
6	11957	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387	绝缘输入螺柱衬套	BUSHING INSULATING-INPUT STUD	1
9	38013	输入柱垫圈	WASHER INPUT STUD	1
10	26992	不锈钢输入柱锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel INPUT STUD	1
11	20890	输入柱螺母(.250-20)	NUT (.250-20) INPUT STUD	1
12	61787	电刷架	HOLDER BRUSH	2
12	898265014	电刷支架	HOLDER-BRUSH	2
13	68586	电刷及支架至端盖螺钉	SCREW BRUSH AND HOLDER TO CAP	2
14	95669	换向器端盖	END CAP COMMUTATOR	1
14	75383	端盖	END CAP	1

图 52自动混合装置 Auto-Blend

REF	零件编号	中文名称	英文名称	数量
-	130194	自动混合装置	AUTO BLEND ASSEMBLY	1
1	16612	油箱套件机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	16619	机油箱盖	CAP OIL TANK	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	16620	安装支架套件	BRACKET KIT Mounting	1
8	13993	箍带	BAND	1
9	13983	支架(左)	BRACKET (LEFT)	1
10	13984	支架(右)	BRACKET (RIGHT)	1
11	16613	盖板	COVER	1
12	13985	机油滤清器/传感器套件	FILTER/SENSOR KIT Oil	1
13	18576	燃油滤清器套件	FILTER KIT Fuel	1
14	13992	乙烯基软管	VINYL TUBE	1
15	16618	机油滤网	STRAINER Oil	1
16	16615	止回阀套件	CHECK VALVE KIT	1
17	16621	安装板	PLATE	1
18	19265	模块套件	MODULE KIT	1
19	16623	支架套件	BRACKET KIT	1
20	16616	衬垫套件	GASKET KIT	1
21	18679	燃油滤清器螺钉	SCREW FUEL FILTER	2
22	18680	滤清器螺钉垫圈	WASHER FILTER SCREW	2
23	18752	O型圈	'O'RING	2
24	14585A1	自动混合线束总成	HARNESS ASSEMBLY AUTO-BLEND	1

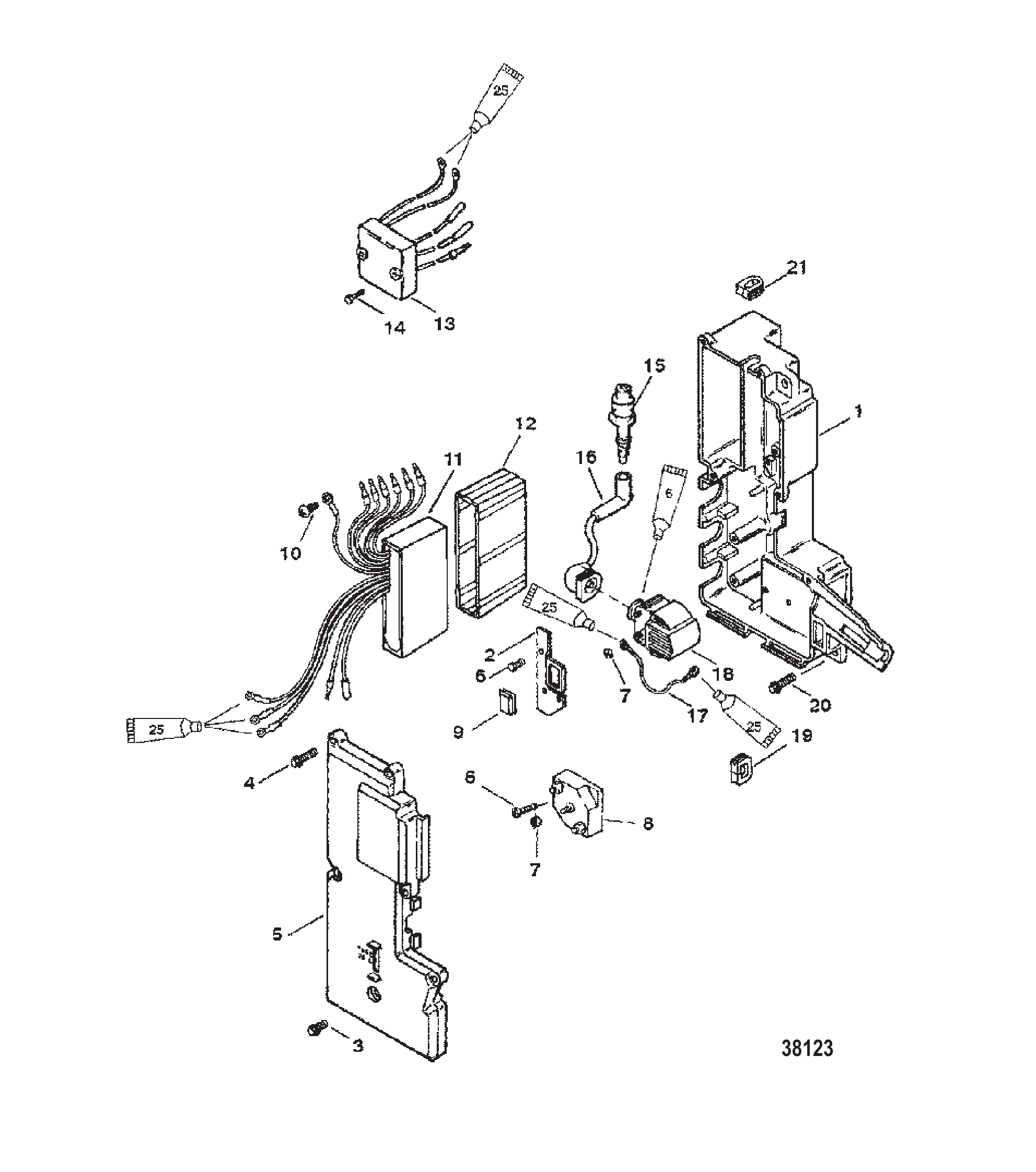

图 53电气组件(55) ELECTRICAL COMPONENTS (55)

REF	零件编号	中文名称	英文名称	数量
1	19745A8	电器板总成	PLATE ASSEMBLY Electrical	1
2	814674A1	固定板总成	PLATE ASSEMBLY Retaining	1
3	8240631	螺钉	SCREW	1
4	824063	螺钉	SCREW	5
3	40011106	不锈钢螺钉(M5x13)	SCREW (M5 x 13) Stainless Steel	1
4	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	5 OR 6
5	814795T	盖板	COVER	1
6	40007107	螺钉(M5×16)	SCREW (M5 x 16)	4
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	8
8	17602A2	端子排	TERMINAL BLOCK	1
8	17602T02	接线端子总成	TERMINAL BLOCK ASSEMBLY	1
9	816031	堵头	PLUG	1
10	40007106	螺钉 (M5 x 13)	SCREW (M5 x 13)	1
11	19052A5	开关盒总成	SWITCHBOX ASSEMBLY	1
11	19052A8	开关盒总成	SWITCHBOX ASSEMBLY	1
12	813643	护套	BOOT	1
13	821889A12	限速器	SPEED LIMITER	1
13	821889A31	转速限制器	REV LIMITER	1
-	11149A10	适配器线束总成(3.5英寸)	HARNESS ASSEMBLY Adapter (3-1/2")	1
-	823147A6	限速器线束总成(15英寸)	HARNESS ASSEMBLY Speed Limiter (15")	1
14	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
15	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	3
15	13686Q	NGK BU8H @10	NGK BU8H @10	3
15	14103568	火花塞(NGK #BUZ8H-加拿大/比利时)	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)	3
15	896329885	SP #L6VC @4	SP #L6VC @4	3
15	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	3
15	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	3
15	8168372	火花塞(NGK #BPZ8H-N-10-加拿大)	SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)	3
15	938	SP #QL78YC @4	SP #QL78YC @4	3
16	821945A52	火花塞导线套件	SPARK PLUG LEAD KIT	1
17	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	3
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	3
18	8M0230859	点火线圈总成	COIL IGNITION ASY	3
18	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	3
18	8M0230859	点火线圈总成	COIL IGNITION ASY	3
19	813741	护孔环	GROMMET	1
20	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	3
21	813742	护孔环	GROMMET	1

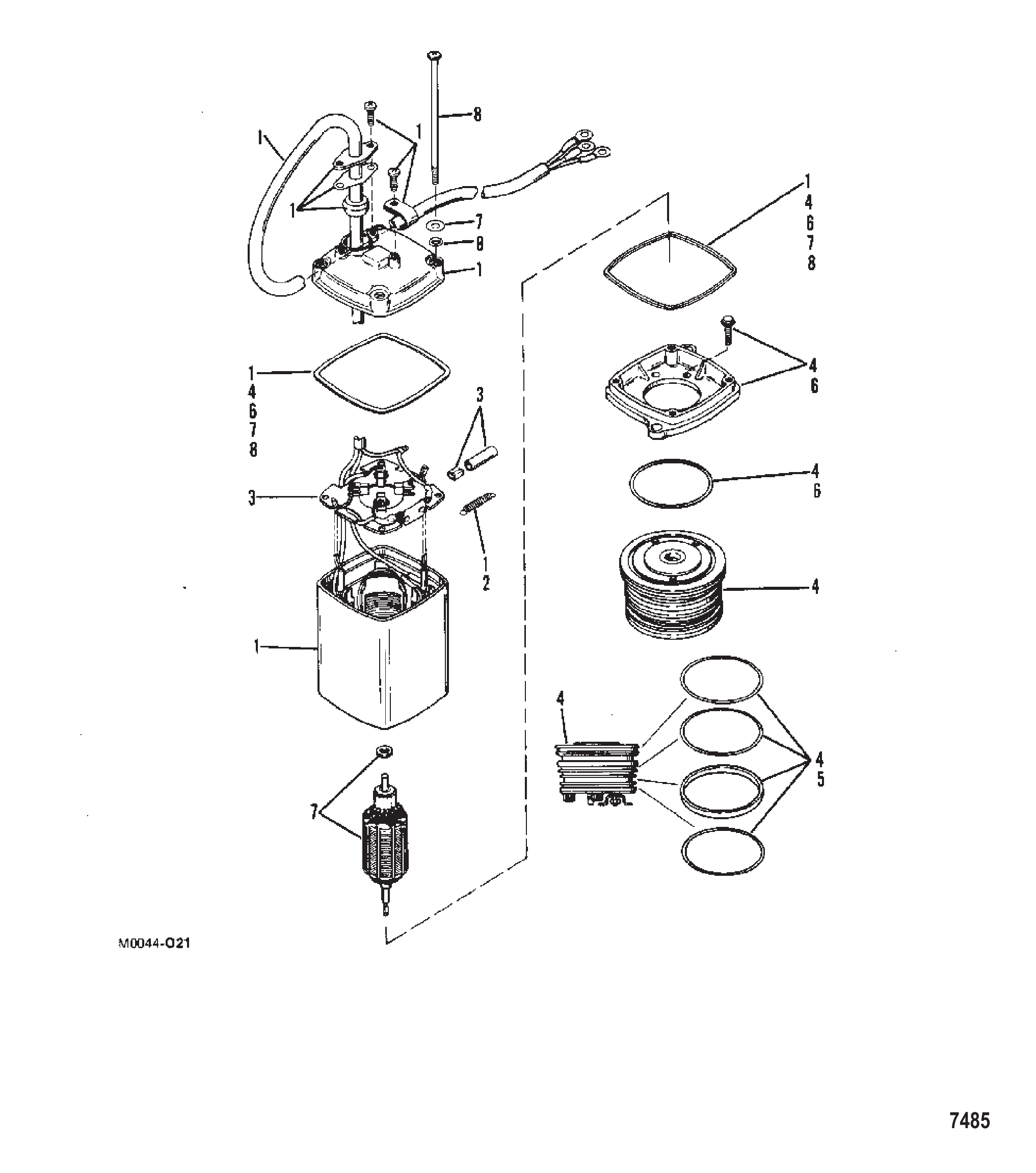

图 54动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 55顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	827328T9	顶盖总成	TOP COWL ASSEMBLY	1
1	827328T10	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	859356A1	隔音毯套装	SOUND BLANKET KIT	1
4	859356A02	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
6	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
7	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	2
8	823865	盖塞	CAP PLUG	2
9	831207T10	手柄	HANDLE	1
9	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
10	812707	衬套	BUSHING	2
11	831214	隔套	SPACER	1
12	12134	波形垫圈	WASHER Wave	1
13	F481777	凸轮锁轴	CAM Latch Shaft	1
13	8M0001081	凸轮	CAM	1
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
15	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
16	821249M2	前支架	BRACKET Front	3
16	8M0036792	支架	BRACKET	3
17	815477	缓冲器锁扣	BUMPER Latch	3
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
19	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
20	8237951	挡圈	RING Retaining	1
21	815263	滚轮	ROLLER	1
21	8M0207770	滚轮@3	ROLLER @3	1
22	8155381	滚动销	PIN Roll	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	12066Q9	绳索	ROPE	1
26	12066Q10	启动绳@2	ROPE-STARTER@2	1

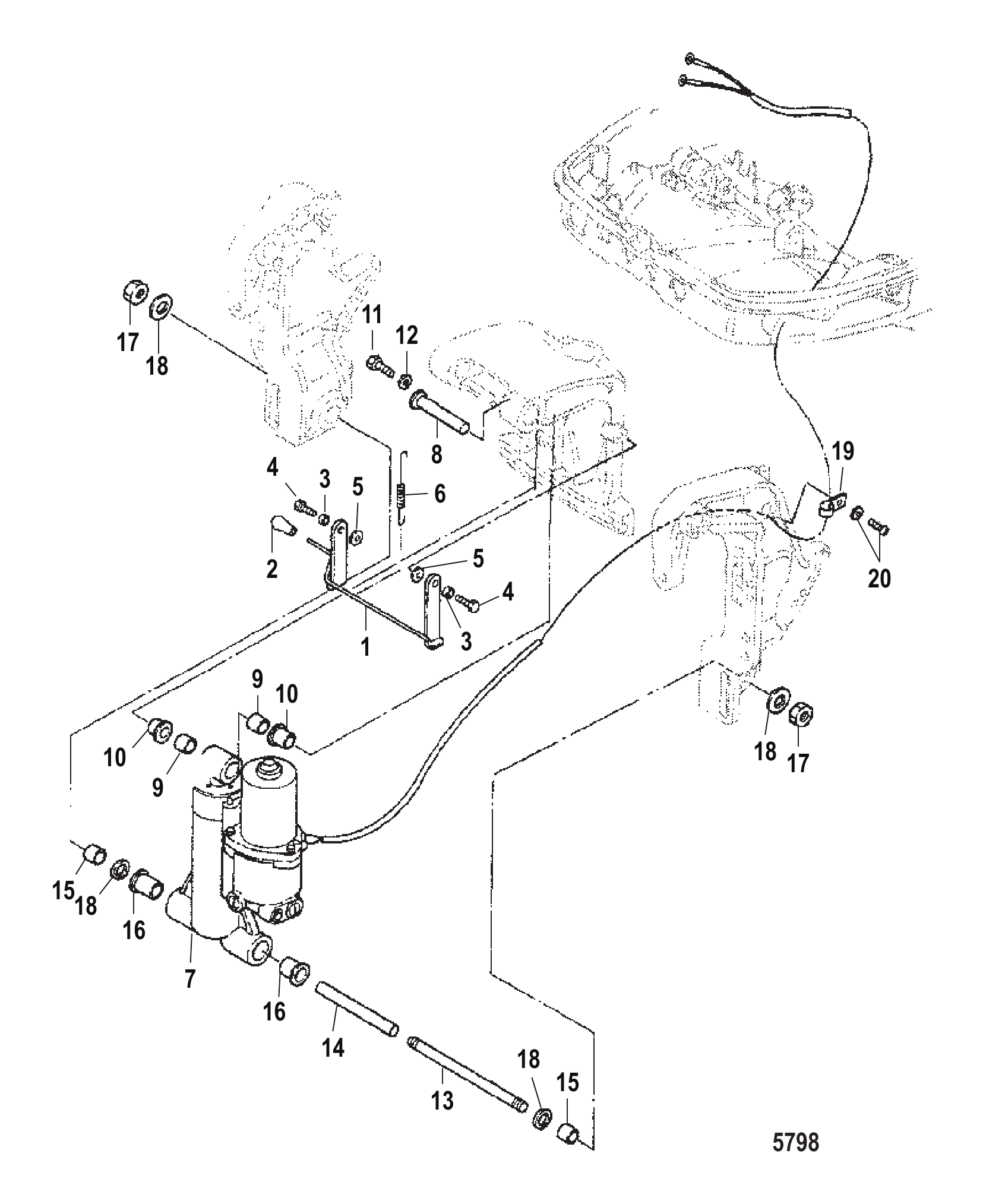

图 56动力升降 Power Trim

REF	零件编号	中文名称	英文名称	数量
1	8251123	倾斜挡块	STOP Tilt	1
1	8251124	倾斜挡块	STOP Tilt	1
1	8251123	倾斜挡块	STOP Tilt	1
2	16208	握把	GRIP	1
2	16207A3	倾斜止动套件	TILT STOP KIT	1
3	9528616	轴环	COLLAR	2
4	82304216	螺栓	BOLT	2
4	8M0062251	螺栓	BOLT	2
5	168261	垫圈	WASHER	2
6	953837	弹簧	SPRING	1
7	851873A1	动力升降总成	POWER TRIM ASSEMBLY	1
8	851874	上气缸销	PIN Upper Cylinder	1
8	8M0115482	气缸销	PIN-CYLINDER	1
9	8113682	套筒	SLEEVE	2
10	161765	衬套	BUSHING	2
11	16223	螺栓(M6x14)	BOLT (M6 x 14)	1
12	16238	垫圈	WASHER	1
12	898101937	垫圈	WASHER	1
13	8518741	下气缸销	PIN Lower Cylinder	1
14	9528617	轴环	COLLAR	1
15	8113682	套筒	SLEEVE	2
16	161766	衬套	BUSHING	2
16	16176011	衬套	BUSHING	2
17	85372219	螺母	NUT	2
18	8518681	垫圈	WASHER	4
18	8M0060184	垫圈	WASHER	4
19	17169	卡箍	CLAMP	1
20	8555445	螺钉	SCREW	1

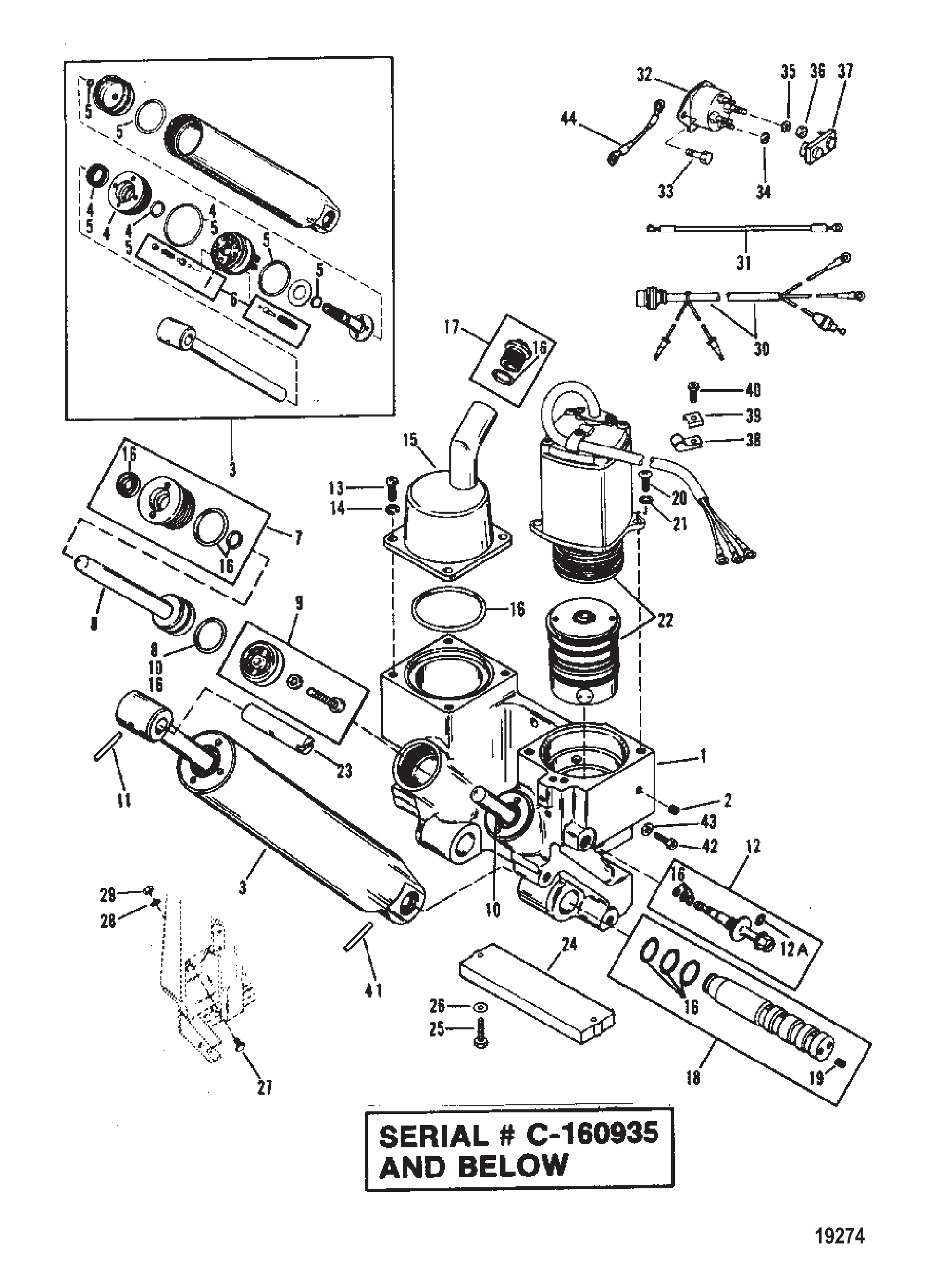

图 57动力配平组件（序列号-0C160935及以下） Power Trim Components (S/N-0C160935 & Below)

REF	零件编号	中文名称	英文名称	数量
1	99659A21	歧管总成 (黑色)	MANIFOLD ASSEMBLY (BLACK)	1
1	99659A22	歧管总成 (灰色)	MANIFOLD ASSEMBLY (GRAY)	1
2	99616	管塞歧管	PIPE PLUG MANIFOLD	11
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	11
3	41493A9	配平油缸总成 (黑色)	TRIM CYLINDER ASSEMBLY (BLACK)	1
3	41493A6	配平油缸总成 (灰色)	TRIM CYLINDER ASSEMBLY (GRAY)	1
4	41492A1	导向器总成	GUIDE ASSEMBLY	1
5	41478A1	维修套件	REPAIR KIT	1
6	41482A3	止回阀套件	CHECK VALVE KIT	1
7	99638A1	导向总成装饰杆	GUIDE ASSEMBLY TRIM ROD	2
7	8M0021648	端盖总成	END CAP ASSEMBLY	2
8	43397A7	活塞总成端口	PISTON ASSEMBLY PORT	1
9	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
10	43398A3		PISTON/ROD ASSEMBLY Power Trim STARBOARD	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	13794	沟槽销-升降油缸(上)	PIN Groove TRIM CYLINDER (UPPER)	1
11	821539	三叶销	PIN Trilobe	1
12	812843A1	阀门总成	VALVE ASSEMBLY	1
12	893929A01	安全阀套件	VALVE KIT Relief	1
12A	812844	E形环阀门总成	E RING VALVE ASSEMBLY	1
12A	815949001	E形环	E-RING	1
13	4000327	螺钉(M6x14)-盖板	SCREW (M6 x 14) COVER	4
14	43450	盖板螺丝垫圈	WASHER COVER SCREW	4
14	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
15	99642	歧管盖	COVER MANIFOLD	1
16	48462A2	O型圈套件	O-RING KIT	1
16	48462A4	O型圈套件	O RING KIT	1
17	99609A1	塞子总成	PLUG ASSEMBLY	1
18	99641A1	轴总成	SHAFT ASSEMBLY	1
18	99641A02	轴总成	SHAFT ASSY	1
19	99616	轴管塞	PIPE PLUG SHAFT	2
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
20	4008820	螺钉(M6x20)-泵与马达	SCREW (M6 x 20) PUMP AND MOTOR	2
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
22	99186T	泵与电机总成	PUMP AND MOTOR	1
22	826729A10	ORD 8M0143217	ORD 8M0143217	1
23	99625		SHAFT UPPER	1
23	99625002	轴	SHAFT	1
24	43396A2	阳极总成	ANODE ASSEMBLY	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000332	螺钉(M6x35)-阳极	SCREW (M6 x 35) ANODE	2
26	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	996301	撞板-升降轴	STRIKER PLATE TRIM SHAFT	2
27	8M0045383	冲击板	STRIKER PLATE	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	46335	螺母 (.375-24)	NUT (.375-24)	2
30	99695A1	线束总成控制动力配平 (3线)	HARNESS ASSEMBLY Control POWER TRIM (3 WIRE)	1
30	17201A2	电缆总成 (17.00英寸) 动力配平 (2线)	CABLE ASSEMBLY (17.00 Inches) POWER TRIM (2 WIRE)	1
31	87379A39	线束总成 (2-3/4" - 红色)	WIRE ASSEMBLY (2-3/4" - RED)	2
32	96158	启动电磁阀	SOLENOID Starter	3
32	8M0185622	电磁阀	SOLENOID	3
33	41508	螺钉(0.250-20x0.500)-不锈钢启动电磁阀	SCREW (.250-20 x .500) Stainless Steel STARTER SOLENOID	6
34	26419	螺母 (#8-32) 黄铜电磁阀端子	NUT (#8-32) Brass SOLENIOD TERMINAL	4
35	26992	锁紧垫圈 (.250) 不锈钢电磁阀端子	LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL	8
36	94330	螺母 (.250-20) 黄铜电磁阀端子	NUT (.250-20) Brass SOLENOID TERMINAL	4
37	97861	绝缘体启动电磁阀	INSULATOR STARTER SOLENIOD	2
38	22875		CLIP PUMP WIRE	1
39	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	1
39	8M0084613	C形垫圈	C-WASHER	1
40	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	1
41	44431	沟槽销-升降油缸(下)	PIN Groove TRIM CYLINDER (LOWER)	1
41	878267	销	PIN	1
42	4000377		SCREW (M10 x 30) MANIFOLD	6
43	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6
44	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	3

图 58燃油泵(55/60 SEAPRO/MARATHON) FUEL PUMP (55/60 SEAPRO/MARATHON)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE SPRING	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS		NOT SOLD SEPARATE SPRING	1
9	NSS		NOT SOLD SEPARATE CAP	1
10	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS		NOT SOLD SEPARATE GASKET-BOOST	1
13	NSS		NOT SOLD SEPARATE GASKET-PULSE	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
17	4009340	燃油泵螺钉	SCREW FUEL PUMP	2
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
17	81754150	燃油泵至曲轴箱螺钉	SCREW FUEL PUMP TO CRANKCASE	2
18	144303	底座	BASE	1
19	9912980	软管	HOSE	AR
19	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	AR
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	818984	软管	HOSE	1
21	830768	软管	HOSE	1
22	9912878	软管(.187)(26.00英寸散装)(4-1/4")	HOSE (.187) (26.00 Inches Bulk) (4-1/4")	1
23	87946A14	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
23	891642T03	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
24	8170281	支架	BRACKET	1
25	401196	螺母 (M6)	NUT (M6)	1
26	59169	接头	FITTING	1
26	59169003	三通接头	FITTING Tee	1
27	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
27	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
28	8168771	注油球	PRIMER BULB	1
28	858763	注油球	PRIMER BULB	1
29	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	816856T01	燃油接头	CONNECTOR-FUEL	1
30	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
-	812867A97	衬垫套件	GASKET SET	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1

图 59缓冲板 ATTENUATOR PLATE

REF	零件编号	中文名称	英文名称	数量
1	19662	消音器	ATTENUATOR Sound	1
2	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	4
3	815784	盖帽	CAP	1
4	812889	密封件	SEAL	3
5	812874	消音板	PLATE Sound Attenuator	2
6	4000363	螺丝(M8 x 100)	SCREW (M8 x 100)	6
7	821145	油门连杆	LINK Throttle	1
7	825204T03	连接杆	LINK	1
8	812883	调节连杆	LINK Adjusting	2
9	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
10	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
10	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
11	11399A1	臂总成	ARM ASSEMBLY	1
12	67748	滚轮	ROLLER	1
13	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
14	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
14	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
15	9912878	软管(.187)(26.00英寸散装)(4-1/4")	HOSE (.187) (26.00 Inches Bulk) (4-1/4")	2
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	8144461	法兰衬垫	GASKET Flange	3
18	8252043	油门连杆	LINK Throttle	1
18	825204T03	连接杆	LINK	1
-	812867A97	衬垫套件	GASKET SET	1

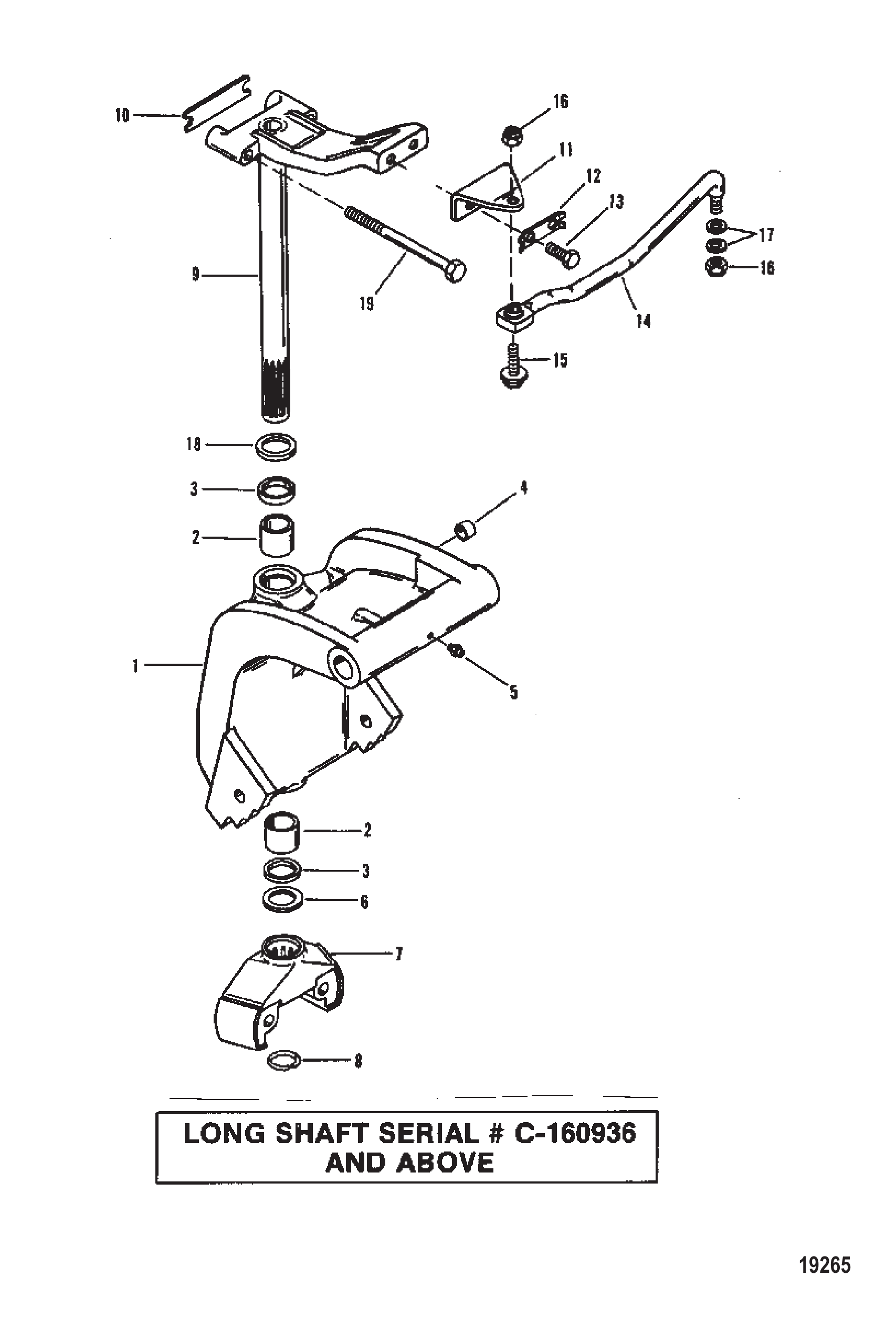

图 60旋转支架（长轴-序列号0C160936及以上） Swivel Bracket (Long Shaft-S/N-0C160936 & Up)

REF	零件编号	中文名称	英文名称	数量
1	9749A1	旋转支架总成（黑色）	SWIVEL BRACKET ASSEMBLY (BLACK)	1
1	9749A2	旋转支架总成（灰色）	SWIVEL BRACKET ASSEMBLY (GRAY)	1
2	19622	轴承	BEARING	2
2	821124	轴承	BEARING	2
3	32911	油封	SEAL Oil	2
4	19606	轴承	BEARING	2
5	74036	润滑脂接头	FITTING Grease	3
5	8M0169589	润滑脂接头	FITTING Grease	3
6	25176	垫圈	WASHER	1
7	77416T	底部轭架(黑色)	YOKE Bottom (BLACK)	1
7	77416T1	黑色下轭架	YOKE-BOTTOM-BLACK	1
7	77416T6	底部轭架(灰色)	YOKE Bottom (GRAY)	1
8	77415	挡圈	RETAINING RING	1
9	19459A3	臂总成转向 (黑色)	ARM ASSEMBLY Steering (BLACK)	1
9	19459T3	转向臂总成-黑色	ARM ASSY-STEER-BL	1
9	19459A4	转向臂总成(灰色)	ARM ASSEMBLY Steering (GRAY)	1
10	30711	缓冲垫	BUMPER	1
11	19616T	支架（黑色）	BRACKET (BLACK)	1
11	19616A1	支架	BRACKET	1
11	19616T6	支架（灰色）	BRACKET (GRAY)	1
12	76533	绑带	STRAP	1
13	34352	螺钉（.375-24 x .875）	SCREW (.375-24 x .875)	2
14	19608	连杆(右舷)	LINK ROD (STARBOARD)	1
14	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
14	19609	连杆(左舷)	LINK ROD (PORT)	1
14	19609A6	转向安装套件	ATTACHING KIT Steering	1
15	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
15	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
16	34863	螺母 (.375-24)	NUT (.375-24)	2
16	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
17	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
18	52865	垫圈	WASHER	1
19	66897	螺栓（.437-20 x 5.250）	BOLT (.437-20 x 5.250)	2

图 61手动倾斜装置组件(设计I型) MANUAL TILT COMPONENTS (DESIGN I)

REF	零件编号	中文名称	英文名称	数量
-	19300A7	配平泵总成	PUMP ASSEMBLY Trim	1
-	19300A8	配平泵总成-完整	PUMP ASSEMBLY Trim - Complete	1
-	832020T3	手动调整	MANUAL TRIM	1
1	8134272	减震杆套件	SHOCK ROD KIT	1
1	8M0118572	减震杆套件	SHOCK ROD KIT	1
1	826416A1	减震杆套件	SHOCK ROD KIT	1
1	893942A01	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	8134291	减震活塞	PISTON Shock	1
3	NSS	活塞减震器(不单独销售)	NOT SOLD SEPARATE PISTON-SHOCK	1
4	813432A2	气缸修理包	CYLINDER REBUILD KIT	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	8112241	气缸套件	CYLINDER KIT	1
6	893918A01	气缸套件	CYLINDER KIT	1
7	813433A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813454A1	蓄能器	ACCUMULATOR	1
8	893920A01	蓄能器套件	ACCUMULATOR KIT	1
9	813455A3	阀块总成	VALVE BLOCK ASSEMBLY	1
9	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
10	813456A4	维修套件	REPAIR KIT	1
11	813458A2	塞套件	PLUG KIT	1
12	813457A2	凸轮套件	CAM KIT	1
12	813455A4	阀体总成	VALVE BODY ASSEMBLY	1
13	813459	塞套件	PLUG KIT	1
14	19607	销	PIN	2
15	821539	三叶销	PIN Trilobe	2
-	826417A1	弹簧套件	SPRING KIT	1
-	826417A2	搁浅套件-手动	BEACHING KT-MANUA	1

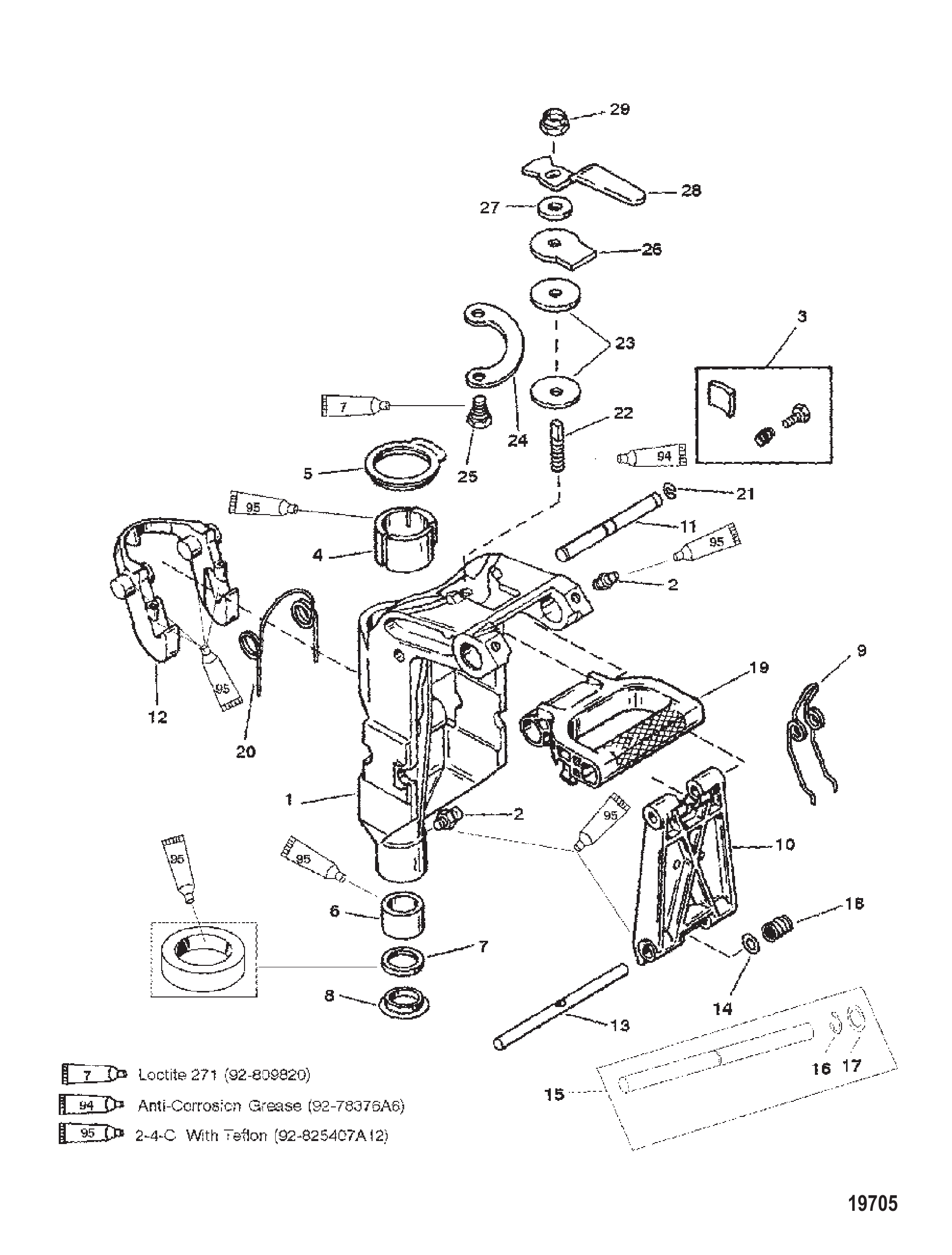

图 62旋转支架 SWIVEL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	8831A6	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A7	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A14	ORD 3402-8831A13	ORD 3402-8831A13	1
1	8831A5	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831T08	旋转支架-黑色	BRKT-SWIVEL-BLACK	1
1	8831A9	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A10	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	润滑脂接头	FITTING Grease	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	42124A2	副驾驶板总成	PLATE ASSEMBLY Co-Pilot	1
4	421402	轴承	BEARING	1
5	420801	推力轴承-上	BEARING Thrust - Upper	1
5	42080T01	轴承	BEARING	1
6	42139	衬套	BUSHING	1
7	42077	密封件	SEAL	1
8	42373	止推垫片	THRUST WASHER	1
9	421301	弹簧	SPRING	1
10	420824	支架	BRACKET	1
10	42082T04	支架	BRACKET	1
11	420811	销	PIN	1
12	421411	倒挡锁钩	HOOK Reverse Lock	1
12	8M0075731	倒挡钩	HOOK Reverse	1
13	42083	枢轴销	PIN Pivot	1
13	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
14	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
15	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
16	NSS	不单独销售	NOT SOLD SEPARATE	1
17	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
18	42128	弹簧	SPRING	1
19	42085F4	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
19	42085F2	提手	CARRYING HANDLE	1
19	42085F5	提手	CARRYING HANDLE	1
19	42085F3	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
20	42127	弹簧	SPRING	1
21	13194	挡圈	RING Retaining	2
22	821961	杆	ROD	1
23	8165621	圆盘	DISC	2
24	821958A1	板组件套件	PLATE KIT	1
25	82130014	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
26	821957	制动板	BRAKE PLATE	1
27	29330	垫圈	WASHER	1
28	821959	手柄	HANDLE	1
29	34863	螺母 (.375-24)	NUT (.375-24)	1
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
-	8237011	副驾驶贴花	DECAL Co-Pilot	1

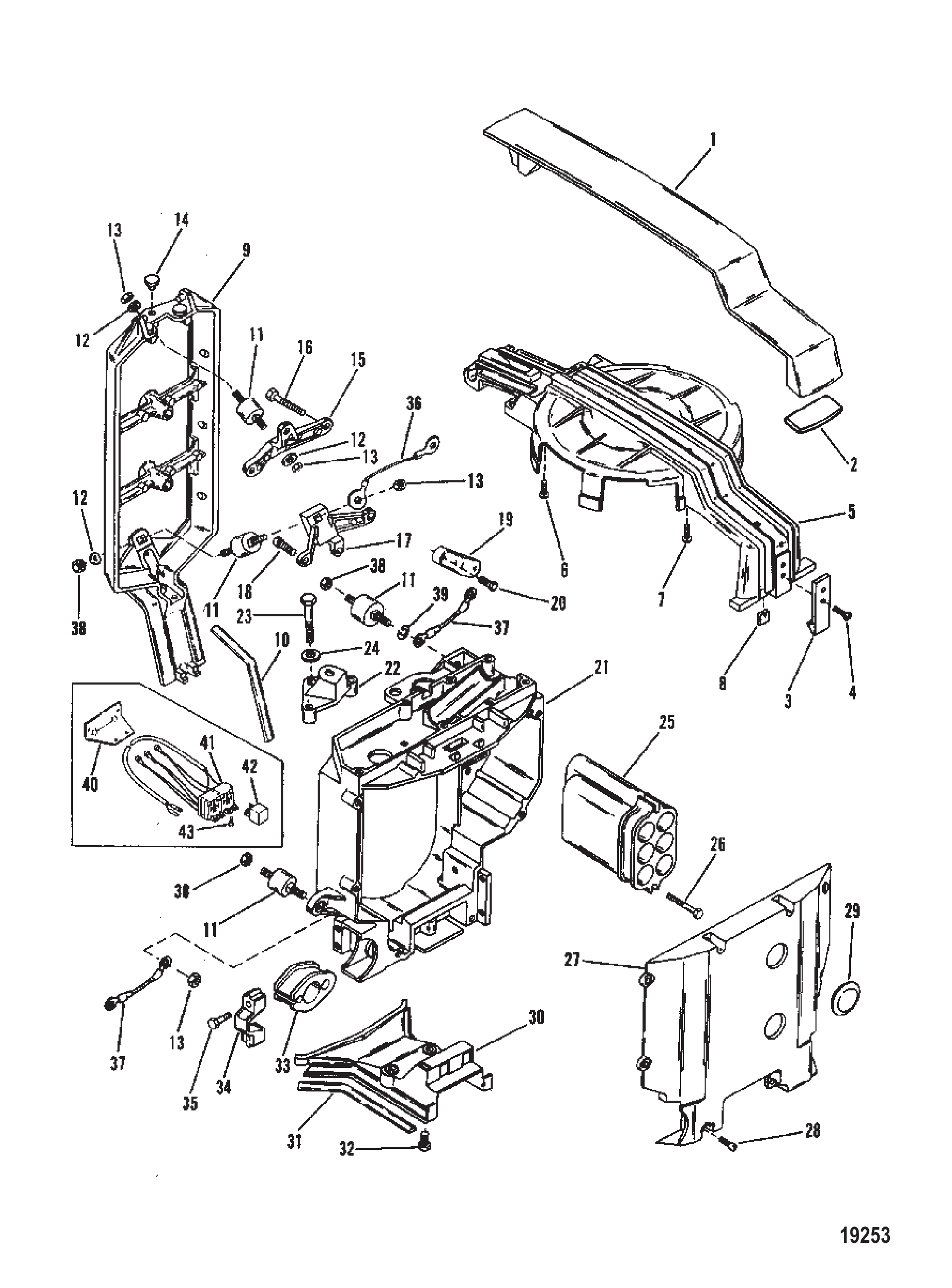

图 63整流罩支撑支架 Cowl Support Brackets

REF	零件编号	中文名称	英文名称	数量
1	73641A1	黑色顶部支架	BRACKET TOP (BLACK)	1
1	73641A2	灰色顶部支架	BRACKET TOP (GRAY)	1
2	62444	顶部支架/安装板橡胶密封条	SEAL RUBBER-TOP BRACKET/MOUNTING PLATE	1
3	79652	支架固定夹	CLIP SUPPORT BRACKET	1
4	48409	支架固定夹用#10-16x0.625不锈钢螺钉	SCREW (#10-16 x .625) Stainless Steel CLIP TO SUPPORT	2
5	79490T	飞轮护罩	SHIELD FLYWHEEL	1
5	79490	护罩	SHIELD	1
6	37656	护罩至支架用#10-32x0.620螺钉	SCREW (#10-32 x .620) SHIELD TO SUPPORT BRACKET	1
7	48408	螺钉（#10-16 x 0.500）护罩至支撑架	SCREW (#10-16 x .500) SHIELD TO SUPPORT BRACKET	3
8	91891	消音器耐磨板	WEAR PLATE SOUND ATENUATOR	2
9	74510A2	后罩支撑架	BRACKET COWL SUPPORT-REAR	1
10	698761	后支架与顶支架密封件	SEAL REAR BRACKET AND TOP BRACKET	2
11	90435	橡胶支座	MOUNT RUBBER	4
12	20346	橡胶安装垫圈	WASHER RUBBER MOUNT	3
12	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	3
13	20184	螺母 (1/4-28X7/32) 橡胶支座	NUT (1/4-28X7/32) RUBBER MOUNT	4
13	8M0207775	螺母 @5	NUT @5	4
14	26901	后支撑架橡胶缓冲块	BUMPER RUBBER-REAR SUPPORT BRACKET	3
14	269011	橡胶缓冲垫	BUMPER Rubber	3
15	60116	顶罩支撑架加固件	BRACE COWL SUPPORT BRACKET (TOP)	1
16	76596	螺钉（0.250-20 x 1.250）支撑架	SCREW (.250-20 x 1.250) SUPPORT BRACKET	3
17	87764	后下部安装架	BRACKET REAR LOWER MOUNT	1
18	76596	螺钉（0.250-20 x 1.250）后支架固定	SCREW (.250-20 x 1.250) REAR BRACKET ATTACHING	3
19	71097	橡胶安装架	BRACKET RUBBER MOUNT	1
20	59645	螺钉（0.312-18 x 0.750）支架至曲轴箱（3/4英寸）	SCREW (.312-18 x .750) BRACKET TO CRANKCASE (3/4")	1
20	824941	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	1
21	97348T	消音器	ATTENUATOR SOUND	1
21	973482	消音器	SOUND ATTENUATOR	1
22	88684	手动阻风门盖	COVER MANUAL CHOKE	1
23	32293	螺钉（0.312-24 x 1.75）盖至顶盖	SCREW (.312-24 x 1.75) COVER TO TOP COVER	1
24	53705	盖板螺丝垫圈	WASHER COVER SCREW	1
24	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	1
25	73986	空气歧管	MANIFOLD Air	1
26	69093	螺钉（0.250-20 x 1.50）空气歧管	SCREW (.250-20 x 1.50) AIR MANIFOLD	2
27	14915T	前消音器盖	COVER SOUND ATTENUATOR (FRONT)	1
28	37655	螺钉（#10-32 x 0.500）前盖	SCREW (#10-32 x .500) FRONT COVER	8
29	73336	前盖塞	PLUG FRONT COVER	2
30	41128A1	隔板总成	PLATE ASSEMBLY	1
31	698761	密封板	SEAL PLATE	2
32	90198	盖板至支撑架螺钉	SCREW COVER PLATE TO SUPPORT BRACKET	2
32	20540	螺钉(.250-20 x .62)	SCREW (.250-20 x .62)	2
33	14169	电缆护套	GROMMET ELECTRICAL CABLES	1
34	14160	固定盖	CAP RETAINING	1
35	14168	螺钉（0.250-20 x 1.00）盖	SCREW (.250-20 x 1.00) CAP	2
36	88238A3	接地线总成	CABLE ASSEMBLY Ground	1
37	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	2
38	36069	螺母	NUT	3
39	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
40	19686	支架	BRACKET	1
41	19758A3	线束总成	HARNESS ASSEMBLY	1
42	18211	继电器开关	RELAY SWITCH	1
43	20401	螺钉（0.190-24 x 0.38）	SCREW (.190-24 x .38)	1

图 64下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

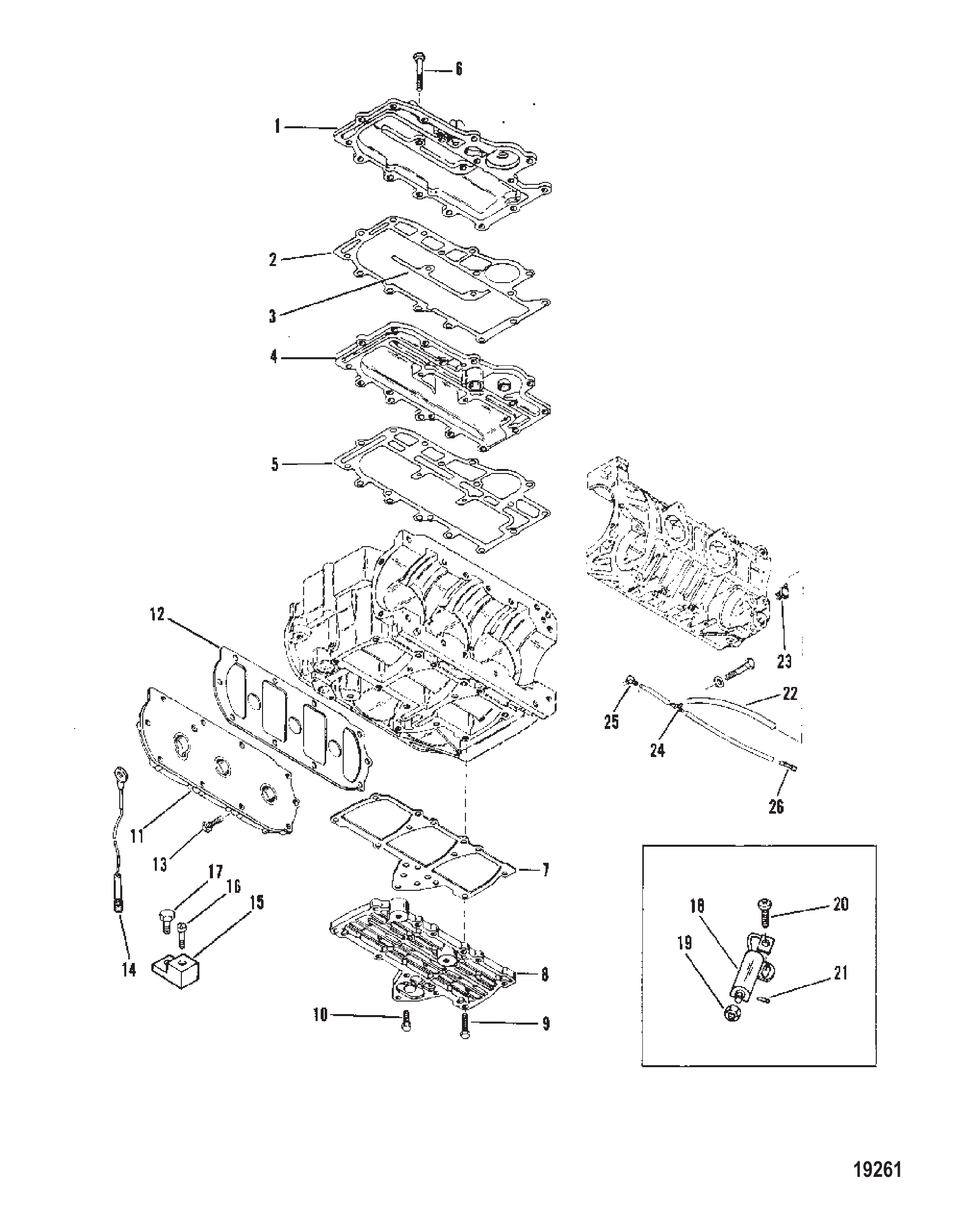

图 65排气与歧管盖 EXHAUST AND MANIFOLD COVERS

REF	零件编号	中文名称	英文名称	数量
1	78529	排气歧管盖	COVER EXHAUST MANIFOLD	1
2	695242	板至排气歧管盖衬垫	GASKET PLATE TO EXHAUST MANIFOLD COVER	1
3	703351	挡板至盖衬垫	GASKET BAFFLE PLATE TO COVER	1
4	69579	排气歧管挡板	PLATE BAFFLE-EXHAUST MANIFOLD	1
5	695252	挡板至气缸体衬垫	GASKET BAFFLE PLATE TO CYLINDER BLOCK	1
6	38837	螺钉（0.312-18 x 1.12）板与歧管盖	SCREW (.312-18 x 1.12) PLATE AND MANIFOLD COVER	1
6	74824	螺钉（0.312-18 x 1.250）板与歧管盖	SCREW (.312-18 x 1.250) PLATE AND MANIFOLD COVER	15
6	70602	螺钉（0.250-20 x 2.00）板/歧管盖	SCREW (.250-20 x 2.00) PLATE/MANIFOLD COVER	2
7	76862	转换盖衬垫	GASKET TRANSFER COVER	1
7	768621	衬垫	GASKET	1
8	14428A1	转换盖总成	COVER ASSEMBLY TRANSFER	1
9	37562	不锈钢螺钉（0.312-18 x 1.00）转换盖	SCREW (.312-18 x 1.00) Stainless Steel TRANSFER COVER	11
10	28668	不锈钢螺钉（0.250-20 x 0.875）盖与燃油泵	SCREW (.250-20 x .875) Stainless Steel COVER AND FUEL PUMP	2
11	8364A1	气缸体盖	COVER CYLINDER BLCOK	1
12	437792	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
13	69100	气缸体盖螺钉（1英寸）	SCREW CYLINDER BLCOK COVER (1")	4
13	8M0214943	螺钉	SCREW	4
14	96829A1	温度开关总成（260度）	SWITCH ASSEMBLY Temperature (260 DEGREES)	1
14	19541A2	温度开关套件（285度）	TEMPERATURE SWITCH KIT (285 DEGREES)	1
15	45915	接线端子排（电气）	TERMINAL BLOCK (ELECTRIC)	1
16	69079	螺钉 (#10-16 x .440) 接线端子(电气)	SCREW (#10-16 x .440) TERMINAL BLOCK (ELECTRIC)	1
17	28192	螺钉 (#10-24 x .50) 接线端子(电气)	SCREW (#10-24 x .50) TERMINAL BLOCK (ELECTRIC)	1
17	72169	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
18	33386A3	开关总成	SWITCH ASSEMLBY	1
19	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
20	37655	螺钉 (#10-32 x .500) 水银开关至曲轴箱(1/2")	SCREW (#10-32 x .500) MERCURY SWITCH TO CRANKCASE (1/2")	1
21	36242		PIN Roll MERCURY SWITCH	2
22	99130122	管材 (20.00英尺散装) 曲轴箱通气	TUBING (20.00 Feet Bulk) CRANKCASE BLEED	3
22	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
23	42864	接头曲轴箱通气	FITTING CRANKCASE BLEED	1
23	428641	止回阀接头	FITTING Check Valve	1
24	59169	接头曲轴箱通气管	FITTING CRANKCASEE BLEED HOSE	1
24	59169003	三通接头	FITTING Tee	1
25	15133	接头曲轴箱	FITTING CRANKCASE	1
26	42865	连接器消音器	CONNECTOR ATTENUATOR	1
26	428651	止回阀	VALVE-CHECK	1
-	43779A87	衬垫套件	GASKET SET	1

图 66气缸体与曲轴箱 Cylinder Block and Crankcase

REF	零件编号	中文名称	英文名称	数量
1	9755A9	气缸体	CYLINDER BLOCK	1
1	9755A14	气缸体	CYLINDER BLOCK	1
1	9755T14	气缸体	CYLINDER BLOCK	1
1	9755A10	气缸体	CYLINDER BLOCK	1
1	9755T10	气缸体	CYLINDER BLOCK	1
1	9755A15	气缸体	CYLINDER BLOCK	1
1	9755T15	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	42658	止回阀	CHECK VALVE	1
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材(20英尺散装)(16英寸)	TUBING (20.00 Feet Bulk) (16")	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
6	426233	止回阀	CHECK VALVE	1
7	812888A1	托架总成	CARRIER ASSEMBLY	2
8	42657A1	止回阀	CHECK VALVE	2
8	42657A3	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	20033	定位销	PIN Dowel (LOCATING)	1
12	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
13	812870	主轴承座中心销	PIN Center Main (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	18597	盖板	COVER	1
15	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
16	65848	托架	CARRIER	1
17	64872	护孔环	GROMMET	1
18	8128671	衬垫	GASKET	1
18	8128672	衬垫	GASKET	1
19	8161941	螺柱	STUD	2
19	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
20	18598	管塞	PIPE PLUG	4
20	185981	管塞(.375-18)	PLUG Pipe (.375-18)	4
21	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
22	81742720	螺钉(M8 x 20)(55号件用3个)	SCREW (M8 x 20) (QTY. OF 3 ON 55)	4
22	40011149	不锈钢螺钉(M8 x 25)(55号件用3个)	SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)	4
22A	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
23	8128821	提动阀	POPPET	1
24	812887	隔膜	DIAPHRAGM	1
24	8128871	隔膜	DIAPHRAGM	1
24	812887002	隔膜	DIAPHRAGM	1
25	94182	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	90392	弹簧	SPRING	1
27	18336	弹簧	SPRING	1
27	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
28	75692	节温器	THERMOSTAT	1
28	14586	节温器	THERMOSTAT	1
29	62386	衬垫	GASKET	1
29	8M0204714	衬垫@4	GASKET @4	1
30	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
30	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	99664	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	78279	弯头	ELBOW	1
38	8M0207781	弯头	ELBOW	1
39	19074	盖板	COVER	1
39	190741	盖板	COVER	1
39	8M0036859	盖板	COVER	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129961	盖板	COVER	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
45	821595	吊环	LIFTING EYE	1
46	821616	螺钉	SCREW	1
46	821606	螺钉	SCREW	1
47	400265	螺母 (M8)	NUT (M8)	1
47	401368	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

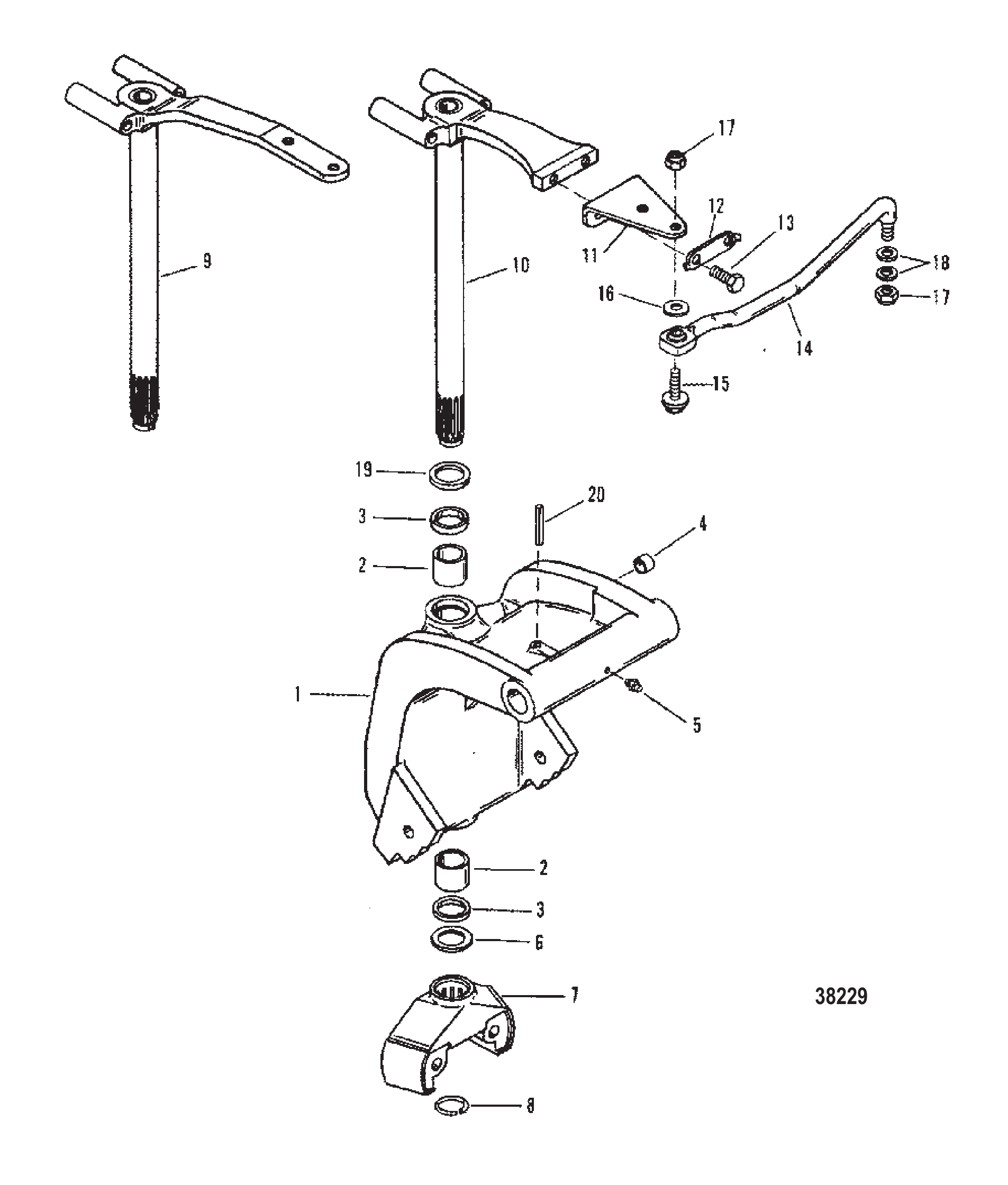

图 67旋转支架(序列号:0D181999及以下) SWIVEL BRACKET (S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	814690A1	旋转支架(短)(黑色)	SWIVEL BRACKET (SHORT) (BLACK)	1
1	814690A2	旋转支架(短)(灰色)	SWIVEL BRACKET (SHORT) (GRAY)	1
1	815556A1	旋转支架(长)(黑色)	SWIVEL BRACKET (LONG) (BLACK)	1
1	815556A2	旋转支架(长)(灰色)	SWIVEL BRACKET (LONG) (GRAY)	1
2	821124	轴承	BEARING	2
3	32911	油封	SEAL Oil	2
4	19606	轴承	BEARING	2
5	74036	润滑脂接头	FITTING Grease	3
5	8M0169589	润滑脂接头	FITTING Grease	3
6	52865	垫圈	WASHER	1
7	19654T	底部轭架(黑色)	YOKE Bottom (BLACK)	1
7	19654T1	下轭架	YOKE Bottom	1
7	19654T6	底部轭架(灰色)	YOKE Bottom (GRAY)	1
7	19654T7	ORD 19654T 1	ORD 19654T 1	1
8	77415	挡圈	RETAINING RING	1
9	NLA	已停产旋转销(黑色-被2件式#10替代)	No Longer Available SWIVEL PIN (BLACK-REPLACED BY 2 PIECE REF #10)	1
9	NLA	已停产旋转销(灰色-被2件式#10替代)	No Longer Available SWIVEL PIN (GRAY-REPLACED BY 2 PIECE REF #10)	1
10	812897A7	旋转销总成(短)(黑色)	SWIVEL PIN ASSEMBLY (SHORT) (BLACK)	1
10	812897A19	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	812897A8	旋转销总成(短)(灰色)	SWIVEL PIN ASSEMBLY (SHORT) (GRAY)	1
10	812897A20	ORD 17-812897A19	ORD 17-812897A19	1
10	812896A14	旋转销总成(黑色)	SWIVEL PIN ASSEMBLY (BLACK)	1
10	812896A22	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	812896A15	旋转销总成(灰色)	SWIVEL PIN ASSEMBLY (GRAY)	1
10	812896A23	旋转销-GR-LG	SWIVEL PIN-GR-LG	1
11	816667T	支架（黑色）	BRACKET (BLACK)	1
11	8M0184092	支架	BRACKET	1
11	816667F3	支架（灰色）	BRACKET (GRAY)	1
11	8M0184092	支架	BRACKET	1
12	816669	锁紧垫圈	TAB WASHER	1
12	8M0009820	锁紧垫圈	TAB WASHER	1
13	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
14	196081	连杆(右舷)	LINK ROD (STARBOARD)	1
14	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
14	196091	连杆(左舷)	LINK ROD (PORT)	1
14	19609A6	转向安装套件	ATTACHING KIT Steering	1
15	90041	螺钉(.375-24 x 1.620)	SCREW (.375-24 x 1.620)	1
15	856680	螺钉(.375-24 x 1.62)	SCREW (.375-24 x 1.62)	1
16	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
16	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
17	34863	螺母 (.375-24)	NUT (.375-24)	2
17	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
18	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
19	52865	垫圈	WASHER	1
20	823876	销	PIN	1

图 68齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9760A8	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	9760A9	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A21	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A12	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A13	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A10	齿轮箱总成(加长)(黑色)	GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A11	齿轮箱总成(加长)(灰色)	GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A2	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A3	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A20	齿轮箱总成(基础款)(TRACKER)	GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
2	67892	磁性螺钉	SCREW Magnetic	1
2	8M0058389	放油螺钉套件	SCREW KIT Drain	1
3	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	2
3	79953Q04	放油螺钉套件	SCREW KIT Drain	2
4	19183	纤维垫圈	WASHER Fiber	3
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
5	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
5	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
7	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
8	812768	滚柱轴承	BEARING Roller	1
8A	818226A1	密封/板套件	SEAL/PLATE KIT	1
9	813694	小齿轮	GEAR Pinion	1
9	813694T	小齿轮	GEAR Pinion	1
10	55910	螺母(.437-20)	NUT (.437-20)	1
11	812732A1	换挡轴总成(短/长)	SHIFT SHAFT ASSEMBLY (SHORT/LONG)	1
11	815420	换挡轴(加长型)	SHIFT SHAFT (X-LONG)	1
12	29641	E型卡环	E RING	1
13	813696A2	衬套总成	BUSHING ASSEMBLY	1
14	45258	O型圈 (.987 x .103)	O-RING (.987 x .103)	1
15	8164641	油封	SEAL Oil	1
15	8M0246145	油封	OIL SEAL	1
16	815422	驱动轴(短)	DRIVESHAFT (SHORT)	1
16	812731	驱动轴(长型)	DRIVESHAFT (LONG)	1
16	815421	驱动轴(加长型)	DRIVESHAFT (X-LONG)	1
17	812770A1	垫片组	SHIM SET	AR
17	8M0063262	垫片组	SHIM SET	AR
18	77420A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
18	8M0166756	轴承总成	BEARING ASSEMBLY	1
19	812820	螺母	NUT	1
19	8128201	螺母	NUT	1
20	812966A3	底座总成	BASE ASSEMBLY	1
20	8M0245488	水泵底座	BASE WATER PUMP	1
21	30224	O型圈 (1.859 x .139)	O-RING (1.859 x .139)	1
21	8M0204651	O型圈	O-RING	1
22	814669	油封	SEAL Oil	1
22	8M0245489	油封	SEAL OIL	1
23	814670	油封	SEAL Oil	1
24	197001	面板	FACE PLATE	1
24	19700A2	面板	FACE PLATE	1
25	19453	叶轮	IMPELLER	1
25	19453T	叶轮	IMPELLER	1
26	19699	键	KEY	1
26	8M0032831	叶轮键	KEY Impeller	1
27	14334A1	水泵总成	PUMP ASSEMBLY Water	1
27	14334A3	水泵总成	PUMP ASSEMBLY Water	1
28	19701	衬垫(下部)	GASKET (LOWER)	1
28	8M0224241	衬垫	GASKET	1
29	194541	衬垫(上部)	GASKET (UPPER)	1
30	43023	油封(短/长)	SEAL (SHORT/LONG)	1
30	8M0204658	密封件	SEAL	1
31	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
33	43045	绝缘体	INSULATOR	4
33	8M0204659	绝缘体@4	INSULATOR @4	4
34	19452	绝缘体	INSULATOR	2
35	76039	换挡凸轮控制	CAM Shift Control	1
35	760394	换挡凸轮控制	CAM Shift Control	1
-	812867A97	衬垫套件	GASKET SET	1
-	812966A11	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 69齿轮箱螺旋桨轴-60海宝/马拉松/大脚-6爪倒车离合器 GEAR HSG PROPSHAFT-60 SEA/MARA/BIG FOOT-6 JAW REV. CLUTCH

REF	零件编号	中文名称	英文名称	数量
-	9011G16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G17	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011G15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011G8	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011G60	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
43	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
44	NSS		NOT SOLD SEPARATE CUP	1
45	850033A2	前进齿轮套件	GEAR KIT Forward	1
45	859472A3	前进齿轮总成-30齿	GEAR ASSEMBLY Forward - 30 Teeth	1
46	30895	滚针轴承	BEARING Needle	1
46	30895T	滚针轴承	BEARING Needle	1
47	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
48	44530	钢球	BALL	3
49	NSS		NOT SOLD SEPARATE SLIDE	1
50	850327	弹簧	SPRING	1
51	850048	离合器	CLUTCH	1
51	850048T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	850308	螺旋桨轴	PROPELLER SHAFT	1
54	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
55	850034	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
55	850034T	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
56	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
56	8M0168901	轴承座总成	CARRIER ASSY.	1
57	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
57	8M0214974	O型圈	O RING	1
58	30956	滚针轴承	BEARING Needle	1
58	30956T	滚针轴承	BEARING Needle	1
59	70080	油封	SEAL Oil	1
59	8M0205728	密封件	SEAL	1
60	70081	油封	SEAL Oil	1
60	8M0205729	密封件	SEAL	1
61	12578	滚针轴承	BEARING Needle	1
61	12578T	滚柱轴承	BEARING Roller	1
62	12577	止推垫片	THRUST WASHER	1
63	12576	推力轴承	BEARING Thrust	1
64	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
64	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
65	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
65	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
66	401198	螺母 (M8)	NUT (M8)	2
66	401378	螺母 (M8)	NUT (M8)	2
67	44491A1	垫片组	SHIM SET	1
67	8M0063266	垫片组	SHIM SET	1
68	NSS	螺纹嵌件(不单独销售)	NOT SOLD SEPARATE THREAD INSERT	2
69	NSS		NOT SOLD SEPARATE DECAL	1
70	13191A1	止推垫片	THRUST WASHER	1
70	13191Q01	止推垫片	THRUST WASHER	1
71	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
71	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
72	816629	锁紧垫圈	TAB WASHER	1
72	816629Q	锁紧垫圈	TAB WASHER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 70排气与歧管盖 Exhaust and Manifold Covers

REF	零件编号	中文名称	英文名称	数量
1	78529	排气歧管盖	COVER EXHAUST MANIFOLD	1
2	695242	板至排气歧管盖衬垫	GASKET PLATE TO EXHAUST MANIFOLD COVER	1
3	703351	挡板至盖衬垫	GASKET BAFFLE PLATE TO COVER	1
4	69579	排气歧管挡板	PLATE BAFFLE-EXHAUST MANIFOLD	1
5	695252	挡板至气缸体衬垫	GASKET BAFFLE PLATE TO CYLINDER BLOCK	1
6	38837	螺钉（0.312-18 x 1.12）板与歧管盖	SCREW (.312-18 x 1.12) PLATE AND MANIFOLD COVER	1
6	74824	螺钉（0.312-18 x 1.250）板与歧管盖	SCREW (.312-18 x 1.250) PLATE AND MANIFOLD COVER	15
6	70602	螺钉（0.250-20 x 2.00）板/歧管盖	SCREW (.250-20 x 2.00) PLATE/MANIFOLD COVER	2
7	76862	转换盖衬垫	GASKET TRANSFER COVER	1
7	768621	衬垫	GASKET	1
8	14428A1	转换盖总成	COVER ASSEMBLY TRANSFER	1
9	37562	不锈钢螺钉（0.312-18 x 1.00）转换盖	SCREW (.312-18 x 1.00) Stainless Steel TRANSFER COVER	11
10	28668	不锈钢螺钉（0.250-20 x 0.875）盖与燃油泵	SCREW (.250-20 x .875) Stainless Steel COVER AND FUEL PUMP	2
11	8364A1	气缸体盖	COVER CYLINDER BLCOK	1
12	437792	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
13	69100	气缸体盖螺钉（1英寸）	SCREW CYLINDER BLCOK COVER (1")	4
13	8M0214943	螺钉	SCREW	4
14	96829A1	温度开关总成（260度）	SWITCH ASSEMBLY Temperature (260 DEGREES)	1
14	19541A2	温度开关套件（285度）	TEMPERATURE SWITCH KIT (285 DEGREES)	1
15	45915	接线端子排（电气）	TERMINAL BLOCK (ELECTRIC)	1
16	69079	螺钉 (#10-16 x .440) 接线端子(电气)	SCREW (#10-16 x .440) TERMINAL BLOCK (ELECTRIC)	1
17	28192	螺钉 (#10-24 x .50) 接线端子(电气)	SCREW (#10-24 x .50) TERMINAL BLOCK (ELECTRIC)	1
17	72169	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
18	33386A3	开关总成	SWITCH ASSEMLBY	1
19	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
20	37655	螺钉 (#10-32 x .500) 水银开关至曲轴箱(1/2")	SCREW (#10-32 x .500) MERCURY SWITCH TO CRANKCASE (1/2")	1
21	36242		PIN Roll MERCURY SWITCH	2
22	99130122	管材 (20.00英尺散装) 曲轴箱通气	TUBING (20.00 Feet Bulk) CRANKCASE BLEED	3
22	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
23	42864	接头曲轴箱通气	FITTING CRANKCASE BLEED	1
23	428641	止回阀接头	FITTING Check Valve	1
24	59169	接头曲轴箱通气管	FITTING CRANKCASEE BLEED HOSE	1
24	59169003	三通接头	FITTING Tee	1
25	15133	接头曲轴箱	FITTING CRANKCASE	1
26	42865	连接器消音器	CONNECTOR ATTENUATOR	1
26	428651	止回阀	VALVE-CHECK	1
-	43779A87	衬垫套件	GASKET SET	1

图 71齿轮箱螺旋桨轴-60海宝/马拉松/大脚-3爪倒车离合器 GEAR HSG PROPSHAFT-60 SEA/MARA/BIG FOOT-3 JAW REV. CLUTCH

REF	零件编号	中文名称	英文名称	数量
-	9011A69	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A71	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A70	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011A72	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011A73	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A74	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
41	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
42	12634A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
42	12634T02	齿轮总成	GEAR ASSEMBLY	1
43	30895	滚针轴承	BEARING Needle	1
43	30895T	滚针轴承	BEARING Needle	1
44	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
44	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	44530	钢球	BALL	3
46	30622	弹簧	SPRING	1
47	822539	离合器	CLUTCH	1
47	822539T	离合器	CLUTCH	1
48	30632	十字销	PIN Cross	1
48	8M0100263	十字销	PIN Cross	1
49	30893	弹簧	SPRING	1
50	12238T	螺旋桨轴	PROPELLER SHAFT	1
51	12635	倒挡齿轮	GEAR Reverse	1
51	12635T	倒挡齿轮	GEAR-REVERSE	1
52	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	8M0168901	轴承座总成	CARRIER ASSY.	1
53	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
53	8M0214974	O型圈	O RING	1
54	30956	滚针轴承	BEARING Needle	1
54	30956T	滚针轴承	BEARING Needle	1
55	76868	内密封件	SEAL (INNER)	1
55	8M0248882	油封@5	SEAL-OIL @5	1
56	70081	油封(外)	SEAL Oil (OUTER)	1
56	8M0205729	密封件	SEAL	1
57	12578	滚针轴承	BEARING Needle	1
57	12578T	滚柱轴承	BEARING Roller	1
58	12577	止推垫片	THRUST WASHER	1
59	12576	推力轴承	BEARING Thrust	1
60	429174	双头螺栓(M8 x 1.25 x 48)	STUD (M8 x 1.25 x 48)	2
60	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
61	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
61	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
62	401198	螺母 (M8)	NUT (M8)	2
62	401378	螺母 (M8)	NUT (M8)	2
63	44491A1	垫片组	SHIM SET	1
63	8M0063266	垫片组	SHIM SET	1
64	13191A1	止推垫片	THRUST WASHER	1
64	13191Q01	止推垫片	THRUST WASHER	1
65	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
65	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
66	816629	锁紧垫圈	TAB WASHER	1
66	816629Q	锁紧垫圈	TAB WASHER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

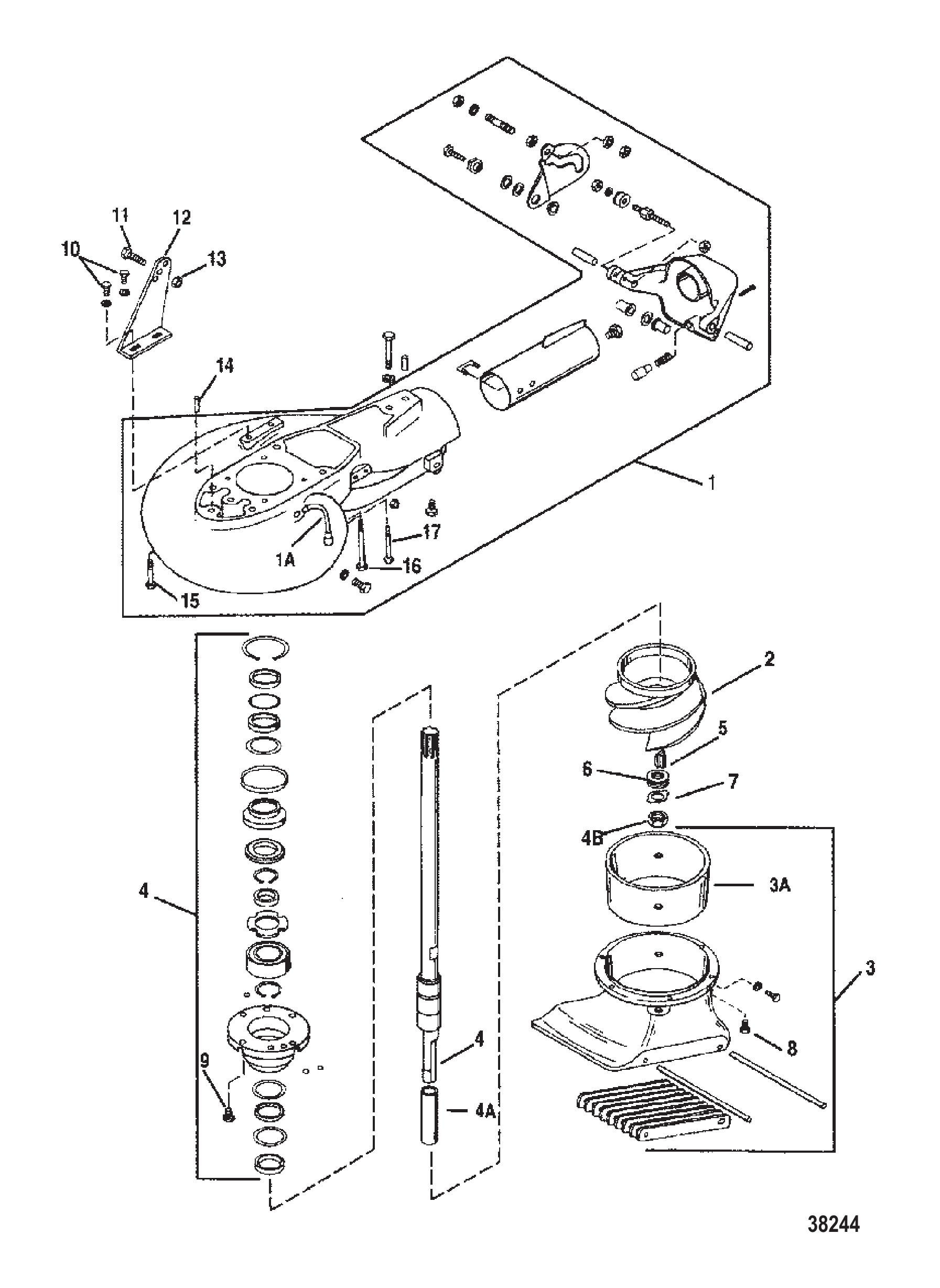

图 72喷泵总成 JET PUMP ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	80140060	喷射泵组件(黑色)	JET PUMP ASSEMBLY (BLACK)	1
-	80140160	喷射泵组件(灰色)	JET PUMP ASSEMBLY (GRAY)	1
-	8M0230714	喷射泵总成	JET PUMP ASSY	1
1	80141160	泵壳	HOUSING Pump	1
1	801411T60	泵壳体	HOUSING PUMP	1
1A	827490	润滑油管	HOSE Lube	1
2	80141460	叶轮	IMPELLER	1
2	8M0230713	叶轮	IMPELLER	1
3	80141260	进气壳体	HOUSING Intake	1
3A	8271882	衬套	LINER	1
4	80141360	驱动轴	DRIVESHAFT	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	818146	螺钉(.312-18 X .88)	SCREW (.312-18 X .88)	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
16	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
17	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
18	95802	不锈钢螺钉(.375-16 x 2.750)	SCREW (.375-16 x 2.750) Stainless Steel	1
19	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
19	8M0214963	垫圈	WASHER	1

图 73齿轮箱(螺旋桨轴)(50/55/60) GEAR HOUSING (PROPELLER SHAFT)(50/55/60)

REF	零件编号	中文名称	英文名称	数量
-	9760A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A32	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
34	812769A1	垫片组	SHIM SET	AR
34	8M0063263	垫片组	SHIM SET	AR
35	812767A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
35	8M0103476	轴承总成	BEARING ASSY	1
36	813693A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
36	813693T1	前进齿轮	GEAR Forward	1
37	21739	滚柱轴承	BEARING Roller	1
38	812929	凸轮从动件	FOLLOWER Cam	1
38	8129291	凸轮从动件	FOLLOWER Cam	1
39	20843	滑块	SLIDE	1
40	38114	弹簧	SPRING	1
41	813697	离合器	CLUTCH	1
41	813697T	离合器	CLUTCH	1
42	38113	十字销	PIN Cross	1
42	8M0020942	十字销@2	PIN-CROSS @2	1
43	815418	弹簧	SPRING	1
44	14493	螺旋桨轴	PROPELLER SHAFT	1
45	813695	倒挡齿轮	GEAR Reverse	1
45	813695T	倒挡齿轮	GEAR Reverse	1
46	20839	滚珠轴承	BEARING Ball	1
46	20839T	滚珠轴承	BEARING Ball	1
47	19291A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
47	8M0168900	轴承座	BEARING CARRIER	1
48	815460	O型圈	O-RING	1
49	21700	滚针轴承	BEARING Needle	1
50	69188	油封	SEAL Oil	1
50	8M0205511	油封	SEAL Oil	1
51	69189	油封	SEAL Oil	1
51	8M0203757	油封	SEAL Oil	1
52	4000353	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
53	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
53	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
54	17264T2	调整片锌制	TRIM TAB Zinc	1
55	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
56	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
56	8M0214963	垫圈	WASHER	1
57	824389A1	螺旋桨套件	PROPELLER KIT	1
58	62124A1	推力毂总成	THRUST HUB ASSEMBLY	1
58	73345A1	止推垫片	THRUST WASHER	1
59	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
59	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
60	76281	锁紧垫圈	TAB WASHER	1
60	8M0214942	锁紧垫片	WASHER Tab	1
-	812867A97	衬垫套件	GASKET SET	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 74喷射组件 Jet Components

REF	零件编号	中文名称	英文名称	数量
1	821889A18	转速限制器	REV LIMITER	1
2	823147A4	转速限制器线束总成	HARNESS ASSEMBLY Rev Limiter	1
3	826579	支架	BRACKET	1
4	40011127	螺钉 (M6 x 16) 不锈钢	SCREW (M6 x 16) Stainless Steel	2
4	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
5	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
6	801402	润滑脂套装	GREASE KIT	1
6	30500A2	润滑脂套装	GREASE KIT	1
24	197001	面板	FACE PLATE	1
24	19700A2	面板	FACE PLATE	1
25	19453	叶轮	IMPELLER	1
25	19453T	叶轮	IMPELLER	1
26	19699	键	KEY	1
26	8M0032831	叶轮键	KEY Impeller	1
27	14334A1	水泵总成	PUMP ASSEMBLY Water	1
27	14334A3	水泵总成	PUMP ASSEMBLY Water	1
29	194541	衬垫(上部)	GASKET (UPPER)	1
30	43023	密封件	SEAL	1
30	8M0204658	密封件	SEAL	1
31	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
33	43045	绝缘体	INSULATOR	4
33	8M0204659	绝缘体@4	INSULATOR @4	4
34	19452	绝缘体	INSULATOR	2
-	812966A11	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

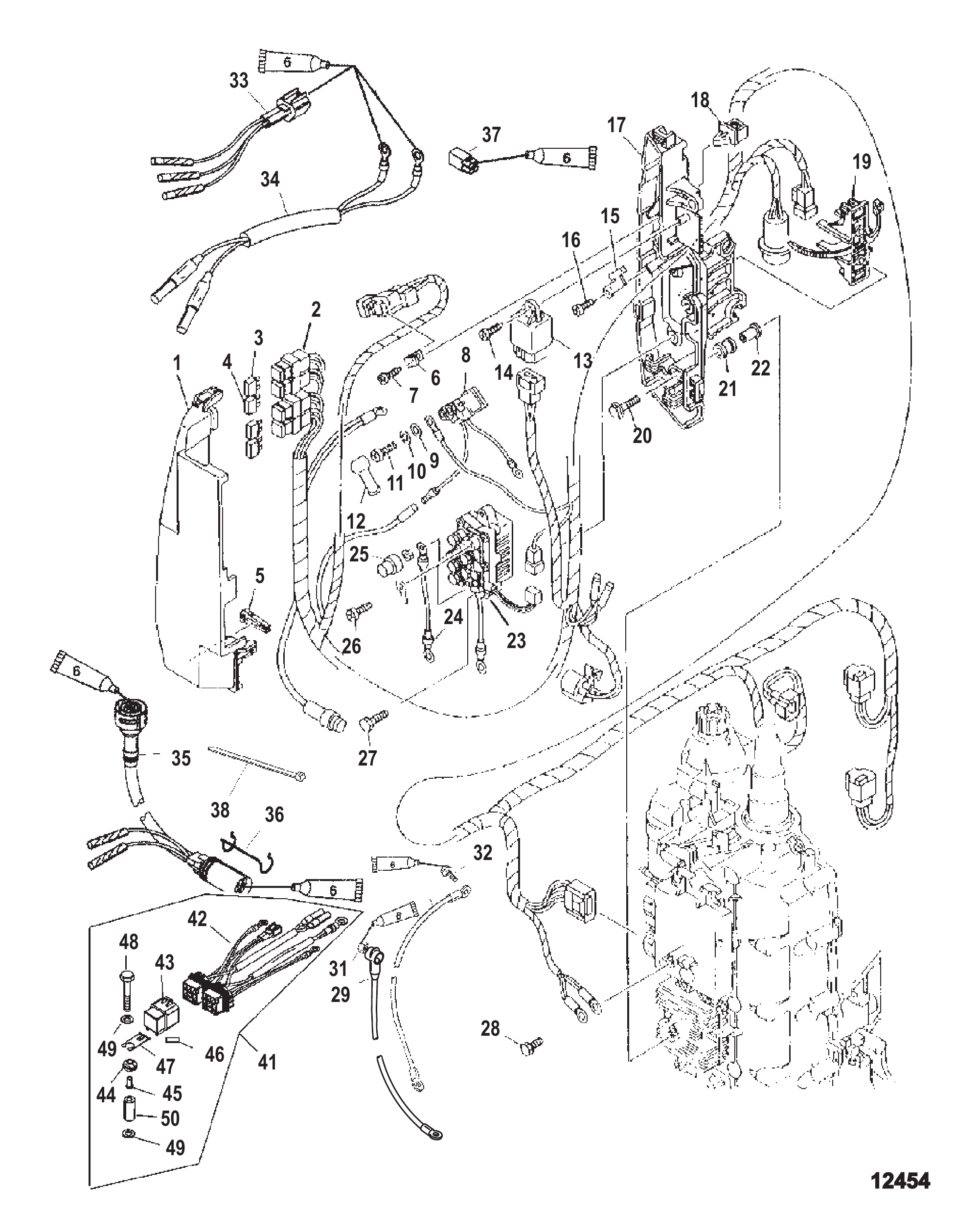

图 75电气组件 ELECTRICAL COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	881363T	盖板	COVER	1
2	881364T2	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
2	881364T1	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
3	804291	保险丝20安培	FUSE 20 Ampere	4
3	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
4	80429110	30安保险丝	FUSE 30 Ampere	4
4	8M0057159	30A保险丝	FUSE-30A	4
0	891824010	保险丝盖	COVER Fuse	4
0	891824020	保险丝盖	COVER Fuse	4
5	804289	保险丝拔取器	PULLER Fuse	1
6	881362	支架	BRACKET	1
7	8813511	螺钉	SCREW	1
8	881352T	继电器	RELAY	1
8	8M0098898	继电器	RELAY	1
9	82214M	垫圈	WASHER	2
10	881355	锁紧垫圈	LOCKWASHER	2
10	82212M	锁紧垫圈	LOCKWASHER	2
11	881354	螺钉	SCREW	2
11	96671M	螺钉	SCREW	2
12	804284	护套	BOOT	2
12	804284001	护套	BOOT	2
13	881350T	继电器	RELAY	1
14	881351	螺钉	SCREW	1
15	881353	卡箍	CLAMP	1
16	8813511	螺钉	SCREW	1
17	881359T	支架	BRACKET	1
17	881363A01	盖/支架套件	COVER/BRACKET KIT	1
18	881361	卡箍	CLAMP	1
19	881360	卡箍	CLAMP	1
20	804270	螺栓(M6×28)	BOLT (M6 x 28)	5
21	881304	护孔环	GROMMET	5
22	82851M	衬套	BUSHING	5
22	804344003	轴环	COLLAR	5
23	881356T1	继电器总成	RELAY ASSEMBLY	1
23	882751A3	升降继电器套件	RELAY KIT Trim	1
24	881357	引线	LEAD WIRE	1
25	881358	盖帽	CAP	1
26	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	825702	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
27	8257021	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
28	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
29	88439A33	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
30	88439A10	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
31	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
32	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
32	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
33	858723T1	适配器/升降线束总成	HARNESS ASSEMBLY Adapter/Trim	1
34	858914T1	升降马达适配器线束总成	HARNESS ASSEMBLY Trim Motor Adaptor	1
35	858740T4	遥控适配器线束总成	HARNESS ASSEMBLY Adapter Assembly Remote	1
36	92753	固定座	RETAINER	1
37	859249T1	连接器	CONNECTOR	1
38	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
39	8272822	高压警告标贴	DECAL Warning High Voltage	1
40	881865	挂档启动警示标贴	DECAL Caution-Start in Gear Start in Gear	1
41	828151A2	升降继电器套件	TRIM RELAY KIT	1
41	882751A3	升降继电器套件	RELAY KIT Trim	1
42	826802A24	升降线束总成	HARNESS ASSEMBLY Trim	1
43	828151A1	继电器总成	RELAY ASSEMBLY	2
43	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
44	818967	护孔环	GROMMET	1
44	8M0207785	护孔环	GROMMET	1
45	818968	衬套	BUSHING	1
45	8M0214955	衬套	BUSHING	1
46	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
47	828102	支架	BRACKET	1
47	8M0207771	安装支架	BRACKET Mounting	1
48	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
49	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
49	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
50	823807	衬套	BUSHING	1

图 76杂项信息 MISCELLANEOUS INFORMATION

零件编号	中文名称	英文名称	数量
81735296	零件手册50/55/60/JET 45	PARTS MANUAL 50/55/60/JET 45	1
817383A1	工具包	TOOL BAG	1
816939A96	贴花套件	DECAL SET	1
811212A96	贴花套件	DECAL SET	1
811212A00	贴花套件(黑色60电动)	DECAL SET (Black 60 Electric)	1
830163A96	贴花套件	DECAL SET	1
804704A00	贴花套件(黑色60 Bigfoot)	DECAL SET (Black 60 Bigfoot)	1
826313A95	贴花套件	DECAL SET	1
826313A01	贴花套件(黑色60 SeaPro)	DECAL SET (Black 60 SeaPro)	1
824097A95	贴花套件	DECAL SET	1
816940A94	贴花套件	DECAL SET	1
816940A97	贴花套件	DECAL SET	1
816940A97	贴花套件	DECAL SET	1
811211A94	贴花套件	DECAL SET	1
811211A03	贴花套件(灰色60电动)	DECAL SET (Gray 60 Electric)	1
811211A97	贴花套件	DECAL SET	1
811211A03	贴花套件(灰色60电动)	DECAL SET (Gray 60 Electric)	1
826326A95	贴花套件	DECAL SET	1
826326A01	贴花套装(灰色Jet 40)	DECAL SET (Gray Jet 40)	1
826326A97	贴花套件	DECAL SET	1
826326A01	贴花套装(灰色Jet 40)	DECAL SET (Gray Jet 40)	1
13361A95	贴花套件	DECAL SET	1
8588372	贴花套件(灰色Marathon 60)	DECAL SET (Gray Marathon 60)	1
824098A95	贴花套件	DECAL SET	1
821573A95	贴花套件	DECAL SET	1
821573A01	贴花套件(黑色55 SeaPro)	DECAL SET (Black 55 SeaPro)	1
821424A95	贴花套件	DECAL SET	1
8588371	贴花套件(灰色Marathon 55)	DECAL SET (Gray Marathon 55)	1
824733A94	贴花套件	DECAL SET	1
824733A96	贴花套装(Tracker 60)	DECAL SET (Tracker 60)	1
831846A97	贴花套装(Tracker Bigfoot 60)	DECAL SET (Tracker Bigfoot 60)	1
826325A96	贴花套件	DECAL SET	1
826325A00	贴花套件	DECAL SET	1
10171970	用户手册	OWNERS MANUAL	1
10173970	用户手册	OWNERS MANUAL	1
10172970	用户手册	OWNERS MANUAL	1
10176970	用户手册	OWNERS MANUAL	1

图 77齿轮箱驱动轴-60海宝/马拉松/大脚-6爪倒车离合器 GEAR HSG DRIVESHAFT-60 SEA/MARA/BIG FOOT-6 JAW REV. CLUTCH

REF	零件编号	中文名称	英文名称	数量
-	9011G16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G17	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011G15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011G8	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9011G60	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
4	79953Q04	放油螺钉套件	SCREW KIT Drain	2
5	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
5	8M0058389	放油螺钉套件	SCREW KIT Drain	1
6	19183	纤维垫圈	WASHER Fiber	3
6	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
7	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
8	316405	平衡鳍板	TRIM TAB	1
8	8M0236553	平衡鳍板	TRIM TAB	1
9	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
11	43040A1	托架总成	CARRIER ASSEMBLY	1
11	43040T1	托架总成	CARRIER ASSEMBLY	1
12	NSS		NOT SOLD SEPARATE NEEDLE BEARING	1
13	826134	阳极块	ANODE	2
13	826134Q	阳极块	ANODE	2
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
16	44484	小齿轮(13齿)(也属于43-850033A2)	GEAR Pinion (13 Teeth) (ALSO PART OF 43-850033A2)	1
16	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	850307	换挡凸轮控制	CAM Shift Control	1
19	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
20	44492A1	垫片组	SHIM SET	AR
20	8M0063265	垫片组	SHIM SET	AR
21	826736A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	826737A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
22	42461A1	套筒/环套件	SLEEVE/RING KIT	1
23	NSS		NOT SOLD SEPARATE RING SEAL	1
24	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
24	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
25	430331	衬垫	GASKET	1
26	430472	衬垫	GASKET	1
26	8M0214931	衬垫	GASKET	1
27	43035	油封	SEAL Oil	1
27	8M0245495	油封	OIL SEAL	1
28	43036	油封	SEAL Oil	1
29	817277	衬垫	GASKET	1
29	8172771	水泵上垫片	GASKET Water Pump, Upper	1
30	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
31	817276	面板	FACEPLATE	1
31	8M0204709	面板	FACEPLATE	1
32	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
32	8M0214957	螺钉	SCREW	4
33	826763A1	联轴器	COUPLING	1
33	826762A1	联轴器	COUPLING	1
34	43037	键	KEY	1
34	8M0204723	键	KEY	1
35	430262	叶轮	IMPELLER	1
35	43026T2	叶轮	IMPELLER	1
36	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
37	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
37	853907A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
38	29641	E型卡环	E RING	1
39	43052A4	衬套总成	BUSHING ASSEMBLY	1
40	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
40	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
41	8164641	油封	SEAL Oil	1
41	8M0246145	油封	OIL SEAL	1
42	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

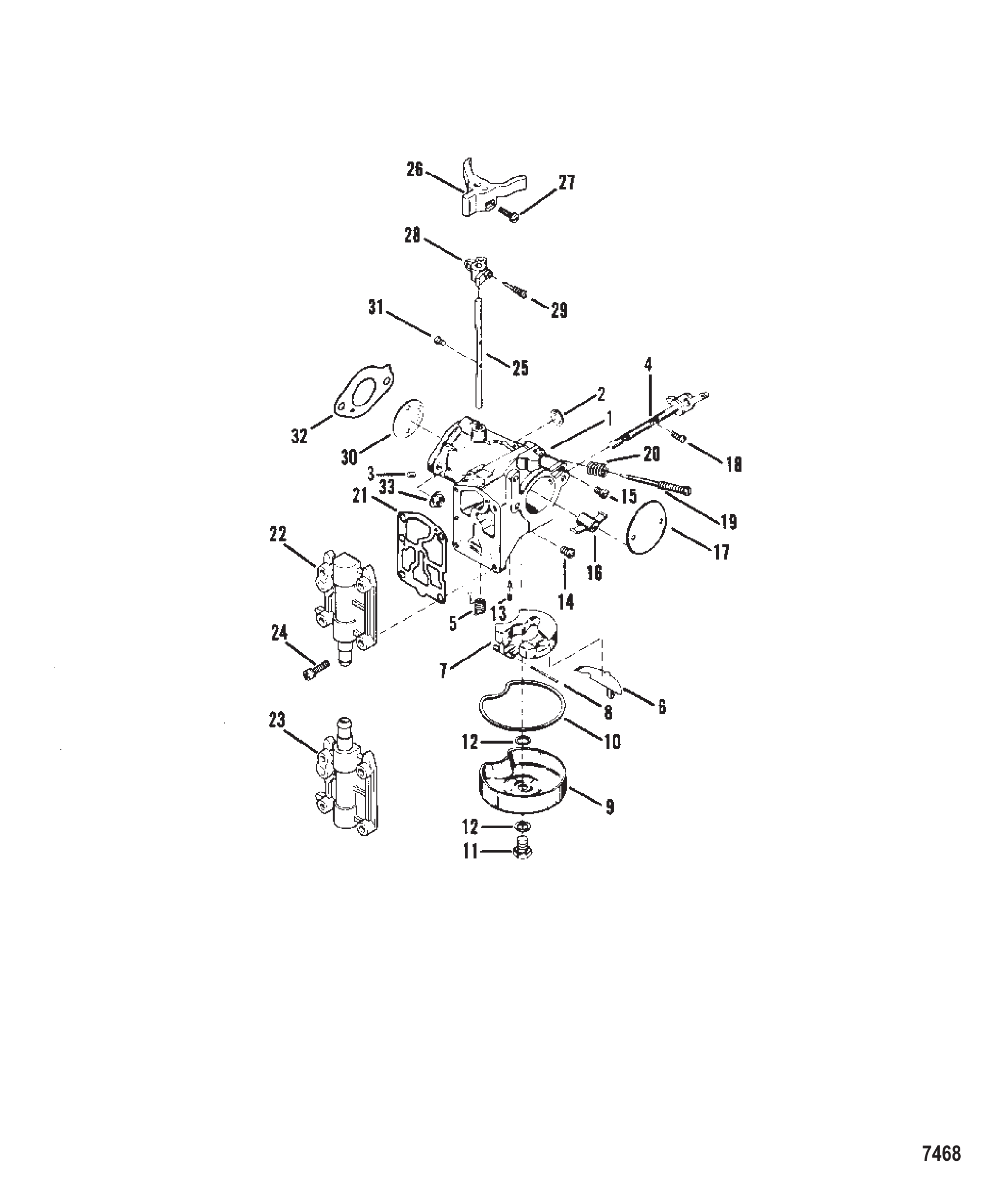

图 78化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	6517A33	化油器总成	CARBURETOR ASSEMBLY	1
1	6517A34	化油器总成	CARBURETOR ASSEMBLY	1
1	6517A64	化油器KT-底置	CARBURETOR KT-BOT	1
2	NSS	大型主体通道(不单独销售)	NOT SOLD SEPARATE Large Body Channel	2
3	NSS	主体通道(不单独销售)	NOT SOLD SEPARATE Body Channel	6
4	96773A1	阻风门轴总成	SHAFT ASSEMBLY Choke	2
4	9296A1	阻风门轴套件	CHOKE SHAFT KIT	2
5	NSS	回位-节气门轴(不单独销售)	NOT SOLD SEPARATE Return-Throttle Shaft	2
6	7211A1	燃油杯挡板	BAFFLE Fuel Bowl	2
6	814483	燃油杯挡板	BAFFLE Fuel Bowl	2
7	9293	浮子	FLOAT	2
8	NSS	浮子固定件(不单独销售)	NOT SOLD SEPARATE Float Retaining	2
9	5127	燃油杯	BOWL Fuel	2
10	NSS	燃油杯(不单独销售)	NOT SOLD SEPARATE Fuel Bowl	2
11	9652	燃油杯至化油器螺钉	SCREW Fuel Bowl to Carburetor	2
12	NSS	燃油杯螺钉(不单独销售)	NOT SOLD SEPARATE Fuel Bowl Screw	4
13	9022	进油针阀及弹簧	NEEDLE AND SPRING Inlet	2
14	1457	主量孔(.057)	JET Main Fuel (.057)	2
15	7335	省油量孔(.098)	JET (.098) Economizer (.098)	2
16	64677	喉管	VENTURI	2
17	8665	阻风门片	SHUTTER Choke	2
18	NSS	阻风门片至轴连接件(不单独销售)	NOT SOLD SEPARATE Choke Shutter to Choke Shaft	4
19	NSS	怠速混合气调节件(不单独销售)	NOT SOLD SEPARATE Idle Mixture	2
20	NSS	怠速混合气螺钉(不单独销售)	NOT SOLD SEPARATE Idle Mixture Screw	2
21	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	2
22	9653	盖板(上化油器)	COVER Plate (Upper Carburetor)	1
23	9654	盖板(下化油器)	COVER Plate (Lower Carburetor)	1
24	5132	滤清器体至化油器螺钉	SCREW Strainer Body to Carburetor	8
24	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	8
25	9020	油门轴	SHAFT Throttle	1
25	9656	油门轴	SHAFT Throttle	1
26	92880	节气门杠杆(上化油器)	LEVER Throttle (Upper Carburetor)	1
27	20847	节气门杠杆螺钉(上化油器)	SCREW Throttle Lever (Upper Carburetor)	2
27	6027	螺钉	SCREW	2
28	97	节气门杠杆(下化油器)	LEVER Throttle (Lower Carburetor)	1
28	8146791	油门杆	LEVER Throttle	1
29	6027	节气门杠杆螺钉(下化油器)	SCREW Throttle Lever (Lower Carburetor)	1
30	9649	节气门片	SHUTTER Throttle	2
31	NSS	节气门片至轴连接件(不单独销售)	NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft	4
32	757911	化油器法兰衬垫	GASKET Carburetor Flange	2
33	64809	化油器安装柱螺母	NUT Carburetor Mounting Stud	4
--	9650	维修套件	REPAIR KIT	2
--	9651	衬垫套件	GASKET SET	2

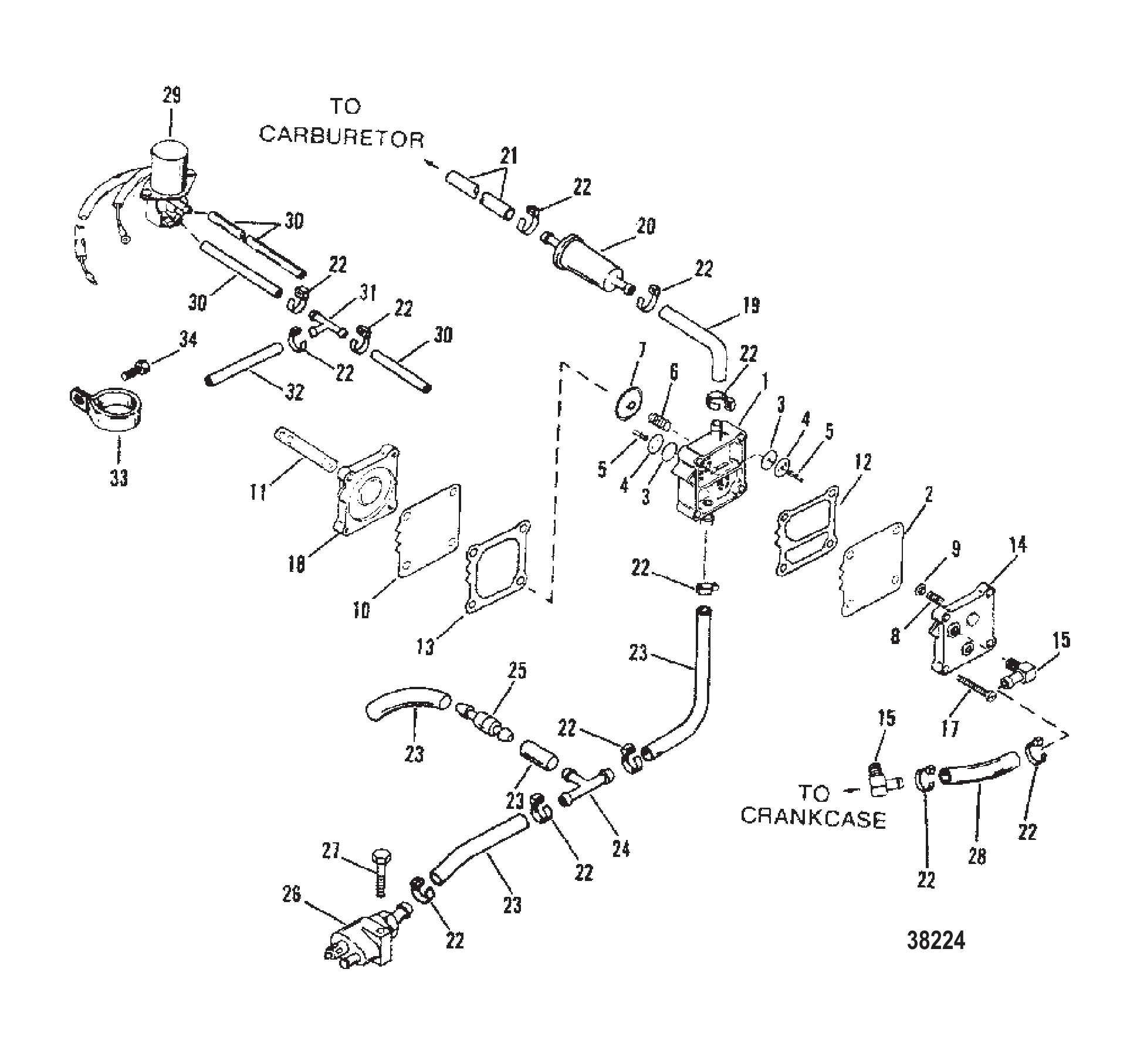

图 79燃油泵(黑色 50/60) FUEL PUMP (BLACK 50/60)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE SPRING	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS		NOT SOLD SEPARATE SPRING	1
9	NSS		NOT SOLD SEPARATE CAP	1
10	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS		NOT SOLD SEPARATE GASKET-BOOST	1
13	NSS		NOT SOLD SEPARATE GASKET-PULSE	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
17	82104540	螺钉(M5 x 40)燃油泵	SCREW (M5 x 40) FUEL PUMP	2
17	82130050	螺钉(M6 x 50)燃油泵至曲轴箱	SCREW (M6 x 50) FUEL PUMP TO CRANKCASE	2
18	144303	底座	BASE	1
19	816865	软管	HOSE	1
19	830767	软管	HOSE	1
20	8162961	燃油滤清器	FILTER Fuel	1
20	816296Q2	燃油滤清器	FILTER Fuel	1
21	19723	燃油管	LINE Fuel	1
21	830761	燃油管	LINE Fuel	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	9912980	软管	HOSE	3
23	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	3
24	818993	三通接头	CONNECTOR Tee	1
25	818994	止回阀	CHECK VALVE	1
25	8189941	止回阀	CHECK VALVE	1
26	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
26	816856T01	燃油接头	CONNECTOR-FUEL	1
27	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
28	9912878	软管(.187)(26.00英寸散装)(4-1/4")	HOSE (.187) (26.00 Inches Bulk) (4-1/4")	1
29	428593	电磁阀	SOLENOID VALVE	1
29	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
30	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	3
31	59169	接头	FITTING	1
31	59169003	三通接头	FITTING Tee	1
32	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
33	633001	卡箍	CLAMP	1
34	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
-	812867A97	衬垫套件	GASKET SET	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1

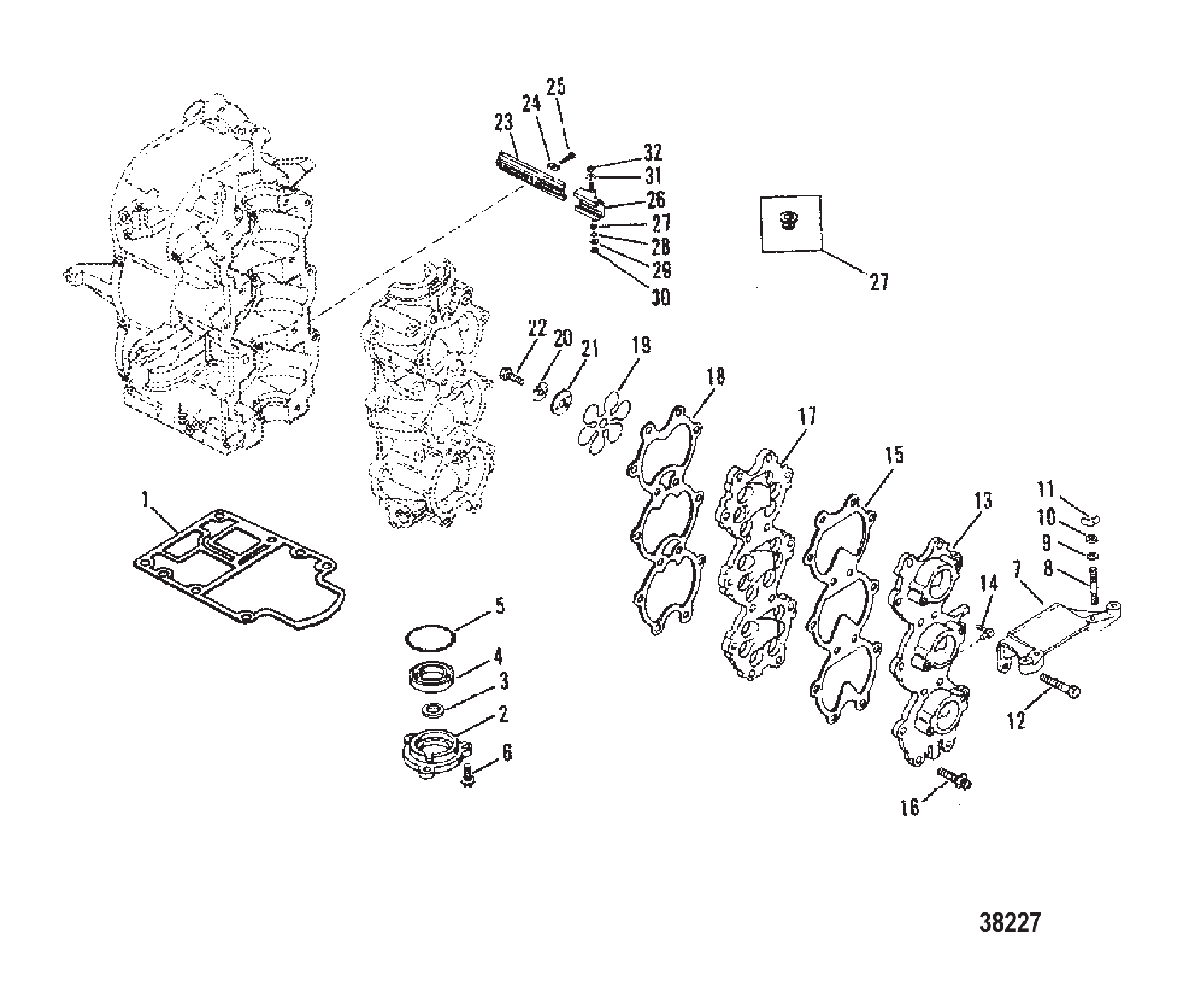

图 80进气歧管与簧片阀组 INDUCTION MANIFOLD AND REED BLOCK

REF	零件编号	中文名称	英文名称	数量
1	812865	衬垫	GASKET	1
2	9812A9	下端盖总成	END CAP ASSEMBLY Lower	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A2	支架总成	BRACKET ASSEMBLY	1
7	19077A3	支架总成	BRACKET ASSEMBLY	1
8	8161941	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	19076A3	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
14	19725	弯头(55号件含2个)	ELBOW (QTY. OF 2 ON 55)	1
15	812869	衬垫	GASKET	1
16	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
17	19075A2	簧片阀总成	REED BLOCK ASSEMBLY	1
17	8M0219197	簧片阀总成	REED BLOCK ASSY	1
18	812868	衬垫	GASKET	1
19	812880A1	簧片组(0.008厚度)	REED SET (0.008 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
19	812880A2	簧片组件(0.010厚度)	REED ASSEMBLY (0.010 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
20	42982	锁紧垫圈	TAB WASHER	3
20	429821	锁紧垫圈	TAB WASHER	3
21	812879	固定座	RETAINER	3
21	812879002	簧片压板	RETAINER Reed	3
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
23	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
24	42981	锁紧垫圈	TAB WASHER	2
25	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
26	988851	滑块	SLIDE	1
27	48475	衬套(II型)	BUSHING (DESIGN II)	1
27	42994	衬套	BUSHING	1
28	29720	波形垫圈	WAVE WASHER	1
29	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
30	400634	螺母 (M6)	NUT (M6)	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	400634	螺母 (M6)	NUT (M6)	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	15026	进气歧管盖	CAP (FOR USE ON INDUCTION MANIFOLD)	3
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

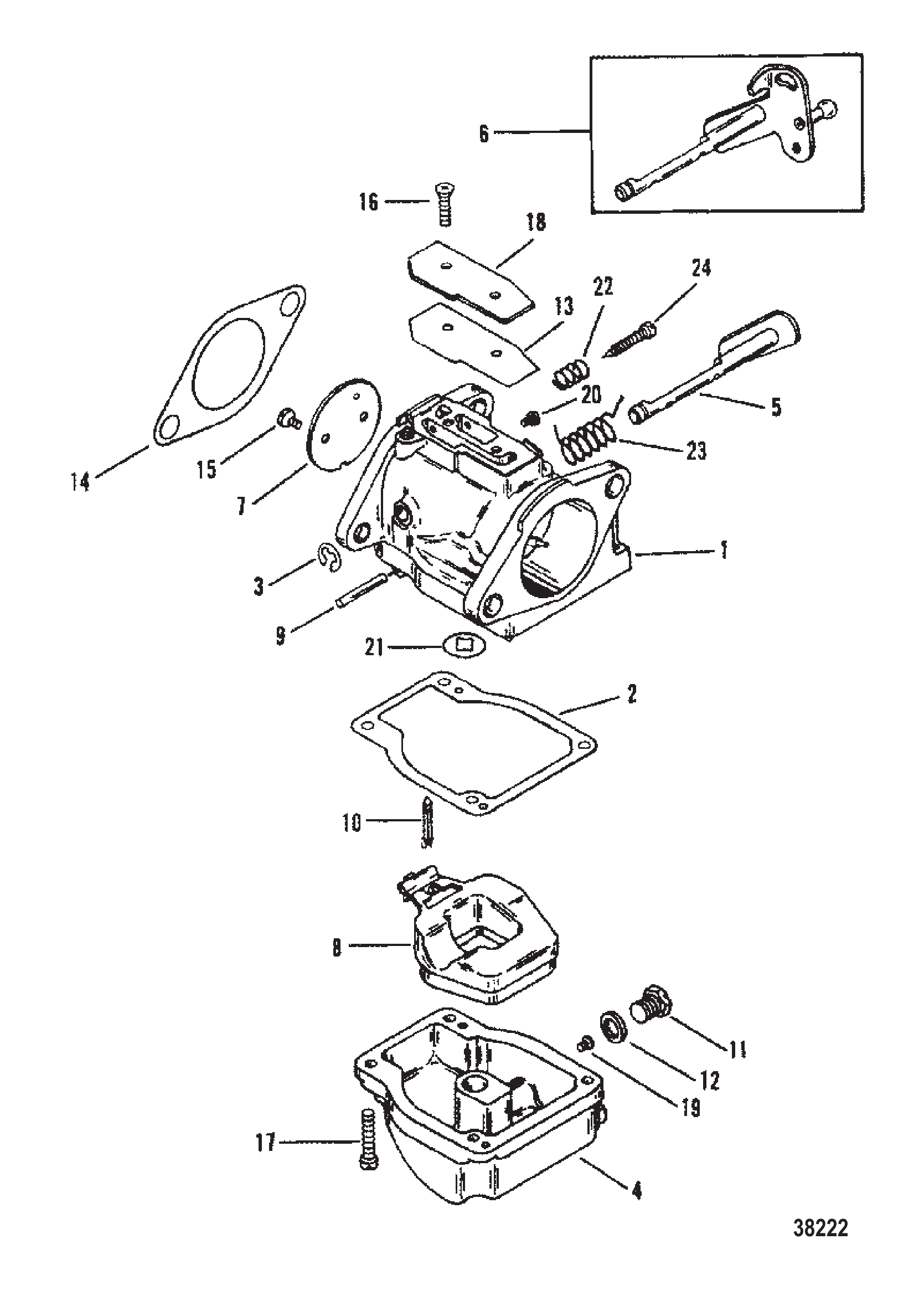

图 81化油器(WME-22/22B/23/24/35) CARBURETOR (WME-22/22B/23/24/35)

REF	零件编号	中文名称	英文名称	数量
1	815406A1	化油器(上)	CARBURETOR (TOP)	1
1	815406A2	化油器(中)	CARBURETOR (CENTER)	1
1	815406A3	化油器(下)	CARBURETOR (BOTTOM)	1
1	817714A4	化油器(上)	CARBURETOR (TOP)	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	817714A5	化油器(中)	CARBURETOR (CENTER)	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	817714A6	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	815405A4	化油器(上)	CARBURETOR (TOP)	1
1	815405A5	化油器(中)	CARBURETOR (CENTER)	1
1	815405A6	化油器(下)	CARBURETOR (BOTTOM)	1
2	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
3	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
4	811695	燃油杯(上)	BOWL Fuel (UPPER)	1
4	9590	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
4	811693	燃油杯	BOWL Fuel	2
4	811695	燃油杯(上)	BOWL Fuel (UPPER)	1
4	811693	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
5	811218	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
6	811219	节气门轴(中央)	SHAFT Throttle (CENTER)	1
7	811216	油门阀	VALVE Throttle	3
7	9593	油门阀	VALVE Throttle	3
8	9594	浮子	FLOAT	3
9	NSS	不单独销售浮子轴	NOT SOLD SEPARATE FLOAT SHAFT	3
10	9595	进油针阀	VALVE Inlet Needle	3
10	879194011	进油阀	VALVE Inlet	3
11	9596	堵头	PLUG	3
11	95961	油杯放油塞	PLUG Bowl Drain	3
11	811694	塞套件	PLUG KIT	3
12	NSS	不单独销售塞衬垫	NOT SOLD SEPARATE GASKET-PLUG	3
13	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
14	8144461	法兰衬垫	GASKET Flange	3
15	NSS	不单独销售油门阀螺钉	NOT SOLD SEPARATE SCREW-THROTTLE VALVE	6
16	811220	盖板螺丝	SCREW Cover Plate	6
17	5132	燃油杯螺钉	SCREW FUEL BOWL	12
17	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
18	811221	盖板	COVER PLATE	3
19	6359	量孔(.052)	JET (.052)	3
19	6029	量孔(.068)	JET (.068)	3
19	6030	量孔(.070)	JET (.070)	3
20	6247	主量孔(0.090)	JET Main (.090)	3
21	NSS		NOT SOLD SEPARATE GASKET	3
22	NSS		NOT SOLD SEPARATE SPRING	3
23	NSS		NOT SOLD SEPARATE SPRING	3
24	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236353	化油器维修套件	REPAIR KIT Carburetor	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

图 82启动器总成(手动-55) STARTER ASSEMBLY (MANUAL - 55)

REF	零件编号	中文名称	英文名称	数量
1	85174A1	手柄总成	HANDLE ASSEMBLY	1
2	8167652	支架	REST	1
3	8136072	密封件	SEAL	1
3	8M0043161	密封件	SEAL	1
4	82170475	螺钉(M6×75)	SCREW (M6 x 75)	2
5	821702	隔套	SPACER	2
6	816086	衬套	BUSHING	4
7	815795	护孔环	GROMMET	8
8	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	8
9	401196	螺母 (M6)	NUT (M6)	4
10	8167485	联锁电缆	CABLE Interlock	1
10	8567541	联锁电缆	CABLE Interlock	1
11	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
12	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
13	27769	开口销	COTTER PIN	1
13	26811	开口销	COTTER PIN	1
14	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
14	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
15	27769	开口销	COTTER PIN	1
15	26811	开口销	COTTER PIN	1
16	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
-	816728A12	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
17	8167285	壳体	HOUSING	1
17	816728T05	壳体	HOUSING	1
18	826791	弹簧	SPRING	1
19	8166903	杠杆	LEVER	1
20	8167121	凸轮	CAM	1
20	816712T01	凸轮	CAM	1
21	816711	固定座	RETAINER	1
22	8182491	螺钉(#10-16 x 1.00)	SCREW (#10-16 x 1.00)	3
23	826229	弹簧锁紧垫圈	LOCKWASHER SPRING	1
24	868571	弹簧	SPRING	1
24	86857T01	弹簧	SPRING	1
25	825269A1	启动滑轮	SHEAVE Starter	1
25	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
26	86851	弹簧	SPRING	2
26	86851T02	弹簧 @2	SPRING @2	2
27	86850	凸轮	CAM	2
27	868501	凸轮	CAM	2
28	868491	挡圈	RING Retaining	2
28	86849T01	环 @2	RING @2	2
29	12066A9	绳索	ROPE	1
29	12066Q10	启动绳@2	ROPE-STARTER@2	1
30	86852	弹簧	SPRING	1
30	868523	弹簧	SPRING	1
31	86853	凸轮	CAM	1
31	86853T01	凸轮	CAM	1
32	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
33	42690	衬套	BUSHING	1
33	8M0183792	绳索衬套	ROPE BUSHING	1
34	818853	挡圈	RING Retaining	1

图 83动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

图 84下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

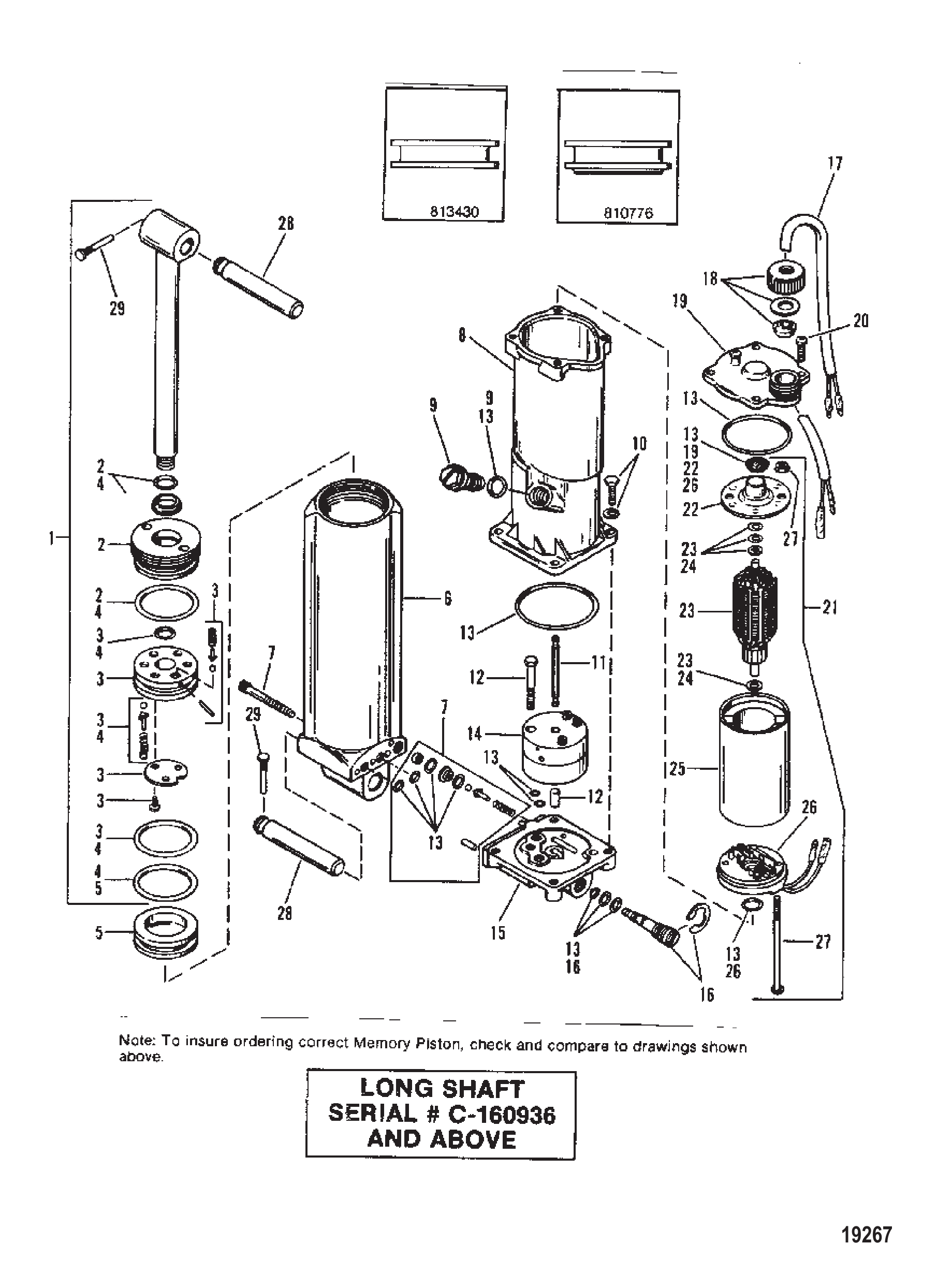

图 85电动配平组件（长序列号-0C160936及以上） Electric Trim Components (Long-S/N-0C160936 & Up)

REF	零件编号	中文名称	英文名称	数量
1	813427	减震杆总成套件	SHOCK ROD ASSEMBLY KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A1	气缸修理包	CYLINDER REBUILD KIT	1
5	813430	配平记忆活塞套件（见备注）	PISTON KIT Trim Memory (SEE NOTE)	1
5	893903A01	活塞套件	PISTON KIT	1
5	810776	记忆活塞套件（见备注）	PISTON KIT Memory (SEE NOTE)	1
6	810777	气缸套件	CYLINDER KIT	1
7	813433A1	螺丝和密封套件气缸	SCREW AND SEAL KIT CYLINDER	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813434A1	储液罐	RESERVOIR	1
9	813435	塞套件	PLUG KIT	1
9	8134351	堵头	PLUG	1
10	813436	螺钉套件	SCREW KIT	1
11	813437	驱动轴	DRIVESHAFT	1
12	813438	螺丝和销钉套件	SCREW AND PIN KIT	1
13	813439A1	密封套件	SEAL KIT	1
13	813439A3	O型圈套件	O RING KIT	1
14	813440	泵	PUMP	1
14	811227	泵	PUMP	1
15	813441	歧管总成	MANIFOLD ASSEMBLY	1
16	813442A1	安全阀套件	RELIEF VALVE KIT	1
16	893929A01	安全阀套件	VALVE KIT Relief	1
17	813443	线束总成	HARNESS ASSEMBLY	1
17	811698	线束总成	HARNESS ASSEMBLY	1
18	813444	边框套件	BEZEL KIT	1
18	811698	线束总成	HARNESS ASSEMBLY	1
19	813445	储液罐盖套件	CAP KIT Reservoir	1
20	813446	螺丝帽	SCREW CAP	1
21	813447	电机套件	MOTOR KIT	1
22	813448	端盖	END CAP	1
23	813449A1	电枢	ARMATURE	1
24	813450	止推垫片套件	THRUST WASHER KIT	1
25	813451	外壳和磁铁套件	SHELL AND MAGNET KIT	1
26	813452	端架套件	END FRAME KIT	1
27	813453	螺栓螺母套件	BOLT AND NUT KIT	1
28	19607	销	PIN	2
29	19603	槽销	PIN Groove	2
29	821539	三叶销	PIN Trilobe	2
30	19686	支架	BRACKET	1
31	19758A3	线束总成	HARNESS ASSEMBLY	1
32	18211	继电器开关	RELAY SWITCH	2
34	20401	螺钉（0.190-24 x 0.38）	SCREW (.190-24 x .38)	2
-	19217A1	完整配平泵总成	PUMP ASSEMBLY Trim COMPLETE	1
-	854472A3	动力调整套件	POWER TRIM KIT	1

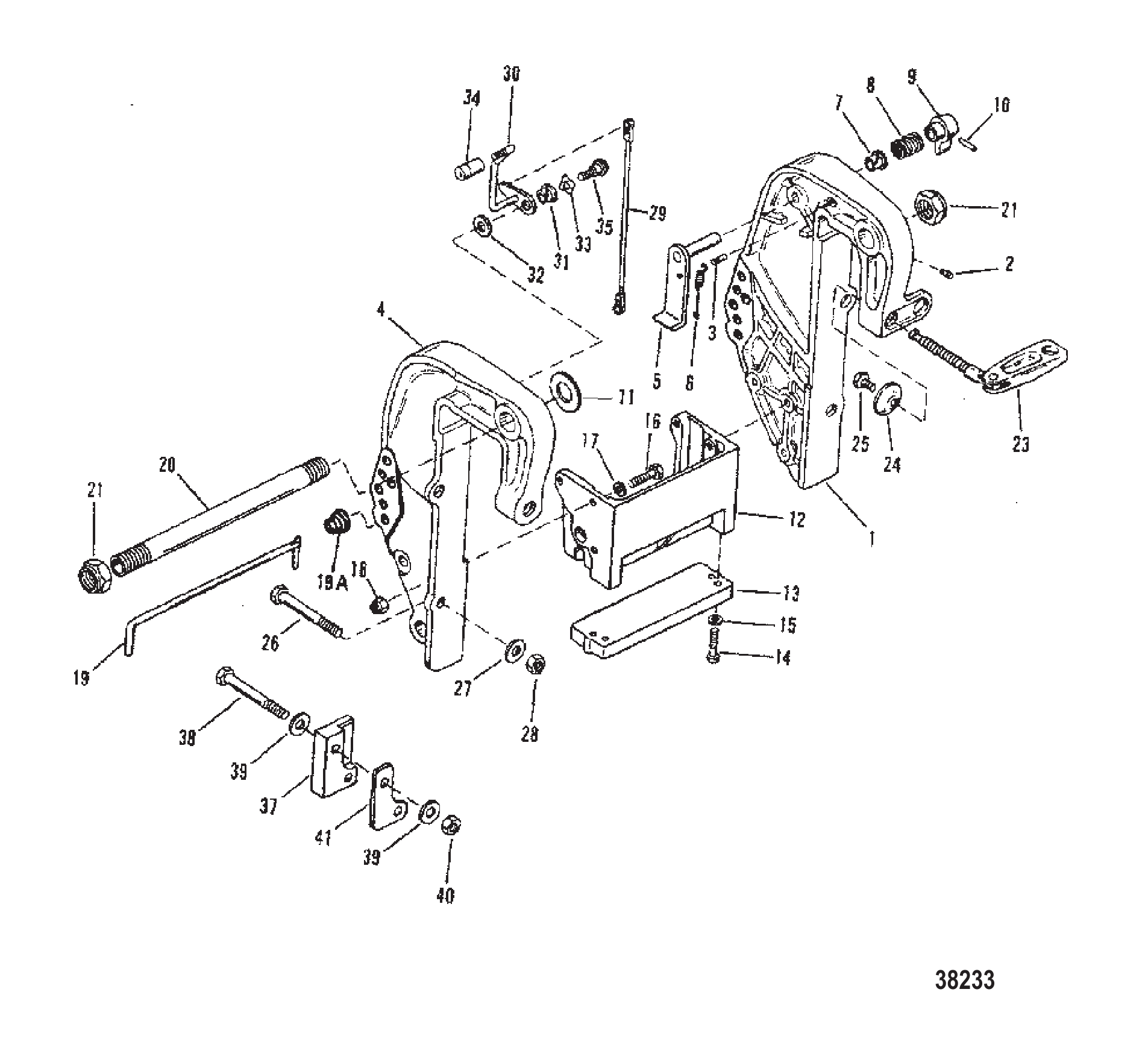

图 86夹紧支架(手动)(序列号:0D1812000及以上) CLAMP BRACKET (MANUAL) (S/N: 0D1812000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	822868A1	夹紧支架总成(黑色)	CLAMP BRACKET ASSEMBLY (BLACK)	1
1	822868A2	夹紧支架总成(灰色)	CLAMP BRACKET ASSEMBLY (GRAY)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822867F1	夹紧支架(黑色)	CLAMP BRACKET (BLACK)	1
4	822867F2	夹紧支架(灰色)	CLAMP BRACKET (GRAY)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮(黑色)	KNOB (BLACK)	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮(灰色)	KNOB (GRAY)	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19A	821461	弹簧	SPRING	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
23	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
24	818884	垫圈	WASHER	2
25	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
37	812432F2	安装支架(右舷)	MOUNTING BRACKET (STARBOARD)	1
37	812432F5	安装支架	MOUNTING BRACKET	1
37	812433F3	安装支架(左舷)	MOUNTING BRACKET (PORT)	1
37	812433F5	安装支架	MOUNTING BRACKET	1
38	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
39	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
39	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	134371	螺母 (.375-24)	NUT (.375-24)	4
40	862903	螺母 (.375-24)	NUT (.375-24)	4
41	821722	垫片	SHIM	4

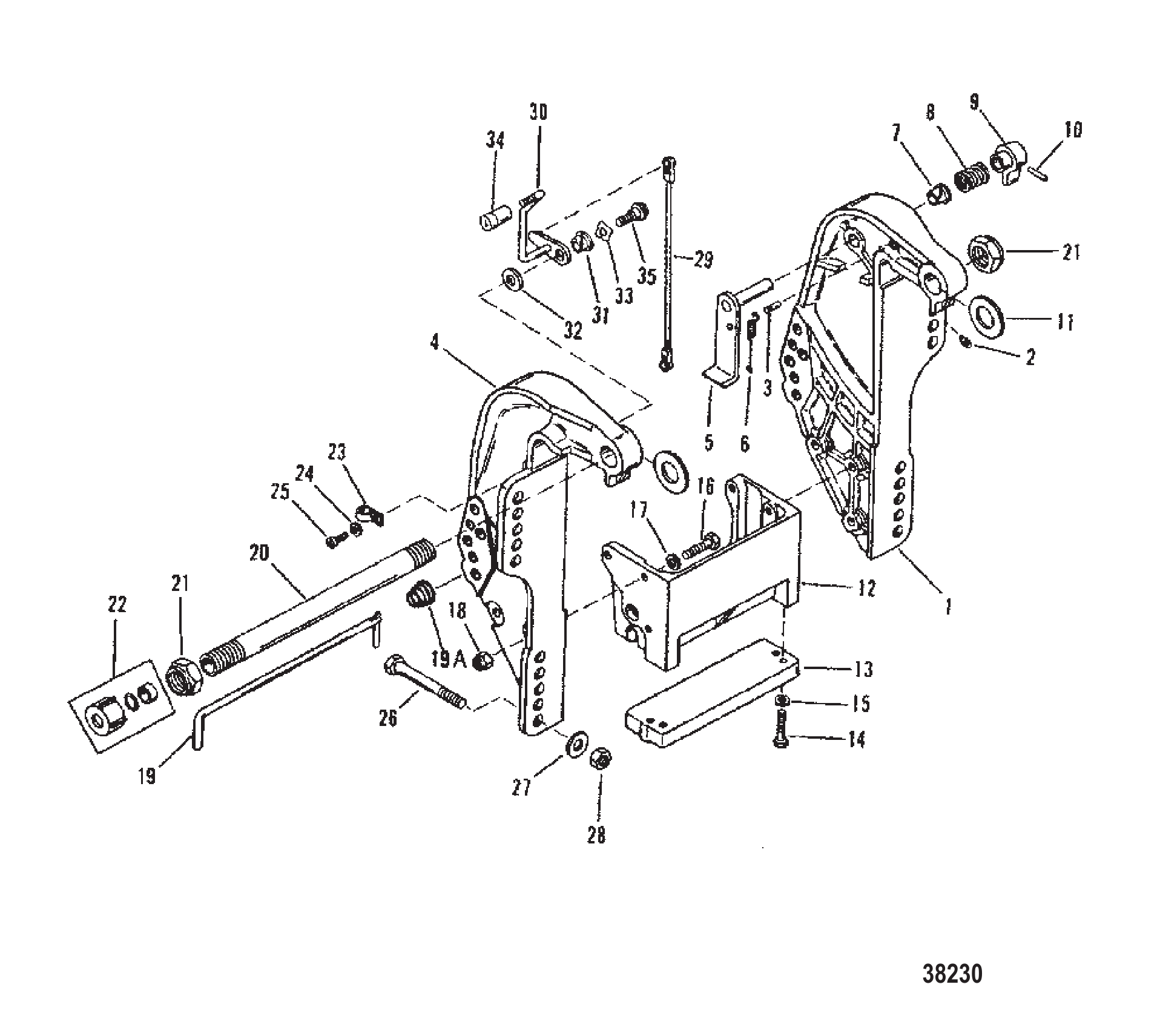

图 87艉板支架(50/60)(序列号:0D181999及以下) TRANSOM BRACKET (50/60)(S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	9751A1	艉板支架总成(黑色)	BRACKET ASSEMBLY Transom (BLACK)	1
1	9751A2	艉板支架总成(灰色)	BRACKET ASSEMBLY Transom (GRAY)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	9750T	艉板支架(黑色)	BRACKET Transom (BLACK)	1
4	9750T6	艉板支架(灰色)	BRACKET Transom (GRAY)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486T6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486F6	锚支架	BRACKET Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	19613A1	倾斜销总成	PIN ASSEMBLY Tilt	1
19A	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19A	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
22	19624A1	密封套件	SEAL KIT	1
23	22740	卡扣	CLIP	1
24	69205	C形垫圈	C WASHER	1
24	8M0084613	C形垫圈	C-WASHER	1
25	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
25	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	815796	垫圈	WASHER	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1

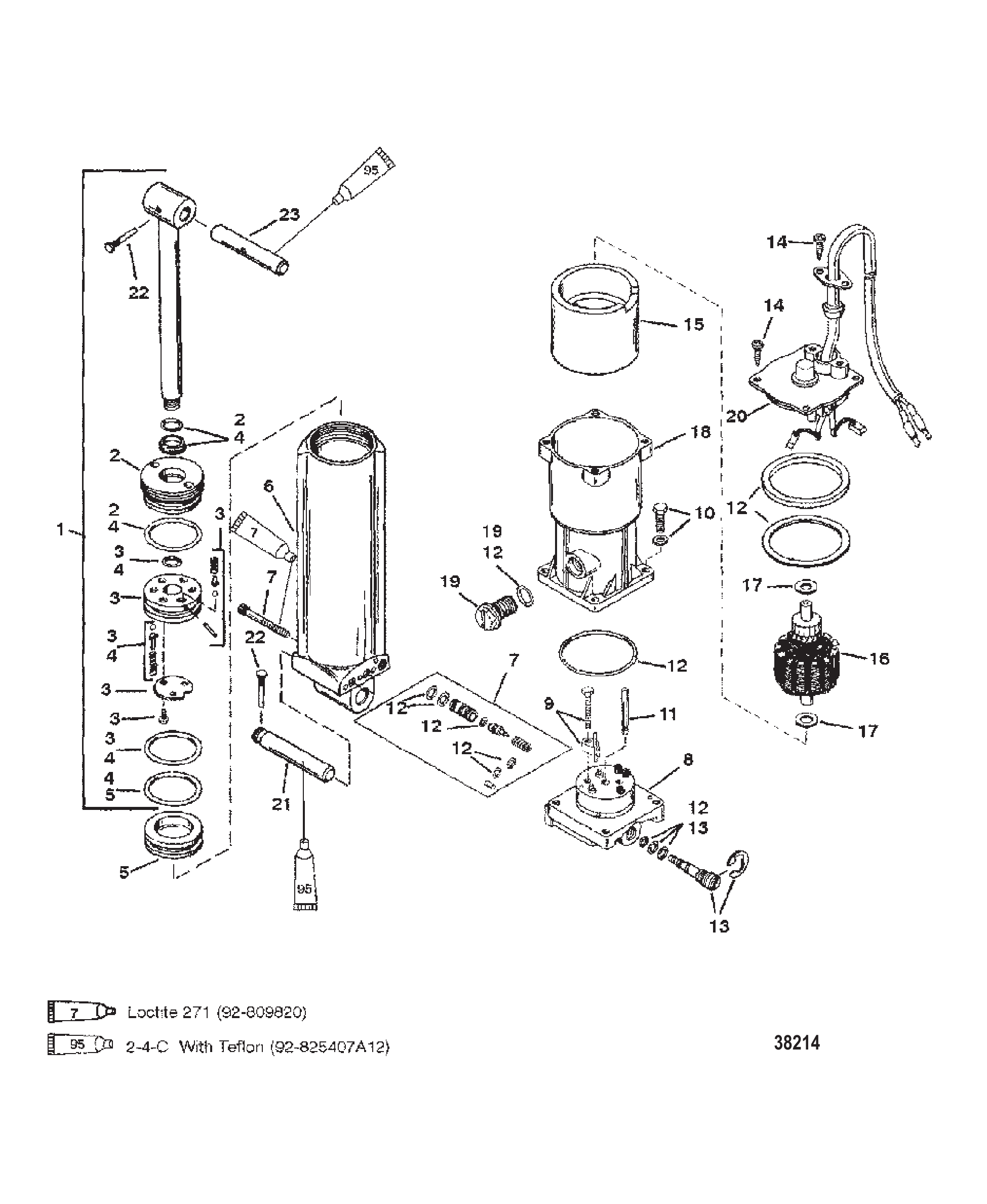

图 88动力配平(序列号0G357069及以下-黑色注油塞) POWER TRIM (S/# 0G357069 and BELOW-BLACK FILL PLUG)

REF	零件编号	中文名称	英文名称	数量
-	822870A1	泵总成	PUMP ASSEMBLY	1
1	8134271	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A3	气缸密封套件	SEAL KIT Cylinder	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	811228	气缸套件	CYLINDER KIT	1
6	893904T01	气缸总成	CYLINDER ASSEMBLY	1
7	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	8116706	泵/歧管套件	PUMP/MANIFOLD KIT	1
8	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
9	823180A1	摇臂套件	ROCKER ARM KIT	1
9	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
10	813436	螺钉套件	SCREW KIT	1
11	811671	驱动轴	DRIVESHAFT	1
12	811672A3	O型圈套件	O-RING KIT	1
12	811672A4	O型圈套件	O RING KIT	1
13	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
13	893929A01	安全阀套件	VALVE KIT Relief	1
14	813446	螺钉	SCREW	1
15	811674	储液罐/马达	RESERVOIR/MOTOR	1
15	809885A1	电机套件	MOTOR KIT	1
16	811675	电枢	ARMATURE	1
17	811676	止推垫片套件	THRUST WASHER KIT	1
18	811673	储液罐	RESERVOIR	1
18	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
19	813435	塞套件	PLUG KIT	1
19	8134351	堵头	PLUG	1
20	811677	储液罐盖套件	CAP KIT Reservoir	1
20	809885A1	电机套件	MOTOR KIT	1
21	19607	销	PIN	1
22	821539	三叶销	PIN Trilobe	2
23	822869	销	PIN	1
23	822869001	锚销	PIN Anchor	1

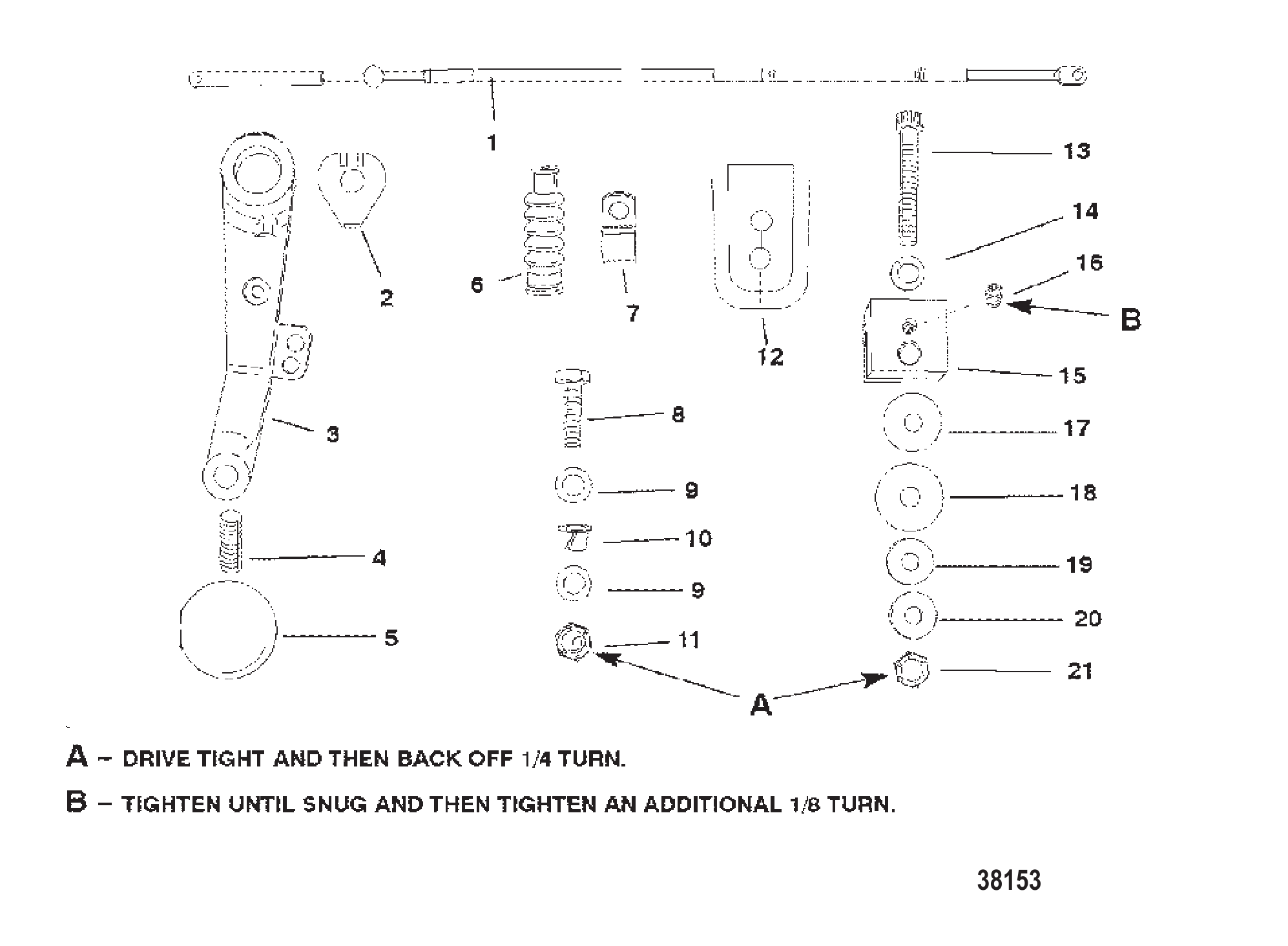

图 89舵柄适配器套件(JET 45) TILLER HANDLE ADAPTOR KIT (JET 45)

REF	零件编号	中文名称	英文名称	数量
-	850000A2	转接套件 45号喷口	ADAPTER KIT 45 JET	1
1	832001A6	换挡线缆总成	CABLE ASSEMBLY Shift	1
2	8158051	锁紧垫圈	TAB WASHER	1
3	816367F5	杠杆	LEVER	1
3	816367F6	杠杆	LEVER	1
4	58152	双头螺柱(0.375-24×1.125)	STUD (.375-24 x 1.125)	1
4	8M0034452	螺柱	STUD	1
5	98530	旋钮	KNOB	1
6	85552	护套	BOOT	1
6	85552001	护套	BOOT	1
7	805444	卡扣	CLIP	1
7	8054441	卡扣	CLIP	1
8	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	1
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
10	26856	衬套	BUSHING	1
11	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
11	8M0207776	螺母	NUT	1
12	8136052	密封件	SEAL	1
12	813605003	密封件	SEAL	1
13	71958	螺丝(.250-28 x 1.75)	SCREW (.250-28 x 1.75)	1
14	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
15	828094	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
16	72734	紧定螺丝(#10-32 x .310)	SET SCREW (#10-32 x .310)	1
17	37905	垫圈	WASHER	1
18	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
19	35459	垫圈	WASHER	1
20	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
20	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
21	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1

图 90外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	813010A8	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	8M0107016	罩盖-顶部, 黑色	COWL-TOP, BLACK	1
1	813010A9	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	813010T14	顶罩总成银色-电动型	TOP COWL ASSEMBLY Silver-Electric	1
1	813010A14	上机罩总成(银色)	TOP COWL ASSEMBLY (SILVER)	1
1	813010T14	顶罩总成银色-电动型	TOP COWL ASSEMBLY Silver-Electric	1
1	813010A13	上机罩总成(TRACKER)	TOP COWL ASSEMBLY (TRACKER)	1
1	813010T14	顶罩总成银色-电动型	TOP COWL ASSEMBLY Silver-Electric	1
1	816534A8	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	8M0107142	罩盖-顶部, 黑色	COWL-TOP, BLACK	1
1	816534A14	上机罩总成(银色)	TOP COWL ASSEMBLY (SILVER)	1
1	816534T14	顶罩总成银色-手动型	TOP COWL ASSEMBLY Silver-Manual	1
2	824666	进气口护罩	SHIELD Air Inlet	1
3	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	24664	垫圈(M4 x 20)(旧设计)	WASHER (M4 x 20) (OLD DESIGN)	4
5	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start (MANUAL STARTING)	1
5	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
6	813548A3	罩盖支撑支架-黑色(前)	BRACKET Cowl Support - Black (FRONT)	1
6	813548A4	罩盖支撑支架总成(前)(灰色)	BRACKET ASSEMBLY Cowl Support (FRONT ) (GRAY)	1
6	813548A6	罩盖支撑支架-银色(前)	BRACKET Cowl Support - Silver (FRONT)	1
6	813548A3	支架罩盖支撑-黑色	BRACKET Cowl Support - Black	1
6	813548A5	罩盖支撑支架总成(前)(TRACKER)	BRACKET ASSEMBLY Cowl Support (FRONT) (TRACKER)	1
6A	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	2
6B	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
6C	8237515	螺母(M4)	NUT (M4)	2
7	813549A2	罩盖支撑支架(后)	BRACKET Cowl Support (REAR)	1
7A	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	3
7B	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
7C	8237515	螺母(M4)	NUT (M4)	3
8	814336A1	隔音毯套装	SOUND BLANKET KIT	1
8	814336A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
9	444622	密封件	SEAL	1
9	8M0043150	罩盖密封条	SEAL-COWL	1
10	813504A1	油位表套件	GAUGE KIT Oil Level	1
11	813505	护孔环	GROMMET	1
12	11317	固定座	RETAINER	1
12	113171	固定座	RETAINER	1
13	113161	螺母	NUT	1
13	65110	螺母	NUT	1
14	8135462	支架	MOUNT	3
14	813546003	支架	MOUNT	3
15	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
15	893763	滚轮锁扣支架	BRACKET Roller Latch	1
16	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
17	812512A5	底罩(黑色)	BOTTOM COWL (BLACK)	1
17	812512A8	下机罩	BOTTOM COWL	1
17	812512A6	底罩(灰色)	BOTTOM COWL (GRAY)	1
17	812512A9	下罩总成	BOTTOM COWL ASSEMBLY	1
17	812512A7	下机罩(TRACKER)	BOTTOM COWL (TRACKER)	1
17	812512A10	底部罩盖-TRACK	COWL-BOTTOM-TRACK	1
18	813607	密封件	SEAL	1
18	8M0043162	密封件	SEAL	1
19	4000335	螺钉(M6 x 50)	SCREW (M6 x 50)	1
20	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
21	37642	波形垫圈	WAVE WASHER	2
22	19428	衬套	BUSHING	1
23	813547T	罩盖锁杆(黑色)	LEVER Cowl Latch (BLACK)	1
23	813547F1	杠杆	LEVER	1
23	813547T6	罩盖锁杆(灰色)	LEVER Cowl Latch (GRAY)	1
23	813547F1	杠杆	LEVER	1
23	813547F3	罩盖锁杆(TRACKER)	LEVER Cowl Latch (TRACKER)	1
23	813547F1	杠杆	LEVER	1
24	826354A1	衬套套件罩盖锁扣	BUSHING KIT Cowl Latch	1
25	813604	锁扣凸轮	LATCH CAM	1
26	400634	螺母 (M6)	NUT (M6)	1
26	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
27	88807A28	拉线总成	CABLE ASSEMBLY	1
28	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
28	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
29	19812A1	支架电缆固定器	BRACKET Cable Retainer	1
29	19812T03	支架总成	BRACKET ASSEMBLY	1
30	42975	传动螺钉	DRIVE SCREW	2
31	98889	闩锁	LATCH	1
32	39519	杯套	CUP	1
33	813613	接头	FITTING	1
34	7568058	软管 (15.00英寸)	HOSE (15.00 Inches)	1
35	8128301	堵头	PLUG	1
35	812830T01	堵头	PLUG	1
36	8124431	固定座	RETAINER	1
36	8M0032848	开关固定座	RETAINER Switch	1
37	824896	装饰圈(旧设计)	BEZEL (OLD DESIGN)	1
38	18286A40	开关总成	SWITCH ASSEMBLY	1
38	8M0235192	微调开关	SWITCH TRIM	1
39	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	2
40	813606	密封件	SEAL	1
40	813606003	密封件	SEAL	1
41	8136051	密封件	SEAL	1
41	813605003	密封件	SEAL	1
42	812717T	配平盖(黑色)	TRIM COVER (BLACK)	1
42	812717T1	配平盖	TRIM COVER	1
42	812717T6	配平盖(灰色)	TRIM COVER (GRAY)	1
42	812717T	配平盖	TRIM COVER	1
42	812717F1	配平盖(追踪器型)	TRIM COVER (TRACKER)	1
43	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	4
44	813939A2	继电器总成	RELAY ASSEMBLY	1
NS	821509	继电器	RELAY	2
NS	821509T01	继电器	RELAY	2
45	40011130	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	2
46	823593A1	导流板套件空气	DEFLECTOR KIT Air	1

图 91燃油泵(50/60) FUEL PUMP (50/60)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE SPRING	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS	不单独销售	NOT SOLD SEPARATE	1
9	NSS		NOT SOLD SEPARATE CAP	1
10	NSS		NOT SOLD SEPARATE DIAPHRAGM	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS		NOT SOLD SEPARATE GASKET-BOOST	1
13	NSS		NOT SOLD SEPARATE GASKET-PULSE	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
16	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
16	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
17	144303	底座	BASE	1
18	830767	软管	HOSE	1
19	8162961	燃油滤清器	FILTER Fuel	1
19	816296Q2	燃油滤清器	FILTER Fuel	1
20	830761	燃油管	LINE Fuel	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	83075780	管材(28.00英寸散装)(1-1/4英寸)(1-1/4英寸)(14-1/4英寸)	TUBING (28.00 Inches Bulk) (1-1/4 IN.)(1-1/4 IN.)(14-1/4 IN.)	3
22	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	3
23	818993	三通接头	CONNECTOR Tee	1
24	8189941	止回阀	CHECK VALVE	1
25	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
25	816856T01	燃油接头	CONNECTOR-FUEL	1
26	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
27	9912878	软管 (0.187) (26.00英寸散装) (4-1/4英寸)	HOSE (.187) (26.00 Inches Bulk) (4-1/4 IN.)	1
28	428593	电磁阀	SOLENOID VALVE	1
28	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
29	9912688	管材(36.00英寸散装)(1-3/4英寸)(3-1/4英寸)(11-1/2英寸)	TUBING (36.00 Inches Bulk) (1-3/4 IN.)(3-1/4 IN.)(11-1/2 IN.)	3
30	59169	接头	FITTING	1
30	59169003	三通接头	FITTING Tee	1
31	99130122	管材（20英尺卷装）（16英寸）	TUBING (20.00 Feet Bulk) (16 IN.)	1
31	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
32	633001	卡箍	CLAMP	1
33	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
-	812867A97	衬垫套件	GASKET SET	1
-	811209A93	动力头总成	POWERHEAD ASSEMBLY	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

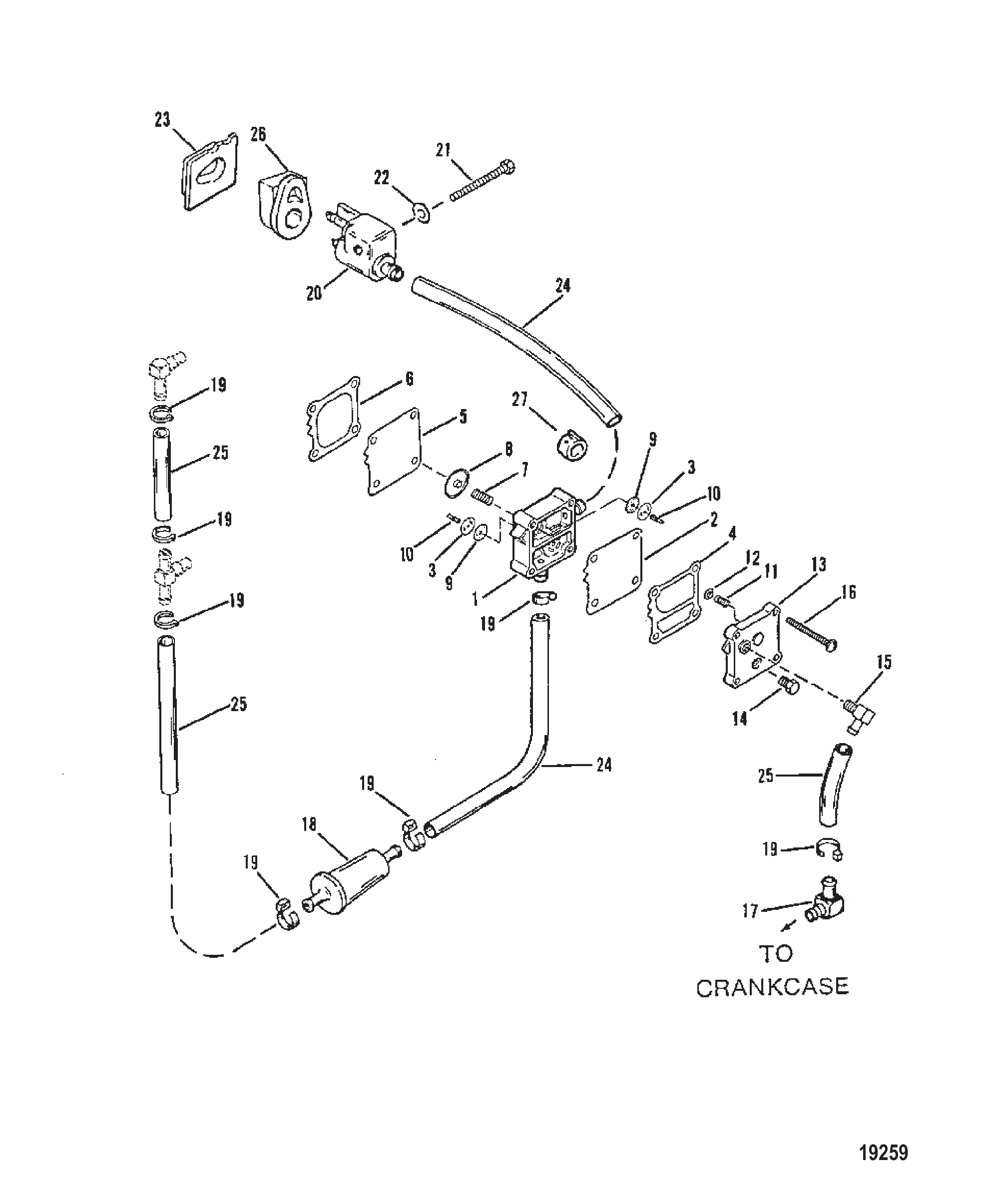

图 92燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	14360A14	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A4	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS		NOT SOLD SEPARATE Disc-Rubber	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	98775A2	燃油泵板	PLATE FUEL PUMP	1
13	987752	安装板	PLATE	1
14	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
15	19688	接头	FITTING	1
16	90190	燃油泵螺钉	SCREW FUEL PUMP	1
16	16562	燃油泵螺钉(#12-24x1.50)	SCREW (#12-24 x 1.50) FUEL PUMP	3
17	64705	燃油管接头	FITTING FUEL LINE	1
18	164941	燃油滤清器	FILTER Fuel	1
18	816296Q2	燃油滤清器	FILTER Fuel	1
19	90077	燃油管束带	TIE STRAP FUEL TUBING	AR
19	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	15781A10	燃油接头-金属	CONNECTOR Fuel - Metal	1
20	15781A1	燃油连接器	CONNECTOR Fuel	1
20	15781A1	燃油接头(塑料)	CONNECTOR Fuel (PLASTIC)	1
20	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
21	76596	燃油金属接头螺钉(0.250-20x1.250)	SCREW (.250-20 x 1.250) FUEL CONNECTOR (METAL)	1
21	69093	燃油塑料接头螺钉(0.250-20x1.50)	SCREW (.250-20 x 1.50) FUEL CONNECTOR (PLASTIC)	1
22	27736	燃油金属接头螺钉垫圈	WASHER FUEL CONNECTOR SCREW (METAL)	1
22	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	29245	不锈钢燃油塑料接头螺钉垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel FUEL CONNECTOR SCREW (PLASTIC)	1
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	17970	燃油金属接头护圈	GROMMET FUEL CONNECTOR (METAL)	1
23	17969	燃油塑料接头护圈	GROMMET FUEL CONNECTOR (PLASTIC)	1
24	9912976	油管	TUBING	2
24	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
25	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	3
25	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	3
26	815849	橡胶护圈 (60 EL)	GROMMET (60 EL)	1
27	415827	尼龙卡箍 (60 EL)	CLAMP Nylon (60 EL)	2
27	41582Q7	卡箍	CLAMP	2
-	43779A87	衬垫套件	GASKET SET	1

图 93专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量

图 94喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	80140060	喷射泵组件(黑色)	JET PUMP ASSEMBLY (BLACK)	1
-	80140160	喷射泵组件(灰色)	JET PUMP ASSEMBLY (GRAY)	1
-	8M0230714	喷射泵总成	JET PUMP ASSY	1
1	80141160	泵壳	HOUSING Pump	1
1	801411T60	泵壳体	HOUSING PUMP	1
1A	827490	润滑油管	HOSE Lube	1
2	80141460	叶轮	IMPELLER	1
2	8M0230713	叶轮	IMPELLER	1
3	80141260	进气壳体	HOUSING Intake	1
3A	8271882	衬套	LINER	1
4	80141360	驱动轴	DRIVESHAFT	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	818146	螺钉(.312-18 X .88)	SCREW (.312-18 X .88)	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
16	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
17	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
18	95802	不锈钢螺钉(.375-16 x 2.750)	SCREW (.375-16 x 2.750) Stainless Steel	1
19	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
19	8M0214963	垫圈	WASHER	1

图 95排气板 EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	19653A2	排气板总成	PLATE ASSEMBLY Exhaust	1
-	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	1
2	23784	定位销	PIN Dowel	4
3	812893	上部支架	MOUNT Upper	1
3	8M4501491	上部安装总成	MOUNT UPPER ASM	1
4	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
5	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
5	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
6	93416	垫圈	WASHER	2
6	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
7	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
7	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	90099	螺母(M12)	NUT (M12)	2
8	896963	螺母(M12)	NUT (M12)	2
9	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1
10	812866	衬垫	GASKET	1
10	8M0000820	衬垫	GASKET	1
11	48237	衬套	BUSHING	1
12	815639A2	换挡轴(上)(短)	SHIFT SHAFT (UPPER)(SHORT)	1
12	812891A1	换挡轴(上)(长-50/60)	SHIFT SHAFT (UPPER)(LONG - 50/60)	1
12	815639A1	换挡轴(上)(长-55)	SHIFT SHAFT (UPPER)(LONG - 55)	1
12	812891A3	换挡轴(60浮筒型-电动)	SHIFT SHAFT (60 PONTOON - ELECTRIC)	1
12	815639A3	换挡轴(60海程/马拉松型-手动)	SHIFT SHAFT (60 SEAPRO/MARATHON - MANUAL)	1
13	812872	换挡连杆	SHIFT LINK	1
13	812872A1	换挡连杆	SHIFT LINK	1
13	812872A1	换挡连杆	SHIFT LINK	1
14	48475	衬套	BUSHING	1
14	42994	衬套	BUSHING	1
15	29720	波形垫圈	WAVE WASHER	1
16	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
17	400634	螺母 (M6)	NUT (M6)	1
17	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
18	430144	水管(短型)	TUBE Water (SHORT)	1
18	8M0042795	短型水管	TUBE-WATER-SHORT	1
18	430143	水管(长型)	TUBE Water (LONG)	1
18	8M0042794	大型水管	TUBE-WATER-LG	1
19	93221	护孔环	GROMMET	1
19	93221002	护孔环	GROMMET	1
20	196551	排气管	TUBE Exhaust	1
20	8M0045214	排气管	TUBE-EXHAUST	1
21	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
22	812886	密封件	SEAL	1
22	812886001	密封件	SEAL	1
23	99019	卡箍	CLAMP	1
24	42941	水管密封件(上部)	SEAL Water Tube (UPPER)	1
24	42941001	水管密封件	SEAL Water Tube	1
25	40011155	不锈钢螺钉(M8x55)	SCREW (M8 x 55) Stainless Steel	2
-	812867A97	衬垫套件	GASKET SET	1

图 96齿轮箱壳体(螺旋桨轴-大脚/海宝/马拉松/浮筒型) GEAR HSG (PROP-BIGFOOT/SEAPRO/MARATHON/PONTOON)

REF	零件编号	中文名称	英文名称	数量
-	9011A69	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9011A71	齿轮箱总成(加长)(黑色)	GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A70	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011A72	齿轮箱总成(加长)(灰色)	GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011A73	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A74	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
42	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
43	12634A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
43	12634T02	齿轮总成	GEAR ASSEMBLY	1
44	30895	滚针轴承	BEARING Needle	1
44	30895T	滚针轴承	BEARING Needle	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45A	44530	钢球	BALL	3
46	30622	弹簧	SPRING	1
47	822539	离合器	CLUTCH	1
47	822539T	离合器	CLUTCH	1
48	30632	十字销	PIN Cross	1
48	8M0100263	十字销	PIN Cross	1
49	30893	弹簧	SPRING	1
50	12238T	螺旋桨轴	PROPELLER SHAFT	1
51	12635	倒挡齿轮	GEAR Reverse	1
51	12635T	倒挡齿轮	GEAR-REVERSE	1
52	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	8M0168901	轴承座总成	CARRIER ASSY.	1
53	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
53	8M0214974	O型圈	O RING	1
54	30956	滚针轴承	BEARING Needle	1
54	30956T	滚针轴承	BEARING Needle	1
55	76868	内密封件	SEAL (INNER)	1
55	8M0248882	油封@5	SEAL-OIL @5	1
56	70081	油封(外)	SEAL Oil (OUTER)	1
56	8M0205729	密封件	SEAL	1
57	12578	滚针轴承	BEARING Needle	1
57	12578T	滚柱轴承	BEARING Roller	1
58	12577	止推垫片	THRUST WASHER	1
59	12576	推力轴承	BEARING Thrust	1
60	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
61	4002317	垫圈 (8.90 X 17.0 X 1.9SS)	WASHER (8.90 X 17.0 X 1.9SS)	2
62	44491A1	垫片组	SHIM SET	1
62	8M0063266	垫片组	SHIM SET	1
63	13191A1	止推垫片	THRUST WASHER	1
63	13191Q01	止推垫片	THRUST WASHER	1
64	816629	锁紧垫圈	TAB WASHER	1
64	816629Q	锁紧垫圈	TAB WASHER	1
65	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
65	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 97顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	827328T9	顶盖总成	TOP COWL ASSEMBLY	1
1	827328T10	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	859356A1	隔音毯套装	SOUND BLANKET KIT	1
4	859356A02	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
6	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
7	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	2
8	823865	盖塞	CAP PLUG	2
9	831207T10	手柄	HANDLE	1
9	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
10	812707	衬套	BUSHING	2
11	831214	隔套	SPACER	1
12	12134	波形垫圈	WASHER Wave	1
13	F481777	凸轮锁轴	CAM Latch Shaft	1
13	8M0001081	凸轮	CAM	1
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
15	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
16	821249M2	前支架	BRACKET Front	3
16	8M0036792	支架	BRACKET	3
17	815477	缓冲器锁扣	BUMPER Latch	3
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
19	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
20	8237951	挡圈	RING Retaining	1
21	815263	滚轮	ROLLER	1
21	8M0207770	滚轮@3	ROLLER @3	1
22	8155381	滚动销	PIN Roll	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	12066Q9	绳索	ROPE	1
26	12066Q10	启动绳@2	ROPE-STARTER@2	1

图 98齿轮箱（驱动轴） Gear Housing (Driveshaft)

REF	零件编号	中文名称	英文名称	数量
-	9760A8	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	9760A9	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A21	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A12	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A13	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A10	齿轮箱总成(加长)(黑色)	GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A11	齿轮箱总成(加长)(灰色)	GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A2	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A3	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A20	齿轮箱总成(基础款)(TRACKER)	GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
2	67892	磁性螺钉	SCREW Magnetic	1
2	8M0058389	放油螺钉套件	SCREW KIT Drain	1
3	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	2
3	79953Q04	放油螺钉套件	SCREW KIT Drain	2
4	19183	纤维垫圈	WASHER Fiber	3
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
5	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
5	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
7	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
8	812768	滚柱轴承	BEARING Roller	1
8A	818226A1	密封/板套件	SEAL/PLATE KIT	1
9	813694	小齿轮	GEAR Pinion	1
9	813694T	小齿轮	GEAR Pinion	1
10	55910	螺母(.437-20)	NUT (.437-20)	1
11	812732A1	换挡轴总成(短/长)	SHIFT SHAFT ASSEMBLY (SHORT/LONG)	1
11	815420	换挡轴(加长型)	SHIFT SHAFT (X-LONG)	1
12	29641	E型卡环	E RING	1
13	813696A2	衬套总成	BUSHING ASSEMBLY	1
14	45258	O型圈 (.987 x .103)	O-RING (.987 x .103)	1
15	8164641	油封	SEAL Oil	1
15	8M0246145	油封	OIL SEAL	1
16	815422	驱动轴(短)	DRIVESHAFT (SHORT)	1
16	812731	驱动轴(长型)	DRIVESHAFT (LONG)	1
16	815421	驱动轴(加长型)	DRIVESHAFT (X-LONG)	1
17	812770A1	垫片组	SHIM SET	AR
17	8M0063262	垫片组	SHIM SET	AR
18	77420A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
18	8M0166756	轴承总成	BEARING ASSEMBLY	1
19	812820	螺母	NUT	1
19	8128201	螺母	NUT	1
20	812966A3	底座总成	BASE ASSEMBLY	1
20	8M0245488	水泵底座	BASE WATER PUMP	1
21	30224	O型圈 (1.859 x .139)	O-RING (1.859 x .139)	1
21	8M0204651	O型圈	O-RING	1
22	814669	油封	SEAL Oil	1
22	8M0245489	油封	SEAL OIL	1
23	814670	油封	SEAL Oil	1
24	197001	面板	FACE PLATE	1
24	19700A2	面板	FACE PLATE	1
25	19453	叶轮	IMPELLER	1
25	19453T	叶轮	IMPELLER	1
26	19699	键	KEY	1
26	8M0032831	叶轮键	KEY Impeller	1
27	14334A1	水泵总成	PUMP ASSEMBLY Water	1
27	14334A3	水泵总成	PUMP ASSEMBLY Water	1
28	19701	衬垫(下部)	GASKET (LOWER)	1
28	8M0224241	衬垫	GASKET	1
29	194541	衬垫(上部)	GASKET (UPPER)	1
30	43023	油封(短/长)	SEAL (SHORT/LONG)	1
30	8M0204658	密封件	SEAL	1
31	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
33	43045	绝缘体	INSULATOR	4
33	8M0204659	绝缘体@4	INSULATOR @4	4
34	19452	绝缘体	INSULATOR	2
35	76039	换挡凸轮控制	CAM Shift Control	1
35	760394	换挡凸轮控制	CAM Shift Control	1
-	812867A97	衬垫套件	GASKET SET	1
-	812966A11	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 99外罩支撑架 COWL SUPPORT BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	73641A1	黑色顶部支架	BRACKET TOP (BLACK)	1
1	73641A2	灰色顶部支架	BRACKET TOP (GRAY)	1
2	62444	顶部支架/安装板橡胶密封条	SEAL RUBBER-TOP BRACKET/MOUNTING PLATE	1
3	79652	支架固定夹	CLIP SUPPORT BRACKET	1
4	48409	支架固定夹用#10-16x0.625不锈钢螺钉	SCREW (#10-16 x .625) Stainless Steel CLIP TO SUPPORT	2
5	79490T	飞轮护罩	SHIELD FLYWHEEL	1
5	79490	护罩	SHIELD	1
6	37656	护罩至支架用#10-32x0.620螺钉	SCREW (#10-32 x .620) SHIELD TO SUPPORT BRACKET	1
7	48408	螺钉（#10-16 x 0.500）护罩至支撑架	SCREW (#10-16 x .500) SHIELD TO SUPPORT BRACKET	3
8	91891	消音器耐磨板	WEAR PLATE SOUND ATENUATOR	2
9	74510A2	后罩支撑架	BRACKET COWL SUPPORT-REAR	1
10	698761	后支架与顶支架密封件	SEAL REAR BRACKET AND TOP BRACKET	2
11	90435	橡胶支座	MOUNT RUBBER	4
12	20346	橡胶安装垫圈	WASHER RUBBER MOUNT	3
12	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	3
13	20184	螺母 (1/4-28X7/32) 橡胶支座	NUT (1/4-28X7/32) RUBBER MOUNT	4
13	8M0207775	螺母 @5	NUT @5	4
14	26901	后支撑架橡胶缓冲块	BUMPER RUBBER-REAR SUPPORT BRACKET	3
14	269011	橡胶缓冲垫	BUMPER Rubber	3
15	60116	顶罩支撑架加固件	BRACE COWL SUPPORT BRACKET (TOP)	1
16	76596	螺钉（0.250-20 x 1.250）支撑架	SCREW (.250-20 x 1.250) SUPPORT BRACKET	3
17	87764	后下部安装架	BRACKET REAR LOWER MOUNT	1
18	76596	螺钉（0.250-20 x 1.250）后支架固定	SCREW (.250-20 x 1.250) REAR BRACKET ATTACHING	3
19	71097	橡胶安装架	BRACKET RUBBER MOUNT	1
20	59645	螺钉（0.312-18 x 0.750）支架至曲轴箱（3/4英寸）	SCREW (.312-18 x .750) BRACKET TO CRANKCASE (3/4")	1
20	824941	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	1
21	97348T	消音器	ATTENUATOR SOUND	1
21	973482	消音器	SOUND ATTENUATOR	1
22	88684	手动阻风门盖	COVER MANUAL CHOKE	1
23	32293	螺钉（0.312-24 x 1.75）盖至顶盖	SCREW (.312-24 x 1.75) COVER TO TOP COVER	1
24	53705	盖板螺丝垫圈	WASHER COVER SCREW	1
24	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	1
25	73986	空气歧管	MANIFOLD Air	1
26	69093	螺钉（0.250-20 x 1.50）空气歧管	SCREW (.250-20 x 1.50) AIR MANIFOLD	2
27	14915T	前消音器盖	COVER SOUND ATTENUATOR (FRONT)	1
28	37655	螺钉（#10-32 x 0.500）前盖	SCREW (#10-32 x .500) FRONT COVER	8
29	73336	前盖塞	PLUG FRONT COVER	2
30	41128A1	隔板总成	PLATE ASSEMBLY	1
31	698761	密封板	SEAL PLATE	2
32	90198	盖板至支撑架螺钉	SCREW COVER PLATE TO SUPPORT BRACKET	2
32	20540	螺钉(.250-20 x .62)	SCREW (.250-20 x .62)	2
33	14169	电缆护套	GROMMET ELECTRICAL CABLES	1
34	14160	固定盖	CAP RETAINING	1
35	14168	螺钉（0.250-20 x 1.00）盖	SCREW (.250-20 x 1.00) CAP	2
36	88238A3	接地线总成	CABLE ASSEMBLY Ground	1
37	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	2
38	36069	螺母	NUT	3
39	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
40	19686	支架	BRACKET	1
41	19758A3	线束总成	HARNESS ASSEMBLY	1
42	18211	继电器开关	RELAY SWITCH	1
43	20401	螺钉（0.190-24 x 0.38）	SCREW (.190-24 x .38)	1

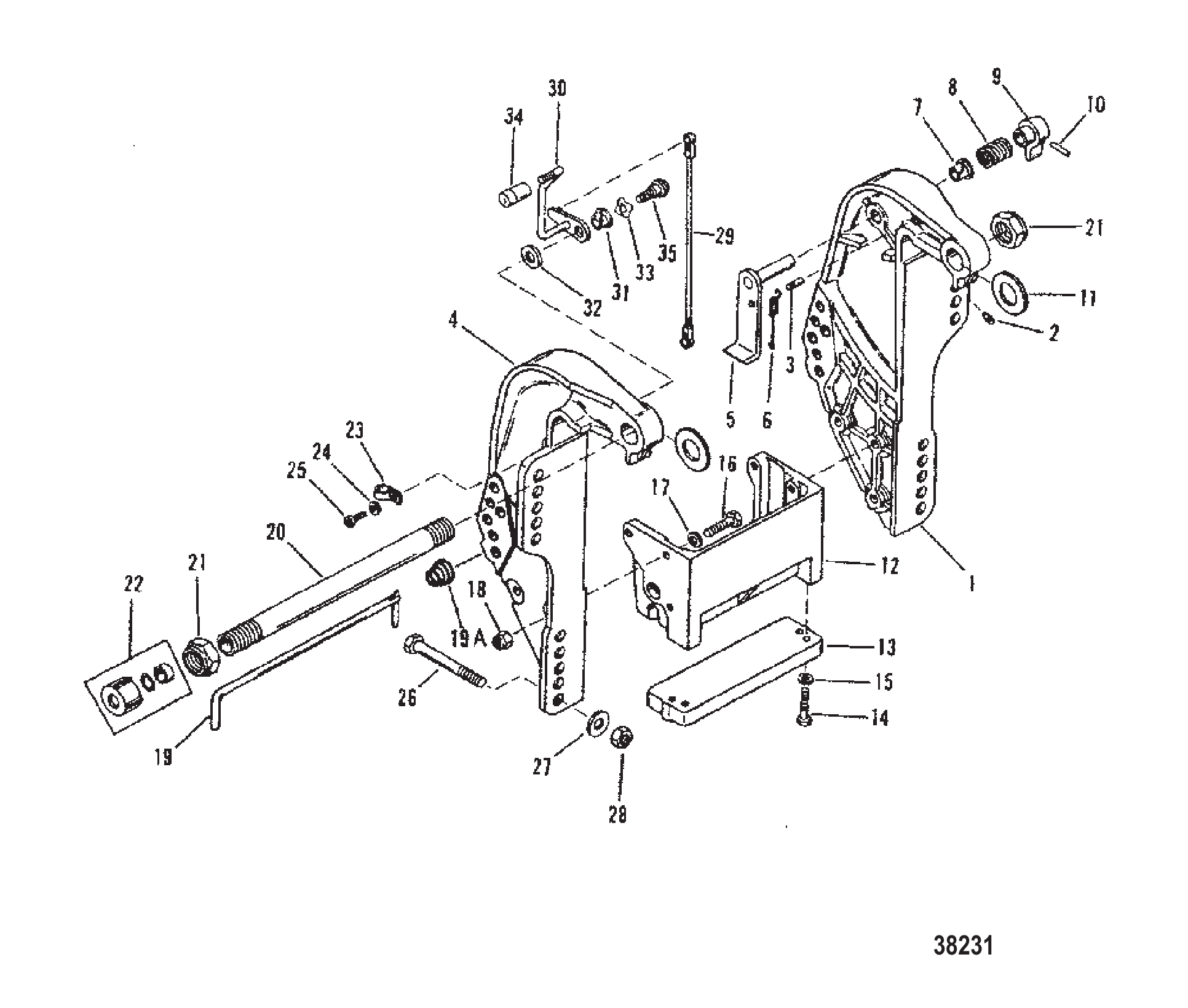

图 100艉板支架(50/60)(序列号:0D182000及以上) TRANSOM BRACKET (50/60)(S/N: 0D182000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	822866A1	艉板支架总成(黑色)	BRACKET ASSEMBLY Transom (BLACK)	1
1	822866A2	艉板支架总成(灰色)	BRACKET ASSEMBLY Transom (GRAY)	1
1	822866A3	艉板支架总成(TRACKER)	BRACKET ASSEMBLY Transom (TRACKER)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822865F2	艉板支架(黑色)	BRACKET Transom (BLACK)	1
4	822865T05	艉板支架-右舷	BRACKET Transom - Starboard	1
4	822865F3	艉板支架(灰色)	BRACKET Transom (GRAY)	1
4	822865F4	艉板支架(TRACKER)	BRACKET Transom (TRACKER)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A5	倾斜锁定杆总成(TRACKER)	LEVER ASSEMBLY Tilt Lock (TRACKER)	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮(黑色)	KNOB (BLACK)	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮(灰色)	KNOB (GRAY)	1
9	812709	旋钮	KNOB	1
9	812709F1	旋钮(TRACKER)	KNOB (TRACKER)	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F7	锚支架(TRACKER)	BRACKET Anchor (TRACKER)	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19A	821461	弹簧	SPRING	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	30499	螺母(7/8-14)	NUT (7/8-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
22	19624A1	密封套件	SEAL KIT	1
23	26550	卡箍	CLAMP	1
24	69205	C形垫圈	C WASHER	1
24	8M0084613	C形垫圈	C-WASHER	1
25	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
25	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1

图 101齿轮箱壳体(驱动轴-大脚/海宝/马拉松/浮筒型) GEAR HSG (DRIVE-BIGFOOT/SEAPRO/MARATHON/PONTOON)

REF	零件编号	中文名称	英文名称	数量
-	9011A69	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9011A71	齿轮箱总成(LL)(黑色)	GEAR HOUSING ASSEMBLY (LL) (BLACK)	1
-	9011G94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A70	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9011G96	ORD 1667-9011G92	ORD 1667-9011G92	1
-	9011A72	齿轮箱总成(LL)(灰色)	GEAR HOUSING ASSEMBLY (LL) (GRAY)	1
-	9011G48	齿轮箱	GEAR HOUSING	1
1	9011A73	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A74	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
5	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	2
5	79953Q04	放油螺钉套件	SCREW KIT Drain	2
6	67892	磁性螺钉	SCREW Magnetic	1
6	8M0058389	放油螺钉套件	SCREW KIT Drain	1
7	19183	纤维垫圈	WASHER Fiber	3
7	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
8	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
9	316404	平衡鳍板	TRIM TAB	1
9	31640Q4	平衡鳍板	TRIM TAB	1
10	15942	螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250)	1
10	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
11	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
12	43040A1	托架总成	CARRIER ASSEMBLY	1
12	43040T1	托架总成	CARRIER ASSEMBLY	1
12A	826134	阳极块	ANODE	2
12A	826134Q	阳极块	ANODE	2
12B	400634	螺母 (M6)	NUT (M6)	1
12B	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12C	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
13	44484	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
13	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	76039	换挡凸轮控制	CAM Shift Control	1
15	760394	换挡凸轮控制	CAM Shift Control	1
16	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
17	44492A1	垫片组	SHIM SET	1
17	8M0063265	垫片组	SHIM SET	1
18	826736A1	驱动轴总成(长)	DRIVESHAFT ASSEMBLY (LONG)	1
18	826737A1	驱动轴总成(加长)	DRIVESHAFT ASSEMBLY (X-LONG)	1
19	42461A1	套筒/环套件	SLEEVE/RING KIT	1
20	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
20	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
21	430331	衬垫	GASKET	1
22	430472	衬垫	GASKET	1
22	8M0214931	衬垫	GASKET	1
23	43035	油封(上)	SEAL Oil (UPPER)	1
23	8M0245495	油封	OIL SEAL	1
24	43036	油封(下)	SEAL Oil (LOWER)	1
25	817277	衬垫	GASKET	1
25	8172771	水泵上垫片	GASKET Water Pump, Upper	1
26	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
27	817276	面板	FACEPLATE	1
27	8M0204709	面板	FACEPLATE	1
28	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
28	8M0214957	螺钉	SCREW	4
29	826763A1	联轴器(长)	COUPLING (LONG)	1
29	826762A1	联轴器(LL)	COUPLING (LL)	1
32	43037	键	KEY	1
32	8M0204723	键	KEY	1
33	430262	叶轮	IMPELLER	1
33	43026T2	叶轮	IMPELLER	1
34	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
36	43048A1	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
36	430482	换挡轴总成(LL)	SHIFT SHAFT ASSEMBLY (LL)	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

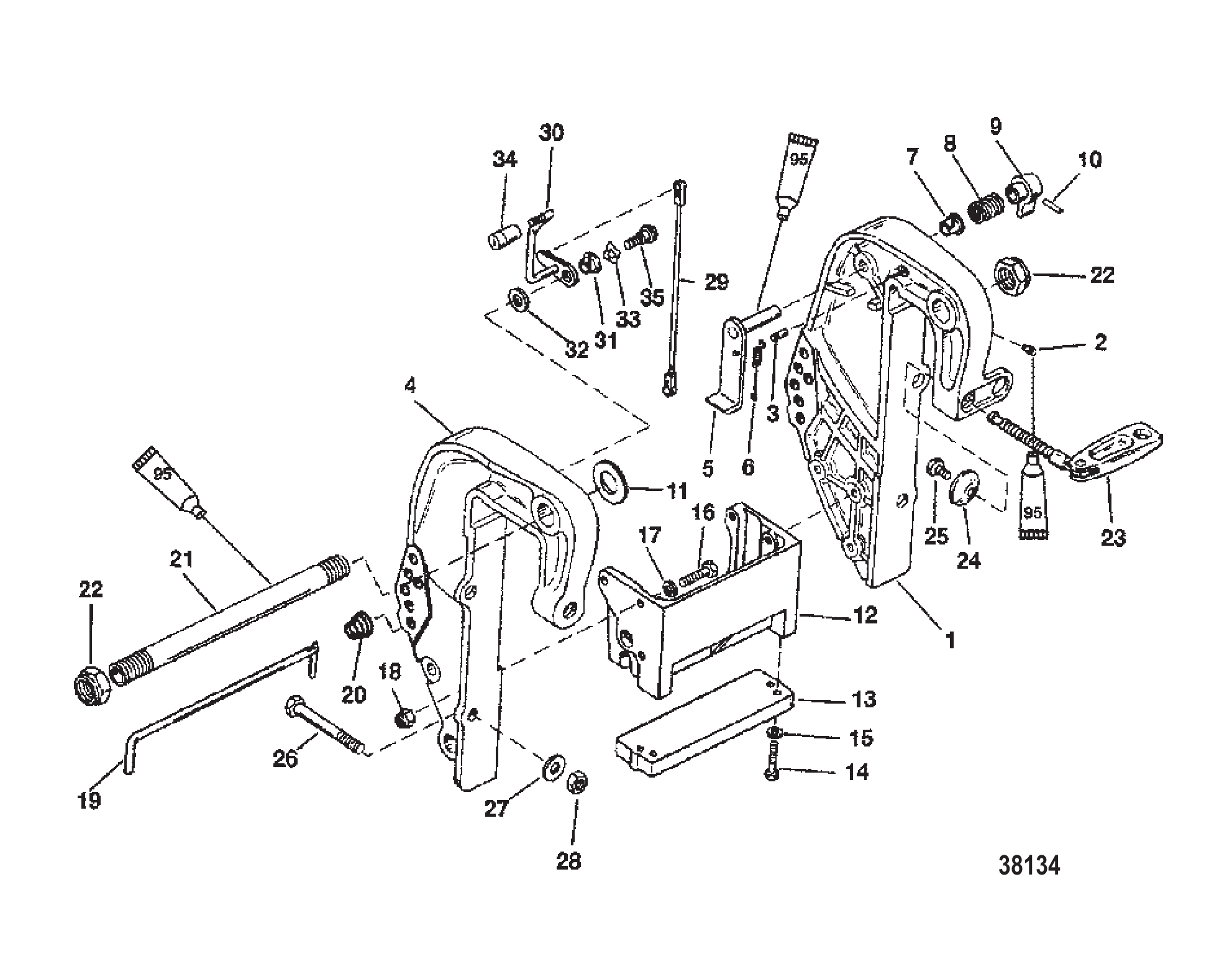

图 102夹紧支架(手动) CLAMP BRACKET (MANUAL)

REF	零件编号	中文名称	英文名称	数量
1	822868A1	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	822868A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822867F1	夹箍支架	CLAMP BRACKET	1
4	822867F2	夹箍支架	CLAMP BRACKET	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	821461	弹簧	SPRING	1
21	19614	倾斜管	TILT TUBE	1
21	8M0041938	倾斜管	TILT TUBE	1
22	826164	螺母 (.875-14)	NUT (.875-14)	2
22	8M0231351	锁紧螺母	NUT Lock	2
23	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
24	818884	垫圈	WASHER	2
25	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938525	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1

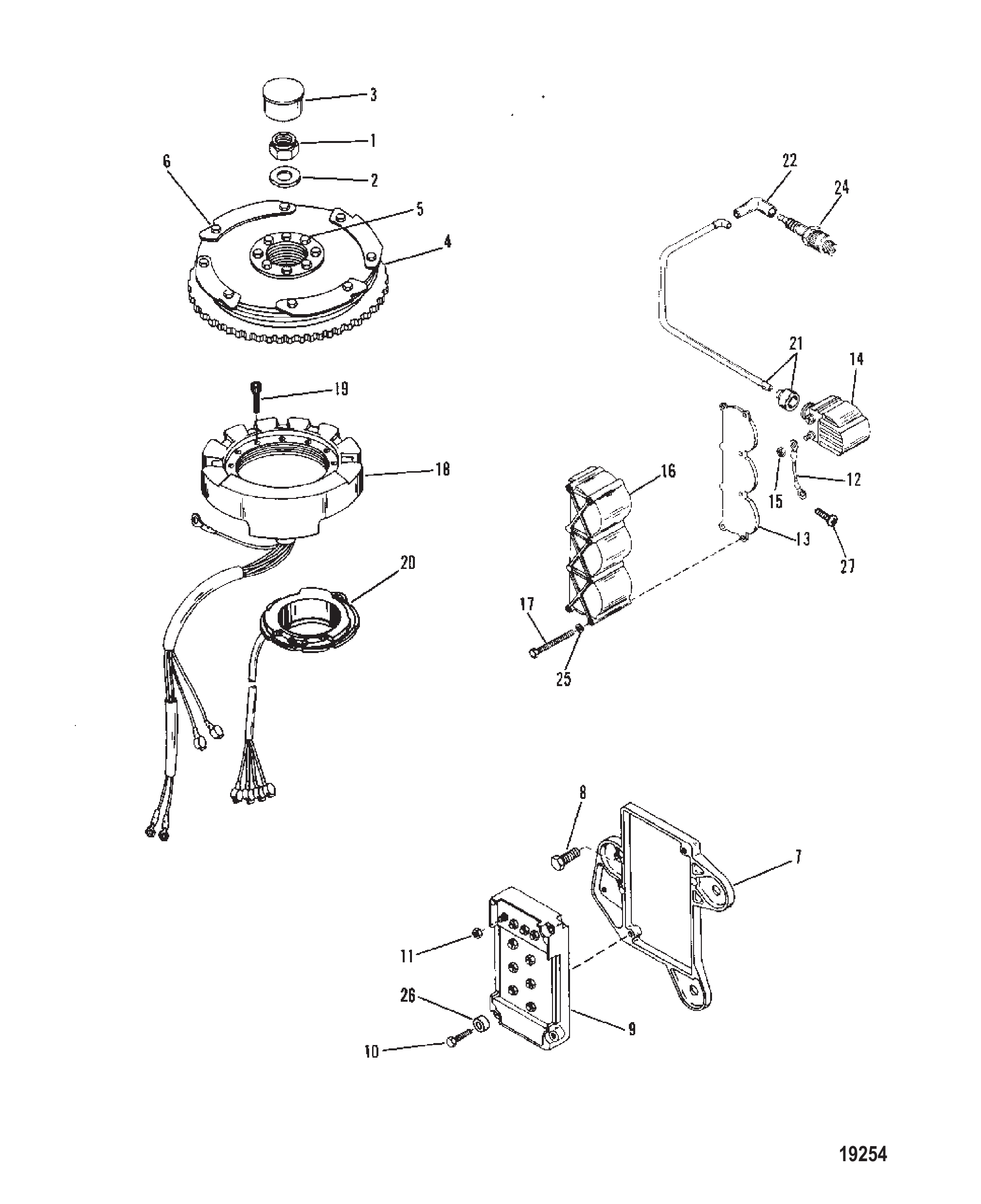

图 103飞轮、开关盒、点火线圈与定子 Flywheel, Switch Box, Ignition Coil and Stator

REF	零件编号	中文名称	英文名称	数量
1	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
2	68229	垫圈（0.641 x 1.250 x 0.190）飞轮螺母	WASHER (.641 x 1.250 x .190) FLYWHEEL NUT	1
2	33001	垫圈	WASHER	1
3	45907	塞子黄色飞轮拉拔器螺纹	PLUG Yellow FLYWHEEL PULLER THREADS	1
4	8722A5	飞轮总成	FLYWHEEL ASSEMBLY	1
5	68997	螺钉 (.312-24 x .750) 板/轮毂	SCREW (.312-24 x .750) PLATE/HUB	8
6	32417		SCREW (.250-28 x .625) FLEXIBLE PLATE TO FLYWHEEL	8
7	889351	开关盒安装板	PLATE SWITCH BOX	1
8	59645	螺钉 (.312-18 x .750) 开关盒板	SCREW (.312-18 x .750) SWITCH BOX PLATE	3
8	824941	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	3
9	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	1
9	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	1
10	20619	螺钉 (#12-24 x 1.25) 开关盒至板	SCREW (#12-24 x 1.25) SWITCH BOX TO PLATE	2
11	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	10
12	60443A3	线束总成开关盒至线圈	WIRE ASSEMBLY SWITCH BOX TO COIL	1
12	62822A1	线束总成开关盒至线圈	WIRE ASSEMBLY SWITCH BOX TO COIL	1
12	68896A4	线束总成开关盒至线圈	WIRE ASSEMBLY SWITCH BOX TO COIL	1
12	88807A9	电缆总成开关盒至线圈	CABLE ASSEMBLY SWITCH BOX TO COIL	1
12	88807A13	电缆总成开关盒至线圈	CABLE ASSEMBLY SWITCH BOX TO COIL	3
13	73439	板安装-点火线圈	PLATE MOUNTING-IGNITION COIL	1
14	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	3
14	8M0230859	点火线圈总成	COIL IGNITION ASY	3
15	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	6
16	43542	点火线圈盖	COVER IGNITION COIL	1
17	92399	螺钉 (.190-32 x 2.250) 盖至安装板	SCREW (.190-32 x 2.250) COVER TO MOUNTING PLATE	6
18	5704A7	定子总成	STATOR ASSEMBLY	1
19	63136	螺钉 (#10-24 x .880) 定子至上端盖	SCREW (#10-24 x .880) STATOR TO UPPER END CAP	4
20	96455A8	触发板总成	PLATE ASSEMBLY Trigger	1
21	813715A6	线束总成火花塞	WIRE ASSEMBLY SPARK PLUG	1
22	63709A1	护套/端子套件	BOOT/TERMINAL KIT	3
24	97180	火花塞	SPARK PLUG	3
24	896329827	SP #L76V @4	SP #L76V @4	3
24	14103550	火花塞 (NGK-BUZHW) (加拿大和比利时)	SPARK PLUG (NGK-BUZHW) (CANADA AND BELGIUM)	3
24	896329898	SP #QL76V @4	SP #QL76V @4	3
25	30164		WASHER (.192 x .375 x .0312) Stainless Steel COIL COVER SCREW	6
26	94304	隔套	SPACER	2
27	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	1
27	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1

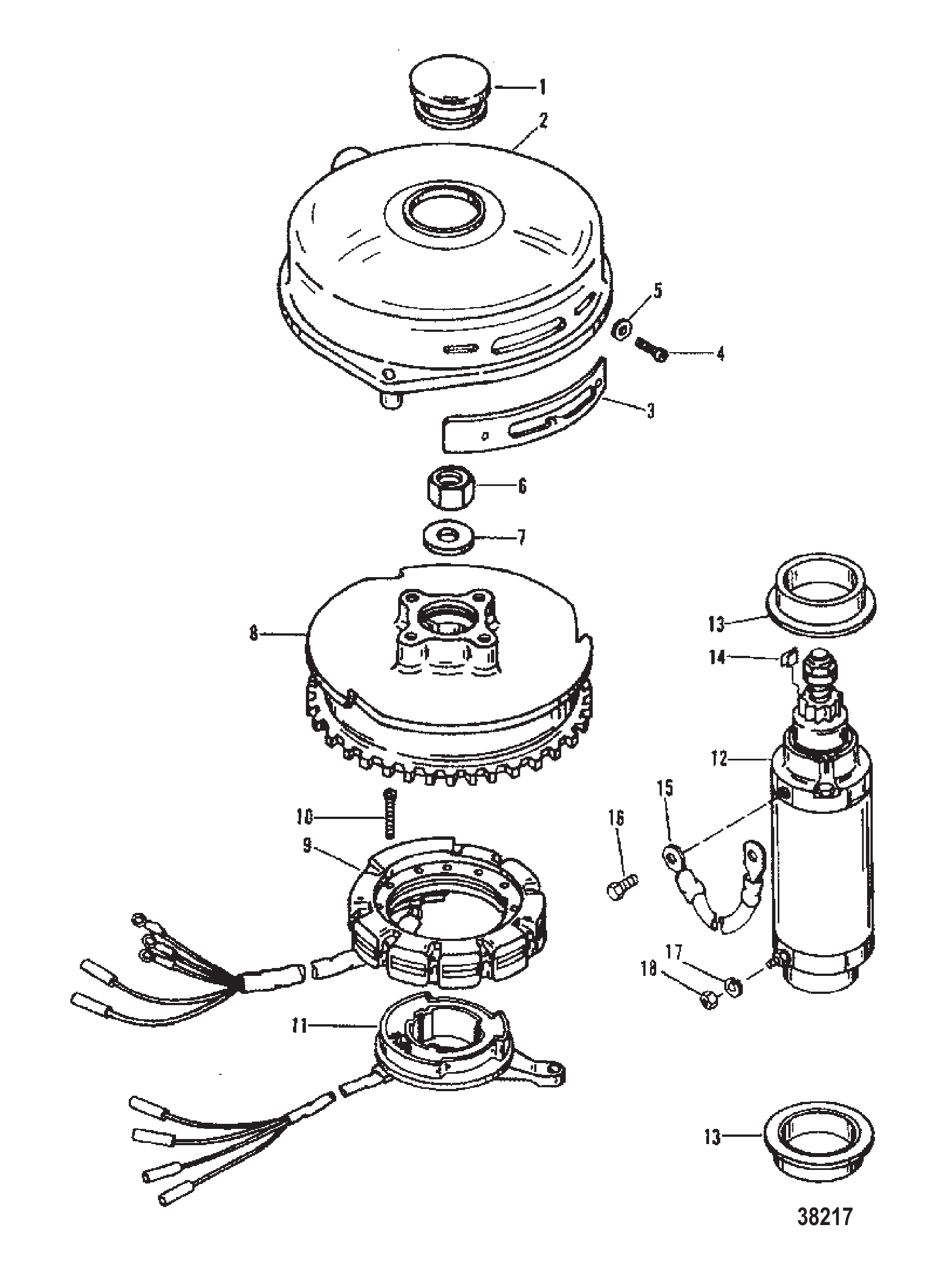

图 104飞轮与启动电机(50/60) FLYWHEEL AND STARTER MOTOR (50/60)

REF	零件编号	中文名称	英文名称	数量
1	89219	堵头	PLUG	1
2	812777T	飞轮盖	FLYWHEEL COVER	1
2	812777T1	盖总成	COVER ASSEMBLY	1
3	79022	标记	MARKER	1
4	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
5	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
6	42979	螺母(M16)	NUT (M16)	1
7	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
7	33001	垫圈	WASHER	1
8	9008A19	飞轮	FLYWHEEL	1
8	9008A50	飞轮	FLYWHEEL	1
9	9710A26	定子(冲压398-9710A22)	STATOR (STAMPED 398-9710A22)	1
9	9873A38	定子套件	STATOR KIT	1
9	9710A23	定子(冲压398-9710A23)	STATOR (STAMPED 398-9710A23)	1
9	9873A35	高输出交流发电机套件	HIGH OUTPUT ALTERNATOR KIT	1
9	9710A36	定子(冲压398-9710A34)	STATOR (STAMPED 398-9710A34)	1
9	832075A19	点火定子套件	IGNITION STATOR KIT	1
10	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
10	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
11	99021A16	触发器	TRIGGER	1
12	44369A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	57247	停机开关	STOP	2
14	8M0043376	停机开关	STOP	2
15	88807A31	拉线总成	CABLE ASSEMBLY	1
16	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
17	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
18	64015	螺母 (.250-20)	NUT (.250-20)	1

图 105手动倾斜装置组件 Manual Tilt Components

REF	零件编号	中文名称	英文名称	数量
1	813427A4	减震杆总成	SHOCK ROD ASSEMBLY	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	8134291	减震活塞	PISTON Shock	1
4	813432A2	气缸修理包	CYLINDER REBUILD KIT	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	810777	气缸套件	CYLINDER KIT	1
6	811224A1	气缸总成	CYLINDER ASSEMBLY	1
6	893918A01	气缸套件	CYLINDER KIT	1
7	813433A1	螺丝和密封套件气缸	SCREW AND SEAL KIT CYLINDER	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
8	893920A01	蓄能器套件	ACCUMULATOR KIT	1
9	813455T4	阀体总成	VALVE BODY ASSEMBLY	1
9	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
10	813456A4	维修套件	REPAIR KIT	1
10	813456A4	维修套件	REPAIR KIT	1
11	813458	塞套件	PLUG KIT	1
11	813458A2	塞套件	PLUG KIT	1
12	813457A1	凸轮总成套件	CAM ASSEMBLY KIT	1
13	813459	塞套件	PLUG KIT	1
14	19607	销	PIN	2
15	821539	三叶销	PIN Trilobe	2
-	830050T3	手动配平总成(完整)	MANUAL TRIM ASSEMBLY COMPLETE	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1

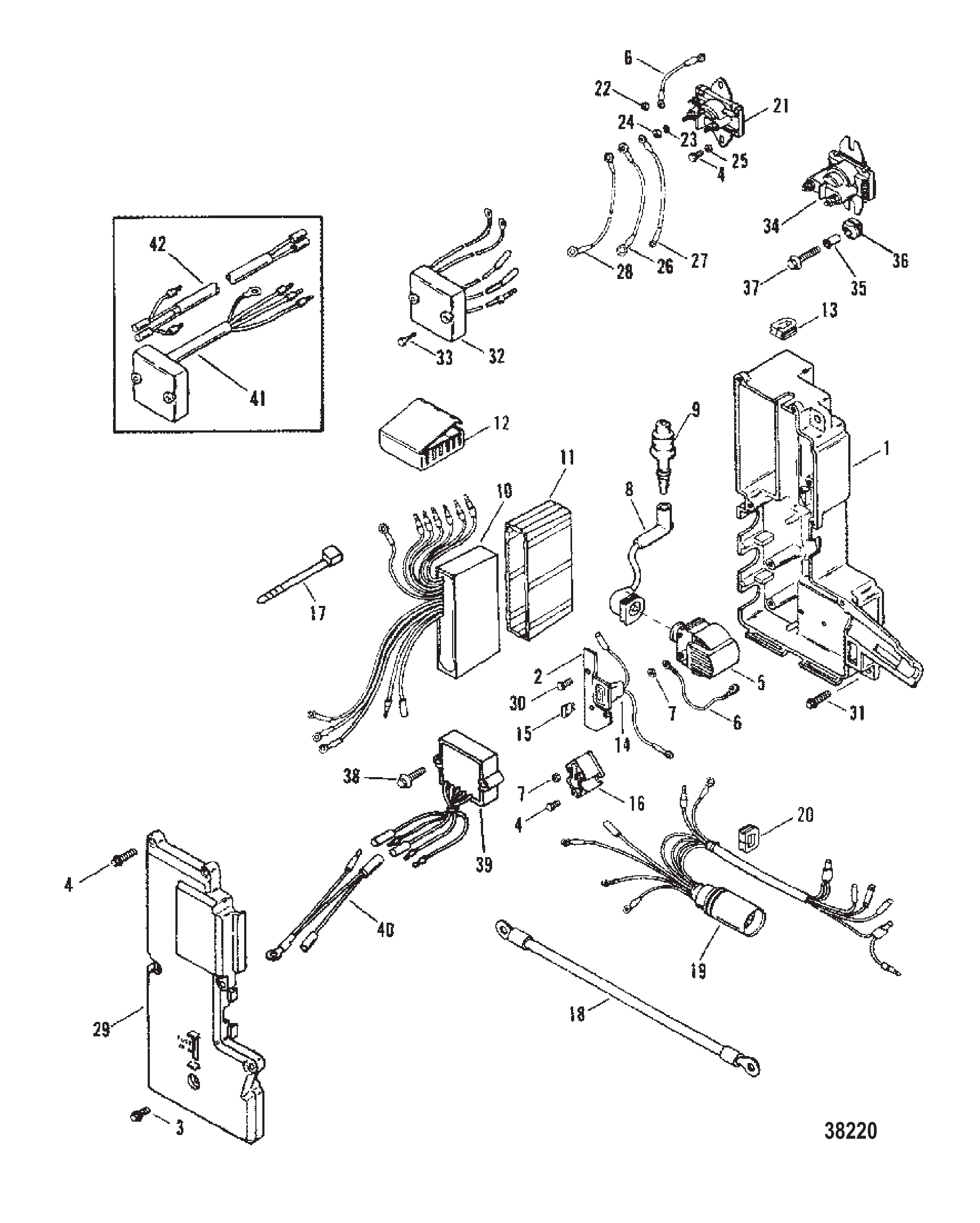

图 106电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	881363T	盖板	COVER	1
2	881364T2	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
2	881364T1	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
3	804291	保险丝20安培	FUSE 20 Ampere	4
3	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
4	80429110	30安保险丝	FUSE 30 Ampere	4
4	8M0057159	30A保险丝	FUSE-30A	4
0	891824010	保险丝盖	COVER Fuse	4
0	891824020	保险丝盖	COVER Fuse	4
5	804289	保险丝拔取器	PULLER Fuse	1
6	881362	支架	BRACKET	1
7	8813511	螺钉	SCREW	1
8	881352T	继电器	RELAY	1
8	8M0098898	继电器	RELAY	1
9	82214M	垫圈	WASHER	2
10	881355	锁紧垫圈	LOCKWASHER	2
10	82212M	锁紧垫圈	LOCKWASHER	2
11	881354	螺钉	SCREW	2
11	96671M	螺钉	SCREW	2
12	804284	护套	BOOT	2
12	804284001	护套	BOOT	2
13	881350T	继电器	RELAY	1
14	881351	螺钉	SCREW	1
15	881353	卡箍	CLAMP	1
16	8813511	螺钉	SCREW	1
17	881359T	支架	BRACKET	1
17	881363A01	盖/支架套件	COVER/BRACKET KIT	1
18	881361	卡箍	CLAMP	1
19	881360	卡箍	CLAMP	1
20	804270	螺栓(M6×28)	BOLT (M6 x 28)	5
21	881304	护孔环	GROMMET	5
22	82851M	衬套	BUSHING	5
22	804344003	轴环	COLLAR	5
23	881356T1	继电器总成	RELAY ASSEMBLY	1
23	882751A3	升降继电器套件	RELAY KIT Trim	1
24	881357	引线	LEAD WIRE	1
25	881358	盖帽	CAP	1
26	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	825702	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
27	8257021	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
28	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
29	88439A33	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
30	88439A10	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
31	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
32	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
32	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
33	858723T1	适配器/升降线束总成	HARNESS ASSEMBLY Adapter/Trim	1
34	858914T1	升降马达适配器线束总成	HARNESS ASSEMBLY Trim Motor Adaptor	1
35	858740T4	遥控适配器线束总成	HARNESS ASSEMBLY Adapter Assembly Remote	1
36	92753	固定座	RETAINER	1
37	859249T1	连接器	CONNECTOR	1
38	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
39	8272822	高压警告标贴	DECAL Warning High Voltage	1
40	881865	挂档启动警示标贴	DECAL Caution-Start in Gear Start in Gear	1
41	828151A2	升降继电器套件	TRIM RELAY KIT	1
41	882751A3	升降继电器套件	RELAY KIT Trim	1
42	826802A24	升降线束总成	HARNESS ASSEMBLY Trim	1
43	828151A1	继电器总成	RELAY ASSEMBLY	2
43	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
44	818967	护孔环	GROMMET	1
44	8M0207785	护孔环	GROMMET	1
45	818968	衬套	BUSHING	1
45	8M0214955	衬套	BUSHING	1
46	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
47	828102	支架	BRACKET	1
47	8M0207771	安装支架	BRACKET Mounting	1
48	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
49	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
49	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
50	823807	衬套	BUSHING	1

图 107曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9611A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	63742	滚珠轴承	BEARING Ball	1
2	63742T	滚珠轴承	BEARING Ball	1
3	812877	挡圈	RING Retaining	1
4	91800	半圆键	KEY Woodruff	2
5	43019A2	齿轮总成	GEAR ASSEMBLY	1
6	812873A1	滚子轴承总成(顶部)	BEARING ASSEMBLY Roller (TOP)	1
7	419531	油封	SEAL Oil	1
8	812881A1	滚子轴承总成(中部)	BEARING ASSEMBLY Roller (CENTER)	2
9	9613A1	活塞总成	PISTON ASSEMBLY	3
9	9613T1	活塞	PISTON	3
9	9613A2	活塞总成	PISTON ASSEMBLY	AR
9	9613T2	活塞总成0.015	PISTON ASSY .015	AR
9	9613A3	活塞总成	PISTON ASSEMBLY	AR
9	9613T3	活塞	PISTON	AR
10	52035	锁环	RING Lock	6
10	857196	锁紧环	LOCK RING	6
11	19721A6	活塞环组	RING SET Piston	1
11	19721A1	活塞环组	RING SET Piston	AR
11	19721A2	活塞环组	RING SET Piston	AR
12	9612A2	连杆总成	CONNECTING ROD ASSEMBLY	3
12	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
13	812876	垫圈	WASHER	6
13	8M0012298	止推垫片	THRUST WASHER	6
14	47270	轴承	BEARING	8
14	8M0214934	滚针轴承@200	BRG-NEEDLE @200	8
15	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
16	17514A1	轴承套件	BEARING KIT	3
16	8M0234886	轴承保持架	CAGE BEARING	3
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

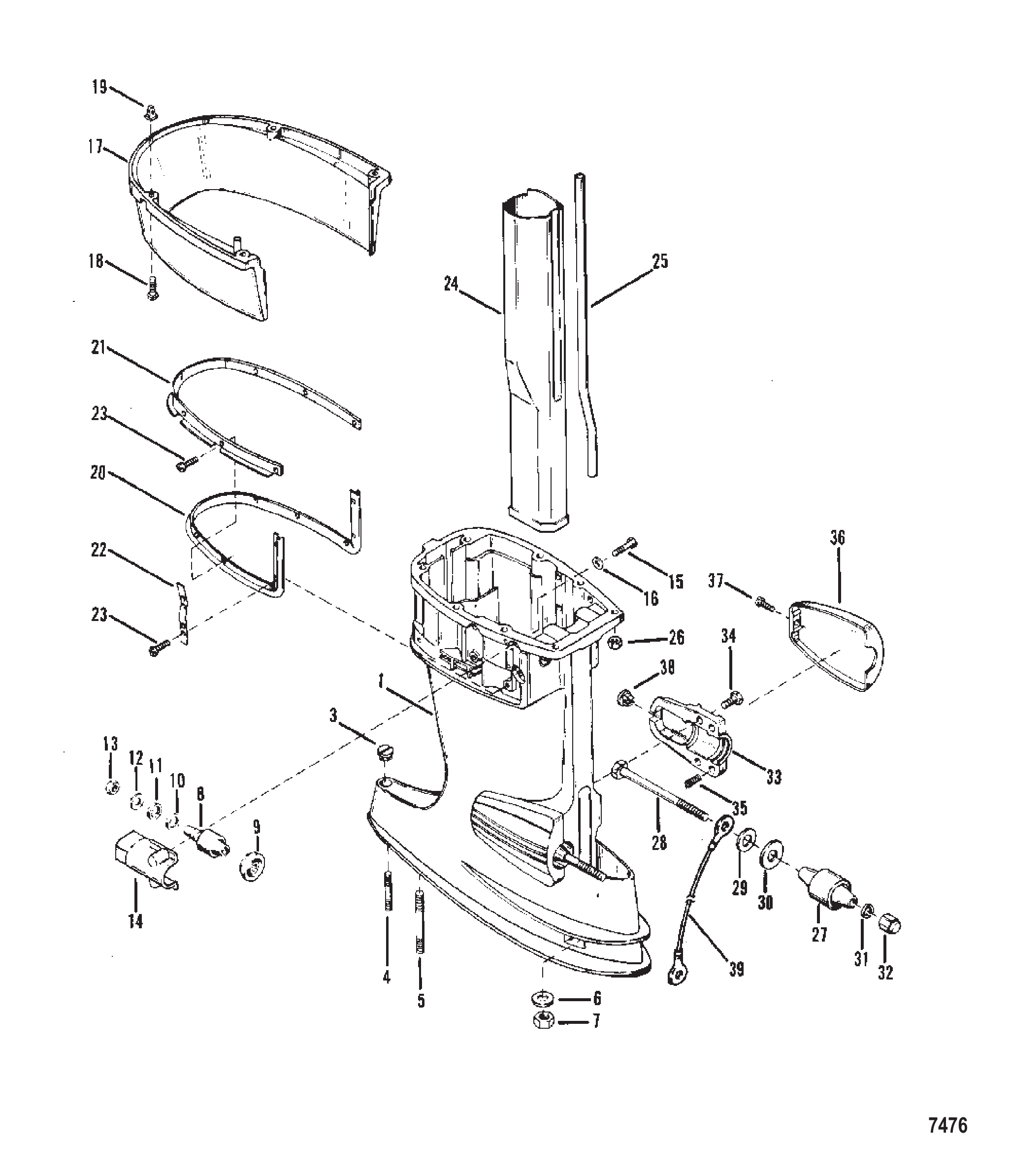

图 108驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7512A10	驱动轴壳体总成(短轴)	HOUSING ASSEMBLY Driveshaft (Short Shaft)	1
1	7513A12	驱动轴壳体总成(长轴)	HOUSING ASSEMBLY Driveshaft (Long Shaft)	1
1	8189A10	黑色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Black	1
1	8189A11	灰色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Gray	1
3	64649	塑料螺塞-调整片螺钉孔	PLUG Plastic - Trim Tab Screw Hole	1
4	57932		STUD (.375-16/.375-24 x 1.750) Driveshaft Housing	1
4	8M0022145	螺柱(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750)	1
5	57935	驱动轴壳体双头螺柱(3英寸)	STUD Driveshaft Housing (3 Inch)	1
6	65791	齿轮箱壳体螺柱垫圈(0.438英寸)	WASHER Gear Housing Studs (0.438 Inch)	2
7	34933		NUT (.437-20) Stainless Steel Gear Housing Studs	2
7	8M0204653	螺母	NUT	2
8	93445	橡胶上支架	MOUNT Rubber - Upper	2
8	923373	支架	MOUNT	2
9	96401	上支架密封件	SEAL Upper Mount	2
10	27727		WASHER Upper Mount Bolt (37/64 I.D.)	2
11	66966		WASHER Rubber - Upper Mount Bolt	2
12	30514		WASHER Upper Mount Bolt	2
13	34933		NUT (.437-20) Stainless Steel Upper Mount Bolt	2
13	8M0204653	螺母	NUT	2
14	87883T	上减震座盖	COVER Upper Mount	2
14	87883	盖板	COVER	2
15	76630		SCREW (.250-20 x 1.00) Upper Mount Cover	4
15	8M0214943	螺钉	SCREW	4
16	29245		WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw	4
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	37687	驱动轴壳体调整盖	COVER Trim - Driveshaft Housing	1
17	37687F2	驱动轴壳体调整盖	COVER Trim - Driveshaft Housing	1
18	57807		SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing	4
19	92012		GROMMET Trim Cover Screw	4
19	8M0079730	密封圈套件	GROMMET KIT	4
20	38157	调整盖至驱动轴壳体密封件	SEAL Trim Cover to Driveshaft Housing	1
21	38158	调整盖密封条(后)	STRIP Retaining - Trim Cover Seal (Rear)	1
22	38154	调整盖密封条(侧)	STRIP Retaining - Trim Cover Seal (Side)	2
23	48408	固定条螺钉(#10-16 x .500)	SCREW (#10-16 x .500) Retaining Strip	8
24	695431	排气管	TUBE Exhaust	1
24	695441	排气管	TUBE Exhaust	1
25	37727	进水口管	TUBE Water Inlet	1
25	45679	进水口管	TUBE Water Inlet	1
26	64809	动力头螺柱螺母(0.313英寸)	NUT Powerhead Studs (0.313 Inch)	8
27	75304	下橡胶支座	MOUNT Rubber - Lower	2
27	75304T1	支架	MOUNT	2
28	75284		SCREW (.500-20 x 5.500) Lower Mount Screw	2
28	43426	下支座螺丝	SCREW Lower Mount Screw	2
29	28051		WASHER Lower Mount Screw	2
30	28053	下支座螺丝橡胶垫圈	WASHER Rubber - Lower Mount Screw	2
31	30119		WASHER (.875 Inch Outside Diameter) Lower Mount Screw	2
32	25096		NUT Lower Mount Screw	2
33	69592	下支座夹箍	CLAMP Lower Mount	2
33	69592F1	卡箍	CLAMP	2
34	29256		SCREW (.312-18 x .875) Lower Mount Clamp	4
35	35522		SPRING Tension - Lower Mount Clamp	4
36	35474T	下安装夹盖	COVER Lower Mount Clamp	2
36	35474F2	下支座夹箍盖	COVER Lower Mount Clamp Lower Mount Clamp	2
37	87884	盖至下支座夹箍螺丝(#12-14 x 0.920)	SCREW (#12-14 x .920) Cover to Lower Mount Clamp	2
38	35521		NUT Lower Mount Clamp Cover	2
39	88238A2	动力升降接地线组件(2根)	CABLE ASSEMBLY Ground Quanity of Two on Power Trim	1
39	88238A10	接地线总成	CABLE ASSEMBLY Ground	1

图 109夹箍支架 CLAMP BRACKET

REF	零件编号	中文名称	英文名称	数量
1	8894A5	夹具支架总成 (左舷) (黑色)	CLAMP BRACKET ASSEMBLY (PORT) (BLACK)	1
1	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	8894A6	夹具支架总成 (左舷) (灰色)	CLAMP BRACKET ASSEMBLY (PORT) (GRAY)	1
1	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A3	夹具支架总成 (右舷) (黑色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)	1
2	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A4	夹具支架总成 (右舷) (灰色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)	1
2	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
3	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	92767A3	蝶形螺丝总成 (16 mm)	THUMB SCREW ASSEMBLY (16 mm)	2
4	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	818884	垫圈	WASHER	2
5	768041	垫圈固定螺丝	SCREW WASHER ATTACHING	2
5	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
6	43431	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
6	818539	隔套	SPACER	1
6	8M0084719	隔套	SPACER	1
7	42129	夹紧支架螺柱	STUD CLAMP BRACKET	1
7A	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
8	400256	夹紧支架螺柱防松垫圈(M6)	LOCKWASHER (M6) CLAMP BRACKET STUD	2
9	400212	夹紧支架螺柱不锈钢螺母(M6)	NUT (M6) Stainless Steel CLAMP BRACKET STUD	2
10	42078	倾斜管	TILT TUBE	1
11	30954	安全卡扣	CLIP SAFETY	1
11	8M0085928	卡扣	CLIP	1
12	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
13	71421	倾斜管尼龙垫圈	WASHER Nylon TILT TUBE	2
14	42390A1	倾斜回位杆总成	LEVER ASSEMBLY Tilt Return	2
15	90901	倾斜限位带-左舷侧	STRAP TILT STOP - PORT SIDE	1
16	42498	限位带至夹紧支架螺钉(M6x1.0)	SCREW (M6 x 1.0) STRAP TO CLAMP BRACKET	2
17	31030	倾斜限位带螺钉波形垫圈	WAVE WASHER TILT STOP STRAT SCREW	1
18	43216	夹紧支架至艉板螺栓(.250-20x3.50)	BOLT (.250-20 x 3.50) CLAMP TO TRANSOM	2
19	67983	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
21	814427	倾斜锁定滑块(新设计)	SHUTTLE TILT LOCK (NEW DESIGN)	1
22	12869	倾斜位置标贴	DECAL Tilt Position	1

图 110喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	8127181	机油箱	TANK Oil	1
1	812718T1	油箱总成	TANK ASSEMBLY Oil	1
2	19070A2	盖总成	CAP ASSEMBLY	1
3	90186	O型圈	O-RING	1
4	8160661	密封件	SEAL	1
1	812718A1	油箱总成	TANK ASSEMBLY Oil	1
1	812718T1	油箱总成	TANK ASSEMBLY Oil	1
2	828765A2	盖总成	CAP ASSEMBLY	1
4	8160662	密封件	SEAL	1
4	8M0039080	密封件-油箱	SEAL-OIL TANK	1
5	19299A1	通风组件	VENT ASSEMBLY	1
6	64871	阀门	VALVE	1
7	813644	护孔环	GROMMET	1
8	813649	护套	BOOT	1
9	812890	护套	BOOT	1
9	8M0039085	护套	BOOT	1
10	12886A6	开关总成	SWITCH ASSEMBLY	1
11	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
12	812690A1	机油喷射泵总成	PUMP ASSEMBLY Oil Injection	1
12	818902A1	机油喷射泵总成	PUMP ASSEMBLY Oil Injection	1
13	62705	O型圈	O-RING	1
13	8M0204667	O型圈×2	O RING @2	1
14	36390	O型圈	O-RING	1
15	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
16	19277	从动齿轮	GEAR Driven	1
17	19278A2	轴承总成	BEARING ASSEMBLY	1
18	82381325	管材(10.00英寸散装)	TUBING (10.00 Inches Bulk)	2
18	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	2
19	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
20	821287	连接杆	LINK	1

图 111外罩与前盖 COWLING AND FRONT COVER

REF	零件编号	中文名称	英文名称	数量
1	6228A1	顶罩总成(右舷黑色)	TOP COWL ASSEMBLY (STARBOARD BLACK)	1
1	6228A3	顶罩总成(右舷灰色)	TOP COWL ASSEMBLY (STARBOARD GRAY)	1
2	60297	燃油接头密封圈-罩	SEAL FUEL CONNECTOR -COWL	1
3	6227A1	顶罩总成(左舷黑色)	TOP COWL ASSEMBLY (PORT BLACK)	1
3	6227A17	顶罩总成(左舷灰色)	TOP COWL ASSEMBLY (PORT GRAY)	1
4	60298	控制电缆密封圈-罩	SEAL CONTROL CABLES-COWL	1
5	89717T	罩体密封后支架	BRACKET COWL SEALING-REAR	1
6	698761	后支架密封圈	SEAL REAR BRACKET	2
7	90980	罩体铰链支架	BRACKET COWL HINGE	2
8	45561	铰链支架下部螺钉(.250-20 x 1.12)	SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER	2
8	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
8	75794	铰链支架上部螺钉(1-1/8英寸)	SCREW HINGE BRACKET-UPPER (1-1/8")	2
9	75805	铰链支架螺钉帽(上部)	CAP HINGE BRACKET SCREW (UPPER)	2
10	26992	铰链支架螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW	4
11	37998	铰链支架螺钉垫圈	WASHER HINGE BRACKET SCREW	4
12	75806	铰链支架螺钉垫圈(上部)	WASHER HINGE BRACKET SCREW (UPPER)	2
13	90979	机罩铰链销	PIN COWL HINGE	4
14	28782	螺钉(.312-18 x .880)不锈钢铰链销至机罩	SCREW (.312-18 x .880) Stainless Steel PIN TO COWL	4
15	26993	锁紧垫圈(.312)铰链销固定螺钉	LOCKWASHER (.312) PIN ATTACHING SCREW	4
15	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
16	46785A5	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
17	62628	机罩锁扣筒	BARREL COWL LATCH	2
18	31312	螺钉(#10-32 x 0.875)锁扣总成至筒体	SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL	2
19	15222	机罩锁扣调节杆	BAR ADJUSTMENT-COWL LATCH	2
20	62629	机罩锁扣筒	BARREL COWL LATCH	2
21	62624	机罩锁扣张力弹簧	SPRING TENSION-COWL LATCH	2
22	30164	垫圈(.192 x .375 x .0312)不锈钢调节杆至筒体	WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL	2
23	45812	螺母(#10-32)不锈钢调节杆至筒体	NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL	2
23	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
24	8774A6	前盖(黑色)	FRONT COVER (BLACK)	1
24	8774A7	前盖(灰色)	FRONT COVER (GRAY)	1
25	795511	隔音毯	BLANKET SOUND ABSORBING	1
26	14333	旋钮	KNOB	1
27	30771	垫圈	WASHER	2
28	75246	垫圈	WASHER	2
29	30772	弹簧	SPRING	1
30	29077	滚动销	PIN Roll	1
31	47341A1	拉绳与手柄套件手动/应急启动(仅限手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY)	1
31	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 112旋转支架 Swivel Bracket

REF	零件编号	中文名称	英文名称	数量
1	8831A6	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A7	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A14	ORD 3402-8831A13	ORD 3402-8831A13	1
1	8831A5	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831T08	旋转支架-黑色	BRKT-SWIVEL-BLACK	1
1	8831A9	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A10	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	润滑脂接头	FITTING Grease	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	42124A2	副驾驶板总成	PLATE ASSEMBLY Co-Pilot	1
4	421402	轴承	BEARING	1
5	420801	推力轴承-上	BEARING Thrust - Upper	1
5	42080T01	轴承	BEARING	1
6	42139	衬套	BUSHING	1
7	42077	密封件	SEAL	1
8	42373	止推垫片	THRUST WASHER	1
9	421301	弹簧	SPRING	1
10	420824	支架	BRACKET	1
10	42082T04	支架	BRACKET	1
11	420811	销	PIN	1
12	421411	倒挡锁钩	HOOK Reverse Lock	1
12	8M0075731	倒挡钩	HOOK Reverse	1
13	42083	枢轴销	PIN Pivot	1
13	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
14	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
15	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
16	NSS	不单独销售	NOT SOLD SEPARATE	1
17	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
18	42128	弹簧	SPRING	1
19	42085F4	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
19	42085F2	提手	CARRYING HANDLE	1
19	42085F5	提手	CARRYING HANDLE	1
19	42085F3	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
20	42127	弹簧	SPRING	1
21	13194	挡圈	RING Retaining	2
22	821961	杆	ROD	1
23	8165621	圆盘	DISC	2
24	821958A1	板组件套件	PLATE KIT	1
25	82130014	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
26	821957	制动板	BRAKE PLATE	1
27	29330	垫圈	WASHER	1
28	821959	手柄	HANDLE	1
29	34863	螺母 (.375-24)	NUT (.375-24)	1
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
-	8237011	副驾驶贴花	DECAL Co-Pilot	1

图 113启动电机总成（博世） STARTER MOTOR ASSEMBLY (BOSCH)

REF	零件编号	中文名称	英文名称	数量
-	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	893891T	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	75385	贯穿螺栓	BOLT THRU	2
6	75386	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387	绝缘衬套	BUSHING INSULATING	1
9	38013	输入柱垫圈	WASHER INPUT STUD	1
10	26992	不锈钢输入柱锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel INPUT STUD	1
11	20890	输入柱螺母(.250-20)	NUT (.250-20) INPUT STUD	1
12	61787	电刷架	HOLDER BRUSH	2
12	898265014	电刷支架	HOLDER-BRUSH	2
13	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
14	79215	换向器端盖	END CAP COMMUTATOR	1
14	15386001	端盖	END CAP	1

图 114专用工具 TOOLS SPECIAL

REF	零件编号	中文名称	英文名称	数量
-	815366A3	电池隔离器套件	ISOLATOR KIT Battery	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	89045	适配器	ADAPTER	1
-	890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	14443A1	测试线束总成	HARNESS ASSEMBLY Test	1
-	99379	正时灯	TIMING LIGHT	1
-	29287	量规工具	GAUGE TOOL	1
-	55919	驱动头	DRIVER HEAD	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	52952A1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	65494	环压缩工具(2.0升)	COMPRESSOR TOOL Ring (2.0L)	1
-	65494T	环压缩工具	COMPRESSOR TOOL Ring	1
-	818773	活塞环压缩工具(2.5升)	COMPRESSOR TOOL Piston Ring (2.5L)	1
-	818773T	活塞环压缩工具(3.50)	COMPRESSOR TOOL Piston Ring (3.50)	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	30591A1	动力头支架工具	STAND TOOL Powerhead	1
-	30591T1	支架工具	STAND TOOL	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	112301	对正工具	ALIGNMENT TOOL	1
-	99750A1	万用表	MULTI METER	1
-	52915A6	测试仪表套件	TEST GAUGE KIT	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	44487A1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1

图 115油门杆与联动装置 THROTTLE LEVER AND LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	878550	油门杆	LEVER Throttle	1
2	84974M	垫圈	WASHER	1
3	81868M	波形垫圈	WAVE WASHER	1
4	8528162	螺母	NUT	1
5	881378	轴环	COLLAR	2
6	94524M	垫圈	WASHER	1
7	804343	弹簧	SPRING	1
8	878548	节气门控制杆	LEVER Throttle Control	1
9	84974M	垫圈	WASHER	1
10	81868M	波形垫圈	WAVE WASHER	1
11	881375	螺栓 (M6 x 30)	BOLT (M6 x 30)	1
12	35459	垫圈	WASHER	1
13	859746	开口销	COTTER PIN	1

图 116动力配平组件(序列号:0D181999及以下) POWER TRIM COMPONENTS (S/N: 0D181999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	813427	减震杆总成套件	SHOCK ROD ASSEMBLY KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A3	气缸密封套件	SEAL KIT Cylinder	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	810777	气缸套件	CYLINDER KIT	1
6	811228	气缸套件	CYLINDER KIT	1
6	893904T01	气缸总成	CYLINDER ASSEMBLY	1
7	813433A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
7	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	811227	泵	PUMP	1
8	811227	泵	PUMP	1
9	813441	歧管总成	MANIFOLD ASSEMBLY	1
9	811225	歧管总成	MANIFOLD ASSEMBLY	1
10	813436	螺钉套件	SCREW KIT	1
11	813437	驱动轴	DRIVESHAFT	1
12	813438	螺丝和销钉套件	SCREW AND PIN KIT	1
13	813439A2	密封套件	SEAL KIT	1
13	813439A3	O型圈套件	O RING KIT	1
14	813434A1	储液罐	RESERVOIR	1
15	813435	塞套件	PLUG KIT	1
15	8134351	堵头	PLUG	1
16	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
16	893929A01	安全阀套件	VALVE KIT Relief	1
17	811698	线束总成	HARNESS ASSEMBLY	1
19	813445	储液罐盖套件	CAP KIT Reservoir	1
20	813446	螺钉	SCREW	1
21	813447	电机套件	MOTOR KIT	1
22	813448	端盖	END CAP	1
23	813449A1	电枢	ARMATURE	1
24	813450	止推垫片套件	THRUST WASHER KIT	1
25	813451	外壳和磁铁套件	SHELL AND MAGNET KIT	1
26	813452	端架套件	END FRAME KIT	1
27	813453	螺栓螺母套件	BOLT AND NUT KIT	1
28	19607	销	PIN	2
29	821539	三叶销	PIN Trilobe	2
-	19217A5	完整配平泵总成	PUMP ASSEMBLY Trim COMPLETE	1
-	854472A3	动力调整套件	POWER TRIM KIT	1

图 117启动电机总成（普雷斯特olite） STARTER MOTOR ASSEMBLY (PRESTOLITE)

REF	零件编号	中文名称	英文名称	数量
1	8848	驱动电机	MOTOR DRIVE	1
2	8852	驱动端板总成	PLATE ASSEMBLY DRIVE END	1
3	8853	驱动端板衬套	BUSHING DRIVE END PLATE	1
4	8857	电枢	ARMATURE	1
5	8856	电枢止推垫片组件	PACKAGE ARMATURE THRUST WASHER	1
6	8849	换向器端盖总成	END CAP ASSEMBLY COMMUTATOR	1
7	8850	电刷板/支架总成	PLATE/HOLDER ASSEMBLY Brush	1
8	8851	电刷与端子套装	BRUSH AND TERMINAL SET	1
9	8854	电刷弹簧组 (每套2弹簧)	SPRING SET BRUSH (2 SPRINGS PER SET)	2
10	8855	贯穿螺栓 - 端盖至端板 (1/4-28)	BOLT THRU - END CAP TO END PLATE (1/4-28)	1

图 118进气歧管与簧片阀组 Induction Manifold and Reed Block

REF	零件编号	中文名称	英文名称	数量
1	812865	衬垫	GASKET	1
2	9812A9	下端盖总成	END CAP ASSEMBLY Lower	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A2	支架总成	BRACKET ASSEMBLY	1
7	19077A3	支架总成	BRACKET ASSEMBLY	1
8	8161941	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	19076A3	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
14	19725	弯头(55号件含2个)	ELBOW (QTY. OF 2 ON 55)	1
15	812869	衬垫	GASKET	1
16	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
17	19075A2	簧片阀总成	REED BLOCK ASSEMBLY	1
17	8M0219197	簧片阀总成	REED BLOCK ASSY	1
18	812868	衬垫	GASKET	1
19	812880A1	簧片组(0.008厚度)	REED SET (0.008 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
19	812880A2	簧片组件(0.010厚度)	REED ASSEMBLY (0.010 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
20	42982	锁紧垫圈	TAB WASHER	3
20	429821	锁紧垫圈	TAB WASHER	3
21	812879	固定座	RETAINER	3
21	812879002	簧片压板	RETAINER Reed	3
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
23	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
24	42981	锁紧垫圈	TAB WASHER	2
25	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
26	988851	滑块	SLIDE	1
27	48475	衬套(II型)	BUSHING (DESIGN II)	1
27	42994	衬套	BUSHING	1
28	29720	波形垫圈	WAVE WASHER	1
29	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
30	400634	螺母 (M6)	NUT (M6)	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	400634	螺母 (M6)	NUT (M6)	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	15026	进气歧管盖	CAP (FOR USE ON INDUCTION MANIFOLD)	3
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 119夹具支架总成 CLAMP BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	5570A3	夹紧支架总成(左舷)	CLAMP BRACKET ASSEMBLY (PORT)	1
2	5571A3	夹紧支架总成(右舷)	CLAMP BRACKET ASSEMBLY (STARBOARD)	1
3	77190A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	76804	蝶形螺钉	SCREW THUMB SCREW	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
5	818884	垫圈	WASHER	2
6	71421	倾斜管尼龙垫圈-夹紧至旋转支架	WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET	2
7	96962	倾斜管夹紧至旋转支架	TILT TUBE CLAMP TO SWIVEL BRACKET	1
8	39333	倾斜管塞	PLUG TILT TUBE	2
9	93164	倾斜管紧固螺母(.875)	NUT (.875) TILT TUBE FASTENING	2
10	71420	提手	HANDLE CARRYING	1
11	71417	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	71418A2	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
15	62143	倾斜锁止销弹簧	SPRING TILT LOCK PIN	1
16	67982	夹紧支架至船体螺栓	BOLT CLAMP BRACKET TO BOAT	2
17	67983	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
18	56374	夹紧支架螺钉螺母(.250-20)	NUT (.250-20) CLAMP BRACKET SCREW	2
18	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2

图 120曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9611A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	63742	滚珠轴承	BEARING Ball	1
2	63742T	滚珠轴承	BEARING Ball	1
3	812877	挡圈	RING Retaining	1
4	91800	半圆键	KEY Woodruff	2
5	43019A2	齿轮总成	GEAR ASSEMBLY	1
6	812873A1	滚子轴承总成(顶部)	BEARING ASSEMBLY Roller (TOP)	1
7	419531	油封	SEAL Oil	1
8	812881A1	滚子轴承总成(中部)	BEARING ASSEMBLY Roller (CENTER)	2
9	9613A1	活塞总成	PISTON ASSEMBLY	3
9	9613T1	活塞	PISTON	3
9	9613A2	活塞总成	PISTON ASSEMBLY	AR
9	9613T2	活塞总成0.015	PISTON ASSY .015	AR
9	9613A3	活塞总成	PISTON ASSEMBLY	AR
9	9613T3	活塞	PISTON	AR
10	52035	锁环	RING Lock	6
10	857196	锁紧环	LOCK RING	6
11	19721A6	活塞环组	RING SET Piston	1
11	19721A1	活塞环组	RING SET Piston	AR
11	19721A2	活塞环组	RING SET Piston	AR
12	9612A2	连杆总成	CONNECTING ROD ASSEMBLY	3
12	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
13	812876	垫圈	WASHER	6
13	8M0012298	止推垫片	THRUST WASHER	6
14	47270	轴承	BEARING	8
14	8M0214934	滚针轴承@200	BRG-NEEDLE @200	8
15	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
16	17514A1	轴承套件	BEARING KIT	3
16	8M0234886	轴承保持架	CAGE BEARING	3
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 121驱动轴壳体（短型）(长序列号-0C160935及以下) Driveshaft Housing (Short)(Long S/N-0C160935 and Below)

REF	零件编号	中文名称	英文名称	数量
1	7512A10	驱动轴壳体总成（短轴）（黑色）	HOUSING ASSEMBLY Driveshaft (SHORT SHAFT)(BLACK)	1
1	8188A8	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	7513A12	驱动轴壳体总成（长轴）（黑色）	HOUSING ASSEMBLY Driveshaft (LONG SHAFT)(BLACK)	1
1	8189A10	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	8189A11	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
2	64649		PLUG PLASTIC - TRIM TAB SCREW HOLE	1
3	57932	螺柱（0.375-16/0.375-24 x 1.750）驱动轴壳体	STUD (.375-16/.375-24 x 1.750) DRIVE SHAFT HOUSING	1
3	8M0022145	螺柱(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750)	1
4	57935	驱动轴壳体螺柱（3英寸）	STUD DRIVE SHAFT HOUSING (3")	1
5	65791	齿轮箱螺柱垫圈（7/16英寸）	WASHER GEAR HOUSING STUDS (7/16")	2
6	34933	齿轮箱壳体双头螺栓不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUDS	2
6	8M0204653	螺母	NUT	2
7	93445	橡胶安装座-上部	MOUNT RUBBER - UPPER	2
7	923373	支架	MOUNT	2
8	96401		SEAL UPPER MOUNT	2
9	27727	垫圈上部安装螺栓（内径37/64）	WASHER UPPER MOUNT BOLT (37/64 I.D.)	2
10	66966	橡胶垫圈-上部安装螺栓	WASHER RUBBER - UPPER MOUNT BOLT	2
11	30514	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
12	8M0204653	螺母	NUT	2
13	87883T	上支座盖	COVER UPPER MOUNT	2
13	87883	盖板	COVER	2
14	76630	螺钉（0.250-20 x 1.00）上部安装盖	SCREW (.250-20 x 1.00) UPPER ,MOUNT COVER	4
14	8M0214943	螺钉	SCREW	4
15	29245	上支座盖螺丝不锈钢垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT COVER SCREW	4
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
16	38157	饰盖至驱动轴壳体密封件	SEAL TRIM COVER TO DRIVE SHAFT HOUSING	1
17	38158		STRIP RETAINING - TRIM COVER SEAL (REAR)	1
18	38154		STRIP RETAINING - TRIM COVER SEAL (SIDE)	2
19	48408		SCREW (#10-16 x .500) RETAINING STRIP	8
20	695431	排气管	TUBE EXHAUST	1
20	695441	排气管	TUBE EXHAUST	1
21	37727	进水口管	TUBE WATER INLET	1
21	45679	进水口管	TUBE WATER INLET	1
22	64809	动力头螺柱螺母（5/16英寸）	NUT POWERHEAD STUDS (5/16")	8
23	75304	下橡胶支座	MOUNT RUBBER - LOWER	2
23	75304T1	支架	MOUNT	2
24	75284	下支座螺丝(.500-20 x 5.500)	SCREW (.500-20 x 5.500) LOWER MOUNT SCREW	2
24	43426		SCREW LOWER MOUNT SCREW	2
25	28051	下部安装螺钉垫圈（适用处使用）	WASHER LOWER MOUNT SCREW (Use where Applicable)	2
26	28053	橡胶垫圈-下部安装螺钉（适用处使用）	WASHER RUBBER - LOWER MOUNT SCREW (Use where Applicable)	2
27	30119	垫圈（外径0.875英寸）下安装螺丝	WASHER (.875 Inch Outside Diameter) LOWER MOUNT SCREW	2
28	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
29	69592T	下安装夹	CLAMP LOWER MOUNT	2
29	69592F1	卡箍	CLAMP	2
30	29256	螺丝（0.312-18 x 0.875）下安装夹	SCREW (.312-18 x .875) LOWER MOUNT CLAMP	4
31	35522	弹簧张力-下安装夹	SPRING TENSION - LOWER MOUNT CLAMP	4
32	35474T	下安装夹盖	COVER LOWER MOUNT CLAMP	2
32	35474F2		COVER Lower Mount Clamp LOWER MOUNT CLAMP	2
33	87884		SCREW (#12-14 x .920) COVER TO LOWER MOUNT CLAMP	2
34	35521	下安装夹盖螺母	NUT LOWER MOUNT CLAMP COVER	2
35	88238A2	接地电缆总成	CABLE ASSEMBLY Ground GROUND	1
35	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
36	23651	进水套管（1.625英寸）	SLEEVE (1.625) WATER INLET TUBE	1

图 122化油器(WME-26/27/28/28/43/44/45) CARBURETOR (WME-26/27/28/28/43/44/45)

REF	零件编号	中文名称	英文名称	数量
1	821679A1	化油器(上)	CARBURETOR (TOP)	1
1	821679A2	化油器(中)	CARBURETOR (CENTER)	1
1	821679T18	化油器	CARBURETOR	1
1	821679A3	化油器(下)	CARBURETOR (BOTTOM)	1
1	821679T19	化油器	CARBURETOR	1
1	821946A1	化油器(上)	CARBURETOR (TOP)	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A2	化油器(中)	CARBURETOR (CENTER)	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A3	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A4	化油器(上)	CARBURETOR (TOP)	1
1	821946T42	化油器	CARBURETOR	1
1	821946A5	化油器(中)	CARBURETOR (CENTER)	1
1	821946T43	化油器	CARBURETOR	1
1	821946A6	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946T44	化油器	CARBURETOR	1
1	821679A17	化油器(上)	CARBURETOR (TOP)	1
1	821679T17	化油器	CARBURETOR	1
1	821679A18	化油器(中)	CARBURETOR (CENTER)	1
1	821679T18	化油器	CARBURETOR	1
1	821679A19	化油器(下)	CARBURETOR (BOTTOM)	1
1	821679T19	化油器	CARBURETOR	1
1	821946A24	化油器(上)	CARBURETOR (TOP)	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A25	化油器(中)	CARBURETOR (CENTER)	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A26	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A27	化油器(上)	CARBURETOR (TOP)	1
1	821946T42	化油器	CARBURETOR	1
1	821946A28	化油器(中)	CARBURETOR (CENTER)	1
1	821946T43	化油器	CARBURETOR	1
1	821946A29	化油器(下)	CARBURETOR (BOTTOM)	1
1	821946T44	化油器	CARBURETOR	1
2	823634	节气门调节螺钉(上/下)	SCREW THROTTLE ADJUSTMENT (UPPER/BOTTOM)	2
3	823632	节气门轴(上)	SHAFT Throttle (UPPER)	1
3	823632	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
4	823636	节气门轴(下)	SHAFT Throttle (BOTTOM)	1
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
5	NSS	不单独销售油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	3
6	6247	主量孔(0.090)	JET Main (.090)	3
7	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
8	NSS	不单独销售怠速针弹簧	NOT SOLD SEPARATE SPRING-IDLE NEEDLE	3
9	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杆	LEVER Oil Pump	1
14	8086121	杆固定螺钉	SCREW Lever Retainer	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	823637	油门阀	VALVE Throttle	3
16	9593	油门阀	VALVE Throttle	3
16	879194023	节气门阀	VALVE-THROTTLE	3
17	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
18	F10064	轴	SHAFT	3
19	NSS	不单独销售喷油嘴衬垫	NOT SOLD SEPARATE GASKET-NOZZLE WELL	3
20	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
21	9595	进油针阀	VALVE Inlet Needle	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	5132	燃油杯螺钉	SCREW FUEL BOWL	12
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
23	808612	燃油杯螺钉及垫圈(#8-32x.750)	SCREW AND WASHER (#8-32 x .750) FUEL BOWL	12
24	811695	燃油杯(上)	BOWL Fuel (UPPER)	1
24	811693	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
25	811694	塞套件	PLUG KIT	3
26	NSS	排水碗密封件(不单独销售)	NOT SOLD SEPARATE SEAL-BOWL DRAIN	3
27	6246	量孔(.048)	JET (.048)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
27	4217	主量孔(.062)	JET Main (.062)	3
-	8236353	化油器维修套件	REPAIR KIT Carburetor	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	812867A97	衬垫套件	GASKET SET	1

图 123艉板支架(50/60) TRANSOM BRACKET (50/60)

REF	零件编号	中文名称	英文名称	数量
1	822866A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	822866A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	822866A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822865F2	艉板支架	BRACKET Transom	1
4	822865T05	艉板支架-右舷	BRACKET Transom - Starboard	1
4	822865F3	艉板支架	BRACKET Transom	1
4	822865F4	艉板支架	BRACKET Transom	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A5	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709F1	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F7	锚支架	BRACKET Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	821461	弹簧	SPRING	1
21	19614	倾斜管	TILT TUBE	1
21	8M0041938	倾斜管	TILT TUBE	1
22	826164	螺母 (.875-14)	NUT (.875-14)	2
22	8M0231351	锁紧螺母	NUT Lock	2
23	19624A1	密封套件	SEAL KIT	1
24	26550	卡箍	CLAMP	1
24	22740	卡扣	CLIP	1
25	69205	C形垫圈	C WASHER	1
25	8M0084613	C形垫圈	C-WASHER	1
26	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
26	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
27	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
28	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
29	8M0027784	螺母	NUT	4
29	82671117	螺母(.500-20)	NUT (.500-20)	4
30	1938525	连接杆	LINK	1
30	8M0084737	连接杆	LINK	1
31	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
32	812707	衬套	BUSHING	1
33	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
33	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
34	99611	波形垫圈	WAVE WASHER	1
35	19621	倾斜旋钮	TILT KNOB	1
35	8M0007469	倾斜旋钮	KNOB Tilt	1
36	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
37	96930A1	螺栓总成	BOLT ASSEMBLY	1
38	23161	螺母 (.375-24)	NUT (.375-24)	1

图 124动力微调 POWER TRIM

REF	零件编号	中文名称	英文名称	数量
1	8251123	倾斜挡块	STOP Tilt	1
1	8251124	倾斜挡块	STOP Tilt	1
1	8251123	倾斜挡块	STOP Tilt	1
2	16208	握把	GRIP	1
2	16207A3	倾斜止动套件	TILT STOP KIT	1
3	9528616	轴环	COLLAR	2
4	82304216	螺栓	BOLT	2
4	8M0062251	螺栓	BOLT	2
5	168261	垫圈	WASHER	2
6	953837	弹簧	SPRING	1
7	851873A1	动力升降总成	POWER TRIM ASSEMBLY	1
8	851874	上气缸销	PIN Upper Cylinder	1
8	8M0115482	气缸销	PIN-CYLINDER	1
9	8113682	套筒	SLEEVE	2
10	161765	衬套	BUSHING	2
11	16223	螺栓(M6x14)	BOLT (M6 x 14)	1
12	16238	垫圈	WASHER	1
12	898101937	垫圈	WASHER	1
13	8518741	下气缸销	PIN Lower Cylinder	1
14	9528617	轴环	COLLAR	1
15	8113682	套筒	SLEEVE	2
16	161766	衬套	BUSHING	2
16	16176011	衬套	BUSHING	2
17	85372219	螺母	NUT	2
18	8518681	垫圈	WASHER	4
18	8M0060184	垫圈	WASHER	4
19	17169	卡箍	CLAMP	1
20	8555445	螺钉	SCREW	1

图 125转向手柄套件 STEERING HANDLE KIT

REF	零件编号	中文名称	英文名称	数量
1	12020A1	转向臂手柄总成(黑色)	HANDLE ASSEMBLY Steering Arm (BLACK)	1
1	12020A2	转向臂总成(灰色)	ARM ASSEMBLY Steering (GRAY)	1
1	12020A4	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
2	812930A1	衬套	BUSHING	2
1A	12020A3	转向臂手柄总成(黑色)	HANDLE ASSEMBLY Steering Arm (BLACK)	1
1A	12020A4	转向臂手柄总成(灰色)	HANDLE ASSEMBLY Steering Arm (GRAY)	1
1A	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
2A	429922	衬套	BUSHING	2
2A	42992T02	衬套	BUSHING	2
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	AR
6	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	AR
6	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	AR
6	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	AR
7	12013	卡箍	CLAMP	1
7	889729	卡箍	CLAMP	1
8	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
9	816873	蝶形螺母	WING NUT	1
9	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
10	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
11	823609A5	停止开关总成(设计II-带金属锁环)	SWITCH ASSEMBLY Stop (DESIGN II - W/METAL LOCK RING)	1
11	8M0104612	开关总成	SWITCH ASSY	1
12	NLA	已停产停止开关(设计I-订购套件87-823609A15)	No Longer Available STOP SWITCH (DESIGN I - ORDER KIT 87-823609A15)	1
13	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
14	99589	握把	GRIP	1
14	8M0221732	外握把	GRIP OUTER	1
15	648551	卡箍	CLAMP	1
16	648551	卡箍	CLAMP	1
17	785512	导管	CONDUIT	1
17	8885242	导管	CONDUIT	1
18	895661	导向管	GUIDE TUBE	1
18	8M0026078	导向管	TUBE-GUIDE	1
19	89578	套筒	BARREL	1
20	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
21	12019	拉线总成	CABLE ASSEMBLY	1
22	43433	导套	GUIDE	1
22	8M0204660	导套	GUIDE	1
23	20007	锚定件	ANCHOR	1
24	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
24	8M0204644	螺钉组	SCREW SET	2
25	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
26	48416	盖帽	CAP	1
27	4002319	垫圈	WASHER	1
28	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
29	14601	隔套	SPACER	1
29	146011	隔套	SPACER	1
30	12018A2	管总成	TUBE ASSEMBLY	1
30	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
31	13914	螺母(M10)	NUT (M10)	1
31	40140	螺母(M10)	NUT (M10)	1

图 126舵柄 TILLER HANDLE

REF	零件编号	中文名称	英文名称	数量
1	160752	转向手柄	HANDLE Steering	1
2	16090	贴花	DECAL	1
3	160861	握把	GRIP	1
4	8150461	螺钉	SCREW	1
5	8537152	隔套	SPACER	1
6	8150263	开口销	COTTER PIN	1
7	16191	隔套	SPACER	1
8	16336	衬套	BUSHING	3
9	8537232	波形垫圈	WAVE WASHER	1
10	160931	油门轴	SHAFT Throttle	1
11	8129352	螺栓	BOLT	2
12	8230422	螺栓	BOLT	1
13	8537227	尼龙螺母	NUT Nylon	1
14	168302	螺栓	BOLT	2
15	853752	支架	BRACKET	2
16	160932	油门轴	SHAFT Throttle	1
17	16823	护孔环	GROMMET	1
18	16226	电线护圈	GROMMET (Electric)	1
19	952869	轴环	COLLAR	2
20	16192	垫圈	WASHER	1
21	9528610	轴环	COLLAR	1
22	853751	小齿轮	GEAR Pinion	1
23	952186	滚动销	PIN Roll	1

图 127电气组件(50/60) ELECTRICAL COMPONENTS (50/60)

REF	零件编号	中文名称	英文名称	数量
1	19745A8	电器板总成	PLATE ASSEMBLY Electrical	1
2	814674A1	固定板总成	PLATE ASSEMBLY Retaining	1
3	8240631	螺钉	SCREW	1
4	824063	螺钉	SCREW	5
3	40011106	螺钉(M5x13)不锈钢(配合参考号#39使用)	SCREW (M5 x 13) Stainless Steel (USE W/REF. #39)	1
4	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	5 OR 6
5	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	3
5	8M0230859	点火线圈总成	COIL IGNITION ASY	3
5	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	3
5	8M0230859	点火线圈总成	COIL IGNITION ASY	3
6	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	4
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	9
8	821945A52	火花塞导线套件	SPARK PLUG LEAD KIT	1
9	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	3
9	13686Q	NGK BU8H @10	NGK BU8H @10	3
9	14103568	火花塞(NGK #BUZ8H-加拿大/比利时)	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)	3
9	896329885	SP #L6VC @4	SP #L6VC @4	3
9	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	3
9	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	3
9	8168372	火花塞(NGK #BPZ8H-N-10-加拿大)	SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)	3
9	938	SP #QL78YC @4	SP #QL78YC @4	3
10	19052A5	开关盒总成	SWITCHBOX ASSEMBLY	1
10	19052A8	开关盒总成	SWITCHBOX ASSEMBLY	1
11	813643	护套	BOOT	1
12	814760	固定座(旧款)	RETAINER (OLD DESIGN)	1
13	813742	护孔环	GROMMET	1
14	19637A2	保险丝插座总成(1环形/1子弹头连接器)	SOCKET ASSEMBLY Fuse (1 RING/1 BULLET CONNECTOR)	1
14	19637A3	保险丝插座总成(2子弹头连接器)	SOCKET ASSEMBLY Fuse (2 BULLET CONNECTORS)	1
15	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
16	816770	整流器(旧款)	RECTIFIER (OLD DESIGN)	1
16	8M0058226	整流器	RECTIFIER	1
17	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
18	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
19	19061A2	线束总成(导线带环形端子)(灰色)	HARNESS ASSEMBLY ( LEAD HAS RING TERMINAL) (GRAY)	1
19	19061A4	线束总成	HARNESS ASSEMBLY	1
19	19061A4	线束总成(导线带子弹头连接器)(灰色)	HARNESS ASSEMBLY ( LEAD HAS BULLET CONNECTOR) (GRAY)	1
20	813741	护孔环	GROMMET	1
21	96054	启动电磁阀总成(设计I型)	SOLENOID ASSEMBLY Starter (DESIGN I)	1
21	8M0185149	启动电磁阀	SOLENOID START	1
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
24	64015	螺母 (.250-20)	NUT (.250-20)	2
25	4002314	垫圈	WASHER	2
26	79139A24	电缆总成(9-1/4")	CABLE ASSEMBLY (9-1/4")	1
27	88807A31	电缆总成(7")	CABLE ASSEMBLY (7")	2
28	88439A9	蓄电池正极电缆总成(96英寸)	CABLE ASSEMBLY Battery - Positive (96")	1
29	814795T	盖板	COVER	1
30	40007107	螺钉(M5×16)	SCREW (M5 x 16)	4 OR 6
31	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	3
32	14857A6	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
32	14857A16	机油报警模块	MODULE-OILWARNING	1
32	14857A10	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
32	14857A16	机油报警模块	MODULE-OILWARNING	1
33	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
34	850188T1	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
34	8M0185147	电磁阀总成	SOLENOID ASSY	1
35	818968	衬套	BUSHING	2
35	8M0214955	衬套	BUSHING	2
36	818967	护孔环	GROMMET	2
36	8M0207785	护孔环	GROMMET	2
37	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	2
38	400039	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
39	815279T	电压调节器	REGULATOR Voltage	1
39	8M0084173	电压调节器	VOLTAGE REGULATOR	1
40	813524A2	拉线总成	CABLE ASSEMBLY	1
41	821889A12	限速器	SPEED LIMITER	1
41	821889A31	转速限制器	REV LIMITER	1
42	823147A6	限速器线束总成	HARNESS ASSEMBLY Speed Limiter	1

图 128自动混合装置 Auto-Blend

REF	零件编号	中文名称	英文名称	数量
-	130195	自动混合装置	AUTO BLEND ASSEMBLY	1
1	16612	油箱套件机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	16619	机油箱盖	CAP OIL TANK	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	16620	安装支架套件	BRACKET KIT Mounting	1
8	13993	箍带	BAND	1
9	13983	支架(左)	BRACKET (LEFT)	1
10	13984	支架(右)	BRACKET (RIGHT)	1
11	16626	盖板	COVER	1
12	16624	机油滤清器及液位传感器套件	SENSOR KIT Oil Filter And Level	1
13	16625	喇叭套件	HORN KIT	1
14	16618	机油滤网	STRAINER Oil	1
15	16615	止回阀套件	CHECK VALVE KIT	1
16	18576	燃油滤清器套件	FILTER KIT Fuel	1
17	13992	乙烯基软管	VINYL TUBE	1
18	16621	安装板	PLATE	1
19	16627	模块套件	MODULE KIT	1
20	16628	测试按钮套件	TEST BUTTON KIT	1
21	16629	电池盒套件(使用9伏电池)	CASE KIT Battery (USE 9 VOLT BATTERY)	1
22	16630	密封圈套件	GROMMET KIT	1
23	16631	支架套件	BRACKET KIT	1
24	16616	衬垫套件	GASKET KIT	1

图 129化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
0-1	7132M	化油器总成	CARBURETOR ASSEMBLY	1
0-1	7996M	化油器	CARBURETOR	1
1	83361M	浮子室	FLOAT BOWL	1
2	83362M	O型圈	O-RING	1
3	83363M	浮子	FLOAT	1
3	891730A01	浮子套件	FLOAT KIT	1
4	83364M	进油针阀组件	NEEDLE/SEAT KIT Inlet	1
5	81698M	进油针销	PIN INLET NEEDLE	1
5	92639M	浮子销	PIN Float	1
6	83365M	销	PIN	1
6	81278M	销	PIN	1
7	82781M	卡扣	CLIP	1
7	8M0120624	卡箍@2	CLIP @2	1
8	83887M	主喷嘴	NOZZLE MAIN	1
9	83367M	主量孔(#155)	JET MAIN (# 155)	1
10	83888M	低速量孔(#55)	JET SLOW (# 55)	1
11	83369M	盖帽	CAP	1
11	8M0080455	堵头	PLUG	1
12	83370M	轴环	COLLAR	1
13	83371M	螺钉	SCREW	1
14	83372M	垫圈	WASHER	1
15	82378M	螺母	NUT	1
15	82388M	螺母 (M5)	NUT (M5)	1
16	83373M	螺钉	SCREW	4
16	11796M	螺钉(M4 x 14)	SCREW (M4 x 14)	4
17	83374M	螺钉	SCREW	1
18	83375M	螺钉	SCREW	1
19	83376M	垫圈	WASHER	1
20	81292M	螺钉	SCREW	1
21	82073M	弹簧	SPRING	1
22	83889M	怠速混合气螺钉	SCREW IDLE MIXTURE	1
23	81277M	怠速调节螺钉	SCREW IDLE SPEED	1
24	82080M	弹簧	SPRING	1
-	84167M	衬垫套件	GASKET SET	1
-	94483M	衬垫套件	GASKET SET	1
-	84475M	维修套件	REPAIR KIT	1

图 130化油器连杆与阻风门电磁阀 Carburetor Linkage and Choke Solenoid

REF	零件编号	中文名称	英文名称	数量
1	60549A7	阻风门电磁阀总成	SOLENOID ASSEMBLY Choke	1
2	26996	锁紧垫圈(#10)不锈钢阻风门电磁阀端子	LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL	1
3	68219	螺母(#10-32)不锈钢阻风门电磁阀端子	NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL	1
4	33524	螺钉(.312-24 x .620)阻风门电磁阀	SCREW (.312-24 x .620) CHOKE SOLENOID	1
5	29250	螺母(.312-24)阻风门电磁阀螺钉	NUT (.312-24) CHOKE SOLENOID SCREWS	2
6	89008A2	阻风门电磁阀柱塞总成	PLUNGER ASSEMBLY CHOKE SOLENOID	1
7	76076A1	阻风门拉杆总成	ROD ASSEMBLY Choke	1
8	90242A1	旋钮总成	KNOB ASSEMBLY	1
9	35519	螺钉(#10-16 x .500)阻风门旋钮线	SCREW (#10-16 x .500) WIRE TO CHOKE KNOB	1
10	20116	阻风门旋钮护圈	GROMMET CHOKE KNOB	1
12	52743	螺钉(.312-18 x 3.750)化油器至曲轴箱	SCREW (.312-18 x 3.750) CARBURETOR TO CRANKCASE	4
13	77583	节流阀杆	LEVER THROTTLE	1
14	60293	螺钉(#5-40 x .500)杆至化油器	SCREW (#5-40 x .500) LEVER TO CARBURETOR	1
15	60292A1	联轴器总成	COUPLING ASSEMBLY	1
16	89694	节流阀轴联轴器键	KEY THROTTLE SHAFT COUPLING	1
17	92500	推式螺母滚轮-联轴器	PUSH NUT ROLLER - COUPLING	1
18	60293	螺钉(#5-40 x .500)卷边垫圈至联轴器	SCREW (#5-40 x .500) ROLLED WASHER TO COUPLING	1
19	91996A1	化油器板总成	PLATE ASSEMBLY CARBURETOR	1
20	71090	化油器板密封件	SEAL CARBURETOR PLATE	1
21	20367	螺钉板至化油器(7/16")	SCREW PLATE TO CARBURETOR (7/16")	4
22	29245	垫圈(.281 x .500 x .060)不锈钢板螺钉	WASHER (.281 x .500 x .060) Stainless Steel PLATE SCREW	4
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4

图 131夹紧支架(短型)(长型-0C160935及以下)(60EL NOI)(NPT) Clamp Bracket (Short)(Long-0C160935 & Below)(60EL NOI)(NPT)

REF	零件编号	中文名称	英文名称	数量
1	8394A1	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
1	8394A3	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
2	78492A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
3	78493	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	784951	垫片至拇指螺钉	SCREW WASHER TO THUMB SCREW	2
4	78495	螺钉（.312-24 x .680）	SCREW (.312-24 x .680)	2
5	75043	拇指螺丝帽	CAP THUMB SCREW	2
6	74528	倾斜管	TILT TUBE	1
6	8M0041936	倾斜管	TILT TUBE	1
7	52864	倾斜管垫圈	WASHER TILT TUBE	2
8	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	2
8	858869	螺母 (.875-14)	NUT (.875-14)	2
10	98877	上部减震支架	SHOCK MOUNT Upper UPPER MOUNT	1
11	73203	夹紧支架衬套	BUSHING CLAMP BRACKET	2
12	59623	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	2
13	59625	夹紧支架螺柱	STUD CLAMP BRACKET	1
14	26993	锁紧垫圈(.312)夹支架螺柱	LOCKWASHER (.312) CLAMP BRACKET STUD	2
14	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
15	28770	螺母(.312-24)不锈钢-夹支架螺柱	NUT (.312-24) Stainless Steel CLAMP BRACKET STUD	2
16	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
16	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
18	68298	夹紧支架固定螺栓（0.375-16 x 3.250）	BOLT (.375-16 x 3.250) CLAMP BRACKET TO TRANSOM	2
19	68410	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
19	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	2
18	89673	夹紧支架固定螺钉（0.375-16 x 5.00）	SCREW (.375-16 x 5.00) CLAMP BRACKET TO TRANSOM	2
19	28420	垫圈 (1-1/4 x 25/64 x 0.125 不锈钢) 夹紧支架螺栓	WASHER (1-1/ 4 x 25/64 x .125 SS) CLAMP BRACKET BOLT	2
19	68300		WASHER (..88 x .39 x .06) CLAMP BRACKET BOLT	2
20	99405	夹紧支架螺栓螺母	NUT CLAMP BRACKET BOLT	4
20	82671112	螺母（.375-16）	NUT (.375-16)	4
21	69375A1	上下减震销螺钉（0.500-20 x 0.625）	SCREW (.500-20 x .625) UPPER AND LOWER SHOCK PIN	2
22	98876		STRAP TILT STOP	1
23	98878	下部安装销	PIN LOWER MOUNT	1
24	98875	弹簧	SPRING	1

图 132整流罩与前盖 Cowling and Front Cover

REF	零件编号	中文名称	英文名称	数量
1	6228A1	顶罩总成(右舷黑色)	TOP COWL ASSEMBLY (STARBOARD BLACK)	1
1	6228A3	顶罩总成(右舷灰色)	TOP COWL ASSEMBLY (STARBOARD GRAY)	1
2	60297	燃油接头密封圈-罩	SEAL FUEL CONNECTOR -COWL	1
3	6227A1	顶罩总成(左舷黑色)	TOP COWL ASSEMBLY (PORT BLACK)	1
3	6227A17	顶罩总成(左舷灰色)	TOP COWL ASSEMBLY (PORT GRAY)	1
4	60298	控制电缆密封圈-罩	SEAL CONTROL CABLES-COWL	1
5	89717T	罩体密封后支架	BRACKET COWL SEALING-REAR	1
6	698761	后支架密封圈	SEAL REAR BRACKET	2
7	90980	罩体铰链支架	BRACKET COWL HINGE	2
8	45561	铰链支架下部螺钉(.250-20 x 1.12)	SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER	2
8	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
8	75794	铰链支架上部螺钉(1-1/8英寸)	SCREW HINGE BRACKET-UPPER (1-1/8")	2
9	75805	铰链支架螺钉帽(上部)	CAP HINGE BRACKET SCREW (UPPER)	2
10	26992	铰链支架螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW	4
11	37998	铰链支架螺钉垫圈	WASHER HINGE BRACKET SCREW	4
12	75806	铰链支架螺钉垫圈(上部)	WASHER HINGE BRACKET SCREW (UPPER)	2
13	90979	机罩铰链销	PIN COWL HINGE	4
14	28782	螺钉(.312-18 x .880)不锈钢铰链销至机罩	SCREW (.312-18 x .880) Stainless Steel PIN TO COWL	4
15	26993	锁紧垫圈(.312)铰链销固定螺钉	LOCKWASHER (.312) PIN ATTACHING SCREW	4
15	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
16	46785A5	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
17	62628	机罩锁扣筒	BARREL COWL LATCH	2
18	31312	螺钉(#10-32 x 0.875)锁扣总成至筒体	SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL	2
19	15222	机罩锁扣调节杆	BAR ADJUSTMENT-COWL LATCH	2
20	62629	机罩锁扣筒	BARREL COWL LATCH	2
21	62624	机罩锁扣张力弹簧	SPRING TENSION-COWL LATCH	2
22	30164	垫圈(.192 x .375 x .0312)不锈钢调节杆至筒体	WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL	2
23	45812	螺母(#10-32)不锈钢调节杆至筒体	NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL	2
23	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
24	8774A6	前盖(黑色)	FRONT COVER (BLACK)	1
24	8774A7	前盖(灰色)	FRONT COVER (GRAY)	1
25	795511	隔音毯	BLANKET SOUND ABSORBING	1
26	14333	旋钮	KNOB	1
27	30771	垫圈	WASHER	2
28	75246	垫圈	WASHER	2
29	30772	弹簧	SPRING	1
30	29077	滚动销	PIN Roll	1
31	47341A1	拉绳与手柄套件手动/应急启动(仅限手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY)	1
31	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 133整流罩支撑支架 Cowl Support Brackets

REF	零件编号	中文名称	英文名称	数量
1	73641A1	黑色顶部支架	BRACKET TOP (BLACK)	1
1	73641A2	灰色顶部支架	BRACKET TOP (GRAY)	1
2	62444	顶部支架/安装板橡胶密封条	SEAL RUBBER-TOP BRACKET/MOUNTING PLATE	1
3	79652	支架固定夹	CLIP SUPPORT BRACKET	1
4	48409	支架固定夹用#10-16x0.625不锈钢螺钉	SCREW (#10-16 x .625) Stainless Steel CLIP TO SUPPORT	2
5	79490T	飞轮护罩	SHIELD FLYWHEEL	1
5	79490	护罩	SHIELD	1
6	37656	护罩至支架用#10-32x0.620螺钉	SCREW (#10-32 x .620) SHIELD TO SUPPORT BRACKET	1
7	48408	螺钉（#10-16 x 0.500）护罩至支撑架	SCREW (#10-16 x .500) SHIELD TO SUPPORT BRACKET	3
8	91891	消音器耐磨板	WEAR PLATE SOUND ATENUATOR	2
9	74510A2	后罩支撑架	BRACKET COWL SUPPORT-REAR	1
10	698761	后支架与顶支架密封件	SEAL REAR BRACKET AND TOP BRACKET	2
11	90435	橡胶支座	MOUNT RUBBER	4
12	20346	橡胶安装垫圈	WASHER RUBBER MOUNT	3
12	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	3
13	20184	螺母 (1/4-28X7/32) 橡胶支座	NUT (1/4-28X7/32) RUBBER MOUNT	4
13	8M0207775	螺母 @5	NUT @5	4
14	26901	后支撑架橡胶缓冲块	BUMPER RUBBER-REAR SUPPORT BRACKET	3
14	269011	橡胶缓冲垫	BUMPER Rubber	3
15	60116	顶罩支撑架加固件	BRACE COWL SUPPORT BRACKET (TOP)	1
16	76596	螺钉（0.250-20 x 1.250）支撑架	SCREW (.250-20 x 1.250) SUPPORT BRACKET	3
17	87764	后下部安装架	BRACKET REAR LOWER MOUNT	1
18	76596	螺钉（0.250-20 x 1.250）后支架固定	SCREW (.250-20 x 1.250) REAR BRACKET ATTACHING	3
19	71097	橡胶安装架	BRACKET RUBBER MOUNT	1
20	59645	螺钉（0.312-18 x 0.750）支架至曲轴箱（3/4英寸）	SCREW (.312-18 x .750) BRACKET TO CRANKCASE (3/4")	1
20	824941	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	1
21	97348T	消音器	ATTENUATOR SOUND	1
21	973482	消音器	SOUND ATTENUATOR	1
22	88684	手动阻风门盖	COVER MANUAL CHOKE	1
23	32293	螺钉（0.312-24 x 1.75）盖至顶盖	SCREW (.312-24 x 1.75) COVER TO TOP COVER	1
24	53705	盖板螺丝垫圈	WASHER COVER SCREW	1
24	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	1
25	73986	空气歧管	MANIFOLD Air	1
26	69093	螺钉（0.250-20 x 1.50）空气歧管	SCREW (.250-20 x 1.50) AIR MANIFOLD	2
27	14915T	前消音器盖	COVER SOUND ATTENUATOR (FRONT)	1
28	37655	螺钉（#10-32 x 0.500）前盖	SCREW (#10-32 x .500) FRONT COVER	8
29	73336	前盖塞	PLUG FRONT COVER	2
30	41128A1	隔板总成	PLATE ASSEMBLY	1
31	698761	密封板	SEAL PLATE	2
32	90198	盖板至支撑架螺钉	SCREW COVER PLATE TO SUPPORT BRACKET	2
32	20540	螺钉(.250-20 x .62)	SCREW (.250-20 x .62)	2
33	14169	电缆护套	GROMMET ELECTRICAL CABLES	1
34	14160	固定盖	CAP RETAINING	1
35	14168	螺钉（0.250-20 x 1.00）盖	SCREW (.250-20 x 1.00) CAP	2
36	88238A3	接地线总成	CABLE ASSEMBLY Ground	1
37	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	2
38	36069	螺母	NUT	3
39	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
40	19686	支架	BRACKET	1
41	19758A3	线束总成	HARNESS ASSEMBLY	1
42	18211	继电器开关	RELAY SWITCH	1
43	20401	螺钉（0.190-24 x 0.38）	SCREW (.190-24 x .38)	1

图 134曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9611A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	63742	滚珠轴承	BEARING Ball	1
2	63742T	滚珠轴承	BEARING Ball	1
3	812877	挡圈	RING Retaining	1
4	91800	半圆键	KEY Woodruff	2
5	43019A2	齿轮总成	GEAR ASSEMBLY	1
6	812873A1	滚子轴承总成(顶部)	BEARING ASSEMBLY Roller (TOP)	1
7	419531	油封	SEAL Oil	1
8	812881A1	滚子轴承总成(中部)	BEARING ASSEMBLY Roller (CENTER)	2
9	9613A1	活塞总成	PISTON ASSEMBLY	3
9	9613T1	活塞	PISTON	3
9	9613A2	活塞总成	PISTON ASSEMBLY	AR
9	9613T2	活塞总成0.015	PISTON ASSY .015	AR
9	9613A3	活塞总成	PISTON ASSEMBLY	AR
9	9613T3	活塞	PISTON	AR
10	52035	锁环	RING Lock	6
10	857196	锁紧环	LOCK RING	6
11	19721A6	活塞环组	RING SET Piston	1
11	19721A1	活塞环组	RING SET Piston	AR
11	19721A2	活塞环组	RING SET Piston	AR
12	9612A2	连杆总成	CONNECTING ROD ASSEMBLY	3
12	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
13	812876	垫圈	WASHER	6
13	8M0012298	止推垫片	THRUST WASHER	6
14	47270	轴承	BEARING	8
14	8M0214934	滚针轴承@200	BRG-NEEDLE @200	8
15	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
16	17514A1	轴承套件	BEARING KIT	3
16	8M0234886	轴承保持架	CAGE BEARING	3
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 135气缸体 Cylinder Block

REF	零件编号	中文名称	英文名称	数量
1	827953A4	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材 (20.00英尺散装) (15英寸)	TUBING (20.00 Feet Bulk) (15 IN.)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	426232	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
7	812888A2	托架总成	CARRIER ASSEMBLY	2
8	42657A4	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	43044	定位销 - 无孔 (0.375 x 0.625)	PIN Dowel - Without Hole (.375 x .625) (LOCATING)	1
13	8128701	销(轴承座圈)	PIN (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	827284	衬垫	GASKET	1
15	8161946	螺柱	STUD	2
15	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
16	185981	管塞(.375-18)	PLUG Pipe (.375-18)	1
17	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
18	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
19	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
20	19725	弯头	ELBOW	2
21	426585	止回阀	CHECK VALVE	2
22	827251A1	盖板	COVER	1
23	850897	吊环	LIFTING EYE	1
24	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	1
25	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
26	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	4
27	827365	托架	CARRIER	1
27	889735	托架	CARRIER	1
28	850055	节温器 43°C (110°F)	THERMOSTAT 43°C (110°F)	1
28	850055001	节温器 43°C (110°F)	THERMOSTAT 43°C (110°F)	1
29	62701	O型圈	O-RING	1
30	854639	密封件	SEAL	1
30	854639001	密封件	SEAL	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	996641	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
39	78279	弯头	ELBOW	1
39	8M0207781	弯头	ELBOW	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
44	99130122	管材 (20.00英尺散装) (5-1/2英寸)	TUBING (20.00 Feet Bulk) (5-1/2 IN.)	2
44	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
45	825064	贴花-挂档启动警告(电动-无手柄)	DECAL Caution Start In Gear, (ELECTRIC-NON-HANDLE)	1
45	881865	警示贴纸-挂档启动	DECAL Caution-Start in Gear	1
-	852071A97	动力头总成	POWERHEAD ASSEMBLY	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812867A97	衬垫套件	GASKET SET	1

图 136驱动轴壳体（长型-0C160936及以上）(60EL NOI)(NPT) Driveshaft Housing (Long-0C160936 & Up)(60EL NOI)(NPT)

REF	零件编号	中文名称	英文名称	数量
1	8189A12	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	8189A13	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
2	64649		PLUG PLASTIC - TRIM TAB SCREW HOLE	1
3	57932	传动轴壳体双头螺栓(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750) DRIVESHAFT HOUSING	1
3	8M0022145	螺柱(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750)	1
4	57935	传动轴壳体双头螺栓(3")	STUD DRIVESHAFT HOUSING (3")	1
5	65791	齿轮箱螺柱垫圈（7/16英寸）	WASHER GEAR HOUSING STUDS (7/16")	2
6	34933	齿轮箱壳体双头螺栓不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUDS	2
6	8M0204653	螺母	NUT	2
7	93445	橡胶安装座-上部	MOUNT RUBBER - UPPER	2
7	923373	支架	MOUNT	2
7	923371	重型支座	MOUNT (HEAVY DUTY)	2
7	923373	支架	MOUNT	2
8	96401		SEAL UPPER MOUNT	2
9	27727	垫圈上部安装螺栓（内径37/64）	WASHER UPPER MOUNT BOLT (37/64 I.D.)	2
10	66966	橡胶垫圈-上部安装螺栓	WASHER RUBBER - UPPER MOUNT BOLT	2
11	30514	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
12	8M0204653	螺母	NUT	2
13	87883T	上支座盖	COVER UPPER MOUNT	2
13	87883	盖板	COVER	2
14	76630	螺丝（0.250-20 x 1.00）上部安装盖	SCREW (.250-20 x 1.00) UPPER MOUNT COVER	4
14	8M0214943	螺钉	SCREW	4
15	29245	上支座盖螺丝不锈钢垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT COVER SCREW	4
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
16	38157		SEAL TRIM COVER TO DRIVESHAFT HOUSING	1
17	38158		STRIP RETAINING - TRIM COVER SEAL (REAR)	1
18	38154	侧饰盖固定条	STRIP RETAINING - TRIM COVER (SIDE)	2
19	48408		SCREW (#10-16 x .500) RETAINING STRIP	8
20	695441	排气管	TUBE EXHAUST	1
21	45679	进水口管	TUBE WATER INLET	1
22	64809	动力头螺柱螺母（5/16英寸）	NUT POWERHEAD STUDS (5/16")	8
23	75304	下橡胶支座	MOUNT RUBBER - LOWER	2
23	75304T1	支架	MOUNT	2
24	75284	下支座螺丝(.500-20 x 5.500)	SCREW (.500-20 x 5.500) LOWER MOUNT SCREW	2
25	28051	下部安装螺钉垫圈（适用处使用）	WASHER LOWER MOUNT SCREW (Use where Applicable)	2
26	28053	橡胶垫圈-下部安装螺钉（适用处使用）	WASHER RUBBER - LOWER MOUNT SCREW (Use where Applicable)	2
27	30119	垫圈（外径0.875英寸）下安装螺丝	WASHER (.875 Inch Outside Diameter) LOWER MOUNT SCREW	2
28	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
29	69592T	下安装夹	CLAMP LOWER MOUNT	2
29	69592F1	卡箍	CLAMP	2
30	29256	螺丝（0.312-18 x 0.875）下安装夹	SCREW (.312-18 x .875) LOWER MOUNT CLAMP	4
31	35522	弹簧张力-下安装夹	SPRING TENSION - LOWER MOUNT CLAMP	4
32	35474T	下部安装夹盖（黑色）	COVER LOWER MOUNT CLAMP (BLACK)	2
32	35474F2	下部安装夹盖（灰色）	COVER Lower Mount Clamp LOWER MOUNT CLAMP (GRAY)	2
33	87884		SCREW (#12-14 x .920) COVER TO LOWER MOUNT CLAMP	2
34	35521	下安装夹盖螺母	NUT LOWER MOUNT CLAMP COVER	2
35	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
35	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
36	23651	进水套管（1.625英寸）	SLEEVE (1.625) WATER INLET TUBE	1

图 137驱动轴壳体（短型）(长序列号-0C160935及以下) Driveshaft Housing (Short)(Long S/N-0C160935 and Below)

REF	零件编号	中文名称	英文名称	数量
1	7512A10	驱动轴壳体总成（短轴）（黑色）	HOUSING ASSEMBLY Driveshaft (SHORT SHAFT)(BLACK)	1
1	8188A8	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	7513A12	驱动轴壳体总成（长轴）（黑色）	HOUSING ASSEMBLY Driveshaft (LONG SHAFT)(BLACK)	1
1	8189A10	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	8189A11	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
2	64649		PLUG PLASTIC - TRIM TAB SCREW HOLE	1
3	57932	螺柱（0.375-16/0.375-24 x 1.750）驱动轴壳体	STUD (.375-16/.375-24 x 1.750) DRIVE SHAFT HOUSING	1
3	8M0022145	螺柱(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750)	1
4	57935	驱动轴壳体螺柱（3英寸）	STUD DRIVE SHAFT HOUSING (3")	1
5	65791	齿轮箱螺柱垫圈（7/16英寸）	WASHER GEAR HOUSING STUDS (7/16")	2
6	34933	齿轮箱壳体双头螺栓不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUDS	2
6	8M0204653	螺母	NUT	2
7	93445	橡胶安装座-上部	MOUNT RUBBER - UPPER	2
7	923373	支架	MOUNT	2
8	96401		SEAL UPPER MOUNT	2
9	27727	垫圈上部安装螺栓（内径37/64）	WASHER UPPER MOUNT BOLT (37/64 I.D.)	2
10	66966	橡胶垫圈-上部安装螺栓	WASHER RUBBER - UPPER MOUNT BOLT	2
11	30514	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
12	8M0204653	螺母	NUT	2
13	87883T	上支座盖	COVER UPPER MOUNT	2
13	87883	盖板	COVER	2
14	76630	螺钉（0.250-20 x 1.00）上部安装盖	SCREW (.250-20 x 1.00) UPPER ,MOUNT COVER	4
14	8M0214943	螺钉	SCREW	4
15	29245	上支座盖螺丝不锈钢垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT COVER SCREW	4
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
16	38157	饰盖至驱动轴壳体密封件	SEAL TRIM COVER TO DRIVE SHAFT HOUSING	1
17	38158		STRIP RETAINING - TRIM COVER SEAL (REAR)	1
18	38154		STRIP RETAINING - TRIM COVER SEAL (SIDE)	2
19	48408		SCREW (#10-16 x .500) RETAINING STRIP	8
20	695431	排气管	TUBE EXHAUST	1
20	695441	排气管	TUBE EXHAUST	1
21	37727	进水口管	TUBE WATER INLET	1
21	45679	进水口管	TUBE WATER INLET	1
22	64809	动力头螺柱螺母（5/16英寸）	NUT POWERHEAD STUDS (5/16")	8
23	75304	下橡胶支座	MOUNT RUBBER - LOWER	2
23	75304T1	支架	MOUNT	2
24	75284	下支座螺丝(.500-20 x 5.500)	SCREW (.500-20 x 5.500) LOWER MOUNT SCREW	2
24	43426		SCREW LOWER MOUNT SCREW	2
25	28051	下部安装螺钉垫圈（适用处使用）	WASHER LOWER MOUNT SCREW (Use where Applicable)	2
26	28053	橡胶垫圈-下部安装螺钉（适用处使用）	WASHER RUBBER - LOWER MOUNT SCREW (Use where Applicable)	2
27	30119	垫圈（外径0.875英寸）下安装螺丝	WASHER (.875 Inch Outside Diameter) LOWER MOUNT SCREW	2
28	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
29	69592T	下安装夹	CLAMP LOWER MOUNT	2
29	69592F1	卡箍	CLAMP	2
30	29256	螺丝（0.312-18 x 0.875）下安装夹	SCREW (.312-18 x .875) LOWER MOUNT CLAMP	4
31	35522	弹簧张力-下安装夹	SPRING TENSION - LOWER MOUNT CLAMP	4
32	35474T	下安装夹盖	COVER LOWER MOUNT CLAMP	2
32	35474F2		COVER Lower Mount Clamp LOWER MOUNT CLAMP	2
33	87884		SCREW (#12-14 x .920) COVER TO LOWER MOUNT CLAMP	2
34	35521	下安装夹盖螺母	NUT LOWER MOUNT CLAMP COVER	2
35	88238A2	接地电缆总成	CABLE ASSEMBLY Ground GROUND	1
35	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
36	23651	进水套管（1.625英寸）	SLEEVE (1.625) WATER INLET TUBE	1

图 138电动配平组件（长序列号-0C160936及以上） Electric Trim Components (Long-S/N-0C160936 & Up)

REF	零件编号	中文名称	英文名称	数量
1	813427	减震杆总成套件	SHOCK ROD ASSEMBLY KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A1	气缸修理包	CYLINDER REBUILD KIT	1
5	813430	配平记忆活塞套件（见备注）	PISTON KIT Trim Memory (SEE NOTE)	1
5	893903A01	活塞套件	PISTON KIT	1
5	810776	记忆活塞套件（见备注）	PISTON KIT Memory (SEE NOTE)	1
6	810777	气缸套件	CYLINDER KIT	1
7	813433A1	螺丝和密封套件气缸	SCREW AND SEAL KIT CYLINDER	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813434A1	储液罐	RESERVOIR	1
9	813435	塞套件	PLUG KIT	1
9	8134351	堵头	PLUG	1
10	813436	螺钉套件	SCREW KIT	1
11	813437	驱动轴	DRIVESHAFT	1
12	813438	螺丝和销钉套件	SCREW AND PIN KIT	1
13	813439A1	密封套件	SEAL KIT	1
13	813439A3	O型圈套件	O RING KIT	1
14	813440	泵	PUMP	1
14	811227	泵	PUMP	1
15	813441	歧管总成	MANIFOLD ASSEMBLY	1
16	813442A1	安全阀套件	RELIEF VALVE KIT	1
16	893929A01	安全阀套件	VALVE KIT Relief	1
17	813443	线束总成	HARNESS ASSEMBLY	1
17	811698	线束总成	HARNESS ASSEMBLY	1
18	813444	边框套件	BEZEL KIT	1
18	811698	线束总成	HARNESS ASSEMBLY	1
19	813445	储液罐盖套件	CAP KIT Reservoir	1
20	813446	螺丝帽	SCREW CAP	1
21	813447	电机套件	MOTOR KIT	1
22	813448	端盖	END CAP	1
23	813449A1	电枢	ARMATURE	1
24	813450	止推垫片套件	THRUST WASHER KIT	1
25	813451	外壳和磁铁套件	SHELL AND MAGNET KIT	1
26	813452	端架套件	END FRAME KIT	1
27	813453	螺栓螺母套件	BOLT AND NUT KIT	1
28	19607	销	PIN	2
29	19603	槽销	PIN Groove	2
29	821539	三叶销	PIN Trilobe	2
30	19686	支架	BRACKET	1
31	19758A3	线束总成	HARNESS ASSEMBLY	1
32	18211	继电器开关	RELAY SWITCH	2
34	20401	螺钉（0.190-24 x 0.38）	SCREW (.190-24 x .38)	2
-	19217A1	完整配平泵总成	PUMP ASSEMBLY Trim COMPLETE	1
-	854472A3	动力调整套件	POWER TRIM KIT	1

图 139排气与歧管盖 Exhaust and Manifold Covers

REF	零件编号	中文名称	英文名称	数量
1	78529	排气歧管盖	COVER EXHAUST MANIFOLD	1
2	695242	板至排气歧管盖衬垫	GASKET PLATE TO EXHAUST MANIFOLD COVER	1
3	703351	挡板至盖衬垫	GASKET BAFFLE PLATE TO COVER	1
4	69579	排气歧管挡板	PLATE BAFFLE-EXHAUST MANIFOLD	1
5	695252	挡板至气缸体衬垫	GASKET BAFFLE PLATE TO CYLINDER BLOCK	1
6	38837	螺钉（0.312-18 x 1.12）板与歧管盖	SCREW (.312-18 x 1.12) PLATE AND MANIFOLD COVER	1
6	74824	螺钉（0.312-18 x 1.250）板与歧管盖	SCREW (.312-18 x 1.250) PLATE AND MANIFOLD COVER	15
6	70602	螺钉（0.250-20 x 2.00）板/歧管盖	SCREW (.250-20 x 2.00) PLATE/MANIFOLD COVER	2
7	76862	转换盖衬垫	GASKET TRANSFER COVER	1
7	768621	衬垫	GASKET	1
8	14428A1	转换盖总成	COVER ASSEMBLY TRANSFER	1
9	37562	不锈钢螺钉（0.312-18 x 1.00）转换盖	SCREW (.312-18 x 1.00) Stainless Steel TRANSFER COVER	11
10	28668	不锈钢螺钉（0.250-20 x 0.875）盖与燃油泵	SCREW (.250-20 x .875) Stainless Steel COVER AND FUEL PUMP	2
11	8364A1	气缸体盖	COVER CYLINDER BLCOK	1
12	437792	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
13	69100	气缸体盖螺钉（1英寸）	SCREW CYLINDER BLCOK COVER (1")	4
13	8M0214943	螺钉	SCREW	4
14	96829A1	温度开关总成（260度）	SWITCH ASSEMBLY Temperature (260 DEGREES)	1
14	19541A2	温度开关套件（285度）	TEMPERATURE SWITCH KIT (285 DEGREES)	1
15	45915	接线端子排（电气）	TERMINAL BLOCK (ELECTRIC)	1
16	69079	螺钉 (#10-16 x .440) 接线端子(电气)	SCREW (#10-16 x .440) TERMINAL BLOCK (ELECTRIC)	1
17	28192	螺钉 (#10-24 x .50) 接线端子(电气)	SCREW (#10-24 x .50) TERMINAL BLOCK (ELECTRIC)	1
17	72169	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
18	33386A3	开关总成	SWITCH ASSEMLBY	1
19	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
20	37655	螺钉 (#10-32 x .500) 水银开关至曲轴箱(1/2")	SCREW (#10-32 x .500) MERCURY SWITCH TO CRANKCASE (1/2")	1
21	36242		PIN Roll MERCURY SWITCH	2
22	99130122	管材 (20.00英尺散装) 曲轴箱通气	TUBING (20.00 Feet Bulk) CRANKCASE BLEED	3
22	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
23	42864	接头曲轴箱通气	FITTING CRANKCASE BLEED	1
23	428641	止回阀接头	FITTING Check Valve	1
24	59169	接头曲轴箱通气管	FITTING CRANKCASEE BLEED HOSE	1
24	59169003	三通接头	FITTING Tee	1
25	15133	接头曲轴箱	FITTING CRANKCASE	1
26	42865	连接器消音器	CONNECTOR ATTENUATOR	1
26	428651	止回阀	VALVE-CHECK	1
-	43779A87	衬垫套件	GASKET SET	1

图 140排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	19653A2	排气板总成	PLATE ASSEMBLY Exhaust	1
-	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	1
2	23784	定位销	PIN Dowel	4
3	812893	上部支架	MOUNT Upper	1
3	8M4501491	上部安装总成	MOUNT UPPER ASM	1
4	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
5	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
5	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
6	93416	垫圈	WASHER	2
6	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
7	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
7	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	90099	螺母(M12)	NUT (M12)	2
8	896963	螺母(M12)	NUT (M12)	2
9	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1
10	812866	衬垫	GASKET	1
10	8M0000820	衬垫	GASKET	1
11	48237	衬套	BUSHING	1
12	815639A2	换挡轴(上)(短)	SHIFT SHAFT (UPPER)(SHORT)	1
12	812891A1	换挡轴(上)(长-50/60)	SHIFT SHAFT (UPPER)(LONG - 50/60)	1
12	815639A1	换挡轴(上)(长-55)	SHIFT SHAFT (UPPER)(LONG - 55)	1
12	812891A3	换挡轴(60浮筒型-电动)	SHIFT SHAFT (60 PONTOON - ELECTRIC)	1
12	815639A3	换挡轴(60海程/马拉松型-手动)	SHIFT SHAFT (60 SEAPRO/MARATHON - MANUAL)	1
13	812872	换挡连杆	SHIFT LINK	1
13	812872A1	换挡连杆	SHIFT LINK	1
13	812872A1	换挡连杆	SHIFT LINK	1
14	48475	衬套	BUSHING	1
14	42994	衬套	BUSHING	1
15	29720	波形垫圈	WAVE WASHER	1
16	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
17	400634	螺母 (M6)	NUT (M6)	1
17	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
18	430144	水管(短型)	TUBE Water (SHORT)	1
18	8M0042795	短型水管	TUBE-WATER-SHORT	1
18	430143	水管(长型)	TUBE Water (LONG)	1
18	8M0042794	大型水管	TUBE-WATER-LG	1
19	93221	护孔环	GROMMET	1
19	93221002	护孔环	GROMMET	1
20	196551	排气管	TUBE Exhaust	1
20	8M0045214	排气管	TUBE-EXHAUST	1
21	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
22	812886	密封件	SEAL	1
22	812886001	密封件	SEAL	1
23	99019	卡箍	CLAMP	1
24	42941	水管密封件(上部)	SEAL Water Tube (UPPER)	1
24	42941001	水管密封件	SEAL Water Tube	1
25	40011155	不锈钢螺钉(M8x55)	SCREW (M8 x 55) Stainless Steel	2
-	812867A97	衬垫套件	GASKET SET	1

图 141飞轮、开关盒、点火线圈与定子 Flywheel, Switch Box, Ignition Coil and Stator

REF	零件编号	中文名称	英文名称	数量
1	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
2	68229	垫圈（0.641 x 1.250 x 0.190）飞轮螺母	WASHER (.641 x 1.250 x .190) FLYWHEEL NUT	1
2	33001	垫圈	WASHER	1
3	45907	塞子黄色飞轮拉拔器螺纹	PLUG Yellow FLYWHEEL PULLER THREADS	1
4	8722A5	飞轮总成	FLYWHEEL ASSEMBLY	1
5	68997	螺钉 (.312-24 x .750) 板/轮毂	SCREW (.312-24 x .750) PLATE/HUB	8
6	32417		SCREW (.250-28 x .625) FLEXIBLE PLATE TO FLYWHEEL	8
7	889351	开关盒安装板	PLATE SWITCH BOX	1
8	59645	螺钉 (.312-18 x .750) 开关盒板	SCREW (.312-18 x .750) SWITCH BOX PLATE	3
8	824941	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	3
9	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	1
9	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	1
10	20619	螺钉 (#12-24 x 1.25) 开关盒至板	SCREW (#12-24 x 1.25) SWITCH BOX TO PLATE	2
11	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	10
12	60443A3	线束总成开关盒至线圈	WIRE ASSEMBLY SWITCH BOX TO COIL	1
12	62822A1	线束总成开关盒至线圈	WIRE ASSEMBLY SWITCH BOX TO COIL	1
12	68896A4	线束总成开关盒至线圈	WIRE ASSEMBLY SWITCH BOX TO COIL	1
12	88807A9	电缆总成开关盒至线圈	CABLE ASSEMBLY SWITCH BOX TO COIL	1
12	88807A13	电缆总成开关盒至线圈	CABLE ASSEMBLY SWITCH BOX TO COIL	3
13	73439	板安装-点火线圈	PLATE MOUNTING-IGNITION COIL	1
14	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	3
14	8M0230859	点火线圈总成	COIL IGNITION ASY	3
15	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	6
16	43542	点火线圈盖	COVER IGNITION COIL	1
17	92399	螺钉 (.190-32 x 2.250) 盖至安装板	SCREW (.190-32 x 2.250) COVER TO MOUNTING PLATE	6
18	5704A7	定子总成	STATOR ASSEMBLY	1
19	63136	螺钉 (#10-24 x .880) 定子至上端盖	SCREW (#10-24 x .880) STATOR TO UPPER END CAP	4
20	96455A8	触发板总成	PLATE ASSEMBLY Trigger	1
21	813715A6	线束总成火花塞	WIRE ASSEMBLY SPARK PLUG	1
22	63709A1	护套/端子套件	BOOT/TERMINAL KIT	3
24	97180	火花塞	SPARK PLUG	3
24	896329827	SP #L76V @4	SP #L76V @4	3
24	14103550	火花塞 (NGK-BUZHW) (加拿大和比利时)	SPARK PLUG (NGK-BUZHW) (CANADA AND BELGIUM)	3
24	896329898	SP #QL76V @4	SP #QL76V @4	3
25	30164		WASHER (.192 x .375 x .0312) Stainless Steel COIL COVER SCREW	6
26	94304	隔套	SPACER	2
27	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	1
27	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1

图 142燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
0-1	84139M	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	80613M	衬垫	GASKET	1
1	80613	衬垫	GASKET	1
2	80606M	隔膜泵	DIAPHRAGM PUMP	1
3	80611M	板簧导板	PLATE SPRING GUIDE	1
4	80610M	隔膜泵弹簧	SPRING PUMP DIAPHRAGM	1
5	84650M	止回阀	CHECK VALVE	2
6	80614M	衬垫	GASKET	1
6	80614	衬垫	GASKET	1
7	84141M	隔膜泵	DIAPHRAGM PUMP	1
8	80607M	泵盖	COVER PUMP	1
9	82208M	锁紧垫圈	WASHER LOCK	3
9	82186M	垫圈	WASHER	3
10	82522M	螺钉	SCREW	3
11	80757M	衬垫	GASKET	1
11	80757	衬垫	GASKET	1
12	82428M	螺栓	BOLT	2
12	827043M	螺栓	BOLT	2
13	82199M	锁紧垫圈	WASHER LOCK	2
13	82214M	垫圈	WASHER	2
-	84167M	衬垫套件	GASKET SET	1
-	94483M	衬垫套件	GASKET SET	1

图 143齿轮箱（驱动轴） Gear Housing (Driveshaft)

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
2	85822A1	速度表连接器总成	CONNECTOR ASSEMBLY Speedometer	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	85500	定位销(.187 x .530)齿轮箱	PIN Dowel (.187 x .530) Gear Housing	2
3	8M0084726	定位销	PIN Dowel	2
4	33778	水泵/底座柱螺栓(2.625英寸)	STUD Water Pump/Base (2.625 Inch)	3
5	57933	柱螺栓(.437-14/.437-20 x 2.190)齿轮箱	STUD (.437-14/.437-20 x 2.190) Gear Housing	2
5	8M0034453	柱螺栓(7/16 x 2.19)	STUD (7/16 x 2.19)	2
6	62091	传动轴滚柱轴承	BEARING Roller Driveshaft	1
6	62091T	轴承	BEARING	1
7	72849A1	进水滤网总成	SCREEN ASSEMBLY Water Intake	1
8	36070	螺钉(#10-32 x 1.250)进水滤网至齿轮箱	SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing	1
9	45812	螺母(#10-32)不锈钢进水滤网螺钉	NUT (#10-32) Stainless Steel Water Intake Screen Screw	1
9	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
10	92815	排气管支撑板	PLATE Support - Exhaust Tube	1
11	37721	排气管密封件	SEAL Exhaust Tube	1
11	37721001	密封件@2	SEAL @2	1
12	98097	传动轴小齿轮	GEAR Pinion Driveshaft	1
12	98097T	小齿轮	GEAR-PINION	1
13	55910	螺母(.437-20)小齿轮至传动轴	NUT (.437-20) Pinion Gear to Driveshaft	1
14	19552	水泵底座衬垫	GASKET Water Pump Base	1
15	26722	O型圈	O-RING	1
16	77177A1	水泵底座总成	BASE ASSEMBLY Water Pump	1
17	90562	密封件(1.254 x .312)	SEAL (1.254 x .312)	1
18	79831	油封	SEAL Oil	1
19	35973	定位销	PIN Dowel	2
20	19553	下衬垫	GASKET Lower	1
21	54705	面板	FACE PLATE	1
21	32768	面板	FACEPLATE	1
22	19551	上衬垫	GASKET Upper	1
23	89983	叶轮	IMPELLER	1
23	89983T	叶轮	IMPELLER	1
24	56662	叶轮驱动键	KEY Impeller Drive	1
24	8M0032837	键@5	KEY @5	1
25	77822A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	48753	嵌件	INSERT	1
27	38452	橡胶密封件	SEAL Rubber	1
28	38453	尼龙垫圈	WASHER Nylon	1
29	29245	垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓	WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs	3
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
30	13438	螺母(.250-28)水泵体与底座柱螺栓	NUT (.250-28) Water Pump Body and Base Studs	3
30	8267119	螺母(.250-28)	NUT (.250-28)	3
31	20273	橡胶O型圈	O-RING Rubber	1
32	78654A1	传动轴座总成	SEAT ASSEMBLY Driveshaft	1
33	86304	花键密封件-传动轴	SEAL Splined - Driveshaft	1
34	79953	螺钉(.375-16 x .250)润滑脂加注口	SCREW (.375-16 x .250) Grease Filler	1
34	79953Q04	放油螺钉套件	SCREW KIT Drain	1
35	67892	磁性放油螺钉	SCREW Magnetic Drain	1
35	8M0058389	放油螺钉套件	SCREW KIT Drain	1
36	19183	纤维垫圈(加注/放油螺钉)	WASHER Fiber Filler/Drain Screw	2
36	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
37	88181	润滑套筒-传动轴	SLEEVE Lubrication - Driveshaft	1
38	92881A1	轴承垫片组(齿轮箱用)(.002-3-5-10-20)	SHIM SET Bearing to Gear Housing(.002-3-5-10-20)	AR
39	77420A1	圆锥滚子轴承总成-传动轴	BEARING ASSEMBLY Roller Tapered - Driveshaft	1
39	8M0166756	轴承总成	BEARING ASSEMBLY	1
40	88025A2	驱动轴总成	DRIVESHAFT ASSEMLBY	1
40	98179	驱动轴	DRIVESHAFT	1
40	88024A2	驱动轴总成	DRIVESHAFT ASSEMBLY	1
40	98180	驱动轴	DRIVESHAFT	1
41	20254	驱动轴压缩弹簧	SPRING Compression - Driveshaft	1
42	30545	驱动轴销	PIN Driveshaft	1
43	76063A1	换挡轴总成	SHAFT ASSEMBLY Shift	1
44	29641	换挡轴E型卡环	E RING Shift Shaft	1
45	25439	O型圈(.862 x .103)换挡轴衬套	O-RING (.862 x .103) Shift Shaft Bushing	1
46	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
47	76384	换挡轴衬套油封	SEAL Oil Shift Shaft Bushing	1
47	8M0246145	油封	OIL SEAL	1
48	77674	橡胶垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing	1
49	78036	倒挡锁定底座	BASE Reverse Locking	1
50	433081	倒挡锁定凸轮	CAM Reverse Locking	1
50	43308T1	凸轮	CAM	1
-	77177A3	水泵套件	WATER PUMP KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 144齿轮箱螺旋桨轴 Gear Housing Propeller Shaft

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
51	76039	换挡凸轮控制	CAM Shift Control	1
51	760394	换挡凸轮控制	CAM Shift Control	1
52	38374A1	轴承杯与齿轮箱调整垫片组(.002-3-5-10)	SHIM SET Bearing Cup to Gear Housing (.002-3-5-10)	AR
53	38356A1	轴承套件	BEARING SET	1
54	55608A4	前进齿轮总成	GEAR ASSEMBLY Forward	1
54	55608T4	前进齿轮总成	GEAR ASSY-FORWARD	1
55	21739	前进齿轮滚柱轴承	BEARING Roller Foward Gear	1
56	38441	凸轮从动件	FOLLOWER Cam	1
57	20843	十字销滑套	SLIDE Cross Pin	1
58	38114	十字销固定弹簧	SPRING Retaining - Cross Pin	1
59	92911	滑动离合器棘轮	RATCHET Sliding Clutch	1
59	92911T	离合器	CLUTCH	1
60	38113	棘轮到螺旋桨轴十字销	PIN Cross Ratchet to Propeller Shaft	1
60	8M0020942	十字销@2	PIN-CROSS @2	1
61	39845	凸轮从动件压缩弹簧	SPRING Compression - Cam Follower	1
62	75365	螺旋桨轴	PROPELLER SHAFT	1
63	79158	倒挡齿轮	GEAR Reverse	1
63	79158T	倒挡齿轮	GEAR-REVERSE	1
64	32004	倒档齿轮止推垫片	WASHER Thrust - Reverse Gear	1
65	20839	倒档齿轮滚珠轴承	BEARING Ball Reverse Gear	1
65	20839T	滚珠轴承	BEARING Ball	1
66	31986	轴承座O型圈	O-RING Bearing Carrier	1
67	69386A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	69386T1	轴承座总成	CARRIER ASSY-BRG	1
68	21700	轴承座滚针轴承	BEARING Needle Bearing Carrier	1
69	69188	轴承座油封	SEAL Oil Bearing Carrier	1
69	8M0205511	油封	SEAL Oil	1
70	69189	轴承座油封	SEAL Oil Bearing Carrier	1
70	8M0203757	油封	SEAL Oil	1
71	30281	轴承座定位键	KEY Locating - Bearing Carrier	1
72	53012	齿轮箱盖锁紧垫片	TAB WASHER Gear Housing Cover	1
73	87763	齿轮箱螺母	NUT Gear Housing	1
74	31640A1	齿轮箱平衡片总成	TRIM TAB ASSEMBLY Gear Housing	1
74	31640Q4	平衡鳍板	TRIM TAB	1
75	66024	平衡片固定螺丝(.437-14 x 1.75)	SCREW (.437-14 x 1.75) Trim Tab to Gear Housing	1
76	45175	驱动轴壳体螺柱垫片(.406 x .750 x .104)(0.375英寸)	WASHER (.406 x .750 x .104) Driveshaft Housing Stud (0.375 Inch)	1
76	8M0214963	垫圈	WASHER	1
77	34863	驱动轴壳体螺柱螺母(.375-24)	NUT (.375-24) Driveshaft Housing Stud	1
77	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
78	65791	壳体与螺柱垫片(0.437英寸)	WASHER Housing to Stud (0.437 Inch)	1
79	34933	不锈钢螺柱螺母(.437-20)	NUT (.437-20) Stainless Steel Stud	1
79	8M0204653	螺母	NUT	1
80	73345A1	前止推垫片	THRUST WASHER Front	1
81	76281	螺旋桨螺母锁紧垫片	TAB WASHER Propeller Nut	1
81	8M0214942	锁紧垫片	WASHER Tab	1
82	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
82	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 145手动倾斜装置组件 Manual Tilt Components

REF	零件编号	中文名称	英文名称	数量
1	813427A4	减震杆总成	SHOCK ROD ASSEMBLY	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	8134291	减震活塞	PISTON Shock	1
4	813432A2	气缸修理包	CYLINDER REBUILD KIT	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	810777	气缸套件	CYLINDER KIT	1
6	811224A1	气缸总成	CYLINDER ASSEMBLY	1
6	893918A01	气缸套件	CYLINDER KIT	1
7	813433A1	螺丝和密封套件气缸	SCREW AND SEAL KIT CYLINDER	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
8	893920A01	蓄能器套件	ACCUMULATOR KIT	1
9	813455T4	阀体总成	VALVE BODY ASSEMBLY	1
9	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
10	813456A4	维修套件	REPAIR KIT	1
10	813456A4	维修套件	REPAIR KIT	1
11	813458	塞套件	PLUG KIT	1
11	813458A2	塞套件	PLUG KIT	1
12	813457A1	凸轮总成套件	CAM ASSEMBLY KIT	1
13	813459	塞套件	PLUG KIT	1
14	19607	销	PIN	2
15	821539	三叶销	PIN Trilobe	2
-	830050T3	手动配平总成(完整)	MANUAL TRIM ASSEMBLY COMPLETE	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1

图 146动力配平组件（序列号-0C160935及以下） Power Trim Components (S/N-0C160935 & Below)

REF	零件编号	中文名称	英文名称	数量
1	99659A21	歧管总成 (黑色)	MANIFOLD ASSEMBLY (BLACK)	1
1	99659A22	歧管总成 (灰色)	MANIFOLD ASSEMBLY (GRAY)	1
2	99616	管塞歧管	PIPE PLUG MANIFOLD	11
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	11
3	41493A9	配平油缸总成 (黑色)	TRIM CYLINDER ASSEMBLY (BLACK)	1
3	41493A6	配平油缸总成 (灰色)	TRIM CYLINDER ASSEMBLY (GRAY)	1
4	41492A1	导向器总成	GUIDE ASSEMBLY	1
5	41478A1	维修套件	REPAIR KIT	1
6	41482A3	止回阀套件	CHECK VALVE KIT	1
7	99638A1	导向总成装饰杆	GUIDE ASSEMBLY TRIM ROD	2
7	8M0021648	端盖总成	END CAP ASSEMBLY	2
8	43397A7	活塞总成端口	PISTON ASSEMBLY PORT	1
9	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
10	43398A3		PISTON/ROD ASSEMBLY Power Trim STARBOARD	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	13794	沟槽销-升降油缸(上)	PIN Groove TRIM CYLINDER (UPPER)	1
11	821539	三叶销	PIN Trilobe	1
12	812843A1	阀门总成	VALVE ASSEMBLY	1
12	893929A01	安全阀套件	VALVE KIT Relief	1
12A	812844	E形环阀门总成	E RING VALVE ASSEMBLY	1
12A	815949001	E形环	E-RING	1
13	4000327	螺钉(M6x14)-盖板	SCREW (M6 x 14) COVER	4
14	43450	盖板螺丝垫圈	WASHER COVER SCREW	4
14	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
15	99642	歧管盖	COVER MANIFOLD	1
16	48462A2	O型圈套件	O-RING KIT	1
16	48462A4	O型圈套件	O RING KIT	1
17	99609A1	塞子总成	PLUG ASSEMBLY	1
18	99641A1	轴总成	SHAFT ASSEMBLY	1
18	99641A02	轴总成	SHAFT ASSY	1
19	99616	轴管塞	PIPE PLUG SHAFT	2
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
20	4008820	螺钉(M6x20)-泵与马达	SCREW (M6 x 20) PUMP AND MOTOR	2
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
22	99186T	泵与电机总成	PUMP AND MOTOR	1
22	826729A10	ORD 8M0143217	ORD 8M0143217	1
23	99625		SHAFT UPPER	1
23	99625002	轴	SHAFT	1
24	43396A2	阳极总成	ANODE ASSEMBLY	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000332	螺钉(M6x35)-阳极	SCREW (M6 x 35) ANODE	2
26	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	996301	撞板-升降轴	STRIKER PLATE TRIM SHAFT	2
27	8M0045383	冲击板	STRIKER PLATE	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	46335	螺母 (.375-24)	NUT (.375-24)	2
30	99695A1	线束总成控制动力配平 (3线)	HARNESS ASSEMBLY Control POWER TRIM (3 WIRE)	1
30	17201A2	电缆总成 (17.00英寸) 动力配平 (2线)	CABLE ASSEMBLY (17.00 Inches) POWER TRIM (2 WIRE)	1
31	87379A39	线束总成 (2-3/4" - 红色)	WIRE ASSEMBLY (2-3/4" - RED)	2
32	96158	启动电磁阀	SOLENOID Starter	3
32	8M0185622	电磁阀	SOLENOID	3
33	41508	螺钉(0.250-20x0.500)-不锈钢启动电磁阀	SCREW (.250-20 x .500) Stainless Steel STARTER SOLENOID	6
34	26419	螺母 (#8-32) 黄铜电磁阀端子	NUT (#8-32) Brass SOLENIOD TERMINAL	4
35	26992	锁紧垫圈 (.250) 不锈钢电磁阀端子	LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL	8
36	94330	螺母 (.250-20) 黄铜电磁阀端子	NUT (.250-20) Brass SOLENOID TERMINAL	4
37	97861	绝缘体启动电磁阀	INSULATOR STARTER SOLENIOD	2
38	22875		CLIP PUMP WIRE	1
39	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	1
39	8M0084613	C形垫圈	C-WASHER	1
40	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	1
41	44431	沟槽销-升降油缸(下)	PIN Groove TRIM CYLINDER (LOWER)	1
41	878267	销	PIN	1
42	4000377		SCREW (M10 x 30) MANIFOLD	6
43	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6
44	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	3

图 147动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 148维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称
-	81639990	零件手册 XR-10/MAGNUM 10/SEA PRO 10/MARATHON 10	PARTS MANUAL XR-10/MAGNUM 10/SEA PRO 10/MARATHON 10
-	816290A90	标贴套装(XR10)	DECAL SET (XR10)
-	816291A92	标贴套装(MAGNUM 10)	DECAL SET (MAGNUM 10)
-	817633A91	标贴套装(SEA PRO 10)	DECAL SET (SEA PRO 10)
-	13361A91	标贴套装(MARATHON 10)	DECAL SET (MARATHON 10)
-	12048930	用户指南(XR 10)	OWNERS GUIDE (XR 10)
-	14138930	用户指南(MAGNUM 10)	OWNERS GUIDE (MAGNUM 10)
-	816755930	用户指南(SEA PRO 10)	OWNERS GUIDE (SEA PRO 10)
-	816757930	使用手册（马拉松10）	OWNERS GUIDE (MARATHON 10)

图 149启动电机、电磁阀与整流器 Starter Motor, Solenoid and Rectifier

REF	零件编号	中文名称	英文名称	数量
1	62351A1	整流器	RECTIFIER	1
2	38055	螺钉 (.190-32 x .620) 整流器至板	SCREW (.190-32 x .620) RECTIFIER TO PLATE	2
3	47483	J型卡扣	J CLIP	1
4	134731	保险丝座	HOLDER Fuse	1
5	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINAL	3
6	96158	启动电磁阀	SOLENOID Starter	1
6	8M0185622	电磁阀	SOLENOID	1
7	26996	锁紧垫圈（#10）不锈钢电磁阀端子	LOCKWASHER (#10) Stainless Steel SOLENOID TERMINAL	2
8	26419	螺母(#8-32)-黄铜电磁阀端子	NUT (#8-32) Brass SOLENOID TERMINAL	2
9	26992	锁紧垫圈 (.250) 不锈钢电磁阀端子	LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL	2
10	94330	螺母 (.250-20) 黄铜电磁阀端子	NUT (.250-20) Brass SOLENOID TERMINAL	2
11	97861	绝缘体-启动电磁阀	INSULATOR STARTER SOLENOID	1
12	41508	螺钉 (.250-20 x .500) 不锈钢电磁阀至消音器	SCREW (.250-20 x .500) Stainless Steel SOLENOID TO ATTENUATOR	2
12	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	2
13	26992	锁紧垫圈 (.250) 不锈钢电磁阀螺钉	LOCKWASHER (.250) Stainless Steel SOLENOID SCREW	2
14	44369A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
15	44368	适配器启动马达	ADAPTER STARTER MOTOR	1
16	57247	止动橡胶 - 启动马达	STOP RUBBER - STARTER MOTOR	2
16	8M0043376	停机开关	STOP	2
17	93388A1	电缆总成 (6.00英寸) 黑色启动器至消音器	CABLE ASSEMBLY (6.00 Inches) Black STARTER TO SOUND ATTENUATOR	1
18	69035	螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢电缆至启动马达	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR	1
19	93389A6	电缆总成电磁阀至启动马达 - 9-1/2"	CABLE ASSEMBLY SOLENOID TO STARTER MOTOR - 9-1/2"	1
20	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
21	64015	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
22	56703	橡胶套环 - 启动器安装	COLLAR RUBBER - STARTER MOUNT	2
22	8M0034918	轴环	COLLAR	2
23	56774	垫片套环至安装支架	SPACER COLLAR TO MOUNTING BRACKETS	AR
24	14614A1	线束总成 (内部)	HARNESS ASSEMBLY (INTERNAL)	1
25	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
26	79091	保险丝20安培	FUSE 20 Ampere	1
26	8M0207796	保险丝20安培	FUSE 20 AMP	1
27	88751	线束夹	CLAMP WIRING HARNESS	1
28	23702	螺钉(0.190-32x1.12)线束卡箍	SCREW (.190-32 x 1.12) WIRING HARNESS CLAMP	1
29	72761	垫圈(0.203x0.562x0.060)-不锈钢线束夹螺钉	WASHER (.203 x .562 x .060) Stainless Steel WIRING HARNESS CLAMP SCREW	1
30	28357	弹簧线束	SPRING WIRING HARNESS	1
27	63153	J型线束夹	J CLIP WIRING HARNESS	1
28	62568	螺钉 (#10-16 x .375) 夹子	SCREW (#10-16 x .375) CLAMP	1
31	88439A7	电缆总成蓄电池 (正极)	CABLE ASSEMBLY Battery (POSITIVE)	1
31	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
32	28700	线束夹	CLAMP WIRING HARNESS	1
33	73286	螺钉 (.250-20 x .500) 不锈钢线束夹	SCREW (.250-20 x .500) Stainless Steel WIRING HARNESS CLAMP	1
34	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1

图 150启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	822462	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	965661	贯穿螺栓	THRU BOLT	1
3	90643	驱动套件	DRIVE KIT	1
4	68575	驱动总成	DRIVE ASSEMBLY	1
4	685753	驱动总成	DRIVE ASSEMBLY	1
5	823639	驱动端盖	DRIVE CAP	1
5	8236392	驱动端盖	DRIVE CAP	1
6	965651	电枢	ARMATURE	1
7	8119011	换向器端盖	CAP Commutator	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	支架	HOLDER	1
9	898265014	电刷支架	HOLDER-BRUSH	1
10	F15158	螺钉	SCREW	2
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	64015	螺母 (.250-20)	NUT (.250-20)	1
13	88439A9	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
14	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	3
15	NSS	警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Warning	1
16	823989	油箱支架	BRACKET Oil Tank	1

图 151旋转支架（长轴-序列号0C160936及以上） Swivel Bracket (Long Shaft-S/N-0C160936 & Up)

REF	零件编号	中文名称	英文名称	数量
1	9749A1	旋转支架总成（黑色）	SWIVEL BRACKET ASSEMBLY (BLACK)	1
1	9749A2	旋转支架总成（灰色）	SWIVEL BRACKET ASSEMBLY (GRAY)	1
2	19622	轴承	BEARING	2
2	821124	轴承	BEARING	2
3	32911	油封	SEAL Oil	2
4	19606	轴承	BEARING	2
5	74036	润滑脂接头	FITTING Grease	3
5	8M0169589	润滑脂接头	FITTING Grease	3
6	25176	垫圈	WASHER	1
7	77416T	底部轭架(黑色)	YOKE Bottom (BLACK)	1
7	77416T1	黑色下轭架	YOKE-BOTTOM-BLACK	1
7	77416T6	底部轭架(灰色)	YOKE Bottom (GRAY)	1
8	77415	挡圈	RETAINING RING	1
9	19459A3	臂总成转向 (黑色)	ARM ASSEMBLY Steering (BLACK)	1
9	19459T3	转向臂总成-黑色	ARM ASSY-STEER-BL	1
9	19459A4	转向臂总成(灰色)	ARM ASSEMBLY Steering (GRAY)	1
10	30711	缓冲垫	BUMPER	1
11	19616T	支架（黑色）	BRACKET (BLACK)	1
11	19616A1	支架	BRACKET	1
11	19616T6	支架（灰色）	BRACKET (GRAY)	1
12	76533	绑带	STRAP	1
13	34352	螺钉（.375-24 x .875）	SCREW (.375-24 x .875)	2
14	19608	连杆(右舷)	LINK ROD (STARBOARD)	1
14	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
14	19609	连杆(左舷)	LINK ROD (PORT)	1
14	19609A6	转向安装套件	ATTACHING KIT Steering	1
15	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
15	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
16	34863	螺母 (.375-24)	NUT (.375-24)	2
16	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
17	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
18	52865	垫圈	WASHER	1
19	66897	螺栓（.437-20 x 5.250）	BOLT (.437-20 x 5.250)	2

图 152旋转支架（动力配平）(序列号0C160935及以下) Swivel Bracket (Power Trim)(S/N-0C160935 & Below)

REF	零件编号	中文名称	英文名称	数量
1	8710A4	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710A18	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735		SEAL Oil SWIVEL BRACKET (LOWER)	1
3	67669	衬套旋转支架 - 下部和上部	BUSHING SWIVEL BRACKET - LOWER AND UPPER	2
3	818764	衬套	BUSHING	2
4	33466	O形环旋转支架 - 上部	O-RING SWIVEL BRACKET - UPPER	1
5	67668	垫片旋转支架 - 上部	SPACER SWIVEL BRACKET - UPPER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	99608	转轴支架衬套	BUSHING SWIVEL BRACKET	2
7	821207	衬套	BUSHING	2
8	64014		SCREW (.250-28 x .500) SWIVEL BRACKET	2
9	99621		SCREW (.437-20 x 6.620) STEERING ARM TO UPPER MOUNT	2
10	28203		BUMPER TOP YOKE	1
11	78854		WAVE WASHER BOTTOM YOKE	1
12	42961T	下轭架	YOKE Bottom	1
12	42961T6	下轭架	YOKE Bottom	1
13	67684	卡环-底部轭架	RING Retaining BOTTOM YOKE	1
14	67670		WASHER THRUST - SWIVEL BRACKET	1
15	99661A2	旋转销总成	SWIVEL PIN ASSEMBLY	1
16	17432A6	连杆总成	LINK ROD ASSEMBLY	1
16	17432A5	连杆总成	LINK ROD ASSEMBLY	1
17	14000		SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM	1
17	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
18	34863		NUT (.375-24) STEERING LINK SCREW	2
18	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
19	34931		WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM	2

图 153旋转支架（短型）(长序列号0C160935及以下)(60EL NOI)(NPT) Swivel Bracket (Short)(Long-0C160935 & Below)(60EL NOI)(NPT)

REF	零件编号	中文名称	英文名称	数量
1	8597A4	旋转支架	SWIVEL BRACKET	1
1	8599A6	旋转支架	SWIVEL BRACKET	1
2	32911	旋转支架油封	SEAL Oil SWIVEL BRACKET	2
3	74036	润滑脂接头	FITTING Grease	4
3	8M0169589	润滑脂接头	FITTING Grease	4
4	22734	旋转支架油封	SEAL Oil SWIVEL BRACKET	2
5	88798A1	旋转销总成	SWIVEL PIN ASSEMBLY	1
5	88798A23	短型旋转销总成	SWIVEL PIN ASY SH	1
5	88798A2	旋转销总成	SWIVEL PIN ASSEMBLY	1
5	88798A24	长型旋转销总成	SWIVEL PIN ASY LG	1
6	30711	转向臂缓冲器	BUMPER STEERING ARM	1
7	66897	螺栓 (.437-20 x 5.250) 上部安装至旋转销	BOLT (.437-20 x 5.250) UPPER MOUNT TO SWIVEL PIN	2
8	25176	垫圈旋转销至底部轭	WASHER SWIVEL PIN TO BOTTOM YOKE	1
9	77416T	下轭架	YOKE Bottom	1
9	77416T1	黑色下轭架	YOKE-BOTTOM-BLACK	1
9	77416T6	下轭架	YOKE Bottom	1
10	77415	底部轭架挡圈	RETAINING RING BOTTOM YOKE	1
11/12	89105	倾斜锁定右舷/左舷	TILT LOCK STARBOARD/PORT	2
13	62702		O-RING (.301 x .070) TILT LOCK	2
13	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	2
14	79659	倾斜锁定联轴器	COUPLING TILT LOCK	1
15	47959	倾斜锁定管开口销	COTTER PIN TILT LOCK TUBE	2
16	56349		SHAFT REVERSE LOCK PIVOT	1
17	69132		BUSHING REVERSE PIVOT SHAFT	2
18	45882	倒挡锁定至轴开口销	COTTER PIN REVERSE LOCK TO SHAFT	1
19	78203A2	倒挡锁定张力弹簧	SPRING REVERSE LOCK TENSION	1
20	14664A3	倒车锁	REVERESE LOCK	1
21	43415		PUSH ROD REVERSE LOCK	1
21	43416		PUSH ROD REVERSE LOCK	1
22	70132	不锈钢推杆垫圈（0.323 x 0.563 x 0.063英寸）	WASHER (.323 x .563 x .063) Stainless Steel PUSH ROD	1
22	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	1
23	44297	推杆弹簧	SPRING PUSH ROD	1
24	89813	推杆端头	ROD END PUSH ROD	1
25	35814	推杆螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel PUSH ROD	1
25	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
26	93336	推杆导套	GUIDE PUSH ROD	1
26	933361	换挡轴导套	GUIDE Shift Shaft	1
27	765351	支架行驶导板	BRACKET RIDE GUIDE	1
28	76533	带式支架螺钉	STRAP BRACKET SCREW	1
29	34352		SCREW (.375-24 x .875) BRACKET	2
30	47606	止推垫圈	WASHER THRUST	1
-	43779A87	衬垫套件	GASKET SET	1

图 154节气门联动装置 Throttle Linkage

REF	零件编号	中文名称	英文名称	数量
1	76864	节流阀执行器尼龙壳体	HOUSING NYLON-THROTTLE ACTUATOR	1
2	77025	节流阀执行器尼龙凸轮	CAM NYLON-THROTTLE ACTUATOR	1
3	37571	壳体螺钉(0.190-32x0.500)	SCREW (.190-32 x .500) HOUSING	1
4	26996	壳体螺钉用#10不锈钢锁紧垫圈	LOCKWASHER (#10) Stainless Steel HOUSING SREW	1
5	60570	执行器壳体固定板	PLATE RETAINER-ACTUATOR HOUSING	1
6	74213	节流连杆尼龙套筒	BARREL NYLON-THROTTLE LINK ROD	1
7	74164	节流连杆	ROD LINK-THROTTLE	1
8	77013A1	节流控制杆万向接头	SWIVEL LINK TO THROTTLE CONTROL LEVER	1
9	29402	连杆万向接头波形垫圈	WAVE WASHER LINK ROD SWIVEL	2
10	26856		BUSHING LINK ROD SWIVEL	2
11	33786		WASHER LINK ROD SWIVEL	2
11	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	2
12	45774		NUT LINK ROD SWIVEL	2
13	77032A2	节流控制杆总成	LEVER ASSEMBLY THROTTLE CONTROL	1
14	73655	节流杆调节螺钉(2英寸)	SCREW THROTTLE LEVER ADJUSTING (2")	2
14	67916	螺钉(0.250-28x2.00)	SCREW (.250-28 x 2.00)	2
15	29598	调节螺钉用0.250-28不锈钢防松螺母	NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW	3
16	52023	调节螺钉帽	CAP ADJUSTINTG SCREW	3
17	55337	节流控制杆螺钉(0.375-16x1.75)	SCREW (.375-16 x 1.75) THROTTLE CONTROL LEVER	1
17	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
18	55164	节气门控制杆螺钉衬套	BUSHING THROTTLE CONTROL LEVER SCREW	1
19	55171	节气门控制杆螺钉衬套	BUSHING THROTTLE CONTROL LEVER SCREW	1
20	55162	弹簧	SPRING	1
21	77031A2	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
22	68410	节气门控制杆螺钉垫圈	WASHER THROTTLE CONTROL LEVER SCREW	1
22	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
23	32627	点火提前调节螺钉(0.190-32x1.50)	SCREW (.190-32 x 1.50) SPARK ADVANCE ADJUSTING	1
24	68219		NUT (#10-32) Stainless Steel ADJUSTING SCREW	1
25	48039	调节螺钉帽	CAP ADJUSTING SCREW	1
26	77650	点火提前杆调节螺钉	SCREW SPARK ADVANCE LEVER ADJUSTING	1
27	29598	调节螺钉用0.250-28不锈钢防松螺母	NUT (.250-28) Stainless Steel JAM-ADUSTING SCREW	1
28	52023	调节螺钉帽	CAP ADJUSTING SCREW	1
29	39483	节气门控制杆锁扣	LATCH THROTTLE CONTROL LEVER	1
30	22486	节流控制杆锁扣螺钉(0.250-28x0.880)	SCREW (.250-28 x .880) LATCH TO THROTTLE CONTROL LEVER	1
30	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
31	20099	锁扣螺钉压缩弹簧	SPRING COMPRESSION-LATCH SCREW	1
32	20586	锁扣安装螺钉用0.250-28螺母	NUT (.250-28) LATCH ATTACHING SCREW	1
32	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
33	74897	定子连杆枢轴	PIVOT LINK ROD TO STATOR	1
33	74897T	枢轴	PIVOT	1
34	74212	点火提前连杆	ROD LINK-SPARK ADVANCE	1
35	77013A1		SWIVEL LINK ROD TO SPARK ADVANCE LEVER	1

图 155艉板支架（长轴-序列号0C160936及以上） Transom Bracket (Long Shaft S/N-0C160936 & Up)

REF	零件编号	中文名称	英文名称	数量
1	9751A1	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
1	9751A2	艉板支架总成(左舷)(灰色)	BRACKET ASSEMBLY Transom (PORT) (GRAY)	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	9750T	艉板支架 (右舷) (黑色)	BRACKET Transom (STARBOARD) (BLACK)	1
4	9750T6	艉板支架(右舷)(灰色)	BRACKET Transom (STARBOARD) (GRAY)	1
5	19618A2	倾斜锁杆总成(黑色)	LEVER ASSEMBLY Tilt Lock (BLACK)	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁杆总成(灰色)	LEVER ASSEMBLY Tilt Lock (GRAY)	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮(黑色)	KNOB (BLACK)	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮(灰色)	KNOB (GRAY)	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486T	锚支架(黑色)	BRACKET Anchor (BLACK)	1
12	18486F5	锚支架	BRACKET Anchor	1
12	18486T6	锚支架(灰色)	BRACKET Anchor (GRAY)	1
12	18486F6	锚支架	BRACKET Anchor	1
13	43396A2	阳极总成	ANODE ASSEMBLY	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000332	螺钉(M6x35)	SCREW (M6 x 35)	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	19613A1	倾斜销总成	PIN ASSEMBLY Tilt	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	56041	螺母 (.875-14)	NUT (.875-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
22	19624A1	密封套件	SEAL KIT	1
23	22740	卡箍 (动力配平)	CLIP (POWER TRIM)	1
24	69205	C形垫圈 (动力配平)	C WASHER (POWER TRIM)	1
24	8M0084613	C形垫圈	C-WASHER	1
25	812832	螺钉 (#10-16 x .500) (动力配平)	SCREW (#10-16 x .500) (POWER TRIM)	1
25	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0027784	螺母	NUT	4
28	82671117	螺母(.500-20)	NUT (.500-20)	4
29	1938521	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	杆总成倾斜 (非动力配平)	LEVER ASSEMBLY Tilt (NON POWER TRIM)	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套 (非动力配平)	BUSHING (NON POWER TRIM)	1
32	815796	垫圈 (.030")(非动力配平)	WASHER (.030")(NON POWER TRIM)	AR
32	19605	垫圈 (.520 x .850 x .060) 尼龙 - 黑色 (非动力配平)	WASHER (.520 x .850 x .060) Nylon - Black (NON POWER TRIM)	AR
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	AR
33	99611	波形垫圈 (非动力配平)	WAVE WASHER (NON POWER TRIM)	1
34	19621	倾斜旋钮(非动力升降)	TILT KNOB (NON POWER TRIM)	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺丝(.375-16 x .62)(非动力升降)	SCREW (.375-16 x .62) (NON POWER TRIM)	1
-	812432A1	发动机安装套件(附件)	MOUNTING KIT Engine (ACCESSORY)	1
36	76841	螺丝(.500-20 x 3.500)(附件)	SCREW (.500-20 x 3.500) (ACCESSORY)	2
37	812432T	安装支架(右舷)(附件)	BRACKET Mounting (STARBOARD)(ACCESSORY)	1
37	812432F5	安装支架	MOUNTING BRACKET	1
37	812433T	安装支架(左舷)(附件)	BRACKET Mounting (PORT)(ACCESSORY)	1
37	812433F5	安装支架	MOUNTING BRACKET	1
38	88432	螺丝(.375-24 x 4.00)(附件)	SCREW (.375-24 x 4.00) (ACCESSORY)	4
39	29395	垫圈(.390 x 1.00 x .06)(附件)	WASHER (.390 x 1.00 x .06) (ACCESSORY)	8
39	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	134371	螺母(.375-24)(附件)	NUT (.375-24) (ACCESSORY)	4
40	862903	螺母 (.375-24)	NUT (.375-24)	4
41	812434A2	T型手柄螺母(附件)	NUT T Handle (ACCESSORY)	2

图 156艉板支架（动力配平）(序列号0C160935及以下) Transom Bracket (Power Trim)(S/N-0C160935 & Below)

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成(右舷)(黑色)	BRACKET ASSEMBLY Transom (STARBOARD) (BLACK)	1
1	8718A2	艉板支架总成(右舷)(灰色)	BRACKET ASSEMBLY Transom (STARBOARD) (GRAY)	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A5	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A6	艉板支架总成(左舷)(灰色)	BRACKET ASSEMBLY Transom (PORT) (GRAY)	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑配件左舷艉板支架	FITTING Grease PORT TRANSOM BRACKET	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A1	倾斜管	TILT TUBE	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
5	90068T		NUT TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
5	90068T6		NUT TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	45711		O-RING (.612 x .103) TILT TUBE	1
7	88750	波形垫圈(1.62 x 1.05)倾斜管	WASHER Wave (1.62 x 1.05) TILT TUBE	2
8	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	1
8	858869	螺母 (.875-14)	NUT (.875-14)	1
9	677551	螺丝(.500-20 x 4.500)支架固定艉板	SCREW (.500-20 x 4.500) MOUNTING BRACKET TO TRANSOM	4
9	8M0149747	螺钉	SCREW	4
10	28421		WASHER (1.5 x 3.05 x 0.13) Stainless Steel MOUNTING BRACKET BOLT	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母-安装支架螺栓	NUT MOUNTING BRACKET BOLT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
13	23161	螺栓螺母（3/8英寸-24牙）	NUT (.375-24) BOLT	1
14	99629A2	倾斜锁杆总成	LEVER ASSEMBLY TILT LOCK	1
14	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	99611	倾斜杆波形垫圈	WAVE WASHER TILT LEVER	1
16	65830	倾斜杆尼龙衬套	NYLINER TILT LEVER	2
17	99633	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
17	99633T6	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99622	弹簧	SPRING	1
20	99604	槽销	PIN Groove	1
