水星 Mercury 50 3 CYL 0P017000 THRU 0P325499 - 爆炸图零件明细

两冲程 化油器 · Belgium - Cat.# 90-803026 · 共 159 个部位 · 6635 条零件

1化油器2齿轮箱(螺旋桨轴)3动力配平(序列号0G357070及以上-黄色注油塞)4动力配平组件(序列号:0D182000及以上)5气缸体与曲轴箱总成6附件7机油喷射组件8杂项零件/附件9节气门联动装置10燃油泵(白色或红色)11骑导转向系统12化油器13艉板支架（长轴-序列号0C160936及以上）14润滑图表15自动混合器16喷射组件17升降开关套件18齿轮箱驱动轴-60海宝/马拉松/大脚-3爪倒车离合器19驱动轴壳体（长型-0C160936及以上）(60EL NOI)(NPT)20旋转支架（短型）(长序列号0C160935及以下)(60EL NOI)(NPT)21维修/支撑材料22齿轮箱(驱动轴)(50/55/60)23飞轮(55)24整流罩与前盖25艉板支架（动力配平）(序列号0C160935及以下)26排气板27启动马达28手动倾斜装置组件29启动电机总成30齿轮箱螺旋桨轴31化油器连杆与阻风门电磁阀32启动电机、电磁阀与整流器33衰减板34舵柄手柄35齿轮箱图表(60海宝/马拉松/大脚)36延伸组件37夹紧支架(短型)(长型-0C160935及以下)(60EL NOI)(NPT)38气缸体39飞轮(55/60海宝/马拉松)40气缸体与曲轴箱41化油器联动机构与阻风门电磁阀42启动器总成(手动)(55)43旋转支架（动力配平）(序列号0C160935及以下)44驱动轴壳体45附件46夹紧支架(55)(序列号:0D181999及以下)47夹紧支架48油门杆及联动装置49手动倾斜组件(设计II型)50旋转支架(序列号:0D182000及以上)51启动电机52自动混合装置53电气组件(55)54动力升降泵(Eaton矩形电机)55顶罩56动力升降57动力配平组件（序列号-0C160935及以下）58燃油泵(55/60 SEAPRO/MARATHON)59缓冲板60旋转支架（长轴-序列号0C160936及以上）61手动倾斜装置组件(设计I型)62旋转支架63整流罩支撑支架64下机罩65排气与歧管盖66气缸体与曲轴箱67旋转支架(序列号:0D181999及以下)68齿轮箱（驱动轴）69齿轮箱螺旋桨轴-60海宝/马拉松/大脚-6爪倒车离合器70排气与歧管盖71齿轮箱螺旋桨轴-60海宝/马拉松/大脚-3爪倒车离合器72喷泵总成73齿轮箱(螺旋桨轴)(50/55/60)74喷射组件75电气组件76杂项信息77齿轮箱驱动轴-60海宝/马拉松/大脚-6爪倒车离合器78化油器总成79燃油泵(黑色 50/60)80进气歧管与簧片阀组81化油器(WME-22/22B/23/24/35)82启动器总成(手动-55)83动力升降组件84下罩85电动配平组件（长序列号-0C160936及以上）86夹紧支架(手动)(序列号:0D1812000及以上)87艉板支架(50/60)(序列号:0D181999及以下)88动力配平(序列号0G357069及以下-黑色注油塞)89舵柄适配器套件(JET 45)90外罩91燃油泵(50/60)92燃油泵93专用工具94喷泵总成95排气板96齿轮箱壳体(螺旋桨轴-大脚/海宝/马拉松/浮筒型)97顶罩98齿轮箱（驱动轴）99外罩支撑架100艉板支架(50/60)(序列号:0D182000及以上)101齿轮箱壳体(驱动轴-大脚/海宝/马拉松/浮筒型)102夹紧支架(手动)103飞轮、开关盒、点火线圈与定子104飞轮与启动电机(50/60)105手动倾斜装置组件106电气组件107曲轴、活塞及连杆108驱动轴外壳总成109夹箍支架110喷油组件111外罩与前盖112旋转支架113启动电机总成（博世）114专用工具115油门杆与联动装置116动力配平组件(序列号:0D181999及以下)117启动电机总成（普雷斯特olite）118进气歧管与簧片阀组119夹具支架总成120曲轴、活塞与连杆121驱动轴壳体（短型）(长序列号-0C160935及以下)122化油器(WME-26/27/28/28/43/44/45)123艉板支架(50/60)124动力微调125转向手柄套件126舵柄127电气组件(50/60)128附件129衰减板130下罩131化油器132夹紧支架133曲轴活塞及连杆134气缸体与曲轴箱135驱动轴壳体/排气板136电气组件137飞轮与定子(电动)138飞轮与定子(手动)139燃油泵(电动)140燃油泵(手动)141衬垫套件-发动机大修142齿轮箱(驱动轴)(1.83:1传动比)143齿轮箱螺旋桨轴-1.83:1传动比144进气歧管与簧片阀组145喷射组件146喷泵总成147润滑图表148机油喷射组件149动力升降150维修/支撑材料151启动器总成（手动）152启动电机153旋转支架154旋转管155油门杆及联动装置156舵柄手柄157专用工具158顶罩159升降开关套件

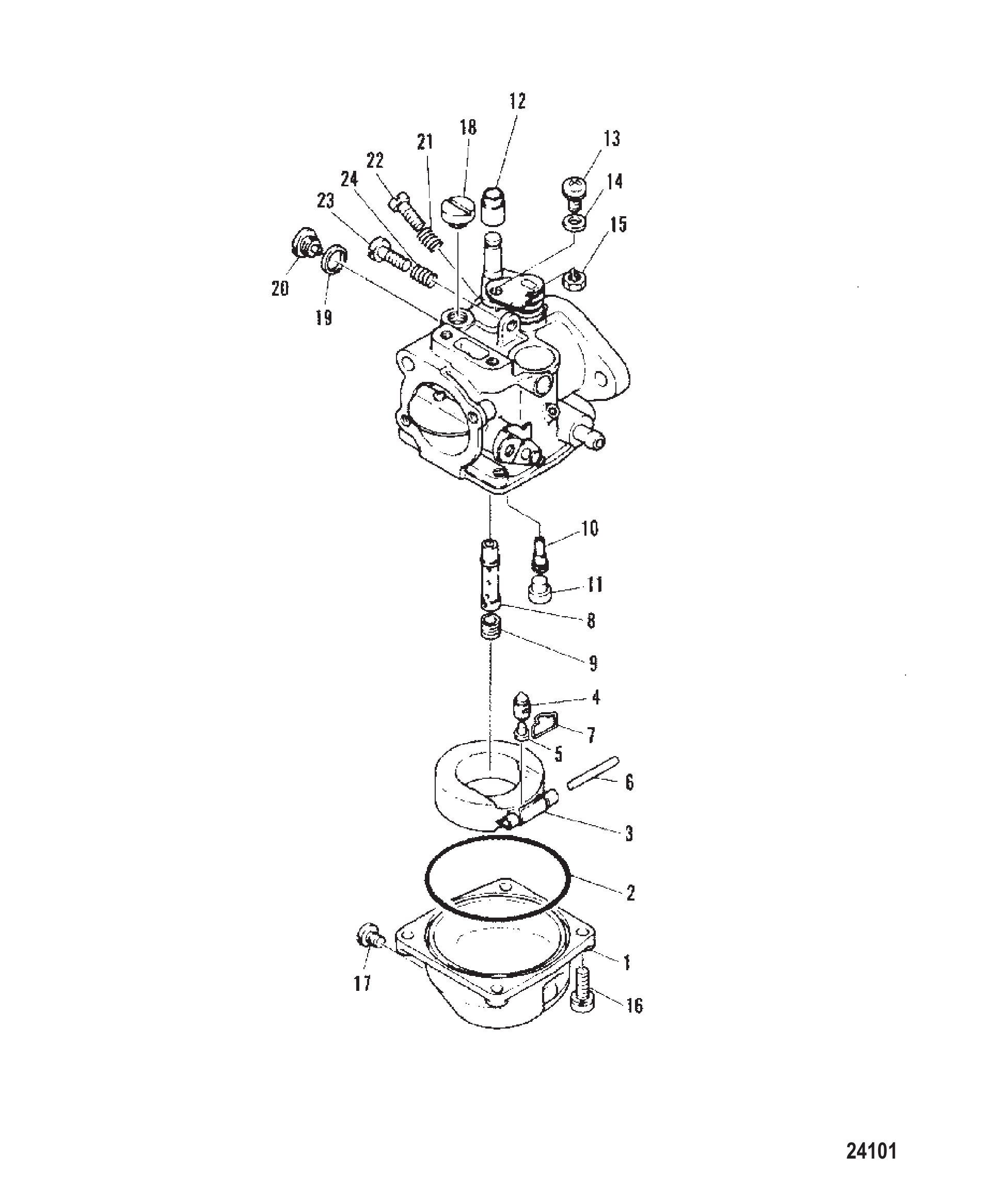

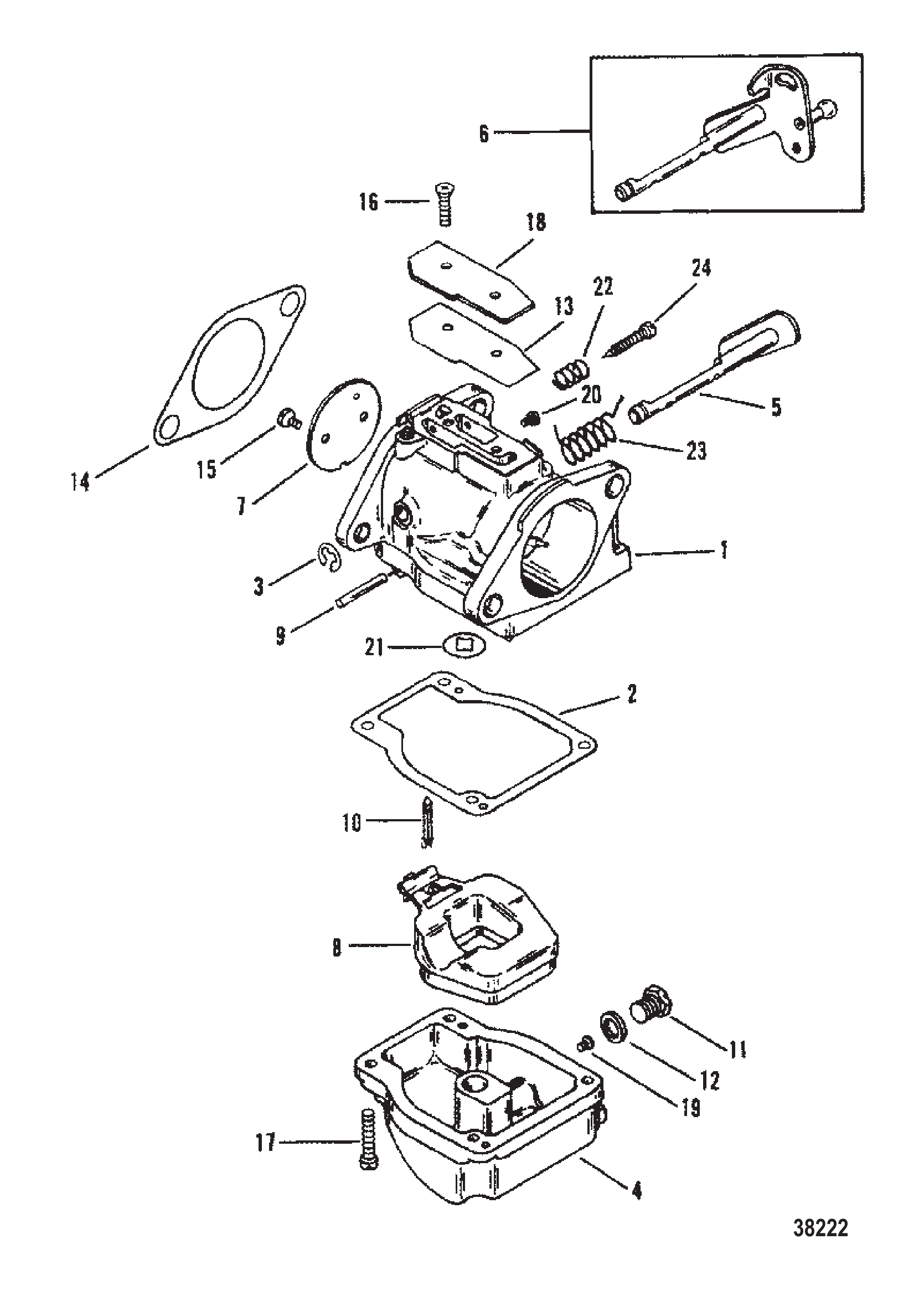

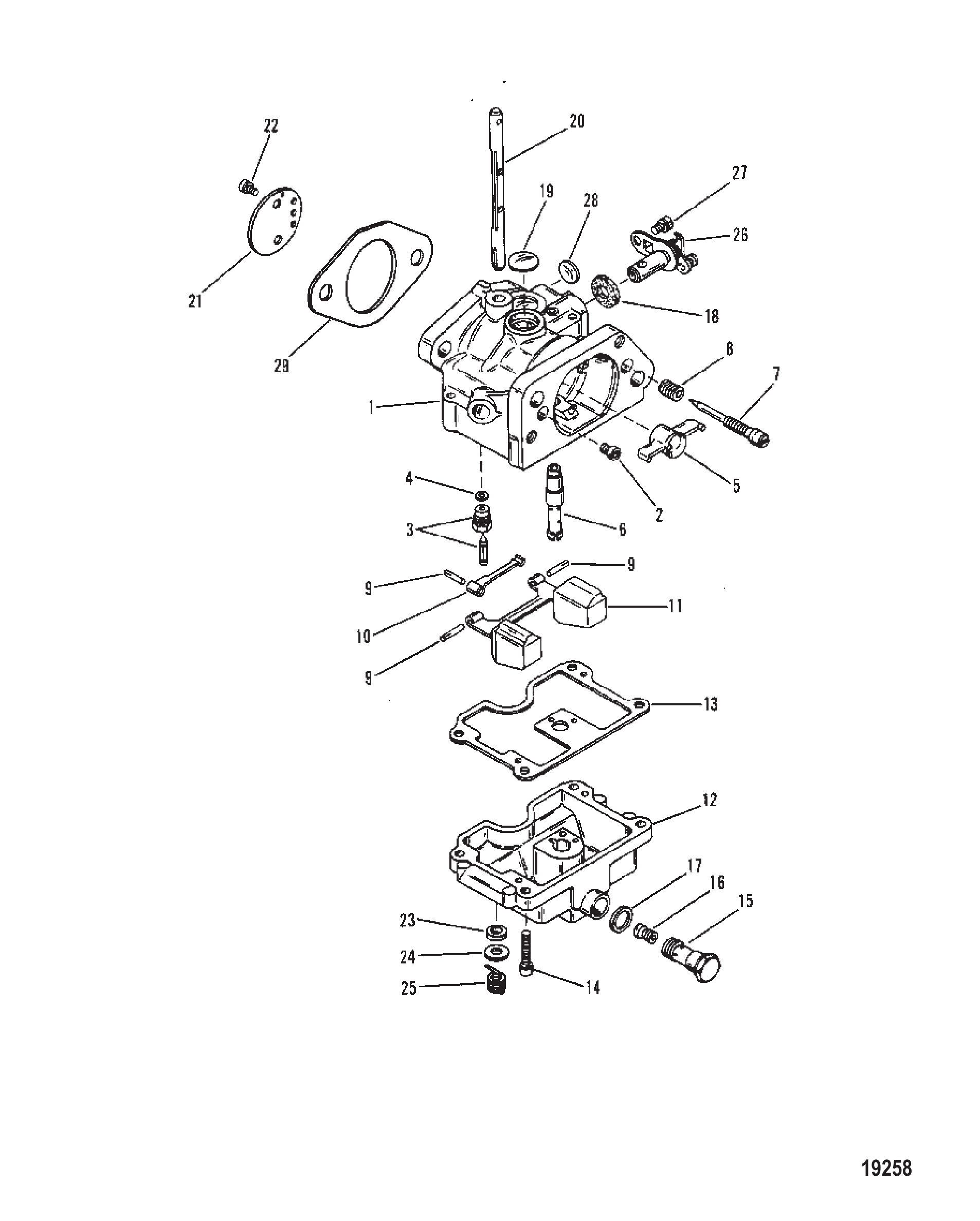

图 1化油器 Carburetor

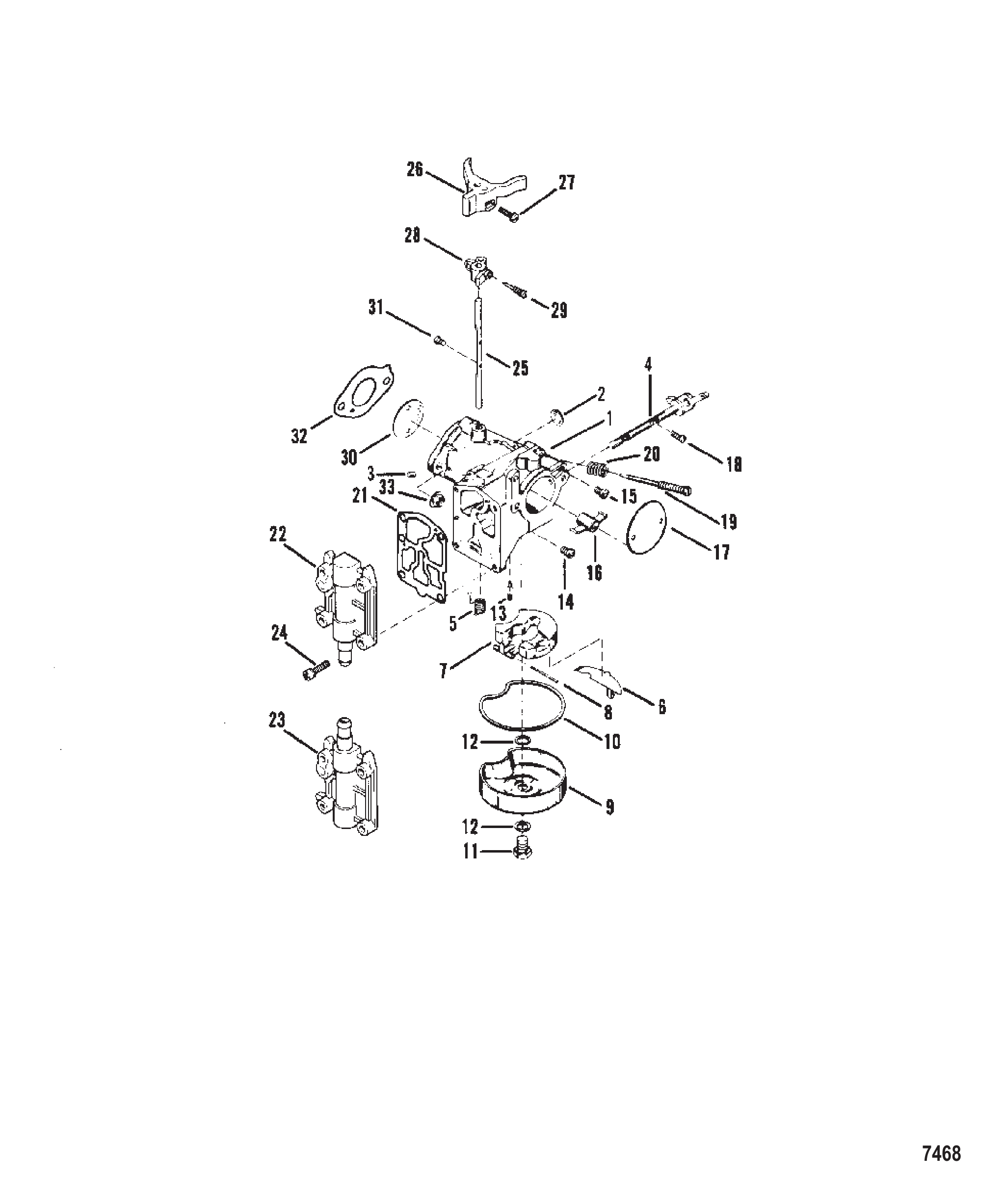

化油器 Carburetor
REF零件编号中文名称英文名称数量
16071A47化油器总成(上部-50)(WM15)CARBURETOR ASSEMBLY (TOP - 50) (WM15)1
16071A53化油器总成CARBURETOR ASSEMBLY1
16071A48化油器总成(下部-50)(WM15)CARBURETOR ASSEMBLY (BOTTOM - 50) (WM15)1
16071A54化油器总成CARBURETOR ASSEMBLY1
16071A50化油器总成(上部-60)(WM13A)CARBURETOR ASSEMBLY (TOP - 60) (WM13A)1
16071A59化油器总成CARBURETOR ASSEMBLY1
16071A40化油器总成(下部-60)(WM13A)CARBURETOR ASSEMBLY (BOTTOM - 60) (WM13A)1
16071A56化油器总成CARBURETOR ASSEMBLY1
16071A53化油器总成(上部-50)(WM-18)CARBURETOR ASSEMBLY (TOP - 50) (WM-18)1
16071A54化油器总成(下部-50)(WM-18)CARBURETOR ASSEMBLY (BOTTOM - 50) (WM-18)1
16071A59化油器总成(上部-60)(WM-16A)CARBURETOR ASSEMBLY (TOP - 60) (WM-16A)1
16071A56化油器总成(下部-60)(WM-16A)CARBURETOR ASSEMBLY (BOTTOM - 60) (WM-16A)1
26249主量孔(.096)通风碗JET Main (.096) VENT BOWL2
38318进油针阀(WM 13/15)NEEDLE Inlet (WM 13/15)2
383181阀座套件VALVE SEAT KIT2
319271进油针阀/阀座套件(WM 13A/16A/18)NEEDLE/SEAT KIT Inlet (WM 13A/16A/18)2
3192711进油针阀组件NEEDLE AND SEAT Inlet2
4NSS垫片(不单独销售)NOT SOLD SEPARATE Gasket2
552106A1塑料喉管VENTURI Plastic2
6NSS喷嘴(不单独销售)NOT SOLD SEPARATE Nozzle2
7NSS进油针(不单独销售)NOT SOLD SEPARATE Inlet Needle2
8NSS怠速混合弹簧(不单独销售)NOT SOLD SEPARATE Spring-Idle Mixture2
9NSSNOT SOLD SEPARATE Float Pin6
10NSSNOT SOLD SEPARATE Float Lever2
1119273浮子FLOAT2
129483燃油碗(WM 15/16A/18)BOWL Fuel (WM 15/16A/18)2
127835燃油碗(WM 13/13A)BOWL Fuel (WM 13/13A)2
13NSSNOT SOLD SEPARATE Gasket-Fuel Bowl2
14NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl2
156199主量孔塞PLUG MAIN JET2
167831主燃油量孔(.058)(.058)JET Main Fuel (.058) (.058)2
166207量孔(.072)JET (.072)2
166680量孔（0.078）JET (.078)2
163794量孔(.074)JET (.074)1
166207量孔(.072)JET (.072)1
17NSS主量孔塞垫片(不单独销售)NOT SOLD SEPARATE Gasket-Main Jet Plug2
18NSS燃油入口滤网(不单独销售)NOT SOLD SEPARATE Screen, Fuel Inlet2
19NSS韦尔奇塞(9/16英寸)(不单独销售)NOT SOLD SEPARATE Welch Plug (9/16 Inch)4
204807油门轴SHAFT Throttle2
219484油门阀VALVE Throttle2
217833油门阀VALVE Throttle2
22NSS阀至节气门轴螺丝(不单独销售)NOT SOLD SEPARATE Screw-Valve to Throttle Shaft4
236204节气门轴密封SEAL THROTTLE SHAFT2
246203节气门轴垫圈WASHER THROTTLE SHAFT2
25NSSNOT SOLD SEPARATE Spring-Throttle Return2
266198加浓阀总成VALVE ASSEMBLY ENRICHMENT2
27NSS加浓支架螺丝(不单独销售)NOT SOLD SEPARATE Screw-Enrichment Bracket2
28NSS韦尔奇塞(7/16英寸)(不单独销售)NOT SOLD SEPARATE Welch Plug (7/16 Inch)2
29733771化油器衬垫GASKET CARBURETOR2
-6200化油器垫片套件GASKET KIT Carburetor2
-19274维修套件REPAIR KIT2
-812953化油器维修套件REPAIR KIT - CARB2
-19272维修套件REPAIR KIT1
-812953化油器维修套件REPAIR KIT - CARB1
-43779A87动力头衬垫套件GASKET SET Powerhead1

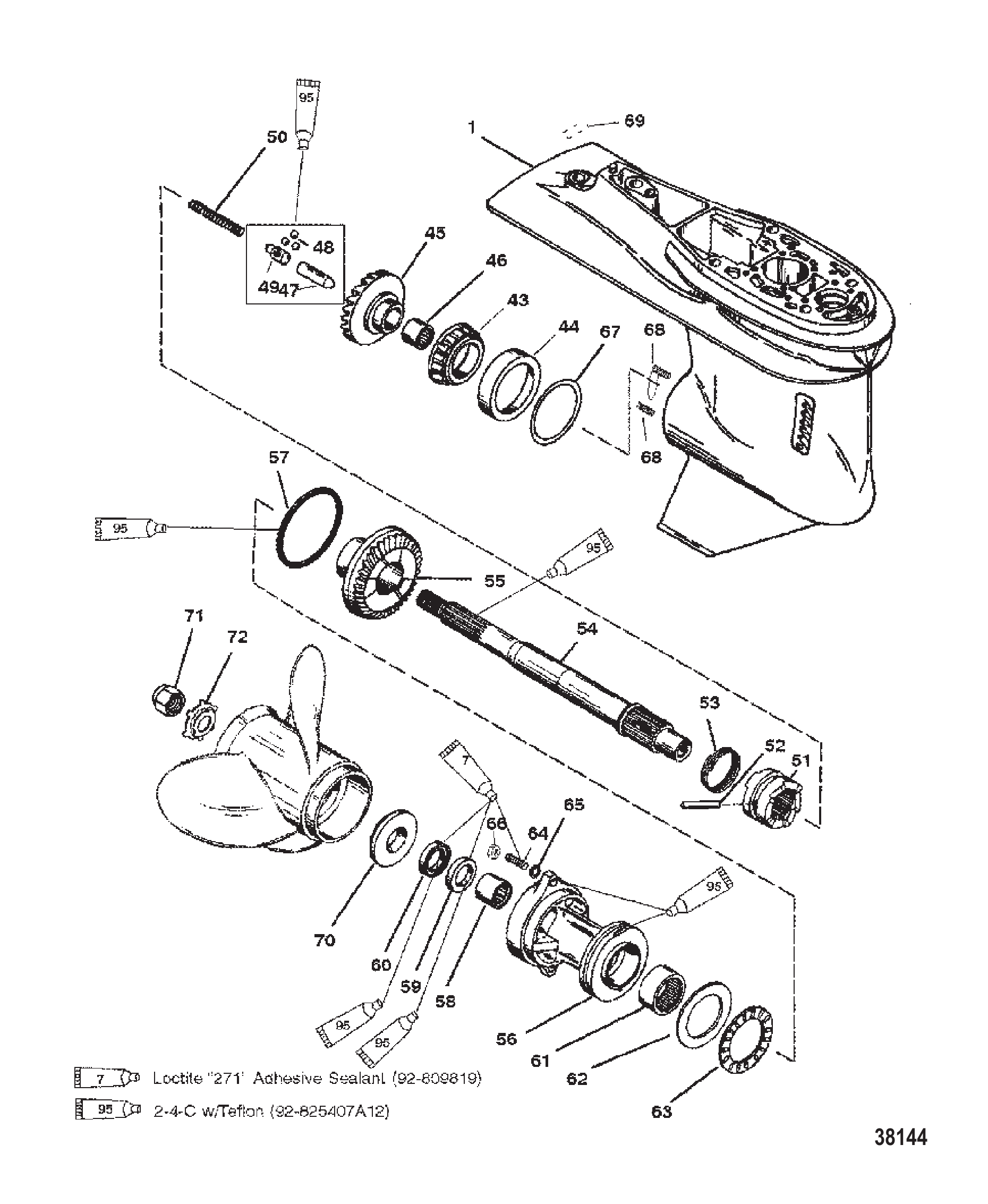

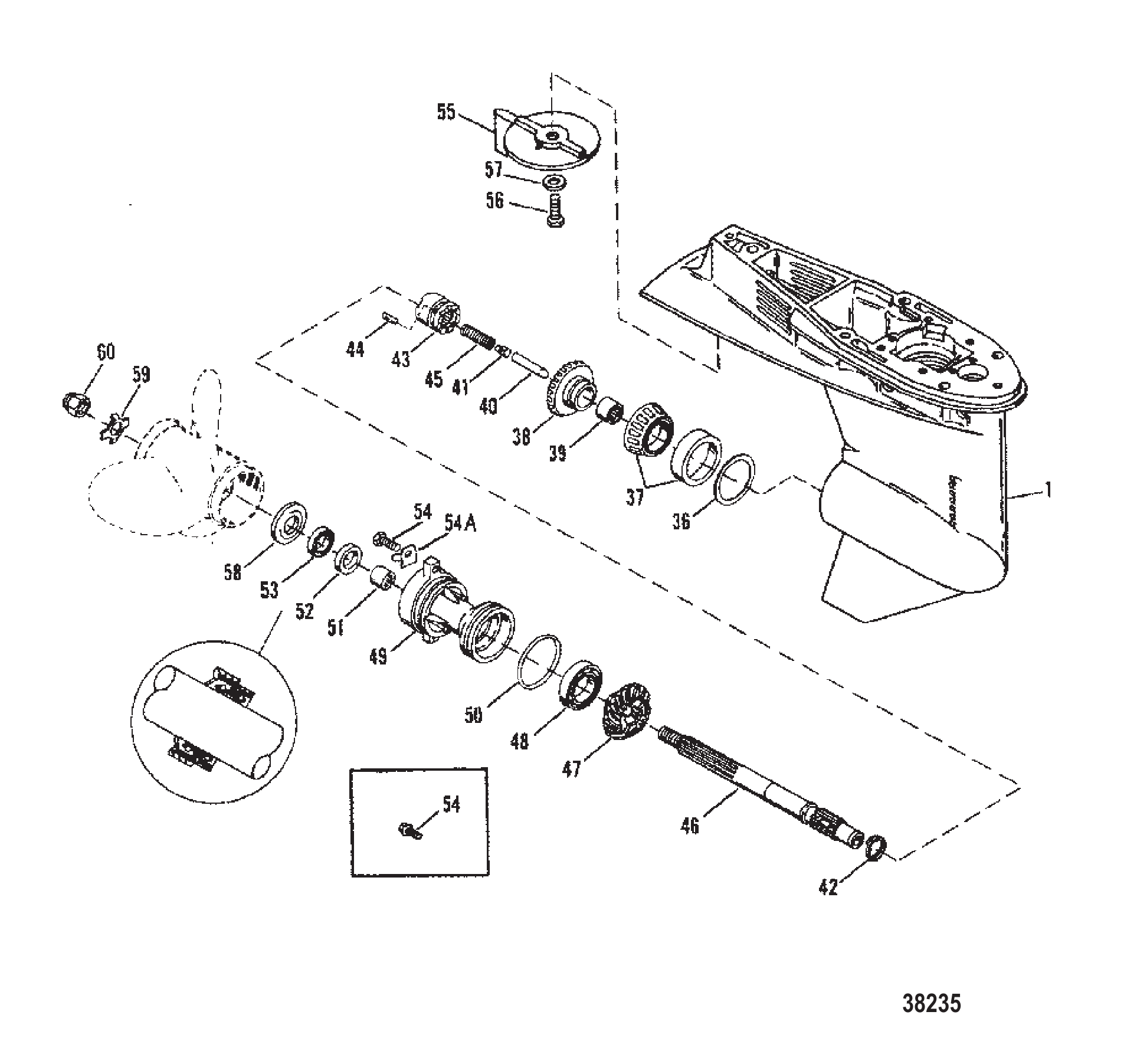

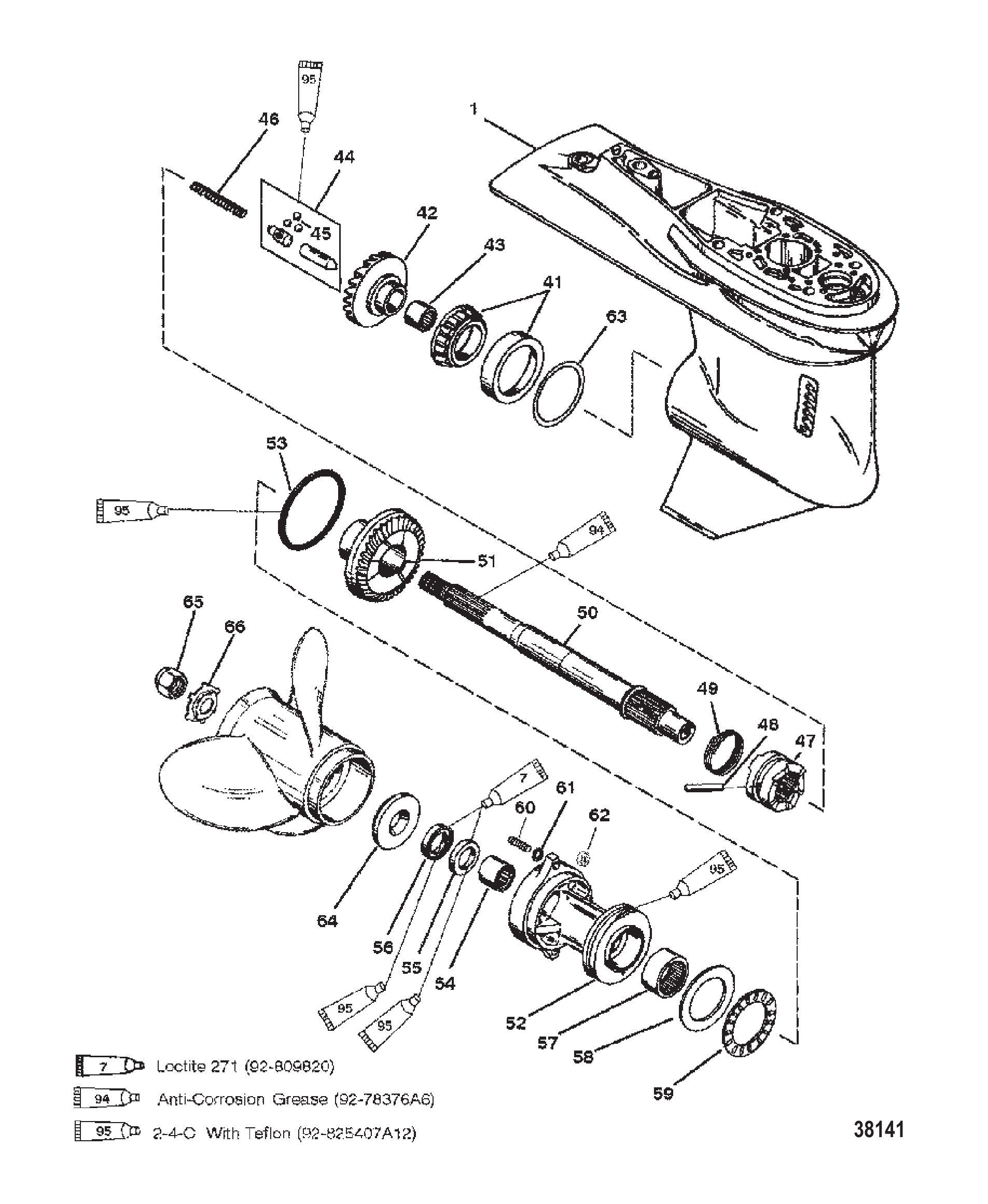

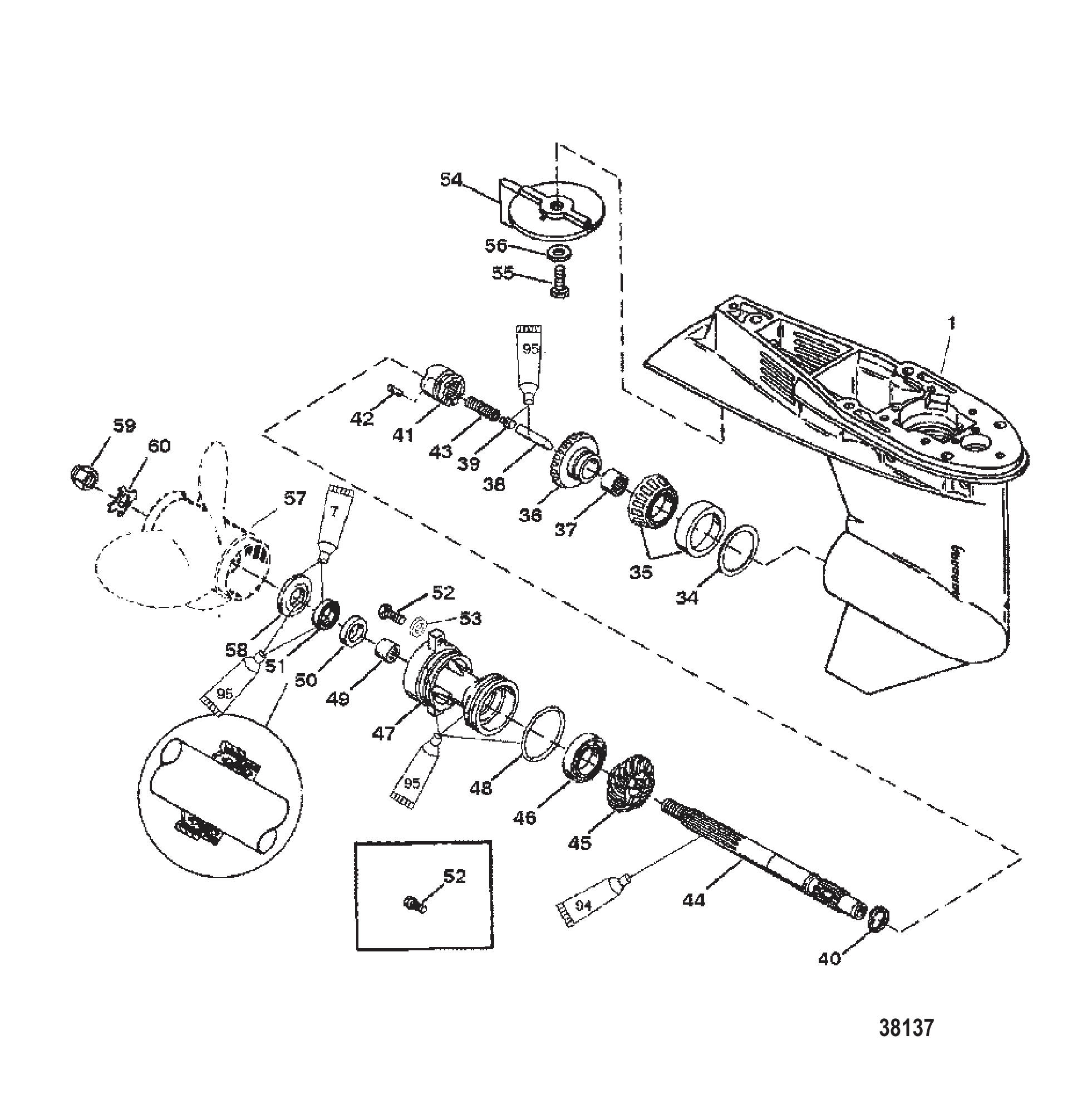

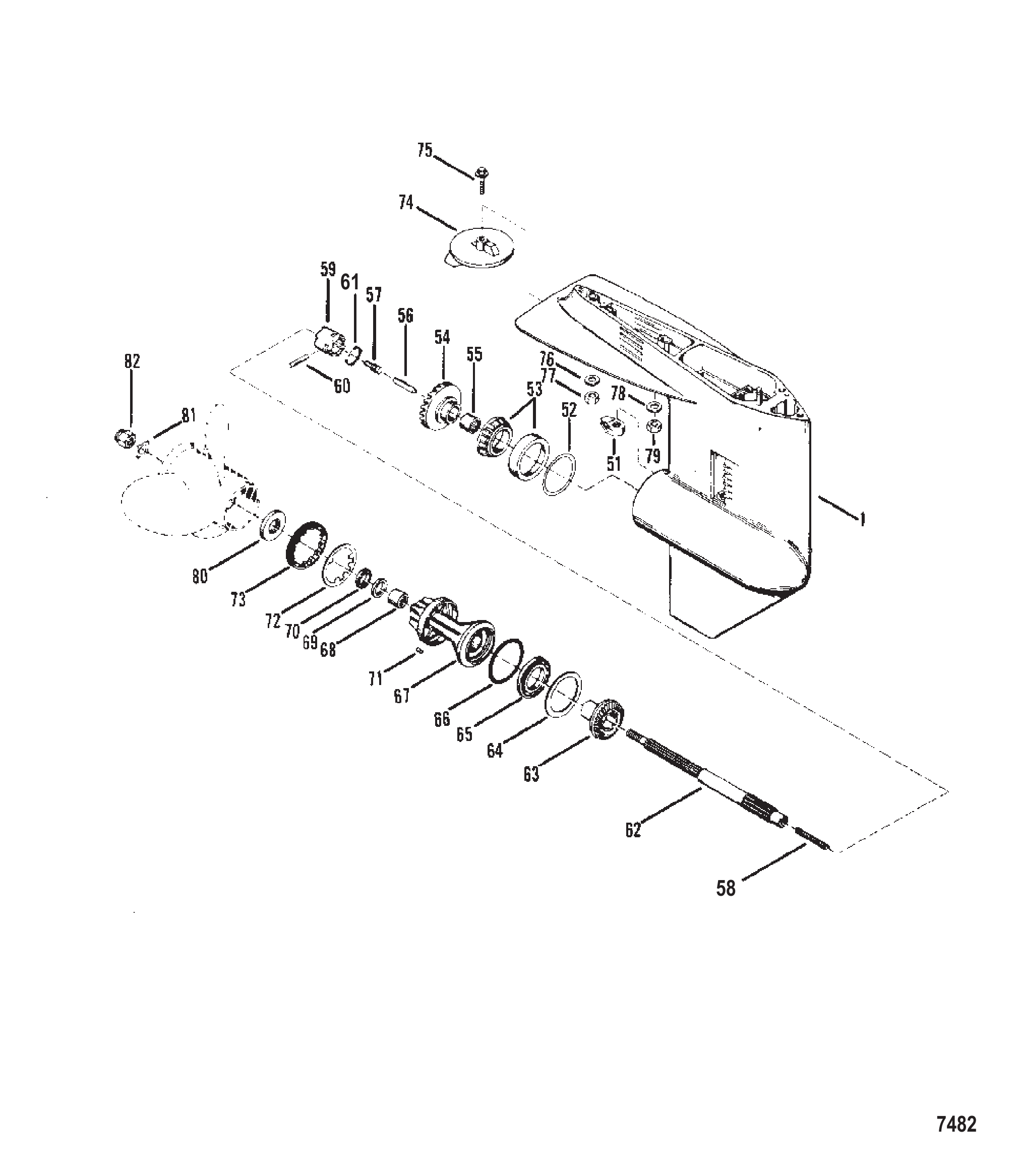

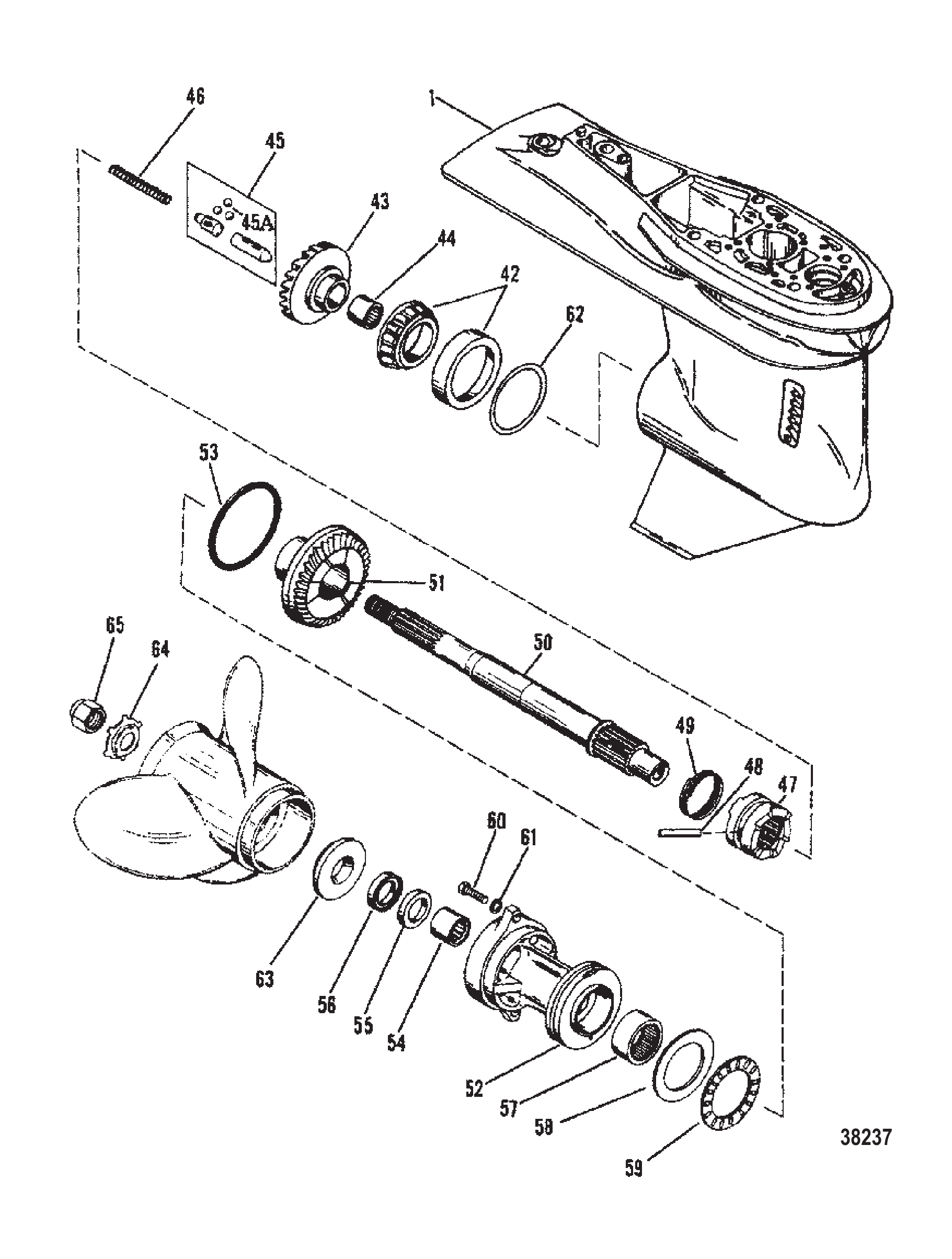

图 2齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
REF零件编号中文名称英文名称数量
-9760A8齿轮箱总成(短型)(黑色)GEAR HOUSING ASSEMBLY (SHORT) (BLACK)1
-9760A9齿轮箱总成(短型)(灰色)GEAR HOUSING ASSEMBLY (SHORT) (GRAY)1
-9760A24齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A21齿轮箱总成(长型)(追踪者系列)GEAR HOUSING ASSEMBLY (LONG) (TRACKER)1
-9760T27ORD1671-9760T25ORD1671- 9760T251
-9760A12齿轮箱总成(长型)(黑色)GEAR HOUSING ASSEMBLY (LONG) (BLACK)1
-9760T25齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A13齿轮箱总成(长型)(灰色)GEAR HOUSING ASSEMBLY (LONG) (GRAY)1
-9760T26ORD 1671-9760T25ORD 1671-9760T251
-9760A10齿轮箱总成(加长)(黑色)GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)1
-9760T28齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A11齿轮箱总成(加长)(灰色)GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)1
-9760T29灰色齿轮箱GEAR HOUSING-GR1
19760A2齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC)(BLACK)1
19760T42基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19760A3齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC)(GRAY)1
19760T31ORD 1671-9760T30ORD 1671-9760T301
19760A20齿轮箱总成(基础款)(TRACKER)GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)1
19760T32ORD 1671-9760T42ORD 1671-9760T421
36812769A1垫片组SHIM SETAR
368M0063263垫片组SHIM SETAR
37812767A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
378M0103476轴承总成BEARING ASSY1
38813693A1前进齿轮总成GEAR ASSEMBLY Forward1
38813693T1前进齿轮GEAR Forward1
3921739滚柱轴承BEARING Roller1
408129291凸轮从动件FOLLOWER Cam1
4120843滑块SLIDE1
4238114弹簧SPRING1
43813697离合器CLUTCH1
43813697T离合器CLUTCH1
4438113十字销PIN Cross1
448M0020942十字销@2PIN-CROSS @21
45815418弹簧SPRING1
4614493螺旋桨轴PROPELLER SHAFT1
47813695倒挡齿轮GEAR Reverse1
47813695T倒挡齿轮GEAR Reverse1
4820839滚珠轴承BEARING Ball1
4820839T滚珠轴承BEARING Ball1
4919291A3轴承座总成CARRIER ASSEMBLY Bearing1
498M0168900轴承座BEARING CARRIER1
50815460O型圈O-RING1
5121700滚针轴承BEARING Needle1
5269188油封SEAL Oil1
528M0205511油封SEAL Oil1
5369189油封SEAL Oil1
538M0203757油封SEAL Oil1
544000353螺钉 (M8 x 25)SCREW (M8 x 25)2
54A826613锁紧垫圈TAB WASHER2
548136911螺丝(M8×0.98)SCREW (M8 x .98)2
5517264T2调整片 锌制TRIM TAB Zinc1
564000377螺钉 (M10 x 30)SCREW (M10 x 30)1
5745175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
578M0214963垫圈WASHER1
5873345A1止推垫片THRUST WASHER1
5976281锁紧垫圈TAB WASHER1
598M0214942锁紧垫片WASHER Tab1
6069578A1螺旋桨螺母套件PROP NUT KIT1
6069578Q1螺旋桨螺母套件PROP NUT KIT1
-812867A91发动机垫片组GASKET SET Engine1
-812867A97衬垫套件GASKET SET1
-814669A2齿轮箱密封套件SEAL KIT Gear Housing1

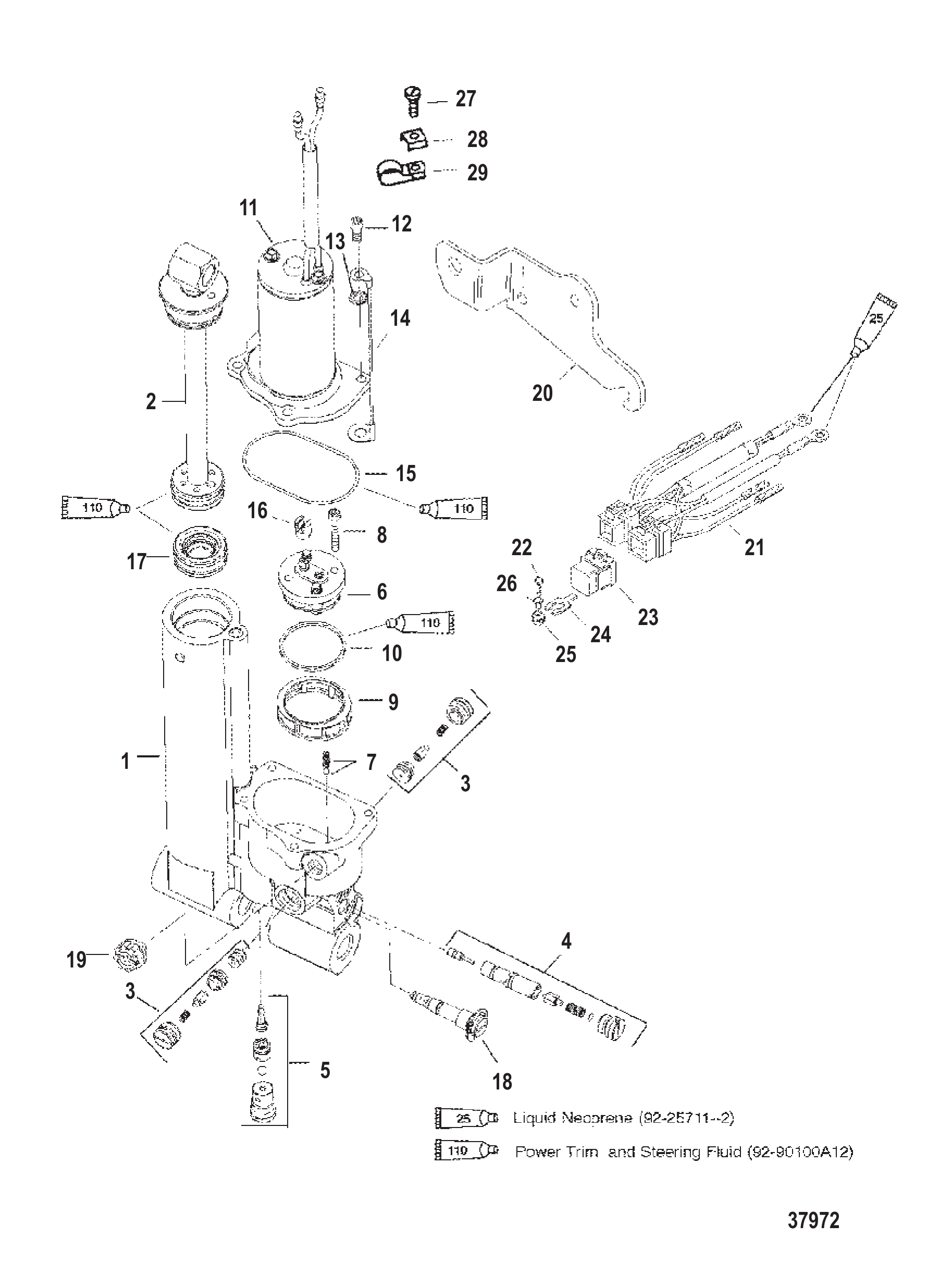

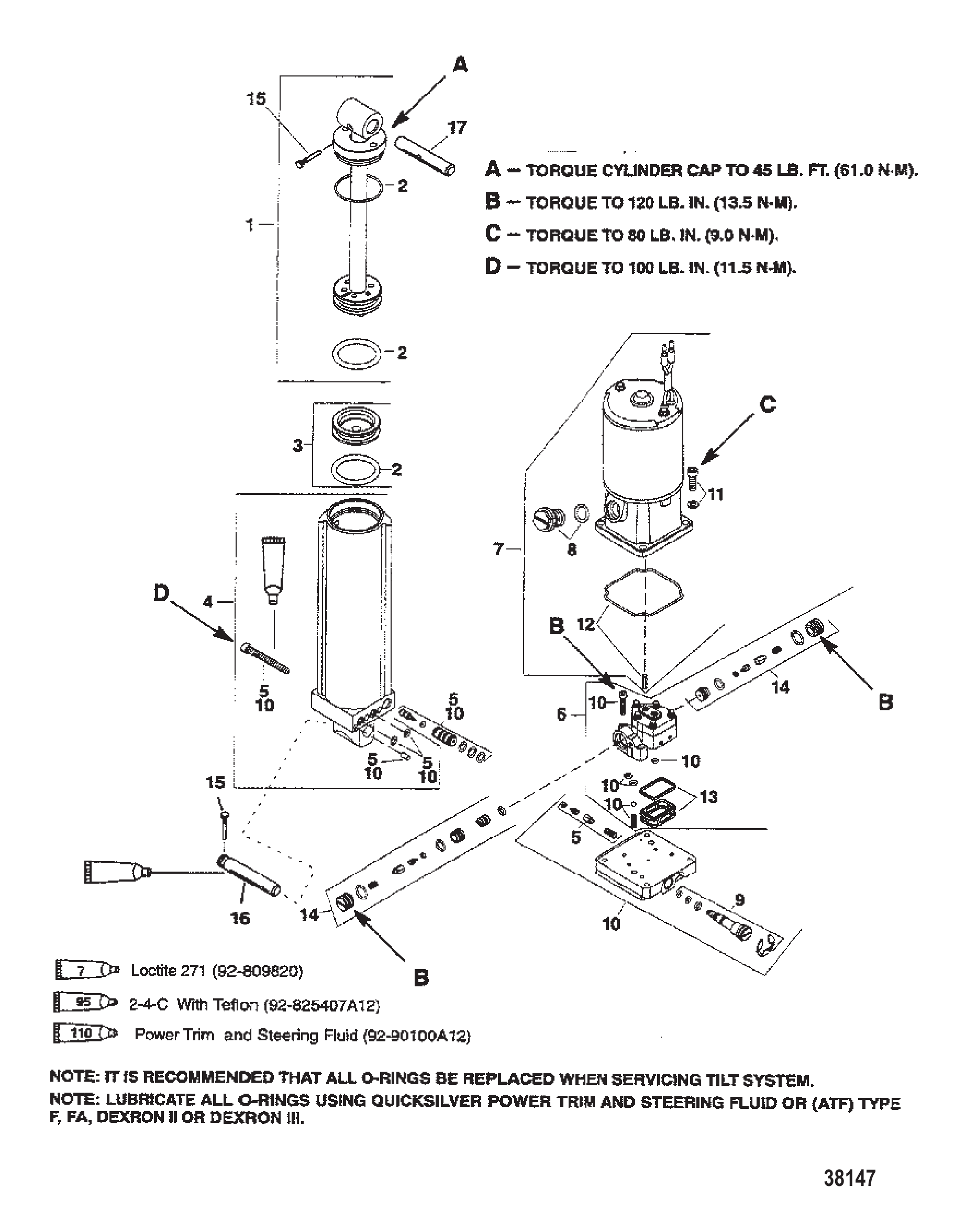

图 3动力配平(序列号0G357070及以上-黄色注油塞) POWER TRIM (S/# 0G357070 and UP-YELLOW FILL PLUG)
动力配平(序列号0G357070及以上-黄色注油塞) POWER TRIM (S/# 0G357070 and UP-YELLOW FILL PLUG)
REF零件编号中文名称英文名称数量
-830150A2泵总成PUMP ASSEMBLY1
1813427A3减震杆套件SHOCK ROD KIT1
1893943A01减震杆套件SHOCK ROD KIT1
2809872A2O型圈维修包O-RING KIT Rebuild1
28M0171819O型圈套件O-RING KIT1
3810776A1记忆活塞总成PISTON ASSEMBLY Memory1
38M0171822记忆活塞套件MEMORY PISTON KIT1
4811228A1气缸总成CYLINDER ASSEMBLY1
4893904T01气缸总成CYLINDER ASSEMBLY1
5809873A1配平限位阀套件VALVE KIT Trim Limit1
5893905A02阀套件VALVE KIT1
6809874A1泵总成PUMP ASSEMBLY1
6893906A02泵总成PUMP ASSEMBLY1
7809885A1电机套件MOTOR KIT1
7893907A02电机套件MOTOR KIT1
88134351堵头PLUG1
9813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
9893929A01安全阀套件VALVE KIT Relief1
10809875A1歧管套件MANIFOLD KIT1
10893909A02歧管套件MANIFOLD KIT1
11809876A1螺丝套件(电机)SCREW KIT (MOTOR)1
12809877A1驱动轴/密封套件DRIVESHAFT/SEAL KIT1
13809878A1滤清器套件FILTER KIT1
13893912A02滤清器套件FILTER KIT1
14809879A1提升阀套件POPPET KIT1
14893913A02提升阀套件POPPET KIT1
-809880A1O型圈套件(完整调整)O-RING KIT (COMPLETE TRIM)1
-893914A02O型圈套件O-RING KIT1
15821539三叶销PIN Trilobe2
1619607销PIN1
17822869销PIN1
17822869001锚销PIN Anchor1

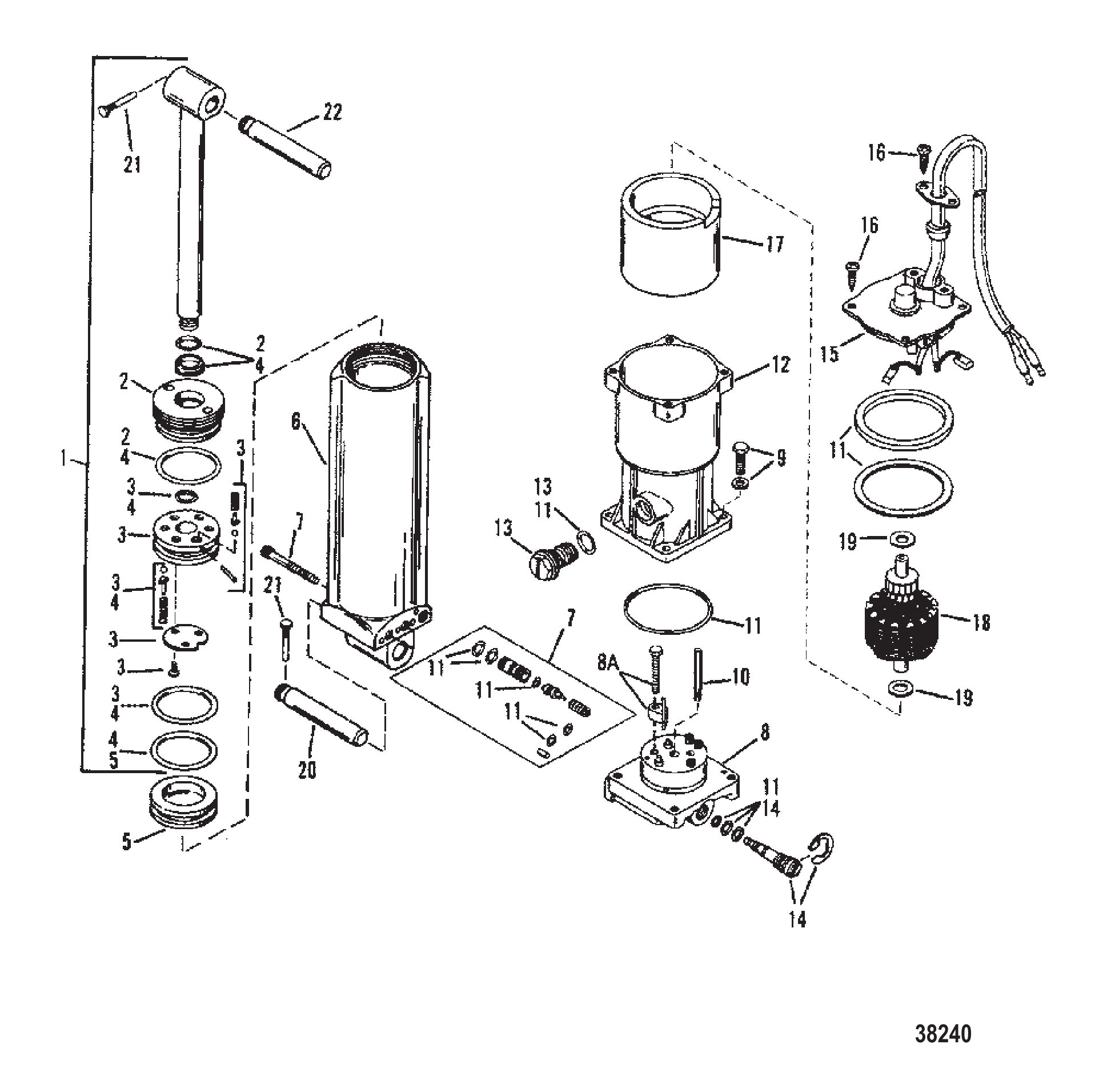

图 4动力配平组件(序列号:0D182000及以上) POWER TRIM COMPONENTS (S/N: 0D182000 AND UP)
动力配平组件(序列号:0D182000及以上) POWER TRIM COMPONENTS (S/N: 0D182000 AND UP)
REF零件编号中文名称英文名称数量
-822870A1泵总成PUMP ASSEMBLY1
18134271减震杆套件SHOCK ROD KIT1
1893943A01减震杆套件SHOCK ROD KIT1
2813428升降缸端盖总成END CAP ASSEMBLY Trim Cylinder1
3813429减震活塞总成PISTON ASSEMBLY Shock1
4813432A3气缸密封套件SEAL KIT Cylinder1
5810776记忆活塞套件PISTON KIT Memory1
6811228气缸套件CYLINDER KIT1
6893904T01气缸总成CYLINDER ASSEMBLY1
7811226A1螺钉与密封套件SCREW AND SEAL KIT1
7811678A6螺钉与密封套件SCREW AND SEAL KIT1
88116706泵/歧管套件PUMP/MANIFOLD KIT1
8809901A1泵/电机总成PUMP/MOTOR ASSEMBLY1
8A823180A1摇臂套件ROCKER ARM KIT1
8A809901A2泵/歧管总成PUMP/MANIFOLD ASSEMBLY1
9813436螺钉套件SCREW KIT1
10811671驱动轴DRIVESHAFT1
11811672A3O型圈套件O-RING KIT1
11811672A4O型圈套件O RING KIT1
12811673储液罐RESERVOIR1
12809901A1泵/电机总成PUMP/MOTOR ASSEMBLY1
13813435塞套件PLUG KIT1
138134351堵头PLUG1
14813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
14893929A01安全阀套件VALVE KIT Relief1
15811677储液罐盖套件CAP KIT Reservoir1
15809885A1电机套件MOTOR KIT1
16813446螺钉SCREW1
17811674储液罐/马达RESERVOIR/MOTOR1
17809885A1电机套件MOTOR KIT1
18811675电枢ARMATURE1
19811676止推垫片套件THRUST WASHER KIT1
2019607销PIN1
21821539三叶销PIN Trilobe2
22822869销PIN1
22822869001锚销PIN Anchor1

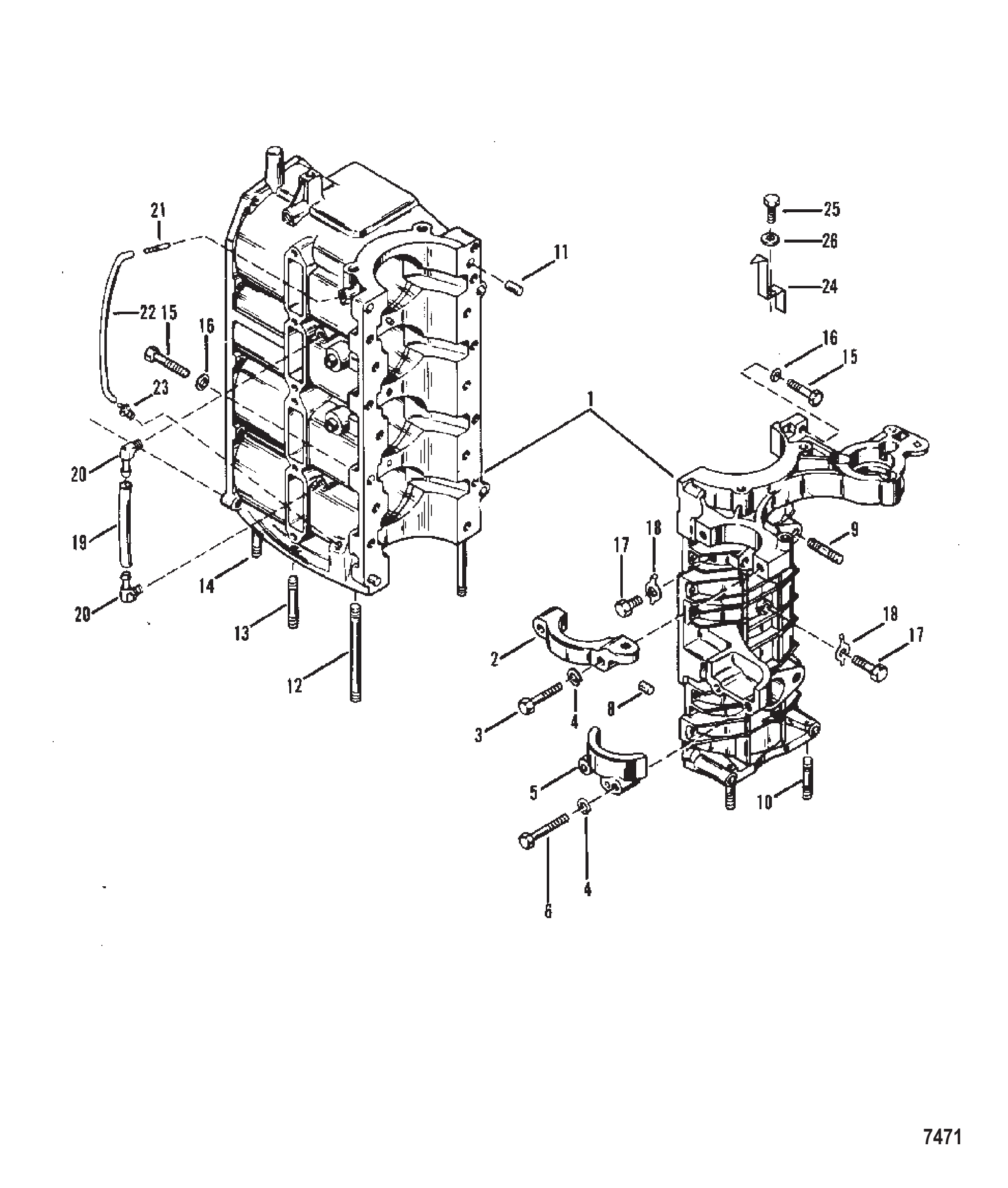

图 5气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
REF零件编号中文名称英文名称数量
18981A6气缸体总成CYLINDER BLOCK ASSEMBLY1
272038启动电机上支架BRACKET Upper Starter Motor1
373279支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch)2
426993支架螺钉锁紧垫圈(.312)LOCKWASHER (.312) Bracket Screw4
48M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
576867启动电机下盖COVER Lower Starter Motor1
673279盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch)2
820032缸体至主轴承定位销PIN Dowel Cylinder block to main bearing2
968164化油器双头螺柱(1.25英寸)STUD Carburetor (1.25 Inch)4
964936螺柱STUD4
1068165曲轴箱至驱动轴壳体双头螺柱(1.625英寸)STUD Crankcase to Driveshaft Housing (1.625 Inch)2
1120033曲轴箱至缸体定位销PIN Dowel Crankcase to Cylinder Block2
1143044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
1287901缸体至驱动轴壳体双头螺柱(4英寸)STUD Cylinder block to drive shaft housing (4 Inch)2
1368166缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸)STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch)2
1468167缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸)STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch)2
1573657曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸)SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch)13
1531984曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸)SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch)3
1573275曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸)SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch)2
1670132曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063)WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw17
168M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)17
1720359螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
1798260螺钉(.375-16 x .620)SCREW (.375-16 x .620)2
1820091中央轴承锁紧螺钉止动垫圈TAB WASHER Center Bearing Locking Screw3
1999127109平衡管(57英寸散装)-主轴承(5.50英寸)LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch)1
198M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
2099664平衡管至缸体弯头ELBOW Balance Tube to Cylinder Block2
2099664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon2
2165857上部泄放软管接头CONNECTOR Upper Bleed Hose1
2156759倒钩接头FITTING Barbed1
229938779气缸泄放软管(11英寸)HOSE Cylinder Bleed (11 Inch)1
2342867下部泄放软管止回阀CHECK VALVE Lower Bleed Hose1
23428671止回阀CHECK VALVE1
2499156正时指示器INDICATOR Timing1
2539349指示器至曲轴箱不锈钢螺钉(.312-18 x .750)SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase1
2626993指示器螺钉锁紧垫圈(.312)LOCKWASHER (.312) Indicator Screw1
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
-97469A87动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-97469T87船用动力头POWERHEAD MARINE1
图 6附件 ACCESSORIES
附件 ACCESSORIES
REF零件编号中文名称英文名称数量

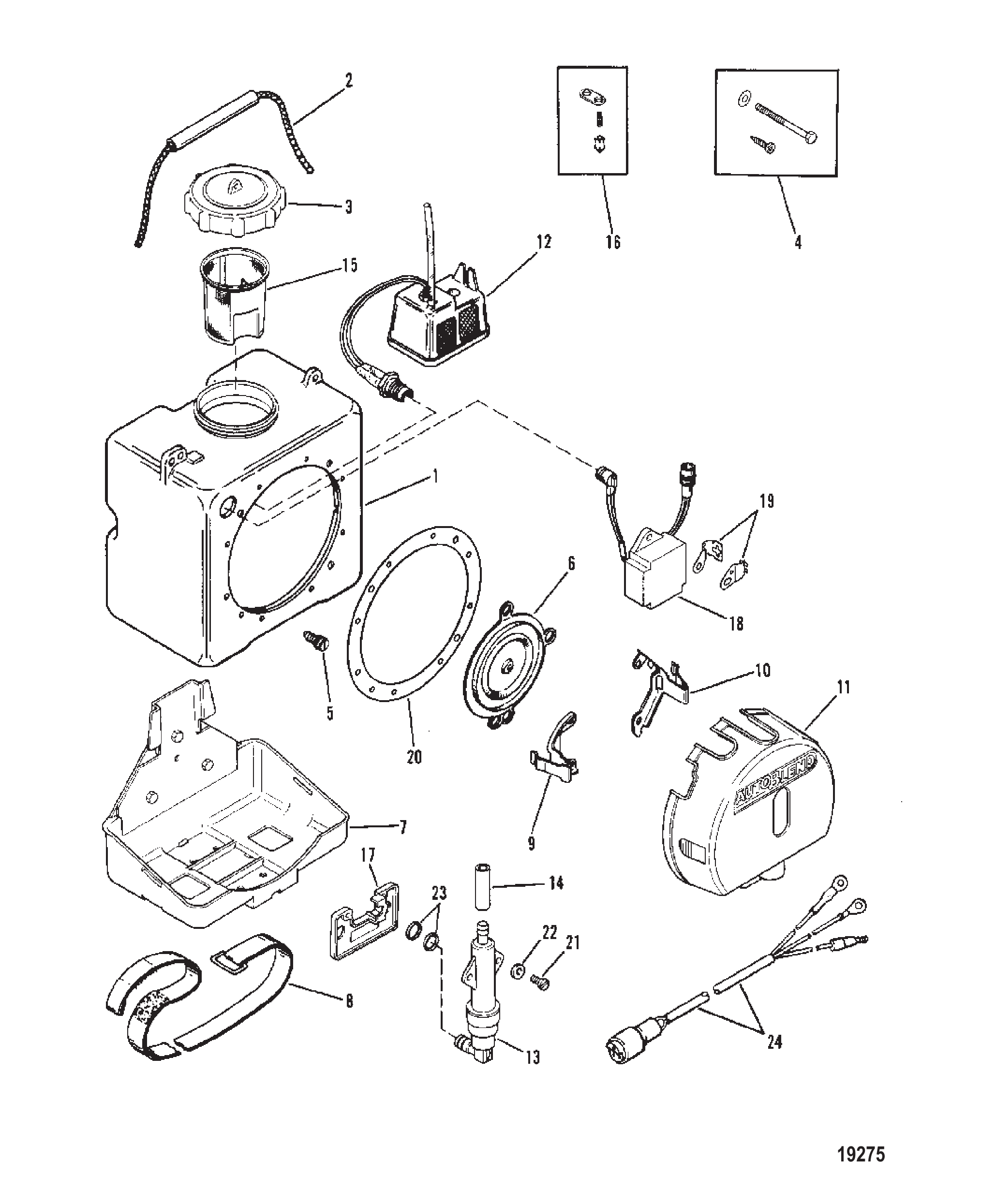

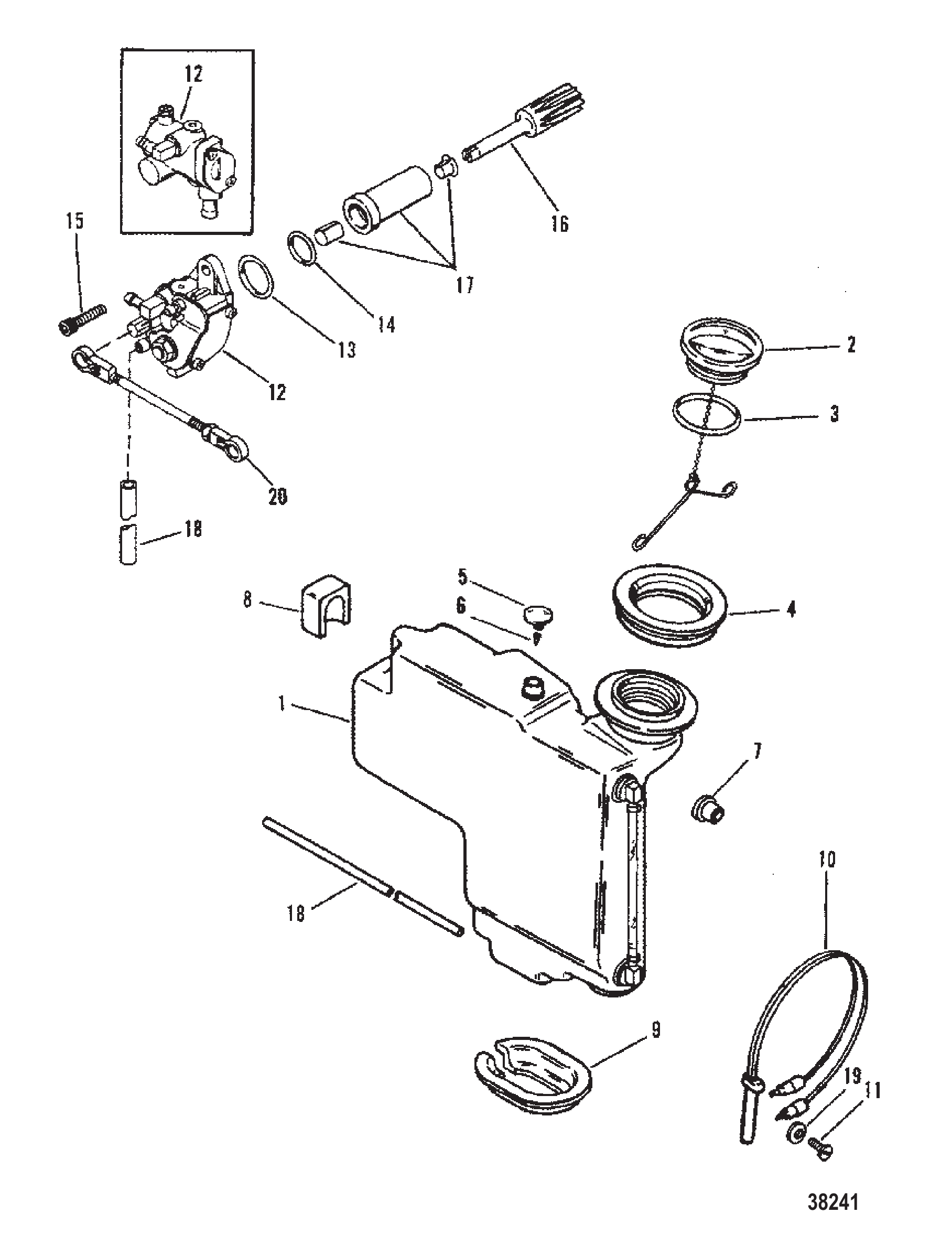

图 7机油喷射组件 Oil Injection Components
机油喷射组件 Oil Injection Components
REF零件编号中文名称英文名称数量
1830889A4油箱总成TANK ASSEMBLY1
2NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
358376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
5814449A3盖总成CAP ASSEMBLY1
642999衬垫GASKET1
642999T衬垫GASKET1
7856156A2开关总成SWITCH ASSEMBLY1
7856156T02开关总成SWITCH ASSEMBLY1
881893435螺钉(M8×35)SCREW (M8 x 35)3
88M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)3
9817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel3
10855362护孔环GROMMET3
10855362001护孔环GROMMET3
11855364衬套BUSHING3
-8742A20遥控机油箱总成TANK ASSEMBLY Remote Oil1
-8742A22遥控机油箱总成TANK ASSEMBLY Remote Oil1
1287421油箱TANK1
13816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
13816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
1411332O型圈(2.225 x .210)O-RING (2.225 x .210)1
1543298A2盖总成CAP ASSEMBLY2
16NSS不单独销售嵌件NOT SOLD SEPARATE Insert1
1711332O型圈(2.225 x .210)O-RING (2.225 x .210)1
1899802管TUBE1
1999439软管(114.00英寸)HOSE (114.00 Inches)1
2012335A1支架套件BRACKET KIT1
2112323A1绳索/挂钩套件CORD/HOOK KIT1
图 8杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-81735291零件手册50/55/60/JET 45PARTS MANUAL 50/55/60/JET 451
-817383A1工具包(55)TOOL BAG (55)1
-816939A94贴花套件(50)(黑色)DECAL SET (50) (BLACK)1
-816939A96贴花套件DECAL SET1
-811212A94贴花套件(60)(黑色)DECAL SET (60) (BLACK)1
-811212A00贴花套件(黑色60电动)DECAL SET (Black 60 Electric)1
-826313A95贴花套件(60)(黑色)(SEAPRO)DECAL SET (60) (BLACK) (SEAPRO)1
-826313A01贴花套件(黑色60 SeaPro)DECAL SET (Black 60 SeaPro)1
-830163A96贴花套件(黑色60浮筒/大脚)DECAL SET (BLACK 60 PONTOON/BIG FOOT)1
-804704A00贴花套件(黑色60 Bigfoot)DECAL SET (Black 60 Bigfoot)1
-824097A95贴花套件(60)(黑色)(FORMULA)DECAL SET (60) (BLACK) (FORMULA)1
-816940A94贴花套件(50)(灰色)DECAL SET (50) (GRAY)1
-816940A97贴花套件DECAL SET1
-811211A94贴花套件(60)(灰色)DECAL SET (60) (GRAY)1
-811211A03贴花套件(灰色60电动)DECAL SET (Gray 60 Electric)1
-824098A95贴花套件(60 MAGNUM III)(灰色)(北美不销售)DECAL SET (60 MAGNUM III) (GRAY) Not sold in North America1
-821573A95贴花套件(55)(黑色)DECAL SET (55) (BLACK)1
-821573A01贴花套件(黑色55 SeaPro)DECAL SET (Black 55 SeaPro)1
-821424A95贴花套件(55)(灰色)DECAL SET (55) (GRAY)1
-8588371贴花套件(灰色Marathon 55)DECAL SET (Gray Marathon 55)1
-824733A94贴花套件(TRACKER)DECAL SET (TRACKER)1
-13361A95贴花套件(MARATHON 60)DECAL SET (MARATHON 60)1
-8588372贴花套件(灰色Marathon 60)DECAL SET (Gray Marathon 60)1
-826325A95贴花套装(JET 45)(黑色)DECAL SET (JET 45) (BLACK)1
-826325A00贴花套件DECAL SET1
-826326A95贴花套装(JET 45)(灰色)DECAL SET (JET 45) (GRAY)1
-826326A01贴花套装(灰色Jet 40)DECAL SET (Gray Jet 40)1
-814319950用户手册(50/60)(黑色)OWNERS MANUAL (50/60) (BLACK)1
-821732950用户手册(55)(黑色)OWNERS MANUAL (55) (BLACK)1
-816763950用户手册(50/60)(灰色)OWNERS MANUAL (50/60) (GRAY)1
-821733950用户手册(55)(灰色)OWNERS MANUAL (55) (GRAY)1
-826596950用户手册(JET 45)OWNERS MANUAL (JET 45)1

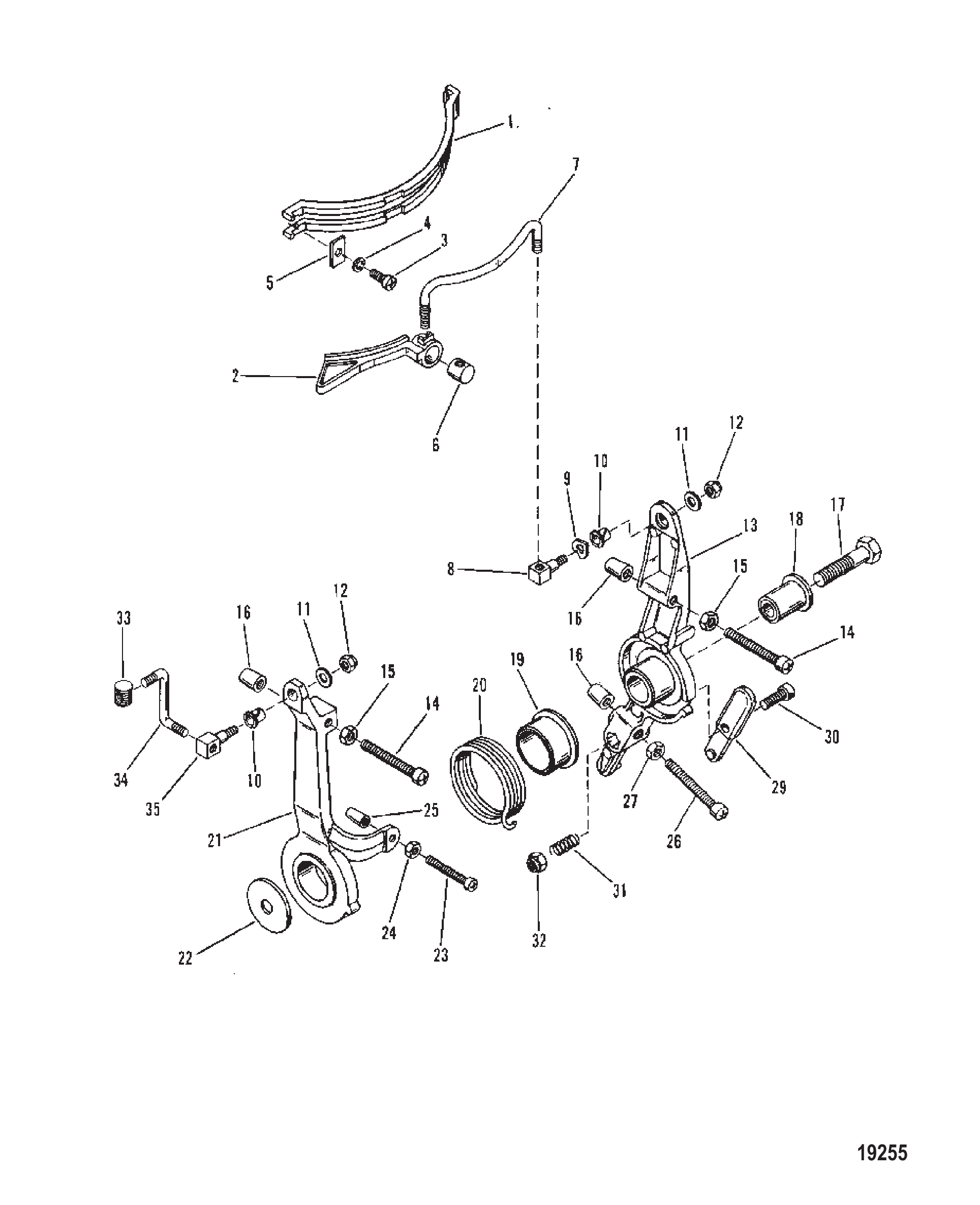

图 9节气门联动装置 Throttle Linkage
节气门联动装置 Throttle Linkage
REF零件编号中文名称英文名称数量
176864节流阀执行器尼龙壳体HOUSING NYLON-THROTTLE ACTUATOR1
277025节流阀执行器尼龙凸轮CAM NYLON-THROTTLE ACTUATOR1
337571壳体螺钉(0.190-32x0.500)SCREW (.190-32 x .500) HOUSING1
426996壳体螺钉用#10不锈钢锁紧垫圈LOCKWASHER (#10) Stainless Steel HOUSING SREW1
560570执行器壳体固定板PLATE RETAINER-ACTUATOR HOUSING1
674213节流连杆尼龙套筒BARREL NYLON-THROTTLE LINK ROD1
774164节流连杆ROD LINK-THROTTLE1
877013A1节流控制杆万向接头SWIVEL LINK TO THROTTLE CONTROL LEVER1
929402连杆万向接头波形垫圈WAVE WASHER LINK ROD SWIVEL2
1026856BUSHING LINK ROD SWIVEL2
1133786WASHER LINK ROD SWIVEL2
1173288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel2
1245774NUT LINK ROD SWIVEL2
1377032A2节流控制杆总成LEVER ASSEMBLY THROTTLE CONTROL1
1473655节流杆调节螺钉(2英寸)SCREW THROTTLE LEVER ADJUSTING (2")2
1467916螺钉(0.250-28x2.00)SCREW (.250-28 x 2.00)2
1529598调节螺钉用0.250-28不锈钢防松螺母NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW3
1652023调节螺钉帽CAP ADJUSTINTG SCREW3
1755337节流控制杆螺钉(0.375-16x1.75)SCREW (.375-16 x 1.75) THROTTLE CONTROL LEVER1
17818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1855164节气门控制杆螺钉衬套BUSHING THROTTLE CONTROL LEVER SCREW1
1955171节气门控制杆螺钉衬套BUSHING THROTTLE CONTROL LEVER SCREW1
2055162弹簧SPRING1
2177031A2点火提前杆总成LEVER ASSEMBLY SPARK ADVANCE1
2268410节气门控制杆螺钉垫圈WASHER THROTTLE CONTROL LEVER SCREW1
2246765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
2332627点火提前调节螺钉(0.190-32x1.50)SCREW (.190-32 x 1.50) SPARK ADVANCE ADJUSTING1
2468219NUT (#10-32) Stainless Steel ADJUSTING SCREW1
2548039调节螺钉帽CAP ADJUSTING SCREW1
2677650点火提前杆调节螺钉SCREW SPARK ADVANCE LEVER ADJUSTING1
2729598调节螺钉用0.250-28不锈钢防松螺母NUT (.250-28) Stainless Steel JAM-ADUSTING SCREW1
2852023调节螺钉帽CAP ADJUSTING SCREW1
2939483节气门控制杆锁扣LATCH THROTTLE CONTROL LEVER1
3022486节流控制杆锁扣螺钉(0.250-28x0.880)SCREW (.250-28 x .880) LATCH TO THROTTLE CONTROL LEVER1
3069026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
3120099锁扣螺钉压缩弹簧SPRING COMPRESSION-LATCH SCREW1
3220586锁扣安装螺钉用0.250-28螺母NUT (.250-28) LATCH ATTACHING SCREW1
32826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3374897定子连杆枢轴PIVOT LINK ROD TO STATOR1
3374897T枢轴PIVOT1
3474212点火提前连杆ROD LINK-SPARK ADVANCE1
3577013A1SWIVEL LINK ROD TO SPARK ADVANCE LEVER1

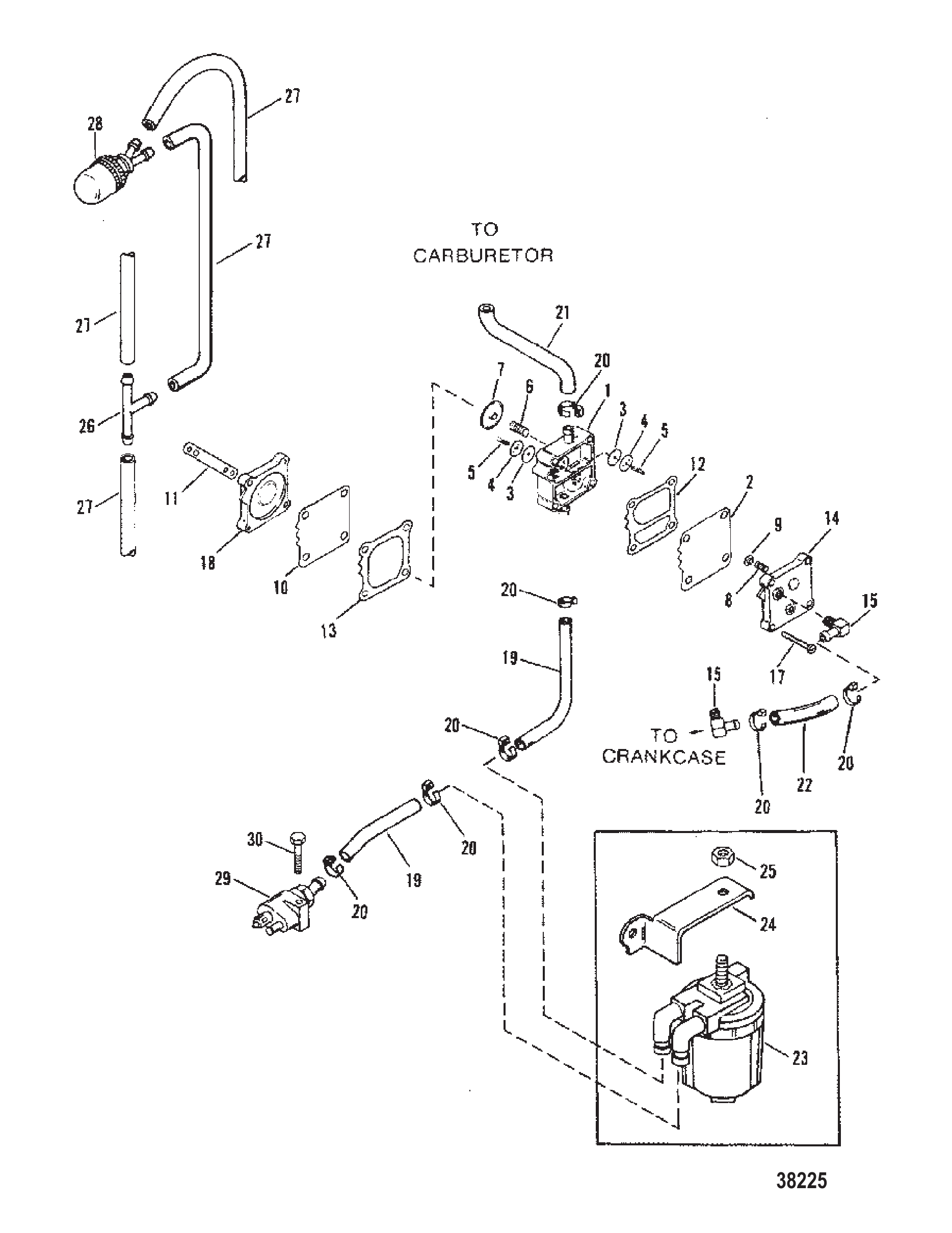

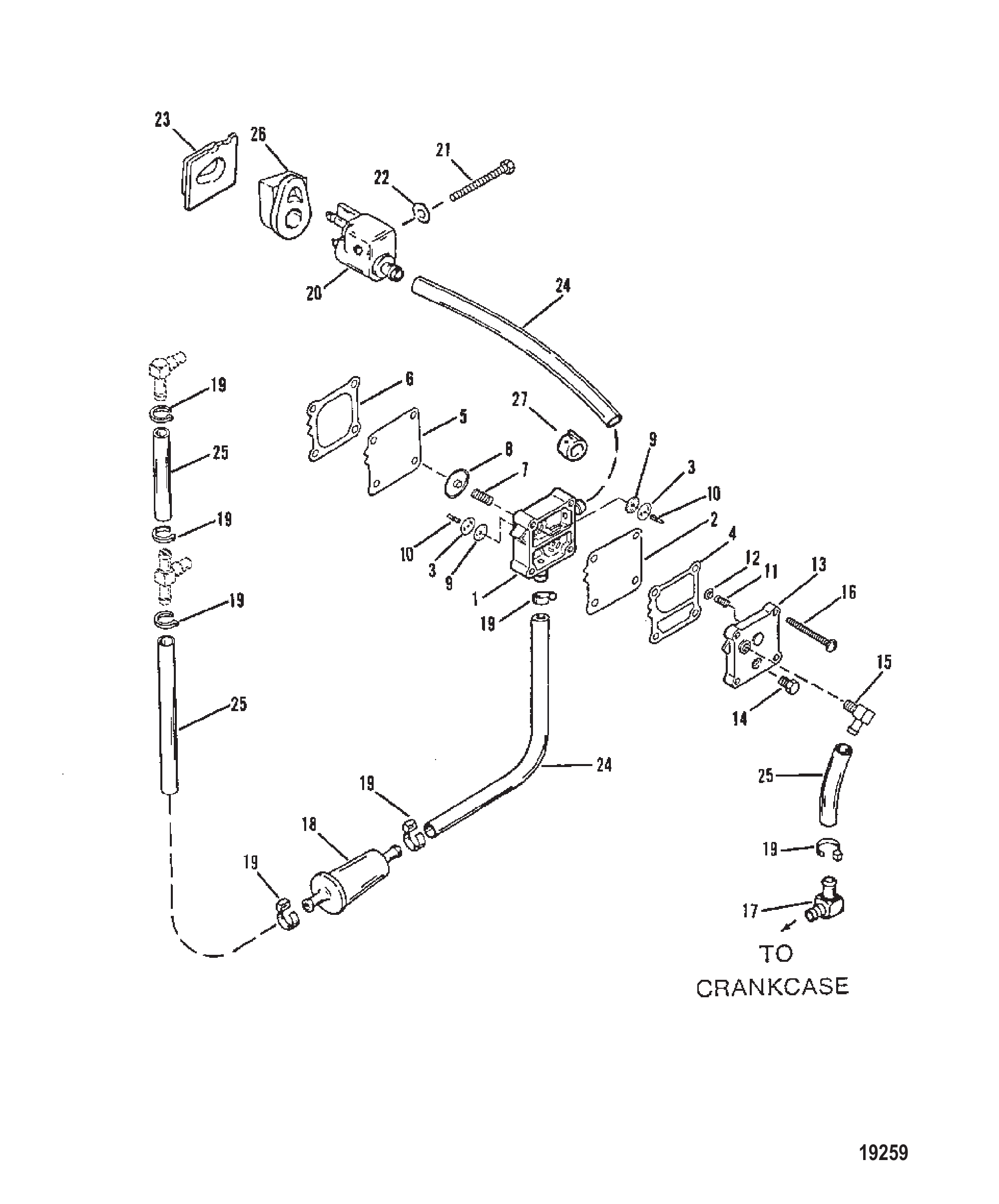

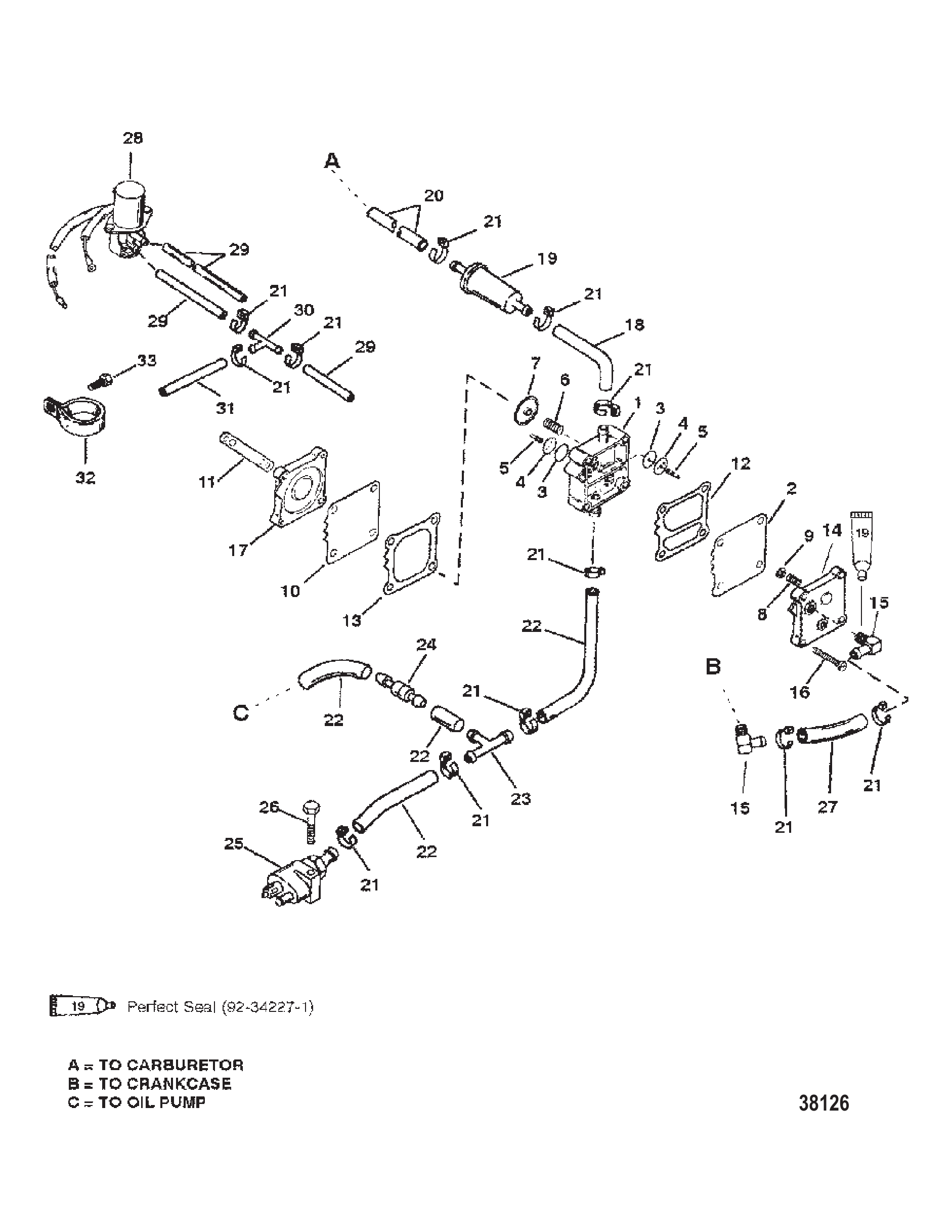

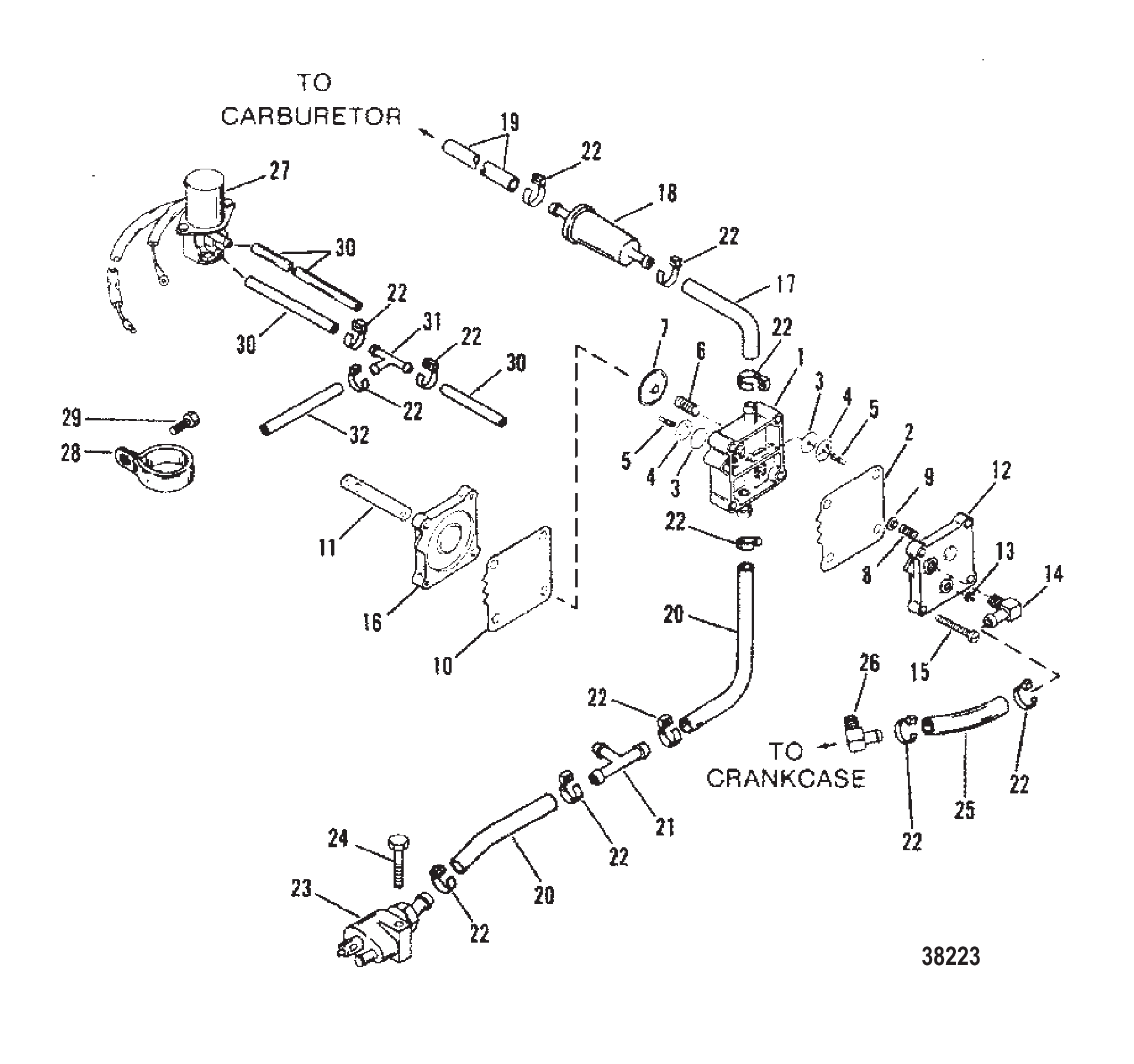

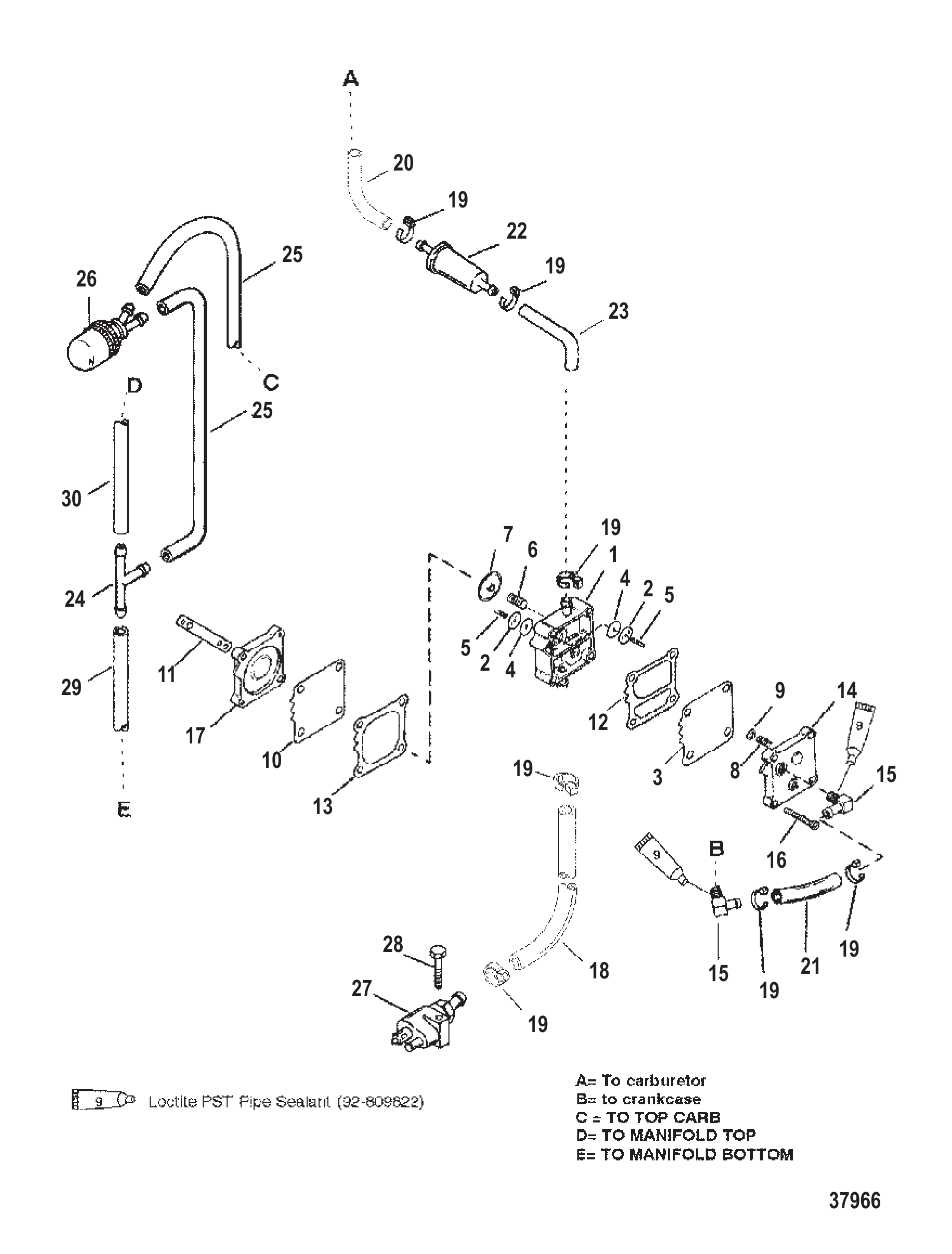

图 10燃油泵(白色或红色) FUEL PUMP (WHITE OR RED)
燃油泵(白色或红色) FUEL PUMP (WHITE OR RED)
REF零件编号中文名称英文名称数量
114360A41燃油泵总成PUMP ASSEMBLY Fuel1
242990A10膜片组件DIAPHAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSSNOT SOLD SEPARATE CHECK VALVE-RUBBER2
4NSSNOT SOLD SEPARATE CHECK VALVE2
5NSSNOT SOLD SEPARATE RETAINER2
6NSSNOT SOLD SEPARATE SPRING1
7NSSNOT SOLD SEPARATE CAP1
8NSSNOT SOLD SEPARATE SPRING1
9NSSNOT SOLD SEPARATE CAP1
10NSSNOT SOLD SEPARATE DIAPHRAGM1
11987691衬垫GASKET1
118M0204705衬垫@2GASKET @21
1298775A7安装板PLATE1
1356800管塞 (.0625-27)PLUG Pipe (.0625-27)1
1419688A1接头FITTING1
154009340螺钉(40毫米)SCREW (40MM)2
1582104540螺钉(M5 x 40)SCREW (M5 x 40)2
1540057134螺钉(M6 x 50)SCREW (M6 x 50)2
16144303底座BASE1
17816865软管HOSE1
17830767软管HOSE1
188162961燃油滤清器FILTER Fuel1
18816296Q2燃油滤清器FILTER Fuel1
1919723燃油管LINE Fuel1
19830761燃油管LINE Fuel1
209912980软管HOSE2
208M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)2
2113773三通TEE1
22816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
22816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
23816856A1燃油接头总成CONNECTOR ASSEMBLY Fuel1
23816856T01燃油接头CONNECTOR-FUEL1
244000332螺钉(M6x35)SCREW (M6 x 35)1
2599127109管路(57英寸散装)(4.75英寸)LINE (57.00 Inches Bulk) (4-3/4")1
258M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
2619688接头FITTING1
27428593电磁阀SOLENOID VALVE1
27819503A5加浓阀电磁阀套件SOLENOID KIT Enrichner Valve1
28633001卡箍CLAMP1
2940011127螺钉 (M6 x 16) 不锈钢SCREW (M6 x 16) Stainless Steel1
294006731螺钉(M6 x 16)SCREW (M6 x 16)1
301430165油管(38.00英寸 散装)TUBING (38.00 Inches Bulk)3
3159169接头FITTING1
3159169003三通接头FITTING Tee1
3299130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
32892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
-812867A97衬垫套件GASKET SET1
-857005A1膜片组件DIAPHRAGM KIT1
图 11骑导转向系统 RIDEGUIDE STEERING
骑导转向系统 RIDEGUIDE STEERING
REF零件编号中文名称英文名称数量
019608A11转向安装套件ATTACHING KIT Steering1
019608A14发动机转向安装套件ATTACHING KIT Engine Steering1
019609A5转向安装套件ATTACHING KIT Steering1
019609A6转向安装套件ATTACHING KIT Steering1
097933A6转向套件双机安装套件STEERING KIT Duel Engine Attaching Kit1
0816667A2转向支架总成BRACKET ASSEMBLY Steering1
图 12化油器 CARBURETOR

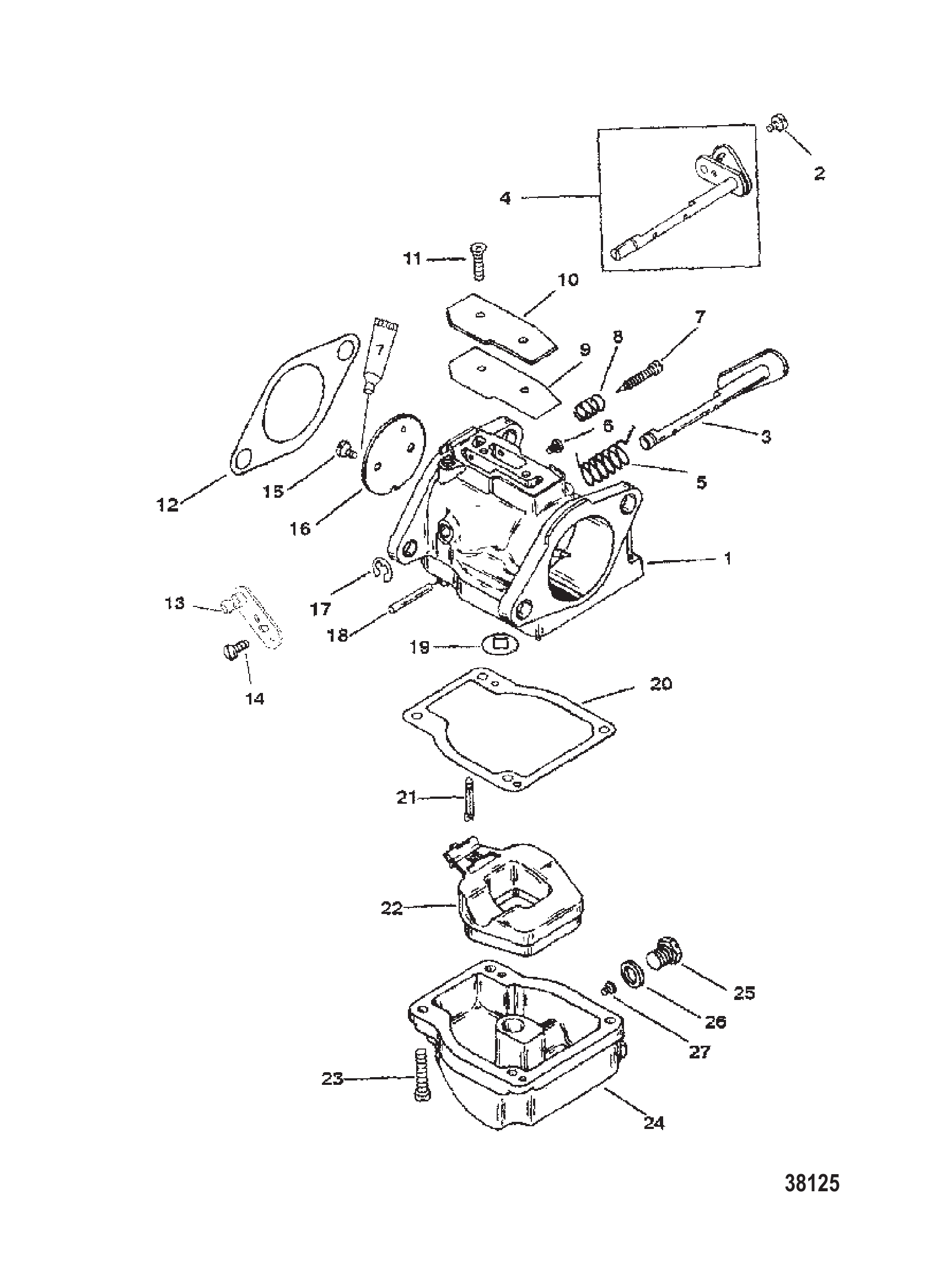

化油器 CARBURETOR
REF零件编号中文名称英文名称数量
1821679A17化油器CARBURETOR1
1821679A18化油器CARBURETOR1
1821679T18化油器CARBURETOR1
1821679A19化油器CARBURETOR1
1821679T19化油器CARBURETOR1
1821946A24化油器CARBURETOR1
1821946A45化油器维修包CARBURETOR KIT1
1821946A25化油器CARBURETOR1
1821946A46化油器维修包CARBURETOR KIT1
1821946A26化油器CARBURETOR1
1821946A47化油器维修包CARBURETOR KIT1
1821946A27化油器CARBURETOR1
1821946T42化油器CARBURETOR1
1821946A28化油器CARBURETOR1
1821946T43化油器CARBURETOR1
1821946A29化油器CARBURETOR1
1821946T44化油器CARBURETOR1
2823634螺丝(上/下部)SCREW (UPPER/BOTTOM)2
3823632油门轴SHAFT Throttle1
4823633油门轴SHAFT Throttle1
4823636油门轴SHAFT Throttle1
3823632节气门轴(上/下部)SHAFT Throttle (UPPER/BOTTOM)2
4823633节气门轴(中央)SHAFT Throttle (CENTER)1
5NSS不单独销售 油门回位弹簧NOT SOLD SEPARATE SPRING-THROTTLE RETURN3
66247主量孔(0.090)JET Main (.090)3
7NSS不单独销售 怠速针NOT SOLD SEPARATE IDLE NEEDLE3
8NSS不单独销售 怠速针弹簧NOT SOLD SEPARATE SPRING-IDLE NEEDLE3
9NSS不单独销售 盖板衬垫NOT SOLD SEPARATE GASKET-COVER PLATE3
10811221盖板COVER PLATE3
11811220盖板螺丝SCREW Cover Plate6
128144461法兰衬垫GASKET Flange3
138113522油泵杠杆(WME43/45-底部)LEVER Oil Pump (WME43/45 - BOTTOM)1
148086121杠杆固定螺钉(WME43/45-底部)SCREW Lever Retainer (WME43/45 - BOTTOM)1
15F10155节气门螺丝SCREW Throttle Valve6
16879194023节气门阀VALVE-THROTTLE3
17NSS不单独销售 挡圈NOT SOLD SEPARATE RETAINING RING3
18F10064轴SHAFT3
19NSS不单独销售 喷油嘴衬垫NOT SOLD SEPARATE GASKET-NOZZLE WELL3
20NSS不单独销售 燃油杯衬垫NOT SOLD SEPARATE GASKET-FUEL BOWL3
21879194011进油阀VALVE Inlet3
229594浮子FLOAT3
23808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)12
24811695燃油杯BOWL Fuel1
24811693燃油杯BOWL Fuel2
25811694塞套件PLUG KIT3
26NSS排水碗密封件(不单独销售)NOT SOLD SEPARATE SEAL-BOWL DRAIN3
276246量孔(.048)JET (.048)3
276487主量孔(0.060)JET Main (.060)3
274217主量孔(.062)JET Main (.062)3
-812867A97衬垫套件GASKET SET1
-8236354化油器维修套件REPAIR KIT Carburetor1
-8112231化油器衬垫组GASKET SET Carburetor1
图 13艉板支架（长轴-序列号0C160936及以上） Transom Bracket (Long Shaft S/N-0C160936 & Up)

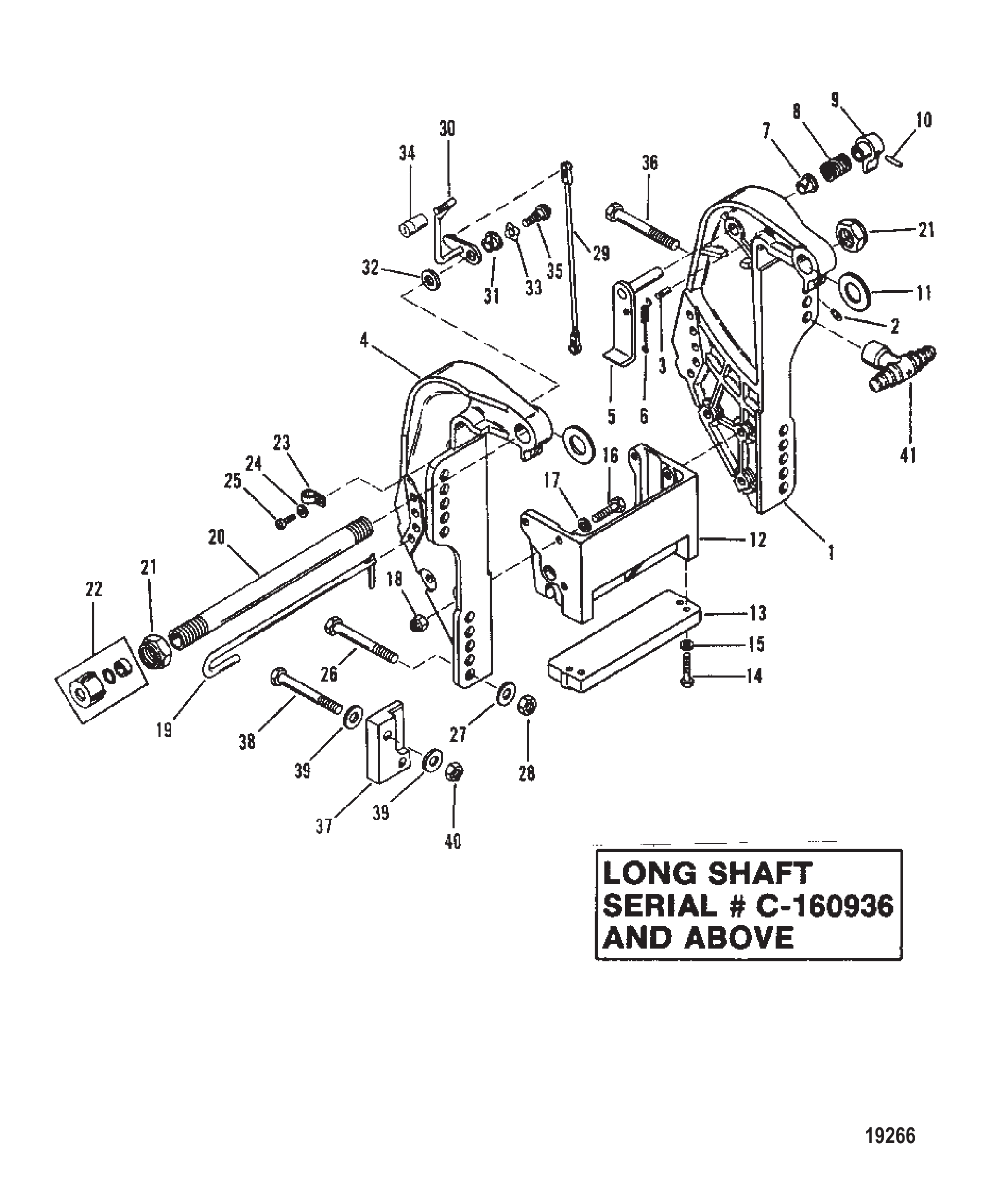

艉板支架（长轴-序列号0C160936及以上） Transom Bracket (Long Shaft S/N-0C160936 & Up)
REF零件编号中文名称英文名称数量
19751A1艉板支架总成(左舷)(黑色)BRACKET ASSEMBLY Transom (PORT) (BLACK)1
19751A2艉板支架总成(左舷)(灰色)BRACKET ASSEMBLY Transom (PORT) (GRAY)1
298727润滑脂接头FITTING Grease1
28M0169588润滑脂接头FITTING Grease1
399604槽销PIN Groove1
49750T艉板支架 (右舷) (黑色)BRACKET Transom (STARBOARD) (BLACK)1
49750T6艉板支架(右舷)(灰色)BRACKET Transom (STARBOARD) (GRAY)1
519618A2倾斜锁杆总成(黑色)LEVER ASSEMBLY Tilt Lock (BLACK)1
5893704T01倾斜锁杆LEVER Tilt Lock1
519618A3倾斜锁杆总成(灰色)LEVER ASSEMBLY Tilt Lock (GRAY)1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
699622弹簧SPRING1
765830尼龙衬套NYLINER1
8812708弹簧SPRING1
9812709T旋钮(黑色)KNOB (BLACK)1
9812709旋钮KNOB1
9812709T6旋钮(灰色)KNOB (GRAY)1
9812709旋钮KNOB1
1099615槽销PIN Groove1
1119619垫圈WASHER2
1218486T锚支架(黑色)BRACKET Anchor (BLACK)1
1218486F5锚支架BRACKET Anchor1
1218486T6锚支架(灰色)BRACKET Anchor (GRAY)1
1218486F6锚支架BRACKET Anchor1
1343396A2阳极总成ANODE ASSEMBLY1
13818298Q1阳极套件ANODE KIT1
144000332螺钉(M6x35)SCREW (M6 x 35)2
1529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
158M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
164000354螺钉 (M8 x 30)SCREW (M8 x 30)5
164000355螺钉(M8×35)SCREW (M8 x 35)1
17400257锁紧垫圈（M8）LOCKWASHER (M8)4
18400635螺母 (M8)NUT (M8)2
18401388不锈钢螺母 (M8)NUT (M8) Stainless Steel2
1919613A1倾斜销总成PIN ASSEMBLY Tilt1
2019614倾斜管TILT TUBE1
208M0041938倾斜管TILT TUBE1
2156041螺母 (.875-14)NUT (.875-14)2
21858869螺母 (.875-14)NUT (.875-14)2
2219624A1密封套件SEAL KIT1
2322740卡箍 (动力配平)CLIP (POWER TRIM)1
2469205C形垫圈 (动力配平)C WASHER (POWER TRIM)1
248M0084613C形垫圈C-WASHER1
25812832螺钉 (#10-16 x .500) (动力配平)SCREW (#10-16 x .500) (POWER TRIM)1
25878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
26814259螺钉 (.500-20 x 4.00)SCREW (.500-20 x 4.00)4
2728421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
278M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
288M0027784螺母NUT4
2882671117螺母(.500-20)NUT (.500-20)4
291938521连接杆LINK1
298M0084737连接杆LINK1
3019615A4杆总成 倾斜 (非动力配平)LEVER ASSEMBLY Tilt (NON POWER TRIM)1
3019615A05倾斜杆总成LEVER ASSEMBLY Tilt1
31812707衬套 (非动力配平)BUSHING (NON POWER TRIM)1
32815796垫圈 (.030")(非动力配平)WASHER (.030")(NON POWER TRIM)AR
3219605垫圈 (.520 x .850 x .060) 尼龙 - 黑色 (非动力配平)WASHER (.520 x .850 x .060) Nylon - Black (NON POWER TRIM)AR
328M0042643垫圈(.520 x .850 x .060) 尼龙 黑色WASHER (.520 x .850 x .060) Nylon, BlackAR
3399611波形垫圈 (非动力配平)WAVE WASHER (NON POWER TRIM)1
3419621倾斜旋钮(非动力升降)TILT KNOB (NON POWER TRIM)1
348M0007469倾斜旋钮KNOB Tilt1
3519611螺丝(.375-16 x .62)(非动力升降)SCREW (.375-16 x .62) (NON POWER TRIM)1
-812432A1发动机安装套件(附件)MOUNTING KIT Engine (ACCESSORY)1
3676841螺丝(.500-20 x 3.500)(附件)SCREW (.500-20 x 3.500) (ACCESSORY)2
37812432T安装支架(右舷)(附件)BRACKET Mounting (STARBOARD)(ACCESSORY)1
37812432F5安装支架MOUNTING BRACKET1
37812433T安装支架(左舷)(附件)BRACKET Mounting (PORT)(ACCESSORY)1
37812433F5安装支架MOUNTING BRACKET1
3888432螺丝(.375-24 x 4.00)(附件)SCREW (.375-24 x 4.00) (ACCESSORY)4
3929395垫圈(.390 x 1.00 x .06)(附件)WASHER (.390 x 1.00 x .06) (ACCESSORY)8
398M0042641垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)8
40134371螺母(.375-24)(附件)NUT (.375-24) (ACCESSORY)4
40862903螺母 (.375-24)NUT (.375-24)4
41812434A2T型手柄螺母(附件)NUT T Handle (ACCESSORY)2
图 14润滑图表 Lube Chart
润滑图表 Lube Chart
REF零件编号中文名称英文名称数量
-NOPART无零件清单NO PARTS LIST1

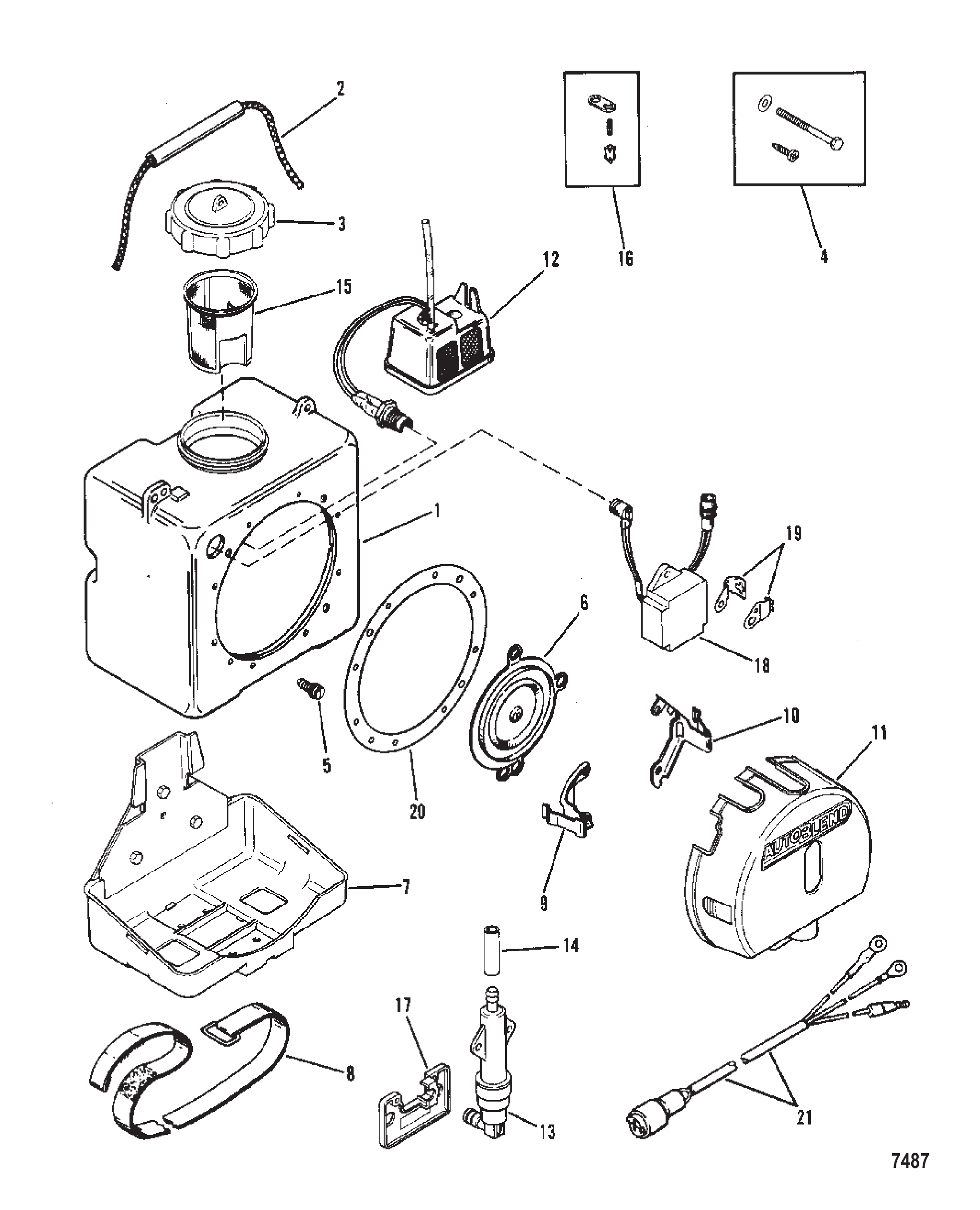

图 15自动混合器 AUTO-BLEND
自动混合器 AUTO-BLEND
REF零件编号中文名称英文名称数量
-130194自动混合装置AUTO BLEND ASSEMBLY1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
316619CAP Oil Tank1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
716620安装支架套件BRACKET KIT Mounting1
813993箍带BAND1
913983左支架BRACKET Left1
1013984右支架BRACKET Right1
1116613盖板COVER1
1213985机油滤清器/传感器套件FILTER/SENSOR KIT Oil1
1318576燃油滤清器套件FILTER KIT Fuel1
1413992乙烯基软管VINYL TUBE1
1516618机油滤网STRAINER Oil1
1616615止回阀套件CHECK VALVE KIT1
1716621安装板PLATE1
1819265模块套件MODULE KIT1
1916623支架套件BRACKET KIT1
2016616衬垫套件GASKET KIT1
2114585A1自动混合线束总成HARNESS ASSEMBLY Auto Blend1

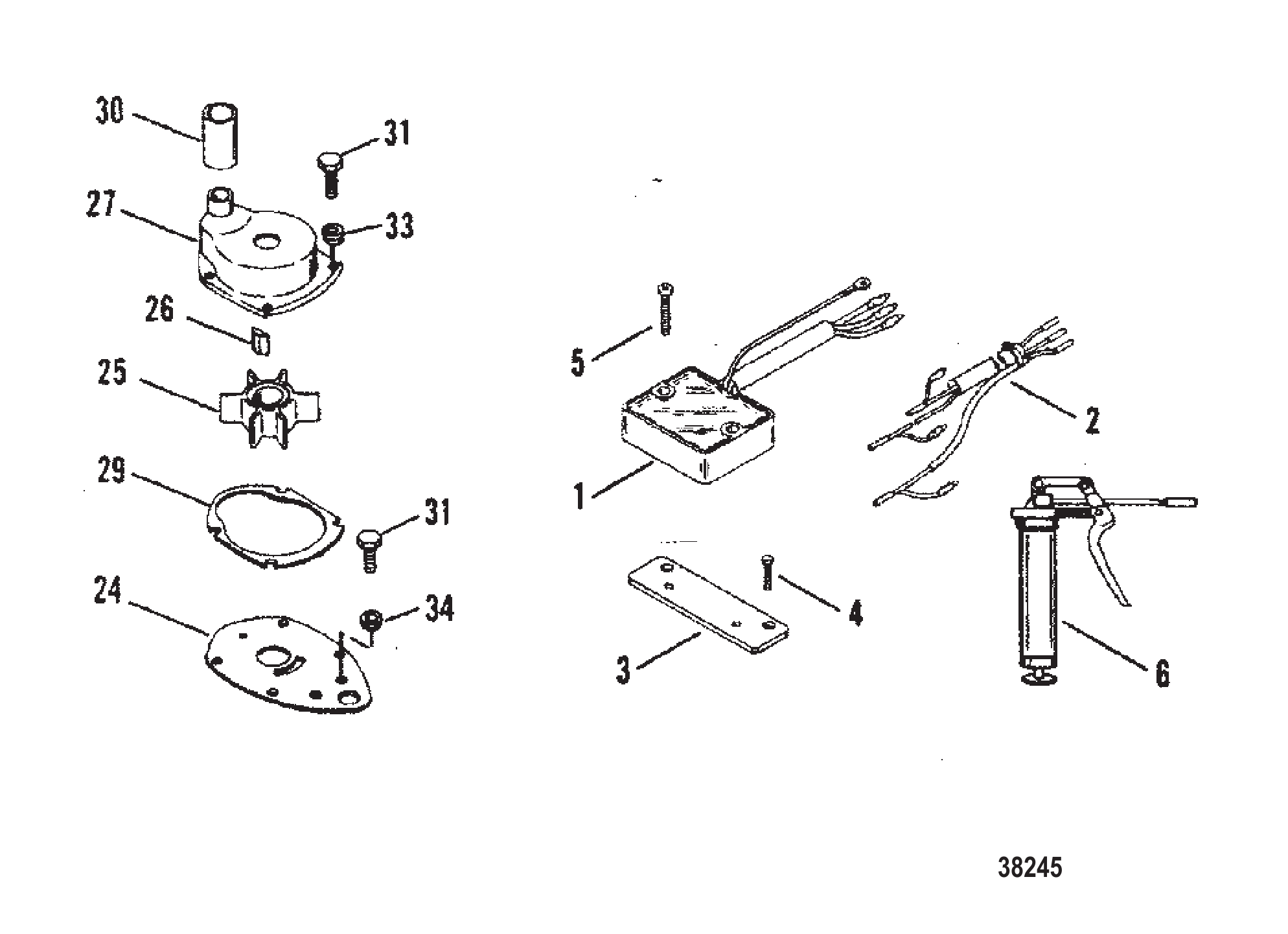

图 16喷射组件 JET COMPONENTS
喷射组件 JET COMPONENTS
REF零件编号中文名称英文名称数量
1821889A18转速限制器REV LIMITER1
2823147A4转速限制器线束总成HARNESS ASSEMBLY Rev Limiter1
3826579支架BRACKET1
440011127螺钉 (M6 x 16) 不锈钢SCREW (M6 x 16) Stainless Steel2
44006731螺钉(M6 x 16)SCREW (M6 x 16)2
540011109螺钉 (M5 x 25) 不锈钢SCREW (M5 x 25) Stainless Steel2
6801402润滑脂套装GREASE KIT1
630500A2润滑脂套装GREASE KIT1
24197001面板FACE PLATE1
2419700A2面板FACE PLATE1
2519453叶轮IMPELLER1
2519453T叶轮IMPELLER1
2619699键KEY1
268M0032831叶轮键KEY Impeller1
2714334A1水泵总成PUMP ASSEMBLY Water1
2714334A3水泵总成PUMP ASSEMBLY Water1
29194541衬垫(上部)GASKET (UPPER)1
3043023密封件SEAL1
308M0204658密封件SEAL1
318248324螺钉(M6 x 16)SCREW (M6 x 16)6
3343045绝缘体INSULATOR4
338M0204659绝缘体@4INSULATOR @44
3419452绝缘体INSULATOR2
-812966A11水泵维修套件REPAIR KIT Water Pump1
-812966A12水泵维修套件REPAIR KIT Water Pump1
-814669A2齿轮箱密封套件SEAL KIT Gear Housing1

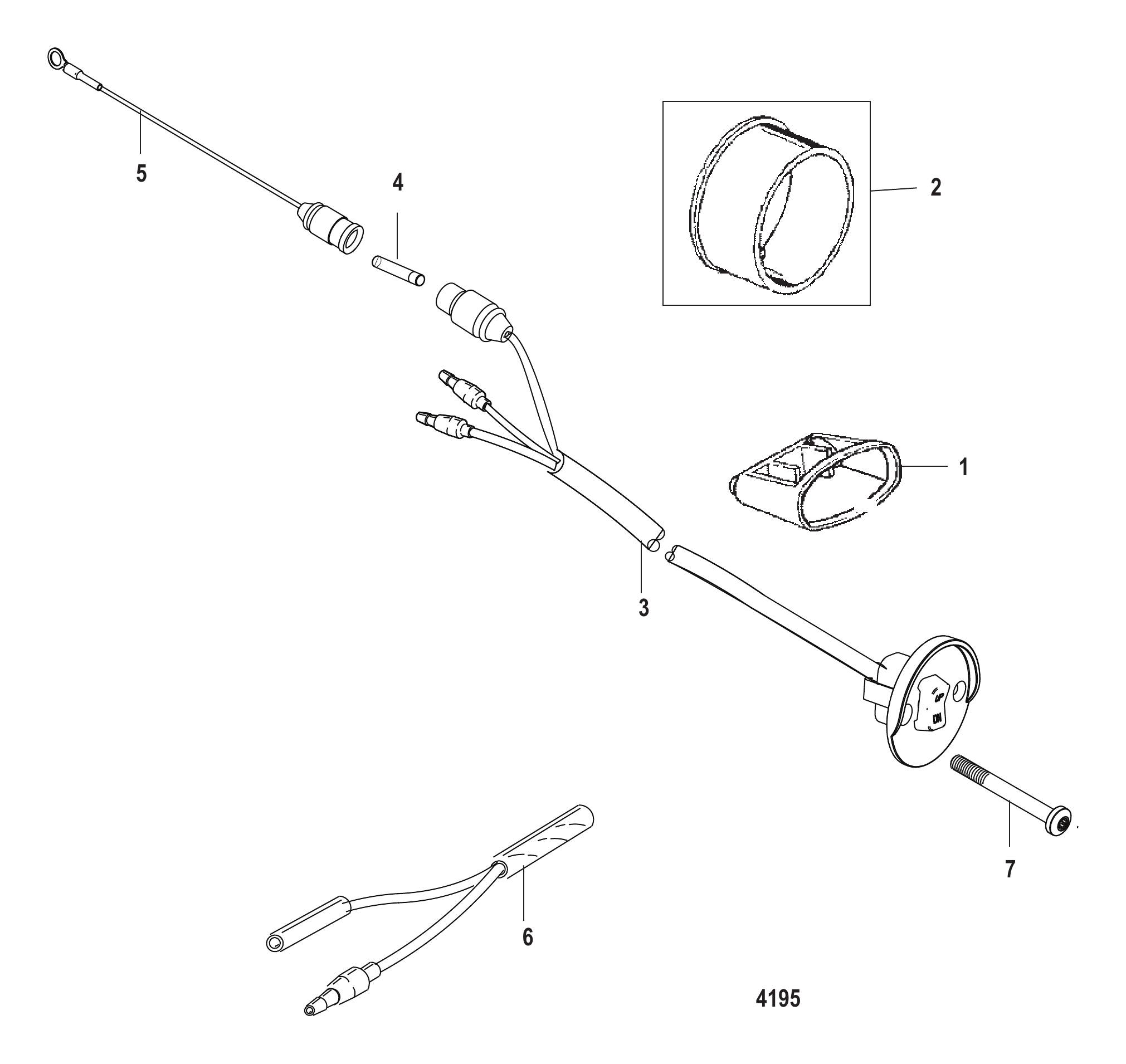

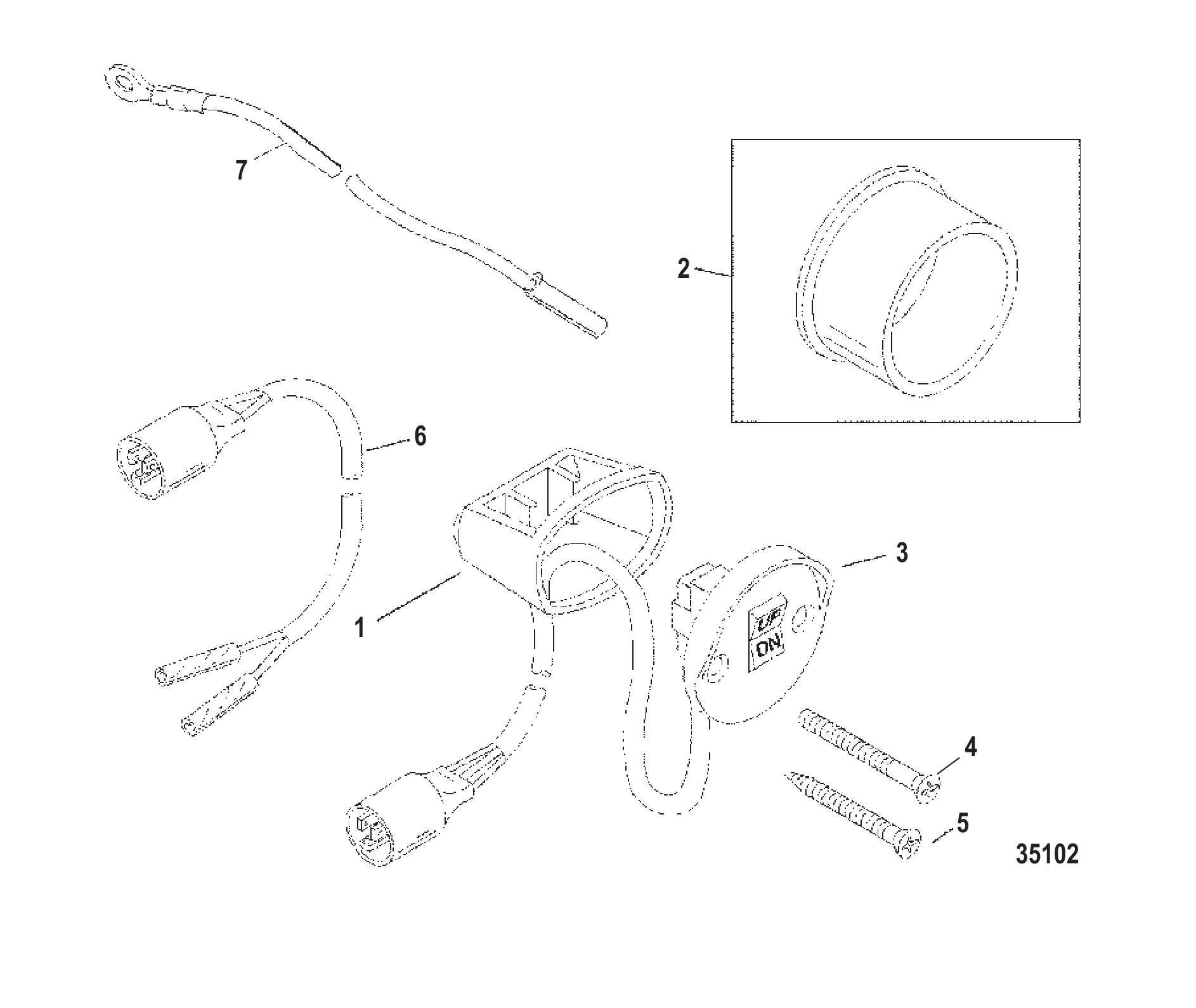

图 17升降开关套件 Trim Switch Kit
升降开关套件 Trim Switch Kit
REF零件编号中文名称英文名称数量
-18286A17配平开关套件SWITCH KIT Trim1
118861固定座RETAINER1
2814820适配器ADAPTER1
318286A28开关SWITCH1
419209螺钉(#10-32 x 2.25)SCREW (#10-32 x 2.25)2
5813523螺钉(#10-16 x 2.25)SCREW (#10-16 x 2.25)2
6848017A2升降线束总成HARNESS ASSEMBLY Trim1
7849614A2配平开关线束总成HARNESS ASSEMBLY Trim Switch1

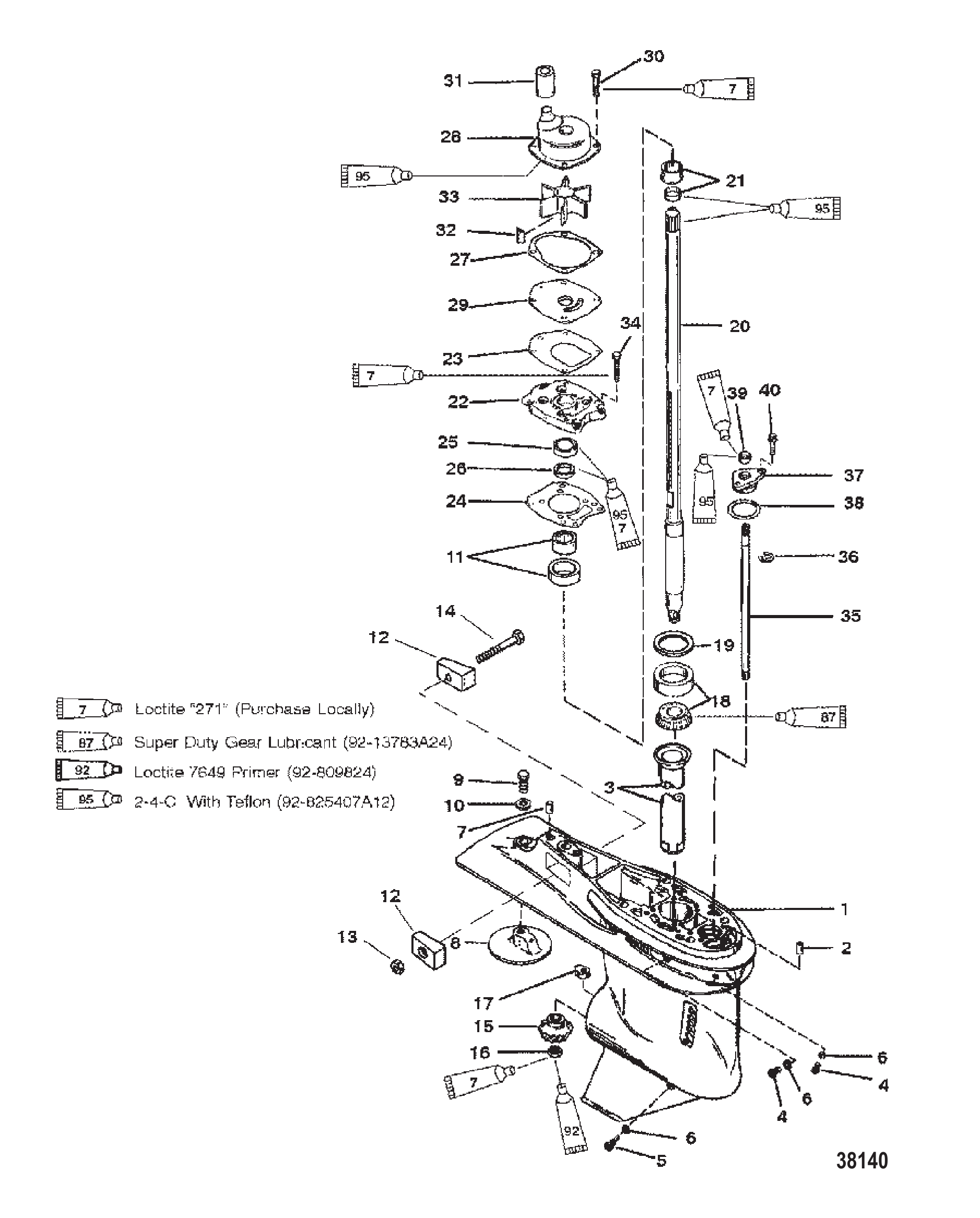

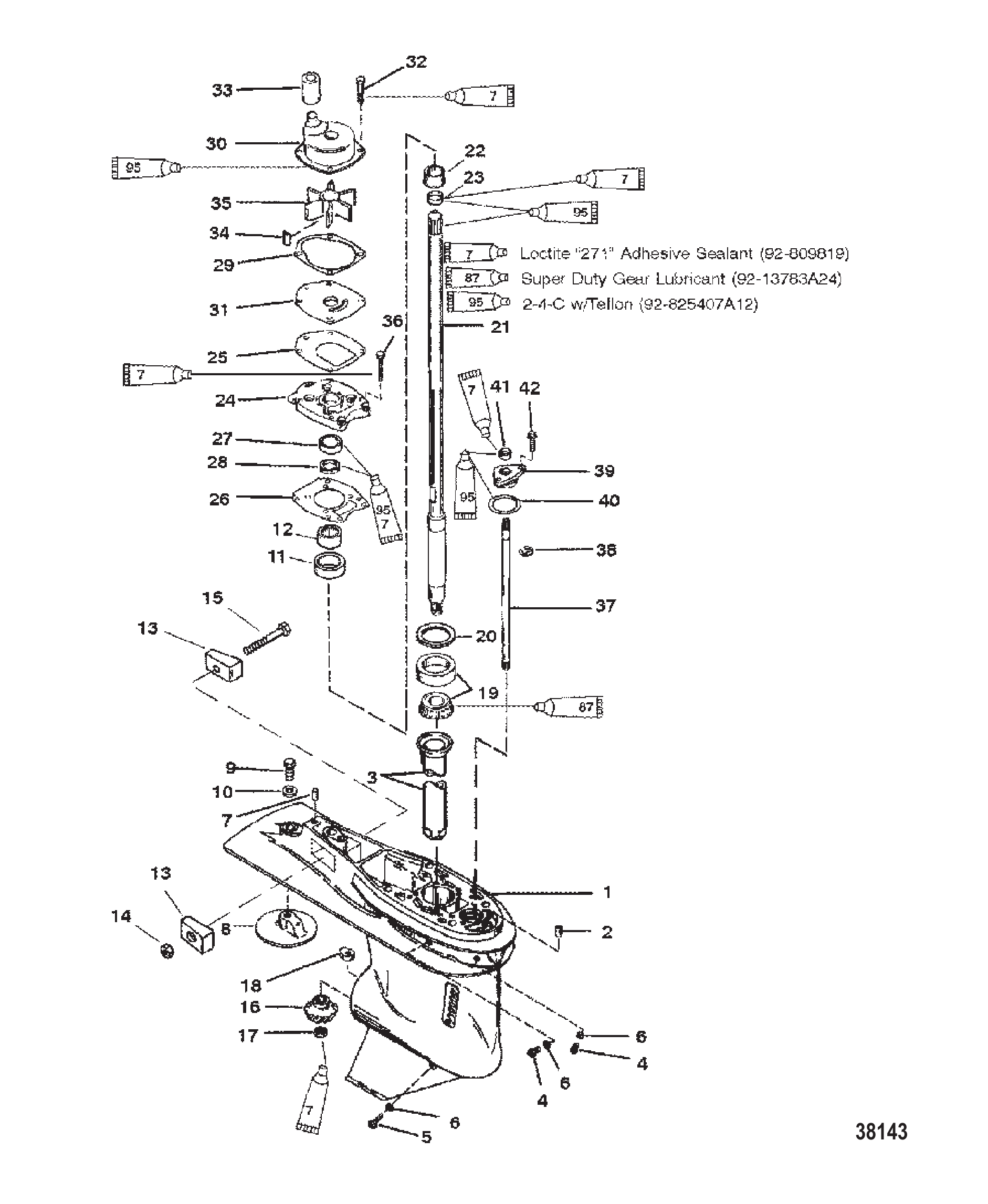

图 18齿轮箱驱动轴-60海宝/马拉松/大脚-3爪倒车离合器 GEAR HSG DRIVESHAFT-60 SEA/MARA/BIG FOOT-3 JAW REV. CLUTCH
齿轮箱驱动轴-60海宝/马拉松/大脚-3爪倒车离合器 GEAR HSG DRIVESHAFT-60 SEA/MARA/BIG FOOT-3 JAW REV. CLUTCH
REF零件编号中文名称英文名称数量
-9011A69齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A71齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G94齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A70齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G96ORD 1667-9011G92ORD 1667-9011G921
-9011A72齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G48齿轮箱GEAR HOUSING1
19011A73齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19011T73齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19011A74齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19011T74ORD 1667-9011T73ORD 1667-9011T731
243043定位销-带孔(.375 x .625)(前)PIN Dowel - With Hole (.375 x .625) (FRONT)1
28M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
343046注油管TUBE Oiler1
479953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)2
479953Q04放油螺钉套件SCREW KIT Drain2
567892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
58M0058389放油螺钉套件SCREW KIT Drain1
619183纤维垫圈WASHER Fiber3
68M0187157蓝色密封件@15SEAL-BLUE @153
743044定位销-无孔(.375 x .625)(后)PIN Dowel - Without Hole (.375 x .625) (REAR)1
8316405平衡鳍板TRIM TAB1
88M0236553平衡鳍板TRIM TAB1
9825427不锈钢螺钉(0.437-14x1.250)SCREW (.437-14 x 1.250) Stainless Steel1
1045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel1
1143040A1托架总成CARRIER ASSEMBLY1
1143040T1托架总成CARRIER ASSEMBLY1
12826134阳极块ANODE2
12826134Q阳极块ANODE2
138268336螺母 (M6)NUT (M6)1
13401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
144000333螺钉(M6 x 40)SCREW (M6 x 40)1
1544484小齿轮(13齿)GEAR Pinion (13 Teeth)1
1544484T小齿轮(13齿)GEAR Pinion (13 Teeth)1
1635921螺母(0.625-18)NUT (.625-18)1
1776039换挡凸轮控制CAM Shift Control1
17760394换挡凸轮控制CAM Shift Control1
1842677A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
1944492A1垫片组SHIM SET1
198M0063265垫片组SHIM SET1
20826736A1驱动轴总成DRIVESHAFT ASSEMBLY1
20826737A1驱动轴总成DRIVESHAFT ASSEMBLY1
2142461A1套筒/环套件SLEEVE/RING KIT1
2243055A4水泵盖总成COVER ASSEMBLY Water Pump1
228M0113262水泵盖总成COVER ASSEMBLY Water Pump1
23430331衬垫GASKET1
24430472衬垫GASKET1
248M0214931衬垫GASKET1
2543035油封(上)SEAL Oil (UPPER)1
258M0245495油封OIL SEAL1
2643036油封(下)SEAL Oil (LOWER)1
27817277衬垫GASKET1
278172771水泵上垫片GASKET Water Pump, Upper1
28817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
29817276面板FACEPLATE1
298M0204709面板FACEPLATE1
308248327螺钉 (M6 x 30)SCREW (M6 x 30)4
308M0214957螺钉SCREW4
31826763A1联轴器COUPLING1
31826762A1联轴器COUPLING1
3243037键KEY1
328M0204723键KEY1
33430262叶轮IMPELLER1
3343026T2叶轮IMPELLER1
348248326螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)6
3543048A1换挡轴总成SHIFT SHAFT ASSEMBLY1
35430482换挡轴总成SHIFT SHAFT ASSEMBLY1
3629641E型卡环E RING1
3743052A4衬套总成BUSHING ASSEMBLY1
3845710O型圈(1.424x0.103)O-RING (1.424 x .103)1
388M0204681特殊O型圈1.424x0.103O-RING 1.424 x .103, Special1
398164641油封SEAL Oil1
398M0246145油封OIL SEAL1
408248326螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
-43024A7水泵维修套件REPAIR KIT Water Pump1
-8M0113799水泵修理包REPAIR KIT-W/P1
-43035A4齿轮箱密封套件SEAL KIT Gear Housing1

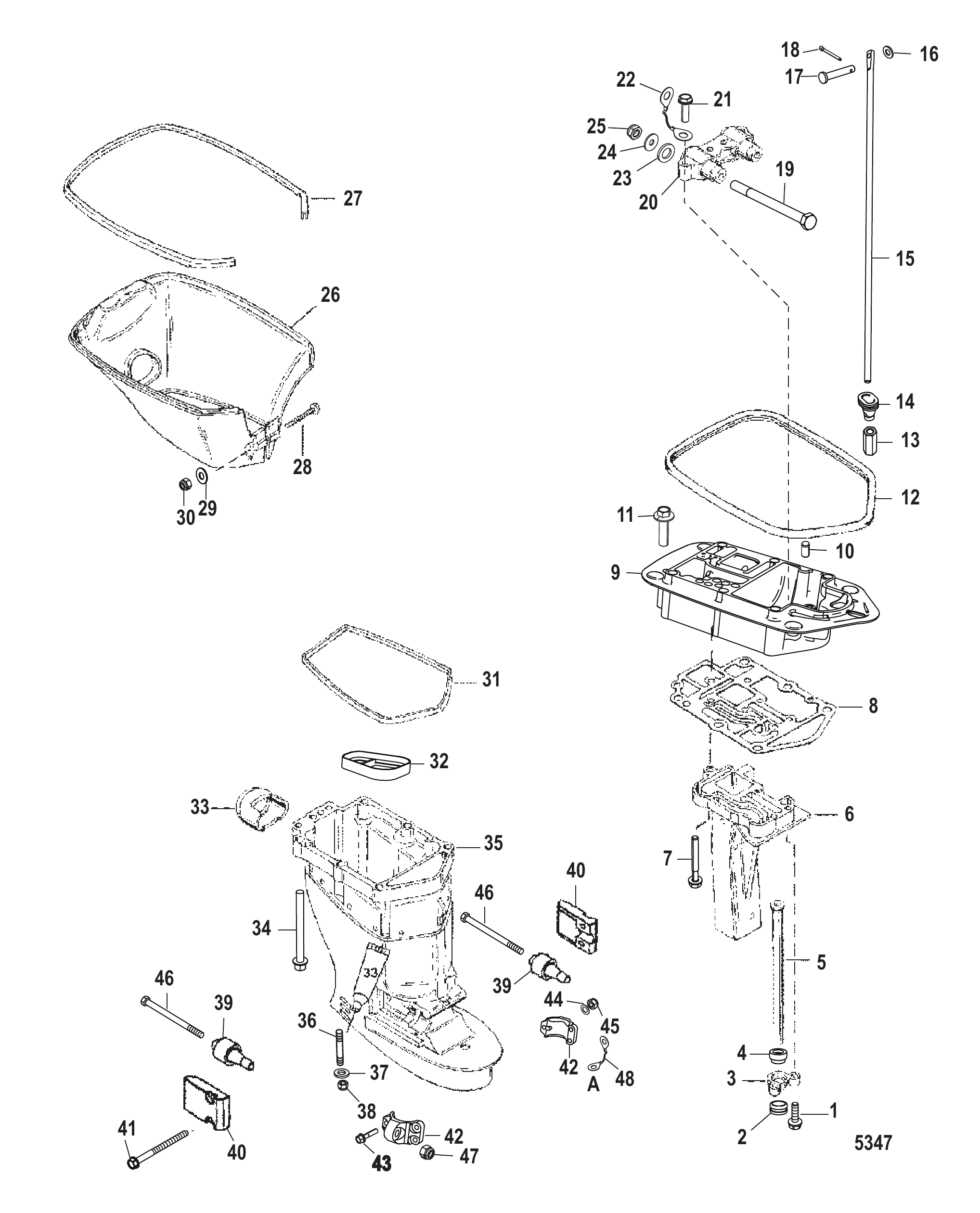

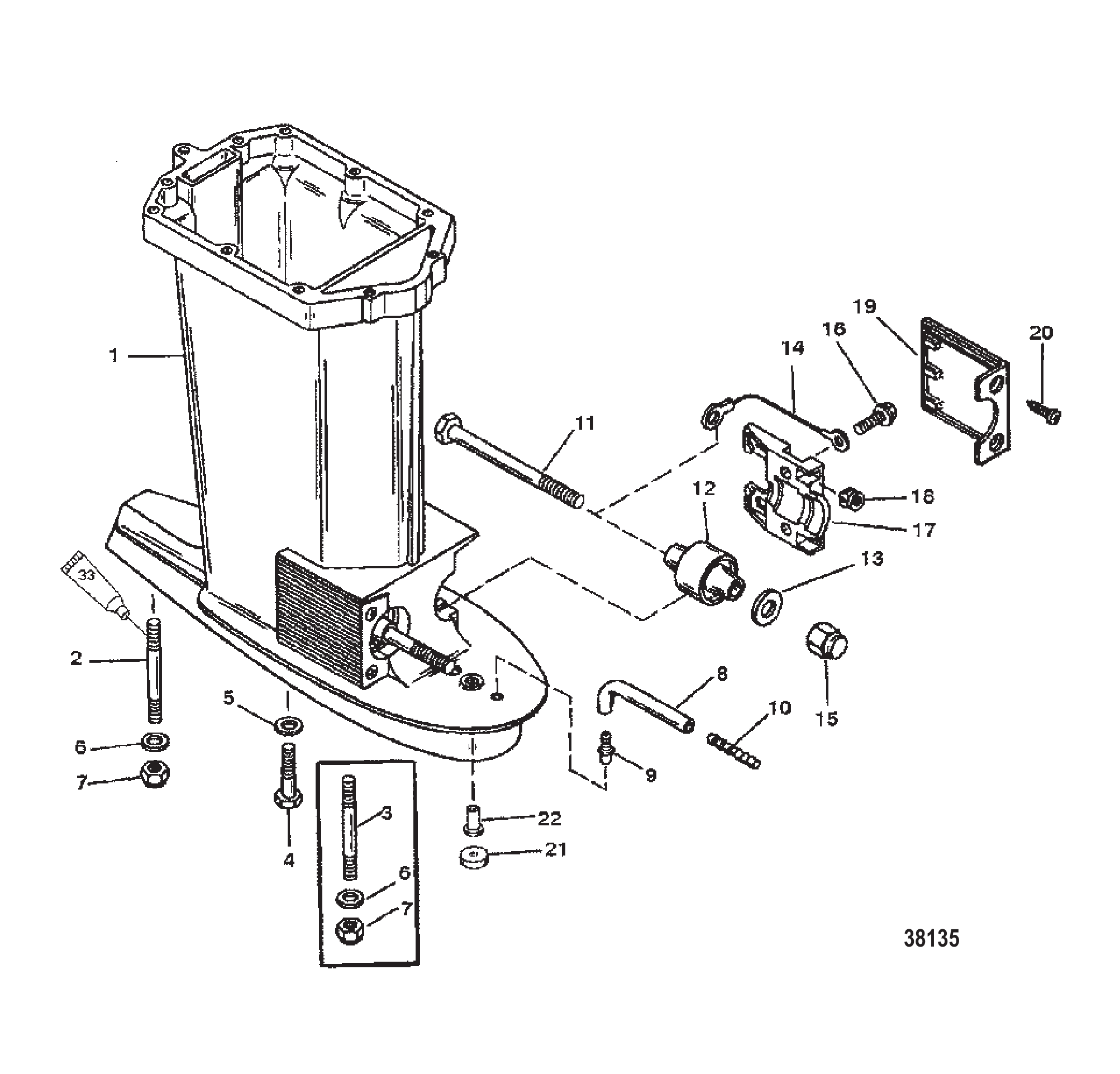

图 19驱动轴壳体（长型-0C160936及以上）(60EL NOI)(NPT) Driveshaft Housing (Long-0C160936 & Up)(60EL NOI)(NPT)
驱动轴壳体（长型-0C160936及以上）(60EL NOI)(NPT) Driveshaft Housing (Long-0C160936 & Up)(60EL NOI)(NPT)
REF零件编号中文名称英文名称数量
18189A12传动轴壳体总成(黑色)HOUSING ASSEMBLY Driveshaft (BLACK)1
18189A13传动轴壳体总成(灰色)HOUSING ASSEMBLY Driveshaft (GRAY)1
264649PLUG PLASTIC - TRIM TAB SCREW HOLE1
357932传动轴壳体双头螺栓(.375-16/.375-24 x 1.750)STUD (.375-16/.375-24 x 1.750) DRIVESHAFT HOUSING1
38M0022145螺柱(.375-16/.375-24 x 1.750)STUD (.375-16/.375-24 x 1.750)1
457935传动轴壳体双头螺栓(3")STUD DRIVESHAFT HOUSING (3")1
565791齿轮箱螺柱垫圈（7/16英寸）WASHER GEAR HOUSING STUDS (7/16")2
634933齿轮箱壳体双头螺栓不锈钢螺母(.437-20)NUT (.437-20) Stainless Steel GEAR HOUSING STUDS2
68M0204653螺母NUT2
793445橡胶安装座-上部MOUNT RUBBER - UPPER2
7923373支架MOUNT2
7923371重型支座MOUNT (HEAVY DUTY)2
7923373支架MOUNT2
896401SEAL UPPER MOUNT2
927727垫圈上部安装螺栓（内径37/64）WASHER UPPER MOUNT BOLT (37/64 I.D.)2
1066966橡胶垫圈-上部安装螺栓WASHER RUBBER - UPPER MOUNT BOLT2
1130514上支座螺栓垫圈WASHER UPPER MOUNT BOLT2
1234933螺母（0.437-20）不锈钢上部安装螺栓NUT (.437-20) Stainless Steel UPPER MOUNT BOLT2
128M0204653螺母NUT2
1387883T上支座盖COVER UPPER MOUNT2
1387883盖板COVER2
1476630螺丝（0.250-20 x 1.00）上部安装盖SCREW (.250-20 x 1.00) UPPER MOUNT COVER4
148M0214943螺钉SCREW4
1529245上支座盖螺丝不锈钢垫圈(.281 x .500 x .060)WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT COVER SCREW4
158M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
1638157SEAL TRIM COVER TO DRIVESHAFT HOUSING1
1738158STRIP RETAINING - TRIM COVER SEAL (REAR)1
1838154侧饰盖固定条STRIP RETAINING - TRIM COVER (SIDE)2
1948408SCREW (#10-16 x .500) RETAINING STRIP8
20695441排气管TUBE EXHAUST1
2145679进水口管TUBE WATER INLET1
2264809动力头螺柱螺母（5/16英寸）NUT POWERHEAD STUDS (5/16")8
2375304下橡胶支座MOUNT RUBBER - LOWER2
2375304T1支架MOUNT2
2475284下支座螺丝(.500-20 x 5.500)SCREW (.500-20 x 5.500) LOWER MOUNT SCREW2
2528051下部安装螺钉垫圈（适用处使用）WASHER LOWER MOUNT SCREW (Use where Applicable)2
2628053橡胶垫圈-下部安装螺钉（适用处使用）WASHER RUBBER - LOWER MOUNT SCREW (Use where Applicable)2
2730119垫圈（外径0.875英寸）下安装螺丝WASHER (.875 Inch Outside Diameter) LOWER MOUNT SCREW2
2825096下安装螺丝螺母NUT LOWER MOUNT SCREW2
2969592T下安装夹CLAMP LOWER MOUNT2
2969592F1卡箍CLAMP2
3029256螺丝（0.312-18 x 0.875）下安装夹SCREW (.312-18 x .875) LOWER MOUNT CLAMP4
3135522弹簧张力-下安装夹SPRING TENSION - LOWER MOUNT CLAMP4
3235474T下部安装夹盖（黑色）COVER LOWER MOUNT CLAMP (BLACK)2
3235474F2下部安装夹盖（灰色）COVER Lower Mount Clamp LOWER MOUNT CLAMP (GRAY)2
3387884SCREW (#12-14 x .920) COVER TO LOWER MOUNT CLAMP2
3435521下安装夹盖螺母NUT LOWER MOUNT CLAMP COVER2
3588238A2接地线总成CABLE ASSEMBLY Ground1
3588238A10接地线总成CABLE ASSEMBLY Ground1
3623651进水套管（1.625英寸）SLEEVE (1.625) WATER INLET TUBE1

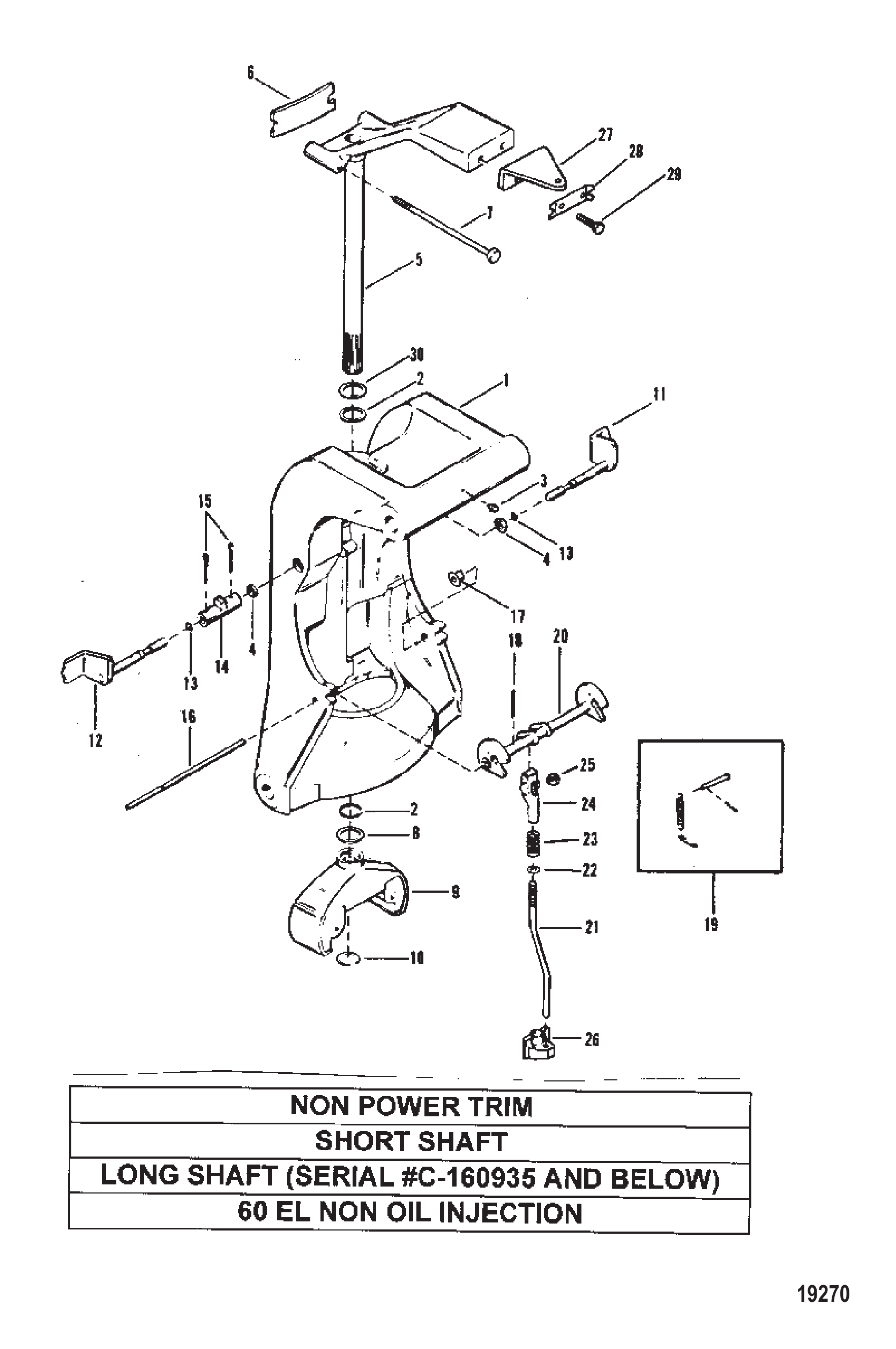

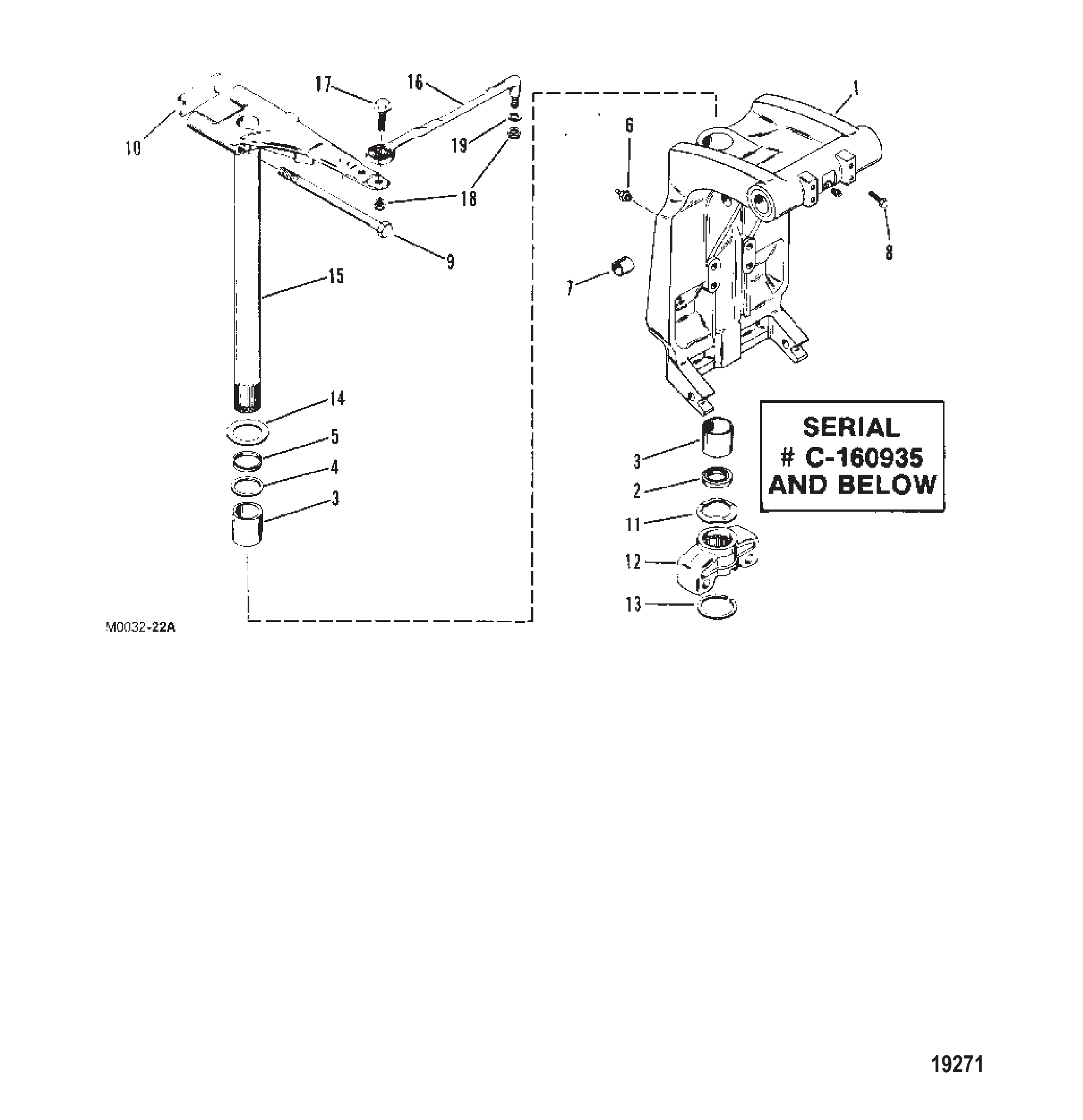

图 20旋转支架（短型）(长序列号0C160935及以下)(60EL NOI)(NPT) Swivel Bracket (Short)(Long-0C160935 & Below)(60EL NOI)(NPT)
旋转支架（短型）(长序列号0C160935及以下)(60EL NOI)(NPT) Swivel Bracket (Short)(Long-0C160935 & Below)(60EL NOI)(NPT)
REF零件编号中文名称英文名称数量
18597A4旋转支架SWIVEL BRACKET1
18599A6旋转支架SWIVEL BRACKET1
232911旋转支架油封SEAL Oil SWIVEL BRACKET2
374036润滑脂接头FITTING Grease4
38M0169589润滑脂接头FITTING Grease4
422734旋转支架油封SEAL Oil SWIVEL BRACKET2
588798A1旋转销总成SWIVEL PIN ASSEMBLY1
588798A23短型旋转销总成SWIVEL PIN ASY SH1
588798A2旋转销总成SWIVEL PIN ASSEMBLY1
588798A24长型旋转销总成SWIVEL PIN ASY LG1
630711转向臂缓冲器BUMPER STEERING ARM1
766897螺栓 (.437-20 x 5.250) 上部安装至旋转销BOLT (.437-20 x 5.250) UPPER MOUNT TO SWIVEL PIN2
825176垫圈 旋转销至底部轭WASHER SWIVEL PIN TO BOTTOM YOKE1
977416T下轭架YOKE Bottom1
977416T1黑色下轭架YOKE-BOTTOM-BLACK1
977416T6下轭架YOKE Bottom1
1077415底部轭架挡圈RETAINING RING BOTTOM YOKE1
11/1289105倾斜锁定右舷/左舷TILT LOCK STARBOARD/PORT2
1362702O-RING (.301 x .070) TILT LOCK2
13627021O型圈(.301 x .070)O-RING (.301 x .070)2
1479659倾斜锁定联轴器COUPLING TILT LOCK1
1547959倾斜锁定管开口销COTTER PIN TILT LOCK TUBE2
1656349SHAFT REVERSE LOCK PIVOT1
1769132BUSHING REVERSE PIVOT SHAFT2
1845882倒挡锁定至轴开口销COTTER PIN REVERSE LOCK TO SHAFT1
1978203A2倒挡锁定张力弹簧SPRING REVERSE LOCK TENSION1
2014664A3倒车锁REVERESE LOCK1
2143415PUSH ROD REVERSE LOCK1
2143416PUSH ROD REVERSE LOCK1
2270132不锈钢推杆垫圈（0.323 x 0.563 x 0.063英寸）WASHER (.323 x .563 x .063) Stainless Steel PUSH ROD1
228M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)1
2344297推杆弹簧SPRING PUSH ROD1
2489813推杆端头ROD END PUSH ROD1
2535814推杆螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel PUSH ROD1
2582670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
2693336推杆导套GUIDE PUSH ROD1
26933361换挡轴导套GUIDE Shift Shaft1
27765351支架 行驶导板BRACKET RIDE GUIDE1
2876533带式支架螺钉STRAP BRACKET SCREW1
2934352SCREW (.375-24 x .875) BRACKET2
3047606止推垫圈WASHER THRUST1
-43779A87衬垫套件GASKET SET1
图 21维修/支撑材料 Service/Support Material
维修/支撑材料 Service/Support Material
REF零件编号中文名称英文名称数量
-16404零件手册50/60马力(3缸)PARTS MANUAL 50/60 Hp (3 Cylinder)
-43779A87衬垫套件GASKET SET
-43538A89贴花套装(黑色50)DECAL SET (BLACK 50)
-11622A87贴花套装(灰色50)(红/橙)DECAL SET (GRAY 50)(RED/ORANGE)
-810463A90贴花套件DECAL SET
-810463A90贴花套装(灰色50)(银色)DECAL SET (GRAY 50)(SILVER)
-13483A89贴花套装(黑色60)DECAL SET (BLACK 60)
-816116A90贴花套装(黑色60 EL)(红/白)DECAL SET (BLACK 60 EL)(RED/WHITE)
-13483A89贴花套件DECAL SET
-43598A87贴花套装(灰色60)(红/橙)DECAL SET (GRAY 60)(RED/ORANGE)
-810464A90贴花套件DECAL SET
-810464A90贴花套装(灰色60)(银色)DECAL SET (GRAY 60)(SILVER)
-816117A90贴花套装(灰色60 EL)(橙/白)DECAL SET (GRAY 60 EL)(ORANGE/WHITE)
-810464A90贴花套件DECAL SET
-812811900用户指南(黑色50/60)OWNERS GUIDE (BLACK 50/60)
-812811901用户手册MANUAL-OWNERS
-812813900用户指南(灰色50/60)OWNERS GUIDE (GRAY 50/60)
-812813901用户手册MANUAL-OWNERS
-815824900用户指南(黑色60 EL)OWNERS GUIDE (BLACK 60 EL)
-812811901用户手册MANUAL-OWNERS
-815827900用户指南(灰色60 EL)OWNERS GUIDE (GRAY 60 EL)
-812813901用户手册MANUAL-OWNERS

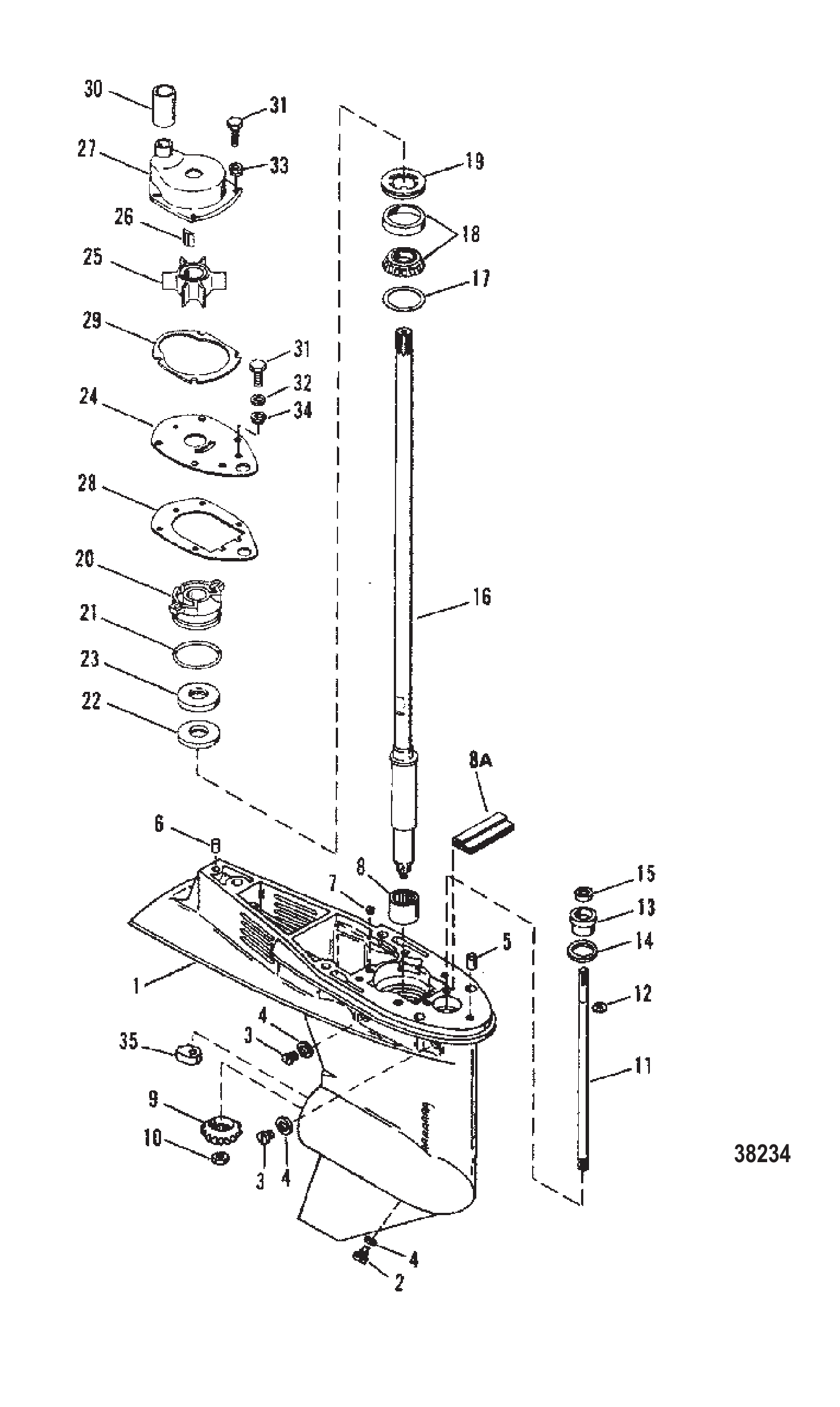

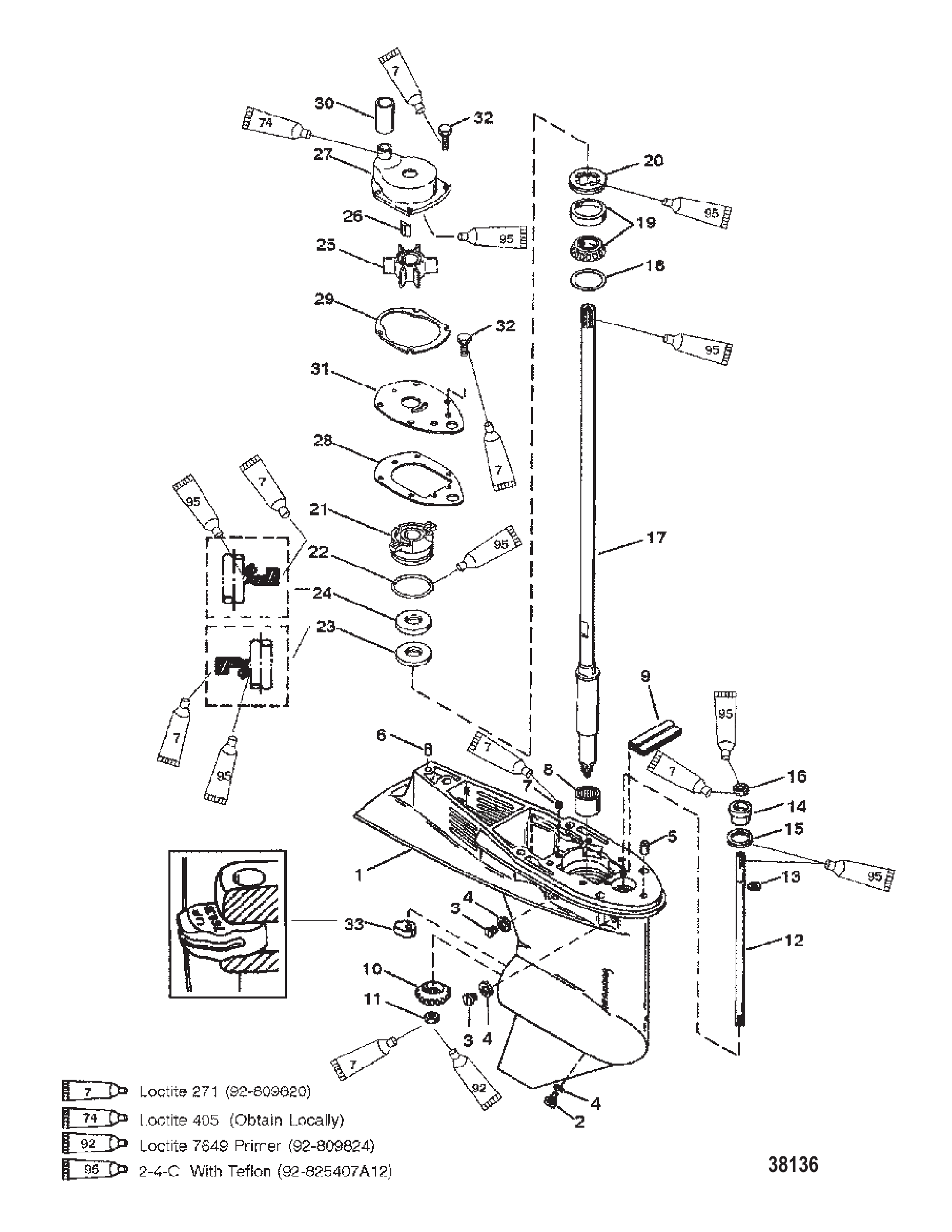

图 22齿轮箱(驱动轴)(50/55/60) GEAR HOUSING (DRIVESHAFT)(50/55/60)
齿轮箱(驱动轴)(50/55/60) GEAR HOUSING (DRIVESHAFT)(50/55/60)
REF零件编号中文名称英文名称数量
-9760A23齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A24齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A27齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760T27ORD1671-9760T25ORD1671- 9760T251
-9760A25齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760T25齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A26齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760T26ORD 1671-9760T25ORD 1671-9760T251
-9760A28齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760T28齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A29齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760T29灰色齿轮箱GEAR HOUSING-GR1
19760A30齿轮箱总成GEAR HOUSING ASSEMBLY1
19760T42基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19760A31齿轮箱总成GEAR HOUSING ASSEMBLY1
19760T31ORD 1671-9760T30ORD 1671-9760T301
19760A32齿轮箱总成GEAR HOUSING ASSEMBLY1
19760T32ORD 1671-9760T42ORD 1671-9760T421
267892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
28M0058389放油螺钉套件SCREW KIT Drain1
379953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)2
379953Q04放油螺钉套件SCREW KIT Drain2
419183纤维垫圈WASHER Fiber3
48M0187157蓝色密封件@15SEAL-BLUE @153
543043定位销-带孔(0.375×0.625)PIN Dowel - With Hole (.375 x .625)1
58M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
756800管塞 (.0625-27)PLUG Pipe (.0625-27)1
8812768滚柱轴承BEARING Roller1
9818226A1密封/板套件SEAL/PLATE KIT1
10813694小齿轮GEAR Pinion1
10813694T小齿轮GEAR Pinion1
1155910螺母(.437-20)NUT (.437-20)1
12812732A1换挡轴总成SHIFT SHAFT ASSEMBLY1
12815420换档轴SHIFT SHAFT1
1329641E型卡环E RING1
14813696A2衬套总成BUSHING ASSEMBLY1
1545258O型圈 (.987 x .103)O-RING (.987 x .103)1
168164641油封SEAL Oil1
168M0246145油封OIL SEAL1
17815422驱动轴DRIVESHAFT1
17812731驱动轴DRIVESHAFT1
17815421驱动轴DRIVESHAFT1
18812770A1垫片组SHIM SETAR
188M0063262垫片组SHIM SETAR
1977420A1滚柱轴承总成BEARING ASSEMBLY Roller1
198M0166756轴承总成BEARING ASSEMBLY1
208128201螺母NUT1
21812966A3底座总成BASE ASSEMBLY1
218M0245488水泵底座BASE WATER PUMP1
2230224O型圈 (1.859 x .139)O-RING (1.859 x .139)1
228M0204651O型圈O-RING1
23814669油封SEAL Oil1
238M0245489油封SEAL OIL1
24814670油封SEAL Oil1
2519453叶轮IMPELLER1
2519453T叶轮IMPELLER1
2619699键KEY1
268M0032831叶轮键KEY Impeller1
2714334A2水泵总成PUMP ASSEMBLY Water1
2714334A3水泵总成PUMP ASSEMBLY Water1
2819701衬垫(下部)GASKET (LOWER)1
288M0224241衬垫GASKET1
29822189水泵上衬垫GASKET Upper Water Pump1
3043023油封(短/长)SEAL (SHORT/LONG)1
308M0204658密封件SEAL1
3119700A1面板FACE PLATE1
3119700A2面板FACE PLATE1
328248324螺钉(M6 x 16)SCREW (M6 x 16)6
3376039换挡凸轮控制CAM Shift Control1
33760394换挡凸轮控制CAM Shift Control1
-812867A97衬垫套件GASKET SET1
-814669A2齿轮箱密封套件SEAL KIT Gear Housing1
-812966A6水泵维修套件REPAIR KIT Water Pump1
-812966A12水泵维修套件REPAIR KIT Water Pump1

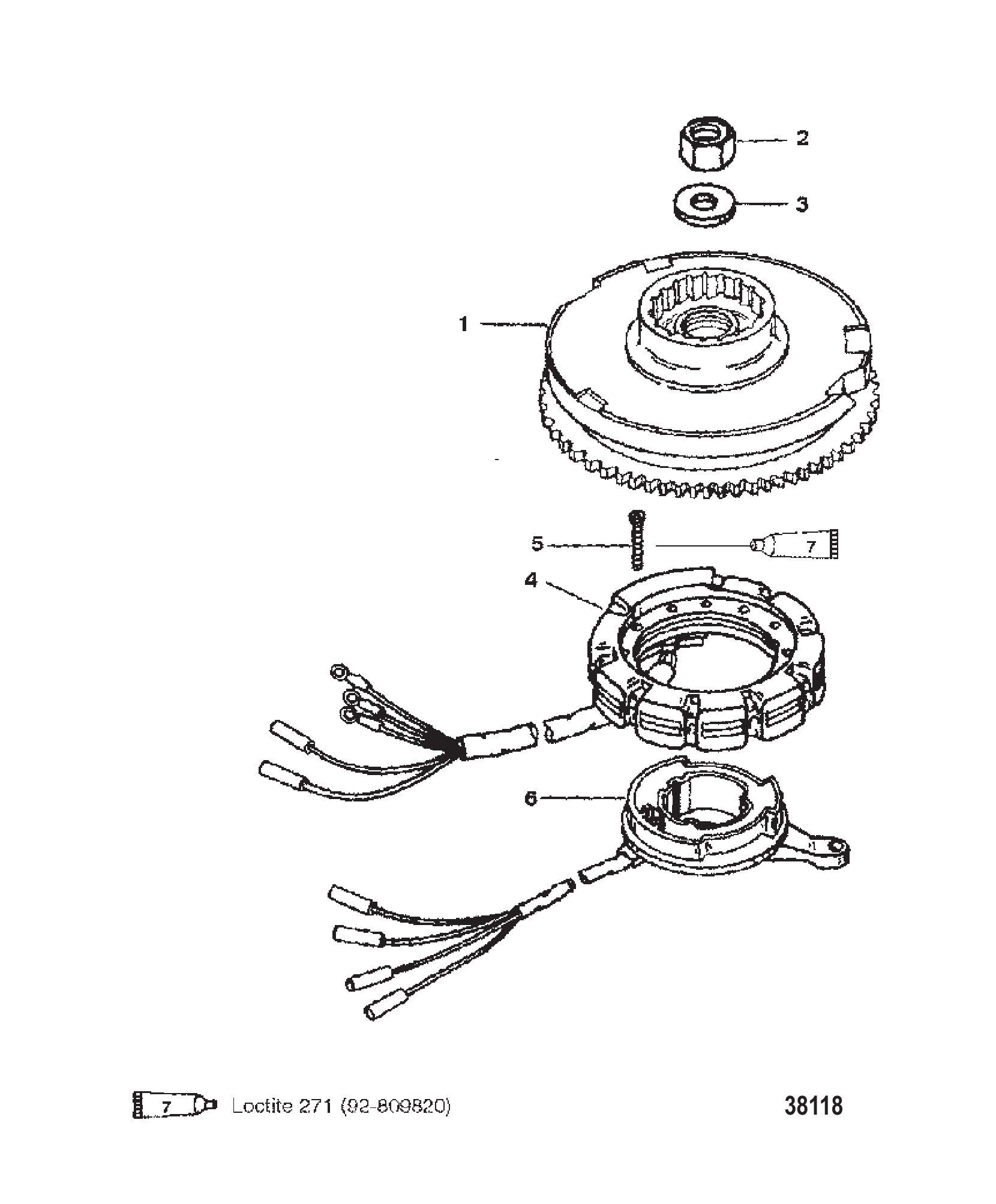

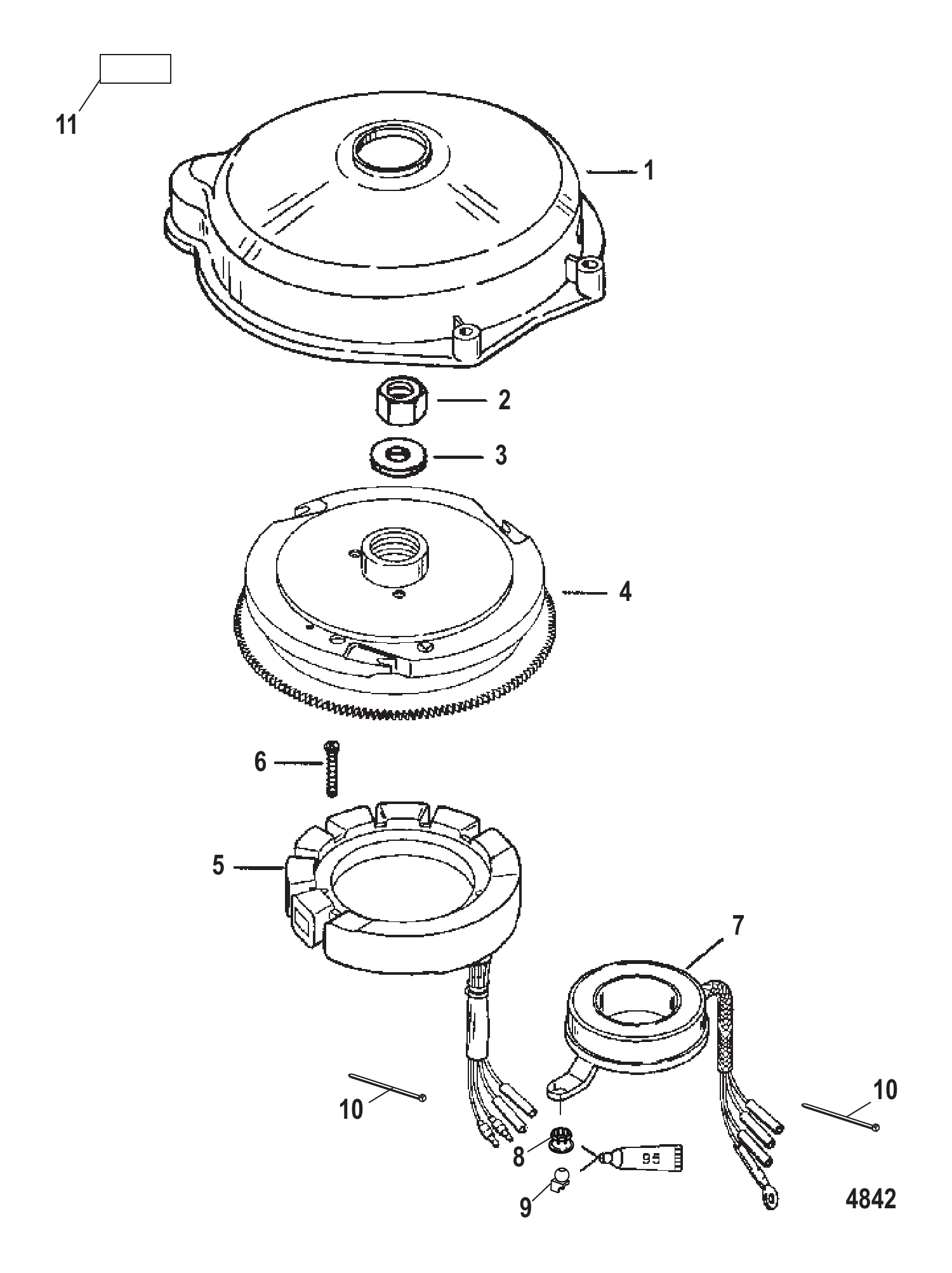

图 23飞轮(55) FLYWHEEL (55)
飞轮(55) FLYWHEEL (55)
REF零件编号中文名称英文名称数量

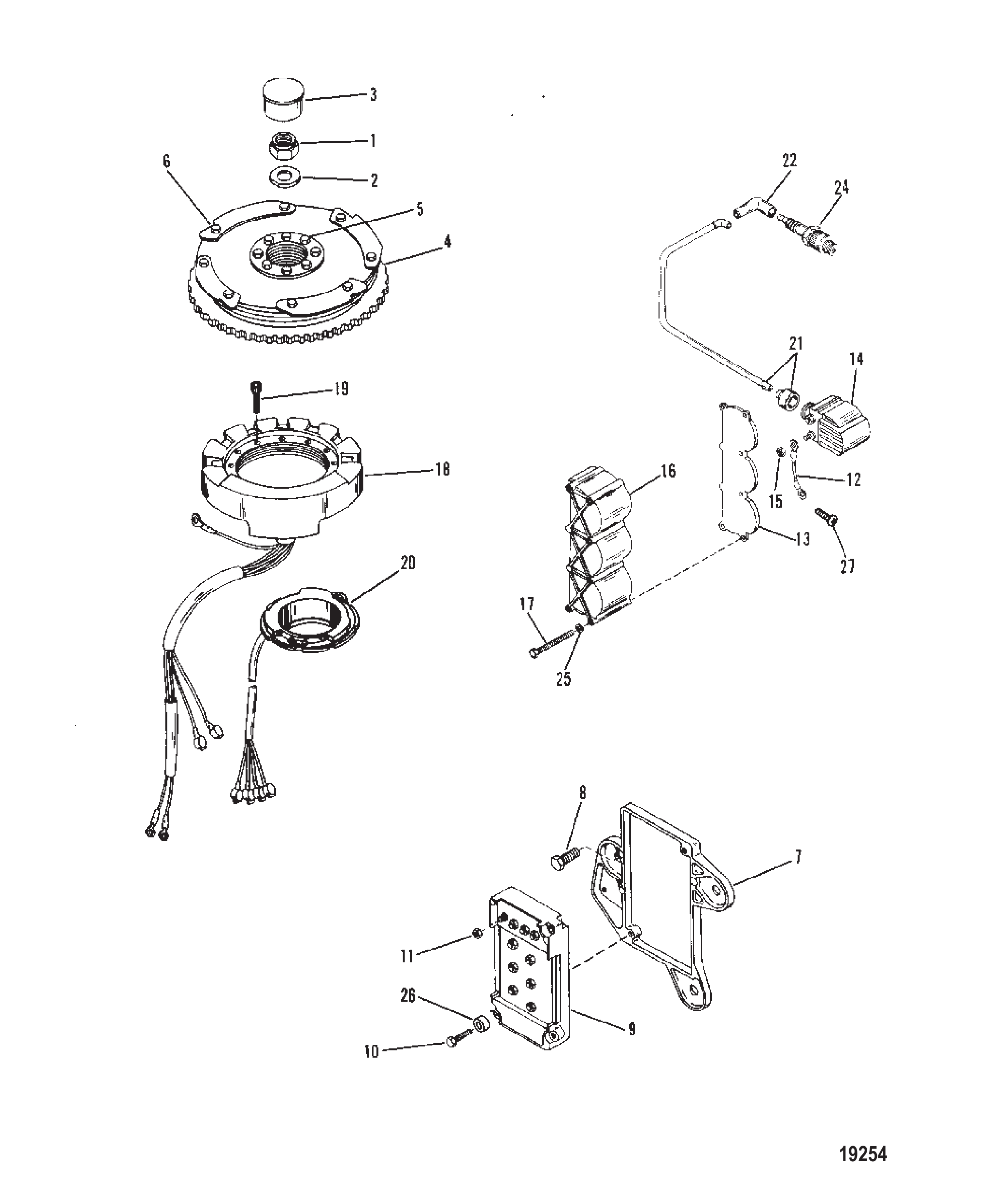

19008A48飞轮FLYWHEEL1
242979螺母(M16)NUT (M16)1
368229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
333001垫圈WASHER1
4832074A4定子STATOR1
54007330螺丝(M5 x 30)SCREW (M5 x 30)4
54013930螺丝(M5 x 30)SCREW (M5 x 30)4
699021A16触发器TRIGGER1

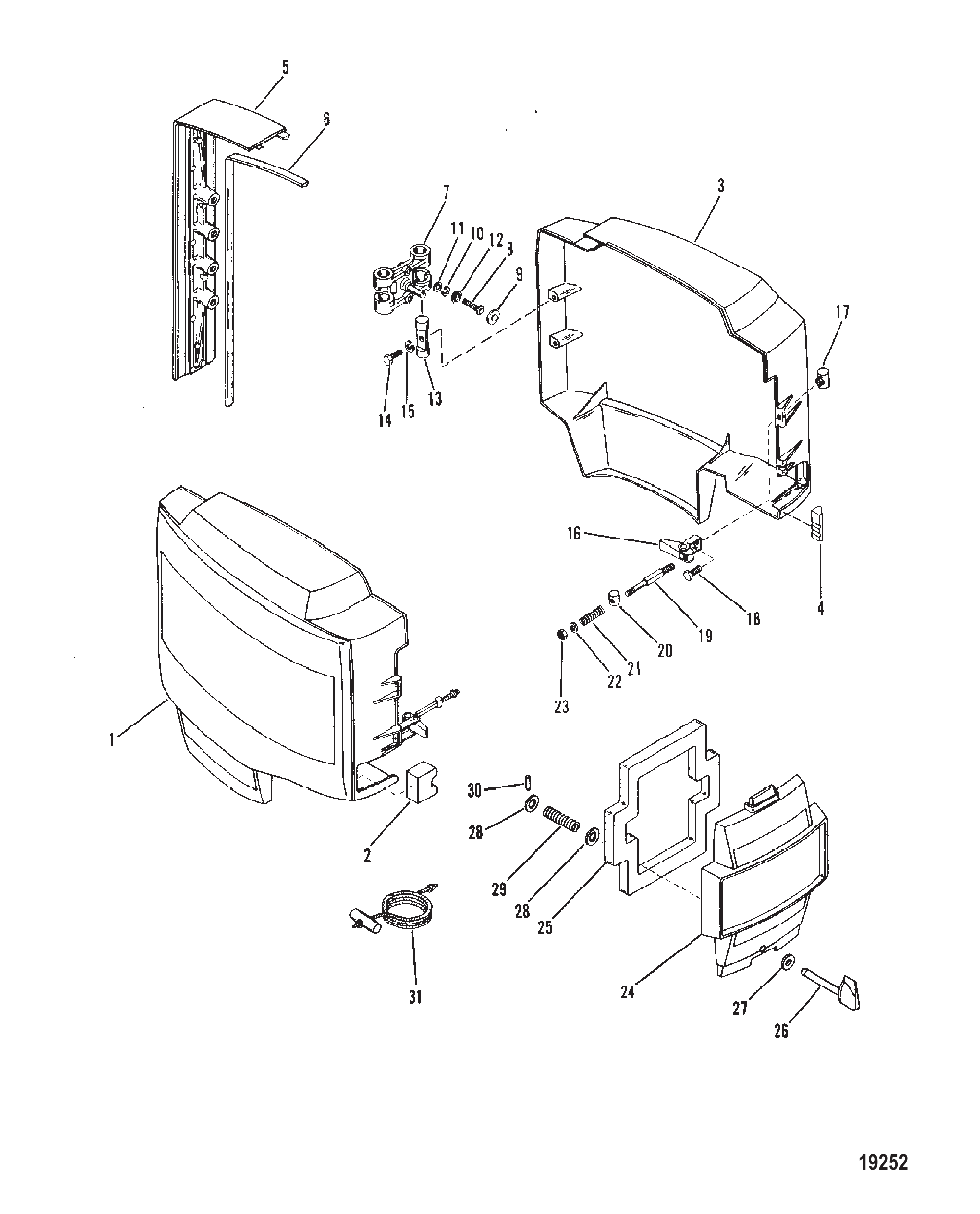

图 24整流罩与前盖 Cowling and Front Cover

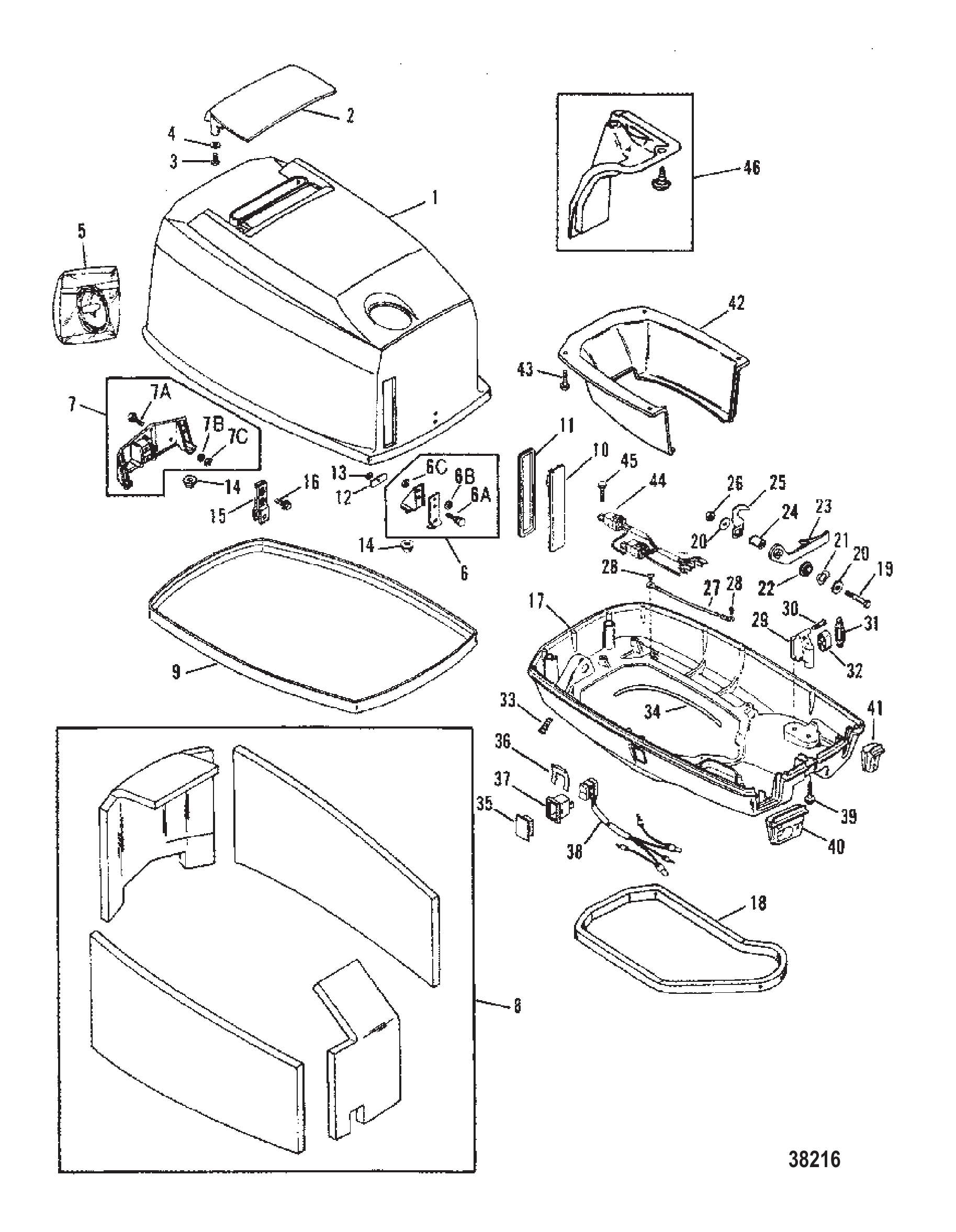

整流罩与前盖 Cowling and Front Cover
REF零件编号中文名称英文名称数量

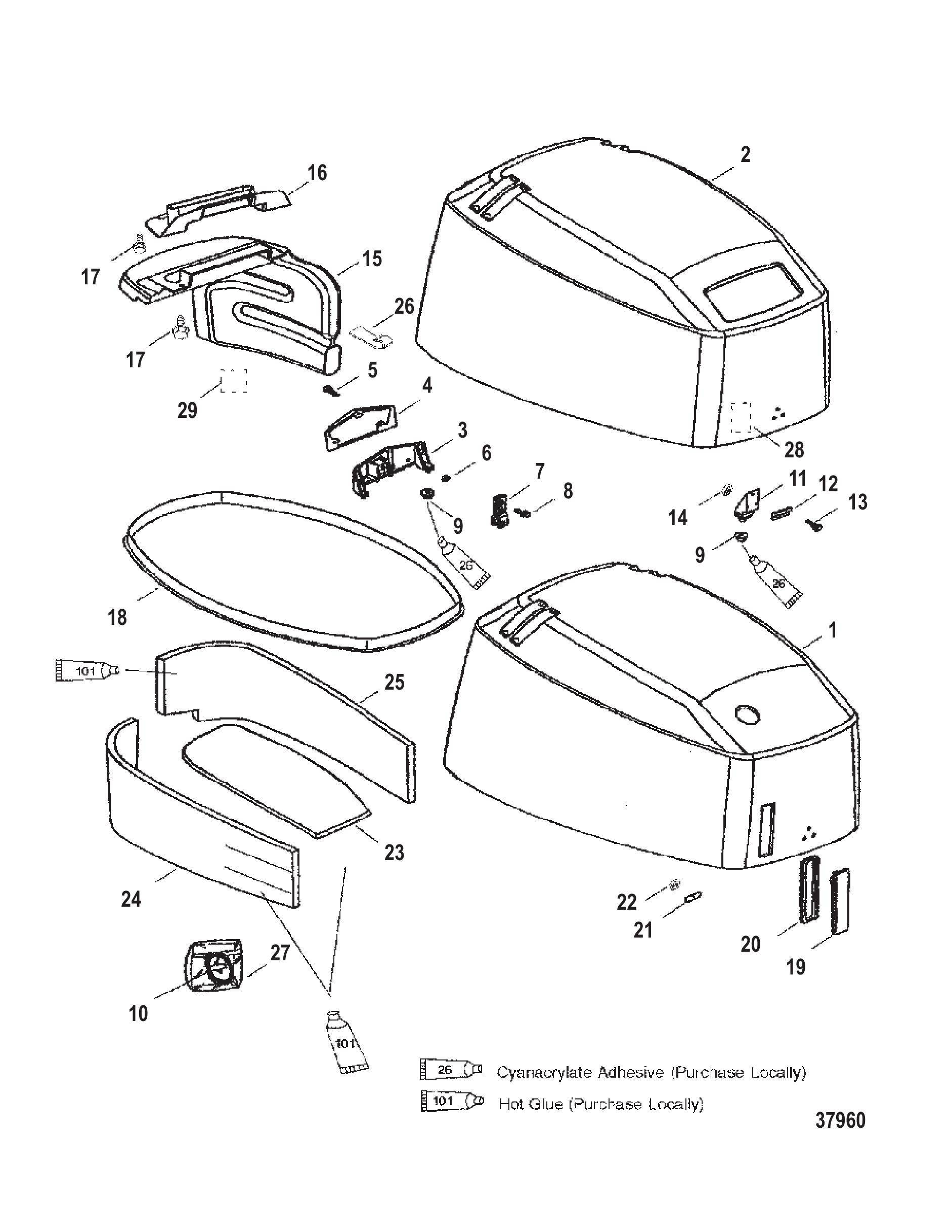

16228A1顶罩总成(右舷黑色)TOP COWL ASSEMBLY (STARBOARD BLACK)1
16228A3顶罩总成(右舷灰色)TOP COWL ASSEMBLY (STARBOARD GRAY)1
260297燃油接头密封圈-罩SEAL FUEL CONNECTOR -COWL1
36227A1顶罩总成(左舷黑色)TOP COWL ASSEMBLY (PORT BLACK)1
36227A17顶罩总成(左舷灰色)TOP COWL ASSEMBLY (PORT GRAY)1
460298控制电缆密封圈-罩SEAL CONTROL CABLES-COWL1
589717T罩体密封后支架BRACKET COWL SEALING-REAR1
6698761后支架密封圈SEAL REAR BRACKET2
790980罩体铰链支架BRACKET COWL HINGE2
845561铰链支架下部螺钉(.250-20 x 1.12)SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER2
8455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
875794铰链支架上部螺钉(1-1/8英寸)SCREW HINGE BRACKET-UPPER (1-1/8")2
975805铰链支架螺钉帽(上部)CAP HINGE BRACKET SCREW (UPPER)2
1026992铰链支架螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW4
1137998铰链支架螺钉垫圈WASHER HINGE BRACKET SCREW4
1275806铰链支架螺钉垫圈(上部)WASHER HINGE BRACKET SCREW (UPPER)2
1390979机罩铰链销PIN COWL HINGE4
1428782螺钉(.312-18 x .880)不锈钢 铰链销至机罩SCREW (.312-18 x .880) Stainless Steel PIN TO COWL4
1526993锁紧垫圈(.312)铰链销固定螺钉LOCKWASHER (.312) PIN ATTACHING SCREW4
158M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1646785A5罩壳锁扣总成LATCH ASSEMBLY Cowl2
1762628机罩锁扣筒BARREL COWL LATCH2
1831312螺钉(#10-32 x 0.875)锁扣总成至筒体SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL2
1915222机罩锁扣调节杆BAR ADJUSTMENT-COWL LATCH2
2062629机罩锁扣筒BARREL COWL LATCH2
2162624机罩锁扣张力弹簧SPRING TENSION-COWL LATCH2
2230164垫圈(.192 x .375 x .0312)不锈钢 调节杆至筒体WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL2
2345812螺母(#10-32)不锈钢 调节杆至筒体NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL2
23859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel2
248774A6前盖(黑色)FRONT COVER (BLACK)1
248774A7前盖(灰色)FRONT COVER (GRAY)1
25795511隔音毯BLANKET SOUND ABSORBING1
2614333旋钮KNOB1
2730771垫圈WASHER2
2875246垫圈WASHER2
2930772弹簧SPRING1
3029077滚动销PIN Roll1
3147341A1拉绳与手柄套件 手动/应急启动(仅限手动启动)ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY)1
3147341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1

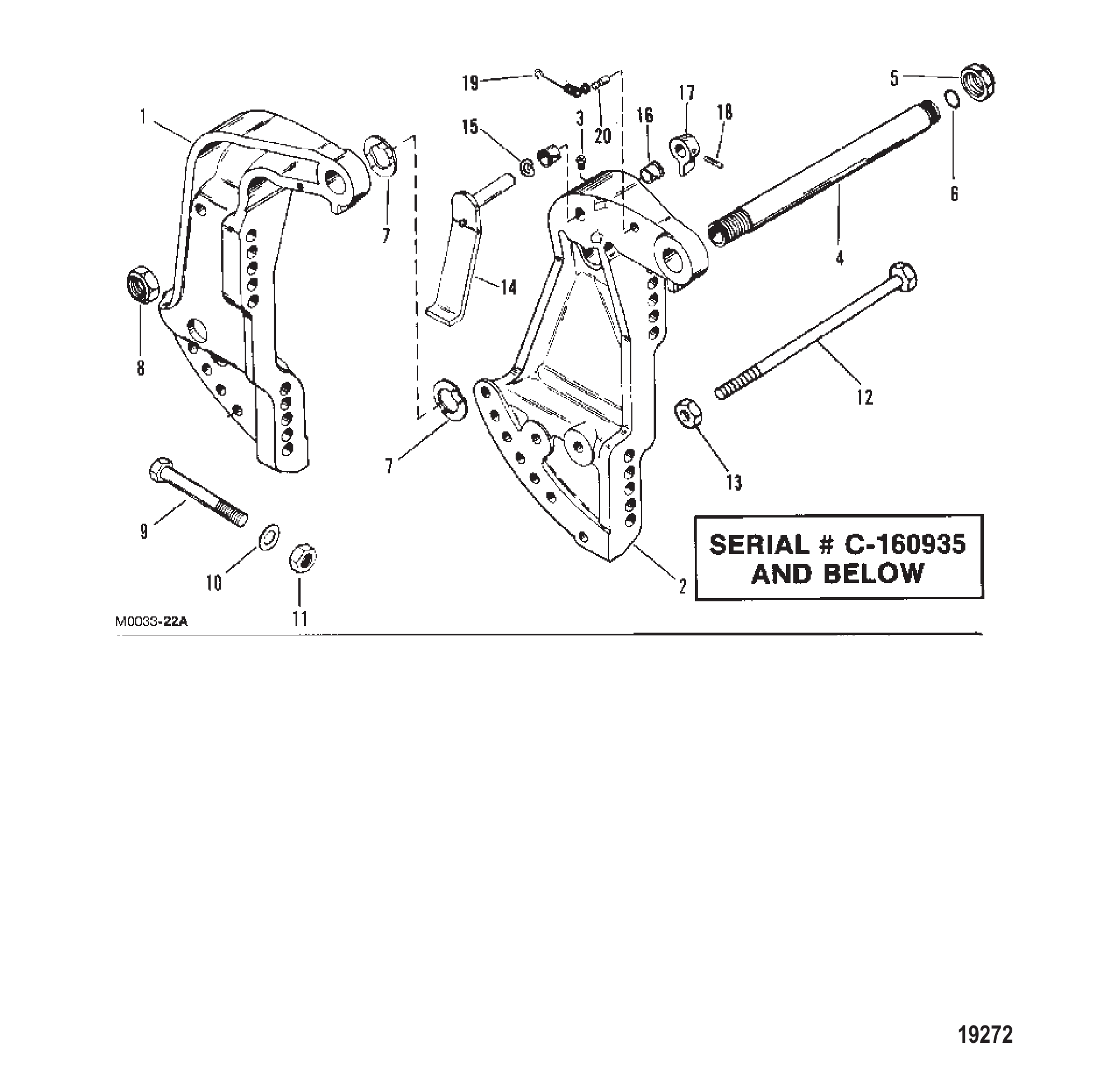

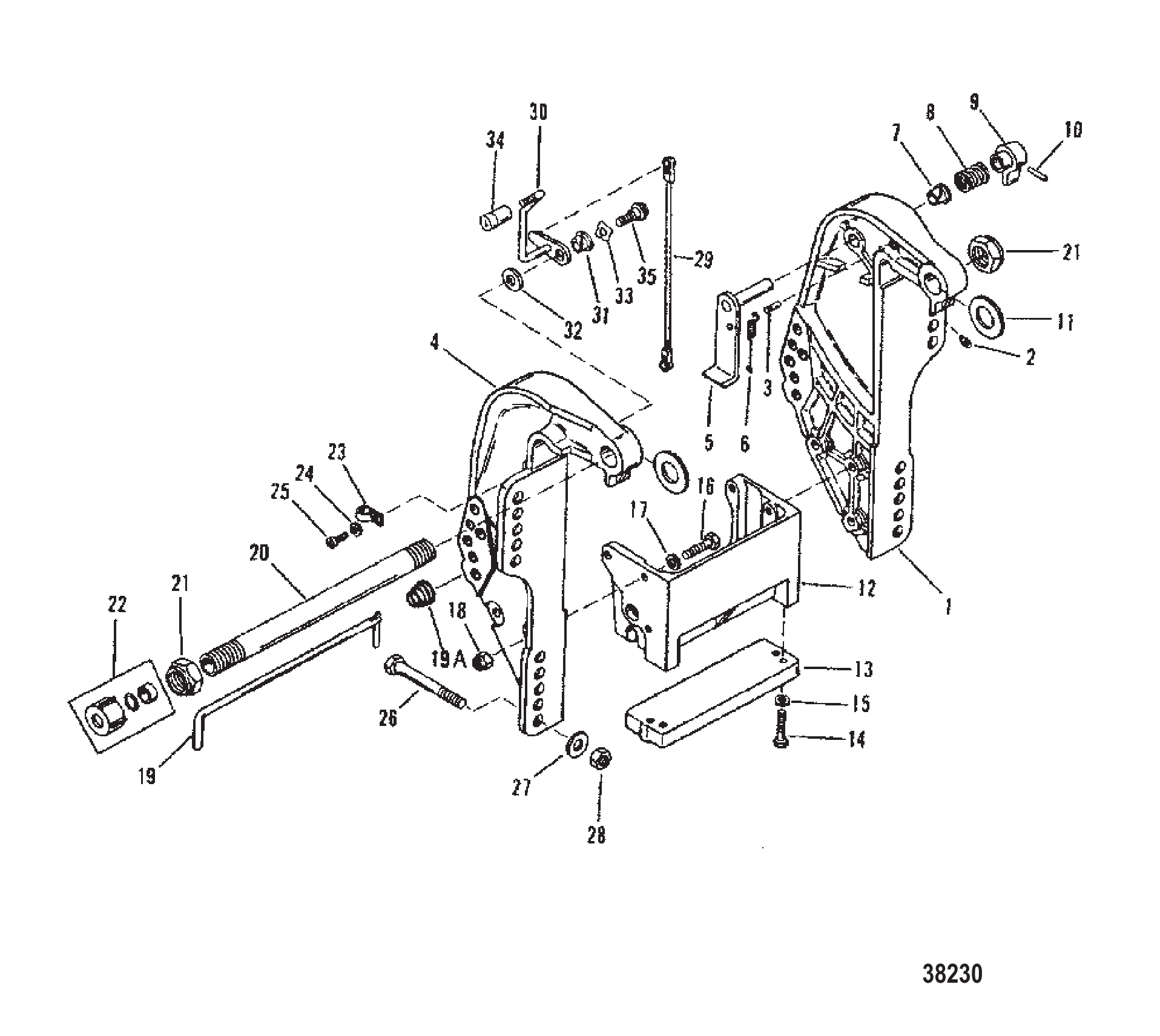

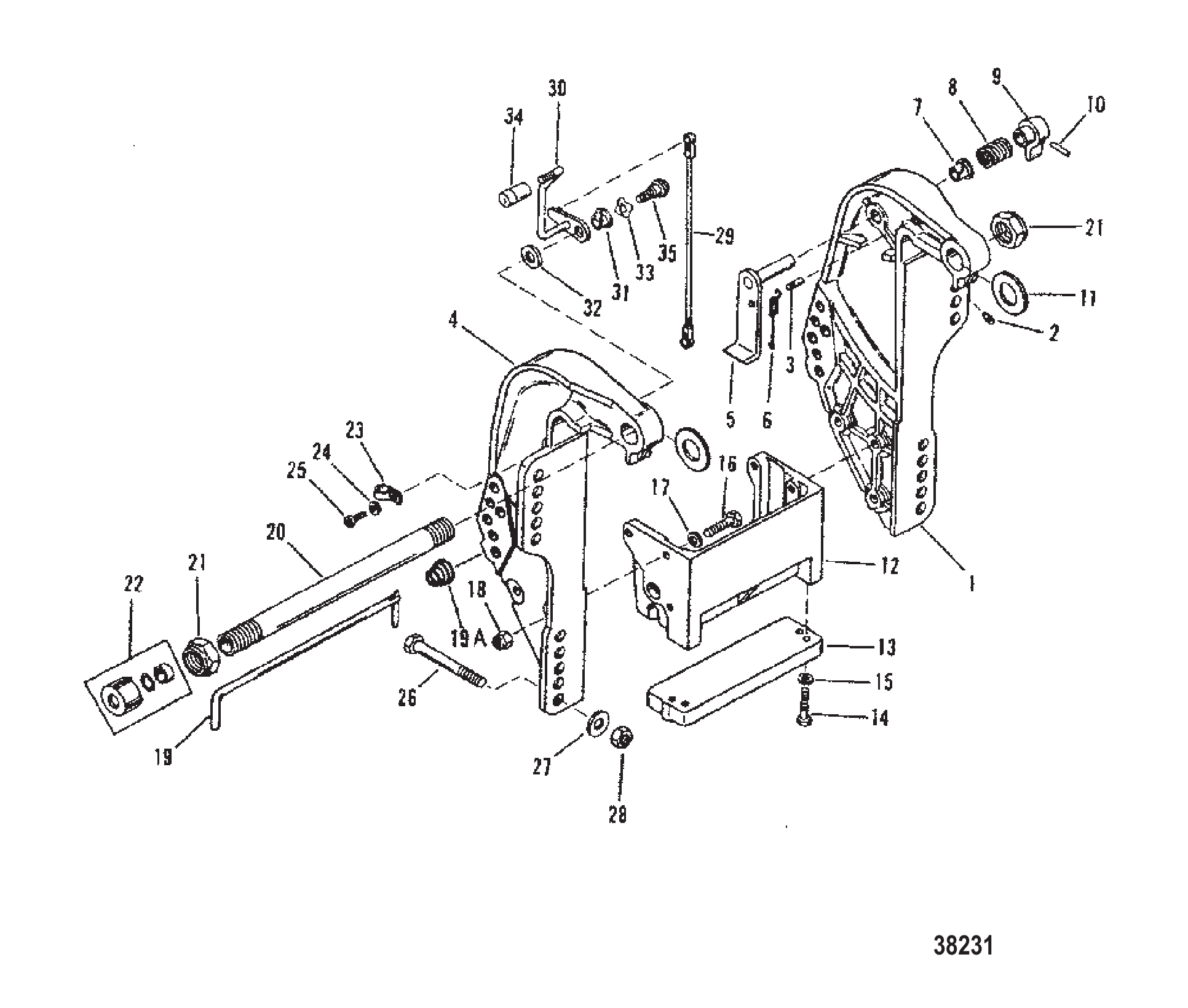

图 25艉板支架（动力配平）(序列号0C160935及以下) Transom Bracket (Power Trim)(S/N-0C160935 & Below)
艉板支架（动力配平）(序列号0C160935及以下) Transom Bracket (Power Trim)(S/N-0C160935 & Below)
REF零件编号中文名称英文名称数量
18718A1艉板支架总成(右舷)(黑色)BRACKET ASSEMBLY Transom (STARBOARD) (BLACK)1
18718A2艉板支架总成(右舷)(灰色)BRACKET ASSEMBLY Transom (STARBOARD) (GRAY)1
18718F8艉板支架BRACKET Transom1
28716A5艉板支架总成(左舷)(黑色)BRACKET ASSEMBLY Transom (PORT) (BLACK)1
28716A8艉板支架总成BRACKET ASSEMBLY Transom1
28716A6艉板支架总成(左舷)(灰色)BRACKET ASSEMBLY Transom (PORT) (GRAY)1
28716A9艉板支架总成BRACKET ASSEMBLY Transom1
398727润滑配件左舷艉板支架FITTING Grease PORT TRANSOM BRACKET1
38M0169588润滑脂接头FITTING Grease1
499170A1倾斜管TILT TUBE1
499170A2倾斜管套件TUBE KIT Tilt1
590068TNUT TILT TUBE1
5859133螺母(1.00-14)NUT (1.00-14)1
590068T6NUT TILT TUBE1
5859133螺母(1.00-14)NUT (1.00-14)1
645711O-RING (.612 x .103) TILT TUBE1
788750波形垫圈(1.62 x 1.05)倾斜管WASHER Wave (1.62 x 1.05) TILT TUBE2
856041螺母(.875-14)倾斜管NUT (.875-14) TILT TUBE1
8858869螺母 (.875-14)NUT (.875-14)1
9677551螺丝(.500-20 x 4.500)支架固定艉板SCREW (.500-20 x 4.500) MOUNTING BRACKET TO TRANSOM4
98M0149747螺钉SCREW4
1028421WASHER (1.5 x 3.05 x 0.13) Stainless Steel MOUNTING BRACKET BOLT4
108M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0027784螺母-安装支架螺栓NUT MOUNTING BRACKET BOLT4
1182671117螺母(.500-20)NUT (.500-20)4
1296930A1倾斜锁螺栓总成BOLT ASSEMBLY TILT LOCK1
1323161螺栓螺母（3/8英寸-24牙）NUT (.375-24) BOLT1
1499629A2倾斜锁杆总成LEVER ASSEMBLY TILT LOCK1
148M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1599611倾斜杆波形垫圈WAVE WASHER TILT LEVER1
1665830倾斜杆尼龙衬套NYLINER TILT LEVER2
1799633倾斜锁杆旋钮KNOB TILT LOCK LEVER1
1799633T6倾斜锁杆旋钮KNOB TILT LOCK LEVER1
1799633旋钮KNOB1
1899615槽销PIN Groove1
1999622弹簧SPRING1
2099604槽销PIN Groove1

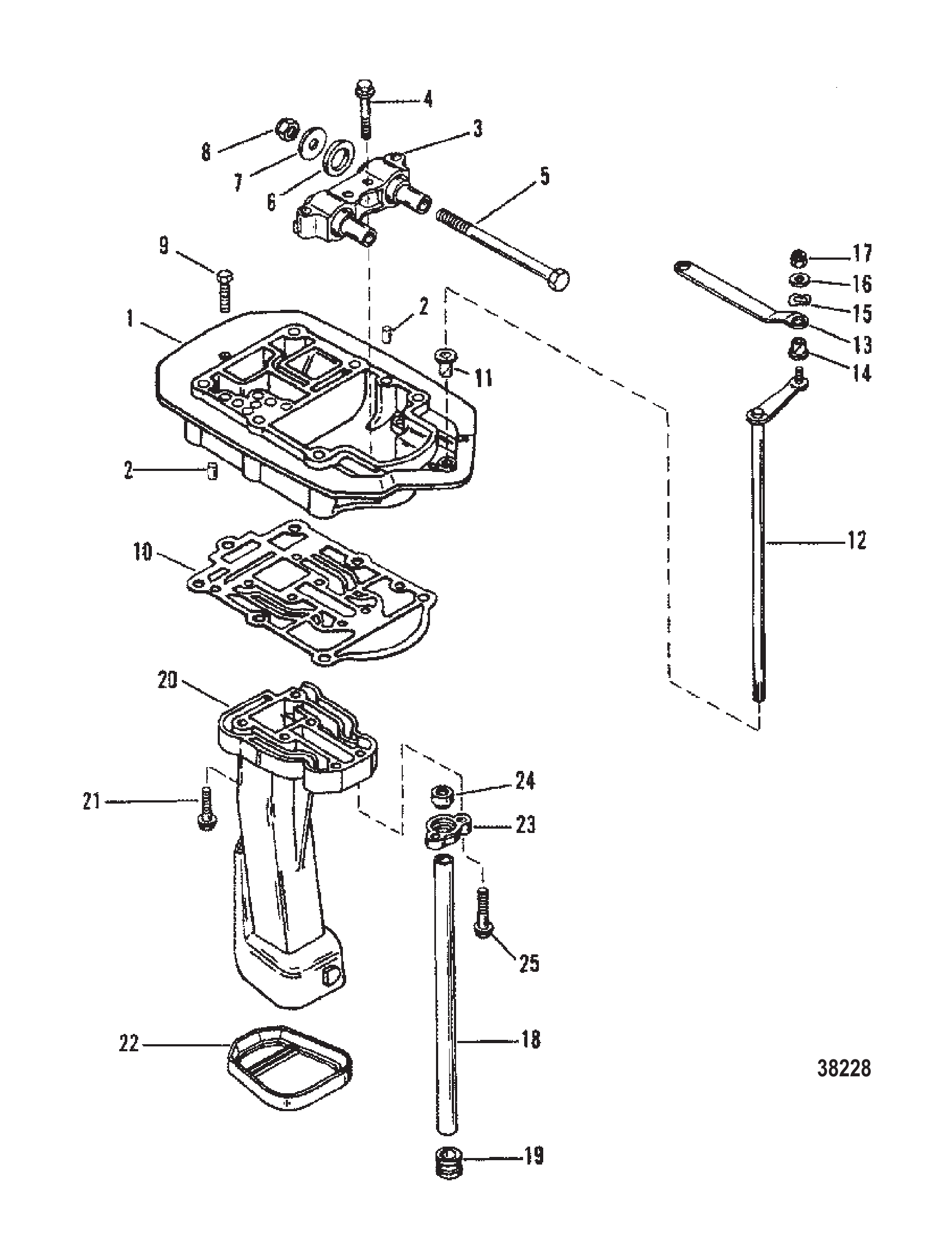

图 26排气板 Exhaust Plate
排气板 Exhaust Plate
REF零件编号中文名称英文名称数量
119653A2排气板总成PLATE ASSEMBLY Exhaust1
-817519A1排水单向阀总成CHECK VALVE ASSEMBLY Drain1
223784定位销PIN Dowel4
3812893上部支架MOUNT Upper1
38M4501491上部安装总成MOUNT UPPER ASM1
440011153不锈钢螺钉(M8x45)SCREW (M8 x 45) Stainless Steel4
542973螺栓(M12×154)BOLT (M12 x 154)2
5898835001螺钉(M12 x 154)SCREW (M12 x 154)2
693416垫圈WASHER2
632834垫圈(0.9375x1.750x0.172)WASHER (.9375 x 1.750 x .172)2
728421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
78M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
890099螺母(M12)NUT (M12)2
8896963螺母(M12)NUT (M12)2
940011158不锈钢螺钉(M8×70)SCREW (M8 x 70) Stainless Steel1
10812866衬垫GASKET1
108M0000820衬垫GASKET1
1148237衬套BUSHING1
12815639A2换挡轴(上)(短)SHIFT SHAFT (UPPER)(SHORT)1
12812891A1换挡轴(上)(长-50/60)SHIFT SHAFT (UPPER)(LONG - 50/60)1
12815639A1换挡轴(上)(长-55)SHIFT SHAFT (UPPER)(LONG - 55)1
12812891A3换挡轴(60浮筒型-电动)SHIFT SHAFT (60 PONTOON - ELECTRIC)1
12815639A3换挡轴(60海程/马拉松型-手动)SHIFT SHAFT (60 SEAPRO/MARATHON - MANUAL)1
13812872换挡连杆SHIFT LINK1
13812872A1换挡连杆SHIFT LINK1
13812872A1换挡连杆SHIFT LINK1
1448475衬套BUSHING1
1442994衬套BUSHING1
1529720波形垫圈WAVE WASHER1
1624664垫圈 (M4 x 20)WASHER (M4 x 20)1
17400634螺母 (M6)NUT (M6)1
17401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
18430144水管(短型)TUBE Water (SHORT)1
188M0042795短型水管TUBE-WATER-SHORT1
18430143水管(长型)TUBE Water (LONG)1
188M0042794大型水管TUBE-WATER-LG1
1993221护孔环GROMMET1
1993221002护孔环GROMMET1
20196551排气管TUBE Exhaust1
208M0045214排气管TUBE-EXHAUST1
2140011153不锈钢螺钉(M8x45)SCREW (M8 x 45) Stainless Steel4
22812886密封件SEAL1
22812886001密封件SEAL1
2399019卡箍CLAMP1
2442941水管密封件(上部)SEAL Water Tube (UPPER)1
2442941001水管密封件SEAL Water Tube1
2540011155不锈钢螺钉(M8x55)SCREW (M8 x 55) Stainless Steel2
-812867A97衬垫套件GASKET SET1

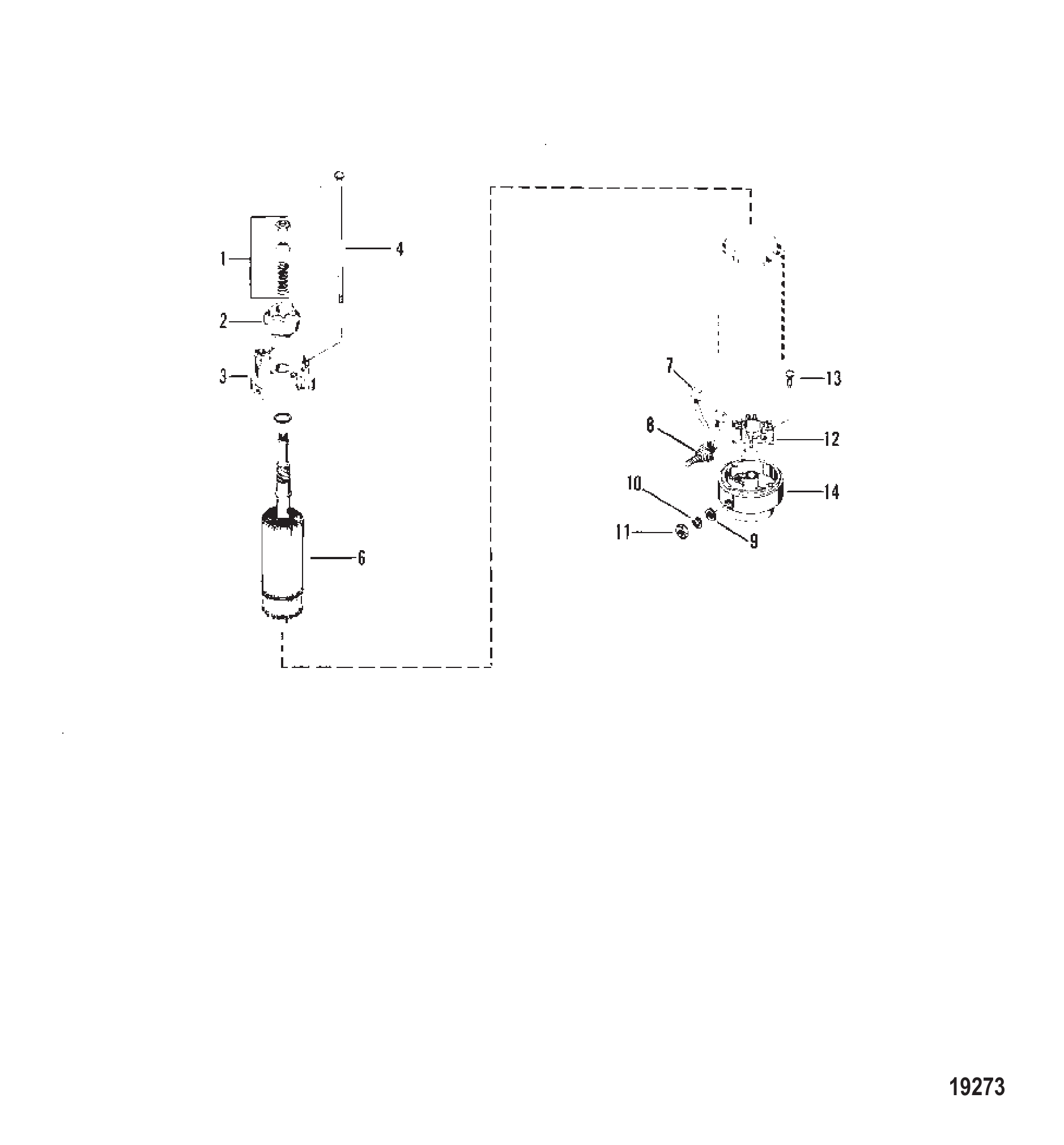

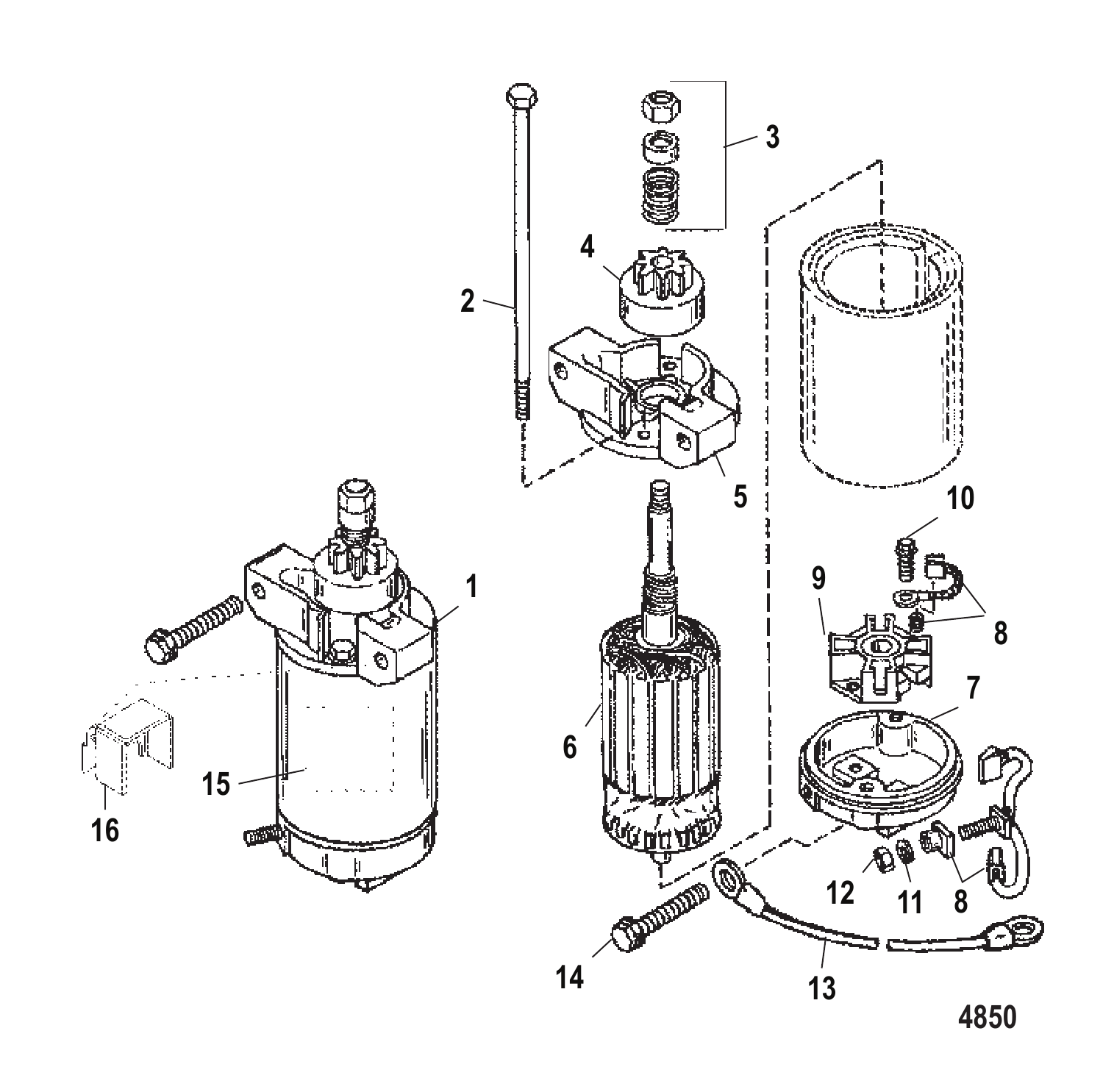

图 27启动马达 STARTER MOTOR
启动马达 STARTER MOTOR
REF零件编号中文名称英文名称数量
-881368T1启动电机总成STARTER MOTOR ASSEMBLY1
-881368T2启动电机总成STARTER MOTOR ASSEMBLY1
1804314T定子STATOR1
2804313T电枢ARMATURE1
3881369T1电刷支架总成HOLDER ASSEMBLY Brush1
4804316电刷组BRUSH SET1
5804317弹簧SPRING4
6881370T支架BRACKET1
7804337螺钉(M4×16)SCREW (M4 x 16)2
8804335贯穿螺栓(M6×120)THRU BOLT (M6 x 120)2
9804321T1齿轮套件GEAR KIT1
10804322离合器CLUTCH1
11804330垫圈套件WASHER KIT1
12804324支架BRACKET1
13804326齿圈RING GEAR1
14804327衬垫GASKET1
15804325轴承BEARING1
16804323小齿轮轴SHAFT Pinion1
17804329惰轮IDLER GEAR3
17804329001惰轮GEAR Idler3
18804328支架BRACKET1
19804331T盖板COVER1
20804336螺栓(M6×52)BOLT (M6 x 52)2
21804319小齿轮PINION1
22804320小齿轮止动组STOP SET Pinion1
23804332杠杆套件LEVER KIT1
24804334盖板COVER1
25881371T启动继电器RELAY Starter1
25881371T1启动继电器RELAY Starter1
25881371T1启动继电器RELAY Starter1
26804605螺栓(M8×45)BOLT (M8 x 45)3
27881373接线端子TERMINAL1
28881377锁紧垫圈LOCKWASHER1
2982382M螺母NUT1
30881372螺母NUT1
31881374盖板COVER1

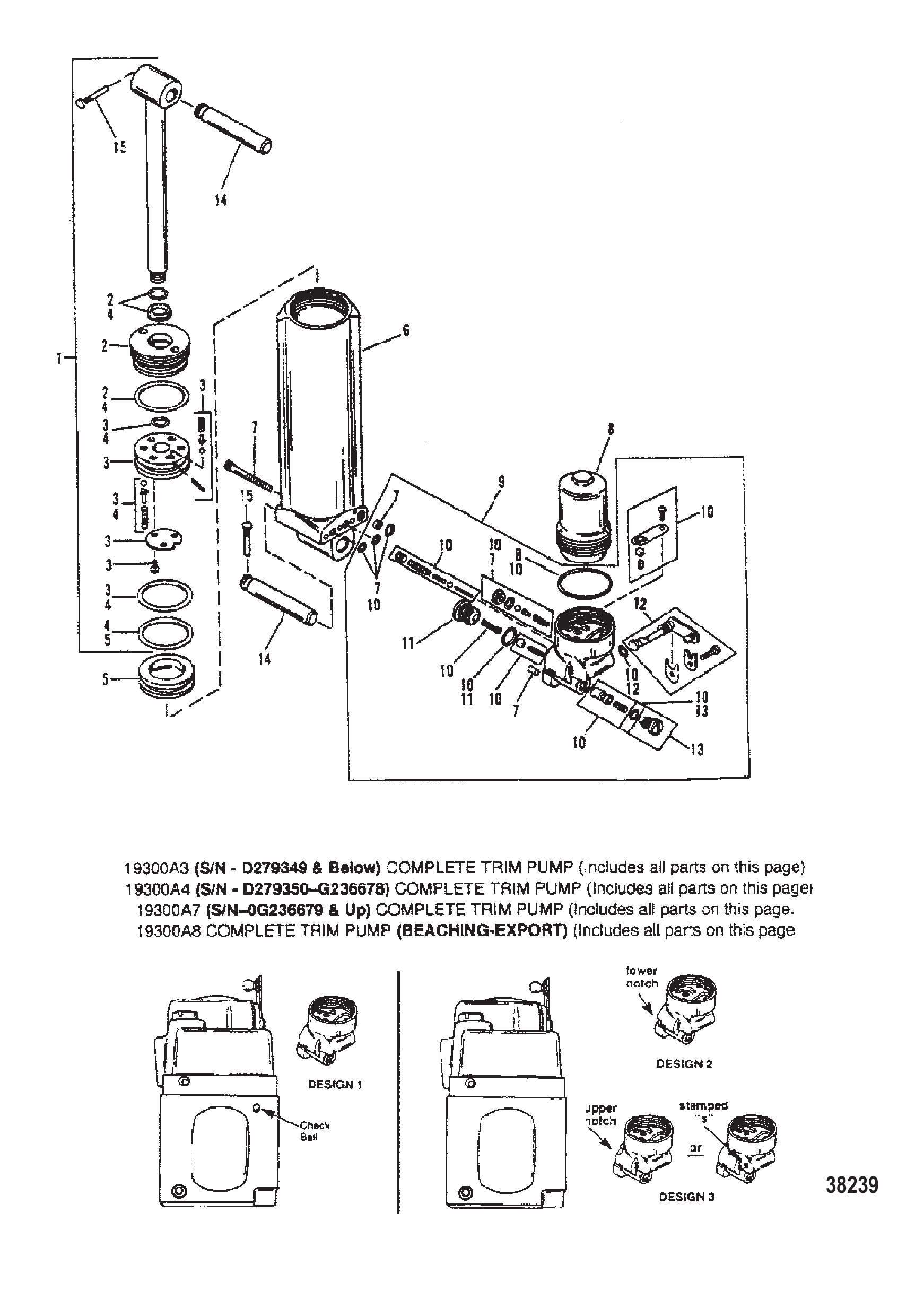

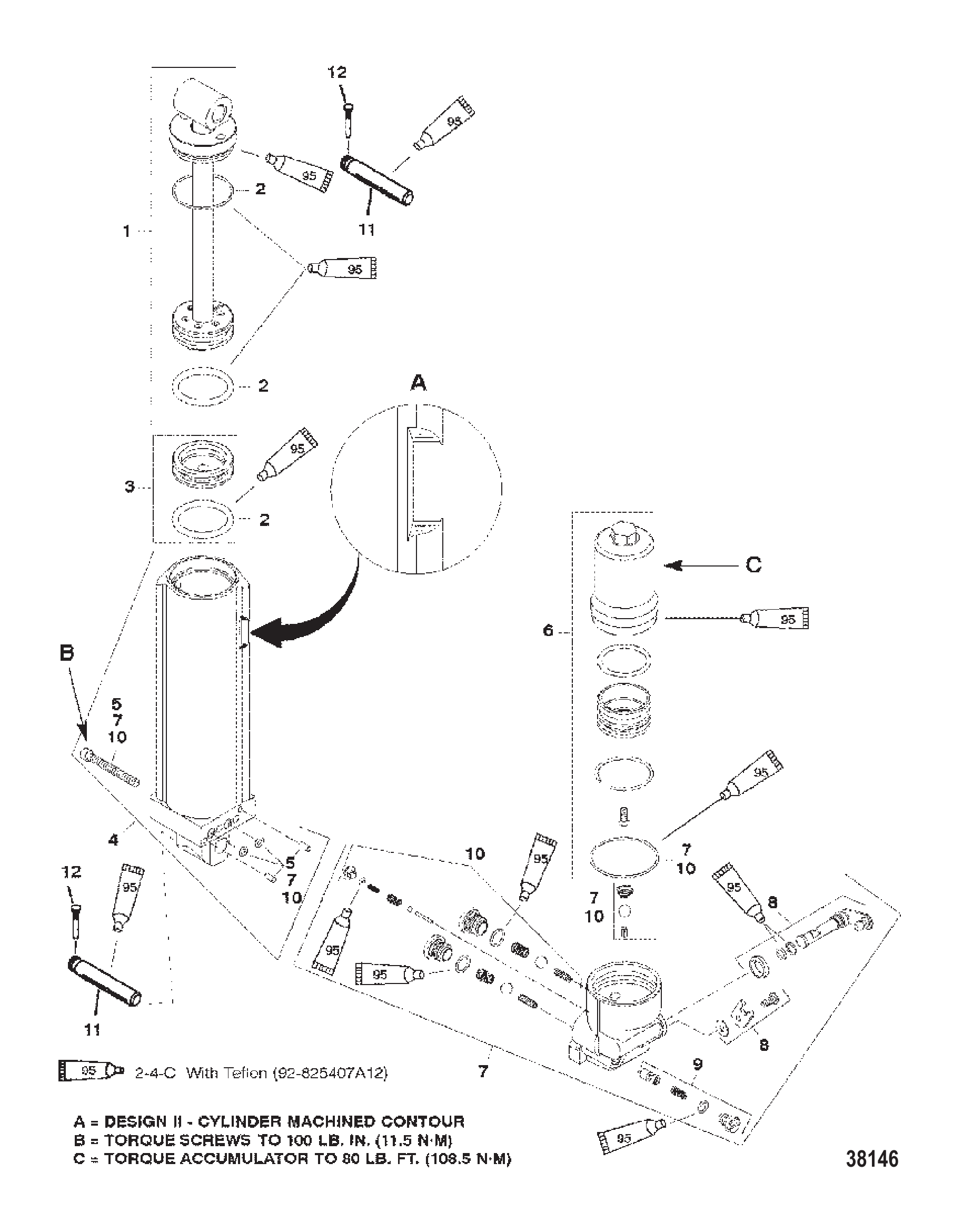

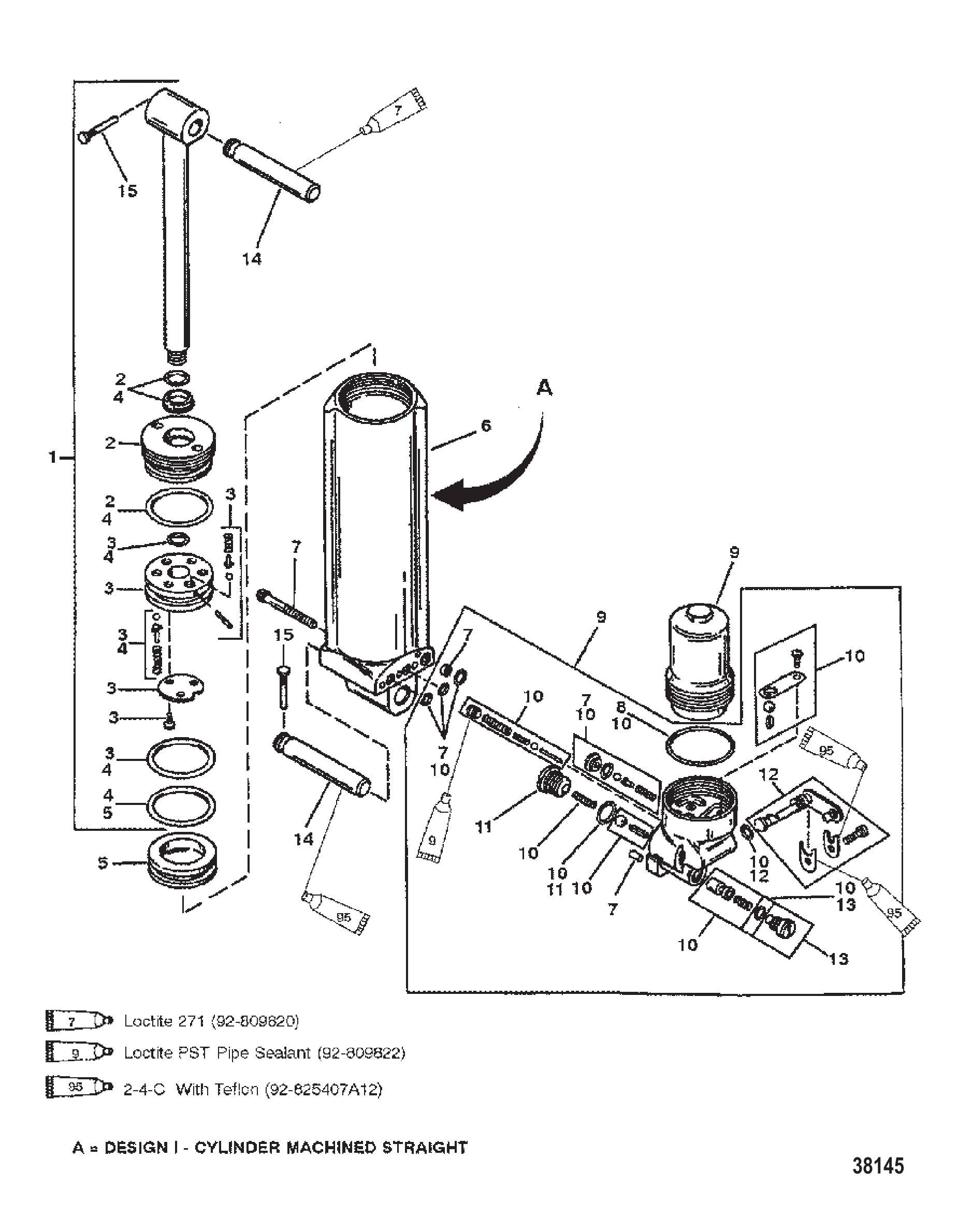

图 28手动倾斜装置组件 MANUAL TILT COMPONENTS
手动倾斜装置组件 MANUAL TILT COMPONENTS
REF零件编号中文名称英文名称数量
1813427A4减震杆总成SHOCK ROD ASSEMBLY1
2813428升降缸端盖总成END CAP ASSEMBLY Trim Cylinder1
38134291减震活塞PISTON Shock1
4813432A2气缸修理包CYLINDER REBUILD KIT1
5810776记忆活塞套件PISTON KIT Memory1
6810777气缸套件CYLINDER KIT1
6811224A1气缸总成CYLINDER ASSEMBLY1
6893918A01气缸套件CYLINDER KIT1
7813433A1螺丝和密封套件气缸SCREW AND SEAL KIT CYLINDER1
7893919A01螺丝/密封套件SCREW/SEAL KIT1
8813454A2蓄能器总成ACCUMULATOR ASSEMBLY1
8893920A01蓄能器套件ACCUMULATOR KIT1
9813455T4阀体总成VALVE BODY ASSEMBLY1
98M0118574阀体总成VALVE BODY ASSEMBLY1
10813456A4维修套件REPAIR KIT1
10813456A4维修套件REPAIR KIT1
11813458塞套件PLUG KIT1
11813458A2塞套件PLUG KIT1
12813457A1凸轮总成套件CAM ASSEMBLY KIT1
13813459塞套件PLUG KIT1
1419607销PIN2
15821539三叶销PIN Trilobe2
-830050T3手动配平总成(完整)MANUAL TRIM ASSEMBLY COMPLETE1
-8M0118570手动配平总成MANUAL TRIM ASSEMBLY1

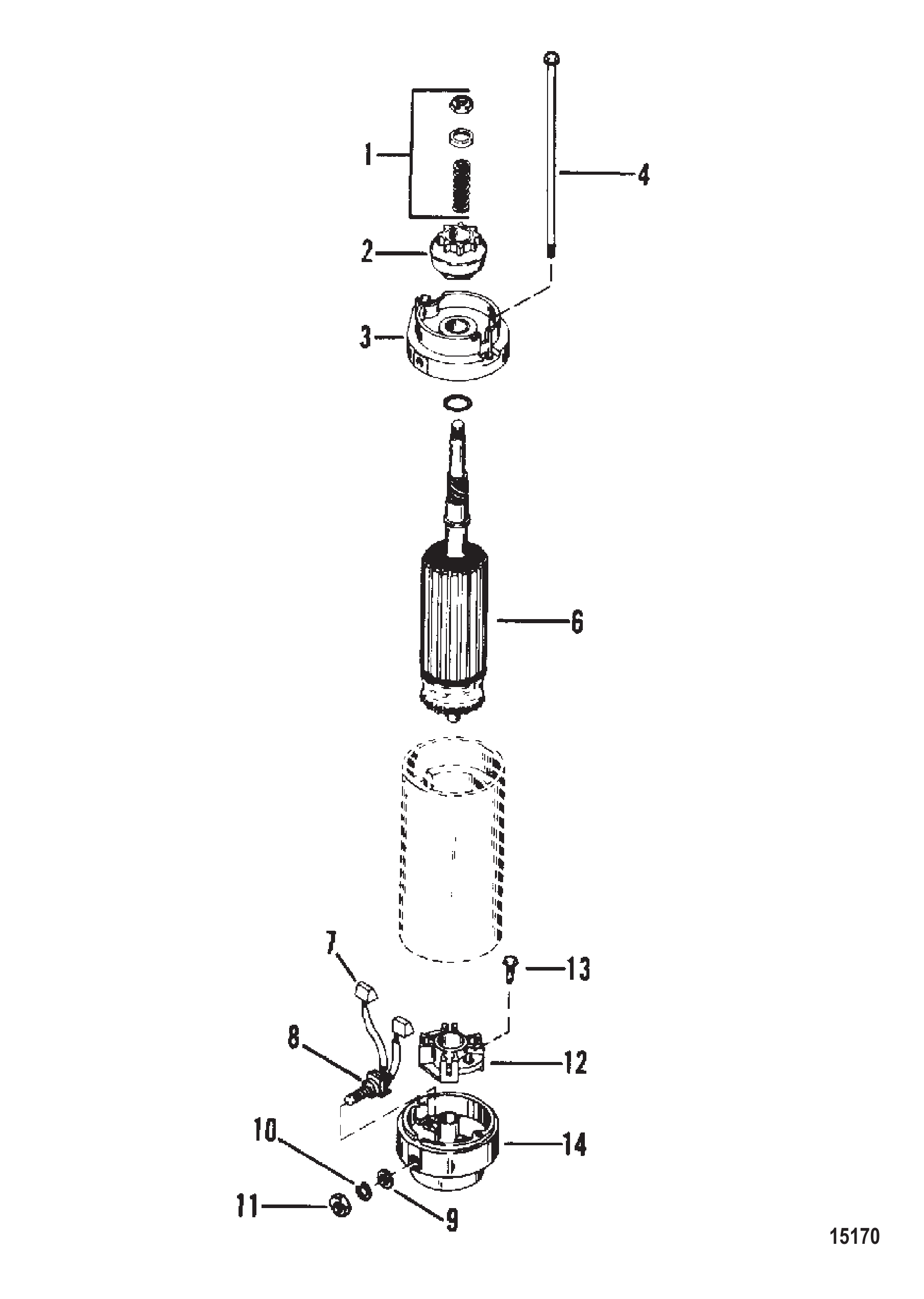

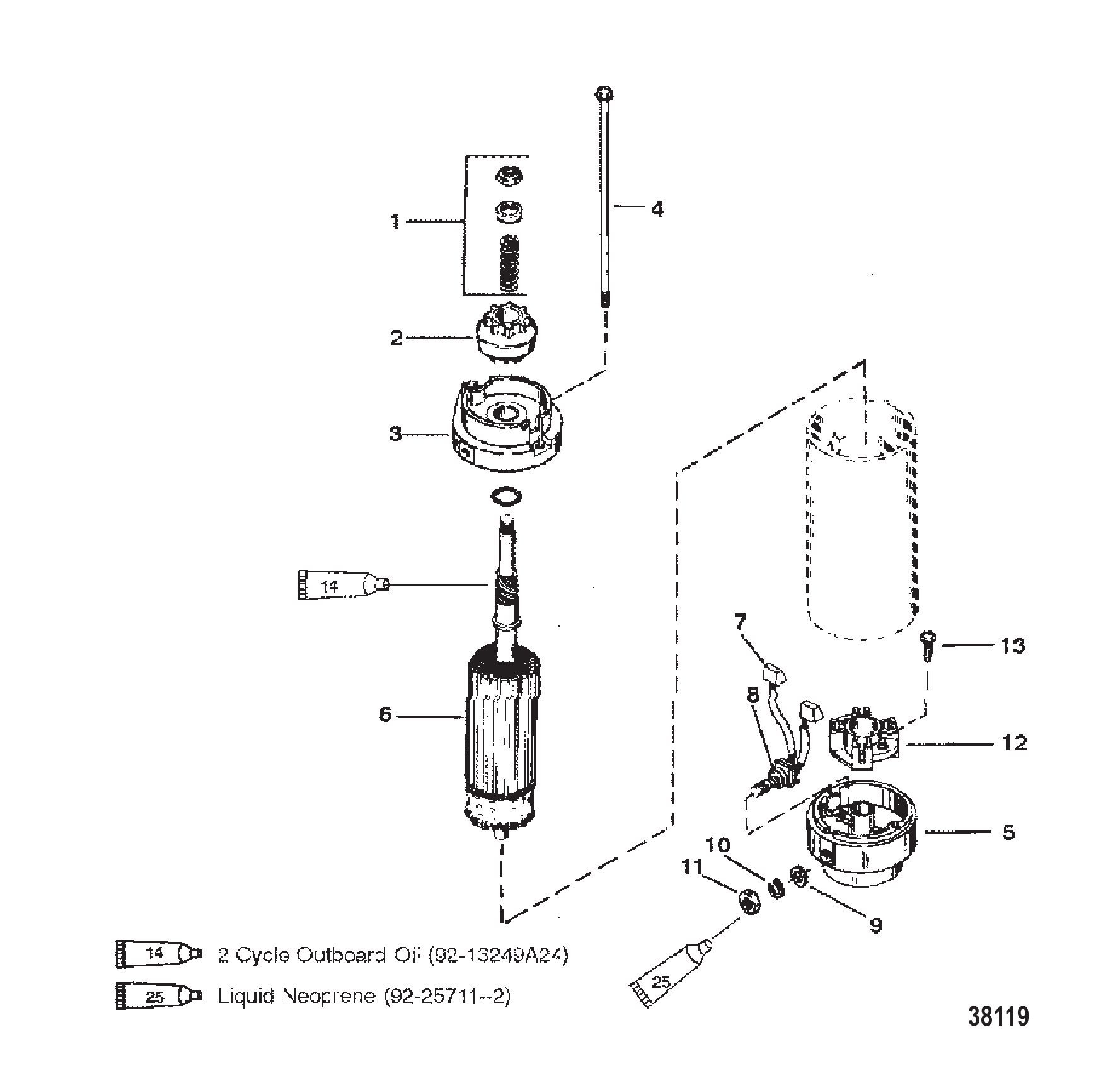

图 29启动电机总成 STARTER MOTOR ASSEMBLY
启动电机总成 STARTER MOTOR ASSEMBLY
REF零件编号中文名称英文名称数量
-44369A1启动电机总成STARTER MOTOR ASSEMBLY1
190643驱动套件DRIVE KIT1
2685753驱动总成DRIVE ASSEMBLY1
375660安装板PLATE1
495686螺栓BOLT2
575383端盖END CAP1
611957电枢ARMATURE1
775384电刷/弹簧套件BRUSH/SPRING KIT1
7898265016电刷/弹簧套件BRUSH/SPRING KIT1
857387衬套BUSHING1
9NSS非单独销售垫片(AMER.BOSCH #WA-1728)NOT SOLD SEPARATE WASHER (AMER. BOSCH #WA-1728)1
1026992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
1120890螺母 (.250-20)NUT (.250-20)1
1261787支架HOLDER2
12898265014电刷支架HOLDER-BRUSH2
13NSS不单独销售螺丝(AMER. BOSCH #02441-22-SC-30SM)NOT SOLD SEPARATE SCREW (AMER. BOSCH #02441-22-SC-30SM)2

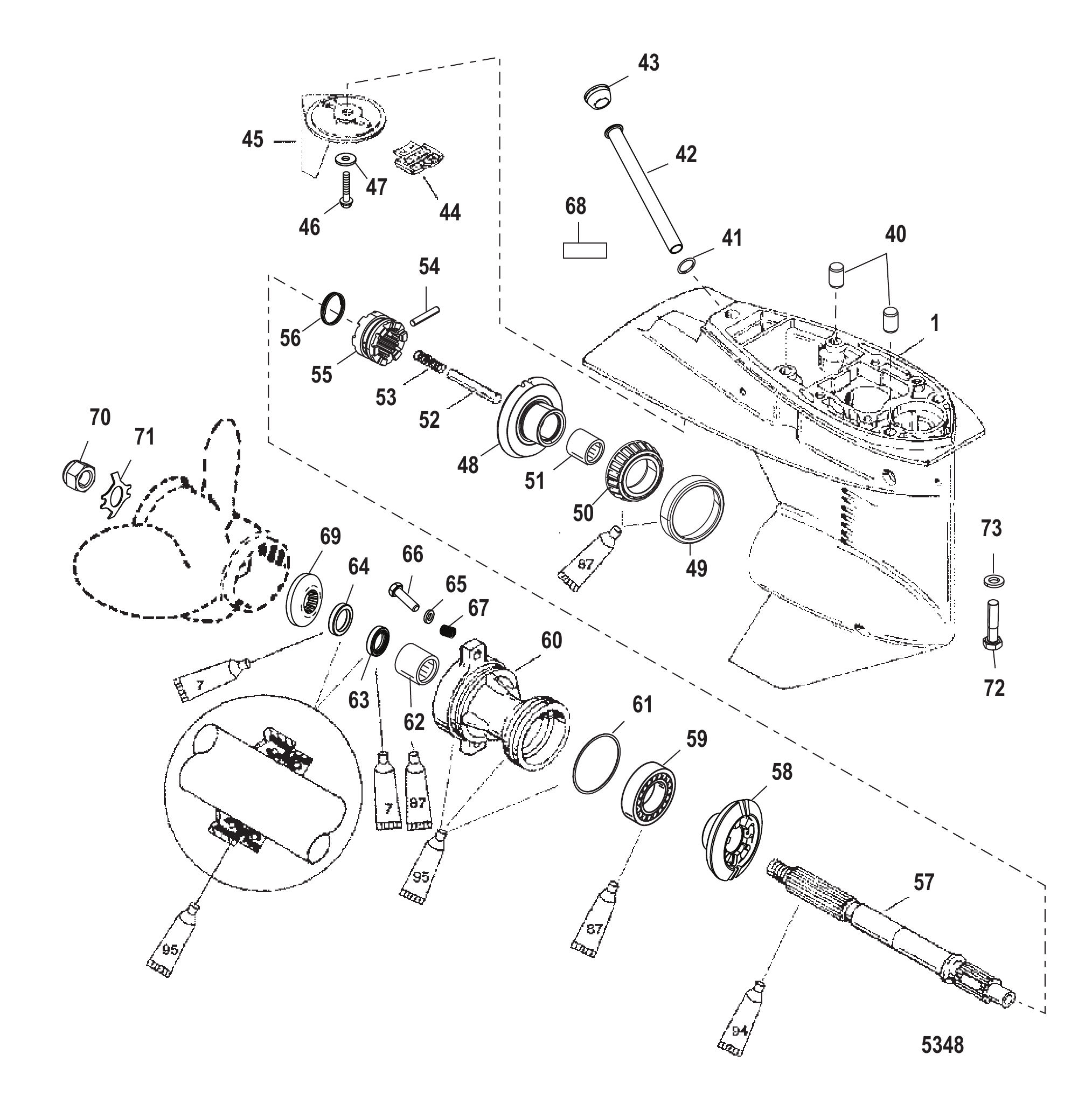

图 30齿轮箱螺旋桨轴 Gear Housing Propeller Shaft
齿轮箱螺旋桨轴 Gear Housing Propeller Shaft
REF零件编号中文名称英文名称数量
-9539A2齿轮箱总成(短轴)(黑色)GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK)1
-9539A3齿轮箱总成(长轴)(黑色)GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK)1
-9539A9齿轮箱总成(长轴)(灰色)GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY)1
19539A1齿轮箱总成(黑色-基础款)GEAR HOUSING ASSEMBLY (BLACK-BASIC)1
19539T1齿轮箱GEAR HOUSING1
19539A8齿轮箱总成(灰色-基础款)GEAR HOUSING ASSEMBLY (GRAY-BASIC)1
19539T8ORD 1643-9539T 1ORD 1643-9539T 11
5176039换挡凸轮控制CAM Shift Control1
51760394换挡凸轮控制CAM Shift Control1
5238374A1轴承杯垫片组(.002-3-5-10)SHIM SET BEARING CUP (.002-3-5-10)AR
5338356A1轴承套件BEARING SET1
5488018A1前进齿轮总成GEAR ASSEMBLY Forward1
5488018T1前进齿轮总成GEAR ASSY-FORWARD1
5521739前进档滚柱轴承BEARING Roller FORWARD GEAR1
5638441凸轮从动件FOLLOWER Cam1
5720843SLIDE CROSS PIN1
5839845压缩弹簧-凸轮随动件SPRING COMPRESSION-CAM FOLLOWER1
5992911棘轮滑动离合器RATCHET SLIDING CLUTCH1
5992911T离合器CLUTCH1
6038113棘轮到螺旋桨轴十字销PIN Cross RATCHET TO PROPELLER SHAFT1
608M0020942十字销@2PIN-CROSS @21
6138114十字销固定弹簧SPRING RETAINING-CROSS PIN1
6275365螺旋桨轴PROPELLER SHAFT1
6388017倒挡齿轮GEAR Reverse1
6388017T倒档齿轮REVERSE GEAR1
6432004倒档齿轮垫圈WASHER REVERSE GEAR1
6520839倒档齿轮滚珠轴承BEARING Ball REVERSE GEAR1
6520839T滚珠轴承BEARING Ball1
6631986轴承座O型圈O-RING BEARING CARRIER1
6769386A1轴承座总成CARRIER ASSEMBLY Bearing1
6769386T1轴承座总成CARRIER ASSY-BRG1
6821700滚针轴承-轴承座BEARING Needle BEARING CARRIER1
6969188轴承座油封SEAL Oil BEARING CARRIER1
698M0205511油封SEAL Oil1
7069189轴承座油封SEAL Oil BEARING CARRIER1
708M0203757油封SEAL Oil1
7130281轴承座定位键KEY LOCATING, BEARING CARRIER1
7253012齿轮箱螺母止动垫圈TAB WASHER GEAR HOUSING NUT1
7387763NUT GEAR HOUSING1
7431640A1TRIM TAB ASSEMBLY GEAR HOUSING1
7431640Q4平衡鳍板TRIM TAB1
7566024SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING1
7645175驱动轴壳体螺柱垫圈(0.406x0.750x0.104)WASHER (.406 x .750 x .104) DRIVE SHAFT HOUSING STUD1
768M0214963垫圈WASHER1
7734863驱动轴壳体螺柱螺母(0.375-24)NUT (.375-24) DRIVE SHAFT HOUSING STUD1
778M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
7865791驱动轴壳体螺柱垫圈WASHER DRIVE SHAFT HOUSING STUD1
7934933不锈钢驱动轴壳体螺柱螺母(0.437-20)NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUD1
798M0204653螺母NUT1
8073345A1THRUST WASHER FRONT1
8176281螺旋桨止动垫圈TAB WASHER PROPELLER1
818M0214942锁紧垫片WASHER Tab1
8269578A1螺旋桨螺母套件PROP NUT KIT1
8269578Q1螺旋桨螺母套件PROP NUT KIT1
-79831A1密封套件SEAL KIT1
-43779A87衬垫套件GASKET SET1

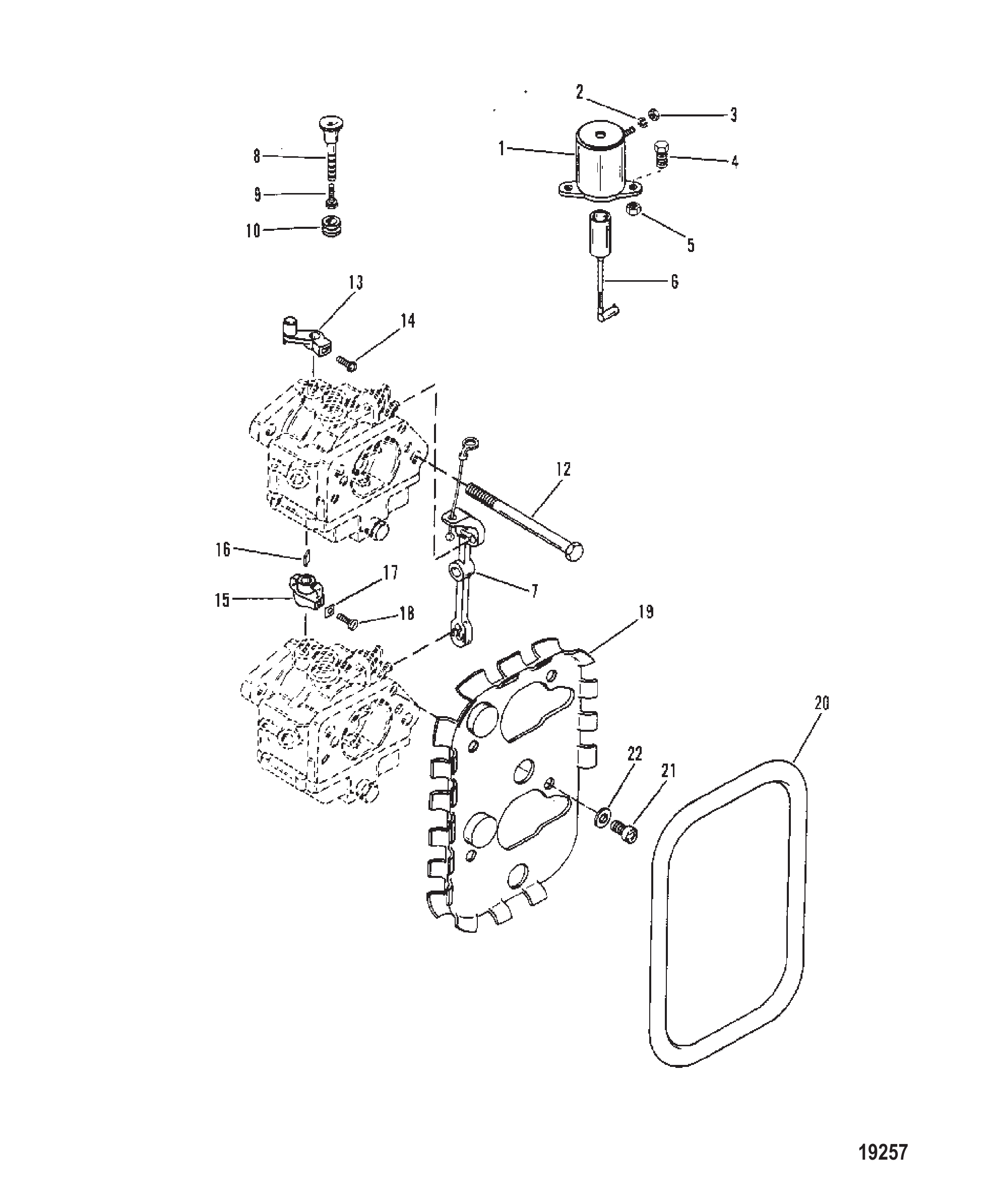

图 31化油器连杆与阻风门电磁阀 Carburetor Linkage and Choke Solenoid
化油器连杆与阻风门电磁阀 Carburetor Linkage and Choke Solenoid
REF零件编号中文名称英文名称数量
160549A7阻风门电磁阀总成SOLENOID ASSEMBLY Choke1
226996锁紧垫圈(#10)不锈钢阻风门电磁阀端子LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL1
368219螺母(#10-32)不锈钢阻风门电磁阀端子NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL1
433524螺钉(.312-24 x .620)阻风门电磁阀SCREW (.312-24 x .620) CHOKE SOLENOID1
529250螺母(.312-24)阻风门电磁阀螺钉NUT (.312-24) CHOKE SOLENOID SCREWS2
689008A2阻风门电磁阀柱塞总成PLUNGER ASSEMBLY CHOKE SOLENOID1
776076A1阻风门拉杆总成ROD ASSEMBLY Choke1
890242A1旋钮总成KNOB ASSEMBLY1
935519螺钉(#10-16 x .500)阻风门旋钮线SCREW (#10-16 x .500) WIRE TO CHOKE KNOB1
1020116阻风门旋钮护圈GROMMET CHOKE KNOB1
1252743螺钉(.312-18 x 3.750)化油器至曲轴箱SCREW (.312-18 x 3.750) CARBURETOR TO CRANKCASE4
1377583节流阀杆LEVER THROTTLE1
1460293螺钉(#5-40 x .500)杆至化油器SCREW (#5-40 x .500) LEVER TO CARBURETOR1
1560292A1联轴器总成COUPLING ASSEMBLY1
1689694节流阀轴联轴器键KEY THROTTLE SHAFT COUPLING1
1792500推式螺母滚轮-联轴器PUSH NUT ROLLER - COUPLING1
1860293螺钉(#5-40 x .500)卷边垫圈至联轴器SCREW (#5-40 x .500) ROLLED WASHER TO COUPLING1
1991996A1化油器板总成PLATE ASSEMBLY CARBURETOR1
2071090化油器板密封件SEAL CARBURETOR PLATE1
2120367螺钉板至化油器(7/16")SCREW PLATE TO CARBURETOR (7/16")4
2229245垫圈(.281 x .500 x .060)不锈钢板螺钉WASHER (.281 x .500 x .060) Stainless Steel PLATE SCREW4
228M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4

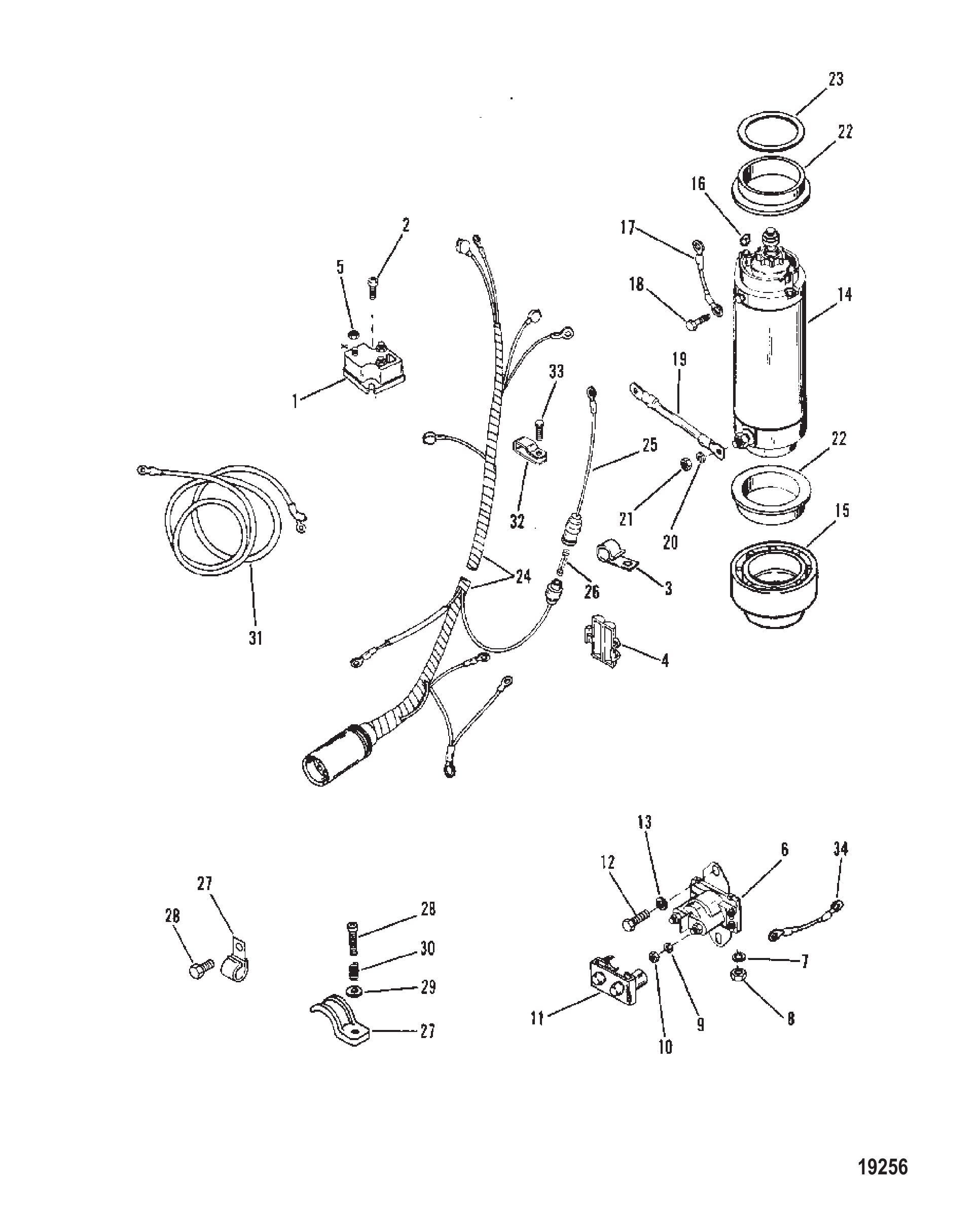

图 32启动电机、电磁阀与整流器 Starter Motor, Solenoid and Rectifier
启动电机、电磁阀与整流器 Starter Motor, Solenoid and Rectifier
REF零件编号中文名称英文名称数量
162351A1整流器RECTIFIER1
238055螺钉 (.190-32 x .620) 整流器至板SCREW (.190-32 x .620) RECTIFIER TO PLATE2
347483J型卡扣J CLIP1
4134731保险丝座HOLDER Fuse1
545076螺母(#10-32)黄铜整流器端子NUT (#10-32) Brass RECTIFIER TERMINAL3
696158启动电磁阀SOLENOID Starter1
68M0185622电磁阀SOLENOID1
726996锁紧垫圈（#10）不锈钢电磁阀端子LOCKWASHER (#10) Stainless Steel SOLENOID TERMINAL2
826419螺母(#8-32)-黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINAL2
926992锁紧垫圈 (.250) 不锈钢电磁阀端子LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL2
1094330螺母 (.250-20) 黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINAL2
1197861绝缘体-启动电磁阀INSULATOR STARTER SOLENOID1
1241508螺钉 (.250-20 x .500) 不锈钢 电磁阀至消音器SCREW (.250-20 x .500) Stainless Steel SOLENOID TO ATTENUATOR2
1290192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel2
1326992锁紧垫圈 (.250) 不锈钢 电磁阀螺钉LOCKWASHER (.250) Stainless Steel SOLENOID SCREW2
1444369A1启动电机总成STARTER MOTOR ASSEMBLY1
1544368适配器 启动马达ADAPTER STARTER MOTOR1
1657247止动橡胶 - 启动马达STOP RUBBER - STARTER MOTOR2
168M0043376停机开关STOP2
1793388A1电缆总成 (6.00英寸) 黑色 启动器至消音器CABLE ASSEMBLY (6.00 Inches) Black STARTER TO SOUND ATTENUATOR1
1869035螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR1
1993389A6电缆总成 电磁阀至启动马达 - 9-1/2"CABLE ASSEMBLY SOLENOID TO STARTER MOTOR - 9-1/2"1
2026992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
2164015螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1
2256703橡胶套环 - 启动器安装COLLAR RUBBER - STARTER MOUNT2
228M0034918轴环COLLAR2
2356774垫片 套环至安装支架SPACER COLLAR TO MOUNTING BRACKETSAR
2414614A1线束总成 (内部)HARNESS ASSEMBLY (INTERNAL)1
2595084A2电缆总成-保险丝CABLE ASSEMBLY FUSE1
2679091保险丝20安培FUSE 20 Ampere1
268M0207796保险丝20安培FUSE 20 AMP1
2788751线束夹CLAMP WIRING HARNESS1
2823702螺钉(0.190-32x1.12)线束卡箍SCREW (.190-32 x 1.12) WIRING HARNESS CLAMP1
2972761垫圈(0.203x0.562x0.060)-不锈钢线束夹螺钉WASHER (.203 x .562 x .060) Stainless Steel WIRING HARNESS CLAMP SCREW1
3028357弹簧 线束SPRING WIRING HARNESS1
2763153J型线束夹J CLIP WIRING HARNESS1
2862568螺钉 (#10-16 x .375) 夹子SCREW (#10-16 x .375) CLAMP1
3188439A7电缆总成 蓄电池 (正极)CABLE ASSEMBLY Battery (POSITIVE)1
3188439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
3228700线束夹CLAMP WIRING HARNESS1
3373286螺钉 (.250-20 x .500) 不锈钢 线束夹SCREW (.250-20 x .500) Stainless Steel WIRING HARNESS CLAMP1
3488807A16黑色电缆总成(4.00英寸)CABLE ASSEMBLY (4.00 Inches) Black1

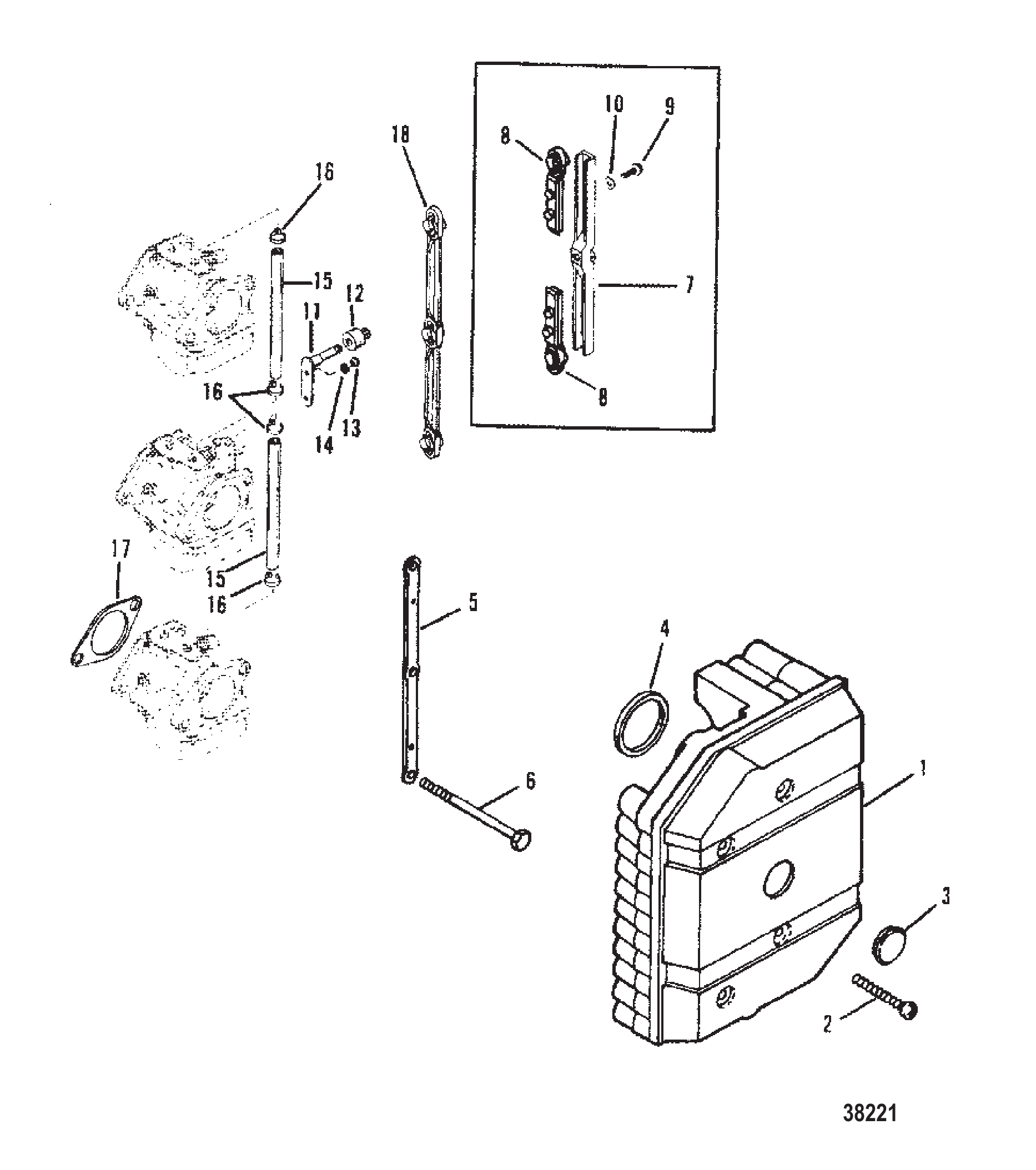

图 33衰减板 Attenuator Plate
衰减板 Attenuator Plate
REF零件编号中文名称英文名称数量
119662消音器ATTENUATOR Sound1
2814776调节螺钉(M6 x 55)SCREW Adjusting (M6 x 55)4
3815784盖帽CAP1
4812889密封件SEAL3
5812874消音板PLATE Sound Attenuator2
64000363螺丝(M8 x 100)SCREW (M8 x 100)6
7821145油门连杆LINK Throttle1
7825204T03连接杆LINK1
8812883调节连杆LINK Adjusting2
948408螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)4
1056681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)4
108M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)4
1111399A1臂总成ARM ASSEMBLY1
1267748滚轮ROLLER1
1340056103螺钉 (M5 x 6)SCREW (M5 x 6)1
1456681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
148M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
159912878软管(.187)(26.00英寸散装)(4-1/4")HOSE (.187) (26.00 Inches Bulk) (4-1/4")2
16816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
178144461法兰衬垫GASKET Flange3
188252043油门连杆LINK Throttle1
18825204T03连接杆LINK1
-812867A97衬垫套件GASKET SET1

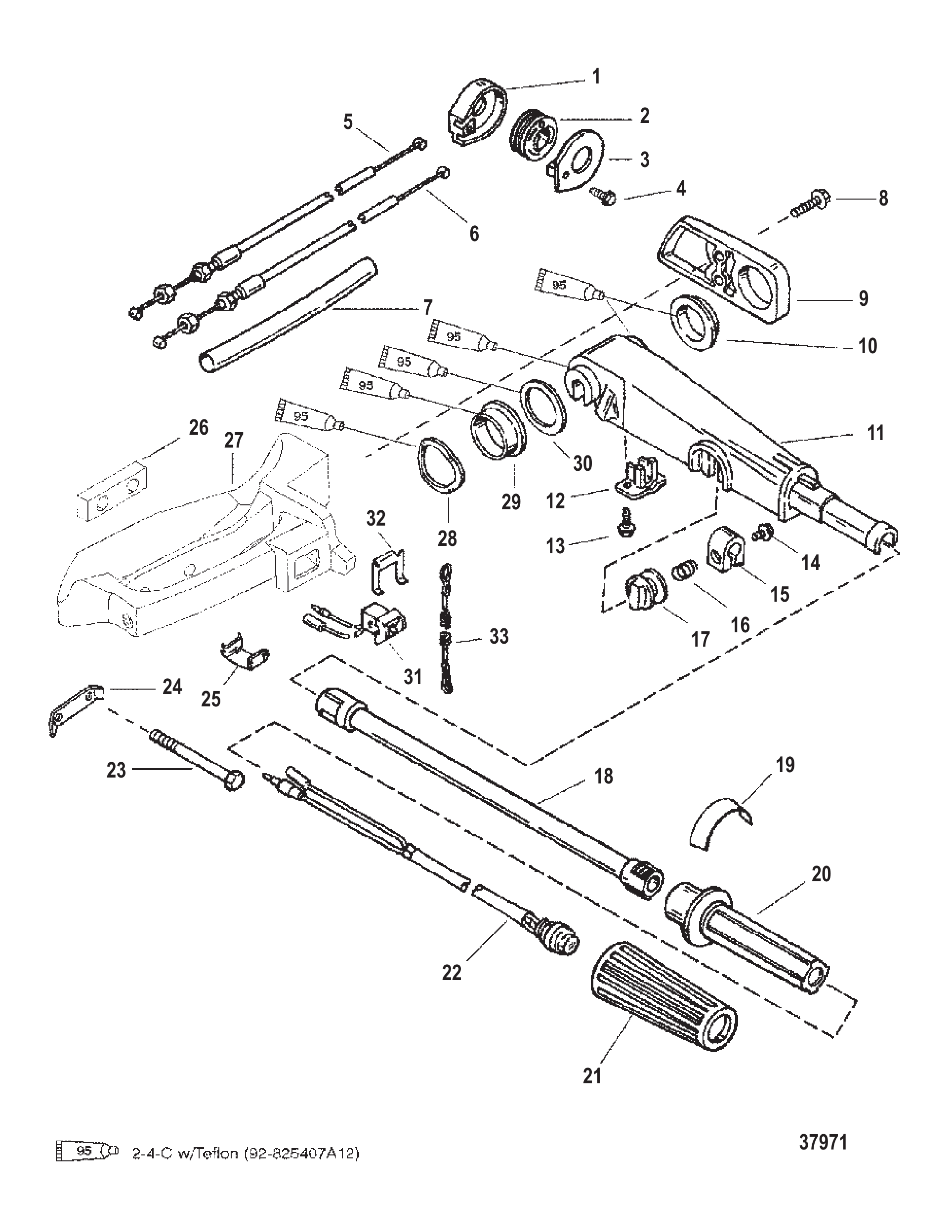

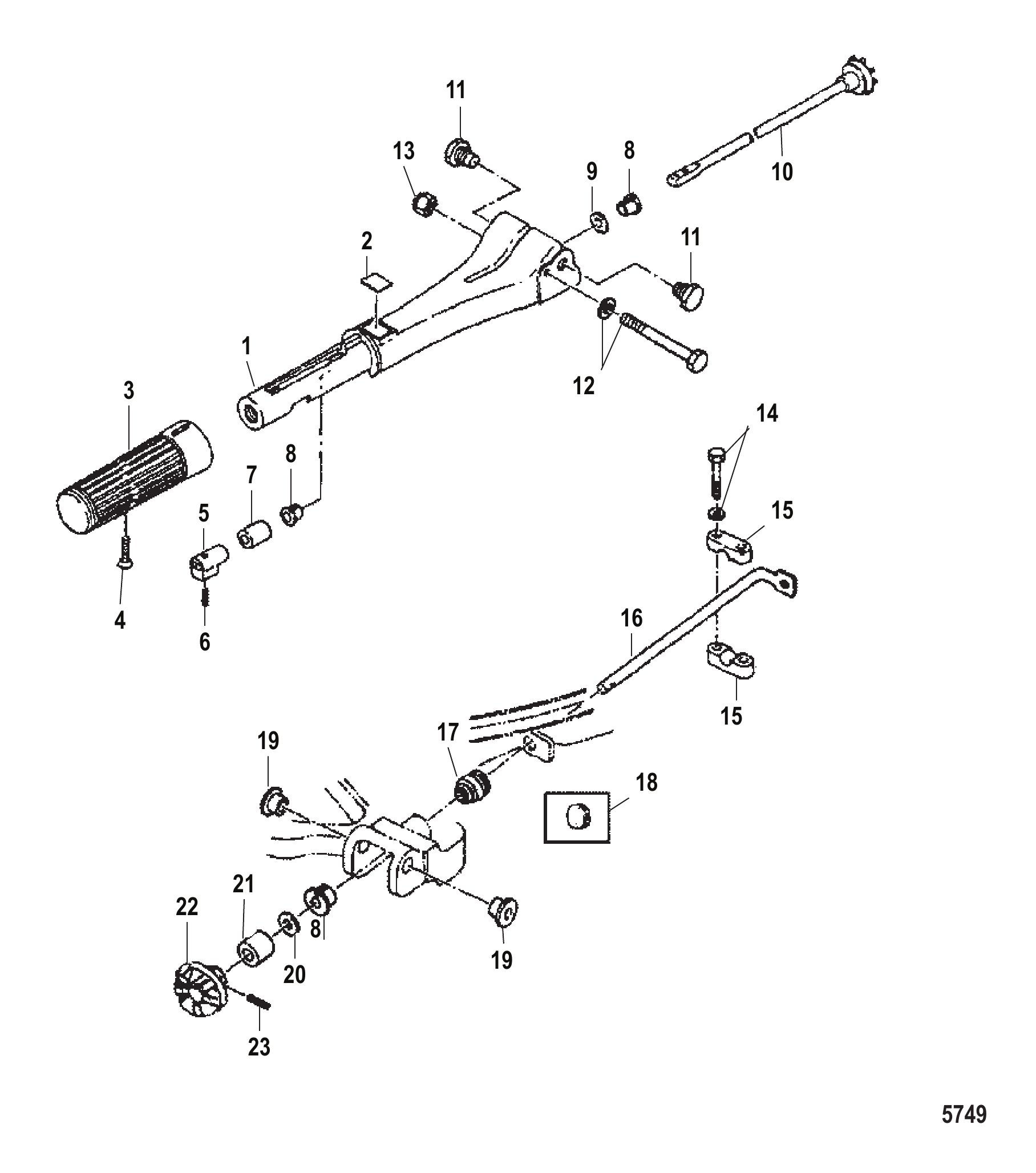

图 34舵柄手柄 Tiller Handle
舵柄手柄 Tiller Handle
REF零件编号中文名称英文名称数量
1160752转向手柄HANDLE Steering1
216090贴花DECAL1
28M0097201舵柄贴花DECAL Tiller1
3160861握把GRIP1
48150461螺钉SCREW1
58537152隔套SPACER1
68150263开口销COTTER PIN1
716191隔套SPACER1
816336衬套BUSHING3
98537232波形垫圈WAVE WASHER1
10160931油门轴SHAFT Throttle1
118129352螺栓BOLT2
118M0111108螺栓BOLT2
128230422螺栓BOLT1
128M0050498螺栓BOLT1
138537227尼龙螺母NUT Nylon1
14168302螺栓BOLT2
14879194264螺栓BOLT2
15853752支架BRACKET2
16160932油门轴SHAFT Throttle1
1716823护孔环GROMMET1
1816226电线护圈GROMMET (Electric)1
19952869轴环COLLAR2
2016192垫圈WASHER1
219528610轴环COLLAR1
22853751小齿轮GEAR Pinion1
23952186滚动销PIN Roll1

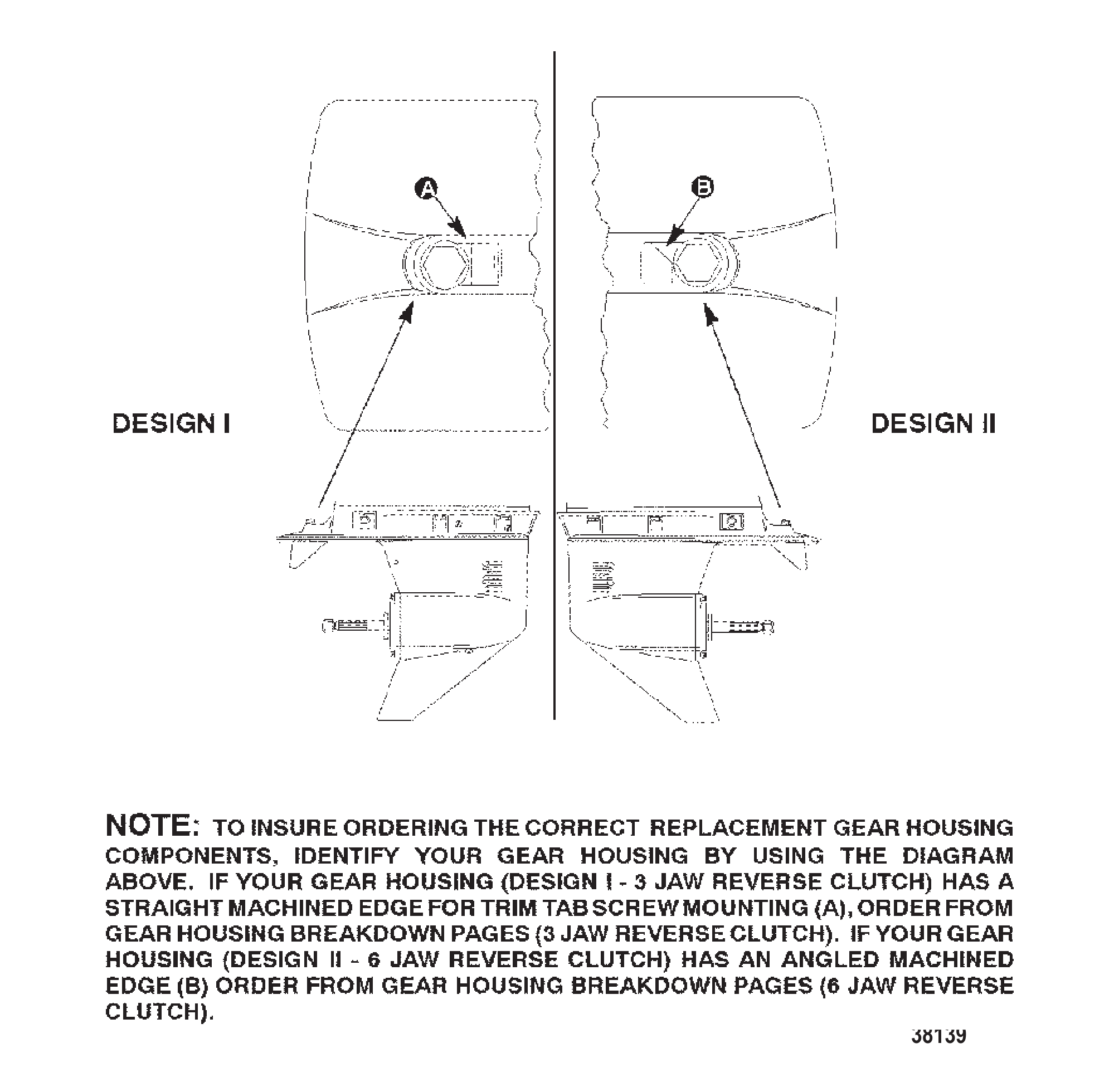

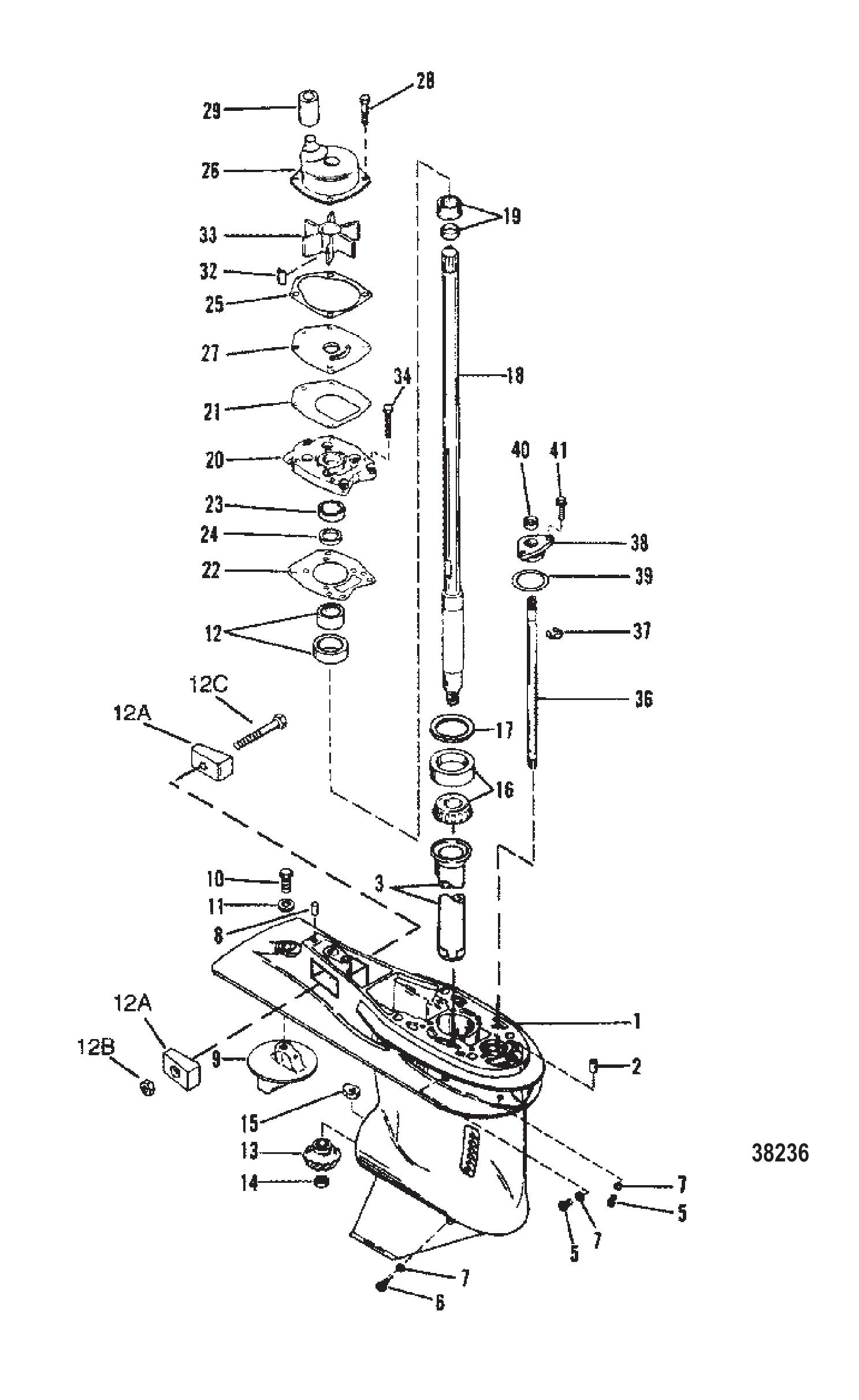

图 35齿轮箱图表(60海宝/马拉松/大脚) GEAR HOUSING CHART (60 SEAPRO/MARATHON/BIG FOOT)
齿轮箱图表(60海宝/马拉松/大脚) GEAR HOUSING CHART (60 SEAPRO/MARATHON/BIG FOOT)
REF零件编号中文名称英文名称数量
-NSS齿轮箱体(不单独销售)NOT SOLD SEPARATE Gear Housing

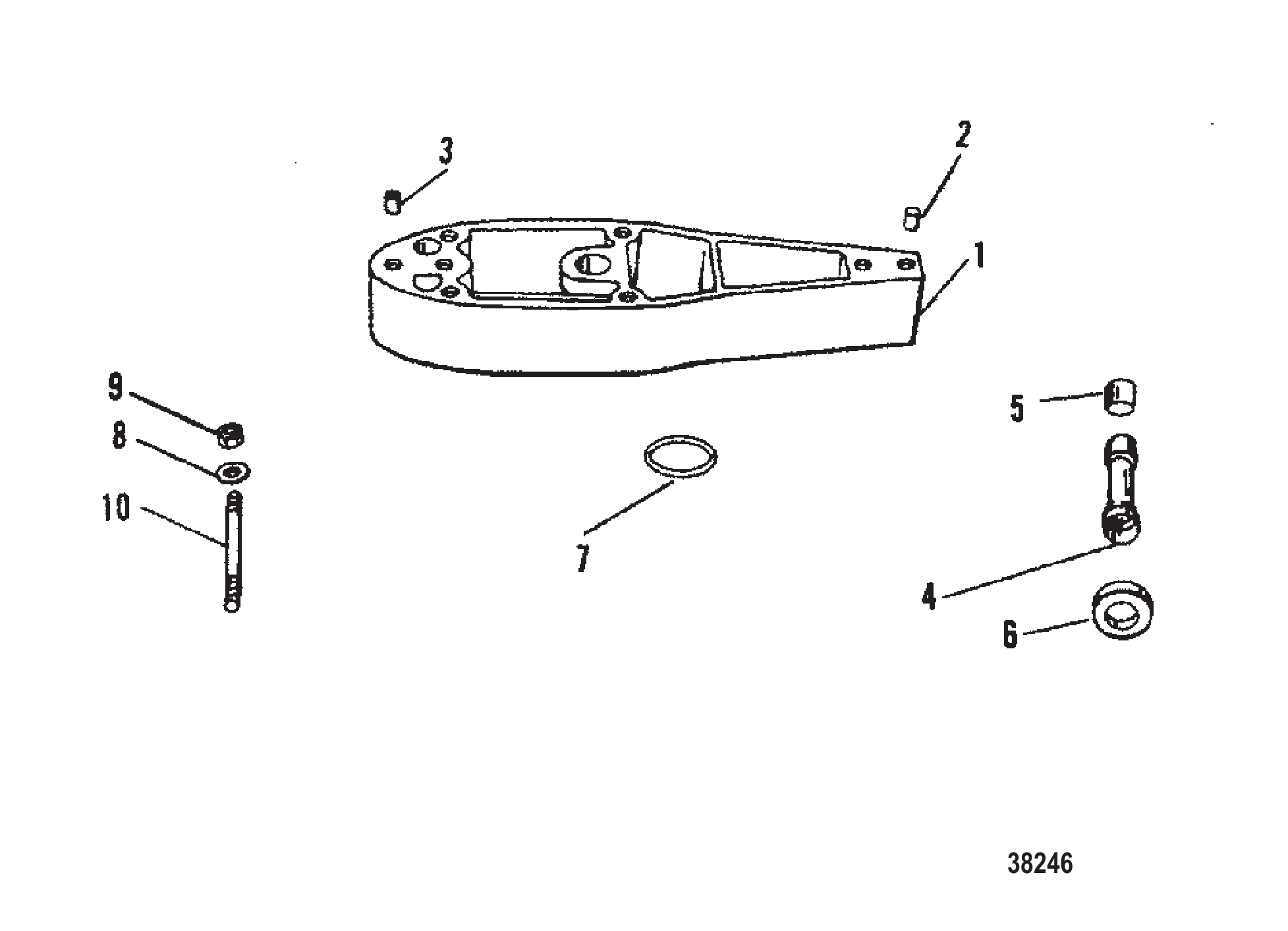

图 36延伸组件 EXTENSION COMPONENTS
延伸组件 EXTENSION COMPONENTS
REF零件编号中文名称英文名称数量
1816696A3垫片(黑色)SPACER (BLACK)1
1816696A4垫片(灰色)SPACER (GRAY)1
1816696A5垫片(追踪者型)SPACER (TRACKER)1
1816696F5垫片(黑色)SPACER (BLACK)1
1816696T5隔套SPACER1
1816696F6垫片(灰色)SPACER (GRAY)1
1816696T6ORD 816696T5ORD 816696T 51
243044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
343043定位销-带孔(0.375×0.625)PIN Dowel - With Hole (.375 x .625)1
38M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
4817401A1水管总成TUBE ASSEMBLY Water1
538970油封(旧款)SEAL (OLD DESIGN)1
6821093密封件SEAL1
721836O型圈(.796 x .139)O-RING (.796 x .139)1
78M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
845175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)4
88M0214963垫圈WASHER4
913914螺母(M10)NUT (M10)5
940140螺母(M10)NUT (M10)5
108168661双头螺柱 (M10 x 120)STUD (M10 x 120)5
108M0034425双头螺柱 (M10 x 120)STUD (M10 x 120)5

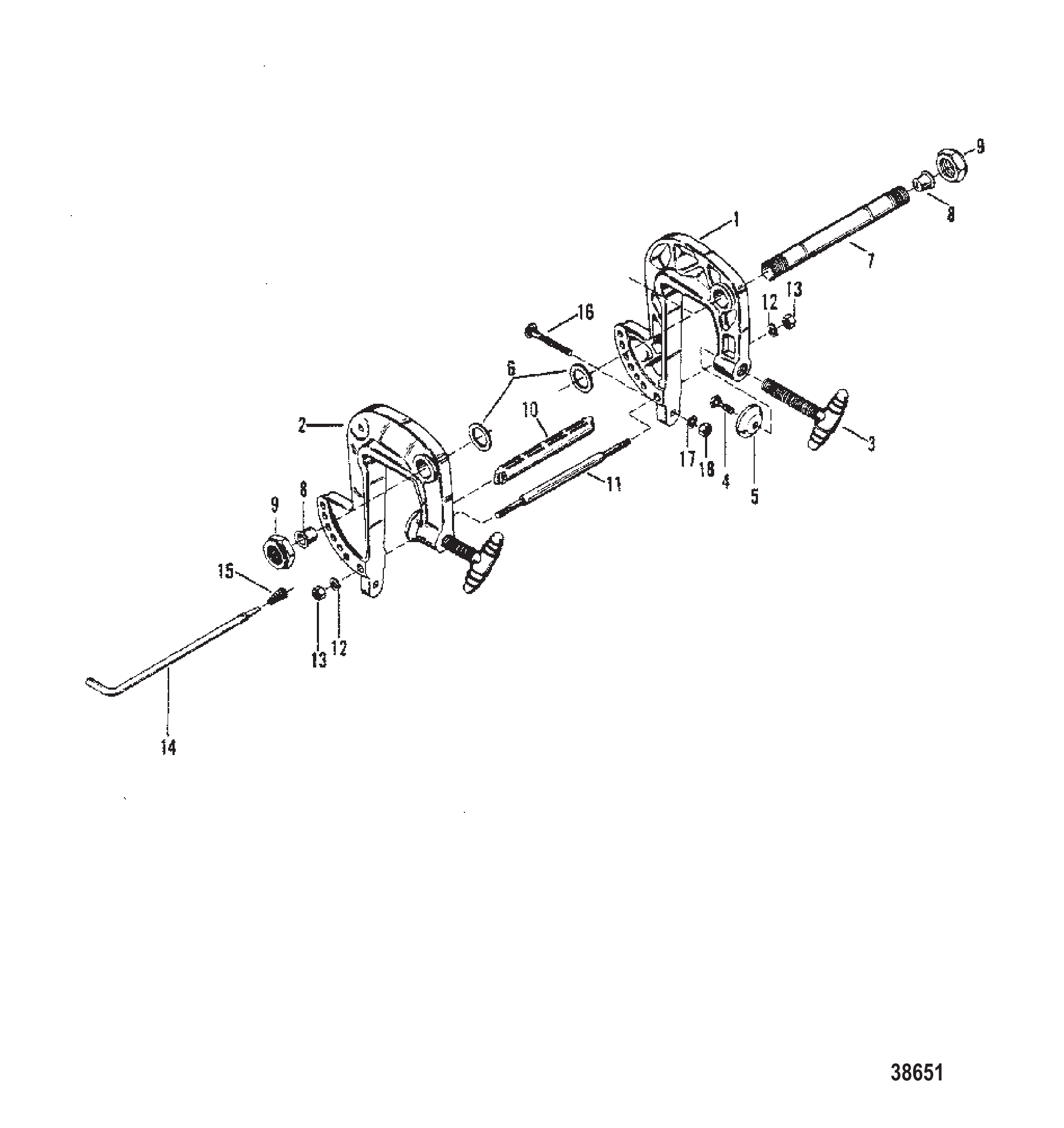

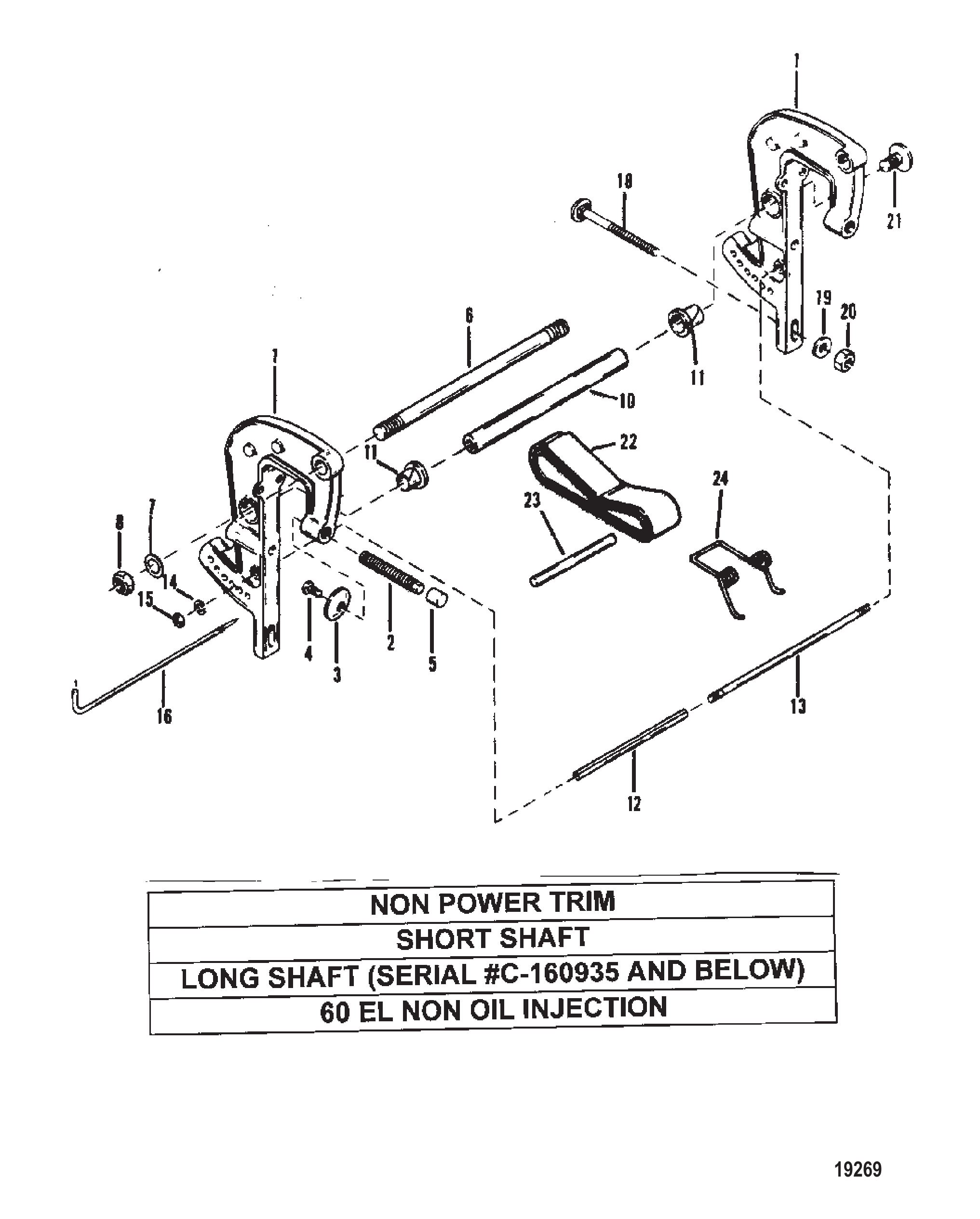

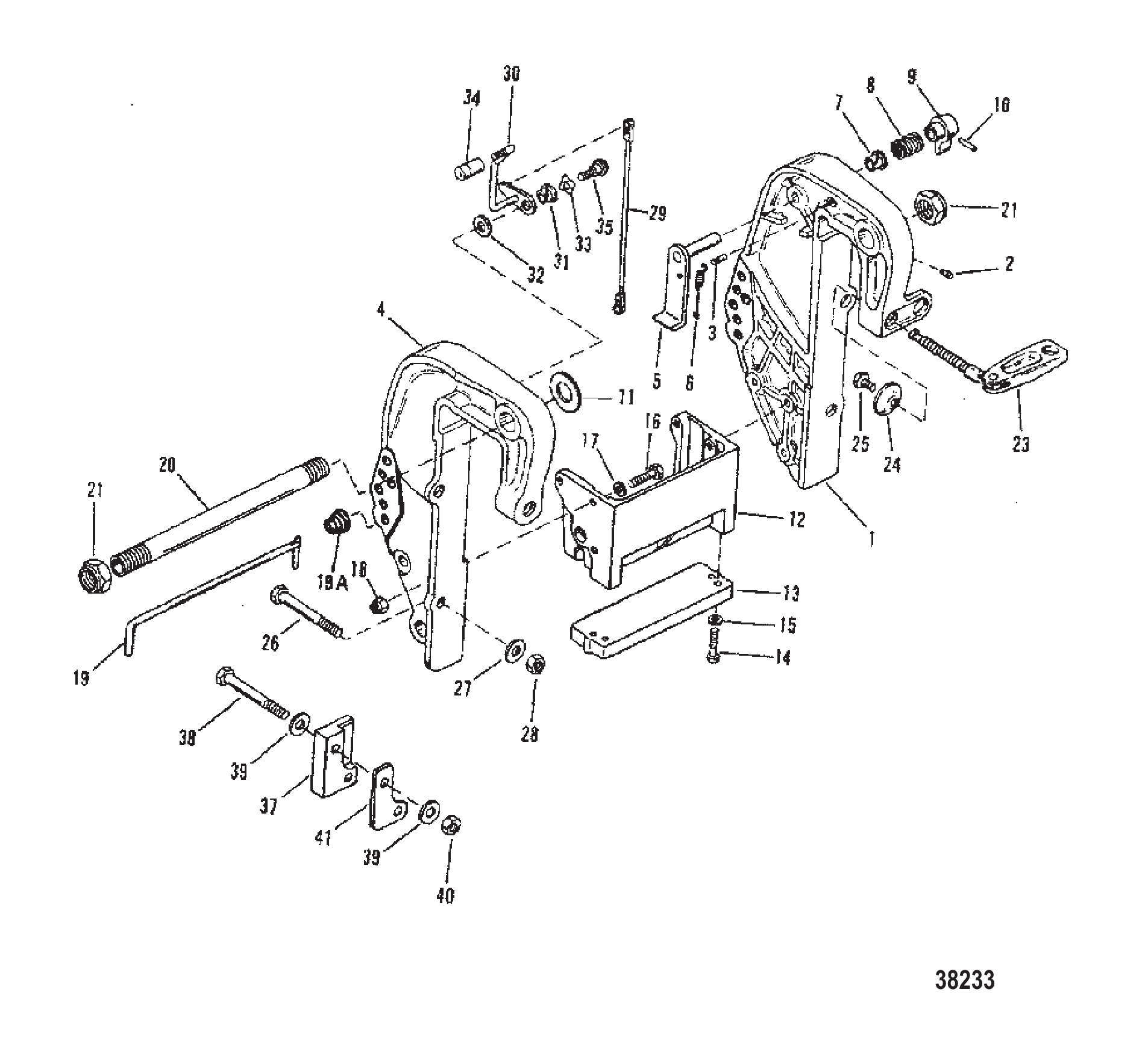

图 37夹紧支架(短型)(长型-0C160935及以下)(60EL NOI)(NPT) Clamp Bracket (Short)(Long-0C160935 & Below)(60EL NOI)(NPT)
夹紧支架(短型)(长型-0C160935及以下)(60EL NOI)(NPT) Clamp Bracket (Short)(Long-0C160935 & Below)(60EL NOI)(NPT)
REF零件编号中文名称英文名称数量
18394A1夹具支架总成CLAMP BRACKET ASSEMBLY2
18394A3夹具支架总成CLAMP BRACKET ASSEMBLY2
278492A1蝶形螺钉总成THUMB SCREW ASSEMBLY2
378493蝶形螺丝垫圈WASHER THUMB SCREW2
4784951垫片至拇指螺钉SCREW WASHER TO THUMB SCREW2
478495螺钉（.312-24 x .680）SCREW (.312-24 x .680)2
575043拇指螺丝帽CAP THUMB SCREW2
674528倾斜管TILT TUBE1
68M0041936倾斜管TILT TUBE1
752864倾斜管垫圈WASHER TILT TUBE2
856041螺母(.875-14)倾斜管NUT (.875-14) TILT TUBE2
8858869螺母 (.875-14)NUT (.875-14)2
1098877上部减震支架SHOCK MOUNT Upper UPPER MOUNT1
1173203夹紧支架衬套BUSHING CLAMP BRACKET2
1259623夹紧支架螺柱隔套SPACER CLAMP BRACKET STUD2
1359625夹紧支架螺柱STUD CLAMP BRACKET1
1426993锁紧垫圈(.312)夹支架螺柱LOCKWASHER (.312) CLAMP BRACKET STUD2
148M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1528770螺母(.312-24)不锈钢-夹支架螺柱NUT (.312-24) Stainless Steel CLAMP BRACKET STUD2
1649930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
168M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
1868298夹紧支架固定螺栓（0.375-16 x 3.250）BOLT (.375-16 x 3.250) CLAMP BRACKET TO TRANSOM2
1968410夹紧支架螺栓垫圈WASHER CLAMP BRACKET BOLT2
1946765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)2
1889673夹紧支架固定螺钉（0.375-16 x 5.00）SCREW (.375-16 x 5.00) CLAMP BRACKET TO TRANSOM2
1928420垫圈 (1-1/4 x 25/64 x 0.125 不锈钢) 夹紧支架螺栓WASHER (1-1/ 4 x 25/64 x .125 SS) CLAMP BRACKET BOLT2
1968300WASHER (..88 x .39 x .06) CLAMP BRACKET BOLT2
2099405夹紧支架螺栓螺母NUT CLAMP BRACKET BOLT4
2082671112螺母（.375-16）NUT (.375-16)4
2169375A1上下减震销螺钉（0.500-20 x 0.625）SCREW (.500-20 x .625) UPPER AND LOWER SHOCK PIN2
2298876STRAP TILT STOP1
2398878下部安装销PIN LOWER MOUNT1
2498875弹簧SPRING1

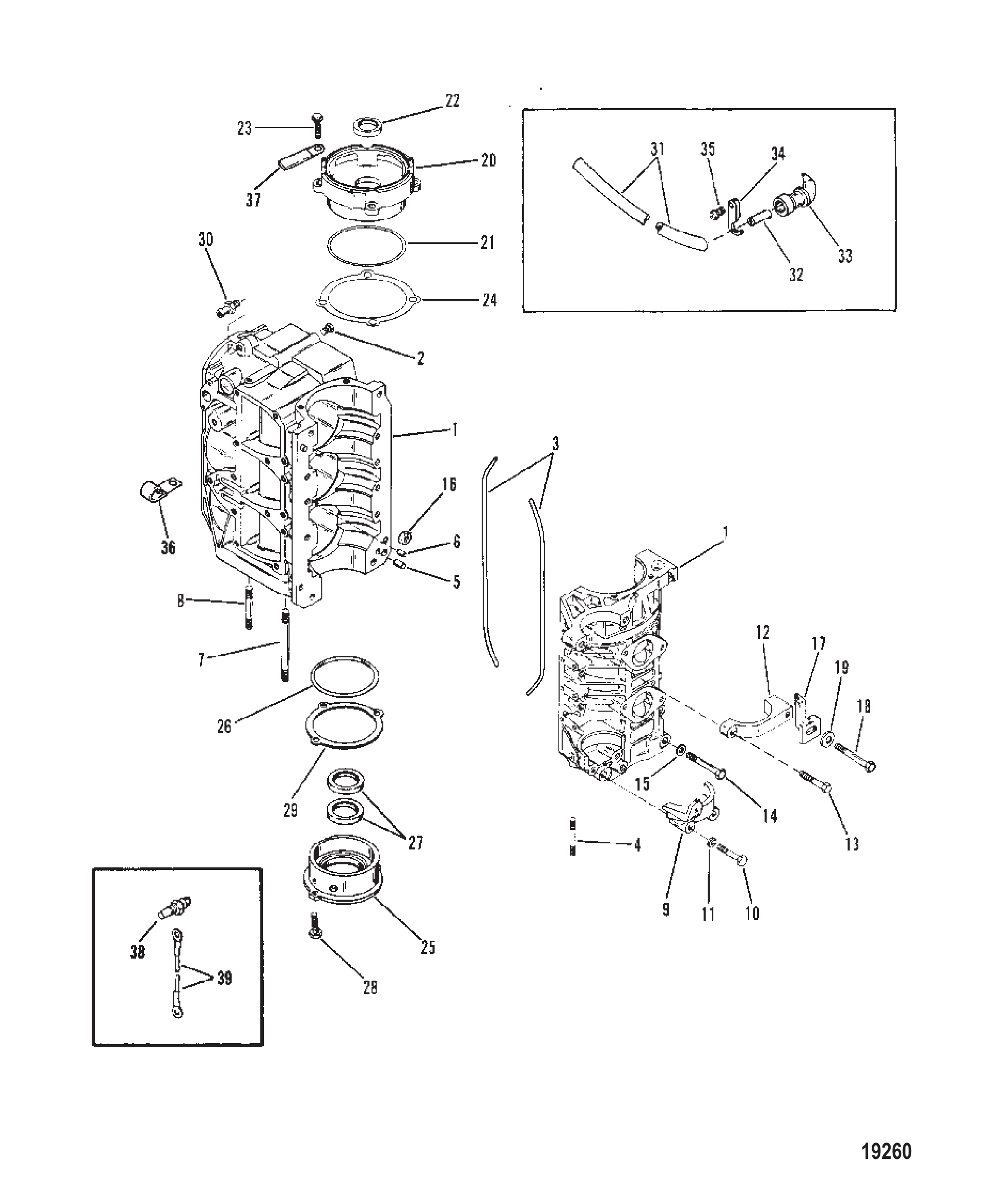

图 38气缸体 Cylinder Block
气缸体 Cylinder Block
REF零件编号中文名称英文名称数量
18362A10气缸体总成CYLINDER BLOCK ASSMEBLY1
18362A11气缸体总成CYLINDER BLOCK ASSMEBLY1
266517曲轴箱通气限流器RESTRICTOR CRANKCASE BLEED2
360286曲轴箱至气缸体衬垫GASKET CRANKCASE TO CYLINDER BLOCK2
468201曲轴箱至驱动轴壳体螺柱(2-1/4英寸)STUD CRANKCASE TO DRIVE SHAFT HOUSING (2-1/4")2
520033定位销曲轴箱至气缸体PIN Dowel CRANKCASE TO CYLINDER BLOCK2
543044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
620323气缸体至主轴承定位销PIN Dowel CYLINDER BLOCK TO MAIN BEARING2
792345气缸体螺柱(4-3/8英寸)STUD CYLINDER BLOCK (4-3/8")2
868202气缸体排气侧螺柱(0.312-24x3.00)STUD (.312-24 x 3.00) CYLINDER BLOCK - EXHAUST SIDE1
868167气缸体传输侧螺柱(0.312-18/0.312-24x2.560)(2-9/16英寸)STUD (.312-18/.312-24 x 2.560) CYLINDER BLOCK - TRANSFER SIDE (2-9/16")1
976975启动马达下盖COVER STARTER MOTOR (BOTTOM)1
1077065启动马达盖螺钉(0.312-18x2)SCREW (.312-18 x 2) STARTER MOTOR COVER2
10815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
1126993启动马达盖螺钉锁紧垫圈(0.312)LOCKWASHER (.312) STARTER MOTOR COVER SCREW4
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1279735A1启动马达上盖COVER STARTER MOTOR (TOP)1
1335385启动马达气缸体螺钉(0.312-18x1-3/4)SCREW (.312-18 x 1-3/4) STARTER MOTOR CYLINDER BLOCK1
1435385曲轴箱至气缸体螺钉(0.312-18x1-3/4)SCREW (.312-18 x 1-3/4) CRANKCASE TO CYLINDER BLOCK11
1473657曲轴箱至气缸体螺丝(.312-18 x 1.50)SCREW (.312-18 x 1.50) CRANKCASE TO CYLINDER BLOCK2
1422039曲轴箱至气缸体螺钉(0.312-24x2.75)SCREW (.312-24 x 2.75) CRANKCASE TO CYLINDER BLOCK2
1526020曲轴箱底部螺钉垫圈WASHER CRANKCASE SCREW (BOTTOM)13
1629250曲轴箱底部螺钉螺母(0.312-24)NUT (.312-24) CRANKCASE SCREW (BOTTOM)2
1779736正时指示器INDICATOR TIMING1
1858414指示器与启动器盖螺钉SCREW INDICATOR AND STARTER COVER1
1956720不锈钢指示器螺钉垫圈(0.330x0.750x0.060)WASHER (.330 x .750 x .060) Stainless Steel INDICATOR SCREW1
206357A1上端盖总成END CAP ASSEMBLY UPPER1
2164966端盖O型圈(3.739x0.070)O-RING (3.739 x .070) END CAP1
2241953端盖密封件SEAL END CAP1
2373169上端盖安装螺钉(1英寸)SCREW UPPER END CAP MOUNTING (1")4
23812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch4
2473644A1上端盖垫片(0.006-8-10)SHIM UPPER END CAP (.006-8-10)AR
256691A1下端盖总成END CAP ASSEMBLY LOWER1
2632546端盖O型圈O-RING END CAP1
2741953端盖密封件SEAL END CAP2
2869034下端盖安装螺钉及锁紧垫圈(0.312-18x1.00)SCREW AND LOCKWASHER (.312-18 x 1.00) LOWER END CAP MOUNTING3
2830225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)3
2920085A1下端盖垫片组(0.002-3-5-10)SHIM SET LOWER END CAP (.002-3-5-10)AR
3029111气缸体软管接头CONNECTOR HOSE TO CYLINDER BLOCK1
30291112接头FITTING1
31774572示流软管(48英寸散装)HOSE (48.00 Inches Bulk) TELL TALE1
3290882示流软管套管SLEEVE TELL TALE HOSE1
3369555示流喷嘴-后支撑架NOZZLE TELL TALE - REAR SUPPORT BRACKET1
3369555001喷嘴NOZZLE1
3470705示流喷嘴卡箍CLAMP TELL TALE NOZZLE1
3548408示流卡箍螺钉(#10-16x0.500)SCREW (#10-16 x .500) TELL TALE CLAMP1
3655098J型卡扣J CLIP3
368M0024808J型夹J-CLIP3
3792041卡扣CLIP1
3812415温度传感器(动力艇)SENDER Temperature (POWERBOAT)1
3988824A7线束总成(31.50英寸)棕褐色(动力艇)CABLE ASSEMBLY (31.50 Inches) Tan (POWERBOAT)1
-13713A87动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-97470A87动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-97470T87船用动力头POWERHEAD MARINE1
-43779A87衬垫套件GASKET SET1
图 39飞轮(55/60海宝/马拉松) FLYWHEEL (55/60 SEAPRO/MARATHON)
飞轮(55/60海宝/马拉松) FLYWHEEL (55/60 SEAPRO/MARATHON)
REF零件编号中文名称英文名称数量
19008A48飞轮FLYWHEEL1
242979螺母(M16)NUT (M16)1
368229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
333001垫圈WASHER1
4832074A4定子STATOR1
54007330螺丝(M5 x 30)SCREW (M5 x 30)4
54013930螺丝(M5 x 30)SCREW (M5 x 30)4
699021A16触发器TRIGGER1

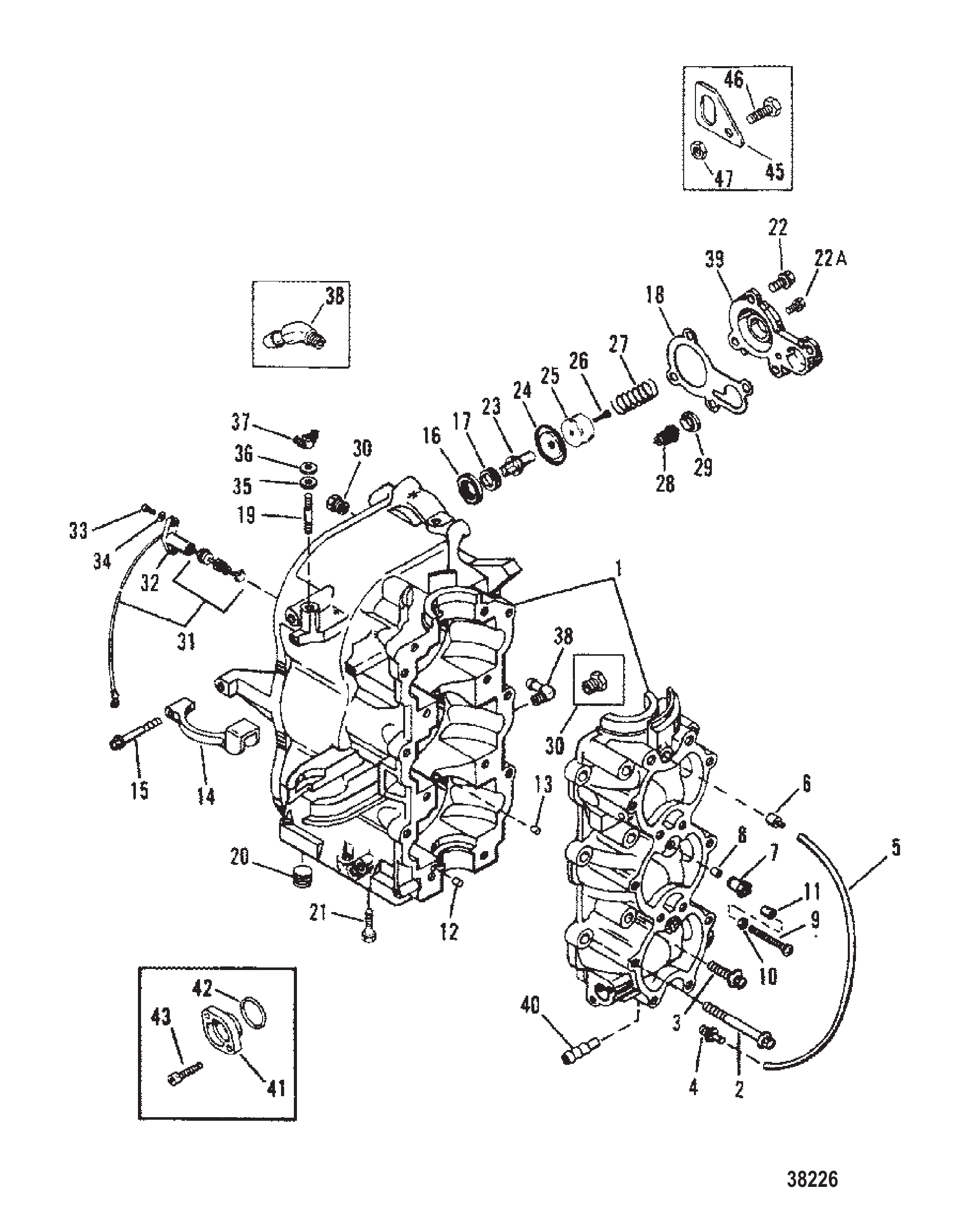

图 40气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE
气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE
REF零件编号中文名称英文名称数量
19755A9气缸体CYLINDER BLOCK1
19755A14气缸体CYLINDER BLOCK1
19755T14气缸体CYLINDER BLOCK1
19755A10气缸体CYLINDER BLOCK1
19755T10气缸体CYLINDER BLOCK1
19755A15气缸体CYLINDER BLOCK1
19755T15气缸体CYLINDER BLOCK1
281742780螺钉(M8 x 80)SCREW (M8 x 80)8
381742730螺钉 (M8 x 30)SCREW (M8 x 30)6
442658止回阀CHECK VALVE1
4426585止回阀CHECK VALVE1
599130122管材(20英尺散装)(16英寸)TUBING (20.00 Feet Bulk) (16")1
5892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
642623止回阀(压入式)CHECK VALVE (PRESS-IN)1
6426233止回阀CHECK VALVE1
7812888A1托架总成CARRIER ASSEMBLY2
842657A1止回阀CHECK VALVE2
842657A3止回阀CHECK VALVE2
9814776调节螺钉(M6 x 55)SCREW Adjusting (M6 x 55)1
10400212螺母(M6)不锈钢NUT (M6) Stainless Steel1
1142942盖帽CAP1
1220033定位销PIN Dowel (LOCATING)1
1243044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
13812870主轴承座中心销PIN Center Main (BEARING RACE)3
138M0084653定位销PIN - DOWEL3
1418597盖板COVER1
1581742750螺钉(M8 x 50)SCREW (M8 x 50)2
1665848托架CARRIER1
1764872护孔环GROMMET1
188128671衬垫GASKET1
188128672衬垫GASKET1
198161941螺柱STUD2
198161949双头螺柱(M6 x 44)STUD (M6 x 44)2
2018598管塞PIPE PLUG4
20185981管塞(.375-18)PLUG Pipe (.375-18)4
21817430110螺钉(M10 x 110)SCREW (M10 x 110)6
2281742720螺钉(M8 x 20)(55号件用3个)SCREW (M8 x 20) (QTY. OF 3 ON 55)4
2240011149不锈钢螺钉(M8 x 25)(55号件用3个)SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)4
22A12896螺钉(#8-18 x .310)SCREW (#8-18 x .310)1
238128821提动阀POPPET1
24812887隔膜DIAPHRAGM1
248128871隔膜DIAPHRAGM1
24812887002隔膜DIAPHRAGM1
2594182垫圈WASHER1
2669570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
2790392弹簧SPRING1
2718336弹簧SPRING1
2742996不锈钢弹簧SPRING (Stainless Steel)1
2875692节温器THERMOSTAT1
2814586节温器THERMOSTAT1
2962386衬垫GASKET1
298M0204714衬垫@4GASKET @41
3032802管塞 (.125-27)PLUG Pipe (.125-27)1
30328022黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
31787992温度传感器SENDER Temperature1
3244552固定座RETAINER1
32889733固定座RETAINER1
338128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
33878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
3456681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
348M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
3549221垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)WASHER (.187 x .500 x .062) Neoprene2
358M0204663垫片@5WASHER @52
3669056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel2
37816872蝶形螺母WING NUT2
3899664弯头ELBOW1
3899664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
3878279弯头ELBOW1
388M0207781弯头ELBOW1
3919074盖板COVER1
39190741盖板COVER1
398M0036859盖板COVER1
4065857连接器CONNECTOR1
4056759倒钩接头FITTING Barbed1
418129961盖板COVER1
418129962盖板COVER1
4248462O型圈 (.614 x .070)O-RING (.614 x .070)1
4340011108不锈钢螺钉 (M5 x 20)SCREW (M5 x 20) Stainless Steel2
45821595吊环LIFTING EYE1
46821616螺钉SCREW1
46821606螺钉SCREW1
47400265螺母 (M8)NUT (M8)1
47401368不锈钢螺母 (M8)NUT (M8) Stainless Steel1
-812867A97衬垫套件GASKET SET1
-811208T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-821744T92动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T93动力头总成(完整)POWERHEAD ASSEMBLY Complete1
图 41化油器联动机构与阻风门电磁阀 CARBURETOR LINKAGE AND CHOKE SOLENOID
化油器联动机构与阻风门电磁阀 CARBURETOR LINKAGE AND CHOKE SOLENOID
REF零件编号中文名称英文名称数量
160549A7阻风门电磁阀总成SOLENOID ASSEMBLY Choke1
226996锁紧垫圈(#10)不锈钢阻风门电磁阀端子LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL1
368219螺母(#10-32)不锈钢阻风门电磁阀端子NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL1
433524螺钉(.312-24 x .620)阻风门电磁阀SCREW (.312-24 x .620) CHOKE SOLENOID1
529250螺母(.312-24)阻风门电磁阀螺钉NUT (.312-24) CHOKE SOLENOID SCREWS2
689008A2阻风门电磁阀柱塞总成PLUNGER ASSEMBLY CHOKE SOLENOID1
776076A1阻风门拉杆总成ROD ASSEMBLY Choke1
890242A1旋钮总成KNOB ASSEMBLY1
935519螺钉(#10-16 x .500)阻风门旋钮线SCREW (#10-16 x .500) WIRE TO CHOKE KNOB1
1020116阻风门旋钮护圈GROMMET CHOKE KNOB1
1252743螺钉(.312-18 x 3.750)化油器至曲轴箱SCREW (.312-18 x 3.750) CARBURETOR TO CRANKCASE4
1377583节流阀杆LEVER THROTTLE1
1460293螺钉(#5-40 x .500)杆至化油器SCREW (#5-40 x .500) LEVER TO CARBURETOR1
1560292A1联轴器总成COUPLING ASSEMBLY1
1689694节流阀轴联轴器键KEY THROTTLE SHAFT COUPLING1
1792500推式螺母滚轮-联轴器PUSH NUT ROLLER - COUPLING1
1860293螺钉(#5-40 x .500)卷边垫圈至联轴器SCREW (#5-40 x .500) ROLLED WASHER TO COUPLING1
1991996A1化油器板总成PLATE ASSEMBLY CARBURETOR1
2071090化油器板密封件SEAL CARBURETOR PLATE1
2120367螺钉板至化油器(7/16")SCREW PLATE TO CARBURETOR (7/16")4
2229245垫圈(.281 x .500 x .060)不锈钢板螺钉WASHER (.281 x .500 x .060) Stainless Steel PLATE SCREW4
228M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4

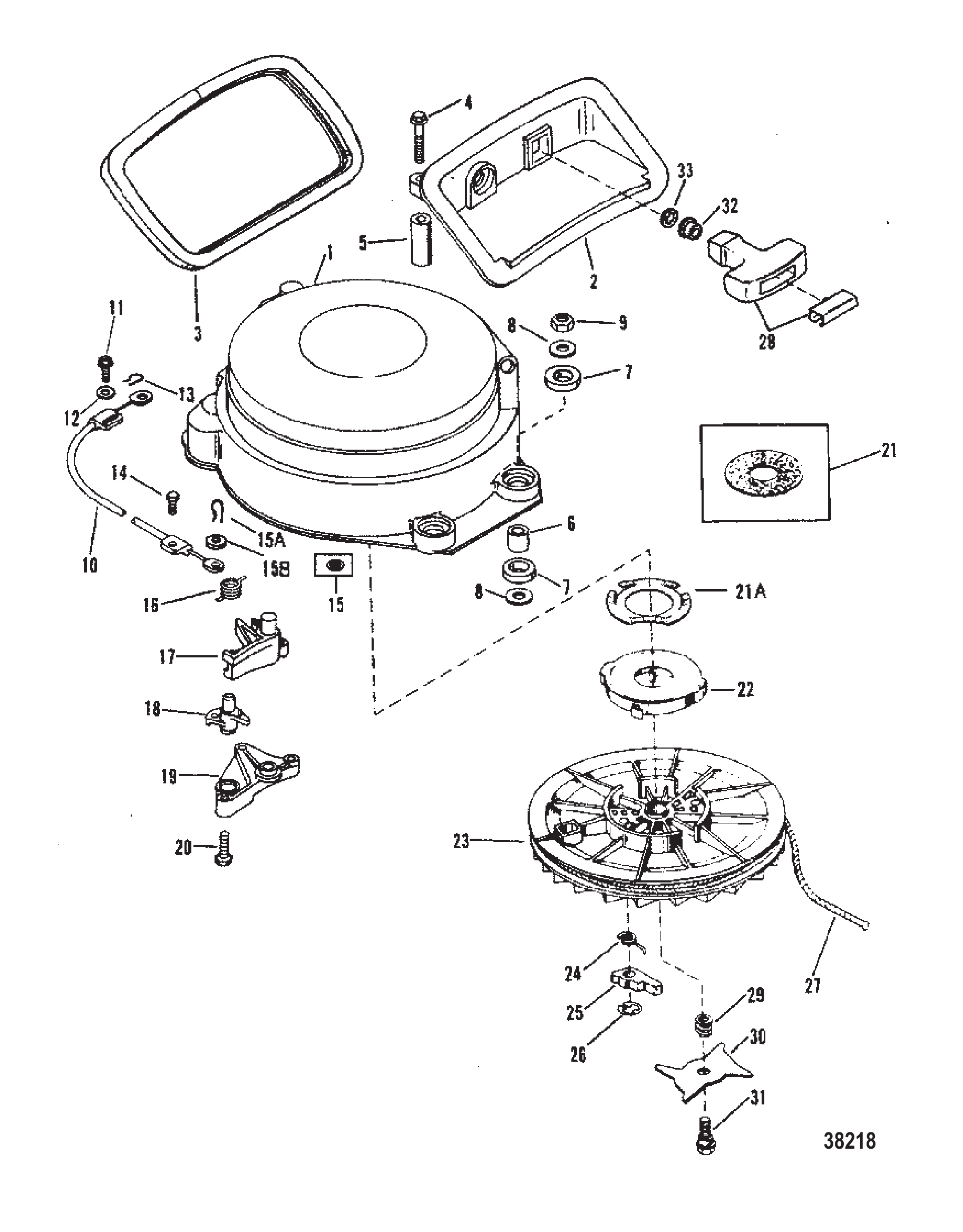

图 42启动器总成(手动)(55) STARTER ASSEMBLY (MANUAL)(55)
启动器总成(手动)(55) STARTER ASSEMBLY (MANUAL)(55)
REF零件编号中文名称英文名称数量
18167285壳体HOUSING1
2816765支架REST1
28167652支架REST1
38136072密封件SEAL1
38M0043161密封件SEAL1
482170475螺钉(M6×75)SCREW (M6 x 75)2
5821702隔套SPACER2
6816086衬套BUSHING4
7815795护孔环GROMMET8
869057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)8
9401196螺母 (M6)NUT (M6)4
108167481联锁电缆CABLE Interlock1
108567541联锁电缆CABLE Interlock1
118214281螺钉(#10-16x0.625)SCREW (#10-16 x .625)1
1273288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
1327769开口销COTTER PIN1
1326811开口销COTTER PIN1
14812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
14878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
15821027推入式螺母(设计I)PUSH NUT (DESIGN I)1
15A27769开口销(设计II)COTTER PIN (DESIGN II)1
15A26811开口销COTTER PIN1
15B35462不锈钢垫圈(0.2656x0.625x0.0625)(设计II)WASHER (.2656 x .625 x .0625) Stainless Steel (DESIGN II)1
-816728A9手拉启动器总成STARTER ASSEMBLY Recoil1
-816728T14手拉启动器总成STARTER ASSEMBLY Recoil1
-816728A10手拉启动器总成STARTER ASSEMBLY Recoil1
-816728T14手拉启动器总成STARTER ASSEMBLY Recoil1
16826791弹簧SPRING1
178166902杠杆LEVER1
188167121凸轮CAM1
18816712T01凸轮CAM1
19816711固定座RETAINER1
208182491螺钉(#10-16 x 1.00)SCREW (#10-16 x 1.00)3
2190478垫块(设计I)PAD (DESIGN I)1
21833161T毛毡垫PAD-FELT1
21A826229弹簧锁紧垫圈(设计II)LOCKWASHER SPRING (DESIGN II)1
2286857弹簧SPRING1
2286857T01弹簧SPRING1
23825269滑轮SHEAVE1
23825269T01启动器滑轮总成SHEAVE STARTR ASU1
2486851弹簧SPRING2
2486851T02弹簧 @2SPRING @22
2586850凸轮CAM2
25868501凸轮CAM2
2686849挡圈RING Retaining2
2686849T01环 @2RING @22
2712066A9绳索ROPE1
2712066Q10启动绳@2ROPE-STARTER@21
2885174A1手柄总成HANDLE ASSEMBLY1
2986852弹簧SPRING1
29868523弹簧SPRING1
3086853凸轮CAM1
3086853T01凸轮CAM1
31826253螺钉(.250-20 x .625)SCREW (.250-20 x .625)1
3242690衬套BUSHING1
328M0183792绳索衬套ROPE BUSHING1
33818853挡圈RING Retaining1

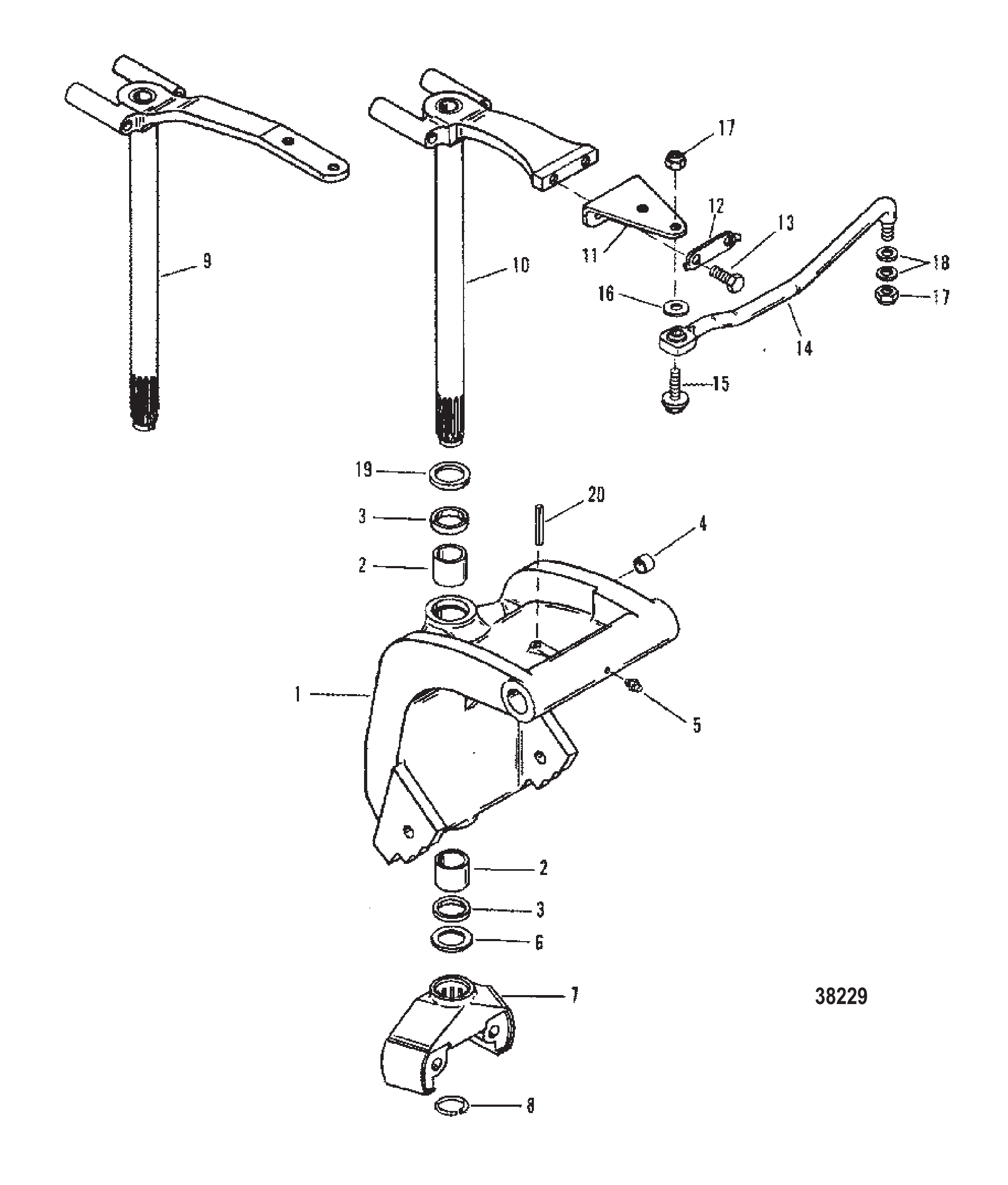

图 43旋转支架（动力配平）(序列号0C160935及以下) Swivel Bracket (Power Trim)(S/N-0C160935 & Below)
旋转支架（动力配平）(序列号0C160935及以下) Swivel Bracket (Power Trim)(S/N-0C160935 & Below)
REF零件编号中文名称英文名称数量
18710A4旋转支架总成SWIVEL BRACKET ASSEMBLY1
18710A18旋转支架总成SWIVEL BRACKET ASSEMBLY1
18710T21灰色旋转支架总成SWIVEL BRACKET ASSEMBLY Gray1
287735SEAL Oil SWIVEL BRACKET (LOWER)1
367669衬套 旋转支架 - 下部和上部BUSHING SWIVEL BRACKET - LOWER AND UPPER2
3818764衬套BUSHING2
433466O形环 旋转支架 - 上部O-RING SWIVEL BRACKET - UPPER1
567668垫片 旋转支架 - 上部SPACER SWIVEL BRACKET - UPPER1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
799608转轴支架衬套BUSHING SWIVEL BRACKET2
7821207衬套BUSHING2
864014SCREW (.250-28 x .500) SWIVEL BRACKET2
999621SCREW (.437-20 x 6.620) STEERING ARM TO UPPER MOUNT2
1028203BUMPER TOP YOKE1
1178854WAVE WASHER BOTTOM YOKE1
1242961T下轭架YOKE Bottom1
1242961T6下轭架YOKE Bottom1
1367684卡环-底部轭架RING Retaining BOTTOM YOKE1
1467670WASHER THRUST - SWIVEL BRACKET1
1599661A2旋转销总成SWIVEL PIN ASSEMBLY1
1617432A6连杆总成LINK ROD ASSEMBLY1
1617432A5连杆总成LINK ROD ASSEMBLY1
1714000SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM1
17849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
1834863NUT (.375-24) STEERING LINK SCREW2
188M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1934931WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM2

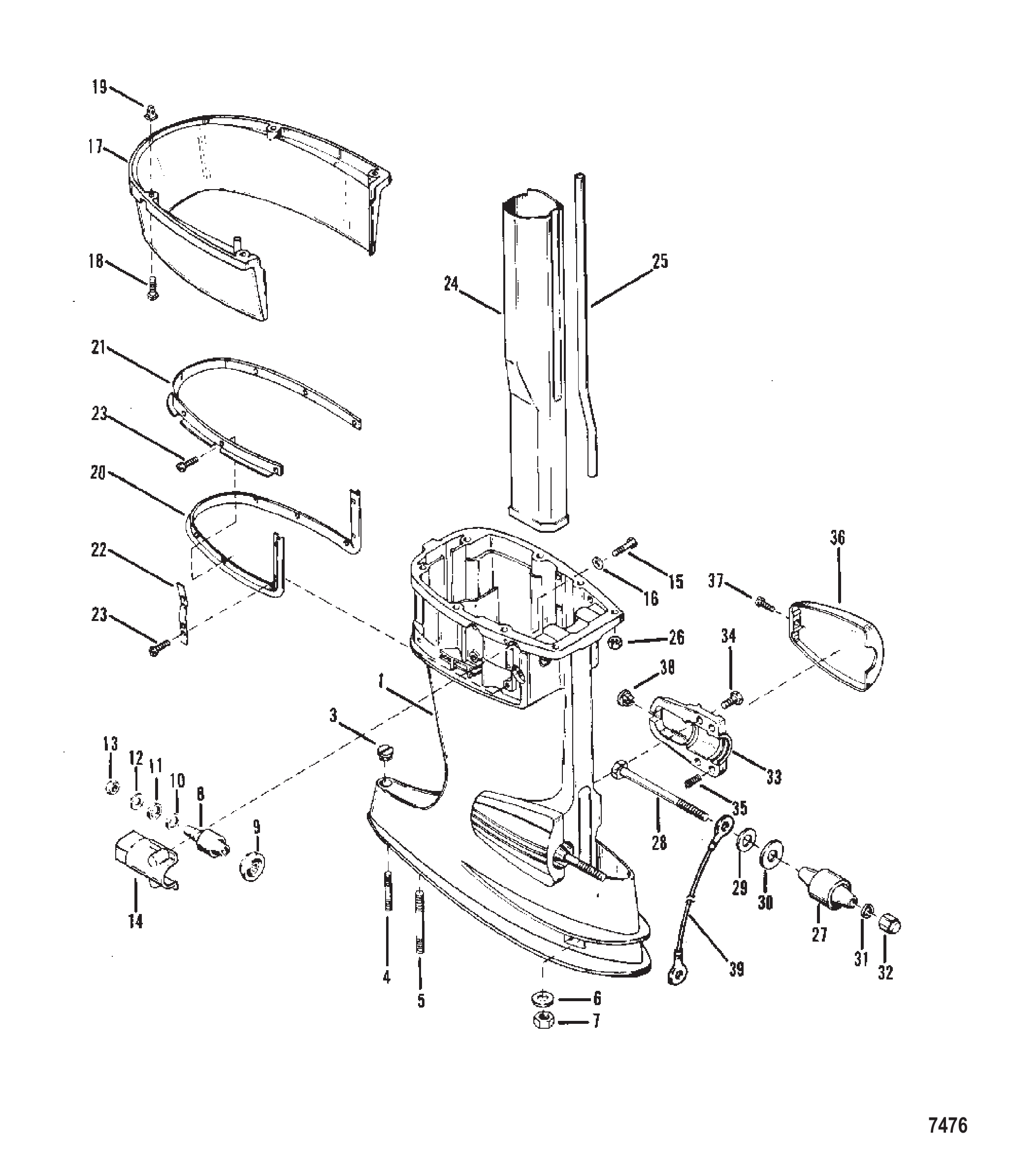

图 44驱动轴壳体 DRIVESHAFT HOUSING
驱动轴壳体 DRIVESHAFT HOUSING
REF零件编号中文名称英文名称数量
1816528A1驱动轴壳体总成(短)(黑色)HOUSING ASSEMBLY Driveshaft (SHORT) (BLACK)1
1816528A2驱动轴壳体总成(短)(灰色)HOUSING ASSEMBLY Driveshaft (SHORT) (GRAY)1
1816528T2驱动轴壳体-灰色HSG-D SHAFT-GRAY1
19864A6驱动轴壳体总成(长)(黑色)HOUSING ASSEMBLY Driveshaft (LONG) (BLACK)1
19864T6驱动轴壳体HOUSING Driveshaft1
19864A7驱动轴壳体总成(长)(灰色)HOUSING ASSEMBLY Driveshaft (LONG) (GRAY)1
19864T7ORD 3510-9864T6ORD 3510-9864T 61
19864A5驱动轴壳体总成(长轴)(TRACKER)HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER)1
19864T6驱动轴壳体HOUSING Driveshaft1
1816528A3驱动轴壳体总成(JET 45)(黑色)HOUSING ASSEMBLY Driveshaft (JET 45) (BLACK)1
1816528A4驱动轴壳体总成(JET 45)(灰色)HOUSING ASSEMBLY Driveshaft (JET 45) (GRAY)1
2903507双头螺栓(M10×60)STUD (M10 x 60)1
2903501双头螺栓(M10×100)(60浮筒-长型)STUD (M10 x 100) (60 PONTOON - LONG)1
28168664双头螺栓(M10×166)(60浮筒-加长型)STUD (M10 x 166) (60 PONTOON - LL)1
28M0034445STUD-M10X1.5-160STUD-M10X1.5-1601
38168663双头螺栓(M10×124)(60浮筒-加长型)STUD (M10 x 124) (60 PONTOON - LL)4
38M0034446STUD-M10X15-124STUD-M10 X 15-1244
44000380螺丝(M10 x 45)SCREW (M10 x 45)4
543042垫圈WASHER4
545176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel4
645175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
68M0214963垫圈WASHER1
713914螺母(M10)NUT (M10)1
740140螺母(M10)NUT (M10)1
885822A7速度计传感器SPEEDOMETER PICK UP1
913035接头FITTING1
98M0181450接头FITTING1
1085822直通接头CONNECTOR Straight1
1085822T直通接头CONNECTOR Straight1
1142973螺栓(M12×154)BOLT (M12 x 154)2
11898835001螺钉(M12 x 154)SCREW (M12 x 154)2
12812892下支架MOUNT Lower2
1242930A1下支架总成MOUNT ASSEMBLY Lower2
1330119垫圈(外径0.875英寸)WASHER (.875 Inch Outside Diameter)2
1488238A2接地线总成CABLE ASSEMBLY Ground1
1488238A10接地线总成CABLE ASSEMBLY Ground1
1543528螺母(M12)NUT (M12)2
158M0204662螺母NUT2
1640011149螺钉 (M8 x 25) 不锈钢SCREW (M8 x 25) Stainless Steel4
1793192卡箍CLAMP2
178M0036730卡箍CLAMP2
1835521螺母NUT4
1967077T黑色盖COVER Black2
198M4500752盖板COVER2
1967077T6盖(灰色)COVER (GRAY)2
1967077F1灰色盖板COVER Gray2
1967077F2盖(TRACKER)COVER (TRACKER)2
198M4500752盖板COVER2
2088417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
21813745隔套SPACER1
218137451垫片(60浮筒-加长型)SPACER (60 PONTOON - LL)1
2243585联轴器COUPLING1
图 45附件 Accessories
附件 Accessories
REF零件编号中文名称英文名称数量
086306A01适配器ADAPTER1
0821400A2动力升降倾斜传感器套件SENDER KIT Power Trim1
08M0074845ORD 8M0098264ORD 8M00982641
092876A8转向安装套件ATTACHING KIT Steering1
092876A9双机延长套件EXTENSION KIT Dual Engine1
0883040A1转速表模块套件TACH MODULE KIT1

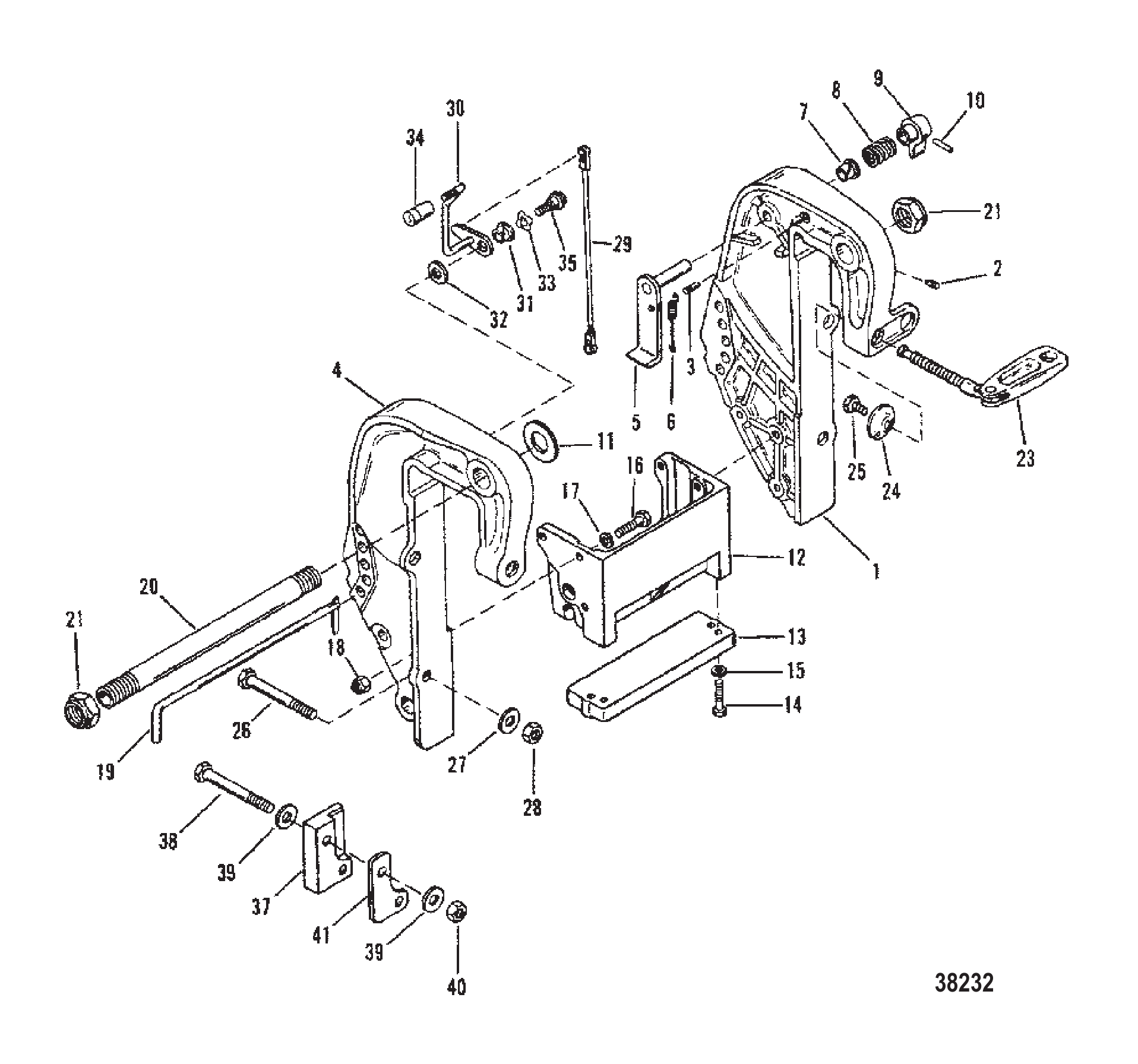

图 46夹紧支架(55)(序列号:0D181999及以下) CLAMP BRACKET (55) (S/N: 0D181999 AND BELOW)
夹紧支架(55)(序列号:0D181999及以下) CLAMP BRACKET (55) (S/N: 0D181999 AND BELOW)
REF零件编号中文名称英文名称数量
1818881A2艉板支架总成(黑色)BRACKET ASSEMBLY Transom (BLACK)1
1818881A3艉板支架总成(灰色)BRACKET ASSEMBLY Transom (GRAY)1
298727润滑脂接头FITTING Grease1
28M0169588润滑脂接头FITTING Grease1
399604槽销PIN Groove1
4818880F1艉板支架(黑色)BRACKET Transom (BLACK)1
4818880F2艉板支架(灰色)BRACKET Transom (GRAY)1
519618A2倾斜锁杆总成(黑色)LEVER ASSEMBLY Tilt Lock (BLACK)1
5893704T01倾斜锁杆LEVER Tilt Lock1
519618A3倾斜锁杆总成(灰色)LEVER ASSEMBLY Tilt Lock (GRAY)1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
699622弹簧SPRING1
765830尼龙衬套NYLINER1
8812708弹簧SPRING1
9812709T旋钮(黑色)KNOB (BLACK)1
9812709旋钮KNOB1
9812709T6旋钮(灰色)KNOB (GRAY)1
9812709旋钮KNOB1
1099615槽销PIN Groove1
1119619垫圈WASHER2
1218486F5锚支架(黑色)BRACKET Anchor (BLACK)1
1218486A08支架套件锚BRACKET KIT Anchor1
1218486T6锚支架(灰色)BRACKET Anchor (GRAY)1
1218486F6锚支架BRACKET Anchor1
13818298A1阳极套件ANODE KIT1
13818298Q1阳极套件ANODE KIT1
144000330螺钉(M6x25)SCREW (M6 x 25)2
148M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
158M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
164000354螺钉 (M8 x 30)SCREW (M8 x 30)5
164000355螺钉(M8×35)SCREW (M8 x 35)1
17400257锁紧垫圈（M8）LOCKWASHER (M8)4
18400635螺母 (M8)NUT (M8)2
18401388不锈钢螺母 (M8)NUT (M8) Stainless Steel2
1949930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
198M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
2019614倾斜管TILT TUBE1
208M0041938倾斜管TILT TUBE1
2130499螺母(7/8-14)NUT (7/8-14)2
21858869螺母 (.875-14)NUT (.875-14)2
23818883A1蝶形螺钉总成THUMB SCREW ASSEMBLY2
24818884垫圈WASHER2
25768041螺钉SCREW2
25768042六角凸肩螺钉SHOULDER SCREW Hex2
26814259螺钉 (.500-20 x 4.00)SCREW (.500-20 x 4.00)4
2728421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
278M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
288M0027784螺母NUT4
2882671117螺母(.500-20)NUT (.500-20)4
291938525连接杆LINK1
298M0084737连接杆LINK1
3019615A4倾斜杆总成LEVER ASSEMBLY Tilt1
3019615A05倾斜杆总成LEVER ASSEMBLY Tilt1
31812707衬套BUSHING1
32815796垫圈WASHER1
3399611波形垫圈WAVE WASHER1
3419621倾斜旋钮TILT KNOB1
348M0007469倾斜旋钮KNOB Tilt1
3519611螺钉(.375-16×0.62)SCREW (.375-16 x .62)1
37812432F2安装支架(右舷)MOUNTING BRACKET (STARBOARD)1
37812432F5安装支架MOUNTING BRACKET1
37812433F3安装支架(左舷)MOUNTING BRACKET (PORT)1
37812433F5安装支架MOUNTING BRACKET1
3888432螺钉(.375-24 x 4.00)SCREW (.375-24 x 4.00)4
3929395垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)8
398M0042641垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)8
40134371螺母 (.375-24)NUT (.375-24)4
40862903螺母 (.375-24)NUT (.375-24)4
41821722垫片SHIM4

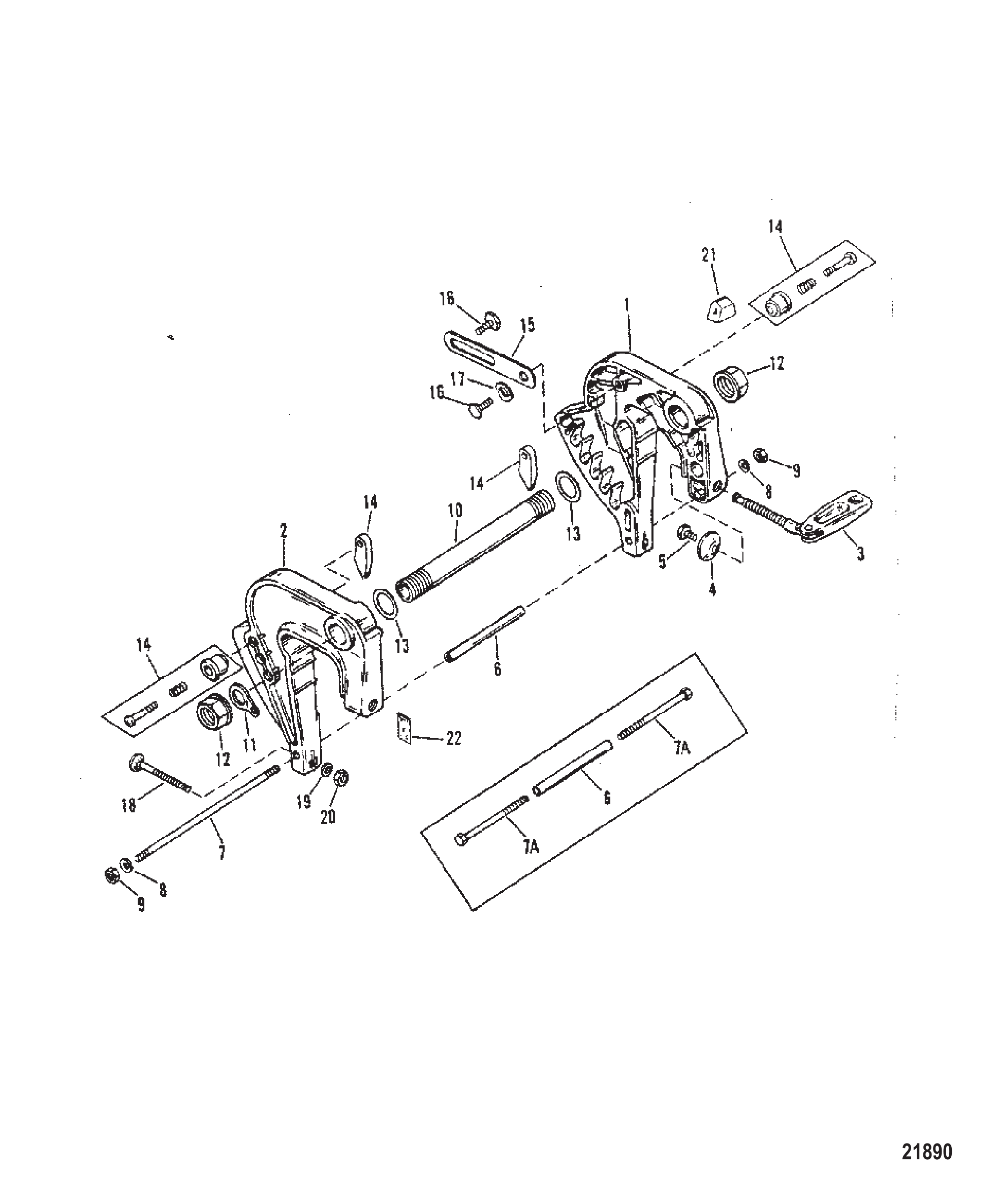

图 47夹紧支架 Clamp Bracket
夹紧支架 Clamp Bracket
REF零件编号中文名称英文名称数量
18894A5夹具支架总成 (左舷) (黑色)CLAMP BRACKET ASSEMBLY (PORT) (BLACK)1
18894A11夹具支架总成CLAMP BRACKET ASSEMBLY1
18894A6夹具支架总成 (左舷) (灰色)CLAMP BRACKET ASSEMBLY (PORT) (GRAY)1
18894A12夹具支架总成CLAMP BRACKET ASSEMBLY1
28892A3夹具支架总成 (右舷) (黑色)CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)1
28894A11夹具支架总成CLAMP BRACKET ASSEMBLY1
28892A4夹具支架总成 (右舷) (灰色)CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)1
28894A12夹具支架总成CLAMP BRACKET ASSEMBLY1
392767A1蝶形螺丝总成 (14 mm)THUMB SCREW ASSEMBLY (14 mm)2
392767A3蝶形螺丝总成 (16 mm)THUMB SCREW ASSEMBLY (16 mm)2
473719蝶形螺丝垫圈WASHER THUMB SCREW2
4818884垫圈WASHER2
5768041垫圈固定螺丝SCREW WASHER ATTACHING2
5768042六角凸肩螺钉SHOULDER SCREW Hex2
643431夹紧支架螺柱隔套SPACER CLAMP BRACKET STUD1
6818539隔套SPACER1
68M0084719隔套SPACER1
742129夹紧支架螺柱STUD CLAMP BRACKET1
7A4000333螺钉(M6 x 40)SCREW (M6 x 40)2
8400256夹紧支架螺柱防松垫圈(M6)LOCKWASHER (M6) CLAMP BRACKET STUD2
9400212夹紧支架螺柱不锈钢螺母(M6)NUT (M6) Stainless Steel CLAMP BRACKET STUD2
1042078倾斜管TILT TUBE1
1130954安全卡扣CLIP SAFETY1
118M0085928卡扣CLIP1
1293164倾斜管螺母(.875)NUT (.875) TILT TUBE2
1371421倾斜管尼龙垫圈WASHER Nylon TILT TUBE2
1442390A1倾斜回位杆总成LEVER ASSEMBLY Tilt Return2
1590901倾斜限位带-左舷侧STRAP TILT STOP - PORT SIDE1
1642498限位带至夹紧支架螺钉(M6x1.0)SCREW (M6 x 1.0) STRAP TO CLAMP BRACKET2
1731030倾斜限位带螺钉波形垫圈WAVE WASHER TILT STOP STRAT SCREW1
1843216夹紧支架至艉板螺栓(.250-20x3.50)BOLT (.250-20 x 3.50) CLAMP TO TRANSOM2
1967983夹紧支架螺栓垫圈WASHER CLAMP BRACKET BOLT2
21814427倾斜锁定滑块(新设计)SHUTTLE TILT LOCK (NEW DESIGN)1
2212869倾斜位置标贴DECAL Tilt Position1

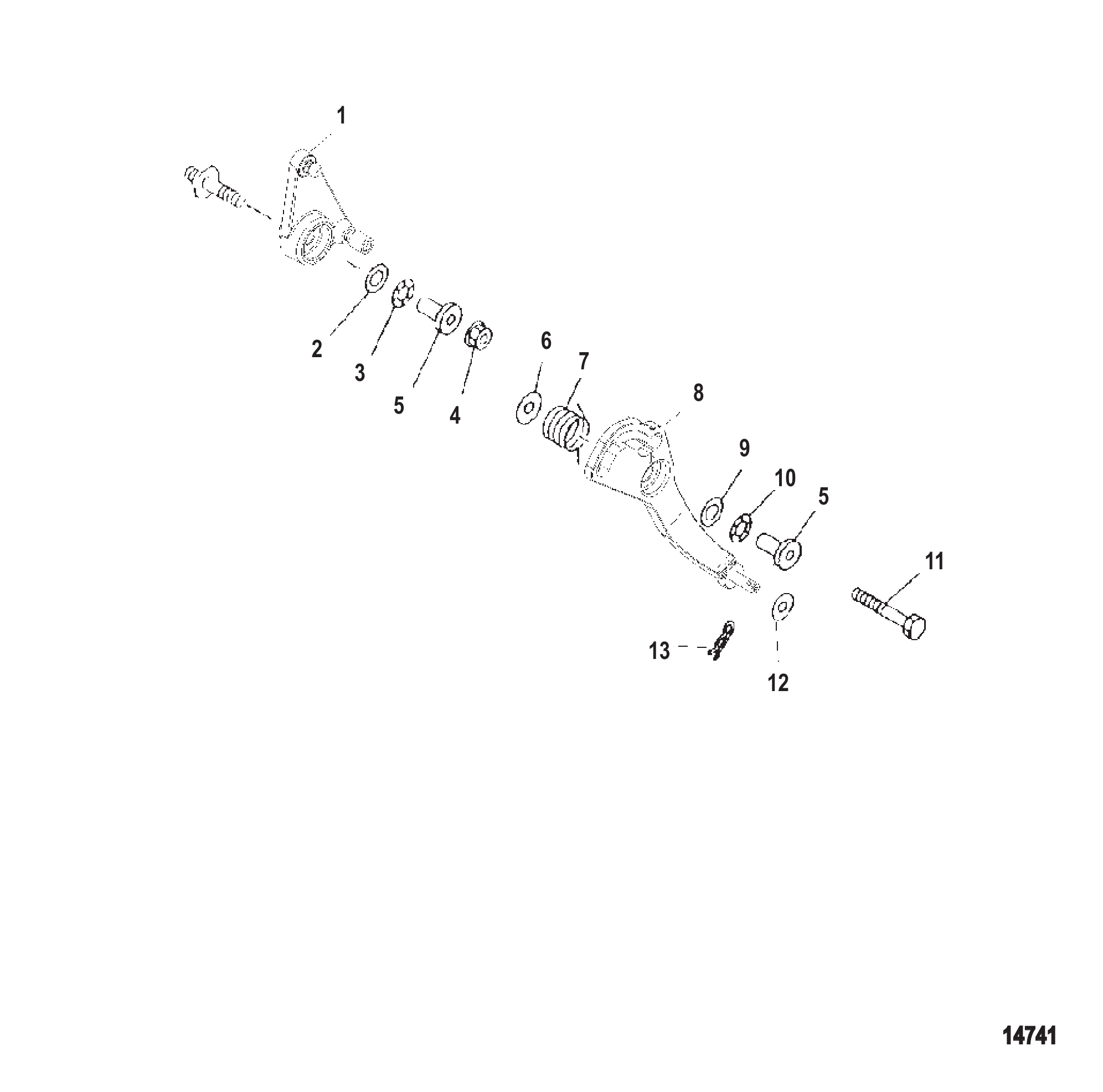

图 48油门杆及联动装置 Throttle Lever and Linkage
油门杆及联动装置 Throttle Lever and Linkage
REF零件编号中文名称英文名称数量
1878550油门杆LEVER Throttle1
284974M垫圈WASHER1
381868M波形垫圈WAVE WASHER1
48528162螺母NUT1
5881378轴环COLLAR2
694524M垫圈WASHER1
7804343弹簧SPRING1
8878548节气门控制杆LEVER Throttle Control1
984974M垫圈WASHER1
1081868M波形垫圈WAVE WASHER1
11881375螺栓 (M6 x 30)BOLT (M6 x 30)1
1235459垫圈WASHER1
13859746开口销COTTER PIN1
图 49手动倾斜组件(设计II型) MANUAL TILT COMPONENTS (DESIGN II)
手动倾斜组件(设计II型) MANUAL TILT COMPONENTS (DESIGN II)
REF零件编号中文名称英文名称数量
-830050A2手动配平总成MANUAL TRIM ASSEMBLY1
-8M0118570手动配平总成MANUAL TRIM ASSEMBLY1
-832020A2手动配平总成MANUAL TRIM ASSEMBLY1
-832020T3手动调整MANUAL TRIM1
1813427A1减震杆总成SHOCK ROD ASSEMBLY1
18M0118572减震杆套件SHOCK ROD KIT1
1813427A2减震杆总成SHOCK ROD ASSEMBLY1
1893942A01减震杆套件SHOCK ROD KIT1
2809872A1气缸O型圈套件O-RING KIT Cylinder1
2893917A01O型圈修理包REBUILD KIT O-Ring1
3813430A1配平记忆活塞总成PISTON ASSEMBLY Trim Memory1
3893903A01活塞套件PISTON KIT1
4811224A1气缸总成CYLINDER ASSEMBLY1
4893918A01气缸套件CYLINDER KIT1
5813433A2螺钉与密封套件SCREW AND SEAL KIT1
5893919A01螺丝/密封套件SCREW/SEAL KIT1
6813454A2蓄能器总成ACCUMULATOR ASSEMBLY1
6893920A01蓄能器套件ACCUMULATOR KIT1
7813455A4阀体总成VALVE BODY ASSEMBLY1
78M0118574阀体总成VALVE BODY ASSEMBLY1
8813457A3凸轮套件CAM KIT1
8893923A01凸轮套件CAM KIT1
9809881A1速度阀套件VALVE KIT Velocity1
9893924A01阀套件VALVE KIT1
10809882A1维修套件REPAIR KIT1
10893925A01维修套件REPAIR KIT1
-809880A2O型圈套件O-RING KIT1
-893922A01O型圈套件O-RING KIT1
1119607销PIN2
12821539三叶销PIN Trilobe2

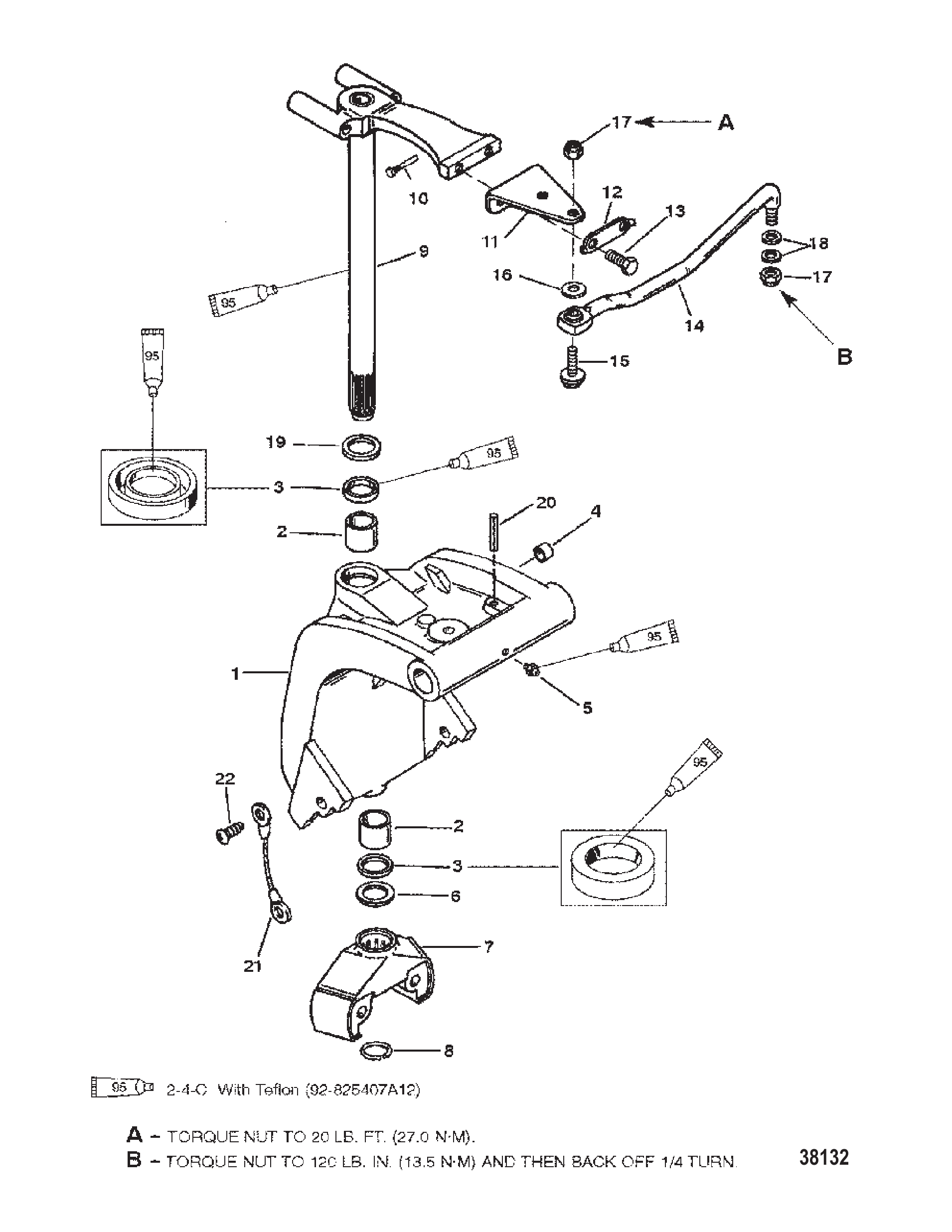

图 50旋转支架(序列号:0D182000及以上) SWIVEL BRACKET (S/N: 0D182000 AND UP)
旋转支架(序列号:0D182000及以上) SWIVEL BRACKET (S/N: 0D182000 AND UP)
REF零件编号中文名称英文名称数量
1822864A1旋转支架(短)(黑色)SWIVEL BRACKET (SHORT) (BLACK)1
1822864A2旋转支架总成(短)(灰色)SWIVEL BRACKET ASSEMBLY (SHORT) (GRAY)1
1822864A1旋转支架SWIVEL BRACKET1
1822863A1旋转支架(长)(黑色)SWIVEL BRACKET (LONG) (BLACK)1
1822863A2旋转支架总成(长)(灰色)SWIVEL BRACKET ASSEMBLY (LONG) (GRAY)1
1822863A3旋转支架总成(长)(TRACKER)SWIVEL BRACKET ASSEMBLY (LONG) (TRACKER)1
2821124轴承BEARING2
332911油封SEAL Oil2
419606轴承BEARING2
574036润滑脂接头FITTING Grease3
58M0169589润滑脂接头FITTING Grease3
625176垫圈WASHER1
719654T底部轭架(黑色)YOKE Bottom (BLACK)1
719654T1下轭架YOKE Bottom1
719654T6底部轭架(灰色)YOKE Bottom (GRAY)1
719654T7ORD 19654T 1ORD 19654T 11
719654F1底部轭架（追踪者）YOKE Bottom (TRACKER)1
877415挡圈RETAINING RING1
9812897A7旋转销总成(短)(黑色)SWIVEL PIN ASSEMBLY (SHORT) (BLACK)1
9812897A19旋转销总成SWIVEL PIN ASSEMBLY1
9812897A8旋转销总成(短)(灰色)SWIVEL PIN ASSEMBLY (SHORT) (GRAY)1
9812897A20ORD 17-812897A19ORD 17-812897A191
9812896A14旋转销总成(长)(黑色)SWIVEL PIN ASSEMBLY (LONG) (BLACK)1
9812896A22旋转销总成SWIVEL PIN ASSEMBLY1
9812896A15旋转销总成(长)(灰色)SWIVEL PIN ASSEMBLY (LONG) (GRAY)1
9812896A23旋转销-GR-LGSWIVEL PIN-GR-LG1
9812896A16旋转销总成(长)(TRACKER)SWIVEL PIN ASSEMBLY (LONG) (TRACKER)1
108219871联动销PIN Co-Pilot1
11816667T支架（黑色）BRACKET (BLACK)1
118M0184092支架BRACKET1
11816667F3支架（灰色）BRACKET (GRAY)1
118M0184092支架BRACKET1
11816667F2支架(TRACKER)BRACKET (TRACKER)1
118M0184092支架BRACKET1
12816669锁紧垫圈TAB WASHER1
128M0009820锁紧垫圈TAB WASHER1
134000377螺钉 (M10 x 30)SCREW (M10 x 30)2
14196081连杆(右舷)LINK ROD (STARBOARD)1
1419608A14发动机转向安装套件ATTACHING KIT Engine Steering1
14196091连杆(左舷)LINK ROD (PORT)1
1419609A6转向安装套件ATTACHING KIT Steering1
1590041螺钉(.375-24 x 1.620)SCREW (.375-24 x 1.620)1
15856680螺钉(.375-24 x 1.62)SCREW (.375-24 x 1.62)1
1671970垫圈(0.390×0.546×0.12)WASHER (.390 x .546 x .12)1
168M0109680垫圈(0.39×0.546×0.12)WASHER (.39 X .546 X.12)1
1734863螺母 (.375-24)NUT (.375-24)2
178M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1837828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
1952865垫圈WASHER1
20823876销(手柄)PIN (HANDLE)1
2188238A2接地线总成CABLE ASSEMBLY Ground1
2188238A10接地线总成CABLE ASSEMBLY Ground1
2241508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
图 51启动电机 Starter Motor
启动电机 Starter Motor
REF零件编号中文名称英文名称数量
-44369A1启动电机总成STARTER MOTOR ASSEMBLY1
190643驱动套件DRIVE KIT1
268575驱动总成DRIVE ASSEMBLY1
2685753驱动总成DRIVE ASSEMBLY1
375660驱动端板PLATE DRIVE END1
495686贯穿螺栓BOLT THRU2
611957电枢ARMATURE1
775384电刷/弹簧套件BRUSH/SPRING KIT1
7898265016电刷/弹簧套件BRUSH/SPRING KIT1
857387绝缘输入螺柱衬套BUSHING INSULATING-INPUT STUD1
938013输入柱垫圈WASHER INPUT STUD1
1026992不锈钢输入柱锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel INPUT STUD1
1120890输入柱螺母(.250-20)NUT (.250-20) INPUT STUD1
1261787电刷架HOLDER BRUSH2
12898265014电刷支架HOLDER-BRUSH2
1368586电刷及支架至端盖螺钉SCREW BRUSH AND HOLDER TO CAP2
1495669换向器端盖END CAP COMMUTATOR1
1475383端盖END CAP1
图 52自动混合装置 Auto-Blend
自动混合装置 Auto-Blend
REF零件编号中文名称英文名称数量
-130194自动混合装置AUTO BLEND ASSEMBLY1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
316619机油箱盖CAP OIL TANK1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
716620安装支架套件BRACKET KIT Mounting1
813993箍带BAND1
913983支架(左)BRACKET (LEFT)1
1013984支架(右)BRACKET (RIGHT)1
1116613盖板COVER1
1213985机油滤清器/传感器套件FILTER/SENSOR KIT Oil1
1318576燃油滤清器套件FILTER KIT Fuel1
1413992乙烯基软管VINYL TUBE1
1516618机油滤网STRAINER Oil1
1616615止回阀套件CHECK VALVE KIT1
1716621安装板PLATE1
1819265模块套件MODULE KIT1
1916623支架套件BRACKET KIT1
2016616衬垫套件GASKET KIT1
2118679燃油滤清器螺钉SCREW FUEL FILTER2
2218680滤清器螺钉垫圈WASHER FILTER SCREW2
2318752O型圈'O'RING2
2414585A1自动混合线束总成HARNESS ASSEMBLY AUTO-BLEND1

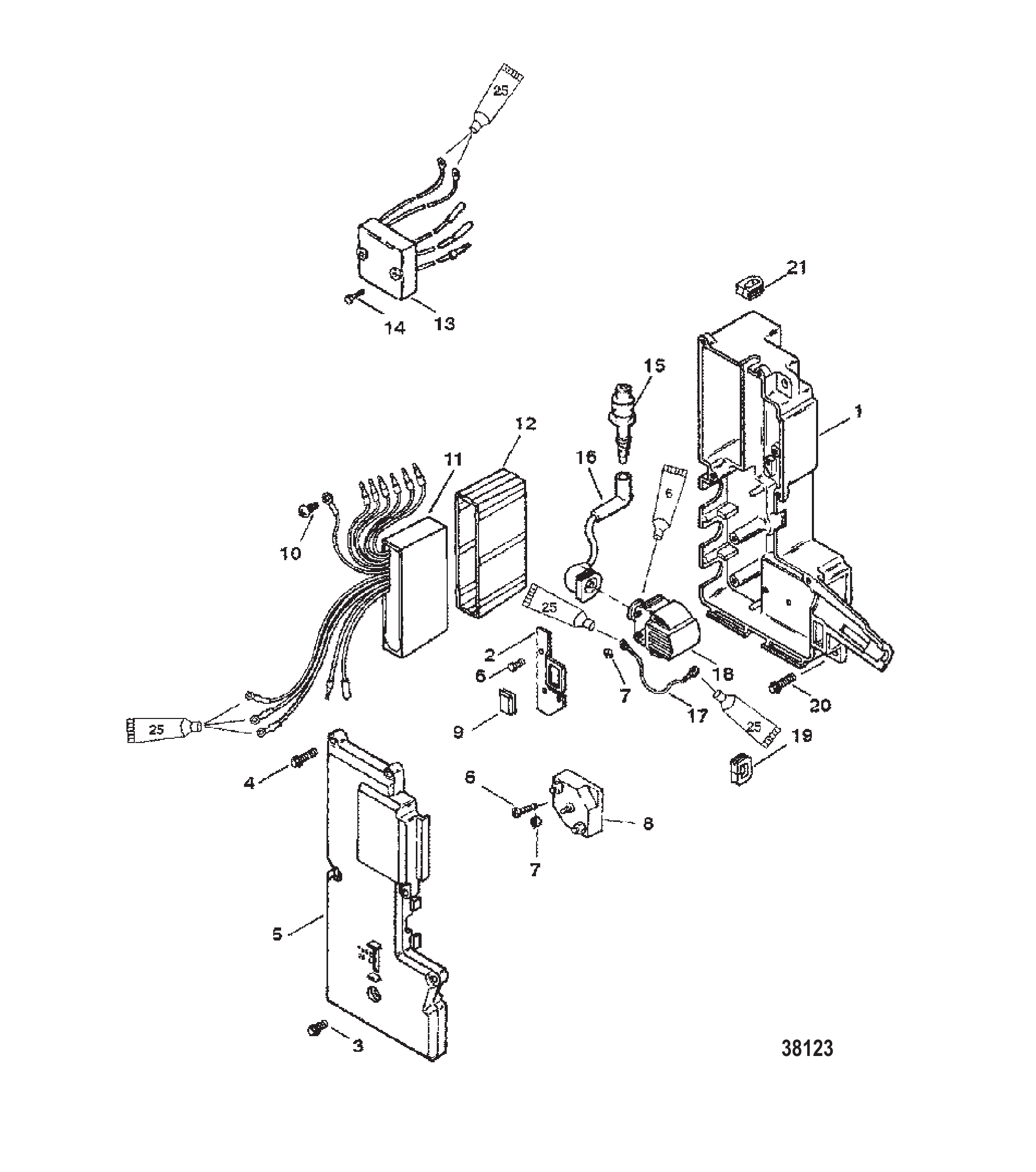

图 53电气组件(55) ELECTRICAL COMPONENTS (55)
电气组件(55) ELECTRICAL COMPONENTS (55)
REF零件编号中文名称英文名称数量
119745A8电器板总成PLATE ASSEMBLY Electrical1
2814674A1固定板总成PLATE ASSEMBLY Retaining1
38240631螺钉SCREW1
4824063螺钉SCREW5
340011106不锈钢螺钉(M5x13)SCREW (M5 x 13) Stainless Steel1
440011109螺钉 (M5 x 25) 不锈钢SCREW (M5 x 25) Stainless Steel5 OR 6
5814795T盖板COVER1
640007107螺钉(M5×16)SCREW (M5 x 16)4
745076黄铜螺母(#10-32)NUT (#10-32) Brass8
817602A2端子排TERMINAL BLOCK1
817602T02接线端子总成TERMINAL BLOCK ASSEMBLY1
9816031堵头PLUG1
1040007106螺钉 (M5 x 13)SCREW (M5 x 13)1
1119052A5开关盒总成SWITCHBOX ASSEMBLY1
1119052A8开关盒总成SWITCHBOX ASSEMBLY1
12813643护套BOOT1
13821889A12限速器SPEED LIMITER1
13821889A31转速限制器REV LIMITER1
-11149A10适配器线束总成(3.5英寸)HARNESS ASSEMBLY Adapter (3-1/2")1
-823147A6限速器线束总成(15英寸)HARNESS ASSEMBLY Speed Limiter (15")1
1440011109螺钉 (M5 x 25) 不锈钢SCREW (M5 x 25) Stainless Steel2
15136862火花塞（NGK #BU8H）SPARK PLUG (NGK #BU8H)3
1513686QNGK BU8H @10NGK BU8H @103
1514103568火花塞(NGK #BUZ8H-加拿大/比利时)SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)3
15896329885SP #L6VC @4SP #L6VC @43
158167372火花塞(NGK BP8H-N-10)SPARK PLUG (NGK #BP8H-N-10)3
15816737QNGK BP8HN-10@10NGK BP8HN-10@103
158168372火花塞(NGK #BPZ8H-N-10-加拿大)SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)3
15938SP #QL78YC @4SP #QL78YC @43
16821945A52火花塞导线套件SPARK PLUG LEAD KIT1
1788807A6黑色电缆总成 (3.50 英寸)CABLE ASSEMBLY (3.50 Inches) Black3
187370A13点火线圈总成COIL ASSEMBLY Ignition3
188M0230859点火线圈总成COIL IGNITION ASY3
187370A19点火线圈总成COIL ASSEMBLY Ignition3
188M0230859点火线圈总成COIL IGNITION ASY3
19813741护孔环GROMMET1
2040011149螺钉 (M8 x 25) 不锈钢SCREW (M8 x 25) Stainless Steel3
21813742护孔环GROMMET1
图 54动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
REF零件编号中文名称英文名称数量
-99186T泵与电机总成PUMP AND MOTOR1
112659机架与磁场套件FRAME AND FIELD KIT1
1991861动力升降泵总成PUMP ASSEMBLY Power Trim1
212665电刷弹簧套件SPRING KIT Brush1
313506电刷卡套件BRUSH CARD KIT1
3991861动力升降泵总成PUMP ASSEMBLY Power Trim1
412662泵与端架套件PUMP AND END FRAME KIT1
4991861动力升降泵总成PUMP ASSEMBLY Power Trim1
512663泵密封套件SEAL KIT Pump1
5126631泵密封套件SEAL KIT Pump1
612660端架套件END FRAME KIT1
6991861动力升降泵总成PUMP ASSEMBLY Power Trim1
712661电枢套件ARMATURE KIT1
7991861动力升降泵总成PUMP ASSEMBLY Power Trim1
812664贯穿螺栓套件THRU BOLT KIT1
图 55顶罩 TOP COWL
顶罩 TOP COWL
REF零件编号中文名称英文名称数量
1827328T9顶盖总成TOP COWL ASSEMBLY1
1827328T10顶盖总成TOP COWL ASSEMBLY1
2821256T1黑色进气口INLET Air - Black1
2821256T03进气口INLET Air1
2821256T2银色进气口INLET Air - Silver1
382130016螺钉(M6 x 16)SCREW (M6 x 16)4
4859356A1隔音毯套装SOUND BLANKET KIT1
4859356A02隔音毯套装SOUND BLANKET KIT1
5NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
6NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
7NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket2
8823865盖塞CAP PLUG2
9831207T10手柄HANDLE1
9831207A16罩盖锁手柄套件HANDLE KIT Cowl Latch1
10812707衬套BUSHING2
11831214隔套SPACER1
1212134波形垫圈WASHER Wave1
13F481777凸轮锁轴CAM Latch Shaft1
138M0001081凸轮CAM1
144002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
148M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
151993716螺钉(M6 x 16)SCREW (M6 x 16)1
16821249M2前支架BRACKET Front3
168M0036792支架BRACKET3
17815477缓冲器锁扣BUMPER Latch3
1829245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
188M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
19401366螺母(M6)不锈钢NUT (M6) Stainless Steel6
208237951挡圈RING Retaining1
21815263滚轮ROLLER1
218M0207770滚轮@3ROLLER @31
228155381滚动销PIN Roll1
2329245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
238M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
24401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2547341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2612066Q9绳索ROPE1
2612066Q10启动绳@2ROPE-STARTER@21

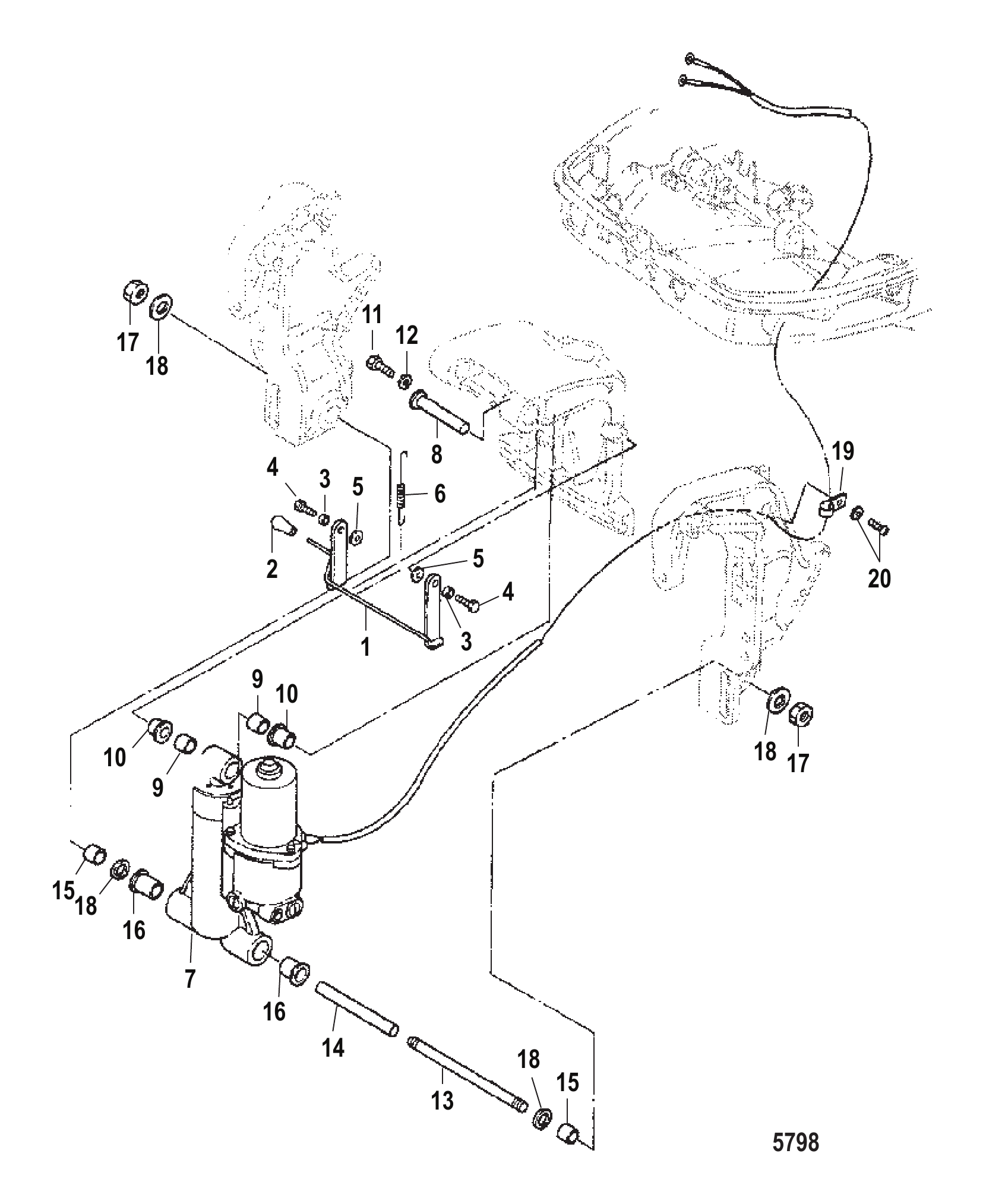

图 56动力升降 Power Trim
动力升降 Power Trim
REF零件编号中文名称英文名称数量
18251123倾斜挡块STOP Tilt1
18251124倾斜挡块STOP Tilt1
18251123倾斜挡块STOP Tilt1
216208握把GRIP1
216207A3倾斜止动套件TILT STOP KIT1
39528616轴环COLLAR2
482304216螺栓BOLT2
48M0062251螺栓BOLT2
5168261垫圈WASHER2
6953837弹簧SPRING1
7851873A1动力升降总成POWER TRIM ASSEMBLY1
8851874上气缸销PIN Upper Cylinder1
88M0115482气缸销PIN-CYLINDER1
98113682套筒SLEEVE2
10161765衬套BUSHING2
1116223螺栓(M6x14)BOLT (M6 x 14)1
1216238垫圈WASHER1
12898101937垫圈WASHER1
138518741下气缸销PIN Lower Cylinder1
149528617轴环COLLAR1
158113682套筒SLEEVE2
16161766衬套BUSHING2
1616176011衬套BUSHING2
1785372219螺母NUT2
188518681垫圈WASHER4
188M0060184垫圈WASHER4
1917169卡箍CLAMP1
208555445螺钉SCREW1

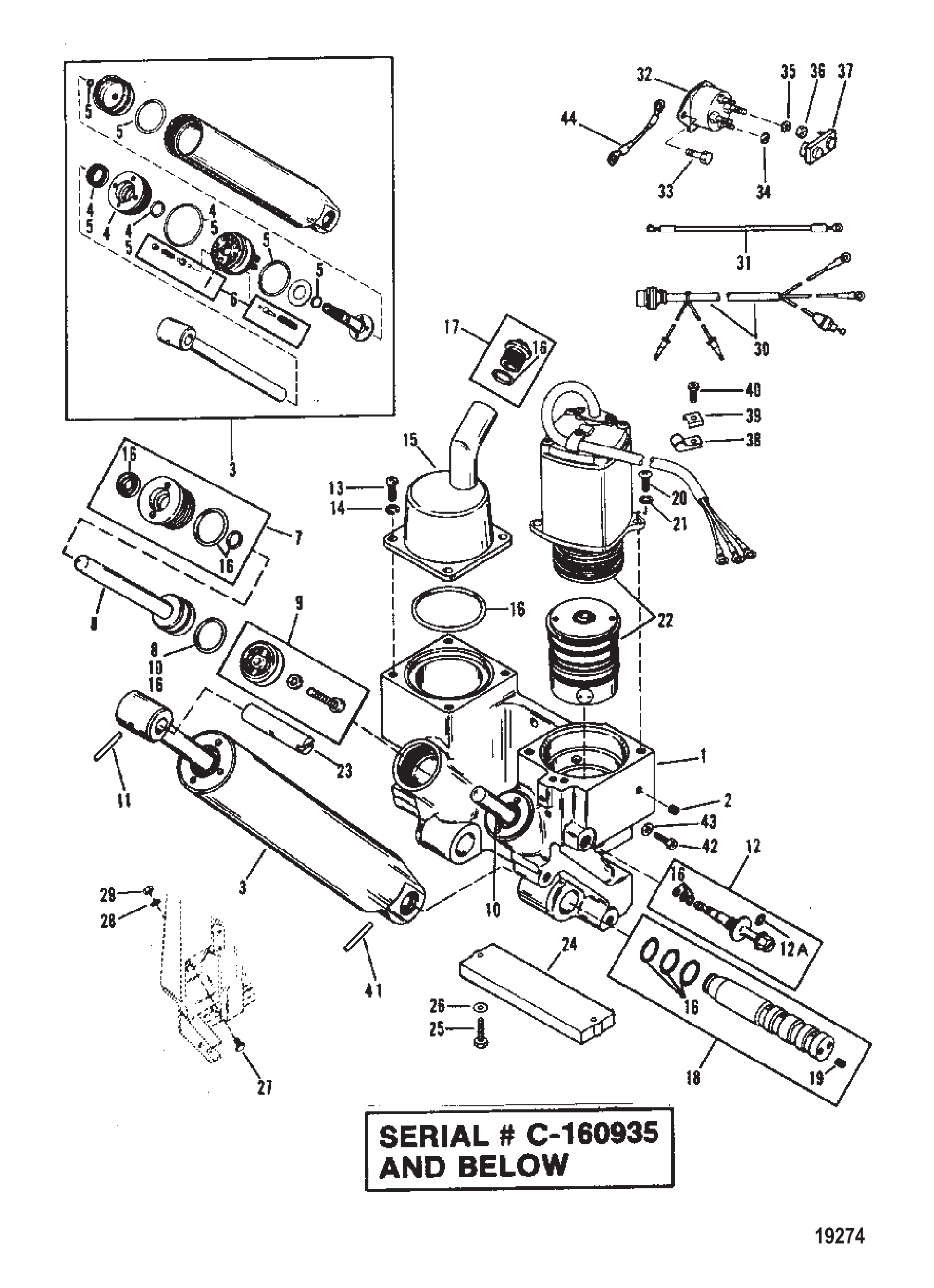

图 57动力配平组件（序列号-0C160935及以下） Power Trim Components (S/N-0C160935 & Below)
动力配平组件（序列号-0C160935及以下） Power Trim Components (S/N-0C160935 & Below)
REF零件编号中文名称英文名称数量
199659A21歧管总成 (黑色)MANIFOLD ASSEMBLY (BLACK)1
199659A22歧管总成 (灰色)MANIFOLD ASSEMBLY (GRAY)1
299616管塞歧管PIPE PLUG MANIFOLD11
256800管塞 (.0625-27)PLUG Pipe (.0625-27)11
341493A9配平油缸总成 (黑色)TRIM CYLINDER ASSEMBLY (BLACK)1
341493A6配平油缸总成 (灰色)TRIM CYLINDER ASSEMBLY (GRAY)1
441492A1导向器总成GUIDE ASSEMBLY1
541478A1维修套件REPAIR KIT1
641482A3止回阀套件CHECK VALVE KIT1
799638A1导向总成装饰杆GUIDE ASSEMBLY TRIM ROD2
78M0021648端盖总成END CAP ASSEMBLY2
843397A7活塞总成端口PISTON ASSEMBLY PORT1
912184A1升降过滤器总成TRIM FILTER ASSEMBLY1
1043398A3PISTON/ROD ASSEMBLY Power Trim STARBOARD1
10878414T01活塞总成PISTON ASSEMBLY1
1113794沟槽销-升降油缸(上)PIN Groove TRIM CYLINDER (UPPER)1
11821539三叶销PIN Trilobe1
12812843A1阀门总成VALVE ASSEMBLY1
12893929A01安全阀套件VALVE KIT Relief1
12A812844E形环 阀门总成E RING VALVE ASSEMBLY1
12A815949001E形环E-RING1
134000327螺钉(M6x14)-盖板SCREW (M6 x 14) COVER4
1443450盖板螺丝垫圈WASHER COVER SCREW4
144002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
1599642歧管盖COVER MANIFOLD1
1648462A2O型圈套件O-RING KIT1
1648462A4O型圈套件O RING KIT1
1799609A1塞子总成PLUG ASSEMBLY1
1899641A1轴总成SHAFT ASSEMBLY1
1899641A02轴总成SHAFT ASSY1
1999616轴管塞PIPE PLUG SHAFT2
1956800管塞 (.0625-27)PLUG Pipe (.0625-27)2
204008820螺钉(M6x20)-泵与马达SCREW (M6 x 20) PUMP AND MOTOR2
21400256锁紧垫圈 (M6)LOCKWASHER (M6)2
2299186T泵与电机总成PUMP AND MOTOR1
22826729A10ORD 8M0143217ORD 8M01432171
2399625SHAFT UPPER1
2399625002轴SHAFT1
2443396A2阳极总成ANODE ASSEMBLY1
24818298Q1阳极套件ANODE KIT1
254000332螺钉(M6x35)-阳极SCREW (M6 x 35) ANODE2
2629245垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW2
268M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
27996301撞板-升降轴STRIKER PLATE TRIM SHAFT2
278M0045383冲击板STRIKER PLATE2
2858643锁紧垫圈 (.375)LOCKWASHER (.375)2
2946335螺母 (.375-24)NUT (.375-24)2
3099695A1线束总成 控制 动力配平 (3线)HARNESS ASSEMBLY Control POWER TRIM (3 WIRE)1
3017201A2电缆总成 (17.00英寸) 动力配平 (2线)CABLE ASSEMBLY (17.00 Inches) POWER TRIM (2 WIRE)1
3187379A39线束总成 (2-3/4" - 红色)WIRE ASSEMBLY (2-3/4" - RED)2
3296158启动电磁阀SOLENOID Starter3
328M0185622电磁阀SOLENOID3
3341508螺钉(0.250-20x0.500)-不锈钢启动电磁阀SCREW (.250-20 x .500) Stainless Steel STARTER SOLENOID6
3426419螺母 (#8-32) 黄铜电磁阀端子NUT (#8-32) Brass SOLENIOD TERMINAL4
3526992锁紧垫圈 (.250) 不锈钢电磁阀端子LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL8
3694330螺母 (.250-20) 黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINAL4
3797861绝缘体 启动电磁阀INSULATOR STARTER SOLENIOD2
3822875CLIP PUMP WIRE1
3969205C形垫圈线夹螺钉C WASHER CLIP SCREW1
398M0084613C形垫圈C-WASHER1
4069079螺钉(#10-16x0.440)-夹子到艉板支架SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET1
4144431沟槽销-升降油缸(下)PIN Groove TRIM CYLINDER (LOWER)1
41878267销PIN1
424000377SCREW (M10 x 30) MANIFOLD6
43400258锁紧垫圈(M10)-不锈钢歧管螺钉LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW6
4488807A16黑色电缆总成(4.00英寸)CABLE ASSEMBLY (4.00 Inches) Black3
图 58燃油泵(55/60 SEAPRO/MARATHON) FUEL PUMP (55/60 SEAPRO/MARATHON)
燃油泵(55/60 SEAPRO/MARATHON) FUEL PUMP (55/60 SEAPRO/MARATHON)
REF零件编号中文名称英文名称数量
114360A43燃油泵总成PUMP ASSEMBLY Fuel1
2857005A1膜片组件DIAPHRAGM KIT1
3NSSNOT SOLD SEPARATE CHECK VALVE-RUBBER2
4NSSNOT SOLD SEPARATE CHECK VALVE2
5NSSNOT SOLD SEPARATE RETAINER2
6NSSNOT SOLD SEPARATE SPRING1
7NSSNOT SOLD SEPARATE CAP1
8NSSNOT SOLD SEPARATE SPRING1
9NSSNOT SOLD SEPARATE CAP1
10NSSNOT SOLD SEPARATE DIAPHRAGM1
11987691衬垫GASKET1
118M0204705衬垫@2GASKET @21
12NSSNOT SOLD SEPARATE GASKET-BOOST1
13NSSNOT SOLD SEPARATE GASKET-PULSE1
14987752安装板PLATE1
154333590度接头(.125-27)尼龙CONNECTOR 90 Degree (.125-27) Nylon2
1543335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal2
174009340燃油泵螺钉SCREW FUEL PUMP2
1782104540螺钉(M5 x 40)SCREW (M5 x 40)2
1781754150燃油泵至曲轴箱螺钉SCREW FUEL PUMP TO CRANKCASE2
18144303底座BASE1
199912980软管HOSEAR
198M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)AR
20816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
20816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
21818984软管HOSE1
21830768软管HOSE1
229912878软管(.187)(26.00英寸散装)(4-1/4")HOSE (.187) (26.00 Inches Bulk) (4-1/4")1
2387946A14燃油滤清器总成FILTER ASSEMBLY Fuel1
23891642T03燃油滤清器总成FILTER ASSEMBLY Fuel1
248170281支架BRACKET1
25401196螺母 (M6)NUT (M6)1
2659169接头FITTING1
2659169003三通接头FITTING Tee1
2799130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
27892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
288168771注油球PRIMER BULB1
28858763注油球PRIMER BULB1
29816856A1燃油接头总成CONNECTOR ASSEMBLY Fuel1
29816856T01燃油接头CONNECTOR-FUEL1
304000332螺钉(M6x35)SCREW (M6 x 35)1
-812867A97衬垫套件GASKET SET1
-857005A1膜片组件DIAPHRAGM KIT1
图 59缓冲板 ATTENUATOR PLATE
缓冲板 ATTENUATOR PLATE
REF零件编号中文名称英文名称数量
119662消音器ATTENUATOR Sound1
2814776调节螺钉(M6 x 55)SCREW Adjusting (M6 x 55)4
3815784盖帽CAP1
4812889密封件SEAL3
5812874消音板PLATE Sound Attenuator2
64000363螺丝(M8 x 100)SCREW (M8 x 100)6
7821145油门连杆LINK Throttle1
7825204T03连接杆LINK1
8812883调节连杆LINK Adjusting2
948408螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)4
1056681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)4
108M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)4
1111399A1臂总成ARM ASSEMBLY1
1267748滚轮ROLLER1
1340056103螺钉 (M5 x 6)SCREW (M5 x 6)1
1456681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
148M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
159912878软管(.187)(26.00英寸散装)(4-1/4")HOSE (.187) (26.00 Inches Bulk) (4-1/4")2
16816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
178144461法兰衬垫GASKET Flange3
188252043油门连杆LINK Throttle1
18825204T03连接杆LINK1
-812867A97衬垫套件GASKET SET1

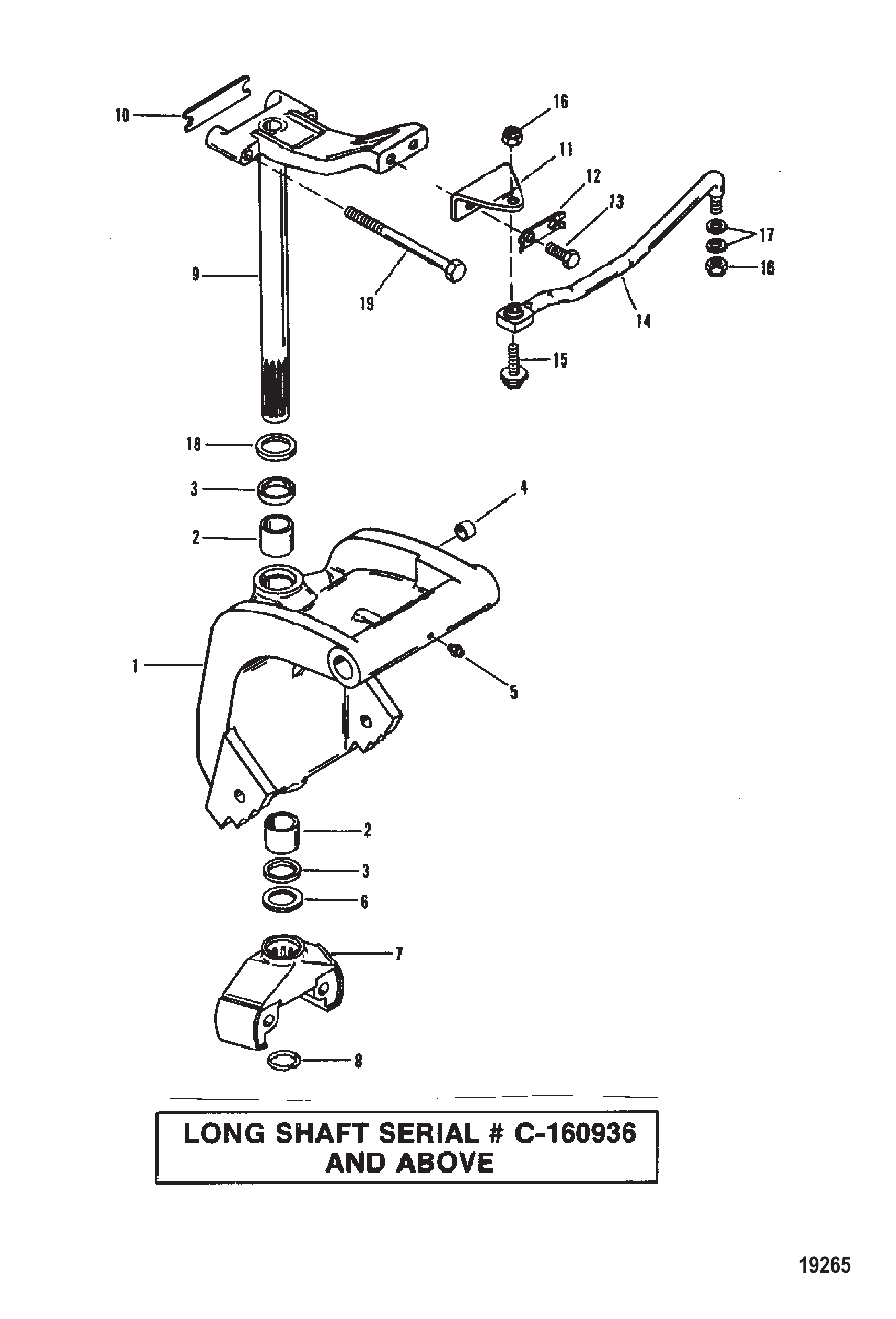

图 60旋转支架（长轴-序列号0C160936及以上） Swivel Bracket (Long Shaft-S/N-0C160936 & Up)
旋转支架（长轴-序列号0C160936及以上） Swivel Bracket (Long Shaft-S/N-0C160936 & Up)
REF零件编号中文名称英文名称数量
19749A1旋转支架总成（黑色）SWIVEL BRACKET ASSEMBLY (BLACK)1
19749A2旋转支架总成（灰色）SWIVEL BRACKET ASSEMBLY (GRAY)1
219622轴承BEARING2
2821124轴承BEARING2
332911油封SEAL Oil2
419606轴承BEARING2
574036润滑脂接头FITTING Grease3
58M0169589润滑脂接头FITTING Grease3
625176垫圈WASHER1
777416T底部轭架(黑色)YOKE Bottom (BLACK)1
777416T1黑色下轭架YOKE-BOTTOM-BLACK1
777416T6底部轭架(灰色)YOKE Bottom (GRAY)1
877415挡圈RETAINING RING1
919459A3臂总成 转向 (黑色)ARM ASSEMBLY Steering (BLACK)1
919459T3转向臂总成-黑色ARM ASSY-STEER-BL1
919459A4转向臂总成(灰色)ARM ASSEMBLY Steering (GRAY)1
1030711缓冲垫BUMPER1
1119616T支架（黑色）BRACKET (BLACK)1
1119616A1支架BRACKET1
1119616T6支架（灰色）BRACKET (GRAY)1
1276533绑带STRAP1
1334352螺钉（.375-24 x .875）SCREW (.375-24 x .875)2
1419608连杆(右舷)LINK ROD (STARBOARD)1
1419608A14发动机转向安装套件ATTACHING KIT Engine Steering1
1419609连杆(左舷)LINK ROD (PORT)1
1419609A6转向安装套件ATTACHING KIT Steering1
1514000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
15849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
1634863螺母 (.375-24)NUT (.375-24)2
168M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1734931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel2
1852865垫圈WASHER1
1966897螺栓（.437-20 x 5.250）BOLT (.437-20 x 5.250)2
图 61手动倾斜装置组件(设计I型) MANUAL TILT COMPONENTS (DESIGN I)
手动倾斜装置组件(设计I型) MANUAL TILT COMPONENTS (DESIGN I)
REF零件编号中文名称英文名称数量
-19300A7配平泵总成PUMP ASSEMBLY Trim1
-19300A8配平泵总成-完整PUMP ASSEMBLY Trim - Complete1
-832020T3手动调整MANUAL TRIM1
18134272减震杆套件SHOCK ROD KIT1
18M0118572减震杆套件SHOCK ROD KIT1
1826416A1减震杆套件SHOCK ROD KIT1
1893942A01减震杆套件SHOCK ROD KIT1
2813428升降缸端盖总成END CAP ASSEMBLY Trim Cylinder1
38134291减震活塞PISTON Shock1
3NSS活塞减震器(不单独销售)NOT SOLD SEPARATE PISTON-SHOCK1
4813432A2气缸修理包CYLINDER REBUILD KIT1
5810776记忆活塞套件PISTON KIT Memory1
68112241气缸套件CYLINDER KIT1
6893918A01气缸套件CYLINDER KIT1
7813433A1螺钉与密封套件SCREW AND SEAL KIT1
7893919A01螺丝/密封套件SCREW/SEAL KIT1
8813454A1蓄能器ACCUMULATOR1
8893920A01蓄能器套件ACCUMULATOR KIT1
9813455A3阀块总成VALVE BLOCK ASSEMBLY1
98M0118574阀体总成VALVE BODY ASSEMBLY1
10813456A4维修套件REPAIR KIT1
11813458A2塞套件PLUG KIT1
12813457A2凸轮套件CAM KIT1
12813455A4阀体总成VALVE BODY ASSEMBLY1
13813459塞套件PLUG KIT1
1419607销PIN2
15821539三叶销PIN Trilobe2
-826417A1弹簧套件SPRING KIT1
-826417A2搁浅套件-手动BEACHING KT-MANUA1
图 62旋转支架 SWIVEL BRACKET
旋转支架 SWIVEL BRACKET
REF零件编号中文名称英文名称数量
18831A6旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A13旋转支架-黑色SWIVEL BRKT-BLACK1
18831A7旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A14ORD 3402-8831A13ORD 3402-8831A131
18831A5旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A13旋转支架-黑色SWIVEL BRKT-BLACK1
18831A8旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831T08旋转支架-黑色BRKT-SWIVEL-BLACK1
18831A9旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A8旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A10旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A8旋转支架总成SWIVEL BRACKET ASSEMBLY1
274036润滑脂接头FITTING Grease3
28M0169589润滑脂接头FITTING Grease3
342124A2副驾驶板总成PLATE ASSEMBLY Co-Pilot1
4421402轴承BEARING1
5420801推力轴承-上BEARING Thrust - Upper1
542080T01轴承BEARING1
642139衬套BUSHING1
742077密封件SEAL1
842373止推垫片THRUST WASHER1
9421301弹簧SPRING1
10420824支架BRACKET1
1042082T04支架BRACKET1
11420811销PIN1
12421411倒挡锁钩HOOK Reverse Lock1
128M0075731倒挡钩HOOK Reverse1
1342083枢轴销PIN Pivot1
13830741A1枢轴销总成PIN ASSEMBLY Pivot1
148M0027716垫圈 (0.390 x 0.600 x 0.032) 不锈钢WASHER (.390 x .600 x .032) Stainless Steel1
15830741A1枢轴销总成PIN ASSEMBLY Pivot1
16NSS不单独销售NOT SOLD SEPARATE1
178M0027716垫圈 (0.390 x 0.600 x 0.032) 不锈钢WASHER (.390 x .600 x .032) Stainless Steel1
1842128弹簧SPRING1
1942085F4提手CARRYING HANDLE1
19420852手柄-黑色HANDLE-BLACK1
1942085F2提手CARRYING HANDLE1
1942085F5提手CARRYING HANDLE1
1942085F3提手CARRYING HANDLE1
19420852手柄-黑色HANDLE-BLACK1
2042127弹簧SPRING1
2113194挡圈RING Retaining2
22821961杆ROD1
238165621圆盘DISC2
24821958A1板组件套件PLATE KIT1
2582130014螺钉 (M6 x 14)SCREW (M6 x 14)2
26821957制动板BRAKE PLATE1
2729330垫圈WASHER1
28821959手柄HANDLE1
2934863螺母 (.375-24)NUT (.375-24)1
298M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
-8237011副驾驶贴花DECAL Co-Pilot1

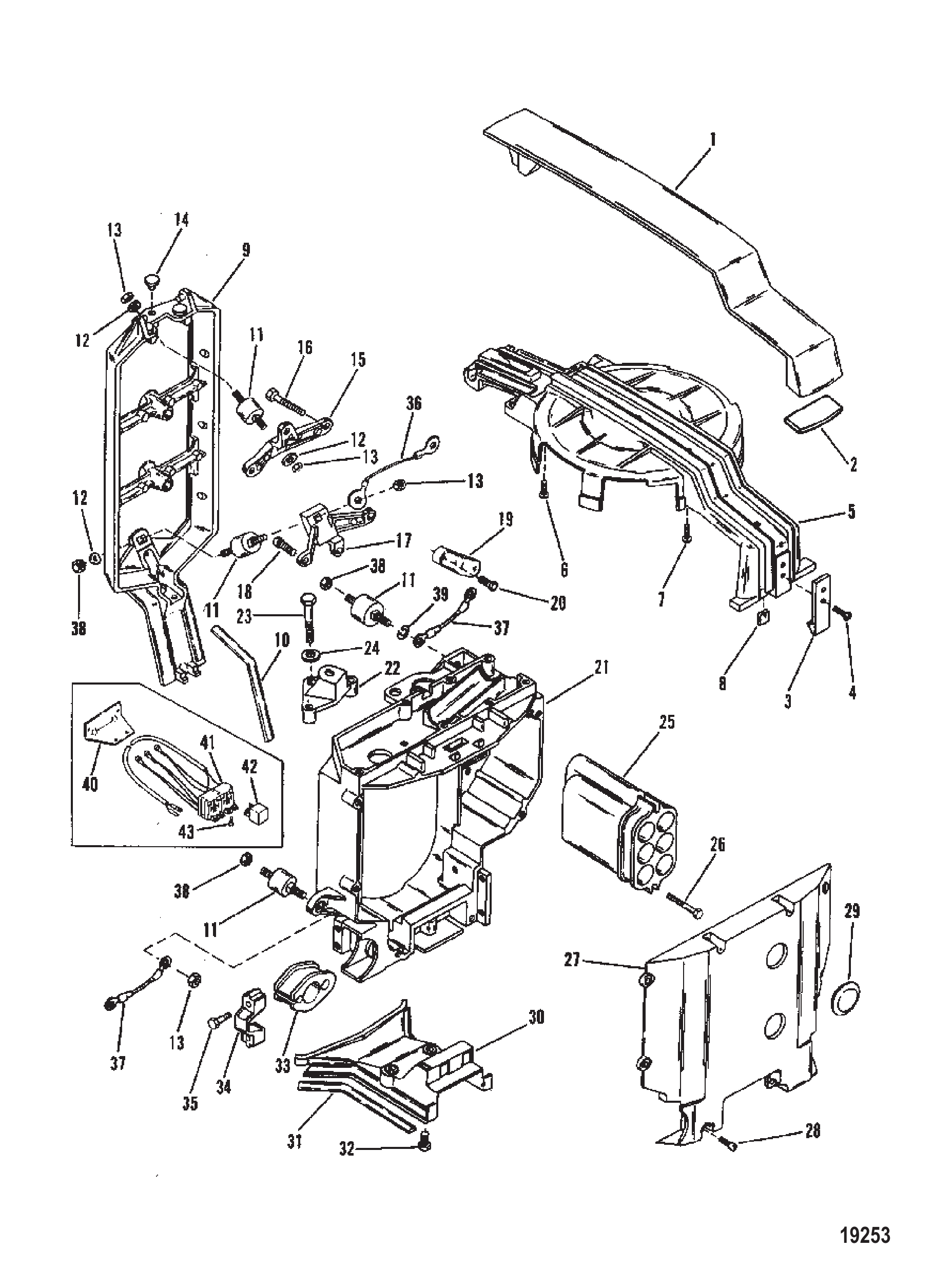

图 63整流罩支撑支架 Cowl Support Brackets
整流罩支撑支架 Cowl Support Brackets
REF零件编号中文名称英文名称数量
173641A1黑色顶部支架BRACKET TOP (BLACK)1
173641A2灰色顶部支架BRACKET TOP (GRAY)1
262444顶部支架/安装板橡胶密封条SEAL RUBBER-TOP BRACKET/MOUNTING PLATE1
379652支架固定夹CLIP SUPPORT BRACKET1
448409支架固定夹用#10-16x0.625不锈钢螺钉SCREW (#10-16 x .625) Stainless Steel CLIP TO SUPPORT2
579490T飞轮护罩SHIELD FLYWHEEL1
579490护罩SHIELD1
637656护罩至支架用#10-32x0.620螺钉SCREW (#10-32 x .620) SHIELD TO SUPPORT BRACKET1
748408螺钉（#10-16 x 0.500）护罩至支撑架SCREW (#10-16 x .500) SHIELD TO SUPPORT BRACKET3
891891消音器耐磨板WEAR PLATE SOUND ATENUATOR2
974510A2后罩支撑架BRACKET COWL SUPPORT-REAR1
10698761后支架与顶支架密封件SEAL REAR BRACKET AND TOP BRACKET2
1190435橡胶支座MOUNT RUBBER4
1220346橡胶安装垫圈WASHER RUBBER MOUNT3
1269057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)3
1320184螺母 (1/4-28X7/32) 橡胶支座NUT (1/4-28X7/32) RUBBER MOUNT4
138M0207775螺母 @5NUT @54
1426901后支撑架橡胶缓冲块BUMPER RUBBER-REAR SUPPORT BRACKET3
14269011橡胶缓冲垫BUMPER Rubber3
1560116顶罩支撑架加固件BRACE COWL SUPPORT BRACKET (TOP)1
1676596螺钉（0.250-20 x 1.250）支撑架SCREW (.250-20 x 1.250) SUPPORT BRACKET3
1787764后下部安装架BRACKET REAR LOWER MOUNT1
1876596螺钉（0.250-20 x 1.250）后支架固定SCREW (.250-20 x 1.250) REAR BRACKET ATTACHING3
1971097橡胶安装架BRACKET RUBBER MOUNT1
2059645螺钉（0.312-18 x 0.750）支架至曲轴箱（3/4英寸）SCREW (.312-18 x .750) BRACKET TO CRANKCASE (3/4")1
20824941螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)1
2197348T消音器ATTENUATOR SOUND1
21973482消音器SOUND ATTENUATOR1
2288684手动阻风门盖COVER MANUAL CHOKE1
2332293螺钉（0.312-24 x 1.75）盖至顶盖SCREW (.312-24 x 1.75) COVER TO TOP COVER1
2453705盖板螺丝垫圈WASHER COVER SCREW1
248M0204690垫圈 (.344 x .688 x .065) 不锈钢WASHER (.344 x .688 x .065) Stainless Steel1
2573986空气歧管MANIFOLD Air1
2669093螺钉（0.250-20 x 1.50）空气歧管SCREW (.250-20 x 1.50) AIR MANIFOLD2
2714915T前消音器盖COVER SOUND ATTENUATOR (FRONT)1
2837655螺钉（#10-32 x 0.500）前盖SCREW (#10-32 x .500) FRONT COVER8
2973336前盖塞PLUG FRONT COVER2
3041128A1隔板总成PLATE ASSEMBLY1
31698761密封板SEAL PLATE2
3290198盖板至支撑架螺钉SCREW COVER PLATE TO SUPPORT BRACKET2
3220540螺钉(.250-20 x .62)SCREW (.250-20 x .62)2
3314169电缆护套GROMMET ELECTRICAL CABLES1
3414160固定盖CAP RETAINING1
3514168螺钉（0.250-20 x 1.00）盖SCREW (.250-20 x 1.00) CAP2
3688238A3接地线总成CABLE ASSEMBLY Ground1
3765999A2线缆总成(黑色)CABLE ASSEMBLY Black2
3836069螺母NUT3
3926992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
4019686支架BRACKET1
4119758A3线束总成HARNESS ASSEMBLY1
4218211继电器开关RELAY SWITCH1
4320401螺钉（0.190-24 x 0.38）SCREW (.190-24 x .38)1
图 64下机罩 BOTTOM COWL
下机罩 BOTTOM COWL
REF零件编号中文名称英文名称数量
1878587A1下罩总成BOTTOM COWL ASSEMBLY1
2858743A2下罩总成BOTTOM COWL ASSEMBLY1
28M0113913右舷下罩BCOWL-LOWER STBD B1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
4878547T嵌件INSERT1
582130040螺钉(M6 x 40)SCREW (M6 x 40)8
6831209固定座RETAINER1
7858742怠速排气套BOOT Idle Exhaust1
8859251护孔环GROMMET1
88M0039078护孔环GROMMET1
9827948接头FITTING1
10855576垫圈WASHER1
11816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)6
12830756109软管(57英寸整卷)(裁切至5英寸长度)HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)1
128M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
13881535软管(32.00英寸)HOSE (32.00 Inches)1
149912688管材(36.00英寸散装)(26.00英寸)TUBING (36.00 Inches Bulk) (26.00 Inch)1
15817518三通TEE1
1682130020螺钉 (M6 x 20)SCREW (M6 x 20)2
178587411护孔环GROMMET1
17889724护孔环GROMMET1
18856990开关总成SWITCH ASSEMBLY1
188M0235192微调开关SWITCH TRIM1
19824868螺钉(M6×75)SCREW (M6 x 75)1
20821253F1前手柄黑色FRONT HANDLE Black1
20889740A02手柄套件HANDLE KIT1
2133589衬套BUSHING2
2248462O型圈 (.614 x .070)O-RING (.614 x .070)1
238219423棘爪PAWL1
2469057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
25401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2613541公插头PLUG Male2

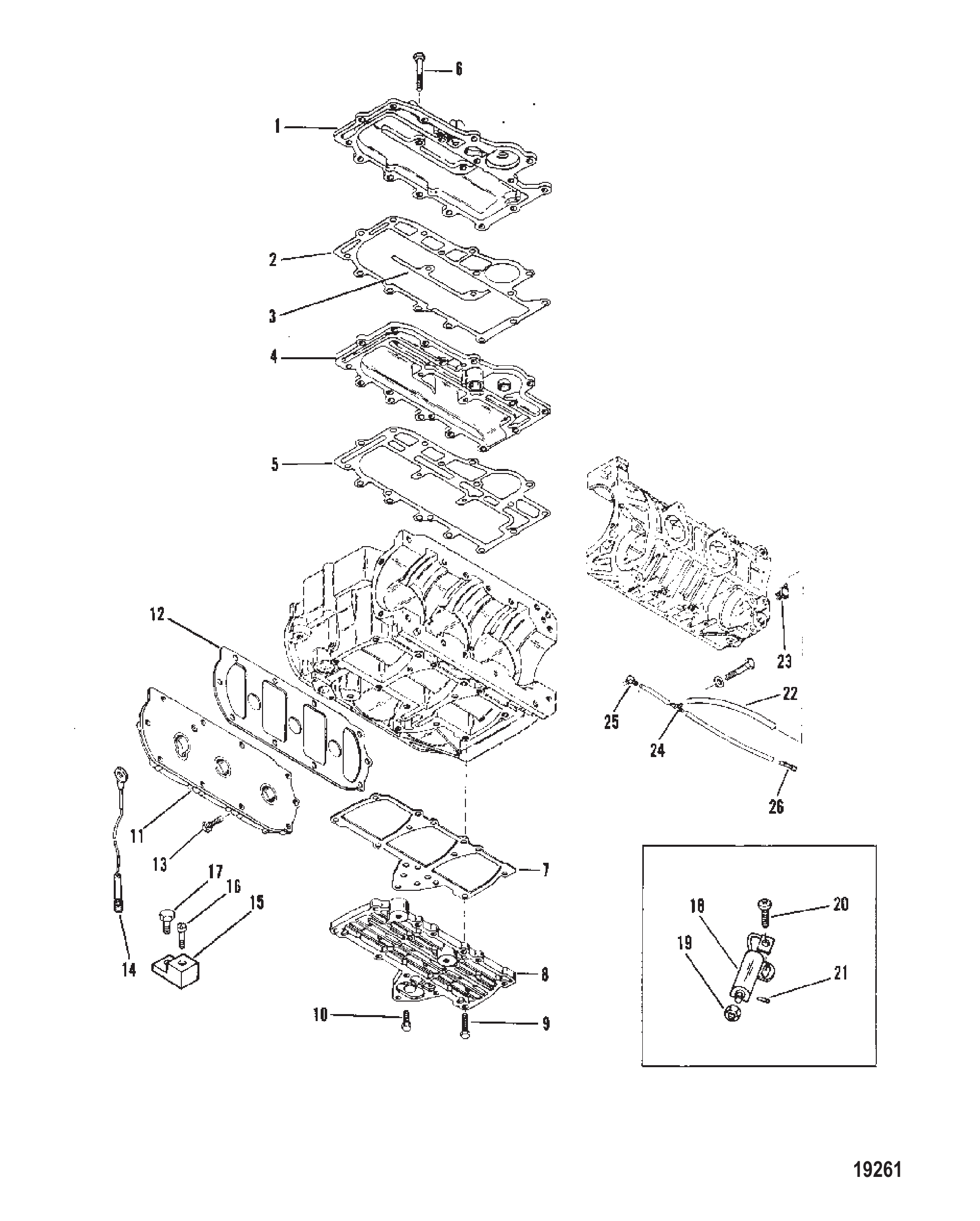

图 65排气与歧管盖 EXHAUST AND MANIFOLD COVERS
排气与歧管盖 EXHAUST AND MANIFOLD COVERS
REF零件编号中文名称英文名称数量
178529排气歧管盖COVER EXHAUST MANIFOLD1
2695242板至排气歧管盖衬垫GASKET PLATE TO EXHAUST MANIFOLD COVER1
3703351挡板至盖衬垫GASKET BAFFLE PLATE TO COVER1
469579排气歧管挡板PLATE BAFFLE-EXHAUST MANIFOLD1
5695252挡板至气缸体衬垫GASKET BAFFLE PLATE TO CYLINDER BLOCK1
638837螺钉（0.312-18 x 1.12）板与歧管盖SCREW (.312-18 x 1.12) PLATE AND MANIFOLD COVER1
674824螺钉（0.312-18 x 1.250）板与歧管盖SCREW (.312-18 x 1.250) PLATE AND MANIFOLD COVER15
670602螺钉（0.250-20 x 2.00）板/歧管盖SCREW (.250-20 x 2.00) PLATE/MANIFOLD COVER2
776862转换盖衬垫GASKET TRANSFER COVER1
7768621衬垫GASKET1
814428A1转换盖总成COVER ASSEMBLY TRANSFER1
937562不锈钢螺钉（0.312-18 x 1.00）转换盖SCREW (.312-18 x 1.00) Stainless Steel TRANSFER COVER11
1028668不锈钢螺钉（0.250-20 x 0.875）盖与燃油泵SCREW (.250-20 x .875) Stainless Steel COVER AND FUEL PUMP2
118364A1气缸体盖COVER CYLINDER BLCOK1
12437792气缸体盖衬垫GASKET CYLINDER BLOCK COVER1
1369100气缸体盖螺钉（1英寸）SCREW CYLINDER BLCOK COVER (1")4
138M0214943螺钉SCREW4
1496829A1温度开关总成（260度）SWITCH ASSEMBLY Temperature (260 DEGREES)1
1419541A2温度开关套件（285度）TEMPERATURE SWITCH KIT (285 DEGREES)1
1545915接线端子排（电气）TERMINAL BLOCK (ELECTRIC)1
1669079螺钉 (#10-16 x .440) 接线端子(电气)SCREW (#10-16 x .440) TERMINAL BLOCK (ELECTRIC)1
1728192螺钉 (#10-24 x .50) 接线端子(电气)SCREW (#10-24 x .50) TERMINAL BLOCK (ELECTRIC)1
1772169螺钉(#10-24x0.500)SCREW (#10-24 x .500)1
1833386A3开关总成SWITCH ASSEMLBY1
1945076螺母 (#10-32) 黄铜水银开关端子NUT (#10-32) Brass MERCURY SWITCH TERMINAL1
2037655螺钉 (#10-32 x .500) 水银开关至曲轴箱(1/2")SCREW (#10-32 x .500) MERCURY SWITCH TO CRANKCASE (1/2")1
2136242PIN Roll MERCURY SWITCH2
2299130122管材 (20.00英尺散装) 曲轴箱通气TUBING (20.00 Feet Bulk) CRANKCASE BLEED3
22892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)3
2342864接头 曲轴箱通气FITTING CRANKCASE BLEED1
23428641止回阀接头FITTING Check Valve1
2459169接头 曲轴箱通气管FITTING CRANKCASEE BLEED HOSE1
2459169003三通接头FITTING Tee1
2515133接头 曲轴箱FITTING CRANKCASE1
2642865连接器 消音器CONNECTOR ATTENUATOR1
26428651止回阀VALVE-CHECK1
-43779A87衬垫套件GASKET SET1
图 66气缸体与曲轴箱 Cylinder Block and Crankcase
气缸体与曲轴箱 Cylinder Block and Crankcase
REF零件编号中文名称英文名称数量
19755A9气缸体CYLINDER BLOCK1
19755A14气缸体CYLINDER BLOCK1
19755T14气缸体CYLINDER BLOCK1
19755A10气缸体CYLINDER BLOCK1
19755T10气缸体CYLINDER BLOCK1
19755A15气缸体CYLINDER BLOCK1
19755T15气缸体CYLINDER BLOCK1
281742780螺钉(M8 x 80)SCREW (M8 x 80)8
381742730螺钉 (M8 x 30)SCREW (M8 x 30)6
442658止回阀CHECK VALVE1
4426585止回阀CHECK VALVE1
599130122管材(20英尺散装)(16英寸)TUBING (20.00 Feet Bulk) (16")1
5892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
642623止回阀(压入式)CHECK VALVE (PRESS-IN)1
6426233止回阀CHECK VALVE1
7812888A1托架总成CARRIER ASSEMBLY2
842657A1止回阀CHECK VALVE2
842657A3止回阀CHECK VALVE2
9814776调节螺钉(M6 x 55)SCREW Adjusting (M6 x 55)1
10400212螺母(M6)不锈钢NUT (M6) Stainless Steel1
1142942盖帽CAP1
1220033定位销PIN Dowel (LOCATING)1
1243044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
13812870主轴承座中心销PIN Center Main (BEARING RACE)3
138M0084653定位销PIN - DOWEL3
1418597盖板COVER1
1581742750螺钉(M8 x 50)SCREW (M8 x 50)2
1665848托架CARRIER1
1764872护孔环GROMMET1
188128671衬垫GASKET1
188128672衬垫GASKET1
198161941螺柱STUD2
198161949双头螺柱(M6 x 44)STUD (M6 x 44)2
2018598管塞PIPE PLUG4
20185981管塞(.375-18)PLUG Pipe (.375-18)4
21817430110螺钉(M10 x 110)SCREW (M10 x 110)6
2281742720螺钉(M8 x 20)(55号件用3个)SCREW (M8 x 20) (QTY. OF 3 ON 55)4
2240011149不锈钢螺钉(M8 x 25)(55号件用3个)SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)4
22A12896螺钉(#8-18 x .310)SCREW (#8-18 x .310)1
238128821提动阀POPPET1
24812887隔膜DIAPHRAGM1
248128871隔膜DIAPHRAGM1
24812887002隔膜DIAPHRAGM1
2594182垫圈WASHER1
2669570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
2790392弹簧SPRING1
2718336弹簧SPRING1
2742996不锈钢弹簧SPRING (Stainless Steel)1
2875692节温器THERMOSTAT1
2814586节温器THERMOSTAT1
2962386衬垫GASKET1
298M0204714衬垫@4GASKET @41
3032802管塞 (.125-27)PLUG Pipe (.125-27)1
30328022黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
31787992温度传感器SENDER Temperature1
3244552固定座RETAINER1
32889733固定座RETAINER1
338128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
33878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
3456681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
348M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
3549221垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)WASHER (.187 x .500 x .062) Neoprene2
358M0204663垫片@5WASHER @52
3669056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel2
37816872蝶形螺母WING NUT2
3899664弯头ELBOW1
3899664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
3878279弯头ELBOW1
388M0207781弯头ELBOW1
3919074盖板COVER1
39190741盖板COVER1
398M0036859盖板COVER1
4065857连接器CONNECTOR1
4056759倒钩接头FITTING Barbed1
418129961盖板COVER1
418129962盖板COVER1
4248462O型圈 (.614 x .070)O-RING (.614 x .070)1
4340011108不锈钢螺钉 (M5 x 20)SCREW (M5 x 20) Stainless Steel2
45821595吊环LIFTING EYE1
46821616螺钉SCREW1
46821606螺钉SCREW1
47400265螺母 (M8)NUT (M8)1
47401368不锈钢螺母 (M8)NUT (M8) Stainless Steel1
-812867A97衬垫套件GASKET SET1
-811208T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-821744T92动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T93动力头总成(完整)POWERHEAD ASSEMBLY Complete1
图 67旋转支架(序列号:0D181999及以下) SWIVEL BRACKET (S/N: 0D181999 AND BELOW)
旋转支架(序列号:0D181999及以下) SWIVEL BRACKET (S/N: 0D181999 AND BELOW)
REF零件编号中文名称英文名称数量
1814690A1旋转支架(短)(黑色)SWIVEL BRACKET (SHORT) (BLACK)1
1814690A2旋转支架(短)(灰色)SWIVEL BRACKET (SHORT) (GRAY)1
1815556A1旋转支架(长)(黑色)SWIVEL BRACKET (LONG) (BLACK)1
1815556A2旋转支架(长)(灰色)SWIVEL BRACKET (LONG) (GRAY)1
2821124轴承BEARING2
332911油封SEAL Oil2
419606轴承BEARING2
574036润滑脂接头FITTING Grease3
58M0169589润滑脂接头FITTING Grease3
652865垫圈WASHER1
719654T底部轭架(黑色)YOKE Bottom (BLACK)1
719654T1下轭架YOKE Bottom1
719654T6底部轭架(灰色)YOKE Bottom (GRAY)1
719654T7ORD 19654T 1ORD 19654T 11
877415挡圈RETAINING RING1
9NLA已停产旋转销(黑色-被2件式#10替代)No Longer Available SWIVEL PIN (BLACK-REPLACED BY 2 PIECE REF #10)1
9NLA已停产旋转销(灰色-被2件式#10替代)No Longer Available SWIVEL PIN (GRAY-REPLACED BY 2 PIECE REF #10)1
10812897A7旋转销总成(短)(黑色)SWIVEL PIN ASSEMBLY (SHORT) (BLACK)1
10812897A19旋转销总成SWIVEL PIN ASSEMBLY1
10812897A8旋转销总成(短)(灰色)SWIVEL PIN ASSEMBLY (SHORT) (GRAY)1
10812897A20ORD 17-812897A19ORD 17-812897A191
10812896A14旋转销总成(黑色)SWIVEL PIN ASSEMBLY (BLACK)1
10812896A22旋转销总成SWIVEL PIN ASSEMBLY1
10812896A15旋转销总成(灰色)SWIVEL PIN ASSEMBLY (GRAY)1
10812896A23旋转销-GR-LGSWIVEL PIN-GR-LG1
11816667T支架（黑色）BRACKET (BLACK)1
118M0184092支架BRACKET1
11816667F3支架（灰色）BRACKET (GRAY)1
118M0184092支架BRACKET1
12816669锁紧垫圈TAB WASHER1
128M0009820锁紧垫圈TAB WASHER1
134000377螺钉 (M10 x 30)SCREW (M10 x 30)2
14196081连杆(右舷)LINK ROD (STARBOARD)1
1419608A14发动机转向安装套件ATTACHING KIT Engine Steering1
14196091连杆(左舷)LINK ROD (PORT)1
1419609A6转向安装套件ATTACHING KIT Steering1
1590041螺钉(.375-24 x 1.620)SCREW (.375-24 x 1.620)1
15856680螺钉(.375-24 x 1.62)SCREW (.375-24 x 1.62)1
1671970垫圈(0.390×0.546×0.12)WASHER (.390 x .546 x .12)1
168M0109680垫圈(0.39×0.546×0.12)WASHER (.39 X .546 X.12)1
1734863螺母 (.375-24)NUT (.375-24)2
178M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1834931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel2
1952865垫圈WASHER1
20823876销PIN1
图 68齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-9760A8齿轮箱总成(短型)(黑色)GEAR HOUSING ASSEMBLY (SHORT) (BLACK)1
-9760A9齿轮箱总成(短型)(灰色)GEAR HOUSING ASSEMBLY (SHORT) (GRAY)1
-9760A24齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A21齿轮箱总成(长型)(追踪者系列)GEAR HOUSING ASSEMBLY (LONG) (TRACKER)1
-9760T27ORD1671-9760T25ORD1671- 9760T251
-9760A12齿轮箱总成(长型)(黑色)GEAR HOUSING ASSEMBLY (LONG) (BLACK)1
-9760T25齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A13齿轮箱总成(长型)(灰色)GEAR HOUSING ASSEMBLY (LONG) (GRAY)1
-9760T26ORD 1671-9760T25ORD 1671-9760T251
-9760A10齿轮箱总成(加长)(黑色)GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)1
-9760T28齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A11齿轮箱总成(加长)(灰色)GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)1
-9760T29灰色齿轮箱GEAR HOUSING-GR1
19760A2齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC)(BLACK)1
19760T42基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19760A3齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC)(GRAY)1
19760T31ORD 1671-9760T30ORD 1671-9760T301
19760A20齿轮箱总成(基础款)(TRACKER)GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)1
19760T32ORD 1671-9760T42ORD 1671-9760T421
267892磁性螺钉SCREW Magnetic1
28M0058389放油螺钉套件SCREW KIT Drain1
379953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)2
379953Q04放油螺钉套件SCREW KIT Drain2
419183纤维垫圈WASHER Fiber3
48M0187157蓝色密封件@15SEAL-BLUE @153
543043定位销-带孔(0.375×0.625)PIN Dowel - With Hole (.375 x .625)1
58M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
756800管塞 (.0625-27)PLUG Pipe (.0625-27)1
8812768滚柱轴承BEARING Roller1
8A818226A1密封/板套件SEAL/PLATE KIT1
9813694小齿轮GEAR Pinion1
9813694T小齿轮GEAR Pinion1
1055910螺母(.437-20)NUT (.437-20)1
11812732A1换挡轴总成(短/长)SHIFT SHAFT ASSEMBLY (SHORT/LONG)1
11815420换挡轴(加长型)SHIFT SHAFT (X-LONG)1
1229641E型卡环E RING1
13813696A2衬套总成BUSHING ASSEMBLY1
1445258O型圈 (.987 x .103)O-RING (.987 x .103)1
158164641油封SEAL Oil1
158M0246145油封OIL SEAL1
16815422驱动轴(短)DRIVESHAFT (SHORT)1
16812731驱动轴(长型)DRIVESHAFT (LONG)1
16815421驱动轴(加长型)DRIVESHAFT (X-LONG)1
17812770A1垫片组SHIM SETAR
178M0063262垫片组SHIM SETAR
1877420A1滚柱轴承总成BEARING ASSEMBLY Roller1
188M0166756轴承总成BEARING ASSEMBLY1
19812820螺母NUT1
198128201螺母NUT1
20812966A3底座总成BASE ASSEMBLY1
208M0245488水泵底座BASE WATER PUMP1
2130224O型圈 (1.859 x .139)O-RING (1.859 x .139)1
218M0204651O型圈O-RING1
22814669油封SEAL Oil1
228M0245489油封SEAL OIL1
23814670油封SEAL Oil1
24197001面板FACE PLATE1
2419700A2面板FACE PLATE1
2519453叶轮IMPELLER1
2519453T叶轮IMPELLER1
2619699键KEY1
268M0032831叶轮键KEY Impeller1
2714334A1水泵总成PUMP ASSEMBLY Water1
2714334A3水泵总成PUMP ASSEMBLY Water1
2819701衬垫(下部)GASKET (LOWER)1
288M0224241衬垫GASKET1
29194541衬垫(上部)GASKET (UPPER)1
3043023油封(短/长)SEAL (SHORT/LONG)1
308M0204658密封件SEAL1
318248324螺钉(M6 x 16)SCREW (M6 x 16)6
3343045绝缘体INSULATOR4
338M0204659绝缘体@4INSULATOR @44
3419452绝缘体INSULATOR2
3576039换挡凸轮控制CAM Shift Control1
35760394换挡凸轮控制CAM Shift Control1
-812867A97衬垫套件GASKET SET1
-812966A11水泵维修套件REPAIR KIT Water Pump1
-812966A12水泵维修套件REPAIR KIT Water Pump1
-814669A2齿轮箱密封套件SEAL KIT Gear Housing1
图 69齿轮箱螺旋桨轴-60海宝/马拉松/大脚-6爪倒车离合器 GEAR HSG PROPSHAFT-60 SEA/MARA/BIG FOOT-6 JAW REV. CLUTCH
齿轮箱螺旋桨轴-60海宝/马拉松/大脚-6爪倒车离合器 GEAR HSG PROPSHAFT-60 SEA/MARA/BIG FOOT-6 JAW REV. CLUTCH
REF零件编号中文名称英文名称数量
-9011G16齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G14齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G94齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G17齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G96ORD 1667-9011G92ORD 1667-9011G921
-9011G15齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G48齿轮箱GEAR HOUSING1
19011G8齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19011G59基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011G9齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19011G60基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
4330894A1圆锥轴承组BEARING SET Cup And Cone1
44NSSNOT SOLD SEPARATE CUP1
45850033A2前进齿轮套件GEAR KIT Forward1
45859472A3前进齿轮总成-30齿GEAR ASSEMBLY Forward - 30 Teeth1
4630895滚针轴承BEARING Needle1
4630895T滚针轴承BEARING Needle1
47850315A1凸轮从动件套件FOLLOWER KIT Cam1
4844530钢球BALL3
49NSSNOT SOLD SEPARATE SLIDE1
50850327弹簧SPRING1
51850048离合器CLUTCH1
51850048T离合器CLUTCH1
5230632十字销PIN Cross1
528M0100263十字销PIN Cross1
5330893弹簧SPRING1
54850308螺旋桨轴PROPELLER SHAFT1
548M0140445螺旋桨轴PROPELLER SHAFT1
55850034倒车齿轮(30齿)GEAR Reverse (30 Teeth)1
55850034T倒车齿轮(30齿)GEAR Reverse (30 Teeth)1
5612596A2轴承座总成CARRIER ASSEMBLY Bearing1
568M0168901轴承座总成CARRIER ASSY.1
5797386O型圈 (3.609 x .139)O-RING (3.609 x .139)1
578M0214974O型圈O RING1
5830956滚针轴承BEARING Needle1
5830956T滚针轴承BEARING Needle1
5970080油封SEAL Oil1
598M0205728密封件SEAL1
6070081油封SEAL Oil1
608M0205729密封件SEAL1
6112578滚针轴承BEARING Needle1
6112578T滚柱轴承BEARING Roller1
6212577止推垫片THRUST WASHER1
6312576推力轴承BEARING Thrust1
64429172双头螺柱(M8×48)STUD (M8 x 48)2
648M0034456双头螺柱(M8×1.25×48)STUD (M8 X 1.25 X 48)2
6570132垫圈(0.323×0.563×0.063)不锈钢WASHER (.323 x .563 x .063) Stainless Steel2
658M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)2
66401198螺母 (M8)NUT (M8)2
66401378螺母 (M8)NUT (M8)2
6744491A1垫片组SHIM SET1
678M0063266垫片组SHIM SET1
68NSS螺纹嵌件(不单独销售)NOT SOLD SEPARATE THREAD INSERT2
69NSSNOT SOLD SEPARATE DECAL1
7013191A1止推垫片THRUST WASHER1
7013191Q01止推垫片THRUST WASHER1
7152707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
7152707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
72816629锁紧垫圈TAB WASHER1
72816629Q锁紧垫圈TAB WASHER1
-43035A4齿轮箱密封套件SEAL KIT Gear Housing1
图 70排气与歧管盖 Exhaust and Manifold Covers
排气与歧管盖 Exhaust and Manifold Covers
REF零件编号中文名称英文名称数量
178529排气歧管盖COVER EXHAUST MANIFOLD1
2695242板至排气歧管盖衬垫GASKET PLATE TO EXHAUST MANIFOLD COVER1
3703351挡板至盖衬垫GASKET BAFFLE PLATE TO COVER1
469579排气歧管挡板PLATE BAFFLE-EXHAUST MANIFOLD1
5695252挡板至气缸体衬垫GASKET BAFFLE PLATE TO CYLINDER BLOCK1
638837螺钉（0.312-18 x 1.12）板与歧管盖SCREW (.312-18 x 1.12) PLATE AND MANIFOLD COVER1
674824螺钉（0.312-18 x 1.250）板与歧管盖SCREW (.312-18 x 1.250) PLATE AND MANIFOLD COVER15
670602螺钉（0.250-20 x 2.00）板/歧管盖SCREW (.250-20 x 2.00) PLATE/MANIFOLD COVER2
776862转换盖衬垫GASKET TRANSFER COVER1
7768621衬垫GASKET1
814428A1转换盖总成COVER ASSEMBLY TRANSFER1
937562不锈钢螺钉（0.312-18 x 1.00）转换盖SCREW (.312-18 x 1.00) Stainless Steel TRANSFER COVER11
1028668不锈钢螺钉（0.250-20 x 0.875）盖与燃油泵SCREW (.250-20 x .875) Stainless Steel COVER AND FUEL PUMP2
118364A1气缸体盖COVER CYLINDER BLCOK1
12437792气缸体盖衬垫GASKET CYLINDER BLOCK COVER1
1369100气缸体盖螺钉（1英寸）SCREW CYLINDER BLCOK COVER (1")4
138M0214943螺钉SCREW4
1496829A1温度开关总成（260度）SWITCH ASSEMBLY Temperature (260 DEGREES)1
1419541A2温度开关套件（285度）TEMPERATURE SWITCH KIT (285 DEGREES)1
1545915接线端子排（电气）TERMINAL BLOCK (ELECTRIC)1
1669079螺钉 (#10-16 x .440) 接线端子(电气)SCREW (#10-16 x .440) TERMINAL BLOCK (ELECTRIC)1
1728192螺钉 (#10-24 x .50) 接线端子(电气)SCREW (#10-24 x .50) TERMINAL BLOCK (ELECTRIC)1
1772169螺钉(#10-24x0.500)SCREW (#10-24 x .500)1
1833386A3开关总成SWITCH ASSEMLBY1
1945076螺母 (#10-32) 黄铜水银开关端子NUT (#10-32) Brass MERCURY SWITCH TERMINAL1
2037655螺钉 (#10-32 x .500) 水银开关至曲轴箱(1/2")SCREW (#10-32 x .500) MERCURY SWITCH TO CRANKCASE (1/2")1
2136242PIN Roll MERCURY SWITCH2
2299130122管材 (20.00英尺散装) 曲轴箱通气TUBING (20.00 Feet Bulk) CRANKCASE BLEED3
22892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)3
2342864接头 曲轴箱通气FITTING CRANKCASE BLEED1
23428641止回阀接头FITTING Check Valve1
2459169接头 曲轴箱通气管FITTING CRANKCASEE BLEED HOSE1
2459169003三通接头FITTING Tee1
2515133接头 曲轴箱FITTING CRANKCASE1
2642865连接器 消音器CONNECTOR ATTENUATOR1
26428651止回阀VALVE-CHECK1
-43779A87衬垫套件GASKET SET1
图 71齿轮箱螺旋桨轴-60海宝/马拉松/大脚-3爪倒车离合器 GEAR HSG PROPSHAFT-60 SEA/MARA/BIG FOOT-3 JAW REV. CLUTCH
齿轮箱螺旋桨轴-60海宝/马拉松/大脚-3爪倒车离合器 GEAR HSG PROPSHAFT-60 SEA/MARA/BIG FOOT-3 JAW REV. CLUTCH
REF零件编号中文名称英文名称数量
-9011A69齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A71齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G94齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A70齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G96ORD 1667-9011G92ORD 1667-9011G921
-9011A72齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G48齿轮箱GEAR HOUSING1
19011A73齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19011T73齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19011A74齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19011T74ORD 1667-9011T73ORD 1667-9011T731
4130894A1圆锥轴承组BEARING SET Cup And Cone1
4212634A2前进齿轮总成GEAR ASSEMBLY Forward1
4212634T02齿轮总成GEAR ASSEMBLY1
4330895滚针轴承BEARING Needle1
4330895T滚针轴承BEARING Needle1
4412239A1凸轮从动件套件FOLLOWER KIT Cam1
44850315A1凸轮从动件套件FOLLOWER KIT Cam1
4544530钢球BALL3
4630622弹簧SPRING1
47822539离合器CLUTCH1
47822539T离合器CLUTCH1
4830632十字销PIN Cross1
488M0100263十字销PIN Cross1
4930893弹簧SPRING1
5012238T螺旋桨轴PROPELLER SHAFT1
5112635倒挡齿轮GEAR Reverse1
5112635T倒挡齿轮GEAR-REVERSE1
5212596A2轴承座总成CARRIER ASSEMBLY Bearing1
528M0168901轴承座总成CARRIER ASSY.1
5397386O型圈 (3.609 x .139)O-RING (3.609 x .139)1
538M0214974O型圈O RING1
5430956滚针轴承BEARING Needle1
5430956T滚针轴承BEARING Needle1
5576868内密封件SEAL (INNER)1
558M0248882油封@5SEAL-OIL @51
5670081油封(外)SEAL Oil (OUTER)1
568M0205729密封件SEAL1
5712578滚针轴承BEARING Needle1
5712578T滚柱轴承BEARING Roller1
5812577止推垫片THRUST WASHER1
5912576推力轴承BEARING Thrust1
60429174双头螺栓(M8 x 1.25 x 48)STUD (M8 x 1.25 x 48)2
608M0034456双头螺柱(M8×1.25×48)STUD (M8 X 1.25 X 48)2
6170132垫圈(0.323×0.563×0.063)不锈钢WASHER (.323 x .563 x .063) Stainless Steel2
618M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)2
62401198螺母 (M8)NUT (M8)2
62401378螺母 (M8)NUT (M8)2
6344491A1垫片组SHIM SET1
638M0063266垫片组SHIM SET1
6413191A1止推垫片THRUST WASHER1
6413191Q01止推垫片THRUST WASHER1
6552707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
6552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
66816629锁紧垫圈TAB WASHER1
66816629Q锁紧垫圈TAB WASHER1
-43035A4齿轮箱密封套件SEAL KIT Gear Housing1

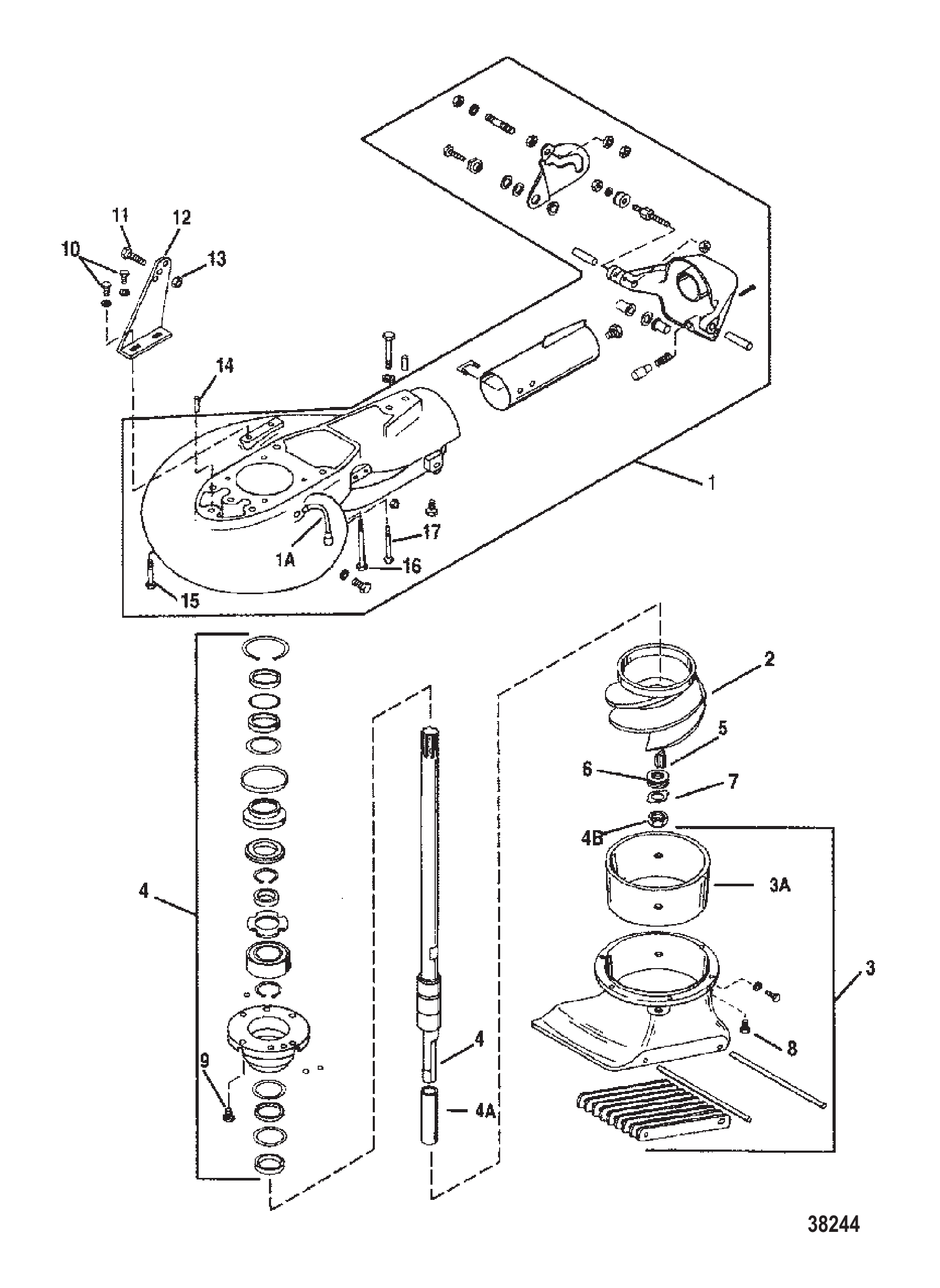

图 72喷泵总成 JET PUMP ASSEMBLY
喷泵总成 JET PUMP ASSEMBLY
REF零件编号中文名称英文名称数量
-80140060喷射泵组件(黑色)JET PUMP ASSEMBLY (BLACK)1
-80140160喷射泵组件(灰色)JET PUMP ASSEMBLY (GRAY)1
-8M0230714喷射泵总成JET PUMP ASSY1
180141160泵壳HOUSING Pump1
1801411T60泵壳体HOUSING PUMP1
1A827490润滑油管HOSE Lube1
280141460叶轮IMPELLER1
28M0230713叶轮IMPELLER1
380141260进气壳体HOUSING Intake1
3A8271882衬套LINER1
480141360驱动轴DRIVESHAFT1
4A8271891套筒SLEEVE1
4B8271901螺母NUT1
5801405875键KEY1
6801404875叶轮垫片SHIM Impeller8
7801403875锁紧垫圈TAB WASHER1
8818146螺钉(.312-18 X .88)SCREW (.312-18 X .88)6
919923088螺钉(.250-20 x .875)SCREW (.250-20 x .875)4
1019923062螺钉(.250-20 x .625)SCREW (.250-20 x .625)2
1160411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
12801410电缆支架BRACKET Cable Support1
1367980螺母(.312-18)NUT (.312-18)1
1382670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
14801407定位销PIN Dowel2
154010860不锈钢六角法兰螺钉(M10 x 60)SCREW (M10 x 60) Hex Flange - Stainless Steel2
164010890不锈钢六角法兰螺钉(M10 x 90)SCREW (M10 x 90) Hex Flange - Stainless Steel1
174010870不锈钢六角法兰螺钉(M10 x 70)SCREW (M10 x 70) Hex Flange - Stainless Steel1
1895802不锈钢螺钉(.375-16 x 2.750)SCREW (.375-16 x 2.750) Stainless Steel1
1945175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
198M0214963垫圈WASHER1
图 73齿轮箱(螺旋桨轴)(50/55/60) GEAR HOUSING (PROPELLER SHAFT)(50/55/60)
齿轮箱(螺旋桨轴)(50/55/60) GEAR HOUSING (PROPELLER SHAFT)(50/55/60)
REF零件编号中文名称英文名称数量
-9760A23齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A24齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A27齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760T27ORD1671-9760T25ORD1671- 9760T251
-9760A25齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760T25齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A26齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760T26ORD 1671-9760T25ORD 1671-9760T251
-9760A28齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760T28齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A29齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760T29灰色齿轮箱GEAR HOUSING-GR1
19760A30齿轮箱总成GEAR HOUSING ASSEMBLY1
19760T42基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19760A31齿轮箱总成GEAR HOUSING ASSEMBLY1
19760T31ORD 1671-9760T30ORD 1671-9760T301
19760A32齿轮箱总成GEAR HOUSING ASSEMBLY1
19760T32ORD 1671-9760T42ORD 1671-9760T421
34812769A1垫片组SHIM SETAR
348M0063263垫片组SHIM SETAR
35812767A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
358M0103476轴承总成BEARING ASSY1
36813693A1前进齿轮总成GEAR ASSEMBLY Forward1
36813693T1前进齿轮GEAR Forward1
3721739滚柱轴承BEARING Roller1
38812929凸轮从动件FOLLOWER Cam1
388129291凸轮从动件FOLLOWER Cam1
3920843滑块SLIDE1
4038114弹簧SPRING1
41813697离合器CLUTCH1
41813697T离合器CLUTCH1
4238113十字销PIN Cross1
428M0020942十字销@2PIN-CROSS @21
43815418弹簧SPRING1
4414493螺旋桨轴PROPELLER SHAFT1
45813695倒挡齿轮GEAR Reverse1
45813695T倒挡齿轮GEAR Reverse1
4620839滚珠轴承BEARING Ball1
4620839T滚珠轴承BEARING Ball1
4719291A3轴承座总成CARRIER ASSEMBLY Bearing1
478M0168900轴承座BEARING CARRIER1
48815460O型圈O-RING1
4921700滚针轴承BEARING Needle1
5069188油封SEAL Oil1
508M0205511油封SEAL Oil1
5169189油封SEAL Oil1
518M0203757油封SEAL Oil1
524000353螺钉 (M8 x 25)SCREW (M8 x 25)2
5370132垫圈(0.323×0.563×0.063)不锈钢WASHER (.323 x .563 x .063) Stainless Steel2
538M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)2
5417264T2调整片 锌制TRIM TAB Zinc1
554000377螺钉 (M10 x 30)SCREW (M10 x 30)1
5645175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
568M0214963垫圈WASHER1
57824389A1螺旋桨套件PROPELLER KIT1
5862124A1推力毂总成THRUST HUB ASSEMBLY1
5873345A1止推垫片THRUST WASHER1
5969578A1螺旋桨螺母套件PROP NUT KIT1
5969578Q1螺旋桨螺母套件PROP NUT KIT1
6076281锁紧垫圈TAB WASHER1
608M0214942锁紧垫片WASHER Tab1
-812867A97衬垫套件GASKET SET1
-814669A2齿轮箱密封套件SEAL KIT Gear Housing1
图 74喷射组件 Jet Components
喷射组件 Jet Components
REF零件编号中文名称英文名称数量
1821889A18转速限制器REV LIMITER1
2823147A4转速限制器线束总成HARNESS ASSEMBLY Rev Limiter1
3826579支架BRACKET1
440011127螺钉 (M6 x 16) 不锈钢SCREW (M6 x 16) Stainless Steel2
44006731螺钉(M6 x 16)SCREW (M6 x 16)2
540011109螺钉 (M5 x 25) 不锈钢SCREW (M5 x 25) Stainless Steel2
6801402润滑脂套装GREASE KIT1
630500A2润滑脂套装GREASE KIT1
24197001面板FACE PLATE1
2419700A2面板FACE PLATE1
2519453叶轮IMPELLER1
2519453T叶轮IMPELLER1
2619699键KEY1
268M0032831叶轮键KEY Impeller1
2714334A1水泵总成PUMP ASSEMBLY Water1
2714334A3水泵总成PUMP ASSEMBLY Water1
29194541衬垫(上部)GASKET (UPPER)1
3043023密封件SEAL1
308M0204658密封件SEAL1
318248324螺钉(M6 x 16)SCREW (M6 x 16)6
3343045绝缘体INSULATOR4
338M0204659绝缘体@4INSULATOR @44
3419452绝缘体INSULATOR2
-812966A11水泵维修套件REPAIR KIT Water Pump1
-812966A12水泵维修套件REPAIR KIT Water Pump1
-814669A2齿轮箱密封套件SEAL KIT Gear Housing1
图 75电气组件 ELECTRICAL COMPONENTS
电气组件 ELECTRICAL COMPONENTS
REF零件编号中文名称英文名称数量
1881363T盖板COVER1
2881364T2线束总成HARNESS ASSEMBLY1
2881364T04线束HARNESS1
2881364T1线束总成HARNESS ASSEMBLY1
2881364T04线束HARNESS1
3804291保险丝20安培FUSE 20 Ampere4
3832969T20迷你保险丝-黄色-20安FUSE Mini - Yellow - 20 Ampere4
48042911030安保险丝FUSE 30 Ampere4
48M005715930A保险丝FUSE-30A4
0891824010保险丝盖COVER Fuse4
0891824020保险丝盖COVER Fuse4
5804289保险丝拔取器PULLER Fuse1
6881362支架BRACKET1
78813511螺钉SCREW1
8881352T继电器RELAY1
88M0098898继电器RELAY1
982214M垫圈WASHER2
10881355锁紧垫圈LOCKWASHER2
1082212M锁紧垫圈LOCKWASHER2
11881354螺钉SCREW2
1196671M螺钉SCREW2
12804284护套BOOT2
12804284001护套BOOT2
13881350T继电器RELAY1
14881351螺钉SCREW1
15881353卡箍CLAMP1
168813511螺钉SCREW1
17881359T支架BRACKET1
17881363A01盖/支架套件COVER/BRACKET KIT1
18881361卡箍CLAMP1
19881360卡箍CLAMP1
20804270螺栓(M6×28)BOLT (M6 x 28)5
21881304护孔环GROMMET5
2282851M衬套BUSHING5
22804344003轴环COLLAR5
23881356T1继电器总成RELAY ASSEMBLY1
23882751A3升降继电器套件RELAY KIT Trim1
24881357引线LEAD WIRE1
25881358盖帽CAP1
268248324螺钉(M6 x 16)SCREW (M6 x 16)2
27825702螺栓 (M6 x 20)BOLT (M6 x 20)2
278257021螺栓 (M6 x 20)BOLT (M6 x 20)2
28804604螺栓 (M6 x 20)BOLT (M6 x 20)1
2988439A33正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
3088439A10蓄电池负极电缆总成CABLE ASSEMBLY Negative - Battery1
31401388不锈钢螺母 (M8)NUT (M8) Stainless Steel1
3240011128不锈钢螺钉(M6x20)SCREW (M6 x 20) Stainless Steel1
328M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD1
33858723T1适配器/升降线束总成HARNESS ASSEMBLY Adapter/Trim1
34858914T1升降马达适配器线束总成HARNESS ASSEMBLY Trim Motor Adaptor1
35858740T4遥控适配器线束总成HARNESS ASSEMBLY Adapter Assembly Remote1
3692753固定座RETAINER1
37859249T1连接器CONNECTOR1
38816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
398272822高压警告标贴DECAL Warning High Voltage1
40881865挂档启动警示标贴DECAL Caution-Start in Gear Start in Gear1
41828151A2升降继电器套件TRIM RELAY KIT1
41882751A3升降继电器套件RELAY KIT Trim1
42826802A24升降线束总成HARNESS ASSEMBLY Trim1
43828151A1继电器总成RELAY ASSEMBLY2
438M0207773调整继电器总成RELAY ASSEMBLY Trim2
44818967护孔环GROMMET1
448M0207785护孔环GROMMET1
45818968衬套BUSHING1
458M0214955衬套BUSHING1
46NSS标贴(不单独销售)NOT SOLD SEPARATE Decal1
47828102支架BRACKET1
478M0207771安装支架BRACKET Mounting1
48824868螺钉(M6×75)SCREW (M6 x 75)1
494002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)2
498M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.52
50823807衬套BUSHING1
图 76杂项信息 MISCELLANEOUS INFORMATION
杂项信息 MISCELLANEOUS INFORMATION
REF零件编号中文名称英文名称数量
081735296零件手册50/55/60/JET 45PARTS MANUAL 50/55/60/JET 451
0817383A1工具包TOOL BAG1
0816939A96贴花套件DECAL SET1
0811212A96贴花套件DECAL SET1
0811212A00贴花套件(黑色60电动)DECAL SET (Black 60 Electric)1
0830163A96贴花套件DECAL SET1
0804704A00贴花套件(黑色60 Bigfoot)DECAL SET (Black 60 Bigfoot)1
0826313A95贴花套件DECAL SET1
0826313A01贴花套件(黑色60 SeaPro)DECAL SET (Black 60 SeaPro)1
0824097A95贴花套件DECAL SET1
0816940A94贴花套件DECAL SET1
0816940A97贴花套件DECAL SET1
0816940A97贴花套件DECAL SET1
0811211A94贴花套件DECAL SET1
0811211A03贴花套件(灰色60电动)DECAL SET (Gray 60 Electric)1
0811211A97贴花套件DECAL SET1
0811211A03贴花套件(灰色60电动)DECAL SET (Gray 60 Electric)1
0826326A95贴花套件DECAL SET1
0826326A01贴花套装(灰色Jet 40)DECAL SET (Gray Jet 40)1
0826326A97贴花套件DECAL SET1
0826326A01贴花套装(灰色Jet 40)DECAL SET (Gray Jet 40)1
013361A95贴花套件DECAL SET1
08588372贴花套件(灰色Marathon 60)DECAL SET (Gray Marathon 60)1
0824098A95贴花套件DECAL SET1
0821573A95贴花套件DECAL SET1
0821573A01贴花套件(黑色55 SeaPro)DECAL SET (Black 55 SeaPro)1
0821424A95贴花套件DECAL SET1
08588371贴花套件(灰色Marathon 55)DECAL SET (Gray Marathon 55)1
0824733A94贴花套件DECAL SET1
0824733A96贴花套装(Tracker 60)DECAL SET (Tracker 60)1
0831846A97贴花套装(Tracker Bigfoot 60)DECAL SET (Tracker Bigfoot 60)1
0826325A96贴花套件DECAL SET1
0826325A00贴花套件DECAL SET1
010171970用户手册OWNERS MANUAL1
010173970用户手册OWNERS MANUAL1
010172970用户手册OWNERS MANUAL1
010176970用户手册OWNERS MANUAL1
图 77齿轮箱驱动轴-60海宝/马拉松/大脚-6爪倒车离合器 GEAR HSG DRIVESHAFT-60 SEA/MARA/BIG FOOT-6 JAW REV. CLUTCH
齿轮箱驱动轴-60海宝/马拉松/大脚-6爪倒车离合器 GEAR HSG DRIVESHAFT-60 SEA/MARA/BIG FOOT-6 JAW REV. CLUTCH
REF零件编号中文名称英文名称数量
-9011G16齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G14齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G94齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G17齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G96ORD 1667-9011G92ORD 1667-9011G921
-9011G15齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G48齿轮箱GEAR HOUSING1
19011G8齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19011G59基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011G9齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19011G60基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
243043定位销-带孔(.375 x .625)(前)PIN Dowel - With Hole (.375 x .625) (FRONT)1
28M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
343046注油管TUBE Oiler1
479953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)2
479953Q04放油螺钉套件SCREW KIT Drain2
567892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
58M0058389放油螺钉套件SCREW KIT Drain1
619183纤维垫圈WASHER Fiber3
68M0187157蓝色密封件@15SEAL-BLUE @153
743044定位销-无孔(.375 x .625)(后)PIN Dowel - Without Hole (.375 x .625) (REAR)1
8316405平衡鳍板TRIM TAB1
88M0236553平衡鳍板TRIM TAB1
9825427不锈钢螺钉(0.437-14x1.250)SCREW (.437-14 x 1.250) Stainless Steel1
1045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel1
1143040A1托架总成CARRIER ASSEMBLY1
1143040T1托架总成CARRIER ASSEMBLY1
12NSSNOT SOLD SEPARATE NEEDLE BEARING1
13826134阳极块ANODE2
13826134Q阳极块ANODE2
148268336螺母 (M6)NUT (M6)1
14401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
154000333螺钉(M6 x 40)SCREW (M6 x 40)1
1644484小齿轮(13齿)(也属于43-850033A2)GEAR Pinion (13 Teeth) (ALSO PART OF 43-850033A2)1
1644484T小齿轮(13齿)GEAR Pinion (13 Teeth)1
1735921螺母(0.625-18)NUT (.625-18)1
18850307换挡凸轮控制CAM Shift Control1
1942677A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
2044492A1垫片组SHIM SETAR
208M0063265垫片组SHIM SETAR
21826736A1驱动轴总成DRIVESHAFT ASSEMBLY1
21826737A1驱动轴总成DRIVESHAFT ASSEMBLY1
2242461A1套筒/环套件SLEEVE/RING KIT1
23NSSNOT SOLD SEPARATE RING SEAL1
2443055A4水泵盖总成COVER ASSEMBLY Water Pump1
248M0113262水泵盖总成COVER ASSEMBLY Water Pump1
25430331衬垫GASKET1
26430472衬垫GASKET1
268M0214931衬垫GASKET1
2743035油封SEAL Oil1
278M0245495油封OIL SEAL1
2843036油封SEAL Oil1
29817277衬垫GASKET1
298172771水泵上垫片GASKET Water Pump, Upper1
30817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
31817276面板FACEPLATE1
318M0204709面板FACEPLATE1
328248327螺钉 (M6 x 30)SCREW (M6 x 30)4
328M0214957螺钉SCREW4
33826763A1联轴器COUPLING1
33826762A1联轴器COUPLING1
3443037键KEY1
348M0204723键KEY1
35430262叶轮IMPELLER1
3543026T2叶轮IMPELLER1
368248326螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)6
37853906A1换挡轴总成SHIFT SHAFT ASSEMBLY1
37853907A1换挡轴总成SHIFT SHAFT ASSEMBLY1
3829641E型卡环E RING1
3943052A4衬套总成BUSHING ASSEMBLY1
4045710O型圈(1.424x0.103)O-RING (1.424 x .103)1
408M0204681特殊O型圈1.424x0.103O-RING 1.424 x .103, Special1
418164641油封SEAL Oil1
418M0246145油封OIL SEAL1
428248326螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
-43024A7水泵维修套件REPAIR KIT Water Pump1
-8M0113799水泵修理包REPAIR KIT-W/P1
-43035A4齿轮箱密封套件SEAL KIT Gear Housing1
图 78化油器总成 CARBURETOR ASSEMBLY
化油器总成 CARBURETOR ASSEMBLY
REF零件编号中文名称英文名称数量
16517A33化油器总成CARBURETOR ASSEMBLY1
16517A34化油器总成CARBURETOR ASSEMBLY1
16517A64化油器KT-底置CARBURETOR KT-BOT1
2NSS大型主体通道(不单独销售)NOT SOLD SEPARATE Large Body Channel2
3NSS主体通道(不单独销售)NOT SOLD SEPARATE Body Channel6
496773A1阻风门轴总成SHAFT ASSEMBLY Choke2
49296A1阻风门轴套件CHOKE SHAFT KIT2
5NSS回位-节气门轴(不单独销售)NOT SOLD SEPARATE Return-Throttle Shaft2
67211A1燃油杯挡板BAFFLE Fuel Bowl2
6814483燃油杯挡板BAFFLE Fuel Bowl2
79293浮子FLOAT2
8NSS浮子固定件(不单独销售)NOT SOLD SEPARATE Float Retaining2
95127燃油杯BOWL Fuel2
10NSS燃油杯(不单独销售)NOT SOLD SEPARATE Fuel Bowl2
119652燃油杯至化油器螺钉SCREW Fuel Bowl to Carburetor2
12NSS燃油杯螺钉(不单独销售)NOT SOLD SEPARATE Fuel Bowl Screw4
139022进油针阀及弹簧NEEDLE AND SPRING Inlet2
141457主量孔(.057)JET Main Fuel (.057)2
157335省油量孔(.098)JET (.098) Economizer (.098)2
1664677喉管VENTURI2
178665阻风门片SHUTTER Choke2
18NSS阻风门片至轴连接件(不单独销售)NOT SOLD SEPARATE Choke Shutter to Choke Shaft4
19NSS怠速混合气调节件(不单独销售)NOT SOLD SEPARATE Idle Mixture2
20NSS怠速混合气螺钉(不单独销售)NOT SOLD SEPARATE Idle Mixture Screw2
21NSS不单独销售 燃油泵NOT SOLD SEPARATE Fuel Pump2
229653盖板(上化油器)COVER Plate (Upper Carburetor)1
239654盖板(下化油器)COVER Plate (Lower Carburetor)1
245132滤清器体至化油器螺钉SCREW Strainer Body to Carburetor8
24808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)8
259020油门轴SHAFT Throttle1
259656油门轴SHAFT Throttle1
2692880节气门杠杆(上化油器)LEVER Throttle (Upper Carburetor)1
2720847节气门杠杆螺钉(上化油器)SCREW Throttle Lever (Upper Carburetor)2
276027螺钉SCREW2
2897节气门杠杆(下化油器)LEVER Throttle (Lower Carburetor)1
288146791油门杆LEVER Throttle1
296027节气门杠杆螺钉(下化油器)SCREW Throttle Lever (Lower Carburetor)1
309649节气门片SHUTTER Throttle2
31NSS节气门片至轴连接件(不单独销售)NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft4
32757911化油器法兰衬垫GASKET Carburetor Flange2
3364809化油器安装柱螺母NUT Carburetor Mounting Stud4
--9650维修套件REPAIR KIT2
--9651衬垫套件GASKET SET2

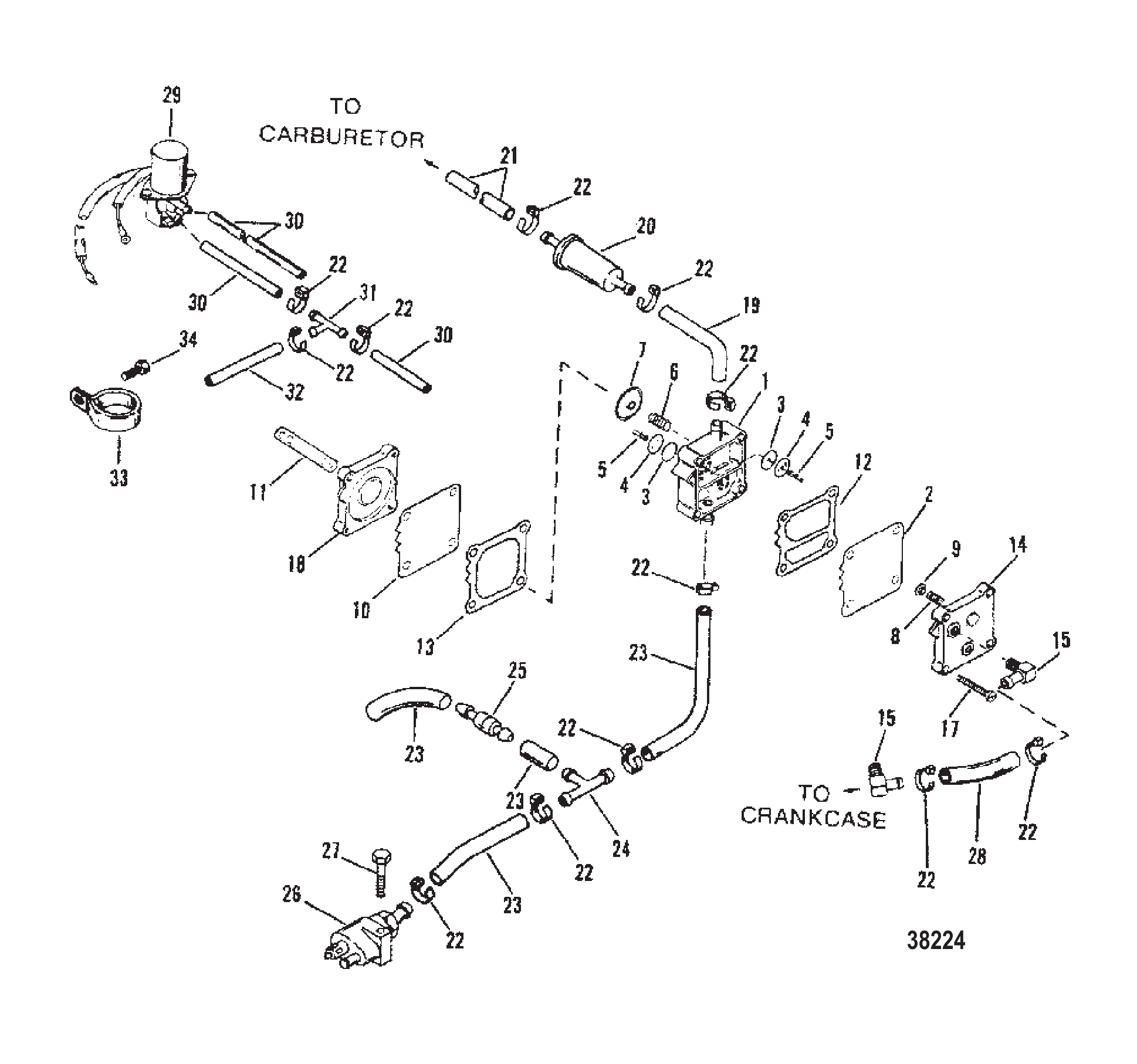

图 79燃油泵(黑色 50/60) FUEL PUMP (BLACK 50/60)
燃油泵(黑色 50/60) FUEL PUMP (BLACK 50/60)
REF零件编号中文名称英文名称数量
114360A43燃油泵总成PUMP ASSEMBLY Fuel1
242990A10膜片组件DIAPHAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSSNOT SOLD SEPARATE CHECK VALVE-RUBBER2
4NSSNOT SOLD SEPARATE CHECK VALVE2
5NSSNOT SOLD SEPARATE RETAINER2
6NSSNOT SOLD SEPARATE SPRING1
7NSSNOT SOLD SEPARATE CAP1
8NSSNOT SOLD SEPARATE SPRING1
9NSSNOT SOLD SEPARATE CAP1
10NSSNOT SOLD SEPARATE DIAPHRAGM1
11987691衬垫GASKET1
118M0204705衬垫@2GASKET @21
12NSSNOT SOLD SEPARATE GASKET-BOOST1
13NSSNOT SOLD SEPARATE GASKET-PULSE1
14987752安装板PLATE1
154333590度接头(.125-27)尼龙CONNECTOR 90 Degree (.125-27) Nylon2
1543335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal2
1782104540螺钉(M5 x 40)燃油泵SCREW (M5 x 40) FUEL PUMP2
1782130050螺钉(M6 x 50)燃油泵至曲轴箱SCREW (M6 x 50) FUEL PUMP TO CRANKCASE2
18144303底座BASE1
19816865软管HOSE1
19830767软管HOSE1
208162961燃油滤清器FILTER Fuel1
20816296Q2燃油滤清器FILTER Fuel1
2119723燃油管LINE Fuel1
21830761燃油管LINE Fuel1
22816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
22816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
239912980软管HOSE3
238M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)3
24818993三通接头CONNECTOR Tee1
25818994止回阀CHECK VALVE1
258189941止回阀CHECK VALVE1
26816856A1燃油接头总成CONNECTOR ASSEMBLY Fuel1
26816856T01燃油接头CONNECTOR-FUEL1
274000332螺钉(M6x35)SCREW (M6 x 35)1
289912878软管(.187)(26.00英寸散装)(4-1/4")HOSE (.187) (26.00 Inches Bulk) (4-1/4")1
29428593电磁阀SOLENOID VALVE1
29819503A5加浓阀电磁阀套件SOLENOID KIT Enrichner Valve1
309912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)3
3159169接头FITTING1
3159169003三通接头FITTING Tee1
3299130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
32892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
33633001卡箍CLAMP1
344006731螺钉(M6 x 16)SCREW (M6 x 16)1
-812867A97衬垫套件GASKET SET1
-857005A1膜片组件DIAPHRAGM KIT1

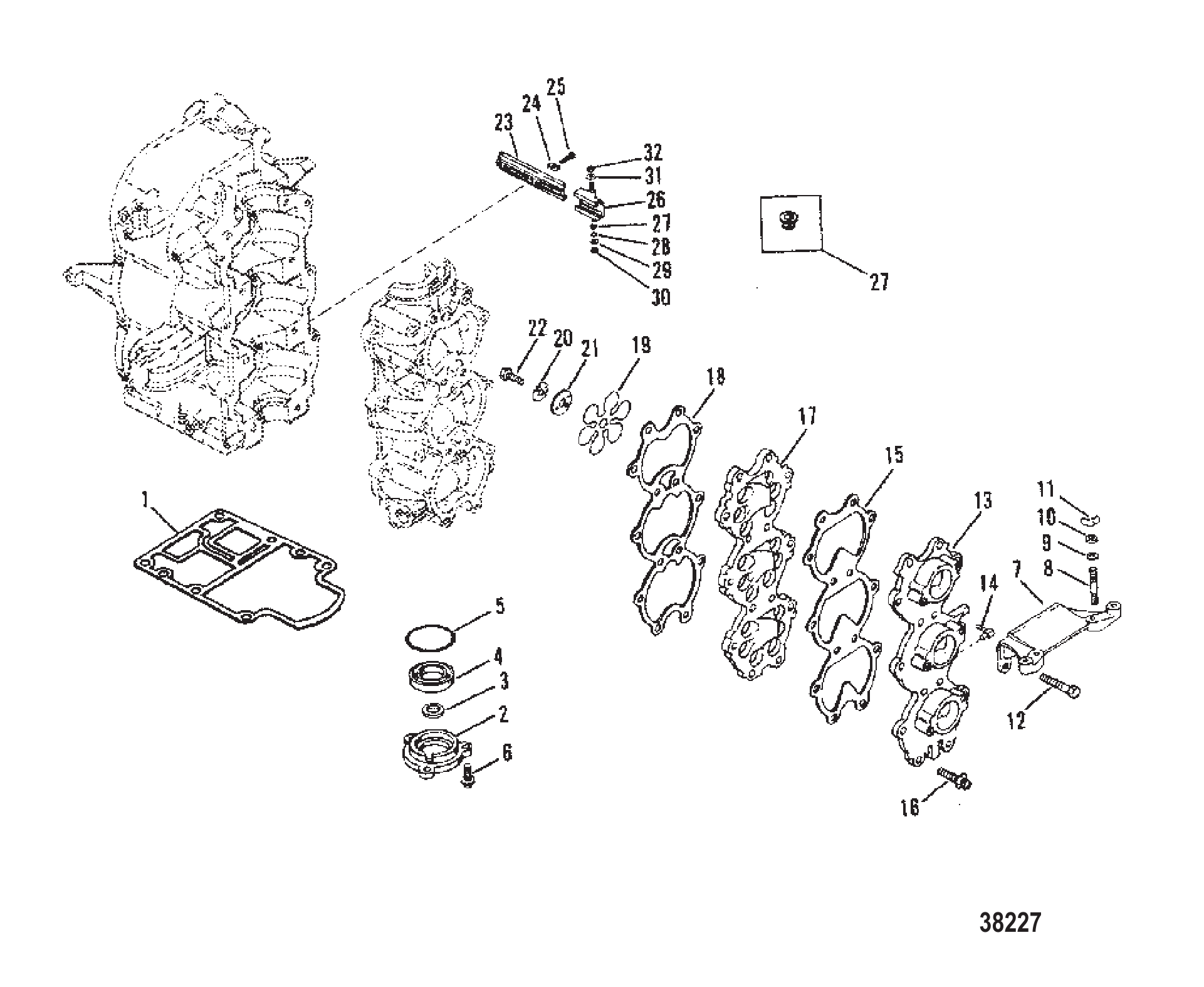

图 80进气歧管与簧片阀组 INDUCTION MANIFOLD AND REED BLOCK
进气歧管与簧片阀组 INDUCTION MANIFOLD AND REED BLOCK
REF零件编号中文名称英文名称数量
1812865衬垫GASKET1
29812A9下端盖总成END CAP ASSEMBLY Lower1
29812T9下端盖总成END CAP ASSEMBLY Lower1
366301油封SEAL Oil1
441953密封件SEAL1
590011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
58M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
681742720螺钉(M8 x 20)SCREW (M8 x 20)3
719077A2支架总成BRACKET ASSEMBLY1
719077A3支架总成BRACKET ASSEMBLY1
88161941螺柱STUD2
88161949双头螺柱(M6 x 44)STUD (M6 x 44)2
949221垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)WASHER (.187 x .500 x .062) Neoprene2
98M0204663垫片@5WASHER @52
1069056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel2
11816872蝶形螺母WING NUT2
1282127335螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)4
1319076A3进气歧管总成MANIFOLD ASSEMBLY Induction1
1419725弯头(55号件含2个)ELBOW (QTY. OF 2 ON 55)1
15812869衬垫GASKET1
1681742730螺钉 (M8 x 30)SCREW (M8 x 30)10
1719075A2簧片阀总成REED BLOCK ASSEMBLY1
178M0219197簧片阀总成REED BLOCK ASSY1
18812868衬垫GASKET1
19812880A1簧片组(0.008厚度)REED SET (0.008 THICK)3
19812880A03簧片组件REED ASSEMBLY3
19812880A2簧片组件(0.010厚度)REED ASSEMBLY (0.010 THICK)3
19812880A03簧片组件REED ASSEMBLY3
2042982锁紧垫圈TAB WASHER3
20429821锁紧垫圈TAB WASHER3
21812879固定座RETAINER3
21812879002簧片压板RETAINER Reed3
224000171螺钉(M6 x 16)SCREW (M6 x 16)3
2342881A1换挡拨叉总成SHIFT RAIL ASSEMBLY1
2442981锁紧垫圈TAB WASHER2
2540001134螺钉 (M8 x 25)SCREW (M8 x 25)2
26988851滑块SLIDE1
2748475衬套(II型)BUSHING (DESIGN II)1
2742994衬套BUSHING1
2829720波形垫圈WAVE WASHER1
2924664垫圈 (M4 x 20)WASHER (M4 x 20)1
30400634螺母 (M6)NUT (M6)1
30401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
3135459垫圈WASHER1
32400634螺母 (M6)NUT (M6)1
32401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
-15026进气歧管盖CAP (FOR USE ON INDUCTION MANIFOLD)3
-812867A97衬垫套件GASKET SET1
-811208T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-821744T92动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T93动力头总成(完整)POWERHEAD ASSEMBLY Complete1
图 81化油器(WME-22/22B/23/24/35) CARBURETOR (WME-22/22B/23/24/35)
化油器(WME-22/22B/23/24/35) CARBURETOR (WME-22/22B/23/24/35)
REF零件编号中文名称英文名称数量
1815406A1化油器(上)CARBURETOR (TOP)1
1815406A2化油器(中)CARBURETOR (CENTER)1
1815406A3化油器(下)CARBURETOR (BOTTOM)1
1817714A4化油器(上)CARBURETOR (TOP)1
1821946A45化油器维修包CARBURETOR KIT1
1817714A5化油器(中)CARBURETOR (CENTER)1
1821946A46化油器维修包CARBURETOR KIT1
1817714A6化油器(下)CARBURETOR (BOTTOM)1
1821946A47化油器维修包CARBURETOR KIT1
1815405A4化油器(上)CARBURETOR (TOP)1
1815405A5化油器(中)CARBURETOR (CENTER)1
1815405A6化油器(下)CARBURETOR (BOTTOM)1
2NSS不单独销售 燃油杯衬垫NOT SOLD SEPARATE GASKET-FUEL BOWL3
3NSS不单独销售 挡圈NOT SOLD SEPARATE RETAINING RING3
4811695燃油杯(上)BOWL Fuel (UPPER)1
49590燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
4811693燃油杯BOWL Fuel2
4811695燃油杯(上)BOWL Fuel (UPPER)1
4811693燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
5811218节气门轴(上/下部)SHAFT Throttle (UPPER/BOTTOM)2
6811219节气门轴(中央)SHAFT Throttle (CENTER)1
7811216油门阀VALVE Throttle3
79593油门阀VALVE Throttle3
89594浮子FLOAT3
9NSS不单独销售 浮子轴NOT SOLD SEPARATE FLOAT SHAFT3
109595进油针阀VALVE Inlet Needle3
10879194011进油阀VALVE Inlet3
119596堵头PLUG3
1195961油杯放油塞PLUG Bowl Drain3
11811694塞套件PLUG KIT3
12NSS不单独销售 塞衬垫NOT SOLD SEPARATE GASKET-PLUG3
13NSS不单独销售 盖板衬垫NOT SOLD SEPARATE GASKET-COVER PLATE3
148144461法兰衬垫GASKET Flange3
15NSS不单独销售 油门阀螺钉NOT SOLD SEPARATE SCREW-THROTTLE VALVE6
16811220盖板螺丝SCREW Cover Plate6
175132燃油杯螺钉SCREW FUEL BOWL12
17808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)12
18811221盖板COVER PLATE3
196359量孔(.052)JET (.052)3
196029量孔(.068)JET (.068)3
196030量孔(.070)JET (.070)3
206247主量孔(0.090)JET Main (.090)3
21NSSNOT SOLD SEPARATE GASKET3
22NSSNOT SOLD SEPARATE SPRING3
23NSSNOT SOLD SEPARATE SPRING3
24NSS不单独销售 怠速针NOT SOLD SEPARATE IDLE NEEDLE3
-812867A97衬垫套件GASKET SET1
-8236353化油器维修套件REPAIR KIT Carburetor1
-8236354化油器维修套件REPAIR KIT Carburetor1
-8112231化油器衬垫组GASKET SET Carburetor1

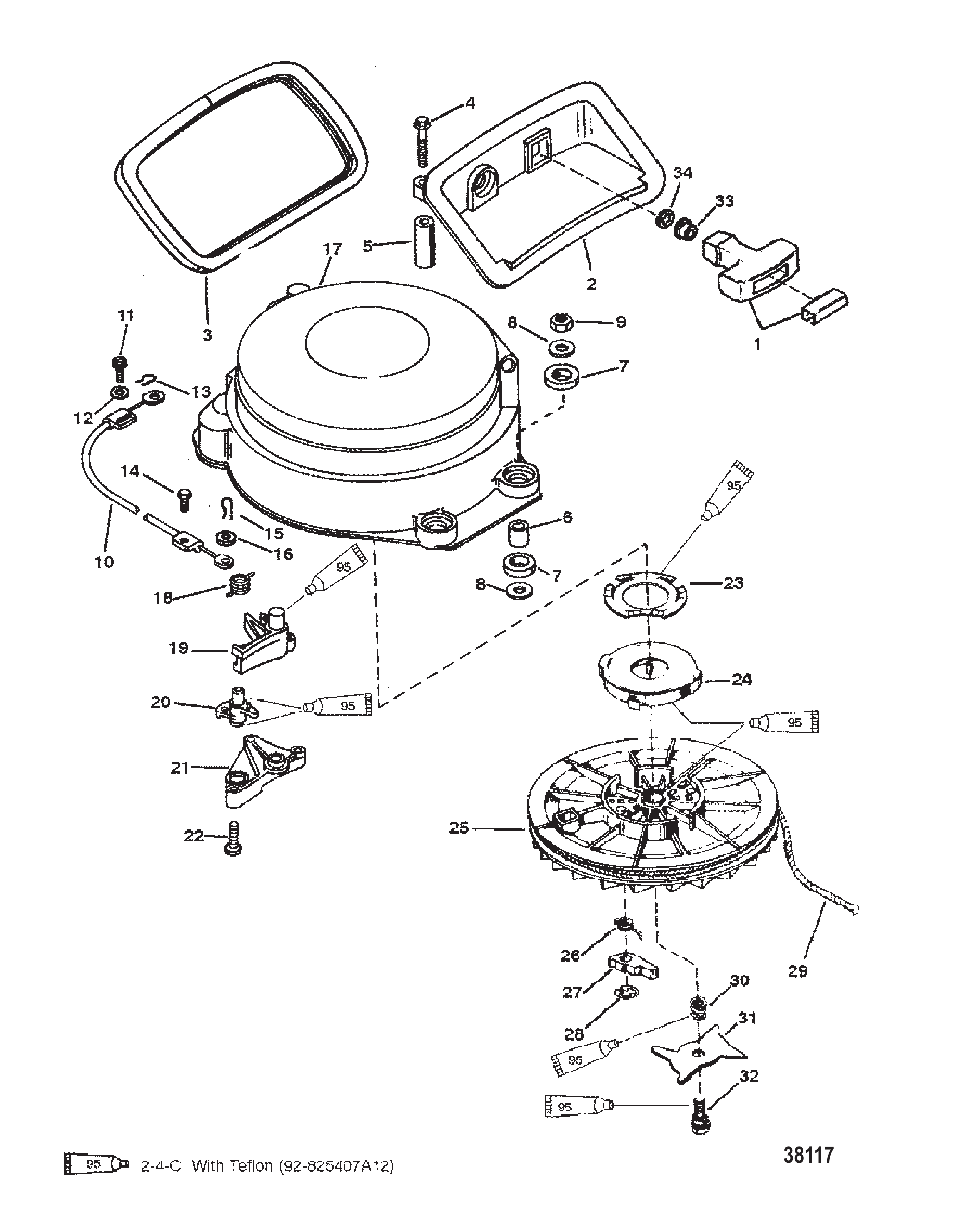

图 82启动器总成(手动-55) STARTER ASSEMBLY (MANUAL - 55)
启动器总成(手动-55) STARTER ASSEMBLY (MANUAL - 55)
REF零件编号中文名称英文名称数量
185174A1手柄总成HANDLE ASSEMBLY1
28167652支架REST1
38136072密封件SEAL1
38M0043161密封件SEAL1
482170475螺钉(M6×75)SCREW (M6 x 75)2
5821702隔套SPACER2
6816086衬套BUSHING4
7815795护孔环GROMMET8
869057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)8
9401196螺母 (M6)NUT (M6)4
108167485联锁电缆CABLE Interlock1
108567541联锁电缆CABLE Interlock1
118214281螺钉(#10-16x0.625)SCREW (#10-16 x .625)1
1273288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
1327769开口销COTTER PIN1
1326811开口销COTTER PIN1
14812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
14878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
1527769开口销COTTER PIN1
1526811开口销COTTER PIN1
1635462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
-816728A12手拉启动器总成STARTER ASSEMBLY Recoil1
-816728T14手拉启动器总成STARTER ASSEMBLY Recoil1
178167285壳体HOUSING1
17816728T05壳体HOUSING1
18826791弹簧SPRING1
198166903杠杆LEVER1
208167121凸轮CAM1
20816712T01凸轮CAM1
21816711固定座RETAINER1
228182491螺钉(#10-16 x 1.00)SCREW (#10-16 x 1.00)3
23826229弹簧锁紧垫圈LOCKWASHER SPRING1
24868571弹簧SPRING1
2486857T01弹簧SPRING1
25825269A1启动滑轮SHEAVE Starter1
25825269T01启动器滑轮总成SHEAVE STARTR ASU1
2686851弹簧SPRING2
2686851T02弹簧 @2SPRING @22
2786850凸轮CAM2
27868501凸轮CAM2
28868491挡圈RING Retaining2
2886849T01环 @2RING @22
2912066A9绳索ROPE1
2912066Q10启动绳@2ROPE-STARTER@21
3086852弹簧SPRING1
30868523弹簧SPRING1
3186853凸轮CAM1
3186853T01凸轮CAM1
32826253螺钉(.250-20 x .625)SCREW (.250-20 x .625)1
3342690衬套BUSHING1
338M0183792绳索衬套ROPE BUSHING1
34818853挡圈RING Retaining1
图 83动力升降组件 POWER TRIM COMPONENTS
动力升降组件 POWER TRIM COMPONENTS
REF零件编号中文名称英文名称数量
-830250T3动力升降泵总成PUMP ASSEMBLY Power Trim1
1811666A1减震杆套件SHOCK ROD KIT1
18M0171821减震杆套件SHOCK ROD KIT1
2809872A2O型圈维修包O-RING KIT Rebuild1
28M0171819O型圈套件O-RING KIT1
3810776A1记忆活塞总成PISTON ASSEMBLY Memory1
38M0171822记忆活塞套件MEMORY PISTON KIT1
4811669A1气缸总成CYLINDER ASSEMBLY1
4893916A01气缸总成CYLINDER ASSEMBLY1
5809873A1配平限位阀套件VALVE KIT Trim Limit1
5893905A02阀套件VALVE KIT1
6809874A1泵总成PUMP ASSEMBLY1
6893906A02泵总成PUMP ASSEMBLY1
7809885A2电机套件MOTOR KIT1
7893907A02电机套件MOTOR KIT1
88134351堵头PLUG1
9813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
9893929A01安全阀套件VALVE KIT Relief1
10809875A1歧管套件MANIFOLD KIT1
10893909A02歧管套件MANIFOLD KIT1
11809876A1电机螺钉套件SCREW KIT Motor1
1288238A18拉线总成CABLE ASSEMBLY1
13809877A1驱动轴/密封套件DRIVESHAFT/SEAL KIT1
14809878A1滤清器套件FILTER KIT1
14893912A02滤清器套件FILTER KIT1
15809879A1提升阀套件POPPET KIT1
15893913A02提升阀套件POPPET KIT1
-809880A1完整配平O型圈套件O-RING KIT Complete Trim1
-893914A02O型圈套件O-RING KIT1
16821539三叶销PIN Trilobe2
17818898锚销PIN Anchor1
18996251轴SHAFT1
1899625002轴SHAFT1
1922740卡扣CLIP2
20878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
2169205C形垫圈C WASHER1
218M0084613C形垫圈C-WASHER1

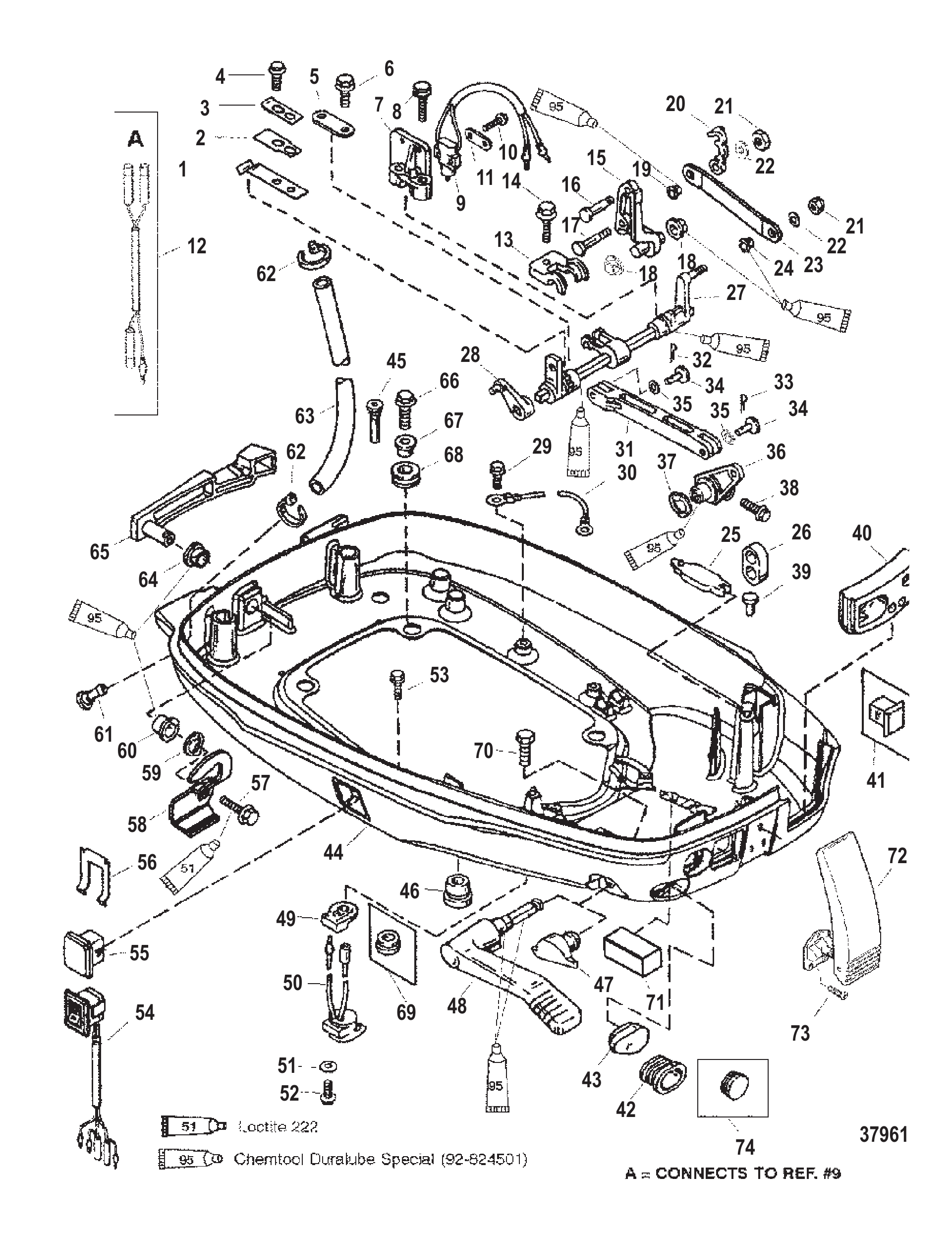

图 84下罩 Bottom Cowl
下罩 Bottom Cowl
REF零件编号中文名称英文名称数量
1878587A1下罩总成BOTTOM COWL ASSEMBLY1
2858743A2下罩总成BOTTOM COWL ASSEMBLY1
28M0113913右舷下罩BCOWL-LOWER STBD B1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
4878547T嵌件INSERT1
582130040螺钉(M6 x 40)SCREW (M6 x 40)8
6831209固定座RETAINER1
7858742怠速排气套BOOT Idle Exhaust1
8859251护孔环GROMMET1
88M0039078护孔环GROMMET1
9827948接头FITTING1
10855576垫圈WASHER1
11816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)6
12830756109软管(57英寸整卷)(裁切至5英寸长度)HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)1
128M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
13881535软管(32.00英寸)HOSE (32.00 Inches)1
149912688管材(36.00英寸散装)(26.00英寸)TUBING (36.00 Inches Bulk) (26.00 Inch)1
15817518三通TEE1
1682130020螺钉 (M6 x 20)SCREW (M6 x 20)2
178587411护孔环GROMMET1
17889724护孔环GROMMET1
18856990开关总成SWITCH ASSEMBLY1
188M0235192微调开关SWITCH TRIM1
19824868螺钉(M6×75)SCREW (M6 x 75)1
20821253F1前手柄黑色FRONT HANDLE Black1
20889740A02手柄套件HANDLE KIT1
2133589衬套BUSHING2
2248462O型圈 (.614 x .070)O-RING (.614 x .070)1
238219423棘爪PAWL1
2469057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
25401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2613541公插头PLUG Male2

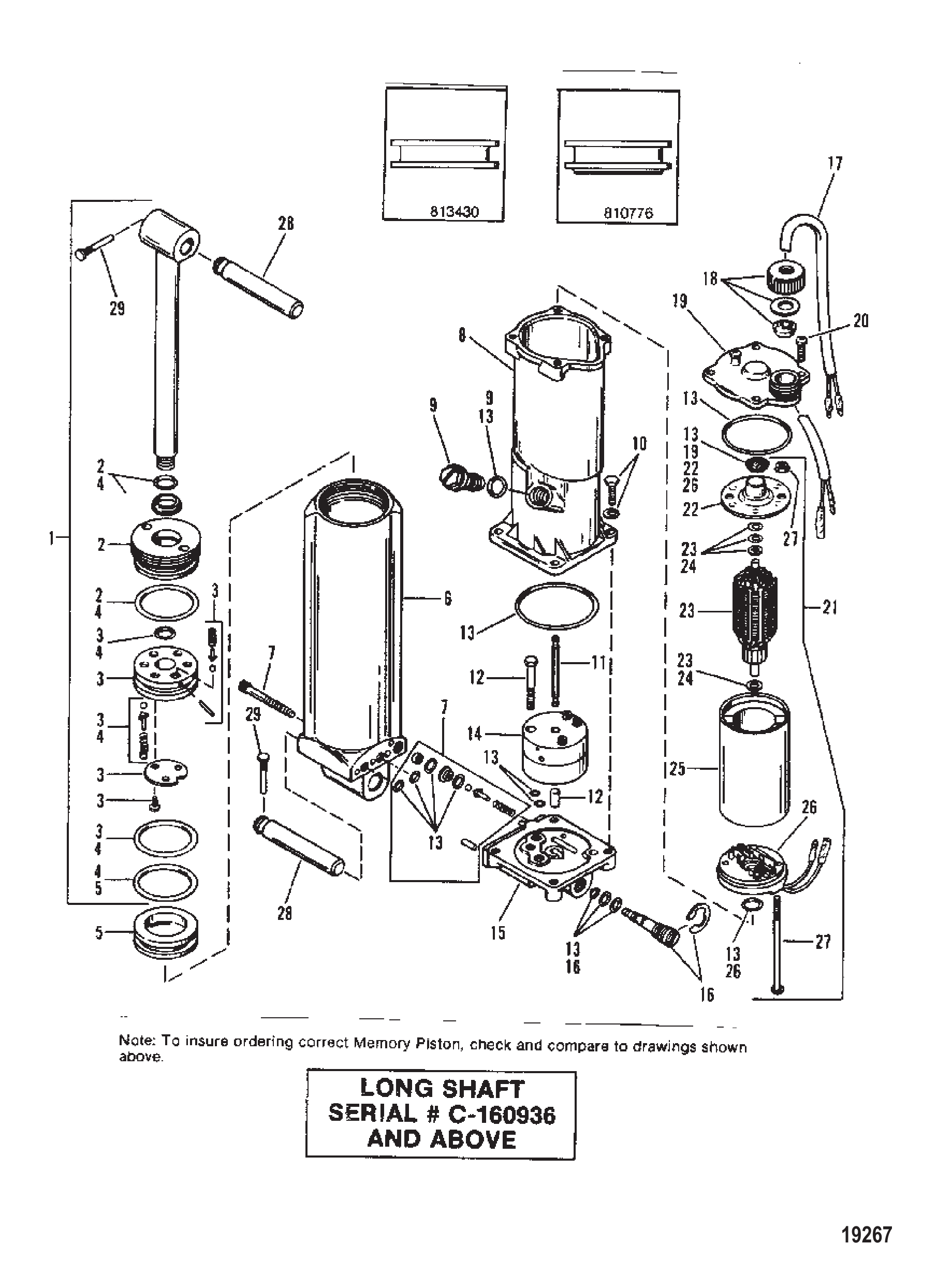

图 85电动配平组件（长序列号-0C160936及以上） Electric Trim Components (Long-S/N-0C160936 & Up)
电动配平组件（长序列号-0C160936及以上） Electric Trim Components (Long-S/N-0C160936 & Up)
REF零件编号中文名称英文名称数量
1813427减震杆总成套件SHOCK ROD ASSEMBLY KIT1
2813428升降缸端盖总成END CAP ASSEMBLY Trim Cylinder1
3813429减震活塞总成PISTON ASSEMBLY Shock1
4813432A1气缸修理包CYLINDER REBUILD KIT1
5813430配平记忆活塞套件（见备注）PISTON KIT Trim Memory (SEE NOTE)1
5893903A01活塞套件PISTON KIT1
5810776记忆活塞套件（见备注）PISTON KIT Memory (SEE NOTE)1
6810777气缸套件CYLINDER KIT1
7813433A1螺丝和密封套件气缸SCREW AND SEAL KIT CYLINDER1
7893919A01螺丝/密封套件SCREW/SEAL KIT1
8813434A1储液罐RESERVOIR1
9813435塞套件PLUG KIT1
98134351堵头PLUG1
10813436螺钉套件SCREW KIT1
11813437驱动轴DRIVESHAFT1
12813438螺丝和销钉套件SCREW AND PIN KIT1
13813439A1密封套件SEAL KIT1
13813439A3O型圈套件O RING KIT1
14813440泵PUMP1
14811227泵PUMP1
15813441歧管总成MANIFOLD ASSEMBLY1
16813442A1安全阀套件RELIEF VALVE KIT1
16893929A01安全阀套件VALVE KIT Relief1
17813443线束总成HARNESS ASSEMBLY1
17811698线束总成HARNESS ASSEMBLY1
18813444边框套件BEZEL KIT1
18811698线束总成HARNESS ASSEMBLY1
19813445储液罐盖套件CAP KIT Reservoir1
20813446螺丝帽SCREW CAP1
21813447电机套件MOTOR KIT1
22813448端盖END CAP1
23813449A1电枢ARMATURE1
24813450止推垫片套件THRUST WASHER KIT1
25813451外壳和磁铁套件SHELL AND MAGNET KIT1
26813452端架套件END FRAME KIT1
27813453螺栓螺母套件BOLT AND NUT KIT1
2819607销PIN2
2919603槽销PIN Groove2
29821539三叶销PIN Trilobe2
3019686支架BRACKET1
3119758A3线束总成HARNESS ASSEMBLY1
3218211继电器开关RELAY SWITCH2
3420401螺钉（0.190-24 x 0.38）SCREW (.190-24 x .38)2
-19217A1完整配平泵总成PUMP ASSEMBLY Trim COMPLETE1
-854472A3动力调整套件POWER TRIM KIT1

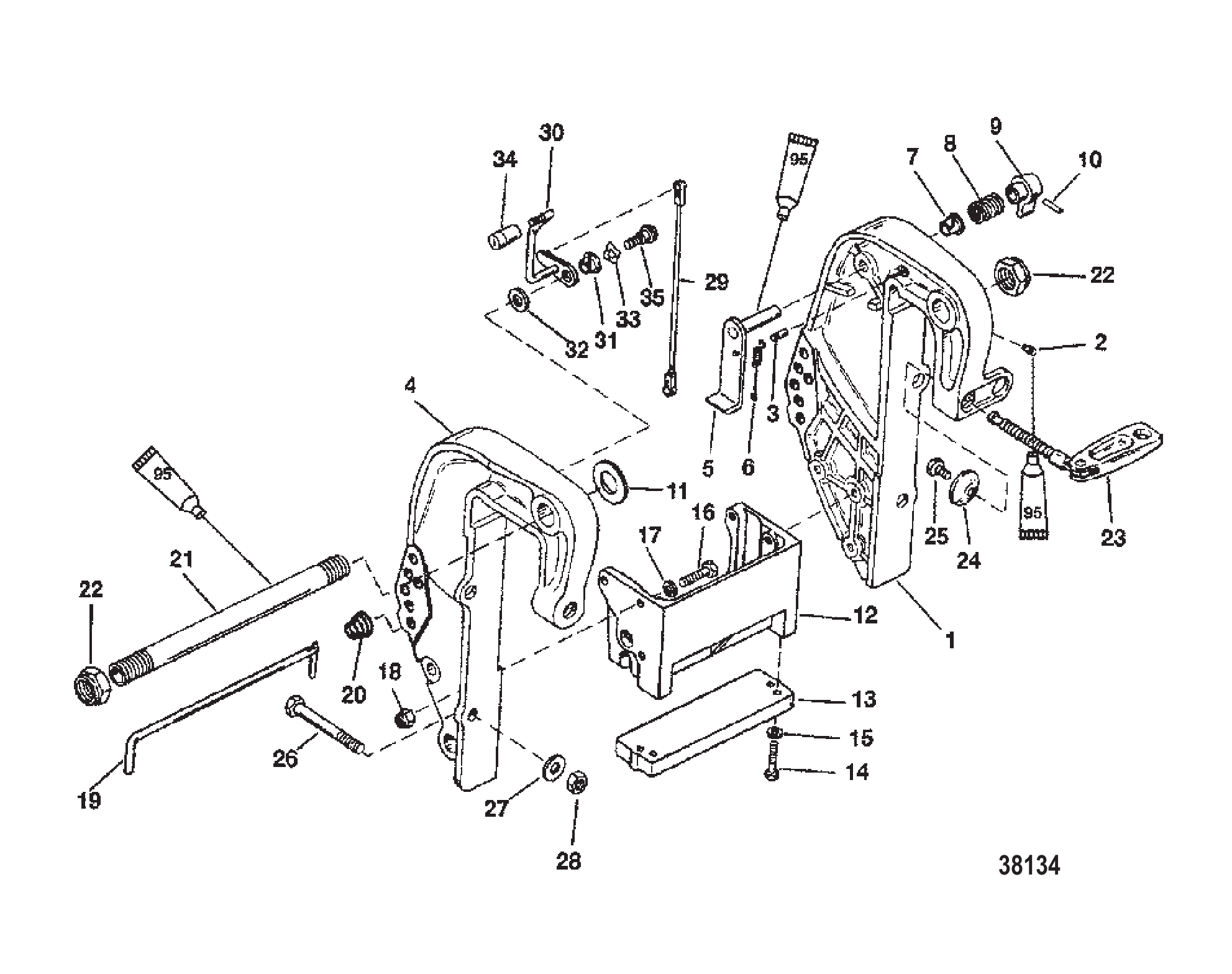

图 86夹紧支架(手动)(序列号:0D1812000及以上) CLAMP BRACKET (MANUAL) (S/N: 0D1812000 AND UP)
夹紧支架(手动)(序列号:0D1812000及以上) CLAMP BRACKET (MANUAL) (S/N: 0D1812000 AND UP)
REF零件编号中文名称英文名称数量
1822868A1夹紧支架总成(黑色)CLAMP BRACKET ASSEMBLY (BLACK)1
1822868A2夹紧支架总成(灰色)CLAMP BRACKET ASSEMBLY (GRAY)1
298727润滑脂接头FITTING Grease1
28M0169588润滑脂接头FITTING Grease1
399604槽销PIN Groove1
4822867F1夹紧支架(黑色)CLAMP BRACKET (BLACK)1
4822867F2夹紧支架(灰色)CLAMP BRACKET (GRAY)1
519618A2倾斜锁杆总成(黑色)LEVER ASSEMBLY Tilt Lock (BLACK)1
5893704T01倾斜锁杆LEVER Tilt Lock1
519618A3倾斜锁杆总成(灰色)LEVER ASSEMBLY Tilt Lock (GRAY)1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
699622弹簧SPRING1
765830尼龙衬套NYLINER1
8812708弹簧SPRING1
9812709T旋钮(黑色)KNOB (BLACK)1
9812709旋钮KNOB1
9812709T6旋钮(灰色)KNOB (GRAY)1
9812709旋钮KNOB1
1099615槽销PIN Groove1
1119619垫圈WASHER2
1218486F5锚支架(黑色)BRACKET Anchor (BLACK)1
1218486A08支架套件锚BRACKET KIT Anchor1
1218486F6锚支架(灰色)BRACKET Anchor (GRAY)1
1218486A08支架套件锚BRACKET KIT Anchor1
13818298A1阳极套件ANODE KIT1
13818298Q1阳极套件ANODE KIT1
144000330螺钉(M6x25)SCREW (M6 x 25)2
148M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
158M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
164000354螺钉 (M8 x 30)SCREW (M8 x 30)5
164000355螺钉(M8×35)SCREW (M8 x 35)1
17400257锁紧垫圈（M8）LOCKWASHER (M8)4
18400635螺母 (M8)NUT (M8)2
18401388不锈钢螺母 (M8)NUT (M8) Stainless Steel2
1949930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
198M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
19A821461弹簧SPRING1
2019614倾斜管TILT TUBE1
208M0041938倾斜管TILT TUBE1
2130499螺母(7/8-14)NUT (7/8-14)2
21858869螺母 (.875-14)NUT (.875-14)2
23818883A1蝶形螺钉总成THUMB SCREW ASSEMBLY2
24818884垫圈WASHER2
25768042六角凸肩螺钉SHOULDER SCREW Hex2
26814259螺钉 (.500-20 x 4.00)SCREW (.500-20 x 4.00)4
2728421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
278M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
288M0027784螺母NUT4
2882671117螺母(.500-20)NUT (.500-20)4
291938525连接杆LINK1
298M0084737连接杆LINK1
3019615A4倾斜杆总成LEVER ASSEMBLY Tilt1
3019615A05倾斜杆总成LEVER ASSEMBLY Tilt1
31812707衬套BUSHING1
3219605垫圈(.520 x .850 x .060) 尼龙-黑色WASHER (.520 x .850 x .060) Nylon - Black1
328M0042643垫圈(.520 x .850 x .060) 尼龙 黑色WASHER (.520 x .850 x .060) Nylon, Black1
3399611波形垫圈WAVE WASHER1
3419621倾斜旋钮TILT KNOB1
348M0007469倾斜旋钮KNOB Tilt1
3519611螺钉(.375-16×0.62)SCREW (.375-16 x .62)1
37812432F2安装支架(右舷)MOUNTING BRACKET (STARBOARD)1
37812432F5安装支架MOUNTING BRACKET1
37812433F3安装支架(左舷)MOUNTING BRACKET (PORT)1
37812433F5安装支架MOUNTING BRACKET1
3888432螺钉(.375-24 x 4.00)SCREW (.375-24 x 4.00)4
3929395垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)8
398M0042641垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)8
40134371螺母 (.375-24)NUT (.375-24)4
40862903螺母 (.375-24)NUT (.375-24)4
41821722垫片SHIM4
图 87艉板支架(50/60)(序列号:0D181999及以下) TRANSOM BRACKET (50/60)(S/N: 0D181999 AND BELOW)
艉板支架(50/60)(序列号:0D181999及以下) TRANSOM BRACKET (50/60)(S/N: 0D181999 AND BELOW)
REF零件编号中文名称英文名称数量
19751A1艉板支架总成(黑色)BRACKET ASSEMBLY Transom (BLACK)1
19751A2艉板支架总成(灰色)BRACKET ASSEMBLY Transom (GRAY)1
298727润滑脂接头FITTING Grease1
28M0169588润滑脂接头FITTING Grease1
399604槽销PIN Groove1
49750T艉板支架(黑色)BRACKET Transom (BLACK)1
49750T6艉板支架(灰色)BRACKET Transom (GRAY)1
519618A2倾斜锁杆总成(黑色)LEVER ASSEMBLY Tilt Lock (BLACK)1
5893704T01倾斜锁杆LEVER Tilt Lock1
519618A3倾斜锁杆总成(灰色)LEVER ASSEMBLY Tilt Lock (GRAY)1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
699622弹簧SPRING1
765830尼龙衬套NYLINER1
8812708弹簧SPRING1
9812709T旋钮KNOB1
9812709旋钮KNOB1
9812709T6旋钮KNOB1
9812709旋钮KNOB1
1099615槽销PIN Groove1
1119619垫圈WASHER2
1218486F5锚支架(黑色)BRACKET Anchor (BLACK)1
1218486A08支架套件锚BRACKET KIT Anchor1
1218486T6锚支架(灰色)BRACKET Anchor (GRAY)1
1218486F6锚支架BRACKET Anchor1
13818298A1阳极套件ANODE KIT1
13818298Q1阳极套件ANODE KIT1
144000330螺钉(M6x25)SCREW (M6 x 25)2
148M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
158M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
164000354螺钉 (M8 x 30)SCREW (M8 x 30)5
164000355螺钉(M8×35)SCREW (M8 x 35)1
17400257锁紧垫圈（M8）LOCKWASHER (M8)4
18400635螺母 (M8)NUT (M8)2
18401388不锈钢螺母 (M8)NUT (M8) Stainless Steel2
1919613A1倾斜销总成PIN ASSEMBLY Tilt1
19A49930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
19A8M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
2019614倾斜管TILT TUBE1
208M0041938倾斜管TILT TUBE1
2130499螺母(7/8-14)NUT (7/8-14)2
21858869螺母 (.875-14)NUT (.875-14)2
2219624A1密封套件SEAL KIT1
2322740卡扣CLIP1
2469205C形垫圈C WASHER1
248M0084613C形垫圈C-WASHER1
25817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)1
25878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
26814259螺钉 (.500-20 x 4.00)SCREW (.500-20 x 4.00)4
2728421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
278M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
288M0027784螺母NUT4
2882671117螺母(.500-20)NUT (.500-20)4
291938525连接杆LINK1
298M0084737连接杆LINK1
3019615A4倾斜杆总成LEVER ASSEMBLY Tilt1
3019615A05倾斜杆总成LEVER ASSEMBLY Tilt1
31812707衬套BUSHING1
32815796垫圈WASHER1
3399611波形垫圈WAVE WASHER1
3419621倾斜旋钮TILT KNOB1
348M0007469倾斜旋钮KNOB Tilt1
3519611螺钉(.375-16×0.62)SCREW (.375-16 x .62)1

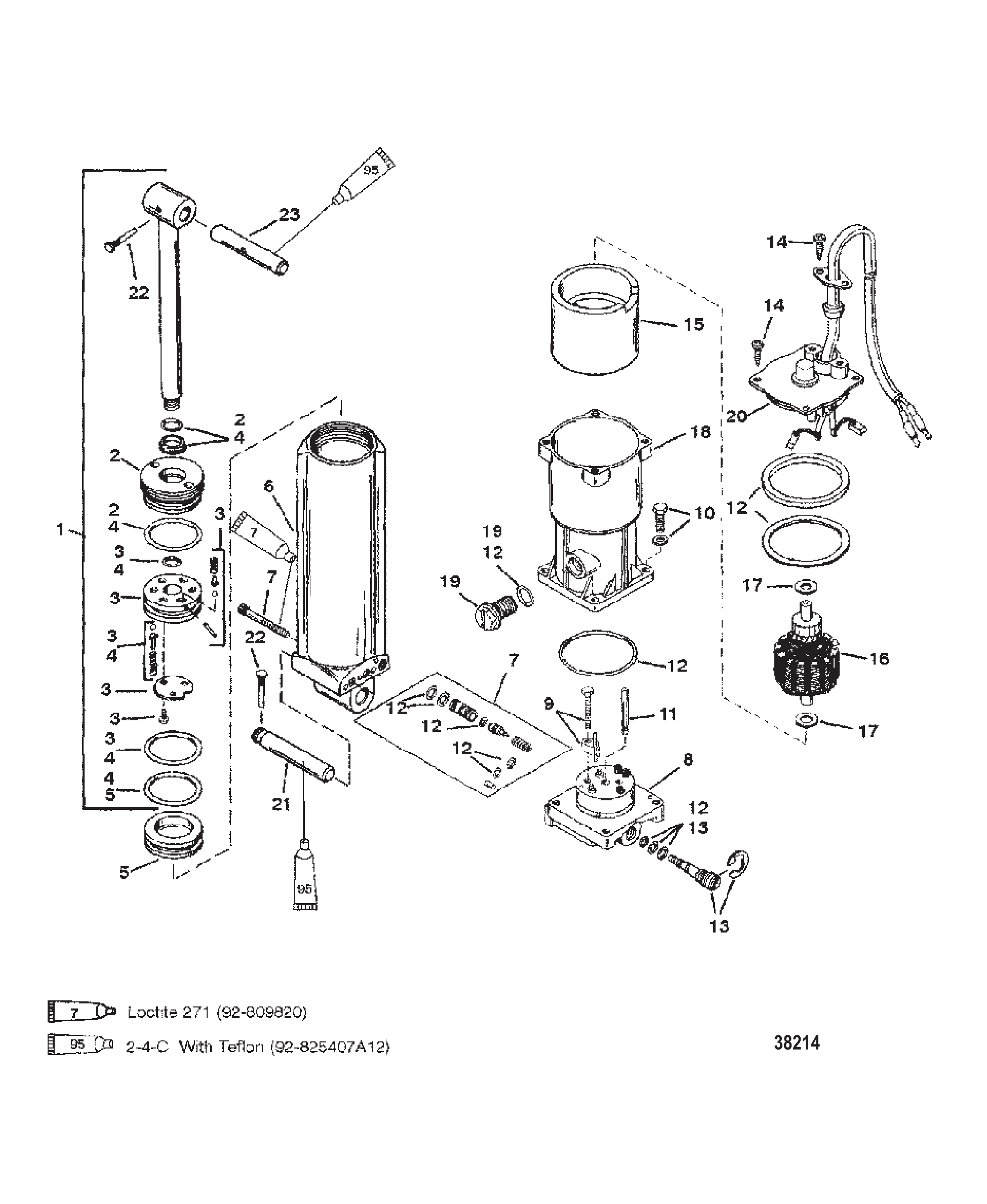

图 88动力配平(序列号0G357069及以下-黑色注油塞) POWER TRIM (S/# 0G357069 and BELOW-BLACK FILL PLUG)
动力配平(序列号0G357069及以下-黑色注油塞) POWER TRIM (S/# 0G357069 and BELOW-BLACK FILL PLUG)
REF零件编号中文名称英文名称数量
-822870A1泵总成PUMP ASSEMBLY1
18134271减震杆套件SHOCK ROD KIT1
1893943A01减震杆套件SHOCK ROD KIT1
2813428升降缸端盖总成END CAP ASSEMBLY Trim Cylinder1
3813429减震活塞总成PISTON ASSEMBLY Shock1
4813432A3气缸密封套件SEAL KIT Cylinder1
5810776记忆活塞套件PISTON KIT Memory1
6811228气缸套件CYLINDER KIT1
6893904T01气缸总成CYLINDER ASSEMBLY1
7811226A1螺钉与密封套件SCREW AND SEAL KIT1
7811678A6螺钉与密封套件SCREW AND SEAL KIT1
88116706泵/歧管套件PUMP/MANIFOLD KIT1
8809901A1泵/电机总成PUMP/MOTOR ASSEMBLY1
9823180A1摇臂套件ROCKER ARM KIT1
9809901A2泵/歧管总成PUMP/MANIFOLD ASSEMBLY1
10813436螺钉套件SCREW KIT1
11811671驱动轴DRIVESHAFT1
12811672A3O型圈套件O-RING KIT1
12811672A4O型圈套件O RING KIT1
13813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
13893929A01安全阀套件VALVE KIT Relief1
14813446螺钉SCREW1
15811674储液罐/马达RESERVOIR/MOTOR1
15809885A1电机套件MOTOR KIT1
16811675电枢ARMATURE1
17811676止推垫片套件THRUST WASHER KIT1
18811673储液罐RESERVOIR1
18809901A1泵/电机总成PUMP/MOTOR ASSEMBLY1
19813435塞套件PLUG KIT1
198134351堵头PLUG1
20811677储液罐盖套件CAP KIT Reservoir1
20809885A1电机套件MOTOR KIT1
2119607销PIN1
22821539三叶销PIN Trilobe2
23822869销PIN1
23822869001锚销PIN Anchor1

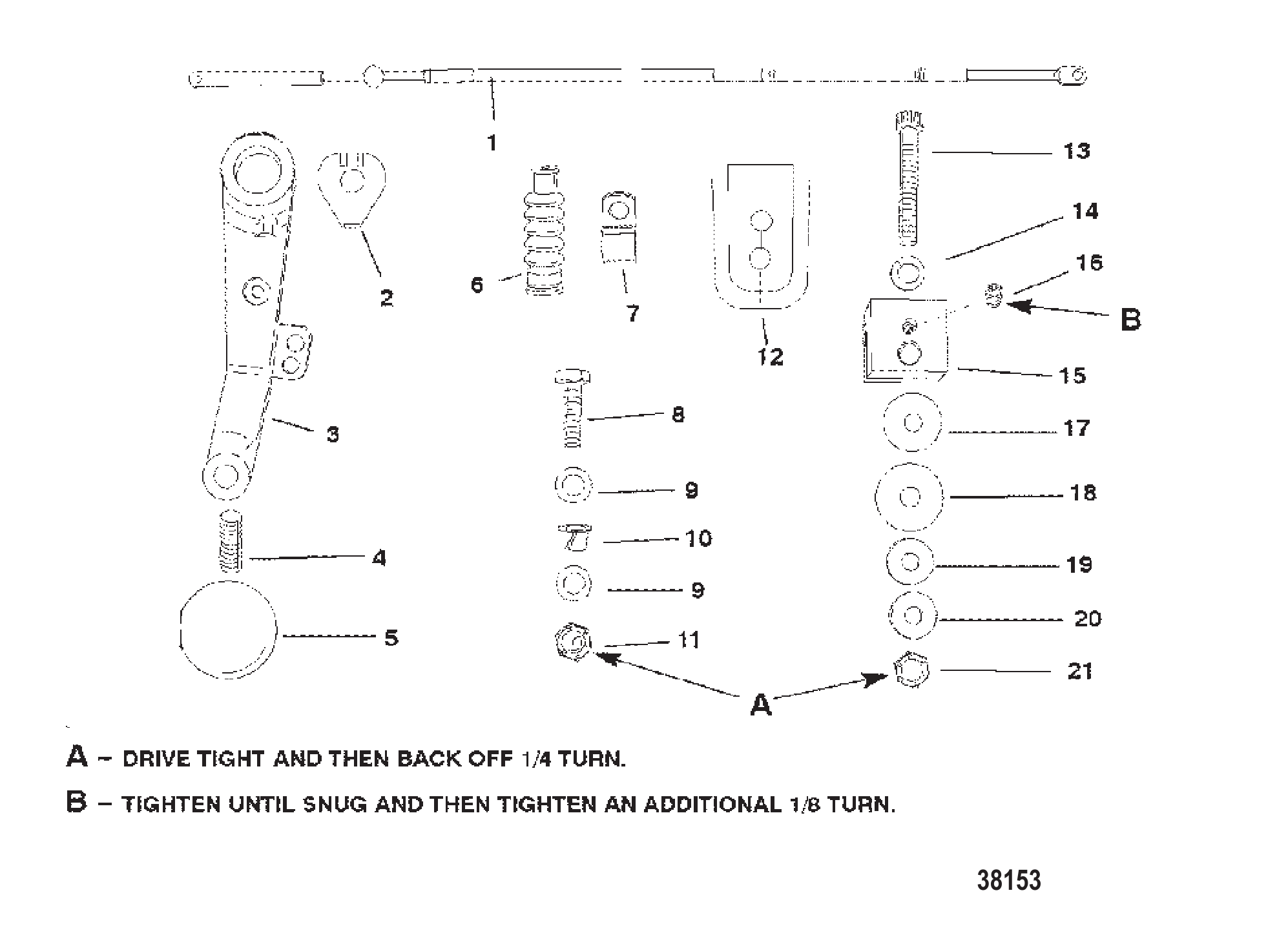

图 89舵柄适配器套件(JET 45) TILLER HANDLE ADAPTOR KIT (JET 45)
舵柄适配器套件(JET 45) TILLER HANDLE ADAPTOR KIT (JET 45)
REF零件编号中文名称英文名称数量
-850000A2转接套件 45号喷口ADAPTER KIT 45 JET1
1832001A6换挡线缆总成CABLE ASSEMBLY Shift1
28158051锁紧垫圈TAB WASHER1
3816367F5杠杆LEVER1
3816367F6杠杆LEVER1
458152双头螺柱(0.375-24×1.125)STUD (.375-24 x 1.125)1
48M0034452螺柱STUD1
598530旋钮KNOB1
685552护套BOOT1
685552001护套BOOT1
7805444卡扣CLIP1
78054441卡扣CLIP1
828668螺钉 (.250-20 x .875) 不锈钢SCREW (.250-20 x .875) Stainless Steel1
929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
98M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
1026856衬套BUSHING1
11814101螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel1
118M0207776螺母NUT1
128136052密封件SEAL1
12813605003密封件SEAL1
1371958螺丝(.250-28 x 1.75)SCREW (.250-28 x 1.75)1
1426992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
15828094换挡线缆固定块BLOCK Shift Cable-Retaining1
1672734紧定螺丝(#10-32 x .310)SET SCREW (#10-32 x .310)1
1737905垫圈WASHER1
1835280垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel1
1935459垫圈WASHER1
204002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
208M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
2135888不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
图 90外罩 COWLING
外罩 COWLING
REF零件编号中文名称英文名称数量
1813010A8顶罩总成(黑色)TOP COWL ASSEMBLY (BLACK)1
18M0107016罩盖-顶部, 黑色COWL-TOP, BLACK1
1813010A9顶罩总成(灰色)TOP COWL ASSEMBLY (GRAY)1
1813010T14顶罩总成 银色-电动型TOP COWL ASSEMBLY Silver-Electric1
1813010A14上机罩总成(银色)TOP COWL ASSEMBLY (SILVER)1
1813010T14顶罩总成 银色-电动型TOP COWL ASSEMBLY Silver-Electric1
1813010A13上机罩总成(TRACKER)TOP COWL ASSEMBLY (TRACKER)1
1813010T14顶罩总成 银色-电动型TOP COWL ASSEMBLY Silver-Electric1
1816534A8顶罩总成(黑色)TOP COWL ASSEMBLY (BLACK)1
18M0107142罩盖-顶部, 黑色COWL-TOP, BLACK1
1816534A14上机罩总成(银色)TOP COWL ASSEMBLY (SILVER)1
1816534T14顶罩总成 银色-手动型TOP COWL ASSEMBLY Silver-Manual1
2824666进气口护罩SHIELD Air Inlet1
34006731螺钉(M6 x 16)SCREW (M6 x 16)4
424664垫圈(M4 x 20)(旧设计)WASHER (M4 x 20) (OLD DESIGN)4
547341A1手动/应急启动绳柄套件ROPE AND HANDLE KIT Manual/Emergency Start (MANUAL STARTING)1
547341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
6813548A3罩盖支撑支架-黑色(前)BRACKET Cowl Support - Black (FRONT)1
6813548A4罩盖支撑支架总成(前)(灰色)BRACKET ASSEMBLY Cowl Support (FRONT ) (GRAY)1
6813548A6罩盖支撑支架-银色(前)BRACKET Cowl Support - Silver (FRONT)1
6813548A3支架 罩盖支撑-黑色BRACKET Cowl Support - Black1
6813548A5罩盖支撑支架总成(前)(TRACKER)BRACKET ASSEMBLY Cowl Support (FRONT) (TRACKER)1
6A8231871螺钉(M4×14.5)SCREW (M4 x 14.5)2
6B26995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel2
6C8237515螺母(M4)NUT (M4)2
7813549A2罩盖支撑支架(后)BRACKET Cowl Support (REAR)1
7A8231871螺钉(M4×14.5)SCREW (M4 x 14.5)3
7B26995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel3
7C8237515螺母(M4)NUT (M4)3
8814336A1隔音毯套装SOUND BLANKET KIT1
8814336A02隔音毯套装(预涂压敏胶)SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)1
9444622密封件SEAL1
98M0043150罩盖密封条SEAL-COWL1
10813504A1油位表套件GAUGE KIT Oil Level1
11813505护孔环GROMMET1
1211317固定座RETAINER1
12113171固定座RETAINER1
13113161螺母NUT1
1365110螺母NUT1
148135462支架MOUNT3
14813546003支架MOUNT3
1518173锁扣滚轮支架总成BRACKET ASSEMBLY Latch Roller1
15893763滚轮锁扣支架BRACKET Roller Latch1
164006731螺钉(M6 x 16)SCREW (M6 x 16)2
17812512A5底罩(黑色)BOTTOM COWL (BLACK)1
17812512A8下机罩BOTTOM COWL1
17812512A6底罩(灰色)BOTTOM COWL (GRAY)1
17812512A9下罩总成BOTTOM COWL ASSEMBLY1
17812512A7下机罩(TRACKER)BOTTOM COWL (TRACKER)1
17812512A10底部罩盖-TRACKCOWL-BOTTOM-TRACK1
18813607密封件SEAL1
188M0043162密封件SEAL1
194000335螺钉(M6 x 50)SCREW (M6 x 50)1
2035280垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel2
2137642波形垫圈WAVE WASHER2
2219428衬套BUSHING1
23813547T罩盖锁杆(黑色)LEVER Cowl Latch (BLACK)1
23813547F1杠杆LEVER1
23813547T6罩盖锁杆(灰色)LEVER Cowl Latch (GRAY)1
23813547F1杠杆LEVER1
23813547F3罩盖锁杆(TRACKER)LEVER Cowl Latch (TRACKER)1
23813547F1杠杆LEVER1
24826354A1衬套套件 罩盖锁扣BUSHING KIT Cowl Latch1
25813604锁扣凸轮LATCH CAM1
26400634螺母 (M6)NUT (M6)1
26401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
2788807A28拉线总成CABLE ASSEMBLY1
28817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)2
28878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
2919812A1支架 电缆固定器BRACKET Cable Retainer1
2919812T03支架总成BRACKET ASSEMBLY1
3042975传动螺钉DRIVE SCREW2
3198889闩锁LATCH1
3239519杯套CUP1
33813613接头FITTING1
347568058软管 (15.00英寸)HOSE (15.00 Inches)1
358128301堵头PLUG1
35812830T01堵头PLUG1
368124431固定座RETAINER1
368M0032848开关固定座RETAINER Switch1
37824896装饰圈(旧设计)BEZEL (OLD DESIGN)1
3818286A40开关总成SWITCH ASSEMBLY1
388M0235192微调开关SWITCH TRIM1
3940011151不锈钢螺钉(M8×35)SCREW (M8 x 35) Stainless Steel2
40813606密封件SEAL1
40813606003密封件SEAL1
418136051密封件SEAL1
41813605003密封件SEAL1
42812717T配平盖(黑色)TRIM COVER (BLACK)1
42812717T1配平盖TRIM COVER1
42812717T6配平盖(灰色)TRIM COVER (GRAY)1
42812717T配平盖TRIM COVER1
42812717F1配平盖(追踪器型)TRIM COVER (TRACKER)1
434006731螺钉(M6 x 16)SCREW (M6 x 16)4
44813939A2继电器总成RELAY ASSEMBLY1
NS821509继电器RELAY2
NS821509T01继电器RELAY2
4540011130不锈钢螺钉(M6x30)SCREW (M6 x 30) Stainless Steel2
46823593A1导流板套件 空气DEFLECTOR KIT Air1
图 91燃油泵(50/60) FUEL PUMP (50/60)
燃油泵(50/60) FUEL PUMP (50/60)
REF零件编号中文名称英文名称数量
114360A43燃油泵总成PUMP ASSEMBLY Fuel1
242990A10膜片组件DIAPHAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSSNOT SOLD SEPARATE CHECK VALVE-RUBBER2
4NSSNOT SOLD SEPARATE CHECK VALVE2
5NSSNOT SOLD SEPARATE RETAINER2
6NSSNOT SOLD SEPARATE SPRING1
7NSSNOT SOLD SEPARATE CAP1
8NSS不单独销售NOT SOLD SEPARATE1
9NSSNOT SOLD SEPARATE CAP1
10NSSNOT SOLD SEPARATE DIAPHRAGM1
11987691衬垫GASKET1
118M0204705衬垫@2GASKET @21
12NSSNOT SOLD SEPARATE GASKET-BOOST1
13NSSNOT SOLD SEPARATE GASKET-PULSE1
14987752安装板PLATE1
154333590度接头(.125-27)尼龙CONNECTOR 90 Degree (.125-27) Nylon2
1543335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal2
1682104540螺钉(M5 x 40)SCREW (M5 x 40)2
1682130050螺钉(M6 x 50)SCREW (M6 x 50)2
17144303底座BASE1
18830767软管HOSE1
198162961燃油滤清器FILTER Fuel1
19816296Q2燃油滤清器FILTER Fuel1
20830761燃油管LINE Fuel1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2283075780管材(28.00英寸散装)(1-1/4英寸)(1-1/4英寸)(14-1/4英寸)TUBING (28.00 Inches Bulk) (1-1/4 IN.)(1-1/4 IN.)(14-1/4 IN.)3
228M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)3
23818993三通接头CONNECTOR Tee1
248189941止回阀CHECK VALVE1
25816856A1燃油接头总成CONNECTOR ASSEMBLY Fuel1
25816856T01燃油接头CONNECTOR-FUEL1
264000332螺钉(M6x35)SCREW (M6 x 35)1
279912878软管 (0.187) (26.00英寸散装) (4-1/4英寸)HOSE (.187) (26.00 Inches Bulk) (4-1/4 IN.)1
28428593电磁阀SOLENOID VALVE1
28819503A5加浓阀电磁阀套件SOLENOID KIT Enrichner Valve1
299912688管材(36.00英寸散装)(1-3/4英寸)(3-1/4英寸)(11-1/2英寸)TUBING (36.00 Inches Bulk) (1-3/4 IN.)(3-1/4 IN.)(11-1/2 IN.)3
3059169接头FITTING1
3059169003三通接头FITTING Tee1
3199130122管材（20英尺卷装）（16英寸）TUBING (20.00 Feet Bulk) (16 IN.)1
31892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
32633001卡箍CLAMP1
334006731螺钉(M6 x 16)SCREW (M6 x 16)1
-812867A97衬垫套件GASKET SET1
-811209A93动力头总成POWERHEAD ASSEMBLY1
-811209T93动力头总成(完整)POWERHEAD ASSEMBLY Complete1
图 92燃油泵 Fuel Pump
燃油泵 Fuel Pump
REF零件编号中文名称英文名称数量
114360A14燃油泵总成PUMP ASSEMBLY Fuel1
242990A4膜片组件DIAPHRAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSS橡胶止回阀(不单独销售)NOT SOLD SEPARATE Check Valve-Rubber2
4NSS增压垫片(不单独销售)NOT SOLD SEPARATE Gasket-Boost1
5NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm2
6NSS脉冲垫片(不单独销售)NOT SOLD SEPARATE Gasket-Pulse1
7NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
8NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
9NSSNOT SOLD SEPARATE Disc-Rubber2
10NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer2
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
12NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
1398775A2燃油泵板PLATE FUEL PUMP1
13987752安装板PLATE1
1456800管塞 (.0625-27)PLUG Pipe (.0625-27)1
1519688接头FITTING1
1690190燃油泵螺钉SCREW FUEL PUMP1
1616562燃油泵螺钉(#12-24x1.50)SCREW (#12-24 x 1.50) FUEL PUMP3
1764705燃油管接头FITTING FUEL LINE1
18164941燃油滤清器FILTER Fuel1
18816296Q2燃油滤清器FILTER Fuel1
1990077燃油管束带TIE STRAP FUEL TUBINGAR
19816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2015781A10燃油接头-金属CONNECTOR Fuel - Metal1
2015781A1燃油连接器CONNECTOR Fuel1
2015781A1燃油接头(塑料)CONNECTOR Fuel (PLASTIC)1
20816856Q3燃油接头总成CONNECTOR ASSEMBLY Fuel1
2176596燃油金属接头螺钉(0.250-20x1.250)SCREW (.250-20 x 1.250) FUEL CONNECTOR (METAL)1
2169093燃油塑料接头螺钉(0.250-20x1.50)SCREW (.250-20 x 1.50) FUEL CONNECTOR (PLASTIC)1
2227736燃油金属接头螺钉垫圈WASHER FUEL CONNECTOR SCREW (METAL)1
2289302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
2229245不锈钢燃油塑料接头螺钉垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel FUEL CONNECTOR SCREW (PLASTIC)1
228M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
2317970燃油金属接头护圈GROMMET FUEL CONNECTOR (METAL)1
2317969燃油塑料接头护圈GROMMET FUEL CONNECTOR (PLASTIC)1
249912976油管TUBING2
248M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)2
2599127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)3
258M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)3
26815849橡胶护圈 (60 EL)GROMMET (60 EL)1
27415827尼龙卡箍 (60 EL)CLAMP Nylon (60 EL)2
2741582Q7卡箍CLAMP2
-43779A87衬垫套件GASKET SET1
图 93专用工具 Tools Special
专用工具 Tools Special
REF零件编号中文名称英文名称数量
图 94喷泵总成 Jet Pump Assembly
喷泵总成 Jet Pump Assembly
REF零件编号中文名称英文名称数量
-80140060喷射泵组件(黑色)JET PUMP ASSEMBLY (BLACK)1
-80140160喷射泵组件(灰色)JET PUMP ASSEMBLY (GRAY)1
-8M0230714喷射泵总成JET PUMP ASSY1
180141160泵壳HOUSING Pump1
1801411T60泵壳体HOUSING PUMP1
1A827490润滑油管HOSE Lube1
280141460叶轮IMPELLER1
28M0230713叶轮IMPELLER1
380141260进气壳体HOUSING Intake1
3A8271882衬套LINER1
480141360驱动轴DRIVESHAFT1
4A8271891套筒SLEEVE1
4B8271901螺母NUT1
5801405875键KEY1
6801404875叶轮垫片SHIM Impeller8
7801403875锁紧垫圈TAB WASHER1
8818146螺钉(.312-18 X .88)SCREW (.312-18 X .88)6
919923088螺钉(.250-20 x .875)SCREW (.250-20 x .875)4
1019923062螺钉(.250-20 x .625)SCREW (.250-20 x .625)2
1160411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
12801410电缆支架BRACKET Cable Support1
1367980螺母(.312-18)NUT (.312-18)1
1382670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
14801407定位销PIN Dowel2
154010860不锈钢六角法兰螺钉(M10 x 60)SCREW (M10 x 60) Hex Flange - Stainless Steel2
164010890不锈钢六角法兰螺钉(M10 x 90)SCREW (M10 x 90) Hex Flange - Stainless Steel1
174010870不锈钢六角法兰螺钉(M10 x 70)SCREW (M10 x 70) Hex Flange - Stainless Steel1
1895802不锈钢螺钉(.375-16 x 2.750)SCREW (.375-16 x 2.750) Stainless Steel1
1945175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
198M0214963垫圈WASHER1
图 95排气板 EXHAUST PLATE
排气板 EXHAUST PLATE
REF零件编号中文名称英文名称数量
119653A2排气板总成PLATE ASSEMBLY Exhaust1
-817519A1排水单向阀总成CHECK VALVE ASSEMBLY Drain1
223784定位销PIN Dowel4
3812893上部支架MOUNT Upper1
38M4501491上部安装总成MOUNT UPPER ASM1
440011153不锈钢螺钉(M8x45)SCREW (M8 x 45) Stainless Steel4
542973螺栓(M12×154)BOLT (M12 x 154)2
5898835001螺钉(M12 x 154)SCREW (M12 x 154)2
693416垫圈WASHER2
632834垫圈(0.9375x1.750x0.172)WASHER (.9375 x 1.750 x .172)2
728421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
78M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
890099螺母(M12)NUT (M12)2
8896963螺母(M12)NUT (M12)2
940011158不锈钢螺钉(M8×70)SCREW (M8 x 70) Stainless Steel1
10812866衬垫GASKET1
108M0000820衬垫GASKET1
1148237衬套BUSHING1
12815639A2换挡轴(上)(短)SHIFT SHAFT (UPPER)(SHORT)1
12812891A1换挡轴(上)(长-50/60)SHIFT SHAFT (UPPER)(LONG - 50/60)1
12815639A1换挡轴(上)(长-55)SHIFT SHAFT (UPPER)(LONG - 55)1
12812891A3换挡轴(60浮筒型-电动)SHIFT SHAFT (60 PONTOON - ELECTRIC)1
12815639A3换挡轴(60海程/马拉松型-手动)SHIFT SHAFT (60 SEAPRO/MARATHON - MANUAL)1
13812872换挡连杆SHIFT LINK1
13812872A1换挡连杆SHIFT LINK1
13812872A1换挡连杆SHIFT LINK1
1448475衬套BUSHING1
1442994衬套BUSHING1
1529720波形垫圈WAVE WASHER1
1624664垫圈 (M4 x 20)WASHER (M4 x 20)1
17400634螺母 (M6)NUT (M6)1
17401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
18430144水管(短型)TUBE Water (SHORT)1
188M0042795短型水管TUBE-WATER-SHORT1
18430143水管(长型)TUBE Water (LONG)1
188M0042794大型水管TUBE-WATER-LG1
1993221护孔环GROMMET1
1993221002护孔环GROMMET1
20196551排气管TUBE Exhaust1
208M0045214排气管TUBE-EXHAUST1
2140011153不锈钢螺钉(M8x45)SCREW (M8 x 45) Stainless Steel4
22812886密封件SEAL1
22812886001密封件SEAL1
2399019卡箍CLAMP1
2442941水管密封件(上部)SEAL Water Tube (UPPER)1
2442941001水管密封件SEAL Water Tube1
2540011155不锈钢螺钉(M8x55)SCREW (M8 x 55) Stainless Steel2
-812867A97衬垫套件GASKET SET1
图 96齿轮箱壳体(螺旋桨轴-大脚/海宝/马拉松/浮筒型) GEAR HSG (PROP-BIGFOOT/SEAPRO/MARATHON/PONTOON)
齿轮箱壳体(螺旋桨轴-大脚/海宝/马拉松/浮筒型) GEAR HSG (PROP-BIGFOOT/SEAPRO/MARATHON/PONTOON)
REF零件编号中文名称英文名称数量
-9011A69齿轮箱总成(长型)(黑色)GEAR HOUSING ASSEMBLY (LONG) (BLACK)1
-9011A71齿轮箱总成(加长)(黑色)GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)1
-9011G94齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A70齿轮箱总成(长型)(灰色)GEAR HOUSING ASSEMBLY (LONG) (GRAY)1
-9011G96ORD 1667-9011G92ORD 1667-9011G921
-9011A72齿轮箱总成(加长)(灰色)GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)1
-9011G48齿轮箱GEAR HOUSING1
19011A73齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC)(BLACK)1
19011T73齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19011A74齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC)(GRAY)1
19011T74ORD 1667-9011T73ORD 1667-9011T731
4230894A1圆锥轴承组BEARING SET Cup And Cone1
4312634A2前进齿轮总成GEAR ASSEMBLY Forward1
4312634T02齿轮总成GEAR ASSEMBLY1
4430895滚针轴承BEARING Needle1
4430895T滚针轴承BEARING Needle1
4512239A1凸轮从动件套件FOLLOWER KIT Cam1
45850315A1凸轮从动件套件FOLLOWER KIT Cam1
45A44530钢球BALL3
4630622弹簧SPRING1
47822539离合器CLUTCH1
47822539T离合器CLUTCH1
4830632十字销PIN Cross1
488M0100263十字销PIN Cross1
4930893弹簧SPRING1
5012238T螺旋桨轴PROPELLER SHAFT1
5112635倒挡齿轮GEAR Reverse1
5112635T倒挡齿轮GEAR-REVERSE1
5212596A2轴承座总成CARRIER ASSEMBLY Bearing1
528M0168901轴承座总成CARRIER ASSY.1
5397386O型圈 (3.609 x .139)O-RING (3.609 x .139)1
538M0214974O型圈O RING1
5430956滚针轴承BEARING Needle1
5430956T滚针轴承BEARING Needle1
5576868内密封件SEAL (INNER)1
558M0248882油封@5SEAL-OIL @51
5670081油封(外)SEAL Oil (OUTER)1
568M0205729密封件SEAL1
5712578滚针轴承BEARING Needle1
5712578T滚柱轴承BEARING Roller1
5812577止推垫片THRUST WASHER1
5912576推力轴承BEARING Thrust1
604000354螺钉 (M8 x 30)SCREW (M8 x 30)2
614002317垫圈 (8.90 X 17.0 X 1.9SS)WASHER (8.90 X 17.0 X 1.9SS)2
6244491A1垫片组SHIM SET1
628M0063266垫片组SHIM SET1
6313191A1止推垫片THRUST WASHER1
6313191Q01止推垫片THRUST WASHER1
64816629锁紧垫圈TAB WASHER1
64816629Q锁紧垫圈TAB WASHER1
6552707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
6552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
-43035A4齿轮箱密封套件SEAL KIT Gear Housing1
图 97顶罩 Top Cowl
顶罩 Top Cowl
REF零件编号中文名称英文名称数量
1827328T9顶盖总成TOP COWL ASSEMBLY1
1827328T10顶盖总成TOP COWL ASSEMBLY1
2821256T1黑色进气口INLET Air - Black1
2821256T03进气口INLET Air1
2821256T2银色进气口INLET Air - Silver1
382130016螺钉(M6 x 16)SCREW (M6 x 16)4
4859356A1隔音毯套装SOUND BLANKET KIT1
4859356A02隔音毯套装SOUND BLANKET KIT1
5NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
6NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
7NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket2
8823865盖塞CAP PLUG2
9831207T10手柄HANDLE1
9831207A16罩盖锁手柄套件HANDLE KIT Cowl Latch1
10812707衬套BUSHING2
11831214隔套SPACER1
1212134波形垫圈WASHER Wave1
13F481777凸轮锁轴CAM Latch Shaft1
138M0001081凸轮CAM1
144002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
148M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
151993716螺钉(M6 x 16)SCREW (M6 x 16)1
16821249M2前支架BRACKET Front3
168M0036792支架BRACKET3
17815477缓冲器锁扣BUMPER Latch3
1829245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
188M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
19401366螺母(M6)不锈钢NUT (M6) Stainless Steel6
208237951挡圈RING Retaining1
21815263滚轮ROLLER1
218M0207770滚轮@3ROLLER @31
228155381滚动销PIN Roll1
2329245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
238M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
24401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2547341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2612066Q9绳索ROPE1
2612066Q10启动绳@2ROPE-STARTER@21
图 98齿轮箱（驱动轴） Gear Housing (Driveshaft)
齿轮箱（驱动轴） Gear Housing (Driveshaft)
REF零件编号中文名称英文名称数量
-9760A8齿轮箱总成(短型)(黑色)GEAR HOUSING ASSEMBLY (SHORT) (BLACK)1
-9760A9齿轮箱总成(短型)(灰色)GEAR HOUSING ASSEMBLY (SHORT) (GRAY)1
-9760A24齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A21齿轮箱总成(长型)(追踪者系列)GEAR HOUSING ASSEMBLY (LONG) (TRACKER)1
-9760T27ORD1671-9760T25ORD1671- 9760T251
-9760A12齿轮箱总成(长型)(黑色)GEAR HOUSING ASSEMBLY (LONG) (BLACK)1
-9760T25齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A13齿轮箱总成(长型)(灰色)GEAR HOUSING ASSEMBLY (LONG) (GRAY)1
-9760T26ORD 1671-9760T25ORD 1671-9760T251
-9760A10齿轮箱总成(加长)(黑色)GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)1
-9760T28齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A11齿轮箱总成(加长)(灰色)GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)1
-9760T29灰色齿轮箱GEAR HOUSING-GR1
19760A2齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC)(BLACK)1
19760T42基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19760A3齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC)(GRAY)1
19760T31ORD 1671-9760T30ORD 1671-9760T301
19760A20齿轮箱总成(基础款)(TRACKER)GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)1
19760T32ORD 1671-9760T42ORD 1671-9760T421
267892磁性螺钉SCREW Magnetic1
28M0058389放油螺钉套件SCREW KIT Drain1
379953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)2
379953Q04放油螺钉套件SCREW KIT Drain2
419183纤维垫圈WASHER Fiber3
48M0187157蓝色密封件@15SEAL-BLUE @153
543043定位销-带孔(0.375×0.625)PIN Dowel - With Hole (.375 x .625)1
58M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
756800管塞 (.0625-27)PLUG Pipe (.0625-27)1
8812768滚柱轴承BEARING Roller1
8A818226A1密封/板套件SEAL/PLATE KIT1
9813694小齿轮GEAR Pinion1
9813694T小齿轮GEAR Pinion1
1055910螺母(.437-20)NUT (.437-20)1
11812732A1换挡轴总成(短/长)SHIFT SHAFT ASSEMBLY (SHORT/LONG)1
11815420换挡轴(加长型)SHIFT SHAFT (X-LONG)1
1229641E型卡环E RING1
13813696A2衬套总成BUSHING ASSEMBLY1
1445258O型圈 (.987 x .103)O-RING (.987 x .103)1
158164641油封SEAL Oil1
158M0246145油封OIL SEAL1
16815422驱动轴(短)DRIVESHAFT (SHORT)1
16812731驱动轴(长型)DRIVESHAFT (LONG)1
16815421驱动轴(加长型)DRIVESHAFT (X-LONG)1
17812770A1垫片组SHIM SETAR
178M0063262垫片组SHIM SETAR
1877420A1滚柱轴承总成BEARING ASSEMBLY Roller1
188M0166756轴承总成BEARING ASSEMBLY1
19812820螺母NUT1
198128201螺母NUT1
20812966A3底座总成BASE ASSEMBLY1
208M0245488水泵底座BASE WATER PUMP1
2130224O型圈 (1.859 x .139)O-RING (1.859 x .139)1
218M0204651O型圈O-RING1
22814669油封SEAL Oil1
228M0245489油封SEAL OIL1
23814670油封SEAL Oil1
24197001面板FACE PLATE1
2419700A2面板FACE PLATE1
2519453叶轮IMPELLER1
2519453T叶轮IMPELLER1
2619699键KEY1
268M0032831叶轮键KEY Impeller1
2714334A1水泵总成PUMP ASSEMBLY Water1
2714334A3水泵总成PUMP ASSEMBLY Water1
2819701衬垫(下部)GASKET (LOWER)1
288M0224241衬垫GASKET1
29194541衬垫(上部)GASKET (UPPER)1
3043023油封(短/长)SEAL (SHORT/LONG)1
308M0204658密封件SEAL1
318248324螺钉(M6 x 16)SCREW (M6 x 16)6
3343045绝缘体INSULATOR4
338M0204659绝缘体@4INSULATOR @44
3419452绝缘体INSULATOR2
3576039换挡凸轮控制CAM Shift Control1
35760394换挡凸轮控制CAM Shift Control1
-812867A97衬垫套件GASKET SET1
-812966A11水泵维修套件REPAIR KIT Water Pump1
-812966A12水泵维修套件REPAIR KIT Water Pump1
-814669A2齿轮箱密封套件SEAL KIT Gear Housing1
图 99外罩支撑架 COWL SUPPORT BRACKETS
外罩支撑架 COWL SUPPORT BRACKETS
REF零件编号中文名称英文名称数量
173641A1黑色顶部支架BRACKET TOP (BLACK)1
173641A2灰色顶部支架BRACKET TOP (GRAY)1
262444顶部支架/安装板橡胶密封条SEAL RUBBER-TOP BRACKET/MOUNTING PLATE1
379652支架固定夹CLIP SUPPORT BRACKET1
448409支架固定夹用#10-16x0.625不锈钢螺钉SCREW (#10-16 x .625) Stainless Steel CLIP TO SUPPORT2
579490T飞轮护罩SHIELD FLYWHEEL1
579490护罩SHIELD1
637656护罩至支架用#10-32x0.620螺钉SCREW (#10-32 x .620) SHIELD TO SUPPORT BRACKET1
748408螺钉（#10-16 x 0.500）护罩至支撑架SCREW (#10-16 x .500) SHIELD TO SUPPORT BRACKET3
891891消音器耐磨板WEAR PLATE SOUND ATENUATOR2
974510A2后罩支撑架BRACKET COWL SUPPORT-REAR1
10698761后支架与顶支架密封件SEAL REAR BRACKET AND TOP BRACKET2
1190435橡胶支座MOUNT RUBBER4
1220346橡胶安装垫圈WASHER RUBBER MOUNT3
1269057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)3
1320184螺母 (1/4-28X7/32) 橡胶支座NUT (1/4-28X7/32) RUBBER MOUNT4
138M0207775螺母 @5NUT @54
1426901后支撑架橡胶缓冲块BUMPER RUBBER-REAR SUPPORT BRACKET3
14269011橡胶缓冲垫BUMPER Rubber3
1560116顶罩支撑架加固件BRACE COWL SUPPORT BRACKET (TOP)1
1676596螺钉（0.250-20 x 1.250）支撑架SCREW (.250-20 x 1.250) SUPPORT BRACKET3
1787764后下部安装架BRACKET REAR LOWER MOUNT1
1876596螺钉（0.250-20 x 1.250）后支架固定SCREW (.250-20 x 1.250) REAR BRACKET ATTACHING3
1971097橡胶安装架BRACKET RUBBER MOUNT1
2059645螺钉（0.312-18 x 0.750）支架至曲轴箱（3/4英寸）SCREW (.312-18 x .750) BRACKET TO CRANKCASE (3/4")1
20824941螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)1
2197348T消音器ATTENUATOR SOUND1
21973482消音器SOUND ATTENUATOR1
2288684手动阻风门盖COVER MANUAL CHOKE1
2332293螺钉（0.312-24 x 1.75）盖至顶盖SCREW (.312-24 x 1.75) COVER TO TOP COVER1
2453705盖板螺丝垫圈WASHER COVER SCREW1
248M0204690垫圈 (.344 x .688 x .065) 不锈钢WASHER (.344 x .688 x .065) Stainless Steel1
2573986空气歧管MANIFOLD Air1
2669093螺钉（0.250-20 x 1.50）空气歧管SCREW (.250-20 x 1.50) AIR MANIFOLD2
2714915T前消音器盖COVER SOUND ATTENUATOR (FRONT)1
2837655螺钉（#10-32 x 0.500）前盖SCREW (#10-32 x .500) FRONT COVER8
2973336前盖塞PLUG FRONT COVER2
3041128A1隔板总成PLATE ASSEMBLY1
31698761密封板SEAL PLATE2
3290198盖板至支撑架螺钉SCREW COVER PLATE TO SUPPORT BRACKET2
3220540螺钉(.250-20 x .62)SCREW (.250-20 x .62)2
3314169电缆护套GROMMET ELECTRICAL CABLES1
3414160固定盖CAP RETAINING1
3514168螺钉（0.250-20 x 1.00）盖SCREW (.250-20 x 1.00) CAP2
3688238A3接地线总成CABLE ASSEMBLY Ground1
3765999A2线缆总成(黑色)CABLE ASSEMBLY Black2
3836069螺母NUT3
3926992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
4019686支架BRACKET1
4119758A3线束总成HARNESS ASSEMBLY1
4218211继电器开关RELAY SWITCH1
4320401螺钉（0.190-24 x 0.38）SCREW (.190-24 x .38)1

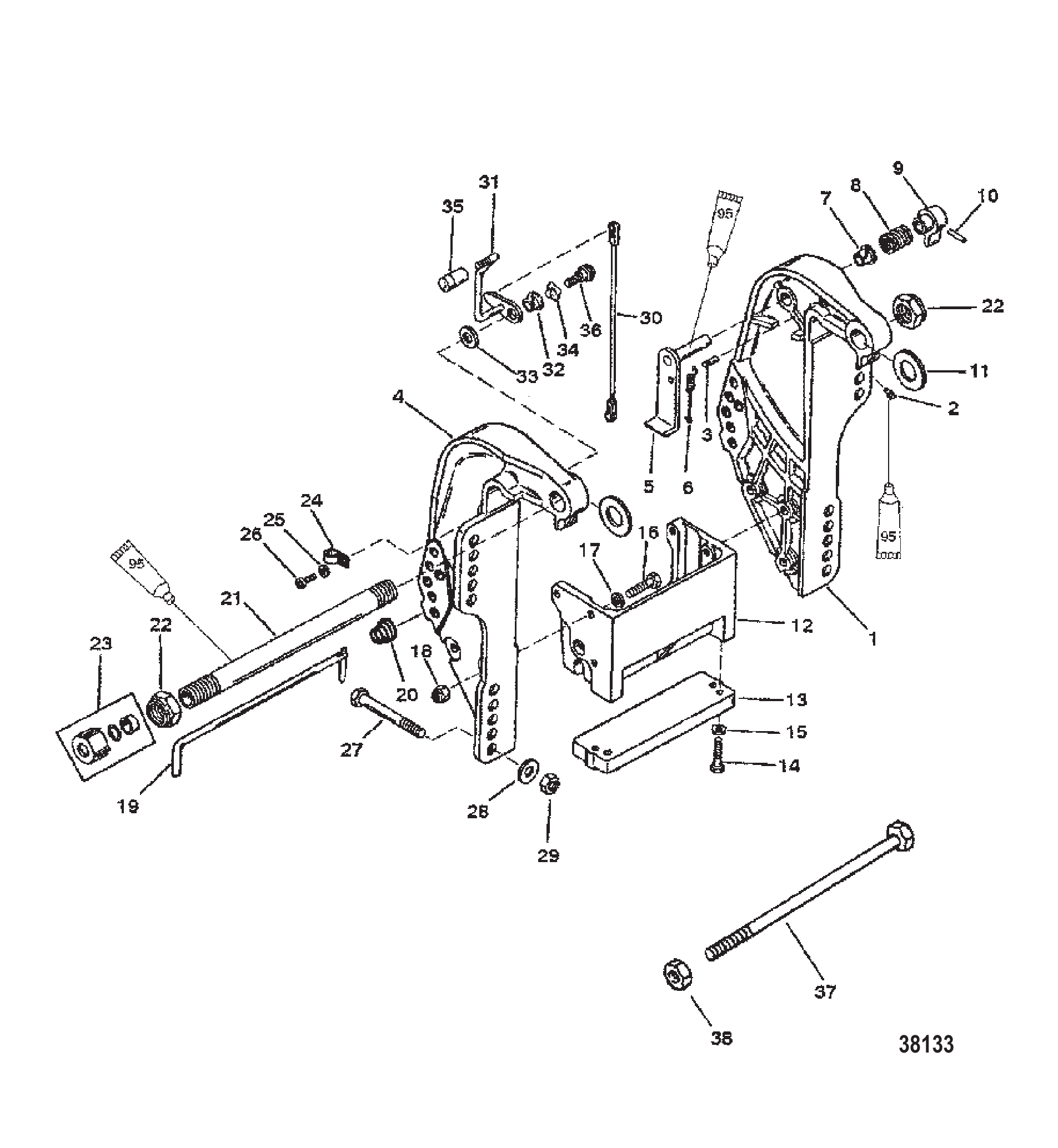

图 100艉板支架(50/60)(序列号:0D182000及以上) TRANSOM BRACKET (50/60)(S/N: 0D182000 AND UP)
艉板支架(50/60)(序列号:0D182000及以上) TRANSOM BRACKET (50/60)(S/N: 0D182000 AND UP)
REF零件编号中文名称英文名称数量
1822866A1艉板支架总成(黑色)BRACKET ASSEMBLY Transom (BLACK)1
1822866A2艉板支架总成(灰色)BRACKET ASSEMBLY Transom (GRAY)1
1822866A3艉板支架总成(TRACKER)BRACKET ASSEMBLY Transom (TRACKER)1
298727润滑脂接头FITTING Grease1
28M0169588润滑脂接头FITTING Grease1
399604槽销PIN Groove1
4822865F2艉板支架(黑色)BRACKET Transom (BLACK)1
4822865T05艉板支架-右舷BRACKET Transom - Starboard1
4822865F3艉板支架(灰色)BRACKET Transom (GRAY)1
4822865F4艉板支架(TRACKER)BRACKET Transom (TRACKER)1
519618A2倾斜锁杆总成(黑色)LEVER ASSEMBLY Tilt Lock (BLACK)1
5893704T01倾斜锁杆LEVER Tilt Lock1
519618A3倾斜锁杆总成(灰色)LEVER ASSEMBLY Tilt Lock (GRAY)1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
519618A5倾斜锁定杆总成(TRACKER)LEVER ASSEMBLY Tilt Lock (TRACKER)1
699622弹簧SPRING1
765830尼龙衬套NYLINER1
8812708弹簧SPRING1
9812709T旋钮(黑色)KNOB (BLACK)1
9812709旋钮KNOB1
9812709T6旋钮(灰色)KNOB (GRAY)1
9812709旋钮KNOB1
9812709F1旋钮(TRACKER)KNOB (TRACKER)1
9812709旋钮KNOB1
1099615槽销PIN Groove1
1119619垫圈WASHER2
1218486F5锚支架(黑色)BRACKET Anchor (BLACK)1
1218486A08支架套件锚BRACKET KIT Anchor1
1218486F6锚支架(灰色)BRACKET Anchor (GRAY)1
1218486A08支架套件锚BRACKET KIT Anchor1
1218486F7锚支架(TRACKER)BRACKET Anchor (TRACKER)1
13818298A1阳极套件ANODE KIT1
13818298Q1阳极套件ANODE KIT1
144000330螺钉(M6x25)SCREW (M6 x 25)2
148M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
158M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
164000354螺钉 (M8 x 30)SCREW (M8 x 30)5
164000355螺钉(M8×35)SCREW (M8 x 35)1
17400257锁紧垫圈（M8）LOCKWASHER (M8)4
18400635螺母 (M8)NUT (M8)2
18401388不锈钢螺母 (M8)NUT (M8) Stainless Steel2
1949930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
198M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
19A821461弹簧SPRING1
2019614倾斜管TILT TUBE1
208M0041938倾斜管TILT TUBE1
2130499螺母(7/8-14)NUT (7/8-14)2
21858869螺母 (.875-14)NUT (.875-14)2
2219624A1密封套件SEAL KIT1
2326550卡箍CLAMP1
2469205C形垫圈C WASHER1
248M0084613C形垫圈C-WASHER1
25817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)1
25878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
26814259螺钉 (.500-20 x 4.00)SCREW (.500-20 x 4.00)4
2728421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
278M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
288M0027784螺母NUT4
2882671117螺母(.500-20)NUT (.500-20)4
291938525连接杆LINK1
298M0084737连接杆LINK1
3019615A4倾斜杆总成LEVER ASSEMBLY Tilt1
3019615A05倾斜杆总成LEVER ASSEMBLY Tilt1
31812707衬套BUSHING1
3219605垫圈(.520 x .850 x .060) 尼龙-黑色WASHER (.520 x .850 x .060) Nylon - Black1
328M0042643垫圈(.520 x .850 x .060) 尼龙 黑色WASHER (.520 x .850 x .060) Nylon, Black1
3399611波形垫圈WAVE WASHER1
3419621倾斜旋钮TILT KNOB1
348M0007469倾斜旋钮KNOB Tilt1
3519611螺钉(.375-16×0.62)SCREW (.375-16 x .62)1
图 101齿轮箱壳体(驱动轴-大脚/海宝/马拉松/浮筒型) GEAR HSG (DRIVE-BIGFOOT/SEAPRO/MARATHON/PONTOON)
齿轮箱壳体(驱动轴-大脚/海宝/马拉松/浮筒型) GEAR HSG (DRIVE-BIGFOOT/SEAPRO/MARATHON/PONTOON)
REF零件编号中文名称英文名称数量
-9011A69齿轮箱总成(长型)(黑色)GEAR HOUSING ASSEMBLY (LONG) (BLACK)1
-9011A71齿轮箱总成(LL)(黑色)GEAR HOUSING ASSEMBLY (LL) (BLACK)1
-9011G94齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A70齿轮箱总成(长型)(灰色)GEAR HOUSING ASSEMBLY (LONG) (GRAY)1
-9011G96ORD 1667-9011G92ORD 1667-9011G921
-9011A72齿轮箱总成(LL)(灰色)GEAR HOUSING ASSEMBLY (LL) (GRAY)1
-9011G48齿轮箱GEAR HOUSING1
19011A73齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC)(BLACK)1
19011T73齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19011A74齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC)(GRAY)1
19011T74ORD 1667-9011T73ORD 1667-9011T731
243043定位销-带孔(.375 x .625)(前)PIN Dowel - With Hole (.375 x .625) (FRONT)1
28M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
343046注油管TUBE Oiler1
579953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)2
579953Q04放油螺钉套件SCREW KIT Drain2
667892磁性螺钉SCREW Magnetic1
68M0058389放油螺钉套件SCREW KIT Drain1
719183纤维垫圈WASHER Fiber3
78M0187157蓝色密封件@15SEAL-BLUE @153
843044定位销-无孔(.375 x .625)(后)PIN Dowel - Without Hole (.375 x .625) (REAR)1
9316404平衡鳍板TRIM TAB1
931640Q4平衡鳍板TRIM TAB1
1015942螺钉(0.437-14x1.250)SCREW (.437-14 x 1.250)1
10825427不锈钢螺钉(0.437-14x1.250)SCREW (.437-14 x 1.250) Stainless Steel1
1145176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel1
1243040A1托架总成CARRIER ASSEMBLY1
1243040T1托架总成CARRIER ASSEMBLY1
12A826134阳极块ANODE2
12A826134Q阳极块ANODE2
12B400634螺母 (M6)NUT (M6)1
12B401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
12C4000333螺钉(M6 x 40)SCREW (M6 x 40)1
1344484小齿轮(13齿)GEAR Pinion (13 Teeth)1
1344484T小齿轮(13齿)GEAR Pinion (13 Teeth)1
1435921螺母(0.625-18)NUT (.625-18)1
1576039换挡凸轮控制CAM Shift Control1
15760394换挡凸轮控制CAM Shift Control1
1642677A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
1744492A1垫片组SHIM SET1
178M0063265垫片组SHIM SET1
18826736A1驱动轴总成(长)DRIVESHAFT ASSEMBLY (LONG)1
18826737A1驱动轴总成(加长)DRIVESHAFT ASSEMBLY (X-LONG)1
1942461A1套筒/环套件SLEEVE/RING KIT1
2043055A4水泵盖总成COVER ASSEMBLY Water Pump1
208M0113262水泵盖总成COVER ASSEMBLY Water Pump1
21430331衬垫GASKET1
22430472衬垫GASKET1
228M0214931衬垫GASKET1
2343035油封(上)SEAL Oil (UPPER)1
238M0245495油封OIL SEAL1
2443036油封(下)SEAL Oil (LOWER)1
25817277衬垫GASKET1
258172771水泵上垫片GASKET Water Pump, Upper1
26817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
27817276面板FACEPLATE1
278M0204709面板FACEPLATE1
288248327螺钉 (M6 x 30)SCREW (M6 x 30)4
288M0214957螺钉SCREW4
29826763A1联轴器(长)COUPLING (LONG)1
29826762A1联轴器(LL)COUPLING (LL)1
3243037键KEY1
328M0204723键KEY1
33430262叶轮IMPELLER1
3343026T2叶轮IMPELLER1
348248326螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)6
3643048A1换挡轴总成 (长)SHIFT SHAFT ASSEMBLY (LONG)1
36430482换挡轴总成(LL)SHIFT SHAFT ASSEMBLY (LL)1
3729641E型卡环E RING1
3843052A4衬套总成BUSHING ASSEMBLY1
3945710O型圈(1.424x0.103)O-RING (1.424 x .103)1
398M0204681特殊O型圈1.424x0.103O-RING 1.424 x .103, Special1
408164641油封SEAL Oil1
408M0246145油封OIL SEAL1
418248326螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
-43024A7水泵维修套件REPAIR KIT Water Pump1
-8M0113799水泵修理包REPAIR KIT-W/P1
-43035A4齿轮箱密封套件SEAL KIT Gear Housing1
图 102夹紧支架(手动) CLAMP BRACKET (MANUAL)
夹紧支架(手动) CLAMP BRACKET (MANUAL)
REF零件编号中文名称英文名称数量
1822868A1夹具支架总成CLAMP BRACKET ASSEMBLY1
1822868A2夹具支架总成CLAMP BRACKET ASSEMBLY1
298727润滑脂接头FITTING Grease1
28M0169588润滑脂接头FITTING Grease1
399604槽销PIN Groove1
4822867F1夹箍支架CLAMP BRACKET1
4822867F2夹箍支架CLAMP BRACKET1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
5893704T01倾斜锁杆LEVER Tilt Lock1
519618A3倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
699622弹簧SPRING1
765830尼龙衬套NYLINER1
8812708弹簧SPRING1
9812709T旋钮KNOB1
9812709旋钮KNOB1
9812709T6旋钮KNOB1
9812709旋钮KNOB1
1099615槽销PIN Groove1
1119619垫圈WASHER2
1218486F5锚支架BRACKET Anchor1
1218486A08支架套件锚BRACKET KIT Anchor1
1218486F6锚支架BRACKET Anchor1
1218486A08支架套件锚BRACKET KIT Anchor1
13818298A1阳极套件ANODE KIT1
13818298Q1阳极套件ANODE KIT1
144000330螺钉(M6x25)SCREW (M6 x 25)2
148M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
158M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
164000354螺钉 (M8 x 30)SCREW (M8 x 30)5
164000355螺钉(M8×35)SCREW (M8 x 35)1
17400257锁紧垫圈（M8）LOCKWASHER (M8)4
18400635螺母 (M8)NUT (M8)2
18401388不锈钢螺母 (M8)NUT (M8) Stainless Steel2
1949930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
198M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
20821461弹簧SPRING1
2119614倾斜管TILT TUBE1
218M0041938倾斜管TILT TUBE1
22826164螺母 (.875-14)NUT (.875-14)2
228M0231351锁紧螺母NUT Lock2
23818883A1蝶形螺钉总成THUMB SCREW ASSEMBLY2
24818884垫圈WASHER2
25768042六角凸肩螺钉SHOULDER SCREW Hex2
26814259螺钉 (.500-20 x 4.00)SCREW (.500-20 x 4.00)4
2728421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
278M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
288M0027784螺母NUT4
2882671117螺母(.500-20)NUT (.500-20)4
291938525连接杆LINK1
298M0084737连接杆LINK1
3019615A4倾斜杆总成LEVER ASSEMBLY Tilt1
3019615A05倾斜杆总成LEVER ASSEMBLY Tilt1
31812707衬套BUSHING1
3219605垫圈(.520 x .850 x .060) 尼龙-黑色WASHER (.520 x .850 x .060) Nylon - Black1
328M0042643垫圈(.520 x .850 x .060) 尼龙 黑色WASHER (.520 x .850 x .060) Nylon, Black1
3399611波形垫圈WAVE WASHER1
3419621倾斜旋钮TILT KNOB1
348M0007469倾斜旋钮KNOB Tilt1
3519611螺钉(.375-16×0.62)SCREW (.375-16 x .62)1
图 103飞轮、开关盒、点火线圈与定子 Flywheel, Switch Box, Ignition Coil and Stator
飞轮、开关盒、点火线圈与定子 Flywheel, Switch Box, Ignition Coil and Stator
REF零件编号中文名称英文名称数量
152901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
268229垫圈（0.641 x 1.250 x 0.190）飞轮螺母WASHER (.641 x 1.250 x .190) FLYWHEEL NUT1
233001垫圈WASHER1
345907塞子 黄色 飞轮拉拔器螺纹PLUG Yellow FLYWHEEL PULLER THREADS1
48722A5飞轮总成FLYWHEEL ASSEMBLY1
568997螺钉 (.312-24 x .750) 板/轮毂SCREW (.312-24 x .750) PLATE/HUB8
632417SCREW (.250-28 x .625) FLEXIBLE PLATE TO FLYWHEEL8
7889351开关盒安装板PLATE SWITCH BOX1
859645螺钉 (.312-18 x .750) 开关盒板SCREW (.312-18 x .750) SWITCH BOX PLATE3
8824941螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)3
97778A9开关盒总成SWITCHBOX ASSEMBLY1
97778A12开关盒总成SWITCHBOX ASSEMBLY1
1020619螺钉 (#12-24 x 1.25) 开关盒至板SCREW (#12-24 x 1.25) SWITCH BOX TO PLATE2
1145076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL10
1260443A3线束总成 开关盒至线圈WIRE ASSEMBLY SWITCH BOX TO COIL1
1262822A1线束总成 开关盒至线圈WIRE ASSEMBLY SWITCH BOX TO COIL1
1268896A4线束总成 开关盒至线圈WIRE ASSEMBLY SWITCH BOX TO COIL1
1288807A9电缆总成 开关盒至线圈CABLE ASSEMBLY SWITCH BOX TO COIL1
1288807A13电缆总成 开关盒至线圈CABLE ASSEMBLY SWITCH BOX TO COIL3
1373439板 安装-点火线圈PLATE MOUNTING-IGNITION COIL1
147370A13点火线圈总成COIL ASSEMBLY Ignition3
148M0230859点火线圈总成COIL IGNITION ASY3
1545076螺母(#10-32)黄铜点火线圈端子NUT (#10-32) Brass IGNITION COIL TERMINAL6
1643542点火线圈盖COVER IGNITION COIL1
1792399螺钉 (.190-32 x 2.250) 盖至安装板SCREW (.190-32 x 2.250) COVER TO MOUNTING PLATE6
185704A7定子总成STATOR ASSEMBLY1
1963136螺钉 (#10-24 x .880) 定子至上端盖SCREW (#10-24 x .880) STATOR TO UPPER END CAP4
2096455A8触发板总成PLATE ASSEMBLY Trigger1
21813715A6线束总成 火花塞WIRE ASSEMBLY SPARK PLUG1
2263709A1护套/端子套件BOOT/TERMINAL KIT3
2497180火花塞SPARK PLUG3
24896329827SP #L76V @4SP #L76V @43
2414103550火花塞 (NGK-BUZHW) (加拿大和比利时)SPARK PLUG (NGK-BUZHW) (CANADA AND BELGIUM)3
24896329898SP #QL76V @4SP #QL76V @43
2530164WASHER (.192 x .375 x .0312) Stainless Steel COIL COVER SCREW6
2694304隔套SPACER2
2769079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)1
2748408螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1

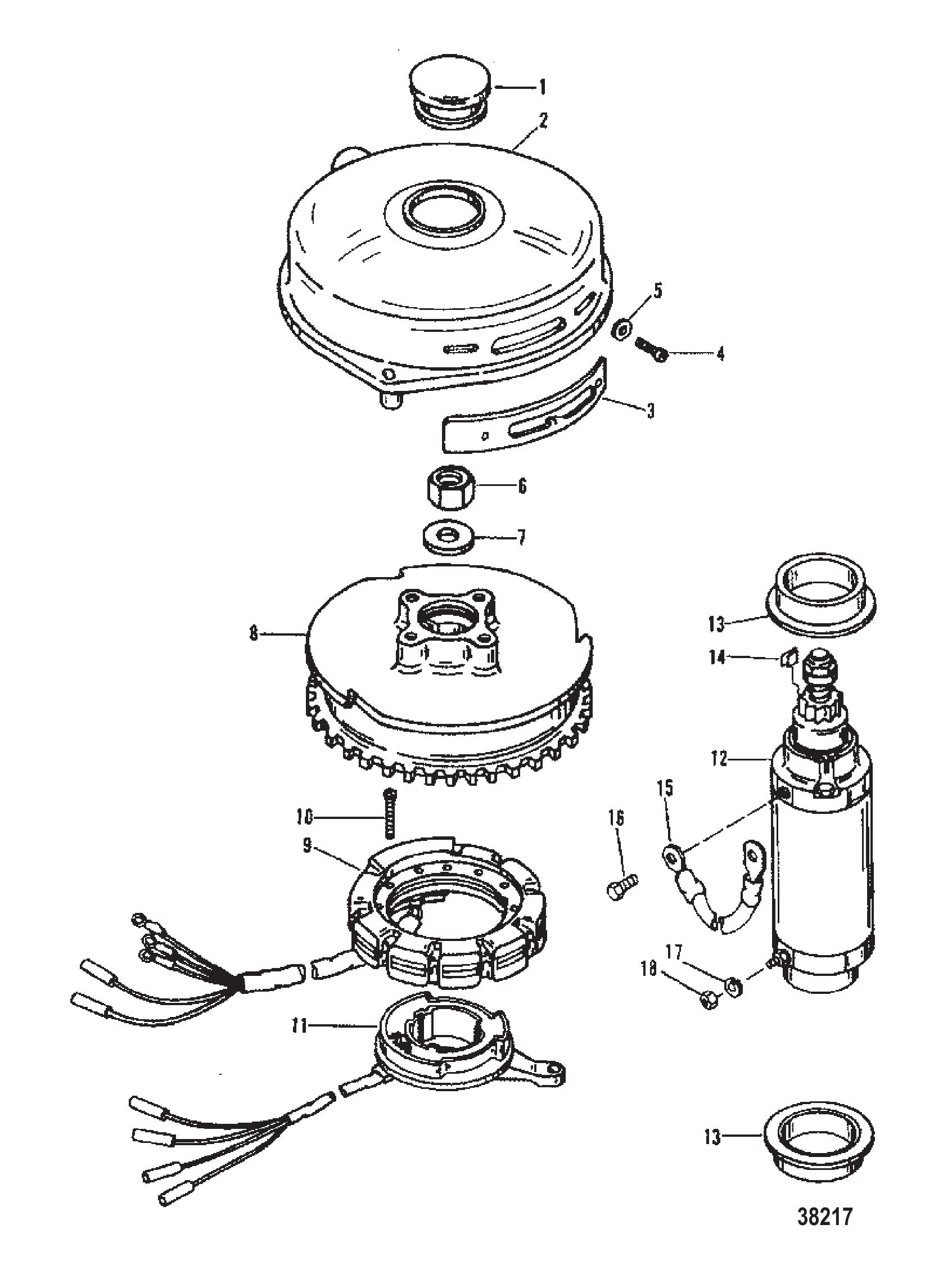

图 104飞轮与启动电机(50/60) FLYWHEEL AND STARTER MOTOR (50/60)
飞轮与启动电机(50/60) FLYWHEEL AND STARTER MOTOR (50/60)
REF零件编号中文名称英文名称数量
189219堵头PLUG1
2812777T飞轮盖FLYWHEEL COVER1
2812777T1盖总成COVER ASSEMBLY1
379022标记MARKER1
437572螺钉 (.190-32 x .380)SCREW (.190-32 x .380)2
572761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel2
642979螺母(M16)NUT (M16)1
768229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
733001垫圈WASHER1
89008A19飞轮FLYWHEEL1
89008A50飞轮FLYWHEEL1
99710A26定子(冲压398-9710A22)STATOR (STAMPED 398-9710A22)1
99873A38定子套件STATOR KIT1
99710A23定子(冲压398-9710A23)STATOR (STAMPED 398-9710A23)1
99873A35高输出交流发电机套件HIGH OUTPUT ALTERNATOR KIT1
99710A36定子(冲压398-9710A34)STATOR (STAMPED 398-9710A34)1
9832075A19点火定子套件IGNITION STATOR KIT1
104007330螺丝(M5 x 30)SCREW (M5 x 30)4
104013930螺丝(M5 x 30)SCREW (M5 x 30)4
1199021A16触发器TRIGGER1
1244369A1启动电机总成STARTER MOTOR ASSEMBLY1
1356703轴环COLLAR2
138M0034918轴环COLLAR2
1457247停机开关STOP2
148M0043376停机开关STOP2
1588807A31拉线总成CABLE ASSEMBLY1
1669035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
1726992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
1864015螺母 (.250-20)NUT (.250-20)1
图 105手动倾斜装置组件 Manual Tilt Components
手动倾斜装置组件 Manual Tilt Components
REF零件编号中文名称英文名称数量
1813427A4减震杆总成SHOCK ROD ASSEMBLY1
2813428升降缸端盖总成END CAP ASSEMBLY Trim Cylinder1
38134291减震活塞PISTON Shock1
4813432A2气缸修理包CYLINDER REBUILD KIT1
5810776记忆活塞套件PISTON KIT Memory1
6810777气缸套件CYLINDER KIT1
6811224A1气缸总成CYLINDER ASSEMBLY1
6893918A01气缸套件CYLINDER KIT1
7813433A1螺丝和密封套件气缸SCREW AND SEAL KIT CYLINDER1
7893919A01螺丝/密封套件SCREW/SEAL KIT1
8813454A2蓄能器总成ACCUMULATOR ASSEMBLY1
8893920A01蓄能器套件ACCUMULATOR KIT1
9813455T4阀体总成VALVE BODY ASSEMBLY1
98M0118574阀体总成VALVE BODY ASSEMBLY1
10813456A4维修套件REPAIR KIT1
10813456A4维修套件REPAIR KIT1
11813458塞套件PLUG KIT1
11813458A2塞套件PLUG KIT1
12813457A1凸轮总成套件CAM ASSEMBLY KIT1
13813459塞套件PLUG KIT1
1419607销PIN2
15821539三叶销PIN Trilobe2
-830050T3手动配平总成(完整)MANUAL TRIM ASSEMBLY COMPLETE1
-8M0118570手动配平总成MANUAL TRIM ASSEMBLY1

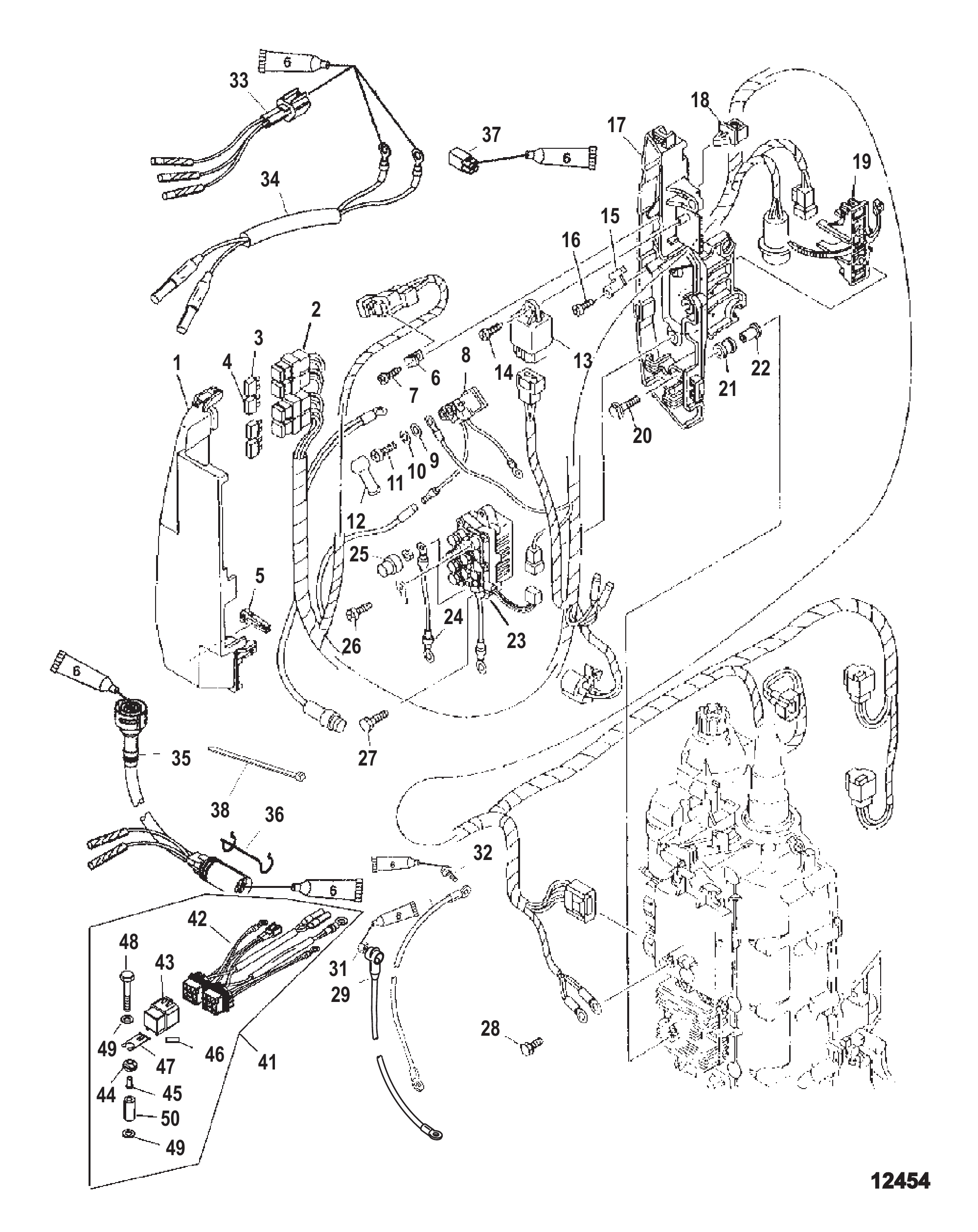

图 106电气组件 Electrical Components
电气组件 Electrical Components
REF零件编号中文名称英文名称数量
1881363T盖板COVER1
2881364T2线束总成HARNESS ASSEMBLY1
2881364T04线束HARNESS1
2881364T1线束总成HARNESS ASSEMBLY1
2881364T04线束HARNESS1
3804291保险丝20安培FUSE 20 Ampere4
3832969T20迷你保险丝-黄色-20安FUSE Mini - Yellow - 20 Ampere4
48042911030安保险丝FUSE 30 Ampere4
48M005715930A保险丝FUSE-30A4
0891824010保险丝盖COVER Fuse4
0891824020保险丝盖COVER Fuse4
5804289保险丝拔取器PULLER Fuse1
6881362支架BRACKET1
78813511螺钉SCREW1
8881352T继电器RELAY1
88M0098898继电器RELAY1
982214M垫圈WASHER2
10881355锁紧垫圈LOCKWASHER2
1082212M锁紧垫圈LOCKWASHER2
11881354螺钉SCREW2
1196671M螺钉SCREW2
12804284护套BOOT2
12804284001护套BOOT2
13881350T继电器RELAY1
14881351螺钉SCREW1
15881353卡箍CLAMP1
168813511螺钉SCREW1
17881359T支架BRACKET1
17881363A01盖/支架套件COVER/BRACKET KIT1
18881361卡箍CLAMP1
19881360卡箍CLAMP1
20804270螺栓(M6×28)BOLT (M6 x 28)5
21881304护孔环GROMMET5
2282851M衬套BUSHING5
22804344003轴环COLLAR5
23881356T1继电器总成RELAY ASSEMBLY1
23882751A3升降继电器套件RELAY KIT Trim1
24881357引线LEAD WIRE1
25881358盖帽CAP1
268248324螺钉(M6 x 16)SCREW (M6 x 16)2
27825702螺栓 (M6 x 20)BOLT (M6 x 20)2
278257021螺栓 (M6 x 20)BOLT (M6 x 20)2
28804604螺栓 (M6 x 20)BOLT (M6 x 20)1
2988439A33正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
3088439A10蓄电池负极电缆总成CABLE ASSEMBLY Negative - Battery1
31401388不锈钢螺母 (M8)NUT (M8) Stainless Steel1
3240011128不锈钢螺钉(M6x20)SCREW (M6 x 20) Stainless Steel1
328M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD1
33858723T1适配器/升降线束总成HARNESS ASSEMBLY Adapter/Trim1
34858914T1升降马达适配器线束总成HARNESS ASSEMBLY Trim Motor Adaptor1
35858740T4遥控适配器线束总成HARNESS ASSEMBLY Adapter Assembly Remote1
3692753固定座RETAINER1
37859249T1连接器CONNECTOR1
38816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
398272822高压警告标贴DECAL Warning High Voltage1
40881865挂档启动警示标贴DECAL Caution-Start in Gear Start in Gear1
41828151A2升降继电器套件TRIM RELAY KIT1
41882751A3升降继电器套件RELAY KIT Trim1
42826802A24升降线束总成HARNESS ASSEMBLY Trim1
43828151A1继电器总成RELAY ASSEMBLY2
438M0207773调整继电器总成RELAY ASSEMBLY Trim2
44818967护孔环GROMMET1
448M0207785护孔环GROMMET1
45818968衬套BUSHING1
458M0214955衬套BUSHING1
46NSS标贴(不单独销售)NOT SOLD SEPARATE Decal1
47828102支架BRACKET1
478M0207771安装支架BRACKET Mounting1
48824868螺钉(M6×75)SCREW (M6 x 75)1
494002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)2
498M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.52
50823807衬套BUSHING1
图 107曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
REF零件编号中文名称英文名称数量
19611A1曲轴总成CRANKSHAFT ASSEMBLY1
263742滚珠轴承BEARING Ball1
263742T滚珠轴承BEARING Ball1
3812877挡圈RING Retaining1
491800半圆键KEY Woodruff2
543019A2齿轮总成GEAR ASSEMBLY1
6812873A1滚子轴承总成(顶部)BEARING ASSEMBLY Roller (TOP)1
7419531油封SEAL Oil1
8812881A1滚子轴承总成(中部)BEARING ASSEMBLY Roller (CENTER)2
99613A1活塞总成PISTON ASSEMBLY3
99613T1活塞PISTON3
99613A2活塞总成PISTON ASSEMBLYAR
99613T2活塞总成0.015PISTON ASSY .015AR
99613A3活塞总成PISTON ASSEMBLYAR
99613T3活塞PISTONAR
1052035锁环RING Lock6
10857196锁紧环LOCK RING6
1119721A6活塞环组RING SET Piston1
1119721A1活塞环组RING SET PistonAR
1119721A2活塞环组RING SET PistonAR
129612A2连杆总成CONNECTING ROD ASSEMBLY3
129612A6连杆总成CONNECTING ROD ASSEMBLY3
13812876垫圈WASHER6
138M0012298止推垫片THRUST WASHER6
1447270轴承BEARING8
148M0214934滚针轴承@200BRG-NEEDLE @2008
1591012螺钉(0.250-28特殊)SCREW (.250-28 Special)6
1617514A1轴承套件BEARING KIT3
168M0234886轴承保持架CAGE BEARING3
-811208T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-821744T92动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T93动力头总成(完整)POWERHEAD ASSEMBLY Complete1
图 108驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
REF零件编号中文名称英文名称数量
17512A10驱动轴壳体总成(短轴)HOUSING ASSEMBLY Driveshaft (Short Shaft)1
17513A12驱动轴壳体总成(长轴)HOUSING ASSEMBLY Driveshaft (Long Shaft)1
18189A10黑色传动轴壳体总成HOUSING ASSEMBLY Driveshaft Black1
18189A11灰色传动轴壳体总成HOUSING ASSEMBLY Driveshaft Gray1
364649塑料螺塞-调整片螺钉孔PLUG Plastic - Trim Tab Screw Hole1
457932STUD (.375-16/.375-24 x 1.750) Driveshaft Housing1
48M0022145螺柱(.375-16/.375-24 x 1.750)STUD (.375-16/.375-24 x 1.750)1
557935驱动轴壳体双头螺柱(3英寸)STUD Driveshaft Housing (3 Inch)1
665791齿轮箱壳体螺柱垫圈(0.438英寸)WASHER Gear Housing Studs (0.438 Inch)2
734933NUT (.437-20) Stainless Steel Gear Housing Studs2
78M0204653螺母NUT2
893445橡胶上支架MOUNT Rubber - Upper2
8923373支架MOUNT2
996401上支架密封件SEAL Upper Mount2
1027727WASHER Upper Mount Bolt (37/64 I.D.)2
1166966WASHER Rubber - Upper Mount Bolt2
1230514WASHER Upper Mount Bolt2
1334933NUT (.437-20) Stainless Steel Upper Mount Bolt2
138M0204653螺母NUT2
1487883T上减震座盖COVER Upper Mount2
1487883盖板COVER2
1576630SCREW (.250-20 x 1.00) Upper Mount Cover4
158M0214943螺钉SCREW4
1629245WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw4
168M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
1737687驱动轴壳体调整盖COVER Trim - Driveshaft Housing1
1737687F2驱动轴壳体调整盖COVER Trim - Driveshaft Housing1
1857807SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing4
1992012GROMMET Trim Cover Screw4
198M0079730密封圈套件GROMMET KIT4
2038157调整盖至驱动轴壳体密封件SEAL Trim Cover to Driveshaft Housing1
2138158调整盖密封条(后)STRIP Retaining - Trim Cover Seal (Rear)1
2238154调整盖密封条(侧)STRIP Retaining - Trim Cover Seal (Side)2
2348408固定条螺钉(#10-16 x .500)SCREW (#10-16 x .500) Retaining Strip8
24695431排气管TUBE Exhaust1
24695441排气管TUBE Exhaust1
2537727进水口管TUBE Water Inlet1
2545679进水口管TUBE Water Inlet1
2664809动力头螺柱螺母(0.313英寸)NUT Powerhead Studs (0.313 Inch)8
2775304下橡胶支座MOUNT Rubber - Lower2
2775304T1支架MOUNT2
2875284SCREW (.500-20 x 5.500) Lower Mount Screw2
2843426下支座螺丝SCREW Lower Mount Screw2
2928051WASHER Lower Mount Screw2
3028053下支座螺丝橡胶垫圈WASHER Rubber - Lower Mount Screw2
3130119WASHER (.875 Inch Outside Diameter) Lower Mount Screw2
3225096NUT Lower Mount Screw2
3369592下支座夹箍CLAMP Lower Mount2
3369592F1卡箍CLAMP2
3429256SCREW (.312-18 x .875) Lower Mount Clamp4
3535522SPRING Tension - Lower Mount Clamp4
3635474T下安装夹盖COVER Lower Mount Clamp2
3635474F2下支座夹箍盖COVER Lower Mount Clamp Lower Mount Clamp2
3787884盖至下支座夹箍螺丝(#12-14 x 0.920)SCREW (#12-14 x .920) Cover to Lower Mount Clamp2
3835521NUT Lower Mount Clamp Cover2
3988238A2动力升降接地线组件(2根)CABLE ASSEMBLY Ground Quanity of Two on Power Trim1
3988238A10接地线总成CABLE ASSEMBLY Ground1
图 109夹箍支架 CLAMP BRACKET
夹箍支架 CLAMP BRACKET
REF零件编号中文名称英文名称数量
18894A5夹具支架总成 (左舷) (黑色)CLAMP BRACKET ASSEMBLY (PORT) (BLACK)1
18894A11夹具支架总成CLAMP BRACKET ASSEMBLY1
18894A6夹具支架总成 (左舷) (灰色)CLAMP BRACKET ASSEMBLY (PORT) (GRAY)1
18894A12夹具支架总成CLAMP BRACKET ASSEMBLY1
28892A3夹具支架总成 (右舷) (黑色)CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)1
28894A11夹具支架总成CLAMP BRACKET ASSEMBLY1
28892A4夹具支架总成 (右舷) (灰色)CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)1
28894A12夹具支架总成CLAMP BRACKET ASSEMBLY1
392767A1蝶形螺丝总成 (14 mm)THUMB SCREW ASSEMBLY (14 mm)2
392767A3蝶形螺丝总成 (16 mm)THUMB SCREW ASSEMBLY (16 mm)2
473719蝶形螺丝垫圈WASHER THUMB SCREW2
4818884垫圈WASHER2
5768041垫圈固定螺丝SCREW WASHER ATTACHING2
5768042六角凸肩螺钉SHOULDER SCREW Hex2
643431夹紧支架螺柱隔套SPACER CLAMP BRACKET STUD1
6818539隔套SPACER1
68M0084719隔套SPACER1
742129夹紧支架螺柱STUD CLAMP BRACKET1
7A4000333螺钉(M6 x 40)SCREW (M6 x 40)2
8400256夹紧支架螺柱防松垫圈(M6)LOCKWASHER (M6) CLAMP BRACKET STUD2
9400212夹紧支架螺柱不锈钢螺母(M6)NUT (M6) Stainless Steel CLAMP BRACKET STUD2
1042078倾斜管TILT TUBE1
1130954安全卡扣CLIP SAFETY1
118M0085928卡扣CLIP1
1293164倾斜管螺母(.875)NUT (.875) TILT TUBE2
1371421倾斜管尼龙垫圈WASHER Nylon TILT TUBE2
1442390A1倾斜回位杆总成LEVER ASSEMBLY Tilt Return2
1590901倾斜限位带-左舷侧STRAP TILT STOP - PORT SIDE1
1642498限位带至夹紧支架螺钉(M6x1.0)SCREW (M6 x 1.0) STRAP TO CLAMP BRACKET2
1731030倾斜限位带螺钉波形垫圈WAVE WASHER TILT STOP STRAT SCREW1
1843216夹紧支架至艉板螺栓(.250-20x3.50)BOLT (.250-20 x 3.50) CLAMP TO TRANSOM2
1967983夹紧支架螺栓垫圈WASHER CLAMP BRACKET BOLT2
21814427倾斜锁定滑块(新设计)SHUTTLE TILT LOCK (NEW DESIGN)1
2212869倾斜位置标贴DECAL Tilt Position1
图 110喷油组件 OIL INJECTION COMPONENTS
喷油组件 OIL INJECTION COMPONENTS
REF零件编号中文名称英文名称数量
18127181机油箱TANK Oil1
1812718T1油箱总成TANK ASSEMBLY Oil1
219070A2盖总成CAP ASSEMBLY1
390186O型圈O-RING1
48160661密封件SEAL1
1812718A1油箱总成TANK ASSEMBLY Oil1
1812718T1油箱总成TANK ASSEMBLY Oil1
2828765A2盖总成CAP ASSEMBLY1
48160662密封件SEAL1
48M0039080密封件-油箱SEAL-OIL TANK1
519299A1通风组件VENT ASSEMBLY1
664871阀门VALVE1
7813644护孔环GROMMET1
8813649护套BOOT1
9812890护套BOOT1
98M0039085护套BOOT1
1012886A6开关总成SWITCH ASSEMBLY1
1158376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
12812690A1机油喷射泵总成PUMP ASSEMBLY Oil Injection1
12818902A1机油喷射泵总成PUMP ASSEMBLY Oil Injection1
1362705O型圈O-RING1
138M0204667O型圈×2O RING @21
1436390O型圈O-RING1
1540011108不锈钢螺钉 (M5 x 20)SCREW (M5 x 20) Stainless Steel2
1619277从动齿轮GEAR Driven1
1719278A2轴承总成BEARING ASSEMBLY1
1882381325管材(10.00英寸散装)TUBING (10.00 Inches Bulk)2
1882381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)2
1972761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
20821287连接杆LINK1
图 111外罩与前盖 COWLING AND FRONT COVER
外罩与前盖 COWLING AND FRONT COVER
REF零件编号中文名称英文名称数量
16228A1顶罩总成(右舷黑色)TOP COWL ASSEMBLY (STARBOARD BLACK)1
16228A3顶罩总成(右舷灰色)TOP COWL ASSEMBLY (STARBOARD GRAY)1
260297燃油接头密封圈-罩SEAL FUEL CONNECTOR -COWL1
36227A1顶罩总成(左舷黑色)TOP COWL ASSEMBLY (PORT BLACK)1
36227A17顶罩总成(左舷灰色)TOP COWL ASSEMBLY (PORT GRAY)1
460298控制电缆密封圈-罩SEAL CONTROL CABLES-COWL1
589717T罩体密封后支架BRACKET COWL SEALING-REAR1
6698761后支架密封圈SEAL REAR BRACKET2
790980罩体铰链支架BRACKET COWL HINGE2
845561铰链支架下部螺钉(.250-20 x 1.12)SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER2
8455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
875794铰链支架上部螺钉(1-1/8英寸)SCREW HINGE BRACKET-UPPER (1-1/8")2
975805铰链支架螺钉帽(上部)CAP HINGE BRACKET SCREW (UPPER)2
1026992铰链支架螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW4
1137998铰链支架螺钉垫圈WASHER HINGE BRACKET SCREW4
1275806铰链支架螺钉垫圈(上部)WASHER HINGE BRACKET SCREW (UPPER)2
1390979机罩铰链销PIN COWL HINGE4
1428782螺钉(.312-18 x .880)不锈钢 铰链销至机罩SCREW (.312-18 x .880) Stainless Steel PIN TO COWL4
1526993锁紧垫圈(.312)铰链销固定螺钉LOCKWASHER (.312) PIN ATTACHING SCREW4
158M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1646785A5罩壳锁扣总成LATCH ASSEMBLY Cowl2
1762628机罩锁扣筒BARREL COWL LATCH2
1831312螺钉(#10-32 x 0.875)锁扣总成至筒体SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL2
1915222机罩锁扣调节杆BAR ADJUSTMENT-COWL LATCH2
2062629机罩锁扣筒BARREL COWL LATCH2
2162624机罩锁扣张力弹簧SPRING TENSION-COWL LATCH2
2230164垫圈(.192 x .375 x .0312)不锈钢 调节杆至筒体WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL2
2345812螺母(#10-32)不锈钢 调节杆至筒体NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL2
23859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel2
248774A6前盖(黑色)FRONT COVER (BLACK)1
248774A7前盖(灰色)FRONT COVER (GRAY)1
25795511隔音毯BLANKET SOUND ABSORBING1
2614333旋钮KNOB1
2730771垫圈WASHER2
2875246垫圈WASHER2
2930772弹簧SPRING1
3029077滚动销PIN Roll1
3147341A1拉绳与手柄套件 手动/应急启动(仅限手动启动)ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY)1
3147341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1

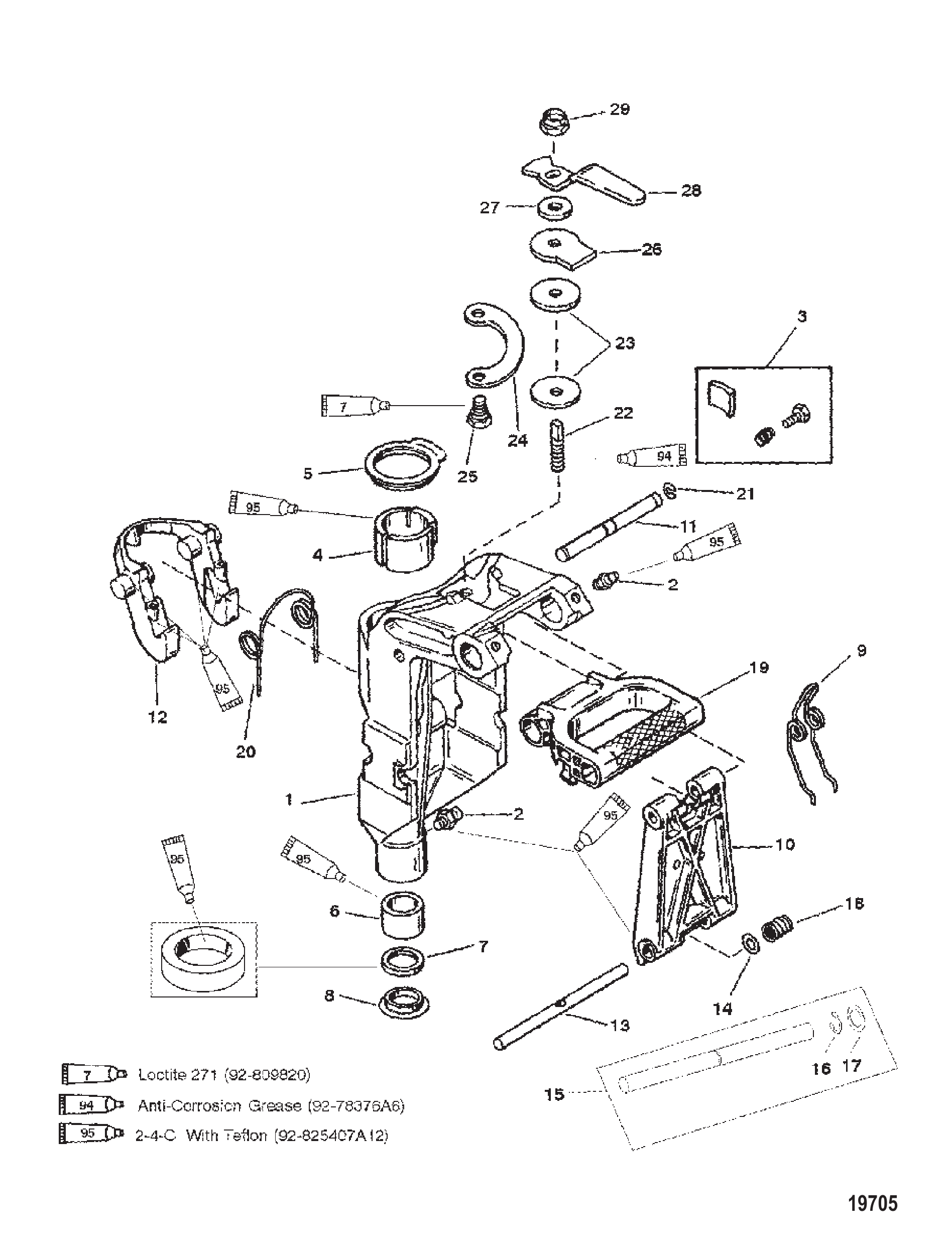

图 112旋转支架 Swivel Bracket
旋转支架 Swivel Bracket
REF零件编号中文名称英文名称数量
18831A6旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A13旋转支架-黑色SWIVEL BRKT-BLACK1
18831A7旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A14ORD 3402-8831A13ORD 3402-8831A131
18831A5旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A13旋转支架-黑色SWIVEL BRKT-BLACK1
18831A8旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831T08旋转支架-黑色BRKT-SWIVEL-BLACK1
18831A9旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A8旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A10旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A8旋转支架总成SWIVEL BRACKET ASSEMBLY1
274036润滑脂接头FITTING Grease3
28M0169589润滑脂接头FITTING Grease3
342124A2副驾驶板总成PLATE ASSEMBLY Co-Pilot1
4421402轴承BEARING1
5420801推力轴承-上BEARING Thrust - Upper1
542080T01轴承BEARING1
642139衬套BUSHING1
742077密封件SEAL1
842373止推垫片THRUST WASHER1
9421301弹簧SPRING1
10420824支架BRACKET1
1042082T04支架BRACKET1
11420811销PIN1
12421411倒挡锁钩HOOK Reverse Lock1
128M0075731倒挡钩HOOK Reverse1
1342083枢轴销PIN Pivot1
13830741A1枢轴销总成PIN ASSEMBLY Pivot1
148M0027716垫圈 (0.390 x 0.600 x 0.032) 不锈钢WASHER (.390 x .600 x .032) Stainless Steel1
15830741A1枢轴销总成PIN ASSEMBLY Pivot1
16NSS不单独销售NOT SOLD SEPARATE1
178M0027716垫圈 (0.390 x 0.600 x 0.032) 不锈钢WASHER (.390 x .600 x .032) Stainless Steel1
1842128弹簧SPRING1
1942085F4提手CARRYING HANDLE1
19420852手柄-黑色HANDLE-BLACK1
1942085F2提手CARRYING HANDLE1
1942085F5提手CARRYING HANDLE1
1942085F3提手CARRYING HANDLE1
19420852手柄-黑色HANDLE-BLACK1
2042127弹簧SPRING1
2113194挡圈RING Retaining2
22821961杆ROD1
238165621圆盘DISC2
24821958A1板组件套件PLATE KIT1
2582130014螺钉 (M6 x 14)SCREW (M6 x 14)2
26821957制动板BRAKE PLATE1
2729330垫圈WASHER1
28821959手柄HANDLE1
2934863螺母 (.375-24)NUT (.375-24)1
298M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
-8237011副驾驶贴花DECAL Co-Pilot1
图 113启动电机总成（博世） STARTER MOTOR ASSEMBLY (BOSCH)
启动电机总成（博世） STARTER MOTOR ASSEMBLY (BOSCH)
REF零件编号中文名称英文名称数量
-66015启动电机总成STARTER MOTOR ASSEMBLY1
-893891T启动电机总成STARTER MOTOR ASSEMBLY1
190643驱动套件DRIVE KIT1
268575驱动总成DRIVE ASSEMBLY1
2685753驱动总成DRIVE ASSEMBLY1
375660驱动端板PLATE DRIVE END1
475385贯穿螺栓BOLT THRU2
675386电枢ARMATURE1
775384电刷/弹簧套件BRUSH/SPRING KIT1
7898265016电刷/弹簧套件BRUSH/SPRING KIT1
857387绝缘衬套BUSHING INSULATING1
938013输入柱垫圈WASHER INPUT STUD1
1026992不锈钢输入柱锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel INPUT STUD1
1120890输入柱螺母(.250-20)NUT (.250-20) INPUT STUD1
1261787电刷架HOLDER BRUSH2
12898265014电刷支架HOLDER-BRUSH2
1368586电刷及支架螺钉SCREW BRUSH AND HOLDER2
1479215换向器端盖END CAP COMMUTATOR1
1415386001端盖END CAP1
图 114专用工具 TOOLS SPECIAL
专用工具 TOOLS SPECIAL
REF零件编号中文名称英文名称数量
-815366A3电池隔离器套件ISOLATOR KIT Battery1
-58222A1百分表工具DIAL INDICATOR TOOL1
-89045适配器ADAPTER1
-890451直流电压适配工具ADAPTER TOOL Direct Voltage1
-52344飞轮固定器工具(齿型)FLYWHEEL HOLDER TOOL Teeth Type1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-99750A1万用表MULTI METER1
-24161飞轮拉拔器盖工具CAP TOOL Flywheel Puller1
-52024A1开关总成SWITCH ASSEMBLY1
-59339维修用转速表SERVICE TACHOMETER1
-892647A01DMT万用表套件MULTI-METER KIT DMT1
-850439T1八腔测试仪TESTER Eight Chamber1
-63998A1单腔间隙工具GAP TOOL Single Chamber1
-850439火花测试器SPARK TESTER1
-850439T1八腔测试仪TESTER Eight Chamber1
-14443A1测试线束总成HARNESS ASSEMBLY Test1
-99379正时灯TIMING LIGHT1
-29287量规工具GAUGE TOOL1
-55919驱动头DRIVER HEAD1
-52344飞轮固定器工具(齿型)FLYWHEEL HOLDER TOOL Teeth Type1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-90455吊环LIFTING EYE1
-904551吊环LIFTING EYE1
-77109A3安装工具套件INSTALLER KIT1
-52952A1活塞销锁环拆卸工具REMOVAL TOOL Piston Pin Lock Ring1
-52952T1活塞销锁环拆卸工具REMOVAL TOOL Piston Pin Lock Ring1
-74607A3活塞销安装套件INSTALLER KIT Piston Pin1
-65494环压缩工具(2.0升)COMPRESSOR TOOL Ring (2.0L)1
-65494T环压缩工具COMPRESSOR TOOL Ring1
-818773活塞环压缩工具(2.5升)COMPRESSOR TOOL Piston Ring (2.5L)1
-818773T活塞环压缩工具(3.50)COMPRESSOR TOOL Piston Ring (3.50)1
-24697活塞环扩张工具EXPANDER TOOL Piston Ring1
-30591A1动力头支架工具STAND TOOL Powerhead1
-30591T1支架工具STAND TOOL1
-24161飞轮拉拔器盖工具CAP TOOL Flywheel Puller1
-66274扭矩扳手(0-150磅英寸)TORQUE WRENCH (0-150 lb-in)1
-37241通用拉拔板PULLER PLATE Universal1
-112301对正工具ALIGNMENT TOOL1
-99750A1万用表MULTI METER1
-52915A6测试仪表套件TEST GAUGE KIT1
-74951扳手SPANNER WRENCH1
-63209加热灯HEAT LAMP1
-44487A1调整杆导向器拆卸工具REMOVER TOOL Trim Rod Guide1
-44487T1调整杆导向器拆卸工具REMOVER TOOL Trim Rod Guide1
-44486A1调整杆拆卸工具REMOVAL TOOL Trim Rod1
图 115油门杆与联动装置 THROTTLE LEVER AND LINKAGE
油门杆与联动装置 THROTTLE LEVER AND LINKAGE
REF零件编号中文名称英文名称数量
1878550油门杆LEVER Throttle1
284974M垫圈WASHER1
381868M波形垫圈WAVE WASHER1
48528162螺母NUT1
5881378轴环COLLAR2
694524M垫圈WASHER1
7804343弹簧SPRING1
8878548节气门控制杆LEVER Throttle Control1
984974M垫圈WASHER1
1081868M波形垫圈WAVE WASHER1
11881375螺栓 (M6 x 30)BOLT (M6 x 30)1
1235459垫圈WASHER1
13859746开口销COTTER PIN1

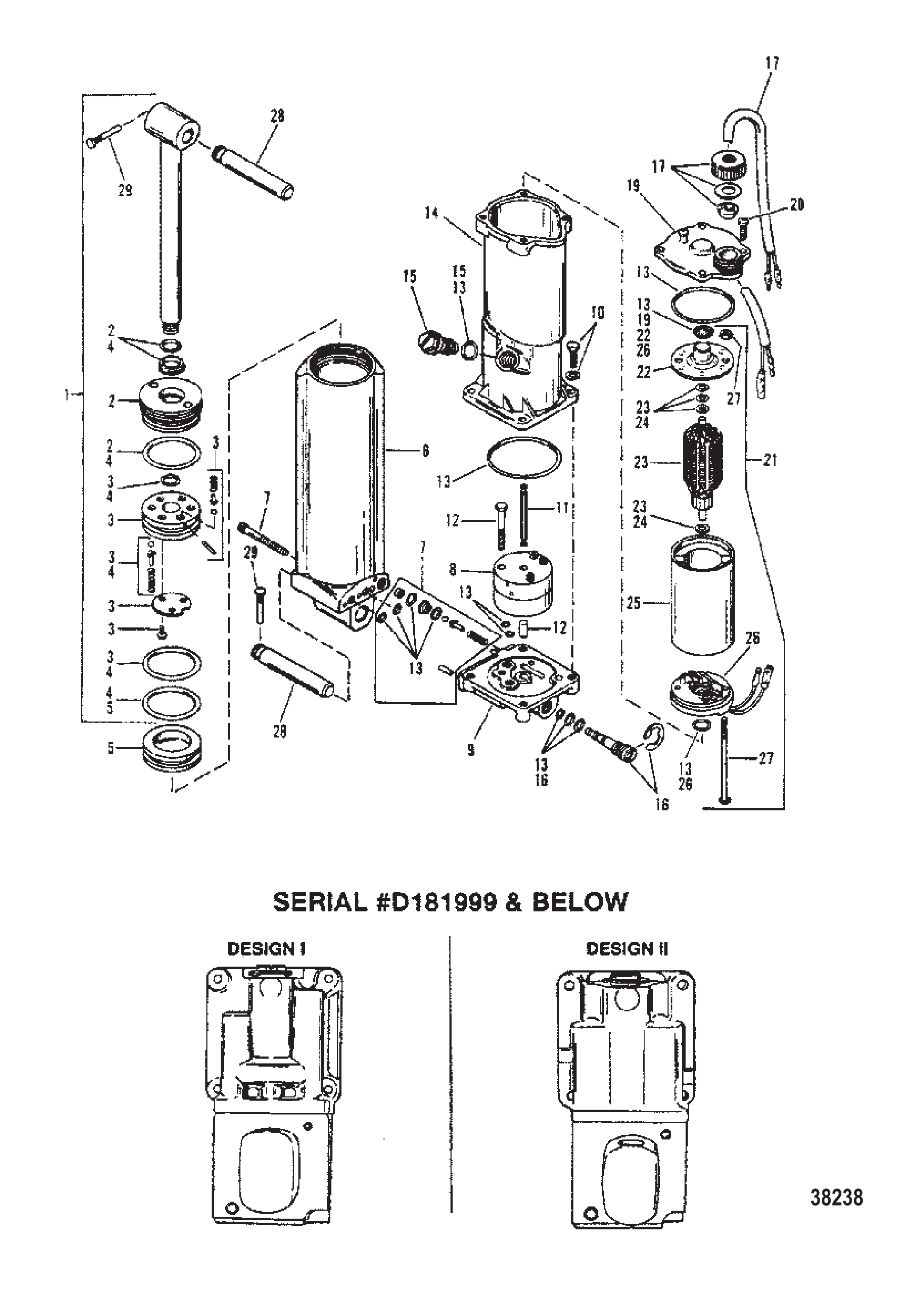

图 116动力配平组件(序列号:0D181999及以下) POWER TRIM COMPONENTS (S/N: 0D181999 AND BELOW)
动力配平组件(序列号:0D181999及以下) POWER TRIM COMPONENTS (S/N: 0D181999 AND BELOW)
REF零件编号中文名称英文名称数量
1813427减震杆总成套件SHOCK ROD ASSEMBLY KIT1
2813428升降缸端盖总成END CAP ASSEMBLY Trim Cylinder1
3813429减震活塞总成PISTON ASSEMBLY Shock1
4813432A3气缸密封套件SEAL KIT Cylinder1
5810776记忆活塞套件PISTON KIT Memory1
6810777气缸套件CYLINDER KIT1
6811228气缸套件CYLINDER KIT1
6893904T01气缸总成CYLINDER ASSEMBLY1
7813433A1螺钉与密封套件SCREW AND SEAL KIT1
7893919A01螺丝/密封套件SCREW/SEAL KIT1
7811226A1螺钉与密封套件SCREW AND SEAL KIT1
7811678A6螺钉与密封套件SCREW AND SEAL KIT1
8811227泵PUMP1
8811227泵PUMP1
9813441歧管总成MANIFOLD ASSEMBLY1
9811225歧管总成MANIFOLD ASSEMBLY1
10813436螺钉套件SCREW KIT1
11813437驱动轴DRIVESHAFT1
12813438螺丝和销钉套件SCREW AND PIN KIT1
13813439A2密封套件SEAL KIT1
13813439A3O型圈套件O RING KIT1
14813434A1储液罐RESERVOIR1
15813435塞套件PLUG KIT1
158134351堵头PLUG1
16813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
16893929A01安全阀套件VALVE KIT Relief1
17811698线束总成HARNESS ASSEMBLY1
19813445储液罐盖套件CAP KIT Reservoir1
20813446螺钉SCREW1
21813447电机套件MOTOR KIT1
22813448端盖END CAP1
23813449A1电枢ARMATURE1
24813450止推垫片套件THRUST WASHER KIT1
25813451外壳和磁铁套件SHELL AND MAGNET KIT1
26813452端架套件END FRAME KIT1
27813453螺栓螺母套件BOLT AND NUT KIT1
2819607销PIN2
29821539三叶销PIN Trilobe2
-19217A5完整配平泵总成PUMP ASSEMBLY Trim COMPLETE1
-854472A3动力调整套件POWER TRIM KIT1

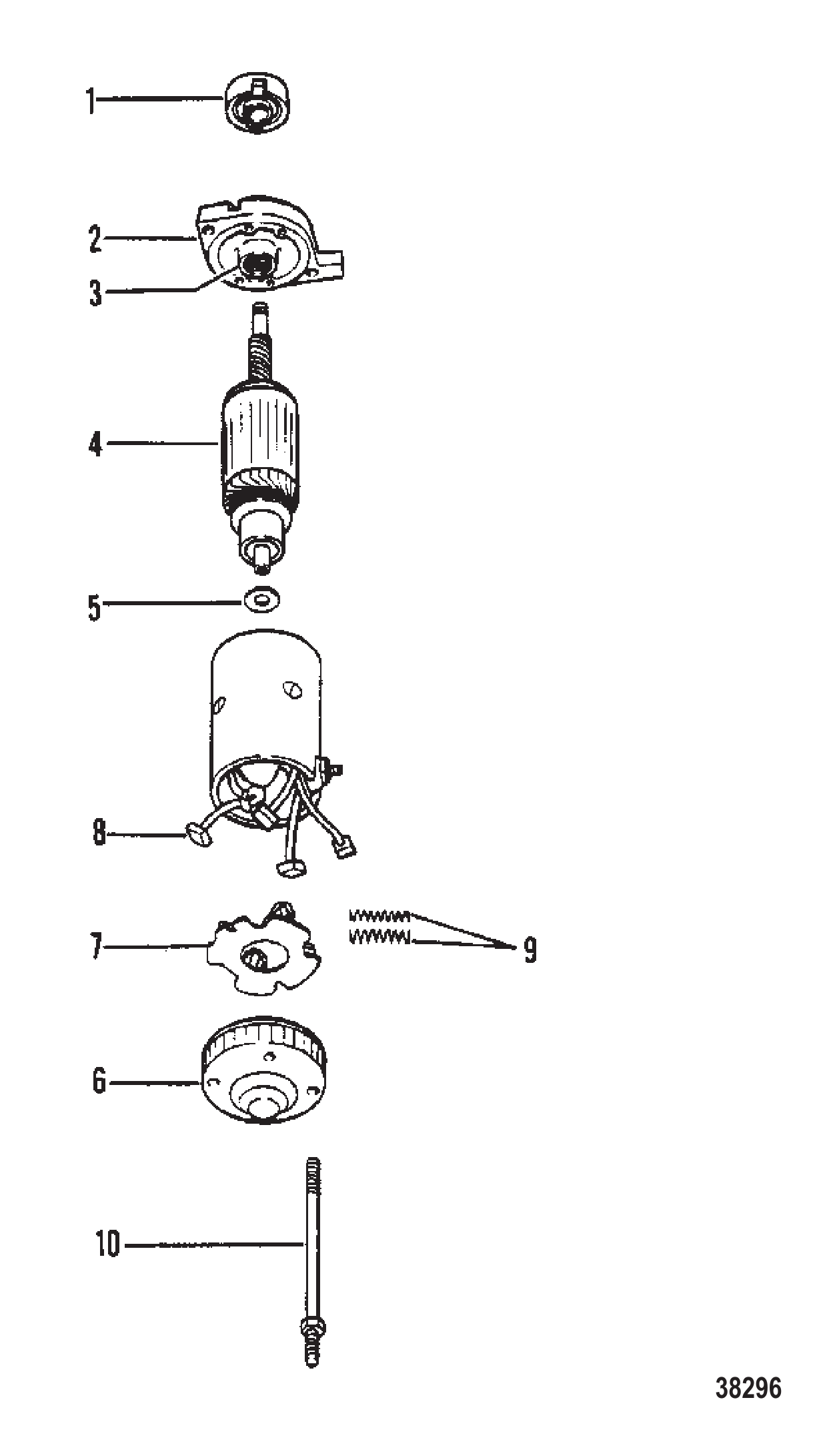

图 117启动电机总成（普雷斯特olite） STARTER MOTOR ASSEMBLY (PRESTOLITE)
启动电机总成（普雷斯特olite） STARTER MOTOR ASSEMBLY (PRESTOLITE)
REF零件编号中文名称英文名称数量
18848驱动电机MOTOR DRIVE1
28852驱动端板总成PLATE ASSEMBLY DRIVE END1
38853驱动端板衬套BUSHING DRIVE END PLATE1
48857电枢ARMATURE1
58856电枢止推垫片组件PACKAGE ARMATURE THRUST WASHER1
68849换向器端盖总成END CAP ASSEMBLY COMMUTATOR1
78850电刷板/支架总成PLATE/HOLDER ASSEMBLY Brush1
88851电刷与端子套装BRUSH AND TERMINAL SET1
98854电刷弹簧组 (每套2弹簧)SPRING SET BRUSH (2 SPRINGS PER SET)2
108855贯穿螺栓 - 端盖至端板 (1/4-28)BOLT THRU - END CAP TO END PLATE (1/4-28)1
图 118进气歧管与簧片阀组 Induction Manifold and Reed Block
进气歧管与簧片阀组 Induction Manifold and Reed Block
REF零件编号中文名称英文名称数量
1812865衬垫GASKET1
29812A9下端盖总成END CAP ASSEMBLY Lower1
29812T9下端盖总成END CAP ASSEMBLY Lower1
366301油封SEAL Oil1
441953密封件SEAL1
590011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
58M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
681742720螺钉(M8 x 20)SCREW (M8 x 20)3
719077A2支架总成BRACKET ASSEMBLY1
719077A3支架总成BRACKET ASSEMBLY1
88161941螺柱STUD2
88161949双头螺柱(M6 x 44)STUD (M6 x 44)2
949221垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)WASHER (.187 x .500 x .062) Neoprene2
98M0204663垫片@5WASHER @52
1069056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel2
11816872蝶形螺母WING NUT2
1282127335螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)4
1319076A3进气歧管总成MANIFOLD ASSEMBLY Induction1
1419725弯头(55号件含2个)ELBOW (QTY. OF 2 ON 55)1
15812869衬垫GASKET1
1681742730螺钉 (M8 x 30)SCREW (M8 x 30)10
1719075A2簧片阀总成REED BLOCK ASSEMBLY1
178M0219197簧片阀总成REED BLOCK ASSY1
18812868衬垫GASKET1
19812880A1簧片组(0.008厚度)REED SET (0.008 THICK)3
19812880A03簧片组件REED ASSEMBLY3
19812880A2簧片组件(0.010厚度)REED ASSEMBLY (0.010 THICK)3
19812880A03簧片组件REED ASSEMBLY3
2042982锁紧垫圈TAB WASHER3
20429821锁紧垫圈TAB WASHER3
21812879固定座RETAINER3
21812879002簧片压板RETAINER Reed3
224000171螺钉(M6 x 16)SCREW (M6 x 16)3
2342881A1换挡拨叉总成SHIFT RAIL ASSEMBLY1
2442981锁紧垫圈TAB WASHER2
2540001134螺钉 (M8 x 25)SCREW (M8 x 25)2
26988851滑块SLIDE1
2748475衬套(II型)BUSHING (DESIGN II)1
2742994衬套BUSHING1
2829720波形垫圈WAVE WASHER1
2924664垫圈 (M4 x 20)WASHER (M4 x 20)1
30400634螺母 (M6)NUT (M6)1
30401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
3135459垫圈WASHER1
32400634螺母 (M6)NUT (M6)1
32401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
-15026进气歧管盖CAP (FOR USE ON INDUCTION MANIFOLD)3
-812867A97衬垫套件GASKET SET1
-811208T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-821744T92动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T93动力头总成(完整)POWERHEAD ASSEMBLY Complete1
图 119夹具支架总成 CLAMP BRACKET ASSEMBLY
夹具支架总成 CLAMP BRACKET ASSEMBLY
REF零件编号中文名称英文名称数量
15570A3夹紧支架总成(左舷)CLAMP BRACKET ASSEMBLY (PORT)1
25571A3夹紧支架总成(右舷)CLAMP BRACKET ASSEMBLY (STARBOARD)1
377190A3蝶形螺钉总成THUMB SCREW ASSEMBLY2
476804蝶形螺钉SCREW THUMB SCREW2
4768042六角凸肩螺钉SHOULDER SCREW Hex2
573719蝶形螺丝垫圈WASHER THUMB SCREW2
5818884垫圈WASHER2
671421倾斜管尼龙垫圈-夹紧至旋转支架WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET2
796962倾斜管夹紧至旋转支架TILT TUBE CLAMP TO SWIVEL BRACKET1
839333倾斜管塞PLUG TILT TUBE2
993164倾斜管紧固螺母(.875)NUT (.875) TILT TUBE FASTENING2
1071420提手HANDLE CARRYING1
1171417夹紧支架螺柱STUD CLAMP BRACKET1
1226992夹紧支架螺柱不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD2
1329598夹紧支架螺柱不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel CLAMP BRACKET STUD2
1471418A2倾斜锁销总成PIN ASSEMBLY Tilt Lock1
1562143倾斜锁止销弹簧SPRING TILT LOCK PIN1
1667982夹紧支架至船体螺栓BOLT CLAMP BRACKET TO BOAT2
1767983夹紧支架螺钉垫圈WASHER CLAMP BRACKET SCREW2
1856374夹紧支架螺钉螺母(.250-20)NUT (.250-20) CLAMP BRACKET SCREW2
188267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel2
图 120曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
19611A1曲轴总成CRANKSHAFT ASSEMBLY1
263742滚珠轴承BEARING Ball1
263742T滚珠轴承BEARING Ball1
3812877挡圈RING Retaining1
491800半圆键KEY Woodruff2
543019A2齿轮总成GEAR ASSEMBLY1
6812873A1滚子轴承总成(顶部)BEARING ASSEMBLY Roller (TOP)1
7419531油封SEAL Oil1
8812881A1滚子轴承总成(中部)BEARING ASSEMBLY Roller (CENTER)2
99613A1活塞总成PISTON ASSEMBLY3
99613T1活塞PISTON3
99613A2活塞总成PISTON ASSEMBLYAR
99613T2活塞总成0.015PISTON ASSY .015AR
99613A3活塞总成PISTON ASSEMBLYAR
99613T3活塞PISTONAR
1052035锁环RING Lock6
10857196锁紧环LOCK RING6
1119721A6活塞环组RING SET Piston1
1119721A1活塞环组RING SET PistonAR
1119721A2活塞环组RING SET PistonAR
129612A2连杆总成CONNECTING ROD ASSEMBLY3
129612A6连杆总成CONNECTING ROD ASSEMBLY3
13812876垫圈WASHER6
138M0012298止推垫片THRUST WASHER6
1447270轴承BEARING8
148M0214934滚针轴承@200BRG-NEEDLE @2008
1591012螺钉(0.250-28特殊)SCREW (.250-28 Special)6
1617514A1轴承套件BEARING KIT3
168M0234886轴承保持架CAGE BEARING3
-811208T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-821744T92动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T93动力头总成(完整)POWERHEAD ASSEMBLY Complete1

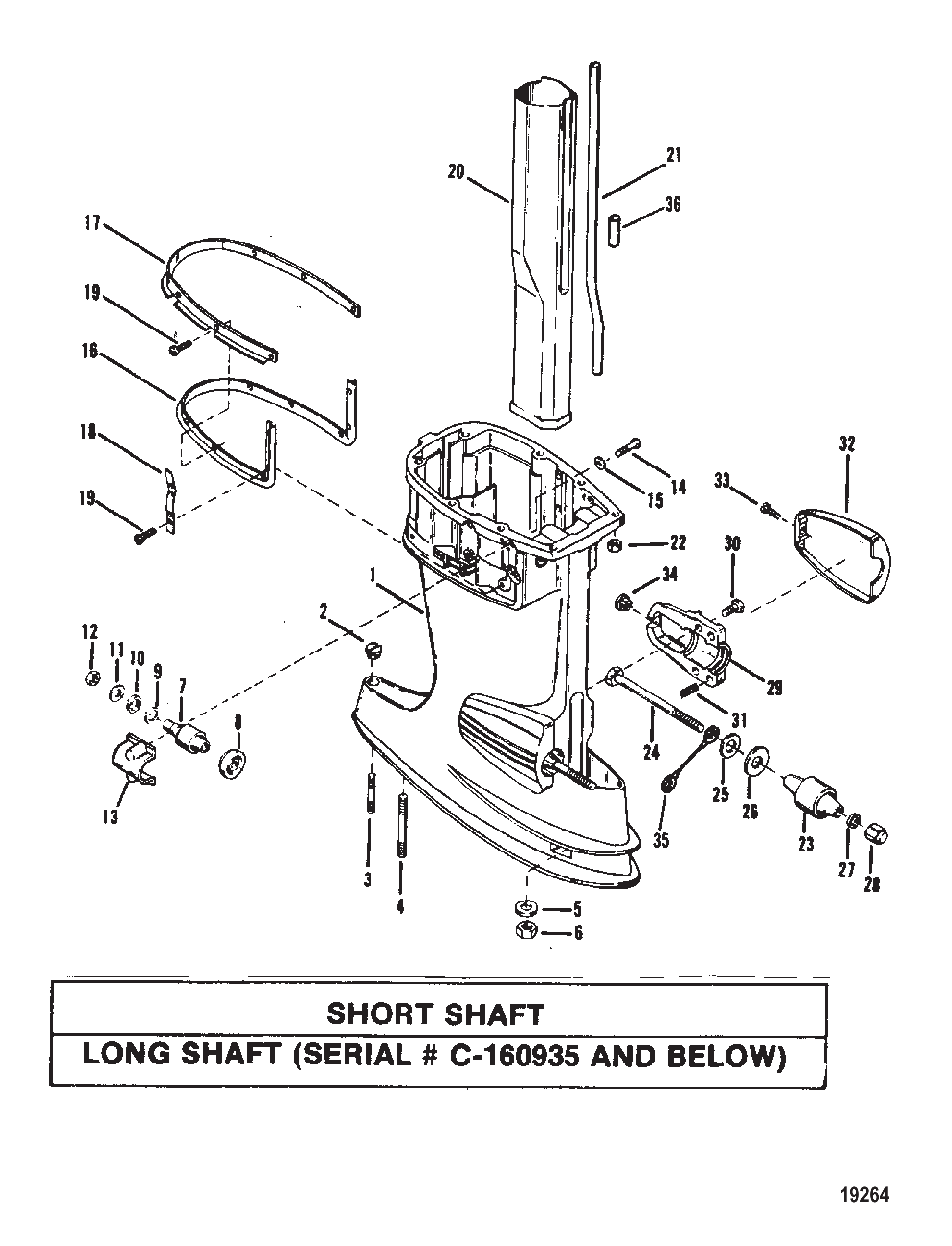

图 121驱动轴壳体（短型）(长序列号-0C160935及以下) Driveshaft Housing (Short)(Long S/N-0C160935 and Below)
驱动轴壳体（短型）(长序列号-0C160935及以下) Driveshaft Housing (Short)(Long S/N-0C160935 and Below)
REF零件编号中文名称英文名称数量
17512A10驱动轴壳体总成（短轴）（黑色）HOUSING ASSEMBLY Driveshaft (SHORT SHAFT)(BLACK)1
18188A8驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
17513A12驱动轴壳体总成（长轴）（黑色）HOUSING ASSEMBLY Driveshaft (LONG SHAFT)(BLACK)1
18189A10传动轴壳体总成(黑色)HOUSING ASSEMBLY Driveshaft (BLACK)1
18189A11传动轴壳体总成(灰色)HOUSING ASSEMBLY Driveshaft (GRAY)1
264649PLUG PLASTIC - TRIM TAB SCREW HOLE1
357932螺柱（0.375-16/0.375-24 x 1.750）驱动轴壳体STUD (.375-16/.375-24 x 1.750) DRIVE SHAFT HOUSING1
38M0022145螺柱(.375-16/.375-24 x 1.750)STUD (.375-16/.375-24 x 1.750)1
457935驱动轴壳体螺柱（3英寸）STUD DRIVE SHAFT HOUSING (3")1
565791齿轮箱螺柱垫圈（7/16英寸）WASHER GEAR HOUSING STUDS (7/16")2
634933齿轮箱壳体双头螺栓不锈钢螺母(.437-20)NUT (.437-20) Stainless Steel GEAR HOUSING STUDS2
68M0204653螺母NUT2
793445橡胶安装座-上部MOUNT RUBBER - UPPER2
7923373支架MOUNT2
896401SEAL UPPER MOUNT2
927727垫圈上部安装螺栓（内径37/64）WASHER UPPER MOUNT BOLT (37/64 I.D.)2
1066966橡胶垫圈-上部安装螺栓WASHER RUBBER - UPPER MOUNT BOLT2
1130514上支座螺栓垫圈WASHER UPPER MOUNT BOLT2
1234933螺母（0.437-20）不锈钢上部安装螺栓NUT (.437-20) Stainless Steel UPPER MOUNT BOLT2
128M0204653螺母NUT2
1387883T上支座盖COVER UPPER MOUNT2
1387883盖板COVER2
1476630螺钉（0.250-20 x 1.00）上部安装盖SCREW (.250-20 x 1.00) UPPER ,MOUNT COVER4
148M0214943螺钉SCREW4
1529245上支座盖螺丝不锈钢垫圈(.281 x .500 x .060)WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT COVER SCREW4
158M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
1638157饰盖至驱动轴壳体密封件SEAL TRIM COVER TO DRIVE SHAFT HOUSING1
1738158STRIP RETAINING - TRIM COVER SEAL (REAR)1
1838154STRIP RETAINING - TRIM COVER SEAL (SIDE)2
1948408SCREW (#10-16 x .500) RETAINING STRIP8
20695431排气管TUBE EXHAUST1
20695441排气管TUBE EXHAUST1
2137727进水口管TUBE WATER INLET1
2145679进水口管TUBE WATER INLET1
2264809动力头螺柱螺母（5/16英寸）NUT POWERHEAD STUDS (5/16")8
2375304下橡胶支座MOUNT RUBBER - LOWER2
2375304T1支架MOUNT2
2475284下支座螺丝(.500-20 x 5.500)SCREW (.500-20 x 5.500) LOWER MOUNT SCREW2
2443426SCREW LOWER MOUNT SCREW2
2528051下部安装螺钉垫圈（适用处使用）WASHER LOWER MOUNT SCREW (Use where Applicable)2
2628053橡胶垫圈-下部安装螺钉（适用处使用）WASHER RUBBER - LOWER MOUNT SCREW (Use where Applicable)2
2730119垫圈（外径0.875英寸）下安装螺丝WASHER (.875 Inch Outside Diameter) LOWER MOUNT SCREW2
2825096下安装螺丝螺母NUT LOWER MOUNT SCREW2
2969592T下安装夹CLAMP LOWER MOUNT2
2969592F1卡箍CLAMP2
3029256螺丝（0.312-18 x 0.875）下安装夹SCREW (.312-18 x .875) LOWER MOUNT CLAMP4
3135522弹簧张力-下安装夹SPRING TENSION - LOWER MOUNT CLAMP4
3235474T下安装夹盖COVER LOWER MOUNT CLAMP2
3235474F2COVER Lower Mount Clamp LOWER MOUNT CLAMP2
3387884SCREW (#12-14 x .920) COVER TO LOWER MOUNT CLAMP2
3435521下安装夹盖螺母NUT LOWER MOUNT CLAMP COVER2
3588238A2接地电缆总成CABLE ASSEMBLY Ground GROUND1
3588238A10接地线总成CABLE ASSEMBLY Ground1
3623651进水套管（1.625英寸）SLEEVE (1.625) WATER INLET TUBE1
图 122化油器(WME-26/27/28/28/43/44/45) CARBURETOR (WME-26/27/28/28/43/44/45)
化油器(WME-26/27/28/28/43/44/45) CARBURETOR (WME-26/27/28/28/43/44/45)
REF零件编号中文名称英文名称数量
1821679A1化油器(上)CARBURETOR (TOP)1
1821679A2化油器(中)CARBURETOR (CENTER)1
1821679T18化油器CARBURETOR1
1821679A3化油器(下)CARBURETOR (BOTTOM)1
1821679T19化油器CARBURETOR1
1821946A1化油器(上)CARBURETOR (TOP)1
1821946A45化油器维修包CARBURETOR KIT1
1821946A2化油器(中)CARBURETOR (CENTER)1
1821946A46化油器维修包CARBURETOR KIT1
1821946A3化油器(下)CARBURETOR (BOTTOM)1
1821946A47化油器维修包CARBURETOR KIT1
1821946A4化油器(上)CARBURETOR (TOP)1
1821946T42化油器CARBURETOR1
1821946A5化油器(中)CARBURETOR (CENTER)1
1821946T43化油器CARBURETOR1
1821946A6化油器(下)CARBURETOR (BOTTOM)1
1821946T44化油器CARBURETOR1
1821679A17化油器(上)CARBURETOR (TOP)1
1821679T17化油器CARBURETOR1
1821679A18化油器(中)CARBURETOR (CENTER)1
1821679T18化油器CARBURETOR1
1821679A19化油器(下)CARBURETOR (BOTTOM)1
1821679T19化油器CARBURETOR1
1821946A24化油器(上)CARBURETOR (TOP)1
1821946A45化油器维修包CARBURETOR KIT1
1821946A25化油器(中)CARBURETOR (CENTER)1
1821946A46化油器维修包CARBURETOR KIT1
1821946A26化油器(下)CARBURETOR (BOTTOM)1
1821946A47化油器维修包CARBURETOR KIT1
1821946A27化油器(上)CARBURETOR (TOP)1
1821946T42化油器CARBURETOR1
1821946A28化油器(中)CARBURETOR (CENTER)1
1821946T43化油器CARBURETOR1
1821946A29化油器(下)CARBURETOR (BOTTOM)1
1821946T44化油器CARBURETOR1
2823634节气门调节螺钉(上/下)SCREW THROTTLE ADJUSTMENT (UPPER/BOTTOM)2
3823632节气门轴(上)SHAFT Throttle (UPPER)1
3823632节气门轴(上/下部)SHAFT Throttle (UPPER/BOTTOM)2
4823633节气门轴(中央)SHAFT Throttle (CENTER)1
4823636节气门轴(下)SHAFT Throttle (BOTTOM)1
4823633节气门轴(中央)SHAFT Throttle (CENTER)1
5NSS不单独销售 油门回位弹簧NOT SOLD SEPARATE SPRING-THROTTLE RETURN3
66247主量孔(0.090)JET Main (.090)3
7NSS不单独销售 怠速针NOT SOLD SEPARATE IDLE NEEDLE3
8NSS不单独销售 怠速针弹簧NOT SOLD SEPARATE SPRING-IDLE NEEDLE3
9NSS不单独销售 盖板衬垫NOT SOLD SEPARATE GASKET-COVER PLATE3
10811221盖板COVER PLATE3
11811220盖板螺丝SCREW Cover Plate6
128144461法兰衬垫GASKET Flange3
138113522油泵杆LEVER Oil Pump1
148086121杆固定螺钉SCREW Lever Retainer1
15F10155节气门螺丝SCREW Throttle Valve6
16823637油门阀VALVE Throttle3
169593油门阀VALVE Throttle3
16879194023节气门阀VALVE-THROTTLE3
17NSS不单独销售 挡圈NOT SOLD SEPARATE RETAINING RING3
18F10064轴SHAFT3
19NSS不单独销售 喷油嘴衬垫NOT SOLD SEPARATE GASKET-NOZZLE WELL3
20NSS不单独销售 燃油杯衬垫NOT SOLD SEPARATE GASKET-FUEL BOWL3
219595进油针阀VALVE Inlet Needle3
21879194011进油阀VALVE Inlet3
229594浮子FLOAT3
235132燃油杯螺钉SCREW FUEL BOWL12
23808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)12
23808612燃油杯螺钉及垫圈(#8-32x.750)SCREW AND WASHER (#8-32 x .750) FUEL BOWL12
24811695燃油杯(上)BOWL Fuel (UPPER)1
24811693燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
25811694塞套件PLUG KIT3
26NSS排水碗密封件(不单独销售)NOT SOLD SEPARATE SEAL-BOWL DRAIN3
276246量孔(.048)JET (.048)3
276487主量孔(0.060)JET Main (.060)3
274217主量孔(.062)JET Main (.062)3
-8236353化油器维修套件REPAIR KIT Carburetor1
-8236354化油器维修套件REPAIR KIT Carburetor1
-8112231化油器衬垫组GASKET SET Carburetor1
-812867A97衬垫套件GASKET SET1
图 123艉板支架(50/60) TRANSOM BRACKET (50/60)
艉板支架(50/60) TRANSOM BRACKET (50/60)
REF零件编号中文名称英文名称数量
1822866A1艉板支架总成BRACKET ASSEMBLY Transom1
1822866A2艉板支架总成BRACKET ASSEMBLY Transom1
1822866A3艉板支架总成BRACKET ASSEMBLY Transom1
298727润滑脂接头FITTING Grease1
28M0169588润滑脂接头FITTING Grease1
399604槽销PIN Groove1
4822865F2艉板支架BRACKET Transom1
4822865T05艉板支架-右舷BRACKET Transom - Starboard1
4822865F3艉板支架BRACKET Transom1
4822865F4艉板支架BRACKET Transom1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
5893704T01倾斜锁杆LEVER Tilt Lock1
519618A3倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
519618A5倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
699622弹簧SPRING1
765830尼龙衬套NYLINER1
8812708弹簧SPRING1
9812709T旋钮KNOB1
9812709旋钮KNOB1
9812709T6旋钮KNOB1
9812709旋钮KNOB1
9812709F1旋钮KNOB1
9812709旋钮KNOB1
1099615槽销PIN Groove1
1119619垫圈WASHER2
1218486F5锚支架BRACKET Anchor1
1218486A08支架套件锚BRACKET KIT Anchor1
1218486F6锚支架BRACKET Anchor1
1218486A08支架套件锚BRACKET KIT Anchor1
1218486F7锚支架BRACKET Anchor1
13818298A1阳极套件ANODE KIT1
13818298Q1阳极套件ANODE KIT1
144000330螺钉(M6x25)SCREW (M6 x 25)2
148M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
158M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
164000354螺钉 (M8 x 30)SCREW (M8 x 30)5
164000355螺钉(M8×35)SCREW (M8 x 35)1
17400257锁紧垫圈（M8）LOCKWASHER (M8)4
18400635螺母 (M8)NUT (M8)2
18401388不锈钢螺母 (M8)NUT (M8) Stainless Steel2
1949930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
198M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
20821461弹簧SPRING1
2119614倾斜管TILT TUBE1
218M0041938倾斜管TILT TUBE1
22826164螺母 (.875-14)NUT (.875-14)2
228M0231351锁紧螺母NUT Lock2
2319624A1密封套件SEAL KIT1
2426550卡箍CLAMP1
2422740卡扣CLIP1
2569205C形垫圈C WASHER1
258M0084613C形垫圈C-WASHER1
26812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
26878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
27814259螺钉 (.500-20 x 4.00)SCREW (.500-20 x 4.00)4
2828421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
288M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
298M0027784螺母NUT4
2982671117螺母(.500-20)NUT (.500-20)4
301938525连接杆LINK1
308M0084737连接杆LINK1
3119615A4倾斜杆总成LEVER ASSEMBLY Tilt1
3119615A05倾斜杆总成LEVER ASSEMBLY Tilt1
32812707衬套BUSHING1
3319605垫圈(.520 x .850 x .060) 尼龙-黑色WASHER (.520 x .850 x .060) Nylon - Black1
338M0042643垫圈(.520 x .850 x .060) 尼龙 黑色WASHER (.520 x .850 x .060) Nylon, Black1
3499611波形垫圈WAVE WASHER1
3519621倾斜旋钮TILT KNOB1
358M0007469倾斜旋钮KNOB Tilt1
3619611螺钉(.375-16×0.62)SCREW (.375-16 x .62)1
3796930A1螺栓总成BOLT ASSEMBLY1
3823161螺母 (.375-24)NUT (.375-24)1
图 124动力微调 POWER TRIM
动力微调 POWER TRIM
REF零件编号中文名称英文名称数量
18251123倾斜挡块STOP Tilt1
18251124倾斜挡块STOP Tilt1
18251123倾斜挡块STOP Tilt1
216208握把GRIP1
216207A3倾斜止动套件TILT STOP KIT1
39528616轴环COLLAR2
482304216螺栓BOLT2
48M0062251螺栓BOLT2
5168261垫圈WASHER2
6953837弹簧SPRING1
7851873A1动力升降总成POWER TRIM ASSEMBLY1
8851874上气缸销PIN Upper Cylinder1
88M0115482气缸销PIN-CYLINDER1
98113682套筒SLEEVE2
10161765衬套BUSHING2
1116223螺栓(M6x14)BOLT (M6 x 14)1
1216238垫圈WASHER1
12898101937垫圈WASHER1
138518741下气缸销PIN Lower Cylinder1
149528617轴环COLLAR1
158113682套筒SLEEVE2
16161766衬套BUSHING2
1616176011衬套BUSHING2
1785372219螺母NUT2
188518681垫圈WASHER4
188M0060184垫圈WASHER4
1917169卡箍CLAMP1
208555445螺钉SCREW1
图 125转向手柄套件 STEERING HANDLE KIT
转向手柄套件 STEERING HANDLE KIT
REF零件编号中文名称英文名称数量
112020A1转向臂手柄总成(黑色)HANDLE ASSEMBLY Steering Arm (BLACK)1
112020A2转向臂总成(灰色)ARM ASSEMBLY Steering (GRAY)1
112020A4转向臂手柄总成HANDLE ASSEMBLY Steering Arm1
2812930A1衬套BUSHING2
1A12020A3转向臂手柄总成(黑色)HANDLE ASSEMBLY Steering Arm (BLACK)1
1A12020A4转向臂手柄总成(灰色)HANDLE ASSEMBLY Steering Arm (GRAY)1
1A12020A3转向臂手柄总成HANDLE ASSEMBLY Steering Arm1
2A429922衬套BUSHING2
2A42992T02衬套BUSHING2
348414壳体HOUSING1
448519安装板PLATE1
548518衬垫GASKET1
6812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)AR
6878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)AR
68128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)AR
6878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)AR
712013卡箍CLAMP1
7889729卡箍CLAMP1
840007112螺钉(M5 x 40)SCREW (M5 x 40)2
9816873蝶形螺母WING NUT1
9816874蝶形螺母 (#10-32)WING NUT (#10-32)1
10823609A15停机开关套件-油门手柄SWITCH KIT Stop - Throttle Handle1
11823609A5停止开关总成(设计II-带金属锁环)SWITCH ASSEMBLY Stop (DESIGN II - W/METAL LOCK RING)1
118M0104612开关总成SWITCH ASSY1
12NLA已停产停止开关(设计I-订购套件87-823609A15)No Longer Available STOP SWITCH (DESIGN I - ORDER KIT 87-823609A15)1
1362568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
1499589握把GRIP1
148M0221732外握把GRIP OUTER1
15648551卡箍CLAMP1
16648551卡箍CLAMP1
17785512导管CONDUIT1
178885242导管CONDUIT1
18895661导向管GUIDE TUBE1
188M0026078导向管TUBE-GUIDE1
1989578套筒BARREL1
20824081紧定螺钉(#10-32)SET SCREW (#10-32)1
2112019拉线总成CABLE ASSEMBLY1
2243433导套GUIDE1
228M0204660导套GUIDE1
2320007锚定件ANCHOR1
2420518紧定螺钉(#8-32)SET SCREW (#8-32)2
248M0204644螺钉组SCREW SET2
25823567105螺丝(M10 x 105)六角法兰-不锈钢SCREW (M10 x 105) Hex Flange - Stainless Steel1
2648416盖帽CAP1
274002319垫圈WASHER1
2812024垫圈(0.402 x 0.787 x 0.039 贝氏)WASHER (.402 x .787 x .039 Bellevi)1
2914601隔套SPACER1
29146011隔套SPACER1
3012018A2管总成TUBE ASSEMBLY1
3012018A4油门拉线管总成TUBE ASSEMBLY Throttle1
3113914螺母(M10)NUT (M10)1
3140140螺母(M10)NUT (M10)1
图 126舵柄 TILLER HANDLE
舵柄 TILLER HANDLE
REF零件编号中文名称英文名称数量
1160752转向手柄HANDLE Steering1
216090贴花DECAL1
3160861握把GRIP1
48150461螺钉SCREW1
58537152隔套SPACER1
68150263开口销COTTER PIN1
716191隔套SPACER1
816336衬套BUSHING3
98537232波形垫圈WAVE WASHER1
10160931油门轴SHAFT Throttle1
118129352螺栓BOLT2
128230422螺栓BOLT1
138537227尼龙螺母NUT Nylon1
14168302螺栓BOLT2
15853752支架BRACKET2
16160932油门轴SHAFT Throttle1
1716823护孔环GROMMET1
1816226电线护圈GROMMET (Electric)1
19952869轴环COLLAR2
2016192垫圈WASHER1
219528610轴环COLLAR1
22853751小齿轮GEAR Pinion1
23952186滚动销PIN Roll1
图 127电气组件(50/60) ELECTRICAL COMPONENTS (50/60)
电气组件(50/60) ELECTRICAL COMPONENTS (50/60)
REF零件编号中文名称英文名称数量
119745A8电器板总成PLATE ASSEMBLY Electrical1
2814674A1固定板总成PLATE ASSEMBLY Retaining1
38240631螺钉SCREW1
4824063螺钉SCREW5
340011106螺钉(M5x13)不锈钢(配合参考号#39使用)SCREW (M5 x 13) Stainless Steel (USE W/REF. #39)1
440011109螺钉 (M5 x 25) 不锈钢SCREW (M5 x 25) Stainless Steel5 OR 6
57370A13点火线圈总成COIL ASSEMBLY Ignition3
58M0230859点火线圈总成COIL IGNITION ASY3
57370A19点火线圈总成COIL ASSEMBLY Ignition3
58M0230859点火线圈总成COIL IGNITION ASY3
688807A6黑色电缆总成 (3.50 英寸)CABLE ASSEMBLY (3.50 Inches) Black4
745076黄铜螺母(#10-32)NUT (#10-32) Brass9
8821945A52火花塞导线套件SPARK PLUG LEAD KIT1
9136862火花塞（NGK #BU8H）SPARK PLUG (NGK #BU8H)3
913686QNGK BU8H @10NGK BU8H @103
914103568火花塞(NGK #BUZ8H-加拿大/比利时)SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)3
9896329885SP #L6VC @4SP #L6VC @43
98167372火花塞(NGK BP8H-N-10)SPARK PLUG (NGK #BP8H-N-10)3
9816737QNGK BP8HN-10@10NGK BP8HN-10@103
98168372火花塞(NGK #BPZ8H-N-10-加拿大)SPARK PLUG (NGK #BPZ8H-N-10 - CANADA)3
9938SP #QL78YC @4SP #QL78YC @43
1019052A5开关盒总成SWITCHBOX ASSEMBLY1
1019052A8开关盒总成SWITCHBOX ASSEMBLY1
11813643护套BOOT1
12814760固定座(旧款)RETAINER (OLD DESIGN)1
13813742护孔环GROMMET1
1419637A2保险丝插座总成(1环形/1子弹头连接器)SOCKET ASSEMBLY Fuse (1 RING/1 BULLET CONNECTOR)1
1419637A3保险丝插座总成(2子弹头连接器)SOCKET ASSEMBLY Fuse (2 BULLET CONNECTORS)1
15812619黄色保险丝-20安培FUSE Yellow - 20 Ampere1
16816770整流器(旧款)RECTIFIER (OLD DESIGN)1
168M0058226整流器RECTIFIER1
17816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
1888439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
1919061A2线束总成(导线带环形端子)(灰色)HARNESS ASSEMBLY ( LEAD HAS RING TERMINAL) (GRAY)1
1919061A4线束总成HARNESS ASSEMBLY1
1919061A4线束总成(导线带子弹头连接器)(灰色)HARNESS ASSEMBLY ( LEAD HAS BULLET CONNECTOR) (GRAY)1
20813741护孔环GROMMET1
2196054启动电磁阀总成(设计I型)SOLENOID ASSEMBLY Starter (DESIGN I)1
218M0185149启动电磁阀SOLENOID START1
2226419黄铜螺母 (#8-32)NUT (#8-32) Brass2
2326992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
2464015螺母 (.250-20)NUT (.250-20)2
254002314垫圈WASHER2
2679139A24电缆总成(9-1/4")CABLE ASSEMBLY (9-1/4")1
2788807A31电缆总成(7")CABLE ASSEMBLY (7")2
2888439A9蓄电池正极电缆总成(96英寸)CABLE ASSEMBLY Battery - Positive (96")1
29814795T盖板COVER1
3040007107螺钉(M5×16)SCREW (M5 x 16)4 OR 6
3140011149螺钉 (M8 x 25) 不锈钢SCREW (M8 x 25) Stainless Steel3
3214857A6机油报警模块总成MODULE ASSEMBLY Oil Warning1
3214857A16机油报警模块MODULE-OILWARNING1
3214857A10机油报警模块总成MODULE ASSEMBLY Oil Warning1
3214857A16机油报警模块MODULE-OILWARNING1
3340011109螺钉 (M5 x 25) 不锈钢SCREW (M5 x 25) Stainless Steel2
34850188T1启动电磁阀总成SOLENOID ASSEMBLY Starter1
348M0185147电磁阀总成SOLENOID ASSY1
35818968衬套BUSHING2
358M0214955衬套BUSHING2
36818967护孔环GROMMET2
368M0207785护孔环GROMMET2
3740011110螺钉(M5×30不锈钢)SCREW (M5 x 30) Stainless Steel2
38400039螺钉 (M5 x 35)SCREW (M5 x 35)2
39815279T电压调节器REGULATOR Voltage1
398M0084173电压调节器VOLTAGE REGULATOR1
40813524A2拉线总成CABLE ASSEMBLY1
41821889A12限速器SPEED LIMITER1
41821889A31转速限制器REV LIMITER1
42823147A6限速器线束总成HARNESS ASSEMBLY Speed Limiter1
图 128附件 Accessories
附件 Accessories
REF零件编号中文名称英文名称数量
0827927A8燃油管路总成（8英尺）LINE ASSEMBLY Fuel (8 Feet) (8 FT.)1
0877680Q8燃油软管总成(8英尺)HOSE ASSEMBLY Fuel (8 Feet)1
0827927A12燃油管路总成(12英尺)LINE ASSEMBLY Fuel (12 Feet)1
0877680Q12燃油软管总成(12英尺)HOSE ASSEMBLY Fuel (12 Feet)1
017146A8燃油管路总成(8英尺)LINE ASSEMBLY Fuel (8 Feet)1
0877681Q8燃油软管总成(8英尺)HOSE ASSEMBLY Fuel (8 Feet)1
017146A12燃油管路总成(12英尺)LINE ASSEMBLY Fuel (12 Feet)1
0877681Q12燃油软管总成(12英尺)HOSE ASSEMBLY Fuel (12 Feet)1
0822379A12燃油管路总成(12英尺)LINE ASSEMBLY Fuel (12 Feet)1
0877683Q12燃油软管总成(12英尺)HOSE ASSEMBLY Fuel (12 Feet)1
090983A3电动起动机套件STARTER MOTOR KIT Electric1
090983A5起动机转换套件CONVERSION KIT Starter Motor1
0823609A7舵柄启动开关转换套件CONVERSION KIT Tiller Handle Start Switch1
012334A2发动机线束总成HARNESS ASSEMBLY Engine Wiring1
042805A6遥控安装套件(6/8/9/9/15马力)ATTACHING KIT Remote Control (6/8/9/9/15 Hp)1
0821190A3侧移转换套件CONVERSION KIT Side Shift1
012426A7延长套件EXTENSION KIT1
012426A8延长套件EXTENSION KIT1
0830578A1倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
0828517A1化油器防冰套件ANTI-ICING KIT Carburetor1
014586A3节温器套件THERMOSTAT KIT1
07370A40高能点火套件HIGH ENERGY IGNITION KIT1
042282A3照明线圈套件COIL KIT Lighting1
042282A4照明线圈套件COIL KIT Lighting1
095845A5照明调节器套件REGULATOR KIT Lighting1
062351A10蓄电池充电套件CHARGING KIT Battery1
012612A2冲洗附件FLUSHING ATTACHMENT1
012612Q2冲洗附件FLUSHING ATTACHMENT1
014171A2电机锁MOTOR LOCK1
014171Q2电机锁MOTOR LOCK1
011606A1右舷安装套件ATTACHING KIT Starboard1
011606A2左舷安装套件ATTACHING KIT Port1
012569A1线缆滑轮安装套件ATTACHING KIT Cable And Pulley1
图 129衰减板 Attenuator Plate
衰减板 Attenuator Plate
REF零件编号中文名称英文名称数量
119662消音器ATTENUATOR Sound1
2814776调节螺钉(M6 x 55)SCREW Adjusting (M6 x 55)4
3815784盖帽CAP1
4812889密封件SEAL3
5812874消音板PLATE Sound Attenuator2
64000363螺丝(M8 x 100)SCREW (M8 x 100)6
7821145油门连杆LINK Throttle1
7825204T03连接杆LINK1
8812883调节连杆LINK Adjusting2
948408螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)4
1056681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)4
108M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)4
1111399A1臂总成ARM ASSEMBLY1
1267748滚轮ROLLER1
1340056103螺钉 (M5 x 6)SCREW (M5 x 6)1
1456681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
148M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
159912878软管(.187)(26.00英寸散装)(4-1/4")HOSE (.187) (26.00 Inches Bulk) (4-1/4")2
16816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
178144461法兰衬垫GASKET Flange3
188252043油门连杆LINK Throttle1
18825204T03连接杆LINK1
-812867A97衬垫套件GASKET SET1
图 130下罩 Bottom Cowl
下罩 Bottom Cowl
REF零件编号中文名称英文名称数量
1824992定位弹簧SPRING Detent1
2824993背衬弹簧SPRING Backing2
3824994板簧SPRING Plate1
482191916螺钉(M5×14)SCREW (M5 x 14)2
58280471绑带STRAP1
640011127螺钉 (M6 x 16) 不锈钢SCREW (M6 x 16) Stainless Steel1
64006731螺钉(M6 x 16)SCREW (M6 x 16)1
78220081卡箍CLAMP1
78M0039049换档轴夹CLAMP-SHIFT SHAFT1
840011130不锈钢螺钉(M6x30)SCREW (M6 x 30) Stainless Steel2
9813960A3开关SWITCH1
98M0052927开关总成SWITCH ASSY1
104001168不锈钢螺丝(M3.5 x 20)SCREW (M3.5 x 20) Stainless Steel2
1088075020螺丝(M3 x 20)SCREW (M3 x 20)2
11824923安装板PLATE1
12824934A3线束总成HARNESS ASSEMBLY1
13822469盖帽CAP1
138M0036802中间盖CAP-INTERMEDIATE1
1440011127螺钉 (M6 x 16) 不锈钢SCREW (M6 x 16) Stainless Steel1
144006731螺钉(M6 x 16)SCREW (M6 x 16)1
158224671杠杆LEVER1
158M0041741中间杆LEVER-INTERMEDIAT1
1642927嵌件INSERT1
178224561销PIN1
1826954衬套BUSHING2
1948475衬套BUSHING1
20822459固定座RETAINER1
218268336螺母 (M6)NUT (M6)2
21401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
2269056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel2
238224701换挡连杆LINK Shift1
2448475衬套BUSHING1
2598889闩锁LATCH1
2639519杯套CUP1
27821483A6水平换挡轴SHIFT SHAFT Horizontal1
28821487联锁驱动杆LEVER -INTERLOCK ACTUATING1
29817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)1
29878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
3088807A28线缆总成(黑色-7.5英寸)CABLE ASSEMBLY (BLACK-7 1/2 IN.)1
318251751换挡连杆SHIFT ROD1
318M0037997换档杆ROD-SHIFT1
32269531开口销COTTER PIN2
32210711开口销COTTER PIN2
3321071开口销COTTER PIN1
33210711开口销COTTER PIN1
348251851销PIN2
35827418锁紧垫圈LOCKWASHER2
36822011换挡杆LEVER Shift1
37825273波形垫圈WAVE WASHER1
3840011107不锈钢螺钉(M5x16)SCREW (M5 x 16) Stainless Steel1
3942975传动螺钉DRIVE SCREW2
40828462护孔环GROMMET1
40828462001护孔环GROMMET1
4117230堵头PLUG1
42822424密封件SEAL1
42822424001油门线密封件SEAL Throttle Cable1
43823874密封件SEAL1
43823874001堵头PLUG1
44828165A1下机罩BOTTOM COWL1
44828165A2下机罩BOTTOM COWL1
45817519A1排水单向阀总成CHECK VALVE ASSEMBLY Drain1
4619565护孔环GROMMET1
4619565002护孔环GROMMET1
4619564护孔环GROMMET1
468M0179867护孔环GROMMET1
47824076堵头PLUG1
47824076001换挡杆堵头PLUG Shift Lever1
488214901手柄HANDLE1
49823572密封件SEAL1
49823572001报警喇叭密封件SEAL Warning Horn1
50816492A1音响报警器总成ALARM ASSEMBLY Audio Warning1
508M0210763报警器ALARM1
514002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
518M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
5282239312螺钉(M5 x 12)SCREW (M5 x 12)1
53812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
53878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
54850691开关SWITCH1
548M0235192微调开关SWITCH TRIM1
558128301堵头PLUG1
55812830T01堵头PLUG1
568124431固定座RETAINER1
568M0032848开关固定座RETAINER Switch1
5782130016螺钉(M6 x 16)SCREW (M6 x 16)1
58828464锁紧凸轮CAM Latch1
5912134波形垫圈WASHER Wave1
60812707衬套BUSHING1
61813613接头FITTING1
62816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
62816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
637568058软管 (15.00英寸)HOSE (15.00 Inches)1
64812707衬套BUSHING1
65823573F1罩壳锁杆LEVER Cowl Latch1
65823573F2罩壳锁杆LEVER Cowl Latch1
6640011129不锈钢螺钉(M6x25)SCREW (M6 x 25) Stainless Steel4
67822003衬套BUSHING4
68822002护孔环GROMMET4
69824473堵头PLUG1
7040011107SCREW (M5 x 16) Stainless Steel INTERLOCK CABLE1
71828465缓冲垫BUMPER2
718M0043169缓冲垫BUMPER2
72828463前锁扣LATCH Front1
734001987螺钉(M4×16)SCREW (M4 x 16)3
7416226护孔环GROMMET1
图 131化油器 Carburetor
化油器 Carburetor
REF零件编号中文名称英文名称数量
0-17132M化油器总成CARBURETOR ASSEMBLY1
0-17996M化油器CARBURETOR1
183361M浮子室FLOAT BOWL1
283362MO型圈O-RING1
383363M浮子FLOAT1
3891730A01浮子套件FLOAT KIT1
483364M进油针阀组件NEEDLE/SEAT KIT Inlet1
581698M进油针销PIN INLET NEEDLE1
592639M浮子销PIN Float1
683365M销PIN1
681278M销PIN1
782781M卡扣CLIP1
78M0120624卡箍@2CLIP @21
883887M主喷嘴NOZZLE MAIN1
983367M主量孔(#155)JET MAIN (# 155)1
1083888M低速量孔(#55)JET SLOW (# 55)1
1183369M盖帽CAP1
118M0080455堵头PLUG1
1283370M轴环COLLAR1
1383371M螺钉SCREW1
1483372M垫圈WASHER1
1582378M螺母NUT1
1582388M螺母 (M5)NUT (M5)1
1683373M螺钉SCREW4
1611796M螺钉(M4 x 14)SCREW (M4 x 14)4
1783374M螺钉SCREW1
1883375M螺钉SCREW1
1983376M垫圈WASHER1
2081292M螺钉SCREW1
2182073M弹簧SPRING1
2283889M怠速混合气螺钉SCREW IDLE MIXTURE1
2381277M怠速调节螺钉SCREW IDLE SPEED1
2482080M弹簧SPRING1
-84167M衬垫套件GASKET SET1
-94483M衬垫套件GASKET SET1
-84475M维修套件REPAIR KIT1
图 132夹紧支架 Clamp Bracket
夹紧支架 Clamp Bracket
REF零件编号中文名称英文名称数量
18894A5夹紧支架总成 (左舷) 黑色CLAMP BRACKET ASSEMBLY (PORT) BLACK1
18894A11夹具支架总成CLAMP BRACKET ASSEMBLY1
18894A6夹紧支架总成 (左舷) 灰色CLAMP BRACKET ASSEMBLY (PORT) GRAY1
18894A12夹具支架总成CLAMP BRACKET ASSEMBLY1
28892A3夹紧支架总成 (右舷) 黑色CLAMP BRACKET ASSEMBLY (STARBOARD) BLACK1
28894A11夹具支架总成CLAMP BRACKET ASSEMBLY1
28892A4夹紧支架总成 (右舷) 灰色CLAMP BRACKET ASSEMBLY (STARBOARD) GRAY1
28894A12夹具支架总成CLAMP BRACKET ASSEMBLY1
392767A1蝶形螺丝总成 (14 mm)THUMB SCREW ASSEMBLY (14 mm)2
392767A3蝶形螺丝总成 (16 mm)THUMB SCREW ASSEMBLY (16 mm)2
473719垫圈WASHER2
4818884垫圈WASHER2
5768041螺钉SCREW2
5768042六角凸肩螺钉SHOULDER SCREW Hex2
643431隔套SPACER1
6818539隔套SPACER1
68M0084719隔套SPACER1
742129螺柱STUD1
7A4000333螺钉(M6 x 40)SCREW (M6 x 40)2
8400256锁紧垫圈 (M6)LOCKWASHER (M6)2
9400212螺母(M6)不锈钢NUT (M6) Stainless Steel2
1042078倾斜管TILT TUBE1
1130954卡扣CLIP1
118M0085928卡扣CLIP1
1293164螺母 (0.875)NUT (.875)2
1371421尼龙垫圈WASHER Nylon2
1442390A1倾斜回位杆总成LEVER ASSEMBLY Tilt Return2
1590901倾斜止动带-左舷侧STRAP TILT STOP-PORT SIDE1
1642498螺钉 (M6 x 1.0)SCREW (M6 x 1.0)2
1731030波形垫圈WAVE WASHER1
1843216螺栓 (0.250-20 x 3.50)BOLT (.250-20 x 3.50)2
1967983垫圈WASHER2
2013855螺母 (.250-20)NUT (.250-20)2
208267118螺母 (.250-20)NUT (.250-20)2
21814427梭子SHUTTLE1
2212869倾斜位置标贴DECAL Tilt Position1
图 133曲轴活塞及连杆 Crankshaft Pistons and Connection Rods
曲轴活塞及连杆 Crankshaft Pistons and Connection Rods
REF零件编号中文名称英文名称数量
1827954T3曲轴总成CRANKSHAFT ASSEMBLY1
243019A2齿轮总成GEAR ASSEMBLY1
363742T滚珠轴承BEARING Ball1
4812877挡圈RING Retaining1
591800半圆键KEY Woodruff2
6818889A1滚柱轴承总成BEARING ASSEMBLY Roller1
78173971油封SEAL Oil1
8827955A2轴承总成BEARING ASSEMBLY2
9NSS不单独销售NOT SOLD SEPARATE56
10NSS不单独销售NOT SOLD SEPARATE2
11850026T1活塞总成PISTON ASSEMBLY3
11850026T2活塞PISTON3
12857196锁紧环LOCK RING6
13831255A6活塞环组RING SET Piston1
13821695A6活塞环组RING SET Piston3
14NSS不单独销售NOT SOLD SEPARATE1
159612A6连杆总成CONNECTING ROD ASSEMBLY3
16812876垫圈WASHER6
168M0012298止推垫片THRUST WASHER6
1747270轴承BEARING87
178M0214934滚针轴承@200BRG-NEEDLE @20087
1891012螺钉(0.250-28特殊)SCREW (.250-28 Special)6
1917514A1轴承套件BEARING KIT3
198M0234886轴承保持架CAGE BEARING3
-852067T98动力头总成POWERHEAD ASSEMBLY1
图 134气缸体与曲轴箱 Cylinder Block and Crankcase
气缸体与曲轴箱 Cylinder Block and Crankcase
REF零件编号中文名称英文名称数量
19755A9气缸体CYLINDER BLOCK1
19755A14气缸体CYLINDER BLOCK1
19755T14气缸体CYLINDER BLOCK1
19755A10气缸体CYLINDER BLOCK1
19755T10气缸体CYLINDER BLOCK1
19755A15气缸体CYLINDER BLOCK1
19755T15气缸体CYLINDER BLOCK1
281742780螺钉(M8 x 80)SCREW (M8 x 80)8
381742730螺钉 (M8 x 30)SCREW (M8 x 30)6
442658止回阀CHECK VALVE1
4426585止回阀CHECK VALVE1
599130122管材(20英尺散装)(16英寸)TUBING (20.00 Feet Bulk) (16")1
5892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
642623止回阀(压入式)CHECK VALVE (PRESS-IN)1
6426233止回阀CHECK VALVE1
7812888A1托架总成CARRIER ASSEMBLY2
842657A1止回阀CHECK VALVE2
842657A3止回阀CHECK VALVE2
9814776调节螺钉(M6 x 55)SCREW Adjusting (M6 x 55)1
10400212螺母(M6)不锈钢NUT (M6) Stainless Steel1
1142942盖帽CAP1
1220033定位销PIN Dowel (LOCATING)1
1243044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
13812870主轴承座中心销PIN Center Main (BEARING RACE)3
138M0084653定位销PIN - DOWEL3
1418597盖板COVER1
1581742750螺钉(M8 x 50)SCREW (M8 x 50)2
1665848托架CARRIER1
1764872护孔环GROMMET1
188128671衬垫GASKET1
188128672衬垫GASKET1
198161941螺柱STUD2
198161949双头螺柱(M6 x 44)STUD (M6 x 44)2
2018598管塞PIPE PLUG4
20185981管塞(.375-18)PLUG Pipe (.375-18)4
21817430110螺钉(M10 x 110)SCREW (M10 x 110)6
2281742720螺钉(M8 x 20)(55号件用3个)SCREW (M8 x 20) (QTY. OF 3 ON 55)4
2240011149不锈钢螺钉(M8 x 25)(55号件用3个)SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)4
22A12896螺钉(#8-18 x .310)SCREW (#8-18 x .310)1
238128821提动阀POPPET1
24812887隔膜DIAPHRAGM1
248128871隔膜DIAPHRAGM1
24812887002隔膜DIAPHRAGM1
2594182垫圈WASHER1
2669570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
2790392弹簧SPRING1
2718336弹簧SPRING1
2742996不锈钢弹簧SPRING (Stainless Steel)1
2875692节温器THERMOSTAT1
2814586节温器THERMOSTAT1
2962386衬垫GASKET1
298M0204714衬垫@4GASKET @41
3032802管塞 (.125-27)PLUG Pipe (.125-27)1
30328022黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
31787992温度传感器SENDER Temperature1
3244552固定座RETAINER1
32889733固定座RETAINER1
338128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
33878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
3456681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
348M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
3549221垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)WASHER (.187 x .500 x .062) Neoprene2
358M0204663垫片@5WASHER @52
3669056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel2
37816872蝶形螺母WING NUT2
3899664弯头ELBOW1
3899664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
3878279弯头ELBOW1
388M0207781弯头ELBOW1
3919074盖板COVER1
39190741盖板COVER1
398M0036859盖板COVER1
4065857连接器CONNECTOR1
4056759倒钩接头FITTING Barbed1
418129961盖板COVER1
418129962盖板COVER1
4248462O型圈 (.614 x .070)O-RING (.614 x .070)1
4340011108不锈钢螺钉 (M5 x 20)SCREW (M5 x 20) Stainless Steel2
45821595吊环LIFTING EYE1
46821616螺钉SCREW1
46821606螺钉SCREW1
47400265螺母 (M8)NUT (M8)1
47401368不锈钢螺母 (M8)NUT (M8) Stainless Steel1
-812867A97衬垫套件GASKET SET1
-811208T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-821744T92动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T93动力头总成(完整)POWERHEAD ASSEMBLY Complete1
图 135驱动轴壳体/排气板 Driveshaft Housing/Exhaust Plate
驱动轴壳体/排气板 Driveshaft Housing/Exhaust Plate
REF零件编号中文名称英文名称数量
140011155不锈钢螺钉(M8x55)SCREW (M8 x 55) Stainless Steel2
293221护孔环GROMMET1
293221002护孔环GROMMET1
399019卡箍CLAMP1
442941水管密封件SEAL Water Tube1
442941001水管密封件SEAL Water Tube1
5430144水管TUBE Water1
58M0042795短型水管TUBE-WATER-SHORT1
5430143水管TUBE Water1
58M0042794大型水管TUBE-WATER-LG1
68214401排气管TUBE Exhaust1
687917217T排气管TUBE-EXHAUST1
740011153不锈钢螺钉(M8x45)SCREW (M8 x 45) Stainless Steel4
8821446驱动轴壳体衬垫GASKET Driveshaft Housing1
88M0000821衬垫GASKET1
9821439A4适配板总成ADAPTER PLATE ASSEMBLY1
9821439T4适配板ADAPTER PLATE1
1023784定位销PIN Dowel4
114010875不锈钢六角法兰螺钉(M10x75)SCREW (M10 x 75) Hex Flange - Stainless Steel1
12821510底罩密封条SEAL Bottom Cowl1
128M0043148底罩密封件SEAL-BOTTOM COWL1
13822419联轴器COUPLER1
14822408护孔环GROMMET1
14822408001护孔环GROMMET1
15822418换挡轴(上部)SHIFT SHAFT (UPPER)1
15880042换档轴SHIFT SHAFT1
1689302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
17822417销PIN1
18269531开口销COTTER PIN1
18210711开口销COTTER PIN1
19822396螺钉(M12x162)SCREW (M12 x 162)2
198M0000520螺栓BOLT2
20821441支架MOUNT1
208M4501487上部安装总成MOUNT UPPER ASM1
2140011153不锈钢螺钉(M8x45)SCREW (M8 x 45) Stainless Steel4
2288238A10接地线总成CABLE ASSEMBLY Ground1
23934161氯丁橡胶垫圈WASHER Neoprene2
2332834垫圈(0.9375x1.750x0.172)WASHER (.9375 x 1.750 x .172)2
2428421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
248M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
2590099螺母(M12)NUT (M12)2
25896963螺母(M12)NUT (M12)2
26828466A1配平盖TRIM COVER1
26828466A2配平盖TRIM COVER1
26828466A1配平盖TRIM COVER1
27822421缓冲垫BUMPER1
278M0043155上部配平缓冲器BUMPER-UPPER TRIM1
28826173螺钉(M5x0.8x60)SCREW (M5 x .8 x 60)1
2973288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
30400263螺母 (M5)NUT (M5)1
318270231缓冲垫BUMPER1
318M0043170缓冲垫BUMPER1
32822395密封件SEAL1
32822395001密封件SEAL1
33828495怠速泄压密封件SEAL Idle Relief1
33828495001怠速泄压密封件SEAL Idle Relief1
34817430110螺钉(M10 x 110)SCREW (M10 x 110)6
35821447A10驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
35821447T10驱动轴壳体HOUSING Driveshaft1
35821447A11驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
35821447T11驱动轴壳体-灰色DRIVESHAFT HSG-GR1
35821841A7驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
35821841T7驱动轴壳体HOUSING Driveshaft1
35821841A8驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
35821841T8D/S壳体-灰色D/S HOUSING-GRAY1
36823984螺柱（M10×50）STUD (M10 x 50)1
3745175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
378M0214963垫圈WASHER1
3813914螺母(M10)NUT (M10)1
3840140螺母(M10)NUT (M10)1
398284842支架 (下部)MOUNT (LOWER)2
40828485F1安装盖COVER Mount2
40828485F2安装盖COVER Mount2
40828485F1安装盖COVER Mount2
4140011151不锈钢螺钉(M8×35)SCREW (M8 x 35) Stainless Steel4
42850030F1下轭架YOKE Bottom2
42850030F2下轭架YOKE Bottom2
42850030F1下轭架YOKE Bottom2
4382445940螺钉 (M8 x 40) 不锈钢SCREW (M8 x 40) Stainless Steel3
438M0038368螺钉 M8 x 40SCREW M8 x 403
4436001垫圈WASHER3
45401198螺母 (M8)NUT (M8)3
45401378螺母 (M8)NUT (M8)3
46828556螺钉 (M12 x 125)SCREW (M12 x 125)2
4790099螺母(M12)NUT (M12)2
47896963螺母(M12)NUT (M12)2
48NA不可用 不随此型号销售NOT AVAILABLE Not Sold With This Model1
-828553A97衬垫套件GASKET SET1
图 136电气组件 Electrical Components
电气组件 Electrical Components
REF零件编号中文名称英文名称数量
18302351电气板PLATE Electrical1
282239312螺钉(M5 x 12)SCREW (M5 x 12)1
389302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
456762扎带(4.00英寸)TIE STRAP (4.00 Inches)1
5821889A49转速限制器REV LIMITER1
5821889A50转速限制器REV LIMITER1
68266241卡箍CLAMP1
782239312螺钉(M5 x 12)SCREW (M5 x 12)3
8850187A1电磁阀总成SOLENOID ASSEMBLY1
88M0185146电磁阀总成SOLENOID ASSEMBLY1
9818968衬套BUSHING2
98M0214955衬套BUSHING2
10818967护孔环GROMMET2
108M0207785护孔环GROMMET2
1182129125螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
1264015螺母 (.250-20)NUT (.250-20)2
1326992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
1488807A33拉线总成CABLE ASSEMBLY1
1588807A16黑色电缆总成(4.00英寸)CABLE ASSEMBLY (4.00 Inches) Black1
1626419黄铜螺母 (#8-32)NUT (#8-32) Brass2
17854515电压调节器REGULATOR Voltage1
178M0084173电压调节器VOLTAGE REGULATOR1
1882129135螺钉(M6x35)SCREW (M6 x 35)2
1955098J型卡扣J CLIP1
198M0024808J型夹J-CLIP1
20830233红色绝缘护套BOOT Insulator - Red1
2188439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
2229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
228M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
23816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
23816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2482129125螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
2588807A31拉线总成CABLE ASSEMBLY1
2682129110螺丝 (M6 x 10)SCREW (M6 x 10)1
2754457J型卡扣(手动需2个)J CLIP (QTY. OF 2 REQUIRED ON MANUAL)3
28850220A2发动机线束总成HARNESS ASSEMBLY Engine1
29812619黄色保险丝-20安培FUSE Yellow - 20 Ampere1
3013541公插头PLUG Male1
31822002护孔环GROMMET3
32822003衬套BUSHING3
334002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)3
338M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.53
3440011129不锈钢螺钉(M6x25)SCREW (M6 x 25) Stainless Steel3
35850221A2点火线束总成HARNESS ASSEMBLY Ignition1
36827509A7CDM总成CDM ASSEMBLY3
36827509T7CDM模块总成CDM MODULE ASSEMBLY3
37821945A61高压电缆总成CABLE ASSEMBLY Hi Tension3
3863709A1护套/端子套件BOOT/TERMINAL KIT3
398167372火花塞(NGK# BP8H-N-10)SPARK PLUG (NGK# BP8H-N-10)3
39816737QNGK BP8HN-10@10NGK BP8HN-10@103
398168372火花塞(NGK#BPZ-8H-N-10)SPARK PLUG (NGK#BPZ-8H-N-10)3
39938SP #QL78YC @4SP #QL78YC @43
3914103568火花塞(NGK#BUZ8H)SPARK PLUG (NGK#BUZ8H)3
39896329885SP #L6VC @4SP #L6VC @43
3912343火花塞(NGK#BP8HS-10)SPARK PLUG (NGK#BP8HS-10)3
398M0114745SP BP8HS-10 @4SP BP8HS-10 @43
4082129116螺钉(M6 x 16)SCREW (M6 x 16)6
41850052A1电源线束总成HARNESS ASSEMBLY Power1
4211149A31线束总成HARNESS ASSEMBLY1
4211149T31线束总成HARNESS ASSY1
图 137飞轮与定子(电动) Flywheel and Stator (Electric)
飞轮与定子(电动) Flywheel and Stator (Electric)
REF零件编号中文名称英文名称数量
1812777T1盖总成COVER ASSEMBLY1
242979螺母(M16)NUT (M16)1
368229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
333001垫圈WASHER1
4878226T2飞轮FLYWHEEL1
4859234T24飞轮FLYWHEEL1
5832075A4点火定子套件IGNITION STATOR KIT1
5832075A21定子总成STATOR ASSEMBLY1
64013930螺丝(M5 x 30)SCREW (M5 x 30)4
7854512T触发器TRIGGER1
893421旋转球头SWIVEL BALL1
993254旋转底座SWIVEL BASE1
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
11856985A7EPA标签信息贴花DECAL EPA Label Information1
11804665A00EPA标签信息贴花DECAL EPA Label Information1
11804665A01EPA标签信息贴花DECAL EPA Label Information1
11804665A02EPA标签信息贴花DECAL EPA Label Information1
11804665A03EPA标签信息贴花DECAL EPA Label Information1
11804665A04EPA标签信息贴花DECAL EPA Label Information1
图 138飞轮与定子(手动) Flywheel and Stator (Manual)
飞轮与定子(手动) Flywheel and Stator (Manual)
REF零件编号中文名称英文名称数量
19008A42飞轮FLYWHEEL1
1859234T25飞轮FLYWHEEL1
242979螺母(M16)NUT (M16)1
368229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
333001垫圈WASHER1
4832074A5定子STATOR1
4832074A11定子总成STATOR ASSEMBLY1
54007330螺丝(M5 x 30)SCREW (M5 x 30)4
54013930螺丝(M5 x 30)SCREW (M5 x 30)4
6854512T触发器TRIGGER1
793421旋转球头SWIVEL BALL1
893254旋转底座SWIVEL BASE1
9816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
9816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
1013541公插头PLUG Male2
图 139燃油泵(电动) Fuel Pump (Electric)
燃油泵(电动) Fuel Pump (Electric)
REF零件编号中文名称英文名称数量
-14360A43燃油泵总成PUMP ASSEMBLY Fuel1
-14360A78燃油泵套件PUMP KIT Fuel1
1NSS不单独销售 燃油泵NOT SOLD SEPARATE Fuel Pump1
242990A10膜片组件DIAPHAGM KIT2
2857005A1膜片组件DIAPHRAGM KIT2
3NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
4NSS橡胶止回阀(不单独销售)NOT SOLD SEPARATE Check Valve-Rubber2
5NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer2
6NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
7NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
8NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
9NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
10NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
11987691衬垫GASKET1
118M0204705衬垫@2GASKET @21
12NSS增压垫片(不单独销售)NOT SOLD SEPARATE Gasket-Boost1
13NSS脉冲垫片(不单独销售)NOT SOLD SEPARATE Gasket-Pulse1
14987752安装板PLATE1
154333590度接头(.125-27)尼龙CONNECTOR 90 Degree (.125-27) Nylon2
1543335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal2
1682104540螺钉(M5 x 40)SCREW (M5 x 40)2
1682130050螺钉(M6 x 50)SCREW (M6 x 50)2
17144303底座BASE1
18831949软管HOSE1
198162961燃油滤清器FILTER Fuel1
19816296Q2燃油滤清器FILTER Fuel1
20830761燃油管LINE Fuel1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2283075780管材(28.00英寸散装)(1-1/2英寸)TUBING (28.00 Inches Bulk) (1-1/2 IN.)1
228M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
2283075780管材(28.00英寸散装)(1-1/4英寸)TUBING (28.00 Inches Bulk) (1-1/4 IN.)1
228M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
2383075780管材(28.00英寸散装)(1-1/2英寸)TUBING (28.00 Inches Bulk) (1-1/2 IN.)1
238M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
2383075780管材(28.00英寸散装)(1-1/4英寸)TUBING (28.00 Inches Bulk) (1-1/4 IN.)1
238M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
24818992连接器CONNECTOR1
24818993三通接头CONNECTOR Tee1
2582381335管材(15.00英寸散装)(2英寸)TUBING (15.00 Inches Bulk) (2 IN.)1
2582381335管材(15.00英寸散装)(1-1/2英寸)TUBING (15.00 Inches Bulk) (1-1/2 IN.)1
2683075780管材(28.00英寸散装)(22英寸)TUBING (28.00 Inches Bulk) (22 IN.)1
268M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
278189941止回阀CHECK VALVE1
28816856A1燃油接头总成CONNECTOR ASSEMBLY Fuel1
28816856T01燃油接头CONNECTOR-FUEL1
294000332螺钉(M6x35)SCREW (M6 x 35)1
309912878软管 (0.187) (26.00英寸散装) (4-1/4英寸)HOSE (.187) (26.00 Inches Bulk) (4-1/4 IN.)1
31633001卡箍CLAMP1
31633003卡箍CLAMP1
32428593电磁阀SOLENOID VALVE1
32819503A5加浓阀电磁阀套件SOLENOID KIT Enrichner Valve1
33819503A5加浓阀电磁阀套件SOLENOID KIT Enrichner Valve1
349912688管材(36.00英寸散装)(9-1/2英寸)TUBING (36.00 Inches Bulk) (9-1/2 IN.)1
349912688管材(36.00英寸散装)(8英寸)TUBING (36.00 Inches Bulk) (8 IN.)1
359912688管材(36.00英寸散装)(3-1/4英寸)TUBING (36.00 Inches Bulk) (3-1/4 IN.)1
359912688管材(36.00英寸散装)(4英寸)TUBING (36.00 Inches Bulk) (4 IN.)1
3699130122管材（20英尺卷装）（16英寸）TUBING (20.00 Feet Bulk) (16 IN.)1
36892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
3699130122管材(20.00英尺散装)(14英寸)TUBING (20.00 Feet Bulk) (14 IN.)1
36892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
3759169接头FITTING1
3759169003三通接头FITTING Tee1
389912688管材(36.00英寸散装)(2英寸)TUBING (36.00 Inches Bulk) (2 IN.)1
394006731螺钉(M6 x 16)SCREW (M6 x 16)1
-852067A98动力头总成POWERHEAD ASSEMBLY1
-852067T98动力头总成POWERHEAD ASSEMBLY1
-828553A97衬垫套件GASKET SET1
图 140燃油泵(手动) Fuel Pump (Manual)
燃油泵(手动) Fuel Pump (Manual)
REF零件编号中文名称英文名称数量
-14360A43燃油泵总成PUMP ASSEMBLY Fuel1
-14360A78燃油泵套件PUMP KIT Fuel1
1NSS不单独销售 燃油泵NOT SOLD SEPARATE Fuel Pump1
242990A10膜片组件DIAPHAGM KIT2
2857005A1膜片组件DIAPHRAGM KIT2
3NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
4NSS橡胶止回阀(不单独销售)NOT SOLD SEPARATE Check Valve-Rubber2
5NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer2
6NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
7NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
8NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
9NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
10NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
11987691衬垫GASKET1
118M0204705衬垫@2GASKET @21
12NSS增压垫片(不单独销售)NOT SOLD SEPARATE Gasket-Boost1
13NSS脉冲垫片(不单独销售)NOT SOLD SEPARATE Gasket-Pulse1
14987752安装板PLATE1
154333590度接头(.125-27)尼龙CONNECTOR 90 Degree (.125-27) Nylon2
1543335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal2
1682104540螺钉(M5 x 40)SCREW (M5 x 40)2
1682130050螺钉(M6 x 50)SCREW (M6 x 50)2
17144303底座BASE1
1883075780管材(28.00英寸散装)(22英寸)TUBING (28.00 Inches Bulk) (22 IN.)1
188M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
19816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
19816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
20830761燃油管LINE Fuel1
219912878软管 (0.187) (26.00英寸散装) (4-1/4英寸)HOSE (.187) (26.00 Inches Bulk) (4-1/4 IN.)1
228162961燃油滤清器FILTER Fuel1
22816296Q2燃油滤清器FILTER Fuel1
23831949软管HOSE1
2459169接头FITTING1
2459169003三通接头FITTING Tee1
2599130122管材(20英尺散装)(9-1/2英寸)TUBING (20.00 Feet Bulk) (9-1/2 IN.)2
25892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)2
268168773注油球PRIMER BULB1
26858763注油球PRIMER BULB1
27816856A1燃油接头总成CONNECTOR ASSEMBLY Fuel1
27816856T01燃油接头CONNECTOR-FUEL1
284000332螺钉(M6x35)SCREW (M6 x 35)1
2999130122管材 (20.00英尺散装) (5-1/2英寸)TUBING (20.00 Feet Bulk) (5-1/2 IN.)1
29892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
3099130122管材(20英尺整卷)(1.5英寸)TUBING (20.00 Feet Bulk) (1-1/2 IN.)1
30892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
-852067A98动力头总成POWERHEAD ASSEMBLY1
-852067T98动力头总成POWERHEAD ASSEMBLY1
-828553A97衬垫套件GASKET SET1
图 141衬垫套件-发动机大修 Gasket Set Components-Engine Overhaul
衬垫套件-发动机大修 Gasket Set Components-Engine Overhaul
REF零件编号中文名称英文名称数量
-828553A97衬垫套件GASKET SET1
048462O型圈 (.614 x .070)O-RING (.614 x .070)1
0828553气缸体至排气板衬垫GASKET Cylinder Block to Exhaust Plate1
08M0000822衬垫GASKET1
090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
08M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
042941上水管密封件SEAL Water Tube Upper1
042941001水管密封件SEAL Water Tube1
0821446驱动轴壳体衬垫GASKET Driveshaft Housing1
08M0000821衬垫GASKET1
08M0027721垫圈WASHER1
08M0204722垫圈WASHER1
0822189水泵上衬垫GASKET Upper Water Pump Water Pump1
0822217水泵下部衬垫GASKET Lower Water Pump Lower1
08M0214956衬垫GASKET1
0821308O型圈(1.421 x .139)(内径1.421)O-RING (1.421 x .139) (1.421 I.D.)1
0191833密封件SEAL1
08M0187157蓝色密封件@15SEAL-BLUE @151
026855O型圈(1.609 x 0.139)O-RING (1.609 x .139)1
0812869进气歧管垫片GASKET Induction Manifold1
0812868簧片阀衬垫GASKET Reed Block1
0827284节温器盖衬垫GASKET Thermostat Cover1
085594O型圈(.239 x .174)(内径.239)O-RING (.239 x .174) (.239 I.D.)1
0823942水管衬垫GASKET Water Tube1
0815460轴承座O型圈O-RING Bearing Carrier1
036390O型圈(内径.676)O-RING (.676 I.D.)1
062705O型圈 (.739 内径)O-RING (.739 I.D.)1
08M0204667O型圈×2O RING @21
0NSS止回阀片(不单独销售)NOT SOLD SEPARATE (Disc-Check Valve)1
0NSS燃油泵膜片(不单独销售)NOT SOLD SEPARATE (Diaphragm-Fuel Pump)1
0987691燃油泵衬垫GASKET Fuel Pump1
08M0204705衬垫@2GASKET @21
0NSS增压室垫片(不单独销售)NOT SOLD SEPARATE (Gasket-Boost Chamber)1
0NSS脉冲室垫片(不单独销售)NOT SOLD SEPARATE (Gasket-Pulse Chamber)1
017311止回阀固定座RETAINER Check Valve2
0NSS增压压缩弹簧(不单独销售)NOT SOLD SEPARATE (Spring Compression, Boost)1
0NSS主压缩弹簧(不单独销售)NOT SOLD SEPARATE (Spring Compression, Main)1
0NSS弹簧端盖(不单独销售)NOT SOLD SEPARATE (Cap-Spring End)1
0NSS弹簧端盖(不单独销售)NOT SOLD SEPARATE (Cap-Spring End)1
08144461化油器法兰垫片GASKET Flange Carburetor3
图 142齿轮箱(驱动轴)(1.83:1传动比) Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
齿轮箱(驱动轴)(1.83:1传动比) Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
REF零件编号中文名称英文名称数量
-821306A26齿轮箱总成GEAR HOUSING ASSEMBLY1
-821306T26齿轮箱总成GEAR HOUSING ASSEMBLY1
-821306A27齿轮箱总成GEAR HOUSING ASSEMBLY1
-821306T27ORD1682-821306T26ORD1682-821306T261
-821306A28齿轮箱总成GEAR HOUSING ASSEMBLY1
-821306T28齿轮箱总成GEAR HOUSING ASSEMBLY1
-821306A29齿轮箱总成GEAR HOUSING ASSEMBLY1
-821306T29ORD1682-821306T28ORD1682-821306T281
1821306A12齿轮箱总成GEAR HOUSING ASSEMBLY1
1821306T12基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1821306A13齿轮箱总成GEAR HOUSING ASSEMBLY1
1821306T13基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
2818226A1密封/板套件SEAL/PLATE KIT1
3NSSNOT SOLD SEPARATE Plate1
479953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
479953Q04放油螺钉套件SCREW KIT Drain1
519183纤维垫圈WASHER Fiber1
58M0187157蓝色密封件@15SEAL-BLUE @151
667892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
68M0058389放油螺钉套件SCREW KIT Drain1
719183纤维垫圈WASHER Fiber1
78M0187157蓝色密封件@15SEAL-BLUE @151
855910螺母(.437-20)NUT (.437-20)1
98221612齿轮 小齿轮 (12齿)GEAR Pinion (12 TEETH)1
9822161T2小齿轮GEAR Pinion1
10821321A2轴承总成BEARING ASSEMBLY1
11NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
128248324螺钉(M6 x 16)SCREW (M6 x 16)4
13821351A3水泵上壳体总成HOUSING ASSEMBLY Water Pump Upper1
148235471密封件SEAL1
158M0027721垫圈WASHER1
158M0204722垫圈WASHER1
1685119键KEY1
168M0214993键@5KEY @51
178M0027721垫圈WASHER1
178M0204722垫圈WASHER1
18822189水泵上衬垫GASKET Upper Water Pump1
19822217水泵下衬垫GASKET Lower Water Pump1
198M0214956衬垫GASKET1
208213542面板FACE PLATE1
21850893叶轮IMPELLER1
218M0204712叶轮IMPELLER1
22821307A2水泵底座总成BASE ASSEMBLY Water Pump1
23821309密封件SEAL1
238M0248704油封SEAL OIL1
24821310密封件SEAL1
25821308O型圈(1.421 x 0.139)O-RING (1.421 x .139)1
26822466A1驱动轴DRIVESHAFT1
26822159A1驱动轴DRIVESHAFT1
26822159T1驱动轴DRIVESHAFT1
27821311滚珠轴承BEARING Ball1
28823548扎带TIE STRAP1
28823548T扎带TIE STRAP1
29822158护套BOOT1
30821827固定座RETAINER1
3126855O型圈(1.609 x 0.139)O-RING (1.609 x .139)1
3285594O型圈(.239 x .174)O-RING (.239 x .174)1
33814803垫圈WASHER1
34822453A1换档轴SHIFT SHAFT1
34821319A1换档轴SHIFT SHAFT1
35400212螺母(M6)不锈钢NUT (M6) Stainless Steel1
3629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
368M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
3785593销(.078 x .437)PIN (.078 x .437)1
388213161换档凸轮CAM Shift1
39822369销(0.125 x 0.625)PIN (.125 x .625)1
-828553A97衬垫套件GASKET SET1
-823547A2密封套件SEAL KIT1
-821354A2水泵维修套件REPAIR KIT Water Pump1
图 143齿轮箱螺旋桨轴-1.83:1传动比 Gear Housing Propeller Shaft - 1.83:1 Gear Ratio
齿轮箱螺旋桨轴-1.83:1传动比 Gear Housing Propeller Shaft - 1.83:1 Gear Ratio
REF零件编号中文名称英文名称数量
-821306T26齿轮箱总成GEAR HOUSING ASSEMBLY1
-821306T28齿轮箱总成GEAR HOUSING ASSEMBLY1
1821306T12基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
40821327定位销PIN Dowel2
41823942衬垫GASKET1
42821828管TUBE1
428M0026108管TUBE1
43824928橡胶塞PLUG Rubber1
43824928001橡胶塞PLUG Rubber1
44821829滤网SCREEN1
45822157T2平衡鳍板TRIM TAB1
4682497020螺钉(M8 x 20)SCREW (M8 x 20)1
4772397垫圈WASHER1
48822162T2前进齿轮(22齿)GEAR Forward (22 Teeth)1
4999328A1滚柱轴承总成BEARING ASSEMBLY Roller1
498M0103470圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
50NSS不单独销售NOT SOLD SEPARATE1
5141326滚柱轴承BEARING Roller1
52821578凸轮从动件FOLLOWER Cam1
538261991弹簧SPRING1
5485093销PIN1
548M0020999十字销PIN CROSS1
55821314T离合器CLUTCH1
5638114弹簧SPRING1
578215772螺旋桨轴PROPELLER SHAFT1
578M0140441螺旋桨轴PROP SHAFT1
58822163T1倒车齿轮(22齿)GEAR Reverse (22 Teeth)1
5920839T滚珠轴承BEARING Ball1
6019291A3轴承座总成CARRIER ASSEMBLY Bearing1
608M0168900轴承座BEARING CARRIER1
61815460O型圈O-RING1
6221700滚针轴承BEARING Needle1
6369188油封SEAL Oil1
638M0205511油封SEAL Oil1
6469189油封SEAL Oil1
648M0203757油封SEAL Oil1
6570132垫圈(0.323×0.563×0.063)不锈钢WASHER (.323 x .563 x .063) Stainless Steel2
658M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)2
65855941垫圈(.323 x .590 x .112)不锈钢WASHER (.323 x .590 x .112) Stainless Steel2
664000353螺钉 (M8 x 25)SCREW (M8 x 25)2
6685594030螺钉 (M8 x 30)SCREW (M8 x 30)2
678227731螺纹嵌件INSERT Threaded2
68NSS贴花1.83:1(12 X 22)(不单独销售)NOT SOLD SEPARATE (Decal 1.83:1) (12 X 22)1
6973345A1止推垫片THRUST WASHER1
7069578Q1螺旋桨螺母套件PROP NUT KIT1
7176281锁紧垫圈TAB WASHER1
718M0214942锁紧垫片WASHER Tab1
724000380螺丝(M10 x 45)SCREW (M10 x 45)4
73856774垫圈(0.406×0.750×0.105)不锈钢WASHER (.406 x .750 x .105) Stainless Steel4
738M0214963垫圈WASHER4
-828553A97衬垫套件GASKET SET1
-823547A2密封套件SEAL KIT1
图 144进气歧管与簧片阀组 Induction Manifold and Reed Block
进气歧管与簧片阀组 Induction Manifold and Reed Block
REF零件编号中文名称英文名称数量
1812865衬垫GASKET1
29812A9下端盖总成END CAP ASSEMBLY Lower1
29812T9下端盖总成END CAP ASSEMBLY Lower1
366301油封SEAL Oil1
441953密封件SEAL1
590011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
58M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
681742720螺钉(M8 x 20)SCREW (M8 x 20)3
719077A2支架总成BRACKET ASSEMBLY1
719077A3支架总成BRACKET ASSEMBLY1
88161941螺柱STUD2
88161949双头螺柱(M6 x 44)STUD (M6 x 44)2
949221垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)WASHER (.187 x .500 x .062) Neoprene2
98M0204663垫片@5WASHER @52
1069056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel2
11816872蝶形螺母WING NUT2
1282127335螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)4
1319076A3进气歧管总成MANIFOLD ASSEMBLY Induction1
1419725弯头(55号件含2个)ELBOW (QTY. OF 2 ON 55)1
15812869衬垫GASKET1
1681742730螺钉 (M8 x 30)SCREW (M8 x 30)10
1719075A2簧片阀总成REED BLOCK ASSEMBLY1
178M0219197簧片阀总成REED BLOCK ASSY1
18812868衬垫GASKET1
19812880A1簧片组(0.008厚度)REED SET (0.008 THICK)3
19812880A03簧片组件REED ASSEMBLY3
19812880A2簧片组件(0.010厚度)REED ASSEMBLY (0.010 THICK)3
19812880A03簧片组件REED ASSEMBLY3
2042982锁紧垫圈TAB WASHER3
20429821锁紧垫圈TAB WASHER3
21812879固定座RETAINER3
21812879002簧片压板RETAINER Reed3
224000171螺钉(M6 x 16)SCREW (M6 x 16)3
2342881A1换挡拨叉总成SHIFT RAIL ASSEMBLY1
2442981锁紧垫圈TAB WASHER2
2540001134螺钉 (M8 x 25)SCREW (M8 x 25)2
26988851滑块SLIDE1
2748475衬套(II型)BUSHING (DESIGN II)1
2742994衬套BUSHING1
2829720波形垫圈WAVE WASHER1
2924664垫圈 (M4 x 20)WASHER (M4 x 20)1
30400634螺母 (M6)NUT (M6)1
30401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
3135459垫圈WASHER1
32400634螺母 (M6)NUT (M6)1
32401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
-15026进气歧管盖CAP (FOR USE ON INDUCTION MANIFOLD)3
-812867A97衬垫套件GASKET SET1
-811208T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-821744T92动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T93动力头总成(完整)POWERHEAD ASSEMBLY Complete1
图 145喷射组件 Jet Components
喷射组件 Jet Components
REF零件编号中文名称英文名称数量
1821889A18转速限制器REV LIMITER1
2823147A4转速限制器线束总成HARNESS ASSEMBLY Rev Limiter1
3826579支架BRACKET1
440011127螺钉 (M6 x 16) 不锈钢SCREW (M6 x 16) Stainless Steel2
44006731螺钉(M6 x 16)SCREW (M6 x 16)2
540011109螺钉 (M5 x 25) 不锈钢SCREW (M5 x 25) Stainless Steel2
6801402润滑脂套装GREASE KIT1
630500A2润滑脂套装GREASE KIT1
24197001面板FACE PLATE1
2419700A2面板FACE PLATE1
2519453叶轮IMPELLER1
2519453T叶轮IMPELLER1
2619699键KEY1
268M0032831叶轮键KEY Impeller1
2714334A1水泵总成PUMP ASSEMBLY Water1
2714334A3水泵总成PUMP ASSEMBLY Water1
29194541衬垫(上部)GASKET (UPPER)1
3043023密封件SEAL1
308M0204658密封件SEAL1
318248324螺钉(M6 x 16)SCREW (M6 x 16)6
3343045绝缘体INSULATOR4
338M0204659绝缘体@4INSULATOR @44
3419452绝缘体INSULATOR2
-812966A11水泵维修套件REPAIR KIT Water Pump1
-812966A12水泵维修套件REPAIR KIT Water Pump1
-814669A2齿轮箱密封套件SEAL KIT Gear Housing1
图 146喷泵总成 Jet Pump Assembly
喷泵总成 Jet Pump Assembly
REF零件编号中文名称英文名称数量
-80140060喷射泵组件(黑色)JET PUMP ASSEMBLY (BLACK)1
-80140160喷射泵组件(灰色)JET PUMP ASSEMBLY (GRAY)1
-8M0230714喷射泵总成JET PUMP ASSY1
180141160泵壳HOUSING Pump1
1801411T60泵壳体HOUSING PUMP1
1A827490润滑油管HOSE Lube1
280141460叶轮IMPELLER1
28M0230713叶轮IMPELLER1
380141260进气壳体HOUSING Intake1
3A8271882衬套LINER1
480141360驱动轴DRIVESHAFT1
4A8271891套筒SLEEVE1
4B8271901螺母NUT1
5801405875键KEY1
6801404875叶轮垫片SHIM Impeller8
7801403875锁紧垫圈TAB WASHER1
8818146螺钉(.312-18 X .88)SCREW (.312-18 X .88)6
919923088螺钉(.250-20 x .875)SCREW (.250-20 x .875)4
1019923062螺钉(.250-20 x .625)SCREW (.250-20 x .625)2
1160411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
12801410电缆支架BRACKET Cable Support1
1367980螺母(.312-18)NUT (.312-18)1
1382670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
14801407定位销PIN Dowel2
154010860不锈钢六角法兰螺钉(M10 x 60)SCREW (M10 x 60) Hex Flange - Stainless Steel2
164010890不锈钢六角法兰螺钉(M10 x 90)SCREW (M10 x 90) Hex Flange - Stainless Steel1
174010870不锈钢六角法兰螺钉(M10 x 70)SCREW (M10 x 70) Hex Flange - Stainless Steel1
1895802不锈钢螺钉(.375-16 x 2.750)SCREW (.375-16 x 2.750) Stainless Steel1
1945175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
198M0214963垫圈WASHER1
图 147润滑图表 Lube Chart
润滑图表 Lube Chart
REF零件编号中文名称英文名称数量
-NOPART无零件清单NO PARTS LIST
图 148机油喷射组件 Oil Injection Components
机油喷射组件 Oil Injection Components
REF零件编号中文名称英文名称数量
18127181机油箱TANK Oil1
1812718T1油箱总成TANK ASSEMBLY Oil1
219070A2盖总成CAP ASSEMBLY1
390186O型圈O-RING1
48160661密封件SEAL1
1812718A1油箱总成TANK ASSEMBLY Oil1
1812718T1油箱总成TANK ASSEMBLY Oil1
2828765A2盖总成CAP ASSEMBLY1
48160662密封件SEAL1
48M0039080密封件-油箱SEAL-OIL TANK1
519299A1通风组件VENT ASSEMBLY1
664871阀门VALVE1
7813644护孔环GROMMET1
8813649护套BOOT1
9812890护套BOOT1
98M0039085护套BOOT1
1012886A6开关总成SWITCH ASSEMBLY1
1158376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
12812690A1机油喷射泵总成PUMP ASSEMBLY Oil Injection1
12818902A1机油喷射泵总成PUMP ASSEMBLY Oil Injection1
1362705O型圈O-RING1
138M0204667O型圈×2O RING @21
1436390O型圈O-RING1
1540011108不锈钢螺钉 (M5 x 20)SCREW (M5 x 20) Stainless Steel2
1619277从动齿轮GEAR Driven1
1719278A2轴承总成BEARING ASSEMBLY1
1882381325管材(10.00英寸散装)TUBING (10.00 Inches Bulk)2
1882381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)2
1972761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
20821287连接杆LINK1
图 149动力升降 Power Trim
动力升降 Power Trim
REF零件编号中文名称英文名称数量
1822344A5动力微调POWER TRIM1
1822344T14动力升降总成POWER TRIM ASSEMBLY1
-827668A1O型圈套件O-RING KIT1
2827670A2减震杆总成SHOCK ROD ASSEMBLY1
2893931A01减震杆总成SHOCK ROD ASSY1
3827671A1先导止回阀总成PILOT CHECK ASSEMBLY1
4827672A1倾斜泄压阀总成TILT RELIEF VALVE ASSEMBLY1
5827673A1吸入阀座总成SEAT ASSEMBLY Suction1
6827674A1泵总成PUMP ASSEMBLY1
7NSS不单独销售 球/弹簧NOT SOLD SEPARATE Ball/Spring1
8NSS螺丝(不单独销售)NOT SOLD SEPARATE Screw1
9NSSNOT SOLD SEPARATE Filter1
10NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
11827675A1电机总成MOTOR ASSEMBLY1
12NSS螺丝(不单独销售)NOT SOLD SEPARATE Screw4
13NSS不单独销售垫圈NOT SOLD SEPARATE Washer4
1488238A15拉线总成CABLE ASSEMBLY1
15NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
16NSSNOT SOLD SEPARATE Coupler1
17827676活塞记忆PISTON Memory1
18813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
18893929A01安全阀套件VALVE KIT Relief1
19811613塞子总成PLUG ASSEMBLY1
20831276T支架BRACKET1
21826802A9升降线束总成HARNESS ASSEMBLY Trim1
2282129125螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
23828151A1继电器总成RELAY ASSEMBLY2
238M0207773调整继电器总成RELAY ASSEMBLY Trim2
24828102支架BRACKET2
248M0207771安装支架BRACKET Mounting2
25818967护孔环GROMMET2
258M0207785护孔环GROMMET2
26818968衬套BUSHING2
268M0214955衬套BUSHING2
278128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
27878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
2869205C形垫圈C WASHER1
288M0084613C形垫圈C-WASHER1
2922740卡扣CLIP2
图 150维修/支撑材料 Service/Support Material
维修/支撑材料 Service/Support Material
REF零件编号中文名称英文名称数量
-81639990零件手册 XR-10/MAGNUM 10/SEA PRO 10/MARATHON 10PARTS MANUAL XR-10/MAGNUM 10/SEA PRO 10/MARATHON 10
-816290A90标贴套装(XR10)DECAL SET (XR10)
-816291A92标贴套装(MAGNUM 10)DECAL SET (MAGNUM 10)
-817633A91标贴套装(SEA PRO 10)DECAL SET (SEA PRO 10)
-13361A91标贴套装(MARATHON 10)DECAL SET (MARATHON 10)
-12048930用户指南(XR 10)OWNERS GUIDE (XR 10)
-14138930用户指南(MAGNUM 10)OWNERS GUIDE (MAGNUM 10)
-816755930用户指南(SEA PRO 10)OWNERS GUIDE (SEA PRO 10)
-816757930使用手册（马拉松10）OWNERS GUIDE (MARATHON 10)
图 151启动器总成（手动） Starter Assembly (Manual)
启动器总成（手动） Starter Assembly (Manual)
REF零件编号中文名称英文名称数量
185174A1手柄总成HANDLE ASSEMBLY1
2NSS不单独销售 保持器NOT SOLD SEPARATE Retaomer1
-821788A6支架总成 启动手柄REST ASSEMBLY Starter Handle1
3NSS不单独销售 支架NOT SOLD SEPARATE Rest1
48249951密封件SEAL1
48M0043416手柄座密封SEAL-HANDLE REST1
54010630不锈钢螺钉(M6x30)SCREW (M6 x 30) Stainless Steel2
6830190隔套SPACER2
7816086衬套BUSHING4
8815795护孔环GROMMET8
969057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)8
10401196螺母 (M6)NUT (M6)4
11NSS正时贴纸（不单独销售）NOT SOLD SEPARATE Decal-Timing1
128167485联锁电缆CABLE Interlock1
128567541联锁电缆CABLE Interlock1
138214281螺钉(#10-16x0.625)SCREW (#10-16 x .625)1
1473288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
1526811开口销COTTER PIN1
16812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
16878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
1727769开口销COTTER PIN1
1726811开口销COTTER PIN1
-816728A12手拉启动器总成STARTER ASSEMBLY Recoil1
-816728T14手拉启动器总成STARTER ASSEMBLY Recoil1
188167285壳体HOUSING1
18816728T05壳体HOUSING1
19826791弹簧SPRING1
208166903杠杆LEVER1
218167121凸轮CAM1
21816712T01凸轮CAM1
22816711固定座RETAINER1
238182491螺钉(#10-16 x 1.00)SCREW (#10-16 x 1.00)3
24826229弹簧锁紧垫圈LOCKWASHER SPRING1
25868571弹簧SPRING1
2586857T01弹簧SPRING1
26825269A1启动滑轮SHEAVE Starter1
26825269T01启动器滑轮总成SHEAVE STARTR ASU1
27868511弹簧SPRING2
2786851T02弹簧 @2SPRING @22
28868501凸轮CAM2
29868491挡圈RING Retaining2
2986849T01环 @2RING @22
3012066A9绳索ROPE1
3012066Q10启动绳@2ROPE-STARTER@21
31868521凸轮弹簧SPRING Cam1
31868523弹簧SPRING1
32868531凸轮CAM1
3286853T01凸轮CAM1
33826253螺钉(.250-20 x .625)SCREW (.250-20 x .625)1
3442690衬套BUSHING1
348M0183792绳索衬套ROPE BUSHING1
35818853挡圈RING Retaining1
36NSS不单独销售 贴花-警示-空挡怠速NOT SOLD SEPARATE Decal-Caution-In Gear Idle1
图 152启动电机 Starter Motor
启动电机 Starter Motor
REF零件编号中文名称英文名称数量
1822462启动电机总成STARTER MOTOR ASSEMBLY1
2965661贯穿螺栓THRU BOLT1
390643驱动套件DRIVE KIT1
468575驱动总成DRIVE ASSEMBLY1
4685753驱动总成DRIVE ASSEMBLY1
5823639驱动端盖DRIVE CAP1
58236392驱动端盖DRIVE CAP1
6965651电枢ARMATURE1
78119011换向器端盖CAP Commutator1
875384电刷/弹簧套件BRUSH/SPRING KIT1
8898265016电刷/弹簧套件BRUSH/SPRING KIT1
961787支架HOLDER1
9898265014电刷支架HOLDER-BRUSH1
10F15158螺钉SCREW2
1126992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
1264015螺母 (.250-20)NUT (.250-20)1
1388439A9电缆总成 蓄电池-正极CABLE ASSEMBLY Battery - Positive1
1440011153不锈钢螺钉(M8x45)SCREW (M8 x 45) Stainless Steel3
15NSS警告贴纸(不单独销售)NOT SOLD SEPARATE Decal-Warning1
16823989油箱支架BRACKET Oil Tank1
图 153旋转支架 Swivel Bracket
旋转支架 Swivel Bracket
REF零件编号中文名称英文名称数量
18831A6旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A13旋转支架-黑色SWIVEL BRKT-BLACK1
18831A7旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A14ORD 3402-8831A13ORD 3402-8831A131
18831A8旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831T08旋转支架-黑色BRKT-SWIVEL-BLACK1
18831A9旋转支架总成SWIVEL BRACKET ASSEMBLY1
18831A8旋转支架总成SWIVEL BRACKET ASSEMBLY1
274036润滑脂接头FITTING Grease3
28M0169589润滑脂接头FITTING Grease3
342124A2副驾驶板总成PLATE ASSEMBLY Co-Pilot1
4421402轴承BEARING1
5420801推力轴承-上BEARING Thrust - Upper1
542080T01轴承BEARING1
642139衬套BUSHING1
742077密封件SEAL1
842373止推垫片THRUST WASHER1
9421301弹簧SPRING1
10420824支架BRACKET1
1042082T04支架BRACKET1
11420811销PIN1
12421411倒挡锁钩HOOK Reverse Lock1
128M0075731倒挡钩HOOK Reverse1
1342083枢轴销PIN Pivot1
13830741A1枢轴销总成PIN ASSEMBLY Pivot1
148M0027716垫圈 (0.390 x 0.600 x 0.032) 不锈钢WASHER (.390 x .600 x .032) Stainless Steel1
15830741A1枢轴销总成PIN ASSEMBLY Pivot1
16NSS非单独销售挡圈NOT SOLD SEPARATE Retaining Ring1
178M0027716垫圈 (0.390 x 0.600 x 0.032) 不锈钢WASHER (.390 x .600 x .032) Stainless Steel1
1842128弹簧SPRING1
1942085F4提手CARRYING HANDLE1
19420852手柄-黑色HANDLE-BLACK1
1942085F5提手CARRYING HANDLE1
1942085F4提手CARRYING HANDLE1
2042127弹簧SPRING1
2113194挡圈RING Retaining2
22821961杆ROD1
238165621圆盘DISC2
24821958A1板组件套件PLATE KIT1
2540011126不锈钢螺丝(M6 x 13)SCREW (M6 x 13) Stainless Steel2
26821957制动板BRAKE PLATE1
2729330垫圈WASHER1
28821959手柄HANDLE1
2934863螺母 (.375-24)NUT (.375-24)1
298M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
-8237011副驾驶贴花DECAL Co-Pilot1
图 154旋转管 Swivel Tube
旋转管 Swivel Tube
REF零件编号中文名称英文名称数量
1821769F1旋转管头HEAD Swivel Tube1
1821769T1旋转管头-黑色SWIVEL TUBE HEAD Black1
1821769F2旋转管头HEAD Swivel Tube1
1821769T2旋转管头-灰色SWIVEL TUBE HEAD Gray1
2816667F3支架BRACKET1
28M0184092支架BRACKET1
3816669F1锁紧垫圈TAB WASHER1
38M0009820锁紧垫圈TAB WASHER1
44000377螺钉 (M10 x 30)SCREW (M10 x 30)2
534863螺母 (.375-24)NUT (.375-24)1
58M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
6823792杠杆LEVER1
729330垫圈WASHER1
8821961螺纹杆ROD (THREADED)1
9821957制动板BRAKE PLATE1
108165621圆盘DISC1
11823791安装板PLATE1
118M0007471旋转头板PLATE Swivel Head1
128165621圆盘DISC1
13768042六角凸肩螺钉SHOULDER SCREW Hex2
14826658缓冲垫BUMPER1
148M0156878缓冲垫BUMPER1
图 155油门杆及联动装置 Throttle Lever and Linkage
油门杆及联动装置 Throttle Lever and Linkage
REF零件编号中文名称英文名称数量
142946T1油门杆LEVER Throttle1
2817582调节螺钉(M5 x 35)SCREW Adjusting (M5 x 35)1
3400211不锈钢螺母(M5)NUT (M5) Stainless Steel1
4196632点火提前杆LEVER Spark Advance1
419663T02杠杆LEVER1
5814776调节螺钉(M6 x 55)SCREW Adjusting (M6 x 55)2
6400212螺母(M6)不锈钢NUT (M6) Stainless Steel2
742942盖帽CAP2
842986螺柱STUD1
990517螺母(M10)NUT (M10)1
10812930A1衬套BUSHING1
1142980垫圈WASHER1
1255162弹簧SPRING1
1342927嵌件INSERT1
1435459垫圈WASHER1
15401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
1642918杆ROD1
16878172点火提前杆ROD Spark Advance1
1793254旋转底座SWIVEL BASE2
1893421旋转球头SWIVEL BALL2
19812871杆 油门ROD Throttle1
20932481衬套BUSHING2
208M0215006旋转衬套BUSHING Swivel2
2142984螺柱STUD1
218161949双头螺柱(M6 x 44)STUD (M6 x 44)1
228128852节气门凸轮CAM Throttle1
2365567不锈钢垫圈(0.265x0.750x0.048)WASHER (.265 x .750 x .048) Stainless Steel1
24401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
25817702弹簧SPRING1
264007180螺丝(M10 x 45)SCREW (M10 x 45)1
图 156舵柄手柄 Tiller Handle
舵柄手柄 Tiller Handle
REF零件编号中文名称英文名称数量
1822148A7盖板套件COVER KIT1
2822150滑轮PULLEY1
3NSS不单独销售外壳NOT SOLD SEPARATE Case1
4812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
4878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
54324212电缆总成 油门 (28.50英寸)CABLE ASSEMBLY Throttle (28.50 Inches)1
64324213电缆总成 油门 (30.00英寸)CABLE ASSEMBLY Throttle (30.00 Inches)1
7960099套管(12.00英寸)SLEEVE (12.00 Inches)1
882526225螺钉 (M8 x 25毫米)SCREW (M8 x 25 mm)2
9822407F1盖板COVER1
98M0072298盖板COVER1
9822407F2盖板COVER1
10821477衬套（内径1.485-1.475）BUSHING 1.485-1.475 Inside Diameter1
11828813F1臂ARM1
11828813T1转向手柄臂ARM Steering Handle1
11828813F2转向手柄臂ARM Steering Handle1
11828813T2转向手柄臂总成ARM ASSEMBLY Steering Handle1
12822441固定座RETAINER1
1340011107不锈钢螺钉(M5x16)SCREW (M5 x 16) Stainless Steel1
144000330螺钉(M6x25)SCREW (M6 x 25)1
148M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS1
15821971节气门锁LOCK Throttle1
15892995节气门锁LOCK Throttle1
1696203弹簧SPRING1
17821972节气门旋钮KNOB Throttle1
17821972T节气门旋钮KNOB Throttle1
18821463A2舵柄管TILLER TUBE1
188M0138696舵柄管TILLER TUBE1
198242001贴花DECAL1
198242004贴花DECAL1
20821465节气门手柄HANDLE Throttle1
2199589握把GRIP1
218M0221732外握把GRIP OUTER1
22823609A13开关总成SWITCH ASSEMBLY1
228M0104614停止开关SWITCH Stop1
23824848110螺钉(M10 x 110)SCREW (M10 x 110)2
24816669F1锁紧垫圈TAB WASHER1
248M0009820锁紧垫圈TAB WASHER1
25823687卡扣CLIP1
26828569隔套SPACER1
27821455A4舵柄支架BRACKET Tiller1
27821455A5舵柄支架BRACKET Tiller1
27821455A4舵柄支架BRACKET Tiller1
28826792波形垫圈WAVE WASHER1
29821477衬套（内径1.485-1.475）BUSHING 1.485-1.475 Inside Diameter1
30827314垫圈WASHER1
3111083A15开关SWITCH1
3111083A31停止开关SWITCH Stop1
32120441黄铜固定座RETAINER Brass1
328M0032846黄铜固定座RETAINER Brass1
3315920A54拉绳总成LANYARD ASSEMBLY1
3315920Q54拉绳总成LANYARD ASSEMBLY1
图 157专用工具 Tools Special
专用工具 Tools Special
REF零件编号中文名称英文名称数量
-36392化油器量具GAUGE TOOL Carburetor1
-89045适配器ADAPTER1
-890451直流电压适配工具ADAPTER TOOL Direct Voltage1
-52344飞轮固定器工具(齿型)FLYWHEEL HOLDER TOOL Teeth Type1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-99750A1万用表MULTI METER1
-52024A1开关总成SWITCH ASSEMBLY1
-59339维修用转速表SERVICE TACHOMETER1
-892647A01DMT万用表套件MULTI-METER KIT DMT1
-850439T1八腔测试仪TESTER Eight Chamber1
-63998A1单腔间隙工具GAP TOOL Single Chamber1
-850439火花测试器SPARK TESTER1
-850439T1八腔测试仪TESTER Eight Chamber1
-99379正时灯TIMING LIGHT1
-825207A1TPI/CDM测试线束总成HARNESS ASSEMBLY TPI/CDM Test1
-NSS夹头(不单独销售)(SNAP ON - CG41-14)NOT SOLD SEPARATE Collet (SNAP ON - CG41-14)1
-NSS膨胀杆(不单独销售)(SNAP ON - CG41-11)NOT SOLD SEPARATE Expanding Rod (SNAP ON - CG41-11)1
-822778A3下压力套件DOWN PRESSURE KIT1
-99750A1万用表MULTI METER1
-74951扳手SPANNER WRENCH1
-63209加热灯HEAT LAMP1
-29287量规工具GAUGE TOOL1
-55919驱动头DRIVER HEAD1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-90455吊环LIFTING EYE1
-904551吊环LIFTING EYE1
-77109A3安装工具套件INSTALLER KIT1
-52952A1活塞销锁环拆卸工具REMOVAL TOOL Piston Pin Lock Ring1
-52952T1活塞销锁环拆卸工具REMOVAL TOOL Piston Pin Lock Ring1
-24697活塞环扩张工具EXPANDER TOOL Piston Ring1
-74607A3活塞销安装套件INSTALLER KIT Piston Pin1
-24283卡簧钳PLIERS Snap Ring1
-25821A1动力头支架工具STAND TOOL Powerhead1
-25821T1动力头支架工具STAND TOOL Powerhead1
-66274扭矩扳手(0-150磅英寸)TORQUE WRENCH (0-150 lb-in)1
-37241通用拉拔板PULLER PLATE Universal1
-78473背隙测量仪INDICATOR TOOL Backlash1
-8M0053505背隙指示工具TOOL Indicator, Backlash1
-196601背隙测量仪INDICATOR TOOL Backlash1
-817007轴承座密封安装工具INSTALLER TOOL Bearing Carrier Seal1
-817007T密封安装工具INSTALLER TOOL Seal1
-825199导向器PILOT1
-13945轴承安装工具INSTALLATION TOOL Bearing1
-14309A1轴承安装工具INSTALLATION TOOL Bearing1
-14309T02轴承安装工具INSTALLATION TOOL Bearing1
-14311A2轴承预紧工具PRE LOAD TOOL Bearing1
-14311A04预紧力工具TOOL Preload1
-83165M轴承拉拔器总成PULLER ASSEMBLY Bearing1
-83165T拉拔器总成PULLER ASSEMBLY1
-14308A1轴承座圈工具RACE TOOL Bearing1
-14308T02轴承座圈驱动器BEARING RACE DRIVER1
-31229A7轴承拉拔器套件PULLER KIT Bearing1
-24156螺母(0.625-18)NUT (.625-18)1
-15755心轴MANDREL1
-15755T滚针轴承驱动器NEEDLE BEARING DRIVER1
-36569驱动头工具DRIVE HEAD TOOL1
-36569T驱动头工具DRIVE HEAD TOOL1
-37312驱动头工具DRIVER HEAD TOOL1
-37312T传动轴轴承驱动器DRIVESHAFT BEARING DRIVER1
-37323滚针轴承导杆工具DRIVER ROD TOOL Needle Bearings1
-36571导向垫圈PILOT WASHER1
-36571T导向垫圈PILOT WASHER1
-37350导向垫圈PILOT WASHER1
-37350T导向心轴PILOT MANDREL1
-29310安装板PLATE1
-34961垫圈WASHER1
-43506轴承保持器扳手WRENCH Bearing Retainer1
-43506T轴承固定工具RETAINING TOOL Bearing1
-825200A1弹簧钩具HOOK TOOL Spring1
-83155千分表转接套件ADAPTER KIT Dial Indicator1
-8M0237356适配器套件ADAPTER KIT1
-58222A1百分表工具DIAL INDICATOR TOOL1
-13779轴承拆卸工具REMOVER TOOL Bearing1
-817009杯形驱动器DRIVER CUP1
-817009T轴承杯驱动器工具DRIVER TOOL Bearing Cup1
-817070传动轴固定工具HOLDING TOOL Driveshaft1
-825196传动轴固定工具HOLDING TOOL Driveshaft1
-817005轴承安装工具INSTALLER TOOL Bearing1
-826872轴承安装工具INSTALLER TOOL Bearing1
-817058A1轴承驱动器工具DRIVER TOOL Bearing1
-817011滚针轴承安装工具INSTALLER TOOL Needle Bearing1
-817011T滚针轴承安装工具INSTALLER TOOL Needle Bearing1
-13949油封安装工具DRIVER TOOL Oil Seal1
-31108油封安装工具DRIVER TOOL Oil Seal1
-31108T油封驱动器DRIVER Oil Seal1
-825197心轴MANDREL1
-825197T油封安装工具INSTALLER TOOL Oil Seal1
-825198心轴MANDREL1
-817008A2小齿轮定位工具LOCATION TOOL Pinion Gear1
-12349A2小齿轮定位工具LOCATION TOOL Pinion1
-12349A05小齿轮定位工具TOOL Pinion Locating1
-27780拉拔器PULLER1
-46086A1拉拔器爪头总成PULLER JAW ASSEMBLY1
-37241通用拉拔板PULLER PLATE Universal1
-34569A1滑动锤拉拔器总成PULLER ASSEMBLY Slide Hammer1
-85560推力轴承BEARING Thrust1
-66274扭矩扳手(0-150磅英寸)TORQUE WRENCH (0-150 lb-in)1
-817006水泵底座密封安装工具INSTALLER TOOL Water Pump Base Seal1
-14310A1磨损套筒安装工具INSTALLATION TOOL Wear Sleeve1
-14310T1耐磨套驱动器WEAR SLEEVE DRIVER1
图 158顶罩 Top Cowl
顶罩 Top Cowl
REF零件编号中文名称英文名称数量
1825239A13顶盖总成TOP COWL ASSEMBLY1
18M0107150罩盖-顶部, 黑色COWL-TOP, BLACK1
1825239A14顶盖总成TOP COWL ASSEMBLY1
1825239T14顶盖总成TOP COWL ASSEMBLY1
2825239A11顶盖总成TOP COWL ASSEMBLY1
2825239T11顶盖总成TOP COWL ASSEMBLY1
2825239A12顶盖总成TOP COWL ASSEMBLY1
2825239T12顶盖总成TOP COWL ASSEMBLY1
3813549F3支架 罩盖支撑BRACKET Cowl Support1
38M0041044支架BRACKET1
4828433垫片 支架SPACER Bracket1
4828433T隔套SPACER1
583208630螺钉SCREW3
6400632螺母NUT3
718173锁扣滚轮支架总成BRACKET ASSEMBLY Latch Roller1
7893763滚轮锁扣支架BRACKET Roller Latch1
84006731螺钉(M6 x 16)SCREW (M6 x 16)2
98135462支架MOUNT3
9813546003支架MOUNT3
1047341A1手动/应急启动绳柄套件ROPE AND HANDLE KIT Manual/Emergency Start1
1047341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
11828468支架 罩盖支撑-前部BRACKET Cowl Support - Front1
118M0041646支架BRACKET1
12828503锁扣保持器LATCH KEEPER1
1383208616螺钉SCREW3
14400632螺母NUT1
15828178导管 进气口DUCT Air Inlet1
158M0038217导管-进气口DUCT-AIR INLET1
16NSS不单独销售 进气插入件NOT SOLD SEPARATE Induction Insert1
17F2317螺钉(.250-20 x .875)SCREW (.250-20 x .875)2
18831905密封件SEAL1
188M0043404密封件SEAL1
19813504A1油位表套件GAUGE KIT Oil Level1
20813505护孔环GROMMET1
21113171固定座RETAINER1
22113161螺母NUT1
2265110螺母NUT1
23828180A1隔音套件(全套)SOUND BLANKET KIT (ALL)1
23828180A02隔音毯套装(预涂压敏胶)SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)1
24NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
25NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
26NSS胶带(不单独销售)NOT SOLD SEPARATE Tape1
27NSS不单独出售 信封袋NOT SOLD SEPARATE Envelope1
2882409316前进-空档-倒档换挡贴纸DECAL F-N-R Shift1
298555778EPA标签贴花(顶罩进气管)DECAL EPA Label Information (TOP COWL INLET DUCT)1
29855577A8REF SOB 09-18REF SOB 09-181
图 159升降开关套件 Trim Switch Kit
升降开关套件 Trim Switch Kit
REF零件编号中文名称英文名称数量
-18286A18升降开关套件(10.00英尺)SWITCH KIT Trim (10.00 Feet)1
118861固定座RETAINER1
2814820适配器ADAPTER1
3NSS开关(不单独销售)NOT SOLD SEPARATE Switch1
479091保险丝20安培FUSE 20 Ampere1
48M0207796保险丝20安培FUSE 20 AMP1
595084A2拉线总成CABLE ASSEMBLY1
611149A2线缆总成 (6.00英寸)CABLE ASSEMBLY (6.00 Inches)2
719209螺钉(#10-32 x 2.25)SCREW (#10-32 x 2.25)2
7813523螺钉(#10-16 x 2.25)SCREW (#10-16 x 2.25)2
