水星 Mercury 45, 450 4 CYL 8063985 THRU 0B110788 - 爆炸图零件明细

两冲程化油器 · Cat.# 90-13287 · 共 78 个部位 · 3193 条零件

1自动混合装置 2化油器总成(WALBRO)3端盖与排气罩 4电气组件 5动力升降油缸修理包(电动手柄)6夹紧支架总成(非动力升降)7齿轮箱螺旋桨轴 8动力升降泵(Eaton矩形电机)9端盖与排气罩 10飞轮/点火线圈与开关盒 11排气板与换挡联动机构 12外罩 13安装五金件(电动手柄)14化油器总成(TILLOTSON)15化油器总成 16杂项零件/附件 17燃油泵 18液压泵总成(电动手柄)19外罩 20下罩壳及支撑支架 21旋转支架与转向臂 22转向手柄总成 23气缸体与曲轴箱总成 24齿轮箱（驱动轴）25夹具支架总成 26油门控制联动机构 27自动混合器 28启动电机总成 29启动器回绕装置 30化油器联动机构/阻风门电磁阀 31杂项零件/附件 32动力升降组件(电动手柄)33驱动轴壳体总成 34气缸体与曲轴箱总成 35转向手柄总成 36旋转支架与倒车锁(非动力升降)37曲轴/活塞及连杆 38化油器联动机构/阻风门电磁阀 39驱动轴外壳总成 40下罩壳及支撑支架 41齿轮箱(螺旋桨轴)42电气组件 43升降油缸与软管(电动手柄)44启动器回绕组件 45动力升降倾斜组件 46艉板支架(动力升降)47齿轮箱（驱动轴）48排气板与换挡联动机构 49自动混合器 50下罩壳及支撑支架 51化油器总成(TILLOTSON)52化油器总成(WALBRO)53化油器联动机构/阻风门电磁阀 54夹具支架总成 55外罩 56曲轴/活塞及连杆 57气缸体与曲轴箱总成 58驱动轴外壳总成 59电气组件 60端盖与排气罩 61排气板与换挡联动机构 62飞轮、点火线圈和开关盒 63齿轮箱（驱动轴）64齿轮箱(螺旋桨轴)65液压泵总成(金属油箱)66液压泵总成(塑料油箱)67杂项零件/附件 68动力升降组件(无断路器和保险丝)69动力升降组件(含断路器与保险丝)70动力升降油缸修理包(76509A3和76509A23)71动力升降油缸修理包(92194A14和92194A20)72螺旋桨(右旋)73启动电机总成 74启动器回绕装置 75转向手柄总成 76旋转支架与倒车锁 77油门控制联动机构 78升降油缸及液压软管

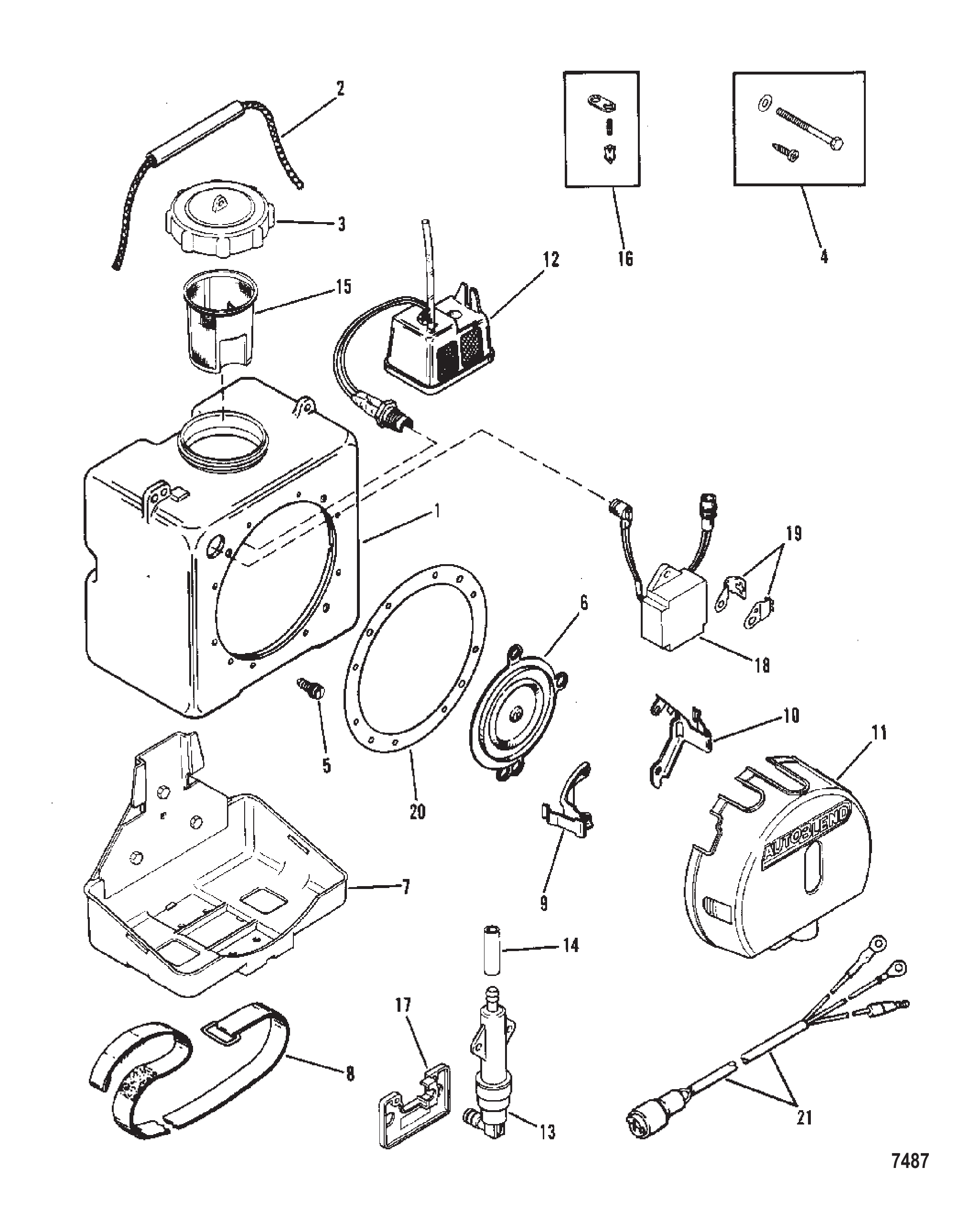

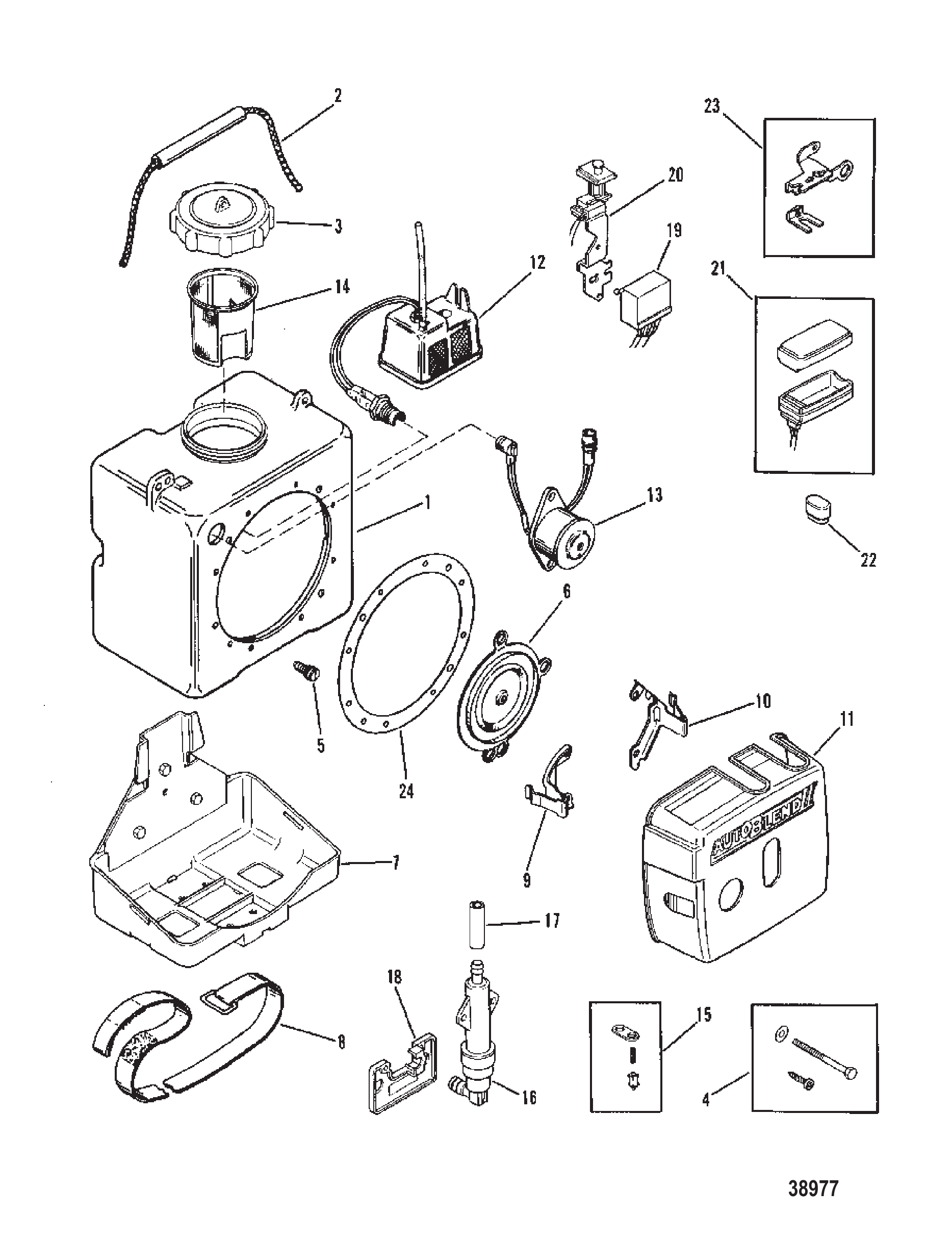

图 1自动混合装置 Auto-Blend

REF	零件编号	中文名称	英文名称	数量
-	130194	自动混合装置	AUTO BLEND ASSEMBLY	1
1	16612	油箱套件机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	16619		CAP Oil Tank	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	16620	安装支架套件	BRACKET KIT Mounting	1
8	13993	箍带	BAND	1
9	13983	左支架	BRACKET Left	1
10	13984	右支架	BRACKET Right	1
11	16613	盖板	COVER	1
12	13985	机油滤清器/传感器套件	FILTER/SENSOR KIT Oil	1
13	18576	燃油滤清器套件	FILTER KIT Fuel	1
14	13992	乙烯基软管	VINYL TUBE	1
15	16618	机油滤网	STRAINER Oil	1
16	16615	止回阀套件	CHECK VALVE KIT	1
17	16621	安装板	PLATE	1
18	19265	模块套件	MODULE KIT	1
19	16623	支架套件	BRACKET KIT	1
20	16616	衬垫套件	GASKET KIT	1
21	14585A1	自动混合线束总成	HARNESS ASSEMBLY Auto Blend	1

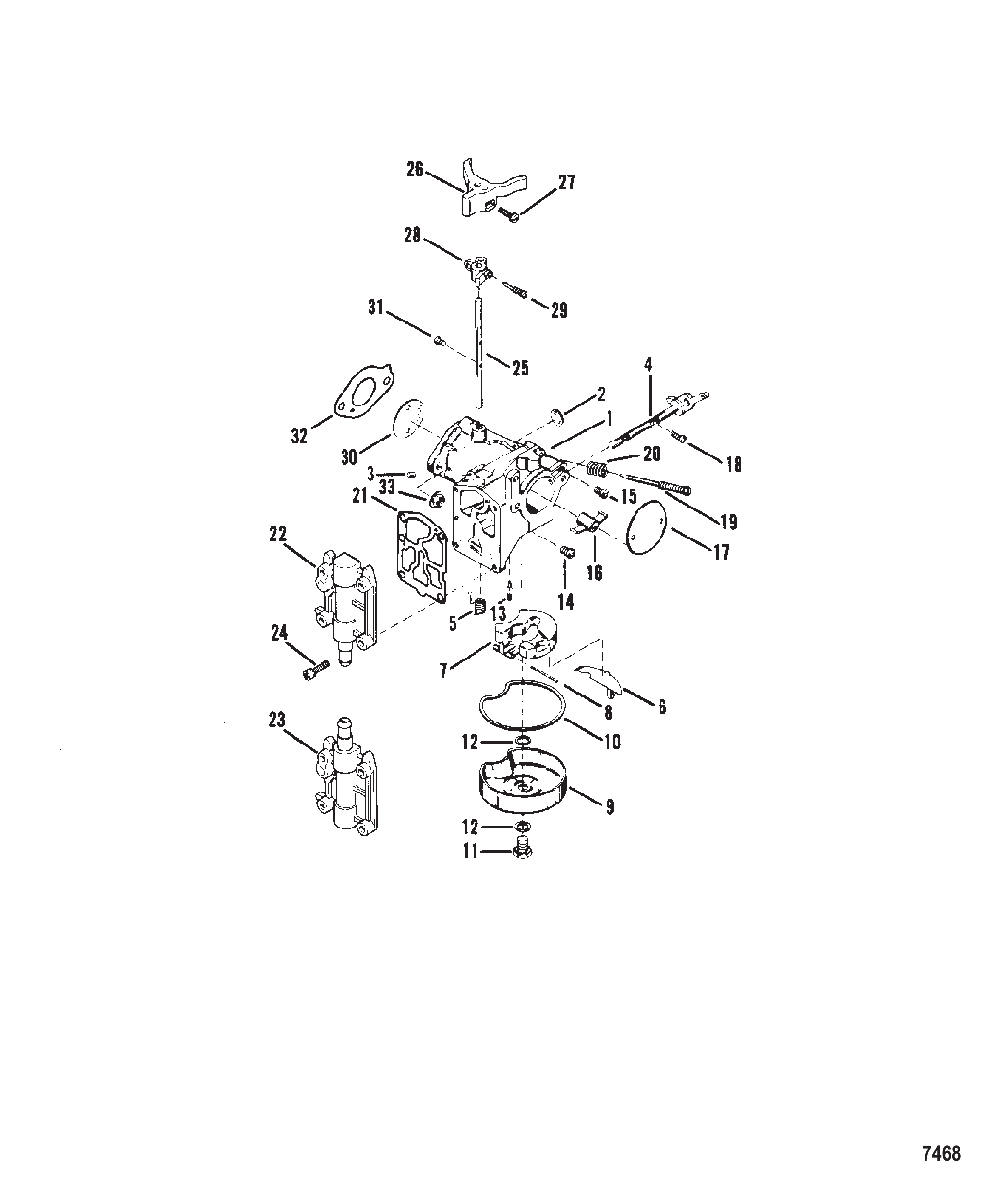

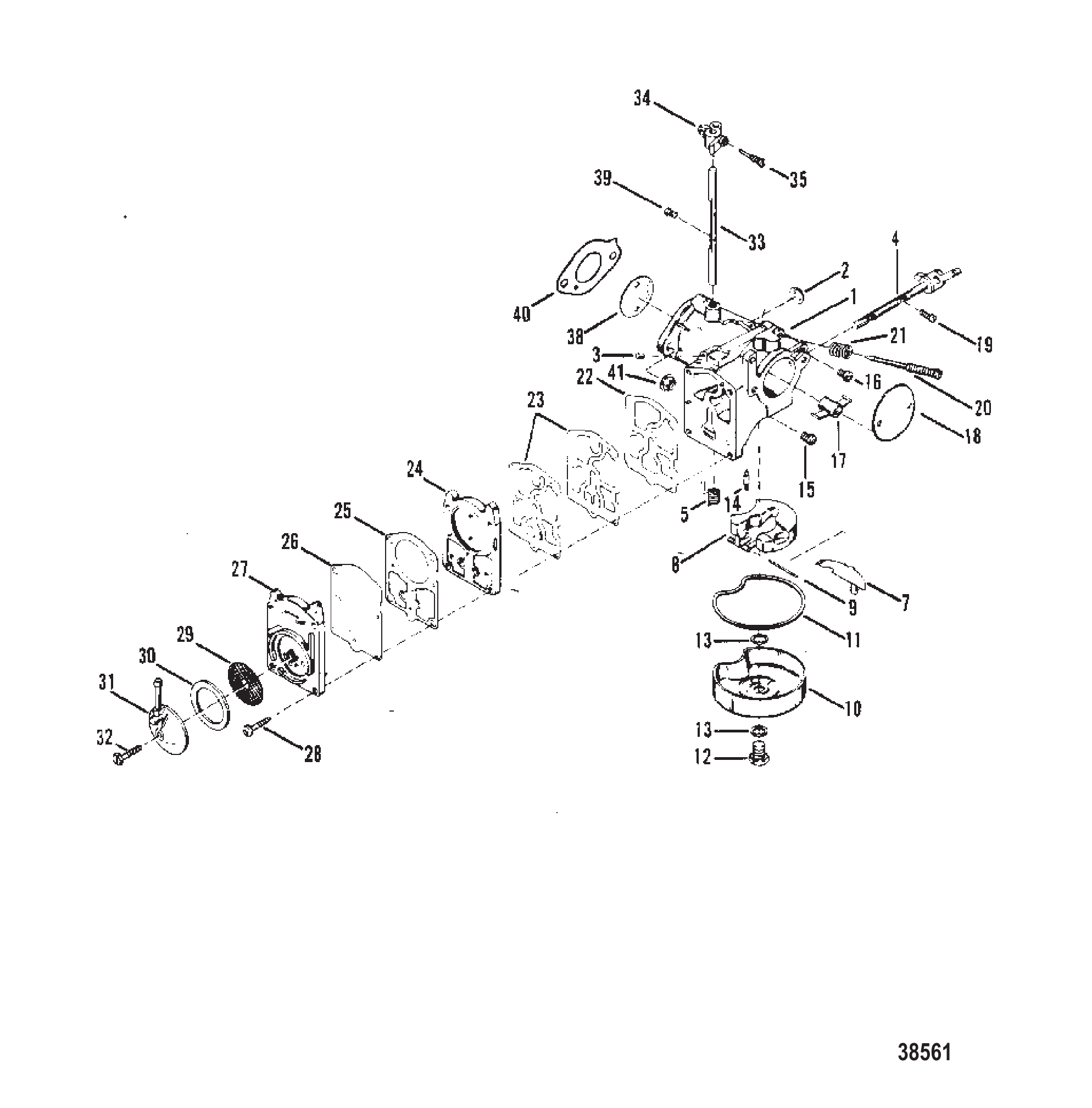

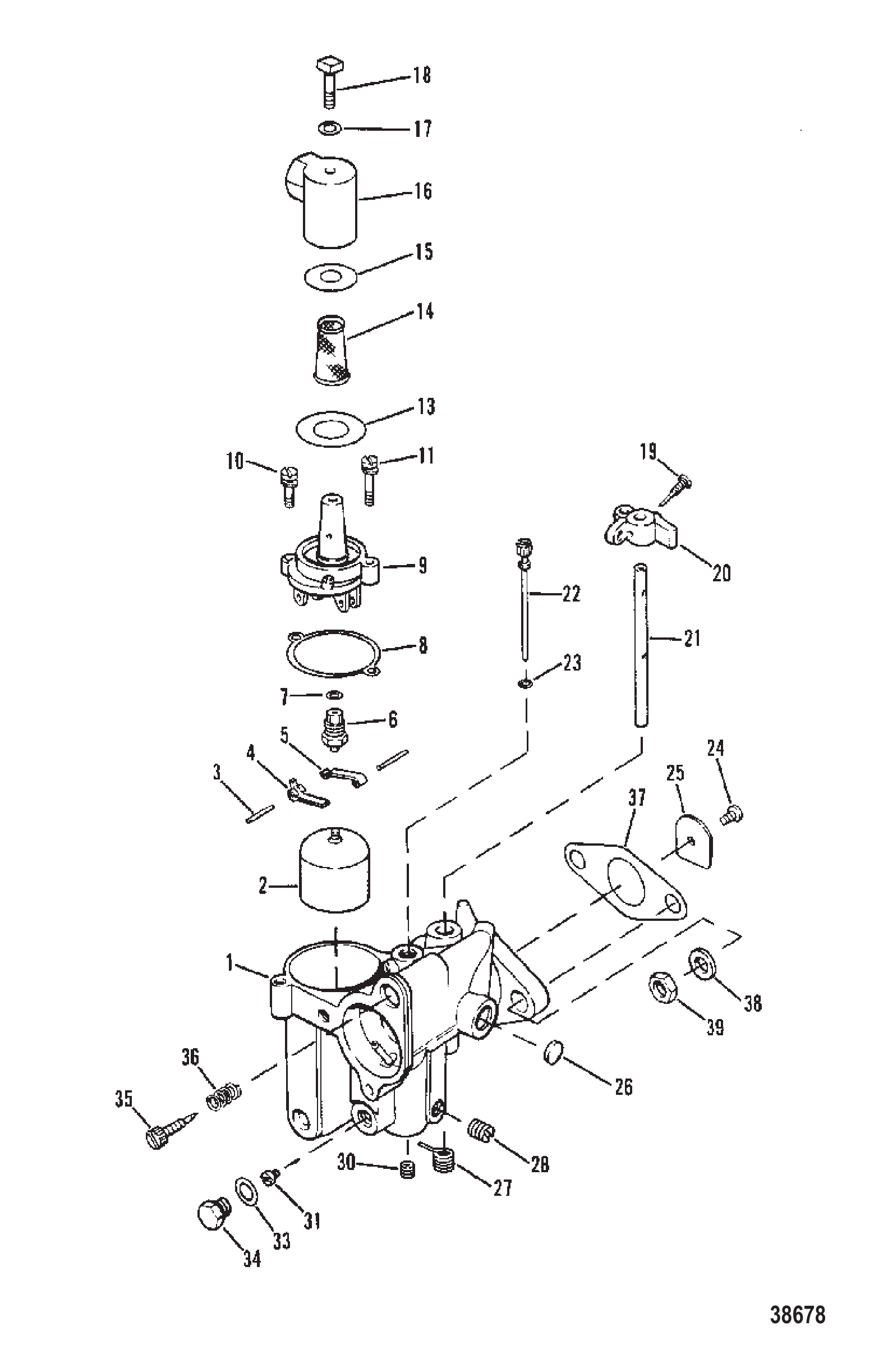

图 2化油器总成(WALBRO) CARBURETOR ASSEMBLY (WALBRO)

REF	零件编号	中文名称	英文名称	数量
1	8740A1	化油器总成	CARBURETOR COMPLETE	1
2	8983	浮子总成	FLOAT ASSEMBLY	1
2	8673	浮子总成	FLOAT ASSEMBLY	1
3	NSS	不单独销售-浮子杠杆小齿轮销	NOT SOLD SEPARATE Pin, float lever pinion	2
4	NSS	不单独销售-浮子杠杆(下)	NOT SOLD SEPARATE Lever, float (Lower)	1
5	NSS	不单独销售-浮子杠杆(上)	NOT SOLD SEPARATE Lever, float (Upper)	1
6	8318	进油针阀座及衬垫	NEEDLE Inlet SEAT AND GASKET	1
6	83181	阀座套件	VALVE SEAT KIT	1
7	NSS	不单独销售-进油阀座衬垫	NOT SOLD SEPARATE Gasket, inlet seat	1
8	NSS	不单独销售-浮子室盖衬垫	NOT SOLD SEPARATE Gasket, float bowl cover	1
9	1133	浮子室盖	COVER FLOAT BOWL	1
10	52195	浮子室盖螺钉(短)	SCREW FLOAT BOWL COVER (SHORT)	1
11	52196	浮子室盖螺钉(大)	SCREW FLOAT BOWL COVER (LARGE)	1
13	NSS	不单独销售-滤网盖衬垫(大)	NOT SOLD SEPARATE Gasket, strainer cover (Large)	1
14	3938	滤网	SCREEN FILTER	1
15	NSS	不单独销售-滤网	NOT SOLD SEPARATE Screen, filter	1
16	1135	滤网盖(90度)	COVER STRAINER (90 DEGREE)	1
17	NSS	不单独销售-滤网盖螺钉衬垫	NOT SOLD SEPARATE Gasket, strainer cover screw	1
18	25822	滤网盖螺钉	SCREW STRAINER COVER	1
19	20847	节流阀止动杆螺钉	SCREW THROTTLE STOP LEVER	1
19	6027	螺钉	SCREW	1
20	97	节流阀止动杆	LEVER THROTTLE STOP	1
20	8146791	油门杆	LEVER Throttle	1
21	1716	轴	SHAFT	1
22	NSS		NOT SOLD SEPARATE Idle Tube	1
23	NSS	不单独销售怠速管衬垫	NOT SOLD SEPARATE Gasket, idle tube	1
24	NSS		NOT SOLD SEPARATE Screw, throttle shutter	1
25	3739	节气门片	SHUTTER	1
26	NSS	不单独销售水道闷塞	NOT SOLD SEPARATE Welch Plug, body channel	1
27	NSS	不单独销售节气门轴回位弹簧	NOT SOLD SEPARATE Spring, throttle shaft return	1
28	NSS	不单独销售水道闷塞螺丝	NOT SOLD SEPARATE Screw, plug - body channel	1
30	NSS	不单独销售主喷管闷塞螺丝	NOT SOLD SEPARATE Screw, plug - main nozzle	1
31	3252	主量孔(.032)	JET (.032) MAIN FUEL	OPT
31	3251	主量孔(.034)-标准型	JET (.034) MAIN FUEL - STANDARD	1
31	3026	主量孔(.036)	JET (.036) MAIN FUEL	OPT
31	2407	主量孔(.039)	JET Main Fuel (.039) MAIN FUEL	OPT
31	1896	主量孔(.041)	JET MAIN FUEL (.041)	OPT
33	NSS	不单独销售量孔通道闷塞螺丝垫片	NOT SOLD SEPARATE Gasket, jet channel plug screw	1
34	NSS	不单独销售主量孔通道闷塞螺丝	NOT SOLD SEPARATE Screw, plug - main fuel jet channel	1
35	3740	怠速调节螺钉	SCREW IDLE ADJUSTMENT	1
36	NSS	不单独销售怠速调节螺钉弹簧	NOT SOLD SEPARATE Spring, idle adjustment screw	1
37	63309	化油器-簧片阀组衬垫	GASKET CARBURETOR TO REED BLOCK	1
38	20583	化油器安装柱垫圈	WASHER CARBURETOR MOUNTING STUD	1
39	24652	化油器安装柱螺母(.250-28)	NUT (.250-28) CARBURETOR MOUNTING STUD	2
-	1717	衬垫套件	GASKET SET	1
-	9019	维修零件包	REPAIR PARTS KIT	1

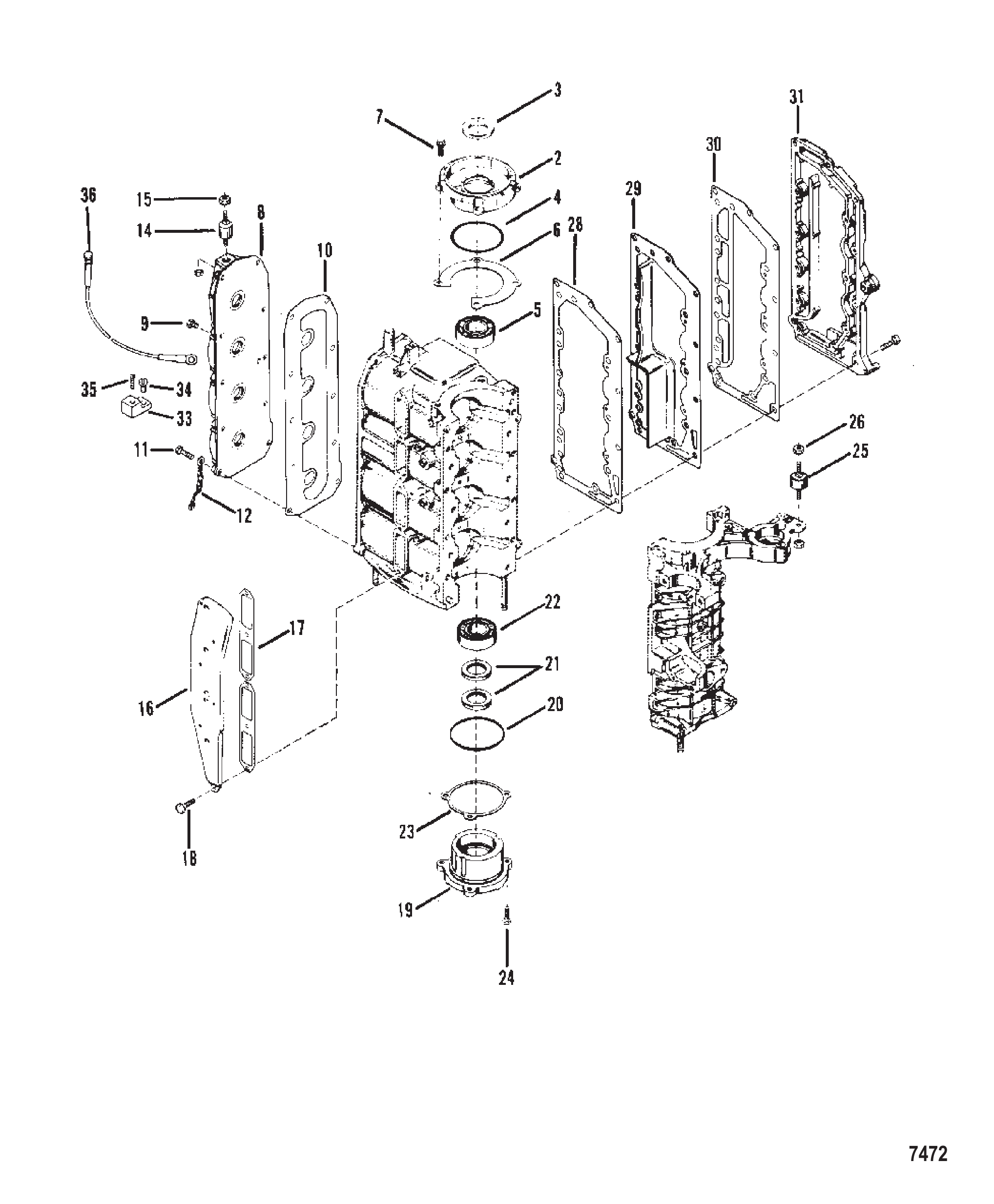

图 3端盖与排气罩 End Caps and Exhaust Cover

REF	零件编号	中文名称	英文名称	数量
2	5826A2	上端盖总成	END CAP ASSEMBLY Upper	1
3	41953		SEAL Upper End Cap	1
4	20081	上端盖O型圈	O-RING Upper End Cap	1
5	63742	上端盖滚珠轴承	BEARING Ball Upper End Cap	1
6	72538A1	上端盖垫片(.005-10)	SHIM Upper End Cap (.005-10)	AR
7	73274	上端盖螺丝(0.75英寸)	SCREW Upper End Cap (0.75 Inch)	4
8	8360A1	气缸体盖总成	COVER ASSEMBLY Cylinder Block	1
9	32802		PLUG Pipe (.125-27) Cylinder Block Cover	1
10	437772	气缸体盖衬垫	GASHET Cylinder Block Cover	1
11	69100	气缸体盖螺丝(1英寸)	SCREW Cylinder Block Cover (1 Inch)	10
12	46933A7	拉线总成	CABLE ASSEMBLY	2
14	90435	气缸体盖橡胶支座	MOUNT Rubber - Cylinder Block Cover	1
15	20184		NUT (1/4-28X7/32) Rubber Mount	2
16	18827A1	换气口盖总成	COVER ASSEMBLY Transfer Port	1
17	279361	换气口盖垫片	GASKET Transfer Port Cover	2
18	90198	换气口盖螺丝(0.625英寸)	SCREW Transfer Port Cover (0.625 Inch)	6
19	6635A1	下端盖总成	END CAP ASSEMBLY Lower	1
20	20081	下端盖O型圈	O-RING Lower End Cap	1
21	41953		SEAL Lower End Cap	2
22	63742	下端盖滚珠轴承	BEARING Ball Lower End Cap	1
23	20085A1	下端盖垫片组(.005-10)	SHIM SET Lower End Cap (.005-10)	AR
24	29256	下端盖螺丝(.312-18 x 0.875)	SCREW (.312-18 x .875) Lower End Cap	3
25	90435	曲轴箱橡胶支座	MOUNT Rubber - Crankcase	2
26	20184		NUT (1/4-28X7/32) Rubber Mount	4
28	854912	气缸体至隔板衬垫	GASKET Cylinder Block to Baffle Plate	1
29	90421	挡板 - 排气歧管	PLATE Baffle - Exhaust Manifold	1
30	854922	隔板至排气盖衬垫	GASKET Baffle Plate to Exhaust Cover	1
31	77381	排气歧管盖	COVER Exhaust Manifold	1
32	37562	不锈钢歧管盖至气缸体螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel Manifold Cover to Cylinder Block	14
32	38837	歧管盖至气缸体螺丝(.312-18 x 1.12)	SCREW (.312-18 x 1.12) Manifold Cover to Cylinder Block	1
33	45915	端子排	TERMINAL BLOCK	1
34	62568	接线端子螺丝(#10-16 x 0.375)	SCREW (#10-16 x .375) Terminal Block	1
35	28192	接线端子螺丝(#10-24 x 0.50)	SCREW (#10-24 x .50) Terminal Block	1
36	96829A1	温度开关总成260棕	SWITCH ASSEMBLY Temperature 260 Tan	1
36	16775A2	温度开关300棕绿	TEMPERATURE SWITCH 300 Tan and Green	1
-	85491A87	衬垫套件	GASKET SET	1

图 4电气组件 Electric Components

REF	零件编号	中文名称	英文名称	数量
1	95815	上盖	COVER (TOP)	1
2	95828	下盖	COVER (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1
10	95814	绑带	STRAP	1
11	95813	紧固件	FASTENER	1
12	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
13	4005727	螺钉	SCREW	2
14	45771	垫圈	WASHER	2
15	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
16	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
17	816770	整流器	RECTIFIER	1
18	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
19	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
20	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
21	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	64015	螺母 (.250-20)	NUT (.250-20)	2
24	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
25	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
25	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
26	92439	支架(旧设计)	BRACKET (OLD DESIGN)	1
27	4000327	螺钉(M6×14)(旧设计)	SCREW (M6 x 14) (OLD DESIGN)	1
28	35044	垫圈(0.281×0.625×0.065)不锈钢(旧设计)	WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)	1
29	400212	螺母(M6)不锈钢(旧设计)	NUT (M6) Stainless Steel (OLD DESIGN)	1
30	815504310	蜗轮卡箍(旧设计)	CLAMP Worm Gear (OLD DESIGN)	1
31	86704A2	定子总成	STATOR ASSEMBLY	1
32	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3

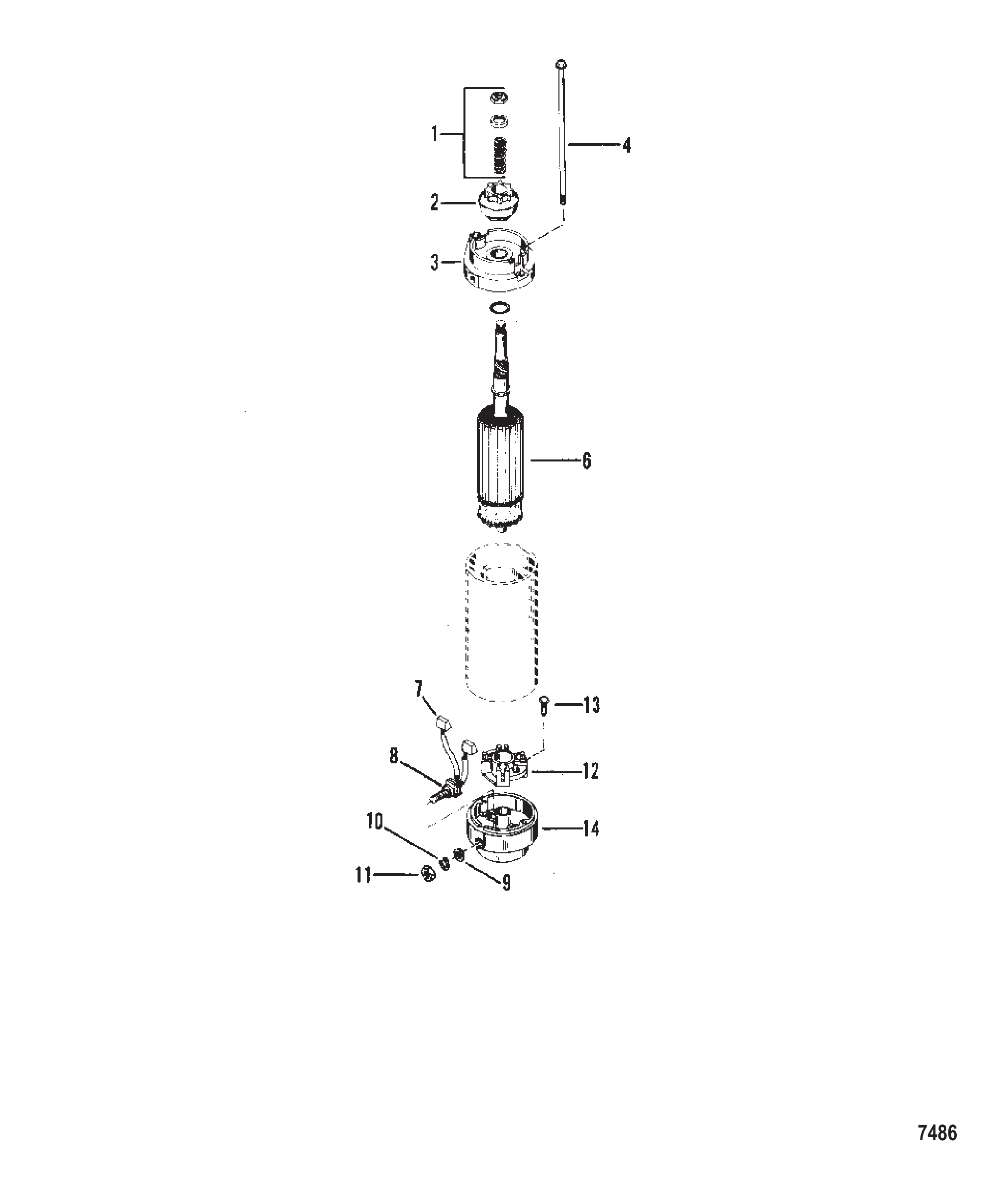

33	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
34	96561	驱动套件	DRIVE KIT	1
35	96562	驱动器	DRIVE	1
36	96563	端盖	END CAP	1
37	96565	电枢	ARMATURE	1
38	96564	端盖	END CAP	1
39	96566	贯穿螺栓	THRU BOLT	1
40	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
41	424291	固定座	RETAINER	1
42	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
43	79091	保险丝20安培	FUSE 20 Ampere	1
44	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1
45	12152	固定座	RETAINER	1
46	92753	固定座	RETAINER	1
47	55098	J型卡扣	J CLIP	1

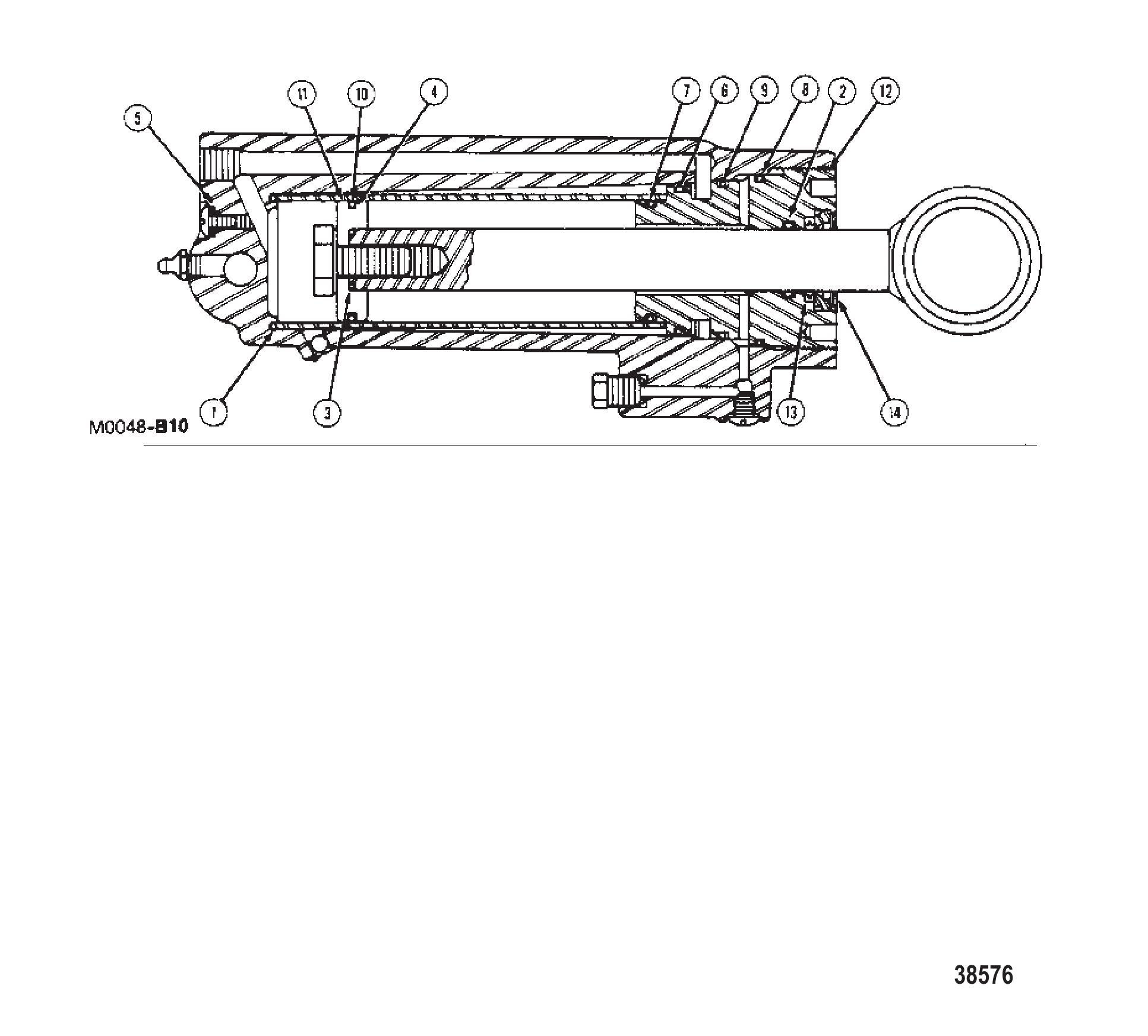

图 5动力升降油缸修理包(电动手柄) Power Trim Cylinder Repair Kits (Electric Handle)

REF	零件编号	中文名称	英文名称	数量
-	92188A2	维修套件	REPAIR KIT	1
1	N.S.S.	不单独销售	Not Sold Separate	1
2	N.S.S.	不单独销售 (1-1/4" X X1-1/2" X 1/8")	Not Sold Separate (1-1/4" X X1-1/2" X 1/8")	1
3	N.S.S.	不单独销售	Not Sold Separate	1
4	N.S.S.	不单独销售 (1-7/8 X 2-1/16 X 3/32)	Not Sold Separate (1-7/8 X 2-1/16 X 3/32)	1
5	N.S.S.	不单独销售 (3/4 X 15/16 X 3/32)	Not Sold Separate (3/4 X 15/16 X 3/32)	1
6	N.S.S.	不单独销售 (1-1/2 X 1-3/4 X 3/32)	Not Sold Separate (1-1/2 X 1-3/4 X 3/32)	1

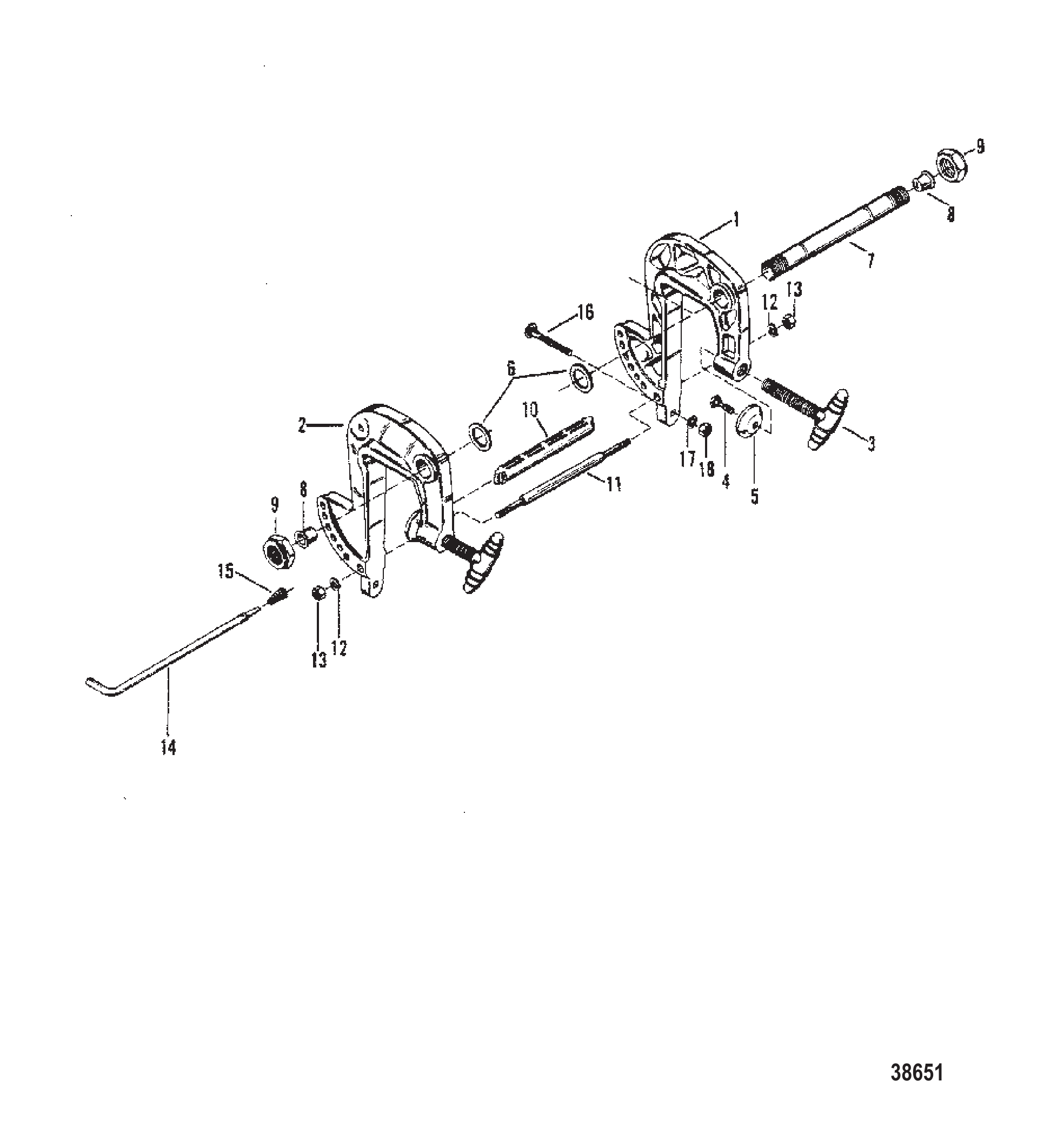

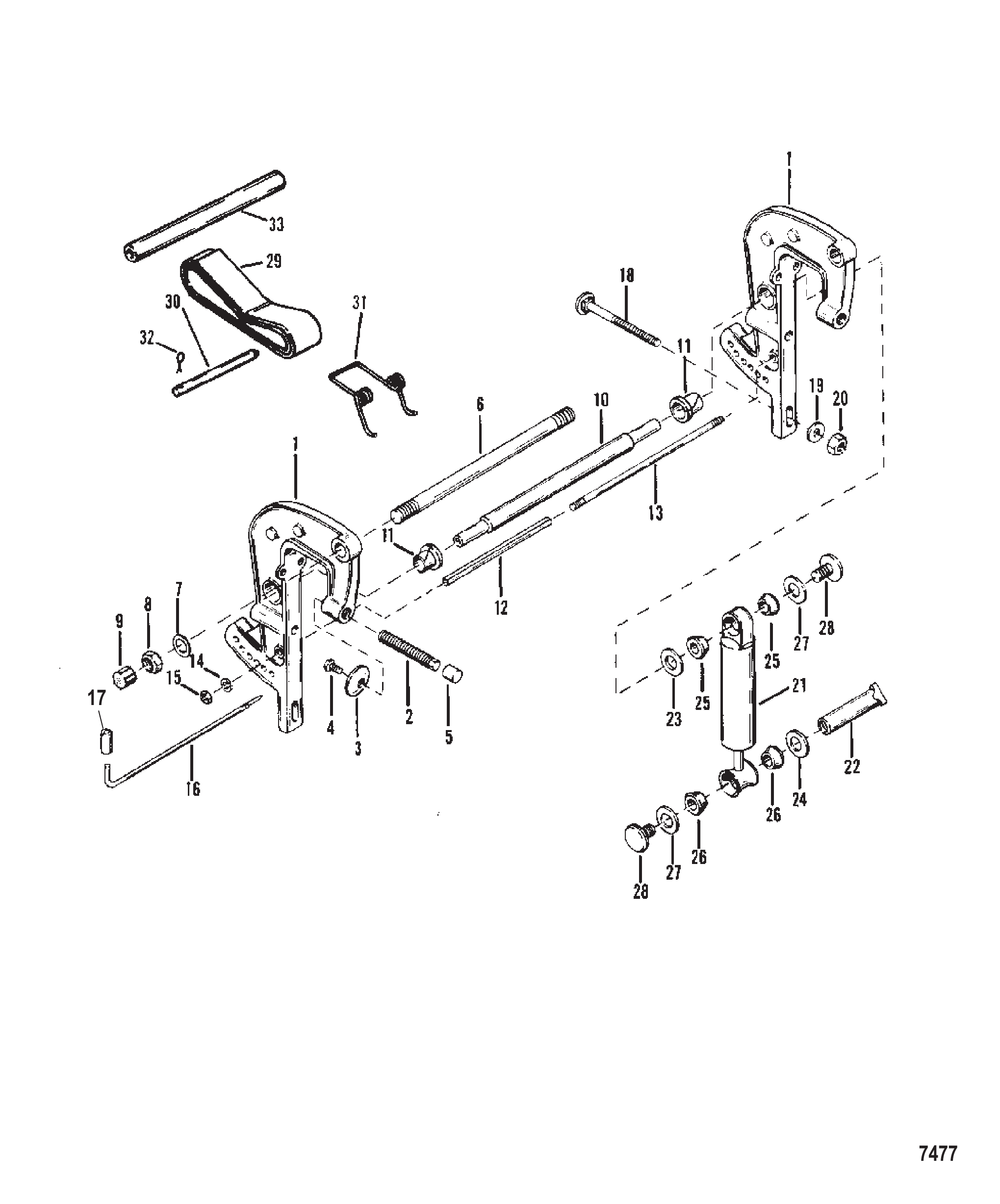

图 6夹紧支架总成(非动力升降) Clamp Bracket Assembly (Non Power Trim)

REF	零件编号	中文名称	英文名称	数量
1	8394A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
1	8394A1	黑色夹紧支架总成	CLAMP BRACKET ASSEMBLY Black	2
1	8394A3	灰色夹紧支架总成	CLAMP BRACKET ASSEMBLY Gray	2
2	90470A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
2	78492A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
3	78493		WASHER Thumb Screw	2
4	784951		SCREW Washer to Thumb Screw	2
5	75043		CAP Thumb Screw	2
6	74528	倾斜管	TILT TUBE	1
7	52864		WASHER Tilt Tube	2
8	56041		NUT (.875-14) Tilt Tube	2
9	53078		CAP Plastic - Tilt Tube	2
10	28416	上减震销	PIN Upper Shock	1
11	73203		BUSHING Clamp Bracket	2
12	59623		SPACER Clamp Bracket Stud	1
13	59625		STUD Clamp Bracket	1
14	26993		LOCKWASHER (.312) Clamp Bracket Stud	2
15	28770		NUT (.312-24) Stainless Steel Clamp Bracket Stud	2
16	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
18	68298	夹紧支架至艉板螺栓(.375-16 x 3.250)(3.25英寸)	BOLT (.375-16 x 3.250) Clamp Bracket to Tramsom (3.25 Inch)	2
19	68410		WASHER Clamp Bracket Bolt	2
18	89673	夹紧支架至艉板螺钉(.375-16 x 5.00)(5英寸)	SCREW (.375-16 x 5.00) Clamp Bracket to Transom (5 Inch)	2
19	28420		WASHER (1-1/ 4 x 25/64 x .125 SS) Clamp Bracket Bolt	2
19	68300	夹紧支架螺栓垫圈(0.88 x 0.39 x 0.06)	WASHER (..88 x .39 x .06) Clamp Bracket Bolt	2
20	99405		NUT Clamp Bracket Bolt	4
21	58780A7	黑色减震器	SHOCK ABSORBER Black	2
21	58780A4	灰色减震器	SHOCK ABSORBER Gray	2
22	696531	下减震销	PIN Lower Shock	2
23	34937	上衬套止动垫圈(内)(.766 x 1.312 x .125)	WASHER (.766 x 1.312 x .125) Upper Bushing Retainer (Inner)	2
24	59378	下衬套止动垫圈(内)	WASHER Lower Bushing Retainer (Inner)	2
25	32171	橡胶衬套-减震器(上)	BUSHING Rubber - Shock Absorber (Upper)	4
26	28198	橡胶衬套-减震器(下)	BUSHING Rubber - Shock Absorber (Lower)	4
27	69374	上下衬套垫圈(外)	WASHER Upper and Lower Bushing (Outer)	4
28	69375A1	上下减震销螺钉(.500-20 x .625)(0.625英寸)	SCREW (.500-20 x .625) Upper and Lower Shock Pin (0.625 Inch)	4
29	98876	拉带倾斜止动	STRAP Tilt Stop	1
30	98878	下减震器安装销	PIN Lower Shock Mount	1
31	98875	弹簧	SPRING	1
32	32857	开口销	COTTER PIN	1
33	98877	上减震座	SHOCK MOUNT Upper	1

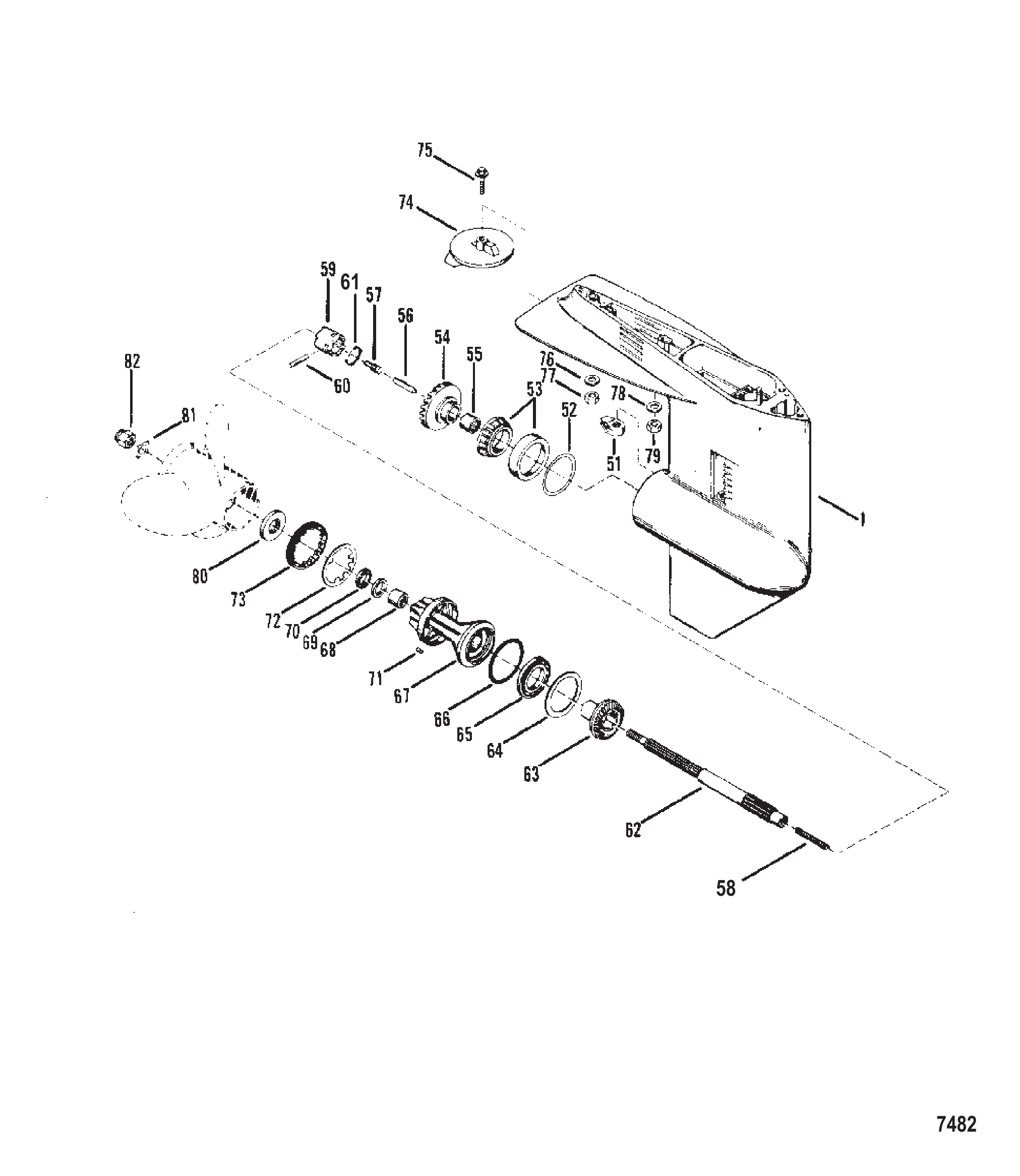

图 7齿轮箱螺旋桨轴 Gear Housing Propeller Shaft

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
51	76039	换挡凸轮控制	CAM Shift Control	1
51	760394	换挡凸轮控制	CAM Shift Control	1
52	38374A1	轴承杯与齿轮箱调整垫片组(.002-3-5-10)	SHIM SET Bearing Cup to Gear Housing (.002-3-5-10)	AR
53	38356A1	轴承套件	BEARING SET	1
54	55608A4	前进齿轮总成	GEAR ASSEMBLY Forward	1
54	55608T4	前进齿轮总成	GEAR ASSY-FORWARD	1
55	21739	前进齿轮滚柱轴承	BEARING Roller Foward Gear	1
56	38441	凸轮从动件	FOLLOWER Cam	1
57	20843	十字销滑套	SLIDE Cross Pin	1
58	38114	十字销固定弹簧	SPRING Retaining - Cross Pin	1
59	92911	滑动离合器棘轮	RATCHET Sliding Clutch	1
59	92911T	离合器	CLUTCH	1
60	38113	棘轮到螺旋桨轴十字销	PIN Cross Ratchet to Propeller Shaft	1
60	8M0020942	十字销@2	PIN-CROSS @2	1
61	39845	凸轮从动件压缩弹簧	SPRING Compression - Cam Follower	1
62	75365	螺旋桨轴	PROPELLER SHAFT	1
63	79158	倒挡齿轮	GEAR Reverse	1
63	79158T	倒挡齿轮	GEAR-REVERSE	1
64	32004	倒档齿轮止推垫片	WASHER Thrust - Reverse Gear	1
65	20839	倒档齿轮滚珠轴承	BEARING Ball Reverse Gear	1
65	20839T	滚珠轴承	BEARING Ball	1
66	31986	轴承座O型圈	O-RING Bearing Carrier	1
67	69386A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	69386T1	轴承座总成	CARRIER ASSY-BRG	1
68	21700	轴承座滚针轴承	BEARING Needle Bearing Carrier	1
69	69188	轴承座油封	SEAL Oil Bearing Carrier	1
69	8M0205511	油封	SEAL Oil	1
70	69189	轴承座油封	SEAL Oil Bearing Carrier	1
70	8M0203757	油封	SEAL Oil	1
71	30281	轴承座定位键	KEY Locating - Bearing Carrier	1
72	53012	齿轮箱盖锁紧垫片	TAB WASHER Gear Housing Cover	1
73	87763	齿轮箱螺母	NUT Gear Housing	1
74	31640A1	齿轮箱平衡片总成	TRIM TAB ASSEMBLY Gear Housing	1
74	31640Q4	平衡鳍板	TRIM TAB	1
75	66024	平衡片固定螺丝(.437-14 x 1.75)	SCREW (.437-14 x 1.75) Trim Tab to Gear Housing	1
76	45175	驱动轴壳体螺柱垫片(.406 x .750 x .104)(0.375英寸)	WASHER (.406 x .750 x .104) Driveshaft Housing Stud (0.375 Inch)	1
76	8M0214963	垫圈	WASHER	1
77	34863	驱动轴壳体螺柱螺母(.375-24)	NUT (.375-24) Driveshaft Housing Stud	1
77	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
78	65791	壳体与螺柱垫片(0.437英寸)	WASHER Housing to Stud (0.437 Inch)	1
79	34933	不锈钢螺柱螺母(.437-20)	NUT (.437-20) Stainless Steel Stud	1
79	8M0204653	螺母	NUT	1
80	73345A1	前止推垫片	THRUST WASHER Front	1
81	76281	螺旋桨螺母锁紧垫片	TAB WASHER Propeller Nut	1
81	8M0214942	锁紧垫片	WASHER Tab	1
82	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
82	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

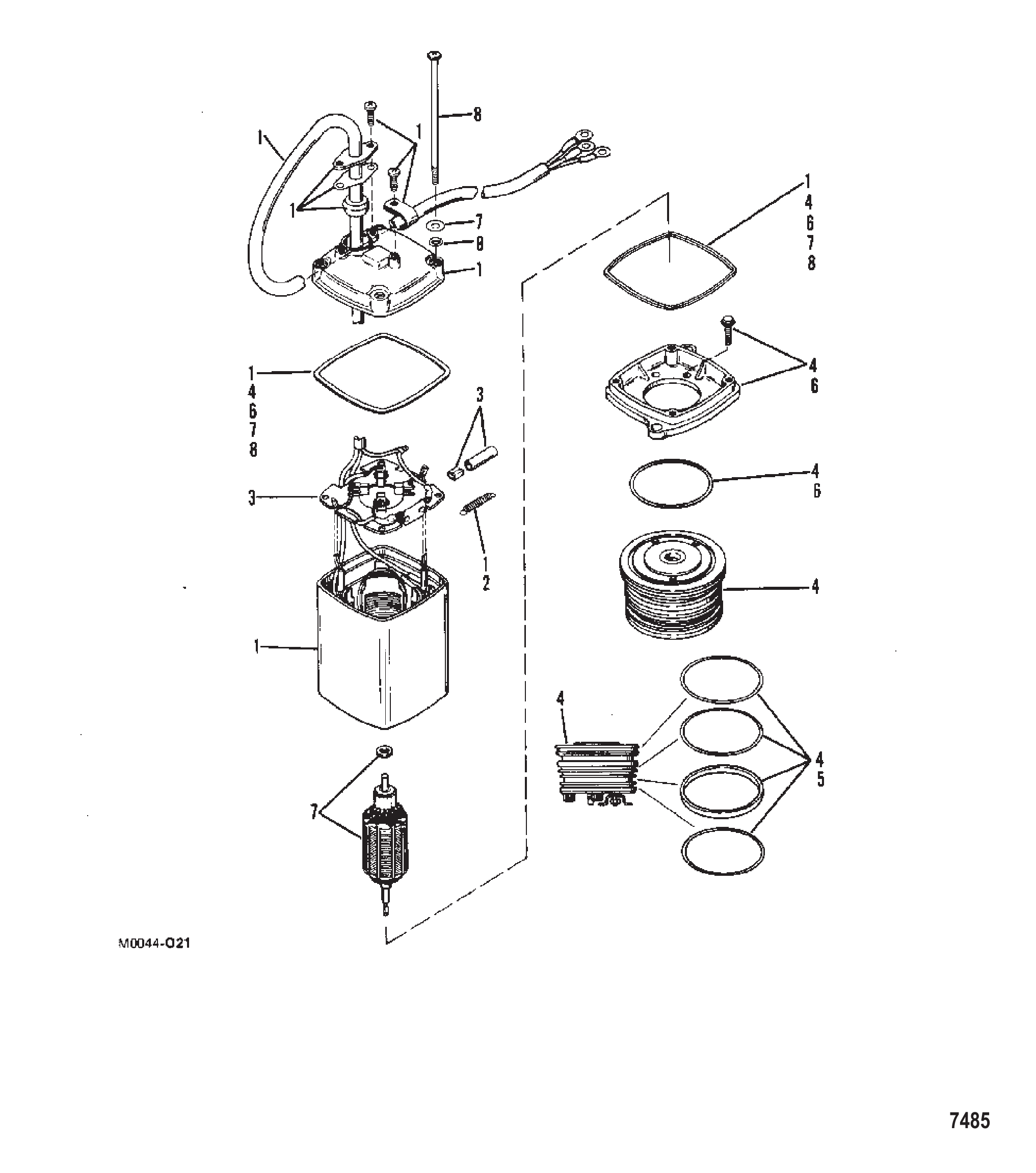

图 8动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 9端盖与排气罩 END CAPS AND EXHAUST COVER

REF	零件编号	中文名称	英文名称	数量
2	5826A2	上端盖总成	END CAP ASSEMBLY Upper	1
3	41953		SEAL Upper End Cap	1
4	20081	上端盖O型圈	O-RING Upper End Cap	1
5	63742	上端盖滚珠轴承	BEARING Ball Upper End Cap	1
5	63742T	滚珠轴承	BEARING Ball	1
6	72538A1	上端盖垫片(.005-10)	SHIM Upper End Cap (.005-10)	AR
7	73274	上端盖螺丝(0.75英寸)	SCREW Upper End Cap (0.75 Inch)	4
7	824941	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	4
8	8360A1	气缸体盖总成	COVER ASSEMBLY Cylinder Block	1
9	32802		PLUG Pipe (.125-27) Cylinder Block Cover	1
9	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
10	437772	气缸体盖衬垫	GASHET Cylinder Block Cover	1
11	69100	气缸体盖螺丝(1英寸)	SCREW Cylinder Block Cover (1 Inch)	10
11	8M0214943	螺钉	SCREW	10
12	46933A7	拉线总成	CABLE ASSEMBLY	2
14	90435	气缸体盖橡胶支座	MOUNT Rubber - Cylinder Block Cover	1
15	20184		NUT (1/4-28X7/32) Rubber Mount	2
15	8M0207775	螺母 @5	NUT @5	2
16	18827A1	换气口盖总成	COVER ASSEMBLY Transfer Port	1
17	279361	换气口盖垫片	GASKET Transfer Port Cover	2
18	90198	换气口盖螺丝(0.625英寸)	SCREW Transfer Port Cover (0.625 Inch)	6
18	20540	螺钉(.250-20 x .62)	SCREW (.250-20 x .62)	6
19	6635A1	下端盖总成	END CAP ASSEMBLY Lower	1
19	6635T1	端盖	END CAP	1
20	20081	下端盖O型圈	O-RING Lower End Cap	1
21	41953		SEAL Lower End Cap	2
22	63742	下端盖滚珠轴承	BEARING Ball Lower End Cap	1
22	63742T	滚珠轴承	BEARING Ball	1
23	20085A1	下端盖垫片组(.005-10)	SHIM SET Lower End Cap (.005-10)	AR
24	29256	下端盖螺丝(.312-18 x 0.875)	SCREW (.312-18 x .875) Lower End Cap	3
25	90435	曲轴箱橡胶支座	MOUNT Rubber - Crankcase	2
26	20184		NUT (1/4-28X7/32) Rubber Mount	4
26	8M0207775	螺母 @5	NUT @5	4
28	854912	气缸体至隔板衬垫	GASKET Cylinder Block to Baffle Plate	1
28	854913	衬垫	GASKET	1
29	90421	挡板 - 排气歧管	PLATE Baffle - Exhaust Manifold	1
29	90421T01	挡板	PLATE-BAFFLE	1
30	854922	隔板至排气盖衬垫	GASKET Baffle Plate to Exhaust Cover	1
30	854924	衬垫	GASKET	1
31	77381	排气歧管盖	COVER Exhaust Manifold	1
32	37562	不锈钢歧管盖至气缸体螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel Manifold Cover to Cylinder Block	14
32	38837	歧管盖至气缸体螺丝(.312-18 x 1.12)	SCREW (.312-18 x 1.12) Manifold Cover to Cylinder Block	1
33	45915	端子排	TERMINAL BLOCK	1
34	62568	接线端子螺丝(#10-16 x 0.375)	SCREW (#10-16 x .375) Terminal Block	1
35	28192	接线端子螺丝(#10-24 x 0.50)	SCREW (#10-24 x .50) Terminal Block	1
35	72169	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
36	96829A1	温度开关总成260棕	SWITCH ASSEMBLY Temperature 260 Tan	1
36	16775A2	温度开关300棕绿	TEMPERATURE SWITCH 300 Tan and Green	1
36	16775A1	温度开关总成	SWITCH ASSY-TEMP	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

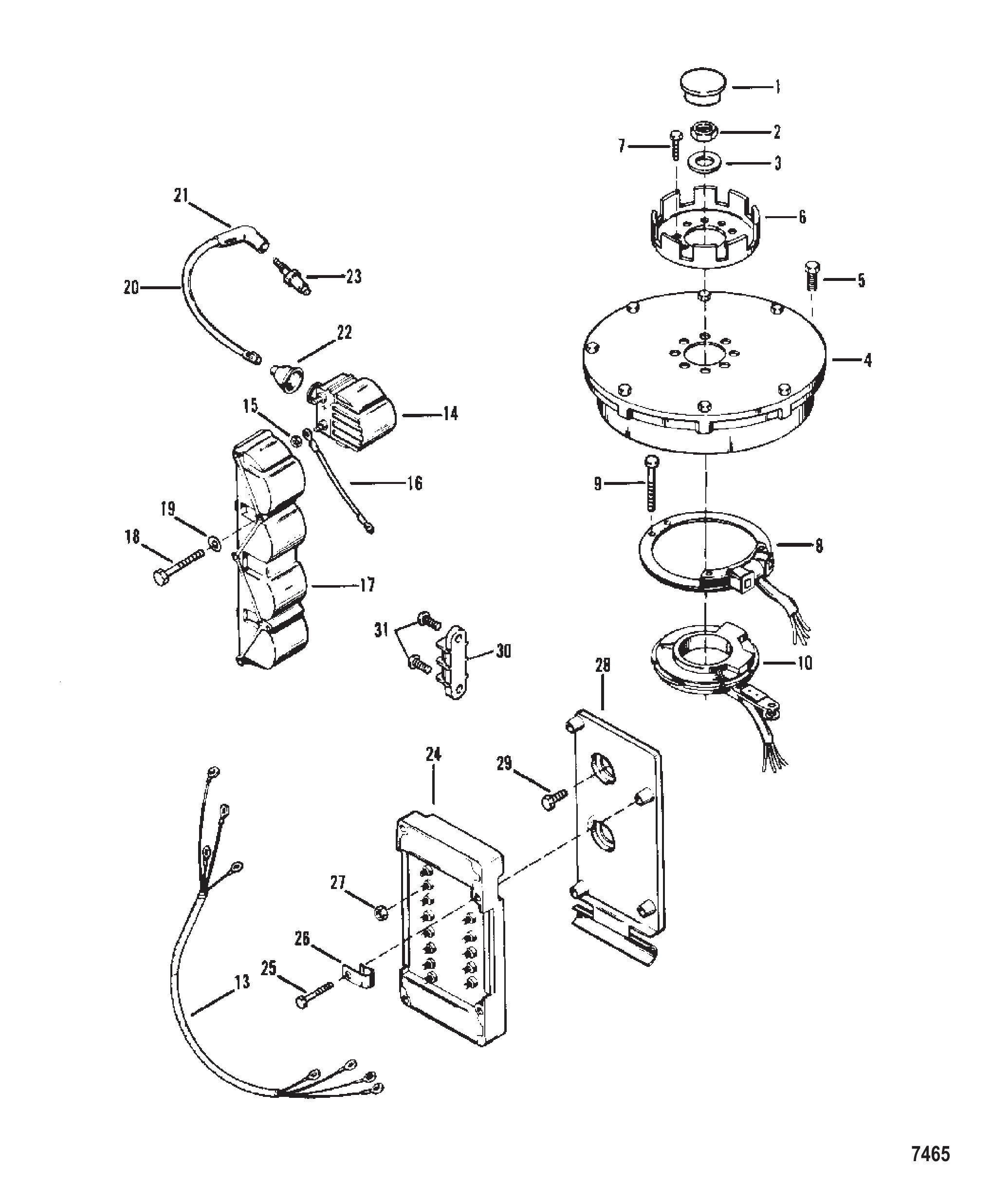

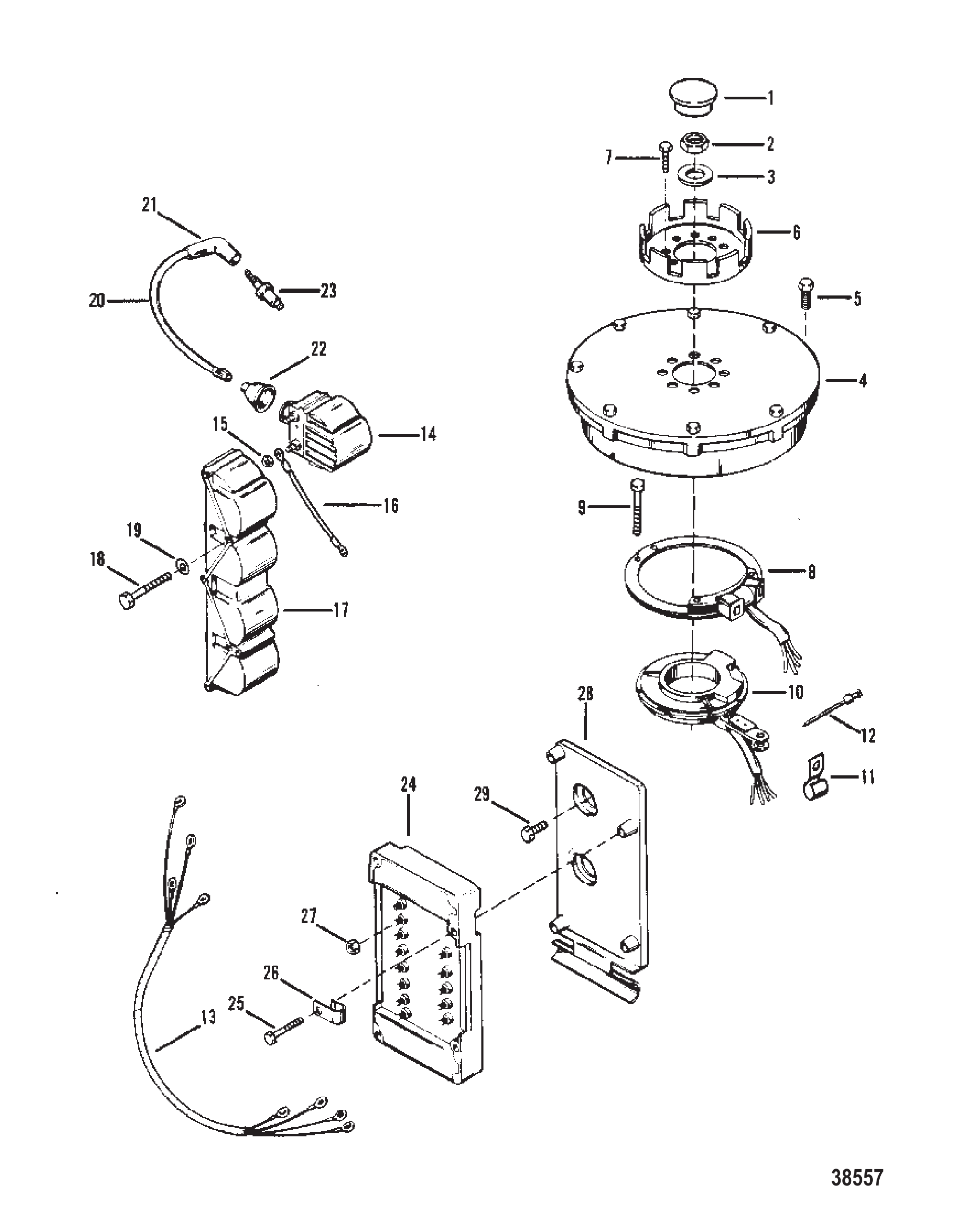

图 10飞轮/点火线圈与开关盒 Flywheel Ignition Coil and Switch Box

REF	零件编号	中文名称	英文名称	数量
1	45907		PLUG Yellow Flywheel	1
2	22339		NUT (.625-18) Flywheel	1
3	68229		WASHER (.641 x 1.250 x .190) Flywheel Nut	1
4	8722A11	飞轮总成	FLYWHEEL ASSEMBLY	1
4	8722A9	飞轮总成	FLYWHEEL ASSMEBLY	1
5	32417	螺钉 (.250-28 x .625) 柔性板至飞轮	SCREW (.250-28 x .625) Flexible Plate to Flywheel	8
6	88755	棘轮飞轮(手动)	RATCHET Flywheel (Manual)	1
7	68997	螺钉 (.312-24 x .750) 棘轮至飞轮(手动)	SCREW (.312-24 x .750) Ratchet to Flywheel (Manual)	8
8	5454A56	定子	STATOR	1
8	5454A25	定子	STATOR	1
9	75840	螺钉 (#10-24 x .880) 定子至上端盖	SCREW (#10-24 x .880) Stator to Upper End Cap	4
10	96452A4	触发器总成	TRIGGER ASSEMBLY	1
13	88721A1	线束总成开关盒至点火线圈	HARNESS ASSEMBLY Switch Box to Ignition Coil	1
14	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	4
15	45076	螺母 (#10-32) 黄铜点火线圈端子	NUT (#10-32) Brass Ignition Coil Terminals	8
16	60466A19	电缆总成线圈至开关盒	CABLE ASSEMBLY Coil to Switch Box	4
17	87554	点火线圈盖	COVER Ignition Coil	1
18	88856	螺钉 (.190-32 x 2.00) 线圈盖	SCREW (.190-32 x 2.00) Coil Cover	5
19	30164	垫圈 (.192 x .375 x .0312) 不锈钢线圈盖螺钉	WASHER (.192 x .375 x .0312) Stainless Steel Coil Cover Screw	5
20	813715A5	火花塞引线总成	LEAD ASSEMBLY Spark Plug	1
21	63709A1	护套/端子套件	BOOT/TERMINAL KIT	4
22	2854		BOOT Ignition Coil	4
23	97182	火花塞	SPARK PLUG	4
23	14103550	火花塞 (NGK-BUZHW)	SPARK PLUG (NGK-BUZHW)	4
24	5772A2	开关盒总成	SWITCHBOX ASSEMBLY	1
25	20619	螺钉 (#12-24 x 1.25) 开关盒与"J"形夹至板	SCREW (#12-24 x 1.25) Switch Box and "J" Clip to Plate	4
26	642351	J形夹开关盒引线	J CLIP Switch Box Leads	1
27	45076		NUT (#10-32) Brass Switch Box Terminals	13
28	88322	开关盒板	PLATE Switch Box	1
29	54615	螺钉 (.250-20 x .625) 开关盒板至气缸体	SCREW (.250-20 x .625) Switch Box Plate to Cylinder Block	2
30	63813	端子排	TERMINAL BLOCK	1
31	20568	螺钉 (.190-24 x .62) 接线板	SCREW (.190-24 x .62) Terminal Block	2
31	62568	接线端子螺丝(#10-16 x 0.375)	SCREW (#10-16 x .375) Terminal Block	2

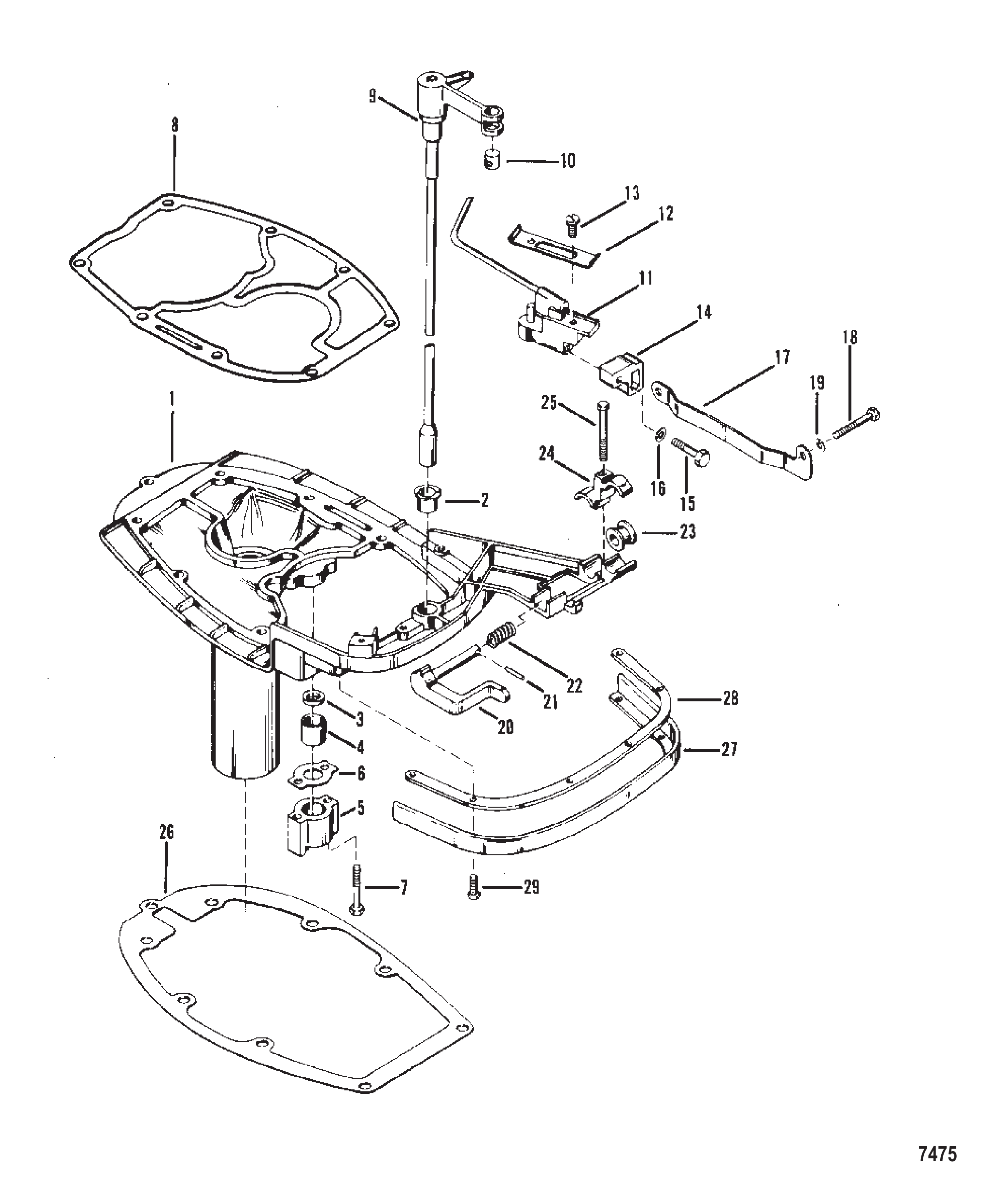

图 11排气板与换挡联动机构 EXHAUST PLATE AND SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	42819A2	排气延伸板总成	PLATE ASSEMLBY Exhaust Extension	1
2	27132	排气延伸板衬套	BUSHING Exhaust Extension Plate	1
3	38453	进水口管尼龙垫圈	WASHER Nylon - Water Inlet Tube	1
4	38452	水管橡胶密封件	SEAL Rubber - Water Tube	1
5	79799		HOUSING Water Inlet Tube Seal	1
6	797971	壳体衬垫	GASKET Housing	1
7	79798	壳体至排气板螺丝(#10-32 x 1.380)(1.375英寸)	SCREW (#10-32 x 1.380) Housing to Exhaust Plate (1.375 Inch)	2
8	796501	动力头衬垫	GASKET Powerhead	1
9	76632A3	上短换挡轴总成	SHIFT SHAFT ASSEMBLY Upper Short Shaft	1
9	76632A4	上长换挡轴总成	SHIFT SHAFT ASSEMBLY Upper Long Shaft	1
10	60572	上换挡轴尼龙套筒	BARREL Nylon - Upper Shift Shaft	1
10	8M0221994	筒形接头	BARREL FITTING	1
11	74739A3	换挡控制执行器总成	ACTUATOR ASSEMBLY Shift Control	1
12	37934	换挡拉索弹簧	SPRING Shift Cable	1
13	38069	弹簧至执行器螺丝	SCREW Spring to Actuator	1
14	37932	换挡控制执行器尼龙轴承	BEARING Nylon - Shift Control Actuator	1
15	36137	轴承至换挡控制执行器螺丝(.250-28 x 1.00)	SCREW (.250-28 x 1.00) Bearing to Shift Control Actuator	1
16	21272	轴承螺丝锁紧垫圈(.250)	LOCKWASHER (.250) Bearing Screw	1
17	37935	换挡控制轴承导轨	RAIL Shift Control Bearing	1
18	69028	不锈钢导轨至排气歧管盖螺丝(.250-28 x 0.750)	SCREW (.250-28 x .750) Stainless Steel Rail to Exhaust Manifold Cover	1
19	26992	不锈钢导轨螺丝锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel Rail Screw	1
20	59037A2	油门和换挡拉索杆	LEVER Throttle and Shift Cables	1
21	23928	快拆杆滚销	PIN Roll - Quick Disconnect Lever	2
21	239281	滚动销	PIN Roll	2
22	38005	快拆杆弹簧	SPRING Quick Disconnect Lever	2
23	37927	快拆杆尼龙衬套	BUSHING Nylon Nylon - Quick Disconnect Lever	2
24	37926	尼龙轴承保持架	RETAINER Nylon Bearing	1
25	37923	轴承保持架螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250) Bearing Retainer	1
26	385011	排气延伸板衬垫	GASKET Exhaust Extension Plate	1
27	38156	排气延伸板橡胶密封件	SEAL Rubber - Exhaust Extension Plate	1
28	99136	橡胶密封条	STRIP Rubber Seal	1
29	37571	固定条螺丝(.190-32 x 0.500)	SCREW (.190-32 x .500) Retaining Strip	6
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

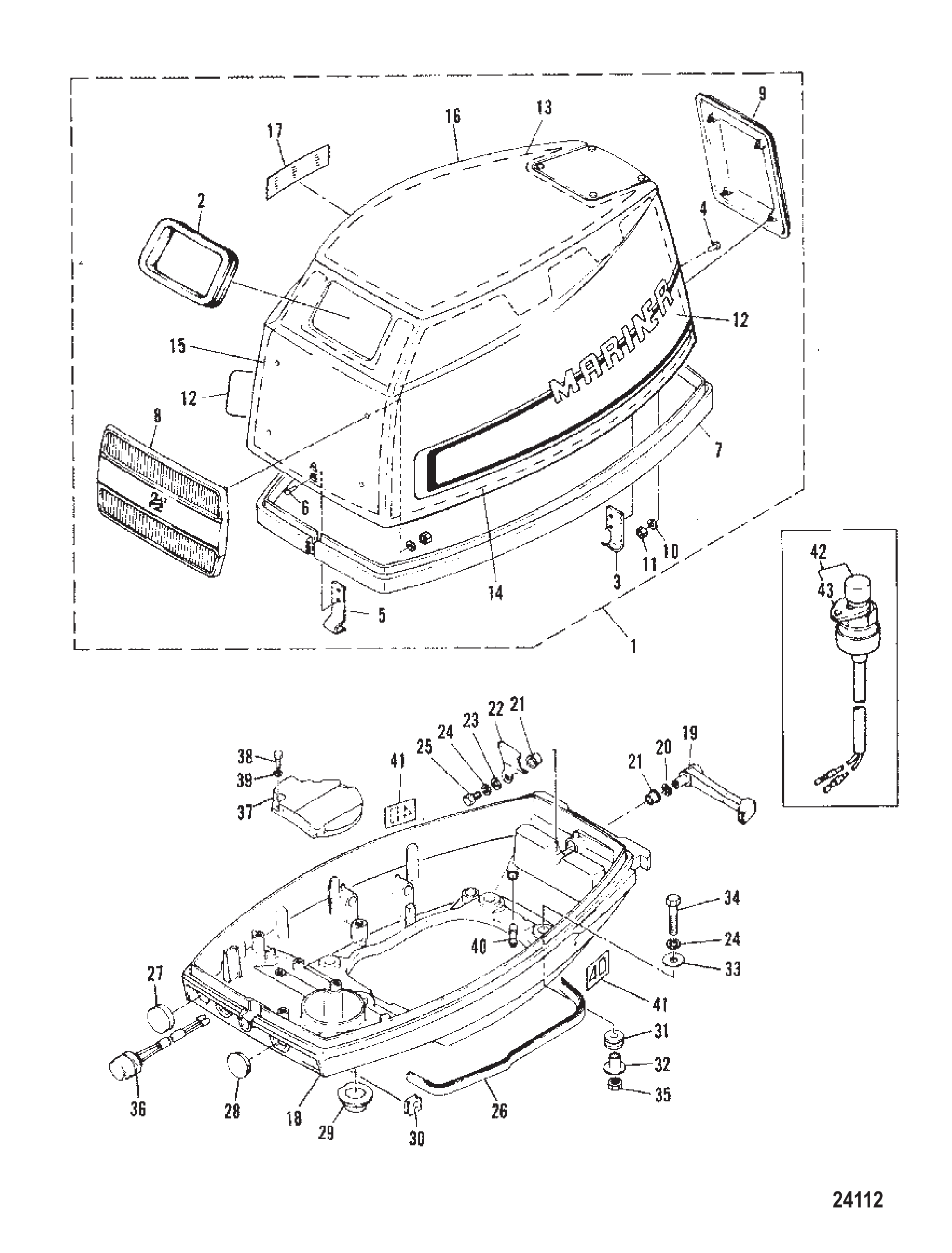

图 12外罩 Cowling

REF	零件编号	中文名称	英文名称	数量
1	7938	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7937A8	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7938F4	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7937F4	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
2	55455		HOOK Top Cowl Latch - Rear	1
3	22956		SCREW (.250-28 x .880) Rear Hook to Top Cowl	2
4	26992		LOCKWASHER (.250) Stainless Steel Rear Hook Screw	2
5	37690	顶罩后护板	SHIELD Rear - Top Cowl	1
6	48409		SCREW (#10-16 x .625) Stainless Steel Rear Shield to Top Cowl	3
7	97447A1	顶罩固定架总成	RETAINER ASSEMBLY Top Cowl	1
8	53167	顶罩固定架螺丝(.312-18 x .880)	SCREW (.312-18 x .880) Retainer to Top Cowl	1
8	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	1
9	39107	固定架螺丝锁紧垫圈(.312-24)	LOCKWASHER (.312-24) Retainer Screw	1
10	94918T	罩盖锁扣铰链杆	LEVER Cowl Latch Hinge	1
10	94918F1	杠杆	LEVER	1
11	52739T	顶罩锁扣铰链	HINGE Cowl Latch-Top Cowl	1
11	52739	铰链	HINGE	1
12	58998	罩盖锁扣杆铰链销	PIN Cowl Latch Lever to Hinge	1
13	7927A5	水星前盖板(无标贴)	FRONT COVER MERCURY Without Decal	1
13	7927A19	马琳前盖板(无标贴)	FRONT COVER MARINER Without Decal	1
14	56849	前盖板旋钮	KNOB Cowl Front Cover	1
15	30771	盖板旋钮垫圈	WASHER Cover Knob	1
16	59572	盖板旋钮垫圈	WASHER Cover Knob	2
17	30772	盖板旋钮张力弹簧	SPRING Tension - Cover Knob	1
18	29077	旋钮张力弹簧销	PIN Roll Tension Spring to Knob	1
19	38674	隔音毯	BLANKET Sound	1
20	94923	隔音垫	PAD Sound	2
21	3247A3	水星环绕式顶罩总成(无标贴)	TOP COWL ASSEMBLY Wrap Around - Mercury Without Decal	1
21	8181A4	马琳环绕式顶罩总成(无标贴)	TOP COWL ASSEMBLY Wrap Around - Mariner Without Decal	1
22	46785A1	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
23	30413	罩盖锁钩	HOOK Cowl Latch	2

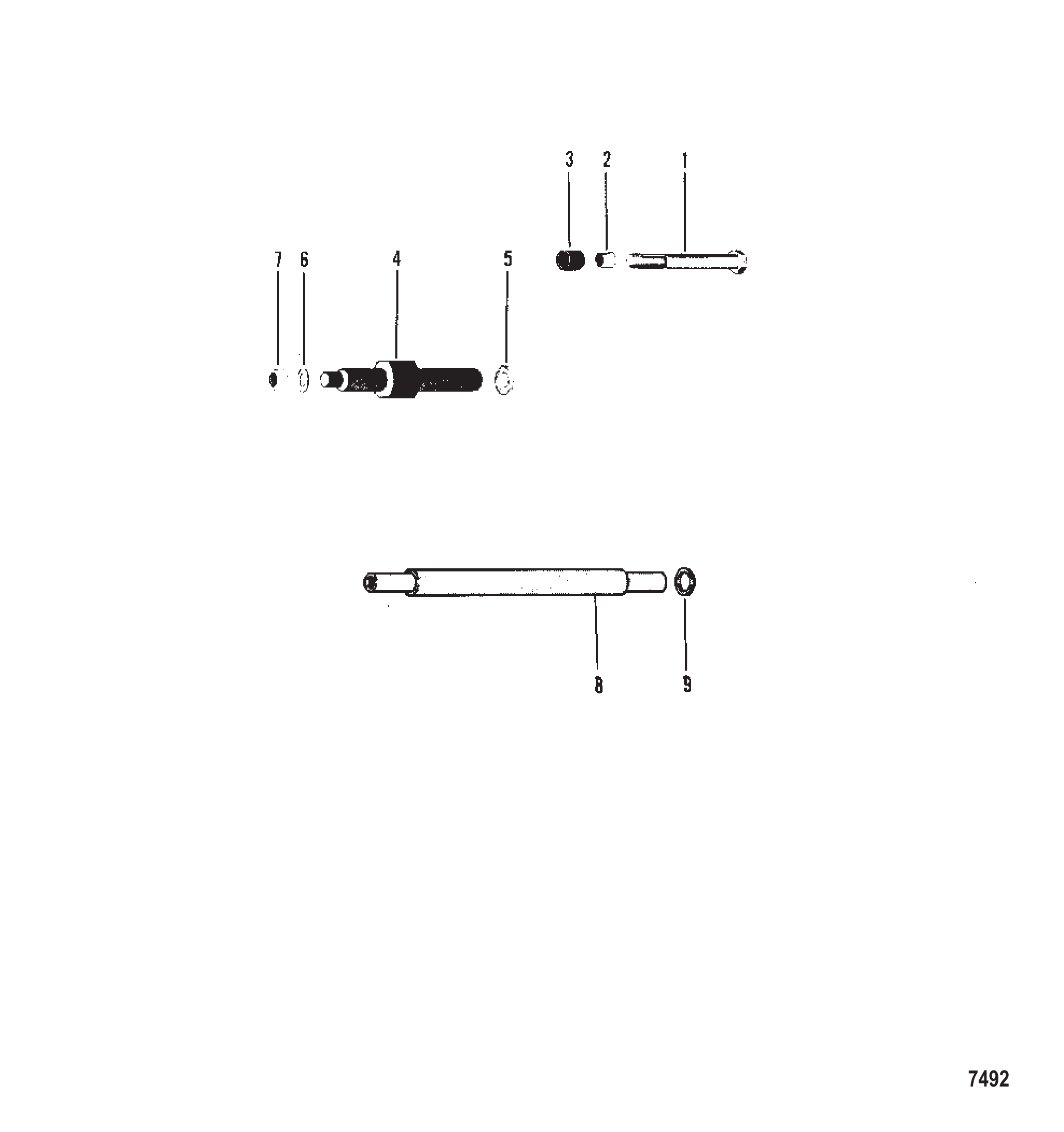

图 13安装五金件(电动手柄) Mounting Hardware (Electric Handle)

REF	零件编号	中文名称	英文名称	数量
1	62882	螺钉 (.500-20 x 3.250) 支架至减震销	SCREW (.500-20 x 3.250) Bracket to Shock Pin	2
2	62885		SPACER Mounting Bracket Screw	2
2	89952		SPACER Mounting Bracket Screw	2
3	62884		SPACER Mounting Bracket Screw	2
4	62887		PIN Trim Cylinders to Swivel Bracket	2
5	63099		WASHER (1.50 x .766 x .125) Trim Cylinder Pin	2
6	54012		WASHER (.530 x .870 x .105) Stainless Steel Trim Cylinder Pin	2
7	35778		NUT (.500-20) Trim Cylinder Pin	2
8	28416	上减震安装销	PIN Upper Shock Mounting	1
9	34937	垫圈 (.766 x 1.312 x .125) 减震销	WASHER (.766 x 1.312 x .125) Shock Pin	2

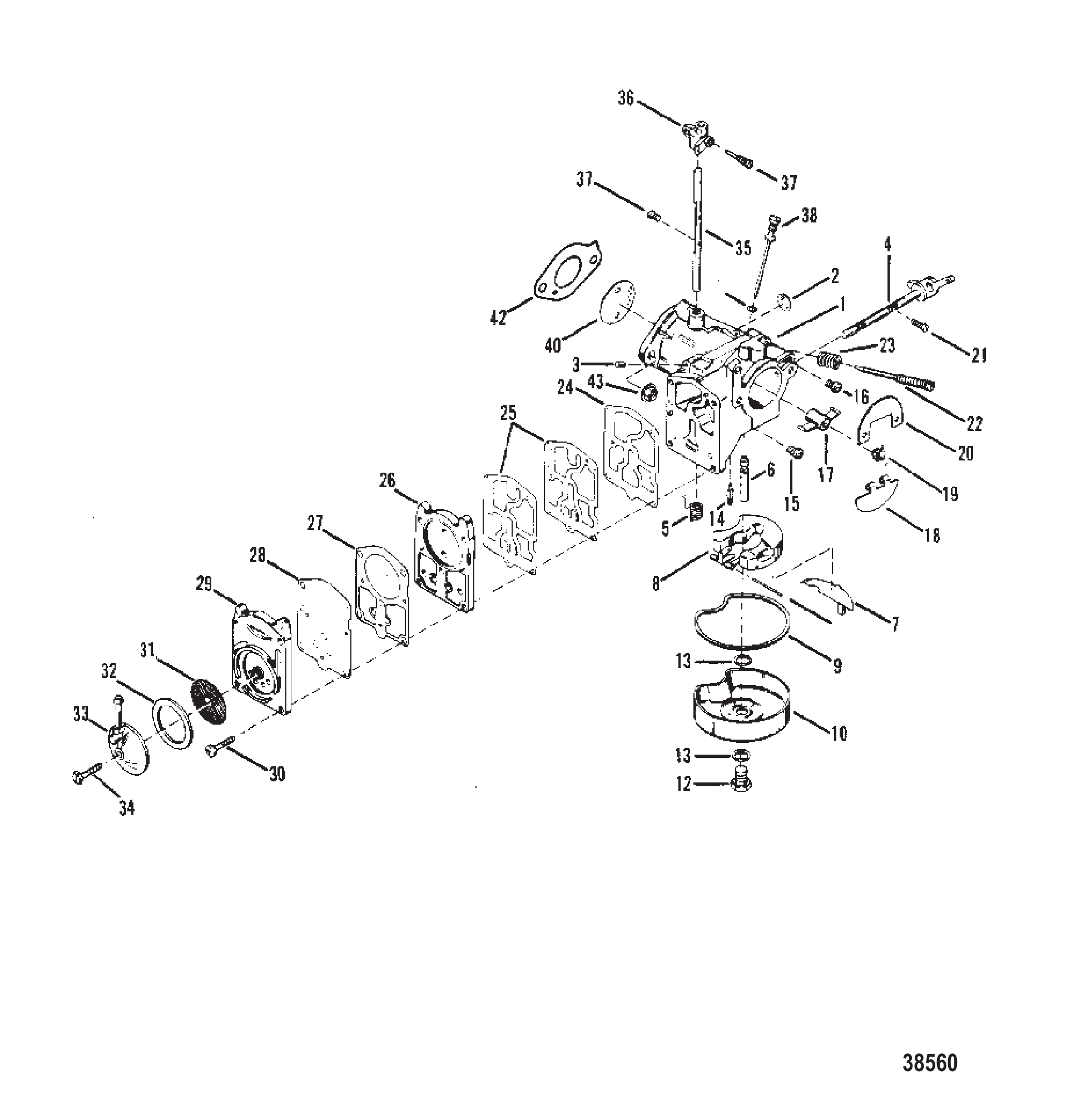

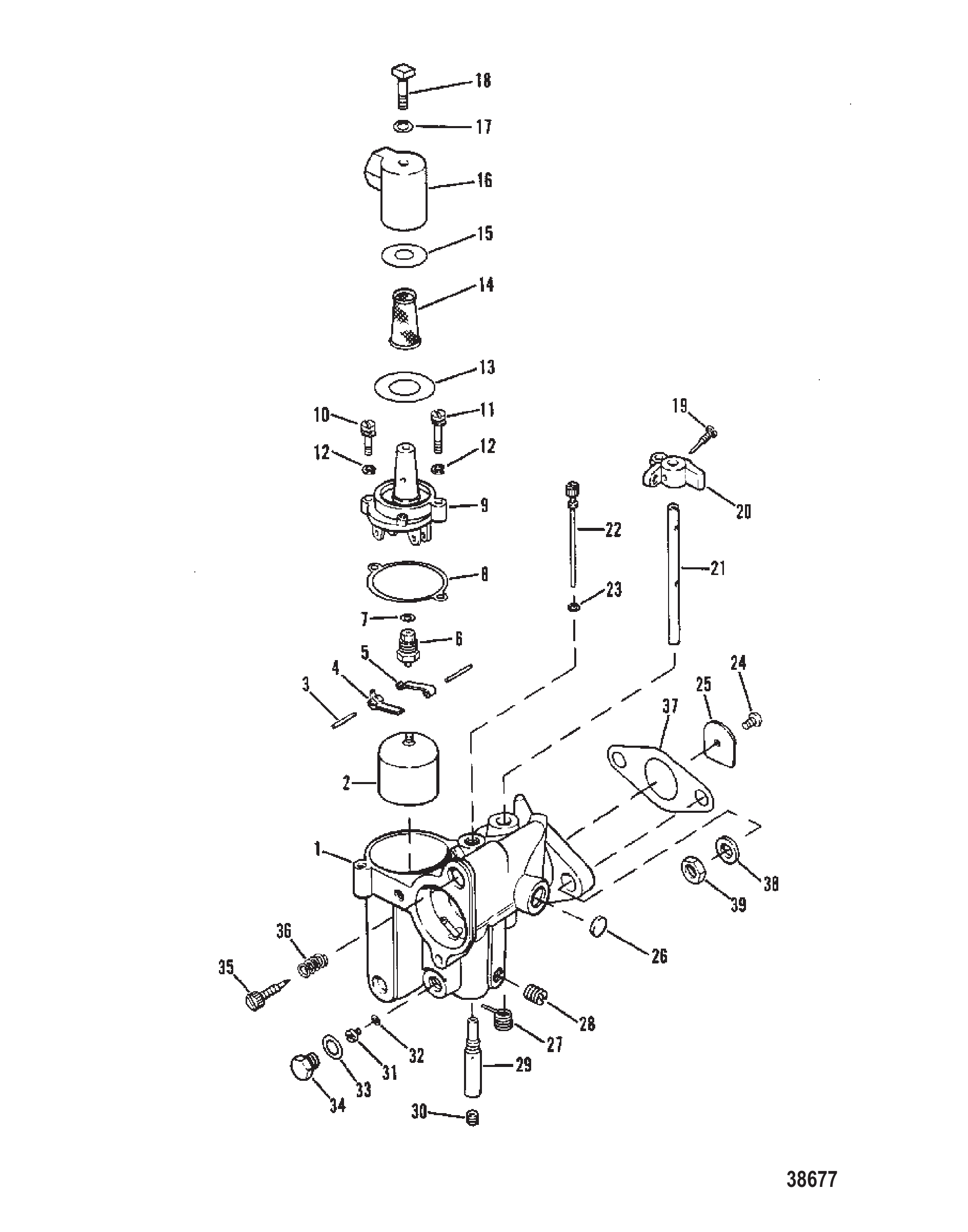

图 14化油器总成(TILLOTSON) CARBURETOR ASSEMBLY (TILLOTSON)

REF	零件编号	中文名称	英文名称	数量
1	3711	化油器总成(完整)	CARBURETOR ASSEMBLY COMPLETE	1
2	8983	浮子总成	FLOAT ASSEMBLY	1
2	8673	浮子总成	FLOAT ASSEMBLY	1
3	NSS	不单独销售浮子杆小齿轮销	NOT SOLD SEPARATE Pin-Float Lever Pinion	2
4	NSS	不单独销售下浮子杆	NOT SOLD SEPARATE Float Lever-Lower	1
5	NSS	不单独销售上浮子杆	NOT SOLD SEPARATE Float Lever-Upper	1
6	9258	进油针阀/阀座套件(含阀座及垫片)	NEEDLE/SEAT KIT Inlet SEAT AND GASKET	1
6	92581	阀座套件	VALVE SEAT KIT	1
7	NSS	不单独销售进油阀座垫片	NOT SOLD SEPARATE Gasket-Inlet Seat	1
8	NSS		NOT SOLD SEPARATE Gasket-Float Bowl Cover	1
9	1133	浮子室盖	COVER FLOAT BOWL	1
10	52195	浮子室螺丝(短)	SCREW FLOAT BOWL (SHORT)	1
11	52196	浮子室盖螺丝(长)	SCREW FLOAT BOWL COVER (LONG)	1
12	26995	锁紧垫圈 (#8) 不锈钢浮子室盖螺钉	LOCKWASHER (#8) Stainless Steel FLOAT BOWL COVER SCREW	2
13	NSS	不单独销售滤网盖垫片(大)	NOT SOLD SEPARATE Gasket-Strainer cover (Large)	1
14	3938	滤网	SCREEN FILTER	1
15	NSS	不单独销售滤网盖垫片(小)	NOT SOLD SEPARATE Gasket, Strainer cover (Small)	1
16	1135	滤网盖(90度)	COVER STRAINER (90 DEGREES)	1
17	NSS		NOT SOLD SEPARATE Gasket, Strainer cover Screw	1
18	25822	滤网盖螺钉	SCREW STRAINER COVER	1
19	20847	节流阀止动杆螺钉	SCREW THROTTLE STOP LEVER	1
19	6027	螺钉	SCREW	1
20	97	节流阀止动杆	LEVER THROTTLE STOP	1
20	8146791	油门杆	LEVER Throttle	1
21	1716	轴	SHAFT	1
22	NSS		NOT SOLD SEPARATE Idle Tube
23	NSS		NOT SOLD SEPARATE Gasket, Idle tube	1
24	NSS	不单独销售节气门片螺丝	NOT SOLD SEPARATE Screw-throttle Shutter	1
25	3739	节气门片	SHUTTER	1
26	NSS		NOT SOLD SEPARATE Welch Plug, Body Channel	1
27	NSS	不单独销售节气门轴回位弹簧	NOT SOLD SEPARATE Spring, throttle shaft return	1
28	28845	水道闷塞螺丝	SCREW PLUG-BODY CHANNEL	1
29	NSS		NOT SOLD SEPARATE Main Nozzle	1
30	23178	主喷管闷塞螺丝	SCREW PLUG-MAIN NOZZLE	1
31	3252	主量孔(.032)	JET (.032) MAIN FUEL	OPT
31	3251	主量孔(.034)	JET (.034) MAIN FUEL	OPT
31	3026	主量孔(.036)-标准型	JET (.036) MAIN FUEL-STANDARD	1
31	2407	主量孔(.039)	JET Main Fuel (.039)	OPT
31	1896	主量孔(.041)	JET MAIN FUEL (.041)	OPT
32	NSS	不单独销售主量孔垫片	NOT SOLD SEPARATE Gasket-Main Fuel Jet	1
33	NSS		NOT SOLD SEPARATE Gasket, Jet Channel Plug Screw	1
34	28405	主量孔通道闷塞螺丝	SCREW PLUG-MAIN FUEL JET CHANNEL	1
35	3740	怠速调节螺钉	SCREW IDLE ADJUSTMENT	1
36	NSS		NOT SOLD SEPARATE Spring, Idle Adjustment Screw	1
37	63309	化油器-簧片阀组衬垫	GASKET CARBURETOR TO REED BLOCK	1
38	20583	化油器安装柱垫圈	WASHER CARBURETOR MOUNTING STUD	1
39	24652	化油器安装柱螺母(.250-28)	NUT (.250-28) CARBURETOR MOUNTING STUD	2
-	1717	衬垫套件	GASKET SET
-	3741	维修零件包	REPAIR PARTS KIT
-	92621	化油器修理包	REPAIR KIT-CARB

图 15化油器总成 Carburetor Assembly

REF	零件编号	中文名称	英文名称	数量
1	6517A33	化油器总成	CARBURETOR ASSEMBLY	1
1	6517A34	化油器总成	CARBURETOR ASSEMBLY	1
1	6517A64	化油器KT-底置	CARBURETOR KT-BOT	1
2	NSS	大型主体通道(不单独销售)	NOT SOLD SEPARATE Large Body Channel	2
3	NSS	主体通道(不单独销售)	NOT SOLD SEPARATE Body Channel	6
4	96773A1	阻风门轴总成	SHAFT ASSEMBLY Choke	2
4	9296A1	阻风门轴套件	CHOKE SHAFT KIT	2
5	NSS	回位-节气门轴(不单独销售)	NOT SOLD SEPARATE Return-Throttle Shaft	2
6	7211A1	燃油杯挡板	BAFFLE Fuel Bowl	2
6	814483	燃油杯挡板	BAFFLE Fuel Bowl	2
7	9293	浮子	FLOAT	2
8	NSS	浮子固定件(不单独销售)	NOT SOLD SEPARATE Float Retaining	2
9	5127	燃油杯	BOWL Fuel	2
10	NSS	燃油杯(不单独销售)	NOT SOLD SEPARATE Fuel Bowl	2
11	9652	燃油杯至化油器螺钉	SCREW Fuel Bowl to Carburetor	2
12	NSS	燃油杯螺钉(不单独销售)	NOT SOLD SEPARATE Fuel Bowl Screw	4
13	9022	进油针阀及弹簧	NEEDLE AND SPRING Inlet	2
14	1457	主量孔(.057)	JET Main Fuel (.057)	2
15	7335	省油量孔(.098)	JET (.098) Economizer (.098)	2
16	64677	喉管	VENTURI	2
17	8665	阻风门片	SHUTTER Choke	2
18	NSS	阻风门片至轴连接件(不单独销售)	NOT SOLD SEPARATE Choke Shutter to Choke Shaft	4
19	NSS	怠速混合气调节件(不单独销售)	NOT SOLD SEPARATE Idle Mixture	2
20	NSS	怠速混合气螺钉(不单独销售)	NOT SOLD SEPARATE Idle Mixture Screw	2
21	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	2
22	9653	盖板(上化油器)	COVER Plate (Upper Carburetor)	1
23	9654	盖板(下化油器)	COVER Plate (Lower Carburetor)	1
24	5132	滤清器体至化油器螺钉	SCREW Strainer Body to Carburetor	8
24	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	8
25	9020	油门轴	SHAFT Throttle	1
25	9656	油门轴	SHAFT Throttle	1
26	92880	节气门杠杆(上化油器)	LEVER Throttle (Upper Carburetor)	1
27	20847	节气门杠杆螺钉(上化油器)	SCREW Throttle Lever (Upper Carburetor)	2
27	6027	螺钉	SCREW	2
28	97	节气门杠杆(下化油器)	LEVER Throttle (Lower Carburetor)	1
28	8146791	油门杆	LEVER Throttle	1
29	6027	节气门杠杆螺钉(下化油器)	SCREW Throttle Lever (Lower Carburetor)	1
30	9649	节气门片	SHUTTER Throttle	2
31	NSS	节气门片至轴连接件(不单独销售)	NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft	4
32	757911	化油器法兰衬垫	GASKET Carburetor Flange	2
33	64809	化油器安装柱螺母	NUT Carburetor Mounting Stud	4
--	9650	维修套件	REPAIR KIT	2
--	9651	衬垫套件	GASKET SET	2

图 16杂项零件/附件 Miscellaneous Parts/Accessories

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

图 17燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

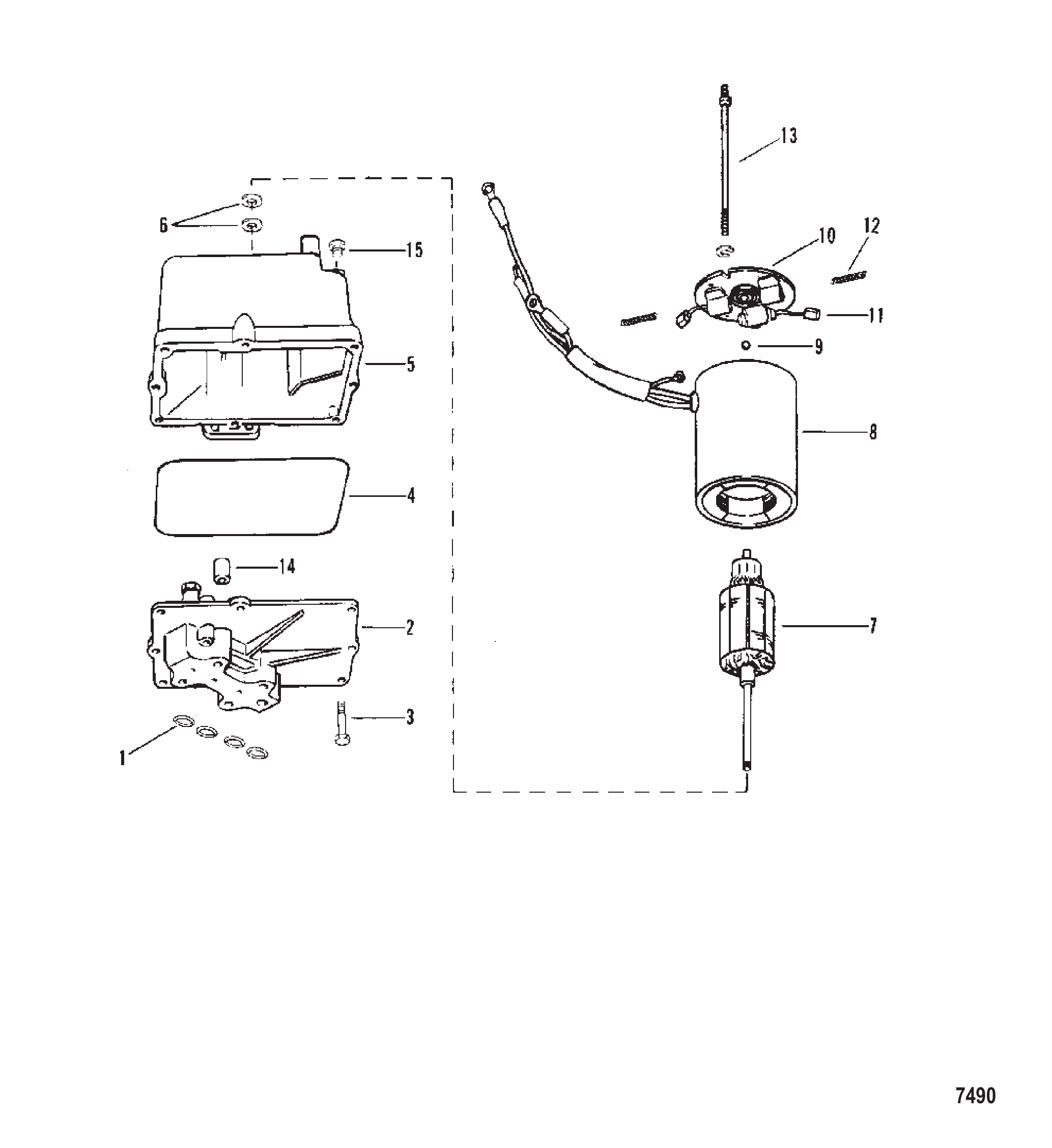

图 18液压泵总成(电动手柄) Hydraulic Pump Assembly (Electric Handle)

REF	零件编号	中文名称	英文名称	数量
-	92975A6	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	48171		O-RING (.364. x .070) Hydraulic Pump	4
2	8317	阀体与齿轮总成	VALVE BODY AND GEAR ASSEMBLY	1
3	69570		SCREW (#10-16 x .750) Valve Body to Reservoir	8
4	7735		SEAL Reservoir to Valve Body and Gear	1
5	7731	塑料储液罐总成	RESEROVIR ASSEMBLY Plastic	1
6	7732		WASHER Thrust - Armature	AR
7	7729		ARMATURE Field and Frame	1
8	8261	磁场框架总成	FIELD AND FRAME ASSEMBLY	1
9	7730		BALL Commutator End Plate	1
10	8262		PLATE ASSEMBLY Commutator End	1
11	8989	电刷套件换向器端板	BRUSH KIT Commutator End Plate	1
12	2529		SPRING SET Brush Tension	1
13	7733	贯穿螺栓组板与框架至储液罐	BOLT SET Through - Plate and Frame to Reservoir	1
14	7727	联轴器与轴	COUPLER AND SHAFT	1
15	7728		FILL PLUG Reservoir	1

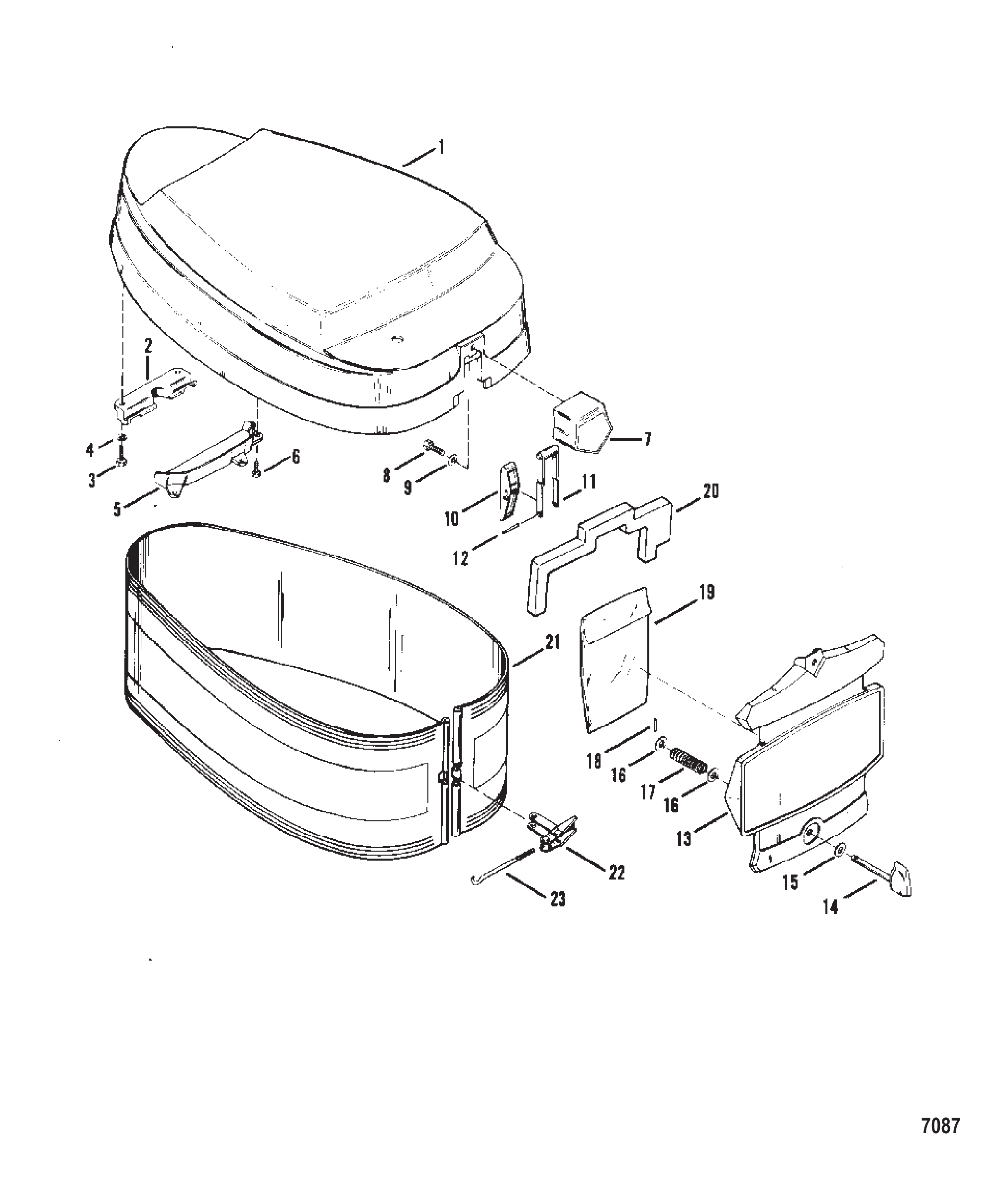

图 19外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	7938	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7937A8	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7938F4	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
1	7937F4	顶罩总成(无标贴)	TOP COWL ASSEMBLY Without Decal	1
2	55455		HOOK Top Cowl Latch - Rear	1
3	22956		SCREW (.250-28 x .880) Rear Hook to Top Cowl	2
4	26992		LOCKWASHER (.250) Stainless Steel Rear Hook Screw	2
5	37690	顶罩后护板	SHIELD Rear - Top Cowl	1
6	48409		SCREW (#10-16 x .625) Stainless Steel Rear Shield to Top Cowl	3
7	97447A1	顶罩固定架总成	RETAINER ASSEMBLY Top Cowl	1
8	53167	顶罩固定架螺丝(.312-18 x .880)	SCREW (.312-18 x .880) Retainer to Top Cowl	1
8	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	1
9	39107	固定架螺丝锁紧垫圈(.312-24)	LOCKWASHER (.312-24) Retainer Screw	1
10	94918T	罩盖锁扣铰链杆	LEVER Cowl Latch Hinge	1
10	94918F1	杠杆	LEVER	1
11	52739T	顶罩锁扣铰链	HINGE Cowl Latch-Top Cowl	1
11	52739	铰链	HINGE	1
12	58998	罩盖锁扣杆铰链销	PIN Cowl Latch Lever to Hinge	1
13	7927A5	水星前盖板(无标贴)	FRONT COVER MERCURY Without Decal	1
13	7927A19	马琳前盖板(无标贴)	FRONT COVER MARINER Without Decal	1
14	56849	前盖板旋钮	KNOB Cowl Front Cover	1
15	30771	盖板旋钮垫圈	WASHER Cover Knob	1
16	59572	盖板旋钮垫圈	WASHER Cover Knob	2
17	30772	盖板旋钮张力弹簧	SPRING Tension - Cover Knob	1
18	29077	旋钮张力弹簧销	PIN Roll Tension Spring to Knob	1
19	38674	隔音毯	BLANKET Sound	1
20	94923	隔音垫	PAD Sound	2
21	3247A3	水星环绕式顶罩总成(无标贴)	TOP COWL ASSEMBLY Wrap Around - Mercury Without Decal	1
21	8181A4	马琳环绕式顶罩总成(无标贴)	TOP COWL ASSEMBLY Wrap Around - Mariner Without Decal	1
22	46785A1	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
23	30413	罩盖锁钩	HOOK Cowl Latch	2

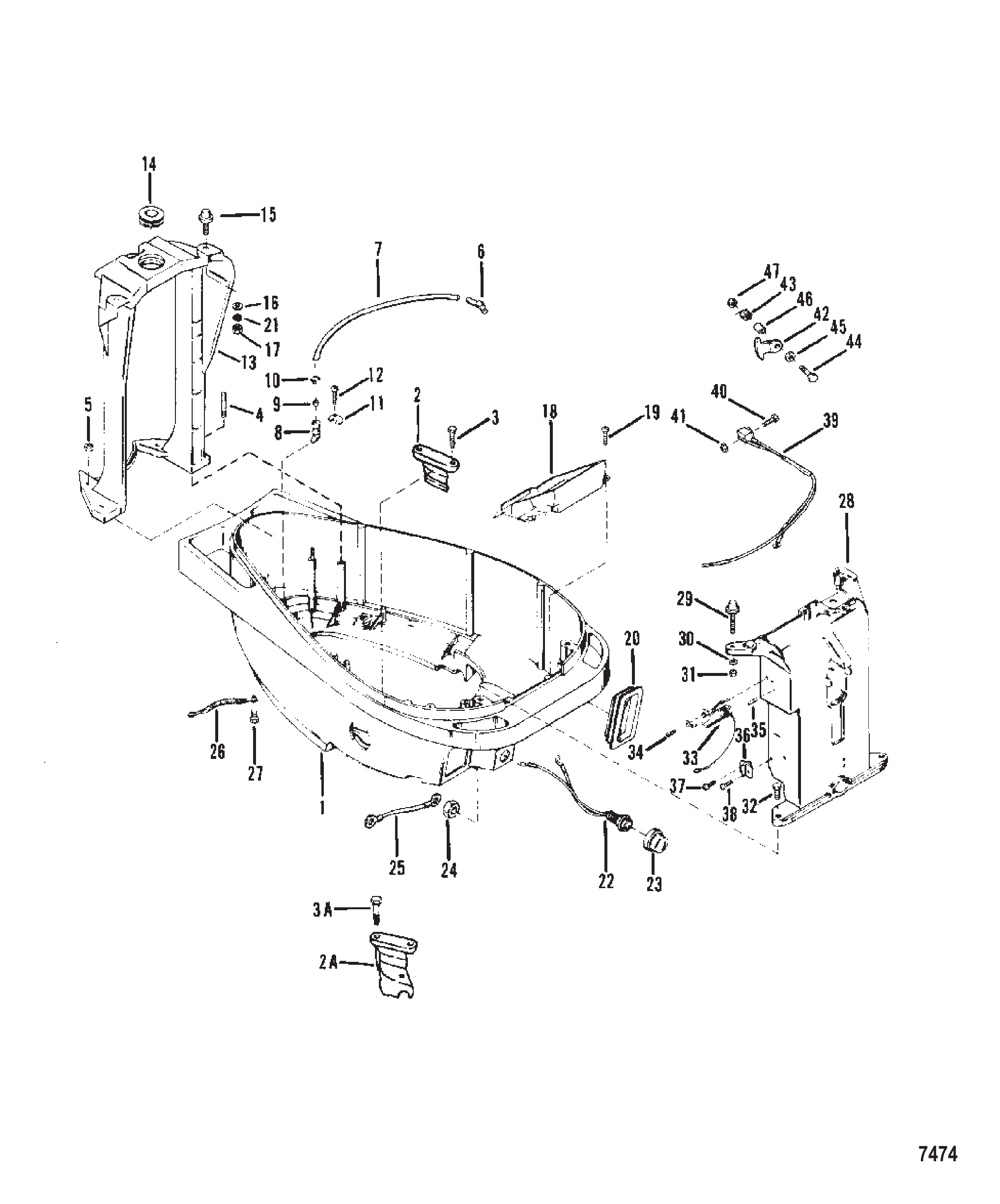

图 20下罩壳及支撑支架 Bottom Cowl and Support Brackets

REF	零件编号	中文名称	英文名称	数量
1	7715A4	下罩总成	BOTTOM COWL ASSEMBLY	1
1	7715A5	下罩总成	BOTTOM COWL ASSEMBLY	1
2	88926T	下机罩盖	COVER Bottom Cowl	1
3	28636	螺钉（.250-20 x .750）下机罩盖塞	SCREW (.250-20 x .750) Plug to Bottom Cowl	2
2A	948801	下机罩盖塞	PLUG Bottom Cowl	1
3A	28636	螺钉（.250-20 x .750）下机罩盖塞	SCREW (.250-20 x .750) Plug to Bottom Cowl	2
4	56766	螺柱（.250-20/.250-28 x 1.380）下机罩	STUD (.250-20/.250-28 x 1.380) Bottom Cowl	4
5	20184	螺母（1/4-28X7/32）下机罩螺柱	NUT (1/4-28X7/32) Bottom Cowl Stud	4
6	78279	示流管弯头-气缸体	ELBOW Tell Tale Hose - Cylinder Block	1
7	7568054	示流软管至下机罩（14英寸）	HOSE Tell Tale Hose to Bottom Cowl (14 Inch)	1
8	69791	示流管喷嘴至下机罩	NOZZLE Tell Tale Hose to Bottom Cowl	1
9	90882	示流喷嘴套管	SLEEVE Tell Tale Nozzle	1
10	90077	示流喷嘴扎带	TIE STRAP Tell Nozzle	AR
11	66849	喷嘴卡箍-示流管	CLAMP Nozzle - Tell Tale	1
12	48408	螺钉（#10-16 x .500）喷嘴卡箍至下机罩	SCREW (#10-16 x .500) Nozzle Clamp to Bottom Cowl	1
13	720201	后支撑支架	BRACKET Rear Support	1
14	52723	后支撑支架衬套	GROMMET Rear Support Bracket	1
15	60577		MOUNT Rubber - Rear Support Bracket	2
16	21631		WASHER (.255 x .625 x .0312) Rubber Mount	AR
17	29598	螺母（.250-28）不锈钢橡胶座	NUT (.250-28) Stainless Steel Rubber Mount	2
18	72466	滴水盘	DRIP TRAY	1
19	48409	螺钉（#10-16 x .625）不锈钢滴水盘至下机罩	SCREW (#10-16 x .625) Stainless Steel Drip Tray to Bottom Cowl	3
20	37695	控制电缆护套	BOOT Control Cable	1
21	26992		LOCKWASHER (.250) Stainless Steel Rubber Mount	2
22	69508A31	停机开关总成	SWITCH ASSEMBLY Stop	1
23	99525A1	顶部开关盖总成	COVER ASSEMBLY Top Switch	1
24	69844		NUT Stop Switch	1
25	62190A8	橙色停机开关线束总成	WIRE ASSEMBLY Orange Stop Switch	1
26	88238A4	电缆总成（3.375英寸）	CABLE ASSEMBLY (3.375 Inch)	2
27	62568	螺钉（#10-16 x .375）接地带	SCREW (#10-16 x .375) Ground Strap	2
28	42660A1	前支撑支架总成	BRACKET ASSEMBLY Front Support	1
29	31014		MOUNT Rubber - Front Support Bracket	2
30	26992		LOCKWASHER (.250) Stainless Steel Rubber Mount	2
31	29598	螺母（.250-28）不锈钢橡胶座	NUT (.250-28) Stainless Steel Rubber Mount	2
32	37562	螺钉（.312-18 x 1.00）不锈钢前支撑支架至下机罩	SCREW (.312-18 x 1.00) Stainless Steel Front Support Bracket to Bottom Cowl	2
33	58124A20	水银开关总成	SWITCH ASSEMBLY Mercury	1
33	33386A3	水银开关总成	SWITCH ASSEMLBY Mercury	1
34	69235	螺钉（.190-24 x .500）开关至前支架（0.50英寸）	SCREW (.190-24 x .500) Switch to Front Bracket (0.50 Inch)	1
35	36242	水银开关滚针	PIN Roll Mercury Switch	2
36	45915	端子排	TERMINAL BLOCK	1
37	20411	螺钉（.190-24 x .62）端子排至前支架	SCREW (.190-24 x .62) Terminal Block to Front Bracket	1
38	69079	螺钉（#10-16 x .440）线束引线	SCREW (#10-16 x .440) Harness Leads	1
39	74605A4	空挡启动开关总成	SWITCH ASSEMBLY Neutral Start	1
40	64332	螺钉（#4-40 x .750）	SCREW (#4-40 x .750)	2
41	24832	螺母（#4-40）开关螺钉	NUT (#4-40) Switch Screw	2
42	97411	执行器	ACTUATOR	1
43	88099	联锁执行器弹簧	SPRING Interlock Actuator	1
44	37892	执行器至前支架螺钉(.190-32 x 1.00)	SCREW (.190-32 x 1.00) Actuator to Front Bracket	1
45	22887	执行器螺钉垫圈	WASHER Actuator Screw	1
46	88100	执行器螺钉隔套	SPACER Actuator Screw	1
47	45812	执行器螺钉不锈钢螺母(#10-32)	NUT (#10-32) Stainless Steel Actuator Screw	1

图 21旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

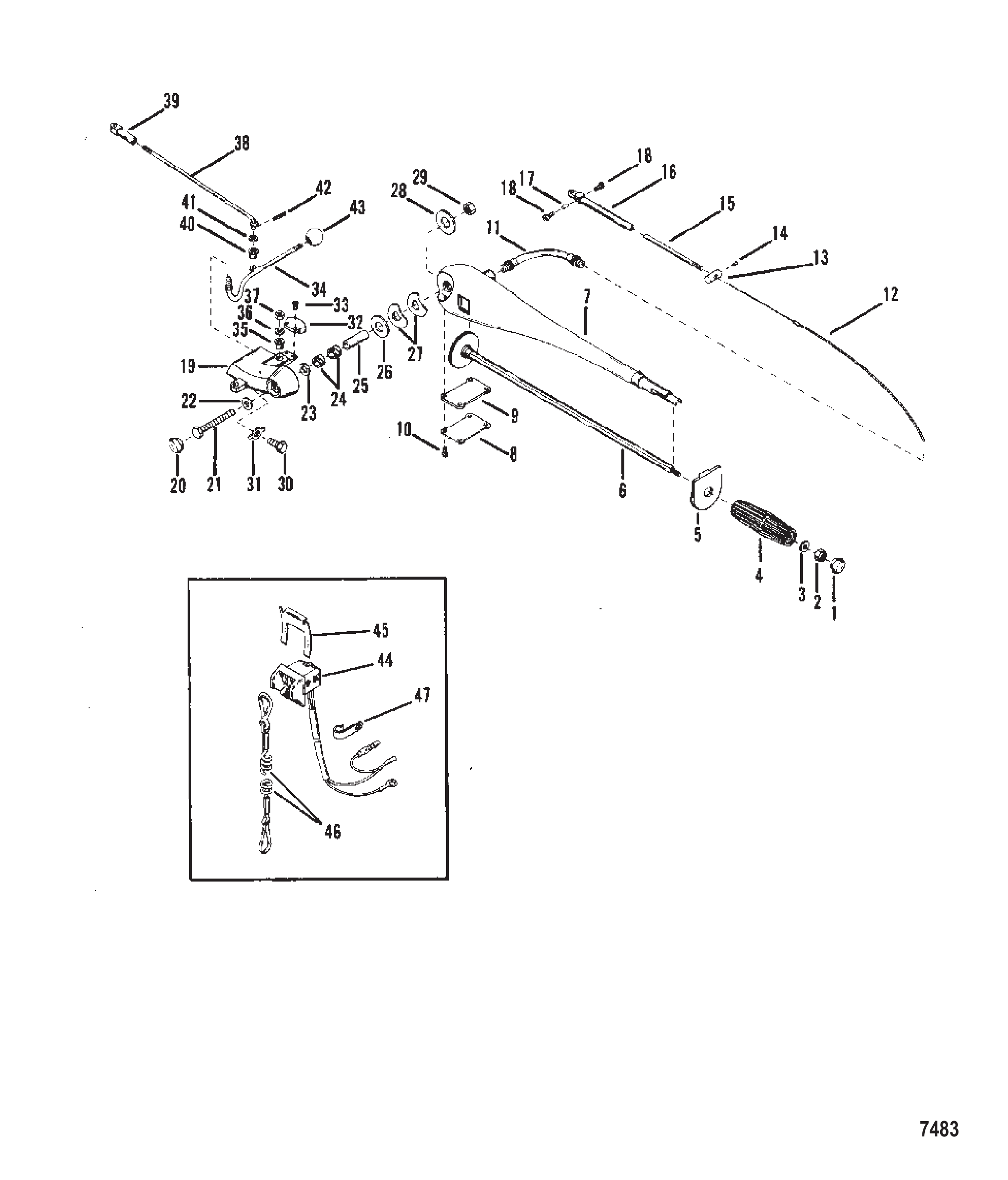

图 22转向手柄总成 STEERING HANDLE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	48416		CAP Steering Handle Grip	1
2	20586		NUT (.250-28) Steering Handle Arm	1
2	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
3	21631		WASHER (.255 x .625 x .0312) Steering Handle Arm	1
3	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
4	58192A1		GRIP Steering Handle Arm	1
5	48414	驱动轮外壳	HOUSING Drive Wheel	1
6	48516A1	驱动轮/杆总成	DRIVE WHEEL/ROD ASSEMBLY	1
7	48405A2	臂总成	ARM ASSEMBLY	1
8	48519		PLATE Cover - Drive Wheel	1
9	48518	盖板垫片	GASKET Cover Plate	1
10	28192	螺钉 (#10-24 x .50) 驱动轮盖板	SCREW (#10-24 x .50) Drive Wheel Cover Plate	4
10	72169	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
11	785511	电缆导管	CONDUIT Cable	1
12	48520	节气门拉索	CABLE Throttle	1
13	89613	控制连杆接头	CONNECTOR Control Linkage	1
14	89601		SCREW Set - Throttle Cable Guide Tube	1
14	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
15	895661	节气门电缆导向管	GUIDE TUBE Throttle Cable Guide	1
15	8M0026078	导向管	TUBE-GUIDE	1
16	43433	节气门电缆导向器	GUIDE Throttle Cable	1
16	8M0204660	导套	GUIDE	1
17	20007		ANCHOR Throttle Cable	1
18	20518		SET SCREW (#8-32) Throttle Cable Anchor	2
18	8M0204644	螺钉组	SCREW SET	2
19	48404T	手柄支架	BRACKET Handle	1
19	48404T8	支架	BRACKET	1
20	48416	手柄支架盖	CAP Handle Bracket	1
21	48476	手柄支架螺钉	SCREW Handle Bracket	1
21	823597	螺丝(.500-20 x 2.50)	SCREW (.500-20 x 2.50)	1
22	48477	手柄支架垫圈	WASHER Handle Bracket	1
23	48526	尼龙垫圈-手柄支架	WASHER Nylon - Handle Bracket	1
24	28919	尼龙衬套-手柄支架	BUSHING Nylon - Handle Bracket	2
25	48525	手柄支架隔套	SPACER Handle Bracket	1
26	48527	尼龙垫圈-手柄支架	WASHER Nylon - Handle Bracket	1
26	38000	垫圈	WASHER	1
27	48478	手柄支架波形垫圈	WAVE WASHER Handle Bracket	2
28	49636	尼龙垫圈-手柄支架	WASHER Nylon - Handle Bracket	1
29	20220	螺母(.500-20)-手柄支架螺钉	NUT (.500-20) Handle Bracket Screw	1
29	82671317	螺母(.500-20)	NUT (.500-20)	1
30	35786		SCREW (.375-24 x 1.00) Bracket to Engine	2
31	43589	支架螺钉锁紧垫圈	TAB WASHER Bracket Screw	2
32	78812A1		DETENT Shift Lever	1
33	48409	不锈钢换挡杆定位螺钉(#10-16 x .625)	SCREW (#10-16 x .625) Stainless Steel Shift Lever Detent	2
34	485681	换挡杆	SHIFT LEVVER	1
35	48237	尼龙衬套-换挡杆	BUSHING Nylong - Shift Lever	1
36	34931		WASHER (.406 x .734 x .063) Stainless Steel Shift Lever	1
37	34863	螺母(.375-24)-换挡杆	NUT (.375-24) Shift Lever	1
37	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
38	49563	换挡连杆	SHIFT ROD	1
38	8128061	杆	ROD	1
39	48419		ROD END Shift Rod	1
39	48419T	杆端-2.16英寸	ROD END-2.16 IN	1
40	48475	尼龙衬套-换挡杆	BUSHING Nylon - Shift Rod	1
41	35950		WASHER (.273 x .437 x .031) Stainless Steel Shift Rod	1
42	25191		COTTER PIN Shift Rod	1
43	98530		KNOB Shift Lever	1
44	11083A11	停机开关总成	SWITCH ASSEMBLY Stop	1
45	12044		RETANER Stop Switch	1
45	8M0032846	黄铜固定座	RETAINER Brass	1
46	15920A54	拉绳总成	LANYARD ASSEMBLY	1
46	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
47	64855	停止开关夹	CLAMP Stop Switch	1
47	648552	卡扣	CLIP	1
--	52148A1	副驾驶套件	CO-PILOT KIT	1

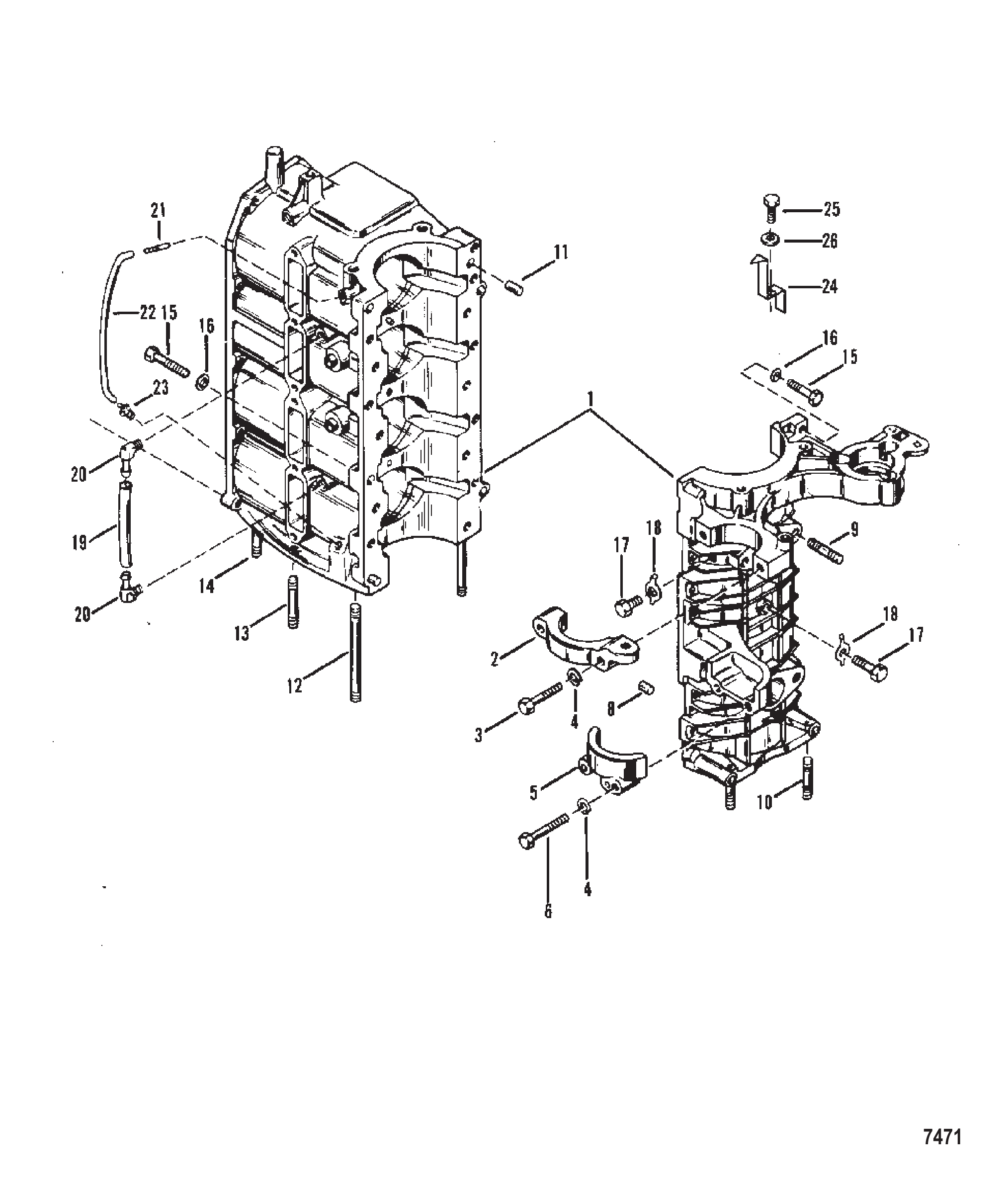

图 23气缸体与曲轴箱总成 Cylinder Block and Crankcase Assembly

REF	零件编号	中文名称	英文名称	数量
1	8981A6	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	72038	启动电机上支架	BRACKET Upper Starter Motor	1
3	73279	支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)	SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch)	2
4	26993	支架螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Bracket Screw	4
5	76867	启动电机下盖	COVER Lower Starter Motor	1
6	73279	盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)	SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch)	2
8	20032	缸体至主轴承定位销	PIN Dowel Cylinder block to main bearing	2
9	68164	化油器双头螺柱(1.25英寸)	STUD Carburetor (1.25 Inch)	4
10	68165	曲轴箱至驱动轴壳体双头螺柱(1.625英寸)	STUD Crankcase to Driveshaft Housing (1.625 Inch)	2
11	20033	曲轴箱至缸体定位销	PIN Dowel Crankcase to Cylinder Block	2
12	87901	缸体至驱动轴壳体双头螺柱(4英寸)	STUD Cylinder block to drive shaft housing (4 Inch)	2
13	68166	缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸)	STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch)	2
14	68167	缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸)	STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch)	2
15	73657	曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸)	SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch)	13
15	31984	曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸)	SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch)	3
15	73275	曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸)	SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch)	2
16	70132	曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063)	WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw	17
17	20359	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
17	98260	螺钉(.375-16 x .620)	SCREW (.375-16 x .620)	2
18	20091	中央轴承锁紧螺钉止动垫圈	TAB WASHER Center Bearing Locking Screw	3
19	99127109	平衡管(57英寸散装)-主轴承(5.50英寸)	LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch)	1
20	99664	平衡管至缸体弯头	ELBOW Balance Tube to Cylinder Block	2
21	65857	上部泄放软管接头	CONNECTOR Upper Bleed Hose	1
22	9938779	气缸泄放软管(11英寸)	HOSE Cylinder Bleed (11 Inch)	1
23	42867	下部泄放软管止回阀	CHECK VALVE Lower Bleed Hose	1
24	99156	正时指示器	INDICATOR Timing	1
25	39349	指示器至曲轴箱不锈钢螺钉(.312-18 x .750)	SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase	1
26	26993	指示器螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Indicator Screw	1
-	97469A87	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 24齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
2	85822A1	速度表连接器总成	CONNECTOR ASSEMBLY Speedometer	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	85500	定位销(.187 x .530)齿轮箱	PIN Dowel (.187 x .530) Gear Housing	2
3	8M0084726	定位销	PIN Dowel	2
4	33778	水泵/底座柱螺栓(2.625英寸)	STUD Water Pump/Base (2.625 Inch)	3
5	57933	柱螺栓(.437-14/.437-20 x 2.190)齿轮箱	STUD (.437-14/.437-20 x 2.190) Gear Housing	2
5	8M0034453	柱螺栓(7/16 x 2.19)	STUD (7/16 x 2.19)	2
6	62091	传动轴滚柱轴承	BEARING Roller Driveshaft	1
6	62091T	轴承	BEARING	1
7	72849A1	进水滤网总成	SCREEN ASSEMBLY Water Intake	1
8	36070	螺钉(#10-32 x 1.250)进水滤网至齿轮箱	SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing	1
9	45812	螺母(#10-32)不锈钢进水滤网螺钉	NUT (#10-32) Stainless Steel Water Intake Screen Screw	1
9	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
10	92815	排气管支撑板	PLATE Support - Exhaust Tube	1
11	37721	排气管密封件	SEAL Exhaust Tube	1
11	37721001	密封件@2	SEAL @2	1
12	98097	传动轴小齿轮	GEAR Pinion Driveshaft	1
12	98097T	小齿轮	GEAR-PINION	1
13	55910	螺母(.437-20)小齿轮至传动轴	NUT (.437-20) Pinion Gear to Driveshaft	1
14	19552	水泵底座衬垫	GASKET Water Pump Base	1
15	26722	O型圈	O-RING	1
16	77177A1	水泵底座总成	BASE ASSEMBLY Water Pump	1
17	90562	密封件(1.254 x .312)	SEAL (1.254 x .312)	1
18	79831	油封	SEAL Oil	1
19	35973	定位销	PIN Dowel	2
20	19553	下衬垫	GASKET Lower	1
21	54705	面板	FACE PLATE	1
21	32768	面板	FACEPLATE	1
22	19551	上衬垫	GASKET Upper	1
23	89983	叶轮	IMPELLER	1
23	89983T	叶轮	IMPELLER	1
24	56662	叶轮驱动键	KEY Impeller Drive	1
24	8M0032837	键@5	KEY @5	1
25	77822A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	48753	嵌件	INSERT	1
27	38452	橡胶密封件	SEAL Rubber	1
28	38453	尼龙垫圈	WASHER Nylon	1
29	29245	垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓	WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs	3
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
30	13438	螺母(.250-28)水泵体与底座柱螺栓	NUT (.250-28) Water Pump Body and Base Studs	3
30	8267119	螺母(.250-28)	NUT (.250-28)	3
31	20273	橡胶O型圈	O-RING Rubber	1
32	78654A1	传动轴座总成	SEAT ASSEMBLY Driveshaft	1
33	86304	花键密封件-传动轴	SEAL Splined - Driveshaft	1
34	79953	螺钉(.375-16 x .250)润滑脂加注口	SCREW (.375-16 x .250) Grease Filler	1
34	79953Q04	放油螺钉套件	SCREW KIT Drain	1
35	67892	磁性放油螺钉	SCREW Magnetic Drain	1
35	8M0058389	放油螺钉套件	SCREW KIT Drain	1
36	19183	纤维垫圈(加注/放油螺钉)	WASHER Fiber Filler/Drain Screw	2
36	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
37	88181	润滑套筒-传动轴	SLEEVE Lubrication - Driveshaft	1
38	92881A1	轴承垫片组(齿轮箱用)(.002-3-5-10-20)	SHIM SET Bearing to Gear Housing(.002-3-5-10-20)	AR
39	77420A1	圆锥滚子轴承总成-传动轴	BEARING ASSEMBLY Roller Tapered - Driveshaft	1
39	8M0166756	轴承总成	BEARING ASSEMBLY	1
40	88025A2	驱动轴总成	DRIVESHAFT ASSEMLBY	1
40	98179	驱动轴	DRIVESHAFT	1
40	88024A2	驱动轴总成	DRIVESHAFT ASSEMBLY	1
40	98180	驱动轴	DRIVESHAFT	1
41	20254	驱动轴压缩弹簧	SPRING Compression - Driveshaft	1
42	30545	驱动轴销	PIN Driveshaft	1
43	76063A1	换挡轴总成	SHAFT ASSEMBLY Shift	1
44	29641	换挡轴E型卡环	E RING Shift Shaft	1
45	25439	O型圈(.862 x .103)换挡轴衬套	O-RING (.862 x .103) Shift Shaft Bushing	1
46	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
47	76384	换挡轴衬套油封	SEAL Oil Shift Shaft Bushing	1
47	8M0246145	油封	OIL SEAL	1
48	77674	橡胶垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing	1
49	78036	倒挡锁定底座	BASE Reverse Locking	1
50	433081	倒挡锁定凸轮	CAM Reverse Locking	1
50	43308T1	凸轮	CAM	1
-	77177A3	水泵套件	WATER PUMP KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 25夹具支架总成 CLAMP BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	5570A3	夹紧支架总成(左舷)	CLAMP BRACKET ASSEMBLY (PORT)	1
2	5571A3	夹紧支架总成(右舷)	CLAMP BRACKET ASSEMBLY (STARBOARD)	1
3	77190A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	76804	蝶形螺钉	SCREW THUMB SCREW	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
5	818884	垫圈	WASHER	2
6	71421	倾斜管尼龙垫圈-夹紧至旋转支架	WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET	2
7	96962	倾斜管夹紧至旋转支架	TILT TUBE CLAMP TO SWIVEL BRACKET	1
8	39333	倾斜管塞	PLUG TILT TUBE	2
9	93164	倾斜管紧固螺母(.875)	NUT (.875) TILT TUBE FASTENING	2
10	71420	提手	HANDLE CARRYING	1
11	71417	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	71418A2	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
15	62143	倾斜锁止销弹簧	SPRING TILT LOCK PIN	1
16	67982	夹紧支架至船体螺栓	BOLT CLAMP BRACKET TO BOAT	2
17	67983	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
18	56374	夹紧支架螺钉螺母(.250-20)	NUT (.250-20) CLAMP BRACKET SCREW	2
18	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2

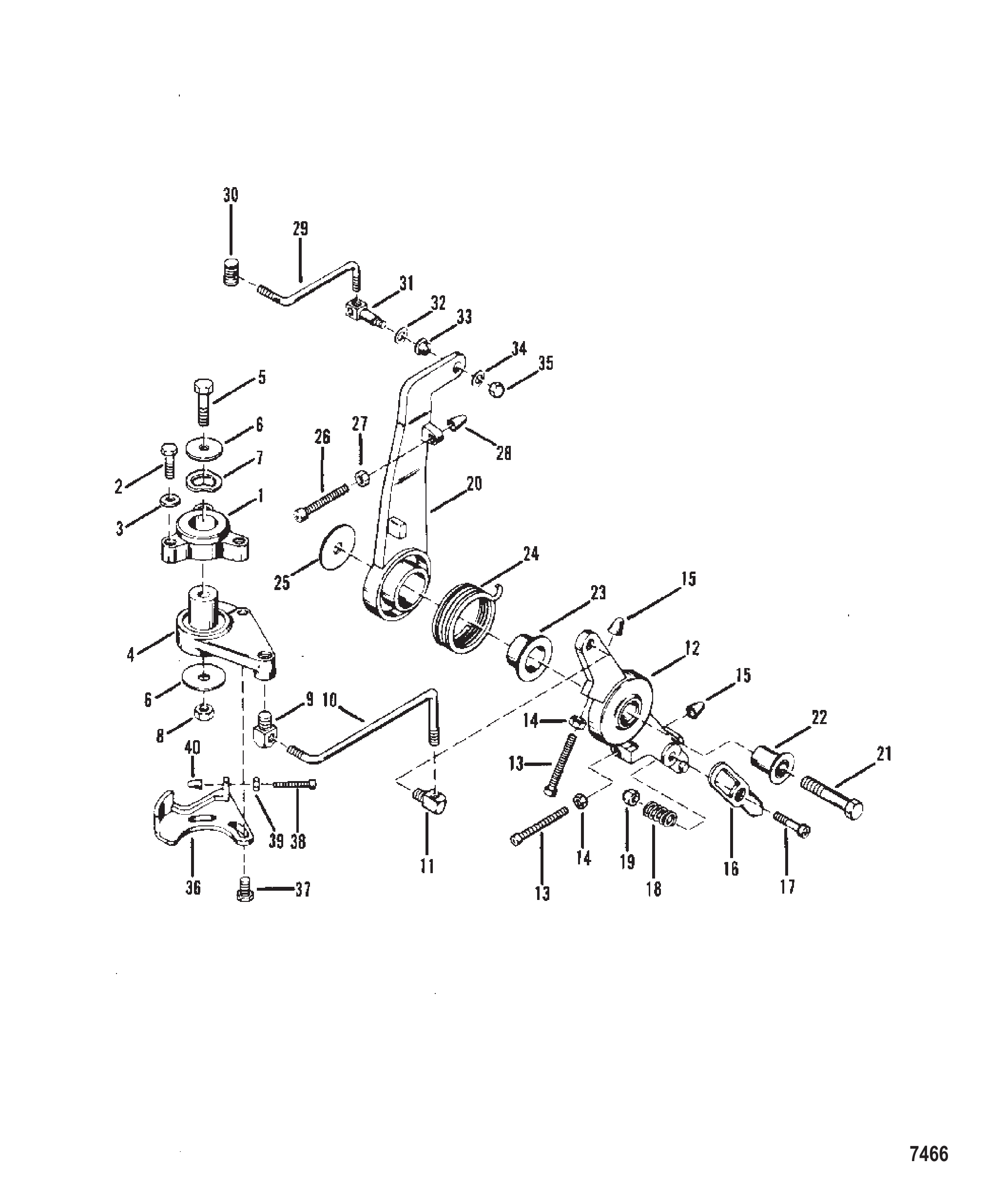

图 26油门控制联动机构 Throttle Control Linkage

REF	零件编号	中文名称	英文名称	数量
1	72040	油门执行器支架	BRACKET Throttle Actuator	1
2	53576	节气门执行器支架螺钉(.312-18 x 1.125)	SCREW (.312-18 x 1.125) Throttle Actuator Bracket	3
3	26993	节气门执行器支架螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Throttle Actuator Bracket Screw	3
3	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
4	72032	节气门执行器	ACTUATOR Throttle	1
4	815603A1	油门执行器总成	ACTUATOR ASSEMBLY Throttle	1
5	21449	支架至节气门执行器螺钉(.312-24 x 2.00)	SCREW (.312-24 x 2.00) Bracket to Throttle Actuator	1
6	25893	支架螺钉垫圈	WASHER Bracket Screw	2
7	62172	支架螺钉波形垫圈	WAVE WASHER Bracket Screw	1
8	29250	支架螺钉螺母(.312-24)	NUT (.312-24) Bracket Screw	1
9	57440	连杆至节气门执行器旋转接头	SWIVEL Link Rod to Throttle Actuator	1
10	72043	连杆	LINK ROD	1
11	57440	连杆至节气门臂旋转接头	SWIVEL Link Rod to Throttle Arm	1
12	76560	节气门臂	ARM Throttle	1
12	815603A1	油门执行器总成	ACTUATOR ASSEMBLY Throttle	1
13	55903	节气门臂调节螺钉	SCREW Adjusting - Throttle Arm	1
13	89778	螺钉	SCREW	1
13	25158	节气门臂调节螺钉(.190-32 x 1.75)	SCREW (.190-32 x 1.75) Adjusting - Throttle Arm	1
14	68219	不锈钢调节螺钉螺母(#10-32)	NUT (#10-32) Stainless Steel Adjusting Screw	2
15	48039		CAP Adjusting Screw	2
16	39483	节气门臂锁扣	LATCH Throttle Arm	1
17	22486	锁扣至节气门臂螺钉(.250-28 x .880)	SCREW (.250-28 x .880) Latch to Throttle Arm	1
17	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
18	20099		SPRING Compression - Latch Screw	1
19	20586		NUT (.250-28) Latch Screw	1
19	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
20	76559A1	点火提前杆	LEVER Spark Advance	1
20	815607A1	点火提前杆总成	LEVER ASSEMBLY Spark Advance	1
21	55337	杠杆和臂至气缸体螺钉(.375-16 x 1.75)	SCREW (.375-16 x 1.75) Lever and Arm to Cylinder Block	1
21	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
22	55164	杠杆臂螺钉衬套	BUSHING Lever and Arm Screw	1
23	55171	杠杆臂螺钉衬套	BUSHING Lever and Arm Screw	1
24	55162		SPRING Return - Spark Advance Lever	1
25	68410	杠杆臂螺钉垫圈	WASHER Lever and Arm Screw	1
25	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
26	25158	调节螺钉(.190-32 x 1.75)-火花提前杠杆	SCREW (.190-32 x 1.75) Adjusting - Spark Advance Lever	1
27	68219	不锈钢调节螺钉螺母(#10-32)	NUT (#10-32) Stainless Steel Adjusting Screw	1
28	48039		CAP Adjusting Screw	1
29	76056	火花提前连杆	LINK ROD Spark Advance	1
30	74897	螺纹枢轴-连杆至触发器	PIVOT Threaded - Link Rod to Trigger	1
30	74897T	枢轴	PIVOT	1
31	77013A1	连杆旋转接头-火花提前杠杆	SWIVEL Link Rod to Spark Advance Lever	1
32	29402	旋转接头波形垫圈	WAVE WASHER Swivel	1
33	26856	连杆旋转接头衬套	BUSHING Link Rod Swivel	1
34	33786	连杆旋转接头垫圈	WASHER Link Rod Swivel	1
34	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
35	45774	连杆旋转接头螺母	NUT Link Rod Swivel	1
36	66778	节流阀执行器板	PLATE Throttle Actuator	1
36	66778T	油门板	PLATE-THROTTLE	1
37	46420	螺钉(#10-24 x .500)-板至节流阀执行器	SCREW (#10-24 x .500) Plate to Throttle Actuator	2
38	23015	调节螺钉(.190-32 x 1.00)-板	SCREW (.190-32 x 1.00) Adjusting - Plate	1
39	68219	不锈钢调节螺钉螺母(#10-32)	NUT (#10-32) Stainless Steel Adjusting Screw	1
40	48039		CAP Adjusting Screw	1

图 27自动混合器 AUTO-BLEND

REF	零件编号	中文名称	英文名称	数量
-	130194	自动混合装置	AUTO BLEND ASSEMBLY	1
1	16612	油箱套件机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	16619		CAP Oil Tank	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	16620	安装支架套件	BRACKET KIT Mounting	1
8	13993	箍带	BAND	1
9	13983	左支架	BRACKET Left	1
10	13984	右支架	BRACKET Right	1
11	16613	盖板	COVER	1
12	13985	机油滤清器/传感器套件	FILTER/SENSOR KIT Oil	1
13	18576	燃油滤清器套件	FILTER KIT Fuel	1
14	13992	乙烯基软管	VINYL TUBE	1
15	16618	机油滤网	STRAINER Oil	1
16	16615	止回阀套件	CHECK VALVE KIT	1
17	16621	安装板	PLATE	1
18	19265	模块套件	MODULE KIT	1
19	16623	支架套件	BRACKET KIT	1
20	16616	衬垫套件	GASKET KIT	1
21	14585A1	自动混合线束总成	HARNESS ASSEMBLY Auto Blend	1

图 28启动电机总成 Starter Motor Assembly

REF	零件编号	中文名称	英文名称	数量
-	73521	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660		PLATE Drive End	1
4	75379	贯穿螺栓	BOLT Through	2
6	75382	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387		BUSHING Insulating	1
9	38013		WASHER Input Stud	1
10	26992		LOCKWASHER (.250) Stainless Steel Input Stud	1
11	20890		NUT (.250-20) Input Stud	1
12	61787	电刷架	HOLDER Brush	2
12	898265014	电刷支架	HOLDER-BRUSH	2
13	68586		SCREW Brush and Holder	2
14	75383		END CAP Commutator	1

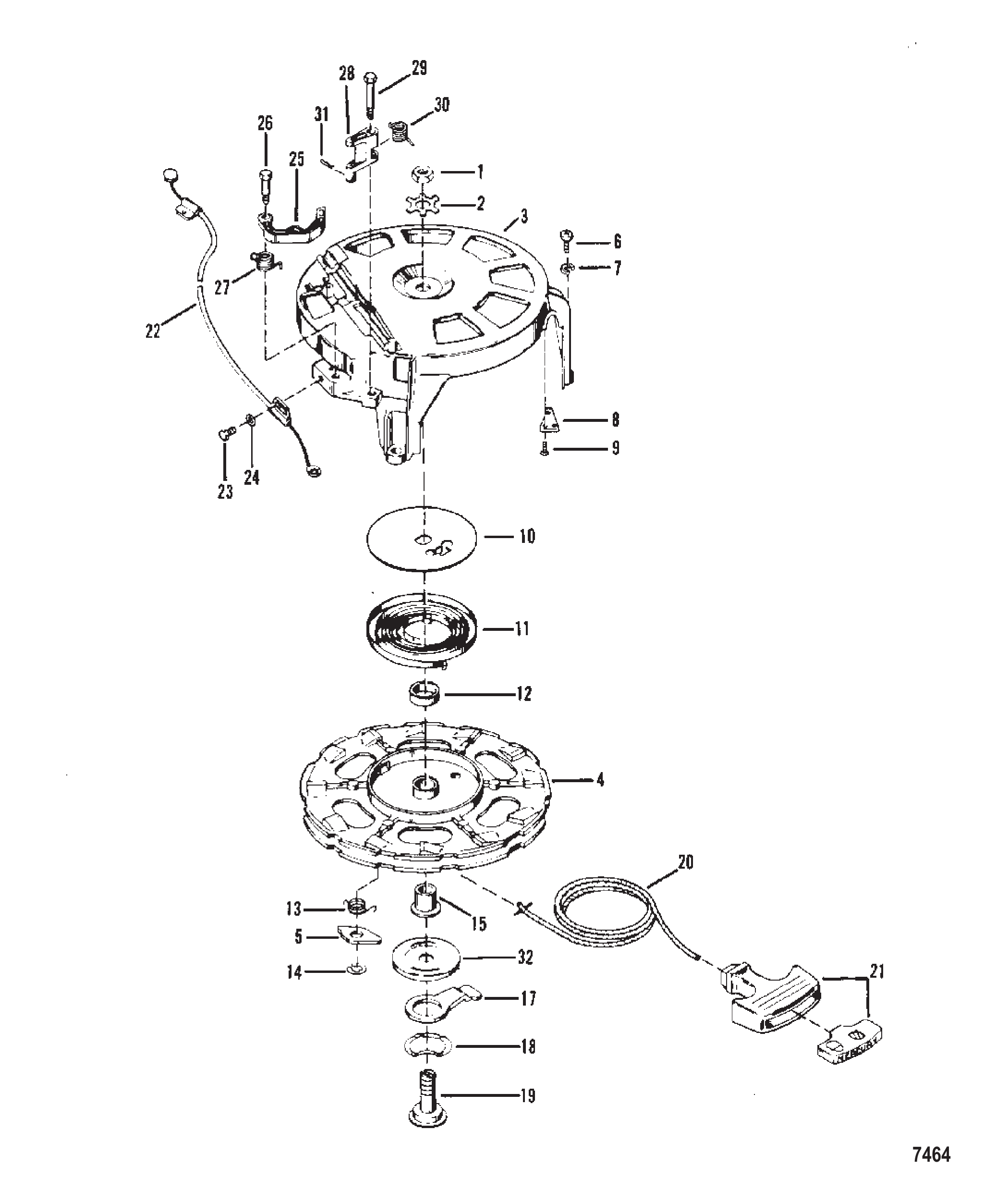

图 29启动器回绕装置 STARTER REWIND

REF	零件编号	中文名称	英文名称	数量
1	20166		NUT Sheave Shaft (Left Hand Thread)	1
2	61004		TAB WASHER Sheave Shaft Nut	1
3	890162	启动器壳体	HOUSING Starter	1
4	44255A1	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
5	44508	启动棘爪	PAWL Starter	1
6	54523	螺钉 (.312-18 x 1.00) 启动器外壳	SCREW (.312-18 x 1.00) Starter Housing	3
7	20202	锁紧垫圈启动器外壳螺钉	LOCKWASHER Starter Housing Screw	3
8	37691	电缆导板	PLATE Cable Guide	1
9	35881	螺钉 (#6-32 x .250) 驱动-电缆导板	SCREW (#6-32 x .250) Drive - Cable Guide Plate	3
9	358811	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	3
10	61002		PLATE Starter Rewind	1
11	39502A1	弹簧	SPRING	1
11	39502T02	回卷弹簧	SPRING-RECOIL	1
12	87649		BUSHING Spring Guide	1
13	87651		SPRING Starter Pawl	1
14	87706		E RING Starter Pawl	1
15	63061		SPACER Sheave Shaft	1
17	94962	杠杆	LEVER	1
18	20160	波形垫圈	WAVE WASHER	1
19	87656	滑轮轴	SHEAVE SHAFT	1
20	12066A9	绳索	ROPE	1
20	12066Q10	启动绳@2	ROPE-STARTER@2	1
20	47341A1	绳索与手柄套件手动/应急启动	ROPE AND HANDLE KIT Manual/Emergency Start For Manual Starting	1
20	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
21	85174A1	手柄总成	HANDLE ASSEMBLY	1
22	76568	联锁电缆	CABLE Interlock	1
23	69022	螺钉 (#10-32 x .500) 不锈钢联锁电缆固定	SCREW (#10-32 x .500) Stainless Steel Interlock Cable Attaching	2
24	33786	联锁电缆螺钉垫圈	WASHER Interlock Cable Screw	2
24	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	2
25	42820		CAM Interlock	1
25	428201	凸轮	CAM	1
26	76138	螺钉 (.312-18 x 1.120) 联锁凸轮(1.125英寸)	SCREW (.312-18 x 1.120) Interlock Cam (1.125 Inch)	1
27	76140	联锁凸轮螺钉弹簧	SPRING Interlock Cam Screw	1
27	761401	弹簧	SPRING	1
28	79371		ACTUATOR Interlock	1
29	76137	联锁执行器螺钉(1.625英寸)	SCREW Interlock Actuator (1.625 Inch)	1
30	76139	联锁执行器螺钉弹簧	SPRING Interlock Actuator Screw	1
31	27769		COTTER PIN Interlock Cable to Actuator	1
31	26811	开口销	COTTER PIN	1
32	35559		WASHER Starter Rewind	1
-	89016A3	起动机总成回绕式	STARTER ASSEMBLY Rewind	1

图 30化油器联动机构/阻风门电磁阀 Carburetor Linkage/Choke Solenoid

REF	零件编号	中文名称	英文名称	数量
1	54293A11	阻风门电磁阀总成	SOLENOID ASSEMBLY Choke	1
2	26996		LOCKWASHER (#10) Stainless Steel Choke Solenoid Terminal	1
3	45076		NUT (#10-32) Brass Choke Solenoid Terminal	1
4	26066	阻风门电磁阀至前支架螺钉(.312-24 x 1.75)	SCREW (.312-24 x 1.75) Choke Solenoid to Front Bracket	2
5	26993	阻风门电磁阀螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Choke Solenoid Screw	2
6	22053	阻风门电磁阀螺钉螺母(.312-24)	NUT (.312-24) Choke Solenoid Screw	2
7	56074A8	阻风门电磁阀柱塞总成	PLUNGER ASSEMBLY Choke Solenoid	1
8	90241	阻风门旋钮	KNOB Choke	1
9	90242A1	旋钮总成	KNOB ASSEMBLY	1
10	35519	拉带至阻风门旋钮螺钉(#10-16 x .500)	SCREW (#10-16 x .500) Strap to Choke Knob	1
11	49589	阻风门旋钮至拉杆拉带	STRAP Choke Knob to Choke Rod	1
12	62568	拉带至阻风门拉杆螺钉(#10-16 x .375)	SCREW (#10-16 x .375) Strap to Choke Rod	1
13	20116		GROMMET Choke Knob	1
14	85966A1	阻风门拉杆总成	ROD ASSEMBLY Choke	1
15	86042	阻风门拉杆螺钉	SCREW Choke Rod	2
16	60288	阻风门拉杆弹簧	SPRING Choke Rod	1
17	53719A2	拾取支架总成	BRACKET ASSEMBLY Pick Up	1
18	66104	拾取支架螺钉(#8-32 x .790)	SCREW (#8-32 x .790) Pick-Up Bracket	1
19	89694	联轴器键	KEY Coupling	1
20	99127109	化油器三通燃油管(57.00英寸散装)	LINE (57.00 Inches Bulk) Carburetor to Tee to Carburetor	2
21	90077	燃油管束带	TIE STRAP Fuel Line	AR
22	73318	塑料燃油三通	TEE Plastic Fuel Line	1

图 31杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

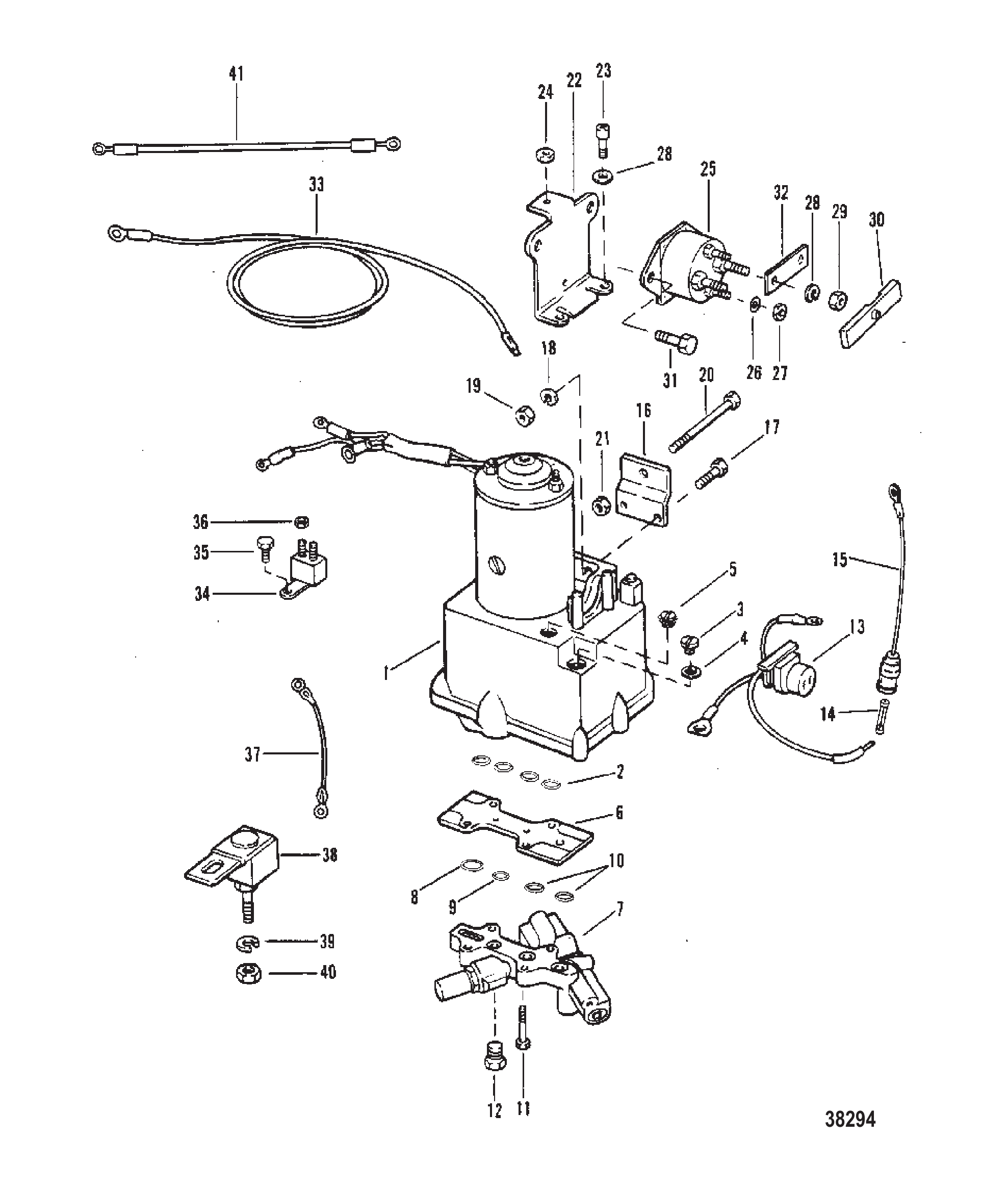

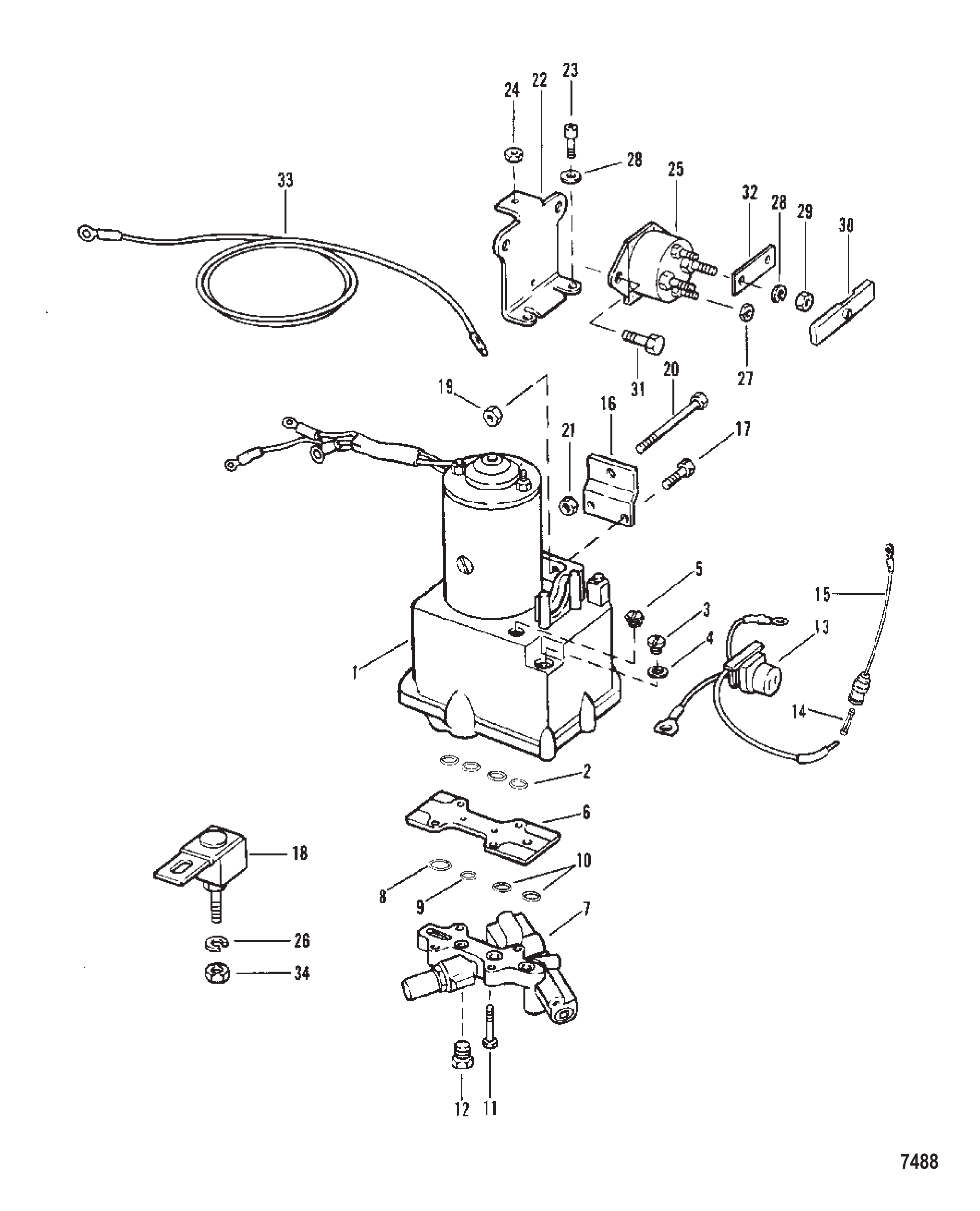

图 32动力升降组件(电动手柄) Power Trim Components (Electric Handle)

REF	零件编号	中文名称	英文名称	数量
1	92975A6	液压泵总成	PUMP ASSEMBLY Hydraulic	1
2	48171		O-RING (.364. x .070) Manifold Plate	4
3	79953		SCREW (.375-16 x .250) Filler - Hydraulic Pump	1
4	19183	纤维密封填料螺钉垫圈	WASHER Fiber Sealing Filler Screw	1
5	62269	螺钉 (#10-32 x .437) 液压泵通气孔	SCREW (#10-32 x .437) Vent - Hydraulic Pump Hydraulic Pump	1
6	45336		PLATE Manifold	1
7	45197A2	控制阀总成	VALVE ASSEMBLY Control	1
--	48171	O形圈 (.364. x .070) 歧管板(参见参考号#2)	O-RING (.364. x .070) Manifold Plate (See Reference. #2)	4
8	45254	O形圈控制阀	O-RING Control Valve	1
9	48171		O-RING (.364. x .070) Control Valve	1
10	45253	O形圈控制阀	O-RING Control Valve	2
11	56500	螺钉 (.250-28 x 1.250) 阀与歧管板至泵	SCREW (.250-28 x 1.250) Valve and Manifold Plate to Pump	4
12	46008	控制阀塞	PLUG Control Valve	2
13	79147A3	线束总成	HARNESS ASSEMBLY	1
14	79091	保险丝20安培	FUSE 20 Ampere	1
15	95084A3	保险丝线束总成	CABLE ASSEMBLY Fuse	1
16	45377T	安装支架	BRACKET Mounting	2
17	35386	螺钉 (.312-18 x 1.00) 安装支架至液压泵	SCREW (.312-18 x 1.00) Mounting Bracket to Hydraulic Pump	4
18	79023A90	90安培保险丝总成	FUSE ASSEMBLY 90 Ampere	1
19	21908		NUT (.312-18) Cad Plated Mounting Bracket Screw	4
20	31830	螺栓 (.375-24 x 1.75) 液压泵至船体	BOLT (.375-24 x 1.75) Hydaulic Pump to Boat	2
21	24883	液压泵手册螺母	NUT Hydaulic Pump Book	2
22	94279	安装支架-启动电磁阀	BRACKET Mounting - Starter Solendied	1
23	48060	螺钉 (.250-14 x .625) 安装支架至液压泵	SCREW (.250-14 x .625) Mounting Bracket to Hydraulic Pump	2
24	29488	螺母 (#10-32) 安装支架至液压泵贯穿螺栓	NUT (#10-32) Mounting Bracket to Hydraulic Pump through Bolt	1
25	96158	启动电磁阀	SOLENOID Starter	2
26	96457		WASHER Phenolic (.27 x .81 x .062) Fuse Terminal	1
27	26419		NUT (#8-32) Brass Solenoid Terminal	4
28	26992		LOCKWASHER (.250) Stainless Steel Solenoid Terminal	4
29	94330		NUT (.250-20) Brass Solenoid Terminal	4
30	96535	橡胶启动电磁阀端子护套	BOOT Rubber Starter Solenoid Terminal	1
31	41508	螺钉 (.250-20 x .500) 不锈钢启动电磁阀至安装支架	SCREW (.250-20 x .500) Stainless Steel Starter Solenoid to Mounting Bracket	4
32	94275	连杆电磁阀至电磁阀	LINK Soleniod to Solenoid	1
33	79139A13	电池电缆总成	CABLE ASSEMBLY Battery	1
34	21825		NUT (.250-28) Fuse Terminal	1

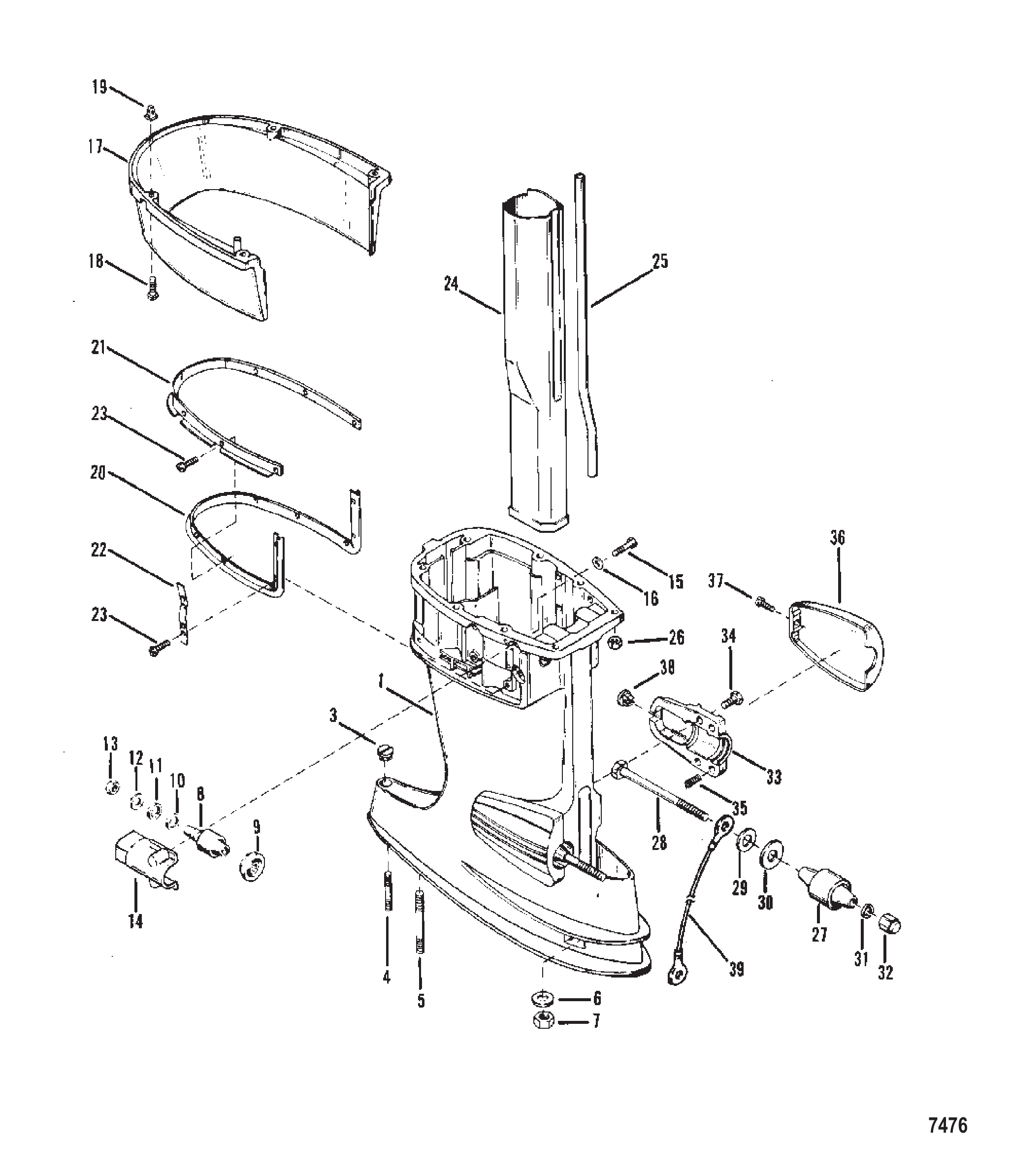

图 33驱动轴壳体总成 Driveshaft Housing Assembly

REF	零件编号	中文名称	英文名称	数量
1	7512A10	驱动轴壳体总成(短轴)	HOUSING ASSEMBLY Driveshaft (Short Shaft)	1
1	7513A12	驱动轴壳体总成(长轴)	HOUSING ASSEMBLY Driveshaft (Long Shaft)	1
1	8189A10	黑色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Black	1
1	8189A11	灰色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Gray	1
3	64649	塑料螺塞-调整片螺钉孔	PLUG Plastic - Trim Tab Screw Hole	1
4	57932		STUD (.375-16/.375-24 x 1.750) Driveshaft Housing	1
5	57935	驱动轴壳体双头螺柱(3英寸)	STUD Driveshaft Housing (3 Inch)	1
6	65791	齿轮箱壳体螺柱垫圈(0.438英寸)	WASHER Gear Housing Studs (0.438 Inch)	2
7	34933		NUT (.437-20) Stainless Steel Gear Housing Studs	2
8	93445	橡胶上支架	MOUNT Rubber - Upper	2
9	96401	上支架密封件	SEAL Upper Mount	2
10	27727		WASHER Upper Mount Bolt (37/64 I.D.)	2
11	66966		WASHER Rubber - Upper Mount Bolt	2
12	30514		WASHER Upper Mount Bolt	2
13	34933		NUT (.437-20) Stainless Steel Upper Mount Bolt	2
14	87883T	上减震座盖	COVER Upper Mount	2
15	76630		SCREW (.250-20 x 1.00) Upper Mount Cover	4
16	29245		WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw	4
17	37687	驱动轴壳体调整盖	COVER Trim - Driveshaft Housing	1
17	37687F2	驱动轴壳体调整盖	COVER Trim - Driveshaft Housing	1
18	57807		SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing	4
19	92012		GROMMET Trim Cover Screw	4
20	38157	调整盖至驱动轴壳体密封件	SEAL Trim Cover to Driveshaft Housing	1
21	38158	调整盖密封条(后)	STRIP Retaining - Trim Cover Seal (Rear)	1
22	38154	调整盖密封条(侧)	STRIP Retaining - Trim Cover Seal (Side)	2
23	48408	固定条螺钉(#10-16 x .500)	SCREW (#10-16 x .500) Retaining Strip	8
24	695431	排气管	TUBE Exhaust	1
24	695441	排气管	TUBE Exhaust	1
25	37727	进水口管	TUBE Water Inlet	1
25	45679	进水口管	TUBE Water Inlet	1
26	64809	动力头螺柱螺母(0.313英寸)	NUT Powerhead Studs (0.313 Inch)	8
27	75304	下橡胶支座	MOUNT Rubber - Lower	2
28	75284		SCREW (.500-20 x 5.500) Lower Mount Screw	2
28	43426	下支座螺丝	SCREW Lower Mount Screw	2
29	28051		WASHER Lower Mount Screw	2
30	28053	下支座螺丝橡胶垫圈	WASHER Rubber - Lower Mount Screw	2
31	30119		WASHER (.875 Inch Outside Diameter) Lower Mount Screw	2
32	25096		NUT Lower Mount Screw	2
33	69592	下支座夹箍	CLAMP Lower Mount	2
34	29256		SCREW (.312-18 x .875) Lower Mount Clamp	4
35	35522		SPRING Tension - Lower Mount Clamp	4
36	35474T	下安装夹盖	COVER Lower Mount Clamp	2
36	35474F2	下支座夹箍盖	COVER Lower Mount Clamp Lower Mount Clamp	2
37	87884	盖至下支座夹箍螺丝(#12-14 x 0.920)	SCREW (#12-14 x .920) Cover to Lower Mount Clamp	2
38	35521		NUT Lower Mount Clamp Cover	2
39	88238A2	动力升降接地线组件(2根)	CABLE ASSEMBLY Ground Quanity of Two on Power Trim	1

图 34气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8981A6	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	72038	启动电机上支架	BRACKET Upper Starter Motor	1
3	73279	支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)	SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch)	2
4	26993	支架螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Bracket Screw	4
4	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
5	76867	启动电机下盖	COVER Lower Starter Motor	1
6	73279	盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)	SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch)	2
8	20032	缸体至主轴承定位销	PIN Dowel Cylinder block to main bearing	2
9	68164	化油器双头螺柱(1.25英寸)	STUD Carburetor (1.25 Inch)	4
9	64936	螺柱	STUD	4
10	68165	曲轴箱至驱动轴壳体双头螺柱(1.625英寸)	STUD Crankcase to Driveshaft Housing (1.625 Inch)	2
11	20033	曲轴箱至缸体定位销	PIN Dowel Crankcase to Cylinder Block	2
11	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
12	87901	缸体至驱动轴壳体双头螺柱(4英寸)	STUD Cylinder block to drive shaft housing (4 Inch)	2
13	68166	缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸)	STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch)	2
14	68167	缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸)	STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch)	2
15	73657	曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸)	SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch)	13
15	31984	曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸)	SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch)	3
15	73275	曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸)	SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch)	2
16	70132	曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063)	WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw	17
16	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	17
17	20359	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
17	98260	螺钉(.375-16 x .620)	SCREW (.375-16 x .620)	2
18	20091	中央轴承锁紧螺钉止动垫圈	TAB WASHER Center Bearing Locking Screw	3
19	99127109	平衡管(57英寸散装)-主轴承(5.50英寸)	LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	99664	平衡管至缸体弯头	ELBOW Balance Tube to Cylinder Block	2
20	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
21	65857	上部泄放软管接头	CONNECTOR Upper Bleed Hose	1
21	56759	倒钩接头	FITTING Barbed	1
22	9938779	气缸泄放软管(11英寸)	HOSE Cylinder Bleed (11 Inch)	1
23	42867	下部泄放软管止回阀	CHECK VALVE Lower Bleed Hose	1
23	428671	止回阀	CHECK VALVE	1
24	99156	正时指示器	INDICATOR Timing	1
25	39349	指示器至曲轴箱不锈钢螺钉(.312-18 x .750)	SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase	1
26	26993	指示器螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Indicator Screw	1
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
-	97469A87	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	97469T87	船用动力头	POWERHEAD MARINE	1

图 35转向手柄总成 Steering Handle Assembly

REF	零件编号	中文名称	英文名称	数量
1	48416		CAP Steering Handle Grip	1
2	20586		NUT (.250-28) Steering Handle Arm	1
3	21631		WASHER (.255 x .625 x .0312) Steering Handle Arm	1
4	58192A1		GRIP Steering Handle Arm	1
5	48414	驱动轮外壳	HOUSING Drive Wheel	1
6	48516A1	驱动轮/杆总成	DRIVE WHEEL/ROD ASSEMBLY	1
7	48405A2	臂总成	ARM ASSEMBLY	1
8	48519		PLATE Cover - Drive Wheel	1
9	48518	盖板垫片	GASKET Cover Plate	1
10	28192	螺钉 (#10-24 x .50) 驱动轮盖板	SCREW (#10-24 x .50) Drive Wheel Cover Plate	4
11	785511	电缆导管	CONDUIT Cable	1
12	48520	节气门拉索	CABLE Throttle	1
13	89613	控制连杆接头	CONNECTOR Control Linkage	1
14	89601		SCREW Set - Throttle Cable Guide Tube	1
15	895661	节气门电缆导向管	GUIDE TUBE Throttle Cable Guide	1
16	43433	节气门电缆导向器	GUIDE Throttle Cable	1
17	20007		ANCHOR Throttle Cable	1
18	20518		SET SCREW (#8-32) Throttle Cable Anchor	2
19	48404T	手柄支架	BRACKET Handle	1
20	48416	手柄支架盖	CAP Handle Bracket	1
21	48476	手柄支架螺钉	SCREW Handle Bracket	1
22	48477	手柄支架垫圈	WASHER Handle Bracket	1
23	48526	尼龙垫圈-手柄支架	WASHER Nylon - Handle Bracket	1
24	28919	尼龙衬套-手柄支架	BUSHING Nylon - Handle Bracket	2
25	48525	手柄支架隔套	SPACER Handle Bracket	1
26	48527	尼龙垫圈-手柄支架	WASHER Nylon - Handle Bracket	1
27	48478	手柄支架波形垫圈	WAVE WASHER Handle Bracket	2
28	49636	尼龙垫圈-手柄支架	WASHER Nylon - Handle Bracket	1
29	20220	螺母(.500-20)-手柄支架螺钉	NUT (.500-20) Handle Bracket Screw	1
30	35786		SCREW (.375-24 x 1.00) Bracket to Engine	2
31	43589	支架螺钉锁紧垫圈	TAB WASHER Bracket Screw	2
32	78812A1		DETENT Shift Lever	1
33	48409	不锈钢换挡杆定位螺钉(#10-16 x .625)	SCREW (#10-16 x .625) Stainless Steel Shift Lever Detent	2
34	485681	换挡杆	SHIFT LEVVER	1
35	48237	尼龙衬套-换挡杆	BUSHING Nylong - Shift Lever	1
36	34931		WASHER (.406 x .734 x .063) Stainless Steel Shift Lever	1
37	34863	螺母(.375-24)-换挡杆	NUT (.375-24) Shift Lever	1
38	49563	换挡连杆	SHIFT ROD	1
39	48419		ROD END Shift Rod	1
40	48475	尼龙衬套-换挡杆	BUSHING Nylon - Shift Rod	1
41	35950		WASHER (.273 x .437 x .031) Stainless Steel Shift Rod	1
42	25191		COTTER PIN Shift Rod	1
43	98530		KNOB Shift Lever	1
44	11083A11	停机开关总成	SWITCH ASSEMBLY Stop	1
45	12044		RETANER Stop Switch	1
46	15920A54	拉绳总成	LANYARD ASSEMBLY	1
47	64855	停止开关夹	CLAMP Stop Switch	1
--	52148A1	副驾驶套件	CO-PILOT KIT	1

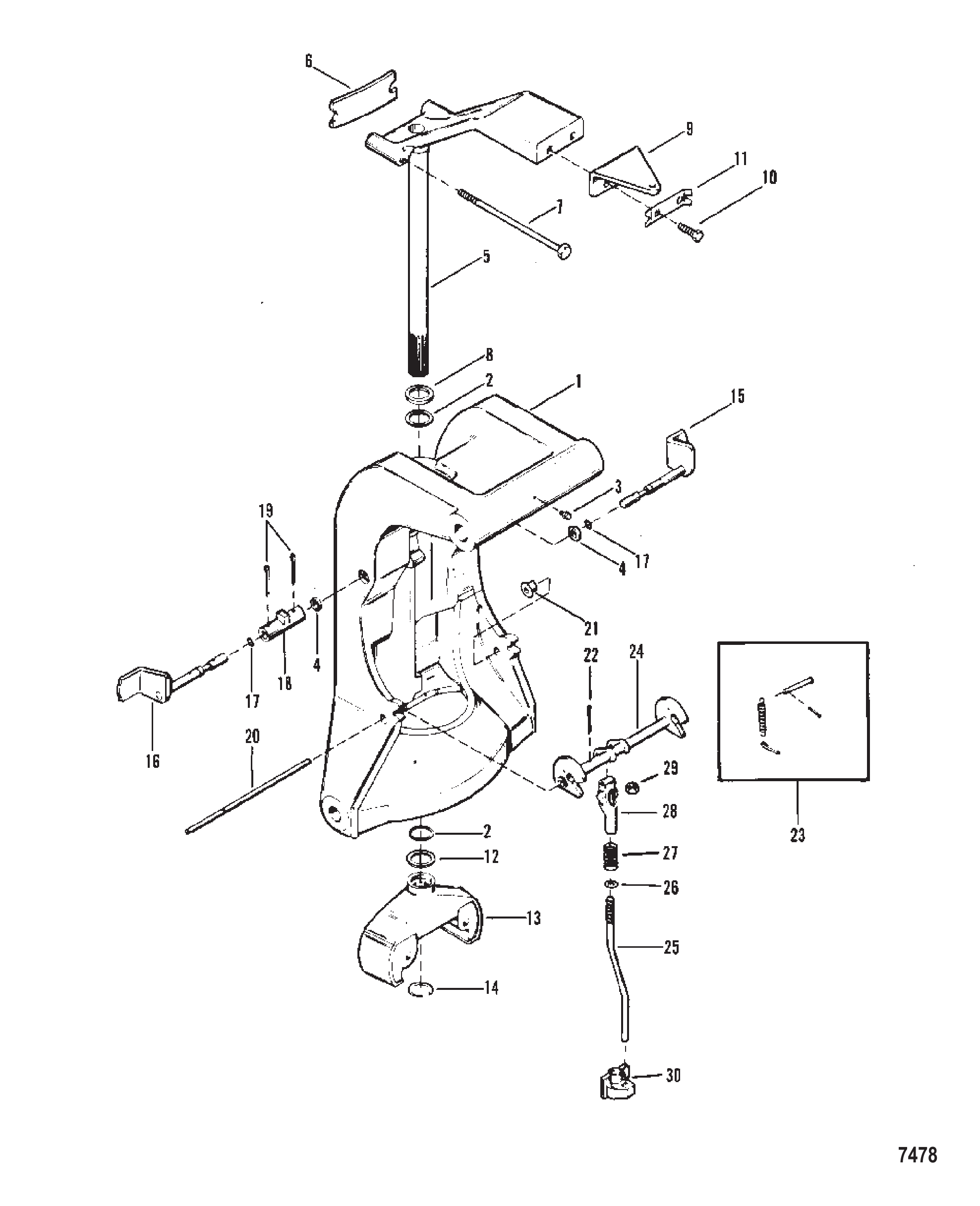

图 36旋转支架与倒车锁(非动力升降) Swivel Bracket and Reverse Lock (Non Power Trim)

REF	零件编号	中文名称	英文名称	数量
1	8597A4	旋转支架	SWIVEL BRACKET	1
1	8599A6	旋转支架	SWIVEL BRACKET	1
2	32911		SEAL Oil Swivel Bracket	2
3	74036	润滑脂接头	FITTING Grease	4
4	22734		SEAL Oil Swivel Bracket	2
5	88798A1	两件式转向臂旋转销总成	SWIVEL PIN ASSEMBLY Two Piece Steering Arm	1
5	88798A2	两件式转向臂旋转销总成	SWIVEL PIN ASSEMBLY Two Piece Steering Arm	1
5	69540A3	整体式转向臂旋转销总成	SWIVEL PIN ASSEMBLY One Piece Steering Arm	1
5	69540A4	整体式转向臂旋转销总成	SWIVEL PIN ASSEMBLY One Piece Steering Arm	1
6	30711		BUMPER Steering Arm	1
7	66897	螺栓(.437-20 x 5.250)-上支架至旋转销(5.25英寸)	BOLT (.437-20 x 5.250) Upper MOunt to Swivel Pin (5.25 Inch)	2
8	47606	旋转销垫圈-下部	WASHER Swivel Pin - Lower	1
9	76535	行驶导向支架	BRACKET Ride - Guide	1
10	34352	支架螺钉(.375-24 x .875)	SCREW (.375-24 x .875) Bracket	2
11	76533		STRAP Bracket Screw	1
12	25176		WASHER Swivel Pin to Bottom Yoke (.060)	1
13	77416T	下轭架	YOKE Bottom	1
13	77416T6	下轭架	YOKE Bottom	1
14	77415		RETAINING RING Bottom Yoke	1
15/16	89105	倾斜锁定装置	TILT LOCK	2
15/16	99431A1	倾斜锁定装置	TILT LOCK	2
17	62702	O型圈(.301 x .070)-倾斜锁定	O-RING (.301 x .070) Tilt Lock	2
18	79659		COUPLING Tilt Lock	1
19	47959		COTTER PIN Tilt Lock Tube	2
20	56349	倒挡锁定枢轴	SHAFT Reverse Lock Pivot	1
21	69132	倒挡枢轴衬套	BUSHING Reverse Pivot Shaft	2
22	45882		COTTER PIN Reverse Lock to Shaft	2
23	78203A2	倒挡锁定张力弹簧	SPRING Reverse Lock Tension	1
24	14664A3	倒车锁	REVERESE LOCK	1
25	43415	倒挡锁定推杆	PUSH ROD Reverse Lock	1
25	43416	倒挡锁定推杆	PUSH ROD Reverse Lock	1
26	70132		WASHER (.323 x .563 x .063) Stainless Steel Push Rod	1
27	44297		SPRING Push Rod	1
28	89813		ROD END Push Rod	1
29	35814	不锈钢推杆螺母(.312-24)	NUT (.312-24) Stainless Steel Push Rod	1
30	93336		GUIDE Push Rod	1
-	85491A87	衬垫套件	GASKET SET	1

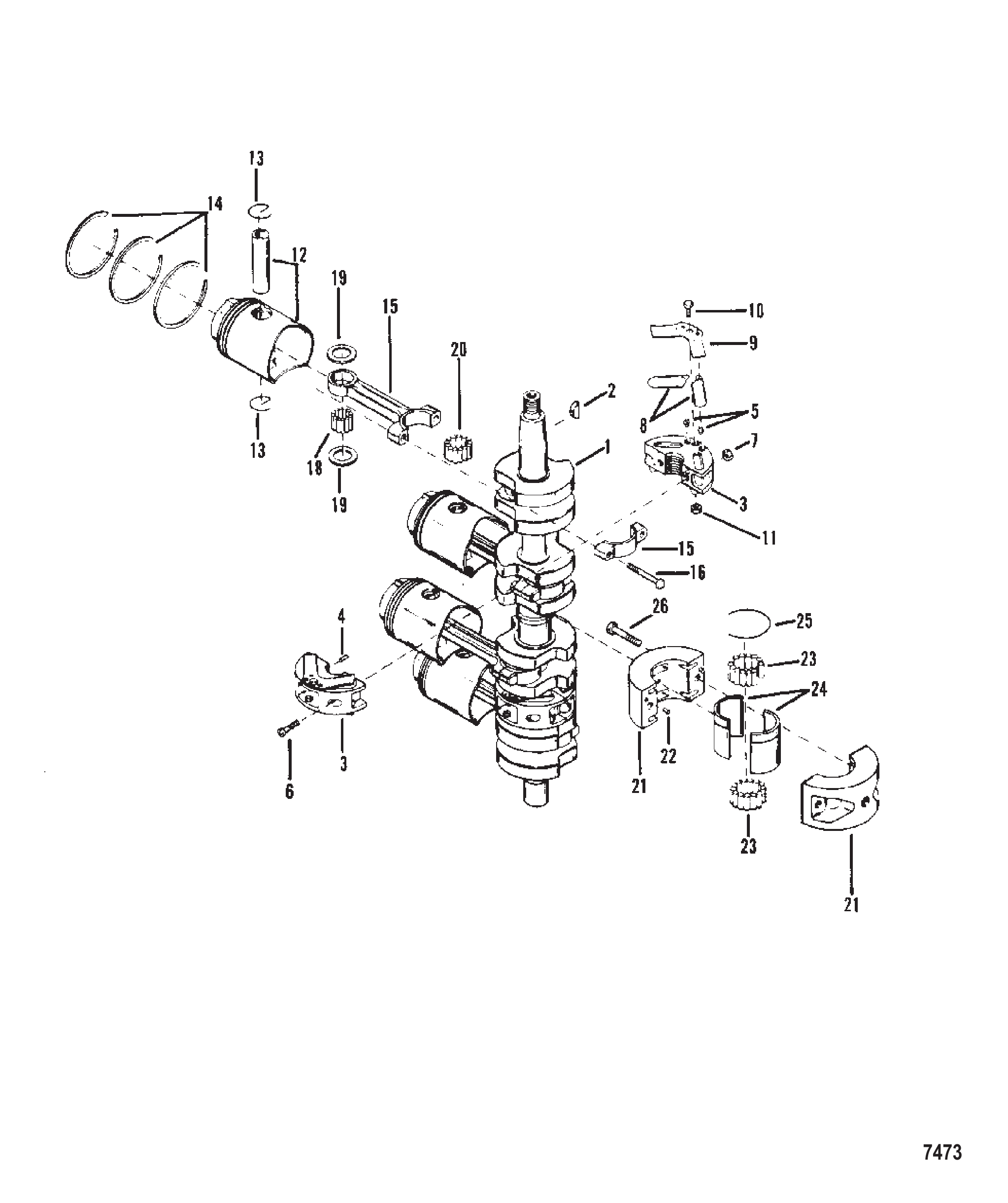

图 37曲轴/活塞及连杆 Crankshaft Pistons, and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9075	曲轴	CRANKSHAFT	1
2	20094	曲轴半圆键	KEY Woodruff Crankshaft	1
3	3267A25	主阀式轴承总成	BEARING ASSEMBLY Main Valve Type	2
4	20032	主轴承定位销	PIN Dowel Main Bearing	4
5	65855	簧片定位销	PIN Dowel Reed Locating	16
6	45775	主轴承螺钉(#12-28 x .560)(0.563英寸)	SCREW (#12-28 x .560) Main Bearing (0.563 Inch)	4
7	45774	主轴承螺钉螺母	NUT Main Bearing Screw	4
8	88498A1	配套簧片组	REED SET Matched	2
9	79014	簧片止挡	STOP Reed	8
10	77280	簧片止动螺钉(.190-32 x .560)(0.563英寸)	SCREW (.190-32 x .560) Reed Stop (0.563 Inch)	8
11	20110	簧片止动螺钉螺母(#10-32)	NUT (#10-32) Reed Stop Screw	8
12	5172A6	活塞总成	PISTON ASSEMBLY	4
12	3366A2	活塞总成	PISTON ASSEMBLY	AR
12	7716A2	活塞总成	PISTON ASSEMBLY	AR
13	47276	活塞销锁环	LOCK RING Piston Pin	8
14	27841A12	活塞环组-标准	RING SET Piston - Standard	1
14	28616A12	活塞环组	RING SET Piston	1
14	89822A12	活塞环组-.030加大	RING SET Piston - .030 Oversize	1
15	7621A3	连杆总成	CONNECTING ROD ASSEMBLY	4
16	91012	盖至连杆专用螺钉(.250-28)	SCREW (.250-28 Special) Cap to Rod	8
18	20063		BEARING Needle Piston Pin	108
19	47275	针阀定位垫圈	WASHER Needle Locating	8
20	20046T	曲柄销滚针轴承	BEARING Needle Crankpint	100
21	7060A2	中央主轴承总成	BEARING ASSEMBLY Center Main	1
22	20032		PIN Dowel Center Main Bearing	2
23	71422	滚针轴承	BEARING Needle	56
24	26113	外圈	RACE Outer	1
25	26933	外圈卡环	RING Snap Outer Race	1
26	76630	中心主轴承螺钉(.250-20 x 1.00)(1英寸)	SCREW (.250-20 x 1.00) Center Main Bearing (1 Inch)	2

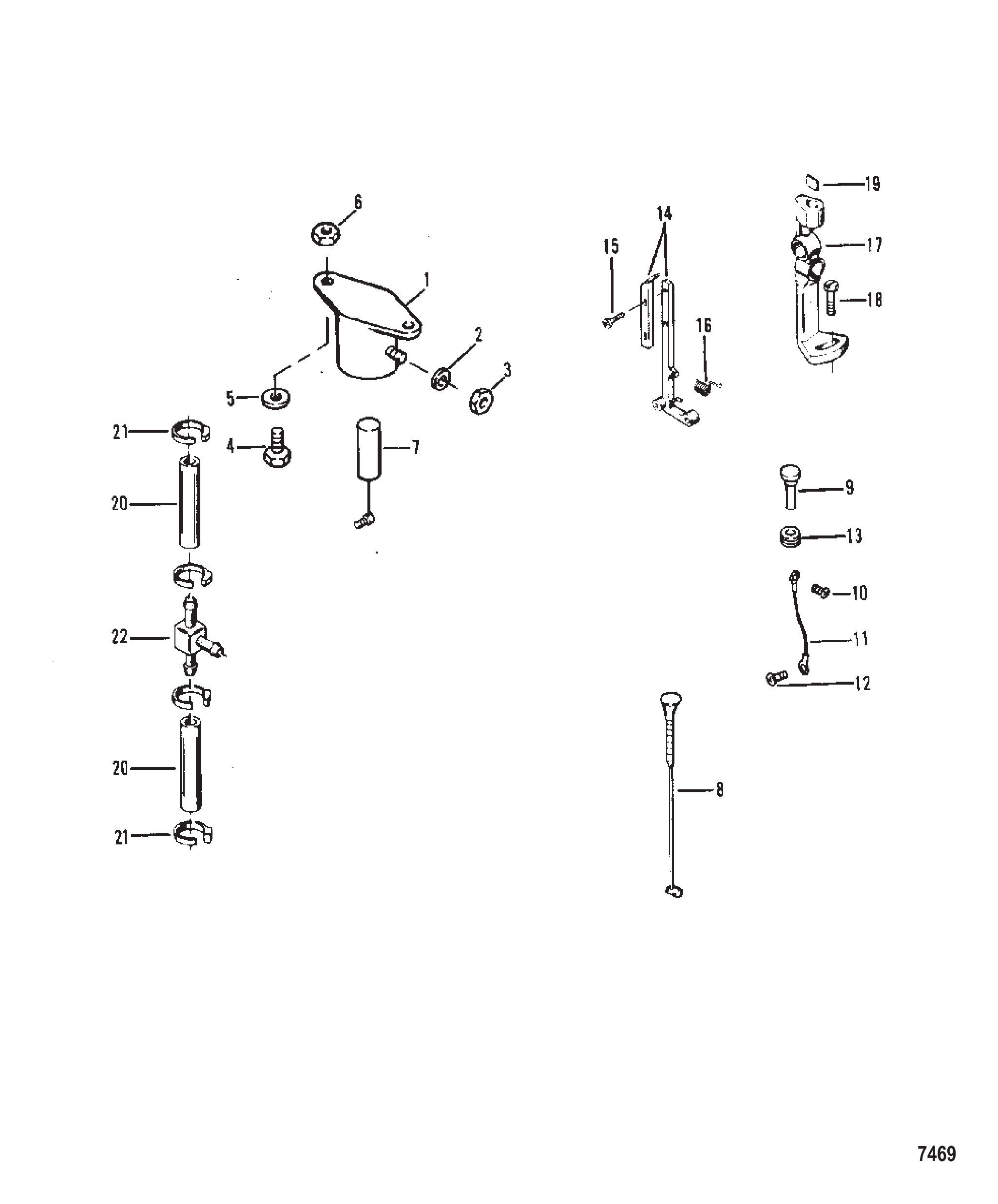

图 38化油器联动机构/阻风门电磁阀 CARBURETOR LINKAGE/CHOKE SOLENOID

REF	零件编号	中文名称	英文名称	数量
1	54293A11	阻风门电磁阀总成	SOLENOID ASSEMBLY Choke	1
2	26996		LOCKWASHER (#10) Stainless Steel Choke Solenoid Terminal	1
3	45076		NUT (#10-32) Brass Choke Solenoid Terminal	1
4	26066	阻风门电磁阀至前支架螺钉(.312-24 x 1.75)	SCREW (.312-24 x 1.75) Choke Solenoid to Front Bracket	2
5	26993	阻风门电磁阀螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Choke Solenoid Screw	2
5	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
6	22053	阻风门电磁阀螺钉螺母(.312-24)	NUT (.312-24) Choke Solenoid Screw	2
7	56074A8	阻风门电磁阀柱塞总成	PLUNGER ASSEMBLY Choke Solenoid	1
8	90241	阻风门旋钮	KNOB Choke	1
9	90242A1	旋钮总成	KNOB ASSEMBLY	1
10	35519	拉带至阻风门旋钮螺钉(#10-16 x .500)	SCREW (#10-16 x .500) Strap to Choke Knob	1
11	49589	阻风门旋钮至拉杆拉带	STRAP Choke Knob to Choke Rod	1
12	62568	拉带至阻风门拉杆螺钉(#10-16 x .375)	SCREW (#10-16 x .375) Strap to Choke Rod	1
13	20116		GROMMET Choke Knob	1
14	85966A1	阻风门拉杆总成	ROD ASSEMBLY Choke	1
15	86042	阻风门拉杆螺钉	SCREW Choke Rod	2
15	77614A1	螺钉套件	SCREW KIT	2
16	60288	阻风门拉杆弹簧	SPRING Choke Rod	1
17	53719A2	拾取支架总成	BRACKET ASSEMBLY Pick Up	1
18	66104	拾取支架螺钉(#8-32 x .790)	SCREW (#8-32 x .790) Pick-Up Bracket	1
19	89694	联轴器键	KEY Coupling	1
20	99127109	化油器三通燃油管(57.00英寸散装)	LINE (57.00 Inches Bulk) Carburetor to Tee to Carburetor	2
20	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
21	90077	燃油管束带	TIE STRAP Fuel Line	AR
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	73318	塑料燃油三通	TEE Plastic Fuel Line	1

图 39驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7512A10	驱动轴壳体总成(短轴)	HOUSING ASSEMBLY Driveshaft (Short Shaft)	1
1	7513A12	驱动轴壳体总成(长轴)	HOUSING ASSEMBLY Driveshaft (Long Shaft)	1
1	8189A10	黑色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Black	1
1	8189A11	灰色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Gray	1
3	64649	塑料螺塞-调整片螺钉孔	PLUG Plastic - Trim Tab Screw Hole	1
4	57932		STUD (.375-16/.375-24 x 1.750) Driveshaft Housing	1
4	8M0022145	螺柱(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750)	1
5	57935	驱动轴壳体双头螺柱(3英寸)	STUD Driveshaft Housing (3 Inch)	1
6	65791	齿轮箱壳体螺柱垫圈(0.438英寸)	WASHER Gear Housing Studs (0.438 Inch)	2
7	34933		NUT (.437-20) Stainless Steel Gear Housing Studs	2
7	8M0204653	螺母	NUT	2
8	93445	橡胶上支架	MOUNT Rubber - Upper	2
8	923373	支架	MOUNT	2
9	96401	上支架密封件	SEAL Upper Mount	2
10	27727		WASHER Upper Mount Bolt (37/64 I.D.)	2
11	66966		WASHER Rubber - Upper Mount Bolt	2
12	30514		WASHER Upper Mount Bolt	2
13	34933		NUT (.437-20) Stainless Steel Upper Mount Bolt	2
13	8M0204653	螺母	NUT	2
14	87883T	上减震座盖	COVER Upper Mount	2
14	87883	盖板	COVER	2
15	76630		SCREW (.250-20 x 1.00) Upper Mount Cover	4
15	8M0214943	螺钉	SCREW	4
16	29245		WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw	4
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	37687	驱动轴壳体调整盖	COVER Trim - Driveshaft Housing	1
17	37687F2	驱动轴壳体调整盖	COVER Trim - Driveshaft Housing	1
18	57807		SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing	4
19	92012		GROMMET Trim Cover Screw	4
19	8M0079730	密封圈套件	GROMMET KIT	4
20	38157	调整盖至驱动轴壳体密封件	SEAL Trim Cover to Driveshaft Housing	1
21	38158	调整盖密封条(后)	STRIP Retaining - Trim Cover Seal (Rear)	1
22	38154	调整盖密封条(侧)	STRIP Retaining - Trim Cover Seal (Side)	2
23	48408	固定条螺钉(#10-16 x .500)	SCREW (#10-16 x .500) Retaining Strip	8
24	695431	排气管	TUBE Exhaust	1
24	695441	排气管	TUBE Exhaust	1
25	37727	进水口管	TUBE Water Inlet	1
25	45679	进水口管	TUBE Water Inlet	1
26	64809	动力头螺柱螺母(0.313英寸)	NUT Powerhead Studs (0.313 Inch)	8
27	75304	下橡胶支座	MOUNT Rubber - Lower	2
27	75304T1	支架	MOUNT	2
28	75284		SCREW (.500-20 x 5.500) Lower Mount Screw	2
28	43426	下支座螺丝	SCREW Lower Mount Screw	2
29	28051		WASHER Lower Mount Screw	2
30	28053	下支座螺丝橡胶垫圈	WASHER Rubber - Lower Mount Screw	2
31	30119		WASHER (.875 Inch Outside Diameter) Lower Mount Screw	2
32	25096		NUT Lower Mount Screw	2
33	69592	下支座夹箍	CLAMP Lower Mount	2
33	69592F1	卡箍	CLAMP	2
34	29256		SCREW (.312-18 x .875) Lower Mount Clamp	4
35	35522		SPRING Tension - Lower Mount Clamp	4
36	35474T	下安装夹盖	COVER Lower Mount Clamp	2
36	35474F2	下支座夹箍盖	COVER Lower Mount Clamp Lower Mount Clamp	2
37	87884	盖至下支座夹箍螺丝(#12-14 x 0.920)	SCREW (#12-14 x .920) Cover to Lower Mount Clamp	2
38	35521		NUT Lower Mount Clamp Cover	2
39	88238A2	动力升降接地线组件(2根)	CABLE ASSEMBLY Ground Quanity of Two on Power Trim	1
39	88238A10	接地线总成	CABLE ASSEMBLY Ground	1

图 40下罩壳及支撑支架 BOTTOM COWL AND SUPPORT BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	7715A4	下罩总成	BOTTOM COWL ASSEMBLY	1
1	7715A5	下罩总成	BOTTOM COWL ASSEMBLY	1
2	88926T	下机罩盖	COVER Bottom Cowl	1
2	88926F1	盖板	COVER	1
3	28636	螺钉（.250-20 x .750）下机罩盖塞	SCREW (.250-20 x .750) Plug to Bottom Cowl	2
2A	948801	下机罩盖塞	PLUG Bottom Cowl	1
3A	28636	螺钉（.250-20 x .750）下机罩盖塞	SCREW (.250-20 x .750) Plug to Bottom Cowl	2
4	56766	螺柱（.250-20/.250-28 x 1.380）下机罩	STUD (.250-20/.250-28 x 1.380) Bottom Cowl	4
5	20184	螺母（1/4-28X7/32）下机罩螺柱	NUT (1/4-28X7/32) Bottom Cowl Stud	4
5	8M0207775	螺母 @5	NUT @5	4
6	78279	示流管弯头-气缸体	ELBOW Tell Tale Hose - Cylinder Block	1
6	8M0207781	弯头	ELBOW	1
7	7568054	示流软管至下机罩（14英寸）	HOSE Tell Tale Hose to Bottom Cowl (14 Inch)	1
7	7568058	软管 (15.00英寸)	HOSE (15.00 Inches)	1
8	69791	示流管喷嘴至下机罩	NOZZLE Tell Tale Hose to Bottom Cowl	1
9	90882	示流喷嘴套管	SLEEVE Tell Tale Nozzle	1
10	90077	示流喷嘴扎带	TIE STRAP Tell Nozzle	AR
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	66849	喷嘴卡箍-示流管	CLAMP Nozzle - Tell Tale	1
12	48408	螺钉（#10-16 x .500）喷嘴卡箍至下机罩	SCREW (#10-16 x .500) Nozzle Clamp to Bottom Cowl	1
13	720201	后支撑支架	BRACKET Rear Support	1
14	52723	后支撑支架衬套	GROMMET Rear Support Bracket	1
15	60577		MOUNT Rubber - Rear Support Bracket	2
16	21631		WASHER (.255 x .625 x .0312) Rubber Mount	AR
16	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	AR
17	29598	螺母（.250-28）不锈钢橡胶座	NUT (.250-28) Stainless Steel Rubber Mount	2
18	72466	滴水盘	DRIP TRAY	1
19	48409	螺钉（#10-16 x .625）不锈钢滴水盘至下机罩	SCREW (#10-16 x .625) Stainless Steel Drip Tray to Bottom Cowl	3
20	37695	控制电缆护套	BOOT Control Cable	1
21	26992		LOCKWASHER (.250) Stainless Steel Rubber Mount	2
22	69508A31	停机开关总成	SWITCH ASSEMBLY Stop	1
23	99525A1	顶部开关盖总成	COVER ASSEMBLY Top Switch	1
24	69844		NUT Stop Switch	1
25	62190A8	橙色停机开关线束总成	WIRE ASSEMBLY Orange Stop Switch	1
26	88238A4	电缆总成（3.375英寸）	CABLE ASSEMBLY (3.375 Inch)	2
26	88238T01	拉线总成	CABLE ASSEMBLY	2
27	62568	螺钉（#10-16 x .375）接地带	SCREW (#10-16 x .375) Ground Strap	2
28	42660A1	前支撑支架总成	BRACKET ASSEMBLY Front Support	1
29	31014		MOUNT Rubber - Front Support Bracket	2
30	26992		LOCKWASHER (.250) Stainless Steel Rubber Mount	2
31	29598	螺母（.250-28）不锈钢橡胶座	NUT (.250-28) Stainless Steel Rubber Mount	2
32	37562	螺钉（.312-18 x 1.00）不锈钢前支撑支架至下机罩	SCREW (.312-18 x 1.00) Stainless Steel Front Support Bracket to Bottom Cowl	2
33	58124A20	水银开关总成	SWITCH ASSEMBLY Mercury	1
33	33386A3	水银开关总成	SWITCH ASSEMLBY Mercury	1
34	69235	螺钉（.190-24 x .500）开关至前支架（0.50英寸）	SCREW (.190-24 x .500) Switch to Front Bracket (0.50 Inch)	1
35	36242	水银开关滚针	PIN Roll Mercury Switch	2
36	45915	端子排	TERMINAL BLOCK	1
37	20411	螺钉（.190-24 x .62）端子排至前支架	SCREW (.190-24 x .62) Terminal Block to Front Bracket	1
38	69079	螺钉（#10-16 x .440）线束引线	SCREW (#10-16 x .440) Harness Leads	1
39	74605A4	空挡启动开关总成	SWITCH ASSEMBLY Neutral Start	1
40	64332	螺钉（#4-40 x .750）	SCREW (#4-40 x .750)	2
41	24832	螺母（#4-40）开关螺钉	NUT (#4-40) Switch Screw	2
42	97411	执行器	ACTUATOR	1
43	88099	联锁执行器弹簧	SPRING Interlock Actuator	1
44	37892	执行器至前支架螺钉(.190-32 x 1.00)	SCREW (.190-32 x 1.00) Actuator to Front Bracket	1
45	22887	执行器螺钉垫圈	WASHER Actuator Screw	1
46	88100	执行器螺钉隔套	SPACER Actuator Screw	1
47	45812	执行器螺钉不锈钢螺母(#10-32)	NUT (#10-32) Stainless Steel Actuator Screw	1
47	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1

图 41齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成-标准旋转1.87:1传动比(完整)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)	1
1	9148A11	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	1
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	43999	滚子轴承(外径1.308)	BEARING Roller (1.308 O.D.)	2
57	73363	滚子轴承(外径1.313)	BEARING Roller (1.313 O.D.)	2
57	73363T	轴承	BEARING	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独出售(43-44104A2部件)	Not Sold Separate (PART OF 43-44104A2)	1
64	68100	止推环	RING THRUST	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承-倒档齿轮	BEARING Ball BALL-REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	轴承座定位键	KEY LOCATING-BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024	螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")	SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")	1
75	67891	填充块	FILLER BLOCK FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈-螺旋桨螺母	WASHER Splined SPLINED-PROPELLER NUT	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
83	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
-	89238A2	密封套件	SEAL KIT	1
-	14697A87	衬垫套件	GASKET SET

图 42电气组件 ELECTRIC COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	95815	上盖	COVER (TOP)	1
2	95828	下盖	COVER (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
4	55741001	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1
10	95814	绑带	STRAP	1
11	95813	紧固件	FASTENER	1
12	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
12	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
13	4005727	螺钉	SCREW	2
14	45771	垫圈	WASHER	2
15	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
16	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
17	816770	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
19	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
20	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
20	8M0185149	启动电磁阀	SOLENOID START	1
21	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	64015	螺母 (.250-20)	NUT (.250-20)	2
24	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
25	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
25	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
25	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
25	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
26	92439	支架(旧设计)	BRACKET (OLD DESIGN)	1
27	4000327	螺钉(M6×14)(旧设计)	SCREW (M6 x 14) (OLD DESIGN)	1
28	35044	垫圈(0.281×0.625×0.065)不锈钢(旧设计)	WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)	1
29	400212	螺母(M6)不锈钢(旧设计)	NUT (M6) Stainless Steel (OLD DESIGN)	1
30	815504310	蜗轮卡箍(旧设计)	CLAMP Worm Gear (OLD DESIGN)	1
31	86704A2	定子总成	STATOR ASSEMBLY	1
31	86704A10	辅助定子	STATOR Auxiliary	1
32	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3
33	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
33	8M0033984	启动马达	STARTER MOTOR	1
34	96561	驱动套件	DRIVE KIT	1
35	96562	驱动器	DRIVE	1
36	96563	端盖	END CAP	1
36	96563T	端盖	END CAP	1
37	96565	电枢	ARMATURE	1
38	96564	端盖	END CAP	1
38	96564T	端盖	END CAP	1
39	96566	贯穿螺栓	THRU BOLT	1
40	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
40	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
41	424291	固定座	RETAINER	1
42	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
43	79091	保险丝20安培	FUSE 20 Ampere	1
43	8M0207796	保险丝20安培	FUSE 20 AMP	1
44	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1
45	12152	固定座	RETAINER	1
46	92753	固定座	RETAINER	1
47	55098	J型卡扣	J CLIP	1
47	8M0024808	J型夹	J-CLIP	1

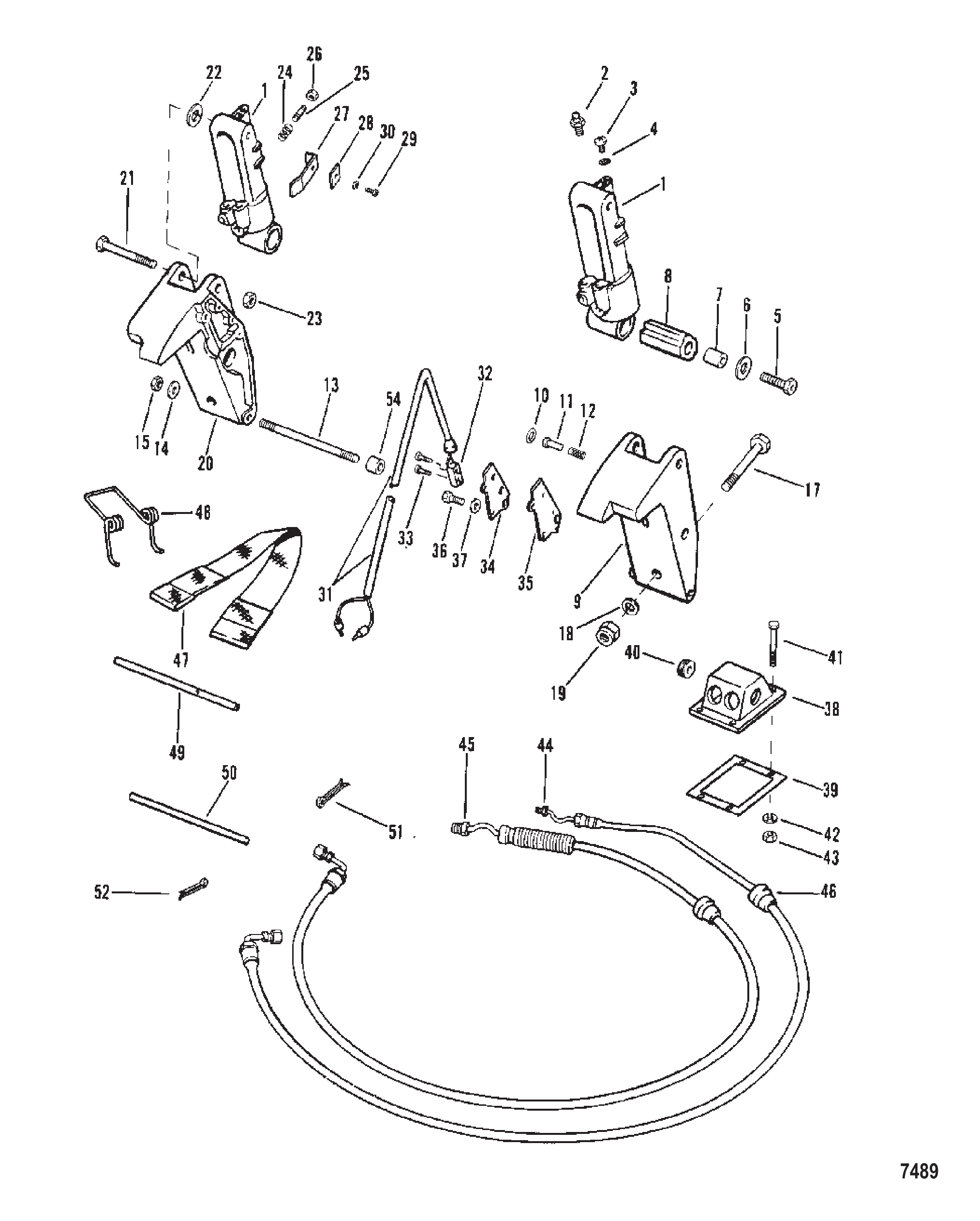

图 43升降油缸与软管(电动手柄) Trim Cylinders and Hoses (Electric Handle)

REF	零件编号	中文名称	英文名称	数量
1	92194A14	配平油缸	TRIM CYLINDER	2
1	92194A20	配平油缸	TRIM CYLINDER	2
2	74036		FITTING Grease Trim Cylinder	2
3	45265		SCREW (#10-32 x .3125) Bleed	4
4	45016		O-RING Bleed Screw	4
5	92050		SCREW (.500-20 x 1.500) Trim Cylinder	2
6	28421		WASHER (1.5 x 3.05 x 0.13) Stainless Steel Trim Cylinder Bolt	4
7	45280		SPACER Trim Cylinder - Lower	2
8	94907A1		BUSHING Rubber - Trim Cylinder	2
9	89108A3	平衡缸支架	BRACKET Trim Cylinder	1
10	70608		SEAL Oil Port Bracket	1
11	89290		PLUNGER Limit Switch Actuating	1
12	95881		SPRING Tension - Limit Switch Plunger	1
13	45282	螺柱(.312-24 x 16.620)-安装支架	STUD (.312-24 x 16.620) Mounting Bracket	1
14	26993		LOCKWASHER (.312) Mounting Bracket Stud	2
15	28770		NUT (.312-24) Stainless Steel Mounting Bracket Stud	2
17	68298	螺栓(.375-16 x 3.250)-安装支架至艉板	BOLT (.375-16 x 3.250) Mounting Bracket to Transom	6
17	89673	螺钉(.375-16 x 5.00)-安装支架至艉板	SCREW (.375-16 x 5.00) Mounting Bracket to Transom	2
18	68410		WASHER Mounting Bracket Bolt	6
19	99405	安装支架螺栓螺母	NUT Mounting Bracket Bolt	8
20	89111T	平衡缸支架	BRACKET Trim Cylinder	1
21	45328	螺钉(.437-20 x 3.560)-平衡缸至安装支架	SCREW (.437-20 x 3.560) Trim Cylinder to Mounting Bracket	2
22	37807	平衡缸螺钉垫圈	WASHER Trim Cylinder Screw	1
23	35053		NUT (.437-20) Trim Cylinder Screw	2
24	24390		SPRING Tension - Adjusting Stud	1
25	21085	调节螺柱(#10-32 x .930)-切断限位开关	STUD (#10-32 x .930) Adjusting - Cut - Out Limit Switch	1
26	45812		NUT (#10-32) Stainless Steel Jam - Limit Switch Adjusting Stud	1
27	99897		CAM Limit Switch Adjusting Stud	1
28	86967		PLATE Retaining - Limit Switch Cam	1
29	68513		SCREW (#10-32 x .375) Stainless Steel Retaining Plate and Cam	1
30	26996		LOCKWASHER (#10) Stainless Steel Retaining Plate and Cam Screw	1
31	45326A2	切断限位开关总成	SWITCH ASSEMBLY Cut - Out Limit	1
32	45354	橡胶衬套-切断限位开关	BUSHING Rubber - Cut- Out Limit Switch	1
33	47255	螺钉(#4-40 x .625)-切断限位开关	SCREW (#4-40 x .625) Cut - Out Limit Switch	2
34	89272		COVER Limit Switch	1
35	892731	限位开关盖衬垫	GASKET Limit Switch Cover	1
36	34994		SCREW (#10-32 x 1.00) Stainless Steel Limit Switch Cover	4
37	38833		WASHER Limit Switch Cover Screw	4
38	87774A1		COVER Inlet - Transom	1
39	87775		GASKET Inlet Cover	1
40	45507		GROMMET Rubber - Inlet Cover	1
41	36070		SCREW (#10-32 x 1.250) Inlet Cover to Boat	4
42	26996		LOCKWASHER (#10) Stainless Steel Inlet Cover Screw	4
43	68219		NUT (#10-32) Stainless Steel Inlet Cover Screw	4
44	88005	软管-平衡缸至控制阀	HOSE Trim - Cylinder to Control Valve	2
45	88006	软管-升降缸至控制阀	HOSE Lift - Cylinder to Control Valve	2
46	35977	橡胶护圈	GROMMET Rubber	4
46	97191	橡胶护圈	GROMMET Rubber	2
46	12602	橡胶护圈	GROMMET Rubber	2
47	98876	绑带	STRAP	1
48	98875	弹簧	SPRING	1
49	98878	安装管销	PIN Mounting Tube	1
50	63473		TUBE Cushion	1
51	32857	安装管销开口销	COTTER PIN Mounting Tub Pin	1
52	45882	倾斜销固定开口销	COTTER PIN Tilt Pin Retaining	1
54	59623	安装支架隔套	SPACER Mounting Bracket	1

图 44启动器回绕组件 Starter Rewind

REF	零件编号	中文名称	英文名称	数量
1	20166		NUT Sheave Shaft (Left Hand Thread)	1
2	61004		TAB WASHER Sheave Shaft Nut	1
3	890162	启动器壳体	HOUSING Starter	1
4	44255A1	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
5	44508	启动棘爪	PAWL Starter	1
6	54523	螺钉 (.312-18 x 1.00) 启动器外壳	SCREW (.312-18 x 1.00) Starter Housing	3
7	20202	锁紧垫圈启动器外壳螺钉	LOCKWASHER Starter Housing Screw	3
8	37691	电缆导板	PLATE Cable Guide	1
9	35881	螺钉 (#6-32 x .250) 驱动-电缆导板	SCREW (#6-32 x .250) Drive - Cable Guide Plate	3
10	61002		PLATE Starter Rewind	1
11	39502A1	弹簧	SPRING	1
12	87649		BUSHING Spring Guide	1
13	87651		SPRING Starter Pawl	1
14	87706		E RING Starter Pawl	1
15	63061		SPACER Sheave Shaft	1
17	94962	杠杆	LEVER	1
18	20160	波形垫圈	WAVE WASHER	1
19	87656	滑轮轴	SHEAVE SHAFT	1
20	12066A9	绳索	ROPE	1
20	47341A1	绳索与手柄套件手动/应急启动	ROPE AND HANDLE KIT Manual/Emergency Start For Manual Starting	1
21	85174A1	手柄总成	HANDLE ASSEMBLY	1
22	76568	联锁电缆	CABLE Interlock	1
23	69022	螺钉 (#10-32 x .500) 不锈钢联锁电缆固定	SCREW (#10-32 x .500) Stainless Steel Interlock Cable Attaching	2
24	33786	联锁电缆螺钉垫圈	WASHER Interlock Cable Screw	2
25	42820		CAM Interlock	1
26	76138	螺钉 (.312-18 x 1.120) 联锁凸轮(1.125英寸)	SCREW (.312-18 x 1.120) Interlock Cam (1.125 Inch)	1
27	76140	联锁凸轮螺钉弹簧	SPRING Interlock Cam Screw	1
28	79371		ACTUATOR Interlock	1
29	76137	联锁执行器螺钉(1.625英寸)	SCREW Interlock Actuator (1.625 Inch)	1
30	76139	联锁执行器螺钉弹簧	SPRING Interlock Actuator Screw	1
31	27769		COTTER PIN Interlock Cable to Actuator	1
32	35559		WASHER Starter Rewind	1
-	89016A3	起动机总成回绕式	STARTER ASSEMBLY Rewind	1

图 45动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

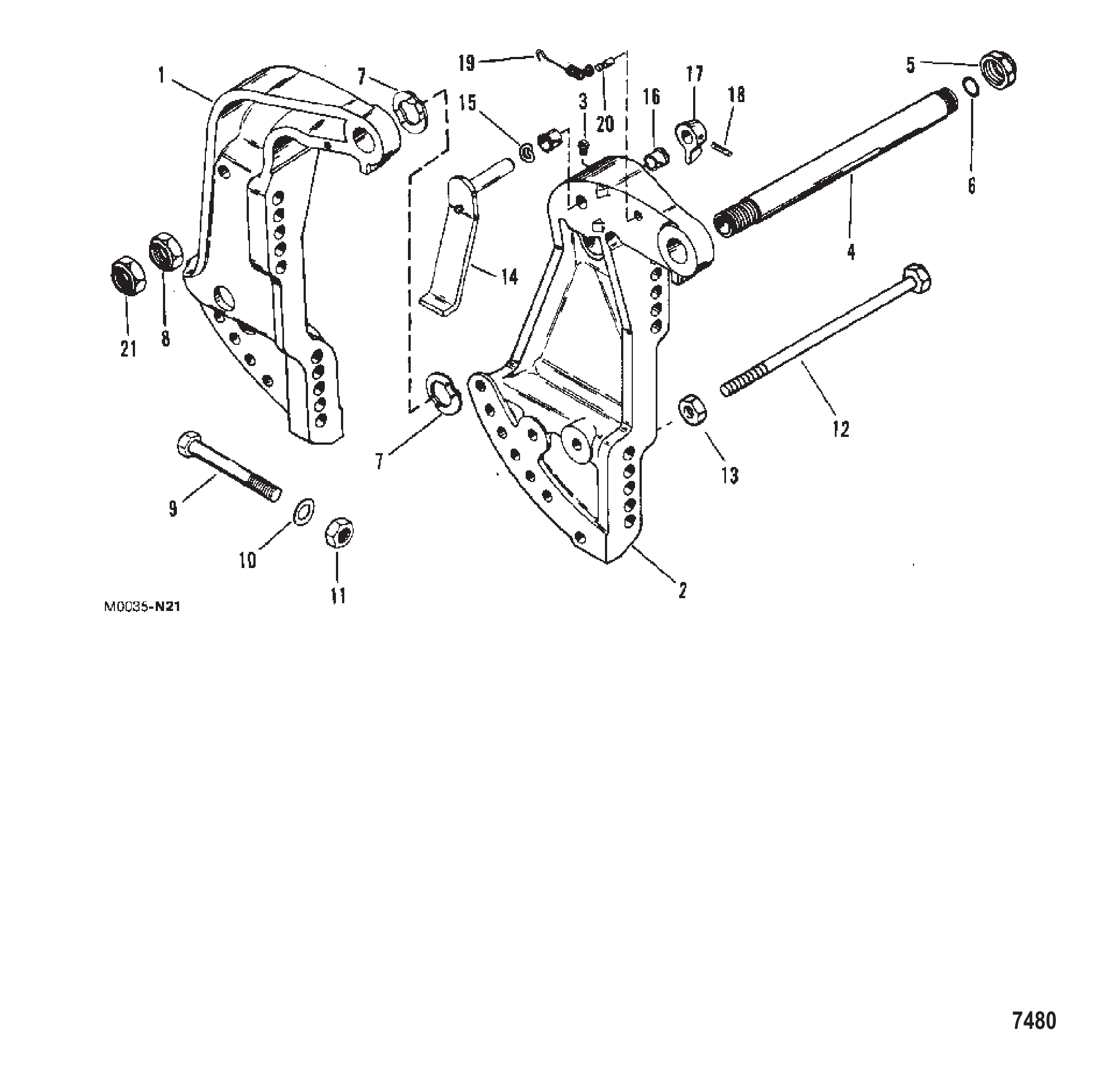

图 46艉板支架(动力升降) Transom Bracket (Power Trim)

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板右舷支架总成-黑色	BRACKET ASSEMBLY Transom Starboard - Black	1
2	8716A5	艉板左舷支架总成-黑色	BRACKET ASSEMBLY Transom Port - Black	1
1	8718A2	艉板右舷支架总成-灰色	BRACKET ASSEMBLY Transom Starboard - Gray	1
2	8716A6	艉板左舷支架总成-灰色	BRACKET ASSEMBLY Transom Port - Gray	1
3	98727	艉板支架注油嘴	FITTING Grease Port Tramsom Bracket	1
4	99170A1	倾斜管	TILT TUBE	1
5	90068T	倾斜管螺母	NUT Tilt Tube	1
5	90068T6	倾斜管螺母	NUT Tilt Tube	1
6	45711	倾斜管O型圈(0.612x0.103)	O-RING (.612 x .103) Tilt Tube	1
7	88750		WASHER Wave (1.62 x 1.05) Tilt Tube	2
8	56041	螺母(.875-14)-倾斜管(7.57)	NUT (.875-14) Tilt Tube (7.57)	1
9	677551	螺钉(.500-20 x 4.500)-安装支架至艉板	SCREW (.500-20 x 4.500) Mounting Bracket to Tramsom	4
10	28421	垫圈(1.5 x 3.05 x 0.13)-不锈钢安装支架螺栓	WASHER (1.5 x 3.05 x 0.13) Stainless Steel Mounting Bracket Bolt	4
11	8M0027784	安装支架螺栓螺母	NUT Mounting Bracket Bolt	4
12	96930A1		BOLT ASSEMBLY Tilt Lock	1
13	23161		NUT (.375-24) Bolt	1
14	99629A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	99611		WAVE WASHER Tilt Lever	1
16	65830		NYLINER Tilt Lever	2
17	99633		KNOB Tilt Lock Lever	1
17	99633T6		KNOB Tilt Lock Lever	1
18	99615	槽销	PIN Groove	1
19	99622	弹簧	SPRING	1
20	99604	槽销	PIN Groove	1
21	37984	螺母 (.875-14)	NUT (.875-14)	1

图 47齿轮箱（驱动轴） Gear Housing (Driveshaft)

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
2	85822A1	速度表连接器总成	CONNECTOR ASSEMBLY Speedometer	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	85500	定位销(.187 x .530)齿轮箱	PIN Dowel (.187 x .530) Gear Housing	2
3	8M0084726	定位销	PIN Dowel	2
4	33778	水泵/底座柱螺栓(2.625英寸)	STUD Water Pump/Base (2.625 Inch)	3
5	57933	柱螺栓(.437-14/.437-20 x 2.190)齿轮箱	STUD (.437-14/.437-20 x 2.190) Gear Housing	2
5	8M0034453	柱螺栓(7/16 x 2.19)	STUD (7/16 x 2.19)	2
6	62091	传动轴滚柱轴承	BEARING Roller Driveshaft	1
6	62091T	轴承	BEARING	1
7	72849A1	进水滤网总成	SCREEN ASSEMBLY Water Intake	1
8	36070	螺钉(#10-32 x 1.250)进水滤网至齿轮箱	SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing	1
9	45812	螺母(#10-32)不锈钢进水滤网螺钉	NUT (#10-32) Stainless Steel Water Intake Screen Screw	1
9	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
10	92815	排气管支撑板	PLATE Support - Exhaust Tube	1
11	37721	排气管密封件	SEAL Exhaust Tube	1
11	37721001	密封件@2	SEAL @2	1
12	98097	传动轴小齿轮	GEAR Pinion Driveshaft	1
12	98097T	小齿轮	GEAR-PINION	1
13	55910	螺母(.437-20)小齿轮至传动轴	NUT (.437-20) Pinion Gear to Driveshaft	1
14	19552	水泵底座衬垫	GASKET Water Pump Base	1
15	26722	O型圈	O-RING	1
16	77177A1	水泵底座总成	BASE ASSEMBLY Water Pump	1
17	90562	密封件(1.254 x .312)	SEAL (1.254 x .312)	1
18	79831	油封	SEAL Oil	1
19	35973	定位销	PIN Dowel	2
20	19553	下衬垫	GASKET Lower	1
21	54705	面板	FACE PLATE	1
21	32768	面板	FACEPLATE	1
22	19551	上衬垫	GASKET Upper	1
23	89983	叶轮	IMPELLER	1
23	89983T	叶轮	IMPELLER	1
24	56662	叶轮驱动键	KEY Impeller Drive	1
24	8M0032837	键@5	KEY @5	1
25	77822A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	48753	嵌件	INSERT	1
27	38452	橡胶密封件	SEAL Rubber	1
28	38453	尼龙垫圈	WASHER Nylon	1
29	29245	垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓	WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs	3
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
30	13438	螺母(.250-28)水泵体与底座柱螺栓	NUT (.250-28) Water Pump Body and Base Studs	3
30	8267119	螺母(.250-28)	NUT (.250-28)	3
31	20273	橡胶O型圈	O-RING Rubber	1
32	78654A1	传动轴座总成	SEAT ASSEMBLY Driveshaft	1
33	86304	花键密封件-传动轴	SEAL Splined - Driveshaft	1
34	79953	螺钉(.375-16 x .250)润滑脂加注口	SCREW (.375-16 x .250) Grease Filler	1
34	79953Q04	放油螺钉套件	SCREW KIT Drain	1
35	67892	磁性放油螺钉	SCREW Magnetic Drain	1
35	8M0058389	放油螺钉套件	SCREW KIT Drain	1
36	19183	纤维垫圈(加注/放油螺钉)	WASHER Fiber Filler/Drain Screw	2
36	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
37	88181	润滑套筒-传动轴	SLEEVE Lubrication - Driveshaft	1
38	92881A1	轴承垫片组(齿轮箱用)(.002-3-5-10-20)	SHIM SET Bearing to Gear Housing(.002-3-5-10-20)	AR
39	77420A1	圆锥滚子轴承总成-传动轴	BEARING ASSEMBLY Roller Tapered - Driveshaft	1
39	8M0166756	轴承总成	BEARING ASSEMBLY	1
40	88025A2	驱动轴总成	DRIVESHAFT ASSEMLBY	1
40	98179	驱动轴	DRIVESHAFT	1
40	88024A2	驱动轴总成	DRIVESHAFT ASSEMBLY	1
40	98180	驱动轴	DRIVESHAFT	1
41	20254	驱动轴压缩弹簧	SPRING Compression - Driveshaft	1
42	30545	驱动轴销	PIN Driveshaft	1
43	76063A1	换挡轴总成	SHAFT ASSEMBLY Shift	1
44	29641	换挡轴E型卡环	E RING Shift Shaft	1
45	25439	O型圈(.862 x .103)换挡轴衬套	O-RING (.862 x .103) Shift Shaft Bushing	1
46	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
47	76384	换挡轴衬套油封	SEAL Oil Shift Shaft Bushing	1
47	8M0246145	油封	OIL SEAL	1
48	77674	橡胶垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing	1
49	78036	倒挡锁定底座	BASE Reverse Locking	1
50	433081	倒挡锁定凸轮	CAM Reverse Locking	1
50	43308T1	凸轮	CAM	1
-	77177A3	水泵套件	WATER PUMP KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 48排气板与换挡联动机构 Exhaust Plate and Shift Linkage

REF	零件编号	中文名称	英文名称	数量
1	42819A2	排气延伸板总成	PLATE ASSEMLBY Exhaust Extension	1
2	27132	排气延伸板衬套	BUSHING Exhaust Extension Plate	1
3	38453	进水口管尼龙垫圈	WASHER Nylon - Water Inlet Tube	1
4	38452	水管橡胶密封件	SEAL Rubber - Water Tube	1
5	79799		HOUSING Water Inlet Tube Seal	1
6	797971	壳体衬垫	GASKET Housing	1
7	79798	壳体至排气板螺丝(#10-32 x 1.380)(1.375英寸)	SCREW (#10-32 x 1.380) Housing to Exhaust Plate (1.375 Inch)	2
8	796501	动力头衬垫	GASKET Powerhead	1
9	76632A3	上短换挡轴总成	SHIFT SHAFT ASSEMBLY Upper Short Shaft	1
9	76632A4	上长换挡轴总成	SHIFT SHAFT ASSEMBLY Upper Long Shaft	1
10	60572	上换挡轴尼龙套筒	BARREL Nylon - Upper Shift Shaft	1
11	74739A3	换挡控制执行器总成	ACTUATOR ASSEMBLY Shift Control	1
12	37934	换挡拉索弹簧	SPRING Shift Cable	1
13	38069	弹簧至执行器螺丝	SCREW Spring to Actuator	1
14	37932	换挡控制执行器尼龙轴承	BEARING Nylon - Shift Control Actuator	1
15	36137	轴承至换挡控制执行器螺丝(.250-28 x 1.00)	SCREW (.250-28 x 1.00) Bearing to Shift Control Actuator	1
16	21272	轴承螺丝锁紧垫圈(.250)	LOCKWASHER (.250) Bearing Screw	1
17	37935	换挡控制轴承导轨	RAIL Shift Control Bearing	1
18	69028	不锈钢导轨至排气歧管盖螺丝(.250-28 x 0.750)	SCREW (.250-28 x .750) Stainless Steel Rail to Exhaust Manifold Cover	1
19	26992	不锈钢导轨螺丝锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel Rail Screw	1
20	59037A2	油门和换挡拉索杆	LEVER Throttle and Shift Cables	1
21	23928	快拆杆滚销	PIN Roll - Quick Disconnect Lever	2
22	38005	快拆杆弹簧	SPRING Quick Disconnect Lever	2
23	37927	快拆杆尼龙衬套	BUSHING Nylon Nylon - Quick Disconnect Lever	2
24	37926	尼龙轴承保持架	RETAINER Nylon Bearing	1
25	37923	轴承保持架螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250) Bearing Retainer	1
26	385011	排气延伸板衬垫	GASKET Exhaust Extension Plate	1
27	38156	排气延伸板橡胶密封件	SEAL Rubber - Exhaust Extension Plate	1
28	99136	橡胶密封条	STRIP Rubber Seal	1
29	37571	固定条螺丝(.190-32 x 0.500)	SCREW (.190-32 x .500) Retaining Strip	6
-	85491A87	衬垫套件	GASKET SET	1

图 49自动混合器 AUTO-BLEND

REF	零件编号	中文名称	英文名称	数量
-	130195	自动混合装置	AUTO BLEND ASSEMBLY	1
1	16612	油箱套件机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	16619	机油箱盖	CAP OIL TANK	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	16620	安装支架套件	BRACKET KIT Mounting	1
8	13993	箍带	BAND	1
9	13983	支架(左)	BRACKET (LEFT)	1
10	13984	支架(右)	BRACKET (RIGHT)	1
11	16626	盖板	COVER	1
12	16624	机油滤清器及液位传感器套件	SENSOR KIT Oil Filter And Level	1
13	16625	喇叭套件	HORN KIT	1
14	16618	机油滤网	STRAINER Oil	1
15	16615	止回阀套件	CHECK VALVE KIT	1
16	18576	燃油滤清器套件	FILTER KIT Fuel	1
17	13992	乙烯基软管	VINYL TUBE	1
18	16621	安装板	PLATE	1
19	16627	模块套件	MODULE KIT	1
20	16628	测试按钮套件	TEST BUTTON KIT	1
21	16629	电池盒套件(使用9伏电池)	CASE KIT Battery (USE 9 VOLT BATTERY)	1
22	16630	密封圈套件	GROMMET KIT	1
23	16631	支架套件	BRACKET KIT	1
24	16616	衬垫套件	GASKET KIT	1

图 50下罩壳及支撑支架 BOTTOM COWL AND SUPPORT BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	7715A4	下罩总成	BOTTOM COWL ASSEMBLY	1
1	7715A5	下罩总成	BOTTOM COWL ASSEMBLY	1
2	88926T	下机罩盖	COVER Bottom Cowl	1
2	88926F1	盖板	COVER	1
3	28636	螺钉（.250-20 x .750）下机罩盖塞	SCREW (.250-20 x .750) Plug to Bottom Cowl	2
2A	948801	下机罩盖塞	PLUG Bottom Cowl	1
3A	28636	螺钉（.250-20 x .750）下机罩盖塞	SCREW (.250-20 x .750) Plug to Bottom Cowl	2
4	56766	螺柱（.250-20/.250-28 x 1.380）下机罩	STUD (.250-20/.250-28 x 1.380) Bottom Cowl	4
5	20184	螺母（1/4-28X7/32）下机罩螺柱	NUT (1/4-28X7/32) Bottom Cowl Stud	4
5	8M0207775	螺母 @5	NUT @5	4
6	78279	示流管弯头-气缸体	ELBOW Tell Tale Hose - Cylinder Block	1
6	8M0207781	弯头	ELBOW	1
7	7568054	示流软管至下机罩（14英寸）	HOSE Tell Tale Hose to Bottom Cowl (14 Inch)	1
7	7568058	软管 (15.00英寸)	HOSE (15.00 Inches)	1
8	69791	示流管喷嘴至下机罩	NOZZLE Tell Tale Hose to Bottom Cowl	1
9	90882	示流喷嘴套管	SLEEVE Tell Tale Nozzle	1
10	90077	示流喷嘴扎带	TIE STRAP Tell Nozzle	AR
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	66849	喷嘴卡箍-示流管	CLAMP Nozzle - Tell Tale	1
12	48408	螺钉（#10-16 x .500）喷嘴卡箍至下机罩	SCREW (#10-16 x .500) Nozzle Clamp to Bottom Cowl	1
13	720201	后支撑支架	BRACKET Rear Support	1
14	52723	后支撑支架衬套	GROMMET Rear Support Bracket	1
15	60577		MOUNT Rubber - Rear Support Bracket	2
16	21631		WASHER (.255 x .625 x .0312) Rubber Mount	AR
16	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	AR
17	29598	螺母（.250-28）不锈钢橡胶座	NUT (.250-28) Stainless Steel Rubber Mount	2
18	72466	滴水盘	DRIP TRAY	1
19	48409	螺钉（#10-16 x .625）不锈钢滴水盘至下机罩	SCREW (#10-16 x .625) Stainless Steel Drip Tray to Bottom Cowl	3
20	37695	控制电缆护套	BOOT Control Cable	1
21	26992		LOCKWASHER (.250) Stainless Steel Rubber Mount	2
22	69508A31	停机开关总成	SWITCH ASSEMBLY Stop	1
23	99525A1	顶部开关盖总成	COVER ASSEMBLY Top Switch	1
24	69844		NUT Stop Switch	1
25	62190A8	橙色停机开关线束总成	WIRE ASSEMBLY Orange Stop Switch	1
26	88238A4	电缆总成（3.375英寸）	CABLE ASSEMBLY (3.375 Inch)	2
26	88238T01	拉线总成	CABLE ASSEMBLY	2
27	62568	螺钉（#10-16 x .375）接地带	SCREW (#10-16 x .375) Ground Strap	2
28	42660A1	前支撑支架总成	BRACKET ASSEMBLY Front Support	1
29	31014		MOUNT Rubber - Front Support Bracket	2
30	26992		LOCKWASHER (.250) Stainless Steel Rubber Mount	2
31	29598	螺母（.250-28）不锈钢橡胶座	NUT (.250-28) Stainless Steel Rubber Mount	2
32	37562	螺钉（.312-18 x 1.00）不锈钢前支撑支架至下机罩	SCREW (.312-18 x 1.00) Stainless Steel Front Support Bracket to Bottom Cowl	2
33	58124A20	水银开关总成	SWITCH ASSEMBLY Mercury	1
33	33386A3	水银开关总成	SWITCH ASSEMLBY Mercury	1
34	69235	螺钉（.190-24 x .500）开关至前支架（0.50英寸）	SCREW (.190-24 x .500) Switch to Front Bracket (0.50 Inch)	1
35	36242	水银开关滚针	PIN Roll Mercury Switch	2
36	45915	端子排	TERMINAL BLOCK	1
37	20411	螺钉（.190-24 x .62）端子排至前支架	SCREW (.190-24 x .62) Terminal Block to Front Bracket	1
38	69079	螺钉（#10-16 x .440）线束引线	SCREW (#10-16 x .440) Harness Leads	1
39	74605A4	空挡启动开关总成	SWITCH ASSEMBLY Neutral Start	1
40	64332	螺钉（#4-40 x .750）	SCREW (#4-40 x .750)	2
41	24832	螺母（#4-40）开关螺钉	NUT (#4-40) Switch Screw	2
42	97411	执行器	ACTUATOR	1
43	88099	联锁执行器弹簧	SPRING Interlock Actuator	1
44	37892	执行器至前支架螺钉(.190-32 x 1.00)	SCREW (.190-32 x 1.00) Actuator to Front Bracket	1
45	22887	执行器螺钉垫圈	WASHER Actuator Screw	1
46	88100	执行器螺钉隔套	SPACER Actuator Screw	1
47	45812	执行器螺钉不锈钢螺母(#10-32)	NUT (#10-32) Stainless Steel Actuator Screw	1
47	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1

图 51化油器总成(TILLOTSON) CARBURETOR ASSEMBLY (TILLOTSON)

REF	零件编号	中文名称	英文名称	数量
1	6517A14	化油器总成	CARBURETOR ASSEMBLY	2
1	6517A8	化油器总成	CARBURETOR ASSEMBLY	2
1	6517A61	化油器	CARBURETOR	2
2	NSS	不单独销售水道闷塞(大)	NOT SOLD SEPARATE WELCH PLUG, BODY CHANNEL (LARGE)	2
3	NSS	不单独销售水道闷塞	NOT SOLD SEPARATE PLUG, BODY CHANNEL	6
4	96773A1	阻风门轴总成	SHAFT ASSEMBLY Choke	2
4	9296A1	阻风门轴套件	CHOKE SHAFT KIT	2
5	NSS	不单独销售节气门轴回位弹簧	NOT SOLD SEPARATE SPRING, RETURN - THROTTLE SHAFT	2
6	NSS	主喷嘴(不单独销售)	NOT SOLD SEPARATE MAIN NOZZLE	2
7	7211A1		BAFFLE FUEL BOWL	2
7	814483	燃油杯挡板	BAFFLE Fuel Bowl	2
8	9293	浮子	FLOAT	2
9	NSS	浮子固定销（不单独销售）	NOT SOLD SEPARATE PIN, FLOAT RETAINING	2
10	5127	燃油杯	BOWL Fuel	2
11	NSS	燃油碗垫片(不单独销售)	NOT SOLD SEPARATE GASKET, FUEL BOWL	2
12	5415	化油器油杯固定螺钉	SCREW FUEL BOWL TO CARBURETOR	2
13	NSS	油杯螺钉衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL BOWL SCREW	4
14	9022	进油针阀及弹簧	NEEDLE AND SPRING Inlet	2
15	1655	主量孔（0.055）	JET MAIN FUEL (.055)	2
16	6249	主喷口(.096)	JET Main (.096)	2
16	5733	主量孔 (.092)	JET Main (.092)	2
17	64677	喉管	VENTURI	2
18	5194	电动阻风门泄压阀	VALVE CHOKE RELIEF - ELECTRIC	2
19	5414	电动阻风门泄压阀弹簧	SPRING CHOKE RELIEF VALVE - ELECTRIC	2
20	5197	阻风门片	SHUTTER Choke	2
20	8665	阻风门片	SHUTTER Choke	2
21	N.S.S.	阻风门片（TILLOTSON #25B-312，不单独销售）	Not Sold Separate CHOKE SHUTTER (TILLOTSON #25B-312)	4
22	NSS	怠速混合螺钉（不单独销售）	NOT SOLD SEPARATE SCREW, IDLE MIXTURE	2
23	NSS	怠速混合螺钉弹簧（不单独销售）	NOT SOLD SEPARATE SPRING, IDLE MIXTURE SCREW	2
24	NSS	燃油泵膜片衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM	2
25	NSS	燃油泵膜片（不单独销售）	NOT SOLD SEPARATE DIAPHRAGM, FUEL PUMP	2
26	5129	燃油泵体	BODY FUEL PUMP	2
27	NSS	燃油泵安装衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL PUMP ATTACHING	2
28	NSS	燃油泵膜片（不单独销售）	NOT SOLD SEPARATE DIAPHRAGM, FUEL PUMP	2
29	5131	滤清器壳体	BODY STRAINER	2
30	5132		SCREW STRAINER BODY TO CARBURETOR	8
30	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	8
31	5758	滤网	SCREEN STRAINER	2
32	5207	滤清器盖衬垫	GASKET STRAINER COVER	2
33	4236	进油口盖	COVER INLET	2
33	99941	盖板	COVER	2
34	NSS	滤清器盖固定螺钉（不单独销售）	NOT SOLD SEPARATE SCREW, STRAINER COVER TO BODY	2
35	2012	油门轴	SHAFT Throttle	2
36	74371	节流阀杆	LEVER THROTTLE	1
36	97	节流阀杆	LEVER THROTTLE	1
36	8146791	油门杆	LEVER Throttle	1
37	20847	节气门杠杆固定螺钉	SCREW THROTTLE LEVER ATTACHING	2
37	6027	螺钉	SCREW	2
38	NSS	怠速管 (不单独销售)	NOT SOLD SEPARATE IDLE TUBE	2
39	NSS		NOT SOLD SEPARATE GASKET, IDLE TUBE	2
40	6225	节气门片	SHUTTER Throttle	2
41	NSS	节气门片固定螺钉（不单独销售）	NOT SOLD SEPARATE SCREW, THROTTLE SHUTTER TO THROTTLE SHAFT	4
42	75791	衬垫	GASKET	2
42	757911	衬垫	GASKET	2
43	64809		NUT CARBURETOR MOUNTING STUD	4
-	5198	衬垫套件	GASKET SET	2
-	9270	维修零件包	REPAIR PARTS KIT	2
-	51991	化油器修理包	REPAIR KIT-CARB	2
-	8307	维修零件包	REPAIR PARTS KIT	2
-	51991	化油器修理包	REPAIR KIT-CARB	2
-	5137	膜片/衬垫套件	DIAPHRAGM/GASKET KIT	2

图 52化油器总成(WALBRO) CARBURETOR ASSEMBLY (WALBRO)

REF	零件编号	中文名称	英文名称	数量
1	6517A28	化油器总成	CARBURETOR ASSEMBLY	1
1	6517A29	化油器总成	CARBURETOR ASSEMBLY	1
1	6517A62	化油器	CARBURETOR	1
2	NSS	不单独销售水道闷塞(大)	NOT SOLD SEPARATE WELCH PLUG, BODY CHANNEL (LARGE)	2
3	NSS	不单独销售水道闷塞	NOT SOLD SEPARATE PLUG, BODY CHANNEL	6
4	96773A1	阻风门轴总成	SHAFT ASSEMBLY Choke	2
4	9296A1	阻风门轴套件	CHOKE SHAFT KIT	2
5	NSS	不单独销售节气门轴回位弹簧	NOT SOLD SEPARATE SPRING, RETURN - THROTTLE SHAFT	2
7	7211A1		BAFFLE FUEL BOWL	2
7	814483	燃油杯挡板	BAFFLE Fuel Bowl	2
8	9293	浮子	FLOAT	2
9	NSS	浮子固定销（不单独销售）	NOT SOLD SEPARATE PIN, FLOAT RETAINING	2
10	5127	燃油杯	BOWL Fuel	2
11	NSS	燃油碗垫片(不单独销售)	NOT SOLD SEPARATE GASKET, FUEL BOWL	2
12	9025	化油器油杯固定螺钉	SCREW FUEL BOWL TO CARBURETOR	2
13	NSS	油杯螺钉衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL BOWL SCREW	4
14	9022	进油针阀及弹簧	NEEDLE AND SPRING Inlet	2
15	1457		JET MAIN FUEL (.057)	2
16	7335	省油量孔（0.098）	JET (.098) ECONOMIZER	2
17	64677	喉管	VENTURI	2
18	8665	阻风门片	SHUTTER Choke	2
19	NSS	阻风门片固定螺钉（不单独销售）	NOT SOLD SEPARATE SCREW, CHOKE SHUTTER TO CHOKE SHAFT	4
20	NSS	怠速混合螺钉（不单独销售）	NOT SOLD SEPARATE SCREW, IDLE MIXTURE	2
21	NSS	怠速混合螺钉弹簧（不单独销售）	NOT SOLD SEPARATE SPRING, IDLE MIXTURE SCREW	2
22	NSS	燃油泵膜片衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM	2
23	NSS	燃油泵膜片（不单独销售）	NOT SOLD SEPARATE DIAPHRAGM, FUEL PUMP	2
24	5129	燃油泵体	BODY FUEL PUMP	2
25	NSS	燃油泵安装衬垫（不单独销售）	NOT SOLD SEPARATE GASKET, FUEL PUMP ATTACHING	2
26	NSS	燃油泵膜片（不单独销售）	NOT SOLD SEPARATE DIAPHRAGM, FUEL PUMP	2
27	5131	滤清器壳体	BODY STRAINER	2
28	5132		SCREW STRAINER BODY TO CARBURETOR	8
28	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	8
29	5758	滤网	SCREEN STRAINER	2
30	5207	滤清器盖衬垫	GASKET STRAINER COVER	2
31	4236	进油口盖	COVER INLET	2
31	99941	盖板	COVER	2
32	NSS	滤清器盖固定螺钉（不单独销售）	NOT SOLD SEPARATE SCREW, STRAINER COVER TO BODY	2
33	9020	油门轴	SHAFT Throttle	1
33	9656	油门轴	SHAFT Throttle	1
34	92880	节气门杠杆	LEVER THROTTLER	1
34	97	节流阀杆	LEVER THROTTLE	1
34	8146791	油门杆	LEVER Throttle	1
35	20847	节气门杠杆螺钉	SCREW THROTTLE LEVER	1
35	6027	螺钉	SCREW	1
35	6027	节气门杠杆螺钉	SCREW THROTTLE LEVER	1
38	9021	节气门片	SHUTTER Throttle	2
39	NSS	节气门片固定螺钉（不单独销售）	NOT SOLD SEPARATE SCREW, THROTTLE SHUTTER TO THROTTLE SHAFT	4
40	75791	衬垫	GASKET	2
40	757911	衬垫	GASKET	2
41	64809		NUT CARBURETOR MOUNTING STUD	4
-	9023	维修零件包	REPAIR PARTS KIT	2
-	9024	膜片/衬垫套件	DIAPHRAGM/GASKET KIT	2

图 53化油器联动机构/阻风门电磁阀 CARBURETOR LINKAGE/CHOKE SOLENOID

REF	零件编号	中文名称	英文名称	数量
1	54293A11	阻风门电磁阀总成	SOLENOID ASSEMBLY Choke	1
2	26996		LOCKWASHER (#10) Stainless Steel Choke Solenoid Terminal	1
3	45076		NUT (#10-32) Brass Choke Solenoid Terminal	1
4	26066	阻风门电磁阀至前支架螺钉(.312-24 x 1.75)	SCREW (.312-24 x 1.75) Choke Solenoid to Front Bracket	2
5	26993	阻风门电磁阀螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Choke Solenoid Screw	2
5	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
6	22053	阻风门电磁阀螺钉螺母(.312-24)	NUT (.312-24) Choke Solenoid Screw	2
7	56074A8	阻风门电磁阀柱塞总成	PLUNGER ASSEMBLY Choke Solenoid	1
8	90241	阻风门旋钮	KNOB Choke	1
9	90242A1	旋钮总成	KNOB ASSEMBLY	1
10	35519	拉带至阻风门旋钮螺钉(#10-16 x .500)	SCREW (#10-16 x .500) Strap to Choke Knob	1
11	49589	阻风门旋钮至拉杆拉带	STRAP Choke Knob to Choke Rod	1
12	62568	拉带至阻风门拉杆螺钉(#10-16 x .375)	SCREW (#10-16 x .375) Strap to Choke Rod	1
13	20116		GROMMET Choke Knob	1
14	85966A1	阻风门拉杆总成	ROD ASSEMBLY Choke	1
15	86042	阻风门拉杆螺钉	SCREW Choke Rod	2
15	77614A1	螺钉套件	SCREW KIT	2
16	60288	阻风门拉杆弹簧	SPRING Choke Rod	1
17	53719A2	拾取支架总成	BRACKET ASSEMBLY Pick Up	1
18	66104	拾取支架螺钉(#8-32 x .790)	SCREW (#8-32 x .790) Pick-Up Bracket	1
19	89694	联轴器键	KEY Coupling	1
20	99127109	化油器三通燃油管(57.00英寸散装)	LINE (57.00 Inches Bulk) Carburetor to Tee to Carburetor	2
20	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
21	90077	燃油管束带	TIE STRAP Fuel Line	AR
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	73318	塑料燃油三通	TEE Plastic Fuel Line	1

图 54夹具支架总成 CLAMP BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8394A2	手动夹紧支架总成	CLAMP BRACKET ASSEMBLY (MANUAL)	2
1	8394A1	水星电动夹紧支架总成	CLAMP BRACKET ASSEMBLY ( ELECTRIC) MERCURY	2
1	8394A3	马林电动夹紧支架总成	CLAMP BRACKET ASSEMBLY (ELECTRIC ) MARINER	2
2	90470A3	手动翼形螺钉总成	THUMB SCREW ASSEMBLY (MANUAL)	2
2	78492A1	电动翼形螺钉总成	THUMB SCREW ASSEMBLY (ELECTRIC)	2
3	78493	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	784951	垫片至拇指螺钉	SCREW WASHER TO THUMB SCREW	2
4	78495	螺钉（.312-24 x .680）	SCREW (.312-24 x .680)	2
5	75043	电动翼形螺钉帽	CAP THUMB SCREW (ELECTRIC)	2
6	74528	倾斜管	TILT TUBE	1
6	8M0041936	倾斜管	TILT TUBE	1
7	52864	倾斜管垫圈	WASHER TILT TUBE	2
8	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	2
8	858869	螺母 (.875-14)	NUT (.875-14)	2
9	53078	倾斜管塑料盖	CAP PLASTIC - TILT TUBE	2
10	28416	上减震销（带减震器）	PIN UPPER SHOCK - WITH SHOCK ABSORBER	1
11	73203	夹紧支架衬套	BUSHING CLAMP BRACKET	2
12	59623	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
13	59625	夹紧支架螺柱	STUD CLAMP BRACKET	1
14	26993	锁紧垫圈(.312)夹支架螺柱	LOCKWASHER (.312) CLAMP BRACKET STUD	2
14	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
15	28770	螺母(.312-24)不锈钢-夹支架螺柱	NUT (.312-24) Stainless Steel CLAMP BRACKET STUD	2
16	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
16	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
17	28052	倾斜锁销橡胶套	SLEEVE RUBBER - TILT LOCK PIN	1
18	68298	夹紧支架固定螺栓（0.375-16 x 3.250）	BOLT (.375-16 x 3.250) CLAMP BRACKET TO TRANSOM	2
19	68410	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
19	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	2
18	89673	夹紧支架固定螺钉（0.375-16 x 5.00）	SCREW (.375-16 x 5.00) CLAMP BRACKET TO TRANSOM	2
19	28420	垫圈 (1-1/4 x 25/64 x 0.125 不锈钢) 夹紧支架螺栓	WASHER (1-1/ 4 x 25/64 x .125 SS) CLAMP BRACKET BOLT	2
19	68300		WASHER (..88 x .39 x .06) CLAMP BRACKET BOLT	2
20	99405	夹紧支架螺栓螺母	NUT CLAMP BRACKET BOLT	4
20	82671112	螺母（.375-16）	NUT (.375-16)	4
21	58780A3	水星减震器	SHOCK ABSORBER MERCURY	2
21	58780A7	减震器	SHOCK ABSORBER	2
21	58780A4	减震器	SHOCK ABSORBER	2
22	69653	下减震销	PIN LOWER SHOCK	2
22	696531	销	PIN	2
23	34937		WASHER (.766 x 1.312 x .125) UPPER BUSHING RETAINER (INNER)	2
24	59378	下刷架垫圈（内）	WASHER LOWER BRUSHING RETAINER (INNER)	2
25	32171		BUSHING RUBBER - SHOCK ABSORBER (UPPER)	4
26	28198		BUSHING RUBBER - SHOCK ABSORBER (LOWER)	4
27	69374		WASHER UPPER AND LOWER BUSHING (OUTER)	4
28	69375A1	上下减震销螺钉（0.500-20 x 0.625）	SCREW (.500-20 x .625) UPPER AND LOWER SHOCK PIN	4
29	98876		STRAP TILT STOP	1
30	98878	下部减震器安装销	PIN LOWER SHOCK MOUNT	1
31	98875	弹簧	SPRING	1
32	32857	开口销	COTTER PIN	1
32	8M0214922	开口销	COTTER PIN	1
33	98877	上减震座	SHOCK MOUNT Upper	1

图 55外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	7103M	顶盖总成	TOP COWL ASSEMBLY	1
2	80601M	橡胶密封件	SEAL RUBBER	1
3	83212M	支架	HOLDER	1
4	83599M	铆钉	RIVET	2
5	83137M	挂钩	HOOK	1
6	83143M	铆钉	RIVET	2
7	83600M	密封件	SEAL	1
8	83601M	前徽标	EMBLEM FRONT	1
9	83602M	后徽标	EMBLEM REAR	1
10	82196M	垫圈	WASHER	8
11	82388M	螺母 (M5)	NUT (M5)	8
12	82866M	贴花	DECAL	1
13	83926M	隔音毯	SOUND BLANKET	1
14	83927M	隔音毯	SOUND BLANCKET	2
15	83928M	隔音毯	SOUND BLANKET	1
16	83929M	隔音毯	SOUND BLANKET	1
17	81202M	换挡指示贴花	DECAL Shift Indicator	1
18	7104M	下罩底部	BOTTOM COWL BOTTOM	1
19	83605M	杠杆夹	LEVER CLAMP	1
20	81869M	波形垫圈	WASHER WAVE	1
21	81949M	衬套	BUSHING	2
22	81145M	卡箍	CLAMP	1
23	81794M	垫圈	WASHER	1
24	82197M	锁紧垫圈	WASHER LOCK	5
25	84315M	螺栓	BOLT	1
26	83606M	密封件	SEAL	1
27	81589M	护孔圈(手动启动型号)	GROMMET (MANUEL START MODEL)	1
28	83607M	护孔环	GROMMET	1
29	83608M	护孔环	GROMMET	1
30	83609M	护孔环	GROMMET	1
31	82065M	护孔环	GROMMET	4
32	83610M	轴环	COLLAR	4
33	81796M	垫圈	WASHER	4
34	84237M	螺栓	BOLT	4
35	83611M	螺母	NUT	4
36	83612M	停止开关总成(手动型号)	SWITCH ASSEMBLY Stop (MANUAL MODEL)	1
37	83613M	盖板	COVER	1
38	84247M	螺栓	BOLT	3
39	82199M	锁紧垫圈	WASHER LOCK	3
40	83616M	接头	FITTING	1
41	83761M	马力标贴	DECAL HP	2
42	83615M	停机开关总成	SWITCH ASSEMBLY Stop	1
43	81531M	止动器	STOPPER	1

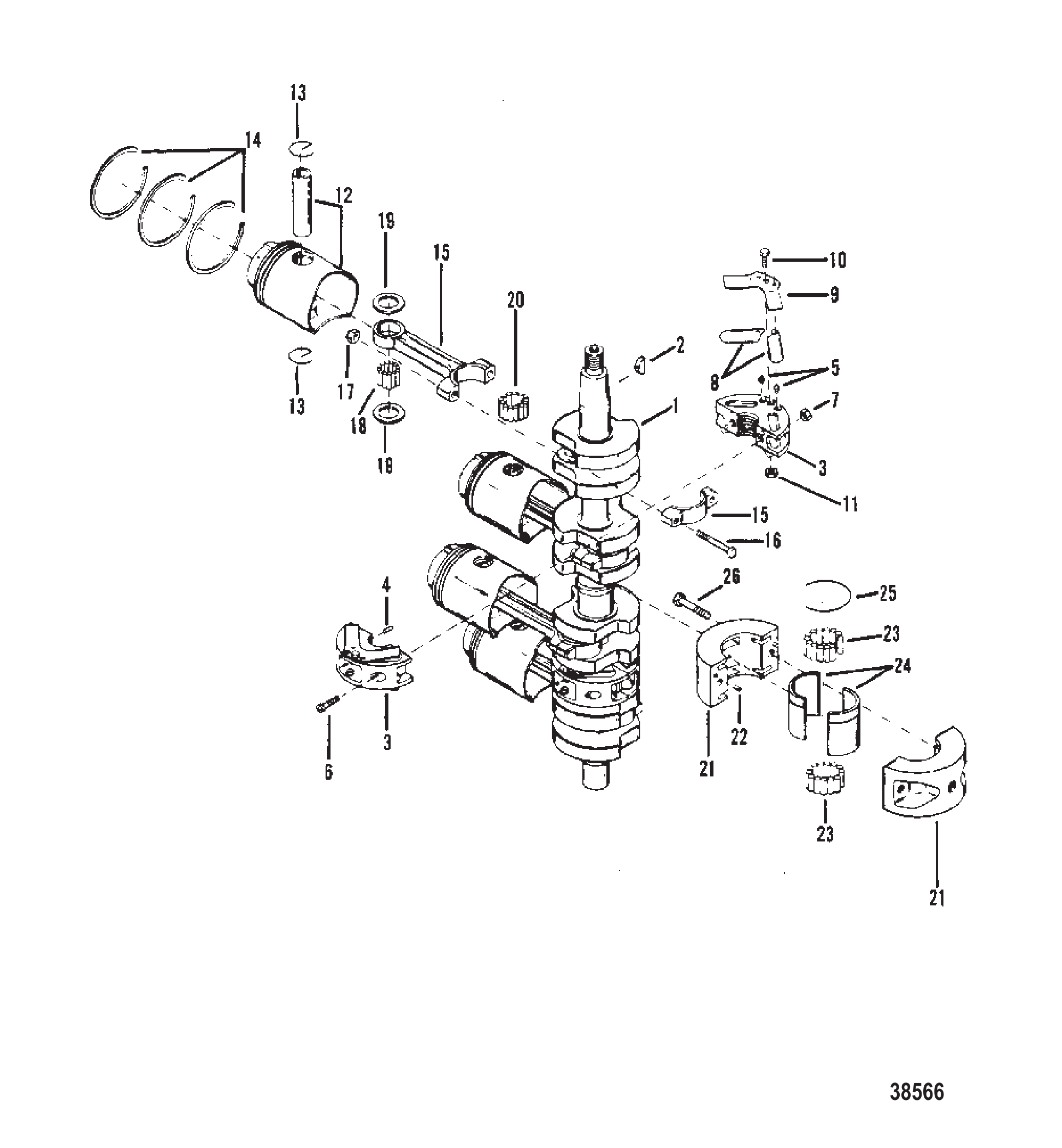

图 56曲轴/活塞及连杆 CRANKSHAFT, PISTONS, AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9075	曲轴	CRANKSHAFT	1
2	20094		KEY Woodruff CRANKSHAFT	1
3	3267A25	主轴承总成(阀门型)	BEARING ASSEMBLY Main (VALVE TYPE)	2
3	3267T25	簧片阀总成	REED BLOCK ASSY	2
4	20032		PIN Dowel MAIN BEARING	4
5	65855		PIN Dowel REED LOCATING	16
6	45775	主轴承螺钉（#12-28 x 0.560）	SCREW (#12-28 x .560) MAIN BEARING	4
7	45774		NUT MAIN BEARING SCREW	4
8	88498A1		REED SET MATCHED	2
9	79014	簧片止挡	STOP Reed	8
9	822839	簧片止挡	STOP Reed	8
10	77280	簧片止动螺钉（0.190-32 x 0.560）	SCREW (.190-32 x .560) REED STOP	8
11	20110		NUT (#10-32) REED STOP SCREW	8
12	5172A6	活塞总成	PISTON ASSEMBLY	4
12	9229A7	活塞总成	PISTON ASSEMBLY	4
12	3366A2	活塞总成（0.015加大）	PISTON ASSEMBLY (.015 OVERSIZE)	AR
12	9229A10	活塞总成	PISTON ASSEMBLY	AR
12	7716A2	活塞总成（0.030加大）	PISTON ASSEMBLY (.030 OVERSIZE)	AR
12	9229A11	活塞总成	PISTON ASSEMBLY	AR
13	47276	活塞销锁环	LOCK RING PISTON PIN	8
13	828119	活塞销锁环	LOCK RING Piston Pin	8
14	27841A12	活塞环组-标准	RING SET Piston - Standard	1
14	28616A12	活塞环组（0.015加大）	RING SET Piston (.015 OVERSIZE)	1
14	89822A12	活塞环组-.030加大	RING SET Piston - .030 Oversize	1
15	7621A3	连杆总成	CONNECTING ROD ASSEMBLY	4
16	45379	连杆盖螺钉（带螺母）	SCREW CAP TO ROD - WITH NUT	8
16	91012	连杆盖螺钉（0.250-28特殊，不带螺母）	SCREW (.250-28 Special) CAP TO ROD - WITHOUT NUT	8
17	20061	连杆螺钉螺母（带螺母）	NUT ROD SCREW - WITH NUT	8
18	20063	活塞销滚针轴承	BEARING Needle PISTON PIN	108
19	47275	定位针垫圈	WASHER NEEDLE LOCATING	8
20	20046	曲柄销滚针轴承	BEARING Needle CRANKPIN	100
20	20046T	滚针轴承	BEARING Needle	100
21	7060A2	中央主轴承总成	BEARING ASSEMBLY Center Main	1
22	20032	定位销中心主轴承	PIN Dowel CENTER MAIN BEARING	2
23	71422	滚针轴承	BEARING Needle	56
23	714221	轴承	BEARING	56
24	26113		RACE OUTER	1
24	26113T	中心主座圈	RACE-CENTER MAIN	1
25	26933		RING Snap OUTER RACE	1
26	76630	中央主轴承螺钉（0.250-20 x 1.00）	SCREW (.250-20 x 1.00) CENTER MAIN BEARING	2
26	8M0214943	螺钉	SCREW	2

图 57气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8981A6	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	72038	启动电机上支架	BRACKET Upper Starter Motor	1
3	73279	支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)	SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch)	2
4	26993	支架螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Bracket Screw	4
4	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
5	76867	启动电机下盖	COVER Lower Starter Motor	1
6	73279	盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)	SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch)	2
8	20032	缸体至主轴承定位销	PIN Dowel Cylinder block to main bearing	2
9	68164	化油器双头螺柱(1.25英寸)	STUD Carburetor (1.25 Inch)	4
9	64936	螺柱	STUD	4
10	68165	曲轴箱至驱动轴壳体双头螺柱(1.625英寸)	STUD Crankcase to Driveshaft Housing (1.625 Inch)	2
11	20033	曲轴箱至缸体定位销	PIN Dowel Crankcase to Cylinder Block	2
11	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
12	87901	缸体至驱动轴壳体双头螺柱(4英寸)	STUD Cylinder block to drive shaft housing (4 Inch)	2
13	68166	缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸)	STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch)	2
14	68167	缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸)	STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch)	2
15	73657	曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸)	SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch)	13
15	31984	曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸)	SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch)	3
15	73275	曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸)	SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch)	2
16	70132	曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063)	WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw	17
16	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	17
17	20359	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
17	98260	螺钉(.375-16 x .620)	SCREW (.375-16 x .620)	2
18	20091	中央轴承锁紧螺钉止动垫圈	TAB WASHER Center Bearing Locking Screw	3
19	99127109	平衡管(57英寸散装)-主轴承(5.50英寸)	LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	99664	平衡管至缸体弯头	ELBOW Balance Tube to Cylinder Block	2
20	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
21	65857	上部泄放软管接头	CONNECTOR Upper Bleed Hose	1
21	56759	倒钩接头	FITTING Barbed	1
22	9938779	气缸泄放软管(11英寸)	HOSE Cylinder Bleed (11 Inch)	1
23	42867	下部泄放软管止回阀	CHECK VALVE Lower Bleed Hose	1
23	428671	止回阀	CHECK VALVE	1
24	99156	正时指示器	INDICATOR Timing	1
25	39349	指示器至曲轴箱不锈钢螺钉(.312-18 x .750)	SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase	1
26	26993	指示器螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Indicator Screw	1
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
-	97469A87	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	97469T87	船用动力头	POWERHEAD MARINE	1

图 58驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7512A10	驱动轴壳体总成(短轴)	HOUSING ASSEMBLY Driveshaft (Short Shaft)	1
1	7513A12	驱动轴壳体总成(长轴)	HOUSING ASSEMBLY Driveshaft (Long Shaft)	1
1	8189A10	黑色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Black	1
1	8189A11	灰色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Gray	1
3	64649	塑料螺塞-调整片螺钉孔	PLUG Plastic - Trim Tab Screw Hole	1
4	57932		STUD (.375-16/.375-24 x 1.750) Driveshaft Housing	1
4	8M0022145	螺柱(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750)	1
5	57935	驱动轴壳体双头螺柱(3英寸)	STUD Driveshaft Housing (3 Inch)	1
6	65791	齿轮箱壳体螺柱垫圈(0.438英寸)	WASHER Gear Housing Studs (0.438 Inch)	2
7	34933		NUT (.437-20) Stainless Steel Gear Housing Studs	2
7	8M0204653	螺母	NUT	2
8	93445	橡胶上支架	MOUNT Rubber - Upper	2
8	923373	支架	MOUNT	2
9	96401	上支架密封件	SEAL Upper Mount	2
10	27727		WASHER Upper Mount Bolt (37/64 I.D.)	2
11	66966		WASHER Rubber - Upper Mount Bolt	2
12	30514		WASHER Upper Mount Bolt	2
13	34933		NUT (.437-20) Stainless Steel Upper Mount Bolt	2
13	8M0204653	螺母	NUT	2
14	87883T	上减震座盖	COVER Upper Mount	2
14	87883	盖板	COVER	2
15	76630		SCREW (.250-20 x 1.00) Upper Mount Cover	4
15	8M0214943	螺钉	SCREW	4
16	29245		WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw	4
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	37687	驱动轴壳体调整盖	COVER Trim - Driveshaft Housing	1
17	37687F2	驱动轴壳体调整盖	COVER Trim - Driveshaft Housing	1
18	57807		SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing	4
19	92012		GROMMET Trim Cover Screw	4
19	8M0079730	密封圈套件	GROMMET KIT	4
20	38157	调整盖至驱动轴壳体密封件	SEAL Trim Cover to Driveshaft Housing	1
21	38158	调整盖密封条(后)	STRIP Retaining - Trim Cover Seal (Rear)	1
22	38154	调整盖密封条(侧)	STRIP Retaining - Trim Cover Seal (Side)	2
23	48408	固定条螺钉(#10-16 x .500)	SCREW (#10-16 x .500) Retaining Strip	8
24	695431	排气管	TUBE Exhaust	1
24	695441	排气管	TUBE Exhaust	1
25	37727	进水口管	TUBE Water Inlet	1
25	45679	进水口管	TUBE Water Inlet	1
26	64809	动力头螺柱螺母(0.313英寸)	NUT Powerhead Studs (0.313 Inch)	8
27	75304	下橡胶支座	MOUNT Rubber - Lower	2
27	75304T1	支架	MOUNT	2
28	75284		SCREW (.500-20 x 5.500) Lower Mount Screw	2
28	43426	下支座螺丝	SCREW Lower Mount Screw	2
29	28051		WASHER Lower Mount Screw	2
30	28053	下支座螺丝橡胶垫圈	WASHER Rubber - Lower Mount Screw	2
31	30119		WASHER (.875 Inch Outside Diameter) Lower Mount Screw	2
32	25096		NUT Lower Mount Screw	2
33	69592	下支座夹箍	CLAMP Lower Mount	2
33	69592F1	卡箍	CLAMP	2
34	29256		SCREW (.312-18 x .875) Lower Mount Clamp	4
35	35522		SPRING Tension - Lower Mount Clamp	4
36	35474T	下安装夹盖	COVER Lower Mount Clamp	2
36	35474F2	下支座夹箍盖	COVER Lower Mount Clamp Lower Mount Clamp	2
37	87884	盖至下支座夹箍螺丝(#12-14 x 0.920)	SCREW (#12-14 x .920) Cover to Lower Mount Clamp	2
38	35521		NUT Lower Mount Clamp Cover	2
39	88238A2	动力升降接地线组件(2根)	CABLE ASSEMBLY Ground Quanity of Two on Power Trim	1
39	88238A10	接地线总成	CABLE ASSEMBLY Ground	1

图 59电气组件 ELECTRIC COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	95815	上盖	COVER (TOP)	1
2	95828	下盖	COVER (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
4	55741001	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1
10	95814	绑带	STRAP	1
11	95813	紧固件	FASTENER	1
12	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
12	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
13	4005727	螺钉	SCREW	2
14	45771	垫圈	WASHER	2
15	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
16	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
17	816770	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
19	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
20	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
20	8M0185149	启动电磁阀	SOLENOID START	1
21	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	64015	螺母 (.250-20)	NUT (.250-20)	2
24	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
25	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
25	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
25	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
25	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
26	92439	支架(旧设计)	BRACKET (OLD DESIGN)	1
27	4000327	螺钉(M6×14)(旧设计)	SCREW (M6 x 14) (OLD DESIGN)	1
28	35044	垫圈(0.281×0.625×0.065)不锈钢(旧设计)	WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)	1
29	400212	螺母(M6)不锈钢(旧设计)	NUT (M6) Stainless Steel (OLD DESIGN)	1
30	815504310	蜗轮卡箍(旧设计)	CLAMP Worm Gear (OLD DESIGN)	1
31	86704A2	定子总成	STATOR ASSEMBLY	1
31	86704A10	辅助定子	STATOR Auxiliary	1
32	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3
33	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
33	8M0033984	启动马达	STARTER MOTOR	1
34	96561	驱动套件	DRIVE KIT	1
35	96562	驱动器	DRIVE	1
36	96563	端盖	END CAP	1
36	96563T	端盖	END CAP	1
37	96565	电枢	ARMATURE	1
38	96564	端盖	END CAP	1
38	96564T	端盖	END CAP	1
39	96566	贯穿螺栓	THRU BOLT	1
40	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
40	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
41	424291	固定座	RETAINER	1
42	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
43	79091	保险丝20安培	FUSE 20 Ampere	1
43	8M0207796	保险丝20安培	FUSE 20 AMP	1
44	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1
45	12152	固定座	RETAINER	1
46	92753	固定座	RETAINER	1
47	55098	J型卡扣	J CLIP	1
47	8M0024808	J型夹	J-CLIP	1

图 60端盖与排气罩 END CAPS AND EXHAUST COVER

REF	零件编号	中文名称	英文名称	数量
2	5826A2	上端盖总成	END CAP ASSEMBLY Upper	1
3	41953		SEAL Upper End Cap	1
4	20081	上端盖O型圈	O-RING Upper End Cap	1
5	63742	上端盖滚珠轴承	BEARING Ball Upper End Cap	1
5	63742T	滚珠轴承	BEARING Ball	1
6	72538A1	上端盖垫片(.005-10)	SHIM Upper End Cap (.005-10)	AR
7	73274	上端盖螺丝(0.75英寸)	SCREW Upper End Cap (0.75 Inch)	4
7	824941	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	4
8	8360A1	气缸体盖总成	COVER ASSEMBLY Cylinder Block	1
9	32802		PLUG Pipe (.125-27) Cylinder Block Cover	1
9	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
10	437772	气缸体盖衬垫	GASHET Cylinder Block Cover	1
11	69100	气缸体盖螺丝(1英寸)	SCREW Cylinder Block Cover (1 Inch)	10
11	8M0214943	螺钉	SCREW	10
12	46933A7	拉线总成	CABLE ASSEMBLY	2
14	90435	气缸体盖橡胶支座	MOUNT Rubber - Cylinder Block Cover	1
15	20184		NUT (1/4-28X7/32) Rubber Mount	2
15	8M0207775	螺母 @5	NUT @5	2
16	18827A1	换气口盖总成	COVER ASSEMBLY Transfer Port	1
17	279361	换气口盖垫片	GASKET Transfer Port Cover	2
18	90198	换气口盖螺丝(0.625英寸)	SCREW Transfer Port Cover (0.625 Inch)	6
18	20540	螺钉(.250-20 x .62)	SCREW (.250-20 x .62)	6
19	6635A1	下端盖总成	END CAP ASSEMBLY Lower	1
19	6635T1	端盖	END CAP	1
20	20081	下端盖O型圈	O-RING Lower End Cap	1
21	41953		SEAL Lower End Cap	2
22	63742	下端盖滚珠轴承	BEARING Ball Lower End Cap	1
22	63742T	滚珠轴承	BEARING Ball	1
23	20085A1	下端盖垫片组(.005-10)	SHIM SET Lower End Cap (.005-10)	AR
24	29256	下端盖螺丝(.312-18 x 0.875)	SCREW (.312-18 x .875) Lower End Cap	3
25	90435	曲轴箱橡胶支座	MOUNT Rubber - Crankcase	2
26	20184		NUT (1/4-28X7/32) Rubber Mount	4
26	8M0207775	螺母 @5	NUT @5	4
28	854912	气缸体至隔板衬垫	GASKET Cylinder Block to Baffle Plate	1
28	854913	衬垫	GASKET	1
29	90421	挡板 - 排气歧管	PLATE Baffle - Exhaust Manifold	1
29	90421T01	挡板	PLATE-BAFFLE	1
30	854922	隔板至排气盖衬垫	GASKET Baffle Plate to Exhaust Cover	1
30	854924	衬垫	GASKET	1
31	77381	排气歧管盖	COVER Exhaust Manifold	1
32	37562	不锈钢歧管盖至气缸体螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel Manifold Cover to Cylinder Block	14
32	38837	歧管盖至气缸体螺丝(.312-18 x 1.12)	SCREW (.312-18 x 1.12) Manifold Cover to Cylinder Block	1
33	45915	端子排	TERMINAL BLOCK	1
34	62568	接线端子螺丝(#10-16 x 0.375)	SCREW (#10-16 x .375) Terminal Block	1
35	28192	接线端子螺丝(#10-24 x 0.50)	SCREW (#10-24 x .50) Terminal Block	1
35	72169	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
36	96829A1	温度开关总成260棕	SWITCH ASSEMBLY Temperature 260 Tan	1
36	16775A2	温度开关300棕绿	TEMPERATURE SWITCH 300 Tan and Green	1
36	16775A1	温度开关总成	SWITCH ASSY-TEMP	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 61排气板与换挡联动机构 EXHAUST PLATE AND SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	42819A2	排气延伸板总成	PLATE ASSEMLBY Exhaust Extension	1
2	27132	排气延伸板衬套	BUSHING Exhaust Extension Plate	1
3	38453	进水口管尼龙垫圈	WASHER Nylon - Water Inlet Tube	1
4	38452	水管橡胶密封件	SEAL Rubber - Water Tube	1
5	79799		HOUSING Water Inlet Tube Seal	1
6	797971	壳体衬垫	GASKET Housing	1
7	79798	壳体至排气板螺丝(#10-32 x 1.380)(1.375英寸)	SCREW (#10-32 x 1.380) Housing to Exhaust Plate (1.375 Inch)	2
8	796501	动力头衬垫	GASKET Powerhead	1
9	76632A3	上短换挡轴总成	SHIFT SHAFT ASSEMBLY Upper Short Shaft	1
9	76632A4	上长换挡轴总成	SHIFT SHAFT ASSEMBLY Upper Long Shaft	1
10	60572	上换挡轴尼龙套筒	BARREL Nylon - Upper Shift Shaft	1
10	8M0221994	筒形接头	BARREL FITTING	1
11	74739A3	换挡控制执行器总成	ACTUATOR ASSEMBLY Shift Control	1
12	37934	换挡拉索弹簧	SPRING Shift Cable	1
13	38069	弹簧至执行器螺丝	SCREW Spring to Actuator	1
14	37932	换挡控制执行器尼龙轴承	BEARING Nylon - Shift Control Actuator	1
15	36137	轴承至换挡控制执行器螺丝(.250-28 x 1.00)	SCREW (.250-28 x 1.00) Bearing to Shift Control Actuator	1
16	21272	轴承螺丝锁紧垫圈(.250)	LOCKWASHER (.250) Bearing Screw	1
17	37935	换挡控制轴承导轨	RAIL Shift Control Bearing	1
18	69028	不锈钢导轨至排气歧管盖螺丝(.250-28 x 0.750)	SCREW (.250-28 x .750) Stainless Steel Rail to Exhaust Manifold Cover	1
19	26992	不锈钢导轨螺丝锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel Rail Screw	1
20	59037A2	油门和换挡拉索杆	LEVER Throttle and Shift Cables	1
21	23928	快拆杆滚销	PIN Roll - Quick Disconnect Lever	2
21	239281	滚动销	PIN Roll	2
22	38005	快拆杆弹簧	SPRING Quick Disconnect Lever	2
23	37927	快拆杆尼龙衬套	BUSHING Nylon Nylon - Quick Disconnect Lever	2
24	37926	尼龙轴承保持架	RETAINER Nylon Bearing	1
25	37923	轴承保持架螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250) Bearing Retainer	1
26	385011	排气延伸板衬垫	GASKET Exhaust Extension Plate	1
27	38156	排气延伸板橡胶密封件	SEAL Rubber - Exhaust Extension Plate	1
28	99136	橡胶密封条	STRIP Rubber Seal	1
29	37571	固定条螺丝(.190-32 x 0.500)	SCREW (.190-32 x .500) Retaining Strip	6
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 62飞轮、点火线圈和开关盒 FLYWHEEL, IGNITION COIL AND SWITCH BOX

REF	零件编号	中文名称	英文名称	数量
1	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
2	22339	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
2	8M0214915	螺母	NUT	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	5977A32	飞轮总成	FLYWHEEL ASSEMBLY	1
4	8722A16	飞轮	FLYWHEEL	1
4	5977A23	飞轮总成	FLYWHEEL ASSEMBLY	1
4	8722A17	飞轮	FLYWHEEL	1
4	8722A11	飞轮总成	FLYWHEEL ASSEMBLY	1
4	8722A16	飞轮	FLYWHEEL	1
4	8722A9	飞轮总成	FLYWHEEL ASSMEBLY	1
4	8722A17	飞轮	FLYWHEEL	1
5	32417	螺钉(.250-28 x .625)	SCREW (.250-28 x .625)	8
6	88755	手动棘轮	RATCHET MANUAL	1
7	68997	手动螺钉（0.312-24 x 0.750）	SCREW (.312-24 x .750) MANUAL	8
8	76314A3	定子	STATOR	1
8	5454A25	定子	STATOR	1
8	832075A20	点火定子套件	IGNITION STATOR KIT	1
9	75840	螺钉 (#10-24 x 0.880)	SCREW (#10-24 x .880)	2
9	76290	螺钉(5/8英寸)	SCREW (5/8")	2
9	F2211	不锈钢螺钉(#10-24 x .625)	SCREW (#10-24 x .625) Stainless Steel	2
10	96452A1	触发器总成	TRIGGER ASSEMBLY	1
10	96452A4	触发器总成	TRIGGER ASSEMBLY	1
11	61001	化油器柱塞J形卡扣	J CLIP TRIGGER LADS TO CARBURETOR STUD	1
12	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	1
13	88721A1		HARNESS ASSEMBLY SWITCH BOX TO IGNITION COIL	1
14	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	4
14	8M0230859	点火线圈总成	COIL IGNITION ASY	4
15	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	8
16	60466A19		CABLE ASSEMBLY COIL TO SWITCH BOX	4
17	87554	点火线圈盖	COVER IGNITION COIL	1
18	76502	螺钉（0.190-32 x 1.880）	SCREW (.190-32 x 1.880)	5
18	88856	螺钉(0.190-32 x 2.00)	SCREW (.190-32 x 2.00)	5
19	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	5
20	99215A25	火花塞导线总成	LEAD ASSEMBLY SPARK PLUG	4
20	813715A1	引线	LEAD WIRE	4
21	63709A1	护套/端子套件	BOOT/TERMINAL KIT	4
22	2854	点火线圈护套	BOOT IGNITION COIL	4
22	2854T01	护套@3	BOOT @3	4
23	97182	火花塞（NGK #BUHW-2）	SPARK PLUG (NGK #BUHW-2)	4
23	896329833	SP #L78V @4	SP #L78V @4	4
23	75739	火花塞	SPARK PLUG	4
23	14103Q	ORD 896329838	ORD 896329838	4
24	5772A2	开关盒总成	SWITCHBOX ASSEMBLY	1
24	5772A7	开关盒总成	SWITCHBOX ASSEMBLY	1
25	20619	螺钉（#12-24 x 1.25）	SCREW (#12-24 x 1.25)	4
26	642351		J CLIP SWITCH BOX LEADS	1
26	8M0024808	J型夹	J-CLIP	1
27	45076	开关箱端子黄铜螺母(#10-32)	NUT (#10-32) Brass SWITCH BOX TERMINALS	13
28	88322	开关盒安装板	PLATE SWITCH BOX	1
29	54615		SCREW (.250-20 x .625) SWITCH BOX PLATE TO CYLINDER BLOCK	2

图 63齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
2	85822A1	速度表连接器总成	CONNECTOR ASSEMBLY Speedometer	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	85500	定位销(.187 x .530)齿轮箱	PIN Dowel (.187 x .530) Gear Housing	2
3	8M0084726	定位销	PIN Dowel	2
4	33778	水泵/底座柱螺栓(2.625英寸)	STUD Water Pump/Base (2.625 Inch)	3
5	57933	柱螺栓(.437-14/.437-20 x 2.190)齿轮箱	STUD (.437-14/.437-20 x 2.190) Gear Housing	2
5	8M0034453	柱螺栓(7/16 x 2.19)	STUD (7/16 x 2.19)	2
6	62091	传动轴滚柱轴承	BEARING Roller Driveshaft	1
6	62091T	轴承	BEARING	1
7	72849A1	进水滤网总成	SCREEN ASSEMBLY Water Intake	1
8	36070	螺钉(#10-32 x 1.250)进水滤网至齿轮箱	SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing	1
9	45812	螺母(#10-32)不锈钢进水滤网螺钉	NUT (#10-32) Stainless Steel Water Intake Screen Screw	1
9	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
10	92815	排气管支撑板	PLATE Support - Exhaust Tube	1
11	37721	排气管密封件	SEAL Exhaust Tube	1
11	37721001	密封件@2	SEAL @2	1
12	98097	传动轴小齿轮	GEAR Pinion Driveshaft	1
12	98097T	小齿轮	GEAR-PINION	1
13	55910	螺母(.437-20)小齿轮至传动轴	NUT (.437-20) Pinion Gear to Driveshaft	1
14	19552	水泵底座衬垫	GASKET Water Pump Base	1
15	26722	O型圈	O-RING	1
16	77177A1	水泵底座总成	BASE ASSEMBLY Water Pump	1
17	90562	密封件(1.254 x .312)	SEAL (1.254 x .312)	1
18	79831	油封	SEAL Oil	1
19	35973	定位销	PIN Dowel	2
20	19553	下衬垫	GASKET Lower	1
21	54705	面板	FACE PLATE	1
21	32768	面板	FACEPLATE	1
22	19551	上衬垫	GASKET Upper	1
23	89983	叶轮	IMPELLER	1
23	89983T	叶轮	IMPELLER	1
24	56662	叶轮驱动键	KEY Impeller Drive	1
24	8M0032837	键@5	KEY @5	1
25	77822A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	48753	嵌件	INSERT	1
27	38452	橡胶密封件	SEAL Rubber	1
28	38453	尼龙垫圈	WASHER Nylon	1
29	29245	垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓	WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs	3
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
30	13438	螺母(.250-28)水泵体与底座柱螺栓	NUT (.250-28) Water Pump Body and Base Studs	3
30	8267119	螺母(.250-28)	NUT (.250-28)	3
31	20273	橡胶O型圈	O-RING Rubber	1
32	78654A1	传动轴座总成	SEAT ASSEMBLY Driveshaft	1
33	86304	花键密封件-传动轴	SEAL Splined - Driveshaft	1
34	79953	螺钉(.375-16 x .250)润滑脂加注口	SCREW (.375-16 x .250) Grease Filler	1
34	79953Q04	放油螺钉套件	SCREW KIT Drain	1
35	67892	磁性放油螺钉	SCREW Magnetic Drain	1
35	8M0058389	放油螺钉套件	SCREW KIT Drain	1
36	19183	纤维垫圈(加注/放油螺钉)	WASHER Fiber Filler/Drain Screw	2
36	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
37	88181	润滑套筒-传动轴	SLEEVE Lubrication - Driveshaft	1
38	92881A1	轴承垫片组(齿轮箱用)(.002-3-5-10-20)	SHIM SET Bearing to Gear Housing(.002-3-5-10-20)	AR
39	77420A1	圆锥滚子轴承总成-传动轴	BEARING ASSEMBLY Roller Tapered - Driveshaft	1
39	8M0166756	轴承总成	BEARING ASSEMBLY	1
40	88025A2	驱动轴总成	DRIVESHAFT ASSEMLBY	1
40	98179	驱动轴	DRIVESHAFT	1
40	88024A2	驱动轴总成	DRIVESHAFT ASSEMBLY	1
40	98180	驱动轴	DRIVESHAFT	1
41	20254	驱动轴压缩弹簧	SPRING Compression - Driveshaft	1
42	30545	驱动轴销	PIN Driveshaft	1
43	76063A1	换挡轴总成	SHAFT ASSEMBLY Shift	1
44	29641	换挡轴E型卡环	E RING Shift Shaft	1
45	25439	O型圈(.862 x .103)换挡轴衬套	O-RING (.862 x .103) Shift Shaft Bushing	1
46	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
47	76384	换挡轴衬套油封	SEAL Oil Shift Shaft Bushing	1
47	8M0246145	油封	OIL SEAL	1
48	77674	橡胶垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing	1
49	78036	倒挡锁定底座	BASE Reverse Locking	1
50	433081	倒挡锁定凸轮	CAM Reverse Locking	1
50	43308T1	凸轮	CAM	1
-	77177A3	水泵套件	WATER PUMP KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 64齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7406A34	水星短轴齿轮箱总成	GEAR HOUSING ASSEMBLY (SHORT SHAFT) MERCURY	1
-	7406A35	水星长轴齿轮箱总成	GEAR HOUSING ASSEMBLY (LONG SHAFT) MERCURY	1
-	9539A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7406A43	水星超长轴齿轮箱总成	GEAR HOUSING ASSEMBLY (X-LONG SHAFT) MERCURY	1
-	9539A10	齿轮箱	GEAR HOUSING	1
-	7406A38	马林短轴齿轮箱总成	GEAR HOUSING ASSEMBLY (SHORT SHAFT) MARINER	1
-	9539A6	齿轮箱总成	GEAR HUSING ASSEMBLY	1
-	7406A39	马林长轴齿轮箱总成	GEAR HOUSING ASSEMBLY (LONG SHAFT) MARINER	1
-	9539A7	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7406A43	齿轮箱总成（超长轴）Mariner	GEAR HOUSING ASSEMBLY (X-LONG SHAFT) MARINER	1
-	9539A10	齿轮箱	GEAR HOUSING	1
1	7406A16	齿轮箱总成水星	GEAR HOUSING ASSEMBLY Mercury	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	7406A41	齿轮箱总成 Mariner	GEAR HOUSING ASSEMBLY Mariner	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
51	76039	换挡凸轮控制	CAM Shift Control	1
51	760394	换挡凸轮控制	CAM Shift Control	1
52	38374A1		SHIM SET BEARING CUP TO GEAR HOUSING (.002-3-5-10)	AR
53	38356A1	轴承套件	BEARING SET	1
54	55608A4	前进齿轮总成	GEAR ASSEMBLY Forward	1
54	55608T4	前进齿轮总成	GEAR ASSY-FORWARD	1
55	21739	前进档滚柱轴承	BEARING Roller FORWARD GEAR	1
56	38441	凸轮从动件	FOLLOWER Cam	1
57	20843		SLIDE CROSS PIN	1
58	38114	十字销固定弹簧	SPRING RETAINING - CROSS PIN	1
59	92911	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
59	92911T	离合器	CLUTCH	1
60	38113	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
60	8M0020942	十字销@2	PIN-CROSS @2	1
61	39845	凸轮从动件压缩弹簧	SPRING COMPRESSION - CAM FOLLOWER	1
62	75365	螺旋桨轴	PROPELLER SHAFT	1
63	79158	倒挡齿轮	GEAR Reverse	1
63	79158T	倒挡齿轮	GEAR-REVERSE	1
64	32004		WASHER THRUST - REVERSE GEAR	1
65	20839	倒档齿轮滚珠轴承	BEARING Ball REVERSE GEAR	1
65	20839T	滚珠轴承	BEARING Ball	1
66	31986	轴承座O型圈	O-RING BEARING CARRIER	1
67	69386A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	69386T1	轴承座总成	CARRIER ASSY-BRG	1
68	21700	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
69	69188	轴承座油封	SEAL Oil BEARING CARRIER	1
69	8M0205511	油封	SEAL Oil	1
70	69189	轴承座油封	SEAL Oil BEARING CARRIER	1
70	8M0203757	油封	SEAL Oil	1
71	30281		KEY LOCATING - BEARING CARRIER	1
72	53012	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
73	87763		NUT GEAR HOUSING	1
74	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
74	31640Q4	平衡鳍板	TRIM TAB	1
75	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
76	45175	垫圈（0.406 x 0.750 x 0.104）驱动轴壳体螺柱	WASHER (.406 x .750 x .104) DRIVESHAFT HOUSING STUD	1
76	8M0214963	垫圈	WASHER	1
77	34863		NUT (.375-24) DRIVESHAFT HOUSING STUD	1
77	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
78	65791	垫圈（7/16"）	WASHER HOUSING TO STUD (7/16")	1
79	34933		NUT (.437-20) Stainless Steel STUD	1
79	8M0204653	螺母	NUT	1
80	73345A1		THRUST WASHER FRONT	1
81	76281	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
81	8M0214942	锁紧垫片	WASHER Tab	1
82	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
82	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	72486A32	衬垫套件	GASKET SET	1

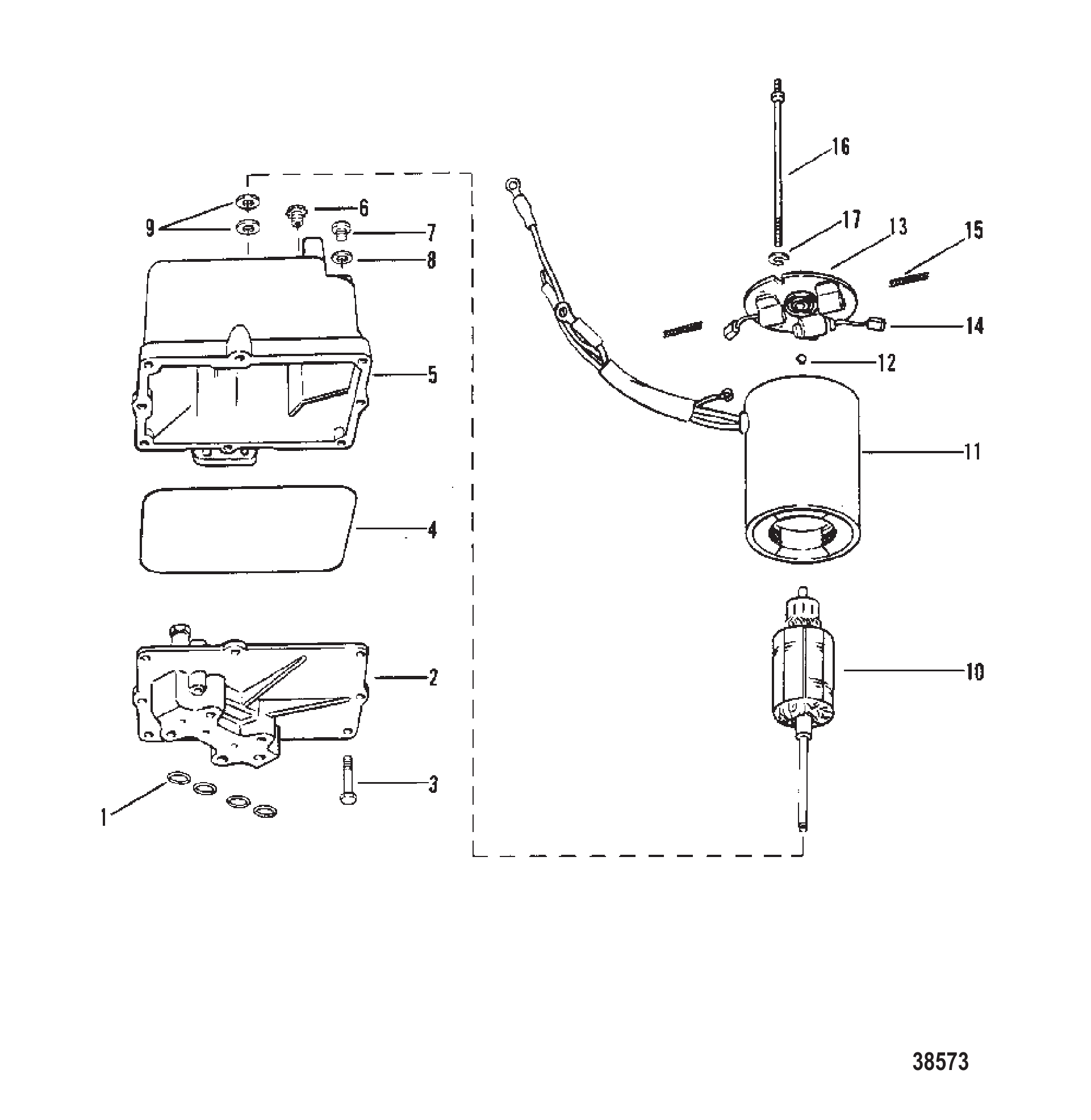

图 65液压泵总成(金属油箱) HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)

REF	零件编号	中文名称	英文名称	数量
-	76395A5	液压泵总成（完整）	PUMP ASSEMBLY Hydraulic COMLETE	1
1	48171	O型圈(0.364 x 0.070)	O-RING (.364. x .070)	4
2	7734	阀体与齿轮总成	VALVE BODY AND GEAR ASSEMBLY	1
3	20411	螺钉（.190-24 x .62）阀体至油箱	SCREW (.190-24 x .62) VALVE BODY TO RESERVOIR	8
4	2937	密封件（油箱至阀体及齿轮）	SEAL RESEROVIR TO VALVE BODY AND GEAR	1
4	7735	密封件	SEAL	1
5	2939	储液罐总成	RESERVOIR ASSEMBLY	1
6	62269	螺钉 (#10-32 x 0.437) 通气口-液压泵	SCREW (#10-32 x .437) VENT - HYDRAULIC PUMP	1
7	79953	螺钉（.375-16 x .250）液压泵注油口	SCREW (.375-16 x .250) FILLER - HYDRUALIC PUMP	1
7	79953Q04	放油螺钉套件	SCREW KIT Drain	1
8	20260	垫圈	WASHER	1
8	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
9	2623	止推垫圈-电枢	WASHER THRUST - ARMATURE	AR
10	2943	电枢磁场与框架	ARMATURE FIELD AND FRAME	1
11	2942	磁场框架总成	FIELD AND FRAME ASSEMBLY	1
12	2944	换向器端板滚珠	BALL COMMUTATOR END PLATE	1
13	2940	换向器端板总成	PLATE ASSEMBLY COMMUTATOR END	1
14	2941	换向器端板电刷组	BRUSH SET COMMUTATOR END PLATE	1
14	8989	电刷套件	BRUSH KIT	1
15	2529	电刷张力弹簧组	SPRING SET BRUSH TENSION	1
16	2938	螺栓套件	BOLT SET	1
17	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2

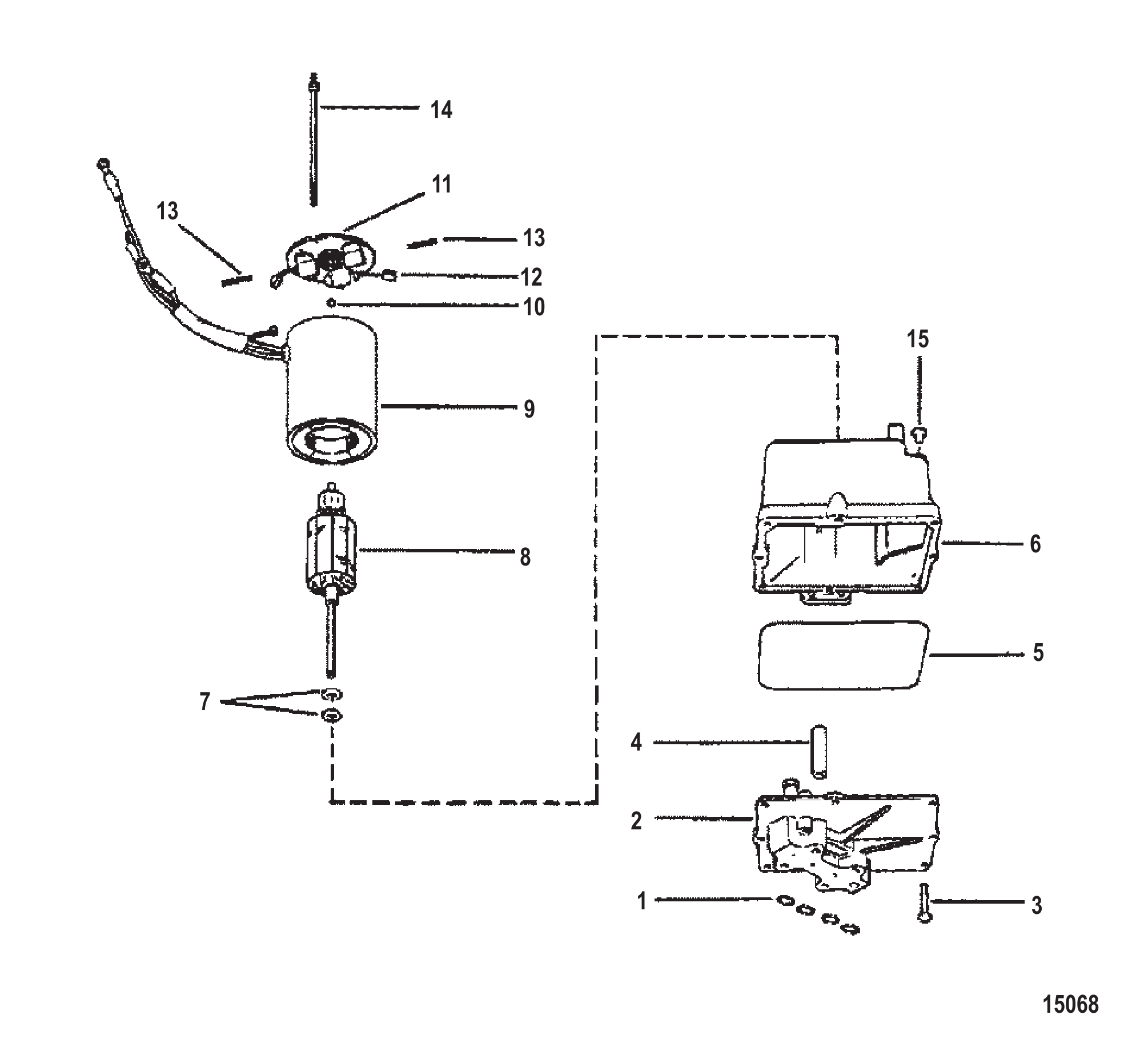

图 66液压泵总成(塑料油箱) HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)

REF	零件编号	中文名称	英文名称	数量
-	92975A6	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	48171	O型圈 (.364 x 0.070) 液压泵	O-RING (.364. x .070) HYDRAULIC PUMP	4
2	8317	阀体与齿轮总成	VALVE BODY AND GEAR ASSEMBLY	1
2	92975A32	泵套件-微调	PUMP KIT-TRIM	1
3	69570	螺钉 (#10-16 x 0.750) 阀体至储液罐	SCREW (#10-16 x .750) VALVE BODY TO RESERVOIR	8
4	7727	联轴器与轴	COUPLER AND SHAFT	1
5	7735	储液罐至阀体与齿轮密封件	SEAL RESERVOIR TO VALVE BODY AND GEAR	1
6	7731	储液罐总成 (塑料)	RESEROVIR ASSEMBLY (PLASTIC)	1
7	7732	止推垫圈-电枢	WASHER THRUST - ARMATURE	AR
8	7729	电枢磁场与框架	ARMATURE FIELD AND FRAME	1
9	8261	磁场框架总成	FIELD AND FRAME ASSEMBLY	1
10	7730	换向器端板滚珠	BALL COMMUTATOR END PLATE	1
11	8262	换向器端板总成	PLATE ASSEMBLY COMMUTATOR END	1
12	2941	换向器端板电刷组	BRUSH SET COMMUTATOR END PLATE	1
12	8989	电刷套件	BRUSH KIT	1
13	2529	电刷张力弹簧组	SPRING SET BRUSH TENSION	1
14	7733	贯穿螺栓组板与框架至储液罐	BOLT SET Thru- Plate and Frame to Reservoir	1
15	7728	储液罐注油塞	FILL PLUG RESERVOIR	1

图 67杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

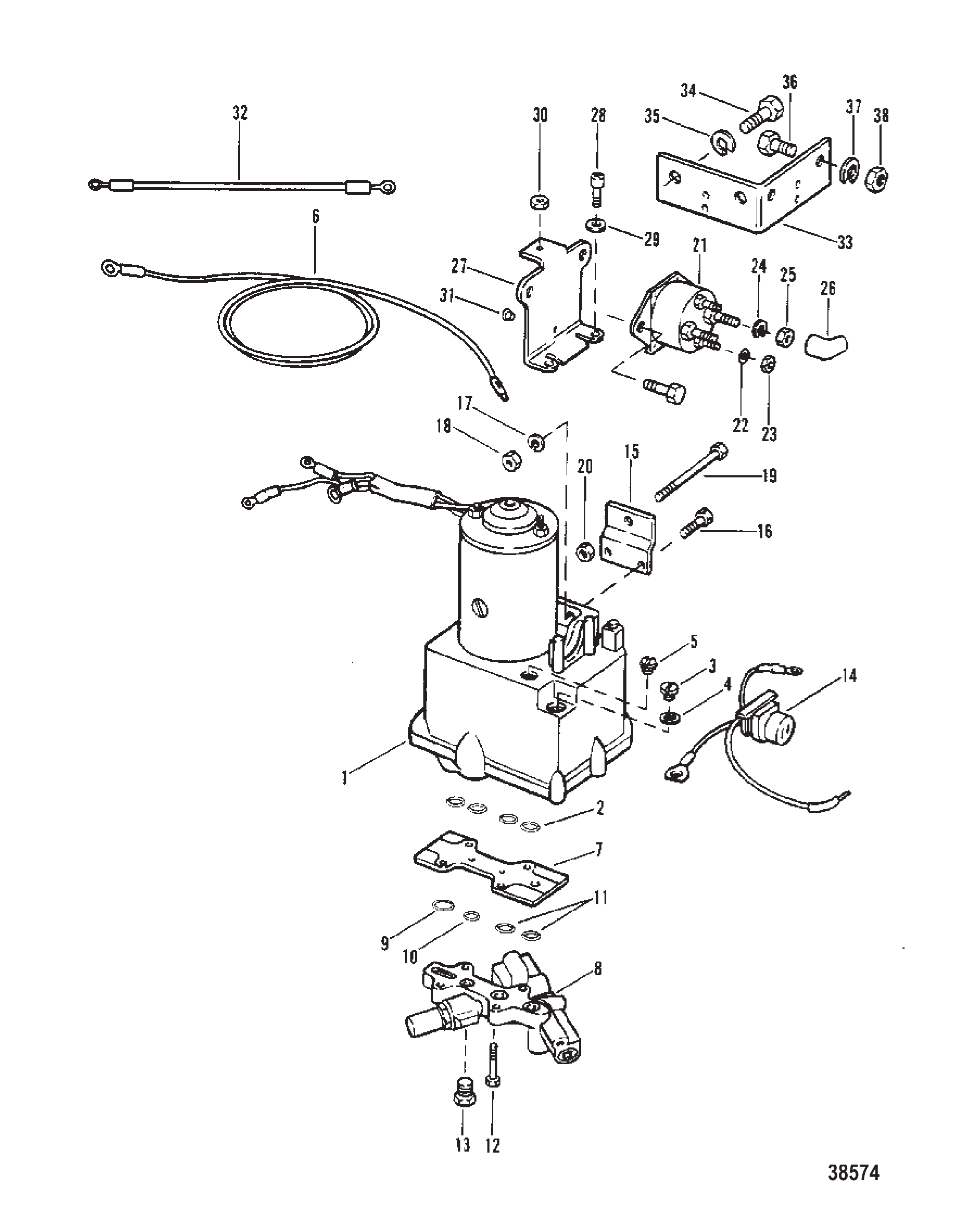

图 68动力升降组件(无断路器和保险丝) POWER TRIM COMPONENTS (WITHOUT CIRCUIT BREAKER AND FUSE)

REF	零件编号	中文名称	英文名称	数量
1	76395A5	液压泵总成（金属油箱）	PUMP ASSEMBLY Hydraulic (METAL RESERVOIR)	1
1	92975A32	泵套件-微调	PUMP KIT-TRIM	1
1	92975A6	液压泵总成 (塑料储液罐)	PUMP ASSEMBLY Hydraulic (PLASTIC RESERVOIR)	1
1	92975A32	泵套件-微调	PUMP KIT-TRIM	1
2	48171	O型圈 (.364 x 0.070) 歧管板	O-RING (.364. x .070) MANIFOLD PLATE	4
3	79953	螺钉（.375-16 x .250）液压泵注油口	SCREW (.375-16 x .250) FILLER - HYDRUALIC PUMP	1
3	79953Q04	放油螺钉套件	SCREW KIT Drain	1
4	20260	垫圈	WASHER	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	62269	螺钉 (#10-32 x 0.437) 通气口-液压泵	SCREW (#10-32 x .437) VENT - HYDRAULIC PUMP	1
6	32979	电池导线（正极）	LEAD Battery (POSITIVE)	1
6	32988	电池导线（负极）	LEAD Battery (NEGATIVE)	1
7	45336	歧管板	PLATE MANIFOLD	1
8	45197A2	控制阀总成	VALVE ASSEMBLY Control	1
--	48171	O型圈（.364 x .070）（参见编号#2）	O-RING (.364. x .070) (SEE REF. #2)	4
9	45254	O型圈控制阀 (3/4英寸外径)	O-RING CONTROL VALVE (3/4" O.D.)	1
10	48171	O型圈（.364 x .070）控制阀（1/2"外径）	O-RING (.364. x .070) CONTROL VALVE (1/2" O.D.)	1
11	45253	O型圈控制阀 (5/8英寸外径)	O-RING CONTROL VALVE (5/8" O.D.)	2
12	56500	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
13	46008	控制阀堵头（1/2-20"）	PLUG CONTROL VALVE (1/2-20")	2
14	74023A1	线束总成	HARNESS ASSEMBLY	1
15	45377	安装支架	BRACKET MOUNTING	2
15	45377T	支架	BRACKET	2
16	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
17	39107	锁紧垫圈(0.312-24)	LOCKWASHER (.312-24)	4
18	21908	螺母（.312-18）镀镉	NUT (.312-18) Cad Plated	4
19	68298	螺栓（.375-16 x 3.250）液压泵至船体	BOLT (.375-16 x 3.250) HYDRUALIC PUMP TO BOAT	2
20	99405	螺母	NUT	2
20	82671112	螺母（.375-16）	NUT (.375-16)	2
21	68258	启动电磁阀	SOLENOID Starter	2
21	853654A1	电磁阀	SOLENOID	2
22	26996	锁紧垫圈（#10）不锈钢电磁阀端子	LOCKWASHER (#10) Stainless Steel SOLENOID TERMINAL	4
23	68219	螺母（#10-32）不锈钢电磁阀端子	NUT (#10-32) Stainless Steel SOLENOID TERMINAL	4
24	26993	锁紧垫圈（.312）电磁阀端子	LOCKWASHER (.312) SOLENOID TERMINAL	4
24	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
25	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINAL	4
25	8M0204668	螺母(.312-18)	NUT (.312-18)	4
26	46265	橡胶护套-启动电磁阀端子	BOOT RUBBER - STARTER SOLENOID TERMINAL	4
27	74407	安装支架-启动电磁阀	BRACKET MOUNTING - STARTER SOLENOID	1
27	74407T	支架	BRACKET	1
28	21140	螺钉（.250-28 x .50）	SCREW (.250-28 x .50)	2
29	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
30	24656	螺母	NUT	1
31	26901	橡胶缓冲垫-电磁阀支架	BUMPER RUBBER - SOLENOID BRACKET	1
31	269011	橡胶缓冲垫	BUMPER Rubber	1
32	79139A2	跳线总成（正极）	WIRE ASSEMBLY Jumper (POSITIVE)	1
32	55992	跳线（负极）	WIRE Jumper (NEGATIVE)	1
33	74406	安装支架-启动电磁阀	BRACKET MOUNTING - STARTER SOLENOID	1
34	69028	螺钉（.250-28 x .750）不锈钢	SCREW (.250-28 x .750) Stainless Steel	2
35	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
36	32417	螺钉(.250-28 x .625)	SCREW (.250-28 x .625)	2
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
38	21825	螺母(.250-28)	NUT (.250-28)	4

图 69动力升降组件(含断路器与保险丝) POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE)

REF	零件编号	中文名称	英文名称	数量
1	92975A6	液压泵总成	PUMP ASSEMBLY Hydraulic	1
2	48171	O型圈 (.364 x 0.070) 歧管板	O-RING (.364. x .070) MANIFOLD PLATE	4
3	79953	螺钉 (.375-16 x 0.250) 注油口-液压泵	SCREW (.375-16 x .250) FILLER - HYDRAULIC PUMP	1
3	79953Q04	放油螺钉套件	SCREW KIT Drain	1
4	20260	密封垫圈-注油螺钉	WASHER SEALING - FILLER SCREW	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	62269	螺钉 (#10-32 x 0.437) 通气口-液压泵	SCREW (#10-32 x .437) VENT - HYDRAULIC PUMP	1
6	45336	歧管板	PLATE MANIFOLD	1
7	45197A2	控制阀总成	VALVE ASSEMBLY Control	1
--	48171	O型圈 (.364 x 0.070) 歧管板 (参见编号#2)	O-RING (.364. x .070) MANIFOLD PLATE (SEE REF. #2)	4
8	45254	O型圈控制阀 (3/4英寸外径)	O-RING CONTROL VALVE (3/4" O.D.)	1
9	48171	O型圈（.364 x .070）控制阀（1/2"外径）	O-RING (.364. x .070) CONROL VALVE (1/2" O.D.)	1
10	45253	O型圈控制阀（5/8"外径）	O-RING CONTROL VALVE 5/8" O.D.	2
11	56500	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
12	46008	控制阀堵头（1/2-20"）	PLUG CONTROL VALVE (1/2-20")	2
13	79147A3	线束总成	HARNESS ASSEMBLY	1
14	79091	保险丝20安培	FUSE 20 Ampere	1
14	8M0207796	保险丝20安培	FUSE 20 AMP	1
15	95084A3	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
16	45377	安装支架	BRACKET MOUNTING	2
16	45377T	支架	BRACKET	2
17	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
18	39107	锁紧垫圈（.312-24）安装支架螺钉	LOCKWASHER (.312-24) MOUNTING BRACKET SCREW	4
19	21908	螺母 (.312-18) 镀镉安装支架螺钉	NUT (.312-18) Cad Plated MOUNTING BRACKET SCREW	4
20	31830	螺栓 (.375-24 x 1.75) 液压泵至船体	BOLT (.375-24 x 1.75) HYDRAULIC PUMP TO BOAT	2
21	99405	液压泵螺栓螺母	NUT HYDRAULIC PUMP BOLT	2
21	82671112	螺母（.375-16）	NUT (.375-16)	2
22	94279	安装支架-启动电磁阀	BRACKET MOUNTING - STARTER SOLENOID	1
23	48063	螺钉	SCREW	2
23	28638	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
24	29488	螺母 (#10-32)	NUT (#10-32)	1
24	8M0204718	螺母	NUT	1
25	96158	启动电磁阀	SOLENOID Starter	2
25	8M0185622	电磁阀	SOLENOID	2
26	26995	锁紧垫圈 (#8) 不锈钢电磁阀端子	LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL	4
27	26419	螺母(#8-32)-黄铜电磁阀端子	NUT (#8-32) Brass SOLENOID TERMINAL	4
28	26992	锁紧垫圈 (.250) 不锈钢电磁阀端子	LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL	4
29	94330	螺母 (.250-20) 黄铜电磁阀端子	NUT (.250-20) Brass SOLENOID TERMINAL	4
30	96535	橡胶护套-启动电磁阀端子	BOOT RUBBER - STARTER SOLENOID TERMINAL	4
30	861680	绝缘体	INSULATOR	4
31	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	4
32	94275	电磁阀间连杆	LINK SOLENOID TO SOLENOID	1
33	79139A13	电缆总成蓄电池 (正极)	CABLE ASSEMBLY Battery (POSITIVE)	1
33	79138A1	负极电缆总成	CABLE ASSEMBLY (NEGATIVE)	1
34	79149	断路器-20安培（早期型号）	BREAKER Circuit - 20 Ampere EARLY MODELS	1
34	8M0085705	20安培电路断路器	BREAKER Circuit - 20 Ampere	1
35	69014	螺钉（#10-24 x .375）断路器-早期型号	SCREW (#10-24 x .375) CIRCUIT BREAKER - EARLY MODELS	2
35	8M0113176	螺钉	SCREW	2
36	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
37	87379A5	电线	WIRE	1
38	79023A90	90安培保险丝总成	FUSE ASSEMBLY 90 Ampere	1
38	79023T90	90安培保险丝总成	FUSE ASSEMBLY 90 Ampere	1
39	96457	酚醛垫圈(0.27x0.81x0.062)保险丝端子	WASHER Phenolic (.27 x .81 x .062) FUSE TERMINAL	1
40	21825	螺母(0.250-28)保险丝端子	NUT (.250-28) FUSE TERMINAL	1
41	61600A9	启动电磁阀导线(黑色)	WIRE STARTER SOLENOID (BLACK)	2

图 70动力升降油缸修理包(76509A3和76509A23) POWER TRIM CYLINDER REPAIR KITS (76509A3 AND 76509A23)

REF	零件编号	中文名称	英文名称	数量
-	64507A1	维修套件	REPAIR KIT	1
1	N.S.S.	不单独销售 O型圈（1-1/2" X 1-5/8" X 1/16"）	Not Sold Separate O-Ring (1-1/2" X 1-5/8" X 1/16")	1
2	N.S.S.	不单独销售 O型圈（3/4" X 15/16" X 1/8"）	Not Sold Separate O-Ring (3/4" X 15/16" X 1/8")	1
3	N.S.S.	不单独销售 O型圈（5/8" X 3/4" X 1/1"）	Not Sold Separate O-Ring (5/8" X 3/4" X 1/1")	1
4	N.S.S.	不单独销售 O型圈（1-1/4" X 1-7/16" X 1/16"）	Not Sold Separate O-Ring (1-1/4" X 1-7/16" X 1/16")	1
5	N.S.S.	不单独销售 O型圈（7/32" X 11/32" X 1/16"）	Not Sold Separate O-Ring (7/32" X 11/32" X 1/16")	2
6	N.S.S.	不单独销售 O型圈（1-5/8" X 1-13/16" X 1/8"）	Not Sold Separate O-Ring (1-5/8" X 1-13/16" X 1/8")	1
7	N.S.S.	不单独销售 O型圈（1-5/16" X 1-1/2" X 1/8"）	Not Sold Separate O-Ring (1-5/16" X 1-1/2" X 1/8")	1
8	N.S.S.	不单独销售 O型圈（1-7/8" X 2" X 1/8"）	Not Sold Separate O-Ring (1-7/8" X 2" X 1/8")	1
9	N.S.S.	不单独销售 O型圈（1-3/4" X 1-15/16" X 1/8"）	Not Sold Separate O-Ring (1-3/4" X 1-15/16" X 1/8")	1
10	N.S.S.	不单独销售密封件-活塞滑块	Not Sold Separate SEAL, SLIPPER - PISTON	1
11	N.S.S.	不单独销售活塞杆-重型	Not Sold Separate PISTON, ROD - HEAVY DUTY	1
12	64505A1	活塞固定环总成	RETAINER ASSEMBLY PISTON	1
13	N.S.S.	不单独销售刮杆	Not Sold Separate ROD, SCRAPER	1
14	N.S.S.	不单独销售刮片固定环	Not Sold Separate RETAINER, SCRAPER	1
-	76509A3	配平油缸	TRIM CYLINDER	1
-	92194A14	配平油缸	TRIM CYLINDER	1
-	76509A23	配平油缸	TRIM CYLINDER	1
-	92194A20	配平油缸	TRIM CYLINDER	1

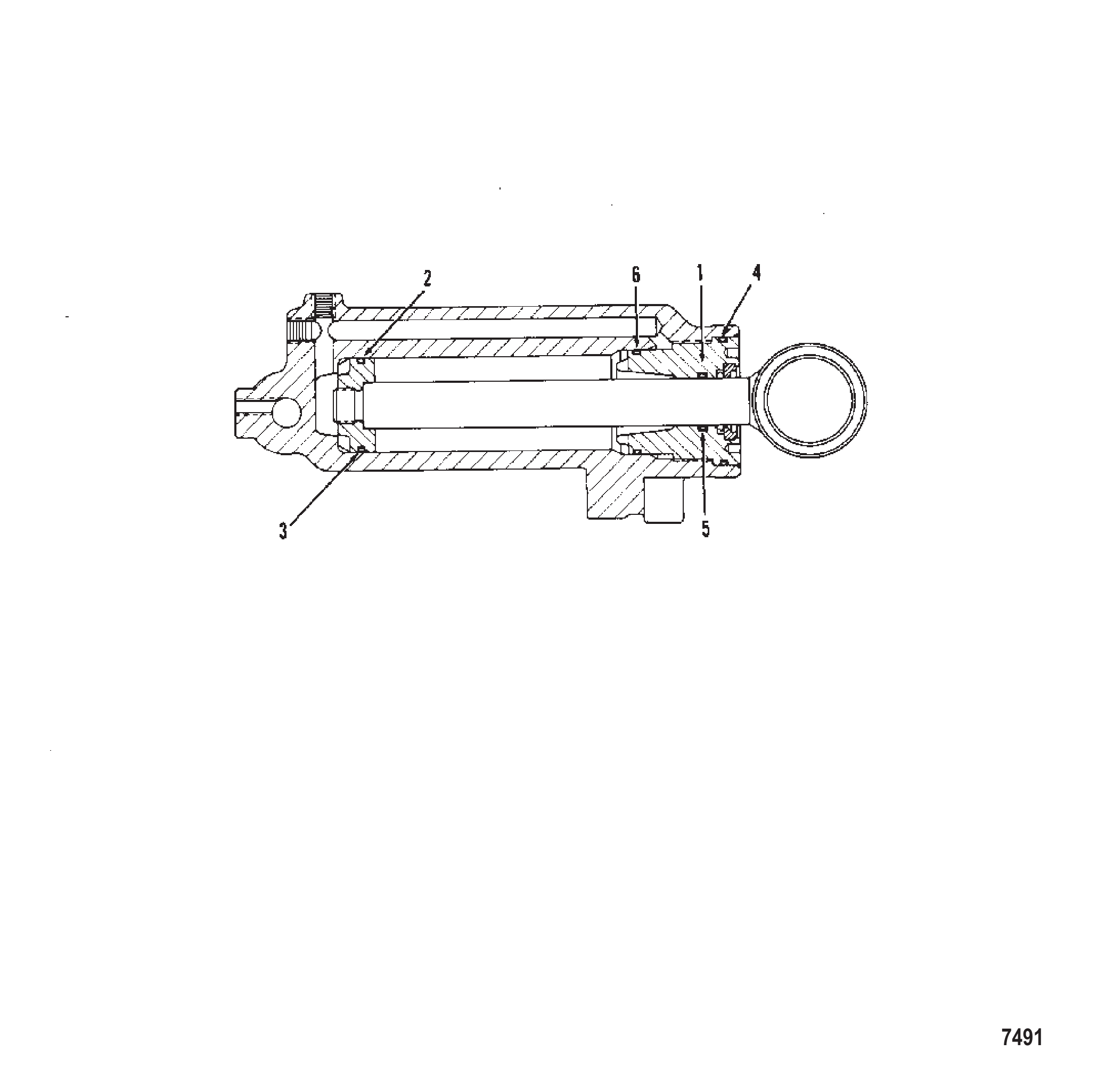

图 71动力升降油缸修理包(92194A14和92194A20) POWER TRIM CYLINDER REPAIR KITS (92194A14 AND 92194A20)

REF	零件编号	中文名称	英文名称	数量
-	92188A2	维修套件	REPAIR KIT	1
1	N.S.S.	气缸盖不单独销售	Not Sold Separate Cylinder Cap	1
2	N.S.S.	不单独销售 O型圈（1-1/4" X 1-1/2" X 1/8"）	Not Sold Separate O-Ring (1-1/4" X X1-1/2" X 1/8")	1
3	N.S.S.	垫片不单独销售	Not Sold Separate Spacer	1
4	N.S.S.		Not Sold Separate O-Ring (1-7/8" X 2-1/16" X 3/32")	1
5	N.S.S.		Not Sold Separate O-Ring (3/4" X 15/16" X 3/32")	1
6	N.S.S.	不单独销售 O型圈（1-1/2" X 1-3/4" X 3/32"）	Not Sold Separate O-Ring )1-1/2" X 1-3/4" X 3/32")	1
-	92194A14	配平油缸	TRIM CYLINDER	1
-	92194A20	配平油缸	TRIM CYLINDER	1

图 72螺旋桨(右旋) PROPELLERS (RIGHT HAND ROTATION)

REF	零件编号	中文名称	英文名称
-	73132A40	螺旋桨总成(铝制)(螺距10")	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 10")
-	73134A40	螺旋桨总成(铝制)(螺距12")	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 12")
-	73134A45	BLMX 10.6X12	BLMX 10.6X12
-	73136A40	螺旋桨总成(铝制)(螺距13")	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 13")
-	73136A45	BLMX 10.4X13	BLMX 10.4X13
-	73138A40	螺旋桨总成(铝制)(螺距14")	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 14")
-	73138A45	BLMX 10.3X14	BLMX 10.3X14
-	73140A40	螺旋桨总成(铝制)(螺距15")	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 15")
-	73140A45	BLMX 10.1X15	BLMX 10.1X15
-	73144A40	螺旋桨总成(铝制)(螺距17")	PROPELLER ASSEMBLY (ALUMINUM)(PITCH 17")
-	73144A45	BLMX 10X17	BLMX 10X17

图 73启动电机总成 Starter Motor Assembly

REF	零件编号	中文名称	英文名称	数量
-	73521	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660		PLATE Drive End	1
4	75379	贯穿螺栓	BOLT Through	2
6	75382	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387		BUSHING Insulating	1
9	38013		WASHER Input Stud	1
10	26992		LOCKWASHER (.250) Stainless Steel Input Stud	1
11	20890		NUT (.250-20) Input Stud	1
12	61787	电刷架	HOLDER Brush	2
12	898265014	电刷支架	HOLDER-BRUSH	2
13	68586		SCREW Brush and Holder	2
14	75383		END CAP Commutator	1

图 74启动器回绕装置 STARTER REWIND

REF	零件编号	中文名称	英文名称	数量
1	20166		NUT Sheave Shaft (Left Hand Thread)	1
2	61004		TAB WASHER Sheave Shaft Nut	1
3	890162	启动器壳体	HOUSING Starter	1
4	44255A1	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
5	44508	启动棘爪	PAWL Starter	1
6	54523	螺钉 (.312-18 x 1.00) 启动器外壳	SCREW (.312-18 x 1.00) Starter Housing	3
7	20202	锁紧垫圈启动器外壳螺钉	LOCKWASHER Starter Housing Screw	3
8	37691	电缆导板	PLATE Cable Guide	1
9	35881	螺钉 (#6-32 x .250) 驱动-电缆导板	SCREW (#6-32 x .250) Drive - Cable Guide Plate	3
9	358811	螺丝(#6-32 x .250)	SCREW (#6-32 x .250)	3
10	61002		PLATE Starter Rewind	1
11	39502A1	弹簧	SPRING	1
11	39502T02	回卷弹簧	SPRING-RECOIL	1
12	87649		BUSHING Spring Guide	1
13	87651		SPRING Starter Pawl	1
14	87706		E RING Starter Pawl	1
15	63061		SPACER Sheave Shaft	1
17	94962	杠杆	LEVER	1
18	20160	波形垫圈	WAVE WASHER	1
19	87656	滑轮轴	SHEAVE SHAFT	1
20	12066A9	绳索	ROPE	1
20	12066Q10	启动绳@2	ROPE-STARTER@2	1
20	47341A1	绳索与手柄套件手动/应急启动	ROPE AND HANDLE KIT Manual/Emergency Start For Manual Starting	1
20	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
21	85174A1	手柄总成	HANDLE ASSEMBLY	1
22	76568	联锁电缆	CABLE Interlock	1
23	69022	螺钉 (#10-32 x .500) 不锈钢联锁电缆固定	SCREW (#10-32 x .500) Stainless Steel Interlock Cable Attaching	2
24	33786	联锁电缆螺钉垫圈	WASHER Interlock Cable Screw	2
24	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	2
25	42820		CAM Interlock	1
25	428201	凸轮	CAM	1
26	76138	螺钉 (.312-18 x 1.120) 联锁凸轮(1.125英寸)	SCREW (.312-18 x 1.120) Interlock Cam (1.125 Inch)	1
27	76140	联锁凸轮螺钉弹簧	SPRING Interlock Cam Screw	1
27	761401	弹簧	SPRING	1
28	79371		ACTUATOR Interlock	1
29	76137	联锁执行器螺钉(1.625英寸)	SCREW Interlock Actuator (1.625 Inch)	1
30	76139	联锁执行器螺钉弹簧	SPRING Interlock Actuator Screw	1
31	27769		COTTER PIN Interlock Cable to Actuator	1
31	26811	开口销	COTTER PIN	1
32	35559		WASHER Starter Rewind	1
-	89016A3	起动机总成回绕式	STARTER ASSEMBLY Rewind	1

图 75转向手柄总成 STEERING HANDLE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	48416		CAP Steering Handle Grip	1
2	20586		NUT (.250-28) Steering Handle Arm	1
2	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
3	21631		WASHER (.255 x .625 x .0312) Steering Handle Arm	1
3	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
4	58192A1		GRIP Steering Handle Arm	1
5	48414	驱动轮外壳	HOUSING Drive Wheel	1
6	48516A1	驱动轮/杆总成	DRIVE WHEEL/ROD ASSEMBLY	1
7	48405A2	臂总成	ARM ASSEMBLY	1
8	48519		PLATE Cover - Drive Wheel	1
9	48518	盖板垫片	GASKET Cover Plate	1
10	28192	螺钉 (#10-24 x .50) 驱动轮盖板	SCREW (#10-24 x .50) Drive Wheel Cover Plate	4
10	72169	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
11	785511	电缆导管	CONDUIT Cable	1
12	48520	节气门拉索	CABLE Throttle	1
13	89613	控制连杆接头	CONNECTOR Control Linkage	1
14	89601		SCREW Set - Throttle Cable Guide Tube	1
14	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
15	895661	节气门电缆导向管	GUIDE TUBE Throttle Cable Guide	1
15	8M0026078	导向管	TUBE-GUIDE	1
16	43433	节气门电缆导向器	GUIDE Throttle Cable	1
16	8M0204660	导套	GUIDE	1
17	20007		ANCHOR Throttle Cable	1
18	20518		SET SCREW (#8-32) Throttle Cable Anchor	2
18	8M0204644	螺钉组	SCREW SET	2
19	48404T	手柄支架	BRACKET Handle	1
19	48404T8	支架	BRACKET	1
20	48416	手柄支架盖	CAP Handle Bracket	1
21	48476	手柄支架螺钉	SCREW Handle Bracket	1
21	823597	螺丝(.500-20 x 2.50)	SCREW (.500-20 x 2.50)	1
22	48477	手柄支架垫圈	WASHER Handle Bracket	1
23	48526	尼龙垫圈-手柄支架	WASHER Nylon - Handle Bracket	1
24	28919	尼龙衬套-手柄支架	BUSHING Nylon - Handle Bracket	2
25	48525	手柄支架隔套	SPACER Handle Bracket	1
26	48527	尼龙垫圈-手柄支架	WASHER Nylon - Handle Bracket	1
26	38000	垫圈	WASHER	1
27	48478	手柄支架波形垫圈	WAVE WASHER Handle Bracket	2
28	49636	尼龙垫圈-手柄支架	WASHER Nylon - Handle Bracket	1
29	20220	螺母(.500-20)-手柄支架螺钉	NUT (.500-20) Handle Bracket Screw	1
29	82671317	螺母(.500-20)	NUT (.500-20)	1
30	35786		SCREW (.375-24 x 1.00) Bracket to Engine	2
31	43589	支架螺钉锁紧垫圈	TAB WASHER Bracket Screw	2
32	78812A1		DETENT Shift Lever	1
33	48409	不锈钢换挡杆定位螺钉(#10-16 x .625)	SCREW (#10-16 x .625) Stainless Steel Shift Lever Detent	2
34	485681	换挡杆	SHIFT LEVVER	1
35	48237	尼龙衬套-换挡杆	BUSHING Nylong - Shift Lever	1
36	34931		WASHER (.406 x .734 x .063) Stainless Steel Shift Lever	1
37	34863	螺母(.375-24)-换挡杆	NUT (.375-24) Shift Lever	1
37	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
38	49563	换挡连杆	SHIFT ROD	1
38	8128061	杆	ROD	1
39	48419		ROD END Shift Rod	1
39	48419T	杆端-2.16英寸	ROD END-2.16 IN	1
40	48475	尼龙衬套-换挡杆	BUSHING Nylon - Shift Rod	1
41	35950		WASHER (.273 x .437 x .031) Stainless Steel Shift Rod	1
42	25191		COTTER PIN Shift Rod	1
43	98530		KNOB Shift Lever	1
44	11083A11	停机开关总成	SWITCH ASSEMBLY Stop	1
45	12044		RETANER Stop Switch	1
45	8M0032846	黄铜固定座	RETAINER Brass	1
46	15920A54	拉绳总成	LANYARD ASSEMBLY	1
46	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
47	64855	停止开关夹	CLAMP Stop Switch	1
47	648552	卡扣	CLIP	1
--	52148A1	副驾驶套件	CO-PILOT KIT	1

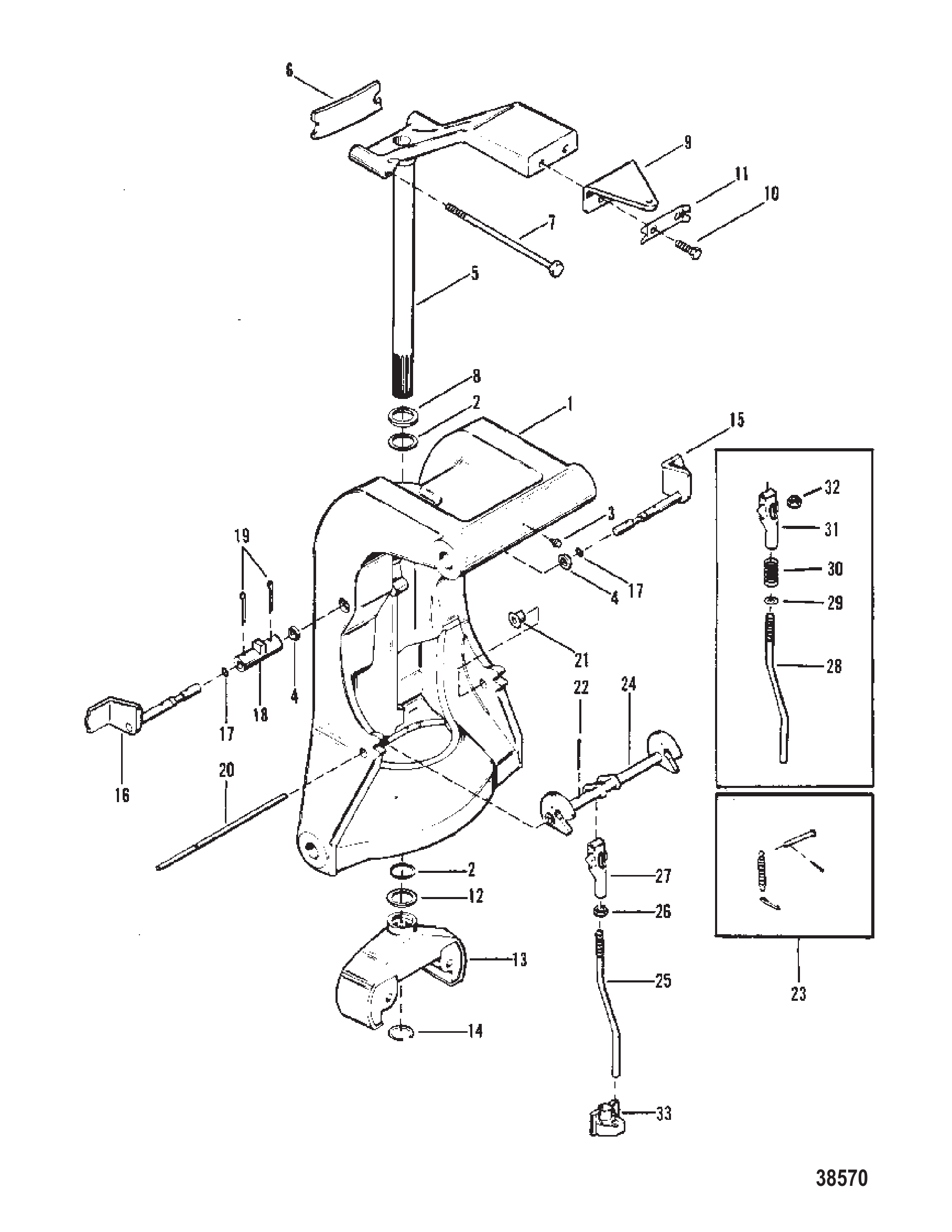

图 76旋转支架与倒车锁 SWIVEL BRACKET AND REVERSE LOCK

REF	零件编号	中文名称	英文名称	数量
1	8597A4	旋转支架（短轴）	SWIVEL BRACKET (SHORT SHAFT)	1
1	8599A6	旋转支架（长轴）	SWIVEL BRACKET (LONG SHAFT)	1
2	32911	旋转支架油封	SEAL Oil SWIVEL BRACKET	2
3	74036	润滑脂接头	FITTING Grease	4
3	8M0169589	润滑脂接头	FITTING Grease	4
4	22734	旋转支架油封	SEAL Oil SWIVEL BRACKET	2
5	88798A1	旋转销总成（短轴）-手动	SWIVEL PIN ASSEMBLY (SHORT SHAFT) - MANUAL	1
5	88798A23	短型旋转销总成	SWIVEL PIN ASY SH	1
5	88798A2	旋转销总成（长轴）-手动	SWIVEL PIN ASSEMBLY (LONG SHAFT) - MANUAL	1
5	88798A24	长型旋转销总成	SWIVEL PIN ASY LG	1
5	69540A3	旋转销总成（短轴）-电动	SWIVEL PIN ASSEMBLY (SHORT SHAFT) - ELECTRIC	1
5	69540A4	旋转销总成（长轴）-电动	SWIVEL PIN ASSEMBLY (LONG SHAFT ) - ELECTRIC	1
6	30711	转向臂缓冲器	BUMPER STEERING ARM	1
7	66897	螺栓（.437-20 x 5.250）	BOLT (.437-20 x 5.250)	2
8	47606		WASHER SWIVEL PIN - LOWER	1
9	76535	导流板支架	BRACKET RIDE-GUIDE	1
9	76535T	支架	BRACKET	1
10	34352	螺钉（.375-24 x .875）	SCREW (.375-24 x .875)	2
11	76533	带式支架螺钉	STRAP BRACKET SCREW	1
12	25176	旋转销至底部轭架垫圈（0.060英寸）	WASHER SWIVEL PIN TO BOTTOM YOKE (.060)	1
13	77416	下轭架	YOKE Bottom	1
13	77416T1	黑色下轭架	YOKE-BOTTOM-BLACK	1
14	77415	底部轭架挡圈	RETAINING RING BOTTOM YOKE	1
15	76386	倾斜锁定总成（右舷）	TILT LOCK ASSEMBLY STARBOARD	1
16	76385	倾斜锁定总成（左舷）	TILT LOCK ASSEMBLY PORT	1
16	76385T	杠杆	LEVER	1
15/16	89105	倾斜锁定右舷/左舷	TILT LOCK STARBOARD/PORT	2
15/16	99431A1	倾斜锁定装置（电动舵柄型号）	TILT LOCK (ELECTRIC TILLER HANDLE MODELS)	2
17	62702		O-RING (.301 x .070) TILT LOCK	2
17	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	2
18	79659	倾斜锁定联轴器	COUPLING TILT LOCK	1
19	47959	倾斜锁定管开口销	COTTER PIN TILT LOCK TUBE	2
20	56349		SHAFT REVERSE LOCK PIVOT	1
21	69132	倒车枢轴轴套	BUSHING RVERSE PIVOT SHAFT	2
22	45882	倒挡锁定至轴开口销	COTTER PIN REVERSE LOCK TO SHAFT	1
23	78203A2	倒挡锁定张力弹簧	SPRING REVERSE LOCK TENSION	1
24	87432	倒挡锁定总成	LOCK ASSEMBLY Reverse	1
24	43410	倒挡锁定总成	LOCK ASSEMBLY Reverse	1
24	14664A3	倒车锁	REVERESE LOCK	1
25	47835	倒车锁推杆（短轴）	PUSH ROD REVERSE LOCK (SHORT SHAFT)	1
25	47836	倒车锁推杆（长轴）	PUSH ROD REVERSE LOCK (LONG SHAFT)	1
25	43415A2	倒车锁推杆总成（短轴）	PUSH ROD ASSEMBLY REVERSE LOCK (SHORT SHAFT)	1
25	43416A2	倒挡锁推杆总成（长轴）	PUSH ROD ASSEMBLY REVERSE LOCK (LONG SHAFT)	1
26	28770	推杆螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel PUSH ROD	1
26	28770	推杆螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel PUSH ROD	2
27	47837	推杆端头	ROD END PUSH ROD	1
27	89813	推杆端头	ROD END PUSH ROD	1
28	43415	倒车锁推杆（短轴）	PUSH ROD REVERSE LOCK (SHORT SHAFT)	1
28	43416	倒车锁推杆（长轴）	PUSH ROD REVERSE LOCK (LONG SHAFT)	1
29	70132	推杆垫圈(.323x.563x.063)不锈钢-后期型号	WASHER (.323 x .563 x .063) Stainless Steel PUSH ROD - LATER MODELS	1
29	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	1
30	44297	推杆弹簧-后期型号	SPRING PUSH ROD - LATER MODELS	1
31	89813	推杆端头-后期型号	ROD END PUSH ROD - LATER MODELS	1
32	35814	推杆螺母(.312-24)不锈钢-后期型号	NUT (.312-24) Stainless Steel PUSH ROD - LATER MODELS	1
32	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
33	93336	推杆导套	GUIDE PUSH ROD	1
33	933361	换挡轴导套	GUIDE Shift Shaft	1
-	72486A32	衬垫套件	GASKET SET	1

图 77油门控制联动机构 Throttle Control Linkage

REF	零件编号	中文名称	英文名称	数量
1	72040	油门执行器支架	BRACKET Throttle Actuator	1
2	53576	节气门执行器支架螺钉(.312-18 x 1.125)	SCREW (.312-18 x 1.125) Throttle Actuator Bracket	3
3	26993	节气门执行器支架螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Throttle Actuator Bracket Screw	3
3	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
4	72032	节气门执行器	ACTUATOR Throttle	1
4	815603A1	油门执行器总成	ACTUATOR ASSEMBLY Throttle	1
5	21449	支架至节气门执行器螺钉(.312-24 x 2.00)	SCREW (.312-24 x 2.00) Bracket to Throttle Actuator	1
6	25893	支架螺钉垫圈	WASHER Bracket Screw	2
7	62172	支架螺钉波形垫圈	WAVE WASHER Bracket Screw	1
8	29250	支架螺钉螺母(.312-24)	NUT (.312-24) Bracket Screw	1
9	57440	连杆至节气门执行器旋转接头	SWIVEL Link Rod to Throttle Actuator	1
10	72043	连杆	LINK ROD	1
11	57440	连杆至节气门臂旋转接头	SWIVEL Link Rod to Throttle Arm	1
12	76560	节气门臂	ARM Throttle	1
12	815603A1	油门执行器总成	ACTUATOR ASSEMBLY Throttle	1
13	55903	节气门臂调节螺钉	SCREW Adjusting - Throttle Arm	1
13	89778	螺钉	SCREW	1
13	25158	节气门臂调节螺钉(.190-32 x 1.75)	SCREW (.190-32 x 1.75) Adjusting - Throttle Arm	1
14	68219	不锈钢调节螺钉螺母(#10-32)	NUT (#10-32) Stainless Steel Adjusting Screw	2
15	48039		CAP Adjusting Screw	2
16	39483	节气门臂锁扣	LATCH Throttle Arm	1
17	22486	锁扣至节气门臂螺钉(.250-28 x .880)	SCREW (.250-28 x .880) Latch to Throttle Arm	1
17	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
18	20099		SPRING Compression - Latch Screw	1
19	20586		NUT (.250-28) Latch Screw	1
19	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
20	76559A1	点火提前杆	LEVER Spark Advance	1
20	815607A1	点火提前杆总成	LEVER ASSEMBLY Spark Advance	1
21	55337	杠杆和臂至气缸体螺钉(.375-16 x 1.75)	SCREW (.375-16 x 1.75) Lever and Arm to Cylinder Block	1
21	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
22	55164	杠杆臂螺钉衬套	BUSHING Lever and Arm Screw	1
23	55171	杠杆臂螺钉衬套	BUSHING Lever and Arm Screw	1
24	55162		SPRING Return - Spark Advance Lever	1
25	68410	杠杆臂螺钉垫圈	WASHER Lever and Arm Screw	1
25	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
26	25158	调节螺钉(.190-32 x 1.75)-火花提前杠杆	SCREW (.190-32 x 1.75) Adjusting - Spark Advance Lever	1
27	68219	不锈钢调节螺钉螺母(#10-32)	NUT (#10-32) Stainless Steel Adjusting Screw	1
28	48039		CAP Adjusting Screw	1
29	76056	火花提前连杆	LINK ROD Spark Advance	1
30	74897	螺纹枢轴-连杆至触发器	PIVOT Threaded - Link Rod to Trigger	1
30	74897T	枢轴	PIVOT	1
31	77013A1	连杆旋转接头-火花提前杠杆	SWIVEL Link Rod to Spark Advance Lever	1
32	29402	旋转接头波形垫圈	WAVE WASHER Swivel	1
33	26856	连杆旋转接头衬套	BUSHING Link Rod Swivel	1
34	33786	连杆旋转接头垫圈	WASHER Link Rod Swivel	1
34	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
35	45774	连杆旋转接头螺母	NUT Link Rod Swivel	1
36	66778	节流阀执行器板	PLATE Throttle Actuator	1
36	66778T	油门板	PLATE-THROTTLE	1
37	46420	螺钉(#10-24 x .500)-板至节流阀执行器	SCREW (#10-24 x .500) Plate to Throttle Actuator	2
38	23015	调节螺钉(.190-32 x 1.00)-板	SCREW (.190-32 x 1.00) Adjusting - Plate	1
39	68219	不锈钢调节螺钉螺母(#10-32)	NUT (#10-32) Stainless Steel Adjusting Screw	1
40	48039		CAP Adjusting Screw	1

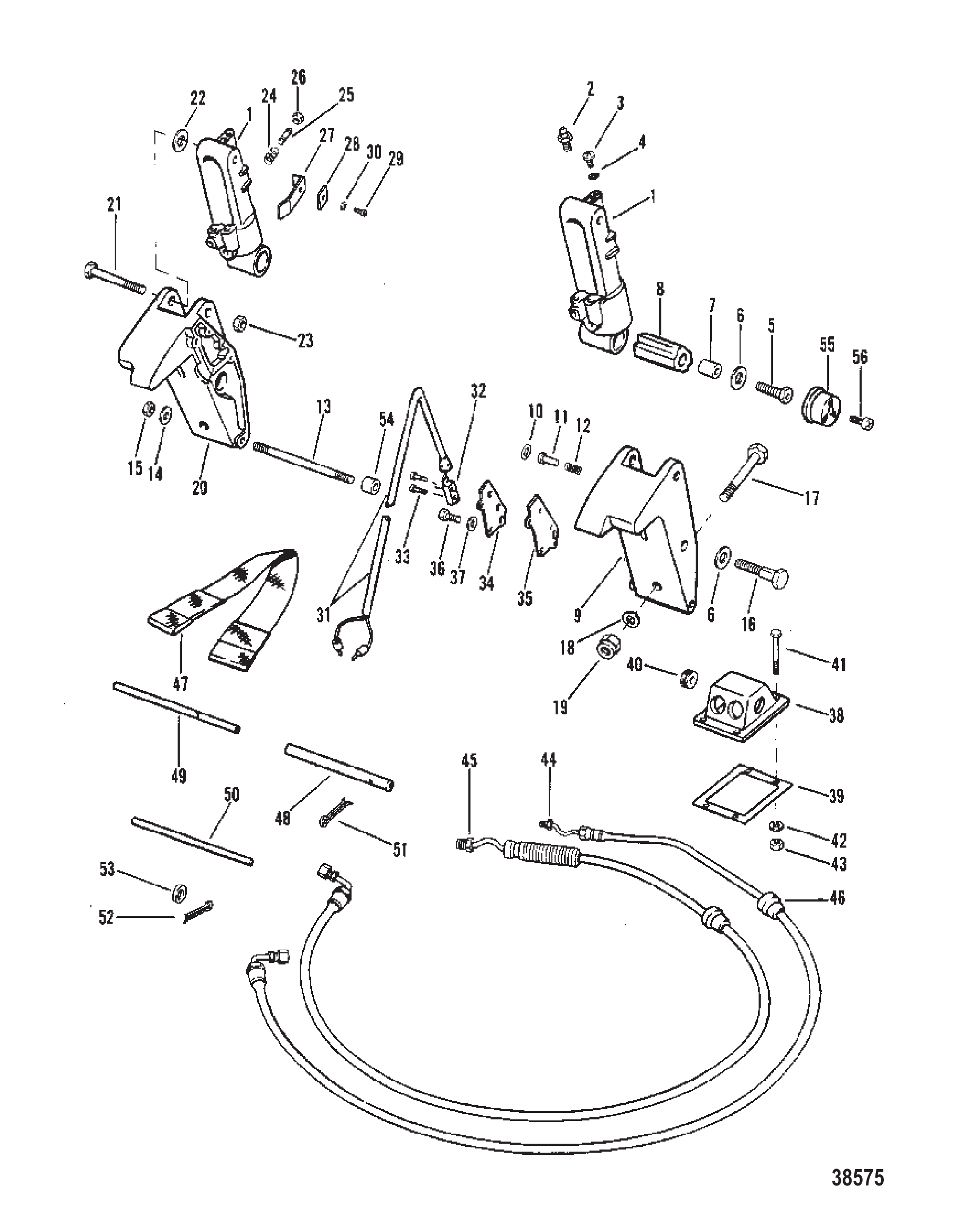

图 78升降油缸及液压软管 TRIM CYLINDERS AND HYDRAULIC HOSES

REF	零件编号	中文名称	英文名称	数量
1	76509A3	配平油缸铸件#78439	TRIM CYLINDER CASTING #78439	2
1	92194A14	配平油缸	TRIM CYLINDER	2
1	92194A14	配平油缸铸件#92193	TRIM CYLINDER CASTING #92193	2
1	76509A23	配平油缸铸件#78439	TRIM CYLINDER CASTING #78439	2
1	92194A20	配平油缸	TRIM CYLINDER	2
1	92194A20	配平油缸铸件#92193	TRIM CYLINDER CASTING #92193	2
2	74036	润滑脂接头-配平油缸	FITTING Grease TRIM CYLINDER	2
2	8M0169589	润滑脂接头	FITTING Grease	2
3	45265	螺钉(#10-32x0.3125)放气	SCREW (#10-32 x .3125) BLEED	4
4	45016	O型圈-放气螺钉	O-RING BLEED SCREW	4
5	45264	螺钉(0.500-20x1.500)配平油缸	SCREW (.500-20 x 1.500) TRIM CYLINDER	2
5	92050	螺钉(0.500-20x1.500)配平油缸	SCREW (.500-20 x 1.500) TRIM CYLINDER	2
6	28421	垫圈(1.5x3.05x0.13)不锈钢配平油缸螺栓	WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRIM CYLINDER BOLT	2
6	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
7	45280	垫片-配平油缸下部	SPACER TRIM CYLINDER - LOWER	2
8	94907A1	橡胶衬套-配平油缸	BUSHING RUBBER - TRIM CYLINDER	2
9	89108A3	支架-配平油缸(左舷)	BRACKET TRIM CYLINDER (PORT)	1
10	70608	油封-左舷支架	SEAL Oil PORT BRACKET	1
11	89290	柱塞-限位开关驱动	PLUNGER LIMIT SWITCH ACTUATING	1
12	95881	张力弹簧-限位开关柱塞	SPRING TENSION - LIMIT SWITCH PLUNGER	1
13	62888	双头螺栓(0.312x18.880)安装支架	STUD (.312 x 18.880) MOUNTING BRACKET	1
14	26993	锁紧垫圈(0.312)安装支架双头螺栓	LOCKWASHER (.312) MOUNTING BRACKET STUD	2
14	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
15	28770	螺母(0.312-24)不锈钢安装支架双头螺栓	NUT (.312-24) Stainless Steel MOUNTING BRACKET STUD	2
16	45263	螺钉(0.500-20x2.250)安装支架	SCREW (.500-20 x .2.250) MOUNTING BRACKET	2
17	68298	螺栓（0.375英寸-16牙 x 3.250英寸）	BOLT (.375-16 x 3.250)	6
17	89673	螺钉（0.375英寸-16牙 x 5.00英寸）	SCREW (.375-16 x 5.00)	2
18	68410	垫圈-安装支架螺栓	WASHER MOUNTING BRACKET BOLT	6
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	6
19	99405	螺母-安装支架螺栓	NUT MOUNTING BRACKET BOLT	8
19	82671112	螺母（.375-16）	NUT (.375-16)	8
20	89111	支架-配平油缸(右舷)	BRACKET TRIM CYLINDER (STARBOARD)	1
20	89111T	支架	BRACKET	1
21	45328	螺钉(0.437-20x3.560)	SCREW (.437-20 x 3.560)	2
22	37807	垫圈	WASHER	1
23	35053	螺母(.437-20)	NUT (.437-20)	2
23	8M0143423	尼龙螺母	NUT Nylon	2
24	24390	张力弹簧	SPRING TENSION	1
25	21085	调节螺柱(#10-32x.930)	STUD (#10-32 x .930) ADJUSTING	1
25	8M0034461	螺柱	STUD	1
26	45812	锁紧螺母(#10-32)不锈钢	NUT (#10-32) Stainless Steel JAM	1
26	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
27	99897	凸轮	CAM	1
28	86967	挡板	PLATE RETAINING	1
29	68513	螺钉(#10-32x.375)不锈钢	SCREW (#10-32 x .375) Stainless Steel	1
30	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	1
31	45326A2	开关总成	SWITCH ASSEMBLY	1
32	45354	橡胶衬套	BUSHING RUBBER	1
33	47255	螺钉(#4-40x.625)	SCREW (#4-40 x .625)	2
34	89272	限位开关盖	COVER LIMIT SWITCH	1
35	89273	衬垫	GASKET	1
35	892731	衬垫	GASKET	1
36	34994	不锈钢螺钉(#10-32 x 1.00)	SCREW (#10-32 x 1.00) Stainless Steel	4
37	38833	垫圈	WASHER	4
38	87774A1	艉板进水口盖	COVER INLET - TRANSOM	1
39	87775	衬垫	GASKET	1
40	45507	橡胶护圈	GROMMET RUBBER	1
41	36070	螺钉 (#10-32 x 1.250) 进水口盖至船体	SCREW (#10-32 x 1.250) INLET COVER TO BOAT	4
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
43	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
44	88005	微调软管	HOSE TRIM	2
45	88006	升降软管	HOSE LIFT	2
46	35977	橡胶护圈(3/8"内径-1"长)	GROMMET RUBBER (3/8" I.D. - 1" LONG)	4
46	97191	橡胶护圈(3/8"内径-7/8"长)	GROMMET RUBBER (3/8" I.D. - 7/8" LONG)	2
46	35977	护孔环	GROMMET	2
46	97000	橡胶护圈(7/16"内径-7/8"长)	GROMMET RUBBER (7/16" I.D. - 7/8" LONG)	2
46	12602002	护孔环	GROMMET	2
47	73519A1	拉带倾斜止动	STRAP Tilt Stop	1
48	69259	安装管	TUBE MOUNTING	1
49	69258	安装管销	PIN MOUNTING TUBE	1
50	63473	缓冲管	TUBE CUSHION	1
51	36391	开口销安装管销	COTTER PIN MOUNTING TUBE PIN	1
51	36002	开口销	COTTER PIN	1
52	45882		COTTER PIN TILT PIN RETAINING	1
53	39304	倾斜销垫片	WASHER TILT PIN	1
54	59623		SPACER MOUNTING BRACKET	2
55	70679	配平油缸盖	COVER TRIM CYLINDER	2
56	37655	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	2
