水星 Mercury 45, 450 4 CYL 0B110789 THRU 0B370271 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-16403 · 共 79 个部位 · 2993 条零件

1自动混合装置2化油器总成(WALBRO)3端盖与排气罩4电气组件5动力升降油缸修理包(电动手柄)6夹紧支架总成(非动力升降)7齿轮箱螺旋桨轴8动力升降泵(Eaton矩形电机)9端盖与排气罩10飞轮/点火线圈与开关盒11排气板与换挡联动机构12外罩13安装五金件(电动手柄)14化油器总成(TILLOTSON)15化油器总成16杂项零件/附件17燃油泵18液压泵总成(电动手柄)19外罩20下罩壳及支撑支架21旋转支架与转向臂22转向手柄总成23气缸体与曲轴箱总成24齿轮箱（驱动轴）25夹具支架总成26油门控制联动机构27自动混合器28启动电机总成29启动器回绕装置30化油器联动机构/阻风门电磁阀31杂项零件/附件32动力升降组件(电动手柄)33驱动轴壳体总成34气缸体与曲轴箱总成35转向手柄总成36旋转支架与倒车锁(非动力升降)37曲轴/活塞及连杆38化油器联动机构/阻风门电磁阀39驱动轴外壳总成40下罩壳及支撑支架41齿轮箱(螺旋桨轴)42电气组件43升降油缸与软管(电动手柄)44启动器回绕组件45动力升降倾斜组件46艉板支架(动力升降)47齿轮箱（驱动轴）48排气板与换挡联动机构49自动混合装置50下罩壳及支撑支架51化油器总成52化油器联动机构/阻风门电磁阀53夹紧支架总成(非动力升降)54外罩55曲轴/活塞及连杆56气缸体与曲轴箱总成57驱动轴壳体总成58电气组件59端盖与排气罩60排气板与换挡联动机构61飞轮/点火线圈与开关盒62燃油泵63齿轮箱（驱动轴）64齿轮箱螺旋桨轴65液压泵总成(电动手柄)66杂项零件/附件67安装五金件(电动手柄)68动力升降倾斜组件69动力升降组件(电动手柄)70动力升降油缸修理包(电动手柄)71动力升降泵(Eaton矩形电机)72启动电机总成73启动器回绕组件74转向手柄总成75旋转支架与倒车锁(非动力升降)76旋转支架与转向臂77油门控制联动机构78艉板支架(动力升降)79升降油缸与软管(电动手柄)

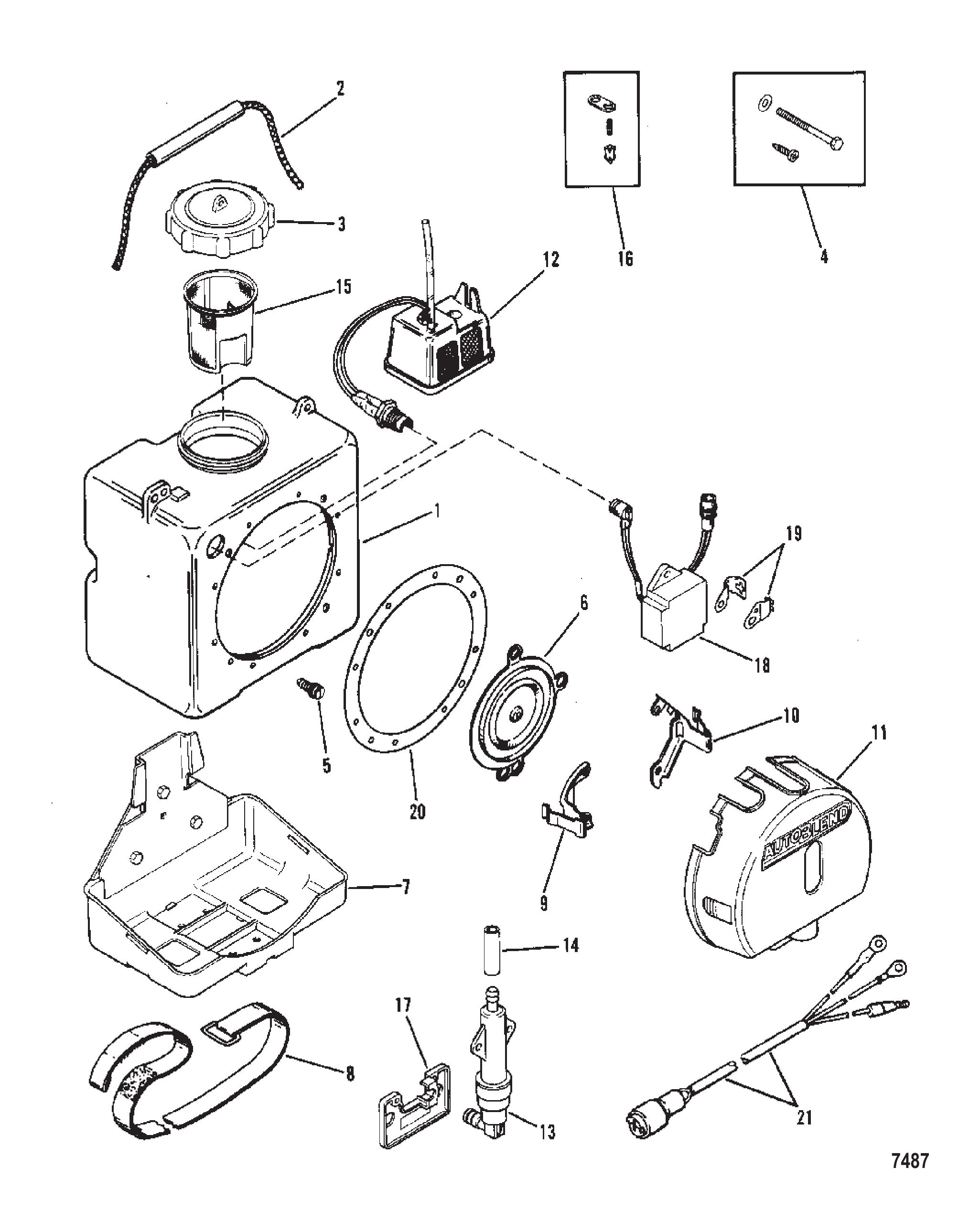

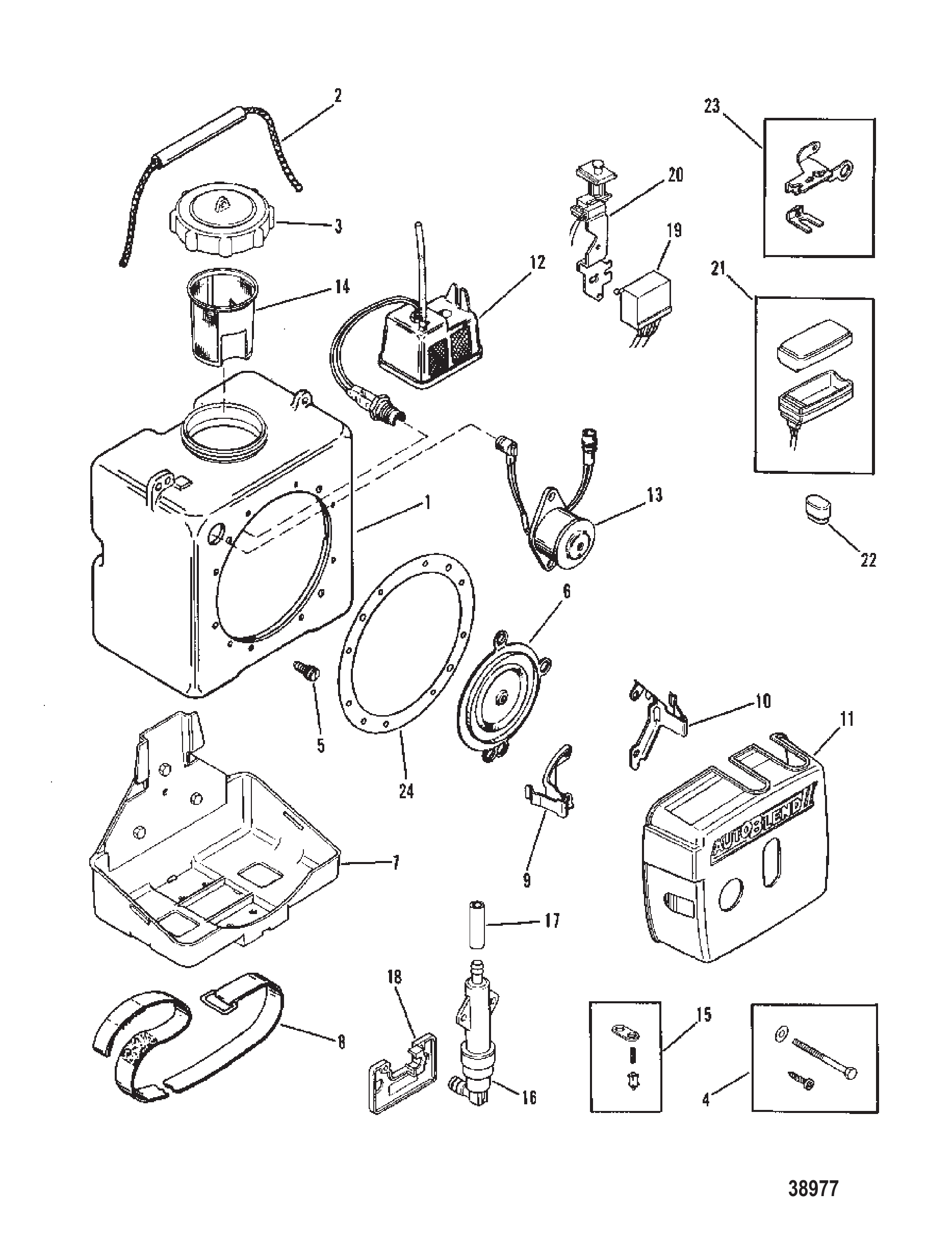

图 1自动混合装置 Auto-Blend
自动混合装置 Auto-Blend
REF零件编号中文名称英文名称数量
-130194自动混合装置AUTO BLEND ASSEMBLY1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
316619CAP Oil Tank1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
716620安装支架套件BRACKET KIT Mounting1
813993箍带BAND1
913983左支架BRACKET Left1
1013984右支架BRACKET Right1
1116613盖板COVER1
1213985机油滤清器/传感器套件FILTER/SENSOR KIT Oil1
1318576燃油滤清器套件FILTER KIT Fuel1
1413992乙烯基软管VINYL TUBE1
1516618机油滤网STRAINER Oil1
1616615止回阀套件CHECK VALVE KIT1
1716621安装板PLATE1
1819265模块套件MODULE KIT1
1916623支架套件BRACKET KIT1
2016616衬垫套件GASKET KIT1
2114585A1自动混合线束总成HARNESS ASSEMBLY Auto Blend1

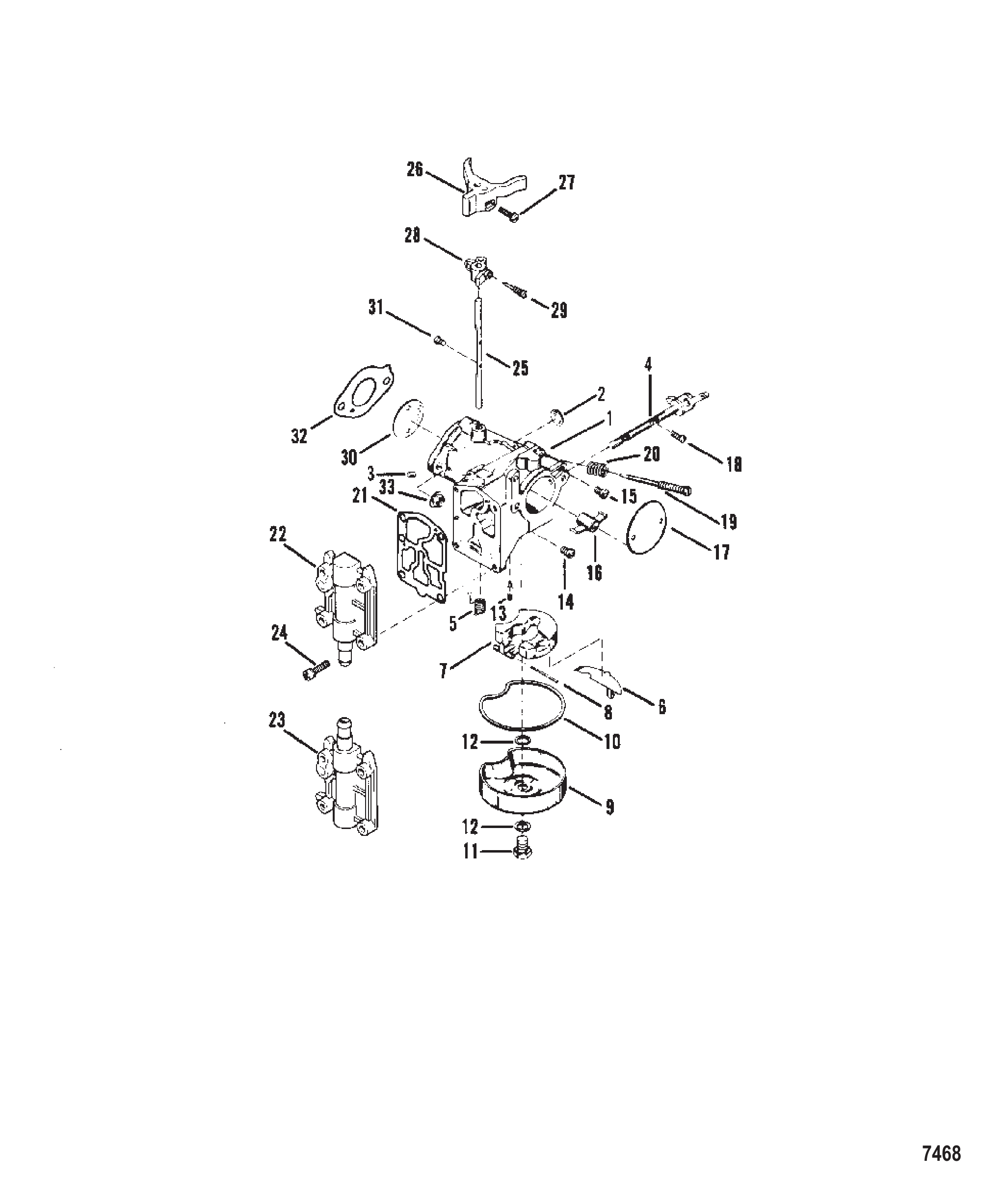

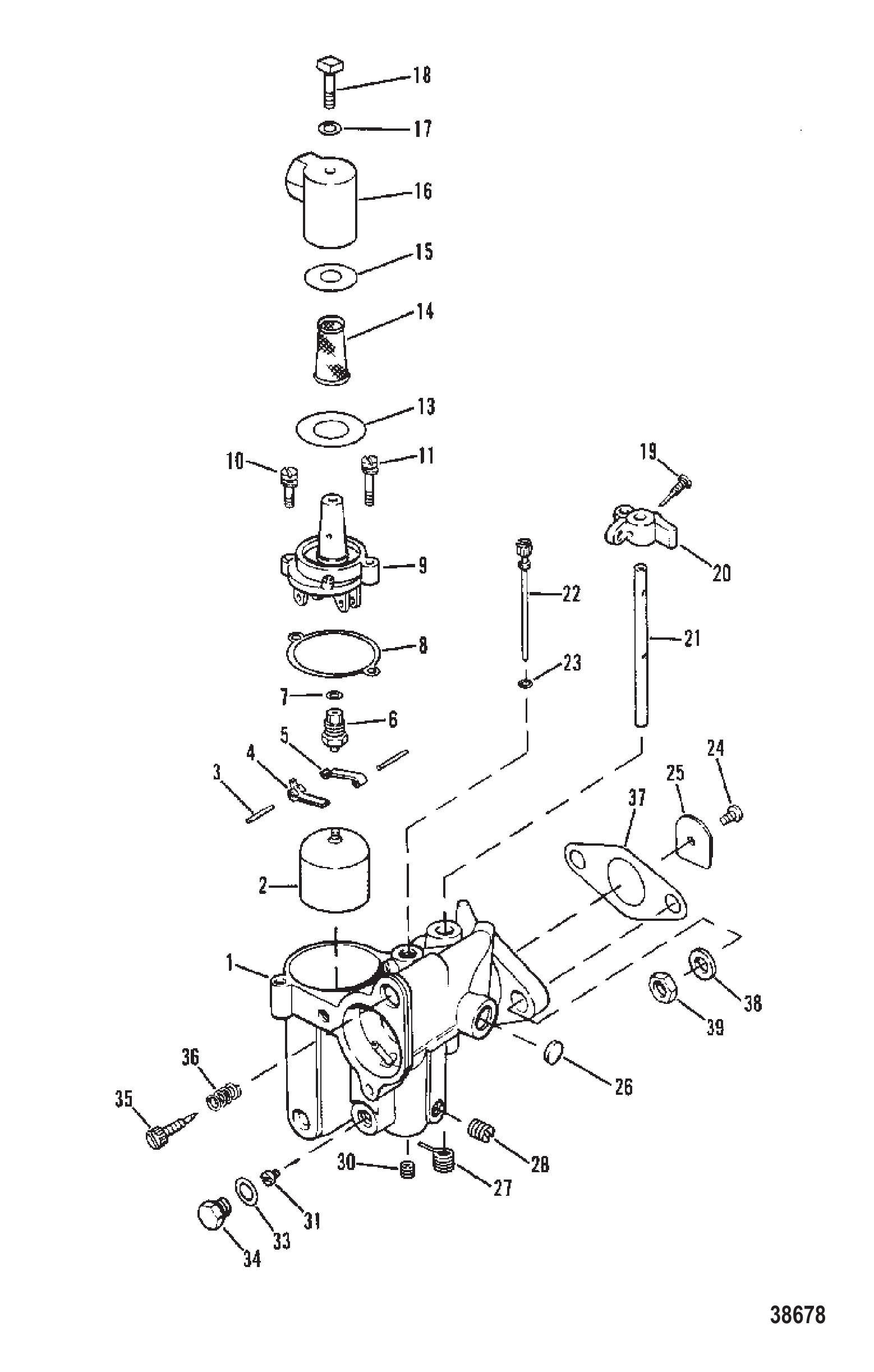

图 2化油器总成(WALBRO) CARBURETOR ASSEMBLY (WALBRO)
化油器总成(WALBRO) CARBURETOR ASSEMBLY (WALBRO)
REF零件编号中文名称英文名称数量
18740A1化油器总成CARBURETOR COMPLETE1
28983浮子总成FLOAT ASSEMBLY1
28673浮子总成FLOAT ASSEMBLY1
3NSS不单独销售-浮子杠杆小齿轮销NOT SOLD SEPARATE Pin, float lever pinion2
4NSS不单独销售-浮子杠杆(下)NOT SOLD SEPARATE Lever, float (Lower)1
5NSS不单独销售-浮子杠杆(上)NOT SOLD SEPARATE Lever, float (Upper)1
68318进油针阀座及衬垫NEEDLE Inlet SEAT AND GASKET1
683181阀座套件VALVE SEAT KIT1
7NSS不单独销售-进油阀座衬垫NOT SOLD SEPARATE Gasket, inlet seat1
8NSS不单独销售-浮子室盖衬垫NOT SOLD SEPARATE Gasket, float bowl cover1
91133浮子室盖COVER FLOAT BOWL1
1052195浮子室盖螺钉(短)SCREW FLOAT BOWL COVER (SHORT)1
1152196浮子室盖螺钉(大)SCREW FLOAT BOWL COVER (LARGE)1
13NSS不单独销售-滤网盖衬垫(大)NOT SOLD SEPARATE Gasket, strainer cover (Large)1
143938滤网SCREEN FILTER1
15NSS不单独销售-滤网NOT SOLD SEPARATE Screen, filter1
161135滤网盖(90度)COVER STRAINER (90 DEGREE)1
17NSS不单独销售-滤网盖螺钉衬垫NOT SOLD SEPARATE Gasket, strainer cover screw1
1825822滤网盖螺钉SCREW STRAINER COVER1
1920847节流阀止动杆螺钉SCREW THROTTLE STOP LEVER1
196027螺钉SCREW1
2097节流阀止动杆LEVER THROTTLE STOP1
208146791油门杆LEVER Throttle1
211716轴SHAFT1
22NSSNOT SOLD SEPARATE Idle Tube1
23NSS不单独销售 怠速管衬垫NOT SOLD SEPARATE Gasket, idle tube1
24NSSNOT SOLD SEPARATE Screw, throttle shutter1
253739节气门片SHUTTER1
26NSS不单独销售 水道闷塞NOT SOLD SEPARATE Welch Plug, body channel1
27NSS不单独销售 节气门轴回位弹簧NOT SOLD SEPARATE Spring, throttle shaft return1
28NSS不单独销售 水道闷塞螺丝NOT SOLD SEPARATE Screw, plug - body channel1
30NSS不单独销售 主喷管闷塞螺丝NOT SOLD SEPARATE Screw, plug - main nozzle1
313252主量孔(.032)JET (.032) MAIN FUELOPT
313251主量孔(.034)-标准型JET (.034) MAIN FUEL - STANDARD1
313026主量孔(.036)JET (.036) MAIN FUELOPT
312407主量孔(.039)JET Main Fuel (.039) MAIN FUELOPT
311896主量孔(.041)JET MAIN FUEL (.041)OPT
33NSS不单独销售 量孔通道闷塞螺丝垫片NOT SOLD SEPARATE Gasket, jet channel plug screw1
34NSS不单独销售 主量孔通道闷塞螺丝NOT SOLD SEPARATE Screw, plug - main fuel jet channel1
353740怠速调节螺钉SCREW IDLE ADJUSTMENT1
36NSS不单独销售 怠速调节螺钉弹簧NOT SOLD SEPARATE Spring, idle adjustment screw1
3763309化油器-簧片阀组衬垫GASKET CARBURETOR TO REED BLOCK1
3820583化油器安装柱垫圈WASHER CARBURETOR MOUNTING STUD1
3924652化油器安装柱螺母(.250-28)NUT (.250-28) CARBURETOR MOUNTING STUD2
-1717衬垫套件GASKET SET1
-9019维修零件包REPAIR PARTS KIT1

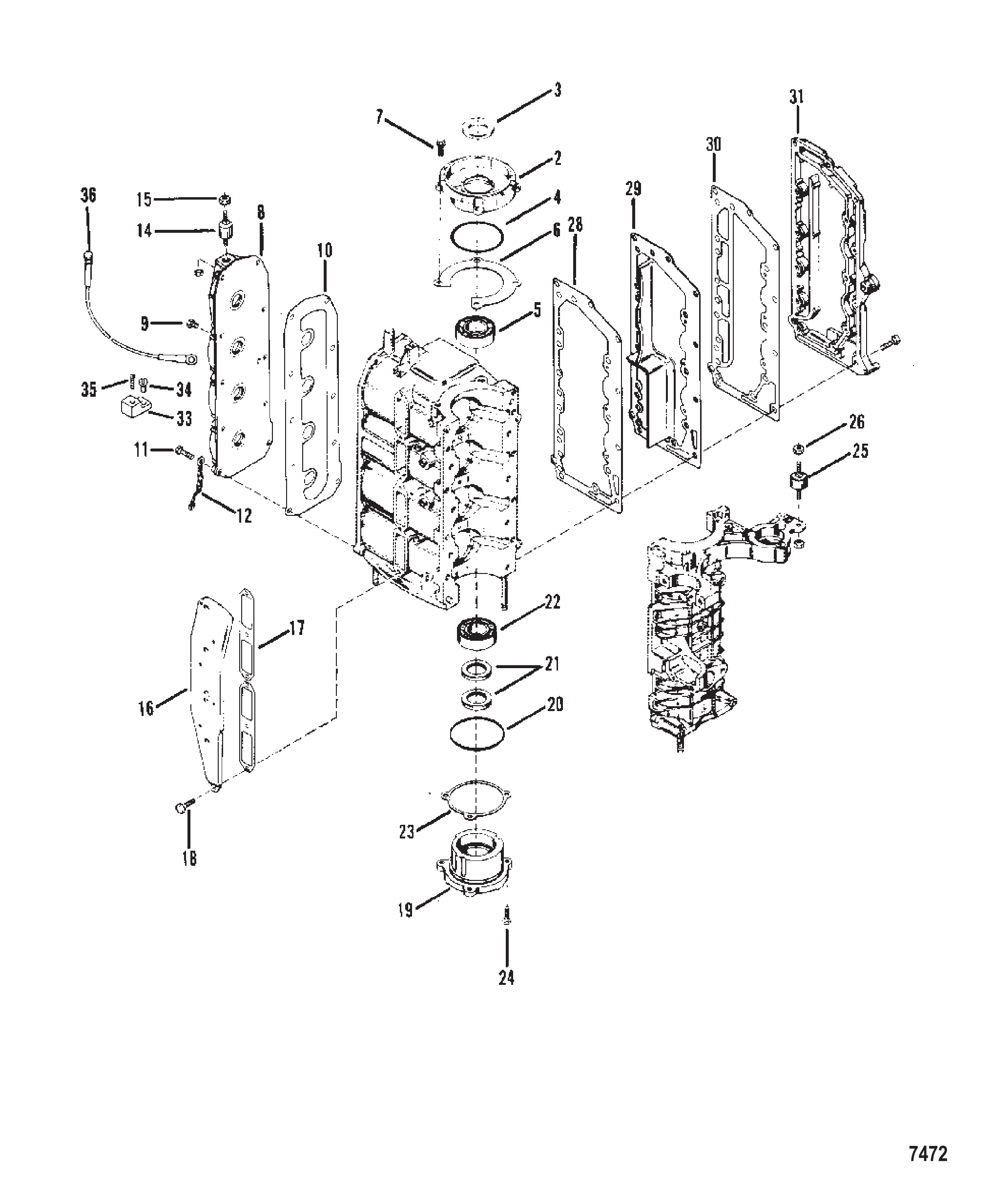

图 3端盖与排气罩 End Caps and Exhaust Cover
端盖与排气罩 End Caps and Exhaust Cover
REF零件编号中文名称英文名称数量
25826A2上端盖总成END CAP ASSEMBLY Upper1
341953SEAL Upper End Cap1
420081上端盖O型圈O-RING Upper End Cap1
563742上端盖滚珠轴承BEARING Ball Upper End Cap1
672538A1上端盖垫片(.005-10)SHIM Upper End Cap (.005-10)AR
773274上端盖螺丝(0.75英寸)SCREW Upper End Cap (0.75 Inch)4
88360A1气缸体盖总成COVER ASSEMBLY Cylinder Block1
932802PLUG Pipe (.125-27) Cylinder Block Cover1
10437772气缸体盖衬垫GASHET Cylinder Block Cover1
1169100气缸体盖螺丝(1英寸)SCREW Cylinder Block Cover (1 Inch)10
1246933A7拉线总成CABLE ASSEMBLY2
1490435气缸体盖橡胶支座MOUNT Rubber - Cylinder Block Cover1
1520184NUT (1/4-28X7/32) Rubber Mount2
1618827A1换气口盖总成COVER ASSEMBLY Transfer Port1
17279361换气口盖垫片GASKET Transfer Port Cover2
1890198换气口盖螺丝(0.625英寸)SCREW Transfer Port Cover (0.625 Inch)6
196635A1下端盖总成END CAP ASSEMBLY Lower1
2020081下端盖O型圈O-RING Lower End Cap1
2141953SEAL Lower End Cap2
2263742下端盖滚珠轴承BEARING Ball Lower End Cap1
2320085A1下端盖垫片组(.005-10)SHIM SET Lower End Cap (.005-10)AR
2429256下端盖螺丝(.312-18 x 0.875)SCREW (.312-18 x .875) Lower End Cap3
2590435曲轴箱橡胶支座MOUNT Rubber - Crankcase2
2620184NUT (1/4-28X7/32) Rubber Mount4
28854912气缸体至隔板衬垫GASKET Cylinder Block to Baffle Plate1
2990421挡板 - 排气歧管PLATE Baffle - Exhaust Manifold1
30854922隔板至排气盖衬垫GASKET Baffle Plate to Exhaust Cover1
3177381排气歧管盖COVER Exhaust Manifold1
3237562不锈钢歧管盖至气缸体螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel Manifold Cover to Cylinder Block14
3238837歧管盖至气缸体螺丝(.312-18 x 1.12)SCREW (.312-18 x 1.12) Manifold Cover to Cylinder Block1
3345915端子排TERMINAL BLOCK1
3462568接线端子螺丝(#10-16 x 0.375)SCREW (#10-16 x .375) Terminal Block1
3528192接线端子螺丝(#10-24 x 0.50)SCREW (#10-24 x .50) Terminal Block1
3696829A1温度开关总成260棕SWITCH ASSEMBLY Temperature 260 Tan1
3616775A2温度开关300棕绿TEMPERATURE SWITCH 300 Tan and Green1
-85491A87衬垫套件GASKET SET1
图 4电气组件 Electric Components
电气组件 Electric Components
REF零件编号中文名称英文名称数量
195815上盖COVER (TOP)1
295828下盖COVER (BOTTOM)1
395810A1启动开关总成SWITCH ASSEMBLY Start1
455741护套BOOT1
588890A2开关总成SWITCH ASSEMBLY1
679139A20电缆总成（红色）CABLE ASSEMBLY (RED)1
1095814绑带STRAP1
1195813紧固件FASTENER1
1240056108螺钉（M5×20）SCREW (M5 x 20)1
134005727螺钉SCREW2
1445771垫圈WASHER2
1562568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
1669570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
17816770整流器RECTIFIER1
1848409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel2
1945076黄铜螺母(#10-32)NUT (#10-32) Brass3
2096054启动电磁阀总成SOLENOID ASSEMBLY Starter1
214000327螺钉 (M6 x 14)SCREW (M6 x 14)2
2226419黄铜螺母 (#8-32)NUT (#8-32) Brass2
2364015螺母 (.250-20)NUT (.250-20)2
2488809A5电线总成（黄色）WIRE ASSEMBLY (YELLOW)1
2588439A8电池电缆总成(红色)CABLE ASSEMBLY Battery (RED)1
2588439A6电池电缆总成(黑色)CABLE ASSEMBLY Battery (BLACK)1
2692439支架(旧设计)BRACKET (OLD DESIGN)1
274000327螺钉(M6×14)(旧设计)SCREW (M6 x 14) (OLD DESIGN)1
2835044垫圈(0.281×0.625×0.065)不锈钢(旧设计)WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)1
29400212螺母(M6)不锈钢(旧设计)NUT (M6) Stainless Steel (OLD DESIGN)1
30815504310蜗轮卡箍(旧设计)CLAMP Worm Gear (OLD DESIGN)1
3186704A2定子总成STATOR ASSEMBLY1
324000123螺丝(M5 x 30)SCREW (M5 x 30)3

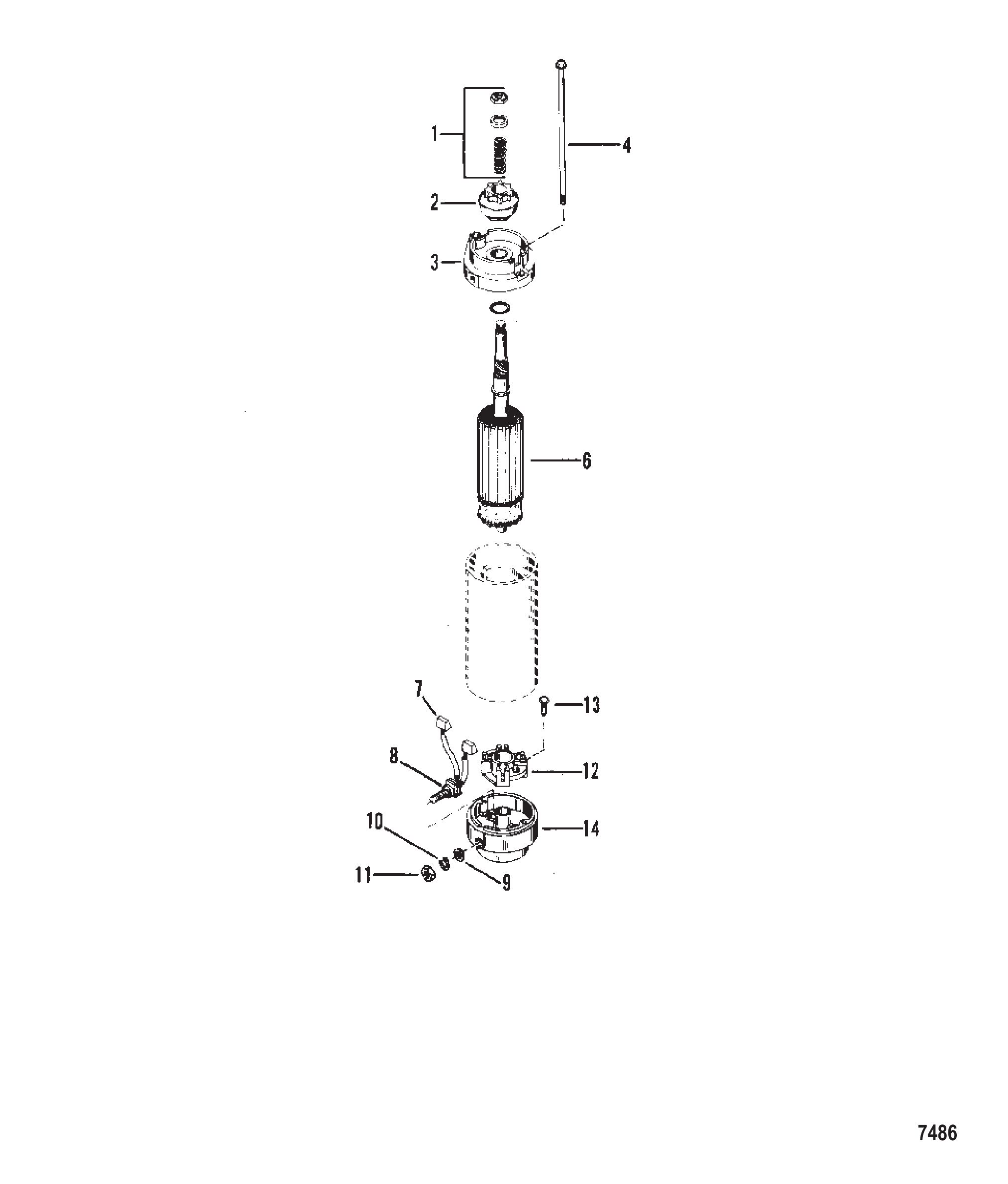

3390983A1启动电机总成STARTER MOTOR ASSEMBLY1
3496561驱动套件DRIVE KIT1
3596562驱动器DRIVE1
3696563端盖END CAP1
3796565电枢ARMATURE1
3896564端盖END CAP1
3996566贯穿螺栓THRU BOLT1
40421251螺钉(M8x55)SCREW (M8 x 55)2
41424291固定座RETAINER1
4212334A2发动机线束总成HARNESS ASSEMBLY Engine Wiring1
4379091保险丝20安培FUSE 20 Ampere1
44134731保险丝座(旧设计)HOLDER Fuse (OLD DESIGN)1
4512152固定座RETAINER1
4692753固定座RETAINER1
4755098J型卡扣J CLIP1

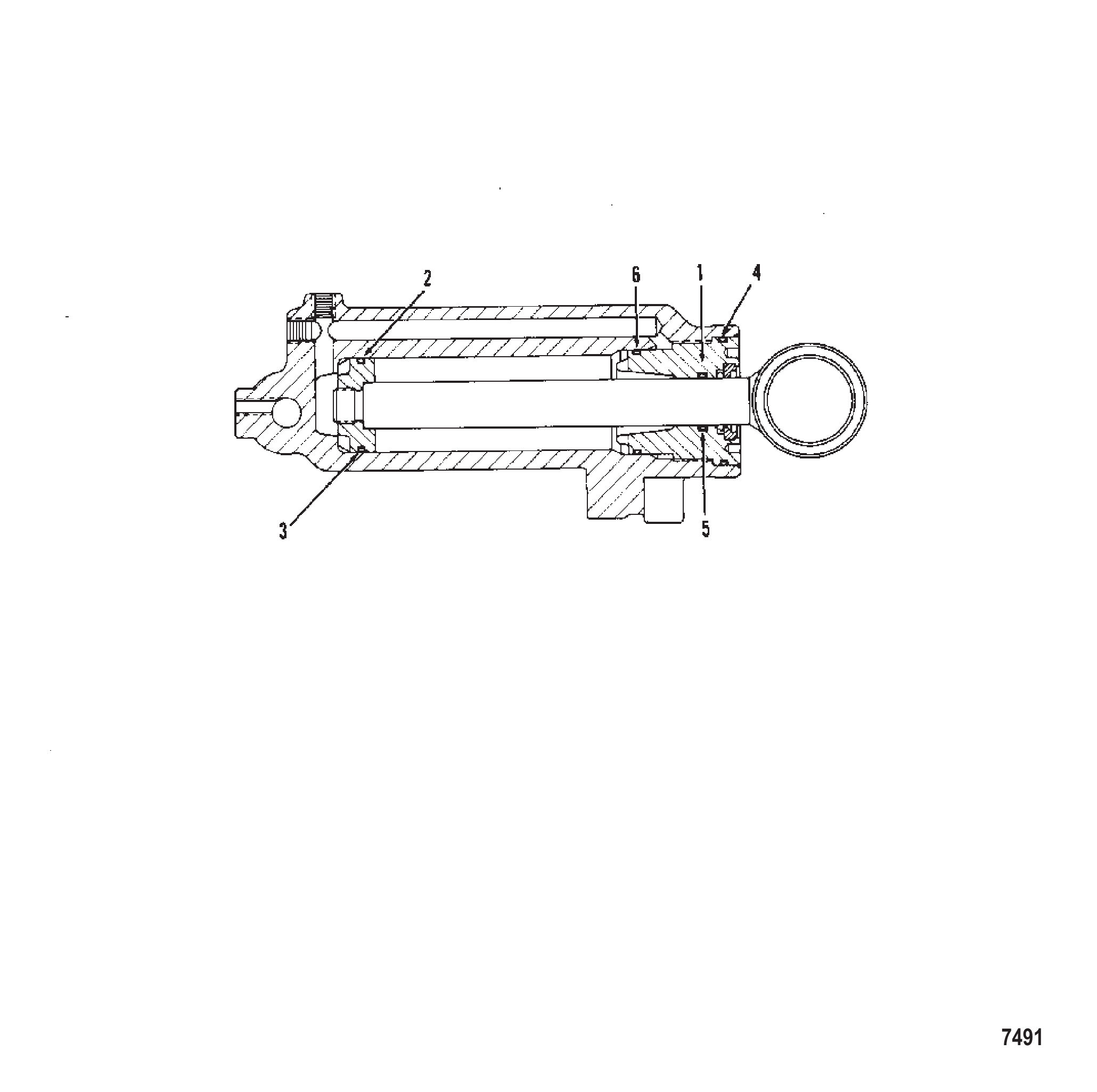

图 5动力升降油缸修理包(电动手柄) Power Trim Cylinder Repair Kits (Electric Handle)
动力升降油缸修理包(电动手柄) Power Trim Cylinder Repair Kits (Electric Handle)
REF零件编号中文名称英文名称数量
-92188A2维修套件REPAIR KIT1
1N.S.S.不单独销售Not Sold Separate1
2N.S.S.不单独销售 (1-1/4" X X1-1/2" X 1/8")Not Sold Separate (1-1/4" X X1-1/2" X 1/8")1
3N.S.S.不单独销售Not Sold Separate1
4N.S.S.不单独销售 (1-7/8 X 2-1/16 X 3/32)Not Sold Separate (1-7/8 X 2-1/16 X 3/32)1
5N.S.S.不单独销售 (3/4 X 15/16 X 3/32)Not Sold Separate (3/4 X 15/16 X 3/32)1
6N.S.S.不单独销售 (1-1/2 X 1-3/4 X 3/32)Not Sold Separate (1-1/2 X 1-3/4 X 3/32)1

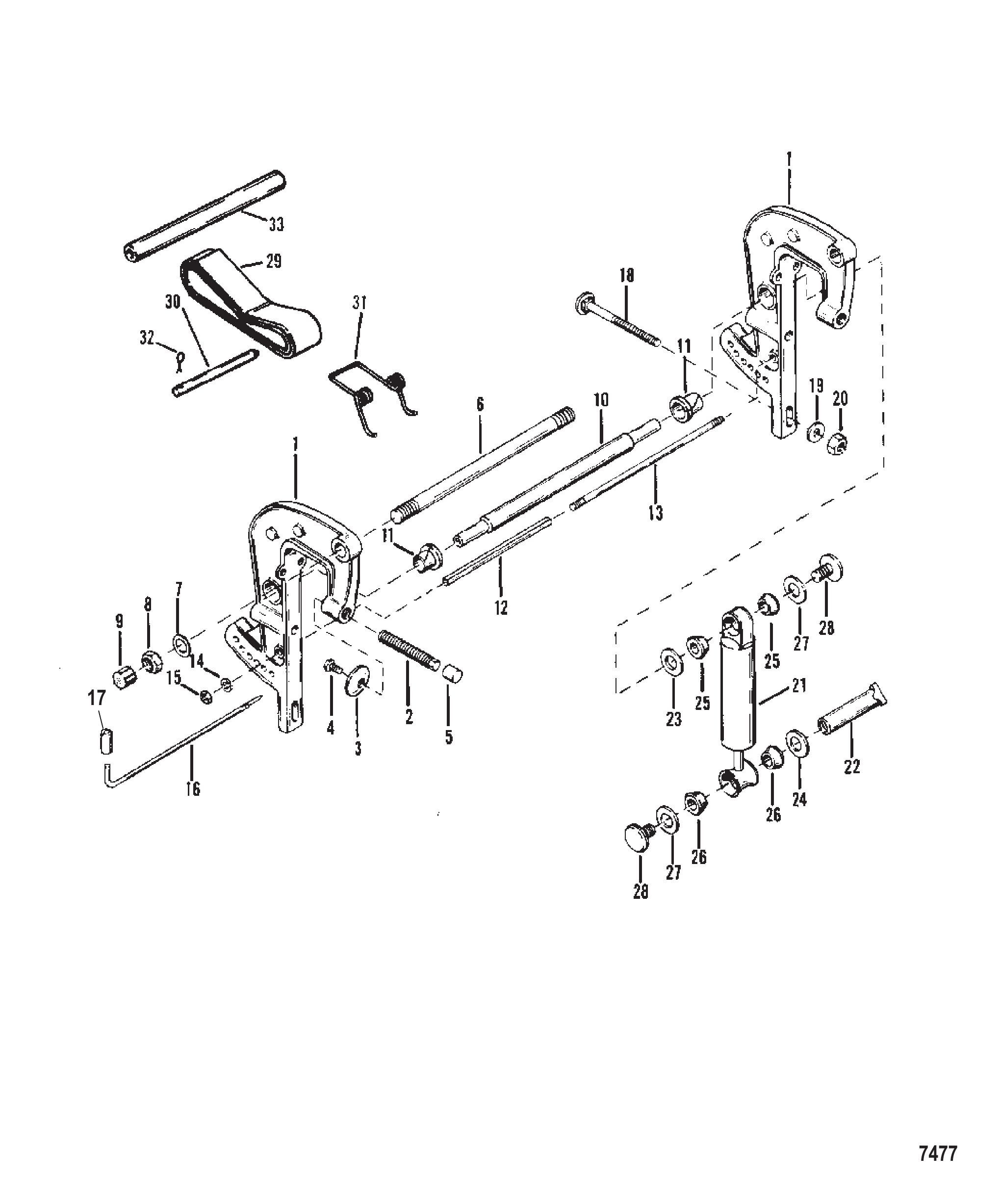

图 6夹紧支架总成(非动力升降) Clamp Bracket Assembly (Non Power Trim)

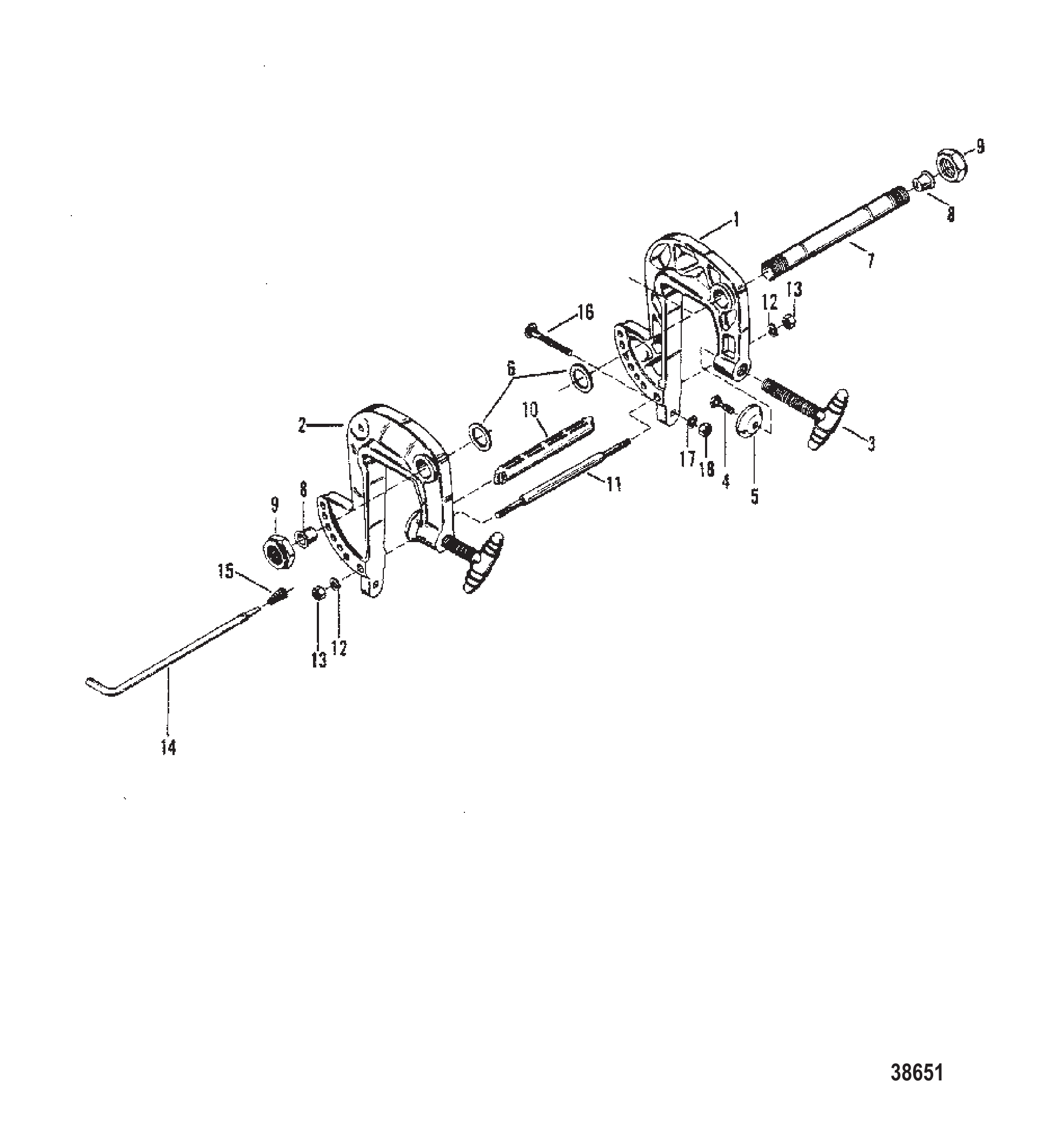

夹紧支架总成(非动力升降) Clamp Bracket Assembly (Non Power Trim)
REF零件编号中文名称英文名称数量
18394A2夹具支架总成CLAMP BRACKET ASSEMBLY2
18394A1黑色夹紧支架总成CLAMP BRACKET ASSEMBLY Black2
18394A3灰色夹紧支架总成CLAMP BRACKET ASSEMBLY Gray2
290470A3蝶形螺钉总成THUMB SCREW ASSEMBLY2
278492A1蝶形螺钉总成THUMB SCREW ASSEMBLY2
378493WASHER Thumb Screw2
4784951SCREW Washer to Thumb Screw2
575043CAP Thumb Screw2
674528倾斜管TILT TUBE1
752864WASHER Tilt Tube2
856041NUT (.875-14) Tilt Tube2
953078CAP Plastic - Tilt Tube2
1028416上减震销PIN Upper Shock1
1173203BUSHING Clamp Bracket2
1259623SPACER Clamp Bracket Stud1
1359625STUD Clamp Bracket1
1426993LOCKWASHER (.312) Clamp Bracket Stud2
1528770NUT (.312-24) Stainless Steel Clamp Bracket Stud2
1649930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
1868298夹紧支架至艉板螺栓(.375-16 x 3.250)(3.25英寸)BOLT (.375-16 x 3.250) Clamp Bracket to Tramsom (3.25 Inch)2
1968410WASHER Clamp Bracket Bolt2
1889673夹紧支架至艉板螺钉(.375-16 x 5.00)(5英寸)SCREW (.375-16 x 5.00) Clamp Bracket to Transom (5 Inch)2
1928420WASHER (1-1/ 4 x 25/64 x .125 SS) Clamp Bracket Bolt2
1968300夹紧支架螺栓垫圈(0.88 x 0.39 x 0.06)WASHER (..88 x .39 x .06) Clamp Bracket Bolt2
2099405NUT Clamp Bracket Bolt4
2158780A7黑色减震器SHOCK ABSORBER Black2
2158780A4灰色减震器SHOCK ABSORBER Gray2
22696531下减震销PIN Lower Shock2
2334937上衬套止动垫圈(内)(.766 x 1.312 x .125)WASHER (.766 x 1.312 x .125) Upper Bushing Retainer (Inner)2
2459378下衬套止动垫圈(内)WASHER Lower Bushing Retainer (Inner)2
2532171橡胶衬套-减震器(上)BUSHING Rubber - Shock Absorber (Upper)4
2628198橡胶衬套-减震器(下)BUSHING Rubber - Shock Absorber (Lower)4
2769374上下衬套垫圈(外)WASHER Upper and Lower Bushing (Outer)4
2869375A1上下减震销螺钉(.500-20 x .625)(0.625英寸)SCREW (.500-20 x .625) Upper and Lower Shock Pin (0.625 Inch)4
2998876拉带 倾斜止动STRAP Tilt Stop1
3098878下减震器安装销PIN Lower Shock Mount1
3198875弹簧SPRING1
3232857开口销COTTER PIN1
3398877上减震座SHOCK MOUNT Upper1

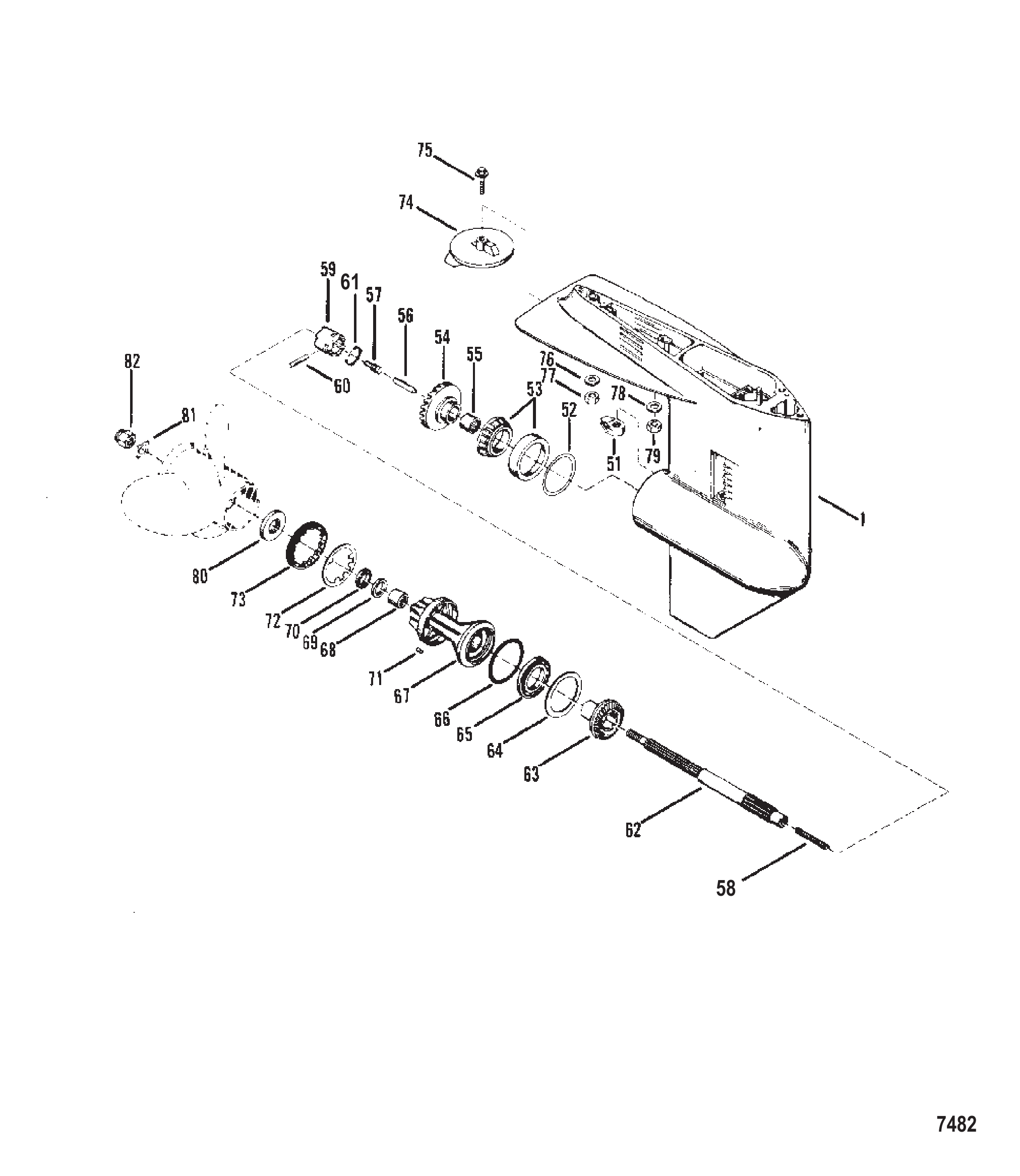

图 7齿轮箱螺旋桨轴 Gear Housing Propeller Shaft
齿轮箱螺旋桨轴 Gear Housing Propeller Shaft
REF零件编号中文名称英文名称数量
-9539A4齿轮箱总成短轴-黑色GEAR HOUSING ASSEMBLY Short Shaft - Black1
-9539A5齿轮箱总成长轴-黑色GEAR HOUSING ASSEMBLY Long Shaft - Black1
-9539A6齿轮箱总成短轴-灰色GEAR HUSING ASSEMBLY Short Shaft - Gray1
-9539A7齿轮箱总成长轴-灰色GEAR HOUSING ASSEMBLY Long Shaft - Gray1
19539A1齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T1齿轮箱GEAR HOUSING1
19539A8齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T8ORD 1643-9539T 1ORD 1643-9539T 11
5176039换挡凸轮控制CAM Shift Control1
51760394换挡凸轮控制CAM Shift Control1
5238374A1轴承杯与齿轮箱调整垫片组(.002-3-5-10)SHIM SET Bearing Cup to Gear Housing (.002-3-5-10)AR
5338356A1轴承套件BEARING SET1
5455608A4前进齿轮总成GEAR ASSEMBLY Forward1
5455608T4前进齿轮总成GEAR ASSY-FORWARD1
5521739前进齿轮滚柱轴承BEARING Roller Foward Gear1
5638441凸轮从动件FOLLOWER Cam1
5720843十字销滑套SLIDE Cross Pin1
5838114十字销固定弹簧SPRING Retaining - Cross Pin1
5992911滑动离合器棘轮RATCHET Sliding Clutch1
5992911T离合器CLUTCH1
6038113棘轮到螺旋桨轴十字销PIN Cross Ratchet to Propeller Shaft1
608M0020942十字销@2PIN-CROSS @21
6139845凸轮从动件压缩弹簧SPRING Compression - Cam Follower1
6275365螺旋桨轴PROPELLER SHAFT1
6379158倒挡齿轮GEAR Reverse1
6379158T倒挡齿轮GEAR-REVERSE1
6432004倒档齿轮止推垫片WASHER Thrust - Reverse Gear1
6520839倒档齿轮滚珠轴承BEARING Ball Reverse Gear1
6520839T滚珠轴承BEARING Ball1
6631986轴承座O型圈O-RING Bearing Carrier1
6769386A1轴承座总成CARRIER ASSEMBLY Bearing1
6769386T1轴承座总成CARRIER ASSY-BRG1
6821700轴承座滚针轴承BEARING Needle Bearing Carrier1
6969188轴承座油封SEAL Oil Bearing Carrier1
698M0205511油封SEAL Oil1
7069189轴承座油封SEAL Oil Bearing Carrier1
708M0203757油封SEAL Oil1
7130281轴承座定位键KEY Locating - Bearing Carrier1
7253012齿轮箱盖锁紧垫片TAB WASHER Gear Housing Cover1
7387763齿轮箱螺母NUT Gear Housing1
7431640A1齿轮箱平衡片总成TRIM TAB ASSEMBLY Gear Housing1
7431640Q4平衡鳍板TRIM TAB1
7566024平衡片固定螺丝(.437-14 x 1.75)SCREW (.437-14 x 1.75) Trim Tab to Gear Housing1
7645175驱动轴壳体螺柱垫片(.406 x .750 x .104)(0.375英寸)WASHER (.406 x .750 x .104) Driveshaft Housing Stud (0.375 Inch)1
768M0214963垫圈WASHER1
7734863驱动轴壳体螺柱螺母(.375-24)NUT (.375-24) Driveshaft Housing Stud1
778M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
7865791壳体与螺柱垫片(0.437英寸)WASHER Housing to Stud (0.437 Inch)1
7934933不锈钢螺柱螺母(.437-20)NUT (.437-20) Stainless Steel Stud1
798M0204653螺母NUT1
8073345A1前止推垫片THRUST WASHER Front1
8176281螺旋桨螺母锁紧垫片TAB WASHER Propeller Nut1
818M0214942锁紧垫片WASHER Tab1
8269578A1螺旋桨螺母套件PROP NUT KIT1
8269578Q1螺旋桨螺母套件PROP NUT KIT1
-79831A1密封套件SEAL KIT1
-85491A87衬垫套件GASKET SET1
-85491A90衬垫套件GASKET SET1

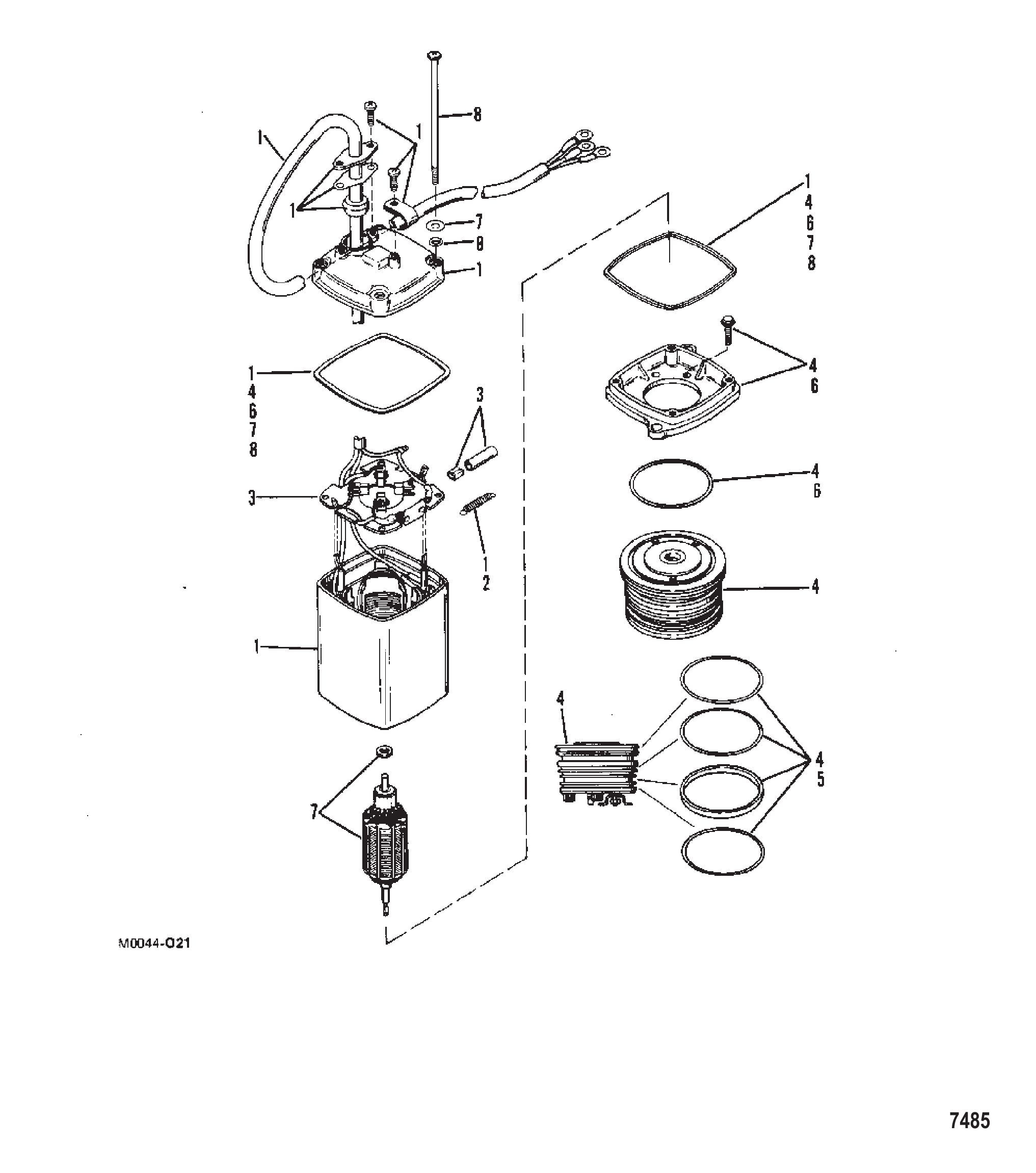

图 8动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
REF零件编号中文名称英文名称数量
-99186T泵与电机总成PUMP AND MOTOR1
112659机架与磁场套件FRAME AND FIELD KIT1
1991861动力升降泵总成PUMP ASSEMBLY Power Trim1
212665电刷弹簧套件SPRING KIT Brush1
313506电刷卡套件BRUSH CARD KIT1
3991861动力升降泵总成PUMP ASSEMBLY Power Trim1
412662泵与端架套件PUMP AND END FRAME KIT1
4991861动力升降泵总成PUMP ASSEMBLY Power Trim1
512663泵密封套件SEAL KIT Pump1
5126631泵密封套件SEAL KIT Pump1
612660端架套件END FRAME KIT1
6991861动力升降泵总成PUMP ASSEMBLY Power Trim1
712661电枢套件ARMATURE KIT1
7991861动力升降泵总成PUMP ASSEMBLY Power Trim1
812664贯穿螺栓套件THRU BOLT KIT1
图 9端盖与排气罩 END CAPS AND EXHAUST COVER
端盖与排气罩 END CAPS AND EXHAUST COVER
REF零件编号中文名称英文名称数量
25826A2上端盖总成END CAP ASSEMBLY Upper1
341953SEAL Upper End Cap1
420081上端盖O型圈O-RING Upper End Cap1
563742上端盖滚珠轴承BEARING Ball Upper End Cap1
563742T滚珠轴承BEARING Ball1
672538A1上端盖垫片(.005-10)SHIM Upper End Cap (.005-10)AR
773274上端盖螺丝(0.75英寸)SCREW Upper End Cap (0.75 Inch)4
7824941螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)4
88360A1气缸体盖总成COVER ASSEMBLY Cylinder Block1
932802PLUG Pipe (.125-27) Cylinder Block Cover1
9328022黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
10437772气缸体盖衬垫GASHET Cylinder Block Cover1
1169100气缸体盖螺丝(1英寸)SCREW Cylinder Block Cover (1 Inch)10
118M0214943螺钉SCREW10
1246933A7拉线总成CABLE ASSEMBLY2
1490435气缸体盖橡胶支座MOUNT Rubber - Cylinder Block Cover1
1520184NUT (1/4-28X7/32) Rubber Mount2
158M0207775螺母 @5NUT @52
1618827A1换气口盖总成COVER ASSEMBLY Transfer Port1
17279361换气口盖垫片GASKET Transfer Port Cover2
1890198换气口盖螺丝(0.625英寸)SCREW Transfer Port Cover (0.625 Inch)6
1820540螺钉(.250-20 x .62)SCREW (.250-20 x .62)6
196635A1下端盖总成END CAP ASSEMBLY Lower1
196635T1端盖END CAP1
2020081下端盖O型圈O-RING Lower End Cap1
2141953SEAL Lower End Cap2
2263742下端盖滚珠轴承BEARING Ball Lower End Cap1
2263742T滚珠轴承BEARING Ball1
2320085A1下端盖垫片组(.005-10)SHIM SET Lower End Cap (.005-10)AR
2429256下端盖螺丝(.312-18 x 0.875)SCREW (.312-18 x .875) Lower End Cap3
2590435曲轴箱橡胶支座MOUNT Rubber - Crankcase2
2620184NUT (1/4-28X7/32) Rubber Mount4
268M0207775螺母 @5NUT @54
28854912气缸体至隔板衬垫GASKET Cylinder Block to Baffle Plate1
28854913衬垫GASKET1
2990421挡板 - 排气歧管PLATE Baffle - Exhaust Manifold1
2990421T01挡板PLATE-BAFFLE1
30854922隔板至排气盖衬垫GASKET Baffle Plate to Exhaust Cover1
30854924衬垫GASKET1
3177381排气歧管盖COVER Exhaust Manifold1
3237562不锈钢歧管盖至气缸体螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel Manifold Cover to Cylinder Block14
3238837歧管盖至气缸体螺丝(.312-18 x 1.12)SCREW (.312-18 x 1.12) Manifold Cover to Cylinder Block1
3345915端子排TERMINAL BLOCK1
3462568接线端子螺丝(#10-16 x 0.375)SCREW (#10-16 x .375) Terminal Block1
3528192接线端子螺丝(#10-24 x 0.50)SCREW (#10-24 x .50) Terminal Block1
3572169螺钉(#10-24x0.500)SCREW (#10-24 x .500)1
3696829A1温度开关总成260棕SWITCH ASSEMBLY Temperature 260 Tan1
3616775A2温度开关300棕绿TEMPERATURE SWITCH 300 Tan and Green1
3616775A1温度开关总成SWITCH ASSY-TEMP1
-85491A87衬垫套件GASKET SET1
-85491A90衬垫套件GASKET SET1

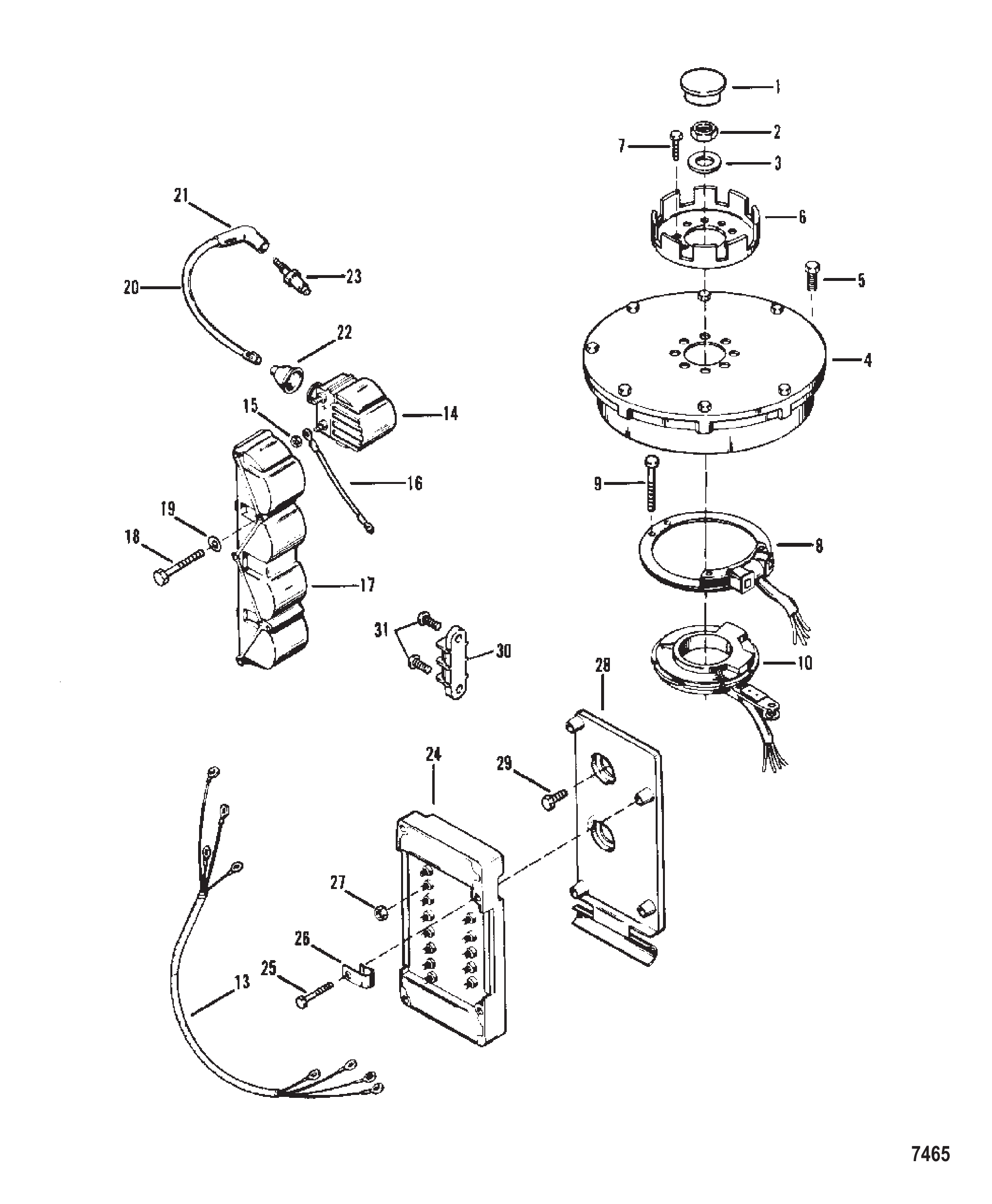

图 10飞轮/点火线圈与开关盒 Flywheel Ignition Coil and Switch Box
飞轮/点火线圈与开关盒 Flywheel Ignition Coil and Switch Box
REF零件编号中文名称英文名称数量
145907PLUG Yellow Flywheel1
222339NUT (.625-18) Flywheel1
368229WASHER (.641 x 1.250 x .190) Flywheel Nut1
48722A11飞轮总成FLYWHEEL ASSEMBLY1
48722A9飞轮总成FLYWHEEL ASSMEBLY1
532417螺钉 (.250-28 x .625) 柔性板至飞轮SCREW (.250-28 x .625) Flexible Plate to Flywheel8
688755棘轮飞轮(手动)RATCHET Flywheel (Manual)1
768997螺钉 (.312-24 x .750) 棘轮至飞轮(手动)SCREW (.312-24 x .750) Ratchet to Flywheel (Manual)8
85454A56定子STATOR1
85454A25定子STATOR1
975840螺钉 (#10-24 x .880) 定子至上端盖SCREW (#10-24 x .880) Stator to Upper End Cap4
1096452A4触发器总成TRIGGER ASSEMBLY1
1388721A1线束总成 开关盒至点火线圈HARNESS ASSEMBLY Switch Box to Ignition Coil1
147370A13点火线圈总成COIL ASSEMBLY Ignition4
1545076螺母 (#10-32) 黄铜点火线圈端子NUT (#10-32) Brass Ignition Coil Terminals8
1660466A19电缆总成 线圈至开关盒CABLE ASSEMBLY Coil to Switch Box4
1787554点火线圈盖COVER Ignition Coil1
1888856螺钉 (.190-32 x 2.00) 线圈盖SCREW (.190-32 x 2.00) Coil Cover5
1930164垫圈 (.192 x .375 x .0312) 不锈钢线圈盖螺钉WASHER (.192 x .375 x .0312) Stainless Steel Coil Cover Screw5
20813715A5火花塞引线总成LEAD ASSEMBLY Spark Plug1
2163709A1护套/端子套件BOOT/TERMINAL KIT4
222854BOOT Ignition Coil4
2397182火花塞SPARK PLUG4
2314103550火花塞 (NGK-BUZHW)SPARK PLUG (NGK-BUZHW)4
245772A2开关盒总成SWITCHBOX ASSEMBLY1
2520619螺钉 (#12-24 x 1.25) 开关盒与"J"形夹至板SCREW (#12-24 x 1.25) Switch Box and "J" Clip to Plate4
26642351J形夹 开关盒引线J CLIP Switch Box Leads1
2745076NUT (#10-32) Brass Switch Box Terminals13
2888322开关盒板PLATE Switch Box1
2954615螺钉 (.250-20 x .625) 开关盒板至气缸体SCREW (.250-20 x .625) Switch Box Plate to Cylinder Block2
3063813端子排TERMINAL BLOCK1
3120568螺钉 (.190-24 x .62) 接线板SCREW (.190-24 x .62) Terminal Block2
3162568接线端子螺丝(#10-16 x 0.375)SCREW (#10-16 x .375) Terminal Block2

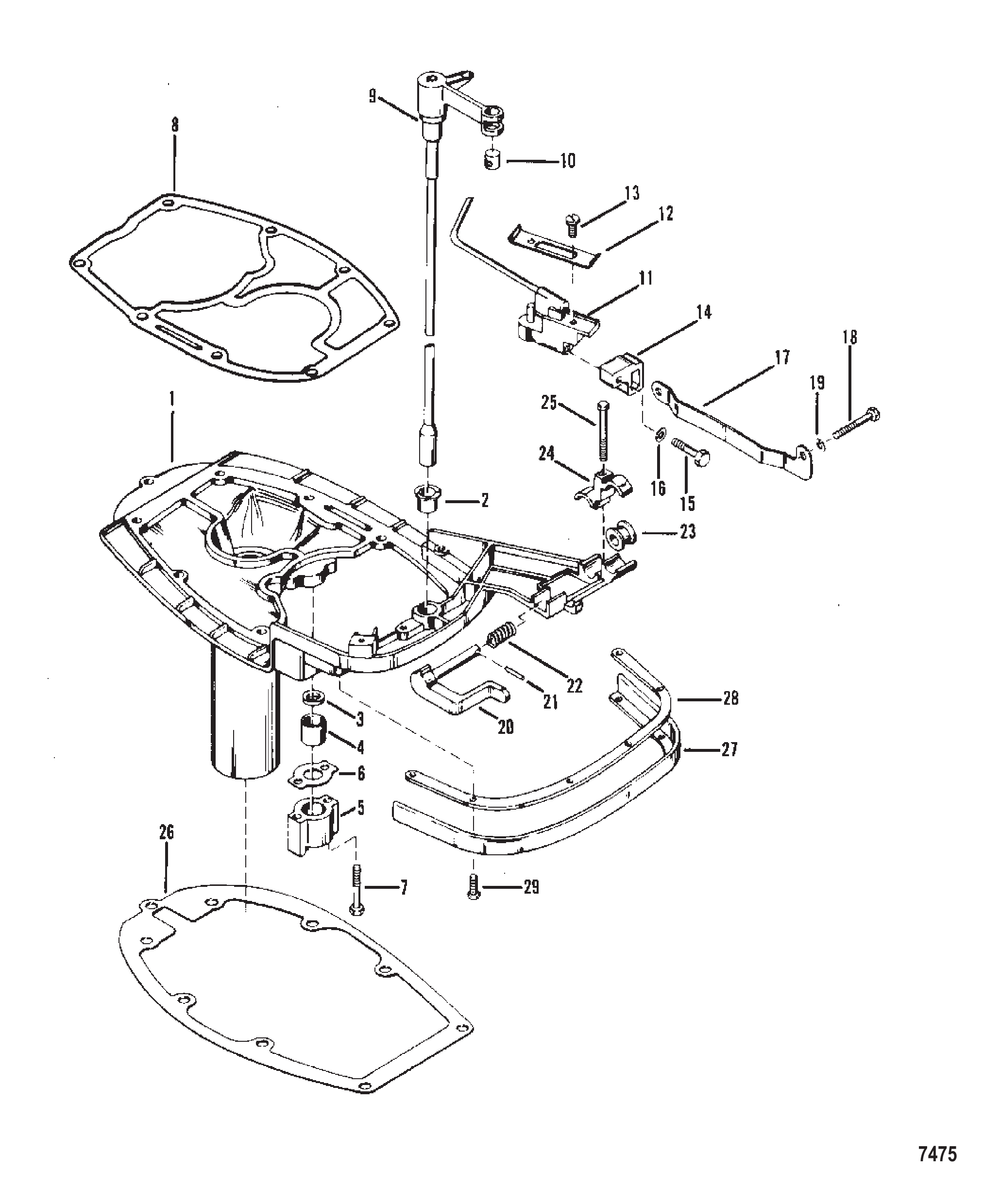

图 11排气板与换挡联动机构 EXHAUST PLATE AND SHIFT LINKAGE
排气板与换挡联动机构 EXHAUST PLATE AND SHIFT LINKAGE
REF零件编号中文名称英文名称数量
142819A2排气延伸板总成PLATE ASSEMLBY Exhaust Extension1
227132排气延伸板衬套BUSHING Exhaust Extension Plate1
338453进水口管尼龙垫圈WASHER Nylon - Water Inlet Tube1
438452水管橡胶密封件SEAL Rubber - Water Tube1
579799HOUSING Water Inlet Tube Seal1
6797971壳体衬垫GASKET Housing1
779798壳体至排气板螺丝(#10-32 x 1.380)(1.375英寸)SCREW (#10-32 x 1.380) Housing to Exhaust Plate (1.375 Inch)2
8796501动力头衬垫GASKET Powerhead1
976632A3上短换挡轴总成SHIFT SHAFT ASSEMBLY Upper Short Shaft1
976632A4上长换挡轴总成SHIFT SHAFT ASSEMBLY Upper Long Shaft1
1060572上换挡轴尼龙套筒BARREL Nylon - Upper Shift Shaft1
108M0221994筒形接头BARREL FITTING1
1174739A3换挡控制执行器总成ACTUATOR ASSEMBLY Shift Control1
1237934换挡拉索弹簧SPRING Shift Cable1
1338069弹簧至执行器螺丝SCREW Spring to Actuator1
1437932换挡控制执行器尼龙轴承BEARING Nylon - Shift Control Actuator1
1536137轴承至换挡控制执行器螺丝(.250-28 x 1.00)SCREW (.250-28 x 1.00) Bearing to Shift Control Actuator1
1621272轴承螺丝锁紧垫圈(.250)LOCKWASHER (.250) Bearing Screw1
1737935换挡控制轴承导轨RAIL Shift Control Bearing1
1869028不锈钢导轨至排气歧管盖螺丝(.250-28 x 0.750)SCREW (.250-28 x .750) Stainless Steel Rail to Exhaust Manifold Cover1
1926992不锈钢导轨螺丝锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel Rail Screw1
2059037A2油门和换挡拉索杆LEVER Throttle and Shift Cables1
2123928快拆杆滚销PIN Roll - Quick Disconnect Lever2
21239281滚动销PIN Roll2
2238005快拆杆弹簧SPRING Quick Disconnect Lever2
2337927快拆杆尼龙衬套BUSHING Nylon Nylon - Quick Disconnect Lever2
2437926尼龙轴承保持架RETAINER Nylon Bearing1
2537923轴承保持架螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250) Bearing Retainer1
26385011排气延伸板衬垫GASKET Exhaust Extension Plate1
2738156排气延伸板橡胶密封件SEAL Rubber - Exhaust Extension Plate1
2899136橡胶密封条STRIP Rubber Seal1
2937571固定条螺丝(.190-32 x 0.500)SCREW (.190-32 x .500) Retaining Strip6
-85491A87衬垫套件GASKET SET1
-85491A90衬垫套件GASKET SET1

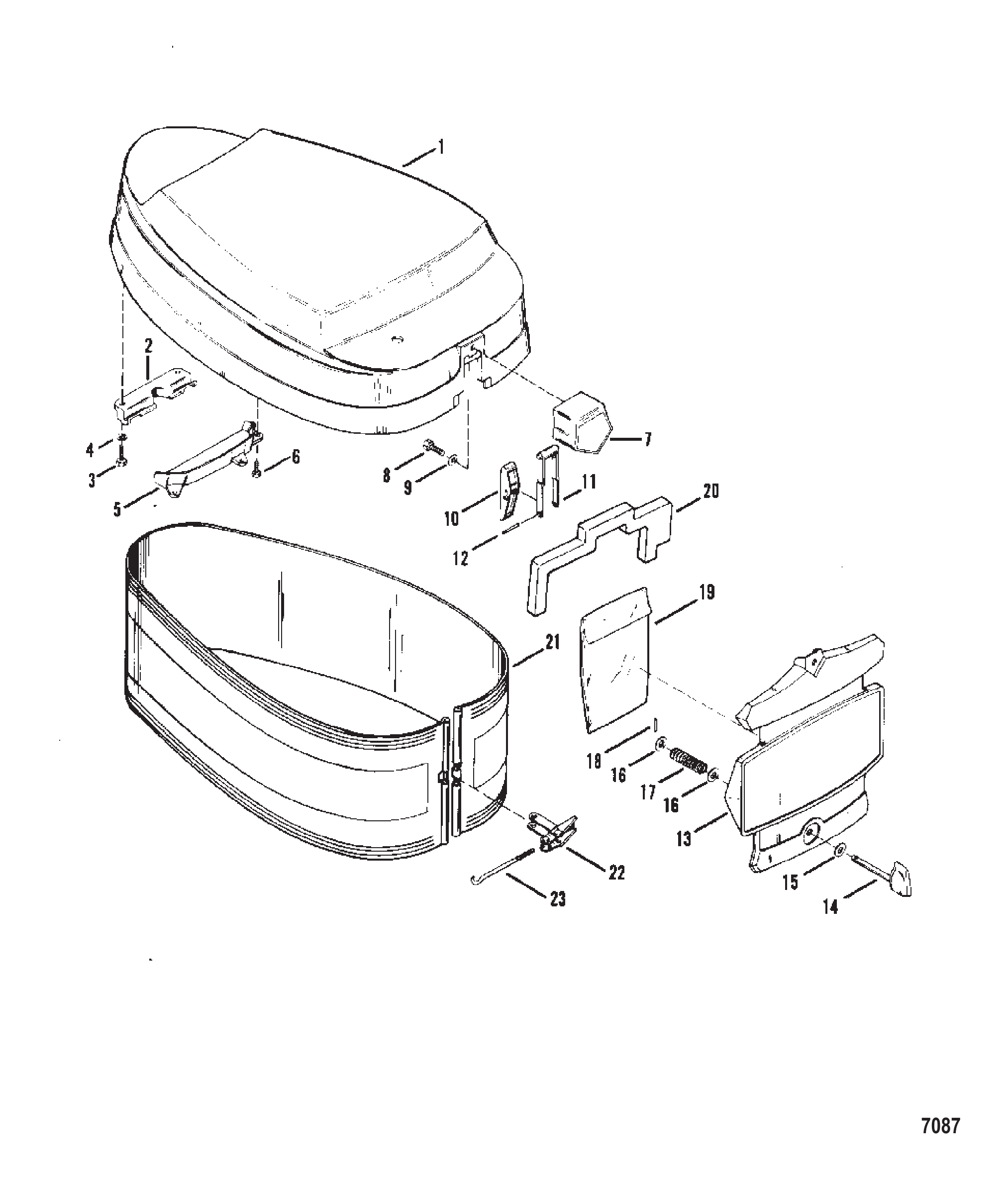

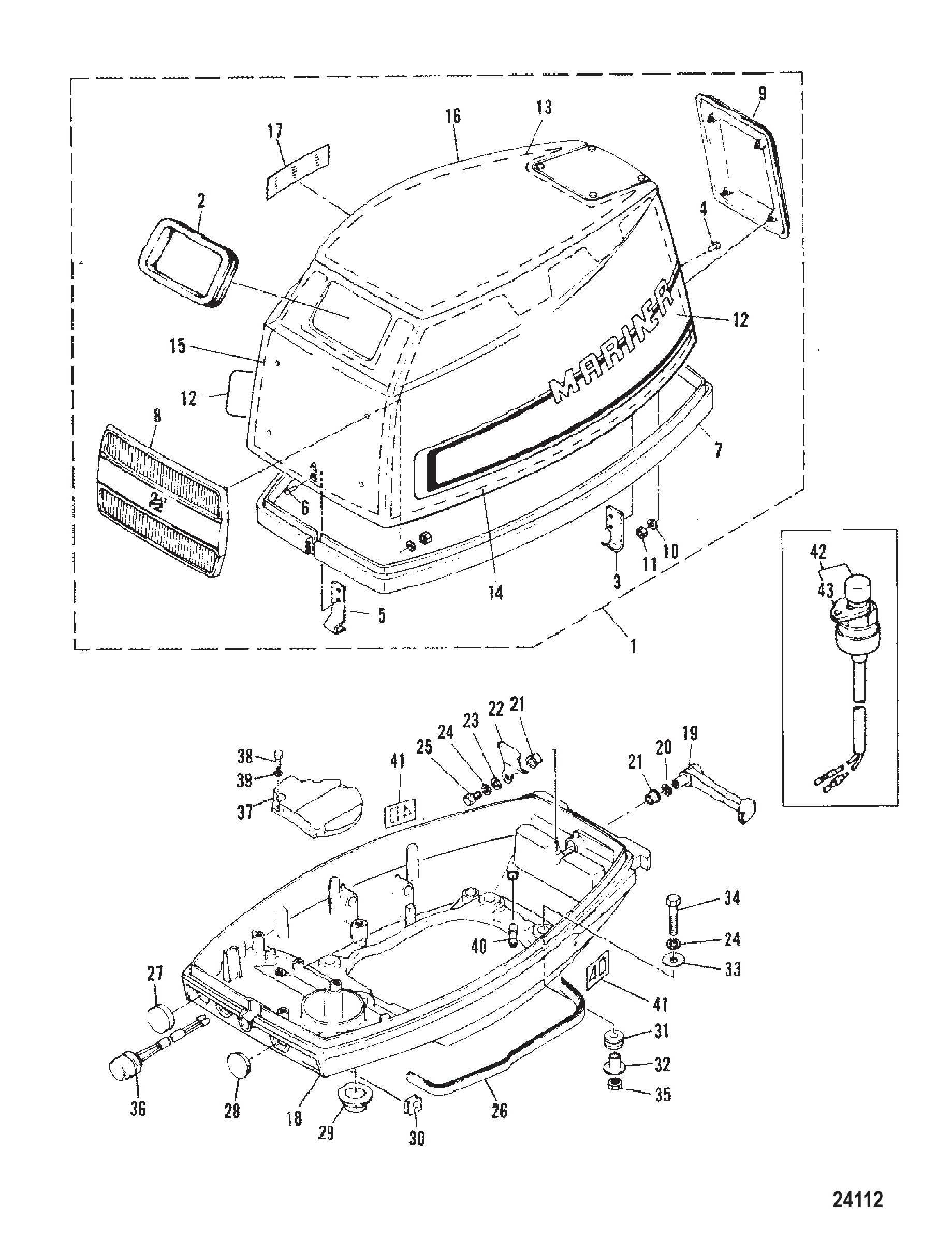

图 12外罩 Cowling
外罩 Cowling
REF零件编号中文名称英文名称数量
17938顶罩总成(无标贴)TOP COWL ASSEMBLY Without Decal1
17937A8顶罩总成(无标贴)TOP COWL ASSEMBLY Without Decal1
17938F4顶罩总成(无标贴)TOP COWL ASSEMBLY Without Decal1
17937F4顶罩总成(无标贴)TOP COWL ASSEMBLY Without Decal1
255455HOOK Top Cowl Latch - Rear1
322956SCREW (.250-28 x .880) Rear Hook to Top Cowl2
426992LOCKWASHER (.250) Stainless Steel Rear Hook Screw2
537690顶罩后护板SHIELD Rear - Top Cowl1
648409SCREW (#10-16 x .625) Stainless Steel Rear Shield to Top Cowl3
797447A1顶罩固定架总成RETAINER ASSEMBLY Top Cowl1
853167顶罩固定架螺丝(.312-18 x .880)SCREW (.312-18 x .880) Retainer to Top Cowl1
853167T螺钉 0.312-18X 0.88SCREW .312-18X .881
939107固定架螺丝锁紧垫圈(.312-24)LOCKWASHER (.312-24) Retainer Screw1
1094918T罩盖锁扣铰链杆LEVER Cowl Latch Hinge1
1094918F1杠杆LEVER1
1152739T顶罩锁扣铰链HINGE Cowl Latch-Top Cowl1
1152739铰链HINGE1
1258998罩盖锁扣杆铰链销PIN Cowl Latch Lever to Hinge1
137927A5水星前盖板(无标贴)FRONT COVER MERCURY Without Decal1
137927A19马琳前盖板(无标贴)FRONT COVER MARINER Without Decal1
1456849前盖板旋钮KNOB Cowl Front Cover1
1530771盖板旋钮垫圈WASHER Cover Knob1
1659572盖板旋钮垫圈WASHER Cover Knob2
1730772盖板旋钮张力弹簧SPRING Tension - Cover Knob1
1829077旋钮张力弹簧销PIN Roll Tension Spring to Knob1
1938674隔音毯BLANKET Sound1
2094923隔音垫PAD Sound2
213247A3水星环绕式顶罩总成(无标贴)TOP COWL ASSEMBLY Wrap Around - Mercury Without Decal1
218181A4马琳环绕式顶罩总成(无标贴)TOP COWL ASSEMBLY Wrap Around - Mariner Without Decal1
2246785A1罩壳锁扣总成LATCH ASSEMBLY Cowl2
2330413罩盖锁钩HOOK Cowl Latch2

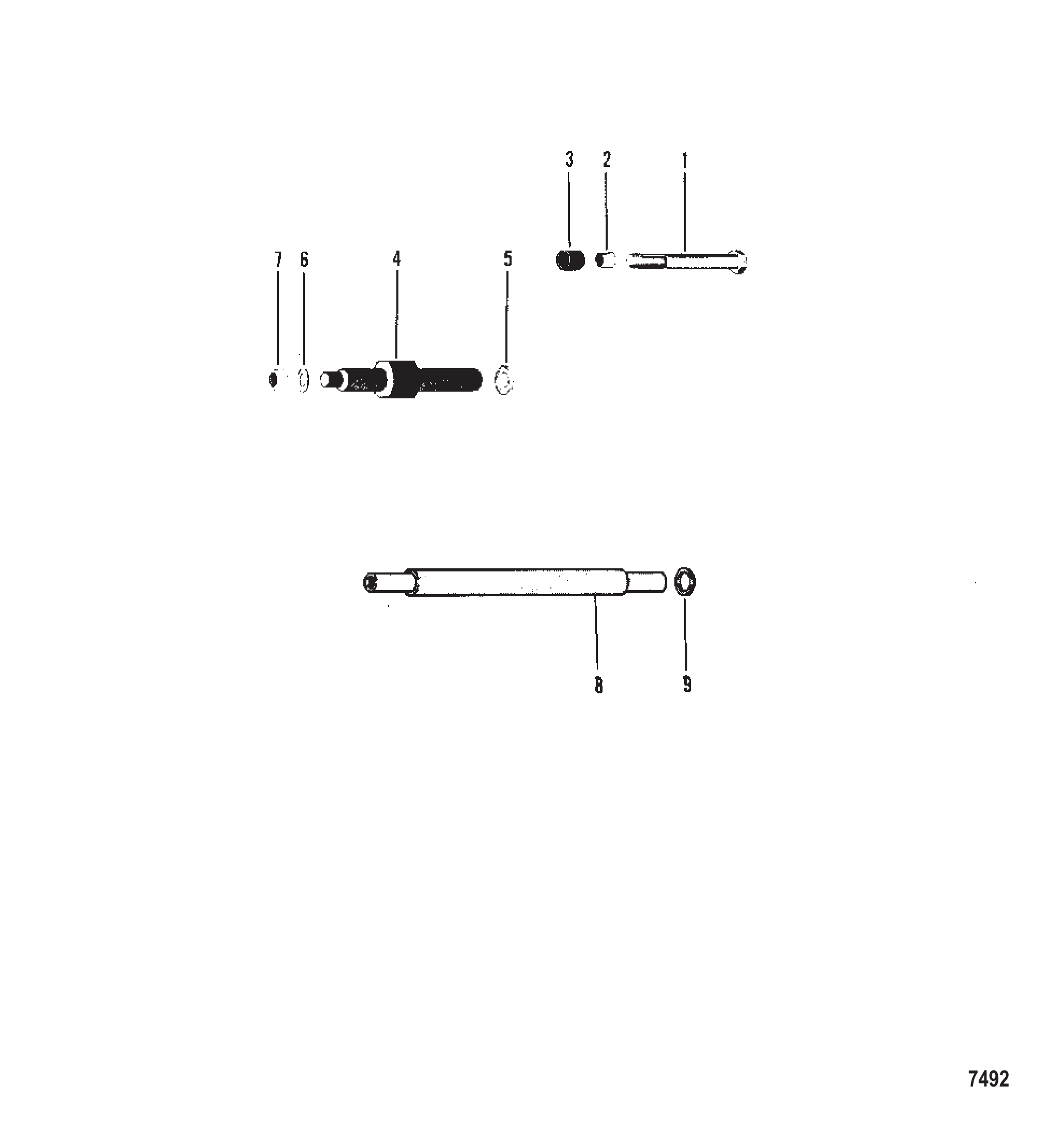

图 13安装五金件(电动手柄) Mounting Hardware (Electric Handle)
安装五金件(电动手柄) Mounting Hardware (Electric Handle)
REF零件编号中文名称英文名称数量
162882螺钉 (.500-20 x 3.250) 支架至减震销SCREW (.500-20 x 3.250) Bracket to Shock Pin2
262885SPACER Mounting Bracket Screw2
289952SPACER Mounting Bracket Screw2
362884SPACER Mounting Bracket Screw2
462887PIN Trim Cylinders to Swivel Bracket2
563099WASHER (1.50 x .766 x .125) Trim Cylinder Pin2
654012WASHER (.530 x .870 x .105) Stainless Steel Trim Cylinder Pin2
735778NUT (.500-20) Trim Cylinder Pin2
828416上减震安装销PIN Upper Shock Mounting1
934937垫圈 (.766 x 1.312 x .125) 减震销WASHER (.766 x 1.312 x .125) Shock Pin2

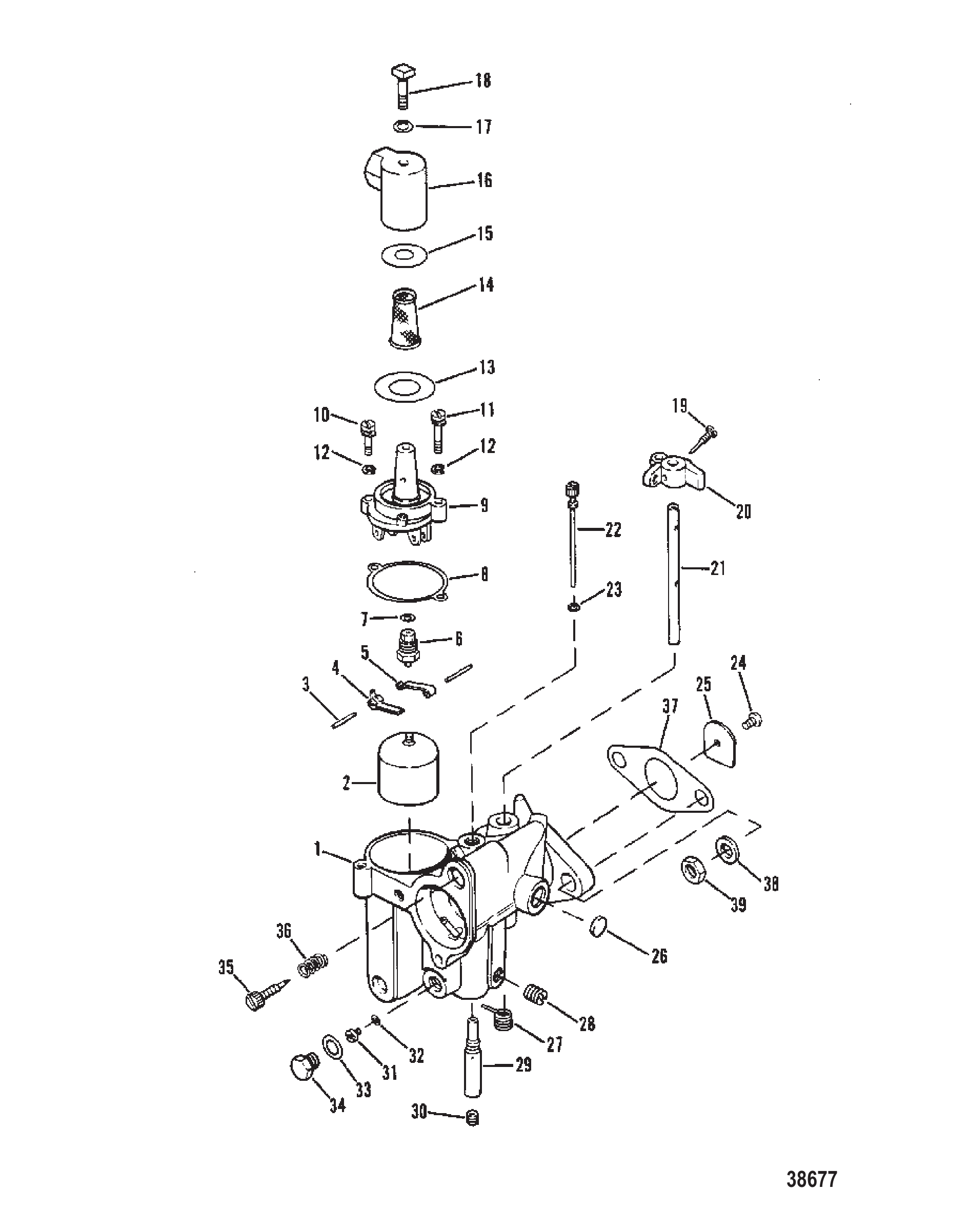

图 14化油器总成(TILLOTSON) CARBURETOR ASSEMBLY (TILLOTSON)
化油器总成(TILLOTSON) CARBURETOR ASSEMBLY (TILLOTSON)
REF零件编号中文名称英文名称数量
13711化油器总成(完整)CARBURETOR ASSEMBLY COMPLETE1
28983浮子总成FLOAT ASSEMBLY1
28673浮子总成FLOAT ASSEMBLY1
3NSS不单独销售 浮子杆小齿轮销NOT SOLD SEPARATE Pin-Float Lever Pinion2
4NSS不单独销售 下浮子杆NOT SOLD SEPARATE Float Lever-Lower1
5NSS不单独销售 上浮子杆NOT SOLD SEPARATE Float Lever-Upper1
69258进油针阀/阀座套件(含阀座及垫片)NEEDLE/SEAT KIT Inlet SEAT AND GASKET1
692581阀座套件VALVE SEAT KIT1
7NSS不单独销售 进油阀座垫片NOT SOLD SEPARATE Gasket-Inlet Seat1
8NSSNOT SOLD SEPARATE Gasket-Float Bowl Cover1
91133浮子室盖COVER FLOAT BOWL1
1052195浮子室螺丝(短)SCREW FLOAT BOWL (SHORT)1
1152196浮子室盖螺丝(长)SCREW FLOAT BOWL COVER (LONG)1
1226995锁紧垫圈 (#8) 不锈钢 浮子室盖螺钉LOCKWASHER (#8) Stainless Steel FLOAT BOWL COVER SCREW2
13NSS不单独销售 滤网盖垫片(大)NOT SOLD SEPARATE Gasket-Strainer cover (Large)1
143938滤网SCREEN FILTER1
15NSS不单独销售 滤网盖垫片(小)NOT SOLD SEPARATE Gasket, Strainer cover (Small)1
161135滤网盖(90度)COVER STRAINER (90 DEGREES)1
17NSSNOT SOLD SEPARATE Gasket, Strainer cover Screw1
1825822滤网盖螺钉SCREW STRAINER COVER1
1920847节流阀止动杆螺钉SCREW THROTTLE STOP LEVER1
196027螺钉SCREW1
2097节流阀止动杆LEVER THROTTLE STOP1
208146791油门杆LEVER Throttle1
211716轴SHAFT1
22NSSNOT SOLD SEPARATE Idle Tube
23NSSNOT SOLD SEPARATE Gasket, Idle tube1
24NSS不单独销售 节气门片螺丝NOT SOLD SEPARATE Screw-throttle Shutter1
253739节气门片SHUTTER1
26NSSNOT SOLD SEPARATE Welch Plug, Body Channel1
27NSS不单独销售 节气门轴回位弹簧NOT SOLD SEPARATE Spring, throttle shaft return1
2828845水道闷塞螺丝SCREW PLUG-BODY CHANNEL1
29NSSNOT SOLD SEPARATE Main Nozzle1
3023178主喷管闷塞螺丝SCREW PLUG-MAIN NOZZLE1
313252主量孔(.032)JET (.032) MAIN FUELOPT
313251主量孔(.034)JET (.034) MAIN FUELOPT
313026主量孔(.036)-标准型JET (.036) MAIN FUEL-STANDARD1
312407主量孔(.039)JET Main Fuel (.039)OPT
311896主量孔(.041)JET MAIN FUEL (.041)OPT
32NSS不单独销售 主量孔垫片NOT SOLD SEPARATE Gasket-Main Fuel Jet1
33NSSNOT SOLD SEPARATE Gasket, Jet Channel Plug Screw1
3428405主量孔通道闷塞螺丝SCREW PLUG-MAIN FUEL JET CHANNEL1
353740怠速调节螺钉SCREW IDLE ADJUSTMENT1
36NSSNOT SOLD SEPARATE Spring, Idle Adjustment Screw1
3763309化油器-簧片阀组衬垫GASKET CARBURETOR TO REED BLOCK1
3820583化油器安装柱垫圈WASHER CARBURETOR MOUNTING STUD1
3924652化油器安装柱螺母(.250-28)NUT (.250-28) CARBURETOR MOUNTING STUD2
-1717衬垫套件GASKET SET
-3741维修零件包REPAIR PARTS KIT
-92621化油器修理包REPAIR KIT-CARB
图 15化油器总成 Carburetor Assembly
化油器总成 Carburetor Assembly
REF零件编号中文名称英文名称数量
16517A33化油器总成CARBURETOR ASSEMBLY1
16517A34化油器总成CARBURETOR ASSEMBLY1
16517A64化油器KT-底置CARBURETOR KT-BOT1
2NSS大型主体通道(不单独销售)NOT SOLD SEPARATE Large Body Channel2
3NSS主体通道(不单独销售)NOT SOLD SEPARATE Body Channel6
496773A1阻风门轴总成SHAFT ASSEMBLY Choke2
49296A1阻风门轴套件CHOKE SHAFT KIT2
5NSS回位-节气门轴(不单独销售)NOT SOLD SEPARATE Return-Throttle Shaft2
67211A1燃油杯挡板BAFFLE Fuel Bowl2
6814483燃油杯挡板BAFFLE Fuel Bowl2
79293浮子FLOAT2
8NSS浮子固定件(不单独销售)NOT SOLD SEPARATE Float Retaining2
95127燃油杯BOWL Fuel2
10NSS燃油杯(不单独销售)NOT SOLD SEPARATE Fuel Bowl2
119652燃油杯至化油器螺钉SCREW Fuel Bowl to Carburetor2
12NSS燃油杯螺钉(不单独销售)NOT SOLD SEPARATE Fuel Bowl Screw4
139022进油针阀及弹簧NEEDLE AND SPRING Inlet2
141457主量孔(.057)JET Main Fuel (.057)2
157335省油量孔(.098)JET (.098) Economizer (.098)2
1664677喉管VENTURI2
178665阻风门片SHUTTER Choke2
18NSS阻风门片至轴连接件(不单独销售)NOT SOLD SEPARATE Choke Shutter to Choke Shaft4
19NSS怠速混合气调节件(不单独销售)NOT SOLD SEPARATE Idle Mixture2
20NSS怠速混合气螺钉(不单独销售)NOT SOLD SEPARATE Idle Mixture Screw2
21NSS不单独销售 燃油泵NOT SOLD SEPARATE Fuel Pump2
229653盖板(上化油器)COVER Plate (Upper Carburetor)1
239654盖板(下化油器)COVER Plate (Lower Carburetor)1
245132滤清器体至化油器螺钉SCREW Strainer Body to Carburetor8
24808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)8
259020油门轴SHAFT Throttle1
259656油门轴SHAFT Throttle1
2692880节气门杠杆(上化油器)LEVER Throttle (Upper Carburetor)1
2720847节气门杠杆螺钉(上化油器)SCREW Throttle Lever (Upper Carburetor)2
276027螺钉SCREW2
2897节气门杠杆(下化油器)LEVER Throttle (Lower Carburetor)1
288146791油门杆LEVER Throttle1
296027节气门杠杆螺钉(下化油器)SCREW Throttle Lever (Lower Carburetor)1
309649节气门片SHUTTER Throttle2
31NSS节气门片至轴连接件(不单独销售)NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft4
32757911化油器法兰衬垫GASKET Carburetor Flange2
3364809化油器安装柱螺母NUT Carburetor Mounting Stud4
--9650维修套件REPAIR KIT2
--9651衬垫套件GASKET SET2
图 16杂项零件/附件 Miscellaneous Parts/Accessories
杂项零件/附件 Miscellaneous Parts/Accessories
REF零件编号中文名称英文名称数量
-811286零件手册(6/8/9.9/15马力)PARTS MANUAL 6/8/9.9/15 Hp
-12048930用户指南(黑色)OWNERS GUIDE (BLACK)
-14138930用户指南(灰色)OWNERS GUIDE (GRAY)
-14012A89贴花套装(9.9/210帆动力)DECAL SET (9.9/210 SAILPOWER)
-12836A89贴花套装(黑色-6至9.9马力)DECAL SET (BLACK- 6 THRU 9.9)
-13478A88贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-810458A92贴花套装(灰色-6至15马力)DECAL SET (GRAY- 6 THRU 15)
-822787A93贴花套装(灰色-8帆伴侣)DECAL SET (GRAY 8 SAILMATE)
-808560A03贴花套件DECAL SET
-808522A94贴花套装(黑色-6马力)DECAL SET (BLACK-6)
-808522A00贴花套件DECAL SET
-808526A94贴花套装(黑色-8马力)DECAL SET (BLACK -8)
-808526A00贴花套件DECAL SET
-12836A94贴花套装(黑色-9.9马力)DECAL SET (BLACK- 9.9)
-12836A00贴花套件DECAL SET
-808523A94贴花套装(9.9帆动力)DECAL SET (9.9 SAILPOWER)
-808523A96贴花套件DECAL SET
-13478A94贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-13478A00贴花套件DECAL SET
-808524A94贴花套装(灰色-6马力)DECAL SET (GRAY-6)
-808524A03贴花套件DECAL SET
-808545A94贴花套装(灰色-8马力)DECAL SET (GRAY-8)
-808545A03贴花套件DECAL SET
-808560A94贴花套装(8帆伴侣)DECAL SET (8 SAILMATE)
-808560A03贴花套件DECAL SET
-808525A94贴花套装(灰色-9.9马力)DECAL SET (GRAY-9.9)
-808525A03贴花套件DECAL SET
-808546A94贴花套装(灰色-15马力)DECAL SET (GRAY-15)
-808546A03贴花套件DECAL SET

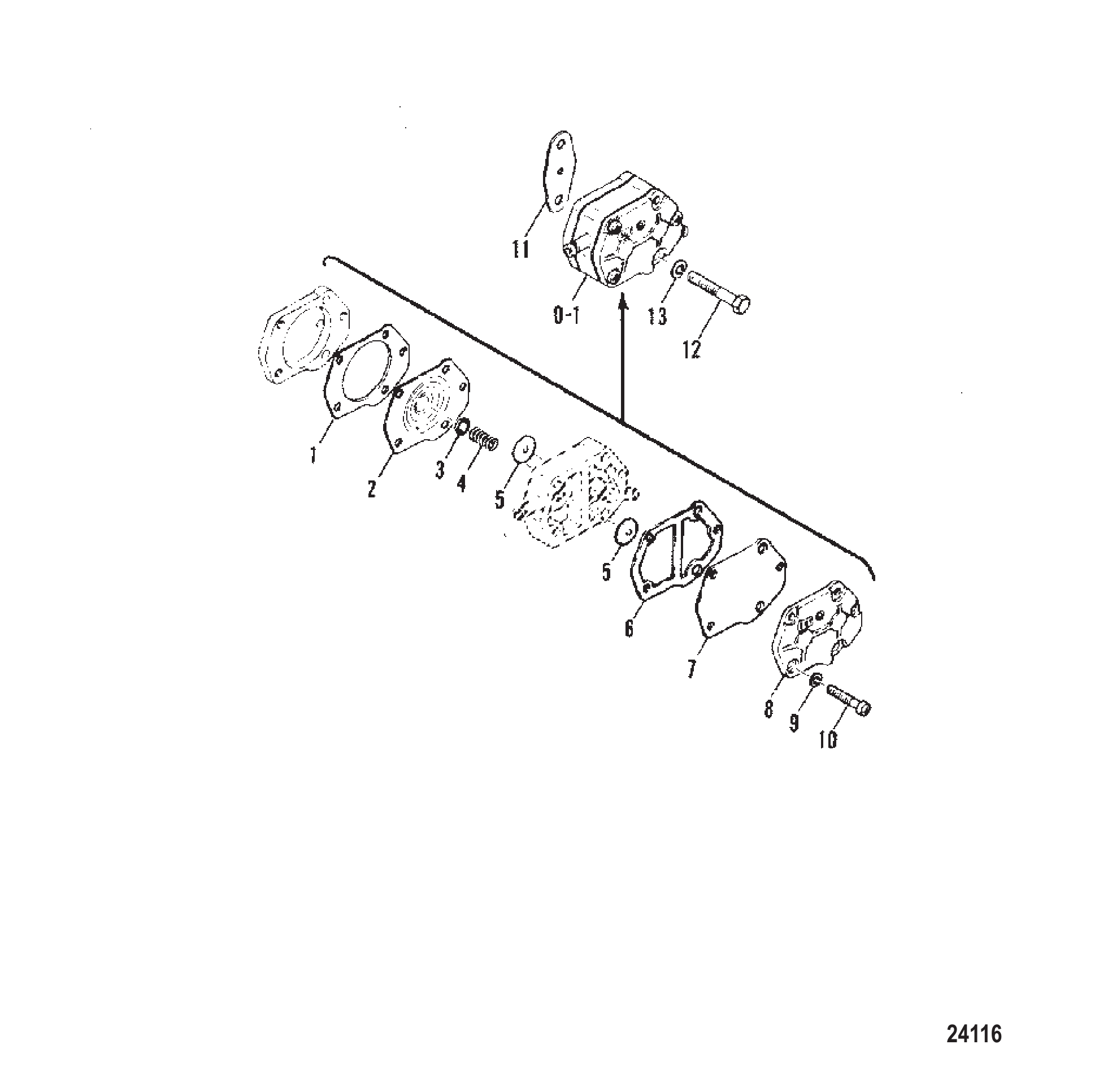

图 17燃油泵 Fuel Pump
燃油泵 Fuel Pump
REF零件编号中文名称英文名称数量
1880890T1燃油泵PUMP Fuel1
2NSS不单独销售本体NOT SOLD SEPARATE Body1
3881544弹簧SPRING1
4881545柱塞PLUNGER1
5881546弹簧SPRING1
6881547隔膜DIAPHRAGM1
7881548销PIN1
8NSS不单独销售本体NOT SOLD SEPARATE Body1
9NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
10NSS不单独销售本体NOT SOLD SEPARATE Body1
11881550螺钉SCREW3
12881333螺母NUT3
13804255O型圈O-RING1
138M0050719O型圈O-RING1
14879650卡箍CLAMP2
1456762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
15804256螺栓 (M6 x 30)BOLT (M6 x 30)2
16881543软管HOSE1
16881543002油管TUBING1
17881542支架BRACKET1
188527768螺栓(M6 x 16)BOLT (M6 x 16)1
18811188T螺栓BOLT1
198528161螺母NUT1
1982382M螺母NUT1
20881538T1滤清器总成FILTER ASSEMBLY1
20881538T02燃油滤清器总成FILTER ASSY-FUEL1
21881540滤芯1.75英寸ELEMENT 1.75 Inches1
218M0168897燃油滤清器FUEL FILTER1
218M0101436滤芯1.50英寸ELEMENT 1.50 Inches1
218M0117705燃油滤清器FILTER-FUEL1
22826966MO型圈O-RING1
22826966TO型圈O RING1
23881541浮子FLOAT1
24881539杯套CUP1
248M0101437杯套CUP1
248M0137185燃油杯CUP FUEL1
25879650卡箍CLAMP2
2556762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
26804260支架BRACKET1
27804112螺栓(M7 x 48)BOLT (M7 x 48)2
28804113定位销PIN Dowel2
2984292M垫圈WASHER2
30804257燃油转换杆LEVER Fuel Change1
31881334轴SHAFT1
32804259销PIN2
3282738M滚销PIN-ROLL2
33830757130管材(.312)(70英寸整卷)裁切至55英寸长度TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.1
338M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
34816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
35822769连接器CONNECTOR1
36NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
37828547T1导管(.500内径 x 3英尺整卷)CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)1
-858732T01衬垫套件GASKET SET1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-881310T1气缸盖总成CYLINDER HEAD ASSEMBLY1
-881310T09气缸盖HEAD-CYLINDER1

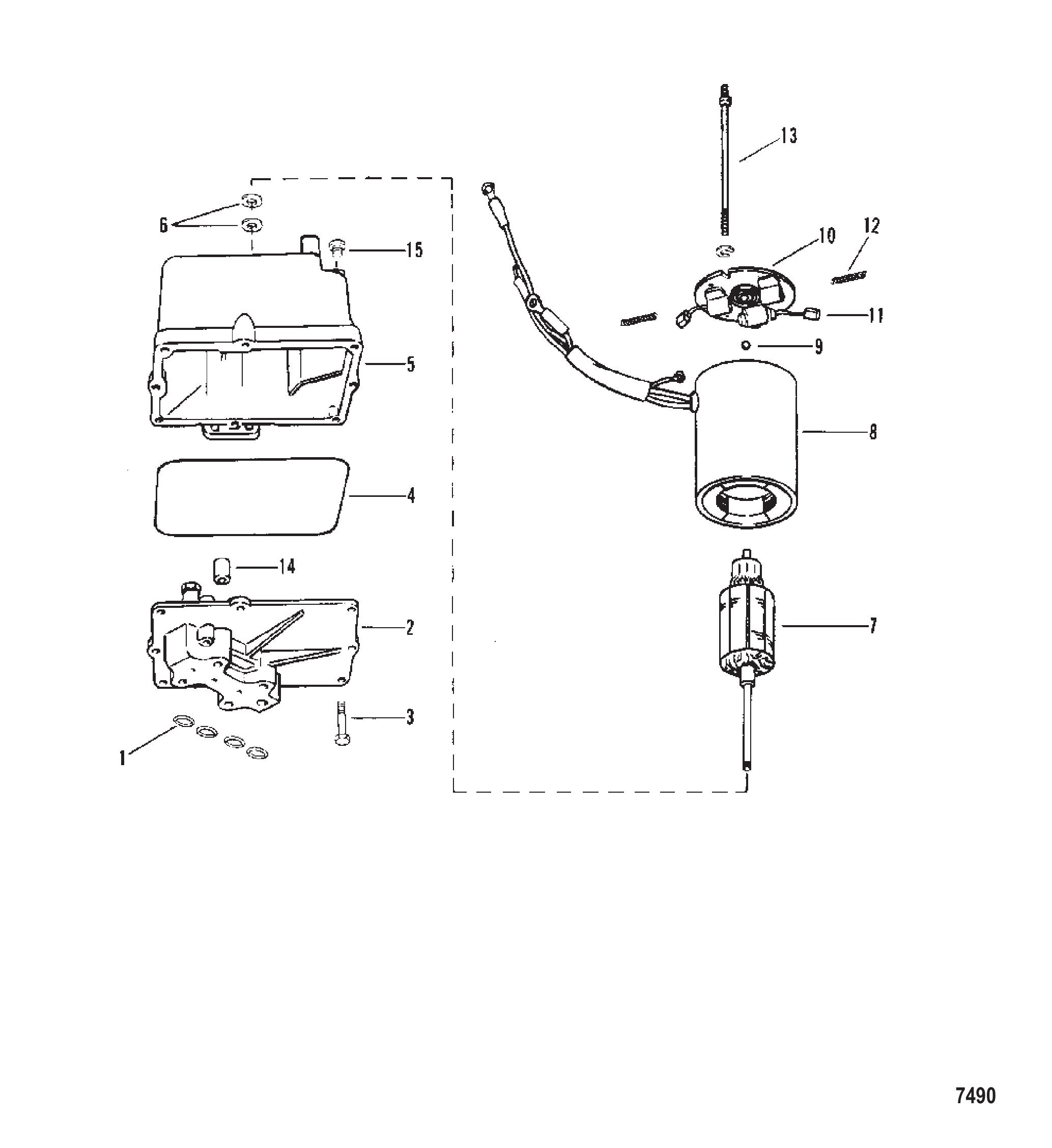

图 18液压泵总成(电动手柄) Hydraulic Pump Assembly (Electric Handle)
液压泵总成(电动手柄) Hydraulic Pump Assembly (Electric Handle)
REF零件编号中文名称英文名称数量
-92975A6液压泵总成PUMP ASSEMBLY Hydraulic1
148171O-RING (.364. x .070) Hydraulic Pump4
28317阀体与齿轮总成VALVE BODY AND GEAR ASSEMBLY1
369570SCREW (#10-16 x .750) Valve Body to Reservoir8
47735SEAL Reservoir to Valve Body and Gear1
57731塑料储液罐总成RESEROVIR ASSEMBLY Plastic1
67732WASHER Thrust - ArmatureAR
77729ARMATURE Field and Frame1
88261磁场框架总成FIELD AND FRAME ASSEMBLY1
97730BALL Commutator End Plate1
108262PLATE ASSEMBLY Commutator End1
118989电刷套件 换向器端板BRUSH KIT Commutator End Plate1
122529SPRING SET Brush Tension1
137733贯穿螺栓组 板与框架至储液罐BOLT SET Through - Plate and Frame to Reservoir1
147727联轴器与轴COUPLER AND SHAFT1
157728FILL PLUG Reservoir1
图 19外罩 COWLING
外罩 COWLING
REF零件编号中文名称英文名称数量
17938顶罩总成(无标贴)TOP COWL ASSEMBLY Without Decal1
17937A8顶罩总成(无标贴)TOP COWL ASSEMBLY Without Decal1
17938F4顶罩总成(无标贴)TOP COWL ASSEMBLY Without Decal1
17937F4顶罩总成(无标贴)TOP COWL ASSEMBLY Without Decal1
255455HOOK Top Cowl Latch - Rear1
322956SCREW (.250-28 x .880) Rear Hook to Top Cowl2
426992LOCKWASHER (.250) Stainless Steel Rear Hook Screw2
537690顶罩后护板SHIELD Rear - Top Cowl1
648409SCREW (#10-16 x .625) Stainless Steel Rear Shield to Top Cowl3
797447A1顶罩固定架总成RETAINER ASSEMBLY Top Cowl1
853167顶罩固定架螺丝(.312-18 x .880)SCREW (.312-18 x .880) Retainer to Top Cowl1
853167T螺钉 0.312-18X 0.88SCREW .312-18X .881
939107固定架螺丝锁紧垫圈(.312-24)LOCKWASHER (.312-24) Retainer Screw1
1094918T罩盖锁扣铰链杆LEVER Cowl Latch Hinge1
1094918F1杠杆LEVER1
1152739T顶罩锁扣铰链HINGE Cowl Latch-Top Cowl1
1152739铰链HINGE1
1258998罩盖锁扣杆铰链销PIN Cowl Latch Lever to Hinge1
137927A5水星前盖板(无标贴)FRONT COVER MERCURY Without Decal1
137927A19马琳前盖板(无标贴)FRONT COVER MARINER Without Decal1
1456849前盖板旋钮KNOB Cowl Front Cover1
1530771盖板旋钮垫圈WASHER Cover Knob1
1659572盖板旋钮垫圈WASHER Cover Knob2
1730772盖板旋钮张力弹簧SPRING Tension - Cover Knob1
1829077旋钮张力弹簧销PIN Roll Tension Spring to Knob1
1938674隔音毯BLANKET Sound1
2094923隔音垫PAD Sound2
213247A3水星环绕式顶罩总成(无标贴)TOP COWL ASSEMBLY Wrap Around - Mercury Without Decal1
218181A4马琳环绕式顶罩总成(无标贴)TOP COWL ASSEMBLY Wrap Around - Mariner Without Decal1
2246785A1罩壳锁扣总成LATCH ASSEMBLY Cowl2
2330413罩盖锁钩HOOK Cowl Latch2

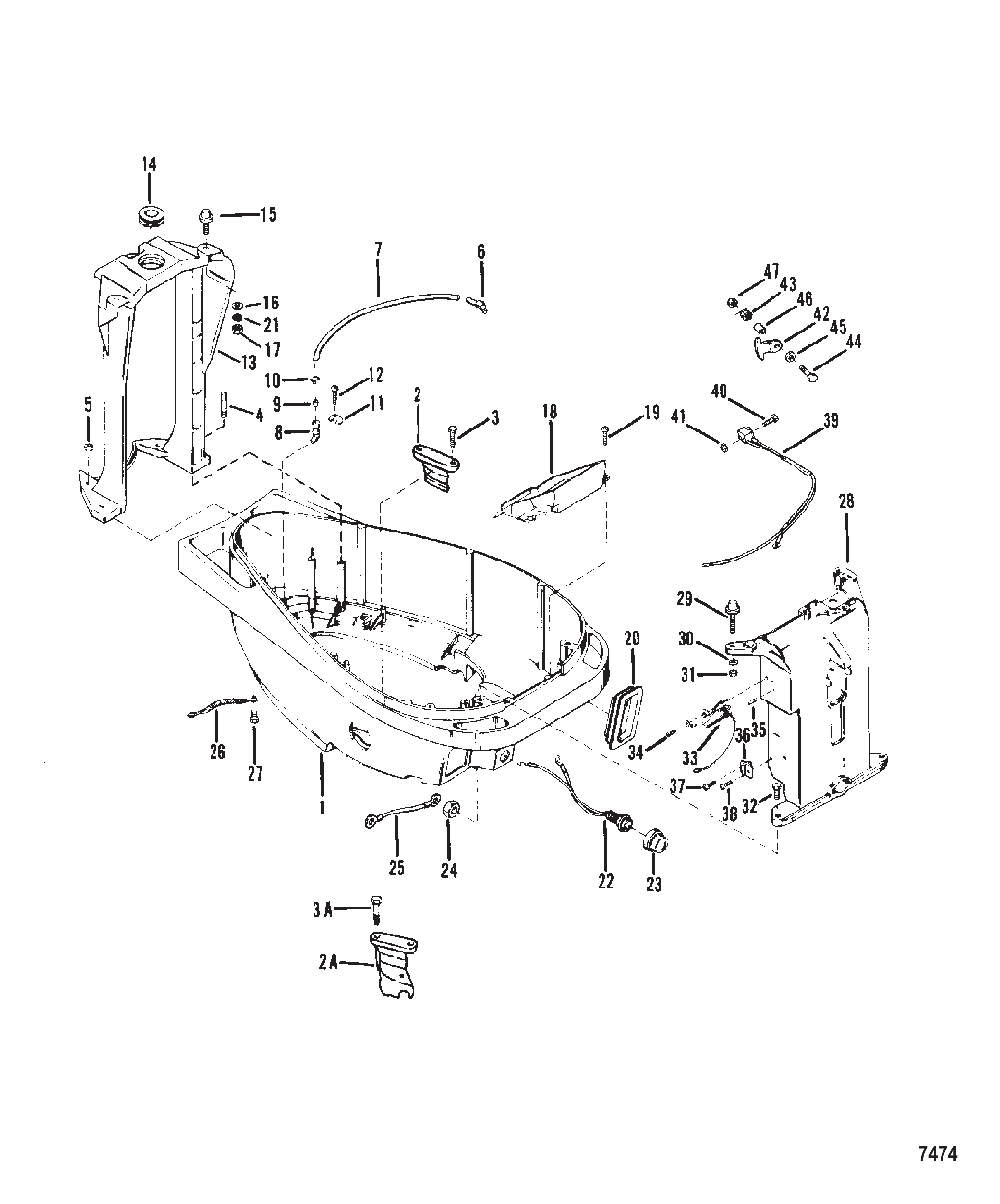

图 20下罩壳及支撑支架 Bottom Cowl and Support Brackets
下罩壳及支撑支架 Bottom Cowl and Support Brackets
REF零件编号中文名称英文名称数量
17715A4下罩总成BOTTOM COWL ASSEMBLY1
17715A5下罩总成BOTTOM COWL ASSEMBLY1
288926T下机罩盖COVER Bottom Cowl1
328636螺钉（.250-20 x .750）下机罩盖塞SCREW (.250-20 x .750) Plug to Bottom Cowl2
2A948801下机罩盖塞PLUG Bottom Cowl1
3A28636螺钉（.250-20 x .750）下机罩盖塞SCREW (.250-20 x .750) Plug to Bottom Cowl2
456766螺柱（.250-20/.250-28 x 1.380）下机罩STUD (.250-20/.250-28 x 1.380) Bottom Cowl4
520184螺母（1/4-28X7/32）下机罩螺柱NUT (1/4-28X7/32) Bottom Cowl Stud4
678279示流管弯头-气缸体ELBOW Tell Tale Hose - Cylinder Block1
77568054示流软管至下机罩（14英寸）HOSE Tell Tale Hose to Bottom Cowl (14 Inch)1
869791示流管喷嘴至下机罩NOZZLE Tell Tale Hose to Bottom Cowl1
990882示流喷嘴套管SLEEVE Tell Tale Nozzle1
1090077示流喷嘴扎带TIE STRAP Tell NozzleAR
1166849喷嘴卡箍-示流管CLAMP Nozzle - Tell Tale1
1248408螺钉（#10-16 x .500）喷嘴卡箍至下机罩SCREW (#10-16 x .500) Nozzle Clamp to Bottom Cowl1
13720201后支撑支架BRACKET Rear Support1
1452723后支撑支架衬套GROMMET Rear Support Bracket1
1560577MOUNT Rubber - Rear Support Bracket2
1621631WASHER (.255 x .625 x .0312) Rubber MountAR
1729598螺母（.250-28）不锈钢橡胶座NUT (.250-28) Stainless Steel Rubber Mount2
1872466滴水盘DRIP TRAY1
1948409螺钉（#10-16 x .625）不锈钢滴水盘至下机罩SCREW (#10-16 x .625) Stainless Steel Drip Tray to Bottom Cowl3
2037695控制电缆护套BOOT Control Cable1
2126992LOCKWASHER (.250) Stainless Steel Rubber Mount2
2269508A31停机开关总成SWITCH ASSEMBLY Stop1
2399525A1顶部开关盖总成COVER ASSEMBLY Top Switch1
2469844NUT Stop Switch1
2562190A8橙色停机开关线束总成WIRE ASSEMBLY Orange Stop Switch1
2688238A4电缆总成（3.375英寸）CABLE ASSEMBLY (3.375 Inch)2
2762568螺钉（#10-16 x .375）接地带SCREW (#10-16 x .375) Ground Strap2
2842660A1前支撑支架总成BRACKET ASSEMBLY Front Support1
2931014MOUNT Rubber - Front Support Bracket2
3026992LOCKWASHER (.250) Stainless Steel Rubber Mount2
3129598螺母（.250-28）不锈钢橡胶座NUT (.250-28) Stainless Steel Rubber Mount2
3237562螺钉（.312-18 x 1.00）不锈钢前支撑支架至下机罩SCREW (.312-18 x 1.00) Stainless Steel Front Support Bracket to Bottom Cowl2
3358124A20水银开关总成SWITCH ASSEMBLY Mercury1
3333386A3水银开关总成SWITCH ASSEMLBY Mercury1
3469235螺钉（.190-24 x .500）开关至前支架（0.50英寸）SCREW (.190-24 x .500) Switch to Front Bracket (0.50 Inch)1
3536242水银开关滚针PIN Roll Mercury Switch2
3645915端子排TERMINAL BLOCK1
3720411螺钉（.190-24 x .62）端子排至前支架SCREW (.190-24 x .62) Terminal Block to Front Bracket1
3869079螺钉（#10-16 x .440）线束引线SCREW (#10-16 x .440) Harness Leads1
3974605A4空挡启动开关总成SWITCH ASSEMBLY Neutral Start1
4064332螺钉（#4-40 x .750）SCREW (#4-40 x .750)2
4124832螺母（#4-40）开关螺钉NUT (#4-40) Switch Screw2
4297411执行器ACTUATOR1
4388099联锁执行器弹簧SPRING Interlock Actuator1
4437892执行器至前支架螺钉(.190-32 x 1.00)SCREW (.190-32 x 1.00) Actuator to Front Bracket1
4522887执行器螺钉垫圈WASHER Actuator Screw1
4688100执行器螺钉隔套SPACER Actuator Screw1
4745812执行器螺钉不锈钢螺母(#10-32)NUT (#10-32) Stainless Steel Actuator Screw1

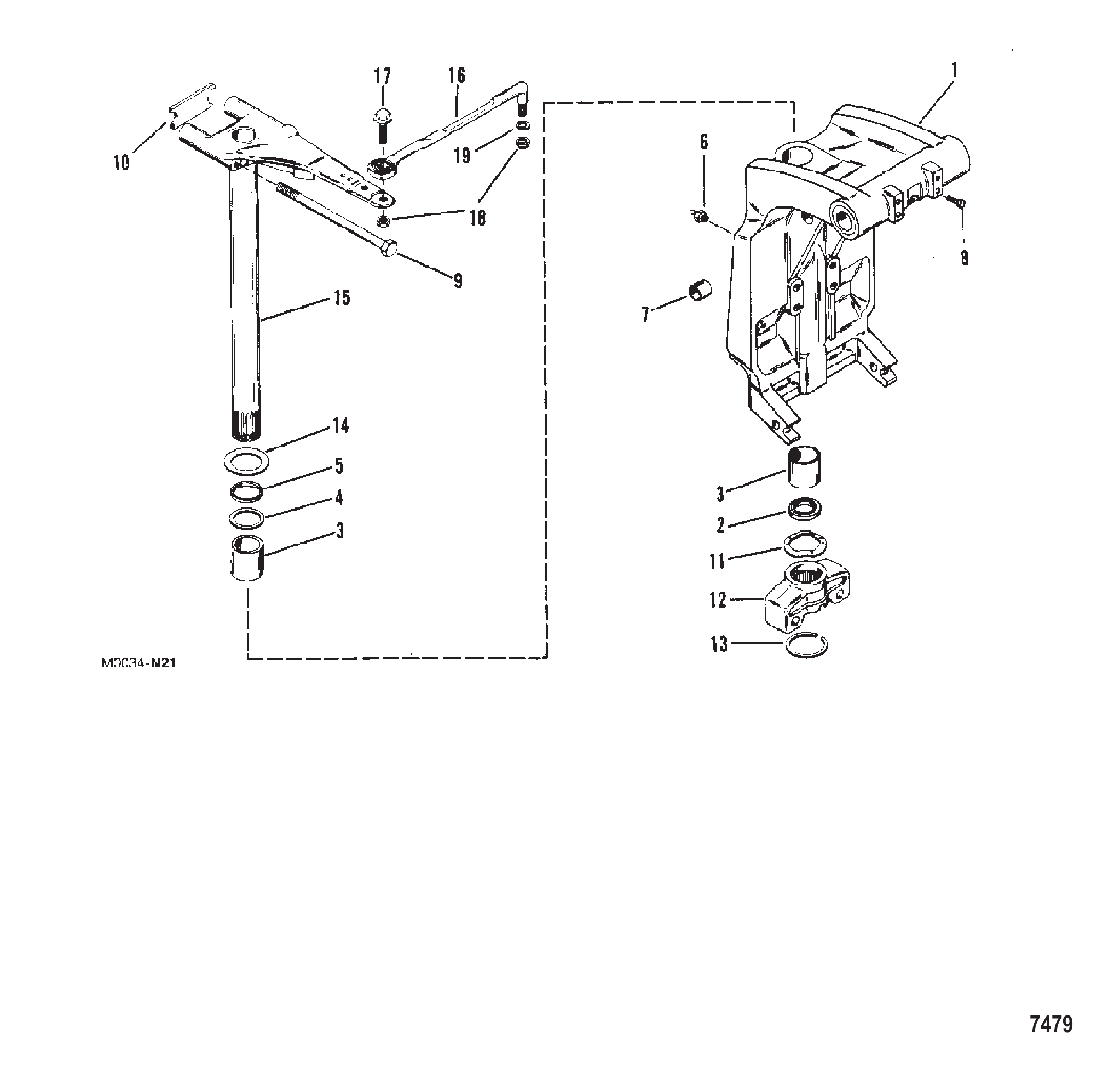

图 21旋转支架与转向臂 Swivel Bracket and Steering Arm
旋转支架与转向臂 Swivel Bracket and Steering Arm
REF零件编号中文名称英文名称数量
1818904T1旋转支架SWIVEL BRACKET1
287735下油封SEAL Oil Lower1
3818764衬套BUSHING2
433504O型圈O-RING1
48M0214926O型圈 @10O RING @101
5816039隔套SPACER1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
864014螺钉(.250-28x.500)SCREW (.250-28 x .500)2
999661A26旋转销总成SWIVEL PIN ASSEMBLY1
999661A35旋转销总成SWIVEL PIN ASSEMBLY1
1092876A10连杆总成LINK ROD ASSEMBLY1
1092876A12连杆总成LINK ROD ASSEMBLY1
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
12826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel2
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1337828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
1442961A1底部轭架总成YOKE ASSEMBLY Bottom1
1442961A06底部轭架总成YOKE ASSEMBLY Bottom1
1567684挡圈RING Retaining1
16816432止推垫片THRUST WASHER1
17NSS不单独销售 贴纸, 序列号覆膜NOT SOLD SEPARATE Decal, Serial Overlaminate1
1811288下轭缓冲垫BUMPER Bottom Yoke1
1811288001下轭缓冲垫BUMPER Bottom Yoke1
1988882上轭缓冲垫BUMPER Top Yoke1

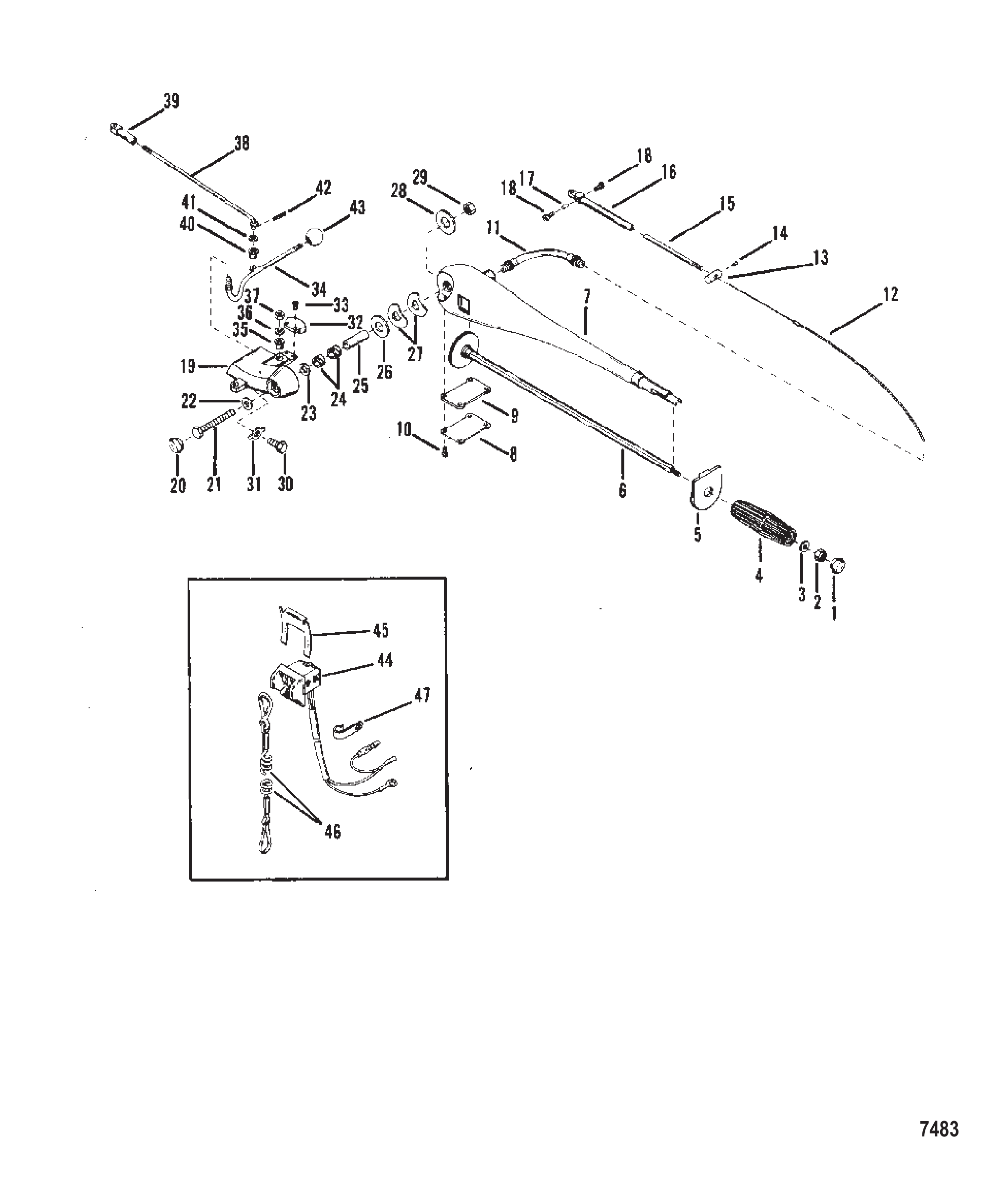

图 22转向手柄总成 STEERING HANDLE ASSEMBLY
转向手柄总成 STEERING HANDLE ASSEMBLY
REF零件编号中文名称英文名称数量
148416CAP Steering Handle Grip1
220586NUT (.250-28) Steering Handle Arm1
2826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
321631WASHER (.255 x .625 x .0312) Steering Handle Arm1
369056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel1
458192A1GRIP Steering Handle Arm1
548414驱动轮外壳HOUSING Drive Wheel1
648516A1驱动轮/杆总成DRIVE WHEEL/ROD ASSEMBLY1
748405A2臂总成ARM ASSEMBLY1
848519PLATE Cover - Drive Wheel1
948518盖板垫片GASKET Cover Plate1
1028192螺钉 (#10-24 x .50) 驱动轮盖板SCREW (#10-24 x .50) Drive Wheel Cover Plate4
1072169螺钉(#10-24x0.500)SCREW (#10-24 x .500)4
11785511电缆导管CONDUIT Cable1
1248520节气门拉索CABLE Throttle1
1389613控制连杆接头CONNECTOR Control Linkage1
1489601SCREW Set - Throttle Cable Guide Tube1
14824081紧定螺钉(#10-32)SET SCREW (#10-32)1
15895661节气门电缆导向管GUIDE TUBE Throttle Cable Guide1
158M0026078导向管TUBE-GUIDE1
1643433节气门电缆导向器GUIDE Throttle Cable1
168M0204660导套GUIDE1
1720007ANCHOR Throttle Cable1
1820518SET SCREW (#8-32) Throttle Cable Anchor2
188M0204644螺钉组SCREW SET2
1948404T手柄支架BRACKET Handle1
1948404T8支架BRACKET1
2048416手柄支架盖CAP Handle Bracket1
2148476手柄支架螺钉SCREW Handle Bracket1
21823597螺丝(.500-20 x 2.50)SCREW (.500-20 x 2.50)1
2248477手柄支架垫圈WASHER Handle Bracket1
2348526尼龙垫圈-手柄支架WASHER Nylon - Handle Bracket1
2428919尼龙衬套-手柄支架BUSHING Nylon - Handle Bracket2
2548525手柄支架隔套SPACER Handle Bracket1
2648527尼龙垫圈-手柄支架WASHER Nylon - Handle Bracket1
2638000垫圈WASHER1
2748478手柄支架波形垫圈WAVE WASHER Handle Bracket2
2849636尼龙垫圈-手柄支架WASHER Nylon - Handle Bracket1
2920220螺母(.500-20)-手柄支架螺钉NUT (.500-20) Handle Bracket Screw1
2982671317螺母(.500-20)NUT (.500-20)1
3035786SCREW (.375-24 x 1.00) Bracket to Engine2
3143589支架螺钉锁紧垫圈TAB WASHER Bracket Screw2
3278812A1DETENT Shift Lever1
3348409不锈钢换挡杆定位螺钉(#10-16 x .625)SCREW (#10-16 x .625) Stainless Steel Shift Lever Detent2
34485681换挡杆SHIFT LEVVER1
3548237尼龙衬套-换挡杆BUSHING Nylong - Shift Lever1
3634931WASHER (.406 x .734 x .063) Stainless Steel Shift Lever1
3734863螺母(.375-24)-换挡杆NUT (.375-24) Shift Lever1
378M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
3849563换挡连杆SHIFT ROD1
388128061杆ROD1
3948419ROD END Shift Rod1
3948419T杆端-2.16英寸ROD END-2.16 IN1
4048475尼龙衬套-换挡杆BUSHING Nylon - Shift Rod1
4135950WASHER (.273 x .437 x .031) Stainless Steel Shift Rod1
4225191COTTER PIN Shift Rod1
4398530KNOB Shift Lever1
4411083A11停机开关总成SWITCH ASSEMBLY Stop1
4512044RETANER Stop Switch1
458M0032846黄铜固定座RETAINER Brass1
4615920A54拉绳总成LANYARD ASSEMBLY1
4615920Q54拉绳总成LANYARD ASSEMBLY1
4764855停止开关夹CLAMP Stop Switch1
47648552卡扣CLIP1
--52148A1副驾驶套件CO-PILOT KIT1

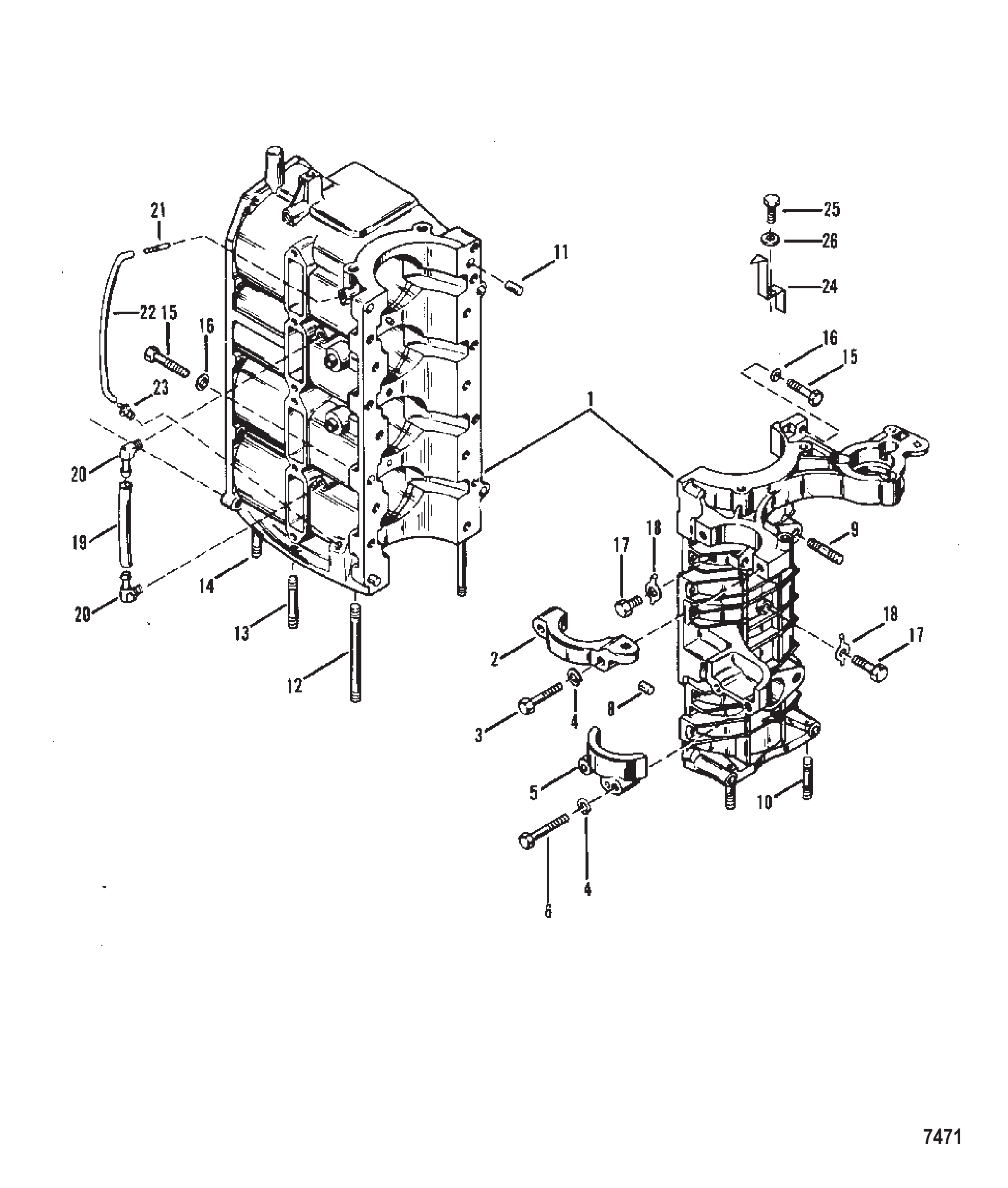

图 23气缸体与曲轴箱总成 Cylinder Block and Crankcase Assembly
气缸体与曲轴箱总成 Cylinder Block and Crankcase Assembly
REF零件编号中文名称英文名称数量
18981A6气缸体总成CYLINDER BLOCK ASSEMBLY1
272038启动电机上支架BRACKET Upper Starter Motor1
373279支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch)2
426993支架螺钉锁紧垫圈(.312)LOCKWASHER (.312) Bracket Screw4
576867启动电机下盖COVER Lower Starter Motor1
673279盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch)2
820032缸体至主轴承定位销PIN Dowel Cylinder block to main bearing2
968164化油器双头螺柱(1.25英寸)STUD Carburetor (1.25 Inch)4
1068165曲轴箱至驱动轴壳体双头螺柱(1.625英寸)STUD Crankcase to Driveshaft Housing (1.625 Inch)2
1120033曲轴箱至缸体定位销PIN Dowel Crankcase to Cylinder Block2
1287901缸体至驱动轴壳体双头螺柱(4英寸)STUD Cylinder block to drive shaft housing (4 Inch)2
1368166缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸)STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch)2
1468167缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸)STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch)2
1573657曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸)SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch)13
1531984曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸)SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch)3
1573275曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸)SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch)2
1670132曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063)WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw17
1720359螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
1798260螺钉(.375-16 x .620)SCREW (.375-16 x .620)2
1820091中央轴承锁紧螺钉止动垫圈TAB WASHER Center Bearing Locking Screw3
1999127109平衡管(57英寸散装)-主轴承(5.50英寸)LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch)1
2099664平衡管至缸体弯头ELBOW Balance Tube to Cylinder Block2
2165857上部泄放软管接头CONNECTOR Upper Bleed Hose1
229938779气缸泄放软管(11英寸)HOSE Cylinder Bleed (11 Inch)1
2342867下部泄放软管止回阀CHECK VALVE Lower Bleed Hose1
2499156正时指示器INDICATOR Timing1
2539349指示器至曲轴箱不锈钢螺钉(.312-18 x .750)SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase1
2626993指示器螺钉锁紧垫圈(.312)LOCKWASHER (.312) Indicator Screw1
-97469A87动力头总成(完整)POWERHEAD ASSEMBLY Complete1
图 24齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-9539A4齿轮箱总成短轴-黑色GEAR HOUSING ASSEMBLY Short Shaft - Black1
-9539A5齿轮箱总成长轴-黑色GEAR HOUSING ASSEMBLY Long Shaft - Black1
-9539A6齿轮箱总成短轴-灰色GEAR HUSING ASSEMBLY Short Shaft - Gray1
-9539A7齿轮箱总成长轴-灰色GEAR HOUSING ASSEMBLY Long Shaft - Gray1
19539A1齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T1齿轮箱GEAR HOUSING1
19539A8齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T8ORD 1643-9539T 1ORD 1643-9539T 11
285822A1速度表连接器总成CONNECTOR ASSEMBLY Speedometer1
285822A10连接器总成CONNECTOR ASSEMBLY1
385500定位销(.187 x .530)齿轮箱PIN Dowel (.187 x .530) Gear Housing2
38M0084726定位销PIN Dowel2
433778水泵/底座柱螺栓(2.625英寸)STUD Water Pump/Base (2.625 Inch)3
557933柱螺栓(.437-14/.437-20 x 2.190)齿轮箱STUD (.437-14/.437-20 x 2.190) Gear Housing2
58M0034453柱螺栓(7/16 x 2.19)STUD (7/16 x 2.19)2
662091传动轴滚柱轴承BEARING Roller Driveshaft1
662091T轴承BEARING1
772849A1进水滤网总成SCREEN ASSEMBLY Water Intake1
836070螺钉(#10-32 x 1.250)进水滤网至齿轮箱SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing1
945812螺母(#10-32)不锈钢进水滤网螺钉NUT (#10-32) Stainless Steel Water Intake Screen Screw1
9859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
1092815排气管支撑板PLATE Support - Exhaust Tube1
1137721排气管密封件SEAL Exhaust Tube1
1137721001密封件@2SEAL @21
1298097传动轴小齿轮GEAR Pinion Driveshaft1
1298097T小齿轮GEAR-PINION1
1355910螺母(.437-20)小齿轮至传动轴NUT (.437-20) Pinion Gear to Driveshaft1
1419552水泵底座衬垫GASKET Water Pump Base1
1526722O型圈O-RING1
1677177A1水泵底座总成BASE ASSEMBLY Water Pump1
1790562密封件(1.254 x .312)SEAL (1.254 x .312)1
1879831油封SEAL Oil1
1935973定位销PIN Dowel2
2019553下衬垫GASKET Lower1
2154705面板FACE PLATE1
2132768面板FACEPLATE1
2219551上衬垫GASKET Upper1
2389983叶轮IMPELLER1
2389983T叶轮IMPELLER1
2456662叶轮驱动键KEY Impeller Drive1
248M0032837键@5KEY @51
2577822A1水泵壳体总成BODY ASSEMBLY Water Pump1
2648753嵌件INSERT1
2738452橡胶密封件SEAL Rubber1
2838453尼龙垫圈WASHER Nylon1
2929245垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs3
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
3013438螺母(.250-28)水泵体与底座柱螺栓NUT (.250-28) Water Pump Body and Base Studs3
308267119螺母(.250-28)NUT (.250-28)3
3120273橡胶O型圈O-RING Rubber1
3278654A1传动轴座总成SEAT ASSEMBLY Driveshaft1
3386304花键密封件-传动轴SEAL Splined - Driveshaft1
3479953螺钉(.375-16 x .250)润滑脂加注口SCREW (.375-16 x .250) Grease Filler1
3479953Q04放油螺钉套件SCREW KIT Drain1
3567892磁性放油螺钉SCREW Magnetic Drain1
358M0058389放油螺钉套件SCREW KIT Drain1
3619183纤维垫圈(加注/放油螺钉)WASHER Fiber Filler/Drain Screw2
368M0187157蓝色密封件@15SEAL-BLUE @152
3788181润滑套筒-传动轴SLEEVE Lubrication - Driveshaft1
3892881A1轴承垫片组(齿轮箱用)(.002-3-5-10-20)SHIM SET Bearing to Gear Housing(.002-3-5-10-20)AR
3977420A1圆锥滚子轴承总成-传动轴BEARING ASSEMBLY Roller Tapered - Driveshaft1
398M0166756轴承总成BEARING ASSEMBLY1
4088025A2驱动轴总成DRIVESHAFT ASSEMLBY1
4098179驱动轴DRIVESHAFT1
4088024A2驱动轴总成DRIVESHAFT ASSEMBLY1
4098180驱动轴DRIVESHAFT1
4120254驱动轴压缩弹簧SPRING Compression - Driveshaft1
4230545驱动轴销PIN Driveshaft1
4376063A1换挡轴总成SHAFT ASSEMBLY Shift1
4429641换挡轴E型卡环E RING Shift Shaft1
4525439O型圈(.862 x .103)换挡轴衬套O-RING (.862 x .103) Shift Shaft Bushing1
4677631A2换挡轴衬套总成BUSHING ASSEMBLY Shift Shaft1
4776384换挡轴衬套油封SEAL Oil Shift Shaft Bushing1
478M0246145油封OIL SEAL1
4877674橡胶垫圈(.35 x .75 x .12)换挡轴衬套WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing1
4978036倒挡锁定底座BASE Reverse Locking1
50433081倒挡锁定凸轮CAM Reverse Locking1
5043308T1凸轮CAM1
-77177A3水泵套件WATER PUMP KIT1
-79831A1密封套件SEAL KIT1
-85491A87衬垫套件GASKET SET1
-85491A90衬垫套件GASKET SET1
图 25夹具支架总成 CLAMP BRACKET ASSEMBLY
夹具支架总成 CLAMP BRACKET ASSEMBLY
REF零件编号中文名称英文名称数量
15570A3夹紧支架总成(左舷)CLAMP BRACKET ASSEMBLY (PORT)1
25571A3夹紧支架总成(右舷)CLAMP BRACKET ASSEMBLY (STARBOARD)1
377190A3蝶形螺钉总成THUMB SCREW ASSEMBLY2
476804蝶形螺钉SCREW THUMB SCREW2
4768042六角凸肩螺钉SHOULDER SCREW Hex2
573719蝶形螺丝垫圈WASHER THUMB SCREW2
5818884垫圈WASHER2
671421倾斜管尼龙垫圈-夹紧至旋转支架WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET2
796962倾斜管夹紧至旋转支架TILT TUBE CLAMP TO SWIVEL BRACKET1
839333倾斜管塞PLUG TILT TUBE2
993164倾斜管紧固螺母(.875)NUT (.875) TILT TUBE FASTENING2
1071420提手HANDLE CARRYING1
1171417夹紧支架螺柱STUD CLAMP BRACKET1
1226992夹紧支架螺柱不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD2
1329598夹紧支架螺柱不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel CLAMP BRACKET STUD2
1471418A2倾斜锁销总成PIN ASSEMBLY Tilt Lock1
1562143倾斜锁止销弹簧SPRING TILT LOCK PIN1
1667982夹紧支架至船体螺栓BOLT CLAMP BRACKET TO BOAT2
1767983夹紧支架螺钉垫圈WASHER CLAMP BRACKET SCREW2
1856374夹紧支架螺钉螺母(.250-20)NUT (.250-20) CLAMP BRACKET SCREW2
188267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel2

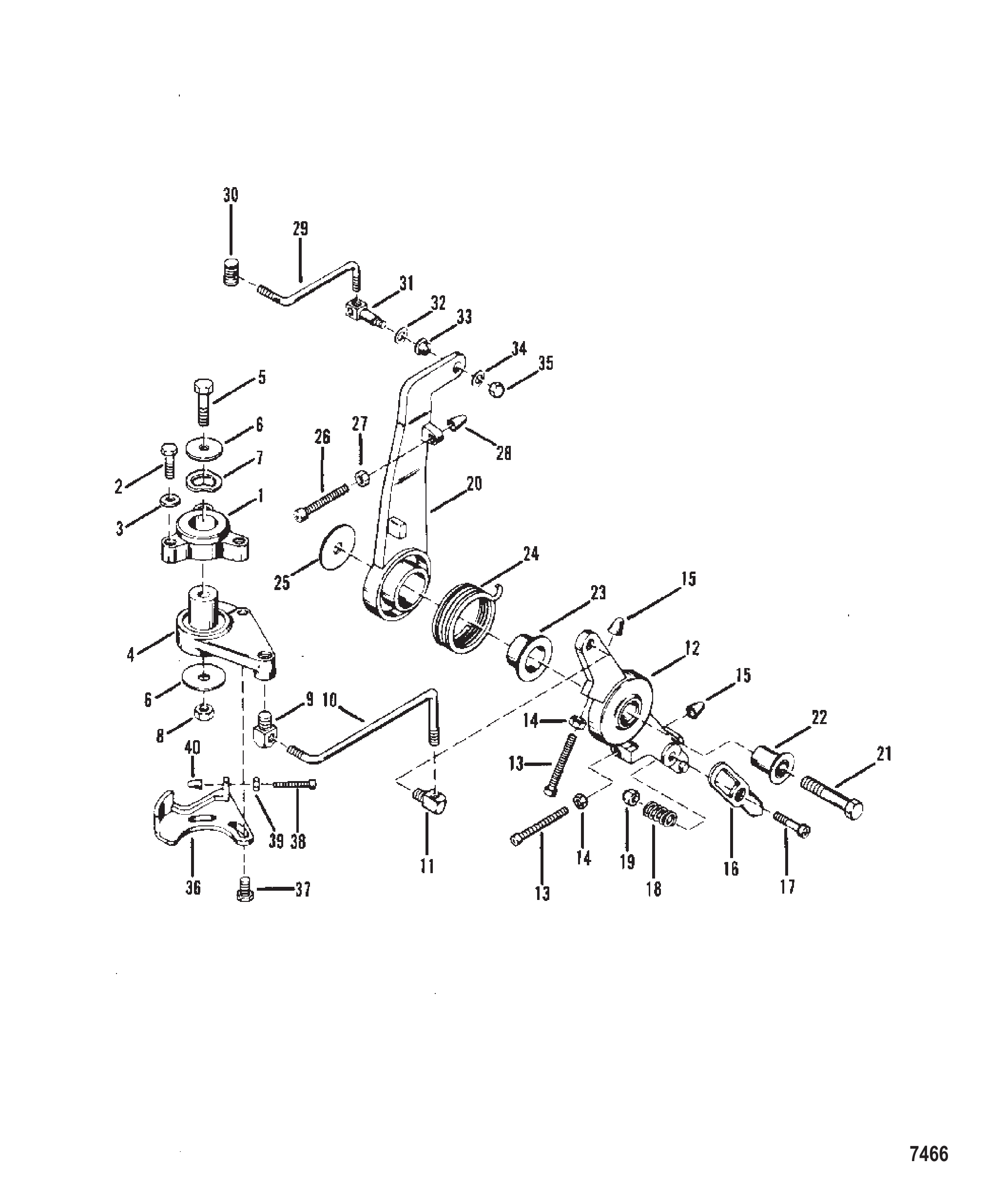

图 26油门控制联动机构 Throttle Control Linkage
油门控制联动机构 Throttle Control Linkage
REF零件编号中文名称英文名称数量
172040油门执行器支架BRACKET Throttle Actuator1
253576节气门执行器支架螺钉(.312-18 x 1.125)SCREW (.312-18 x 1.125) Throttle Actuator Bracket3
326993节气门执行器支架螺钉锁紧垫圈(.312)LOCKWASHER (.312) Throttle Actuator Bracket Screw3
38M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
472032节气门执行器ACTUATOR Throttle1
4815603A1油门执行器总成ACTUATOR ASSEMBLY Throttle1
521449支架至节气门执行器螺钉(.312-24 x 2.00)SCREW (.312-24 x 2.00) Bracket to Throttle Actuator1
625893支架螺钉垫圈WASHER Bracket Screw2
762172支架螺钉波形垫圈WAVE WASHER Bracket Screw1
829250支架螺钉螺母(.312-24)NUT (.312-24) Bracket Screw1
957440连杆至节气门执行器旋转接头SWIVEL Link Rod to Throttle Actuator1
1072043连杆LINK ROD1
1157440连杆至节气门臂旋转接头SWIVEL Link Rod to Throttle Arm1
1276560节气门臂ARM Throttle1
12815603A1油门执行器总成ACTUATOR ASSEMBLY Throttle1
1355903节气门臂调节螺钉SCREW Adjusting - Throttle Arm1
1389778螺钉SCREW1
1325158节气门臂调节螺钉(.190-32 x 1.75)SCREW (.190-32 x 1.75) Adjusting - Throttle Arm1
1468219不锈钢调节螺钉螺母(#10-32)NUT (#10-32) Stainless Steel Adjusting Screw2
1548039CAP Adjusting Screw2
1639483节气门臂锁扣LATCH Throttle Arm1
1722486锁扣至节气门臂螺钉(.250-28 x .880)SCREW (.250-28 x .880) Latch to Throttle Arm1
1769026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
1820099SPRING Compression - Latch Screw1
1920586NUT (.250-28) Latch Screw1
19826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
2076559A1点火提前杆LEVER Spark Advance1
20815607A1点火提前杆总成LEVER ASSEMBLY Spark Advance1
2155337杠杆和臂至气缸体螺钉(.375-16 x 1.75)SCREW (.375-16 x 1.75) Lever and Arm to Cylinder Block1
21818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
2255164杠杆臂螺钉衬套BUSHING Lever and Arm Screw1
2355171杠杆臂螺钉衬套BUSHING Lever and Arm Screw1
2455162SPRING Return - Spark Advance Lever1
2568410杠杆臂螺钉垫圈WASHER Lever and Arm Screw1
2546765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
2625158调节螺钉(.190-32 x 1.75)-火花提前杠杆SCREW (.190-32 x 1.75) Adjusting - Spark Advance Lever1
2768219不锈钢调节螺钉螺母(#10-32)NUT (#10-32) Stainless Steel Adjusting Screw1
2848039CAP Adjusting Screw1
2976056火花提前连杆LINK ROD Spark Advance1
3074897螺纹枢轴-连杆至触发器PIVOT Threaded - Link Rod to Trigger1
3074897T枢轴PIVOT1
3177013A1连杆旋转接头-火花提前杠杆SWIVEL Link Rod to Spark Advance Lever1
3229402旋转接头波形垫圈WAVE WASHER Swivel1
3326856连杆旋转接头衬套BUSHING Link Rod Swivel1
3433786连杆旋转接头垫圈WASHER Link Rod Swivel1
3473288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
3545774连杆旋转接头螺母NUT Link Rod Swivel1
3666778节流阀执行器板PLATE Throttle Actuator1
3666778T油门板PLATE-THROTTLE1
3746420螺钉(#10-24 x .500)-板至节流阀执行器SCREW (#10-24 x .500) Plate to Throttle Actuator2
3823015调节螺钉(.190-32 x 1.00)-板SCREW (.190-32 x 1.00) Adjusting - Plate1
3968219不锈钢调节螺钉螺母(#10-32)NUT (#10-32) Stainless Steel Adjusting Screw1
4048039CAP Adjusting Screw1
图 27自动混合器 AUTO-BLEND
自动混合器 AUTO-BLEND
REF零件编号中文名称英文名称数量
-130194自动混合装置AUTO BLEND ASSEMBLY1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
316619CAP Oil Tank1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
716620安装支架套件BRACKET KIT Mounting1
813993箍带BAND1
913983左支架BRACKET Left1
1013984右支架BRACKET Right1
1116613盖板COVER1
1213985机油滤清器/传感器套件FILTER/SENSOR KIT Oil1
1318576燃油滤清器套件FILTER KIT Fuel1
1413992乙烯基软管VINYL TUBE1
1516618机油滤网STRAINER Oil1
1616615止回阀套件CHECK VALVE KIT1
1716621安装板PLATE1
1819265模块套件MODULE KIT1
1916623支架套件BRACKET KIT1
2016616衬垫套件GASKET KIT1
2114585A1自动混合线束总成HARNESS ASSEMBLY Auto Blend1
图 28启动电机总成 Starter Motor Assembly
启动电机总成 Starter Motor Assembly
REF零件编号中文名称英文名称数量
-73521启动电机总成STARTER MOTOR ASSEMBLY1
190643驱动套件DRIVE KIT1
268575驱动总成DRIVE ASSEMBLY1
2685753驱动总成DRIVE ASSEMBLY1
375660PLATE Drive End1
475379贯穿螺栓BOLT Through2
675382电枢ARMATURE1
775384电刷/弹簧套件BRUSH/SPRING KIT1
7898265016电刷/弹簧套件BRUSH/SPRING KIT1
857387BUSHING Insulating1
938013WASHER Input Stud1
1026992LOCKWASHER (.250) Stainless Steel Input Stud1
1120890NUT (.250-20) Input Stud1
1261787电刷架HOLDER Brush2
12898265014电刷支架HOLDER-BRUSH2
1368586SCREW Brush and Holder2
1475383END CAP Commutator1

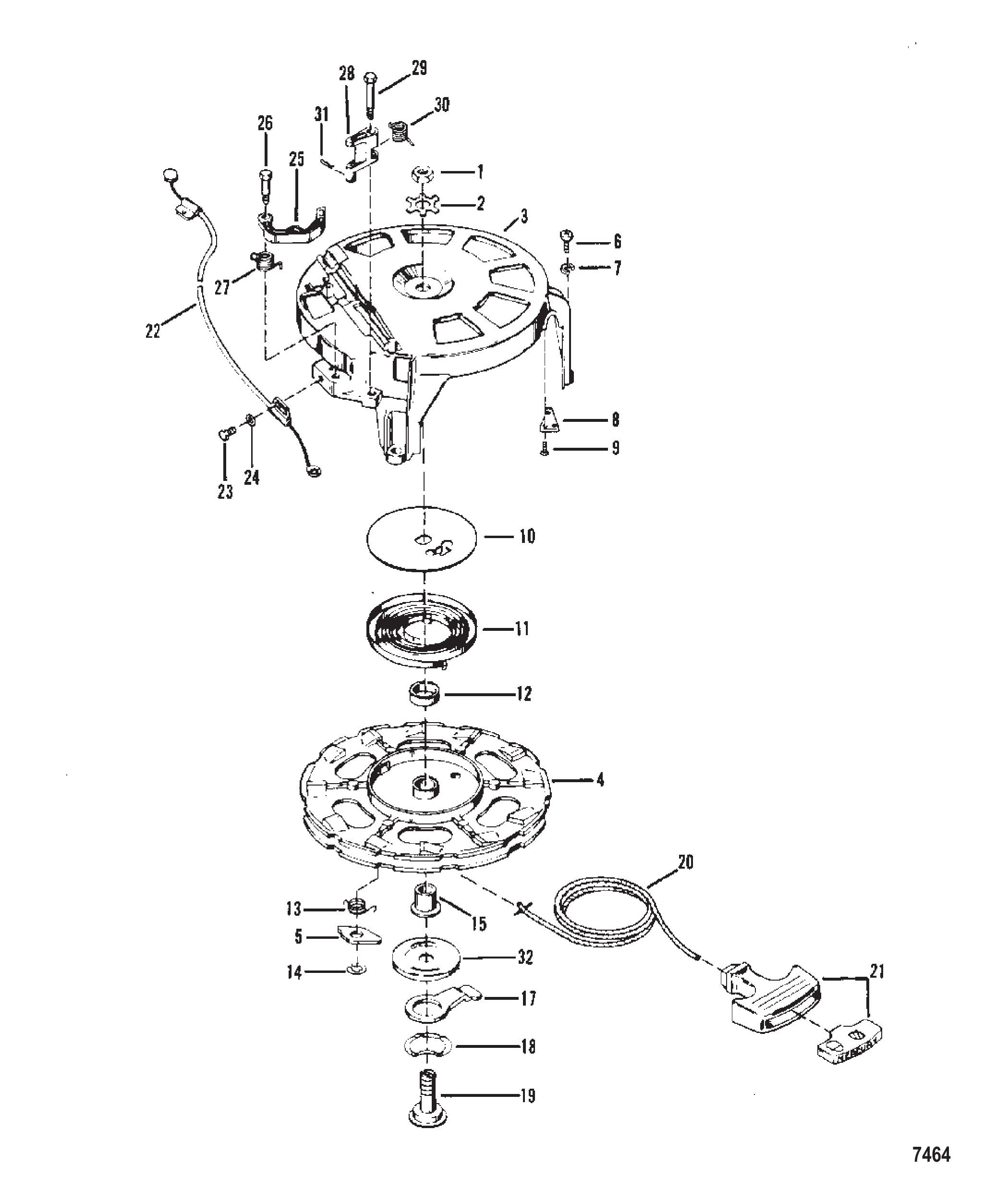

图 29启动器回绕装置 STARTER REWIND
启动器回绕装置 STARTER REWIND
REF零件编号中文名称英文名称数量
120166NUT Sheave Shaft (Left Hand Thread)1
261004TAB WASHER Sheave Shaft Nut1
3890162启动器壳体HOUSING Starter1
444255A1启动器滑轮总成SHEAVE ASSEMBLY Starter1
544508启动棘爪PAWL Starter1
654523螺钉 (.312-18 x 1.00) 启动器外壳SCREW (.312-18 x 1.00) Starter Housing3
720202锁紧垫圈 启动器外壳螺钉LOCKWASHER Starter Housing Screw3
837691电缆导板PLATE Cable Guide1
935881螺钉 (#6-32 x .250) 驱动-电缆导板SCREW (#6-32 x .250) Drive - Cable Guide Plate3
9358811螺丝(#6-32 x .250)SCREW (#6-32 x .250)3
1061002PLATE Starter Rewind1
1139502A1弹簧SPRING1
1139502T02回卷弹簧SPRING-RECOIL1
1287649BUSHING Spring Guide1
1387651SPRING Starter Pawl1
1487706E RING Starter Pawl1
1563061SPACER Sheave Shaft1
1794962杠杆LEVER1
1820160波形垫圈WAVE WASHER1
1987656滑轮轴SHEAVE SHAFT1
2012066A9绳索ROPE1
2012066Q10启动绳@2ROPE-STARTER@21
2047341A1绳索与手柄套件 手动/应急启动ROPE AND HANDLE KIT Manual/Emergency Start For Manual Starting1
2047341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2185174A1手柄总成HANDLE ASSEMBLY1
2276568联锁电缆CABLE Interlock1
2369022螺钉 (#10-32 x .500) 不锈钢联锁电缆固定SCREW (#10-32 x .500) Stainless Steel Interlock Cable Attaching2
2433786联锁电缆螺钉垫圈WASHER Interlock Cable Screw2
2473288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel2
2542820CAM Interlock1
25428201凸轮CAM1
2676138螺钉 (.312-18 x 1.120) 联锁凸轮(1.125英寸)SCREW (.312-18 x 1.120) Interlock Cam (1.125 Inch)1
2776140联锁凸轮螺钉弹簧SPRING Interlock Cam Screw1
27761401弹簧SPRING1
2879371ACTUATOR Interlock1
2976137联锁执行器螺钉(1.625英寸)SCREW Interlock Actuator (1.625 Inch)1
3076139联锁执行器螺钉弹簧SPRING Interlock Actuator Screw1
3127769COTTER PIN Interlock Cable to Actuator1
3126811开口销COTTER PIN1
3235559WASHER Starter Rewind1
-89016A3起动机总成回绕式STARTER ASSEMBLY Rewind1

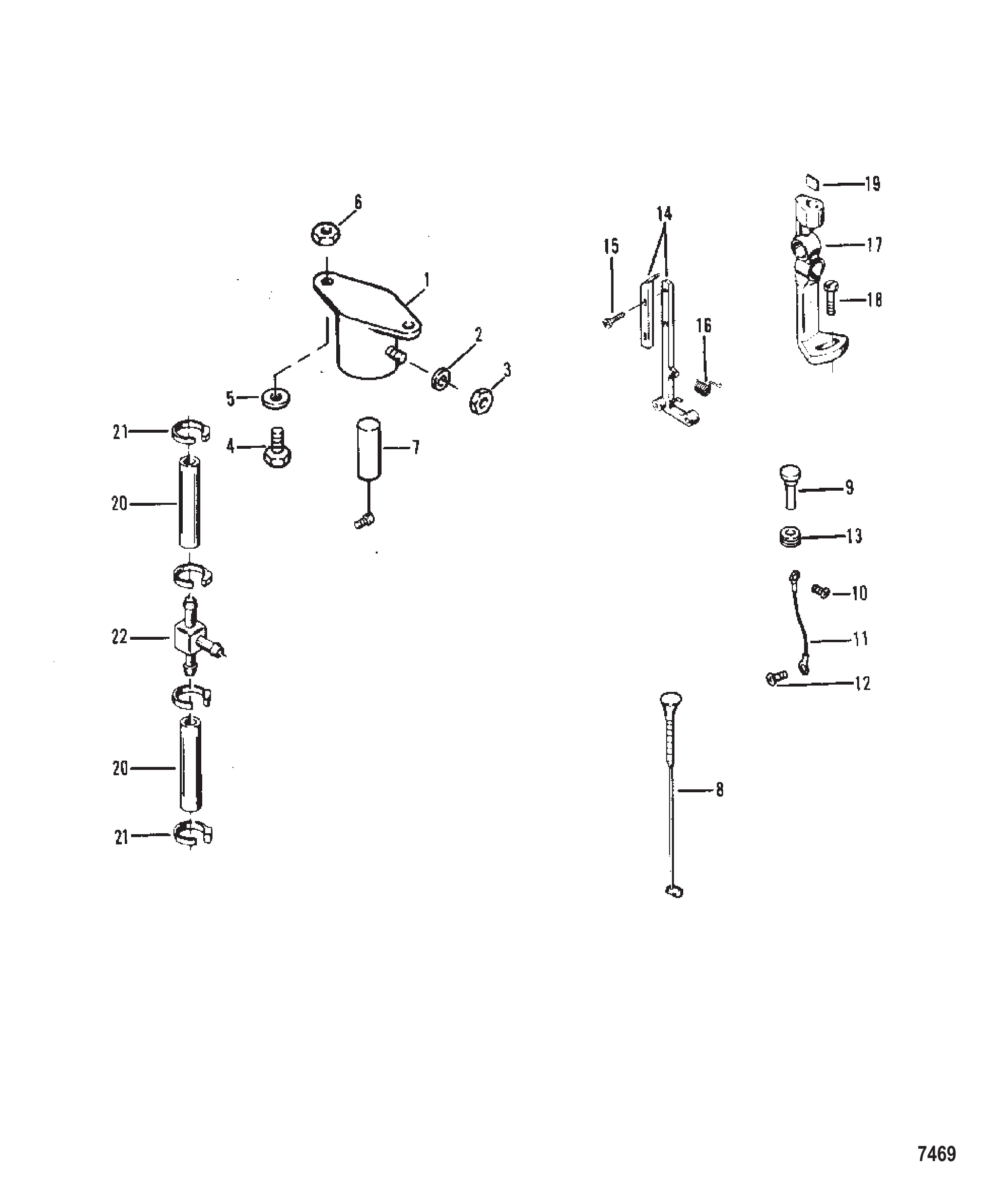

图 30化油器联动机构/阻风门电磁阀 Carburetor Linkage/Choke Solenoid
化油器联动机构/阻风门电磁阀 Carburetor Linkage/Choke Solenoid
REF零件编号中文名称英文名称数量
154293A11阻风门电磁阀总成SOLENOID ASSEMBLY Choke1
226996LOCKWASHER (#10) Stainless Steel Choke Solenoid Terminal1
345076NUT (#10-32) Brass Choke Solenoid Terminal1
426066阻风门电磁阀至前支架螺钉(.312-24 x 1.75)SCREW (.312-24 x 1.75) Choke Solenoid to Front Bracket2
526993阻风门电磁阀螺钉锁紧垫圈(.312)LOCKWASHER (.312) Choke Solenoid Screw2
622053阻风门电磁阀螺钉螺母(.312-24)NUT (.312-24) Choke Solenoid Screw2
756074A8阻风门电磁阀柱塞总成PLUNGER ASSEMBLY Choke Solenoid1
890241阻风门旋钮KNOB Choke1
990242A1旋钮总成KNOB ASSEMBLY1
1035519拉带至阻风门旋钮螺钉(#10-16 x .500)SCREW (#10-16 x .500) Strap to Choke Knob1
1149589阻风门旋钮至拉杆拉带STRAP Choke Knob to Choke Rod1
1262568拉带至阻风门拉杆螺钉(#10-16 x .375)SCREW (#10-16 x .375) Strap to Choke Rod1
1320116GROMMET Choke Knob1
1485966A1阻风门拉杆总成ROD ASSEMBLY Choke1
1586042阻风门拉杆螺钉SCREW Choke Rod2
1660288阻风门拉杆弹簧SPRING Choke Rod1
1753719A2拾取支架总成BRACKET ASSEMBLY Pick Up1
1866104拾取支架螺钉(#8-32 x .790)SCREW (#8-32 x .790) Pick-Up Bracket1
1989694联轴器键KEY Coupling1
2099127109化油器三通燃油管(57.00英寸散装)LINE (57.00 Inches Bulk) Carburetor to Tee to Carburetor2
2190077燃油管束带TIE STRAP Fuel LineAR
2273318塑料燃油三通TEE Plastic Fuel Line1
图 31杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-811286零件手册(6/8/9.9/15马力)PARTS MANUAL 6/8/9.9/15 Hp
-12048930用户指南(黑色)OWNERS GUIDE (BLACK)
-14138930用户指南(灰色)OWNERS GUIDE (GRAY)
-14012A89贴花套装(9.9/210帆动力)DECAL SET (9.9/210 SAILPOWER)
-12836A89贴花套装(黑色-6至9.9马力)DECAL SET (BLACK- 6 THRU 9.9)
-13478A88贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-810458A92贴花套装(灰色-6至15马力)DECAL SET (GRAY- 6 THRU 15)
-822787A93贴花套装(灰色-8帆伴侣)DECAL SET (GRAY 8 SAILMATE)
-808560A03贴花套件DECAL SET
-808522A94贴花套装(黑色-6马力)DECAL SET (BLACK-6)
-808522A00贴花套件DECAL SET
-808526A94贴花套装(黑色-8马力)DECAL SET (BLACK -8)
-808526A00贴花套件DECAL SET
-12836A94贴花套装(黑色-9.9马力)DECAL SET (BLACK- 9.9)
-12836A00贴花套件DECAL SET
-808523A94贴花套装(9.9帆动力)DECAL SET (9.9 SAILPOWER)
-808523A96贴花套件DECAL SET
-13478A94贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-13478A00贴花套件DECAL SET
-808524A94贴花套装(灰色-6马力)DECAL SET (GRAY-6)
-808524A03贴花套件DECAL SET
-808545A94贴花套装(灰色-8马力)DECAL SET (GRAY-8)
-808545A03贴花套件DECAL SET
-808560A94贴花套装(8帆伴侣)DECAL SET (8 SAILMATE)
-808560A03贴花套件DECAL SET
-808525A94贴花套装(灰色-9.9马力)DECAL SET (GRAY-9.9)
-808525A03贴花套件DECAL SET
-808546A94贴花套装(灰色-15马力)DECAL SET (GRAY-15)
-808546A03贴花套件DECAL SET

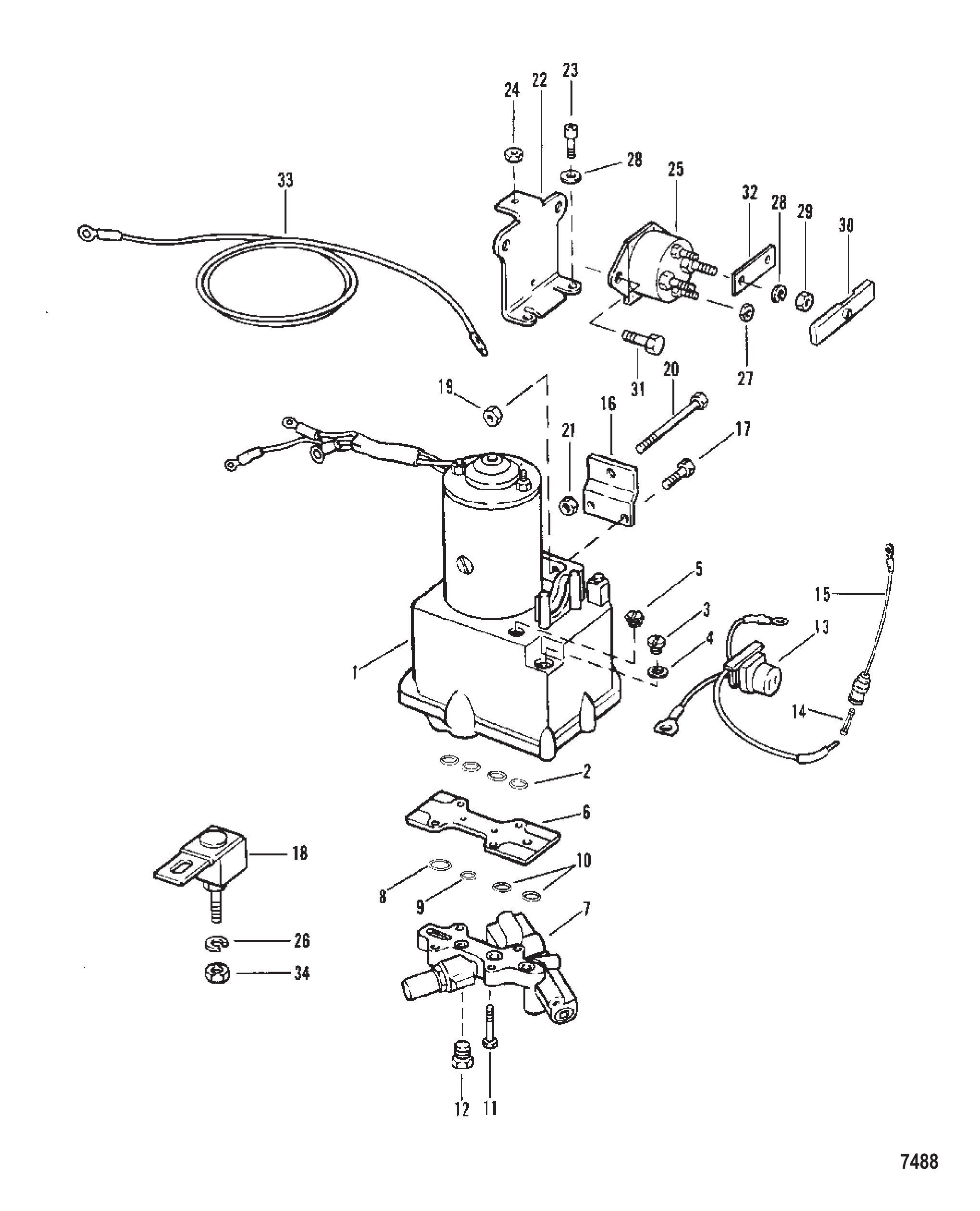

图 32动力升降组件(电动手柄) Power Trim Components (Electric Handle)
动力升降组件(电动手柄) Power Trim Components (Electric Handle)
REF零件编号中文名称英文名称数量
192975A6液压泵总成PUMP ASSEMBLY Hydraulic1
248171O-RING (.364. x .070) Manifold Plate4
379953SCREW (.375-16 x .250) Filler - Hydraulic Pump1
419183纤维密封填料螺钉垫圈WASHER Fiber Sealing Filler Screw1
562269螺钉 (#10-32 x .437) 液压泵通气孔SCREW (#10-32 x .437) Vent - Hydraulic Pump Hydraulic Pump1
645336PLATE Manifold1
745197A2控制阀总成VALVE ASSEMBLY Control1
--48171O形圈 (.364. x .070) 歧管板(参见参考号#2)O-RING (.364. x .070) Manifold Plate (See Reference. #2)4
845254O形圈 控制阀O-RING Control Valve1
948171O-RING (.364. x .070) Control Valve1
1045253O形圈 控制阀O-RING Control Valve2
1156500螺钉 (.250-28 x 1.250) 阀与歧管板至泵SCREW (.250-28 x 1.250) Valve and Manifold Plate to Pump4
1246008控制阀塞PLUG Control Valve2
1379147A3线束总成HARNESS ASSEMBLY1
1479091保险丝20安培FUSE 20 Ampere1
1595084A3保险丝线束总成CABLE ASSEMBLY Fuse1
1645377T安装支架BRACKET Mounting2
1735386螺钉 (.312-18 x 1.00) 安装支架至液压泵SCREW (.312-18 x 1.00) Mounting Bracket to Hydraulic Pump4
1879023A9090安培保险丝总成FUSE ASSEMBLY 90 Ampere1
1921908NUT (.312-18) Cad Plated Mounting Bracket Screw4
2031830螺栓 (.375-24 x 1.75) 液压泵至船体BOLT (.375-24 x 1.75) Hydaulic Pump to Boat2
2124883液压泵手册螺母NUT Hydaulic Pump Book2
2294279安装支架-启动电磁阀BRACKET Mounting - Starter Solendied1
2348060螺钉 (.250-14 x .625) 安装支架至液压泵SCREW (.250-14 x .625) Mounting Bracket to Hydraulic Pump2
2429488螺母 (#10-32) 安装支架至液压泵贯穿螺栓NUT (#10-32) Mounting Bracket to Hydraulic Pump through Bolt1
2596158启动电磁阀SOLENOID Starter2
2696457WASHER Phenolic (.27 x .81 x .062) Fuse Terminal1
2726419NUT (#8-32) Brass Solenoid Terminal4
2826992LOCKWASHER (.250) Stainless Steel Solenoid Terminal4
2994330NUT (.250-20) Brass Solenoid Terminal4
3096535橡胶启动电磁阀端子护套BOOT Rubber Starter Solenoid Terminal1
3141508螺钉 (.250-20 x .500) 不锈钢启动电磁阀至安装支架SCREW (.250-20 x .500) Stainless Steel Starter Solenoid to Mounting Bracket4
3294275连杆 电磁阀至电磁阀LINK Soleniod to Solenoid1
3379139A13电池电缆总成CABLE ASSEMBLY Battery1
3421825NUT (.250-28) Fuse Terminal1

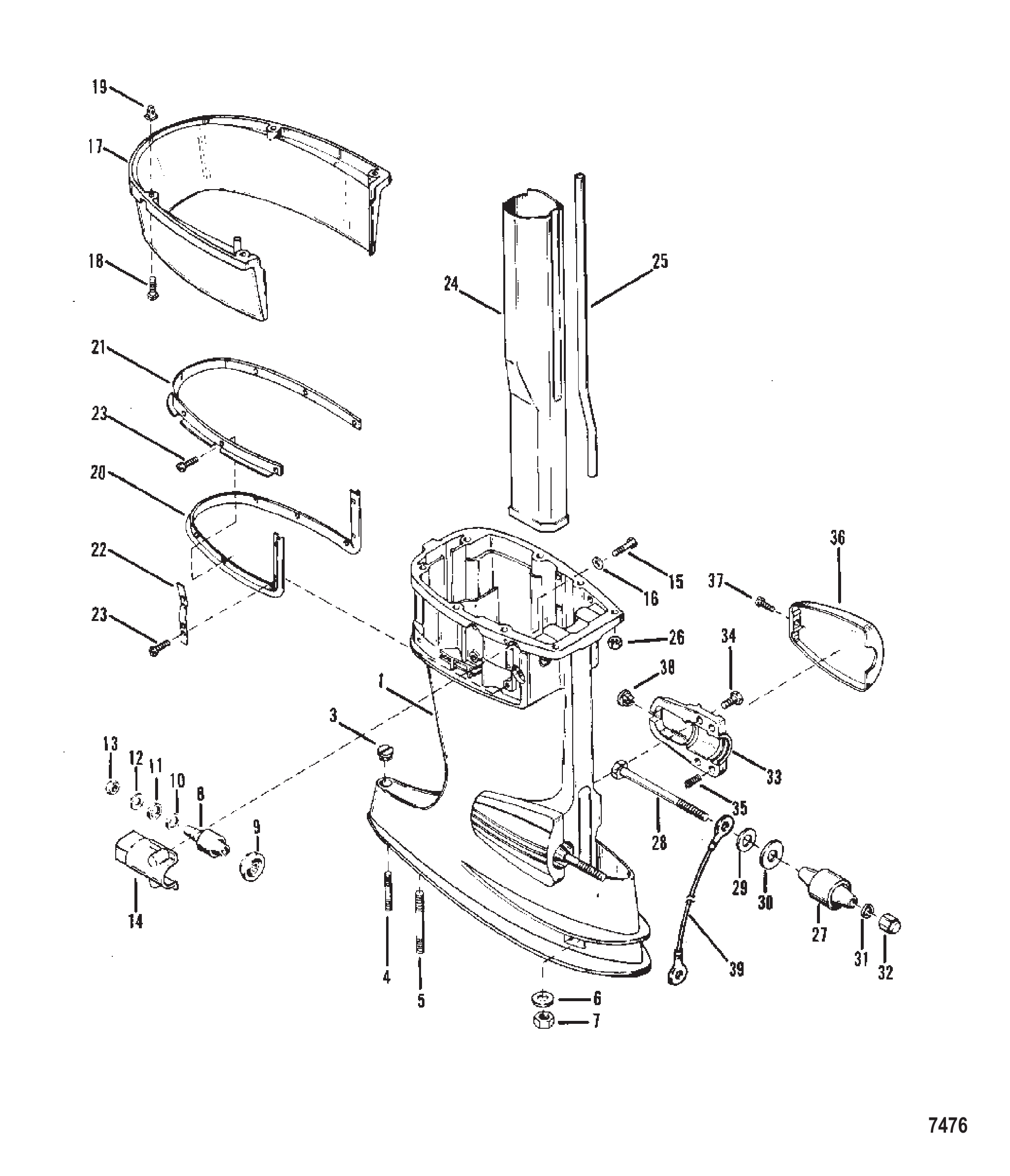

图 33驱动轴壳体总成 Driveshaft Housing Assembly
驱动轴壳体总成 Driveshaft Housing Assembly
REF零件编号中文名称英文名称数量
17512A10驱动轴壳体总成(短轴)HOUSING ASSEMBLY Driveshaft (Short Shaft)1
17513A12驱动轴壳体总成(长轴)HOUSING ASSEMBLY Driveshaft (Long Shaft)1
18189A10黑色传动轴壳体总成HOUSING ASSEMBLY Driveshaft Black1
18189A11灰色传动轴壳体总成HOUSING ASSEMBLY Driveshaft Gray1
364649塑料螺塞-调整片螺钉孔PLUG Plastic - Trim Tab Screw Hole1
457932STUD (.375-16/.375-24 x 1.750) Driveshaft Housing1
557935驱动轴壳体双头螺柱(3英寸)STUD Driveshaft Housing (3 Inch)1
665791齿轮箱壳体螺柱垫圈(0.438英寸)WASHER Gear Housing Studs (0.438 Inch)2
734933NUT (.437-20) Stainless Steel Gear Housing Studs2
893445橡胶上支架MOUNT Rubber - Upper2
996401上支架密封件SEAL Upper Mount2
1027727WASHER Upper Mount Bolt (37/64 I.D.)2
1166966WASHER Rubber - Upper Mount Bolt2
1230514WASHER Upper Mount Bolt2
1334933NUT (.437-20) Stainless Steel Upper Mount Bolt2
1487883T上减震座盖COVER Upper Mount2
1576630SCREW (.250-20 x 1.00) Upper Mount Cover4
1629245WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw4
1737687驱动轴壳体调整盖COVER Trim - Driveshaft Housing1
1737687F2驱动轴壳体调整盖COVER Trim - Driveshaft Housing1
1857807SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing4
1992012GROMMET Trim Cover Screw4
2038157调整盖至驱动轴壳体密封件SEAL Trim Cover to Driveshaft Housing1
2138158调整盖密封条(后)STRIP Retaining - Trim Cover Seal (Rear)1
2238154调整盖密封条(侧)STRIP Retaining - Trim Cover Seal (Side)2
2348408固定条螺钉(#10-16 x .500)SCREW (#10-16 x .500) Retaining Strip8
24695431排气管TUBE Exhaust1
24695441排气管TUBE Exhaust1
2537727进水口管TUBE Water Inlet1
2545679进水口管TUBE Water Inlet1
2664809动力头螺柱螺母(0.313英寸)NUT Powerhead Studs (0.313 Inch)8
2775304下橡胶支座MOUNT Rubber - Lower2
2875284SCREW (.500-20 x 5.500) Lower Mount Screw2
2843426下支座螺丝SCREW Lower Mount Screw2
2928051WASHER Lower Mount Screw2
3028053下支座螺丝橡胶垫圈WASHER Rubber - Lower Mount Screw2
3130119WASHER (.875 Inch Outside Diameter) Lower Mount Screw2
3225096NUT Lower Mount Screw2
3369592下支座夹箍CLAMP Lower Mount2
3429256SCREW (.312-18 x .875) Lower Mount Clamp4
3535522SPRING Tension - Lower Mount Clamp4
3635474T下安装夹盖COVER Lower Mount Clamp2
3635474F2下支座夹箍盖COVER Lower Mount Clamp Lower Mount Clamp2
3787884盖至下支座夹箍螺丝(#12-14 x 0.920)SCREW (#12-14 x .920) Cover to Lower Mount Clamp2
3835521NUT Lower Mount Clamp Cover2
3988238A2动力升降接地线组件(2根)CABLE ASSEMBLY Ground Quanity of Two on Power Trim1
图 34气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
REF零件编号中文名称英文名称数量
18981A6气缸体总成CYLINDER BLOCK ASSEMBLY1
272038启动电机上支架BRACKET Upper Starter Motor1
373279支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch)2
426993支架螺钉锁紧垫圈(.312)LOCKWASHER (.312) Bracket Screw4
48M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
576867启动电机下盖COVER Lower Starter Motor1
673279盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch)2
820032缸体至主轴承定位销PIN Dowel Cylinder block to main bearing2
968164化油器双头螺柱(1.25英寸)STUD Carburetor (1.25 Inch)4
964936螺柱STUD4
1068165曲轴箱至驱动轴壳体双头螺柱(1.625英寸)STUD Crankcase to Driveshaft Housing (1.625 Inch)2
1120033曲轴箱至缸体定位销PIN Dowel Crankcase to Cylinder Block2
1143044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
1287901缸体至驱动轴壳体双头螺柱(4英寸)STUD Cylinder block to drive shaft housing (4 Inch)2
1368166缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸)STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch)2
1468167缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸)STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch)2
1573657曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸)SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch)13
1531984曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸)SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch)3
1573275曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸)SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch)2
1670132曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063)WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw17
168M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)17
1720359螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
1798260螺钉(.375-16 x .620)SCREW (.375-16 x .620)2
1820091中央轴承锁紧螺钉止动垫圈TAB WASHER Center Bearing Locking Screw3
1999127109平衡管(57英寸散装)-主轴承(5.50英寸)LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch)1
198M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
2099664平衡管至缸体弯头ELBOW Balance Tube to Cylinder Block2
2099664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon2
2165857上部泄放软管接头CONNECTOR Upper Bleed Hose1
2156759倒钩接头FITTING Barbed1
229938779气缸泄放软管(11英寸)HOSE Cylinder Bleed (11 Inch)1
2342867下部泄放软管止回阀CHECK VALVE Lower Bleed Hose1
23428671止回阀CHECK VALVE1
2499156正时指示器INDICATOR Timing1
2539349指示器至曲轴箱不锈钢螺钉(.312-18 x .750)SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase1
2626993指示器螺钉锁紧垫圈(.312)LOCKWASHER (.312) Indicator Screw1
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
-97469A87动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-97469T87船用动力头POWERHEAD MARINE1
图 35转向手柄总成 Steering Handle Assembly
转向手柄总成 Steering Handle Assembly
REF零件编号中文名称英文名称数量
148416CAP Steering Handle Grip1
220586NUT (.250-28) Steering Handle Arm1
321631WASHER (.255 x .625 x .0312) Steering Handle Arm1
458192A1GRIP Steering Handle Arm1
548414驱动轮外壳HOUSING Drive Wheel1
648516A1驱动轮/杆总成DRIVE WHEEL/ROD ASSEMBLY1
748405A2臂总成ARM ASSEMBLY1
848519PLATE Cover - Drive Wheel1
948518盖板垫片GASKET Cover Plate1
1028192螺钉 (#10-24 x .50) 驱动轮盖板SCREW (#10-24 x .50) Drive Wheel Cover Plate4
11785511电缆导管CONDUIT Cable1
1248520节气门拉索CABLE Throttle1
1389613控制连杆接头CONNECTOR Control Linkage1
1489601SCREW Set - Throttle Cable Guide Tube1
15895661节气门电缆导向管GUIDE TUBE Throttle Cable Guide1
1643433节气门电缆导向器GUIDE Throttle Cable1
1720007ANCHOR Throttle Cable1
1820518SET SCREW (#8-32) Throttle Cable Anchor2
1948404T手柄支架BRACKET Handle1
2048416手柄支架盖CAP Handle Bracket1
2148476手柄支架螺钉SCREW Handle Bracket1
2248477手柄支架垫圈WASHER Handle Bracket1
2348526尼龙垫圈-手柄支架WASHER Nylon - Handle Bracket1
2428919尼龙衬套-手柄支架BUSHING Nylon - Handle Bracket2
2548525手柄支架隔套SPACER Handle Bracket1
2648527尼龙垫圈-手柄支架WASHER Nylon - Handle Bracket1
2748478手柄支架波形垫圈WAVE WASHER Handle Bracket2
2849636尼龙垫圈-手柄支架WASHER Nylon - Handle Bracket1
2920220螺母(.500-20)-手柄支架螺钉NUT (.500-20) Handle Bracket Screw1
3035786SCREW (.375-24 x 1.00) Bracket to Engine2
3143589支架螺钉锁紧垫圈TAB WASHER Bracket Screw2
3278812A1DETENT Shift Lever1
3348409不锈钢换挡杆定位螺钉(#10-16 x .625)SCREW (#10-16 x .625) Stainless Steel Shift Lever Detent2
34485681换挡杆SHIFT LEVVER1
3548237尼龙衬套-换挡杆BUSHING Nylong - Shift Lever1
3634931WASHER (.406 x .734 x .063) Stainless Steel Shift Lever1
3734863螺母(.375-24)-换挡杆NUT (.375-24) Shift Lever1
3849563换挡连杆SHIFT ROD1
3948419ROD END Shift Rod1
4048475尼龙衬套-换挡杆BUSHING Nylon - Shift Rod1
4135950WASHER (.273 x .437 x .031) Stainless Steel Shift Rod1
4225191COTTER PIN Shift Rod1
4398530KNOB Shift Lever1
4411083A11停机开关总成SWITCH ASSEMBLY Stop1
4512044RETANER Stop Switch1
4615920A54拉绳总成LANYARD ASSEMBLY1
4764855停止开关夹CLAMP Stop Switch1
--52148A1副驾驶套件CO-PILOT KIT1

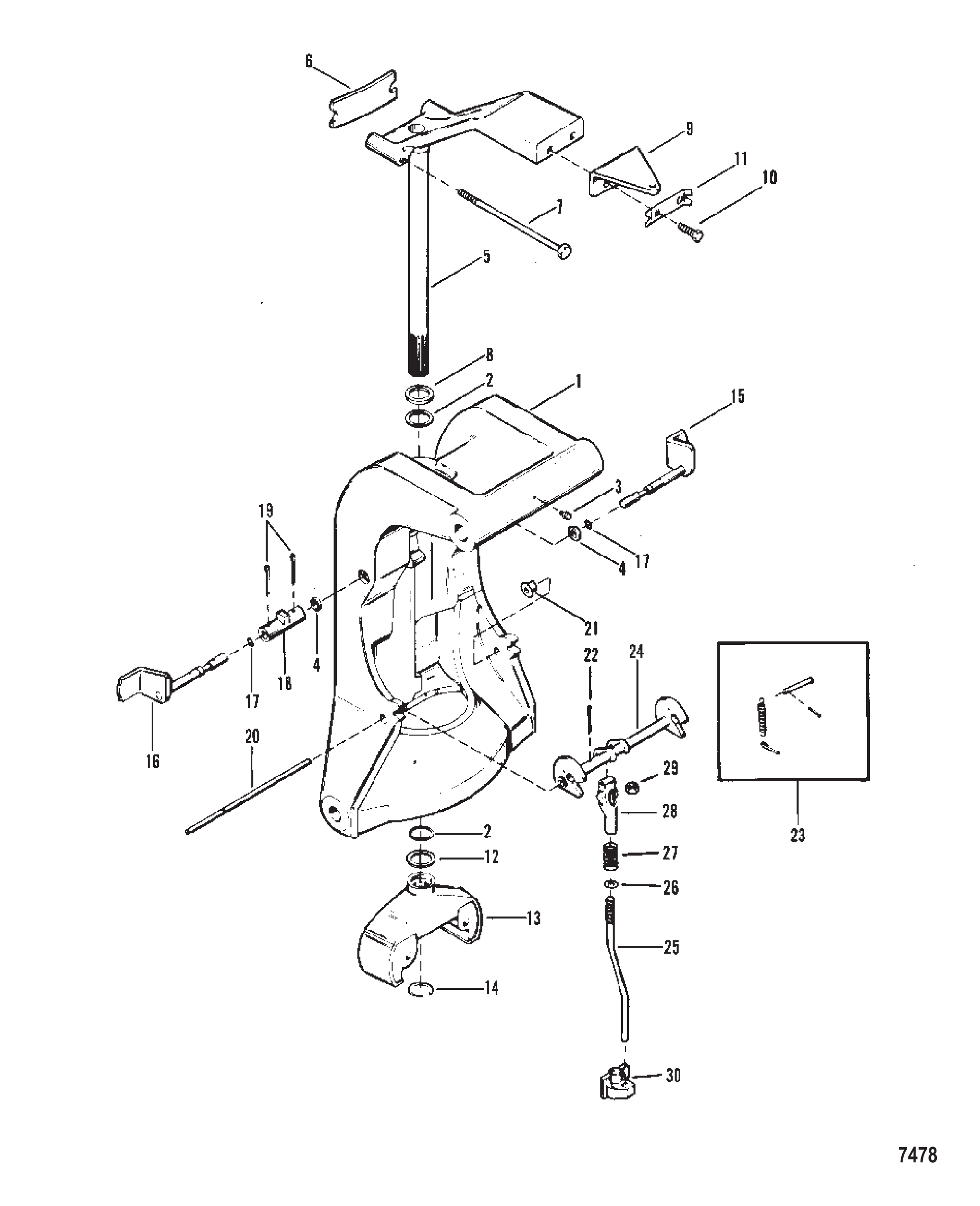

图 36旋转支架与倒车锁(非动力升降) Swivel Bracket and Reverse Lock (Non Power Trim)
旋转支架与倒车锁(非动力升降) Swivel Bracket and Reverse Lock (Non Power Trim)
REF零件编号中文名称英文名称数量
18597A4旋转支架SWIVEL BRACKET1
18599A6旋转支架SWIVEL BRACKET1
232911SEAL Oil Swivel Bracket2
374036润滑脂接头FITTING Grease4
422734SEAL Oil Swivel Bracket2
588798A1两件式转向臂旋转销总成SWIVEL PIN ASSEMBLY Two Piece Steering Arm1
588798A2两件式转向臂旋转销总成SWIVEL PIN ASSEMBLY Two Piece Steering Arm1
569540A3整体式转向臂旋转销总成SWIVEL PIN ASSEMBLY One Piece Steering Arm1
569540A4整体式转向臂旋转销总成SWIVEL PIN ASSEMBLY One Piece Steering Arm1
630711BUMPER Steering Arm1
766897螺栓(.437-20 x 5.250)-上支架至旋转销(5.25英寸)BOLT (.437-20 x 5.250) Upper MOunt to Swivel Pin (5.25 Inch)2
847606旋转销垫圈-下部WASHER Swivel Pin - Lower1
976535行驶导向支架BRACKET Ride - Guide1
1034352支架螺钉(.375-24 x .875)SCREW (.375-24 x .875) Bracket2
1176533STRAP Bracket Screw1
1225176WASHER Swivel Pin to Bottom Yoke (.060)1
1377416T下轭架YOKE Bottom1
1377416T6下轭架YOKE Bottom1
1477415RETAINING RING Bottom Yoke1
15/1689105倾斜锁定装置TILT LOCK2
15/1699431A1倾斜锁定装置TILT LOCK2
1762702O型圈(.301 x .070)-倾斜锁定O-RING (.301 x .070) Tilt Lock2
1879659COUPLING Tilt Lock1
1947959COTTER PIN Tilt Lock Tube2
2056349倒挡锁定枢轴SHAFT Reverse Lock Pivot1
2169132倒挡枢轴衬套BUSHING Reverse Pivot Shaft2
2245882COTTER PIN Reverse Lock to Shaft2
2378203A2倒挡锁定张力弹簧SPRING Reverse Lock Tension1
2414664A3倒车锁REVERESE LOCK1
2543415倒挡锁定推杆PUSH ROD Reverse Lock1
2543416倒挡锁定推杆PUSH ROD Reverse Lock1
2670132WASHER (.323 x .563 x .063) Stainless Steel Push Rod1
2744297SPRING Push Rod1
2889813ROD END Push Rod1
2935814不锈钢推杆螺母(.312-24)NUT (.312-24) Stainless Steel Push Rod1
3093336GUIDE Push Rod1
-85491A87衬垫套件GASKET SET1

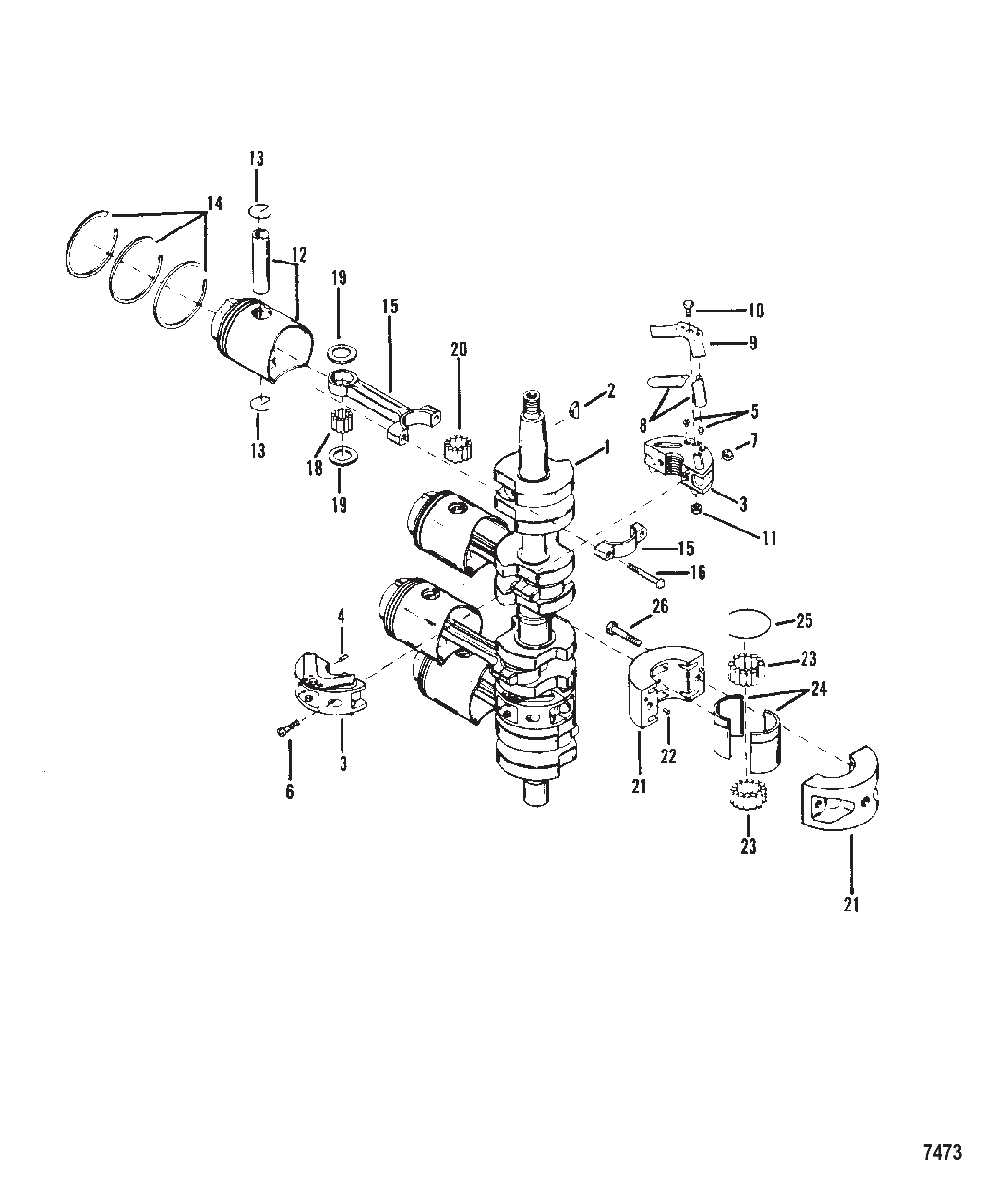

图 37曲轴/活塞及连杆 Crankshaft Pistons, and Connecting Rods
曲轴/活塞及连杆 Crankshaft Pistons, and Connecting Rods
REF零件编号中文名称英文名称数量
19075曲轴CRANKSHAFT1
220094曲轴半圆键KEY Woodruff Crankshaft1
33267A25主阀式轴承总成BEARING ASSEMBLY Main Valve Type2
420032主轴承定位销PIN Dowel Main Bearing4
565855簧片定位销PIN Dowel Reed Locating16
645775主轴承螺钉(#12-28 x .560)(0.563英寸)SCREW (#12-28 x .560) Main Bearing (0.563 Inch)4
745774主轴承螺钉螺母NUT Main Bearing Screw4
888498A1配套簧片组REED SET Matched2
979014簧片止挡STOP Reed8
1077280簧片止动螺钉(.190-32 x .560)(0.563英寸)SCREW (.190-32 x .560) Reed Stop (0.563 Inch)8
1120110簧片止动螺钉螺母(#10-32)NUT (#10-32) Reed Stop Screw8
125172A6活塞总成PISTON ASSEMBLY4
123366A2活塞总成PISTON ASSEMBLYAR
127716A2活塞总成PISTON ASSEMBLYAR
1347276活塞销锁环LOCK RING Piston Pin8
1427841A12活塞环组-标准RING SET Piston - Standard1
1428616A12活塞环组RING SET Piston1
1489822A12活塞环组-.030加大RING SET Piston - .030 Oversize1
157621A3连杆总成CONNECTING ROD ASSEMBLY4
1691012盖至连杆专用螺钉(.250-28)SCREW (.250-28 Special) Cap to Rod8
1820063BEARING Needle Piston Pin108
1947275针阀定位垫圈WASHER Needle Locating8
2020046T曲柄销滚针轴承BEARING Needle Crankpint100
217060A2中央主轴承总成BEARING ASSEMBLY Center Main1
2220032PIN Dowel Center Main Bearing2
2371422滚针轴承BEARING Needle56
2426113外圈RACE Outer1
2526933外圈卡环RING Snap Outer Race1
2676630中心主轴承螺钉(.250-20 x 1.00)(1英寸)SCREW (.250-20 x 1.00) Center Main Bearing (1 Inch)2
图 38化油器联动机构/阻风门电磁阀 CARBURETOR LINKAGE/CHOKE SOLENOID
化油器联动机构/阻风门电磁阀 CARBURETOR LINKAGE/CHOKE SOLENOID
REF零件编号中文名称英文名称数量
154293A11阻风门电磁阀总成SOLENOID ASSEMBLY Choke1
226996LOCKWASHER (#10) Stainless Steel Choke Solenoid Terminal1
345076NUT (#10-32) Brass Choke Solenoid Terminal1
426066阻风门电磁阀至前支架螺钉(.312-24 x 1.75)SCREW (.312-24 x 1.75) Choke Solenoid to Front Bracket2
526993阻风门电磁阀螺钉锁紧垫圈(.312)LOCKWASHER (.312) Choke Solenoid Screw2
58M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
622053阻风门电磁阀螺钉螺母(.312-24)NUT (.312-24) Choke Solenoid Screw2
756074A8阻风门电磁阀柱塞总成PLUNGER ASSEMBLY Choke Solenoid1
890241阻风门旋钮KNOB Choke1
990242A1旋钮总成KNOB ASSEMBLY1
1035519拉带至阻风门旋钮螺钉(#10-16 x .500)SCREW (#10-16 x .500) Strap to Choke Knob1
1149589阻风门旋钮至拉杆拉带STRAP Choke Knob to Choke Rod1
1262568拉带至阻风门拉杆螺钉(#10-16 x .375)SCREW (#10-16 x .375) Strap to Choke Rod1
1320116GROMMET Choke Knob1
1485966A1阻风门拉杆总成ROD ASSEMBLY Choke1
1586042阻风门拉杆螺钉SCREW Choke Rod2
1577614A1螺钉套件SCREW KIT2
1660288阻风门拉杆弹簧SPRING Choke Rod1
1753719A2拾取支架总成BRACKET ASSEMBLY Pick Up1
1866104拾取支架螺钉(#8-32 x .790)SCREW (#8-32 x .790) Pick-Up Bracket1
1989694联轴器键KEY Coupling1
2099127109化油器三通燃油管(57.00英寸散装)LINE (57.00 Inches Bulk) Carburetor to Tee to Carburetor2
208M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)2
2190077燃油管束带TIE STRAP Fuel LineAR
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2273318塑料燃油三通TEE Plastic Fuel Line1
图 39驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
REF零件编号中文名称英文名称数量
17512A10驱动轴壳体总成(短轴)HOUSING ASSEMBLY Driveshaft (Short Shaft)1
17513A12驱动轴壳体总成(长轴)HOUSING ASSEMBLY Driveshaft (Long Shaft)1
18189A10黑色传动轴壳体总成HOUSING ASSEMBLY Driveshaft Black1
18189A11灰色传动轴壳体总成HOUSING ASSEMBLY Driveshaft Gray1
364649塑料螺塞-调整片螺钉孔PLUG Plastic - Trim Tab Screw Hole1
457932STUD (.375-16/.375-24 x 1.750) Driveshaft Housing1
48M0022145螺柱(.375-16/.375-24 x 1.750)STUD (.375-16/.375-24 x 1.750)1
557935驱动轴壳体双头螺柱(3英寸)STUD Driveshaft Housing (3 Inch)1
665791齿轮箱壳体螺柱垫圈(0.438英寸)WASHER Gear Housing Studs (0.438 Inch)2
734933NUT (.437-20) Stainless Steel Gear Housing Studs2
78M0204653螺母NUT2
893445橡胶上支架MOUNT Rubber - Upper2
8923373支架MOUNT2
996401上支架密封件SEAL Upper Mount2
1027727WASHER Upper Mount Bolt (37/64 I.D.)2
1166966WASHER Rubber - Upper Mount Bolt2
1230514WASHER Upper Mount Bolt2
1334933NUT (.437-20) Stainless Steel Upper Mount Bolt2
138M0204653螺母NUT2
1487883T上减震座盖COVER Upper Mount2
1487883盖板COVER2
1576630SCREW (.250-20 x 1.00) Upper Mount Cover4
158M0214943螺钉SCREW4
1629245WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw4
168M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
1737687驱动轴壳体调整盖COVER Trim - Driveshaft Housing1
1737687F2驱动轴壳体调整盖COVER Trim - Driveshaft Housing1
1857807SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing4
1992012GROMMET Trim Cover Screw4
198M0079730密封圈套件GROMMET KIT4
2038157调整盖至驱动轴壳体密封件SEAL Trim Cover to Driveshaft Housing1
2138158调整盖密封条(后)STRIP Retaining - Trim Cover Seal (Rear)1
2238154调整盖密封条(侧)STRIP Retaining - Trim Cover Seal (Side)2
2348408固定条螺钉(#10-16 x .500)SCREW (#10-16 x .500) Retaining Strip8
24695431排气管TUBE Exhaust1
24695441排气管TUBE Exhaust1
2537727进水口管TUBE Water Inlet1
2545679进水口管TUBE Water Inlet1
2664809动力头螺柱螺母(0.313英寸)NUT Powerhead Studs (0.313 Inch)8
2775304下橡胶支座MOUNT Rubber - Lower2
2775304T1支架MOUNT2
2875284SCREW (.500-20 x 5.500) Lower Mount Screw2
2843426下支座螺丝SCREW Lower Mount Screw2
2928051WASHER Lower Mount Screw2
3028053下支座螺丝橡胶垫圈WASHER Rubber - Lower Mount Screw2
3130119WASHER (.875 Inch Outside Diameter) Lower Mount Screw2
3225096NUT Lower Mount Screw2
3369592下支座夹箍CLAMP Lower Mount2
3369592F1卡箍CLAMP2
3429256SCREW (.312-18 x .875) Lower Mount Clamp4
3535522SPRING Tension - Lower Mount Clamp4
3635474T下安装夹盖COVER Lower Mount Clamp2
3635474F2下支座夹箍盖COVER Lower Mount Clamp Lower Mount Clamp2
3787884盖至下支座夹箍螺丝(#12-14 x 0.920)SCREW (#12-14 x .920) Cover to Lower Mount Clamp2
3835521NUT Lower Mount Clamp Cover2
3988238A2动力升降接地线组件(2根)CABLE ASSEMBLY Ground Quanity of Two on Power Trim1
3988238A10接地线总成CABLE ASSEMBLY Ground1
图 40下罩壳及支撑支架 BOTTOM COWL AND SUPPORT BRACKETS
下罩壳及支撑支架 BOTTOM COWL AND SUPPORT BRACKETS
REF零件编号中文名称英文名称数量
17715A4下罩总成BOTTOM COWL ASSEMBLY1
17715A5下罩总成BOTTOM COWL ASSEMBLY1
288926T下机罩盖COVER Bottom Cowl1
288926F1盖板COVER1
328636螺钉（.250-20 x .750）下机罩盖塞SCREW (.250-20 x .750) Plug to Bottom Cowl2
2A948801下机罩盖塞PLUG Bottom Cowl1
3A28636螺钉（.250-20 x .750）下机罩盖塞SCREW (.250-20 x .750) Plug to Bottom Cowl2
456766螺柱（.250-20/.250-28 x 1.380）下机罩STUD (.250-20/.250-28 x 1.380) Bottom Cowl4
520184螺母（1/4-28X7/32）下机罩螺柱NUT (1/4-28X7/32) Bottom Cowl Stud4
58M0207775螺母 @5NUT @54
678279示流管弯头-气缸体ELBOW Tell Tale Hose - Cylinder Block1
68M0207781弯头ELBOW1
77568054示流软管至下机罩（14英寸）HOSE Tell Tale Hose to Bottom Cowl (14 Inch)1
77568058软管 (15.00英寸)HOSE (15.00 Inches)1
869791示流管喷嘴至下机罩NOZZLE Tell Tale Hose to Bottom Cowl1
990882示流喷嘴套管SLEEVE Tell Tale Nozzle1
1090077示流喷嘴扎带TIE STRAP Tell NozzleAR
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1166849喷嘴卡箍-示流管CLAMP Nozzle - Tell Tale1
1248408螺钉（#10-16 x .500）喷嘴卡箍至下机罩SCREW (#10-16 x .500) Nozzle Clamp to Bottom Cowl1
13720201后支撑支架BRACKET Rear Support1
1452723后支撑支架衬套GROMMET Rear Support Bracket1
1560577MOUNT Rubber - Rear Support Bracket2
1621631WASHER (.255 x .625 x .0312) Rubber MountAR
1669056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless SteelAR
1729598螺母（.250-28）不锈钢橡胶座NUT (.250-28) Stainless Steel Rubber Mount2
1872466滴水盘DRIP TRAY1
1948409螺钉（#10-16 x .625）不锈钢滴水盘至下机罩SCREW (#10-16 x .625) Stainless Steel Drip Tray to Bottom Cowl3
2037695控制电缆护套BOOT Control Cable1
2126992LOCKWASHER (.250) Stainless Steel Rubber Mount2
2269508A31停机开关总成SWITCH ASSEMBLY Stop1
2399525A1顶部开关盖总成COVER ASSEMBLY Top Switch1
2469844NUT Stop Switch1
2562190A8橙色停机开关线束总成WIRE ASSEMBLY Orange Stop Switch1
2688238A4电缆总成（3.375英寸）CABLE ASSEMBLY (3.375 Inch)2
2688238T01拉线总成CABLE ASSEMBLY2
2762568螺钉（#10-16 x .375）接地带SCREW (#10-16 x .375) Ground Strap2
2842660A1前支撑支架总成BRACKET ASSEMBLY Front Support1
2931014MOUNT Rubber - Front Support Bracket2
3026992LOCKWASHER (.250) Stainless Steel Rubber Mount2
3129598螺母（.250-28）不锈钢橡胶座NUT (.250-28) Stainless Steel Rubber Mount2
3237562螺钉（.312-18 x 1.00）不锈钢前支撑支架至下机罩SCREW (.312-18 x 1.00) Stainless Steel Front Support Bracket to Bottom Cowl2
3358124A20水银开关总成SWITCH ASSEMBLY Mercury1
3333386A3水银开关总成SWITCH ASSEMLBY Mercury1
3469235螺钉（.190-24 x .500）开关至前支架（0.50英寸）SCREW (.190-24 x .500) Switch to Front Bracket (0.50 Inch)1
3536242水银开关滚针PIN Roll Mercury Switch2
3645915端子排TERMINAL BLOCK1
3720411螺钉（.190-24 x .62）端子排至前支架SCREW (.190-24 x .62) Terminal Block to Front Bracket1
3869079螺钉（#10-16 x .440）线束引线SCREW (#10-16 x .440) Harness Leads1
3974605A4空挡启动开关总成SWITCH ASSEMBLY Neutral Start1
4064332螺钉（#4-40 x .750）SCREW (#4-40 x .750)2
4124832螺母（#4-40）开关螺钉NUT (#4-40) Switch Screw2
4297411执行器ACTUATOR1
4388099联锁执行器弹簧SPRING Interlock Actuator1
4437892执行器至前支架螺钉(.190-32 x 1.00)SCREW (.190-32 x 1.00) Actuator to Front Bracket1
4522887执行器螺钉垫圈WASHER Actuator Screw1
4688100执行器螺钉隔套SPACER Actuator Screw1
4745812执行器螺钉不锈钢螺母(#10-32)NUT (#10-32) Stainless Steel Actuator Screw1
47859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
图 41齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
REF零件编号中文名称英文名称数量
-9148A8齿轮箱总成-标准旋转1.87:1传动比(完整)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)1
19148A11齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4878956换挡凸轮SHIFT CAM1
48789562换挡凸轮SHIFT CAM1
4989594A1凸轮从动件总成FOLLOWER ASSEMBLY CAM1
5079911离合器作动杆ROD CLUTCH ACTUATOR1
5079911A1杆ROD1
5179910压缩弹簧SPRING COMPRESSION2
5278910压缩弹簧垫圈WASHER COMPRESSION SPRING1
5378906PIN SPRING LOCATOR1
538M0084245弹簧定位销PIN Spring Locator1
5447397A1轴承外圈垫片组(.002-3-5-10)SHIM SET BEARING OUTER RACE (.002-3-5-10)AR
5578172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5644104A2前进齿轮总成GEAR ASSEMBLY Forward1
5644104T2齿轮组GEAR SET1
5743999滚子轴承(外径1.308)BEARING Roller (1.308 O.D.)2
5773363滚子轴承(外径1.313)BEARING Roller (1.313 O.D.)2
5773363T轴承BEARING2
5878959棘轮滑动离合器RATCHET SLIDING CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905棘轮到螺旋桨轴十字销PIN Cross RATCHET TO PROPELLER SHAFT1
598M0084243十字销PIN Cross1
6078909棘轮定位销PIN Detent RATCHET2
6178962十字销固定弹簧SPRING RETAINING-CROSS PIN2
6294148螺旋桨轴PROPELLER SHAFT1
63N.S.S.不单独出售(43-44104A2部件)Not Sold Separate (PART OF 43-44104A2)1
6468100止推环RING THRUST1
64681001止推环RING Thrust1
6588957A1滚珠轴承-倒档齿轮BEARING Ball BALL-REVERSE GEAR1
6588957T滚珠轴承BEARING Ball1
6631534轴承座O型圈O-RING BEARING CARRIER1
668M0214920O型圈O RING1
6743567A1轴承座总成CARRIER ASSEMBLY Bearing1
6743567T1轴承座总成CARRIER ASSEMBLY Bearing1
6830956滚针轴承-轴承座BEARING Needle BEARING CARRIER1
6830956T滚针轴承BEARING Needle1
6976868轴承座密封SEAL BEARING CARRIER2
698M0248882油封@5SEAL-OIL @52
7030281轴承座定位键KEY LOCATING-BEARING CARRIER1
7179447齿轮箱盖锁紧垫圈TAB WASHER GEAR HOUSING COVER1
7279448齿轮箱固定座RETAINER GEAR HOUSING1
728M2011027固定座RETAINER1
7331640A1TRIM TAB ASSEMBLY GEAR HOUSING1
7331640Q4平衡鳍板TRIM TAB1
7466024螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")1
7567891填充块FILLER BLOCK FILLER BLOCK1
758M0039169填充块FILLER BLOCK1
7634933螺母(.437-20)不锈钢驱动轴壳体螺柱NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS2
768M0204653螺母NUT2
7765210螺钉(.375-16 x 1.00)齿轮箱SCREW (.375-16 x 1.00) GEAR HOUSING1
7813171推力毂THRUST HUB1
78835467Q01止推垫片套件THRUST WASHER KIT1
7931211A2花键垫圈-螺旋桨螺母WASHER Splined SPLINED-PROPELLER NUT1
7931211Q03垫圈总成WASHER ASSEMBLY1
8031210螺旋桨螺母锁紧垫圈TAB WASHER PROPELLER NUT1
80816629Q锁紧垫圈TAB WASHER1
8152707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8152707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
82423511螺旋桨轴齿形锁紧垫圈LOCKWASHER Toothed PROPELLER SHAFT1
8345176垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS2
-89238A2密封套件SEAL KIT1
-14697A87衬垫套件GASKET SET
图 42电气组件 ELECTRIC COMPONENTS
电气组件 ELECTRIC COMPONENTS
REF零件编号中文名称英文名称数量
195815上盖COVER (TOP)1
295828下盖COVER (BOTTOM)1
395810A1启动开关总成SWITCH ASSEMBLY Start1
455741护套BOOT1
455741001护套BOOT1
588890A2开关总成SWITCH ASSEMBLY1
679139A20电缆总成（红色）CABLE ASSEMBLY (RED)1
1095814绑带STRAP1
1195813紧固件FASTENER1
1240056108螺钉（M5×20）SCREW (M5 x 20)1
1240019108螺钉（M5×20）SCREW (M5 x 20)1
134005727螺钉SCREW2
1445771垫圈WASHER2
1562568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
1669570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
17816770整流器RECTIFIER1
178M0058226整流器RECTIFIER1
1848409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel2
1945076黄铜螺母(#10-32)NUT (#10-32) Brass3
2096054启动电磁阀总成SOLENOID ASSEMBLY Starter1
208M0185149启动电磁阀SOLENOID START1
214000327螺钉 (M6 x 14)SCREW (M6 x 14)2
2226419黄铜螺母 (#8-32)NUT (#8-32) Brass2
2364015螺母 (.250-20)NUT (.250-20)2
2488809A5电线总成（黄色）WIRE ASSEMBLY (YELLOW)1
2588439A8电池电缆总成(红色)CABLE ASSEMBLY Battery (RED)1
2588439A27电缆总成红色-电池CABLE ASSEMBLY Red - Battery1
2588439A6电池电缆总成(黑色)CABLE ASSEMBLY Battery (BLACK)1
2588439A28电缆总成电池-黑色CABLE ASSEMBLY Battery - Black1
2692439支架(旧设计)BRACKET (OLD DESIGN)1
274000327螺钉(M6×14)(旧设计)SCREW (M6 x 14) (OLD DESIGN)1
2835044垫圈(0.281×0.625×0.065)不锈钢(旧设计)WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)1
29400212螺母(M6)不锈钢(旧设计)NUT (M6) Stainless Steel (OLD DESIGN)1
30815504310蜗轮卡箍(旧设计)CLAMP Worm Gear (OLD DESIGN)1
3186704A2定子总成STATOR ASSEMBLY1
3186704A10辅助定子STATOR Auxiliary1
324000123螺丝(M5 x 30)SCREW (M5 x 30)3
3390983A1启动电机总成STARTER MOTOR ASSEMBLY1
338M0033984启动马达STARTER MOTOR1
3496561驱动套件DRIVE KIT1
3596562驱动器DRIVE1
3696563端盖END CAP1
3696563T端盖END CAP1
3796565电枢ARMATURE1
3896564端盖END CAP1
3896564T端盖END CAP1
3996566贯穿螺栓THRU BOLT1
40421251螺钉(M8x55)SCREW (M8 x 55)2
4042125螺钉(M8x55)SCREW (M8 x 55)2
41424291固定座RETAINER1
4212334A2发动机线束总成HARNESS ASSEMBLY Engine Wiring1
4379091保险丝20安培FUSE 20 Ampere1
438M0207796保险丝20安培FUSE 20 AMP1
44134731保险丝座(旧设计)HOLDER Fuse (OLD DESIGN)1
4512152固定座RETAINER1
4692753固定座RETAINER1
4755098J型卡扣J CLIP1
478M0024808J型夹J-CLIP1

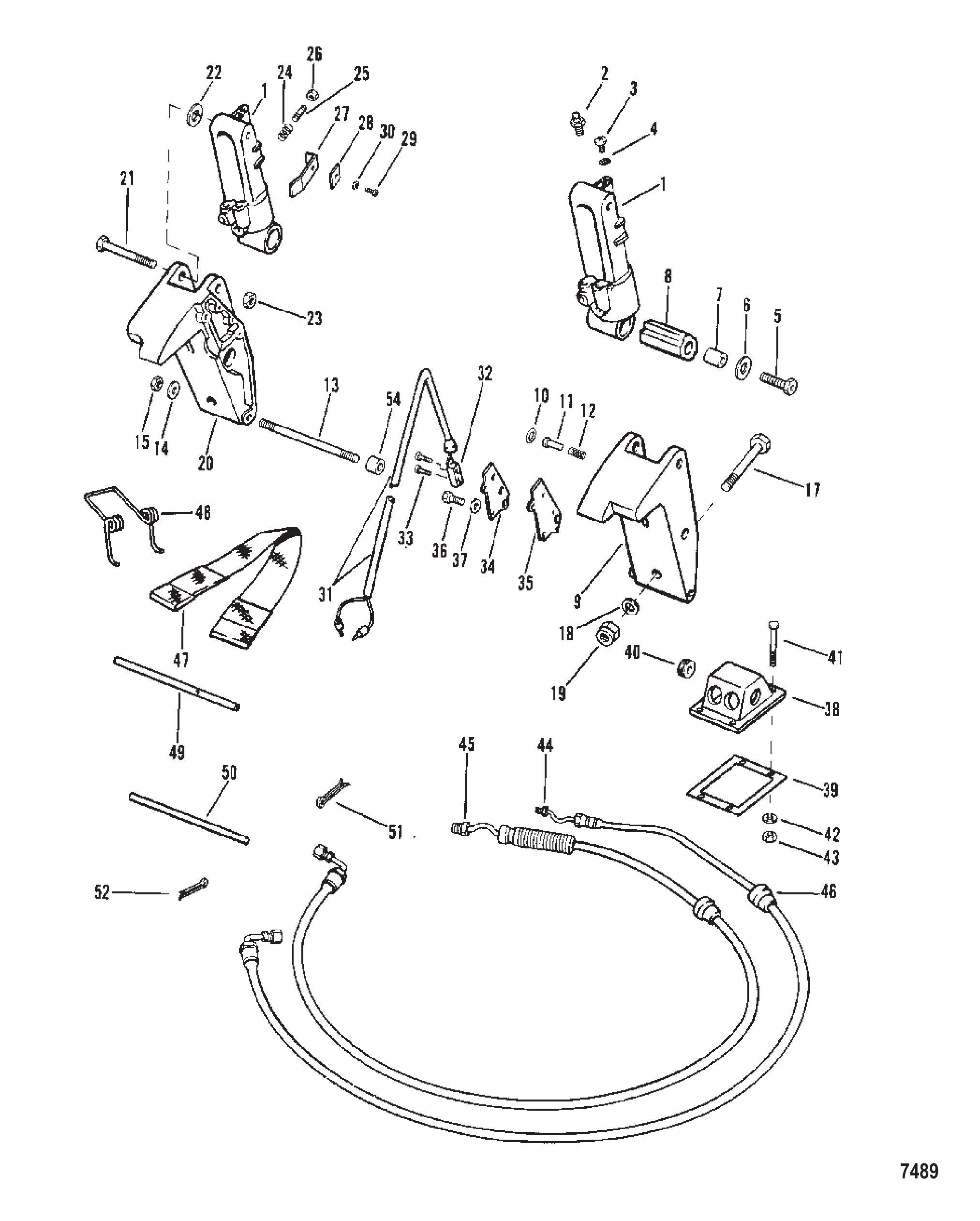

图 43升降油缸与软管(电动手柄) Trim Cylinders and Hoses (Electric Handle)
升降油缸与软管(电动手柄) Trim Cylinders and Hoses (Electric Handle)
REF零件编号中文名称英文名称数量
192194A14配平油缸TRIM CYLINDER2
192194A20配平油缸TRIM CYLINDER2
274036FITTING Grease Trim Cylinder2
345265SCREW (#10-32 x .3125) Bleed4
445016O-RING Bleed Screw4
592050SCREW (.500-20 x 1.500) Trim Cylinder2
628421WASHER (1.5 x 3.05 x 0.13) Stainless Steel Trim Cylinder Bolt4
745280SPACER Trim Cylinder - Lower2
894907A1BUSHING Rubber - Trim Cylinder2
989108A3平衡缸支架BRACKET Trim Cylinder1
1070608SEAL Oil Port Bracket1
1189290PLUNGER Limit Switch Actuating1
1295881SPRING Tension - Limit Switch Plunger1
1345282螺柱(.312-24 x 16.620)-安装支架STUD (.312-24 x 16.620) Mounting Bracket1
1426993LOCKWASHER (.312) Mounting Bracket Stud2
1528770NUT (.312-24) Stainless Steel Mounting Bracket Stud2
1768298螺栓(.375-16 x 3.250)-安装支架至艉板BOLT (.375-16 x 3.250) Mounting Bracket to Transom6
1789673螺钉(.375-16 x 5.00)-安装支架至艉板SCREW (.375-16 x 5.00) Mounting Bracket to Transom2
1868410WASHER Mounting Bracket Bolt6
1999405安装支架螺栓螺母NUT Mounting Bracket Bolt8
2089111T平衡缸支架BRACKET Trim Cylinder1
2145328螺钉(.437-20 x 3.560)-平衡缸至安装支架SCREW (.437-20 x 3.560) Trim Cylinder to Mounting Bracket2
2237807平衡缸螺钉垫圈WASHER Trim Cylinder Screw1
2335053NUT (.437-20) Trim Cylinder Screw2
2424390SPRING Tension - Adjusting Stud1
2521085调节螺柱(#10-32 x .930)-切断限位开关STUD (#10-32 x .930) Adjusting - Cut - Out Limit Switch1
2645812NUT (#10-32) Stainless Steel Jam - Limit Switch Adjusting Stud1
2799897CAM Limit Switch Adjusting Stud1
2886967PLATE Retaining - Limit Switch Cam1
2968513SCREW (#10-32 x .375) Stainless Steel Retaining Plate and Cam1
3026996LOCKWASHER (#10) Stainless Steel Retaining Plate and Cam Screw1
3145326A2切断限位开关总成SWITCH ASSEMBLY Cut - Out Limit1
3245354橡胶衬套-切断限位开关BUSHING Rubber - Cut- Out Limit Switch1
3347255螺钉(#4-40 x .625)-切断限位开关SCREW (#4-40 x .625) Cut - Out Limit Switch2
3489272COVER Limit Switch1
35892731限位开关盖衬垫GASKET Limit Switch Cover1
3634994SCREW (#10-32 x 1.00) Stainless Steel Limit Switch Cover4
3738833WASHER Limit Switch Cover Screw4
3887774A1COVER Inlet - Transom1
3987775GASKET Inlet Cover1
4045507GROMMET Rubber - Inlet Cover1
4136070SCREW (#10-32 x 1.250) Inlet Cover to Boat4
4226996LOCKWASHER (#10) Stainless Steel Inlet Cover Screw4
4368219NUT (#10-32) Stainless Steel Inlet Cover Screw4
4488005软管-平衡缸至控制阀HOSE Trim - Cylinder to Control Valve2
4588006软管-升降缸至控制阀HOSE Lift - Cylinder to Control Valve2
4635977橡胶护圈GROMMET Rubber4
4697191橡胶护圈GROMMET Rubber2
4612602橡胶护圈GROMMET Rubber2
4798876绑带STRAP1
4898875弹簧SPRING1
4998878安装管销PIN Mounting Tube1
5063473TUBE Cushion1
5132857安装管销开口销COTTER PIN Mounting Tub Pin1
5245882倾斜销固定开口销COTTER PIN Tilt Pin Retaining1
5459623安装支架隔套SPACER Mounting Bracket1
图 44启动器回绕组件 Starter Rewind
启动器回绕组件 Starter Rewind
REF零件编号中文名称英文名称数量
120166NUT Sheave Shaft (Left Hand Thread)1
261004TAB WASHER Sheave Shaft Nut1
3890162启动器壳体HOUSING Starter1
444255A1启动器滑轮总成SHEAVE ASSEMBLY Starter1
544508启动棘爪PAWL Starter1
654523螺钉 (.312-18 x 1.00) 启动器外壳SCREW (.312-18 x 1.00) Starter Housing3
720202锁紧垫圈 启动器外壳螺钉LOCKWASHER Starter Housing Screw3
837691电缆导板PLATE Cable Guide1
935881螺钉 (#6-32 x .250) 驱动-电缆导板SCREW (#6-32 x .250) Drive - Cable Guide Plate3
1061002PLATE Starter Rewind1
1139502A1弹簧SPRING1
1287649BUSHING Spring Guide1
1387651SPRING Starter Pawl1
1487706E RING Starter Pawl1
1563061SPACER Sheave Shaft1
1794962杠杆LEVER1
1820160波形垫圈WAVE WASHER1
1987656滑轮轴SHEAVE SHAFT1
2012066A9绳索ROPE1
2047341A1绳索与手柄套件 手动/应急启动ROPE AND HANDLE KIT Manual/Emergency Start For Manual Starting1
2185174A1手柄总成HANDLE ASSEMBLY1
2276568联锁电缆CABLE Interlock1
2369022螺钉 (#10-32 x .500) 不锈钢联锁电缆固定SCREW (#10-32 x .500) Stainless Steel Interlock Cable Attaching2
2433786联锁电缆螺钉垫圈WASHER Interlock Cable Screw2
2542820CAM Interlock1
2676138螺钉 (.312-18 x 1.120) 联锁凸轮(1.125英寸)SCREW (.312-18 x 1.120) Interlock Cam (1.125 Inch)1
2776140联锁凸轮螺钉弹簧SPRING Interlock Cam Screw1
2879371ACTUATOR Interlock1
2976137联锁执行器螺钉(1.625英寸)SCREW Interlock Actuator (1.625 Inch)1
3076139联锁执行器螺钉弹簧SPRING Interlock Actuator Screw1
3127769COTTER PIN Interlock Cable to Actuator1
3235559WASHER Starter Rewind1
-89016A3起动机总成回绕式STARTER ASSEMBLY Rewind1

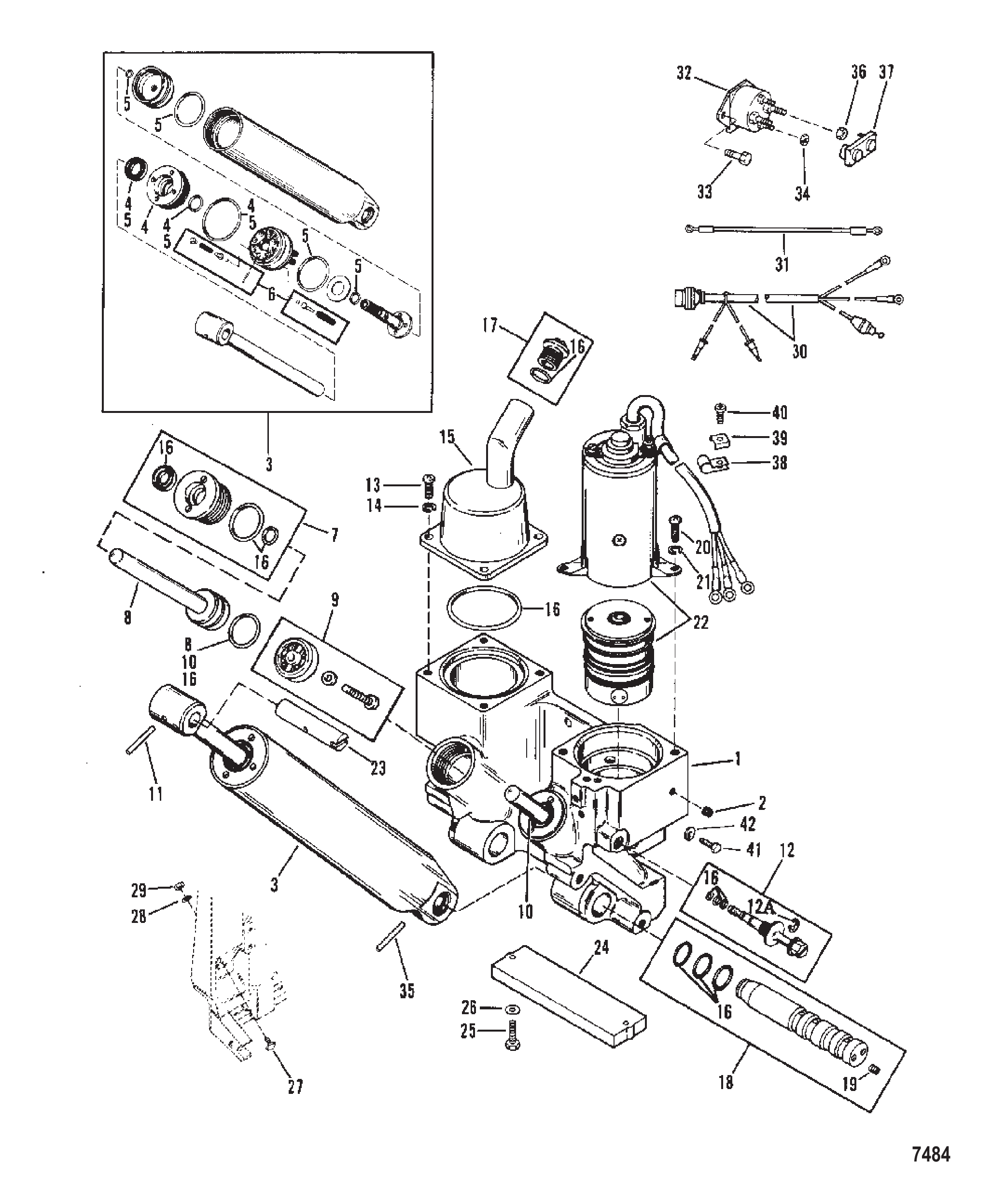

图 45动力升降倾斜组件 Power Trim Components
动力升降倾斜组件 Power Trim Components
REF零件编号中文名称英文名称数量
-830250T3动力升降泵总成PUMP ASSEMBLY Power Trim1
1811666A1减震杆套件SHOCK ROD KIT1
18M0171821减震杆套件SHOCK ROD KIT1
2809872A2O型圈维修包O-RING KIT Rebuild1
28M0171819O型圈套件O-RING KIT1
3810776A1记忆活塞总成PISTON ASSEMBLY Memory1
38M0171822记忆活塞套件MEMORY PISTON KIT1
4811669A1气缸总成CYLINDER ASSEMBLY1
4893916A01气缸总成CYLINDER ASSEMBLY1
5809873A1配平限位阀套件VALVE KIT Trim Limit1
5893905A02阀套件VALVE KIT1
6809874A1泵总成PUMP ASSEMBLY1
6893906A02泵总成PUMP ASSEMBLY1
7809885A2电机套件MOTOR KIT1
7893907A02电机套件MOTOR KIT1
88134351堵头PLUG1
9813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
9893929A01安全阀套件VALVE KIT Relief1
10809875A1歧管套件MANIFOLD KIT1
10893909A02歧管套件MANIFOLD KIT1
11809876A1电机螺钉套件SCREW KIT Motor1
1288238A18拉线总成CABLE ASSEMBLY1
13809877A1驱动轴/密封套件DRIVESHAFT/SEAL KIT1
14809878A1滤清器套件FILTER KIT1
14893912A02滤清器套件FILTER KIT1
15809879A1提升阀套件POPPET KIT1
15893913A02提升阀套件POPPET KIT1
-809880A1完整配平O型圈套件O-RING KIT Complete Trim1
-893914A02O型圈套件O-RING KIT1
16821539三叶销PIN Trilobe2
17818898锚销PIN Anchor1
18996251轴SHAFT1
1899625002轴SHAFT1
1922740卡扣CLIP2
20878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
2169205C形垫圈C WASHER1
218M0084613C形垫圈C-WASHER1

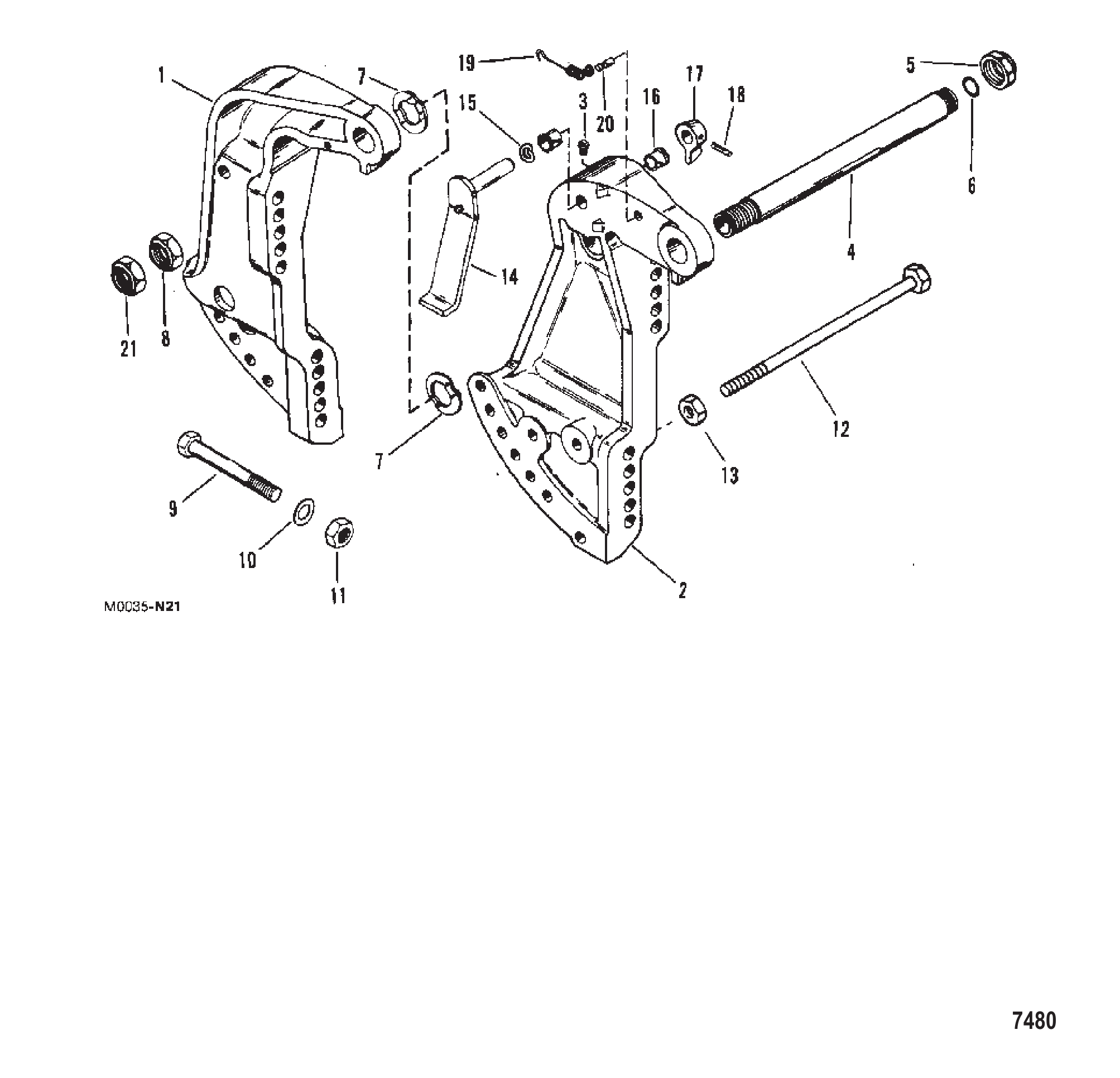

图 46艉板支架(动力升降) Transom Bracket (Power Trim)
艉板支架(动力升降) Transom Bracket (Power Trim)
REF零件编号中文名称英文名称数量
18718A1艉板右舷支架总成-黑色BRACKET ASSEMBLY Transom Starboard - Black1
28716A5艉板左舷支架总成-黑色BRACKET ASSEMBLY Transom Port - Black1
18718A2艉板右舷支架总成-灰色BRACKET ASSEMBLY Transom Starboard - Gray1
28716A6艉板左舷支架总成-灰色BRACKET ASSEMBLY Transom Port - Gray1
398727艉板支架注油嘴FITTING Grease Port Tramsom Bracket1
499170A1倾斜管TILT TUBE1
590068T倾斜管螺母NUT Tilt Tube1
590068T6倾斜管螺母NUT Tilt Tube1
645711倾斜管O型圈(0.612x0.103)O-RING (.612 x .103) Tilt Tube1
788750WASHER Wave (1.62 x 1.05) Tilt Tube2
856041螺母(.875-14)-倾斜管(7.57)NUT (.875-14) Tilt Tube (7.57)1
9677551螺钉(.500-20 x 4.500)-安装支架至艉板SCREW (.500-20 x 4.500) Mounting Bracket to Tramsom4
1028421垫圈(1.5 x 3.05 x 0.13)-不锈钢安装支架螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel Mounting Bracket Bolt4
118M0027784安装支架螺栓螺母NUT Mounting Bracket Bolt4
1296930A1BOLT ASSEMBLY Tilt Lock1
1323161NUT (.375-24) Bolt1
1499629A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1599611WAVE WASHER Tilt Lever1
1665830NYLINER Tilt Lever2
1799633KNOB Tilt Lock Lever1
1799633T6KNOB Tilt Lock Lever1
1899615槽销PIN Groove1
1999622弹簧SPRING1
2099604槽销PIN Groove1
2137984螺母 (.875-14)NUT (.875-14)1
图 47齿轮箱（驱动轴） Gear Housing (Driveshaft)
齿轮箱（驱动轴） Gear Housing (Driveshaft)
REF零件编号中文名称英文名称数量
-9539A4齿轮箱总成短轴-黑色GEAR HOUSING ASSEMBLY Short Shaft - Black1
-9539A5齿轮箱总成长轴-黑色GEAR HOUSING ASSEMBLY Long Shaft - Black1
-9539A6齿轮箱总成短轴-灰色GEAR HUSING ASSEMBLY Short Shaft - Gray1
-9539A7齿轮箱总成长轴-灰色GEAR HOUSING ASSEMBLY Long Shaft - Gray1
19539A1齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T1齿轮箱GEAR HOUSING1
19539A8齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T8ORD 1643-9539T 1ORD 1643-9539T 11
285822A1速度表连接器总成CONNECTOR ASSEMBLY Speedometer1
285822A10连接器总成CONNECTOR ASSEMBLY1
385500定位销(.187 x .530)齿轮箱PIN Dowel (.187 x .530) Gear Housing2
38M0084726定位销PIN Dowel2
433778水泵/底座柱螺栓(2.625英寸)STUD Water Pump/Base (2.625 Inch)3
557933柱螺栓(.437-14/.437-20 x 2.190)齿轮箱STUD (.437-14/.437-20 x 2.190) Gear Housing2
58M0034453柱螺栓(7/16 x 2.19)STUD (7/16 x 2.19)2
662091传动轴滚柱轴承BEARING Roller Driveshaft1
662091T轴承BEARING1
772849A1进水滤网总成SCREEN ASSEMBLY Water Intake1
836070螺钉(#10-32 x 1.250)进水滤网至齿轮箱SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing1
945812螺母(#10-32)不锈钢进水滤网螺钉NUT (#10-32) Stainless Steel Water Intake Screen Screw1
9859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
1092815排气管支撑板PLATE Support - Exhaust Tube1
1137721排气管密封件SEAL Exhaust Tube1
1137721001密封件@2SEAL @21
1298097传动轴小齿轮GEAR Pinion Driveshaft1
1298097T小齿轮GEAR-PINION1
1355910螺母(.437-20)小齿轮至传动轴NUT (.437-20) Pinion Gear to Driveshaft1
1419552水泵底座衬垫GASKET Water Pump Base1
1526722O型圈O-RING1
1677177A1水泵底座总成BASE ASSEMBLY Water Pump1
1790562密封件(1.254 x .312)SEAL (1.254 x .312)1
1879831油封SEAL Oil1
1935973定位销PIN Dowel2
2019553下衬垫GASKET Lower1
2154705面板FACE PLATE1
2132768面板FACEPLATE1
2219551上衬垫GASKET Upper1
2389983叶轮IMPELLER1
2389983T叶轮IMPELLER1
2456662叶轮驱动键KEY Impeller Drive1
248M0032837键@5KEY @51
2577822A1水泵壳体总成BODY ASSEMBLY Water Pump1
2648753嵌件INSERT1
2738452橡胶密封件SEAL Rubber1
2838453尼龙垫圈WASHER Nylon1
2929245垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs3
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
3013438螺母(.250-28)水泵体与底座柱螺栓NUT (.250-28) Water Pump Body and Base Studs3
308267119螺母(.250-28)NUT (.250-28)3
3120273橡胶O型圈O-RING Rubber1
3278654A1传动轴座总成SEAT ASSEMBLY Driveshaft1
3386304花键密封件-传动轴SEAL Splined - Driveshaft1
3479953螺钉(.375-16 x .250)润滑脂加注口SCREW (.375-16 x .250) Grease Filler1
3479953Q04放油螺钉套件SCREW KIT Drain1
3567892磁性放油螺钉SCREW Magnetic Drain1
358M0058389放油螺钉套件SCREW KIT Drain1
3619183纤维垫圈(加注/放油螺钉)WASHER Fiber Filler/Drain Screw2
368M0187157蓝色密封件@15SEAL-BLUE @152
3788181润滑套筒-传动轴SLEEVE Lubrication - Driveshaft1
3892881A1轴承垫片组(齿轮箱用)(.002-3-5-10-20)SHIM SET Bearing to Gear Housing(.002-3-5-10-20)AR
3977420A1圆锥滚子轴承总成-传动轴BEARING ASSEMBLY Roller Tapered - Driveshaft1
398M0166756轴承总成BEARING ASSEMBLY1
4088025A2驱动轴总成DRIVESHAFT ASSEMLBY1
4098179驱动轴DRIVESHAFT1
4088024A2驱动轴总成DRIVESHAFT ASSEMBLY1
4098180驱动轴DRIVESHAFT1
4120254驱动轴压缩弹簧SPRING Compression - Driveshaft1
4230545驱动轴销PIN Driveshaft1
4376063A1换挡轴总成SHAFT ASSEMBLY Shift1
4429641换挡轴E型卡环E RING Shift Shaft1
4525439O型圈(.862 x .103)换挡轴衬套O-RING (.862 x .103) Shift Shaft Bushing1
4677631A2换挡轴衬套总成BUSHING ASSEMBLY Shift Shaft1
4776384换挡轴衬套油封SEAL Oil Shift Shaft Bushing1
478M0246145油封OIL SEAL1
4877674橡胶垫圈(.35 x .75 x .12)换挡轴衬套WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing1
4978036倒挡锁定底座BASE Reverse Locking1
50433081倒挡锁定凸轮CAM Reverse Locking1
5043308T1凸轮CAM1
-77177A3水泵套件WATER PUMP KIT1
-79831A1密封套件SEAL KIT1
-85491A87衬垫套件GASKET SET1
-85491A90衬垫套件GASKET SET1
图 48排气板与换挡联动机构 Exhaust Plate and Shift Linkage
排气板与换挡联动机构 Exhaust Plate and Shift Linkage
REF零件编号中文名称英文名称数量
142819A2排气延伸板总成PLATE ASSEMLBY Exhaust Extension1
227132排气延伸板衬套BUSHING Exhaust Extension Plate1
338453进水口管尼龙垫圈WASHER Nylon - Water Inlet Tube1
438452水管橡胶密封件SEAL Rubber - Water Tube1
579799HOUSING Water Inlet Tube Seal1
6797971壳体衬垫GASKET Housing1
779798壳体至排气板螺丝(#10-32 x 1.380)(1.375英寸)SCREW (#10-32 x 1.380) Housing to Exhaust Plate (1.375 Inch)2
8796501动力头衬垫GASKET Powerhead1
976632A3上短换挡轴总成SHIFT SHAFT ASSEMBLY Upper Short Shaft1
976632A4上长换挡轴总成SHIFT SHAFT ASSEMBLY Upper Long Shaft1
1060572上换挡轴尼龙套筒BARREL Nylon - Upper Shift Shaft1
1174739A3换挡控制执行器总成ACTUATOR ASSEMBLY Shift Control1
1237934换挡拉索弹簧SPRING Shift Cable1
1338069弹簧至执行器螺丝SCREW Spring to Actuator1
1437932换挡控制执行器尼龙轴承BEARING Nylon - Shift Control Actuator1
1536137轴承至换挡控制执行器螺丝(.250-28 x 1.00)SCREW (.250-28 x 1.00) Bearing to Shift Control Actuator1
1621272轴承螺丝锁紧垫圈(.250)LOCKWASHER (.250) Bearing Screw1
1737935换挡控制轴承导轨RAIL Shift Control Bearing1
1869028不锈钢导轨至排气歧管盖螺丝(.250-28 x 0.750)SCREW (.250-28 x .750) Stainless Steel Rail to Exhaust Manifold Cover1
1926992不锈钢导轨螺丝锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel Rail Screw1
2059037A2油门和换挡拉索杆LEVER Throttle and Shift Cables1
2123928快拆杆滚销PIN Roll - Quick Disconnect Lever2
2238005快拆杆弹簧SPRING Quick Disconnect Lever2
2337927快拆杆尼龙衬套BUSHING Nylon Nylon - Quick Disconnect Lever2
2437926尼龙轴承保持架RETAINER Nylon Bearing1
2537923轴承保持架螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250) Bearing Retainer1
26385011排气延伸板衬垫GASKET Exhaust Extension Plate1
2738156排气延伸板橡胶密封件SEAL Rubber - Exhaust Extension Plate1
2899136橡胶密封条STRIP Rubber Seal1
2937571固定条螺丝(.190-32 x 0.500)SCREW (.190-32 x .500) Retaining Strip6
-85491A87衬垫套件GASKET SET1
图 49自动混合装置 Auto-Blend
自动混合装置 Auto-Blend
REF零件编号中文名称英文名称数量
-130195自动混合装置AUTO BLEND ASSEMBLY1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
316619机油箱盖CAP OIL TANK1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
716620安装支架套件BRACKET KIT Mounting1
813993箍带BAND1
913983支架(左)BRACKET (LEFT)1
1013984支架(右)BRACKET (RIGHT)1
1116626盖板COVER1
1216624机油滤清器及液位传感器套件SENSOR KIT Oil Filter And Level1
1316625喇叭套件HORN KIT1
1416618机油滤网STRAINER Oil1
1516615止回阀套件CHECK VALVE KIT1
1618576燃油滤清器套件FILTER KIT Fuel1
1713992乙烯基软管VINYL TUBE1
1816621安装板PLATE1
1916627模块套件MODULE KIT1
2016628测试按钮套件TEST BUTTON KIT1
2116629电池盒套件(使用9伏电池)CASE KIT Battery (USE 9 VOLT BATTERY)1
2216630密封圈套件GROMMET KIT1
2316631支架套件BRACKET KIT1
2416616衬垫套件GASKET KIT1
图 50下罩壳及支撑支架 Bottom Cowl and Support Brackets
下罩壳及支撑支架 Bottom Cowl and Support Brackets
REF零件编号中文名称英文名称数量
17715A4下罩总成BOTTOM COWL ASSEMBLY1
17715A5下罩总成BOTTOM COWL ASSEMBLY1
288926T下机罩盖COVER Bottom Cowl1
328636螺钉（.250-20 x .750）下机罩盖塞SCREW (.250-20 x .750) Plug to Bottom Cowl2
2A948801下机罩盖塞PLUG Bottom Cowl1
3A28636螺钉（.250-20 x .750）下机罩盖塞SCREW (.250-20 x .750) Plug to Bottom Cowl2
456766螺柱（.250-20/.250-28 x 1.380）下机罩STUD (.250-20/.250-28 x 1.380) Bottom Cowl4
520184螺母（1/4-28X7/32）下机罩螺柱NUT (1/4-28X7/32) Bottom Cowl Stud4
678279示流管弯头-气缸体ELBOW Tell Tale Hose - Cylinder Block1
77568054示流软管至下机罩（14英寸）HOSE Tell Tale Hose to Bottom Cowl (14 Inch)1
869791示流管喷嘴至下机罩NOZZLE Tell Tale Hose to Bottom Cowl1
990882示流喷嘴套管SLEEVE Tell Tale Nozzle1
1090077示流喷嘴扎带TIE STRAP Tell NozzleAR
1166849喷嘴卡箍-示流管CLAMP Nozzle - Tell Tale1
1248408螺钉（#10-16 x .500）喷嘴卡箍至下机罩SCREW (#10-16 x .500) Nozzle Clamp to Bottom Cowl1
13720201后支撑支架BRACKET Rear Support1
1452723后支撑支架衬套GROMMET Rear Support Bracket1
1560577MOUNT Rubber - Rear Support Bracket2
1621631WASHER (.255 x .625 x .0312) Rubber MountAR
1729598螺母（.250-28）不锈钢橡胶座NUT (.250-28) Stainless Steel Rubber Mount2
1872466滴水盘DRIP TRAY1
1948409螺钉（#10-16 x .625）不锈钢滴水盘至下机罩SCREW (#10-16 x .625) Stainless Steel Drip Tray to Bottom Cowl3
2037695控制电缆护套BOOT Control Cable1
2126992LOCKWASHER (.250) Stainless Steel Rubber Mount2
2269508A31停机开关总成SWITCH ASSEMBLY Stop1
2399525A1顶部开关盖总成COVER ASSEMBLY Top Switch1
2469844NUT Stop Switch1
2562190A8橙色停机开关线束总成WIRE ASSEMBLY Orange Stop Switch1
2688238A4电缆总成（3.375英寸）CABLE ASSEMBLY (3.375 Inch)2
2762568螺钉（#10-16 x .375）接地带SCREW (#10-16 x .375) Ground Strap2
2842660A1前支撑支架总成BRACKET ASSEMBLY Front Support1
2931014MOUNT Rubber - Front Support Bracket2
3026992LOCKWASHER (.250) Stainless Steel Rubber Mount2
3129598螺母（.250-28）不锈钢橡胶座NUT (.250-28) Stainless Steel Rubber Mount2
3237562螺钉（.312-18 x 1.00）不锈钢前支撑支架至下机罩SCREW (.312-18 x 1.00) Stainless Steel Front Support Bracket to Bottom Cowl2
3358124A20水银开关总成SWITCH ASSEMBLY Mercury1
3333386A3水银开关总成SWITCH ASSEMLBY Mercury1
3469235螺钉（.190-24 x .500）开关至前支架（0.50英寸）SCREW (.190-24 x .500) Switch to Front Bracket (0.50 Inch)1
3536242水银开关滚针PIN Roll Mercury Switch2
3645915端子排TERMINAL BLOCK1
3720411螺钉（.190-24 x .62）端子排至前支架SCREW (.190-24 x .62) Terminal Block to Front Bracket1
3869079螺钉（#10-16 x .440）线束引线SCREW (#10-16 x .440) Harness Leads1
3974605A4空挡启动开关总成SWITCH ASSEMBLY Neutral Start1
4064332螺钉（#4-40 x .750）SCREW (#4-40 x .750)2
4124832螺母（#4-40）开关螺钉NUT (#4-40) Switch Screw2
4297411执行器ACTUATOR1
4388099联锁执行器弹簧SPRING Interlock Actuator1
4437892执行器至前支架螺钉(.190-32 x 1.00)SCREW (.190-32 x 1.00) Actuator to Front Bracket1
4522887执行器螺钉垫圈WASHER Actuator Screw1
4688100执行器螺钉隔套SPACER Actuator Screw1
4745812执行器螺钉不锈钢螺母(#10-32)NUT (#10-32) Stainless Steel Actuator Screw1
图 51化油器总成 Carburetor Assembly
化油器总成 Carburetor Assembly
REF零件编号中文名称英文名称数量
16517A33化油器总成CARBURETOR ASSEMBLY1
16517A34化油器总成CARBURETOR ASSEMBLY1
16517A64化油器KT-底置CARBURETOR KT-BOT1
2NSS大型主体通道(不单独销售)NOT SOLD SEPARATE Large Body Channel2
3NSS主体通道(不单独销售)NOT SOLD SEPARATE Body Channel6
496773A1阻风门轴总成SHAFT ASSEMBLY Choke2
49296A1阻风门轴套件CHOKE SHAFT KIT2
5NSS回位-节气门轴(不单独销售)NOT SOLD SEPARATE Return-Throttle Shaft2
67211A1燃油杯挡板BAFFLE Fuel Bowl2
6814483燃油杯挡板BAFFLE Fuel Bowl2
79293浮子FLOAT2
8NSS浮子固定件(不单独销售)NOT SOLD SEPARATE Float Retaining2
95127燃油杯BOWL Fuel2
10NSS燃油杯(不单独销售)NOT SOLD SEPARATE Fuel Bowl2
119652燃油杯至化油器螺钉SCREW Fuel Bowl to Carburetor2
12NSS燃油杯螺钉(不单独销售)NOT SOLD SEPARATE Fuel Bowl Screw4
139022进油针阀及弹簧NEEDLE AND SPRING Inlet2
141457主量孔(.057)JET Main Fuel (.057)2
157335省油量孔(.098)JET (.098) Economizer (.098)2
1664677喉管VENTURI2
178665阻风门片SHUTTER Choke2
18NSS阻风门片至轴连接件(不单独销售)NOT SOLD SEPARATE Choke Shutter to Choke Shaft4
19NSS怠速混合气调节件(不单独销售)NOT SOLD SEPARATE Idle Mixture2
20NSS怠速混合气螺钉(不单独销售)NOT SOLD SEPARATE Idle Mixture Screw2
21NSS不单独销售 燃油泵NOT SOLD SEPARATE Fuel Pump2
229653盖板(上化油器)COVER Plate (Upper Carburetor)1
239654盖板(下化油器)COVER Plate (Lower Carburetor)1
245132滤清器体至化油器螺钉SCREW Strainer Body to Carburetor8
24808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)8
259020油门轴SHAFT Throttle1
259656油门轴SHAFT Throttle1
2692880节气门杠杆(上化油器)LEVER Throttle (Upper Carburetor)1
2720847节气门杠杆螺钉(上化油器)SCREW Throttle Lever (Upper Carburetor)2
276027螺钉SCREW2
2897节气门杠杆(下化油器)LEVER Throttle (Lower Carburetor)1
288146791油门杆LEVER Throttle1
296027节气门杠杆螺钉(下化油器)SCREW Throttle Lever (Lower Carburetor)1
309649节气门片SHUTTER Throttle2
31NSS节气门片至轴连接件(不单独销售)NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft4
32757911化油器法兰衬垫GASKET Carburetor Flange2
3364809化油器安装柱螺母NUT Carburetor Mounting Stud4
--9650维修套件REPAIR KIT2
--9651衬垫套件GASKET SET2
图 52化油器联动机构/阻风门电磁阀 Carburetor Linkage/Choke Solenoid
化油器联动机构/阻风门电磁阀 Carburetor Linkage/Choke Solenoid
REF零件编号中文名称英文名称数量
154293A11阻风门电磁阀总成SOLENOID ASSEMBLY Choke1
226996LOCKWASHER (#10) Stainless Steel Choke Solenoid Terminal1
345076NUT (#10-32) Brass Choke Solenoid Terminal1
426066阻风门电磁阀至前支架螺钉(.312-24 x 1.75)SCREW (.312-24 x 1.75) Choke Solenoid to Front Bracket2
526993阻风门电磁阀螺钉锁紧垫圈(.312)LOCKWASHER (.312) Choke Solenoid Screw2
622053阻风门电磁阀螺钉螺母(.312-24)NUT (.312-24) Choke Solenoid Screw2
756074A8阻风门电磁阀柱塞总成PLUNGER ASSEMBLY Choke Solenoid1
890241阻风门旋钮KNOB Choke1
990242A1旋钮总成KNOB ASSEMBLY1
1035519拉带至阻风门旋钮螺钉(#10-16 x .500)SCREW (#10-16 x .500) Strap to Choke Knob1
1149589阻风门旋钮至拉杆拉带STRAP Choke Knob to Choke Rod1
1262568拉带至阻风门拉杆螺钉(#10-16 x .375)SCREW (#10-16 x .375) Strap to Choke Rod1
1320116GROMMET Choke Knob1
1485966A1阻风门拉杆总成ROD ASSEMBLY Choke1
1586042阻风门拉杆螺钉SCREW Choke Rod2
1660288阻风门拉杆弹簧SPRING Choke Rod1
1753719A2拾取支架总成BRACKET ASSEMBLY Pick Up1
1866104拾取支架螺钉(#8-32 x .790)SCREW (#8-32 x .790) Pick-Up Bracket1
1989694联轴器键KEY Coupling1
2099127109化油器三通燃油管(57.00英寸散装)LINE (57.00 Inches Bulk) Carburetor to Tee to Carburetor2
2190077燃油管束带TIE STRAP Fuel LineAR
2273318塑料燃油三通TEE Plastic Fuel Line1
图 53夹紧支架总成(非动力升降) Clamp Bracket Assembly (Non Power Trim)
夹紧支架总成(非动力升降) Clamp Bracket Assembly (Non Power Trim)
REF零件编号中文名称英文名称数量
18394A2夹具支架总成CLAMP BRACKET ASSEMBLY2
18394A1黑色夹紧支架总成CLAMP BRACKET ASSEMBLY Black2
18394A3灰色夹紧支架总成CLAMP BRACKET ASSEMBLY Gray2
290470A3蝶形螺钉总成THUMB SCREW ASSEMBLY2
278492A1蝶形螺钉总成THUMB SCREW ASSEMBLY2
378493WASHER Thumb Screw2
4784951SCREW Washer to Thumb Screw2
575043CAP Thumb Screw2
674528倾斜管TILT TUBE1
752864WASHER Tilt Tube2
856041NUT (.875-14) Tilt Tube2
953078CAP Plastic - Tilt Tube2
1028416上减震销PIN Upper Shock1
1173203BUSHING Clamp Bracket2
1259623SPACER Clamp Bracket Stud1
1359625STUD Clamp Bracket1
1426993LOCKWASHER (.312) Clamp Bracket Stud2
1528770NUT (.312-24) Stainless Steel Clamp Bracket Stud2
1649930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
1868298夹紧支架至艉板螺栓(.375-16 x 3.250)(3.25英寸)BOLT (.375-16 x 3.250) Clamp Bracket to Tramsom (3.25 Inch)2
1968410WASHER Clamp Bracket Bolt2
1889673夹紧支架至艉板螺钉(.375-16 x 5.00)(5英寸)SCREW (.375-16 x 5.00) Clamp Bracket to Transom (5 Inch)2
1928420WASHER (1-1/ 4 x 25/64 x .125 SS) Clamp Bracket Bolt2
1968300夹紧支架螺栓垫圈(0.88 x 0.39 x 0.06)WASHER (..88 x .39 x .06) Clamp Bracket Bolt2
2099405NUT Clamp Bracket Bolt4
2158780A7黑色减震器SHOCK ABSORBER Black2
2158780A4灰色减震器SHOCK ABSORBER Gray2
22696531下减震销PIN Lower Shock2
2334937上衬套止动垫圈(内)(.766 x 1.312 x .125)WASHER (.766 x 1.312 x .125) Upper Bushing Retainer (Inner)2
2459378下衬套止动垫圈(内)WASHER Lower Bushing Retainer (Inner)2
2532171橡胶衬套-减震器(上)BUSHING Rubber - Shock Absorber (Upper)4
2628198橡胶衬套-减震器(下)BUSHING Rubber - Shock Absorber (Lower)4
2769374上下衬套垫圈(外)WASHER Upper and Lower Bushing (Outer)4
2869375A1上下减震销螺钉(.500-20 x .625)(0.625英寸)SCREW (.500-20 x .625) Upper and Lower Shock Pin (0.625 Inch)4
2998876拉带 倾斜止动STRAP Tilt Stop1
3098878下减震器安装销PIN Lower Shock Mount1
3198875弹簧SPRING1
3232857开口销COTTER PIN1
3398877上减震座SHOCK MOUNT Upper1
图 54外罩 Cowling
外罩 Cowling
REF零件编号中文名称英文名称数量
17103M顶盖总成TOP COWL ASSEMBLY1
19381M顶盖总成TOP COWL ASSEMBLY1
280601M橡胶密封件SEAL RUBBER1
383212M支架HOLDER1
483599M铆钉RIVET2
4814489M铆钉RIVET2
583137M挂钩HOOK1
683143M铆钉RIVET2
684903M铆钉RIVET2
783600M密封件SEAL1
883601M前徽标EMBLEM FRONT1
983602M后徽标EMBLEM REAR1
1082196M垫圈WASHER8
1082211M垫圈WASHER8
1182388M螺母 (M5)NUT (M5)8
1282866M贴花DECAL1
1383926M隔音毯SOUND BLANKET1
1383232M覆盖件BLANKET1
1483927M隔音毯SOUND BLANCKET2
1583928M隔音毯SOUND BLANKET1
1584321M隔音毯SOUND BLANKET1
1683929M隔音毯SOUND BLANKET1
1684321M隔音毯SOUND BLANKET1
1781202M换挡指示贴花DECAL Shift Indicator1
187104M下罩底部BOTTOM COWL BOTTOM1
189382M外罩COWLING1
1983605M杠杆夹LEVER CLAMP1
1995409M杠杆LEVER1
2081869M波形垫圈WASHER WAVE1
2181949M衬套BUSHING2
2281145M卡箍CLAMP1
2284914M卡箍CLAMP1
2381794M垫圈WASHER1
2482197M锁紧垫圈WASHER LOCK5
2482212M锁紧垫圈LOCKWASHER5
2584315M螺栓BOLT1
2584088M螺丝 (M6 x 10)SCREW (M6 x 10)1
2683606M密封件SEAL1
2697674M密封件SEAL1
2781589M护孔圈(手动启动型号)GROMMET (MANUEL START MODEL)1
2883607M护孔环GROMMET1
2983608M护孔环GROMMET1
3083609M护孔环GROMMET1
3182065M护孔环GROMMET4
3283610M轴环COLLAR4
3381796M垫圈WASHER4
3484237M螺栓BOLT4
3483285M螺栓BOLT4
3583611M螺母NUT4
3582389M螺母NUT4
3683612M停止开关总成(手动型号)SWITCH ASSEMBLY Stop (MANUAL MODEL)1
3783613M盖板COVER1
3884247M螺栓BOLT3
38826957M螺栓BOLT3
3982199M锁紧垫圈WASHER LOCK3
3982214M垫圈WASHER3
4083616M接头FITTING1
4183761M马力标贴DECAL HP2
4283615M停机开关总成SWITCH ASSEMBLY Stop1
4297765M停机开关总成SWITCH ASSEMBLY Stop1
4381531M止动器STOPPER1
4397756M止动器STOPPER1
图 55曲轴/活塞及连杆 Crankshaft Pistons, and Connecting Rods
曲轴/活塞及连杆 Crankshaft Pistons, and Connecting Rods
REF零件编号中文名称英文名称数量
19075曲轴CRANKSHAFT1
220094曲轴半圆键KEY Woodruff Crankshaft1
33267A25主阀式轴承总成BEARING ASSEMBLY Main Valve Type2
420032主轴承定位销PIN Dowel Main Bearing4
565855簧片定位销PIN Dowel Reed Locating16
645775主轴承螺钉(#12-28 x .560)(0.563英寸)SCREW (#12-28 x .560) Main Bearing (0.563 Inch)4
745774主轴承螺钉螺母NUT Main Bearing Screw4
888498A1配套簧片组REED SET Matched2
979014簧片止挡STOP Reed8
1077280簧片止动螺钉(.190-32 x .560)(0.563英寸)SCREW (.190-32 x .560) Reed Stop (0.563 Inch)8
1120110簧片止动螺钉螺母(#10-32)NUT (#10-32) Reed Stop Screw8
125172A6活塞总成PISTON ASSEMBLY4
123366A2活塞总成PISTON ASSEMBLYAR
127716A2活塞总成PISTON ASSEMBLYAR
1347276活塞销锁环LOCK RING Piston Pin8
1427841A12活塞环组-标准RING SET Piston - Standard1
1428616A12活塞环组RING SET Piston1
1489822A12活塞环组-.030加大RING SET Piston - .030 Oversize1
157621A3连杆总成CONNECTING ROD ASSEMBLY4
1691012盖至连杆专用螺钉(.250-28)SCREW (.250-28 Special) Cap to Rod8
1820063BEARING Needle Piston Pin108
1947275针阀定位垫圈WASHER Needle Locating8
2020046T曲柄销滚针轴承BEARING Needle Crankpint100
217060A2中央主轴承总成BEARING ASSEMBLY Center Main1
2220032PIN Dowel Center Main Bearing2
2371422滚针轴承BEARING Needle56
2426113外圈RACE Outer1
2526933外圈卡环RING Snap Outer Race1
2676630中心主轴承螺钉(.250-20 x 1.00)(1英寸)SCREW (.250-20 x 1.00) Center Main Bearing (1 Inch)2
图 56气缸体与曲轴箱总成 Cylinder Block and Crankcase Assembly
气缸体与曲轴箱总成 Cylinder Block and Crankcase Assembly
REF零件编号中文名称英文名称数量
18981A6气缸体总成CYLINDER BLOCK ASSEMBLY1
272038启动电机上支架BRACKET Upper Starter Motor1
373279支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch)2
426993支架螺钉锁紧垫圈(.312)LOCKWASHER (.312) Bracket Screw4
576867启动电机下盖COVER Lower Starter Motor1
673279盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch)2
820032缸体至主轴承定位销PIN Dowel Cylinder block to main bearing2
968164化油器双头螺柱(1.25英寸)STUD Carburetor (1.25 Inch)4
1068165曲轴箱至驱动轴壳体双头螺柱(1.625英寸)STUD Crankcase to Driveshaft Housing (1.625 Inch)2
1120033曲轴箱至缸体定位销PIN Dowel Crankcase to Cylinder Block2
1287901缸体至驱动轴壳体双头螺柱(4英寸)STUD Cylinder block to drive shaft housing (4 Inch)2
1368166缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸)STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch)2
1468167缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸)STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch)2
1573657曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸)SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch)13
1531984曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸)SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch)3
1573275曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸)SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch)2
1670132曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063)WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw17
1720359螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
1798260螺钉(.375-16 x .620)SCREW (.375-16 x .620)2
1820091中央轴承锁紧螺钉止动垫圈TAB WASHER Center Bearing Locking Screw3
1999127109平衡管(57英寸散装)-主轴承(5.50英寸)LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch)1
2099664平衡管至缸体弯头ELBOW Balance Tube to Cylinder Block2
2165857上部泄放软管接头CONNECTOR Upper Bleed Hose1
229938779气缸泄放软管(11英寸)HOSE Cylinder Bleed (11 Inch)1
2342867下部泄放软管止回阀CHECK VALVE Lower Bleed Hose1
2499156正时指示器INDICATOR Timing1
2539349指示器至曲轴箱不锈钢螺钉(.312-18 x .750)SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase1
2626993指示器螺钉锁紧垫圈(.312)LOCKWASHER (.312) Indicator Screw1
-97469A87动力头总成(完整)POWERHEAD ASSEMBLY Complete1
图 57驱动轴壳体总成 Driveshaft Housing Assembly
驱动轴壳体总成 Driveshaft Housing Assembly
REF零件编号中文名称英文名称数量
17512A10驱动轴壳体总成(短轴)HOUSING ASSEMBLY Driveshaft (Short Shaft)1
17513A12驱动轴壳体总成(长轴)HOUSING ASSEMBLY Driveshaft (Long Shaft)1
18189A10黑色传动轴壳体总成HOUSING ASSEMBLY Driveshaft Black1
18189A11灰色传动轴壳体总成HOUSING ASSEMBLY Driveshaft Gray1
364649塑料螺塞-调整片螺钉孔PLUG Plastic - Trim Tab Screw Hole1
457932STUD (.375-16/.375-24 x 1.750) Driveshaft Housing1
557935驱动轴壳体双头螺柱(3英寸)STUD Driveshaft Housing (3 Inch)1
665791齿轮箱壳体螺柱垫圈(0.438英寸)WASHER Gear Housing Studs (0.438 Inch)2
734933NUT (.437-20) Stainless Steel Gear Housing Studs2
893445橡胶上支架MOUNT Rubber - Upper2
996401上支架密封件SEAL Upper Mount2
1027727WASHER Upper Mount Bolt (37/64 I.D.)2
1166966WASHER Rubber - Upper Mount Bolt2
1230514WASHER Upper Mount Bolt2
1334933NUT (.437-20) Stainless Steel Upper Mount Bolt2
1487883T上减震座盖COVER Upper Mount2
1576630SCREW (.250-20 x 1.00) Upper Mount Cover4
1629245WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw4
1737687驱动轴壳体调整盖COVER Trim - Driveshaft Housing1
1737687F2驱动轴壳体调整盖COVER Trim - Driveshaft Housing1
1857807SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing4
1992012GROMMET Trim Cover Screw4
2038157调整盖至驱动轴壳体密封件SEAL Trim Cover to Driveshaft Housing1
2138158调整盖密封条(后)STRIP Retaining - Trim Cover Seal (Rear)1
2238154调整盖密封条(侧)STRIP Retaining - Trim Cover Seal (Side)2
2348408固定条螺钉(#10-16 x .500)SCREW (#10-16 x .500) Retaining Strip8
24695431排气管TUBE Exhaust1
24695441排气管TUBE Exhaust1
2537727进水口管TUBE Water Inlet1
2545679进水口管TUBE Water Inlet1
2664809动力头螺柱螺母(0.313英寸)NUT Powerhead Studs (0.313 Inch)8
2775304下橡胶支座MOUNT Rubber - Lower2
2875284SCREW (.500-20 x 5.500) Lower Mount Screw2
2843426下支座螺丝SCREW Lower Mount Screw2
2928051WASHER Lower Mount Screw2
3028053下支座螺丝橡胶垫圈WASHER Rubber - Lower Mount Screw2
3130119WASHER (.875 Inch Outside Diameter) Lower Mount Screw2
3225096NUT Lower Mount Screw2
3369592下支座夹箍CLAMP Lower Mount2
3429256SCREW (.312-18 x .875) Lower Mount Clamp4
3535522SPRING Tension - Lower Mount Clamp4
3635474T下安装夹盖COVER Lower Mount Clamp2
3635474F2下支座夹箍盖COVER Lower Mount Clamp Lower Mount Clamp2
3787884盖至下支座夹箍螺丝(#12-14 x 0.920)SCREW (#12-14 x .920) Cover to Lower Mount Clamp2
3835521NUT Lower Mount Clamp Cover2
3988238A2动力升降接地线组件(2根)CABLE ASSEMBLY Ground Quanity of Two on Power Trim1
图 58电气组件 Electric Components
电气组件 Electric Components
REF零件编号中文名称英文名称数量
195815上盖COVER (TOP)1
295828下盖COVER (BOTTOM)1
395810A1启动开关总成SWITCH ASSEMBLY Start1
455741护套BOOT1
588890A2开关总成SWITCH ASSEMBLY1
679139A20电缆总成（红色）CABLE ASSEMBLY (RED)1
1095814绑带STRAP1
1195813紧固件FASTENER1
1240056108螺钉（M5×20）SCREW (M5 x 20)1
134005727螺钉SCREW2
1445771垫圈WASHER2
1562568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
1669570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
17816770整流器RECTIFIER1
1848409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel2
1945076黄铜螺母(#10-32)NUT (#10-32) Brass3
2096054启动电磁阀总成SOLENOID ASSEMBLY Starter1
214000327螺钉 (M6 x 14)SCREW (M6 x 14)2
2226419黄铜螺母 (#8-32)NUT (#8-32) Brass2
2364015螺母 (.250-20)NUT (.250-20)2
2488809A5电线总成（黄色）WIRE ASSEMBLY (YELLOW)1
2588439A8电池电缆总成(红色)CABLE ASSEMBLY Battery (RED)1
2588439A6电池电缆总成(黑色)CABLE ASSEMBLY Battery (BLACK)1
2692439支架(旧设计)BRACKET (OLD DESIGN)1
274000327螺钉(M6×14)(旧设计)SCREW (M6 x 14) (OLD DESIGN)1
2835044垫圈(0.281×0.625×0.065)不锈钢(旧设计)WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)1
29400212螺母(M6)不锈钢(旧设计)NUT (M6) Stainless Steel (OLD DESIGN)1
30815504310蜗轮卡箍(旧设计)CLAMP Worm Gear (OLD DESIGN)1
3186704A2定子总成STATOR ASSEMBLY1
324000123螺丝(M5 x 30)SCREW (M5 x 30)3
3390983A1启动电机总成STARTER MOTOR ASSEMBLY1
3496561驱动套件DRIVE KIT1
3596562驱动器DRIVE1
3696563端盖END CAP1
3796565电枢ARMATURE1
3896564端盖END CAP1
3996566贯穿螺栓THRU BOLT1
40421251螺钉(M8x55)SCREW (M8 x 55)2
41424291固定座RETAINER1
4212334A2发动机线束总成HARNESS ASSEMBLY Engine Wiring1
4379091保险丝20安培FUSE 20 Ampere1
44134731保险丝座(旧设计)HOLDER Fuse (OLD DESIGN)1
4512152固定座RETAINER1
4692753固定座RETAINER1
4755098J型卡扣J CLIP1
图 59端盖与排气罩 End Caps and Exhaust Cover
端盖与排气罩 End Caps and Exhaust Cover
REF零件编号中文名称英文名称数量
25826A2上端盖总成END CAP ASSEMBLY Upper1
341953SEAL Upper End Cap1
420081上端盖O型圈O-RING Upper End Cap1
563742上端盖滚珠轴承BEARING Ball Upper End Cap1
672538A1上端盖垫片(.005-10)SHIM Upper End Cap (.005-10)AR
773274上端盖螺丝(0.75英寸)SCREW Upper End Cap (0.75 Inch)4
88360A1气缸体盖总成COVER ASSEMBLY Cylinder Block1
932802PLUG Pipe (.125-27) Cylinder Block Cover1
10437772气缸体盖衬垫GASHET Cylinder Block Cover1
1169100气缸体盖螺丝(1英寸)SCREW Cylinder Block Cover (1 Inch)10
1246933A7拉线总成CABLE ASSEMBLY2
1490435气缸体盖橡胶支座MOUNT Rubber - Cylinder Block Cover1
1520184NUT (1/4-28X7/32) Rubber Mount2
1618827A1换气口盖总成COVER ASSEMBLY Transfer Port1
17279361换气口盖垫片GASKET Transfer Port Cover2
1890198换气口盖螺丝(0.625英寸)SCREW Transfer Port Cover (0.625 Inch)6
196635A1下端盖总成END CAP ASSEMBLY Lower1
2020081下端盖O型圈O-RING Lower End Cap1
2141953SEAL Lower End Cap2
2263742下端盖滚珠轴承BEARING Ball Lower End Cap1
2320085A1下端盖垫片组(.005-10)SHIM SET Lower End Cap (.005-10)AR
2429256下端盖螺丝(.312-18 x 0.875)SCREW (.312-18 x .875) Lower End Cap3
2590435曲轴箱橡胶支座MOUNT Rubber - Crankcase2
2620184NUT (1/4-28X7/32) Rubber Mount4
28854912气缸体至隔板衬垫GASKET Cylinder Block to Baffle Plate1
2990421挡板 - 排气歧管PLATE Baffle - Exhaust Manifold1
30854922隔板至排气盖衬垫GASKET Baffle Plate to Exhaust Cover1
3177381排气歧管盖COVER Exhaust Manifold1
3237562不锈钢歧管盖至气缸体螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel Manifold Cover to Cylinder Block14
3238837歧管盖至气缸体螺丝(.312-18 x 1.12)SCREW (.312-18 x 1.12) Manifold Cover to Cylinder Block1
3345915端子排TERMINAL BLOCK1
3462568接线端子螺丝(#10-16 x 0.375)SCREW (#10-16 x .375) Terminal Block1
3528192接线端子螺丝(#10-24 x 0.50)SCREW (#10-24 x .50) Terminal Block1
3696829A1温度开关总成260棕SWITCH ASSEMBLY Temperature 260 Tan1
3616775A2温度开关300棕绿TEMPERATURE SWITCH 300 Tan and Green1
-85491A87衬垫套件GASKET SET1
图 60排气板与换挡联动机构 Exhaust Plate and Shift Linkage
排气板与换挡联动机构 Exhaust Plate and Shift Linkage
REF零件编号中文名称英文名称数量
142819A2排气延伸板总成PLATE ASSEMLBY Exhaust Extension1
227132排气延伸板衬套BUSHING Exhaust Extension Plate1
338453进水口管尼龙垫圈WASHER Nylon - Water Inlet Tube1
438452水管橡胶密封件SEAL Rubber - Water Tube1
579799HOUSING Water Inlet Tube Seal1
6797971壳体衬垫GASKET Housing1
779798壳体至排气板螺丝(#10-32 x 1.380)(1.375英寸)SCREW (#10-32 x 1.380) Housing to Exhaust Plate (1.375 Inch)2
8796501动力头衬垫GASKET Powerhead1
976632A3上短换挡轴总成SHIFT SHAFT ASSEMBLY Upper Short Shaft1
976632A4上长换挡轴总成SHIFT SHAFT ASSEMBLY Upper Long Shaft1
1060572上换挡轴尼龙套筒BARREL Nylon - Upper Shift Shaft1
1174739A3换挡控制执行器总成ACTUATOR ASSEMBLY Shift Control1
1237934换挡拉索弹簧SPRING Shift Cable1
1338069弹簧至执行器螺丝SCREW Spring to Actuator1
1437932换挡控制执行器尼龙轴承BEARING Nylon - Shift Control Actuator1
1536137轴承至换挡控制执行器螺丝(.250-28 x 1.00)SCREW (.250-28 x 1.00) Bearing to Shift Control Actuator1
1621272轴承螺丝锁紧垫圈(.250)LOCKWASHER (.250) Bearing Screw1
1737935换挡控制轴承导轨RAIL Shift Control Bearing1
1869028不锈钢导轨至排气歧管盖螺丝(.250-28 x 0.750)SCREW (.250-28 x .750) Stainless Steel Rail to Exhaust Manifold Cover1
1926992不锈钢导轨螺丝锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel Rail Screw1
2059037A2油门和换挡拉索杆LEVER Throttle and Shift Cables1
2123928快拆杆滚销PIN Roll - Quick Disconnect Lever2
2238005快拆杆弹簧SPRING Quick Disconnect Lever2
2337927快拆杆尼龙衬套BUSHING Nylon Nylon - Quick Disconnect Lever2
2437926尼龙轴承保持架RETAINER Nylon Bearing1
2537923轴承保持架螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250) Bearing Retainer1
26385011排气延伸板衬垫GASKET Exhaust Extension Plate1
2738156排气延伸板橡胶密封件SEAL Rubber - Exhaust Extension Plate1
2899136橡胶密封条STRIP Rubber Seal1
2937571固定条螺丝(.190-32 x 0.500)SCREW (.190-32 x .500) Retaining Strip6
-85491A87衬垫套件GASKET SET1
图 61飞轮/点火线圈与开关盒 Flywheel Ignition Coil and Switch Box
飞轮/点火线圈与开关盒 Flywheel Ignition Coil and Switch Box
REF零件编号中文名称英文名称数量
145907PLUG Yellow Flywheel1
222339NUT (.625-18) Flywheel1
368229WASHER (.641 x 1.250 x .190) Flywheel Nut1
48722A11飞轮总成FLYWHEEL ASSEMBLY1
48722A9飞轮总成FLYWHEEL ASSMEBLY1
532417螺钉 (.250-28 x .625) 柔性板至飞轮SCREW (.250-28 x .625) Flexible Plate to Flywheel8
688755棘轮飞轮(手动)RATCHET Flywheel (Manual)1
768997螺钉 (.312-24 x .750) 棘轮至飞轮(手动)SCREW (.312-24 x .750) Ratchet to Flywheel (Manual)8
85454A56定子STATOR1
85454A25定子STATOR1
975840螺钉 (#10-24 x .880) 定子至上端盖SCREW (#10-24 x .880) Stator to Upper End Cap4
1096452A4触发器总成TRIGGER ASSEMBLY1
1388721A1线束总成 开关盒至点火线圈HARNESS ASSEMBLY Switch Box to Ignition Coil1
147370A13点火线圈总成COIL ASSEMBLY Ignition4
1545076螺母 (#10-32) 黄铜点火线圈端子NUT (#10-32) Brass Ignition Coil Terminals8
1660466A19电缆总成 线圈至开关盒CABLE ASSEMBLY Coil to Switch Box4
1787554点火线圈盖COVER Ignition Coil1
1888856螺钉 (.190-32 x 2.00) 线圈盖SCREW (.190-32 x 2.00) Coil Cover5
1930164垫圈 (.192 x .375 x .0312) 不锈钢线圈盖螺钉WASHER (.192 x .375 x .0312) Stainless Steel Coil Cover Screw5
20813715A5火花塞引线总成LEAD ASSEMBLY Spark Plug1
2163709A1护套/端子套件BOOT/TERMINAL KIT4
222854BOOT Ignition Coil4
2397182火花塞SPARK PLUG4
2314103550火花塞 (NGK-BUZHW)SPARK PLUG (NGK-BUZHW)4
245772A2开关盒总成SWITCHBOX ASSEMBLY1
2520619螺钉 (#12-24 x 1.25) 开关盒与"J"形夹至板SCREW (#12-24 x 1.25) Switch Box and "J" Clip to Plate4
26642351J形夹 开关盒引线J CLIP Switch Box Leads1
2745076NUT (#10-32) Brass Switch Box Terminals13
2888322开关盒板PLATE Switch Box1
2954615螺钉 (.250-20 x .625) 开关盒板至气缸体SCREW (.250-20 x .625) Switch Box Plate to Cylinder Block2
3063813端子排TERMINAL BLOCK1
3120568螺钉 (.190-24 x .62) 接线板SCREW (.190-24 x .62) Terminal Block2
3162568接线端子螺丝(#10-16 x 0.375)SCREW (#10-16 x .375) Terminal Block2
图 62燃油泵 Fuel Pump
燃油泵 Fuel Pump
REF零件编号中文名称英文名称数量
0-184139M燃油泵总成PUMP ASSEMBLY Fuel1
180613M衬垫GASKET1
180613衬垫GASKET1
280606M隔膜泵DIAPHRAGM PUMP1
380611M板簧导板PLATE SPRING GUIDE1
480610M隔膜泵弹簧SPRING PUMP DIAPHRAGM1
584650M止回阀CHECK VALVE2
680614M衬垫GASKET1
680614衬垫GASKET1
784141M隔膜泵DIAPHRAGM PUMP1
880607M泵盖COVER PUMP1
982208M锁紧垫圈WASHER LOCK3
982186M垫圈WASHER3
1082522M螺钉SCREW3
1180757M衬垫GASKET1
1180757衬垫GASKET1
1282428M螺栓BOLT2
12827043M螺栓BOLT2
1382199M锁紧垫圈WASHER LOCK2
1382214M垫圈WASHER2
-84167M衬垫套件GASKET SET1
-94483M衬垫套件GASKET SET1
图 63齿轮箱（驱动轴） Gear Housing (Driveshaft)
齿轮箱（驱动轴） Gear Housing (Driveshaft)
REF零件编号中文名称英文名称数量
-9539A4齿轮箱总成短轴-黑色GEAR HOUSING ASSEMBLY Short Shaft - Black1
-9539A5齿轮箱总成长轴-黑色GEAR HOUSING ASSEMBLY Long Shaft - Black1
-9539A6齿轮箱总成短轴-灰色GEAR HUSING ASSEMBLY Short Shaft - Gray1
-9539A7齿轮箱总成长轴-灰色GEAR HOUSING ASSEMBLY Long Shaft - Gray1
19539A1齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T1齿轮箱GEAR HOUSING1
19539A8齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T8ORD 1643-9539T 1ORD 1643-9539T 11
285822A1速度表连接器总成CONNECTOR ASSEMBLY Speedometer1
285822A10连接器总成CONNECTOR ASSEMBLY1
385500定位销(.187 x .530)齿轮箱PIN Dowel (.187 x .530) Gear Housing2
38M0084726定位销PIN Dowel2
433778水泵/底座柱螺栓(2.625英寸)STUD Water Pump/Base (2.625 Inch)3
557933柱螺栓(.437-14/.437-20 x 2.190)齿轮箱STUD (.437-14/.437-20 x 2.190) Gear Housing2
58M0034453柱螺栓(7/16 x 2.19)STUD (7/16 x 2.19)2
662091传动轴滚柱轴承BEARING Roller Driveshaft1
662091T轴承BEARING1
772849A1进水滤网总成SCREEN ASSEMBLY Water Intake1
836070螺钉(#10-32 x 1.250)进水滤网至齿轮箱SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing1
945812螺母(#10-32)不锈钢进水滤网螺钉NUT (#10-32) Stainless Steel Water Intake Screen Screw1
9859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
1092815排气管支撑板PLATE Support - Exhaust Tube1
1137721排气管密封件SEAL Exhaust Tube1
1137721001密封件@2SEAL @21
1298097传动轴小齿轮GEAR Pinion Driveshaft1
1298097T小齿轮GEAR-PINION1
1355910螺母(.437-20)小齿轮至传动轴NUT (.437-20) Pinion Gear to Driveshaft1
1419552水泵底座衬垫GASKET Water Pump Base1
1526722O型圈O-RING1
1677177A1水泵底座总成BASE ASSEMBLY Water Pump1
1790562密封件(1.254 x .312)SEAL (1.254 x .312)1
1879831油封SEAL Oil1
1935973定位销PIN Dowel2
2019553下衬垫GASKET Lower1
2154705面板FACE PLATE1
2132768面板FACEPLATE1
2219551上衬垫GASKET Upper1
2389983叶轮IMPELLER1
2389983T叶轮IMPELLER1
2456662叶轮驱动键KEY Impeller Drive1
248M0032837键@5KEY @51
2577822A1水泵壳体总成BODY ASSEMBLY Water Pump1
2648753嵌件INSERT1
2738452橡胶密封件SEAL Rubber1
2838453尼龙垫圈WASHER Nylon1
2929245垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs3
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
3013438螺母(.250-28)水泵体与底座柱螺栓NUT (.250-28) Water Pump Body and Base Studs3
308267119螺母(.250-28)NUT (.250-28)3
3120273橡胶O型圈O-RING Rubber1
3278654A1传动轴座总成SEAT ASSEMBLY Driveshaft1
3386304花键密封件-传动轴SEAL Splined - Driveshaft1
3479953螺钉(.375-16 x .250)润滑脂加注口SCREW (.375-16 x .250) Grease Filler1
3479953Q04放油螺钉套件SCREW KIT Drain1
3567892磁性放油螺钉SCREW Magnetic Drain1
358M0058389放油螺钉套件SCREW KIT Drain1
3619183纤维垫圈(加注/放油螺钉)WASHER Fiber Filler/Drain Screw2
368M0187157蓝色密封件@15SEAL-BLUE @152
3788181润滑套筒-传动轴SLEEVE Lubrication - Driveshaft1
3892881A1轴承垫片组(齿轮箱用)(.002-3-5-10-20)SHIM SET Bearing to Gear Housing(.002-3-5-10-20)AR
3977420A1圆锥滚子轴承总成-传动轴BEARING ASSEMBLY Roller Tapered - Driveshaft1
398M0166756轴承总成BEARING ASSEMBLY1
4088025A2驱动轴总成DRIVESHAFT ASSEMLBY1
4098179驱动轴DRIVESHAFT1
4088024A2驱动轴总成DRIVESHAFT ASSEMBLY1
4098180驱动轴DRIVESHAFT1
4120254驱动轴压缩弹簧SPRING Compression - Driveshaft1
4230545驱动轴销PIN Driveshaft1
4376063A1换挡轴总成SHAFT ASSEMBLY Shift1
4429641换挡轴E型卡环E RING Shift Shaft1
4525439O型圈(.862 x .103)换挡轴衬套O-RING (.862 x .103) Shift Shaft Bushing1
4677631A2换挡轴衬套总成BUSHING ASSEMBLY Shift Shaft1
4776384换挡轴衬套油封SEAL Oil Shift Shaft Bushing1
478M0246145油封OIL SEAL1
4877674橡胶垫圈(.35 x .75 x .12)换挡轴衬套WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing1
4978036倒挡锁定底座BASE Reverse Locking1
50433081倒挡锁定凸轮CAM Reverse Locking1
5043308T1凸轮CAM1
-77177A3水泵套件WATER PUMP KIT1
-79831A1密封套件SEAL KIT1
-85491A87衬垫套件GASKET SET1
-85491A90衬垫套件GASKET SET1
图 64齿轮箱螺旋桨轴 Gear Housing Propeller Shaft
齿轮箱螺旋桨轴 Gear Housing Propeller Shaft
REF零件编号中文名称英文名称数量
-9539A4齿轮箱总成短轴-黑色GEAR HOUSING ASSEMBLY Short Shaft - Black1
-9539A5齿轮箱总成长轴-黑色GEAR HOUSING ASSEMBLY Long Shaft - Black1
-9539A6齿轮箱总成短轴-灰色GEAR HUSING ASSEMBLY Short Shaft - Gray1
-9539A7齿轮箱总成长轴-灰色GEAR HOUSING ASSEMBLY Long Shaft - Gray1
19539A1齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T1齿轮箱GEAR HOUSING1
19539A8齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T8ORD 1643-9539T 1ORD 1643-9539T 11
5176039换挡凸轮控制CAM Shift Control1
51760394换挡凸轮控制CAM Shift Control1
5238374A1轴承杯与齿轮箱调整垫片组(.002-3-5-10)SHIM SET Bearing Cup to Gear Housing (.002-3-5-10)AR
5338356A1轴承套件BEARING SET1
5455608A4前进齿轮总成GEAR ASSEMBLY Forward1
5455608T4前进齿轮总成GEAR ASSY-FORWARD1
5521739前进齿轮滚柱轴承BEARING Roller Foward Gear1
5638441凸轮从动件FOLLOWER Cam1
5720843十字销滑套SLIDE Cross Pin1
5838114十字销固定弹簧SPRING Retaining - Cross Pin1
5992911滑动离合器棘轮RATCHET Sliding Clutch1
5992911T离合器CLUTCH1
6038113棘轮到螺旋桨轴十字销PIN Cross Ratchet to Propeller Shaft1
608M0020942十字销@2PIN-CROSS @21
6139845凸轮从动件压缩弹簧SPRING Compression - Cam Follower1
6275365螺旋桨轴PROPELLER SHAFT1
6379158倒挡齿轮GEAR Reverse1
6379158T倒挡齿轮GEAR-REVERSE1
6432004倒档齿轮止推垫片WASHER Thrust - Reverse Gear1
6520839倒档齿轮滚珠轴承BEARING Ball Reverse Gear1
6520839T滚珠轴承BEARING Ball1
6631986轴承座O型圈O-RING Bearing Carrier1
6769386A1轴承座总成CARRIER ASSEMBLY Bearing1
6769386T1轴承座总成CARRIER ASSY-BRG1
6821700轴承座滚针轴承BEARING Needle Bearing Carrier1
6969188轴承座油封SEAL Oil Bearing Carrier1
698M0205511油封SEAL Oil1
7069189轴承座油封SEAL Oil Bearing Carrier1
708M0203757油封SEAL Oil1
7130281轴承座定位键KEY Locating - Bearing Carrier1
7253012齿轮箱盖锁紧垫片TAB WASHER Gear Housing Cover1
7387763齿轮箱螺母NUT Gear Housing1
7431640A1齿轮箱平衡片总成TRIM TAB ASSEMBLY Gear Housing1
7431640Q4平衡鳍板TRIM TAB1
7566024平衡片固定螺丝(.437-14 x 1.75)SCREW (.437-14 x 1.75) Trim Tab to Gear Housing1
7645175驱动轴壳体螺柱垫片(.406 x .750 x .104)(0.375英寸)WASHER (.406 x .750 x .104) Driveshaft Housing Stud (0.375 Inch)1
768M0214963垫圈WASHER1
7734863驱动轴壳体螺柱螺母(.375-24)NUT (.375-24) Driveshaft Housing Stud1
778M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
7865791壳体与螺柱垫片(0.437英寸)WASHER Housing to Stud (0.437 Inch)1
7934933不锈钢螺柱螺母(.437-20)NUT (.437-20) Stainless Steel Stud1
798M0204653螺母NUT1
8073345A1前止推垫片THRUST WASHER Front1
8176281螺旋桨螺母锁紧垫片TAB WASHER Propeller Nut1
818M0214942锁紧垫片WASHER Tab1
8269578A1螺旋桨螺母套件PROP NUT KIT1
8269578Q1螺旋桨螺母套件PROP NUT KIT1
-79831A1密封套件SEAL KIT1
-85491A87衬垫套件GASKET SET1
-85491A90衬垫套件GASKET SET1
图 65液压泵总成(电动手柄) Hydraulic Pump Assembly (Electric Handle)
液压泵总成(电动手柄) Hydraulic Pump Assembly (Electric Handle)
REF零件编号中文名称英文名称数量
-92975A6液压泵总成PUMP ASSEMBLY Hydraulic1
148171O-RING (.364. x .070) Hydraulic Pump4
28317阀体与齿轮总成VALVE BODY AND GEAR ASSEMBLY1
369570SCREW (#10-16 x .750) Valve Body to Reservoir8
47735SEAL Reservoir to Valve Body and Gear1
57731塑料储液罐总成RESEROVIR ASSEMBLY Plastic1
67732WASHER Thrust - ArmatureAR
77729ARMATURE Field and Frame1
88261磁场框架总成FIELD AND FRAME ASSEMBLY1
97730BALL Commutator End Plate1
108262PLATE ASSEMBLY Commutator End1
118989电刷套件 换向器端板BRUSH KIT Commutator End Plate1
122529SPRING SET Brush Tension1
137733贯穿螺栓组 板与框架至储液罐BOLT SET Through - Plate and Frame to Reservoir1
147727联轴器与轴COUPLER AND SHAFT1
157728FILL PLUG Reservoir1
图 66杂项零件/附件 Miscellaneous Parts/Accessories
杂项零件/附件 Miscellaneous Parts/Accessories
REF零件编号中文名称英文名称数量
-811286零件手册(6/8/9.9/15马力)PARTS MANUAL 6/8/9.9/15 Hp
-12048930用户指南(黑色)OWNERS GUIDE (BLACK)
-14138930用户指南(灰色)OWNERS GUIDE (GRAY)
-14012A89贴花套装(9.9/210帆动力)DECAL SET (9.9/210 SAILPOWER)
-12836A89贴花套装(黑色-6至9.9马力)DECAL SET (BLACK- 6 THRU 9.9)
-13478A88贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-810458A92贴花套装(灰色-6至15马力)DECAL SET (GRAY- 6 THRU 15)
-822787A93贴花套装(灰色-8帆伴侣)DECAL SET (GRAY 8 SAILMATE)
-808560A03贴花套件DECAL SET
-808522A94贴花套装(黑色-6马力)DECAL SET (BLACK-6)
-808522A00贴花套件DECAL SET
-808526A94贴花套装(黑色-8马力)DECAL SET (BLACK -8)
-808526A00贴花套件DECAL SET
-12836A94贴花套装(黑色-9.9马力)DECAL SET (BLACK- 9.9)
-12836A00贴花套件DECAL SET
-808523A94贴花套装(9.9帆动力)DECAL SET (9.9 SAILPOWER)
-808523A96贴花套件DECAL SET
-13478A94贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-13478A00贴花套件DECAL SET
-808524A94贴花套装(灰色-6马力)DECAL SET (GRAY-6)
-808524A03贴花套件DECAL SET
-808545A94贴花套装(灰色-8马力)DECAL SET (GRAY-8)
-808545A03贴花套件DECAL SET
-808560A94贴花套装(8帆伴侣)DECAL SET (8 SAILMATE)
-808560A03贴花套件DECAL SET
-808525A94贴花套装(灰色-9.9马力)DECAL SET (GRAY-9.9)
-808525A03贴花套件DECAL SET
-808546A94贴花套装(灰色-15马力)DECAL SET (GRAY-15)
-808546A03贴花套件DECAL SET
图 67安装五金件(电动手柄) Mounting Hardware (Electric Handle)
安装五金件(电动手柄) Mounting Hardware (Electric Handle)
REF零件编号中文名称英文名称数量
162882螺钉 (.500-20 x 3.250) 支架至减震销SCREW (.500-20 x 3.250) Bracket to Shock Pin2
262885SPACER Mounting Bracket Screw2
289952SPACER Mounting Bracket Screw2
362884SPACER Mounting Bracket Screw2
462887PIN Trim Cylinders to Swivel Bracket2
563099WASHER (1.50 x .766 x .125) Trim Cylinder Pin2
654012WASHER (.530 x .870 x .105) Stainless Steel Trim Cylinder Pin2
735778NUT (.500-20) Trim Cylinder Pin2
828416上减震安装销PIN Upper Shock Mounting1
934937垫圈 (.766 x 1.312 x .125) 减震销WASHER (.766 x 1.312 x .125) Shock Pin2
图 68动力升降倾斜组件 Power Trim Components
动力升降倾斜组件 Power Trim Components
REF零件编号中文名称英文名称数量
199659A21歧管总成MANIFOLD ASSEMBLY1
199659A22歧管总成MANIFOLD ASSEMBLY1
299616PIPE PLUG Manifold11
256800管塞 (.0625-27)PLUG Pipe (.0625-27)11
341493A9升降油缸总成TRIM CYLINDER ASSEMBLY1
341493A6升降油缸总成TRIM CYLINDER ASSEMBLY1
441492A1导向器总成GUIDE ASSEMBLY1
541478A1维修套件REPAIR KIT1
641482A3止回阀套件CHECK VALVE KIT1
799638A1GUIDE ASSEMBLY Trim Rod2
78M0021648端盖总成END CAP ASSEMBLY2
843397A7活塞总成 左舷PISTON ASSEMBLY Port1
912184A1升降过滤器总成TRIM FILTER ASSEMBLY1
1043398A3右舷动力升降活塞/连杆总成PISTON/ROD ASSEMBLY Power Trim Starboard1
10878414T01活塞总成PISTON ASSEMBLY1
1113794槽式配平缸销-上部PIN Groove Trim Cylinder - Upper1
11821539三叶销PIN Trilobe1
12812843A1阀门总成VALVE ASSEMBLY1
12893929A01安全阀套件VALVE KIT Relief1
12A812844E型卡环E RING1
12A815949001E形环E-RING1
134000327SCREW (M6 x 14) Cover4
1443450WASHER Cover Screw4
144002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
1599642COVER Manifold1
1648462A2O型圈套件O-RING KIT1
1648462A4O型圈套件O RING KIT1
1799609A1塞子总成PLUG ASSEMBLY1
1899641A1轴总成SHAFT ASSEMBLY1
1899641A02轴总成SHAFT ASSY1
1999616PIPE PLUG Shaft2
1956800管塞 (.0625-27)PLUG Pipe (.0625-27)2
204008820SCREW (M6 x 20) Pump and Motor2
21400256锁紧垫圈 (M6)LOCKWASHER (M6)2
2299186T泵与电机总成PUMP AND MOTOR1
22826729A10ORD 8M0143217ORD 8M01432171
2399625上轴SHAFT Upper1
2399625002轴SHAFT1
2443396A2阳极总成ANODE ASSEMBLY1
24818298Q1阳极套件ANODE KIT1
254000332SCREW (M6 x 35) Anode2
2629245WASHER (.281 x .500 x .060) Stainless Steel Anode Screw2
268M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
27996301STRIKER PLATE Trim Shaft2
278M0045383冲击板STRIKER PLATE2
2858643锁紧垫圈 (.375)LOCKWASHER (.375)2
2946335螺母 (.375-24)NUT (.375-24)2
3099695A1控制动力配平线束总成HARNESS ASSEMBLY Control Power Trim1
3017201A3控制动力配平线束总成HARNESS ASSEMBLY Control Power Trim1
3179139A23红色线束总成WIRE ASSEMBLY Red1
3187379A14电线总成 (2.750英寸) 红色WIRE ASSEMBLY (2.750 Inches) Red1
3296158启动电磁阀SOLENOID Starter3
328M0185622电磁阀SOLENOID3
3341508SCREW (.250-20 x .500) Stainless Steel Starter Solenoid6
3426419螺母 (#8-32) 黄铜电磁阀端子NUT (#8-32) Brass Solnoid Terminal2
3544431PIN Groove Trim Cylinder (Lower)1
35878267销PIN1
3694330NUT (.250-20) Brass Solenoid Terminal4
3797861INSULATOR Starter Solenoid3
3822875泵线夹CLIP Pump Wire1
3969205C WASHER Clip Screw1
398M0084613C形垫圈C-WASHER1
4069079SCREW (#10-16 x .440) Clip to Transom Bracket1
414000377歧管螺钉(M10x30)SCREW (M10 x 30) Manifold6
42400258LOCKWASHER (M10) Stainless Steel Manifold Screw6
图 69动力升降组件(电动手柄) Power Trim Components (Electric Handle)
动力升降组件(电动手柄) Power Trim Components (Electric Handle)
REF零件编号中文名称英文名称数量
192975A6液压泵总成PUMP ASSEMBLY Hydraulic1
248171O-RING (.364. x .070) Manifold Plate4
379953SCREW (.375-16 x .250) Filler - Hydraulic Pump1
419183纤维密封填料螺钉垫圈WASHER Fiber Sealing Filler Screw1
562269螺钉 (#10-32 x .437) 液压泵通气孔SCREW (#10-32 x .437) Vent - Hydraulic Pump Hydraulic Pump1
645336PLATE Manifold1
745197A2控制阀总成VALVE ASSEMBLY Control1
--48171O形圈 (.364. x .070) 歧管板(参见参考号#2)O-RING (.364. x .070) Manifold Plate (See Reference. #2)4
845254O形圈 控制阀O-RING Control Valve1
948171O-RING (.364. x .070) Control Valve1
1045253O形圈 控制阀O-RING Control Valve2
1156500螺钉 (.250-28 x 1.250) 阀与歧管板至泵SCREW (.250-28 x 1.250) Valve and Manifold Plate to Pump4
1246008控制阀塞PLUG Control Valve2
1379147A3线束总成HARNESS ASSEMBLY1
1479091保险丝20安培FUSE 20 Ampere1
1595084A3保险丝线束总成CABLE ASSEMBLY Fuse1
1645377T安装支架BRACKET Mounting2
1735386螺钉 (.312-18 x 1.00) 安装支架至液压泵SCREW (.312-18 x 1.00) Mounting Bracket to Hydraulic Pump4
1879023A9090安培保险丝总成FUSE ASSEMBLY 90 Ampere1
1921908NUT (.312-18) Cad Plated Mounting Bracket Screw4
2031830螺栓 (.375-24 x 1.75) 液压泵至船体BOLT (.375-24 x 1.75) Hydaulic Pump to Boat2
2124883液压泵手册螺母NUT Hydaulic Pump Book2
2294279安装支架-启动电磁阀BRACKET Mounting - Starter Solendied1
2348060螺钉 (.250-14 x .625) 安装支架至液压泵SCREW (.250-14 x .625) Mounting Bracket to Hydraulic Pump2
2429488螺母 (#10-32) 安装支架至液压泵贯穿螺栓NUT (#10-32) Mounting Bracket to Hydraulic Pump through Bolt1
2596158启动电磁阀SOLENOID Starter2
2696457WASHER Phenolic (.27 x .81 x .062) Fuse Terminal1
2726419NUT (#8-32) Brass Solenoid Terminal4
2826992LOCKWASHER (.250) Stainless Steel Solenoid Terminal4
2994330NUT (.250-20) Brass Solenoid Terminal4
3096535橡胶启动电磁阀端子护套BOOT Rubber Starter Solenoid Terminal1
3141508螺钉 (.250-20 x .500) 不锈钢启动电磁阀至安装支架SCREW (.250-20 x .500) Stainless Steel Starter Solenoid to Mounting Bracket4
3294275连杆 电磁阀至电磁阀LINK Soleniod to Solenoid1
3379139A13电池电缆总成CABLE ASSEMBLY Battery1
3421825NUT (.250-28) Fuse Terminal1
图 70动力升降油缸修理包(电动手柄) Power Trim Cylinder Repair Kits (Electric Handle)
动力升降油缸修理包(电动手柄) Power Trim Cylinder Repair Kits (Electric Handle)
REF零件编号中文名称英文名称数量
-92188A2维修套件REPAIR KIT1
1N.S.S.不单独销售Not Sold Separate1
2N.S.S.不单独销售 (1-1/4" X X1-1/2" X 1/8")Not Sold Separate (1-1/4" X X1-1/2" X 1/8")1
3N.S.S.不单独销售Not Sold Separate1
4N.S.S.不单独销售 (1-7/8 X 2-1/16 X 3/32)Not Sold Separate (1-7/8 X 2-1/16 X 3/32)1
5N.S.S.不单独销售 (3/4 X 15/16 X 3/32)Not Sold Separate (3/4 X 15/16 X 3/32)1
6N.S.S.不单独销售 (1-1/2 X 1-3/4 X 3/32)Not Sold Separate (1-1/2 X 1-3/4 X 3/32)1
图 71动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
REF零件编号中文名称英文名称数量
-99186T泵与电机总成PUMP AND MOTOR1
112659机架与磁场套件FRAME AND FIELD KIT1
1991861动力升降泵总成PUMP ASSEMBLY Power Trim1
212665电刷弹簧套件SPRING KIT Brush1
313506电刷卡套件BRUSH CARD KIT1
3991861动力升降泵总成PUMP ASSEMBLY Power Trim1
412662泵与端架套件PUMP AND END FRAME KIT1
4991861动力升降泵总成PUMP ASSEMBLY Power Trim1
512663泵密封套件SEAL KIT Pump1
5126631泵密封套件SEAL KIT Pump1
612660端架套件END FRAME KIT1
6991861动力升降泵总成PUMP ASSEMBLY Power Trim1
712661电枢套件ARMATURE KIT1
7991861动力升降泵总成PUMP ASSEMBLY Power Trim1
812664贯穿螺栓套件THRU BOLT KIT1
图 72启动电机总成 Starter Motor Assembly
启动电机总成 Starter Motor Assembly
REF零件编号中文名称英文名称数量
-73521启动电机总成STARTER MOTOR ASSEMBLY1
190643驱动套件DRIVE KIT1
268575驱动总成DRIVE ASSEMBLY1
2685753驱动总成DRIVE ASSEMBLY1
375660PLATE Drive End1
475379贯穿螺栓BOLT Through2
675382电枢ARMATURE1
775384电刷/弹簧套件BRUSH/SPRING KIT1
7898265016电刷/弹簧套件BRUSH/SPRING KIT1
857387BUSHING Insulating1
938013WASHER Input Stud1
1026992LOCKWASHER (.250) Stainless Steel Input Stud1
1120890NUT (.250-20) Input Stud1
1261787电刷架HOLDER Brush2
12898265014电刷支架HOLDER-BRUSH2
1368586SCREW Brush and Holder2
1475383END CAP Commutator1
图 73启动器回绕组件 Starter Rewind
启动器回绕组件 Starter Rewind
REF零件编号中文名称英文名称数量
120166NUT Sheave Shaft (Left Hand Thread)1
261004TAB WASHER Sheave Shaft Nut1
3890162启动器壳体HOUSING Starter1
444255A1启动器滑轮总成SHEAVE ASSEMBLY Starter1
544508启动棘爪PAWL Starter1
654523螺钉 (.312-18 x 1.00) 启动器外壳SCREW (.312-18 x 1.00) Starter Housing3
720202锁紧垫圈 启动器外壳螺钉LOCKWASHER Starter Housing Screw3
837691电缆导板PLATE Cable Guide1
935881螺钉 (#6-32 x .250) 驱动-电缆导板SCREW (#6-32 x .250) Drive - Cable Guide Plate3
1061002PLATE Starter Rewind1
1139502A1弹簧SPRING1
1287649BUSHING Spring Guide1
1387651SPRING Starter Pawl1
1487706E RING Starter Pawl1
1563061SPACER Sheave Shaft1
1794962杠杆LEVER1
1820160波形垫圈WAVE WASHER1
1987656滑轮轴SHEAVE SHAFT1
2012066A9绳索ROPE1
2047341A1绳索与手柄套件 手动/应急启动ROPE AND HANDLE KIT Manual/Emergency Start For Manual Starting1
2185174A1手柄总成HANDLE ASSEMBLY1
2276568联锁电缆CABLE Interlock1
2369022螺钉 (#10-32 x .500) 不锈钢联锁电缆固定SCREW (#10-32 x .500) Stainless Steel Interlock Cable Attaching2
2433786联锁电缆螺钉垫圈WASHER Interlock Cable Screw2
2542820CAM Interlock1
2676138螺钉 (.312-18 x 1.120) 联锁凸轮(1.125英寸)SCREW (.312-18 x 1.120) Interlock Cam (1.125 Inch)1
2776140联锁凸轮螺钉弹簧SPRING Interlock Cam Screw1
2879371ACTUATOR Interlock1
2976137联锁执行器螺钉(1.625英寸)SCREW Interlock Actuator (1.625 Inch)1
3076139联锁执行器螺钉弹簧SPRING Interlock Actuator Screw1
3127769COTTER PIN Interlock Cable to Actuator1
3235559WASHER Starter Rewind1
-89016A3起动机总成回绕式STARTER ASSEMBLY Rewind1
图 74转向手柄总成 Steering Handle Assembly
转向手柄总成 Steering Handle Assembly
REF零件编号中文名称英文名称数量
148416CAP Steering Handle Grip1
220586NUT (.250-28) Steering Handle Arm1
321631WASHER (.255 x .625 x .0312) Steering Handle Arm1
458192A1GRIP Steering Handle Arm1
548414驱动轮外壳HOUSING Drive Wheel1
648516A1驱动轮/杆总成DRIVE WHEEL/ROD ASSEMBLY1
748405A2臂总成ARM ASSEMBLY1
848519PLATE Cover - Drive Wheel1
948518盖板垫片GASKET Cover Plate1
1028192螺钉 (#10-24 x .50) 驱动轮盖板SCREW (#10-24 x .50) Drive Wheel Cover Plate4
11785511电缆导管CONDUIT Cable1
1248520节气门拉索CABLE Throttle1
1389613控制连杆接头CONNECTOR Control Linkage1
1489601SCREW Set - Throttle Cable Guide Tube1
15895661节气门电缆导向管GUIDE TUBE Throttle Cable Guide1
1643433节气门电缆导向器GUIDE Throttle Cable1
1720007ANCHOR Throttle Cable1
1820518SET SCREW (#8-32) Throttle Cable Anchor2
1948404T手柄支架BRACKET Handle1
2048416手柄支架盖CAP Handle Bracket1
2148476手柄支架螺钉SCREW Handle Bracket1
2248477手柄支架垫圈WASHER Handle Bracket1
2348526尼龙垫圈-手柄支架WASHER Nylon - Handle Bracket1
2428919尼龙衬套-手柄支架BUSHING Nylon - Handle Bracket2
2548525手柄支架隔套SPACER Handle Bracket1
2648527尼龙垫圈-手柄支架WASHER Nylon - Handle Bracket1
2748478手柄支架波形垫圈WAVE WASHER Handle Bracket2
2849636尼龙垫圈-手柄支架WASHER Nylon - Handle Bracket1
2920220螺母(.500-20)-手柄支架螺钉NUT (.500-20) Handle Bracket Screw1
3035786SCREW (.375-24 x 1.00) Bracket to Engine2
3143589支架螺钉锁紧垫圈TAB WASHER Bracket Screw2
3278812A1DETENT Shift Lever1
3348409不锈钢换挡杆定位螺钉(#10-16 x .625)SCREW (#10-16 x .625) Stainless Steel Shift Lever Detent2
34485681换挡杆SHIFT LEVVER1
3548237尼龙衬套-换挡杆BUSHING Nylong - Shift Lever1
3634931WASHER (.406 x .734 x .063) Stainless Steel Shift Lever1
3734863螺母(.375-24)-换挡杆NUT (.375-24) Shift Lever1
3849563换挡连杆SHIFT ROD1
3948419ROD END Shift Rod1
4048475尼龙衬套-换挡杆BUSHING Nylon - Shift Rod1
4135950WASHER (.273 x .437 x .031) Stainless Steel Shift Rod1
4225191COTTER PIN Shift Rod1
4398530KNOB Shift Lever1
4411083A11停机开关总成SWITCH ASSEMBLY Stop1
4512044RETANER Stop Switch1
4615920A54拉绳总成LANYARD ASSEMBLY1
4764855停止开关夹CLAMP Stop Switch1
--52148A1副驾驶套件CO-PILOT KIT1
图 75旋转支架与倒车锁(非动力升降) Swivel Bracket and Reverse Lock (Non Power Trim)
旋转支架与倒车锁(非动力升降) Swivel Bracket and Reverse Lock (Non Power Trim)
REF零件编号中文名称英文名称数量
18597A4旋转支架SWIVEL BRACKET1
18599A6旋转支架SWIVEL BRACKET1
232911SEAL Oil Swivel Bracket2
374036润滑脂接头FITTING Grease4
422734SEAL Oil Swivel Bracket2
588798A1两件式转向臂旋转销总成SWIVEL PIN ASSEMBLY Two Piece Steering Arm1
588798A2两件式转向臂旋转销总成SWIVEL PIN ASSEMBLY Two Piece Steering Arm1
569540A3整体式转向臂旋转销总成SWIVEL PIN ASSEMBLY One Piece Steering Arm1
569540A4整体式转向臂旋转销总成SWIVEL PIN ASSEMBLY One Piece Steering Arm1
630711BUMPER Steering Arm1
766897螺栓(.437-20 x 5.250)-上支架至旋转销(5.25英寸)BOLT (.437-20 x 5.250) Upper MOunt to Swivel Pin (5.25 Inch)2
847606旋转销垫圈-下部WASHER Swivel Pin - Lower1
976535行驶导向支架BRACKET Ride - Guide1
1034352支架螺钉(.375-24 x .875)SCREW (.375-24 x .875) Bracket2
1176533STRAP Bracket Screw1
1225176WASHER Swivel Pin to Bottom Yoke (.060)1
1377416T下轭架YOKE Bottom1
1377416T6下轭架YOKE Bottom1
1477415RETAINING RING Bottom Yoke1
15/1689105倾斜锁定装置TILT LOCK2
15/1699431A1倾斜锁定装置TILT LOCK2
1762702O型圈(.301 x .070)-倾斜锁定O-RING (.301 x .070) Tilt Lock2
1879659COUPLING Tilt Lock1
1947959COTTER PIN Tilt Lock Tube2
2056349倒挡锁定枢轴SHAFT Reverse Lock Pivot1
2169132倒挡枢轴衬套BUSHING Reverse Pivot Shaft2
2245882COTTER PIN Reverse Lock to Shaft2
2378203A2倒挡锁定张力弹簧SPRING Reverse Lock Tension1
2414664A3倒车锁REVERESE LOCK1
2543415倒挡锁定推杆PUSH ROD Reverse Lock1
2543416倒挡锁定推杆PUSH ROD Reverse Lock1
2670132WASHER (.323 x .563 x .063) Stainless Steel Push Rod1
2744297SPRING Push Rod1
2889813ROD END Push Rod1
2935814不锈钢推杆螺母(.312-24)NUT (.312-24) Stainless Steel Push Rod1
3093336GUIDE Push Rod1
-85491A87衬垫套件GASKET SET1
图 76旋转支架与转向臂 Swivel Bracket and Steering Arm
旋转支架与转向臂 Swivel Bracket and Steering Arm
REF零件编号中文名称英文名称数量
18710A17旋转支架总成SWIVEL BRACKET ASSEMBLY1
18710A18旋转支架总成SWIVEL BRACKET ASSEMBLY1
287735旋转支架油封(下部)SEAL Oil Swivel Bracket (Lower)1
367669旋转支架衬套(上下部)BUSHING Swivel Bracket (Lower and Upper)2
433466旋转支架O型圈(上部)O-RING Swivel Bracket (Upper)1
567668旋转支架隔套(上部)SPACER Swivel Bracket (Upper)1
674036润滑脂接头FITTING Grease Grease2
799608旋转支架衬套BUSHING Swivel Bracket2
864014旋转支架螺钉(.250-28 x .500)SCREW (.250-28 x .500) Swivel Bracket2
999621转向臂至上支架螺钉(.437-20 x 6.620)SCREW (.437-20 x 6.620) Steering Arm to Upper Mount2
1028203上轭缓冲垫BUMPER Top Yoke1
1178854下轭波形垫圈WAVE WASHER Bottom Yoke1
1242961T下轭架YOKE Bottom1
1242961T6下轭架YOKE Bottom1
1367684下轭固定环RING Retaining Bottom Yoke1
1467670旋转支架止推垫圈WASHER Thrust - Swivel Bracket1
1599661A2旋转销总成SWIVEL PIN ASSEMBLY1
1692876A1转向连杆总成LINK ASSEMBLY Steering1
1714000转向连杆至转向臂螺钉(.375-24 x 1.25)SCREW (.375-24 x 1.25) Steering Link to Steering Arm1
1834863转向连杆螺钉螺母(.375-24)NUT (.375-24) Steering Link Screw2
1934931不锈钢转向连杆至转向臂垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063) Stainless Steel Steering Link to Steering Arm2
-85491A87衬垫套件GASKET SET1
图 77油门控制联动机构 Throttle Control Linkage
油门控制联动机构 Throttle Control Linkage
REF零件编号中文名称英文名称数量
172040油门执行器支架BRACKET Throttle Actuator1
253576节气门执行器支架螺钉(.312-18 x 1.125)SCREW (.312-18 x 1.125) Throttle Actuator Bracket3
326993节气门执行器支架螺钉锁紧垫圈(.312)LOCKWASHER (.312) Throttle Actuator Bracket Screw3
38M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
472032节气门执行器ACTUATOR Throttle1
4815603A1油门执行器总成ACTUATOR ASSEMBLY Throttle1
521449支架至节气门执行器螺钉(.312-24 x 2.00)SCREW (.312-24 x 2.00) Bracket to Throttle Actuator1
625893支架螺钉垫圈WASHER Bracket Screw2
762172支架螺钉波形垫圈WAVE WASHER Bracket Screw1
829250支架螺钉螺母(.312-24)NUT (.312-24) Bracket Screw1
957440连杆至节气门执行器旋转接头SWIVEL Link Rod to Throttle Actuator1
1072043连杆LINK ROD1
1157440连杆至节气门臂旋转接头SWIVEL Link Rod to Throttle Arm1
1276560节气门臂ARM Throttle1
12815603A1油门执行器总成ACTUATOR ASSEMBLY Throttle1
1355903节气门臂调节螺钉SCREW Adjusting - Throttle Arm1
1389778螺钉SCREW1
1325158节气门臂调节螺钉(.190-32 x 1.75)SCREW (.190-32 x 1.75) Adjusting - Throttle Arm1
1468219不锈钢调节螺钉螺母(#10-32)NUT (#10-32) Stainless Steel Adjusting Screw2
1548039CAP Adjusting Screw2
1639483节气门臂锁扣LATCH Throttle Arm1
1722486锁扣至节气门臂螺钉(.250-28 x .880)SCREW (.250-28 x .880) Latch to Throttle Arm1
1769026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
1820099SPRING Compression - Latch Screw1
1920586NUT (.250-28) Latch Screw1
19826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
2076559A1点火提前杆LEVER Spark Advance1
20815607A1点火提前杆总成LEVER ASSEMBLY Spark Advance1
2155337杠杆和臂至气缸体螺钉(.375-16 x 1.75)SCREW (.375-16 x 1.75) Lever and Arm to Cylinder Block1
21818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
2255164杠杆臂螺钉衬套BUSHING Lever and Arm Screw1
2355171杠杆臂螺钉衬套BUSHING Lever and Arm Screw1
2455162SPRING Return - Spark Advance Lever1
2568410杠杆臂螺钉垫圈WASHER Lever and Arm Screw1
2546765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
2625158调节螺钉(.190-32 x 1.75)-火花提前杠杆SCREW (.190-32 x 1.75) Adjusting - Spark Advance Lever1
2768219不锈钢调节螺钉螺母(#10-32)NUT (#10-32) Stainless Steel Adjusting Screw1
2848039CAP Adjusting Screw1
2976056火花提前连杆LINK ROD Spark Advance1
3074897螺纹枢轴-连杆至触发器PIVOT Threaded - Link Rod to Trigger1
3074897T枢轴PIVOT1
3177013A1连杆旋转接头-火花提前杠杆SWIVEL Link Rod to Spark Advance Lever1
3229402旋转接头波形垫圈WAVE WASHER Swivel1
3326856连杆旋转接头衬套BUSHING Link Rod Swivel1
3433786连杆旋转接头垫圈WASHER Link Rod Swivel1
3473288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
3545774连杆旋转接头螺母NUT Link Rod Swivel1
3666778节流阀执行器板PLATE Throttle Actuator1
3666778T油门板PLATE-THROTTLE1
3746420螺钉(#10-24 x .500)-板至节流阀执行器SCREW (#10-24 x .500) Plate to Throttle Actuator2
3823015调节螺钉(.190-32 x 1.00)-板SCREW (.190-32 x 1.00) Adjusting - Plate1
3968219不锈钢调节螺钉螺母(#10-32)NUT (#10-32) Stainless Steel Adjusting Screw1
4048039CAP Adjusting Screw1
图 78艉板支架(动力升降) Transom Bracket (Power Trim)
艉板支架(动力升降) Transom Bracket (Power Trim)
REF零件编号中文名称英文名称数量
18718A1艉板右舷支架总成-黑色BRACKET ASSEMBLY Transom Starboard - Black1
28716A5艉板左舷支架总成-黑色BRACKET ASSEMBLY Transom Port - Black1
18718A2艉板右舷支架总成-灰色BRACKET ASSEMBLY Transom Starboard - Gray1
28716A6艉板左舷支架总成-灰色BRACKET ASSEMBLY Transom Port - Gray1
398727艉板支架注油嘴FITTING Grease Port Tramsom Bracket1
499170A1倾斜管TILT TUBE1
590068T倾斜管螺母NUT Tilt Tube1
590068T6倾斜管螺母NUT Tilt Tube1
645711倾斜管O型圈(0.612x0.103)O-RING (.612 x .103) Tilt Tube1
788750WASHER Wave (1.62 x 1.05) Tilt Tube2
856041螺母(.875-14)-倾斜管(7.57)NUT (.875-14) Tilt Tube (7.57)1
9677551螺钉(.500-20 x 4.500)-安装支架至艉板SCREW (.500-20 x 4.500) Mounting Bracket to Tramsom4
1028421垫圈(1.5 x 3.05 x 0.13)-不锈钢安装支架螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel Mounting Bracket Bolt4
118M0027784安装支架螺栓螺母NUT Mounting Bracket Bolt4
1296930A1BOLT ASSEMBLY Tilt Lock1
1323161NUT (.375-24) Bolt1
1499629A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1599611WAVE WASHER Tilt Lever1
1665830NYLINER Tilt Lever2
1799633KNOB Tilt Lock Lever1
1799633T6KNOB Tilt Lock Lever1
1899615槽销PIN Groove1
1999622弹簧SPRING1
2099604槽销PIN Groove1
2137984螺母 (.875-14)NUT (.875-14)1
图 79升降油缸与软管(电动手柄) Trim Cylinders and Hoses (Electric Handle)
升降油缸与软管(电动手柄) Trim Cylinders and Hoses (Electric Handle)
REF零件编号中文名称英文名称数量
192194A14配平油缸TRIM CYLINDER2
192194A20配平油缸TRIM CYLINDER2
274036FITTING Grease Trim Cylinder2
345265SCREW (#10-32 x .3125) Bleed4
445016O-RING Bleed Screw4
592050SCREW (.500-20 x 1.500) Trim Cylinder2
628421WASHER (1.5 x 3.05 x 0.13) Stainless Steel Trim Cylinder Bolt4
745280SPACER Trim Cylinder - Lower2
894907A1BUSHING Rubber - Trim Cylinder2
989108A3平衡缸支架BRACKET Trim Cylinder1
1070608SEAL Oil Port Bracket1
1189290PLUNGER Limit Switch Actuating1
1295881SPRING Tension - Limit Switch Plunger1
1345282螺柱(.312-24 x 16.620)-安装支架STUD (.312-24 x 16.620) Mounting Bracket1
1426993LOCKWASHER (.312) Mounting Bracket Stud2
1528770NUT (.312-24) Stainless Steel Mounting Bracket Stud2
1768298螺栓(.375-16 x 3.250)-安装支架至艉板BOLT (.375-16 x 3.250) Mounting Bracket to Transom6
1789673螺钉(.375-16 x 5.00)-安装支架至艉板SCREW (.375-16 x 5.00) Mounting Bracket to Transom2
1868410WASHER Mounting Bracket Bolt6
1999405安装支架螺栓螺母NUT Mounting Bracket Bolt8
2089111T平衡缸支架BRACKET Trim Cylinder1
2145328螺钉(.437-20 x 3.560)-平衡缸至安装支架SCREW (.437-20 x 3.560) Trim Cylinder to Mounting Bracket2
2237807平衡缸螺钉垫圈WASHER Trim Cylinder Screw1
2335053NUT (.437-20) Trim Cylinder Screw2
2424390SPRING Tension - Adjusting Stud1
2521085调节螺柱(#10-32 x .930)-切断限位开关STUD (#10-32 x .930) Adjusting - Cut - Out Limit Switch1
2645812NUT (#10-32) Stainless Steel Jam - Limit Switch Adjusting Stud1
2799897CAM Limit Switch Adjusting Stud1
2886967PLATE Retaining - Limit Switch Cam1
2968513SCREW (#10-32 x .375) Stainless Steel Retaining Plate and Cam1
3026996LOCKWASHER (#10) Stainless Steel Retaining Plate and Cam Screw1
3145326A2切断限位开关总成SWITCH ASSEMBLY Cut - Out Limit1
3245354橡胶衬套-切断限位开关BUSHING Rubber - Cut- Out Limit Switch1
3347255螺钉(#4-40 x .625)-切断限位开关SCREW (#4-40 x .625) Cut - Out Limit Switch2
3489272COVER Limit Switch1
35892731限位开关盖衬垫GASKET Limit Switch Cover1
3634994SCREW (#10-32 x 1.00) Stainless Steel Limit Switch Cover4
3738833WASHER Limit Switch Cover Screw4
3887774A1COVER Inlet - Transom1
3987775GASKET Inlet Cover1
4045507GROMMET Rubber - Inlet Cover1
4136070SCREW (#10-32 x 1.250) Inlet Cover to Boat4
4226996LOCKWASHER (#10) Stainless Steel Inlet Cover Screw4
4368219NUT (#10-32) Stainless Steel Inlet Cover Screw4
4488005软管-平衡缸至控制阀HOSE Trim - Cylinder to Control Valve2
4588006软管-升降缸至控制阀HOSE Lift - Cylinder to Control Valve2
4635977橡胶护圈GROMMET Rubber4
4697191橡胶护圈GROMMET Rubber2
4612602橡胶护圈GROMMET Rubber2
4798876绑带STRAP1
4898875弹簧SPRING1
4998878安装管销PIN Mounting Tube1
5063473TUBE Cushion1
5132857安装管销开口销COTTER PIN Mounting Tub Pin1
5245882倾斜销固定开口销COTTER PIN Tilt Pin Retaining1
5459623安装支架隔套SPACER Mounting Bracket1
