水星 Mercury 40 JET 0P325500 THRU 0P392690 - 爆炸图零件明细

两冲程化油器 · Belgium - Cat.# 90-803022001 · 共 35 个部位 · 1413 条零件

图 1附件 Accessories

REF	零件编号	中文名称	英文名称	数量
-	62351A10	充电套件电池整流器	CHARGING KIT Battery Rectifier	1
-	828155A3	化油器防冰套件	ANTI-ICING KIT Carburetor	1
-	43393A1	提手	CARRYING HANDLE	1
-	44369A3	电动起动机套件	STARTER MOTOR KIT Electric	1
-	822462A2	起动机转换套件	CONVERSION KIT Starter Motor	1
-	816696A1	延长套件 (2.5英寸/64毫米)	EXTENSION KIT (2.5 Inches/64mm) (64 MM) Extension Kit	1
-	816696A6	延长套件 (2.5英寸/64毫米)	EXTENSION KIT (2.5 Inches/64mm) (64 MM) Extension Kit)	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
-	8M0044836	燃油软管总成(8英尺)Quicksilver品牌	HOSE ASSEMBLY Fuel (8 Feet) Quicksilver Branded	1
-	877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
-	858109Q12	燃油软管总成(12英尺)-带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect	1
-	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
-	858104Q08	燃油软管总成(8英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect Engine End Only	1
-	877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
-	858106Q12	燃油软管总成(12英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect Engine End Only	1
-	877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
-	858108Q12	燃油软管总成(8英尺)-无接头	HOSE ASSEMBLY Fuel (8 Feet) - No Fittings	1
-	95845A5	照明调节器套件	REGULATOR KIT Lighting	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	855654A5	动力调整套件	POWER TRIM KIT	1
-	8M0055008	动力调整套件	POWER TRIM KIT	1
-	830150A7	动力调整套件	POWER TRIM KIT	1
-	8M0055001	动力调整套件	POWER TRIM KIT	1
-	14645A4	微调开关 (舵柄安装)	TRIM SWITCH (Tiller Mounted)	1
-	812718A2	油箱套件外置机油	TANK KIT Remote Oil	1
-	18286A18	微调开关套件 (10英尺/3米)	SWITCH KIT Trim (10.00 Feet) (3 M) Long	1
-	815548A4	35马力限速套件	35 HP HORSE POWER RESTRICTOR KIT	1
-	850000A2	转接套件 45号喷口	ADAPTER KIT 45 JET	1
-	14586A4	节温器套件	THERMOSTAT KIT	1
-	850055A2	节温器套件	THERMOSTAT KIT	1
-	816366A27	转向手柄套件	STEERING HANDLE KIT	1
-	816366A48	转向手柄套件	STEERING HANDLE KIT	1
-	17334A2	视觉警报系统 (低机油/过热)	VISUAL WARNING SYSTEM (Low Oil/Overhear)	1
-	802893Q	燃油水分分离器 - Quicksilver品牌	FILTER Fuel/Water Separating - Quicksilver Brand	1
-	802893Q01	燃油水分分离器	FILTER Fuel/Water Separating	1
-	802893T	燃油水分分离器 - Mercury品牌	FILTER Fuel/Water Separating - Mercury Brand	1
-	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
-	19609A6	转向安装套件	ATTACHING KIT Steering	1
-	97933A6	转向套件双机连接	STEERING KIT Dual Engine Attaching Kit	1
-	816667A2	转向支架总成	BRACKET ASSEMBLY Steering	1

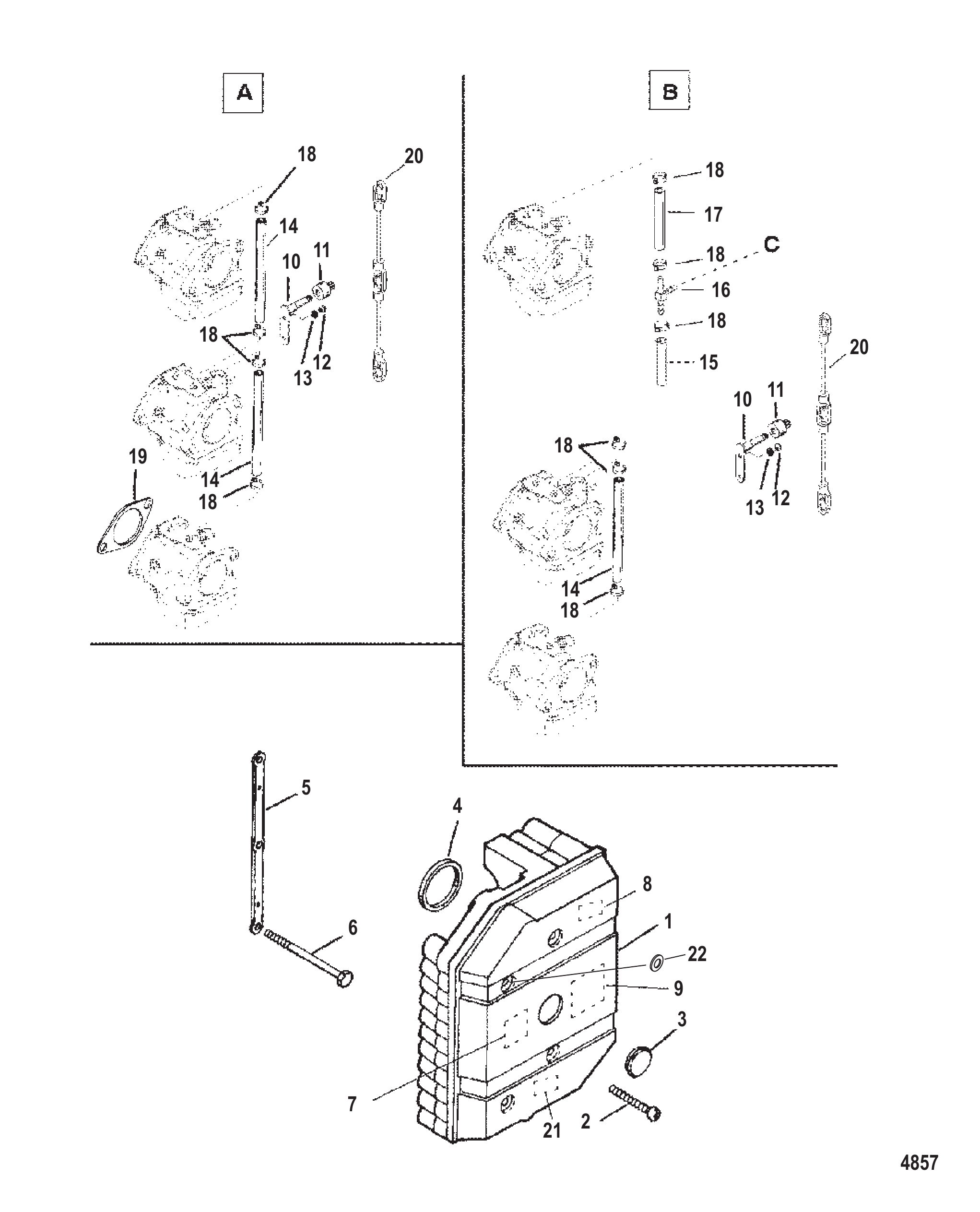

图 2衰减板 Attenuator Plate

REF	零件编号	中文名称	英文名称	数量
1	19662	消音器	ATTENUATOR Sound	1
2	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	4
3	815784	盖帽	CAP	1
4	812889	密封件	SEAL	3
5	812874	消音板	PLATE Sound Attenuator	2
6	4000363	螺丝(M8 x 100)	SCREW (M8 x 100)	6
7	NSS	警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Warning	1
8	NSS	不单独销售贴花-警示	NOT SOLD SEPARATE Decal-Caution	1
9	NSS	不单独出售贴纸-全油门正时	NOT SOLD SEPARATE Decal-Full Throttle Timing	1
10	11399A1	臂总成	ARM ASSEMBLY	1
11	67748	滚轮	ROLLER	1
12	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
13	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
13	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
14	9912878	软管 (.187) (26.00英寸散装) (裁切至4.25英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)	2
14	9912878	软管 (.187) (26.00英寸散装) (裁切至4.25英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)	1
15	9912878	软管 (.187) (26.00英寸散装) (裁切至3.00英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 3.00 Inch Length)	1
16	830285	接头三通	FITTING TEE	1
17	9912878	软管 (.187) (26.00英寸散装) (裁切至1.00英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 1.00 Inch Length)	1
18	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	8144461	法兰衬垫	GASKET Flange	3
20	8252043	油门连杆	LINK Throttle	1
20	825204T03	连接杆	LINK	1
21	NSS	空档怠速警告贴纸（不单独销售）	NOT SOLD SEPARATE Decal-Caution in Gear Idle	1
22	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1

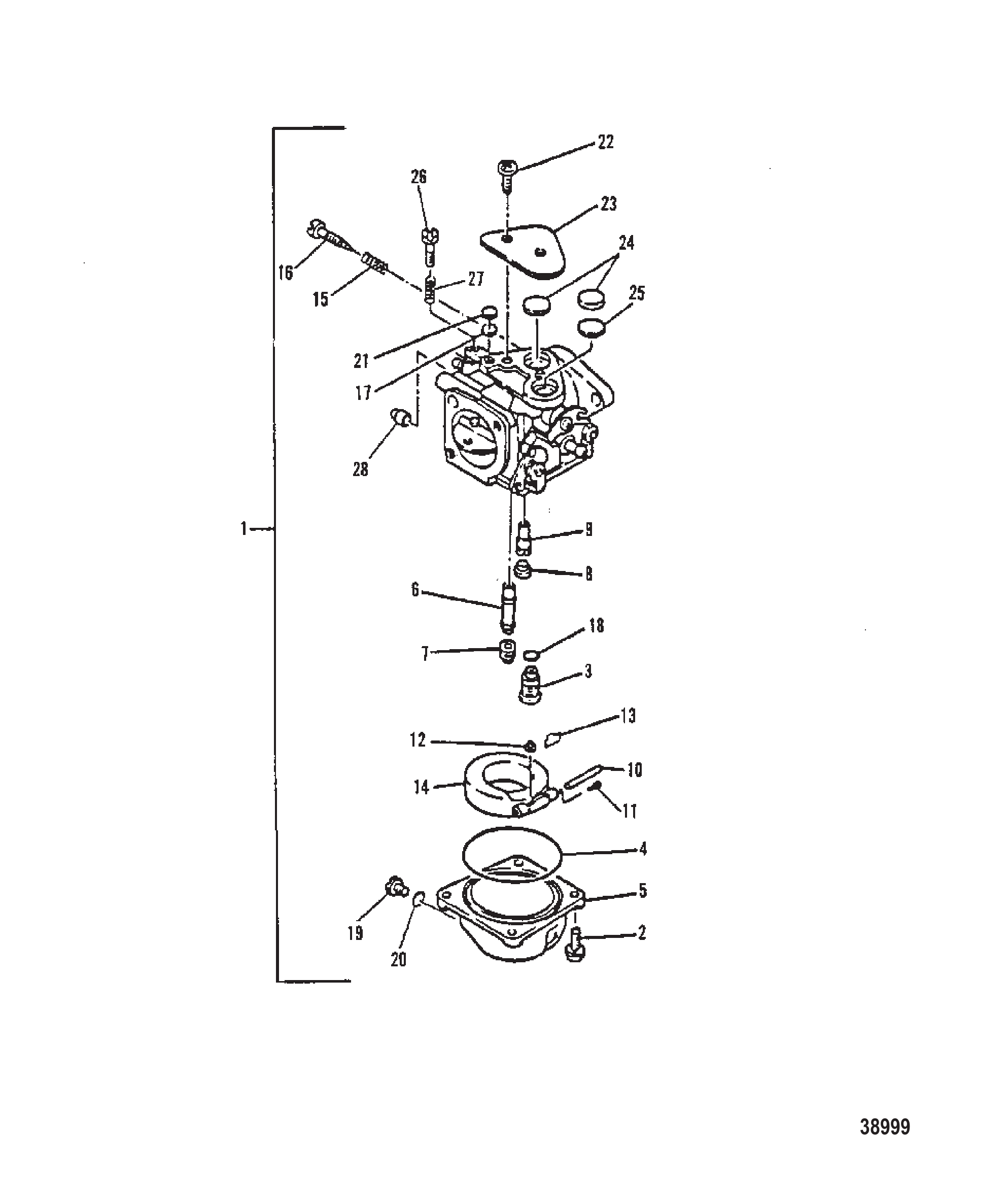

图 3化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	9660M	化油器总成	CARBURETOR ASSEMBLY	1
1	9676M	化油器总成	CARBURETOR ASSEMBLY	1
1	814564M	化油器	CARBURETOR	1
1	814565M	化油器	CARBURETOR	1
1	811361M	化油器	CARBURETOR	1
1	811363M	化油器	CARBURETOR	1
1	811362M	化油器	CARBURETOR	1
1	811364M	化油器	CARBURETOR	1
2	814566M	螺钉	SCREW	8
2	11796M	螺钉(M4 x 14)	SCREW (M4 x 14)	8
3	17050M	针阀组	NEEDLE VALVE SET	2
4	83362M	O型圈	O-RING	2
5	94495M	本体	BODY	2
6	97727M	喷嘴	NOZZLE	2
7	42437M	量孔(#170)	JET (#170)	2
8	83369M	盖帽	CAP	2
8	8M0080455	堵头	PLUG	2
9	42438M	量孔(#75)	JET (#75)	2
10	97730M	销	PIN	2
11	82500M	螺钉(M4 x 8)	SCREW (M4 x 8)	2
12	92639M	浮子销	PIN Float	2
13	82781M	卡扣	CLIP	2
13	8M0120624	卡箍@2	CLIP @2	2
14	83363M	浮子	FLOAT	2
14	891730A01	浮子套件	FLOAT KIT	2
15	94499M	弹簧	SPRING	2
16	17067M	螺钉	SCREW	2
17	97732M	安装板	PLATE	2
18	97070M	O型圈	O-RING	2
19	81293M	放油螺钉	SCREW Drain	2
20	94498M	O型圈	O-RING	2
21	97733M	填料	PACKING	2
22	19147M	螺钉	SCREW	4
23	97734M	安装板	PLATE	2
24	97735M	衬垫	GASKET	4
25	97736M	安装板	PLATE	2
26	81277M	螺钉(下部)	SCREW (LOWER)	1
27	82080M	弹簧(下部)	SPRING (LOWER)	1
28	19233M	轴套(下部)	COLLAR (LOWER)	1
-	17068M	化油器维修套件	REPAIR KIT Carburetor	1

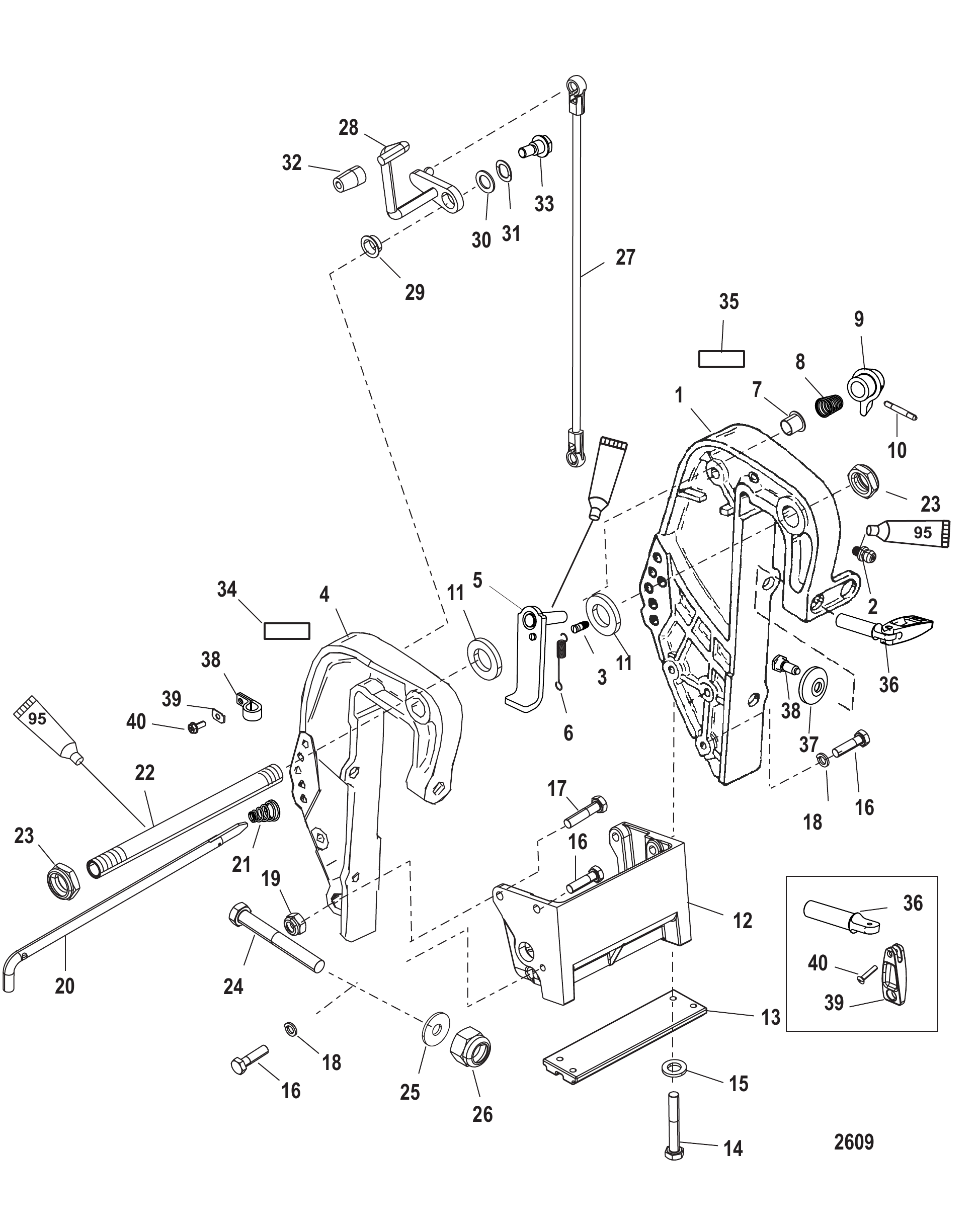

图 4夹紧支架(手动) Clamp Bracket (Manual)

REF	零件编号	中文名称	英文名称	数量
1	822868A1	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822867F1	夹箍支架	CLAMP BRACKET	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	85594030	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
17	8M0000586	螺钉(M8×35)	SCREW (M8 x 35)	1
18	843108	垫圈（.330 x .560 x .060）不锈钢	WASHER (.330 x .560 x .060) Stainless Steel	4
19	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
20	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
21	821461	弹簧	SPRING	1
22	196141	倾斜管	TILT TUBE	1
22	8M0041938	倾斜管	TILT TUBE	1
23	858869	螺母 (.875-14)	NUT (.875-14)	2
24	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
25	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
25	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
26	82671117	螺母(.500-20)	NUT (.500-20)	4
27	1938525	连接杆	LINK	1
27	8M0084737	连接杆	LINK	1
28	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
28	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
29	812707	衬套	BUSHING	1
30	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
30	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
31	99611	波形垫圈	WAVE WASHER	1
32	19621	倾斜旋钮	TILT KNOB	1
32	8M0007469	倾斜旋钮	KNOB Tilt	1
33	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
34	830253	倾斜锁止贴纸	DECAL Tilt Lock	1
35	NSS	警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Warning	1
36	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
37	818884	垫圈	WASHER	2
38	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
39	NSS	不单独销售手柄	NOT SOLD SEPARATE Handle	1
40	NSS	不单独销售铆钉	NOT SOLD SEPARATE Rivet	1

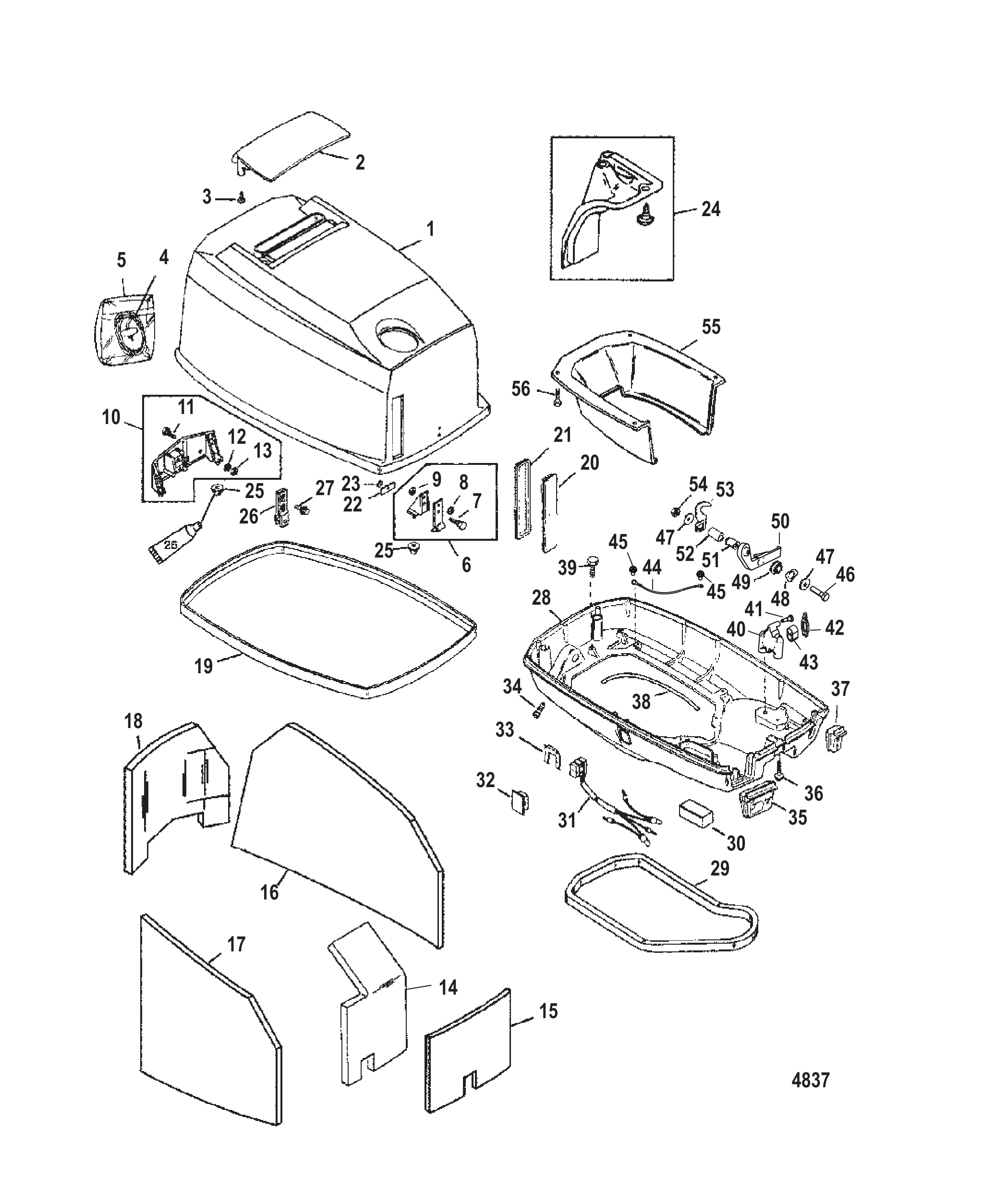

图 5上/下罩壳 Cowl Top and Bottom

REF	零件编号	中文名称	英文名称	数量
1	813010T8	顶罩总成黑色-电动型	TOP COWL ASSEMBLY Black-Electric	1
1	813010T14	顶罩总成银色-电动型	TOP COWL ASSEMBLY Silver-Electric	1
1	816534T8	顶罩总成黑色-手动型	TOP COWL ASSEMBLY Black-Manual	1
1	8M0107142	罩盖-顶部, 黑色	COWL-TOP, BLACK	1
1	816534T14	顶罩总成银色-手动型	TOP COWL ASSEMBLY Silver-Manual	1
2	824666	进气口护罩	SHIELD Air Inlet	1
3	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
5	NSS	不单独出售信封袋	NOT SOLD SEPARATE Envelope	1
6	813548A3	支架罩盖支撑-黑色	BRACKET Cowl Support - Black	1
6	813548A6	支架罩盖支撑-银色	BRACKET Cowl Support - Silver	1
6	813548A3	支架罩盖支撑-黑色	BRACKET Cowl Support - Black	1
7	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	2
8	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
9	8237515	螺母(M4)	NUT (M4)	2
10	813549A2	支架罩盖支撑	BRACKET Cowl Support	1
11	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	3
12	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
13	8237515	螺母(M4)	NUT (M4)	3
14	814336A1	隔音毯套件(热熔胶)	SOUND BLANKET KIT (Hot Glue Adhesive)	1
14	814336A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
14	814336A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
15	NSS	不单独销售隔音垫-手动型	NOT SOLD SEPARATE Sound Blanket-Manual	1
16	NSS	不单独销售隔音垫-右舷	NOT SOLD SEPARATE Sound Blanket-Starboard	1
17	NSS	不单独销售隔音垫-左舷	NOT SOLD SEPARATE Sound Blanket-Port	1
18	NSS	不单独销售隔音垫-后部	NOT SOLD SEPARATE Sound Blanket-Rear	1
19	444622	密封件	SEAL	1
19	8M0043150	罩盖密封条	SEAL-COWL	1
20	813504A1	油位表套件	GAUGE KIT Oil Level	1
21	813505	护孔环	GROMMET	1
22	113171	固定座	RETAINER	1
23	113161	螺母	NUT	1
23	65110	螺母	NUT	1
24	823593A1	导流板套件空气	DEFLECTOR KIT Air	1
25	813546003	支架	MOUNT	3
26	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
26	893763	滚轮锁扣支架	BRACKET Roller Latch	1
27	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
28	812512A8	下机罩	BOTTOM COWL	1
29	813607	密封件	SEAL	1
29	8M0043162	密封件	SEAL	1
30	828465	缓冲垫	BUMPER	2
30	8M0043169	缓冲垫	BUMPER	2
31	896620	开关总成	SWITCH ASSEMBLY	1
31	8M0235192	微调开关	SWITCH TRIM	1
32	8128301	堵头	PLUG	1
32	812830T01	堵头	PLUG	1
33	8124431	固定座	RETAINER	1
33	8M0032848	开关固定座	RETAINER Switch	1
34	813613	接头	FITTING	1
35	813606003	密封件	SEAL	1
35	8136062	密封件	SEAL	1
35	813606003	密封件	SEAL	1
36	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	2
37	813605003	密封件	SEAL	1
38	7568058	软管 (15.00英寸)	HOSE (15.00 Inches)	1
39	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
40	19812A1	支架电缆固定器	BRACKET Cable Retainer	1
40	19812T03	支架总成	BRACKET ASSEMBLY	1
41	42975	传动螺钉	DRIVE SCREW	2
42	98889	闩锁	LATCH	1
43	39519	杯套	CUP	1
44	88807A28	拉线总成	CABLE ASSEMBLY	1
45	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
46	4000335	螺钉(M6 x 50)	SCREW (M6 x 50)	1
47	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
48	37642	波形垫圈	WAVE WASHER	2
49	19428	衬套	BUSHING	1
50	813547T	罩壳锁杆	LEVER Cowl Latch	1
50	813547F1	杠杆	LEVER	1
51	826354A1	衬套套件罩盖锁扣	BUSHING KIT Cowl Latch	1
52	NSS	不单独销售衬套	NOT SOLD SEPARATE Bushing	1
53	813604	锁扣凸轮	LATCH CAM	1
54	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
55	812717T1	配平盖	TRIM COVER	1
56	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
56	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4

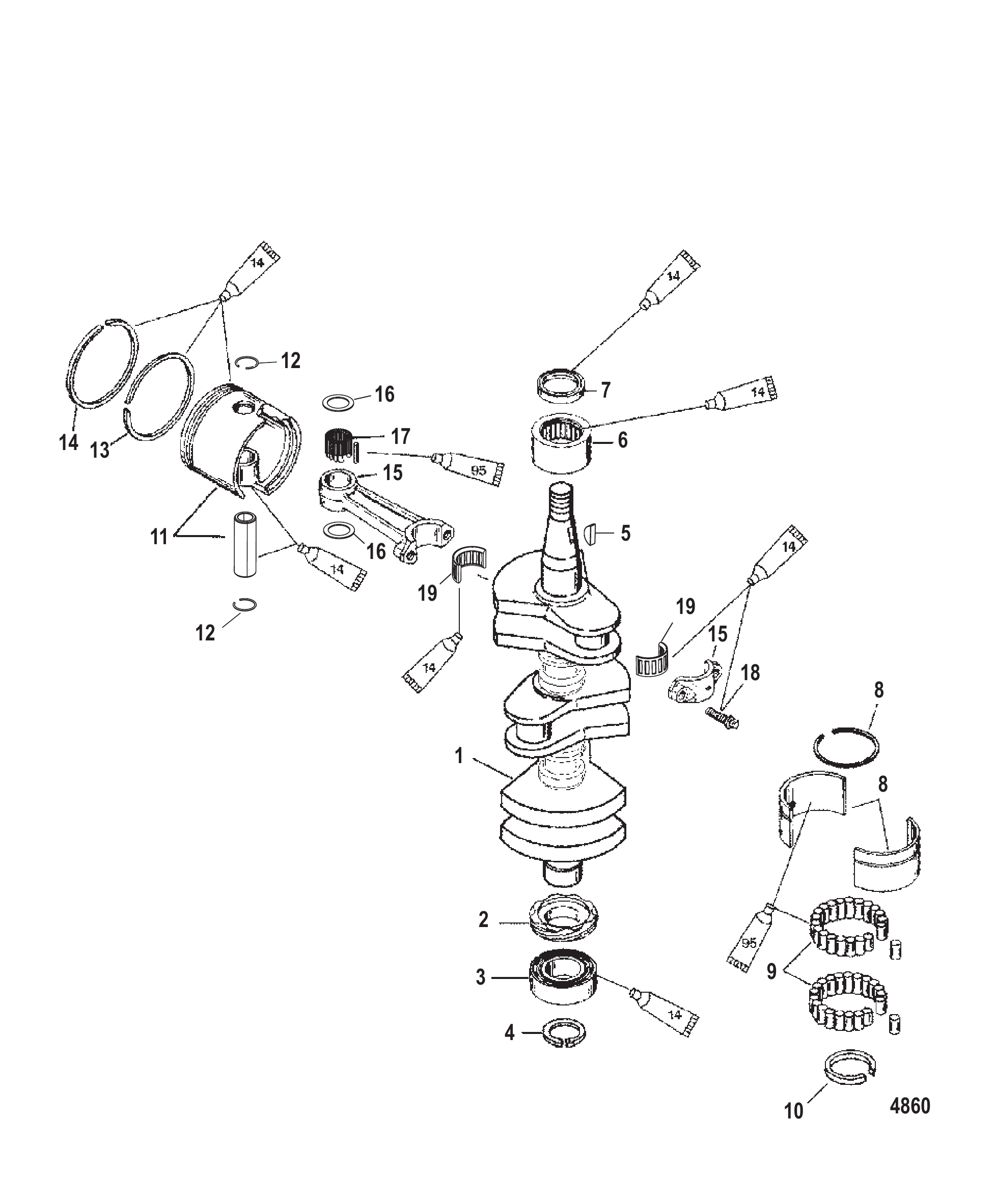

图 6曲轴、活塞与连杆 Crankshaft Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	827954T2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43019A2	齿轮总成	GEAR ASSEMBLY	1
3	63742T	滚珠轴承	BEARING Ball	1
4	812877	挡圈	RING Retaining	1
5	91800	半圆键	KEY Woodruff	2
6	818889A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	8173971	油封	SEAL Oil	1
8	827955A2	轴承总成	BEARING ASSEMBLY	2
9	NSS	滚轮(不单独销售)	NOT SOLD SEPARATE Roller	56
10	NSS	密封环（不单独销售）	NOT SOLD SEPARATE Ring-Seal	2
11	850026T1	活塞总成	PISTON ASSEMBLY	3
11	850026T2	活塞	PISTON	3
12	857196	锁紧环	LOCK RING	6
13	831255A6	活塞环组	RING SET Piston	1
13	821695A6	活塞环组	RING SET Piston	3
14	NSS	活塞环(不单独销售)	NOT SOLD SEPARATE Piston Ring	3
15	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
16	812876	垫圈	WASHER	6
16	8M0012298	止推垫片	THRUST WASHER	6
17	47270	轴承	BEARING	87
17	8M0214934	滚针轴承@200	BRG-NEEDLE @200	87
18	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
19	17514A1	轴承套件	BEARING KIT	6
19	8M0234886	轴承保持架	CAGE BEARING	6
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1

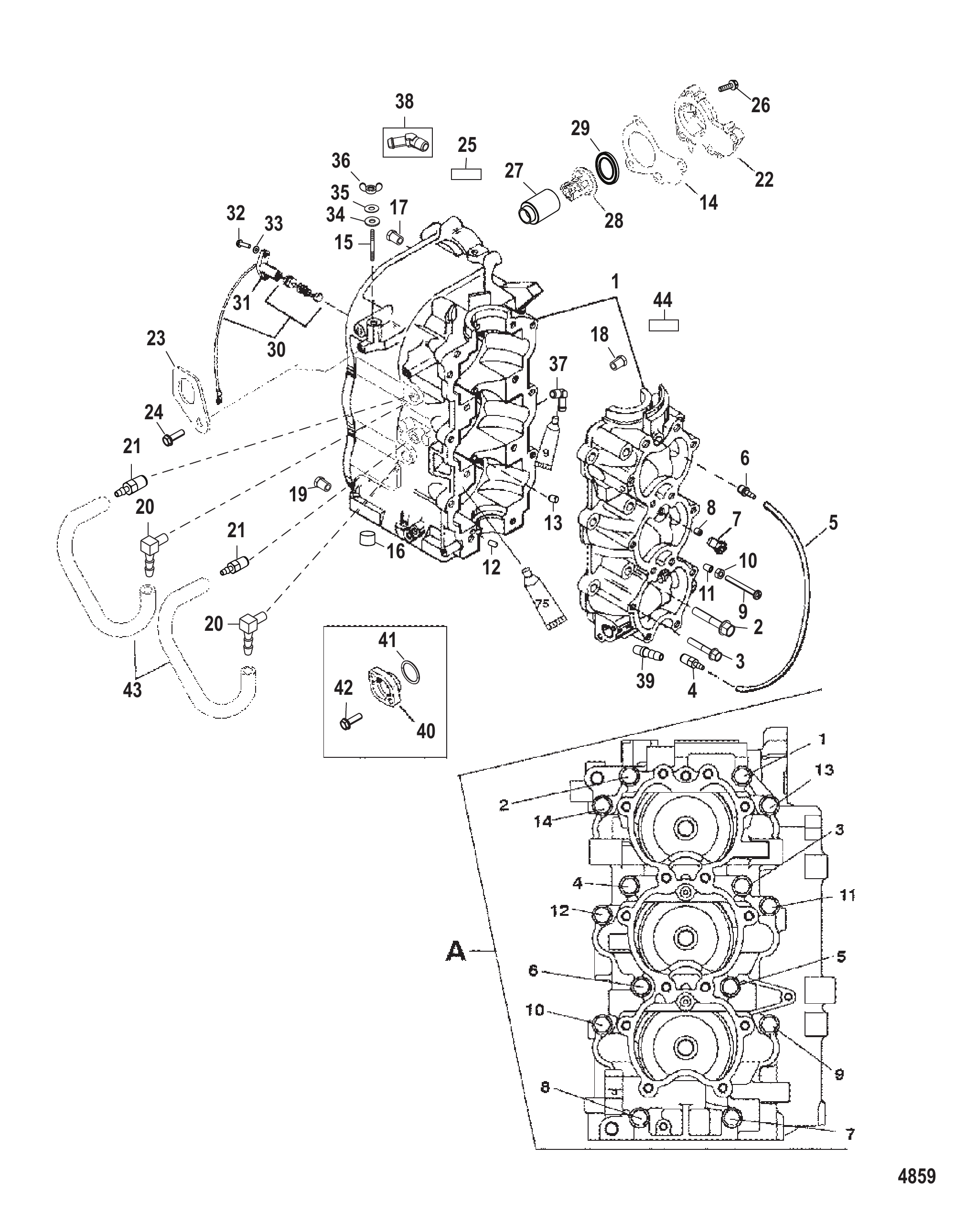

图 7气缸体与曲轴箱 Cylinder Block and Crankcase

REF	零件编号	中文名称	英文名称	数量
1	827953T4	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材 (20.00英尺散装) (裁切至15.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 15.00 Inch Length)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	426232	止回阀 (压入式)	CHECK VALVE (Press-In)	1
7	812888A2	托架总成	CARRIER ASSEMBLY	2
8	42657A4	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	43044		PIN Dowel - Without Hole (.375 x .625) (Locating)	1
13	8128701		PIN (Bearing Race)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	827284	衬垫	GASKET	1
15	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
16	185981	管塞(.375-18)	PLUG Pipe (.375-18)	1
17	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
18	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
19	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
20	19725	弯头	ELBOW	2
21	426585	止回阀	CHECK VALVE	2
22	827251A1	盖板	COVER	1
23	850897	吊环	LIFTING EYE	1
24	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	1
25	NSS	不单独销售铭牌-序列号	NOT SOLD SEPARATE Decal-Serialization	1
26	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	4
27	827365	托架	CARRIER	1
27	889735	托架	CARRIER	1
28	850055	节温器 43°C (110°F) 110度	THERMOSTAT 43°C (110°F) 110 Degree	1
28	850055001	节温器 43°C (110°F)	THERMOSTAT 43°C (110°F)	1
29	854639	密封件	SEAL	1
29	854639001	密封件	SEAL	1
30	787992	温度传感器	SENDER Temperature	1
31	44552	固定座	RETAINER	1
31	889733	固定座	RETAINER	1
32	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
33	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
34	8M0204663	垫片@5	WASHER @5	2
35	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
36	816872	蝶形螺母	WING NUT	2
37	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	782792	45度弯头接头(1.25)	FITTING Elbow 45 Degree (1.25)	1
38	8M0207781	弯头	ELBOW	1
39	56759	倒钩接头	FITTING Barbed	1
40	8129962	盖板	COVER	1
41	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
42	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
43	99130122	管材 (20.00英尺散装) (裁切至5.50英寸)	TUBING (20.00 Feet Bulk) (Cut to 5.50 Inch Length)	2
43	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
44	881865	警示贴纸-挂档启动	DECAL Caution-Start in Gear	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812867A97	衬垫套件	GASKET SET	1

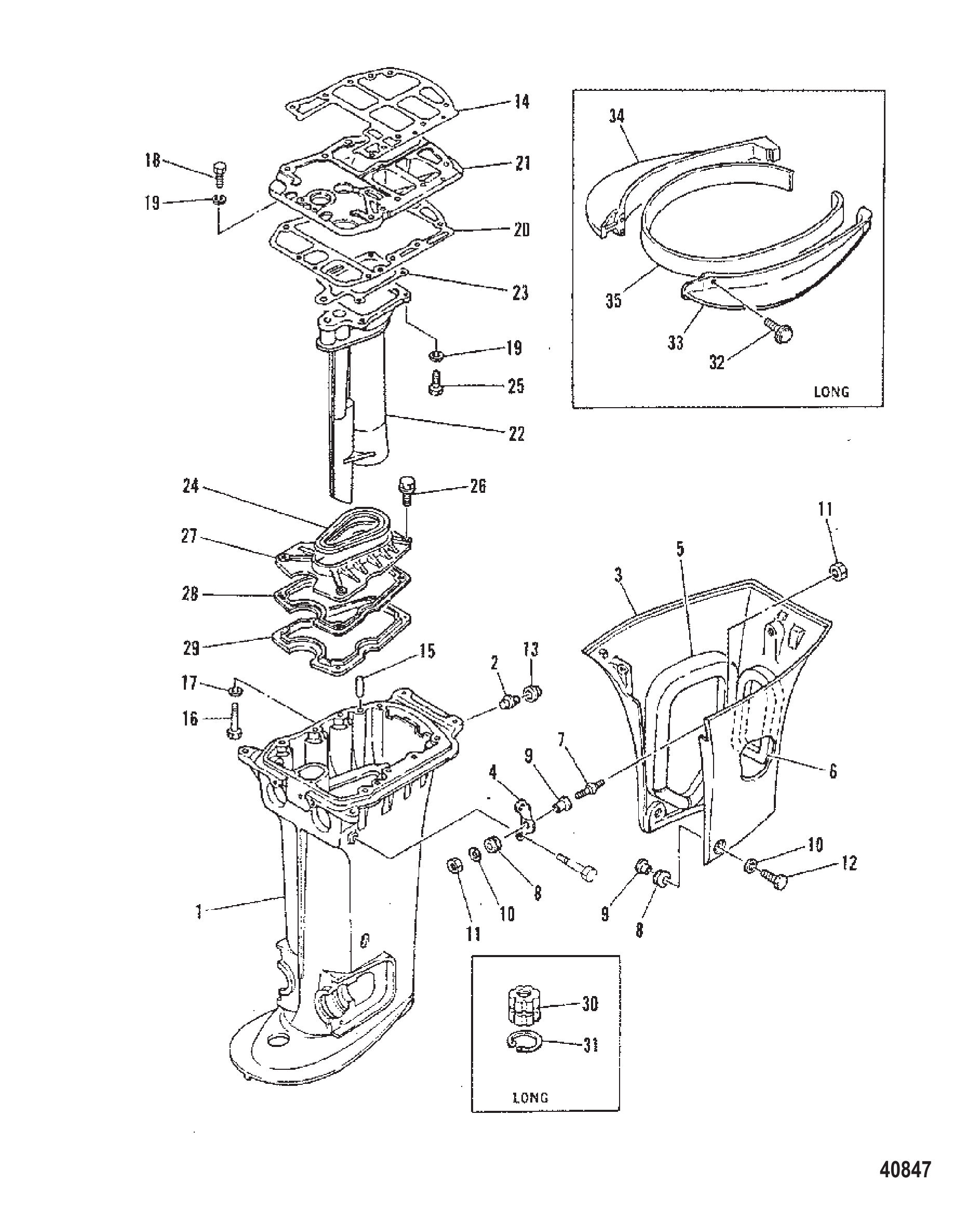

图 8驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	8569M	驱动轴壳体	HOUSING Driveshaft	1
1	8570M	驱动轴壳体	HOUSING Driveshaft	1
2	94520M	停机开关	STOP	1
3	94517M	挡板	APRON	1
4	94521M	支架	BRACKET	2
5	94518M	减震器	DAMPER	2
6	94519M	密封件	SEAL	1
7	94523M	螺栓	BOLT	2
8	94525M	护孔环	GROMMET	4
9	94522M	轴环	COLLAR	4
10	94524M	垫圈	WASHER	4
11	82389M	螺母	NUT	4
12	94526M	螺栓	BOLT	2
13	83042M	减震器	DAMPER	1
14	83378M	衬垫	GASKET	1
14	11885	衬垫	GASKET	1
15	83379M	销	PIN	2
16	97749M	螺栓	BOLT	8
17	82215M	锁紧垫圈	LOCKWASHER	8
18	82405M	螺栓	BOLT	3
19	82212M	锁紧垫圈	LOCKWASHER	7
20	19175M	衬垫	GASKET	1
20	19175	衬垫	GASKET	1
21	814969M	排气板	PLATE Exhaust	1
22	97750M	排气管	TUBE Exhaust	1
23	83383M	衬垫	GASKET	1
24	83384M	密封件	SEAL	1
25	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	4
26	82476M	螺栓	BOLT	4
27	814970M	安装板	PLATE	1
28	83386M	密封件	SEAL	1
29	814971M	安装板	PLATE	1
30	94529M	衬套	BUSHING	1
31	94530M	卡簧	CIRCLIP	1
32	82476M	螺栓	BOLT	3
33	93046M	防溅板	SPLASH PLATE	1
34	93047M	防溅板	SPLASH PLATE	1
35	93048M	密封件	SEAL	1
-	814556M	动力头衬垫套件	GASKET SET Powerhead	1
-	94533M	衬垫套件	GASKET SET	1

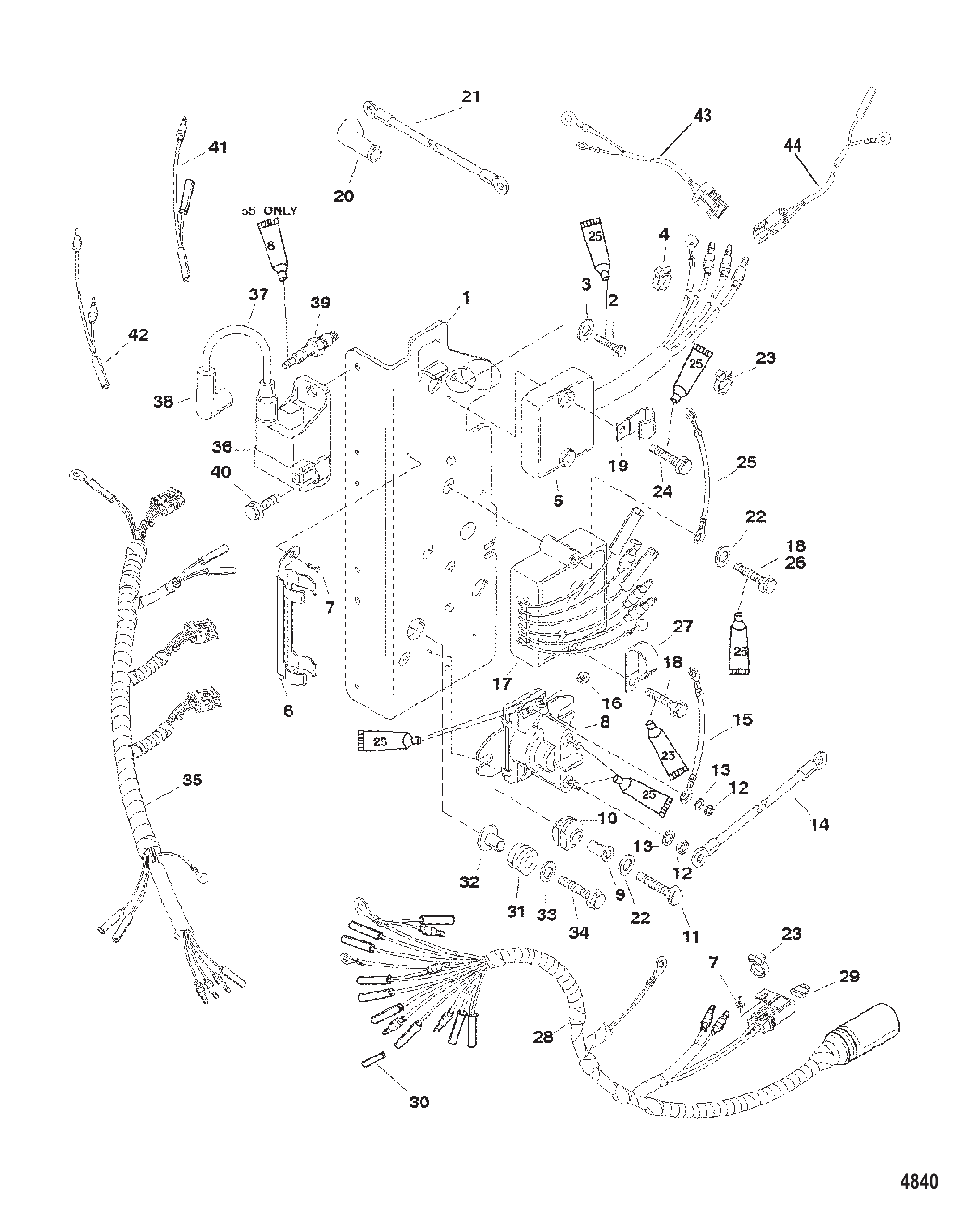

图 9电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	8302351	电气板	PLATE Electrical	1
2	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	1
3	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
4	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
5	821889A49	转速限制器	REV LIMITER	1
5	821889A50	转速限制器	REV LIMITER	1
6	8266241	卡箍	CLAMP	1
7	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	3
8	850187T1	电磁阀总成	SOLENOID ASSEMBLY	1
8	8M0185146	电磁阀总成	SOLENOID ASSEMBLY	1
9	818968	衬套	BUSHING	2
9	8M0214955	衬套	BUSHING	2
10	818967	护孔环	GROMMET	2
10	8M0207785	护孔环	GROMMET	2
11	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
12	64015	螺母 (.250-20)	NUT (.250-20)	2
13	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
14	88807A33	拉线总成	CABLE ASSEMBLY	1
15	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
16	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
17	883072T	电压调节器	REGULATOR Voltage	1
17	8M0084173	电压调节器	VOLTAGE REGULATOR	1
17	883071T	电压调节器	REGULATOR Voltage	1
18	82129140	螺钉(M6 x 40)	SCREW (M6 x 40)	2
19	55098	J型卡扣	J CLIP	1
19	8M0024808	J型夹	J-CLIP	1
20	830233	红色绝缘护套	BOOT Insulator - Red	1
21	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
22	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
23	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
25	88807A31	拉线总成	CABLE ASSEMBLY	1
26	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	1
27	54457	J型卡扣	J CLIP	2
28	850220A2	发动机线束总成	HARNESS ASSEMBLY Engine	1
29	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
30	13541	公插头	PLUG Male	1
31	822002	护孔环	GROMMET	3
32	822003	衬套	BUSHING	3
33	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
33	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	3
34	40011129	不锈钢螺钉(M6x25)	SCREW (M6 x 25) Stainless Steel	3
35	850221A2	点火线束总成	HARNESS ASSEMBLY Ignition	1
36	827509T7	CDM模块总成	CDM MODULE ASSEMBLY	2
36	827509A10	CDM模块总成	CDM MODULE ASSEMBLY	1
37	857124A1	高压线总成	CABLE ASSEMBLY Hi-Tension	3
38	857074A1	护套/端子套件	BOOT/TERMINAL KIT	3
39	8167372	火花塞	SPARK PLUG	3
39	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	3
39	8168372	火花塞	SPARK PLUG	3
39	938	SP #QL78YC @4	SP #QL78YC @4	3
39	14103568	火花塞	SPARK PLUG	3
39	896329885	SP #L6VC @4	SP #L6VC @4	3
39	12343	火花塞	SPARK PLUG	3
39	8M0114745	SP BP8HS-10 @4	SP BP8HS-10 @4	3
40	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	6
41	850052A1	电源线束总成	HARNESS ASSEMBLY Power	1
42	11149A31	线束总成	HARNESS ASSEMBLY	1
42	11149T31	线束总成	HARNESS ASSY	1
43	65017A27	线束总成	HARNESS ASSEMBLY	1
44	74725A3	线束总成避雷型	HARNESS ASSEMBLY Lightning	1

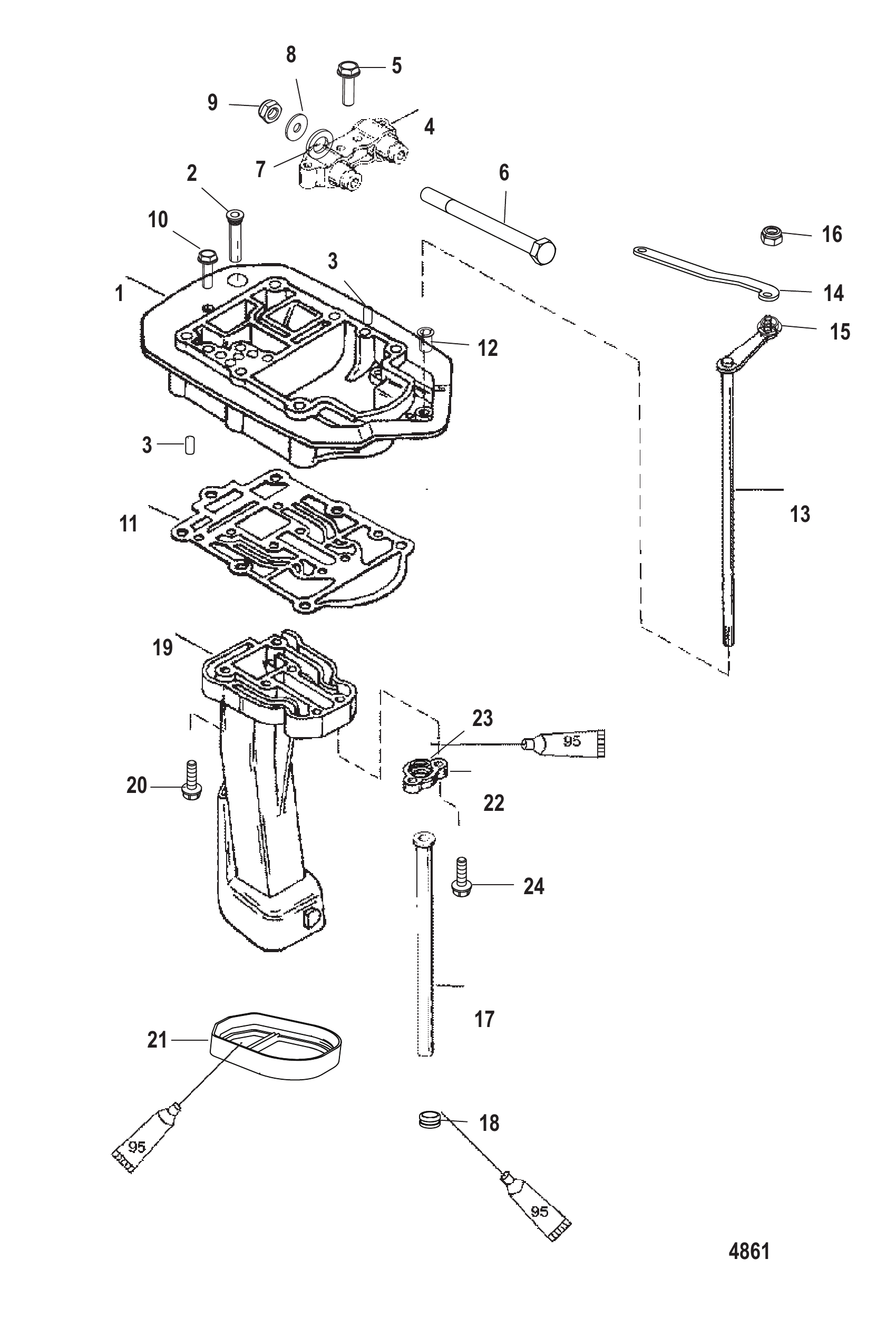

图 10排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	19653T3	排气板总成	PLATE ASSEMBLY Exhaust	1
2	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	1
3	23784	定位销	PIN Dowel	4
4	881899	上部支架	MOUNT Upper	1
4	8M4501491	上部安装总成	MOUNT UPPER ASM	1
5	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
6	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
6	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
7	934161	氯丁橡胶垫圈	WASHER Neoprene	2
7	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
8	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
9	859129	螺母(M12)	NUT (M12)	2
9	896963	螺母(M12)	NUT (M12)	2
10	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1
11	812866	衬垫	GASKET	1
11	8M0000820	衬垫	GASKET	1
12	48237	衬套	BUSHING	1
13	815639A10	换档轴	SHIFT SHAFT	1
13	812891A7	换档轴	SHIFT SHAFT	1
13	815639A9	换档轴	SHIFT SHAFT	1
14	812872A2	换挡连杆	SHIFT LINK	1
15	48475	衬套	BUSHING	1
16	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
17	8812002	水管	TUBE Water	1
17	8M0042795	短型水管	TUBE-WATER-SHORT	1
17	8812001	水管	TUBE Water	1
17	8M0042794	大型水管	TUBE-WATER-LG	1
18	93221	护孔环	GROMMET	1
18	93221002	护孔环	GROMMET	1
19	196551	排气管	TUBE Exhaust	1
19	8M0045214	排气管	TUBE-EXHAUST	1
20	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
21	812886	密封件	SEAL	1
21	812886001	密封件	SEAL	1
22	99019	卡箍	CLAMP	1
23	42941	水管密封件	SEAL Water Tube	1
23	42941001	水管密封件	SEAL Water Tube	1
24	40011155	不锈钢螺钉(M8x55)	SCREW (M8 x 55) Stainless Steel	2
-	812867A97	衬垫套件	GASKET SET	1

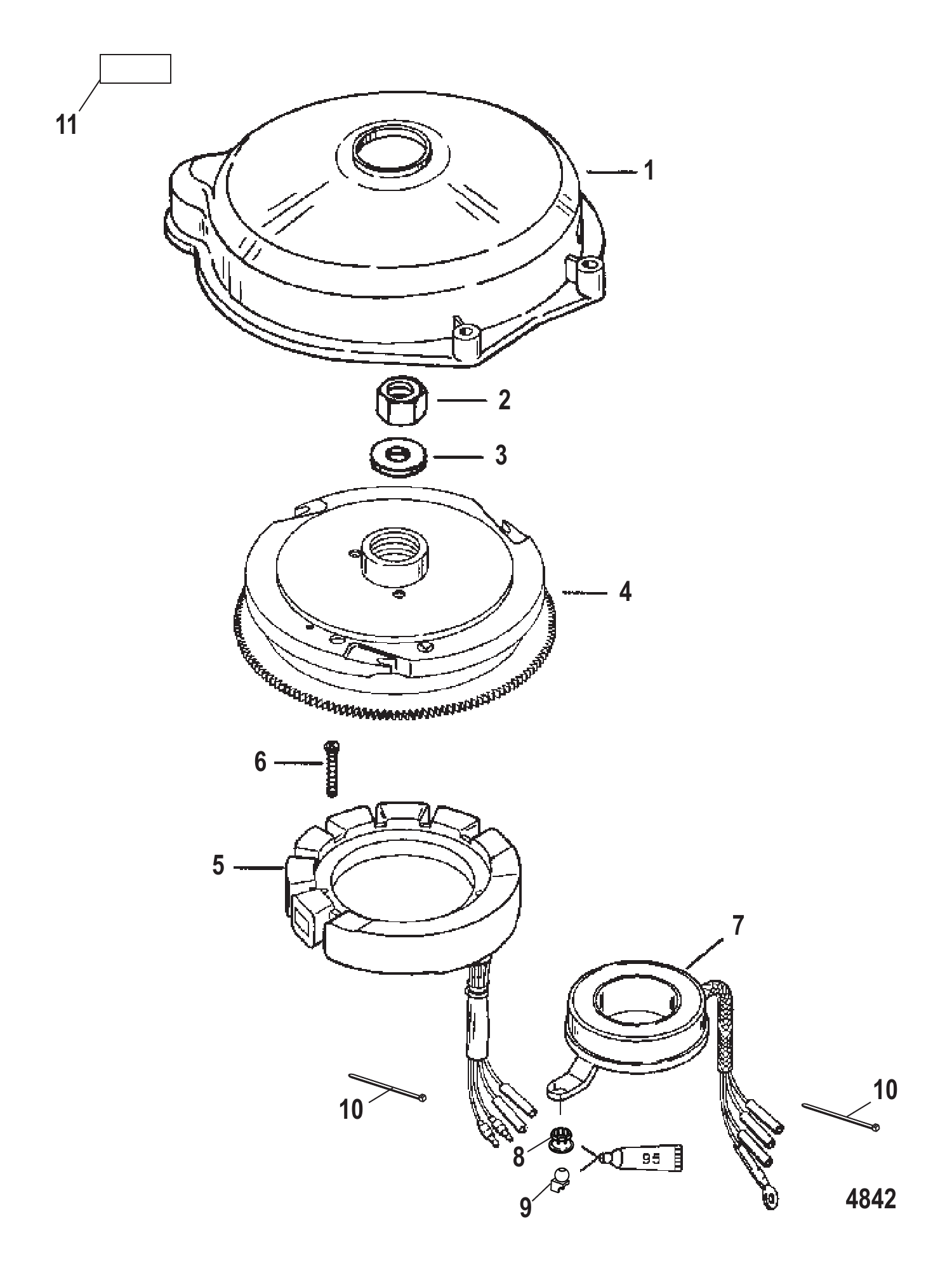

图 11飞轮与定子(电动) Flywheel and Stator Electric

REF	零件编号	中文名称	英文名称	数量
1	812777T1	盖总成	COVER ASSEMBLY	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	878226T2	飞轮	FLYWHEEL	1
4	859234T24	飞轮	FLYWHEEL	1
5	832075A4	点火定子套件	IGNITION STATOR KIT	1
5	832075A21	定子总成	STATOR ASSEMBLY	1
6	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
7	854512T	触发器	TRIGGER	1
8	93421	旋转球头	SWIVEL BALL	1
9	93254	旋转底座	SWIVEL BASE	1
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
11	856985A7	EPA标签信息贴花	DECAL EPA Label Information	1
11	804665A00	EPA标签信息贴花	DECAL EPA Label Information	1
11	804665A01	EPA标签信息贴花	DECAL EPA Label Information	1
11	804665A02	EPA标签信息贴花	DECAL EPA Label Information	1
11	804665A03	EPA标签信息贴花	DECAL EPA Label Information	1
11	804665A04	EPA标签信息贴花	DECAL EPA Label Information	1

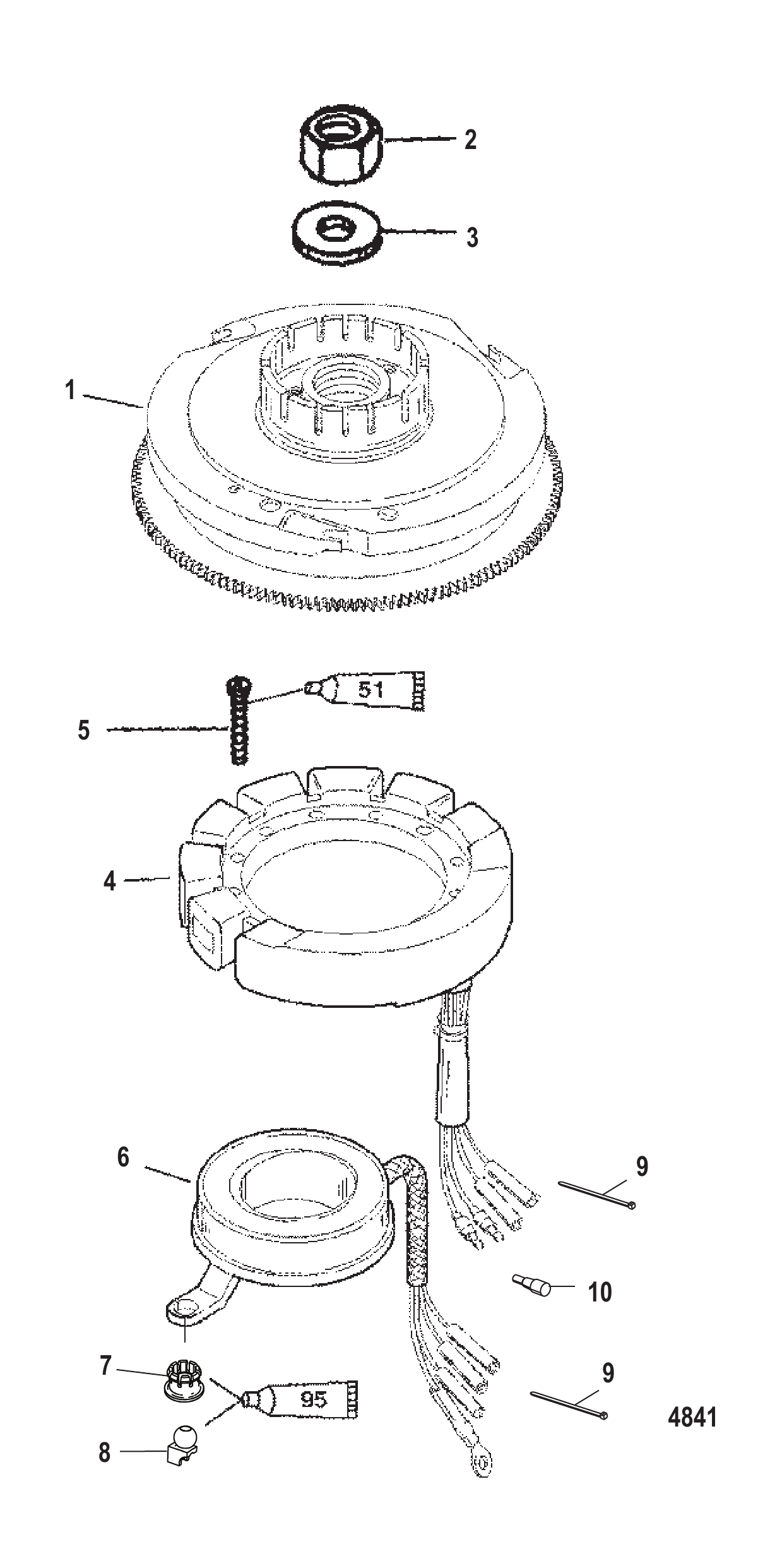

图 12飞轮及定子(手动) Flywheel and Stator Manual

REF	零件编号	中文名称	英文名称	数量
1	878226T6	飞轮	FLYWHEEL	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	832074A5	定子	STATOR	1
4	832074A11	定子总成	STATOR ASSEMBLY	1
5	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
6	854512T	触发器	TRIGGER	1
7	93421	旋转球头	SWIVEL BALL	1
8	93254	旋转底座	SWIVEL BASE	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	13541	公插头	PLUG Male	2

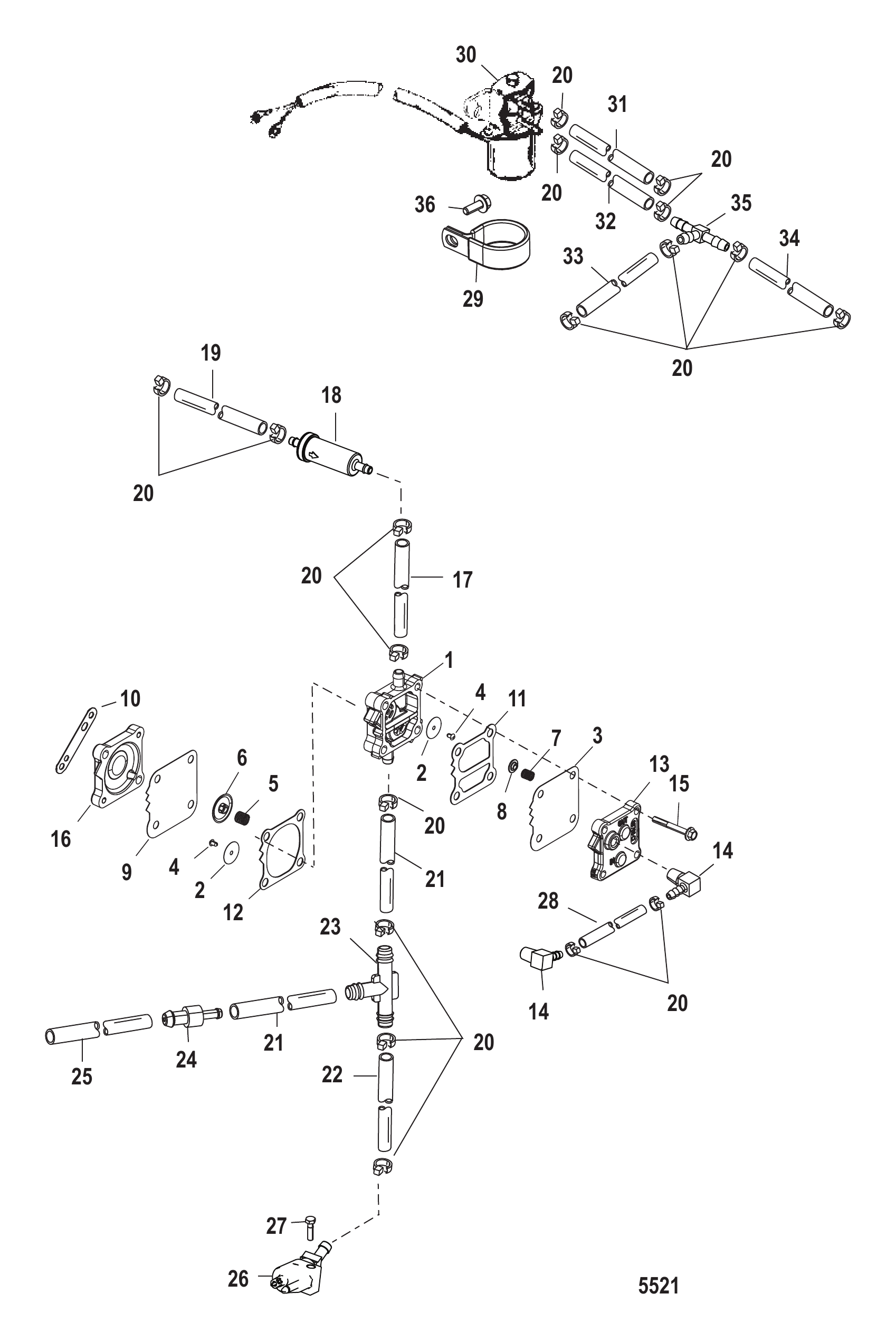

图 13电动燃油泵 Fuel Pump Electric

REF	零件编号	中文名称	英文名称	数量
-	14360A71	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	857005A1	膜片组件	DIAPHRAGM KIT	2
3	NSS	不单独销售膜片套件	NOT SOLD SEPARATE Diaphragm Kit	1
4	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
5	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
6	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	987691	衬垫	GASKET	1
10	8M0204705	衬垫@2	GASKET @2	1
11	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
12	NSS	不单独销售垫片-脉冲	NOT SOLD SEPARATE Gsket-Pulse	1
13	987752	安装板	PLATE	1
14	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
14	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
15	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
15	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
16	144303	底座	BASE	1
17	831949	软管	HOSE	1
18	816296Q2	燃油滤清器	FILTER Fuel	1
19	830761	燃油管	LINE Fuel	1
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	830757130	管材 (.312) (70.00英寸散装) (裁切至1.25英寸)	TUBING (.312) (70.00 Inches Bulk) (Cut to 1.25 Inch Length)	2
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
22	830757130	管材（0.312）（70英寸整卷）（裁切为14.25英寸长度）	TUBING (.312) (70.00 Inches Bulk) (Cut to 14.25 Inch Length)	1
22	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
23	818993	三通接头	CONNECTOR Tee	1
24	8189941	止回阀	CHECK VALVE	1
25	82381335	管材（15英寸整卷）（裁切为1.5英寸长度）	TUBING (15.00 Inches Bulk) (Cut to 1.50 Inch Length)	1
26	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
26	816856T01	燃油接头	CONNECTOR-FUEL	1
27	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
28	9912878	软管 (.187) (26.00英寸散装) (裁切至4.25英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)	1
29	633003	卡箍	CLAMP	1
30	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
31	9912688	管材 (36.00英寸散装) (裁切至8.00英寸)	TUBING (36.00 Inches Bulk) (Cut to 8.00 Inch Length)	1
32	9912688	管材 (36.00英寸散装) (裁切至4.00英寸)	TUBING (36.00 Inches Bulk) (Cut to 4.00 Inch Length)	1
33	99130122	管材 (20.00英尺散装) (裁切至14.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 14.00 Inch Length)	1
33	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
34	9912688	管材 (36.00英寸散装) (裁切至2.00英寸)	TUBING (36.00 Inches Bulk) (Cut to 2.00 Inch Length)	1
35	591692	三通接头	FITTING Tee	1
35	59169003	三通接头	FITTING Tee	1
36	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
-	812867A97	衬垫套件	GASKET SET	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1

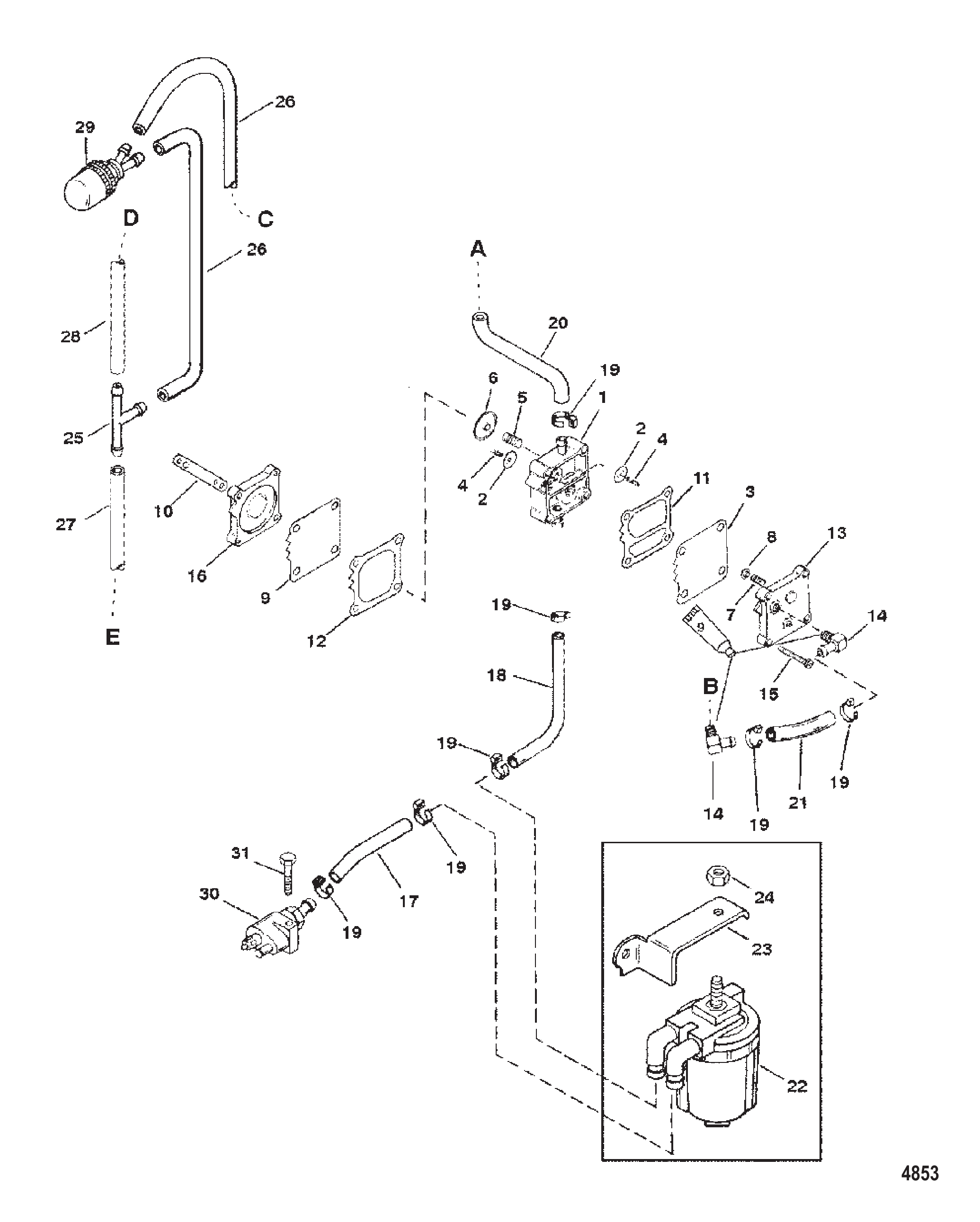

图 14手动燃油泵 Fuel Pump Manual

REF	零件编号	中文名称	英文名称	数量
-	14360A71	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	857005A1	膜片组件	DIAPHRAGM KIT	2
3	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
4	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
5	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
6	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	987691	衬垫	GASKET	1
10	8M0204705	衬垫@2	GASKET @2	1
11	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
12	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
13	987752	安装板	PLATE	1
14	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
14	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
15	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
15	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
16	144303	底座	BASE	1
17	830757130	管材 (.312) (70.00英寸散装)	TUBING (.312) (70.00 Inches Bulk)	1
17	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
18	830757130	管材 (.312) (70.00英寸散装)	TUBING (.312) (70.00 Inches Bulk)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	830768	软管	HOSE	1
21	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	1
22	87946T14	燃油滤清器	FILTER Fuel	1
22	891642T03	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
22	891642T03	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
22	8M0063726	燃油滤清器总成	FILTER ASSY-FUEL	1
23	8170281	支架	BRACKET	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	591692	三通接头	FITTING Tee	1
25	59169003	三通接头	FITTING Tee	1
26	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	2
26	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
27	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
27	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
28	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
28	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
29	858763	注油球	PRIMER BULB	1
30	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
30	816856T01	燃油接头	CONNECTOR-FUEL	1
31	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
-	812867A97	衬垫套件	GASKET SET	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1

图 15发动机大修衬垫组件 Gasket Set Componetns Engine Overhaul

REF	零件编号	中文名称	英文名称	数量
-	812867A97	发动机大修垫片套装	GASKET SET Engine Overhaul	1
-	8144461	化油器法兰垫片	GASKET Flange Carburetor	3
-	812889	密封件消音器至化油器	SEAL Attenuator to Carburetor	3
-	827284	节温器盖衬垫	GASKET Thermostat Cover	1
-	62386	节温器衬垫	GASKET Thermostat	1
-	8M0204714	衬垫@4	GASKET @4	1
-	8128671	衬垫节温器/提升阀盖	GASKET Thermostat/Poppet Cover	1
-	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
-	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
-	828553	衬垫气缸体至排气延伸板	GASKET Cylinder Block to Exhaust Ext. Plate	1
-	8M0000822	衬垫	GASKET	1
-	812868	簧片阀衬垫	GASKET Reed Block	1
-	812869	进气歧管垫片	GASKET Induction Manifold	1
-	812866	衬垫排气板至驱动轴壳体	GASKET Exhaust Plate to Driveshaft Housing	1
-	8M0000820	衬垫	GASKET	1
-	42941	上水管密封	SEAL Water Tube Water Tube, Upper	1
-	42941001	水管密封件	SEAL Water Tube	1
-	93221	衬套水管	GROMMET Water Tube	1
-	93221002	护孔环	GROMMET	1
-	30224	O型圈 (1.859 x .139)	O-RING (1.859 x .139)	1
-	8M0204651	O型圈	O-RING	1
-	19701	下衬垫	GASKET Lower	1
-	8M0224241	衬垫	GASKET	1
-	194541	水泵上垫片	GASKET Water Pump, Upper	1
-	43023	水管密封件	SEAL Water Tube	1
-	8M0204658	密封件	SEAL	1
-	191833	密封件	SEAL	3
-	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
-	45258	O型圈 (.987 x .103)	O-RING (.987 x .103)	1
-	815460	轴承座O型圈	O-RING Bearing Carrier	1
-	NSS	不单独销售止回阀片	NOT SOLD SEPARATE Disc-Check Valve	2
-	NSS	不单独销售膜片-燃油泵	NOT SOLD SEPARATE Diaphragm-Fuel Pump	2
-	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	1
-	987691	燃油泵衬垫	GASKET Fuel Pump	1
-	8M0204705	衬垫@2	GASKET @2	1
-	NSS	不单独销售衬垫-增压室	NOT SOLD SEPARATE Gasket-Boost Chamber	1
-	NSS	不单独销售衬垫-脉冲室	NOT SOLD SEPARATE Gasket-Pulse Chamber	1
-	17311	止回阀固定座	RETAINER Check Valve	2
-	NSS	增压压缩件(不单独销售)	NOT SOLD SEPARATE Compression, Boost	1
-	NSS	不单独销售弹簧-压缩,主	NOT SOLD SEPARATE Spring-Compression, Main	1
-	NSS	不单独销售端盖-弹簧	NOT SOLD SEPARATE Cap-Spring End	1
-	NSS	不单独销售端盖-弹簧	NOT SOLD SEPARATE Cap-Spring End	1
-	8128672	衬垫节温器/提升阀盖	GASKET Thermostat/Poppet Cover	1
-	822189	水泵上衬垫	GASKET Upper Water Pump Water Pump	1

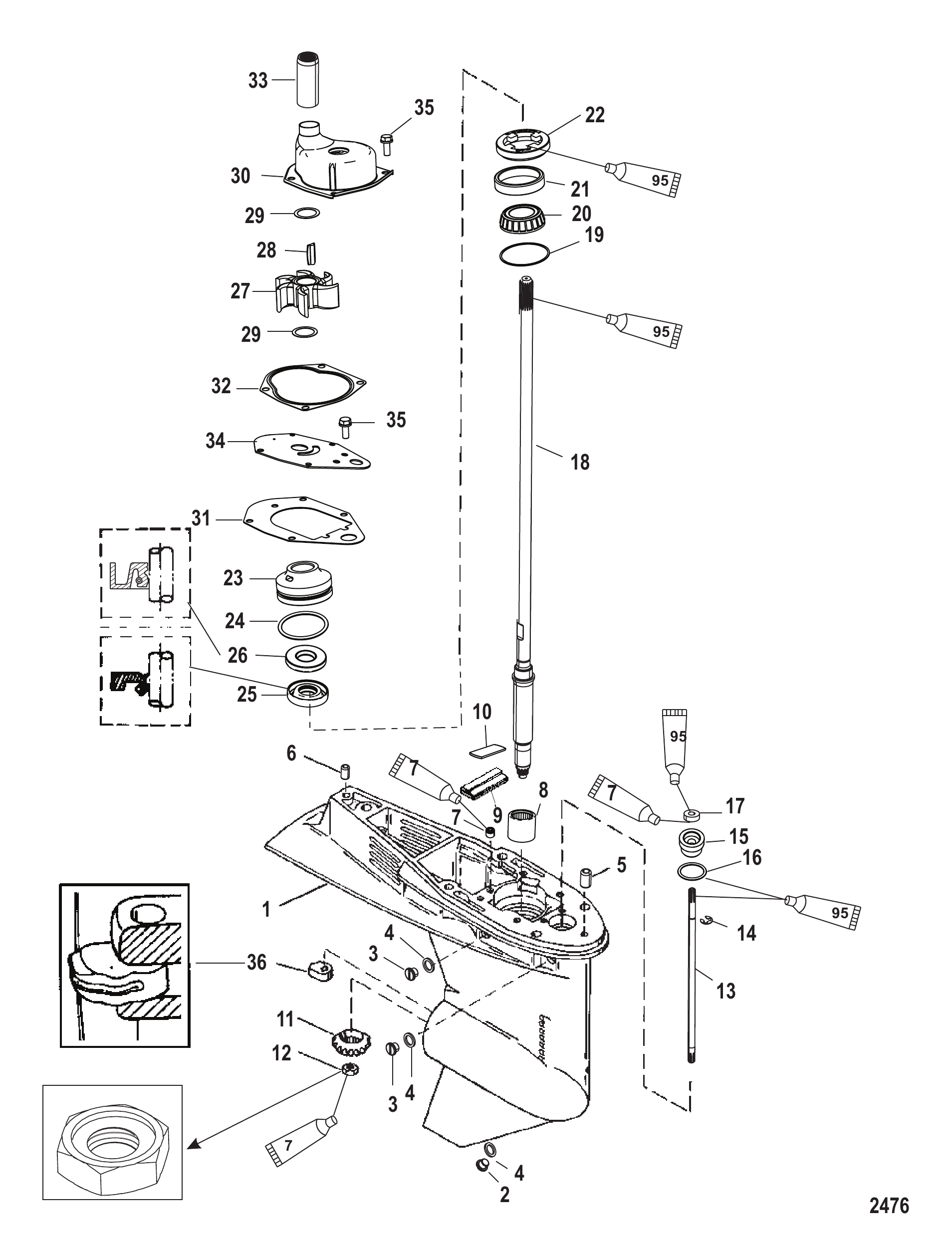

图 16齿轮箱驱动轴 1.64:1 传动比 Gear Housing Driveshaft 1.64:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	9760T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	9760T25	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	9760T28	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
2	79953Q04	放油螺钉套件	SCREW KIT Drain	1
2	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
2	8M0058389	放油螺钉套件	SCREW KIT Drain	1
3	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	2
3	79953Q04	放油螺钉套件	SCREW KIT Drain	2
4	191832	垫圈	WASHER	3
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
5	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
5	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
7	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
8	812768	滚柱轴承	BEARING Roller	1
9	818226A1	密封/板套件	SEAL/PLATE KIT	1
10	NSS	不单独销售填充板	NOT SOLD SEPARATE Filler Plate	1
11	813694T	齿轮小齿轮 14齿	GEAR Pinion 14 Teeth	1
12	55910	螺母(.437-20)	NUT (.437-20)	1
13	812732A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
13	815420	换档轴	SHIFT SHAFT	1
14	29641	E型卡环	E RING	1
15	813696A2	衬套总成	BUSHING ASSEMBLY	1
16	45258	O型圈 (.987 x .103)	O-RING (.987 x .103)	1
17	8164641	油封	SEAL Oil	1
17	8M0246145	油封	OIL SEAL	1
18	815422	驱动轴	DRIVESHAFT	1
18	812731	驱动轴	DRIVESHAFT	1
18	815421	驱动轴	DRIVESHAFT	1
18	812731	驱动轴	DRIVESHAFT	1
19	812770A1	垫片组	SHIM SET	AR
19	8M0063262	垫片组	SHIM SET	AR
20	77420A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
20	8M0166756	轴承总成	BEARING ASSEMBLY	1
21	NSS	不单独销售	NOT SOLD SEPARATE	1
22	8128201	螺母	NUT	1
23	812966A7	水泵底座总成	BASE ASSEMBLY Water Pump	1
23	8M0245488	水泵底座	BASE WATER PUMP	1
24	30224	O型圈 (1.859 x .139)	O-RING (1.859 x .139)	1
24	8M0204651	O型圈	O-RING	1
25	814669	油封	SEAL Oil	1
25	8M0245489	油封	SEAL OIL	1
26	814670	油封	SEAL Oil	1
27	19453T	叶轮	IMPELLER	1
28	19699	键	KEY	1
28	8M0032831	叶轮键	KEY Impeller	1
29	858234	垫圈	WASHER	2
29	8M0204720	垫圈	WASHER	2
-	14334A3	水泵总成	PUMP ASSEMBLY Water	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
30	8M0242489	水泵	WATER PUMP	1
31	19701	衬垫	GASKET	1
31	8M0224241	衬垫	GASKET	1
32	822189	水泵上衬垫	GASKET Upper Water Pump	1
33	43023	密封件	SEAL	1
33	8M0204658	密封件	SEAL	1
34	19700A2	面板	FACE PLATE	1
35	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
36	760394	换挡凸轮控制	CAM Shift Control	1
-	812867A97	衬垫套件	GASKET SET	1
-	812966A11	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

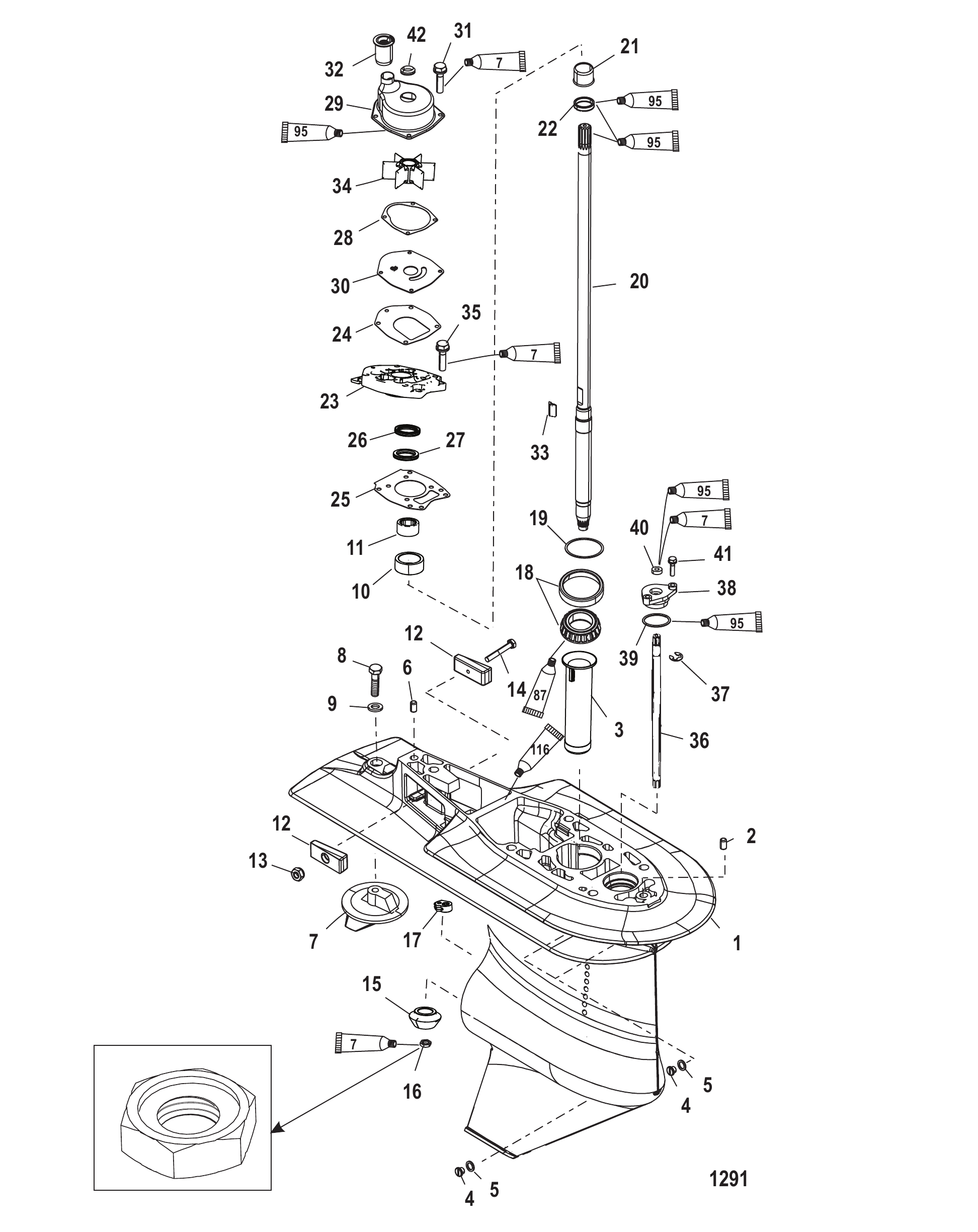

图 17齿轮箱驱动轴 2.33:1 Gear Housing Driveshaft 2.33:1

REF	零件编号	中文名称	英文名称	数量
-	9011G92	齿轮箱总成(完整)(长轴)(大脚系列)	GEAR HOUSING ASSEMBLY (Complete) (Long)(Bigfoot)	1
-	9011G94	齿轮箱总成(完整)(超长轴)(大脚系列)	GEAR HOUSING ASSEMBLY (Complete) (LL)(Bigfoot)	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	3
4	79953Q04	放油螺钉套件	SCREW KIT Drain	3
4	67892A05	磁性放油螺塞套件	PLUG KIT Drain (Magnetic)	OPT
4	8M0058389	放油螺钉套件	SCREW KIT Drain	OPT
5	191833	密封件	SEAL	3
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
7	31640T5	平衡鳍板	TRIM TAB	1
7	8M0236553	平衡鳍板	TRIM TAB	1
8	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
9	451761	垫圈(.453 x .812 x .105)黑色氧化	WASHER (.453 x .812 x .105) Black Oxide	1
10	43040T1	托架总成	CARRIER ASSEMBLY	1
11	NSS	滚针轴承(不单独销售)	NOT SOLD SEPARATE Needle Bearing	1
12	826134Q	阳极块	ANODE	2
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	NSS	小齿轮(12齿)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (12 Teeth)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	850307	换挡凸轮控制	CAM Shift Control	1
18	883047A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
19	44492A1	垫片组	SHIM SET	1
19	8M0063265	垫片组	SHIM SET	1
20	826736A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	826737A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	NSS	不单独销售环形密封件	NOT SOLD SEPARATE Ring Seal	1
23	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
24	430331	衬垫	GASKET	1
25	430472	衬垫	GASKET	1
25	8M0214931	衬垫	GASKET	1
26	43035	油封	SEAL Oil	1
26	8M0245495	油封	OIL SEAL	1
27	43036	油封	SEAL Oil	1
28	8172771	水泵上垫片	GASKET Water Pump, Upper	1
29	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
30	8172761	面板	FACEPLATE	1
30	8M0204709	面板	FACEPLATE	1
31	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
32	826763A1	联轴器	COUPLING	1
32	826762A1	联轴器	COUPLING	1
33	43037	键	KEY	1
33	8M0204723	键	KEY	1
34	43026T2	叶轮	IMPELLER	1
35	82684425	螺钉(M6x25)	SCREW (M6 x 25)	6
36	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	853907A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	457101	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	82684425	螺钉(M6x25)	SCREW (M6 x 25)	2
42	816575	端面密封	FACE SEAL	1
42	861415	端面密封	SEAL Face	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43026Q06	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1

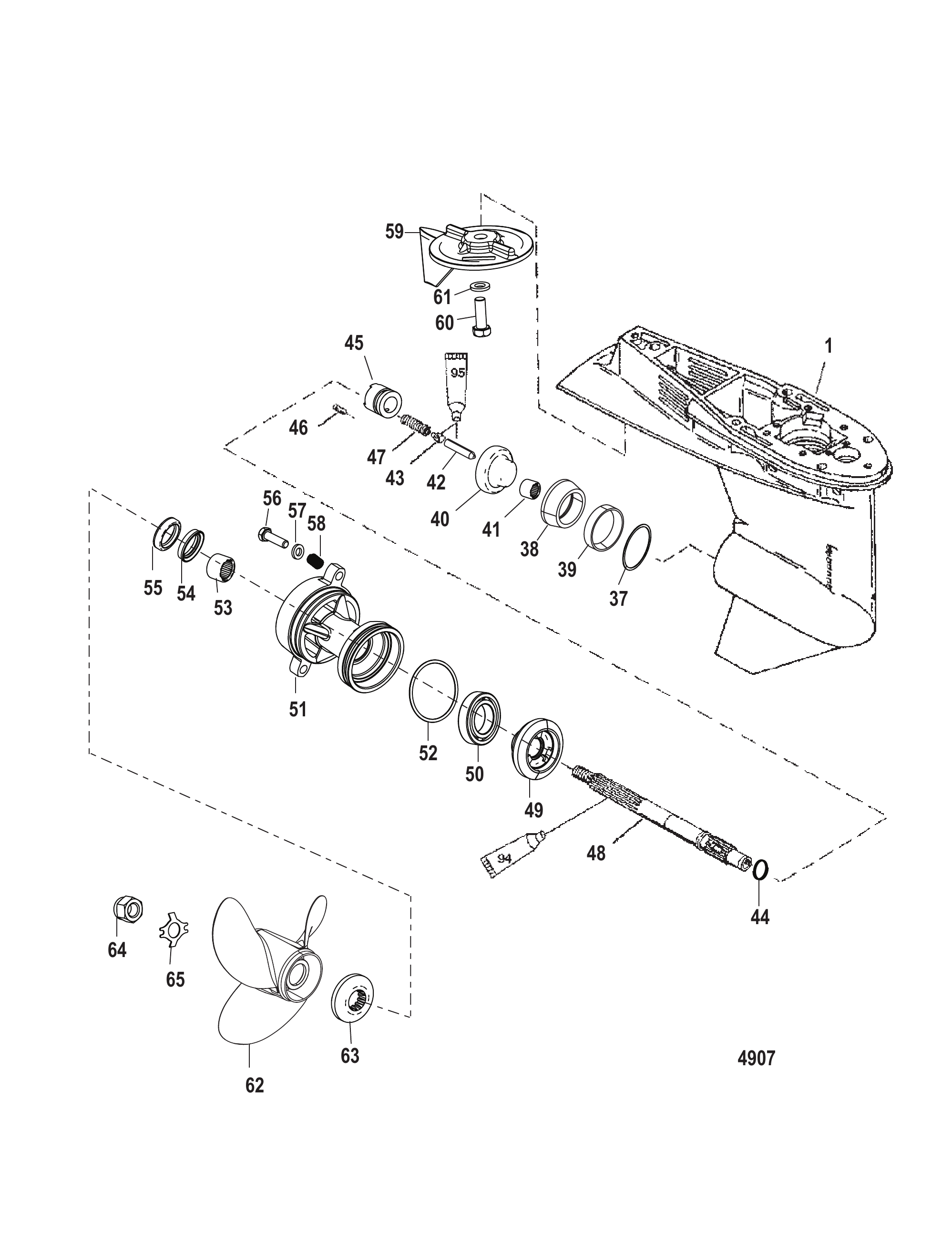

图 18齿轮箱螺旋桨轴 1.64:1 传动比 Gear Housing Propeller Shaft - 1.64:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
0	9760T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	9760T25	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	9760T28	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
37	812769A1	垫片组	SHIM SET	AR
37	8M0063263	垫片组	SHIM SET	AR
38	812767A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
38	8M0103476	轴承总成	BEARING ASSY	1
39	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
40	813693T1	齿轮前进档 23齿	GEAR Forward 23 Teeth	1
41	21739	滚柱轴承	BEARING Roller	1
42	8129291	凸轮从动件	FOLLOWER Cam	1
43	20843	滑块	SLIDE	1
44	38114	弹簧	SPRING	1
45	813697T	离合器	CLUTCH	1
46	38113	十字销	PIN Cross	1
46	8M0020942	十字销@2	PIN-CROSS @2	1
47	815418	弹簧	SPRING	1
48	14493	螺旋桨轴	PROPELLER SHAFT	1
49	813695T	齿轮倒档 23齿	GEAR Reverse 23 Teeth	1
50	20839T	滚珠轴承	BEARING Ball	1
51	19291A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
51	8M0168900	轴承座	BEARING CARRIER	1
52	815460	O型圈	O-RING	1
53	21700	滚针轴承	BEARING Needle	1
54	69188	油封	SEAL Oil	1
54	8M0205511	油封	SEAL Oil	1
55	69189	油封	SEAL Oil	1
55	8M0203757	油封	SEAL Oil	1
56	85594030	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
57	855941	垫圈(.323 x .590 x .112)不锈钢	WASHER (.323 x .590 x .112) Stainless Steel	2
58	8227731	螺纹嵌件	INSERT Threaded	2
59	17264T2	调整片锌制	TRIM TAB Zinc	1
60	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
61	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1
61	8M0214963	垫圈	WASHER	1
62	816704A40	螺旋桨套件	PROPELLER KIT	1
62	816704A45	BLMX 10.5X13	BLMX 10.5X13	1
63	73345A1	止推垫片	THRUST WASHER	1
64	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
65	76281	锁紧垫圈	TAB WASHER	1
65	8M0214942	锁紧垫片	WASHER Tab	1
-	812867A97	衬垫套件	GASKET SET	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

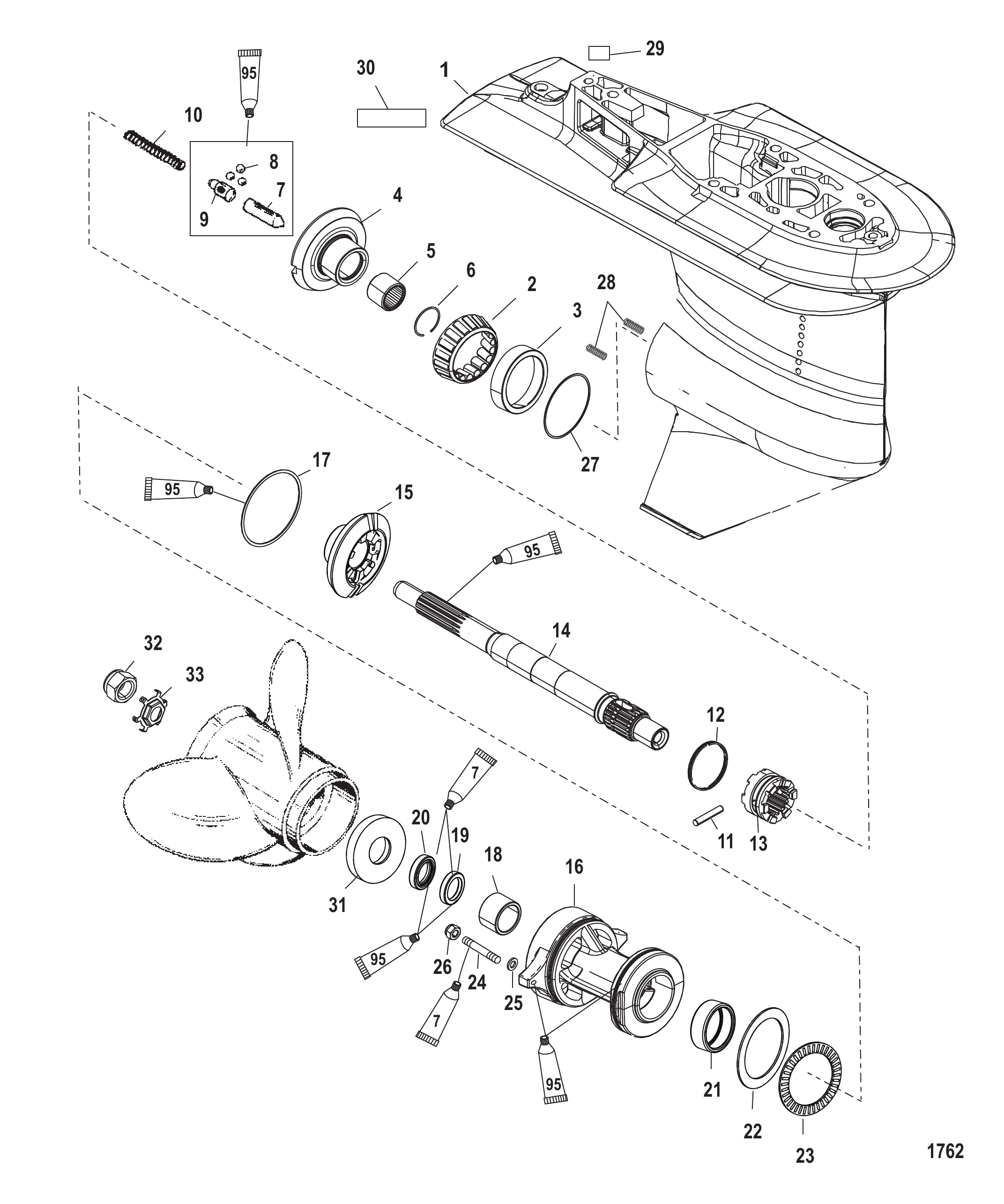

图 19齿轮箱螺旋桨轴 2.33:1 传动比 Gear Housing Propeller Shaft - 2.33:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	9011G92	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (Complete)	1
-	9011G94	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (Complete)	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
3	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
4	882813A3	前进齿轮与小齿轮套件(28齿)	GEAR KIT Forward And Pinion 28 Teeth	1
5	30895T	滚针轴承	BEARING Needle	1
6	856823	挡圈	RING Retaining	1
7	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
8	44530	钢球	BALL	3
9	NSS	滑动件(不单独销售)	NOT SOLD SEPARATE Slide	1
10	850327	弹簧	SPRING	1
11	30632	十字销	PIN Cross	1
11	8M0100263	十字销	PIN Cross	1
12	30893	弹簧	SPRING	1
13	850048T	离合器	CLUTCH	1
14	850308	螺旋桨轴	PROPELLER SHAFT	1
14	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
15	882814T	倒车齿轮-28齿	GEAR Reverse - 28 Teeth	1
16	12596T2	轴承座总成	CARRIER ASSEMBLY Bearing	1
16	8M0168901	轴承座总成	CARRIER ASSY.	1
17	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
17	8M0214974	O型圈	O RING	1
18	30956T	滚针轴承	BEARING Needle	1
19	70080	油封	SEAL Oil	1
19	8M0205728	密封件	SEAL	1
20	70081	油封	SEAL Oil	1
20	8M0205729	密封件	SEAL	1
21	12578T	滚柱轴承	BEARING Roller	1
22	12577	止推垫片	THRUST WASHER	1
23	12576	推力轴承	BEARING Thrust	1
24	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
24	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
25	855941	垫圈(.323 x .590 x .112)不锈钢	WASHER (.323 x .590 x .112) Stainless Steel	2
26	401378	螺母 (M8)	NUT (M8)	2
27	44491A1	垫片组	SHIM SET	1
27	8M0063266	垫片组	SHIM SET	1
28	8227731	螺纹嵌件	INSERT Threaded	2
29	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
30	NSS	不单独销售贴纸-螺旋桨操作	NOT SOLD SEPARATE Decal-Prop Operation	1
31	13191Q01	止推垫片	THRUST WASHER	1
32	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
33	816629Q	锁紧垫圈	TAB WASHER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

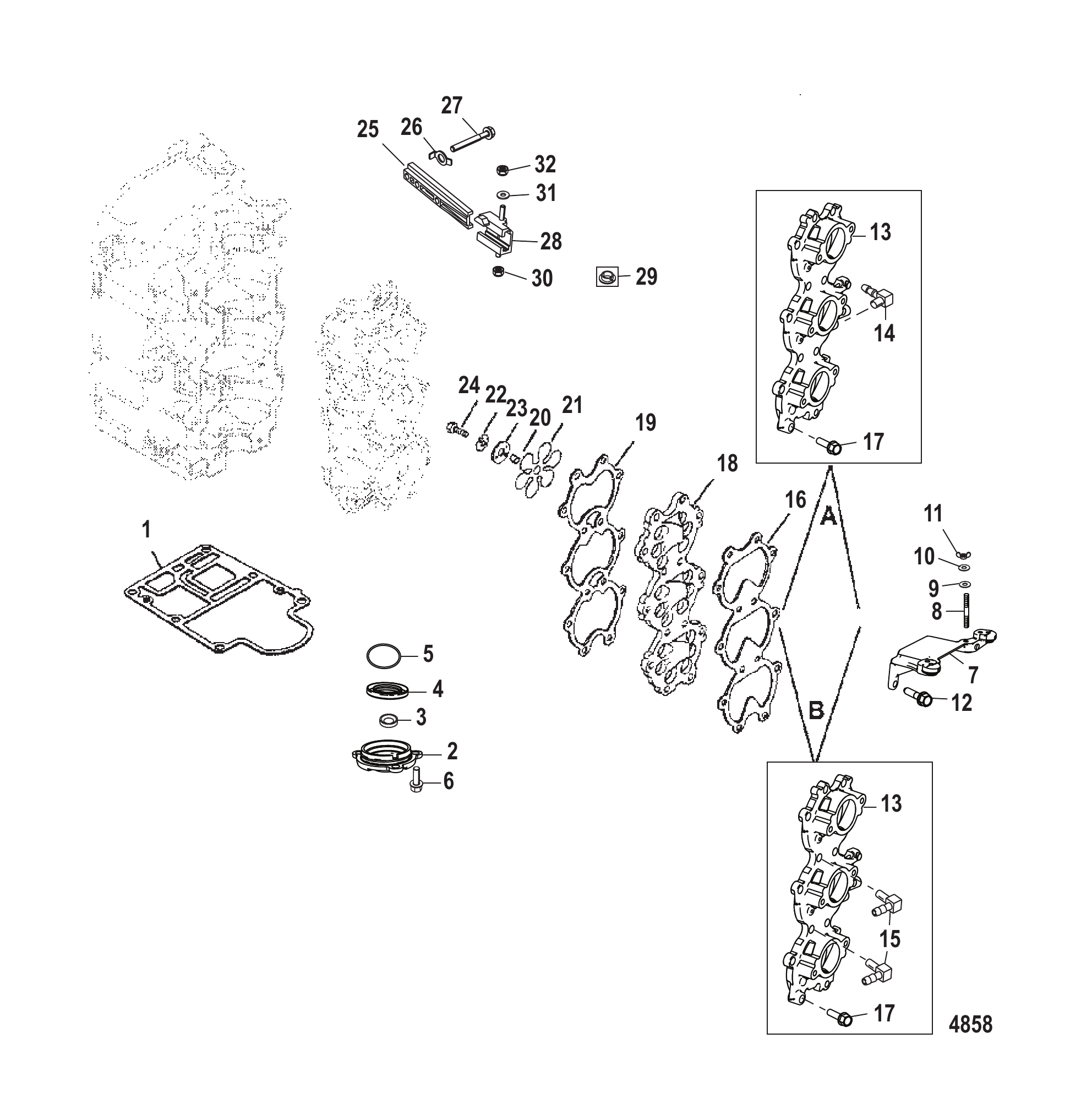

图 20进气歧管与簧片阀组 Induction Manifold and Reed Block

REF	零件编号	中文名称	英文名称	数量
1	828553	衬垫	GASKET	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A5	支架总成	BRACKET ASSEMBLY	1
7	19077A07	支架总成	BRACKET ASSEMBLY	1
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
13	827998A1	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
-	15026	盖帽	CAP	3
14	19725	弯头	ELBOW	1
15	19725	弯头	ELBOW	2
16	812869	衬垫	GASKET	1
17	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
18	19075A3	簧片阀总成	REED BLOCK ASSEMBLY	1
18	8M0219197	簧片阀总成	REED BLOCK ASSY	1
19	812868	衬垫	GASKET	1
20	NSS	定位销(不单独销售)	NOT SOLD SEPARATE Dowel Pin	6
21	812880A2	簧片组件	REED ASSEMBLY	3
21	812880A03	簧片组件	REED ASSEMBLY	3
22	429821	锁紧垫圈	TAB WASHER	3
23	8128791	簧片压板	RETAINER Reed	3
23	812879002	簧片压板	RETAINER Reed	3
24	88421471	螺钉(M6 x 16)	SCREW (M6 x 16)	3
25	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
26	42981	锁紧垫圈	TAB WASHER	2
27	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
28	988851	滑块	SLIDE	1
29	48475	衬套	BUSHING	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	852071T97	动力头总成	POWERHEAD ASSEMBLY	1

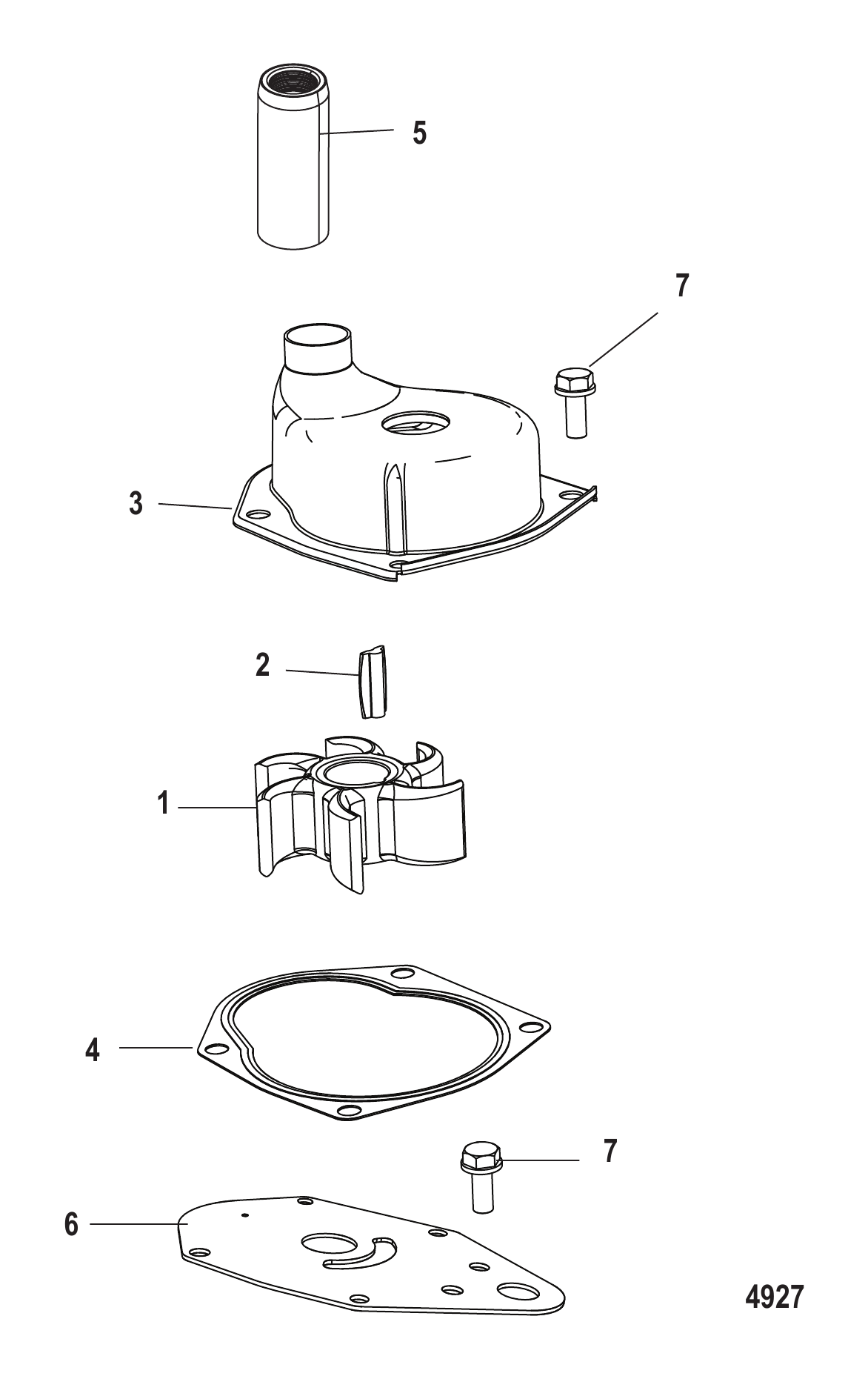

图 21喷射组件 Jet Components

REF	零件编号	中文名称	英文名称	数量
1	19453T	叶轮	IMPELLER	1
2	19699	键	KEY	1
2	8M0032831	叶轮键	KEY Impeller	1
-	14334A3	水泵总成	PUMP ASSEMBLY Water	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
3	8M0242489	水泵	WATER PUMP	1
4	822189	水泵上衬垫	GASKET Upper Water Pump	1
5	43023	密封件	SEAL	1
5	8M0204658	密封件	SEAL	1
6	19700A2	面板	FACE PLATE	1
7	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	6
-	812966A11	水泵维修套件	REPAIR KIT Water Pump	1
-	812966A12	水泵维修套件	REPAIR KIT Water Pump	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

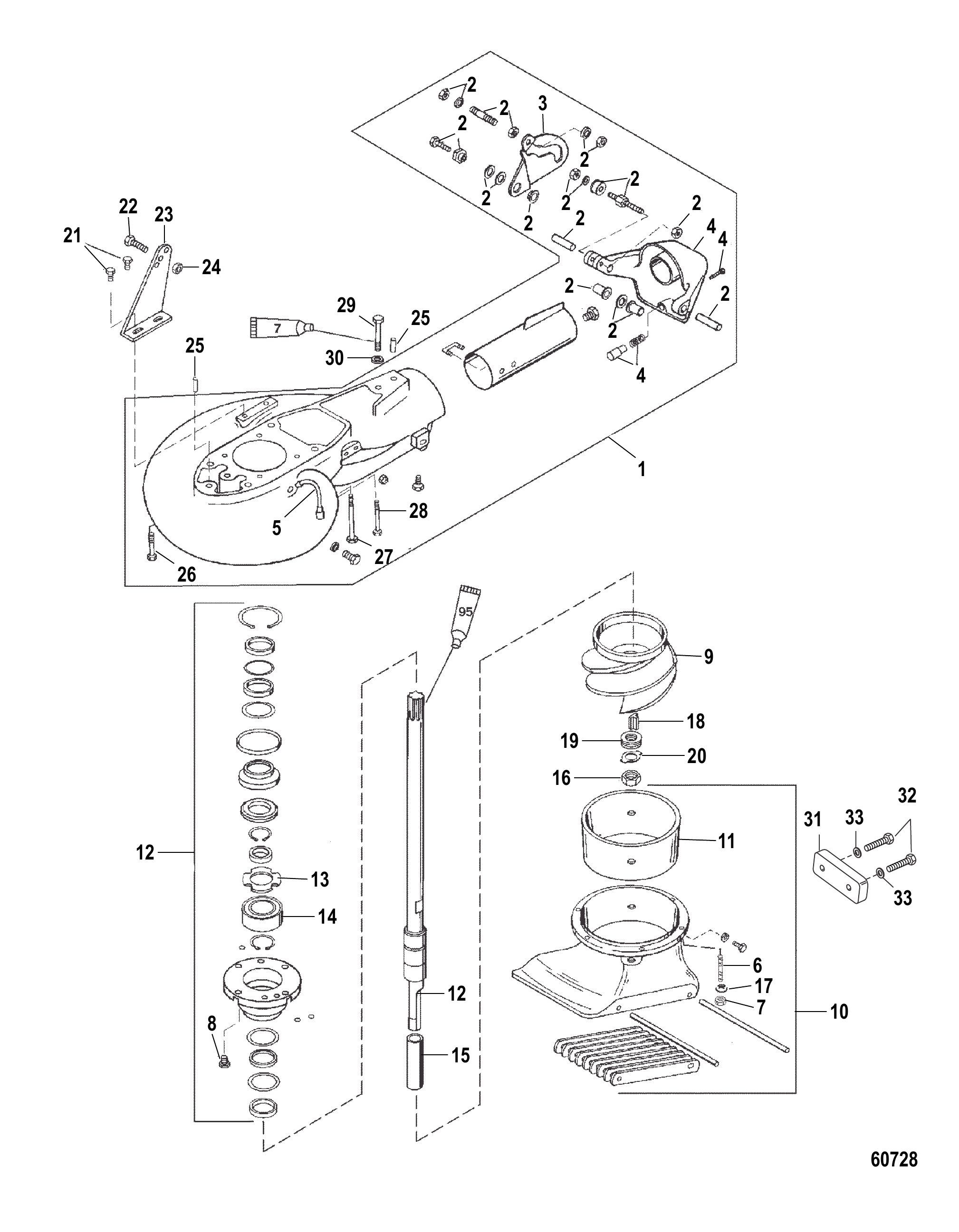

图 22喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	856143A6	喷泵总成	JET PUMP ASSEMBLY	1
1	855767T60	泵壳	HOUSING Pump	1
2	878377	换挡连杆套件	SHIFT LINKAGE KIT	1
3	878382	凸轮	CAM	1
4	878380	倒车挡板(带缓冲)	GATE Reverse - With Bumper	1
5	827490	润滑油管	HOSE Lube	1
6	855840	双头螺柱(.312-18 x 1.81)	STUD (.312-18 x 1.81)	6
7	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	6
8	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	855708T60	叶轮	IMPELLER	1
9	8M0230713	叶轮	IMPELLER	1
10	80141260	进气壳体	HOUSING Intake	1
11	8271882	衬套	LINER	1
12	85576960	驱动轴	DRIVESHAFT	1
13	8796521	止推垫片	THRUST WASHER	1
14	8796531	滚珠轴承	BEARING Ball	1
15	8271891	套筒	SLEEVE	1
16	8271901	螺母	NUT	1
17	36001	垫圈	WASHER	6
18	801405875	键	KEY	1
19	801404875	叶轮垫片	SHIM Impeller	8
20	801403875	锁紧垫圈	TAB WASHER	1
21	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
22	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
23	801410	电缆支架	BRACKET Cable Support	1
24	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
25	801407	定位销	PIN Dowel	2
26	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
27	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
28	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
29	95802	不锈钢螺钉(.375-16 x 2.750)	SCREW (.375-16 x 2.750) Stainless Steel	1
30	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1
30	8M0214963	垫圈	WASHER	1
31	889246A72	阳极套件	ANODE KIT	1
32	801432001	螺栓(M6x25)	BOLT (M6 x 25)	2
33	879652003	垫圈	WASHER	2

图 23润滑图表 Lube Chart

REF	零件编号	中文名称	英文名称	数量
-	NOPART	无零件清单	NO PARTS LIST

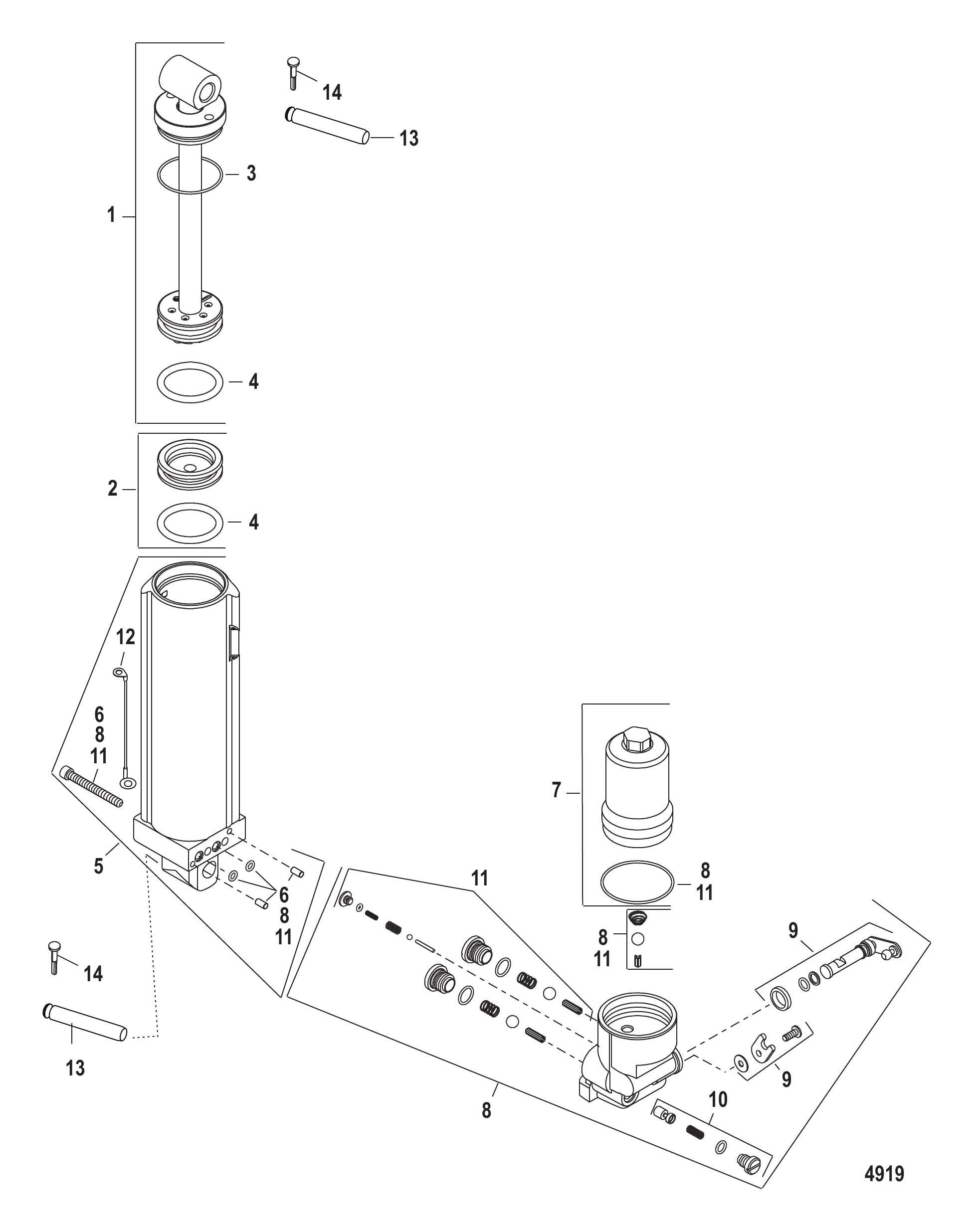

图 24手动倾斜装置组件 Manual Tilt Components

REF	零件编号	中文名称	英文名称	数量
-	830050T3	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	832020T3	手动调整	MANUAL TRIM	1
1	813427A4	减震杆总成	SHOCK ROD ASSEMBLY	1
1	8M0118572	减震杆套件	SHOCK ROD KIT	1
1	813427A2	减震杆总成	SHOCK ROD ASSEMBLY	1
1	893942A01	减震杆套件	SHOCK ROD KIT	1
2	813430A1	配平记忆活塞总成	PISTON ASSEMBLY Trim Memory	1
2	893903A01	活塞套件	PISTON KIT	1
3	809872A1	气缸O型圈套件	O-RING KIT Cylinder	1
3	893917A01	O型圈修理包	REBUILD KIT O-Ring	1
4	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	2
5	811224A1	气缸总成	CYLINDER ASSEMBLY	1
5	893918A01	气缸套件	CYLINDER KIT	1
6	813433A2	螺钉与密封套件	SCREW AND SEAL KIT	1
6	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
7	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
7	893920A01	蓄能器套件	ACCUMULATOR KIT	1
8	813455T4	阀体总成	VALVE BODY ASSEMBLY	1
8	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
9	813457A3	凸轮套件	CAM KIT	1
9	893923A01	凸轮套件	CAM KIT	1
10	809881A1	速度阀套件	VALVE KIT Velocity	1
10	893924A01	阀套件	VALVE KIT	1
11	809882A1	维修套件	REPAIR KIT	1
11	893925A01	维修套件	REPAIR KIT	1
12	88238A13	拉线总成	CABLE ASSEMBLY	1
12	8M0207768	拉线总成	CABLE ASSEMBLY	1
-	809880A2	O型圈套件	O-RING KIT	1
-	893922A01	O型圈套件	O-RING KIT	1
13	19607	销	PIN	2
14	821539	三叶销	PIN Trilobe	2

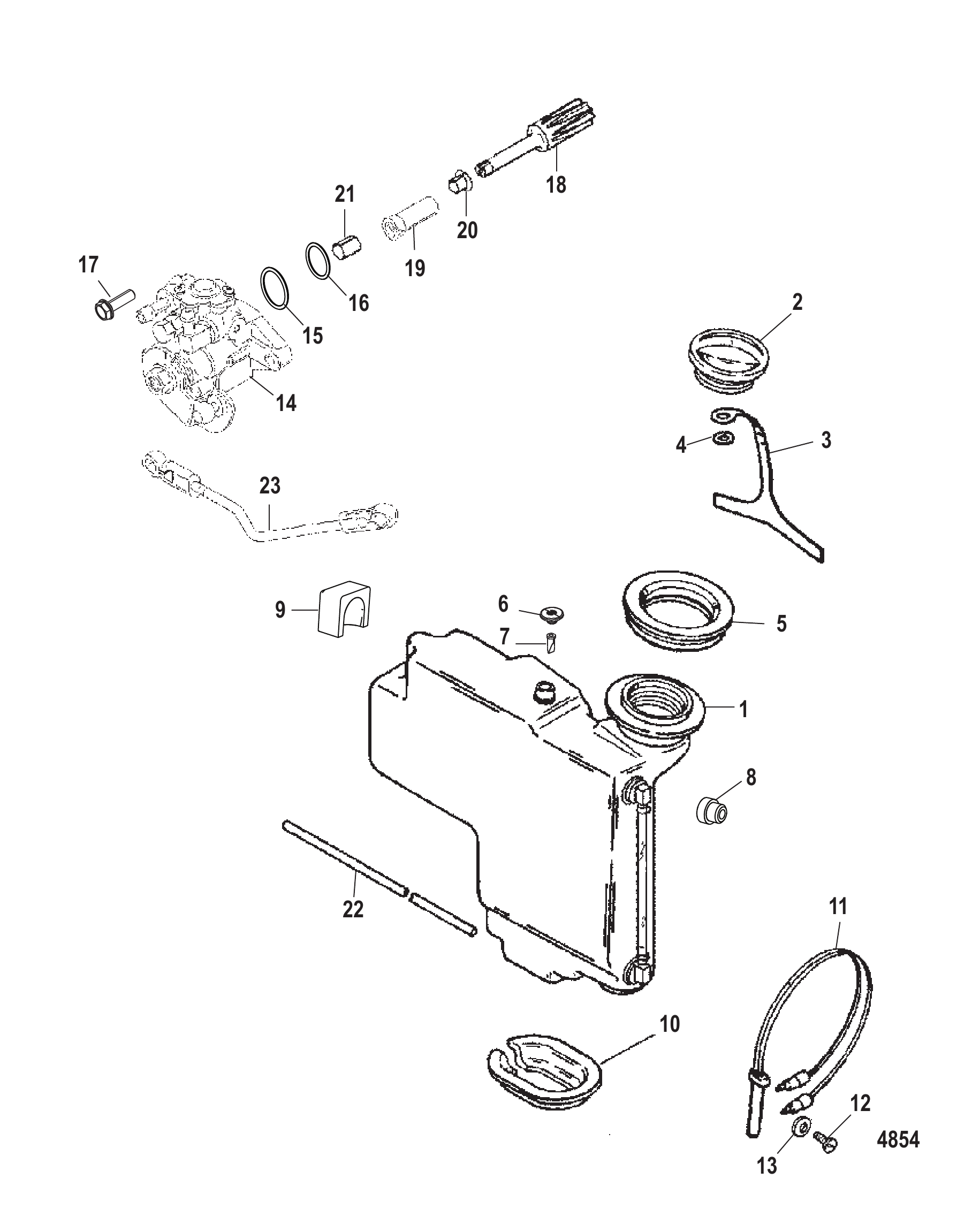

图 25机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	812718T1	油箱总成	TANK ASSEMBLY Oil	1
2	828765A2	盖总成	CAP ASSEMBLY	1
3	NSS	不单独销售系绳	NOT SOLD SEPARATE Tether	1
4	821285	压入式螺母	PUSH NUT	1
5	8160662	密封件	SEAL	1
5	8M0039080	密封件-油箱	SEAL-OIL TANK	1
6	19299A1	通风组件	VENT ASSEMBLY	1
7	64871	阀门	VALVE	1
8	8136441	护孔环	GROMMET	1
8	813644002	护孔环	GROMMET	1
9	99162	护套	BOOT	1
9	99162001	护套	BOOT	1
10	812890	护套	BOOT	1
10	8M0039085	护套	BOOT	1
11	12886A6	开关总成	SWITCH ASSEMBLY	1
12	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
13	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
14	818902A1	机油喷射泵总成	PUMP ASSEMBLY Oil Injection	1
15	62705	O型圈	O-RING	1
15	8M0204667	O型圈×2	O RING @2	1
16	36390	O型圈	O-RING	1
17	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
18	19277	从动齿轮	GEAR Driven	1
19	19278A2	轴承总成	BEARING ASSEMBLY	1
20	17597		BUSHING (Flanged)	1
21	17596	衬套	BUSHING	1
22	82381335	管材 (15.00英寸散装) (裁切至6.00英寸)	TUBING (15.00 Inches Bulk) (Cut to 6.00 Inch Lengh)	1
23	826581A2	连接杆	LINK	1
23	8M0084729	连杆-油泵总成	LINK-OIL PUMP ASY	1

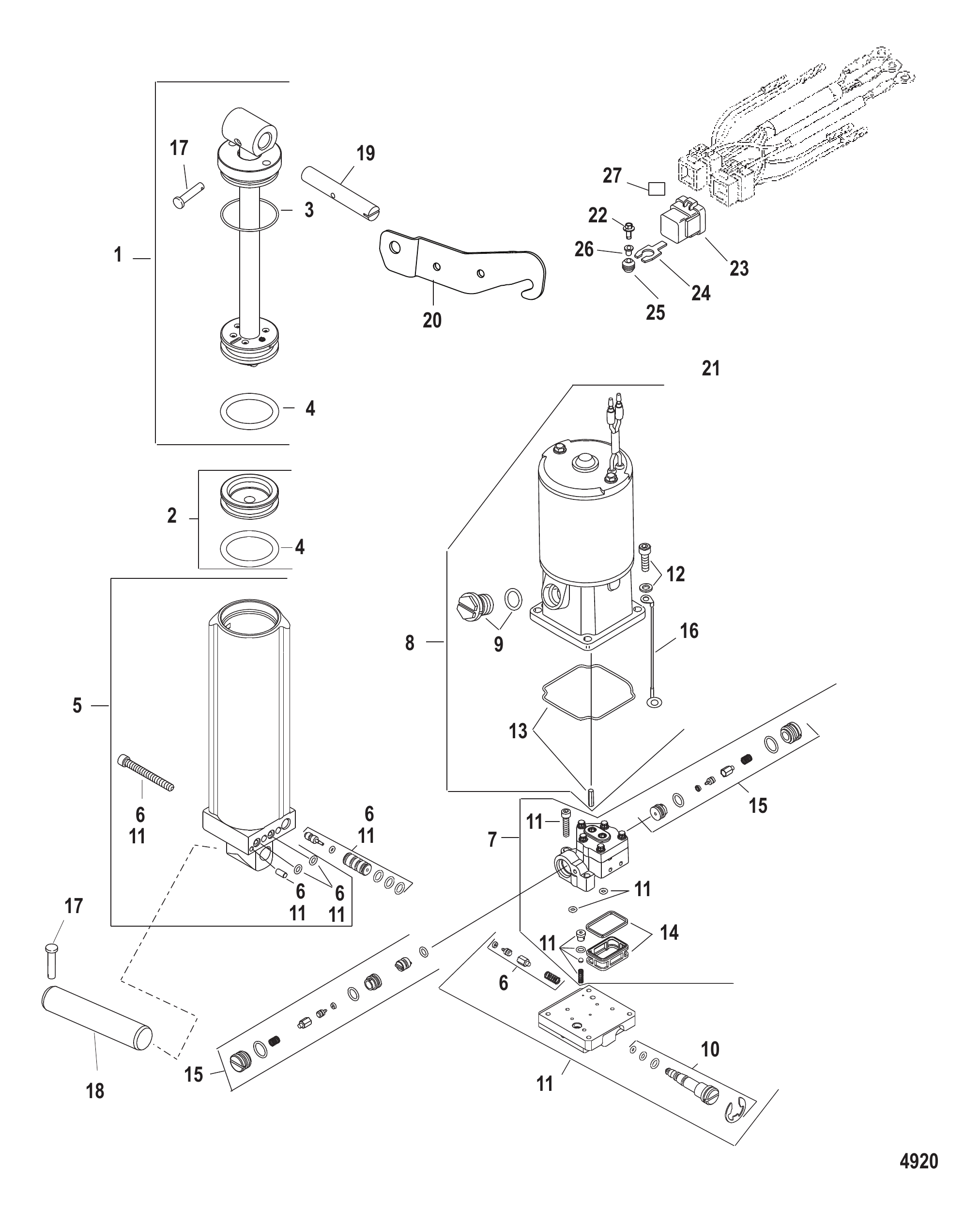

图 26动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830150T6	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
-	8M0055006	动力调整套件	POWER TRIM KIT	1
-	855654T4	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
-	8M0055011	动力调整套件	POWER TRIM KIT	1
-	855654T08	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
-	8M0055011	动力调整套件	POWER TRIM KIT	1
-	NSS	不单独销售动力调整泵 (全套)	NOT SOLD SEPARATE Power Trim Pump (All)	1
1	813427A3	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
1	855833A1	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
1	855833A02	减震杆套件	SHOCK ROD KIT	1
1	8M0118573	减震杆套件	SHOCK ROD KIT	1
2	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
2	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
3	809872A2	O型圈维修包	O-RING KIT Rebuild	1
3	8M0171819	O型圈套件	O-RING KIT	1
4	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	2
5	811228A1	气缸总成	CYLINDER ASSEMBLY	1
5	893904T01	气缸总成	CYLINDER ASSEMBLY	1
6	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
6	893905A02	阀套件	VALVE KIT	1
6	809873A2	配平限位阀套件	VALVE KIT Trim Limit	1
6	893944A01	配平限位阀套件	VALVE KIT Trim Limit	1
6	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
6	893905A02	阀套件	VALVE KIT	1
7	809874A1	泵总成	PUMP ASSEMBLY	1
7	893906A02	泵总成	PUMP ASSEMBLY	1
8	809885A2	电机套件	MOTOR KIT	1
8	893907A02	电机套件	MOTOR KIT	1
9	8134351	堵头	PLUG	1
10	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
10	893929A01	安全阀套件	VALVE KIT Relief	1
11	809875A1	歧管套件	MANIFOLD KIT	1
11	893909A02	歧管套件	MANIFOLD KIT	1
12	809876A1		SCREW KIT (Motor)	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
16	88238A18	拉线总成	CABLE ASSEMBLY	1
-	809880A1		O-RING KIT (Complete Trim)	1
-	893914A02	O型圈套件	O-RING KIT	1
17	821539	三叶销	PIN Trilobe	2
18	19607	销	PIN	1
19	822869	销	PIN	1
19	822869001	锚销	PIN Anchor	1
20	831276T	支架	BRACKET	1
21	826802A12	线束总成	HARNESS ASSEMBLY	1
22	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
23	828151A1	继电器总成	RELAY ASSEMBLY	2
23	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
24	828102	支架	BRACKET	2
24	8M0207771	安装支架	BRACKET Mounting	2
25	818967	护孔环	GROMMET	2
25	8M0207785	护孔环	GROMMET	2
26	818968	衬套	BUSHING	2
26	8M0214955	衬套	BUSHING	2
27	NSS	微调继电器标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Trim Relay	2

图 27维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	814840	零件手册 Mariner 40	PARTS MANUAL Mariner 40	1

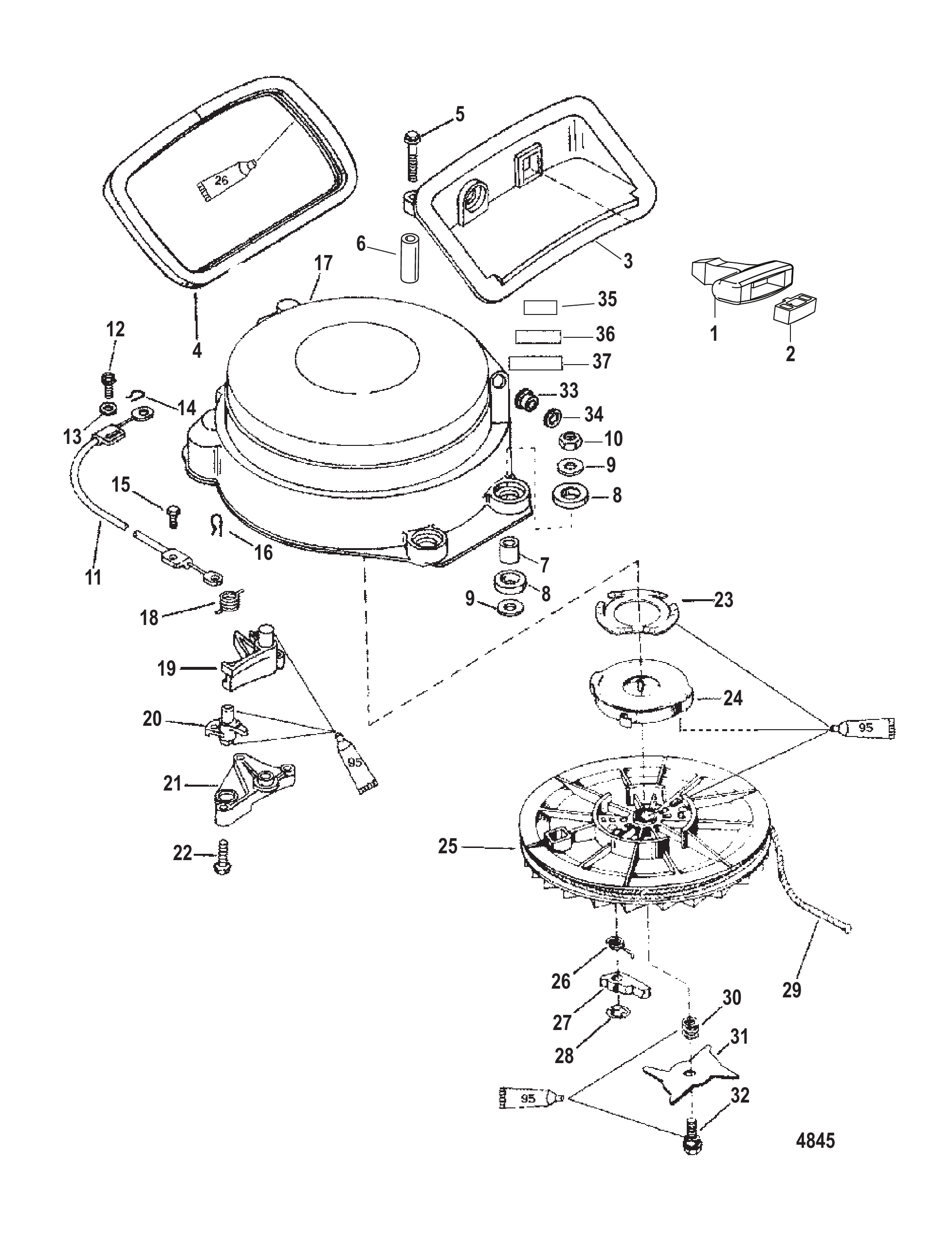

图 28启动器总成手册 Starter Assembly Manual

REF	零件编号	中文名称	英文名称	数量
1	85174A1	手柄总成	HANDLE ASSEMBLY	1
2	NSS	不单独销售	NOT SOLD SEPARATE	1
3	8167652	支架	REST	1
4	8136072	密封件	SEAL	1
4	8M0043161	密封件	SEAL	1
5	82170475	螺钉(M6×75)	SCREW (M6 x 75)	2
6	821702	隔套	SPACER	2
7	816086	衬套	BUSHING	4
8	8157951	护孔环	GROMMET	8
9	858779	垫圈（0.265×0.750×0.048）	WASHER (.265 x .750 x .048)	8
10	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	4
8	815795	护孔环	GROMMET	8
9	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	8
10	400264	螺母 (M6)	NUT (M6)	4
10	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	4
11	8567541	联锁电缆	CABLE Interlock	1
12	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
13	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
14	26811	开口销	COTTER PIN	1
15	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
16	26811	开口销	COTTER PIN	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
17	8167285	壳体	HOUSING	1
17	816728T05	壳体	HOUSING	1
18	826791	弹簧	SPRING	1
19	8166903	杠杆	LEVER	1
20	8167121	凸轮	CAM	1
20	816712T01	凸轮	CAM	1
21	816711	固定座	RETAINER	1
22	8182491	螺钉(#10-16 x 1.00)	SCREW (#10-16 x 1.00)	3
23	826229		LOCKWASHER Spring	1
24	868571	弹簧	SPRING	1
24	86857T01	弹簧	SPRING	1
25	825269A1	启动滑轮	SHEAVE Starter	1
25	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
26	868512	弹簧	SPRING	2
26	86851T02	弹簧 @2	SPRING @2	2
27	868501	凸轮	CAM	2
28	868491	挡圈	RING Retaining	2
28	86849T01	环 @2	RING @2	2
29	12066Q9	绳索	ROPE	1
29	12066Q10	启动绳@2	ROPE-STARTER@2	1
30	868523	弹簧	SPRING	1
31	868531	凸轮	CAM	1
31	86853T01	凸轮	CAM	1
32	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
33	42690	衬套	BUSHING	1
33	8M0183792	绳索衬套	ROPE BUSHING	1
34	818853	挡圈	RING Retaining	1
35	NSS	正时贴纸（不单独销售）	NOT SOLD SEPARATE Decal-Timing	1
36	NSS	不单独出售贴纸-全油门正时	NOT SOLD SEPARATE Decal-Full Throttle Timing	1
37	856985A7	EPA标签信息贴花	DECAL EPA Label Information	1
37	804665A00	EPA标签信息贴花	DECAL EPA Label Information	1
37	804665A01	EPA标签信息贴花	DECAL EPA Label Information	1
37	804665A02	EPA标签信息贴花	DECAL EPA Label Information	1
37	804665A03	EPA标签信息贴花	DECAL EPA Label Information	1
37	804665A04	EPA标签信息贴花	DECAL EPA Label Information	1

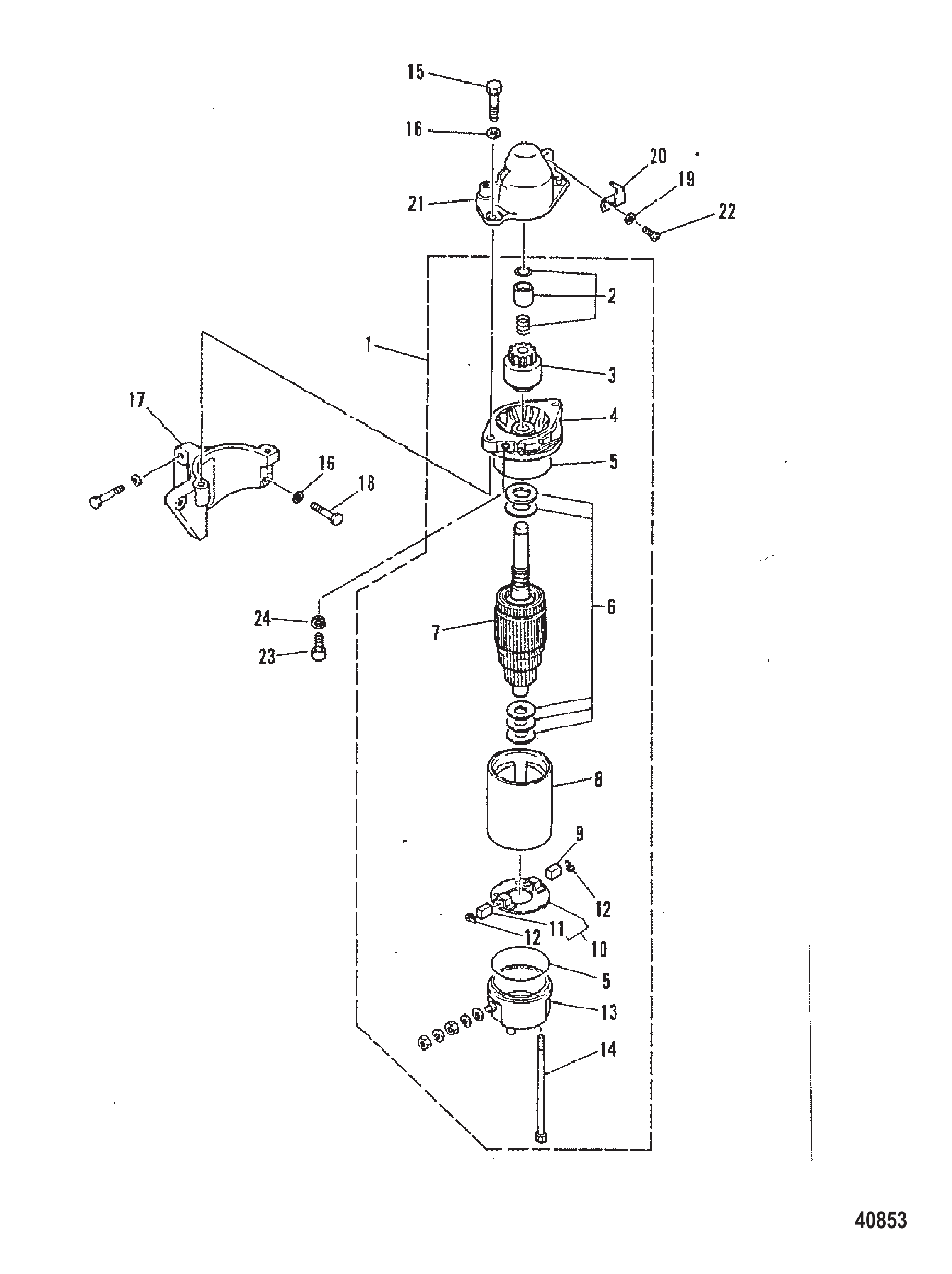

图 29启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	814980M	启动电机总成	STARTING MOTOR ASSEMBLY	1
2	96360M	小齿轮止动器套件	STOPPER KIT Pinion	1
3	97694M	小齿轮	PINION	1
3	97694T	小齿轮	PINION	1
4	814981M	支架(前)	BRACKET (FRONT)	1
5	814982M	O型圈	O-RING	2
6	96364M	垫圈套件	WASHER KIT	1
7	96365M	电枢	ARMATURE	1
8	96366M	定子	STATOR	1
9	96368M	电刷	BRUSH	1
10	96367M	电刷架	HOLDER Brush	1
11	96369M	电刷	BRUSH	1
12	84927M	弹簧	SPRING	2
13	96370M	后盖	COVER (REAR)	1
14	84929M	螺栓	BOLT	2
15	82442M	螺栓	BOLT	2
16	82217M	垫圈	WASHER	4
17	814983M	支架	BRACKET	1
18	82441M	螺栓	BOLT	2
19	82211M	垫圈	WASHER	1
20	814984M	正时板	TIMING PLATE	1
21	814985M	盖板	COVER	1
22	83523M	螺钉	SCREW	1
23	96371M	螺栓	BOLT	1
24	82215M	锁紧垫圈	LOCKWASHER	1

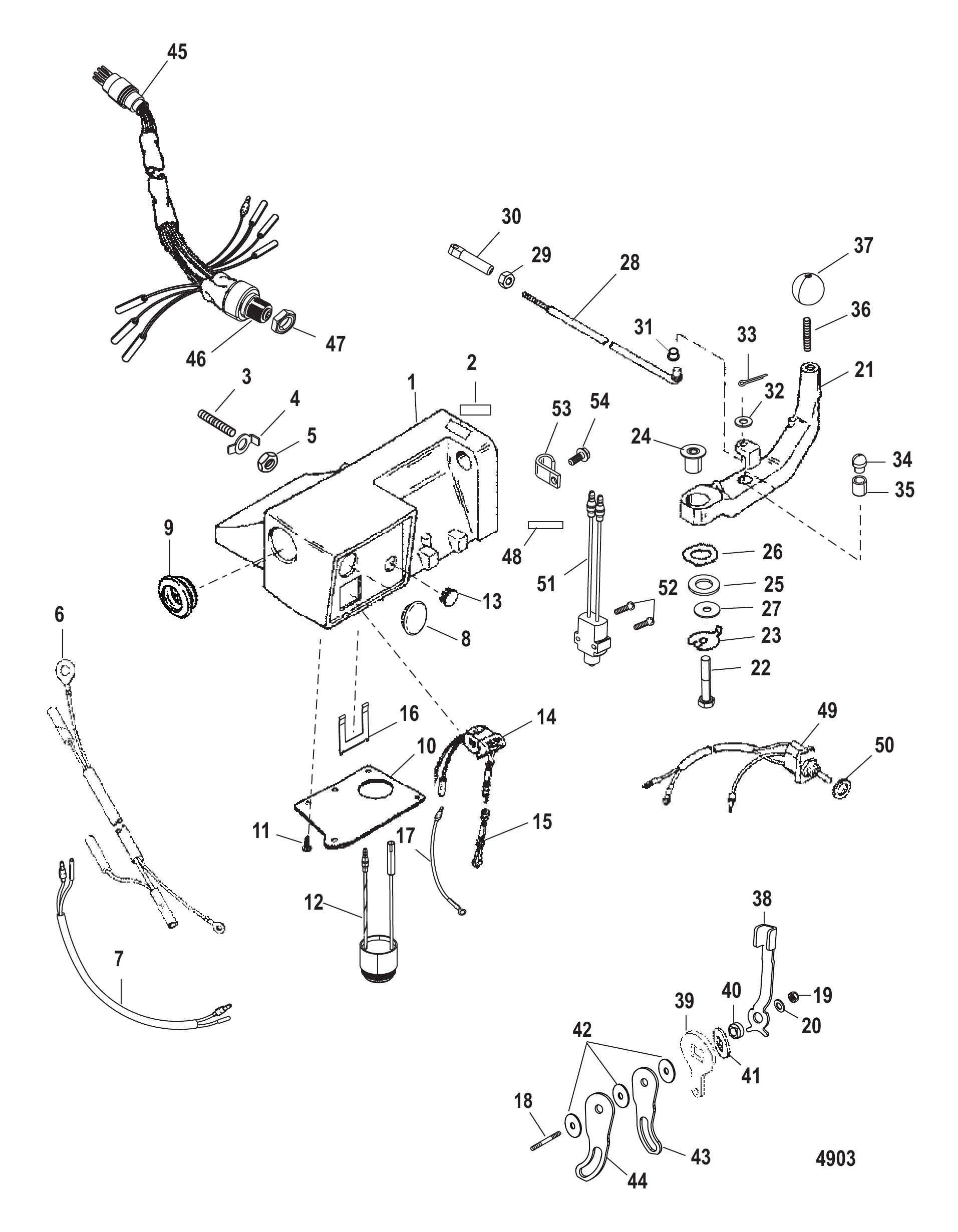

图 30转向手柄套件 Steerig Handle Kit

REF	零件编号	中文名称	英文名称	数量
1	816366T3	支架	BRACKET	1
2	NSS	不单独销售贴纸-换挡	NOT SOLD SEPARATE Decal-Shift	1
3	815802	螺柱 (M10 x 150 x 58)	STUD (M10 x 150 x 58)	2
4	815806	锁紧垫圈	TAB WASHER	2
5	40125100	螺母(M10)	NUT (M10)	2
6	815851A2	线束总成停止	HARNESS ASSEMBLY Stop	1
7	821028A2	拉线总成	CABLE ASSEMBLY	1
8	815803	堵头	PLUG	1
9	121051	护孔环	GROMMET	1
10	8158041	盖板	COVER	1
11	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
12	816051A2	喇叭总成	HORN ASSEMBLY	1
13	12014	堵头	PLUG	1
13	889730	堵头	PLUG	1
14	11083A4	停机开关总成	SWITCH ASSEMBLY Stop	1
15	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
16	120441	黄铜固定座	RETAINER Brass	1
16	8M0032846	黄铜固定座	RETAINER Brass	1
17	11149A3	拉线总成	CABLE ASSEMBLY	1
18	816560	双头螺柱(M10×2.12)	STUD (M10 x 2.12)	1
18	8M0034440	螺柱	STUD	1
19	400636	螺母	NUT	1
20	823933	垫圈(0.405×0.760×0.060) 聚甲醛树脂	WASHER (.405 x .760 x .060) Delrin	1
21	816367F5	杠杆	LEVER	1
22	4000357	螺钉 (M8 x 45)	SCREW (M8 x 45)	1
23	8158051	锁紧垫圈	TAB WASHER	1
24	8159831	衬套	BUSHING	1
25	824610	塑料垫圈	WASHER Plastic	1
26	823970	垫圈	WASHER	1
27	814803	垫圈	WASHER	1
28	495636	换挡连杆	SHIFT ROD	1
29	64015	螺母 (.250-20)	NUT (.250-20)	1
30	48419	拉杆端头	ROD END	1
30	48419T	杆端-2.16英寸	ROD END-2.16 IN	1
31	26856	衬套	BUSHING	1
32	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	1
33	25191	开口销	COTTER PIN	1
34	12016A2	定位弹簧套件	DETENT/SPRING KIT	1
35	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
36	58152	双头螺柱(0.375-24×1.125)	STUD (.375-24 x 1.125)	1
36	8M0034452	螺柱	STUD	1
37	98530	旋钮	KNOB	1
38	816416A3	杠杆套件	LEVER KIT	1
39	NSS	制动器(不单独销售)	NOT SOLD SEPARATE Brake	1
40	816564	驱动器	DRIVER	1
41	816576	垫圈	WASHER	1
42	8165621	圆盘	DISC	3
43	8164131	上臂	ARM (TOP)	1
44	8164141	下臂	ARM (BOTTOM)	1
45	12649A5	线束总成	HARNESS ASSEMBLY	1
46	88107A5	钥匙开关套件	SWITCH KIT Key	1
47	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
48	NSS	装饰贴花(不单独销售)	NOT SOLD SEPARATE Decal-Trim	1
49	14645A4	微调开关	TRIM SWITCH	1
50	49440	螺母(0.468-32)	NUT (.468-32)	2
51	813960A3	开关	SWITCH	1
51	8M0052927	开关总成	SWITCH ASSY	1
52	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	2
53	648552	卡扣	CLIP	1
54	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
NS	894911	点火钥匙(1A)	KEY Ignition (1A)	AR
NS	894912	点火钥匙(1B)	KEY Ignition (1B)	AR
NS	894913	点火钥匙(1C)	KEY Ignition (1C)	AR
NS	894914	点火钥匙(1D)	KEY Ignition (1D)	AR
NS	894915	点火钥匙(1E)	KEY Ignition (1E)	AR
NS	894916	点火钥匙(1F)	KEY Ignition (1F)	AR
NS	894917	点火钥匙(2A)	KEY Ignition (2A)	AR
NS	894918	点火钥匙(2B)	KEY Ignition (2B)	AR
NS	894919	点火钥匙(2C)	KEY Ignition (2C)	AR
NS	8949110	点火钥匙(2D)	KEY Ignition (2D)	AR
NS	8949111	点火钥匙(2E)	KEY Ignition (2E)	AR
NS	8949112	点火钥匙(2F)	KEY Ignition (2F)	AR
-	816366A27	转向手柄套件	STEERING HANDLE KIT	1
-	816366A48	转向手柄套件	STEERING HANDLE KIT	1

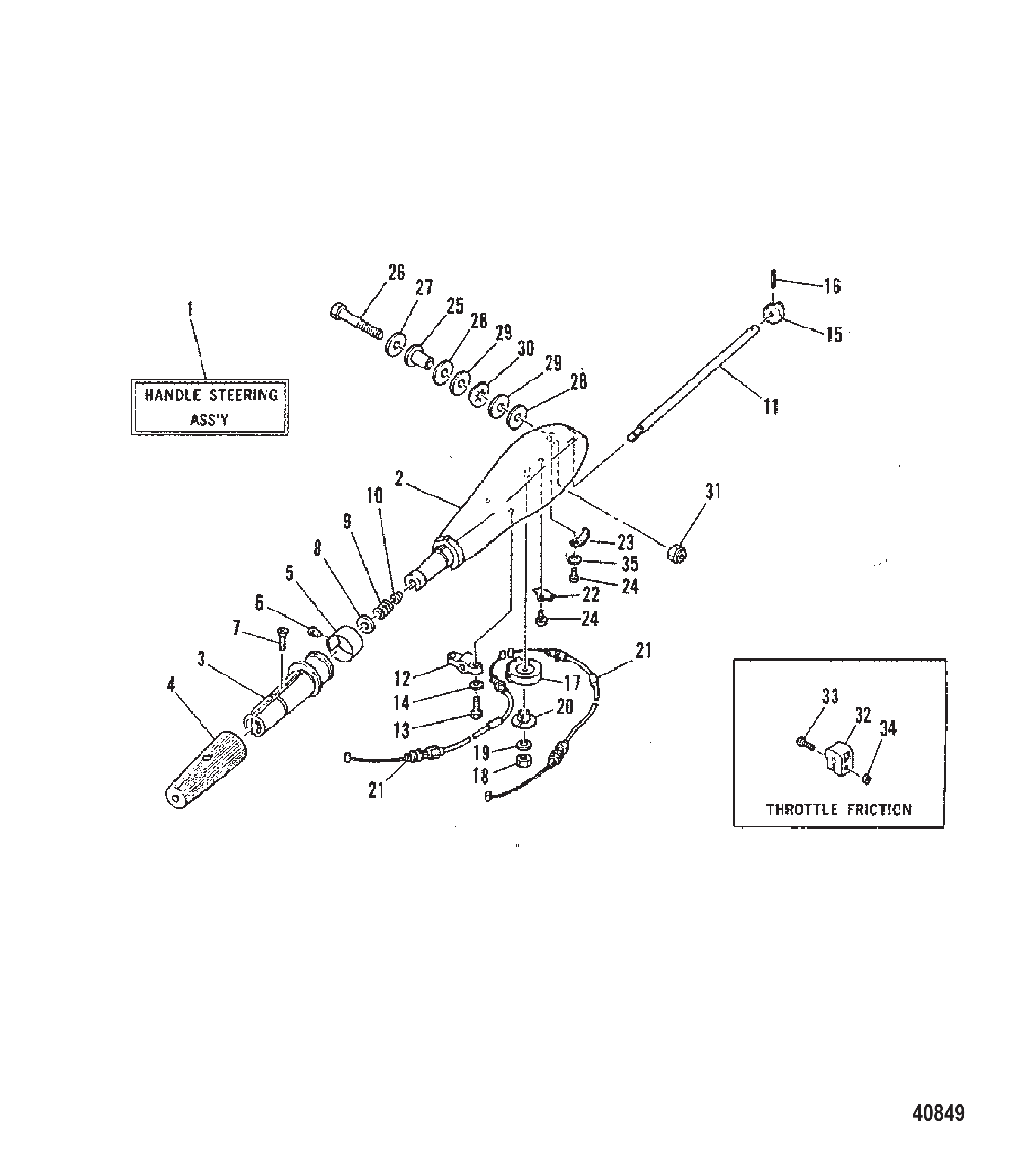

图 31转向手柄 Steering Handle

REF	零件编号	中文名称	英文名称	数量
1	95419A1	转向手柄总成	HANDLE ASSEMBLY Steering	1
2	84971M	手柄	HANDLE	1
3	81585M	握把	GRIP	1
4	95497M	橡胶手柄	HANDLE RUBBER	1
4	8M0080456	握把	GRIP	1
5	97747M	指示器	INDICATOR	1
6	81907M	铆钉	RIVET	1
7	18847M	螺钉	SCREW	1
7	811916M	螺钉	SCREW	1
8	82220M	垫圈	WASHER	1
9	82095M	弹簧	SPRING	1
10	81945M	衬套	BUSHING	1
11	83516M	轴	SHAFT	1
12	83517M	支架	BRACKET	1
13	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
14	82214M	垫圈	WASHER	2
15	80778M	齿轮	GEAR	1
16	82151M	销	PIN	1
17	83518M	小齿轮	PINION	1
18	82389M	螺母	NUT	1
19	82212M	锁紧垫圈	LOCKWASHER	1
20	83519M	衬套	BUSHING	1
21	97748M	油门拉线	WIRE Throttle	2
22	83521M	支架	HOLDER	1
23	83522M	支架	HOLDER	1
24	84313M	螺栓	BOLT	2
25	81950M	衬套	BUSHING	1
26	94514M	螺栓	BOLT	1
27	83524M	垫圈	WASHER	1
28	81853M	垫圈	WASHER	2
29	81815M	垫圈	WASHER	2
30	81870M	垫圈	WASHER	1
31	81786M	螺母	NUT	1
32	82895M	摩擦片	FRICTION PIECE	1
33	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
34	83056M	螺母	NUT	1
35	82211M	垫圈	WASHER	2

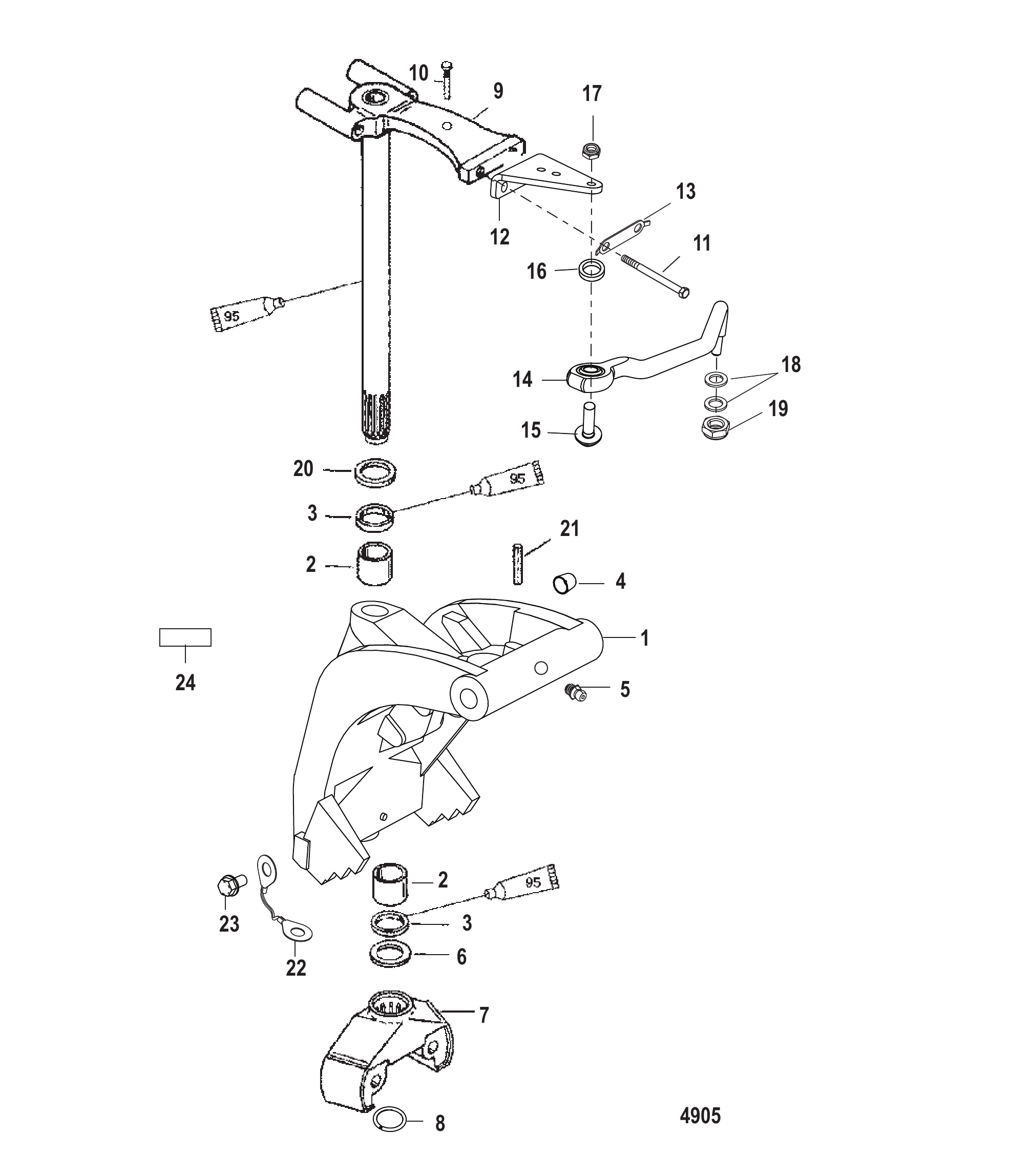

图 32旋转支架 Swivel Bracket

REF	零件编号	中文名称	英文名称	数量
1	822864A1	旋转支架	SWIVEL BRACKET	1
1	8M0084208	旋转支架-黑色	BRKT-SWIVEL-BLACK	1
1	822863A1	旋转支架	SWIVEL BRACKET	1
2	821124	轴承	BEARING	2
3	32911	油封	SEAL Oil	2
4	19606	轴承	BEARING	2
5	74036	润滑脂接头	FITTING Grease	3
5	8M0169589	润滑脂接头	FITTING Grease	3
6	52865	垫圈	WASHER	1
7	19654T1	下轭架	YOKE Bottom	1
8	77415	挡圈	RETAINING RING	1
9	812897A19	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	812896A22	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	8219872	联动销	PIN Co-Pilot	1
11	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
12	816667F3	支架	BRACKET	1
12	8M0184092	支架	BRACKET	1
13	816669F1	锁紧垫圈	TAB WASHER	1
13	8M0009820	锁紧垫圈	TAB WASHER	1
14	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
15	823919	螺钉（0.375-24 x 1.500）	SCREW (.375-24 x 1.500)	1
16	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
16	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
17	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
17	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
18	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
19	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
19	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
20	52865	垫圈	WASHER	1
21	823876	手柄销	PIN Handle	1
22	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
23	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
24	NSS	不单独销售铭牌-序列号	NOT SOLD SEPARATE Decal-Serialization	1

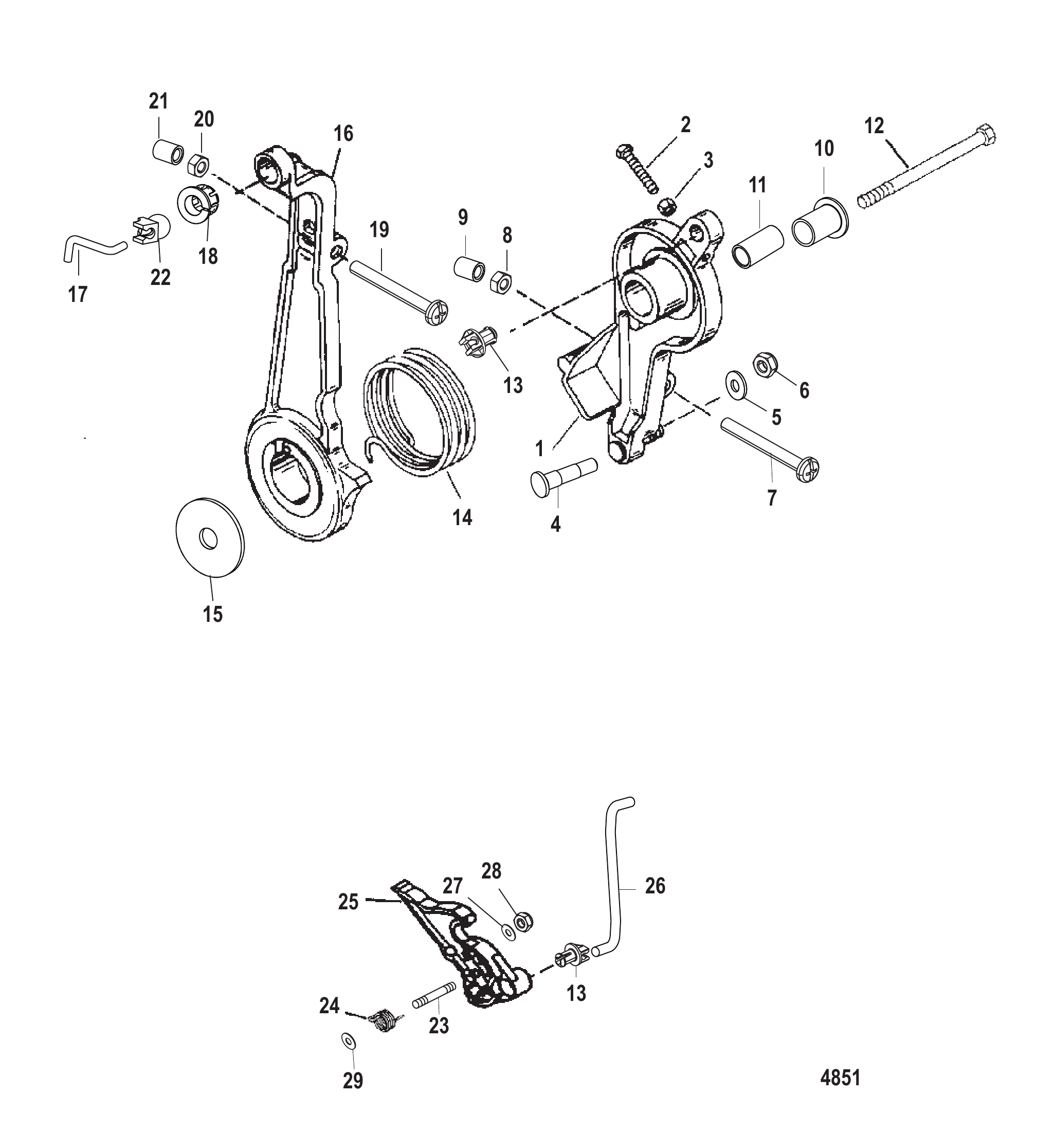

图 33油门杆及联动装置 Throttle Lever and Linkage

REF	零件编号	中文名称	英文名称	数量
1	42946T1	油门杆	LEVER Throttle	1
2	817582	调节螺钉(M5 x 35)	SCREW Adjusting (M5 x 35)	1
3	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
4	42927	嵌件	INSERT	1
5	35459	垫圈	WASHER	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
8	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
9	42942	盖帽	CAP	1
10	812930A1	衬套	BUSHING	1
11	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
12	4007180	螺丝(M10 x 45)	SCREW (M10 x 45)	1
13	932481	衬套	BUSHING	2
13	8M0215006	旋转衬套	BUSHING Swivel	2
14	55162	弹簧	SPRING	1
15	42980	垫圈	WASHER	1
16	196632	点火提前杆	LEVER Spark Advance	1
16	19663T02	杠杆	LEVER	1
17	878172	点火提前杆	ROD Spark Advance	1
18	93254	旋转底座	SWIVEL BASE	1
19	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
20	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
21	42942	盖帽	CAP	1
22	93421	旋转球头	SWIVEL BALL	1
23	42984	螺柱	STUD	1
23	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
24	817702	弹簧	SPRING	1
25	828160A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
26	878174	杆油门	ROD Throttle	1
27	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
28	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
29	828494	垫圈	WASHER	1

图 34专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	817383A1	工具包	TOOL BAG	1
-	890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	99750A1	万用表	MULTI METER	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439T	检测仪	TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	99379	正时灯	TIMING LIGHT	1
-	825207A1	TPI/CDM测试线束总成	HARNESS ASSEMBLY TPI/CDM Test	1
-	NSS	快接件CG41-14(不单独销售)	NOT SOLD SEPARATE (Snap On- CG41-14)	1
-	NSS	快接件CG41-11(不单独销售)	NOT SOLD SEPARATE (Snap On- CG41-11)	1
-	822778A3	下压力套件	DOWN PRESSURE KIT	1
-	99750A1	万用表	MULTI METER	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	29287	量规工具	GAUGE TOOL	1
-	55919	驱动头	DRIVER HEAD	1
-	90455T	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	25821T1	动力头支架工具	STAND TOOL Powerhead	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	85560	推力轴承	BEARING Thrust	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	817006	水泵底座密封安装工具	INSTALLER TOOL Water Pump Base Seal	1
-	14310T1	耐磨套驱动器	WEAR SLEEVE DRIVER	1

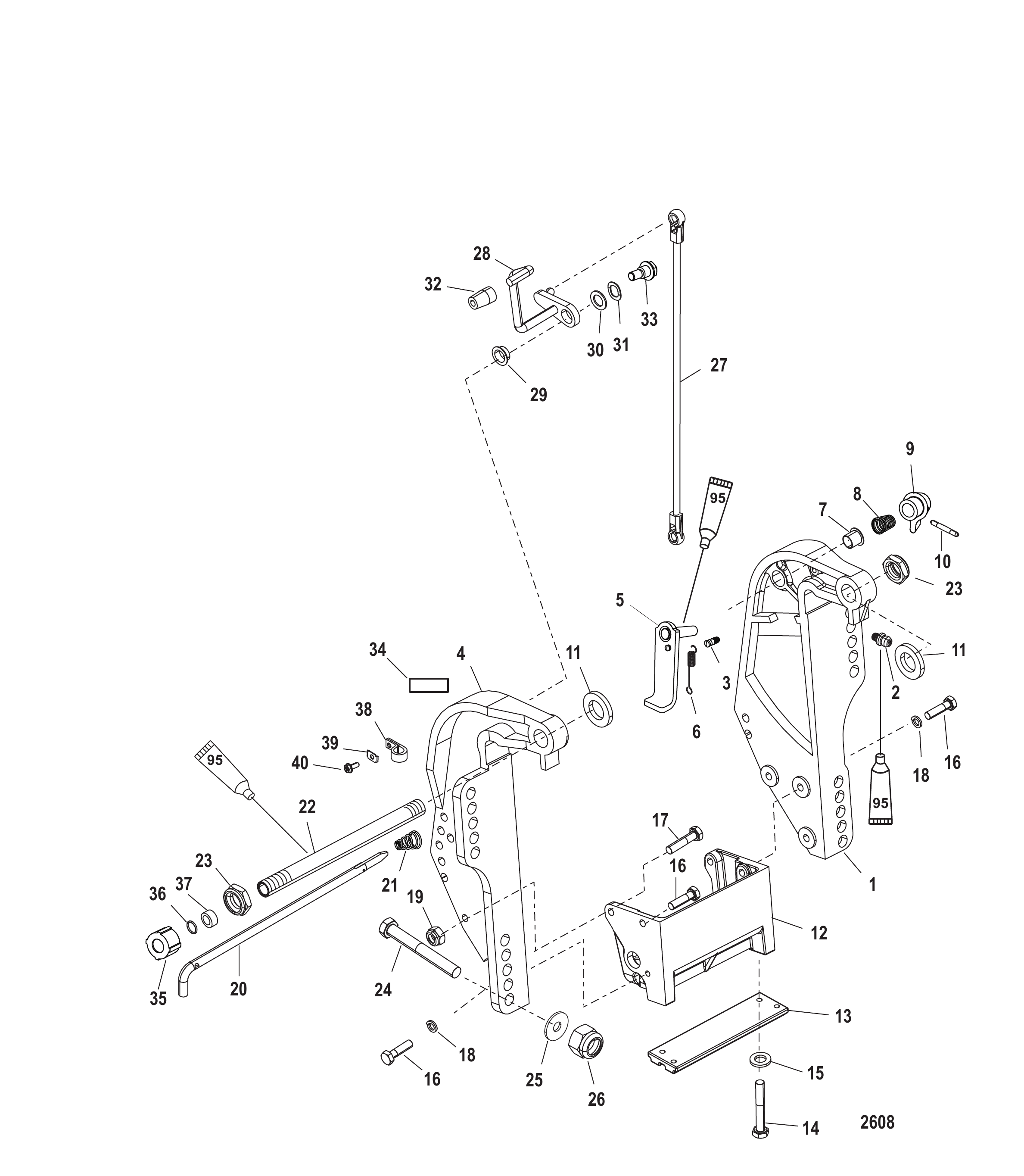

图 35艉板支架(电动) Transom Bracket (Electric)

REF	零件编号	中文名称	英文名称	数量
1	822866A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	822865F2	艉板支架	BRACKET Transom	1
4	822865T05	艉板支架-右舷	BRACKET Transom - Starboard	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	85594030	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
17	8M0000586	螺钉(M8×35)	SCREW (M8 x 35)	1
18	843108	垫圈（.330 x .560 x .060）不锈钢	WASHER (.330 x .560 x .060) Stainless Steel	4
19	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
20	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
21	821461	弹簧	SPRING	1
22	196141	倾斜管	TILT TUBE	1
22	8M0041938	倾斜管	TILT TUBE	1
23	858869	螺母 (.875-14)	NUT (.875-14)	2
24	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
25	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
25	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
26	82671117	螺母(.500-20)	NUT (.500-20)	4
27	1938525	连接杆	LINK	1
27	8M0084737	连接杆	LINK	1
28	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
28	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
29	812707	衬套	BUSHING	1
30	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
30	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
31	99611	波形垫圈	WAVE WASHER	1
32	19621	倾斜旋钮	TILT KNOB	1
32	8M0007469	倾斜旋钮	KNOB Tilt	1
33	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
34	830253	倾斜锁止贴纸	DECAL Tilt Lock	1
35	19624A1	密封套件	SEAL KIT	1
36	29619	O型圈(0.583×0.103)	O-RING (.583 x .103)	1
37	78861	隔套	SPACER	1
38	22740	卡扣	CLIP	1
39	69205	C形垫圈	C WASHER	1
39	8M0084613	C形垫圈	C-WASHER	1
40	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
