水星 Mercury 40 HP 2 CYL (PRODUCT OF USA) 7146488 THRU 7147237 - 爆炸图零件明细

两冲程 化油器 · Canada - Cat.# 90-90686 · 共 32 个部位 · 982 条零件

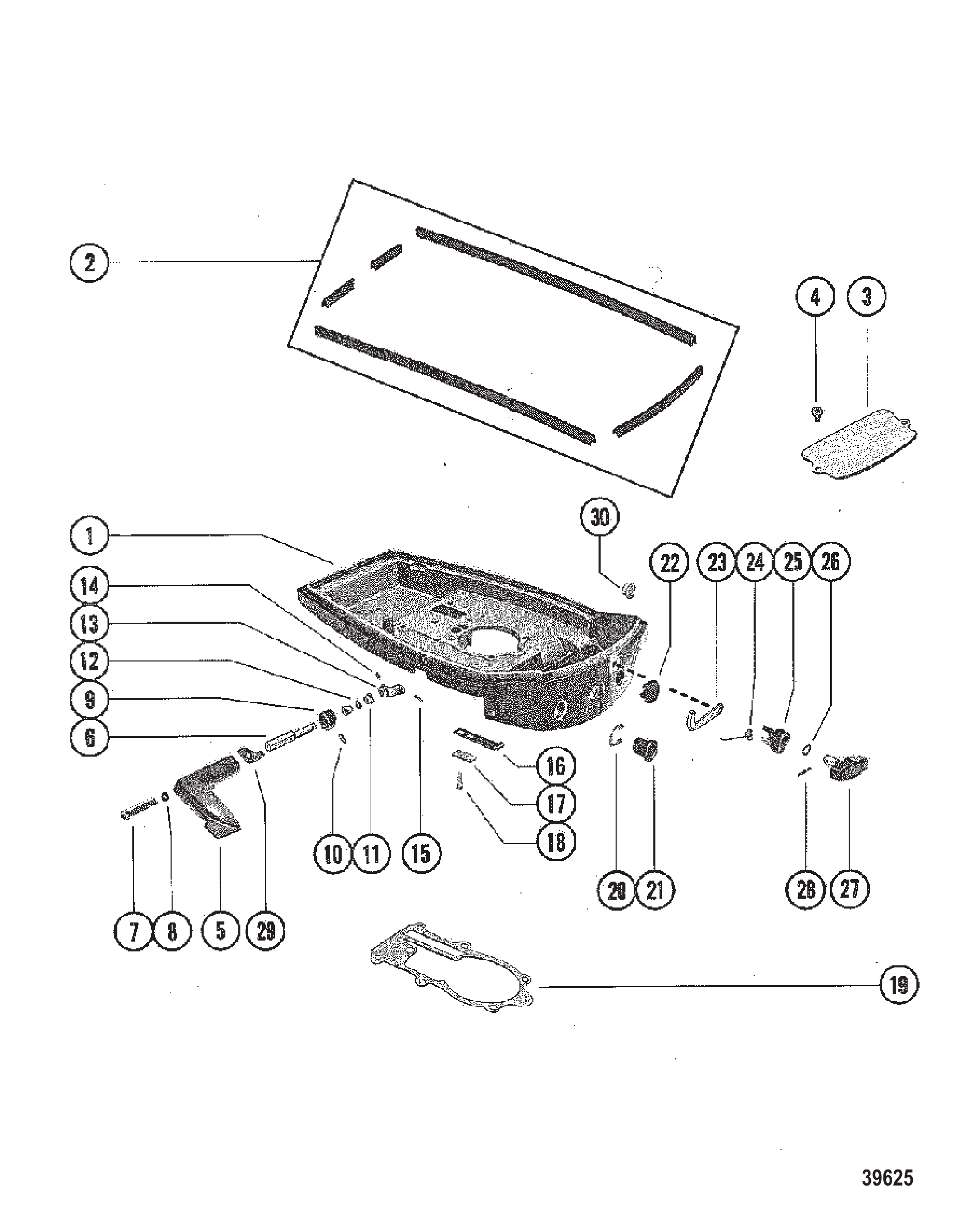

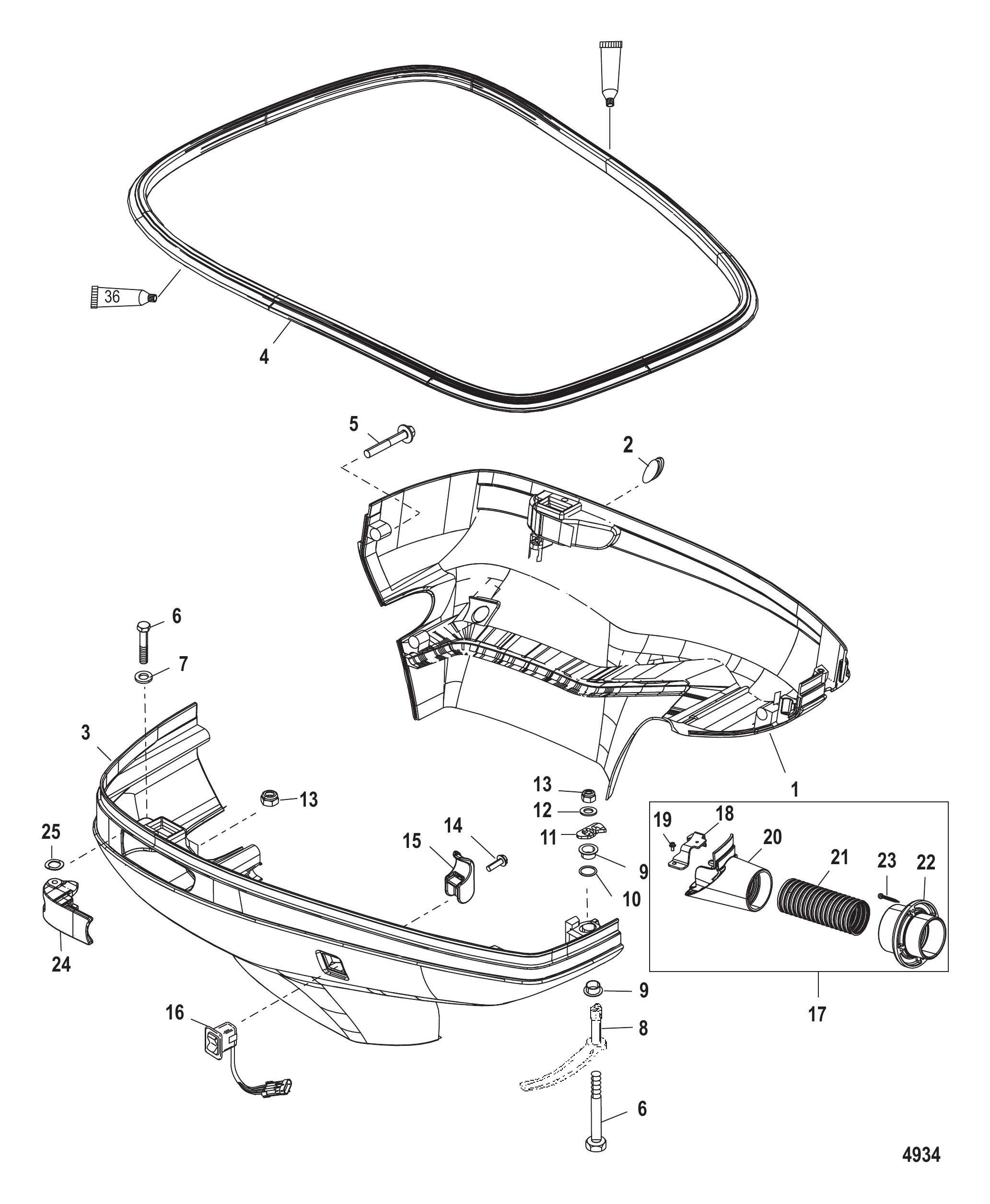

图 1下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	7603	下机罩	BOTTOM COWL	1
2	714933	下罩成型件(2"-6 1/2" -15")	MOLDING BOTTOM COWL (2"-6 1/2" -15")	5
3	70455	下罩盖	COVER BOTTOM COWL	1
4	69079	螺丝(#10-16 x .440)下罩盖固定	SCREW (#10-16 x .440) COVER TO BOTTOM COWL	2
5	86055	换挡手柄	HANDLE SHIFT	1
6	86056A1	换挡轴	SHAFT SHIFT	1
7	69560	螺钉（.190-32 x 1.250）换挡手柄至轴	SCREW (.190-32 x 1.250) SHIFT HANDLE TO SHAFT	1
8	26996	锁紧垫圈（#10）不锈钢换挡手柄螺钉	LOCKWASHER (#10) Stainless Steel SHIFT HANDLE SCREW	1
9	66414	换挡凸轮定位器	CAM SHIFT DETENT	1
10	25905	凸轮至换挡轴销	PIN CAM TO SHIFT SHAFT	1
11	26856	换挡轴衬套	BUSHING SHIFT SHAFT	2
12	20415	换挡轴O型圈	O-RING SHIFT SHAFT	1
13	72733	换挡臂	ARM SHIFT	1
14	72734	定位螺丝(#10-32 x .310)换挡臂	SET SCREW (#10-32 x .310) SHIFT ARM	1
15	21071	换挡轴开口销	COTTER PIN SHIFT SHAFT	1
16	39627	定位弹簧	SPRING DETENT	1
17	39601	定位弹簧板	PLATE DETENT SPRING	1
18	25764	螺丝(.190-32 x .50)下罩定位弹簧	SCREW (.190-32 x .50) DETENT SPRING TO BOTTOM COWL	2
19	68940	驱动轴壳体/下罩衬垫	GASKET DRIVESHAFT HSG./BOTTOM COWL	1
19	92874	驱动轴壳体/下罩衬垫	GASKET DRIVESHAFT HSG./BOTTOM COWL	1
20	72168	挡圈	RING RETAINER	1
21	78303	起动机拉绳固定座	RETAINER STARTER ROPE	1
21	70393	起动机拉绳固定座	RETAINER STARTER ROPE	1
22	74258	下罩塞-燃油适配器	PLUG BOTTOM COWL - FUEL ADAPTOR	1
23	70462	锁扣曲柄臂	ARM LATCH CRANK	1
24	70459	锁扣曲柄弹簧	SPRING LATCH CRANK	1
25	75263	前锁扣曲柄	CRANK FRONT LATCH	1
26	34632	锁扣手柄垫圈	WASHER LATCH HANDLE	2
27	70460	下罩锁扣手柄	HANDLE LATCH BOTTOM COWL	1
27	92798	下罩锁扣手柄	HANDLE LATCH BOTTOM COWL	1
28	38489	锁扣手柄至曲柄滚销	PIN Roll LATCH HANDLE TO CRANK	1
29	74802	换挡臂止动块	STOP SHIFT ARM	1
30	93171	下罩衬套	BUSHING BOTTOM COWL	1
-	77586A78	衬垫套件	GASKET SET	1

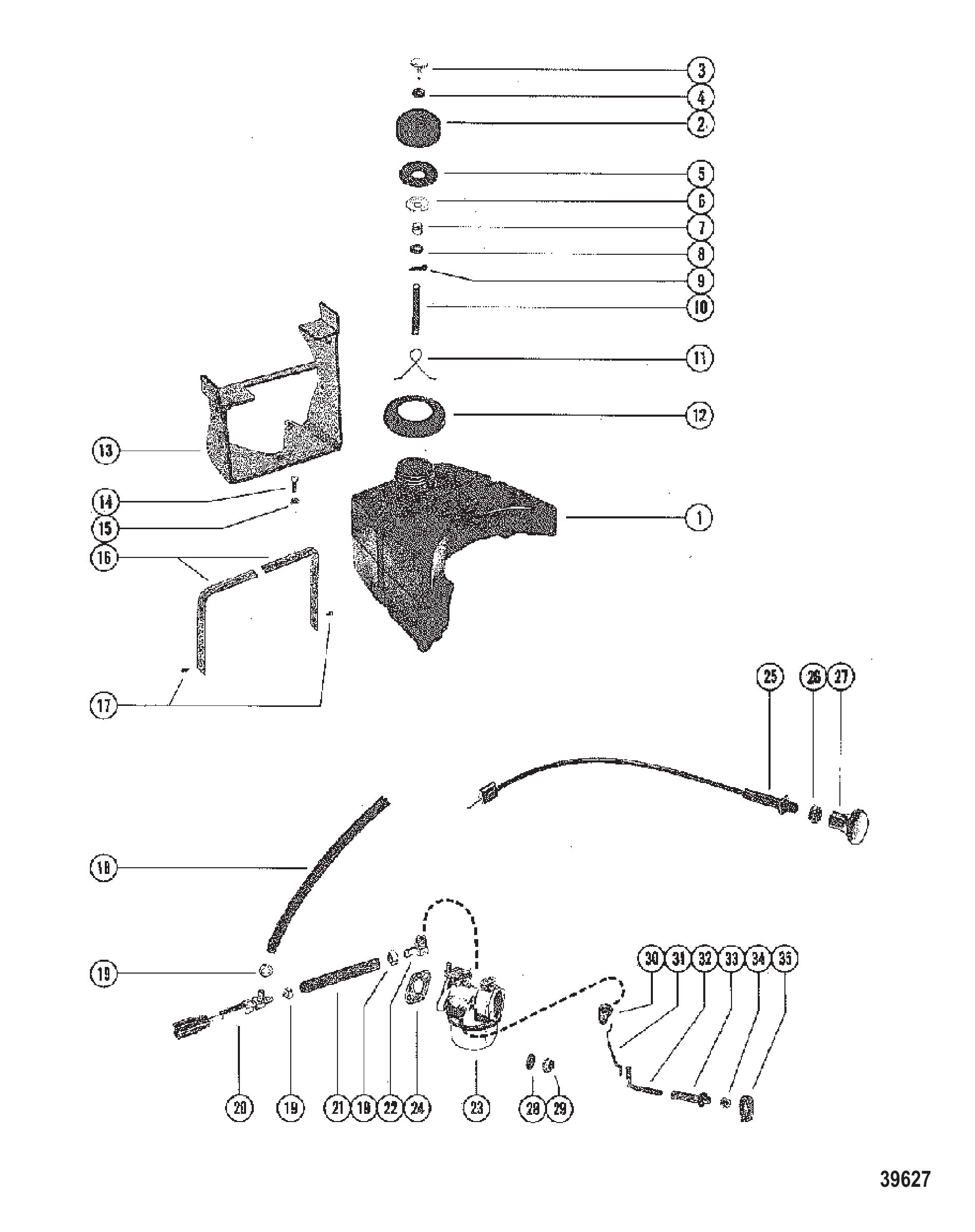

图 2燃油箱、油管及化油器 FUEL TANK, FUEL LINES AND CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	8083A2	燃油箱总成	TANK ASSEMBLY Fuel	1
-	93587	燃油箱衬套	BUSHING FUEL TANK	1
-	93588	燃油箱弯头(带滤网)	ELBOW FUEL TANK - W/ FILTER SCREEN	1
2	78573A1	燃油盖	CAP FUEL	1
3	70298	燃油盖通风螺钉	SCREW VENT - FUEL CAP	1
4	49221	垫圈(.187 x .500 x .062)氯丁橡胶 通气螺钉	WASHER (.187 x .500 x .062) Neoprene VENT SCREW	1
4	8M0204663	垫片@5	WASHER @5	1
5	78577	燃油盖垫片	GASKET FUEL CAP	1
6	38255	燃油盖垫圈	WASHER FUEL CAP	1
7	22227	燃油盖弹簧	SPRING FUEL CAP	1
8	57029	燃油盖垫圈	WASHER FUEL CAP	1
8	71055	垫圈	WASHER	1
9	21071	燃油盖开口销	COTTER PIN FUEL CAP	1
9	210711	开口销	COTTER PIN	1
10	752373	燃油盖链条	CHAIN FUEL CAP	1
11	85767	燃油盖固定弹簧	SPRING FUEL CAP - RETAINING	1
12	78578	燃油箱至外罩垫片	GASKET FUEL TANK TO COWL	1
13	78579	燃油箱与点火线圈支架	BRACKET FUEL TANK AND IGNITION COIL	1
14	37571	支架至缸体螺钉(.190-32 x .500)	SCREW (.190-32 x .500) BRACKET TO CYLINDER BLOCK	3
15	45812	支架螺钉螺母(#10-32不锈钢)	NUT (#10-32) Stainless Steel BRACKET SCREW	3
15	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	3
16	75689A1	燃油箱固定带总成	STRAP ASSEMBLY FUEL TANK ATTACHING	1
17	26668	固定带总成至燃油箱支架螺钉	SCREW STRAP ASSEMBLY TO FUEL TANK BRACKET	2
18	31583109	燃油箱至阀门油管(8")	LINE Fuel FUEL TANK TO VALVE (8")	1
18	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
19	68424	燃油管固定夹	CLAMP FUEL LINE ATTACHING	4
20	89398	燃油切断阀	VALVE FUEL SHUT OFF	1
21	31583109	阀门至化油器油管(4")	LINE Fuel VALVE TO CARBURETOR (4")	1
21	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
22	64704	化油器接头	FITTING CARBURETOR	1
22	19688	接头	FITTING	1
22	96858	化油器接头	FITTING CARBURETOR	1
23	7069	化油器	CARBURETOR	1
23	89977A2	化油器维修包	CARBURETOR KIT	1
23	8402	化油器	CARBURETOR	1
24	70417	化油器安装垫片	GASKET CARBURETOR MOUNTING	1
25	70557	阻风门拉索	CABLE Choke	1
26	78045	阻风门电缆锁紧螺母	NUT LOCKING - CHOKE CABLE	1
27	86874	阻风门电缆按钮	BUTTON CHOKE CABLE	1
28	29245	化油器螺柱垫圈(.281 x .500 x .060不锈钢)	WASHER (.281 x .500 x .060) Stainless Steel CARBURETOR STUD	2
28	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	36069	化油器双头螺栓螺母	NUT CARBURETOR STUD	2
30	78049	怠速调节杆	LEVER IDLE ADJUSTMENT	1
31	78046	怠速调节连杆	LINK IDLE ADJUSTMENT	1
32	78048	怠速调节轴	SHAFT IDLE ADJUSTMENT	1
33	78047	怠速调节套筒	SLEEVE IDLE ADJUSTMENT	1
34	78045	阻风门旋钮螺母	NUT CHOKE KNOB	1
35	92434A2	阻风门旋钮	KNOB CHOKE	1
--	76623	燃油箱支架	BRACKET FUEL TANK	1

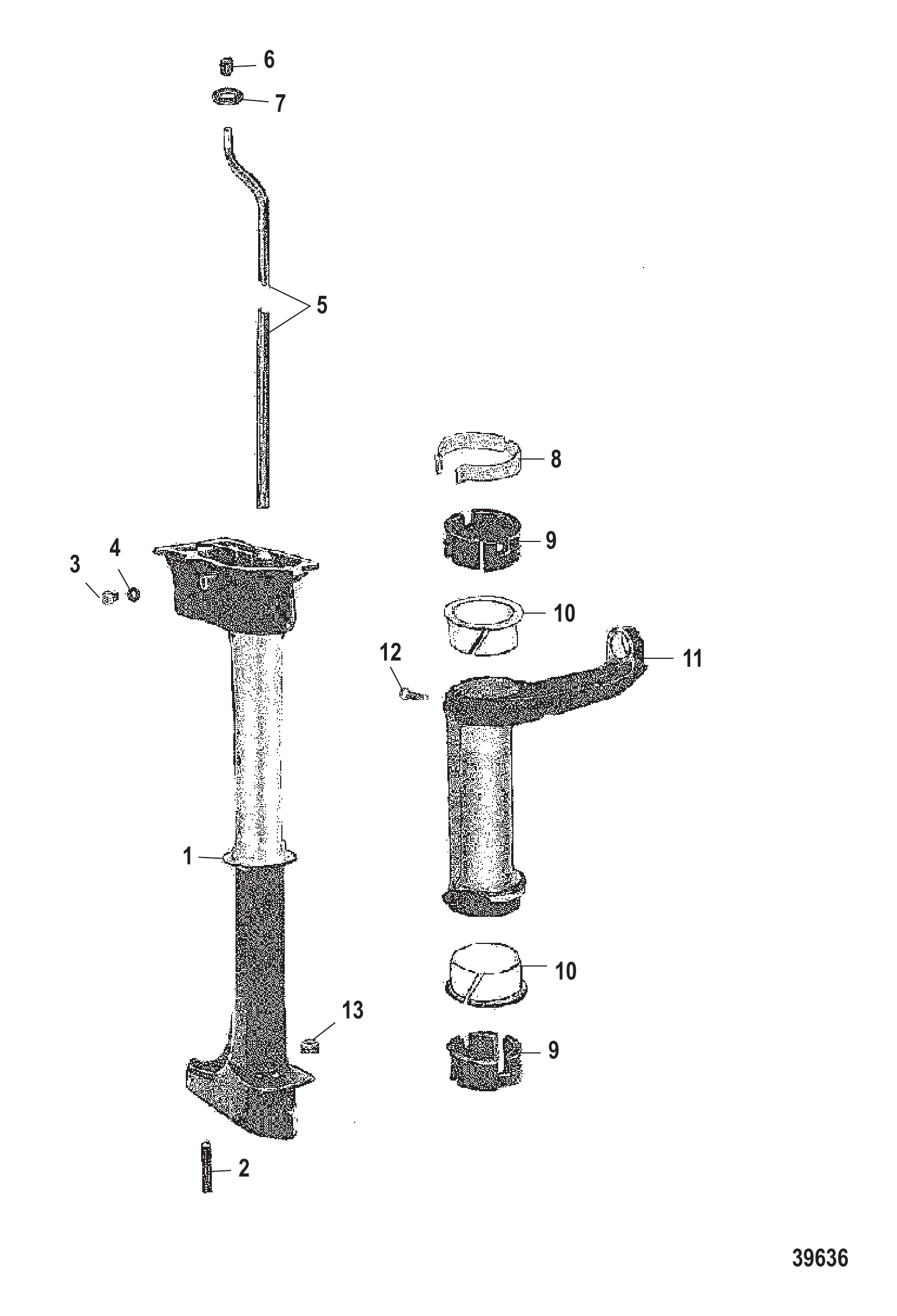

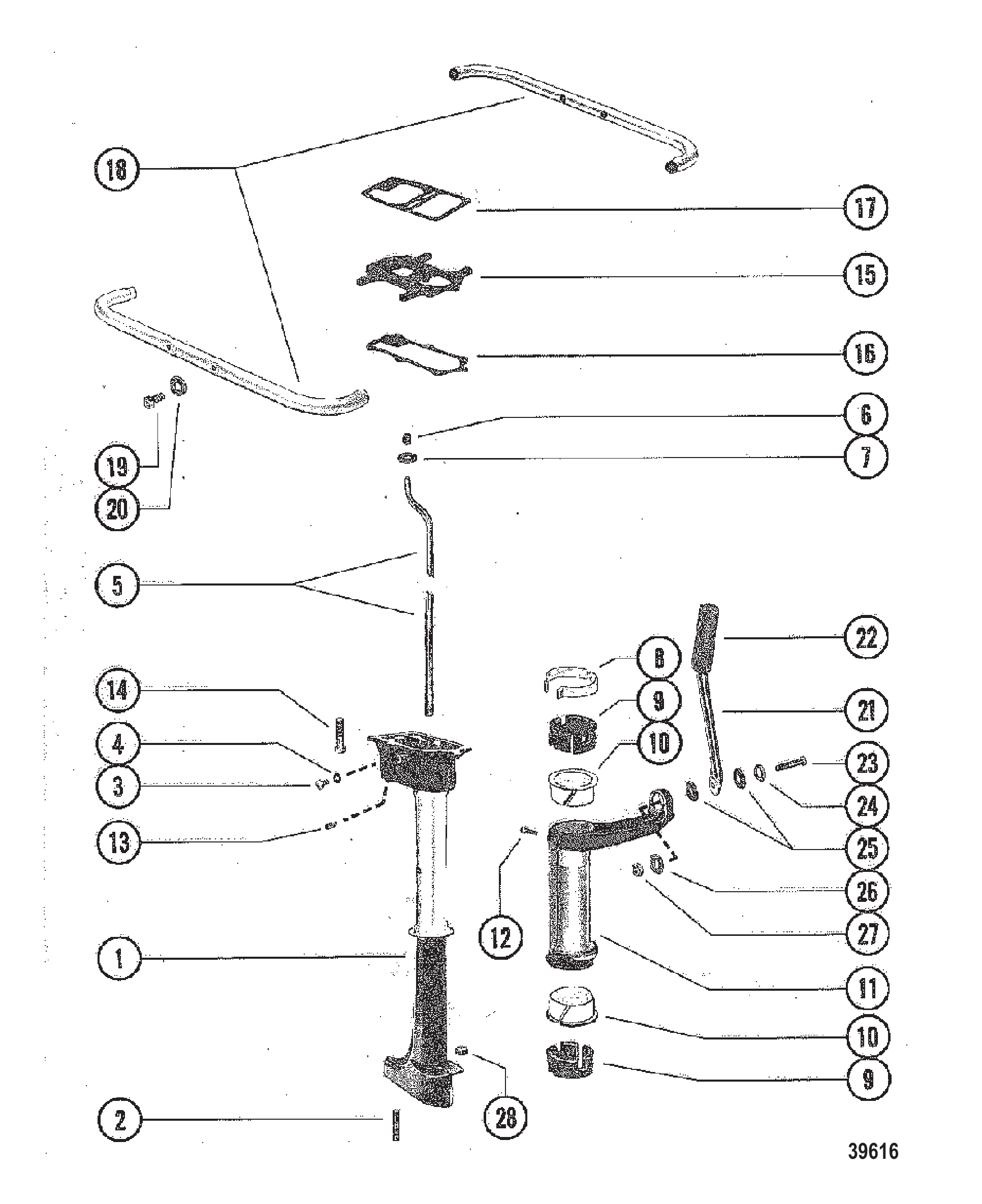

图 3驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	6673A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	68927	驱动轴壳体螺柱	STUD DRIVESHAFAT HOUSING	1
2	75321	驱动轴壳体螺柱	STUD DRIVE SHAFT HOUSING	1
3	79953	螺丝(.375-16 x .250)油脂过滤器	SCREW (.375-16 x .250) GREASE FILTER	1
3	79953Q04	放油螺钉套件	SCREW KIT Drain	1
4	20260	油脂加注螺丝垫圈	WASHER GREAST FILLER SCREW	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	68979	水管	TUBE Water	1
5	75308	水管	TUBE Water	1
6	36556	水封（外径0.5英寸）水管	SEAL (.500 Inch Outside Diameter) WATER TUBE	1
7	86214	水管密封轴承	BEARING WATER TUBE SEAL	1
7	13127	隔套	SPACER	1
8	79791	副驾驶夹箍	CLAMP CO-PILOT	1
9	74480	橡胶安装座(上)	MOUNT RUBBER (TOP)	1
9	88669	支架	MOUNT	1
9	74481	橡胶安装座(下)	MOUNT RUBBER (BOTTOM)	1
9	88669	支架	MOUNT	1
9	88669	橡胶安装座(上下)	MOUNT RUBBER (TOP AND BOTTOM)	2
10	74308	橡胶安装衬套	BUSHING RUBBER MOUNT	2
11	68990A1	转向臂支架总成	BRACKET ASSEMBLY STEERING ARM	1
11	98496A1	支架总成	BRACKET ASSY	1
12	75840	螺钉（#10-24 x .880）转向臂支架	SCREW (#10-24 x .880) STEERING ARM BRACKET	4
13	35814	螺母（.312-24）不锈钢齿轮箱螺柱	NUT (.312-24) Stainless Steel GEAR HOUSING STUD	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
-	75311	驱动轴壳体适配器	ADAPTER DRIVESHAFT HOUSING	1
-	75311T	适配器	ADAPTOR	1
-	94909	传动轴轴承座	BLOCK Bearing DRIVESHAFT	1
-	26668	适配器螺丝	SCREW ADAPTOR	2
-	77586A78	衬垫套件	GASKET SET	1

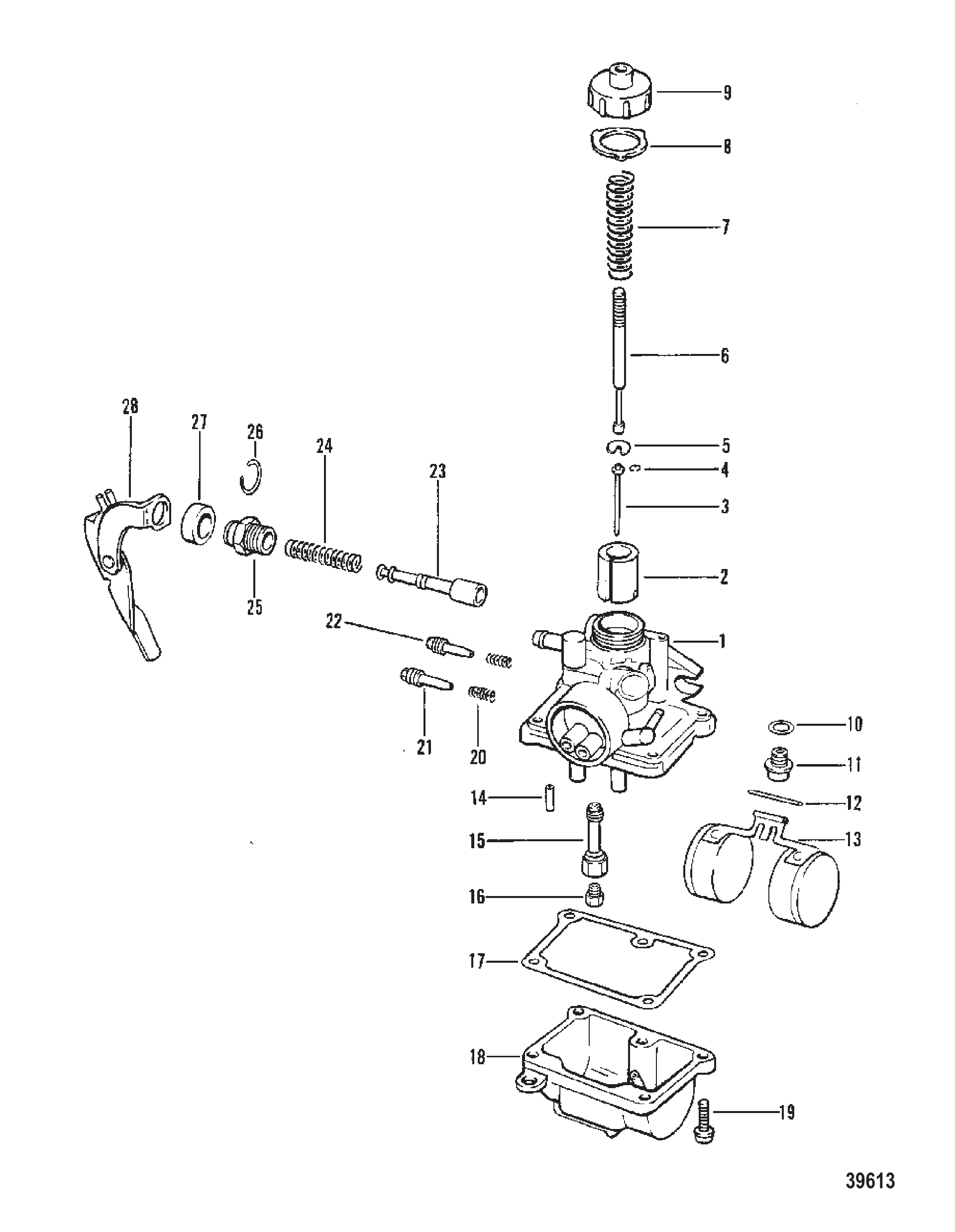

图 4化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7069	化油器	CARBURETOR	1
1	89977A2	化油器维修包	CARBURETOR KIT	1
1	8402	化油器	CARBURETOR	1
2	6043	喷嘴固定座(.041)	RETAINER JET (.041)	1
3	NSS	不单独出售-喷嘴固定座衬垫	NOT SOLD SEPARATE GASKET, JET RETAINER	2
4	8155	燃油杯	BOWL Fuel	1
5	NSS	燃油碗垫片(不单独销售)	NOT SOLD SEPARATE GASKET, FUEL BOWL	1
6	5898	浮子	FLOAT	1
7	5904	浮子弹簧	SPRING FLOAT	1
8	NSS	浮子销(不单独销售)	NOT SOLD SEPARATE FLOAT PIN	1
9	4805	滤网	SCREEN FILTER	1
10	5900	喷嘴	NOZZLE	1
10	8671	喷嘴	NOZZLE	1
11	NSS	不单独出售-进油针阀/阀座及衬垫	NOT SOLD SEPARATE INLET NEEDLE, SEAT AND GASKET	1
12	NSS	不单独出售 衬垫、进油针阀及阀座组件	NOT SOLD SEPARATE GASKET, INLET NEEDLE AND SEAT	1
14	5896	阻风门轴	SHAFT CHOKE	1
15	5905	阻风门复位弹簧	SPRING CHOKE RETURN	1
16	5897	阻风门阀	VALVE CHOKE	1
17	5902	螺钉 (#6-32 x 0.187) 阀门用	SCREW (#6-32 x .187) VALVE	2
18	5894	节流阀轴	SHAFT THROTTLE	1
19	5903	节气门复位弹簧	SPRING THROTTLE RETURN	1
20	6480	节气门阀	VALVE THROTTLE	1
20	8670	阀门	VALVE	1
20	8670	节气门阀	VALVE THROTTLE	1
21	NSS	不单独出售 怠速油针	NOT SOLD SEPARATE IDLE NNEDLE	1
22	6103	怠速油针弹簧	SPRING IDLE NEEDLE	1
23	NSS	不单独出售 化油器检修塞 (5/16英寸)	NOT SOLD SEPARATE WLECH PLUG, CARBURETOR (5/16")	1
--	NSS	不单独出售 化油器盖塞	NOT SOLD SEPARATE CAP PLUG, CARBURETOR	2
-	7262	化油器修理衬垫套装	GASKET SET Carburetor Repair	1
-	7263	维修零件包	REPAIR PARTS KIT	1
-	8672	维修零件包	REPAIR PARTS KIT	1

图 5杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	90686	零件手册 4马力	PARTS MANUAL 4 Hp	1
-	89319A80	贴花套件	DECAL SET	1
-	77586A78	衬垫套件	GASKET SET	1
-	87905A5	燃油泵套件 (外置油箱)	PUMP KIT Fuel (REMOTE FUEL TANK)	1

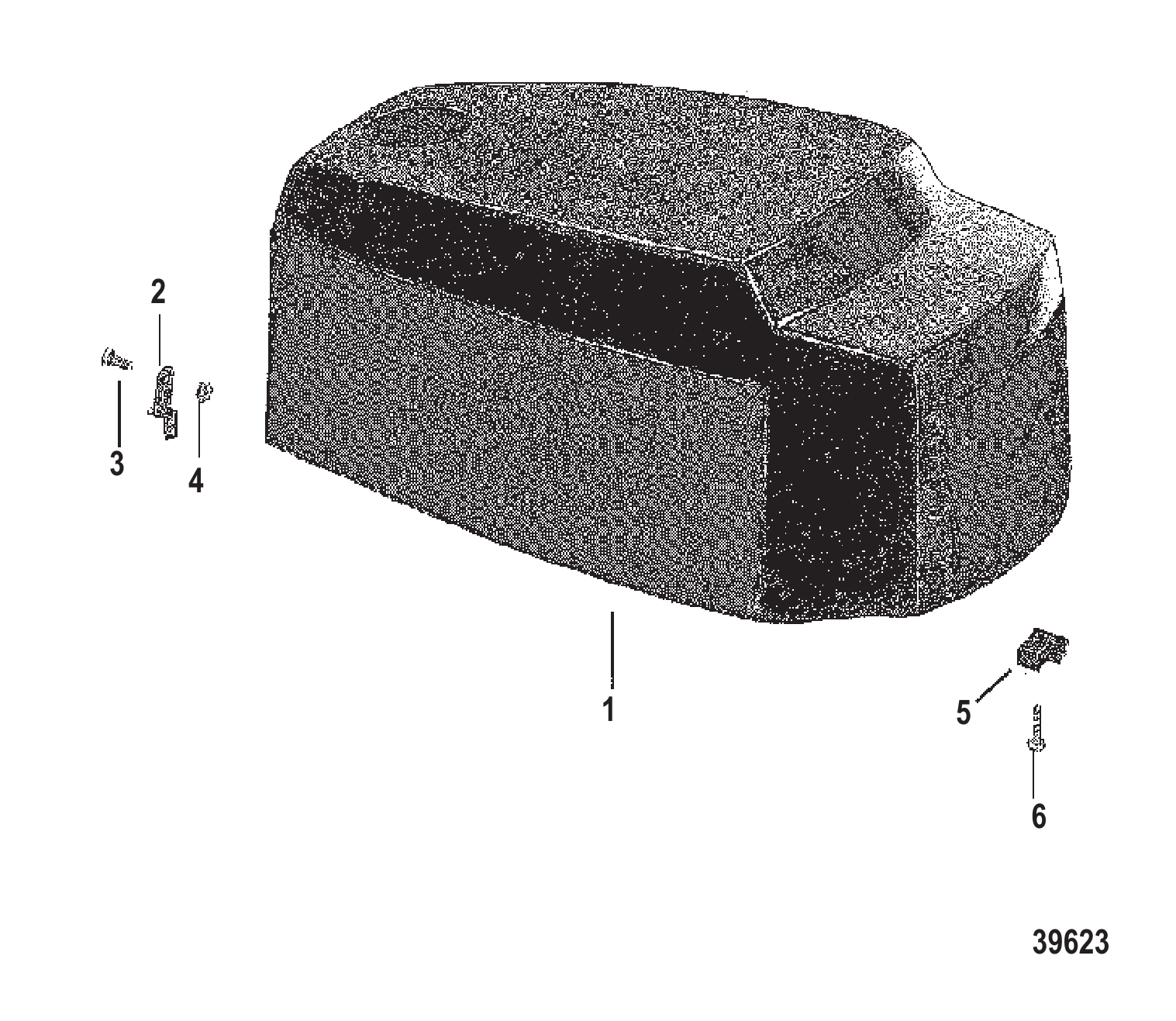

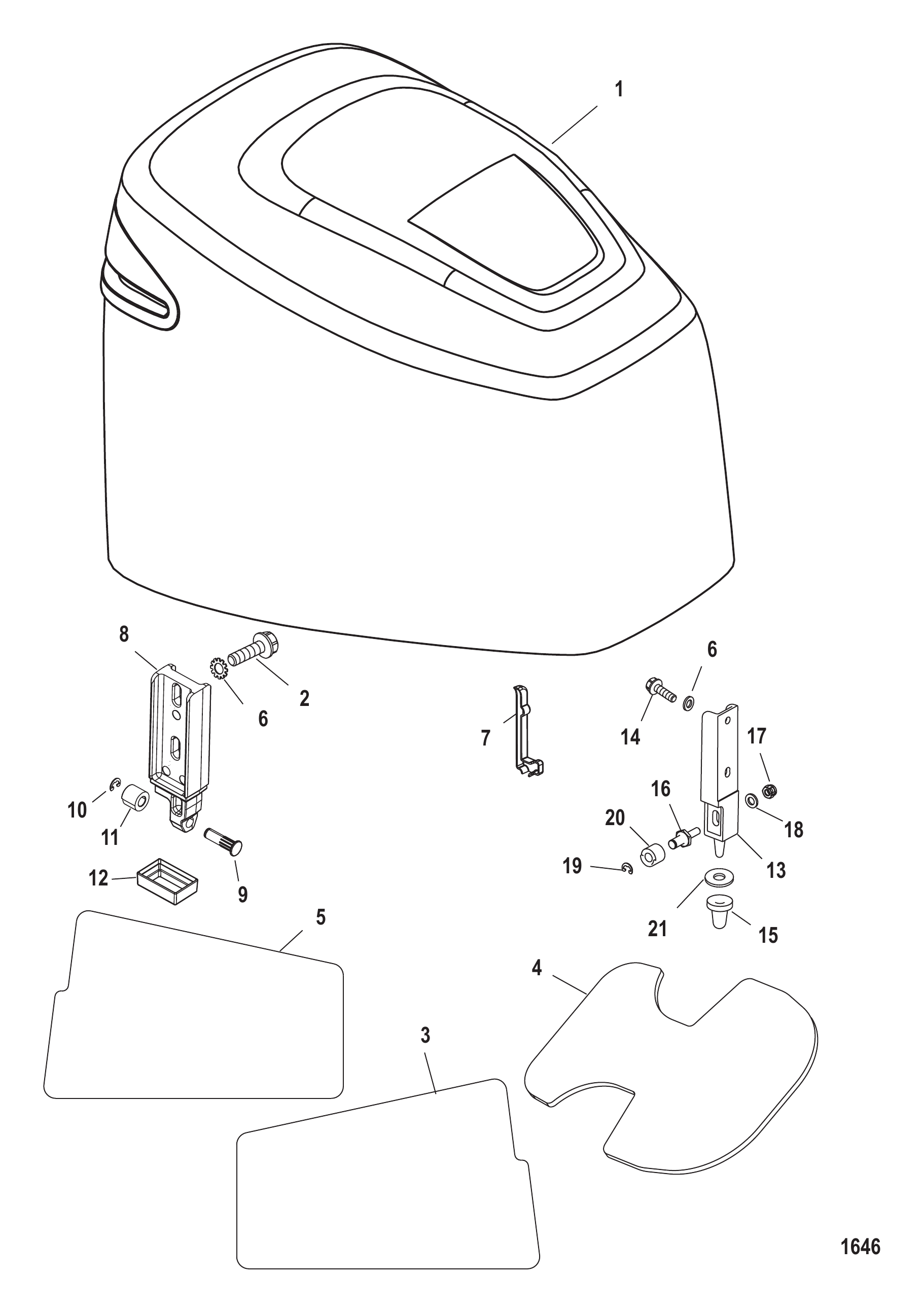

图 6顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	6654	顶盖总成	TOP COWL ASSEMBLY	1
2	74139	顶罩挂钩 - 后部	HOOK TOP COWL - REAR	1
3	75686	顶罩挂钩螺钉 (3/8英寸)	SCREW HOOK TO TOP COWL (3/8")	1
3	45742	螺钉 (.190-32 x 0.312)	SCREW (.190-32 x .312)	1
4	31953	挂钩螺钉螺母	NUT HOOK SCREW	1
4	8M0204718	螺母	NUT	1
5	70461	顶罩卡扣 - 前部	CATCH TOP COWL - FRONT	1
6	69570	螺钉 (#10-16 x 0.750) 卡扣固定用	SCREW (#10-16 x .750) CATCH TO TOP COWL	1

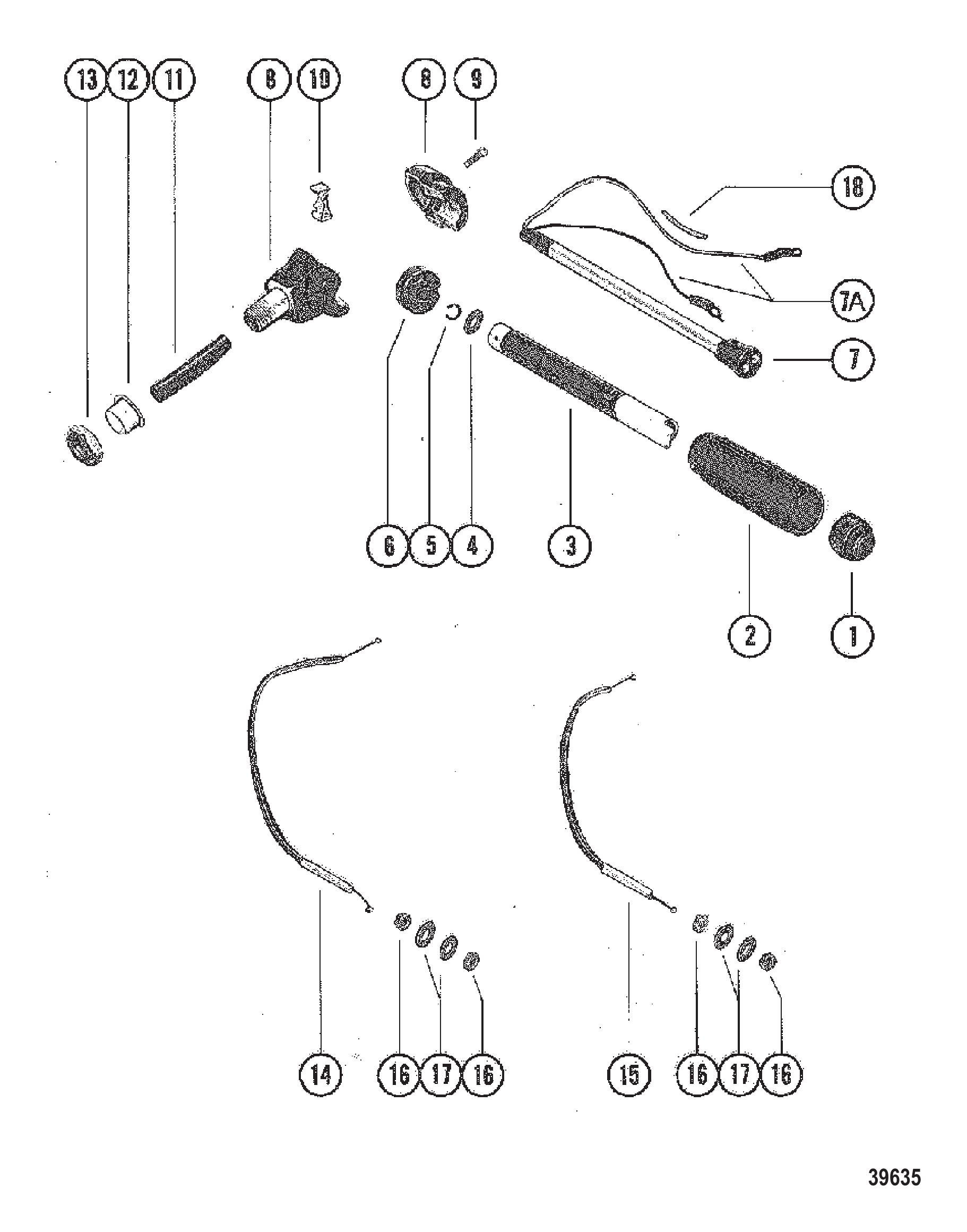

图 7转向手柄总成 STEERING HANDLE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	55741A1	手柄护套总成	BOOT ASSEMBLY HANDLE	1
2	70382	握柄	GRIP HANDLE	1
3	70383	手柄臂	ARM HANDLE	1
4	31433	手柄垫圈	WASHER HANDLE	1
5	70384	手柄挡圈	RING Retaining HANDLE	1
6	70386	转向手柄滑轮	PULLEY STEERING HANDLE	1
7	70385	手柄轴	SHAFT HANDLE	1
7A	70671A1	停机开关线束总成	HARNESS ASSEMBLY STOP SWITCH	1
8	70389A2	手柄支架总成	BRACKET ASSEMBLY HANDLE	1
9	37978	螺丝(#10-32 x .750)不锈钢手柄支架	SCREW (#10-32 x .750) Stainless Steel HANDLE BRACKET	2
10	70390	拉线固定器	RETAINER CABLE	1
11	708571	绝缘电缆	INSULATOR CABLE	1
12	70391	手柄支架衬套	BUSHING HANDLE BRACKET	1
13	73784	手柄支架螺母	NUT HANDLE BRACKET	1
14	70571	油门加速拉线	CABLE THROTTLE ADVANCE	1
14	92791	电缆	CABLE	1
15	70572	油门减速拉线	CABLE THROTTLE RETARD	1
15	92791	电缆	CABLE	1
14&15	92791	油门加减速拉线	CABLE THROTTLE ADVANCE/ RETARD	2
16	21825	螺母(.250-28)油门拉线	NUT (.250-28) THROTTLE CABLE	4
17	37998	油门拉线垫圈	WASHER THROTTLE CABLE	4
18	28655	开关线束止动套	SLEEVE STOP SWITCH HARNESS	1
18	5790811	套管(10.00英寸散装)	SLEEVE (10.00 Inches Bulk)	1

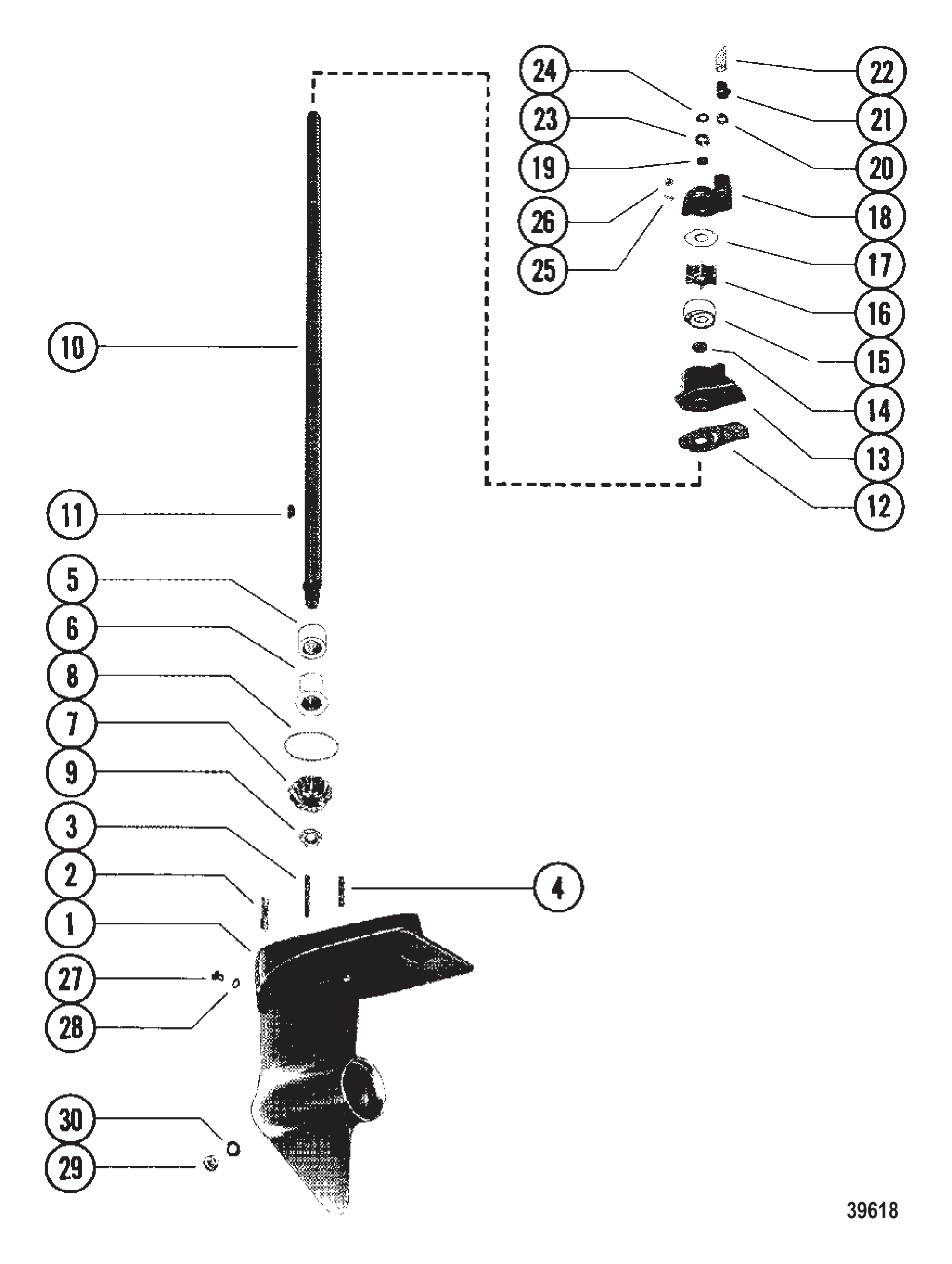

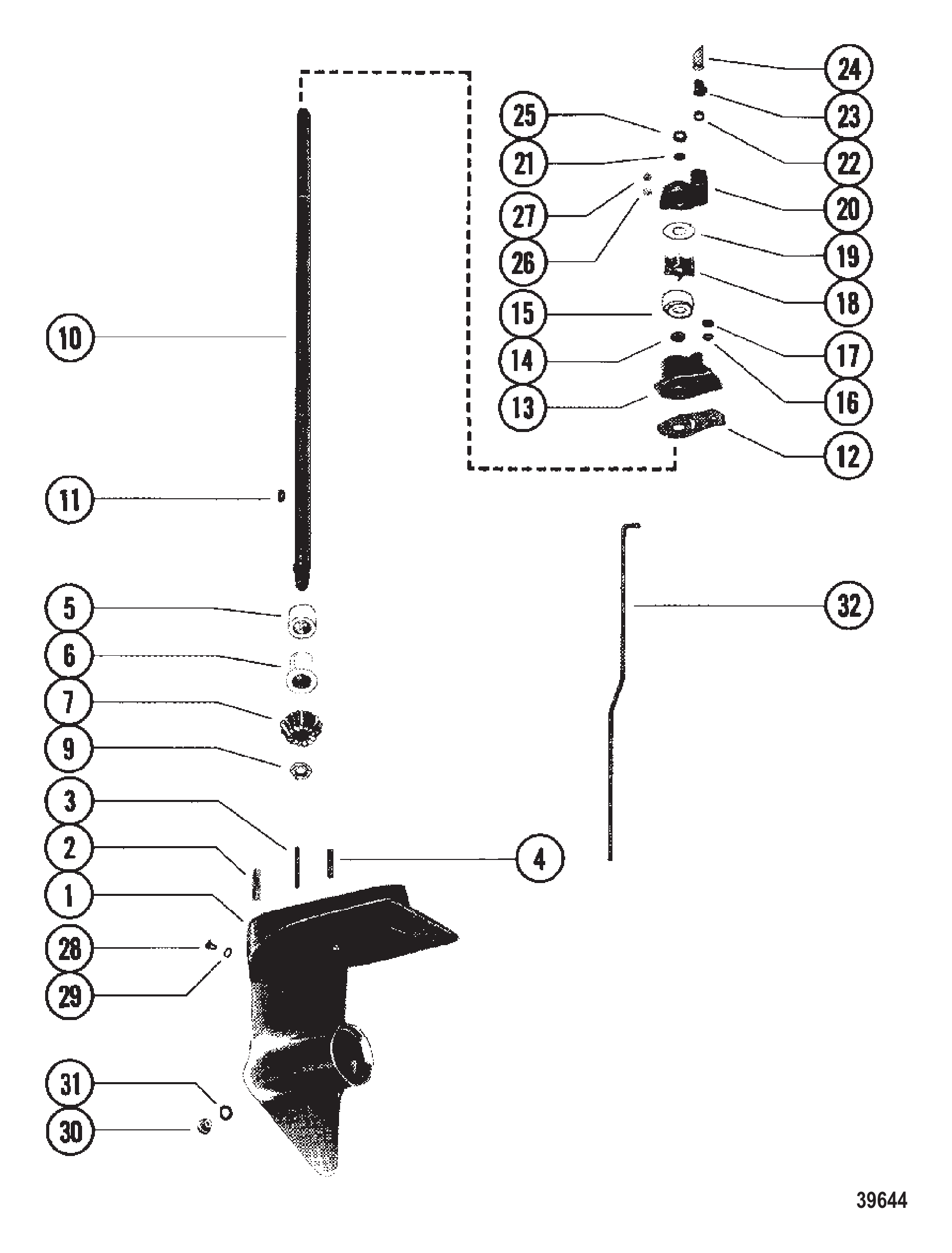

图 8齿轮箱总成(驱动轴) GEAR HOUSING ASSEMBLY (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7811A5	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A20	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A6	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A21	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A20	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A21	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7811A9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
2	68927	齿轮箱螺柱(2.125英寸)	STUD GEAR HOUSING (2 1/8")	1
2	75321	齿轮箱螺柱(7.25英寸)	STUD GEAR HOUSING (7 1/4")	1
3	68928	水泵螺柱(2.125英寸)	STUD WATER PUMP (2 1/8")	2
4	70741	水泵螺柱(1.125英寸)	STUD WATER PUMP (1 1/8")	1
5	77428	齿轮箱轴承	BEARING GEAR HOUSING	1
6	90770	衬套法兰 - 齿轮箱	BUSHING FLANGES -GEAR HOUSING	1
7	90796	小齿轮	GEAR Pinion	1
9	20922	小齿轮螺母	NUT PINION GEAR	1
10	77432	驱动轴	DRIVESHAFT	1
10	77433	驱动轴	DRIVESHAFT	1
11	56655	叶轮驱动键	KEY IMPELLER DRIVE	1
11	8M0032835	键	KEY	1
12	68939	水泵下衬垫	GASKET WATER PUMP - LOWER	1
13	90844A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
14	77066	水泵油封	SEAL Oil WATER PUMP	1
14	897153	油封@3	SEAL-OIL @3	1
15	70977	水泵衬套	INSERT WATER PUMP	1
15	70977T	嵌件	INSERT	1
16	56681	水泵垫圈(0.203x0.500x0.032)	WASHER (.203 x .500 x .032) WATER PUMP	1
16	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
17	74138	水泵O型圈	O-RING WATER PUMP	1
18	89980	叶轮	IMPELLER	1
19	68955	水泵面板	FACE PLATE WATER PUMP	1
20	95965A2	水泵盖总成	COVER ASSEMBLY Water Pump	1
21	30913	水泵盖油封	SEAL Oil WATER PUMP COVER	1
22	86214	水管密封轴承	BEARING WATER TUBE SEAL	1
22	13127	隔套	SPACER	1
23	36558	水管密封件	SEAL WATER TUBE	1
24	31792	导水管套筒	SLEEVE WATER TUBE GUIDE	1
24	31792T	套管@5	SLEEVE @5	1
25	30526	传动轴橡胶环	RING RUBBER - DRIVESHAFT	1
26	30164	水泵双头螺栓不锈钢垫圈(0.192x0.375x0.0312)	WASHER (.192 x .375 x .0312) Stainless Steel WATER PUMP STUDS	3
27	45812	水泵双头螺栓不锈钢螺母(#10-32)	NUT (#10-32) Stainless Steel WATER PUMP STUDS	3
27	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	3
28	28653	齿轮箱通气螺钉(#10-32x0.25)	SCREW (#10-32 x 0.25) VENT - GEAR HOUSING	1
29	20262	通气螺钉垫圈	WASHER VENT SCREW	1
29	19643	密封件	SEAL	1
30	79953		SCREW (.375-16 x .250) GREASE FILLER	1
30	79953Q04	放油螺钉套件	SCREW KIT Drain	1
31	20260	润滑脂加注螺钉垫圈	WASHER GREASE FILLER SCREW	1
31	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
32	72418	换档轴	SHIFT SHAFT	1
32	72418T	换档轴	SHIFT SHAFT	1
32	75307	换档轴	SHIFT SHAFT	1
-	90844A2	水泵维修套件	REPAIR KIT Water Pump	1
-	71140A1	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	77586A78	衬垫套件	GASKET SET	1

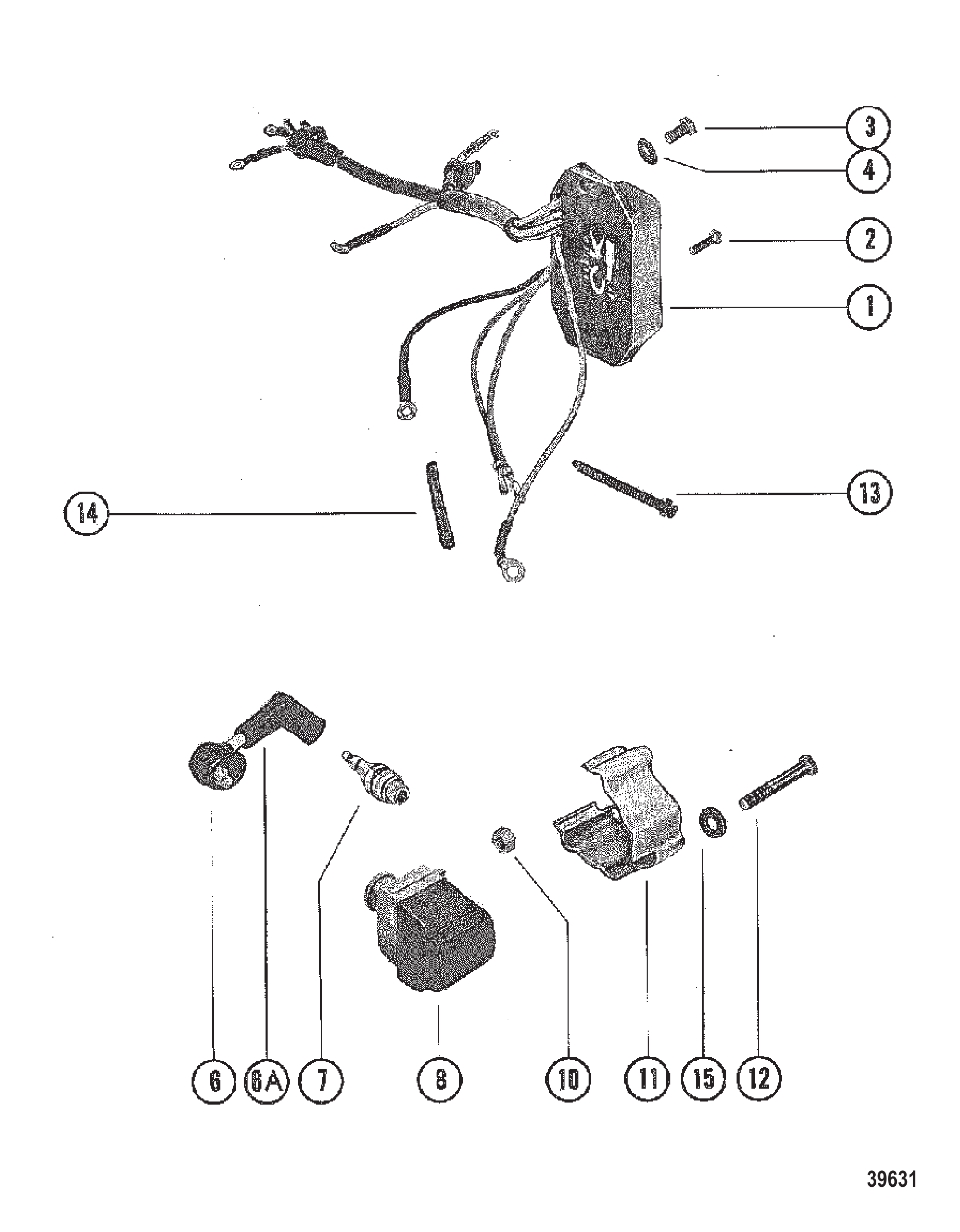

图 9开关盒及点火线圈 SWITCH BOX AND IGNITION COIL

REF	零件编号	中文名称	英文名称	数量
1	6222A8	开关盒总成	SWITCHBOX ASSEMBLY	1
2	45218	螺丝(#10-32 x .380)开关盒接地	SCREW (#10-32 x .380) SWITCH BOX GROUND	1
3	22523	螺丝(.190-32 x .75)开关盒	SCREW (.190-32 x .75) SWITCH BOX	2
4	56681	垫圈(0.203x0.500x0.032)开关盒螺钉	WASHER (.203 x .500 x .032) SWITCH BOX SCREW	2
4	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
6	90816A25	高压线总成	WIRE ASSEMBLY HIGH TENSION	2
6	813715A1	引线	LEAD WIRE	2
6A	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
7	88090	火花塞	SPARK PLUG	2
7	88088	火花塞	SPARK PLUG	2
7	8M0114744	SP BP7HS-10 @4	SP BP7HS-10 @4	2
8	5288A2	点火线圈总成	COIL ASSEMBLY Ignition	2
8	8M0166172	点火线圈	IGNITION COIL	2
10	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	4
11	76254	盖板	COVER	2
12	76502	螺丝(.190-32 x 1.880)线圈盖	SCREW (.190-32 x 1.880) COIL COVER	6
13	61990	扎带(14.00英寸)开关盒引线	TIE STRAP (14.00 Inches) SWITCH BOX LEADS	1
14	579082	开关盒导线套管	SLEEVE SWITCH BOX LEADS	2
14	5790811	套管(10.00英寸散装)	SLEEVE (10.00 Inches Bulk)	2
15	21273	线圈盖螺丝垫圈	WASHER COIL COVER SCREW	2

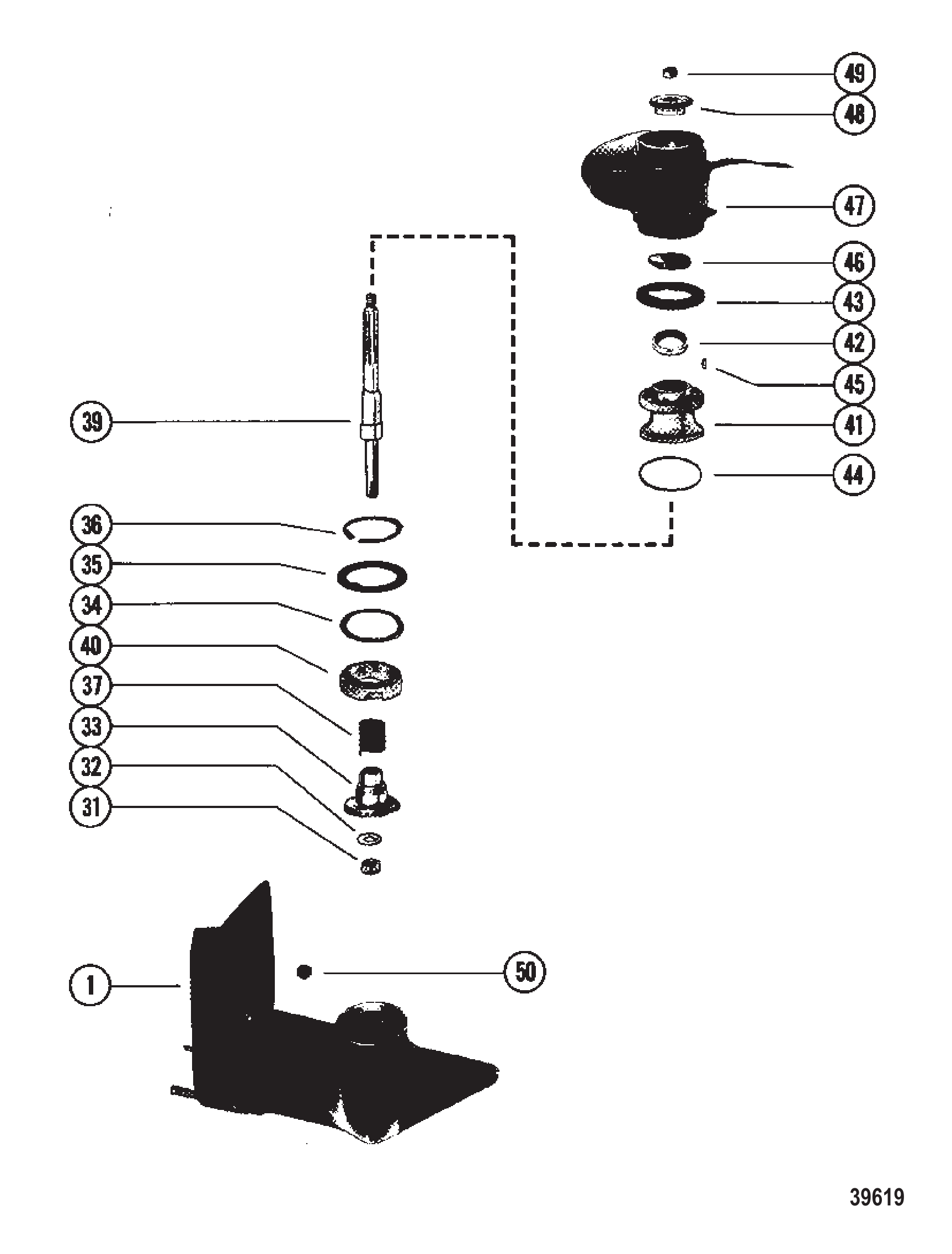

图 10齿轮箱总成(螺旋桨轴) GEAR HOUSING ASSEMBLY (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7811A5	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A20	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A6	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A21	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A20	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A21	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7811A9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
31	20696	螺旋桨轴螺母	NUT PROPELLER SHAFT	1
32	73672	螺旋桨轴垫圈	WASHER PROPELLER SHAFT	1
33	90795	驱动齿轮	GEAR Drive	1
33	90795A1	齿轮总成	GEAR ASSY	1
34	79603	螺旋桨轴专用垫圈	WASHER SPECIAL - PROPELLER SHAFT	1
35	79602A1	螺旋桨轴垫片组(0.002-3-5-10-20)	SHIM SET PROPELLER SHAFT (.002-3-5-10-20)	AR
36	79601	挡圈	RING Retaining	1
37	91813	离合器弹簧	SPRING CLUTCH	1
39	77425	螺旋桨轴	PROPELLER SHAFT	1
39	93358	螺旋桨轴	PROPELLER SHAFT	1
40	77424	螺旋桨轴隔套	SPACER PROPELLER SHAFT	1
41	77431A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
41	99210A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
42	71140	油封	SEAL Oil	1
42	98309	油封	SEAL Oil	1
43	75812	齿轮箱盖	COVER GEAR HOUSING	1
44	68935	轴承座O型圈(1.799x0.103)	O-RING (1.799 x .103) BEARING CARRIER	1
45	32003	轴承座键	KEY BEARING CARRIER	1
46	70588	前进推力毂	THRUST HUB FORWARD	1
47	86903A1	螺旋桨总成	PROPELLER ASSEMBLY	1
47	93357A1	螺旋桨总成	PROPELLER ASSEMBLY	1
47	93357A10	螺旋桨总成	PROPELLER ASSEMBLY	1
48	70589	后推力毂	THRUST HUB AFT	1
48	93356	后推力毂	THRUST HUB AFT	1
49	35814	螺旋桨不锈钢螺母(0.312-24)	NUT (.312-24) Stainless Steel PROPELLER	1
49	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
50	35814	驱动轴壳体螺柱不锈钢螺母(.312-24)	NUT (.312-24) Stainless Steel DRIVE SHAFT HOUSING STUD	1
50	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
-	77586A78	衬垫套件	GASKET SET	1
-	71140A1	齿轮箱密封套件	SEAL KIT Gear Housing	1

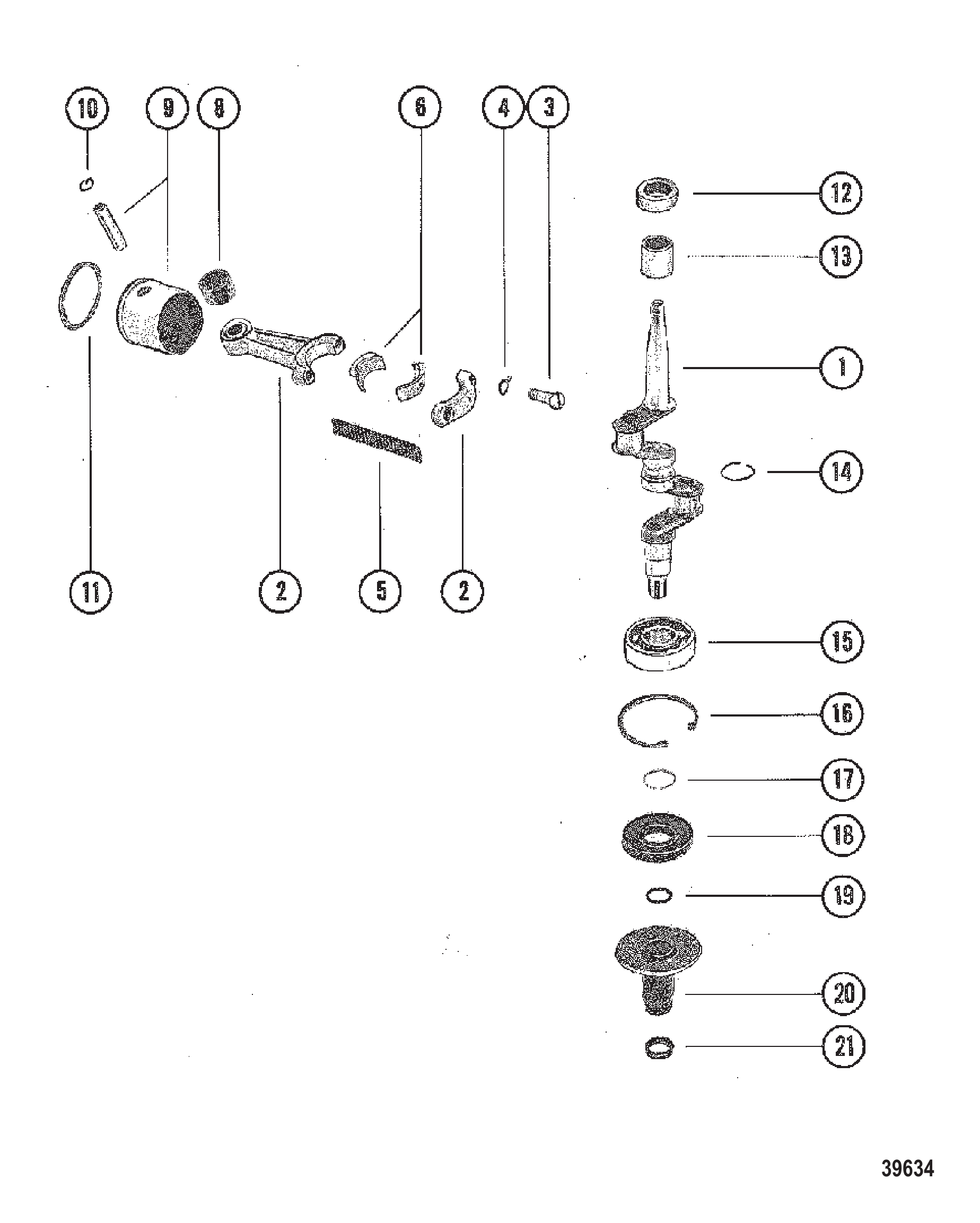

图 11曲轴、活塞与连杆 CRANKSHAFT, PISTON AND CONNECTING ROD

REF	零件编号	中文名称	英文名称	数量
1	5549	曲轴	CRANKSHAFT	1
2	5547A5	连杆总成	CONNECTING ROD ASSEMBLY	2
3	72455	连杆螺钉	SCREW CONNECTING ROD	4
4	72454	连杆螺钉锁紧垫圈	TAB WASHER CONNECTING ROD SCREW	4
5	68944	连杆滚针轴承	BEARING Needle CONNECTING ROD	50
6	68953A1	曲柄销衬套总成	LINER ASSEMBLY CRANKPIN	2
8	68949	连杆-活塞销滚柱轴承	BEARING Roller CONNECTING ROD - PISTON PIN	2
9	6248A2	活塞总成	PISTON ASSEMBLY	2
9	8076A2	活塞总成	PISTON ASSEMBLY	2
9	8076A2	活塞总成	PISTON ASSEMBLY	2
10	68950	活塞锁环	LOCK RING PISTON	4
11	70175A12	活塞环组	RING SET Piston	1
12	30530	曲轴上油封	SEAL Oil CRANKSHAFT - UPPER	1
13	78099	曲轴上滚柱轴承	BEARING Roller CRANKSHAFT - UPPER	1
14	71841	曲轴环	RING CRANKSHAFT	1
15	69389	曲轴下滚珠轴承	BEARING Ball CRANKSHAFT - LOWER	1
16	68952	滚珠轴承挡圈-大	RING Retaining BALL BEARING -LARGE	1
17	27275	滚珠轴承挡圈-小	RING Retaining BALL BEARING - SMALL	1
18	77494	曲轴油封	SEAL Oil CRANKSHAFT	1
19	62706	O型圈(.426 x .070)曲轴	O-RING (.426 x .070) CRANKSHAFT	1
20	70786A1	曲轴联轴器总成	COUPLING ASSEMBLY CRANKSHAFT	1
21	76266	联轴器密封	SEAL COUPLING	1
-	77586A78	衬垫套件	GASKET SET	1

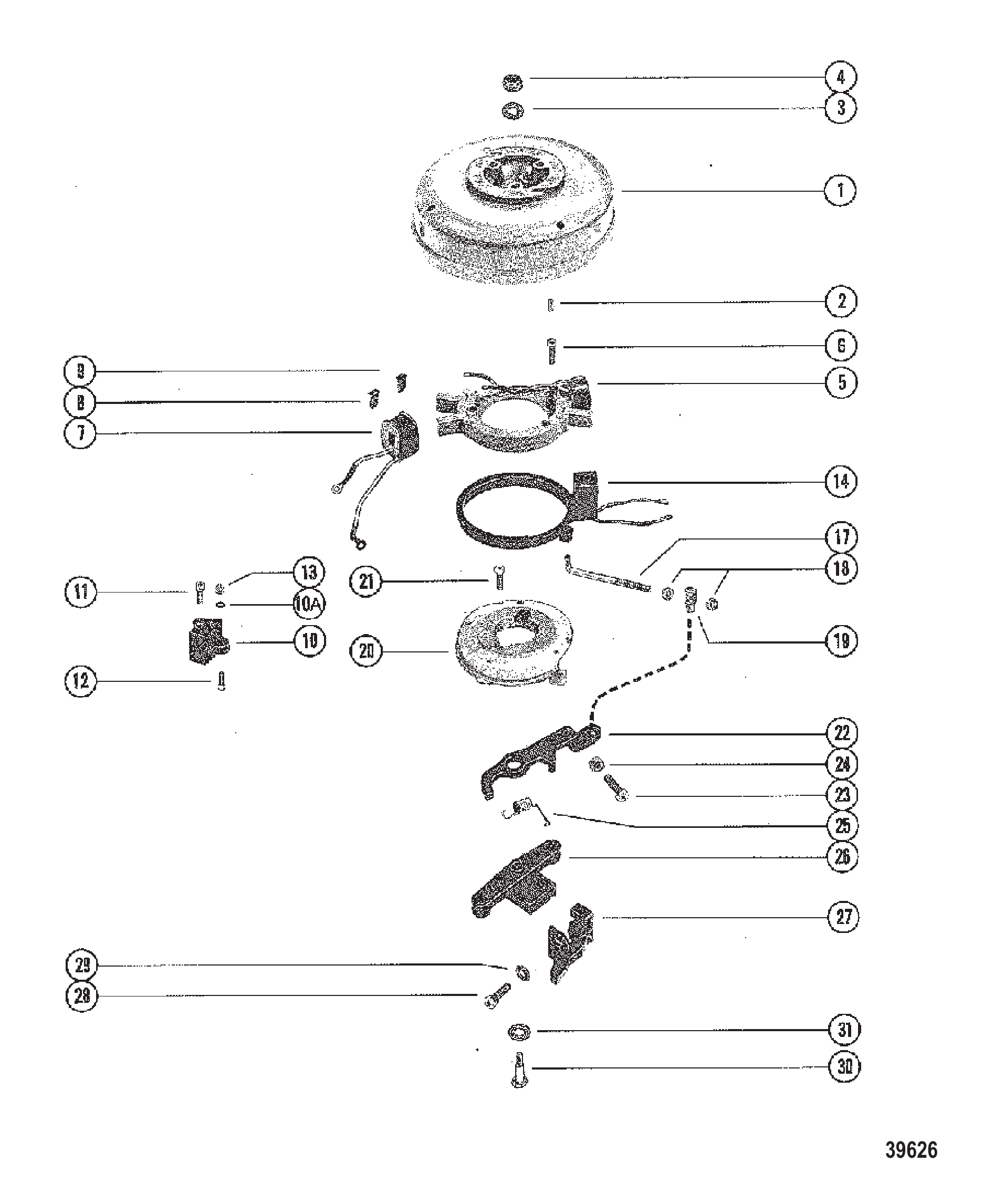

图 12飞轮及定子 FLYWHEEL AND STATOR

REF	零件编号	中文名称	英文名称	数量
1	7933A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	20094	飞轮半圆键	KEY Woodruff FLYWHEEL RIVE	1
3	25970	飞轮垫片	WASHER FLYWHEEL	1
3	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	1
4	20509	飞轮螺母	NUT FLYWHEEL	1
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
5	5566A5	定子总成	STATOR ASSEMBLY	1
6	66707	定子安装支架螺钉(7/8")	SCREW STATOR TO MOUNTING BRACKET (7/8")	3
7	5589A1	线圈总成(2 1/4"和4 1/4"引线)	COIL ASSEMBLY (2 1/4" AND 4 1/4" LEADS)	1
7	5590A1	线圈总成(3 3/8"和4 3/8"引线)	COIL ASSEMBLY (3 3/8" AND 4 3/8" LEADS)	1
8	59538	卡箍线圈固定	CLIP COIL RETAINING	2
8	59538T	卡箍@2	CLIP @2	2
9	65927	卡箍线圈固定	CLIP COIL RETAINING	2
10	69348	接线端子排定子	TERMINAL BLOCK STATOR	1
10A	58308	内齿锁紧垫圈(#10)接线板	LOCKWASHER Internal (#10) TERMINAL BLOCK	1
11	22654	螺丝(.190-32 x .38)引线至接线端子排	SCREW (.190-32 x .38) LEADS TO TERMINAL BLOCK	1
12	69347	接线板至定子螺钉(5/8")	SCREW TERMINAL BLOCK TO STATOR (5/8")	1
13	46438	螺母(#10-32)接线端子排螺丝	NUT (#10-32) TERMINAL BLOCK SCREW	1
14	70426A3	触发器总成	TRIGGER ASSEMBLY	1
17	70414	触发杆至火花控制杆连杆	LINK ROD TRIGGER TO SPARK LEVER	1
18	68219	调节连杆螺母(#10-32不锈钢)	NUT (#10-32) Stainless Steel ADJUSTING LINK ROD	2
19	33973	旋转连杆	SWIVEL LINK ROD	1
20	70428	定子安装支架	BRACKET STATOR MOUNTING	1
21	20512	定子安装支架螺钉(7/16")	SCREW STATOR MOUNTING BRACKET (7/16")	2
21	25764	螺钉(.190-32 x .50)	SCREW (.190-32 x .50)	2
22	70422	火花控制杆	LEVER SPARK	1
23	62802	火花控制杆调节螺钉(1 1/8")	SCREW ADJUSTNG - SPARK LEVER (1 1/8")	1
24	21923	调节螺钉螺母(8-32)	NUT ( 8-32) ADJUSTING SCREW	1
24	21923T	螺母@2	NUT @2	1
25	70418	节气门杆弹簧	SPRING THROTTLE LEVER	1
26	70424	油门杆	LEVER Throttle	1
27	70429	节气门凸轮	CAM Throttle	1
28	38055	节气门凸轮至节气门杆螺钉(.190-32 x .620)	SCREW (.190-32 x .620) THROTTLE CAM TO THROTTLE LEVER	1
29	56681	节气门凸轮螺钉垫圈(.203 x .500 x .032)	WASHER (.203 x .500 x .032) THROTTLE CAM SCREW	1
29	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
30	38515	肩部螺钉(7/8")	SCREW SHOULDER (7/8")	1
31	21631	肩部螺钉垫圈(.255 x .625 x .0312)	WASHER (.255 x .625 x .0312) SHOULDER SCREW	1
31	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1

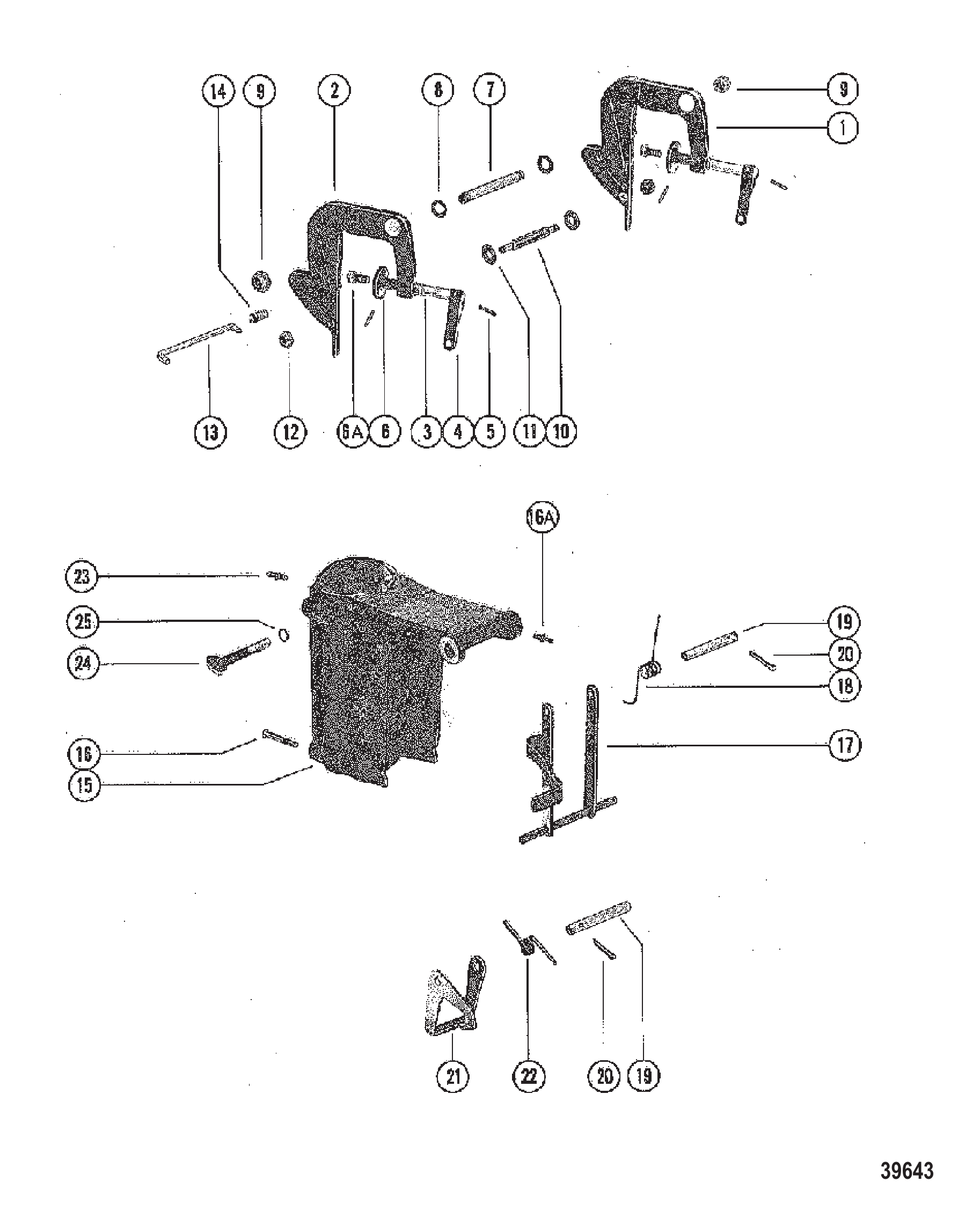

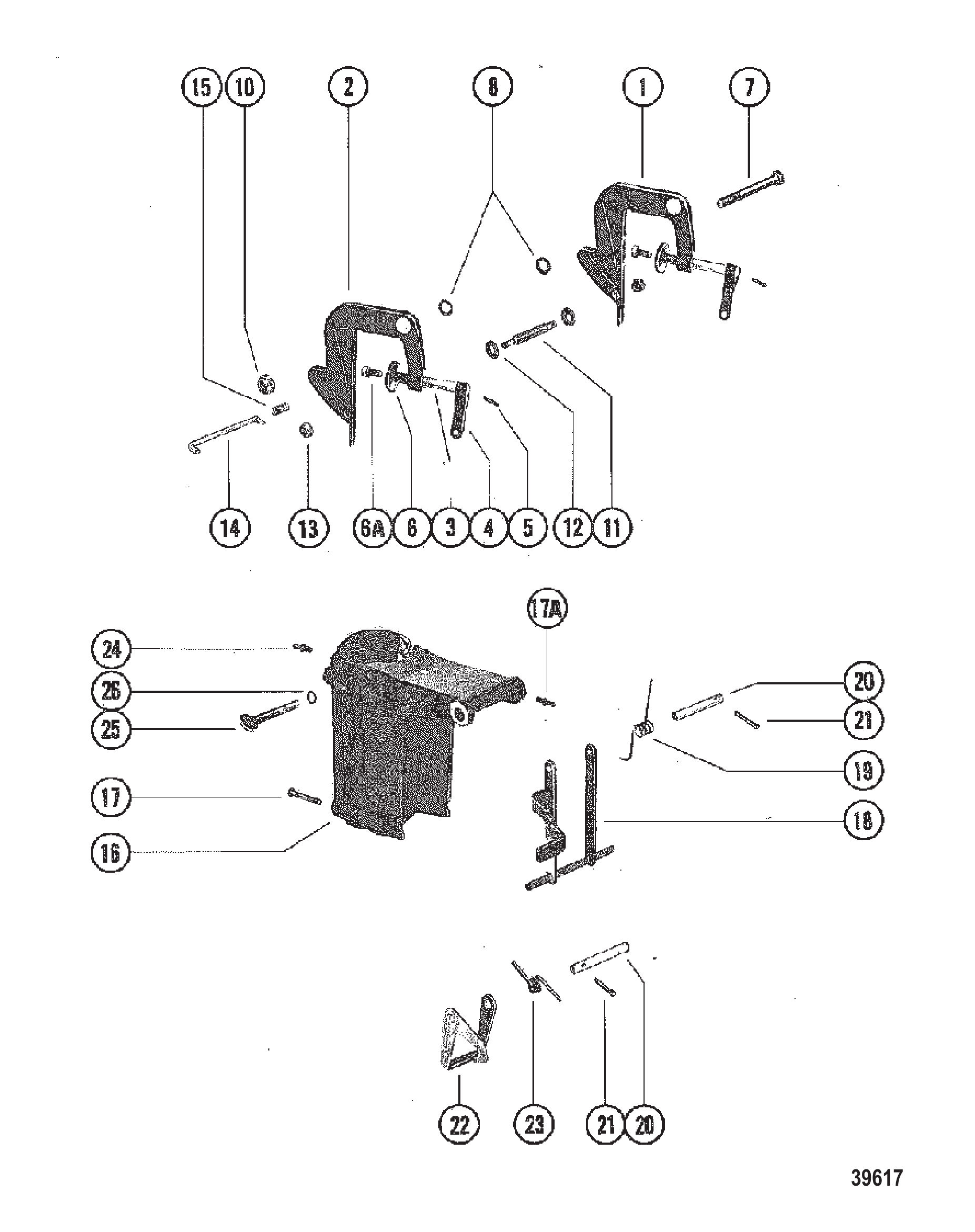

图 13夹紧和旋转支架总成 CLAMP AND SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7291A1	夹具支架(左舷)	CLAMP BRACKET (PORT)	1
2	7289A1	夹具支架(右舷)	CLAMP BRACKET (STARBOARD)	1
3	77190A4	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	78971	蝶形螺丝手柄	HANDLE THUMB SCREW	2
5	78970	蝶形螺丝定位销	PIN Groove THUMB SCREW	4
6	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
6	818884	垫圈	WASHER	2
6A	76804	蝶形螺丝垫片	SCREW THUMB SCREW WASHER	2
6A	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
7	96917	卡箍支架螺丝	SCREW CLAMP BRACKET	1
8	34931	卡箍支架螺丝垫圈(.406 x .734 x .063)不锈钢	WASHER (.406 x .734 x .063) Stainless Steel CLAMP BRACKET SCREW	2
9	34863	卡箍支架螺丝螺母(.375-24)	NUT (.375-24) CLAMP BRACKET SCREW	1
9	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
10	68925	夹紧支架螺柱	STUD CLAMP BRACKET	1
11	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
12	29598	螺母 (.250-28) 不锈钢夹支架螺柱	NUT (.250-28) Stainless Steel CLAM BRACKET STUD	2
13	68929A2	倾斜销总成	PIN ASSEMBLY Tilt	1
14	62143	倾斜销弹簧	SPRING TILT PIN	1
15	7400A2	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
16	69067	旋转支架螺丝(.250-20 x 1.375)	SCREW (.250-20 x 1.375) SWIVEL BRACKET	4
16A	31345	旋转支架接头	FITTING SWIVEL BRACKET	1
16A	8M0169589	润滑脂接头	FITTING Grease	1
17	76110A1	倾斜杆总成	LEVER ASSEMBLY Tilt	1
18	68932	左舷扭力弹簧	SPRING TORSION - PORT	1
19	68968	倒挡锁止杆	ROD REVERSE LOCK	2
20	25191	倒挡锁杆开口销	COTTER PIN REVERSE LOCK ROD	2
21	68972	倒挡锁止杆	LEVER REVERSE LOCK	1
22	73124	右舷扭力弹簧	SPRING TORSION - STARBOARD	1
23	31345	接头	FITTING	2
23	8M0169589	润滑脂接头	FITTING Grease	2
24	79793A1	调节螺丝总成	SCREW ASSEBMLY Adjustment	1
25	20385	O型圈 (.239 x 0.070) 辅助螺钉用	O-RING (.239 x .070) CO-PILOT SCREW	1
-	77586A78	衬垫套件	GASKET SET	1

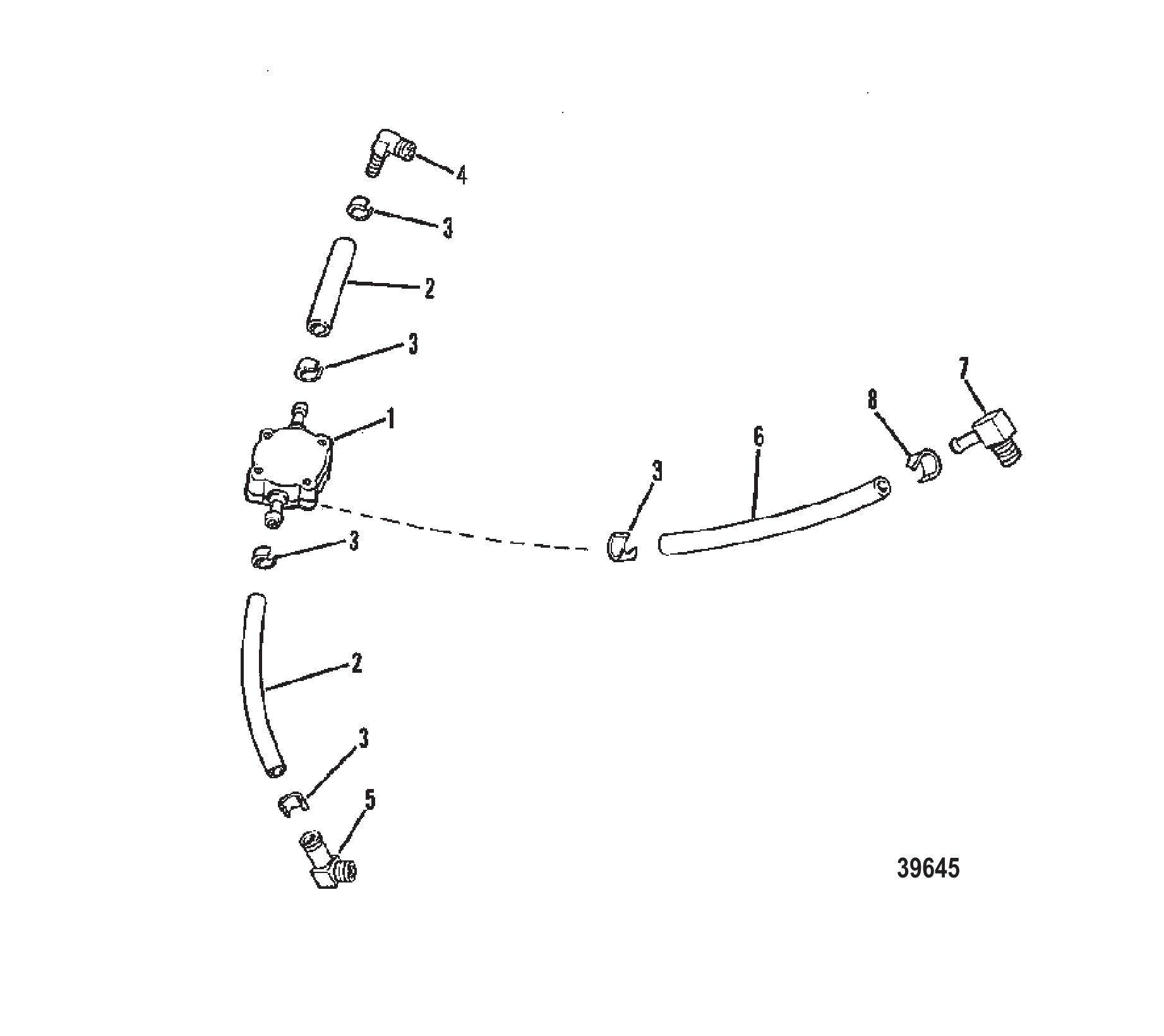

图 14燃油泵及油管 FUEL PUMP AND FUEL LINES

REF	零件编号	中文名称	英文名称	数量
1	89977A1	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	99127109	管线(57英寸散装)(4-1/2"和1-3/4")	LINE (57.00 Inches Bulk) (4-1/2" AND 1-3/4")	2
2	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	2
3	68424	燃油管卡箍	CLAMP FUEL LINE	4
4	64704	燃油管至化油器接头	FITTING FUEL LINE TO CARBURETOR	1
4	19688	接头	FITTING	1
5	63981	燃油管转接头	FITTING FUEL LINE TO ADAPTOR	1
6	9912846	燃油泵至缸体油管(1英寸)	TUBING FUEL PUMP TO BLOCK (1 INCH)	1
6	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	1
7	61544	软管至缸体弯头(45度)	ELBOW HOSE TO CYLINDER BLOCK (45 DEGREE)	1
8	68424	燃油泵软管至弯头卡箍	CLAMP FUEL PUMP HOSE TO ELBOWS	2

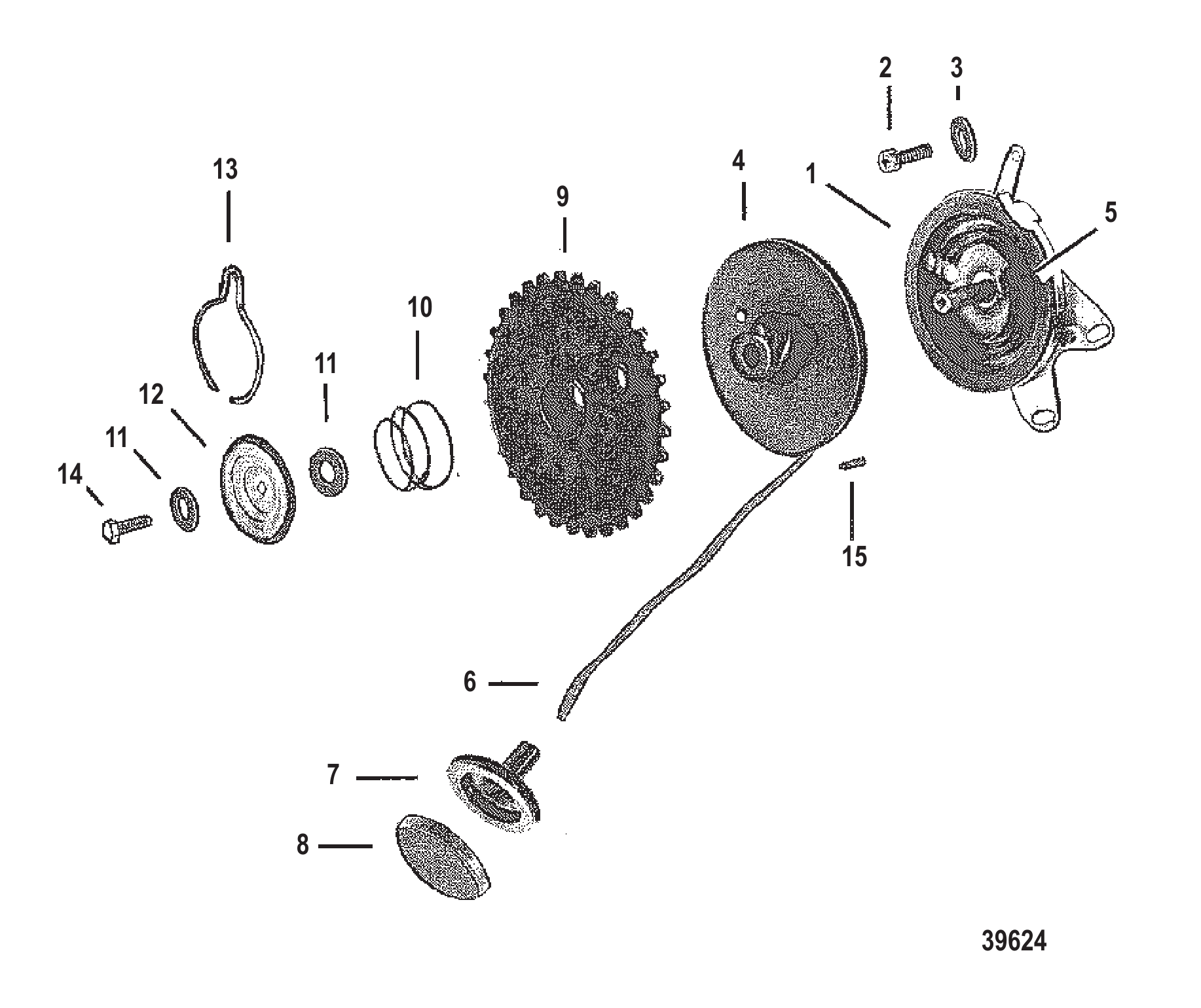

图 15手动启动器 MANUAL STARTER

REF	零件编号	中文名称	英文名称	数量
1	75764	启动器回绕支架总成	BRACKET ASSEMBLY STARTER REWIND	1
2	37571	支架至缸体螺钉(.190-32 x .500)	SCREW (.190-32 x .500) BRACKET TO CYLINDER BLOCK	3
3	30164	支架至缸体螺钉垫圈(.192 x .375 x .0312不锈钢)	WASHER (.192 x .375 x .0312) Stainless Steel BRACKET TO CYLINDER BLOCK SCREW	2
4	77568	启动滑轮	SHEAVE Starter	1
5	70167	启动器回位弹簧	SPRING STARTER REWIND	1
6	90892A2	启动拉绳总成(含2个铆钉)	ROPE ASSEMBLY Starter (INCLUDES 2 RIVETS)	1
7	70396	启动绳手柄	HANDLE STARTER ROPE	1
8	70394	启动手柄盖	CAP STARTER HANDLE	1
9	90324	启动器回绕小齿轮	GEAR Pinion STARTER REWIND	1
10	70288	小齿轮弹簧	SPRING PINION	1
11	90323	小齿轮垫圈	WASHER PINION	2
12	90322	小齿轮弹簧固定座	RETAINER PINION SPRING	1
13	90321	扭力弹簧-小齿轮	SPRING TORSION - PINION	1
14	79644	螺丝(.190-32 x .880)弹簧固定器	SCREW (.190-32 x .880) SPRING RETAINER	1
15	70180	铆钉启动滑轮	RIVET STARTER SHEAVE	2

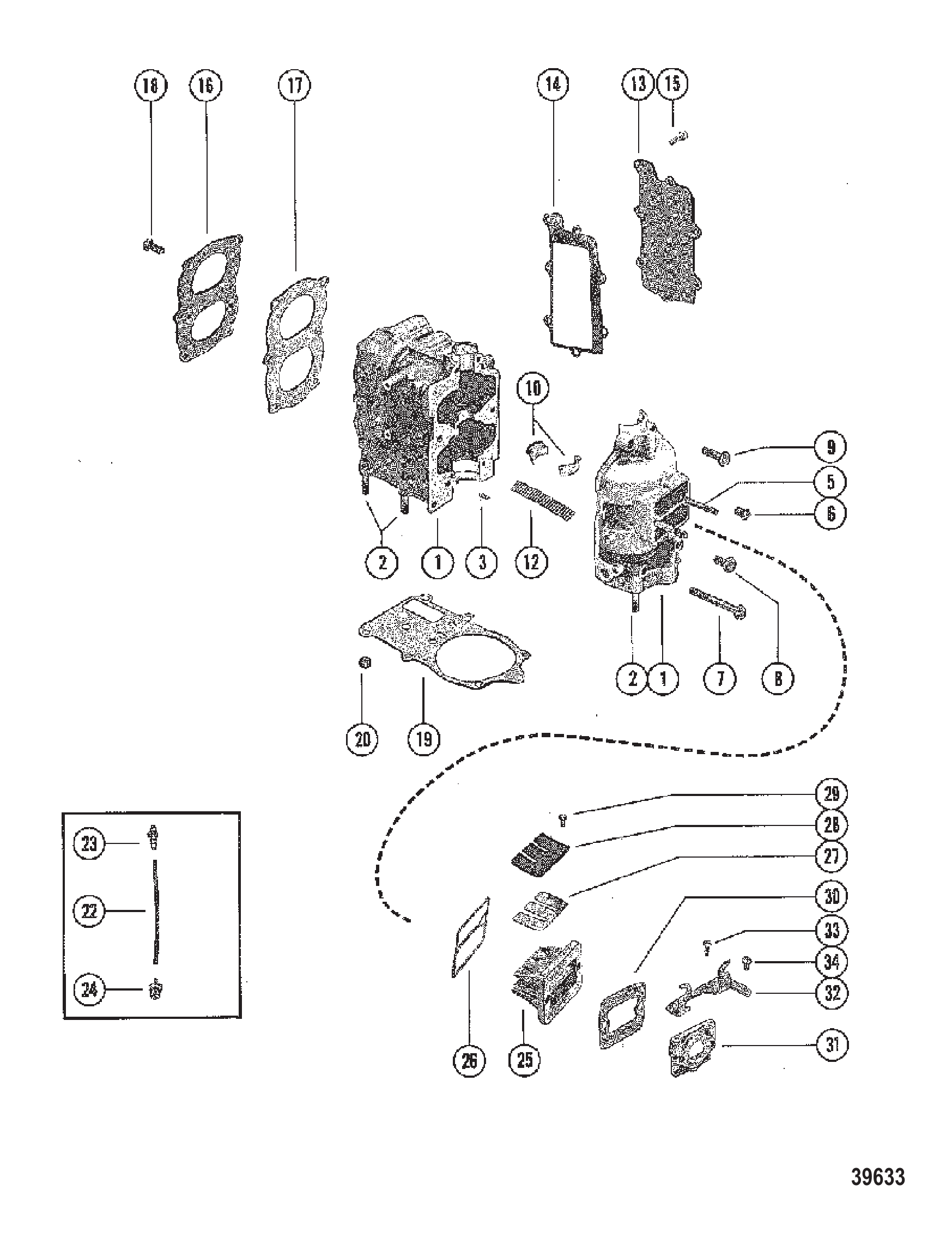

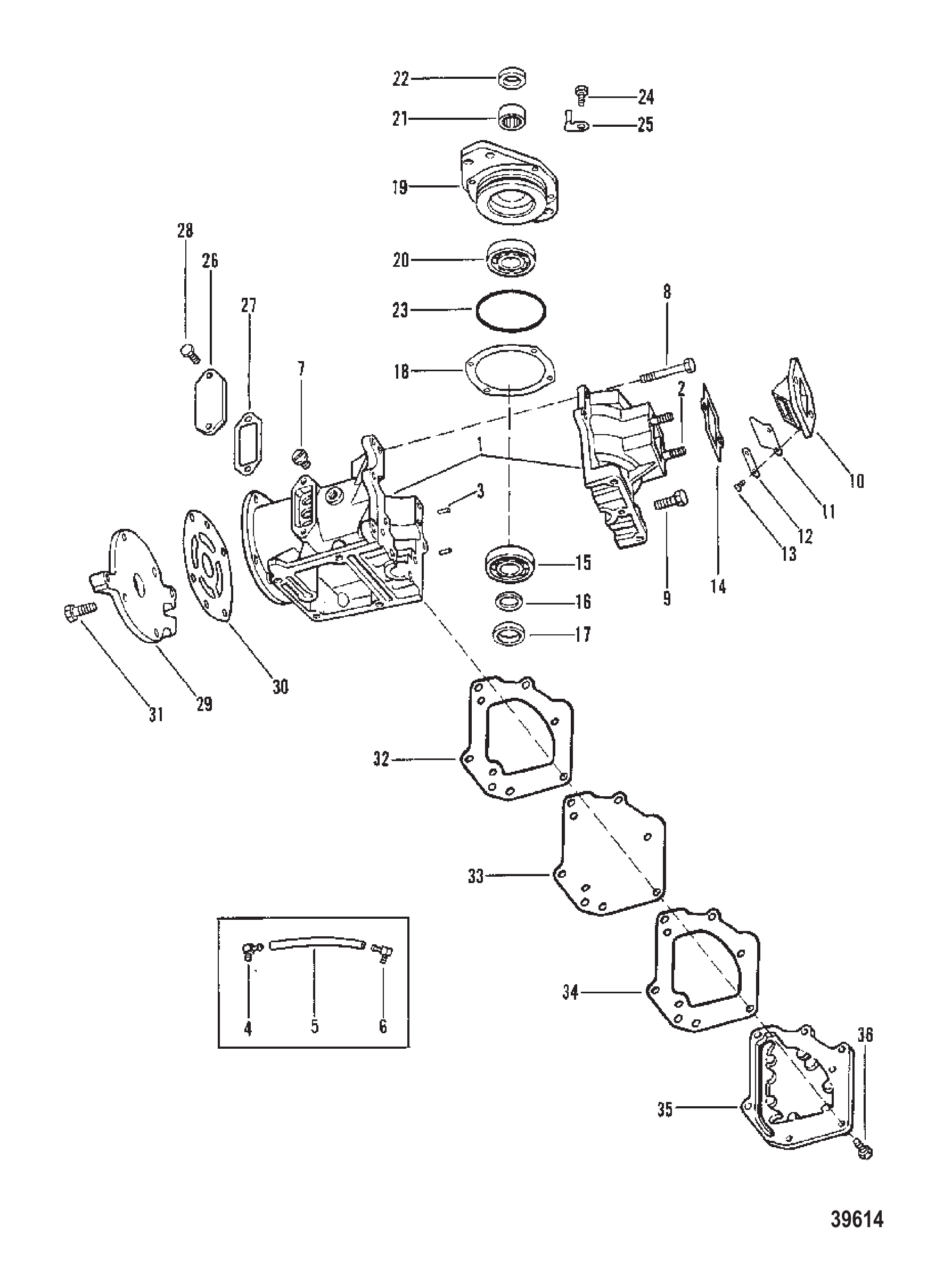

图 16气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7713A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	72809	螺柱 (.250-20/.250-28 x 1.620) 动力头	STUD (.250-20/.250-28 x 1.620) POWERHEAD	6
2	728091	螺柱 (.250 x 1.620)	STUD (.250 x 1.620)	6
3	85500	定位销 (.187 x 0.530) 气缸体	PIN Dowel (.187 x .530) CYLINDER BLOCK	2
3	8M0084726	定位销	PIN Dowel	2
5	20353	螺柱 (.250-28 x 1.750) 簧片阀组与化油器	STUD (.250-28 x 1.750) REED BLOCK AND CARBURETOR	2
6	56800	管塞 (.0625-27) 气缸体	PLUG Pipe (.0625-27) CYLINDER BLOCK	1
7	70732	螺钉 (.250-20 x 2.00) 曲轴箱至气缸体	SCREW (.250-20 x 2.00) CRANKCASE TO CYLINDER BLOCK	2
8	28635	螺钉 (.250-20 x 0.620) 不锈钢 曲轴箱至气缸体	SCREW (.250-20 x .620) Stainless Steel CRANKCASE TO CYLINDER BLOCK	2
9	28667	螺钉 (.250-20 x 1.00) 不锈钢 曲轴箱至气缸体	SCREW (.250-20 x 1.00) Stainless Steel CRANKCASE TO CYLINDER BLOCK	2
10	68953A1	气缸体衬套总成	LINER ASSEMBLY CYLINDER BLOCK	1
12	71840	滚针轴承 中央主轴承	BEARING Needle CENTER MAIN	25
13	77585	排气歧管盖	COVER EXHAUST MANIFOLD	1
14	77586	排气歧管盖衬垫	GASKET EXHAUST MANIFOLD COVER	1
15	32228	螺钉 (#10-32 x 0.625) 排气歧管盖	SCREW (#10-32 x .625) EXHAUST MANIFOLD COVER	10
16	5546	气缸体盖	COVER CYLINDER BLOCK	1
17	68942	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
18	32228	螺钉 (#10-32 x 0.625) 气缸体盖	SCREW (#10-32 x .625) CYLINDER BLOCK COVER	6
19	68941	机体至底罩衬垫	GASKET BLOCK TO BOTTOM COWL	1
20	24652	螺母 (.250-28) 动力头螺柱	NUT (.250-28) POWERHEAD STUDS	6
22	5493576	泄压管	TUBE BLEED	1
22	9938779	软管	HOSE	1
23	65857	转接接头	CONNECTOR ADAPTOR	1
23	56759	倒钩接头	FITTING Barbed	1
24	64871A2	曲轴箱止回阀	CHECK VALVE CRANKCASE	1
25	69498	簧片阀组	REED BLOCK	1
26	70415	曲轴箱至簧片阀组衬垫	GASKET CRANKCASE TO REED BLOCK	1
27	69499A1	簧片组件	REED ASSEMBLY	1
28	69500	簧片止挡	STOP Reed	2
29	28430	螺钉 (#6-32 x 0.25) 簧片及止动片	SCREW (#6-32 x .25) REED AND REED STOP	6
30	70416	簧片阀组至转接座衬垫	GASKET REED BLOCK TO ADAPTOR	1
31	70420	化油器转接座	ADAPTER CARBURETOR TO REED BLOCK	1
32	79746	线缆安装支架	BRACKET CABLE MOUNTING	1
33	69022	螺钉 (#10-32 x 0.500) 不锈钢 支架至转接座	SCREW (#10-32 x .500) Stainless Steel BRACKET TO ADAPTOR	2
34	20055	螺钉 (#10-32 x 0.375) 线缆安装支架	SCREW (#10-32 x .375) CABLE MOUNTING BRACKET	1
-	77586A78	衬垫套件	GASKET SET	1
-	72530A78	动力头总成	POWERHEAD ASSEMBLY	1

图 17下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	850302A1	下罩盖（左舷）	BOTTOM COWL Port	1
1	850302A07	下罩盖（左舷）	BOTTOM COWL Port	1
1	8M0107324	下罩盖（左舷）	BOTTOM COWL Port	1
2	854367001	堵头	PLUG	1
3	850301A1	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	850301A07	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	850301A07	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	8M0107323	下罩盖（右舷）	BOTTOM COWL Starboard	1
4	844155001	罩盖密封件	SEAL Cowl	1
4	8M0043268	罩盖密封条	SEAL-COWL	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
6	824868	螺钉(M6×75)	SCREW (M6 x 75)	3
7	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
7	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
8	850684F1	前手柄	FRONT HANDLE	1
8	8M0053903	前手柄	FRONT HANDLE	1
9	335891	衬套	BUSHING	2
10	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
11	8219423	棘爪	PAWL	1
12	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
13	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
14	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
15	822873	卡扣	CLIP	1
16	8569901	升降倾斜开关	SWITCH Trim	1
16	8M0235191	升降倾斜开关	SWITCH Trim	1
16	896620001	升降倾斜开关	SWITCH Trim	1
16	8M0235191	升降倾斜开关	SWITCH Trim	1
17	842756T01	索具套件	RIGGING KIT	1
18	842744002	支架	BRACKET	1
19	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
20	843185T02	联轴器	COUPLER	1
21	842756T05	软管	HOSE	1
21	842756005	软管	HOSE	1
22	843174T02	索具联轴器	COUPLER Rigging	1
22	843174002	联轴器	COUPLER	1
23	47994	螺钉 (#10 x 1.50)	SCREW (#10 x 1.50)	4
24	852361T1	机罩手柄	HANDLE Cowl	2
24	850682A06	支架和手柄套件	BRACKET AND HANDLE KIT	2
25	29402	波形垫圈	WAVE WASHER	2

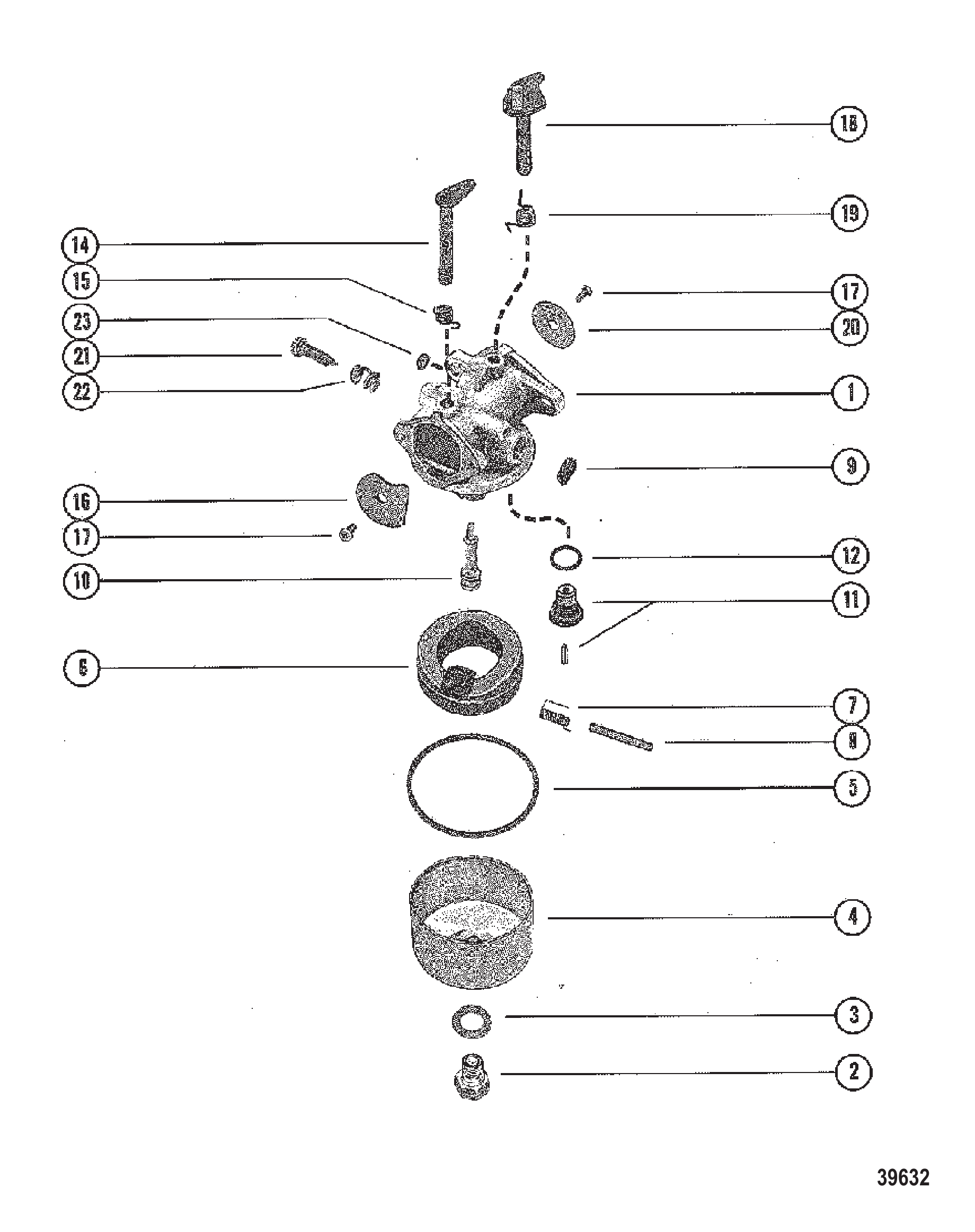

图 18化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7568	化油器	CARBURETOR	1
2	7759	油门阀	VALVE Throttle	1
3	7772	量孔针阀	JET NEEDLE	1
4	7770	针阀E型卡环	E RING NEEDLE JET	1
5	7774	固定座	RETAINER	1
6	7760	杆	ROD	1
7	7758	弹簧杆	SPRING ROD	1
8	7757	盖衬垫	GASKET COVER	1
9	7756	混合室盖	COVER MIXING CHAMBER	1
10	7767	进油针衬垫	GASKET INLET NEEDLE	1
11	7768	进油针阀组件	NEEDLE AND SEAT Inlet	1
12	7769	浮子销	PIN FLOAT	1
13	7762	浮子	FLOAT	1
14	7766	怠速量孔	PILOT JET	1
15	7771	针阀喷嘴	NEEDLE JET	1
16	7773	主量孔	MAIN JET	1
17	7763	浮子室衬垫	GASKET FLOAT BOWL	1
18	N.S.S.		Not Sold Separate Float Bowl	1
19	7765	浮子室螺丝	SCREW FLOAT BOWL	4
20	6158	调节螺丝弹簧	SPRING ADJUSTING SCREW	2
21	7750	低速调节螺丝	SCREW ADJUSTING-LOW SPEED	1
22	7761	怠速调节螺丝	SCREW ADJUSTING-IDLE SPEED	1
23	7751	柱塞	PLUNGER	1
24	7752	柱塞弹簧	SPRING PLUNGER	1
25	7753	柱塞帽	CAP PLUNGER	1
26	7754	柱塞帽卡簧	CLIP PLUNGER CAP	1
27	7755	盖帽	CAP	1
28	7764	杠杆	LEVER	1

图 19夹紧和旋转支架总成 CLAMP AND SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7291A1	夹具支架(左舷)	CLAMP BRACKET (PORT)	1
2	7289A1	夹具支架(右舷)	CLAMP BRACKET (STARBOARD)	1
3	77190A4	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	78971	蝶形螺丝手柄	HANDLE THUMB SCREW	2
5	78970	蝶形螺丝定位销	PIN Groove THUMB SCREW	2
6	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
6	818884	垫圈	WASHER	2
6A	76804	蝶形螺丝垫片	SCREW THUMB SCREW WASHER	2
6A	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
7	79477	卡箍支架螺丝	SCREW CLAMP BRACKET	1
7	96917	螺钉	SCREW	1
8	68920	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
10	34863	卡箍支架双头螺栓/螺丝螺母(.375-24)	NUT (.375-24) CLAMP BRACKET STUD OR SCREW	1
10	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
11	68925	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	68929A2	倾斜销总成	PIN ASSEMBLY Tilt	1
15	62143	倾斜销弹簧	SPRING TILT PIN	1
16	7400A2	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
17	69067	旋转支架螺丝(.250-20 x 1.375)	SCREW (.250-20 x 1.375) SWIVEL BRACKET	4
17A	31345	旋转支架接头	FITTING SWIVEL BRACKET	1
17A	8M0169589	润滑脂接头	FITTING Grease	1
18	76110A1	倾斜杆总成	LEVER ASSEMBLY Tilt	1
19	68932	左舷扭力弹簧	SPRING TORSION-PORT	1
20	68968	倒挡锁止杆	ROD REVERSE LOCK	2
22	68972	倒挡锁止杆	LEVER REVERSE LOCK	1
23	73124	右舷扭力弹簧	SPRING TORSION-STARBOARD	1
24	31345	接头	FITTING	2
24	8M0169589	润滑脂接头	FITTING Grease	2
25	79793A1	调节螺丝总成	SCREW ASSEBMLY Adjustment	1
26	20385	调节螺丝O型圈(.239 x .070)	O-RING (.239 x .070) ADJUSTMENT SCREW	1

图 20曲轴、活塞与连杆 CRANKSHAFT, PISTON AND CONNECTING ROD

REF	零件编号	中文名称	英文名称	数量
1	5549	曲轴	CRANKSHAFT	1
2	5547A5	连杆总成	CONNECTING ROD ASSEMBLY	2
3	72455	连杆螺钉	SCREW CONNECTING ROD	4
4	72454	连杆螺钉锁紧垫圈	TAB WASHER CONNECTING ROD SCREW	4
5	68944	连杆滚针轴承	BEARING Needle CONNECTING ROD	50
6	68953A1	曲柄销衬套总成	LINER ASSEMBLY CRANKPIN	2
8	68949	连杆-活塞销滚柱轴承	BEARING Roller CONNECTING ROD - PISTON PIN	2
9	6248A2	活塞总成	PISTON ASSEMBLY	2
9	8076A2	活塞总成	PISTON ASSEMBLY	2
9	8076A2	活塞总成	PISTON ASSEMBLY	2
10	68950	活塞锁环	LOCK RING PISTON	4
11	70175A12	活塞环组	RING SET Piston	1
12	30530	曲轴上油封	SEAL Oil CRANKSHAFT - UPPER	1
13	78099	曲轴上滚柱轴承	BEARING Roller CRANKSHAFT - UPPER	1
14	71841	曲轴环	RING CRANKSHAFT	1
15	69389	曲轴下滚珠轴承	BEARING Ball CRANKSHAFT - LOWER	1
16	68952	滚珠轴承挡圈-大	RING Retaining BALL BEARING -LARGE	1
17	27275	滚珠轴承挡圈-小	RING Retaining BALL BEARING - SMALL	1
18	77494	曲轴油封	SEAL Oil CRANKSHAFT	1
19	62706	O型圈(.426 x .070)曲轴	O-RING (.426 x .070) CRANKSHAFT	1
20	70786A1	曲轴联轴器总成	COUPLING ASSEMBLY CRANKSHAFT	1
21	76266	联轴器密封	SEAL COUPLING	1
-	77586A78	衬垫套件	GASKET SET	1

图 21气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7744A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8694A3	气缸体	CYLINDER BLOCK	1
1	7696A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8694A3	气缸体	CYLINDER BLOCK	1
2	66021	化油器螺柱	STUD CARBURETOR	2
3	85500	曲轴箱至气缸体定位销(.187 x .530)	PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK	2
3	8M0084726	定位销	PIN Dowel	2
4	89275	泄放接头	FITTING BLEED DRAIN	1
5	52742A1	泄放软管(8英寸)	HOSE BLEED DRAIN (8")	1
5	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
6	88780	泄放示位管弯头	ELBOW Tell-Tale Tubing BLEED DRAIN	1
6	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	1
7	35268	气缸体螺钉	SCREW CYLINDER BLOCK	1
7	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
8	73280	曲轴箱至气缸体螺钉(1.5英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1 1/2")	2
9	76621	曲轴箱至气缸体螺钉(1英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1")	8
10	70726	簧片阀组	REED BLOCK	1
11	35836	簧片进气阀	REED INLET VALVE	2
12	22215	簧片压板	RETAINER REED	2
13	28430	簧片固定螺钉(#6-32 x 0.25)	SCREW (#6-32 x .25) REED AND RETAINER TO BLOCK	4
14	35739	簧片阀组至曲轴箱垫片	GASKET REED BLOCK TO CRANKCASE	1
14	357391	衬垫	GASKET	1
15	72961	曲轴箱滚珠轴承(下)	BEARING Ball CRANKCASE (LOWER)	1
16	89794	下滚珠轴承隔套	SPACER LOWER BALL BEARING	1
17	56397	曲轴箱油封(下)	SEAL Oil CRANKCASE (LOWER)	1
18	31412A1	垫片	SHIM	AR
19	7536A1	轴承壳体总成	HOUSING ASSEMBLY Bearing	1
19	7536A2	端盖总成	END CAP ASSY	1
20	72961	滚珠轴承壳体	BEARING Ball BEARING HOUSING	1
21	31410	滚柱轴承壳体	BEARING Roller BEARING HOUSING	1
22	66301	轴承壳体油封	SEAL Oil BEARING HOUSING	1
23	20863	轴承壳体O型圈	O-RING BEARING HOUSING	1
24	39002	轴承壳体螺钉（1/2英寸）	SCREW BEARING HOUSING (1/2")	4
25	88222	轴承座接地片螺钉	TAB GROUND-BEARING HOUSING SCREW	1
26	35658	换气口盖	COVER TRANSFER COVER	1
27	35657	换气口盖垫片	GASKET TRANSFER PORT COVER	1
28	20720	螺钉(.190-24 x .62)	SCREW (.190-24 x .62)	2
29	7527	气缸体盖	COVER CYLINDER BLOCK	1
30	78140	盖板至气缸体衬垫	GASKET COVER TO CYLINDER BLOCK	1
30	416151	衬垫	GASKET	1
31	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	4
31	8M0214943	螺钉	SCREW	4
32	78139	气缸体至挡板衬垫	GASKET CYLINDER BLOCK TO BAFFLE PLATE	1
32	416141	衬垫	GASKET	1
33	46234	排气歧管挡板	PLATE BAFFLE-EXHAUST MANIFOLD	1
34	78139	衬垫	GASKET	1
34	416141	衬垫	GASKET	1
35	46171	排气歧管盖	COVER EXHAUST MANIFOLD	1
36	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	6
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1
-	88675A79	动力头总成	POWERHEAD ASSEMBLY	1
-	88675A83	动力头总成	POWERHEAD ASSEMBLY	1

图 22驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7601A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8526A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	7723A4	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8526A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	68927	驱动轴壳体螺柱	STUD DRIVESHAFT HOUSING	1
2	75321	驱动轴壳体螺柱	STUD DRIVE SHAFT HOUSING	1
3	79953		SCREW (.375-16 x .250) GREASE FILLER	1
3	79953Q04	放油螺钉套件	SCREW KIT Drain	1
4	20260	润滑脂加注螺钉垫圈	WASHER GREASE FILLER SCREW	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	88996	水管	TUBE Water	1
5	88997	水管	TUBE Water	1
6	36556	水封（外径0.5英寸）水管	SEAL (.500 Inch Outside Diameter) WATER TUBE	1
7	86214		BEARING Water Tube Seal	1
7	13127	隔套	SPACER	1
8	79791	副驾驶夹箍	CLAMP CO-PILOT	1
9	88669	驱动轴壳体橡胶支座	MOUNT RUBBER-DRIVESHAFT HOUSING	2
10	74308	橡胶安装衬套	BUSHING RUBBER MOUNT	2
11	68990A3	转向臂支架总成	BRACKET ASSEMBLY STEERING ARM	1
11	98168A1	支架总成	BRACKET ASSEMBLY	1
11	89744A1	转向臂支架总成	BRACKET ASSEMBLY STEERING ARM	1
11	98168A1	支架总成	BRACKET ASSEMBLY	1
12	75840	螺钉（#10-24 x .880）转向臂支架	SCREW (#10-24 x .880) STEERING ARM BRACKET	4
13	88184	驱动轴壳体塞	PLUG DRIVESHAFT HOUSING	1
14	69067	螺钉（.250-20 x 1.375）驱动轴壳体至动力头	SCREW (.250-20 x 1.375) DRIVESHAFT HOUSING TO POWERHEAD	6
15	90253	适配板	PLATE ADAPTOR	1
15	98319	安装板	PLATE	1
16	88138	驱动轴壳体衬垫	GASKET PLATE TO DRIVESHAFT HOUSING	1
16	41631	衬垫	GASKET	1
16	90254	驱动轴壳体衬垫	GASKET PLATE TO DRIVESHAFT HOUSING	1
16	41631	衬垫	GASKET	1
17	88139	动力头衬垫	GASKET PLATE TO POWERHEAD	1
17	41632	衬垫	GASKET	1
17	92875	动力头衬垫	GASKET PLATE TO POWERHEAD	1
17	41632	衬垫	GASKET	1
18	87664	提手	HANDLE CARRYING	1
19	54615	手柄至适配板螺钉(0.250-20 x 0.625)	SCREW (.250-20 x .625) HANDLE TO ADAPTOR PLATE	4
20	21249	手柄螺钉垫圈	WASHER HANDLE SCREW	4
21	87667	转向手柄	HANDLE STEERING	1
21	87667T	舵柄	TILLER HANDLE	1
22	87668	转向手柄握把	GRIP STEERING HANDLE	1
23	63327	转向手柄支架螺钉(1.5英寸)	SCREW STEERING HANDLE TO BRACKET (1 1/2")	1
23	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	1
24	53166	转向手柄螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STEERING HANDLE SCREW	1
25	56720	转向手柄螺钉不锈钢垫圈(0.330x0.750x0.060)	WASHER (.330 x .750 x .060) Stainless Steel STEERING HANDLE SCREW	2
26	26825	转向手柄螺钉垫圈(0.328x0.750x0.06)	WASHER (.328 x .750 x .06) STEERING HANDLE SCREW	1
27	68292	转向手柄螺钉螺母(0.312-18)	NUT (.312-18) STEERING HANDLE SCREW	1
27	8M0204668	螺母(.312-18)	NUT (.312-18)	1
28	35814	螺母（.312-24）不锈钢齿轮箱螺柱	NUT (.312-24) Stainless Steel GEAR HOUSING STUD	1
28	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
-	75311	驱动轴壳体适配器	ADAPTER DRIVESHAFT HOUSING	1
-	75311T	适配器	ADAPTOR	1
-	76265	传动轴轴承座	BLOCK Bearing DRIVESHAFT	1
-	94909	轴承座	BLOCK Bearing	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1

图 23飞轮及定子 FLYWHEEL AND STATOR

REF	零件编号	中文名称	英文名称	数量
1	7933A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	20094	飞轮半圆键	KEY Woodruff FLYWHEEL RIVE	1
3	25970	飞轮垫片	WASHER FLYWHEEL	1
3	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	1
4	20509	飞轮螺母	NUT FLYWHEEL	1
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
5	5566A5	定子总成	STATOR ASSEMBLY	1
6	66707	定子安装支架螺钉(7/8")	SCREW STATOR TO MOUNTING BRACKET (7/8")	3
7	5589A1	线圈总成(2 1/4"和4 1/4"引线)	COIL ASSEMBLY (2 1/4" AND 4 1/4" LEADS)	1
7	5590A1	线圈总成(3 3/8"和4 3/8"引线)	COIL ASSEMBLY (3 3/8" AND 4 3/8" LEADS)	1
8	59538	卡箍线圈固定	CLIP COIL RETAINING	2
8	59538T	卡箍@2	CLIP @2	2
9	65927	卡箍线圈固定	CLIP COIL RETAINING	2
10	69348	接线端子排定子	TERMINAL BLOCK STATOR	1
10A	58308	内齿锁紧垫圈(#10)接线板	LOCKWASHER Internal (#10) TERMINAL BLOCK	1
11	22654	螺丝(.190-32 x .38)引线至接线端子排	SCREW (.190-32 x .38) LEADS TO TERMINAL BLOCK	1
12	69347	接线板至定子螺钉(5/8")	SCREW TERMINAL BLOCK TO STATOR (5/8")	1
13	46438	螺母(#10-32)接线端子排螺丝	NUT (#10-32) TERMINAL BLOCK SCREW	1
14	70426A3	触发器总成	TRIGGER ASSEMBLY	1
17	70414	触发杆至火花控制杆连杆	LINK ROD TRIGGER TO SPARK LEVER	1
18	68219	调节连杆螺母(#10-32不锈钢)	NUT (#10-32) Stainless Steel ADJUSTING LINK ROD	2
19	33973	旋转连杆	SWIVEL LINK ROD	1
20	70428	定子安装支架	BRACKET STATOR MOUNTING	1
21	20512	定子安装支架螺钉(7/16")	SCREW STATOR MOUNTING BRACKET (7/16")	2
21	25764	螺钉(.190-32 x .50)	SCREW (.190-32 x .50)	2
22	70422	火花控制杆	LEVER SPARK	1
23	62802	火花控制杆调节螺钉(1 1/8")	SCREW ADJUSTNG - SPARK LEVER (1 1/8")	1
24	21923	调节螺钉螺母(8-32)	NUT ( 8-32) ADJUSTING SCREW	1
24	21923T	螺母@2	NUT @2	1
25	70418	节气门杆弹簧	SPRING THROTTLE LEVER	1
26	70424	油门杆	LEVER Throttle	1
27	70429	节气门凸轮	CAM Throttle	1
28	38055	节气门凸轮至节气门杆螺钉(.190-32 x .620)	SCREW (.190-32 x .620) THROTTLE CAM TO THROTTLE LEVER	1
29	56681	节气门凸轮螺钉垫圈(.203 x .500 x .032)	WASHER (.203 x .500 x .032) THROTTLE CAM SCREW	1
29	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
30	38515	肩部螺钉(7/8")	SCREW SHOULDER (7/8")	1
31	21631	肩部螺钉垫圈(.255 x .625 x .0312)	WASHER (.255 x .625 x .0312) SHOULDER SCREW	1
31	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1

图 24燃油泵及油管 FUEL PUMP AND FUEL LINES

REF	零件编号	中文名称	英文名称	数量
1	89977A1	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	99127109	管线(57英寸散装)(4-1/2"和1-3/4")	LINE (57.00 Inches Bulk) (4-1/2" AND 1-3/4")	2
2	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	2
3	68424	燃油管卡箍	CLAMP FUEL LINE	4
4	64704	燃油管至化油器接头	FITTING FUEL LINE TO CARBURETOR	1
4	19688	接头	FITTING	1
5	63981	燃油管转接头	FITTING FUEL LINE TO ADAPTOR	1
6	9912846	燃油泵至缸体油管(1英寸)	TUBING FUEL PUMP TO BLOCK (1 INCH)	1
6	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	1
7	61544	软管至缸体弯头(45度)	ELBOW HOSE TO CYLINDER BLOCK (45 DEGREE)	1
8	68424	燃油泵软管至弯头卡箍	CLAMP FUEL PUMP HOSE TO ELBOWS	2

图 25燃油箱、油管及化油器 FUEL TANK, FUEL LINES AND CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	8083A2	燃油箱总成	TANK ASSEMBLY Fuel	1
-	93587	燃油箱衬套	BUSHING FUEL TANK	1
-	93588	燃油箱弯头(带滤网)	ELBOW FUEL TANK - W/ FILTER SCREEN	1
2	78573A1	燃油盖	CAP FUEL	1
3	70298	燃油盖通风螺钉	SCREW VENT - FUEL CAP	1
4	49221	垫圈(.187 x .500 x .062)氯丁橡胶 通气螺钉	WASHER (.187 x .500 x .062) Neoprene VENT SCREW	1
4	8M0204663	垫片@5	WASHER @5	1
5	78577	燃油盖垫片	GASKET FUEL CAP	1
6	38255	燃油盖垫圈	WASHER FUEL CAP	1
7	22227	燃油盖弹簧	SPRING FUEL CAP	1
8	57029	燃油盖垫圈	WASHER FUEL CAP	1
8	71055	垫圈	WASHER	1
9	21071	燃油盖开口销	COTTER PIN FUEL CAP	1
9	210711	开口销	COTTER PIN	1
10	752373	燃油盖链条	CHAIN FUEL CAP	1
11	85767	燃油盖固定弹簧	SPRING FUEL CAP - RETAINING	1
12	78578	燃油箱至外罩垫片	GASKET FUEL TANK TO COWL	1
13	78579	燃油箱与点火线圈支架	BRACKET FUEL TANK AND IGNITION COIL	1
14	37571	支架至缸体螺钉(.190-32 x .500)	SCREW (.190-32 x .500) BRACKET TO CYLINDER BLOCK	3
15	45812	支架螺钉螺母(#10-32不锈钢)	NUT (#10-32) Stainless Steel BRACKET SCREW	3
15	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	3
16	75689A1	燃油箱固定带总成	STRAP ASSEMBLY FUEL TANK ATTACHING	1
17	26668	固定带总成至燃油箱支架螺钉	SCREW STRAP ASSEMBLY TO FUEL TANK BRACKET	2
18	31583109	燃油箱至阀门油管(8")	LINE Fuel FUEL TANK TO VALVE (8")	1
18	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
19	68424	燃油管固定夹	CLAMP FUEL LINE ATTACHING	4
20	89398	燃油切断阀	VALVE FUEL SHUT OFF	1
21	31583109	阀门至化油器油管(4")	LINE Fuel VALVE TO CARBURETOR (4")	1
21	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
22	64704	化油器接头	FITTING CARBURETOR	1
22	19688	接头	FITTING	1
22	96858	化油器接头	FITTING CARBURETOR	1
23	7069	化油器	CARBURETOR	1
23	89977A2	化油器维修包	CARBURETOR KIT	1
23	8402	化油器	CARBURETOR	1
24	70417	化油器安装垫片	GASKET CARBURETOR MOUNTING	1
25	70557	阻风门拉索	CABLE Choke	1
26	78045	阻风门电缆锁紧螺母	NUT LOCKING - CHOKE CABLE	1
27	86874	阻风门电缆按钮	BUTTON CHOKE CABLE	1
28	29245	化油器螺柱垫圈(.281 x .500 x .060不锈钢)	WASHER (.281 x .500 x .060) Stainless Steel CARBURETOR STUD	2
28	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	36069	化油器双头螺栓螺母	NUT CARBURETOR STUD	2
30	78049	怠速调节杆	LEVER IDLE ADJUSTMENT	1
31	78046	怠速调节连杆	LINK IDLE ADJUSTMENT	1
32	78048	怠速调节轴	SHAFT IDLE ADJUSTMENT	1
33	78047	怠速调节套筒	SLEEVE IDLE ADJUSTMENT	1
34	78045	阻风门旋钮螺母	NUT CHOKE KNOB	1
35	92434A2	阻风门旋钮	KNOB CHOKE	1
--	76623	燃油箱支架	BRACKET FUEL TANK	1

图 26齿轮箱总成(驱动轴) GEAR HOUSING ASSEMBLY (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7726A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7726A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7726A5	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
1	7811A9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	7811A9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
2	68927	齿轮箱螺柱(2.125英寸)	STUD GEAR HOUSING (2 1/8")	1
2	75321	齿轮箱螺柱(7.25英寸)	STUD GEAR HOUSING (7 1/4")	1
3	68928	水泵螺柱(2.125英寸)	STUD WATER PUMP (2 1/8")	2
4	70741	水泵螺柱(1.125英寸)	STUD WATER PUMP (1 1/8")	1
5	77428	齿轮箱轴承	BEARING GEAR HOUSING	1
6	77429	齿轮箱法兰衬套	BUSHING FLANGED-GEAR HOUSING	1
6	90770	衬套	BUSHING	1
6	90770	齿轮箱法兰衬套	BUSHING FLANGED-GEAR HOUSING	1
7	77427	小齿轮	GEAR Pinion	1
7	90795A1	齿轮总成	GEAR ASSY	1
7	90796	小齿轮	GEAR Pinion	1
8	21148A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
9	20922	小齿轮螺母	NUT PINION GEAR	1
10	87617	驱动轴	DRIVESHAFT	1
10	87663	驱动轴	DRIVESHAFT	1
11	56655	叶轮驱动键	KEY IMPELLER DRIVE	1
11	8M0032835	键	KEY	1
12	68939	水泵下衬垫	GASKET WATER PUMP-LOWER	1
13	90844A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
14	77066	水泵油封	SEAL Oil WATER PUMP	1
14	897153	油封@3	SEAL-OIL @3	1
15	70977	水泵衬套	INSERT WATER PUMP	1
15	70977T	嵌件	INSERT	1
16	89980	叶轮	IMPELLER	1
17	68955	水泵面板	FACE PLATE WATER PUMP	1
18	68984A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
18	95965A2	水泵盖总成	COVER ASSEMBLY Water Pump	1
18	90846A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
18	95965A2	水泵盖总成	COVER ASSEMBLY Water Pump	1
19	30913	水泵盖油封	SEAL Oil WATER PUMP COVER	1
20	86214	水管密封轴承	BEARING WATER TUBE SEAL	1
20	13127	隔套	SPACER	1
21	36558	水管密封件	SEAL WATER TUBE	1
22	31792	导水管套筒	SLEEVE WATER TUBE GUIDE	1
22	31792T	套管@5	SLEEVE @5	1
23	30526	驱动轴橡胶环	RING RUBBER-DRIVESHAFT	1
24	85148	传动轴O型圈	O-RING DRIVESHAFT	1
24	62704	O型圈 (.362 x .103)	O-RING (.362 x .103)	1
25	30164	水泵双头螺栓不锈钢垫圈(0.192x0.375x0.0312)	WASHER (.192 x .375 x .0312) Stainless Steel WATER PUMP STUDS	3
26	45812	水泵双头螺栓不锈钢螺母(#10-32)	NUT (#10-32) Stainless Steel WATER PUMP STUDS	3
26	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	3
27	28653	齿轮箱通气螺钉(#10-32 x 0.25)	SCREW (#10-32 x 0.25) VENT-GEAR HOUSING	1
28	20262	通气螺钉垫圈	WASHER VENT SCREW	1
28	19643	密封件	SEAL	1
29	79953		SCREW (.375-16 x .250) GREASE FILLER	1
29	79953Q04	放油螺钉套件	SCREW KIT Drain	1
30	20260	润滑脂加注螺钉垫圈	WASHER GREASE FILLER SCREW	1
30	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
-	90844A2	水泵维修套件	REPAIR KIT Water Pump	1
-	71140A1	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1

图 27齿轮箱总成(螺旋桨轴) GEAR HOUSING ASSEMBLY (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7726A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7726A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7726A5	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
1	7811A9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	7811A9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
31	20696	螺旋桨轴螺母	NUT PROPELLER SHAFT	1
32	73672	螺旋桨轴垫圈	WASHER PROPELLER SHAFT	1
33	77422	驱动齿轮	GEAR Drive	1
33	90795A1	齿轮总成	GEAR ASSY	1
33	90795	驱动齿轮	GEAR Drive	1
33	90795A1	齿轮总成	GEAR ASSY	1
33	93398	驱动齿轮	GEAR Drive	1
34	79603	螺旋桨轴专用垫圈	WASHER SPECIAL-PROPELLER SHAFT	1
35	79602A1	螺旋桨轴垫片组(0.002-3-5-10-20)	SHIM SET PROPELLER SHAFT (.002-3-5-10-20)	AR
36	79601	挡圈	RING Retaining	1
37	91813	离合器弹簧	SPRING CLUTCH	1
39	77425	螺旋桨轴	PROPELLER SHAFT	1
39	93397	螺旋桨轴	PROPELLER SHAFT	1
40	77424	螺旋桨轴隔套	SPACER PROPELLER SHAFT	1
41	77431A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
41	99210A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
42	71140	油封	SEAL Oil	1
42	98309	油封	SEAL Oil	1
43	75812	齿轮箱盖	COVER GEAR HOUSING	1
44	68935	轴承座O型圈(1.799x0.103)	O-RING (1.799 x .103) BEARING CARRIER	1
45	32003	轴承座键	KEY BEARING CARRIER	1
46	70588	前进推力毂	THRUST HUB FORWARD	1
47	86903A1	螺旋桨总成	PROPELLER ASSEMBLY	1
47	93357A1	螺旋桨总成	PROPELLER ASSEMBLY	1
47	93357A10	螺旋桨总成	PROPELLER ASSEMBLY	1
48	70589	后推力毂	THRUST HUB AFT	1
48	93356	后推力毂	THRUST HUB AFT	1
49	35814	螺旋桨不锈钢螺母(0.312-24)	NUT (.312-24) Stainless Steel PROPELLER	1
49	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
50	35814	传动轴壳体双头螺栓不锈钢螺母(0.312-24)	NUT (.312-24) Stainless Steel DRIVESHAFT HOUSING STUD	1
50	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1
-	71140A1	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 28手动启动器 MANUAL STARTER

REF	零件编号	中文名称	英文名称	数量
1	75764	启动器回绕支架总成	BRACKET ASSEMBLY STARTER REWIND	1
2	37571	支架至缸体螺钉(.190-32 x .500)	SCREW (.190-32 x .500) BRACKET TO CYLINDER BLOCK	3
3	30164	支架至缸体螺钉垫圈(.192 x .375 x .0312不锈钢)	WASHER (.192 x .375 x .0312) Stainless Steel BRACKET TO CYLINDER BLOCK SCREW	2
4	77568	启动滑轮	SHEAVE Starter	1
5	70167	启动器回位弹簧	SPRING STARTER REWIND	1
6	90892A2	启动拉绳总成(含2个铆钉)	ROPE ASSEMBLY Starter (INCLUDES 2 RIVETS)	1
7	70396	启动绳手柄	HANDLE STARTER ROPE	1
8	70394	启动手柄盖	CAP STARTER HANDLE	1
9	90324	启动器回绕小齿轮	GEAR Pinion STARTER REWIND	1
10	70288	小齿轮弹簧	SPRING PINION	1
11	90323	小齿轮垫圈	WASHER PINION	2
12	90322	小齿轮弹簧固定座	RETAINER PINION SPRING	1
13	90321	扭力弹簧-小齿轮	SPRING TORSION - PINION	1
14	79644	螺丝(.190-32 x .880)弹簧固定器	SCREW (.190-32 x .880) SPRING RETAINER	1
15	70180	铆钉启动滑轮	RIVET STARTER SHEAVE	2

图 29杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	814201	200 XRI(EFI)(V-6)维修	200 XRI (EFI) (V-6) Service	1
-	8140981	维修手册	SERVICE MANUAL	1
-	8162491	维修手册	SERVICE MANUAL	1
-	14697A87	衬垫套件	GASKET SET	1
-	813032A89	贴花套件	DECAL SET	1
-	814171A89	纪念版贴花套装	DECAL SET (ANNIVERSARY MODEL)	1
-	13492900	用户指南	OWNERS GUIDE	1

图 30转向手柄总成 STEERING HANDLE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	55741A1	手柄护套总成	BOOT ASSEMBLY HANDLE	1
2	70382	握柄	GRIP HANDLE	1
3	70383	手柄臂	ARM HANDLE	1
4	31433	手柄垫圈	WASHER HANDLE	1
5	70384	手柄挡圈	RING Retaining HANDLE	1
6	70386	转向手柄滑轮	PULLEY STEERING HANDLE	1
7	70385	手柄轴	SHAFT HANDLE	1
7A	70671A1	停机开关线束总成	HARNESS ASSEMBLY STOP SWITCH	1
8	70389A2	手柄支架总成	BRACKET ASSEMBLY HANDLE	1
9	37978	螺丝(#10-32 x .750)不锈钢手柄支架	SCREW (#10-32 x .750) Stainless Steel HANDLE BRACKET	2
10	70390	拉线固定器	RETAINER CABLE	1
11	708571	绝缘电缆	INSULATOR CABLE	1
12	70391	手柄支架衬套	BUSHING HANDLE BRACKET	1
13	73784	手柄支架螺母	NUT HANDLE BRACKET	1
14	70571	油门加速拉线	CABLE THROTTLE ADVANCE	1
14	92791	电缆	CABLE	1
15	70572	油门减速拉线	CABLE THROTTLE RETARD	1
15	92791	电缆	CABLE	1
14&15	92791	油门加减速拉线	CABLE THROTTLE ADVANCE/ RETARD	2
16	21825	螺母(.250-28)油门拉线	NUT (.250-28) THROTTLE CABLE	4
17	37998	油门拉线垫圈	WASHER THROTTLE CABLE	4
18	28655	开关线束止动套	SLEEVE STOP SWITCH HARNESS	1
18	5790811	套管(10.00英寸散装)	SLEEVE (10.00 Inches Bulk)	1

图 31开关盒及点火线圈 SWITCH BOX AND IGNITION COIL

REF	零件编号	中文名称	英文名称	数量
1	6222A8	开关盒总成	SWITCHBOX ASSEMBLY	1
2	45218	螺丝(#10-32 x .380)开关盒接地	SCREW (#10-32 x .380) SWITCH BOX GROUND	1
3	22523	螺丝(.190-32 x .75)开关盒	SCREW (.190-32 x .75) SWITCH BOX	2
4	56681	垫圈(0.203x0.500x0.032)开关盒螺钉	WASHER (.203 x .500 x .032) SWITCH BOX SCREW	2
4	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
6	90816A25	高压线总成	WIRE ASSEMBLY HIGH TENSION	2
6	813715A1	引线	LEAD WIRE	2
6A	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
7	88090	火花塞	SPARK PLUG	2
7	88088	火花塞	SPARK PLUG	2
7	8M0114744	SP BP7HS-10 @4	SP BP7HS-10 @4	2
8	5288A2	点火线圈总成	COIL ASSEMBLY Ignition	2
8	8M0166172	点火线圈	IGNITION COIL	2
10	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	4
11	76254	盖板	COVER	2
12	76502	螺丝(.190-32 x 1.880)线圈盖	SCREW (.190-32 x 1.880) COIL COVER	6
13	61990	扎带(14.00英寸)开关盒引线	TIE STRAP (14.00 Inches) SWITCH BOX LEADS	1
14	579082	开关盒导线套管	SLEEVE SWITCH BOX LEADS	2
14	5790811	套管(10.00英寸散装)	SLEEVE (10.00 Inches Bulk)	2
15	21273	线圈盖螺丝垫圈	WASHER COIL COVER SCREW	2

图 32顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	881288T32	顶盖总成	TOP COWL ASSEMBLY	1
2	82130030	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
3	884041A1	隔音毯套装	SOUND BLANKET KIT	1
3	884041A04	隔音毯套装	SOUND BLANKET KIT	1
4	NSS	不单独出售-顶部隔音垫	NOT SOLD SEPARATE Sound Blanket-Top	1
5	NSS	不单独销售 隔音垫-左舷	NOT SOLD SEPARATE Sound Blanket-Port	1
6	93702	垫圈(.250外齿星形)	WASHER (.250 External Star)	6
7	826639T	盖板	COVER	1
8	850682T4	后锁钩总成	HOOK ASSEMBLY Rear Latch	2
8	850682A06	支架和手柄套件	BRACKET AND HANDLE KIT	2
9	NSS		NOT SOLD SEPARATE Pin	2
10	8237951	挡圈	RING Retaining	2
11	815263	滚轮	ROLLER	2
11	8M0207770	滚轮@3	ROLLER @3	2
12	850685002	护孔环	GROMMET	1
12	850685T02	护孔环	GROMMET	1
13	821249M2	前支架	BRACKET Front	1
13	8M0036792	支架	BRACKET	1
14	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
15	815477	缓冲器锁扣	BUMPER Latch	1
16	8155381	滚动销	PIN Roll	1
17	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
19	8237951	挡圈	RING Retaining	1
20	815263	滚轮	ROLLER	1
20	8M0207770	滚轮@3	ROLLER @3	1
21	87161	垫圈	WASHER	1
-	897136A05	贴花套件	DECAL SET	1
-	8M0065133	ORD 8M0114995	ORD 8M0114995	1
