水星 Mercury 40, 400 4 CYL 0C159200 THRU 0G589999 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-814698 · 共 68 个部位 · 2937 条零件

1附件 2喷射组件 3燃油泵 4喷泵总成 5外罩 6驱动轴外壳总成 7手动倾斜组件(设计II型)8启动电机总成 9旋转支架 10动力升降(序列号0D182000至0G357070)(黑色插头)11舵柄适配套件(JET 30)12动力升降(序列号0G357070及以上)(黄色注油塞)13杂项信息 14启动器回绕装置 15飞轮、定子及启动电机 16气缸体与曲轴箱总成 17化油器总成 18转向手柄总成 19喷油组件 20艉板/夹紧支架(序列号0D182000及以上)21齿轮箱（推进轴）22齿轮箱（驱动轴）23手动倾斜设计I型-长轴序列号0C159200及以上 24夹紧支架(拇指螺丝设计-序列号0D181999及以下)25适配板/换挡轴 26油门控制连杆(金属连杆旋转件)27端盖与排气罩 28艉板支架(序列号0D181999及以下)29曲轴、活塞与连杆 30电气箱组件 31升降开关套件 32油门控制连杆(塑料连杆旋转件)33钥匙、阻风门及喇叭套件 34动力升降-长轴(序列号0C159200至0D181999)35附件 36适配板/换挡轴 37化油器总成 38夹紧支架(拇指螺丝设计-序列号0D181999及以下)39外罩 40曲轴、活塞与连杆 41气缸体与曲轴箱总成 42驱动轴外壳总成 43电气箱组件 44端盖与排气罩 45飞轮、定子及启动电机 46燃油泵 47齿轮箱（驱动轴）48齿轮箱（推进轴）49喷射组件 50喷泵总成 51钥匙、阻风门及喇叭套件 52手动倾斜组件(设计II型)53手动倾斜设计I型-长轴序列号0C159200及以上 54杂项信息 55喷油组件 56动力升降-长轴(序列号0C159200至0D181999)57动力升降(序列号0D182000至0G357070)(黑色插头)58动力升降(序列号0G357070及以上)(黄色注油塞)59启动电机总成 60启动器回绕装置 61转向手柄总成 62旋转支架 63油门控制连杆(金属连杆旋转件)64油门控制连杆(塑料连杆旋转件)65舵柄适配套件(JET 30)66艉板支架(序列号0D181999及以下)67艉板/夹紧支架(序列号0D182000及以上)68升降开关套件

图 1附件 ACCESSORIES

零件编号	中文名称	英文名称	数量
62351A10	蓄电池充电套件	CHARGING KIT Battery	1
828155A2	化油器防冰套件	ANTI-ICING KIT Carburetor	1
828155A7	化油器防冰套件	ANTI-ICING KIT Carburetor	1
825294A2	罩装启动按钮改装套件	CONVERSION KIT Cowl Mounted Start Button	1
812497A2	二极管总成(双引擎)	DIODE ASSEMBLY (DUAL ENGINE)	1
898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
822462A1	电启动改装套件	CONVERSION KIT Electric Start	1
822462A4	起动机转换套件	CONVERSION KIT Starter Motor	1
812432A5	发动机安装套件(夹紧螺钉安装)	ENGINE MOUNTING KIT (CLAMP SCREW MOUNTING)	1
812432T5	发动机安装套件	MOUNTING KIT Engine	1
824072A3	延长套件(22.5)	EXTENSION KIT (22.5)	1
824072A4	延长套件(22.5)	EXTENSION KIT (22.5)	1
824072A3	延长套件(22.5)	EXTENSION KIT (22.5)	1
44357A2	冲洗附件	FLUSHING ATTACHMENT	1
44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
827387A2	马力限制套件	HORSEPOWER RESTRICTOR KIT	1
827606A2	马力限制套件	HORSEPOWER RESTRICTOR KIT	1
15000A1	钥匙开关套件远程点火	KEY SWITCH KIT Remote Ignition	1
15000A7	钥匙开关套件远程点火	KEY SWITCH KIT Remote Ignition	1
19674A2	开关/拉绳套件	SWITCH/LANYARD KIT	1
19674Q2	开关/拉绳套件	SWITCH/LANYARD KIT	1
95845A5	照明调节器套件	REGULATOR KIT Lighting	1
88334A2	防腐电极套件	MERCATHODE KIT	1
8M0180081	防腐电极套件	MERCATHODE KIT	1
86300A5	防腐电极监测器	MERCATHODE MONITOR	1
813960A4	开关总成	SWITCH ASSEMBLY	1
822573A11	动力升降仪表传感器套件	SENDER KIT Power Trim Gauge	1
822573A12	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
822344A6	动力调整套件	POWER TRIM KIT	1
822344A11	动力调整套件	POWER TRIM KIT	1

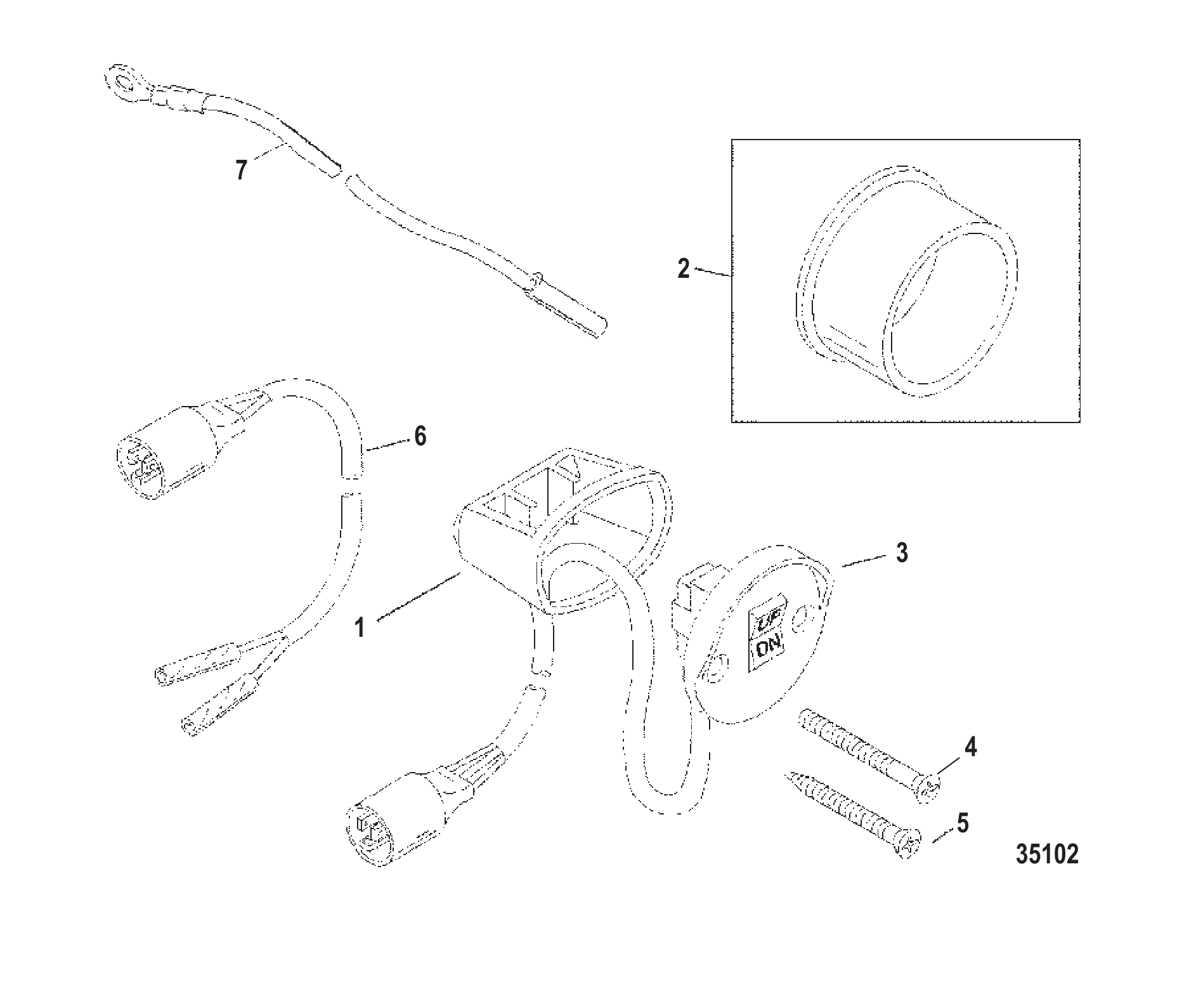

18286A18	升降开关套件(10.00英尺)	SWITCH KIT Trim (10.00 Feet)	1
826557A1	遥控器安装套件	ATTACHING KIT Remote Control	1
824477A3	遥控与加浓线束套件	HARNESS KIT Remote Control And Enrichener	1
822465A1	转向支架总成	BRACKET ASSEMBLY Steering	1
822465A2	转向支架总成	BRACKET ASSEMBLY Steering	1
816667A2	转向支架总成	BRACKET ASSEMBLY Steering	1
821455A8	30/40二冲程舵柄套件	TILLER HANDLE KIT 30/40 2-Stroke	1
821455T8	舵柄套件	TILLER HANDLE KIT	1
821455A9	30/40二冲程舵柄套件	TILLER HANDLE KIT 30/40 2-Stroke	1
821455T9	ORD 821455T 8	ORD 821455T 8	1

图 2喷射组件 JET COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	821889A31	转速限制器	REV LIMITER	1
2	823147A3	转速限制器线束总成	HARNESS ASSEMBLY Rev Limiter	1
3	826580	支架	BRACKET	1
4	76213	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
5	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
6	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
7	801402	润滑脂套装	GREASE KIT	1
7	30500A2	润滑脂套装	GREASE KIT	1
8	37721	密封件	SEAL	1
8	37721001	密封件@2	SEAL @2	1
9	77177A1	水泵底座总成	BASE ASSEMBLY Water Pump	1
10	79831	油封	SEAL Oil	1
11	90562	密封件(1.254 x .312)	SEAL (1.254 x .312)	1
12	35973	定位销	PIN Dowel	2
13	19553	衬垫	GASKET	1
14	54705	面板	FACE PLATE	1
14	32768	面板	FACEPLATE	1
15	19551	衬垫	GASKET	1
16	89983	叶轮	IMPELLER	1
16	89983T	叶轮	IMPELLER	1
17	56662	键	KEY	1
17	8M0032837	键@5	KEY @5	1
18	77822A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
19	48753	嵌件	INSERT	1
20	38452	密封件	SEAL	1
21	38453	垫圈	WASHER	1
22	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
23	13438	螺母(.250-28)	NUT (.250-28)	3
23	8267119	螺母(.250-28)	NUT (.250-28)	3
24	20273	O型圈 (驱动轴)	O-RING (DRIVE SHAFT)	1
-	85491A90	衬垫套件	GASKET SET	1
-	79831A1	密封套件	SEAL KIT	1
-	77177A3	水泵套件	WATER PUMP KIT	1

图 3燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

图 4喷泵总成 JET PUMP ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	80140040	喷泵总成	JET PUMP ASSEMBLY	1
-	80140140	喷泵总成	JET PUMP ASSEMBLY	1
1	80141140	泵壳	HOUSING Pump	1
2	827490	润滑油管	HOSE Lube	1
3	80141440	叶轮	IMPELLER	1
3	855708T40	叶轮	IMPELLER	1
4	80141240	进气壳体	HOUSING Intake	1
5	8271881	衬套	LINER	1
5	827188T1	衬套	LINER	1
6	80141340	驱动轴	DRIVESHAFT	1
7	827190	螺母	NUT	1
8	827189	套筒	SLEEVE	1
9	801405625	叶轮键	KEY Impeller	1
10	801404625	叶轮垫片	SHIM Impeller	8
11	801403625	锁紧垫圈	TAB WASHER	1
12	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
13	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
14	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	801410	电缆支架	BRACKET Cable Support	1
17	67980	螺母(.312-18)	NUT (.312-18)	1
17	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
18	808718	螺柱	STUD	2
19	801406	定位销	PIN Dowel	2
20	801418	水泵支撑环	RING SUPPORT Water Pump	1
21	801408	水泵底座衬垫	GASKET Water Pump Base	1
22	33778	螺柱 (1/4 x 2-5/8英寸)	STUD (1/4 X 2-5/8 IN.)	3
23	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
24	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
24	8M0214963	垫圈	WASHER	1
25	65791	垫圈	WASHER	2
26	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
26	8M0204653	螺母	NUT	2

图 5外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	9378M	顶盖总成	TOP COWL ASSEMBLY	1
2	95400M	侧后标贴套装	DECAL SET Side And Rear	1
3	95401M	前贴花	DECAL Front	1
4	91653M	密封件	SEAL	1
5	95587M	密封件	SEAL	1
6	94655M	支架	HOLDER	1
7	94656M	挂钩	HOOK	1
8	814489M	铆钉	RIVET	4
9	81202M	换挡指示贴花	DECAL Shift Indicator	1
10	9394M	下机罩	BOTTOM COWL	1
11	851902M	停机开关总成	SWITCH ASSEMBLY Stop	1
12	97756M	止动器	STOPPER	1
13	852837	盖帽	CAP	1
14	83277M	护孔环	GROMMET	1
15	94730M	侧面标贴	DECAL Side	2
16	91772M	螺栓	BOLT	1
17	82214M	垫圈	WASHER	1
17	881379	垫圈	WASHER	1
17	82214M	垫圈	WASHER	1
18	81794M	垫圈	WASHER	1
18	804339	垫圈	WASHER	1
18	81794M	垫圈	WASHER	1
19	84914M	卡箍	CLAMP	1
19	84914001	杠杆	LEVER	1
20	81949M	衬套	BUSHING	2
21	80033M	支架	HOLDER	1
22	95402M	杠杆	LEVER	1
23	81869M	垫圈	WASHER	1
24	84669M	护孔环	GROMMET	1
25	81669M	工具包	TOOL KIT	1
25	803581	工具包	TOOL KIT	1

图 6驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	400035	螺丝 M5×16(配合参考号20使用)	SCREW (M5 x 16) (Use W/Reference #20)	2
1	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
2	96248A1	水管壳体总成	HOUSING ASSEMBLY WATER TUBE	1
3	25329	水管密封件	SEAL WATER TUBE	1
4	96247	水管隔套	SPACER WATER TUBE	1
4	889715	水管隔套	SPACER Water Tube	1
5	99702A6	适配板总成	ADAPTER PLATE ASSEMBLY	1
5	99702A7	适配板总成	ADAPTER PLATE ASSEMBLY	1
6	416704	适配板垫片	GASKET ADAPTOR PLATE	1
6	41670006	适配板垫片	GASKET Adaptor Plate	1
7	158662	适配板密封件	SEAL ADAPTOR PLATE	1
8	41211	上支架托架	BRACKET UPPER MOUNT	2
9	40011128	螺丝 M6×20不锈钢(不配合参考号10使用)	SCREW (M6 x 20) Stainless Steel (Use Without Reference #10)	2
9	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	2
9	40007128	螺丝 M6×20(配合参考号10使用)	SCREW (M6 x 20) (Use With Reference #10)	2
10	29245	垫圈（0.281 x 0.500 x 0.060）不锈钢（适用处使用）	WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE)	2
10	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
11	85116	水管(短轴)	TUBE Water (SHORT SHAFT)	1
11	86292	水管(长轴)	TUBE Water (LONG SHAFT)	1
12	9097A2	驱动轴壳体总成(短轴)(黑色)	HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (BLACK)	1
12	9097T5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9098A2	驱动轴壳体总成(长轴)(黑色)	HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (BLACK)	1
12	9098T5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9097A3	驱动轴壳体总成(短轴)(灰色)	HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (GRAY)	1
12	9097T6	驱动轴壳体-灰色	DRIVESHAFT HSG-GR	1
12	9098A3	驱动轴壳体总成(长轴)(灰色)	HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (GRAY)	1
12	9098A6	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9097A4	驱动轴壳体总成(短轴)(TRACKER)	HOUSING ASSEMBLY Driveshaft (SHORT) (TRACKER)	1
12	9098A4	驱动轴壳体总成(长轴)(TRACKER)	HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER)	1
12	9098T5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
13	433373	驱动轴壳体垫片	GASKET DRIVE SHAFT HOUSING	1
13	433374	驱动轴壳体垫片	GASKET Drive Shaft Housing	1
14	14534	怠速泄压盖	COVER IDLE RELIEF	1
15	14621	盖衬垫	GASKET COVER	1
16	14742	盖螺钉(.250-20 x 1.25)	SCREW (.250-20 x 1.25) COVER	1
17	4000360	驱动轴壳体至缸体螺钉(60mm)	SCREW DRIVE SHAFT HOUSING TO BLOCK (60 MM)	6
17	1993870	螺钉(M8 x 70)	SCREW (M8 x 70)	6
18	4002317	驱动轴壳体螺钉垫圈(8.90 X 17.0 X 1.9不锈钢)	WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW	6
19	19583	衬垫(按需使用)	GASKET (USE WHERE APPLICABLE)	1
19	433373	衬垫	GASKET	1
20	30164	壳体螺钉垫圈(.192 x .375 x .0312不锈钢)	WASHER (.192 x .375 x .0312) Stainless Steel HOUSING SCREW	2
21	17258T	配平盖(黑色)	TRIM COVER (BLACK)	1
21	17258T6	配平盖(灰色)	TRIM COVER (GRAY)	1
21	17258T	配平盖	TRIM COVER	1
21	17258F4	配平盖(追踪器型)	TRIM COVER (TRACKER)	1
21	17258T	配平盖	TRIM COVER	1
22	40011128	配平盖螺钉(M6 x 20不锈钢)	SCREW (M6 x 20) Stainless Steel TRIM COVER	4
22	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
23	401196	配平盖螺钉螺母(M6)	NUT (M6) TRIM COVER SCREW	4
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

图 7手动倾斜组件(设计II型) MANUAL TILT COMPONENTS (DESIGN II)

REF	零件编号	中文名称	英文名称	数量
-	830050A2	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1
1	813427A1	减震杆总成	SHOCK ROD ASSEMBLY	1
1	8M0118572	减震杆套件	SHOCK ROD KIT	1
2	813430A1	配平记忆活塞总成	PISTON ASSEMBLY Trim Memory	1
2	893903A01	活塞套件	PISTON KIT	1
3	809872A1	气缸O型圈套件	O-RING KIT Cylinder	1
3	893917A01	O型圈修理包	REBUILD KIT O-Ring	1
4	NSS		NOT SOLD SEPARATE O-RING	2
5	811224A1	气缸总成	CYLINDER ASSEMBLY	1
5	893918A01	气缸套件	CYLINDER KIT	1
6	813433A2	螺钉与密封套件	SCREW AND SEAL KIT	1
6	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
7	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
7	893920A01	蓄能器套件	ACCUMULATOR KIT	1
8	813455A4	阀体总成	VALVE BODY ASSEMBLY	1
8	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
9	813457A3	凸轮套件	CAM KIT	1
9	893923A01	凸轮套件	CAM KIT	1
10	809881A1	速度阀套件	VALVE KIT Velocity	1
10	893924A01	阀套件	VALVE KIT	1
11	809882A1	维修套件	REPAIR KIT	1
11	893925A01	维修套件	REPAIR KIT	1
-	809880A2	O型圈套件	O-RING KIT	1
-	893922A01	O型圈套件	O-RING KIT	1
12	19607	销	PIN	2
13	821539	三叶销	PIN Trilobe	2

图 8启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	74968	贯穿螺栓	BOLT THRU	2
6	N.S.S.	贯穿螺栓 (不单独销售)	Not Sold Separate THRU BOLT	1
7	79216	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	电刷架	HOLDER BRUSH	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
11	15386	换向器端盖	END CAP COMMUTATOR	1
11	15386001	端盖	END CAP	1

图 9旋转支架 SWIVEL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	8831A6	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A7	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A14	ORD 3402-8831A13	ORD 3402-8831A13	1
1	8831A5	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831T08	旋转支架-黑色	BRKT-SWIVEL-BLACK	1
1	8831A9	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A10	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	润滑脂接头	FITTING Grease	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	42124A2	副驾驶板总成	PLATE ASSEMBLY Co-Pilot	1
4	421402	轴承	BEARING	1
5	420801	推力轴承-上	BEARING Thrust - Upper	1
5	42080T01	轴承	BEARING	1
6	42139	衬套	BUSHING	1
7	42077	密封件	SEAL	1
8	42373	止推垫片	THRUST WASHER	1
9	421301	弹簧	SPRING	1
10	420824	支架	BRACKET	1
10	42082T04	支架	BRACKET	1
11	420811	销	PIN	1
12	421411	倒挡锁钩	HOOK Reverse Lock	1
12	8M0075731	倒挡钩	HOOK Reverse	1
13	42083	枢轴销	PIN Pivot	1
13	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
14	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
15	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
16	NSS	不单独销售	NOT SOLD SEPARATE	1
17	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
18	42128	弹簧	SPRING	1
19	42085F4	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
19	42085F2	提手	CARRYING HANDLE	1
19	42085F5	提手	CARRYING HANDLE	1
19	42085F3	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
20	42127	弹簧	SPRING	1
21	13194	挡圈	RING Retaining	2
22	821961	杆	ROD	1
23	8165621	圆盘	DISC	2
24	821958A1	板组件套件	PLATE KIT	1
25	82130014	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
26	821957	制动板	BRAKE PLATE	1
27	29330	垫圈	WASHER	1
28	821959	手柄	HANDLE	1
29	34863	螺母 (.375-24)	NUT (.375-24)	1
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
-	8237011	副驾驶贴花	DECAL Co-Pilot	1

图 10动力升降(序列号0D182000至0G357070)(黑色插头) POWER TRIM (S/N-0D182000 THRU 0G357070)(BLACK PLUG)

REF	零件编号	中文名称	英文名称	数量
-	822870A1	泵总成	PUMP ASSEMBLY	1
-	830150T2	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
01	8134271	减震杆套件	SHOCK ROD KIT	1
01	893943A01	减震杆套件	SHOCK ROD KIT	1
02	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
03	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
04	813432A3	气缸密封套件	SEAL KIT Cylinder	1
05	810776	记忆活塞套件	PISTON KIT Memory	1
06	811228	气缸套件	CYLINDER KIT	1
06	893904T01	气缸总成	CYLINDER ASSEMBLY	1
07	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
07	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
08	8116706	泵/歧管套件	PUMP/MANIFOLD KIT	1
08	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
09	823180A1	摇臂套件	ROCKER ARM KIT	1
09	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
10	813436	螺钉套件	SCREW KIT	1
11	811671	驱动轴	DRIVESHAFT	1
12	811672A3	O型圈套件	O-RING KIT	1
12	811672A4	O型圈套件	O RING KIT	1
13	811673	储液罐	RESERVOIR	1
13	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
14	813435	塞套件	PLUG KIT	1
14	8134351	堵头	PLUG	1
15	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
15	893929A01	安全阀套件	VALVE KIT Relief	1
16	811677	储液罐盖套件	CAP KIT Reservoir	1
16	809885A1	电机套件	MOTOR KIT	1
17	813446	螺钉	SCREW	1
18	811674	储液罐/马达	RESERVOIR/MOTOR	1
18	809885A1	电机套件	MOTOR KIT	1
19	811675	电枢	ARMATURE	1
20	811676	止推垫片套件	THRUST WASHER KIT	1
21	19607	销	PIN	1
22	821539	三叶销	PIN Trilobe	2
23	822869	销	PIN	1
23	822869001	锚销	PIN Anchor	1

图 11舵柄适配套件(JET 30) TILLER HANDLE ADAPTOR KIT (JET 30)

REF	零件编号	中文名称	英文名称	数量
-	850000A1	30号喷嘴适配器套件	ADAPTER KIT 30 JET	1
1	832001A5	油门/换挡线缆总成	CABLE ASSEMBLY Throttle/Shift	1
2	85552	护套	BOOT	1
2	85552001	护套	BOOT	1
3	812615	固定座	RETAINER	1
4	812612	螺柱	STUD	1
5	812616	滑块	SLIDER	1
6	832055	衬套	BUSHING	1
7	812607	环	RING	1
8	35045	螺母(.250-28)	NUT (.250-28)	1
8	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
9	54457	J型卡扣	J CLIP	1
10	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
10	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
11	828093	安装板	PLATE	1
12	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
13	17406	隔套	SPACER	1
14	816086	衬套	BUSHING	1
15	805543	螺钉 (1.25英寸)	SCREW (1.25 inch)	1
16	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
17	828094	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
18	72734	紧定螺丝(#10-32 x .310)	SET SCREW (#10-32 x .310)	1
19	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1

图 12动力升降(序列号0G357070及以上)(黄色注油塞) POWER TRIM (S/N-0G357070 and UP)(YELLOW FILL PLUG)

REF	零件编号	中文名称	英文名称	数量
-	830150A1	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
-	830150T2	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	813427A3	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	NSS		NOT SOLD SEPARATE O-ring	2
4	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
4	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
5	811228A1	气缸总成	CYLINDER ASSEMBLY	1
5	893904T01	气缸总成	CYLINDER ASSEMBLY	1
6	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
6	893905A02	阀套件	VALVE KIT	1
7	809874A1	泵总成	PUMP ASSEMBLY	1
7	893906A02	泵总成	PUMP ASSEMBLY	1
8	809885A1	电机套件	MOTOR KIT	1
8	893907A02	电机套件	MOTOR KIT	1
9	8134351	堵头	PLUG	1
10	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
10	893929A01	安全阀套件	VALVE KIT Relief	1
11	809875A1	歧管套件	MANIFOLD KIT	1
11	893909A02	歧管套件	MANIFOLD KIT	1
12	809876A1	螺丝套件(电机)	SCREW KIT (MOTOR)	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	O型圈套件(完整调整)	O-RING KIT (COMPLETE TRIM)	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	19607	销	PIN	1
18	822869	销	PIN	1
18	822869001	锚销	PIN Anchor	1

图 13杂项信息 MISCELLANEOUS INFORMATION

零件编号	中文名称	英文名称	数量
814698	零件手册 40马力/30喷射型	PARTS MANUAL 40 HP/30 JET	1
814323A90	贴花套件	DECAL SET	1
814323A94	贴花套件	DECAL SET	1
814323A96	贴花套件	DECAL SET	1
814323A96	贴花套件	DECAL SET	1
822166A92	贴花套件	DECAL SET	1
810462A94	贴花套件	DECAL SET	1
810462A97	贴花套件	DECAL SET	1
810462A97	贴花套件	DECAL SET	1
826324A95	贴花套件	DECAL SET	1
826324A97	贴花套件	DECAL SET	1
826324A97	贴花套件	DECAL SET	1
815626A93	贴花套件	DECAL SET	1
824732A94	贴花套件	DECAL SET	1
824732A96	贴花套件	DECAL SET	1
826323A95	贴花套件	DECAL SET	1
826323A96	贴花套件	DECAL SET	1
826323A96	贴花套件	DECAL SET	1
10118970	用户手册	OWNERS MANUAL	1
10134970	用户手册	OWNERS MANUAL	1
10160970	用户手册	OWNERS MANUAL	1

图 14启动器回绕装置 STARTER REWIND

REF	零件编号	中文名称	英文名称	数量
1	20166	螺母(左旋螺纹)	NUT (LEFT HAND THREAD)	1
2	61004	锁紧垫圈	TAB WASHER	1
3	186471	启动器壳体	HOUSING Starter	1
4	44255A1	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
5	44508	启动棘爪	PAWL Starter	1
6	54523	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	3
7	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
7	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
8	45210	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	2
9	20190	螺母 (#10-32)	NUT (#10-32)	2
9	8267086	螺母 (#10-32)	NUT (#10-32)	2
10	61002	安装板	PLATE	1
11	39502A1	弹簧	SPRING	1
11	39502T02	回卷弹簧	SPRING-RECOIL	1
12	87649	衬套	BUSHING	1
13	87651	弹簧	SPRING	1
14	87706	E型卡环	E RING	1
15	63061	隔套	SPACER	1
16	35559	垫圈	WASHER	1
17	94962	杠杆	LEVER	1
18	20160	波形垫圈	WAVE WASHER	1
19	87656	滑轮轴	SHEAVE SHAFT	1
20	12066A9	绳索	ROPE	1
20	12066Q10	启动绳@2	ROPE-STARTER@2	1
20	47341A1	手动/应急启动绳和手柄套件 (用于手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)	1
20	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
21	85174A1	手柄总成	HANDLE ASSEMBLY	1
22	188881	联锁电缆	CABLE Interlock	1
23	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	1
24	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
25	37998	垫圈	WASHER	1
26	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
26	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
27	761401	弹簧	SPRING	1
28	428201	凸轮	CAM	1
29	76138	螺丝(.312-18 x 1.120)	SCREW (.312-18 x 1.120)	1
30	79371	执行器	ACTUATOR	1
31	27769	开口销	COTTER PIN	2
31	26811	开口销	COTTER PIN	2
32	76137	螺丝(1-5/8英寸)	SCREW (1-5/8 IN.)	1
33	76139	弹簧	SPRING	1
34	42690	衬套	BUSHING	1
34	8M0183792	绳索衬套	ROPE BUSHING	1
35	818853	挡圈	RING Retaining	1
36	813544A1	支架总成	REST ASSEMBLY	1
36	813544	支架	REST	1
37	813641	密封件	SEAL	1
38	8168772	注油球	PRIMER BULB	1
38	858763	注油球	PRIMER BULB	1
39	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
39	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
40	89591A5	线束总成	HARNESS ASSEMBLY	1
41	36002	开口销	COTTER PIN	2
42	11149A2	线缆总成(6.00英寸)(非手柄)	CABLE ASSEMBLY (6.00 Inches) (NON-HANDLE)	1
43	812617	飞轮盖	COVER Flywheel	1
44	812611	盖螺丝垫片	SPACER Cover Screw	3
45	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3

图 15飞轮、定子及启动电机 FLYWHEEL, STATOR AND STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	45907	黄色塞	PLUG Yellow	1
2	22339	螺母(0.625-18)	NUT (.625-18)	1
2	8M0214915	螺母	NUT	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	5454A62	定子	STATOR	1
4	832074A6	定子套件	STATOR KIT	1
4	5454A63	定子	STATOR	1
4	832075A20	点火定子套件	IGNITION STATOR KIT	1
4	9710A46	定子	STATOR	1
4	832074A6	定子套件	STATOR KIT	1
4	818535A15	定子	STATOR	1
4	832075A20	点火定子套件	IGNITION STATOR KIT	1
4	9710A45	定子	STATOR	1
5	8722A16	飞轮	FLYWHEEL	1
5	8722A17	飞轮	FLYWHEEL	1
5	8722A13	飞轮	FLYWHEEL	1
5	8722A15	飞轮	FLYWHEEL	1
5	8722T19	飞轮	FLYWHEEL	1
6	32417	螺钉(.250-28 x .625)	SCREW (.250-28 x .625)	8
7	88755	棘轮	RATCHET	1
8	68997	螺钉(.312-24 x .750)	SCREW (.312-24 x .750)	8
9	75840	螺钉 (#10-24 x 0.880)	SCREW (#10-24 x .880)	4
10	96452A5	触发器总成	TRIGGER ASSEMBLY	1
11	73521	启动电机总成	STARTER MOTOR ASSEMBLY	1
11	898265005	启动马达	STARTER MOTOR	1
12	57247	停机开关	STOP	2
12	8M0043376	停机开关	STOP	2
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	88439A20	电线	WIRE	1
15	64015	螺母 (.250-20)	NUT (.250-20)	1
16	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
16	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
18	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	56774	隔套	SPACER	AR

图 16气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8694A3	气缸体	CYLINDER BLOCK	1
2	66021	螺柱	STUD	8
3	85500	曲轴箱至气缸体定位销(.187 x .530)	PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK	2
3	8M0084726	定位销	PIN Dowel	2
4	89275	泄放接头	FITTING BLEED DRAIN	1
5	9912688	泄放管(36英寸散装)	TUBING (36.00 Inches Bulk) BLEED DRAIN	1
6	68424	泄放软管固定夹	CLAMP BLEED HOSE ATTACHING	2
7	88780	泄放示位管弯头	ELBOW Tell-Tale Tubing BLEED DRAIN	1
7	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	1
8	73280	曲轴箱至气缸体螺钉(1-1/2英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1-1/2")	2
9	76621	曲轴箱至气缸体螺钉(1英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1")	8
10	70726	簧片阀组	REED BLOCK	1
11	35836	簧片进气阀	REED INLET VALVE	2
12	22215	簧片压板	RETAINER REED	2
13	28430	螺钉(#6-32 x .25)	SCREW (#6-32 x .25)	4
14	35739	簧片阀组至曲轴箱垫片	GASKET REED BLOCK TO CRANKCASE	1
14	357391	衬垫	GASKET	1
15	72961	曲轴箱滚珠轴承(下)	BEARING Ball CRANKCASE (LOWER)	1
16	56397	曲轴箱油封(下)	SEAL Oil CRANKCASE (LOWER)	1
17	31412A1	垫片	SHIM	AR
18	6352A1	上轴承壳体总成	HOUSING ASSEMBLY Bearing UPPER	1
19	72961	上轴承壳体滚珠轴承	BEARING Ball UPPER BEARING HOUSING	1
20	31410	上轴承壳体滚柱轴承	BEARING Roller UPPER BEARING HOUSING	1
21	66301	上轴承壳体油封	SEAL Oil UPPER BEARING HOUSING	1
22	20863	上轴承壳体O型圈	O-RING UPPER BEARING HOUSING	1
23	34598	压紧夹	CLAMP HOLD DOWN	2
24	36205	螺钉(#10-24 x .563)	SCREW (#10-24 x .563)	4
25	34731	压环弹簧夹	SPRING HOLD DOWN RING CLAMP	4
26	39002	螺钉(1/2英寸)	SCREW (1/2")	4
27	35658	换气口盖	COVER TRANSFER COVER	1
28	35657	换气口盖垫片	GASKET TRANSFER PORT COVER	1
29	20720	螺钉(.190-24 x .62)	SCREW (.190-24 x .62)	2
30	7070A1	气缸体盖总成	COVER ASSEMBLY CYLINDER BLOCK	1
31	66019	橡胶支座-盖板至上罩	MOUNT RUBBER - COVER TO TOP COWL	2
32	20202	橡胶支座锁紧垫圈	LOCKWASHER RUBBER MOUNT	2
33	22053	螺母(.312-24)橡胶支座至盖板	NUT (.312-24) RUBBER MOUNT TO COVER	2
34	416151	盖板至气缸体衬垫	GASKET COVER TO CYLINDER BLOCK	1
35	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	4
35	8M0214943	螺钉	SCREW	4
36	416141	气缸体至挡板衬垫	GASKET CYLINDER BLOCK TO BAFFLE PLATE	1
37	46234	挡板-排气歧管	PLATE BAFFLE - EXHAUST MANIFOLD	1
38	416141	衬垫	GASKET	1
39	46171	排气歧管盖	COVER EXHAUST MANIFOLD	1
40	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	6
-	78139A80	衬垫套件	GASKET SET
-	87096A79	动力头总成	POWERHEAD ASSEMBLY	1

图 17化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	9503A20	化油器 (6)(WMC-66)	CARBURETOR (6)(WMC-66)	1
1	9503T21	化油器 (WMC-78A) (6)	CARBURETOR (WMC-78A) (6)	1
1	9266A21	化油器 (8)(WMC-74)	CARBURETOR (8)(WMC-74)	1
1	9266T22	化油器	CARBURETOR	1
1	9266T22	化油器 (8)(WMC-79A)	CARBURETOR (8)(WMC-79A)	1
1	8846T20	化油器 (WMC-61)	CARBURETOR (WMC-61)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	8846T25	化油器 (WMC-80A) (9.9)	CARBURETOR (WMC-80A) (9.9)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	9726T11	化油器 (15)(WMC-63)	CARBURETOR (15)(WMC-63)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器 (WMC-77) (15)	CARBURETOR (WMC-77) (15)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器 (WMC-83) (15)	CARBURETOR (WMC-83) (15)	1
2	9473	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	804707	轴	SHAFT	1
4	8M0138645	螺钉	SCREW	1
5	804996	弹簧	SPRING	1
6	813022	油门轴	SHAFT Throttle	1
6	19267	油门轴	SHAFT Throttle	1
7	F10167	环	RING	1
8	9164	燃油杯	BOWL Fuel	1
9	824401	浮子杆	LEVER Float	1
10	91691	浮子	FLOAT	1
11	F10064	轴	SHAFT	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	803861	进油针阀	VALVE Inlet Needle	1
14	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
14	5317	量孔(.046)	JET (.046)	1
14	6246	量孔(.048)	JET (.048)	1
14	6207	量孔(.072)	JET (.072)	1
15	9171	堵头	PLUG	1
16	813618	盖板	COVER	1
16	823648	膜片盖	COVER Diaphragm	1
17	9697	螺钉	SCREW	4
18	15827A1	本体	BODY	1
18	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
19	9643	螺钉	SCREW	5
20	9699	安装板	PLATE	1
21	44426	衬垫	GASKET	1
22	9696	螺钉	SCREW	2
23	96371	燃油泵盖	COVER Fuel Pump	1
23	9637	盖板	COVER	1
24	9633	衬垫	GASKET	1
25	9762	堵头	PLUG	1
26	192061	化油器衬垫	GASKET Carburetor	1
27	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
28	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
29	8237072	维修套件	REPAIR KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 18转向手柄总成 STEERING HANDLE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	60850A6	转向手柄总成	HANDLE ASSEMBLY Steering COMPLETE	1
1	60854	油门手柄握把	GRIP HANDLE - THROTTLE	1
2	62251	油门手柄端盖	CAP HANDLE THROTTLE	1
3	66393	轴	SHAFT	1
4	66394A1	油门轴手柄总成	HANDLE ASSEMBLY THROTTLE SHAFT	1
5	46152	油门手柄销	PIN THROTTLE HANDLE	1
6	62252	油门手柄至转向臂垫圈	WASHER THROTTLE HANDLE TO STEERING ARM	1
7	60850	转向手柄臂	ARM STEERING HANDLE	1
8	60852	油门轴齿轮	GEAR THROTTLE SHAFT	1
9	27088	球齿轮至油门轴销	PIN BALL GEAR TO THROTTLE SHAFT	1
10	48003	转向手柄枢轴至支架	PIVOT STEEIRNG HANDLE TO BRACKET	2
11	48002015	手柄枢轴至支架垫片(.015)	SHIM HANDLE PIVOT TO BRACKET (.015)	AR
12	96138	螺钉(.250-28 x .620)手柄至臂支架	SCREW (.250-28 x .620) HANDLE TO ARM BRACKET	2
13	60857A2	万向节总成	UNIVERSAL JOINT ASSEMBLY	1
14	60852	万向节齿轮	GEAR UNIVERSAL JOINT	1
15	27088	球齿轮至万向节销	PIN BALL GEAR TO UNIVERSAL JOINT	1
16	96130A1	转向臂支架	BRACKET STEERING ARM	1
17	62233	螺钉(#10-16 x .625)定位弹簧至支架	SCREW (#10-16 x .625) DETENT SPRING TO BRACKET	2
18	72847	定位弹簧-转向手柄	SPRING DETENT - STEERING HANDLE	2
19	30164	垫圈(.192 x .375 x .0312)不锈钢定位弹簧螺钉	WASHER (.192 x .375 x .0312) Stainless Steel DETENT SPRING SCREW	4

图 19喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	830889A4	油箱总成	TANK ASSEMBLY	1
2	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
3	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
5	814449A3	盖总成	CAP ASSEMBLY	1
6	42999	衬垫	GASKET	1
6	42999T	衬垫	GASKET	1
7	856156A2	开关总成	SWITCH ASSEMBLY	1
7	856156T02	开关总成	SWITCH ASSEMBLY	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
8	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
9	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
10	855362	护孔环	GROMMET	3
10	855362001	护孔环	GROMMET	3
11	855364	衬套	BUSHING	3
-	8742A20	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
-	8742A22	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
12	87421	油箱	TANK	1
13	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
13	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
14	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
15	43298A2	盖总成	CAP ASSEMBLY	2
16	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
17	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
18	99802	管	TUBE	1
19	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
20	12335A1	支架套件	BRACKET KIT	1
21	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

图 20艉板/夹紧支架(序列号0D182000及以上) TRANSOM/CLAMP BRACKET (S/N 0D182000 and ABOVE)

REF	零件编号	中文名称	英文名称	数量
1	822868A1	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	8M0084195	支架-卡箍-黑色	BRACKET-CLAMP-BLK	1
1	822868A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	822866A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	822866T04	艉板支架-左舷	BRACKET Transom - Port	1
2	822866A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	822866A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99604	槽销	PIN Groove	1
5	822867F1	夹箍支架	CLAMP BRACKET	1
5	822867F2	夹箍支架	CLAMP BRACKET	1
6	822865F2	艉板支架	BRACKET Transom	1
6	822865T05	艉板支架-右舷	BRACKET Transom - Starboard	1
6	822865F3	艉板支架	BRACKET Transom	1
6	822865F4	艉板支架	BRACKET Transom	1
7	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
7	893704T01	倾斜锁杆	LEVER Tilt Lock	1
7	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
7	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
7	19618A5	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
8	99622	弹簧	SPRING	1
9	65830	尼龙衬套	NYLINER	1
10	812708	弹簧	SPRING	1
11	812709T	旋钮	KNOB	1
11	812709	旋钮	KNOB	1
11	812709T6	旋钮	KNOB	1
11	812709	旋钮	KNOB	1
11	812709F1	旋钮	KNOB	1
11	812709	旋钮	KNOB	1
12	99615	槽销	PIN Groove	1
13	19619	垫圈	WASHER	2
14	18486F5	锚支架	BRACKET Anchor	1
14	18486A08	支架套件锚	BRACKET KIT Anchor	1
14	18486F6	锚支架	BRACKET Anchor	1
14	18486A08	支架套件锚	BRACKET KIT Anchor	1
14	18486F7	锚支架	BRACKET Anchor	1
15	818298A1	阳极套件	ANODE KIT	1
15	818298Q1	阳极套件	ANODE KIT	1
16	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
16	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
18	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
18	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
19	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
20	400635	螺母 (M8)	NUT (M8)	2
20	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
21	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
21	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
22	821461	弹簧	SPRING	1
23	19614	倾斜管	TILT TUBE	1
23	8M0041938	倾斜管	TILT TUBE	1
24	826164	螺母 (.875-14)	NUT (.875-14)	2
24	8M0231351	锁紧螺母	NUT Lock	2
25	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
26	818884	垫圈	WASHER	2
27	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
28	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
29	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
29	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
30	8M0027784	螺母	NUT	4
30	82671117	螺母(.500-20)	NUT (.500-20)	4
31	1938525	连接杆	LINK	1
31	8M0084737	连接杆	LINK	1
32	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
32	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
33	812707	衬套	BUSHING	1
34	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
34	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
35	99611	波形垫圈	WAVE WASHER	1
36	19621	倾斜旋钮	TILT KNOB	1
36	8M0007469	倾斜旋钮	KNOB Tilt	1
37	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
38	812432F5	安装支架	MOUNTING BRACKET	1
38	812433F5	安装支架	MOUNTING BRACKET	1
39	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
40	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
41	134371	螺母 (.375-24)	NUT (.375-24)	4
41	862903	螺母 (.375-24)	NUT (.375-24)	4
42	821722	垫片	SHIM	4
43	812434A2	T型手柄螺母 (动力升降)	NUT T Handle (POWER TRIM)	1
44	19624A1	密封套件 (电动/手动带遥控)	SEAL KIT (ELECTRIC/MANUAL W/RC)	1
45	26550	卡箍	CLAMP	1
45	22740	卡扣	CLIP	1
46	69205	C形垫圈	C WASHER	1
46	8M0084613	C形垫圈	C-WASHER	1
47	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
47	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1

图 21齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539A6	齿轮箱总成	GEAR HUSING ASSEMBLY	1
-	9539A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539A7	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539T15	齿轮箱短-BL	GEAR HSG SHORT-BL	1
-	9539A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539T18	齿轮箱长-BLA	GEAR HSG-LONG-BLA	1
-	9539A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539T18	齿轮箱长-BLA	GEAR HSG-LONG-BLA	1
-	9539A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539T12	齿轮箱长-TRA	GEAR HSG-LONG-TRA	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
1	9539A13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T13	ORD 1643-9539T 1	ORD 1643-9539T 1	1
48	76039	换挡凸轮控制	CAM Shift Control	1
48	760394	换挡凸轮控制	CAM Shift Control	1
49	38374A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
50	38356A1	轴承套件	BEARING SET	1
51	55608A4	前进齿轮总成	GEAR ASSEMBLY Forward	1
51	55608T4	前进齿轮总成	GEAR ASSY-FORWARD	1
52	21739	滚柱轴承	BEARING Roller	1
53	38441	凸轮从动件	FOLLOWER Cam	1
54	20843	滑块	SLIDE	1
55	38114	弹簧	SPRING	1
56	92911	棘轮	RATCHET	1
56	92911T	离合器	CLUTCH	1
57	38113	十字销	PIN Cross	1
57	8M0020942	十字销@2	PIN-CROSS @2	1
58	39845	弹簧	SPRING	1
58	815418	弹簧	SPRING	1
59	75365	螺旋桨轴	PROPELLER SHAFT	1
60	79158	倒挡齿轮	GEAR Reverse	1
60	79158T	倒挡齿轮	GEAR-REVERSE	1
61	32004	垫圈	WASHER	1
62	20839	滚珠轴承	BEARING Ball	1
62	20839T	滚珠轴承	BEARING Ball	1
63	31986	O型圈	O-RING	1
64	69386A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
64	69386T1	轴承座总成	CARRIER ASSY-BRG	1
65	21700	滚针轴承	BEARING Needle	1
66	69188	油封	SEAL Oil	1
66	8M0205511	油封	SEAL Oil	1
67	69189	油封	SEAL Oil	1
67	8M0203757	油封	SEAL Oil	1
68	30281	键	KEY	1
69	53012	锁紧垫圈	TAB WASHER	1
70	87763	螺母	NUT	1
71	316404	平衡鳍板	TRIM TAB	1
71	31640Q4	平衡鳍板	TRIM TAB	1
72	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
73	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
73	8M0214963	垫圈	WASHER	1
74	34863	螺母 (.375-24)	NUT (.375-24)	1
74	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
75	65791	垫圈 (7/16英寸)	WASHER (7/16 IN.)	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
76	8M0204653	螺母	NUT	1
77	73345A1	止推垫片	THRUST WASHER	1
78	76281	锁紧垫圈	TAB WASHER	1
78	8M0214942	锁紧垫片	WASHER Tab	1
79	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
79	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	85491A90	衬垫套件	GASKET SET	1
-	79831A1	密封套件	SEAL KIT	1

图 22齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	8669A13	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A14	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
-	8669A15	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A16	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	8669T16	ORD 1665-8669T14	ORD 1665-8669T14	1
-	8669A23	齿轮箱总成(短型)(追踪者系列)	GEAR HOUSING ASSEMBLY (SHORT) (TRACKER)	1
-	8669A24	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
1	8669A21	齿轮箱总成(基础黑色)	GEAR HOUSING ASSEMBLY Basic-Black (BLACK)	1
1	8M0083538	GC BASIC 25 2S	GC BASIC 25 2S	1
1	8669A22	齿轮箱总成(基础灰色)	GEAR HOUSING ASSEMBLY Basic-Gray (GRAY)	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8669A25	齿轮箱总成(追踪者系列)	GEAR HOUSING ASSEMBLY (TRACKER)	1
1	8669A39	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	41134	右舷进水口滤网	SCREEN WATER INLET-STARBOARD	1
2	41133	进水口滤网	SCREEN Water Inlet Port	1
3	40031112	螺钉(M5 x 40)	SCREW (M5 x 40)	1
4	400263	螺母(M5)滤网螺钉	NUT (M5) SCREEN SCREW	1
5	41326	滚柱轴承上	BEARING Roller UPPER	1
6	99325	齿轮箱密封件	SEAL GEAR HOUSING	2
7	85500		PIN Dowel (.187 x .530) GEAR HOUSING	2
7	8M0084726	定位销	PIN Dowel	2
8	98294A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	98302	小齿轮	GEAR Pinion	1
10	49908	小齿轮螺钉(0.250-28x0.75英寸)	SCREW (.250-28 x .750) PINION GEAR	1
11	99199	驱动轴(短轴)	DRIVESHAFT (SHORT SHAFT)	1
11	99198	驱动轴(长轴)	DRIVESHAFT (LONG SHAFT)	1
13	14834A1	磁性放油螺钉	SCREW DRAIN - MAGNETIC	1
13	8M0058389	放油螺钉套件	SCREW KIT Drain	1
14	28634A1	润滑脂加注螺钉套件	SCREW KIT GREASE FILLER	1
14	79953Q04	放油螺钉套件	SCREW KIT Drain	1
15	805726	O型圈(放油/加注螺钉用)	O-RING Rubber DRAIN AND FILLER SCREW	2
15	8M0204684	橡胶O型圈	O-RING Rubber	2
16	85562A1	凸轮总成(无钢印)	CAM ASSEMBLY (NO STAMPING)	1
16	85562A2	换挡凸轮(钢印85662--1)	SHIFT CAM (STAMPED 85662--1)	1
17	85096	驱动销	PIN Drive	1
18	85593	销(.078 x .437)	PIN (.078 x .437)	1
19	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
19	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
20	93007	弹簧	SPRING	1
21	85091	垫圈	WASHER	1
22	85594	O型圈(.239 x .174)	O-RING (.239 x .174)	1
23	35276	O型圈(.734 x .139)	O-RING (.734 x .139)	1
24	93878	固定座	RETAINER	1
25	85552	换档轴防尘罩	BOOT SHIFT SHAFT	1
25	85552001	护套	BOOT	1
26	85126	换挡轴(短轴)	SHIFT SHAFT (SHORT SHAFT)	1
26	86293	换挡轴(长轴)	SHIFT SHAFT (LONG SHAFT)	1
27	993261	水泵衬垫	GASKET WATER PUMP	1
28	85083	面板	FACE PLATE	1
29	86645	叶轮垫圈	WASHER IMPELLER	2
29	8M0204722	垫圈	WASHER	2
30	85119	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214993	键@5	KEY @5	1
31	850893	叶轮	IMPELLER	1
31	8M0204712	叶轮	IMPELLER	1
32	69202	水泵O型圈	O-RING WATER PUMP	1
33	99157A1	水泵总成	PUMP ASSEMBLY Water	1
33	99157A02	水泵总成	PUMP ASSEMBLY Water	1
34	90883	螺钉(M5×16)(16毫米)-与参考号36配套使用	SCREW (M5 x 16) (16MM)- Use with Reference #36	4
35	89302	垫圈(0.203×0.406×0.040)-与参考号36配套使用	WASHER (.203 x .406 x .040) Use with Reference #36	4
36	85095	衬套-与参考号36配套使用	BUSHING Use with Reference #36	4
36	8M0214959	衬套@5	BUSHING @5	4
34	4000328	螺钉(M6×16)-不与参考号36配套使用	SCREW (M6 x 16) Use without Reference #36	4
34	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	4
35	29245	不锈钢垫圈(0.281×0.500×0.060)-不与参考号36配套使用	WASHER (.281 x .500 x .060) Stainless Steel Use without Reference #36	4
35	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
37	85090	水管密封件	SEAL WATER TUBE	1
37	85090001	密封件	SEAL	1
38	86203	橡胶传动轴O型圈	O-RING DRIVE SHAFT - RUBBER	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
-	99157T2	水泵套件	PUMP KIT Water	1
-	85090A2	密封套件	SEAL KIT	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

图 23手动倾斜设计I型-长轴序列号0C159200及以上 MANUAL TILT DESIGN I-LONG SHAFT S/N-0C159200 and UP

REF	零件编号	中文名称	英文名称	数量
-	19300A3	配平泵总成(含本页所有零件)	PUMP ASSEMBLY Trim (Included all parts on this page)	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	19300A7	配平泵总成(含本页所有零件)	PUMP ASSEMBLY Trim (Included all parts on this page)	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1
1	8134272	减震杆套件	SHOCK ROD KIT	1
1	8M0118572	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	8134291	减震活塞	PISTON Shock	1
4	813432A2	气缸修理包	CYLINDER REBUILD KIT	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
5	813430A1	配平记忆活塞总成	PISTON ASSEMBLY Trim Memory	1
5	893903A01	活塞套件	PISTON KIT	1
6	810777	气缸套件	CYLINDER KIT	1
6	8112241	气缸套件	CYLINDER KIT	1
6	893918A01	气缸套件	CYLINDER KIT	1
7	813433A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813454A1	蓄能器	ACCUMULATOR	1
8	893920A01	蓄能器套件	ACCUMULATOR KIT	1
9	813455A3	阀块总成	VALVE BLOCK ASSEMBLY	1
9	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
10	813456A3	维修套件	REPAIR KIT	1
10	813456A4	维修套件	REPAIR KIT	1
10	813456A4	维修套件	REPAIR KIT	1
11	813458	塞套件	PLUG KIT	1
11	813458A2	塞套件	PLUG KIT	1
12	813457A1	凸轮总成套件	CAM ASSEMBLY KIT	1
12	813457A2	凸轮套件	CAM KIT	1
12	813455A4	阀体总成	VALVE BODY ASSEMBLY	1
13	813459	塞套件	PLUG KIT	1
14	19607	销	PIN	2
15	821539	三叶销	PIN Trilobe	2

图 24夹紧支架(拇指螺丝设计-序列号0D181999及以下) CLAMP BRACKET (THUMB SCREW DESIGN-S/N 0D181999 and BELOW)

REF	零件编号	中文名称	英文名称	数量
1	818881A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	818881A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	818880F1	艉板支架	BRACKET Transom	1
4	818880F2	艉板支架	BRACKET Transom	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	826164	螺母 (.875-14)	NUT (.875-14)	2
21	8M0231351	锁紧螺母	NUT Lock	2
22	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
23	818884	垫圈	WASHER	2
24	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
25	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
26	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
26	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0027784	螺母	NUT	4
27	82671117	螺母(.500-20)	NUT (.500-20)	4
28	1938525	连接杆	LINK	1
28	8M0084737	连接杆	LINK	1
29	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
29	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	812707	衬套	BUSHING	1
31	815796	垫圈	WASHER	1
32	99611	波形垫圈	WAVE WASHER	1
33	19621	倾斜旋钮	TILT KNOB	1
33	8M0007469	倾斜旋钮	KNOB Tilt	1
34	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
35	812432F5	安装支架	MOUNTING BRACKET	1
35	812433F5	安装支架	MOUNTING BRACKET	1
36	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
37	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
37	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
38	134371	螺母 (.375-24)	NUT (.375-24)	4
38	862903	螺母 (.375-24)	NUT (.375-24)	4
39	821722	垫片	SHIM	4

图 25适配板/换挡轴 ADAPTOR PLATE/SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	18868A1	排气适配板总成	ADAPTER PLATE ASSEMBLY Exhaust	1
2	158663	适配板密封件	SEAL Adaptor Plate	1
3	27132	衬套	BUSHING	1
4	38453	垫圈	WASHER	1
5	38452	密封件	SEAL	1
6	79799	壳体	HOUSING	1
7	797971	衬垫	GASKET	1
8	79798	螺钉(#10-32 x 1.380)	SCREW (#10-32 x 1.380)	2
9	796501	衬垫	GASKET	1
10	385011	衬垫	GASKET	1
11	933361	换挡轴导向器(装配辅助件)	GUIDE Shift Shaft (AN ASSEMBLY AIDE)	1
12	19462A3	换挡轴杆总成	LEVER ASSEMBLY Shift Shaft	1
12	19462A2	换挡轴杆总成	LEVER ASSEMBLY Shift Shaft	1
13	42994	衬套	BUSHING	2
14	812613	换挡连杆	SHIFT LINK	1
15	29720	波形垫圈	WAVE WASHER	2
16	35045	螺母(.250-28)	NUT (.250-28)	2
16	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
17	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	2
18	812616	滑块	SLIDER	1
19	812615	固定座	RETAINER	1
20	812612	螺柱	STUD	1
21	812607	环	RING	1
22	8126141	固定座	RETAINER	1
23	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
23	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
-	85491A90	衬垫套件	GASKET SET	1
-	814278A93	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	814278T93	PH 40	PH 40	1

图 26油门控制连杆(金属连杆旋转件) THROTTLE CONTROL LINKAGE (METAL LINK ROD SWIVELS)

REF	零件编号	中文名称	英文名称	数量
1	72040T	油门执行器支架	BRACKET Throttle Actuator	1
2	53576	螺丝(.312-18 x 1.125)	SCREW (.312-18 x 1.125)	3
3	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
3	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
4	815603A1	油门执行器总成	ACTUATOR ASSEMBLY Throttle	1
5	21449	螺丝(.312-24 x 2.00)	SCREW (.312-24 x 2.00)	1
6	25893	垫圈	WASHER	2
7	62172	波形垫圈	WAVE WASHER	1
8	29250	螺母(.312-24)	NUT (.312-24)	1
9	57440	旋转接头	SWIVEL	1
10	72043	连杆	LINK ROD	1
11	57440	旋转接头	SWIVEL	1
12	NLA	已停产油门臂(订购815603A1)	No Longer Available Throttle Arm (ORDER 815603A1)	1
13	89778	油门臂螺丝(2-1/4英寸)	SCREW THROTTLE ARM (2-1/4 IN.)	1
13	25158	油门臂螺丝(.190-32 x 1.75)	SCREW (.190-32 x 1.75) THROTTLE ARM	1
14	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
15	48039	盖帽	CAP	2
16	39483	闩锁	LATCH	1
17	22486	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
17	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
18	20099	弹簧	SPRING	1
19	35045	螺母(.250-28)	NUT (.250-28)	1
19	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
20	815607A1	点火提前杆总成	LEVER ASSEMBLY Spark Advance	1
21	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
22	55164	衬套	BUSHING	1
23	55171	衬套	BUSHING	1
24	55162	弹簧	SPRING	1
25	68410	垫圈	WASHER	1
25	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
26	25158	螺丝(.190-32 x 1.75)	SCREW (.190-32 x 1.75)	1
27	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
28	48039	盖帽	CAP	1
29	76056	连杆(2-1/2英寸长)	LINK ROD (2-1/2 IN. LONG)	1
30	74897	枢轴	PIVOT	1
30	74897T	枢轴	PIVOT	1
31	77013A1	旋转接头	SWIVEL	1
32	29402	波形垫圈	WAVE WASHER	1
33	26856	衬套	BUSHING	1
34	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
35	45774	螺母	NUT	1
36	66778	安装板	PLATE	1
36	66778T	油门板	PLATE-THROTTLE	1
37	46420	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	2
38	23015	螺丝(.190-32 x 1.00)	SCREW (.190-32 x 1.00)	1
39	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
40	48039	盖帽	CAP	1

图 27端盖与排气罩 END CAPS AND EXHAUST COVER

REF	零件编号	中文名称	英文名称	数量
1	16775A3	温度开关 (电动)	TEMPERATURE SWITCH (ELECTRIC)	1
2	5826A2	端盖总成	END CAP ASSEMBLY	1
3	41953	密封件	SEAL	1
4	20081	O型圈	O-RING	1
5	63742	滚珠轴承	BEARING Ball	1
5	63742T	滚珠轴承	BEARING Ball	1
6	72538A1	垫片 (0.005-10)	SHIM (.005-10)	AR
7	824941	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	4
8	8360A1	盖总成	COVER ASSEMBLY	1
9	328021	管塞 (.125-27)	PLUG Pipe (.125-27)	1
9	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
10	437772	垫片	GASHET	1
11	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	10
11	8M0214943	螺钉	SCREW	10
12	188274	换气口盖总成	COVER ASSEMBLY Transfer Port	1
12	18827T4	T型端口盖	COVER-T FER PORT	1
13	279361	衬垫	GASKET	2
14	90198	螺钉 (5/8英寸)	SCREW (5/8 IN.)	6
14	20540	螺钉(.250-20 x .62)	SCREW (.250-20 x .62)	6
15	854913	衬垫	GASKET	1
16	904211	挡板 - 排气歧管	PLATE Baffle - Exhaust Manifold	1
16	90421T01	挡板	PLATE-BAFFLE	1
17	854924	衬垫	GASKET	1
18	77381	盖板	COVER	1
19	9843A2	下端盖总成	END CAP ASSEMBLY Lower	1
19	9843T2	端盖总成	END CAP ASSY	1
19	9843A3	下端盖总成	END CAP ASSEMBLY Lower	1
19	9843T3	端盖总成	END CAP ASSY	1
20	32546	O型圈	O-RING	1
20	32546	O型圈	O-RING	1
21	41953	密封件	SEAL	2
21	66301	油封	SEAL Oil	1
21	41953	密封件	SEAL	1
21	41953	密封件	SEAL	2
22	63742	滚珠轴承	BEARING Ball	1
22	63742T	滚珠轴承	BEARING Ball	1
22	63742	滚珠轴承	BEARING Ball	1
22	63742T	滚珠轴承	BEARING Ball	1
23	20085A1	垫片组 (0.005-10)	SHIM SET (.005-10)	AR
24	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
25	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	15
-	85491A90	衬垫套件	GASKET SET	1
-	814278A93	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	814278T93	PH 40	PH 40	1

图 28艉板支架(序列号0D181999及以下) TRANSOM BRACKET (S/N 0D181999 and BELOW)

REF	零件编号	中文名称	英文名称	数量
1	9751A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	9751A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	9750T	艉板支架	BRACKET Transom	1
4	9750T6	艉板支架	BRACKET Transom	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	19613A1	倾斜销总成	PIN ASSEMBLY Tilt	1
20	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
21	19614	倾斜管	TILT TUBE	1
21	8M0041938	倾斜管	TILT TUBE	1
22	826164	螺母 (.875-14)	NUT (.875-14)	2
22	8M0231351	锁紧螺母	NUT Lock	2
23	19624A1	密封套件	SEAL KIT	1
24	22740	卡扣	CLIP	1
25	69205	C形垫圈	C WASHER	1
25	8M0084613	C形垫圈	C-WASHER	1
26	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
26	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
27	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
28	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
29	8M0027784	螺母	NUT	4
29	82671117	螺母(.500-20)	NUT (.500-20)	4
30	1938525	连接杆	LINK	1
30	8M0084737	连接杆	LINK	1
31	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
32	812707	衬套	BUSHING	1
33	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
33	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	815796	垫圈 (.030英寸)	WASHER (.030 IN.)	1
34	99611	波形垫圈	WAVE WASHER	1
35	19621	倾斜旋钮	TILT KNOB	1
35	8M0007469	倾斜旋钮	KNOB Tilt	1
36	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
37	76841	螺钉 (.500-20 x 3.500)	SCREW (.500-20 x 3.500)	2
38	812432F5	安装支架	MOUNTING BRACKET	1
38	812433F5	安装支架	MOUNTING BRACKET	1
39	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
40	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
41	134371	螺母 (.375-24)	NUT (.375-24)	4
41	862903	螺母 (.375-24)	NUT (.375-24)	4
42	812434A2	T型手柄螺母	NUT T Handle	2

图 29曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	880894T	曲轴	CRANKSHAFT	1
2	8040992	油封	SEAL Oil	1
3	8041002	油封	SEAL Oil	1
4	804101T	轴承	BEARING	4
4	804101T10	轴承	BEARING	4
4	804101T20	轴承	BEARING	4
5	804102T	轴承	BEARING	5
5	804102T10	轴承	BEARING	5
5	804102T20	轴承	BEARING	5
5	804102T30	轴承	BEARING	5
6	804103T	轴承	BEARING	1
6	804103T10	轴承	BEARING	1
6	804103T20	轴承	BEARING	1
7	880895A05	活塞总成	PISTON ASSEMBLY	4
7	880895A14	活塞/连杆总成	PISTON/CONN ROD	4
7	880895A12	活塞总成	PISTON ASSEMBLY	AR
7	880895A16	活塞/连杆总成	PISTON/CONN ROD	AR
8	880896	螺栓(M8 x 38)	BOLT (M8 x 38)	8
9	880897T02	活塞环组	RING SET Piston	4
9	880898T02	活塞环组	RING SET Piston	AR
10	880899T	轴承	BEARING	8
10	880899T10	轴承	BEARING	8
10	880899T20	轴承	BEARING	8
10	880899T30	轴承	BEARING	8
-	858732A06	衬垫套件	GASKET SET	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

图 30电气箱组件 ELECTRICAL BOX COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	19106	电气箱盖	COVER Electrical Box	1
2	41805	螺钉 (#10-24 x 0.625) 水银开关及盖	SCREW (#10-24 x .625) Mercury Switch and Cover	6
2	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	6
3	19639	螺钉(0.250-20×2.25)	SCREW (.250-20 x 2.25)	3
4	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	2
5	816770	整流器	RECTIFIER	1
5	8M0058226	整流器	RECTIFIER	1
6	41805	螺钉 (#10-24 x 0.625) 水银开关及盖	SCREW (#10-24 x .625) Mercury Switch and Cover	2
6	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	2
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
8	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
8	8M0185149	启动电磁阀	SOLENOID START	1
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
10	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
11	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
12	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
13	64015	螺母 (.250-20)	NUT (.250-20)	2
14	18672A2	线束总成 (与参考号#18配套使用)	HARNESS ASSEMBLY (USE WITH REF. #18)	1
14	18672A6	线束总成 (灰色导线带环形端子)	HARNESS ASSEMBLY (GRAY LEAD HAS RING TERMINAL)	1
14	18672A8	线束总成 (灰色导线带子弹头连接器)	HARNESS ASSEMBLY (GRAY LEAD HAS BULLET CONNECTOR)	1
-	88807A14	电缆总成 (环形/公头连接器)	CABLE ASSEMBLY (RING/MALE CONNECTOR)	1
-	88807A15	电缆总成 (环形/母头连接器)	CABLE ASSEMBLY (RING/FEMALE CONNECTOR)	1
15	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
15	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
16	638131	端子排	TERMINAL BLOCK	1
17	41805	螺钉 (#10-24 x 0.625) 水银开关及盖	SCREW (#10-24 x .625) Mercury Switch and Cover	2
17	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	2
17	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
18	16731A1	汞开关旧款	MERCURY SWITCH Old Design	1
18	16731T01	开关总成	SWITCH ASSY	1
19	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	4
19	8M0230859	点火线圈总成	COIL IGNITION ASY	4
20	60466A19	拉线总成	CABLE ASSEMBLY	4
21	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	8
22	813715A12	火花塞引线总成	LEAD ASSEMBLY Spark Plug	1
23	63709A1	护套/端子套件	BOOT/TERMINAL KIT	4
24	97182	火花塞	SPARK PLUG	4
24	896329833	SP #L78V @4	SP #L78V @4	4
24	14103550	火花塞 (NGK-BUZHW)	SPARK PLUG (NGK-BUZHW)	4
24	896329898	SP #QL76V @4	SP #QL76V @4	4
25	5772A5	开关盒总成	SWITCHBOX ASSEMBLY	1
25	5772A7	开关盒总成	SWITCHBOX ASSEMBLY	1
26	812987	螺钉 (#10-24 x 1.250)	SCREW (#10-24 x 1.250)	4
27	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	13
28	88818A1	电缆总成 (绿色)	CABLE ASSEMBLY (GREEN)	1
28	88819A1	电缆总成 (绿/白)	CABLE ASSEMBLY (GREEN/WHITE)	1
28	88820A1	电缆总成 (绿/黑)	CABLE ASSEMBLY (GREEN/BLACK)	1
28	88821A1	电缆总成 (绿/红)	CABLE ASSEMBLY (GREEN/RED)	1
29	88807A30	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
30	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
30	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
31	813060A1	拉线总成	CABLE ASSEMBLY	1
32	14857A10	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
32	14857A16	机油报警模块	MODULE-OILWARNING	1
33	812987	螺钉 (#10-24 x 1.250)	SCREW (#10-24 x 1.250)	2
34	19637	保险丝插座	SOCKET Fuse	1
35	187581	电气箱	BOX Electrical	1
35	18758T1	电气箱	BOX-ELECTRICAL	1
36	18895A1	线束总成	HARNESS ASSEMBLY	1
37	19761	继电器	RELAY	2
38	812850	支架	SUPPORT	1
39	88890A2	开关总成	SWITCH ASSEMBLY	1
40	74605A8	开关总成	SWITCH ASSEMBLY	1
41	90342	螺钉 (#4-40 x 0.630)	SCREW (#4-40 x .630)	2
42	24832	螺母 (#4-40)	NUT (#4-40)	2
43	11149A1	电缆总成 (3.00英寸)	CABLE ASSEMBLY (3.00 Inches)	1
44	818999A2	电磁阀总成	SOLENOID ASSEMBLY	1
45	818968	衬套	BUSHING	2
45	8M0214955	衬套	BUSHING	2
46	818967	护孔环	GROMMET	2
46	8M0207785	护孔环	GROMMET	2
47	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	2
48	88439A11	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
49	815279T	电压调节器	REGULATOR Voltage	1
49	8M0084173	电压调节器	VOLTAGE REGULATOR	1
50	822970	螺钉 (#10-24 x 1.385)	SCREW (#10-24 x 1.385)	2
51	813524A2	拉线总成	CABLE ASSEMBLY	1

图 31升降开关套件 Trim Switch Kit

REF	零件编号	中文名称	英文名称	数量
-	18286A17	配平开关套件	SWITCH KIT Trim	1
1	18861	固定座	RETAINER	1
2	814820	适配器	ADAPTER	1
3	18286A28	开关	SWITCH	1
4	19209	螺钉(#10-32 x 2.25)	SCREW (#10-32 x 2.25)	2
5	813523	螺钉(#10-16 x 2.25)	SCREW (#10-16 x 2.25)	2
6	848017A2	升降线束总成	HARNESS ASSEMBLY Trim	1
7	849614A2	配平开关线束总成	HARNESS ASSEMBLY Trim Switch	1

图 32油门控制连杆(塑料连杆旋转件) THROTTLE CONTROL LINKAGE (PLASTIC LINK ROD SWIVELS)

REF	零件编号	中文名称	英文名称	数量
1	72040T	油门执行器支架	BRACKET Throttle Actuator	1
2	53576	螺丝(.312-18 x 1.125)	SCREW (.312-18 x 1.125)	3
3	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
3	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
4	815603A1	油门执行器总成	ACTUATOR ASSEMBLY Throttle	1
5	815605	连杆	LINK ROD	1
5	878171	连接杆	ROD-LINK	1
6	93421	旋转球头	SWIVEL BALL	2
7	93254	旋转底座	SWIVEL BASE	2
8	29250	螺母(.312-24)	NUT (.312-24)	1
9	21449	螺丝(.312-24 x 2.00)	SCREW (.312-24 x 2.00)	1
10	25893	垫圈	WASHER	2
11	62172	波形垫圈	WAVE WASHER	1
12	66778	安装板	PLATE	1
12	66778T	油门板	PLATE-THROTTLE	1
13	46420	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	2
14	23015	螺丝(.190-32 x 1.00)	SCREW (.190-32 x 1.00)	1
15	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
16	48039	盖帽	CAP	1
17	22486	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
17	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
18	20099	弹簧	SPRING	1
19	35045	螺母(.250-28)	NUT (.250-28)	1
19	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
20	815607A1	点火提前杆总成	LEVER ASSEMBLY Spark Advance	1
21	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
22	55164	衬套	BUSHING	1
23	55171	衬套	BUSHING	1
24	55162	弹簧	SPRING	1
25	68410	垫圈	WASHER	1
25	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
26	25158	螺丝(.190-32 x 1.75)	SCREW (.190-32 x 1.75)	1
27	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
28	48039	盖帽	CAP	1
29	815604	连杆	LINK ROD	1
30	74897	枢轴	PIVOT	1
30	74897T	枢轴	PIVOT	1
31	93421	旋转球头	SWIVEL BALL	1
32	93254	旋转底座	SWIVEL BASE	1
33	89778	螺丝(2-1/4英寸)	SCREW (2-1/4 IN.)	1
33	25158	螺丝(.190-32 x 1.75)	SCREW (.190-32 x 1.75)	1
34	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
35	48039	盖帽	CAP	2
36	39483	闩锁	LATCH	1

图 33钥匙、阻风门及喇叭套件 KEY, CHOKE AND HORN KIT

REF	零件编号	中文名称	英文名称	数量
-	15000A1	钥匙开关套件远程点火	KEY SWITCH KIT Remote Ignition	1
-	15000A7	钥匙开关套件远程点火	KEY SWITCH KIT Remote Ignition	1
1	15000	壳体	HOUSING	1
2	88107	钥匙开关(钥匙见下方)	KEY SWITCH (SEE BELOW FOR KEY)	1
2	88107A5	钥匙开关套件	SWITCH KIT Key	1
3	894911	点火钥匙(1A)	KEY Ignition (1A)	1
3	894912	点火钥匙(1B)	KEY Ignition (1B)	1
3	894913	点火钥匙(1C)	KEY Ignition (1C)	1
3	894914	点火钥匙(1D)	KEY Ignition (1D)	1
3	894915	点火钥匙(1E)	KEY Ignition (1E)	1
3	894916	点火钥匙(1F)	KEY Ignition (1F)	1
3	894917	点火钥匙(2A)	KEY Ignition (2A)	1
3	894918	点火钥匙(2B)	KEY Ignition (2B)	1
3	894919	点火钥匙(2C)	KEY Ignition (2C)	1
3	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
3	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
3	8949112	点火钥匙(2F)	KEY Ignition (2F)	1
4	93543	特殊螺母-镀铬黄铜	NUT Special - Chrome Brass	1
4	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
5	16564A1	警告喇叭总成	HORN ASSEMBLY Warning	1
6	47994	螺钉 (#10 x 1.50)	SCREW (#10 x 1.50)	4
7	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	4
8	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5

图 34动力升降-长轴(序列号0C159200至0D181999) POWER TRIM-LONG SHAFT (S/N-0C159200 THRU 0D181999)

REF	零件编号	中文名称	英文名称	数量
1	8134271	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A3	气缸密封套件	SEAL KIT Cylinder	1
5	813430A1	配平记忆活塞总成(参见脚注和图示)	PISTON ASSEMBLY Trim Memory (SEE FOOTNOTE & ILLUSTRATION)	1
5	893903A01	活塞套件	PISTON KIT	1
5	810776	记忆活塞套件(参见脚注和图示)	PISTON KIT Memory (SEE FOOTNOTE & ILLUSTRATION)	1
6	810777	气缸套件	CYLINDER KIT	1
6	811228	气缸套件	CYLINDER KIT	1
6	893904T01	气缸总成	CYLINDER ASSEMBLY	1
7	813433A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
7	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	811227	泵	PUMP	1
9	813441	歧管总成	MANIFOLD ASSEMBLY	1
9	811225	歧管总成	MANIFOLD ASSEMBLY	1
10	813436	螺钉套件	SCREW KIT	1
11	813437	驱动轴	DRIVESHAFT	1
12	813438	螺丝和销钉套件	SCREW AND PIN KIT	1
13	813439A2	密封套件	SEAL KIT	1
13	813439A3	O型圈套件	O RING KIT	1
14	813434A1	储液罐	RESERVOIR	1
15	813435	塞套件	PLUG KIT	1
15	8134351	堵头	PLUG	1
16	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
16	893929A01	安全阀套件	VALVE KIT Relief	1
17	811698	线束总成	HARNESS ASSEMBLY	1
18	813445	储液罐盖套件	CAP KIT Reservoir	1
19	813446	螺钉	SCREW	1
20	813447	电机套件	MOTOR KIT	1
21	813448	端盖	END CAP	1
22	813449A1	电枢	ARMATURE	1
23	813450	止推垫片套件	THRUST WASHER KIT	1
24	813451	外壳和磁铁套件	SHELL AND MAGNET KIT	1
25	813452	端架套件	END FRAME KIT	1
26	813453	螺栓螺母套件	BOLT AND NUT KIT	1
27	19607	销	PIN	2
28	821539	三叶销	PIN Trilobe	2
-	19217A5	完整配平泵总成	PUMP ASSEMBLY Trim COMPLETE	1
-	854472A3	动力调整套件	POWER TRIM KIT	1

图 35附件 ACCESSORIES

零件编号	中文名称	英文名称	数量
62351A10	蓄电池充电套件	CHARGING KIT Battery	1
52992A2	线缆滑轮安装套件	ATTACHING KIT Cable And Pulley	1
90983A3	电动起动机套件	STARTER MOTOR KIT Electric	1
90983A5	起动机转换套件	CONVERSION KIT Starter Motor	1
44357A2	冲洗附件	FLUSHING ATTACHMENT	1
44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成 (12英尺)	LINE ASSEMBLY Fuel (12 Feet) (12 FT.)	1
877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
52148A1	副驾驶套件	CO-PILOT KIT	1
15000A7	钥匙开关套件远程点火	KEY SWITCH KIT Remote Ignition	1
42282A3	照明线圈套件	COIL KIT Lighting	1
42282A4	照明线圈套件	COIL KIT Lighting	1
95845A5	照明调节器套件	REGULATOR KIT Lighting	1
14171A2	电机锁	MOTOR LOCK	1
14171Q2	电机锁	MOTOR LOCK	1
828019A1	油压传感器套件	SENDER KIT Oil Pressure	1
8M0068785	油压适配器套件	ADPT KIT-OIL PRES	1
822344A8	动力调整套件	POWER TRIM KIT	1
822344A13	动力调整套件	POWER TRIM KIT	1
822573A12	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
826633A1	遥控器安装套件	ATTACHING KIT Remote Control	1
12756A1	浅水驱动套件	DRIVE KIT Shallow Water	1
821190A2	侧移转换套件	CONVERSION KIT Side Shift	1
816667A2	转向支架总成（不带提手）	BRACKET ASSEMBLY Steering (W/O CARRYING HANDLE)	1
41323A2	转向连杆安装套件	ATTACHING KIT Steering Link	1
41323A03	转向连杆安装套件	ATTACHING KIT Steering Link	1
14586A3	节温器套件	THERMOSTAT KIT	1
98571A3	舵柄支架总成（用于副驾驶套件）	BRACKET ASSEMBLY Tiller Handle (FOR USE W/ CO-PILOT KIT)	1
821468A7	舵柄套件	TILLER HANDLE KIT	1
821468A6	舵柄套件	TILLER HANDLE KIT	1
821468A7	舵柄套件	TILLER HANDLE KIT	1
823609A7	舵柄启动开关转换套件	CONVERSION KIT Tiller Handle Start Switch	1

图 36适配板/换挡轴 ADAPTOR PLATE/SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	18868A1	排气适配板总成	ADAPTER PLATE ASSEMBLY Exhaust	1
2	158663	适配板密封件	SEAL Adaptor Plate	1
3	27132	衬套	BUSHING	1
4	38453	垫圈	WASHER	1
5	38452	密封件	SEAL	1
6	79799	壳体	HOUSING	1
7	797971	衬垫	GASKET	1
8	79798	螺钉(#10-32 x 1.380)	SCREW (#10-32 x 1.380)	2
9	796501	衬垫	GASKET	1
10	385011	衬垫	GASKET	1
11	933361	换挡轴导向器(装配辅助件)	GUIDE Shift Shaft (AN ASSEMBLY AIDE)	1
12	19462A3	换挡轴杆总成	LEVER ASSEMBLY Shift Shaft	1
12	19462A2	换挡轴杆总成	LEVER ASSEMBLY Shift Shaft	1
13	42994	衬套	BUSHING	2
14	812613	换挡连杆	SHIFT LINK	1
15	29720	波形垫圈	WAVE WASHER	2
16	35045	螺母(.250-28)	NUT (.250-28)	2
16	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
17	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	2
18	812616	滑块	SLIDER	1
19	812615	固定座	RETAINER	1
20	812612	螺柱	STUD	1
21	812607	环	RING	1
22	8126141	固定座	RETAINER	1
23	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
23	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
-	85491A90	衬垫套件	GASKET SET	1
-	814278A93	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	814278T93	PH 40	PH 40	1

图 37化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7226A19	化油器总成	CARBURETOR ASSEMBLY	1
2	8983	浮子总成	FLOAT ASSEMBLY	1
2	8673	浮子总成	FLOAT ASSEMBLY	1
3	NSS	浮子销(不单独销售)	NOT SOLD SEPARATE FLOAT PIN	2
4	NSS	浮子杆 (下部) (不单独销售)	NOT SOLD SEPARATE FLOAT LEVER (LOWER)	1
5	NSS	浮子杆 (上部) (不单独销售)	NOT SOLD SEPARATE FLOAT LEVER (UPPER)	1
6	8318	进油针阀	NEEDLE Inlet	1
6	83181	阀座套件	VALVE SEAT KIT	1
7	NSS	衬垫-进油针阀 (不单独销售)	NOT SOLD SEPARATE GASKET-INLET NEEDLE	1
8	NSS	衬垫-浮子室盖 (不单独销售)	NOT SOLD SEPARATE GASKET-FLOAT BOWL COVER	1
9	9016	浮子室盖	COVER FLOAT BOWL	1
10	5733	主量孔 (.092)	JET Main (.092)	1
11	5734	节油器软管	HOSE ECONOMIZER	1
11	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
12	52195	浮子室盖螺钉	SCREW FLOAT BOWL COVER	1
13	4804	浮子室盖螺钉	SCREW FLOAT BOWL COVER	1
14	26995	锁紧垫圈 (#8) 不锈钢浮子室盖螺钉	LOCKWASHER (#8) Stainless Steel FLOAT BOWL COVER SCREW	2
15	92880	节流阀杆	LEVER THROTTLE	1
16	60293	螺钉 (#5-40 x .500) 油门杆	SCREW (#5-40 x .500) THROTTLE LEVER	1
17	92500	推入式螺母-油门杆螺钉	PUSH NUT THROTTLE LEVER SCREW	1
18	8641	油门轴	SHAFT Throttle	1
19	NSS	怠速管 (不单独销售)	NOT SOLD SEPARATE IDLE TUBE	1
20	4540	本体螺钉 (怠速管)	SCREW BODY (IDLE TUBE)	1
21	9017	节气门片	SHUTTER Throttle	1
22	NSS	螺钉-节气门 (不单独销售)	NOT SOLD SEPARATE SCREW, THROTTLE SHUTTER	2
23	NSS	弹簧-怠速调节螺钉 (不单独销售)	NOT SOLD SEPARATE SPRING-IDLE ADJUSTMENT SCREW	1
24	NSS	螺钉-怠速调节 (不单独销售)	NOT SOLD SEPARATE SCREW-IDLE ADJUSTMENT	1
25	NSS	主喷嘴(不单独销售)	NOT SOLD SEPARATE MAIN NOZZLE	1
26	4542	螺塞-主喷管	SCREW PLUG - MAIN NOZZLE	1
27	3794	主量孔 (.074)	JET (.074) MAIN FUEL	OPT
27	6207	主量孔 (.072)	JET (.072) MAIN FUEL	1
27	6030	主量孔 (.070)	JET (.070) MAIN FUEL	OPT
28	4541	螺塞-主燃油量孔通道	SCREW PLUG - MAIN FUEL JET CHANNEL	1
29	NSS	衬垫-量孔通道螺塞螺钉 (不单独销售)	NOT SOLD SEPARATE GASKET-JET CHANNEL PLUG SCREW	1
30	NSS	弹簧-油门轴回位 (不单独销售)	NOT SOLD SEPARATE SPRING-THROTTLE SHAFT RETURN	1
31	4543	本体通道螺钉	SCREW BODY CHANNEL	1
32	52106A1	塑料喉管	VENTURI Plastic	1
33	NSS	不单独销售塞-本体通道	NOT SOLD SEPARATE PLUG-BODY CHANNEL	1
-	4808	衬垫套件	GASKET SET	1
-	879194024	衬垫套件	GASKET KIT	1
-	9018	维修零件包	REPAIR PARTS KIT	1
-	51091	化油器修理包	REPAIR KIT-CARB	1
34	48164	化油器法兰衬垫	GASKET CARBURETOR FLANGE	1
34	481641	衬垫	GASKET	1
35	64809		NUT CARBURETOR MOUNTING STUD	2
36	69016	阻风门枢轴柱（化油器）	STUD CHOKE SHUTTER PIVOT (CARBURETOR)	1
37	55179	化油器阻风门	SHUTTER Choke CARBURETOR	1
38	55163	阻风门张力弹簧	SPRING TENSION - CHOKE SHUTTER	1
39	47960	阻风门柱垫圈	WASHER CHOKE SHUTTER CARBURETOR STUD	1
40	20110	阻风门柱螺母（#10-32）	NUT (#10-32) CHOKE SHUTTER TO CARBURETOR STUD	1
41	57819	化油器滤网	SCREEN CARBURETOR	1
42	58185	滤网固定螺钉（#10-32 x 1.00）	SCREW (#10-32 x 1.00) SCREEN TO CARBUETOR	1
43	57818	滤网螺钉张力弹簧	SPRING TENSION - SCREEN SCREW	1
44	46101	滤网螺钉垫圈	WASHER SCREEN SCREW	1
44	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	1
45	20110	滤网螺钉螺母（#10-32）	NUT (#10-32) SCREEN SCREW	1

图 38夹紧支架(拇指螺丝设计-序列号0D181999及以下) CLAMP BRACKET (THUMB SCREW DESIGN-S/N 0D181999 and BELOW)

REF	零件编号	中文名称	英文名称	数量
1	818881A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	818881A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	818880F1	艉板支架	BRACKET Transom	1
4	818880F2	艉板支架	BRACKET Transom	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
19	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	826164	螺母 (.875-14)	NUT (.875-14)	2
21	8M0231351	锁紧螺母	NUT Lock	2
22	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
23	818884	垫圈	WASHER	2
24	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
25	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
26	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
26	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0027784	螺母	NUT	4
27	82671117	螺母(.500-20)	NUT (.500-20)	4
28	1938525	连接杆	LINK	1
28	8M0084737	连接杆	LINK	1
29	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
29	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	812707	衬套	BUSHING	1
31	815796	垫圈	WASHER	1
32	99611	波形垫圈	WAVE WASHER	1
33	19621	倾斜旋钮	TILT KNOB	1
33	8M0007469	倾斜旋钮	KNOB Tilt	1
34	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
35	812432F5	安装支架	MOUNTING BRACKET	1
35	812433F5	安装支架	MOUNTING BRACKET	1
36	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
37	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
37	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
38	134371	螺母 (.375-24)	NUT (.375-24)	4
38	862903	螺母 (.375-24)	NUT (.375-24)	4
39	821722	垫片	SHIM	4

图 39外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	8587M	顶盖总成	TOP COWL ASSEMBLY	1
1	9387M	顶罩	TOP COWL	1
1	6793M	顶盖总成	TOP COWL ASSEMBLY	1
1	9387M	顶罩	TOP COWL	1
2	97766M	侧后贴花套装	DECAL SIDE AND REAR SET	1
2	95670M	贴花套件	DECAL SET	1
2	81114M	侧面贴花套装	DECAL SIDE SET	1
3	97767M	前徽标	EMBLEM FRONT	1
3	95641M	徽标	EMBLEM	1
3	82898M	前饰板	APPLIQUE FRONT	1
4	82899M	后饰板	APPLIQUE REAR	1
5	80884M	饰板螺母垫圈	WASHER APPLIQUE NUT	10
6	82927M	饰板安装螺母	NUT APPLIQUE ATTACHING	10
7	83212M	卡箍固定架	HOLDER CLAMP BAND	1
8	84903M	铆钉	RIVET	2
9	83137M	挂钩	HOOK	1
10	83140M	铆钉	RIVET	2
11	83319M	隔音毯	SOUND BLANKET	1
11	84323M	隔音毯	SOUND BLANKET	1
12	83320M	后隔音毯	SOUND BLANKET REAR	1
12	84323M	隔音毯	SOUND BLANKET	1
13	83321M	右舷隔音毯	SOUND BLANKET STARBOARD	1
13	83125M	隔音毯	SOUND BLANKET	1
14	83322M	顶部隔音毯	SOUND BLANKET TOP	1
14	83232M	覆盖件	BLANKET	1
15	95506M	左舷隔音毯	SOUND BLANKET PORT	1
15	83125M	隔音毯	SOUND BLANKET	1
16	80601M	启动器橡胶密封	SEAL RUBBER-STARTER	1
17	84901M	顶罩密封	SEAL TOP COWL	1
18	81202M	换挡指示贴花	DECAL Shift Indicator	1
19	95547M	贴花	DECAL	1
20	7854M	下机罩	BOTTOM COWL	1
20	9349M	下机罩	BOTTOM COWL	1
21	84913M	顶罩夹杆	LEVER COWL CLAMP	1
22	82900M	侧边马力标识	GRAPHIC SIDE (HP)	2
23	81949M	顶罩夹杆衬套	BUSHING COWL CLAMP LEVER	2
24	84914M	顶罩夹	CLAMP COWL	1
25	81794M	垫圈	WASHER	1
26	84315M	螺栓	BOLT	1
26	84088M	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
27	83988M	底罩护孔圈	GROMMET BOTTOM COWL	1
28	84915M	底罩护孔圈	GROMMET BOTTOM COWL	1
28	826981M	护孔环	GROMMET	1
29	84916M	停机开关总成	SWITCH ASSEMBLY Stop	1
29	93102M	停机开关总成	SWITCH ASSEMBLY Stop	1
29	92600M	停机开关总成	SWITCH ASSEMBLY Stop	1
29	91622M	开关	SWITCH	1
30	81669M	工具包	TOOL KIT	1
30	803581	工具包	TOOL KIT	1
31	81869M	波形垫圈	WASHER WAVE	1
32	84910M	护孔环	GROMMET	4
33	84911M	轴环	COLLAR	4
34	84912M	专用螺柱	STUD SPECIAL	4
34	95505M	螺柱	STUD	4
35	82383M	螺母	NUT	4
36	82217M	垫圈	WASHER	4
37	82393M	螺母	NUT	4
37	82383M	螺母	NUT	4
38	95570M	贴花	DECAL	1
39	83728M	护孔环	GROMMET	OPT

图 40曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9073A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	78308A1	球轴承保持架总成	RETAINER ASSEMBLY BALL BEARING	1
3	63742	曲轴球轴承保持架	BEARING Ball RETAINER (CRANKSHAFT)	1
3	63742T	滚珠轴承	BEARING Ball	1
4	63634	球轴承挡圈	RING Retaining BALL BEARING	1
5	7238A2	主阀式轴承总成	BEARING ASSEMBLY Main VALVE TYPE	1
6	20032	主轴承定位销	PIN Dowel MAIN, BEARING	2
7	45775	主轴承夹紧螺钉（#12-28 x .560）	SCREW (#12-28 x .560) MAIN BEARING CLAMPING	2
8	45774	主轴承夹紧螺钉螺母	NUT MAIN BEARING CLAMPING SCREW	2
9	56007A1	主轴承簧片组（配对）	REED SET MAIN BEARING (MATCHED)	1
10	56008	主轴承簧片阀限位器	STOP Reed MAIN BEARING REED VALVES	4
11	20055	簧片限位器安装螺钉（#10-32 x .375）	SCREW (#10-32 x .375) REED STOP MOUNTING	12
12	8101A3	连杆总成	CONNECTING ROD ASSEMBLY	2
13	91012	连杆专用螺钉（.250-28）	SCREW (.250-28 Special) CONNECTING ROD	4
15	62596A1	曲柄销轴承总成	BEARING ASSEMBLY CRANKPIN	2
16	47270	活塞销轴承	BEARING PISTON PIN	58
16	8M0214934	滚针轴承@200	BRG-NEEDLE @200	58
17	47247	滚针轴承挡圈	WASHER NEEDLE BEARING RETAINING	4
17	8M0032839	垫片@5	WASHER @5	4
18	8899A3	活塞总成	PISTON ASSEMBLY	2
18	9137A12	标准活塞总成	PISTON ASSY-STD	2
18	8900A2	活塞总成	PISTON ASSEMBLY	AR
18	9137A13	活塞总成-.015	PISTON ASSY-.015	AR
18	8901A2	活塞总成	PISTON ASSEMBLY	AR
18	9137A14	活塞总成-.030	PISTON ASSY-.030	AR
19	78816A12	环	RING	1
19	78811A12	活塞环组-.015加大	RING SET Piston - .015 Oversize	AR
19	88392A12	活塞环组-.030加大	RING SET Piston - .030 Oversize	AR
20	52035	活塞销锁环	RING Lock PISTON PIN	4
20	857196	锁紧环	LOCK RING	4
21	45554	曲轴键	KEY CRANKSHAFT	1

图 41气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8981A18	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8981T18	气缸体	CYLINDER BLOCK	1
2	72038	上支架	BRACKET (UPPER)	1
3	73279	螺钉(.312-18 x 1.880)	SCREW (.312-18 x 1.880)	2
4	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
4	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
5	76867	下盖	COVER (LOWER)	1
6	73279	螺钉(.312-18 x 1.880)	SCREW (.312-18 x 1.880)	2
7	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	1
7	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
8	20032	定位销	PIN Dowel	2
9	64936	螺柱(1-1/4英寸)	STUD (1-1/4 IN.)	4
10	68165	螺柱(1-5/8英寸)	STUD (1-5/8 IN.)	2
11	20033	定位销	PIN Dowel	2
11	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
12	87901	螺柱(4英寸)	STUD (4 IN.)	2
13	68166	螺柱(.312 x 2.125)	STUD (.312 x 2.125)	2
14	68167	螺柱(.312-18/.312-24 x 2.560)	STUD (.312-18/.312-24 x 2.560)	2
15	73657	螺钉(0.312-18 x 1.50)	SCREW (.312-18 x 1.50)	13
15	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	3
15	73275	螺钉(.312-18 x 2.88)	SCREW (.312-18 x 2.88)	2
16	26020	垫圈	WASHER	17
17	20359	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
18	19922075	螺钉(.375-16 x .75)	SCREW (.375-16 x .75)	2
19	830135	锁紧垫圈	LOCKWASHER	3
18	98260	螺钉(.375-16 x .620)	SCREW (.375-16 x .620)	2
19	20091	锁紧垫圈	TAB WASHER	3
20	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
20	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
21	99664	弯头	ELBOW	2
21	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
22	65857	连接器(上部)	CONNECTOR (UPPER)	1
22	56759	倒钩接头	FITTING Barbed	1
23	99130122	管(20.00英尺散装)(11英寸)	TUBING (20.00 Feet Bulk) (11 IN.)	1
23	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
24	42867	止回阀(下部)	CHECK VALVE (LOWER)	1
24	428671	止回阀	CHECK VALVE	1
25	812831	启动注油三通(旧设计)	PRIMER TEE (OLD DESIGN)	1
26	8129961	盖板	COVER	1
27	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
28	55515	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	2
29	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
30	12415	温度传感器	SENDER Temperature	1
31	88824A6	拉线总成	CABLE ASSEMBLY	1
-	85491A90	衬垫套件	GASKET SET	1
-	814278A93	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	814278T93	PH 40	PH 40	1

图 42驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	400035	螺丝 M5×16(配合参考号20使用)	SCREW (M5 x 16) (Use W/Reference #20)	2
1	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
2	96248A1	水管壳体总成	HOUSING ASSEMBLY WATER TUBE	1
3	25329	水管密封件	SEAL WATER TUBE	1
4	96247	水管隔套	SPACER WATER TUBE	1
4	889715	水管隔套	SPACER Water Tube	1
5	99702A6	适配板总成	ADAPTER PLATE ASSEMBLY	1
5	99702A7	适配板总成	ADAPTER PLATE ASSEMBLY	1
6	416704	适配板垫片	GASKET ADAPTOR PLATE	1
6	41670006	适配板垫片	GASKET Adaptor Plate	1
7	158662	适配板密封件	SEAL ADAPTOR PLATE	1
8	41211	上支架托架	BRACKET UPPER MOUNT	2
9	40011128	螺丝 M6×20不锈钢(不配合参考号10使用)	SCREW (M6 x 20) Stainless Steel (Use Without Reference #10)	2
9	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	2
9	40007128	螺丝 M6×20(配合参考号10使用)	SCREW (M6 x 20) (Use With Reference #10)	2
10	29245	垫圈（0.281 x 0.500 x 0.060）不锈钢（适用处使用）	WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE)	2
10	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
11	85116	水管(短轴)	TUBE Water (SHORT SHAFT)	1
11	86292	水管(长轴)	TUBE Water (LONG SHAFT)	1
12	9097A2	驱动轴壳体总成(短轴)(黑色)	HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (BLACK)	1
12	9097T5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9098A2	驱动轴壳体总成(长轴)(黑色)	HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (BLACK)	1
12	9098T5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9097A3	驱动轴壳体总成(短轴)(灰色)	HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (GRAY)	1
12	9097T6	驱动轴壳体-灰色	DRIVESHAFT HSG-GR	1
12	9098A3	驱动轴壳体总成(长轴)(灰色)	HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (GRAY)	1
12	9098A6	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9097A4	驱动轴壳体总成(短轴)(TRACKER)	HOUSING ASSEMBLY Driveshaft (SHORT) (TRACKER)	1
12	9098A4	驱动轴壳体总成(长轴)(TRACKER)	HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER)	1
12	9098T5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
13	433373	驱动轴壳体垫片	GASKET DRIVE SHAFT HOUSING	1
13	433374	驱动轴壳体垫片	GASKET Drive Shaft Housing	1
14	14534	怠速泄压盖	COVER IDLE RELIEF	1
15	14621	盖衬垫	GASKET COVER	1
16	14742	盖螺钉(.250-20 x 1.25)	SCREW (.250-20 x 1.25) COVER	1
17	4000360	驱动轴壳体至缸体螺钉(60mm)	SCREW DRIVE SHAFT HOUSING TO BLOCK (60 MM)	6
17	1993870	螺钉(M8 x 70)	SCREW (M8 x 70)	6
18	4002317	驱动轴壳体螺钉垫圈(8.90 X 17.0 X 1.9不锈钢)	WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW	6
19	19583	衬垫(按需使用)	GASKET (USE WHERE APPLICABLE)	1
19	433373	衬垫	GASKET	1
20	30164	壳体螺钉垫圈(.192 x .375 x .0312不锈钢)	WASHER (.192 x .375 x .0312) Stainless Steel HOUSING SCREW	2
21	17258T	配平盖(黑色)	TRIM COVER (BLACK)	1
21	17258T6	配平盖(灰色)	TRIM COVER (GRAY)	1
21	17258T	配平盖	TRIM COVER	1
21	17258F4	配平盖(追踪器型)	TRIM COVER (TRACKER)	1
21	17258T	配平盖	TRIM COVER	1
22	40011128	配平盖螺钉(M6 x 20不锈钢)	SCREW (M6 x 20) Stainless Steel TRIM COVER	4
22	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
23	401196	配平盖螺钉螺母(M6)	NUT (M6) TRIM COVER SCREW	4
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

图 43电气箱组件 ELECTRICAL BOX COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	19106	电气箱盖	COVER Electrical Box	1
2	41805	螺钉 (#10-24 x 0.625) 水银开关及盖	SCREW (#10-24 x .625) Mercury Switch and Cover	6
2	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	6
3	19639	螺钉(0.250-20×2.25)	SCREW (.250-20 x 2.25)	3
4	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	2
5	816770	整流器	RECTIFIER	1
5	8M0058226	整流器	RECTIFIER	1
6	41805	螺钉 (#10-24 x 0.625) 水银开关及盖	SCREW (#10-24 x .625) Mercury Switch and Cover	2
6	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	2
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
8	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
8	8M0185149	启动电磁阀	SOLENOID START	1
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
10	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
11	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
12	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
13	64015	螺母 (.250-20)	NUT (.250-20)	2
14	18672A2	线束总成 (与参考号#18配套使用)	HARNESS ASSEMBLY (USE WITH REF. #18)	1
14	18672A6	线束总成 (灰色导线带环形端子)	HARNESS ASSEMBLY (GRAY LEAD HAS RING TERMINAL)	1
14	18672A8	线束总成 (灰色导线带子弹头连接器)	HARNESS ASSEMBLY (GRAY LEAD HAS BULLET CONNECTOR)	1
-	88807A14	电缆总成 (环形/公头连接器)	CABLE ASSEMBLY (RING/MALE CONNECTOR)	1
-	88807A15	电缆总成 (环形/母头连接器)	CABLE ASSEMBLY (RING/FEMALE CONNECTOR)	1
15	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
15	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
16	638131	端子排	TERMINAL BLOCK	1
17	41805	螺钉 (#10-24 x 0.625) 水银开关及盖	SCREW (#10-24 x .625) Mercury Switch and Cover	2
17	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	2
17	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
18	16731A1	汞开关旧款	MERCURY SWITCH Old Design	1
18	16731T01	开关总成	SWITCH ASSY	1
19	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	4
19	8M0230859	点火线圈总成	COIL IGNITION ASY	4
20	60466A19	拉线总成	CABLE ASSEMBLY	4
21	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	8
22	813715A12	火花塞引线总成	LEAD ASSEMBLY Spark Plug	1
23	63709A1	护套/端子套件	BOOT/TERMINAL KIT	4
24	97182	火花塞	SPARK PLUG	4
24	896329833	SP #L78V @4	SP #L78V @4	4
24	14103550	火花塞 (NGK-BUZHW)	SPARK PLUG (NGK-BUZHW)	4
24	896329898	SP #QL76V @4	SP #QL76V @4	4
25	5772A5	开关盒总成	SWITCHBOX ASSEMBLY	1
25	5772A7	开关盒总成	SWITCHBOX ASSEMBLY	1
26	812987	螺钉 (#10-24 x 1.250)	SCREW (#10-24 x 1.250)	4
27	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	13
28	88818A1	电缆总成 (绿色)	CABLE ASSEMBLY (GREEN)	1
28	88819A1	电缆总成 (绿/白)	CABLE ASSEMBLY (GREEN/WHITE)	1
28	88820A1	电缆总成 (绿/黑)	CABLE ASSEMBLY (GREEN/BLACK)	1
28	88821A1	电缆总成 (绿/红)	CABLE ASSEMBLY (GREEN/RED)	1
29	88807A30	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
30	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
30	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
31	813060A1	拉线总成	CABLE ASSEMBLY	1
32	14857A10	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
32	14857A16	机油报警模块	MODULE-OILWARNING	1
33	812987	螺钉 (#10-24 x 1.250)	SCREW (#10-24 x 1.250)	2
34	19637	保险丝插座	SOCKET Fuse	1
35	187581	电气箱	BOX Electrical	1
35	18758T1	电气箱	BOX-ELECTRICAL	1
36	18895A1	线束总成	HARNESS ASSEMBLY	1
37	19761	继电器	RELAY	2
38	812850	支架	SUPPORT	1
39	88890A2	开关总成	SWITCH ASSEMBLY	1
40	74605A8	开关总成	SWITCH ASSEMBLY	1
41	90342	螺钉 (#4-40 x 0.630)	SCREW (#4-40 x .630)	2
42	24832	螺母 (#4-40)	NUT (#4-40)	2
43	11149A1	电缆总成 (3.00英寸)	CABLE ASSEMBLY (3.00 Inches)	1
44	818999A2	电磁阀总成	SOLENOID ASSEMBLY	1
45	818968	衬套	BUSHING	2
45	8M0214955	衬套	BUSHING	2
46	818967	护孔环	GROMMET	2
46	8M0207785	护孔环	GROMMET	2
47	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	2
48	88439A11	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
49	815279T	电压调节器	REGULATOR Voltage	1
49	8M0084173	电压调节器	VOLTAGE REGULATOR	1
50	822970	螺钉 (#10-24 x 1.385)	SCREW (#10-24 x 1.385)	2
51	813524A2	拉线总成	CABLE ASSEMBLY	1

图 44端盖与排气罩 END CAPS AND EXHAUST COVER

REF	零件编号	中文名称	英文名称	数量
1	16775A3	温度开关 (电动)	TEMPERATURE SWITCH (ELECTRIC)	1
2	5826A2	端盖总成	END CAP ASSEMBLY	1
3	41953	密封件	SEAL	1
4	20081	O型圈	O-RING	1
5	63742	滚珠轴承	BEARING Ball	1
5	63742T	滚珠轴承	BEARING Ball	1
6	72538A1	垫片 (0.005-10)	SHIM (.005-10)	AR
7	824941	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	4
8	8360A1	盖总成	COVER ASSEMBLY	1
9	328021	管塞 (.125-27)	PLUG Pipe (.125-27)	1
9	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
10	437772	垫片	GASHET	1
11	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	10
11	8M0214943	螺钉	SCREW	10
12	188274	换气口盖总成	COVER ASSEMBLY Transfer Port	1
12	18827T4	T型端口盖	COVER-T FER PORT	1
13	279361	衬垫	GASKET	2
14	90198	螺钉 (5/8英寸)	SCREW (5/8 IN.)	6
14	20540	螺钉(.250-20 x .62)	SCREW (.250-20 x .62)	6
15	854913	衬垫	GASKET	1
16	904211	挡板 - 排气歧管	PLATE Baffle - Exhaust Manifold	1
16	90421T01	挡板	PLATE-BAFFLE	1
17	854924	衬垫	GASKET	1
18	77381	盖板	COVER	1
19	9843A2	下端盖总成	END CAP ASSEMBLY Lower	1
19	9843T2	端盖总成	END CAP ASSY	1
19	9843A3	下端盖总成	END CAP ASSEMBLY Lower	1
19	9843T3	端盖总成	END CAP ASSY	1
20	32546	O型圈	O-RING	1
20	32546	O型圈	O-RING	1
21	41953	密封件	SEAL	2
21	66301	油封	SEAL Oil	1
21	41953	密封件	SEAL	1
21	41953	密封件	SEAL	2
22	63742	滚珠轴承	BEARING Ball	1
22	63742T	滚珠轴承	BEARING Ball	1
22	63742	滚珠轴承	BEARING Ball	1
22	63742T	滚珠轴承	BEARING Ball	1
23	20085A1	垫片组 (0.005-10)	SHIM SET (.005-10)	AR
24	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
25	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	15
-	85491A90	衬垫套件	GASKET SET	1
-	814278A93	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	814278T93	PH 40	PH 40	1

图 45飞轮、定子及启动电机 FLYWHEEL, STATOR AND STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	45907	黄色塞	PLUG Yellow	1
2	22339	螺母(0.625-18)	NUT (.625-18)	1
2	8M0214915	螺母	NUT	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	5454A62	定子	STATOR	1
4	832074A6	定子套件	STATOR KIT	1
4	5454A63	定子	STATOR	1
4	832075A20	点火定子套件	IGNITION STATOR KIT	1
4	9710A46	定子	STATOR	1
4	832074A6	定子套件	STATOR KIT	1
4	818535A15	定子	STATOR	1
4	832075A20	点火定子套件	IGNITION STATOR KIT	1
4	9710A45	定子	STATOR	1
5	8722A16	飞轮	FLYWHEEL	1
5	8722A17	飞轮	FLYWHEEL	1
5	8722A13	飞轮	FLYWHEEL	1
5	8722A15	飞轮	FLYWHEEL	1
5	8722T19	飞轮	FLYWHEEL	1
6	32417	螺钉(.250-28 x .625)	SCREW (.250-28 x .625)	8
7	88755	棘轮	RATCHET	1
8	68997	螺钉(.312-24 x .750)	SCREW (.312-24 x .750)	8
9	75840	螺钉 (#10-24 x 0.880)	SCREW (#10-24 x .880)	4
10	96452A5	触发器总成	TRIGGER ASSEMBLY	1
11	73521	启动电机总成	STARTER MOTOR ASSEMBLY	1
11	898265005	启动马达	STARTER MOTOR	1
12	57247	停机开关	STOP	2
12	8M0043376	停机开关	STOP	2
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	88439A20	电线	WIRE	1
15	64015	螺母 (.250-20)	NUT (.250-20)	1
16	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
16	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
18	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	56774	隔套	SPACER	AR

图 46燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	43113M	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	43113T	燃油泵	FUEL PUMP	1
1	94799M	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	43113T	燃油泵	FUEL PUMP	1
2	80606M	隔膜	DIAPHRAGM	1
3	80611M	板簧导板	PLATE SPRING GUIDE	1
4	80610M	弹簧	SPRING	1
5	80613M	机体至底座衬垫	GASKET BODY TO BASE	1
5	80613	衬垫	GASKET	1
6	41888M	止回阀	CHECK VALVE	2
6	94800M	止回阀	CHECK VALVE	2
6	41888M	止回阀	CHECK VALVE	2
6	84650M	止回阀	CHECK VALVE	1
7	43095M	机体至盖板衬垫	GASKET BODY TO COVER	1
7	80614M	机体至盖板衬垫	GASKET BODY TO COVER	1
7	80614	衬垫	GASKET	1
8	84141M	隔膜	DIAPHRAGM	1
9	43096M	盖板	COVER	1
9	80607M	盖板	COVER	1
9	80607M	盖板	COVER	1
10	82522M	螺钉	SCREW	3
11	82208M	锁紧垫圈	WASHER LOCK	3
11	82186M	垫圈	WASHER	3
12	41889M	螺钉 (M3 x 5)	SCREW (M3 x 5)	2
12	94801M	螺钉	SCREW	2
12	813484M	螺钉	SCREW	2
13	82537M	螺母	NUT	2
14	80757M	燃油泵至曲轴箱衬垫	GASKET FUEL PUMP TO CRANKCASE	1
14	80757	衬垫	GASKET	1
15	82428M	螺栓	BOLT	2
15	827043M	螺栓	BOLT	2
16	82199M	锁紧垫圈	WASHER LOCK	2
16	82214M	垫圈	WASHER	2
-	92575M	动力头衬垫套件	GASKET SET POWERHEAD	1

图 47齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	8669A13	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A14	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
-	8669A15	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A16	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	8669T16	ORD 1665-8669T14	ORD 1665-8669T14	1
-	8669A23	齿轮箱总成(短型)(追踪者系列)	GEAR HOUSING ASSEMBLY (SHORT) (TRACKER)	1
-	8669A24	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
1	8669A21	齿轮箱总成(基础黑色)	GEAR HOUSING ASSEMBLY Basic-Black (BLACK)	1
1	8M0083538	GC BASIC 25 2S	GC BASIC 25 2S	1
1	8669A22	齿轮箱总成(基础灰色)	GEAR HOUSING ASSEMBLY Basic-Gray (GRAY)	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8669A25	齿轮箱总成(追踪者系列)	GEAR HOUSING ASSEMBLY (TRACKER)	1
1	8669A39	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	41134	右舷进水口滤网	SCREEN WATER INLET-STARBOARD	1
2	41133	进水口滤网	SCREEN Water Inlet Port	1
3	40031112	螺钉(M5 x 40)	SCREW (M5 x 40)	1
4	400263	螺母(M5)滤网螺钉	NUT (M5) SCREEN SCREW	1
5	41326	滚柱轴承上	BEARING Roller UPPER	1
6	99325	齿轮箱密封件	SEAL GEAR HOUSING	2
7	85500		PIN Dowel (.187 x .530) GEAR HOUSING	2
7	8M0084726	定位销	PIN Dowel	2
8	98294A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	98302	小齿轮	GEAR Pinion	1
10	49908	小齿轮螺钉(0.250-28x0.75英寸)	SCREW (.250-28 x .750) PINION GEAR	1
11	99199	驱动轴(短轴)	DRIVESHAFT (SHORT SHAFT)	1
11	99198	驱动轴(长轴)	DRIVESHAFT (LONG SHAFT)	1
13	14834A1	磁性放油螺钉	SCREW DRAIN - MAGNETIC	1
13	8M0058389	放油螺钉套件	SCREW KIT Drain	1
14	28634A1	润滑脂加注螺钉套件	SCREW KIT GREASE FILLER	1
14	79953Q04	放油螺钉套件	SCREW KIT Drain	1
15	805726	O型圈(放油/加注螺钉用)	O-RING Rubber DRAIN AND FILLER SCREW	2
15	8M0204684	橡胶O型圈	O-RING Rubber	2
16	85562A1	凸轮总成(无钢印)	CAM ASSEMBLY (NO STAMPING)	1
16	85562A2	换挡凸轮(钢印85662--1)	SHIFT CAM (STAMPED 85662--1)	1
17	85096	驱动销	PIN Drive	1
18	85593	销(.078 x .437)	PIN (.078 x .437)	1
19	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
19	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
20	93007	弹簧	SPRING	1
21	85091	垫圈	WASHER	1
22	85594	O型圈(.239 x .174)	O-RING (.239 x .174)	1
23	35276	O型圈(.734 x .139)	O-RING (.734 x .139)	1
24	93878	固定座	RETAINER	1
25	85552	换档轴防尘罩	BOOT SHIFT SHAFT	1
25	85552001	护套	BOOT	1
26	85126	换挡轴(短轴)	SHIFT SHAFT (SHORT SHAFT)	1
26	86293	换挡轴(长轴)	SHIFT SHAFT (LONG SHAFT)	1
27	993261	水泵衬垫	GASKET WATER PUMP	1
28	85083	面板	FACE PLATE	1
29	86645	叶轮垫圈	WASHER IMPELLER	2
29	8M0204722	垫圈	WASHER	2
30	85119	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214993	键@5	KEY @5	1
31	850893	叶轮	IMPELLER	1
31	8M0204712	叶轮	IMPELLER	1
32	69202	水泵O型圈	O-RING WATER PUMP	1
33	99157A1	水泵总成	PUMP ASSEMBLY Water	1
33	99157A02	水泵总成	PUMP ASSEMBLY Water	1
34	90883	螺钉(M5×16)(16毫米)-与参考号36配套使用	SCREW (M5 x 16) (16MM)- Use with Reference #36	4
35	89302	垫圈(0.203×0.406×0.040)-与参考号36配套使用	WASHER (.203 x .406 x .040) Use with Reference #36	4
36	85095	衬套-与参考号36配套使用	BUSHING Use with Reference #36	4
36	8M0214959	衬套@5	BUSHING @5	4
34	4000328	螺钉(M6×16)-不与参考号36配套使用	SCREW (M6 x 16) Use without Reference #36	4
34	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	4
35	29245	不锈钢垫圈(0.281×0.500×0.060)-不与参考号36配套使用	WASHER (.281 x .500 x .060) Stainless Steel Use without Reference #36	4
35	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
37	85090	水管密封件	SEAL WATER TUBE	1
37	85090001	密封件	SEAL	1
38	86203	橡胶传动轴O型圈	O-RING DRIVE SHAFT - RUBBER	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
-	99157T2	水泵套件	PUMP KIT Water	1
-	85090A2	密封套件	SEAL KIT	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

图 48齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539A6	齿轮箱总成	GEAR HUSING ASSEMBLY	1
-	9539A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539A7	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539T15	齿轮箱短-BL	GEAR HSG SHORT-BL	1
-	9539A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539T18	齿轮箱长-BLA	GEAR HSG-LONG-BLA	1
-	9539A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539T18	齿轮箱长-BLA	GEAR HSG-LONG-BLA	1
-	9539A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539T12	齿轮箱长-TRA	GEAR HSG-LONG-TRA	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
1	9539A13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T13	ORD 1643-9539T 1	ORD 1643-9539T 1	1
48	76039	换挡凸轮控制	CAM Shift Control	1
48	760394	换挡凸轮控制	CAM Shift Control	1
49	38374A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
50	38356A1	轴承套件	BEARING SET	1
51	55608A4	前进齿轮总成	GEAR ASSEMBLY Forward	1
51	55608T4	前进齿轮总成	GEAR ASSY-FORWARD	1
52	21739	滚柱轴承	BEARING Roller	1
53	38441	凸轮从动件	FOLLOWER Cam	1
54	20843	滑块	SLIDE	1
55	38114	弹簧	SPRING	1
56	92911	棘轮	RATCHET	1
56	92911T	离合器	CLUTCH	1
57	38113	十字销	PIN Cross	1
57	8M0020942	十字销@2	PIN-CROSS @2	1
58	39845	弹簧	SPRING	1
58	815418	弹簧	SPRING	1
59	75365	螺旋桨轴	PROPELLER SHAFT	1
60	79158	倒挡齿轮	GEAR Reverse	1
60	79158T	倒挡齿轮	GEAR-REVERSE	1
61	32004	垫圈	WASHER	1
62	20839	滚珠轴承	BEARING Ball	1
62	20839T	滚珠轴承	BEARING Ball	1
63	31986	O型圈	O-RING	1
64	69386A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
64	69386T1	轴承座总成	CARRIER ASSY-BRG	1
65	21700	滚针轴承	BEARING Needle	1
66	69188	油封	SEAL Oil	1
66	8M0205511	油封	SEAL Oil	1
67	69189	油封	SEAL Oil	1
67	8M0203757	油封	SEAL Oil	1
68	30281	键	KEY	1
69	53012	锁紧垫圈	TAB WASHER	1
70	87763	螺母	NUT	1
71	316404	平衡鳍板	TRIM TAB	1
71	31640Q4	平衡鳍板	TRIM TAB	1
72	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
73	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
73	8M0214963	垫圈	WASHER	1
74	34863	螺母 (.375-24)	NUT (.375-24)	1
74	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
75	65791	垫圈 (7/16英寸)	WASHER (7/16 IN.)	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
76	8M0204653	螺母	NUT	1
77	73345A1	止推垫片	THRUST WASHER	1
78	76281	锁紧垫圈	TAB WASHER	1
78	8M0214942	锁紧垫片	WASHER Tab	1
79	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
79	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	85491A90	衬垫套件	GASKET SET	1
-	79831A1	密封套件	SEAL KIT	1

图 49喷射组件 JET COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	821889A31	转速限制器	REV LIMITER	1
2	823147A3	转速限制器线束总成	HARNESS ASSEMBLY Rev Limiter	1
3	826580	支架	BRACKET	1
4	76213	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
5	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
6	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
7	801402	润滑脂套装	GREASE KIT	1
7	30500A2	润滑脂套装	GREASE KIT	1
8	37721	密封件	SEAL	1
8	37721001	密封件@2	SEAL @2	1
9	77177A1	水泵底座总成	BASE ASSEMBLY Water Pump	1
10	79831	油封	SEAL Oil	1
11	90562	密封件(1.254 x .312)	SEAL (1.254 x .312)	1
12	35973	定位销	PIN Dowel	2
13	19553	衬垫	GASKET	1
14	54705	面板	FACE PLATE	1
14	32768	面板	FACEPLATE	1
15	19551	衬垫	GASKET	1
16	89983	叶轮	IMPELLER	1
16	89983T	叶轮	IMPELLER	1
17	56662	键	KEY	1
17	8M0032837	键@5	KEY @5	1
18	77822A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
19	48753	嵌件	INSERT	1
20	38452	密封件	SEAL	1
21	38453	垫圈	WASHER	1
22	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
23	13438	螺母(.250-28)	NUT (.250-28)	3
23	8267119	螺母(.250-28)	NUT (.250-28)	3
24	20273	O型圈 (驱动轴)	O-RING (DRIVE SHAFT)	1
-	85491A90	衬垫套件	GASKET SET	1
-	79831A1	密封套件	SEAL KIT	1
-	77177A3	水泵套件	WATER PUMP KIT	1

图 50喷泵总成 JET PUMP ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	801400251	喷泵总成	JET PUMP ASSEMBLY	1
-	856143A4	喷泵总成	JET PUMP ASSEMBLY	1
-	856143A4	喷泵总成	JET PUMP ASSEMBLY	1
1	801411251	泵壳	HOUSING Pump	1
2	827490	润滑油管	HOSE Lube	1
3	878376	换挡连杆套件	SHIFT LINKAGE KIT	1
4	878381	凸轮	CAM	1
5	878378	倒车挡板(带缓冲)	GATE Reverse - With Bumper	1
6	855708T25	叶轮	IMPELLER	1
7	80141225	进气壳体	HOUSING Intake	1
8	827188T	衬套	LINER	1
9	80141325	驱动轴	DRIVESHAFT	1
9	8M0084536	驱动轴	DRIVESHAFT	1
10	879652	止推垫片	THRUST WASHER	1
11	879653	滚珠轴承	BEARING Ball	1
12	827189	套筒	SLEEVE	1
13	827190	螺母	NUT	1
14	801430	适配器	ADAPTER	1
15	801431	泵底座	BASE Pump	1
16	846500	不锈钢螺钉(#10-32 x 1.00)	SCREW (#10-32 x 1.00) Stainless Steel	4
17	19925125	螺钉(.375-16 x 1.25)	SCREW (.375-16 x 1.25)	1
18	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
19	19924200	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	4
20	12038	垫圈	WASHER	4
20	8M0207778	垫圈（0.344×0.625×0.063英寸）	WASHER .344 x .625 x.063	4
21	801432	螺钉(M10 x 35)	SCREW (M10 x 35)	4
22	801405625	叶轮键	KEY Impeller	1
23	801404625	叶轮垫片	SHIM Impeller	8
24	801403625	锁紧垫圈	TAB WASHER	1
25	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
26	F2211	不锈钢螺钉(#10-24 x .625)	SCREW (#10-24 x .625) Stainless Steel	2

图 51钥匙、阻风门及喇叭套件 KEY, CHOKE AND HORN KIT

REF	零件编号	中文名称	英文名称	数量
-	15000A1	钥匙开关套件远程点火	KEY SWITCH KIT Remote Ignition	1
-	15000A7	钥匙开关套件远程点火	KEY SWITCH KIT Remote Ignition	1
1	15000	壳体	HOUSING	1
2	88107	钥匙开关(钥匙见下方)	KEY SWITCH (SEE BELOW FOR KEY)	1
2	88107A5	钥匙开关套件	SWITCH KIT Key	1
3	894911	点火钥匙(1A)	KEY Ignition (1A)	1
3	894912	点火钥匙(1B)	KEY Ignition (1B)	1
3	894913	点火钥匙(1C)	KEY Ignition (1C)	1
3	894914	点火钥匙(1D)	KEY Ignition (1D)	1
3	894915	点火钥匙(1E)	KEY Ignition (1E)	1
3	894916	点火钥匙(1F)	KEY Ignition (1F)	1
3	894917	点火钥匙(2A)	KEY Ignition (2A)	1
3	894918	点火钥匙(2B)	KEY Ignition (2B)	1
3	894919	点火钥匙(2C)	KEY Ignition (2C)	1
3	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
3	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
3	8949112	点火钥匙(2F)	KEY Ignition (2F)	1
4	93543	特殊螺母-镀铬黄铜	NUT Special - Chrome Brass	1
4	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
5	16564A1	警告喇叭总成	HORN ASSEMBLY Warning	1
6	47994	螺钉 (#10 x 1.50)	SCREW (#10 x 1.50)	4
7	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	4
8	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5

图 52手动倾斜组件(设计II型) MANUAL TILT COMPONENTS (DESIGN II)

REF	零件编号	中文名称	英文名称	数量
-	830050A2	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1
1	813427A1	减震杆总成	SHOCK ROD ASSEMBLY	1
1	8M0118572	减震杆套件	SHOCK ROD KIT	1
2	813430A1	配平记忆活塞总成	PISTON ASSEMBLY Trim Memory	1
2	893903A01	活塞套件	PISTON KIT	1
3	809872A1	气缸O型圈套件	O-RING KIT Cylinder	1
3	893917A01	O型圈修理包	REBUILD KIT O-Ring	1
4	NSS		NOT SOLD SEPARATE O-RING	2
5	811224A1	气缸总成	CYLINDER ASSEMBLY	1
5	893918A01	气缸套件	CYLINDER KIT	1
6	813433A2	螺钉与密封套件	SCREW AND SEAL KIT	1
6	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
7	813454A2	蓄能器总成	ACCUMULATOR ASSEMBLY	1
7	893920A01	蓄能器套件	ACCUMULATOR KIT	1
8	813455A4	阀体总成	VALVE BODY ASSEMBLY	1
8	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
9	813457A3	凸轮套件	CAM KIT	1
9	893923A01	凸轮套件	CAM KIT	1
10	809881A1	速度阀套件	VALVE KIT Velocity	1
10	893924A01	阀套件	VALVE KIT	1
11	809882A1	维修套件	REPAIR KIT	1
11	893925A01	维修套件	REPAIR KIT	1
-	809880A2	O型圈套件	O-RING KIT	1
-	893922A01	O型圈套件	O-RING KIT	1
12	19607	销	PIN	2
13	821539	三叶销	PIN Trilobe	2

图 53手动倾斜设计I型-长轴序列号0C159200及以上 MANUAL TILT DESIGN I-LONG SHAFT S/N-0C159200 and UP

REF	零件编号	中文名称	英文名称	数量
-	19300A3	配平泵总成(含本页所有零件)	PUMP ASSEMBLY Trim (Included all parts on this page)	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1
-	19300A7	配平泵总成(含本页所有零件)	PUMP ASSEMBLY Trim (Included all parts on this page)	1
-	8M0118570	手动配平总成	MANUAL TRIM ASSEMBLY	1
1	8134272	减震杆套件	SHOCK ROD KIT	1
1	8M0118572	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	8134291	减震活塞	PISTON Shock	1
4	813432A2	气缸修理包	CYLINDER REBUILD KIT	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
5	813430A1	配平记忆活塞总成	PISTON ASSEMBLY Trim Memory	1
5	893903A01	活塞套件	PISTON KIT	1
6	810777	气缸套件	CYLINDER KIT	1
6	8112241	气缸套件	CYLINDER KIT	1
6	893918A01	气缸套件	CYLINDER KIT	1
7	813433A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813454A1	蓄能器	ACCUMULATOR	1
8	893920A01	蓄能器套件	ACCUMULATOR KIT	1
9	813455A3	阀块总成	VALVE BLOCK ASSEMBLY	1
9	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
10	813456A3	维修套件	REPAIR KIT	1
10	813456A4	维修套件	REPAIR KIT	1
10	813456A4	维修套件	REPAIR KIT	1
11	813458	塞套件	PLUG KIT	1
11	813458A2	塞套件	PLUG KIT	1
12	813457A1	凸轮总成套件	CAM ASSEMBLY KIT	1
12	813457A2	凸轮套件	CAM KIT	1
12	813455A4	阀体总成	VALVE BODY ASSEMBLY	1
13	813459	塞套件	PLUG KIT	1
14	19607	销	PIN	2
15	821539	三叶销	PIN Trilobe	2

图 54杂项信息 MISCELLANEOUS INFORMATION

零件编号	中文名称	英文名称	数量
814698	零件手册 40马力/30喷射型	PARTS MANUAL 40 HP/30 JET	1
814323A90	贴花套件	DECAL SET	1
814323A94	贴花套件	DECAL SET	1
814323A96	贴花套件	DECAL SET	1
814323A96	贴花套件	DECAL SET	1
822166A92	贴花套件	DECAL SET	1
810462A94	贴花套件	DECAL SET	1
810462A97	贴花套件	DECAL SET	1
810462A97	贴花套件	DECAL SET	1
826324A95	贴花套件	DECAL SET	1
826324A97	贴花套件	DECAL SET	1
826324A97	贴花套件	DECAL SET	1
815626A93	贴花套件	DECAL SET	1
824732A94	贴花套件	DECAL SET	1
824732A96	贴花套件	DECAL SET	1
826323A95	贴花套件	DECAL SET	1
826323A96	贴花套件	DECAL SET	1
826323A96	贴花套件	DECAL SET	1
10118970	用户手册	OWNERS MANUAL	1
10134970	用户手册	OWNERS MANUAL	1
10160970	用户手册	OWNERS MANUAL	1

图 55喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	812778A1	油箱总成	TANK ASSEMBLY Oil	1
1	8M0219214	油箱总成-机油	TANK ASSY-OIL	1
2	19299A1	通风组件	VENT ASSEMBLY	1
3	64871	阀门	VALVE	1
4	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
-	9004934	管材(14.50英寸散装)	TUBING (14.50 Inches Bulk)	1
-	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
-	814200	卡箍	CLAMP	2
5	812988A1	机油盖插入组件	INSERT ASSEMBLY Oil Cap	1
6	813641	密封件	SEAL	1
7	19070A2	盖总成	CAP ASSEMBLY	1
8	90186	O型圈	O-RING	1
9	99161	护套	BOOT	1
10	12886A6	开关总成	SWITCH ASSEMBLY	1
11	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
12	8126901	机油喷射泵	PUMP Oil Injection	1
12	812690T1	机油喷射泵	PUMP-OIL INJECT	1
13	55515	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	2
14	19277	从动齿轮	GEAR Driven	1
15	82381325	管材(10.00英寸散装)	TUBING (10.00 Inches Bulk)	1
15	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
16	62705	O型圈	O-RING	1
16	8M0204667	O型圈×2	O RING @2	1
17	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
18	19278A2	轴承总成	BEARING ASSEMBLY	1

图 56动力升降-长轴(序列号0C159200至0D181999) POWER TRIM-LONG SHAFT (S/N-0C159200 THRU 0D181999)

REF	零件编号	中文名称	英文名称	数量
1	8134271	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A3	气缸密封套件	SEAL KIT Cylinder	1
5	813430A1	配平记忆活塞总成(参见脚注和图示)	PISTON ASSEMBLY Trim Memory (SEE FOOTNOTE & ILLUSTRATION)	1
5	893903A01	活塞套件	PISTON KIT	1
5	810776	记忆活塞套件(参见脚注和图示)	PISTON KIT Memory (SEE FOOTNOTE & ILLUSTRATION)	1
6	810777	气缸套件	CYLINDER KIT	1
6	811228	气缸套件	CYLINDER KIT	1
6	893904T01	气缸总成	CYLINDER ASSEMBLY	1
7	813433A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
7	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	811227	泵	PUMP	1
9	813441	歧管总成	MANIFOLD ASSEMBLY	1
9	811225	歧管总成	MANIFOLD ASSEMBLY	1
10	813436	螺钉套件	SCREW KIT	1
11	813437	驱动轴	DRIVESHAFT	1
12	813438	螺丝和销钉套件	SCREW AND PIN KIT	1
13	813439A2	密封套件	SEAL KIT	1
13	813439A3	O型圈套件	O RING KIT	1
14	813434A1	储液罐	RESERVOIR	1
15	813435	塞套件	PLUG KIT	1
15	8134351	堵头	PLUG	1
16	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
16	893929A01	安全阀套件	VALVE KIT Relief	1
17	811698	线束总成	HARNESS ASSEMBLY	1
18	813445	储液罐盖套件	CAP KIT Reservoir	1
19	813446	螺钉	SCREW	1
20	813447	电机套件	MOTOR KIT	1
21	813448	端盖	END CAP	1
22	813449A1	电枢	ARMATURE	1
23	813450	止推垫片套件	THRUST WASHER KIT	1
24	813451	外壳和磁铁套件	SHELL AND MAGNET KIT	1
25	813452	端架套件	END FRAME KIT	1
26	813453	螺栓螺母套件	BOLT AND NUT KIT	1
27	19607	销	PIN	2
28	821539	三叶销	PIN Trilobe	2
-	19217A5	完整配平泵总成	PUMP ASSEMBLY Trim COMPLETE	1
-	854472A3	动力调整套件	POWER TRIM KIT	1

图 57动力升降(序列号0D182000至0G357070)(黑色插头) POWER TRIM (S/N-0D182000 THRU 0G357070)(BLACK PLUG)

REF	零件编号	中文名称	英文名称	数量
-	822870A1	泵总成	PUMP ASSEMBLY	1
-	830150T2	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
01	8134271	减震杆套件	SHOCK ROD KIT	1
01	893943A01	减震杆套件	SHOCK ROD KIT	1
02	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
03	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
04	813432A3	气缸密封套件	SEAL KIT Cylinder	1
05	810776	记忆活塞套件	PISTON KIT Memory	1
06	811228	气缸套件	CYLINDER KIT	1
06	893904T01	气缸总成	CYLINDER ASSEMBLY	1
07	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
07	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
08	8116706	泵/歧管套件	PUMP/MANIFOLD KIT	1
08	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
09	823180A1	摇臂套件	ROCKER ARM KIT	1
09	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
10	813436	螺钉套件	SCREW KIT	1
11	811671	驱动轴	DRIVESHAFT	1
12	811672A3	O型圈套件	O-RING KIT	1
12	811672A4	O型圈套件	O RING KIT	1
13	811673	储液罐	RESERVOIR	1
13	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
14	813435	塞套件	PLUG KIT	1
14	8134351	堵头	PLUG	1
15	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
15	893929A01	安全阀套件	VALVE KIT Relief	1
16	811677	储液罐盖套件	CAP KIT Reservoir	1
16	809885A1	电机套件	MOTOR KIT	1
17	813446	螺钉	SCREW	1
18	811674	储液罐/马达	RESERVOIR/MOTOR	1
18	809885A1	电机套件	MOTOR KIT	1
19	811675	电枢	ARMATURE	1
20	811676	止推垫片套件	THRUST WASHER KIT	1
21	19607	销	PIN	1
22	821539	三叶销	PIN Trilobe	2
23	822869	销	PIN	1
23	822869001	锚销	PIN Anchor	1

图 58动力升降(序列号0G357070及以上)(黄色注油塞) POWER TRIM (S/N-0G357070 and UP)(YELLOW FILL PLUG)

REF	零件编号	中文名称	英文名称	数量
-	830150A1	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
-	830150T2	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	813427A3	减震杆套件	SHOCK ROD KIT	1
1	893943A01	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	NSS		NOT SOLD SEPARATE O-ring	2
4	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
4	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
5	811228A1	气缸总成	CYLINDER ASSEMBLY	1
5	893904T01	气缸总成	CYLINDER ASSEMBLY	1
6	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
6	893905A02	阀套件	VALVE KIT	1
7	809874A1	泵总成	PUMP ASSEMBLY	1
7	893906A02	泵总成	PUMP ASSEMBLY	1
8	809885A1	电机套件	MOTOR KIT	1
8	893907A02	电机套件	MOTOR KIT	1
9	8134351	堵头	PLUG	1
10	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
10	893929A01	安全阀套件	VALVE KIT Relief	1
11	809875A1	歧管套件	MANIFOLD KIT	1
11	893909A02	歧管套件	MANIFOLD KIT	1
12	809876A1	螺丝套件(电机)	SCREW KIT (MOTOR)	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	O型圈套件(完整调整)	O-RING KIT (COMPLETE TRIM)	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	19607	销	PIN	1
18	822869	销	PIN	1
18	822869001	锚销	PIN Anchor	1

图 59启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	41583	启动马达总成(10齿小齿轮)	STARTER MOTOR ASSEMBLY (10 PINION TEETH)	1
-	41583T	ORD 50-898265007	ORD 50-898265007	1
1	90642	驱动套件	DRIVE KIT	1
2	43076	驱动总成(10齿小齿轮)	DRIVE ASSEMBLY (10 PINION TEETH)	1
2	43076T	驱动总成	DRIVE ASSY	1
3	68584	驱动端板总成	PLATE ASSEMBLY DRIVE END	1
4	N.S.S.	不单独销售贯穿螺栓(BOSCH #SC-3803)	Not Sold Separate THRU BOLT (BOSCH #SC-3803)	2
5	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
6	N.S.S.	不单独销售止推垫圈(BOSCH #WA-3122)	Not Sold Separate THRUST WASHER (BOSCH #WA-3122)	1
7	57384	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	57387	绝缘衬套	BUSHING INSULATING	1
10	N.S.S.	不单独销售垫圈(BOSCH #WA-3074-1)	Not Sold Separate WASHER (BOSCH #WA-3074-1)	1
11	38013	输入柱垫圈	WASHER INPUT STUD	1
12	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
13	20890	螺母 (.250-20)	NUT (.250-20)	1
14	57389	端盖总成含电刷架	END CAP ASSEMBLY W/BRUSH HOLDER	1

图 60启动器回绕装置 STARTER REWIND

REF	零件编号	中文名称	英文名称	数量
1	20166	滑轮轴螺母(左旋螺纹)	NUT SHEAVE SHAFT (LEFT HAND THREAD)	1
2	61004	止动垫圈螺旋轴螺母	TAB WASHER SHREAVE SHAFT NUT	1
3	39597	起动机壳体护圈	GROMMET STARTER HOUSING	2
4	76141	联锁电缆总成	CABLE ASSEMBLY INTERLOCK	1
5	32228	螺钉（#10-32 X 0.625）	SCREW (#10-32 x .625)	1
6	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	1
7	42820	联锁凸轮	CAM INTERLOCK	1
7	428201	凸轮	CAM	1
8	76138	螺丝(.312-18 x 1.120)	SCREW (.312-18 x 1.120)	1
9	76140	弹簧	SPRING	1
9	761401	弹簧	SPRING	1
10	79371	执行器	ACTUATOR	1
11	76137	螺钉	SCREW	1
12	76139	弹簧	SPRING	1
13	30191	垫圈	WASHER	1
14	27769	开口销	COTTER PIN	1
14	26811	开口销	COTTER PIN	1
15	55860	启动器滑轮	PULLEY STARTER	1
16	45210	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
17	22887	滑轮螺丝垫圈	WASHER PULLEY SCREW	3
18	30977	滑轮螺钉隔套	SPACER PULLEY SCREW	1
18	309772	隔套	SPACER	1
19	94121	起动机拉绳固定座	RETAINER STARTER ROPE	1
20	24656	滑轮螺钉螺母	NUT PULLEY SCREW	1
21	76080A1	启动器壳体总成	HOUSING ASSEMBLY Starter	1
21	76079A8	起动机总成回绕式	STARTER ASSEMBLY Rewind	1
21	760791	启动器壳体	HOUSING Starter	1
21	760792	启动器壳体	HOUSING Starter	1
22	94338A1	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
22	44255A1	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
23	91936	启动棘爪	PAWL Starter	1
23	44508	启动棘爪	PAWL Starter	1
24	88759	螺钉(1英寸)	SCREW (1")	2
24	88760	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
25	26993	锁紧垫圈(.312)起动机壳体螺钉	LOCKWASHER (.312) STARTER HOUSING SCREW	3
25	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
26	61002	起动机回绕板	PLATE STARTER REWIND	1
27	39502A1	启动器回位弹簧	SPRING STARTER REWIND	1
27	39502T02	回卷弹簧	SPRING-RECOIL	1
28	87649	弹簧导套	BUSHING SPRING GUIDE	1
29	87651	起动机棘爪弹簧	SPRING STARTER PAWL	1
30	87706	起动机棘爪E型环	E RING STARTER PAWL	1
31	63061	滑轮轴间隔套	SPACER SHEAVE SHAFT	1
33	94962	杠杆	LEVER	1
34	20160	波形垫圈	WAVE WASHER	1
35	87656	滑轮轴	SHEAVE SHAFT	1
36	28985A2	启动机电缆总成	CABLE ASSEMBLY Starter	1
36	12066Q10	启动绳@2	ROPE-STARTER@2	1
36	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
36	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
37	79470A1	绳索固定组件	RETAINER KIT Rope	1
38	35559	起动机回绕垫圈	WASHER STARTER REWIND	1
-	76079A8	起动机总成回绕式	STARTER ASSEMBLY Rewind	1

图 61转向手柄总成 STEERING HANDLE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	78551A4	转向手柄总成	HANDLE ASSEMBLY Steering	1
1	48416	转向手柄握把端盖	CAP STEERING HANDLE GRIP	1
2	20586	螺母 (.250-28) 转向手柄臂	NUT (.250-28) STEERING HANDLE ARM	1
2	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
3	21631	垫圈 (.255 x .625 x .0312) 转向手柄臂	WASHER (.255 x .625 x .0312) STEERING HANDLE ARM	1
3	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
4	58192A1	转向手柄臂握把	GRIP STEERING HANDLE ARM	1
5	48414	驱动轮壳体 - 转向臂手柄	HOUSING DRIVE WHEEL - STEERING ARM HANDLE	1
6	48516A1	驱动轮/杆总成	DRIVE WHEEL/ROD ASSEMBLY	1
7	48405	转向手柄臂	ARM STEERING HANDLE	1
7	48405A2	臂总成	ARM ASSEMBLY	1
8	48519	盖板 - 驱动轮	PLATE COVER - DRIVE WHEEL	1
9	48518	盖板衬垫	GASKET COVER PLATE	1
10	28192	螺钉 (#10-24 x .50)	SCREW (#10-24 x .50)	4
10	72169	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
11	785512	线缆导管	CONDUIT CABLE	1
11	8885242	导管	CONDUIT	1
12	48520	节气门拉索	CABLE Throttle	1
13	89578	控制连杆套筒	BARREL CONTROL LINKAGE	1
14	89601	定位螺钉 - 油门线导向管	SCREW SET - THROTTLE CABLE GUIDE TUBE	1
14	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
15	89566	油门线导向管	TUBE THROTTLE CABLE GUIDE	1
15	8M0026078	导向管	TUBE-GUIDE	1
16	29880	油门线导向器	GUIDE THROTTLE CABLE	1
16	8M0204660	导套	GUIDE	1
17	20007	油门线固定座	ANCHOR THROTTLE CABLE	1
18	20518	定位螺钉 (#8-32) 油门线固定座	SET SCREW (#8-32) THROTTLE CABLE ANCHOR	2
18	8M0204644	螺钉组	SCREW SET	2
19	48404	转向手柄支架	BRACKET STEERING HANDLE	1
19	48404T8	支架	BRACKET	1
20	48416	转向手柄支架端盖	CAP STEERING HANDLE BRACKET	1
21	48476	螺钉	SCREW	1
21	823597	螺丝(.500-20 x 2.50)	SCREW (.500-20 x 2.50)	1
22	48477	垫圈转向手柄支架 (.505 内径)	WASHER STEERING HANDLE BRACKET (.505 I.D.)	1
23	48526	尼龙垫圈 - 手柄支架 (.630 内径)	WASHER NYLON - HANDLE BRACKET (.630 I.D.)	1
24	28919	尼龙衬套 - 手柄支架 (5/8" 内径)	BUSHING NYLON - HANDLE BRACKET (5/8" I.D.)	2
25	48525	转向手柄支架隔套	SPACER STEERING HANDLE BRACKET	1
26	48527	尼龙垫圈 - 手柄支架 (1-35/64" 外径)	WASHER NYLON - HANDLE BRACKET (1-35/64" O.D.)	1
26	38000	垫圈	WASHER	1
27	48478	波形垫圈转向手柄支架	WAVE WASHER STEERING HANDLE BRACKET	2
28	49636	尼龙垫圈 - 手柄支架 (1-3/4 外径)	WASHER NYLON - HANDLE BRACKET (1-3/4 O.D.)	1
29	20220	螺母(.500-20)转向手柄支架螺钉	NUT (.500-20) STEERING HANDLE BRACKET SCREW	1
29	82671317	螺母(.500-20)	NUT (.500-20)	1
30	35786	螺钉(.375-24 x 1.00)支架至发动机	SCREW (.375-24 x 1.00) BRACKET TO ENGINE	2
31	31828	锁紧垫圈支架螺钉	TAB WASHER BRACKET SCREW	2
31	43589	锁紧垫圈	TAB WASHER	2
32	78812A1	换挡杆定位器	DETENT SHIFT LEVER	1
33	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
34	48521	换挡杆	LEVER Shift	1
34	485681	换挡杆	SHIFT LEVVER	1
35	48237	尼龙衬套-换挡杆(3/8"内径)	BUSHING NYLON - SHIFT LEVER (3/8" I.D.)	1
36	34931	垫圈(.406 x .734 x .063)不锈钢换挡杆	WASHER (.406 x .734 x .063) Stainless Steel SHIFT LEVER	1
37	34863	螺母(.375-24)换挡杆至转向手柄支架	NUT (.375-24) SHIFT LEVER TO STEERING HANDLE BRACKET	1
37	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
38	49563	换挡杆	SHIFT ROD SHIFT	1
38	8128061	杆	ROD	1
39	48419	换挡杆端头	ROD END SHIFT ROD	1
39	48419T	杆端-2.16英寸	ROD END-2.16 IN	1
40	48475	尼龙衬套-换挡杆(1/4"内径)	BUSHING NYLON - SHIFT ROD (1/4" I.D.)	1
41	35950	垫圈(.273 x .437 x .031)不锈钢换挡杆	WASHER (.273 x .437 x .031) Stainless Steel SHIFT ROD	1
42	25191	开口销换挡杆	COTTER PIN SHIFT ROD	2
43	98530	换挡杆旋钮	KNOB SHIFT LEVER	1
44	45064	底部罩盖-短路开关	COVER BOTTOM COWL - SHORTING SWITCH	1
45	35827	底部罩盖塞-短路开关孔	PLUG BOTTOM COWL - SHORTING SWITCH HOLE	1
46	30428	底部罩盖固定塞	FASTENER PLUG TO BOTTOM COWL	1
-	52148A1	副驾驶套件	CO-PILOT KIT	1

图 62旋转支架 SWIVEL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	8130297	旋转支架	SWIVEL BRACKET	1
1	8M0161543	旋转支架	SWIVEL BRACKET	1
2	824969	润滑脂接头	FITTING Grease	5
3	808599	盖帽	CAP	5
4	8537435	衬套	BUSHING	2
5	162052	摩擦片	FRICTION PLATE	1
6	953831	弹簧	SPRING	1
7	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
8	8537401	接地线	GROUND WIRE	1
8	898101089	接地线	WIRE Ground	1
8	898101089	接地线	WIRE Ground	1
9	8230427	螺栓总成(M6 x 12)	BOLT ASSEMBLY (M6 x 12)	2
10	853770A1	转向轴总成	SHAFT ASSEMBLY Steering	1
10	853770T01	转向轴	SHAFT-STEERING	1
11	8537141	C形卡环	C CLIP	1
12	161403	垫圈	WASHER	1
12	879194002	垫圈	WASHER	1
13	162041	上推力板	THRUST PLATE Upper	1
14	8537076	油封	SEAL Oil	1
15	8537436	衬套	BUSHING	2
16	162382	垫圈	WASHER	4
17	8537721	锁紧板	LOCK PLATE	4
18	85372215	螺母	NUT	4
19	162042	下部推力板	THRUST PLATE Lower	1
19	16204004	推力板	THRUST PLATE	1
20	853786	下轭架	YOKE Bottom	1
21	8537731	缓冲垫	BUMPER	1
22	8537142	C形环	C-RING	1

图 63油门控制连杆(金属连杆旋转件) THROTTLE CONTROL LINKAGE (METAL LINK ROD SWIVELS)

REF	零件编号	中文名称	英文名称	数量
1	72040T	油门执行器支架	BRACKET Throttle Actuator	1
2	53576	螺丝(.312-18 x 1.125)	SCREW (.312-18 x 1.125)	3
3	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
3	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
4	815603A1	油门执行器总成	ACTUATOR ASSEMBLY Throttle	1
5	21449	螺丝(.312-24 x 2.00)	SCREW (.312-24 x 2.00)	1
6	25893	垫圈	WASHER	2
7	62172	波形垫圈	WAVE WASHER	1
8	29250	螺母(.312-24)	NUT (.312-24)	1
9	57440	旋转接头	SWIVEL	1
10	72043	连杆	LINK ROD	1
11	57440	旋转接头	SWIVEL	1
12	NLA	已停产油门臂(订购815603A1)	No Longer Available Throttle Arm (ORDER 815603A1)	1
13	89778	油门臂螺丝(2-1/4英寸)	SCREW THROTTLE ARM (2-1/4 IN.)	1
13	25158	油门臂螺丝(.190-32 x 1.75)	SCREW (.190-32 x 1.75) THROTTLE ARM	1
14	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
15	48039	盖帽	CAP	2
16	39483	闩锁	LATCH	1
17	22486	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
17	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
18	20099	弹簧	SPRING	1
19	35045	螺母(.250-28)	NUT (.250-28)	1
19	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
20	815607A1	点火提前杆总成	LEVER ASSEMBLY Spark Advance	1
21	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
22	55164	衬套	BUSHING	1
23	55171	衬套	BUSHING	1
24	55162	弹簧	SPRING	1
25	68410	垫圈	WASHER	1
25	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
26	25158	螺丝(.190-32 x 1.75)	SCREW (.190-32 x 1.75)	1
27	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
28	48039	盖帽	CAP	1
29	76056	连杆(2-1/2英寸长)	LINK ROD (2-1/2 IN. LONG)	1
30	74897	枢轴	PIVOT	1
30	74897T	枢轴	PIVOT	1
31	77013A1	旋转接头	SWIVEL	1
32	29402	波形垫圈	WAVE WASHER	1
33	26856	衬套	BUSHING	1
34	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
35	45774	螺母	NUT	1
36	66778	安装板	PLATE	1
36	66778T	油门板	PLATE-THROTTLE	1
37	46420	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	2
38	23015	螺丝(.190-32 x 1.00)	SCREW (.190-32 x 1.00)	1
39	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
40	48039	盖帽	CAP	1

图 64油门控制连杆(塑料连杆旋转件) THROTTLE CONTROL LINKAGE (PLASTIC LINK ROD SWIVELS)

REF	零件编号	中文名称	英文名称	数量
1	72040T	油门执行器支架	BRACKET Throttle Actuator	1
2	53576	螺丝(.312-18 x 1.125)	SCREW (.312-18 x 1.125)	3
3	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
3	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
4	815603A1	油门执行器总成	ACTUATOR ASSEMBLY Throttle	1
5	815605	连杆	LINK ROD	1
5	878171	连接杆	ROD-LINK	1
6	93421	旋转球头	SWIVEL BALL	2
7	93254	旋转底座	SWIVEL BASE	2
8	29250	螺母(.312-24)	NUT (.312-24)	1
9	21449	螺丝(.312-24 x 2.00)	SCREW (.312-24 x 2.00)	1
10	25893	垫圈	WASHER	2
11	62172	波形垫圈	WAVE WASHER	1
12	66778	安装板	PLATE	1
12	66778T	油门板	PLATE-THROTTLE	1
13	46420	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	2
14	23015	螺丝(.190-32 x 1.00)	SCREW (.190-32 x 1.00)	1
15	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
16	48039	盖帽	CAP	1
17	22486	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
17	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
18	20099	弹簧	SPRING	1
19	35045	螺母(.250-28)	NUT (.250-28)	1
19	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
20	815607A1	点火提前杆总成	LEVER ASSEMBLY Spark Advance	1
21	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
22	55164	衬套	BUSHING	1
23	55171	衬套	BUSHING	1
24	55162	弹簧	SPRING	1
25	68410	垫圈	WASHER	1
25	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
26	25158	螺丝(.190-32 x 1.75)	SCREW (.190-32 x 1.75)	1
27	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
28	48039	盖帽	CAP	1
29	815604	连杆	LINK ROD	1
30	74897	枢轴	PIVOT	1
30	74897T	枢轴	PIVOT	1
31	93421	旋转球头	SWIVEL BALL	1
32	93254	旋转底座	SWIVEL BASE	1
33	89778	螺丝(2-1/4英寸)	SCREW (2-1/4 IN.)	1
33	25158	螺丝(.190-32 x 1.75)	SCREW (.190-32 x 1.75)	1
34	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
35	48039	盖帽	CAP	2
36	39483	闩锁	LATCH	1

图 65舵柄适配套件(JET 30) TILLER HANDLE ADAPTOR KIT (JET 30)

REF	零件编号	中文名称	英文名称	数量
-	850000A1	30号喷嘴适配器套件	ADAPTER KIT 30 JET	1
1	832001A5	油门/换挡线缆总成	CABLE ASSEMBLY Throttle/Shift	1
2	85552	护套	BOOT	1
2	85552001	护套	BOOT	1
3	812615	固定座	RETAINER	1
4	812612	螺柱	STUD	1
5	812616	滑块	SLIDER	1
6	832055	衬套	BUSHING	1
7	812607	环	RING	1
8	35045	螺母(.250-28)	NUT (.250-28)	1
8	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
9	54457	J型卡扣	J CLIP	1
10	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
10	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
11	828093	安装板	PLATE	1
12	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
13	17406	隔套	SPACER	1
14	816086	衬套	BUSHING	1
15	805543	螺钉 (1.25英寸)	SCREW (1.25 inch)	1
16	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
17	828094	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
18	72734	紧定螺丝(#10-32 x .310)	SET SCREW (#10-32 x .310)	1
19	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1

图 66艉板支架(序列号0D181999及以下) TRANSOM BRACKET (S/N 0D181999 and BELOW)

REF	零件编号	中文名称	英文名称	数量
1	9751A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	9751A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	9750T	艉板支架	BRACKET Transom	1
4	9750T6	艉板支架	BRACKET Transom	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
5	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
9	812709T6	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486F5	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
12	18486F6	锚支架	BRACKET Anchor	1
12	18486A08	支架套件锚	BRACKET KIT Anchor	1
13	818298A1	阳极套件	ANODE KIT	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	19613A1	倾斜销总成	PIN ASSEMBLY Tilt	1
20	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
20	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
21	19614	倾斜管	TILT TUBE	1
21	8M0041938	倾斜管	TILT TUBE	1
22	826164	螺母 (.875-14)	NUT (.875-14)	2
22	8M0231351	锁紧螺母	NUT Lock	2
23	19624A1	密封套件	SEAL KIT	1
24	22740	卡扣	CLIP	1
25	69205	C形垫圈	C WASHER	1
25	8M0084613	C形垫圈	C-WASHER	1
26	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
26	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
27	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
28	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
29	8M0027784	螺母	NUT	4
29	82671117	螺母(.500-20)	NUT (.500-20)	4
30	1938525	连接杆	LINK	1
30	8M0084737	连接杆	LINK	1
31	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
32	812707	衬套	BUSHING	1
33	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
33	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	815796	垫圈 (.030英寸)	WASHER (.030 IN.)	1
34	99611	波形垫圈	WAVE WASHER	1
35	19621	倾斜旋钮	TILT KNOB	1
35	8M0007469	倾斜旋钮	KNOB Tilt	1
36	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
37	76841	螺钉 (.500-20 x 3.500)	SCREW (.500-20 x 3.500)	2
38	812432F5	安装支架	MOUNTING BRACKET	1
38	812433F5	安装支架	MOUNTING BRACKET	1
39	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
40	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
41	134371	螺母 (.375-24)	NUT (.375-24)	4
41	862903	螺母 (.375-24)	NUT (.375-24)	4
42	812434A2	T型手柄螺母	NUT T Handle	2

图 67艉板/夹紧支架(序列号0D182000及以上) TRANSOM/CLAMP BRACKET (S/N 0D182000 and ABOVE)

REF	零件编号	中文名称	英文名称	数量
1	822868A1	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	8M0084195	支架-卡箍-黑色	BRACKET-CLAMP-BLK	1
1	822868A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	822866A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	822866T04	艉板支架-左舷	BRACKET Transom - Port	1
2	822866A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	822866A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99604	槽销	PIN Groove	1
5	822867F1	夹箍支架	CLAMP BRACKET	1
5	822867F2	夹箍支架	CLAMP BRACKET	1
6	822865F2	艉板支架	BRACKET Transom	1
6	822865T05	艉板支架-右舷	BRACKET Transom - Starboard	1
6	822865F3	艉板支架	BRACKET Transom	1
6	822865F4	艉板支架	BRACKET Transom	1
7	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
7	893704T01	倾斜锁杆	LEVER Tilt Lock	1
7	19618A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
7	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
7	19618A5	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
8	99622	弹簧	SPRING	1
9	65830	尼龙衬套	NYLINER	1
10	812708	弹簧	SPRING	1
11	812709T	旋钮	KNOB	1
11	812709	旋钮	KNOB	1
11	812709T6	旋钮	KNOB	1
11	812709	旋钮	KNOB	1
11	812709F1	旋钮	KNOB	1
11	812709	旋钮	KNOB	1
12	99615	槽销	PIN Groove	1
13	19619	垫圈	WASHER	2
14	18486F5	锚支架	BRACKET Anchor	1
14	18486A08	支架套件锚	BRACKET KIT Anchor	1
14	18486F6	锚支架	BRACKET Anchor	1
14	18486A08	支架套件锚	BRACKET KIT Anchor	1
14	18486F7	锚支架	BRACKET Anchor	1
15	818298A1	阳极套件	ANODE KIT	1
15	818298Q1	阳极套件	ANODE KIT	1
16	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
16	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
18	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
18	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
19	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
20	400635	螺母 (M8)	NUT (M8)	2
20	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
21	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
21	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
22	821461	弹簧	SPRING	1
23	19614	倾斜管	TILT TUBE	1
23	8M0041938	倾斜管	TILT TUBE	1
24	826164	螺母 (.875-14)	NUT (.875-14)	2
24	8M0231351	锁紧螺母	NUT Lock	2
25	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
26	818884	垫圈	WASHER	2
27	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
28	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
29	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
29	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
30	8M0027784	螺母	NUT	4
30	82671117	螺母(.500-20)	NUT (.500-20)	4
31	1938525	连接杆	LINK	1
31	8M0084737	连接杆	LINK	1
32	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
32	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
33	812707	衬套	BUSHING	1
34	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
34	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
35	99611	波形垫圈	WAVE WASHER	1
36	19621	倾斜旋钮	TILT KNOB	1
36	8M0007469	倾斜旋钮	KNOB Tilt	1
37	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
38	812432F5	安装支架	MOUNTING BRACKET	1
38	812433F5	安装支架	MOUNTING BRACKET	1
39	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
40	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
41	134371	螺母 (.375-24)	NUT (.375-24)	4
41	862903	螺母 (.375-24)	NUT (.375-24)	4
42	821722	垫片	SHIM	4
43	812434A2	T型手柄螺母 (动力升降)	NUT T Handle (POWER TRIM)	1
44	19624A1	密封套件 (电动/手动带遥控)	SEAL KIT (ELECTRIC/MANUAL W/RC)	1
45	26550	卡箍	CLAMP	1
45	22740	卡扣	CLIP	1
46	69205	C形垫圈	C WASHER	1
46	8M0084613	C形垫圈	C-WASHER	1
47	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
47	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1

图 68升降开关套件 Trim Switch Kit

REF	零件编号	中文名称	英文名称	数量
-	18286A18	升降开关套件(10.00英尺)	SWITCH KIT Trim (10.00 Feet)	1
1	18861	固定座	RETAINER	1
2	814820	适配器	ADAPTER	1
3	NSS	开关(不单独销售)	NOT SOLD SEPARATE Switch
4	79091	保险丝20安培	FUSE 20 Ampere	1
4	8M0207796	保险丝20安培	FUSE 20 AMP	1
5	95084A2	拉线总成	CABLE ASSEMBLY	1
6	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	2
7	19209	螺钉(#10-32 x 2.25)	SCREW (#10-32 x 2.25)	2
7	813523	螺钉(#10-16 x 2.25)	SCREW (#10-16 x 2.25)	2
