两冲程 化油器 · USA - Cat.# 90-803018001 · 共 33 个部位 · 1373 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 62351A10 | 蓄电池充电套件 | CHARGING KIT Battery | 1 |
| 0 | 828155A2 | 化油器防冰套件 | ANTI-ICING KIT Carburetor | 1 |
| 0 | 828155A7 | 化油器防冰套件 | ANTI-ICING KIT Carburetor | 1 |
| 0 | 825294A2 | 罩装启动按钮改装套件 | CONVERSION KIT Cowl Mounted Start Button | 1 |
| 0 | 812497A2 | 二极管总成(双引擎) | DIODE ASSEMBLY (DUAL ENGINE) | 1 |
| 0 | 898289A72 | 双拉绳二极管套件 | DIODE KIT-LANYARD Dual | 1 |
| 0 | 822462A1 | 电启动改装套件 | CONVERSION KIT Electric Start | 1 |
| 0 | 822462A4 | 起动机转换套件 | CONVERSION KIT Starter Motor | 1 |
| 0 | 812432A5 | 发动机安装套件(夹紧螺钉安装) | ENGINE MOUNTING KIT (CLAMP SCREW MOUNTING) | 1 |
| 0 | 812432T5 | 发动机安装套件 | MOUNTING KIT Engine | 1 |
| 0 | 824072A3 | 延长套件(22.5) | EXTENSION KIT (22.5) | 1 |
| 0 | 824072A4 | 延长套件(22.5) | EXTENSION KIT (22.5) | 1 |
| 0 | 824072A3 | 延长套件(22.5) | EXTENSION KIT (22.5) | 1 |
| 0 | 44357A2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| 0 | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| 0 | 827927A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | 1 |
| 0 | 877680Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 0 | 827927A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 0 | 877680Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 0 | 17146A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | 1 |
| 0 | 877681Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 0 | 17146A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 0 | 877681Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 0 | 822379A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 0 | 877683Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 0 | 827387A2 | 马力限制套件 | HORSEPOWER RESTRICTOR KIT | 1 |
| 0 | 827606A2 | 马力限制套件 | HORSEPOWER RESTRICTOR KIT | 1 |
| 0 | 15000A1 | 钥匙开关套件 远程点火 | KEY SWITCH KIT Remote Ignition | 1 |
| 0 | 15000A7 | 钥匙开关套件 远程点火 | KEY SWITCH KIT Remote Ignition | 1 |
| 0 | 19674A2 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| 0 | 19674Q2 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| 0 | 95845A5 | 照明调节器套件 | REGULATOR KIT Lighting | 1 |
| 0 | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 0 | 8M0180081 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 0 | 86300A5 | 防腐电极监测器 | MERCATHODE MONITOR | 1 |
| 0 | 813960A4 | 开关总成 | SWITCH ASSEMBLY | 1 |

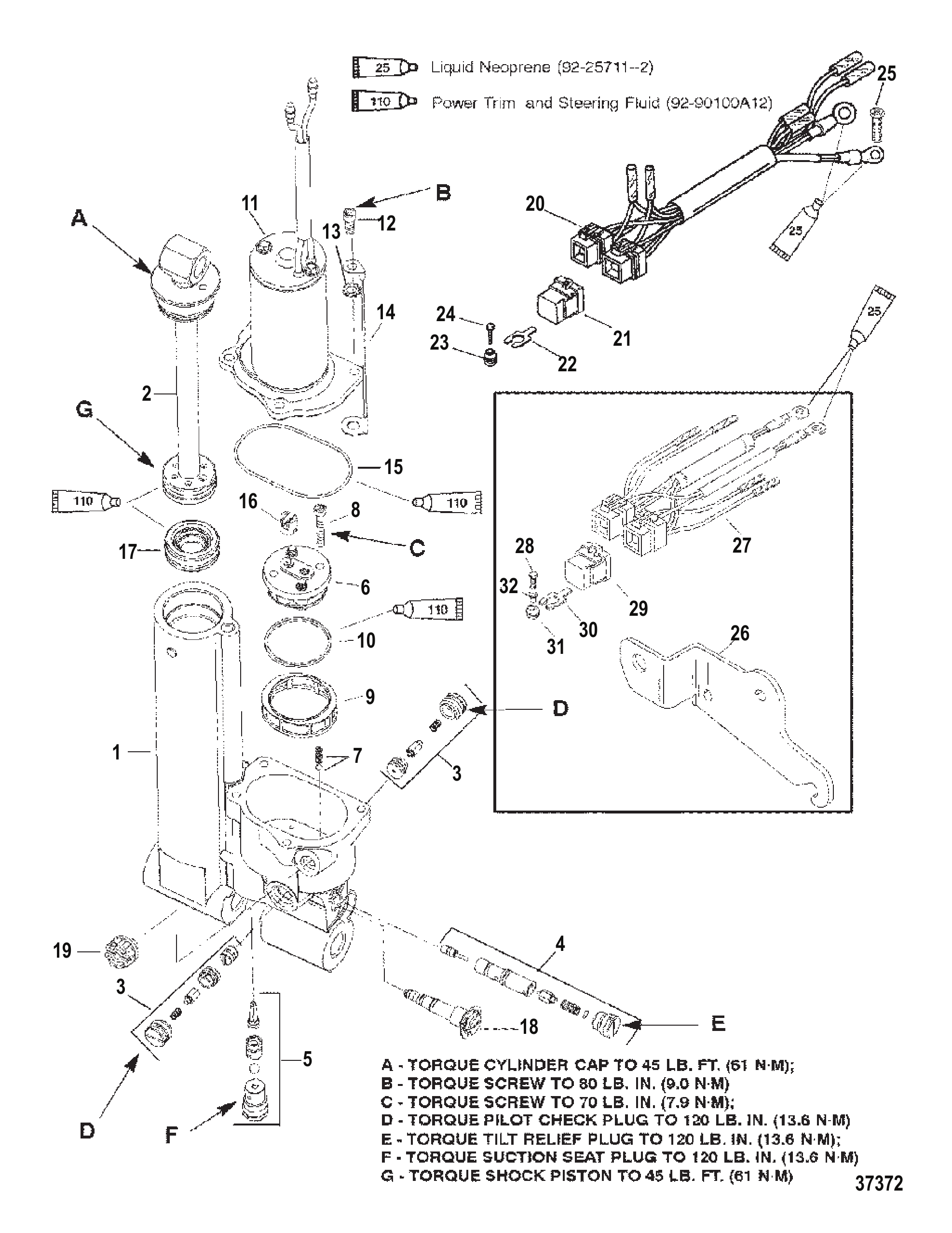

| 0 | 822573A11 | 动力升降仪表传感器套件 | SENDER KIT Power Trim Gauge | 1 |
| 0 | 822573A12 | 动力升降倾斜传感器套件 | SENDER KIT Power Trim | 1 |
| 0 | 822344A6 | 动力调整套件 | POWER TRIM KIT | 1 |
| 0 | 822344A11 | 动力调整套件 | POWER TRIM KIT | 1 |
| 0 | 18286A18 | 升降开关套件(10.00英尺) | SWITCH KIT Trim (10.00 Feet) | 1 |
| 0 | 826557A1 | 遥控器安装套件 | ATTACHING KIT Remote Control | 1 |
| 0 | 824477A3 | 遥控与加浓线束套件 | HARNESS KIT Remote Control And Enrichener | 1 |
| 0 | 822465A1 | 转向支架总成 | BRACKET ASSEMBLY Steering | 1 |
| 0 | 822465A2 | 转向支架总成 | BRACKET ASSEMBLY Steering | 1 |
| 0 | 816667A2 | 转向支架总成 | BRACKET ASSEMBLY Steering | 1 |

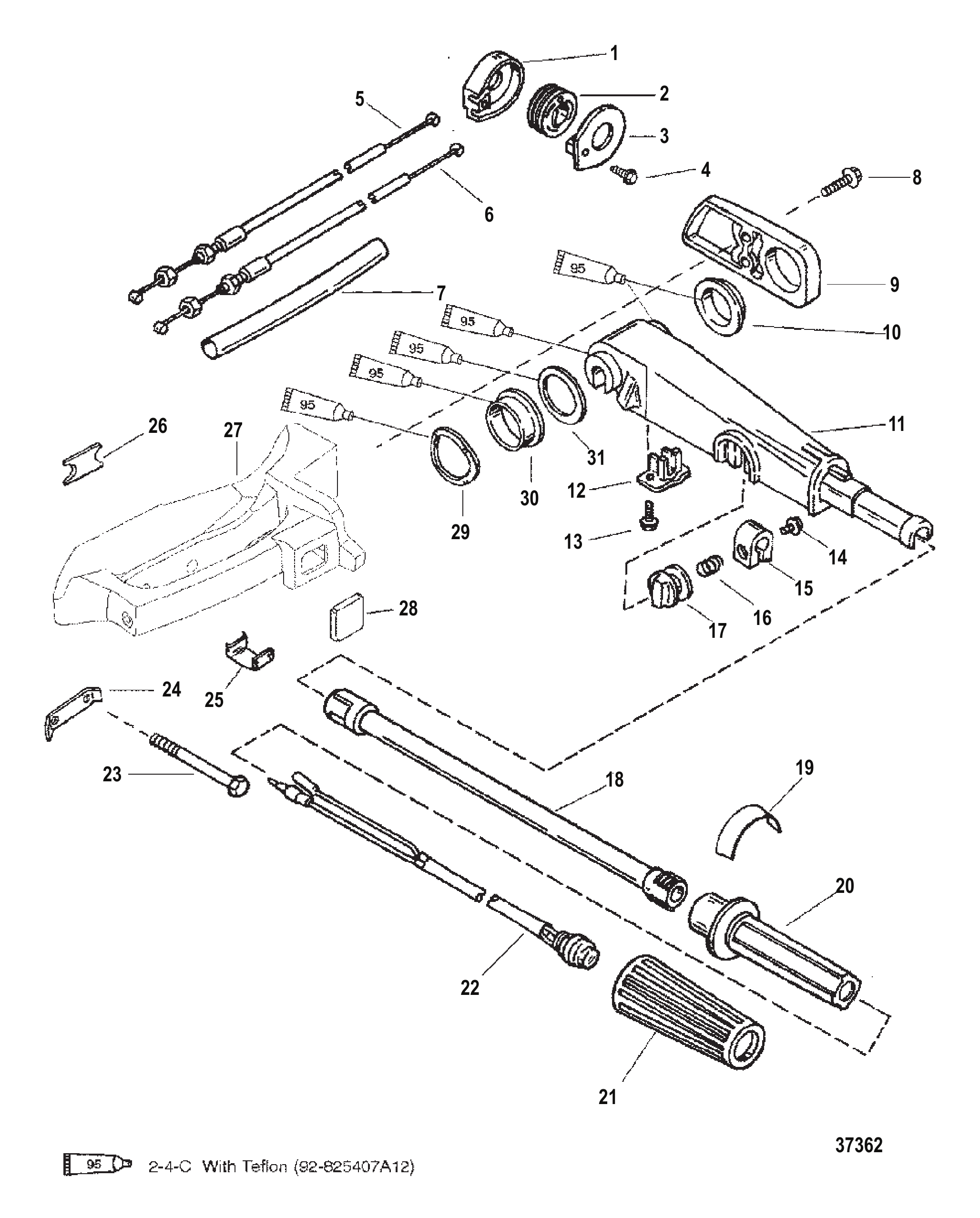

| 0 | 821455A8 | 30/40二冲程舵柄套件 | TILLER HANDLE KIT 30/40 2-Stroke | 1 |
| 0 | 821455T8 | 舵柄套件 | TILLER HANDLE KIT | 1 |
| 0 | 821455A9 | 30/40二冲程舵柄套件 | TILLER HANDLE KIT 30/40 2-Stroke | 1 |
| 0 | 821455T9 | ORD 821455T 8 | ORD 821455T 8 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 824992 | 定位弹簧 | SPRING Detent | 1 |
| 2 | 824993 | 背衬弹簧 | SPRING Backing | 2 |
| 3 | 824994 | 板簧 | SPRING Plate | 1 |
| 4 | 82191916 | 螺钉(M5×14) | SCREW (M5 x 14) | 2 |
| 5 | 8280471 | 绑带 | STRAP | 1 |
| 6 | 40011127 | 螺钉 (M6 x 16) 不锈钢 | SCREW (M6 x 16) Stainless Steel | 1 |
| 6 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 7 | 8220081 | 卡箍 | CLAMP | 1 |
| 7 | 8M0039049 | 换档轴夹 | CLAMP-SHIFT SHAFT | 1 |
| 8 | 40011130 | 不锈钢螺钉(M6x30) | SCREW (M6 x 30) Stainless Steel | 2 |
| 9 | 813960A3 | 开关 | SWITCH | 1 |
| 9 | 8M0052927 | 开关总成 | SWITCH ASSY | 1 |
| 10 | 4001168 | 不锈钢螺丝(M3.5 x 20) | SCREW (M3.5 x 20) Stainless Steel | 2 |
| 10 | 88075020 | 螺丝(M3 x 20) | SCREW (M3 x 20) | 2 |
| 11 | 824923 | 安装板 | PLATE | 1 |
| 12 | 852375A4 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 13 | 822469 | 盖帽 | CAP | 1 |
| 13 | 8M0036802 | 中间盖 | CAP-INTERMEDIATE | 1 |
| 14 | 40011127 | 螺钉 (M6 x 16) 不锈钢 | SCREW (M6 x 16) Stainless Steel | 1 |
| 14 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 15 | 26954 | 衬套 | BUSHING | 1 |
| 16 | 8224671 | 杠杆 | LEVER | 1 |
| 16 | 8M0041741 | 中间杆 | LEVER-INTERMEDIAT | 1 |
| 17 | 42927 | 嵌件 | INSERT | 1 |
| 18 | 822456 | 销 | PIN | 1 |
| 18 | 8224561 | 销 | PIN | 1 |
| 19 | 26954 | 衬套 | BUSHING | 1 |
| 20 | 48475 | 衬套 | BUSHING | 1 |
| 21 | 822459 | 固定座 | RETAINER | 1 |
| 22 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 23 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 23 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 24 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 24 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 25 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 26 | 822470 | 换挡连杆 | SHIFT LINK | 1 |
| 27 | 48475 | 衬套 | BUSHING | 1 |
| 28 | 827310A2 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 28 | 850203A2 | 线束总成 | HARNESS ASSY | 1 |
| 29 | 11149A21 | 适配器线束总成 | HARNESS ASSEMBLY Adapter | 1 |
| 30 | 821483A6 | 水平换挡轴 | SHIFT SHAFT Horizontal | 1 |
| 31 | 821487 | 杠杆 | LEVER | 1 |
| 32 | 27769 | 开口销 | COTTER PIN | 1 |
| 32 | 26811 | 开口销 | COTTER PIN | 1 |
| 33 | 817626 | 自攻螺钉(#10-16×0.380) | SCREW (#10-16 x .380) (SELF TAP) | 1 |
| 33 | 878607 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 34 | 88807A28 | 线缆总成(黑色-7.5英寸) | CABLE ASSEMBLY (BLACK-7 1/2 IN.) | 1 |
| 35 | 8251751 | 换挡连杆 | SHIFT ROD | 1 |
| 35 | 8M0037997 | 换档杆 | ROD-SHIFT | 1 |
| 36 | 269531 | 开口销 | COTTER PIN | 1 |
| 36 | 210711 | 开口销 | COTTER PIN | 1 |
| 37 | 21071 | 开口销 | COTTER PIN | 1 |
| 37 | 210711 | 开口销 | COTTER PIN | 1 |
| 38 | 8251851 | 销 | PIN | 2 |
| 39 | 827418 | 锁紧垫圈 | LOCKWASHER | 2 |
| 40 | 822011 | 换挡杆 | LEVER Shift | 1 |
| 41 | 825273 | 波形垫圈 | WAVE WASHER | 1 |
| 42 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 1 |
| 43 | 98889 | 闩锁 | LATCH | 1 |
| 44 | 39519 | 杯套 | CUP | 1 |
| 45 | 42975 | 传动螺钉 | DRIVE SCREW | 2 |
| 46 | 8224231 | 密封件 | SEAL | 1 |
| 46 | 822423002 | 密封件 | SEAL | 1 |

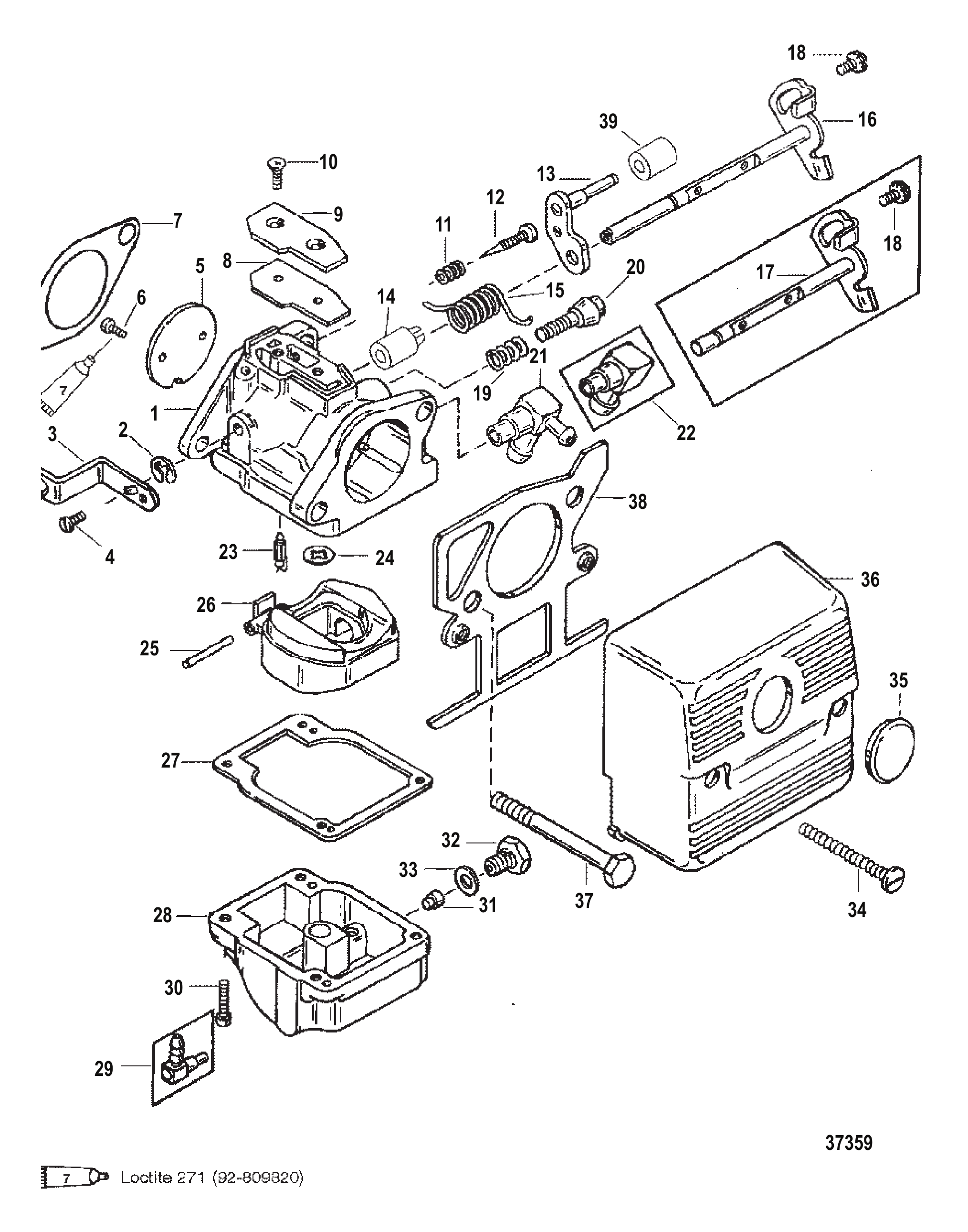

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821383A3 | 化油器 | CARBURETOR | 1 |
| 1 | 821383T17 | 化油器(WME 98) | CARBURETOR (WME 98) | 1 |
| 1 | 821383A4 | 化油器 | CARBURETOR | 1 |
| 1 | 821383T18 | 化油器(WME 99) | CARBURETOR (WME 99) | 1 |
| 1 | 823799A10 | 化油器 | CARBURETOR | 1 |
| 1 | 823799A44 | 化油器维修包 | CARBURETOR KIT | 1 |
| 1 | 823799A11 | 化油器 | CARBURETOR | 1 |
| 1 | 823799T38 | 化油器(WME 97) | CARBURETOR (WME 97) | 1 |
| 1 | 823799A12 | 化油器 | CARBURETOR | 1 |
| 1 | 823799T12 | 化油器 | CARBURETOR | 1 |
| 2 | NSS | 不单独销售 挡圈 | NOT SOLD SEPARATE RETAINING RING | 1 |
| 3 | 8113521 | 油泵杆(电动) | LEVER Oil Pump (ELECTRIC) | 1 |
| 4 | 8086121 | 杆固定螺钉 | SCREW Lever Retainer | 1 |
| 5 | 8236371 | 油门阀 | VALVE Throttle | 1 |
| 6 | NSS | 节流阀螺钉(不单独销售) | NOT SOLD SEPARATE SCREW, Throttel Valve | 2 |
| 7 | 8144461 | 法兰衬垫 | GASKET Flange | 1 |
| 8 | NA | 盖板衬垫(无库存) | NOT AVAILABLE GASKET, Cover Plate | 1 |
| 9 | 811221 | 盖板 | COVER PLATE | 1 |
| 10 | 811220 | 盖板螺丝 | SCREW Cover Plate | 2 |
| 11 | NSS | 怠速针弹簧(不单独销售) | NOT SOLD SEPARATE SPRING, Idle Needle | 1 |
| 12 | NSS | 不单独销售 怠速针 | NOT SOLD SEPARATE IDLE NEEDLE | 1 |
| 13 | 808746 | 杠杆 | LEVER | 1 |
| 14 | 808743 | 节气门轴衬套 | BUSHING Throttle Shaft | 1 |
| 14 | 8087431 | 节气门轴衬套 | BUSHING Throttle Shaft | 1 |
| 15 | NSS | 节气门回位弹簧(不单独销售) | NOT SOLD SEPARATE SPRING, Throttel Return | 1 |
| 16 | 8236331 | 油门轴 | SHAFT Throttle | 1 |
| 17 | 8236323 | 油门轴 | SHAFT Throttle | 1 |
| 18 | 823634 | 螺钉 | SCREW | 1 |
| 19 | 96321 | 怠速调节弹簧 | SPRING Idle Adjustment | 1 |
| 20 | 808739 | 怠速螺钉 | SCREW Idle Speed | 1 |
| 20 | 8087392 | 怠速螺钉 | SCREW Idle Speed | 1 |
| 21 | NSS | 非单独销售配件(属于参考号1) | NOT SOLD SEPARATE FITTING (PART OF REF # 1) | 1 |
| 22 | NSS | 非单独销售配件(属于参考号1) | NOT SOLD SEPARATE FITTING (PART OF REF # 1) | 1 |
| 23 | 879194011 | 进油阀 | VALVE Inlet | 1 |
| 24 | 808738 | 衬垫 | GASKET | 1 |
| 25 | NSS | 不单独销售 浮子轴 | NOT SOLD SEPARATE FLOAT SHAFT | 1 |
| 26 | 9594 | 浮子 | FLOAT | 1 |
| 27 | NSS | NOT SOLD SEPARATE GASKET, Fuel Bowl | 1 | |
| 28 | 811695 | 燃油杯 | BOWL Fuel | 1 |
| 28 | 811693 | 燃油杯 | BOWL Fuel | 1 |
| 29 | NSS | 非单独销售配件(属于1395-811695) | NOT SOLD SEPARATE FITTING (PART OF 1395-811695) | 1 |
| 30 | 808612 | 螺钉及垫圈 (#8-32 x .750) | SCREW AND WASHER (#8-32 x .750) | 4 |
| 31 | 4215 | 燃油主量孔(.066) | JET Main Fuel (.066) | 1 |
| 31 | 5225 | 主量孔(.054) | JET Main (.054) | 1 |
| 32 | 811694 | 塞套件 | PLUG KIT | 1 |
| 33 | 802731 | 油封组(含4个油封) | SEAL (CONSISTS OF 4 SEALS) | 1 |
| 34 | 814776 | 调节螺钉(M6 x 55) | SCREW Adjusting (M6 x 55) | 2 |
| 35 | 815784 | 盖帽 | CAP | 1 |
| 36 | 8235871 | 化油器盖 | COVER Carburetor | 1 |
| 36 | 823587T02 | 化油器盖总成 | COVER ASY-CARB | 1 |
| 37 | 4000363 | 螺钉(M8x100 六角头) | SCREW (M8 x 100) HEX HEAD CAP | 2 |
| 38 | 823586 | 化油器板 | PLATE Carburetor | 1 |
| 38 | 8235862 | 化油器板 | PLATE Carburetor | 1 |
| 39 | 67748 | 滚轮 | ROLLER | 1 |
| - | 8236354 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| - | 8112231 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| - | 822420A94 | 衬垫套件 | GASKET SET | 1 |
| - | 808569A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 808569T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

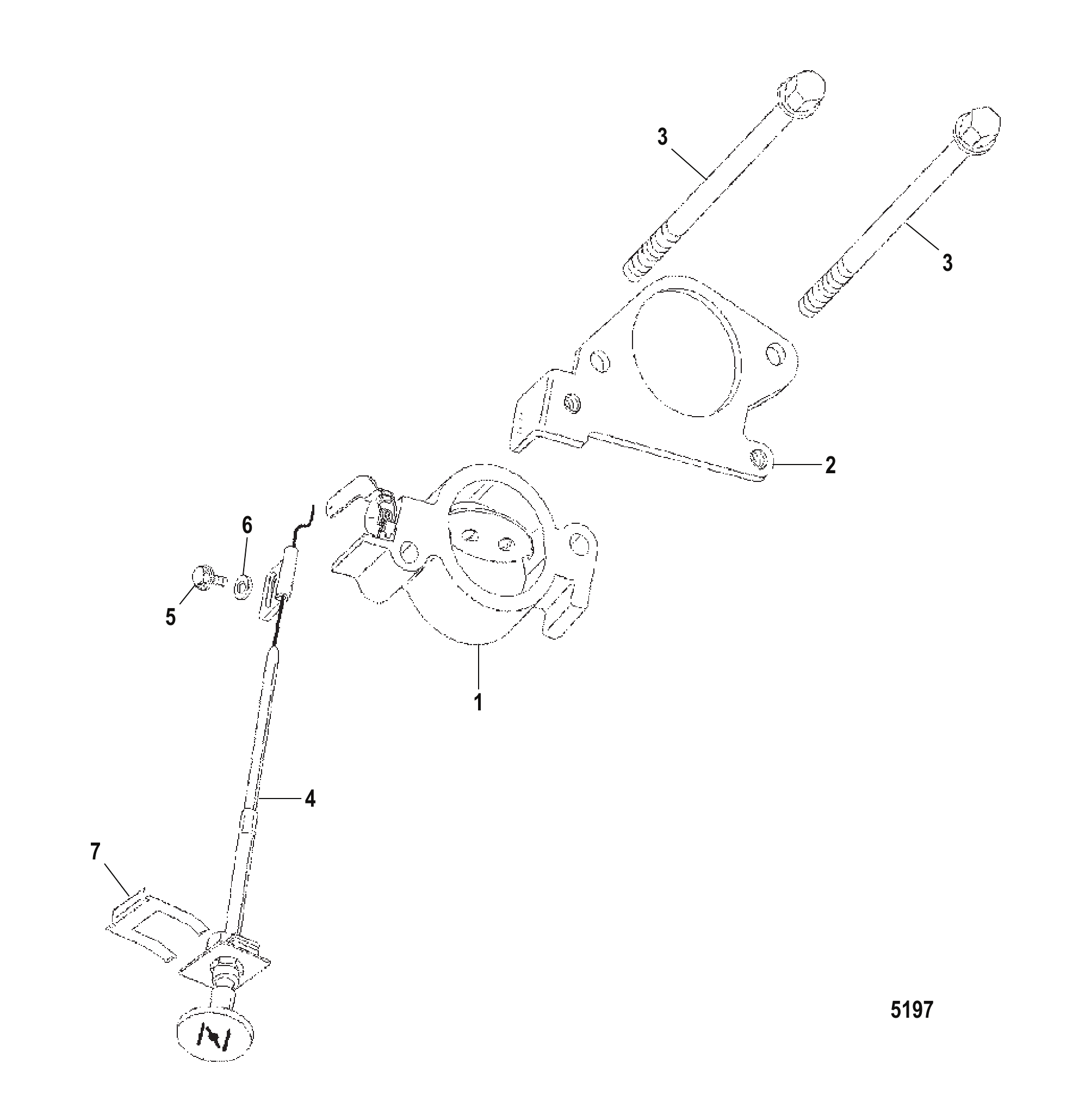

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 856116A1 | 阻风门套件 | CHOKE KIT | 1 |
| 1 | 856116 | 阻风门 | CHOKE | 1 |
| 2 | 856766 | 安装板 | PLATE | 1 |
| 3 | 824459120 | 螺钉（M8 x 120 不锈钢） | SCREW (M8 x 120) Stainless Steel | 2 |
| 4 | 856155 | 阻风门拉索 | CABLE Choke | 1 |
| 5 | 16122 | 螺钉（10-16 X 0.625） | SCREW (10-16 X .625) | 1 |
| 5 | 823042067 | 螺钉 | SCREW | 1 |
| 6 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 1 |
| 7 | 120441 | 黄铜开关固定座 | RETAINER Brass Switch | 1 |
| 7 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |

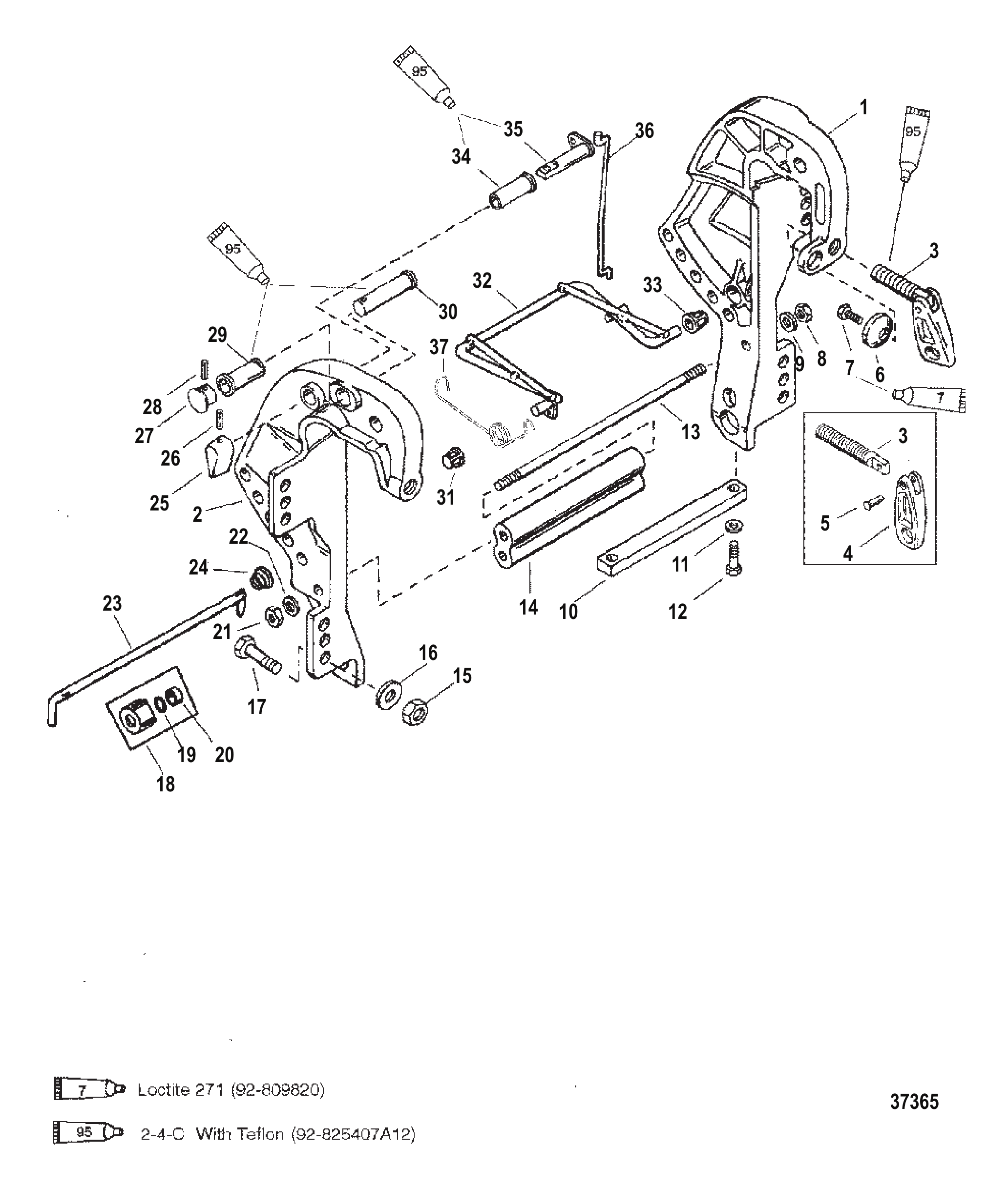

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821773A3 | 夹箍支架 | CLAMP BRACKET | 1 |
| 1 | 821773A4 | 夹箍支架 | CLAMP BRACKET | 1 |
| 1 | 821773A1 | 夹箍支架 | CLAMP BRACKET | 1 |
| 1 | 821773T1 | 夹箍支架 | CLAMP BRACKET | 1 |
| 1 | 821773A2 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 821774A3 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 821774T6 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 821774A4 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 821774T7 | 卡箍支架套件 | BRKT KIT-CLAMP-GR | 1 |
| 2 | 821774A1 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 821774T8 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 821774A2 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 821774T9 | 夹箍支架 | CLAMP BRACKET | 1 |
| 3 | 818883A1 | 蝶形螺钉总成 | THUMB SCREW ASSEMBLY | 2 |
| 4 | NSS | NOT SOLD SEPARATE HANDLE | 2 | |
| 5 | NSS | NOT SOLD SEPARATE RIVET | 2 | |
| 6 | 818884 | 垫圈 | WASHER | 2 |
| 7 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 8 | 13914 | 螺母(M10) | NUT (M10) | 1 |
| 8 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 9 | 4002319 | 垫圈 | WASHER | 1 |
| 10 | 825271 | 阳极块 | ANODE | 1 |
| 10 | 8252711 | 阳极块 | ANODE | 1 |
| 11 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 11 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 12 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 12 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 13 | 823656 | 双头螺柱(M10x277) | STUD (M10 x 277) | 1 |
| 13 | 8M0034459 | 螺柱 | STUD | 1 |
| 14 | 824952 | 隔套 | SPACER | 1 |
| 15 | 8M0027784 | 螺母 | NUT | 4 |
| 15 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 15 | 8M0027784 | 螺母 | NUT | 2 |
| 15 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 2 |
| 15 | 4011910 | 螺母(M10) | NUT (M10) | 2 |
| 15 | 4013710 | 螺母(M10) | NUT (M10) | 2 |
| 16 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 16 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 16 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 16 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 16 | 4002319 | 垫圈 | WASHER | 2 |
| 17 | 814259 | 螺钉 (.500-20 x 4.00) | SCREW (.500-20 x 4.00) | 4 |
| 17 | 814259 | 螺钉 (.500-20 x 4.00) | SCREW (.500-20 x 4.00) | 2 |
| 17 | 826110 | 螺钉 | SCREW | 2 |
| 18 | 19624A1 | 密封套件 | SEAL KIT | 1 |
| 19 | 29619 | O型圈(0.583×0.103) | O-RING (.583 x .103) | 1 |
| 20 | 78861 | 隔套 | SPACER | 1 |
| 21 | 13914 | 螺母(M10) | NUT (M10) | 1 |
| 21 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 22 | 4002319 | 垫圈 | WASHER | 1 |
| 23 | 821457A1 | 倾斜锁销总成 | PIN ASSEMBLY Tilt Lock | 1 |
| 23 | 8M0026103 | 倾斜锁止销总成 | PIN ASY-TILT LOCK | 1 |
| 24 | 821461 | 弹簧 | SPRING | 1 |
| 25 | 822409 | 杠杆 | LEVER | 1 |
| 26 | 25319 | 销钉(.125 x 0.75英寸) | PIN (.125 x 0.75 Inches) | 1 |
| 27 | 822401 | 盖帽 | CAP | 1 |
| 28 | 25319 | 销钉(.125 x 0.75英寸) | PIN (.125 x 0.75 Inches) | 1 |
| 29 | 823589 | 衬套 | BUSHING | 1 |
| 30 | 8224001 | 销 | PIN | 1 |
| 31 | 824858 | 衬套(塑料) | BUSHING (PLASTIC) | 1 |
| 32 | 8224141 | 浅水驱动杆 | ROD Shallow Water Drive | 1 |
| 32 | 878580 | 塑料杆 | ROD Plastic | 1 |
| 33 | 824858 | 衬套(塑料) | BUSHING (PLASTIC) | 1 |
| 34 | 823812 | 衬套 | BUSHING | 1 |
| 35 | 822411 | 臂 | ARM | 1 |
| 36 | 8224122 | 连杆 | LINK ROD | 1 |
| 36 | 878563 | 连杆 | LINK ROD | 1 |
| 37 | 832085A1 | 弹簧 | SPRING | 1 |

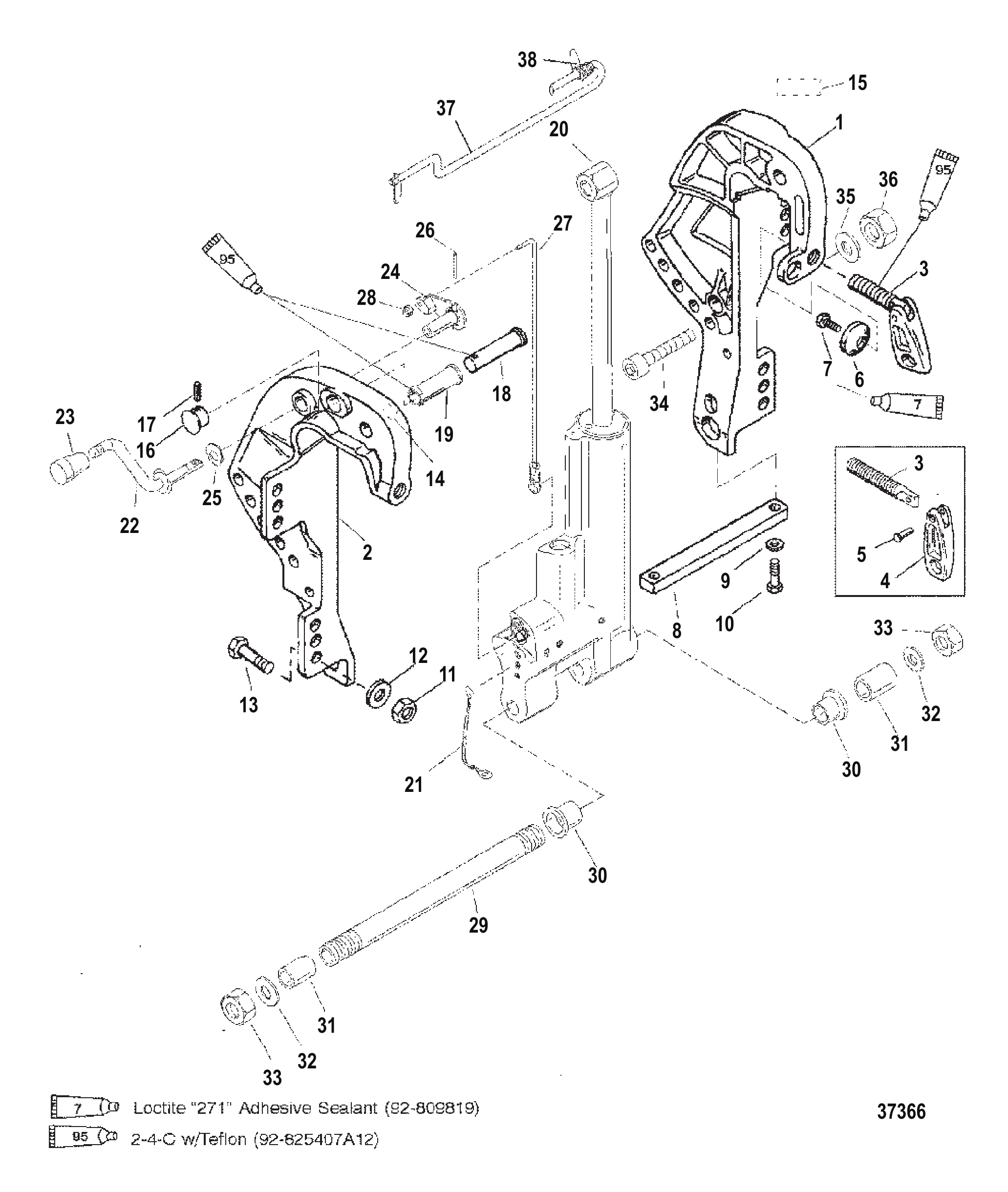

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821773A1 | 夹箍支架 | CLAMP BRACKET | 1 |
| 1 | 821773T1 | 夹箍支架 | CLAMP BRACKET | 1 |
| 1 | 821773A2 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 821774A1 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 821774T8 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 821774A2 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 821774T9 | 夹箍支架 | CLAMP BRACKET | 1 |
| 3 | 818883A1 | 蝶形螺钉总成 | THUMB SCREW ASSEMBLY | 2 |
| 4 | NSS | NOT SOLD SEPARATE HANDLE | 2 | |
| 5 | NSS | NOT SOLD SEPARATE RIVET | 2 | |
| 6 | 818884 | 垫圈 | WASHER | 2 |
| 7 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 8 | 825271 | 阳极块 | ANODE | 1 |
| 8 | 8252711 | 阳极块 | ANODE | 1 |
| 9 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 9 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 10 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 10 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 11 | 8M0027784 | 螺母 | NUT | 2 |
| 11 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 2 |
| 12 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 12 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 13 | 814259 | 螺钉 (.500-20 x 4.00) | SCREW (.500-20 x 4.00) | 2 |
| 14 | NSS | 非单独销售贴纸(倾斜锁止) | NOT SOLD SEPARATE DECAL, Tilt Lock | 1 |
| 15 | NSS | 非单独销售贴纸(警告) | NOT SOLD SEPARATE DECAL, Warning | 1 |
| 16 | 822401 | 盖帽 | CAP | 1 |
| 17 | 25319 | 销钉(.125 x 0.75英寸) | PIN (.125 x 0.75 Inches) | 1 |
| 18 | 823589 | 衬套 | BUSHING | 1 |
| 19 | 8224001 | 销 | PIN | 1 |
| 20 | 828533A1 | 液压辅助配平 | TRIM HYDRAULIC ASSIST | 1 |
| 20 | 828533T1 | 配平装置 | TRIM | 1 |
| 21 | 88238A11 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 22 | 828924 | 倾斜杆 | LEVER Tilt | 1 |
| 23 | 19621 | 倾斜旋钮 | TILT KNOB | 1 |
| 23 | 8M0007469 | 倾斜旋钮 | KNOB Tilt | 1 |
| 24 | 828930 | 杠杆臂 | ARM Lever | 1 |
| 25 | 31030 | 波形垫圈 | WAVE WASHER | 1 |
| 26 | 25319 | 销钉(.125 x 0.75英寸) | PIN (.125 x 0.75 Inches) | 1 |
| 27 | 8289961 | 连接杆 | LINK | 1 |
| 28 | 46438 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 29 | 822481 | 锚定销(14毫米) | PIN Anchor (14 mm) | 1 |
| 29 | 822481001 | 销(14毫米) | PIN (14 mm) | 1 |
| 30 | 822482 | 衬套 | BUSHING | 2 |
| 31 | 822484 | 衬套 | BUSHING | 2 |
| 32 | 825190 | 垫圈 | WASHER | 2 |
| 33 | 4013414 | 螺母(M14) | NUT (M14) | 2 |
| 33 | 826712 | 螺母 | NUT | 2 |
| 34 | 4009040 | 不锈钢螺钉(M10x40) | SCREW (M10 x 40) Stainless Steel | 2 |
| 35 | 4002319 | 垫圈 | WASHER | 2 |
| 36 | 4011910 | 螺母(M10) | NUT (M10) | 2 |
| 36 | 4013710 | 螺母(M10) | NUT (M10) | 2 |
| 37 | 853923A1 | 销 | PIN | 1 |
| 38 | 821461 | 弹簧 | SPRING | 1 |

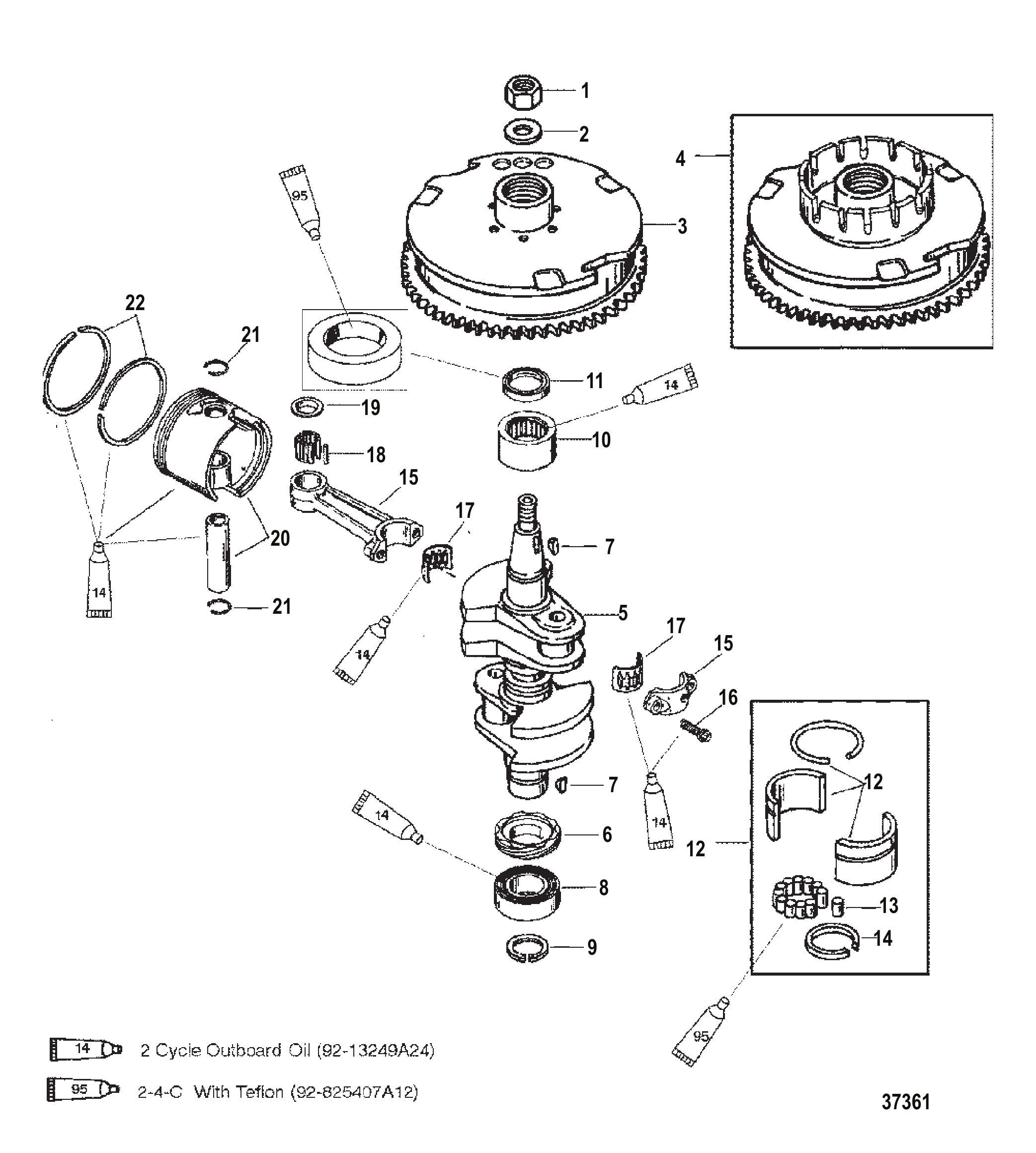

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42979 | 螺母(M16) | NUT (M16) | 1 |
| 2 | 68229 | 垫圈(.641 x 1.250 x .190) | WASHER (.641 x 1.250 x .190) | 1 |
| 2 | 33001 | 垫圈 | WASHER | 1 |
| 3 | 9008A70 | 飞轮 | FLYWHEEL | 1 |
| 3 | 859233T23 | 飞轮 | FLYWHEEL | 1 |
| 3 | 823760A4 | 飞轮 | FLYWHEEL | 1 |
| 3 | 859233T26 | 飞轮总成 | FLYWHEEL ASY | 1 |
| 4 | 9008A68 | 飞轮 | FLYWHEEL | 1 |
| 4 | 859233T24 | 飞轮 | FLYWHEEL | 1 |
| 4 | 9008A38 | 飞轮 | FLYWHEEL | 1 |
| 4 | 859233T25 | 飞轮总成 | FLYWHEEL ASSY | 1 |
| 5 | 821369A1 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 5 | 821369T01 | 曲轴总成 | CRANKSHAFT ASSY | 1 |
| 6 | 43019A2 | 齿轮总成(驱动) | GEAR ASSEMBLY (DRIVER) | 1 |
| 7 | 91800 | 半圆键 | KEY Woodruff | 2 |
| 8 | 63742 | 滚珠轴承 | BEARING Ball | 1 |
| 8 | 63742T | 滚珠轴承 | BEARING Ball | 1 |
| 9 | 812877 | 挡圈 | RING Retaining | 1 |
| 10 | 818889A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 11 | 8173971 | 油封 | SEAL Oil | 1 |
| 12 | 827955A2 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 13 | NSS | NOT SOLD SEPARATE ROLLER | 14 | |
| 14 | NSS | 非单独销售密封环 | NOT SOLD SEPARATE RING, Seal | 1 |
| 15 | 9612A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 15 | 9612A6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 16 | 91012 | 螺钉(0.250-28特殊) | SCREW (.250-28 Special) | 4 |
| 17 | 17514A2 | 轴承套件 | BEARING KIT | 2 |
| 17 | 8M0234886 | 轴承保持架 | CAGE BEARING | 2 |
| 18 | 47270 | 轴承 | BEARING | 58 |
| 18 | 8M0214934 | 滚针轴承@200 | BRG-NEEDLE @200 | 58 |
| 19 | 812876 | 垫圈 | WASHER | 4 |
| 19 | 8M0012298 | 止推垫片 | THRUST WASHER | 4 |
| 20 | 850026A3 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 20 | 850026T3 | 活塞 | PISTON | 2 |
| 20 | 850026A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 20 | 850026T2 | 活塞 | PISTON | AR |
| 20 | 821368A1 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 20 | 850026T3 | 活塞 | PISTON | 2 |
| 20 | 821368A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 20 | 850026T2 | 活塞 | PISTON | AR |
| 21 | 52035 | 锁环 | RING Lock | 4 |
| 21 | 857196 | 锁紧环 | LOCK RING | 4 |
| 22 | 821695A4 | 活塞环组 | RING SET Piston | 1 |
| 22 | 821695A1 | 活塞环组 | RING SET Piston | AR |
| - | 808569A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 808569T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

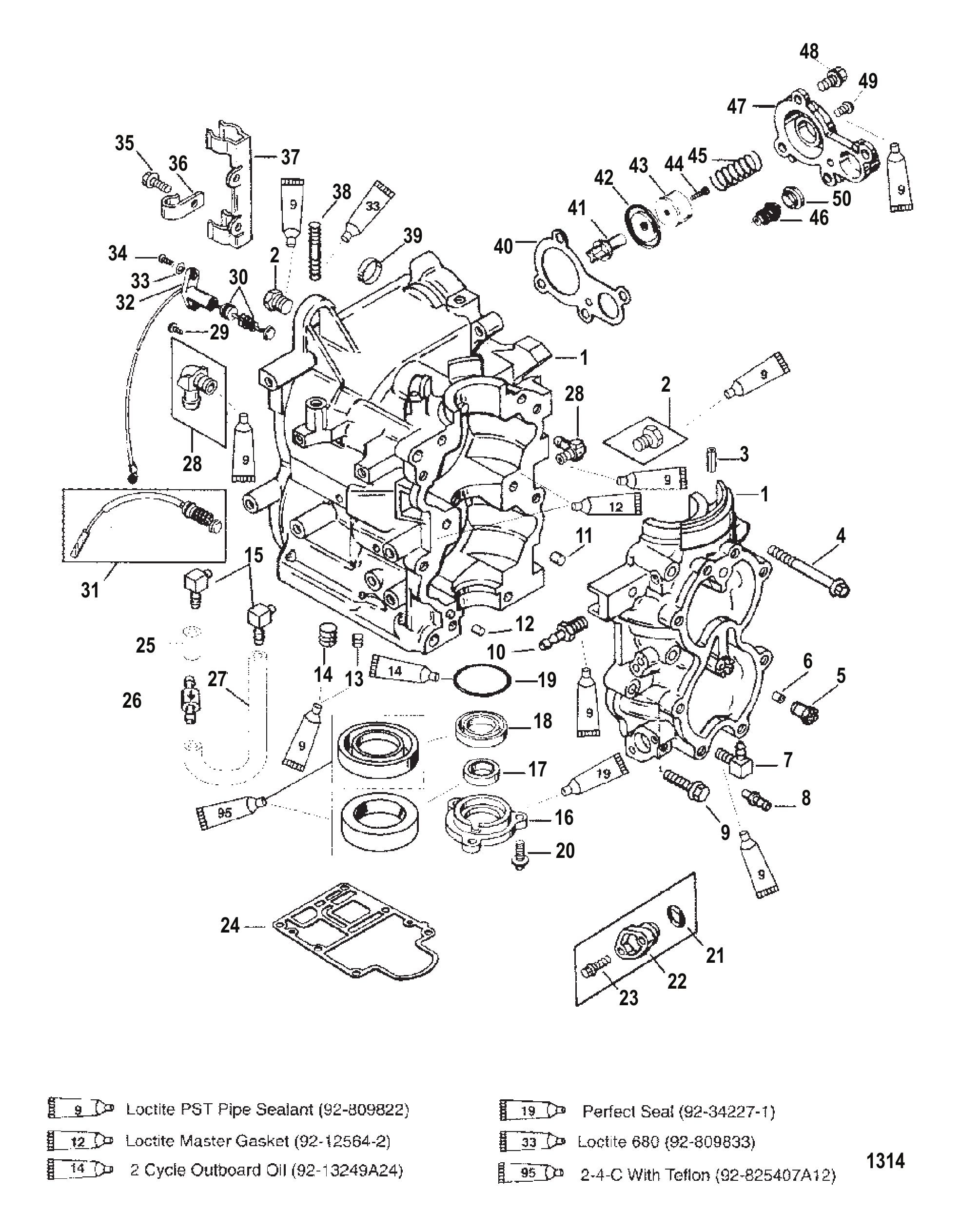

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821358A5 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 821358T5 | 气缸体 | CYLINDER BLOCK | 1 |
| 2 | 328021 | 管塞(.125-27 六角黄铜头) | PLUG Pipe (.125-27) (HEX HEAD-BRASS) | 2 |
| 2 | 328022 | 黄铜管塞 (.125-27) | PLUG Pipe (.125-27) Brass | 2 |
| 3 | 824864 | 滚销(适用处使用) | PIN Roll (USE WHERE APPLICABLE) | 1 |
| 4 | 81742780 | 螺钉(M8x80 六角法兰头) | SCREW (M8 x 80) (HEX FLANGE HEAD) | 6 |
| 5 | 812888A1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 6 | 42657A3 | 止回阀 | CHECK VALVE | 1 |
| 7 | 828218 | 止回阀 | CHECK VALVE | 1 |
| 7 | 8282182 | 止回阀 | CHECK VALVE | 1 |
| 8 | 65857 | 连接器(倒刺式-电气) | CONNECTOR (BARBED-ELECTRIC) | 1 |
| 8 | 56759 | 倒钩接头 | FITTING Barbed | 1 |
| 9 | 81742740 | 螺钉(M8x40 六角法兰头) | SCREW (M8 x 40) (HEX FLANGE HEAD) | 4 |
| 10 | 85439 | 公头连接器 | CONNECTOR Male | 1 |
| 10 | 85439001 | 公头连接器 | CONNECTOR Male | 1 |
| 11 | 812870 | 中心主销 | PIN Center Main | 2 |
| 11 | 8M0084653 | 定位销 | PIN - DOWEL | 2 |
| 12 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 13 | 39072 | 黄铜塞(1/8英寸) | PLUG (1/8 Inch Brass) (1/8 IN.-BRASS) | 1 |
| 13 | 390721 | 黄铜管塞 (.125-27) | PLUG Pipe (.125-27) Brass | 1 |
| 14 | 18598 | 管塞(3/8-18) | PIPE PLUG (3/8-18) | 1 |
| 14 | 185981 | 管塞(.375-18) | PLUG Pipe (.375-18) | 1 |
| 15 | 15133 | 接头 | FITTING | 2 |
| 16 | 9812A4 | 端盖 | END CAP | 1 |
| 16 | 9812A8 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 17 | 828932 | 油封 | SEAL Oil | 1 |
| 18 | 41953 | 密封件 | SEAL | 1 |
| 19 | 90011 | O型圈(2.175 x 0.175) | O-RING (2.175 x .175) | 1 |
| 19 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 20 | 81742720 | 螺钉(M8x20 六角法兰头) | SCREW (M8 x 20) (HEX FLANGE HEAD) | 3 |
| - | 822420A94 | 衬垫套件 | GASKET SET | 1 |
| - | 808569A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 808569T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

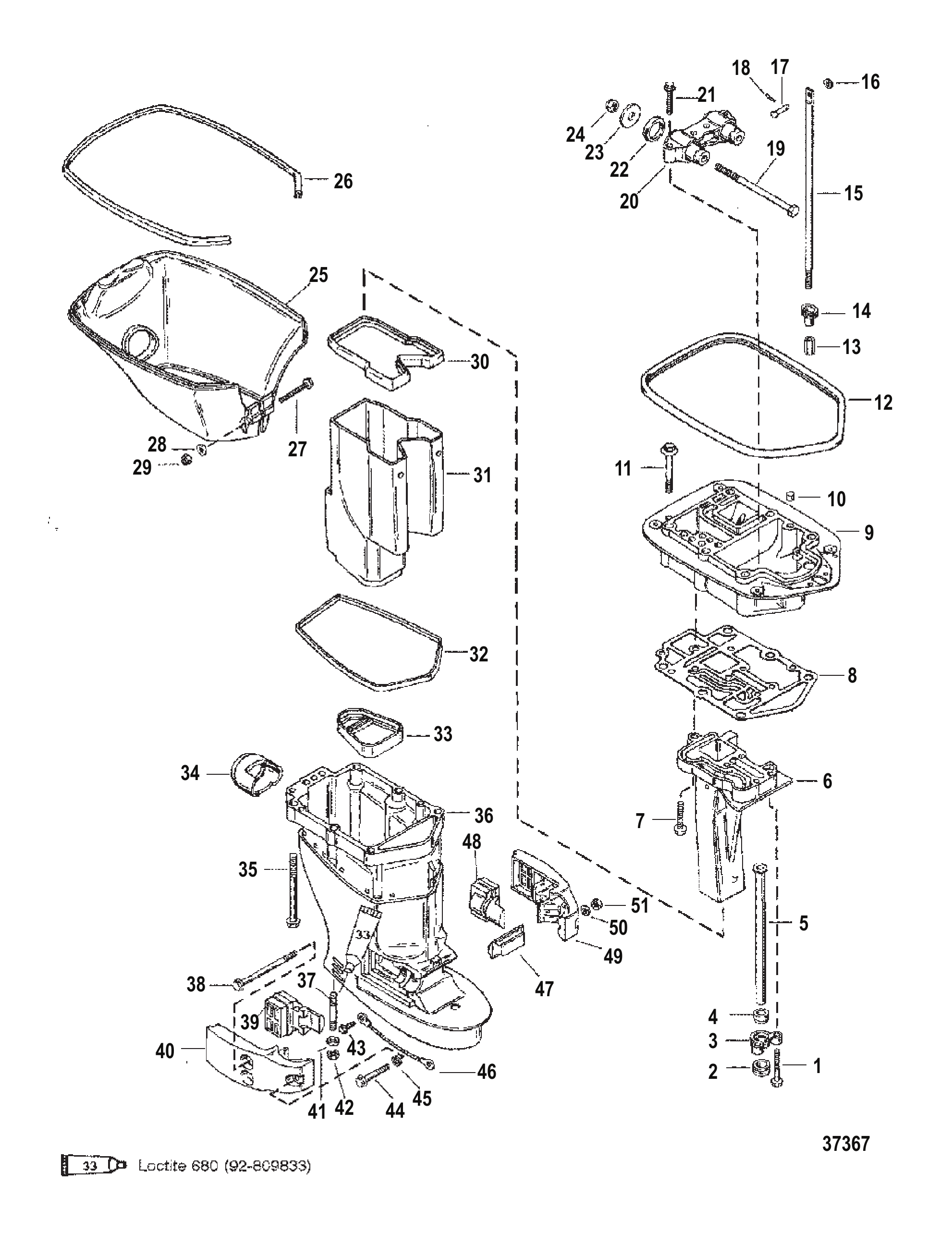

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 40011155 | 不锈钢螺钉(M8x55) | SCREW (M8 x 55) Stainless Steel | 2 |
| 2 | 93221 | 护孔环 | GROMMET | 1 |
| 2 | 93221002 | 护孔环 | GROMMET | 1 |
| 3 | 99019 | 卡箍 | CLAMP | 1 |
| 4 | 42941 | 水管密封件 | SEAL Water Tube | 1 |
| 4 | 42941001 | 水管密封件 | SEAL Water Tube | 1 |
| 5 | 430144 | 水管 | TUBE Water | 1 |
| 5 | 8M0042795 | 短型水管 | TUBE-WATER-SHORT | 1 |
| 5 | 430143 | 水管 | TUBE Water | 1 |
| 5 | 8M0042794 | 大型水管 | TUBE-WATER-LG | 1 |
| 6 | 8246971 | 排气管 | TUBE Exhaust | 1 |
| 6 | 8M0046061 | 排气管 | TUBE-EXHAUST | 1 |
| 7 | 40011153 | 不锈钢螺钉(M8x45) | SCREW (M8 x 45) Stainless Steel | 3 |
| 8 | 821446 | 驱动轴壳体衬垫 | GASKET Driveshaft Housing | 1 |
| 8 | 8M0000821 | 衬垫 | GASKET | 1 |
| 9 | 821439A4 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 9 | 821439T4 | 适配板 | ADAPTER PLATE | 1 |
| 9 | 821439A1 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 9 | 821439T4 | 适配板 | ADAPTER PLATE | 1 |
| 9 | 821439A2 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 9 | 821439T4 | 适配板 | ADAPTER PLATE | 1 |
| 10 | 23784 | 定位销 | PIN Dowel | 4 |
| 11 | 4010875 | 不锈钢六角法兰螺钉(M10x75) | SCREW (M10 x 75) Hex Flange - Stainless Steel | 1 |
| 12 | 821510 | 底罩密封条 | SEAL Bottom Cowl | 1 |
| 12 | 8M0043148 | 底罩密封件 | SEAL-BOTTOM COWL | 1 |
| 13 | 822419 | 联轴器 | COUPLER | 1 |
| 14 | 822408 | 护孔环 | GROMMET | 1 |
| 14 | 822408001 | 护孔环 | GROMMET | 1 |
| 15 | 822418 | 换挡轴(上部) | SHIFT SHAFT (UPPER) | 1 |
| 15 | 880042 | 换档轴 | SHIFT SHAFT | 1 |
| 16 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 1 |
| 17 | 822417 | 销 | PIN | 1 |
| 18 | 21071 | 开口销 | COTTER PIN | 1 |
| 18 | 210711 | 开口销 | COTTER PIN | 1 |
| 19 | 822396 | 螺钉(M12x162) | SCREW (M12 x 162) | 2 |
| 19 | 8M0000520 | 螺栓 | BOLT | 2 |
| 20 | 821441 | 支架 | MOUNT | 1 |
| 20 | 8M4501487 | 上部安装总成 | MOUNT UPPER ASM | 1 |
| 21 | 40011153 | 不锈钢螺钉(M8x45) | SCREW (M8 x 45) Stainless Steel | 4 |
| 22 | 934161 | 氯丁橡胶垫圈 | WASHER Neoprene | 2 |
| 22 | 32834 | 垫圈(0.9375x1.750x0.172) | WASHER (.9375 x 1.750 x .172) | 2 |
| 23 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 23 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 24 | 90099 | 螺母(M12) | NUT (M12) | 2 |
| 24 | 896963 | 螺母(M12) | NUT (M12) | 2 |
| 25 | 821512A4 | 配平盖 | TRIM COVER | 1 |
| 25 | 821512A5 | 配平盖 | TRIM COVER | 1 |
| 25 | 821512A4 | 配平盖 | TRIM COVER | 1 |
| 26 | 822421 | 缓冲垫 | BUMPER | 1 |
| 26 | 8M0043155 | 上部配平缓冲器 | BUMPER-UPPER TRIM | 1 |
| 27 | 826173 | 螺钉(M5x0.8x60) | SCREW (M5 x .8 x 60) | 1 |
| 28 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 1 |
| 29 | 400263 | 螺母 (M5) | NUT (M5) | 1 |
| - | 822420A94 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 4013930 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 5 |
| 2 | 832074A5 | 定子 | STATOR | 1 |
| 2 | 832074A11 | 定子总成 | STATOR ASSEMBLY | 1 |
| 3 | 13541 | 公插头 | PLUG Male | 2 |
| 4 | 853960T | 触发器 | TRIGGER | 1 |
| 5 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 3 |
| 6 | 850187T1 | 电磁阀总成 | SOLENOID ASSEMBLY | 1 |
| 6 | 8M0185146 | 电磁阀总成 | SOLENOID ASSEMBLY | 1 |
| 7 | 818968 | 衬套 | BUSHING | 2 |
| 7 | 8M0214955 | 衬套 | BUSHING | 2 |
| 8 | 818967 | 护孔环 | GROMMET | 2 |
| 8 | 8M0207785 | 护孔环 | GROMMET | 2 |
| 9 | 26419 | 黄铜螺母 (#8-32) | NUT (#8-32) Brass | 2 |
| 10 | 40011129 | 不锈钢螺钉(M6x25) | SCREW (M6 x 25) Stainless Steel | 2 |
| 11 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 2 |

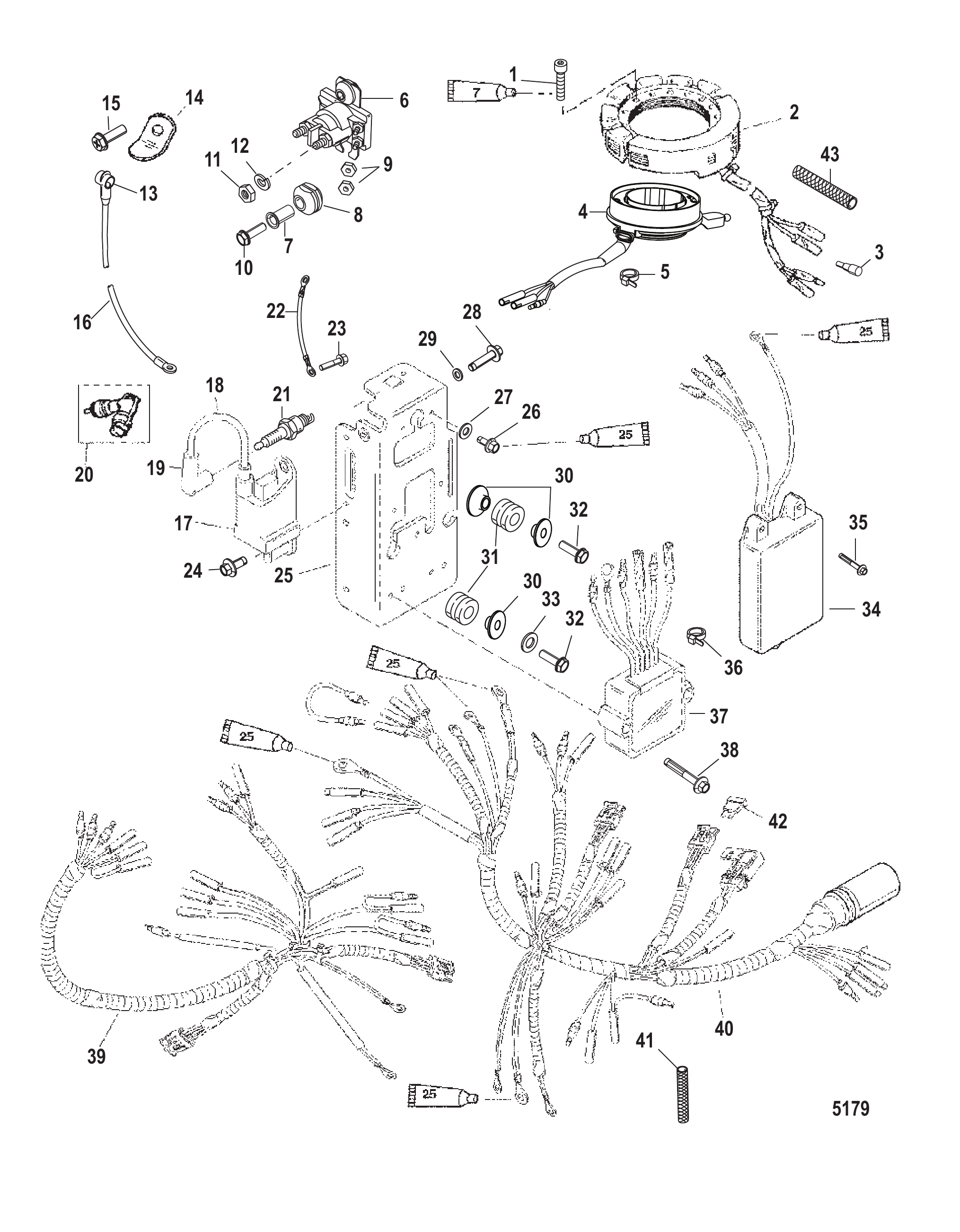

| 12 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 13 | 830233 | 红色绝缘护套 | BOOT Insulator - Red | 1 |
| 14 | 8275101 | 固定座 | RETAINER | 1 |
| 15 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 16 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 17 | 827509T7 | CDM模块总成 | CDM MODULE ASSEMBLY | 2 |
| 18 | 857124A1 | 高压线总成 | CABLE ASSEMBLY Hi-Tension | 2 |
| 19 | 857074A1 | 护套/端子套件 | BOOT/TERMINAL KIT | 2 |
| 20 | 815119M | 火花塞帽 | CAP Spark Plug | 2 |
| 21 | 8167372 | 火花塞 | SPARK PLUG | 2 |
| 21 | 816737Q | NGK BP8HN-10@10 | NGK BP8HN-10@10 | 2 |
| 21 | 8168372 | 火花塞 | SPARK PLUG | 2 |
| 21 | 938 | SP #QL78YC @4 | SP #QL78YC @4 | 2 |
| 22 | 88807A44 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 23 | 81893412 | 螺钉（M8×12） | SCREW (M8 x 12) | 1 |
| 24 | 82129116 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 25 | 8302361 | 电气板 | PLATE Electrical | 1 |
| 26 | 82239312 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 1 |
| 27 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 1 |
| 28 | 82129114 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 1 |
| 29 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 29 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 30 | 8318701 | 衬套 | BUSHING | 6 |
| 31 | 822002 | 护孔环 | GROMMET | 3 |
| 32 | 40011130 | 不锈钢螺钉(M6x30) | SCREW (M6 x 30) Stainless Steel | 3 |
| 33 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 33 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 34 | 821889A49 | 转速限制器 | REV LIMITER | 1 |
| 34 | 821889A50 | 转速限制器 | REV LIMITER | 1 |
| 35 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 36 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 37 | 883072T | 电压调节器 | REGULATOR Voltage | 1 |
| 37 | 8M0084173 | 电压调节器 | VOLTAGE REGULATOR | 1 |
| 38 | 82129135 | 螺钉(M6x35) | SCREW (M6 x 35) | 2 |
| 39 | 854323A2 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| 40 | 854322A2 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| 41 | 828547353 | 导管 (.350内径 x 3.00英尺 散装) | CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) | 1 |
| 42 | 812619 | 黄色保险丝-20安培 | FUSE Yellow - 20 Ampere | 1 |
| 43 | 828547T | 导管(内径1.00英寸 x 3.00英尺散装) | CONDUIT (1.00 Inside Diameter x 3.00 Feet Bulk) | 1 |
| - | 808569T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 8M0063311 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

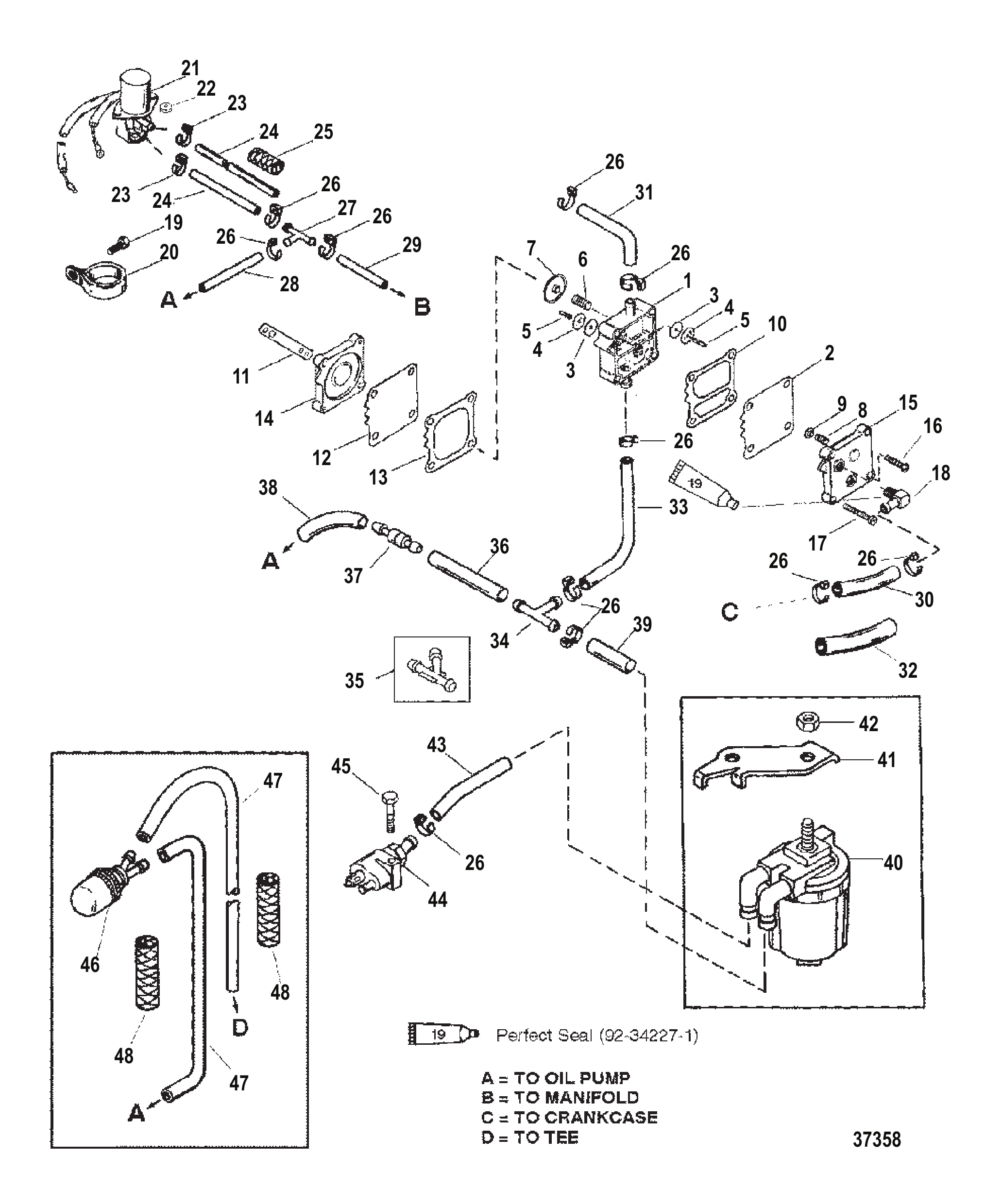

| 1 | 14360A43 | 燃油泵总成 | PUMP ASSEMBLY Fuel | 1 |
| 1 | 14360A78 | 燃油泵套件 | PUMP KIT Fuel | 1 |
| 2 | 42990A10 | 膜片组件 | DIAPHAGM KIT | 1 |
| 2 | 857005A1 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 3 | NSS | 橡胶止回阀(不单独销售) | NOT SOLD SEPARATE RUBBER CHECK VALVE | 2 |
| 4 | NSS | NOT SOLD SEPARATE CHECK VALVE | 2 | |
| 5 | NSS | NOT SOLD SEPARATE RETAINER | 2 | |
| 6 | NSS | NOT SOLD SEPARATE SPRING | 1 | |
| 7 | NSS | NOT SOLD SEPARATE CAP | 1 | |
| 8 | NSS | NOT SOLD SEPARATE SPRING | 1 | |
| 9 | NSS | NOT SOLD SEPARATE CAP | 1 | |
| 10 | NSS | NOT SOLD SEPARATE GASKET, Boost | 1 | |
| 11 | 987691 | 衬垫 | GASKET GASKET | 1 |
| 11 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 12 | NSS | NOT SOLD SEPARATE DIAPHRAGM | 1 | |
| 13 | NSS | NOT SOLD SEPARATE GASKET, Pulse | 1 | |
| 14 | 144303 | 底座 | BASE | 1 |
| 15 | 987752 | 安装板 | PLATE | 1 |
| 16 | 82130050 | 螺钉(M6 x 50) | SCREW (M6 x 50) | 2 |
| 17 | 82104540 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 2 |
| 18 | 43335 | 90度接头(.125-27)尼龙 | CONNECTOR 90 Degree (.125-27) Nylon | 1 |
| 18 | 433351 | 90度接头-带防振密封 | CONNECTOR 90 Degree - With Vibraseal | 1 |
| 19 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 20 | 633001 | 卡箍 | CLAMP | 1 |
| 20 | 633003 | 卡箍 | CLAMP | 1 |
| 21 | 428593 | 电磁阀 | SOLENOID VALVE | 1 |
| 21 | 819503A5 | 加浓阀电磁阀套件 | SOLENOID KIT Enrichner Valve | 1 |
| 21 | 819503A5 | 加浓阀电磁阀套件 | SOLENOID KIT Enrichner Valve | 1 |
| 22 | F694504 | 护孔环 | GROMMET | 1 |
| 23 | 69355 | 扎带(5.50英寸) | TIE STRAP (5.50 Inches) | 2 |
| 23 | 8M0214940 | 扎带 | TIE STRAP | 2 |
| 24 | 9912688 | 管材(36.00英寸散装)(裁切至11 1/2英寸) | TUBING (36.00 Inches Bulk) (Cut to 11 1/2 IN.) | 2 |
| 25 | 82538115 | 套管(0.500 x 5.00) | SLEEVE (.500 x 5.00) | 1 |
| 25 | 82459620 | 套管(3/8 x 7-1/2英寸) | SLEEVE (3/8 X 7-1/2 IN.) | 1 |
| 26 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 26 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 27 | 59169 | 接头 | FITTING | 1 |
| 27 | 59169003 | 三通接头 | FITTING Tee | 1 |
| 28 | 99130122 | 管材(20.00英尺散装)(裁切至4英寸) | TUBING (20.00 Feet Bulk) (Cut to 4 IN.) | 1 |
| 28 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 29 | 9912688 | 管材(36.00英寸散装)(裁切至3-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.) | 1 |
| 30 | 830764 | 软管 | HOSE | 1 |
| 31 | 9912878 | 软管(0.187)(26.00英寸散装)(裁切至3-1/4英寸) | HOSE (.187) (26.00 Inches Bulk) (Cut to 3-1/4 IN.) | 1 |
| 32 | 120966 | 绝缘体 | INSULATOR | 1 |
| 32 | 8507051 | 绝缘体 | INSULATOR | 1 |
| 33 | 824476 | 成型软管 | HOSE (MOLDED) | 1 |
| 33 | 830763 | 软管 | HOSE | 1 |
| 33 | 83075780 | 管材(28.00英寸散装)(裁切至9英寸) | TUBING (28.00 Inches Bulk) (Cut to 9 IN.) | 1 |
| 33 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 34 | 818993 | 三通接头 | CONNECTOR Tee | 1 |
| 35 | 818992 | 连接器 | CONNECTOR | 1 |
| 36 | 83075780 | 管材(28英寸整卷)(裁切为4英寸) | TUBING (28.00 Inches Bulk) (Cut to 4 IN.) | 1 |
| 36 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 37 | 8189941 | 止回阀 | CHECK VALVE | 1 |
| 38 | 82381329 | 管材(12.00英寸散装)(裁切至1-1/2英寸) | TUBING (12.00 Inches Bulk) (Cut to 1-1/2 IN.) | 1 |
| 38 | 82381335 | 油管(15.00英寸 散装) | TUBING (15.00 Inches Bulk) | 1 |
| 39 | 83075780 | 管材(28.00英寸散装)(裁切至1-1/4英寸) | TUBING (28.00 Inches Bulk) (Cut to 1-1/4 IN.) | 1 |
| 39 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 40 | 87946A14 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 40 | 891642T03 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 41 | 822387 | 支架 | BRACKET | 1 |
| 42 | 401196 | 螺母 (M6) | NUT (M6) | 1 |
| 43 | 83075780 | 管材(28.00英寸散装)(裁切至14 1/4英寸) | TUBING (28.00 Inches Bulk) (Cut to 14 1/4 IN.) | 1 |
| 43 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 44 | 816856A1 | 燃油接头总成 | CONNECTOR ASSEMBLY Fuel | 1 |
| 44 | 816856T01 | 燃油接头 | CONNECTOR-FUEL | 1 |
| 45 | 4000332 | 螺钉(M6x35) | SCREW (M6 x 35) | 1 |
| 46 | 8168773 | 注油球 | PRIMER BULB | 1 |
| 46 | 858763 | 注油球 | PRIMER BULB | 1 |
| 47 | 99130122 | 管材(20.00英尺散装)(裁切至9-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 9-1/2 IN.) | 2 |
| 47 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 48 | 82459620 | 套管(3/8 x 7-1/2英寸) | SLEEVE (3/8 X 7-1/2 IN.) | AR |
| 48 | 82538115 | 套管(0.500 x 5.00) | SLEEVE (.500 x 5.00) | 1 |
| - | 822420A94 | 衬垫套件 | GASKET SET | 1 |
| - | 808569A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 808569T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

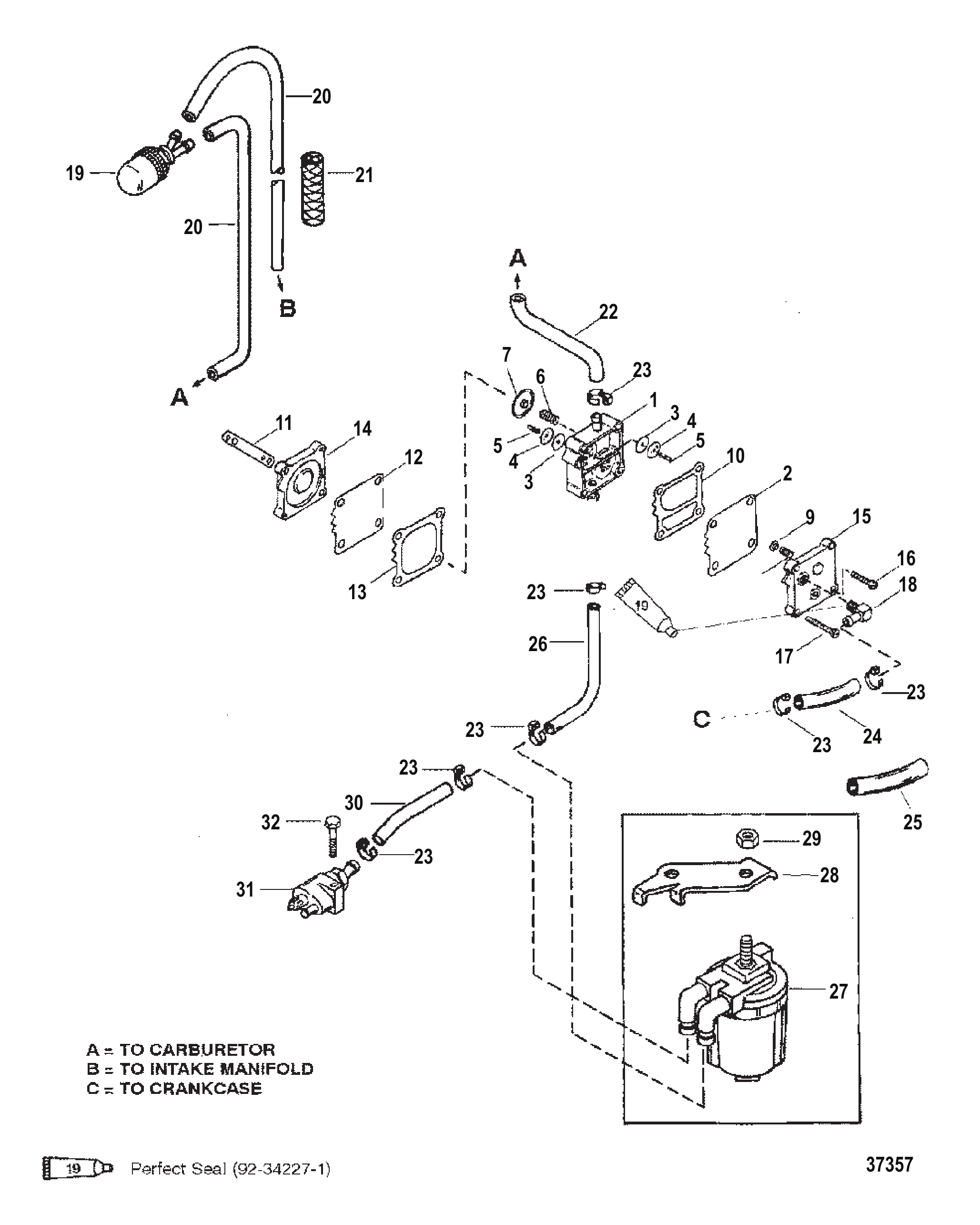

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 14360A43 | 燃油泵总成 | PUMP ASSEMBLY Fuel | 1 |
| 1 | 14360A78 | 燃油泵套件 | PUMP KIT Fuel | 1 |
| 2 | 42990A10 | 膜片组件 | DIAPHAGM KIT | 1 |
| 2 | 857005A1 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 3 | NSS | 橡胶止回阀(不单独销售) | NOT SOLD SEPARATE RUBBER CHECK VALVE | 2 |
| 4 | NSS | NOT SOLD SEPARATE CHECK VALVE | 2 | |
| 5 | NSS | NOT SOLD SEPARATE RETAINER | 2 | |
| 6 | NSS | NOT SOLD SEPARATE SPRING | 1 | |
| 7 | NSS | NOT SOLD SEPARATE CAP | 1 | |
| 8 | NSS | NOT SOLD SEPARATE SPRING | 1 | |
| 9 | NSS | NOT SOLD SEPARATE CAP | 1 | |
| 10 | NSS | NOT SOLD SEPARATE GASKET, Boost | 1 | |
| 11 | 987691 | 衬垫 | GASKET | 1 |
| 11 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 12 | NSS | NOT SOLD SEPARATE DIAPHRAGM | 1 | |
| 13 | NSS | NOT SOLD SEPARATE GASKET, Pulse | 1 | |
| 14 | 144303 | 底座 | BASE | 1 |
| 15 | 987752 | 安装板 | PLATE | 1 |
| 16 | 82130050 | 螺钉(M6 x 50) | SCREW (M6 x 50) | 2 |
| 17 | 82104540 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 2 |
| 18 | 43335 | 90度接头(.125-27)尼龙 | CONNECTOR 90 Degree (.125-27) Nylon | 1 |
| 18 | 433351 | 90度接头-带防振密封 | CONNECTOR 90 Degree - With Vibraseal | 1 |
| 19 | 8168773 | 注油球 | PRIMER BULB | 1 |
| 19 | 858763 | 注油球 | PRIMER BULB | 1 |
| 20 | 99130122 | 管材(20.00英尺散装)(裁切至9-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 9-1/2 IN.) | 2 |
| 20 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 21 | 82538115 | 套管(0.500 x 5.00) | SLEEVE (.500 x 5.00) | 1 |
| 22 | 830764 | 软管 | HOSE | 1 |
| 23 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 23 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 24 | 9912878 | 软管(0.187)(26.00英寸散装)(裁切至3-1/4英寸) | HOSE (.187) (26.00 Inches Bulk) (Cut to 3-1/4 IN.) | 1 |
| 25 | 120966 | 绝缘体 | INSULATOR | 1 |
| 25 | 8507051 | 绝缘体 | INSULATOR | 1 |
| 26 | 830765 | 成型软管 | HOSE (MOLDED) | 1 |
| 27 | 87946A14 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 27 | 891642T03 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 28 | 822387 | 支架 | BRACKET | 1 |
| 29 | 401196 | 螺母 (M6) | NUT (M6) | 1 |
| 30 | 83075780 | 管材(28.00英寸散装)(裁切至14-1/4英寸) | TUBING (28.00 Inches Bulk) (Cut to 14-1/4 IN.) | 1 |
| 30 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 31 | 816856A1 | 燃油接头总成 | CONNECTOR ASSEMBLY Fuel | 1 |
| 31 | 816856T01 | 燃油接头 | CONNECTOR-FUEL | 1 |
| 32 | 4000332 | 螺钉(M6x35) | SCREW (M6 x 35) | 1 |
| - | 822420A94 | 衬垫套件 | GASKET SET | 1 |
| - | 808569A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 808569T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 822420A94 | 发动机大修垫片套装 | GASKET SET Engine Overhaul | 1 |
| - | 857005A1 | 燃油泵膜片维修包 | DIAPHRAGM KIT Fuel Pump | 1 |
| - | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 2 |
| - | NSS | 固定座(不单独销售) | NOT SOLD SEPARATE Retainer | 2 |
| - | NSS | 不单独销售主弹簧 | NOT SOLD SEPARATE Spring-Main | 1 |
| - | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| - | NSS | 增压弹簧(不单独销售) | NOT SOLD SEPARATE Spring-Boost | 1 |
| - | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| - | 987691 | 燃油泵衬垫 | GASKET Fuel Pump | 1 |
| - | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| - | NSS | 增压垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Boost | 1 |
| - | NSS | 脉冲垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Pulse | 1 |
| - | 8144461 | 法兰衬垫 | GASKET Flange | 1 |
| - | 828766 | 油箱盖垫片 | GASKET Tank Cap | 1 |
| - | 36390 | 喷油泵O型圈 | O-RING Oil Injection Pump | 1 |
| - | 62705 | 喷油泵O型圈 | O-RING Oil Injection Pump | 1 |
| - | 8M0204667 | O型圈×2 | O RING @2 | 1 |
| - | 90011 | O型圈（2.175 x 0.175 端盖用） | O-RING (2.175 x .175) End Cap | 1 |
| - | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| - | 48462 | O型圈（0.614 x 0.070 曲轴箱盖用） | O-RING (.614 x .070) Cover Crankcase | 1 |
| - | 828553 | 衬垫 | GASKET | 1 |
| - | 8M0000822 | 衬垫 | GASKET | 1 |
| - | 8128672 | 提升阀垫片 | GASKET Poppet | 1 |
| - | 8128871 | 提升阀膜片 | DIAPHRAGM Poppet | 1 |
| - | 812887002 | 隔膜 | DIAPHRAGM | 1 |
| - | 62386 | 节温器衬垫 | GASKET Thermostat | 1 |
| - | 8M0204714 | 衬垫@4 | GASKET @4 | 1 |
| - | 42941 | 水管密封件 | SEAL Water Tube | 1 |
| - | 42941001 | 水管密封件 | SEAL Water Tube | 1 |
| - | 821446 | 驱动轴壳体衬垫 | GASKET Driveshaft Housing | 1 |
| - | 8M0000821 | 衬垫 | GASKET | 1 |
| - | 21836 | O型圈（0.796 x 0.139 水管延长用） | O-RING (.796 x .139) Water Tube Extension | 1 |
| - | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| - | 191833 | 密封件 | SEAL Sealing | 2 |
| - | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| - | 8M0027721 | 叶轮垫圈 | WASHER Impeller | 2 |
| - | 8M0204722 | 垫圈 | WASHER | 2 |
| - | 822189 | 水泵上壳体总成上部垫片 | GASKET Upper Water Pump Water Pump Upper Housing Assembly (Upper) | 1 |
| - | 822217 | 水泵上壳体总成下部垫片 | GASKET Lower Water Pump Water Pump Upper Housing Assembly (Lower) | 1 |
| - | 8M0214956 | 衬垫 | GASKET | 1 |
| - | 824308 | 水泵底座总成紧定螺钉 | SET SCREW Water Pump Base Assembly | 1 |
| - | MTM14201T | 紧定螺钉@5 | SET SCREW @5 | 1 |
| - | 26855 | O型圈（1.609 x 0.139 换挡轴固定座用） | O-RING (1.609 x .139) Retainer (Shift Shaft) | 1 |
| - | 85594 | O-RING (.239 x .174) Shift Shaft | 1 | |
| - | 823942 | 水管衬垫 | GASKET Water Tube | 1 |
| - | 815460 | 轴承座O型圈 | O-RING Bearing Carrier | 1 |
| - | 62457 | O型圈 | O-RING | 1 |
| - | 821370 | 进气歧管垫片 | GASKET Induction Manifold | 1 |

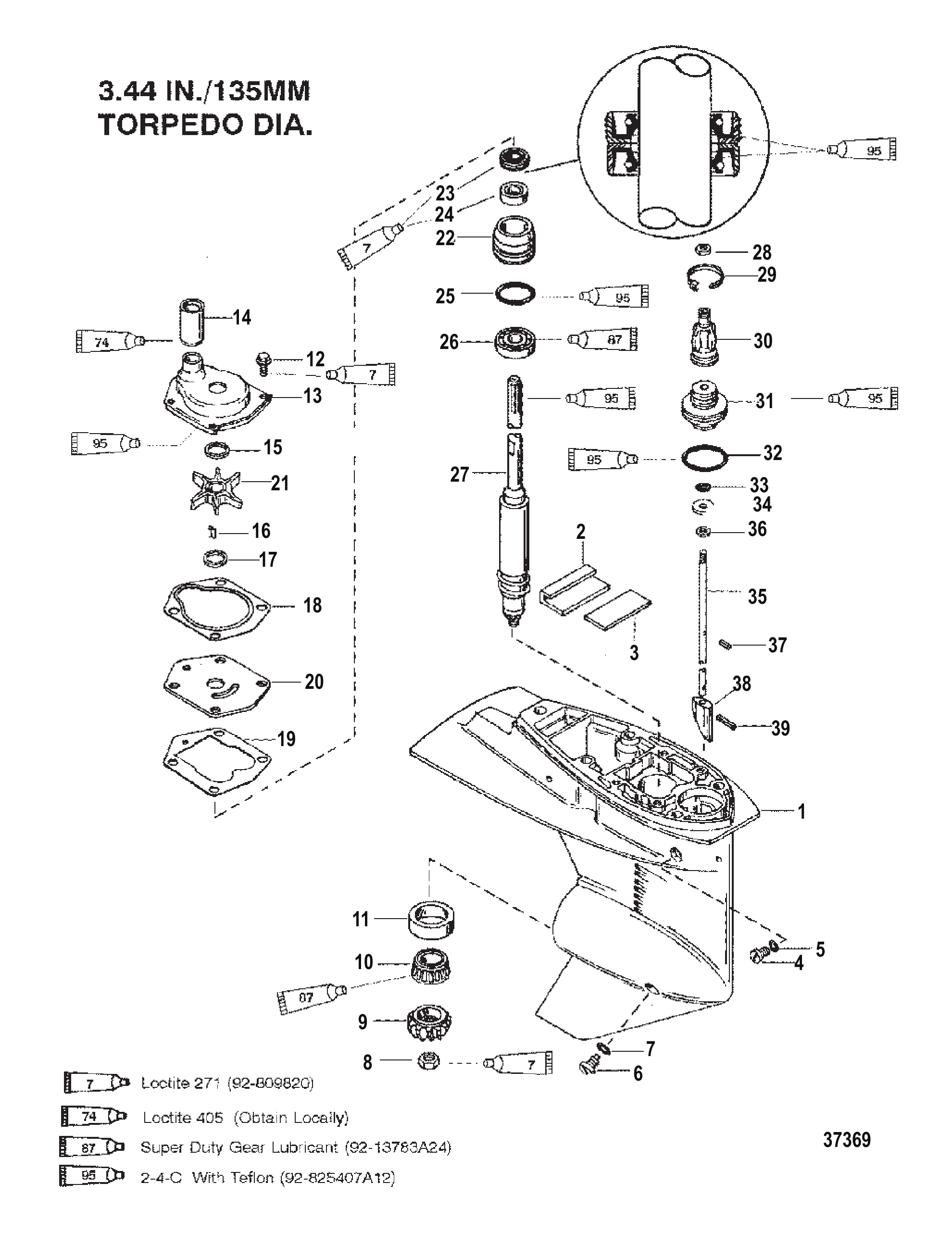

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 821306A8 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 821306T8 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 821306A6 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 821306T6 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 821306A10 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 821306A9 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 821306T9 | 齿轮箱-短型-灰 | GEAR HSG-SHORT-GR | 1 |
| - | 821306A7 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 821306T7 | 齿轮壳体-L-灰色 | GEAR HSG-L-GRAY | 1 |
| - | 821306A11 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 821306A12 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 821306T12 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 821306A13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 821306T13 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 818226A1 | 密封/板套件 | SEAL/PLATE KIT | 1 |
| 3 | NSS | 板件(不单独销售)(参考编号#2部件) | NOT SOLD SEPARATE PLATE (PART OF REF #2) | 1 |
| 4 | 79953A2 | 螺丝套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) | 1 |
| 4 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 5 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 5 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 6 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | 1 |
| 6 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 7 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 7 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 8 | 55910 | 螺母(.437-20) | NUT (.437-20) | 1 |
| 9 | 8213261 | 小齿轮-13齿 | GEAR Pinion - 13 Teeth | 1 |
| 9 | 821326T1 | 小齿轮-13齿 | GEAR Pinion - 13 Teeth | 1 |
| 10 | 821321A2 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 11 | NSS | 杯件(不单独销售)(参考编号#10部件) | NOT SOLD SEPARATE CUP (PART OF REF #10) | 1 |
| 12 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 13 | 821351A2 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 13 | 821351A3 | 水泵上壳体总成 | HOUSING ASSEMBLY Water Pump Upper | 1 |
| 14 | 8235471 | 密封件 | SEAL | 1 |
| 15 | 8M0027721 | 垫圈 | WASHER | 1 |
| 15 | 8M0204722 | 垫圈 | WASHER | 1 |
| 16 | 85119 | 键 | KEY | 1 |
| 16 | 8M0214993 | 键@5 | KEY @5 | 1 |
| 17 | 8M0027721 | 垫圈 | WASHER | 1 |
| 17 | 8M0204722 | 垫圈 | WASHER | 1 |
| 18 | 822189 | 水泵上衬垫 | GASKET Upper Water Pump | 1 |
| 19 | 822217 | 水泵下衬垫 | GASKET Lower Water Pump | 1 |
| 19 | 8M0214956 | 衬垫 | GASKET | 1 |
| 20 | 8213541 | 面板 | FACE PLATE | 1 |
| 20 | 8213542 | 面板 | FACE PLATE | 1 |
| 21 | 850893 | 叶轮 | IMPELLER | 1 |
| 21 | 8M0204712 | 叶轮 | IMPELLER | 1 |
| 22 | 821307A2 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 23 | 821309 | 密封件 | SEAL | 1 |
| 23 | 8M0248704 | 油封 | SEAL OIL | 1 |
| 24 | 821310 | 密封件 | SEAL | 1 |
| 25 | 821308 | O型圈(1.421 x 0.139) | O-RING (1.421 x .139) | 1 |
| 26 | 821311 | 滚珠轴承 | BEARING Ball | 1 |
| 27 | 822466A1 | 驱动轴 | DRIVESHAFT | 1 |
| 27 | 822159A1 | 驱动轴 | DRIVESHAFT | 1 |
| 27 | 822159T1 | 驱动轴 | DRIVESHAFT | 1 |
| 27 | 822552A1 | 驱动轴 | DRIVESHAFT | 1 |
| 28 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 29 | 823548 | 扎带 | TIE STRAP | 1 |
| 29 | 823548T | 扎带 | TIE STRAP | 1 |
| 30 | 822158 | 护套 | BOOT | 1 |
| 31 | 821827 | 固定座 | RETAINER | 1 |
| 32 | 26855 | O型圈(1.609 x 0.139) | O-RING (1.609 x .139) | 1 |
| 33 | 85594 | O型圈(.239 x .174) | O-RING (.239 x .174) | 1 |
| 34 | 814803 | 垫圈 | WASHER | 1 |
| 35 | 822453A1 | 换档轴 | SHIFT SHAFT | 1 |
| 35 | 821319A1 | 换档轴 | SHIFT SHAFT | 1 |
| 35 | 822543A1 | 换档轴 | SHIFT SHAFT | 1 |
| 36 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 36 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 37 | 85593 | 销(.078 x .437) | PIN (.078 x .437) | 1 |
| 38 | 8213161 | 换档凸轮 | CAM Shift | 1 |
| 39 | 822369 | 销(0.125 x 0.625) | PIN (.125 x .625) | 1 |
| - | 822420A94 | 衬垫套件 | GASKET SET | 1 |
| - | 823547A1 | 密封套件 | SEAL KIT | 1 |
| - | 823547A2 | 密封套件 | SEAL KIT | 1 |
| - | 821354A2 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

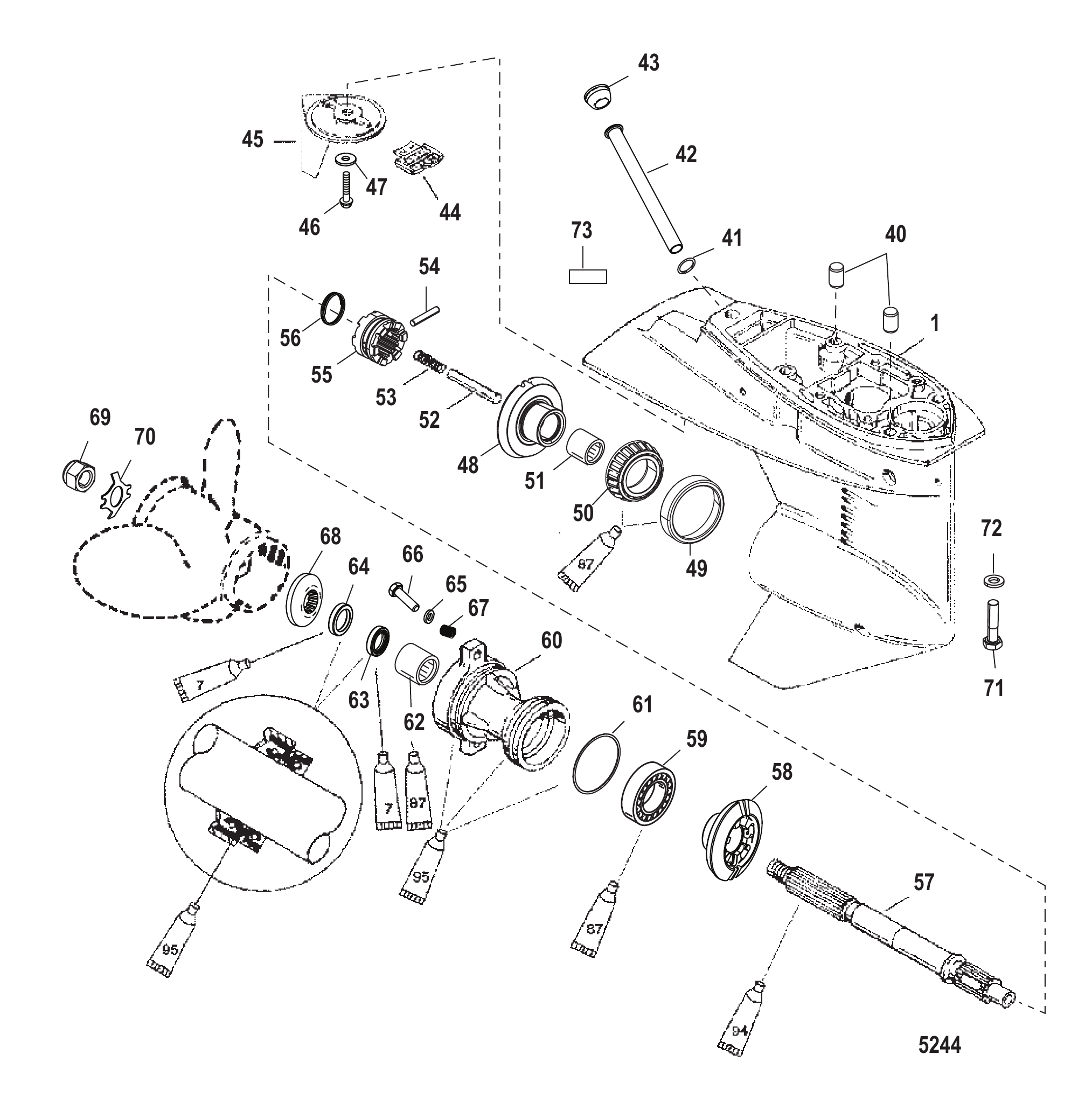

| - | 821306T8 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 821306A55 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 821306T6 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 821306A10 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 821306T12 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 40 | 821327 | 定位销 | PIN Dowel | 2 |
| 41 | 823942 | 衬垫 | GASKET | 1 |
| 42 | 821828 | 管 | TUBE | 1 |
| 42 | 8M0026108 | 管 | TUBE | 1 |
| 43 | 824928 | 橡胶塞 | PLUG Rubber | 1 |
| 43 | 824928001 | 橡胶塞 | PLUG Rubber | 1 |
| 44 | 821829 | 滤网 | SCREEN | 1 |
| 45 | 822157T2 | 平衡鳍板 | TRIM TAB | 1 |
| 46 | 82497020 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 47 | 72397 | 垫圈 | WASHER | 1 |
| 48 | 821315T1 | 前进齿轮总成-26齿 | GEAR ASSEMBLY Forward - 26 Teeth | 1 |
| 49 | 99328A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 49 | 8M0103470 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 50 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 51 | 41326 | 滚柱轴承 | BEARING Roller | 1 |
| 52 | 821578 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 53 | 8261991 | 弹簧 | SPRING | 1 |
| 54 | 85093 | 销 | PIN | 1 |
| 54 | 8M0020999 | 十字销 | PIN CROSS | 1 |
| 55 | 821314T | 离合器 | CLUTCH | 1 |
| 56 | 38114 | 弹簧 | SPRING | 1 |
| 57 | 8215772 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 57 | 8M0140441 | 螺旋桨轴 | PROP SHAFT | 1 |
| 58 | 821312T1 | 倒档齿轮-26齿 | GEAR Reverse - 26 Teeth | 1 |
| 59 | 20839T | 滚珠轴承 | BEARING Ball | 1 |
| 60 | 19291A3 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 60 | 8M0168900 | 轴承座 | BEARING CARRIER | 1 |
| 61 | 815460 | O型圈 | O-RING | 1 |
| 62 | 21700 | 滚针轴承 | BEARING Needle | 1 |
| 63 | 69188 | 油封 | SEAL Oil | 1 |
| 63 | 8M0205511 | 油封 | SEAL Oil | 1 |
| 64 | 69189 | 油封 | SEAL Oil | 1 |
| 64 | 8M0203757 | 油封 | SEAL Oil | 1 |
| 65 | 855941 | 垫圈(.323 x .590 x .112)不锈钢 | WASHER (.323 x .590 x .112) Stainless Steel | 2 |
| 66 | 85594030 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 2 |
| 67 | 8227731 | 螺纹嵌件 | INSERT Threaded | 2 |
| 68 | 73345A1 | 止推垫片 | THRUST WASHER | 1 |
| 69 | 69578Q1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| 70 | 76281 | 锁紧垫圈 | TAB WASHER | 1 |
| 70 | 8M0214942 | 锁紧垫片 | WASHER Tab | 1 |
| 71 | 4000380 | 螺钉（M10 x 45 短/长） | SCREW (M10 x 45) Short/Long | 4 |
| 72 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 4 |
| 72 | 8M0214963 | 垫圈 | WASHER | 4 |
| 73 | NSS | 不单独出售 齿轮比贴纸 | NOT SOLD SEPARATE Decal-Gear Ratio | 1 |
| - | 822420A94 | 衬垫套件 | GASKET SET | 1 |
| - | 823547A2 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

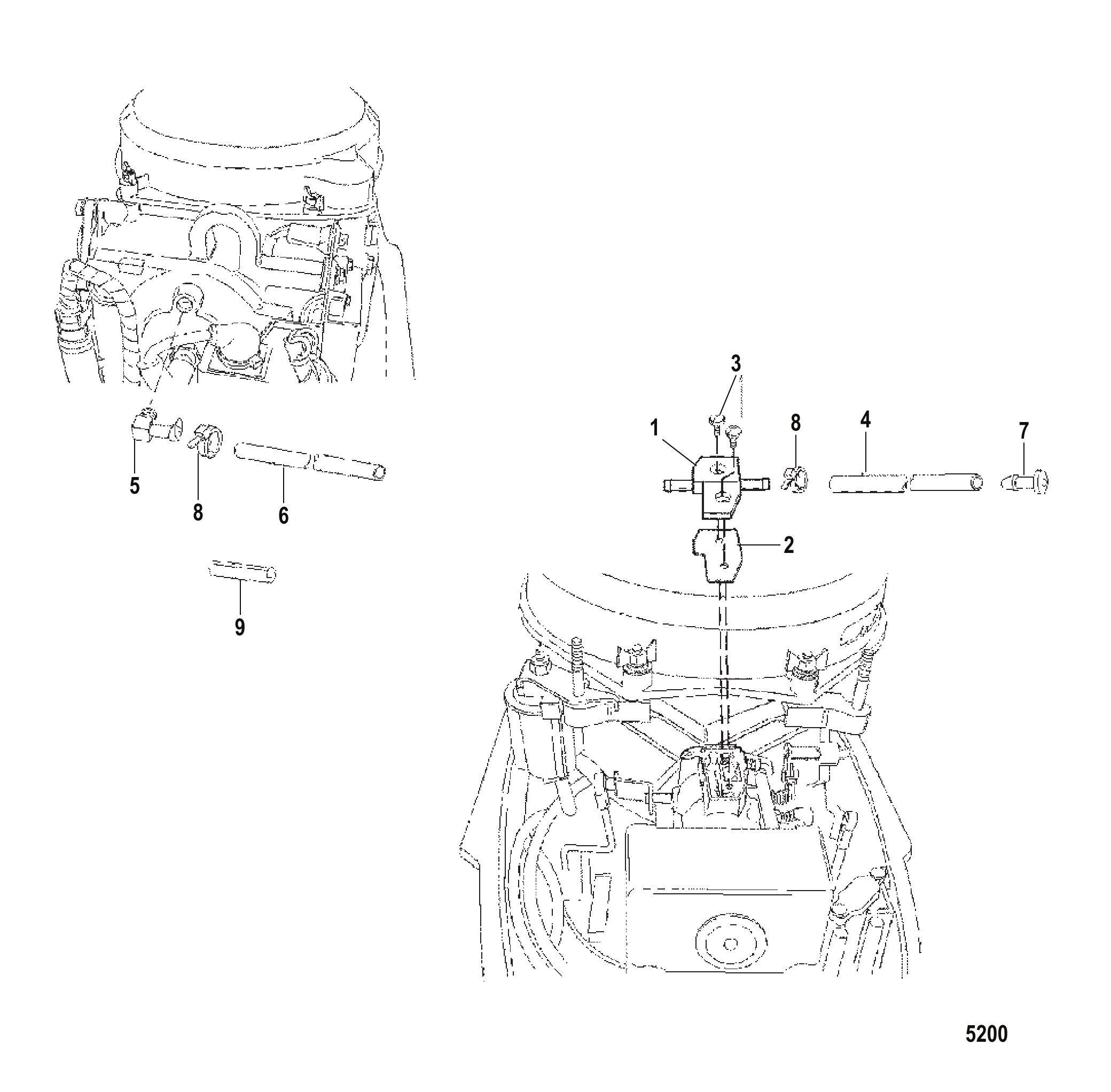

| 1 | 828155A1 | 加热器歧管总成 | MANIFOLD ASSEMBLY Heater | 1 |
| 2 | 826138 | 衬垫 | GASKET | 1 |
| 3 | 20597 | 螺钉 (#8-32 x 0.380) | SCREW (#8-32 x .380) | 2 |
| 4 | 9912878 | 软管 (0.187) (26.00英寸整卷) (裁切至17英寸) | HOSE (.187) (26.00 Inches Bulk) (Cut to 17 Inch Length) | 1 |
| 5 | 33373 | 90度弯头 | ELBOW 90 Degree | 1 |
| 5 | 33373001 | 弯头 | ELBOW | 1 |
| 6 | 9912878 | 软管 (.187) (26.00英寸散装) | HOSE (.187) (26.00 Inches Bulk) | 1 |
| 7 | 828167 | 接头 | FITTING | 1 |
| 8 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 9 | 15026 | 盖帽 | CAP | 2 |

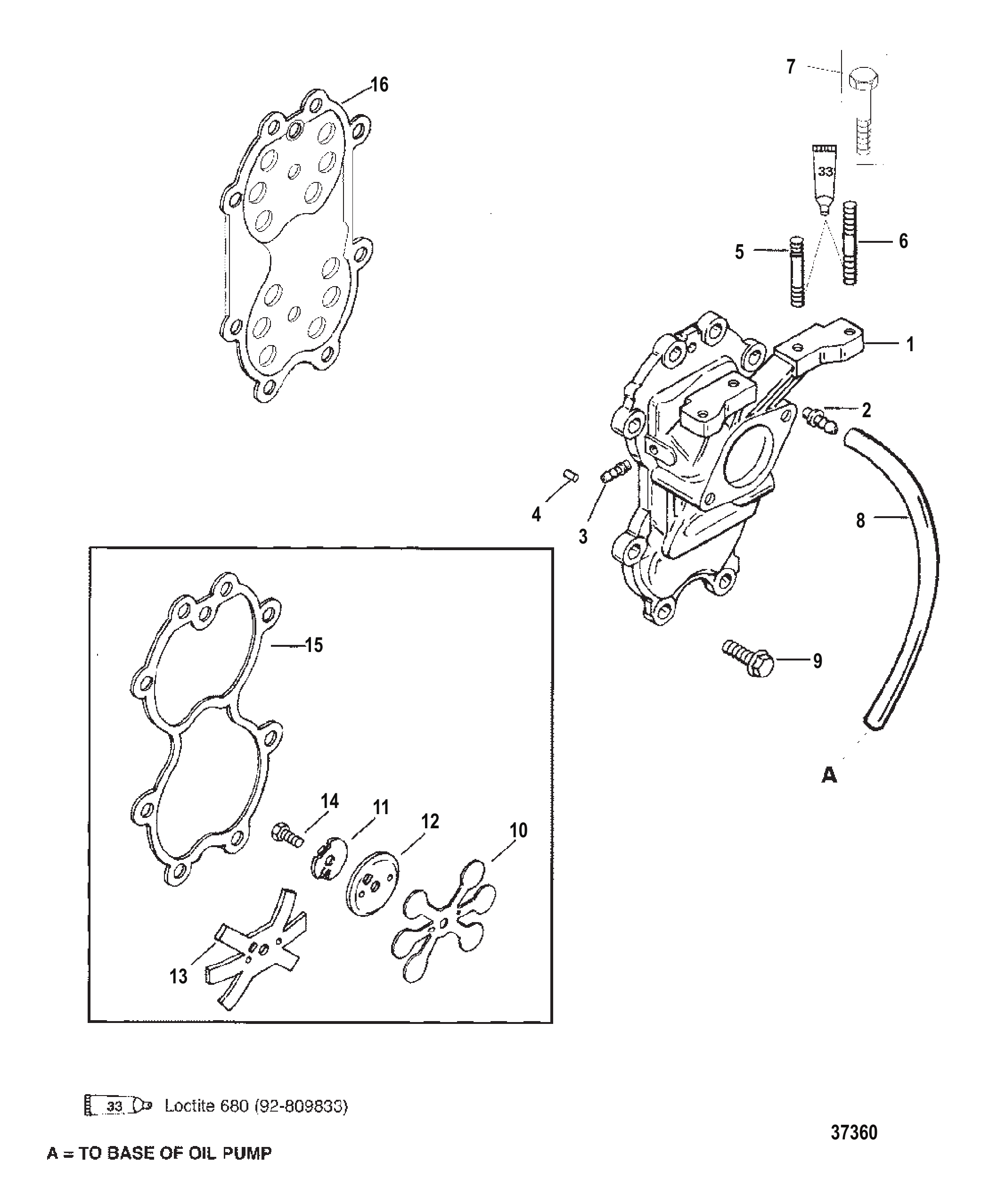

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821371A3 | 进气歧管总成 | MANIFOLD ASSEMBLY Induction | 1 |
| 1 | 821371A2 | 进气歧管总成 | MANIFOLD ASSEMBLY Induction | 1 |
| 2 | 426231 | 止回阀 | CHECK VALVE | 1 |
| 2 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 3 | 823563 | 倒钩接头 | FITTING (BARBED) | 1 |
| 4 | NSS | 定位销(不单独销售)(参考编号#1组件) | NOT SOLD SEPARATE DOWEL PIN (COMPONENT OF REF #1) | 4 |
| 5 | 8161946 | 螺柱(M6 x 1 x 44) | STUD (M6 X 1 X 44) | 2 |
| 5 | 8161949 | 双头螺柱(M6 x 44) | STUD (M6 x 44) | 2 |
| 6 | 823779 | 螺柱(M6 x 1 x 55)(安装螺柱) | STUD (M6 X 1 X 55)(STUD ATTACHING) | 2 |
| 6 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 2 |
| 7 | 82130040 | 螺钉(M6 x 40)(安装螺钉) | SCREW (M6 x 40) (SCREW ATTACHING) | 2 |
| 8 | 99130122 | 管材(20.00英尺散装)(裁切至12 1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 12 1/2 IN.) | 1 |
| 8 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 9 | 81742730 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 8 |
| 9 | 40011149 | 螺钉(M8 x 25)不锈钢(六角法兰头) | SCREW (M8 x 25) Stainless Steel (HEX FLANGE HEAD) | 8 |
| 10 | 812880A2 | 簧片组件 | REED ASSEMBLY | 2 |
| 10 | 812880A03 | 簧片组件 | REED ASSEMBLY | 2 |
| 11 | 42982 | 锁紧垫圈 | TAB WASHER | 2 |
| 11 | 429821 | 锁紧垫圈 | TAB WASHER | 2 |
| 12 | 8128791 | 簧片压板 | RETAINER Reed | 2 |
| 12 | 812879002 | 簧片压板 | RETAINER Reed | 2 |
| 13 | 825267 | 簧片压板 | RETAINER Reed | 2 |
| 14 | 4000171 | 螺钉(M6 x 16)(六角头盖) | SCREW (M6 x 16) (HEX HEAD CAP) | 2 |
| 15 | 821370 | 衬垫 | GASKET | 1 |
| 16 | 830246A2 | 簧片阀 | REED VALVE | 1 |
| 16 | 830246T2 | 簧片阀 | REED VALVE | 1 |
| 16 | 830246A1 | 簧片阀 | REED VALVE | 1 |
| 16 | 830246T3 | 簧片阀 | REED VALVE | 1 |
| - | 822420A94 | 衬垫套件 | GASKET SET | 1 |
| - | 808569A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 808569T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| NOPART | NO PARTS LIST |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8249951 | 密封件 | SEAL | 1 |
| 1 | 8M0043416 | 手柄座密封 | SEAL-HANDLE REST | 1 |
| 2 | 401196 | 螺母 (M6) | NUT (M6) | 2 |
| 3 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 2 |
| 4 | 822392 | 隔套 | SPACER | 2 |
| 5 | 8217882 | 支架 | REST | 1 |
| 5 | 821788T02 | 支架 | REST | 1 |
| 6 | 85174A1 | 手柄总成 | HANDLE ASSEMBLY | 1 |
| 7 | NSS | NOT SOLD SEPARATE RETAINER | 1 | |
| 8 | 400264 | 螺母 (M6) | NUT (M6) | 4 |
| 8 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 4 |
| 9 | 826414 | 垫圈 | WASHER | 4 |
| 9 | 826414T | 垫圈 | WASHER | 4 |
| 10 | 8157951 | 护孔环 | GROMMET | 4 |
| 11 | 816086 | 衬套 | BUSHING | 4 |
| 12 | 8157951 | 护孔环 | GROMMET | 4 |
| 13 | 826414 | 垫圈 | WASHER | 4 |
| 13 | 826414T | 垫圈 | WASHER | 4 |

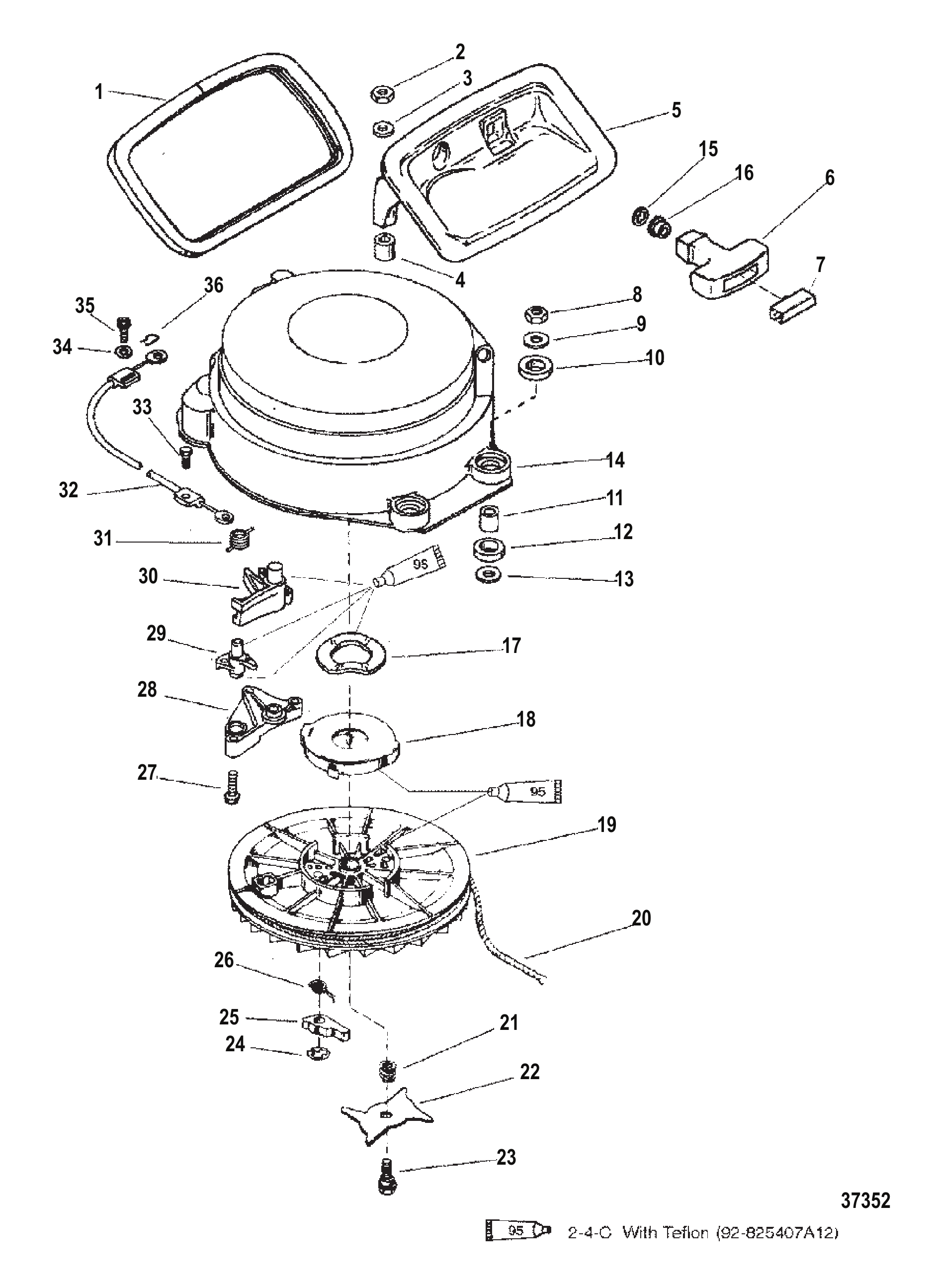

| - | 816728A9 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| - | 816728T14 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| - | 816728A12 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| - | 816728T14 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 14 | 8167285 | 壳体 | HOUSING | 1 |
| 14 | 816728T05 | 壳体 | HOUSING | 1 |
| 15 | 818853 | 挡圈 | RING Retaining | 1 |
| 16 | 42690 | 衬套 | BUSHING | 1 |
| 16 | 8M0183792 | 绳索衬套 | ROPE BUSHING | 1 |
| 17 | 826229 | 锁紧垫圈 | LOCKWASHER | 1 |
| 18 | 868571 | 弹簧 | SPRING | 1 |
| 18 | 86857T01 | 弹簧 | SPRING | 1 |
| 19 | 825269A1 | 启动滑轮 | SHEAVE Starter | 1 |
| 19 | 825269T01 | 启动器滑轮总成 | SHEAVE STARTR ASU | 1 |
| 20 | 12066A9 | 绳索 | ROPE | 1 |
| 20 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| 21 | 86852 | 弹簧 | SPRING | 1 |
| 21 | 868523 | 弹簧 | SPRING | 1 |
| 22 | 86853 | 凸轮 | CAM | 1 |
| 22 | 86853T01 | 凸轮 | CAM | 1 |
| 23 | 826253 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 1 |
| 24 | 868491 | 挡圈 | RING Retaining | 2 |
| 24 | 86849T01 | 环 @2 | RING @2 | 2 |
| 25 | 868501 | 凸轮 | CAM | 2 |
| 26 | 86851 | 弹簧 | SPRING | 2 |
| 26 | 86851T02 | 弹簧 @2 | SPRING @2 | 2 |
| 27 | 8182491 | 螺钉(#10-16 x 1.00) | SCREW (#10-16 x 1.00) | 3 |
| 28 | 816711 | 固定座 | RETAINER | 1 |
| 29 | 8167121 | 凸轮 | CAM | 1 |
| 29 | 816712T01 | 凸轮 | CAM | 1 |
| 30 | 8166902 | 杠杆 | LEVER | 1 |
| 30 | 8166903 | 杠杆 | LEVER | 1 |
| 31 | 826791 | 弹簧 | SPRING | 1 |
| 32 | 8167484 | 联锁电缆 | CABLE Interlock | 1 |
| 32 | 8567542 | 联锁电缆 | CABLE Interlock | 1 |
| 33 | 812832 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 33 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 34 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 1 |
| 35 | 8214281 | 螺钉(#10-16x0.625) | SCREW (#10-16 x .625) | 1 |
| 36 | 27769 | 开口销 | COTTER PIN | 1 |
| 36 | 26811 | 开口销 | COTTER PIN | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822003 | 衬套 | BUSHING | 2 |
| 2 | 822002 | 护孔环 | GROMMET | 2 |
| 3 | 822514A2 | 油箱总成 | TANK ASSEMBLY Oil | 1 |
| 3 | 8M0219215 | 油箱总成-机油 | TANK ASSY-OIL | 1 |
| 4 | 828765A1 | 盖总成 | CAP ASSEMBLY | 1 |
| 5 | 828766 | 衬垫 | GASKET | 1 |
| 6 | NSS | NOT SOLD SEPARATE RETAINER | 1 | |
| 7 | 821285 | 压入式螺母 | PUSH NUT | 1 |
| 8 | 19299A1 | 通风组件 | VENT ASSEMBLY | 1 |
| 9 | 64871 | 阀门 | VALVE | 1 |
| 10 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 10 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 11 | 814200 | 卡箍 | CLAMP | 2 |
| 12 | 9004934 | 管材（14.50英寸散装）（裁切至4-3/4英寸） | TUBING (14.50 Inches Bulk) (Cut to 4-3/4 IN.) | 1 |
| 12 | 82381455 | 油管（25.00英寸散装） | TUBING (25.00 Inches Bulk) | 1 |
| 13 | 826083 | 弯头 | ELBOW | 1 |
| 14 | 82381451 | 管材（1-1/4英寸） | TUBING (1-1/4 IN.) | 1 |
| 14 | 82381455 | 油管（25.00英寸散装） | TUBING (25.00 Inches Bulk) | 1 |
| 15 | 823770 | 护孔环 | GROMMET | 1 |
| 15 | 823770001 | 护孔环 | GROMMET | 1 |
| 16 | 826084 | 隔套 | SPACER | 1 |
| 17 | 12886A6 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 18 | 58376 | 螺钉(.164-18 x .375) | SCREW (.164-18 x .375) | 1 |
| 19 | 72761 | 不锈钢垫圈(.203 x .562 x .060) | WASHER (.203 x .562 x .060) Stainless Steel | 1 |
| 20 | 82381329 | 管材（12.00英寸散装）（裁切至10英寸） | TUBING (12.00 Inches Bulk) (Cut to 10 IN.) | 1 |
| 20 | 82381335 | 油管(15.00英寸 散装) | TUBING (15.00 Inches Bulk) | 1 |
| 21 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 21 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 22 | 826143 | 从动齿轮 | GEAR Driven | 1 |
| 23 | 19278A2 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 24 | 17597 | 衬套（带法兰） | BUSHING (FLANGED) | 1 |
| 25 | 17596 | 衬套 | BUSHING | 1 |
| 26 | 818902A2 | 机油喷射泵总成 | PUMP ASSEMBLY Oil Injection | 1 |
| 27 | 36390 | O型圈 | O-RING | 1 |
| 28 | 62705 | O型圈 | O-RING | 1 |
| 28 | 8M0204667 | O型圈×2 | O RING @2 | 1 |
| 29 | 40011108 | 不锈钢螺钉 (M5 x 20) | SCREW (M5 x 20) Stainless Steel | 2 |
| 30 | 826581A1 | 连接杆 | LINK | 1 |
| 30 | 826581T01 | 连接杆 | LINK | 1 |
| - | 822420A94 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822344A3 | 动力微调 | POWER TRIM | 1 |
| 1 | 822344T14 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 1 | 822344A5 | 动力微调 | POWER TRIM | 1 |
| 1 | 822344T14 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| - | 827668A1 | O型圈套件 | O-RING KIT | 1 |
| 2 | 827670A2 | 减震杆总成 | SHOCK ROD ASSEMBLY | 1 |
| 2 | 893931A01 | 减震杆总成 | SHOCK ROD ASSY | 1 |
| 3 | 827671A1 | 先导止回阀总成 | PILOT CHECK ASSEMBLY | 1 |
| 4 | 827672A1 | 倾斜泄压阀总成 | TILT RELIEF VALVE ASSEMBLY | 1 |
| 5 | 827673A1 | 吸入阀座总成 | SEAT ASSEMBLY Suction | 1 |
| 6 | 827674A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | NSS | 球与弹簧不单独销售 | NOT SOLD SEPARATE BALL AND SPRING | 1 |
| 8 | NSS | NOT SOLD SEPARATE SCREW | 1 | |
| 9 | NSS | 过滤器不单独销售 | NOT SOLD SEPARATE FILTER | 1 |
| 10 | NSS | NOT SOLD SEPARATE O-RING | 1 | |
| 11 | 827675A1 | 电机总成 | MOTOR ASSEMBLY | 1 |
| 12 | NSS | NOT SOLD SEPARATE SCREW | 4 | |
| 13 | NSS | NOT SOLD SEPARATE WASHER | 4 | |
| 14 | 88238A15 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 15 | NSS | NOT SOLD SEPARATE O-RING | 1 | |
| 16 | NSS | 耦合器不单独销售 | NOT SOLD SEPARATE COUPLER | 1 |
| 17 | 827676 | 活塞记忆 | PISTON Memory | 1 |
| 18 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 18 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 19 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| - | 819514A57 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 20 | 819514A58 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 21 | 821509 | 继电器 | RELAY | 2 |
| 21 | 821509T01 | 继电器 | RELAY | 2 |
| 22 | 821382 | 支架 | BRACKET | 2 |
| 22 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 23 | 818967 | 护孔环 | GROMMET | 2 |
| 23 | 8M0207785 | 护孔环 | GROMMET | 2 |
| 24 | 40011129 | 不锈钢螺钉(M6x25) | SCREW (M6 x 25) Stainless Steel | 2 |
| 25 | 8128321 | 螺钉（#10-16 x 0.600）（自攻） | SCREW (#10-16 x .600) (SELF-TAP) | 1 |
| 25 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 26 | 830238T | 支架 | BRACKET | 1 |
| 27 | 826802A9 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 28 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 29 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 29 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 2 |
| 30 | 828102 | 支架 | BRACKET | 2 |
| 30 | 8M0207771 | 安装支架 | BRACKET Mounting | 2 |
| 31 | 818967 | 护孔环 | GROMMET | 2 |
| 31 | 8M0207785 | 护孔环 | GROMMET | 2 |
| 32 | 818968 | 衬套 | BUSHING | 2 |
| 32 | 8M0214955 | 衬套 | BUSHING | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822481 | 锚定销(14毫米) | PIN Anchor (14 mm) | 1 |
| 1 | 822481001 | 销(14毫米) | PIN (14 mm) | 1 |
| 2 | 822482 | 衬套 | BUSHING | 2 |
| 3 | 822484 | 衬套 | BUSHING | 2 |
| 4 | 825190 | 垫圈 | WASHER | 2 |
| 5 | 4013414 | 螺母(M14) | NUT (M14) | 2 |
| 5 | 826712 | 螺母 | NUT | 2 |
| 6 | 4009040 | 不锈钢螺钉(M10x40) | SCREW (M10 x 40) Stainless Steel | 2 |
| 7 | 4002319 | 垫圈 | WASHER | 2 |
| 8 | 4011910 | 螺母(M10) | NUT (M10) | 2 |
| 8 | 4013710 | 螺母(M10) | NUT (M10) | 2 |
| 9 | 8128321 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 9 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 10 | 69205 | C形垫圈 | C WASHER | 1 |
| 10 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 11 | 22740 | 卡扣 | CLIP | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 803018 | 零件手册 30/40 (2缸) 二冲程 | PARTS MANUAL 30/40 (2 Cylinder) 2-Stroke | 1 |
| 0 | 826148R2 | 维修手册 30/40（二冲程） | SERVICE MANUAL 30/40 (2-Stroke) | 1 |
| 0 | 826148R03 | 维修手册 30/40（二冲程） | SERVICE MANUAL 30/40 (2-Stroke) | 1 |
| 0 | 10116040 | 用户手册 | OWNERS MANUAL | 1 |
| 0 | 10116V40 | 用户手册 | OWNERS MANUAL | 1 |
| 0 | 10148040 | 用户手册 | OWNERS MANUAL | 1 |
| 0 | 804869A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 808616A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 8M0112703 | 二冲程 30 40 | 2 STROKE 30 40 | 1 |
| 0 | 824093A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 8582521 | 贴花套件 | DECAL SET | 1 |
| 0 | 8582522 | 贴花套件 | DECAL SET | 1 |
| 0 | 804705A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 808616A96 | 贴花套件 | DECAL SET | 1 |
| 0 | 808616A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 824093A96 | 贴花套件 | DECAL SET | 1 |
| 0 | 824093A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 808617A95 | 贴花套件 | DECAL SET | 1 |
| 0 | 8582521 | 贴花套件 | DECAL SET | 1 |
| 0 | 824424A95 | 贴花套件 | DECAL SET | 1 |
| 0 | 8582522 | 贴花套件 | DECAL SET | 1 |
| 0 | 808683A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 808615A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 8M0114989 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| 0 | 808682A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 808682A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 808682A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 824094A97 | 贴花套件 | DECAL SET | 1 |
| 0 | 824094A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 824094A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 824094A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 824094A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 54321A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 54321A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 54321A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 856985A6 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 804664A00 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 804664A01 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 804664A02 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 804664A03 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 804664A04 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822462 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 893890T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 2 | 965661 | 贯穿螺栓 | THRU BOLT | 1 |
| 3 | 90643 | 驱动套件 | DRIVE KIT | 1 |
| 4 | 68575 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 4 | 685753 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 5 | 823639 | 驱动端盖 | DRIVE CAP | 1 |
| 5 | 8236392 | 驱动端盖 | DRIVE CAP | 1 |
| 6 | 965651 | 电枢 | ARMATURE | 1 |
| 7 | 8119011 | 换向器端盖 | CAP Commutator | 1 |
| 8 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 9 | 61787 | 支架 | HOLDER | 1 |
| 9 | 898265014 | 电刷支架 | HOLDER-BRUSH | 1 |
| 10 | F15158 | 螺钉 | SCREW | 2 |
| 11 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 12 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 13 | 88439A9 | 电缆总成-电池正极（5/16） | CABLE ASSEMBLY Battery - Positive (5/16) | 1 |
| 14 | 40011153 | 不锈钢螺钉(M8x45) | SCREW (M8 x 45) Stainless Steel | 3 |
| 15 | 88807A33 | 电缆总成（黑色-6英寸-1/4英寸端子） | CABLE ASSEMBLY (BLACK-6 IN. - 1/4 IN. TERMINALS) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8249951 | 密封件（适用处使用） | SEAL (USE WHERE APPLICABLE) | 1 |
| 1 | 8M0043416 | 手柄座密封 | SEAL-HANDLE REST | 1 |
| 2 | 8217881 | 支架（机油喷射） | REST (OIL INJECTION) | 1 |
| 2 | 821788A1 | 支架套件 | REST KIT | 1 |
| 3 | 822513 | 启动手柄塞 | PLUG Starter Handle | 1 |
| 2 | 821788A1 | 支架套件 | REST KIT | 1 |
| 3 | 8225131 | 堵头 | PLUG | 1 |
| 3 | 822513002 | 堵头 | PLUG | 1 |
| 4 | 823771 | 护孔环 | GROMMET | 1 |
| 4 | 823771001 | 护孔环 | GROMMET | 1 |
| 5 | 822464 | 堵头 | PLUG | 1 |
| 6 | 401196 | 螺母 (M6) | NUT (M6) | 2 |
| 7 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 2 |
| 8 | 822392 | 隔套 | SPACER | 2 |
| 9 | 400264 | 螺母 (M6) | NUT (M6) | 4 |
| 9 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 4 |
| 10 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 4 |
| 11 | 49221 | 垫圈(0.187 x 0.500 x 0.062 氯丁橡胶) | WASHER (.187 x .500 x .062) Neoprene | 4 |
| 11 | 8M0204663 | 垫片@5 | WASHER @5 | 4 |
| 12 | 812777T1 | 盖总成 | COVER ASSEMBLY | 1 |
| 13 | 4007330 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 5 |
| 13 | 4013930 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 5 |
| 14 | 832075A4 | 点火定子套件 | IGNITION STATOR KIT | 1 |
| 14 | 832075A21 | 定子总成 | STATOR ASSEMBLY | 1 |
| 15 | 62457 | O型圈 | O-RING | 1 |
| 16 | 99021A14 | 触发器 | TRIGGER | 1 |
| 17 | 853960T | 触发器 | TRIGGER | 1 |
| - | 822420A94 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 196081 | 连杆 | LINK ROD | 1 |
| 1 | 19608A14 | 发动机转向安装套件 | ATTACHING KIT Engine Steering | 1 |
| 2 | 823919 | 螺钉（0.375-24 x 1.500） | SCREW (.375-24 x 1.500) | 1 |
| 3 | 71970 | 垫圈(0.390×0.546×0.12) | WASHER (.390 x .546 x .12) | 1 |
| 3 | 8M0109680 | 垫圈(0.39×0.546×0.12) | WASHER (.39 X .546 X.12) | 1 |
| 4 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 5 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 5 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 6 | 822397 | 圆盘（非手柄型号） | PUCK (NON HANDLE MODELS) | 1 |
| 7 | 821772A3 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 7 | 827402T5 | 旋转支架 | SWIVEL BRACKET | 1 |
| 7 | 821772A4 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 7 | 827402T6 | ORD 3410-827402T5 | ORD 3410-827402T5 | 1 |
| 8 | 8217711 | 衬套 (上部) | BUSHING (UPPER) | 1 |
| 9 | 74036 | 润滑脂接头 | FITTING Grease | 3 |
| 9 | 8M0169589 | 润滑脂接头 | FITTING Grease | 3 |
| 10 | 821777 | 衬套（下部） | BUSHING (LOWER) | 1 |
| 11 | 822404 | 密封件 | SEAL | 1 |
| 11 | 8M0205512 | 密封件 | SEAL | 1 |
| 12 | 74036 | 润滑脂接头 | FITTING Grease | 1 |
| 12 | 8M0169589 | 润滑脂接头 | FITTING Grease | 1 |
| 13 | 88238A11 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 14 | 19619 | 垫圈 | WASHER | 1 |
| 15 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 15 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 16 | 27769 | 开口销 | COTTER PIN | 1 |
| 16 | 26811 | 开口销 | COTTER PIN | 1 |
| 17 | 821799 | 枢轴销 | PIN Pivot | 1 |
| 17 | 821799002 | 枢轴销 | PIN Pivot | 1 |
| 18 | 4008910 | 螺钉（M8 X 10）不锈钢 | SCREW (M8 x 10) Stainless Steel | 1 |
| 18 | 40011149 | 螺钉 (M8 x 25) 不锈钢 | SCREW (M8 x 25) Stainless Steel | 1 |
| 19 | 822005 | 橡胶护套 | BOOT Rubber | 1 |
| 20 | 821784 | 弹簧 | SPRING | 1 |
| 21 | 19619 | 垫圈 | WASHER | 1 |
| 22 | 19614 | 倾斜管 | TILT TUBE | 1 |
| 22 | 8M0041938 | 倾斜管 | TILT TUBE | 1 |
| 23 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 23 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 24 | 8237011 | 副驾驶贴花 | DECAL Co-Pilot | 1 |
| 25 | 821539 | 三叶销 | PIN Trilobe | 1 |
| 26 | 823507 | 衬套 | BUSHING | 2 |
| 27 | 822480 | 枢轴销（上部） | PIN Pivot (UPPER) | 1 |
| 28 | 8217751 | 绑带（非动力微调） | STRAP (NON POWER TRIM) | 1 |
| 29 | 821800 | 连杆（上部） | LINK (UPPER) | 1 |
| 30 | 8217981 | 杠杆 | LEVER | 1 |
| 31 | F1669 | 螺母（#6-32） | NUT (#6-32) | 1 |
| 31 | 8M0207777 | 不锈钢螺母 | NUT-SS | 1 |
| 32 | 826578 | 销 | PIN | 2 |
| 33 | F366300 | 弹簧 | SPRING | 2 |
| 34 | 8218051 | 连接杆 | LINK | 1 |
| 34 | 821805A1 | 倒车锁臂总成 | ARM ASSEMBLY Reverse Lock | 1 |
| 35 | 71055 | 垫圈 | WASHER | 1 |
| 36 | 821805A1 | 倒车锁臂总成 | ARM ASSEMBLY Reverse Lock | 1 |
| 37 | 828986 | 倒车锁 | LOCK Reverse | 1 |
| 37 | 821805A1 | 倒车锁臂总成 | ARM ASSEMBLY Reverse Lock | 1 |
| 38 | 27882 | 垫圈 | WASHER | 1 |
| 39 | F1669 | 螺母（#6-32） | NUT (#6-32) | 1 |
| 39 | 8M0207777 | 不锈钢螺母 | NUT-SS | 1 |
| 34 | 8218052 | 连接杆 | LINK | 1 |
| 34 | 8M0026107 | 倒车锁连杆 | LINK-REVERSE LOCK | 1 |
| 35 | 71055 | 垫圈 | WASHER | 1 |
| 36 | 8251811 | 臂 | ARM | 1 |
| 36 | 825181003 | 倒车锁臂 | ARM-REVERSE LOCK | 1 |
| 37 | 8289861 | 倒车锁 | LOCK Reverse | 1 |
| 38 | 27882 | 垫圈（适用处使用） | WASHER (USE WHERE APPLICABLE) | 1 |
| 40 | 29488 | 螺母 (#10-32) | NUT (#10-32) | 2 |
| 40 | 8M0204718 | 螺母 | NUT | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821769F1 | 旋转管头 | HEAD Swivel Tube | 1 |
| 1 | 821769T1 | 旋转管头-黑色 | SWIVEL TUBE HEAD Black | 1 |
| 1 | 821769F2 | 旋转管头 | HEAD Swivel Tube | 1 |
| 1 | 821769T2 | 旋转管头-灰色 | SWIVEL TUBE HEAD Gray | 1 |
| 2 | 822465F1 | 手柄 | HANDLE | 1 |
| 2 | 822465F2 | 搬运手柄 | HANDLE Carrying | 1 |
| 2 | 822465F1 | 手柄 | HANDLE | 1 |
| 3 | 43589 | 锁紧垫圈 | TAB WASHER | 1 |
| 4 | 824848F45 | 螺钉（M10 x 45）（六角头） | SCREW (M10 x 45) (HEX HEAD CAP) | 2 |
| 5 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 1 |
| 5 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 6 | 823792 | 杠杆 | LEVER | 1 |
| 7 | 29330 | 垫圈 | WASHER | 1 |
| 8 | 821961 | 螺纹杆 | ROD (THREADED) | 1 |
| 9 | 821957 | 制动板 | BRAKE PLATE | 1 |
| 10 | 8165621 | 圆盘 | DISC | 1 |
| 11 | 823791 | 安装板 | PLATE | 1 |
| 11 | 8M0007471 | 旋转头板 | PLATE Swivel Head | 1 |
| 12 | 8165621 | 圆盘 | DISC | 1 |
| 13 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822458 | 油门限位缓冲块 | BUMPER Throttle Stop | 1 |
| 2 | 42980 | 垫圈 | WASHER | 1 |
| 3 | 822458 | 油门限位缓冲块 | BUMPER Throttle Stop | 1 |
| 4 | 8213851 | 节气门控制杆 | LEVER Throttle Control | 1 |
| 4 | 8M0041742 | 油门杆 | LEVER-THROTTLE | 1 |
| 5 | 823569 | 螺纹球头 | BALL Threaded | 1 |
| 5 | 8235695 | 螺纹球头 | BALL Threaded | 1 |
| 6 | 812930A1 | 衬套 | BUSHING | 1 |
| 7 | NSS | 不单独销售嵌件 | NOT SOLD SEPARATE Insert | 1 |
| 8 | 4007180 | 螺丝(M10 x 45) | SCREW (M10 x 45) | 1 |
| 9 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 10 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 11 | 822459 | 线缆固定座 | RETAINER Cable | 1 |
| 12 | 42927 | 嵌件 | INSERT | 1 |
| 13 | 8224561 | 销 | PIN | 1 |
| 14 | 881227A4 | 油门控制连杆 | LINK Throttle Control | 1 |
| 15 | 817428 | 插座 | SOCKET | 2 |
| 16 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| 17 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| 18 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 19 | 8214943 | 油门线支架 | BRACKET Throttle Cable | 1 |
| 20 | 853926 | 火花臂 | SPARK ARM | 1 |
| 21 | 853925 | 节气门凸轮 | CAM Throttle | 1 |
| 22 | 42164 | 弹簧 | SPRING | 1 |
| 23 | 823807 | 衬套 | BUSHING | 1 |
| 24 | 99611 | 波形垫圈 | WAVE WASHER | 1 |
| 25 | 4000332 | 螺钉(M6x35) | SCREW (M6 x 35) | 1 |
| 26 | 40019111 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 1 |
| 27 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 28 | 881227A2 | 火花控制连杆 | SPARK CONTROL LINK | 1 |
| 28 | 881227A05 | 火花控制连杆 | SPARK CONTROL LINK | 1 |
| 29 | 817428 | 插座 | SOCKET | 2 |
| 30 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822148A1 | 盖板套件 | COVER KIT | 1 |
| 2 | 822150 | 滑轮 | PULLEY | 1 |
| 3 | NSS | 壳体不单独销售（参考编号#1的一部分） | NOT SOLD SEPARATE CASE (PART OF REF #1) | 1 |
| 4 | 812832 | 螺钉（#10-16 x 0.500）（自攻） | SCREW (#10-16 x .500) (SELF TAP) | 1 |
| 4 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 5 | 432425 | 电缆 | CABLE | 1 |
| 6 | 432427 | 电缆 | CABLE | 1 |
| 7 | 960099 | 套管(12.00英寸) | SLEEVE (12.00 Inches) | 1 |
| 8 | 82526225 | 螺钉（M8 x 25毫米）（六角法兰头） | SCREW (M8 x 25 mm) (HEX FLANGE HEAD) | 2 |
| 9 | 822407F1 | 盖板 | COVER | 1 |
| 9 | 8M0072298 | 盖板 | COVER | 1 |
| 9 | 822407F2 | 盖板 | COVER | 1 |
| 10 | 821477 | 衬套（内径1.485-1.475） | BUSHING 1.485-1.475 Inside Diameter | 1 |
| 11 | 822325F1 | 转向手柄臂 | ARM Steering Handle | 1 |
| 11 | 822325T1 | 转向手柄臂 | ARM Steering Handle | 1 |
| 11 | 822325F2 | 转向手柄臂 | ARM Steering Handle | 1 |
| 11 | 822325T2 | 转向手柄臂 | ARM Steering Handle | 1 |
| 12 | 822441 | 固定座 | RETAINER | 1 |
| 13 | 82239312 | 螺钉（M5 x 12）（六角法兰头） | SCREW (M5 x 12) (HEX FLANGE HEAD) | 1 |
| 14 | 4000330 | 螺钉（M6 x 25）（六角头） | SCREW (M6 x 25) ( HEX HEAD CAP) | 1 |
| 14 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 1 |
| 15 | 821971 | 节气门锁 | LOCK Throttle | 1 |
| 15 | 892995 | 节气门锁 | LOCK Throttle | 1 |
| 16 | 96203 | 弹簧 | SPRING | 1 |
| 17 | 821972 | 节气门旋钮 | KNOB Throttle | 1 |
| 17 | 821972T | 节气门旋钮 | KNOB Throttle | 1 |
| 18 | 821463A1 | 舵柄管 | TILLER TUBE | 1 |
| 18 | 821463T01 | 舵柄管 | TUBE-TILLER | 1 |
| 19 | 8242001 | 贴花 | DECAL | 1 |
| 19 | 8242004 | 贴花 | DECAL | 1 |
| 19 | 8242002 | 贴花 | DECAL | 1 |
| 20 | 821465 | 节气门手柄 | HANDLE Throttle | 1 |
| 21 | 99589 | 握把 | GRIP | 1 |
| 21 | 8M0221732 | 外握把 | GRIP OUTER | 1 |
| 22 | 823609A2 | 停止开关 | SWITCH Stop | 1 |
| 22 | 8M0104611 | 开关总成 | SWITCH ASSY | 1 |
| 23 | 82484890 | 螺钉（M10 x 90）（六角头） | SCREW (M10 x 90) (HEX HEAD CAP) | 2 |
| 24 | 816669F1 | 锁紧垫圈 | TAB WASHER | 1 |
| 24 | 8M0009820 | 锁紧垫圈 | TAB WASHER | 1 |
| 25 | 823687 | 卡扣 | CLIP | 1 |
| 26 | 826658 | 缓冲垫 | BUMPER | 1 |
| 26 | 8M0156878 | 缓冲垫 | BUMPER | 1 |
| 27 | 821455A4 | 舵柄支架 | BRACKET Tiller | 1 |
| 27 | 821455A5 | 舵柄支架 | BRACKET Tiller | 1 |
| 27 | 821455A4 | 舵柄支架 | BRACKET Tiller | 1 |
| 28 | 17230 | 堵头 | PLUG | 1 |
| 29 | 826792 | 波形垫圈 | WAVE WASHER | 1 |
| 30 | 821477 | 衬套（内径1.485-1.475） | BUSHING 1.485-1.475 Inside Diameter | 1 |
| 31 | 827314 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8226084 | DDT诊断模块 | DDT CARTRIDGE | 1 |
| - | 8226086 | 模块 | CARTRIDGE | 1 |
| - | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| - | 73687A2 | 飞轮拉拔器套件 | PULLER KIT Flywheel | 1 |
| - | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 99750A1 | 万用表 | MULTI METER | 1 |
| - | 59339 | 维修用转速表 | SERVICE TACHOMETER | 1 |
| - | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | 63998A1 | 单腔间隙工具 | GAP TOOL Single Chamber | 1 |
| - | 825824A2 | 转速表接口模块 | TACH INTERFACE MODULE | 1 |
| - | 99379 | 正时灯 | TIMING LIGHT | 1 |
| - | 825207A1 | TPI/CDM测试线束总成 | HARNESS ASSEMBLY TPI/CDM Test | 1 |
| - | 825207A2 | 线束总成 | HARNESS ASSEMBLY | 1 |
| - | NA | 不可用 COLELT（快扣式 - CG41-14） | NOT AVAILABLE COLELT (SNAP-ON - CG41-14) | 1 |
| - | NA | 不可用膨胀杆（快拆式 - CG41-11） | NOT AVAILABLE EXPANDING ROD (SNAP-ON - CG41-11) | 1 |
| - | 822778A3 | 下压力套件 | DOWN PRESSURE KIT | 1 |
| - | 74951 | 扳手 | SPANNER WRENCH | 1 |
| - | 63209 | 加热灯 | HEAT LAMP | 1 |
| - | 29287 | 量规工具 | GAUGE TOOL | 1 |
| - | 55919 | 驱动头 | DRIVER HEAD | 1 |
| - | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| - | 73687A2 | 飞轮拉拔器套件 | PULLER KIT Flywheel | 1 |
| - | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 90455 | 吊环 | LIFTING EYE | 1 |
| - | 904551 | 吊环 | LIFTING EYE | 1 |
| - | 77109A3 | 安装工具套件 | INSTALLER KIT | 1 |
| - | 52952A1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | 52952T1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| - | 74607A2 | 活塞销拆装工具 | INSTALL/REMOVER TOOL Piston Pin | 1 |
| - | 74607A3 | 活塞销安装套件 | INSTALLER KIT Piston Pin | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | 827001A1 | 动力头支架工具 | STAND TOOL Powerhead | 1 |
| - | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| - | 24283 | 卡簧钳 | PLIERS Snap Ring | 1 |
| - | 66274 | 扭矩扳手(0-150磅英寸) | TORQUE WRENCH (0-150 lb-in) | 1 |
| - | 85560 | 推力轴承 | BEARING Thrust | 1 |
| - | 817007 | 轴承座密封安装工具 | INSTALLER TOOL Bearing Carrier Seal | 1 |
| - | 817007T | 密封安装工具 | INSTALLER TOOL Seal | 1 |
| - | 31229A7 | 轴承拉拔器套件 | PULLER KIT Bearing | 1 |
| - | 24156 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| - | 29310 | 安装板 | PLATE | 1 |
| - | 34961 | 垫圈 | WASHER | 1 |
| - | 36571 | 导向垫圈 | PILOT WASHER | 1 |
| - | 36571T | 导向垫圈 | PILOT WASHER | 1 |
| - | 37312 | 驱动头工具 | DRIVER HEAD TOOL | 1 |
| - | 37312T | 传动轴轴承驱动器 | DRIVESHAFT BEARING DRIVER | 1 |
| - | 37323 | 滚针轴承导杆工具 | DRIVER ROD TOOL Needle Bearings | 1 |
| - | 13779 | 轴承拆卸工具 | REMOVER TOOL Bearing | 1 |
| - | 825196 | 传动轴固定工具 | HOLDING TOOL Driveshaft | 1 |
| - | 826872 | 轴承安装工具 | INSTALLER TOOL Bearing | 1 |
| - | 825197 | 心轴 | MANDREL | 1 |
| - | 825197T | 油封安装工具 | INSTALLER TOOL Oil Seal | 1 |
| - | 825198 | 心轴 | MANDREL | 1 |
| - | 817011 | 滚针轴承安装工具 | INSTALLER TOOL Needle Bearing | 1 |
| - | 817011T | 滚针轴承安装工具 | INSTALLER TOOL Needle Bearing | 1 |
| - | 825199 | 导向器 | PILOT | 1 |
| - | 27780 | 水泵拉拔器 | PULLER WATER PUMP | 1 |
| - | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| - | 825200A1 | 弹簧钩具 | HOOK TOOL Spring | 1 |
| - | 66274 | 扭矩扳手(0-150磅英寸) | TORQUE WRENCH (0-150 lb-in) | 1 |
| - | 36392 | 化油器量具 | GAUGE TOOL Carburetor | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821528A5 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 821528T5 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 821528A11 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 821528T11 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 821528A7 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 821528T7 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 821528A8 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 821528T8 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 3 | 825742F1 | 闩锁 | LATCH | 1 |
| 3 | 825742F2 | 闩锁 | LATCH | 1 |
| 3 | 825742F3 | 闩锁 | LATCH | 1 |
| 3 | 825742F1 | 闩锁 | LATCH | 1 |
| 4 | 8231871 | 螺钉(M4×14.5) | SCREW (M4 x 14.5) | 2 |
| 5 | 26995 | 防松垫圈(#8不锈钢) | LOCKWASHER (#8) Stainless Steel | 2 |
| 6 | 8237515 | 螺母(M4) | NUT (M4) | 2 |
| 7 | 8260761 | 罩盖密封件 | SEAL Cowl | 1 |
| 7 | 8M0043406 | 外罩密封件 | SEAL, COWL | 1 |
| 8 | 821530A1 | 隔音毯套件（顶部/侧面）（热熔胶粘合） | SOUND BLANKET KIT (Top/Side)(Hot Glue Adhesive) | 1 |
| 8 | 821530A02 | 隔音毯套件（顶部/侧面）（预涂压敏胶） | SOUND BLANKET KIT (Top/Side)(Pre-Applied Pressure Sensitive Adhesive) | 1 |
| 9 | NSS | 不单独销售隔音毯（前部） | NOT SOLD SEPARATE SOUND BLANKET (FRONT) | 1 |
| 10 | NSS | 不单独销售隔音毯（侧/后部） | NOT SOLD SEPARATE SOUND BLANKET (SIDE/REAR) | 1 |
| 11 | 47341A1 | 手动/应急启动绳柄套件 | ROPE AND HANDLE KIT Manual/Emergency Start | 1 |
| 11 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 12 | 18173 | 锁扣滚轮支架总成 | BRACKET ASSEMBLY Latch Roller | 1 |
| 12 | 893763 | 滚轮锁扣支架 | BRACKET Roller Latch | 1 |
| 13 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 14 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 15 | 8224261 | 支架 | BRACKET | 1 |
| 15 | 8M0038412 | 外罩支架 | BRACKET-COWL | 1 |
| 16 | 8231871 | 螺钉(M4×14.5) | SCREW (M4 x 14.5) | 3 |
| 17 | 26995 | 防松垫圈(#8不锈钢) | LOCKWASHER (#8) Stainless Steel | 3 |
| 18 | 8237515 | 螺母(M4) | NUT (M4) | 3 |
| 19 | NSS | 不单独销售进气管 | NOT SOLD SEPARATE DUCT-AIR INLNET | 1 |
| 20 | 815784 | 盖帽 | CAP | 2 |
| 21 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 22 | NSS | 不单独销售胶带（双面） | NOT SOLD SEPARATE TAPE (DOUBLE SIDED) | 1 |
| 23 | 821529F1 | 进气口护罩 | SHIELD Air Inlet | 1 |
| 23 | 8M0053822 | 进气口护罩 | SHIELD-AIR INLET | 1 |
| 23 | 821529F2 | 进气口护罩 | SHIELD Air Inlet | 1 |
| 23 | 821529T3 | 进气口护罩 | SHIELD Air Inlet | 1 |
| 23 | 821529F3 | 进气口护罩 | SHIELD Air Inlet | 1 |
| 23 | 821529T3 | 进气口护罩 | SHIELD Air Inlet | 1 |
| 24 | NSS | 不单独销售油位观察窗 | NOT SOLD SEPARATE WINDOW-OIL SITE GAUGE | 1 |
| 25 | 8555776 | EPA标签信息贴花（顶盖内侧） | DECAL EPA Label Information (INSIDE TOP COWL) | 1 |
| 25 | 855577A6 | REF SOB 09-18 | REF SOB 09-18 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 13914 | 螺母(M10) | NUT (M10) | 4 |
| 1 | 40140 | 螺母(M10) | NUT (M10) | 4 |
| 2 | 8168665 | 双头螺柱（M10 x 130） | STUD (M10 x 130) | 4 |
| 3 | 824072A1 | 驱动轴壳体延长垫片 | SPACER Driveshaft Housing Extension | 1 |
| 3 | 824072A2 | 驱动轴壳体延长垫片 | SPACER Driveshaft Housing Extension | 1 |
| 4 | 821327 | 定位销 | PIN Dowel | 2 |
| 5 | 824082A1 | 延长型水管总成 | TUBE ASSEMBLY Water - Extension | 1 |
| 6 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 6 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 7 | 824084 | 密封件 | SEAL | 1 |
| - | 822420A94 | 衬垫套件 | GASKET SET | 1 |
| - | 823547A1 | 密封套件 | SEAL KIT | 1 |
| - | 823547A2 | 密封套件 | SEAL KIT | 1 |
