两冲程 化油器 · ARCHIVE CAT 34164 · 共 14 个部位 · 527 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

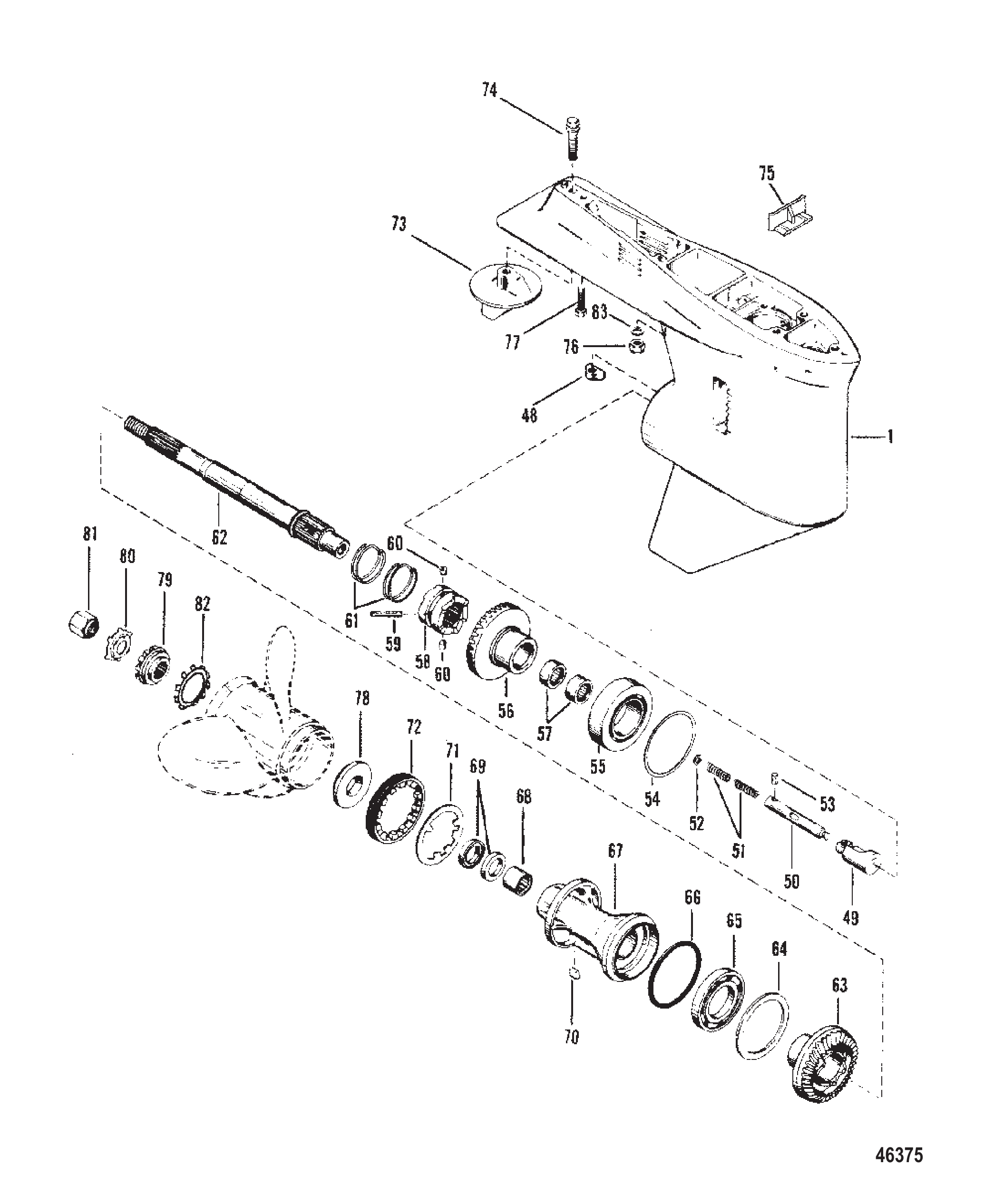

| - | 9148A8 | 齿轮箱总成-标准旋转1.87:1传动比(完整) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE) | 1 |
| 1 | 9148A11 | 齿轮箱总成(基础) | GEAR HOUSING ASSEMBLY (BASIC) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 48 | 78956 | 换挡凸轮 | SHIFT CAM | 1 |
| 48 | 789562 | 换挡凸轮 | SHIFT CAM | 1 |
| 49 | 89594A1 | 凸轮从动件总成 | FOLLOWER ASSEMBLY CAM | 1 |
| 50 | 79911 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 50 | 79911A1 | 杆 | ROD | 1 |
| 51 | 79910 | 压缩弹簧 | SPRING COMPRESSION | 2 |
| 52 | 78910 | 压缩弹簧垫圈 | WASHER COMPRESSION SPRING | 1 |
| 53 | 78906 | PIN SPRING LOCATOR | 1 | |
| 53 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 54 | 47397A1 | 轴承外圈垫片组(.002-3-5-10) | SHIM SET BEARING OUTER RACE (.002-3-5-10) | AR |
| 55 | 78172A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 56 | 44104A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 56 | 44104T2 | 齿轮组 | GEAR SET | 1 |
| 57 | 43999 | 滚子轴承(外径1.308) | BEARING Roller (1.308 O.D.) | 2 |
| 57 | 73363 | 滚子轴承(外径1.313) | BEARING Roller (1.313 O.D.) | 2 |
| 57 | 73363T | 轴承 | BEARING | 2 |
| 58 | 78959 | 棘轮滑动离合器 | RATCHET SLIDING CLUTCH | 1 |
| 58 | 823174T | ORD 8M0100493 | ORD 8M0100493 | 1 |
| 59 | 78905 | 棘轮到螺旋桨轴十字销 | PIN Cross RATCHET TO PROPELLER SHAFT | 1 |
| 59 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 60 | 78909 | 棘轮定位销 | PIN Detent RATCHET | 2 |
| 61 | 78962 | 十字销固定弹簧 | SPRING RETAINING-CROSS PIN | 2 |
| 62 | 94148 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 63 | N.S.S. | 不单独出售(43-44104A2部件) | Not Sold Separate (PART OF 43-44104A2) | 1 |
| 64 | 68100 | 止推环 | RING THRUST | 1 |
| 64 | 681001 | 止推环 | RING Thrust | 1 |
| 65 | 88957A1 | 滚珠轴承-倒档齿轮 | BEARING Ball BALL-REVERSE GEAR | 1 |
| 65 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 66 | 31534 | 轴承座O型圈 | O-RING BEARING CARRIER | 1 |
| 66 | 8M0214920 | O型圈 | O RING | 1 |
| 67 | 43567A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 67 | 43567T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 68 | 30956 | 滚针轴承-轴承座 | BEARING Needle BEARING CARRIER | 1 |
| 68 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 69 | 76868 | 轴承座密封 | SEAL BEARING CARRIER | 2 |
| 69 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 2 |
| 70 | 30281 | 轴承座定位键 | KEY LOCATING-BEARING CARRIER | 1 |
| 71 | 79447 | 齿轮箱盖锁紧垫圈 | TAB WASHER GEAR HOUSING COVER | 1 |
| 72 | 79448 | 齿轮箱固定座 | RETAINER GEAR HOUSING | 1 |
| 72 | 8M2011027 | 固定座 | RETAINER | 1 |
| 73 | 31640A1 | TRIM TAB ASSEMBLY GEAR HOUSING | 1 | |
| 73 | 31640Q4 | 平衡鳍板 | TRIM TAB | 1 |
| 74 | 66024 | 螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4") | SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4") | 1 |
| 75 | 67891 | 填充块 | FILLER BLOCK FILLER BLOCK | 1 |
| 75 | 8M0039169 | 填充块 | FILLER BLOCK | 1 |
| 76 | 34933 | 螺母(.437-20)不锈钢驱动轴壳体螺柱 | NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| 76 | 8M0204653 | 螺母 | NUT | 2 |
| 77 | 65210 | 螺钉(.375-16 x 1.00)齿轮箱 | SCREW (.375-16 x 1.00) GEAR HOUSING | 1 |
| 78 | 13171 | 推力毂 | THRUST HUB | 1 |
| 78 | 835467Q01 | 止推垫片套件 | THRUST WASHER KIT | 1 |
| 79 | 31211A2 | 花键垫圈-螺旋桨螺母 | WASHER Splined SPLINED-PROPELLER NUT | 1 |
| 79 | 31211Q03 | 垫圈总成 | WASHER ASSEMBLY | 1 |
| 80 | 31210 | 螺旋桨螺母锁紧垫圈 | TAB WASHER PROPELLER NUT | 1 |
| 80 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 81 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 81 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 82 | 423511 | 螺旋桨轴齿形锁紧垫圈 | LOCKWASHER Toothed PROPELLER SHAFT | 1 |
| 83 | 45176 | 垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱 | WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 14697A87 | 衬垫套件 | GASKET SET |

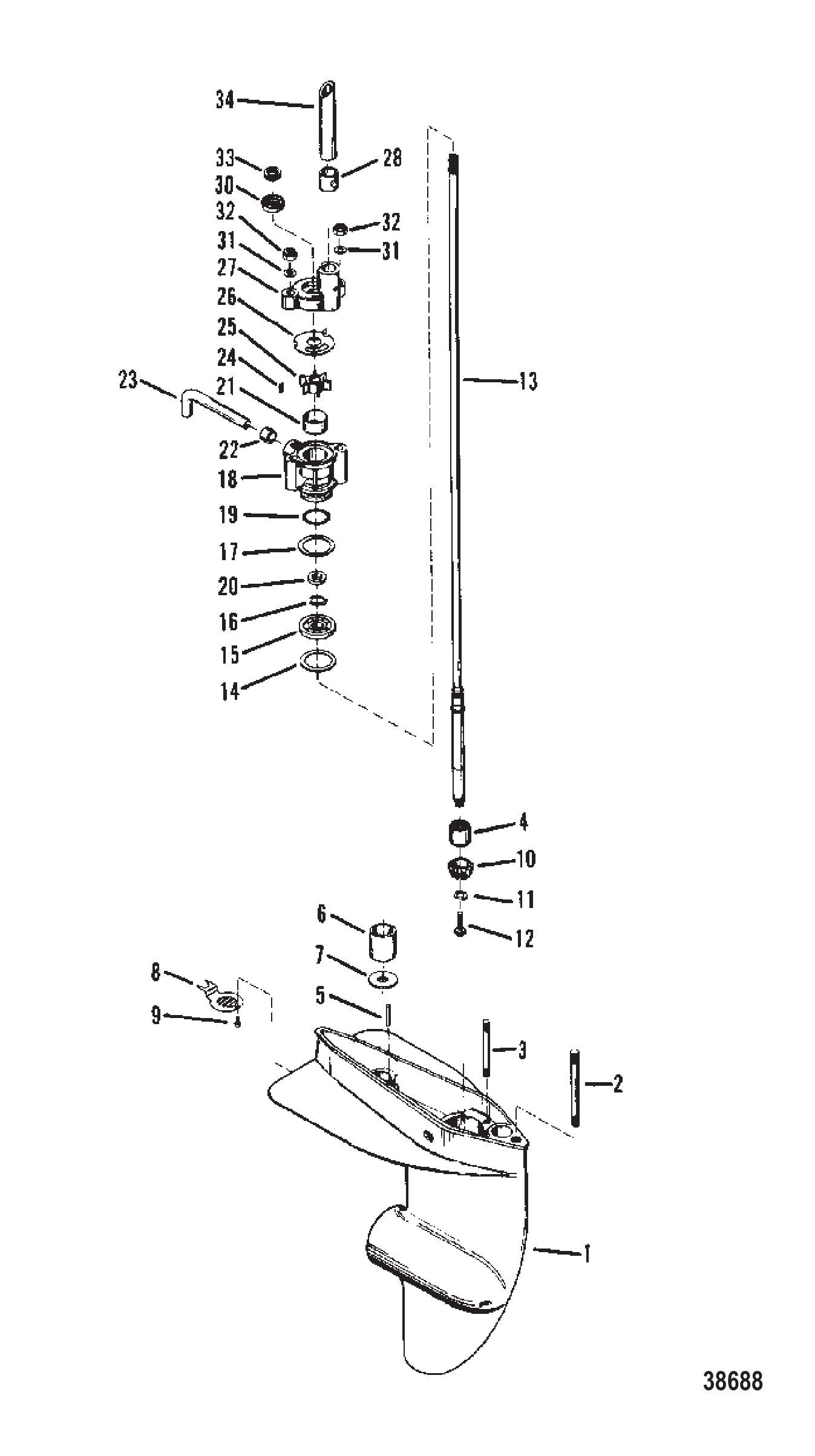

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 7360A29 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| - | 7360A30 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| 1 | 7360A11 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 2 | 58138 | 齿轮箱螺柱(3.5英寸) | STUD GEAR HOUSING (3-1/2") | 1 |
| 3 | 58136 | 水泵壳体螺柱(2.75英寸) | STUD WATER PUMP HOUSING (2-3/4") | 2 |
| 4 | 22756 | 驱动轴滚柱轴承 | BEARING Roller DRIVE SHAFT | 1 |
| 5 | 20032 | 定位销 | PIN Dowel LOCATING | 1 |
| 6 | 33613 | 进水管橡胶密封 | SEAL RUBBER - WATER INTAKE TUBE | 1 |
| 7 | 86215 | 进水管尼龙轴承密封 | BEARING NYLON - INTAKE TUBE SEAL | 1 |
| 8 | 33425 | 进水滤网 | SCREEN WATER INTAKE | 1 |
| 9 | 25612 | 进水滤网螺丝 | SCREW WATER INTAKE SCREEN | 1 |
| 10 | 98696 | 小齿轮 | GEAR Pinion | 1 |
| 11 | 30377 | 小齿轮螺钉锁紧垫圈 | TAB WASHER PINION GEAR SCREW | 1 |
| 12 | 30376 | 小齿轮驱动轴螺丝(#12-28x0.75) | SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT | 1 |
| 13 | 95873A1 | 驱动轴 | DRIVESHAFT | 1 |
| 13 | 95874A1 | 驱动轴 | DRIVESHAFT | 1 |
| 14 | 30527A1 | 滚珠轴承垫片组(0.002-3-5-10) | SHIM ASSEMBLY BALL BEARING (.002-3-5-10) | AR |
| 15 | 70944 | 驱动轴滚珠轴承 | BEARING Ball DRIVE SHAFT | 1 |
| 16 | 30523 | 球轴承挡圈 | RING Retaining BALL BEARING | 1 |
| 17 | 30527A1 | 滚珠轴承垫片组(0.002-3-5-10) | SHIM ASSEMBLY BALL BEARING (.002-3-5-10) | AR |
| 18 | 70941A1 | 水泵总成 | HOUSING ASSEMBLY Water Pump | 1 |
| 18 | 70941T01 | 壳体总成 | HOUSING ASY | 1 |
| 18 | 92970A1 | 水泵总成 | HOUSING ASSEMBLY Water Pump | 1 |
| 19 | 29439 | O型圈 | O-RING | 1 |
| 20 | 30900 | 油封 | SEAL Oil | 1 |
| 20 | 30900T | 密封件@2 | SEAL @2 | 1 |
| 20 | 96063 | 油封 | SEAL Oil | 1 |
| 20 | 897153 | 油封@3 | SEAL-OIL @3 | 1 |
| 21 | 70977 | 嵌件 | INSERT | 1 |
| 21 | 70977T | 嵌件 | INSERT | 1 |
| 22 | 33613 | 进水管密封 | SEAL WATER INTAKE TUBE | 1 |
| 23 | 34293 | 进水管道 | TUBE WATER INTAKE | 1 |
| 24 | 56655 | 叶轮驱动键 | KEY IMPELLER DRIVE | 1 |
| 24 | 8M0032835 | 键 | KEY | 1 |
| 25 | 89981 | 叶轮 | IMPELLER | 1 |
| 25 | 89980 | 叶轮 | IMPELLER | 1 |
| 26 | 46895 | 水泵面板 | FACE PLATE WATER PUMP | 1 |
| 27 | 93224A1 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 28 | 36558 | 水泵盖密封件 | SEAL WATER PUMP COVER | 1 |
| 30 | 30913 | 水泵盖油封 | SEAL Oil WATER PUMP COVER | 1 |
| 31 | 20533 | 垫圈 | WASHER | 2 |
| 32 | 13438 | 水泵壳体螺柱螺母(.250-28) | NUT (.250-28) WATER PUMP HOUSING STUD | 2 |
| 32 | 8267119 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 33 | 30526 | 橡胶环-离心甩水环 | RING RUBBER - CENTRIFUGAL SLINGER | 1 |
| 34 | 31792 | 进水管导向套 | SLEEVE GUIDE - INLET TUBE | 1 |
| 34 | 31792T | 套管@5 | SLEEVE @5 | 1 |
| - | 78139A80 | 衬垫套件 | GASKET SET | 1 |
| - | 70941A3 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 92970A5 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 77066A1 | 水泵密封套件 | SEAL KIT Water Pump | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

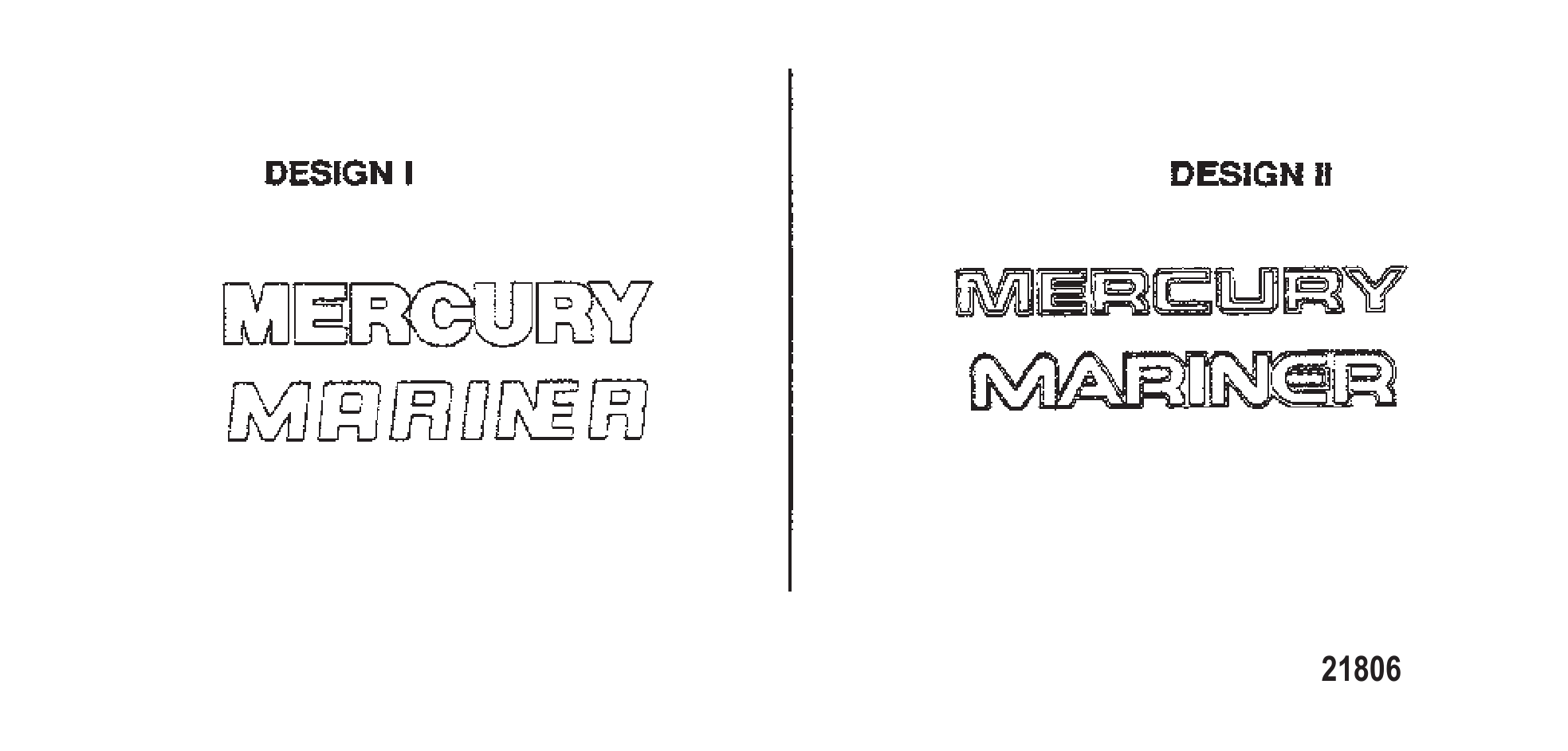

| - | 811286 | 零件手册(6/8/9.9/15马力) | PARTS MANUAL 6/8/9.9/15 Hp | |
| - | 12048930 | 用户指南(黑色) | OWNERS GUIDE (BLACK) | |
| - | 14138930 | 用户指南(灰色) | OWNERS GUIDE (GRAY) | |
| - | 14012A89 | 贴花套装(9.9/210帆动力) | DECAL SET (9.9/210 SAILPOWER) | |
| - | 12836A89 | 贴花套装(黑色-6至9.9马力) | DECAL SET (BLACK- 6 THRU 9.9) | |
| - | 13478A88 | 贴花套装(黑色-15马力) | DECAL SET (BLACK-15) | |
| - | 810458A92 | 贴花套装(灰色-6至15马力) | DECAL SET (GRAY- 6 THRU 15) | |
| - | 822787A93 | 贴花套装(灰色-8帆伴侣) | DECAL SET (GRAY 8 SAILMATE) | |
| - | 808560A03 | 贴花套件 | DECAL SET | |
| - | 808522A94 | 贴花套装(黑色-6马力) | DECAL SET (BLACK-6) | |
| - | 808522A00 | 贴花套件 | DECAL SET | |
| - | 808526A94 | 贴花套装(黑色-8马力) | DECAL SET (BLACK -8) | |
| - | 808526A00 | 贴花套件 | DECAL SET | |
| - | 12836A94 | 贴花套装(黑色-9.9马力) | DECAL SET (BLACK- 9.9) | |
| - | 12836A00 | 贴花套件 | DECAL SET | |
| - | 808523A94 | 贴花套装(9.9帆动力) | DECAL SET (9.9 SAILPOWER) | |
| - | 808523A96 | 贴花套件 | DECAL SET | |
| - | 13478A94 | 贴花套装(黑色-15马力) | DECAL SET (BLACK-15) | |
| - | 13478A00 | 贴花套件 | DECAL SET | |
| - | 808524A94 | 贴花套装(灰色-6马力) | DECAL SET (GRAY-6) | |
| - | 808524A03 | 贴花套件 | DECAL SET | |
| - | 808545A94 | 贴花套装(灰色-8马力) | DECAL SET (GRAY-8) | |
| - | 808545A03 | 贴花套件 | DECAL SET | |
| - | 808560A94 | 贴花套装(8帆伴侣) | DECAL SET (8 SAILMATE) | |
| - | 808560A03 | 贴花套件 | DECAL SET | |
| - | 808525A94 | 贴花套装(灰色-9.9马力) | DECAL SET (GRAY-9.9) | |
| - | 808525A03 | 贴花套件 | DECAL SET | |
| - | 808546A94 | 贴花套装(灰色-15马力) | DECAL SET (GRAY-15) | |
| - | 808546A03 | 贴花套件 | DECAL SET |

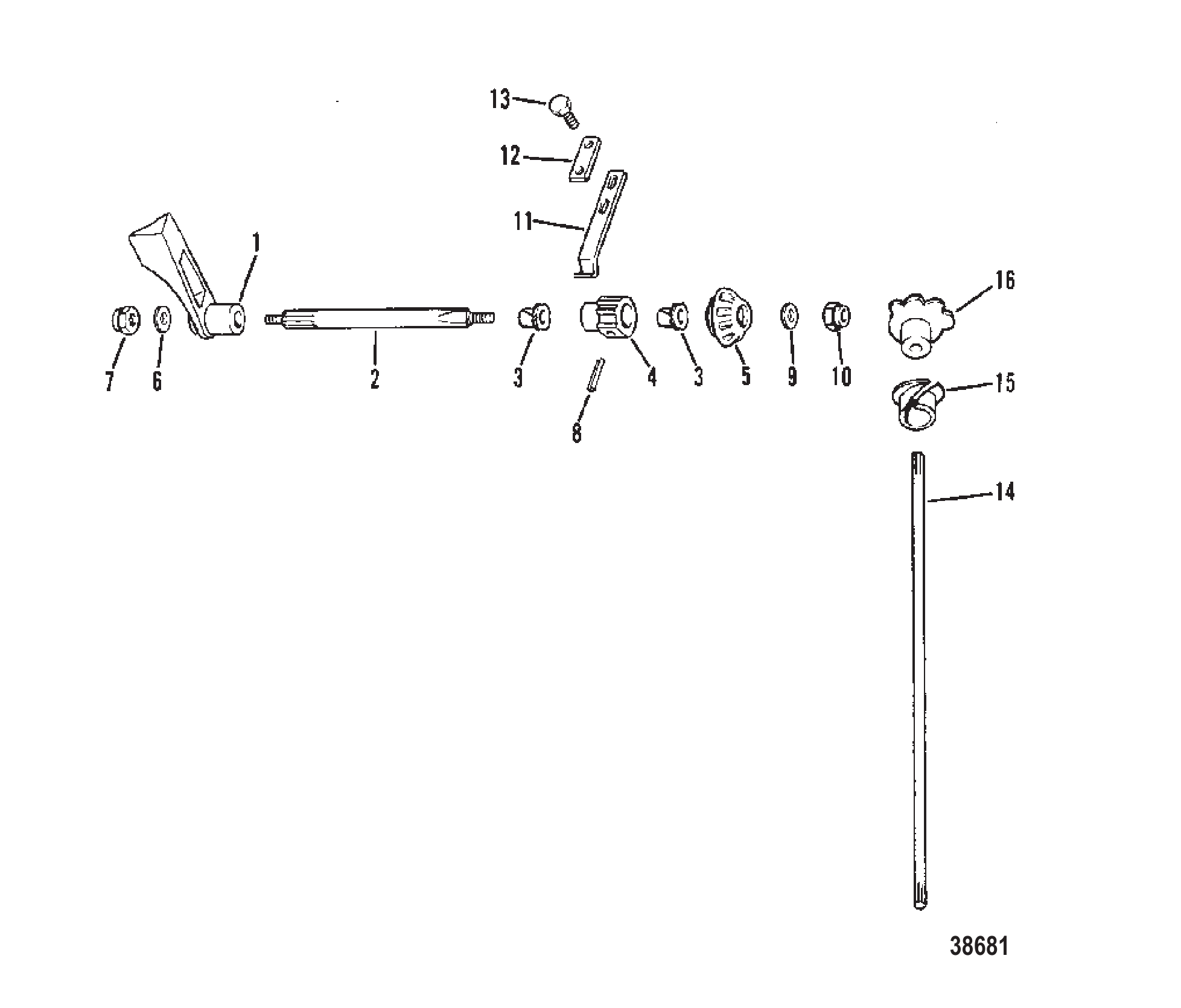

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 66376 | 换挡控制手柄 | HANDLE SHIFT CONTROL | 1 |
| 2 | 66378 | 控制手柄轴 | SHAFT CONTROL HANDLE | 1 |
| 3 | 66375 | 尼龙衬套-换挡控制手柄 | BUSHING NYLON - SHIFT CONTROL HANDLE | 2 |
| 4 | 66414 | 换挡轴凸轮 | CAM SHIFT SHAFT | 1 |
| 5 | 66377 | 换挡控制手柄扇形齿轮 | SECTOR GEAR SHIFT CONTROL HANDLE | 1 |
| 6 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 6 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 7 | 39305 | 螺母 | NUT | 1 |
| 7 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 8 | 25905 | 定位凸轮至换挡轴销 | PIN DETENT CAM TO SHIFT SHAFT | 1 |
| 9 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 9 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 10 | 20361 | 螺母(.250-28) | NUT (.250-28) | 1 |
| 10 | 8267089 | 螺母(.250-28) | NUT (.250-28) | 1 |
| 11 | 39627 | 定位弹簧-曲轴箱 | SPRING DETENT - CRANKCASE | 1 |
| 12 | 39601 | 定位弹簧板 | PLATE DETENT SPRING | 1 |
| 13 | 25764 | 螺钉(.190-32 x .50) | SCREW (.190-32 x .50) | 2 |
| 14 | 71660 | 换挡轴上段 | SHIFT SHAFT UPPER | 1 |
| 15 | 30677 | 尼龙衬套-换挡控制轴 | BUSHING NYLON - SHIFT CONTROL SHAFT | 1 |
| 16 | 86686A1 | 扇形齿轮换挡轴 | SECTOR GEAR SHIFT SHAFT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

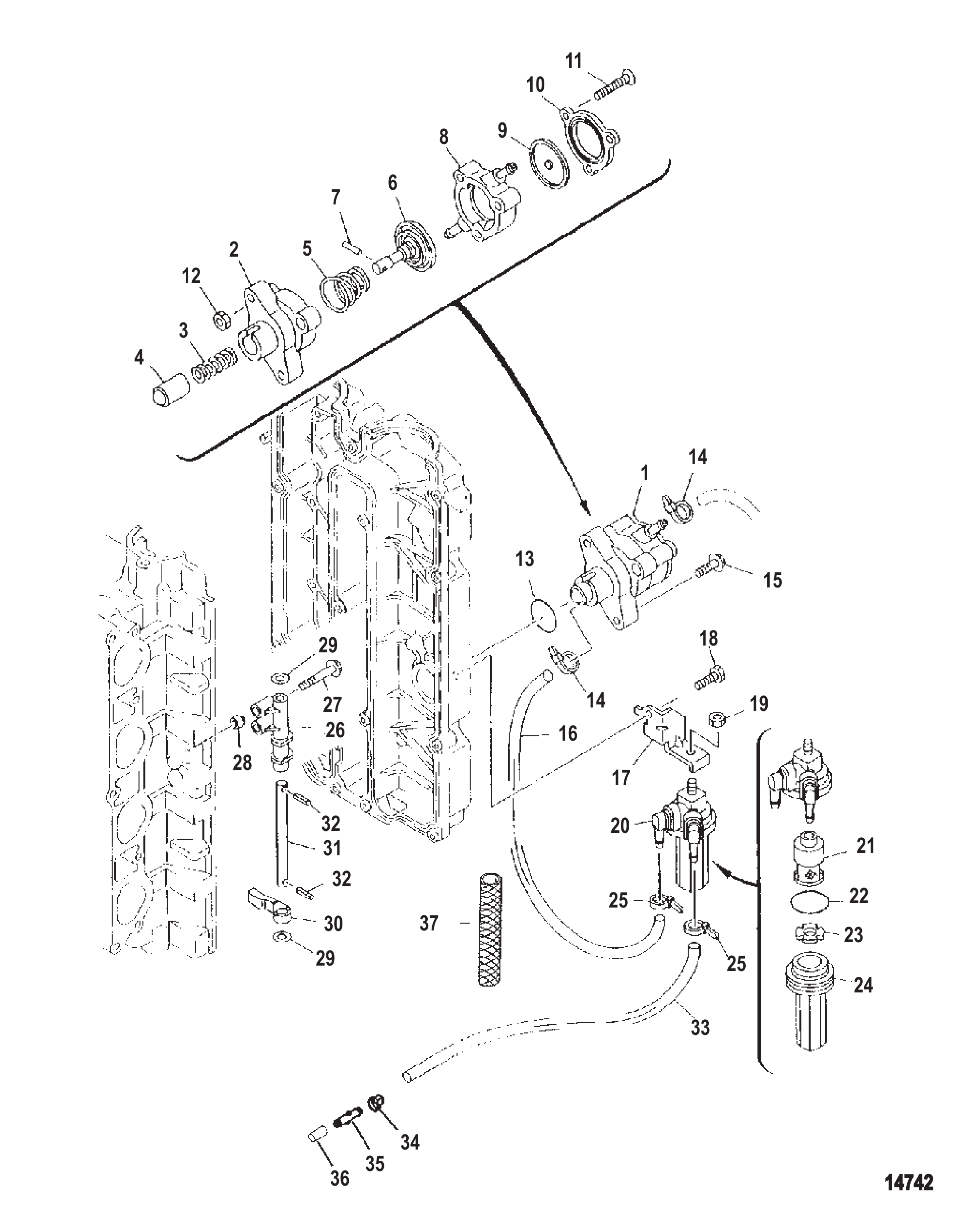

| 1 | 880890T1 | 燃油泵 | PUMP Fuel | 1 |
| 2 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 3 | 881544 | 弹簧 | SPRING | 1 |
| 4 | 881545 | 柱塞 | PLUNGER | 1 |
| 5 | 881546 | 弹簧 | SPRING | 1 |
| 6 | 881547 | 隔膜 | DIAPHRAGM | 1 |
| 7 | 881548 | 销 | PIN | 1 |
| 8 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 9 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 1 |
| 10 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 11 | 881550 | 螺钉 | SCREW | 3 |
| 12 | 881333 | 螺母 | NUT | 3 |
| 13 | 804255 | O型圈 | O-RING | 1 |
| 13 | 8M0050719 | O型圈 | O-RING | 1 |
| 14 | 879650 | 卡箍 | CLAMP | 2 |
| 14 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| 15 | 804256 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 2 |
| 16 | 881543 | 软管 | HOSE | 1 |
| 16 | 881543002 | 油管 | TUBING | 1 |
| 17 | 881542 | 支架 | BRACKET | 1 |
| 18 | 8527768 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 1 |
| 18 | 811188T | 螺栓 | BOLT | 1 |
| 19 | 8528161 | 螺母 | NUT | 1 |
| 19 | 82382M | 螺母 | NUT | 1 |
| 20 | 881538T1 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 20 | 881538T02 | 燃油滤清器总成 | FILTER ASSY-FUEL | 1 |
| 21 | 881540 | 滤芯1.75英寸 | ELEMENT 1.75 Inches | 1 |
| 21 | 8M0168897 | 燃油滤清器 | FUEL FILTER | 1 |
| 21 | 8M0101436 | 滤芯1.50英寸 | ELEMENT 1.50 Inches | 1 |
| 21 | 8M0117705 | 燃油滤清器 | FILTER-FUEL | 1 |
| 22 | 826966M | O型圈 | O-RING | 1 |
| 22 | 826966T | O型圈 | O RING | 1 |
| 23 | 881541 | 浮子 | FLOAT | 1 |
| 24 | 881539 | 杯套 | CUP | 1 |
| 24 | 8M0101437 | 杯套 | CUP | 1 |
| 24 | 8M0137185 | 燃油杯 | CUP FUEL | 1 |
| 25 | 879650 | 卡箍 | CLAMP | 2 |
| 25 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| 26 | 804260 | 支架 | BRACKET | 1 |
| 27 | 804112 | 螺栓(M7 x 48) | BOLT (M7 x 48) | 2 |
| 28 | 804113 | 定位销 | PIN Dowel | 2 |
| 29 | 84292M | 垫圈 | WASHER | 2 |
| 30 | 804257 | 燃油转换杆 | LEVER Fuel Change | 1 |
| 31 | 881334 | 轴 | SHAFT | 1 |
| 32 | 804259 | 销 | PIN | 2 |
| 32 | 82738M | 滚销 | PIN-ROLL | 2 |
| 33 | 830757130 | 管材(.312)(70英寸整卷)裁切至55英寸长度 | TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length. | 1 |
| 33 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 34 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 35 | 822769 | 连接器 | CONNECTOR | 1 |
| 36 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 37 | 828547T1 | 导管(.500内径 x 3英尺整卷) | CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881310T1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| - | 881310T09 | 气缸盖 | HEAD-CYLINDER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

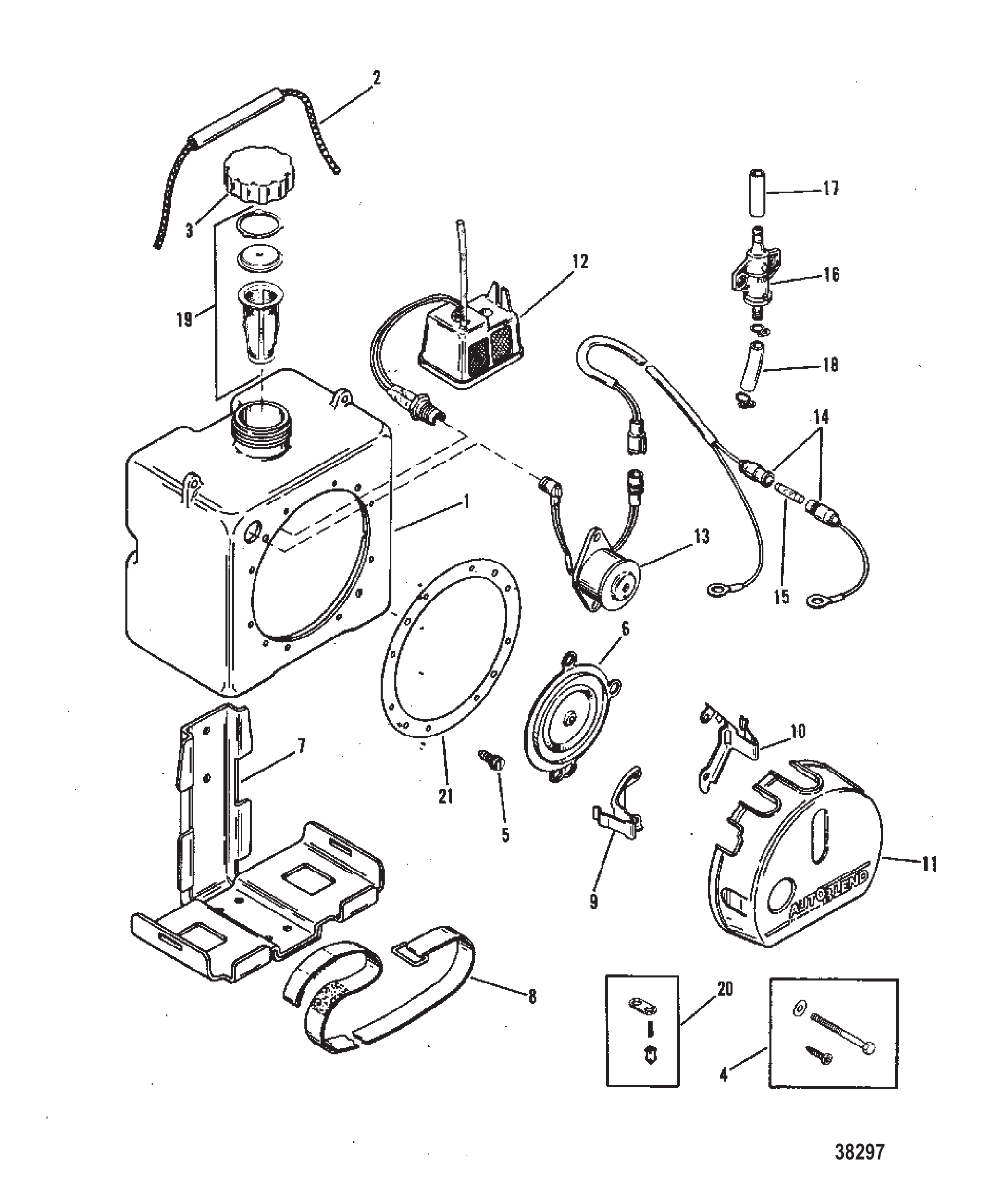

| - | 130195 | 自动混合装置 | AUTO BLEND ASSEMBLY | 1 |
| 1 | 16612 | 油箱套件 机油 | TANK KIT Oil | 1 |
| 2 | 13996 | 手柄套件 | HANDLE KIT | 1 |
| 3 | 16619 | 机油箱盖 | CAP OIL TANK | 1 |
| 4 | 16614 | 五金件套件 | HARDWARE KIT | 1 |
| 5 | 13979 | 放油塞套件 | PLUG KIT Drain | 1 |
| 6 | 16611 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 7 | 16620 | 安装支架套件 | BRACKET KIT Mounting | 1 |
| 8 | 13993 | 箍带 | BAND | 1 |
| 9 | 13983 | 支架(左) | BRACKET (LEFT) | 1 |
| 10 | 13984 | 支架(右) | BRACKET (RIGHT) | 1 |
| 11 | 16626 | 盖板 | COVER | 1 |
| 12 | 16624 | 机油滤清器及液位传感器套件 | SENSOR KIT Oil Filter And Level | 1 |
| 13 | 16625 | 喇叭套件 | HORN KIT | 1 |
| 14 | 16618 | 机油滤网 | STRAINER Oil | 1 |
| 15 | 16615 | 止回阀套件 | CHECK VALVE KIT | 1 |
| 16 | 18576 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 17 | 13992 | 乙烯基软管 | VINYL TUBE | 1 |
| 18 | 16621 | 安装板 | PLATE | 1 |
| 19 | 16627 | 模块套件 | MODULE KIT | 1 |
| 20 | 16628 | 测试按钮套件 | TEST BUTTON KIT | 1 |
| 21 | 16629 | 电池盒套件(使用9伏电池) | CASE KIT Battery (USE 9 VOLT BATTERY) | 1 |
| 22 | 16630 | 密封圈套件 | GROMMET KIT | 1 |
| 23 | 16631 | 支架套件 | BRACKET KIT | 1 |
| 24 | 16616 | 衬垫套件 | GASKET KIT | 1 |

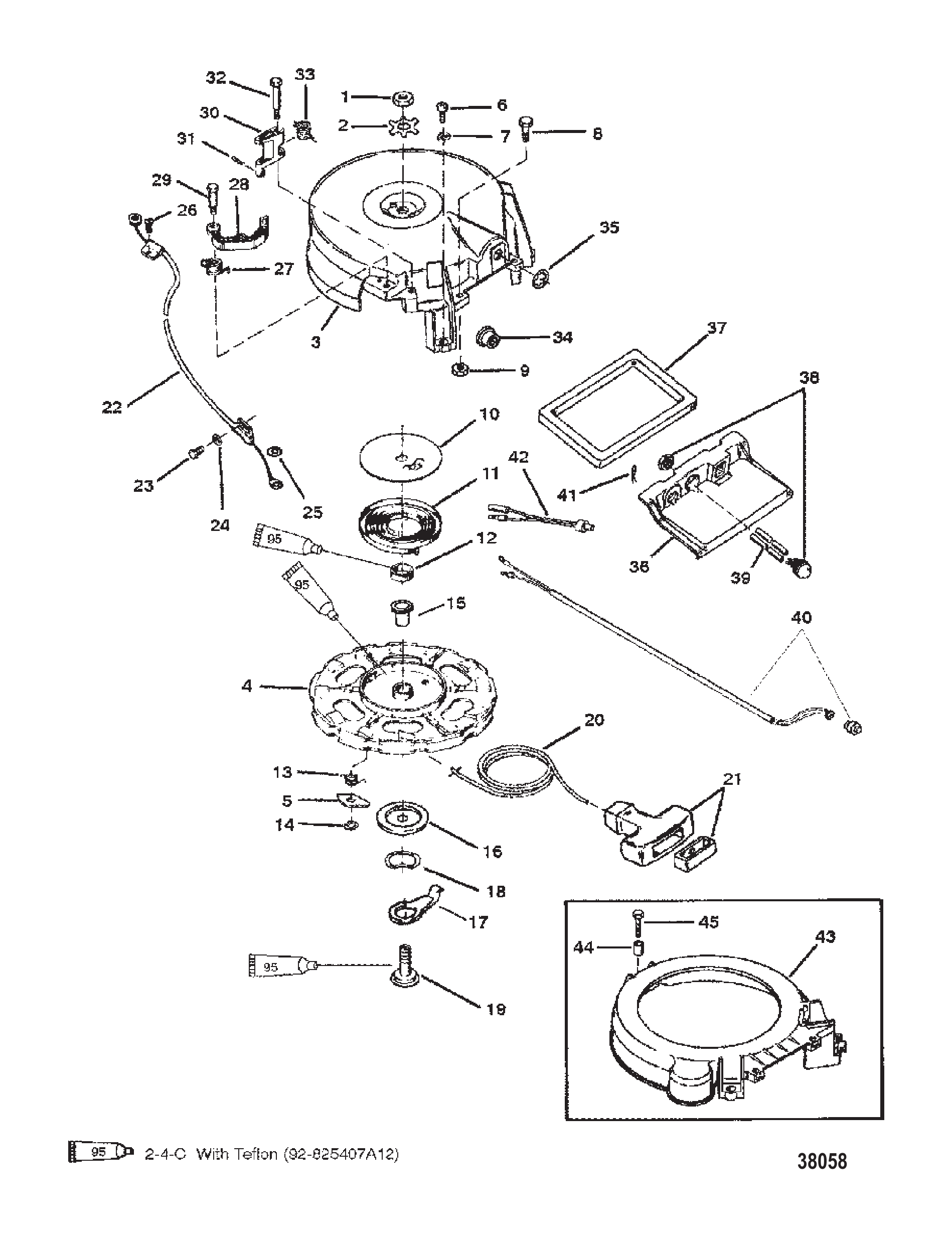

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 20166 | 螺母(左旋螺纹) | NUT (LEFT HAND THREAD) | 1 |
| 2 | 61004 | 锁紧垫圈 | TAB WASHER | 1 |
| 3 | 186471 | 启动器壳体 | HOUSING Starter | 1 |
| 4 | 44255A1 | 启动器滑轮总成 | SHEAVE ASSEMBLY Starter | 1 |
| 5 | 44508 | 启动棘爪 | PAWL Starter | 1 |
| 6 | 54523 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 3 |
| 7 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 7 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 8 | 45210 | 螺钉 (.190-32 x 1.250) | SCREW (.190-32 x 1.250) | 2 |
| 9 | 20190 | 螺母 (#10-32) | NUT (#10-32) | 2 |
| 9 | 8267086 | 螺母 (#10-32) | NUT (#10-32) | 2 |
| 10 | 61002 | 安装板 | PLATE | 1 |
| 11 | 39502A1 | 弹簧 | SPRING | 1 |
| 11 | 39502T02 | 回卷弹簧 | SPRING-RECOIL | 1 |
| 12 | 87649 | 衬套 | BUSHING | 1 |
| 13 | 87651 | 弹簧 | SPRING | 1 |
| 14 | 87706 | E型卡环 | E RING | 1 |
| 15 | 63061 | 隔套 | SPACER | 1 |
| 16 | 35559 | 垫圈 | WASHER | 1 |
| 17 | 94962 | 杠杆 | LEVER | 1 |
| 18 | 20160 | 波形垫圈 | WAVE WASHER | 1 |
| 19 | 87656 | 滑轮轴 | SHEAVE SHAFT | 1 |
| 20 | 12066A9 | 绳索 | ROPE | 1 |
| 20 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| 20 | 47341A1 | 手动/应急启动绳和手柄套件 (用于手动启动) | ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING) | 1 |
| 20 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 21 | 85174A1 | 手柄总成 | HANDLE ASSEMBLY | 1 |
| 22 | 188881 | 联锁电缆 | CABLE Interlock | 1 |
| 23 | 69022 | 螺钉 (#10-32 x .500) 不锈钢 | SCREW (#10-32 x .500) Stainless Steel | 1 |
| 24 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 1 |
| 25 | 37998 | 垫圈 | WASHER | 1 |
| 26 | 812832 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 26 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 27 | 761401 | 弹簧 | SPRING | 1 |
| 28 | 428201 | 凸轮 | CAM | 1 |
| 29 | 76138 | 螺丝(.312-18 x 1.120) | SCREW (.312-18 x 1.120) | 1 |
| 30 | 79371 | 执行器 | ACTUATOR | 1 |
| 31 | 27769 | 开口销 | COTTER PIN | 2 |
| 31 | 26811 | 开口销 | COTTER PIN | 2 |
| 32 | 76137 | 螺丝(1-5/8英寸) | SCREW (1-5/8 IN.) | 1 |
| 33 | 76139 | 弹簧 | SPRING | 1 |
| 34 | 42690 | 衬套 | BUSHING | 1 |
| 34 | 8M0183792 | 绳索衬套 | ROPE BUSHING | 1 |
| 35 | 818853 | 挡圈 | RING Retaining | 1 |
| 36 | 813544A1 | 支架总成 | REST ASSEMBLY | 1 |
| 36 | 813544 | 支架 | REST | 1 |
| 37 | 813641 | 密封件 | SEAL | 1 |
| 38 | 8168772 | 注油球 | PRIMER BULB | 1 |
| 38 | 858763 | 注油球 | PRIMER BULB | 1 |
| 39 | 99130122 | 油管(20.00英尺 散装) | TUBING (20.00 Feet Bulk) | 1 |
| 39 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 40 | 89591A5 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 41 | 36002 | 开口销 | COTTER PIN | 2 |
| 42 | 11149A2 | 线缆总成(6.00英寸)(非手柄) | CABLE ASSEMBLY (6.00 Inches) (NON-HANDLE) | 1 |
| 43 | 812617 | 飞轮盖 | COVER Flywheel | 1 |
| 44 | 812611 | 盖螺丝垫片 | SPACER Cover Screw | 3 |
| 45 | 812618 | 不锈钢螺钉(.312-18 x 1.00)带尼龙垫 | SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

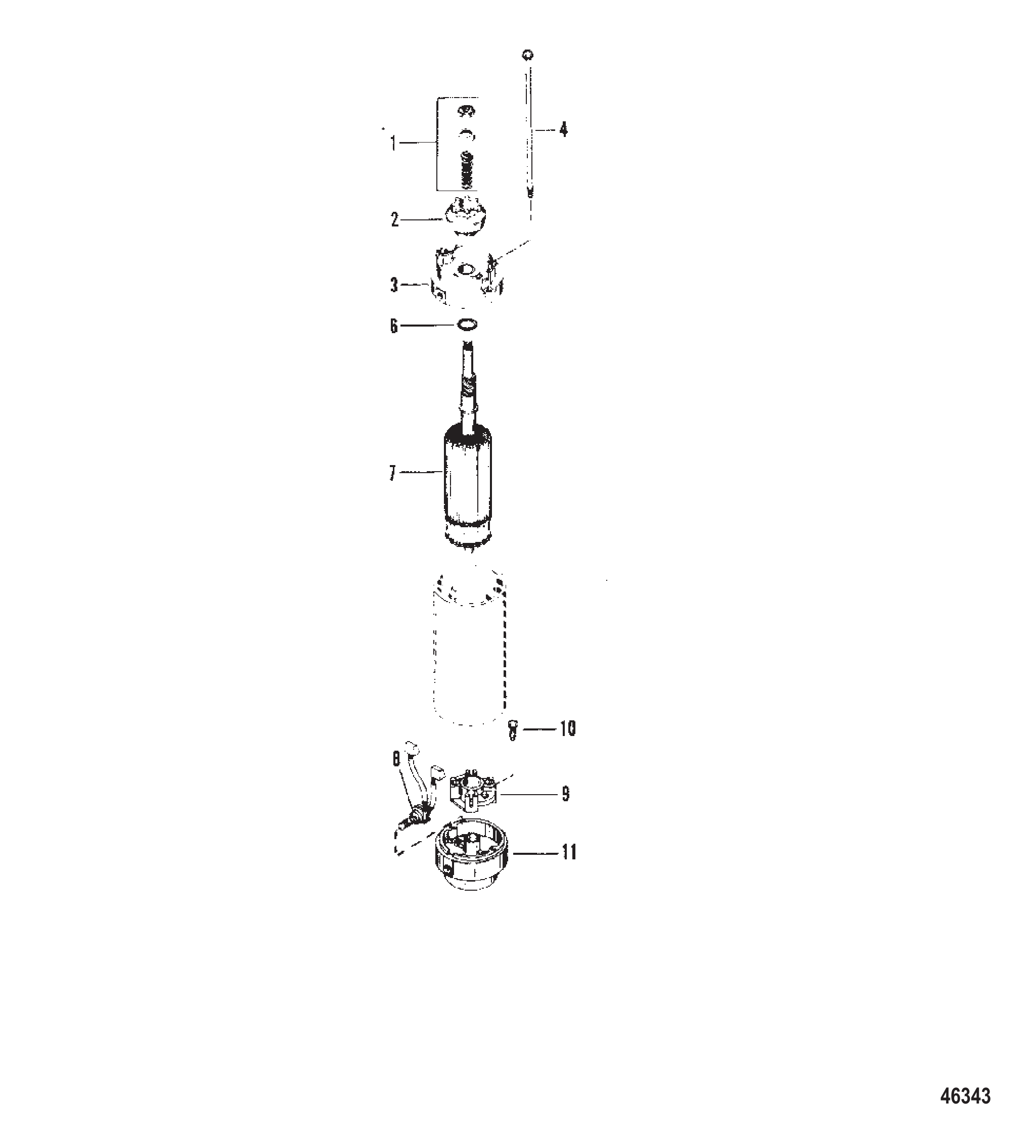

| - | 79472 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 90645 | 驱动套件 | DRIVE KIT | 1 |
| 2 | 75661 | 驱动小齿轮总成 | PINION ASSEMBLY Drive | 1 |
| 2 | 13310T1 | 小齿轮总成 | PINION ASSEMBLY | 1 |
| 3 | 75660 | 驱动端板 | PLATE DRIVE END | 1 |
| 4 | 74968 | 贯穿螺栓 | BOLT THRU | 2 |
| 6 | N.S.S. | 贯穿螺栓 (不单独销售) | Not Sold Separate THRU BOLT | 1 |
| 7 | 79216 | 电枢 | ARMATURE | 1 |
| 8 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 9 | 61787 | 电刷架 | HOLDER BRUSH | 2 |
| 9 | 898265014 | 电刷支架 | HOLDER-BRUSH | 2 |
| 10 | 68586 | 电刷及支架螺钉 | SCREW BRUSH AND HOLDER | 2 |
| 11 | 15386 | 换向器端盖 | END CAP COMMUTATOR | 1 |
| 11 | 15386001 | 端盖 | END CAP | 1 |

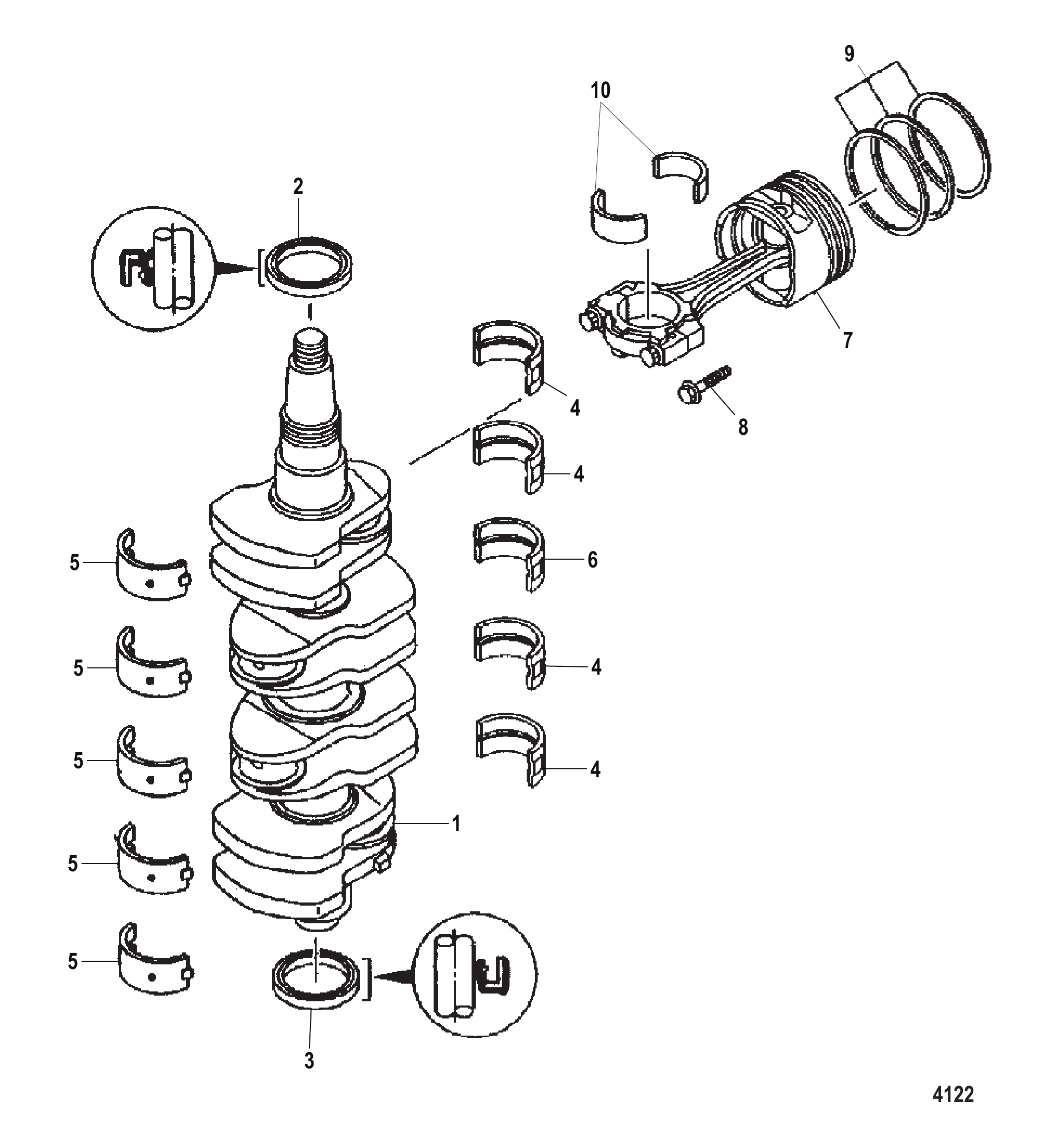

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880894T | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8040992 | 油封 | SEAL Oil | 1 |
| 3 | 8041002 | 油封 | SEAL Oil | 1 |
| 4 | 804101T | 轴承 | BEARING | 4 |
| 4 | 804101T10 | 轴承 | BEARING | 4 |
| 4 | 804101T20 | 轴承 | BEARING | 4 |
| 5 | 804102T | 轴承 | BEARING | 5 |
| 5 | 804102T10 | 轴承 | BEARING | 5 |
| 5 | 804102T20 | 轴承 | BEARING | 5 |
| 5 | 804102T30 | 轴承 | BEARING | 5 |
| 6 | 804103T | 轴承 | BEARING | 1 |
| 6 | 804103T10 | 轴承 | BEARING | 1 |
| 6 | 804103T20 | 轴承 | BEARING | 1 |
| 7 | 880895A05 | 活塞总成 | PISTON ASSEMBLY | 4 |
| 7 | 880895A14 | 活塞/连杆总成 | PISTON/CONN ROD | 4 |
| 7 | 880895A12 | 活塞总成 | PISTON ASSEMBLY | AR |
| 7 | 880895A16 | 活塞/连杆总成 | PISTON/CONN ROD | AR |
| 8 | 880896 | 螺栓(M8 x 38) | BOLT (M8 x 38) | 8 |
| 9 | 880897T02 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880898T02 | 活塞环组 | RING SET Piston | AR |
| 10 | 880899T | 轴承 | BEARING | 8 |
| 10 | 880899T10 | 轴承 | BEARING | 8 |
| 10 | 880899T20 | 轴承 | BEARING | 8 |
| 10 | 880899T30 | 轴承 | BEARING | 8 |
| - | 858732A06 | 衬垫套件 | GASKET SET | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

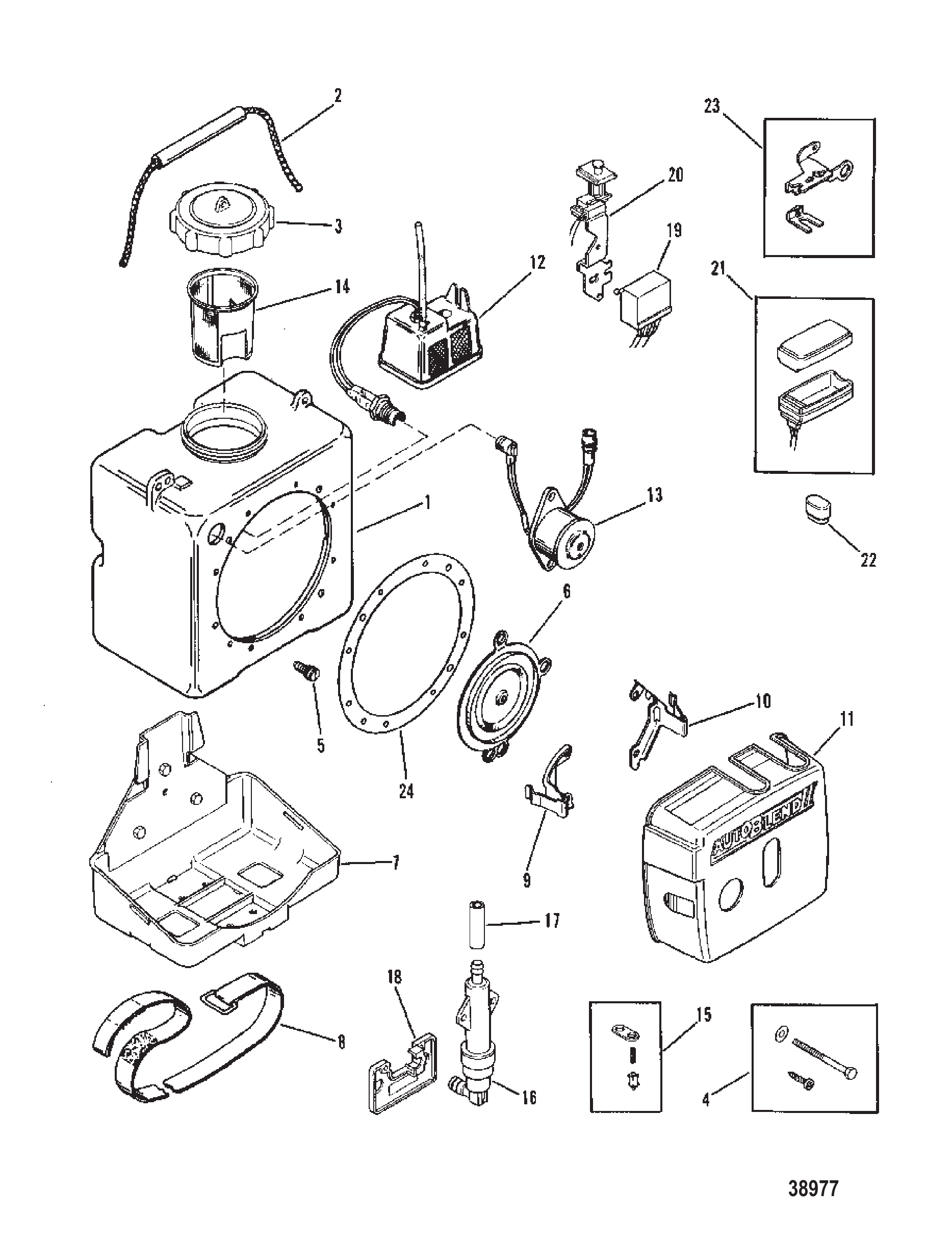

| - | 1301930 | 自动混合器 | AUTO-BLEND | 1 |
| 1 | 13982 | 油箱套件 机油 | TANK KIT Oil | 1 |
| 1 | 16612 | 油箱套件 机油 | TANK KIT Oil | 1 |
| 2 | 13996 | 手柄套件 | HANDLE KIT | 1 |
| 3 | 13986 | 机油箱盖 | CAP OIL TANK | 1 |
| 4 | 13994 | 五金件套件 | HARDWARE KIT | 1 |
| 4 | 16614 | 五金件套件 | HARDWARE KIT | 1 |
| 5 | 13979 | 放油塞套件 | PLUG KIT Drain | 1 |
| 6 | 16611 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 7 | 13990 | 支架 | BRACKET | 1 |
| 8 | 13993 | 箍带 | BAND | 1 |
| 9 | 13983 | 支架(左) | BRACKET (LEFT) | 1 |
| 10 | 13984 | 支架(右) | BRACKET (RIGHT) | 1 |
| 11 | 13991 | 盖板 | COVER | 1 |
| 11 | 16613 | 盖板 | COVER | 1 |
| 12 | 13985 | 机油滤清器/传感器套件 | FILTER/SENSOR KIT Oil | 1 |
| 13 | 13987 | 喇叭套件 | HORN KIT | 1 |
| 14 | 13988 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 15 | 13989 | 保险丝(0.5安培) | FUSE (.5 AMP) | 1 |
| 16 | 13981 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 16 | 18089 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 17 | 13992 | 乙烯基软管 | VINYL TUBE | 1 |
| 18 | 13995 | 燃油管套件 | TUBE KIT Fuel | 1 |
| 19 | 15387A1 | 机油滤网总成 | STRAINER ASSEMBLY Oil | 1 |
| 20 | 16615 | 止回阀套件 | CHECK VALVE KIT | 1 |
| 21 | 16616 | 衬垫套件 | GASKET KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

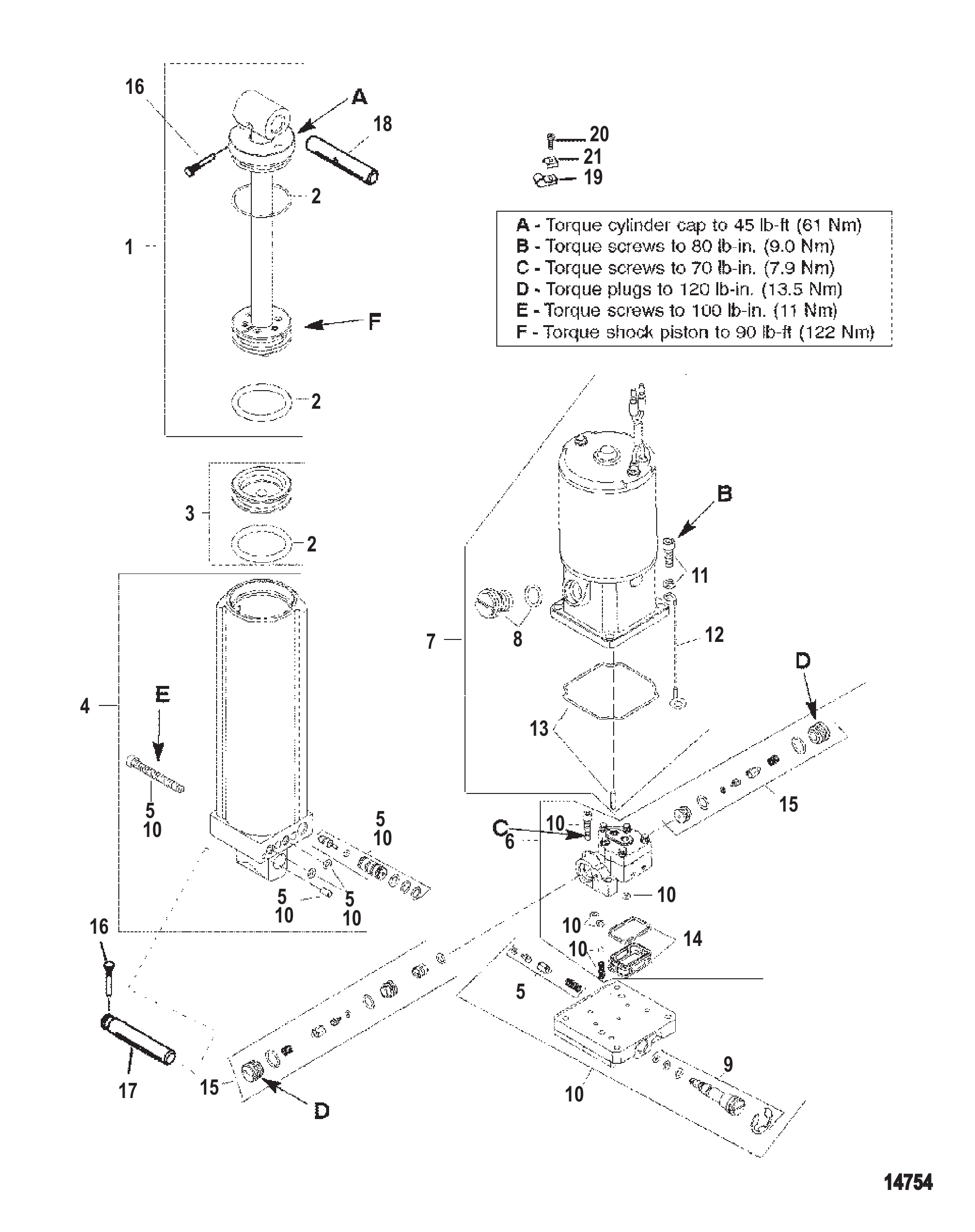

| - | 830250T3 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 1 | 811666A1 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 1 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 2 | 809872A2 | O型圈维修包 | O-RING KIT Rebuild | 1 |
| 2 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 3 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 3 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 4 | 811669A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893916A01 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 5 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 6 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 6 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | 809885A2 | 电机套件 | MOTOR KIT | 1 |
| 7 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 8 | 8134351 | 堵头 | PLUG | 1 |
| 9 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 9 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 10 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 10 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 11 | 809876A1 | 电机螺钉套件 | SCREW KIT Motor | 1 |
| 12 | 88238A18 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 13 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 14 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 14 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 15 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 15 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| - | 809880A1 | 完整配平O型圈套件 | O-RING KIT Complete Trim | 1 |
| - | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| 16 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 17 | 818898 | 锚销 | PIN Anchor | 1 |
| 18 | 996251 | 轴 | SHAFT | 1 |
| 18 | 99625002 | 轴 | SHAFT | 1 |
| 19 | 22740 | 卡扣 | CLIP | 2 |
| 20 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 21 | 69205 | C形垫圈 | C WASHER | 1 |
| 21 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

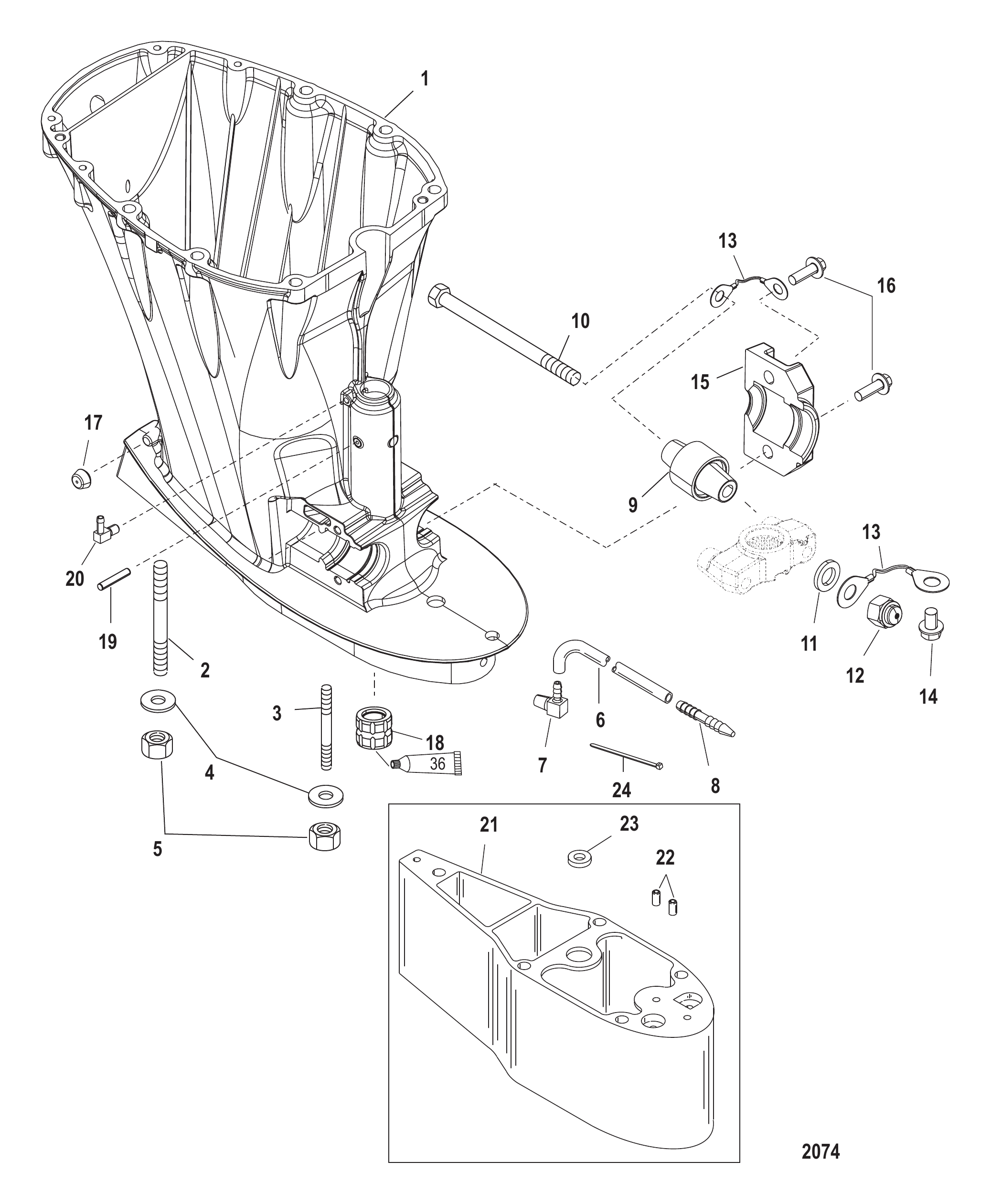

| 1 | 858576T03 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 2 | 903501 | 双头螺柱(M10×100) | STUD (M10 x 100) | 1 |
| 2 | 9035015 | 双头螺柱(M10×227) | STUD (M10 x 227) | 1 |
| 3 | 9035012 | 双头螺柱(M10×63) | STUD (M10 x 63) | 4 |
| 3 | 9035016 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 3 | 8M0034462 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 4 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 5 |
| 4 | 8M0214963 | 垫圈 | WASHER | 5 |
| 5 | 40140 | 螺母(M10) | NUT (M10) | 5 |
| 6 | 85822A15 | 速度计传感器总成 | PICKUP ASSEMBLY Speedometer | 1 |
| 7 | 43335 | 90度接头(.125-27)尼龙 | CONNECTOR 90 Degree (.125-27) Nylon | 1 |
| 7 | 433351 | 90度接头-带防振密封 | CONNECTOR 90 Degree - With Vibraseal | 1 |
| 8 | 85822 | 直通接头 | CONNECTOR Straight | 1 |
| 8 | 85822T | 直通接头 | CONNECTOR Straight | 1 |
| 9 | 44343T1 | 支架 | MOUNT | 2 |
| 10 | 42973 | 螺栓(M12×154) | BOLT (M12 x 154) | 2 |
| 10 | 898835001 | 螺钉(M12 x 154) | SCREW (M12 x 154) | 2 |
| 11 | 30119 | 垫圈(外径0.875英寸) | WASHER (.875 Inch Outside Diameter) | 2 |
| 12 | 43528 | 螺母(M12) | NUT (M12) | 2 |
| 12 | 8M0204662 | 螺母 | NUT | 2 |
| 13 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 2 |
| 14 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 15 | 858916T | 卡箍 | CLAMP | 2 |
| 16 | 4010725 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 4 |
| 17 | 858745 | 盖帽 | CAP | 4 |
| 17 | 8M0142713 | 支撑盖帽 | CAP Chap Support | 4 |
| 18 | 859550 | 衬套 | BUSHING | 1 |
| 19 | 24873 | 定位销 | PIN Alignment | 1 |
| 20 | 855622 | 接头 | FITTING | 1 |
| 21 | 12092A3 | 隔套套件 | SPACER KIT | 1 |
| 22 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 22 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 22 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 23 | 813745 | 隔套 | SPACER | 1 |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

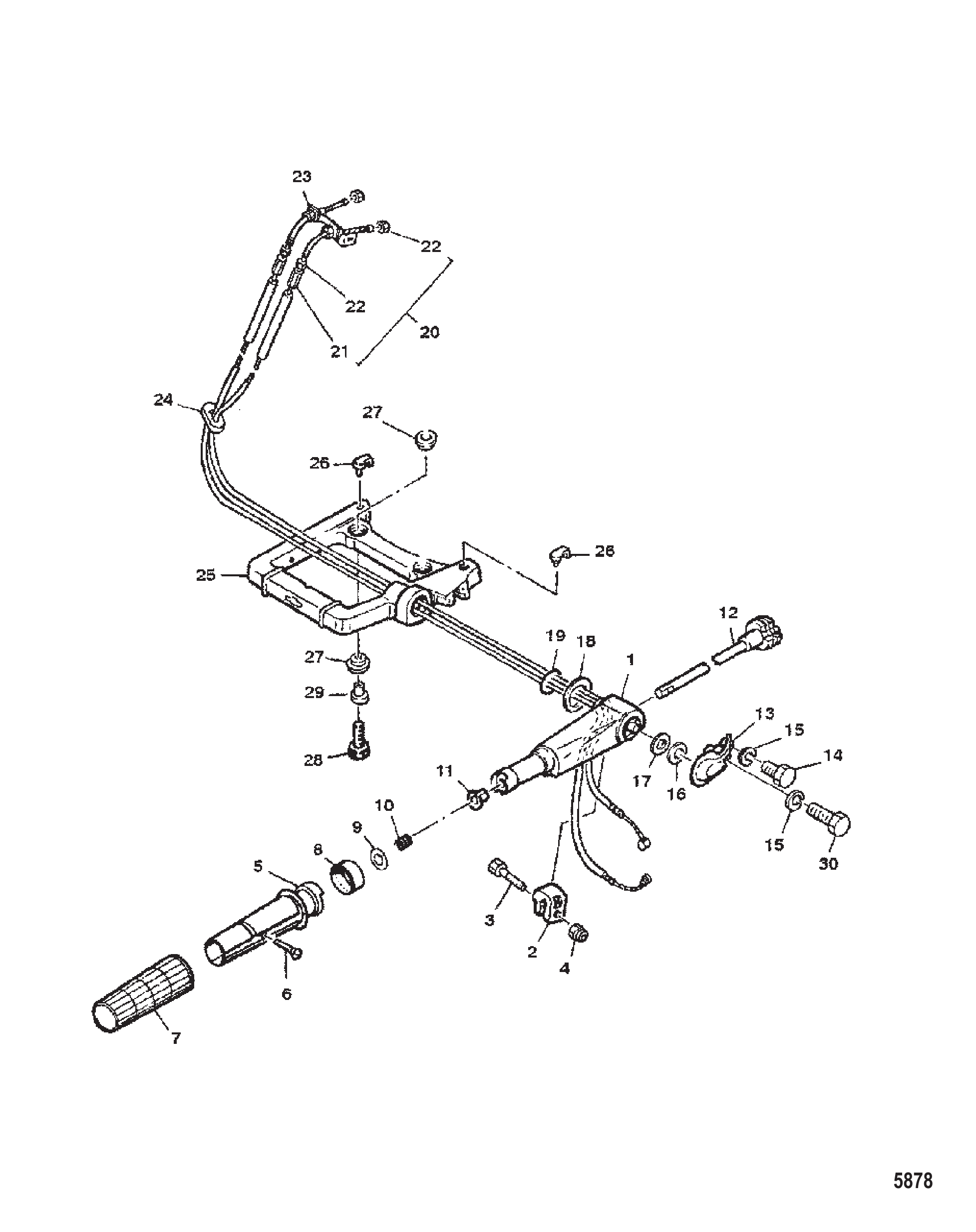

| 1 | 83093M | 转向手柄 | HANDLE Steering | 1 |
| 2 | 82895M | 摩擦片 | FRICTION PIECE | 1 |
| 3 | 84058M | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 4 | 83056M | 螺母 | NUT | 1 |
| 5 | 80504M | 握把 | GRIP | 1 |
| 6 | 811916M | 螺钉 | SCREW | 1 |
| 7 | 80509M | 橡胶件 | RUBBER | 1 |
| 8 | 95606M | 指示器 | INDICATOR | 1 |
| 9 | 82220M | 垫圈 | WASHER | 1 |
| 10 | 82095M | 弹簧 | SPRING | 1 |
| 11 | 81945M | 衬套 | BUSHING | 1 |
| 12 | 81280M | 杠杆 | LEVER | 1 |
| 13 | 95614M | 盖帽 | CAP | 1 |
| 14 | 84058M | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 15 | 881379 | 垫圈 | WASHER | 2 |
| 15 | 82214M | 垫圈 | WASHER | 2 |
| 16 | 80506M | 隔套 | SPACER | 1 |
| 16 | 80507M | 隔套 | SPACER | 1 |
| 16 | 898103217 | 垫片 @5 | SPACER @5 | 1 |
| 16 | 80508M | 隔套 | SPACER | 1 |
| 17 | 82118M | 隔套 | SPACER | 1 |
| 18 | 82121M | 隔套 | SPACER | 1 |
| 19 | 82272M | O型圈 | O-RING | 1 |
| 20 | 95405M | 油门拉索总成 | CABLE ASSEMBLY Throttle | 2 |
| 21 | 81778M | 螺母 | NUT | 2 |
| 22 | 81761M | 螺母 | NUT | 6 |
| 23 | 81037M | 撑杆 | STAY | 1 |
| 24 | 81373M | 护孔环 | GROMMET | 1 |
| 25 | 81054M | 转向支架 | BRACKET Steering | 1 |
| 26 | 80510M | 隔套 | SPACER | 2 |
| 27 | 80515M | 护孔环 | GROMMET | 4 |
| 28 | 804159 | 螺栓 (M8 x 35) | BOLT (M8 x 35) | 2 |
| 29 | 82956M | 衬套 | BUSHING | 2 |
| 30 | 827043M | 螺栓 | BOLT | 1 |

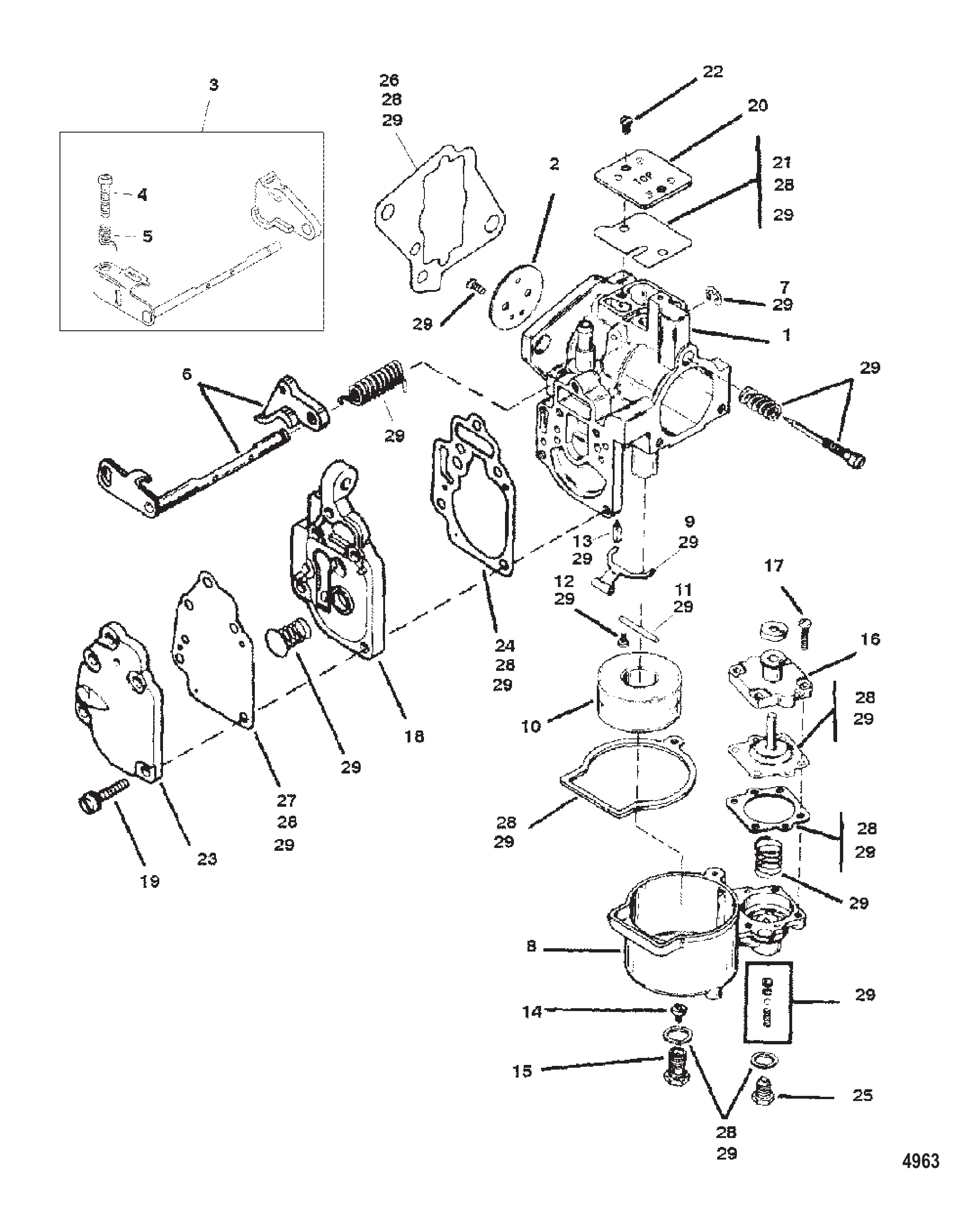

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9503A20 | 化油器 (6)(WMC-66) | CARBURETOR (6)(WMC-66) | 1 |
| 1 | 9503T21 | 化油器 (WMC-78A) (6) | CARBURETOR (WMC-78A) (6) | 1 |
| 1 | 9266A21 | 化油器 (8)(WMC-74) | CARBURETOR (8)(WMC-74) | 1 |
| 1 | 9266T22 | 化油器 | CARBURETOR | 1 |
| 1 | 9266T22 | 化油器 (8)(WMC-79A) | CARBURETOR (8)(WMC-79A) | 1 |
| 1 | 8846T20 | 化油器 (WMC-61) | CARBURETOR (WMC-61) | 1 |
| 1 | 8846T28 | 化油器 (WMC-102) | CARBURETOR (WMC-102) | 1 |
| 1 | 8846T25 | 化油器 (WMC-80A) (9.9) | CARBURETOR (WMC-80A) (9.9) | 1 |
| 1 | 8846T28 | 化油器 (WMC-102) | CARBURETOR (WMC-102) | 1 |
| 1 | 9726T11 | 化油器 (15)(WMC-63) | CARBURETOR (15)(WMC-63) | 1 |
| 1 | 9726T18 | 化油器(WMC-83) | CARBURETOR (WMC-83) | 1 |
| 1 | 9726T15 | 化油器 (WMC-77) (15) | CARBURETOR (WMC-77) (15) | 1 |
| 1 | 9726T18 | 化油器(WMC-83) | CARBURETOR (WMC-83) | 1 |
| 1 | 9726T18 | 化油器 (WMC-83) (15) | CARBURETOR (WMC-83) (15) | 1 |
| 2 | 9473 | 油门阀 | VALVE Throttle | 1 |
| 2 | 815133 | 油门阀 | VALVE Throttle | 1 |
| 2 | 94731 | 油门阀 | VALVE Throttle | 1 |
| 2 | 823716 | 油门阀 | VALVE Throttle | 1 |
| 3 | 804707 | 轴 | SHAFT | 1 |
| 4 | 8M0138645 | 螺钉 | SCREW | 1 |
| 5 | 804996 | 弹簧 | SPRING | 1 |
| 6 | 813022 | 油门轴 | SHAFT Throttle | 1 |
| 6 | 19267 | 油门轴 | SHAFT Throttle | 1 |
| 7 | F10167 | 环 | RING | 1 |
| 8 | 9164 | 燃油杯 | BOWL Fuel | 1 |
| 9 | 824401 | 浮子杆 | LEVER Float | 1 |
| 10 | 91691 | 浮子 | FLOAT | 1 |
| 11 | F10064 | 轴 | SHAFT | 1 |
| 12 | 5902 | 螺钉(#6-32 x .187) | SCREW (#6-32 x .187) | 1 |
| 13 | 803861 | 进油针阀 | VALVE Inlet Needle | 1 |
| 14 | 5315 | 主燃油喷嘴 (.042) | JET Main Fuel (.042) | 1 |
| 14 | 5317 | 量孔(.046) | JET (.046) | 1 |
| 14 | 6246 | 量孔(.048) | JET (.048) | 1 |
| 14 | 6207 | 量孔(.072) | JET (.072) | 1 |
| 15 | 9171 | 堵头 | PLUG | 1 |
| 16 | 813618 | 盖板 | COVER | 1 |
| 16 | 823648 | 膜片盖 | COVER Diaphragm | 1 |
| 17 | 9697 | 螺钉 | SCREW | 4 |
| 18 | 15827A1 | 本体 | BODY | 1 |
| 18 | 9702 | 盖/燃油泵套件 | COVER/FUEL PUMP KIT | 1 |
| 19 | 9643 | 螺钉 | SCREW | 5 |
| 20 | 9699 | 安装板 | PLATE | 1 |
| 21 | 44426 | 衬垫 | GASKET | 1 |
| 22 | 9696 | 螺钉 | SCREW | 2 |
| 23 | 96371 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 23 | 9637 | 盖板 | COVER | 1 |
| 24 | 9633 | 衬垫 | GASKET | 1 |
| 25 | 9762 | 堵头 | PLUG | 1 |
| 26 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| 27 | 9635 | 膜片/衬垫 | DIAPHRAGM/GASKET | 1 |
| 28 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 29 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| - | 42364A92 | 发动机垫片组 | GASKET SET Engine | 1 |
