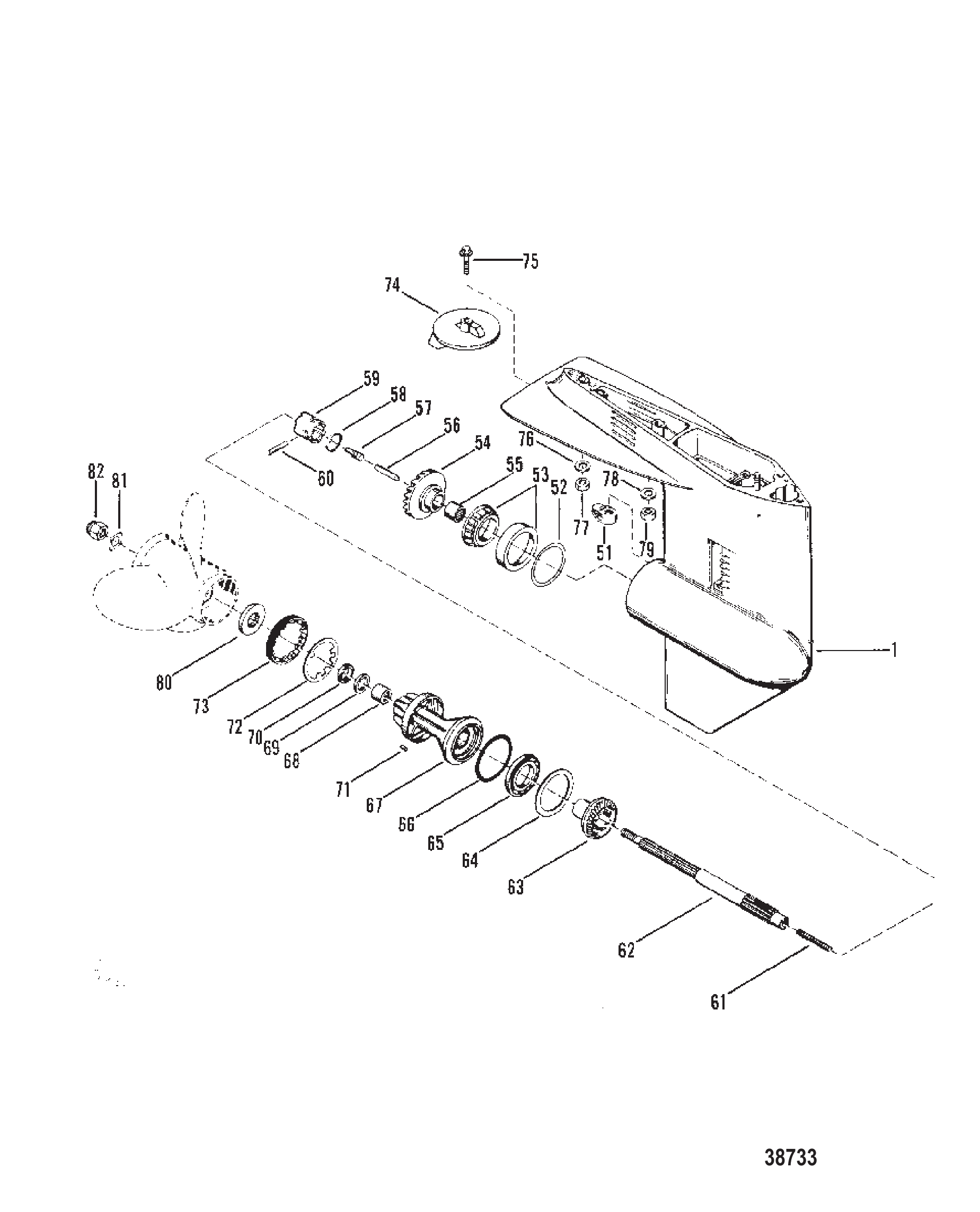

图 1齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成-标准旋转1.87:1传动比(完整)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)	1
1	9148A11	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	1
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	43999	滚子轴承(外径1.308)	BEARING Roller (1.308 O.D.)	2
57	73363	滚子轴承(外径1.313)	BEARING Roller (1.313 O.D.)	2
57	73363T	轴承	BEARING	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独出售(43-44104A2部件)	Not Sold Separate (PART OF 43-44104A2)	1
64	68100	止推环	RING THRUST	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承-倒档齿轮	BEARING Ball BALL-REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	轴承座定位键	KEY LOCATING-BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024	螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")	SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")	1
75	67891	填充块	FILLER BLOCK FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈-螺旋桨螺母	WASHER Splined SPLINED-PROPELLER NUT	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
83	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
-	89238A2	密封套件	SEAL KIT	1
-	14697A87	衬垫套件	GASKET SET

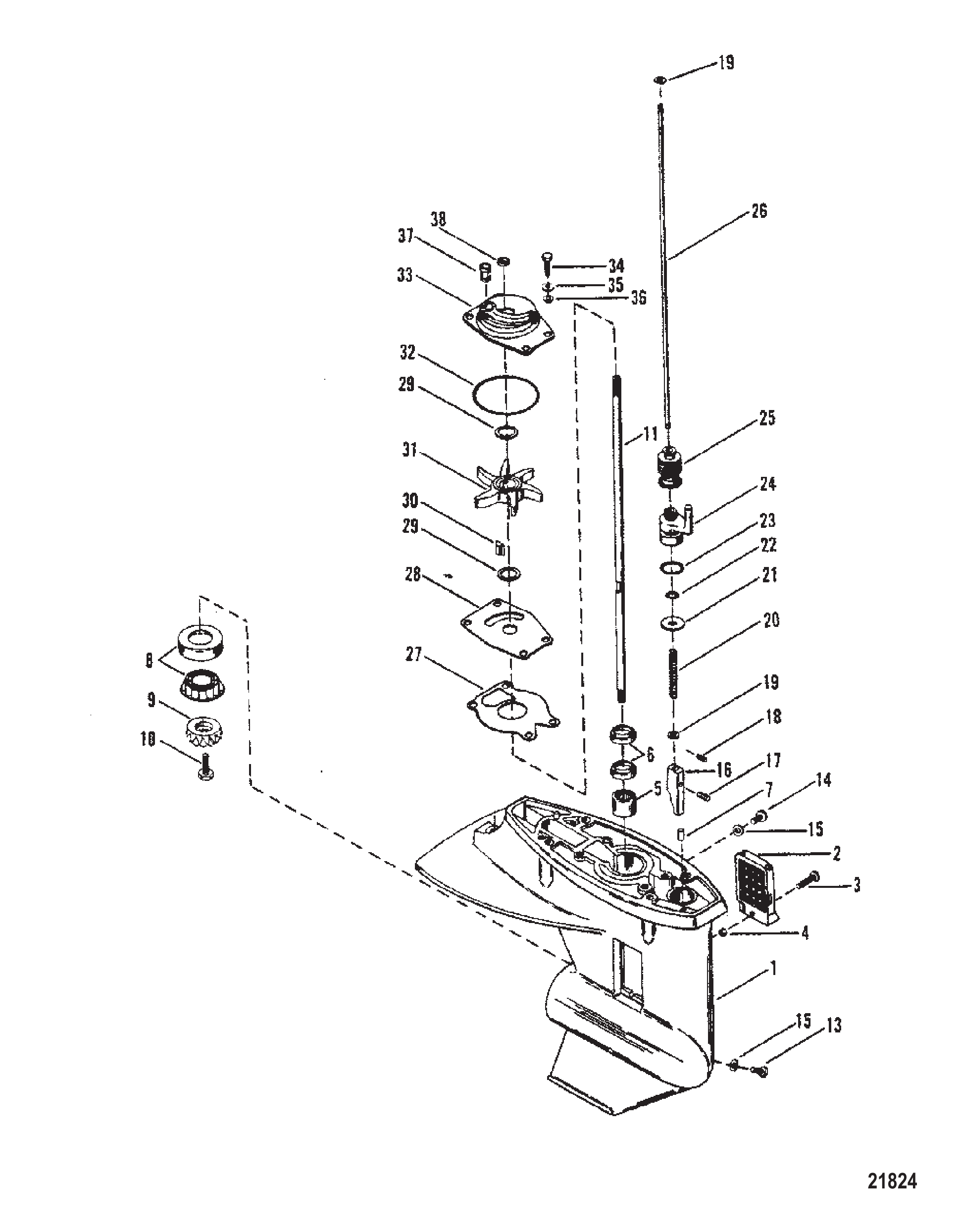

图 2齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7360A29	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7360A30	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7360A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	58138	齿轮箱螺柱(3.5英寸)	STUD GEAR HOUSING (3-1/2")	1
3	58136	水泵壳体螺柱(2.75英寸)	STUD WATER PUMP HOUSING (2-3/4")	2
4	22756	驱动轴滚柱轴承	BEARING Roller DRIVE SHAFT	1
5	20032	定位销	PIN Dowel LOCATING	1
6	33613	进水管橡胶密封	SEAL RUBBER - WATER INTAKE TUBE	1
7	86215	进水管尼龙轴承密封	BEARING NYLON - INTAKE TUBE SEAL	1
8	33425	进水滤网	SCREEN WATER INTAKE	1
9	25612	进水滤网螺丝	SCREW WATER INTAKE SCREEN	1
10	98696	小齿轮	GEAR Pinion	1
11	30377	小齿轮螺钉锁紧垫圈	TAB WASHER PINION GEAR SCREW	1
12	30376	小齿轮驱动轴螺丝(#12-28x0.75)	SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT	1
13	95873A1	驱动轴	DRIVESHAFT	1
13	95874A1	驱动轴	DRIVESHAFT	1
14	30527A1	滚珠轴承垫片组(0.002-3-5-10)	SHIM ASSEMBLY BALL BEARING (.002-3-5-10)	AR
15	70944	驱动轴滚珠轴承	BEARING Ball DRIVE SHAFT	1
16	30523	球轴承挡圈	RING Retaining BALL BEARING	1
17	30527A1	滚珠轴承垫片组(0.002-3-5-10)	SHIM ASSEMBLY BALL BEARING (.002-3-5-10)	AR
18	70941A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
18	70941T01	壳体总成	HOUSING ASY	1
18	92970A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
19	29439	O型圈	O-RING	1
20	30900	油封	SEAL Oil	1
20	30900T	密封件@2	SEAL @2	1
20	96063	油封	SEAL Oil	1
20	897153	油封@3	SEAL-OIL @3	1
21	70977	嵌件	INSERT	1
21	70977T	嵌件	INSERT	1
22	33613	进水管密封	SEAL WATER INTAKE TUBE	1
23	34293	进水管道	TUBE WATER INTAKE	1
24	56655	叶轮驱动键	KEY IMPELLER DRIVE	1
24	8M0032835	键	KEY	1
25	89981	叶轮	IMPELLER	1
25	89980	叶轮	IMPELLER	1
26	46895	水泵面板	FACE PLATE WATER PUMP	1
27	93224A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
28	36558	水泵盖密封件	SEAL WATER PUMP COVER	1
30	30913	水泵盖油封	SEAL Oil WATER PUMP COVER	1
31	20533	垫圈	WASHER	2
32	13438	水泵壳体螺柱螺母(.250-28)	NUT (.250-28) WATER PUMP HOUSING STUD	2
32	8267119	螺母(.250-28)	NUT (.250-28)	2
33	30526	橡胶环-离心甩水环	RING RUBBER - CENTRIFUGAL SLINGER	1
34	31792	进水管导向套	SLEEVE GUIDE - INLET TUBE	1
34	31792T	套管@5	SLEEVE @5	1
-	78139A80	衬垫套件	GASKET SET	1
-	70941A3	水泵维修套件	REPAIR KIT Water Pump	1
-	92970A5	水泵维修套件	REPAIR KIT Water Pump	1
-	77066A1	水泵密封套件	SEAL KIT Water Pump	1

图 3杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

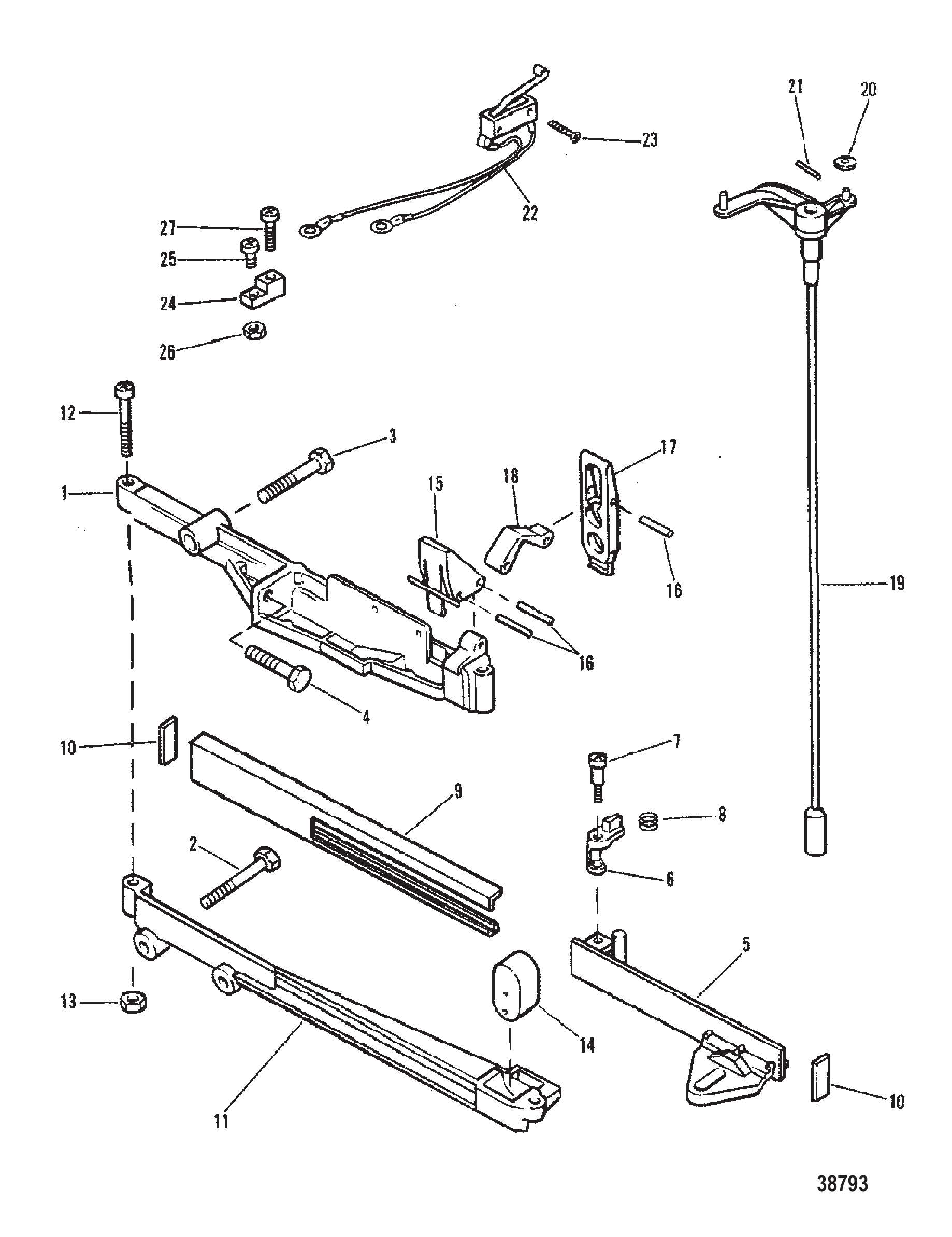

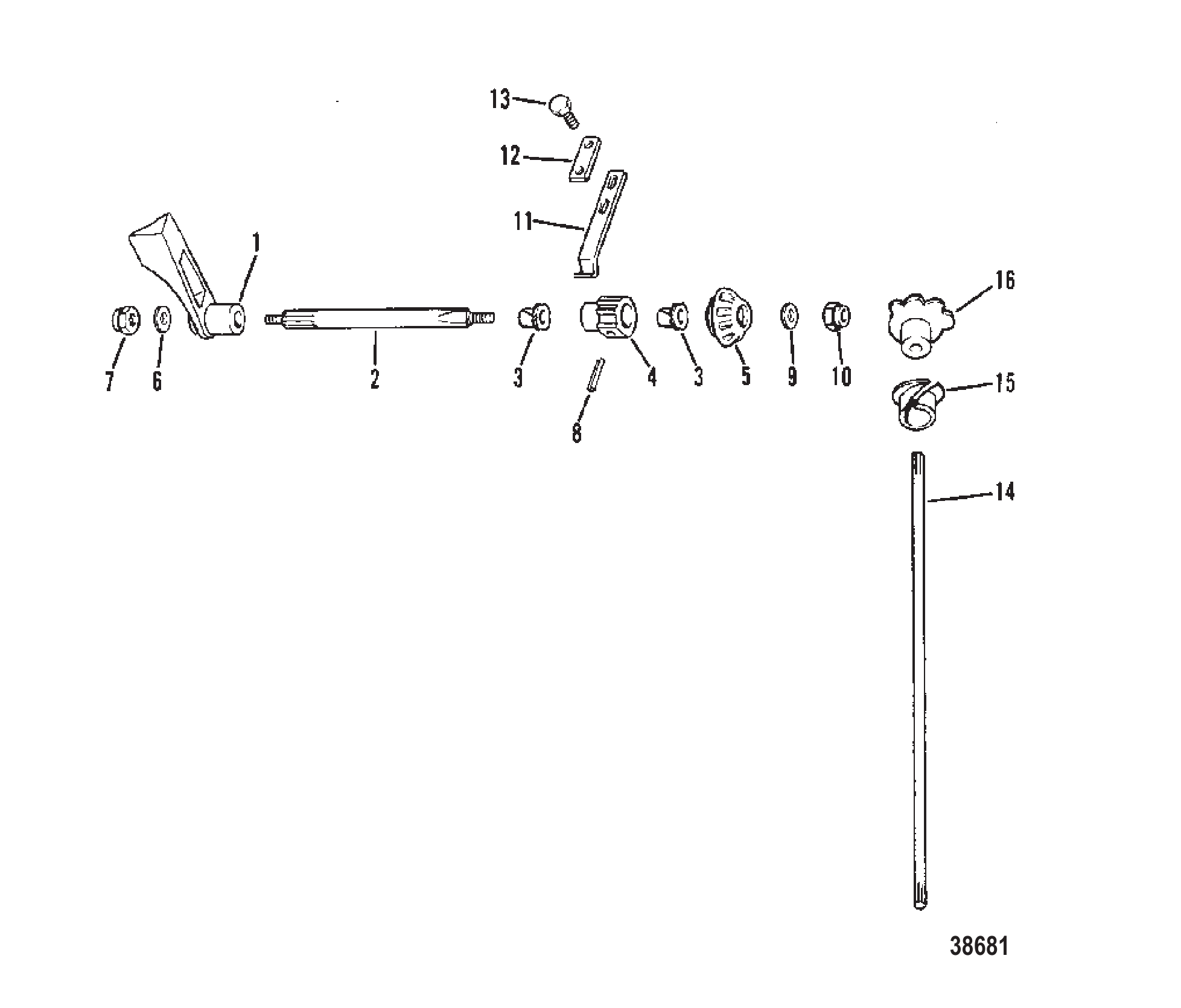

图 4换挡控制联动装置 SHIFT CONTROL LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	66376	换挡控制手柄	HANDLE SHIFT CONTROL	1
2	66378	控制手柄轴	SHAFT CONTROL HANDLE	1
3	66375	尼龙衬套-换挡控制手柄	BUSHING NYLON - SHIFT CONTROL HANDLE	2
4	66414	换挡轴凸轮	CAM SHIFT SHAFT	1
5	66377	换挡控制手柄扇形齿轮	SECTOR GEAR SHIFT CONTROL HANDLE	1
6	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
6	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
7	39305	螺母	NUT	1
7	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
8	25905	定位凸轮至换挡轴销	PIN DETENT CAM TO SHIFT SHAFT	1
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
10	20361	螺母(.250-28)	NUT (.250-28)	1
10	8267089	螺母(.250-28)	NUT (.250-28)	1
11	39627	定位弹簧-曲轴箱	SPRING DETENT - CRANKCASE	1
12	39601	定位弹簧板	PLATE DETENT SPRING	1
13	25764	螺钉(.190-32 x .50)	SCREW (.190-32 x .50)	2
14	71660	换挡轴上段	SHIFT SHAFT UPPER	1
15	30677	尼龙衬套-换挡控制轴	BUSHING NYLON - SHIFT CONTROL SHAFT	1
16	86686A1	扇形齿轮换挡轴	SECTOR GEAR SHIFT SHAFT	1

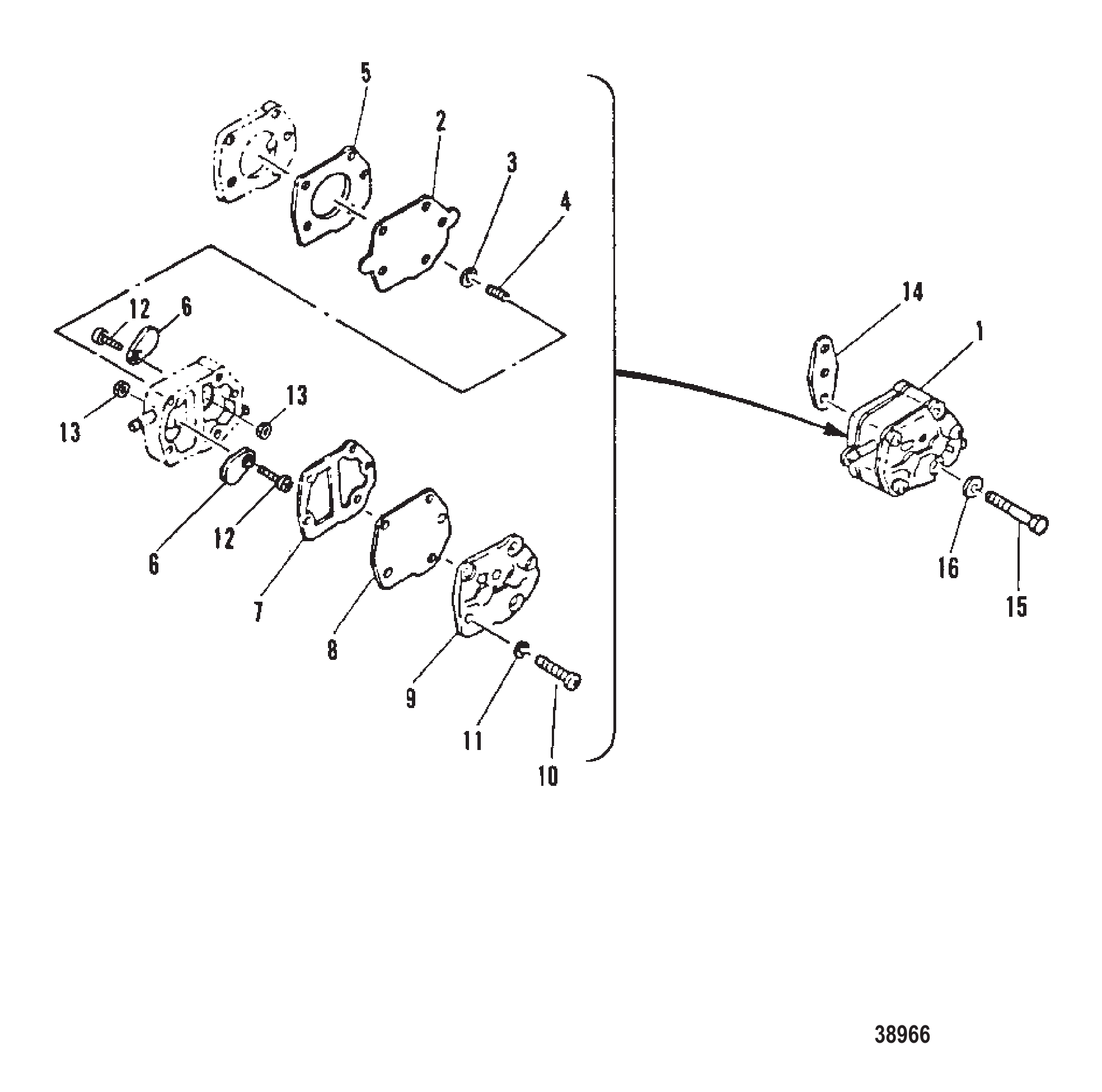

图 5燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

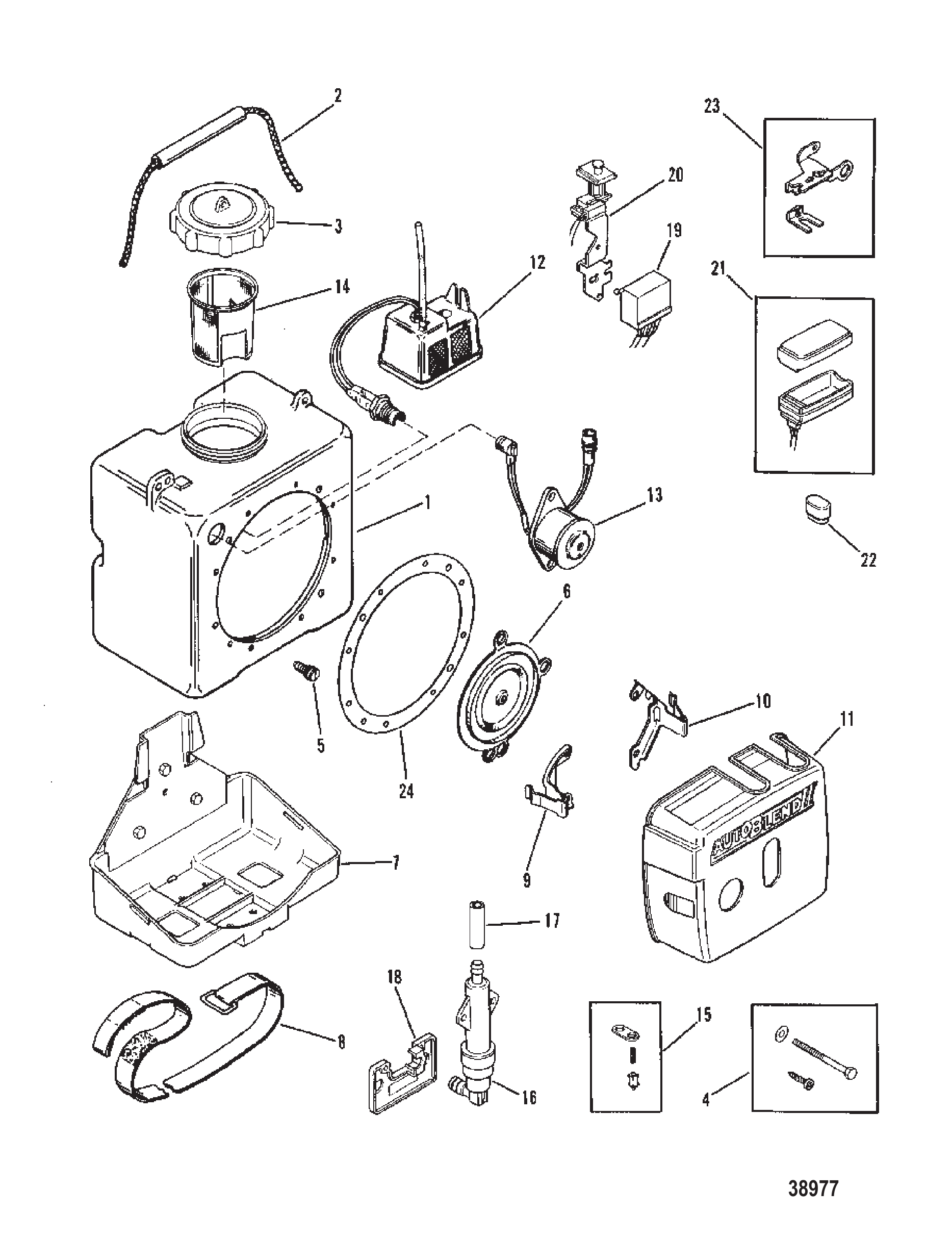

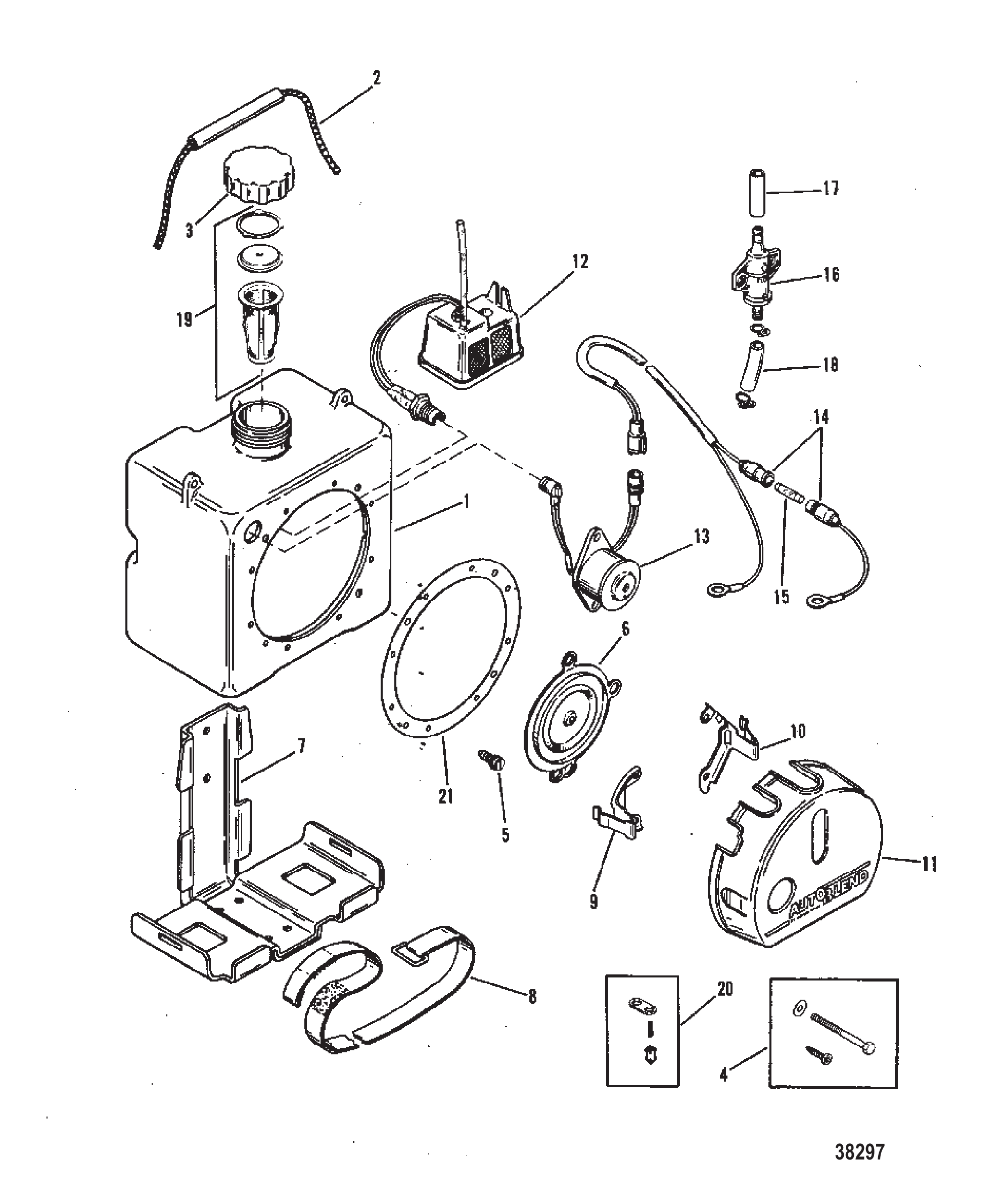

图 6自动混合器 AUTO-BLEND

REF	零件编号	中文名称	英文名称	数量
-	130195	自动混合装置	AUTO BLEND ASSEMBLY	1
1	16612	油箱套件机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	16619	机油箱盖	CAP OIL TANK	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	16620	安装支架套件	BRACKET KIT Mounting	1
8	13993	箍带	BAND	1
9	13983	支架(左)	BRACKET (LEFT)	1
10	13984	支架(右)	BRACKET (RIGHT)	1
11	16626	盖板	COVER	1
12	16624	机油滤清器及液位传感器套件	SENSOR KIT Oil Filter And Level	1
13	16625	喇叭套件	HORN KIT	1
14	16618	机油滤网	STRAINER Oil	1
15	16615	止回阀套件	CHECK VALVE KIT	1
16	18576	燃油滤清器套件	FILTER KIT Fuel	1
17	13992	乙烯基软管	VINYL TUBE	1
18	16621	安装板	PLATE	1
19	16627	模块套件	MODULE KIT	1
20	16628	测试按钮套件	TEST BUTTON KIT	1
21	16629	电池盒套件(使用9伏电池)	CASE KIT Battery (USE 9 VOLT BATTERY)	1
22	16630	密封圈套件	GROMMET KIT	1
23	16631	支架套件	BRACKET KIT	1
24	16616	衬垫套件	GASKET KIT	1

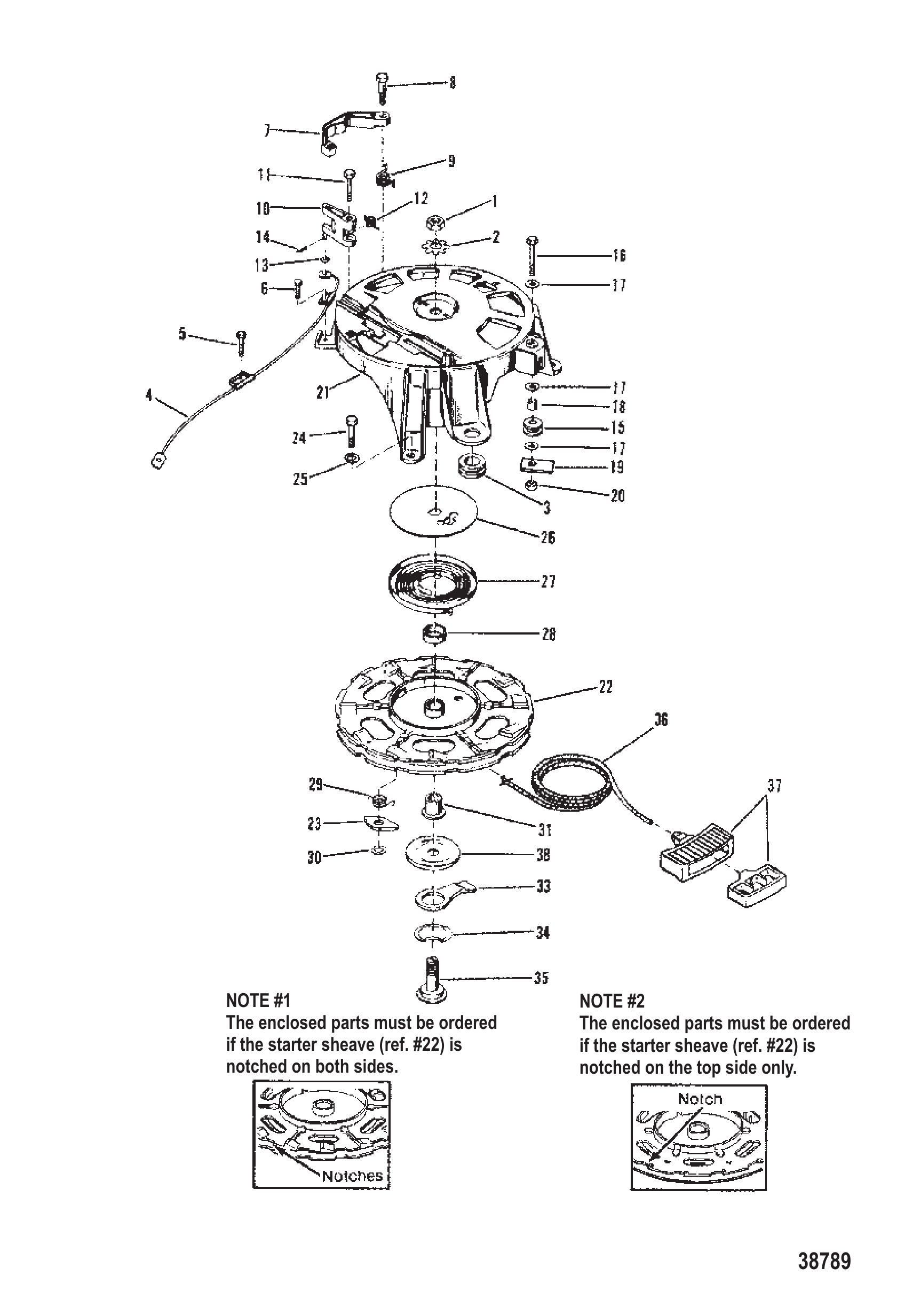

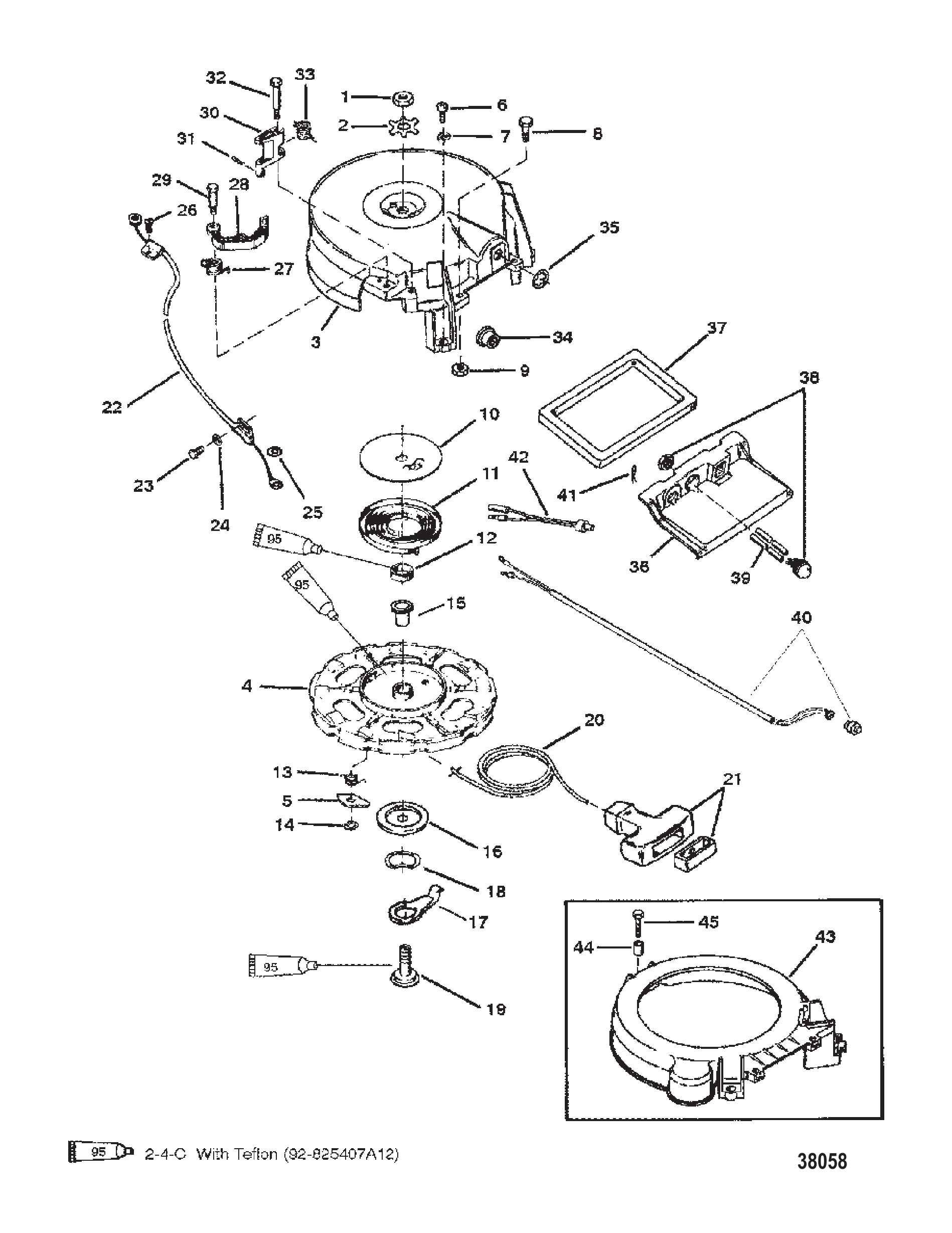

图 7启动器回绕装置 STARTER REWIND

REF	零件编号	中文名称	英文名称	数量
1	20166	螺母(左旋螺纹)	NUT (LEFT HAND THREAD)	1
2	61004	锁紧垫圈	TAB WASHER	1
3	186471	启动器壳体	HOUSING Starter	1
4	44255A1	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
5	44508	启动棘爪	PAWL Starter	1
6	54523	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	3
7	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
7	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
8	45210	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	2
9	20190	螺母 (#10-32)	NUT (#10-32)	2
9	8267086	螺母 (#10-32)	NUT (#10-32)	2
10	61002	安装板	PLATE	1
11	39502A1	弹簧	SPRING	1
11	39502T02	回卷弹簧	SPRING-RECOIL	1
12	87649	衬套	BUSHING	1
13	87651	弹簧	SPRING	1
14	87706	E型卡环	E RING	1
15	63061	隔套	SPACER	1
16	35559	垫圈	WASHER	1
17	94962	杠杆	LEVER	1
18	20160	波形垫圈	WAVE WASHER	1
19	87656	滑轮轴	SHEAVE SHAFT	1
20	12066A9	绳索	ROPE	1
20	12066Q10	启动绳@2	ROPE-STARTER@2	1
20	47341A1	手动/应急启动绳和手柄套件 (用于手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)	1
20	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
21	85174A1	手柄总成	HANDLE ASSEMBLY	1
22	188881	联锁电缆	CABLE Interlock	1
23	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	1
24	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
25	37998	垫圈	WASHER	1
26	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
26	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
27	761401	弹簧	SPRING	1
28	428201	凸轮	CAM	1
29	76138	螺丝(.312-18 x 1.120)	SCREW (.312-18 x 1.120)	1
30	79371	执行器	ACTUATOR	1
31	27769	开口销	COTTER PIN	2
31	26811	开口销	COTTER PIN	2
32	76137	螺丝(1-5/8英寸)	SCREW (1-5/8 IN.)	1
33	76139	弹簧	SPRING	1
34	42690	衬套	BUSHING	1
34	8M0183792	绳索衬套	ROPE BUSHING	1
35	818853	挡圈	RING Retaining	1
36	813544A1	支架总成	REST ASSEMBLY	1
36	813544	支架	REST	1
37	813641	密封件	SEAL	1
38	8168772	注油球	PRIMER BULB	1
38	858763	注油球	PRIMER BULB	1
39	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
39	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
40	89591A5	线束总成	HARNESS ASSEMBLY	1
41	36002	开口销	COTTER PIN	2
42	11149A2	线缆总成(6.00英寸)(非手柄)	CABLE ASSEMBLY (6.00 Inches) (NON-HANDLE)	1
43	812617	飞轮盖	COVER Flywheel	1
44	812611	盖螺丝垫片	SPACER Cover Screw	3
45	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3

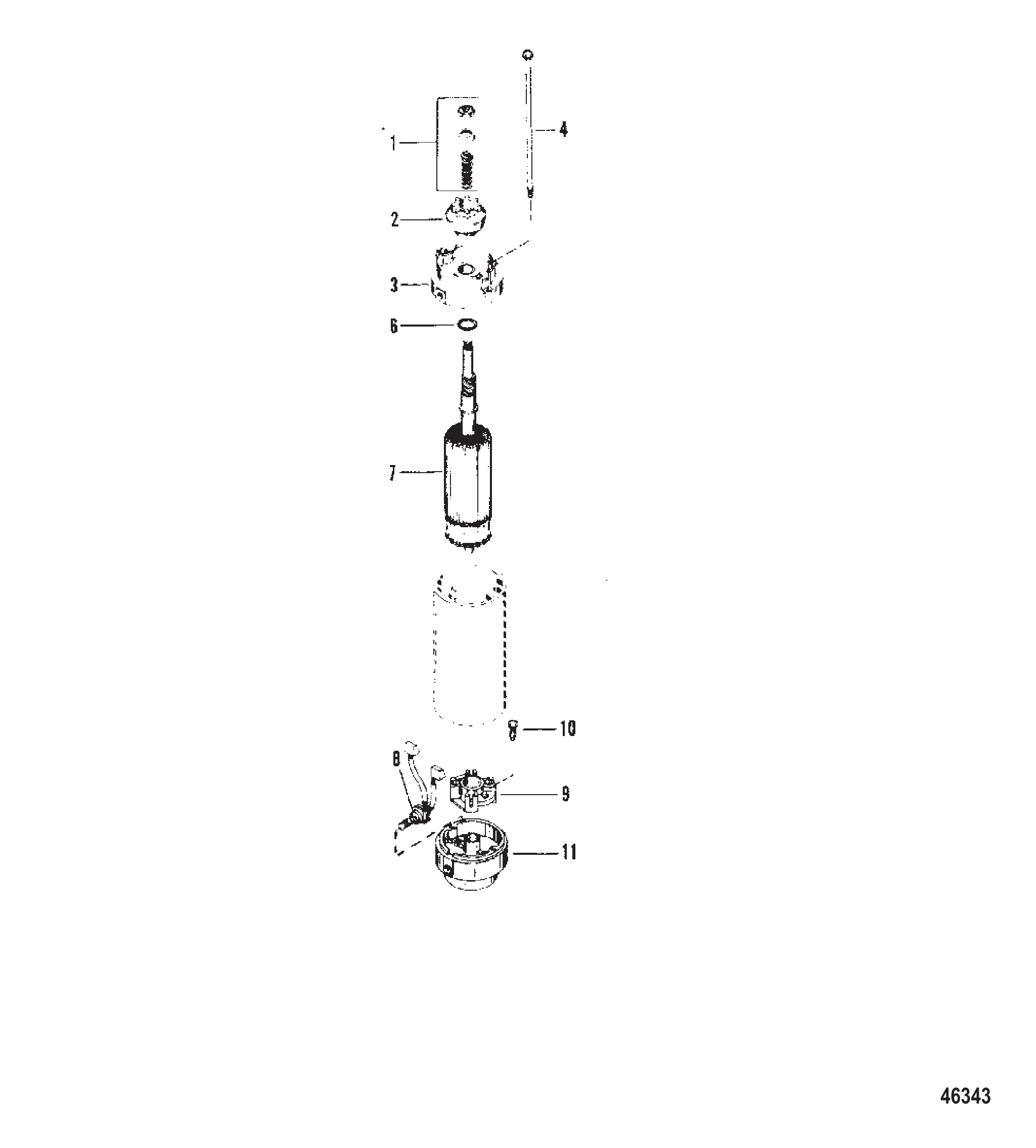

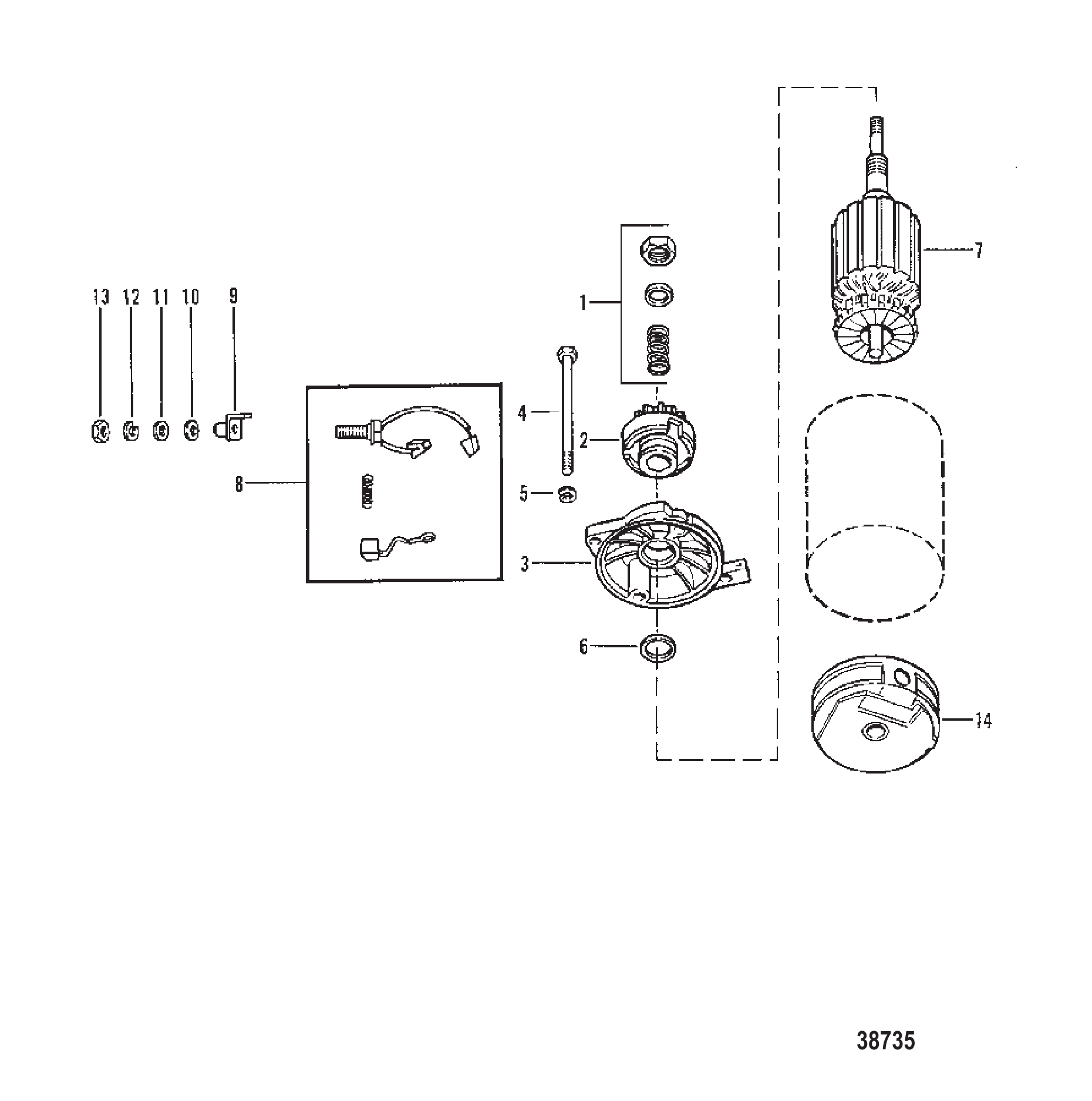

图 8启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	74968	贯穿螺栓	BOLT THRU	2
6	N.S.S.	贯穿螺栓 (不单独销售)	Not Sold Separate THRU BOLT	1
7	79216	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	电刷架	HOLDER BRUSH	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
11	15386	换向器端盖	END CAP COMMUTATOR	1
11	15386001	端盖	END CAP	1

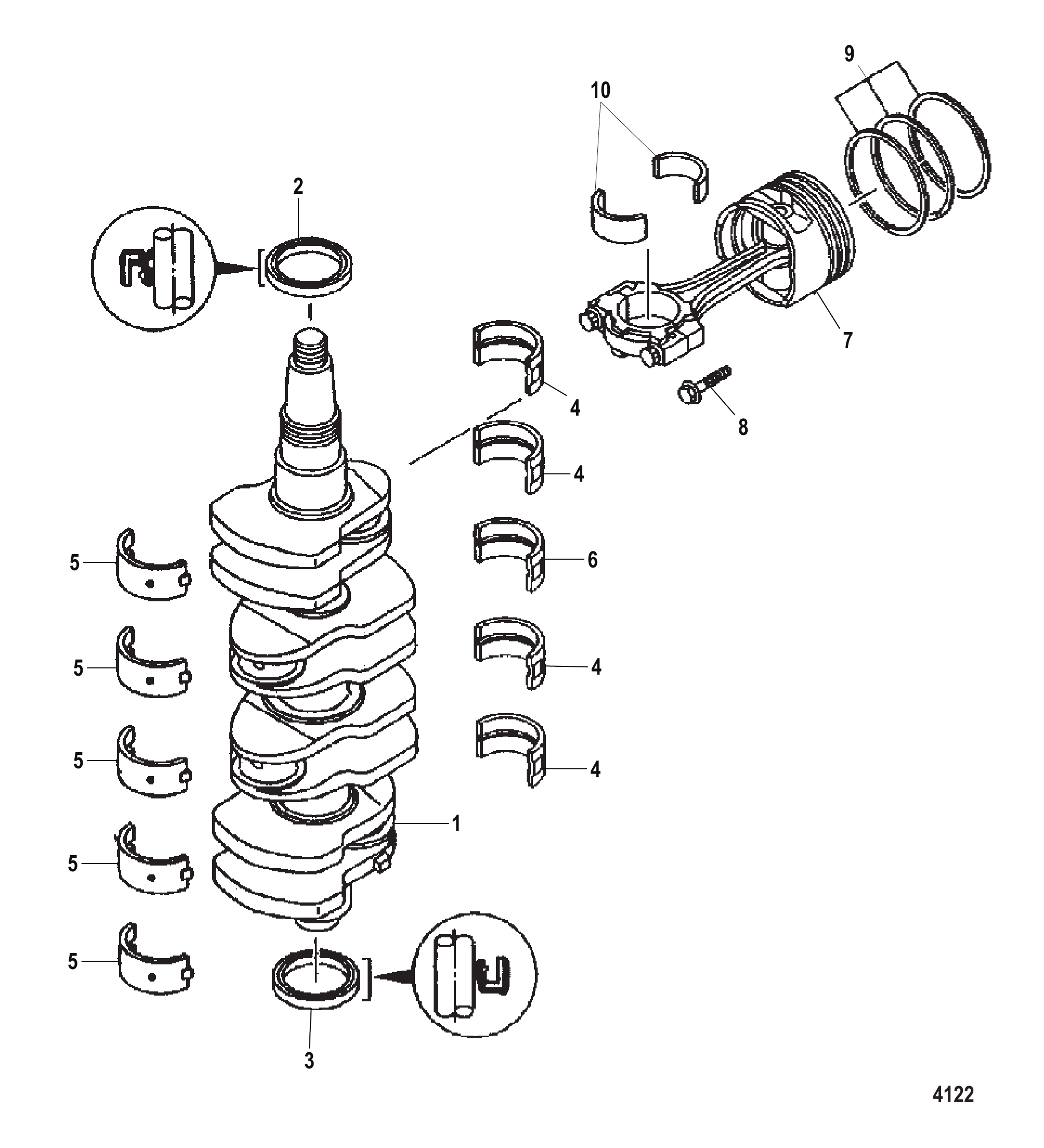

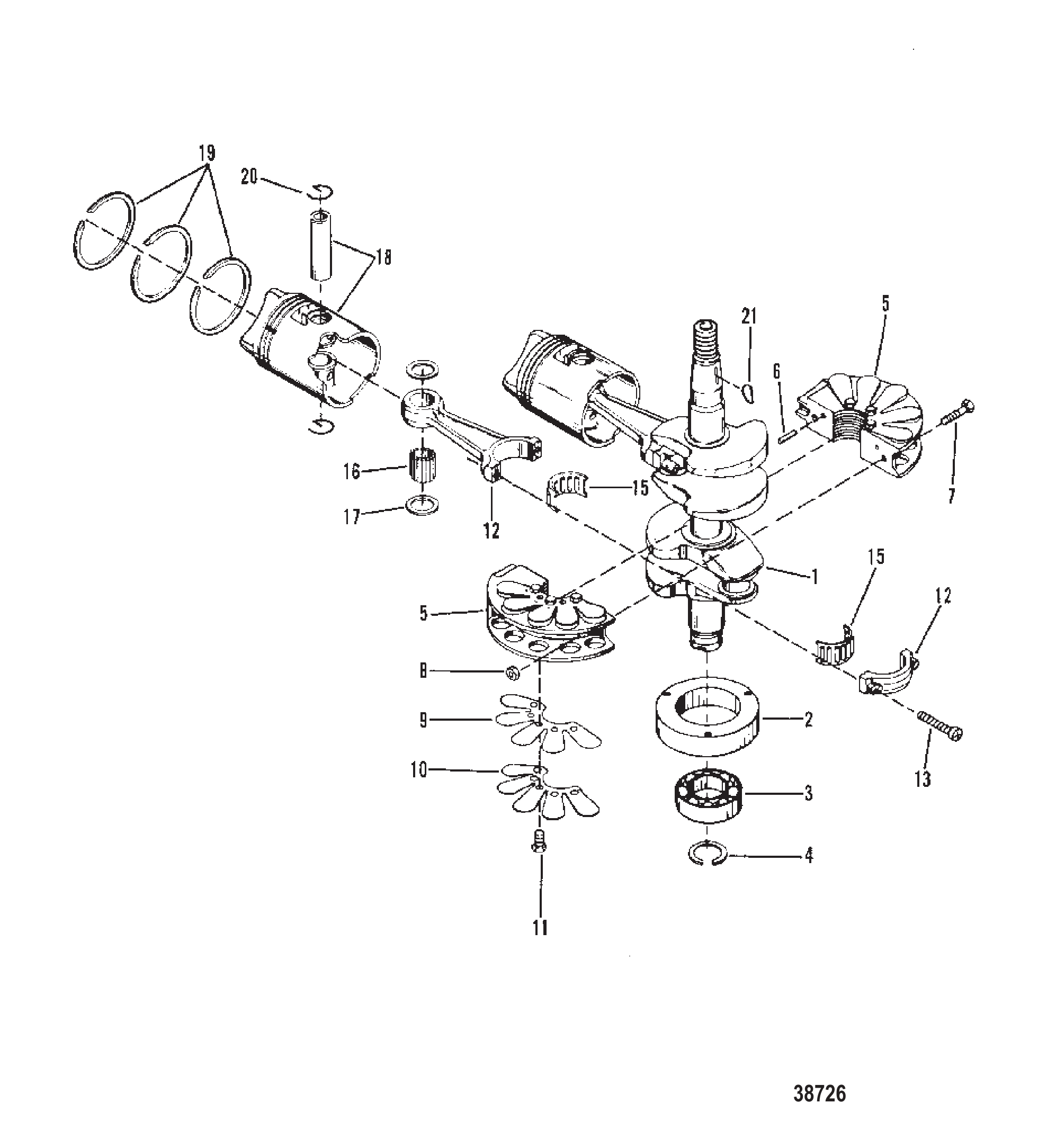

图 9曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	880894T	曲轴	CRANKSHAFT	1
2	8040992	油封	SEAL Oil	1
3	8041002	油封	SEAL Oil	1
4	804101T	轴承	BEARING	4
4	804101T10	轴承	BEARING	4
4	804101T20	轴承	BEARING	4
5	804102T	轴承	BEARING	5
5	804102T10	轴承	BEARING	5
5	804102T20	轴承	BEARING	5
5	804102T30	轴承	BEARING	5
6	804103T	轴承	BEARING	1
6	804103T10	轴承	BEARING	1
6	804103T20	轴承	BEARING	1
7	880895A05	活塞总成	PISTON ASSEMBLY	4
7	880895A14	活塞/连杆总成	PISTON/CONN ROD	4
7	880895A12	活塞总成	PISTON ASSEMBLY	AR
7	880895A16	活塞/连杆总成	PISTON/CONN ROD	AR
8	880896	螺栓(M8 x 38)	BOLT (M8 x 38)	8
9	880897T02	活塞环组	RING SET Piston	4
9	880898T02	活塞环组	RING SET Piston	AR
10	880899T	轴承	BEARING	8
10	880899T10	轴承	BEARING	8
10	880899T20	轴承	BEARING	8
10	880899T30	轴承	BEARING	8
-	858732A06	衬垫套件	GASKET SET	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

图 10自动混合装置 Auto-Blend

REF	零件编号	中文名称	英文名称	数量
-	1301930	自动混合器	AUTO-BLEND	1
1	13982	油箱套件机油	TANK KIT Oil	1
1	16612	油箱套件机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	13986	机油箱盖	CAP OIL TANK	1
4	13994	五金件套件	HARDWARE KIT	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	13990	支架	BRACKET	1
8	13993	箍带	BAND	1
9	13983	支架(左)	BRACKET (LEFT)	1
10	13984	支架(右)	BRACKET (RIGHT)	1
11	13991	盖板	COVER	1
11	16613	盖板	COVER	1
12	13985	机油滤清器/传感器套件	FILTER/SENSOR KIT Oil	1
13	13987	喇叭套件	HORN KIT	1
14	13988	线束总成	HARNESS ASSEMBLY	1
15	13989	保险丝(0.5安培)	FUSE (.5 AMP)	1
16	13981	燃油滤清器套件	FILTER KIT Fuel	1
16	18089	燃油滤清器套件	FILTER KIT Fuel	1
17	13992	乙烯基软管	VINYL TUBE	1
18	13995	燃油管套件	TUBE KIT Fuel	1
19	15387A1	机油滤网总成	STRAINER ASSEMBLY Oil	1
20	16615	止回阀套件	CHECK VALVE KIT	1
21	16616	衬垫套件	GASKET KIT	1

图 11动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

图 12驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	858576T03	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
3	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
3	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	8M0214963	垫圈	WASHER	5
5	40140	螺母(M10)	NUT (M10)	5
6	85822A15	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
7	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
8	85822	直通接头	CONNECTOR Straight	1
8	85822T	直通接头	CONNECTOR Straight	1
9	44343T1	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
10	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
11	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
12	43528	螺母(M12)	NUT (M12)	2
12	8M0204662	螺母	NUT	2
13	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
14	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
15	858916T	卡箍	CLAMP	2
16	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
17	858745	盖帽	CAP	4
17	8M0142713	支撑盖帽	CAP Chap Support	4
18	859550	衬套	BUSHING	1
19	24873	定位销	PIN Alignment	1
20	855622	接头	FITTING	1
21	12092A3	隔套套件	SPACER KIT	1
22	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
22	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
23	813745	隔套	SPACER	1
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

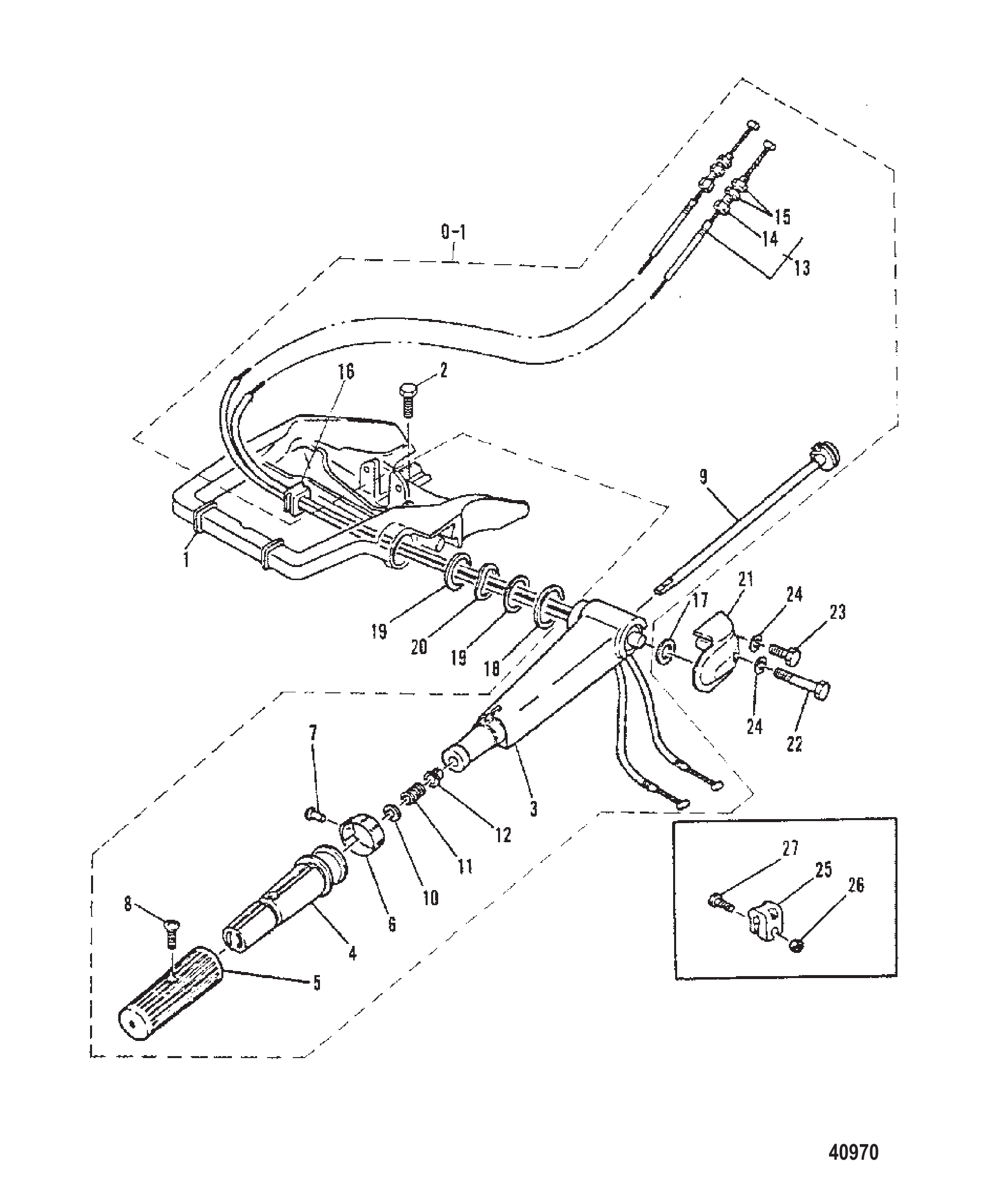

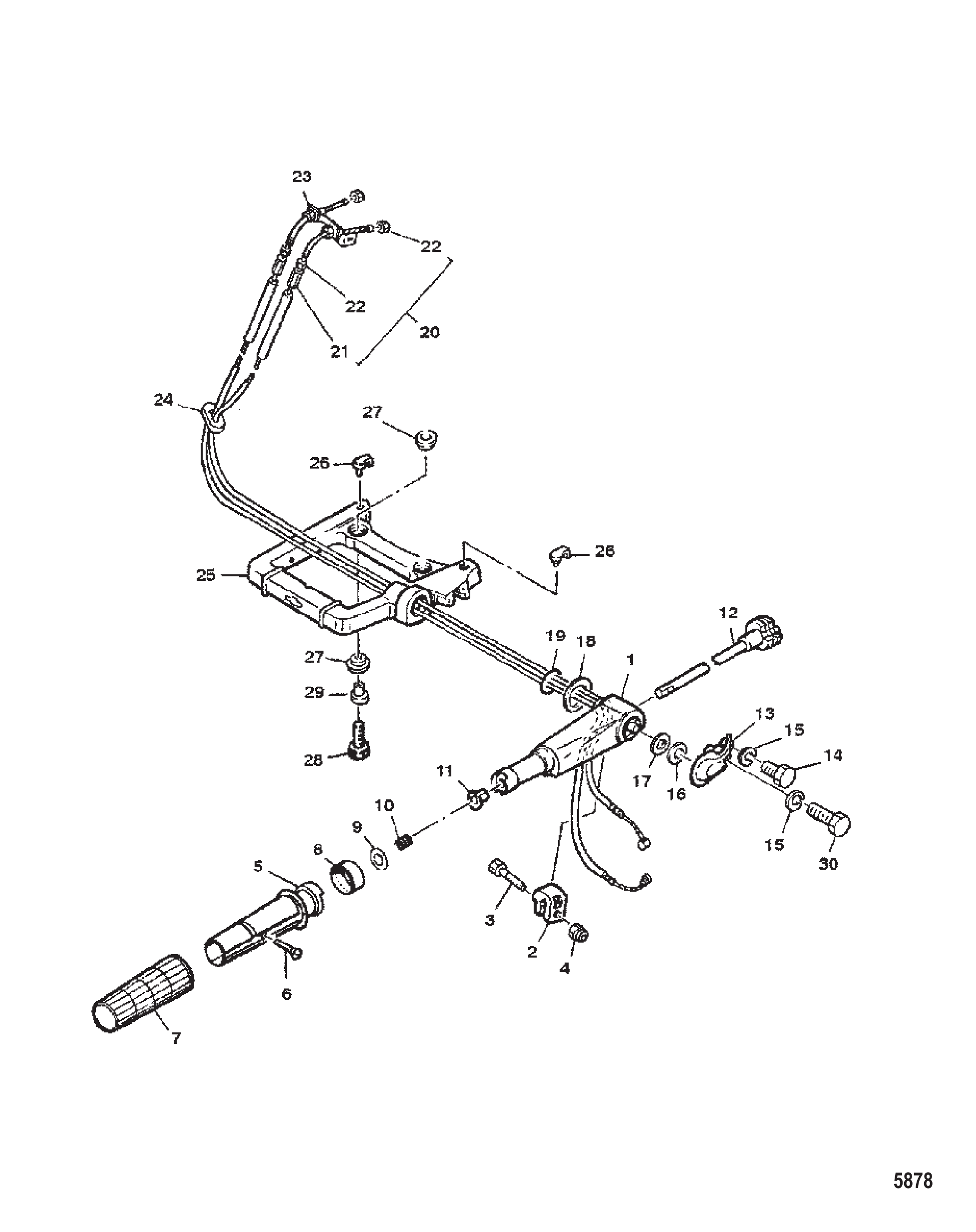

图 13转向手柄 STEERING HANDLE

REF	零件编号	中文名称	英文名称	数量
1	83093M	转向手柄	HANDLE Steering	1
2	82895M	摩擦片	FRICTION PIECE	1
3	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
4	83056M	螺母	NUT	1
5	80504M	握把	GRIP	1
6	811916M	螺钉	SCREW	1
7	80509M	橡胶件	RUBBER	1
8	95606M	指示器	INDICATOR	1
9	82220M	垫圈	WASHER	1
10	82095M	弹簧	SPRING	1
11	81945M	衬套	BUSHING	1
12	81280M	杠杆	LEVER	1
13	95614M	盖帽	CAP	1
14	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
15	881379	垫圈	WASHER	2
15	82214M	垫圈	WASHER	2
16	80506M	隔套	SPACER	1
16	80507M	隔套	SPACER	1
16	898103217	垫片 @5	SPACER @5	1
16	80508M	隔套	SPACER	1
17	82118M	隔套	SPACER	1
18	82121M	隔套	SPACER	1
19	82272M	O型圈	O-RING	1
20	95405M	油门拉索总成	CABLE ASSEMBLY Throttle	2
21	81778M	螺母	NUT	2
22	81761M	螺母	NUT	6
23	81037M	撑杆	STAY	1
24	81373M	护孔环	GROMMET	1
25	81054M	转向支架	BRACKET Steering	1
26	80510M	隔套	SPACER	2
27	80515M	护孔环	GROMMET	4
28	804159	螺栓 (M8 x 35)	BOLT (M8 x 35)	2
29	82956M	衬套	BUSHING	2
30	827043M	螺栓	BOLT	1

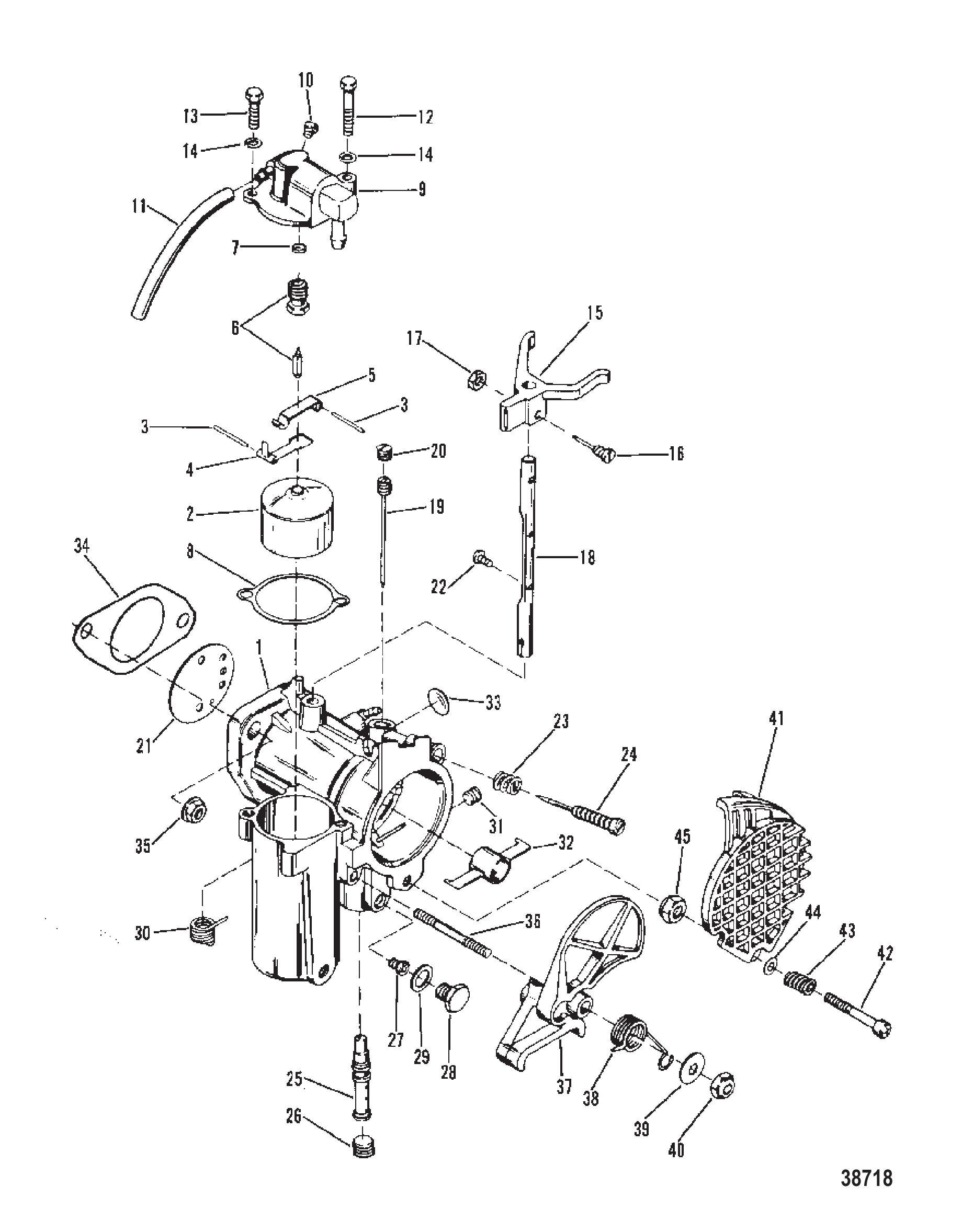

图 14化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	9503A20	化油器 (6)(WMC-66)	CARBURETOR (6)(WMC-66)	1
1	9503T21	化油器 (WMC-78A) (6)	CARBURETOR (WMC-78A) (6)	1
1	9266A21	化油器 (8)(WMC-74)	CARBURETOR (8)(WMC-74)	1
1	9266T22	化油器	CARBURETOR	1
1	9266T22	化油器 (8)(WMC-79A)	CARBURETOR (8)(WMC-79A)	1
1	8846T20	化油器 (WMC-61)	CARBURETOR (WMC-61)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	8846T25	化油器 (WMC-80A) (9.9)	CARBURETOR (WMC-80A) (9.9)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	9726T11	化油器 (15)(WMC-63)	CARBURETOR (15)(WMC-63)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器 (WMC-77) (15)	CARBURETOR (WMC-77) (15)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器 (WMC-83) (15)	CARBURETOR (WMC-83) (15)	1
2	9473	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	804707	轴	SHAFT	1
4	8M0138645	螺钉	SCREW	1
5	804996	弹簧	SPRING	1
6	813022	油门轴	SHAFT Throttle	1
6	19267	油门轴	SHAFT Throttle	1
7	F10167	环	RING	1
8	9164	燃油杯	BOWL Fuel	1
9	824401	浮子杆	LEVER Float	1
10	91691	浮子	FLOAT	1
11	F10064	轴	SHAFT	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	803861	进油针阀	VALVE Inlet Needle	1
14	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
14	5317	量孔(.046)	JET (.046)	1
14	6246	量孔(.048)	JET (.048)	1
14	6207	量孔(.072)	JET (.072)	1
15	9171	堵头	PLUG	1
16	813618	盖板	COVER	1
16	823648	膜片盖	COVER Diaphragm	1
17	9697	螺钉	SCREW	4
18	15827A1	本体	BODY	1
18	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
19	9643	螺钉	SCREW	5
20	9699	安装板	PLATE	1
21	44426	衬垫	GASKET	1
22	9696	螺钉	SCREW	2
23	96371	燃油泵盖	COVER Fuel Pump	1
23	9637	盖板	COVER	1
24	9633	衬垫	GASKET	1
25	9762	堵头	PLUG	1
26	192061	化油器衬垫	GASKET Carburetor	1
27	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
28	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
29	8237072	维修套件	REPAIR KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 15自动混合装置 Auto-Blend

REF	零件编号	中文名称	英文名称	数量
-	130195	自动混合装置	AUTO BLEND ASSEMBLY	1
1	16612	油箱套件机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	16619	机油箱盖	CAP OIL TANK	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	16620	安装支架套件	BRACKET KIT Mounting	1
8	13993	箍带	BAND	1
9	13983	支架(左)	BRACKET (LEFT)	1
10	13984	支架(右)	BRACKET (RIGHT)	1
11	16626	盖板	COVER	1
12	16624	机油滤清器及液位传感器套件	SENSOR KIT Oil Filter And Level	1
13	16625	喇叭套件	HORN KIT	1
14	16618	机油滤网	STRAINER Oil	1
15	16615	止回阀套件	CHECK VALVE KIT	1
16	18576	燃油滤清器套件	FILTER KIT Fuel	1
17	13992	乙烯基软管	VINYL TUBE	1
18	16621	安装板	PLATE	1
19	16627	模块套件	MODULE KIT	1
20	16628	测试按钮套件	TEST BUTTON KIT	1
21	16629	电池盒套件(使用9伏电池)	CASE KIT Battery (USE 9 VOLT BATTERY)	1
22	16630	密封圈套件	GROMMET KIT	1
23	16631	支架套件	BRACKET KIT	1
24	16616	衬垫套件	GASKET KIT	1

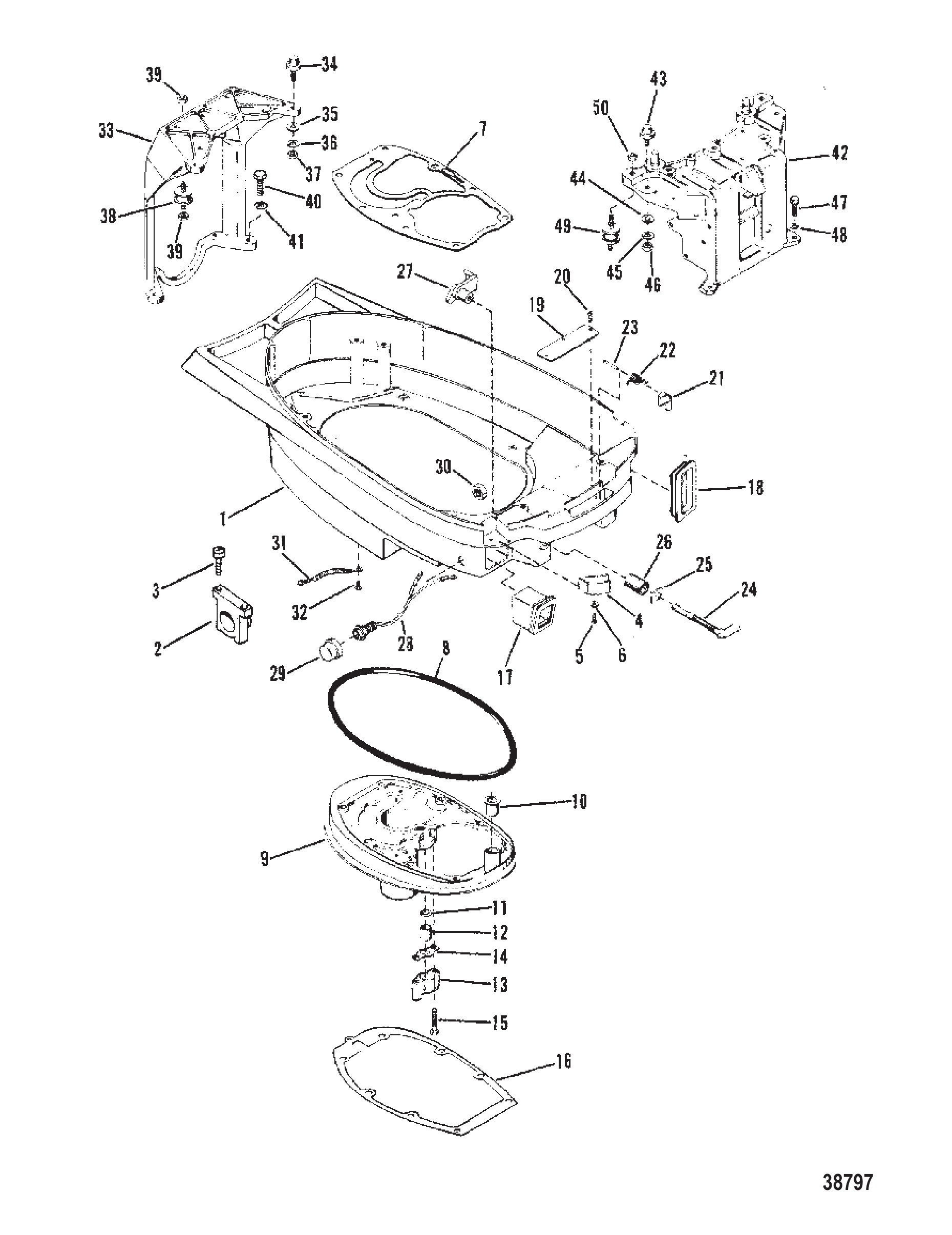

图 16底罩与排气板 BOTTOM COWL AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	7642A1	下罩总成	BOTTOM COWL ASSEMBLY	1
1	7642A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	57786	盖塞-下罩线束孔	COVER PLUG - BOTTOM COWL HARNESS HOLE	1
3	61802	盖塞螺钉至下罩 (7/8英寸)	SCREW PLUG COVER TO BOTTOM COWL (7/8")	2
4	88618	下机罩塞	PLUG BOTTOM COWL	1
5	48409	螺钉 (#10-16 x .625) 不锈钢塞至下罩	SCREW (#10-16 x .625) Stainless Steel PLUG TO BOTTOM COWL	1
6	56681	垫圈 (.203 x .500 x .032) 塞螺钉	WASHER (.203 x .500 x .032) PLUG SCREW	1
6	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
7	62860	衬垫-动力头至排气延伸板	GASKET POWERHEAD TO EXHAUST EXTENSION PLATE	1
7	628601	衬垫	GASKET	1
8	39622	橡胶密封-排气板至下罩	SEAL RUBBER - EXHAUST PLATE TO BOTTOM COWL	1
9	42818A1	排气延伸板总成	PLATE ASSEMBLY EXHAUST EXTENSION	1
10	71980	衬套法兰-排气板	BUSHING FLANGE EXHAUST PLATE	1
11	38453	尼龙垫圈-出水口管	WASHER NYLON - WATER OUTLET TUBE	1
12	38452	橡胶密封-出水口管	SEAL RUBBER - WATER OUTLET TUBE	1
13	79799	壳体-进水口管密封	HOUSING WATER INLET TUBE SEAL	1
14	79797	壳体衬垫	GASKET HOUSING	1
14	797971	衬垫	GASKET	1
15	79798	螺钉 (#10-32 x 1.380) 壳体至排气板	SCREW (#10-32 x 1.380) HOUSING TO EXHAUST PLATE	2
16	38501	排气板衬垫	GASKET EXHAUST PLATE	1
16	385011	衬垫	GASKET	1
17	37637	护套-燃油接头-下罩	BOOT FUEL CONNECTOR - BOTTOM COWL	1
18	39616	护套-控制线缆-下罩	BOOT CONTROL CABLE - BOTTOM COWL	1
19	39555	盖板	COVER PLATE	1
20	69014	螺钉 (#10-24 x .375) 盖板至下罩	SCREW (#10-24 x .375) COVER PLATE TO BOTTOM COWL	3
20	8M0113176	螺钉	SCREW	3
21	76176	前盖操纵杆	LEVER FRONT COVER	1
22	76177	前盖操纵杆弹簧	SPRING FRONT COVER LEVER	1
23	26541	滚销-操纵杆至下罩	PIN Roll LEVER TO BOTTOM COWL	1
24	47969	阻风门旋钮及轴	KNOB AND SHAFT CHOKE	1
25	30314	阻风门轴垫圈	WASHER CHOKE SHAFT	1
26	47968	压缩弹簧-阻风门轴	SPRING COMPRESSION - CHOKE SHAFT	1
27	55180	阻风门杠杆	LEVER CHOKE	1
28	69508A9	停机开关总成	SWITCH ASSEMBLY Stop	1
29	99525A1	停止开关盖总成	COVER ASSEMBLY STOP SWITCH	1
30	69844	停机开关螺母	NUT STOP SWITCH	1
31	88238A4	下罩线缆总成	CABLE ASSEMBLY BOTTOM COWL	2
31	88238T01	拉线总成	CABLE ASSEMBLY	2
32	69014	螺钉 (#10-24 x .375) 接地带	SCREW (#10-24 x .375) GROUND STRAP	2
32	8M0113176	螺钉	SCREW	2
33	76132	支架-上罩支撑 (后部)	BRACKET SUPPORT - TOP COWL (REAR)	1
34	60577	橡胶支座-后支撑架	MOUNT RUBBER - REAR SUPPORT BRACKET	2
35	21631	垫圈(.255 x .625 x .0312)橡胶支座	WASHER (.255 x .625 x .0312) RUBBER MOUNT	AR
35	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	AR
36	26992	不锈钢锁紧垫圈(.250)橡胶支座	LOCKWASHER (.250) Stainless Steel RUBBER MOUNT	2
37	36069	橡胶支座螺母	NUT RUBBER MOUNT	2
38	90435	橡胶支座-后支撑架	MOUNT RUBBER - REAR SUPPORT BRACKET	1
39	36069	橡胶支座螺母	NUT RUBBER MOUNT	2
40	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	4
41	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
41	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
42	95967	支架-上罩支撑 (前部)	BRACKET SUPPORT - TOP COWL (FRONT)	1
42	95967T	支架	BRACKET	1
43	31014	橡胶支座-前支撑架	MOUNT RUBBER - FRONT SUPPORT BRACKET	2
44	21631	垫圈(.255 x .625 x .0312)橡胶支座	WASHER (.255 x .625 x .0312) RUBBER MOUNT	AR
44	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	AR
45	26992	不锈钢锁紧垫圈(.250)橡胶支座	LOCKWASHER (.250) Stainless Steel RUBBER MOUNT	2
46	36069	橡胶支座螺母	NUT RUBBER MOUNT	2
47	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	2
48	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
48	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
49	90435	橡胶支座-前支撑架	MOUNT RUBBER - FRONT SUPPORT BRACKET	2
50	20184	螺母 (1/4-28X7/32) 橡胶支座	NUT (1/4-28X7/32) RUBBER MOUNT	4
50	8M0207775	螺母 @5	NUT @5	4
-	78028A78	衬垫套件	GASKET SET	1

图 17化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7226A19	化油器总成	CARBURETOR ASSEMBLY	1
2	8983	浮子总成	FLOAT ASSEMBLY	1
2	8673	浮子总成	FLOAT ASSEMBLY	1
3	NSS	浮子销(不单独销售)	NOT SOLD SEPARATE FLOAT PIN	2
4	NSS	浮子杆 (下部) (不单独销售)	NOT SOLD SEPARATE FLOAT LEVER (LOWER)	1
5	NSS	浮子杆 (上部) (不单独销售)	NOT SOLD SEPARATE FLOAT LEVER (UPPER)	1
6	8318	进油针阀	NEEDLE Inlet	1
6	83181	阀座套件	VALVE SEAT KIT	1
7	NSS	衬垫-进油针阀 (不单独销售)	NOT SOLD SEPARATE GASKET-INLET NEEDLE	1
8	NSS	衬垫-浮子室盖 (不单独销售)	NOT SOLD SEPARATE GASKET-FLOAT BOWL COVER	1
9	9016	浮子室盖	COVER FLOAT BOWL	1
10	5733	主量孔 (.092)	JET Main (.092)	1
11	5734	节油器软管	HOSE ECONOMIZER	1
11	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
12	52195	浮子室盖螺钉	SCREW FLOAT BOWL COVER	1
13	4804	浮子室盖螺钉	SCREW FLOAT BOWL COVER	1
14	26995	锁紧垫圈 (#8) 不锈钢浮子室盖螺钉	LOCKWASHER (#8) Stainless Steel FLOAT BOWL COVER SCREW	2
15	92880	节流阀杆	LEVER THROTTLE	1
16	60293	螺钉 (#5-40 x .500) 油门杆	SCREW (#5-40 x .500) THROTTLE LEVER	1
17	92500	推入式螺母-油门杆螺钉	PUSH NUT THROTTLE LEVER SCREW	1
18	8641	油门轴	SHAFT Throttle	1
19	NSS	怠速管 (不单独销售)	NOT SOLD SEPARATE IDLE TUBE	1
20	4540	本体螺钉 (怠速管)	SCREW BODY (IDLE TUBE)	1
21	9017	节气门片	SHUTTER Throttle	1
22	NSS	螺钉-节气门 (不单独销售)	NOT SOLD SEPARATE SCREW, THROTTLE SHUTTER	2
23	NSS	弹簧-怠速调节螺钉 (不单独销售)	NOT SOLD SEPARATE SPRING-IDLE ADJUSTMENT SCREW	1
24	NSS	螺钉-怠速调节 (不单独销售)	NOT SOLD SEPARATE SCREW-IDLE ADJUSTMENT	1
25	NSS	主喷嘴(不单独销售)	NOT SOLD SEPARATE MAIN NOZZLE	1
26	4542	螺塞-主喷管	SCREW PLUG - MAIN NOZZLE	1
27	3794	主量孔 (.074)	JET (.074) MAIN FUEL	OPT
27	6207	主量孔 (.072)	JET (.072) MAIN FUEL	1
27	6030	主量孔 (.070)	JET (.070) MAIN FUEL	OPT
28	4541	螺塞-主燃油量孔通道	SCREW PLUG - MAIN FUEL JET CHANNEL	1
29	NSS	衬垫-量孔通道螺塞螺钉 (不单独销售)	NOT SOLD SEPARATE GASKET-JET CHANNEL PLUG SCREW	1
30	NSS	弹簧-油门轴回位 (不单独销售)	NOT SOLD SEPARATE SPRING-THROTTLE SHAFT RETURN	1
31	4543	本体通道螺钉	SCREW BODY CHANNEL	1
32	52106A1	塑料喉管	VENTURI Plastic	1
33	NSS	不单独销售塞-本体通道	NOT SOLD SEPARATE PLUG-BODY CHANNEL	1
-	4808	衬垫套件	GASKET SET	1
-	879194024	衬垫套件	GASKET KIT	1
-	9018	维修零件包	REPAIR PARTS KIT	1
-	51091	化油器修理包	REPAIR KIT-CARB	1
34	48164	化油器法兰衬垫	GASKET CARBURETOR FLANGE	1
34	481641	衬垫	GASKET	1
35	64809		NUT CARBURETOR MOUNTING STUD	2
36	69016	阻风门枢轴柱（化油器）	STUD CHOKE SHUTTER PIVOT (CARBURETOR)	1
37	55179	化油器阻风门	SHUTTER Choke CARBURETOR	1
38	55163	阻风门张力弹簧	SPRING TENSION - CHOKE SHUTTER	1
39	47960	阻风门柱垫圈	WASHER CHOKE SHUTTER CARBURETOR STUD	1
40	20110	阻风门柱螺母（#10-32）	NUT (#10-32) CHOKE SHUTTER TO CARBURETOR STUD	1
41	57819	化油器滤网	SCREEN CARBURETOR	1
42	58185	滤网固定螺钉（#10-32 x 1.00）	SCREW (#10-32 x 1.00) SCREEN TO CARBUETOR	1
43	57818	滤网螺钉张力弹簧	SPRING TENSION - SCREEN SCREW	1
44	46101	滤网螺钉垫圈	WASHER SCREEN SCREW	1
44	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	1
45	20110	滤网螺钉螺母（#10-32）	NUT (#10-32) SCREEN SCREW	1

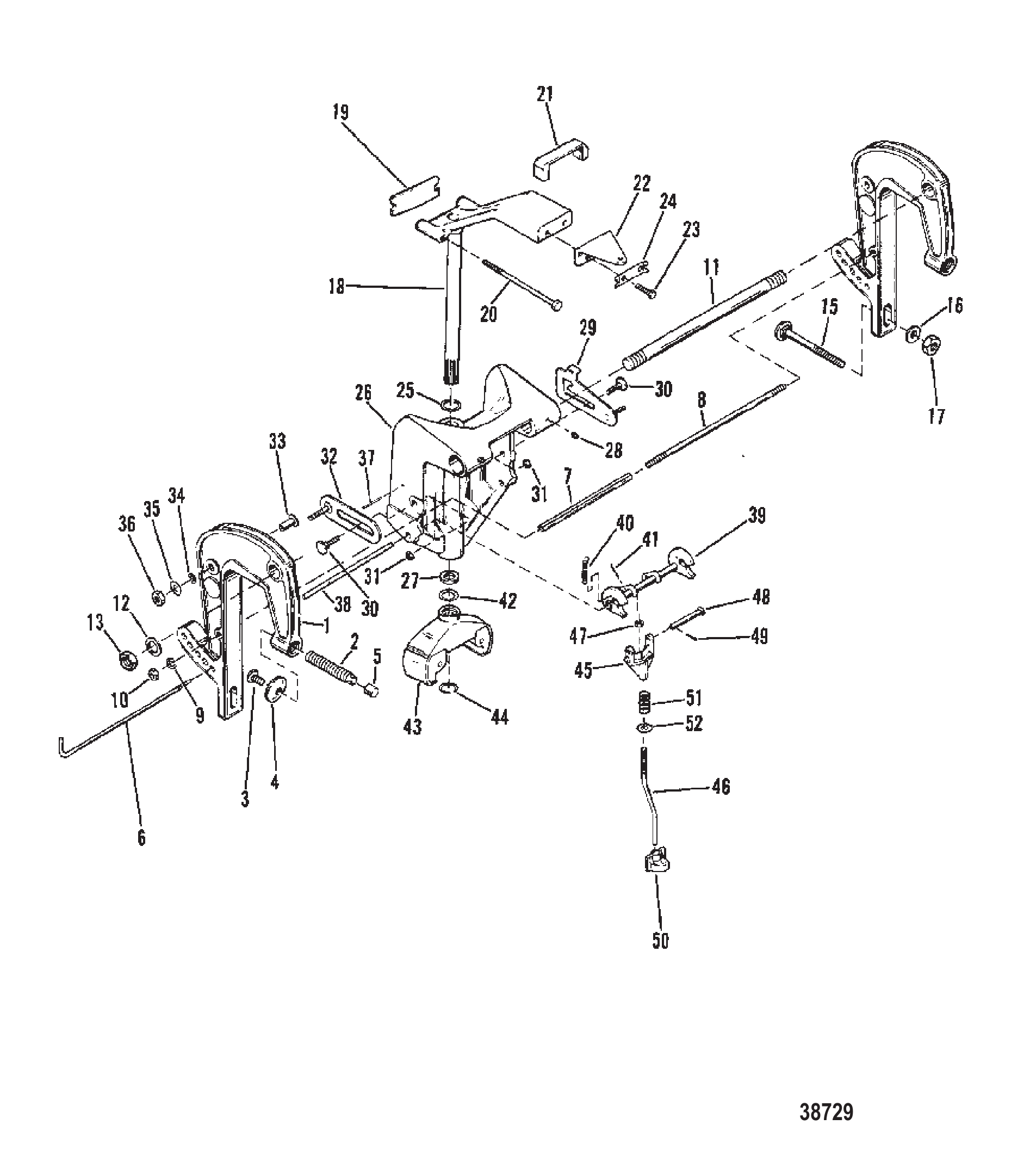

图 18夹紧/旋转支架(短轴)(长轴-0C159199及以下)(NPT) Clamp/Swivel Bracket (Short)(Long-0C159199 and Below(NPT)

REF	零件编号	中文名称	英文名称	数量
1	5611A5	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
1	5611A4	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
2	90470A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
2	78492A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
3	784951	垫片至拇指螺钉	SCREW WASHER TO THUMB SCREW	2
3	78495	螺钉（.312-24 x .680）	SCREW (.312-24 x .680)	2
4	78493	蝶形螺丝垫圈	WASHER THUMB SCREW	2
5	75043	盖帽	CAP	2
6	49930A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
6	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
7	59623	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
8	59625	夹紧支架螺柱	STUD CLAMP BRACKET	1
9	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
10	28770	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	2
11	74528	倾斜管	TILT TUBE	1
11	8M0041936	倾斜管	TILT TUBE	1
12	52864	垫圈	WASHER	6
13	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	2
13	858869	螺母 (.875-14)	NUT (.875-14)	2
15	68298	螺栓（.375-16 x 3.250）（下部）	BOLT (.375-16 x 3.250) (LOWER)	2
16	68410	垫圈（下部）	WASHER (LOWER)	2
16	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	2
17	99405	螺母	NUT	2
17	82671112	螺母（.375-16）	NUT (.375-16)	2
18	88798A19	转向臂总成	ARM ASSEMBLY Steering	1
18	88798A23	短型旋转销总成	SWIVEL PIN ASY SH	1
18	88798A20	转向臂总成	ARM ASSEMBLY Steering	1
18	88798A24	长型旋转销总成	SWIVEL PIN ASY LG	1
19	30711	缓冲垫	BUMPER	1
20	66897	螺栓（.437-20 x 5.250）	BOLT (.437-20 x 5.250)	2
21	62297	缓冲垫	BUMPER	1
22	76535	支架	BRACKET	1
22	76535T	支架	BRACKET	1
23	34352	螺钉（.375-24 x .875）	SCREW (.375-24 x .875)	2
24	76533	绑带	STRAP	1
25	52865	垫圈	WASHER	1
26	7656A1	旋转支架	SWIVEL BRACKET	1
26	7655A1	旋转支架	SWIVEL BRACKET	1
27	32911	油封	SEAL Oil	2
28	74036	润滑脂接头	FITTING Grease	3
28	8M0169589	润滑脂接头	FITTING Grease	3
29	47913A2	左舷操纵杆总成	LEVER ASSEMBLY (PORT)	1
30	69087	螺钉（.312-24 x .880）	SCREW (.312-24 x .880)	2
31	29250	螺母(.312-24)	NUT (.312-24)	2
32	47912A2	右舷操纵杆总成	LEVER ASSEMBLY (STARBOARD)	1
33	47911	衬套	BUSHING	2
34	3462	波形垫圈	WAVE WASHER	2
34	2605	大修套件	OVERHAUL KIT	2
35	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	2
36	29250	螺母(.312-24)	NUT (.312-24)	2
37	25598	销	PIN	1
38	56349	轴	SHAFT	1
39	14664A3	倒车锁	REVERESE LOCK	1
40	29821	弹簧	SPRING	1
41	45882	开口销	COTTER PIN	1
42	25176	垫圈（.060）	WASHER (.060)	1
43	77416T	下轭架	YOKE Bottom	1
43	77416T1	黑色下轭架	YOKE-BOTTOM-BLACK	1
44	77415	挡圈	RETAINING RING	1
45	89813	拉杆端头	ROD END	1
46	43412	推杆	ROD PUSH	1
46	43413	推杆	ROD PUSH	1
47	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
47	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
48	72524	销	PIN	1
49	25191	开口销	COTTER PIN	1
50	93336	导套	GUIDE	1
50	933361	换挡轴导套	GUIDE Shift Shaft	1
51	44297	弹簧	SPRING	1
52	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	1
52	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	1

图 19曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9073A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	78308A1	球轴承保持架总成	RETAINER ASSEMBLY BALL BEARING	1
3	63742	曲轴球轴承保持架	BEARING Ball RETAINER (CRANKSHAFT)	1
3	63742T	滚珠轴承	BEARING Ball	1
4	63634	球轴承挡圈	RING Retaining BALL BEARING	1
5	7238A2	主阀式轴承总成	BEARING ASSEMBLY Main VALVE TYPE	1
6	20032	主轴承定位销	PIN Dowel MAIN, BEARING	2
7	45775	主轴承夹紧螺钉（#12-28 x .560）	SCREW (#12-28 x .560) MAIN BEARING CLAMPING	2
8	45774	主轴承夹紧螺钉螺母	NUT MAIN BEARING CLAMPING SCREW	2
9	56007A1	主轴承簧片组（配对）	REED SET MAIN BEARING (MATCHED)	1
10	56008	主轴承簧片阀限位器	STOP Reed MAIN BEARING REED VALVES	4
11	20055	簧片限位器安装螺钉（#10-32 x .375）	SCREW (#10-32 x .375) REED STOP MOUNTING	12
12	8101A3	连杆总成	CONNECTING ROD ASSEMBLY	2
13	91012	连杆专用螺钉（.250-28）	SCREW (.250-28 Special) CONNECTING ROD	4
15	62596A1	曲柄销轴承总成	BEARING ASSEMBLY CRANKPIN	2
16	47270	活塞销轴承	BEARING PISTON PIN	58
16	8M0214934	滚针轴承@200	BRG-NEEDLE @200	58
17	47247	滚针轴承挡圈	WASHER NEEDLE BEARING RETAINING	4
17	8M0032839	垫片@5	WASHER @5	4
18	8899A3	活塞总成	PISTON ASSEMBLY	2
18	9137A12	标准活塞总成	PISTON ASSY-STD	2
18	8900A2	活塞总成	PISTON ASSEMBLY	AR
18	9137A13	活塞总成-.015	PISTON ASSY-.015	AR
18	8901A2	活塞总成	PISTON ASSEMBLY	AR
18	9137A14	活塞总成-.030	PISTON ASSY-.030	AR
19	78816A12	环	RING	1
19	78811A12	活塞环组-.015加大	RING SET Piston - .015 Oversize	AR
19	88392A12	活塞环组-.030加大	RING SET Piston - .030 Oversize	AR
20	52035	活塞销锁环	RING Lock PISTON PIN	4
20	857196	锁紧环	LOCK RING	4
21	45554	曲轴键	KEY CRANKSHAFT	1

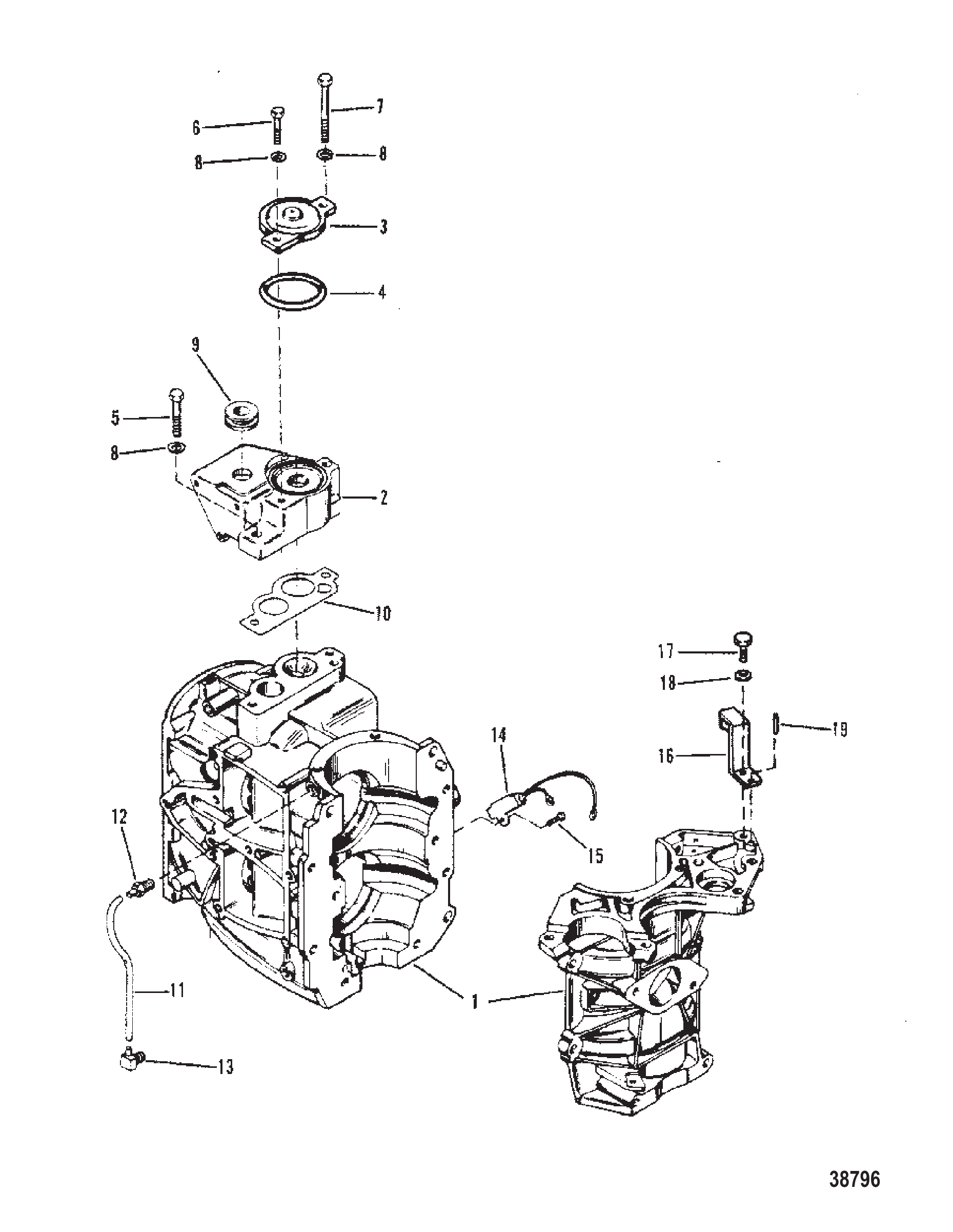

图 20气缸体与节温器 CYLINDER BLOCK AND THERMOSTAT

REF	零件编号	中文名称	英文名称	数量
1	7940A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	7940A6	气缸体/曲轴箱	CYLINDER BLOCK/CRANKCASE	1
2	66843	线圈安装支架	BRACKET COIL MOUNTING	1
2	66843T	支架	BRACKET	1
3	99436A1	线圈支架盖总成	COVER ASSEMBLY COIL BRACKET	1
4	64067	盖O型圈	O-RING COVER	1
4	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
5	31984	线圈支架至缸体螺钉（.312-18 x 1.375）	SCREW (.312-18 x 1.375) COIL MOUNTING BRACKET TO BLOCK	1
6	69034	盖螺钉及锁紧垫圈（.312-18 x 1.00）	SCREW AND LOCKWASHER (.312-18 x 1.00) COVER	1
6	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	1
7	58414	盖及线圈支架至缸体螺钉（2-1/2英寸）	SCREW COVER AND COIL BRACKET TO BLOCK (2-1/2")	1
8	26993	线圈支架螺钉锁紧垫圈（.312）	LOCKWASHER (.312) COIL MOUNTING BRACKET SCREW	3
8	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
9	39597	线圈支架衬套	GROMMET COIL MOUNTING BRACKET	1
10	66847	线圈支架至缸体衬垫	GASKET COIL MOUNTING BRACKET TO BLOCK	1
11	9938779	气缸泄放软管（8英寸）	HOSE CYLINDER BLEED (8")	1
12	42866	气缸泄放单向阀（顶部）	CHECK VALVE CYLINDER BLEED (TOP)	1
13	42863	气缸泄放单向阀（底部）	CHECK VALVE CYLINDER BLEED (BOTTOM)	1
14	58124A24	开关总成	SWITCH ASSEMBLY	1
14	58124A27	开关	SWITCH	1
14	58124A27	开关	SWITCH	1
15	62568	汞开关至排气罩螺钉（#10-16 x .375）	SCREW (#10-16 x .375) MERCURY SWITCH TO EXHAUST COVER	1
16	76184	正时指示器	INDICATOR TIMING	1
17	25299	指示器固定螺钉（.312-18 x .75）	SCREW (.312-18 x .75) INDICATOR ATTACHING	1
18	20084	指示器固定螺钉垫圈（.328 x .562 x .062）	WASHER (.328 x .562 x .062) INDICATOR ATTACHING SCREW	1
19	29908	定位指示销	PIN INDICATOR LOCATING	1
-	78028A78	衬垫套件	GASKET SET	1

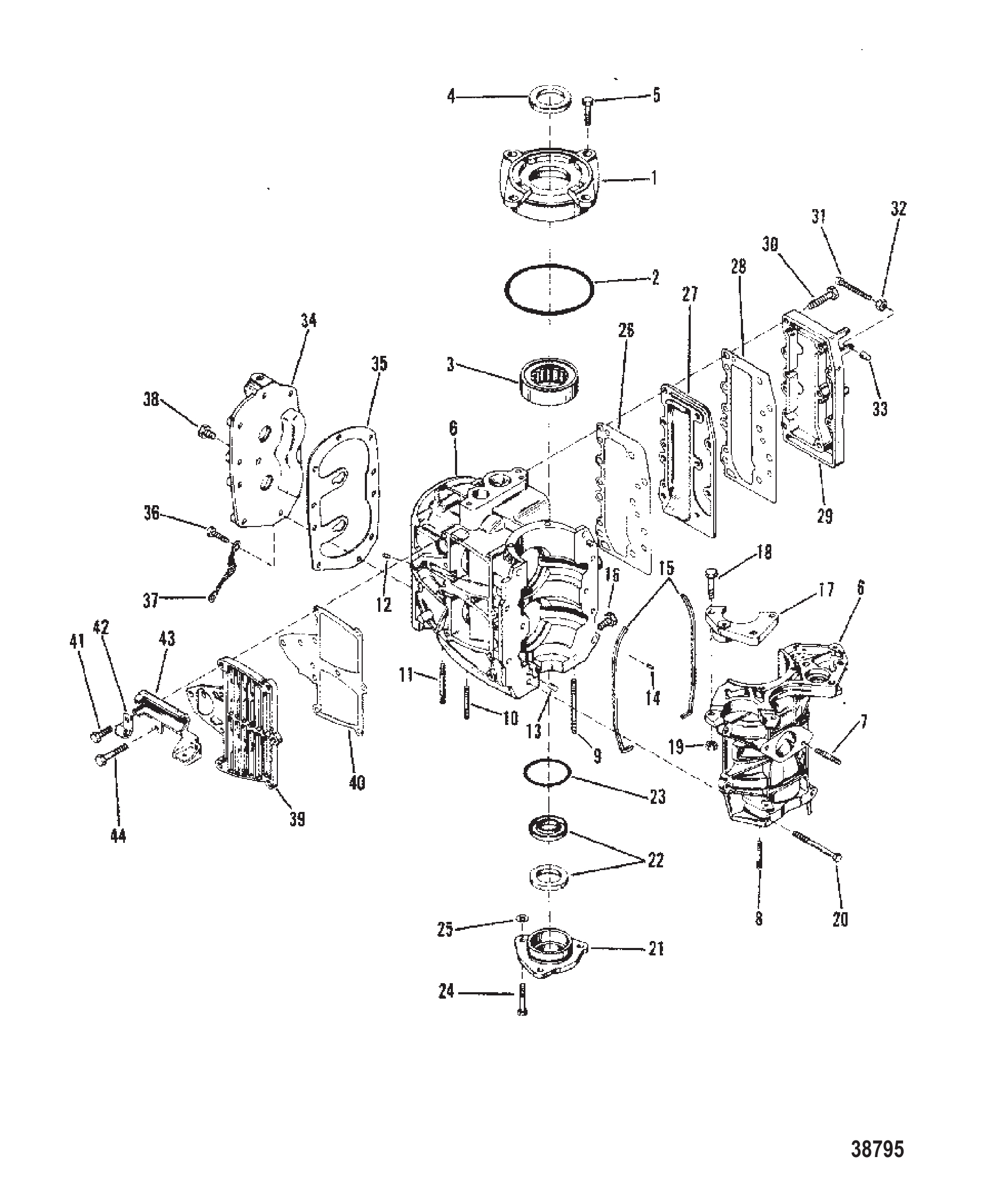

图 21气缸体曲轴箱及盖 CYLINDER BLOCK CRANKCASE AND COVERS

REF	零件编号	中文名称	英文名称	数量
1	8277A1	上端盖总成	END CAP ASSEMBLY Upper	1
2	47254	上端盖O型圈	O-RING UPPER END CAP	1
3	62066	上端盖滚柱轴承	BEARING Roller UPPER END CAP	1
3	62066T	轴承	BEARING	1
4	41953	上端盖油封	SEAL UPPER END CAP	1
5	69034	上端盖安装螺丝及锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00) UPPR END CAP MOUNTING	4
5	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
6	7940A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
6	7940A6	气缸体/曲轴箱	CYLINDER BLOCK/CRANKCASE	1
7	68164	化油器安装双头螺栓(1-1/4")	STUD CARBURETOR MOUNTING (1-1/4")	2
7	64936	螺柱	STUD	2
8	68165	曲轴箱至传动轴壳体双头螺栓(1-5/8")	STUD CRANKCASE TO DRIVESHAFT HOUSING (1-5/8")	2
9	87901	气缸体至传动轴壳体双头螺栓(4-3/8")	STUD CYLINDER BLOCK TO DRIVESHAFT HOUSING (4-3/8")	2
10	68166	气缸体至传动轴壳体双头螺栓(.312 x 2.125)	STUD (.312 x 2.125) CYLINDER BLOCK TO DRIVESHAFT HOUSING	2
11	68167	气缸体至传动轴壳体双头螺栓(.312-18/.312-24 x 2.560)	STUD (.312-18/.312-24 x 2.560) CYLINDER BLOCK TO DRIVESHAFT HOUSING	2
12	66517	气缸体节流孔(泄放)	RESTRICTOR CYLINDER BLOCK (BLEED)	1
13	23784	定位销曲轴箱至气缸体	PIN Dowel CRANKCASE TO CYLINDER BLOCK	2
14	20323	气缸体至主轴承定位销	PIN Dowel CYLINDER BLOCK TO MAIN BEARING	1
15	55158	气缸体密封垫	GASKET SEALING - CYLINDER BLOCK	2
16	32802	气缸体管塞(.125-27)	PLUG Pipe (.125-27) CYLINDER BLOCK	1
16	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
17	62064	启动电机支架	BRACKET STARTER MOTOR	1
18	21339	启动电机支架至缸体螺丝(.312-24 x 1.375)	SCREW (.312-24 x 1.375) STARTER MOTOR BRACKET TO BLOCK	2
19	29250	启动电机支架螺丝螺母(.312-24)	NUT (.312-24) STARTER MOTOR BRACKET SCREW	2
20	73657	曲轴箱至气缸体螺丝(.312-18 x 1.50)	SCREW (.312-18 x 1.50) CRANKCASE TO CYLINDER BLOCK	7
20	63328	曲轴箱至气缸体螺丝(.312-18 x 3.00)	SCREW (.312-18 x 3.00) CRANKCASE TO CYLINDER BLOCK	2
20	74824	曲轴箱至气缸体螺丝(.312-18 x 1.250)	SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK	1
21	7267A1	下端盖总成	END CAP ASSEMBLY Lower	1
22	41953	下端盖油封	SEAL LOWER END CAP	2
23	64067	下端盖O型圈	O-RING LOWER END CAP	1
23	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
24	63365	端盖至气缸体螺丝(1-1/2")	SCREW END CAP TO CYLINDER BLOCK (1-1/2")	3
25	64068	下端盖螺丝O型圈	O-RING LOWER END CAP SCREW	3
26	854891	气缸体至挡板衬垫	GASKET CYLINDER BLOCK TO BAFFLE PLATE	1
26	854892	衬垫	GASKET	1
27	55190	排气歧管分隔板	PLATE DIVIDER - EXHAUST MANIFOLD	1
28	854881	挡板至排气盖垫片	GASKET BAFFLE PLATE TO EXHAUST COVER	1
28	854882	衬垫	GASKET	1
29	55157	排气歧管盖	COVER EXHAUST MANIFOLD	1
29	551572	盖板	COVER	1
30	69092	歧管盖至气缸体螺丝(1.25)	SCREW (1.25) MANIFOLD COVER TO CYLINDER BLOCK	1
30	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
30	69099	歧管盖至气缸体螺丝(1-3/8")	SCREW MANIFOLD COVER TO CYLINDER BLOCK (1-3/8")	7
30	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	7
31	64021	排气盖调节螺丝(1-7/8")	SCREW ADJUSTING - EXHAUST COVER (1-7/8")	2
32	64015	调节螺丝螺母(.250-20)	NUT (.250-20) ADJUSTING SCREW	2
33	26852	尼龙调节螺丝帽	CAP Nylon ADJUSTING SCREW	2
34	9110	气缸体盖	COVER CYLINDER BLOCK	1
34	91101	盖板	COVER	1
35	854901	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
36	76213	气缸体盖安装螺丝(.250-20 x 1.120)	SCREW (.250-20 x 1.120) CYLINDER BLOCK COVER MOUNTING	10
37	46933A3	动力头至下罩接地带总成	STRAP ASEMBLY Ground POWERHEAD TO BOTTOM COWL	2
38	32802	气缸体盖管塞(.125-27)	PLUG Pipe (.125-27) CYLINDER BLOCK COVER	1
38	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
39	43065	换气口盖	COVER TRANSFER PORT	1
39	430651	盖板	COVER	1
40	55279	换气口盖垫片	GASKET TRANSFER PORT COVER	1
40	552791	衬垫	GASKET	1
41	69100	换气口盖安装螺丝(1")	SCREW TRANSFER PORT COVER MOUNTING (1")	4
41	8M0214943	螺钉	SCREW	4
42	47483	线圈线束J型夹	J CLIP COIL HARNESS	1
43	92059	燃油滤清器及线束支架	BRACKET FUEL FILTER AND HARNESS	1
44	76213	支架安装螺丝(.250-20 x 1.120)	SCREW (.250-20 x 1.120) BRACKET MOUNTING	2
-	78028A78	衬垫套件	GASKET SET	1
-	61779A84	动力头总成	POWERHEAD ASSEMBLY	1
-	61779A87	动力头总成	POWERHEAD ASSEMBLY	1

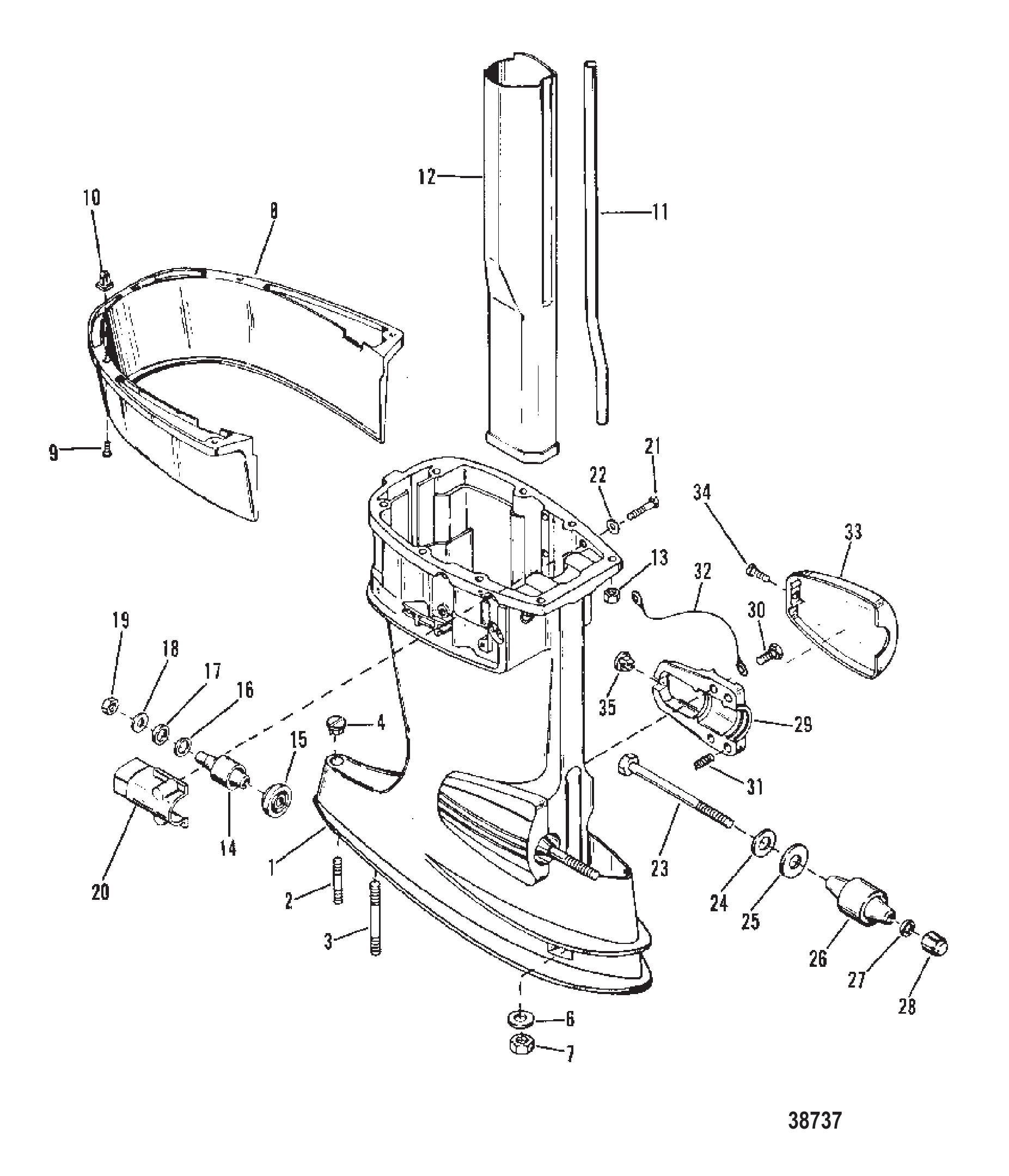

图 22驱动轴壳体(长轴)(0C159200及以上) DRIVESHAFT HOUSING (LONG SHAFT)(0C159200 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	8189A12	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	57932	传动轴壳体双头螺栓(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750) DRIVESHAFT HOUSING	1
2	8M0022145	螺柱(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750)	1
3	57935	传动轴壳体双头螺栓(3")	STUD DRIVESHAFT HOUSING (3")	1
4	64649	吸水孔塑料塞	PLUG PLASTIC- WATER PICK-UP HOLE	1
6	65791	齿轮箱壳体双头螺栓垫圈	WASHER GEAR HOUSING STUDS	2
7	34933	齿轮箱壳体双头螺栓不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUDS	2
7	8M0204653	螺母	NUT	2
8	60769	传动轴壳体微调盖	COVER TRIM-DRIVESHAFT HOUSING	1
9	57807	微调盖至传动轴壳体不锈钢螺丝(#10-16 x .750)	SCREW (#10-16 x .750) Stainless Steel TRIM COVER TO DRIVE SHAFT HOUSING	4
10	92012	装饰盖螺钉衬套	GROMMET TRIM COVER SCREW	4
10	8M0079730	密封圈套件	GROMMET KIT	4
11	45679	出水管道	TUBE WATER OUTLET	1
12	695441	排气管	TUBE EXHAUST	1
13	64809	动力头双头螺栓螺母	NUT POWERHEAD STUDS	8
14	93904	上橡胶支座	MOUNT RUBBER-UPPER	2
14	923373	支架	MOUNT	2
15	96401	上支座波纹管密封	SEAL BELLOWS-UPPER MOUNT	2
16	27727	上支座螺栓垫圈(内径37-64)	WASHER UPPER MOUNT BOLT (37-64 I.D.)	2
17	66966	上支座螺栓橡胶垫圈	WASHER RUBBER-UPPER MOUNT BOLT	2
18	30514	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
19	34933	上支座螺栓不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel UPPER MONT BOLT	2
19	8M0204653	螺母	NUT	2
20	87883T	上支座盖	COVER UPPER MOUNT	2
20	87883	盖板	COVER	2
21	75284	上支座盖螺丝(.500-20 x 5.500)	SCREW (.500-20 x 5.500) UPPER MOUNT COVER	4
22	29245	上支座盖螺丝不锈钢垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT COVER SCREW	4
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
23	75284	下支座螺丝(.500-20 x 5.500)	SCREW (.500-20 x 5.500) LOWER MOUNT SCREW	2
24	28051	下支座螺丝垫圈	WASHER LOWER MOUNT SCREW	2
25	28053	橡胶垫圈	WASHER RUBBER	2
26	75302	下橡胶支座	MOUNT RUBBER-LOWER	2
26	75302T1	支架	MOUNT	2
27	30119	垫圈（外径0.875英寸）下安装螺丝	WASHER (.875 Inch Outside Diameter) LOWER MOUNT SCREW	2
28	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
29	69592T	下安装夹至驱动轴壳体	CLAMP LOWER MOUNT TO DRIVESHAFT HOUSING	2
29	69592F1	卡箍	CLAMP	2
30	29256	螺丝（0.312-18 x 0.875）下安装夹	SCREW (.312-18 x .875) LOWER MOUNT CLAMP	4
31	35522	弹簧张力-下安装夹	SPRING TENSION -LOWER MOUNT CLAMP	4
32	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
32	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
33	35474T	下安装夹盖	COVER LOWER MOUNT CLAMP	2
34	87884	螺丝（#12-14 x 0.920）盖至下夹	SCREW (#12-14 x .920) COVER TO LOWER CLAMP	2
35	35521	下安装夹盖螺母	NUT LOWER MOUNT CLAMP COVER	2

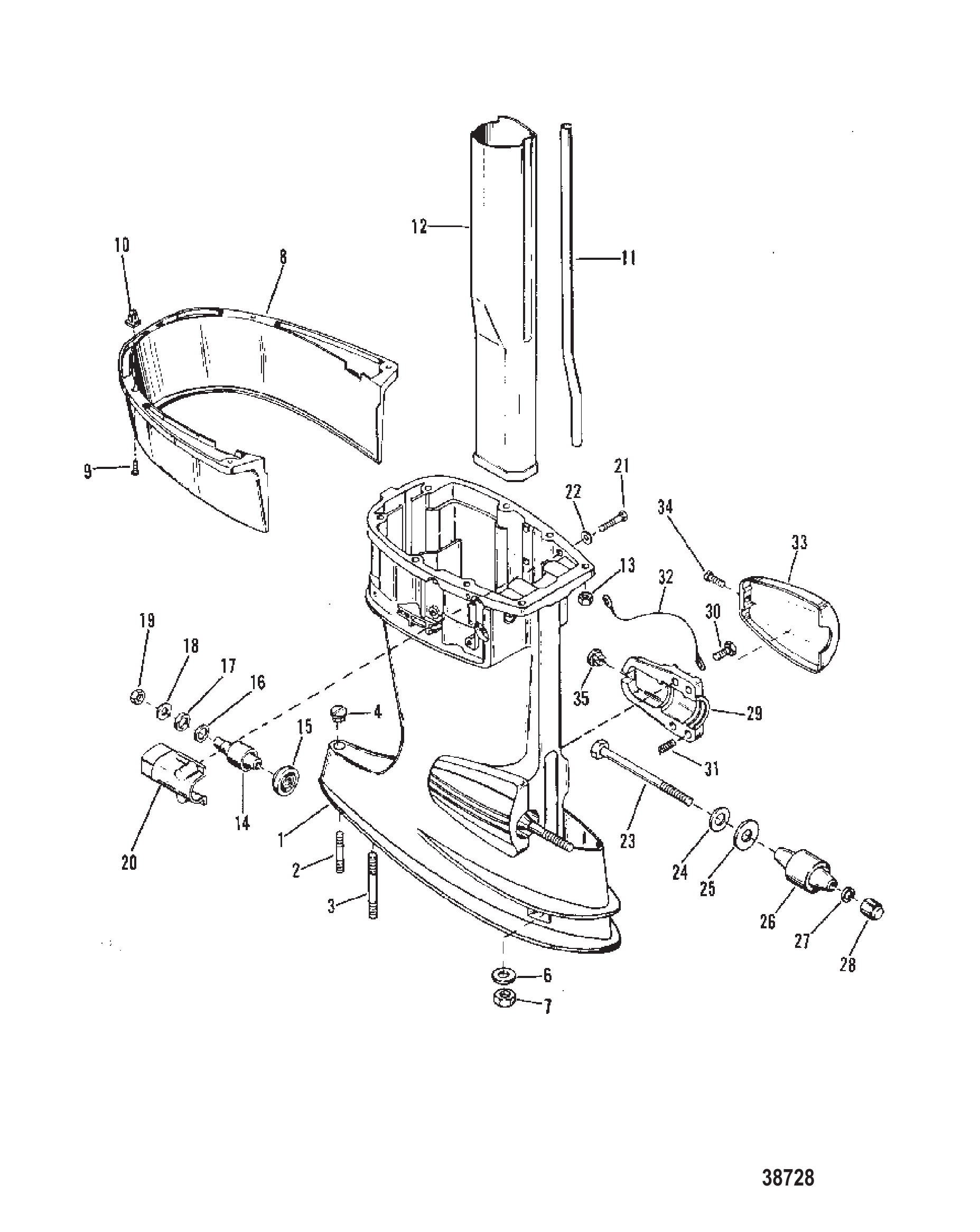

图 23驱动轴壳体(短轴)(长轴-0C159199及以下) Driveshaft Housing (Short)(Long-0C159199 and Below)

REF	零件编号	中文名称	英文名称	数量
1	7512A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8188A8	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	7513A12	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8189A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	57932	传动轴壳体双头螺栓(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750) DRIVESHAFT HOUSING	1
2	8M0022145	螺柱(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750)	1
3	57935	传动轴壳体双头螺栓(3")	STUD DRIVESHAFT HOUSING (3")	1
4	64649	塑料塞-吸水孔	PLUG PLASTIC - WATER PICK-UP HOLE	1
6	65791	齿轮箱壳体双头螺栓垫圈	WASHER GEAR HOUSING STUDS	2
7	34933	齿轮箱壳体双头螺栓不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUDS	2
7	8M0204653	螺母	NUT	2
8	60769	装饰盖-驱动轴壳体	COVER TRIM - DRIVESHAFT HOUSING	1
9	57807	螺丝（#10-16 x 0.750）不锈钢装饰盖至驱动轴壳体	SCREW (#10-16 x .750) Stainless Steel TRIM COVER TO DRIVESHAFT HOUSING	4
10	92012	装饰盖螺钉衬套	GROMMET TRIM COVER SCREW	4
10	8M0079730	密封圈套件	GROMMET KIT	4
11	37727	出水管道	TUBE WATER OUTLET	1
11	45679	出水管道	TUBE WATER OUTLET	1
12	695431	排气管	TUBE EXHAUST	1
12	695441	排气管	TUBE EXHAUST	1
13	64809	动力头双头螺栓螺母	NUT POWERHEAD STUDS	8
14	93904	橡胶安装座-上部	MOUNT RUBBER - UPPER	2
14	923373	支架	MOUNT	2
15	96401	波纹管密封-上部安装座	SEAL BELLOWS - UPPER MOUNT	2
16	27727	垫圈上部安装螺栓（内径37/64）	WASHER UPPER MOUNT BOLT (37/64 I.D.)	2
17	66966	橡胶垫圈-上部安装螺栓	WASHER RUBBER - UPPER MOUNT BOLT	2
18	30514	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
19	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
19	8M0204653	螺母	NUT	2
20	87883T	上支座盖	COVER UPPER MOUNT	2
20	87883	盖板	COVER	2
21	76630	螺丝（0.250-20 x 1.00）上部安装盖	SCREW (.250-20 x 1.00) UPPER MOUNT COVER	4
21	8M0214943	螺钉	SCREW	4
22	29245	上支座盖螺丝不锈钢垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT COVER SCREW	4
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
23	75284	螺钉 (0.500-20 x 5.500)	SCREW (.500-20 x 5.500)	2
23	43426	螺丝（5-3/4英寸）	SCREW (5-3/4")	2
24	28051	下支座螺丝垫圈	WASHER LOWER MOUNT SCREW	2
25	28053	橡胶垫圈	WASHER RUBBER	2
26	75302	下橡胶支座	MOUNT RUBBER-LOWER	2
26	75302T1	支架	MOUNT	2
27	30119	垫圈（外径0.875英寸）下安装螺丝	WASHER (.875 Inch Outside Diameter) LOWER MOUNT SCREW	2
28	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
29	69592T	夹子下部至驱动轴壳体	CLAMP LOWER TO DRIVE SHAFT HOUSING	2
29	69592F1	卡箍	CLAMP	2
30	29256	螺丝（0.312-18 x 0.875）下安装夹	SCREW (.312-18 x .875) LOWER MOUNT CLAMP	4
31	35522	弹簧张力-下安装夹	SPRING TENSION - LOWER MOUNT CLAMP	4
32	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
32	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
33	35474T	下安装夹盖	COVER LOWER MOUNT CLAMP	2
34	87884	螺丝（#12-14 x 0.920）盖至下夹	SCREW (#12-14 x .920) COVER TO LOWER CLAMP	2
35	35521	下安装夹盖螺母	NUT LOWER MOUNT CLAMP COVER	2

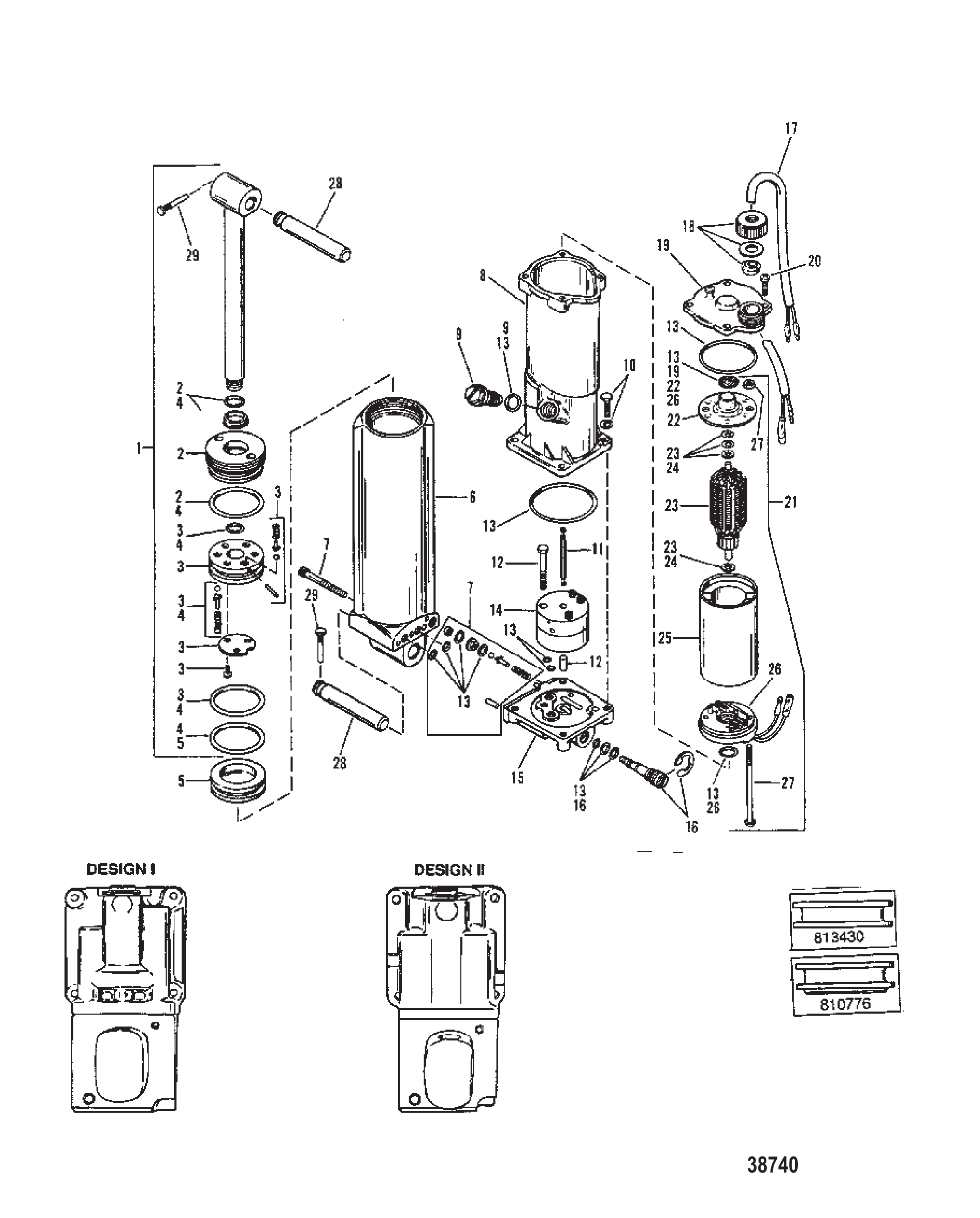

图 24电动升降组件(长轴)(0C159200及以上) ELECTRIC TRIM COMPONENTS (LONG SHAFT)(0C159200 AND UP)

REF	零件编号	中文名称	英文名称	数量
-	19217A1	泵总成装饰（包含所有列出的零件）	PUMP ASSEMBLY Trim (Included all parts listed)	1
-	19217A5	泵总成装饰（包含所有列出的零件）	PUMP ASSEMBLY Trim (Included all parts listed)	1
-	854472A3	动力调整套件	POWER TRIM KIT	1
1	813427	减震杆总成套件	SHOCK ROD ASSEMBLY KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A1	气缸修理包	CYLINDER REBUILD KIT	1
5	813430	活塞套件装饰记忆	PISTON KIT Trim Memory	1
5	893903A01	活塞套件	PISTON KIT	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	810777	气缸套件	CYLINDER KIT	1
6	811228	气缸套件	CYLINDER KIT	1
6	893904T01	气缸总成	CYLINDER ASSEMBLY	1
7	813433A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
7	811226A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	813440	泵	PUMP	1
8	811227	泵	PUMP	1
8	811227	泵	PUMP	1
9	813441	歧管总成	MANIFOLD ASSEMBLY	1
9	811225	歧管总成	MANIFOLD ASSEMBLY	1
10	813436	螺钉套件	SCREW KIT	1
11	813437	驱动轴	DRIVESHAFT	1
12	813438	螺丝和销钉套件	SCREW AND PIN KIT	1
13	813439A1	密封套件	SEAL KIT	1
13	813439A3	O型圈套件	O RING KIT	1
14	813434A1	储液罐	RESERVOIR	1
15	813435	塞套件	PLUG KIT	1
15	8134351	堵头	PLUG	1
16	813442A1	安全阀套件	RELIEF VALVE KIT	1
16	893929A01	安全阀套件	VALVE KIT Relief	1
17	813443	线束总成	HARNESS ASSEMBLY	1
17	811698	线束总成	HARNESS ASSEMBLY	1
18	813444	边框套件	BEZEL KIT	1
18	811698	线束总成	HARNESS ASSEMBLY	1
19	813445	储液罐盖套件	CAP KIT Reservoir	1
20	813446	螺丝帽	SCREW CAP	1
21	813447	电机套件	MOTOR KIT	1
22	813448	端盖	END CAP	1
23	813449A1	电枢	ARMATURE	1
24	813450	止推垫片套件	THRUST WASHER KIT	1
25	813451	外壳和磁铁套件	SHELL AND MAGNET KIT	1
26	813452	端架套件	END FRAME KIT	1
27	813453	螺栓螺母套件	BOLT AND NUT KIT	1
28	19607	销	PIN	2
29	19603	槽销	PIN Groove	2
29	821539	三叶销	PIN Trilobe	2

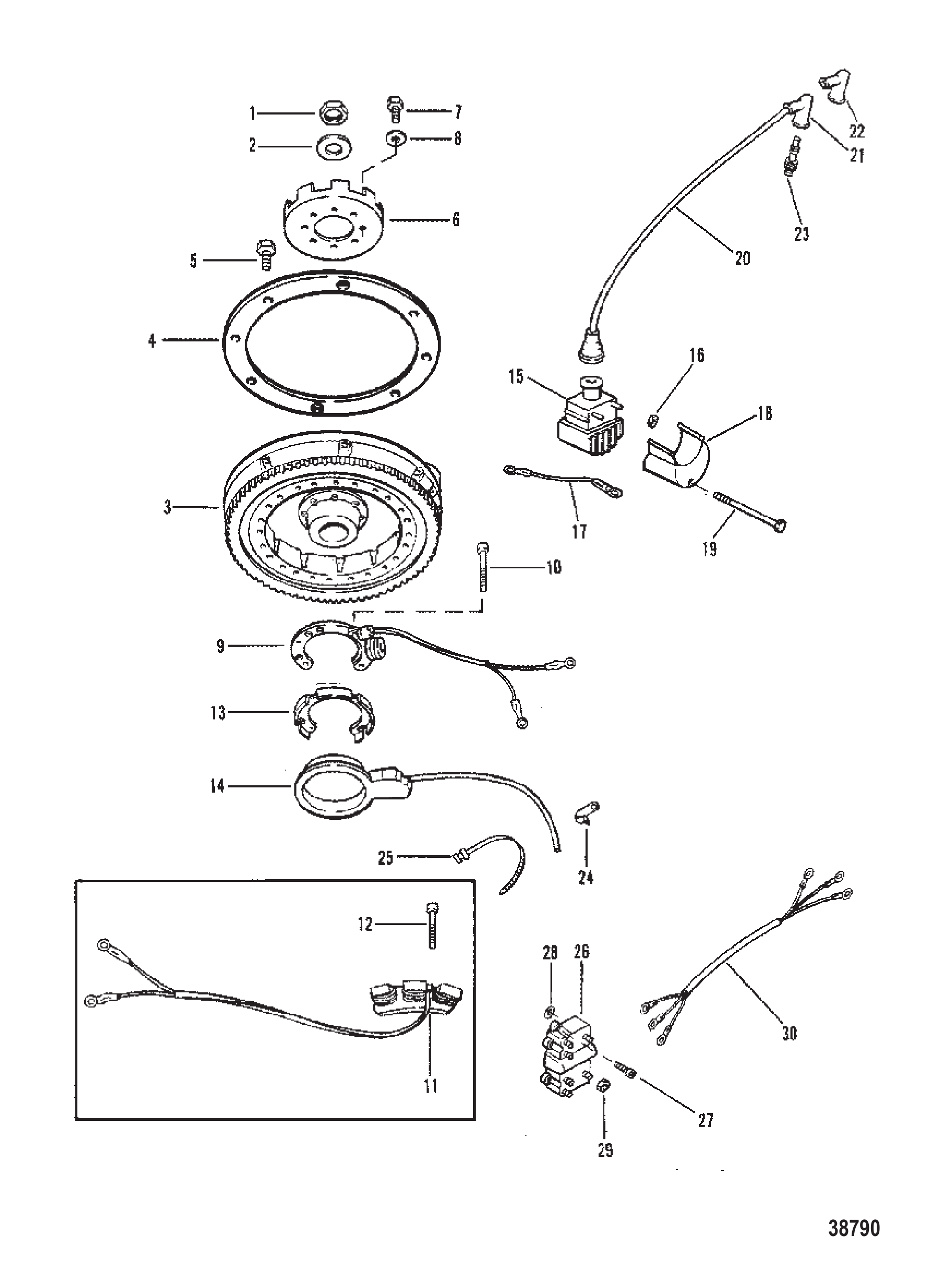

图 25飞轮、点火线圈和开关盒 FLYWHEEL, IGNITION COIL AND SWITCH BOX

REF	零件编号	中文名称	英文名称	数量
1	22339	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
1	8M0214915	螺母	NUT	1
2	68229	垫圈（0.641 x 1.250 x 0.190）飞轮螺母	WASHER (.641 x 1.250 x .190) FLYWHEEL NUT	1
2	33001	垫圈	WASHER	1
3	7912A14	飞轮总成	FLYWHEEL ASSEMBLY	1
3	7912A12	飞轮总成77齿	FLYWHEEL ASSEMBLY 77 TEETH	1
4	41409A1	惯性环总成	INERTIA RING ASSEMBLY	1
5	32417	螺丝（0.250-28 x 0.625）飞轮	SCREW (.250-28 x .625) FLYWHEEL	8
6	65213	棘轮飞轮	RATCHET FLYWHEEL	1
7	68997	螺钉(.312-24 x .750)	SCREW (.312-24 x .750)	8
8	20202	锁紧垫圈	LOCKWASHER	2
9	86617A11	定子	STATOR	1
9	86617A20	定子总成	STATOR ASSEMBLY	1
9	86617A13	定子总成	STATOR ASSEMBLY	1
9	86617A20	定子总成	STATOR ASSEMBLY	1
10	77363	螺钉(#10-24 x 1.50)	SCREW (#10-24 x 1.50)	2
10	76566	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	2
10	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	2
11	86704A2	定子总成充电	STATOR ASSEMBLY CHARGING	1
11	86704A10	辅助定子	STATOR Auxiliary	1
12	93787	螺丝（#10-24 x 1.750）	SCREW (#10-24 x 1.750)	3
13	95707	定子支架	SUPPORT Stator	1
14	92431A1	触发板	TRIGGER PLATE	1
14	92431A6	触发板	TRIGGER PLATE	1
14	92431A6	触发板	TRIGGER PLATE	1
15	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	2
15	8M0230859	点火线圈总成	COIL IGNITION ASY	2
16	45076	螺母 (#10-32) 黄铜线圈端子	NUT (#10-32) Brass COIL TERMINAL	4
17	60466A8	电缆总成黑色线圈盖螺丝	CABLE ASSEMBLY Black COIL COVER SCREW	2
18	76254	点火线圈盖	COVER IGNITION COIL	2
19	69002	螺丝（#10-24 x 1.750）盖至线圈支架	SCREW (#10-24 x 1.750) COVER TO COIL BRACKET	2
19	93460	螺丝（0.190-24 x 2.125）盖至线圈支架	SCREW (.190-24 x 2.125) COVER TO COIL BRACKET	4
20	99215A25	火花塞引线总成（高压）	LEAD ASSEMBLY SPARK PLUG (HIGH TENSION)	2
20	813715A1	引线	LEAD WIRE	2
21	63709A1	护套/端子套件	BOOT/TERMINAL KIT	2
22	99213	火花塞护套	SHEEL SPARK PLUG BOOT	4
23	97180	火花塞（NGH#BUHW）	SPARK PLUG (NGH#BUHW)	2
23	896329827	SP #L76V @4	SP #L76V @4	2
23	68098	火花塞	SPARK PLUG	2
23	14103550	火花塞 (NGK-BUZHW)	SPARK PLUG (NGK-BUZHW)	2
24	54457	J型夹引线	J CLIP LEAD WIRES	1
25	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	2
26	7452A3	开关盒总成	SWITCHBOX ASSEMBLY	1
26	899883230	开关盒总成	SWITCH BOX ASSY	1
26	7452A8	开关盒总成	SWITCHBOX ASSEMBLY	1
26	7452A21	开关盒	SWITCHBOX	1
27	73484	螺丝开关盒至支架	SCREW SWITCH BOX TO BRACKET	3
27	23015	螺丝(.190-32 x 1.00)	SCREW (.190-32 x 1.00)	3
28	69432	外锁紧垫圈（#10）接地	LOCKWASHER External (#10) GROUND	1
29	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	6
30	94295A1	初级线束总成	HARNESS ASSEMBLY PRIMARY	1

图 26燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	43113M	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	43113T	燃油泵	FUEL PUMP	1
1	94799M	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	43113T	燃油泵	FUEL PUMP	1
2	80606M	隔膜	DIAPHRAGM	1
3	80611M	板簧导板	PLATE SPRING GUIDE	1
4	80610M	弹簧	SPRING	1
5	80613M	机体至底座衬垫	GASKET BODY TO BASE	1
5	80613	衬垫	GASKET	1
6	41888M	止回阀	CHECK VALVE	2
6	94800M	止回阀	CHECK VALVE	2
6	41888M	止回阀	CHECK VALVE	2
6	84650M	止回阀	CHECK VALVE	1
7	43095M	机体至盖板衬垫	GASKET BODY TO COVER	1
7	80614M	机体至盖板衬垫	GASKET BODY TO COVER	1
7	80614	衬垫	GASKET	1
8	84141M	隔膜	DIAPHRAGM	1
9	43096M	盖板	COVER	1
9	80607M	盖板	COVER	1
9	80607M	盖板	COVER	1
10	82522M	螺钉	SCREW	3
11	82208M	锁紧垫圈	WASHER LOCK	3
11	82186M	垫圈	WASHER	3
12	41889M	螺钉 (M3 x 5)	SCREW (M3 x 5)	2
12	94801M	螺钉	SCREW	2
12	813484M	螺钉	SCREW	2
13	82537M	螺母	NUT	2
14	80757M	燃油泵至曲轴箱衬垫	GASKET FUEL PUMP TO CRANKCASE	1
14	80757	衬垫	GASKET	1
15	82428M	螺栓	BOLT	2
15	827043M	螺栓	BOLT	2
16	82199M	锁紧垫圈	WASHER LOCK	2
16	82214M	垫圈	WASHER	2
-	92575M	动力头衬垫套件	GASKET SET POWERHEAD	1

图 27齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	8669A13	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A14	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
-	8669A15	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A16	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	8669T16	ORD 1665-8669T14	ORD 1665-8669T14	1
-	8669A23	齿轮箱总成(短型)(追踪者系列)	GEAR HOUSING ASSEMBLY (SHORT) (TRACKER)	1
-	8669A24	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
1	8669A21	齿轮箱总成(基础黑色)	GEAR HOUSING ASSEMBLY Basic-Black (BLACK)	1
1	8M0083538	GC BASIC 25 2S	GC BASIC 25 2S	1
1	8669A22	齿轮箱总成(基础灰色)	GEAR HOUSING ASSEMBLY Basic-Gray (GRAY)	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8669A25	齿轮箱总成(追踪者系列)	GEAR HOUSING ASSEMBLY (TRACKER)	1
1	8669A39	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	41134	右舷进水口滤网	SCREEN WATER INLET-STARBOARD	1
2	41133	进水口滤网	SCREEN Water Inlet Port	1
3	40031112	螺钉(M5 x 40)	SCREW (M5 x 40)	1
4	400263	螺母(M5)滤网螺钉	NUT (M5) SCREEN SCREW	1
5	41326	滚柱轴承上	BEARING Roller UPPER	1
6	99325	齿轮箱密封件	SEAL GEAR HOUSING	2
7	85500		PIN Dowel (.187 x .530) GEAR HOUSING	2
7	8M0084726	定位销	PIN Dowel	2
8	98294A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	98302	小齿轮	GEAR Pinion	1
10	49908	小齿轮螺钉(0.250-28x0.75英寸)	SCREW (.250-28 x .750) PINION GEAR	1
11	99199	驱动轴(短轴)	DRIVESHAFT (SHORT SHAFT)	1
11	99198	驱动轴(长轴)	DRIVESHAFT (LONG SHAFT)	1
13	14834A1	磁性放油螺钉	SCREW DRAIN - MAGNETIC	1
13	8M0058389	放油螺钉套件	SCREW KIT Drain	1
14	28634A1	润滑脂加注螺钉套件	SCREW KIT GREASE FILLER	1
14	79953Q04	放油螺钉套件	SCREW KIT Drain	1
15	805726	O型圈(放油/加注螺钉用)	O-RING Rubber DRAIN AND FILLER SCREW	2
15	8M0204684	橡胶O型圈	O-RING Rubber	2
16	85562A1	凸轮总成(无钢印)	CAM ASSEMBLY (NO STAMPING)	1
16	85562A2	换挡凸轮(钢印85662--1)	SHIFT CAM (STAMPED 85662--1)	1
17	85096	驱动销	PIN Drive	1
18	85593	销(.078 x .437)	PIN (.078 x .437)	1
19	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
19	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
20	93007	弹簧	SPRING	1
21	85091	垫圈	WASHER	1
22	85594	O型圈(.239 x .174)	O-RING (.239 x .174)	1
23	35276	O型圈(.734 x .139)	O-RING (.734 x .139)	1
24	93878	固定座	RETAINER	1
25	85552	换档轴防尘罩	BOOT SHIFT SHAFT	1
25	85552001	护套	BOOT	1
26	85126	换挡轴(短轴)	SHIFT SHAFT (SHORT SHAFT)	1
26	86293	换挡轴(长轴)	SHIFT SHAFT (LONG SHAFT)	1
27	993261	水泵衬垫	GASKET WATER PUMP	1
28	85083	面板	FACE PLATE	1
29	86645	叶轮垫圈	WASHER IMPELLER	2
29	8M0204722	垫圈	WASHER	2
30	85119	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214993	键@5	KEY @5	1
31	850893	叶轮	IMPELLER	1
31	8M0204712	叶轮	IMPELLER	1
32	69202	水泵O型圈	O-RING WATER PUMP	1
33	99157A1	水泵总成	PUMP ASSEMBLY Water	1
33	99157A02	水泵总成	PUMP ASSEMBLY Water	1
34	90883	螺钉(M5×16)(16毫米)-与参考号36配套使用	SCREW (M5 x 16) (16MM)- Use with Reference #36	4
35	89302	垫圈(0.203×0.406×0.040)-与参考号36配套使用	WASHER (.203 x .406 x .040) Use with Reference #36	4
36	85095	衬套-与参考号36配套使用	BUSHING Use with Reference #36	4
36	8M0214959	衬套@5	BUSHING @5	4
34	4000328	螺钉(M6×16)-不与参考号36配套使用	SCREW (M6 x 16) Use without Reference #36	4
34	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	4
35	29245	不锈钢垫圈(0.281×0.500×0.060)-不与参考号36配套使用	WASHER (.281 x .500 x .060) Stainless Steel Use without Reference #36	4
35	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
37	85090	水管密封件	SEAL WATER TUBE	1
37	85090001	密封件	SEAL	1
38	86203	橡胶传动轴O型圈	O-RING DRIVE SHAFT - RUBBER	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
-	99157T2	水泵套件	PUMP KIT Water	1
-	85090A2	密封套件	SEAL KIT	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

图 28齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7406A34	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539A4	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7406A35	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7406A43	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9539A10	齿轮箱	GEAR HOUSING	1
1	7406A16	齿轮箱总成水星	GEAR HOUSING ASSEMBLY Mercury	1
1	9539T1	齿轮箱	GEAR HOUSING	1
51	76039	换挡凸轮控制	CAM Shift Control	1
51	760394	换挡凸轮控制	CAM Shift Control	1
52	38374A1		SHIM SET BEARING CUP TO GEAR HOUSING (.002-3-5-10)	AR
53	38356A1	轴承套件	BEARING SET	1
54	55608A4	前进齿轮总成	GEAR ASSEMBLY Forward	1
54	55608T4	前进齿轮总成	GEAR ASSY-FORWARD	1
55	21739	滚柱轴承	BEARING Roller	1
56	38441	凸轮从动件	FOLLOWER Cam	1
57	20843		SLIDE CROSS PIN	1
58	38114	十字销固定弹簧	SPRING RETAINING-CROSS PIN	1
59	92911	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
59	92911T	离合器	CLUTCH	1
60	38113	十字销	PIN Cross	1
60	8M0020942	十字销@2	PIN-CROSS @2	1
61	39845	压缩弹簧-凸轮随动件	SPRING COMPRESSION-CAM FOLLOWER	1
62	75365	螺旋桨轴	PROPELLER SHAFT	1
63	79158	倒挡齿轮	GEAR Reverse	1
63	79158T	倒挡齿轮	GEAR-REVERSE	1
64	32004	推力垫圈-倒车齿轮	WASHER THRUST-REVERSE GEAR	1
65	20839	滚珠轴承	BEARING Ball	1
65	20839T	滚珠轴承	BEARING Ball	1
66	31986	轴承座O型圈	O-RING BEARING CARRIER	1
67	69386A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	69386T1	轴承座总成	CARRIER ASSY-BRG	1
68	21700	滚针轴承	BEARING Needle	1
69	69188	轴承座油封	SEAL Oil BEARING CARRIER	1
69	8M0205511	油封	SEAL Oil	1
70	69189	轴承座油封	SEAL Oil BEARING CARRIER	1
70	8M0203757	油封	SEAL Oil	1
71	30281	轴承座定位键	KEY LOCATING-BEARING CARRIER	1
72	53012	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
73	87763		NUT GEAR HOUSING	1
74	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
74	31640Q4	平衡鳍板	TRIM TAB	1
75	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
76	45175	垫圈（0.406 x 0.750 x 0.104）驱动轴壳体螺柱	WASHER (.406 x .750 x .104) DRIVESHAFT HOUSING STUD	1
76	8M0214963	垫圈	WASHER	1
77	34863		NUT (.375-24) DRIVESHAFT HOUSING STUD	1
77	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
78	64791	垫圈壳体至螺柱（7-16英寸）	WASHER HOUSING TO STUD (7-16")	1
79	34933		NUT (.437-20) Stainless Steel STUD	1
79	8M0204653	螺母	NUT	1
80	73345A1		THRUST WASHER FRONT	1
81	76281	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
81	8M0214942	锁紧垫片	WASHER Tab	1
82	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
82	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	78028A78	衬垫套件	GASKET SET

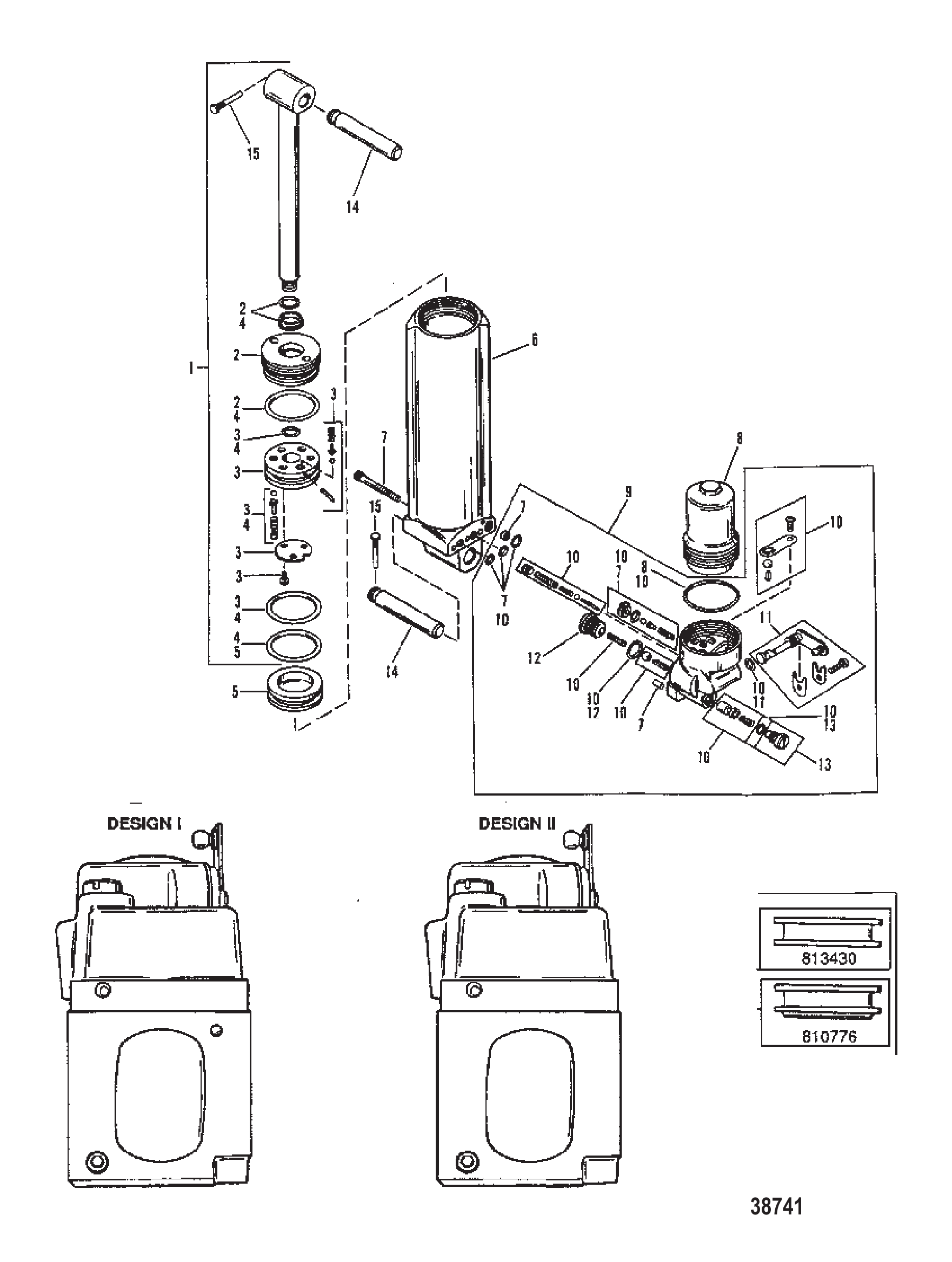

图 29手动倾斜组件(长轴)(0C159200及以上) MANUAL TILT COMPONENTS (LONG SHAFT)(0C159200 AND UP)

REF	零件编号	中文名称	英文名称	数量
-	19300A1	泵总成倾斜（包含所有列出的零件）	PUMP ASSEMBLY Tilt (Includes all parts listed)	1
1	813427	减震杆总成套件	SHOCK ROD ASSEMBLY KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813429	减震活塞总成	PISTON ASSEMBLY Shock	1
4	813432A1	气缸修理包	CYLINDER REBUILD KIT	1
5	813430	活塞套件装饰记忆	PISTON KIT Trim Memory	1
5	893903A01	活塞套件	PISTON KIT	1
5	810776	活塞套件记忆（为确保订购正确的记忆活塞，请检查并与图示对比）	PISTON KIT Memory (To insure ordering the correct memory piston, check and compare to illustration)	1
6	810777	气缸套件	CYLINDER KIT	1
6	811224	气缸	CYLINDER	1
7	813433A1	螺丝和密封套件气缸	SCREW AND SEAL KIT CYLINDER	1
7	893919A01	螺丝/密封套件	SCREW/SEAL KIT	1
8	813454A1	蓄能器	ACCUMULATOR	1
8	893920A01	蓄能器套件	ACCUMULATOR KIT	1
9	813455	阀块总成	VALVE BLOCK ASSEMBLY	1
9	8M0118574	阀体总成	VALVE BODY ASSEMBLY	1
10	813456A1	阀块修理套件	REPAIR KIT VALVE BLOCK	1
10	813456A4	维修套件	REPAIR KIT	1
11	813457A1	凸轮总成套件	CAM ASSEMBLY KIT	1
12	813458	塞套件	PLUG KIT	1
13	813459	塞套件	PLUG KIT	1
14	19607	销	PIN	2
15	19603	槽销	PIN Groove	2
15	821539	三叶销	PIN Trilobe	2

图 30杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	43116	零件手册35马力	PARTS MANUAL 35 Hp	1
-	43206A84	贴花套件	DECAL SET	1
-	13481A89	贴花套件	DECAL SET	1
-	13481A86	贴花套件	DECAL SET	1
-	13481A89	贴花套件	DECAL SET	1
-	78028A78	衬垫套件	GASKET SET	1
-	445621	操作手册	OPERATION MANUAL	1
-	445622	用户手册	MANUAL-OWNERS	1

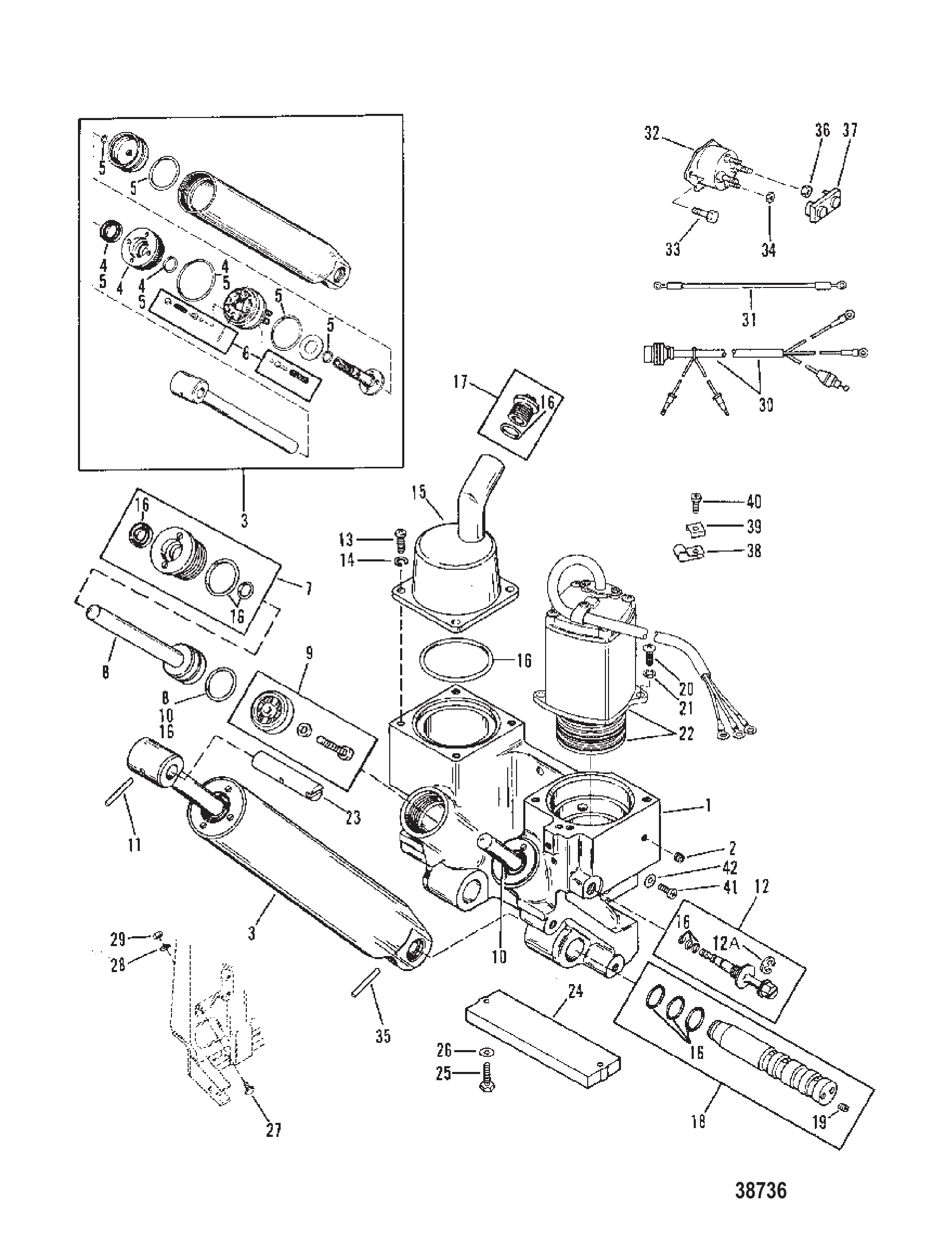

图 31动力升降组件(0C159199及以下) POWER TRIM COMPONENTS (0C159199 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	99659A21	歧管总成	MANIFOLD ASSEMBLY	1
2	99616	管塞歧管	PIPE PLUG MANIFOLD	11
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	11
3	41493A9	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
4	41492A1	导向器总成	GUIDE ASSEMBLY	1
5	41478A1	维修套件	REPAIR KIT	1
6	41482A3	止回阀套件	CHECK VALVE KIT	1
7	99638A1	导向总成装饰杆	GUIDE ASSEMBLY TRIM ROD	2
7	8M0021648	端盖总成	END CAP ASSEMBLY	2
8	43397A7	活塞总成端口	PISTON ASSEMBLY PORT	1
9	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
10	43398A3		PISTON/ROD ASSEMBLY Power Trim STARBOARD	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	13794	沟槽销-升降油缸(上)	PIN Groove TRIM CYLINDER (UPPER)	1
11	821539	三叶销	PIN Trilobe	1
12	812843A1	阀门总成	VALVE ASSEMBLY	1
12	893929A01	安全阀套件	VALVE KIT Relief	1
12A	812844	E型卡环	E RING	1
12A	815949001	E形环	E-RING	1
13	4000327	螺钉(M6x14)-盖板	SCREW (M6 x 14) COVER	4
14	43450	盖板螺丝垫圈	WASHER COVER SCREW	1
14	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	1
15	99642	歧管盖	COVER MANIFOLD	1
16	48462A2	O型圈套件	O-RING KIT	1
16	48462A4	O型圈套件	O RING KIT	1
17	99609A1	塞子总成	PLUG ASSEMBLY	1
18	99641A1	轴总成	SHAFT ASSEMBLY	1
18	99641A02	轴总成	SHAFT ASSY	1
19	99616	轴管塞	PIPE PLUG SHAFT	2
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
20	4008820	螺钉(M6x20)-泵与马达	SCREW (M6 x 20) PUMP AND MOTOR	2
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
22	99186T	泵与电机总成	PUMP AND MOTOR	1
22	826729A10	ORD 8M0143217	ORD 8M0143217	1
23	99625		SHAFT UPPER	1
23	99625002	轴	SHAFT	1
24	43396A2	阳极总成	ANODE ASSEMBLY	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000332	螺钉(M6x35)-阳极	SCREW (M6 x 35) ANODE	2
26	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	996301	撞板-升降轴	STRIKER PLATE TRIM SHAFT	2
27	8M0045383	冲击板	STRIKER PLATE	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	46335	螺母 (.375-24)	NUT (.375-24)	2
30	99695A1	线束总成-动力升降控制	HARNESS ASSEMBLY Control POWER TRIM	1
30	17201A2	电缆总成(17英寸)-动力升降	CABLE ASSEMBLY (17.00 Inches) POWER TRIM	1
31	79139A17	电线总成(23英寸)	WIRE ASSEMBLY (23.00 Inches)	1
31	79139A14	电线总成(11.5英寸-红色)	WIRE ASSEMBLY (11-1/2"-RED)	2
32	96158	启动电磁阀	SOLENOID Starter	3
32	8M0185622	电磁阀	SOLENOID	3
33	41508	螺钉(0.250-20x0.500)-不锈钢启动电磁阀	SCREW (.250-20 x .500) Stainless Steel STARTER SOLENOID	6
34	26419	螺母(#8-32)-黄铜电磁阀端子	NUT (#8-32) Brass SOLENOID TERMINAL	4
35	44431	沟槽销-升降油缸(下)	PIN Groove TRIM CYLINDER (LOWER)	1
35	878267	销	PIN	1
37	97861	绝缘体-启动电磁阀	INSULATOR STARTER SOLENOID	3
38	22875		CLIP PUMP WIRE	1
39	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	1
39	8M0084613	C形垫圈	C-WASHER	1
40	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	1
41	4000377		SCREW (M10 x 30) MANIFOLD	6
42	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6

图 32动力升降泵(Eaton矩形电机-0C159199及以下) Power Trim Pump (Eaton Rectangular Motor-0C159199 and Below)

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 33换挡控制联动装置 SHIFT CONTROL LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	87876	换挡锚支架-上部	BRACKET SHIFT ANCHOR - UPPER	1
1	87876A2	换挡锚支架	SHIFT ANCHOR BACKET	1
2	73657	螺钉(0.312-18 x 1.50)	SCREW (.312-18 x 1.50)	2
3	67450	螺丝(.312-18 x 2.250)	SCREW (.312-18 x 2.250)	1
4	35385	螺钉(0.312-18x1.75)-支架到曲轴箱	SCREW (.312-18 x 1-3/4) BRACKET TO CRANKCASE	1
5	87874	滑动换挡执行件	SLIDE SHIFT ACUTATING	1
6	56193	锁扣-换挡执行滑块(换挡拉线)	LATCH SHIFT ACUTATING SLIDE (SHIFT CABLE)	1
7	39620	螺钉-锁扣到换挡执行滑块	SCREW LATCH TO SHIFT ACTUTING SLIDE	1
8	27087	压缩弹簧-锁扣螺钉	SPRING COMPRESSION - LATCH SCREW	1
9	75717	尼龙滑块-锚支架	SLIDE NYLON -ANCHOR BRACKET	1
10	39515	尼龙端盖-锚支架滑块	END CAP NYLON - ANCHOR BRACKET SLIDE	2
11	75715	换挡锚支架-下部	BRACKET SHIFT ANCHOR - LOWER	1
11	87876A2	换挡锚支架	SHIFT ANCHOR BACKET	1
12	20012	螺钉(0.250-28x1.62)	SCREW (.250-28 x 1.62)	2
13	20586	螺母(0.250-28)-上部锚支架螺钉	NUT (.250-28) UPPER ANCHOR BRACKET SCREW	2
13	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
14	39519	杯形固定器-锚支架(换挡拉线套筒)	CUP RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL)	1
15	39618	尼龙杆-换挡拉线锁定	LEVER NYLON - SHIFT CABLE LOCKING	1
15	87609A1	杠杆套件	LEVER KIT	1
16	47175	销-锁定杆与盖板固定	PIN LOCKING LEVERA AND COVER FASTENING	3
17	90211	尼龙盖-换挡拉线	COVER NYLON - SHIFT CABLE	1
18	65799	连杆-锁定杆到盖板	LINK LOCKING LEVER TO COVER	1
18	87609A1	杠杆套件	LEVER KIT	1
19	75104A7	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
19	75104A8	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
20	37998	垫圈-上部换挡轴	WASHER UPPER SHIFT SHAFT	1
21	27769	开口销-上部换挡轴	COTTER PIN UPPER SHIFT SHAFT	1
21	26811	开口销	COTTER PIN	1
22	88096A1	开关总成	SWITCH ASSEMBLY	1
23	30902	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	2
24	45915	端子排	TERMINAL BLOCK	1
25	25764	螺钉(.190-32 x .50)	SCREW (.190-32 x .50)	1
26	27164	螺母与锁紧垫圈 (#10-32)	NUT AND LOCKWASHER (#10-32)	1
27	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)

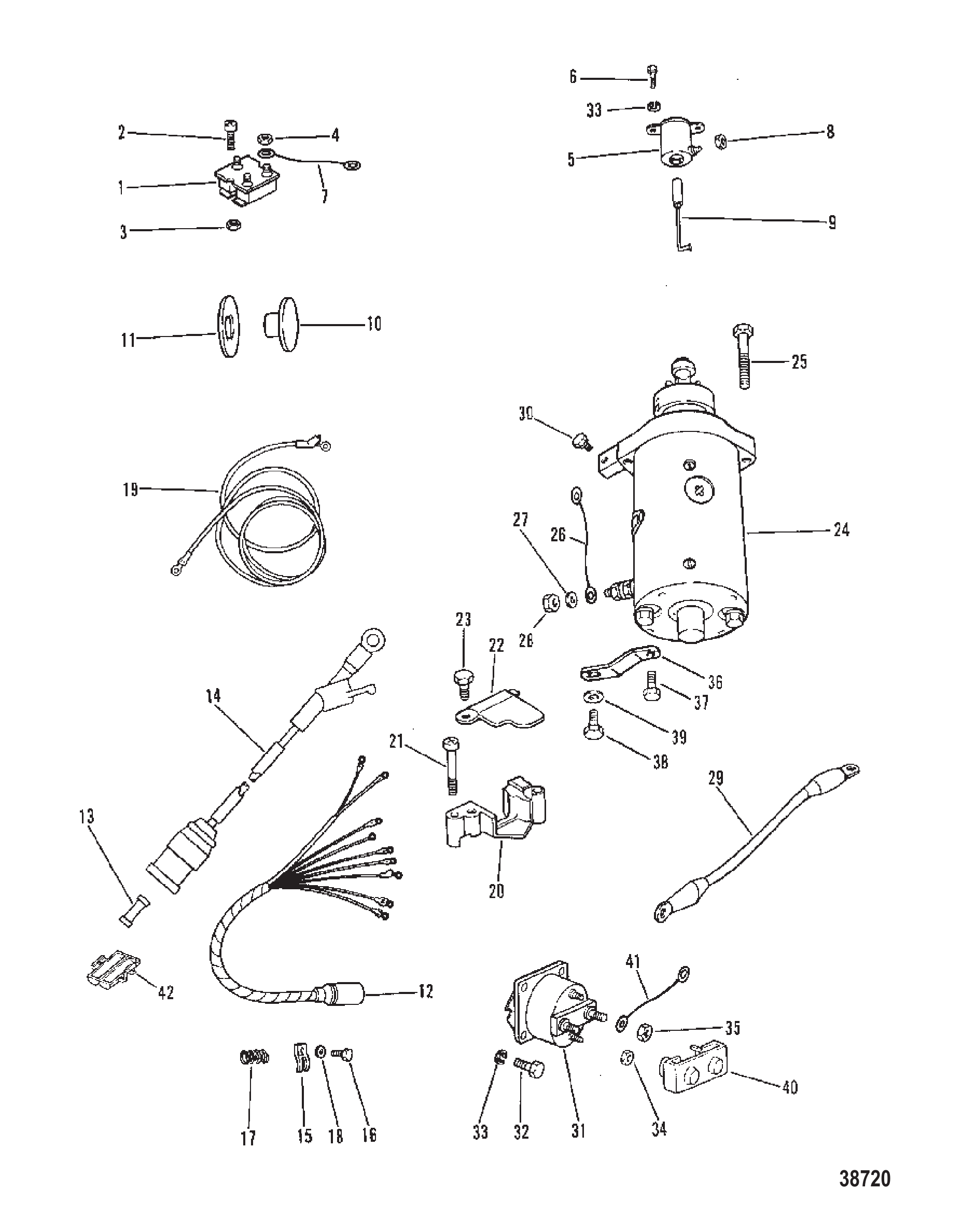

图 34启动电机、整流器及线束(电动) STARTER MOTOR, RECTIFIER AND WIRING HARNESS (ELECTRIC)

REF	零件编号	中文名称	英文名称	数量
1	816770	整流器	RECTIFIER	1
2	38055	螺钉(0.190-32x0.620)-整流器到前支撑架	SCREW (.190-32 x .620) RECTIFIER TO FRONT SUPPORT BRACKET	2
3	27164	螺母与锁紧垫圈(#10-32)-整流器固定螺钉	NUT AND LOCKWASHER (#10-32) RECTIFIER FASTENING SCREW	2
4	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINAL	3
5	54293A11	阻风门电磁阀总成	SOLENOID ASSEMBLY Choke	1
5	889274	电磁阀-阻风门	SOLENOID-CHOKE	1
6	25299	螺钉(0.312-18x0.75)	SCREW (.312-18 x .75)	2
7	88808A17	电线-整流器到电磁阀(红色)	WIRE RECTIFIER TO SOLENOID (RED)	1
8	45076	螺母(#10-32)-黄铜阻风门电磁阀端子	NUT (#10-32) Brass CHOKE SOLENOID TERMINAL	1
9	89008A2	阻风门电磁阀柱塞总成	PLUNGER ASSEMBLY CHOKE SOLENOID	1
10	35827	下机罩塞	PLUG BOTTOM COWL	1
11	30428	紧固件塞	FASTENER PLUG	1
12	96219A8	线束总成	HARNESS ASSEMBLY	1
13	79091	保险丝20安培	FUSE 20 Ampere	1
13	8M0207796	保险丝20安培	FUSE 20 AMP	1
14	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
15	88751	线束夹	CLAMP WIRING HARNESS	1
16	23702	螺钉(0.190-32x1.12)-线束夹	SCREW (.190-32 x 1.12) WIRING AHNRESS CLAMP	1
17	28357	弹簧-线束夹螺钉	SPRING WIRING HARNESS CLAMP SCREW	1
18	72761	垫圈(0.203x0.562x0.060)-不锈钢线束夹螺钉	WASHER (.203 x .562 x .060) Stainless Steel WIRING HARNESS CLAMP SCREW	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	886201	线束支撑架	BRACKET HARNESS SUPPORT	1
21	73280	螺钉-线束支撑架	SCREW HARNESS SUPPORT BRACKET	2
22	88617	盖板-线束支撑架	COVER HARNESS SUPPORT BRACKET	1
23	28635	螺钉(0.250-20x0.620)-不锈钢线束支撑架盖板	SCREW (.250-20 x .620) Stainless Steel HARNESS SUPPORT BRACKET COVER	1
24	41583	启动马达总成(10齿小齿轮)	STARTER MOTOR ASSEMBLY (10 PINION TEETH)	1
24	41583T	ORD 50-898265007	ORD 50-898265007	1
25	35213	螺钉	SCREW	2
26	88807A24	电缆总成-电磁阀到启动马达(黑色)	CABLE ASSEMBLY SOLENOID TO STARTER MOTOR (BLACK)	1
27	26992	锁紧垫圈(0.250)-不锈钢电缆到启动马达螺母	LOCKWASHER (.250) Stainless Steel CABLE TO STARTER MOTOR NUT	1
28	64015	螺母(0.250-20)-电缆到启动马达	NUT (.250-20) CABLE TO STARTER MOTOR	1
29	88809A9	电缆总成-启动器到电磁阀(黄色)	CABLE ASSEMBLY STARTER TO SOLENOID (YELLOW)	1
30	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
31	96158	启动电磁阀	SOLENOID Starter	1
31	8M0185622	电磁阀	SOLENOID	1
32	98253	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	2
32	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	2
33	26992	锁紧垫圈(0.250)-不锈钢阻风门/启动电磁阀螺钉	LOCKWASHER (.250) Stainless Steel CHOKE/STARTER SOLENOID SCREW	4
34	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
35	94330	螺母 (.250-20) 黄铜	NUT (.250-20) Brass	2
36	42729A1	起动机至曲轴箱支架	BRACKET STARTER MOTOR TO CRANKCASE	1
37	32079	螺钉(.250-20 x .560)	SCREW (.250-20 x .560)	1
38	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	1
39	89302	垫圈(.203 x .406 x .040)支架螺钉	WASHER (.203 x .406 x .040) BRACKET SCREW	1
40	97861	绝缘体-启动电磁阀	INSULATOR STARTER SOLENOID	1
41	88807A16	电缆总成(4.00英寸)黑色电磁阀接地	CABLE ASSEMBLY (4.00 Inches) Black SOLENOID GROUND	1
42	134731	保险丝座	HOLDER Fuse	1

图 35启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	41583	启动马达总成(10齿小齿轮)	STARTER MOTOR ASSEMBLY (10 PINION TEETH)	1
-	41583T	ORD 50-898265007	ORD 50-898265007	1
1	90642	驱动套件	DRIVE KIT	1
2	43076	驱动总成(10齿小齿轮)	DRIVE ASSEMBLY (10 PINION TEETH)	1
2	43076T	驱动总成	DRIVE ASSY	1
3	68584	驱动端板总成	PLATE ASSEMBLY DRIVE END	1
4	N.S.S.	不单独销售贯穿螺栓(BOSCH #SC-3803)	Not Sold Separate THRU BOLT (BOSCH #SC-3803)	2
5	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
6	N.S.S.	不单独销售止推垫圈(BOSCH #WA-3122)	Not Sold Separate THRUST WASHER (BOSCH #WA-3122)	1
7	57384	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	57387	绝缘衬套	BUSHING INSULATING	1
10	N.S.S.	不单独销售垫圈(BOSCH #WA-3074-1)	Not Sold Separate WASHER (BOSCH #WA-3074-1)	1
11	38013	输入柱垫圈	WASHER INPUT STUD	1
12	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
13	20890	螺母 (.250-20)	NUT (.250-20)	1
14	57389	端盖总成含电刷架	END CAP ASSEMBLY W/BRUSH HOLDER	1

图 36启动器回绕装置 STARTER REWIND

REF	零件编号	中文名称	英文名称	数量
1	20166	滑轮轴螺母(左旋螺纹)	NUT SHEAVE SHAFT (LEFT HAND THREAD)	1
2	61004	止动垫圈螺旋轴螺母	TAB WASHER SHREAVE SHAFT NUT	1
3	39597	起动机壳体护圈	GROMMET STARTER HOUSING	2
4	76141	联锁电缆总成	CABLE ASSEMBLY INTERLOCK	1
5	32228	螺钉（#10-32 X 0.625）	SCREW (#10-32 x .625)	1
6	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	1
7	42820	联锁凸轮	CAM INTERLOCK	1
7	428201	凸轮	CAM	1
8	76138	螺丝(.312-18 x 1.120)	SCREW (.312-18 x 1.120)	1
9	76140	弹簧	SPRING	1
9	761401	弹簧	SPRING	1
10	79371	执行器	ACTUATOR	1
11	76137	螺钉	SCREW	1
12	76139	弹簧	SPRING	1
13	30191	垫圈	WASHER	1
14	27769	开口销	COTTER PIN	1
14	26811	开口销	COTTER PIN	1
15	55860	启动器滑轮	PULLEY STARTER	1
16	45210	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
17	22887	滑轮螺丝垫圈	WASHER PULLEY SCREW	3
18	30977	滑轮螺钉隔套	SPACER PULLEY SCREW	1
18	309772	隔套	SPACER	1
19	94121	起动机拉绳固定座	RETAINER STARTER ROPE	1
20	24656	滑轮螺钉螺母	NUT PULLEY SCREW	1
21	76080A1	启动器壳体总成	HOUSING ASSEMBLY Starter	1
21	76079A8	起动机总成回绕式	STARTER ASSEMBLY Rewind	1
21	760791	启动器壳体	HOUSING Starter	1
21	760792	启动器壳体	HOUSING Starter	1
22	94338A1	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
22	44255A1	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
23	91936	启动棘爪	PAWL Starter	1
23	44508	启动棘爪	PAWL Starter	1
24	88759	螺钉(1英寸)	SCREW (1")	2
24	88760	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
25	26993	锁紧垫圈(.312)起动机壳体螺钉	LOCKWASHER (.312) STARTER HOUSING SCREW	3
25	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
26	61002	起动机回绕板	PLATE STARTER REWIND	1
27	39502A1	启动器回位弹簧	SPRING STARTER REWIND	1
27	39502T02	回卷弹簧	SPRING-RECOIL	1
28	87649	弹簧导套	BUSHING SPRING GUIDE	1
29	87651	起动机棘爪弹簧	SPRING STARTER PAWL	1
30	87706	起动机棘爪E型环	E RING STARTER PAWL	1
31	63061	滑轮轴间隔套	SPACER SHEAVE SHAFT	1
33	94962	杠杆	LEVER	1
34	20160	波形垫圈	WAVE WASHER	1
35	87656	滑轮轴	SHEAVE SHAFT	1
36	28985A2	启动机电缆总成	CABLE ASSEMBLY Starter	1
36	12066Q10	启动绳@2	ROPE-STARTER@2	1
36	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
36	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
37	79470A1	绳索固定组件	RETAINER KIT Rope	1
38	35559	起动机回绕垫圈	WASHER STARTER REWIND	1
-	76079A8	起动机总成回绕式	STARTER ASSEMBLY Rewind	1

图 37转向手柄 STEERING HANDLE

REF	零件编号	中文名称	英文名称	数量
1	81138M	转向支架	BRACKET STEERING	1
1	19113M	支架	BRACKET	1
2	84830M	螺栓	BOLT	4
0-1	92570M	转向手柄总成	HANDLE ASSEMBLY Steering	1
0-1	95673M	转向手柄	STEERING HANDLE	1
3	84849M	转向手柄	STEERIG HANDLE	1
3	96664M	手柄	HANDLE	1
4	81585M	节气门握把	GRIP THROTTLE	1
5	95497M	橡胶手柄	HANDLE RUBBER	1
5	8M0080456	握把	GRIP	1
5	84854M	橡胶手柄	RUBBER HANDLE	1
5	8M0080456	握把	GRIP	1
6	42432M	节气门指示器	INDICATOR THROTTLE	1
6	97773M	节气门指示器	INDICATOR THROTTLE	1
6	92586M	节气门指示器	INDICATOR THROTTLE	1
6	97773M	指示器	INDICATOR	1
7	81907M	铆钉	RIVET	1
8	82483M	螺钉	SCREW	1
8	811916M	螺钉	SCREW	1
9	84856M	节流阀杆	LEVER THROTTLE	1
10	82204M	节气门轴垫圈	WASHER THROTTLE SHAFT	1
10	82220M	垫圈	WASHER	1
11	82095M	弹簧	SPRING	1
12	81945M	转向臂衬套	BUSHING STEERING ARM	1
13	41892M	油门拉索总成	CABLE ASSEMBLY Throttle	2
14	81747M	线缆螺栓	BOLT CABLE	2
14	815139M	螺栓	BOLT	2
15	81765M	螺母	NUT	4
16	82064M	护孔环	GROMMET	1
17	82119M	隔套	SPACER	1
18	81861M	隔套	SPACER	1
19	84850M	垫圈	WASHER	2
20	84851M	波形垫圈	WASHER WAVE	1
21	84852M	固定座	RETAINER	1
22	84853M	螺栓	BOLT	1
22	84931M	螺栓	BOLT	1
23	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
24	82214M	垫圈	WASHER	2
25	82895M	摩擦片	FRICTION PIECE	OPT
26	83056M	螺母	NUT	OPT
27	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	OPT

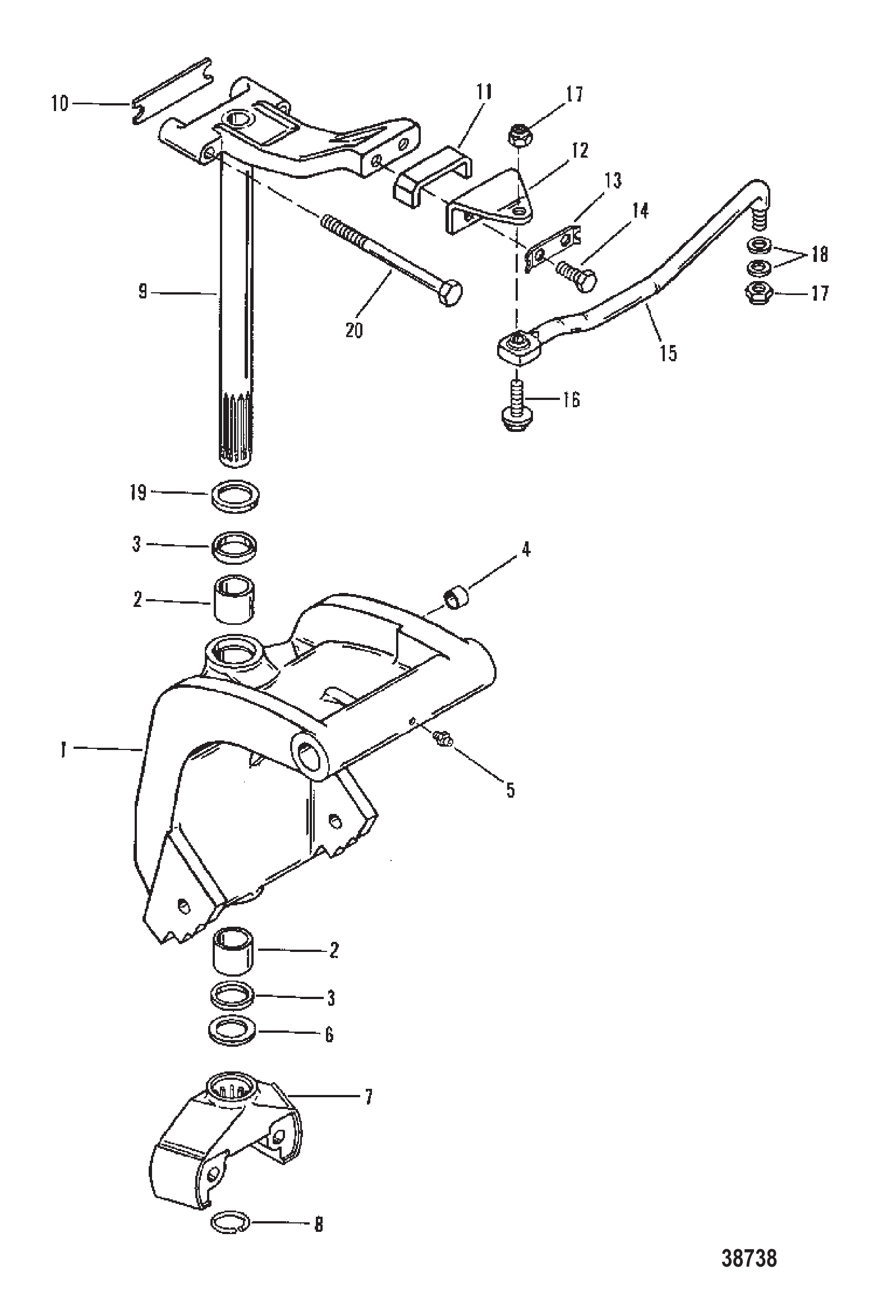

图 38旋转支架(长轴)(0C159200及以上) SWIVEL BRACKET (LONG SHAFT)(0C159200 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	9749A2	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	19622	轴承	BEARING	2
2	821124	轴承	BEARING	2
3	32911	油封	SEAL Oil	2
4	19606	轴承	BEARING	2
5	74036	润滑脂接头	FITTING Grease	3
5	8M0169589	润滑脂接头	FITTING Grease	3
6	25176	垫圈	WASHER	1
7	77416T	下轭架	YOKE Bottom	1
7	77416T1	黑色下轭架	YOKE-BOTTOM-BLACK	1
8	77415	挡圈	RETAINING RING	1
9	19459A3	转向臂总成	ARM ASSEMBLY Steering	1
9	19459T3	转向臂总成-黑色	ARM ASSY-STEER-BL	1
10	30711	缓冲垫	BUMPER	1
11	62297	缓冲垫	BUMPER	1
12	19616T	支架	BRACKET	1
12	19616A1	支架	BRACKET	1
13	76533	绑带	STRAP	1
14	34352	螺钉（.375-24 x .875）	SCREW (.375-24 x .875)	2
15	19608	连杆	LINK ROD	1
15	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
15	19609	连杆	LINK ROD	1
15	19609A6	转向安装套件	ATTACHING KIT Steering	1
16	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
16	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
17	34863	螺母 (.375-24)	NUT (.375-24)	2
17	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
18	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
19	52865	垫圈	WASHER	1
20	66897	螺栓（.437-20 x 5.250）	BOLT (.437-20 x 5.250)	2

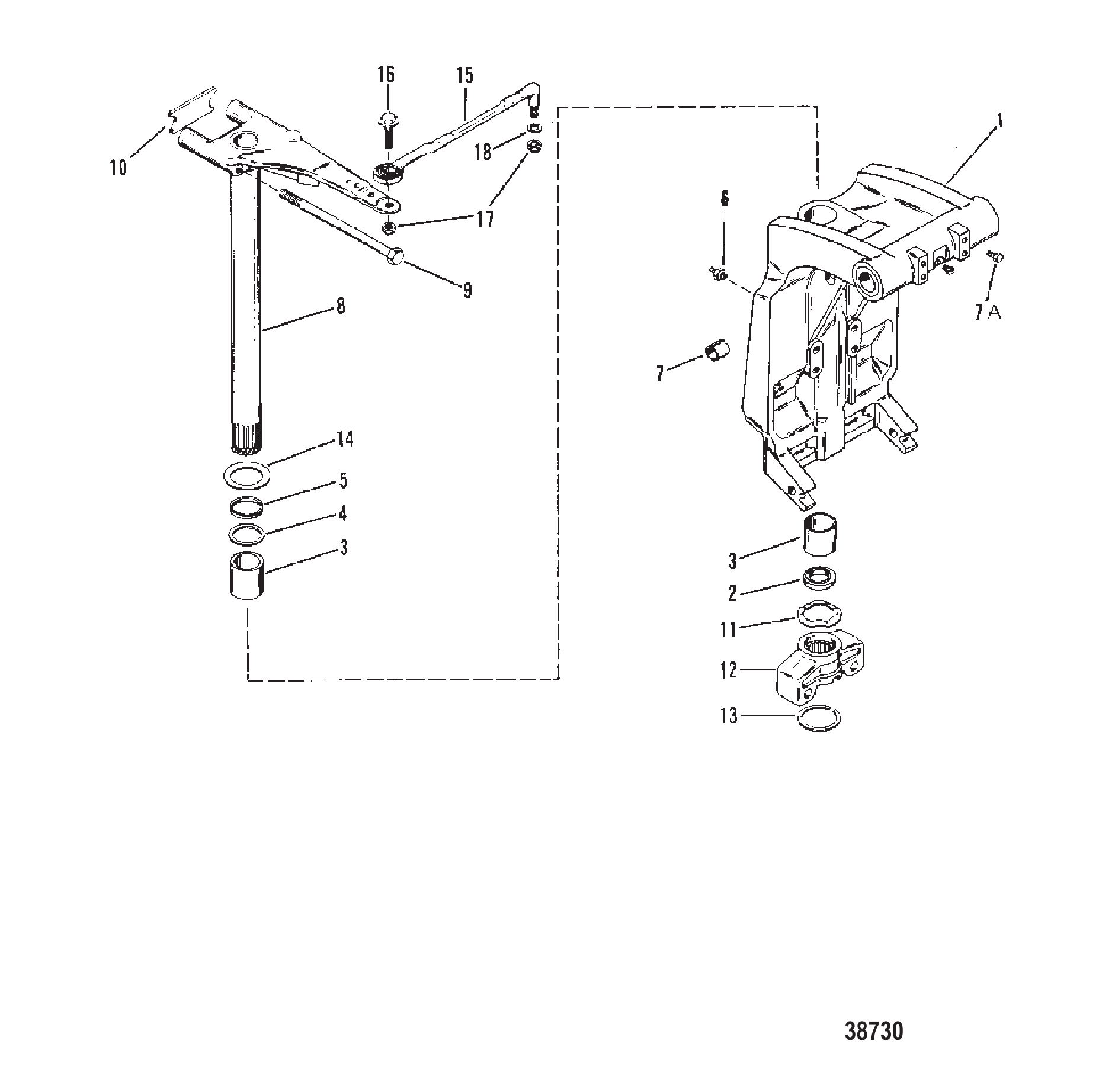

图 39旋转支架(动力升降)(0C159199及以下) SWIVEL BRACKET (POWER TRIM)(0C159199 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	8710A20	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	87735	油封(下)	SEAL Oil (LOWER)	1
3	67669	上下衬套	BUSHING LOWER AND UPPER	2
3	818764	衬套	BUSHING	2
4	33466	上部O型圈	O-RING UPPER	1
5	67668	上部隔套	SPACER UPPER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	99608	衬套	BUSHING	2
7	821207	衬套	BUSHING	2
7	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
8	99661A2	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99621	螺钉(.437-20 x 6.620)	SCREW (.437-20 x 6.620)	2
10	28203	缓冲垫	BUMPER	1
11	78854	波形垫圈	WAVE WASHER	1
12	42961T	下轭架	YOKE Bottom	1
13	67684	挡圈	RING Retaining	1
14	67670	垫圈	WASHER	1
15	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
15	92876A12	连杆总成	LINK ROD ASSEMBLY	1
16	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
16	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
17	34863	螺母 (.375-24)	NUT (.375-24)	2
17	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
18	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
-	85489A87	衬垫套件	GASKET SET	1

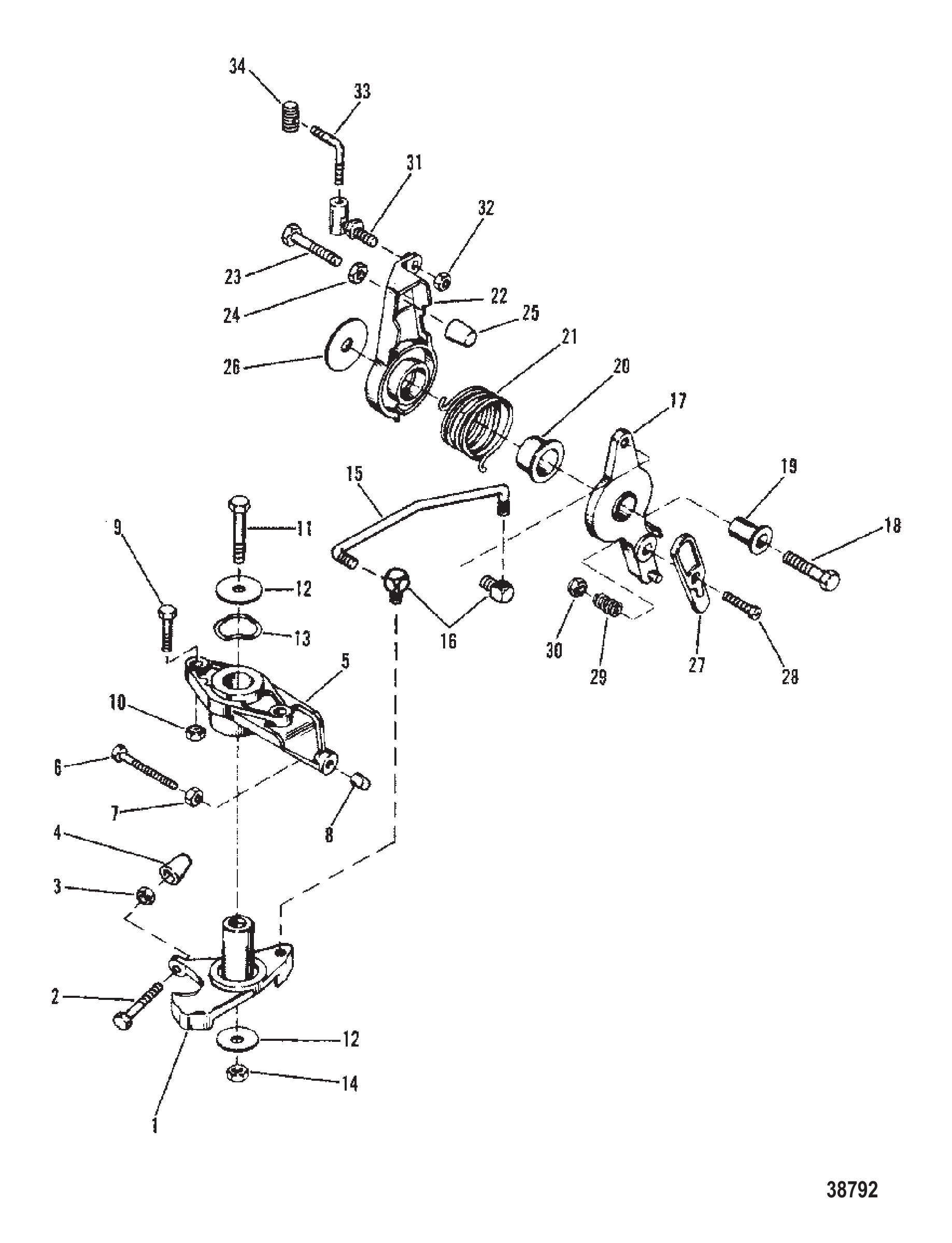

图 40油门与点火提前连杆 THROTTLE AND SPARK ADVANCE LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	44405	节气门执行器凸轮	CAM Throttle ACTUATOR	1
2	63102	调节螺钉(.250-20 x 1.250)-节气门凸轮	SCREW (.250-20 x 1.250) ADJUSTIN - THROTTLE CAM	1
3	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
4	26852	尼龙调节螺丝帽	CAP Nylon ADJUSTING SCREW	1
5	39522	节气门控制轴支架	BRACKET THROTTLE CONTROL SHAFT	1
5	39522T	支架	BRACKET	1
6	64021	螺钉(1-7/8英寸)	SCREW (1-7/8")	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙调节螺丝帽	CAP Nylon ADJUSTING SCREW	1
9	20639	螺钉(.312-24 x 1.12)	SCREW (.312-24 x 1.12)	2
10	29250	螺母(.312-24)节气门控制支架螺钉	NUT (.312-24) THROTTLE CONTROL BRACKET SCREW	2
11	69047	螺钉(2-3/8英寸)	SCREW (2-3/8 INCHES)	1
11	34438	螺钉(.312-24 x 2.375)	SCREW (.312-24 x 2.375)	1
12	25893	垫圈	WASHER	2
13	62172	波形垫圈	WAVE WASHER	1
14	29250	螺母(.312-24)	NUT (.312-24)	1
15	95044	连杆	LINK ROD	1
16	95045	旋转连杆	SWIVEL LINK ROD	2
17	95049	油门控制杆	LEVER THROTTLE CONTROL	1
18	55337	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
18	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
19	55164	节气门控制杆螺钉衬套	BUSHING THROTTLE CONTROL LEVER SCREW	1
20	55171	节气门控制杆螺钉衬套	BUSHING THROTTLE CONTROL LEVER SCREW	1
21	55162	回位弹簧-点火提前杆	SPRING RETURN - SPARK ADVANCE LEVER	1
22	95051	点火提前杆	LEVER SPARK ADVANCE	1
23	32627	调节螺钉(.190-32 x 1.50)-提前杆	SCREW (.190-32 x 1.50) ADJUSTING - ADVANCE LEVER	1
24	68219	锁紧螺母(#10-32)不锈钢-调节螺钉	NUT (#10-32) Stainless Steel JAM - ADJUSTING SCREW	1
25	48039	尼龙帽-调节螺钉	CAP NYLON - ADJUSTIN SCREW	1
26	68410	节气门控制杆螺钉垫圈	WASHER THROTTLE CONTROL LEVER SCREW	1
26	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
27	39483	节气门控制杆锁扣	LATCH THROTTLE CONTROL LEVER	1
28	22486	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
28	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
29	20099	压缩弹簧-锁扣螺钉	SPRING COMPRESSION - LATCH SCREW	1
30	20586	螺母 (.250-28) 卡扣螺钉	NUT (.250-28) LATCH SCREW	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	62459	球头总成点火提前杆	BALL JOINT ASSEMBLY SPARK ADVANCE LEVER	1
31	62459T	球头节总成	BALL JOINT ASSY	1
32	46438	螺母(#10-32)球头至点火提前杆	NUT (#10-32) BALL JOINT TO SPARK ADVANCE LEVER	1
33	61940	连杆	LINK ROD	1
34	74897	螺纹枢轴-触发板至连杆	PIVOT THREADED - TRIGGER PLATE TO LINK ROD	1
34	74897T	枢轴	PIVOT	1

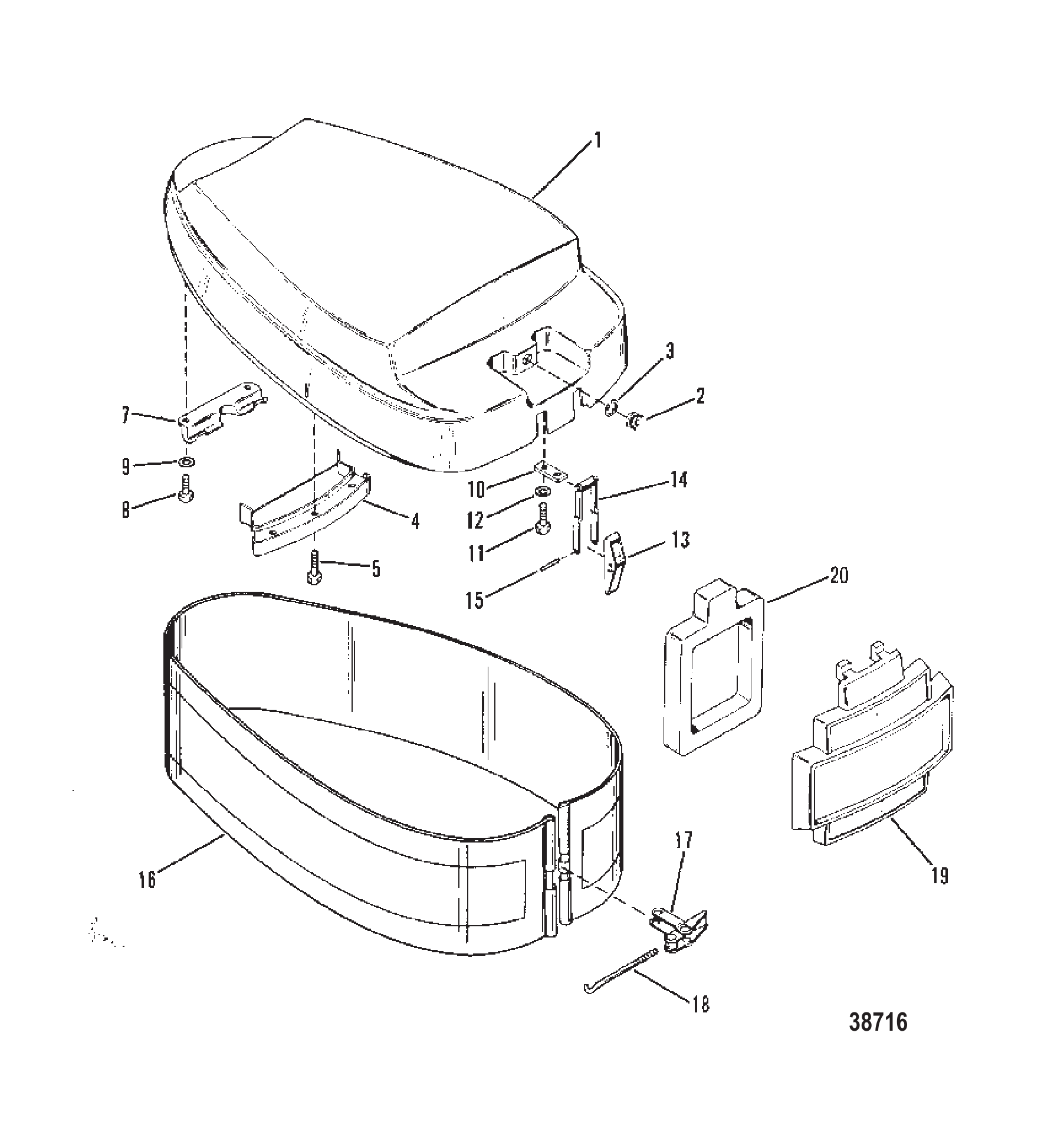

图 41顶罩与外壳 TOP COWL AND COWLING

REF	零件编号	中文名称	英文名称	数量
1	6341	顶盖总成	TOP COWL ASSEMBLY	1
1	6340A2	顶盖总成	TOP COWL ASSEMBLY	1
2	58657	起动机拉绳导槽	ROPE GUIDE STARTER ROPE	1
3	72168	固定环-拉绳导槽	RING RETAING - ROPE GUIDE	1
4	62236	后护罩-顶罩	SHILD REAR - TOP COWL	1
5	48409	螺钉(#10-16 x .625)不锈钢后护罩至顶罩	SCREW (#10-16 x .625) Stainless Steel REAR SHIELD TO TOP COWL	3
7	55455	顶盖锁钩-后部	HOOK TOP COWL LATCH - REAR	1
8	22956	螺钉(.250-28 x .880) 后锁钩至顶盖	SCREW (.250-28 x .880) REAR HOOK TO TOP COWL	2
9	26992	锁紧垫圈(.250)不锈钢后锁钩螺钉	LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW	2
10	75973	铰链板	PLATE HINGE	1
11	32228	螺钉(#10-32 x .625)铰链板	SCREW (#10-32 x .625) HINGE PLATE	2
12	26996	锁紧垫圈(#10)不锈钢铰链板螺钉	LOCKWASHER (#10) Stainless Steel HINGE PLATE SCREW	2
13	94918	顶盖锁杆	LEVER COWL LATCH	1
13	94918F1	杠杆	LEVER	1
14	52739	顶盖锁杆铰链	HINGE COWL LATCH LEVER	1
15	58998	铰链销至锁杆	PIN HINGE TO LEVER	1
16	3878A6	环绕式罩盖总成(无标贴)	WRAP AROUND COWL ASSEMBLY (W/O DECALS)	1
17	46785A1	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
18	30413	罩盖锁扣挂钩	HOOK COWL LATCH FASTENING	2
19	6347A6	罩盖总成前部(无标贴)	COVER ASSEMBLY Cowl - Front (W/O DECALS)	1
19	6347A20	前罩总成	COVER ASSEMBLY Cowl - Front	1
20	76450	前罩盖	BLANKET COWL FRONT COVER	1

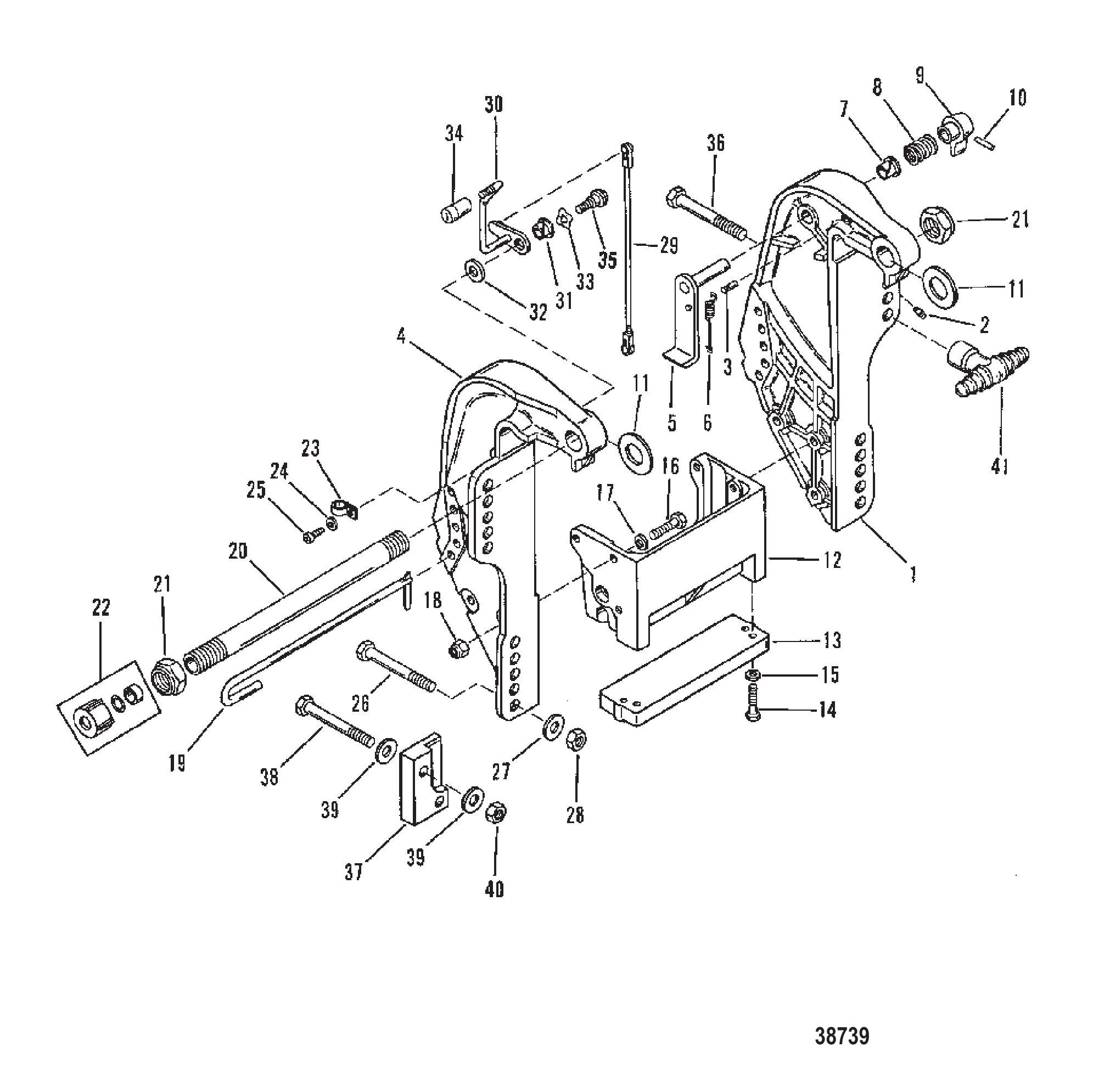

图 42艉板支架(长轴)(0C159200及以上) TRANSOM BRACKET (LONG SHAFT)(0C159200 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	9751A1	艉板支架总成（左舷）	BRACKET ASSEMBLY Transom ( PORT )	1
2	98727	润滑脂接头	FITTING Grease	1
2	8M0169588	润滑脂接头	FITTING Grease	1
3	99604	槽销	PIN Groove	1
4	9750T	艉板支架（右舷）	BRACKET Transom ( STARBOARD )	1
5	19618A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
5	893704T01	倾斜锁杆	LEVER Tilt Lock	1
6	99622	弹簧	SPRING	1
7	65830	尼龙衬套	NYLINER	1
8	812708	弹簧	SPRING	1
9	812709T	旋钮	KNOB	1
9	812709	旋钮	KNOB	1
10	99615	槽销	PIN Groove	1
11	19619	垫圈	WASHER	2
12	18486T	锚支架	BRACKET Anchor	1
12	18486F5	锚支架	BRACKET Anchor	1
13	43396A2	阳极总成	ANODE ASSEMBLY	1
13	818298Q1	阳极套件	ANODE KIT	1
14	4000332	螺钉(M6x35)	SCREW (M6 x 35)	2
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	5
16	4000355	螺钉(M8×35)	SCREW (M8 x 35)	1
17	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	4
18	400635	螺母 (M8)	NUT (M8)	2
18	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
19	19613A1	倾斜销总成	PIN ASSEMBLY Tilt	1
20	19614	倾斜管	TILT TUBE	1
20	8M0041938	倾斜管	TILT TUBE	1
21	56041	螺母 (.875-14)	NUT (.875-14)	2
21	858869	螺母 (.875-14)	NUT (.875-14)	2
22	19624A1	密封套件	SEAL KIT	1
23	22740	卡扣	CLIP	1
24	69205	C形垫圈	C WASHER	1
24	8M0084613	C形垫圈	C-WASHER	1
25	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
25	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
26	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
27	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
27	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
28	35000	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	4
29	1938521	连接杆	LINK	1
29	8M0084737	连接杆	LINK	1
30	19615A4	倾斜杆总成	LEVER ASSEMBLY Tilt	1
30	19615A05	倾斜杆总成	LEVER ASSEMBLY Tilt	1
31	812707	衬套	BUSHING	1
32	815796	垫圈（0.030英寸）	WASHER ( .030" )	1
32	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
32	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
33	99611	波形垫圈	WAVE WASHER	1
34	19621	倾斜旋钮	TILT KNOB	1
34	8M0007469	倾斜旋钮	KNOB Tilt	1
35	19611	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	1
36	76841	螺钉 (.500-20 x 3.500)	SCREW (.500-20 x 3.500)	2
37	812432T	安装支架	BRACKET Mounting	1
37	812432F5	安装支架	MOUNTING BRACKET	1
37	812433T	安装支架	BRACKET Mounting	1
37	812433F5	安装支架	MOUNTING BRACKET	1
38	88432	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	4
39	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
39	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	8
40	134371	螺母 (.375-24)	NUT (.375-24)	4
40	862903	螺母 (.375-24)	NUT (.375-24)	4
41	812434A2	T型手柄螺母	NUT T Handle	2

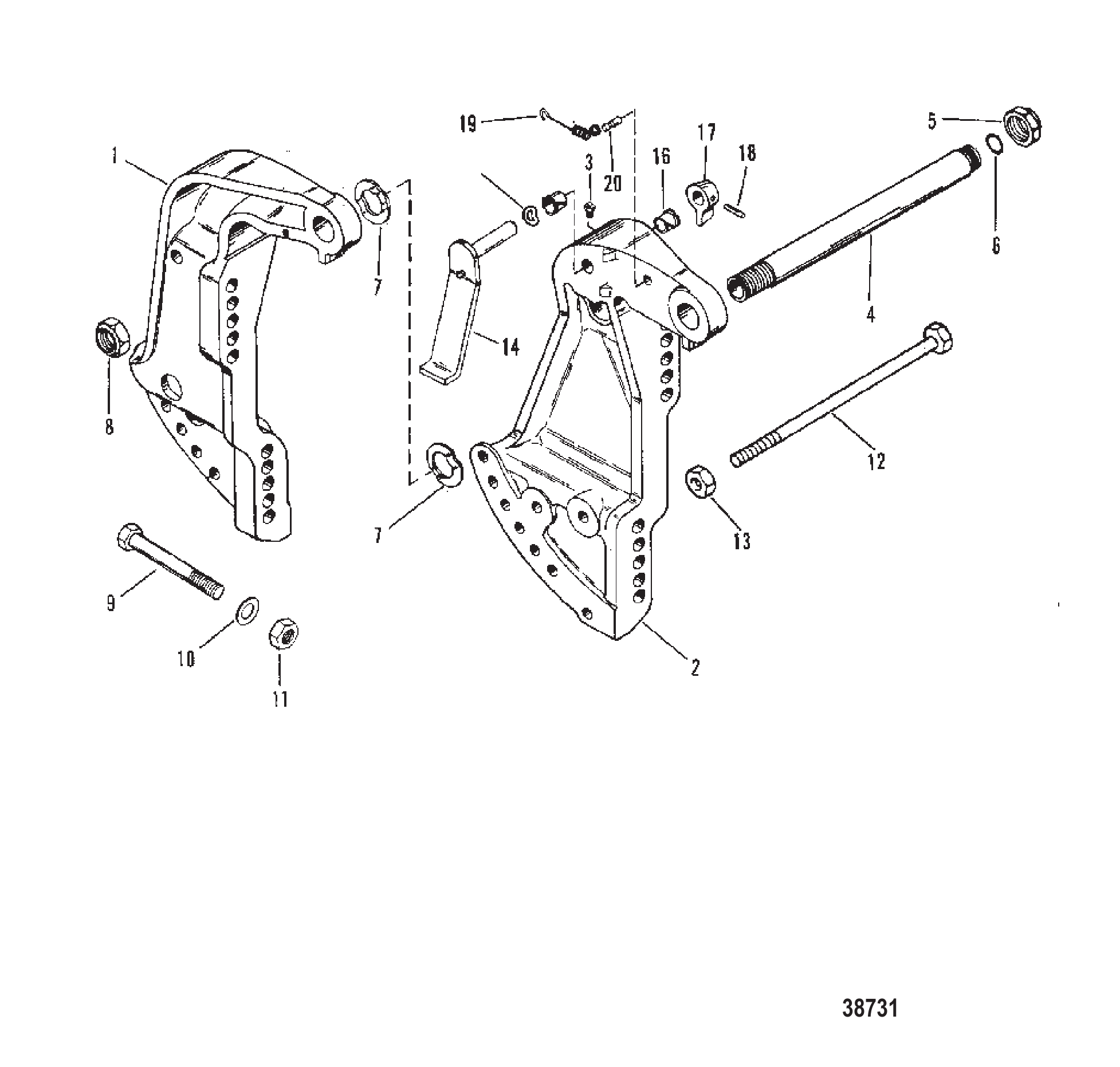

图 43艉板支架(动力升降)(0C159199及以下) TRANSOM BRACKET (POWER TRIM)(0C159199 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成(右舷)	BRACKET ASSEMBLY Transom (STARBOARD)	1
2	8716A5	艉板支架总成(左舷)	BRACKET ASSEMBLY Transom (PORT)	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A1	倾斜管	TILT TUBE	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
5	90068T	倾斜管螺母（1英寸-14牙）	NUT TILT TUBE (1"-14)	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	45711		O-RING (.612 x .103) TILT TUBE	1
7	88750	波形垫圈(1.62 x 1.05)倾斜管	WASHER Wave (1.62 x 1.05) TILT TUBE	2
8	56041	倾斜管螺母（7/8英寸-14牙）	NUT (.875-14) TILT TUBE (7/8-14)	1
8	858869	螺母 (.875-14)	NUT (.875-14)	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	35000	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	4
12	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
13	23161	螺栓螺母（3/8英寸-24牙）	NUT (.375-24) BOLT	1
14	99629A2	杠杆总成	LEVER ASSEMBLY	1
14	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	99611	波形垫圈	WAVE WASHER	1
16	65830	倾斜杆尼龙衬套	NYLINER TILT LEVER	2
17	99633	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
18	99615	槽销	PIN Groove	1
19	99622	弹簧	SPRING	1
20	99604	槽销	PIN Groove	1
