水星 Mercury 35 2 CYL 6445653 THRU 0B110788 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-43116 · 共 40 个部位 · 1613 条零件

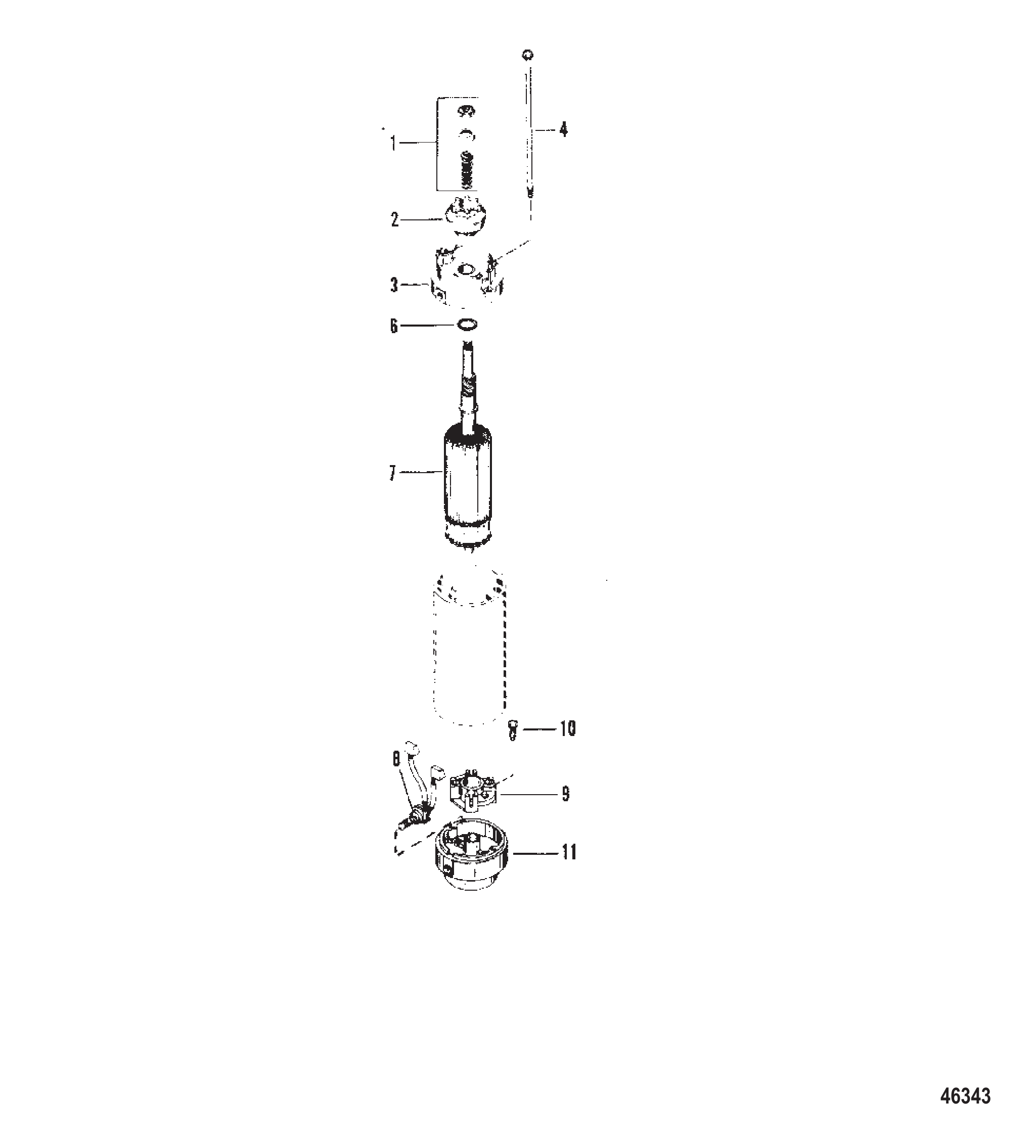

1齿轮箱(螺旋桨轴)2齿轮箱（驱动轴）3杂项零件/附件4换挡控制联动装置5燃油泵6自动混合器7启动器回绕装置8启动电机总成9曲轴、活塞与连杆10自动混合装置11动力升降组件12驱动轴壳体13转向手柄14化油器总成15自动混合器16底罩与排气板17化油器总成18夹紧与旋转支架(非动力升降)19夹紧与旋转支架(动力升降)20曲轴、活塞与连杆21气缸体与节温器22气缸体曲轴箱及盖23驱动轴壳体24飞轮、点火线圈和开关盒25燃油泵与燃油管路26齿轮箱（驱动轴）27齿轮箱(螺旋桨轴)28液压泵总成(塑料油箱)29杂项零件/附件30动力升降组件31动力升降油缸修理包32螺旋桨(右旋)33换挡控制联动装置34启动电机、整流器及线束(仅电动)35启动电机总成36启动器回绕装置37转向手柄38油门与点火提前连杆39顶罩与外壳40升降油缸及液压软管

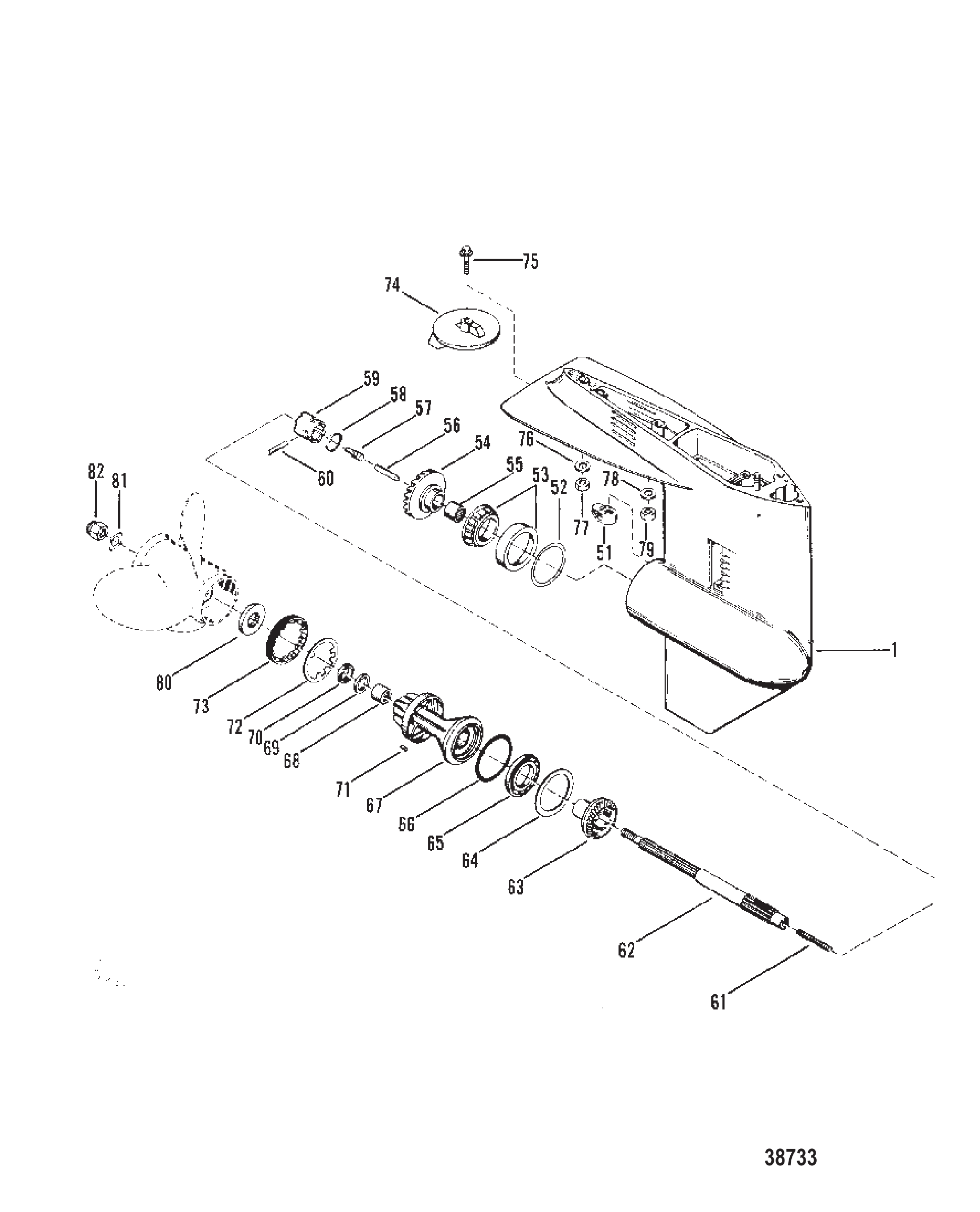

图 1齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
REF零件编号中文名称英文名称数量
-9148A8齿轮箱总成-标准旋转1.87:1传动比(完整)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)1
19148A11齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4878956换挡凸轮SHIFT CAM1
48789562换挡凸轮SHIFT CAM1
4989594A1凸轮从动件总成FOLLOWER ASSEMBLY CAM1
5079911离合器作动杆ROD CLUTCH ACTUATOR1
5079911A1杆ROD1
5179910压缩弹簧SPRING COMPRESSION2
5278910压缩弹簧垫圈WASHER COMPRESSION SPRING1
5378906PIN SPRING LOCATOR1
538M0084245弹簧定位销PIN Spring Locator1
5447397A1轴承外圈垫片组(.002-3-5-10)SHIM SET BEARING OUTER RACE (.002-3-5-10)AR
5578172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5644104A2前进齿轮总成GEAR ASSEMBLY Forward1
5644104T2齿轮组GEAR SET1
5743999滚子轴承(外径1.308)BEARING Roller (1.308 O.D.)2
5773363滚子轴承(外径1.313)BEARING Roller (1.313 O.D.)2
5773363T轴承BEARING2
5878959棘轮滑动离合器RATCHET SLIDING CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905棘轮到螺旋桨轴十字销PIN Cross RATCHET TO PROPELLER SHAFT1
598M0084243十字销PIN Cross1
6078909棘轮定位销PIN Detent RATCHET2
6178962十字销固定弹簧SPRING RETAINING-CROSS PIN2
6294148螺旋桨轴PROPELLER SHAFT1
63N.S.S.不单独出售(43-44104A2部件)Not Sold Separate (PART OF 43-44104A2)1
6468100止推环RING THRUST1
64681001止推环RING Thrust1
6588957A1滚珠轴承-倒档齿轮BEARING Ball BALL-REVERSE GEAR1
6588957T滚珠轴承BEARING Ball1
6631534轴承座O型圈O-RING BEARING CARRIER1
668M0214920O型圈O RING1
6743567A1轴承座总成CARRIER ASSEMBLY Bearing1
6743567T1轴承座总成CARRIER ASSEMBLY Bearing1
6830956滚针轴承-轴承座BEARING Needle BEARING CARRIER1
6830956T滚针轴承BEARING Needle1
6976868轴承座密封SEAL BEARING CARRIER2
698M0248882油封@5SEAL-OIL @52
7030281轴承座定位键KEY LOCATING-BEARING CARRIER1
7179447齿轮箱盖锁紧垫圈TAB WASHER GEAR HOUSING COVER1
7279448齿轮箱固定座RETAINER GEAR HOUSING1
728M2011027固定座RETAINER1
7331640A1TRIM TAB ASSEMBLY GEAR HOUSING1
7331640Q4平衡鳍板TRIM TAB1
7466024螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")1
7567891填充块FILLER BLOCK FILLER BLOCK1
758M0039169填充块FILLER BLOCK1
7634933螺母(.437-20)不锈钢驱动轴壳体螺柱NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS2
768M0204653螺母NUT2
7765210螺钉(.375-16 x 1.00)齿轮箱SCREW (.375-16 x 1.00) GEAR HOUSING1
7813171推力毂THRUST HUB1
78835467Q01止推垫片套件THRUST WASHER KIT1
7931211A2花键垫圈-螺旋桨螺母WASHER Splined SPLINED-PROPELLER NUT1
7931211Q03垫圈总成WASHER ASSEMBLY1
8031210螺旋桨螺母锁紧垫圈TAB WASHER PROPELLER NUT1
80816629Q锁紧垫圈TAB WASHER1
8152707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8152707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
82423511螺旋桨轴齿形锁紧垫圈LOCKWASHER Toothed PROPELLER SHAFT1
8345176垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS2
-89238A2密封套件SEAL KIT1
-14697A87衬垫套件GASKET SET
图 2齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

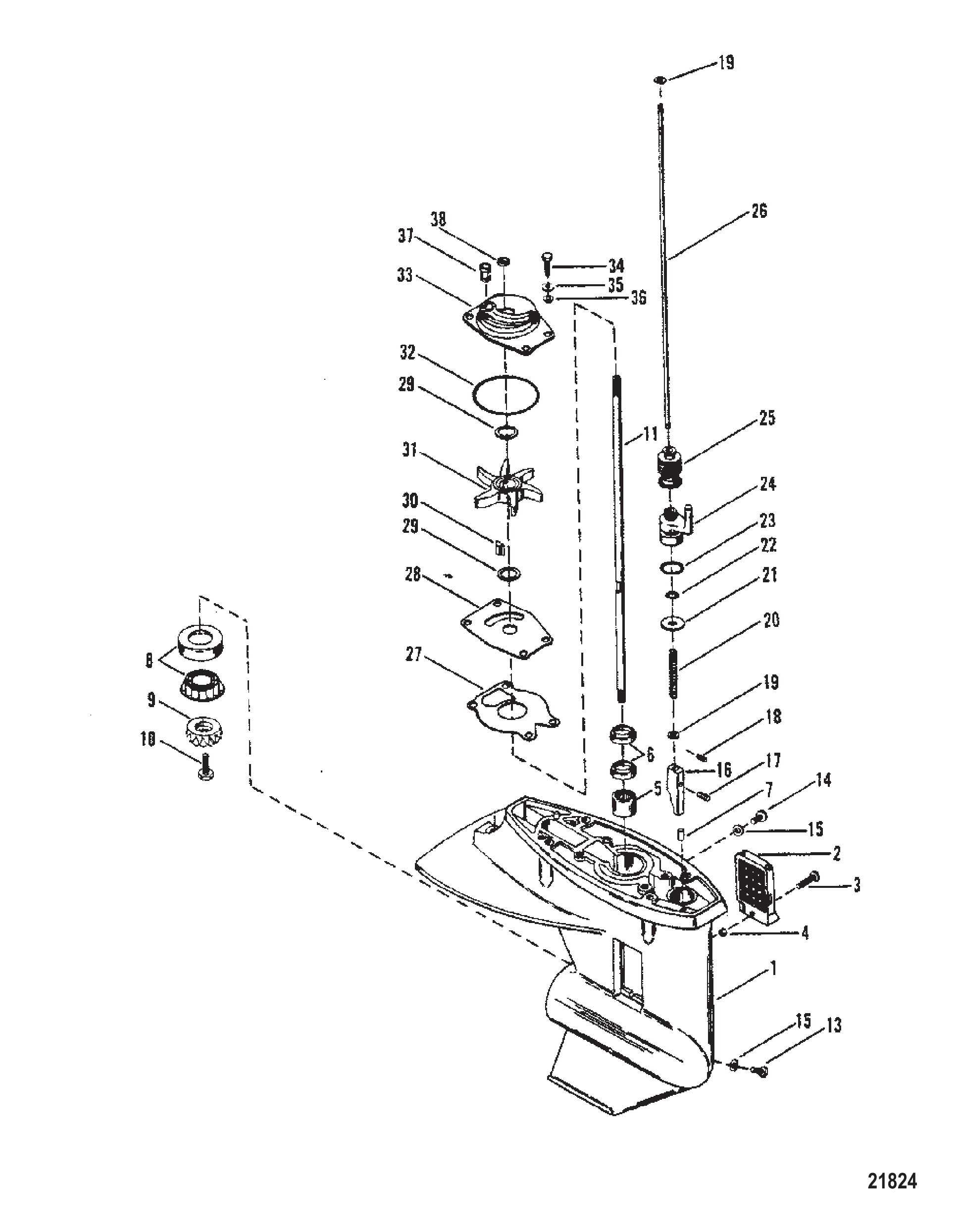

齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-7360A29齿轮箱总成(完整)GEAR HOUSING ASSEMBLY COMPLETE1
-7360A30齿轮箱总成(完整)GEAR HOUSING ASSEMBLY COMPLETE1
17360A11齿轮箱总成GEAR HOUSING ASSEMBLY1
258138齿轮箱螺柱(3.5英寸)STUD GEAR HOUSING (3-1/2")1
358136水泵壳体螺柱(2.75英寸)STUD WATER PUMP HOUSING (2-3/4")2
422756驱动轴滚柱轴承BEARING Roller DRIVE SHAFT1
520032定位销PIN Dowel LOCATING1
633613进水管橡胶密封SEAL RUBBER - WATER INTAKE TUBE1
786215进水管尼龙轴承密封BEARING NYLON - INTAKE TUBE SEAL1
833425进水滤网SCREEN WATER INTAKE1
925612进水滤网螺丝SCREW WATER INTAKE SCREEN1
1098696小齿轮GEAR Pinion1
1130377小齿轮螺钉锁紧垫圈TAB WASHER PINION GEAR SCREW1
1230376小齿轮驱动轴螺丝(#12-28x0.75)SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT1
1395873A1驱动轴DRIVESHAFT1
1395874A1驱动轴DRIVESHAFT1
1430527A1滚珠轴承垫片组(0.002-3-5-10)SHIM ASSEMBLY BALL BEARING (.002-3-5-10)AR
1570944驱动轴滚珠轴承BEARING Ball DRIVE SHAFT1
1630523球轴承挡圈RING Retaining BALL BEARING1
1730527A1滚珠轴承垫片组(0.002-3-5-10)SHIM ASSEMBLY BALL BEARING (.002-3-5-10)AR
1870941A1水泵总成HOUSING ASSEMBLY Water Pump1
1870941T01壳体总成HOUSING ASY1
1892970A1水泵总成HOUSING ASSEMBLY Water Pump1
1929439O型圈O-RING1
2030900油封SEAL Oil1
2030900T密封件@2SEAL @21
2096063油封SEAL Oil1
20897153油封@3SEAL-OIL @31
2170977嵌件INSERT1
2170977T嵌件INSERT1
2233613进水管密封SEAL WATER INTAKE TUBE1
2334293进水管道TUBE WATER INTAKE1
2456655叶轮驱动键KEY IMPELLER DRIVE1
248M0032835键KEY1
2589981叶轮IMPELLER1
2589980叶轮IMPELLER1
2646895水泵面板FACE PLATE WATER PUMP1
2793224A1水泵盖总成COVER ASSEMBLY Water Pump1
2836558水泵盖密封件SEAL WATER PUMP COVER1
3030913水泵盖油封SEAL Oil WATER PUMP COVER1
3120533垫圈WASHER2
3213438水泵壳体螺柱螺母(.250-28)NUT (.250-28) WATER PUMP HOUSING STUD2
328267119螺母(.250-28)NUT (.250-28)2
3330526橡胶环-离心甩水环RING RUBBER - CENTRIFUGAL SLINGER1
3431792进水管导向套SLEEVE GUIDE - INLET TUBE1
3431792T套管@5SLEEVE @51
-78139A80衬垫套件GASKET SET1
-70941A3水泵维修套件REPAIR KIT Water Pump1
-92970A5水泵维修套件REPAIR KIT Water Pump1
-77066A1水泵密封套件SEAL KIT Water Pump1
图 3杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-811286零件手册(6/8/9.9/15马力)PARTS MANUAL 6/8/9.9/15 Hp
-12048930用户指南(黑色)OWNERS GUIDE (BLACK)
-14138930用户指南(灰色)OWNERS GUIDE (GRAY)
-14012A89贴花套装(9.9/210帆动力)DECAL SET (9.9/210 SAILPOWER)
-12836A89贴花套装(黑色-6至9.9马力)DECAL SET (BLACK- 6 THRU 9.9)
-13478A88贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-810458A92贴花套装(灰色-6至15马力)DECAL SET (GRAY- 6 THRU 15)
-822787A93贴花套装(灰色-8帆伴侣)DECAL SET (GRAY 8 SAILMATE)
-808560A03贴花套件DECAL SET
-808522A94贴花套装(黑色-6马力)DECAL SET (BLACK-6)
-808522A00贴花套件DECAL SET
-808526A94贴花套装(黑色-8马力)DECAL SET (BLACK -8)
-808526A00贴花套件DECAL SET
-12836A94贴花套装(黑色-9.9马力)DECAL SET (BLACK- 9.9)
-12836A00贴花套件DECAL SET
-808523A94贴花套装(9.9帆动力)DECAL SET (9.9 SAILPOWER)
-808523A96贴花套件DECAL SET
-13478A94贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-13478A00贴花套件DECAL SET
-808524A94贴花套装(灰色-6马力)DECAL SET (GRAY-6)
-808524A03贴花套件DECAL SET
-808545A94贴花套装(灰色-8马力)DECAL SET (GRAY-8)
-808545A03贴花套件DECAL SET
-808560A94贴花套装(8帆伴侣)DECAL SET (8 SAILMATE)
-808560A03贴花套件DECAL SET
-808525A94贴花套装(灰色-9.9马力)DECAL SET (GRAY-9.9)
-808525A03贴花套件DECAL SET
-808546A94贴花套装(灰色-15马力)DECAL SET (GRAY-15)
-808546A03贴花套件DECAL SET

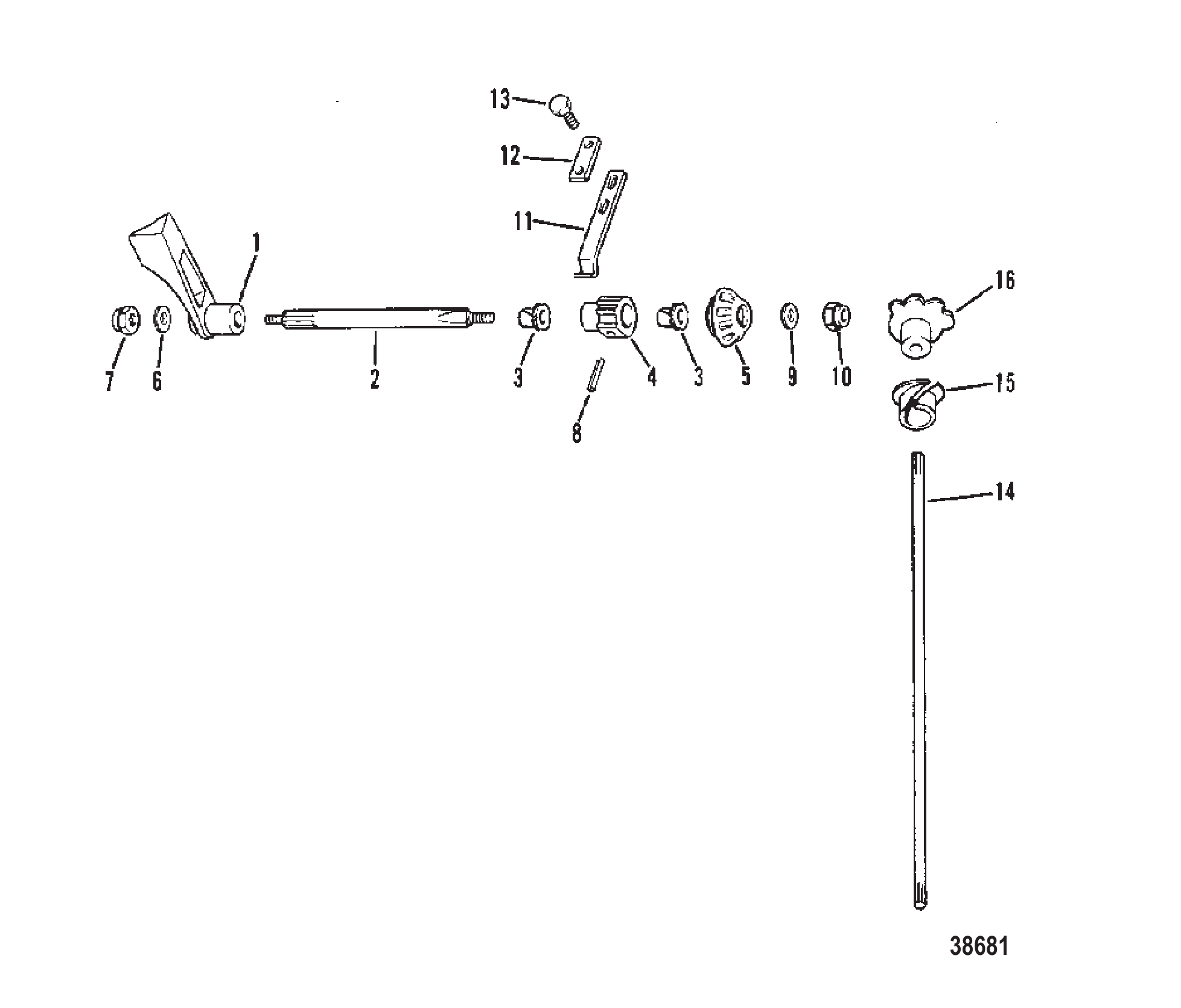

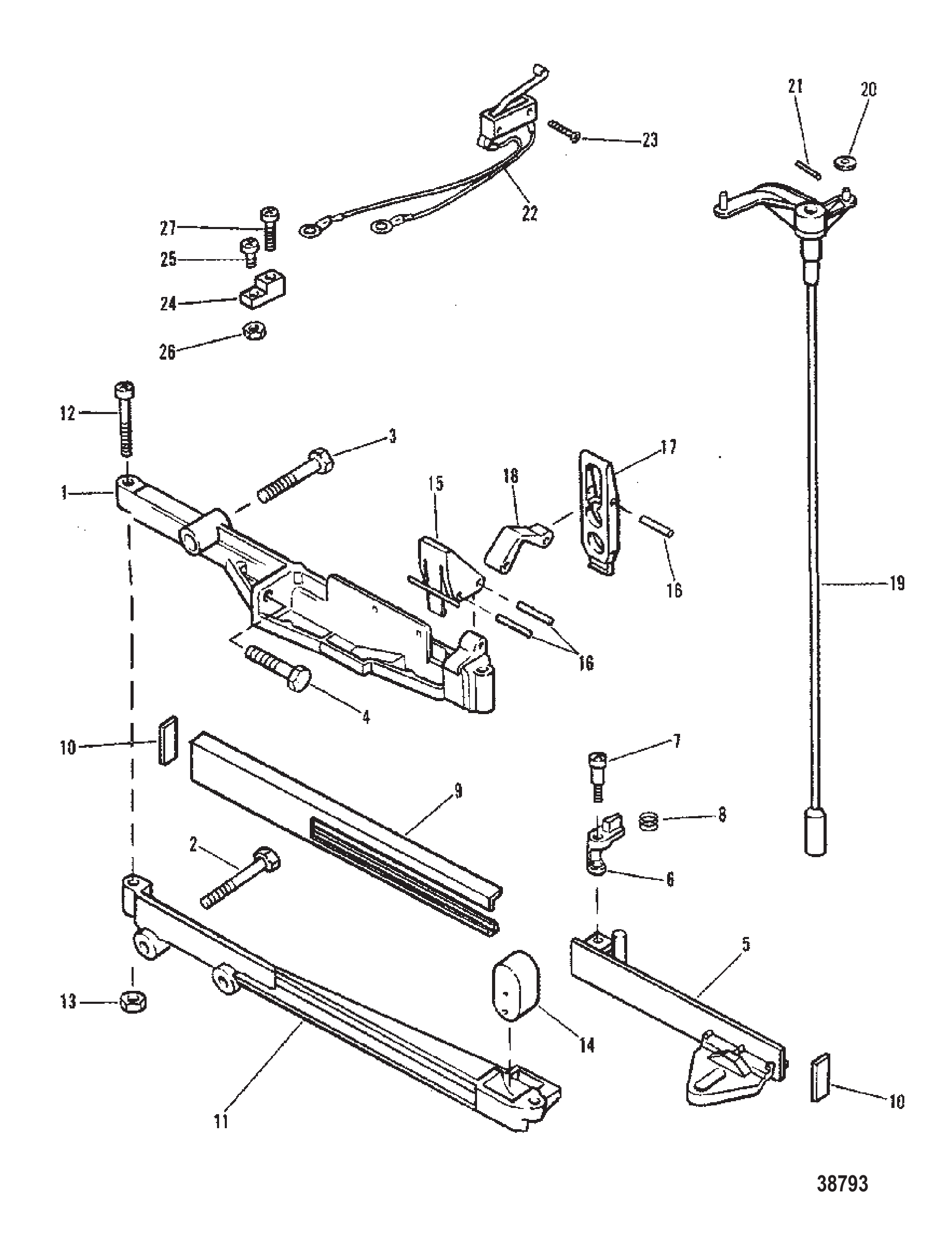

图 4换挡控制联动装置 SHIFT CONTROL LINKAGE
换挡控制联动装置 SHIFT CONTROL LINKAGE
REF零件编号中文名称英文名称数量
166376换挡控制手柄HANDLE SHIFT CONTROL1
266378控制手柄轴SHAFT CONTROL HANDLE1
366375尼龙衬套-换挡控制手柄BUSHING NYLON - SHIFT CONTROL HANDLE2
466414换挡轴凸轮CAM SHIFT SHAFT1
566377换挡控制手柄扇形齿轮SECTOR GEAR SHIFT CONTROL HANDLE1
629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
68M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
739305螺母NUT1
7826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
825905定位凸轮至换挡轴销PIN DETENT CAM TO SHIFT SHAFT1
929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
98M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
1020361螺母(.250-28)NUT (.250-28)1
108267089螺母(.250-28)NUT (.250-28)1
1139627定位弹簧-曲轴箱SPRING DETENT - CRANKCASE1
1239601定位弹簧板PLATE DETENT SPRING1
1325764螺钉(.190-32 x .50)SCREW (.190-32 x .50)2
1471660换挡轴上段SHIFT SHAFT UPPER1
1530677尼龙衬套-换挡控制轴BUSHING NYLON - SHIFT CONTROL SHAFT1
1686686A1扇形齿轮换挡轴SECTOR GEAR SHIFT SHAFT1

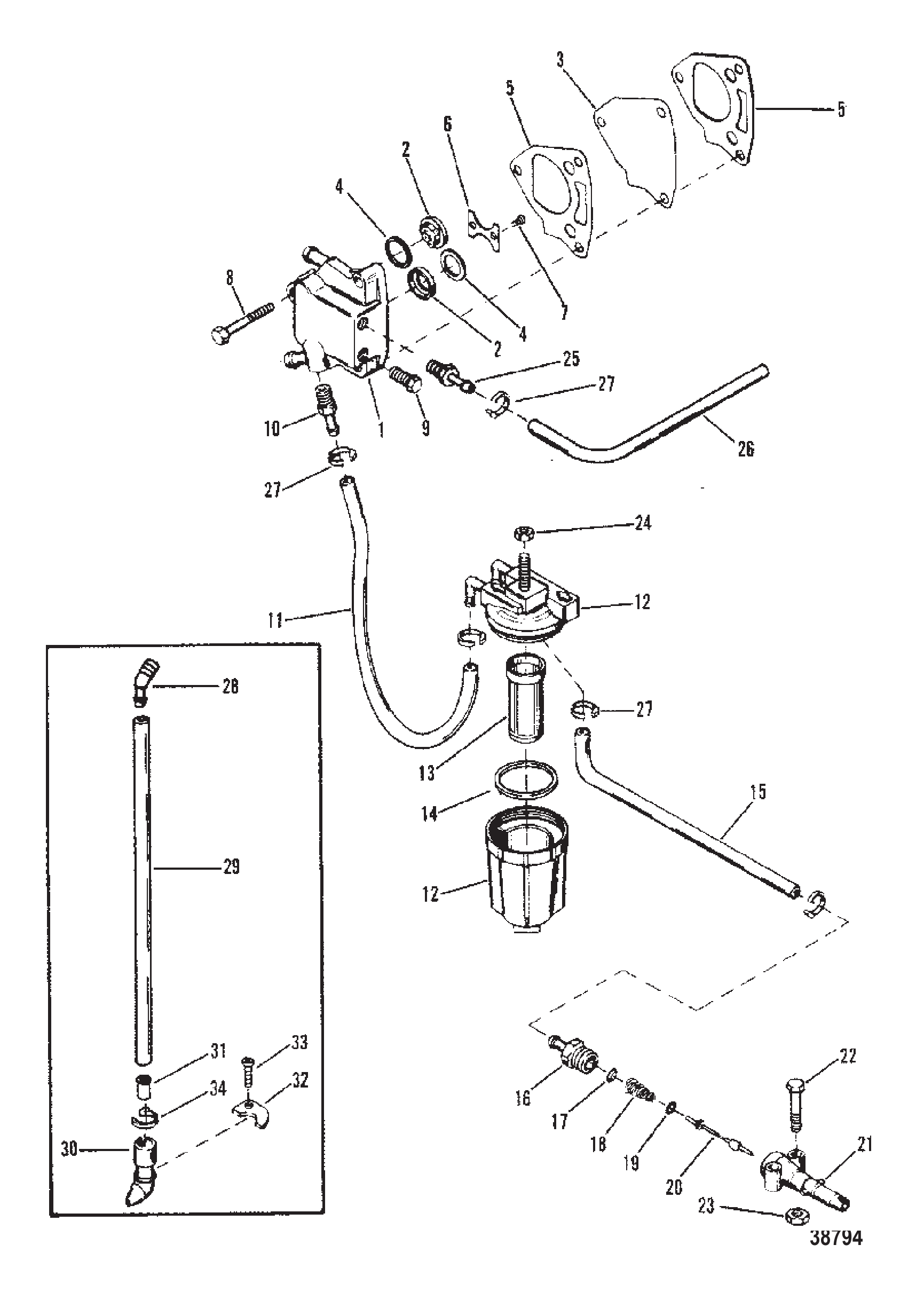

图 5燃油泵 FUEL PUMP
燃油泵 FUEL PUMP
REF零件编号中文名称英文名称数量
1880890T1燃油泵PUMP Fuel1
2NSS不单独销售本体NOT SOLD SEPARATE Body1
3881544弹簧SPRING1
4881545柱塞PLUNGER1
5881546弹簧SPRING1
6881547隔膜DIAPHRAGM1
7881548销PIN1
8NSS不单独销售本体NOT SOLD SEPARATE Body1
9NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
10NSS不单独销售本体NOT SOLD SEPARATE Body1
11881550螺钉SCREW3
12881333螺母NUT3
13804255O型圈O-RING1
138M0050719O型圈O-RING1
14879650卡箍CLAMP2
1456762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
15804256螺栓 (M6 x 30)BOLT (M6 x 30)2
16881543软管HOSE1
16881543002油管TUBING1
17881542支架BRACKET1
188527768螺栓(M6 x 16)BOLT (M6 x 16)1
18811188T螺栓BOLT1
198528161螺母NUT1
1982382M螺母NUT1
20881538T1滤清器总成FILTER ASSEMBLY1
20881538T02燃油滤清器总成FILTER ASSY-FUEL1
21881540滤芯1.75英寸ELEMENT 1.75 Inches1
218M0168897燃油滤清器FUEL FILTER1
218M0101436滤芯1.50英寸ELEMENT 1.50 Inches1
218M0117705燃油滤清器FILTER-FUEL1
22826966MO型圈O-RING1
22826966TO型圈O RING1
23881541浮子FLOAT1
24881539杯套CUP1
248M0101437杯套CUP1
248M0137185燃油杯CUP FUEL1
25879650卡箍CLAMP2
2556762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
26804260支架BRACKET1
27804112螺栓(M7 x 48)BOLT (M7 x 48)2
28804113定位销PIN Dowel2
2984292M垫圈WASHER2
30804257燃油转换杆LEVER Fuel Change1
31881334轴SHAFT1
32804259销PIN2
3282738M滚销PIN-ROLL2
33830757130管材(.312)(70英寸整卷)裁切至55英寸长度TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.1
338M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
34816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
35822769连接器CONNECTOR1
36NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
37828547T1导管(.500内径 x 3英尺整卷)CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)1
-858732T01衬垫套件GASKET SET1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-881310T1气缸盖总成CYLINDER HEAD ASSEMBLY1
-881310T09气缸盖HEAD-CYLINDER1

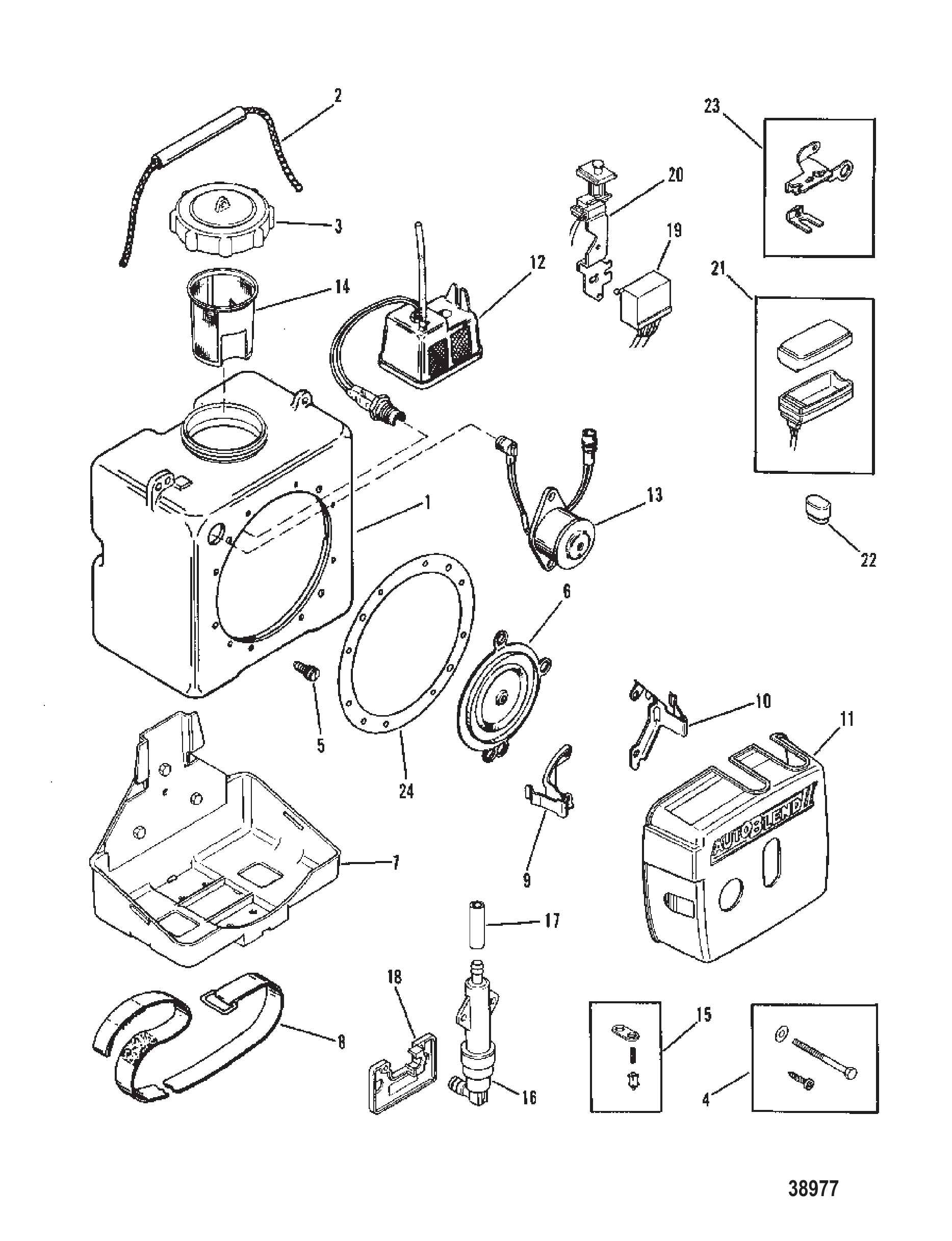

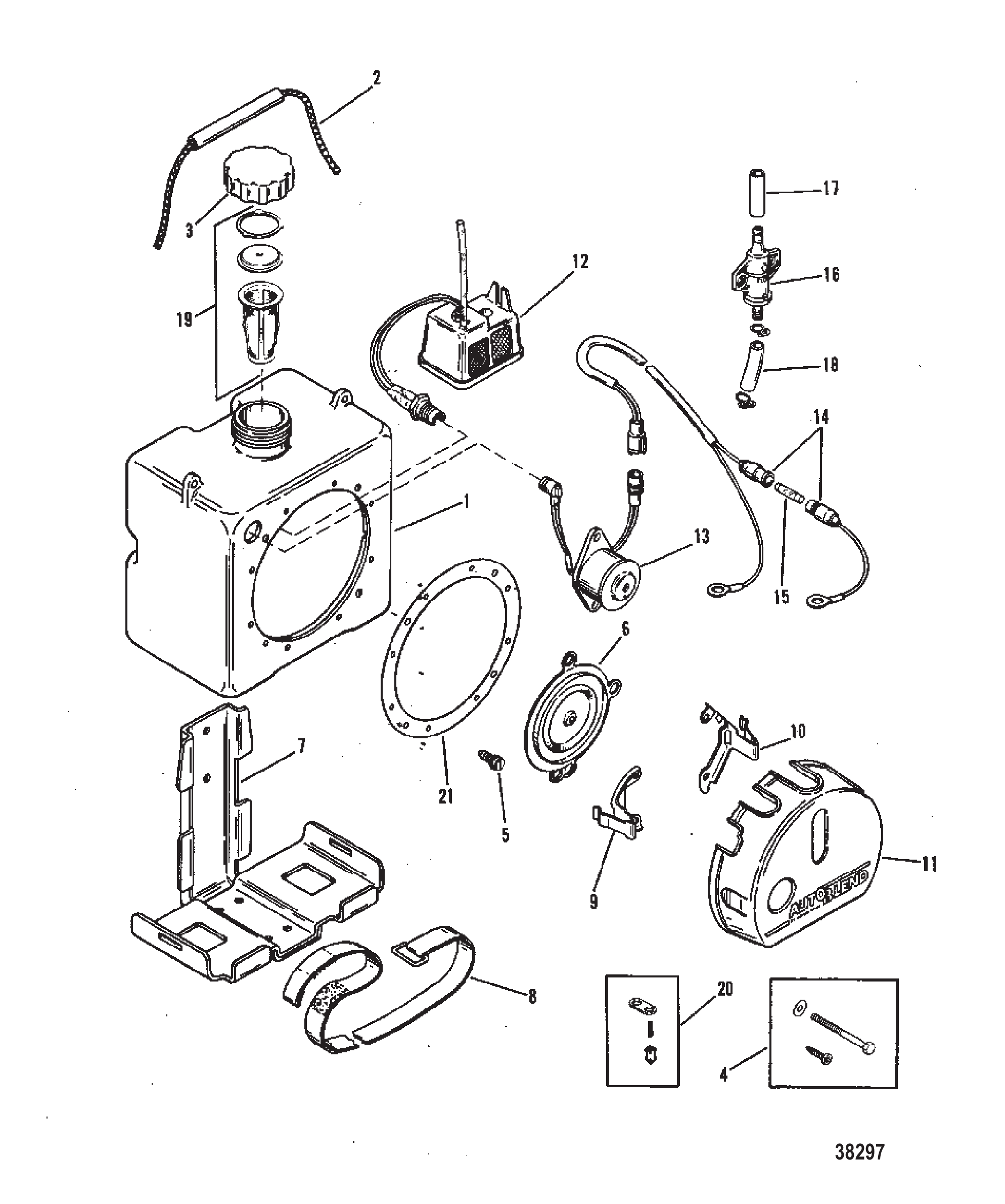

图 6自动混合器 AUTO-BLEND
自动混合器 AUTO-BLEND
REF零件编号中文名称英文名称数量
-130195自动混合装置AUTO BLEND ASSEMBLY1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
316619机油箱盖CAP OIL TANK1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
716620安装支架套件BRACKET KIT Mounting1
813993箍带BAND1
913983支架(左)BRACKET (LEFT)1
1013984支架(右)BRACKET (RIGHT)1
1116626盖板COVER1
1216624机油滤清器及液位传感器套件SENSOR KIT Oil Filter And Level1
1316625喇叭套件HORN KIT1
1416618机油滤网STRAINER Oil1
1516615止回阀套件CHECK VALVE KIT1
1618576燃油滤清器套件FILTER KIT Fuel1
1713992乙烯基软管VINYL TUBE1
1816621安装板PLATE1
1916627模块套件MODULE KIT1
2016628测试按钮套件TEST BUTTON KIT1
2116629电池盒套件(使用9伏电池)CASE KIT Battery (USE 9 VOLT BATTERY)1
2216630密封圈套件GROMMET KIT1
2316631支架套件BRACKET KIT1
2416616衬垫套件GASKET KIT1

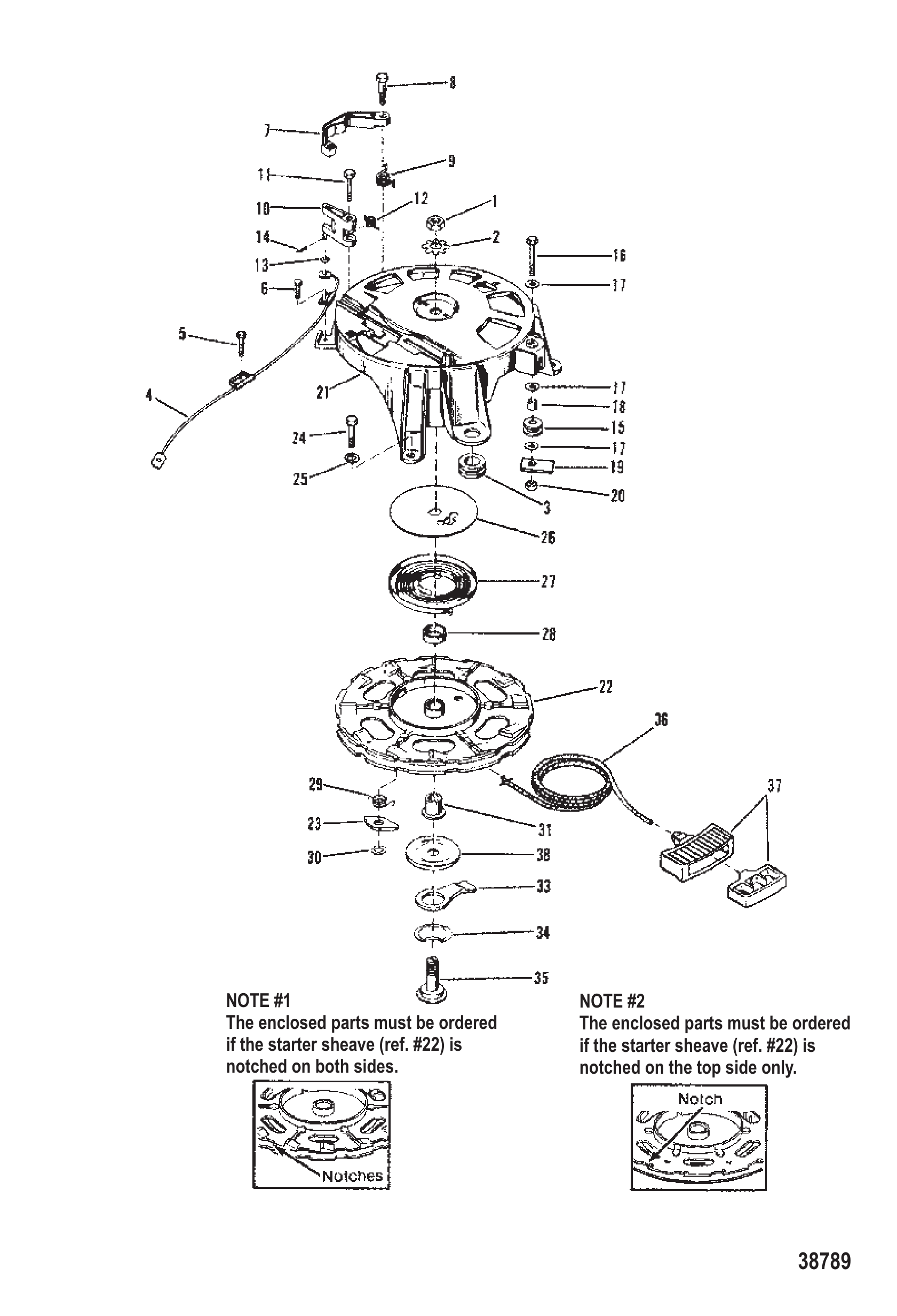

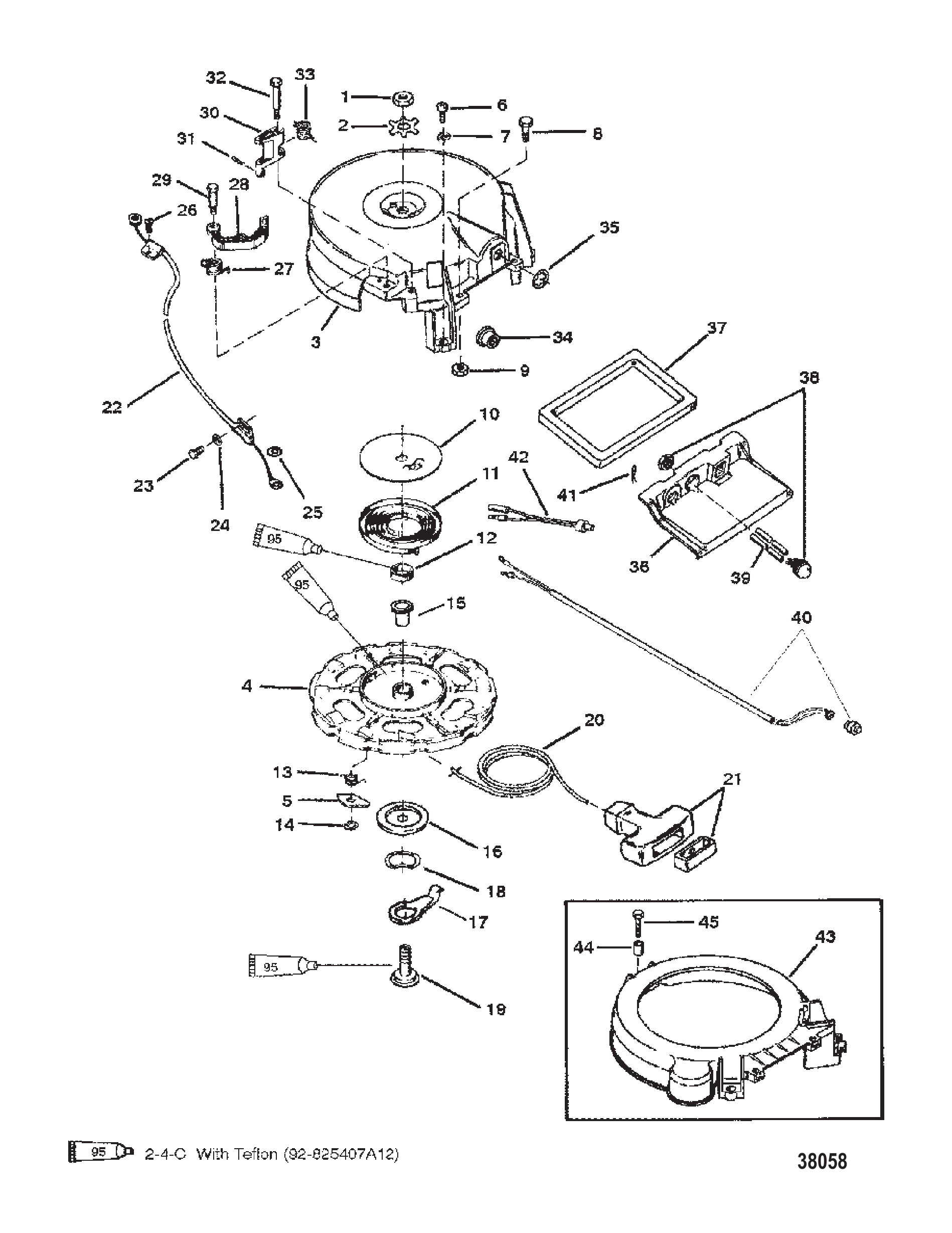

图 7启动器回绕装置 STARTER REWIND
启动器回绕装置 STARTER REWIND
REF零件编号中文名称英文名称数量
120166螺母(左旋螺纹)NUT (LEFT HAND THREAD)1
261004锁紧垫圈TAB WASHER1
3186471启动器壳体HOUSING Starter1
444255A1启动器滑轮总成SHEAVE ASSEMBLY Starter1
544508启动棘爪PAWL Starter1
654523螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)3
726993锁紧垫圈 (.312)LOCKWASHER (.312)3
78M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
845210螺钉 (.190-32 x 1.250)SCREW (.190-32 x 1.250)2
920190螺母 (#10-32)NUT (#10-32)2
98267086螺母 (#10-32)NUT (#10-32)2
1061002安装板PLATE1
1139502A1弹簧SPRING1
1139502T02回卷弹簧SPRING-RECOIL1
1287649衬套BUSHING1
1387651弹簧SPRING1
1487706E型卡环E RING1
1563061隔套SPACER1
1635559垫圈WASHER1
1794962杠杆LEVER1
1820160波形垫圈WAVE WASHER1
1987656滑轮轴SHEAVE SHAFT1
2012066A9绳索ROPE1
2012066Q10启动绳@2ROPE-STARTER@21
2047341A1手动/应急启动绳和手柄套件 (用于手动启动)ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)1
2047341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2185174A1手柄总成HANDLE ASSEMBLY1
22188881联锁电缆CABLE Interlock1
2369022螺钉 (#10-32 x .500) 不锈钢SCREW (#10-32 x .500) Stainless Steel1
2473288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
2537998垫圈WASHER1
26812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
26878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
27761401弹簧SPRING1
28428201凸轮CAM1
2976138螺丝(.312-18 x 1.120)SCREW (.312-18 x 1.120)1
3079371执行器ACTUATOR1
3127769开口销COTTER PIN2
3126811开口销COTTER PIN2
3276137螺丝(1-5/8英寸)SCREW (1-5/8 IN.)1
3376139弹簧SPRING1
3442690衬套BUSHING1
348M0183792绳索衬套ROPE BUSHING1
35818853挡圈RING Retaining1
36813544A1支架总成REST ASSEMBLY1
36813544支架REST1
37813641密封件SEAL1
388168772注油球PRIMER BULB1
38858763注油球PRIMER BULB1
3999130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
39892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
4089591A5线束总成HARNESS ASSEMBLY1
4136002开口销COTTER PIN2
4211149A2线缆总成(6.00英寸)(非手柄)CABLE ASSEMBLY (6.00 Inches) (NON-HANDLE)1
43812617飞轮盖COVER Flywheel1
44812611盖螺丝垫片SPACER Cover Screw3
45812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch3

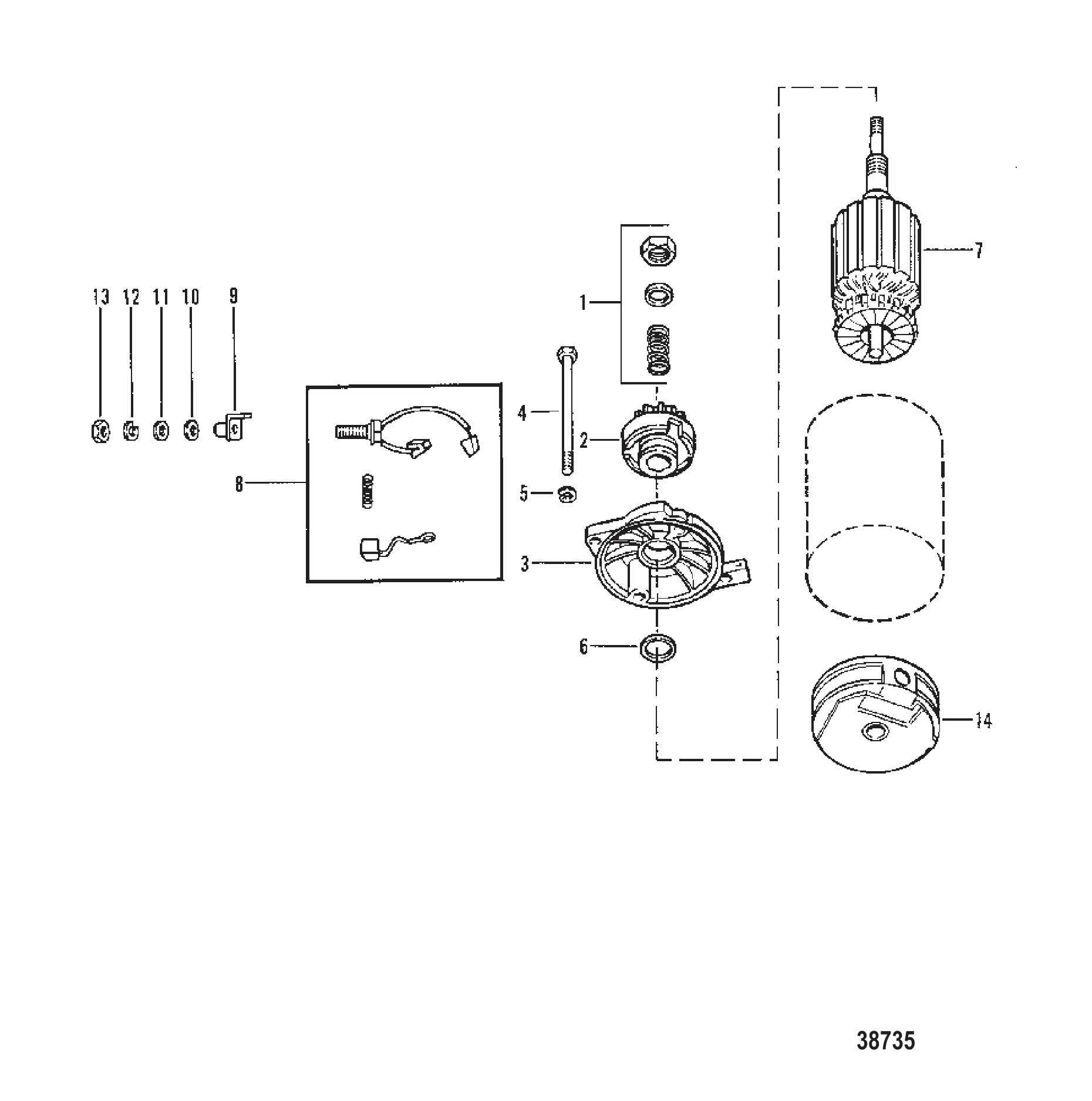

图 8启动电机总成 STARTER MOTOR ASSEMBLY
启动电机总成 STARTER MOTOR ASSEMBLY
REF零件编号中文名称英文名称数量
-79472启动电机总成STARTER MOTOR ASSEMBLY1
190645驱动套件DRIVE KIT1
275661驱动小齿轮总成PINION ASSEMBLY Drive1
213310T1小齿轮总成PINION ASSEMBLY1
375660驱动端板PLATE DRIVE END1
474968贯穿螺栓BOLT THRU2
6N.S.S.贯穿螺栓 (不单独销售)Not Sold Separate THRU BOLT1
779216电枢ARMATURE1
875384电刷/弹簧套件BRUSH/SPRING KIT1
8898265016电刷/弹簧套件BRUSH/SPRING KIT1
961787电刷架HOLDER BRUSH2
9898265014电刷支架HOLDER-BRUSH2
1068586电刷及支架螺钉SCREW BRUSH AND HOLDER2
1115386换向器端盖END CAP COMMUTATOR1
1115386001端盖END CAP1

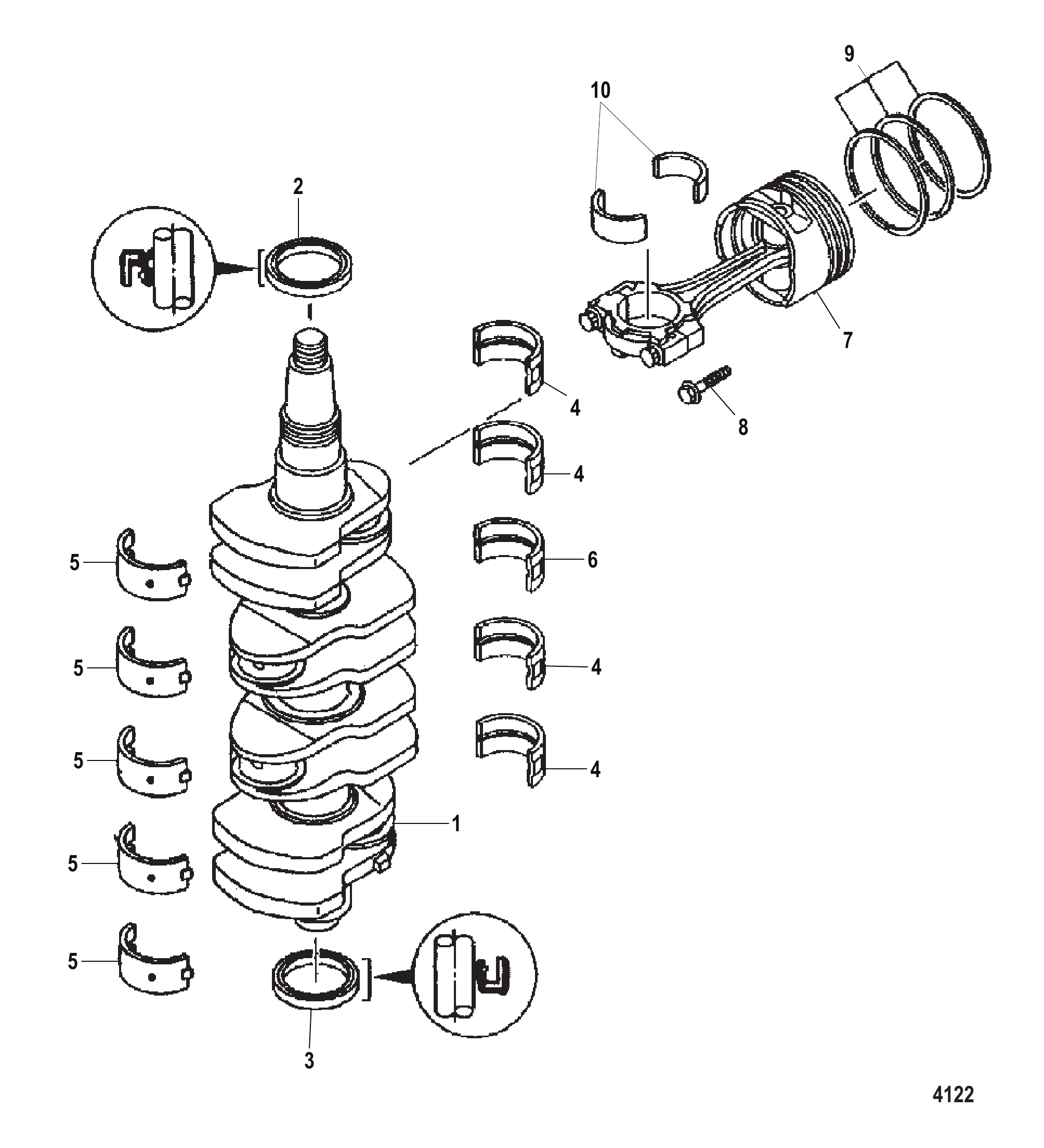

图 9曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
1880894T曲轴CRANKSHAFT1
28040992油封SEAL Oil1
38041002油封SEAL Oil1
4804101T轴承BEARING4
4804101T10轴承BEARING4
4804101T20轴承BEARING4
5804102T轴承BEARING5
5804102T10轴承BEARING5
5804102T20轴承BEARING5
5804102T30轴承BEARING5
6804103T轴承BEARING1
6804103T10轴承BEARING1
6804103T20轴承BEARING1
7880895A05活塞总成PISTON ASSEMBLY4
7880895A14活塞/连杆总成PISTON/CONN ROD4
7880895A12活塞总成PISTON ASSEMBLYAR
7880895A16活塞/连杆总成PISTON/CONN RODAR
8880896螺栓(M8 x 38)BOLT (M8 x 38)8
9880897T02活塞环组RING SET Piston4
9880898T02活塞环组RING SET PistonAR
10880899T轴承BEARING8
10880899T10轴承BEARING8
10880899T20轴承BEARING8
10880899T30轴承BEARING8
-858732A06衬垫套件GASKET SET1
-881421T04动力头总成POWERHEAD ASSEMBLY1
图 10自动混合装置 Auto-Blend
自动混合装置 Auto-Blend
REF零件编号中文名称英文名称数量
-1301930自动混合器AUTO-BLEND1
113982油箱套件 机油TANK KIT Oil1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
313986机油箱盖CAP OIL TANK1
413994五金件套件HARDWARE KIT1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
713990支架BRACKET1
813993箍带BAND1
913983支架(左)BRACKET (LEFT)1
1013984支架(右)BRACKET (RIGHT)1
1113991盖板COVER1
1116613盖板COVER1
1213985机油滤清器/传感器套件FILTER/SENSOR KIT Oil1
1313987喇叭套件HORN KIT1
1413988线束总成HARNESS ASSEMBLY1
1513989保险丝(0.5安培)FUSE (.5 AMP)1
1613981燃油滤清器套件FILTER KIT Fuel1
1618089燃油滤清器套件FILTER KIT Fuel1
1713992乙烯基软管VINYL TUBE1
1813995燃油管套件TUBE KIT Fuel1
1915387A1机油滤网总成STRAINER ASSEMBLY Oil1
2016615止回阀套件CHECK VALVE KIT1
2116616衬垫套件GASKET KIT1

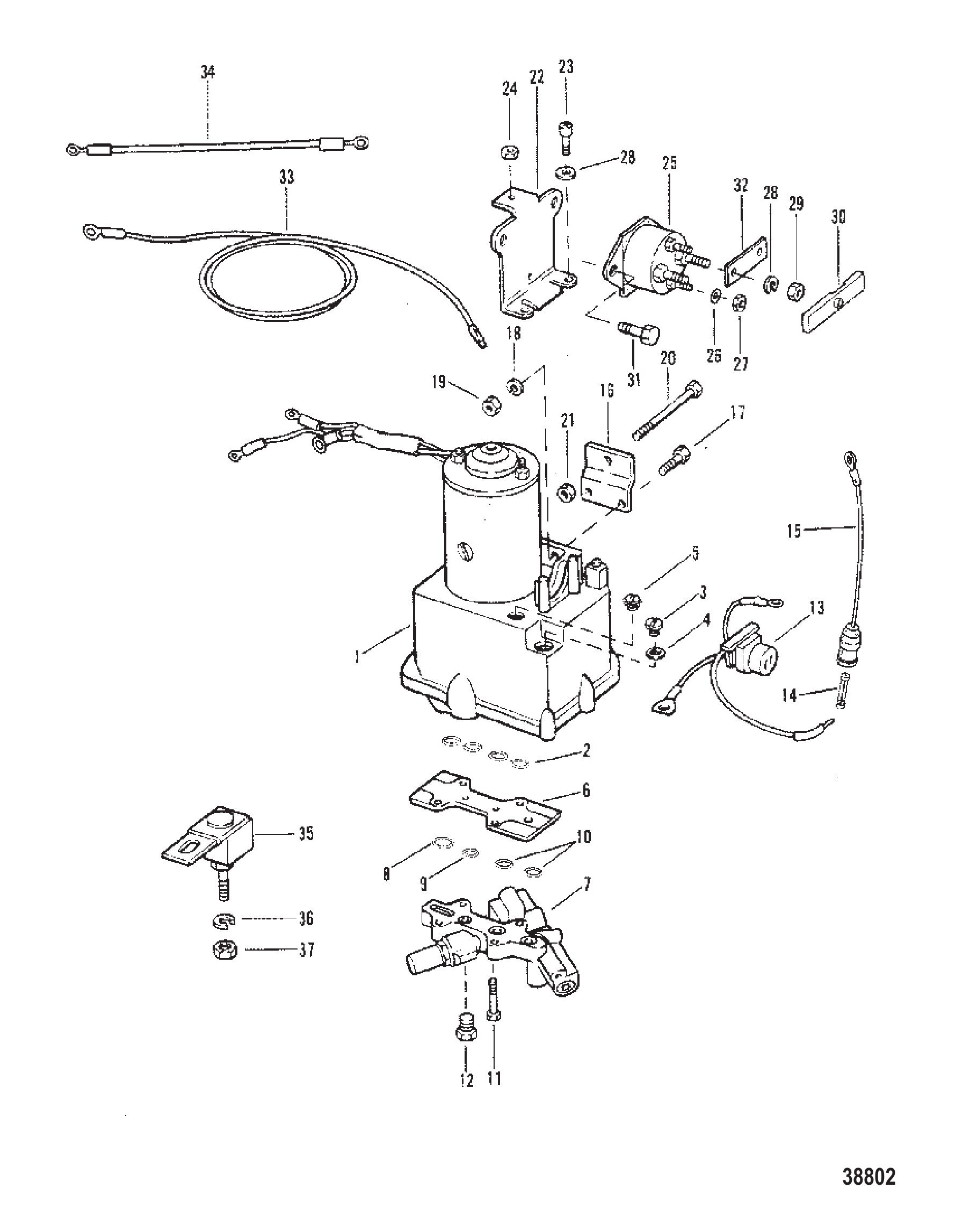

图 11动力升降组件 POWER TRIM COMPONENTS
动力升降组件 POWER TRIM COMPONENTS
REF零件编号中文名称英文名称数量
-830250T3动力升降泵总成PUMP ASSEMBLY Power Trim1
1811666A1减震杆套件SHOCK ROD KIT1
18M0171821减震杆套件SHOCK ROD KIT1
2809872A2O型圈维修包O-RING KIT Rebuild1
28M0171819O型圈套件O-RING KIT1
3810776A1记忆活塞总成PISTON ASSEMBLY Memory1
38M0171822记忆活塞套件MEMORY PISTON KIT1
4811669A1气缸总成CYLINDER ASSEMBLY1
4893916A01气缸总成CYLINDER ASSEMBLY1
5809873A1配平限位阀套件VALVE KIT Trim Limit1
5893905A02阀套件VALVE KIT1
6809874A1泵总成PUMP ASSEMBLY1
6893906A02泵总成PUMP ASSEMBLY1
7809885A2电机套件MOTOR KIT1
7893907A02电机套件MOTOR KIT1
88134351堵头PLUG1
9813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
9893929A01安全阀套件VALVE KIT Relief1
10809875A1歧管套件MANIFOLD KIT1
10893909A02歧管套件MANIFOLD KIT1
11809876A1电机螺钉套件SCREW KIT Motor1
1288238A18拉线总成CABLE ASSEMBLY1
13809877A1驱动轴/密封套件DRIVESHAFT/SEAL KIT1
14809878A1滤清器套件FILTER KIT1
14893912A02滤清器套件FILTER KIT1
15809879A1提升阀套件POPPET KIT1
15893913A02提升阀套件POPPET KIT1
-809880A1完整配平O型圈套件O-RING KIT Complete Trim1
-893914A02O型圈套件O-RING KIT1
16821539三叶销PIN Trilobe2
17818898锚销PIN Anchor1
18996251轴SHAFT1
1899625002轴SHAFT1
1922740卡扣CLIP2
20878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
2169205C形垫圈C WASHER1
218M0084613C形垫圈C-WASHER1

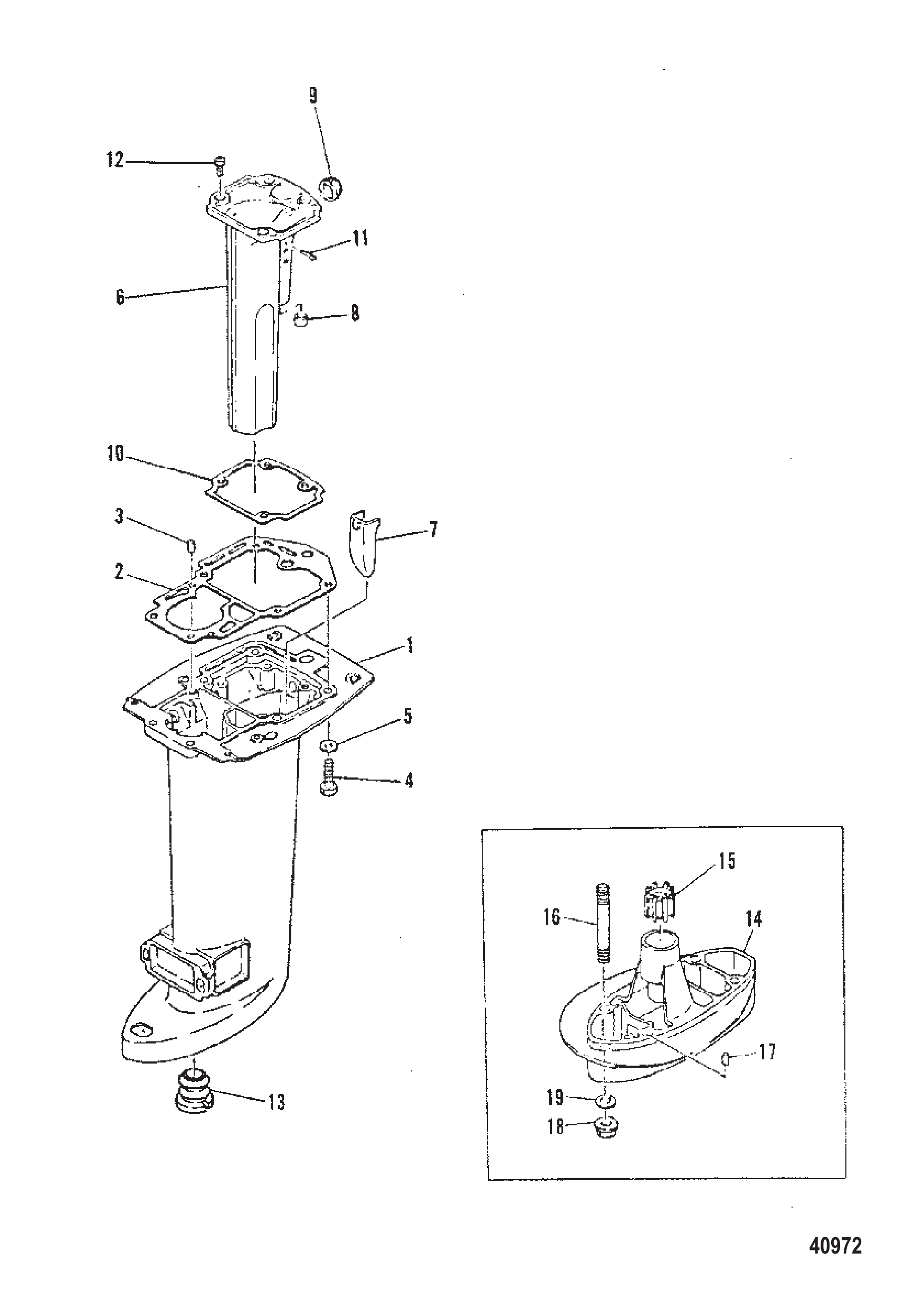

图 12驱动轴壳体 DRIVESHAFT HOUSING
驱动轴壳体 DRIVESHAFT HOUSING
REF零件编号中文名称英文名称数量
1858576T03驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
2903501双头螺柱(M10×100)STUD (M10 x 100)1
29035015双头螺柱(M10×227)STUD (M10 x 227)1
39035012双头螺柱(M10×63)STUD (M10 x 63)4
39035016双头螺柱(M10×190)STUD (M10 x 190)4
38M0034462双头螺柱(M10×190)STUD (M10 x 190)4
4856774垫圈(0.406×0.750×0.105)不锈钢WASHER (.406 x .750 x .105) Stainless Steel5
48M0214963垫圈WASHER5
540140螺母(M10)NUT (M10)5
685822A15速度计传感器总成PICKUP ASSEMBLY Speedometer1
74333590度接头(.125-27)尼龙CONNECTOR 90 Degree (.125-27) Nylon1
743335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal1
885822直通接头CONNECTOR Straight1
885822T直通接头CONNECTOR Straight1
944343T1支架MOUNT2
1042973螺栓(M12×154)BOLT (M12 x 154)2
10898835001螺钉(M12 x 154)SCREW (M12 x 154)2
1130119垫圈(外径0.875英寸)WASHER (.875 Inch Outside Diameter)2
1243528螺母(M12)NUT (M12)2
128M0204662螺母NUT2
1388238A10接地线总成CABLE ASSEMBLY Ground2
1441508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
15858916T卡箍CLAMP2
164010725螺钉 (M8 x 25)SCREW (M8 x 25)4
17858745盖帽CAP4
178M0142713支撑盖帽CAP Chap Support4
18859550衬套BUSHING1
1924873定位销PIN Alignment1
20855622接头FITTING1
2112092A3隔套套件SPACER KIT1
2243043定位销-带孔(0.375×0.625)PIN Dowel - With Hole (.375 x .625)1
228M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
2243044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
23813745隔套SPACER1
24816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2

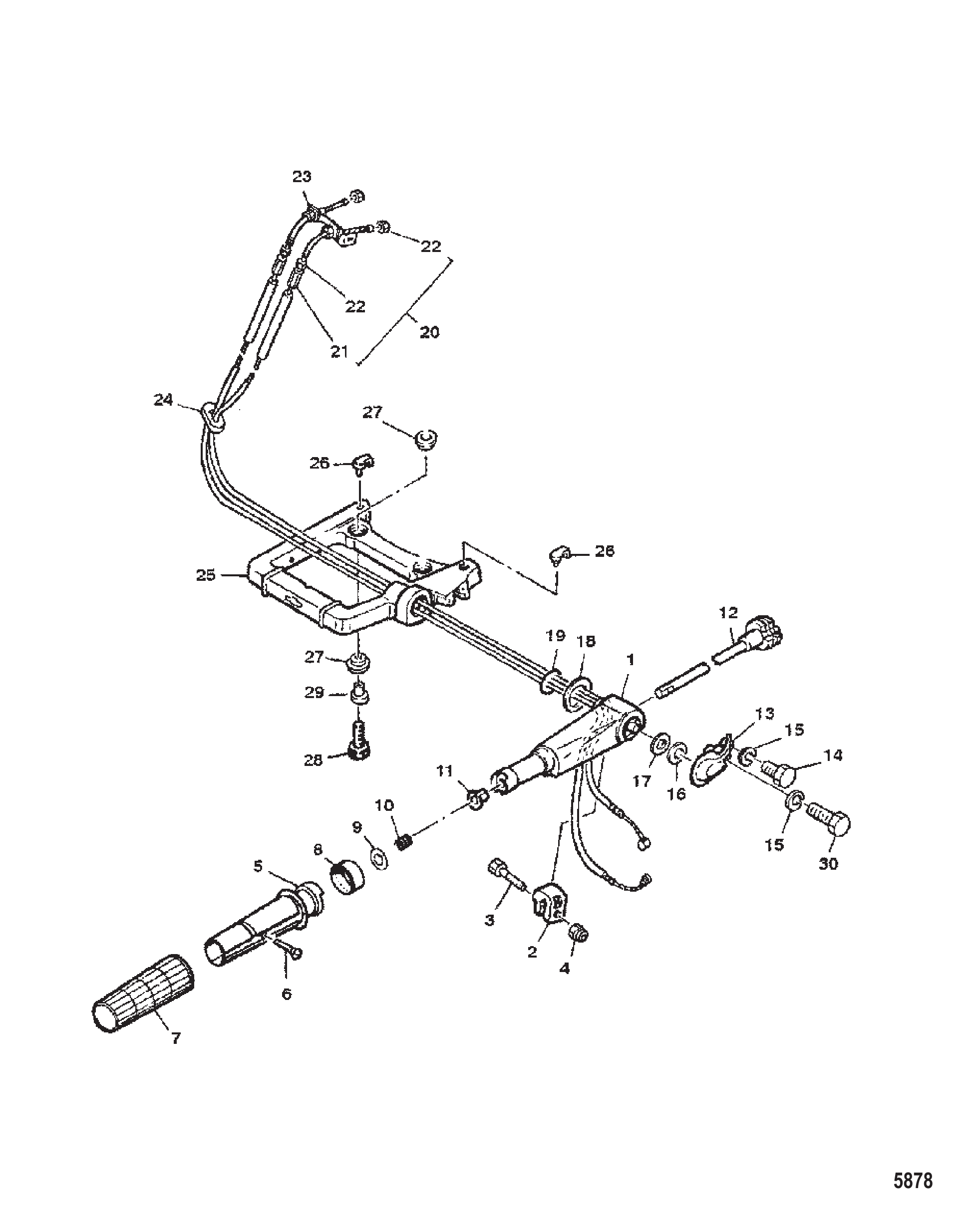

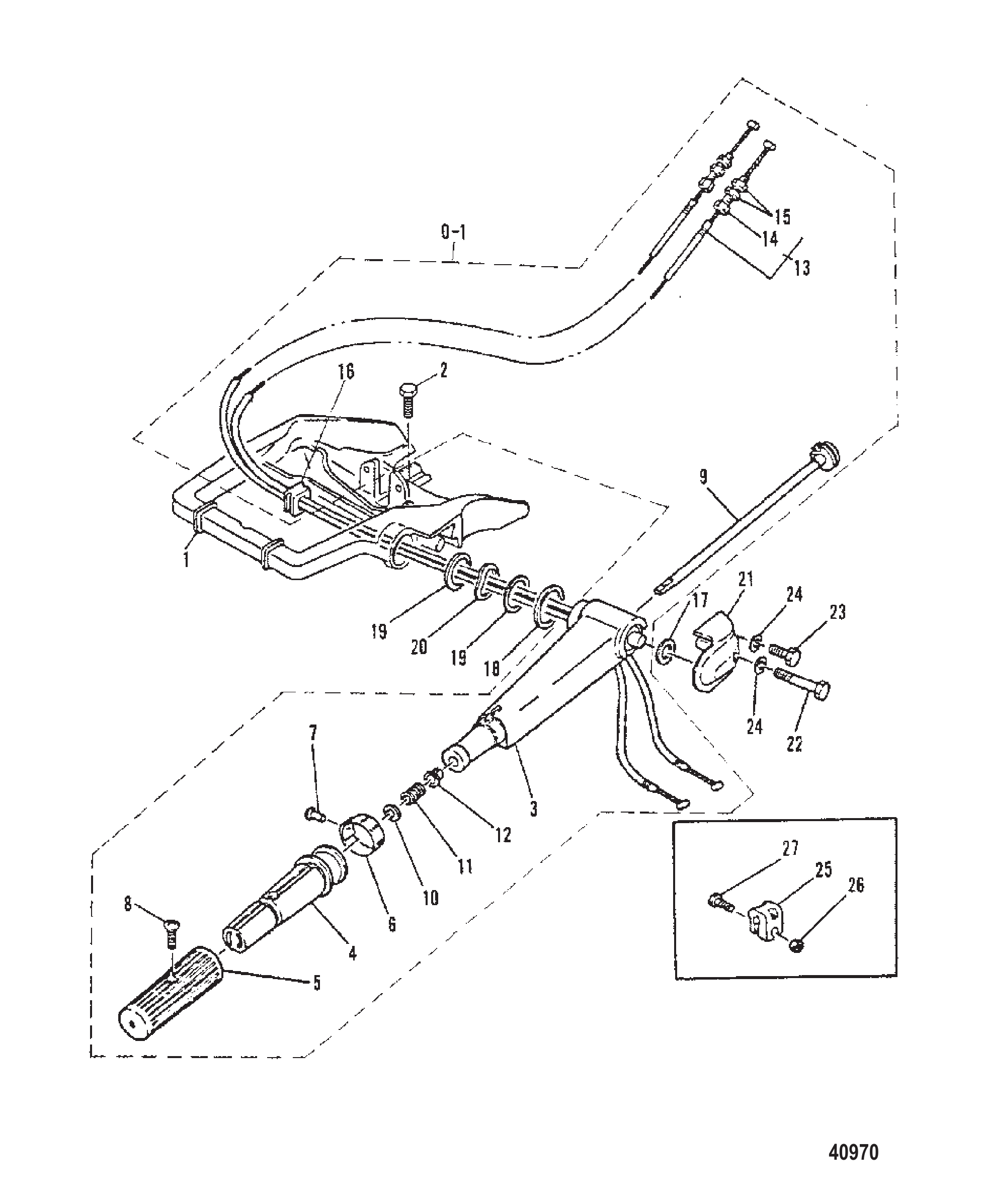

图 13转向手柄 STEERING HANDLE
转向手柄 STEERING HANDLE
REF零件编号中文名称英文名称数量
183093M转向手柄HANDLE Steering1
282895M摩擦片FRICTION PIECE1
384058M螺栓 (M6 x 20)BOLT (M6 x 20)1
483056M螺母NUT1
580504M握把GRIP1
6811916M螺钉SCREW1
780509M橡胶件RUBBER1
895606M指示器INDICATOR1
982220M垫圈WASHER1
1082095M弹簧SPRING1
1181945M衬套BUSHING1
1281280M杠杆LEVER1
1395614M盖帽CAP1
1484058M螺栓 (M6 x 20)BOLT (M6 x 20)1
15881379垫圈WASHER2
1582214M垫圈WASHER2
1680506M隔套SPACER1
1680507M隔套SPACER1
16898103217垫片 @5SPACER @51
1680508M隔套SPACER1
1782118M隔套SPACER1
1882121M隔套SPACER1
1982272MO型圈O-RING1
2095405M油门拉索总成CABLE ASSEMBLY Throttle2
2181778M螺母NUT2
2281761M螺母NUT6
2381037M撑杆STAY1
2481373M护孔环GROMMET1
2581054M转向支架BRACKET Steering1
2680510M隔套SPACER2
2780515M护孔环GROMMET4
28804159螺栓 (M8 x 35)BOLT (M8 x 35)2
2982956M衬套BUSHING2
30827043M螺栓BOLT1

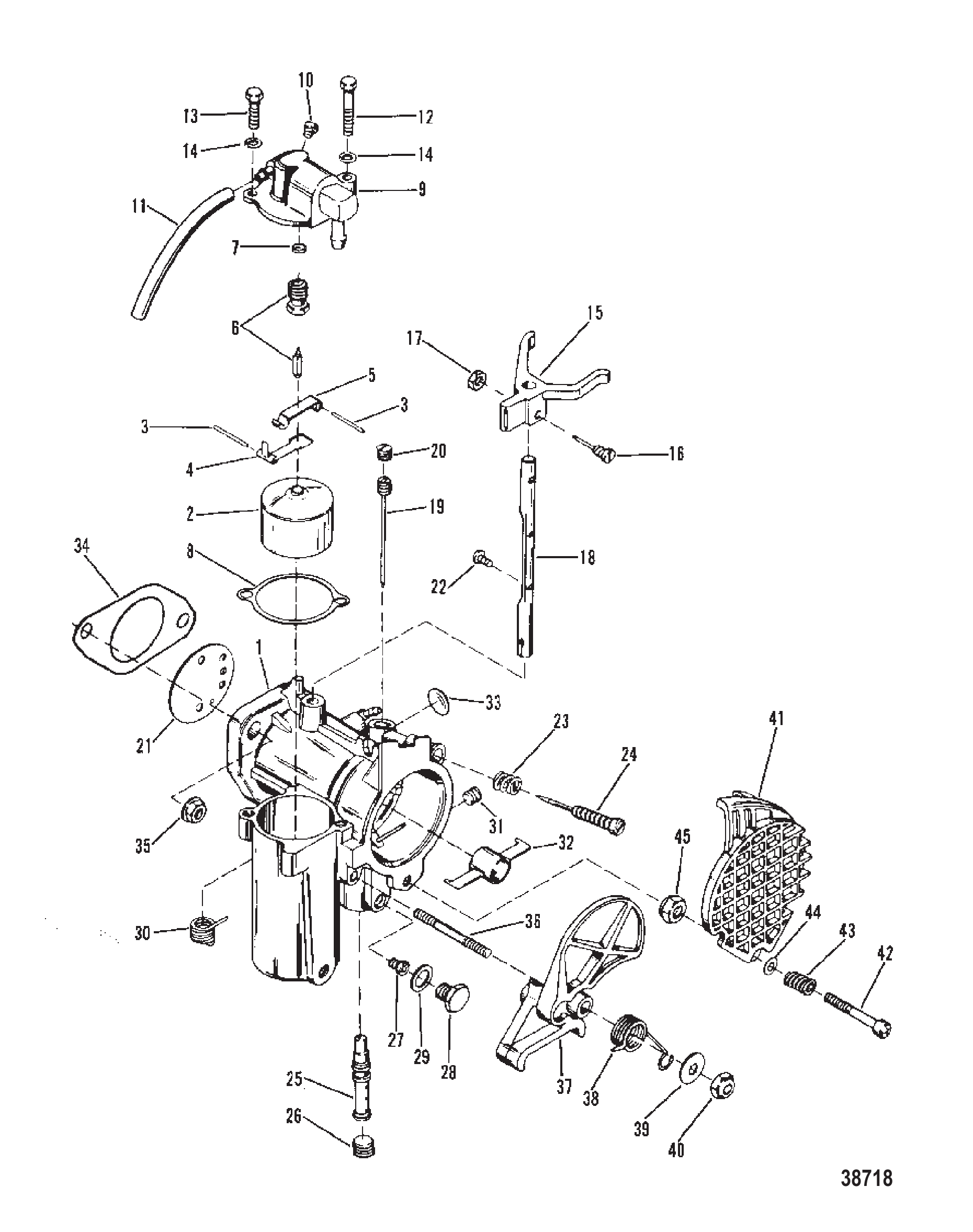

图 14化油器总成 CARBURETOR ASSEMBLY
化油器总成 CARBURETOR ASSEMBLY
REF零件编号中文名称英文名称数量
19503A20化油器 (6)(WMC-66)CARBURETOR (6)(WMC-66)1
19503T21化油器 (WMC-78A) (6)CARBURETOR (WMC-78A) (6)1
19266A21化油器 (8)(WMC-74)CARBURETOR (8)(WMC-74)1
19266T22化油器CARBURETOR1
19266T22化油器 (8)(WMC-79A)CARBURETOR (8)(WMC-79A)1
18846T20化油器 (WMC-61)CARBURETOR (WMC-61)1
18846T28化油器 (WMC-102)CARBURETOR (WMC-102)1
18846T25化油器 (WMC-80A) (9.9)CARBURETOR (WMC-80A) (9.9)1
18846T28化油器 (WMC-102)CARBURETOR (WMC-102)1
19726T11化油器 (15)(WMC-63)CARBURETOR (15)(WMC-63)1
19726T18化油器(WMC-83)CARBURETOR (WMC-83)1
19726T15化油器 (WMC-77) (15)CARBURETOR (WMC-77) (15)1
19726T18化油器(WMC-83)CARBURETOR (WMC-83)1
19726T18化油器 (WMC-83) (15)CARBURETOR (WMC-83) (15)1
29473油门阀VALVE Throttle1
2815133油门阀VALVE Throttle1
294731油门阀VALVE Throttle1
2823716油门阀VALVE Throttle1
3804707轴SHAFT1
48M0138645螺钉SCREW1
5804996弹簧SPRING1
6813022油门轴SHAFT Throttle1
619267油门轴SHAFT Throttle1
7F10167环RING1
89164燃油杯BOWL Fuel1
9824401浮子杆LEVER Float1
1091691浮子FLOAT1
11F10064轴SHAFT1
125902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
13803861进油针阀VALVE Inlet Needle1
145315主燃油喷嘴 (.042)JET Main Fuel (.042)1
145317量孔(.046)JET (.046)1
146246量孔(.048)JET (.048)1
146207量孔(.072)JET (.072)1
159171堵头PLUG1
16813618盖板COVER1
16823648膜片盖COVER Diaphragm1
179697螺钉SCREW4
1815827A1本体BODY1
189702盖/燃油泵套件COVER/FUEL PUMP KIT1
199643螺钉SCREW5
209699安装板PLATE1
2144426衬垫GASKET1
229696螺钉SCREW2
2396371燃油泵盖COVER Fuel Pump1
239637盖板COVER1
249633衬垫GASKET1
259762堵头PLUG1
26192061化油器衬垫GASKET Carburetor1
279635膜片/衬垫DIAPHRAGM/GASKET1
2897611衬垫/膜片套件GASKET/DIAPHRAGM KIT1
298237072维修套件REPAIR KIT1
-42364A92发动机垫片组GASKET SET Engine1
图 15自动混合器 AUTO-BLEND
自动混合器 AUTO-BLEND
REF零件编号中文名称英文名称数量
-130195自动混合装置AUTO BLEND ASSEMBLY1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
316619机油箱盖CAP OIL TANK1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
716620安装支架套件BRACKET KIT Mounting1
813993箍带BAND1
913983支架(左)BRACKET (LEFT)1
1013984支架(右)BRACKET (RIGHT)1
1116626盖板COVER1
1216624机油滤清器及液位传感器套件SENSOR KIT Oil Filter And Level1
1316625喇叭套件HORN KIT1
1416618机油滤网STRAINER Oil1
1516615止回阀套件CHECK VALVE KIT1
1618576燃油滤清器套件FILTER KIT Fuel1
1713992乙烯基软管VINYL TUBE1
1816621安装板PLATE1
1916627模块套件MODULE KIT1
2016628测试按钮套件TEST BUTTON KIT1
2116629电池盒套件(使用9伏电池)CASE KIT Battery (USE 9 VOLT BATTERY)1
2216630密封圈套件GROMMET KIT1
2316631支架套件BRACKET KIT1
2416616衬垫套件GASKET KIT1

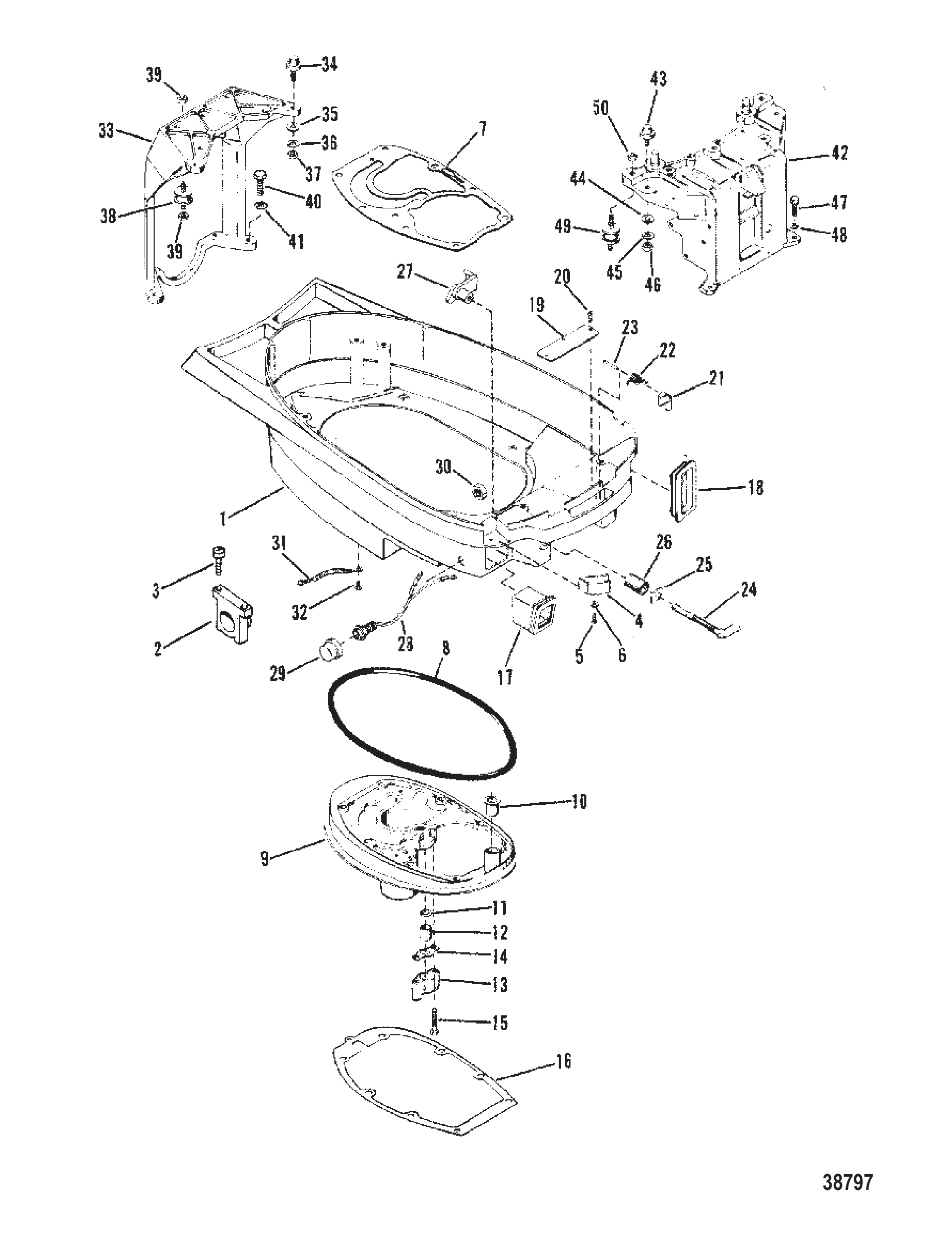

图 16底罩与排气板 BOTTOM COWL AND EXHAUST PLATE
底罩与排气板 BOTTOM COWL AND EXHAUST PLATE
REF零件编号中文名称英文名称数量
17642A1下罩总成BOTTOM COWL ASSEMBLY1
17642A2下罩总成BOTTOM COWL ASSEMBLY1
257786盖塞-下罩线束孔COVER PLUG - BOTTOM COWL HARNESS HOLE1
361802盖塞螺钉至下罩 (7/8英寸)SCREW PLUG COVER TO BOTTOM COWL (7/8")2
488618下机罩塞PLUG BOTTOM COWL1
548409螺钉 (#10-16 x .625) 不锈钢 塞至下罩SCREW (#10-16 x .625) Stainless Steel PLUG TO BOTTOM COWL1
656681垫圈 (.203 x .500 x .032) 塞螺钉WASHER (.203 x .500 x .032) PLUG SCREW1
68M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
762860衬垫-动力头至排气延伸板GASKET POWERHEAD TO EXHAUST EXTENSION PLATE1
7628601衬垫GASKET1
839622橡胶密封-排气板至下罩SEAL RUBBER - EXHAUST PLATE TO BOTTOM COWL1
942818A1排气延伸板总成PLATE ASSEMBLY EXHAUST EXTENSION1
1071980衬套法兰-排气板BUSHING FLANGE EXHAUST PLATE1
1138453尼龙垫圈-出水口管WASHER NYLON - WATER OUTLET TUBE1
1238452橡胶密封-出水口管SEAL RUBBER - WATER OUTLET TUBE1
1379799壳体-进水口管密封HOUSING WATER INLET TUBE SEAL1
1479797壳体衬垫GASKET HOUSING1
14797971衬垫GASKET1
1579798螺钉 (#10-32 x 1.380) 壳体至排气板SCREW (#10-32 x 1.380) HOUSING TO EXHAUST PLATE2
1638501排气板衬垫GASKET EXHAUST PLATE1
16385011衬垫GASKET1
1737637护套-燃油接头-下罩BOOT FUEL CONNECTOR - BOTTOM COWL1
1839616护套-控制线缆-下罩BOOT CONTROL CABLE - BOTTOM COWL1
1939555盖板COVER PLATE1
2069014螺钉 (#10-24 x .375) 盖板至下罩SCREW (#10-24 x .375) COVER PLATE TO BOTTOM COWL3
208M0113176螺钉SCREW3
2176176前盖操纵杆LEVER FRONT COVER1
2276177前盖操纵杆弹簧SPRING FRONT COVER LEVER1
2326541滚销-操纵杆至下罩PIN Roll LEVER TO BOTTOM COWL1
2447969阻风门旋钮及轴KNOB AND SHAFT CHOKE1
2530314阻风门轴垫圈WASHER CHOKE SHAFT1
2647968压缩弹簧-阻风门轴SPRING COMPRESSION - CHOKE SHAFT1
2755180阻风门杠杆LEVER CHOKE1
2869508A9停机开关总成SWITCH ASSEMBLY Stop1
2999525A1停止开关盖总成COVER ASSEMBLY STOP SWITCH1
3069844停机开关螺母NUT STOP SWITCH1
3188238A4下罩线缆总成CABLE ASSEMBLY BOTTOM COWL2
3188238T01拉线总成CABLE ASSEMBLY2
3269014螺钉 (#10-24 x .375) 接地带SCREW (#10-24 x .375) GROUND STRAP2
328M0113176螺钉SCREW2
3376132支架-上罩支撑 (后部)BRACKET SUPPORT - TOP COWL (REAR)1
3460577橡胶支座-后支撑架MOUNT RUBBER - REAR SUPPORT BRACKET2
3521631垫圈(.255 x .625 x .0312)橡胶支座WASHER (.255 x .625 x .0312) RUBBER MOUNTAR
3569056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless SteelAR
3626992不锈钢锁紧垫圈(.250)橡胶支座LOCKWASHER (.250) Stainless Steel RUBBER MOUNT2
3736069橡胶支座螺母NUT RUBBER MOUNT2
3890435橡胶支座-后支撑架MOUNT RUBBER - REAR SUPPORT BRACKET1
3936069橡胶支座螺母NUT RUBBER MOUNT2
4037562不锈钢螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel4
4126993锁紧垫圈 (.312)LOCKWASHER (.312)4
418M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
4295967支架-上罩支撑 (前部)BRACKET SUPPORT - TOP COWL (FRONT)1
4295967T支架BRACKET1
4331014橡胶支座-前支撑架MOUNT RUBBER - FRONT SUPPORT BRACKET2
4421631垫圈(.255 x .625 x .0312)橡胶支座WASHER (.255 x .625 x .0312) RUBBER MOUNTAR
4469056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless SteelAR
4526992不锈钢锁紧垫圈(.250)橡胶支座LOCKWASHER (.250) Stainless Steel RUBBER MOUNT2
4636069橡胶支座螺母NUT RUBBER MOUNT2
4737562不锈钢螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel2
4826993锁紧垫圈 (.312)LOCKWASHER (.312)2
488M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
4990435橡胶支座-前支撑架MOUNT RUBBER - FRONT SUPPORT BRACKET2
5020184螺母 (1/4-28X7/32) 橡胶支座NUT (1/4-28X7/32) RUBBER MOUNT4
508M0207775螺母 @5NUT @54
-78028A78衬垫套件GASKET SET1
图 17化油器总成 CARBURETOR ASSEMBLY
化油器总成 CARBURETOR ASSEMBLY
REF零件编号中文名称英文名称数量
17226A19化油器总成CARBURETOR ASSEMBLY1
28983浮子总成FLOAT ASSEMBLY1
28673浮子总成FLOAT ASSEMBLY1
3NSS浮子销(不单独销售)NOT SOLD SEPARATE FLOAT PIN2
4NSS浮子杆 (下部) (不单独销售)NOT SOLD SEPARATE FLOAT LEVER (LOWER)1
5NSS浮子杆 (上部) (不单独销售)NOT SOLD SEPARATE FLOAT LEVER (UPPER)1
68318进油针阀NEEDLE Inlet1
683181阀座套件VALVE SEAT KIT1
7NSS衬垫-进油针阀 (不单独销售)NOT SOLD SEPARATE GASKET-INLET NEEDLE1
8NSS衬垫-浮子室盖 (不单独销售)NOT SOLD SEPARATE GASKET-FLOAT BOWL COVER1
99016浮子室盖COVER FLOAT BOWL1
105733主量孔 (.092)JET Main (.092)1
115734节油器软管HOSE ECONOMIZER1
11892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1252195浮子室盖螺钉SCREW FLOAT BOWL COVER1
134804浮子室盖螺钉SCREW FLOAT BOWL COVER1
1426995锁紧垫圈 (#8) 不锈钢 浮子室盖螺钉LOCKWASHER (#8) Stainless Steel FLOAT BOWL COVER SCREW2
1592880节流阀杆LEVER THROTTLE1
1660293螺钉 (#5-40 x .500) 油门杆SCREW (#5-40 x .500) THROTTLE LEVER1
1792500推入式螺母-油门杆螺钉PUSH NUT THROTTLE LEVER SCREW1
188641油门轴SHAFT Throttle1
19NSS怠速管 (不单独销售)NOT SOLD SEPARATE IDLE TUBE1
204540本体螺钉 (怠速管)SCREW BODY (IDLE TUBE)1
219017节气门片SHUTTER Throttle1
22NSS螺钉-节气门 (不单独销售)NOT SOLD SEPARATE SCREW, THROTTLE SHUTTER2
23NSS弹簧-怠速调节螺钉 (不单独销售)NOT SOLD SEPARATE SPRING-IDLE ADJUSTMENT SCREW1
24NSS螺钉-怠速调节 (不单独销售)NOT SOLD SEPARATE SCREW-IDLE ADJUSTMENT1
25NSS主喷嘴(不单独销售)NOT SOLD SEPARATE MAIN NOZZLE1
264542螺塞-主喷管SCREW PLUG - MAIN NOZZLE1
273794主量孔 (.074)JET (.074) MAIN FUELOPT
276207主量孔 (.072)JET (.072) MAIN FUEL1
276030主量孔 (.070)JET (.070) MAIN FUELOPT
284541螺塞-主燃油量孔通道SCREW PLUG - MAIN FUEL JET CHANNEL1
29NSS衬垫-量孔通道螺塞螺钉 (不单独销售)NOT SOLD SEPARATE GASKET-JET CHANNEL PLUG SCREW1
30NSS弹簧-油门轴回位 (不单独销售)NOT SOLD SEPARATE SPRING-THROTTLE SHAFT RETURN1
314543本体通道螺钉SCREW BODY CHANNEL1
3252106A1塑料喉管VENTURI Plastic1
33NSS不单独销售 塞-本体通道NOT SOLD SEPARATE PLUG-BODY CHANNEL1
-4808衬垫套件GASKET SET1
-879194024衬垫套件GASKET KIT1
-9018维修零件包REPAIR PARTS KIT1
-51091化油器修理包REPAIR KIT-CARB1
3448164化油器法兰衬垫GASKET CARBURETOR FLANGE1
34481641衬垫GASKET1
3564809NUT CARBURETOR MOUNTING STUD2
3669016阻风门枢轴柱（化油器）STUD CHOKE SHUTTER PIVOT (CARBURETOR)1
3755179化油器阻风门SHUTTER Choke CARBURETOR1
3855163阻风门张力弹簧SPRING TENSION - CHOKE SHUTTER1
3947960阻风门柱垫圈WASHER CHOKE SHUTTER CARBURETOR STUD1
4020110阻风门柱螺母（#10-32）NUT (#10-32) CHOKE SHUTTER TO CARBURETOR STUD1
4157819化油器滤网SCREEN CARBURETOR1
4258185滤网固定螺钉（#10-32 x 1.00）SCREW (#10-32 x 1.00) SCREEN TO CARBUETOR1
4357818滤网螺钉张力弹簧SPRING TENSION - SCREEN SCREW1
4446101滤网螺钉垫圈WASHER SCREEN SCREW1
4430164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel1
4520110滤网螺钉螺母（#10-32）NUT (#10-32) SCREEN SCREW1

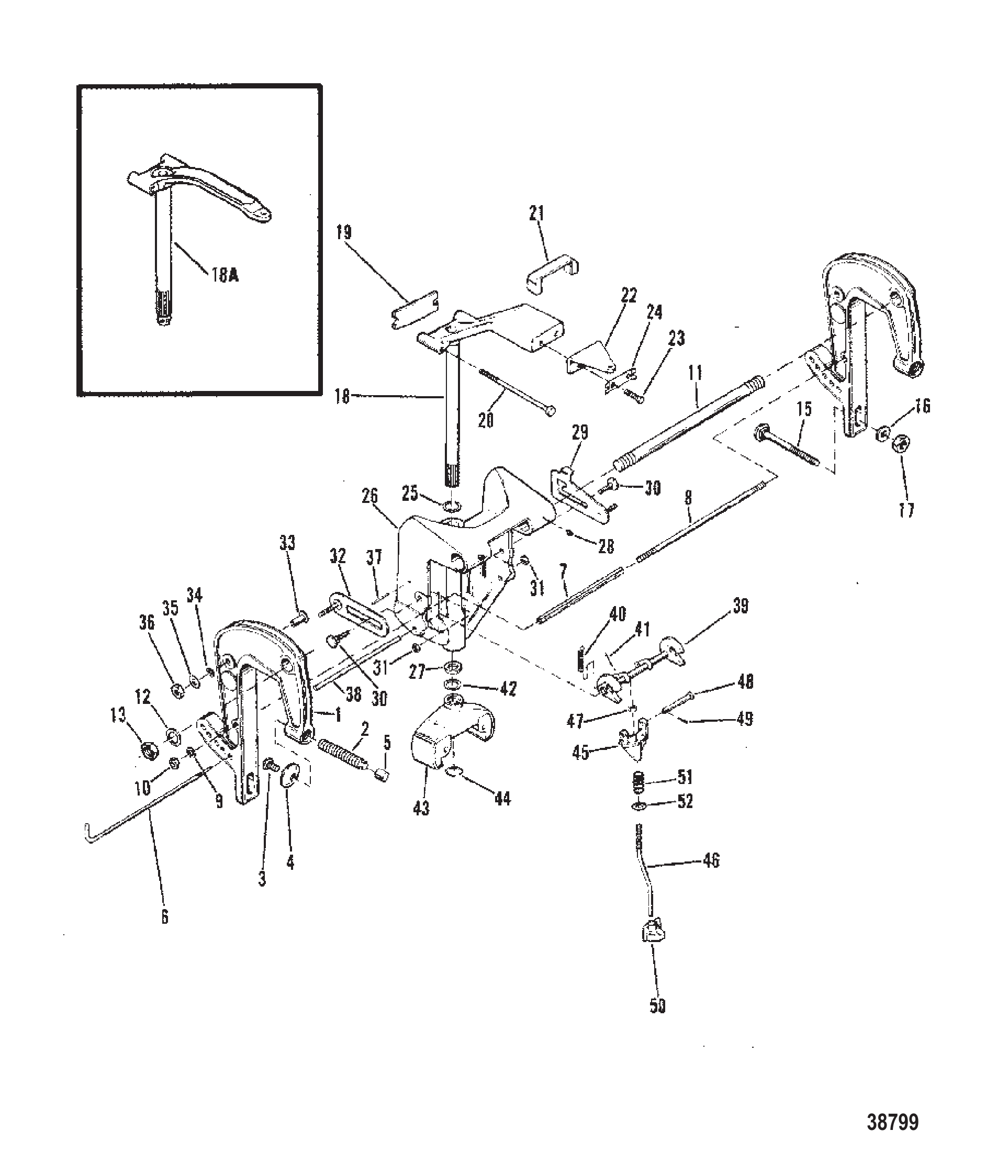

图 18夹紧与旋转支架(非动力升降) CLAMP AND SWIVEL BRACKET (NON POWER TRIM)
夹紧与旋转支架(非动力升降) CLAMP AND SWIVEL BRACKET (NON POWER TRIM)
REF零件编号中文名称英文名称数量
15611A5夹具支架总成CLAMP BRACKET ASSEMBLY2
15611A4夹具支架总成CLAMP BRACKET ASSEMBLY2
290470A3蝶形螺钉总成THUMB SCREW ASSEMBLY2
278492A1蝶形螺钉总成THUMB SCREW ASSEMBLY2
3784951垫片至拇指螺钉SCREW WASHER TO THUMB SCREW2
378495螺钉（.312-24 x .680）SCREW (.312-24 x .680)2
478493蝶形螺丝垫圈WASHER THUMB SCREW2
575043拇指螺丝帽CAP THUMB SCREW2
649930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
68M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
759623夹紧支架螺柱隔套SPACER CLAMP BRAKCET STUD1
859625夹紧支架螺柱STUD CLAMP BRACKET1
926993螺柱锁紧垫圈（0.312英寸）LOCKWASHER (.312) STUD2
98M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1028770不锈钢螺柱螺母（0.312英寸-24牙）NUT (.312-24) Stainless Steel STUD2
1174528倾斜管TILT TUBE1
118M0041936倾斜管TILT TUBE1
1252864夹紧支架至旋转支架垫圈WASHER CLAMP BRACKET TO SWIVEL BRACKET6
1356041螺母(.875-14)倾斜管NUT (.875-14) TILT TUBE2
13858869螺母 (.875-14)NUT (.875-14)2
1568298螺栓（.375-16 x 3.250）（下部）BOLT (.375-16 x 3.250) (LOWER)2
1668410夹紧支架螺栓垫圈（下部）WASHER CLAMP BRACKET BOLT (LOWER)2
1646765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)2
1799405夹紧支架螺栓螺母NUT CLAMP BRACKET BOLT2
1782671112螺母（.375-16）NUT (.375-16)2
1888798A1旋转销总成SWIVEL PIN ASSEMBLY1
1888798A23短型旋转销总成SWIVEL PIN ASY SH1
1888798A2旋转销总成SWIVEL PIN ASSEMBLY1
1888798A24长型旋转销总成SWIVEL PIN ASY LG1
18A69540A3旋转销总成SWIVEL PIN ASSEMBLY1
18A69540A4旋转销总成SWIVEL PIN ASSEMBLY1
1930711转向臂缓冲器BUMPER STEERING ARM1
2066897上部安装至转向臂螺栓（0.437英寸-20牙 x 5.250英寸）BOLT (.437-20 x 5.250) UPPER MOUNT TO STEERING ARM2
2162297转向臂缓冲器BUMPER STEERING ARM1
2276535导流板安装支架BRACKET RIDE-GUIDE ATTACHING1
2276535T支架BRACKET1
2334352支架至转向臂螺钉（0.375英寸-24牙 x 0.875英寸）SCREW (.375-24 x .875) BRACKET TO STEERING ARM2
2476533带式支架螺钉STRAP BRACKET SCREW1
2552865旋转销垫圈WASHER SWIVEL PIN1
267656A1旋转支架SWIVEL BRACKET1
267655A1旋转支架SWIVEL BRACKET1
2732911旋转支架油封SEAL Oil SWIVEL BRACKET2
2874036旋转支架润滑接头FITTING Grease SWIVEL BRACKET3
288M0169589润滑脂接头FITTING Grease3
2947913A2倾斜锁定杆总成-左舷LEVER ASSEMBLY TILT LOCK - PORT SIDE1
3069087螺钉（.312-24 x .880）SCREW (.312-24 x .880)2
3129250倾斜锁定及停止杆螺钉螺母（0.312英寸-24牙）NUT (.312-24) TILT LOCK AND STOP LEVER SCREW2
3247912A2倾斜停止杆总成-右舷LEVER ASSEMBLY TILT STOP - STARBOARD SIDE1
3347911倾斜锁定及停止杆衬套BUSHING TILT LOCK AND STOP LEVER2
3434632倾斜锁定及停止杆波形垫圈WASHER WAVE - TILT LOCK AND STOP LEVER2
3556720不锈钢倾斜锁定及停止杆垫圈（0.330 x 0.750 x 0.060英寸）WASHER (.330 x .750 x .060) Stainless Steel TILT LOCK AND STOP LEVER2
3629250螺母(.312-24)NUT (.312-24)2
3725598倒挡锁定弹簧固定销PIN REVERSE LOCK SPRING ATTACHING1
3856349倒挡锁定至旋转支架轴SHAFT REVERSE LOCK TO SWIVEL BRACKET1
3943410倒挡锁定总成LOCK ASSEMBLY Reverse1
3914664A3倒车锁REVERESE LOCK1
4029821倒挡锁定张力弹簧SPRING REVERSE LOCK TENSION1
4145882倒挡锁定至轴开口销COTTER PIN REVERSE LOCK TO SHAFT1
4225176旋转销至底部轭架垫圈（0.060英寸）WASHER SWIVEL PIN TO BOTTOM YOKE (.060)1
4377416下轭架YOKE Bottom1
4377416T1黑色下轭架YOKE-BOTTOM-BLACK1
4477415底部轭架挡圈RETAINING RING BOTTOM YOKE1
4589813推杆端头ROD END PUSH ROD1
4643412倒挡锁定推杆ROD PUSH - REVERSE LOCK1
4643413倒挡锁定推杆ROD PUSH - REVERSE LOCK1
4735814不锈钢推杆防松螺母（0.312英寸-24牙）NUT (.312-24) Stainless Steel JAM - PUSH ROD1
4782670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
4872524倒挡锁定杆销PIN REVERSE LOCK LEVER1
4925191推杆至倒挡锁定开口销COTTER PIN PUSH ROD TO REVERSE LOCK1
5093336推杆导套GUIDE PUSH ROD1
50933361换挡轴导套GUIDE Shift Shaft1
5144297推杆弹簧SPRING PUSH ROD1
5270132不锈钢推杆垫圈（0.323 x 0.563 x 0.063英寸）WASHER (.323 x .563 x .063) Stainless Steel PUSH ROD1
528M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)1

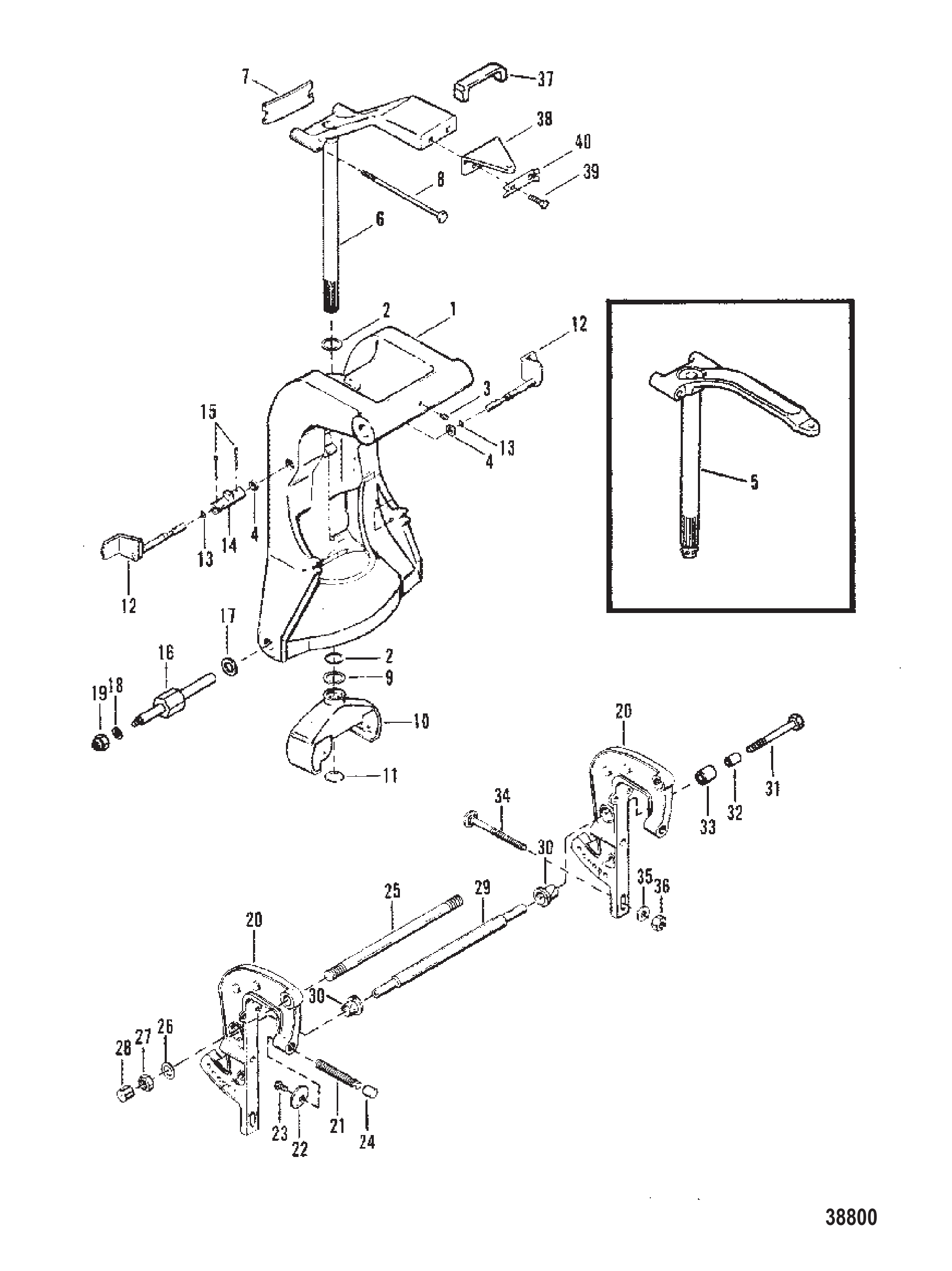

图 19夹紧与旋转支架(动力升降) CLAMP AND SWIVEL BRACKET (POWER TRIM)
夹紧与旋转支架(动力升降) CLAMP AND SWIVEL BRACKET (POWER TRIM)
REF零件编号中文名称英文名称数量
18599A6旋转支架SWIVEL BRACKET1
232911旋转支架油封SEAL Oil SWIVEL BRACKET2
374036润滑脂接头FITTING Grease4
38M0169589润滑脂接头FITTING Grease4
422734旋转支架油封SEAL Oil SWIVEL BRACKET2
569540A4旋转销总成（早期型）SWIVEL PIN ASSEMBLY (EARLY STYLE)1
688798A2旋转销总成（后期型）SWIVEL PIN ASSEMBLY (LATER STYLE)1
688798A24长型旋转销总成SWIVEL PIN ASY LG1
730711转向臂缓冲器BUMPER STEERING ARM1
866897螺栓（.437-20 x 5.250）BOLT (.437-20 x 5.250)2
925176垫圈（.060）WASHER (.060)1
1077416下轭架YOKE Bottom1
1077416T1黑色下轭架YOKE-BOTTOM-BLACK1
1177415底部轭架挡圈RETAINING RING BOTTOM YOKE1
1289105倾斜锁定右舷/左舷TILT LOCK STARBOARD/PORT2
1362702O型圈(.301 x .070)O-RING (.301 x .070)2
13627021O型圈(.301 x .070)O-RING (.301 x .070)2
1479659倾斜锁定联轴器COUPLING TILT LOCK1
1547959倾斜锁定管开口销COTTER PIN TILT LOCK TUBE2
1662887配平油缸至旋转支架销PIN TRIM CYLINDERS TO SWIVEL BRACKET2
1763099配平油缸销垫圈（1.50 x 0.766 x 0.125英寸）WASHER (1.50 x .766 x .125) TRIM CYLINDER PIN2
178M0204695垫圈WASHER2
1854012不锈钢配平油缸销垫圈（0.530 x 0.870 x 0.105英寸）WASHER (.530 x .870 x .105) Stainless Steel TRIM CYLINDER PIN2
188M0204665垫圈(0.530×0.880×0.104 630不锈钢)WASHER (.530 x .880 x .104) 630 Stainless Steel2
1935778配平油缸销螺母（0.500英寸-20牙）NUT (.500-20) TRIM CYLINDER PIN2
19826709117螺母(0.500-20)不锈钢NUT (.500-20) Stainless Steel2
208394A1夹具支架总成CLAMP BRACKET ASSEMBLY2
2178492A1蝶形螺钉总成THUMB SCREW ASSEMBLY2
2278493蝶形螺丝垫圈WASHER THUMB SCREW2
23784951垫片至拇指螺钉SCREW WASHER TO THUMB SCREW2
2378495螺钉（.312-24 x .680）SCREW (.312-24 x .680)2
2475043拇指螺丝帽CAP THUMB SCREW2
2574528倾斜管TILT TUBE1
258M0041936倾斜管TILT TUBE1
2652864倾斜管垫圈WASHER TILT TUBE2
2756041螺母(.875-14)倾斜管NUT (.875-14) TILT TUBE2
27858869螺母 (.875-14)NUT (.875-14)2
2853078倾斜管塑料盖CAP PLASTIC - TILT TUBE2
2928416上部销PIN UPPER1
3073203夹紧支架衬套BUSHING CLAMP BRACKET2
3162882支架至上销螺钉（0.500英寸-20牙 x 3.250英寸）SCREW (.500-20 x 3.250) BRACKET TO UPPER PIN2
3262885安装支架螺钉隔套SPACER MOUNTING BRACKET SCREW2
3289952安装支架螺钉隔套SPACER MOUNTING BRACKET SCREW2
3362884安装支架螺钉隔套SPACER MOUNTING BRACKET SCREW2
3468298螺栓（0.375英寸-16牙 x 3.250英寸）BOLT (.375-16 x 3.250)2
3568410夹紧支架螺栓垫圈WASHER CLAMP BRACKET BOLT2
3546765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)2
3489673螺钉（0.375英寸-16牙 x 5.00英寸）SCREW (.375-16 x 5.00)2
3528420垫圈 (1-1/4 x 25/64 x 0.125 不锈钢) 夹紧支架螺栓WASHER (1-1/ 4 x 25/64 x .125 SS) CLAMP BRACKET BOLT2
3699405夹紧支架螺栓螺母NUT CLAMP BRACKET BOLT4
3682671112螺母（.375-16）NUT (.375-16)4
3762297转向臂缓冲器BUMPER STEERING ARM1
3876535导流板安装支架BRACKET RIDE-GUIDE ATTACHING1
3876535T支架BRACKET1
3934352螺钉（.375-24 x .875）SCREW (.375-24 x .875)2
4076533带式支架螺钉STRAP BRACKET SCREW1
-78028A78衬垫套件GASKET SET

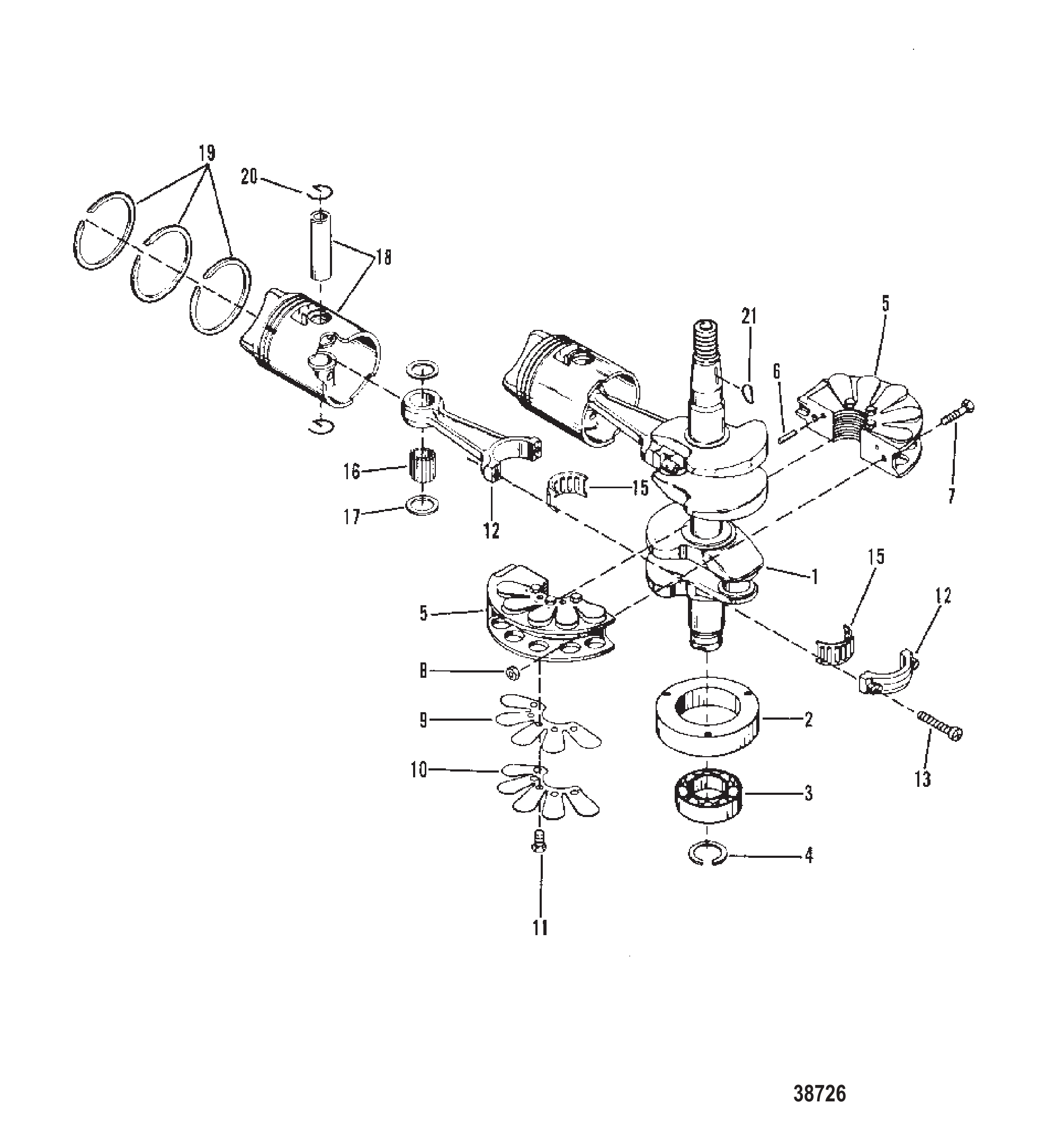

图 20曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
19073A1曲轴总成CRANKSHAFT ASSEMBLY1
278308A1球轴承保持架总成RETAINER ASSEMBLY BALL BEARING1
363742曲轴球轴承保持架BEARING Ball RETAINER (CRANKSHAFT)1
363742T滚珠轴承BEARING Ball1
463634球轴承挡圈RING Retaining BALL BEARING1
57238A2主阀式轴承总成BEARING ASSEMBLY Main VALVE TYPE1
620032主轴承定位销PIN Dowel MAIN, BEARING2
745775主轴承夹紧螺钉（#12-28 x .560）SCREW (#12-28 x .560) MAIN BEARING CLAMPING2
845774主轴承夹紧螺钉螺母NUT MAIN BEARING CLAMPING SCREW2
956007A1主轴承簧片组（配对）REED SET MAIN BEARING (MATCHED)1
1056008主轴承簧片阀限位器STOP Reed MAIN BEARING REED VALVES4
1120055簧片限位器安装螺钉（#10-32 x .375）SCREW (#10-32 x .375) REED STOP MOUNTING12
128101A3连杆总成CONNECTING ROD ASSEMBLY2
1391012连杆专用螺钉（.250-28）SCREW (.250-28 Special) CONNECTING ROD4
1562596A1曲柄销轴承总成BEARING ASSEMBLY CRANKPIN2
1647270活塞销轴承BEARING PISTON PIN58
168M0214934滚针轴承@200BRG-NEEDLE @20058
1747247滚针轴承挡圈WASHER NEEDLE BEARING RETAINING4
178M0032839垫片@5WASHER @54
188899A3活塞总成PISTON ASSEMBLY2
189137A12标准活塞总成PISTON ASSY-STD2
188900A2活塞总成PISTON ASSEMBLYAR
189137A13活塞总成-.015PISTON ASSY-.015AR
188901A2活塞总成PISTON ASSEMBLYAR
189137A14活塞总成-.030PISTON ASSY-.030AR
1978816A12环RING1
1978811A12活塞环组-.015加大RING SET Piston - .015 OversizeAR
1988392A12活塞环组-.030加大RING SET Piston - .030 OversizeAR
2052035活塞销锁环RING Lock PISTON PIN4
20857196锁紧环LOCK RING4
2145554曲轴键KEY CRANKSHAFT1

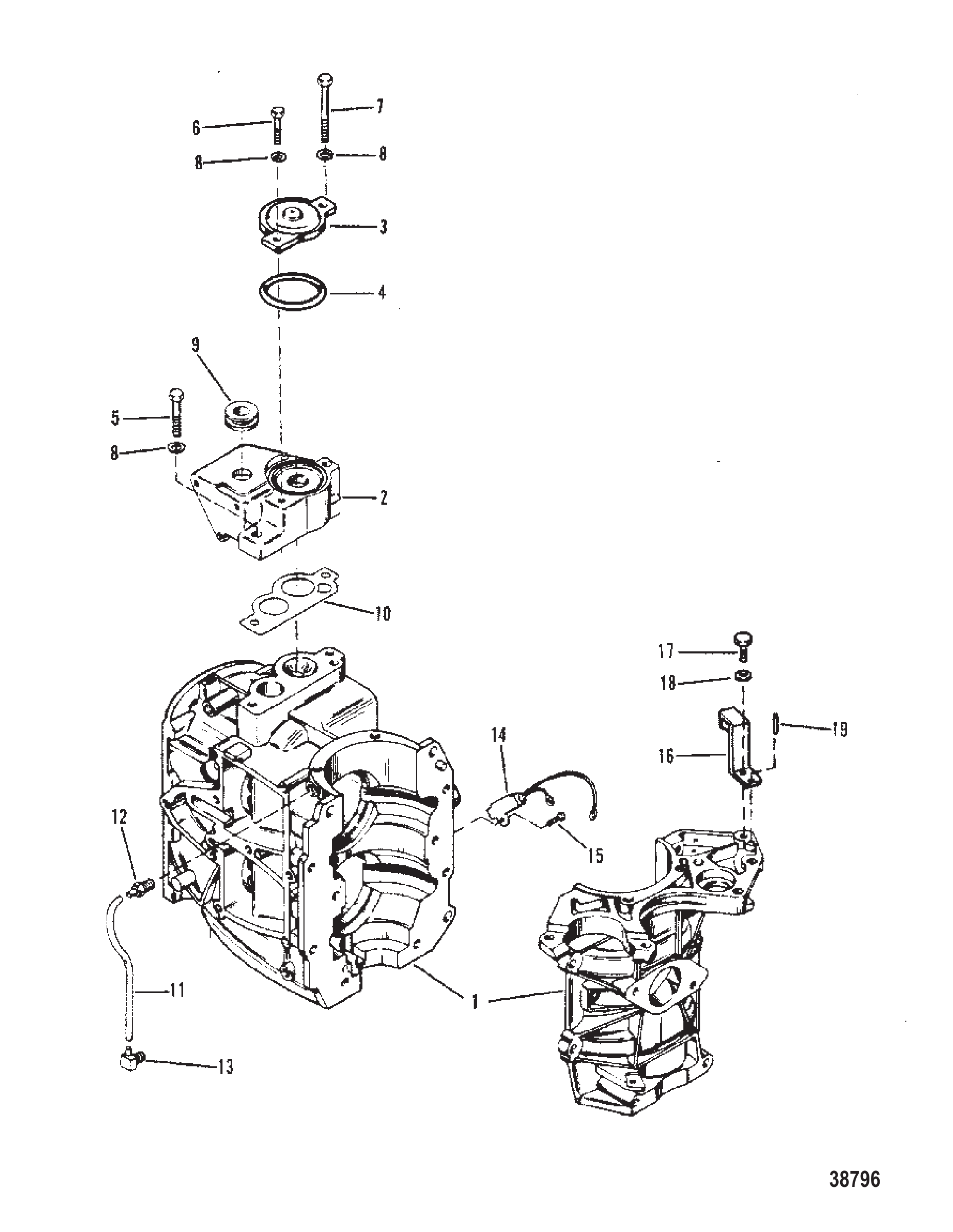

图 21气缸体与节温器 CYLINDER BLOCK AND THERMOSTAT
气缸体与节温器 CYLINDER BLOCK AND THERMOSTAT
REF零件编号中文名称英文名称数量
17940A2气缸体总成CYLINDER BLOCK ASSEMBLY1
17940A6气缸体/曲轴箱CYLINDER BLOCK/CRANKCASE1
266843线圈安装支架BRACKET COIL MOUNTING1
266843T支架BRACKET1
399436A1线圈支架盖总成COVER ASSEMBLY COIL BRACKET1
464067盖O型圈O-RING COVER1
4823683O型圈(1.989 x .070)O-RING (1.989 x .070)1
531984线圈支架至缸体螺钉（.312-18 x 1.375）SCREW (.312-18 x 1.375) COIL MOUNTING BRACKET TO BLOCK1
669034盖螺钉及锁紧垫圈（.312-18 x 1.00）SCREW AND LOCKWASHER (.312-18 x 1.00) COVER1
630225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)1
758414盖及线圈支架至缸体螺钉（2-1/2英寸）SCREW COVER AND COIL BRACKET TO BLOCK (2-1/2")1
826993线圈支架螺钉锁紧垫圈（.312）LOCKWASHER (.312) COIL MOUNTING BRACKET SCREW3
88M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
939597线圈支架衬套GROMMET COIL MOUNTING BRACKET1
1066847线圈支架至缸体衬垫GASKET COIL MOUNTING BRACKET TO BLOCK1
119938779气缸泄放软管（8英寸）HOSE CYLINDER BLEED (8")1
1242866气缸泄放单向阀（顶部）CHECK VALVE CYLINDER BLEED (TOP)1
1342863气缸泄放单向阀（底部）CHECK VALVE CYLINDER BLEED (BOTTOM)1
1458124A24开关总成SWITCH ASSEMBLY1
1458124A27开关SWITCH1
1458124A27开关SWITCH1
1562568汞开关至排气罩螺钉（#10-16 x .375）SCREW (#10-16 x .375) MERCURY SWITCH TO EXHAUST COVER1
1676184正时指示器INDICATOR TIMING1
1725299指示器固定螺钉（.312-18 x .75）SCREW (.312-18 x .75) INDICATOR ATTACHING1
1820084指示器固定螺钉垫圈（.328 x .562 x .062）WASHER (.328 x .562 x .062) INDICATOR ATTACHING SCREW1
1929908定位指示销PIN INDICATOR LOCATING1
-78028A78衬垫套件GASKET SET1

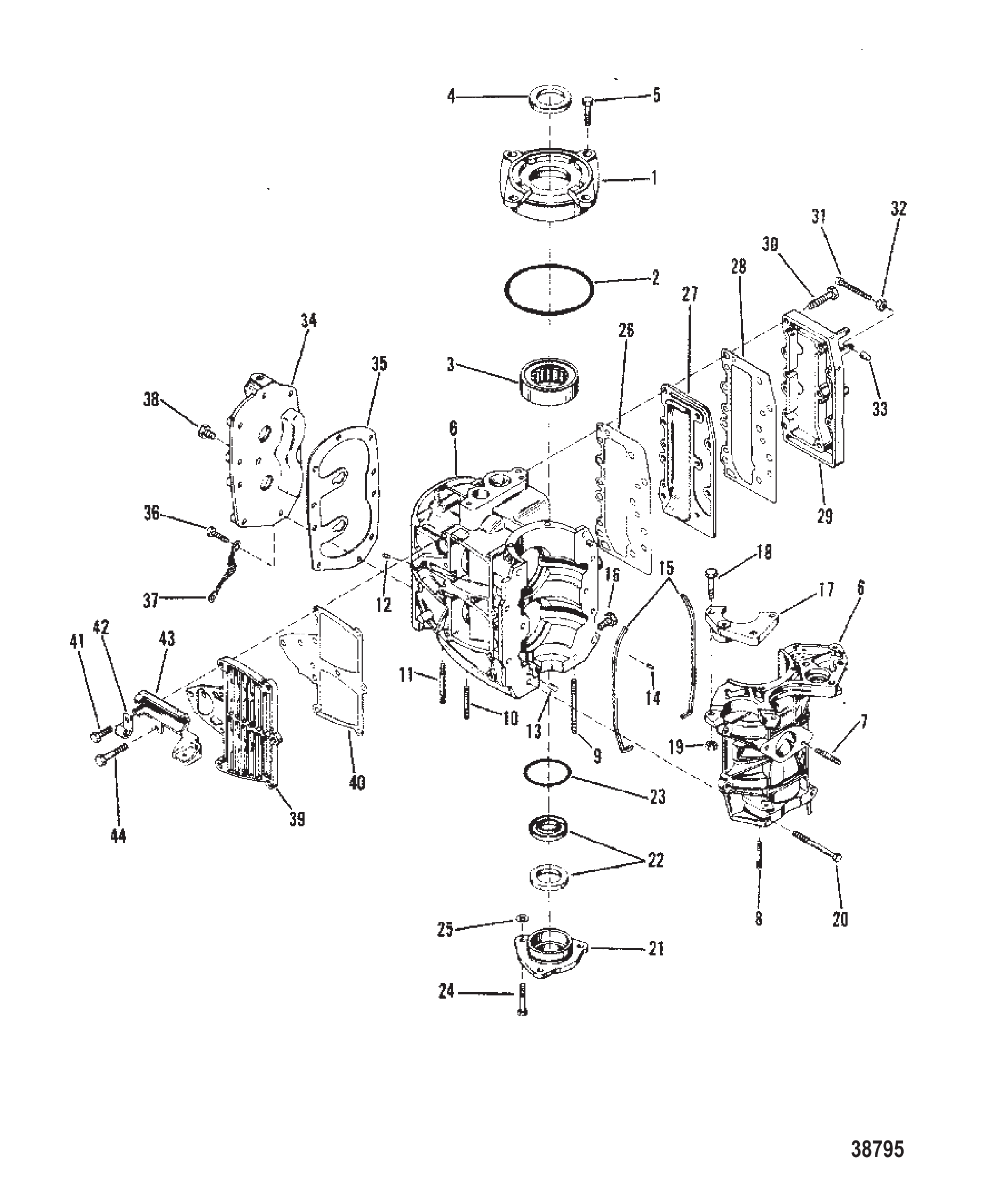

图 22气缸体曲轴箱及盖 CYLINDER BLOCK CRANKCASE AND COVERS
气缸体曲轴箱及盖 CYLINDER BLOCK CRANKCASE AND COVERS
REF零件编号中文名称英文名称数量
18277A1上端盖总成END CAP ASSEMBLY Upper1
247254上端盖O型圈O-RING UPPER END CAP1
362066上端盖滚柱轴承BEARING Roller UPPER END CAP1
362066T轴承BEARING1
441953上端盖油封SEAL UPPER END CAP1
569034上端盖安装螺丝及锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00) UPPR END CAP MOUNTING4
530225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
67940A2气缸体总成CYLINDER BLOCK ASSEMBLY1
67940A6气缸体/曲轴箱CYLINDER BLOCK/CRANKCASE1
768164化油器安装双头螺栓(1-1/4")STUD CARBURETOR MOUNTING (1-1/4")2
764936螺柱STUD2
868165曲轴箱至传动轴壳体双头螺栓(1-5/8")STUD CRANKCASE TO DRIVESHAFT HOUSING (1-5/8")2
987901气缸体至传动轴壳体双头螺栓(4-3/8")STUD CYLINDER BLOCK TO DRIVESHAFT HOUSING (4-3/8")2
1068166气缸体至传动轴壳体双头螺栓(.312 x 2.125)STUD (.312 x 2.125) CYLINDER BLOCK TO DRIVESHAFT HOUSING2
1168167气缸体至传动轴壳体双头螺栓(.312-18/.312-24 x 2.560)STUD (.312-18/.312-24 x 2.560) CYLINDER BLOCK TO DRIVESHAFT HOUSING2
1266517气缸体节流孔(泄放)RESTRICTOR CYLINDER BLOCK (BLEED)1
1323784定位销曲轴箱至气缸体PIN Dowel CRANKCASE TO CYLINDER BLOCK2
1420323气缸体至主轴承定位销PIN Dowel CYLINDER BLOCK TO MAIN BEARING1
1555158气缸体密封垫GASKET SEALING - CYLINDER BLOCK2
1632802气缸体管塞(.125-27)PLUG Pipe (.125-27) CYLINDER BLOCK1
16328022黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
1762064启动电机支架BRACKET STARTER MOTOR1
1821339启动电机支架至缸体螺丝(.312-24 x 1.375)SCREW (.312-24 x 1.375) STARTER MOTOR BRACKET TO BLOCK2
1929250启动电机支架螺丝螺母(.312-24)NUT (.312-24) STARTER MOTOR BRACKET SCREW2
2073657曲轴箱至气缸体螺丝(.312-18 x 1.50)SCREW (.312-18 x 1.50) CRANKCASE TO CYLINDER BLOCK7
2063328曲轴箱至气缸体螺丝(.312-18 x 3.00)SCREW (.312-18 x 3.00) CRANKCASE TO CYLINDER BLOCK2
2074824曲轴箱至气缸体螺丝(.312-18 x 1.250)SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK1
217267A1下端盖总成END CAP ASSEMBLY Lower1
2241953下端盖油封SEAL LOWER END CAP2
2364067下端盖O型圈O-RING LOWER END CAP1
23823683O型圈(1.989 x .070)O-RING (1.989 x .070)1
2463365端盖至气缸体螺丝(1-1/2")SCREW END CAP TO CYLINDER BLOCK (1-1/2")3
2564068下端盖螺丝O型圈O-RING LOWER END CAP SCREW3
26854891气缸体至挡板衬垫GASKET CYLINDER BLOCK TO BAFFLE PLATE1
26854892衬垫GASKET1
2755190排气歧管分隔板PLATE DIVIDER - EXHAUST MANIFOLD1
28854881挡板至排气盖垫片GASKET BAFFLE PLATE TO EXHAUST COVER1
28854882衬垫GASKET1
2955157排气歧管盖COVER EXHAUST MANIFOLD1
29551572盖板COVER1
3069092歧管盖至气缸体螺丝(1.25)SCREW (1.25) MANIFOLD COVER TO CYLINDER BLOCK1
3060411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
3069099歧管盖至气缸体螺丝(1-3/8")SCREW MANIFOLD COVER TO CYLINDER BLOCK (1-3/8")7
3031984螺钉(0.312-18×1.375)SCREW (.312-18 x 1.375)7
3164021排气盖调节螺丝(1-7/8")SCREW ADJUSTING - EXHAUST COVER (1-7/8")2
3264015调节螺丝螺母(.250-20)NUT (.250-20) ADJUSTING SCREW2
3326852尼龙调节螺丝帽CAP Nylon ADJUSTING SCREW2
349110气缸体盖COVER CYLINDER BLOCK1
3491101盖板COVER1
35854901气缸体盖衬垫GASKET CYLINDER BLOCK COVER1
3676213气缸体盖安装螺丝(.250-20 x 1.120)SCREW (.250-20 x 1.120) CYLINDER BLOCK COVER MOUNTING10
3746933A3动力头至下罩接地带总成STRAP ASEMBLY Ground POWERHEAD TO BOTTOM COWL2
3832802气缸体盖管塞(.125-27)PLUG Pipe (.125-27) CYLINDER BLOCK COVER1
38328022黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
3943065换气口盖COVER TRANSFER PORT1
39430651盖板COVER1
4055279换气口盖垫片GASKET TRANSFER PORT COVER1
40552791衬垫GASKET1
4169100换气口盖安装螺丝(1")SCREW TRANSFER PORT COVER MOUNTING (1")4
418M0214943螺钉SCREW4
4247483线圈线束J型夹J CLIP COIL HARNESS1
4392059燃油滤清器及线束支架BRACKET FUEL FILTER AND HARNESS1
4476213支架安装螺丝(.250-20 x 1.120)SCREW (.250-20 x 1.120) BRACKET MOUNTING2
-78028A78衬垫套件GASKET SET1
-61779A84动力头总成POWERHEAD ASSEMBLY1
-61779A87动力头总成POWERHEAD ASSEMBLY1
图 23驱动轴壳体 DRIVESHAFT HOUSING
驱动轴壳体 DRIVESHAFT HOUSING
REF零件编号中文名称英文名称数量
19244M驱动轴壳体HOUSING Driveshaft1
17842M驱动轴壳体HOUSING Driveshaft1
17843M驱动轴壳体HOUSING Driveshaft1
284775M衬垫GASKET1
284775衬垫GASKET1
382364M定位销PIN Dowel2
482465M螺栓BOLT6
495416M螺栓BOLT6
582217M垫圈WASHER6
683306M歧管MANIFOLD1
784776M排气导流管GUIDE Exhaust1
784777M排气导流管GUIDE Exhaust1
881574M排气歧管密封件SEAL EXHAUST MANIFOLD1
981572M排气歧管密封件SEAL EXHAUST MANIFOLD1
1081573M排气歧管衬垫GASKET EXHAUST MANIFOLD1
10826991M衬垫GASKET1
1182131M开口销COTTER PIN1
1182132M开口销COTTER PIN1
1283870M螺钉SCREW4
1343114M密封件SEAL1
1484783M超长轴延伸件EXTENSION (ULTRA LONG SHAFT)1
1584784M衬套BUSHING1
1684785M螺柱STUD4
1782364M定位销PIN Dowel2
1884786M螺母NUT4
1982220M垫圈WASHER4
-41899M下部单元衬垫套件GASKET SET Lower Unit1
-84828M下部单元衬垫套件GASKET SET Lower Unit1
-41899M衬垫套件GASKET SET1
-92575M动力头衬垫套件GASKET SET POWERHEAD1

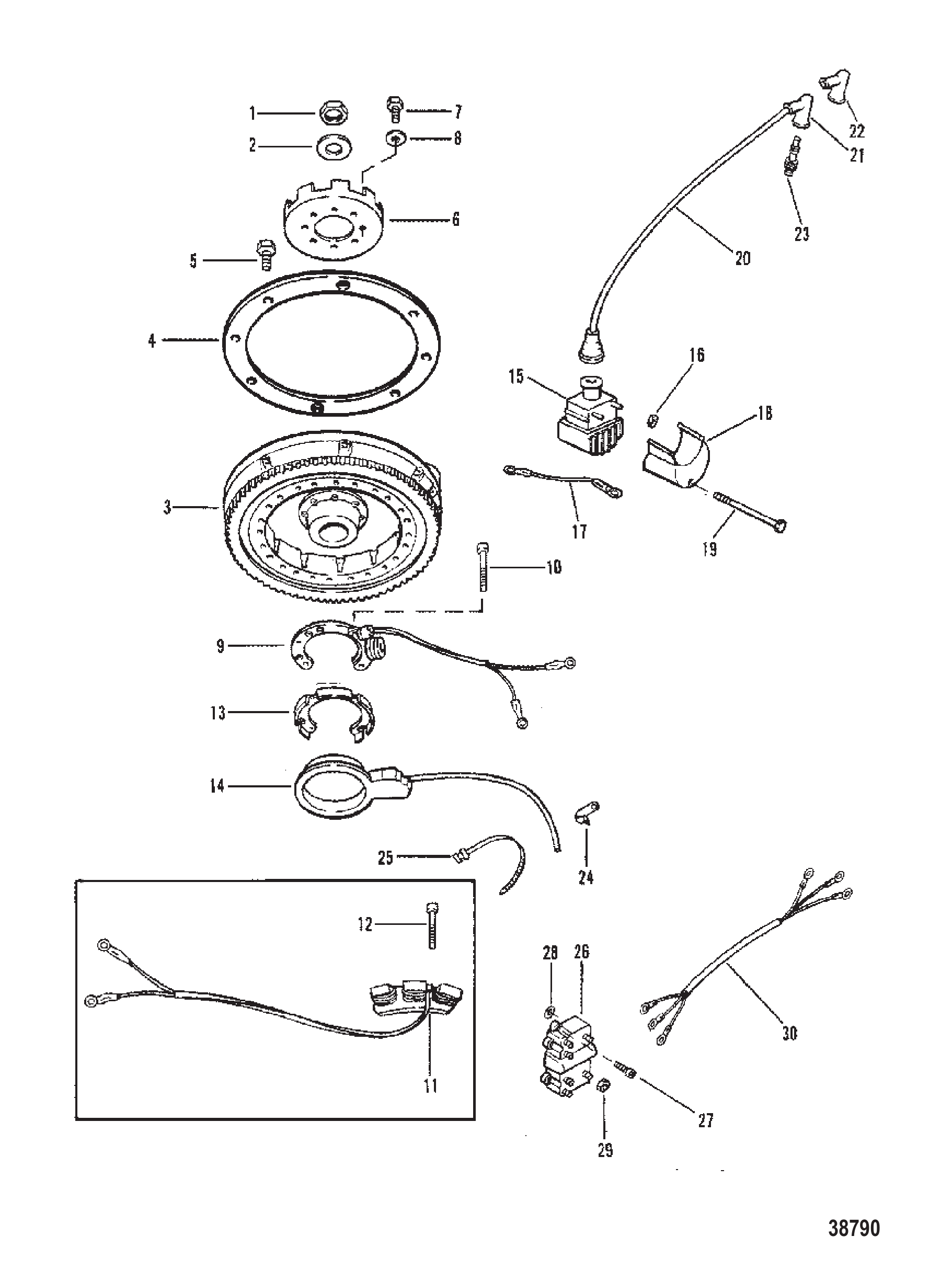

图 24飞轮、点火线圈和开关盒 FLYWHEEL, IGNITION COIL AND SWITCH BOX
飞轮、点火线圈和开关盒 FLYWHEEL, IGNITION COIL AND SWITCH BOX
REF零件编号中文名称英文名称数量
122339螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
18M0214915螺母NUT1
268229垫圈（0.641 x 1.250 x 0.190）飞轮螺母WASHER (.641 x 1.250 x .190) FLYWHEEL NUT1
233001垫圈WASHER1
37912A14飞轮总成FLYWHEEL ASSEMBLY1
37912A12飞轮总成77齿FLYWHEEL ASSEMBLY 77 TEETH1
441409A1惯性环总成INERTIA RING ASSEMBLY1
532417螺丝（0.250-28 x 0.625）飞轮SCREW (.250-28 x .625) FLYWHEEL8
665213棘轮飞轮RATCHET FLYWHEEL1
768997螺钉(.312-24 x .750)SCREW (.312-24 x .750)8
820202锁紧垫圈LOCKWASHER2
986617A11定子STATOR1
986617A20定子总成STATOR ASSEMBLY1
986617A13定子总成STATOR ASSEMBLY1
986617A20定子总成STATOR ASSEMBLY1
1077363螺钉(#10-24 x 1.50)SCREW (#10-24 x 1.50)2
1076566螺丝（#10-24 x 1.00）SCREW (#10-24 x 1.00)2
1019926100螺丝（#10-24 x 1.00）SCREW (#10-24 x 1.00)2
1186704A2定子总成充电STATOR ASSEMBLY CHARGING1
1186704A10辅助定子STATOR Auxiliary1
1293787螺丝（#10-24 x 1.750）SCREW (#10-24 x 1.750)3
1395707定子支架SUPPORT Stator1
1492431A1触发板TRIGGER PLATE1
1492431A6触发板TRIGGER PLATE1
1492431A6触发板TRIGGER PLATE1
157370A13点火线圈总成COIL ASSEMBLY Ignition2
158M0230859点火线圈总成COIL IGNITION ASY2
1645076螺母 (#10-32) 黄铜线圈端子NUT (#10-32) Brass COIL TERMINAL4
1760466A8电缆总成黑色线圈盖螺丝CABLE ASSEMBLY Black COIL COVER SCREW2
1876254点火线圈盖COVER IGNITION COIL2
1969002螺丝（#10-24 x 1.750）盖至线圈支架SCREW (#10-24 x 1.750) COVER TO COIL BRACKET2
1993460螺丝（0.190-24 x 2.125）盖至线圈支架SCREW (.190-24 x 2.125) COVER TO COIL BRACKET4
2099215A25火花塞引线总成（高压）LEAD ASSEMBLY SPARK PLUG (HIGH TENSION)2
20813715A1引线LEAD WIRE2
2163709A1护套/端子套件BOOT/TERMINAL KIT2
2299213火花塞护套SHEEL SPARK PLUG BOOT4
2397180火花塞（NGH#BUHW）SPARK PLUG (NGH#BUHW)2
23896329827SP #L76V @4SP #L76V @42
2368098火花塞SPARK PLUG2
2314103550火花塞 (NGK-BUZHW)SPARK PLUG (NGK-BUZHW)2
2454457J型夹引线J CLIP LEAD WIRES1
2561990扎带(14.00英寸)TIE STRAP (14.00 Inches)2
267452A3开关盒总成SWITCHBOX ASSEMBLY1
26899883230开关盒总成SWITCH BOX ASSY1
267452A8开关盒总成SWITCHBOX ASSEMBLY1
267452A21开关盒SWITCHBOX1
2773484螺丝开关盒至支架SCREW SWITCH BOX TO BRACKET3
2723015螺丝(.190-32 x 1.00)SCREW (.190-32 x 1.00)3
2869432外锁紧垫圈（#10）接地LOCKWASHER External (#10) GROUND1
2945076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL6
3094295A1初级线束总成HARNESS ASSEMBLY PRIMARY1
图 25燃油泵与燃油管路 FUEL PUMP AND FUEL LINE
燃油泵与燃油管路 FUEL PUMP AND FUEL LINE
REF零件编号中文名称英文名称数量
176575A9燃油泵总成PUMP ASSEMBLY Fuel1
213424A1止回阀总成CHECK VALVE ASSEMBLY1
28M0084275止回阀套件CHECK VALVE KIT1
355278A3膜片组件DIAPHRAGM KIT1
355278A4隔膜 KT@5DIAPHRAGM KT@51
4NSSNOT SOLD SEPARATE GASKET2
5NSSNOT SOLD SEPARATE GASKET2
623004止回阀固定座RETAINER CHECK VALVE1
743725螺钉 (#6-32 x 0.380) 固定座至壳体SCREW (#6-32 x .380) RETAINRER TO HOUSING2
835581燃油泵安装螺钉 (1-5/8英寸)SCREW FUEL PUMP MOUNTING (1-5/8")3
886885螺钉（0.250-20 x 1.500）不锈钢SCREW (.250-20 x 1.500) Stainless Steel3
932802管塞 (.125-27) 燃油泵PLUG Pipe (.125-27) FUEL PUMP1
9328022黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
1064705泵入口接头FITTING PUMP INLET1
1199127109油管 (57.00英寸散装) 燃油滤清器至泵 (9英寸)LINE (57.00 Inches Bulk) FUEL FILTER TO PUMP (9")1
118M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1287946A13燃油滤清器总成FILTER ASSEMBLY Fuel1
12889527A07滤清器套件FILTER KIT1
1387946A3滤清器总成FILTER ASSEMBLY1
1387946Q04燃油滤清器套件FILTER KIT Fuel1
1498277燃油滤清器密封件SEAL FUEL FILTER1
14897536密封件SEAL1
1599127109油管 (57.00英寸散装) 适配器至燃油滤清器 (11英寸)LINE (57.00 Inches Bulk) ADAPTOR TO FUEL FILTER (11")1
158M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1663187倒刺接头 (.250-18) 燃油管至适配器FITTING Barb (.250-18) FUEL LINE TO ADAPTOR1
1730188适配器垫片WASHER ADAPTOR1
1823067适配器阀杆弹簧SPRING ADAPTOR STEM1
1823067T弹簧SPRING1
1920415适配器阀杆O型圈O-RING ADAPTOR STEM1
1916524燃油接头O型圈O-RING Fuel Connector1
2023069适配器阀杆止回单元STEM CHECK UNIT ADAPTOR1
2122833适配器止回单元 (燃油泵)ADAPTER CHECK UNIT (FUEL PUMP)1
2256500适配器至下罩盖螺钉(.250-28x1.250)SCREW (.250-28 x 1.250) ADAPTOR TO BOTTOM COWL2
2336069适配器螺钉螺母NUT ADAPTOR SCREW2
24400212螺母 (M6) 不锈钢燃油滤清器NUT (M6) Stainless Steel FUEL FILTER1
2564705泵出口接头FITTING PUMP OUTLET1
2699127109油管 (57.00英寸散装) 泵至化油器 (12-3/4英寸)LINE (57.00 Inches Bulk) PUMP TO CARBURETOR (12-3/4")1
268M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
2768424燃油管固定夹CLAMP FUEL LINE ATTACHING8
2878279弯头 示警软管至缸体ELBOW TELL TALE HOSE TO BLOCK1
288M0207781弯头ELBOW1
297568022示警软管 (6英寸)HOSE TELL TALE (6")1
297568058软管 (15.00英寸)HOSE (15.00 Inches)1
3069791喷嘴 示警软管至外罩NOZZLE TELL TALE HOSE TO COWL1
3190882喷嘴套管SLEEVE NOZZLE1
3266849喷嘴卡箍CLAMP NOZZLE1
3348409螺钉 (#10-16 x 0.625) 不锈钢卡箍至底罩SCREW (#10-16 x .625) Stainless Steel CLAMP TO BOTTOM COWL1
3456762捆扎带 (4.00英寸) 喷嘴TIE STRAP (4.00 Inches) NOZZLE1
-78028A78衬垫套件GASKET SET1
图 26齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-8669A13齿轮箱总成(短型)(黑色)GEAR HOUSING ASSEMBLY (SHORT) (BLACK)1
-8669T13齿轮箱外壳SH-BLKGEAR HSG. SH-BLK1
-8669A14齿轮箱总成(长型)(黑色)GEAR HOUSING ASSEMBLY (LONG) (BLACK)1
-8669T14GC 20/25 2S LGGC 20/25 2S LG1
-8669A15齿轮箱总成(短型)(灰色)GEAR HOUSING ASSEMBLY (SHORT) (GRAY)1
-8669T13齿轮箱外壳SH-BLKGEAR HSG. SH-BLK1
-8669A16齿轮箱总成(长型)(灰色)GEAR HOUSING ASSEMBLY (LONG) (GRAY)1
-8669T16ORD 1665-8669T14ORD 1665-8669T141
-8669A23齿轮箱总成(短型)(追踪者系列)GEAR HOUSING ASSEMBLY (SHORT) (TRACKER)1
-8669A24齿轮箱总成(长型)(追踪者系列)GEAR HOUSING ASSEMBLY (LONG) (TRACKER)1
18669A21齿轮箱总成(基础黑色)GEAR HOUSING ASSEMBLY Basic-Black (BLACK)1
18M0083538GC BASIC 25 2SGC BASIC 25 2S1
18669A22齿轮箱总成(基础灰色)GEAR HOUSING ASSEMBLY Basic-Gray (GRAY)1
18669A21齿轮箱总成基础型-黑色GEAR HOUSING ASSEMBLY Basic-Black1
18669A25齿轮箱总成(追踪者系列)GEAR HOUSING ASSEMBLY (TRACKER)1
18669A39齿轮箱总成GEAR HOUSING ASSEMBLY1
241134右舷进水口滤网SCREEN WATER INLET-STARBOARD1
241133进水口滤网SCREEN Water Inlet Port1
340031112螺钉(M5 x 40)SCREW (M5 x 40)1
4400263螺母(M5)滤网螺钉NUT (M5) SCREEN SCREW1
541326滚柱轴承上BEARING Roller UPPER1
699325齿轮箱密封件SEAL GEAR HOUSING2
785500PIN Dowel (.187 x .530) GEAR HOUSING2
78M0084726定位销PIN Dowel2
898294A1滚柱轴承总成BEARING ASSEMBLY Roller1
998302小齿轮GEAR Pinion1
1049908小齿轮螺钉(0.250-28x0.75英寸)SCREW (.250-28 x .750) PINION GEAR1
1199199驱动轴(短轴)DRIVESHAFT (SHORT SHAFT)1
1199198驱动轴(长轴)DRIVESHAFT (LONG SHAFT)1
1314834A1磁性放油螺钉SCREW DRAIN - MAGNETIC1
138M0058389放油螺钉套件SCREW KIT Drain1
1428634A1润滑脂加注螺钉套件SCREW KIT GREASE FILLER1
1479953Q04放油螺钉套件SCREW KIT Drain1
15805726O型圈(放油/加注螺钉用)O-RING Rubber DRAIN AND FILLER SCREW2
158M0204684橡胶O型圈O-RING Rubber2
1685562A1凸轮总成(无钢印)CAM ASSEMBLY (NO STAMPING)1
1685562A2换挡凸轮(钢印85662--1)SHIFT CAM (STAMPED 85662--1)1
1785096驱动销PIN Drive1
1885593销(.078 x .437)PIN (.078 x .437)1
1929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
198M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
2093007弹簧SPRING1
2185091垫圈WASHER1
2285594O型圈(.239 x .174)O-RING (.239 x .174)1
2335276O型圈(.734 x .139)O-RING (.734 x .139)1
2493878固定座RETAINER1
2585552换档轴防尘罩BOOT SHIFT SHAFT1
2585552001护套BOOT1
2685126换挡轴(短轴)SHIFT SHAFT (SHORT SHAFT)1
2686293换挡轴(长轴)SHIFT SHAFT (LONG SHAFT)1
27993261水泵衬垫GASKET WATER PUMP1
2885083面板FACE PLATE1
2986645叶轮垫圈WASHER IMPELLER2
298M0204722垫圈WASHER2
3085119叶轮驱动键KEY IMPELLER DRIVE1
308M0214993键@5KEY @51
31850893叶轮IMPELLER1
318M0204712叶轮IMPELLER1
3269202水泵O型圈O-RING WATER PUMP1
3399157A1水泵总成PUMP ASSEMBLY Water1
3399157A02水泵总成PUMP ASSEMBLY Water1
3490883螺钉(M5×16)(16毫米)-与参考号36配套使用SCREW (M5 x 16) (16MM)- Use with Reference #364
3589302垫圈(0.203×0.406×0.040)-与参考号36配套使用WASHER (.203 x .406 x .040) Use with Reference #364
3685095衬套-与参考号36配套使用BUSHING Use with Reference #364
368M0214959衬套@5BUSHING @54
344000328螺钉(M6×16)-不与参考号36配套使用SCREW (M6 x 16) Use without Reference #364
348M0214928螺钉(M6 x 16)SCREW (M6 x 16)4
3529245不锈钢垫圈(0.281×0.500×0.060)-不与参考号36配套使用WASHER (.281 x .500 x .060) Stainless Steel Use without Reference #364
358M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
3785090水管密封件SEAL WATER TUBE1
3785090001密封件SEAL1
3886203橡胶传动轴O型圈O-RING DRIVE SHAFT - RUBBER1
-99157A2水泵维修套件REPAIR KIT Water Pump1
-99157T2水泵套件PUMP KIT Water1
-85090A2密封套件SEAL KIT1
-41499A87衬垫套件GASKET SET1
-41499A88衬垫套件GASKET SET1
图 27齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
REF零件编号中文名称英文名称数量
-7406A34齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A4齿轮箱总成GEAR HOUSING ASSEMBLY1
-7406A35齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A5齿轮箱总成GEAR HOUSING ASSEMBLY1
-7406A43齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A10齿轮箱GEAR HOUSING1
17406A16齿轮箱总成水星GEAR HOUSING ASSEMBLY Mercury1
19539T1齿轮箱GEAR HOUSING1
5176039换挡凸轮控制CAM Shift Control1
51760394换挡凸轮控制CAM Shift Control1
5238374A1SHIM SET BEARING CUP TO GEAR HOUSING (.002-3-5-10)AR
5338356A1轴承套件BEARING SET1
5455608A4前进齿轮总成GEAR ASSEMBLY Forward1
5455608T4前进齿轮总成GEAR ASSY-FORWARD1
5521739滚柱轴承BEARING Roller1
5638441凸轮从动件FOLLOWER Cam1
5720843SLIDE CROSS PIN1
5838114十字销固定弹簧SPRING RETAINING-CROSS PIN1
5992911棘轮滑动离合器RATCHET SLIDING CLUTCH1
5992911T离合器CLUTCH1
6038113十字销PIN Cross1
608M0020942十字销@2PIN-CROSS @21
6139845压缩弹簧-凸轮随动件SPRING COMPRESSION-CAM FOLLOWER1
6275365螺旋桨轴PROPELLER SHAFT1
6379158倒挡齿轮GEAR Reverse1
6379158T倒挡齿轮GEAR-REVERSE1
6432004推力垫圈-倒车齿轮WASHER THRUST-REVERSE GEAR1
6520839滚珠轴承BEARING Ball1
6520839T滚珠轴承BEARING Ball1
6631986轴承座O型圈O-RING BEARING CARRIER1
6769386A1轴承座总成CARRIER ASSEMBLY Bearing1
6769386T1轴承座总成CARRIER ASSY-BRG1
6821700滚针轴承BEARING Needle1
6969188轴承座油封SEAL Oil BEARING CARRIER1
698M0205511油封SEAL Oil1
7069189轴承座油封SEAL Oil BEARING CARRIER1
708M0203757油封SEAL Oil1
7130281轴承座定位键KEY LOCATING-BEARING CARRIER1
7253012齿轮箱盖锁紧垫圈TAB WASHER GEAR HOUSING COVER1
7387763NUT GEAR HOUSING1
7431640A1TRIM TAB ASSEMBLY GEAR HOUSING1
7431640Q4平衡鳍板TRIM TAB1
7566024SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING1
7645175垫圈（0.406 x 0.750 x 0.104）驱动轴壳体螺柱WASHER (.406 x .750 x .104) DRIVESHAFT HOUSING STUD1
768M0214963垫圈WASHER1
7734863NUT (.375-24) DRIVESHAFT HOUSING STUD1
778M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
7864791垫圈壳体至螺柱（7-16英寸）WASHER HOUSING TO STUD (7-16")1
7934933NUT (.437-20) Stainless Steel STUD1
798M0204653螺母NUT1
8073345A1THRUST WASHER FRONT1
8176281螺旋桨螺母锁紧垫圈TAB WASHER PROPELLER NUT1
818M0214942锁紧垫片WASHER Tab1
8269578A1螺旋桨螺母套件PROP NUT KIT1
8269578Q1螺旋桨螺母套件PROP NUT KIT1
-78028A78衬垫套件GASKET SET

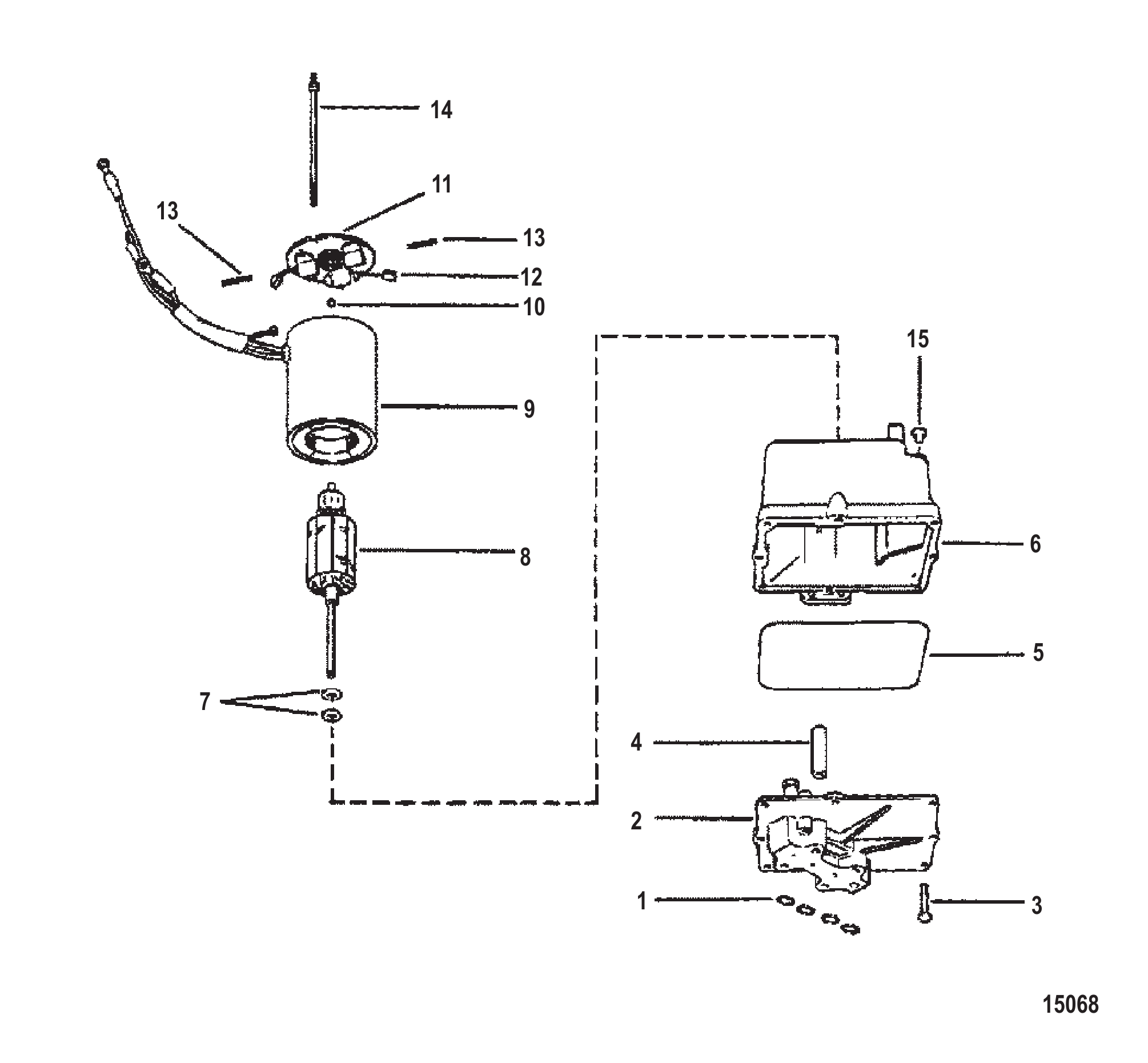

图 28液压泵总成(塑料油箱) HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
液压泵总成(塑料油箱) HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
REF零件编号中文名称英文名称数量
-92975A6液压泵总成PUMP ASSEMBLY Hydraulic1
148171O型圈 (.364 x 0.070) 液压泵O-RING (.364. x .070) HYDRAULIC PUMP4
28317阀体与齿轮总成VALVE BODY AND GEAR ASSEMBLY1
292975A32泵套件-微调PUMP KIT-TRIM1
369570螺钉 (#10-16 x 0.750) 阀体至储液罐SCREW (#10-16 x .750) VALVE BODY TO RESERVOIR8
47727联轴器与轴COUPLER AND SHAFT1
57735储液罐至阀体与齿轮密封件SEAL RESERVOIR TO VALVE BODY AND GEAR1
67731储液罐总成 (塑料)RESEROVIR ASSEMBLY (PLASTIC)1
77732止推垫圈-电枢WASHER THRUST - ARMATUREAR
87729电枢磁场与框架ARMATURE FIELD AND FRAME1
98261磁场框架总成FIELD AND FRAME ASSEMBLY1
107730换向器端板滚珠BALL COMMUTATOR END PLATE1
118262换向器端板总成PLATE ASSEMBLY COMMUTATOR END1
122941换向器端板电刷组BRUSH SET COMMUTATOR END PLATE1
128989电刷套件BRUSH KIT1
132529电刷张力弹簧组SPRING SET BRUSH TENSION1
147733贯穿螺栓组 板与框架至储液罐BOLT SET Thru- Plate and Frame to Reservoir1
157728储液罐注油塞FILL PLUG RESERVOIR1
图 29杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-43116零件手册35马力PARTS MANUAL 35 Hp1
-43206A84贴花套件DECAL SET1
-13481A89贴花套件DECAL SET1
-13481A86贴花套件DECAL SET1
-13481A89贴花套件DECAL SET1
-78028A78衬垫套件GASKET SET1
-445621操作手册OPERATION MANUAL1
-445622用户手册MANUAL-OWNERS1
图 30动力升降组件 POWER TRIM COMPONENTS
动力升降组件 POWER TRIM COMPONENTS
REF零件编号中文名称英文名称数量
192975A6液压泵总成 (塑料储液罐)PUMP ASSEMBLY Hydraulic (PLASTIC RESERVOIR)1
248171O型圈 (.364 x 0.070) 歧管板O-RING (.364. x .070) MANIFOLD PLATE4
379953螺钉 (.375-16 x 0.250) 注油口-液压泵SCREW (.375-16 x .250) FILLER - HYDRAULIC PUMP1
379953Q04放油螺钉套件SCREW KIT Drain1
420260密封垫圈-注油螺钉WASHER SEALING - FILLER SCREW1
48M0187157蓝色密封件@15SEAL-BLUE @151
562269螺钉 (#10-32 x 0.437) 通气口-液压泵SCREW (#10-32 x .437) VENT - HYDRAULIC PUMP1
645336歧管板PLATE MANIFOLD1
745197A2控制阀总成VALVE ASSEMBLY Control1
-48171O型圈 (.364 x 0.070) 歧管板 (参见编号#2)O-RING (.364. x .070) MANIFOLD PLATE (SEE REF. #2)4
845254O型圈 控制阀 (3/4英寸外径)O-RING CONTROL VALVE (3/4" O.D.)1
948171O型圈 (.364 x 0.070) 控制阀O-RING (.364. x .070) CONTROL VALVE1
1045253O型圈 控制阀 (5/8英寸外径)O-RING CONTROL VALVE (5/8" O.D.)2
1156500螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
1246008控制阀塞 (1/2-20)PLUG CONTROL VALVE (1/2-20)2
1379147A3线束总成HARNESS ASSEMBLY1
1479091保险丝20安培FUSE 20 Ampere1
148M0207796保险丝20安培FUSE 20 AMP1
1595084A3电缆总成-保险丝CABLE ASSEMBLY FUSE1
1645377安装支架BRACKET MOUNTING2
1645377T支架BRACKET2
1735386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)4
1839107锁紧垫圈 (.312-24) 安装支架螺钉LOCKWASHER (.312-24) MOUNTING BRACVKET SCREW4
1921908螺母 (.312-18) 镀镉安装支架螺钉NUT (.312-18) Cad Plated MOUNTING BRACKET SCREW4
2031830螺栓 (.375-24 x 1.75) 液压泵至船体BOLT (.375-24 x 1.75) HYDRAULIC PUMP TO BOAT2
2199405液压泵螺栓螺母NUT HYDRAULIC PUMP BOLT2
2182671112螺母（.375-16）NUT (.375-16)2
2294279安装支架-启动电磁阀BRACKET MOUNTING - STARTER SOLENOID1
2348063螺钉SCREW2
2328638螺钉(.250-20 x .750)SCREW (.250-20 x .750)2
2429488螺母 (#10-32)NUT (#10-32)1
248M0204718螺母NUT1
2596158启动电磁阀SOLENOID Starter2
258M0185622电磁阀SOLENOID2
2626995锁紧垫圈 (#8) 不锈钢电磁阀端子LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL4
2726419螺母(#8-32)-黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINAL4
2826992锁紧垫圈 (.250) 不锈钢电磁阀端子LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL4
2994330螺母 (.250-20) 黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINAL4
3096535橡胶护套-启动电磁阀端子BOOT RUBBER - STARTER SOLENOID TERMINAL4
30861680绝缘体INSULATOR4
3141508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel4
3294275电磁阀间连杆LINK SOLENOID TO SOLENOID1
3379139A13电缆总成 蓄电池 (正极)CABLE ASSEMBLY Battery (POSITIVE)1
3379138A1负极电缆总成CABLE ASSEMBLY (NEGATIVE)1
3461600A9启动电磁阀导线(黑色)WIRE STARTER SOLENOID (BLACK)2
3579023A9090安培保险丝总成FUSE ASSEMBLY 90 Ampere1
3579023T9090安培保险丝总成FUSE ASSEMBLY 90 Ampere1
3696457酚醛垫圈(0.27x0.81x0.062)保险丝端子WASHER Phenolic (.27 x .81 x .062) FUSE TERMINAL1
3721825螺母(0.250-28)保险丝端子NUT (.250-28) FUSE TERMINAL1

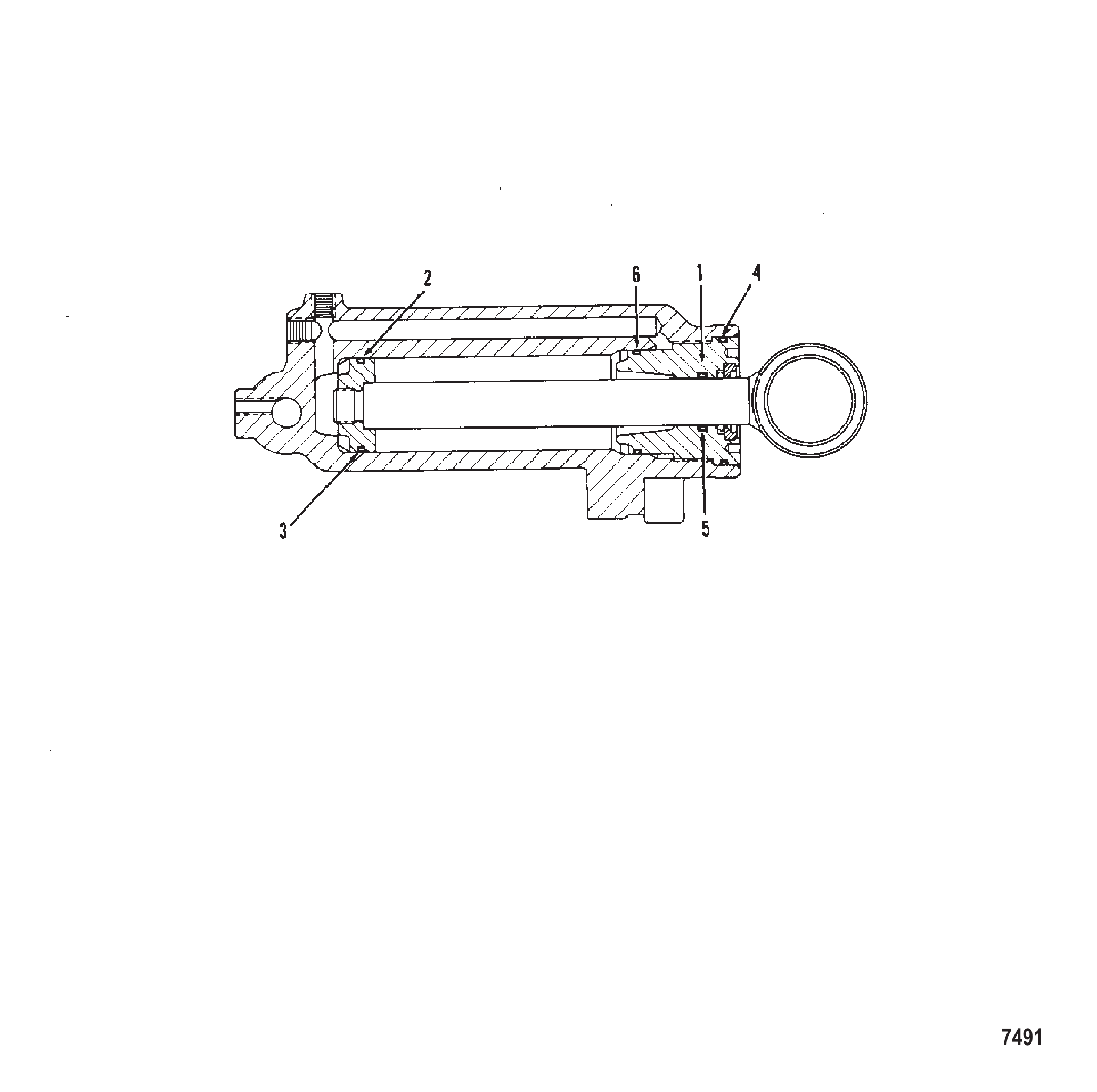

图 31动力升降油缸修理包 POWER TRIM CYLINDER REPAIR KITS
动力升降油缸修理包 POWER TRIM CYLINDER REPAIR KITS
REF零件编号中文名称英文名称数量
-92188A2维修套件(见备注)REPAIR KIT (SEE NOTE)1
1N.S.S.气缸盖不单独销售Not Sold Separate Cylinder Cap1
2N.S.S.O型圈(1-1/4"x1-1/2"x1/8")不单独销售Not Sold Separate O-Ring (1-1/4" x 1-1/2" x 1/8")1
3N.S.S.垫片不单独销售Not Sold Separate Spacer1
4N.S.S.O型圈(1-7/8"x2-1/16"x3/32")不单独销售Not Sold Separate O-Ring (1-7/8" x 2-1/16" x 3/32")1
5N.S.S.O型圈(3/4"x15/16"x3/32")不单独销售Not Sold Separate O-Ring (3/4" x 15/16" x 3/32")1
6N.S.S.O型圈(1-1/2"x1-3/4"x3/32")不单独销售Not Sold Separate O-Ring (1-1/2" x 1-3/4" x 3/32")1
图 32螺旋桨(右旋) PROPELLERS (RIGHT HAND ROTATION)
螺旋桨(右旋) PROPELLERS (RIGHT HAND ROTATION)
REF零件编号中文名称英文名称数量
-73132A40螺旋桨总成(铝制)(螺距10")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 10")
-73134A40螺旋桨总成(铝制)(螺距12")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 12")
-73134A45BLMX 10.6X12BLMX 10.6X12
-73136A40螺旋桨总成(铝制)(螺距13")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 13")
-73136A45BLMX 10.4X13BLMX 10.4X13
-73138A40螺旋桨总成(铝制)(螺距14")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 14")
-73138A45BLMX 10.3X14BLMX 10.3X14
-73140A40螺旋桨总成(铝制)(螺距15")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 15")
-73140A45BLMX 10.1X15BLMX 10.1X15
-73144A40螺旋桨总成(铝制)(螺距17")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 17")
-73144A45BLMX 10X17BLMX 10X17
图 33换挡控制联动装置 SHIFT CONTROL LINKAGE
换挡控制联动装置 SHIFT CONTROL LINKAGE
REF零件编号中文名称英文名称数量
187876换挡锚支架-上部BRACKET SHIFT ANCHOR - UPPER1
187876A2换挡锚支架SHIFT ANCHOR BACKET1
273657螺钉(0.312-18 x 1.50)SCREW (.312-18 x 1.50)2
367450螺丝(.312-18 x 2.250)SCREW (.312-18 x 2.250)1
435385螺钉(0.312-18x1.75)-支架到曲轴箱SCREW (.312-18 x 1-3/4) BRACKET TO CRANKCASE1
587874滑动换挡执行件SLIDE SHIFT ACUTATING1
656193锁扣-换挡执行滑块(换挡拉线)LATCH SHIFT ACUTATING SLIDE (SHIFT CABLE)1
739620螺钉-锁扣到换挡执行滑块SCREW LATCH TO SHIFT ACTUTING SLIDE1
827087压缩弹簧-锁扣螺钉SPRING COMPRESSION - LATCH SCREW1
975717尼龙滑块-锚支架SLIDE NYLON -ANCHOR BRACKET1
1039515尼龙端盖-锚支架滑块END CAP NYLON - ANCHOR BRACKET SLIDE2
1175715换挡锚支架-下部BRACKET SHIFT ANCHOR - LOWER1
1187876A2换挡锚支架SHIFT ANCHOR BACKET1
1220012螺钉(0.250-28x1.62)SCREW (.250-28 x 1.62)2
1320586螺母(0.250-28)-上部锚支架螺钉NUT (.250-28) UPPER ANCHOR BRACKET SCREW2
13826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel2
1439519杯形固定器-锚支架(换挡拉线套筒)CUP RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL)1
1539618尼龙杆-换挡拉线锁定LEVER NYLON - SHIFT CABLE LOCKING1
1587609A1杠杆套件LEVER KIT1
1647175销-锁定杆与盖板固定PIN LOCKING LEVERA AND COVER FASTENING3
1790211尼龙盖-换挡拉线COVER NYLON - SHIFT CABLE1
1865799连杆-锁定杆到盖板LINK LOCKING LEVER TO COVER1
1887609A1杠杆套件LEVER KIT1
1975104A7换挡轴总成SHIFT SHAFT ASSEMBLY1
1975104A8换挡轴总成SHIFT SHAFT ASSEMBLY1
2037998垫圈-上部换挡轴WASHER UPPER SHIFT SHAFT1
2127769开口销-上部换挡轴COTTER PIN UPPER SHIFT SHAFT1
2126811开口销COTTER PIN1
2288096A1开关总成SWITCH ASSEMBLY1
2330902螺丝 (#6-32 x .750)SCREW (#6-32 x .750)2
2445915端子排TERMINAL BLOCK1
2525764螺钉(.190-32 x .50)SCREW (.190-32 x .50)1
2627164螺母与锁紧垫圈 (#10-32)NUT AND LOCKWASHER (#10-32)1
2769079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)

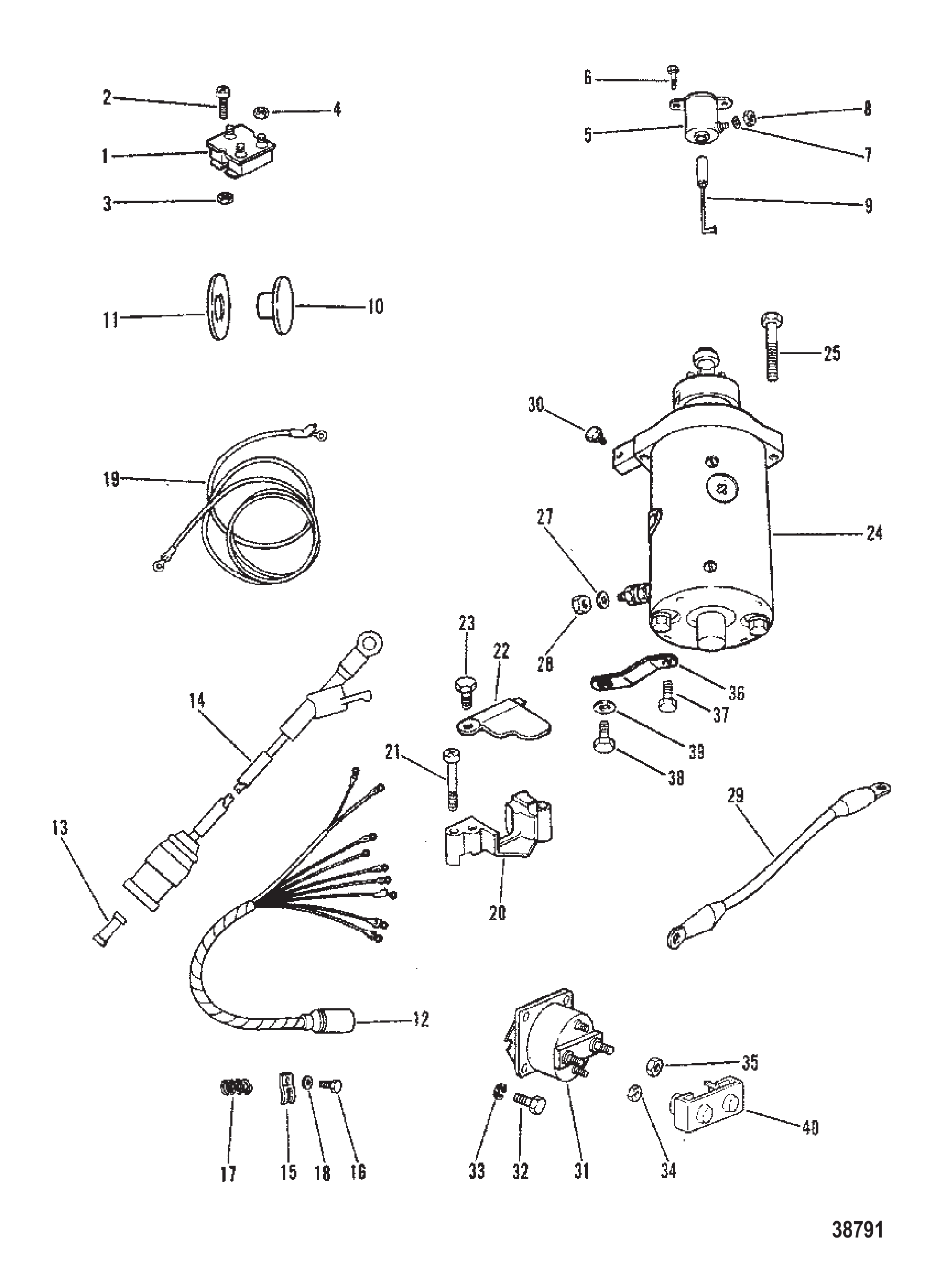

图 34启动电机、整流器及线束(仅电动) STARTER MOTOR, RECTIFIER AND WIRING HARNESS (ELECTRIC ONLY)
启动电机、整流器及线束(仅电动) STARTER MOTOR, RECTIFIER AND WIRING HARNESS (ELECTRIC ONLY)
REF零件编号中文名称英文名称数量
162351A1整流器RECTIFIER1
18M0058226整流器RECTIFIER1
220646螺钉(0.190-32x0.62)SCREW (.190-32 x .62)2
238055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)2
327164螺母与锁紧垫圈(#10-32)-整流器固定螺钉NUT AND LOCKWASHER (#10-32) RECTIFIER FASTENING SCREW2
445076螺母(#10-32)黄铜整流器端子NUT (#10-32) Brass RECTIFIER TERMINAL3
554293A11阻风门电磁阀总成SOLENOID ASSEMBLY Choke1
5889274电磁阀-阻风门SOLENOID-CHOKE1
625299螺钉(0.312-18x0.75)SCREW (.312-18 x .75)2
726996锁紧垫圈(#10)不锈钢阻风门电磁阀端子LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL1
845076螺母(#10-32)黄铜阻风门电磁阀端子NUT (#10-32) Brass CHOKE SOLONOID TERMINAL1
989008A2阻风门电磁阀柱塞总成PLUNGER ASSEMBLY CHOKE SOLENOID1
1035827下机罩塞PLUG BOTTOM COWL1
1130428底部罩盖固定塞FASTENER PLUG TO BOTTOM COWL1
1296219A2线束总成HARNESS ASSEMBLY1
1296219A8线束总成HARNESS ASSEMBLY1
1296219A5线束总成HARNESS ASSEMBLY1
1296219A8线束总成HARNESS ASSEMBLY1
1379091保险丝20安培FUSE 20 Ampere1
138M0207796保险丝20安培FUSE 20 AMP1
1495084A2电缆总成-保险丝CABLE ASSEMBLY FUSE1
1588751线束夹CLAMP WIRING HARNESS1
1623702螺钉(0.190-32x1.12)线束卡箍SCREW (.190-32 x 1.12) WIRING HARNESS CLAMP1
1728357弹簧-线束夹螺钉SPRING WIRING HARNESS CLAMP SCREW1
1872761垫圈(0.203x0.562x0.060)-不锈钢线束夹螺钉WASHER (.203 x .562 x .060) Stainless Steel WIRING HARNESS CLAMP SCREW1
1988439A3正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
1988439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
2088620线束支架BRACKET HARNESS SUPORT1
20886201支架BRACKET1
2173280螺钉-线束支撑架SCREW HARNESS SUPPORT BRACKET2
2288617盖板-线束支撑架COVER HARNESS SUPPORT BRACKET1
2328635螺钉(0.250-20x0.620)-不锈钢线束支撑架盖板SCREW (.250-20 x .620) Stainless Steel HARNESS SUPPORT BRACKET COVER2
2441583启动马达总成(10齿小齿轮)STARTER MOTOR ASSEMBLY (10 PINION TEETH)1
2441583TORD 50-898265007ORD 50-8982650071
2535213螺钉(1-5/8英寸)SCREW (1-5/8 INCH)2
2726992锁紧垫圈(0.250)-不锈钢电缆到启动马达螺母LOCKWASHER (.250) Stainless Steel CABLE TO STARTER MOTOR NUT1
2820890螺母(0.250-20)-电缆到启动马达NUT (.250-20) CABLE TO STARTER MOTOR1
2988809A6电缆总成-启动器到电磁阀(黄色)CABLE ASSEMBLY STARTER TO SOLENOID (YELLOW)1
2988809A9拉线总成CABLE ASSEMBLY1
3069035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
3196158启动电磁阀SOLENOID Starter1
318M0185622电磁阀SOLENOID1
3298253螺钉(0.250-20x0.500)电磁阀至支架SCREW (.250-20 x .500) SOLENOID TO BRACKET2
3326992锁紧垫圈(0.250)不锈钢启动电磁阀螺钉LOCKWASHER (.250) Stainless Steel STARTER SOLENOID SCREW2
3426419黄铜螺母 (#8-32)NUT (#8-32) Brass2
3594330螺母 (.250-20) 黄铜NUT (.250-20) Brass2
3642729A1起动机至曲轴箱支架BRACKET STARTER MOTOR TO CRANKCASE1
3732079螺钉(.250-20 x .560)SCREW (.250-20 x .560)1
3869022螺钉 (#10-32 x .500) 不锈钢SCREW (#10-32 x .500) Stainless Steel1
3989302垫圈(.203 x .406 x .040)支架螺钉WASHER (.203 x .406 x .040) BRACKET SCREW1
4097861绝缘体-启动电磁阀INSULATOR STARTER SOLENOID1
图 35启动电机总成 STARTER MOTOR ASSEMBLY
启动电机总成 STARTER MOTOR ASSEMBLY
REF零件编号中文名称英文名称数量
-41583启动马达总成(10齿小齿轮)STARTER MOTOR ASSEMBLY (10 PINION TEETH)1
-41583TORD 50-898265007ORD 50-8982650071
190642驱动套件DRIVE KIT1
243076驱动总成(10齿小齿轮)DRIVE ASSEMBLY (10 PINION TEETH)1
243076T驱动总成DRIVE ASSY1
368584驱动端板总成PLATE ASSEMBLY DRIVE END1
4N.S.S.不单独销售贯穿螺栓(BOSCH #SC-3803)Not Sold Separate THRU BOLT (BOSCH #SC-3803)2
526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
6N.S.S.不单独销售止推垫圈(BOSCH #WA-3122)Not Sold Separate THRUST WASHER (BOSCH #WA-3122)1
757384电枢ARMATURE1
875384电刷/弹簧套件BRUSH/SPRING KIT1
8898265016电刷/弹簧套件BRUSH/SPRING KIT1
957387绝缘衬套BUSHING INSULATING1
10N.S.S.不单独销售垫圈(BOSCH #WA-3074-1)Not Sold Separate WASHER (BOSCH #WA-3074-1)1
1138013输入柱垫圈WASHER INPUT STUD1
1226992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
1320890螺母 (.250-20)NUT (.250-20)1
1457389端盖总成含电刷架END CAP ASSEMBLY W/BRUSH HOLDER1
图 36启动器回绕装置 STARTER REWIND
启动器回绕装置 STARTER REWIND
REF零件编号中文名称英文名称数量
120166滑轮轴螺母(左旋螺纹)NUT SHEAVE SHAFT (LEFT HAND THREAD)1
261004止动垫圈螺旋轴螺母TAB WASHER SHREAVE SHAFT NUT1
339597起动机壳体护圈GROMMET STARTER HOUSING2
476141联锁电缆总成CABLE ASSEMBLY INTERLOCK1
532228螺钉（#10-32 X 0.625）SCREW (#10-32 x .625)1
669022螺钉 (#10-32 x .500) 不锈钢SCREW (#10-32 x .500) Stainless Steel1
742820联锁凸轮CAM INTERLOCK1
7428201凸轮CAM1
876138螺丝(.312-18 x 1.120)SCREW (.312-18 x 1.120)1
976140弹簧SPRING1
9761401弹簧SPRING1
1079371执行器ACTUATOR1
1176137螺钉SCREW1
1276139弹簧SPRING1
1330191垫圈WASHER1
1427769开口销COTTER PIN1
1426811开口销COTTER PIN1
1555860启动器滑轮PULLEY STARTER1
1645210螺钉 (.190-32 x 1.250)SCREW (.190-32 x 1.250)1
1722887滑轮螺丝垫圈WASHER PULLEY SCREW3
1830977滑轮螺钉隔套SPACER PULLEY SCREW1
18309772隔套SPACER1
1994121起动机拉绳固定座RETAINER STARTER ROPE1
2024656滑轮螺钉螺母NUT PULLEY SCREW1
2176080A1启动器壳体总成HOUSING ASSEMBLY Starter1
2176079A8起动机总成回绕式STARTER ASSEMBLY Rewind1
21760791启动器壳体HOUSING Starter1
21760792启动器壳体HOUSING Starter1
2294338A1启动器滑轮总成SHEAVE ASSEMBLY Starter1
2244255A1启动器滑轮总成SHEAVE ASSEMBLY Starter1
2391936启动棘爪PAWL Starter1
2344508启动棘爪PAWL Starter1
2488759螺钉(1英寸)SCREW (1")2
2488760螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
2526993锁紧垫圈(.312)起动机壳体螺钉LOCKWASHER (.312) STARTER HOUSING SCREW3
258M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
2661002起动机回绕板PLATE STARTER REWIND1
2739502A1启动器回位弹簧SPRING STARTER REWIND1
2739502T02回卷弹簧SPRING-RECOIL1
2887649弹簧导套BUSHING SPRING GUIDE1
2987651起动机棘爪弹簧SPRING STARTER PAWL1
3087706起动机棘爪E型环E RING STARTER PAWL1
3163061滑轮轴间隔套SPACER SHEAVE SHAFT1
3394962杠杆LEVER1
3420160波形垫圈WAVE WASHER1
3587656滑轮轴SHEAVE SHAFT1
3628985A2启动机电缆总成CABLE ASSEMBLY Starter1
3612066Q10启动绳@2ROPE-STARTER@21
3647341A1手动/应急启动绳柄套件ROPE AND HANDLE KIT Manual/Emergency Start1
3647341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
3779470A1绳索固定组件RETAINER KIT Rope1
3835559起动机回绕垫圈WASHER STARTER REWIND1
-76079A8起动机总成回绕式STARTER ASSEMBLY Rewind1
图 37转向手柄 STEERING HANDLE
转向手柄 STEERING HANDLE
REF零件编号中文名称英文名称数量
181138M转向支架BRACKET STEERING1
119113M支架BRACKET1
284830M螺栓BOLT4
0-192570M转向手柄总成HANDLE ASSEMBLY Steering1
0-195673M转向手柄STEERING HANDLE1
384849M转向手柄STEERIG HANDLE1
396664M手柄HANDLE1
481585M节气门握把GRIP THROTTLE1
595497M橡胶手柄HANDLE RUBBER1
58M0080456握把GRIP1
584854M橡胶手柄RUBBER HANDLE1
58M0080456握把GRIP1
642432M节气门指示器INDICATOR THROTTLE1
697773M节气门指示器INDICATOR THROTTLE1
692586M节气门指示器INDICATOR THROTTLE1
697773M指示器INDICATOR1
781907M铆钉RIVET1
882483M螺钉SCREW1
8811916M螺钉SCREW1
984856M节流阀杆LEVER THROTTLE1
1082204M节气门轴垫圈WASHER THROTTLE SHAFT1
1082220M垫圈WASHER1
1182095M弹簧SPRING1
1281945M转向臂衬套BUSHING STEERING ARM1
1341892M油门拉索总成CABLE ASSEMBLY Throttle2
1481747M线缆螺栓BOLT CABLE2
14815139M螺栓BOLT2
1581765M螺母NUT4
1682064M护孔环GROMMET1
1782119M隔套SPACER1
1881861M隔套SPACER1
1984850M垫圈WASHER2
2084851M波形垫圈WASHER WAVE1
2184852M固定座RETAINER1
2284853M螺栓BOLT1
2284931M螺栓BOLT1
2384058M螺栓 (M6 x 20)BOLT (M6 x 20)1
2482214M垫圈WASHER2
2582895M摩擦片FRICTION PIECEOPT
2683056M螺母NUTOPT
2784058M螺栓 (M6 x 20)BOLT (M6 x 20)OPT

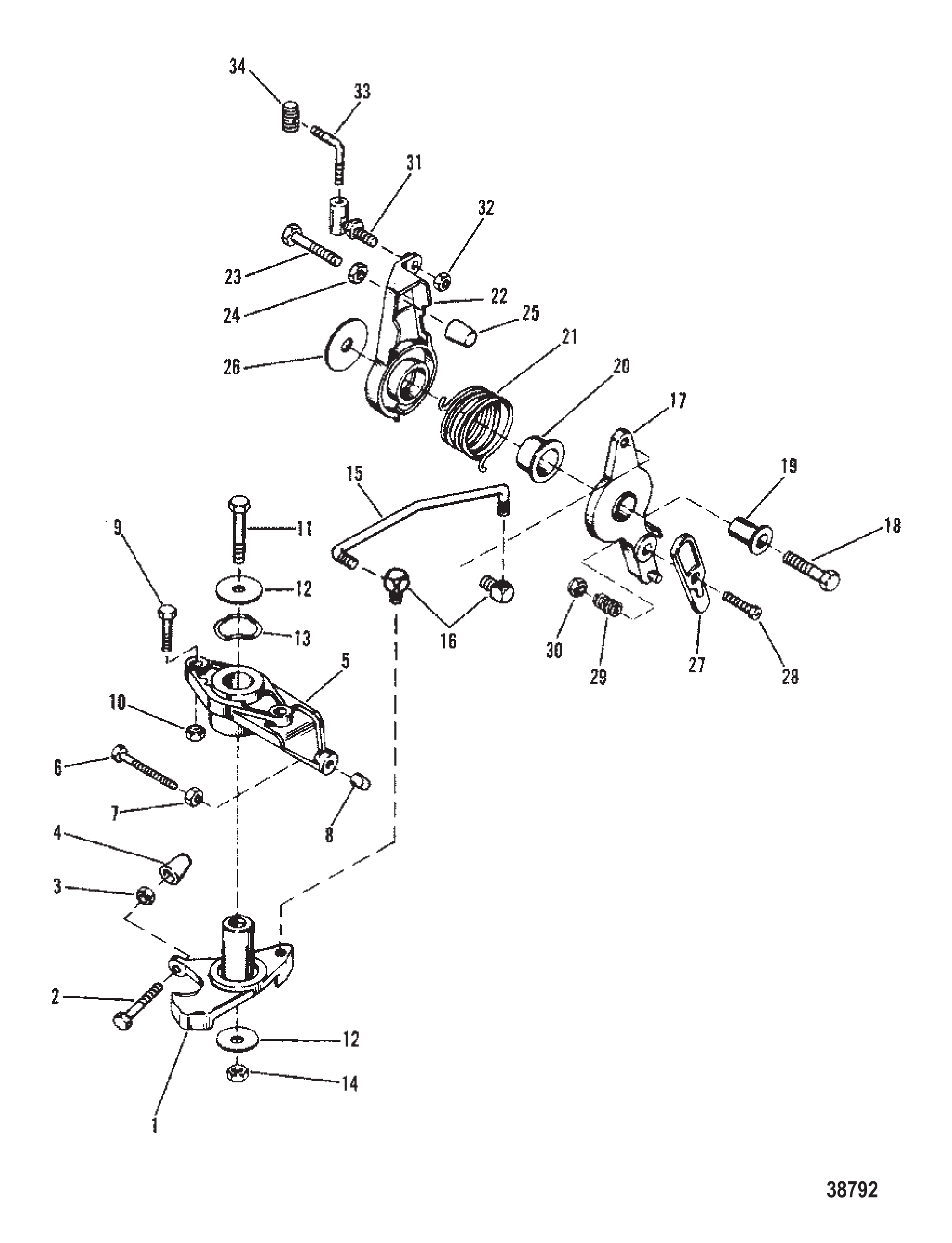

图 38油门与点火提前连杆 THROTTLE AND SPARK ADVANCE LINKAGE
油门与点火提前连杆 THROTTLE AND SPARK ADVANCE LINKAGE
REF零件编号中文名称英文名称数量
144405节气门执行器凸轮CAM Throttle ACTUATOR1
263102调节螺钉(.250-20 x 1.250)-节气门凸轮SCREW (.250-20 x 1.250) ADJUSTIN - THROTTLE CAM1
364015锁紧螺母(.250-20)-调节螺钉NUT (.250-20) JAM - ADJUSTING SCREW1
426852尼龙调节螺丝帽CAP Nylon ADJUSTING SCREW1
539522节气门控制轴支架BRACKET THROTTLE CONTROL SHAFT1
539522T支架BRACKET1
664021螺钉(1-7/8英寸)SCREW (1-7/8")1
764015螺母 (.250-20)NUT (.250-20)1
826852尼龙调节螺丝帽CAP Nylon ADJUSTING SCREW1
920639螺钉(.312-24 x 1.12)SCREW (.312-24 x 1.12)2
1029250螺母(.312-24)节气门控制支架螺钉NUT (.312-24) THROTTLE CONTROL BRACKET SCREW2
1169047螺钉(2-3/8英寸)SCREW (2-3/8 INCHES)1
1134438螺钉(.312-24 x 2.375)SCREW (.312-24 x 2.375)1
1225893垫圈WASHER2
1362172波形垫圈WAVE WASHER1
1429250螺母(.312-24)NUT (.312-24)1
1595044连杆LINK ROD1
1695045旋转连杆SWIVEL LINK ROD2
1795049油门控制杆LEVER THROTTLE CONTROL1
1855337螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
18818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1955164节气门控制杆螺钉衬套BUSHING THROTTLE CONTROL LEVER SCREW1
2055171节气门控制杆螺钉衬套BUSHING THROTTLE CONTROL LEVER SCREW1
2155162回位弹簧-点火提前杆SPRING RETURN - SPARK ADVANCE LEVER1
2295051点火提前杆LEVER SPARK ADVANCE1
2332627调节螺钉(.190-32 x 1.50)-提前杆SCREW (.190-32 x 1.50) ADJUSTING - ADVANCE LEVER1
2468219锁紧螺母(#10-32)不锈钢-调节螺钉NUT (#10-32) Stainless Steel JAM - ADJUSTING SCREW1
2548039尼龙帽-调节螺钉CAP NYLON - ADJUSTIN SCREW1
2668410节气门控制杆螺钉垫圈WASHER THROTTLE CONTROL LEVER SCREW1
2646765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
2739483节气门控制杆锁扣LATCH THROTTLE CONTROL LEVER1
2822486螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
2869026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
2920099压缩弹簧-锁扣螺钉SPRING COMPRESSION - LATCH SCREW1
3020586螺母 (.250-28) 卡扣螺钉NUT (.250-28) LATCH SCREW1
30826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3162459球头总成点火提前杆BALL JOINT ASSEMBLY SPARK ADVANCE LEVER1
3162459T球头节总成BALL JOINT ASSY1
3246438螺母(#10-32)球头至点火提前杆NUT (#10-32) BALL JOINT TO SPARK ADVANCE LEVER1
3361940连杆LINK ROD1
3474897螺纹枢轴-触发板至连杆PIVOT THREADED - TRIGGER PLATE TO LINK ROD1
3474897T枢轴PIVOT1

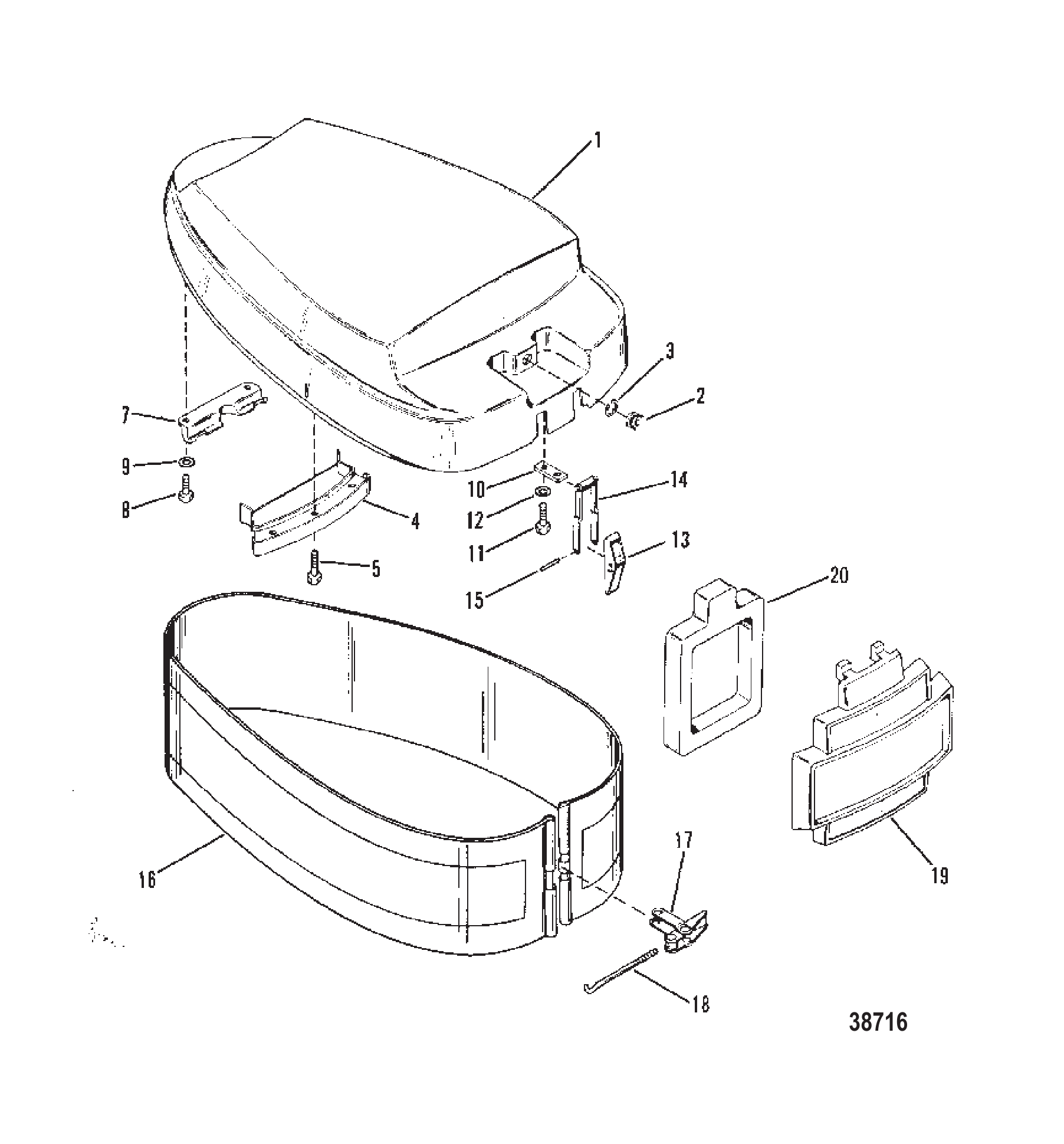

图 39顶罩与外壳 TOP COWL AND COWLING
顶罩与外壳 TOP COWL AND COWLING
REF零件编号中文名称英文名称数量
16341顶盖总成TOP COWL ASSEMBLY1
16340A2顶盖总成TOP COWL ASSEMBLY1
258657起动机拉绳导槽ROPE GUIDE STARTER ROPE1
372168固定环-拉绳导槽RING RETAING - ROPE GUIDE1
462236后护罩-顶罩SHILD REAR - TOP COWL1
548409螺钉(#10-16 x .625)不锈钢后护罩至顶罩SCREW (#10-16 x .625) Stainless Steel REAR SHIELD TO TOP COWL3
755455顶盖锁钩-后部HOOK TOP COWL LATCH - REAR1
822956螺钉(.250-28 x .880) 后锁钩至顶盖SCREW (.250-28 x .880) REAR HOOK TO TOP COWL2
926992锁紧垫圈(.250)不锈钢 后锁钩螺钉LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW2
1075973铰链板PLATE HINGE1
1132228螺钉(#10-32 x .625)铰链板SCREW (#10-32 x .625) HINGE PLATE2
1226996锁紧垫圈(#10)不锈钢铰链板螺钉LOCKWASHER (#10) Stainless Steel HINGE PLATE SCREW2
1394918顶盖锁杆LEVER COWL LATCH1
1394918F1杠杆LEVER1
1452739顶盖锁杆铰链HINGE COWL LATCH LEVER1
1558998铰链销至锁杆PIN HINGE TO LEVER1
163878A6环绕式罩盖总成(无标贴)WRAP AROUND COWL ASSEMBLY (W/O DECALS)1
1746785A1罩壳锁扣总成LATCH ASSEMBLY Cowl2
1830413罩盖锁扣挂钩HOOK COWL LATCH FASTENING2
196347A6罩盖总成前部(无标贴)COVER ASSEMBLY Cowl - Front (W/O DECALS)1
196347A20前罩总成COVER ASSEMBLY Cowl - Front1
2076450前罩盖BLANKET COWL FRONT COVER1

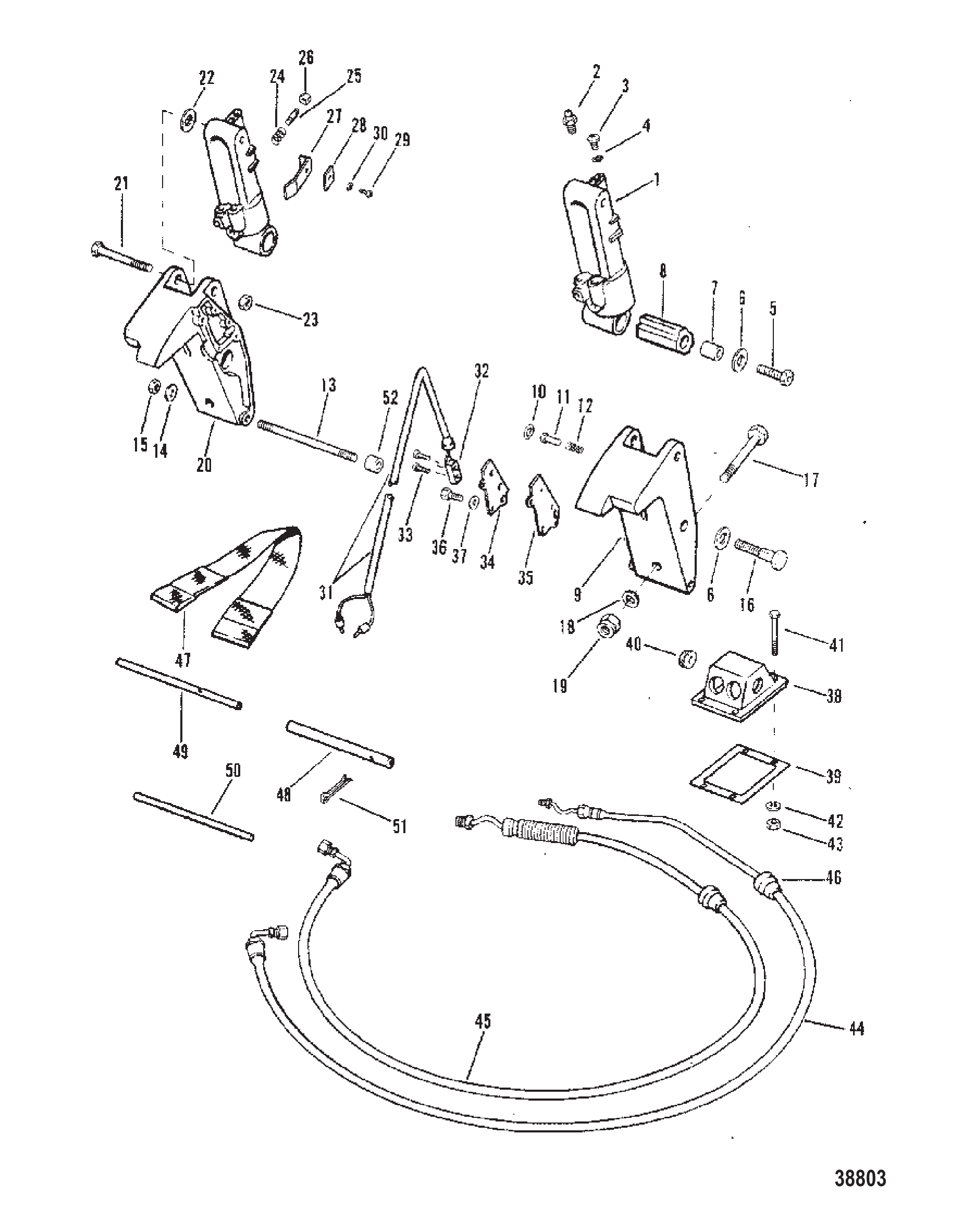

图 40升降油缸及液压软管 TRIM CYLINDERS AND HYDRAULIC HOSES
升降油缸及液压软管 TRIM CYLINDERS AND HYDRAULIC HOSES
REF零件编号中文名称英文名称数量
192194A14配平油缸TRIM CYLINDER2
274036润滑脂接头-配平油缸FITTING Grease TRIM CYLINDER2
28M0169589润滑脂接头FITTING Grease2
345265螺钉(#10-32x0.3125)放气SCREW (#10-32 x .3125) BLEED4
445016O型圈-放气螺钉O-RING BLEED SCREW4
592050螺钉(0.500-20x1.500)配平油缸SCREW (.500-20 x 1.500) TRIM CYLINDER2
628421垫圈(1.5x3.05x0.13)不锈钢配平油缸螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRIM CYLINDER BOLT2
68M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
745280垫片-配平油缸下部SPACER TRIM CYLINDER - LOWER2
894907A1橡胶衬套-配平油缸BUSHING RUBBER - TRIM CYLINDER2
989108A3支架-配平油缸(左舷)BRACKET TRIM CYLINDER (PORT)1
1070608油封-左舷支架SEAL Oil PORT BRACKET1
1189290柱塞-限位开关驱动PLUNGER LIMIT SWITCH ACTUATING1
1295881张力弹簧-限位开关柱塞SPRING TENSION - LIMIT SWITCH PLUNGER1
1362888双头螺栓(0.312x18.880)安装支架STUD (.312 x 18.880) MOUNTING BRACKET1
1426993锁紧垫圈(0.312)安装支架双头螺栓LOCKWASHER (.312) MOUNTING BRACKET STUD2
148M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1528770螺母(0.312-24)不锈钢安装支架双头螺栓NUT (.312-24) Stainless Steel MOUNTING BRACKET STUD2
1645263螺钉(0.500-20x2.250)安装支架SCREW (.500-20 x .2.250) MOUNTING BRACKET2
1768298螺栓（0.375英寸-16牙 x 3.250英寸）BOLT (.375-16 x 3.250)6
1789673螺钉（0.375英寸-16牙 x 5.00英寸）SCREW (.375-16 x 5.00)2
1868410垫圈-安装支架螺栓WASHER MOUNTING BRACKET BOLT6
1846765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)6
1999405螺母-安装支架螺栓NUT MOUNTING BRACKET BOLT8
1982671112螺母（.375-16）NUT (.375-16)8
2089111支架-配平油缸(右舷)BRACKET TRIM CYLINDER (STARBOARD)1
2089111T支架BRACKET1
2145328螺钉(0.437-20x3.560)SCREW (.437-20 x 3.560)2
2237807垫圈WASHER1
2335053螺母(0.437-20)配平油缸螺钉NUT (.437-20) TRIM CYLINDER SCREW2
238M0143423尼龙螺母NUT Nylon2
2424390张力弹簧-调节螺栓SPRING TENSION - ADJUSTING STUD1
2521085双头螺栓(#10-32x0.930)调节-切断限位开关STUD (#10-32 x .930) ADJUSTING - CUT-OUT LIMIT SWITCH1
258M0034461螺柱STUD1
2645812螺母(#10-32)不锈钢锁紧-限位开关调节螺栓NUT (#10-32) Stainless Steel JAM - LIMIT SWITCH ADJUSTING STUD1
26859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
2799897凸轮-限位开关调节螺栓CAM LIMIT SWITCH ADJUSTING STUD1
2886967挡板-限位开关凸轮PLATE RETAINING - LIMIT SWITCH CAM1
2968513螺钉(#10-32x0.375)不锈钢挡板与凸轮SCREW (#10-32 x .375) Stainless Steel RETAINING PLATE AND CAM1
3026996锁紧垫圈(#10)不锈钢挡板与凸轮螺钉LOCKWASHER (#10) Stainless Steel RETAINING PLATE AND CAM SCREW1
3145326A2切断限位开关总成SWITCH ASSEMBLY CUT-OUT LIMIT1
3245354橡胶衬套-切断限位开关BUSHING RUBBER - CUT-OUT LIMIT SWITCH1
3347255螺钉 (#4-40 x .625) 切断限位开关SCREW (#4-40 x .625) CUT-OUT LIMIT SWITCH2
3489272限位开关盖COVER LIMIT SWITCH1
3589273限位开关盖衬垫GASKET LIMIT SWITCH COVER1
35892731衬垫GASKET1
3634994螺钉 (#10-32 x 1.00) 不锈钢 限位开关盖SCREW (#10-32 x 1.00) Stainless Steel LIMIT SWITCH COVER4
3738833限位开关盖螺钉垫圈WASHER LIMIT SWITCH COVER SCREW4
3887774A1艉板进水口盖COVER INLET - TRANSOM1
3987775进水口盖衬垫GASKET INLET COVER1
4045507橡胶衬套 - 进水口盖GROMMET RUBBER - INLET COVER1
4136070螺钉 (#10-32 x 1.250) 进水口盖至船体SCREW (#10-32 x 1.250) INLET COVER TO BOAT4
4226996锁紧垫圈 (#10) 不锈钢 进水口盖螺钉LOCKWASHER (#10) Stainless Steel INLET COVER SCREW4
4368219螺母 (#10-32) 不锈钢 进水口盖螺钉NUT (#10-32) Stainless Steel INLET COVER SCREW4
4488005微调软管HOSE TRIM2
4588006升降软管HOSE LIFT2
4635977护孔环GROMMET4
4697191护孔环GROMMET2
4635977护孔环GROMMET2
4697000护孔环GROMMET2
4612602002护孔环GROMMET2
4773519A1拉带 倾斜止动STRAP Tilt Stop1
4869259安装管 - 倾斜止动TUBE MOUNTING - TILT STOP1
4969258安装管销PIN MOUNTING TUBE1
5063473缓冲管TUBE CUSHION1
5136391开口销 安装管销COTTER PIN MOUNTING TUBE PIN1
5136002开口销COTTER PIN1
5259623安装支架螺钉隔套SPACER MOUNTING BRACKET SCREW2
