水星 Mercury 30 JET 0C159200 THRU 0G589999 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-814698 · 共 34 个部位 · 1639 条零件

1附件2适配板/换挡轴3化油器总成4夹紧支架(拇指螺丝设计-序列号0D181999及以下)5外罩6曲轴、活塞与连杆7气缸体与曲轴箱总成8驱动轴外壳总成9电气箱组件10端盖与排气罩11飞轮、定子及启动电机12燃油泵13齿轮箱（驱动轴）14齿轮箱（推进轴）15喷射组件16喷泵总成17钥匙、阻风门及喇叭套件18手动倾斜组件(设计II型)19手动倾斜设计I型-长轴序列号0C159200及以上20杂项信息21喷油组件22动力升降-长轴(序列号0C159200至0D181999)23动力升降(序列号0D182000至0G357070)(黑色插头)24动力升降(序列号0G357070及以上)(黄色注油塞)25启动电机总成26启动器回绕装置27转向手柄总成28旋转支架29油门控制连杆(金属连杆旋转件)30油门控制连杆(塑料连杆旋转件)31舵柄适配套件(JET 30)32艉板支架(序列号0D181999及以下)33艉板/夹紧支架(序列号0D182000及以上)34升降开关套件
图 1附件 ACCESSORIES
附件 ACCESSORIES
REF零件编号中文名称英文名称数量
-62351A10蓄电池充电套件CHARGING KIT Battery1
-828155A7化油器防冰套件ANTI-ICING KIT Carburetor1
-825294A2罩装启动按钮改装套件CONVERSION KIT Cowl Mounted Start Button1
-812497A2二极管总成 双引擎DIODE ASSEMBLY Dual Engine1
-898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
-822462A4起动机转换套件CONVERSION KIT Starter Motor1
-812432T5发动机安装套件 夹紧螺钉安装MOUNTING KIT Engine Clamp Screw Mounting1
-824072A3延长套件 (22.5) (黑色)EXTENSION KIT (22.5) (Black)1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-877680Q8燃油软管总成(8英尺)HOSE ASSEMBLY Fuel (8 Feet)1
-8M0044836燃油软管总成(8英尺)Quicksilver品牌HOSE ASSEMBLY Fuel (8 Feet) Quicksilver Branded1
-877680Q12燃油软管总成(12英尺)HOSE ASSEMBLY Fuel (12 Feet)1
-858109Q12燃油软管总成(12英尺)-带快速接头HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect1
-877681Q8燃油软管总成(8英尺)HOSE ASSEMBLY Fuel (8 Feet)1
-858104Q08燃油软管总成(8英尺)-仅发动机端带快速接头HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect Engine End Only1
-877681Q12燃油软管总成(12英尺)HOSE ASSEMBLY Fuel (12 Feet)1
-858106Q12燃油软管总成(12英尺)-仅发动机端带快速接头HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect Engine End Only1
-877683Q12燃油软管总成(12英尺)HOSE ASSEMBLY Fuel (12 Feet)1
-858108Q12燃油软管总成(8英尺)-无接头HOSE ASSEMBLY Fuel (8 Feet) - No Fittings1
-877680Q8燃油软管总成(8英尺)HOSE ASSEMBLY Fuel (8 Feet)1
-8M0044836燃油软管总成(8英尺)Quicksilver品牌HOSE ASSEMBLY Fuel (8 Feet) Quicksilver Branded1
-827387A2马力限制套件 40降至35马力-电动型号HORSEPOWER RESTRICTOR KIT 40 TO 35 HP - Electric Models1
-15000A7钥匙开关套件 远程点火KEY SWITCH KIT Remote Ignition1
-19674Q2开关/拉绳套件SWITCH/LANYARD KIT1
-95845A5照明调节器套件REGULATOR KIT Lighting1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-813960A4开关总成SWITCH ASSEMBLY1
-822573A12动力升降倾斜传感器套件SENDER KIT Power Trim1
-822344A11动力调整套件POWER TRIM KIT1
-18286A18升降开关套件(10.00英尺)SWITCH KIT Trim (10.00 Feet)1
-826557A1遥控器安装套件ATTACHING KIT Remote Control1
-824477A3遥控与加浓线束套件HARNESS KIT Remote Control And Enrichener1
-826304A1线束总成HARNESS ASSEMBLY1
-816667A2转向支架总成BRACKET ASSEMBLY Steering1
-821455T8舵柄套件TILLER HANDLE KIT1

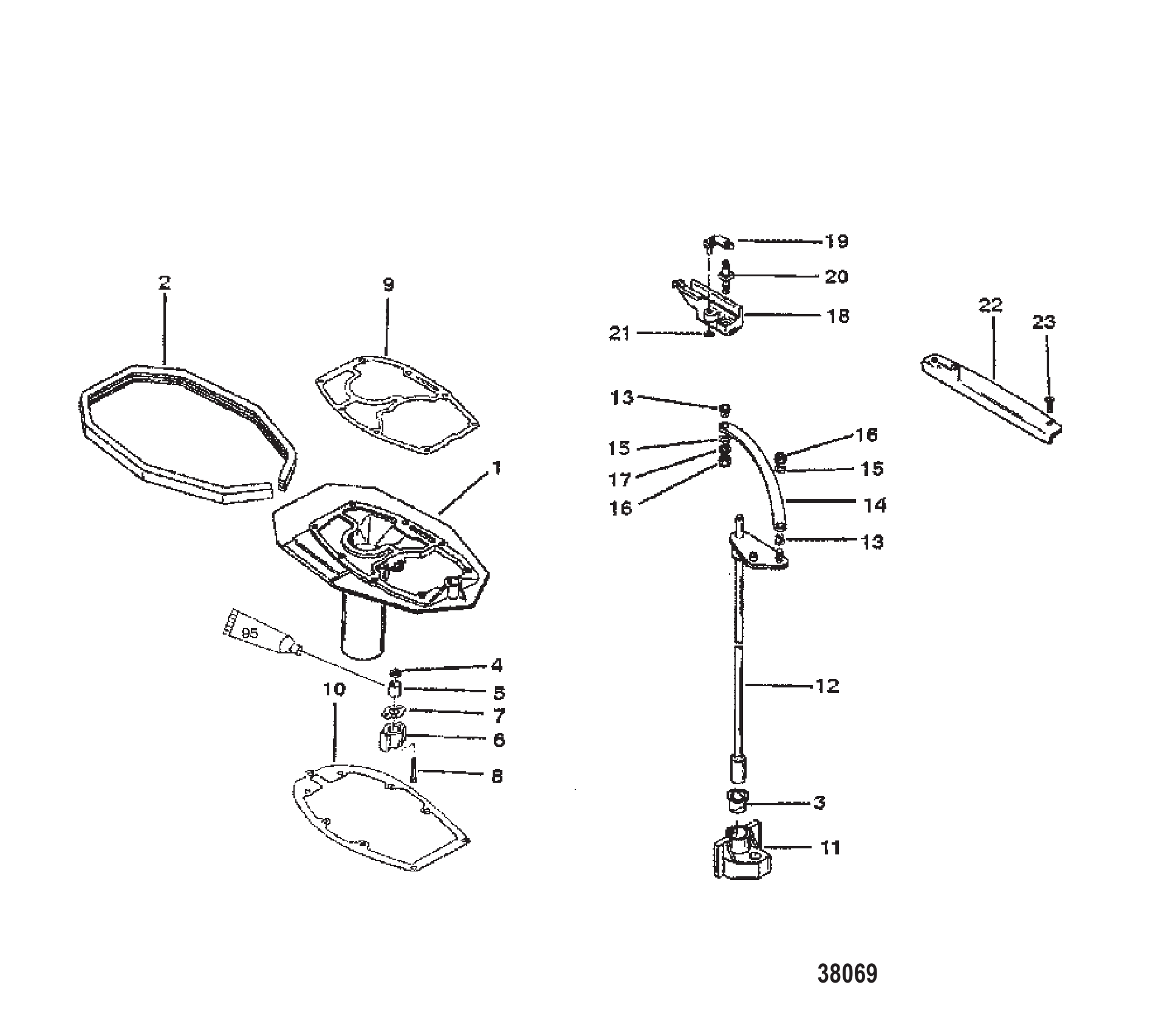

图 2适配板/换挡轴 ADAPTOR PLATE/SHIFT SHAFT
适配板/换挡轴 ADAPTOR PLATE/SHIFT SHAFT
REF零件编号中文名称英文名称数量
118868A1排气适配板总成ADAPTER PLATE ASSEMBLY Exhaust1
2158663适配板密封件SEAL Adaptor Plate1
327132衬套BUSHING1
438453垫圈WASHER1
538452密封件SEAL1
679799壳体HOUSING1
7797971衬垫GASKET1
879798螺钉(#10-32 x 1.380)SCREW (#10-32 x 1.380)2
9796501衬垫GASKET1
10385011衬垫GASKET1
11933361换挡轴导向器(装配辅助件)GUIDE Shift Shaft (AN ASSEMBLY AIDE)1
1219462A3换挡轴杆总成LEVER ASSEMBLY Shift Shaft1
1219462A2换挡轴杆总成LEVER ASSEMBLY Shift Shaft1
1342994衬套BUSHING2
14812613换挡连杆SHIFT LINK1
1529720波形垫圈WAVE WASHER2
1635045螺母(.250-28)NUT (.250-28)2
16826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel2
1735462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel2
18812616滑块SLIDER1
19812615固定座RETAINER1
20812612螺柱STUD1
21812607环RING1
228126141固定座RETAINER1
23812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)2
23878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)2
-85491A90衬垫套件GASKET SET1
-814278A93动力总成完整组件POWERHEAD ASSEMBLY COMPLETE1
-814278T93PH 40PH 401
图 3化油器总成 CARBURETOR ASSEMBLY

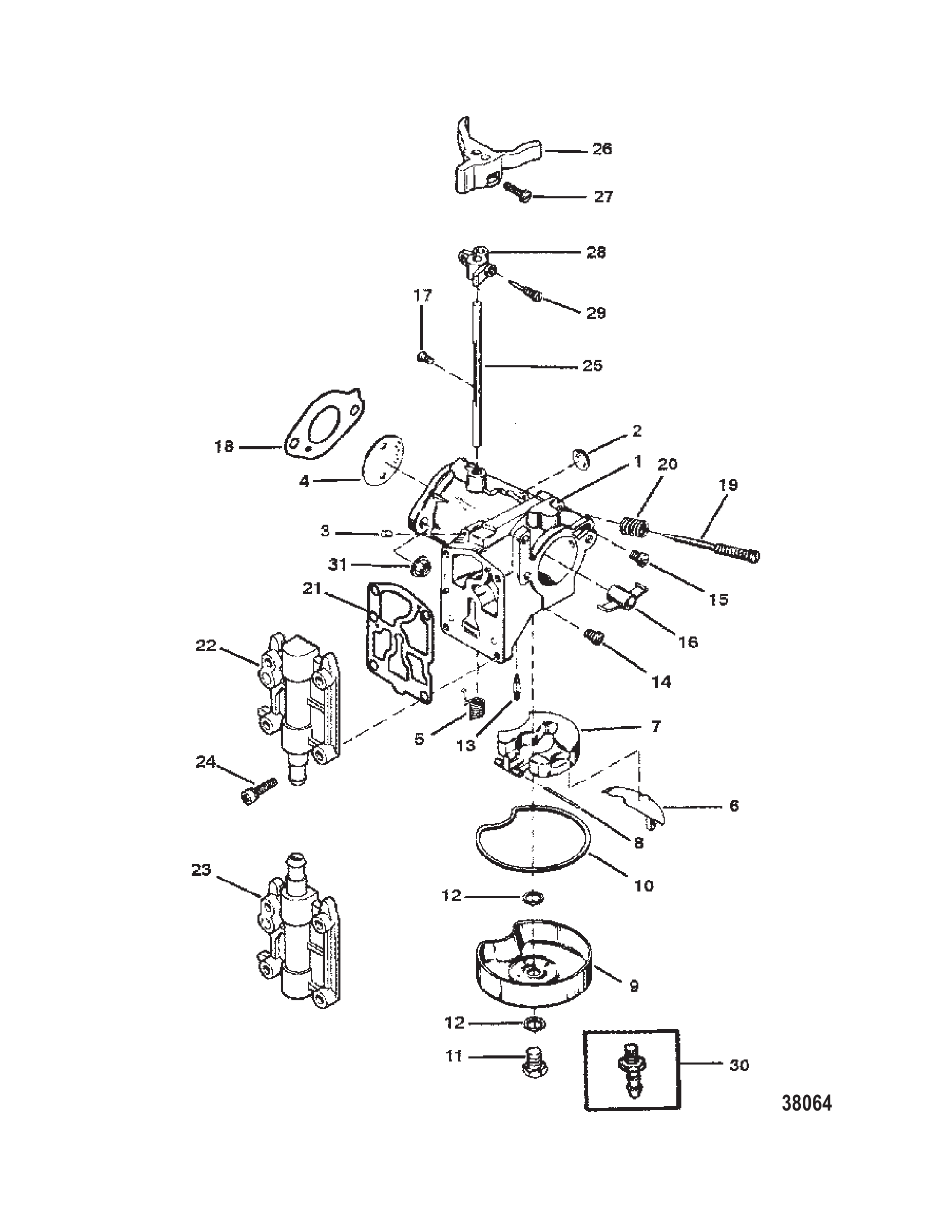

化油器总成 CARBURETOR ASSEMBLY
REF零件编号中文名称英文名称数量
16517A55化油器(上部)CARBURETOR (UPPER)1
1830281A3化油器CARBURETOR1
16517A56化油器(下部)CARBURETOR (LOWER)1
1830281A4化油器CARBURETOR1
1830281A3化油器(上部)CARBURETOR (UPPER)1
1830281A4化油器(下部)CARBURETOR (LOWER)1
2NSS不单独销售 大号韦尔奇塞-本体通道NOT SOLD SEPARATE WELCH PLUG-BODY CHANNEL (LARGE)2
3NSS不单独销售 塞-本体通道NOT SOLD SEPARATE PLUG-BODY CHANNEL6
49649节气门片SHUTTER Throttle2
5NSS不单独销售 节气门轴回位弹簧NOT SOLD SEPARATE SPRING-RETURN-THROTTLE SHAFT2
6814483燃油杯挡板BAFFLE Fuel Bowl2
79293浮子FLOAT2
7823620浮子FLOAT2
8NSS不单独销售 浮子固定销NOT SOLD SEPARATE PIN-FLOAT RETAINING2
95127燃油杯BOWL Fuel2
9823619燃油杯BOWL Fuel2
10NSS不单独销售 燃油杯衬垫NOT SOLD SEPARATE GASKET-FUEL BOWL2
119652螺钉(下部化油器)SCREW (LOWER CARBURETOR)2
11823622量孔总成JET ASSEMBLY1
12NSS不单独销售 燃油碗螺钉垫片NOT SOLD SEPARATE GASKET-FUEL BOWL SCREW4
139595进油针阀VALVE Inlet Needle2
13879194011进油阀VALVE Inlet2
141457量孔(.057)JET (.057)2
157335量孔(.098)JET (.098)2
1664677喉管VENTURI2
17NSS不单独销售 节气门片至节气门轴螺钉NOT SOLD SEPARATE SCREW-THROTTLE SHUTTER TO THROTTLE SHAFT4
18757911衬垫GASKET2
19NSS不单独销售 怠速混合气螺钉NOT SOLD SEPARATE SCREW-IDLE MIXTURE2
20NSS不单独销售 怠速混合气螺钉弹簧NOT SOLD SEPARATE SPRING-IDLE MIXTURE SCREW2
21NSS不单独销售 燃油泵垫片NOT SOLD SEPARATE GASKET-FUEL PUMP2
22814482盖板(上部化油器)COVER Plate (UPPER CARBURETOR)1
239654盖(下部化油器)COVER (LOWER CARBURETOR)1
245132螺钉SCREW8
24808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)8
259020油门轴SHAFT Throttle1
259656油门轴SHAFT Throttle1
2692880杠杆(上部化油器)LEVER (UPPER CARBURETOR)1
2720847螺钉(上部化油器)SCREW (UPPER CARBURETOR)2
276027螺钉SCREW2
288146791节气门杠杆(下部化油器)LEVER Throttle (LOWER CARBURETOR)1
296027螺钉(下部化油器)SCREW (LOWER CARB)1
308148651燃油碗接头(上部化油器)FITTING Fuel Bowl (UPPER CARB)1
30810769燃油碗接头(上部化油器)FITTING Fuel Bowl (UPPER CARB)1
30823621量孔总成JET ASSEMBLY1
3164809螺母NUT4
-422501限流板RESTRICTOR PLATE1
-757911衬垫GASKET2
-9650维修套件REPAIR KIT1
-9651衬垫套件GASKET SET1
-85491A90衬垫套件GASKET SET1
-814278A93动力头总成POWERHEAD ASSEMBLY1
-814278T93PH 40PH 401

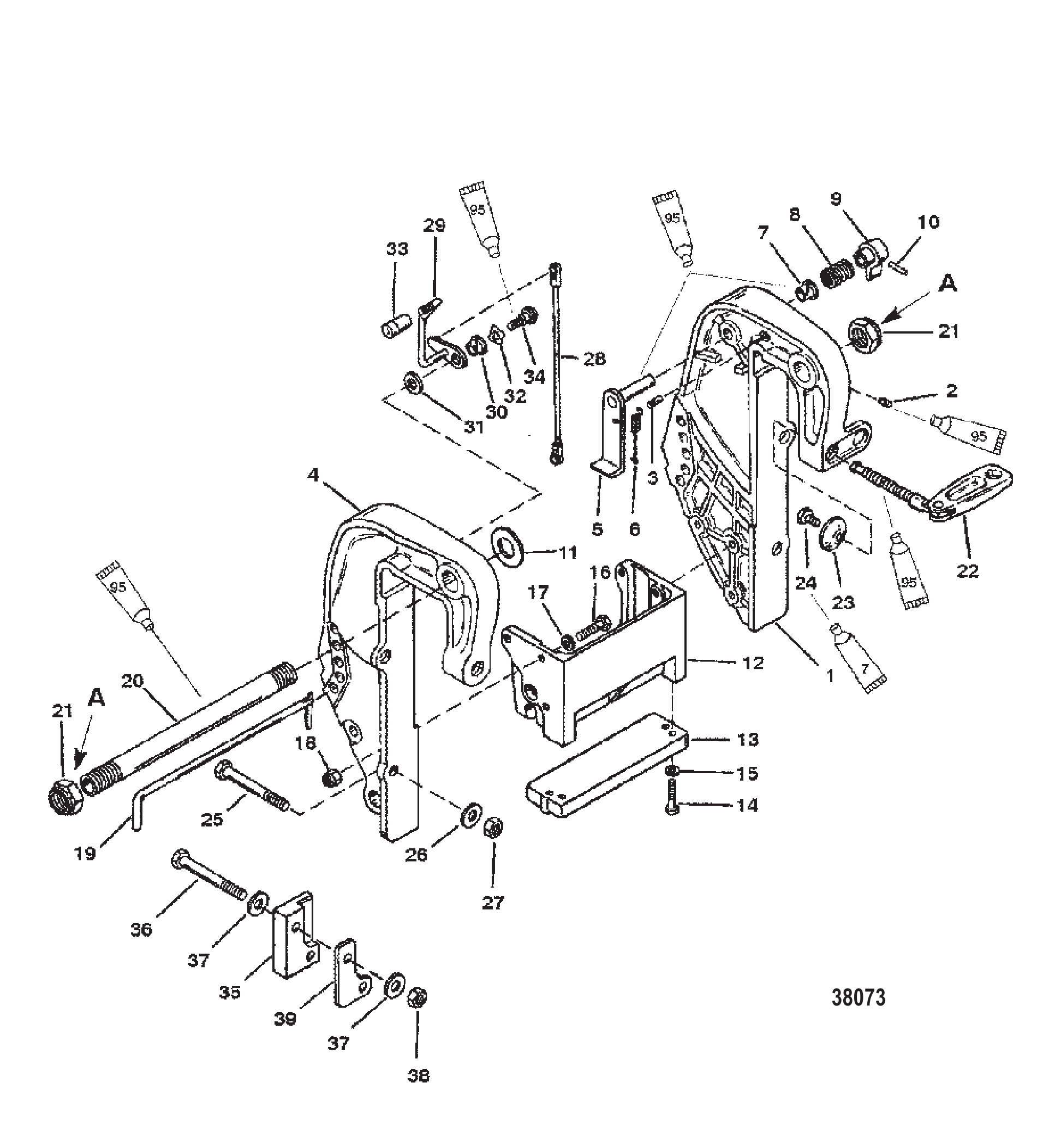

图 4夹紧支架(拇指螺丝设计-序列号0D181999及以下) CLAMP BRACKET (THUMB SCREW DESIGN-S/N 0D181999 and BELOW)
夹紧支架(拇指螺丝设计-序列号0D181999及以下) CLAMP BRACKET (THUMB SCREW DESIGN-S/N 0D181999 and BELOW)
REF零件编号中文名称英文名称数量
1818881A2艉板支架总成BRACKET ASSEMBLY Transom1
1818881A3艉板支架总成BRACKET ASSEMBLY Transom1
298727润滑脂接头FITTING Grease1
28M0169588润滑脂接头FITTING Grease1
399604槽销PIN Groove1
4818880F1艉板支架BRACKET Transom1
4818880F2艉板支架BRACKET Transom1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
5893704T01倾斜锁杆LEVER Tilt Lock1
519618A3倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
699622弹簧SPRING1
765830尼龙衬套NYLINER1
8812708弹簧SPRING1
9812709T旋钮KNOB1
9812709旋钮KNOB1
9812709T6旋钮KNOB1
9812709旋钮KNOB1
1099615槽销PIN Groove1
1119619垫圈WASHER2
1218486F5锚支架BRACKET Anchor1
1218486A08支架套件锚BRACKET KIT Anchor1
1218486F6锚支架BRACKET Anchor1
1218486A08支架套件锚BRACKET KIT Anchor1
13818298A1阳极套件ANODE KIT1
13818298Q1阳极套件ANODE KIT1
144000330螺钉(M6x25)SCREW (M6 x 25)2
148M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
158M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
164000354螺钉 (M8 x 30)SCREW (M8 x 30)5
164000355螺钉(M8×35)SCREW (M8 x 35)1
17400257锁紧垫圈（M8）LOCKWASHER (M8)4
18400635螺母 (M8)NUT (M8)2
18401388不锈钢螺母 (M8)NUT (M8) Stainless Steel2
1949930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
198M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
2019614倾斜管TILT TUBE1
208M0041938倾斜管TILT TUBE1
21826164螺母 (.875-14)NUT (.875-14)2
218M0231351锁紧螺母NUT Lock2
22818883A1蝶形螺钉总成THUMB SCREW ASSEMBLY2
23818884垫圈WASHER2
24768042六角凸肩螺钉SHOULDER SCREW Hex2
25814259螺钉 (.500-20 x 4.00)SCREW (.500-20 x 4.00)4
2628421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
268M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
278M0027784螺母NUT4
2782671117螺母(.500-20)NUT (.500-20)4
281938525连接杆LINK1
288M0084737连接杆LINK1
2919615A4倾斜杆总成LEVER ASSEMBLY Tilt1
2919615A05倾斜杆总成LEVER ASSEMBLY Tilt1
30812707衬套BUSHING1
31815796垫圈WASHER1
3299611波形垫圈WAVE WASHER1
3319621倾斜旋钮TILT KNOB1
338M0007469倾斜旋钮KNOB Tilt1
3419611螺钉(.375-16×0.62)SCREW (.375-16 x .62)1
35812432F5安装支架MOUNTING BRACKET1
35812433F5安装支架MOUNTING BRACKET1
3688432螺钉(.375-24 x 4.00)SCREW (.375-24 x 4.00)4
3729395垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)8
378M0042641垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)8
38134371螺母 (.375-24)NUT (.375-24)4
38862903螺母 (.375-24)NUT (.375-24)4
39821722垫片SHIM4
图 5外罩 COWLING

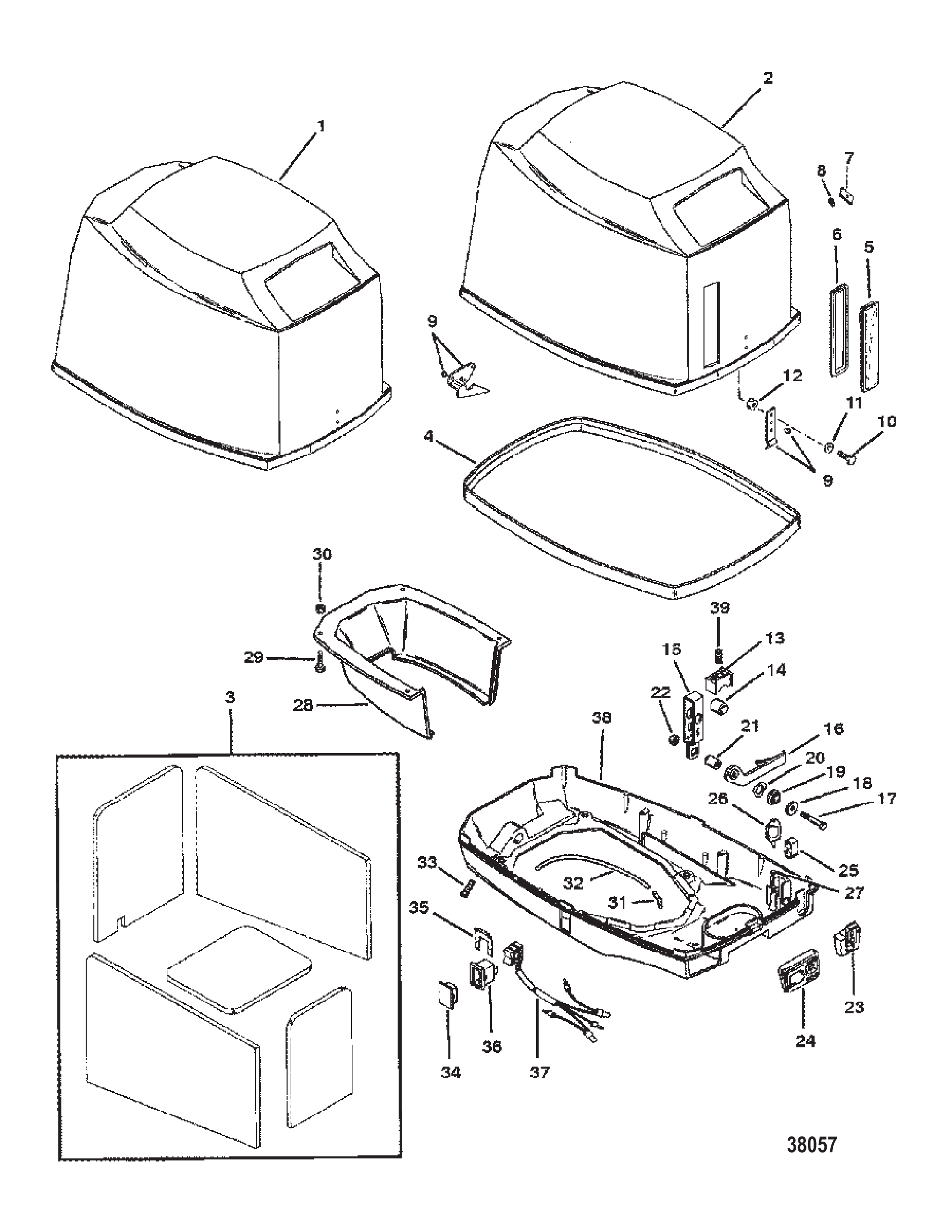

外罩 COWLING
REF零件编号中文名称英文名称数量
19868A9顶罩总成(黑色)TOP COWL ASSEMBLY (BLACK)1
19868T9BL-MAN.顶罩BL-MAN.TOP COWL1
19868A8顶罩总成(灰色)TOP COWL ASSEMBLY (GRAY)1
19868T13顶罩TOP COWL1
19868A13上机罩总成(银色)TOP COWL ASSEMBLY (SILVER)1
19868T13顶罩TOP COWL1
29868A10顶罩总成(黑色)TOP COWL ASSEMBLY (BLACK)1
29868T10BL-ELE顶罩BL-ELE TOP COWL1
29868A1顶罩总成(灰色)TOP COWL ASSEMBLY (GRAY)1
29868T14顶罩-银色COWL-TOP-SILVER1
29868A14上机罩总成(银色)TOP COWL ASSEMBLY (SILVER)1
29868T14顶罩-银色COWL-TOP-SILVER1
29868A12顶罩总成(石墨灰)TOP COWL ASSEMBLY (GRAPHITE GRAY)1
29868T12TR.ELEC顶罩TR.ELEC TOP COWL1
3812991A1隔音毯套装SOUND BLANKET KIT1
4444621密封件SEAL1
48M0043151罩壳密封条COWL-SEAL1
5812807油位表GAUGE Oil Level1
6812808油表衬套GROMMET Oil Gauge1
5813504A1油位表套件GAUGE KIT Oil Level1
6813505护孔环GROMMET1
7113171固定座RETAINER1
8113161螺母NUT1
865110螺母NUT1
9812463A2挂钩/锁扣套件HOOK/LATCH KIT1
108231871螺钉(M4×14.5)SCREW (M4 x 14.5)2
11400254锁紧垫圈LOCKWASHER2
1126995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel2
128237515螺母(M4)NUT (M4)2
13812465托架CARRIER1
14812464滚轮ROLLER1
15812462支架BRACKET1
1619430杠杆LEVER1
17814127螺钉(.250-20 x 1.875)SCREW (.250-20 x 1.875)1
1835280垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel1
1919428衬套BUSHING1
2037642波形垫圈WAVE WASHER1
21194291衬套BUSHING1
22813716螺母NUT1
23812833控制电缆衬套GROMMET Control Cables1
24812986燃油连接器衬套GROMMET Fuel Connector1
2539519杯套CUP1
2698889闩锁LATCH1
2742975传动螺钉DRIVE SCREW2
2818871T配平盖(黑色)TRIM COVER (BLACK)1
2818871T6配平盖(灰色)TRIM COVER (GRAY)1
2818871F3装饰盖(追踪者石墨灰)TRIM COVER (TRACKER GRAPHITE GRAY)1
2945561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)4
29455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)4
3013855螺母 (.250-20)NUT (.250-20)4
308267118螺母 (.250-20)NUT (.250-20)4
3178279弯头ELBOW1
318M0207781弯头ELBOW1
327568058软管 (15.00英寸)HOSE (15.00 Inches)1
3394848接头FITTING1
348128301堵头PLUG1
34812830T01堵头PLUG1
358124431固定座RETAINER1
358M0032848开关固定座RETAINER Switch1
36824896边框BEZEL1
3718286A40开关总成SWITCH ASSEMBLY1
378M0235192微调开关SWITCH TRIM1
389772A1底罩(黑色)BOTTOM COWL (BLACK)1
389772T1底罩总成-黑色COWL ASY-BOT-BLAC1
389772A2底罩(灰色)BOTTOM COWL (GRAY)1
389772T2ORD 9772A 1ORD 9772A 11
389772F2底罩(追踪者石墨灰)BOTTOM COWL (TRACKER GRAPHITE GRAY)1
389772T3ORD 9772T 1ORD 9772T 11
39812480弹簧SPRING1
-814278A93动力头总成POWERHEAD ASSEMBLY1
-814278T93PH 40PH 401

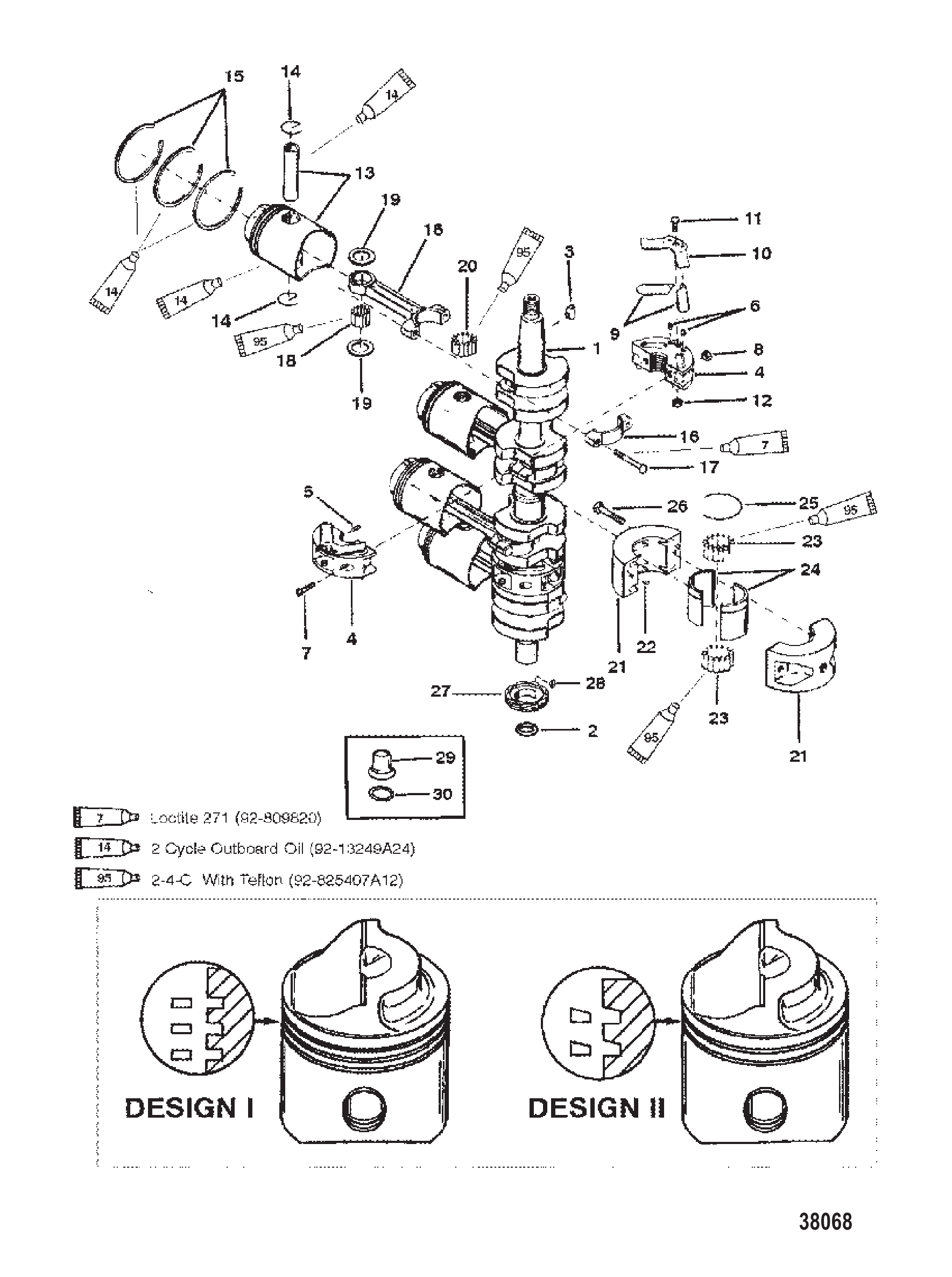

图 6曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
19758A2曲轴CRANKSHAFT1
235276O型圈(.734 x .139)O-RING (.734 x .139)1
320094半圆键KEY Woodruff1
43267A25主轴承总成(阀门型)BEARING ASSEMBLY Main (VALVE TYPE)2
43267T25簧片阀总成REED BLOCK ASSY2
520032定位销PIN Dowel4
665855定位销PIN Dowel16
725764螺钉(.190-32 x .50)SCREW (.190-32 x .50)4
820110螺母 (#10-32)NUT (#10-32)4
988498A1簧片组REED SET2
10822839簧片止挡STOP Reed8
1177280螺钉(.190-32 x .560)SCREW (.190-32 x .560)8
1220110螺母 (#10-32)NUT (#10-32)8
139229A7活塞总成PISTON ASSEMBLY4
139229A10活塞总成PISTON ASSEMBLYAR
139229A11活塞总成PISTON ASSEMBLYAR
135172A6活塞总成PISTON ASSEMBLY4
139229A7活塞总成PISTON ASSEMBLY4
133366A2活塞总成PISTON ASSEMBLYAR
139229A10活塞总成PISTON ASSEMBLYAR
137716A2活塞总成PISTON ASSEMBLYAR
139229A11活塞总成PISTON ASSEMBLYAR
1447276锁紧环LOCK RING8
14828119活塞销锁环LOCK RING Piston Pin8
1518653A12活塞环组RING SET Piston1
1518653A1活塞环组RING SET PistonAR
1518653A2活塞环组RING SET PistonAR
1527841A12活塞环组-标准RING SET Piston - Standard1
1528616A12活塞环组RING SET Piston1
1589822A12活塞环组-.030加大RING SET Piston - .030 Oversize1
167621A3连杆总成CONNECTING ROD ASSEMBLY4
1791012螺钉(0.250-28特殊)SCREW (.250-28 Special)8
1820063滚针轴承BEARING Needle108
1947275垫圈WASHER8
2020046T滚针轴承BEARING Needle1
217060A2中央主轴承总成BEARING ASSEMBLY Center Main1
2220032定位销PIN Dowel2
23714221轴承BEARING56
2426113座圈RACE1
2426113T中心主座圈RACE-CENTER MAIN1
2526933卡环RING Snap1
2676630螺钉 (.250-20 x 1.00)SCREW (.250-20 x 1.00)2
268M0214943螺钉SCREW2
2743019齿轮GEAR1
2891800半圆键KEY Woodruff1
2960834A3托架总成CARRIER ASSEMBLY1
3064254密封件SEAL1
3064254001密封件SEAL1
-814278A93动力总成完整组件POWERHEAD ASSEMBLY COMPLETE1
-814278T93PH 40PH 401

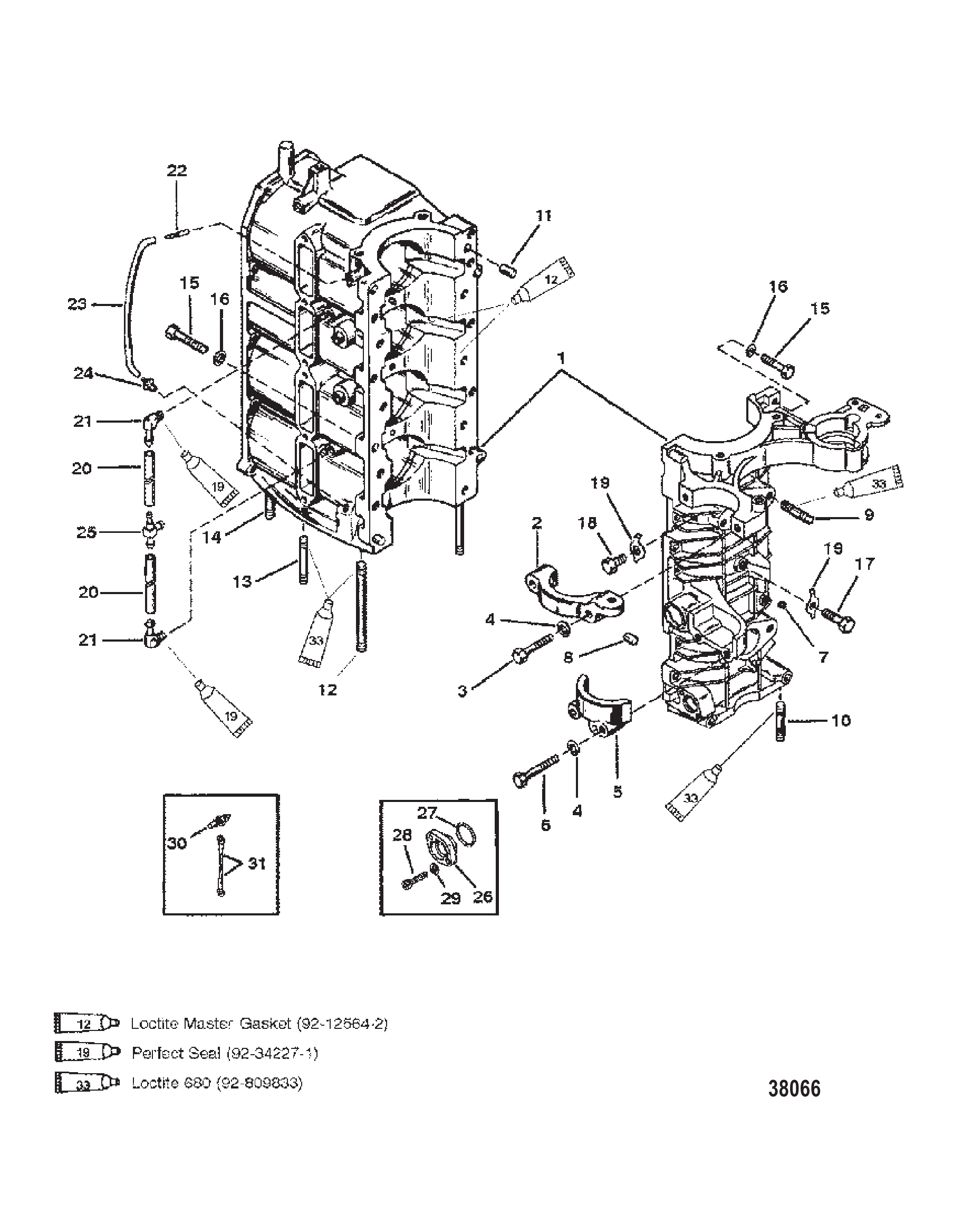

图 7气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
REF零件编号中文名称英文名称数量
18981A18气缸体总成CYLINDER BLOCK ASSEMBLY1
18981T18气缸体CYLINDER BLOCK1
272038上支架BRACKET (UPPER)1
373279螺钉(.312-18 x 1.880)SCREW (.312-18 x 1.880)2
426993锁紧垫圈 (.312)LOCKWASHER (.312)4
48M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
576867下盖COVER (LOWER)1
673279螺钉(.312-18 x 1.880)SCREW (.312-18 x 1.880)2
739072塞(1/8英寸黄铜)PLUG (1/8 Inch Brass)1
7390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
820032定位销PIN Dowel2
964936螺柱(1-1/4英寸)STUD (1-1/4 IN.)4
1068165螺柱(1-5/8英寸)STUD (1-5/8 IN.)2
1120033定位销PIN Dowel2
1143044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
1287901螺柱(4英寸)STUD (4 IN.)2
1368166螺柱(.312 x 2.125)STUD (.312 x 2.125)2
1468167螺柱(.312-18/.312-24 x 2.560)STUD (.312-18/.312-24 x 2.560)2
1573657螺钉(0.312-18 x 1.50)SCREW (.312-18 x 1.50)13
1531984螺钉(0.312-18×1.375)SCREW (.312-18 x 1.375)3
1573275螺钉(.312-18 x 2.88)SCREW (.312-18 x 2.88)2
1626020垫圈WASHER17
1720359螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
1819922075螺钉(.375-16 x .75)SCREW (.375-16 x .75)2
19830135锁紧垫圈LOCKWASHER3
1898260螺钉(.375-16 x .620)SCREW (.375-16 x .620)2
1920091锁紧垫圈TAB WASHER3
20830756109软管(57.00英寸散装)HOSE (57.00 Inches Bulk)1
208M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
2199664弯头ELBOW2
2199664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon2
2265857连接器(上部)CONNECTOR (UPPER)1
2256759倒钩接头FITTING Barbed1
2399130122管(20.00英尺散装)(11英寸)TUBING (20.00 Feet Bulk) (11 IN.)1
23892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
2442867止回阀(下部)CHECK VALVE (LOWER)1
24428671止回阀CHECK VALVE1
25812831启动注油三通(旧设计)PRIMER TEE (OLD DESIGN)1
268129961盖板COVER1
2748462O型圈 (.614 x .070)O-RING (.614 x .070)1
2855515螺钉 (#10-32 x .750)SCREW (#10-32 x .750)2
2989302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
3012415温度传感器SENDER Temperature1
3188824A6拉线总成CABLE ASSEMBLY1
-85491A90衬垫套件GASKET SET1
-814278A93动力总成完整组件POWERHEAD ASSEMBLY COMPLETE1
-814278T93PH 40PH 401

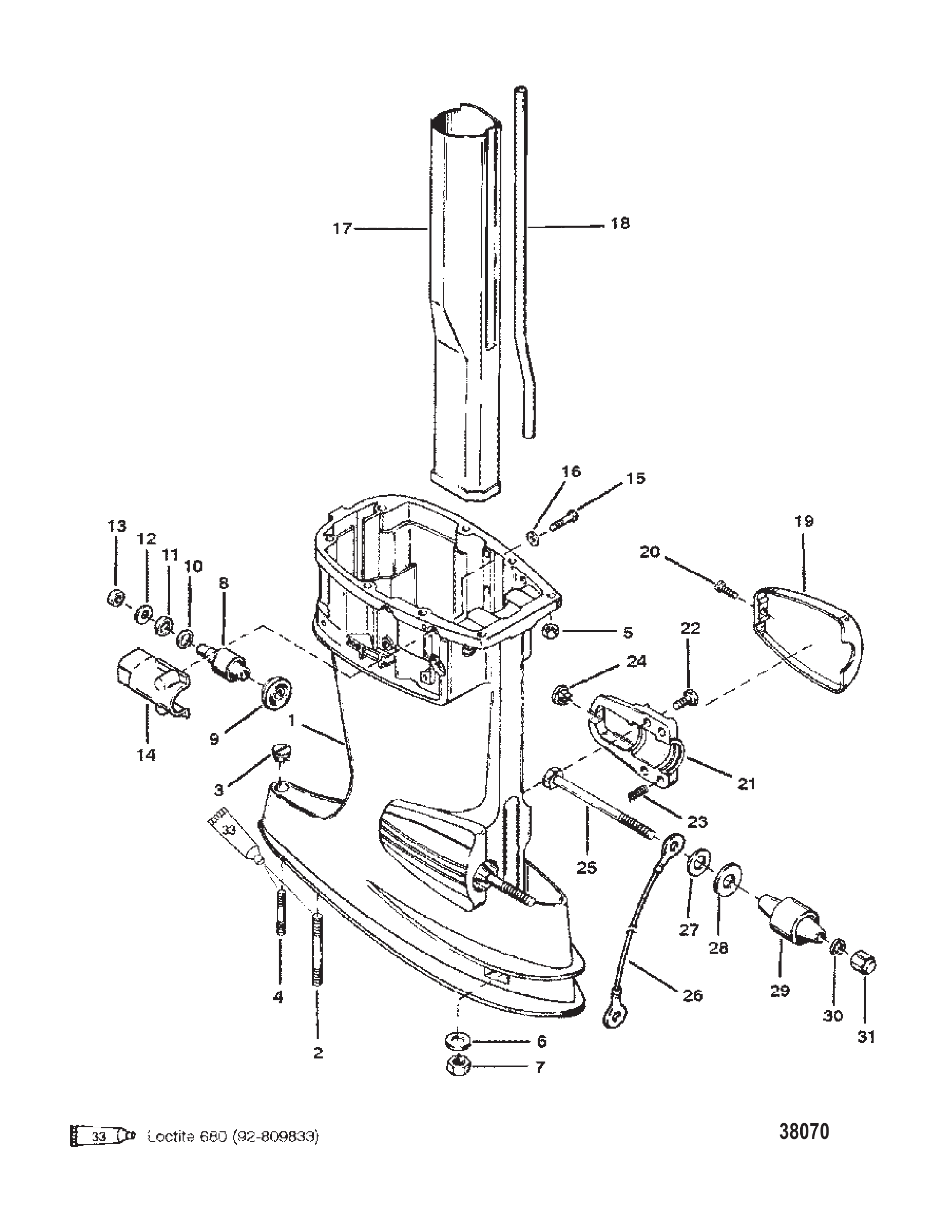

图 8驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
REF零件编号中文名称英文名称数量
18188A8驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18188A9驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18189A12驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18189A13驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18189A14驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18188A11驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18188A12驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
257935螺柱(3英寸)(不与量孔共用)STUD (3 IN.) (NOT USED WITH JET)1
364649堵头PLUG1
457932螺柱(.375-16/.375-24 x 1.750)(不与量孔共用)STUD (.375-16/.375-24 x 1.750) (NOT USED WITH JET)1
48M0022145螺柱(.375-16/.375-24 x 1.750)STUD (.375-16/.375-24 x 1.750)1
564809螺母 (5/16英寸)NUT (5/16 IN.)8
665791垫圈 (7/16英寸)WASHER (7/16 IN.)2
734933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
78M0204653螺母NUT2
8923373支架MOUNT2
996401密封件SEAL2
1027727垫圈 (37/64内径)WASHER (37/64 I.D.)2
1166966垫圈WASHER2
1230514垫圈WASHER2
1334933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
138M0204653螺母NUT2
1487883盖板COVER2
1576630螺钉 (.250-20 x 1.00)SCREW (.250-20 x 1.00)4
158M0214943螺钉SCREW4
1629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
168M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
17695431管TUBE1
17695441管TUBE1
1837727管TUBE1
1845679管TUBE1
1935474T盖板COVER2
1935474F2下安装夹盖COVER Lower Mount Clamp2
1935474F3盖板COVER2
2087884螺钉 (#12-14 x 0.920)SCREW (#12-14 x .920)2
2169592F1卡箍CLAMP2
2229256螺钉 (0.312-18 x 0.875)SCREW (.312-18 x .875)4
2335522弹簧SPRING4
2435521螺母NUT2
2575284螺钉 (0.500-20 x 5.500)SCREW (.500-20 x 5.500)2
2688238A2接地线总成CABLE ASSEMBLY Ground1
2688238A10接地线总成CABLE ASSEMBLY Ground1
2728051垫圈WASHER2
2828053垫圈WASHER2
2975304支架MOUNT2
2975304T1支架MOUNT2
3030119垫圈(外径0.875英寸)WASHER (.875 Inch Outside Diameter)2
3125096螺母NUT2

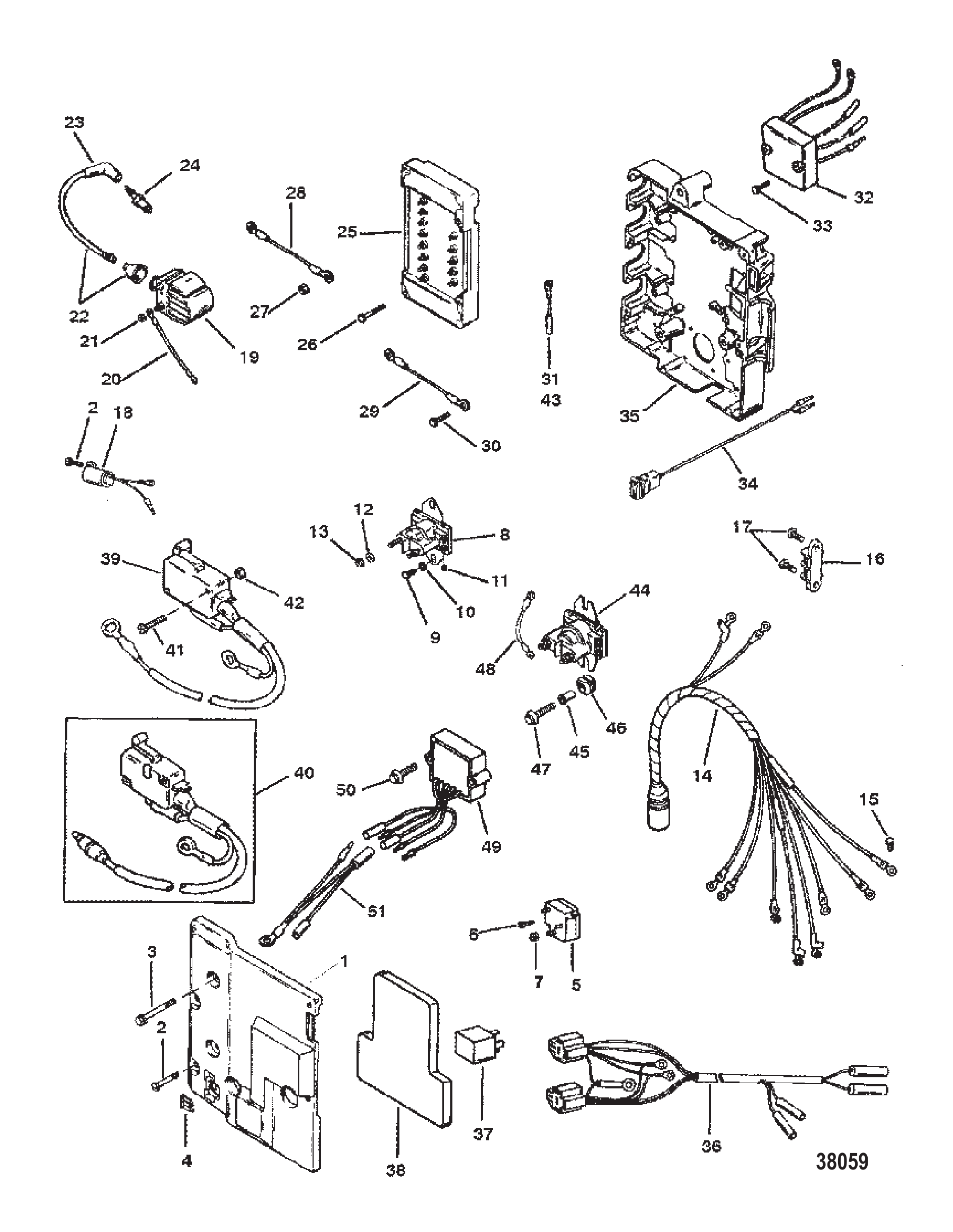

图 9电气箱组件 ELECTRICAL BOX COMPONENTS
电气箱组件 ELECTRICAL BOX COMPONENTS
REF零件编号中文名称英文名称数量
119106电气箱盖COVER Electrical Box1
241805螺钉 (#10-24 x 0.625) 水银开关及盖SCREW (#10-24 x .625) Mercury Switch and Cover6
2418051螺钉 (#10-24 x 0.620)SCREW (#10-24 x .620)6
319639螺钉(0.250-20×2.25)SCREW (.250-20 x 2.25)3
4812619黄色保险丝-20安培FUSE Yellow - 20 Ampere2
5816770整流器RECTIFIER1
58M0058226整流器RECTIFIER1
641805螺钉 (#10-24 x 0.625) 水银开关及盖SCREW (#10-24 x .625) Mercury Switch and Cover2
6418051螺钉 (#10-24 x 0.620)SCREW (#10-24 x .620)2
745076黄铜螺母(#10-32)NUT (#10-32) Brass3
896054启动电磁阀总成SOLENOID ASSEMBLY Starter1
88M0185149启动电磁阀SOLENOID START1
941508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel2
1026992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
1126419黄铜螺母 (#8-32)NUT (#8-32) Brass2
1226992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
1364015螺母 (.250-20)NUT (.250-20)2
1418672A2线束总成 (与参考号#18配套使用)HARNESS ASSEMBLY (USE WITH REF. #18)1
1418672A6线束总成 (灰色导线带环形端子)HARNESS ASSEMBLY (GRAY LEAD HAS RING TERMINAL)1
1418672A8线束总成 (灰色导线带子弹头连接器)HARNESS ASSEMBLY (GRAY LEAD HAS BULLET CONNECTOR)1
-88807A14电缆总成 (环形/公头连接器)CABLE ASSEMBLY (RING/MALE CONNECTOR)1
-88807A15电缆总成 (环形/母头连接器)CABLE ASSEMBLY (RING/FEMALE CONNECTOR)1
15812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
15878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
16638131端子排TERMINAL BLOCK1
1741805螺钉 (#10-24 x 0.625) 水银开关及盖SCREW (#10-24 x .625) Mercury Switch and Cover2
17418051螺钉 (#10-24 x 0.620)SCREW (#10-24 x .620)2
1762568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
1816731A1汞开关 旧款MERCURY SWITCH Old Design1
1816731T01开关总成SWITCH ASSY1
197370A13点火线圈总成COIL ASSEMBLY Ignition4
198M0230859点火线圈总成COIL IGNITION ASY4
2060466A19拉线总成CABLE ASSEMBLY4
2145076黄铜螺母(#10-32)NUT (#10-32) Brass8
22813715A12火花塞引线总成LEAD ASSEMBLY Spark Plug1
2363709A1护套/端子套件BOOT/TERMINAL KIT4
2497182火花塞SPARK PLUG4
24896329833SP #L78V @4SP #L78V @44
2414103550火花塞 (NGK-BUZHW)SPARK PLUG (NGK-BUZHW)4
24896329898SP #QL76V @4SP #QL76V @44
255772A5开关盒总成SWITCHBOX ASSEMBLY1
255772A7开关盒总成SWITCHBOX ASSEMBLY1
26812987螺钉 (#10-24 x 1.250)SCREW (#10-24 x 1.250)4
2745076黄铜螺母(#10-32)NUT (#10-32) Brass13
2888818A1电缆总成 (绿色)CABLE ASSEMBLY (GREEN)1
2888819A1电缆总成 (绿/白)CABLE ASSEMBLY (GREEN/WHITE)1
2888820A1电缆总成 (绿/黑)CABLE ASSEMBLY (GREEN/BLACK)1
2888821A1电缆总成 (绿/红)CABLE ASSEMBLY (GREEN/RED)1
2988807A30线缆总成(黑色)CABLE ASSEMBLY (BLACK)1
30812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
30878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
31813060A1拉线总成CABLE ASSEMBLY1
3214857A10机油报警模块总成MODULE ASSEMBLY Oil Warning1
3214857A16机油报警模块MODULE-OILWARNING1
33812987螺钉 (#10-24 x 1.250)SCREW (#10-24 x 1.250)2
3419637保险丝插座SOCKET Fuse1
35187581电气箱BOX Electrical1
3518758T1电气箱BOX-ELECTRICAL1
3618895A1线束总成HARNESS ASSEMBLY1
3719761继电器RELAY2
38812850支架SUPPORT1
3988890A2开关总成SWITCH ASSEMBLY1
4074605A8开关总成SWITCH ASSEMBLY1
4190342螺钉 (#4-40 x 0.630)SCREW (#4-40 x .630)2
4224832螺母 (#4-40)NUT (#4-40)2
4311149A1电缆总成 (3.00英寸)CABLE ASSEMBLY (3.00 Inches)1
44818999A2电磁阀总成SOLENOID ASSEMBLY1
45818968衬套BUSHING2
458M0214955衬套BUSHING2
46818967护孔环GROMMET2
468M0207785护孔环GROMMET2
4728667螺钉 (0.250-20 x 1.00) 不锈钢SCREW (.250-20 x 1.00) Stainless Steel2
4888439A11线缆总成(黑色)CABLE ASSEMBLY (BLACK)1
49815279T电压调节器REGULATOR Voltage1
498M0084173电压调节器VOLTAGE REGULATOR1
50822970螺钉 (#10-24 x 1.385)SCREW (#10-24 x 1.385)2
51813524A2拉线总成CABLE ASSEMBLY1

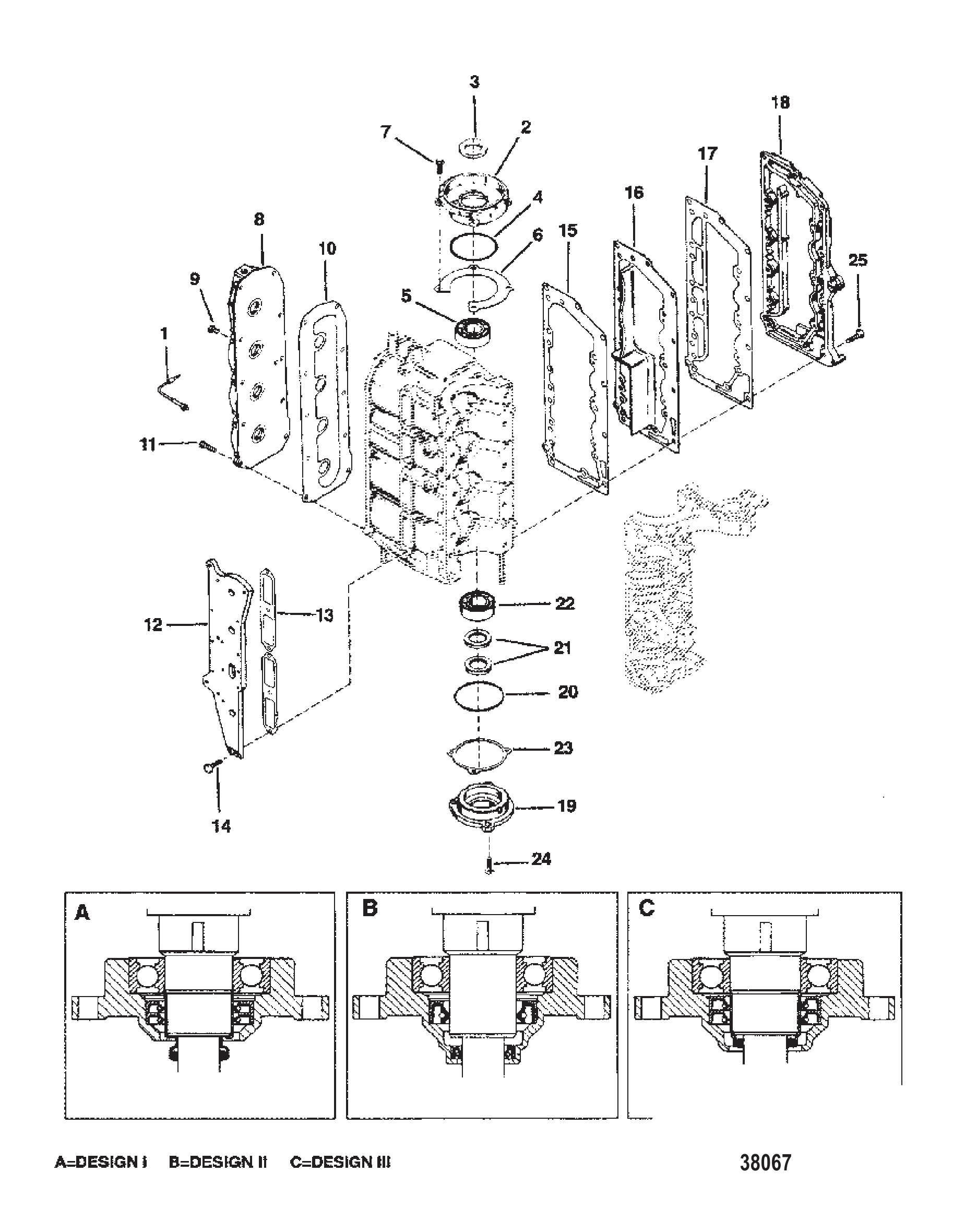

图 10端盖与排气罩 END CAPS AND EXHAUST COVER
端盖与排气罩 END CAPS AND EXHAUST COVER
REF零件编号中文名称英文名称数量
116775A3温度开关 (电动)TEMPERATURE SWITCH (ELECTRIC)1
25826A2端盖总成END CAP ASSEMBLY1
341953密封件SEAL1
420081O型圈O-RING1
563742滚珠轴承BEARING Ball1
563742T滚珠轴承BEARING Ball1
672538A1垫片 (0.005-10)SHIM (.005-10)AR
7824941螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)4
88360A1盖总成COVER ASSEMBLY1
9328021管塞 (.125-27)PLUG Pipe (.125-27)1
9328022黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
10437772垫片GASHET1
1176630螺钉 (.250-20 x 1.00)SCREW (.250-20 x 1.00)10
118M0214943螺钉SCREW10
12188274换气口盖总成COVER ASSEMBLY Transfer Port1
1218827T4T型端口盖COVER-T FER PORT1
13279361衬垫GASKET2
1490198螺钉 (5/8英寸)SCREW (5/8 IN.)6
1420540螺钉(.250-20 x .62)SCREW (.250-20 x .62)6
15854913衬垫GASKET1
16904211挡板 - 排气歧管PLATE Baffle - Exhaust Manifold1
1690421T01挡板PLATE-BAFFLE1
17854924衬垫GASKET1
1877381盖板COVER1
199843A2下端盖总成END CAP ASSEMBLY Lower1
199843T2端盖总成END CAP ASSY1
199843A3下端盖总成END CAP ASSEMBLY Lower1
199843T3端盖总成END CAP ASSY1
2032546O型圈O-RING1
2032546O型圈O-RING1
2141953密封件SEAL2
2166301油封SEAL Oil1
2141953密封件SEAL1
2141953密封件SEAL2
2263742滚珠轴承BEARING Ball1
2263742T滚珠轴承BEARING Ball1
2263742滚珠轴承BEARING Ball1
2263742T滚珠轴承BEARING Ball1
2320085A1垫片组 (0.005-10)SHIM SET (.005-10)AR
2428782螺钉(.312-18 x .880)不锈钢SCREW (.312-18 x .880) Stainless Steel3
2537562不锈钢螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel15
-85491A90衬垫套件GASKET SET1
-814278A93动力总成完整组件POWERHEAD ASSEMBLY COMPLETE1
-814278T93PH 40PH 401

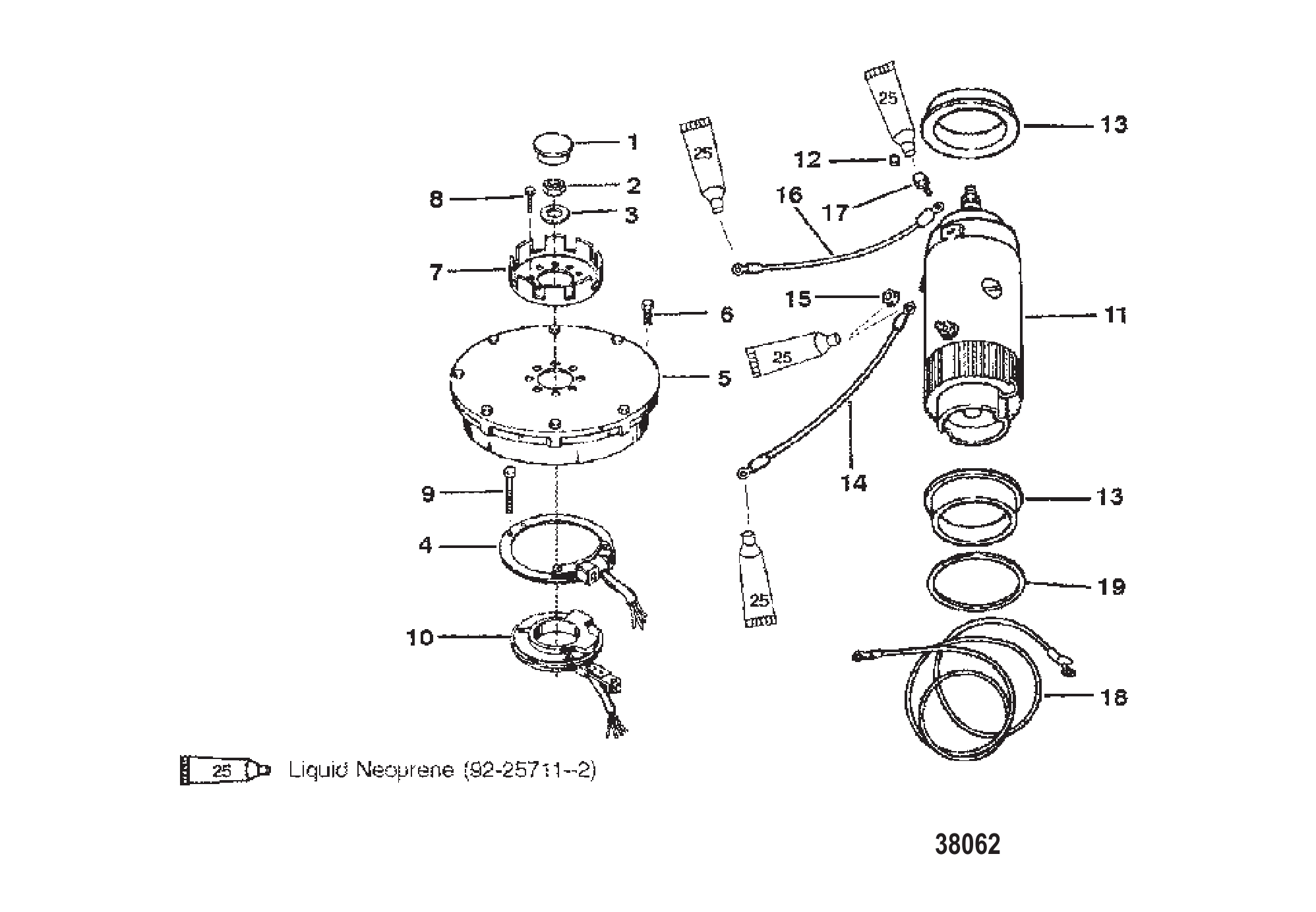

图 11飞轮、定子及启动电机 FLYWHEEL, STATOR AND STARTER MOTOR
飞轮、定子及启动电机 FLYWHEEL, STATOR AND STARTER MOTOR
REF零件编号中文名称英文名称数量
145907黄色塞PLUG Yellow1
222339螺母(0.625-18)NUT (.625-18)1
28M0214915螺母NUT1
368229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
333001垫圈WASHER1
45454A62定子STATOR1
4832074A6定子套件STATOR KIT1
45454A63定子STATOR1
4832075A20点火定子套件IGNITION STATOR KIT1
49710A46定子STATOR1
4832074A6定子套件STATOR KIT1
4818535A15定子STATOR1
4832075A20点火定子套件IGNITION STATOR KIT1
49710A45定子STATOR1
58722A16飞轮FLYWHEEL1
58722A17飞轮FLYWHEEL1
58722A13飞轮FLYWHEEL1
58722A15飞轮FLYWHEEL1
58722T19飞轮FLYWHEEL1
632417螺钉(.250-28 x .625)SCREW (.250-28 x .625)8
788755棘轮RATCHET1
868997螺钉(.312-24 x .750)SCREW (.312-24 x .750)8
975840螺钉 (#10-24 x 0.880)SCREW (#10-24 x .880)4
1096452A5触发器总成TRIGGER ASSEMBLY1
1173521启动电机总成STARTER MOTOR ASSEMBLY1
11898265005启动马达STARTER MOTOR1
1257247停机开关STOP2
128M0043376停机开关STOP2
1356703轴环COLLAR2
138M0034918轴环COLLAR2
1488439A20电线WIRE1
1564015螺母 (.250-20)NUT (.250-20)1
1693388A7线缆总成(黑色)CABLE ASSEMBLY (BLACK)1
1693388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
1769035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
1888439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
1888439A3正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
1956774隔套SPACERAR

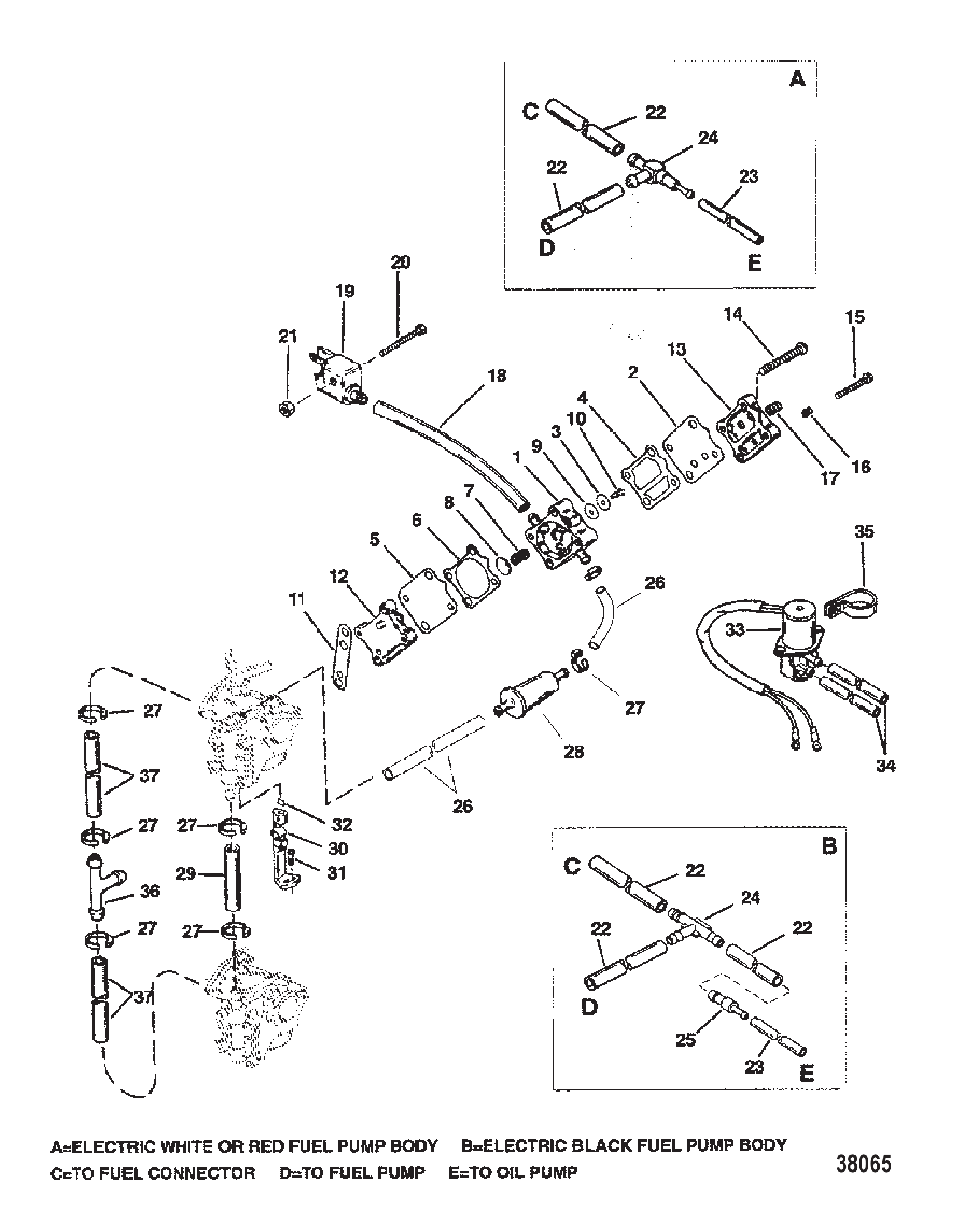

图 12燃油泵 FUEL PUMP
燃油泵 FUEL PUMP
REF零件编号中文名称英文名称数量
114360A43燃油泵总成PUMP ASSEMBLY Fuel1
114360A78燃油泵套件PUMP KIT Fuel1
242990A10膜片组件DIAPHAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSSNOT SOLD SEPARATE CHECK VALVE-RUBBER2
4NSSNOT SOLD SEPARATE GASKET-BOOST1
5NSSNOT SOLD SEPARATE DIAPHRAGM2
6NSSNOT SOLD SEPARATE GASKET-PULSE1
7NSSNOT SOLD SEPARATE SPRING1
8NSSNOT SOLD SEPARATE CAP1
9NSS橡胶圆盘 (不单独销售)NOT SOLD SEPARATE DISC-RUBBER2
10NSSNOT SOLD SEPARATE RETAINER2
11987691衬垫GASKET1
118M0204705衬垫@2GASKET @21
12144303底座BASE1
1398775A4安装板PLATE1
13987752安装板PLATE1
1416452螺钉(#12-24x2.00)SCREW (#12-24 x 2.00)2
1582104540螺钉(M5 x 40)SCREW (M5 x 40)2
1639072塞 (1/8英寸黄铜)PLUG (1/8 Inch Brass) (1/8 IN.)1
16390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
1756800管塞 (.0625-27)PLUG Pipe (.0625-27)1
1883075780管材 (28.00英寸散装) (手动)TUBING (28.00 Inches Bulk) (MANUAL)1
188M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
19816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
19816856Q3燃油接头总成CONNECTOR ASSEMBLY Fuel1
2086885螺钉（0.250-20 x 1.500）不锈钢SCREW (.250-20 x 1.500) Stainless Steel1
2113855螺母 (.250-20)NUT (.250-20)1
218267118螺母 (.250-20)NUT (.250-20)1
2283075780管材(28.00英寸散装)TUBING (28.00 Inches Bulk)2
228M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)2
2283075780管材(28.00英寸散装)TUBING (28.00 Inches Bulk)3
228M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)3
2382381325管材(10.00英寸散装)TUBING (10.00 Inches Bulk)1
2382381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
24424251三通TEE1
24424253接头FITTING1
24818993三通接头CONNECTOR Tee1
25818994止回阀CHECK VALVE1
258189941止回阀CHECK VALVE1
2683075780管材 (28.00英寸散装) (1-3/4英寸)(8-1/2英寸)TUBING (28.00 Inches Bulk) (1-3/4 IN.)(8-1/2 IN.)2
268M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)2
27816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
27816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
288162961燃油滤清器FILTER Fuel1
28816296Q2燃油滤清器FILTER Fuel1
29830756109软管 (57.00英寸散装) (5-1/2英寸)HOSE (57.00 Inches Bulk) (5-1/2 IN.)1
298M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
3053719A2拾取支架总成BRACKET ASSEMBLY Pick Up1
3166104螺钉 (#8-32 x 0.790)SCREW (#8-32 x .790)1
3289694键KEY1
33428592电磁阀SOLENOID VALVE1
33819503A4加浓阀电磁阀套件SOLENOID KIT Enrichner Valve1
349912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
3515279卡箍CLAMP1
3659169接头FITTING1
3659169003三通接头FITTING Tee1
3799130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
37892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
-42990A10膜片组件DIAPHAGM KIT1
-857005A1膜片组件DIAPHRAGM KIT1
-85491A90衬垫套件GASKET SET1
-814278A93动力头总成POWERHEAD ASSEMBLY1
-814278T93PH 40PH 401

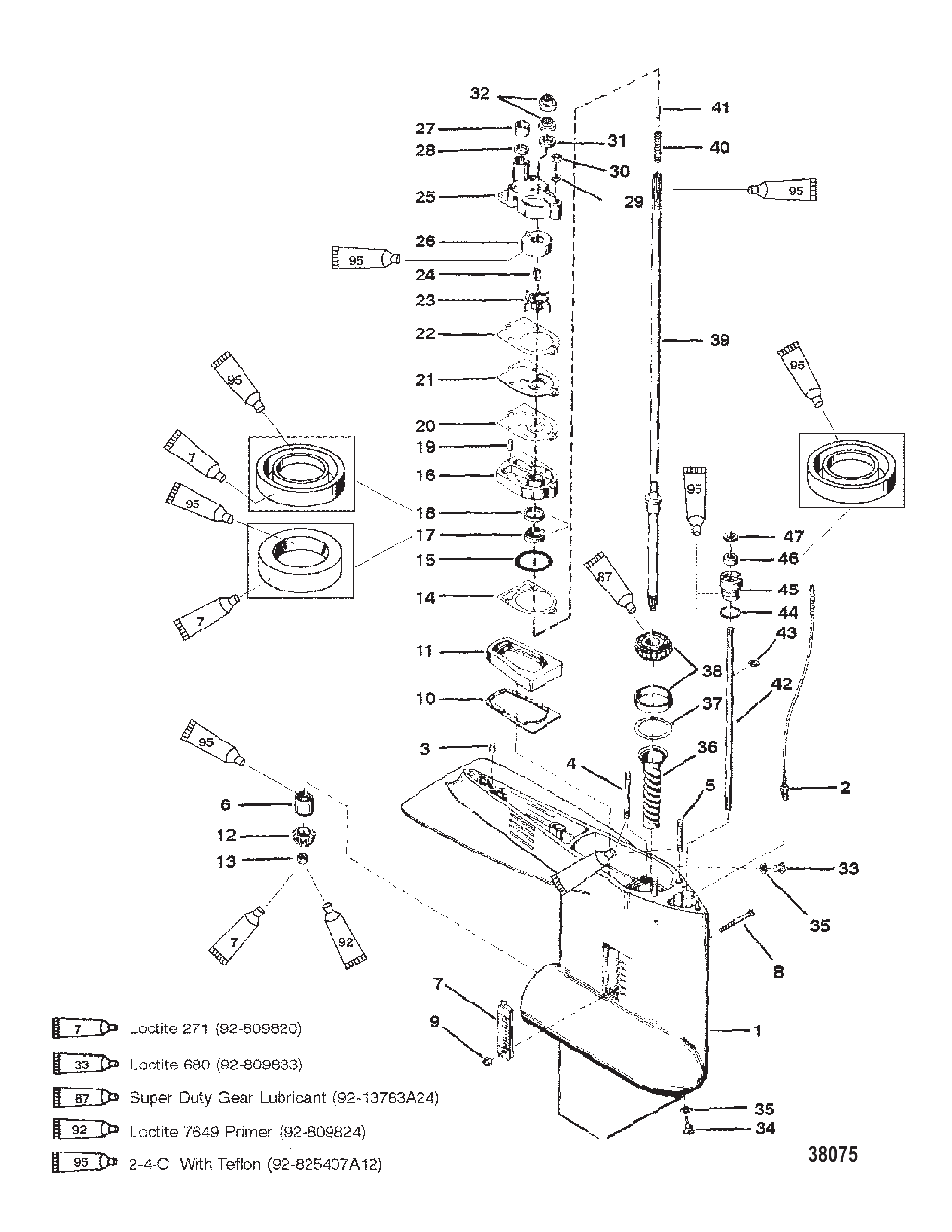

图 13齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-9539A4齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A6齿轮箱总成GEAR HUSING ASSEMBLY1
-9539A5齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A7齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A15齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T15齿轮箱短-BLGEAR HSG SHORT-BL1
-9539A16齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A18齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T18齿轮箱长-BLAGEAR HSG-LONG-BLA1
-9539A19齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T18齿轮箱长-BLAGEAR HSG-LONG-BLA1
-9539A12齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T12齿轮箱长-TRAGEAR HSG-LONG-TRA1
19539A1齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T1齿轮箱GEAR HOUSING1
19539A8齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T8ORD 1643-9539T 1ORD 1643-9539T 11
19539A13齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T13ORD 1643-9539T 1ORD 1643-9539T 11
285822A10连接器总成CONNECTOR ASSEMBLY1
385500定位销(.187 x .530)PIN Dowel (.187 x .530)2
38M0084726定位销PIN Dowel2
433778螺柱 (2-5/8英寸)STUD (2-5/8 IN.)3
557933双头螺柱(.437-14/.437-20 x 2.190)STUD (.437-14/.437-20 x 2.190)2
58M0034453柱螺栓(7/16 x 2.19)STUD (7/16 x 2.19)2
662091滚柱轴承BEARING Roller1
662091T轴承BEARING1
772849A1滤网总成SCREEN ASSEMBLY1
836070螺钉(#10-32×1.25)SCREW (#10-32 x 1.250)1
945812螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
9859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
1092815安装板PLATE1
1137721密封件SEAL1
1137721001密封件@2SEAL @21
1298097小齿轮GEAR Pinion1
1298097T小齿轮GEAR-PINION1
1355910螺母(.437-20)NUT (.437-20)1
1419552衬垫GASKET1
1526722O型圈O-RING1
1677177A1水泵底座总成BASE ASSEMBLY Water Pump1
1790562密封件(1.254 x .312)SEAL (1.254 x .312)1
1879831油封SEAL Oil1
1935973定位销PIN Dowel2
2019553衬垫GASKET1
2154705面板FACE PLATE1
2132768面板FACEPLATE1
2219551衬垫GASKET1
2389983叶轮IMPELLER1
2389983T叶轮IMPELLER1
2456662键KEY1
248M0032837键@5KEY @51
2577822A1水泵壳体总成BODY ASSEMBLY Water Pump1
2648753嵌件INSERT1
2738452密封件SEAL1
2838453垫圈WASHER1
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
3013438螺母(.250-28)NUT (.250-28)3
308267119螺母(.250-28)NUT (.250-28)3
3120273O型圈 (驱动轴)O-RING (DRIVE SHAFT)1
32N.L.A.载体 (已停产，使用60834A3替代)NO LONGER AVAILABLE CARRIER (USE 60834A3)1
3379953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
3379953Q04放油螺钉套件SCREW KIT Drain1
3467892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
348M0058389放油螺钉套件SCREW KIT Drain1
3519183纤维垫圈WASHER Fiber2
358M0187157蓝色密封件@15SEAL-BLUE @152
3688181套筒SLEEVE1
3792881A1垫片组 (0.002-3-5-10-20)SHIM SET (.002-3-5-10-20)AR
3877420A1滚柱轴承总成BEARING ASSEMBLY Roller1
388M0166756轴承总成BEARING ASSEMBLY1
3998179驱动轴DRIVESHAFT1
39981791驱动轴DRIVESHAFT1
3998180驱动轴DRIVESHAFT1
39981801驱动轴DRIVESHAFT1
4020254弹簧SPRING1
4130545销PIN1
4276063A1轴总成SHAFT ASSEMBLY1
4329641E型卡环E RING1
4425439O型圈(.862×0.103)O-RING (.862 x .103)1
4577631A2衬套总成BUSHING ASSEMBLY1
468164641油封SEAL Oil1
468M0246145油封OIL SEAL1
4777674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
-85491A90衬垫套件GASKET SET1
-79831A1密封套件SEAL KIT1
-77177A3水泵套件WATER PUMP KIT1

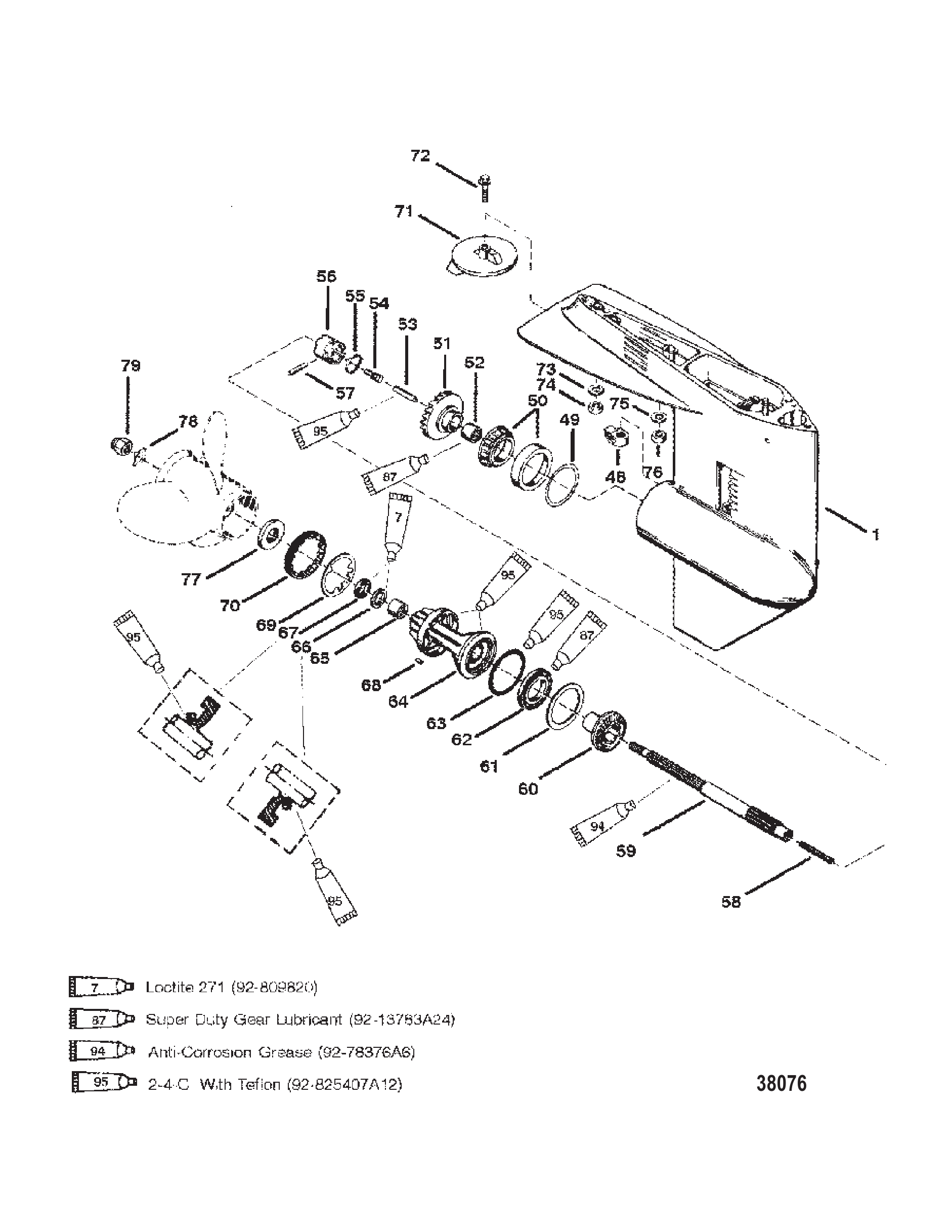

图 14齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)
齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)
REF零件编号中文名称英文名称数量
-9539A4齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A6齿轮箱总成GEAR HUSING ASSEMBLY1
-9539A5齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A7齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A15齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T15齿轮箱短-BLGEAR HSG SHORT-BL1
-9539A16齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A18齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T18齿轮箱长-BLAGEAR HSG-LONG-BLA1
-9539A19齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T18齿轮箱长-BLAGEAR HSG-LONG-BLA1
-9539A12齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T12齿轮箱长-TRAGEAR HSG-LONG-TRA1
19539A1齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T1齿轮箱GEAR HOUSING1
19539A8齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T8ORD 1643-9539T 1ORD 1643-9539T 11
19539A13齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T13ORD 1643-9539T 1ORD 1643-9539T 11
4876039换挡凸轮控制CAM Shift Control1
48760394换挡凸轮控制CAM Shift Control1
4938374A1垫片组(.002-3-5-10)SHIM SET (.002-3-5-10)AR
5038356A1轴承套件BEARING SET1
5155608A4前进齿轮总成GEAR ASSEMBLY Forward1
5155608T4前进齿轮总成GEAR ASSY-FORWARD1
5221739滚柱轴承BEARING Roller1
5338441凸轮从动件FOLLOWER Cam1
5420843滑块SLIDE1
5538114弹簧SPRING1
5692911棘轮RATCHET1
5692911T离合器CLUTCH1
5738113十字销PIN Cross1
578M0020942十字销@2PIN-CROSS @21
5839845弹簧SPRING1
58815418弹簧SPRING1
5975365螺旋桨轴PROPELLER SHAFT1
6079158倒挡齿轮GEAR Reverse1
6079158T倒挡齿轮GEAR-REVERSE1
6132004垫圈WASHER1
6220839滚珠轴承BEARING Ball1
6220839T滚珠轴承BEARING Ball1
6331986O型圈O-RING1
6469386A1轴承座总成CARRIER ASSEMBLY Bearing1
6469386T1轴承座总成CARRIER ASSY-BRG1
6521700滚针轴承BEARING Needle1
6669188油封SEAL Oil1
668M0205511油封SEAL Oil1
6769189油封SEAL Oil1
678M0203757油封SEAL Oil1
6830281键KEY1
6953012锁紧垫圈TAB WASHER1
7087763螺母NUT1
71316404平衡鳍板TRIM TAB1
7131640Q4平衡鳍板TRIM TAB1
7266024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
7345175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
738M0214963垫圈WASHER1
7434863螺母 (.375-24)NUT (.375-24)1
748M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
7565791垫圈 (7/16英寸)WASHER (7/16 IN.)1
7634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel1
768M0204653螺母NUT1
7773345A1止推垫片THRUST WASHER1
7876281锁紧垫圈TAB WASHER1
788M0214942锁紧垫片WASHER Tab1
7969578A1螺旋桨螺母套件PROP NUT KIT1
7969578Q1螺旋桨螺母套件PROP NUT KIT1
-85491A90衬垫套件GASKET SET1
-79831A1密封套件SEAL KIT1

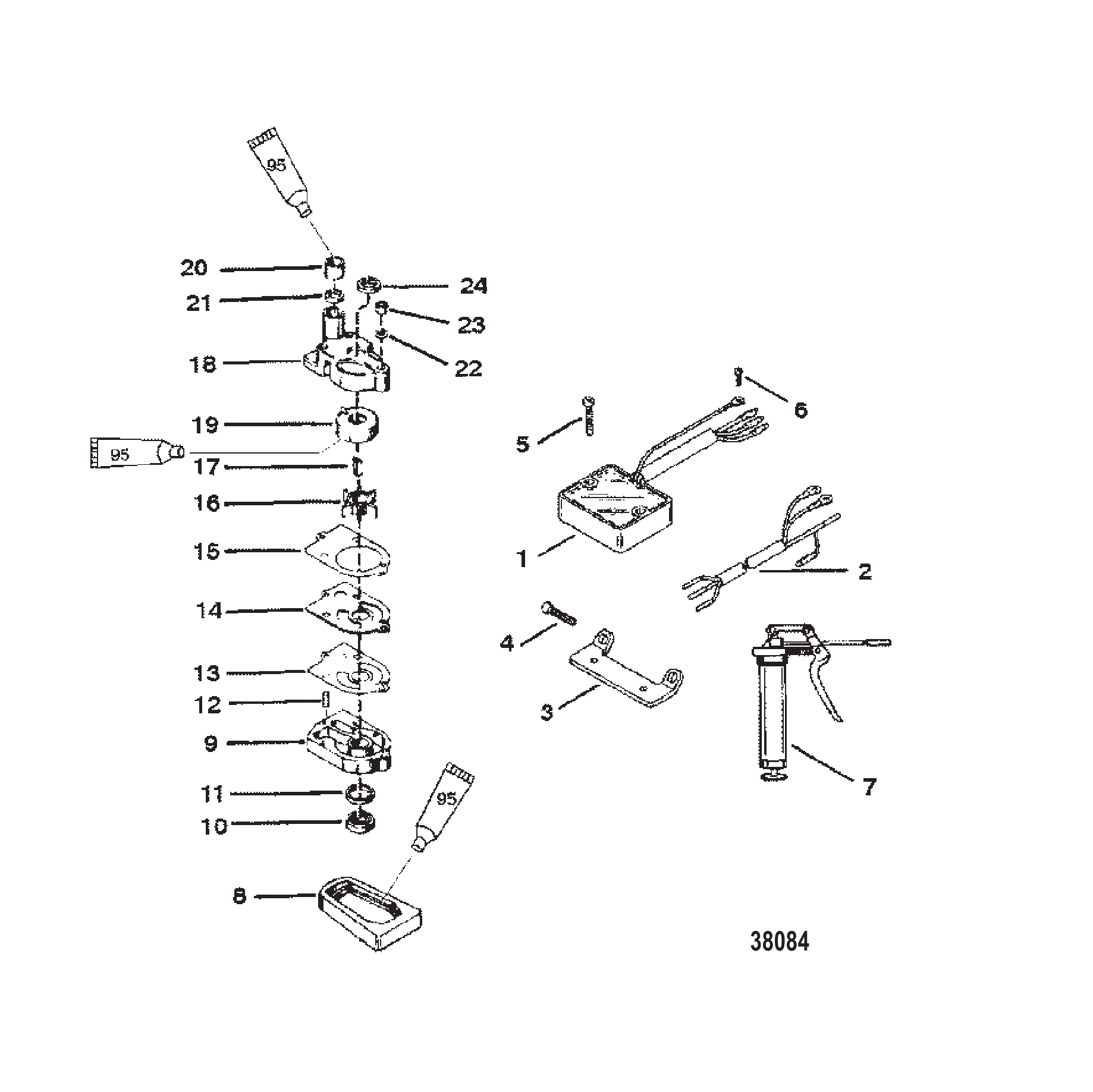

图 15喷射组件 JET COMPONENTS
喷射组件 JET COMPONENTS
REF零件编号中文名称英文名称数量
1821889A31转速限制器REV LIMITER1
2823147A3转速限制器线束总成HARNESS ASSEMBLY Rev Limiter1
3826580支架BRACKET1
476213螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
540011109螺钉 (M5 x 25) 不锈钢SCREW (M5 x 25) Stainless Steel2
662568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
7801402润滑脂套装GREASE KIT1
730500A2润滑脂套装GREASE KIT1
837721密封件SEAL1
837721001密封件@2SEAL @21
977177A1水泵底座总成BASE ASSEMBLY Water Pump1
1079831油封SEAL Oil1
1190562密封件(1.254 x .312)SEAL (1.254 x .312)1
1235973定位销PIN Dowel2
1319553衬垫GASKET1
1454705面板FACE PLATE1
1432768面板FACEPLATE1
1519551衬垫GASKET1
1689983叶轮IMPELLER1
1689983T叶轮IMPELLER1
1756662键KEY1
178M0032837键@5KEY @51
1877822A1水泵壳体总成BODY ASSEMBLY Water Pump1
1948753嵌件INSERT1
2038452密封件SEAL1
2138453垫圈WASHER1
2229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
228M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
2313438螺母(.250-28)NUT (.250-28)3
238267119螺母(.250-28)NUT (.250-28)3
2420273O型圈 (驱动轴)O-RING (DRIVE SHAFT)1
-85491A90衬垫套件GASKET SET1
-79831A1密封套件SEAL KIT1
-77177A3水泵套件WATER PUMP KIT1

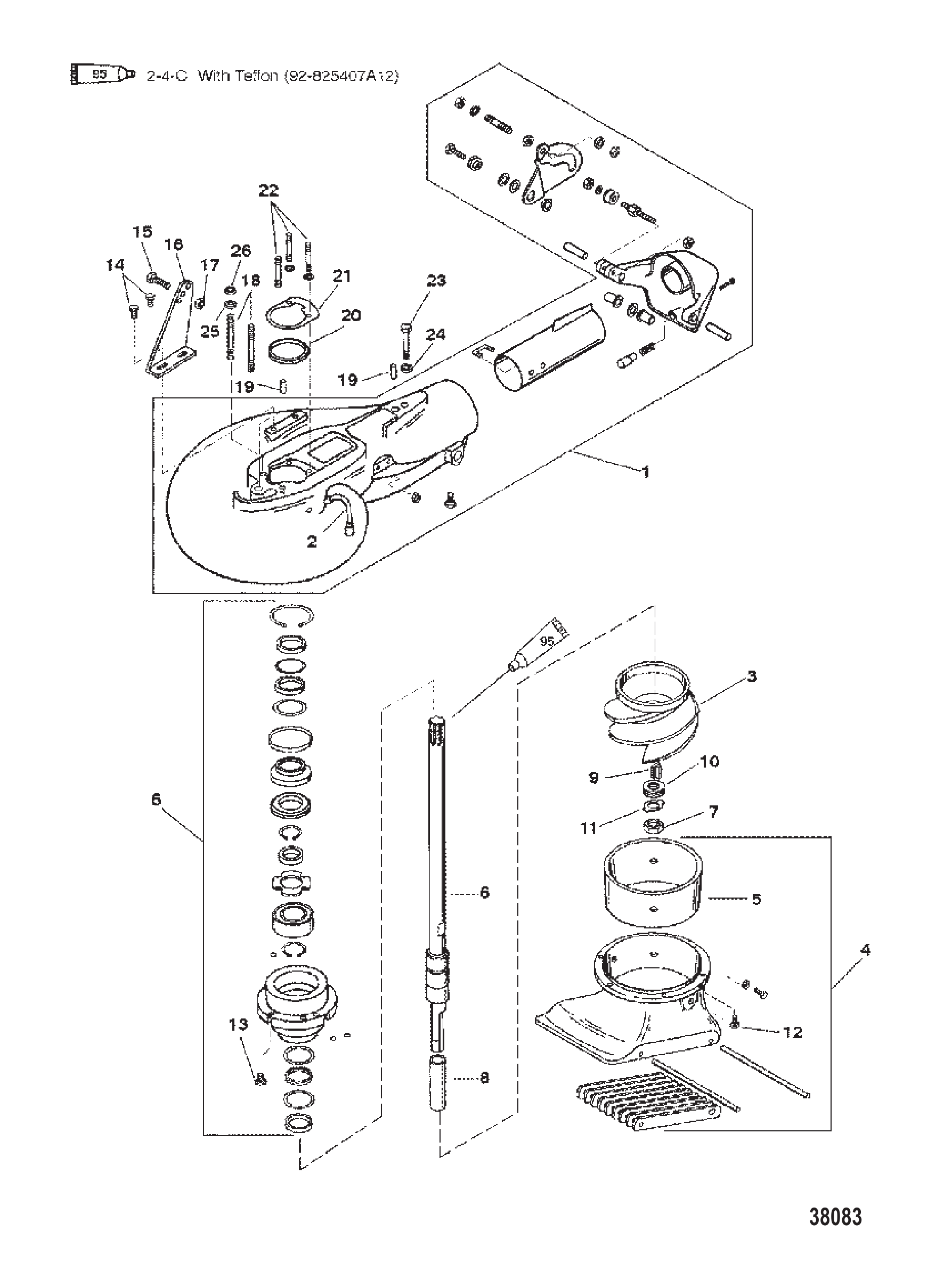

图 16喷泵总成 JET PUMP ASSEMBLY
喷泵总成 JET PUMP ASSEMBLY
REF零件编号中文名称英文名称数量
-80140040喷泵总成JET PUMP ASSEMBLY1
-80140140喷泵总成JET PUMP ASSEMBLY1
180141140泵壳HOUSING Pump1
2827490润滑油管HOSE Lube1
380141440叶轮IMPELLER1
3855708T40叶轮IMPELLER1
480141240进气壳体HOUSING Intake1
58271881衬套LINER1
5827188T1衬套LINER1
680141340驱动轴DRIVESHAFT1
7827190螺母NUT1
8827189套筒SLEEVE1
9801405625叶轮键KEY Impeller1
10801404625叶轮垫片SHIM Impeller8
11801403625锁紧垫圈TAB WASHER1
1290192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
1319923088螺钉(.250-20 x .875)SCREW (.250-20 x .875)4
1419923062螺钉(.250-20 x .625)SCREW (.250-20 x .625)2
1560411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
16801410电缆支架BRACKET Cable Support1
1767980螺母(.312-18)NUT (.312-18)1
1782670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
18808718螺柱STUD2
19801406定位销PIN Dowel2
20801418水泵支撑环RING SUPPORT Water Pump1
21801408水泵底座衬垫GASKET Water Pump Base1
2233778螺柱 (1/4 x 2-5/8英寸)STUD (1/4 X 2-5/8 IN.)3
2368299不锈钢螺钉(.375-16 x 3.00)SCREW (.375-16 x 3.00) Stainless Steel1
2445175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
248M0214963垫圈WASHER1
2565791垫圈WASHER2
2634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
268M0204653螺母NUT2

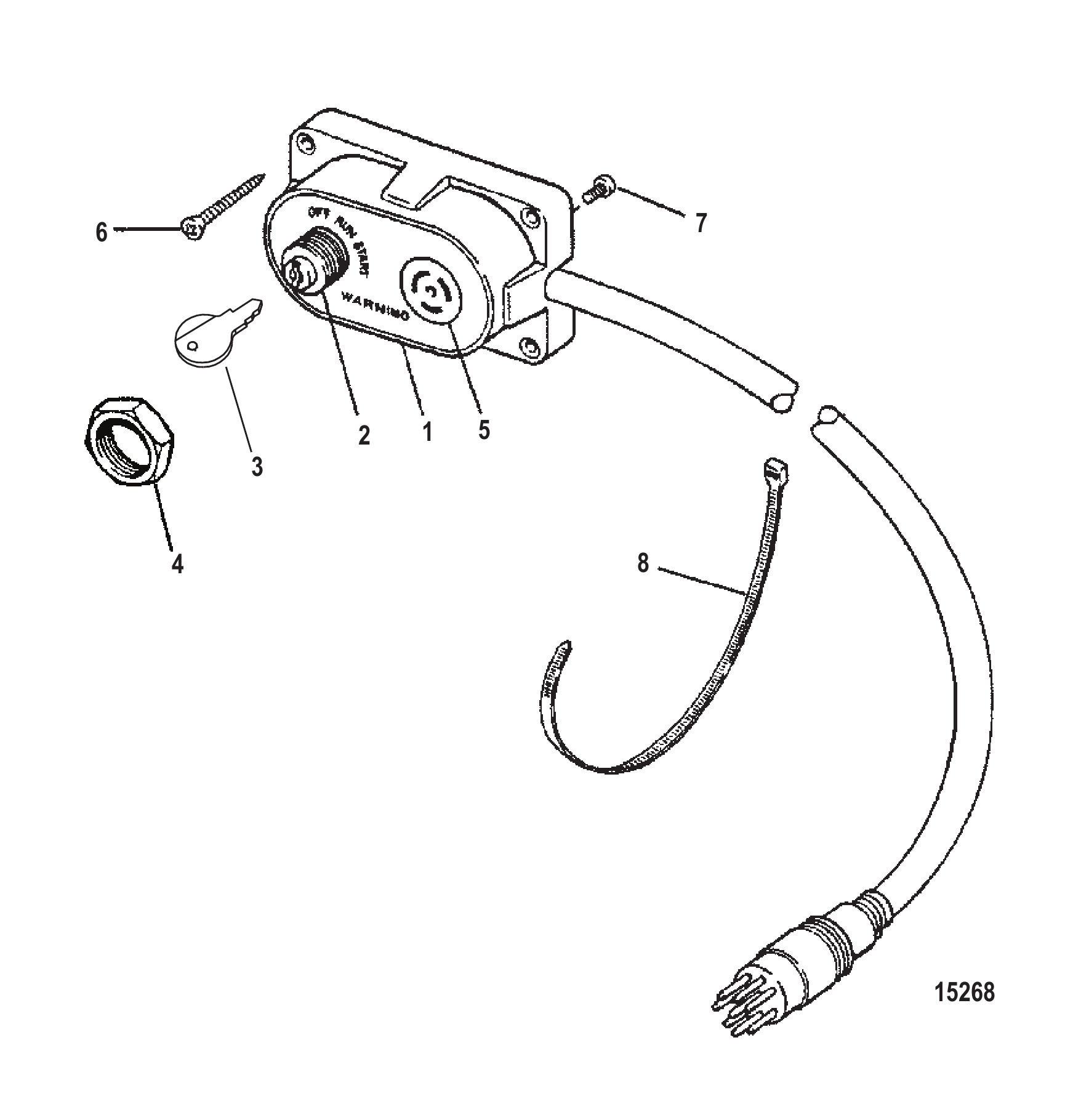

图 17钥匙、阻风门及喇叭套件 KEY, CHOKE AND HORN KIT
钥匙、阻风门及喇叭套件 KEY, CHOKE AND HORN KIT
REF零件编号中文名称英文名称数量
-15000A1钥匙开关套件 远程点火KEY SWITCH KIT Remote Ignition1
-15000A7钥匙开关套件 远程点火KEY SWITCH KIT Remote Ignition1
115000壳体HOUSING1
288107钥匙开关(钥匙见下方)KEY SWITCH (SEE BELOW FOR KEY)1
288107A5钥匙开关套件SWITCH KIT Key1
3894911点火钥匙(1A)KEY Ignition (1A)1
3894912点火钥匙(1B)KEY Ignition (1B)1
3894913点火钥匙(1C)KEY Ignition (1C)1
3894914点火钥匙(1D)KEY Ignition (1D)1
3894915点火钥匙(1E)KEY Ignition (1E)1
3894916点火钥匙(1F)KEY Ignition (1F)1
3894917点火钥匙(2A)KEY Ignition (2A)1
3894918点火钥匙(2B)KEY Ignition (2B)1
3894919点火钥匙(2C)KEY Ignition (2C)1
38949110点火钥匙(2D)KEY Ignition (2D)1
38949111点火钥匙(2E)KEY Ignition (2E)1
38949112点火钥匙(2F)KEY Ignition (2F)1
493543特殊螺母-镀铬黄铜NUT Special - Chrome Brass1
4879755特殊螺母-黑色尼龙NUT Special - Black Nylon1
516564A1警告喇叭总成HORN ASSEMBLY Warning1
647994螺钉 (#10 x 1.50)SCREW (#10 x 1.50)4
762568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)4
8816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
8816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5

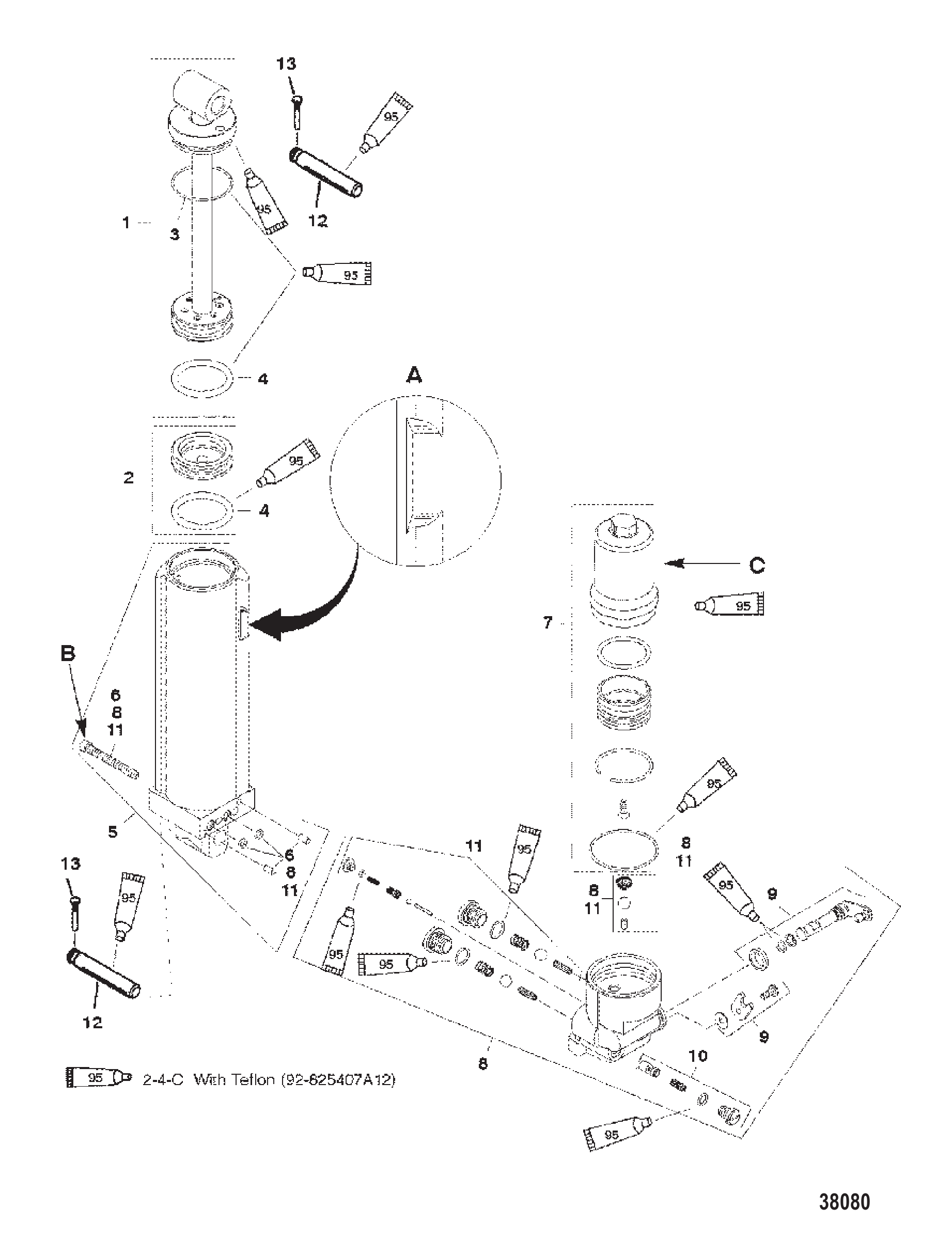

图 18手动倾斜组件(设计II型) MANUAL TILT COMPONENTS (DESIGN II)
手动倾斜组件(设计II型) MANUAL TILT COMPONENTS (DESIGN II)
REF零件编号中文名称英文名称数量
-830050A2手动配平总成MANUAL TRIM ASSEMBLY1
-8M0118570手动配平总成MANUAL TRIM ASSEMBLY1
1813427A1减震杆总成SHOCK ROD ASSEMBLY1
18M0118572减震杆套件SHOCK ROD KIT1
2813430A1配平记忆活塞总成PISTON ASSEMBLY Trim Memory1
2893903A01活塞套件PISTON KIT1
3809872A1气缸O型圈套件O-RING KIT Cylinder1
3893917A01O型圈修理包REBUILD KIT O-Ring1
4NSSNOT SOLD SEPARATE O-RING2
5811224A1气缸总成CYLINDER ASSEMBLY1
5893918A01气缸套件CYLINDER KIT1
6813433A2螺钉与密封套件SCREW AND SEAL KIT1
6893919A01螺丝/密封套件SCREW/SEAL KIT1
7813454A2蓄能器总成ACCUMULATOR ASSEMBLY1
7893920A01蓄能器套件ACCUMULATOR KIT1
8813455A4阀体总成VALVE BODY ASSEMBLY1
88M0118574阀体总成VALVE BODY ASSEMBLY1
9813457A3凸轮套件CAM KIT1
9893923A01凸轮套件CAM KIT1
10809881A1速度阀套件VALVE KIT Velocity1
10893924A01阀套件VALVE KIT1
11809882A1维修套件REPAIR KIT1
11893925A01维修套件REPAIR KIT1
-809880A2O型圈套件O-RING KIT1
-893922A01O型圈套件O-RING KIT1
1219607销PIN2
13821539三叶销PIN Trilobe2

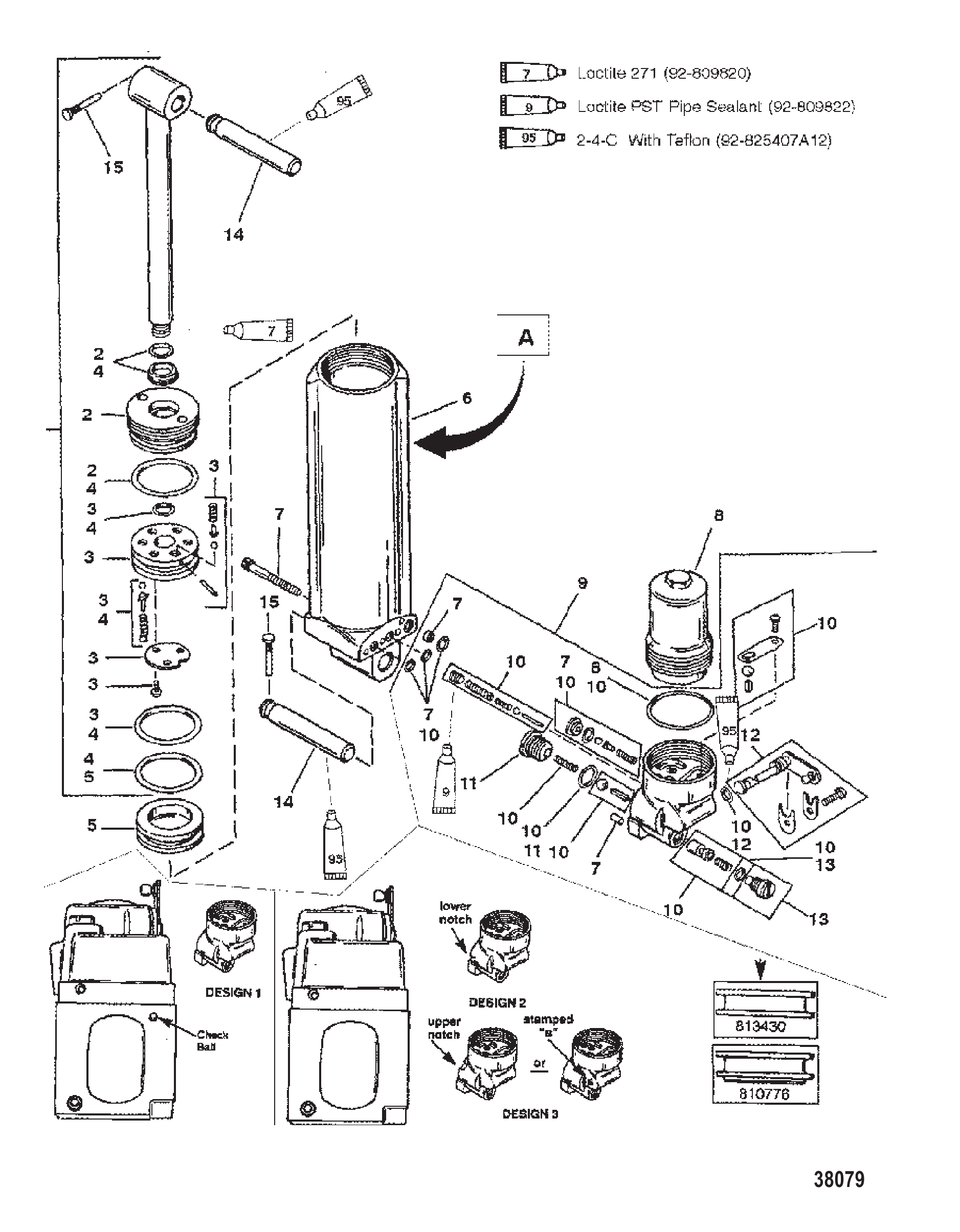

图 19手动倾斜设计I型-长轴序列号0C159200及以上 MANUAL TILT DESIGN I-LONG SHAFT S/N-0C159200 and UP
手动倾斜设计I型-长轴序列号0C159200及以上 MANUAL TILT DESIGN I-LONG SHAFT S/N-0C159200 and UP
REF零件编号中文名称英文名称数量
-19300A3配平泵总成(含本页所有零件)PUMP ASSEMBLY Trim (Included all parts on this page)1
-8M0118570手动配平总成MANUAL TRIM ASSEMBLY1
-19300A7配平泵总成(含本页所有零件)PUMP ASSEMBLY Trim (Included all parts on this page)1
-8M0118570手动配平总成MANUAL TRIM ASSEMBLY1
18134272减震杆套件SHOCK ROD KIT1
18M0118572减震杆套件SHOCK ROD KIT1
2813428升降缸端盖总成END CAP ASSEMBLY Trim Cylinder1
38134291减震活塞PISTON Shock1
4813432A2气缸修理包CYLINDER REBUILD KIT1
5810776记忆活塞套件PISTON KIT Memory1
5813430A1配平记忆活塞总成PISTON ASSEMBLY Trim Memory1
5893903A01活塞套件PISTON KIT1
6810777气缸套件CYLINDER KIT1
68112241气缸套件CYLINDER KIT1
6893918A01气缸套件CYLINDER KIT1
7813433A1螺钉与密封套件SCREW AND SEAL KIT1
7893919A01螺丝/密封套件SCREW/SEAL KIT1
8813454A1蓄能器ACCUMULATOR1
8893920A01蓄能器套件ACCUMULATOR KIT1
9813455A3阀块总成VALVE BLOCK ASSEMBLY1
98M0118574阀体总成VALVE BODY ASSEMBLY1
10813456A3维修套件REPAIR KIT1
10813456A4维修套件REPAIR KIT1
10813456A4维修套件REPAIR KIT1
11813458塞套件PLUG KIT1
11813458A2塞套件PLUG KIT1
12813457A1凸轮总成套件CAM ASSEMBLY KIT1
12813457A2凸轮套件CAM KIT1
12813455A4阀体总成VALVE BODY ASSEMBLY1
13813459塞套件PLUG KIT1
1419607销PIN2
15821539三叶销PIN Trilobe2

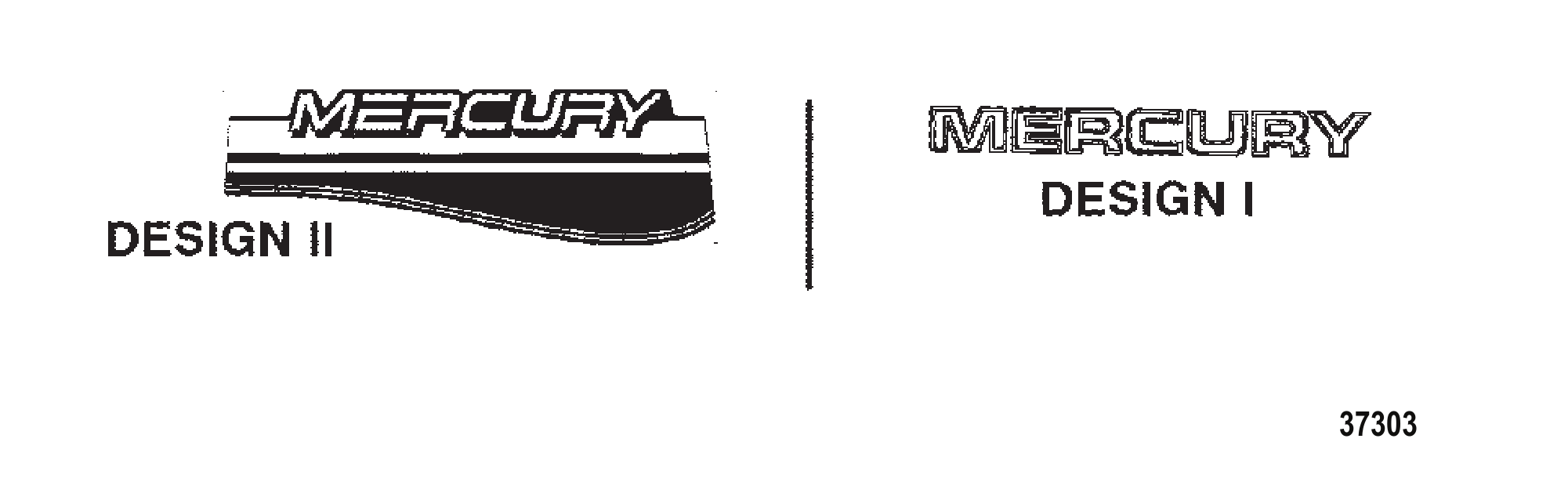

图 20杂项信息 MISCELLANEOUS INFORMATION
杂项信息 MISCELLANEOUS INFORMATION
REF零件编号中文名称英文名称数量
-80874494零件手册30/40马力PARTS MANUAL 30/40 H.P.1
-826148R1维修手册SERVICE MANUAL1
-826148R03维修手册 30/40（二冲程）SERVICE MANUAL 30/40 (2-Stroke)1
-808616A94贴花套件DECAL SET1
-808616A00贴花套件DECAL SET1
-808616A96贴花套件DECAL SET1
-808616A00贴花套件DECAL SET1
-808683A95贴花套件DECAL SET1
-808683A01贴花套件DECAL SET1
-824093A94贴花套件DECAL SET1
-824093A00贴花套件DECAL SET1
-824093A96贴花套件DECAL SET1
-824093A00贴花套件DECAL SET1
-808615A95贴花套件DECAL SET1
-808615A01贴花套件DECAL SET1
-808682A94贴花套件DECAL SET1
-808682A03贴花套件DECAL SET1
-824094A94贴花套件DECAL SET1
-824094A03贴花套件DECAL SET1
-808682A97贴花套件DECAL SET1
-808682A03贴花套件DECAL SET1
-824094A97贴花套件DECAL SET1
-824094A03贴花套件DECAL SET1
-808617A95贴花套件DECAL SET1
-8582521贴花套件DECAL SET1
-824424A95贴花套件DECAL SET1
-8582522贴花套件DECAL SET1
-54321A97贴花套件DECAL SET1
-54321A03贴花套件DECAL SET1
-10116980用户手册OWNERS MANUAL1
-10148980用户手册OWNERS MANUAL1
-8555776EPA标签信息贴花DECAL EPA Label Information1
-855577A6REF SOB 09-18REF SOB 09-181

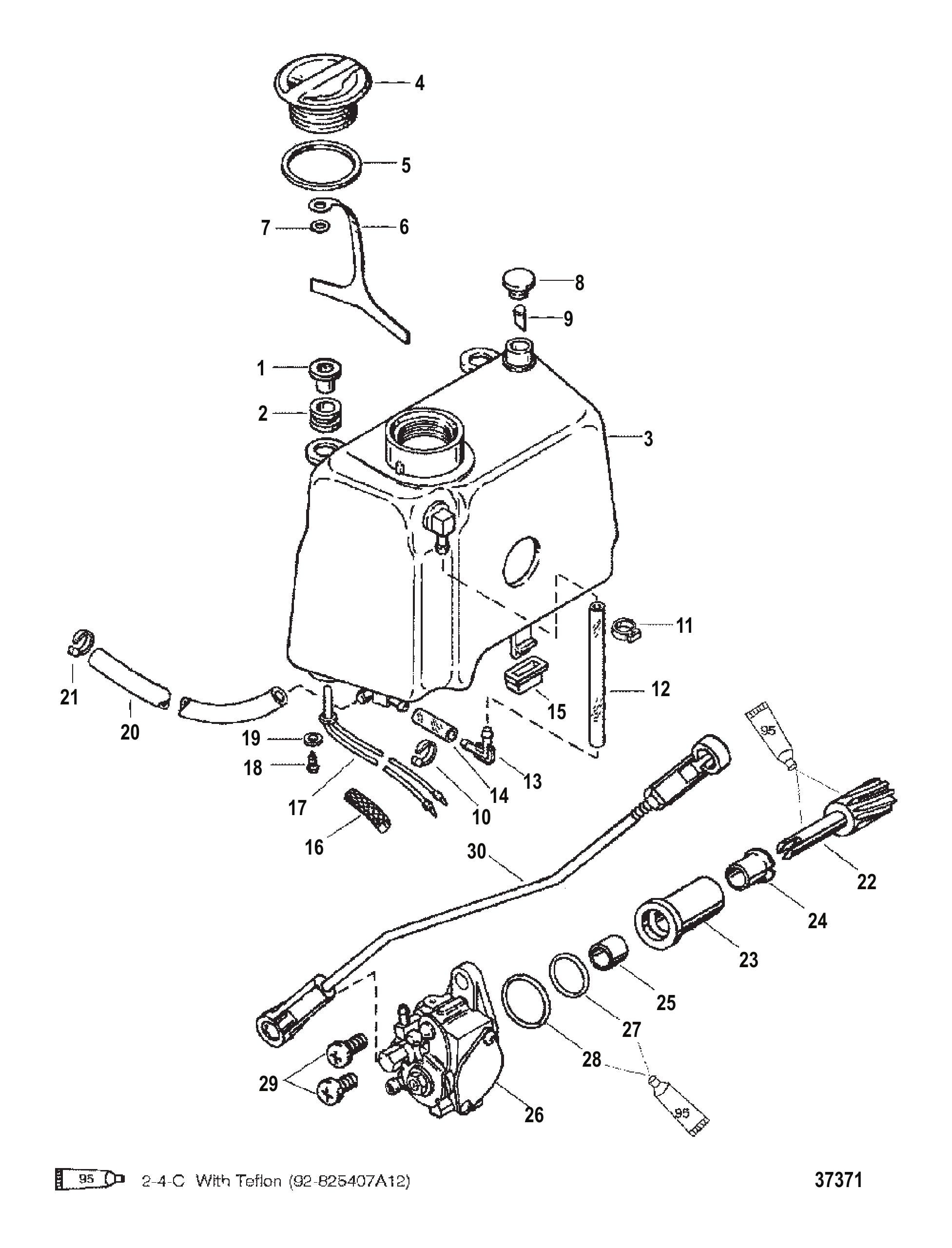

图 21喷油组件 OIL INJECTION COMPONENTS
喷油组件 OIL INJECTION COMPONENTS
REF零件编号中文名称英文名称数量
1822003衬套BUSHING2
2822002护孔环GROMMET2
3822514A2油箱总成TANK ASSEMBLY Oil1
38M0219215油箱总成-机油TANK ASSY-OIL1
4828765A1盖总成CAP ASSEMBLY1
5828766衬垫GASKET1
6NSSNOT SOLD SEPARATE RETAINER1
7821285压入式螺母PUSH NUT1
819299A1通风组件VENT ASSEMBLY1
964871阀门VALVE1
10816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
11814200卡箍CLAMP2
129004934管材（14.50英寸散装）（裁切至4-3/4英寸）TUBING (14.50 Inches Bulk) (Cut to 4-3/4 IN.)1
1282381455油管（25.00英寸散装）TUBING (25.00 Inches Bulk)1
13826083弯头ELBOW1
1482381451管材（1-1/4英寸）TUBING (1-1/4 IN.)1
1482381455油管（25.00英寸散装）TUBING (25.00 Inches Bulk)1
15823770护孔环GROMMET1
15823770001护孔环GROMMET1
16826084隔套SPACER1
1712886A6开关总成SWITCH ASSEMBLY1
1858376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
1972761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
2082381329管材（12.00英寸散装）（裁切至10英寸）TUBING (12.00 Inches Bulk) (Cut to 10 IN.)1
2082381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
22826143从动齿轮GEAR Driven1
2319278A2轴承总成BEARING ASSEMBLY1
2417597衬套（带法兰）BUSHING (FLANGED)1
2517596衬套BUSHING1
26818902A2机油喷射泵总成PUMP ASSEMBLY Oil Injection1
2736390O型圈O-RING1
2862705O型圈O-RING1
288M0204667O型圈×2O RING @21
2940011108不锈钢螺钉 (M5 x 20)SCREW (M5 x 20) Stainless Steel2
30826581A1连接杆LINK1
30826581T01连接杆LINK1
-822420A94衬垫套件GASKET SET1

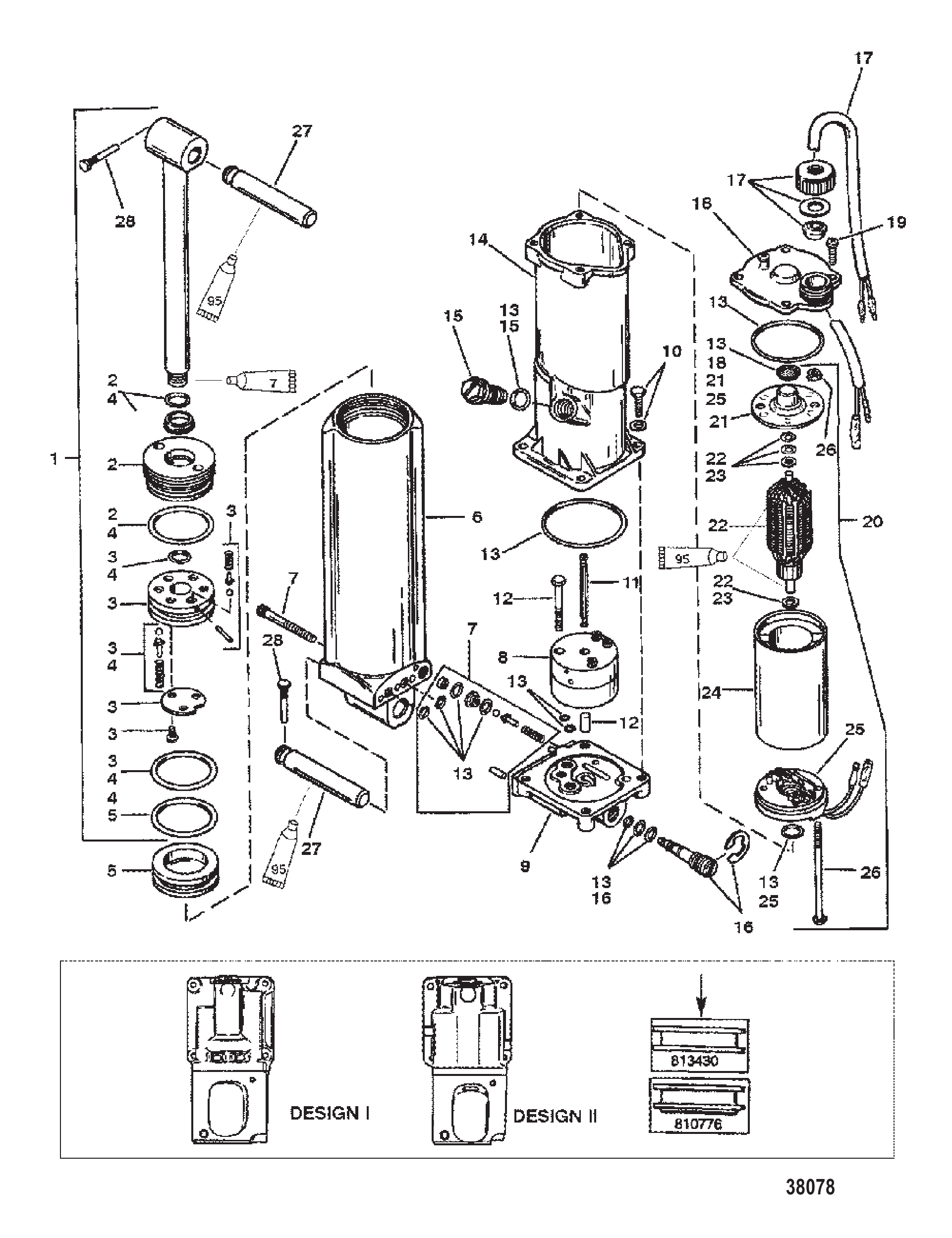

图 22动力升降-长轴(序列号0C159200至0D181999) POWER TRIM-LONG SHAFT (S/N-0C159200 THRU 0D181999)
动力升降-长轴(序列号0C159200至0D181999) POWER TRIM-LONG SHAFT (S/N-0C159200 THRU 0D181999)
REF零件编号中文名称英文名称数量
18134271减震杆套件SHOCK ROD KIT1
1893943A01减震杆套件SHOCK ROD KIT1
2813428升降缸端盖总成END CAP ASSEMBLY Trim Cylinder1
3813429减震活塞总成PISTON ASSEMBLY Shock1
4813432A3气缸密封套件SEAL KIT Cylinder1
5813430A1配平记忆活塞总成(参见脚注和图示)PISTON ASSEMBLY Trim Memory (SEE FOOTNOTE & ILLUSTRATION)1
5893903A01活塞套件PISTON KIT1
5810776记忆活塞套件(参见脚注和图示)PISTON KIT Memory (SEE FOOTNOTE & ILLUSTRATION)1
6810777气缸套件CYLINDER KIT1
6811228气缸套件CYLINDER KIT1
6893904T01气缸总成CYLINDER ASSEMBLY1
7813433A1螺钉与密封套件SCREW AND SEAL KIT1
7893919A01螺丝/密封套件SCREW/SEAL KIT1
7811226A1螺钉与密封套件SCREW AND SEAL KIT1
7811678A6螺钉与密封套件SCREW AND SEAL KIT1
8811227泵PUMP1
9813441歧管总成MANIFOLD ASSEMBLY1
9811225歧管总成MANIFOLD ASSEMBLY1
10813436螺钉套件SCREW KIT1
11813437驱动轴DRIVESHAFT1
12813438螺丝和销钉套件SCREW AND PIN KIT1
13813439A2密封套件SEAL KIT1
13813439A3O型圈套件O RING KIT1
14813434A1储液罐RESERVOIR1
15813435塞套件PLUG KIT1
158134351堵头PLUG1
16813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
16893929A01安全阀套件VALVE KIT Relief1
17811698线束总成HARNESS ASSEMBLY1
18813445储液罐盖套件CAP KIT Reservoir1
19813446螺钉SCREW1
20813447电机套件MOTOR KIT1
21813448端盖END CAP1
22813449A1电枢ARMATURE1
23813450止推垫片套件THRUST WASHER KIT1
24813451外壳和磁铁套件SHELL AND MAGNET KIT1
25813452端架套件END FRAME KIT1
26813453螺栓螺母套件BOLT AND NUT KIT1
2719607销PIN2
28821539三叶销PIN Trilobe2
-19217A5完整配平泵总成PUMP ASSEMBLY Trim COMPLETE1
-854472A3动力调整套件POWER TRIM KIT1

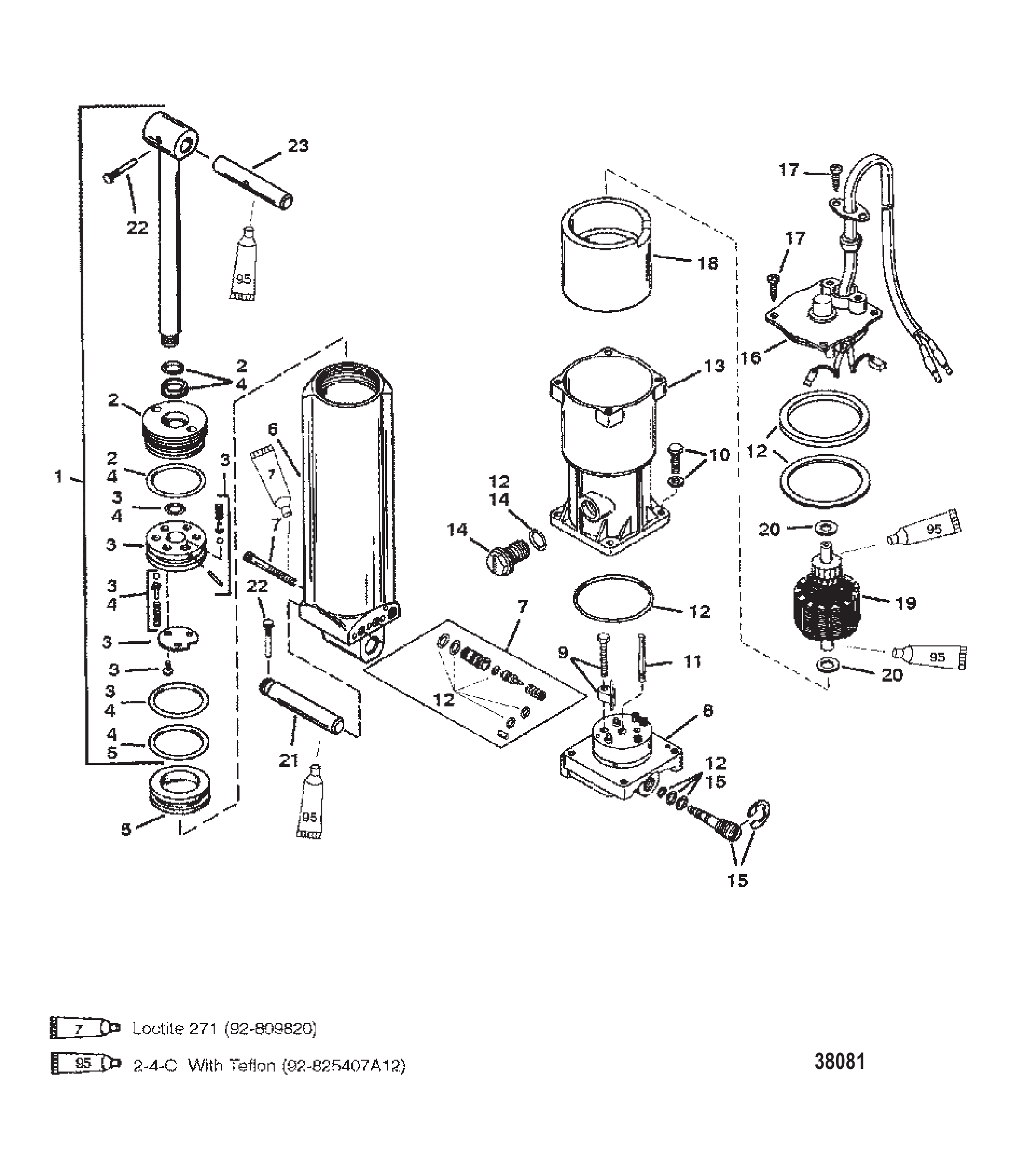

图 23动力升降(序列号0D182000至0G357070)(黑色插头) POWER TRIM (S/N-0D182000 THRU 0G357070)(BLACK PLUG)
动力升降(序列号0D182000至0G357070)(黑色插头) POWER TRIM (S/N-0D182000 THRU 0G357070)(BLACK PLUG)
REF零件编号中文名称英文名称数量
-822870A1泵总成PUMP ASSEMBLY1
-830150T2动力升降泵总成PUMP ASSEMBLY Power Trim1
018134271减震杆套件SHOCK ROD KIT1
01893943A01减震杆套件SHOCK ROD KIT1
02813428升降缸端盖总成END CAP ASSEMBLY Trim Cylinder1
03813429减震活塞总成PISTON ASSEMBLY Shock1
04813432A3气缸密封套件SEAL KIT Cylinder1
05810776记忆活塞套件PISTON KIT Memory1
06811228气缸套件CYLINDER KIT1
06893904T01气缸总成CYLINDER ASSEMBLY1
07811226A1螺钉与密封套件SCREW AND SEAL KIT1
07811678A6螺钉与密封套件SCREW AND SEAL KIT1
088116706泵/歧管套件PUMP/MANIFOLD KIT1
08809901A1泵/电机总成PUMP/MOTOR ASSEMBLY1
09823180A1摇臂套件ROCKER ARM KIT1
09809901A2泵/歧管总成PUMP/MANIFOLD ASSEMBLY1
10813436螺钉套件SCREW KIT1
11811671驱动轴DRIVESHAFT1
12811672A3O型圈套件O-RING KIT1
12811672A4O型圈套件O RING KIT1
13811673储液罐RESERVOIR1
13809901A1泵/电机总成PUMP/MOTOR ASSEMBLY1
14813435塞套件PLUG KIT1
148134351堵头PLUG1
15813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
15893929A01安全阀套件VALVE KIT Relief1
16811677储液罐盖套件CAP KIT Reservoir1
16809885A1电机套件MOTOR KIT1
17813446螺钉SCREW1
18811674储液罐/马达RESERVOIR/MOTOR1
18809885A1电机套件MOTOR KIT1
19811675电枢ARMATURE1
20811676止推垫片套件THRUST WASHER KIT1
2119607销PIN1
22821539三叶销PIN Trilobe2
23822869销PIN1
23822869001锚销PIN Anchor1

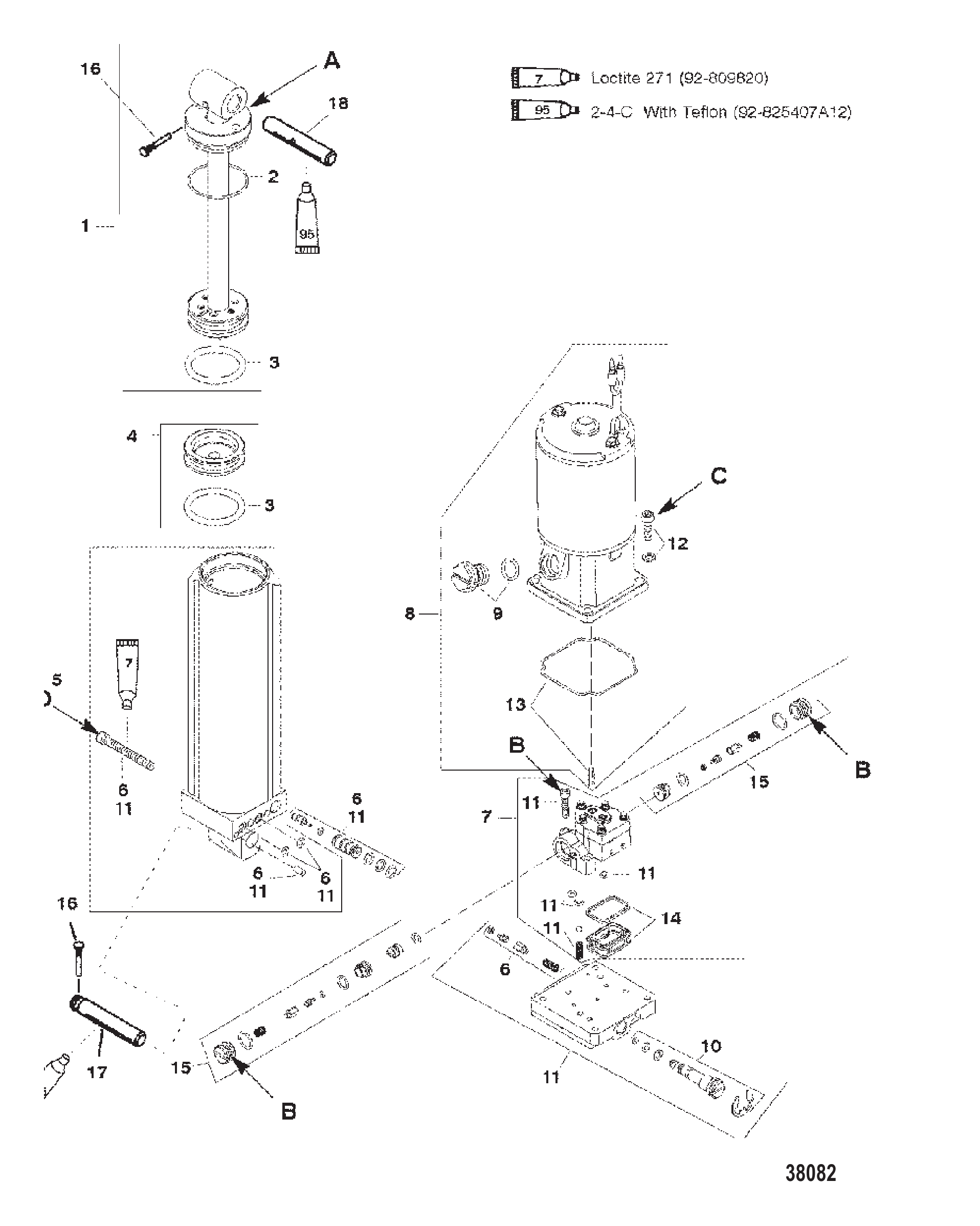

图 24动力升降(序列号0G357070及以上)(黄色注油塞) POWER TRIM (S/N-0G357070 and UP)(YELLOW FILL PLUG)
动力升降(序列号0G357070及以上)(黄色注油塞) POWER TRIM (S/N-0G357070 and UP)(YELLOW FILL PLUG)
REF零件编号中文名称英文名称数量
-830150A1动力升降泵总成PUMP ASSEMBLY Power Trim1
-830150T2动力升降泵总成PUMP ASSEMBLY Power Trim1
1813427A3减震杆套件SHOCK ROD KIT1
1893943A01减震杆套件SHOCK ROD KIT1
2809872A2O型圈维修包O-RING KIT Rebuild1
28M0171819O型圈套件O-RING KIT1
3NSSNOT SOLD SEPARATE O-ring2
4810776A1记忆活塞总成PISTON ASSEMBLY Memory1
48M0171822记忆活塞套件MEMORY PISTON KIT1
5811228A1气缸总成CYLINDER ASSEMBLY1
5893904T01气缸总成CYLINDER ASSEMBLY1
6809873A1配平限位阀套件VALVE KIT Trim Limit1
6893905A02阀套件VALVE KIT1
7809874A1泵总成PUMP ASSEMBLY1
7893906A02泵总成PUMP ASSEMBLY1
8809885A1电机套件MOTOR KIT1
8893907A02电机套件MOTOR KIT1
98134351堵头PLUG1
10813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
10893929A01安全阀套件VALVE KIT Relief1
11809875A1歧管套件MANIFOLD KIT1
11893909A02歧管套件MANIFOLD KIT1
12809876A1螺丝套件(电机)SCREW KIT (MOTOR)1
13809877A1驱动轴/密封套件DRIVESHAFT/SEAL KIT1
14809878A1滤清器套件FILTER KIT1
14893912A02滤清器套件FILTER KIT1
15809879A1提升阀套件POPPET KIT1
15893913A02提升阀套件POPPET KIT1
-809880A1O型圈套件(完整调整)O-RING KIT (COMPLETE TRIM)1
-893914A02O型圈套件O-RING KIT1
16821539三叶销PIN Trilobe2
1719607销PIN1
18822869销PIN1
18822869001锚销PIN Anchor1

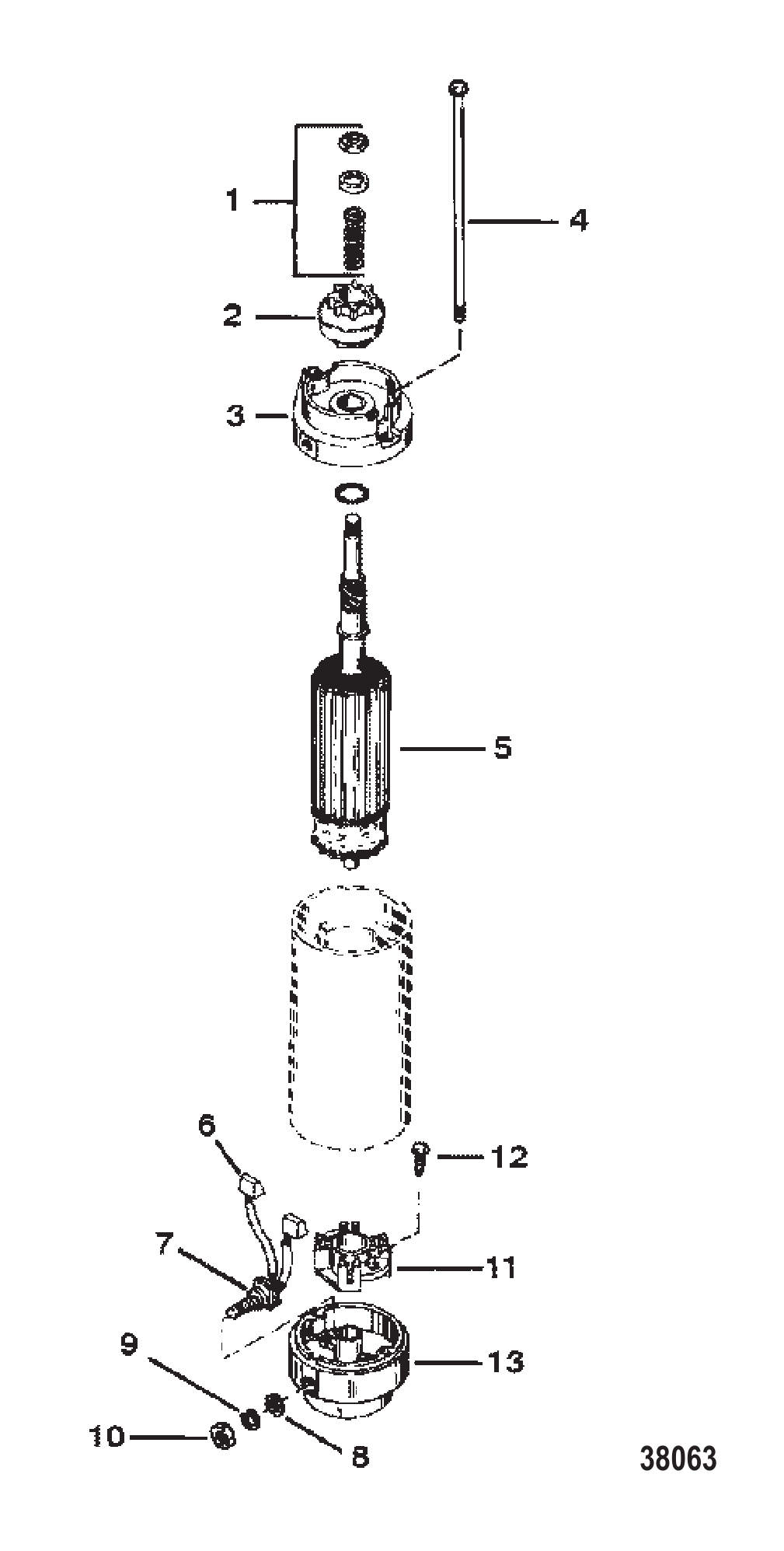

图 25启动电机总成 STARTER MOTOR ASSEMBLY
启动电机总成 STARTER MOTOR ASSEMBLY
REF零件编号中文名称英文名称数量
-73521启动电机总成STARTER MOTOR ASSEMBLY1
-898265005启动马达STARTER MOTOR1
190643驱动套件DRIVE KIT1
268575驱动总成DRIVE ASSEMBLY1
2685753驱动总成DRIVE ASSEMBLY1
375660安装板PLATE1
475379螺栓BOLT2
575382电枢ARMATURE1
675384电刷/弹簧套件BRUSH/SPRING KIT1
6898265016电刷/弹簧套件BRUSH/SPRING KIT1
757387衬套BUSHING1
838013垫圈WASHER1
926992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
1020890螺母 (.250-20)NUT (.250-20)1
1161787支架HOLDER2
11898265014电刷支架HOLDER-BRUSH2
12NSS不单独销售螺丝(AMER. BOSCH #02441-22-SC-30SM)NOT SOLD SEPARATE SCREW (AMER. BOSCH #02441-22-SC-30SM)2
1375383端盖END CAP1

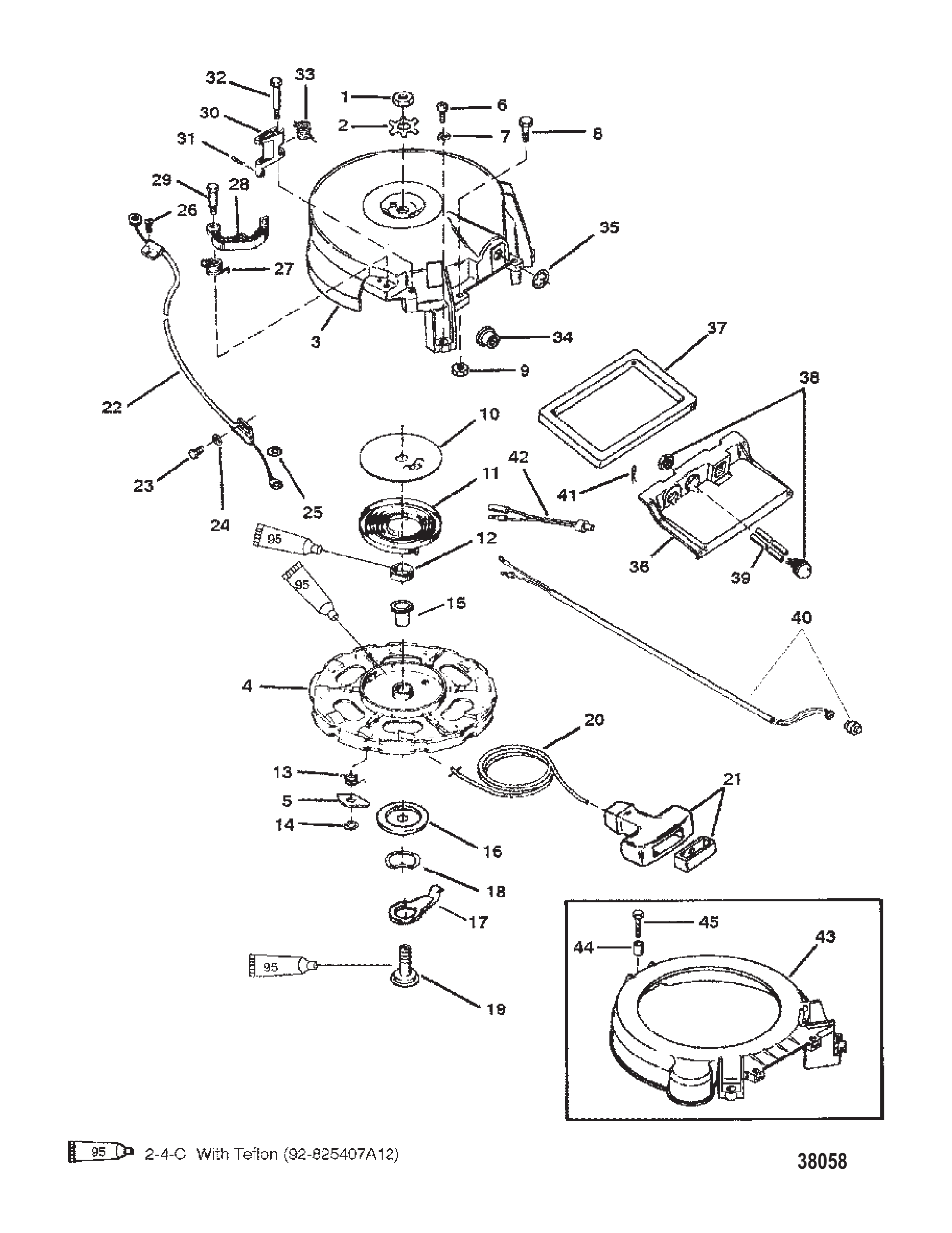

图 26启动器回绕装置 STARTER REWIND
启动器回绕装置 STARTER REWIND
REF零件编号中文名称英文名称数量
120166螺母(左旋螺纹)NUT (LEFT HAND THREAD)1
261004锁紧垫圈TAB WASHER1
3186471启动器壳体HOUSING Starter1
444255A1启动器滑轮总成SHEAVE ASSEMBLY Starter1
544508启动棘爪PAWL Starter1
654523螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)3
726993锁紧垫圈 (.312)LOCKWASHER (.312)3
78M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
845210螺钉 (.190-32 x 1.250)SCREW (.190-32 x 1.250)2
920190螺母 (#10-32)NUT (#10-32)2
98267086螺母 (#10-32)NUT (#10-32)2
1061002安装板PLATE1
1139502A1弹簧SPRING1
1139502T02回卷弹簧SPRING-RECOIL1
1287649衬套BUSHING1
1387651弹簧SPRING1
1487706E型卡环E RING1
1563061隔套SPACER1
1635559垫圈WASHER1
1794962杠杆LEVER1
1820160波形垫圈WAVE WASHER1
1987656滑轮轴SHEAVE SHAFT1
2012066A9绳索ROPE1
2012066Q10启动绳@2ROPE-STARTER@21
2047341A1手动/应急启动绳和手柄套件 (用于手动启动)ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)1
2047341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2185174A1手柄总成HANDLE ASSEMBLY1
22188881联锁电缆CABLE Interlock1
2369022螺钉 (#10-32 x .500) 不锈钢SCREW (#10-32 x .500) Stainless Steel1
2473288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
2537998垫圈WASHER1
26812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
26878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
27761401弹簧SPRING1
28428201凸轮CAM1
2976138螺丝(.312-18 x 1.120)SCREW (.312-18 x 1.120)1
3079371执行器ACTUATOR1
3127769开口销COTTER PIN2
3126811开口销COTTER PIN2
3276137螺丝(1-5/8英寸)SCREW (1-5/8 IN.)1
3376139弹簧SPRING1
3442690衬套BUSHING1
348M0183792绳索衬套ROPE BUSHING1
35818853挡圈RING Retaining1
36813544A1支架总成REST ASSEMBLY1
36813544支架REST1
37813641密封件SEAL1
388168772注油球PRIMER BULB1
38858763注油球PRIMER BULB1
3999130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
39892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
4089591A5线束总成HARNESS ASSEMBLY1
4136002开口销COTTER PIN2
4211149A2线缆总成(6.00英寸)(非手柄)CABLE ASSEMBLY (6.00 Inches) (NON-HANDLE)1
43812617飞轮盖COVER Flywheel1
44812611盖螺丝垫片SPACER Cover Screw3
45812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch3

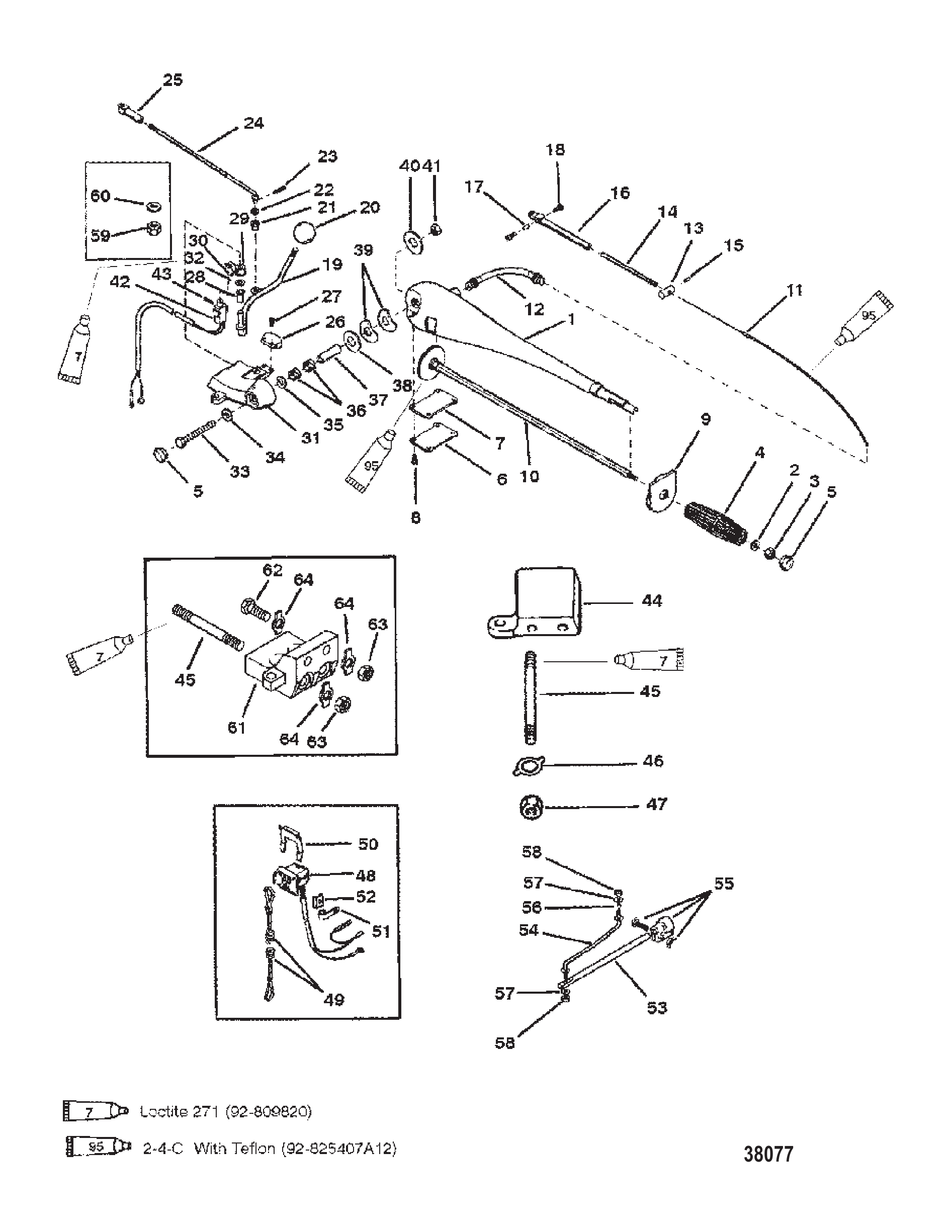

图 27转向手柄总成 STEERING HANDLE ASSEMBLY
转向手柄总成 STEERING HANDLE ASSEMBLY
REF零件编号中文名称英文名称数量
148405A2臂总成ARM ASSEMBLY1
148405A3臂总成ARM ASSEMBLY1
148405A4转向手柄臂总成ARM ASSEMBLY Steering Handle1
269056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel1
335045螺母(.250-28)NUT (.250-28)1
3826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
458192A1握把GRIP1
548416盖帽CAP2
648519安装板PLATE1
748518衬垫GASKET1
8812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)3
8878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)3
88128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
8878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
948414壳体HOUSING1
1048516A1驱动轮/杆总成DRIVE WHEEL/ROD ASSEMBLY1
1141105拉线总成CABLE ASSEMBLY1
12785512导管CONDUIT1
128885242导管CONDUIT1
1389578套筒BARREL1
14895661导向管GUIDE TUBE1
148M0026078导向管TUBE-GUIDE1
15824081紧定螺钉(#10-32)SET SCREW (#10-32)1
1643433导套GUIDE1
168M0204660导套GUIDE1
1720007锚定件ANCHOR1
1820518紧定螺钉(#8-32)SET SCREW (#8-32)2
188M0204644螺钉组SCREW SET2
1914690杠杆LEVER1
19485681换挡杆SHIFT LEVVER1
19485684杠杆LEVER1
2098530旋钮KNOB1
2148475衬套(1/4英寸内径)BUSHING (1/4 IN. I.D.)1
2235950垫圈 (.273 x .437 x .031) 不锈钢WASHER (.273 x .437 x .031) Stainless Steel1
2325191开口销COTTER PIN1
248128062换挡连杆SHIFT ROD1
248128064杆ROD1
25813565拉杆端头ROD END1
2678812A1定位器DETENT1
278128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)2
27878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)2
2848237衬套(3/8英寸内径)BUSHING (3/8 IN. I.D.)1
2917459A2执行器总成ACTUATOR ASSEMBLY1
30824081紧定螺钉(#10-32)SET SCREW (#10-32)2
3148404F3支架BRACKET1
3148404T8支架BRACKET1
3148404F4支架BRACKET1
3148404T8支架BRACKET1
3148404F7转向手柄支架BRACKET Steering Handle1
3148404T8支架BRACKET1
3229629垫圈(.390 x .687 x .030)不锈钢(电动手柄)WASHER (.390 x .687 x .030) Stainless Steel (ELECTRIC HANDLE)1
33823597螺丝(.500-20 x 2.50)SCREW (.500-20 x 2.50)1
3448477垫圈(.505内径)WASHER (.505 I.D.)1
3548526垫圈(.630内径)WASHER (.630 I.D.)1
3628919衬套(5/8英寸内径)BUSHING (5/8 IN. I.D.)2
3748525隔套SPACER1
3848527垫圈(1-35/64英寸外径)WASHER (1-35/64 IN. O.D.)1
3838000垫圈WASHER1
3948478波形垫圈WAVE WASHER2
4049636垫圈(1-3/4英寸外径)WASHER (1-3/4 IN. O.D.)1
4135778螺母(.500-20)NUT (.500-20)1
41826709117螺母(0.500-20)不锈钢NUT (.500-20) Stainless Steel1
42813960A2开关总成SWITCH ASSEMBLY1
428M0052926开关总成SWITCH ASSY1
4312110螺丝 (#6-32 x .750)SCREW (#6-32 x .750)2
4441130隔套SPACER1
4514651螺柱STUD2
4643589锁紧垫圈TAB WASHER2
4734863螺母 (.375-24)NUT (.375-24)2
478M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
4811083A25开关总成SWITCH ASSEMBLY1
4915920A54拉绳总成LANYARD ASSEMBLY1
4915920Q54拉绳总成LANYARD ASSEMBLY1
50120441黄铜固定座RETAINER Brass1
508M0032846黄铜固定座RETAINER Brass1
5126550卡箍CLAMP1
5269205C形垫圈C WASHER1
528M0084613C形垫圈C-WASHER1
5352148导向杆PILOT ROD1
5452150杆ROD1
5552155A1螺母总成NUT ASSEMBLY1
558M0103848螺母总成NUT ASSEMBLY1
56521512衬套BUSHING1
5770132垫圈(0.323×0.563×0.063)不锈钢WASHER (.323 x .563 x .063) Stainless Steel2
578M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)2
5845592螺母(.312-24)NUT (.312-24)2
58826709111螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel2
5933826螺母NUT1
6034931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel1
618216782适配器ADAPTER1
6290072螺钉(.375-24 x 1.750)SCREW (.375-24 x 1.750)2
63134371螺母 (.375-24)NUT (.375-24)4
63862903螺母 (.375-24)NUT (.375-24)4
6437828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2

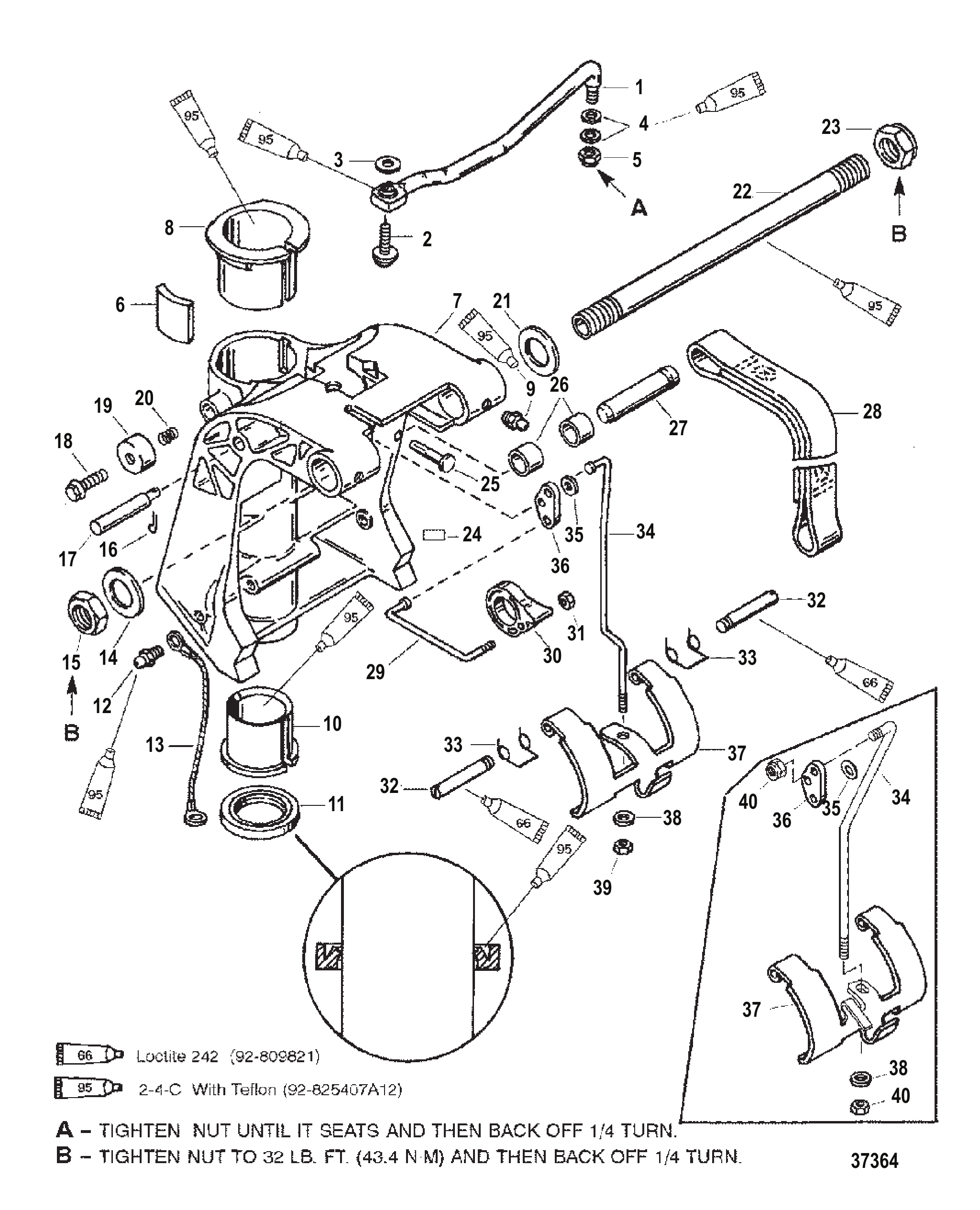

图 28旋转支架 SWIVEL BRACKET
旋转支架 SWIVEL BRACKET
REF零件编号中文名称英文名称数量
1196081连杆LINK ROD1
119608A14发动机转向安装套件ATTACHING KIT Engine Steering1
2823919螺钉（0.375-24 x 1.500）SCREW (.375-24 x 1.500)1
371970垫圈(0.390×0.546×0.12)WASHER (.390 x .546 x .12)1
38M0109680垫圈(0.39×0.546×0.12)WASHER (.39 X .546 X.12)1
437828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
534863螺母 (.375-24)NUT (.375-24)2
58M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
6822397圆盘（非手柄型号）PUCK (NON HANDLE MODELS)1
7821772A3旋转支架总成SWIVEL BRACKET ASSEMBLY1
7827402T5旋转支架SWIVEL BRACKET1
7821772A4旋转支架总成SWIVEL BRACKET ASSEMBLY1
7827402T6ORD 3410-827402T5ORD 3410-827402T51
88217711衬套 (上部)BUSHING (UPPER)1
974036润滑脂接头FITTING Grease3
98M0169589润滑脂接头FITTING Grease3
10821777衬套（下部）BUSHING (LOWER)1
11822404密封件SEAL1
118M0205512密封件SEAL1
1274036润滑脂接头FITTING Grease1
128M0169589润滑脂接头FITTING Grease1
1388238A11拉线总成CABLE ASSEMBLY1
1419619垫圈WASHER1
15826164螺母 (.875-14)NUT (.875-14)1
158M0231351锁紧螺母NUT Lock1
1627769开口销COTTER PIN1
1626811开口销COTTER PIN1
17821799枢轴销PIN Pivot1
17821799002枢轴销PIN Pivot1
184008910螺钉（M8 X 10）不锈钢SCREW (M8 x 10) Stainless Steel1
1840011149螺钉 (M8 x 25) 不锈钢SCREW (M8 x 25) Stainless Steel1
19822005橡胶护套BOOT Rubber1
20821784弹簧SPRING1
2119619垫圈WASHER1
2219614倾斜管TILT TUBE1
228M0041938倾斜管TILT TUBE1
23826164螺母 (.875-14)NUT (.875-14)1
238M0231351锁紧螺母NUT Lock1
248237011副驾驶贴花DECAL Co-Pilot1
25821539三叶销PIN Trilobe1
26823507衬套BUSHING2
27822480枢轴销（上部）PIN Pivot (UPPER)1
288217751绑带（非动力微调）STRAP (NON POWER TRIM)1
29821800连杆（上部）LINK (UPPER)1
308217981杠杆LEVER1
31F1669螺母（#6-32）NUT (#6-32)1
318M0207777不锈钢螺母NUT-SS1
32826578销PIN2
33F366300弹簧SPRING2
348218051连接杆LINK1
34821805A1倒车锁臂总成ARM ASSEMBLY Reverse Lock1
3571055垫圈WASHER1
36821805A1倒车锁臂总成ARM ASSEMBLY Reverse Lock1
37828986倒车锁LOCK Reverse1
37821805A1倒车锁臂总成ARM ASSEMBLY Reverse Lock1
3827882垫圈WASHER1
39F1669螺母（#6-32）NUT (#6-32)1
398M0207777不锈钢螺母NUT-SS1
348218052连接杆LINK1
348M0026107倒车锁连杆LINK-REVERSE LOCK1
3571055垫圈WASHER1
368251811臂ARM1
36825181003倒车锁臂ARM-REVERSE LOCK1
378289861倒车锁LOCK Reverse1
3827882垫圈（适用处使用）WASHER (USE WHERE APPLICABLE)1
4029488螺母 (#10-32)NUT (#10-32)2
408M0204718螺母NUT2

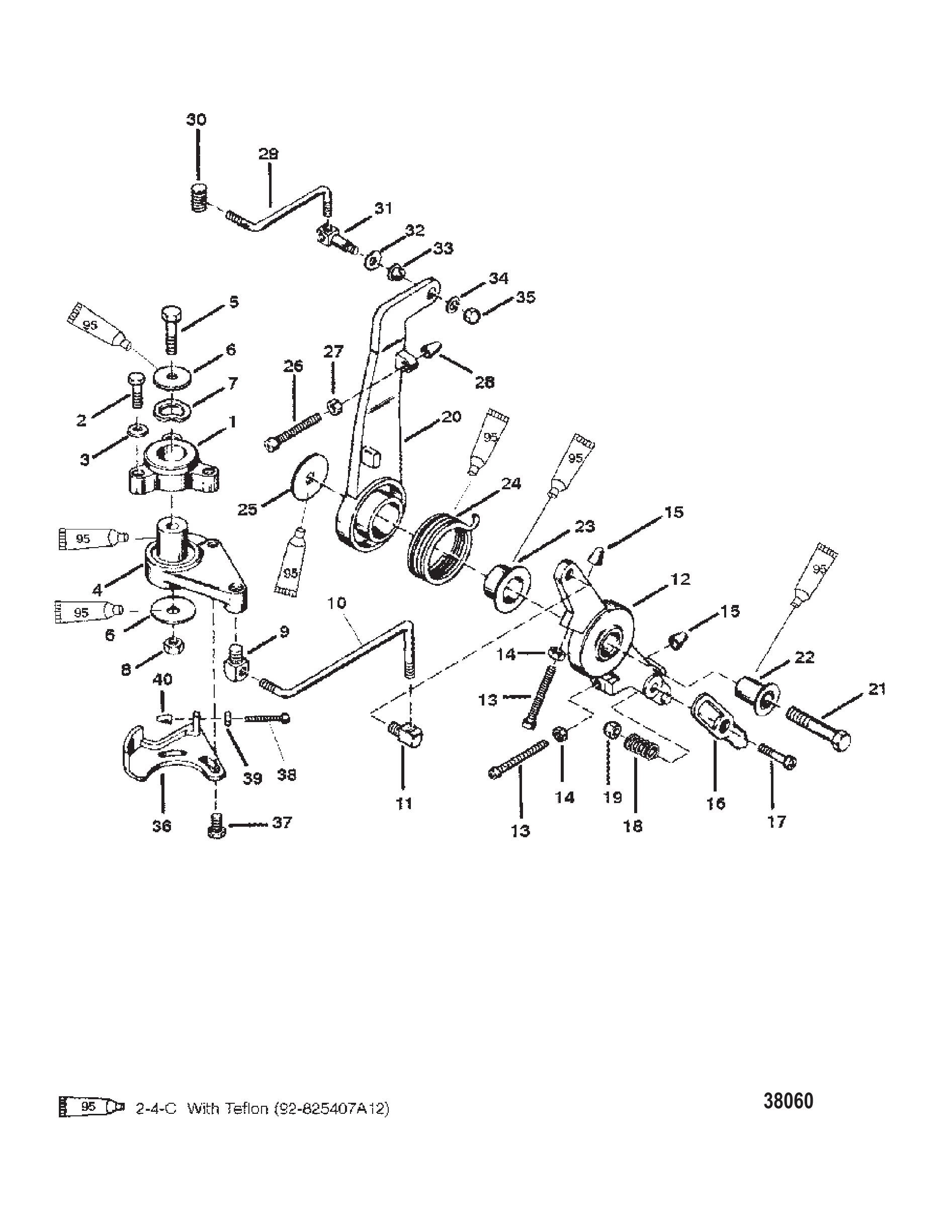

图 29油门控制连杆(金属连杆旋转件) THROTTLE CONTROL LINKAGE (METAL LINK ROD SWIVELS)
油门控制连杆(金属连杆旋转件) THROTTLE CONTROL LINKAGE (METAL LINK ROD SWIVELS)
REF零件编号中文名称英文名称数量
172040T油门执行器支架BRACKET Throttle Actuator1
253576螺丝(.312-18 x 1.125)SCREW (.312-18 x 1.125)3
326993锁紧垫圈 (.312)LOCKWASHER (.312)3
38M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
4815603A1油门执行器总成ACTUATOR ASSEMBLY Throttle1
521449螺丝(.312-24 x 2.00)SCREW (.312-24 x 2.00)1
625893垫圈WASHER2
762172波形垫圈WAVE WASHER1
829250螺母(.312-24)NUT (.312-24)1
957440旋转接头SWIVEL1
1072043连杆LINK ROD1
1157440旋转接头SWIVEL1
12NLA已停产油门臂(订购815603A1)No Longer Available Throttle Arm (ORDER 815603A1)1
1389778油门臂螺丝(2-1/4英寸)SCREW THROTTLE ARM (2-1/4 IN.)1
1325158油门臂螺丝(.190-32 x 1.75)SCREW (.190-32 x 1.75) THROTTLE ARM1
1468219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel2
1548039盖帽CAP2
1639483闩锁LATCH1
1722486螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
1769026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
1820099弹簧SPRING1
1935045螺母(.250-28)NUT (.250-28)1
19826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
20815607A1点火提前杆总成LEVER ASSEMBLY Spark Advance1
21818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
2255164衬套BUSHING1
2355171衬套BUSHING1
2455162弹簧SPRING1
2568410垫圈WASHER1
2546765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
2625158螺丝(.190-32 x 1.75)SCREW (.190-32 x 1.75)1
2768219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
2848039盖帽CAP1
2976056连杆(2-1/2英寸长)LINK ROD (2-1/2 IN. LONG)1
3074897枢轴PIVOT1
3074897T枢轴PIVOT1
3177013A1旋转接头SWIVEL1
3229402波形垫圈WAVE WASHER1
3326856衬套BUSHING1
3473288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
3545774螺母NUT1
3666778安装板PLATE1
3666778T油门板PLATE-THROTTLE1
3746420螺钉(#10-24x0.500)SCREW (#10-24 x .500)2
3823015螺丝(.190-32 x 1.00)SCREW (.190-32 x 1.00)1
3968219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
4048039盖帽CAP1

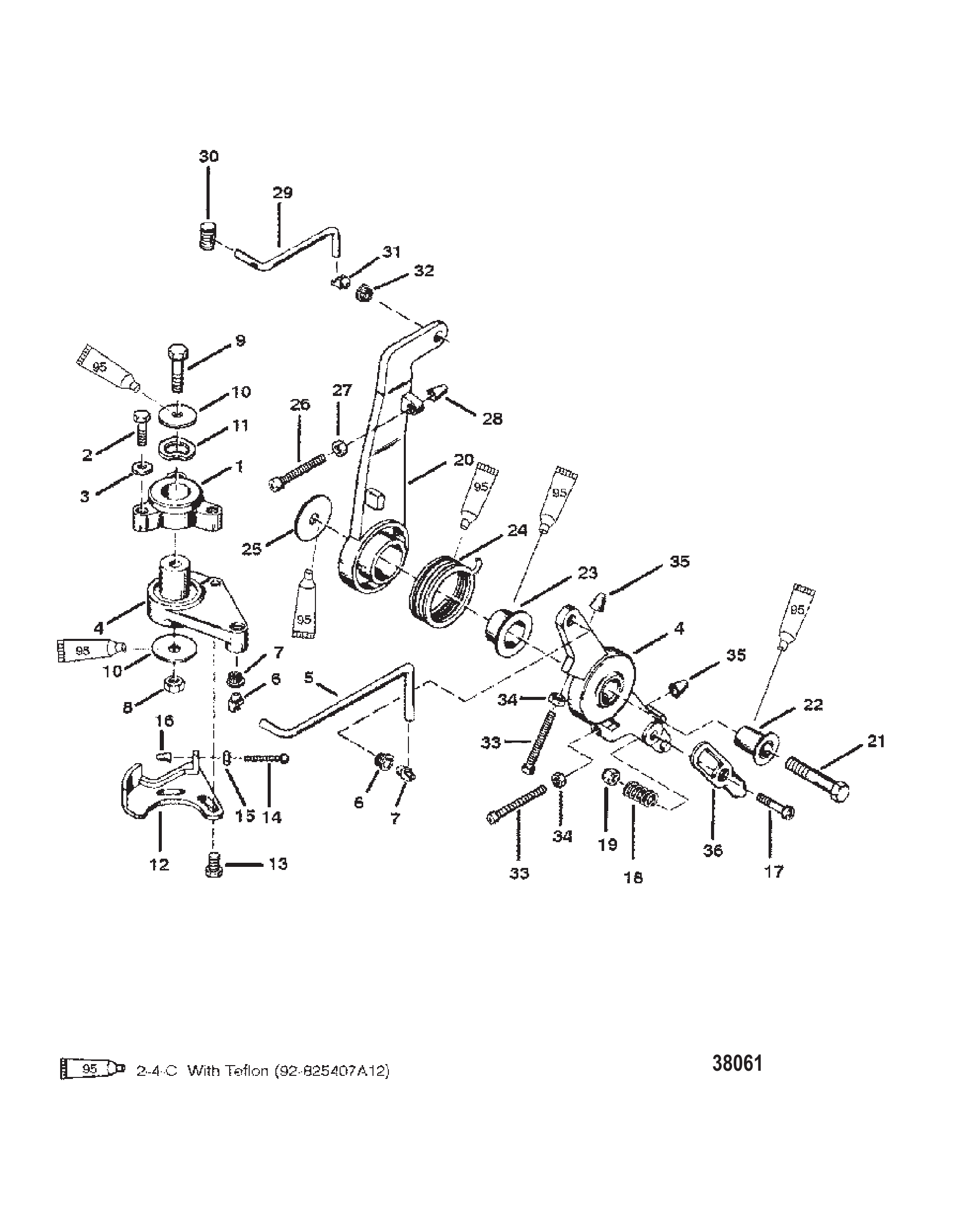

图 30油门控制连杆(塑料连杆旋转件) THROTTLE CONTROL LINKAGE (PLASTIC LINK ROD SWIVELS)
油门控制连杆(塑料连杆旋转件) THROTTLE CONTROL LINKAGE (PLASTIC LINK ROD SWIVELS)
REF零件编号中文名称英文名称数量
172040T油门执行器支架BRACKET Throttle Actuator1
253576螺丝(.312-18 x 1.125)SCREW (.312-18 x 1.125)3
326993锁紧垫圈 (.312)LOCKWASHER (.312)3
38M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
4815603A1油门执行器总成ACTUATOR ASSEMBLY Throttle1
5815605连杆LINK ROD1
5878171连接杆ROD-LINK1
693421旋转球头SWIVEL BALL2
793254旋转底座SWIVEL BASE2
829250螺母(.312-24)NUT (.312-24)1
921449螺丝(.312-24 x 2.00)SCREW (.312-24 x 2.00)1
1025893垫圈WASHER2
1162172波形垫圈WAVE WASHER1
1266778安装板PLATE1
1266778T油门板PLATE-THROTTLE1
1346420螺钉(#10-24x0.500)SCREW (#10-24 x .500)2
1423015螺丝(.190-32 x 1.00)SCREW (.190-32 x 1.00)1
1568219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
1648039盖帽CAP1
1722486螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
1769026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
1820099弹簧SPRING1
1935045螺母(.250-28)NUT (.250-28)1
19826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
20815607A1点火提前杆总成LEVER ASSEMBLY Spark Advance1
21818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
2255164衬套BUSHING1
2355171衬套BUSHING1
2455162弹簧SPRING1
2568410垫圈WASHER1
2546765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
2625158螺丝(.190-32 x 1.75)SCREW (.190-32 x 1.75)1
2768219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
2848039盖帽CAP1
29815604连杆LINK ROD1
3074897枢轴PIVOT1
3074897T枢轴PIVOT1
3193421旋转球头SWIVEL BALL1
3293254旋转底座SWIVEL BASE1
3389778螺丝(2-1/4英寸)SCREW (2-1/4 IN.)1
3325158螺丝(.190-32 x 1.75)SCREW (.190-32 x 1.75)1
3468219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel2
3548039盖帽CAP2
3639483闩锁LATCH1

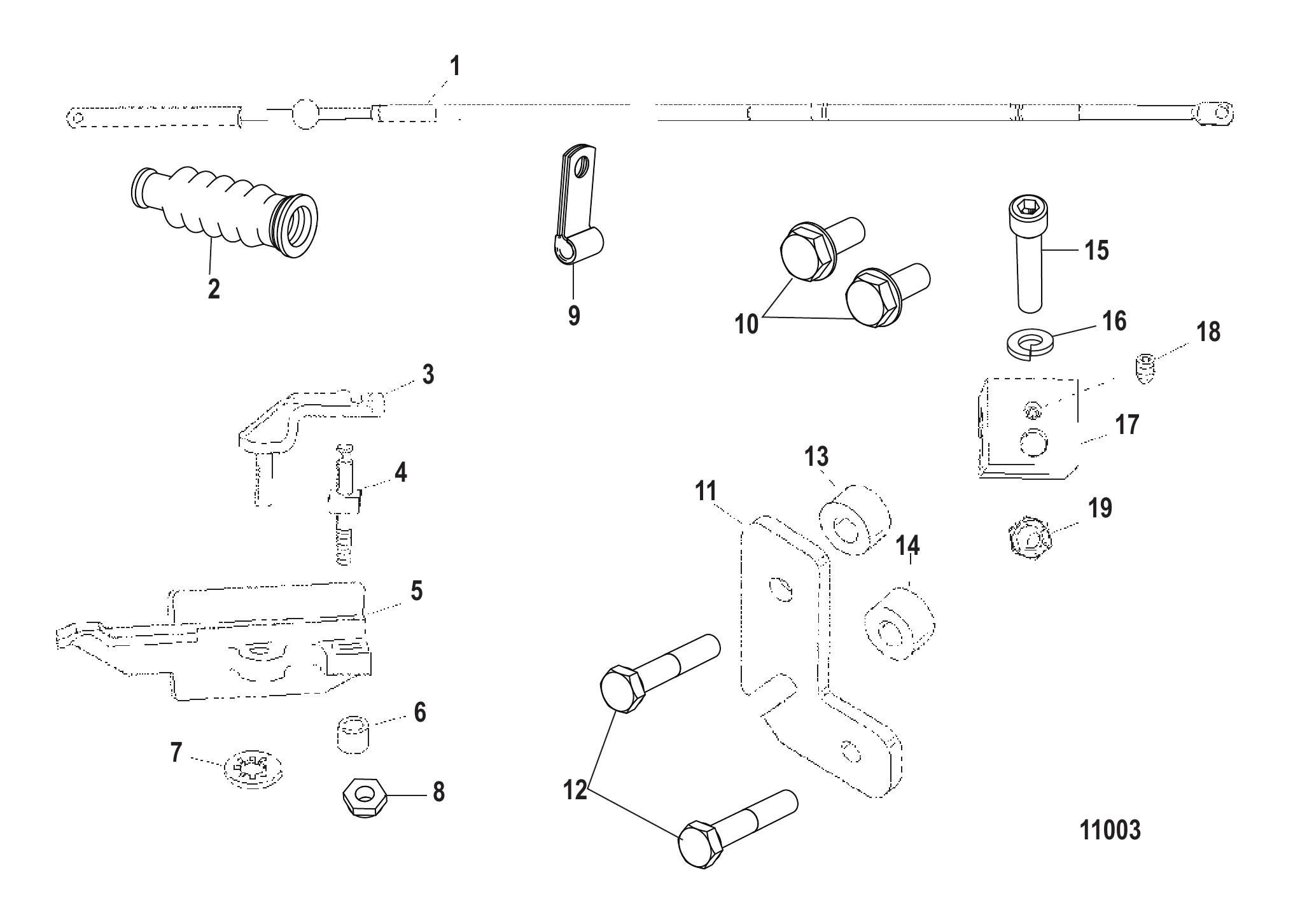

图 31舵柄适配套件(JET 30) TILLER HANDLE ADAPTOR KIT (JET 30)
舵柄适配套件(JET 30) TILLER HANDLE ADAPTOR KIT (JET 30)
REF零件编号中文名称英文名称数量
-850000A130号喷嘴适配器套件ADAPTER KIT 30 JET1
1832001A5油门/换挡线缆总成CABLE ASSEMBLY Throttle/Shift1
285552护套BOOT1
285552001护套BOOT1
3812615固定座RETAINER1
4812612螺柱STUD1
5812616滑块SLIDER1
6832055衬套BUSHING1
7812607环RING1
835045螺母(.250-28)NUT (.250-28)1
8826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
954457J型卡扣J CLIP1
10812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)2
10878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)2
11828093安装板PLATE1
1269267螺钉 (.312-18 x 1.750)SCREW (.312-18 x 1.750)2
1317406隔套SPACER1
14816086衬套BUSHING1
15805543螺钉 (1.25英寸)SCREW (1.25 inch)1
1626992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
17828094换挡线缆固定块BLOCK Shift Cable-Retaining1
1872734紧定螺丝(#10-32 x .310)SET SCREW (#10-32 x .310)1
1935888不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1

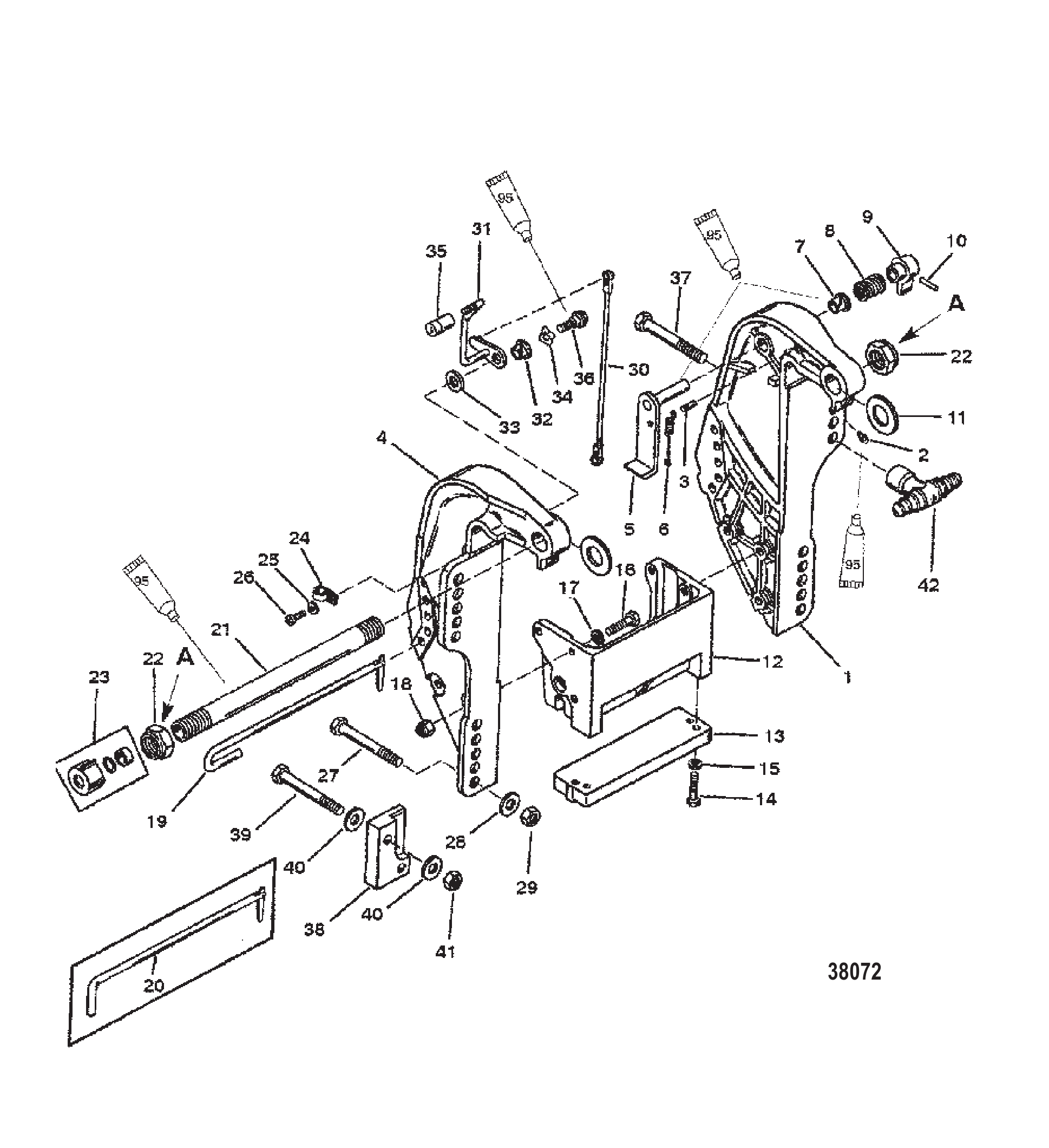

图 32艉板支架(序列号0D181999及以下) TRANSOM BRACKET (S/N 0D181999 and BELOW)
艉板支架(序列号0D181999及以下) TRANSOM BRACKET (S/N 0D181999 and BELOW)
REF零件编号中文名称英文名称数量
19751A1艉板支架总成BRACKET ASSEMBLY Transom1
19751A2艉板支架总成BRACKET ASSEMBLY Transom1
298727润滑脂接头FITTING Grease1
28M0169588润滑脂接头FITTING Grease1
399604槽销PIN Groove1
49750T艉板支架BRACKET Transom1
49750T6艉板支架BRACKET Transom1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
5893704T01倾斜锁杆LEVER Tilt Lock1
519618A3倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
519618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
699622弹簧SPRING1
765830尼龙衬套NYLINER1
8812708弹簧SPRING1
9812709T旋钮KNOB1
9812709旋钮KNOB1
9812709T6旋钮KNOB1
9812709旋钮KNOB1
1099615槽销PIN Groove1
1119619垫圈WASHER2
1218486F5锚支架BRACKET Anchor1
1218486A08支架套件锚BRACKET KIT Anchor1
1218486F6锚支架BRACKET Anchor1
1218486A08支架套件锚BRACKET KIT Anchor1
13818298A1阳极套件ANODE KIT1
13818298Q1阳极套件ANODE KIT1
144000330螺钉(M6x25)SCREW (M6 x 25)2
148M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
158M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
164000354螺钉 (M8 x 30)SCREW (M8 x 30)5
164000355螺钉(M8×35)SCREW (M8 x 35)1
17400257锁紧垫圈（M8）LOCKWASHER (M8)4
18400635螺母 (M8)NUT (M8)2
18401388不锈钢螺母 (M8)NUT (M8) Stainless Steel2
1919613A1倾斜销总成PIN ASSEMBLY Tilt1
2049930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
208M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
2119614倾斜管TILT TUBE1
218M0041938倾斜管TILT TUBE1
22826164螺母 (.875-14)NUT (.875-14)2
228M0231351锁紧螺母NUT Lock2
2319624A1密封套件SEAL KIT1
2422740卡扣CLIP1
2569205C形垫圈C WASHER1
258M0084613C形垫圈C-WASHER1
26812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
26878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
27814259螺钉 (.500-20 x 4.00)SCREW (.500-20 x 4.00)4
2828421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
288M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
298M0027784螺母NUT4
2982671117螺母(.500-20)NUT (.500-20)4
301938525连接杆LINK1
308M0084737连接杆LINK1
3119615A4倾斜杆总成LEVER ASSEMBLY Tilt1
3119615A05倾斜杆总成LEVER ASSEMBLY Tilt1
32812707衬套BUSHING1
3319605垫圈(.520 x .850 x .060) 尼龙-黑色WASHER (.520 x .850 x .060) Nylon - Black1
338M0042643垫圈(.520 x .850 x .060) 尼龙 黑色WASHER (.520 x .850 x .060) Nylon, Black1
33815796垫圈 (.030英寸)WASHER (.030 IN.)1
3499611波形垫圈WAVE WASHER1
3519621倾斜旋钮TILT KNOB1
358M0007469倾斜旋钮KNOB Tilt1
3619611螺钉(.375-16×0.62)SCREW (.375-16 x .62)1
3776841螺钉 (.500-20 x 3.500)SCREW (.500-20 x 3.500)2
38812432F5安装支架MOUNTING BRACKET1
38812433F5安装支架MOUNTING BRACKET1
3988432螺钉(.375-24 x 4.00)SCREW (.375-24 x 4.00)4
4029395垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)8
408M0042641垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)8
41134371螺母 (.375-24)NUT (.375-24)4
41862903螺母 (.375-24)NUT (.375-24)4
42812434A2T型手柄螺母NUT T Handle2

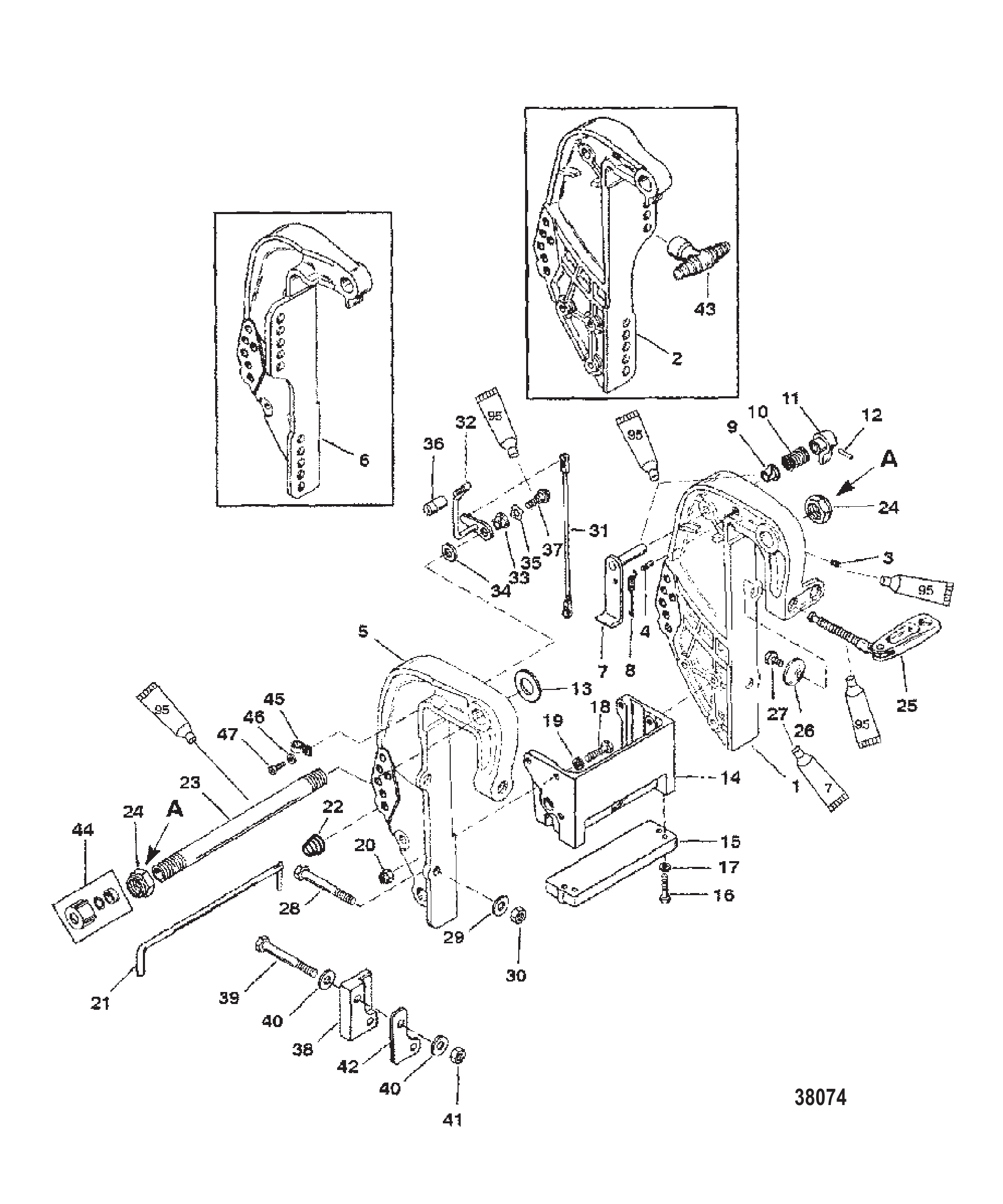

图 33艉板/夹紧支架(序列号0D182000及以上) TRANSOM/CLAMP BRACKET (S/N 0D182000 and ABOVE)
艉板/夹紧支架(序列号0D182000及以上) TRANSOM/CLAMP BRACKET (S/N 0D182000 and ABOVE)
REF零件编号中文名称英文名称数量
1822868A1夹具支架总成CLAMP BRACKET ASSEMBLY1
18M0084195支架-卡箍-黑色BRACKET-CLAMP-BLK1
1822868A2夹具支架总成CLAMP BRACKET ASSEMBLY1
2822866A1艉板支架总成BRACKET ASSEMBLY Transom1
2822866T04艉板支架-左舷BRACKET Transom - Port1
2822866A2艉板支架总成BRACKET ASSEMBLY Transom1
2822866A3艉板支架总成BRACKET ASSEMBLY Transom1
398727润滑脂接头FITTING Grease1
38M0169588润滑脂接头FITTING Grease1
499604槽销PIN Groove1
5822867F1夹箍支架CLAMP BRACKET1
5822867F2夹箍支架CLAMP BRACKET1
6822865F2艉板支架BRACKET Transom1
6822865T05艉板支架-右舷BRACKET Transom - Starboard1
6822865F3艉板支架BRACKET Transom1
6822865F4艉板支架BRACKET Transom1
719618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
7893704T01倾斜锁杆LEVER Tilt Lock1
719618A3倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
719618A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
719618A5倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
899622弹簧SPRING1
965830尼龙衬套NYLINER1
10812708弹簧SPRING1
11812709T旋钮KNOB1
11812709旋钮KNOB1
11812709T6旋钮KNOB1
11812709旋钮KNOB1
11812709F1旋钮KNOB1
11812709旋钮KNOB1
1299615槽销PIN Groove1
1319619垫圈WASHER2
1418486F5锚支架BRACKET Anchor1
1418486A08支架套件锚BRACKET KIT Anchor1
1418486F6锚支架BRACKET Anchor1
1418486A08支架套件锚BRACKET KIT Anchor1
1418486F7锚支架BRACKET Anchor1
15818298A1阳极套件ANODE KIT1
15818298Q1阳极套件ANODE KIT1
164000330螺钉(M6x25)SCREW (M6 x 25)2
168M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1729245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
178M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
184000354螺钉 (M8 x 30)SCREW (M8 x 30)5
184000355螺钉(M8×35)SCREW (M8 x 35)1
19400257锁紧垫圈（M8）LOCKWASHER (M8)4
20400635螺母 (M8)NUT (M8)2
20401388不锈钢螺母 (M8)NUT (M8) Stainless Steel2
2149930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
218M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
22821461弹簧SPRING1
2319614倾斜管TILT TUBE1
238M0041938倾斜管TILT TUBE1
24826164螺母 (.875-14)NUT (.875-14)2
248M0231351锁紧螺母NUT Lock2
25818883A1蝶形螺钉总成THUMB SCREW ASSEMBLY2
26818884垫圈WASHER2
27768042六角凸肩螺钉SHOULDER SCREW Hex2
28814259螺钉 (.500-20 x 4.00)SCREW (.500-20 x 4.00)4
2928421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
298M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
308M0027784螺母NUT4
3082671117螺母(.500-20)NUT (.500-20)4
311938525连接杆LINK1
318M0084737连接杆LINK1
3219615A4倾斜杆总成LEVER ASSEMBLY Tilt1
3219615A05倾斜杆总成LEVER ASSEMBLY Tilt1
33812707衬套BUSHING1
3419605垫圈(.520 x .850 x .060) 尼龙-黑色WASHER (.520 x .850 x .060) Nylon - Black1
348M0042643垫圈(.520 x .850 x .060) 尼龙 黑色WASHER (.520 x .850 x .060) Nylon, Black1
3599611波形垫圈WAVE WASHER1
3619621倾斜旋钮TILT KNOB1
368M0007469倾斜旋钮KNOB Tilt1
3719611螺钉(.375-16×0.62)SCREW (.375-16 x .62)1
38812432F5安装支架MOUNTING BRACKET1
38812433F5安装支架MOUNTING BRACKET1
3988432螺钉(.375-24 x 4.00)SCREW (.375-24 x 4.00)4
4029395垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)8
408M0042641垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)8
41134371螺母 (.375-24)NUT (.375-24)4
41862903螺母 (.375-24)NUT (.375-24)4
42821722垫片SHIM4
43812434A2T型手柄螺母 (动力升降)NUT T Handle (POWER TRIM)1
4419624A1密封套件 (电动/手动带遥控)SEAL KIT (ELECTRIC/MANUAL W/RC)1
4526550卡箍CLAMP1
4522740卡扣CLIP1
4669205C形垫圈C WASHER1
468M0084613C形垫圈C-WASHER1
47812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
47878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1

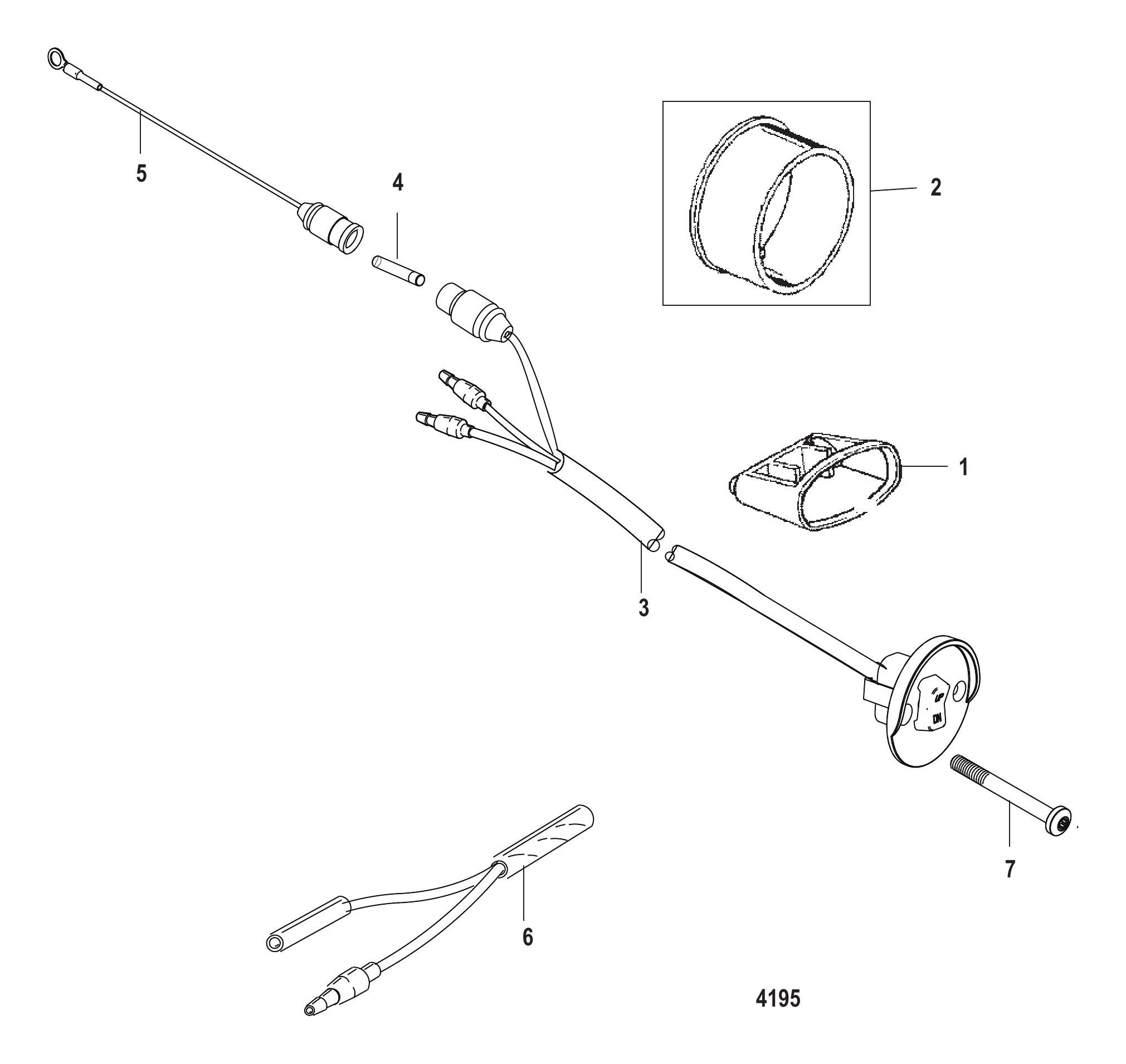

图 34升降开关套件 Trim Switch Kit
升降开关套件 Trim Switch Kit
REF零件编号中文名称英文名称数量
-18286A18升降开关套件(10.00英尺)SWITCH KIT Trim (10.00 Feet)1
118861固定座RETAINER1
2814820适配器ADAPTER1
3NSS开关(不单独销售)NOT SOLD SEPARATE Switch
479091保险丝20安培FUSE 20 Ampere1
48M0207796保险丝20安培FUSE 20 AMP1
595084A2拉线总成CABLE ASSEMBLY1
611149A2线缆总成 (6.00英寸)CABLE ASSEMBLY (6.00 Inches)2
719209螺钉(#10-32 x 2.25)SCREW (#10-32 x 2.25)2
7813523螺钉(#10-16 x 2.25)SCREW (#10-16 x 2.25)2
