水星 Mercury 30 JET 3 CYL 9973100 THRU 0P016999 - 爆炸图零件明细

两冲程化油器 · Belgium - Cat.# 90-85207097 · 共 30 个部位 · 1290 条零件

图 1附件 ACCESSORIES

零件编号	中文名称	英文名称	数量
43393A1	提手	CARRYING HANDLE	1
812497A2	二极管总成(双引擎)	DIODE ASSEMBLY (DUAL ENGINE)	1
898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
822462A3	电启动改装套件	CONVERSION KIT Electric Start	1
822462A06	起动机转换套件	CONVERSION KIT Starter Motor	1
812432A1	发动机安装套件(夹紧螺钉安装)	MOUNTING KIT Engine (CLAMP SCREW MOUNTING)	1
44357A2	冲洗附件	FLUSHING ATTACHMENT	1
44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
815548A8	马力限制器套件	HORSE POWER RESTRICTOR KIT	1
815548A9	马力限制器套件	HORSE POWER RESTRICTOR KIT	1
19674A2	开关/拉绳套件	SWITCH/LANYARD KIT	1
19674Q2	开关/拉绳套件	SWITCH/LANYARD KIT	1
88334A2	防腐电极套件	MERCATHODE KIT	1
8M0180081	防腐电极套件	MERCATHODE KIT	1
86300A5	防腐电极监测器	MERCATHODE MONITOR	1
18286A18	配平开关套件(10.00英尺)(含/不含舵柄)	SWITCH KIT Trim (10.00 Feet) (WITH OR WITHOUT TILLER)	1
828813A6	舵柄套件	TILLER HANDLE KIT	1
828813A29	舵柄套件	TILLER HANDLE KIT	1
828813A7	舵柄套件	TILLER HANDLE KIT	1
828813A6	舵柄套件	TILLER HANDLE KIT	1
17334A2	视觉警告系统(低油位/过热)	VISUAL WARNING SYSTEM (LOW OIL/OVERHEAT)	1
88825A6	电压调节器套件	REGULATOR KIT Voltage	1

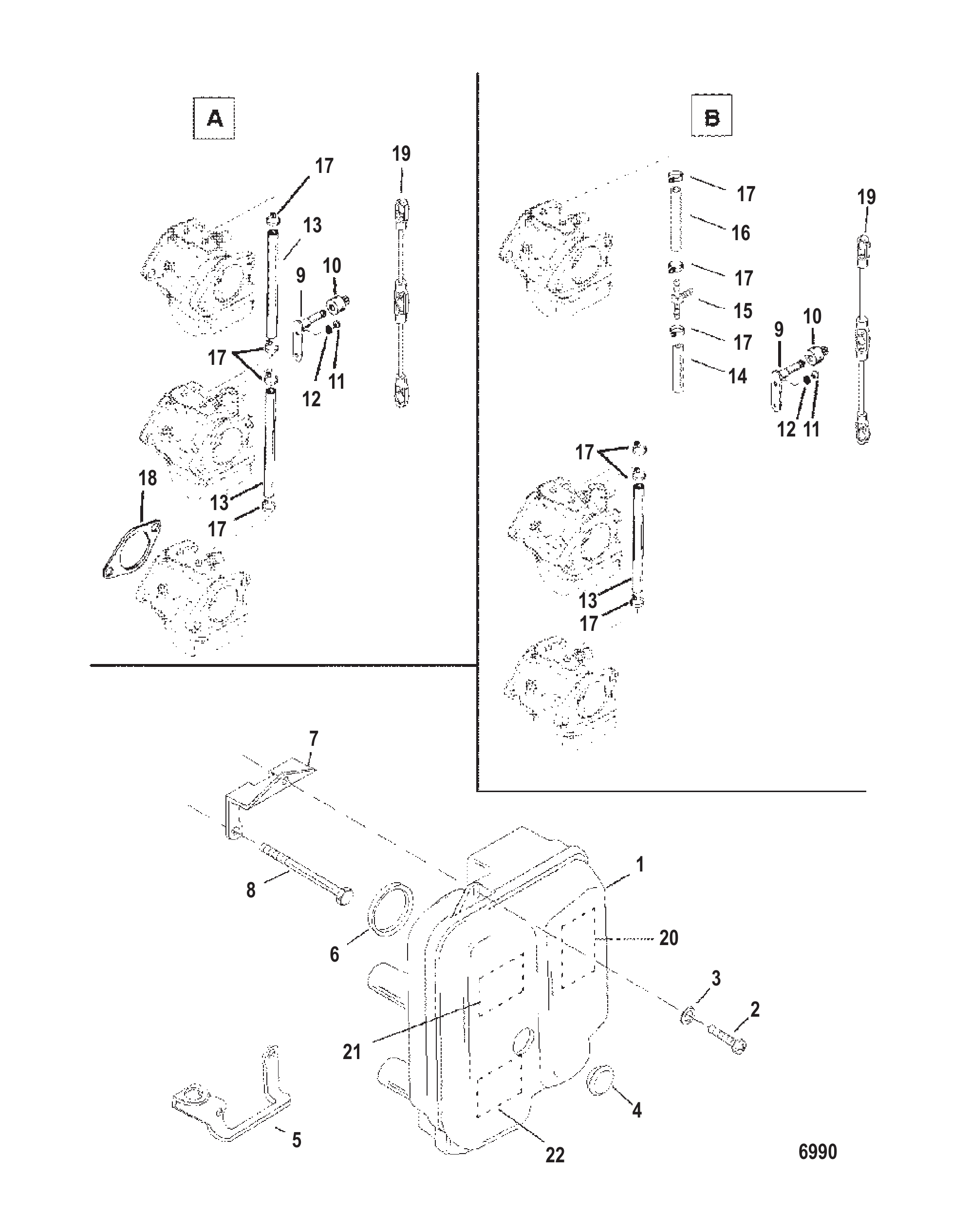

图 2缓冲板 ATTENUATOR PLATE

REF	零件编号	中文名称	英文名称	数量
1	828164	消音器	ATTENUATOR Sound	1
2	40019127	螺钉(M6 x 16)	SCREW (M6 x 16)	1
3	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
4	815784	盖帽	CAP	1
5	828928	支架	BRACKET	1
6	812889	密封件	SEAL	3
7	828927	支架	BRACKET	1
8	4000363	螺丝(M8 x 100)	SCREW (M8 x 100)	6
9	11399A1	臂总成	ARM ASSEMBLY	1
10	67748	滚轮	ROLLER	1
11	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
12	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
12	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
13	9912878	软管 (0.187) (26.00英寸散装) (4-1/4英寸)	HOSE (.187) (26.00 Inches Bulk) (4-1/4 IN.)	2
13	9912878	软管 (0.187) (26.00英寸散装) (4-1/4英寸)	HOSE (.187) (26.00 Inches Bulk) (4-1/4 IN.)	1
14	9912878	软管 (0.187) (26.00英寸散装) (3英寸)	HOSE (.187) (26.00 Inches Bulk) (3 IN.)	1
15	830285	接头三通	FITTING TEE	1
16	9912878	软管 (0.187) (26.00英寸散装) (1英寸)	HOSE (.187) (26.00 Inches Bulk) (1 IN.)	1
17	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
18	8144461	法兰衬垫	GASKET Flange	3
19	8252043	油门连杆	LINK Throttle	1
19	825204T03	连接杆	LINK	1
20	8272822	高压警告标贴	DECAL Warning High Voltage	1
21	NSS	不单独销售贴花-警示	NOT SOLD SEPARATE Decal-Caution	1
22	NSS	不单独销售贴花-警示-空挡怠速	NOT SOLD SEPARATE Decal-Caution-In Gear Idle	1
-	852067A98	动力头总成	POWERHEAD ASSEMBLY	1
-	852067T98	动力头总成	POWERHEAD ASSEMBLY	1
-	828553A97	衬垫套件	GASKET SET	1

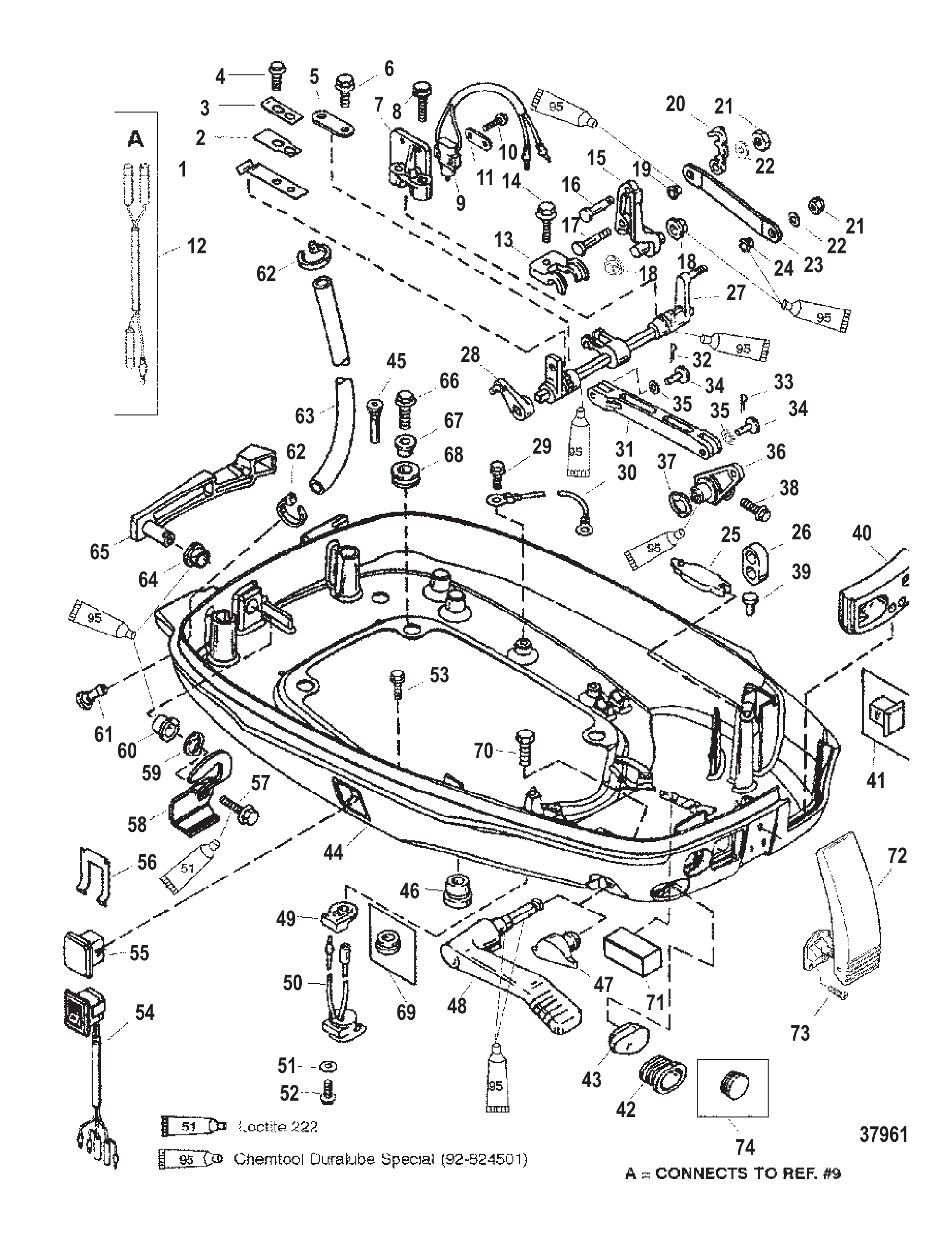

图 3下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	824992	定位弹簧	SPRING Detent	1
2	824993	背衬弹簧	SPRING Backing	2
3	824994	板簧	SPRING Plate	1
4	82191916	螺钉(M5×14)	SCREW (M5 x 14)	2
5	8280471	绑带	STRAP	1
6	40011127	螺钉 (M6 x 16) 不锈钢	SCREW (M6 x 16) Stainless Steel	1
6	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
7	8220081	卡箍	CLAMP	1
7	8M0039049	换档轴夹	CLAMP-SHIFT SHAFT	1
8	40011130	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	2
9	813960A3	开关	SWITCH	1
9	8M0052927	开关总成	SWITCH ASSY	1
10	4001168	不锈钢螺丝(M3.5 x 20)	SCREW (M3.5 x 20) Stainless Steel	2
10	88075020	螺丝(M3 x 20)	SCREW (M3 x 20)	2
11	824923	安装板	PLATE	1
12	824934A3	线束总成	HARNESS ASSEMBLY	1
13	822469	盖帽	CAP	1
13	8M0036802	中间盖	CAP-INTERMEDIATE	1
14	40011127	螺钉 (M6 x 16) 不锈钢	SCREW (M6 x 16) Stainless Steel	1
14	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
15	8224671	杠杆	LEVER	1
15	8M0041741	中间杆	LEVER-INTERMEDIAT	1
16	42927	嵌件	INSERT	1
17	8224561	销	PIN	1
18	26954	衬套	BUSHING	2
19	48475	衬套	BUSHING	1
20	822459	固定座	RETAINER	1
21	8268336	螺母 (M6)	NUT (M6)	2
21	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
22	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
23	8224701	换挡连杆	LINK Shift	1
24	48475	衬套	BUSHING	1
25	98889	闩锁	LATCH	1
26	39519	杯套	CUP	1
27	821483A6	水平换挡轴	SHIFT SHAFT Horizontal	1
28	821487	联锁驱动杆	LEVER -INTERLOCK ACTUATING	1
29	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
29	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
30	88807A28	线缆总成(黑色-7.5英寸)	CABLE ASSEMBLY (BLACK-7 1/2 IN.)	1
31	8251751	换挡连杆	SHIFT ROD	1
31	8M0037997	换档杆	ROD-SHIFT	1
32	269531	开口销	COTTER PIN	2
32	210711	开口销	COTTER PIN	2
33	21071	开口销	COTTER PIN	1
33	210711	开口销	COTTER PIN	1
34	8251851	销	PIN	2
35	827418	锁紧垫圈	LOCKWASHER	2
36	822011	换挡杆	LEVER Shift	1
37	825273	波形垫圈	WAVE WASHER	1
38	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	1
39	42975	传动螺钉	DRIVE SCREW	2
40	828462	护孔环	GROMMET	1
40	828462001	护孔环	GROMMET	1
41	17230	堵头	PLUG	1
42	822424	密封件	SEAL	1
42	822424001	油门线密封件	SEAL Throttle Cable	1
43	823874	密封件	SEAL	1
43	823874001	堵头	PLUG	1
44	828165A1	下机罩	BOTTOM COWL	1
44	828165A2	下机罩	BOTTOM COWL	1
45	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	1
46	19565	护孔环	GROMMET	1
46	19565002	护孔环	GROMMET	1
46	19564	护孔环	GROMMET	1
46	8M0179867	护孔环	GROMMET	1
47	824076	堵头	PLUG	1
47	824076001	换挡杆堵头	PLUG Shift Lever	1
48	8214901	手柄	HANDLE	1
49	823572	密封件	SEAL	1
49	823572001	报警喇叭密封件	SEAL Warning Horn	1
50	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
50	8M0210763	报警器	ALARM	1
51	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
51	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
52	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	1
53	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
53	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
54	850691	开关	SWITCH	1
54	8M0235192	微调开关	SWITCH TRIM	1
55	8128301	堵头	PLUG	1
55	812830T01	堵头	PLUG	1
56	8124431	固定座	RETAINER	1
56	8M0032848	开关固定座	RETAINER Switch	1
57	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	1
58	828464	锁紧凸轮	CAM Latch	1
59	12134	波形垫圈	WASHER Wave	1
60	812707	衬套	BUSHING	1
61	813613	接头	FITTING	1
62	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
62	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
63	7568058	软管 (15.00英寸)	HOSE (15.00 Inches)	1
64	812707	衬套	BUSHING	1
65	823573F1	罩壳锁杆	LEVER Cowl Latch	1
65	823573F2	罩壳锁杆	LEVER Cowl Latch	1
66	40011129	不锈钢螺钉(M6x25)	SCREW (M6 x 25) Stainless Steel	4
67	822003	衬套	BUSHING	4
68	822002	护孔环	GROMMET	4
69	824473	堵头	PLUG	1
70	40011107		SCREW (M5 x 16) Stainless Steel INTERLOCK CABLE	1
71	828465	缓冲垫	BUMPER	2
71	8M0043169	缓冲垫	BUMPER	2
72	828463	前锁扣	LATCH Front	1
73	4001987	螺钉(M4×16)	SCREW (M4 x 16)	3
74	16226	护孔环	GROMMET	1

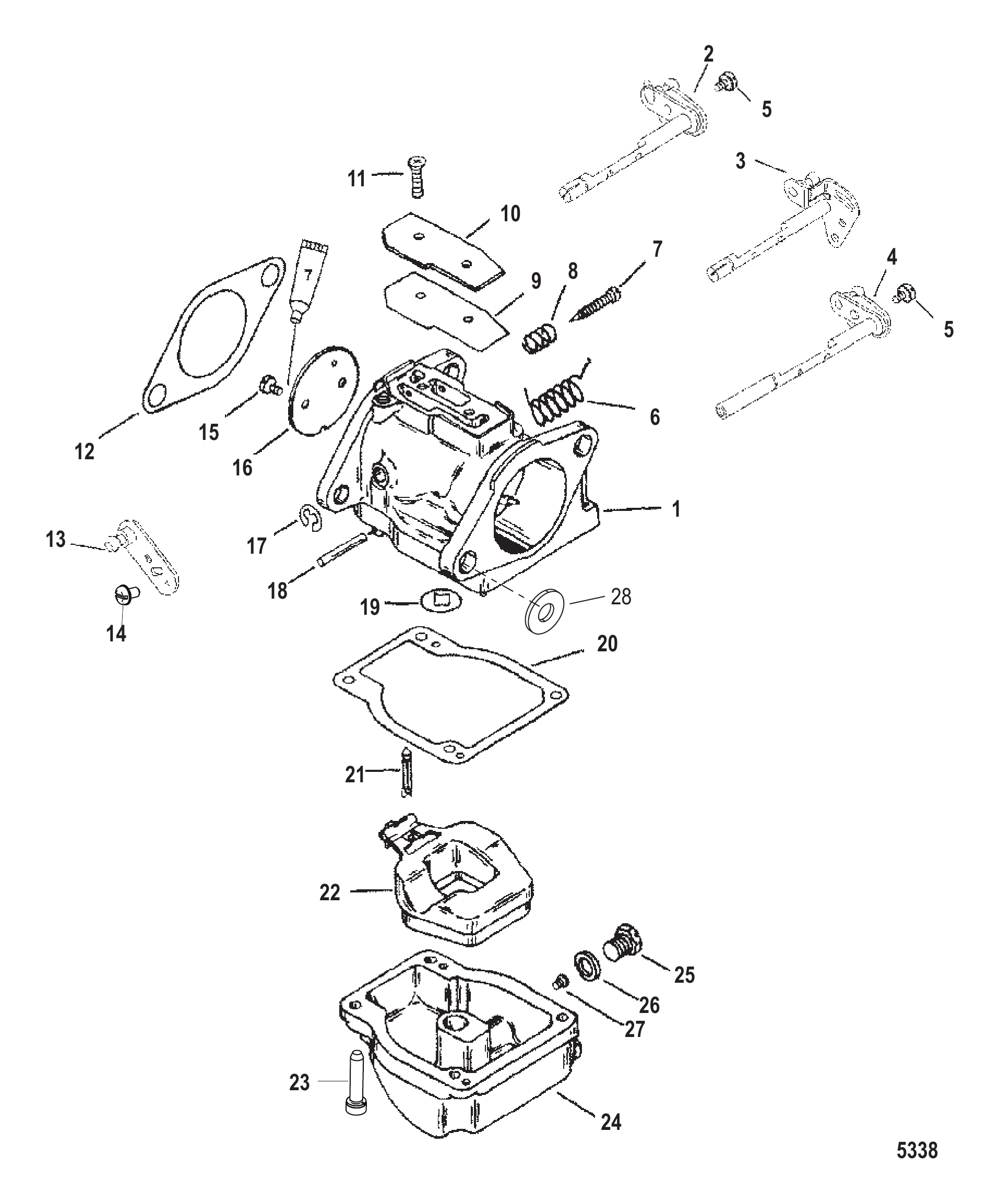

图 4化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	823799A7	化油器	CARBURETOR	1
1	823799T34	化油器(WME 92-1)	CARBURETOR (WME 92-1)	1
1	823799A8	化油器	CARBURETOR	1
1	823799T35	化油器(WME 92-2)	CARBURETOR (WME 92-2)	1
1	823799A9	化油器	CARBURETOR	1
1	823799T36	化油器(WME 92-3)	CARBURETOR (WME 92-3)	1
1	823799A13	化油器	CARBURETOR	1
1	823799T31	化油器(WME 91-1)	CARBURETOR (WME 91-1)	1
1	823799A14	化油器	CARBURETOR	1
1	823799T32	化油器(WME 91-2)	CARBURETOR (WME 91-2)	1
1	823799A15	化油器	CARBURETOR	1
1	823799A33	化油器	CARBURETOR	1
1	824902A16	化油器	CARBURETOR	1
1	824902T28	化油器(WME 93-1)	CARBURETOR (WME 93-1)	1
1	824902A17	化油器	CARBURETOR	1
1	824902T29	化油器(WME 93-2)	CARBURETOR (WME 93-2)	1
1	824902A18	化油器	CARBURETOR	1
1	824902T30	化油器(WME 93-3)	CARBURETOR (WME 93-3)	1
2	823632	油门轴	SHAFT Throttle	1
3	823633	油门轴	SHAFT Throttle	1
4	823636	油门轴	SHAFT Throttle	1
2	823632	油门轴	SHAFT Throttle	2
3	823633	油门轴	SHAFT Throttle	1
5	823634	螺钉	SCREW	2
6	NSS		NOT SOLD SEPARATE Spring-Throttle Return	3
7	NSS		NOT SOLD SEPARATE Idle Needle	3
8	NSS		NOT SOLD SEPARATE Spring-Idle Needle	3
9	NSS		NOT SOLD SEPARATE Gasket-cover Plate	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杆	LEVER Oil Pump	1
14	8086121	杆固定螺钉	SCREW Lever Retainer	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	97245	油门阀	VALVE Throttle	3
17	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	3
18	F10064	轴	SHAFT	3
19	808738	衬垫	GASKET	3
20	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
24	811693	燃油杯	BOWL Fuel	3
24	811695	燃油杯	BOWL Fuel	1
24	811693	燃油杯	BOWL Fuel	2
25	811694	塞套件	PLUG KIT	3
26	802731	油封组(含4个油封)	SEAL (CONSISTS OF 4 SEALS)	1
27	7394	量孔 (.044)	JET (.044)	3
27	6359	量孔(.052)	JET (.052)	3
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	828553A97	衬垫套件	GASKET SET	1

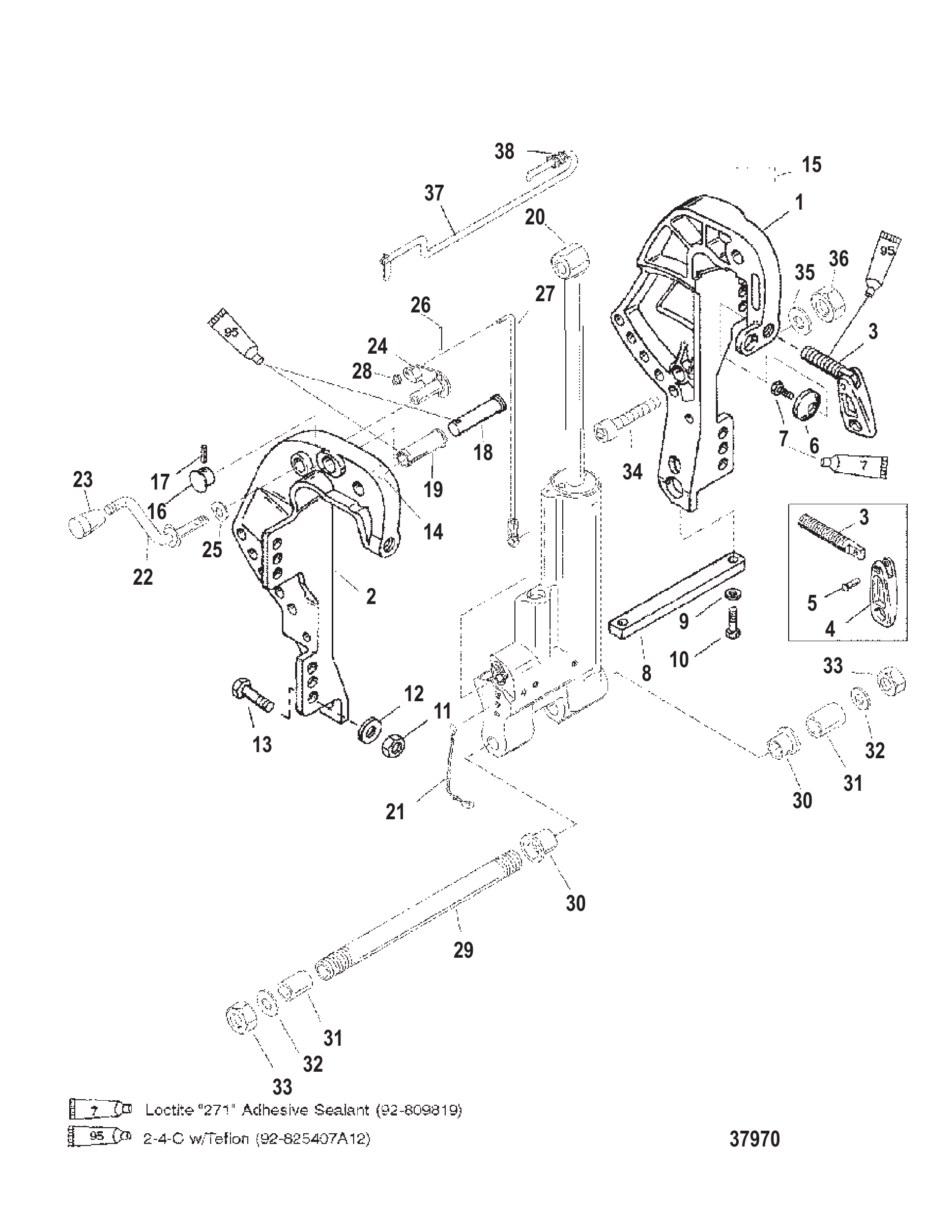

图 5夹箍支架 CLAMP BRACKET

REF	零件编号	中文名称	英文名称	数量
1	821773A1	夹箍支架	CLAMP BRACKET	1
1	821773T1	夹箍支架	CLAMP BRACKET	1
1	821773A2	夹箍支架	CLAMP BRACKET	1
2	821774A1	夹箍支架	CLAMP BRACKET	1
2	821774T8	夹箍支架	CLAMP BRACKET	1
2	821774A2	夹箍支架	CLAMP BRACKET	1
2	821774T9	夹箍支架	CLAMP BRACKET	1
3	818883A1	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	NSS	不单独销售手柄	NOT SOLD SEPARATE Handle	2
5	NSS	不单独销售铆钉	NOT SOLD SEPARATE Rivet	2
6	818884	垫圈	WASHER	2
7	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
8	825271	阳极块	ANODE	1
8	8252711	阳极块	ANODE	1
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
10	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
11	8M0027784	螺母	NUT	2
11	82671117	螺母(.500-20)	NUT (.500-20)	2
12	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
12	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
13	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	2
14	830253	倾斜锁止贴纸	DECAL Tilt Lock	1
15	NSS	警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Warning	1
16	822401	盖帽	CAP	1
17	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
18	823589	衬套	BUSHING	1
19	8224001	销	PIN	1
20	828533A1	液压辅助配平	TRIM HYDRAULIC ASSIST	1
20	828533T1	配平装置	TRIM	1
21	88238A11	拉线总成	CABLE ASSEMBLY	1
22	828924	倾斜杆	LEVER Tilt	1
23	19621	倾斜旋钮	TILT KNOB	1
23	8M0007469	倾斜旋钮	KNOB Tilt	1
24	828930	杠杆臂	ARM Lever	1
25	31030	波形垫圈	WAVE WASHER	1
26	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
27	8289961	连接杆	LINK	1
28	29488	螺母 (#10-32)	NUT (#10-32)	1
28	8M0204718	螺母	NUT	1
29	822481	锚定销(14毫米)	PIN Anchor (14 mm)	1
29	822481001	销(14毫米)	PIN (14 mm)	1
30	822482	衬套	BUSHING	2
31	822484	衬套	BUSHING	2
32	825190	垫圈	WASHER	2
33	4013414	螺母(M14)	NUT (M14)	2
33	826712	螺母	NUT	2
34	4009040	不锈钢螺钉(M10x40)	SCREW (M10 x 40) Stainless Steel	2
35	4002319	垫圈	WASHER	2
36	13914	螺母(M10)	NUT (M10)	2
36	40140	螺母(M10)	NUT (M10)	2
37	853923A1	销	PIN	1
38	821461	弹簧	SPRING	1

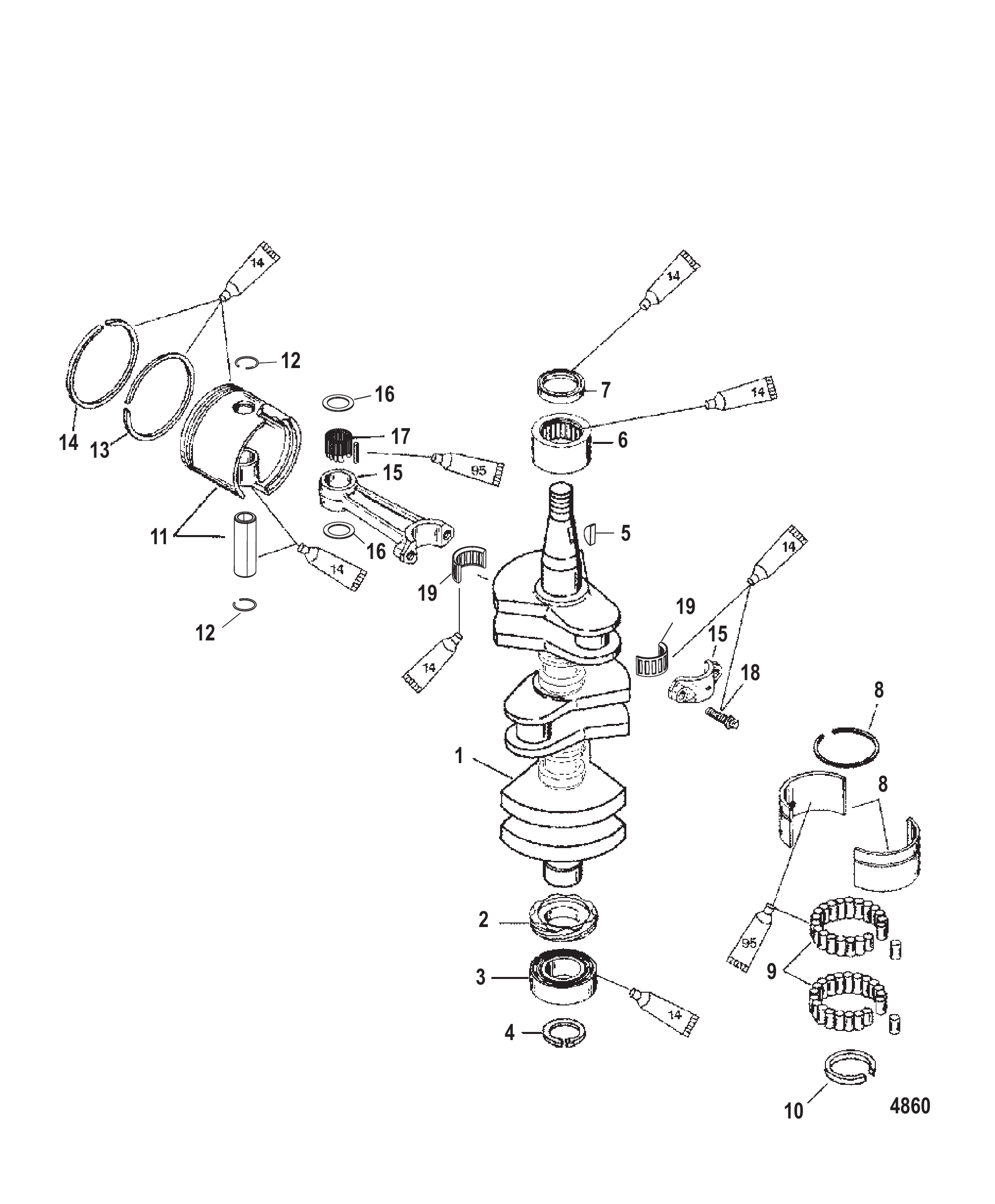

图 6曲轴、活塞及连杆 CRANKSHAFT, PISTONS AND CONNECTION RODS

REF	零件编号	中文名称	英文名称	数量
1	827954A3	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43019A2	齿轮总成	GEAR ASSEMBLY	1
3	63742	滚珠轴承	BEARING Ball	1
3	63742T	滚珠轴承	BEARING Ball	1
4	812877	挡圈	RING Retaining	1
5	91800	半圆键	KEY Woodruff	2
6	818889A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	8173971	油封	SEAL Oil	1
8	827955A2	轴承总成	BEARING ASSEMBLY	2
9	NSS	滚轮(不单独销售)	NOT SOLD SEPARATE Roller	56
10	NSS	密封环（不单独销售）	NOT SOLD SEPARATE Ring-Seal	2
11	850026A1	活塞总成	PISTON ASSEMBLY	3
11	850026T1	活塞总成	PISTON ASSEMBLY	3
11	850026A2	活塞总成	PISTON ASSEMBLY	3
11	850026T2	活塞	PISTON	3
12	52035	锁环	RING Lock	6
12	857196	锁紧环	LOCK RING	6
13	831255A6	活塞环组	RING SET Piston	1
13	821695A6	活塞环组	RING SET Piston	3
14	NSS	活塞环(不单独销售)	NOT SOLD SEPARATE Piston Ring	1
15	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
16	812876	垫圈	WASHER	6
16	8M0012298	止推垫片	THRUST WASHER	6
17	47270	轴承	BEARING	87
17	8M0214934	滚针轴承@200	BRG-NEEDLE @200	87
18	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
19	17514A1	轴承套件	BEARING KIT	3
19	8M0234886	轴承保持架	CAGE BEARING	3
-	852067A98	动力头总成	POWERHEAD ASSEMBLY	1
-	852067T98	动力头总成	POWERHEAD ASSEMBLY	1

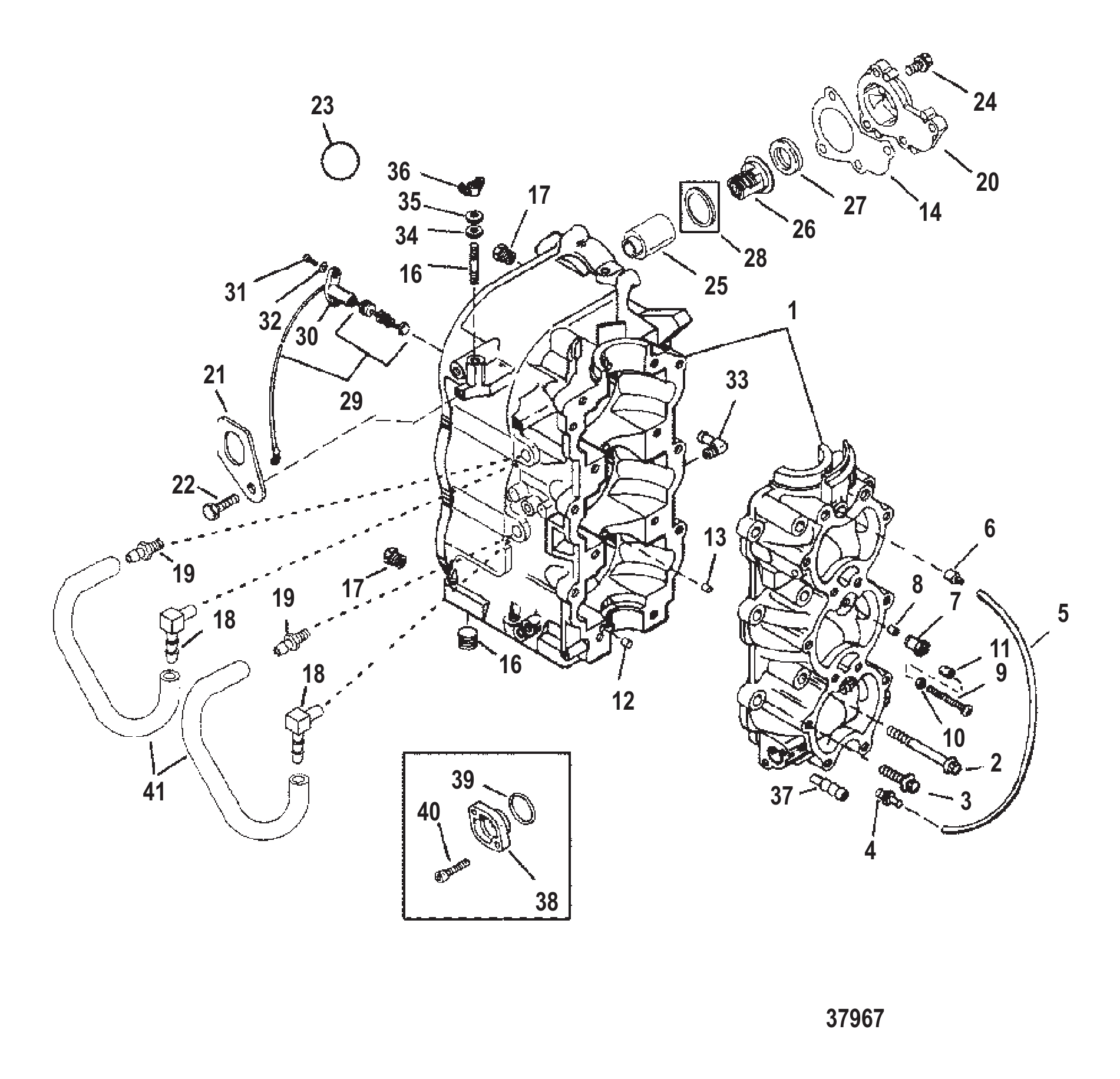

图 7气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE

REF	零件编号	中文名称	英文名称	数量
1	827953A7	气缸体	CYLINDER BLOCK	1
1	827953T7	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材 (20.00英尺散装) (15英寸)	TUBING (20.00 Feet Bulk) (15 IN.)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	426232	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
7	812888A2	托架总成	CARRIER ASSEMBLY	2
8	42657A4	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	43044	定位销 - 无孔 (0.375 x 0.625)	PIN Dowel - Without Hole (.375 x .625) (LOCATING)	1
13	8128701	销(轴承座圈)	PIN (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	827284	衬垫	GASKET	1
15	8161946	螺柱	STUD	2
15	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
16	185981	管塞(.375-18)	PLUG Pipe (.375-18)	1
17	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	2
18	19725	弯头	ELBOW	2
19	426585	止回阀	CHECK VALVE	2
20	827251A1	盖板	COVER	1
20	827251	盖板	COVER	1
20	827251A1	盖板	COVER	1
21	850897	吊环	LIFTING EYE	1
22	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	1
23	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
24	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	4
25	827365	托架	CARRIER	1
25	889735	托架	CARRIER	1
26	850055	节温器 43°C (110°F)	THERMOSTAT 43°C (110°F)	1
26	850055001	节温器 43°C (110°F)	THERMOSTAT 43°C (110°F)	1
27	854639	密封件	SEAL	1
27	854639001	密封件	SEAL	1
28	62701	O型圈	O-RING	1
29	787992	温度传感器	SENDER Temperature	1
30	44552	固定座	RETAINER	1
30	889733	固定座	RETAINER	1
31	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
31	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
32	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
32	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
33	996641	弯头	ELBOW	1
33	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
34	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
34	8M0204663	垫片@5	WASHER @5	2
35	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
36	816872	蝶形螺母	WING NUT	2
37	65857	连接器	CONNECTOR	1
37	56759	倒钩接头	FITTING Barbed	1
38	8129962	盖板	COVER	1
39	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
40	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
41	99130122	管材 (20.00英尺散装) (5-1/2英寸)	TUBING (20.00 Feet Bulk) (5-1/2 IN.)	2
41	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	852067A98	动力头总成	POWERHEAD ASSEMBLY	1
-	852067T98	动力头总成	POWERHEAD ASSEMBLY	1
-	828553A97	衬垫套件	GASKET SET	1

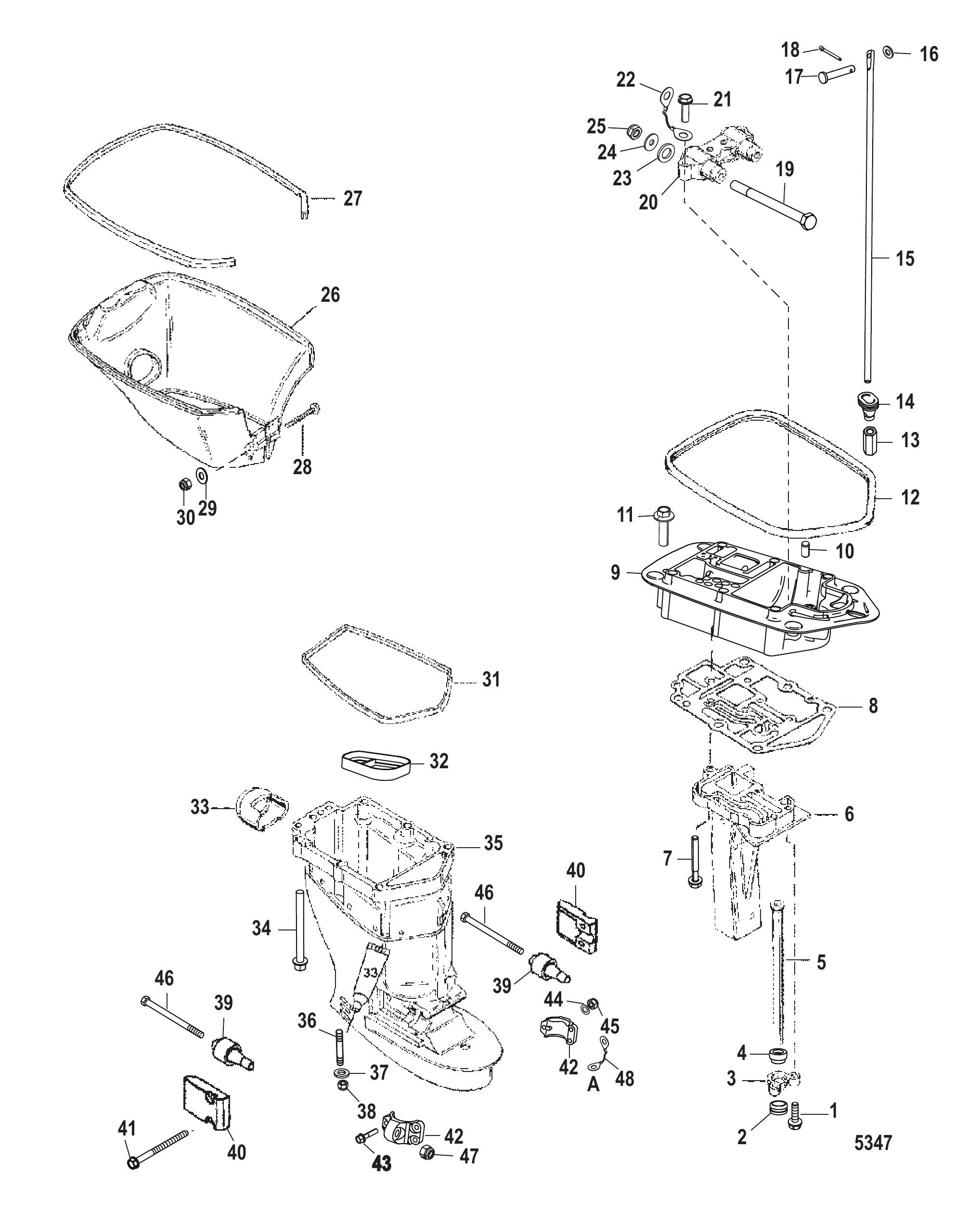

图 8驱动轴壳体/排气板 DRIVESHAFT HOUSING/EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	40011155	不锈钢螺钉(M8x55)	SCREW (M8 x 55) Stainless Steel	2
2	93221	护孔环	GROMMET	1
2	93221002	护孔环	GROMMET	1
3	99019	卡箍	CLAMP	1
4	42941	水管密封件	SEAL Water Tube	1
4	42941001	水管密封件	SEAL Water Tube	1
5	430144	水管	TUBE Water	1
5	8M0042795	短型水管	TUBE-WATER-SHORT	1
5	430143	水管	TUBE Water	1
5	8M0042794	大型水管	TUBE-WATER-LG	1
6	8214401	排气管	TUBE Exhaust	1
6	87917217T	排气管	TUBE-EXHAUST	1
7	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
8	821446	驱动轴壳体衬垫	GASKET Driveshaft Housing	1
8	8M0000821	衬垫	GASKET	1
9	821439A4	适配板总成	ADAPTER PLATE ASSEMBLY	1
9	821439T4	适配板	ADAPTER PLATE	1
10	23784	定位销	PIN Dowel	4
11	4010875	不锈钢六角法兰螺钉(M10x75)	SCREW (M10 x 75) Hex Flange - Stainless Steel	1
12	821510	底罩密封条	SEAL Bottom Cowl	1
12	8M0043148	底罩密封件	SEAL-BOTTOM COWL	1
13	822419	联轴器	COUPLER	1
14	822408	护孔环	GROMMET	1
14	822408001	护孔环	GROMMET	1
15	822418	换挡轴(上部)	SHIFT SHAFT (UPPER)	1
15	880042	换档轴	SHIFT SHAFT	1
16	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
17	822417	销	PIN	1
18	269531	开口销	COTTER PIN	1
18	210711	开口销	COTTER PIN	1
19	822396	螺钉(M12x162)	SCREW (M12 x 162)	2
19	8M0000520	螺栓	BOLT	2
20	821441	支架	MOUNT	1
20	8M4501487	上部安装总成	MOUNT UPPER ASM	1
21	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	4
22	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
23	934161	氯丁橡胶垫圈	WASHER Neoprene	2
23	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
24	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
24	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
25	90099	螺母(M12)	NUT (M12)	2
25	896963	螺母(M12)	NUT (M12)	2
26	828466A1	配平盖	TRIM COVER	1
26	828466A2	配平盖	TRIM COVER	1
26	828466A1	配平盖	TRIM COVER	1
27	822421	缓冲垫	BUMPER	1
27	8M0043155	上部配平缓冲器	BUMPER-UPPER TRIM	1
28	826173	螺钉(M5x0.8x60)	SCREW (M5 x .8 x 60)	1
29	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
30	400263	螺母 (M5)	NUT (M5)	1
31	8270231	缓冲垫	BUMPER	1
31	8M0043170	缓冲垫	BUMPER	1
32	822395	密封件	SEAL	1
32	822395001	密封件	SEAL	1
33	828495	怠速泄压密封件	SEAL Idle Relief	1
33	828495001	怠速泄压密封件	SEAL Idle Relief	1
34	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
35	821447A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
35	821447T10	驱动轴壳体	HOUSING Driveshaft	1
35	821447A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
35	821447T11	驱动轴壳体-灰色	DRIVESHAFT HSG-GR	1
35	821841A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
35	821841T7	驱动轴壳体	HOUSING Driveshaft	1
35	821841A8	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
35	821841T8	D/S壳体-灰色	D/S HOUSING-GRAY	1
36	823984	螺柱（M10×50）	STUD (M10 x 50)	1
37	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
37	8M0214963	垫圈	WASHER	1
38	13914	螺母(M10)	NUT (M10)	1
38	40140	螺母(M10)	NUT (M10)	1
39	8284842	支架 (下部)	MOUNT (LOWER)	2
40	828485F1	安装盖	COVER Mount	2
40	828485F2	安装盖	COVER Mount	2
40	828485F1	安装盖	COVER Mount	2
41	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	4
42	850030F1	下轭架	YOKE Bottom	2
42	850030F2	下轭架	YOKE Bottom	2
42	850030F1	下轭架	YOKE Bottom	2
43	82445940	螺钉 (M8 x 40) 不锈钢	SCREW (M8 x 40) Stainless Steel	3
43	8M0038368	螺钉 M8 x 40	SCREW M8 x 40	3
44	36001	垫圈	WASHER	3
45	401198	螺母 (M8)	NUT (M8)	3
45	401378	螺母 (M8)	NUT (M8)	3
46	828556	螺钉 (M12 x 125)	SCREW (M12 x 125)	2
47	90099	螺母(M12)	NUT (M12)	2
47	896963	螺母(M12)	NUT (M12)	2
48	NA	不可用不随此型号销售	NOT AVAILABLE Not Sold With This Model	1
-	828553A97	衬垫套件	GASKET SET	1

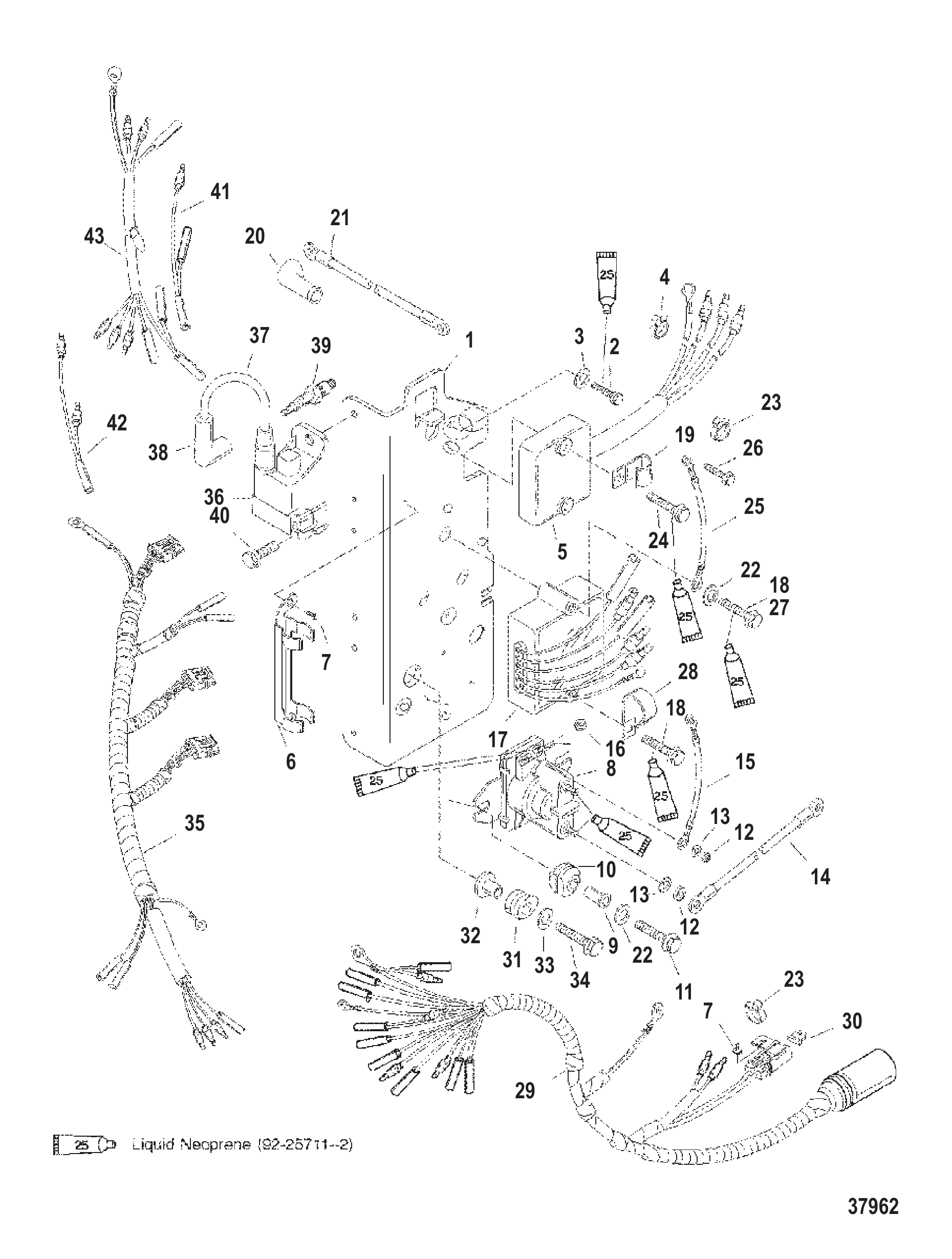

图 9电气组件 ELECTRICAL COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	8302351	电气板	PLATE Electrical	1
2	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	1
3	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
4	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
5	821889A49	转速限制器	REV LIMITER	1
5	821889A50	转速限制器	REV LIMITER	1
6	8266241	卡箍	CLAMP	1
7	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	3
8	850187A1	电磁阀总成	SOLENOID ASSEMBLY	1
8	8M0185146	电磁阀总成	SOLENOID ASSEMBLY	1
9	818968	衬套	BUSHING	2
9	8M0214955	衬套	BUSHING	2
10	818967	护孔环	GROMMET	2
10	8M0207785	护孔环	GROMMET	2
11	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
12	64015	螺母 (.250-20)	NUT (.250-20)	2
13	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
14	88807A33	拉线总成	CABLE ASSEMBLY	1
15	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
16	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
17	854515	电压调节器	REGULATOR Voltage	1
17	8M0084173	电压调节器	VOLTAGE REGULATOR	1
18	82129135	螺钉(M6x35)	SCREW (M6 x 35)	2
19	55098	J型卡扣	J CLIP	1
19	8M0024808	J型夹	J-CLIP	1
20	830233	红色绝缘护套	BOOT Insulator - Red	1
21	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
22	29245	垫圈(.281 x .500 x .060)不锈钢(电动款需3个)	WASHER (.281 x .500 x .060) Stainless Steel (QUANTITY OF 3 ON ELECTRIC)	1
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
25	88807A31	拉线总成	CABLE ASSEMBLY	1
26	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	1
27	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
28	54457	J型夹(电动款需3个)	J CLIP (QUANTITY OF 3 ON ELECTRIC)	2
29	850220A2	发动机线束总成	HARNESS ASSEMBLY Engine	1
30	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
31	822002	护孔环	GROMMET	3
32	822003	衬套	BUSHING	3
33	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
33	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	3
34	40011129	不锈钢螺钉(M6x25)	SCREW (M6 x 25) Stainless Steel	3
35	850221A2	点火线束总成	HARNESS ASSEMBLY Ignition	1
36	827509A7	CDM总成	CDM ASSEMBLY	2
36	827509T7	CDM模块总成	CDM MODULE ASSEMBLY	2
36	827509A10	CDM模块总成	CDM MODULE ASSEMBLY	1
37	821945A61	高压电缆总成	CABLE ASSEMBLY Hi Tension	3
38	63709A1	护套/端子套件	BOOT/TERMINAL KIT	3
39	8167372	火花塞(NGK# BP8H-N-10)	SPARK PLUG (NGK# BP8H-N-10)	3
39	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	3
39	8168372	火花塞(NGK#BPZ-8H-N-10)	SPARK PLUG (NGK#BPZ-8H-N-10)	3
39	938	SP #QL78YC @4	SP #QL78YC @4	3
39	14103568	火花塞(NGK#BUZ8H)	SPARK PLUG (NGK#BUZ8H)	3
39	896329885	SP #L6VC @4	SP #L6VC @4	3
40	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	6
41	850052A1	电源线束总成	HARNESS ASSEMBLY Power	1
42	11149A31	线束总成	HARNESS ASSEMBLY	1
42	11149T31	线束总成	HARNESS ASSY	1
43	852375A2	线束总成	HARNESS ASSEMBLY	1
43	852375A4	线束总成	HARNESS ASSEMBLY	1

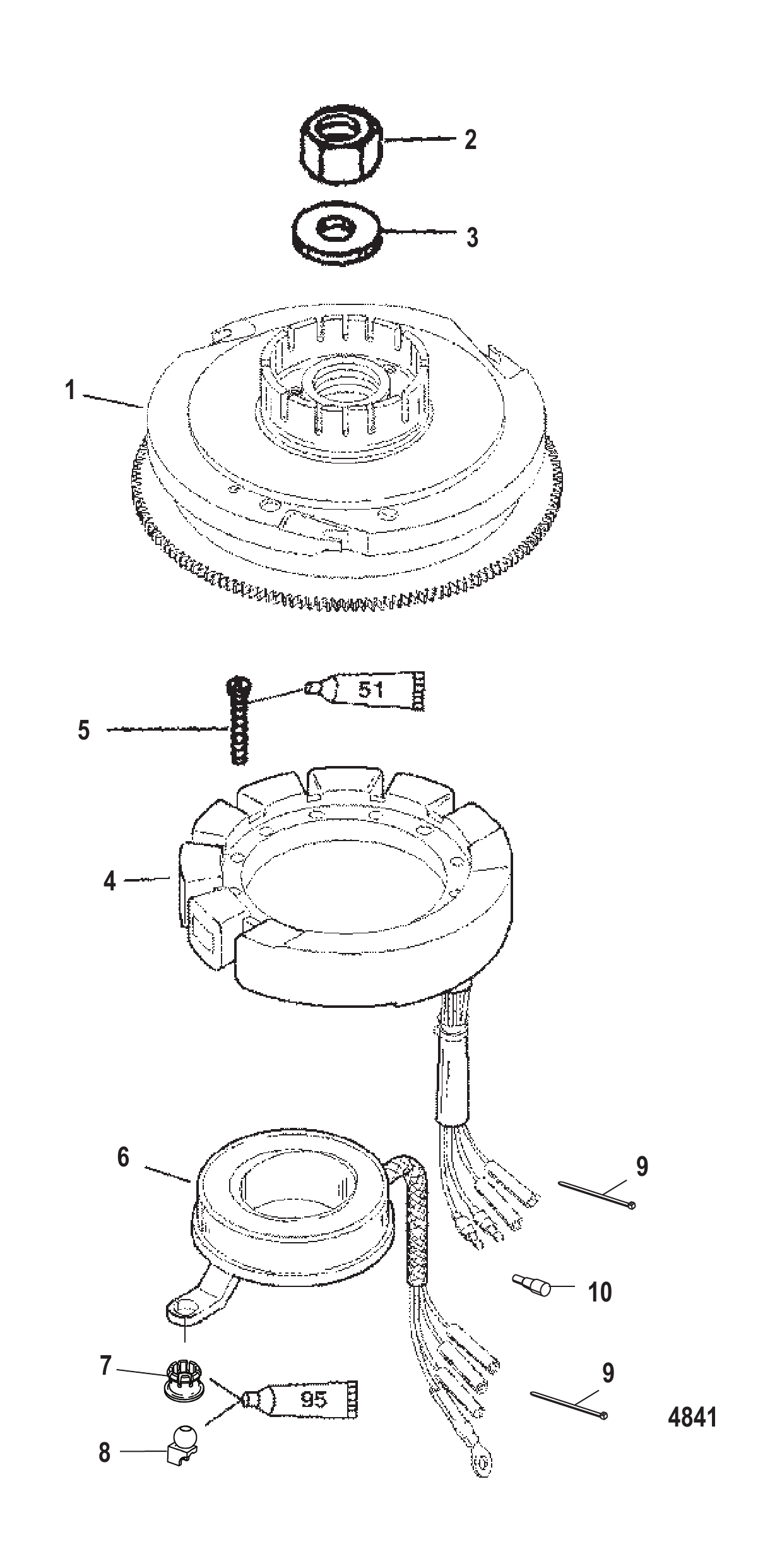

图 10飞轮与定子(手动) FLYWHEEL AND STATOR (MANUAL)

REF	零件编号	中文名称	英文名称	数量
1	9008A42	飞轮	FLYWHEEL	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	832074A5	定子	STATOR	1
4	832074A11	定子总成	STATOR ASSEMBLY	1
5	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
5	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
6	854512T	触发器	TRIGGER	1
7	93421	旋转球头	SWIVEL BALL	1
8	93254	旋转底座	SWIVEL BASE	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	13541	公插头	PLUG Male	2

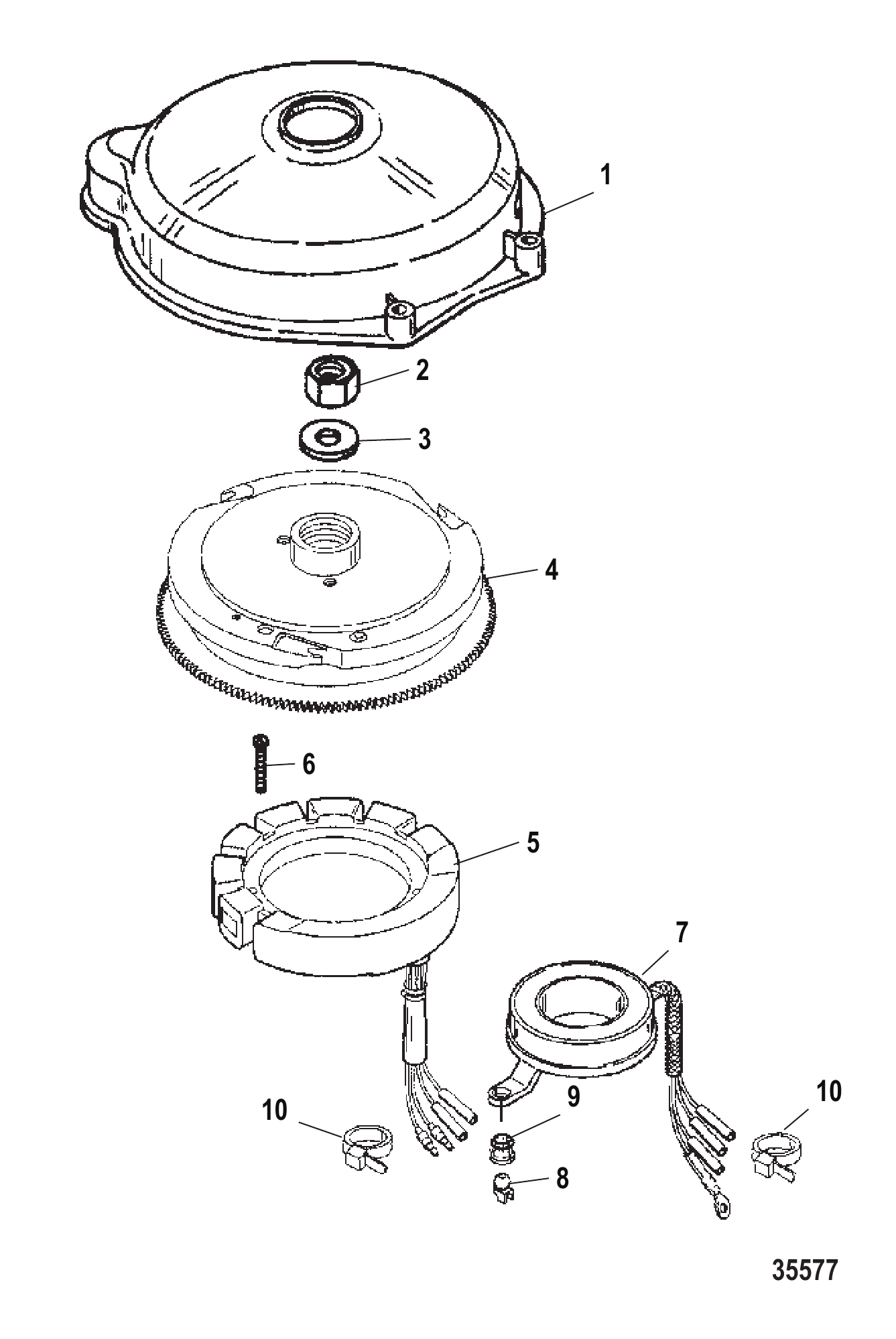

图 11飞轮与定子(电动) Flywheel and Stator Electric

REF	零件编号	中文名称	英文名称	数量
1	812777T1	盖总成	COVER ASSEMBLY	1
2	42979	螺母(M16)	NUT (M16)	1
3	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
3	33001	垫圈	WASHER	1
4	9008A44	飞轮	FLYWHEEL	1
4	859234T24	飞轮	FLYWHEEL	1
5	832075A4	点火定子套件	IGNITION STATOR KIT	1
5	832075A21	定子总成	STATOR ASSEMBLY	1
6	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
6	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
7	854512T	触发器	TRIGGER	1
8	93421	旋转球头	SWIVEL BALL	1
9	93254	旋转底座	SWIVEL BASE	1
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

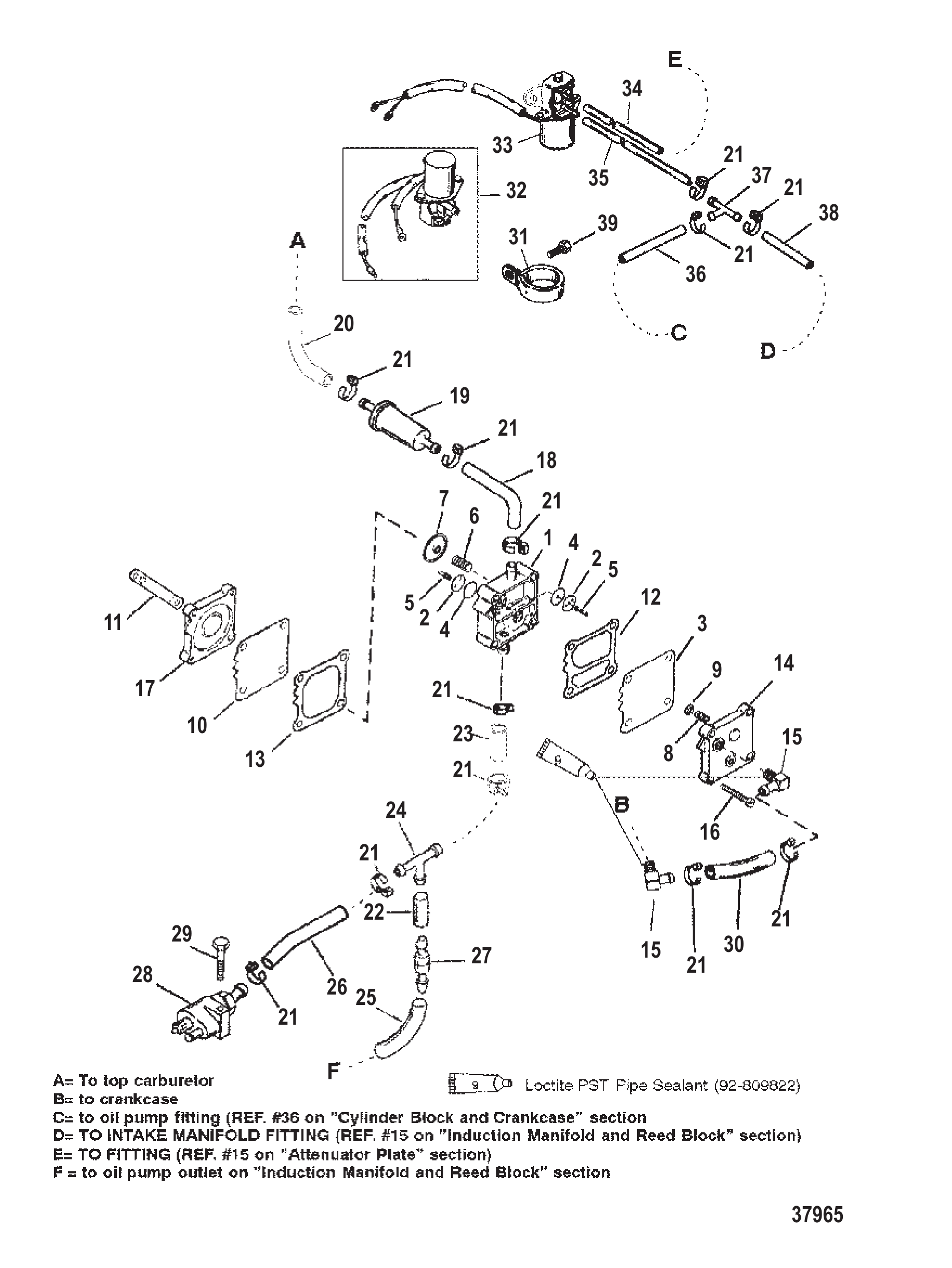

图 12燃油泵(电动) FUEL PUMP (ELECTRIC)

REF	零件编号	中文名称	英文名称	数量
-	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	42990A10	膜片组件	DIAPHAGM KIT	2
2	857005A1	膜片组件	DIAPHRAGM KIT	2
3	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
4	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
5	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
6	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
9	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
10	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
13	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
16	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
16	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
17	144303	底座	BASE	1
18	831949	软管	HOSE	1
19	8162961	燃油滤清器	FILTER Fuel	1
19	816296Q2	燃油滤清器	FILTER Fuel	1
20	830761	燃油管	LINE Fuel	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	83075780	管材(28.00英寸散装)(1-1/2英寸)	TUBING (28.00 Inches Bulk) (1-1/2 IN.)	1
22	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	83075780	管材(28.00英寸散装)(1-1/4英寸)	TUBING (28.00 Inches Bulk) (1-1/4 IN.)	1
22	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
23	83075780	管材(28.00英寸散装)(1-1/2英寸)	TUBING (28.00 Inches Bulk) (1-1/2 IN.)	1
23	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
23	83075780	管材(28.00英寸散装)(1-1/4英寸)	TUBING (28.00 Inches Bulk) (1-1/4 IN.)	1
23	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
24	818992	连接器	CONNECTOR	1
24	818993	三通接头	CONNECTOR Tee	1
25	82381335	管材(15.00英寸散装)(2英寸)	TUBING (15.00 Inches Bulk) (2 IN.)	1
25	82381335	管材(15.00英寸散装)(1-1/2英寸)	TUBING (15.00 Inches Bulk) (1-1/2 IN.)	1
26	83075780	管材(28.00英寸散装)(22英寸)	TUBING (28.00 Inches Bulk) (22 IN.)	1
26	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
27	8189941	止回阀	CHECK VALVE	1
28	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
28	816856T01	燃油接头	CONNECTOR-FUEL	1
29	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
30	9912878	软管 (0.187) (26.00英寸散装) (4-1/4英寸)	HOSE (.187) (26.00 Inches Bulk) (4-1/4 IN.)	1
31	633001	卡箍	CLAMP	1
31	633003	卡箍	CLAMP	1
32	428593	电磁阀	SOLENOID VALVE	1
32	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
33	819503A5	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
34	9912688	管材(36.00英寸散装)(9-1/2英寸)	TUBING (36.00 Inches Bulk) (9-1/2 IN.)	1
34	9912688	管材(36.00英寸散装)(8英寸)	TUBING (36.00 Inches Bulk) (8 IN.)	1
35	9912688	管材(36.00英寸散装)(3-1/4英寸)	TUBING (36.00 Inches Bulk) (3-1/4 IN.)	1
35	9912688	管材(36.00英寸散装)(4英寸)	TUBING (36.00 Inches Bulk) (4 IN.)	1
36	99130122	管材（20英尺卷装）（16英寸）	TUBING (20.00 Feet Bulk) (16 IN.)	1
36	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
36	99130122	管材(20.00英尺散装)(14英寸)	TUBING (20.00 Feet Bulk) (14 IN.)	1
36	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
37	59169	接头	FITTING	1
37	59169003	三通接头	FITTING Tee	1
38	9912688	管材(36.00英寸散装)(2英寸)	TUBING (36.00 Inches Bulk) (2 IN.)	1
39	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
-	852067A98	动力头总成	POWERHEAD ASSEMBLY	1
-	852067T98	动力头总成	POWERHEAD ASSEMBLY	1
-	828553A97	衬垫套件	GASKET SET	1

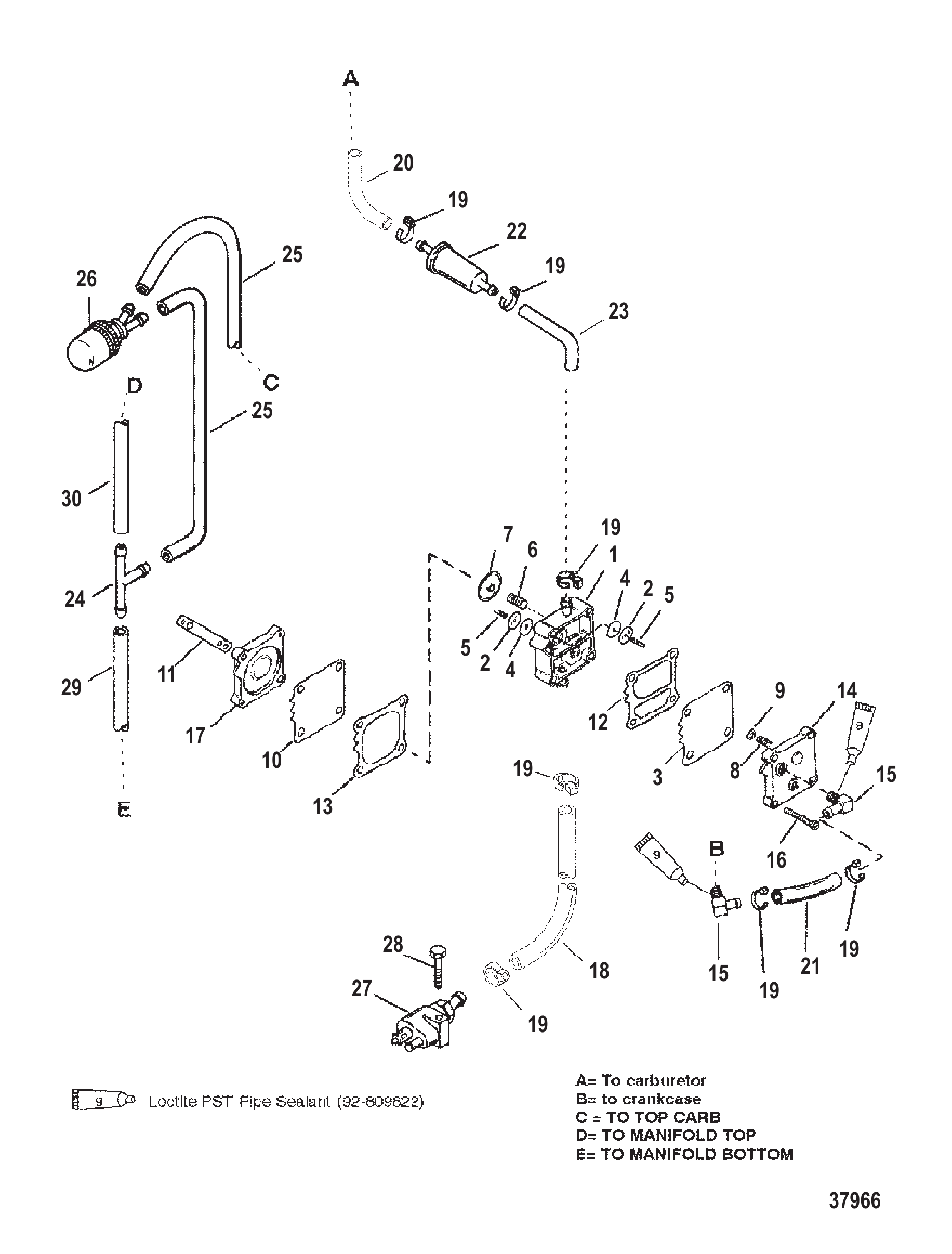

图 13燃油泵(手动) FUEL PUMP (MANUAL)

REF	零件编号	中文名称	英文名称	数量
-	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	42990A10	膜片组件	DIAPHAGM KIT	2
2	857005A1	膜片组件	DIAPHRAGM KIT	2
3	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
4	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
5	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
6	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
9	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
10	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
11	987691	衬垫	GASKET	1
11	8M0204705	衬垫@2	GASKET @2	1
12	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
13	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
14	987752	安装板	PLATE	1
15	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	2
15	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	2
16	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
16	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
17	144303	底座	BASE	1
18	83075780	管材(28.00英寸散装)(22英寸)	TUBING (28.00 Inches Bulk) (22 IN.)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	830761	燃油管	LINE Fuel	1
21	9912878	软管 (0.187) (26.00英寸散装) (4-1/4英寸)	HOSE (.187) (26.00 Inches Bulk) (4-1/4 IN.)	1
22	8162961	燃油滤清器	FILTER Fuel	1
22	816296Q2	燃油滤清器	FILTER Fuel	1
23	831949	软管	HOSE	1
24	59169	接头	FITTING	1
24	59169003	三通接头	FITTING Tee	1
25	99130122	管材(20英尺散装)(9-1/2英寸)	TUBING (20.00 Feet Bulk) (9-1/2 IN.)	2
25	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
26	8168773	注油球	PRIMER BULB	1
26	858763	注油球	PRIMER BULB	1
27	816856A1	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
27	816856T01	燃油接头	CONNECTOR-FUEL	1
28	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
29	99130122	管材 (20.00英尺散装) (5-1/2英寸)	TUBING (20.00 Feet Bulk) (5-1/2 IN.)	1
29	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
30	99130122	管材(20英尺整卷)(1.5英寸)	TUBING (20.00 Feet Bulk) (1-1/2 IN.)	1
30	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
-	852067A98	动力头总成	POWERHEAD ASSEMBLY	1
-	852067T98	动力头总成	POWERHEAD ASSEMBLY	1
-	828553A97	衬垫套件	GASKET SET	1

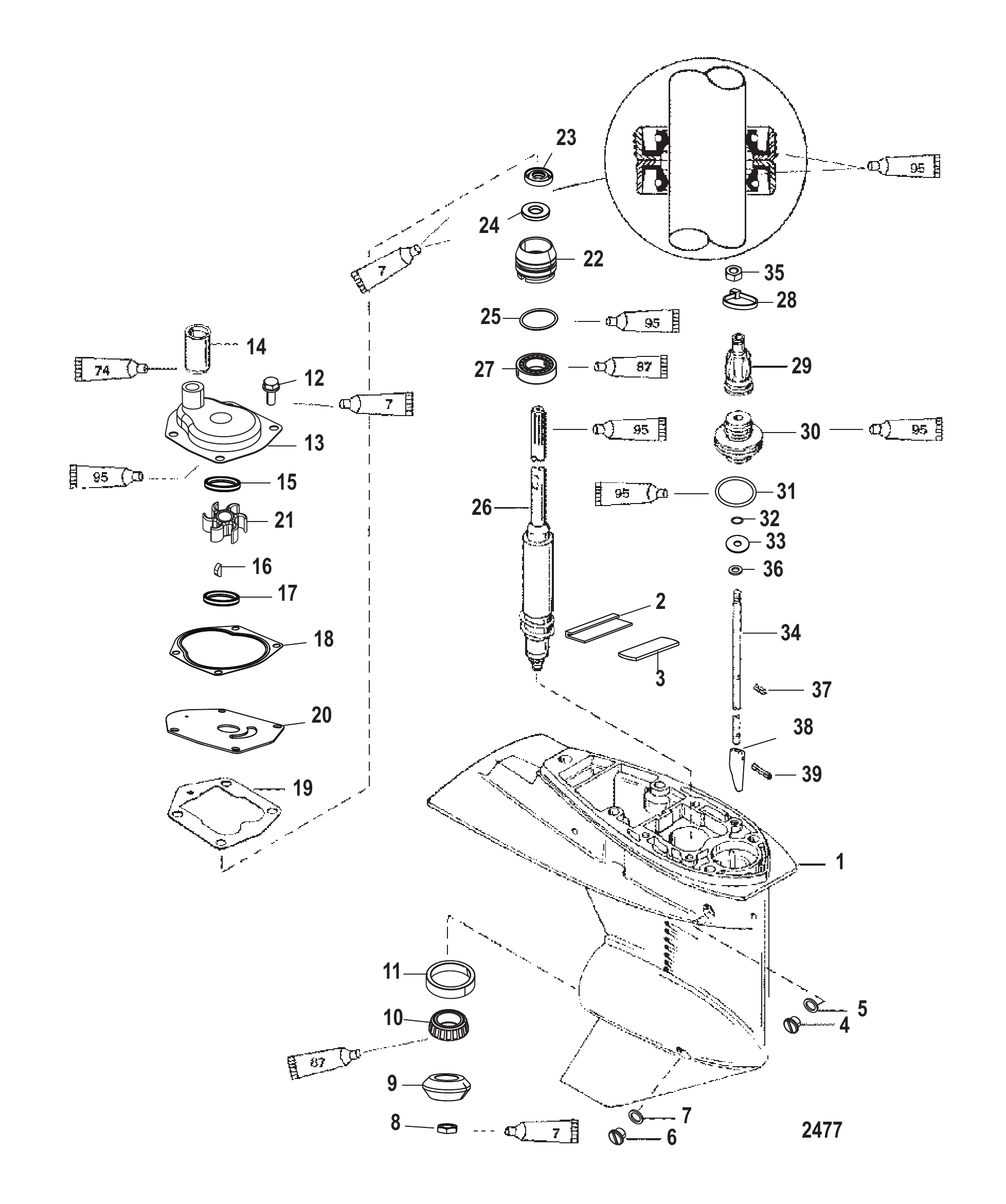

图 14齿轮箱(驱动轴)(1.83:1传动比) GEAR HOUSING (DRIVESHAFT)(1.83:1 GEAR RATIO)

REF	零件编号	中文名称	英文名称	数量
-	821306A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	821306A27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	821306T27	ORD1682-821306T26	ORD1682-821306T26	1
-	821306A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	821306T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	821306A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	821306T29	ORD1682-821306T28	ORD1682-821306T28	1
1	821306A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	821306T12	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	821306A13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	821306T13	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	818226A1	密封/板套件	SEAL/PLATE KIT	1
3	NSS		NOT SOLD SEPARATE Plate	1
4	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
4	79953Q04	放油螺钉套件	SCREW KIT Drain	1
5	19183	纤维垫圈	WASHER Fiber	1
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
6	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
6	8M0058389	放油螺钉套件	SCREW KIT Drain	1
7	19183	纤维垫圈	WASHER Fiber	1
7	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
8	55910	螺母(.437-20)	NUT (.437-20)	1
9	8221612	齿轮小齿轮 (12齿)	GEAR Pinion (12 TEETH)	1
9	822161T2	小齿轮	GEAR Pinion	1
10	821321A2	轴承总成	BEARING ASSEMBLY	1
11	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
12	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	4
13	821351A3	水泵上壳体总成	HOUSING ASSEMBLY Water Pump Upper	1
14	8235471	密封件	SEAL	1
15	8M0027721	垫圈	WASHER	1
15	8M0204722	垫圈	WASHER	1
16	85119	键	KEY	1
16	8M0214993	键@5	KEY @5	1
17	8M0027721	垫圈	WASHER	1
17	8M0204722	垫圈	WASHER	1
18	822189	水泵上衬垫	GASKET Upper Water Pump	1
19	822217	水泵下衬垫	GASKET Lower Water Pump	1
19	8M0214956	衬垫	GASKET	1
20	8213542	面板	FACE PLATE	1
21	850893	叶轮	IMPELLER	1
21	8M0204712	叶轮	IMPELLER	1
22	821307A2	水泵底座总成	BASE ASSEMBLY Water Pump	1
23	821309	密封件	SEAL	1
23	8M0248704	油封	SEAL OIL	1
24	821310	密封件	SEAL	1
25	821308	O型圈(1.421 x 0.139)	O-RING (1.421 x .139)	1
26	822466A1	驱动轴	DRIVESHAFT	1
26	822159A1	驱动轴	DRIVESHAFT	1
26	822159T1	驱动轴	DRIVESHAFT	1
27	821311	滚珠轴承	BEARING Ball	1
28	823548	扎带	TIE STRAP	1
28	823548T	扎带	TIE STRAP	1
29	822158	护套	BOOT	1
30	821827	固定座	RETAINER	1
31	26855	O型圈(1.609 x 0.139)	O-RING (1.609 x .139)	1
32	85594	O型圈(.239 x .174)	O-RING (.239 x .174)	1
33	814803	垫圈	WASHER	1
34	822453A1	换档轴	SHIFT SHAFT	1
34	821319A1	换档轴	SHIFT SHAFT	1
35	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
36	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
36	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
37	85593	销(.078 x .437)	PIN (.078 x .437)	1
38	8213161	换档凸轮	CAM Shift	1
39	822369	销(0.125 x 0.625)	PIN (.125 x .625)	1
-	828553A97	衬垫套件	GASKET SET	1
-	823547A2	密封套件	SEAL KIT	1
-	821354A2	水泵维修套件	REPAIR KIT Water Pump	1

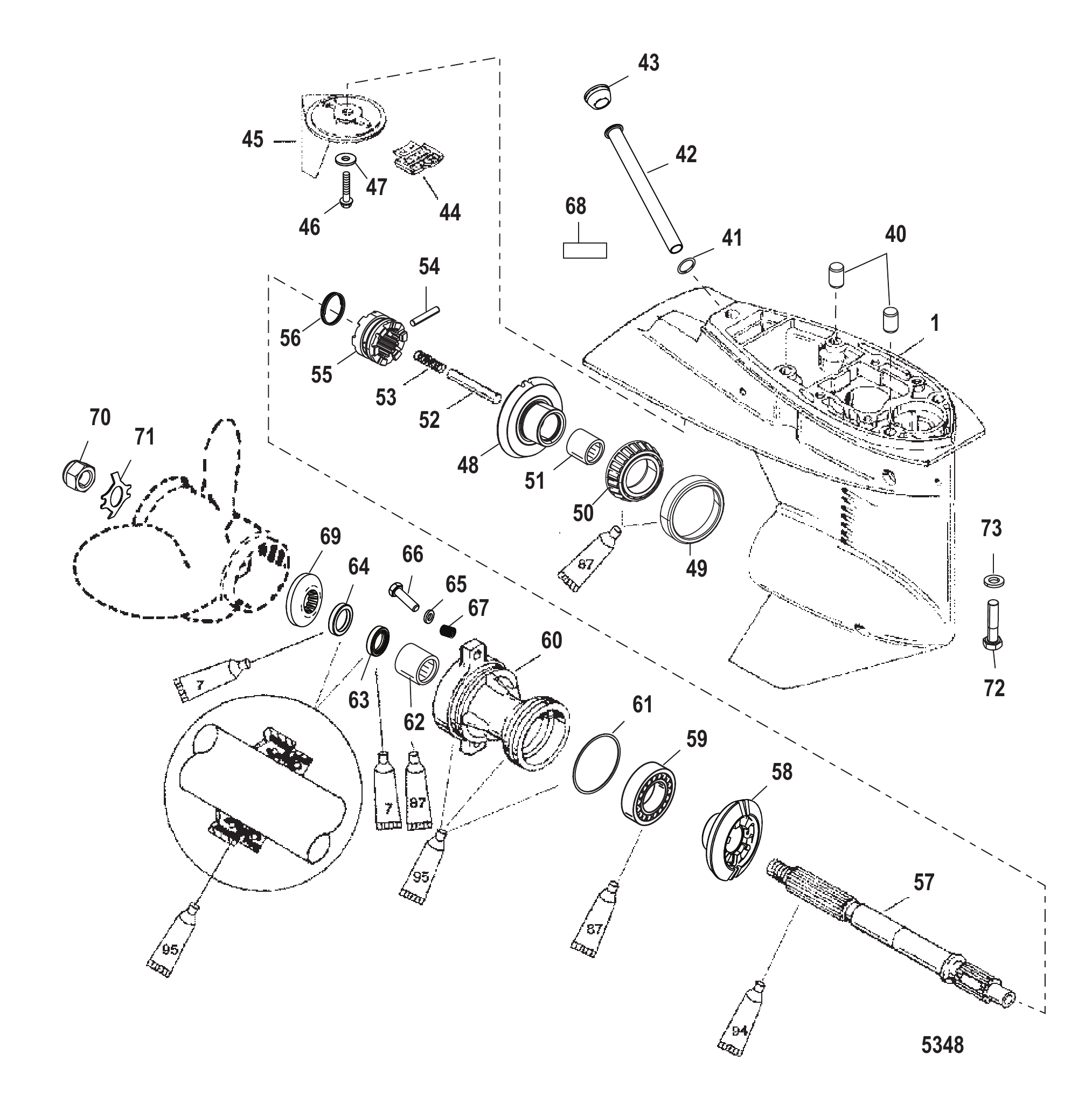

图 15齿轮箱(螺旋桨轴)(1.83:1传动比) GEAR HOUSING (PROPELLER SHAFT)(1.83:1 GEAR RATIO)

REF	零件编号	中文名称	英文名称	数量
-	821306A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	821306A27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	821306T27	ORD1682-821306T26	ORD1682-821306T26	1
-	821306A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	821306T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	821306A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	821306T29	ORD1682-821306T28	ORD1682-821306T28	1
1	821306A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	821306T12	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	821306A13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	821306T13	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
40	821327	定位销	PIN Dowel	2
41	823942	衬垫	GASKET	1
42	821828	管	TUBE	1
42	8M0026108	管	TUBE	1
43	824928	橡胶塞	PLUG Rubber	1
43	824928001	橡胶塞	PLUG Rubber	1
44	821829	滤网	SCREEN	1
45	822157C2	平衡鳍板	TRIM TAB	1
45	822157T2	平衡鳍板	TRIM TAB	1
46	82497020	螺钉(M8 x 20)	SCREW (M8 x 20)	1
47	72397	垫圈	WASHER	1
48	822162A2	齿轮总成前进挡 (22齿)	GEAR ASSEMBLY Forward (22 TEETH)	1
48	822162T2	前进齿轮	GEAR Forward	1
49	99328A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
49	8M0103470	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
50	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
51	41326	滚柱轴承	BEARING Roller	1
52	821578	凸轮从动件	FOLLOWER Cam	1
53	8261991	弹簧	SPRING	1
54	85093	销	PIN	1
54	8M0020999	十字销	PIN CROSS	1
55	821314	离合器	CLUTCH	1
55	821314T	离合器	CLUTCH	1
56	38114	弹簧	SPRING	1
57	8215772	螺旋桨轴	PROPELLER SHAFT	1
57	8M0140441	螺旋桨轴	PROP SHAFT	1
58	822163	齿轮倒挡 (22齿)	GEAR Reverse (22 TEETH)	1
58	822163T1	倒挡齿轮	GEAR Reverse	1
59	20839	滚珠轴承	BEARING Ball	1
59	20839T	滚珠轴承	BEARING Ball	1
60	19291A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
60	8M0168900	轴承座	BEARING CARRIER	1
61	815460	O型圈	O-RING	1
62	21700	滚针轴承	BEARING Needle	1
63	69188	油封	SEAL Oil	1
63	8M0205511	油封	SEAL Oil	1
64	69189	油封	SEAL Oil	1
64	8M0203757	油封	SEAL Oil	1
65	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
65	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
65	855941	垫圈(.323 x .590 x .112)不锈钢	WASHER (.323 x .590 x .112) Stainless Steel	2
66	4000353	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
66	85594030	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
67	8227731	螺纹嵌件	INSERT Threaded	2
68	NSS	不单独销售贴花 (1.83:1)	NOT SOLD SEPARATE Decal (1.83:1)	1
69	73345A1	止推垫片	THRUST WASHER	1
70	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
70	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
71	76281	锁紧垫圈	TAB WASHER	1
71	8M0214942	锁紧垫片	WASHER Tab	1
72	4000380	螺丝(M10 x 45)	SCREW (M10 x 45)	4
73	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	4
-	828553A97	衬垫套件	GASKET SET	1
-	823547A2	密封套件	SEAL KIT	1

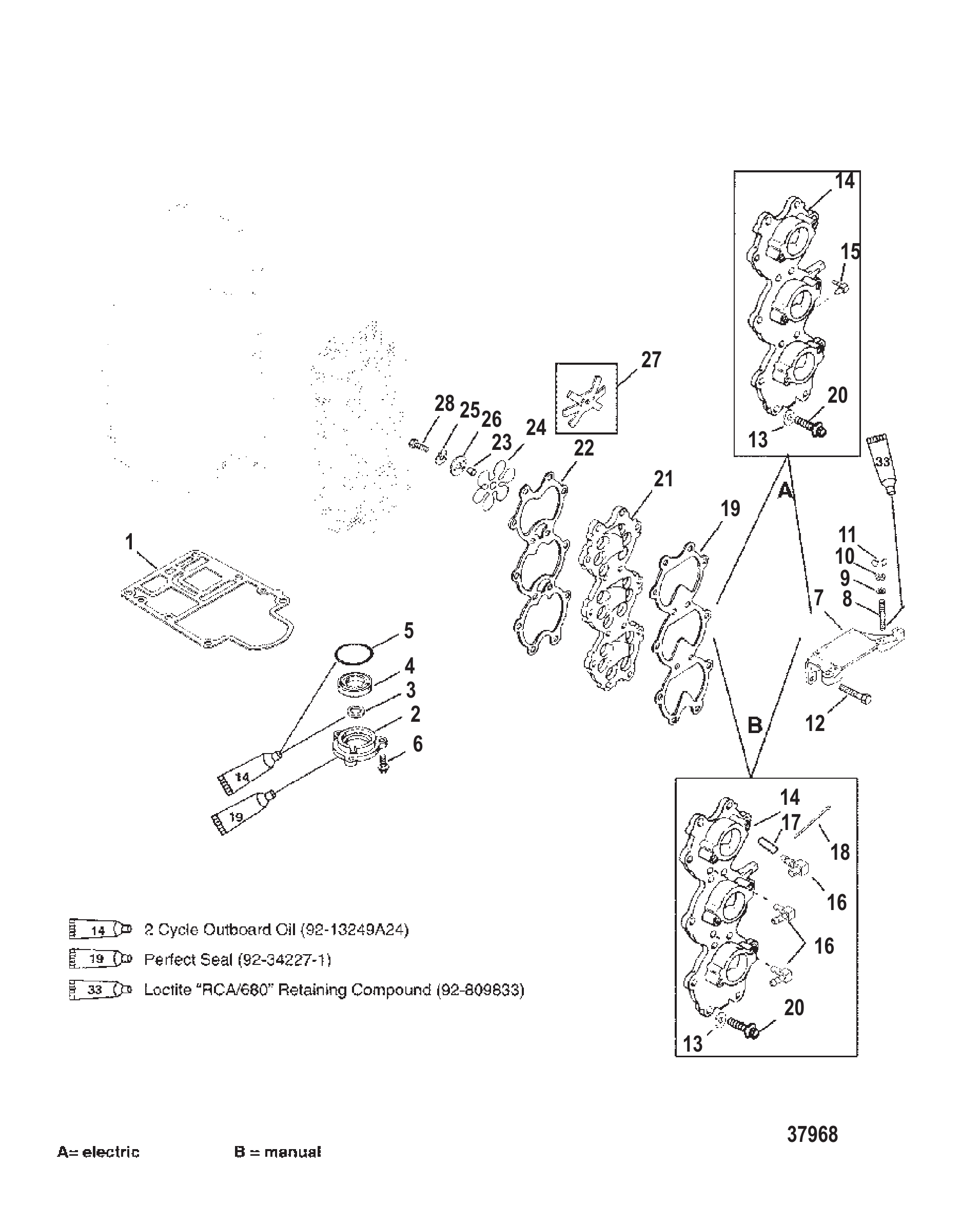

图 16进气歧管与簧片阀组 INDUCTION MANIFOLD AND REED BLOCK

REF	零件编号	中文名称	英文名称	数量
1	828553	衬垫	GASKET	1
1	8M0000822	衬垫	GASKET	1
2	9812A8	端盖总成	END CAP ASSEMBLY	1
3	828932	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A6	支架总成	BRACKET ASSEMBLY	1
7	19077A07	支架总成	BRACKET ASSEMBLY	1
8	8161946	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	814806	垫圈 (0.344 x 0.688 x 0.065) 不锈钢 (适用处使用)	WASHER (.344 x .688 x .065) Stainless Steel (USE WHERE APPLICABLE)	1
13	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	1
14	827998A1	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
15	19725	弯头	ELBOW	1
16	19725	弯头	ELBOW	3
17	15026	盖帽	CAP	1
18	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
18	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
19	812869	衬垫	GASKET	1
20	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
21	19075A3	簧片阀总成	REED BLOCK ASSEMBLY	1
21	8M0219197	簧片阀总成	REED BLOCK ASSY	1
22	812868	衬垫	GASKET	1
23	NSS	定位销(不单独销售)	NOT SOLD SEPARATE Dowel Pin	6
24	812880A2	簧片组件	REED ASSEMBLY	3
24	812880A03	簧片组件	REED ASSEMBLY	3
25	42982	锁紧垫圈	TAB WASHER	3
25	429821	锁紧垫圈	TAB WASHER	3
26	8128791	簧片压板	RETAINER Reed	3
26	812879002	簧片压板	RETAINER Reed	3
27	825267	簧片压板	RETAINER Reed	3
28	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
-	852067A98	动力头总成	POWERHEAD ASSEMBLY	1
-	852067T98	动力头总成	POWERHEAD ASSEMBLY	1
-	828553A97	衬垫套件	GASKET SET	1

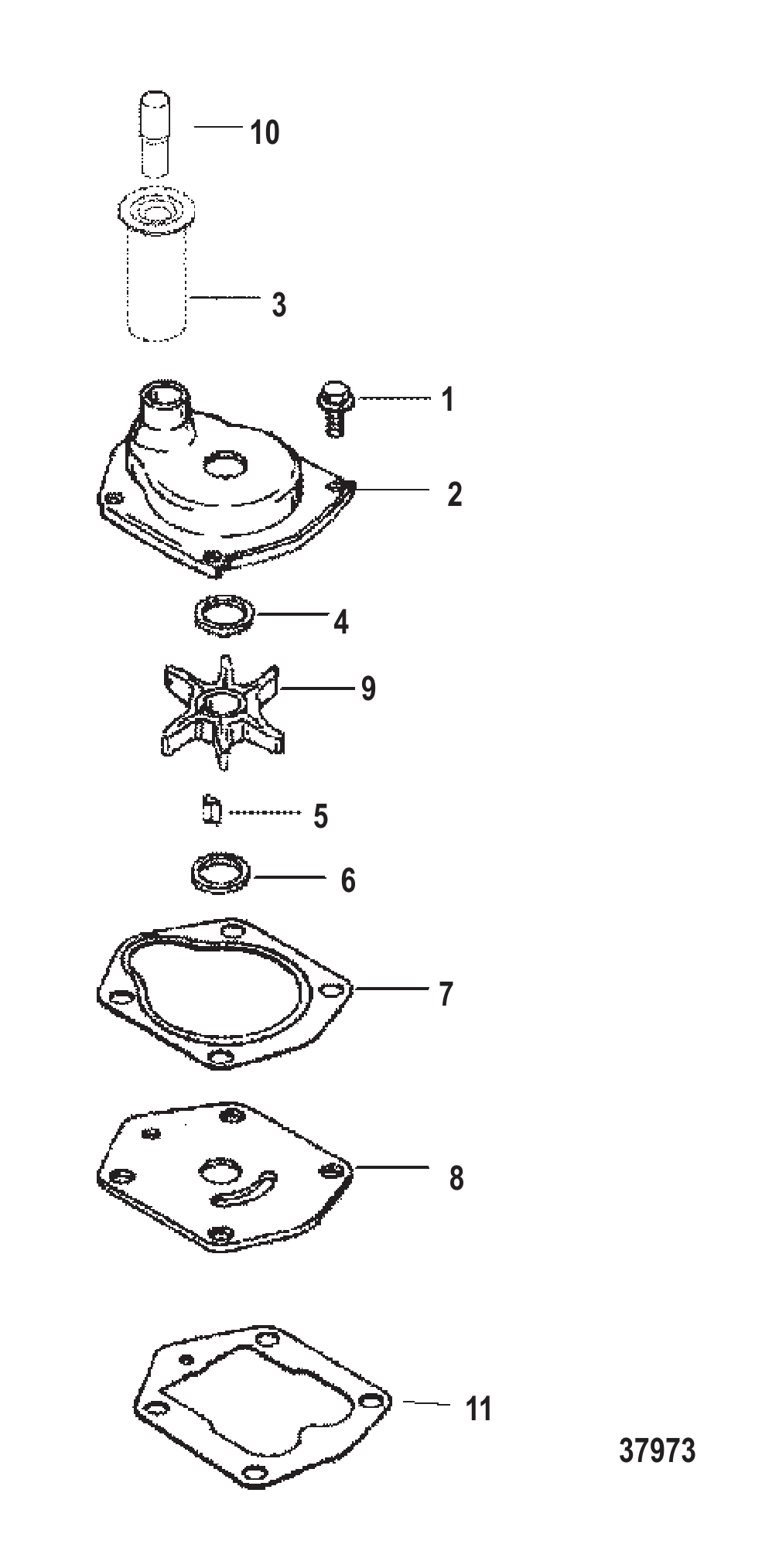

图 17喷射组件 JET COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	4
2	821351A3	水泵上壳体总成	HOUSING ASSEMBLY Water Pump Upper	1
3	8235471	密封件	SEAL	1
4	8M0027721	垫圈	WASHER	1
4	8M0204722	垫圈	WASHER	1
5	85119	键	KEY	1
5	8M0214993	键@5	KEY @5	1
6	8M0027721	垫圈	WASHER	1
6	8M0204722	垫圈	WASHER	1
7	822189	水泵上衬垫	GASKET Upper Water Pump	1
8	8213542	面板	FACE PLATE	1
9	850893	叶轮	IMPELLER	1
9	8M0204712	叶轮	IMPELLER	1
10	854491	水管延长件	EXTENSION Water Tube	1
11	822217	水泵下衬垫	GASKET Lower Water Pump	1
11	8M0214956	衬垫	GASKET	1
-	823547A2	密封套件	SEAL KIT	1
-	821354A2	水泵维修套件	REPAIR KIT Water Pump	1
-	828553A97	衬垫套件	GASKET SET	1

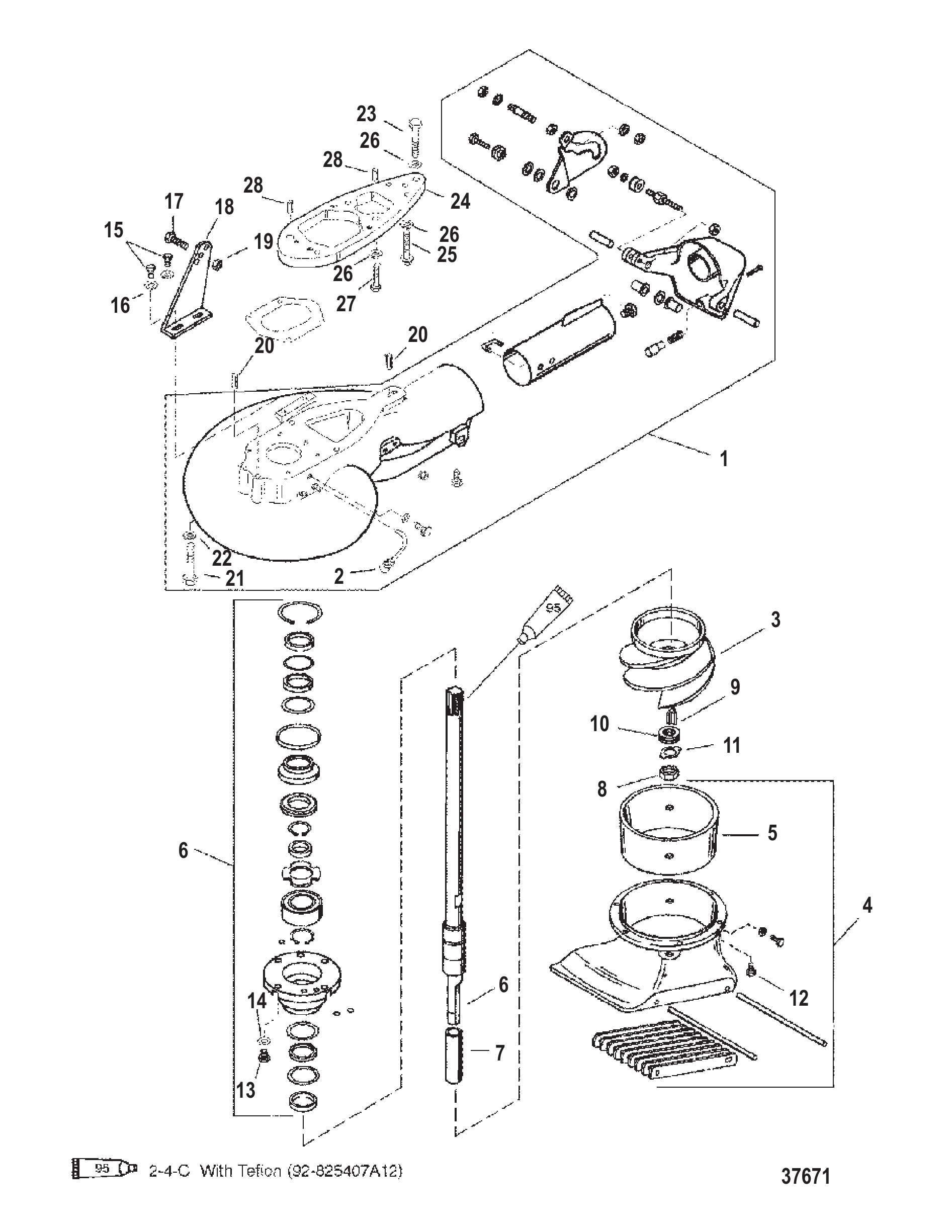

图 18喷泵总成 JET PUMP ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	801400401	喷泵总成	JET PUMP ASSEMBLY	1
-	856143A5	喷泵总成	JET PUMP ASSEMBLY	1
1	801411401	泵壳	HOUSING Pump	1
2	827490	润滑油管	HOSE Lube	1
3	80141440	叶轮	IMPELLER	1
3	855708T40	叶轮	IMPELLER	1
4	80141240	进气壳体	HOUSING Intake	1
5	8271881	衬套	LINER	1
5	827188T1	衬套	LINER	1
6	801413401	驱动轴	DRIVESHAFT	1
7	827189	套筒	SLEEVE	1
8	827190	螺母	NUT	1
9	801405625	叶轮键	KEY Impeller	1
10	801404625	叶轮垫片	SHIM Impeller	8
11	801403625	锁紧垫圈	TAB WASHER	1
12	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
13	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
14	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	4
15	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
16	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	2
17	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
18	801410	电缆支架	BRACKET Cable Support	1
19	67980	螺母(.312-18)	NUT (.312-18)	1
19	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
20	801406	定位销	PIN Dowel	2
21	19924250	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	2
21	19924275	螺钉 (.312-18 x 2.75)	SCREW (.312-18 x 2.75)	2
22	814806	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4
22	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4
23	19925125	螺钉(.375-16 x 1.25)	SCREW (.375-16 x 1.25)	1
24	853881	适配器	ADAPTER	1
25	1993330	螺钉 (M10 x 1.5 x 30)	SCREW (M10 x 1.5 x 30)	1
25	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
26	F8015	垫圈	WASHER	6
27	4000378	不锈钢螺钉(M10 x 35)	SCREW (M10 x 35) Stainless Steel	4
27	87810178	螺钉(M10 x 35)	SCREW (M10 x 35)	4
28	821327	定位销	PIN Dowel	2

图 19杂项信息 MISCELLANEOUS INFORMATION

REF	零件编号	中文名称	英文名称	数量
-	85207097	零件手册 40/50马力 JET 30 (3缸)	PARTS MANUAL 40/50 H.P. JET 30 (3 CYL.)	1
-	852572	维修手册	SERVICE MANUAL	1
-	8M0110565	维修手册	MANUAL-SERVICE	1
-	10170980	用户手册	OWNERS MANUAL	1
-	10174980	用户手册	OWNERS MANUAL	1
-	830163A97	贴花套件	DECAL SET	1
-	852079A97	贴花套件	DECAL SET	1
-	852079A00	贴花套件	DECAL SET	1
-	830164A97	贴花套件	DECAL SET	1
-	830164A03	贴花套件	DECAL SET	1
-	852080A97	贴花套件	DECAL SET	1
-	852080A03	贴花套件	DECAL SET	1
-	850311A97	贴花套件	DECAL SET	1
-	830161A1	贴花套件	DECAL SET	1
-	83016330	贴花套件	DECAL SET	1
-	830163A97	贴花套件	DECAL SET	1
-	830162A98	贴花套件	DECAL SET	1
-	830162A01	贴花套件	DECAL SET	1

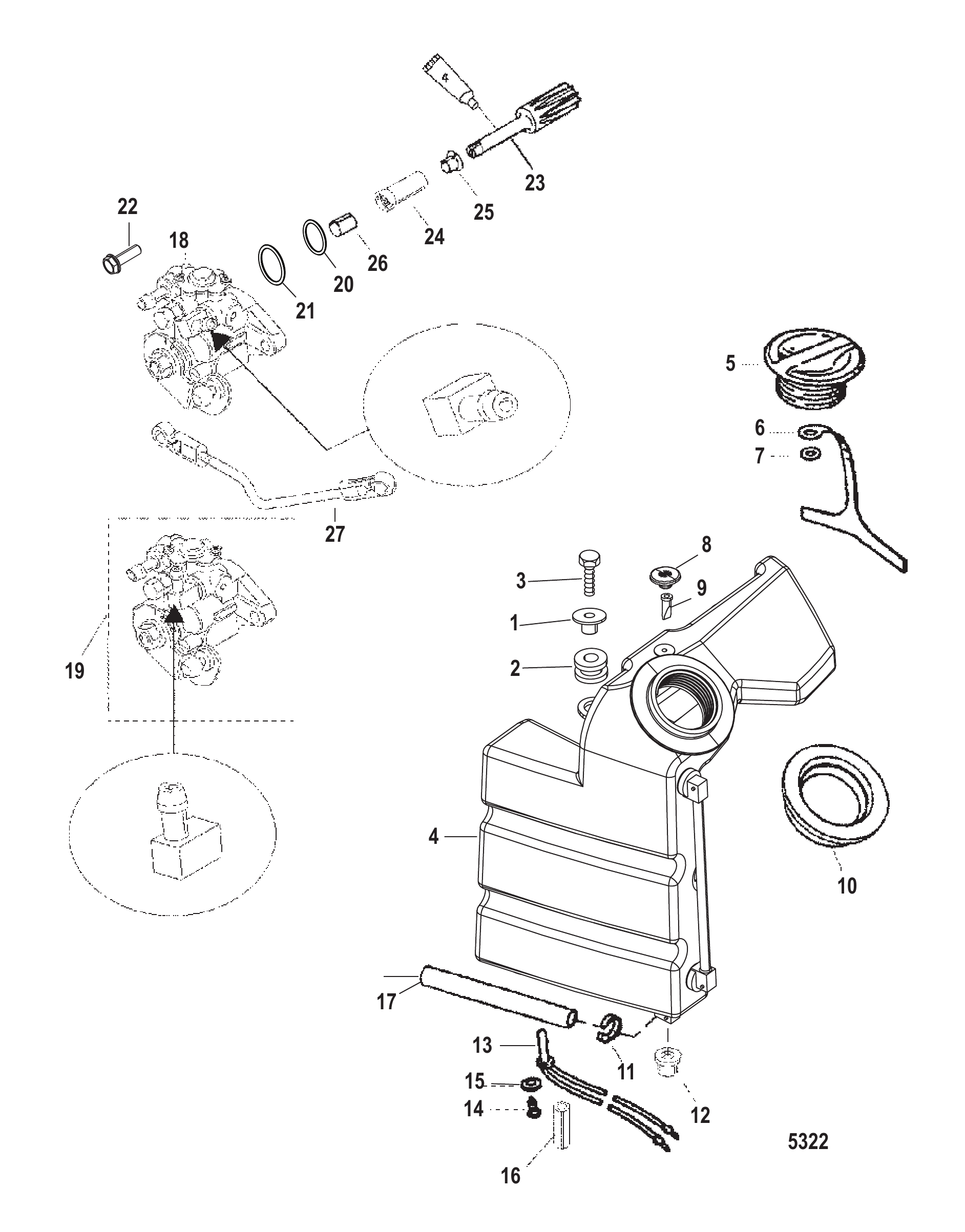

图 20机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	822003	衬套	BUSHING	2
2	822002	护孔环	GROMMET	2
3	40011129	不锈钢螺钉(M6x25)	SCREW (M6 x 25) Stainless Steel	2
4	828163A2	油箱总成	TANK ASSEMBLY Oil	1
5	828765A2	盖总成	CAP ASSEMBLY	1
6	NSS	不单独销售系绳	NOT SOLD SEPARATE Tether	1
7	821285	压入式螺母	PUSH NUT	1
8	19299A1	通风组件	VENT ASSEMBLY	1
9	64871	阀门	VALVE	1
10	8160662	密封件	SEAL	1
10	8M0039080	密封件-油箱	SEAL-OIL TANK	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
12	8136441	护孔环	GROMMET	1
12	813644002	护孔环	GROMMET	1
13	12886A6	开关总成	SWITCH ASSEMBLY	1
14	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
15	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
16	826084	隔套	SPACER	1
17	82381335	管材 (15.00英寸散装) (12英寸)	TUBING (15.00 Inches Bulk) (12 Inch)	1
18	818902A2	机油喷射泵总成	PUMP ASSEMBLY Oil Injection	1
19	818902A1	机油喷射泵总成	PUMP ASSEMBLY Oil Injection	1
20	36390	O型圈	O-RING	1
21	62705	O型圈	O-RING	1
21	8M0204667	O型圈×2	O RING @2	1
22	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
23	19277	从动齿轮	GEAR Driven	1
24	19278A2	轴承总成	BEARING ASSEMBLY	1
25	17597		BUSHING (Flanged)	1
26	17596	衬套	BUSHING	1
27	826581A2	连接杆	LINK	1
27	8M0084729	连杆-油泵总成	LINK-OIL PUMP ASY	1
-	828553A97	衬垫套件	GASKET SET	1

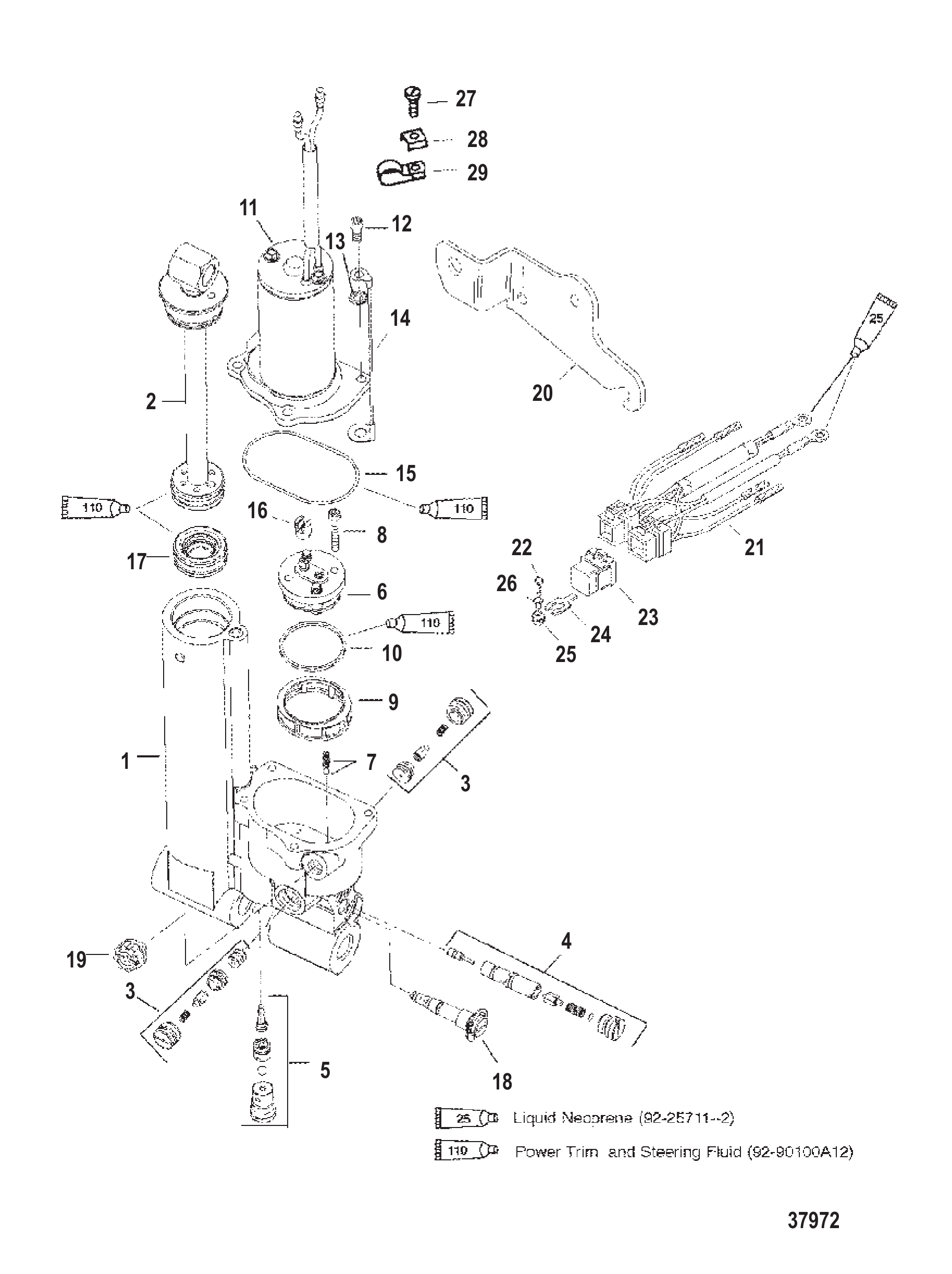

图 21动力微调 POWER TRIM

REF	零件编号	中文名称	英文名称	数量
1	822344A5	动力微调	POWER TRIM	1
-	827668A1	O型圈套件	O-RING KIT	1
2	827670A2	减震杆总成	SHOCK ROD ASSEMBLY	1
2	893931A01	减震杆总成	SHOCK ROD ASSY	1
3	827671A1	先导止回阀总成	PILOT CHECK ASSEMBLY	1
4	827672A1	倾斜泄压阀总成	TILT RELIEF VALVE ASSEMBLY	1
5	827673A1	吸入阀座总成	SEAT ASSEMBLY Suction	1
6	827674A1	泵总成	PUMP ASSEMBLY	1
7	NSS	不单独销售球/弹簧	NOT SOLD SEPARATE Ball/Spring	1
8	NSS	螺丝(不单独销售)	NOT SOLD SEPARATE Screw	1
9	NSS		NOT SOLD SEPARATE Filter	1
10	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
11	827675A1	电机总成	MOTOR ASSEMBLY	1
12	NSS	螺丝(不单独销售)	NOT SOLD SEPARATE Screw	4
13	NSS	不单独销售垫圈	NOT SOLD SEPARATE Washer	4
14	88238A15	拉线总成	CABLE ASSEMBLY	1
15	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
16	NSS		NOT SOLD SEPARATE Coupler	1
17	827676	活塞记忆	PISTON Memory	1
18	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
18	893929A01	安全阀套件	VALVE KIT Relief	1
19	811613	塞子总成	PLUG ASSEMBLY	1
20	831276T	支架	BRACKET	1
21	826802A9	升降线束总成	HARNESS ASSEMBLY Trim	1
22	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
23	828151A1	继电器总成	RELAY ASSEMBLY	2
23	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
24	828102	支架	BRACKET	2
24	8M0207771	安装支架	BRACKET Mounting	2
25	818967	护孔环	GROMMET	2
25	8M0207785	护孔环	GROMMET	2
26	818968	衬套	BUSHING	2
26	8M0214955	衬套	BUSHING	2
27	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
27	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
28	69205	C形垫圈	C WASHER	1
28	8M0084613	C形垫圈	C-WASHER	1
29	22740	卡扣	CLIP	2

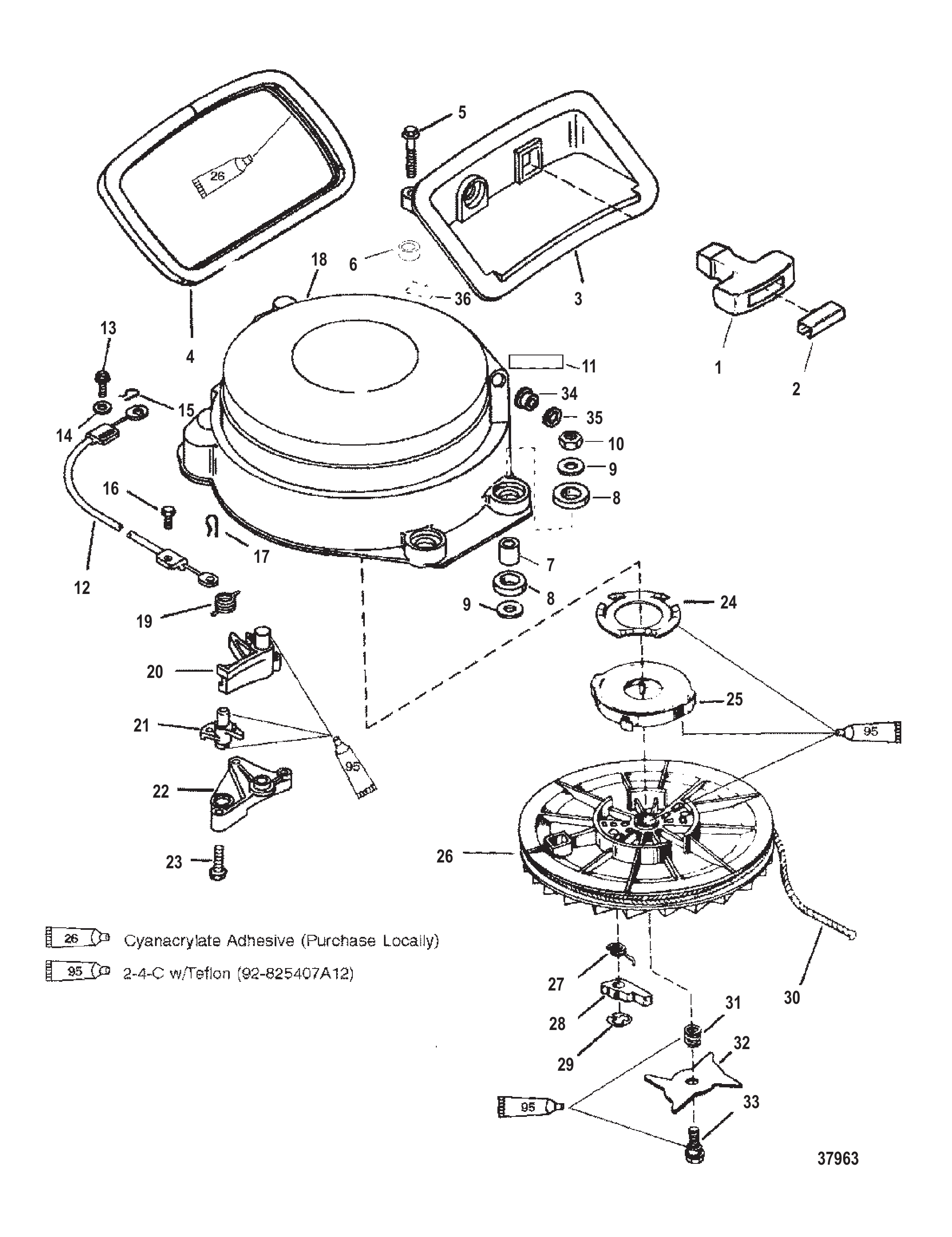

图 22启动器总成(手动) STARTER ASSEMBLY (MANUAL)

REF	零件编号	中文名称	英文名称	数量
1	85174A1	手柄总成	HANDLE ASSEMBLY	1
2	NSS	不单独销售保持器	NOT SOLD SEPARATE Retaomer	1
-	821788A6	支架总成启动手柄	REST ASSEMBLY Starter Handle	1
3	NSS	不单独销售支架	NOT SOLD SEPARATE Rest	1
4	8249951	密封件	SEAL	1
4	8M0043416	手柄座密封	SEAL-HANDLE REST	1
5	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	2
6	830190	隔套	SPACER	2
7	816086	衬套	BUSHING	4
8	815795	护孔环	GROMMET	8
9	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	8
10	401196	螺母 (M6)	NUT (M6)	4
11	NSS	正时贴纸（不单独销售）	NOT SOLD SEPARATE Decal-Timing	1
12	8167485	联锁电缆	CABLE Interlock	1
12	8567541	联锁电缆	CABLE Interlock	1
13	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
14	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
15	26811	开口销	COTTER PIN	1
16	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
16	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
17	27769	开口销	COTTER PIN	1
17	26811	开口销	COTTER PIN	1
-	816728A12	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	816728T14	手拉启动器总成	STARTER ASSEMBLY Recoil	1
18	8167285	壳体	HOUSING	1
18	816728T05	壳体	HOUSING	1
19	826791	弹簧	SPRING	1
20	8166903	杠杆	LEVER	1
21	8167121	凸轮	CAM	1
21	816712T01	凸轮	CAM	1
22	816711	固定座	RETAINER	1
23	8182491	螺钉(#10-16 x 1.00)	SCREW (#10-16 x 1.00)	3
24	826229	弹簧锁紧垫圈	LOCKWASHER SPRING	1
25	868571	弹簧	SPRING	1
25	86857T01	弹簧	SPRING	1
26	825269A1	启动滑轮	SHEAVE Starter	1
26	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
27	868511	弹簧	SPRING	2
27	86851T02	弹簧 @2	SPRING @2	2
28	868501	凸轮	CAM	2
29	868491	挡圈	RING Retaining	2
29	86849T01	环 @2	RING @2	2
30	12066A9	绳索	ROPE	1
30	12066Q10	启动绳@2	ROPE-STARTER@2	1
31	868521	凸轮弹簧	SPRING Cam	1
31	868523	弹簧	SPRING	1
32	868531	凸轮	CAM	1
32	86853T01	凸轮	CAM	1
33	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
34	42690	衬套	BUSHING	1
34	8M0183792	绳索衬套	ROPE BUSHING	1
35	818853	挡圈	RING Retaining	1
36	NSS	不单独销售贴花-警示-空挡怠速	NOT SOLD SEPARATE Decal-Caution-In Gear Idle	1

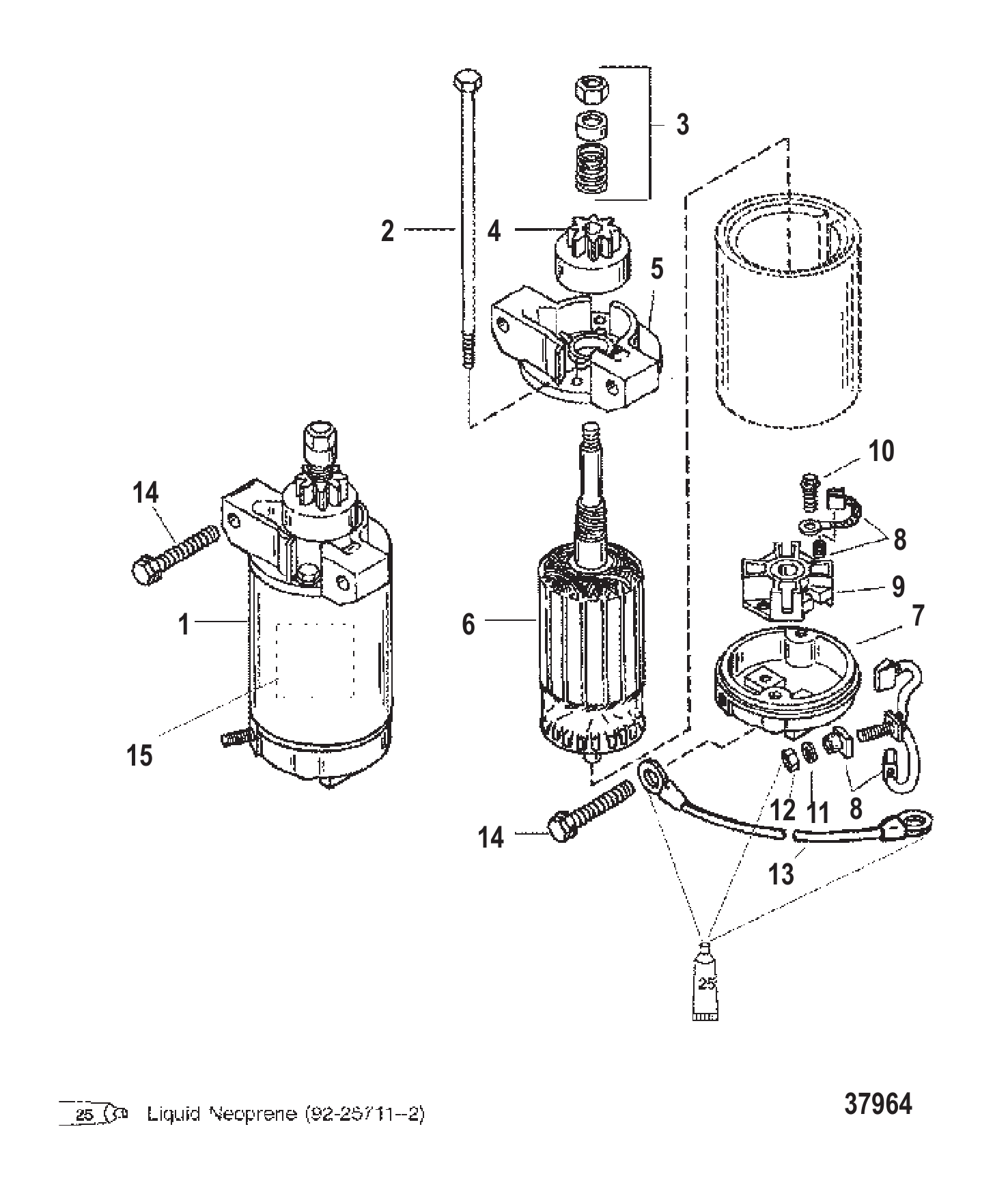

图 23启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	822462	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	893890T	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	965661	贯穿螺栓	THRU BOLT	1
3	90643	驱动套件	DRIVE KIT	1
4	68575	驱动总成	DRIVE ASSEMBLY	1
4	685753	驱动总成	DRIVE ASSEMBLY	1
5	823639	驱动端盖	DRIVE CAP	1
5	8236392	驱动端盖	DRIVE CAP	1
6	965651	电枢	ARMATURE	1
7	8119011	换向器端盖	CAP Commutator	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	支架	HOLDER	1
9	898265014	电刷支架	HOLDER-BRUSH	1
10	F15158	螺钉	SCREW	2
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	64015	螺母 (.250-20)	NUT (.250-20)	1
13	88439A9	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
14	40011153	不锈钢螺钉(M8x45)	SCREW (M8 x 45) Stainless Steel	3
15	8272822	高压警告标贴	DECAL Warning High Voltage	1

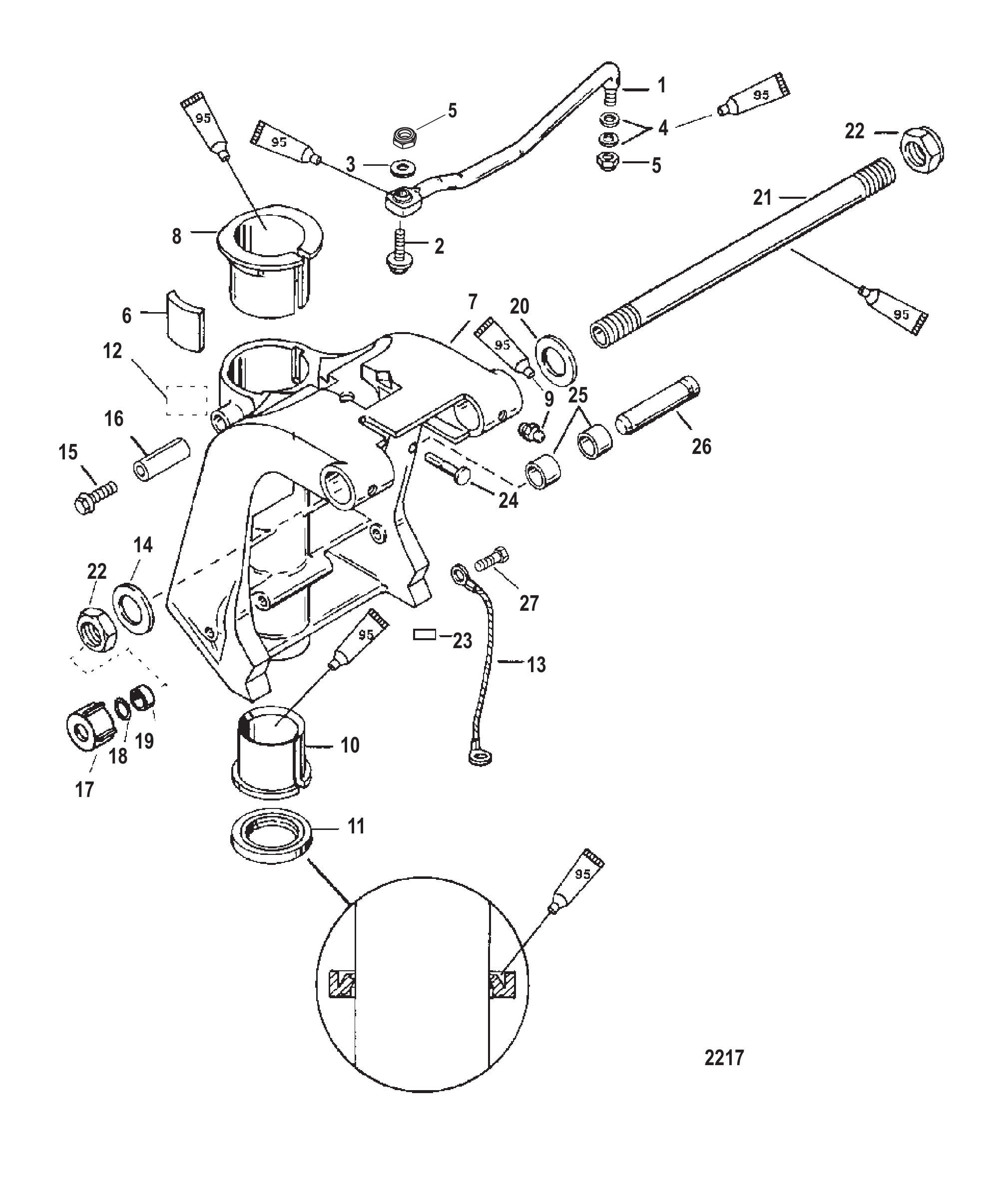

图 24旋转支架 SWIVEL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	196081	连杆	LINK ROD	1
1	19608A14	发动机转向安装套件	ATTACHING KIT Engine Steering	1
2	823919	螺钉（0.375-24 x 1.500）	SCREW (.375-24 x 1.500)	1
3	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
3	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
4	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
5	34863	螺母 (.375-24)	NUT (.375-24)	2
5	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
6	822397	滑块	PUCK	1
7	827402A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
7	827402T5	旋转支架	SWIVEL BRACKET	1
7	827402A2	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
7	827402T6	ORD 3410-827402T5	ORD 3410-827402T5	1
8	8217711	衬套 (上部)	BUSHING (UPPER)	1
9	74036	润滑脂接头	FITTING Grease	3
9	8M0169589	润滑脂接头	FITTING Grease	3
10	821777	衬套（下部）	BUSHING (LOWER)	1
11	822404	密封件	SEAL	1
11	8M0205512	密封件	SEAL	1
12	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
13	88238A11	拉线总成	CABLE ASSEMBLY	1
14	19619	垫圈	WASHER	1
15	4008910	螺钉（M8 X 10）不锈钢	SCREW (M8 x 10) Stainless Steel	1
15	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	1
16	8282451	密封件	SEAL	1
17	19624A1	密封套件	SEAL KIT	1
18	29619	O型圈(0.583×0.103)	O-RING (.583 x .103)	1
19	78861	隔套	SPACER	1
20	19619	垫圈	WASHER	1
21	19614	倾斜管	TILT TUBE	1
21	8M0041938	倾斜管	TILT TUBE	1
22	826164	螺母 (.875-14)	NUT (.875-14)	2
22	8M0231351	锁紧螺母	NUT Lock	2
23	8237011	副驾驶贴花	DECAL Co-Pilot	1
24	821539	三叶销	PIN Trilobe	1
25	823507	衬套	BUSHING	2
26	822480	枢轴销（上部）	PIN Pivot (UPPER)	1
27	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
27	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1

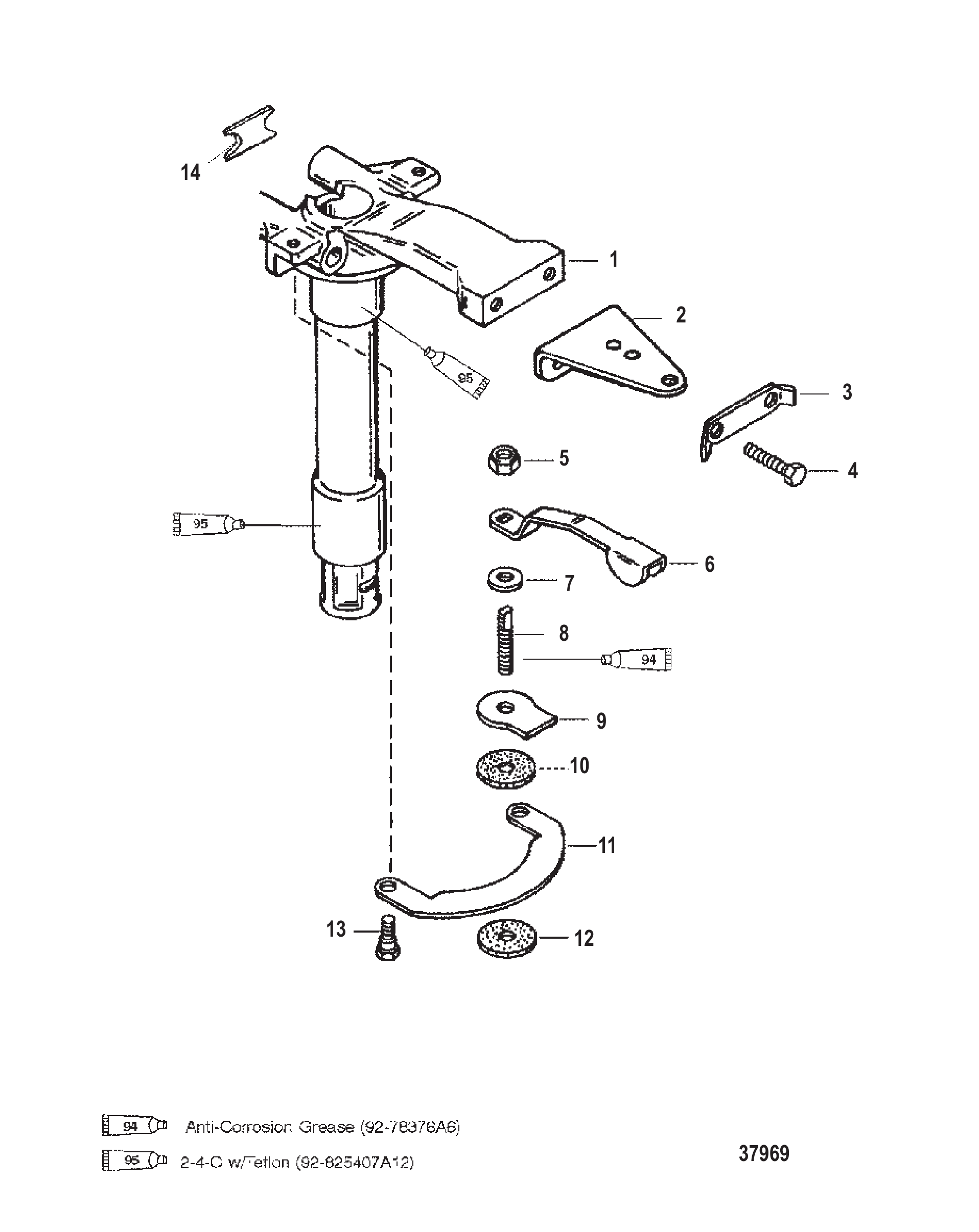

图 25旋转管 SWIVEL TUBE

REF	零件编号	中文名称	英文名称	数量
1	821769F1	旋转管头	HEAD Swivel Tube	1
1	821769F2	旋转管头	HEAD Swivel Tube	1
1	821769T2	旋转管头-灰色	SWIVEL TUBE HEAD Gray	1
2	816667F3	支架	BRACKET	1
2	8M0184092	支架	BRACKET	1
3	816669F1	锁紧垫圈	TAB WASHER	1
3	8M0009820	锁紧垫圈	TAB WASHER	1
4	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
5	34863	螺母 (.375-24)	NUT (.375-24)	1
5	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
6	823792	杠杆	LEVER	1
7	29330	垫圈	WASHER	1
8	821961	螺纹杆	ROD (THREADED)	1
9	821957	制动板	BRAKE PLATE	1
10	8165621	圆盘	DISC	1
11	823791	安装板	PLATE	1
11	8M0007471	旋转头板	PLATE Swivel Head	1
12	8165621	圆盘	DISC	1
13	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
14	826658	缓冲垫	BUMPER	1
14	8M0156878	缓冲垫	BUMPER	1

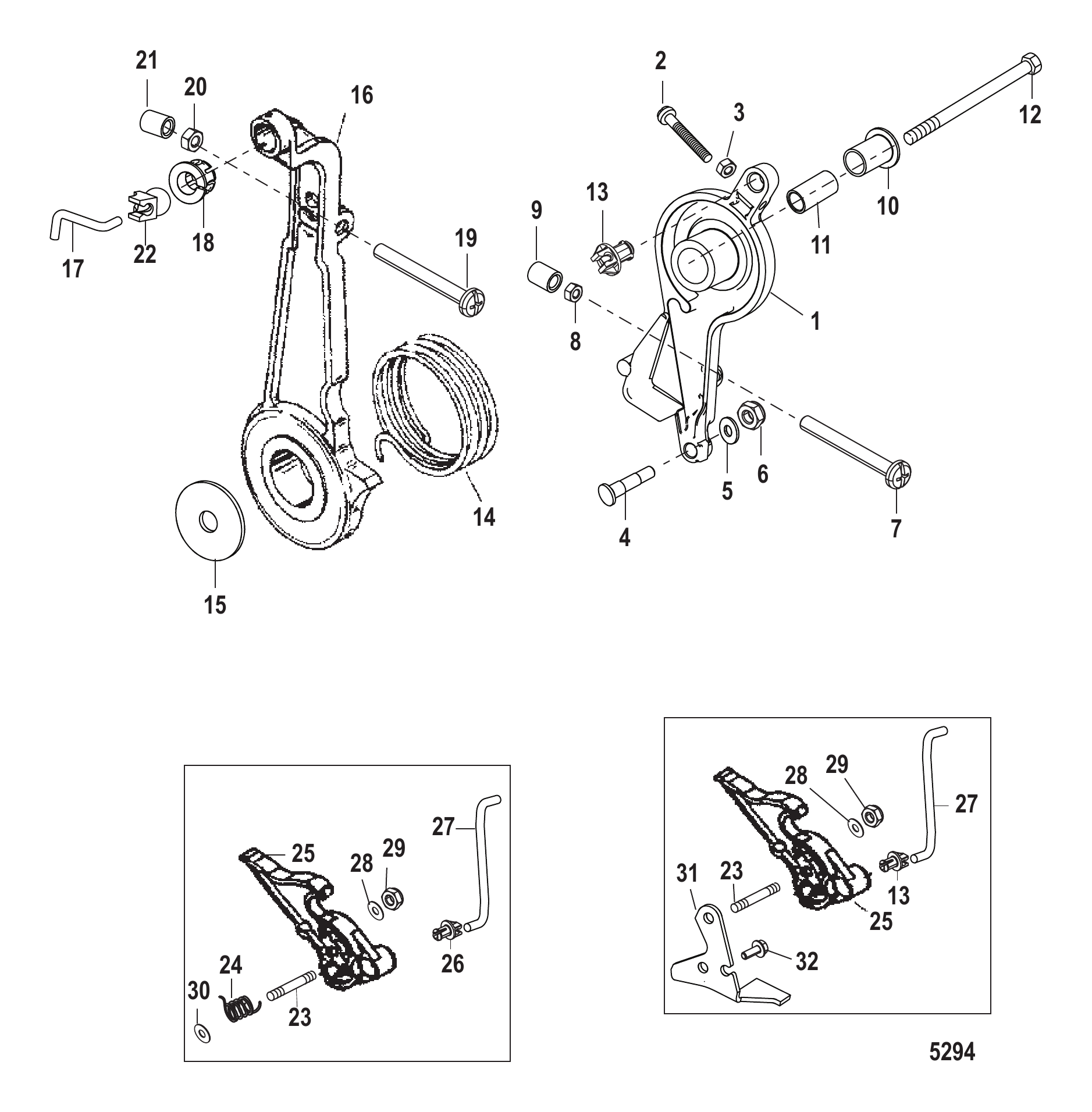

图 26油门杆与联动装置 THROTTLE LEVER AND LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	429461	油门杆	LEVER Throttle	1
1	42946T1	油门杆	LEVER Throttle	1
2	817582	调节螺钉(M5 x 35)	SCREW Adjusting (M5 x 35)	1
3	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
4	42927	嵌件	INSERT	1
5	35459	垫圈	WASHER	1
6	8268336	螺母 (M6)	NUT (M6)	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
8	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
9	42942	盖帽	CAP	1
10	812930A1	衬套	BUSHING	1
11	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
12	4007180	螺丝(M10 x 45)	SCREW (M10 x 45)	1
13	932481	衬套	BUSHING	1
13	8M0215006	旋转衬套	BUSHING Swivel	1
14	55162	弹簧	SPRING	1
15	42980	垫圈	WASHER	1
16	196632	点火提前杆	LEVER Spark Advance	1
16	19663T02	杠杆	LEVER	1
17	42918	杆	ROD	1
17	878172	点火提前杆	ROD Spark Advance	1
18	93254	旋转底座	SWIVEL BASE	1
19	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
20	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
21	42942	盖帽	CAP	1
22	93421	旋转球头	SWIVEL BALL	1
23	42984	螺柱	STUD	1
23	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
24	817702	弹簧	SPRING	1
25	828160A1	节气门凸轮总成	CAM ASSEMBLY Throttle	1
25	828160A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
26	932481	衬套	BUSHING	1
26	8M0215006	旋转衬套	BUSHING Swivel	1
27	828159	杆油门	ROD Throttle	1
27	878174	杆油门	ROD Throttle	1
28	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
29	8268336	螺母 (M6)	NUT (M6)	1
29	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
30	828494	垫圈	WASHER	1
31	8214943	支架	BRACKET	1
32	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1

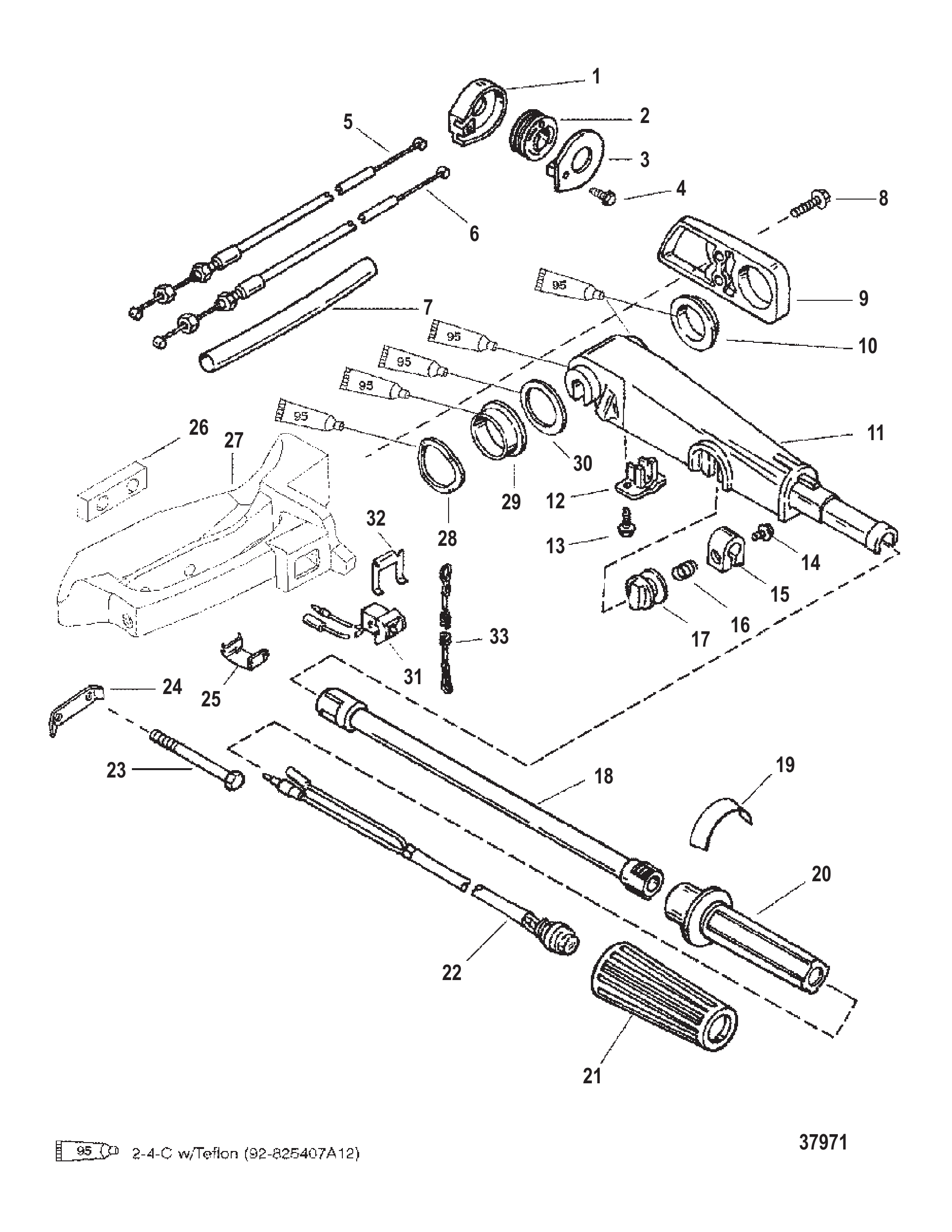

图 27舵柄 TILLER HANDLE

REF	零件编号	中文名称	英文名称	数量
1	822148A7	盖板套件	COVER KIT	1
2	822150	滑轮	PULLEY	1
3	NSS	不单独销售外壳	NOT SOLD SEPARATE Case	1
4	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
4	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
5	4324212	电缆总成油门 (28.50英寸)	CABLE ASSEMBLY Throttle (28.50 Inches)	1
6	4324213	电缆总成油门 (30.00英寸)	CABLE ASSEMBLY Throttle (30.00 Inches)	1
7	960099	套管(12.00英寸)	SLEEVE (12.00 Inches)	1
8	82526225	螺钉 (M8 x 25毫米)	SCREW (M8 x 25 mm)	2
9	822407F1	盖板	COVER	1
9	8M0072298	盖板	COVER	1
9	822407F2	盖板	COVER	1
10	821477	衬套（内径1.485-1.475）	BUSHING 1.485-1.475 Inside Diameter	1
11	828813F1	臂	ARM	1
11	828813T1	转向手柄臂	ARM Steering Handle	1
11	828813F2	转向手柄臂	ARM Steering Handle	1
11	828813T2	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
12	822441	固定座	RETAINER	1
13	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1
15	821971	节气门锁	LOCK Throttle	1
15	892995	节气门锁	LOCK Throttle	1
16	96203	弹簧	SPRING	1
17	821972	节气门旋钮	KNOB Throttle	1
17	821972T	节气门旋钮	KNOB Throttle	1
18	821463A2	舵柄管	TILLER TUBE	1
18	8M0138696	舵柄管	TILLER TUBE	1
19	8242001	贴花	DECAL	1
19	8242004	贴花	DECAL	1
20	821465	节气门手柄	HANDLE Throttle	1
21	99589	握把	GRIP	1
21	8M0221732	外握把	GRIP OUTER	1
22	823609A13	开关总成	SWITCH ASSEMBLY	1
22	8M0104614	停止开关	SWITCH Stop	1
23	824848110	螺钉(M10 x 110)	SCREW (M10 x 110)	2
24	816669F1	锁紧垫圈	TAB WASHER	1
24	8M0009820	锁紧垫圈	TAB WASHER	1
25	823687	卡扣	CLIP	1
26	828569	隔套	SPACER	1
27	821455A4	舵柄支架	BRACKET Tiller	1
27	821455A5	舵柄支架	BRACKET Tiller	1
27	821455A4	舵柄支架	BRACKET Tiller	1
28	826792	波形垫圈	WAVE WASHER	1
29	821477	衬套（内径1.485-1.475）	BUSHING 1.485-1.475 Inside Diameter	1
30	827314	垫圈	WASHER	1
31	11083A15	开关	SWITCH	1
31	11083A31	停止开关	SWITCH Stop	1
32	120441	黄铜固定座	RETAINER Brass	1
32	8M0032846	黄铜固定座	RETAINER Brass	1
33	15920A54	拉绳总成	LANYARD ASSEMBLY	1
33	15920Q54	拉绳总成	LANYARD ASSEMBLY	1

图 28专用工具 TOOLS SPECIAL

REF	零件编号	中文名称	英文名称	数量
-	36392	化油器量具	GAUGE TOOL Carburetor	1
-	89045	适配器	ADAPTER	1
-	890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	99379	正时灯	TIMING LIGHT	1
-	825207A1	TPI/CDM测试线束总成	HARNESS ASSEMBLY TPI/CDM Test	1
-	NSS	夹头(不单独销售)(SNAP ON - CG41-14)	NOT SOLD SEPARATE Collet (SNAP ON - CG41-14)	1
-	NSS	膨胀杆(不单独销售)(SNAP ON - CG41-11)	NOT SOLD SEPARATE Expanding Rod (SNAP ON - CG41-11)	1
-	822778A3	下压力套件	DOWN PRESSURE KIT	1
-	99750A1	万用表	MULTI METER	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	29287	量规工具	GAUGE TOOL	1
-	55919	驱动头	DRIVER HEAD	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	52952A1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	24283	卡簧钳	PLIERS Snap Ring	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1

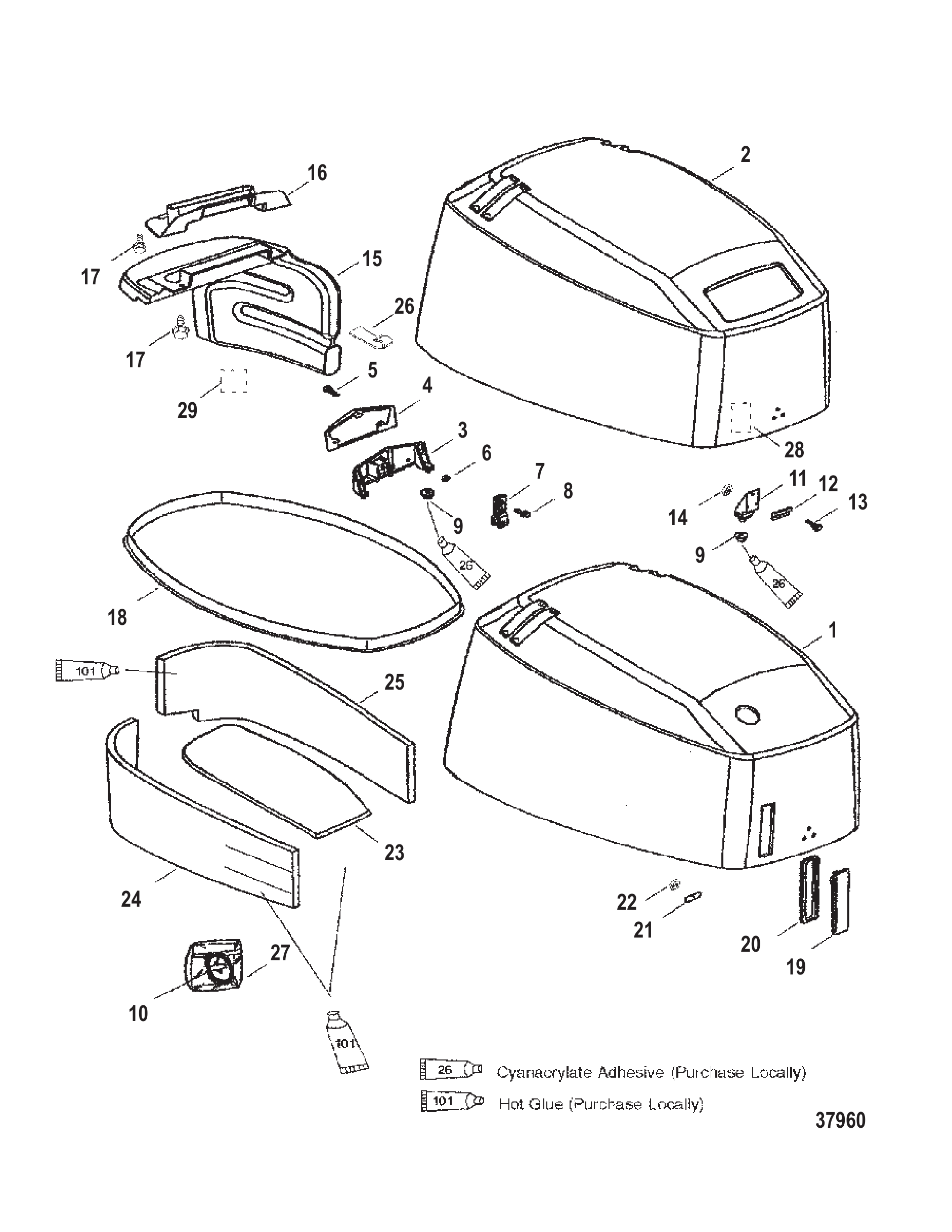

图 29顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	825239A13	顶盖总成	TOP COWL ASSEMBLY	1
1	825239A14	顶盖总成	TOP COWL ASSEMBLY	1
1	825239T14	顶盖总成	TOP COWL ASSEMBLY	1
2	825239A11	顶盖总成	TOP COWL ASSEMBLY	1
2	825239T11	顶盖总成	TOP COWL ASSEMBLY	1
2	825239A12	顶盖总成	TOP COWL ASSEMBLY	1
2	825239T12	顶盖总成	TOP COWL ASSEMBLY	1
3	813549F3	支架罩盖支撑	BRACKET Cowl Support	1
3	8M0041044	支架	BRACKET	1
4	828433	垫片支架	SPACER Bracket	1
4	828433T	隔套	SPACER	1
5	83208630	螺钉	SCREW	3
6	400632	螺母	NUT	3
7	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
7	893763	滚轮锁扣支架	BRACKET Roller Latch	1
8	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
9	8135462	支架	MOUNT	3
9	813546003	支架	MOUNT	3
10	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
10	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
11	828468	支架罩盖支撑-前部	BRACKET Cowl Support - Front	1
11	8M0041646	支架	BRACKET	1
12	828503	锁扣保持器	LATCH KEEPER	1
13	83208616	螺钉	SCREW	3
14	400632	螺母	NUT	1
15	828178	导管进气口	DUCT Air Inlet	1
15	8M0038217	导管-进气口	DUCT-AIR INLET	1
16	NSS	不单独销售进气插入件	NOT SOLD SEPARATE Induction Insert	1
17	F2317	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	2
18	831905	密封件	SEAL	1
18	8M0043404	密封件	SEAL	1
19	813504A1	油位表套件	GAUGE KIT Oil Level	1
20	813505	护孔环	GROMMET	1
21	113171	固定座	RETAINER	1
22	113161	螺母	NUT	1
22	65110	螺母	NUT	1
23	828180A1	隔音套件(全套)	SOUND BLANKET KIT (ALL)	1
23	828180A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
24	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
25	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
26	NSS	胶带(不单独销售)	NOT SOLD SEPARATE Tape	1
27	NSS	不单独出售信封袋	NOT SOLD SEPARATE Envelope	1
28	82409316	前进-空档-倒档换挡贴纸	DECAL F-N-R Shift	1
29	8555778	EPA标签贴花(顶罩进气管)	DECAL EPA Label Information (TOP COWL INLET DUCT)	1
29	855577A8	REF SOB 09-18	REF SOB 09-18	1

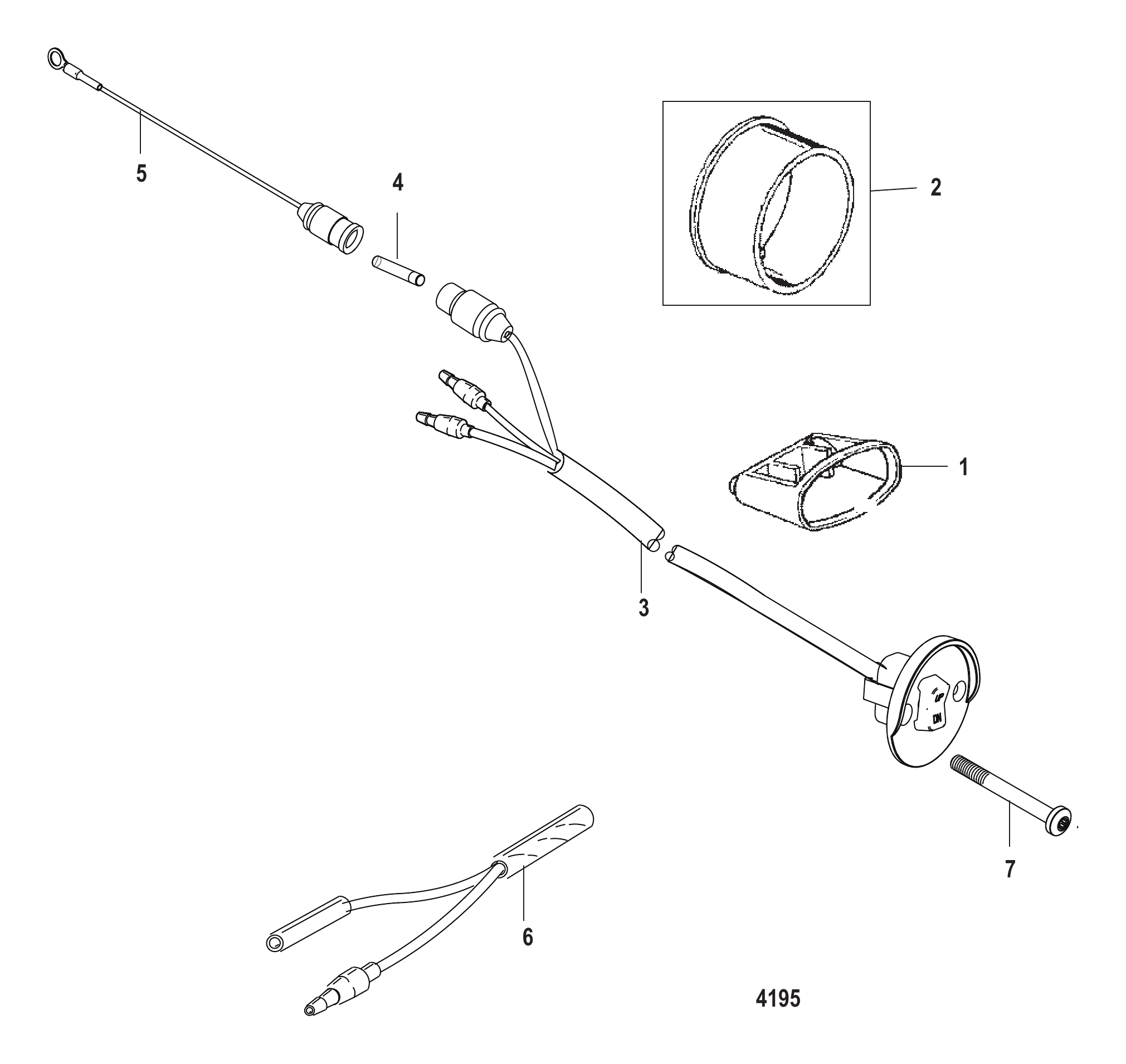

图 30升降开关套件 Trim Switch Kit

REF	零件编号	中文名称	英文名称	数量
-	18286A18	升降开关套件(10.00英尺)	SWITCH KIT Trim (10.00 Feet)	1
1	18861	固定座	RETAINER	1
2	814820	适配器	ADAPTER	1
3	NSS	开关(不单独销售)	NOT SOLD SEPARATE Switch	1
4	79091	保险丝20安培	FUSE 20 Ampere	1
4	8M0207796	保险丝20安培	FUSE 20 AMP	1
5	95084A2	拉线总成	CABLE ASSEMBLY	1
6	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	2
7	19209	螺钉(#10-32 x 2.25)	SCREW (#10-32 x 2.25)	2
7	813523	螺钉(#10-16 x 2.25)	SCREW (#10-16 x 2.25)	2
