水星 Mercury 3.6 HP 9252831 THRU 0A809600 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-88912 · 共 20 个部位 · 764 条零件

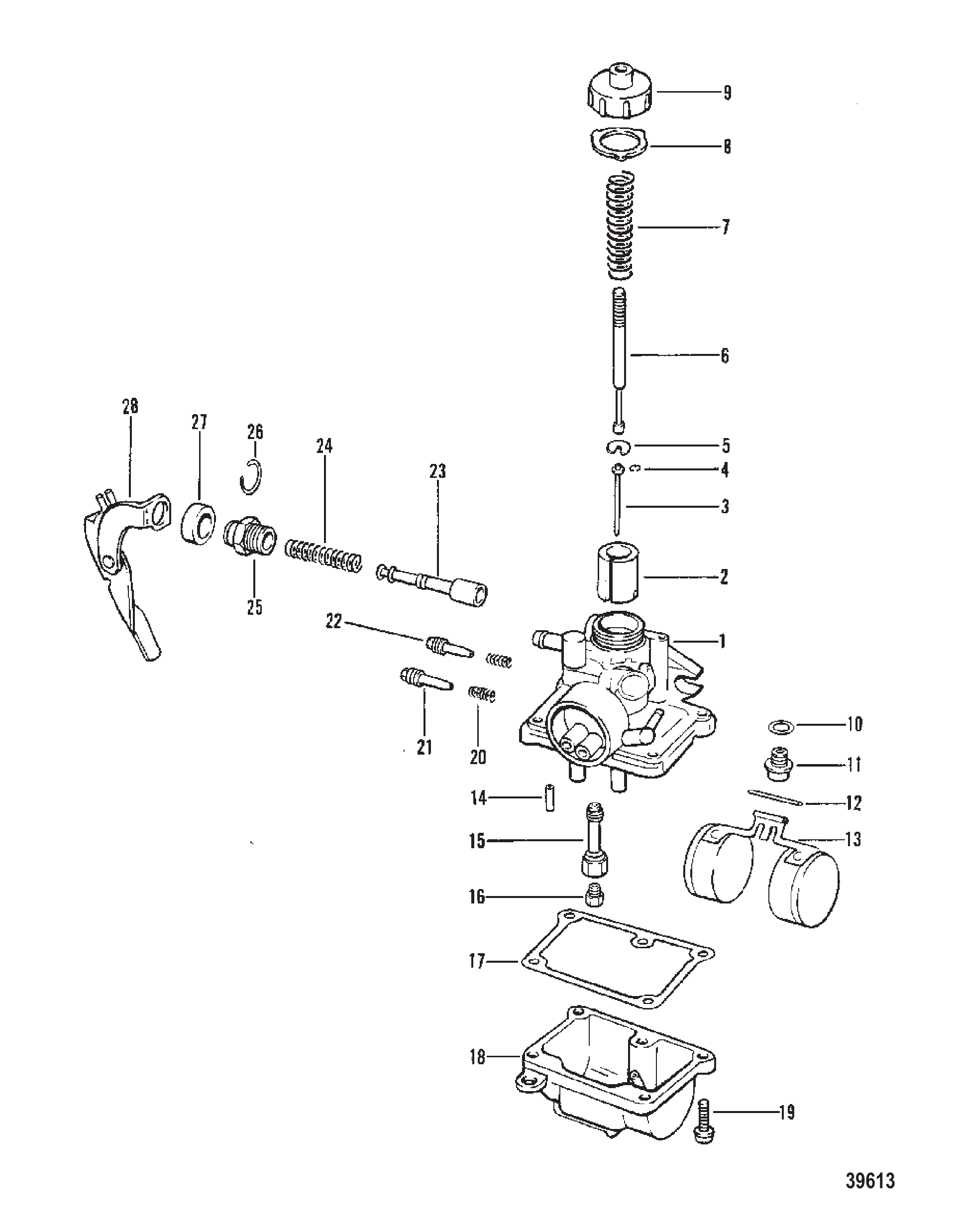

图 1化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7568	化油器	CARBURETOR	1
2	7759	油门阀	VALVE Throttle	1
3	7772	量孔针阀	JET NEEDLE	1
4	7770	针阀E型卡环	E RING NEEDLE JET	1
5	7774	固定座	RETAINER	1
6	7760	杆	ROD	1
7	7758	弹簧杆	SPRING ROD	1
8	7757	盖衬垫	GASKET COVER	1
9	7756	混合室盖	COVER MIXING CHAMBER	1
10	7767	进油针衬垫	GASKET INLET NEEDLE	1
11	7768	进油针阀组件	NEEDLE AND SEAT Inlet	1
12	7769	浮子销	PIN FLOAT	1
13	7762	浮子	FLOAT	1
14	7766	怠速量孔	PILOT JET	1
15	7771	针阀喷嘴	NEEDLE JET	1
16	7773	主量孔	MAIN JET	1
17	7763	浮子室衬垫	GASKET FLOAT BOWL	1
18	N.S.S.		Not Sold Separate Float Bowl	1
19	7765	浮子室螺丝	SCREW FLOAT BOWL	4
20	6158	调节螺丝弹簧	SPRING ADJUSTING SCREW	2
21	7750	低速调节螺丝	SCREW ADJUSTING-LOW SPEED	1
22	7761	怠速调节螺丝	SCREW ADJUSTING-IDLE SPEED	1
23	7751	柱塞	PLUNGER	1
24	7752	柱塞弹簧	SPRING PLUNGER	1
25	7753	柱塞帽	CAP PLUNGER	1
26	7754	柱塞帽卡簧	CLIP PLUNGER CAP	1
27	7755	盖帽	CAP	1
28	7764	杠杆	LEVER	1

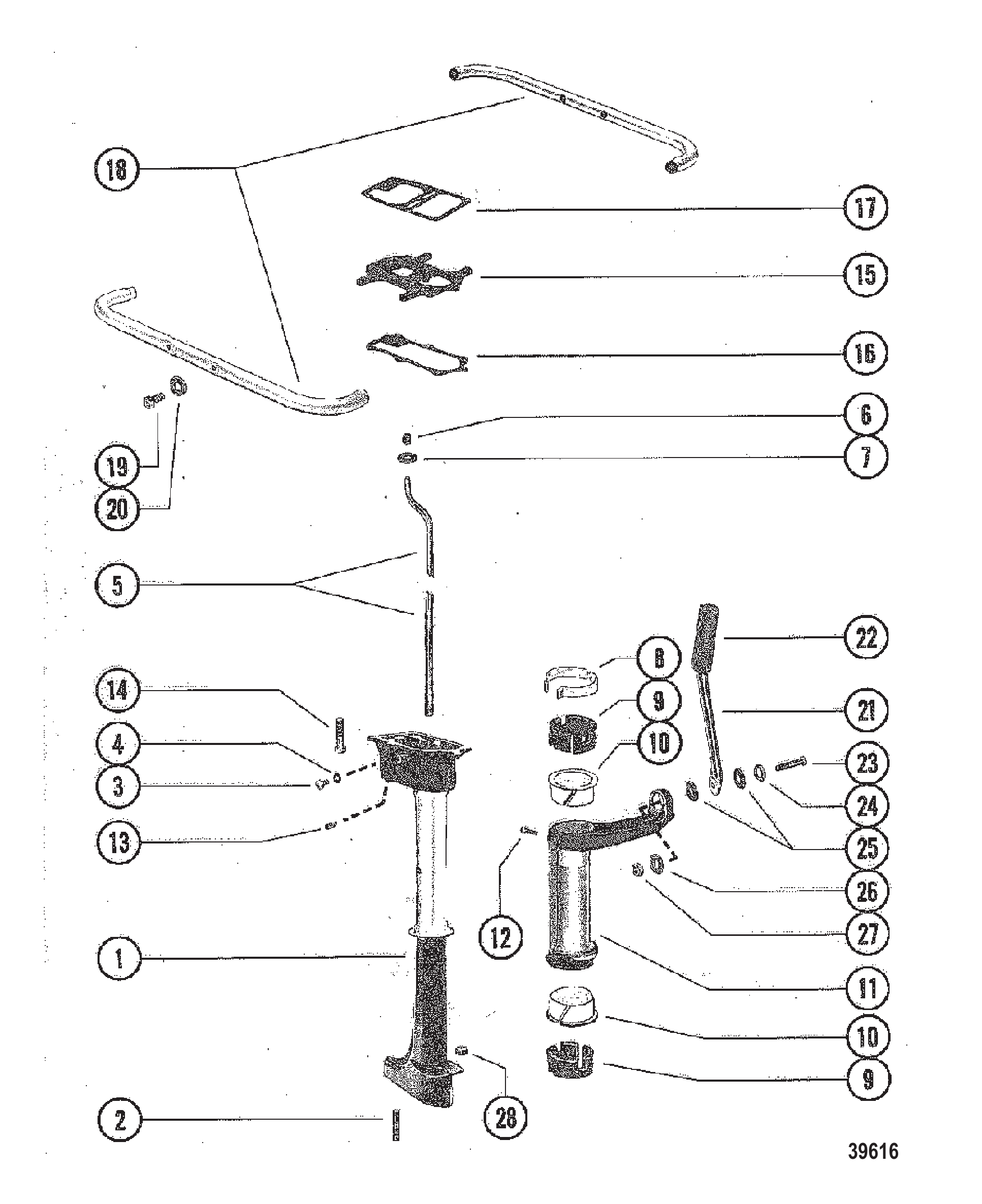

图 2驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7601A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8526A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	7723A4	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8526A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	68927	驱动轴壳体螺柱	STUD DRIVESHAFT HOUSING	1
2	75321	驱动轴壳体螺柱	STUD DRIVE SHAFT HOUSING	1
3	79953		SCREW (.375-16 x .250) GREASE FILLER	1
3	79953Q04	放油螺钉套件	SCREW KIT Drain	1
4	20260	润滑脂加注螺钉垫圈	WASHER GREASE FILLER SCREW	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	88996	水管	TUBE Water	1
5	88997	水管	TUBE Water	1
6	36556	水封（外径0.5英寸）水管	SEAL (.500 Inch Outside Diameter) WATER TUBE	1
7	86214		BEARING Water Tube Seal	1
7	13127	隔套	SPACER	1
8	79791	副驾驶夹箍	CLAMP CO-PILOT	1
9	88669	驱动轴壳体橡胶支座	MOUNT RUBBER-DRIVESHAFT HOUSING	2
10	74308	橡胶安装衬套	BUSHING RUBBER MOUNT	2
11	68990A3	转向臂支架总成	BRACKET ASSEMBLY STEERING ARM	1
11	98168A1	支架总成	BRACKET ASSEMBLY	1
11	89744A1	转向臂支架总成	BRACKET ASSEMBLY STEERING ARM	1
11	98168A1	支架总成	BRACKET ASSEMBLY	1
12	75840	螺钉（#10-24 x .880）转向臂支架	SCREW (#10-24 x .880) STEERING ARM BRACKET	4
13	88184	驱动轴壳体塞	PLUG DRIVESHAFT HOUSING	1
14	69067	螺钉（.250-20 x 1.375）驱动轴壳体至动力头	SCREW (.250-20 x 1.375) DRIVESHAFT HOUSING TO POWERHEAD	6
15	90253	适配板	PLATE ADAPTOR	1
15	98319	安装板	PLATE	1
16	88138	驱动轴壳体衬垫	GASKET PLATE TO DRIVESHAFT HOUSING	1
16	41631	衬垫	GASKET	1
16	90254	驱动轴壳体衬垫	GASKET PLATE TO DRIVESHAFT HOUSING	1
16	41631	衬垫	GASKET	1
17	88139	动力头衬垫	GASKET PLATE TO POWERHEAD	1
17	41632	衬垫	GASKET	1
17	92875	动力头衬垫	GASKET PLATE TO POWERHEAD	1
17	41632	衬垫	GASKET	1
18	87664	提手	HANDLE CARRYING	1
19	54615	手柄至适配板螺钉(0.250-20 x 0.625)	SCREW (.250-20 x .625) HANDLE TO ADAPTOR PLATE	4
20	21249	手柄螺钉垫圈	WASHER HANDLE SCREW	4
21	87667	转向手柄	HANDLE STEERING	1
21	87667T	舵柄	TILLER HANDLE	1
22	87668	转向手柄握把	GRIP STEERING HANDLE	1
23	63327	转向手柄支架螺钉(1.5英寸)	SCREW STEERING HANDLE TO BRACKET (1 1/2")	1
23	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	1
24	53166	转向手柄螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STEERING HANDLE SCREW	1
25	56720	转向手柄螺钉不锈钢垫圈(0.330x0.750x0.060)	WASHER (.330 x .750 x .060) Stainless Steel STEERING HANDLE SCREW	2
26	26825	转向手柄螺钉垫圈(0.328x0.750x0.06)	WASHER (.328 x .750 x .06) STEERING HANDLE SCREW	1
27	68292	转向手柄螺钉螺母(0.312-18)	NUT (.312-18) STEERING HANDLE SCREW	1
27	8M0204668	螺母(.312-18)	NUT (.312-18)	1
28	35814	螺母（.312-24）不锈钢齿轮箱螺柱	NUT (.312-24) Stainless Steel GEAR HOUSING STUD	1
28	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
-	75311	驱动轴壳体适配器	ADAPTER DRIVESHAFT HOUSING	1
-	75311T	适配器	ADAPTOR	1
-	76265	传动轴轴承座	BLOCK Bearing DRIVESHAFT	1
-	94909	轴承座	BLOCK Bearing	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1

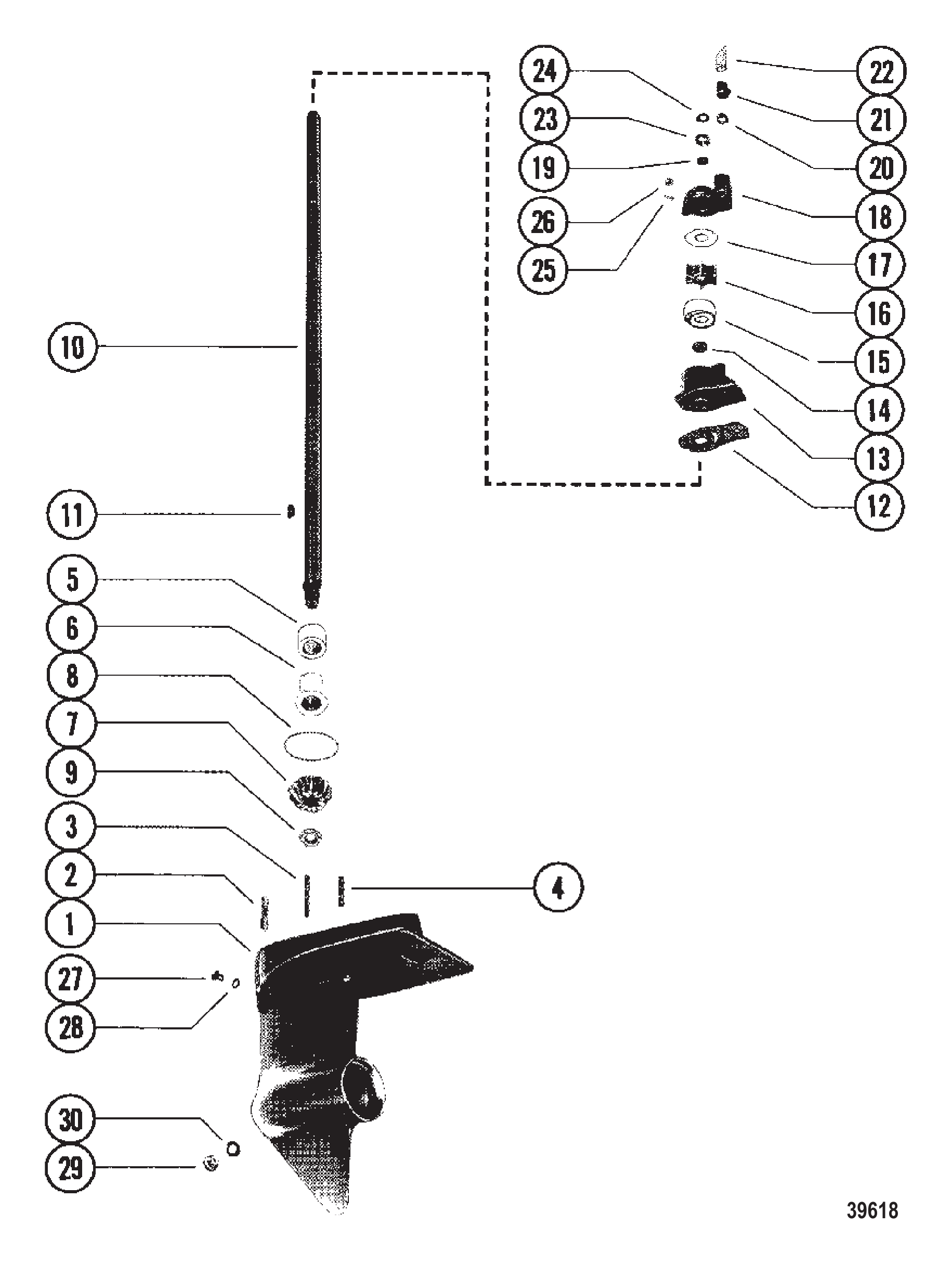

图 3齿轮箱总成(驱动轴) GEAR HOUSING ASSEMBLY (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7726A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7726A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7726A5	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
1	7811A9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	7811A9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
2	68927	齿轮箱螺柱(2.125英寸)	STUD GEAR HOUSING (2 1/8")	1
2	75321	齿轮箱螺柱(7.25英寸)	STUD GEAR HOUSING (7 1/4")	1
3	68928	水泵螺柱(2.125英寸)	STUD WATER PUMP (2 1/8")	2
4	70741	水泵螺柱(1.125英寸)	STUD WATER PUMP (1 1/8")	1
5	77428	齿轮箱轴承	BEARING GEAR HOUSING	1
6	77429	齿轮箱法兰衬套	BUSHING FLANGED-GEAR HOUSING	1
6	90770	衬套	BUSHING	1
6	90770	齿轮箱法兰衬套	BUSHING FLANGED-GEAR HOUSING	1
7	77427	小齿轮	GEAR Pinion	1
7	90795A1	齿轮总成	GEAR ASSY	1
7	90796	小齿轮	GEAR Pinion	1
8	21148A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
9	20922	小齿轮螺母	NUT PINION GEAR	1
10	87617	驱动轴	DRIVESHAFT	1
10	87663	驱动轴	DRIVESHAFT	1
11	56655	叶轮驱动键	KEY IMPELLER DRIVE	1
11	8M0032835	键	KEY	1
12	68939	水泵下衬垫	GASKET WATER PUMP-LOWER	1
13	90844A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
14	77066	水泵油封	SEAL Oil WATER PUMP	1
14	897153	油封@3	SEAL-OIL @3	1
15	70977	水泵衬套	INSERT WATER PUMP	1
15	70977T	嵌件	INSERT	1
16	89980	叶轮	IMPELLER	1
17	68955	水泵面板	FACE PLATE WATER PUMP	1
18	68984A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
18	95965A2	水泵盖总成	COVER ASSEMBLY Water Pump	1
18	90846A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
18	95965A2	水泵盖总成	COVER ASSEMBLY Water Pump	1
19	30913	水泵盖油封	SEAL Oil WATER PUMP COVER	1
20	86214	水管密封轴承	BEARING WATER TUBE SEAL	1
20	13127	隔套	SPACER	1
21	36558	水管密封件	SEAL WATER TUBE	1
22	31792	导水管套筒	SLEEVE WATER TUBE GUIDE	1
22	31792T	套管@5	SLEEVE @5	1
23	30526	驱动轴橡胶环	RING RUBBER-DRIVESHAFT	1
24	85148	传动轴O型圈	O-RING DRIVESHAFT	1
24	62704	O型圈 (.362 x .103)	O-RING (.362 x .103)	1
25	30164	水泵双头螺栓不锈钢垫圈(0.192x0.375x0.0312)	WASHER (.192 x .375 x .0312) Stainless Steel WATER PUMP STUDS	3
26	45812	水泵双头螺栓不锈钢螺母(#10-32)	NUT (#10-32) Stainless Steel WATER PUMP STUDS	3
26	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	3
27	28653	齿轮箱通气螺钉(#10-32 x 0.25)	SCREW (#10-32 x 0.25) VENT-GEAR HOUSING	1
28	20262	通气螺钉垫圈	WASHER VENT SCREW	1
28	19643	密封件	SEAL	1
29	79953		SCREW (.375-16 x .250) GREASE FILLER	1
29	79953Q04	放油螺钉套件	SCREW KIT Drain	1
30	20260	润滑脂加注螺钉垫圈	WASHER GREASE FILLER SCREW	1
30	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
-	90844A2	水泵维修套件	REPAIR KIT Water Pump	1
-	71140A1	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1

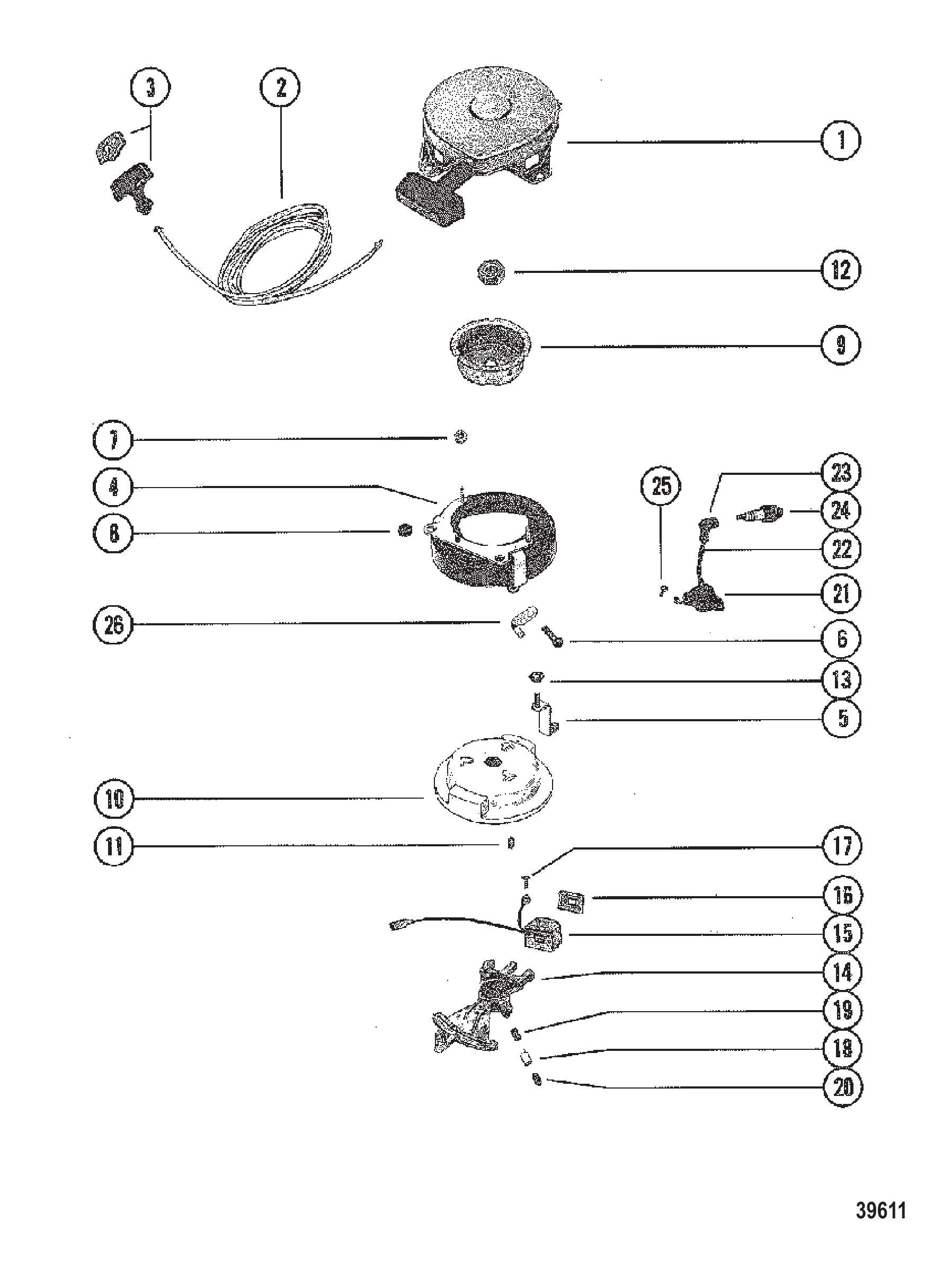

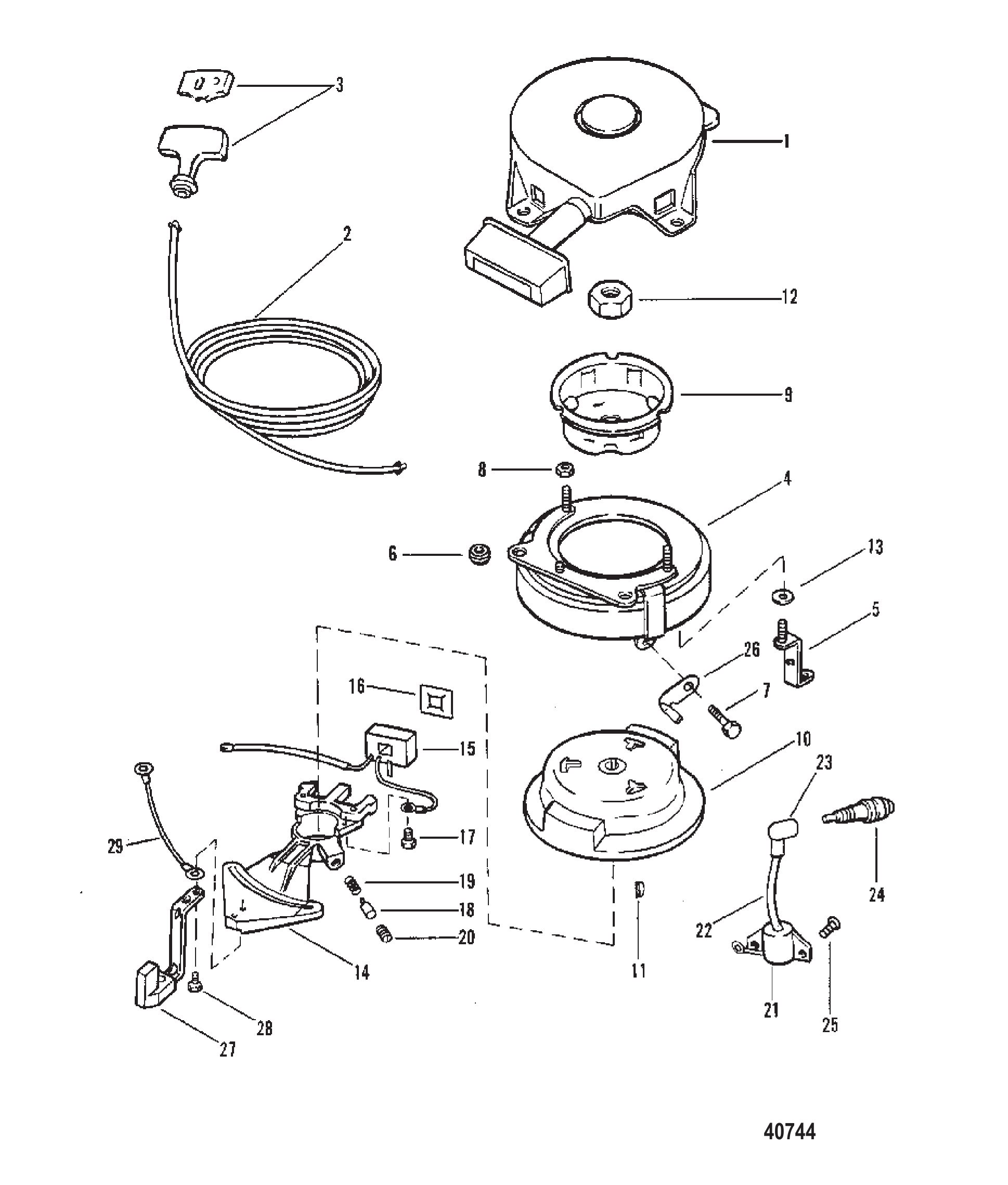

图 4回弹启动器与飞轮 RECOIL STARTER AND FLYWHEEL

REF	零件编号	中文名称	英文名称	数量
1	97175	手拉启动器总成	STARTER ASSEMBLY Recoil	1
1	97175T	反冲启动器	RECOIL STARTER	1
2	89141	绳索	ROPE	1
2	12066Q10	启动绳@2	ROPE-STARTER@2	1
3	79470A1	绳索固定组件	RETAINER KIT Rope	1
4	93498A2	飞轮护罩支架总成	BRACKET ASSEMBLY FLYWHEEL GUARD	1
5	87934	支腿支架	LEG BRACKET	1
6	90329	支架衬套	GROMMET BRACKET	2
7	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	3
8	28941	反冲启动器固定螺母	NUT RECOIL STARTER ATTACHING	4
8	8267139	螺母(.250-28)	NUT (.250-28)	4
9	87886	启动器杯	CUP STARTER	1
10	7530	飞轮	FLYWHEEL	1
11	20094	飞轮伍德鲁夫键	KEY Woodruff FLYWHEEL	1
12	20696	飞轮螺母	NUT FLYWHEEL	1
13	20346	反冲启动器双头螺栓垫圈	WASHER RECOIL STARTER STUD	4
13	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	4
14	98837	点火模块壳体	HOUSING IGNITION MODULE	1
15	88182	点火模块	IGNITION MODULE	1
16	88306	点火模块固定座	RETAINER IGNITION MODULE	1
17	88307	线束固定螺钉(5/16英寸)	SCREW WIRE TO HOUSING (5/16")	1
18	88188	摩擦按钮壳体	BUTTON FRICTION-HOUSING	1
19	90304	摩擦按钮压缩弹簧	SPRING COMPRESSION-FRICTION BUTTON	1
20	88186	摩擦按钮螺钉(0.312-24x0.500)	SCREW (.312-24 x .500) FRICTION BUTTON	1
21	87885	点火线圈	COIL Ignition	1
22	99215A25	导线总成	LEAD ASSEMBLY	1
22	813715A1	引线	LEAD WIRE	1
23	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	1
24	12127	火花塞(NGK #BP6HS-10)	SPARK PLUG (NGK #BP6HS-10)	1
24	8M0114743	SP BP6HS-10 @4	SP BP6HS-10 @4	1
24	88090	火花塞(CHAMPION #QL81Y)	SPARK PLUG (CHAMPION #QL81Y)	1
25	60605	点火线圈螺钉(#10-16x0.750)	SCREW (#10-16 x .750) IGNITION COIL	2
26	88221	怠速止动片	TAB IDLE STOP	1
27	43377A1	节气门杠杆总成	LEVER ASSMEBLY Throttle	1
28	20665	节气门杠杆螺钉(0.190-24x0.50)	SCREW (.190-24 x .50) THROTTLE LEVER	2
29	65773A9	接地线总成	WIRE ASSEMBLY GROUND	1

图 5齿轮箱总成(螺旋桨轴) GEAR HOUSING ASSEMBLY (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7726A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7726A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7726A5	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
1	7811A9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	7811A9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
31	20696	螺旋桨轴螺母	NUT PROPELLER SHAFT	1
32	73672	螺旋桨轴垫圈	WASHER PROPELLER SHAFT	1
33	77422	驱动齿轮	GEAR Drive	1
33	90795A1	齿轮总成	GEAR ASSY	1
33	90795	驱动齿轮	GEAR Drive	1
33	90795A1	齿轮总成	GEAR ASSY	1
33	93398	驱动齿轮	GEAR Drive	1
34	79603	螺旋桨轴专用垫圈	WASHER SPECIAL-PROPELLER SHAFT	1
35	79602A1	螺旋桨轴垫片组(0.002-3-5-10-20)	SHIM SET PROPELLER SHAFT (.002-3-5-10-20)	AR
36	79601	挡圈	RING Retaining	1
37	91813	离合器弹簧	SPRING CLUTCH	1
39	77425	螺旋桨轴	PROPELLER SHAFT	1
39	93397	螺旋桨轴	PROPELLER SHAFT	1
40	77424	螺旋桨轴隔套	SPACER PROPELLER SHAFT	1
41	77431A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
41	99210A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
42	71140	油封	SEAL Oil	1
42	98309	油封	SEAL Oil	1
43	75812	齿轮箱盖	COVER GEAR HOUSING	1
44	68935	轴承座O型圈(1.799x0.103)	O-RING (1.799 x .103) BEARING CARRIER	1
45	32003	轴承座键	KEY BEARING CARRIER	1
46	70588	前进推力毂	THRUST HUB FORWARD	1
47	86903A1	螺旋桨总成	PROPELLER ASSEMBLY	1
47	93357A1	螺旋桨总成	PROPELLER ASSEMBLY	1
47	93357A10	螺旋桨总成	PROPELLER ASSEMBLY	1
48	70589	后推力毂	THRUST HUB AFT	1
48	93356	后推力毂	THRUST HUB AFT	1
49	35814	螺旋桨不锈钢螺母(0.312-24)	NUT (.312-24) Stainless Steel PROPELLER	1
49	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
50	35814	传动轴壳体双头螺栓不锈钢螺母(0.312-24)	NUT (.312-24) Stainless Steel DRIVESHAFT HOUSING STUD	1
50	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1
-	71140A1	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 6杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	99410	MERC 3.5马力零件手册	PARTS MANUAL MERC 3.5 H.P.	1
-	11236	用户手册	OWNERS MANUAL	1
-	98540A83	衬垫套件	GASKET SET	1
-	99362A83	贴花套件	DECAL SET	1
-	43148A84	贴花套件	DECAL SET	1
-	43148A84	贴花套件	DECAL SET	1

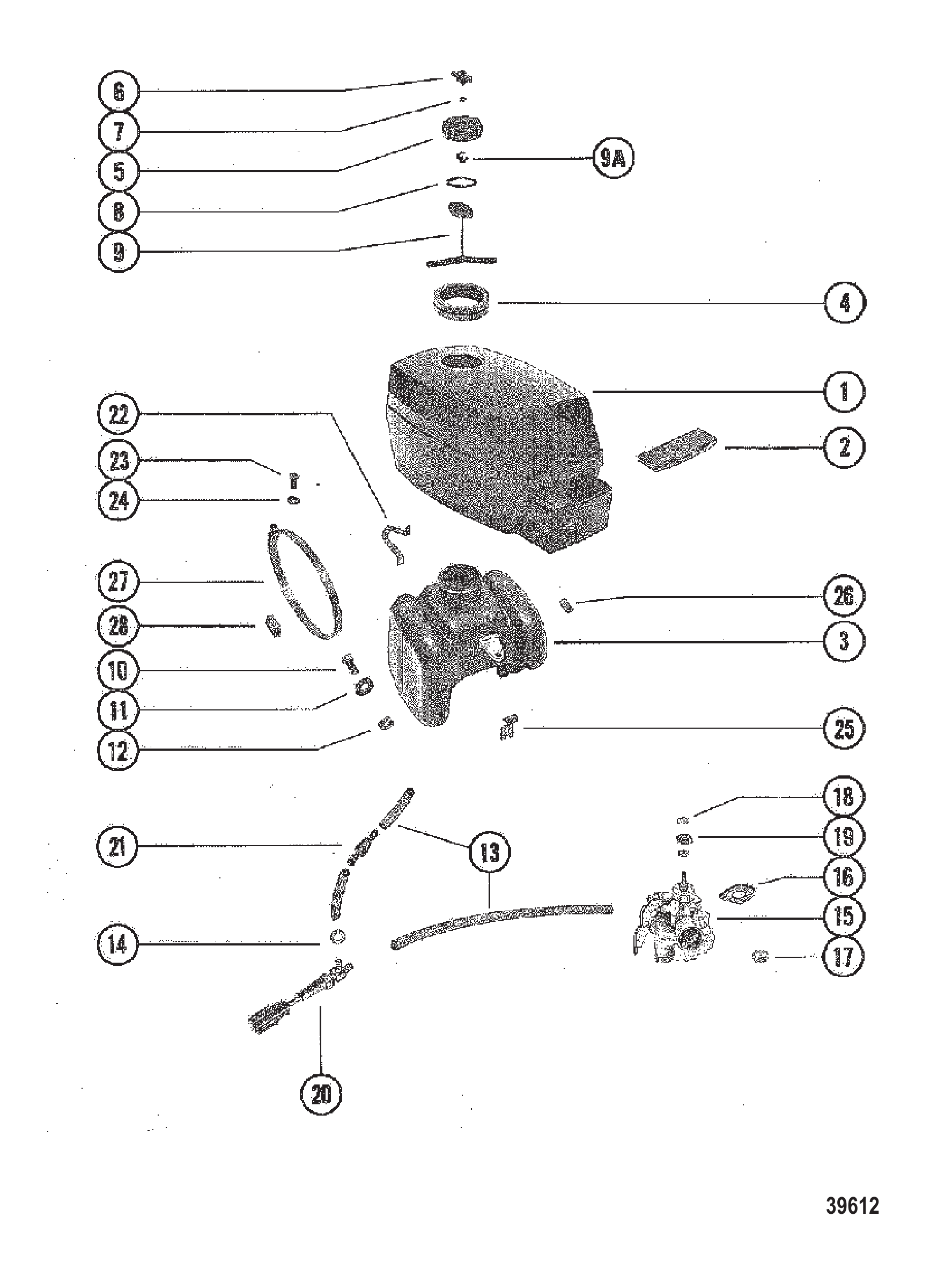

图 7顶罩、燃油箱与化油器 TOP COWL, FUEL TANK AND CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	7926	顶盖总成	TOP COWL ASSEMBLY	1
1	8158A1	顶盖总成	TOP COWL ASSEMBLY	1
1	8158A1	顶盖总成	TOP COWL ASSEMBLY	1
2	87747	化油器盖(顶罩)	COVER CARBURETOR (TOP COWL)	1
2	94108A1	盖板	COVER	1
2	94108A1	化油器盖(顶罩)	COVER CARBURETOR (TOP COWL)	1
3	7526	燃油箱	TANK Fuel	1
3	8082	燃油箱	TANK Fuel	1
3	8082	燃油箱	TANK Fuel	1
4	92882	顶罩密封圈	GROMMET TOP COWL	1
4	98807	衬垫	GASKET	1
5	87615A1	燃油盖总成	CAP ASSEMBLY Fuel	1
5	41660A2	燃油盖总成	CAP ASSEMBLY Fuel	1
6	88297	通气螺钉	SCREW VENT	1
7	69643	通气螺钉O型圈	O-RING VENT SCREW	1
8	26722	燃油盖O型圈	O-RING FUEL CAP	1
9	88298	燃油盖卡扣	RETAINER FUEL CAP	1
9	91925	燃油盖快速固定螺母	PUSH NUT SPEED-FUEL CAP RETAINER	1
10	76630	燃油箱至动力头螺钉(0.250-20x1.00)	SCREW (.250-20 x 1.00) FUEL TANK TO POWERHEAD	2
10	8M0214943	螺钉	SCREW	2
11	20346	燃油箱螺钉垫圈	WASHER FUEL TANK SCREW	6
11	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	6
12	29031	油箱螺丝螺母(1/4-20)	NUT (1/4-20) FUEL TANK SCREW	2
13	8950433	燃油管路(12英寸和3.25英寸)	LINE Fuel (12" AND 3 1/4")	3
13	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	3
14	68424	燃油管固定夹	CLAMP FUEL LINE ATTACHING	5
15	7568	化油器	CARBURETOR	1
16	70417	化油器衬垫	GASKET CARBURETOR	2
17	30406	化油器固定螺母	NUT CARBURETOR ATTACHING	2
18	88223	凸轮从动件	FOLLOWER Cam	1
19	4002027	化油器凸轮随动件螺母	NUT CAM FOLLOWER TO CARBURETOR	2
20	89398	燃油切断阀	VALVE FUEL SHUT-OFF	1
21	76934	燃油滤清器	FILTER Fuel	1
22	90502	燃油箱后支架	BRACKET FUEL TANK-REAR	1
22	97417	支架	BRACKET	1
23	90565	油箱卡箍螺丝(.250-20 x .310)	SCREW (.250-20 x .310) FUEL TANK CLAMP	1
24	53705	燃油箱螺钉垫圈	WASHER FUEL TANK SCREW	1
24	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	1
25	90501	燃油箱前支架	BRACKET FUEL TANK-FRONT	1
26	90396	油箱缓冲垫	BUMPER FUEL TANK	2
27	90497	油箱固定卡箍	CLAMP FUEL TANK ATTACHING	1
28	714933	燃油箱夹装饰条	MOLDING TRIM-FUEL TANK CLAMP	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1

图 8气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7744A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8694A3	气缸体	CYLINDER BLOCK	1
1	7696A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8694A3	气缸体	CYLINDER BLOCK	1
2	66021	化油器螺柱	STUD CARBURETOR	2
3	85500	曲轴箱至气缸体定位销(.187 x .530)	PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK	2
3	8M0084726	定位销	PIN Dowel	2
4	89275	泄放接头	FITTING BLEED DRAIN	1
5	52742A1	泄放软管(8英寸)	HOSE BLEED DRAIN (8")	1
5	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
6	88780	泄放示位管弯头	ELBOW Tell-Tale Tubing BLEED DRAIN	1
6	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	1
7	35268	气缸体螺钉	SCREW CYLINDER BLOCK	1
7	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
8	73280	曲轴箱至气缸体螺钉(1.5英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1 1/2")	2
9	76621	曲轴箱至气缸体螺钉(1英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1")	8
10	70726	簧片阀组	REED BLOCK	1
11	35836	簧片进气阀	REED INLET VALVE	2
12	22215	簧片压板	RETAINER REED	2
13	28430	簧片固定螺钉(#6-32 x 0.25)	SCREW (#6-32 x .25) REED AND RETAINER TO BLOCK	4
14	35739	簧片阀组至曲轴箱垫片	GASKET REED BLOCK TO CRANKCASE	1
14	357391	衬垫	GASKET	1
15	72961	曲轴箱滚珠轴承(下)	BEARING Ball CRANKCASE (LOWER)	1
16	89794	下滚珠轴承隔套	SPACER LOWER BALL BEARING	1
17	56397	曲轴箱油封(下)	SEAL Oil CRANKCASE (LOWER)	1
18	31412A1	垫片	SHIM	AR
19	7536A1	轴承壳体总成	HOUSING ASSEMBLY Bearing	1
19	7536A2	端盖总成	END CAP ASSY	1
20	72961	滚珠轴承壳体	BEARING Ball BEARING HOUSING	1
21	31410	滚柱轴承壳体	BEARING Roller BEARING HOUSING	1
22	66301	轴承壳体油封	SEAL Oil BEARING HOUSING	1
23	20863	轴承壳体O型圈	O-RING BEARING HOUSING	1
24	39002	轴承壳体螺钉（1/2英寸）	SCREW BEARING HOUSING (1/2")	4
25	88222	轴承座接地片螺钉	TAB GROUND-BEARING HOUSING SCREW	1
26	35658	换气口盖	COVER TRANSFER COVER	1
27	35657	换气口盖垫片	GASKET TRANSFER PORT COVER	1
28	20720	螺钉(.190-24 x .62)	SCREW (.190-24 x .62)	2
29	7527	气缸体盖	COVER CYLINDER BLOCK	1
30	78140	盖板至气缸体衬垫	GASKET COVER TO CYLINDER BLOCK	1
30	416151	衬垫	GASKET	1
31	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	4
31	8M0214943	螺钉	SCREW	4
32	78139	气缸体至挡板衬垫	GASKET CYLINDER BLOCK TO BAFFLE PLATE	1
32	416141	衬垫	GASKET	1
33	46234	排气歧管挡板	PLATE BAFFLE-EXHAUST MANIFOLD	1
34	78139	衬垫	GASKET	1
34	416141	衬垫	GASKET	1
35	46171	排气歧管盖	COVER EXHAUST MANIFOLD	1
36	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	6
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1
-	88675A79	动力头总成	POWERHEAD ASSEMBLY	1
-	88675A83	动力头总成	POWERHEAD ASSEMBLY	1

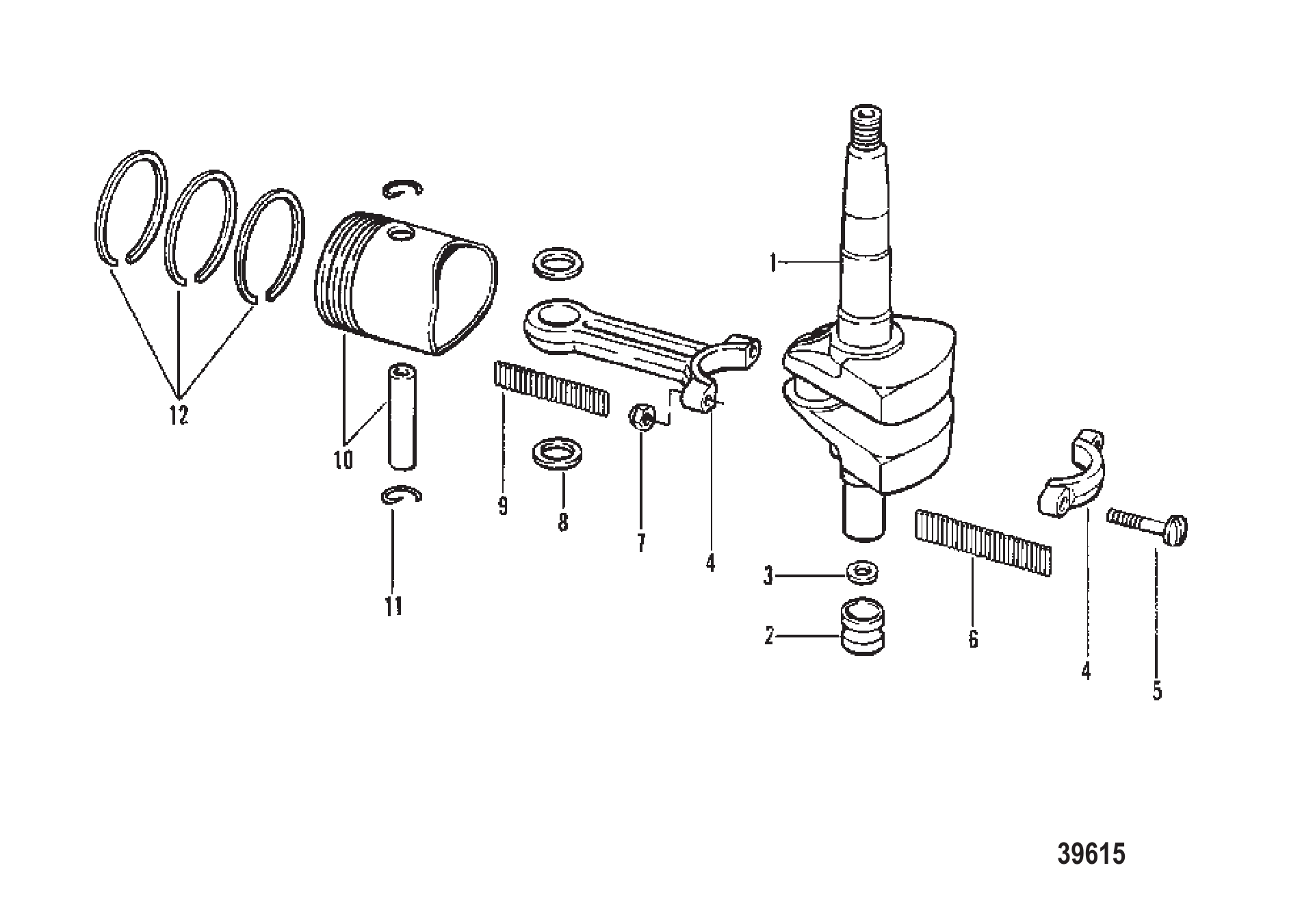

图 9曲轴、活塞与连杆总成 CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7334A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	79952A1	托架总成	CARRIER ASSEMBLY	1
3	79960	承载垫圈	WASHER CARRIER	1
4	7395A2	连杆总成	CONNECTING ROD ASSEMBLY	1
5	87374	连杆螺丝(.250-28 x 1.030)	SCREW (.250-28 x 1.030) CONNECTING ROD	2
6	26815	曲柄销滚针轴承	BEARING Needle CRANKPIN	29
6	8M0045032	滚针轴承@100	NEEDLE BRG @100	29
7	20061	连杆螺钉螺母	NUT CONNECTING ROD SCREW	2
8	65967	滚针轴承挡圈	WASHER NEEDLE BEARING RETAINING	2
9	31505	活塞销滚针轴承	BEARING Needle PISTON PIN	20
10	7391A3	活塞总成	PISTON ASSEMBLY	1
10	7391T3	活塞	PISTON	1
11	21666	活塞销锁环	LOCK RING PISTON PIN	2
12	21665A12	活塞环组	RING SET Piston	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1

图 10夹紧和旋转支架总成 CLAMP AND SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7291A1	夹具支架(左舷)	CLAMP BRACKET (PORT)	1
2	7289A1	夹具支架(右舷)	CLAMP BRACKET (STARBOARD)	1
3	77190A4	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	78971	蝶形螺丝手柄	HANDLE THUMB SCREW	2
5	78970	蝶形螺丝定位销	PIN Groove THUMB SCREW	2
6	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
6	818884	垫圈	WASHER	2
6A	76804	蝶形螺丝垫片	SCREW THUMB SCREW WASHER	2
6A	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
7	79477	卡箍支架螺丝	SCREW CLAMP BRACKET	1
7	96917	螺钉	SCREW	1
8	68920	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
10	34863	卡箍支架双头螺栓/螺丝螺母(.375-24)	NUT (.375-24) CLAMP BRACKET STUD OR SCREW	1
10	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
11	68925	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	68929A2	倾斜销总成	PIN ASSEMBLY Tilt	1
15	62143	倾斜销弹簧	SPRING TILT PIN	1
16	7400A2	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
17	69067	旋转支架螺丝(.250-20 x 1.375)	SCREW (.250-20 x 1.375) SWIVEL BRACKET	4
17A	31345	旋转支架接头	FITTING SWIVEL BRACKET	1
17A	8M0169589	润滑脂接头	FITTING Grease	1
18	76110A1	倾斜杆总成	LEVER ASSEMBLY Tilt	1
19	68932	左舷扭力弹簧	SPRING TORSION-PORT	1
20	68968	倒挡锁止杆	ROD REVERSE LOCK	2
22	68972	倒挡锁止杆	LEVER REVERSE LOCK	1
23	73124	右舷扭力弹簧	SPRING TORSION-STARBOARD	1
24	31345	接头	FITTING	2
24	8M0169589	润滑脂接头	FITTING Grease	2
25	79793A1	调节螺丝总成	SCREW ASSEBMLY Adjustment	1
26	20385	调节螺丝O型圈(.239 x .070)	O-RING (.239 x .070) ADJUSTMENT SCREW	1

图 11化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7568	化油器	CARBURETOR	1
2	7759	油门阀	VALVE Throttle	1
3	7772	量孔针阀	JET NEEDLE	1
4	7770	针阀E型卡环	E RING NEEDLE JET	1
5	7774	固定座	RETAINER	1
6	7760	杆	ROD	1
7	7758	弹簧杆	SPRING ROD	1
8	7757	盖衬垫	GASKET COVER	1
9	7756	混合室盖	COVER MIXING CHAMBER	1
10	7767	进油针衬垫	GASKET INLET NEEDLE	1
11	7768	进油针阀组件	NEEDLE AND SEAT Inlet	1
12	7769	浮子销	PIN FLOAT	1
13	7762	浮子	FLOAT	1
14	7766	怠速量孔	PILOT JET	1
15	7771	针阀喷嘴	NEEDLE JET	1
16	7773	主量孔	MAIN JET	1
17	7763	浮子室衬垫	GASKET FLOAT BOWL	1
18	N.S.S.		Not Sold Separate Float Bowl	1
19	7765	浮子室螺丝	SCREW FLOAT BOWL	4
20	6158	调节螺丝弹簧	SPRING ADJUSTING SCREW	2
21	7750	低速调节螺丝	SCREW ADJUSTING-LOW SPEED	1
22	7761	怠速调节螺丝	SCREW ADJUSTING-IDLE SPEED	1
23	7751	柱塞	PLUNGER	1
24	7752	柱塞弹簧	SPRING PLUNGER	1
25	7753	柱塞帽	CAP PLUNGER	1
26	7754	柱塞帽卡簧	CLIP PLUNGER CAP	1
27	7755	盖帽	CAP	1
28	7764	杠杆	LEVER	1

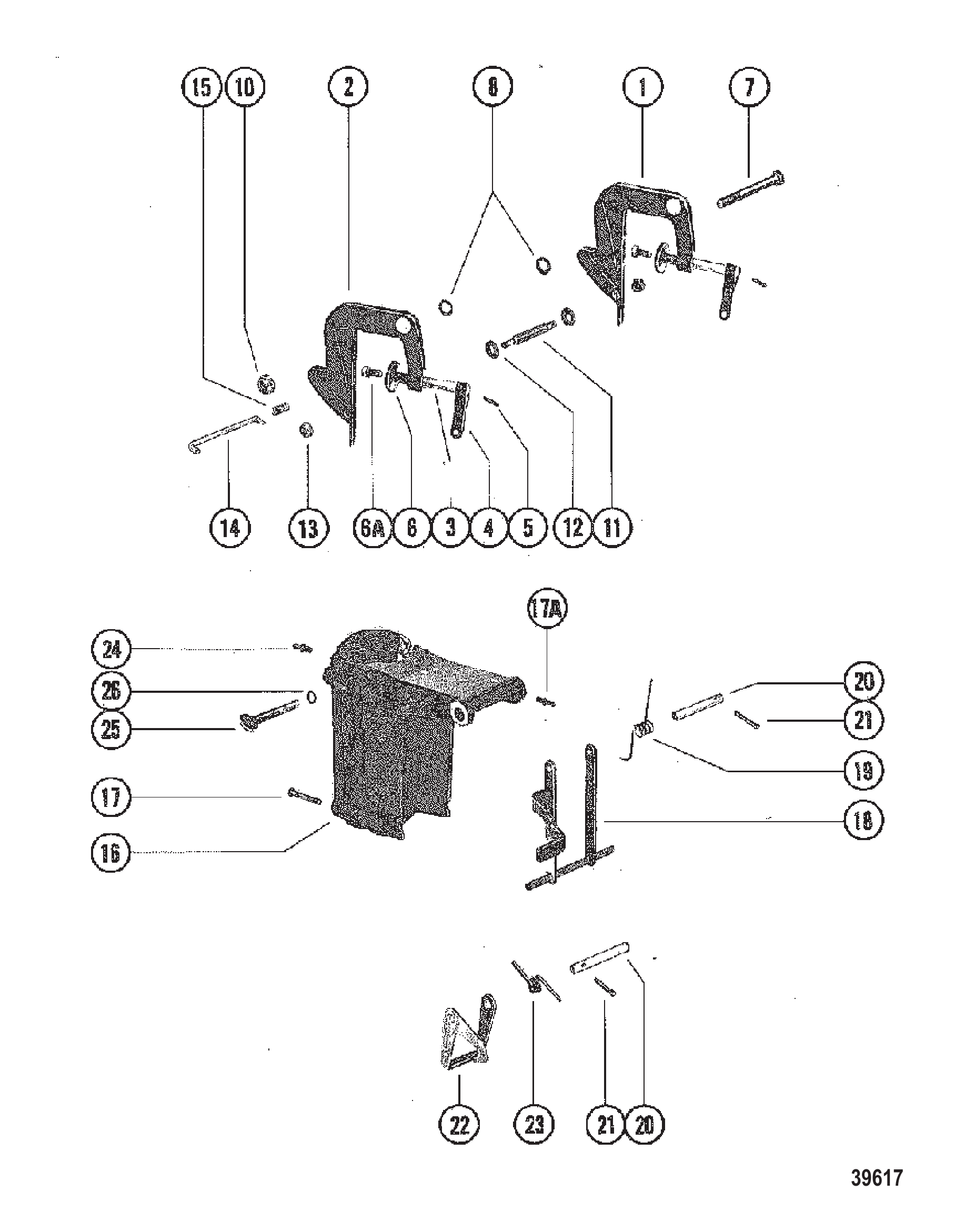

图 12夹紧和旋转支架总成 CLAMP AND SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7291A1	夹具支架(左舷)	CLAMP BRACKET (PORT)	1
2	7289A1	夹具支架(右舷)	CLAMP BRACKET (STARBOARD)	1
3	77190A4	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	78971	蝶形螺丝手柄	HANDLE THUMB SCREW	2
5	78970	蝶形螺丝定位销	PIN Groove THUMB SCREW	2
6	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
6	818884	垫圈	WASHER	2
6A	76804	蝶形螺丝垫片	SCREW THUMB SCREW WASHER	2
6A	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
7	79477	卡箍支架螺丝	SCREW CLAMP BRACKET	1
7	96917	螺钉	SCREW	1
8	68920	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
10	34863	卡箍支架双头螺栓/螺丝螺母(.375-24)	NUT (.375-24) CLAMP BRACKET STUD OR SCREW	1
10	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
11	68925	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	68929A2	倾斜销总成	PIN ASSEMBLY Tilt	1
15	62143	倾斜销弹簧	SPRING TILT PIN	1
16	7400A2	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
17	69067	旋转支架螺丝(.250-20 x 1.375)	SCREW (.250-20 x 1.375) SWIVEL BRACKET	4
17A	31345	旋转支架接头	FITTING SWIVEL BRACKET	1
17A	8M0169589	润滑脂接头	FITTING Grease	1
18	76110A1	倾斜杆总成	LEVER ASSEMBLY Tilt	1
19	68932	左舷扭力弹簧	SPRING TORSION-PORT	1
20	68968	倒挡锁止杆	ROD REVERSE LOCK	2
22	68972	倒挡锁止杆	LEVER REVERSE LOCK	1
23	73124	右舷扭力弹簧	SPRING TORSION-STARBOARD	1
24	31345	接头	FITTING	2
24	8M0169589	润滑脂接头	FITTING Grease	2
25	79793A1	调节螺丝总成	SCREW ASSEBMLY Adjustment	1
26	20385	调节螺丝O型圈(.239 x .070)	O-RING (.239 x .070) ADJUSTMENT SCREW	1

图 13曲轴、活塞与连杆总成 CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7334A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	79952A1	托架总成	CARRIER ASSEMBLY	1
3	79960	承载垫圈	WASHER CARRIER	1
4	7395A2	连杆总成	CONNECTING ROD ASSEMBLY	1
5	87374	连杆螺丝(.250-28 x 1.030)	SCREW (.250-28 x 1.030) CONNECTING ROD	2
6	26815	曲柄销滚针轴承	BEARING Needle CRANKPIN	29
6	8M0045032	滚针轴承@100	NEEDLE BRG @100	29
7	20061	连杆螺钉螺母	NUT CONNECTING ROD SCREW	2
8	65967	滚针轴承挡圈	WASHER NEEDLE BEARING RETAINING	2
9	31505	活塞销滚针轴承	BEARING Needle PISTON PIN	20
10	7391A3	活塞总成	PISTON ASSEMBLY	1
10	7391T3	活塞	PISTON	1
11	21666	活塞销锁环	LOCK RING PISTON PIN	2
12	21665A12	活塞环组	RING SET Piston	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1

图 14气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7744A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8694A3	气缸体	CYLINDER BLOCK	1
1	7696A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8694A3	气缸体	CYLINDER BLOCK	1
2	66021	化油器螺柱	STUD CARBURETOR	2
3	85500	曲轴箱至气缸体定位销(.187 x .530)	PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK	2
3	8M0084726	定位销	PIN Dowel	2
4	89275	泄放接头	FITTING BLEED DRAIN	1
5	52742A1	泄放软管(8英寸)	HOSE BLEED DRAIN (8")	1
5	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
6	88780	泄放示位管弯头	ELBOW Tell-Tale Tubing BLEED DRAIN	1
6	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	1
7	35268	气缸体螺钉	SCREW CYLINDER BLOCK	1
7	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
8	73280	曲轴箱至气缸体螺钉(1.5英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1 1/2")	2
9	76621	曲轴箱至气缸体螺钉(1英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1")	8
10	70726	簧片阀组	REED BLOCK	1
11	35836	簧片进气阀	REED INLET VALVE	2
12	22215	簧片压板	RETAINER REED	2
13	28430	簧片固定螺钉(#6-32 x 0.25)	SCREW (#6-32 x .25) REED AND RETAINER TO BLOCK	4
14	35739	簧片阀组至曲轴箱垫片	GASKET REED BLOCK TO CRANKCASE	1
14	357391	衬垫	GASKET	1
15	72961	曲轴箱滚珠轴承(下)	BEARING Ball CRANKCASE (LOWER)	1
16	89794	下滚珠轴承隔套	SPACER LOWER BALL BEARING	1
17	56397	曲轴箱油封(下)	SEAL Oil CRANKCASE (LOWER)	1
18	31412A1	垫片	SHIM	AR
19	7536A1	轴承壳体总成	HOUSING ASSEMBLY Bearing	1
19	7536A2	端盖总成	END CAP ASSY	1
20	72961	滚珠轴承壳体	BEARING Ball BEARING HOUSING	1
21	31410	滚柱轴承壳体	BEARING Roller BEARING HOUSING	1
22	66301	轴承壳体油封	SEAL Oil BEARING HOUSING	1
23	20863	轴承壳体O型圈	O-RING BEARING HOUSING	1
24	39002	轴承壳体螺钉（1/2英寸）	SCREW BEARING HOUSING (1/2")	4
25	88222	轴承座接地片螺钉	TAB GROUND-BEARING HOUSING SCREW	1
26	35658	换气口盖	COVER TRANSFER COVER	1
27	35657	换气口盖垫片	GASKET TRANSFER PORT COVER	1
28	20720	螺钉(.190-24 x .62)	SCREW (.190-24 x .62)	2
29	7527	气缸体盖	COVER CYLINDER BLOCK	1
30	78140	盖板至气缸体衬垫	GASKET COVER TO CYLINDER BLOCK	1
30	416151	衬垫	GASKET	1
31	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	4
31	8M0214943	螺钉	SCREW	4
32	78139	气缸体至挡板衬垫	GASKET CYLINDER BLOCK TO BAFFLE PLATE	1
32	416141	衬垫	GASKET	1
33	46234	排气歧管挡板	PLATE BAFFLE-EXHAUST MANIFOLD	1
34	78139	衬垫	GASKET	1
34	416141	衬垫	GASKET	1
35	46171	排气歧管盖	COVER EXHAUST MANIFOLD	1
36	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	6
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1
-	88675A79	动力头总成	POWERHEAD ASSEMBLY	1
-	88675A83	动力头总成	POWERHEAD ASSEMBLY	1

图 15驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7601A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8526A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	7723A4	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8526A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	68927	驱动轴壳体螺柱	STUD DRIVESHAFT HOUSING	1
2	75321	驱动轴壳体螺柱	STUD DRIVE SHAFT HOUSING	1
3	79953		SCREW (.375-16 x .250) GREASE FILLER	1
3	79953Q04	放油螺钉套件	SCREW KIT Drain	1
4	20260	润滑脂加注螺钉垫圈	WASHER GREASE FILLER SCREW	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	88996	水管	TUBE Water	1
5	88997	水管	TUBE Water	1
6	36556	水封（外径0.5英寸）水管	SEAL (.500 Inch Outside Diameter) WATER TUBE	1
7	86214		BEARING Water Tube Seal	1
7	13127	隔套	SPACER	1
8	79791	副驾驶夹箍	CLAMP CO-PILOT	1
9	88669	驱动轴壳体橡胶支座	MOUNT RUBBER-DRIVESHAFT HOUSING	2
10	74308	橡胶安装衬套	BUSHING RUBBER MOUNT	2
11	68990A3	转向臂支架总成	BRACKET ASSEMBLY STEERING ARM	1
11	98168A1	支架总成	BRACKET ASSEMBLY	1
11	89744A1	转向臂支架总成	BRACKET ASSEMBLY STEERING ARM	1
11	98168A1	支架总成	BRACKET ASSEMBLY	1
12	75840	螺钉（#10-24 x .880）转向臂支架	SCREW (#10-24 x .880) STEERING ARM BRACKET	4
13	88184	驱动轴壳体塞	PLUG DRIVESHAFT HOUSING	1
14	69067	螺钉（.250-20 x 1.375）驱动轴壳体至动力头	SCREW (.250-20 x 1.375) DRIVESHAFT HOUSING TO POWERHEAD	6
15	90253	适配板	PLATE ADAPTOR	1
15	98319	安装板	PLATE	1
16	88138	驱动轴壳体衬垫	GASKET PLATE TO DRIVESHAFT HOUSING	1
16	41631	衬垫	GASKET	1
16	90254	驱动轴壳体衬垫	GASKET PLATE TO DRIVESHAFT HOUSING	1
16	41631	衬垫	GASKET	1
17	88139	动力头衬垫	GASKET PLATE TO POWERHEAD	1
17	41632	衬垫	GASKET	1
17	92875	动力头衬垫	GASKET PLATE TO POWERHEAD	1
17	41632	衬垫	GASKET	1
18	87664	提手	HANDLE CARRYING	1
19	54615	手柄至适配板螺钉(0.250-20 x 0.625)	SCREW (.250-20 x .625) HANDLE TO ADAPTOR PLATE	4
20	21249	手柄螺钉垫圈	WASHER HANDLE SCREW	4
21	87667	转向手柄	HANDLE STEERING	1
21	87667T	舵柄	TILLER HANDLE	1
22	87668	转向手柄握把	GRIP STEERING HANDLE	1
23	63327	转向手柄支架螺钉(1.5英寸)	SCREW STEERING HANDLE TO BRACKET (1 1/2")	1
23	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	1
24	53166	转向手柄螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STEERING HANDLE SCREW	1
25	56720	转向手柄螺钉不锈钢垫圈(0.330x0.750x0.060)	WASHER (.330 x .750 x .060) Stainless Steel STEERING HANDLE SCREW	2
26	26825	转向手柄螺钉垫圈(0.328x0.750x0.06)	WASHER (.328 x .750 x .06) STEERING HANDLE SCREW	1
27	68292	转向手柄螺钉螺母(0.312-18)	NUT (.312-18) STEERING HANDLE SCREW	1
27	8M0204668	螺母(.312-18)	NUT (.312-18)	1
28	35814	螺母（.312-24）不锈钢齿轮箱螺柱	NUT (.312-24) Stainless Steel GEAR HOUSING STUD	1
28	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
-	75311	驱动轴壳体适配器	ADAPTER DRIVESHAFT HOUSING	1
-	75311T	适配器	ADAPTOR	1
-	76265	传动轴轴承座	BLOCK Bearing DRIVESHAFT	1
-	94909	轴承座	BLOCK Bearing	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1

图 16齿轮箱总成(驱动轴) GEAR HOUSING ASSEMBLY (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7726A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7726A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7726A5	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
1	7811A9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	7811A9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
2	68927	齿轮箱螺柱(2.125英寸)	STUD GEAR HOUSING (2 1/8")	1
2	75321	齿轮箱螺柱(7.25英寸)	STUD GEAR HOUSING (7 1/4")	1
3	68928	水泵螺柱(2.125英寸)	STUD WATER PUMP (2 1/8")	2
4	70741	水泵螺柱(1.125英寸)	STUD WATER PUMP (1 1/8")	1
5	77428	齿轮箱轴承	BEARING GEAR HOUSING	1
6	77429	齿轮箱法兰衬套	BUSHING FLANGED-GEAR HOUSING	1
6	90770	衬套	BUSHING	1
6	90770	齿轮箱法兰衬套	BUSHING FLANGED-GEAR HOUSING	1
7	77427	小齿轮	GEAR Pinion	1
7	90795A1	齿轮总成	GEAR ASSY	1
7	90796	小齿轮	GEAR Pinion	1
8	21148A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
9	20922	小齿轮螺母	NUT PINION GEAR	1
10	87617	驱动轴	DRIVESHAFT	1
10	87663	驱动轴	DRIVESHAFT	1
11	56655	叶轮驱动键	KEY IMPELLER DRIVE	1
11	8M0032835	键	KEY	1
12	68939	水泵下衬垫	GASKET WATER PUMP-LOWER	1
13	90844A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
14	77066	水泵油封	SEAL Oil WATER PUMP	1
14	897153	油封@3	SEAL-OIL @3	1
15	70977	水泵衬套	INSERT WATER PUMP	1
15	70977T	嵌件	INSERT	1
16	89980	叶轮	IMPELLER	1
17	68955	水泵面板	FACE PLATE WATER PUMP	1
18	68984A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
18	95965A2	水泵盖总成	COVER ASSEMBLY Water Pump	1
18	90846A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
18	95965A2	水泵盖总成	COVER ASSEMBLY Water Pump	1
19	30913	水泵盖油封	SEAL Oil WATER PUMP COVER	1
20	86214	水管密封轴承	BEARING WATER TUBE SEAL	1
20	13127	隔套	SPACER	1
21	36558	水管密封件	SEAL WATER TUBE	1
22	31792	导水管套筒	SLEEVE WATER TUBE GUIDE	1
22	31792T	套管@5	SLEEVE @5	1
23	30526	驱动轴橡胶环	RING RUBBER-DRIVESHAFT	1
24	85148	传动轴O型圈	O-RING DRIVESHAFT	1
24	62704	O型圈 (.362 x .103)	O-RING (.362 x .103)	1
25	30164	水泵双头螺栓不锈钢垫圈(0.192x0.375x0.0312)	WASHER (.192 x .375 x .0312) Stainless Steel WATER PUMP STUDS	3
26	45812	水泵双头螺栓不锈钢螺母(#10-32)	NUT (#10-32) Stainless Steel WATER PUMP STUDS	3
26	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	3
27	28653	齿轮箱通气螺钉(#10-32 x 0.25)	SCREW (#10-32 x 0.25) VENT-GEAR HOUSING	1
28	20262	通气螺钉垫圈	WASHER VENT SCREW	1
28	19643	密封件	SEAL	1
29	79953		SCREW (.375-16 x .250) GREASE FILLER	1
29	79953Q04	放油螺钉套件	SCREW KIT Drain	1
30	20260	润滑脂加注螺钉垫圈	WASHER GREASE FILLER SCREW	1
30	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
-	90844A2	水泵维修套件	REPAIR KIT Water Pump	1
-	71140A1	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1

图 17齿轮箱总成(螺旋桨轴) GEAR HOUSING ASSEMBLY (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7726A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7726A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A1	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A2	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	7811A18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7811A19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7726A5	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
1	7811A9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	7811A9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
31	20696	螺旋桨轴螺母	NUT PROPELLER SHAFT	1
32	73672	螺旋桨轴垫圈	WASHER PROPELLER SHAFT	1
33	77422	驱动齿轮	GEAR Drive	1
33	90795A1	齿轮总成	GEAR ASSY	1
33	90795	驱动齿轮	GEAR Drive	1
33	90795A1	齿轮总成	GEAR ASSY	1
33	93398	驱动齿轮	GEAR Drive	1
34	79603	螺旋桨轴专用垫圈	WASHER SPECIAL-PROPELLER SHAFT	1
35	79602A1	螺旋桨轴垫片组(0.002-3-5-10-20)	SHIM SET PROPELLER SHAFT (.002-3-5-10-20)	AR
36	79601	挡圈	RING Retaining	1
37	91813	离合器弹簧	SPRING CLUTCH	1
39	77425	螺旋桨轴	PROPELLER SHAFT	1
39	93397	螺旋桨轴	PROPELLER SHAFT	1
40	77424	螺旋桨轴隔套	SPACER PROPELLER SHAFT	1
41	77431A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
41	99210A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
42	71140	油封	SEAL Oil	1
42	98309	油封	SEAL Oil	1
43	75812	齿轮箱盖	COVER GEAR HOUSING	1
44	68935	轴承座O型圈(1.799x0.103)	O-RING (1.799 x .103) BEARING CARRIER	1
45	32003	轴承座键	KEY BEARING CARRIER	1
46	70588	前进推力毂	THRUST HUB FORWARD	1
47	86903A1	螺旋桨总成	PROPELLER ASSEMBLY	1
47	93357A1	螺旋桨总成	PROPELLER ASSEMBLY	1
47	93357A10	螺旋桨总成	PROPELLER ASSEMBLY	1
48	70589	后推力毂	THRUST HUB AFT	1
48	93356	后推力毂	THRUST HUB AFT	1
49	35814	螺旋桨不锈钢螺母(0.312-24)	NUT (.312-24) Stainless Steel PROPELLER	1
49	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
50	35814	传动轴壳体双头螺栓不锈钢螺母(0.312-24)	NUT (.312-24) Stainless Steel DRIVESHAFT HOUSING STUD	1
50	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1
-	71140A1	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 18杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	814201	200 XRI(EFI)(V-6)维修	200 XRI (EFI) (V-6) Service	1
-	8140981	维修手册	SERVICE MANUAL	1
-	8162491	维修手册	SERVICE MANUAL	1
-	14697A87	衬垫套件	GASKET SET	1
-	813032A89	贴花套件	DECAL SET	1
-	814171A89	纪念版贴花套装	DECAL SET (ANNIVERSARY MODEL)	1
-	13492900	用户指南	OWNERS GUIDE	1

图 19回弹启动器与飞轮 RECOIL STARTER AND FLYWHEEL

REF	零件编号	中文名称	英文名称	数量
1	87622	手拉启动器总成	STARTER ASSEMBLY Recoil	1
2	89141	启动绳	ROPE STARTER	1
2	12066Q10	启动绳@2	ROPE-STARTER@2	1
3	79470A1	绳索固定组件	RETAINER KIT Rope	1
4	93498A1	飞轮护罩支架总成	BRACKET ASSEMBLY FLYWHEEL GUARD	1
4	93498A2	支架总成	BRACKET ASSEMBLY	1
5	87934	支腿支架	LEG BRACKET	1
6	54615	支架与支腿固定螺钉(0.250-20 x 0.625)	SCREW (.250-20 x .625) BRACKET AND LEG ATTACHING	3
7	28941	反冲启动器固定螺母	NUT RECOIL STARTER ATTACHING	4
7	8267139	螺母(.250-28)	NUT (.250-28)	4
8	90329	支架衬套	GROMMET BRACKET	2
9	87886	启动器杯	CUP STARTER	1
10	7530	飞轮	FLYWHEEL	1
11	20094	飞轮驱动半圆键	KEY Woodruff FLYWHEEL DRIVE	1
12	20696	飞轮至曲轴螺母	NUT FLYWHEEL TO CRANKSHAFT	1
13	20346	反冲启动器双头螺栓垫圈	WASHER RECOIL STARTER STUD	4
13	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	4
14	88305	点火模块壳体	HOUSING IGNITION MODULE	1
15	88182	点火模块	IGNITION MODULE	1
16	88306	点火模块固定座	RETAINER IGNITION MODULE	1
17	88307	线束固定螺钉(5/16英寸)	SCREW WIRE TO HOUSING (5/16")	1
18	88188	壳体摩擦按钮	BUTTON FRICITON-HOUSING	1
19	90304	摩擦按钮压缩弹簧	SPRING COMPRESSION-FRICTION BUTTON	1
20	88186	摩擦按钮定位螺钉(0.312-24 x 0.500)	SCREW (.312-24 x .500) SET-FRICTION BUTTON	1
21	87885	点火线圈	COIL Ignition	1
22	63212A2	导线总成	LEAD ASSEMBLY	1
22	813715A1	引线	LEAD WIRE	1
23	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	1
24	88088	火花塞(冠军#L81Y)	SPARK PLUG (CHAMPION #L81Y)	1
24	8M0114744	SP BP7HS-10 @4	SP BP7HS-10 @4	1
24	88090	火花塞(CHAMPION #QL81Y)	SPARK PLUG (CHAMPION #QL81Y)	1
25	60605	点火线圈螺钉(#10-16x0.750)	SCREW (#10-16 x .750) IGNITION COIL	2
26	88221	怠速止动片	TAB IDLE STOP	1

图 20顶罩、燃油箱与化油器 TOP COWL, FUEL TANK AND CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	7926	顶盖总成	TOP COWL ASSEMBLY	1
1	8158A1	顶盖总成	TOP COWL ASSEMBLY	1
1	8158A1	顶盖总成	TOP COWL ASSEMBLY	1
2	87747	化油器盖(顶罩)	COVER CARBURETOR (TOP COWL)	1
2	94108A1	盖板	COVER	1
2	94108A1	化油器盖(顶罩)	COVER CARBURETOR (TOP COWL)	1
3	7526	燃油箱	TANK Fuel	1
3	8082	燃油箱	TANK Fuel	1
3	8082	燃油箱	TANK Fuel	1
4	92882	顶罩密封圈	GROMMET TOP COWL	1
4	98807	衬垫	GASKET	1
5	87615A1	燃油盖总成	CAP ASSEMBLY Fuel	1
5	41660A2	燃油盖总成	CAP ASSEMBLY Fuel	1
6	88297	通气螺钉	SCREW VENT	1
7	69643	通气螺钉O型圈	O-RING VENT SCREW	1
8	26722	燃油盖O型圈	O-RING FUEL CAP	1
9	88298	燃油盖卡扣	RETAINER FUEL CAP	1
9	91925	燃油盖快速固定螺母	PUSH NUT SPEED-FUEL CAP RETAINER	1
10	76630	燃油箱至动力头螺钉(0.250-20x1.00)	SCREW (.250-20 x 1.00) FUEL TANK TO POWERHEAD	2
10	8M0214943	螺钉	SCREW	2
11	20346	燃油箱螺钉垫圈	WASHER FUEL TANK SCREW	6
11	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	6
12	29031	油箱螺丝螺母(1/4-20)	NUT (1/4-20) FUEL TANK SCREW	2
13	8950433	燃油管路(12英寸和3.25英寸)	LINE Fuel (12" AND 3 1/4")	3
13	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	3
14	68424	燃油管固定夹	CLAMP FUEL LINE ATTACHING	5
15	7568	化油器	CARBURETOR	1
16	70417	化油器衬垫	GASKET CARBURETOR	2
17	30406	化油器固定螺母	NUT CARBURETOR ATTACHING	2
18	88223	凸轮从动件	FOLLOWER Cam	1
19	4002027	化油器凸轮随动件螺母	NUT CAM FOLLOWER TO CARBURETOR	2
20	89398	燃油切断阀	VALVE FUEL SHUT-OFF	1
21	76934	燃油滤清器	FILTER Fuel	1
22	90502	燃油箱后支架	BRACKET FUEL TANK-REAR	1
22	97417	支架	BRACKET	1
23	90565	油箱卡箍螺丝(.250-20 x .310)	SCREW (.250-20 x .310) FUEL TANK CLAMP	1
24	53705	燃油箱螺钉垫圈	WASHER FUEL TANK SCREW	1
24	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	1
25	90501	燃油箱前支架	BRACKET FUEL TANK-FRONT	1
26	90396	油箱缓冲垫	BUMPER FUEL TANK	2
27	90497	油箱固定卡箍	CLAMP FUEL TANK ATTACHING	1
28	714933	燃油箱夹装饰条	MOLDING TRIM-FUEL TANK CLAMP	1
-	88139A79	衬垫套件	GASKET SET	1
-	98540A83	衬垫套件	GASKET SET	1
