水星 Mercury 3.5 HP ARCHIVE CAT 822366 - 爆炸图零件明细

两冲程 化油器 · ARCHIVE CAT 822366 · 共 10 个部位 · 437 条零件

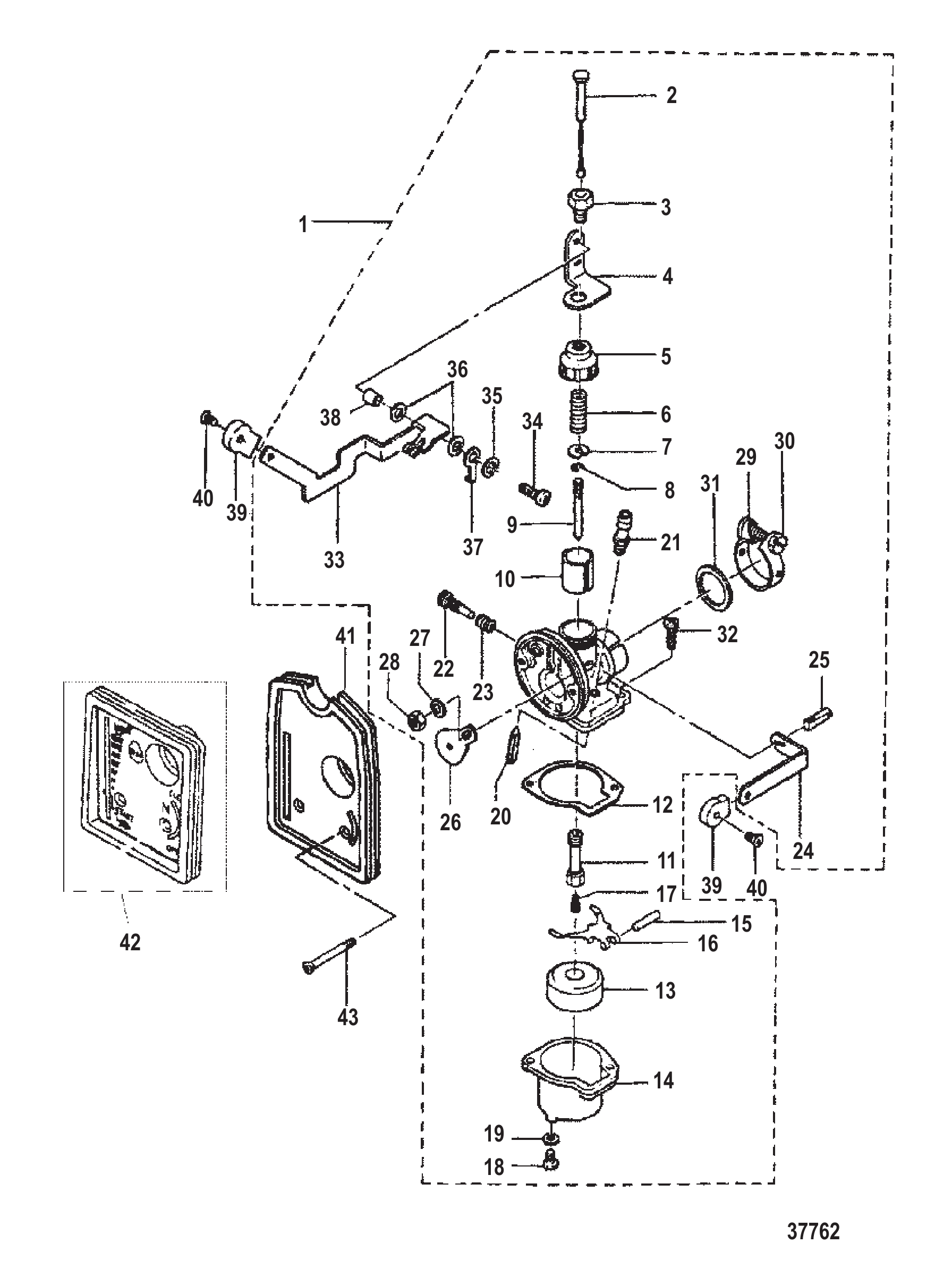

图 1化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	8231752	化油器总成	CARBURETOR ASSEMBLY	1
1	8230402	化油器总成	CARBURETOR ASSEMBLY	1
1	823040A2	化油器	CARBURETOR	1
1	8M0203718	化油器	CARBURETOR	1
2	95252	油门拉线	WIRE Throttle	1
3	95321	螺栓	BOLT	1
4	95253	支架	BRACKET	1
5	95254	盖帽	CAP	1
6	95322	弹簧	SPRING	1
7	95255	安装板	PLATE	1
8	95323	E型卡环	E RING	1
9	815126A1	量孔针阀	JET NEEDLE	1
9	823041	量孔针阀	JET NEEDLE	1
9	8151262	量孔针阀	JET NEEDLE	1
9	8151263	量孔针阀	JET NEEDLE	1
9	8151261	量孔针阀	JET NEEDLE	1
10	95257	油门阀	VALVE Throttle	1
10	952573	油门阀	VALVE Throttle	1
11	815126A1	量孔针阀	JET NEEDLE	1
12	95324	衬垫	GASKET	1
13	95259	浮子	FLOAT	1
14	95260	浮子室	FLOAT BOWL	1
15	95327	铰链销	PIN Hinge	1
16	952621	铰链	HINGE	1
17	815029	主量孔(#92)	MAIN JET (#92)	1
17	8150291	主量孔(#80)	MAIN JET (#80)	1
18	95325	螺钉	SCREW	1
18	953251	放油螺钉	SCREW Drain	1
19	95326	衬垫	GASKET	1
19	953261	衬垫	GASKET	1
19	95326	衬垫	GASKET	1
20	95263	针阀	VALVE Needle	1
20	95263A1	针阀套件	NEEDLE VALVE KIT	1
20	952631	针阀	NEEDLE VALVE	1
21	95264	阀座	SEAT	1
21	95263A1	针阀套件	NEEDLE VALVE KIT	1
21	952641	针阀座	SEAT Needle Valve	1
21	8M0171808	阀座	SEAT VALVE	1
22	95328	螺钉	SCREW	1
23	95329	弹簧	SPRING	1
24	95266	阻风门杠杆	LEVER Shutter	1
25	95331	螺钉	SCREW	1
26	95265	阻风门板	PLATE Choke	1
27	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	1
28	95330	螺母	NUT	1
29	95332	卡箍	CLAMP	1
30	95333	螺钉	SCREW	1
31	811601	O型圈	O-RING	1
32	815071	螺钉	SCREW	2
33	95268	油门杆	LEVER Throttle	1
34	815072	螺钉	SCREW	1
35	95238	锁紧垫圈	LOCKWASHER	1
36	95336	衬垫	GASKET	2
37	95286	轴环	COLLAR	1
37	952672	支架	BRACKET	1
37	952867	轴环	COLLAR	1
38	95267	支架	BRACKET	1
38	952867	轴环	COLLAR	1
38	952672	支架	BRACKET	1
39	95269	旋钮	KNOB	2
40	95338	螺钉	SCREW	2
41	815073	盖板	COVER	1
41	815132	盖板	COVER	1
41	8151321	盖板	COVER	1
41	815073	盖板	COVER	1
42	8150731	盖板	COVER	1
42	8150732	盖板	COVER	1
43	95339	螺钉	SCREW	1
-	95263A1	针阀套件	NEEDLE VALVE KIT	1
-	855546A2	化油器维修套件	REPAIR KIT Carburetor	1
-	8M0171816	化油器修理包	CARB REPAIR KIT	1
-	815076A1	动力头衬垫套件	GASKET SET Powerhead	1
-	898101928	衬垫套装-PH	GASKET SET-PH	1

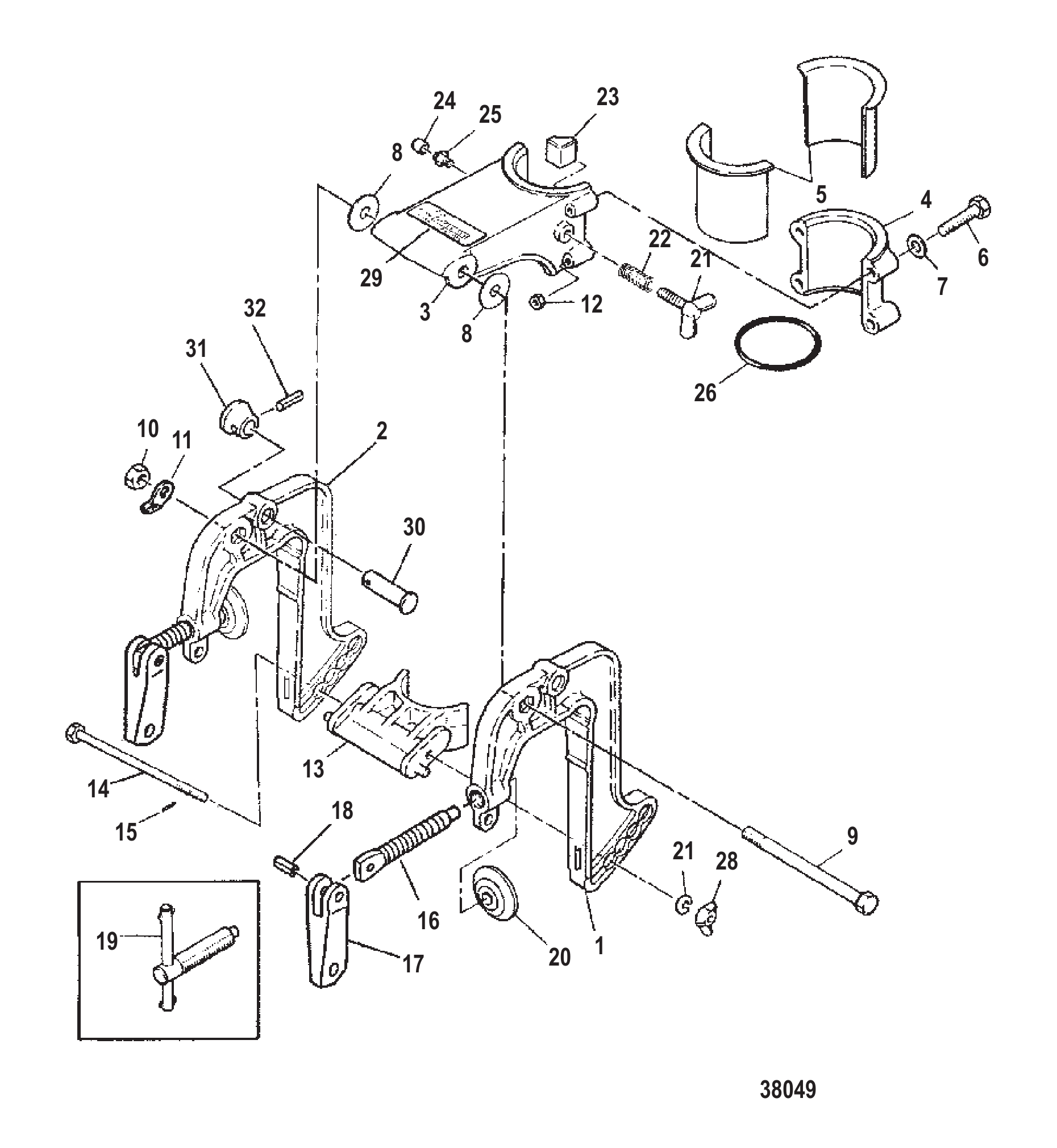

图 2夹紧旋转支架 CLAMP AND SWIVEL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	813486M	夹具支架(左舷)	CLAMP BRACKET (PORT)	1
1	9773M	夹具支架(左/右舷)	CLAMP BRACKET (PORT/STARBOARD)	2
1	813486M	夹箍支架	CLAMP BRACKET	2
1	9338M	夹具支架(左/右舷)	CLAMP BRACKET (PORT/STARBOARD)	2
1	813486M	夹箍支架	CLAMP BRACKET	2
1	7863M	夹具支架(左/右舷)	CLAMP BRACKET (PORT/STARBOARD)	2
2	813487M	夹具支架(右舷)	CLAMP BRACKET (STARBOARD)	1
3	813488M	前旋转支架	SWIVEL BRACKET FRONT	1
3	7864M	前旋转支架	SWIVEL BRACKET FRONT	1
3	813488M	旋转支架	SWIVEL BRACKET	1
4	92535M	后旋转支架	SWIVEL BRACKET REAR	1
5	80382M	导向轴衬套	BUSHING PILOT SHAFT	2
6	92536M	螺栓	BOLT	4
6	84657M	螺栓	BOLT	4
7	82214M	垫圈	WASHER	4
8	81845M	垫圈	WASHER	2
9	81705M	螺栓	BOLT	1
10	82392M	螺母	NUT	1
10	82382M	螺母	NUT	1
11	18840M	夹具支架板	PLATE CLAMP BRACKET	1
11	82215M	锁紧垫圈	LOCKWASHER	1
12	82389M	螺母	NUT	4
13	92537M	推力接收器	RECIEVER THRUST	1
14	92538M	接收器螺栓	BOLT RECEIVER	1
15	82140M	滚动销	PIN Roll	1
16	91783M	艉板夹紧螺钉	SCREW TRANSOM CLAMP	2
17	91784M	艉板夹手柄	HANDLE TRANSOM CLAMP	2
18	41267M	销	PIN	2
18	852812	销	PIN	2
19	92539M	夹具螺丝	CLAMP SCREW	2
20	80638M	艉板夹螺丝垫	PAD TRANSOM CLAMP SCERW	2
21	81745M	翼形螺栓	WING BOLT	1
22	82083M	副驾驶调节螺丝弹簧	SPRING CO-PILOT ADJUSTING SCREW	1
23	80381M	摩擦片	FRICTION PIECE	1
24	81439M	黄油嘴盖	CAP GREASE FITTING	1
25	82369M	黄油嘴	FITTING GREASE	1
26	82279M	O型圈	O-RING	1
27	81791M	垫圈	WASHER	1
28	81776M	蝶形螺母	WING NUT	1
29	95570M	贴花	DECAL	1
30	813489M	轴挡块	SHAFT STOPPER	1
31	813490M	旋钮挡块	KNOB STOPPER	1
32	82147M	滚销	PIN ROLL	1

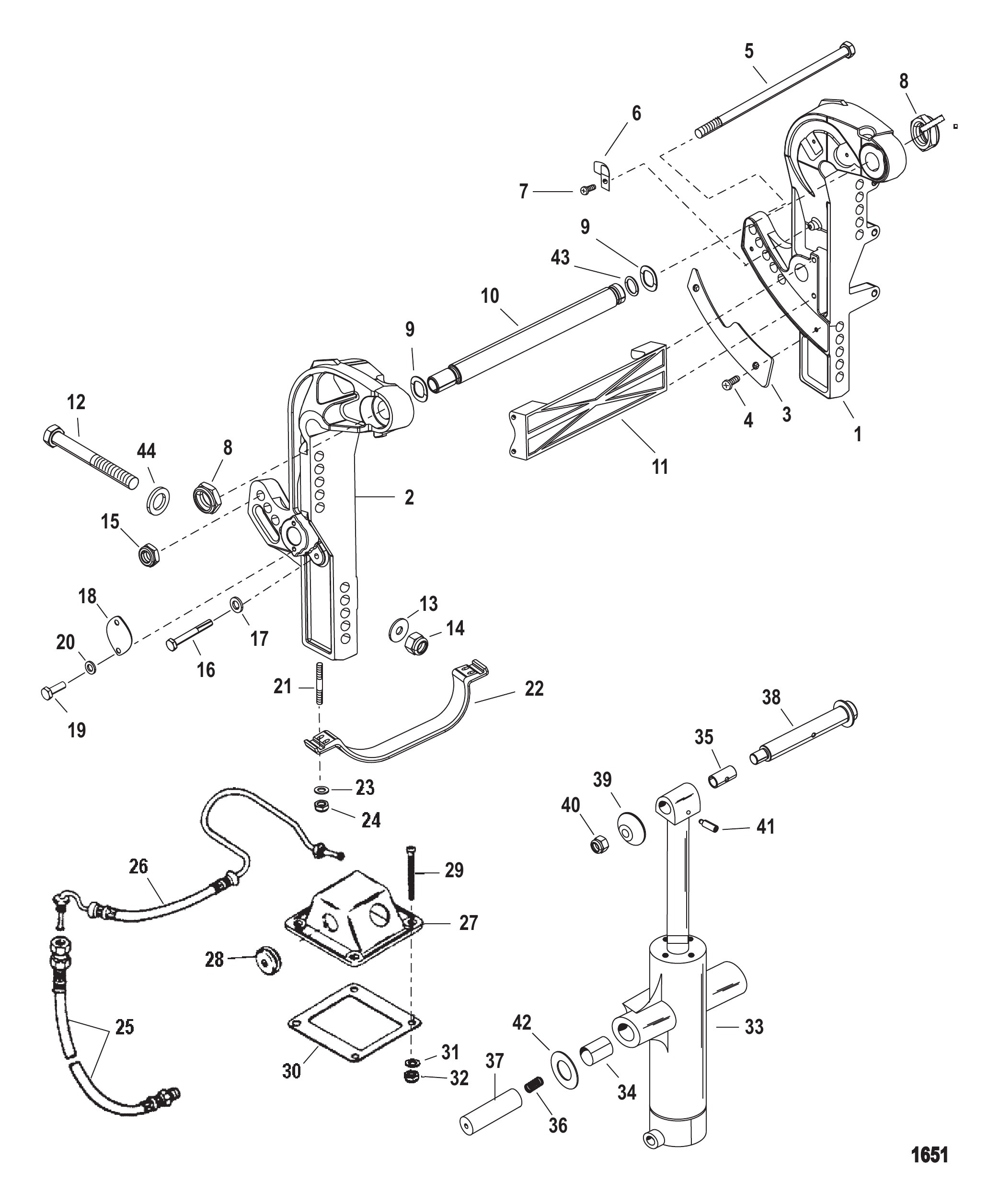

图 3曲轴、活塞与连杆 CRANKSHAFT, PISTON AND CONNECTING ROD

REF	零件编号	中文名称	英文名称	数量
1	847800A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	844353T01	艉板套件	TRANSOM KIT	1
2	847801A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801T01	艉板支架-右舷	BRACKET Transom - Starboard	1
3	847798A1	耐磨垫套件	WEAR PAD KIT	1
3	847798A02	耐磨垫套件	WEAR PAD KIT	1
4	86843	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
5	87180	螺栓(0.500-20 x 11.00)	BOLT (.500-20 x 11.00)	1
6	88512	卡箍	CLAMP	4
6	75275	卡箍	CLAMP	2
7	88829	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	6
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	859133	螺母(1.00-14)	NUT (1.00-14)	1
8	82671327	螺母(1.0-14)	NUT (1.0-14)	1
9	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
10	99170A2	倾斜管套件	TUBE KIT Tilt	1
10	826125A1	倾斜管	TILT TUBE	1
11	85035T	隔套	SPACER	1
11	8M0237541	艉板隔套	SPACER Transom	1
12	677552	螺钉(0.500-20 x 6.500)	SCREW (.500-20 x 6.500)	2
12	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	2
12	8M0149747	螺钉	SCREW	2
13	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
13	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
14	82671117	螺母(.500-20)	NUT (.500-20)	4
15	82671317	螺母(.500-20)	NUT (.500-20)	1
16	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	4
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
18	85026T	安装板	PLATE	2
19	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
20	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
20	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
21	54343	螺柱（.312-24 x 1.380）	STUD (.312-24 x 1.380)	4
21	8M0034451	螺柱	STUD	4
22	89949A1	隔板总成	PLATE ASSEMBLY	1
23	843108	垫圈（.330 x .560 x .060）不锈钢	WASHER (.330 x .560 x .060) Stainless Steel	4
24	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	4
25	89024	液压软管	HOSE Hydraulic	1
25	89023	液压软管	HOSE Hydaulic	1
26	96993	液压软管	HOSE Hydraulic	1
26	96994	液压软管	HOSE Hydraulic	1
27	87871	盖板	COVER	1
27	87871T	盖板	COVER	1
28	45507	护孔环	GROMMET	1
29	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	4
30	87775	衬垫	GASKET	1
31	20878	垫圈	WASHER	4
32	826709106	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
32	8M0204718	螺母	NUT	4
33	79610A17	配平油缸	TRIM CYLINDER	1
33	79610T28	配平油缸	TRIM CYLINDER	1
33	79610T28	配平油缸	TRIM CYLINDER	1
33	79610A32	配平油缸套件	TRIM CYLINDER KIT	1
34	847724	衬套	BUSHING	2
35	841223	轴承	BEARING	1
36	30316	弹簧	SPRING	2
37	85020T	枢轴销	PIN Pivot	2
38	841199	调整销	PIN Trim	1
38	8220752	调整销	PIN Trim	1
39	822076	固定座	RETAINER	1
40	82671317	螺母(.500-20)	NUT (.500-20)	1
41	8071791	紧定螺钉（.250-20 x .820）	SET SCREW (.250-20 x .820)	1
42	85022	垫圈(2.00 x 1.06 x 0.060)	WASHER (2.00 x 1.06 x .060)	2
43	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
44	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
44	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
-	79879A1	维修套件（用于调整油缸）	REPAIR KIT (For Trim Cylinders)	1

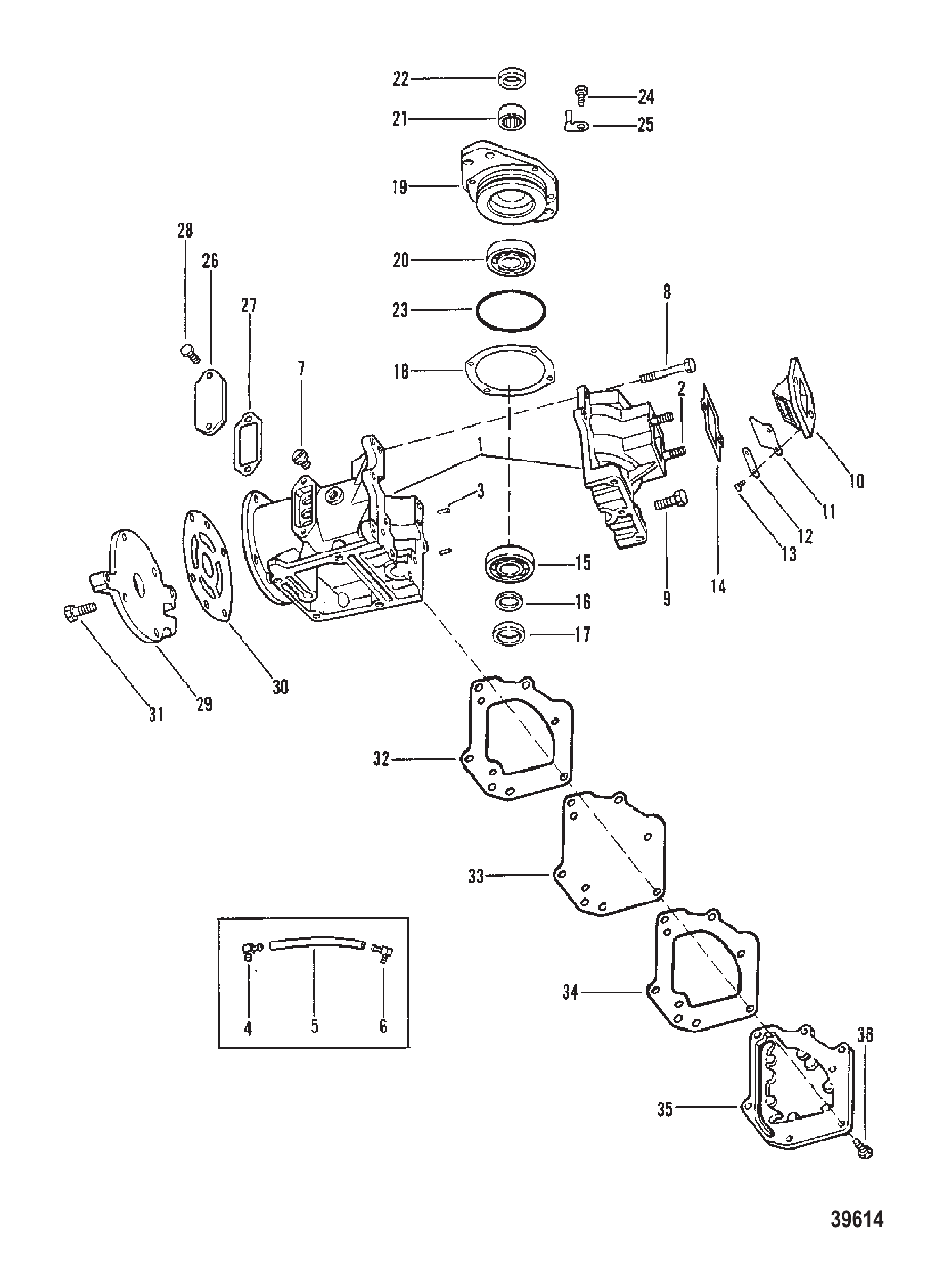

图 4气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE

REF	零件编号	中文名称	英文名称	数量
1	8694A3	气缸体	CYLINDER BLOCK	1
2	66021	化油器螺柱	STUD CARBURETOR	2
3	85500	曲轴箱至气缸体定位销(.187 x .530)	PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK	2
3	8M0084726	定位销	PIN Dowel	2
4	89275	泄放接头	FITTING BLEED DRAIN	1
5	9912688	管材（36英寸散装）泄放管（8英寸）	TUBING (36.00 Inches Bulk) BLEED DRAIN (8")	1
6	88780	泄放示位管弯头	ELBOW Tell-Tale Tubing BLEED DRAIN	1
6	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	1
7	35268	气缸体螺钉	SCREW CYLINDER BLOCK	1
7	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
8	73280	曲轴箱至气缸体螺钉(1-1/2英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1-1/2")	2
9	76621	曲轴箱至气缸体螺钉(1英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1")	8
10	70726	簧片阀组	REED BLOCK	1
11	35836	簧片进气阀	REED INLET VALVE	2
12	22215	簧片压板	RETAINER REED	2
13	28430	螺钉(#6-32 x .25)	SCREW (#6-32 x .25)	4
14	35739	簧片阀组至曲轴箱垫片	GASKET REED BLOCK TO CRANKCASE	1
14	357391	衬垫	GASKET	1
15	72961	曲轴箱滚珠轴承(下)	BEARING Ball CRANKCASE (LOWER)	1
16	89794	下滚珠轴承隔套	SPACER LOWER BALL BEARING	1
17	56397	曲轴箱油封(下)	SEAL Oil CRANKCASE (LOWER)	1
18	31412A1	上壳体垫片（.002-3-5-10）	SHIM UPPER HOUSING (.002-3-5-10)	AR
19	7536A1	轴承壳体总成	HOUSING ASSEMBLY Bearing	1
19	7536A2	端盖总成	END CAP ASSY	1
20	72961	滚珠轴承壳体	BEARING Ball BEARING HOUSING	1
21	31410	滚柱轴承壳体	BEARING Roller BEARING HOUSING	1
22	66301	轴承壳体油封	SEAL Oil BEARING HOUSING	1
23	20863	轴承壳体O型圈	O-RING BEARING HOUSING	1
24	39002	轴承壳体螺钉（1/2英寸）	SCREW BEARING HOUSING (1/2")	4
25	88222	接地片-轴承壳体螺钉	TAB GROUND - BEARING HOUSING SCREW	1
26	35658	换气口盖	COVER TRANSFER COVER	1
27	35657	换气口盖垫片	GASKET TRANSFER PORT COVER	1
28	20720	螺钉（.190-24 x .62）换气口盖	SCREW (.190-24 x .62) TRANSFER PORT COVER	2
29	7527	气缸体盖	COVER CYLINDER BLOCK	1
30	41615	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
30	416151	衬垫	GASKET	1
31	76630	螺钉（.250-20 x 1.00）气缸体盖	SCREW (.250-20 x 1.00) CYLINDER BLOCK COVER	4
31	8M0214943	螺钉	SCREW	4
32	41614	气缸体衬垫	GASKET CYLINDER BLOCK	1
32	416141	衬垫	GASKET	1
33	46234	挡板-排气歧管	PLATE BAFFLE - EXHAUST MANIFOLD	1
34	41614	挡板衬垫	GASKET BAFFLE PLATE	1
34	416141	衬垫	GASKET	1
35	46171	排气歧管盖	COVER EXHAUST MANIFOLD	1
36	49668	螺钉（.250-20 x .750）板/歧管盖	SCREW (.250-20 x .750) PLATE/MANIFOLD COVER	6
-	98540A83	衬垫套件	GASKET SET	1
-	88675A83	动力头总成	POWERHEAD ASSEMBLY	1

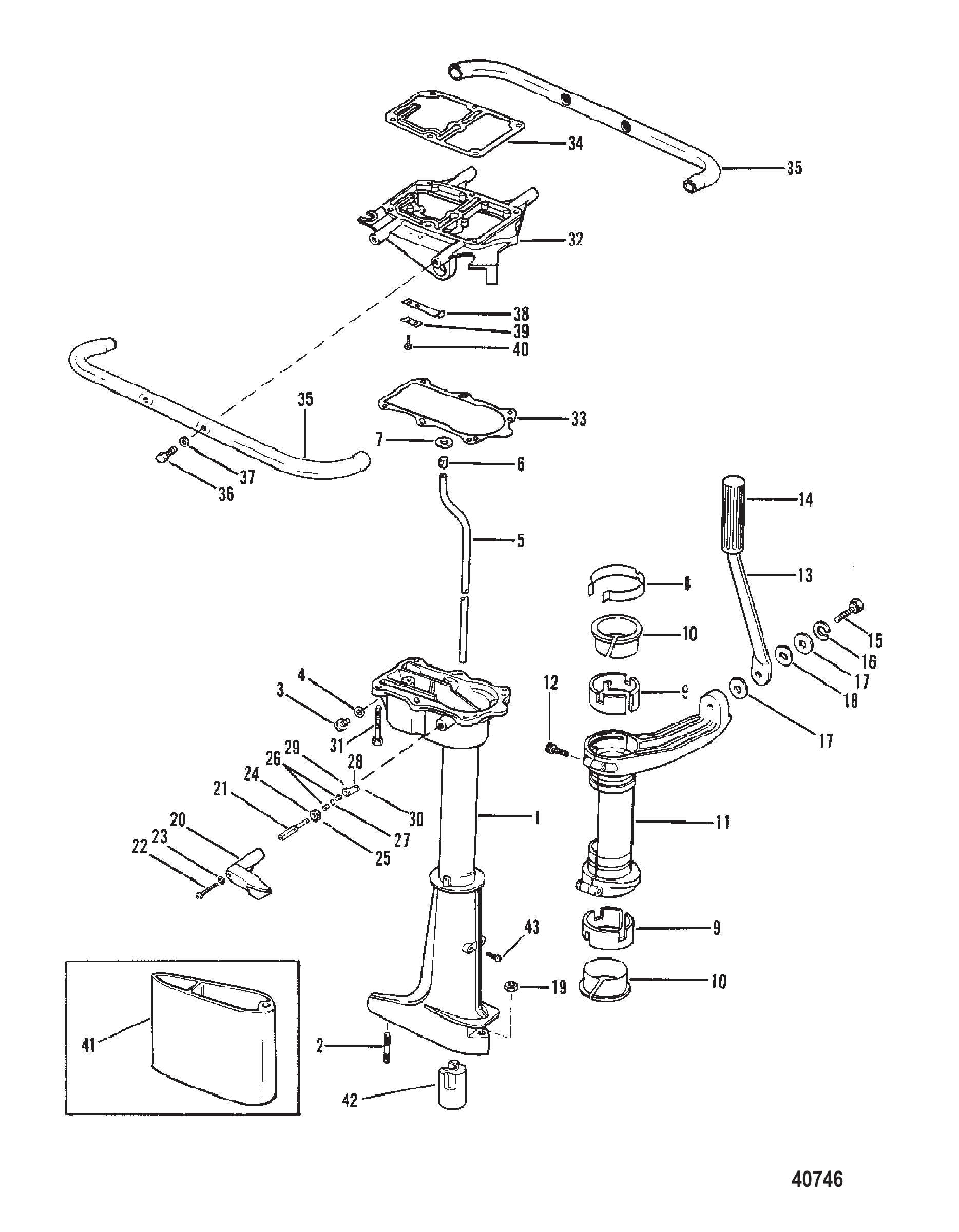

图 5驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	8526A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	68927	驱动轴壳体螺柱	STUD DRIVESHAFT HOUSING	1
2	75321	驱动轴壳体螺柱	STUD DRIVESHAFT HOUSING	1
3	79953		SCREW (.375-16 x .250) GREASE FILLER	1
3	79953Q04	放油螺钉套件	SCREW KIT Drain	1
4	20260	润滑脂加注螺钉垫圈	WASHER GREASE FILLER SCREW	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	88996	水管	TUBE Water	1
5	88997	水管	TUBE Water	1
6	36556	水封（外径0.5英寸）水管	SEAL (.500 Inch Outside Diameter) WATER TUBE	1
7	86214	水管密封轴承	BEARING WATER TUBE SEAL	1
7	13127	隔套	SPACER	1
8	79791	副驾驶夹箍	CLAMP CO-PILOT	1
9	88669	橡胶支座-驱动轴壳体	MOUNT RUBBER - DRIVESHAFT HOUSING	2
10	74308	橡胶安装衬套	BUSHING RUBBER MOUNT	2
11	98168A1	转向臂支架总成	BRACKET ASSEMBLY STEERING ARM	1
12	75840	螺钉（#10-24 x .880）转向臂支架	SCREW (#10-24 x .880) STEERING ARM BRACKET	4
13	98288	转向手柄	HANDLE STEERING	1
14	87668	转向手柄握把	GRIP STEERING HANDLE	1
15	98292	转向手柄至支架螺钉	SCREW STEERING HANDLE TO BRACKET	1
16	98289	转向手柄螺钉垫圈	WASHER STEERING HANDLE SCREW	1
17	98290	转向手柄螺钉垫圈	WASHER STEERING HANDLE SCREW	2
18	98291	转向手柄螺钉垫圈	WASHER STEERING HANDLE SCREW	1
19	35814	螺母（.312-24）不锈钢齿轮箱螺柱	NUT (.312-24) Stainless Steel GEAR HOUSING STUD	1
19	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
20	86055	换挡手柄	HANDLE SHIFT	1
20	86055T	手柄	HANDLE	1
21	86056A1	换挡轴	SHAFT SHIFT	1
22	69560	螺钉（.190-32 x 1.250）换挡手柄至轴	SCREW (.190-32 x 1.250) SHIFT HANDLE TO SHAFT	1
23	26996	锁紧垫圈（#10）不锈钢换挡手柄螺钉	LOCKWASHER (#10) Stainless Steel SHIFT HANDLE SCREW	1
24	66414	换挡凸轮定位器	CAM SHIFT DETENT	1
25	25905	凸轮至换挡轴销	PIN CAM TO SHIFT SHAFT	1
26	26856	换挡轴衬套	BUSHING SHIFT SHAFT	2
27	20415	换挡轴O型圈	O-RING SHIFT SHAFT	1
27	16524	燃油接头O型圈	O-RING Fuel Connector	1
28	72733	换挡臂	ARM SHIFT	1
29	72734	紧定螺丝(#10-32 x .310)	SET SCREW (#10-32 x .310)	1
30	21071	换挡轴开口销	COTTER PIN SHIFT SHAFT	1
30	210711	开口销	COTTER PIN	1
31	69067	螺钉（.250-20 x 1.375）驱动轴壳体至动力头	SCREW (.250-20 x 1.375) DRIVESHAFT HOUSING TO POWERHEAD	6
32	98319	适配板	PLATE ADAPTOR	1
33	41631	板衬垫	GASKET PLATE	1
34	98541	动力头衬垫	GASKET POWERHEAD	1
34	41632	衬垫	GASKET	1
35	87664	搬运手柄	HANDLE CARRING	2
36	28635	螺钉（.250-20 x .620）不锈钢手柄至适配板	SCREW (.250-20 x .620) Stainless Steel HANDLE TO ADAPTOR PALTE	4
37	21249	手柄螺钉垫圈	WASHER HANDLE SCREW	4
38	39627	定位弹簧	SPRING DETENT	1
39	39601	定位弹簧板	PLATE DETENT SPRING	1
40	25764	螺钉（.190-32 x .50）定位弹簧	SCREW (.190-32 x .50) DETENT SPRING	2
41	75311	传动轴壳体适配器(5英寸)	ADAPTER DRIVESHAFT HOUSING (5")	1
41	75311T	适配器	ADAPTOR	1
42	94909	传动轴轴承座	BLOCK Bearing DRIVESHAFT	1
43	69570	支撑座螺钉(#10-16 x 0.750)	SCREW (#10-16 x .750) SUPPORT BLOCK	2
-	98540A83	衬垫套件	GASKET SET	1

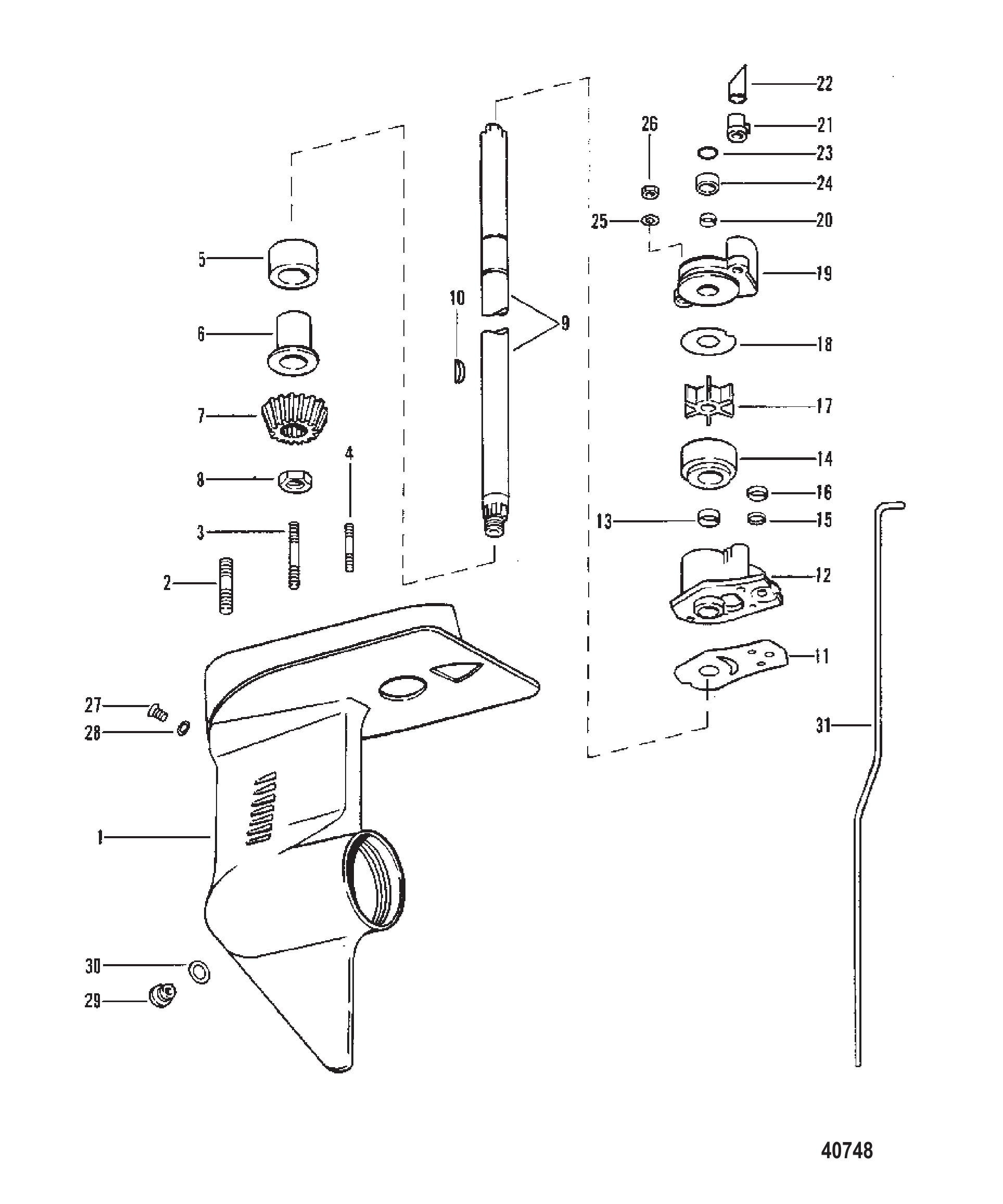

图 6齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7811A22	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	7811A23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	7811A9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
2	68927	齿轮箱双头螺栓(2-1/8英寸)	STUD GEAR HOUSING (2-1/8")	1
2	75321	齿轮箱双头螺栓(7-1/4英寸)	STUD GEAR HOUSING (7-1/4")	1
3	68928	水泵双头螺栓(2-1/8英寸)	STUD WATER PUMP (2-1/8")	2
4	70741	水泵双头螺栓(1-1/8英寸)	STUD WATER PUMP (1-1/8")	1
5	77428	齿轮箱轴承	BEARING GEAR HOUSING	1
6	90770	齿轮箱法兰衬套	BUSHING FLANGED - GEAR HOUSING	1
7	90796	小齿轮	GEAR Pinion	1
8	20922	小齿轮螺母	NUT PINION GEAR	1
9	87617	驱动轴	DRIVESHAFT	1
9	87663	驱动轴	DRIVESHAFT	1
10	56655	叶轮驱动键	KEY IMPELLER DRIVE	1
10	8M0032835	键	KEY	1
11	68939	水泵下衬垫	GASKET WATER PUMP - LOWER	1
12	90844A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
13	96063	水泵油封	SEAL Oil WATER PUMP	1
13	897153	油封@3	SEAL-OIL @3	1
14	70977	水泵衬套	INSERT WATER PUMP	1
14	70977T	嵌件	INSERT	1
15	56681	水泵垫圈(0.203x0.500x0.032)	WASHER (.203 x .500 x .032) WATER PUMP	1
15	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
16	74138	水泵O型圈	O-RING WATER PUMP	1
17	89980	叶轮	IMPELLER	1
18	68955	水泵面板	FACE PLATE WATER PUMP	1
19	95965A2	水泵盖总成	COVER ASSEMBLY Water Pump	1
20	30913	水泵盖油封	SEAL Oil WATER PUMP COVER	1
21	36558	水管密封件	SEAL WATER TUBE	1
22	31792	导水管套筒	SLEEVE WATER TUBE GUIDE	1
22	31792T	套管@5	SLEEVE @5	1
23	62704	传动轴O型圈(0.362x0.103)	O-RING (.362 x .103) DRIVESHAFT	1
24	30526	传动轴橡胶环	RING RUBBER - DRIVESHAFT	1
25	30164	水泵双头螺栓不锈钢垫圈(0.192x0.375x0.0312)	WASHER (.192 x .375 x .0312) Stainless Steel WATER PUMP STUDS	3
26	45812	水泵双头螺栓不锈钢螺母(#10-32)	NUT (#10-32) Stainless Steel WATER PUMP STUDS	3
26	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	3
27	28653	齿轮箱通气螺钉(#10-32x0.25)	SCREW (#10-32 x 0.25) VENT - GEAR HOUSING	1
28	20262	通气螺钉垫圈	WASHER VENT SCREW	1
28	19643	密封件	SEAL	1
29	79953		SCREW (.375-16 x .250) GREASE FILLER	1
29	79953Q04	放油螺钉套件	SCREW KIT Drain	1
30	20260	润滑脂加注螺钉垫圈	WASHER GREASE FILLER SCREW	1
30	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
31	72418	换档轴	SHIFT SHAFT	1
31	72418T	换档轴	SHIFT SHAFT	1
31	75307	换档轴	SHIFT SHAFT	1
-	90844A2	水泵维修套件	REPAIR KIT Water Pump	1
-	71140A1	齿轮箱密封套件	SEAL KIT Gear Housing	1

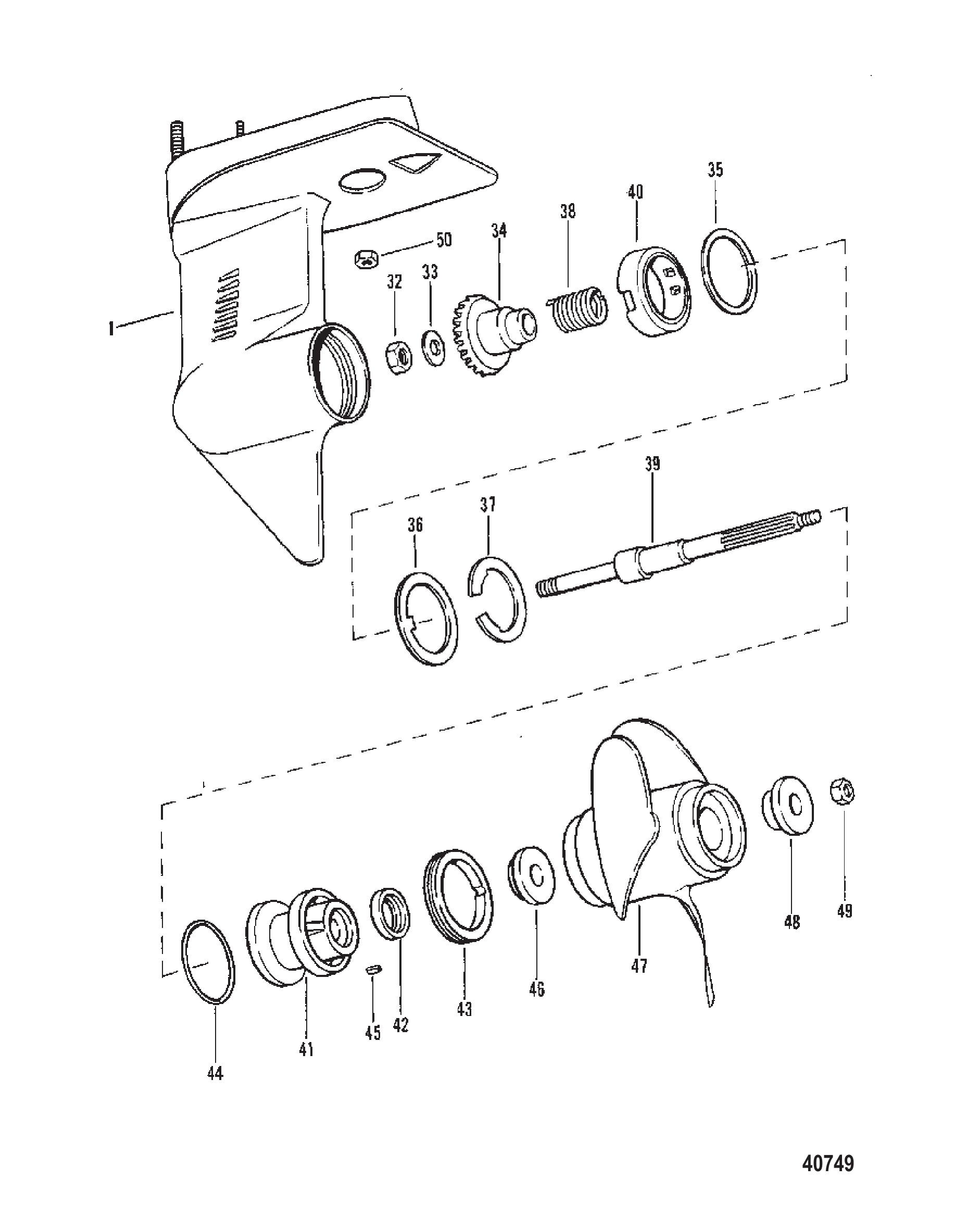

图 7齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7811A22	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	7811A23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	7811A9	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
32	20696	螺旋桨轴螺母	NUT PROPELLER SHAFT	1
33	73672	螺旋桨轴垫圈	WASHER PROPELLER SHAFT	1
34	90795	驱动齿轮	GEAR Drive	1
34	90795A1	齿轮总成	GEAR ASSY	1
35	79603	螺旋桨轴专用垫圈	WASHER SPECIAL - PROPELLER SHAFT	1
36	79602A1	螺旋桨轴垫片组(0.002-3-5-10-20)	SHIM SET PROPELLER SHAFT (.002-3-5-10-20)	AR
37	79601	挡圈	RING Retaining	1
38	91813	离合器弹簧	SPRING CLUTCH	1
39	93358	螺旋桨轴	PROPELLER SHAFT	1
40	77424	螺旋桨轴隔套	SPACER PROPELER SHAFT	1
41	99210A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
42	98309	油封	SEAL Oil	1
43	75812	齿轮箱盖	COVER GEAR HOUSING	1
44	68935	轴承座O型圈(1.799x0.103)	O-RING (1.799 x .103) BEARING CARRIER	1
45	32003	轴承座键	KEY BEARING CARRIER	1
46	70588	前进推力毂	THRUST HUB FORWARD	1
47	93357A10	螺旋桨总成	PROPELLER ASSEMBLY	1
48	93356	后推力毂	THRUST HUB AFT	1
49	35814	不锈钢螺母(0.312-24)	NUT (.312-24) Stainless Steel NUT	1
49	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
50	35814	传动轴壳体双头螺栓不锈钢螺母(0.312-24)	NUT (.312-24) Stainless Steel DRIVESHAFT HOUSING STUD	1
50	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
-	98540A83	衬垫套件	GASKET SET	1

图 8杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	99410	MERC 3.5马力零件手册	PARTS MANUAL MERC 3.5 H.P.	1
-	11236	用户手册	OWNERS MANUAL	1
-	98540A83	衬垫套件	GASKET SET	1
-	99362A83	贴花套件	DECAL SET	1
-	43148A84	贴花套件	DECAL SET	1
-	43148A84	贴花套件	DECAL SET	1

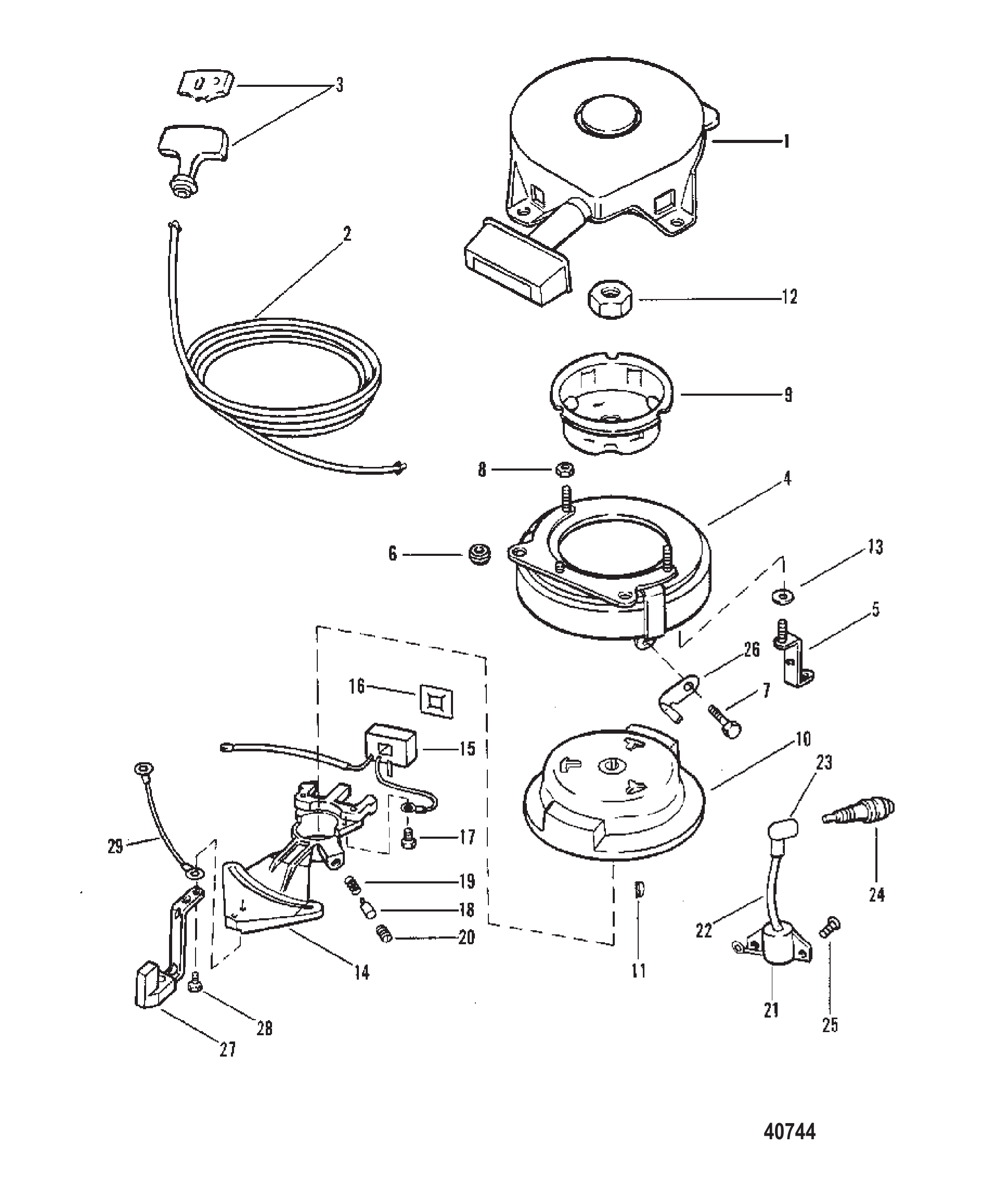

图 9回弹启动器与飞轮 RECOIL STARTER AND FLYWHEEL

REF	零件编号	中文名称	英文名称	数量
1	97175	手拉启动器总成	STARTER ASSEMBLY Recoil	1
1	97175T	反冲启动器	RECOIL STARTER	1
2	89141	绳索	ROPE	1
2	12066Q10	启动绳@2	ROPE-STARTER@2	1
3	79470A1	绳索固定组件	RETAINER KIT Rope	1
4	93498A2	飞轮护罩支架总成	BRACKET ASSEMBLY FLYWHEEL GUARD	1
5	87934	支腿支架	LEG BRACKET	1
6	90329	支架衬套	GROMMET BRACKET	2
7	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	3
8	28941	反冲启动器固定螺母	NUT RECOIL STARTER ATTACHING	4
8	8267139	螺母(.250-28)	NUT (.250-28)	4
9	87886	启动器杯	CUP STARTER	1
10	7530	飞轮	FLYWHEEL	1
11	20094	飞轮伍德鲁夫键	KEY Woodruff FLYWHEEL	1
12	20696	飞轮螺母	NUT FLYWHEEL	1
13	20346	反冲启动器双头螺栓垫圈	WASHER RECOIL STARTER STUD	4
13	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	4
14	98837	点火模块壳体	HOUSING IGNITION MODULE	1
15	88182	点火模块	IGNITION MODULE	1
16	88306	点火模块固定座	RETAINER IGNITION MODULE	1
17	88307	线束固定螺钉(5/16英寸)	SCREW WIRE TO HOUSING (5/16")	1
18	88188	摩擦按钮壳体	BUTTON FRICTION-HOUSING	1
19	90304	摩擦按钮压缩弹簧	SPRING COMPRESSION-FRICTION BUTTON	1
20	88186	摩擦按钮螺钉(0.312-24x0.500)	SCREW (.312-24 x .500) FRICTION BUTTON	1
21	87885	点火线圈	COIL Ignition	1
22	99215A25	导线总成	LEAD ASSEMBLY	1
22	813715A1	引线	LEAD WIRE	1
23	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	1
24	12127	火花塞(NGK #BP6HS-10)	SPARK PLUG (NGK #BP6HS-10)	1
24	8M0114743	SP BP6HS-10 @4	SP BP6HS-10 @4	1
24	88090	火花塞(CHAMPION #QL81Y)	SPARK PLUG (CHAMPION #QL81Y)	1
25	60605	点火线圈螺钉(#10-16x0.750)	SCREW (#10-16 x .750) IGNITION COIL	2
26	88221	怠速止动片	TAB IDLE STOP	1
27	43377A1	节气门杠杆总成	LEVER ASSMEBLY Throttle	1
28	20665	节气门杠杆螺钉(0.190-24x0.50)	SCREW (.190-24 x .50) THROTTLE LEVER	2
29	65773A9	接地线总成	WIRE ASSEMBLY GROUND	1

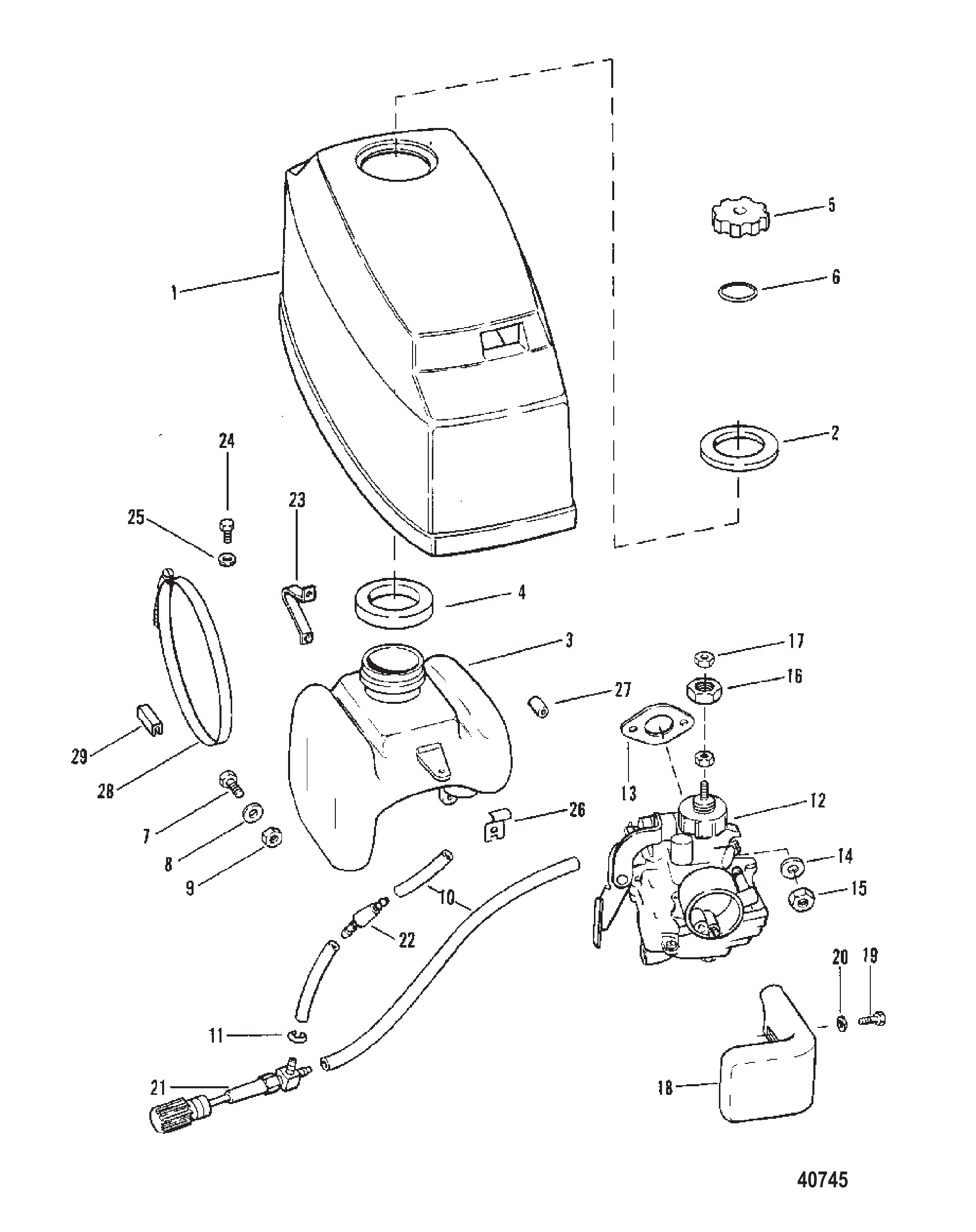

图 10顶罩燃油箱与化油器 TOP COWL FUEL TANK AND CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	8534A1	顶盖总成	TOP COWL ASSEMBLY	1
2	98807	顶罩衬垫	GASKET TOP COWL	1
3	8082	燃油箱	TANK Fuel	1
4	98808	燃油箱衬垫	GASKET FUEL TANK	1
5	41660A2	燃油盖总成	CAP ASSEMBLY Fuel	1
6	42573	燃油盖O型圈	O-RING FUEL CAP	1
7	76630	燃油箱至动力头螺钉(0.250-20x1.00)	SCREW (.250-20 x 1.00) FUEL TANK TO POWERHEAD	2
7	8M0214943	螺钉	SCREW	2
8	20346	燃油箱螺钉垫圈	WASHER FUEL TANK SCREW	5
8	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	5
9	29031	油箱螺丝螺母(1/4-20)	NUT (1/4-20) FUEL TANK SCREW	2
10	9912846	油管(12英寸和3-1/4英寸)	TUBING (12" AND 3-1/4")	3
10	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	3
11	68424	燃油管固定夹	CLAMP FUEL LINE ATTACHING	5
12	7568	化油器	CARBURETOR	1
13	70417	化油器衬垫	GASKET CARBURETOR	3
14	37998	化油器双头螺栓垫圈	WASHER CARBURETOR STUD	2
15	34688	化油器双头螺栓螺母	NUT CARBURETOR STUD	2
15	30506	螺母(.250-28)	NUT (.250-28)	2
16	88223	凸轮从动件	FOLLOWER Cam	1
17	4002027	化油器凸轮随动件螺母	NUT CAM FOLLOWER TO CARBURETOR	2
18	98601	消音盒	BOX Sound	1
19	38627	消音盒螺丝(5/8英寸)	SCREW (5/8 Inch) SOUND BOX	1
19	98254	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	1
20	20346	消音盒螺丝垫圈	WASHER SOUND BOX SCREW	2
20	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	2
21	89398	燃油切断阀	VALVE FUEL SHUT-OFF	1
22	76934	燃油滤清器	FILTER Fuel	1
23	97417	油箱支架-后部	BRACKET FUEL TANK - REAR	1
24	90565	油箱卡箍螺丝(.250-20 x .310)	SCREW (.250-20 x .310) FUEL TANK CLAMP	1
25	26825	油箱螺丝垫圈(.328 x .750 x .06)	WASHER (.328 x .750 x .06) FUEL TANK SCREW	1
26	90501	油箱支架-前部	BRACKET FUEL TANK - FRONT	1
27	90396	油箱缓冲垫	BUMPER FUEL TANK	2
28	90497	油箱固定卡箍	CLAMP FUEL TANK ATTACHING	1
29	714933	油箱卡箍装饰条	MOLDING TRIM - FUEL TANK CLAMP	1
