水星 Mercury 2B HP 6A1-000101 THRU 0D918221 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-92585 · 共 11 个部位 · 376 条零件

1化油器 2阻风门磁电机控制与燃油阀 3夹紧旋转支架 4外罩 5曲轴箱和气缸盖 6曲轴与活塞 7驱动轴外壳与转向手柄 8飞轮磁电机与启动器 9燃油箱 10齿轮箱总成 11螺旋桨图表

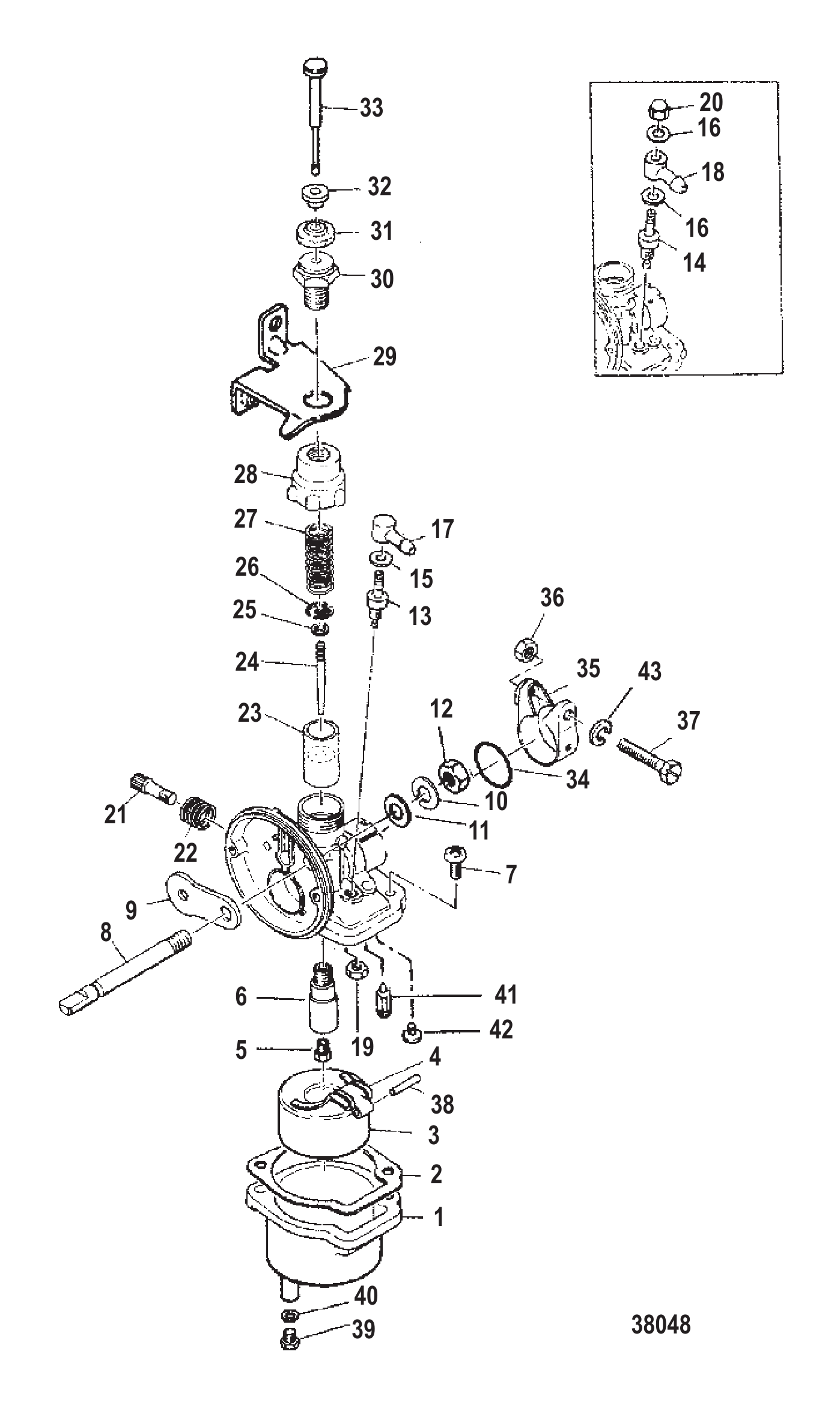

图 1化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
0-1	813479M	化油器	CARBURETOR	1
0-1	814458M	化油器总成	CARBURETOR ASSEMBLY	1
0-1	813479M	化油器	CARBURETOR	1
0-1	7859M	化油器总成	CARBURETOR ASSEMBLY	1
0-1	813479M	化油器	CARBURETOR	1
1	813480M	浮子室	FLOAT BOWL	1
1	13997M	浮子室	FLOAT BOWL	1
1	82832M	浮子室	FLOAT BOWL	1
2	810781M	浮子室衬垫	GASKET FLOAT BOWL	1
2	80344M	浮子室衬垫	GASKET FLOAT BOWL	1
2	94691M	衬垫	GASKET	1
3	810786M	浮子	FLOAT	1
3	80345M	浮子	FLOAT	1
4	80346M	浮子臂浮子	FLOAT ARM FLOAT	1
5	810783M	主量孔 (#96)	JET MAIN (# 96)	1
5	92510M	主量孔 (#96)	JET MAIN (# 96)	1
6	810782M	主喷嘴	NOZZLE MAIN	1
6	92511M	主喷嘴	NOZZLE MAIN	1
7	83509M	螺钉（M4×10）	SCREW (M4 x 10)	2
8	92513M	阻风门杠杆	LEVER CHOKE	1
9	814459M	阻风门阀	VALVE CHOKE	1
9	92514M	阻风门阀	VALVE CHOKE	1
10	92515M	锁紧垫圈	LOCKWASHER	1
11	96335M	垫圈	WASHER	1
12	96336M	螺母	NUT	1
13	41853M	进油阀/阀座组件	VALVE/SEAT KIT Inlet	1
13	82601M	进油阀/阀座组件	VALVE/SEAT KIT Inlet	1
14	80347M	进油阀/阀座组件	VALVE/SEAT KIT Inlet	1
15	41854M	阀座垫片	GASKET VALVE SEAT	1
16	80327M	阀座垫片	GASKET VALVE SEAT	2
17	41855M	连接器	CONNECTOR	1
18	80326M	连接器	CONNECTOR	1
19	41856M	阀座螺母	NUT VALVE SEAT	1
20	80348M	阀座螺母	NUT VALVE SEAT	1
21	80328M	怠速调节螺钉	SCREW PILOT ADJUSTING	1
22	814460M	怠速调节弹簧	SPRING PILOT ADJUSTING	1
22	80329M	怠速调节弹簧	SPRING PILOT ADJUSTING	1
22	814460M	弹簧	SPRING	1
23	11912M	节气门阀	VALVE THROTTLE	1
23	80333M	油门阀	VALVE Throttle	1
24	814461M	针阀	VALVE NEEDLE	1
24	41857M	针阀	VALVE NEEDLE	1
25	80324M	阀夹	CLIP VALVE	1
26	80323M	阀座弹簧	SEAT SPRING	1
27	82599M	节气门阀弹簧	SPRING THROTTLE VALVE	1
28	80325M	主体盖	COVER MAIN BODY	1
29	92516M	节气门线固定器	RETAINER THROTTLE WIRE	1
30	80336M	节气门螺钉	SCREW Throttle	1
31	80196M	盖板	COVER	1
32	92518M	隔套	SPACER	1
33	92519M	节气门柱塞	PLUNGER THROTTLE	1
34	80332M	O型圈	O-RING	1
35	813481M	出口夹	CLIP OUTLET	1
35	41858M	出口夹	CLIP OUTLET	1
35	813481M	卡扣	CLIP	1
36	813482M	螺母	NUT	1
36	92517M	螺母	NUT	1
37	810784M	螺钉	SCREW	1
37	80321M	螺钉	SCREW	1
38	810785M	浮子销	PIN FLOAT	1
38	82804M	浮子销	PIN Float	1
38	811249M	浮子销	PIN Float	1
39	13998M	放油阀	VALVE DRAIN	1
39	14183M	放油螺塞(M4×5)	PLUG Drain (M4 x 5)	1
40	13999M	衬垫	GASKET	1
41	813483M	针阀	VALVE NEEDLE	1
42	81348M	杆	ROD	1
43	82211M	垫圈	WASHER	1
-	813485M	化油器维修套件	REPAIR KIT Carburetor	1
-	41859M	化油器维修套件	REPAIR KIT Carburetor	1
-	41859M	化油器维修套件	REPAIR KIT Carburetor	1

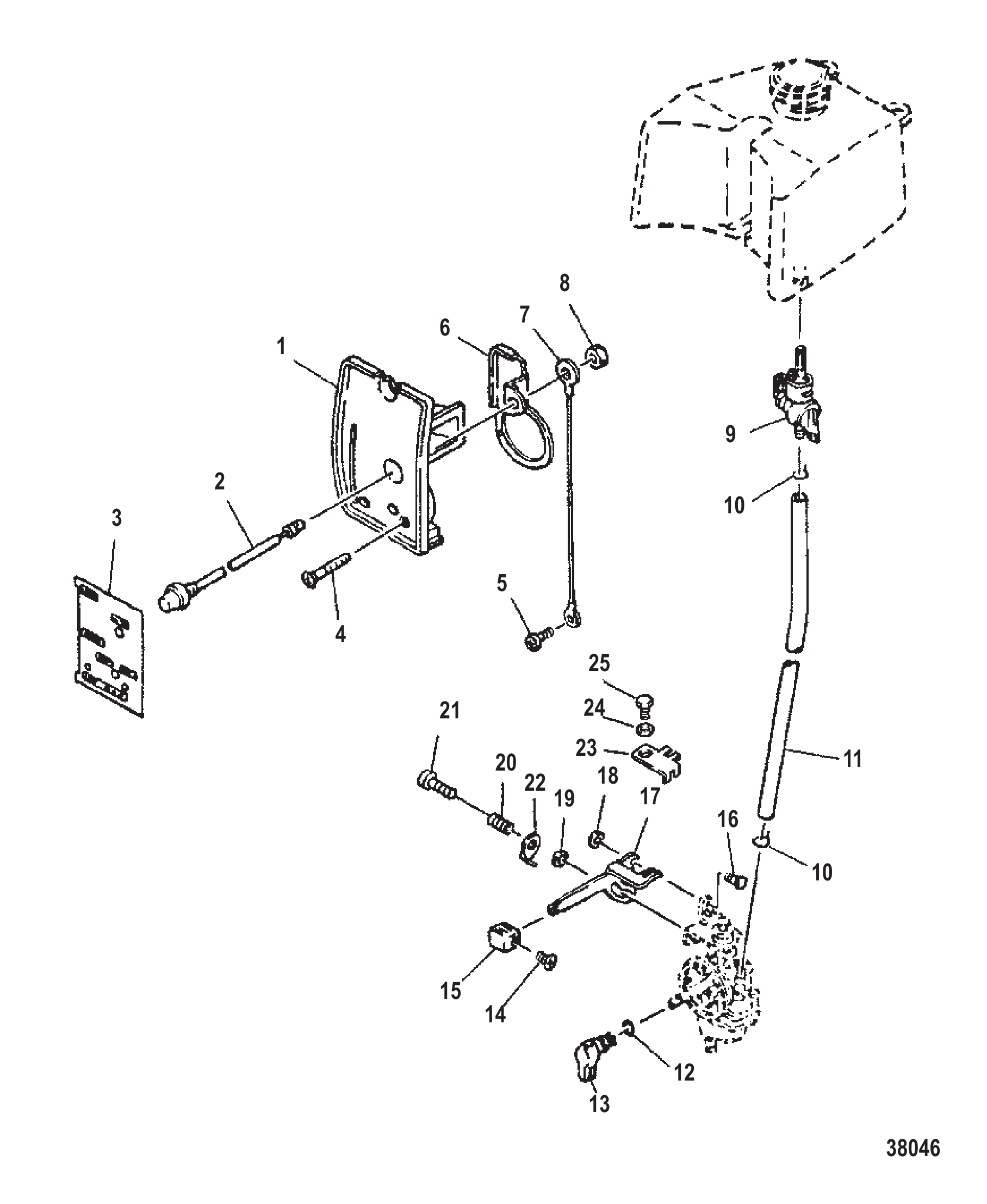

图 2阻风门磁电机控制与燃油阀 CHOKE-MAGNETO CONTROL AND FUEL COCK

REF	零件编号	中文名称	英文名称	数量
1	813476M	进气消声器总成	SILENCER ASSEMBLY Intake	1
1	84990M	进气消声器总成	SILENCER ASSEMBLY Intake	1
2	18835M	停机开关总成	SWITCH ASSEMBLY Stop	1
2	84991M	停机开关总成	SWITCH ASSEMBLY Stop	1
3	11911M	前标牌	DECAL FRONT	1
4	84993M	螺钉	SCREW	2
5	83523M	螺钉	SCREW	1
5	97804M	螺钉	SCREW	1
6	84994M	隔套	SPACER	1
7	84995M	导线	WIRE LEAD	1
8	82393M	螺母	NUT	1
9	95460M	燃油旋塞总成	FUEL COCK ASSEMBLY	1
10	84997M	软管卡箍	CLAMP HOSE	2
11	84997M	燃油管夹	CLAMP FUEL	1
12	84998M	O型圈	O-RING	1
13	84999M	阻风门旋钮	KNOB CHOKE	1
14	95461M	螺钉	SCREW	1
14	92505M	螺钉	SCREW	1
15	92506M	磁电机控制旋钮	KNOB MAGNETO CONTROL	1
16	92507M	U型销	PIN CLEVIS	1
17	18836M	加速臂	ARM Accelerator	1
17	92508M	加速臂	ACCELERATOR ARM	1
18	82327M	卡簧	CIRCLIP	1
19	82209M	垫圈	WASHER	1
20	92509M	弹簧	SPRING	1
21	82521M	螺钉	SCREW	1
22	18838M	锁紧垫圈	WASHER LOCK	1
23	18837M	加速连杆	LINK ACCELERATOR	1
24	82208M	锁紧垫圈	WASHER LOCK	1
25	84313M	螺栓	BOLT	1
-	813475M	动力头衬垫套件	GASKET SET Powerhead	1

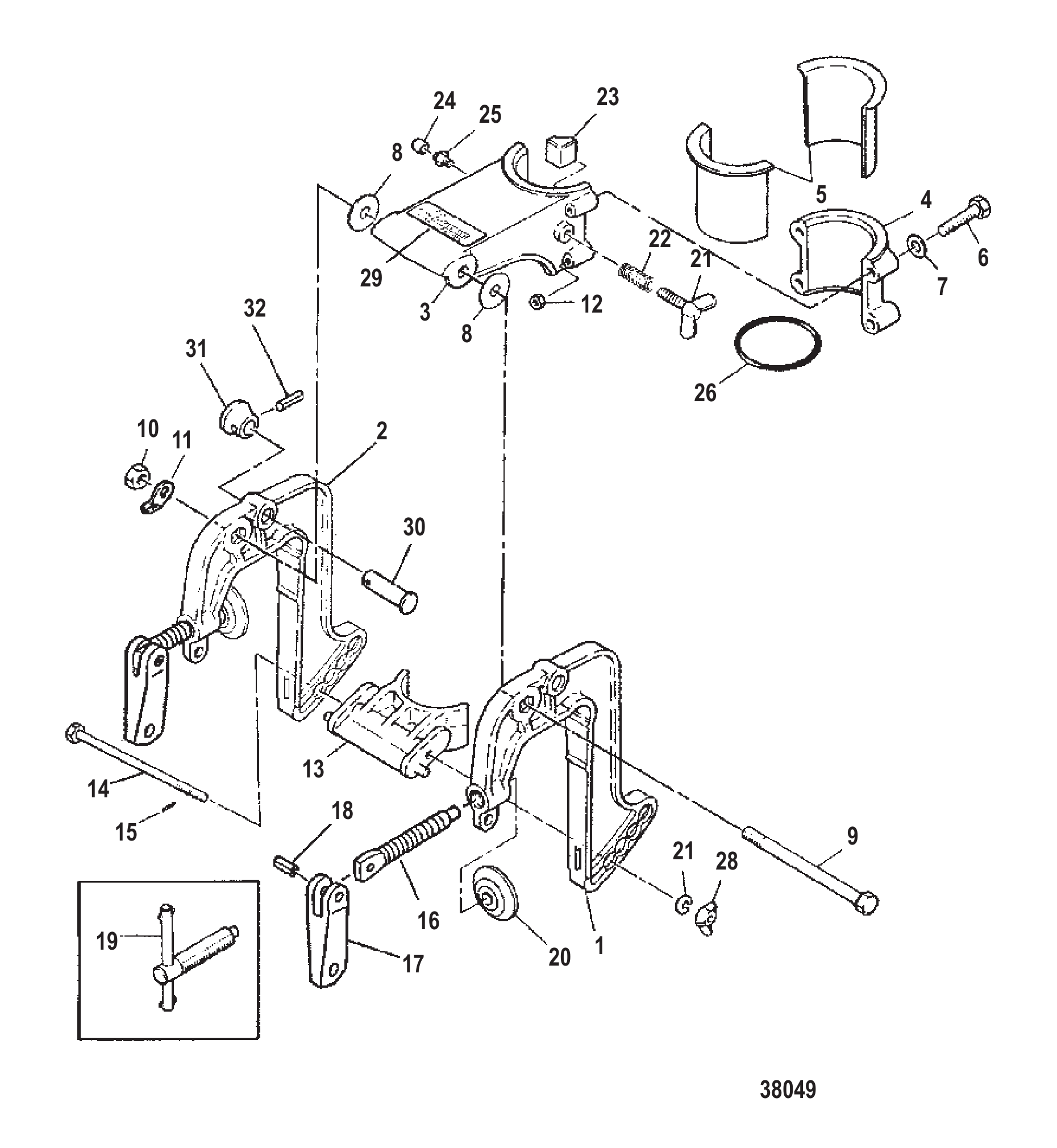

图 3夹紧旋转支架 CLAMP AND SWIVEL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	813486M	夹具支架(左舷)	CLAMP BRACKET (PORT)	1
1	9773M	夹具支架(左/右舷)	CLAMP BRACKET (PORT/STARBOARD)	2
1	813486M	夹箍支架	CLAMP BRACKET	2
1	9338M	夹具支架(左/右舷)	CLAMP BRACKET (PORT/STARBOARD)	2
1	813486M	夹箍支架	CLAMP BRACKET	2
1	7863M	夹具支架(左/右舷)	CLAMP BRACKET (PORT/STARBOARD)	2
2	813487M	夹具支架(右舷)	CLAMP BRACKET (STARBOARD)	1
3	813488M	前旋转支架	SWIVEL BRACKET FRONT	1
3	7864M	前旋转支架	SWIVEL BRACKET FRONT	1
3	813488M	旋转支架	SWIVEL BRACKET	1
4	92535M	后旋转支架	SWIVEL BRACKET REAR	1
5	80382M	导向轴衬套	BUSHING PILOT SHAFT	2
6	92536M	螺栓	BOLT	4
6	84657M	螺栓	BOLT	4
7	82214M	垫圈	WASHER	4
8	81845M	垫圈	WASHER	2
9	81705M	螺栓	BOLT	1
10	82392M	螺母	NUT	1
10	82382M	螺母	NUT	1
11	18840M	夹具支架板	PLATE CLAMP BRACKET	1
11	82215M	锁紧垫圈	LOCKWASHER	1
12	82389M	螺母	NUT	4
13	92537M	推力接收器	RECIEVER THRUST	1
14	92538M	接收器螺栓	BOLT RECEIVER	1
15	82140M	滚动销	PIN Roll	1
16	91783M	艉板夹紧螺钉	SCREW TRANSOM CLAMP	2
17	91784M	艉板夹手柄	HANDLE TRANSOM CLAMP	2
18	41267M	销	PIN	2
18	852812	销	PIN	2
19	92539M	夹具螺丝	CLAMP SCREW	2
20	80638M	艉板夹螺丝垫	PAD TRANSOM CLAMP SCERW	2
21	81745M	翼形螺栓	WING BOLT	1
22	82083M	副驾驶调节螺丝弹簧	SPRING CO-PILOT ADJUSTING SCREW	1
23	80381M	摩擦片	FRICTION PIECE	1
24	81439M	黄油嘴盖	CAP GREASE FITTING	1
25	82369M	黄油嘴	FITTING GREASE	1
26	82279M	O型圈	O-RING	1
27	81791M	垫圈	WASHER	1
28	81776M	蝶形螺母	WING NUT	1
29	95570M	贴花	DECAL	1
30	813489M	轴挡块	SHAFT STOPPER	1
31	813490M	旋钮挡块	KNOB STOPPER	1
32	82147M	滚销	PIN ROLL	1

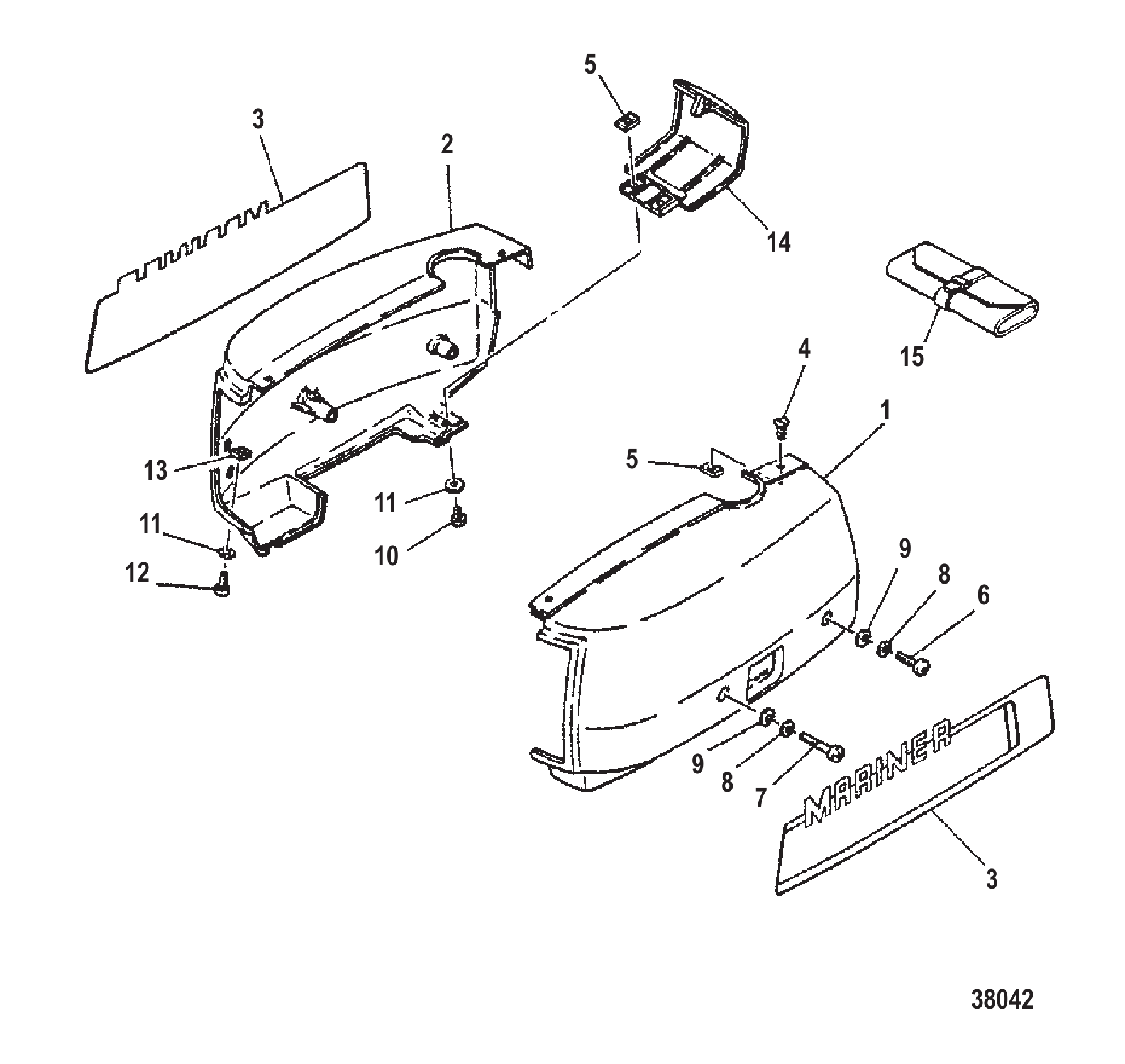

图 4外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	9336M	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
1	9206M	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
1	7869M	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
2	9337M	顶罩总成(右舷)	TOP COWL ASSEMBLY STARBOARD	1
2	7868M	顶罩总成(右舷)	TOP COWL ASSEMBLY STARBOARD	1
3	810931A90	侧面贴花套装	DECAL SIDE SET	1
3	11906M	侧面贴花套装	DECAL SIDE SET	1
4	92556M	螺钉	SCREW	2
5	92557M	螺母	NUT	4
6	82178M	螺钉	SCREW	2
7	92559M	螺钉	SCREW	2
8	82212M	锁紧垫圈	LOCKWASHER LOCK	4
9	82214M	垫圈	WASHER	4
10	83523M	螺钉	SCREW	2
10	14232M	螺钉	SCREW	2
11	82211M	垫圈	WASHER	4
12	14232M	螺钉	SCREW	2
12	83523M	螺钉	SCREW	2
13	92560M	螺母	NUT	2
14	11907M	插头盖帽	COVER PLUG CAP	1
14	92561M	插头盖帽	COVER PLUG CAP	1
15	92562M	工具包	TOOL KIT	1

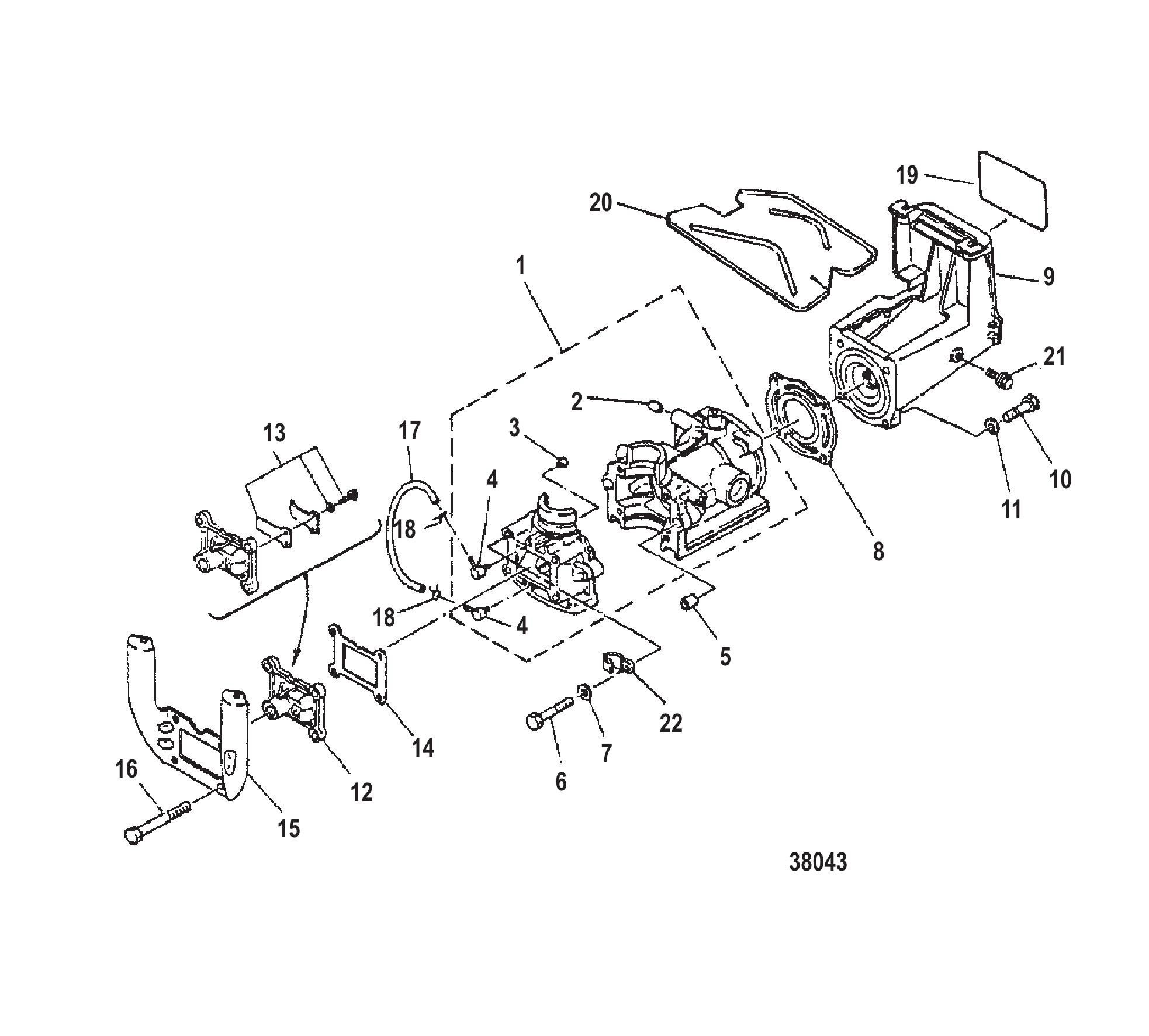

图 5曲轴箱和气缸盖 CRANKCASE AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	7856M	曲轴箱总成	CRANKCASE ASSEMBLY	1
2	81923M	堵头	PLUG	1
3	80107M	止回阀	VALVE CHECK	1
4	80743M	放油接头	FITTING Drain	2
5	14214M	定位销	PIN Dowel	2
6	82428M	螺栓	BOLT	2
7	82214M	垫圈	WASHER	2
8	80313M	气缸盖衬垫	GASKET CYLINDER HEAD	1
9	9208M	气缸盖	CYLINDER HEAD	1
10	82405M	螺栓	BOLT	4
11	82214M	气缸盖螺栓垫圈	WASHER CYLINDER HEAD BOLT	4
12	84983M	簧片阀总成	REED VALVE ASSEMBLY	1
13	84984M	簧片组(不含止动片)	REED SET (REED STOP NOT INCLUDED)	1
14	84985M	簧片阀座垫片	GASKET REED VALVE SEAT	1
15	84986M	节气门连杆支架	BRACKET THROTTLE LINKAGE	1
16	84987M	螺栓	BOLT	4
17	99990M	排水软管	HOSE DRAIN	1
18	82046M	软管卡箍	CLAMP HOSE	2
19	N.S.S.	不单独销售后贴花(属于37-810931A90部件)	Not Sold Separate DECAL-REAR (PART OF 37-810931A90)	1
19	11908M	后贴花	DECAL REAR	1
20	95455M	燃油箱护罩	PROTECTOR FUEL TANK	1
21	95456M	螺栓	BOLT	2
22	83577M	卡箍	CLAMP	1
-	95457M	动力头总成	POWERHEAD ASSEMBLY	1
-	813475M	动力头衬垫套件	GASKET SET Powerhead	1
-	84988M	动力头衬垫套件	GASKET SET Powerhead	1

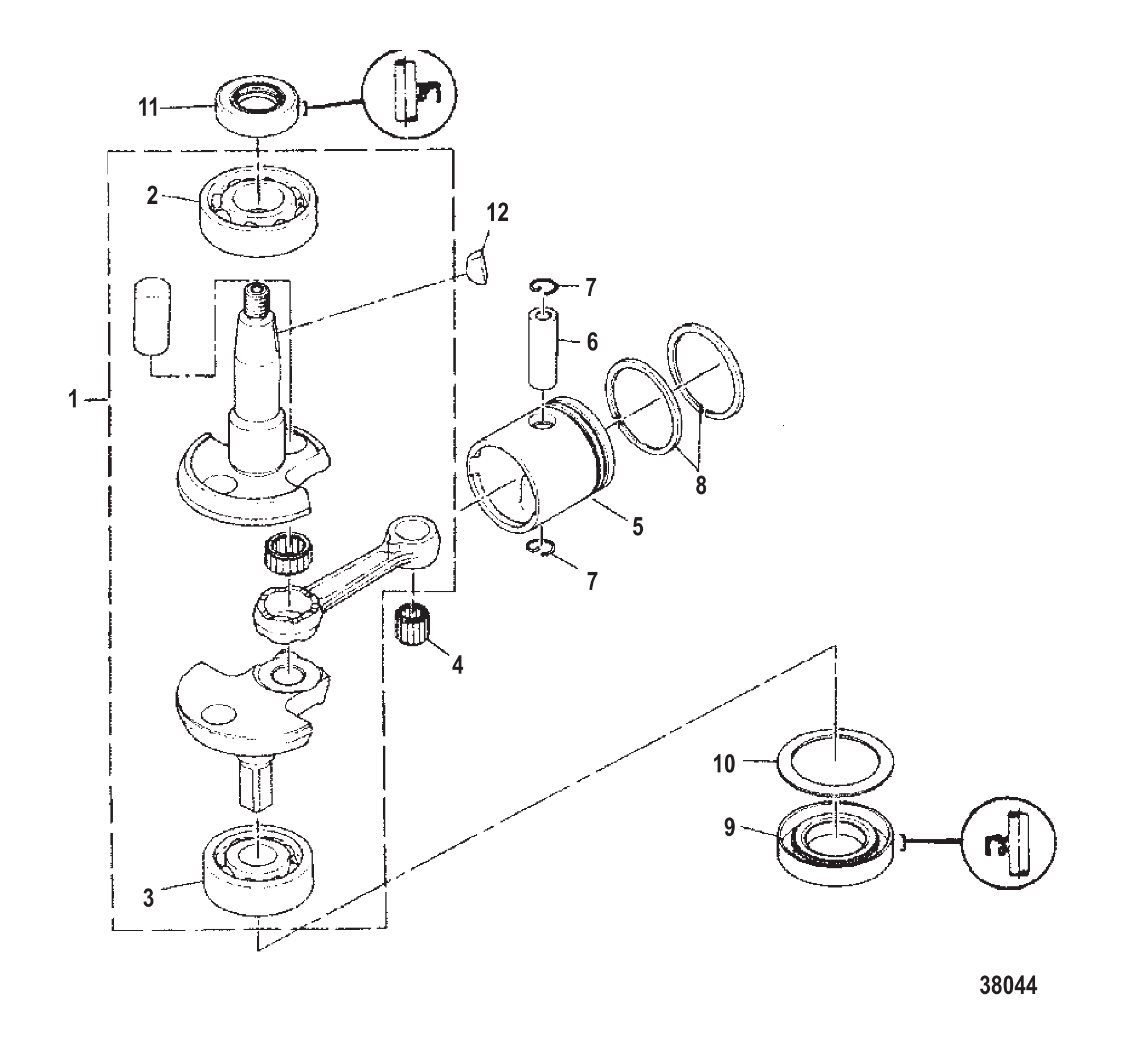

图 6曲轴与活塞 CRANKSHAFT AND PISTON

REF	零件编号	中文名称	英文名称	数量
1	7858M	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	82293M	上轴承	BEARING Upper	1
3	810944M	下轴承	BEARING Lower	1
4	810944M	连杆小端轴承	BEARING CONNECTING ROD-SMALL END	1
4	82310M	连杆小端轴承	BEARING CONNECTING ROD-SMALL END	1
5	6731M	活塞(标准)	PISTON (STD)	1
5	6732M	活塞(一级加大39.25MM)	PISTON (1ST O.S. 39.25MM)	AR
5	6733M	活塞(二级加大39.50MM)	PISTON (2ND O.S 39.50MM)	AR
6	80317M	活塞销	PIN Piston	1
7	82341M	锁紧环	LOCK RING	2
8	80314M	活塞环组(标准)	RING SET Piston (STD)	1
8	80315M	活塞环组(一级加大)	RING SET Piston (1ST O.S.)	AR
8	80316M	活塞环组(二级加大)	RING SET Piston (2ND O.S)	AR
9	813474M	曲轴下油封	SEAL Oil CRANKSHAFT-LOWER	1
9	82242M	曲轴下油封	SEAL Oil CRANKSHAFT-LOWER	1
10	81840M	曲轴轴承下隔套	SPACER CRANKSHAFT BEARAING - LOWER	1
11	82242M	曲轴上油封	SEAL Oil CRANKSHAFT - UPPER	1
11	82237M	曲轴上油封	SEAL Oil CRANKSHAFT-UPPER	1
12	18856M	曲轴至飞轮键	KEY CRANKSHAFT TO FLYWHEEL	1

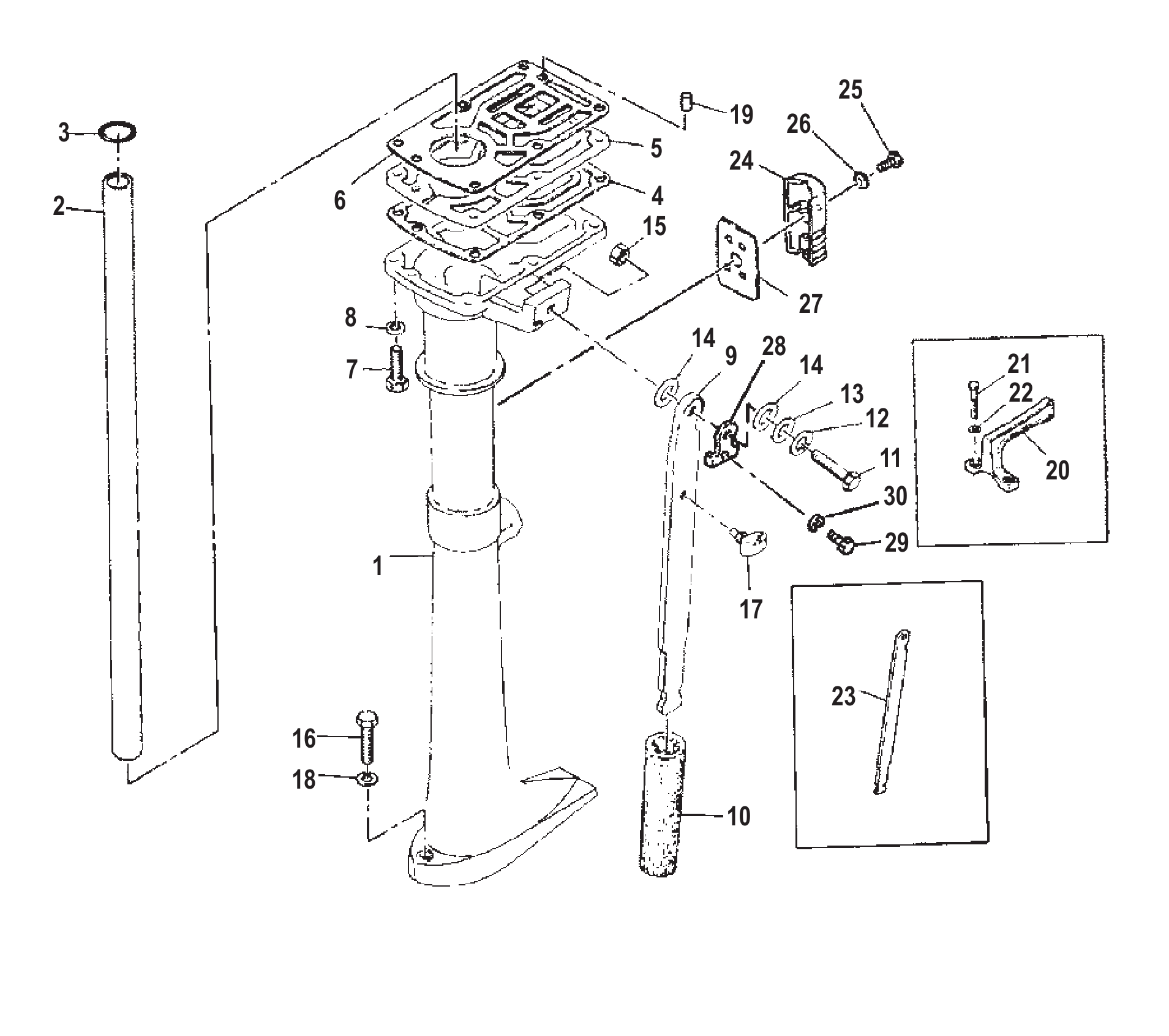

图 7驱动轴外壳与转向手柄 DRIVESHAFT HOUSING AND STEERING HANDLE

REF	零件编号	中文名称	英文名称	数量
1	814462M	驱动轴壳体	HOUSING Driveshaft	1
1	8798M	驱动轴壳体	HOUSING Driveshaft	1
1	7862M	驱动轴壳体	HOUSING Driveshaft	1
2	813491M	传动轴壳体	CASING DRIVESHAFT	1
2	80399M	传动轴管	TUBE DRIVESHAFT	1
3	82269M	O型圈	O-RING	1
4	80355M	排气导流板下垫片	GASKET EXHAUST GUIDE-LOWER	1
5	813492M	排气导流板	GUIDE EXHAUST	1
6	92532M	排气导流板上垫片	GASKET EXHAUST GUIDE-UPPER	1
7	82405M	螺栓	BOLT	6
8	82214M	垫圈	WASHER	6
9	813493M	转向臂	ARM STEERING	1
9	80379M	转向臂	ARM Steering	1
10	80380M	转向握把	GRIP STEERING	1
11	813494M	螺栓	BOLT	1
11	81704M	螺栓	BOLT	1
12	82215M	锁紧垫圈	LOCKWASHER	1
13	82216M	垫圈	WASHER	1
14	81802M	垫圈	WASHER	2
15	82392M	螺母	NUT	1
16	83285M	螺栓	BOLT	1
17	80383M	驱动销固定座	HOLDER DRIVE PIN	1
18	82214M	垫圈	WASHER	1
19	82360M	定位销	PIN Dowel	2
20	84398M	搬运支架	BRACKET CARRYING	1
21	92534M	螺栓	BOLT	2
22	82212M	锁紧垫圈	LOCKWASHER	2
23	84399M	转向手柄	HANDLE Steering	1
24	41248M	盖板	COVER	1
25	83870M	螺钉	SCREW	1
26	82214M	垫圈	WASHER	1
27	41875M	衬垫	GASKET	1
28	813495M	垫圈	WASHER	1
29	84088M	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
30	82212M	锁紧垫圈	LOCKWASHER	1

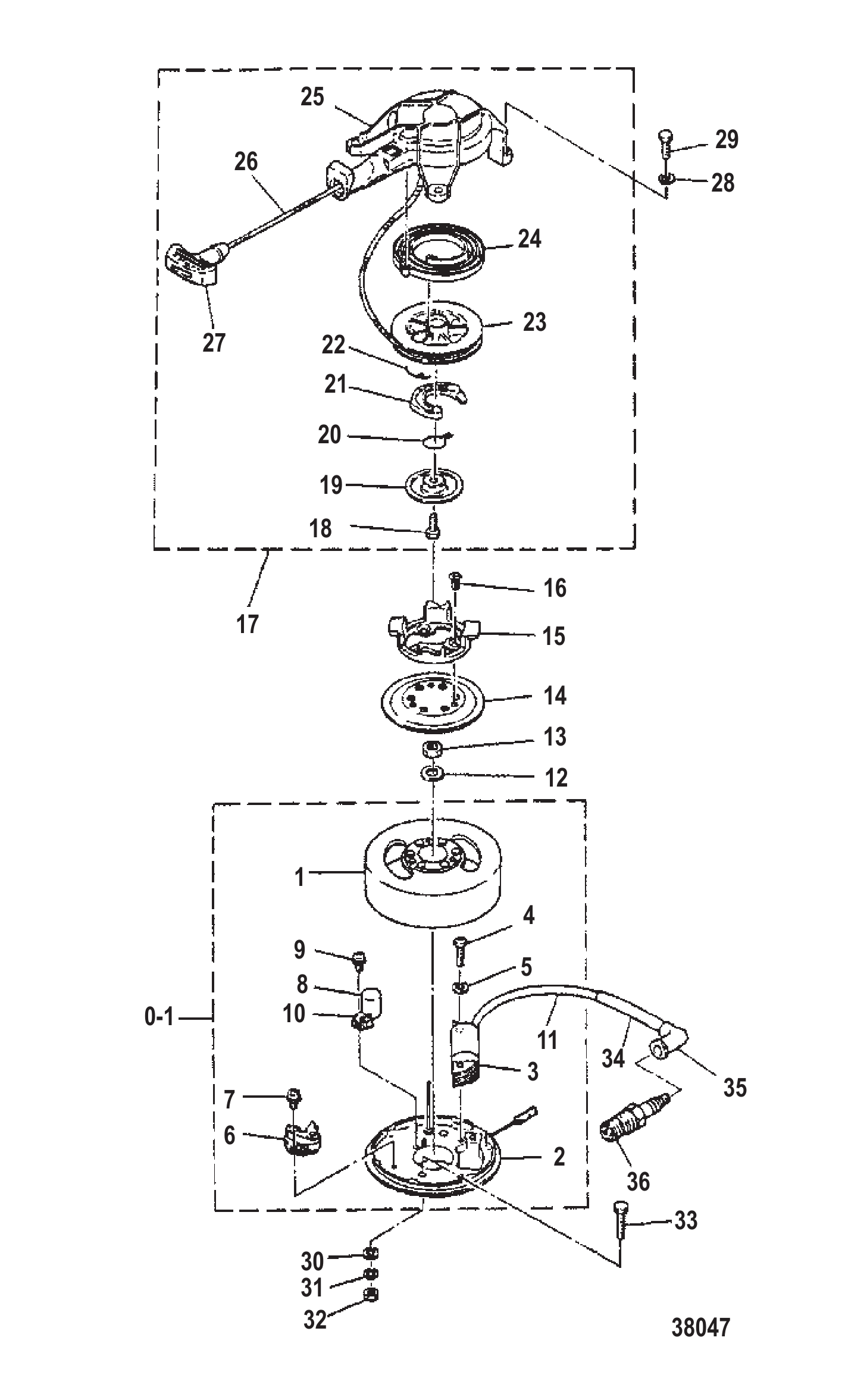

图 8飞轮磁电机与启动器 FLYWHEEL MAGNETO AND STARTER

REF	零件编号	中文名称	英文名称	数量
0-1	7865M	飞轮磁电机总成	FLYWHEEL MAGNETO ASSEMBLY	1
1	7866M	飞轮	FLYWHEEL	1
2	18839M	磁电机底座	BASE MAGNETO	1
2	92541M	磁电机底座	BASE MAGNETO	1
3	92540M	点火线圈	COIL IGNITION	1
4	97803M	螺钉	SCREW	2
4	82521M	螺钉	SCREW	2
5	82186M	锁紧垫圈	WASHER LOCK	2
6	82693M	断电器	BREAKER	1
7	91693M	螺钉	SCREW	1
8	84404M	电容器	CONDENSER	1
9	80001M	螺钉	SCREW	1
10	80003M	润滑器	LUBRICATOR	1
11	82831M	高压线	HIGH TENSION LEAD	1
12	82218M	锁紧垫圈	LOCKWASHER	1
13	82384M	飞轮螺母	NUT FLYWHEEL	1
14	92543M	飞轮盖	COVER FLYWHEEL	1
15	92544M	启动器滑轮	PULLEY STARTER	1
16	92545M	螺钉	SCREW	3
17	92546M	手拉启动器总成	STARTER ASSEMBLY Recoil	1
18	813477M	螺栓	BOLT	1
18	84303M	螺栓	BOLT	1
19	813478M	轴	SHAFT	1
19	92548M	轴	SHAFT	1
20	92549M	驱动爪弹簧	SPRING DRIVE PAWL	1
21	92550M	驱动爪	PAWL DRIVE	1
22	92551M	启动器弹簧	SPRING STARTER	1
23	92552M	启动器滑轮	SHEAVE STARTER	1
24	92553M	启动器弹簧	SPRING STARTER	1
25	7867M	启动器壳体	CASE STARTER	1
26	F521232	启动绳	ROPE Starter	1
27	92554M	启动绳手柄	HANDLE STARTER ROPE	1
28	82214M	垫圈	WASHER	3
29	91725M	螺栓	BOLT	3
29	84247M	螺栓	BOLT	3
30	82212M	锁紧垫圈	LOCKWASHER	2
31	82214M	垫圈	WASHER	2
32	82380M	螺母	NUT	2
33	84237M	螺栓	BOLT	2
34	82030M	火花塞线护套	GROMMET SPARK PLUG WIRE	1
35	80935M	保护器(噪声抑制器)	PROTECTER (NOISE SUPPRESSOR)	1
35	82788M	火花塞帽总成	CAP ASSEMBLY Spark Plug	1
36	84675M	火花塞	SPARK PLUG	1
36	82370M	火花塞	SPARK PLUG	1

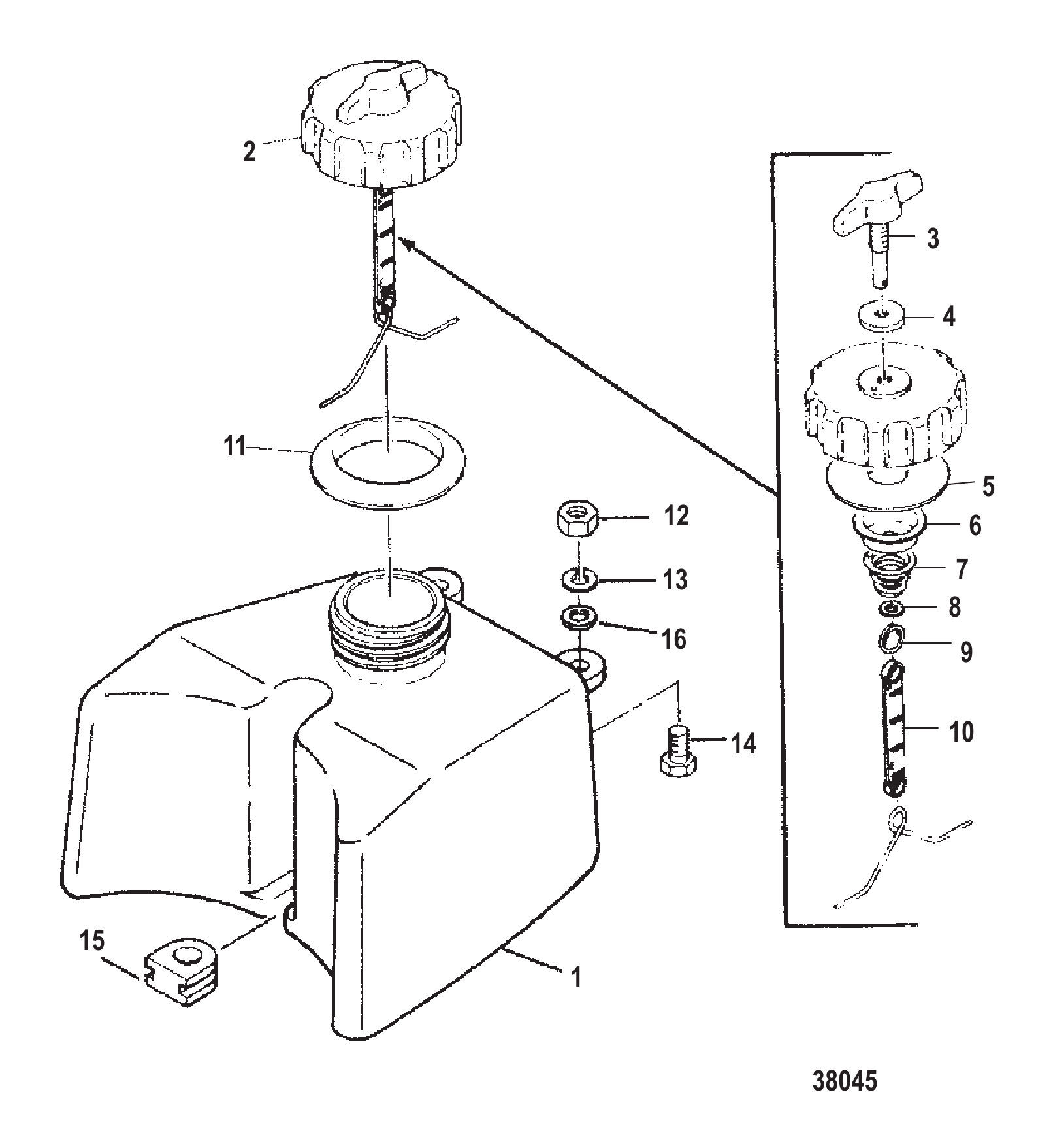

图 9燃油箱 FUEL TANK

REF	零件编号	中文名称	英文名称	数量
1	9209M	燃油箱	TANK Fuel	1
2	18857M	盖总成	CAP ASSEMBLY	1
3	11910M	空气螺钉	SCREW AIR	1
3	82813M	空气螺钉	SCREW AIR	1
4	82814M	衬垫	GASKET	1
5	82815M	填料	PACKING	1
6	82817M	衬垫	GASKET	1
7	82819M	压缩弹簧	SPRING COMPRESSION	1
8	82847M	垫圈	WASHER	1
9	82820M	安全弹簧	SPRING SAFETY	1
10	82821M	指示器	INDICATOR	1
11	95458M	阀帽总成	SEAT CAP ASSEMBLY	1
12	82389M	螺母	NUT	2
12	82380M	螺母	NUT	2
13	82212M	弹簧锁紧垫圈	LOCKWASHER SPRING	2
14	82423M	螺栓	BOLT	2
14	82423M	螺栓	BOLT	2
15	92565M	定位减震器	DAMPER LOCATING	1
16	92564M	垫圈	WASHER	2

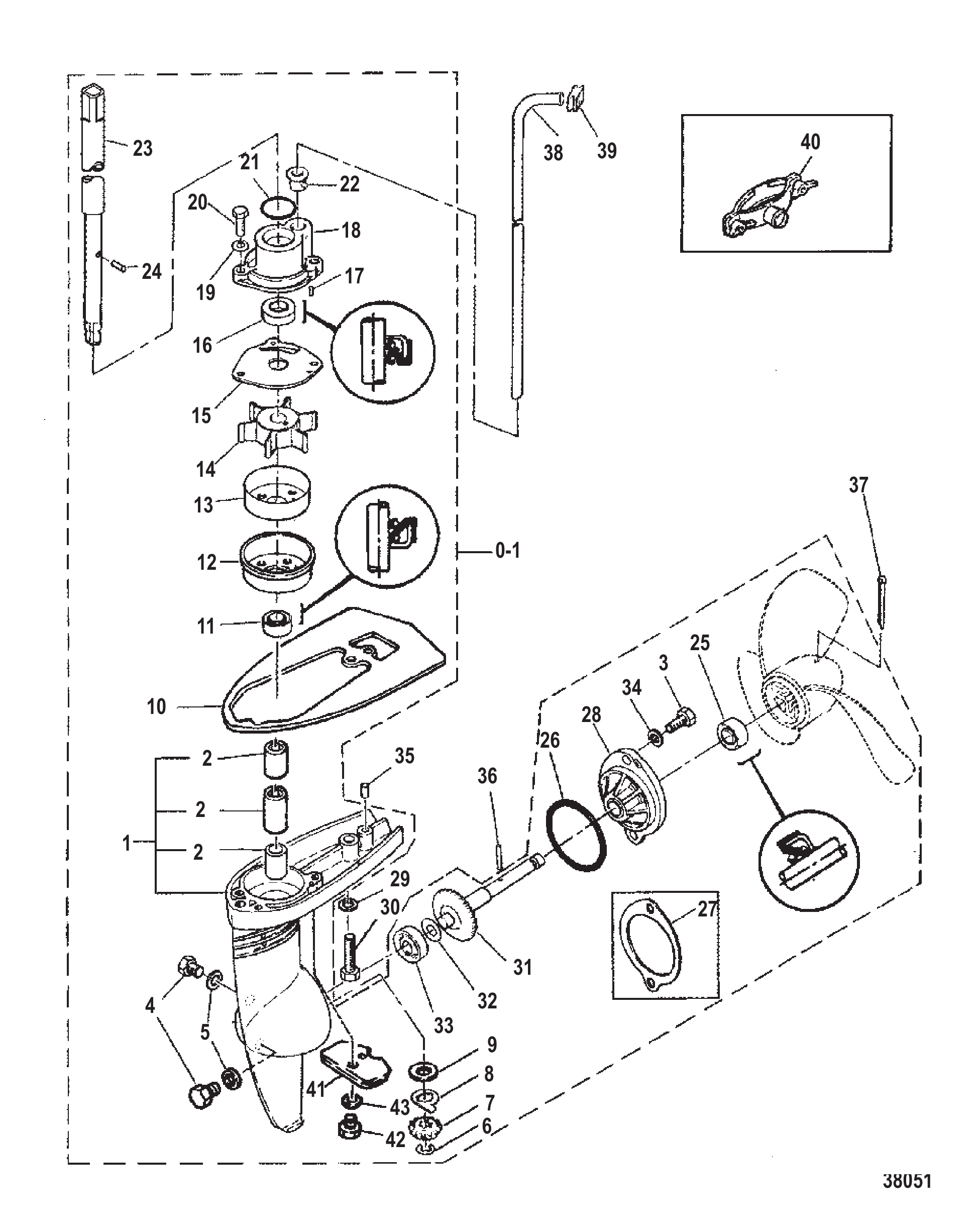

图 10齿轮箱总成 GEARHOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
0-1	810946M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
0-1	813496M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
0-1	9495M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	810955M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9504M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	7861M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	95465M	传动轴衬套	BUSHING DRIVESHAFT	2
3	84368M	螺栓	BOLT	2
4	81924M	放油螺塞	PLUG OIL DRAIN	2
5	81987M	放油螺塞垫片	GASKET OIL DRAIN PLUG	2
6	82331M	卡环	RING Snap	1
7	80405M	小齿轮	GEAR Pinion	1
8	96311M	传动轴止推垫圈	THRUST WASHER DRIVESHAFT	1
8	81875M	传动轴止推垫圈	THRUST WASHER DRIVESHAFT	1
9	80404M	传动轴垫圈(0.3MM)	WASHER DRIVESHAFT (0.3 MM)	AR
9	82802M	传动轴调整垫片(0.5MM)	SHIM DRIVESHAFT (0.5 MM)	AR
10	92528M	安装板	PLATE	1
11	82251M	油封	SEAL Oil	1
12	92529M	护罩油封	SEAL Oil PROTECTOR	1
13	80393M	滤芯	INSERT CARTRIDGE	1
14	80395M	叶轮	IMPELLER	1
15	80394M	滤芯外板	OUTER PLATE CARTRIDGE	1
16	813497M	油封	SEAL Oil	1
16	82251M	油封	SEAL Oil	1
16	82223M	油封	SEAL Oil	1
17	82356M	定位销	PIN Dowel	2
18	813498M	水泵壳体盖	COVER WATER PUMP HOUSING	1
18	96337M	水泵壳体盖	COVER WATER PUMP HOUSING	1
19	82211M	锁紧垫圈	WASHER LOCK	2
20	92521M	螺栓	BOLT	2
21	82269M	O型圈	O-RING	1
22	80398M	橡胶水封	RUBBER WATER SEAL	1
23	92522M	驱动轴	DRIVESHAFT	1
24	82355M	定位销	PIN Dowel	1
25	82250M	螺旋桨轴油封	SEAL Oil PROPELLER SHAFT	1
26	14175M	齿轮箱盖O型圈	O-RING GEAR HOUSING CAP	1
27	80402M	齿轮箱盖垫片	GASKET GEAR HOUSING CAP	1
28	813499M	齿轮箱盖	CAP Gear Housing	1
28	80401M	盖板	COVER	1
29	82214M	垫圈	WASHER	1
30	83285M	螺栓	BOLT	1
31	80406M	齿轮总成	GEAR ASSEMBLY	1
32	80407M	齿轮调整垫片(0.3MM)	SHIM GEAR ADJUST (0.3 MM)	AR
32	80408M	齿轮调整垫片(0.5MM)	SHIM GEAR ADJUST (0.5 MM)	AR
32	14174M	齿轮调整垫片(0.4MM)	SHIM GEAR ADJUST (0.4 MM)	AR
33	82290M	螺旋桨轴轴承	BEARING PROPELLER SHAFT	1
34	82214M	垫圈	WASHER	2
35	82360M	定位销	PIN Dowel	2
35	92524M	定位销	PIN DOWEL	2
36	81896M	驱动销	PIN Drive	1
37	82134M	开口销	COTTER PIN	1
38	80396M	水管	TUBE Water	1
39	80397M	橡胶水封	RUBBER WATER SEAL	1
40	84358M	冲洗附件	FLUSHING ATTACHMENT	1
41	810945M	阳极块	ANODE	1
42	91772M	螺栓	BOLT	1
43	82214M	垫圈	WASHER	1
-	813500M	下部单元衬垫套件	GASKET SET Lower Unit	1
-	18858M	下部单元衬垫套件	GASKET SET Lower Unit	1
-	96338M	下部单元衬垫套件	GASKET SET Lower Unit	1
-	92525M	下部单元衬垫套件	GASKET SET Lower Unit	1
-	814453M	水泵维修套件	REPAIR KIT Water Pump	1
-	96339M	水泵维修套件	REPAIR KIT Water Pump	1

图 11螺旋桨图表 PROP CHART

REF	零件编号	中文名称	英文名称	数量
-	80409M	螺旋桨(螺距5-1/2英寸)(铝制)	PROPELLER (PITCH 5-1/2")(ALUMINUM)	OPT
-	80410M	螺旋桨(螺距4-1/2英寸)(铝制)	PROPELLER (PITCH 4-1/2")(ALUMINUM)	OPT
-	93032M	螺旋桨(螺距4英寸)(塑料)	PROPELLER (PITCH 4")(PLASTIC)	1
