水星 Mercury 25C (THRU PROP. EXHAUST) 695-300101 THRU 318173 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-92571 · 共 56 个部位 · 2599 条零件

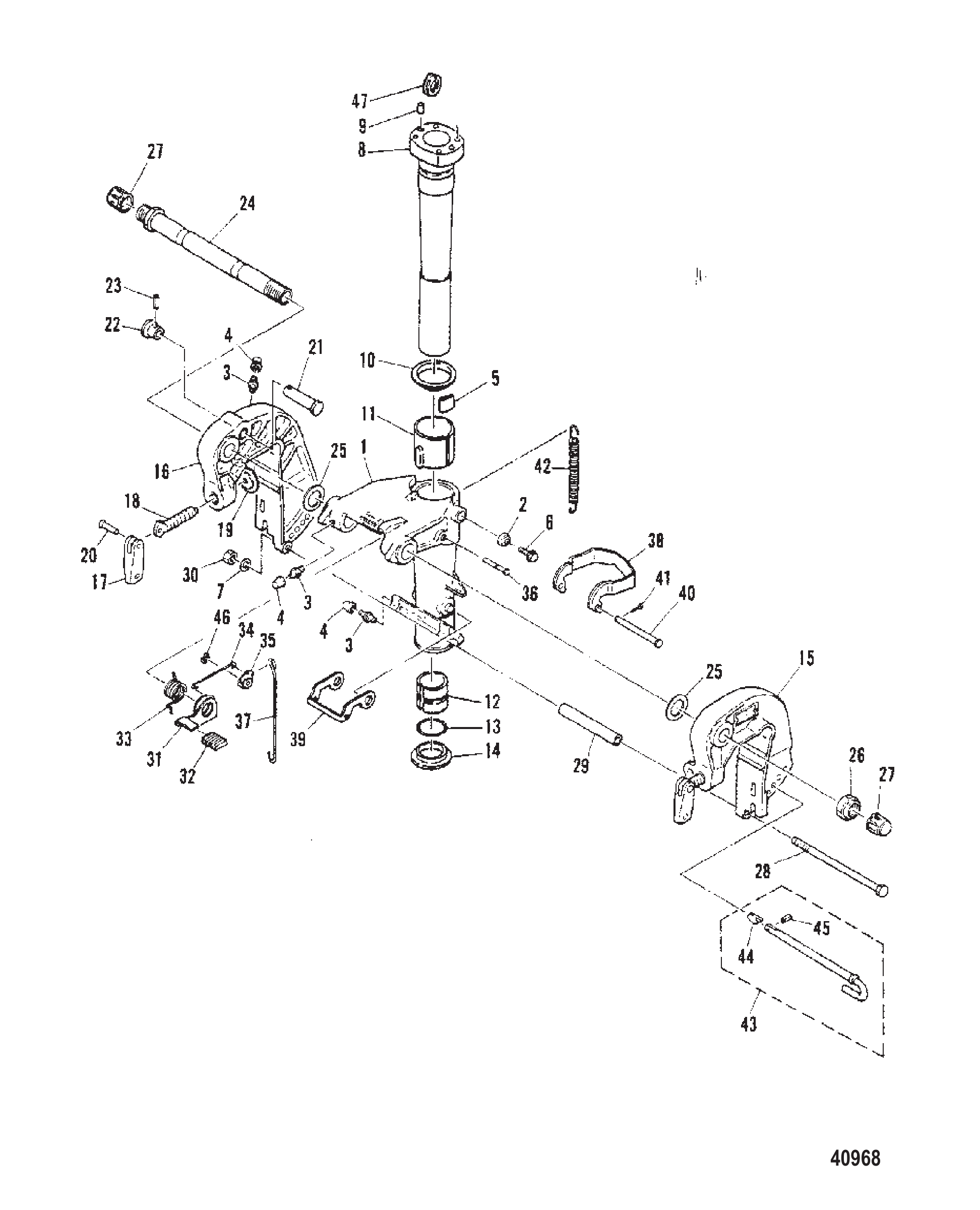

图 1支架M-006086/ML-305361/E-251106/EL-552121及以上 BRACKETS M-006086/ML-305361/E-251106/EL-552121 and Up

REF	零件编号	中文名称	英文名称	数量
1	9246M	旋转支架	SWIVEL BRACKET	1
1	8244M	旋转支架	SWIVEL BRACKET	1
1	9246M	旋转支架	SWIVEL BRACKET	1
2	91637M	密封件	SEAL	1
3	82369M	黄油嘴	FITTING GREASE	4
4	81439M	黄油嘴盖	CAP GREASE FITING	4
5	80633M	摩擦片	PLATE FRICTION	1
6	96382M	螺钉	SCREW	1
7	82217M	垫圈	WASHER	1
8	84833M	转向枢轴	SHAFT STEERING PIVOT	1
9	82368M	定位销	PIN DOWEL	2
10	81873M	垫圈	WASHER	1
11	81964M	枢轴上衬套	BUSHING PIVOT SHAFT-UPPER	1
12	81961M	枢轴下衬套	BUSHING PIVOT SHAFT-LOWER	1
13	82274M	枢轴衬套O型圈	O-RING PIVOT SHAFT BUSHING	1
14	81959M	衬套	BUSHING	1
15	8245M	左舷支架	BRACKET PORT	1
15	9797M	支架	BRACKET	1
16	8246M	右舷支架	BRACKET STARBOARD	1
17	80048M	艉板夹紧螺钉手柄	HANDLE TRANSOM CLAMP SCREW	2
17	809959M	手柄	HANDLE	2
18	81756M	艉板夹紧螺钉	SCREW TRANSOM CLAMP	2
19	80638M	艉板夹紧螺钉垫块	PAD TRANSOM CLAMP SCREW	2
20	81888M	滚销	PIN ROLL	2
21	84835M	倾斜止动轴	SHAFT TILT STOP	1
22	84836M	倾斜止动轴旋钮	KNOB TILT STOP SHAFT	1
22	95650M	旋钮	KNOB	1
23	82148M	滚销	PIN ROLL	1
24	91639M	转向螺栓	BOLT STEERING	1
25	81836M	垫圈	WASHER	2
26	81787M	螺母	NUT	1
26	879172252	螺母	NUT	1
27	81388M	盖帽	CAP	2
27	811914M	盖帽	CAP	2
28	82924M	螺栓	BOLT	1
29	81979M	夹紧支架垫片	SPACER CLAMP BRACKET	1
29	19108M	隔套	SPACER	1
30	82392M	螺母	NUT	1
30	82382M	螺母	NUT	1
31	91640M	锁定/释放杆	LEVER LOCK/RELEASE	1
32	91641M	杆盖	COVER LEVER	1
33	91642M	张力弹簧	SPRING TENSION	1
34	91643M	倒挡锁定杆连杆	LINK REVERSE LOCK LEVER	1
35	80648M	倾斜凸轮	CAM TILT	1
36	91644M	销	PIN	1
36	19109M	销	PIN	1
37	80645M	倒挡锁止杆连杆	ROD REVERSE LOCK LEVER	1
38	84837M	倒挡锁定钩-后	HOOK REVERSE LOCK-REAR	1
39	80643M	倒挡锁定钩-前	HOOK REVERSE LOCK-FRONT	1
40	81882M	销	PIN	1
41	82125M	开口销	COTTER PIN	1
42	82105M	倒挡锁定弹簧	SPRING REVERSE LOCK	1
42	19110M	弹簧	SPRING	1
43	94569M	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
44	82857M	止动板	PLATE Stopper	1
45	82144M	滚销	PIN ROLL	1
46	82330M	卡环	RING Snap	1
47	82070M	护孔环	GROMMET	1

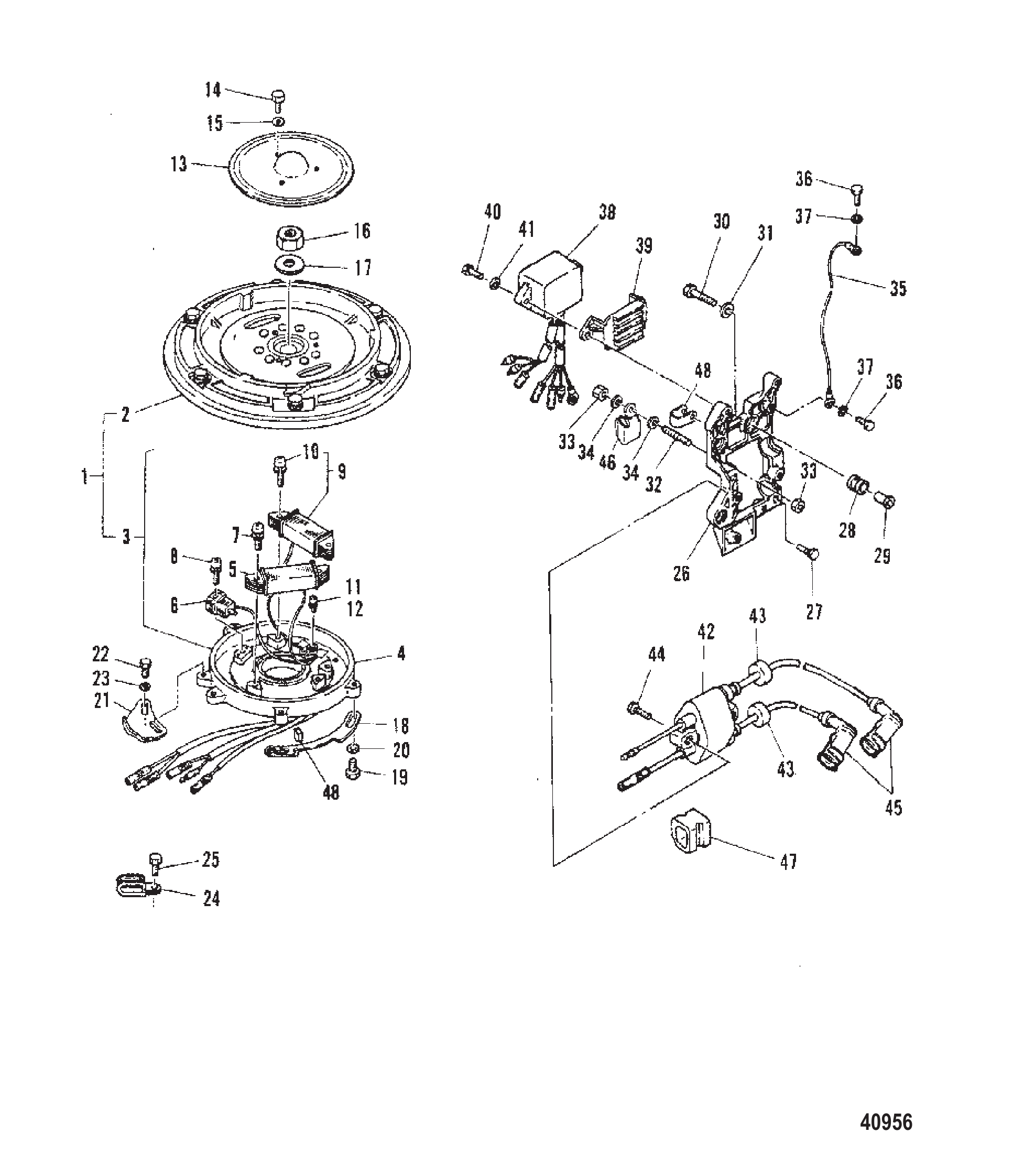

图 2飞轮(M-006086/ML-305361/E-251106/EL-552121及以上) FLYWHEEL (M-006086/ML-305361/E-251106/EL-552121 and Up)

REF	零件编号	中文名称	英文名称	数量
1	8371M	CDI磁电机总成	CDI MAGNETO ASSEMBLY	1
1	8370M	CDI磁电机总成	CDI MAGNETO ASSEMBLY	1
2	8372M	飞轮总成	FLYWHEEL ASSEMBLY	1
2	8369M	飞轮总成	FLYWHEEL ASSEMBLY	1
2	9514M	飞轮总成	FLYWHEEL ASSEMBLY	1
3	96342M	底座总成	BASE ASSEMBLY	1
4	96343M	磁电机底座	BASE MAGNETO	1
5	96344M	充电线圈总成	COIL ASSEMBLY Charge	1
6	96345M	脉冲线圈总成	COIL ASSEMBLY Pulser	1
7	96346M	带垫圈螺钉	SCREW W/WASHER	2
8	91691M	带垫圈螺钉	SCREW W/WASHER	1
9	94804M	照明线圈总成	COIL ASSEMBLY Lighting	1
10	97803M	带垫圈螺钉	SCREW W/WASHER	2
10	96346M	带垫圈螺钉	SCREW W/WASHER	2
11	91699M	带垫圈螺钉	SCREW W/WASHER	1
12	91693M	带垫圈螺钉	SCREW W/WASHER	1
13	80689M	盖板	COVER	1
13	80688M	盖板	COVER	1
14	84303M	螺栓	BOLT	3
14	91772M	螺栓	BOLT	3
15	82198M	垫圈	WASHER	3
15	82213M	垫圈	WASHER	3
16	81770M	螺母	NUT	1
17	81814M	垫圈	WASHER	1
18	99951M	磁电机底座止动件	STOP MAGNETO BASE	1
18	83305M	磁电机底座止动件	STOP MAGNETO BASE	1
18	99951M	停机开关	STOP	1
19	84303M	螺栓	BOLT	2
19	91772M	螺栓	BOLT	2
20	82198M	垫圈	WASHER	2
20	82213M	垫圈	WASHER	2
21	92591M	凸轮	CAM	1
22	84313M	螺栓	BOLT	2
23	82196M	垫圈	WASHER	2
23	82211M	垫圈	WASHER	2
24	96348M	卡箍	CLAMP	1
25	84315M	螺栓	BOLT	1
25	84088M	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
26	96349M	支架	BRACKET	1
27	84869M	减震器	DAMPER	1
28	81523M	减震器	DAMPER	3
29	82851M	衬套	BUSHING	3
29	804344003	轴环	COLLAR	3
30	82405M	螺栓	BOLT	3
31	82979M	垫圈	WASHER	3
31	83769M	垫圈	WASHER	3
32	84870M	螺柱	STUD	1
33	82380M	螺母	NUT	2
33	82389M	螺母	NUT	2
34	82199M	垫圈	WASHER	2
34	82214M	垫圈	WASHER	2
35	84871M	接地线	WIRE GROUND	1
36	84303M	螺栓	BOLT	2
36	91772M	螺栓	BOLT	2
37	82197M	垫圈	WASHER	2
37	82212M	锁紧垫圈	LOCKWASHER	2
38	43077M	开关盒总成	SWITCHBOX ASSEMBLY	1
38	43077T	开关盒	SWITCH BOX	1
39	84873M	支架	BRACKET	1
40	82405M	螺栓	BOLT	2
41	82199M	垫圈	WASHER	2
41	82214M	垫圈	WASHER	2
42	96351M	点火线圈总成	COIL ASSEMBLY Ignition	1
42	95188T	点火线圈	COIL Ignition	1
43	82069M	护孔环	GROMMET	2
44	82405M	螺栓	BOLT	2
45	80935M	保护器(噪声抑制器)	PROTECTER (NOISE SUPPRESSOR)	2
45	815119M	火花塞帽	CAP Spark Plug	2
45	82788M	火花塞帽总成	CAP ASSEMBLY Spark Plug	OPT
45	63709A1	护套/端子套件	BOOT/TERMINAL KIT	OPT
46	96352M	卡箍	CLAMP	1
47	84876M	护孔环	GROMMET	1
48	96353M	卡箍	CLAMP	1
49	99952M	卡箍	CLAMP	1

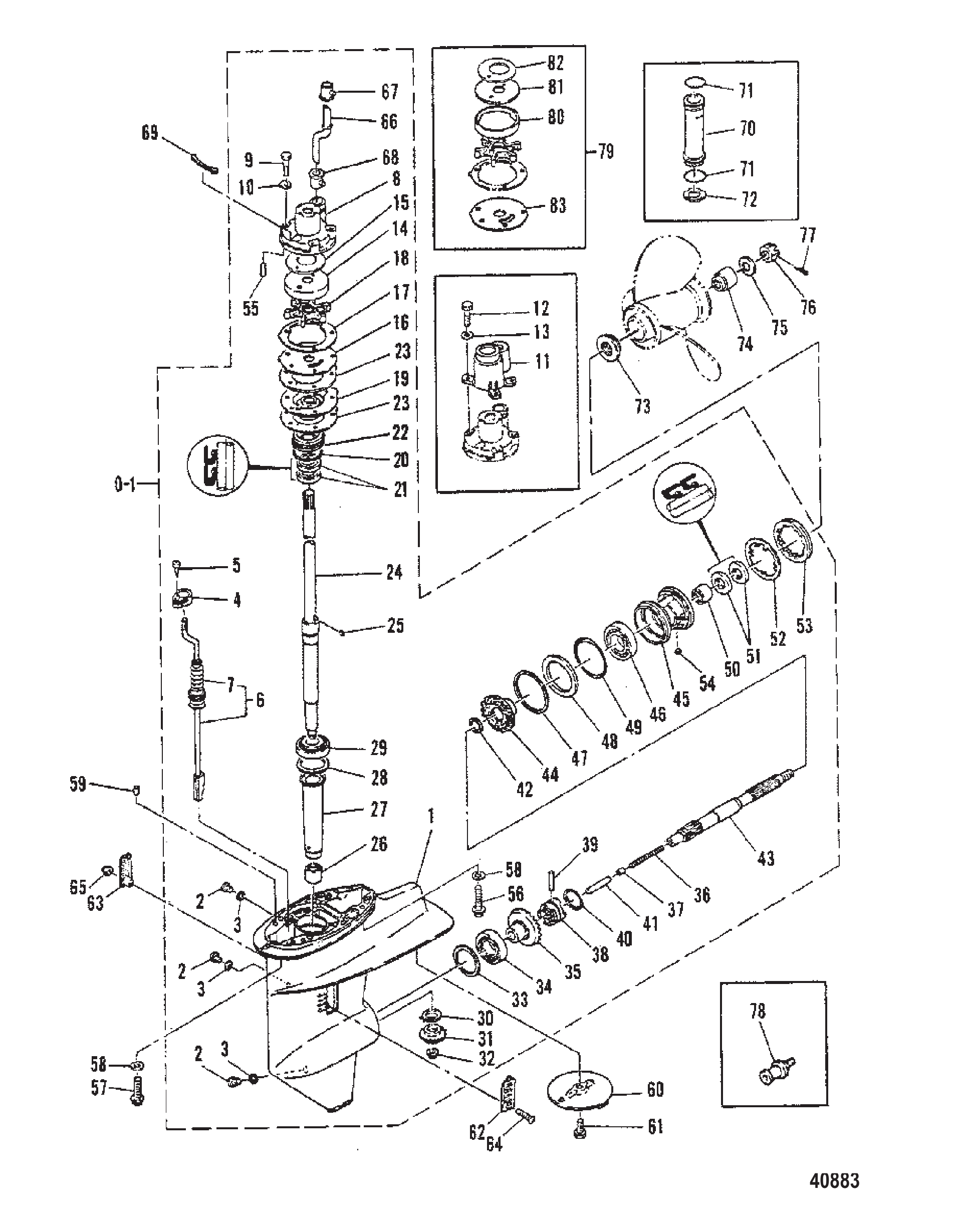

图 3齿轮箱总成 GEARHOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
0-1	8924M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
0-1	9360M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
0-1	7844M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
0-1	9360M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
0-1	8925M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
0-1	9804M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
0-1	7845M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
0-1	9804M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8807M	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
1	7846M	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
2	81924M	堵头	PLUG	3
3	81987M	塞衬垫	GASKET PLUG	3
3	81987	衬垫	GASKET	3
4	84787M	换档轴固定环	RETAINER SHIFT SHAFT	1
5	84788M	螺钉	SCREW	1
6	83069M	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
6	83052M	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
6	83805M	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
7	82914M	护套	BOOT	1
8	41276M	水泵壳体	HOUSING WATER PUMP	1
8	95651M	壳体	HOUSING	1
8	97788M	水泵壳体	HOUSING WATER PUMP	1
8	95651M	壳体	HOUSING	1
9	84790M	螺栓	BOLT	3
9	804124	螺栓	BOLT	3
10	84791M	垫圈	WASHER	3
11	84792M	水泵盖	COVER WATER PUMP	1
12	96293M	螺栓	BOLT	3
12	83285M	螺栓	BOLT	3
13	82214M	垫圈	WASHER	3
14	97789M	水泵衬套	INSERT WATER PUMP	1
15	94807M	密封件	SEAL	1
15	95653M	密封件	SEAL	1
16	41894M	底板	BASE PLATE	1
16	84795M	底座板	PLATE Base	1
16	41894M	底板	BASE PLATE	1
17	41273M	壳体衬垫	GASKET HOUSING	1
17	41273	衬垫	GASKET	1
17	84796M	壳体衬垫	GASKET HOUSING	1
17	41273	衬垫	GASKET	1
18	84797M	叶轮	IMPELLER	1
19	41895M	油封保护器	PROTECTOR OIL SEAL	1
19	811173M	保护器	PROTECTOR	1
19	84798M	油封保护器	PROTECTOR OIL SEAL	1
20	84054M	O型圈	O-RING	1
21	82233M	油封	SEAL Oil	1
21	854017	油封	SEAL Oil	1
22	41271M	油封盖	COVER OIL SEAL	2
23	41272M	保护器衬垫	GASKET PROTECTOR	2
23	84799	衬垫	GASKET	2
23	84799M	保护器衬垫	GASKET PROTECTOR	2
23	84799	衬垫	GASKET	2
24	84800M	驱动轴	DRIVESHAFT	1
24	84801M	驱动轴	DRIVESHAFT	1
24	84802M	驱动轴	DRIVESHAFT	1
25	81603M	叶轮驱动键	KEY IMPELLER DRIVE	1
26	84803M	滚柱轴承(下)	BEARING ROLLER (LOWER)	1
27	84804M	驱动轴套	SLEEVE DRIVESHAFT	1
28	81638M	驱动轴垫片(0.05毫米)	SHIM DRIVESHAFT (.05MM)	AR
28	81639M	驱动轴垫片(0.08毫米)	SHIM DRIVESHAFT (.08MM)	AR
28	81640M	驱动轴垫片(0.12毫米)	SHIM DRIVESHAFT (.12MM)	AR
28	19118M	垫片	SHIM	AR
28	81641M	驱动轴垫片(0.30毫米)	SHIM DRIVESHAFT (.30MM)	AR
28	19121M	垫片	SHIM	AR
28	81642M	驱动轴垫片(0.50毫米)	SHIM DRIVESHAFT (.50MM)	AR
28	19123001	垫片 @5	SHIM @5	AR
29	84805M	圆锥滚子轴承(上部)	BEARING TAPERED ROLLER (UPPER)	1
29	84805T	轴承	BEARING	1
30	81624M	止推垫片	THRUST WASHER	1
31	84806M	小齿轮	GEAR Pinion	1
31	84806T	小齿轮	PINION GEAR	1
32	84807M	螺母	NUT	1
33	81626M	前进齿轮垫片(0.05毫米)	SHIM FORWARD GEAR (.05MM)	AR
33	81627M	前进齿轮垫片(0.08毫米)	SHIM FORWARD GEAR (.08MM)	AR
33	81628M	前进齿轮垫片(0.12毫米)	SHIM FORWARD GEAR (.12MM)	AR
33	18955M	垫片	SHIM	AR
33	81629M	前进齿轮垫片(0.30毫米)	SHIM FORWARD GEAR (.30MM)	AR
33	18958M	垫片	SHIM	AR
33	81630M	前进齿轮垫片(0.50毫米)	SHIM FORWARD GEAR (.50MM)	AR
33	18960M	垫片	SHIM	AR
34	82321M	圆锥滚子轴承(前进)	BEARING TAPERED ROLLER (FORWARD)	1
34	82321T	轴承	BEARING	1
35	84808M	前进齿轮	GEAR FORWARD	1
35	84808T	前进齿轮	FORWARD GEAR	1
36	82078M	压缩弹簧	SPRING COMPRESSION	1
37	80679M	滑动弹簧	SLIDE SPRING	1
38	81644M	离合器	CLUTCH	1
38	81644T	离合器	CLUTCH	1
39	81899M	十字销	PIN Cross	1
40	80678M	十字销环	RING CROSS PIN	1
41	80680M	换挡柱塞	PLUNGER SHIFT	1
42	81831M	止推垫圈	WASHER THRUST	1
43	84809M	螺旋桨轴	PROPELLER SHAFT	1
43	19124A1	螺旋桨轴套件	PROPSHAFT KIT	1
44	84810M	倒车齿轮	GEAR REVERSE	1
44	84810T	倒档齿轮	REVERSE GEAR	1
45	84811M	轴承座	CARRIER Bearing	1
45	8M0119783	轴承座	BEARING CARRIER	1
46	82295M	滚子轴承	BEARING ROLLER	1
46	82295T	滚珠轴承	BEARING Ball	1
47	81633M	倒档齿轮垫片(0.05mm)	SHIM REVERSE GEAR (.05MM)	AR
47	81634M	倒档齿轮垫片(0.08mm)	SHIM REVERSE GEAR (.08MM)	AR
47	81635M	倒档齿轮垫片(0.12mm)	SHIM REVERSE GEAR (.12MM)	AR
47	19126M	垫片	SHIM	AR
47	81636M	倒档齿轮垫片(0.30mm)	SHIM REVERSE GEAR (.30MM)	AR
47	19129M	垫片	SHIM	AR
47	81637M	倒档齿轮垫片(0.50mm)	SHIM REVERSE GEAR (.50MM)	AR
47	19131M	垫片	SHIM	AR
48	81632M	止推垫圈	WASHER THRUST	1
49	84812M	O型圈	O-RING	1
49	811175M	O型圈	O-RING	1
50	82315M	轴承	BEARING	1
51	84813M	油封	SEAL Oil	2
52	84814M	止推垫圈	WASHER TAB	1
53	81619M	螺母	NUT	1
53	8M0073430	螺母	NUT	1
54	81916M	键	KEY	1
55	41275M	定位销	PIN Dowel	2
56	94720M	螺栓	BOLT	2
56	81711M	螺栓	BOLT	2
57	81711M	螺栓	BOLT	2
58	82220M	垫圈	WASHER	4
59	82364M	定位销	PIN Dowel	2
60	82795M	平衡鳍板	TRIM TAB	1
60	82795T	平衡鳍板	TRIM TAB	1
61	84815M	螺栓	BOLT	1
61	82477M	螺栓	BOLT	1
62	41896M	进水口盖(左舷)	COVER WATER INLET (PORT)	1
62	81615M	进水口盖(左舷)	COVER WATER INLET (PORT)	1
62	41896M	盖板	COVER	1
63	41897M	进水口盖(右舷)	COVER WATER INLET (STARBOARD)	1
63	81616M	进水口盖(右舷)	COVER WATER INLET (STARBOARD)	1
63	41897M	盖板	COVER	1
64	82483M	螺钉	SCREW	1
64	811916M	螺钉	SCREW	1
65	81781M	螺母	NUT	1
65	8528165	螺母	NUT	1
66	81605M	水管	TUBE Water	1
66	84816M	水管	TUBE Water	1
66	84817M	水管	TUBE Water	1
67	84818M	上部油封	SEAL UPPER	1
68	80239M	下部油封	SEAL LOWER	1
69	84819M	密封件	SEAL	1
70	84820M	水管延长件	EXTENSION Water Tube	1 or 2
71	84821M	O型圈	O-RING	2
72	41277M	安装板	PLATE	1
72	97783M	安装板	PLATE	1
72	41277M	安装板	PLATE	1
73	81650M	前进推力毂	THRUST HUB FORWARD	1
73	859917	止推垫片	THRUST WASHER	1
74	84823M	倒车推力毂	THRUST HUB REVERSE	1
74	859895	推力毂	THRUST HUB	1
75	82222M	垫圈	WASHER	1
75	859905	垫圈	WASHER	1
76	81774M	螺旋桨螺母	NUT PROPELLER	1
77	82800M	开口销	PIN COTTER	1
77	82132M	开口销	COTTER PIN	1
78	80218M	堵头	PLUG	1
78	8M0121335	堵头	PLUG	1
79	41898M	水泵套件-镀铬	PUMP KIT Water - Chrome	1
79	97790M	水泵套件-镀铬	PUMP KIT Water - Chrome	1
80	97791M	滤芯	INSERT CARTRIDGE	1
80	84825M	滤芯	INSERT CARTRIDGE	1
81	84826M	嵌件	INSERT	1
81	97791M	嵌件	INSERT	1
82	94807M	密封件	SEAL	1
82	95653M	密封件	SEAL	1
83	41274M	外板	OUTER PLATE	1
83	97792M	外板	OUTER PLATE	1
83	41274M	外板	OUTER PLATE	1
-	41899M	下部单元衬垫套件	GASKET SET Lower Unit	1
-	84828M	下部单元衬垫套件	GASKET SET Lower Unit	1
-	41899M	衬垫套件	GASKET SET	1
-	42431M	水泵维修套件	REPAIR KIT WATER PUMP	1
-	97793M	水泵维修套件	REPAIR KIT WATER PUMP	1
-	97793T	水泵修理包	REPAIR KIT-W/P	1

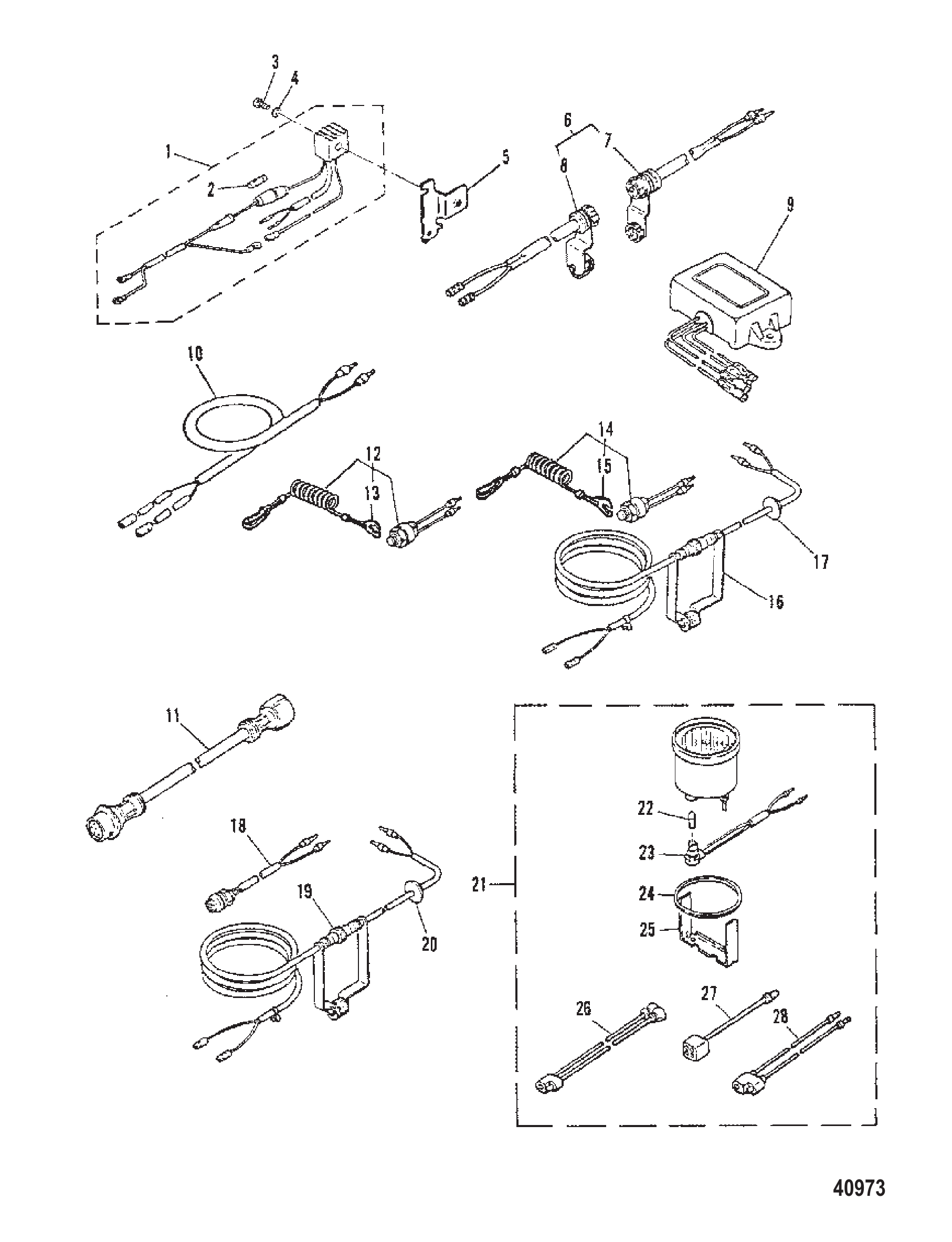

图 4可选零件 OPTIONAL PARTS

REF	零件编号	中文名称	英文名称	数量
1	84329M	整流器总成	RECTIFIER ASSEMBLY	1
2	81522M	保险丝	FUSE	1
3	82492M	螺钉	SCREW	1
3	83108M	螺钉	SCREW	1
4	82196M	垫圈	WASHER	1
4	82211M	垫圈	WASHER	1
5	92603M	整流器安装板	PLATE RECTIFIER MOUNTING	1
6	84124M	2线连接器	CONNECTOR 2 WIRE	1
7	99051M	连接器	CONNECTOR	1
8	99052M	连接器	CONNECTOR	1
9	84125M	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
9	84125T	电压调节器	REGULATOR Voltage	1
10	84959M	停止开关延长线(2米)	EXTENSION (2M) FOR STOP SWITCH	1
10	83645M	停机开关延长线(2米)	LEAD EXTENSION (2M) FOR STOP SWITCH	1
11	84960M	开关面板延长线(2米)	EXTENSION (2M) FOR SWITCH PANEL	1
12	97774M	发动机安装式停止开关总成	SWITCH ASSEMBLY Stop MOTOR MOUNT	1
12	92611M	发动机安装式停止开关总成	SWITCH ASSEMBLY Stop MOTOR MOUNT	1
12	97765M	停机开关总成	SWITCH ASSEMBLY Stop	1
13	97756M	止动器	STOPPER	1
13	81531M	止动器	STOPPER	1
13	97756M	止动器	STOPPER	1
14	97755M	遥控停止开关总成(5米)	SWITCH ASSEMBLY Stop REMOTE (5M)	1
14	97765M	停机开关总成	SWITCH ASSEMBLY Stop	1
14	97777M	遥控停止开关总成(5米)	SWITCH ASSEMBLY Stop REMOTE (5M)	1
14	97765M	停机开关总成	SWITCH ASSEMBLY Stop	1
15	97756M	止动器	STOPPER	1
15	81531M	止动器	STOPPER	1
15	97756M	止动器	STOPPER	1
16	84964M	延长线(5米)	EXTENSION (5M)	1
16	92613M	延长线(5米)	EXTENSION (5M)	1
17	84967M	护孔环	GROMMET	1
17	84915M	护孔环	GROMMET	1
17	826981M	护孔环	GROMMET	1
18	97754M	遥控停止开关总成(5米)	SWITCH ASSEMBLY Stop REMOTE (5M)	1
18	92614M	遥控停止开关总成(5米)	SWITCH ASSEMBLY Stop REMOTE (5M)	1
18	97754M	停机开关总成	SWITCH ASSEMBLY Stop	1
19	84964M	延长线(5米)	EXTENSION (5M)	1
19	92613M	延长件	EXTENSION	1
20	84967M	护孔环	GROMMET	1
21	43984A1	转速表套件	TACHOMETER KIT	1
22	99055M	灯泡	BULB	1
23	99056M	灯泡插座	SOCKET BULB	1
23	99056A1	故障指示灯	MALFUNCTION INDICATOR LAMP	1
24	99057M	减震器	DAMPER	1
25	99058M	安装板	PLATE	1
26	99059M	电线	WIRE	1
27	84353M	连接器	CONNECTOR	1
28	84352M	延长导线	EXTENSION LEAD	1

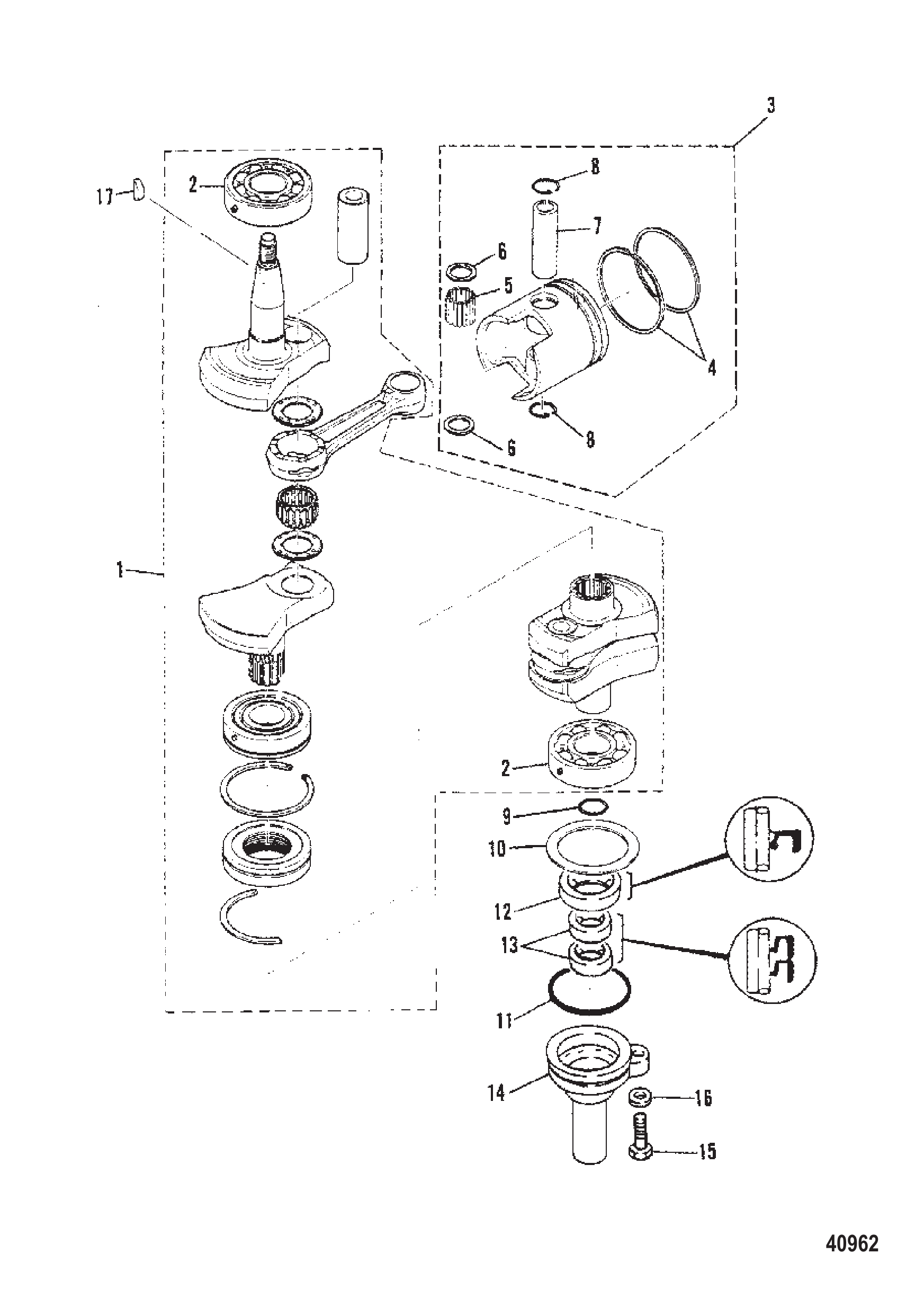

图 5曲轴与活塞 CRANKSHAFT AND PISTON

REF	零件编号	中文名称	英文名称	数量
1	9245M	曲轴总成	CRANKSHAFT ASSEMBLY	1
1	6849M	曲轴总成	CRANKSHAFT ASSEMBLY	1
1	9245M	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	82307M	曲轴轴承	BEARING CRANKSHAFT	2
2	82307T	滚珠轴承	BALL BEARING	2
3	8375M	活塞总成	PISTON ASSEMBLY	2
3	8376M	活塞总成	PISTON ASSEMBLY	AR
3	8377M	活塞总成	PISTON ASSEMBLY	AR
4	81095M	活塞环组	RING SET Piston	2
4	81095T	活塞环组	PISTON RING SET	2
4	81096M	活塞环组	RING SET Piston	AR
4	81096T	活塞环组	PISTON RING SET	AR
4	81097M	活塞环组	RING SET Piston	AR
4	81097T	活塞环组	PISTON RING SET	AR
5	84452M	滚针轴承	BEARING NEEDLE	62
6	81829M	连杆轴承垫片	WASHER CONNECTING ROD BEARING	4
7	80565M	活塞销	PIN PISTON	2
8	82345M	卡环	RING Snap	4
9	82268M	曲轴至驱动轴O型圈	O-RING CRANKSHAFT TO DRIVESHAFT	1
10	81842M	内轴承垫片	SPACER INNER BEARING	1
11	84751M	油封壳体O型圈	O-RING OIL SEAL HOUSING	1
11	84089M	O型圈	O-RING	1
12	43111M	大油封	SEAL Oil LARGE	1
12	84752M	油封	SEAL Oil	1
12	84752M	大油封	SEAL Oil LARGE	1
13	83347M	小油封	SEAL Oil SMALL	2
14	84753M	油封壳体(下)	HOUSING OIL SEAL (LOWER)	1
14	8M0059029	壳体	HOUSING	1
15	94526M	螺栓	BOLT	1
15	82453M	螺栓	BOLT	1
15	82405M	螺栓	BOLT	1
16	82214M	垫圈	WASHER	1
17	81914M	曲轴至飞轮键	KEY CRANKSHAFT TO FLYWHEEL	1
17	8M0057164	键@2	KEY @2	1
-	92575M	动力头衬垫套件	GASKET SET POWERHEAD	1

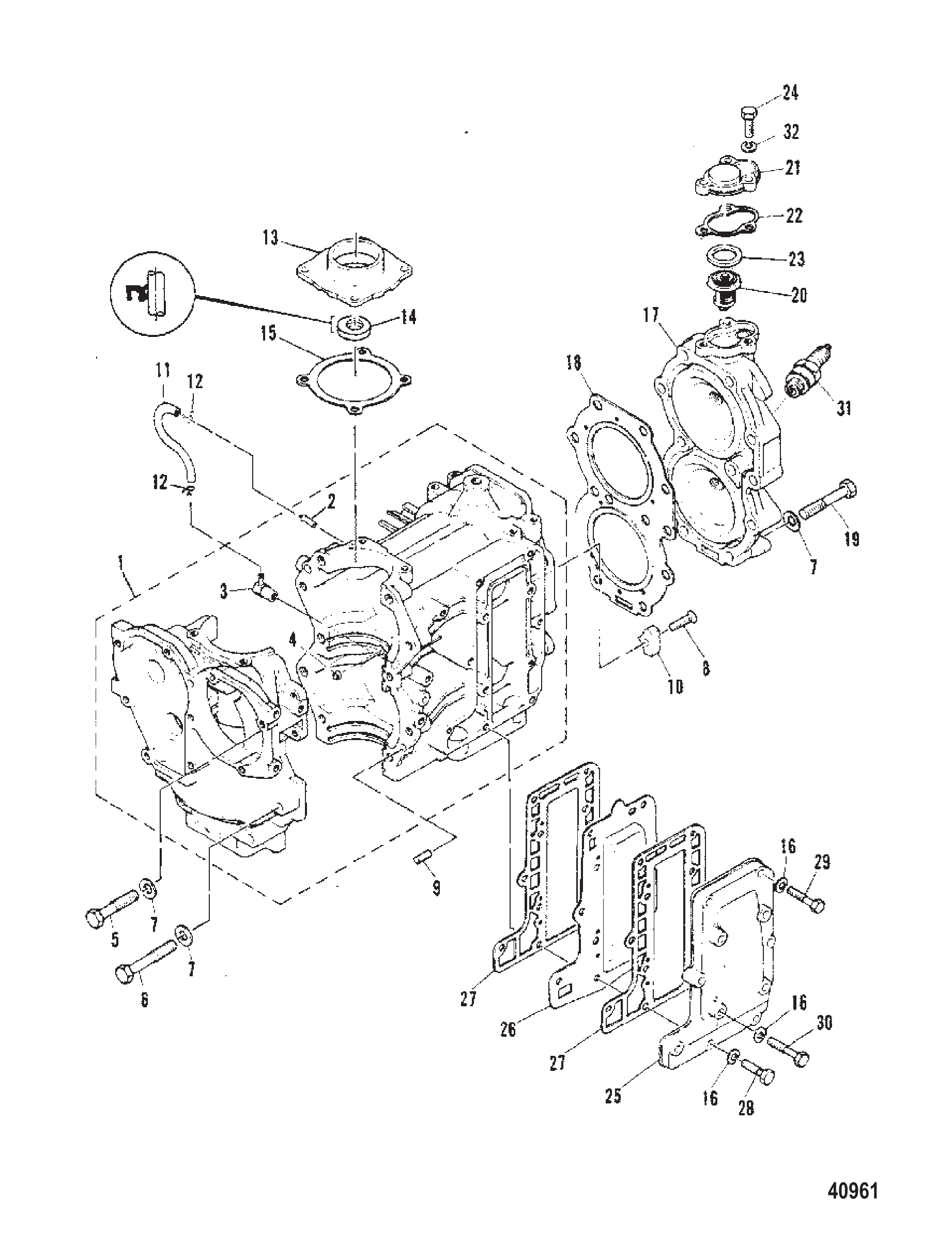

图 6曲轴箱和气缸盖 CRANKCASE AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	8399M	曲轴箱总成	CRANKCASE ASSEMBLY	1
1	9369M	气缸体	CYLINDER BLOCK	1
1	7871M	曲轴箱总成	CRANKCASE ASSEMBLY	1
2	80122M	曲轴箱放油接头	FITTING CRANKCASE DRAIN	1
3	80727M	止回阀总成	CHECK VALVE ASSEMBLY	1
4	80107M	止回阀	VALVE CHECK	1
5	41885M	带垫圈螺栓	BOLT W/WASHER	2
5	82406M	带垫圈螺栓	BOLT W/WASHER	2
6	41884M	螺栓(M8×55)带垫圈	BOLT (M8 x 55) W/WASHER	8
6	8M0101617	螺栓	BOLT	8
6	82408M	螺栓	BOLT	8
7	80564M	垫圈	WASHER	21
8	95209M	螺钉	SCREW	1
8	82167M	螺钉	SCREW	1
8	95209M	螺钉	SCREW	1
9	82364M	定位销	PIN Dowel	2
10	84732M	阳极块	ANODE	1
11	82000M	软管	HOSE	1
11	811045M	软管	HOSE	1
12	82046M	软管卡箍	CLAMP HOSE	2
13	81564M	油封壳体(上)	HOUSING OIL SEAL (UPPER)	1
14	82245M	曲轴上油封	SEAL Oil CRANKSHAFT (UPPER)	1
15	81565M	油封壳体衬垫	GASKET OIL SEAL HOUSING	1
16	82199M	锁紧垫圈	WASHER LOCK	4
16	82214M	垫圈	WASHER	4
17	8400M	气缸盖	HEAD CYLINDER	1
18	81555M	气缸盖衬垫	GASKET CYLINDER HEAD	1
18	81555	衬垫	GASKET	1
19	41885M	带垫圈螺栓	BOLT W/WASHER	11
19	82407M	螺栓	BOLT	11
20	81098M	节温器	THERMOSTAT	1
20	99080M	节温器	THERMOSTAT	1
21	81030M	节温器盖	COVER THERMOSTAT	1
22	81031M	节温器盖衬垫	GASKET THERMOSTAT COVER	1
22	81031	衬垫	GASKET	1
23	81835M	垫圈	WASHER	1
24	83539M	螺栓 (M6 x 20)	BOLT (M6 x 20)	3
24	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	3
25	81569M	排气外罩	COVER EXHAUST-OUTER	1
26	81568M	排气内罩	COVER EXHAUST-INNER	1
27	81570M	排气盖衬垫	GASKET EXHAUST COVER	2
27	81570	衬垫	GASKET	2
28	82453M	螺栓	BOLT	1
28	82405M	螺栓	BOLT	1
28	84239M	螺栓	BOLT	1
28	82405M	螺栓	BOLT	1
29	96293M	螺栓	BOLT	4
29	83285M	螺栓	BOLT	4
29	84488M	螺栓	BOLT	4
29	83285M	螺栓	BOLT	4
30	92523M	螺栓	BOLT	6
30	83285M	螺栓	BOLT	6
31	82371M	火花塞B-7HS(NGK)	SPARK PLUG B-7HS (NGK)	2
31	8M0114739	火花塞B7HS-82 @4	SP B7HS-82 @4	2
32	82197M	垫圈	WASHER	3
32	82212M	锁紧垫圈	LOCKWASHER	3
-	96586M	动力头总成(完整件)(见备注)	POWERHEAD ASSEMBLY COMPLETE (SEE NOTE)	1
-	18969M	船用动力头	POWERHEAD MARINE	1
-	92574M	动力头总成(完整件)(见备注)	POWERHEAD ASSEMBLY COMPLETE (SEE NOTE)	1
-	92575M	动力头衬垫套件	GASKET SET POWERHEAD	1

图 7服务/支持材料 SERVICE/SUPPORT MATERIAL

REF	零件编号	中文名称	英文名称	数量
-	13286	零件手册18/20/25马力(XD)	PARTS MANUAL 18/20/25 H.P. (XD)	1
-	41499A87	衬垫套件	GASKET SET	1
-	43170A84	贴花套件	DECAL SET	1
-	43477A85	贴花套件	DECAL SET	1
-	43173A84	贴花套件	DECAL SET	1
-	13480A86	贴花套件	DECAL SET	1
-	13239A86	贴花套件	DECAL SET	1
-	11181A85	贴花套件	DECAL SET	1
-	11627A85	贴花套件	DECAL SET	1
-	11044870	用户指南	OWNERS GUIDE	1
-	11046870	用户指南	OWNERS GUIDE	1

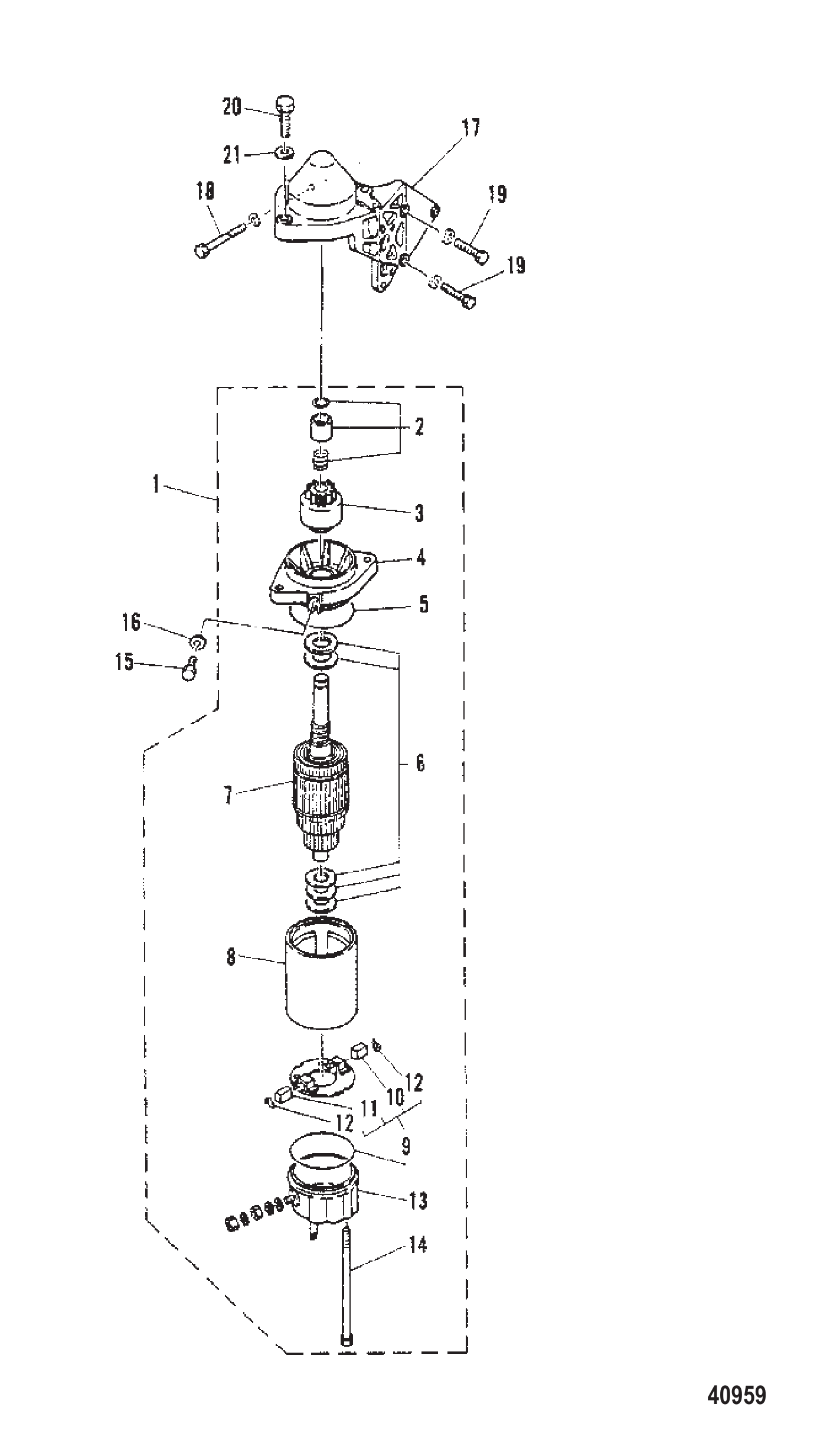

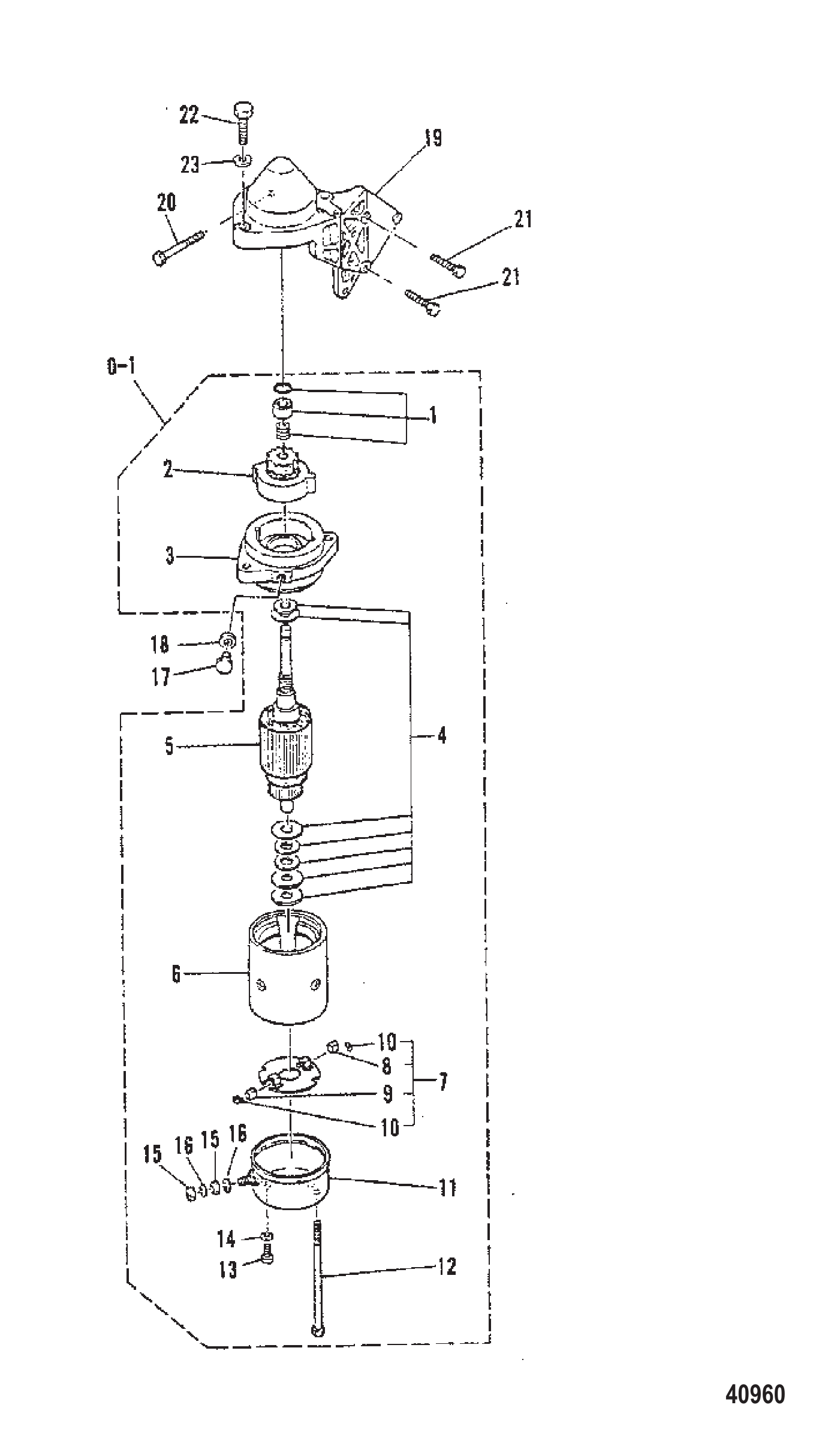

图 8电启动电机(E-251105/EL-552120及以下) ELECTRIC START MOTOR (E-251105/EL-552120 and Below)

REF	零件编号	中文名称	英文名称	数量
0-1	84917M	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	84918M	小齿轮止动组	STOP SET Pinion	1
2	84919M	小齿轮	GEAR Pinion	1
3	84920M	前盖	COVER FRONT	1
4	84921M	垫圈套件	WASHER KIT	1
5	84922M	电枢	ARMATURE	1
6	84923M	定子	STATOR	1
7	84924M	电刷架	HOLDER Brush	1
8	84925M	正极电刷	BRUSH POSITIVE	1
9	84926M	负极电刷	BRUSH NEGATIVE	1
10	84927M	电刷弹簧	SPRING BRUSH	2
11	84928M	后盖	COVER REAR	1
12	84929M	螺栓	BOLT	2
13	82501M	螺钉	SCREW	2
14	82184M	锁紧垫圈	LOCKWASHER	2
14	82206M	锁紧垫圈	LOCKWASHER	2
15	82381M	螺母	NUT	2
15	82390M	螺母 (M6)	NUT (M6)	2
16	82197M	锁紧垫圈	WASHER LOCK	2
16	82212M	锁紧垫圈	LOCKWASHER	2
17	82436M	螺栓	BOLT	1
18	82202M	垫圈	WASHER	1
18	82217M	垫圈	WASHER	1
19	92609M	电机安装支架	BRACKET MOTOR MOUNTING	1
20	84931M	螺栓	BOLT	1
21	84237M	螺栓	BOLT	2
21	83285M	螺栓	BOLT	2
22	82441M	螺栓	BOLT	2
23	82202M	垫圈	WASHER	2
23	82217M	垫圈	WASHER	2

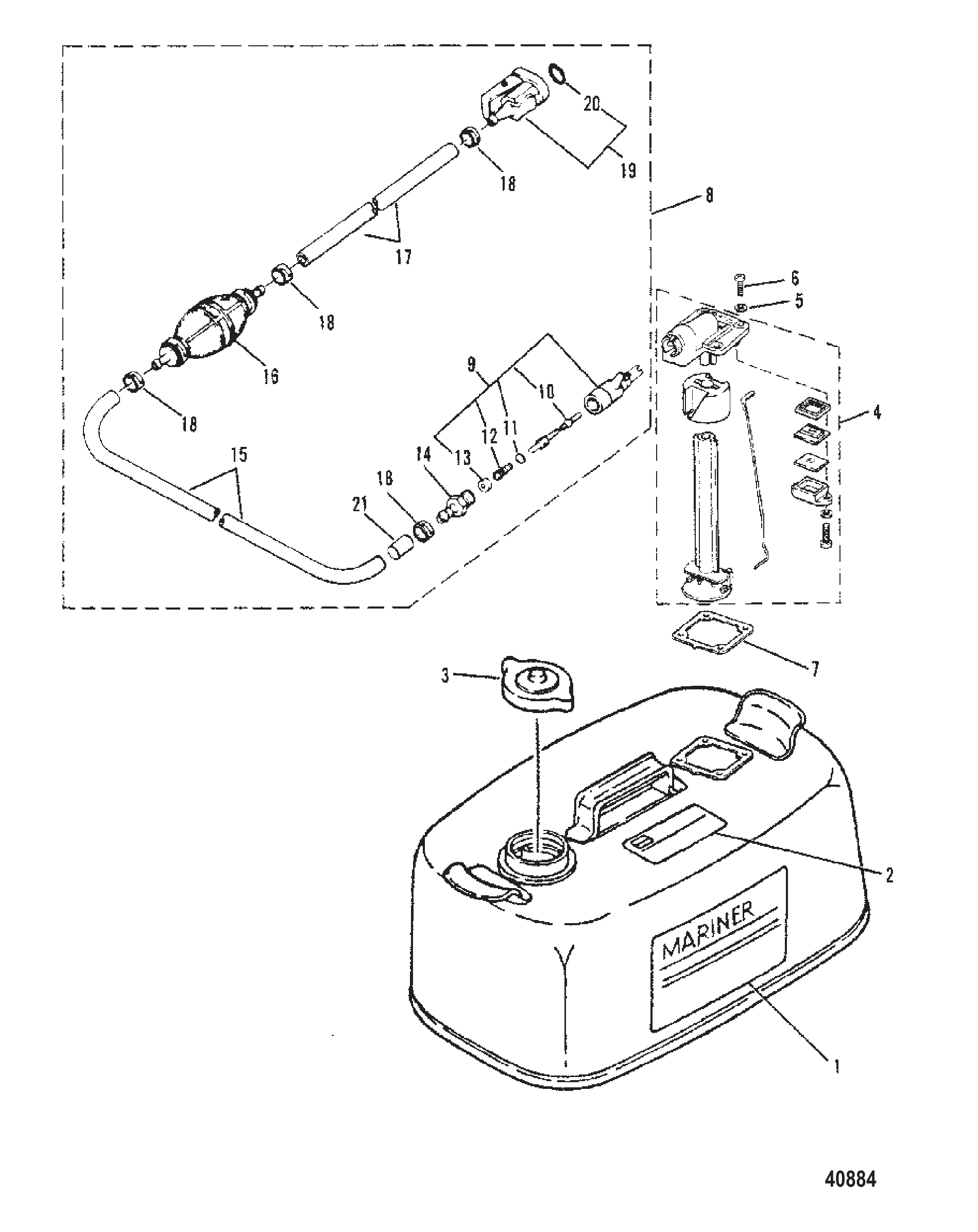

图 9燃油箱M-020320/ML-315435/E-253081/EL-554806及以上 FUEL TANK M-020320/ML-315435/E-253081/EL-554806 and Up

REF	零件编号	中文名称	英文名称	数量
1	95498M	侧面贴花	DECAL SIDE	1
1	95504M	侧面贴花	DECAL SIDE	1
2	95489M	顶部贴花	DECAL TOP	1
2	95503M	顶部贴花	DECAL TOP	1
3	95490M	燃油箱盖	CAP Fuel Tank	1
3	18962M	燃油箱盖	CAP Fuel Tank	1
4	95499M	燃油表总成	METER ASSEMBLY Fuel	1
5	95501M	密封件	SEAL	4
6	95502M	螺钉	SCREW	4
7	95500M	燃油表衬垫总成	GASKET FUEL METER ASS'Y	1
8	95216M	燃油管路总成	LINE ASSEMBLY Fuel	1
8	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
9	30185A1	卡口式阀体总成	BAYONET BODY ASSEMBLY	1
9	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
10	30187	卡口阀体阀杆	STEM BAYONET BODY	1
10	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
11	20415	卡口阀体阀杆O型圈	O-RING BAYONET BODY STEM	1
11	16524	燃油接头O型圈	O-RING Fuel Connector	1
12	30189	卡口弹簧总成	SPRING BAYONET BAODY ASS'Y	1
13	30188	盖垫圈	WASHER CAP	1
14	63187	倒刺接头(0.250-18)燃油管	FITTING Barb (.250-18) FUEL LINE	1
15	84955M	壳体至手泵软管连接器	HOSE CONNECTOR HOUSING TO BULB	1
15	94727M	软管	HOSE	1
16	81325M	注油球	PRIMER BULB	1
16	89396Q01	注油球@4	PRIMER BULB @4	1
17	82023M	手泵至发动机连接软管	HOSE BULB TO ENGINE CONNECTOR	1
17	94727M	软管	HOSE	1
18	80752M	软管卡箍	CLAMP HOSE	4
18	16725M	卡箍	CLAMP	4
19	81042M	发动机端壳体总成	HOUSING ASSEMBLY ENGINE END	1
19	14213Q	燃油接头@2	FITTING-FUEL@2	1
20	82789M	O型圈	O-RING	1
21	81327M	轴环	COLLAR	1

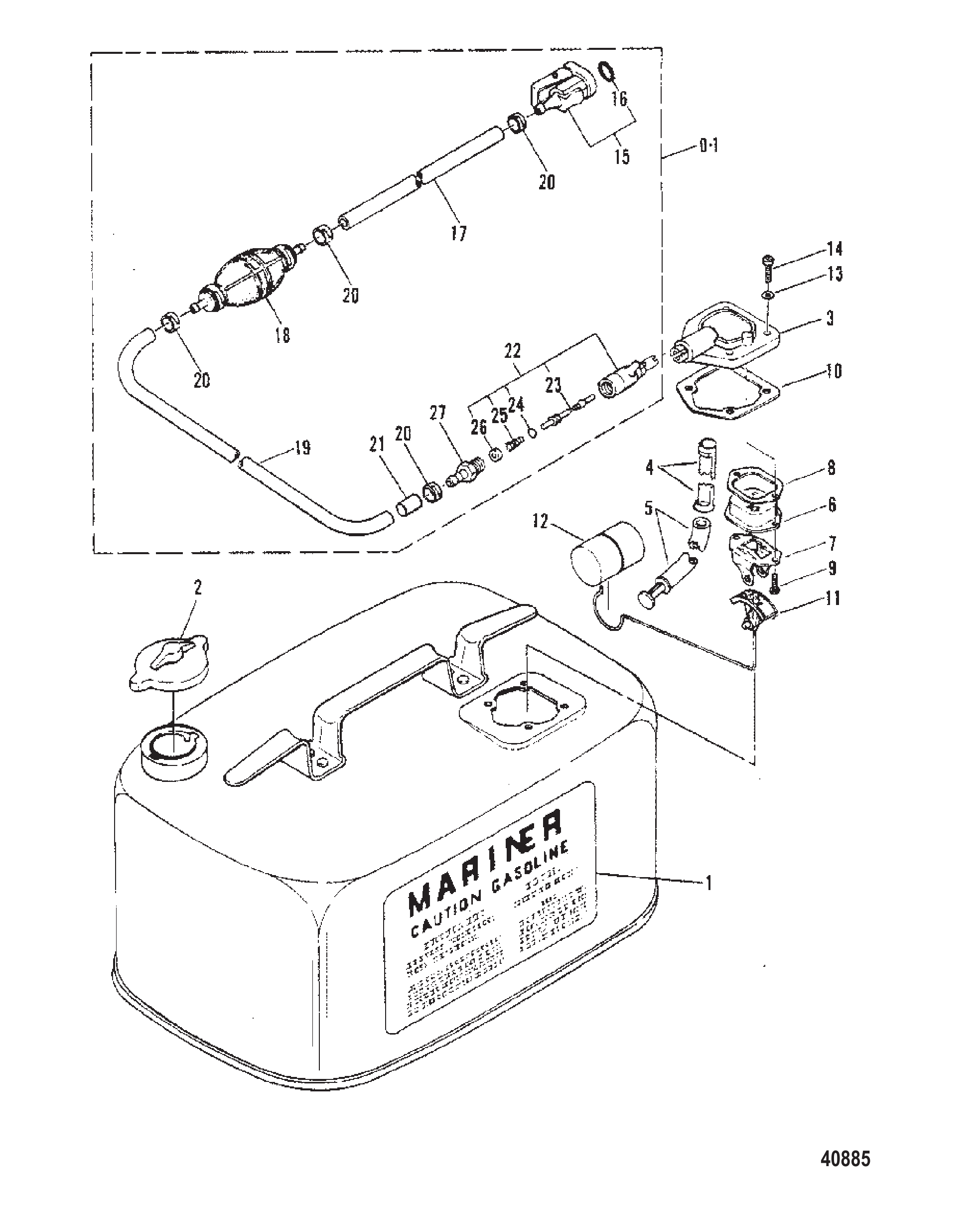

图 10燃油箱M-020319/ML-315434/E-253080/EL-554805及以下 FUEL TANK M-020319/ML-315434/E-253080/EL-554805 and Below

REF	零件编号	中文名称	英文名称	数量
1	82984M	侧面贴花	DECAL SIDE	2
2	83617M	燃油箱盖	CAP Fuel Tank	1
2	18962M	燃油箱盖	CAP Fuel Tank	1
3	83618M	燃油表总成	METER ASSEMBLY Fuel	1
4	83764M	吸油管卡箍	CLAMP PICKUP HOSE	1
5	83626M	吸油软管	HOSE PICKUP	1
5	94727M	软管	HOSE	1
6	80269M	指示器透镜	LENS INDICATOR	1
7	80268M	指示器支架	BRACKET INDICATOR	1
8	80270M	壳体至指示器透镜衬垫	GASKET HOUSING TO LENS INDICATOR	1
8	17540M	衬垫	GASKET	1
9	82518M	螺钉	SCREW	2
9	83523M	螺钉	SCREW	2
10	81320M	壳体至油箱衬垫	GASKET HOUSING TO TANK	1
11	81318M	燃油液位指示器	INDICATOR FUEL LEVEL	1
12	81319M	浮子指示器	FLOAT INDICATOR	1
13	80271M	壳体螺钉垫圈	WASHER HOUSING SCREW	4
13	95501M	密封件	SEAL	4
14	82496M	壳体固定螺钉	SCREW HOUSING ATTACHING	4
0-1	83628M	燃油管路总成	LINE ASSEMBLY Fuel	1
0-1	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
15	81042M	发动机端壳体总成	HOUSING ASSEMBLY ENGINE END	1
15	14213Q	燃油接头@2	FITTING-FUEL@2	1
16	82789M	O型圈	O-RING	1
17	84955M	壳体至手泵软管连接器	HOSE CONNECTOR HOUSING TO BULB	1
17	94727M	软管	HOSE	1
18	81325M	注油球	PRIMER BULB	1
18	89396Q01	注油球@4	PRIMER BULB @4	1
19	82023M	球头至连接器软管	HOSE BULB TO CONNECTOR	1
19	94727M	软管	HOSE	1
20	80752M	软管卡箍	CLAMP HOSE	4
20	16725M	卡箍	CLAMP	4
21	81327M	轴环	COLLAR	1
22	30185A1	卡口式阀体总成	BAYONET BODY ASSEMBLY	1
22	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
23	30187	卡口阀体阀杆	STEM BAYONET BODY	1
23	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
24	20415	卡口阀体阀杆O型圈	O-RING BAYONET BODY STEM	1
24	16524	燃油接头O型圈	O-RING Fuel Connector	1
25	30189	卡口体杆弹簧	SPRING BAYONET BODY STEM	1
26	30188	盖垫圈	WASHER CAP	1
27	63187	倒刺接头(0.250-18)燃油管	FITTING Barb (.250-18) FUEL LINE	1

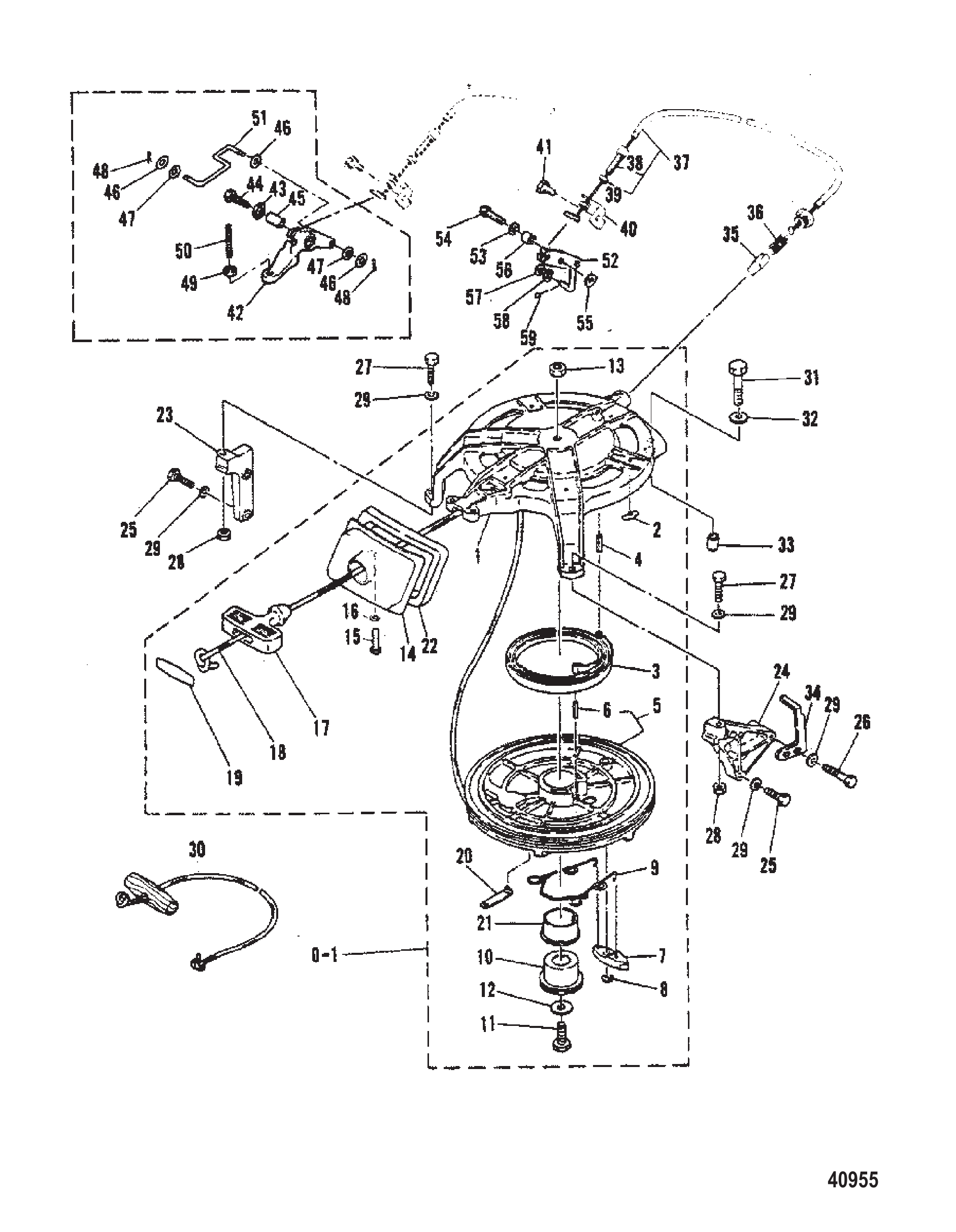

图 11反冲启动器 RECOIL STARTER

REF	零件编号	中文名称	英文名称	数量
0-1	92597M	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	7102M	启动器外壳	HOUSING STARTER	1
1	811912M	壳体	HOUSING	1
2	83585M	启动器壳体塞	PLUG STARTER HOUSING	6
3	83588M	启动器弹簧	SPRING STARTER	1
4	82157M	销	PIN	1
5	83587M	启动滑轮	SHEAVE Starter	1
6	82157M	滚销	PIN ROLL	1
7	84894M	启动器棘爪	PAWL STARTER	1
8	84895M	卡环	RING Snap	1
9	83591M	棘爪弹簧	SPRING PAWL	1
10	83590M	滑轮轴	SHAFT SHEAVE	1
11	84342M	螺栓	BOLT	1
12	81801M	垫圈	WASHER	1
13	82382M	螺母	NUT	1
14	80600M	启动绳导向器	GUIDE STARTER ROPE	1
15	84247M	螺栓	BOLT	2
15	826957M	螺栓	BOLT	2
16	82199M	锁紧垫圈	WASHER LOCK	2
16	82214M	垫圈	WASHER	2
17	80063M	启动手柄	HANDLE STARTER	1
17	814491A1	手柄	HANDLE	1
18	79629A1	启动绳	ROPE Starter	1
18	12066Q10	启动绳@2	ROPE-STARTER@2	1
19	41882M	盖板	COVER	1
19	814491A1	手柄	HANDLE	1
19	84892M	盖板	COVER	1
19	41882M	盖板	COVER	1
20	84893M	卡扣	CLIP	1
21	83589M	衬套	BUSHING	1
22	93107M	密封件	SEAL	1
23	84465M	启动器壳体支架(右舷)	BRACKET STARTER HSG (STARBOARD)	1
24	84466M	启动器壳体支架(左舷手动)	BRACKET STARTER HSG (PORT MANUAL)	1
25	82405M	螺栓	BOLT	4
26	82428M	螺栓	BOLT	1
26	827043M	螺栓	BOLT	1
27	84237M	螺栓	BOLT	2
27	83285M	螺栓	BOLT	2
28	82380M	螺母	NUT	2
28	82389M	螺母	NUT	2
29	82199M	锁紧垫圈	WASHER LOCK	7
29	82214M	垫圈	WASHER	7
30	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
30	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
31	84236M	螺栓	BOLT	1
31	82442M	螺栓	BOLT	1
32	82202M	垫圈	WASHER	1
32	82217M	垫圈	WASHER	1
33	82162M	定位销	PIN DOWEL	1
33	14229M	销	PIN	1
34	96341M	正时板	PLATE TIMING	1
35	81106M	启动器锁定柱塞	PLUNGER STARTER LOCKOUT	1
36	82079M	启动器锁定弹簧	SPRING STARTER LOCKOUT	1
37	81108M	启动器锁定拉索	CABLE STARTER LOCKOUT	1
38	81746M	螺栓	BOLT	1
39	82380M	螺母	NUT	2
39	82389M	螺母	NUT	2
40	81109M	启动器锁定支架	BRACKET STARTER LOCKOUT	1
41	84315M	螺栓	BOLT	1
41	84088M	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
42	91648M	启动器锁定臂	ARM STARTER LOCKOUT	1
43	81969M	垫圈	WASHER	1
44	83539M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
44	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
45	83310M	轴环	COLLAR	1
46	82196M	垫圈	WASHER	3
46	82211M	垫圈	WASHER	3
47	81865M	波形垫圈	WASHER WAVE	2
48	82125M	开口销	COTTER PIN	1
49	82378M	螺母	NUT	2
49	82388M	螺母 (M5)	NUT (M5)	2
50	41883M	螺柱	STUD	1
50	91649M	螺柱	STUD	1
51	91650M	连接杆	LINK	1
52	81107M	启动停止连杆	LINK STARTER STOP	1
53	81867M	波形垫圈	WASHER WAVE	1
54	83539M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
54	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
55	82199M	垫圈	WASHER	1
55	82214M	垫圈	WASHER	1
56	82929M	轴环	COLLAR	1
57	82196M	垫圈	WASHER	1
57	82211M	垫圈	WASHER	1
58	81866M	垫圈	WASHER	1
59	82125M	开口销	COTTER PIN	1

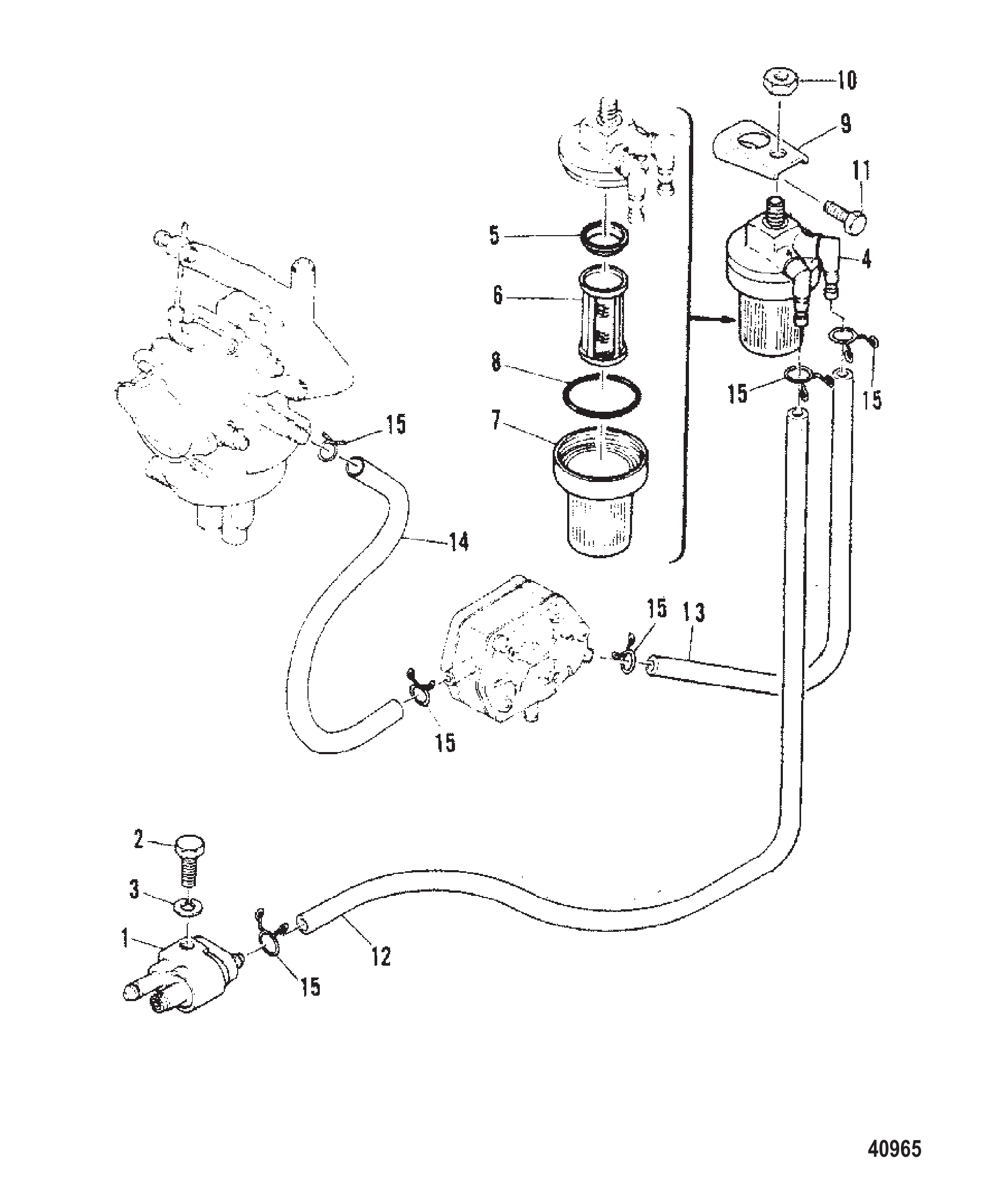

图 12燃油管路和滤清器 FUEL LINES AND FILTER

REF	零件编号	中文名称	英文名称	数量
1	95483M	连接器	CONNECTOR	1
1	14187M	连接器	CONNECTOR	1
1	93099M	燃油管路连接器总成	CONNECTOR ASSEMBLY Fuel Line	1
1	14187M	连接器	CONNECTOR	1
2	83539M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
2	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
3	82199M	锁紧垫圈	WASHER LOCK	1
3	82214M	垫圈	WASHER	1
4	80617M	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
4	826964T	燃油滤清器	FILTER Fuel	1
5	82790M	衬垫	GASKET	1
6	82783M	滤芯	ELEMENT FILTER	1
6	826965T	燃油滤清器	FILTER-FUEL	1
7	82784M	燃油杯	BOWL Fuel	1
7	11935M	杯套	CUP	1
8	84957M	O型圈	O-RING	1
9	80620M	燃油滤清器支架	BRACKET FUEL FILTER	1
10	82382M	螺母	NUT	1
11	84303M	螺栓	BOLT	1
11	91772M	螺栓	BOLT	1
12	84956M	连接器至滤清器燃油管	LINE Fuel CONNECTOR TO FILTER	1
12	82012M	软管	HOSE	1
13	81566M	燃油滤清器至燃油泵油管	LINE Fuel FUEL FILTER TO FUEL PUMP	1
13	81112M	软管	HOSE	1
14	80605M	燃油泵至化油器软管	HOSE FUEL PUMP TO CARBURETOR	1
14	81324M	软管	HOSE	1
15	82047M	软管卡箍	CLAMP HOSE	6
-	92575M	动力头衬垫套件	GASKET SET POWERHEAD	1

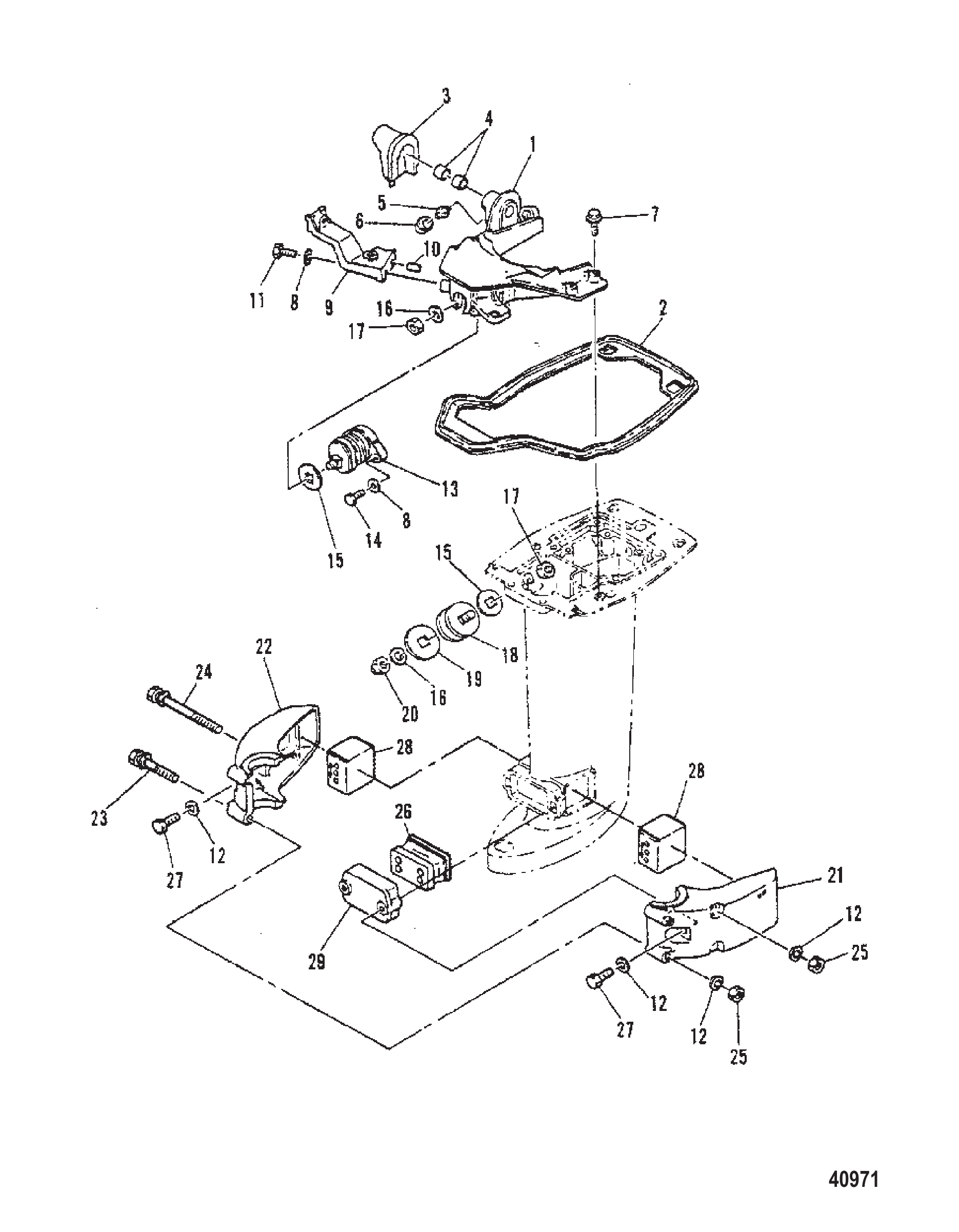

图 13安装系统 MOUNTING SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	95548M	安装支架	BRACKET MOUNTING	1
1	8111651	支架	BRACKET	1
1	80654M	安装支架	BRACKET MOUNTING	1
2	84838M	底碗密封件	SEAL BOTTOM BOWL	1
3	84840M	换挡支架密封件	SEAL SHIFT BRACKET	1
4	81930M	换挡杆衬套	BUSHING SHIFT ROD LEVER	2
5	82369M	黄油嘴	FITTING GREASE	1
6	81439M	黄油嘴盖	CAP GREASE FITTING	1
7	84839M	螺栓	BOLT	4
8	82214M	垫圈	WASHER	3
9	80657M	拉索固定支架	BRACKET CABLE ANCHOR	1
10	82364M	定位销	PIN Dowel	1
11	82451M	螺栓	BOLT	1
11	82423M	螺栓	BOLT	1
12	82217M	垫圈	WASHER	4
13	84841M	前上橡胶支座	MOUNT RUBBER-UPPER FRONT	1
14	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
15	80662M	衬垫	GASKET	3
16	82219M	垫圈	WASHER	3
17	95207M	螺母	NUT	3
17	82395M	螺母	NUT	3
17	82394M	螺母	NUT	3
17	82395M	螺母	NUT	3
18	82557M	上部侧支架	MOUNT UPPER SIDE	2
18	8M0121332	支架	MOUNT	2
19	81612M	衬垫	GASKET	2
20	82183M	螺母	NUT	2
20	82396M	螺母	NUT	2
21	84842M	下部安装壳体-左舷	HOUSING LOWER MOUNT-PORT	1
22	84843M	下部安装壳体-右舷	HOUSING LOWER MOUNT-STARBOARD	1
23	84844M	带垫圈螺栓	BOLT W/WASHER	2
24	41893M	带垫圈螺栓	BOLT W/WASHER	2
24	84845M	螺栓	BOLT	2
25	82392M	螺母	NUT	4
25	82382M	螺母	NUT	4
26	84846M	前下橡胶支座	MOUNT RUBBER-LOWER FRONT	1
27	82464M	螺栓	BOLT	2
27	43106M	螺栓	BOLT	2
28	84848M	壳体橡胶支座	MOUNT RUBBER-HOUSING	2
29	84847M	下安装盖	COVER LOWER MOUNT	1

图 14电启动电机(E-251106/EL-552121及以上) ELECTRIC START MOTOR (E-251106/EL-552121 and Up)

REF	零件编号	中文名称	英文名称	数量
1	97693M	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	96359M	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	97693M	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	96360M	小齿轮止动器套件	STOPPER KIT Pinion	1
3	97694M	小齿轮	PINION	1
3	97694T	小齿轮	PINION	1
4	96362M	前盖	COVER FRONT	1
5	96363M	O型圈	O-RING	2
6	96364M	垫圈套件	WASHER KIT	1
7	96365M	电枢	ARMATURE	1
8	96366M	定子	STATOR	1
9	96367M	电刷架	HOLDER Brush	1
10	96368M	正极电刷	BRUSH POSITIVE	1
11	96369M	负极电刷	BRUSH NEGATIVE	1
12	84927M	电刷弹簧	SPRING BRUSH	2
13	96370M	后盖	COVER REAR	1
14	84929M	螺栓	BOLT	2
15	96371M	螺栓	BOLT	1
16	82202M	垫圈	WASHER	1
16	82217M	垫圈	WASHER	1
19	92609M	电机安装支架	BRACKET MOTOR MOUNTING	1
18	84853M	螺栓	BOLT	1
18	84931M	螺栓	BOLT	1
19	92523M	螺栓	BOLT	2
19	83285M	螺栓	BOLT	2
20	82465M	螺栓	BOLT	2
20	95416M	螺栓	BOLT	2
21	82202M	垫圈	WASHER	2
21	82217M	垫圈	WASHER	2

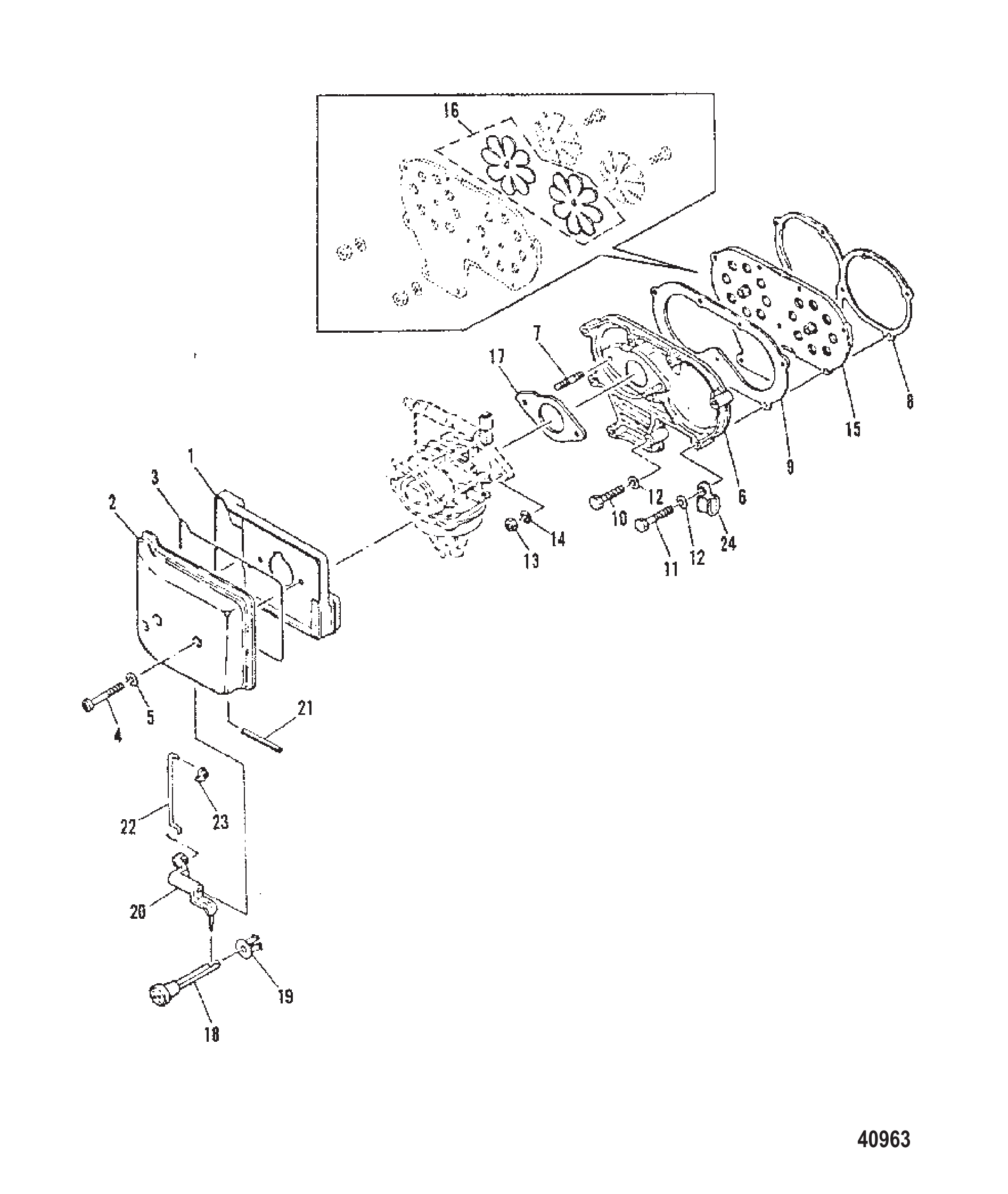

图 15进气歧管 INTAKE MANIFOLD

REF	零件编号	中文名称	英文名称	数量
1	92576M	进气盖(内)	COVER AIR INTAKE (INNER)	1
2	92577M	进气盖(外)	COVER AIR INTAKE (OUTER)	1
3	92578M	盖衬垫	GASKET COVER	1
3	84757M	O型圈	O-RING	1
4	84245M	螺钉	SCREW	2
4	82522M	螺钉	SCREW	2
5	82196M	垫圈	WASHER	2
5	82211M	垫圈	WASHER	2
6	80570M	进气歧管	MANIFOLD INTAKE	1
6	80570002	进气歧管	MANIFOLD Intake	1
7	91735M	化油器安装螺柱	STUD CARBURETOR ATTACHING	2
8	80569M	进气歧管垫片	GASKET INTAKE MANIFOLD	1
9	80571M	簧片阀垫片	GASKET REED VALVE	1
10	82405M	螺栓	BOLT	2
11	83285M	螺栓	BOLT	7
12	82199M	锁紧垫圈	WASHER LOCK	9
12	82214M	垫圈	WASHER	9
13	82380M	螺母	NUT	2
13	82389M	螺母	NUT	2
14	82199M	垫圈	WASHER	2
14	82214M	垫圈	WASHER	2
15	84758M	簧片阀总成	REED VALVE ASSEMBLY	1
15	811027M	簧片阀	REED VALVE	1
16	84759M	簧片组(不含止动片)	REED SET (REED STOPS NOT INCLUDED)	1
17	80572M	化油器歧管垫片	GASKET CARBURETOR MANIFOLD	1
17	80572	衬垫	GASKET	1
18	83960M	阻风门旋钮	KNOB CHOKE	1
19	84760M	阻风门旋钮护圈	GROMMET CHOKE KNOB	1
20	84761M	阻风门杠杆	LEVER CHOKE	1
21	84762M	滚销	PIN ROLL	1
22	92579M	阻风门拉杆	ROD CHOKE	1
23	81191M	支架	BRACKET	1
23	16333	卡扣拉杆	ROD Snap	1
24	82034M	软管卡箍	CLAMP HOSE	1
24	96348M	卡箍	CLAMP	1
-	92575M	动力头衬垫套件	GASKET SET POWERHEAD	1
-	84773M	化油器维修套件	REPAIR KIT Carburetor	1
-	811038M	化油器修理包	REPAIR KIT-CARB	1

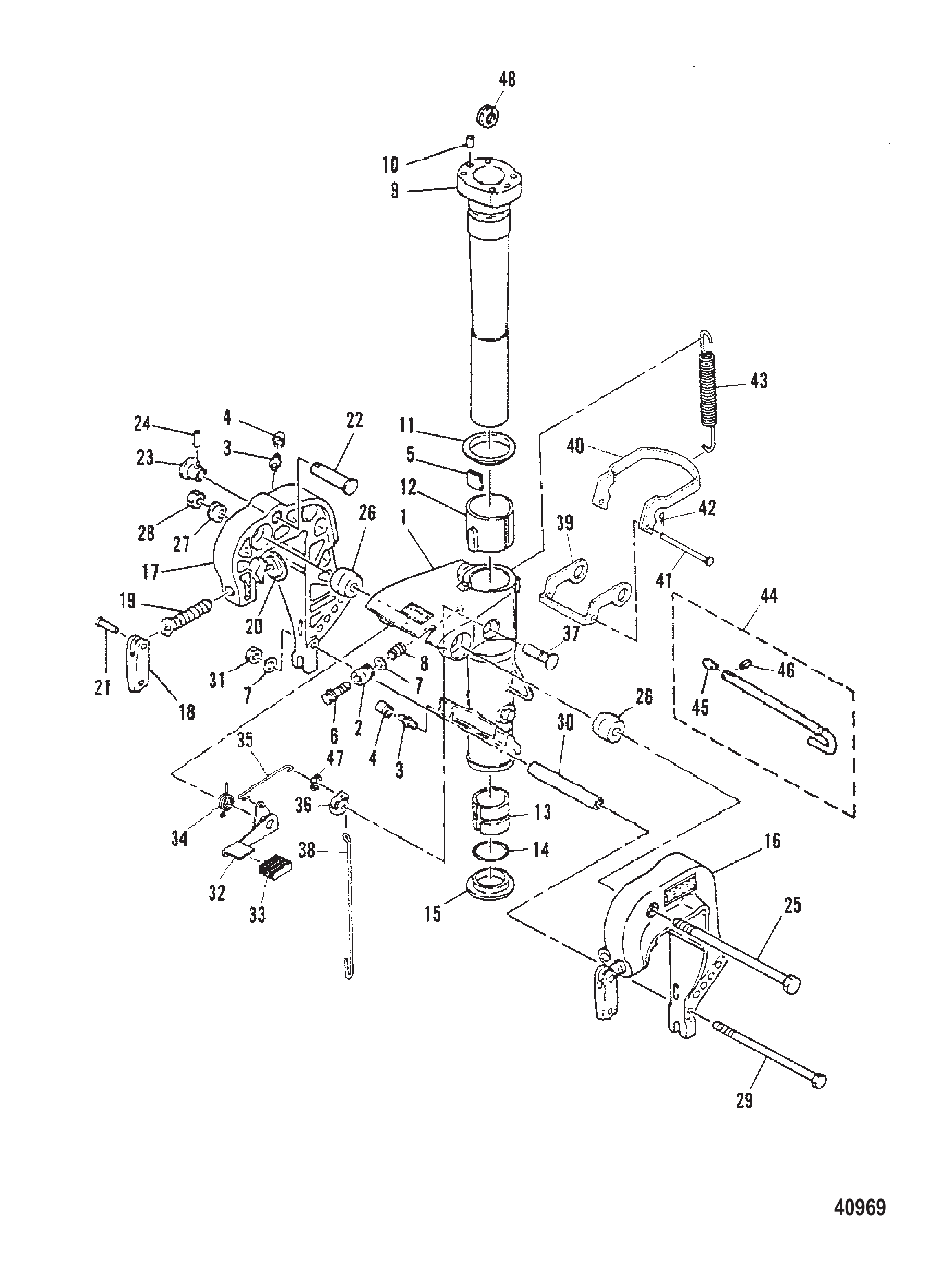

图 16支架M-006085/ML-305360/E-251105/EL-552120及以下 BRACKETS M-006085/ML-305360/E-251105/EL-552120 and Below

REF	零件编号	中文名称	英文名称	数量
1	7855M	旋转支架	BRACKET SWIVEL	1
2	84832M	橡胶密封件	SEAL RUBBER	1
3	82369M	黄油嘴	FITTING GREASE	2
4	81439M	黄油嘴盖	CAP GREASE NIPPLE	2
5	80633M	摩擦片	PLATE FRICTION	1
6	81754M	螺钉	SCREW	1
7	82217M	垫圈	WASHER	2
8	82088M	弹簧	SPRING	1
9	84833M	转向枢轴	SHAFT STEERING PIVOT	1
10	82368M	销	PIN	2
11	81873M	垫圈	WASHER	1
12	81964M	衬套	BUSHING	1
13	81961M	衬套	BUSHING	1
14	82274M	O型圈	O-RING	1
15	81959M	衬套	BUSHING	1
16	7847M	支架	BRACKET	1
17	7848M	支架	BRACKET	1
18	80048M	艉板夹手柄	HANDLE TRANSOM CLAMP	2
18	809959M	手柄	HANDLE	2
19	81756M	螺钉	SCREW	2
20	80638M	艉板夹垫	PAD TRANSOM CLAMP	2
21	81888M	销	PIN	2
22	84835M	轴挡块	SHAFT STOPPER	1
23	84836M	旋钮挡块	KNOB STOPPER	1
23	95650M	旋钮	KNOB	1
24	82148M	弹簧销	PIN SPRING	1
25	84834M	螺栓	BOLT	1
26	80639M	摩擦座	MOUNT FRICTION	2
27	82101M	弹簧	SPRING	1
28	82395M	螺母	NUT	1
29	81979M	隔套	SPACER	1
29	19108M	隔套	SPACER	1
30	82392M	螺母	NUT	1
30	82382M	螺母	NUT	1
31	80646M	杠杆	LEVER	1
32	80646M	倾斜杆	LEVER TILT	1
33	80647M	倾斜杆盖	COVER TILT LEVER	1
34	82109M	扭力弹簧	SPRING TORSION	1
35	80644M	倾斜锁连杆	LINK TILT LOCK	1
36	80648M	倾斜凸轮	CAM TILT	1
37	81895M	销	PIN	1
38	80645M	倾斜锁杆	ROD TILT LOCK	1
39	80643M	倾斜锁钩	HOOK TILT LOCK	1
40	84837M	倾斜锁钩	HOOK TILT LOCK	1
41	81882M	销	PIN	1
42	82125M	开口销	COTTER PIN	1
43	82105M	弹簧	SPRING	1
43	19110M	弹簧	SPRING	1
44	94569M	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
45	82857M	止动板	PLATE Stopper	1
46	82144M	弹簧销	PIN SPRING	1
47	82330M	卡环	RING Snap	1
48	82070M	护孔环	GROMMET	1

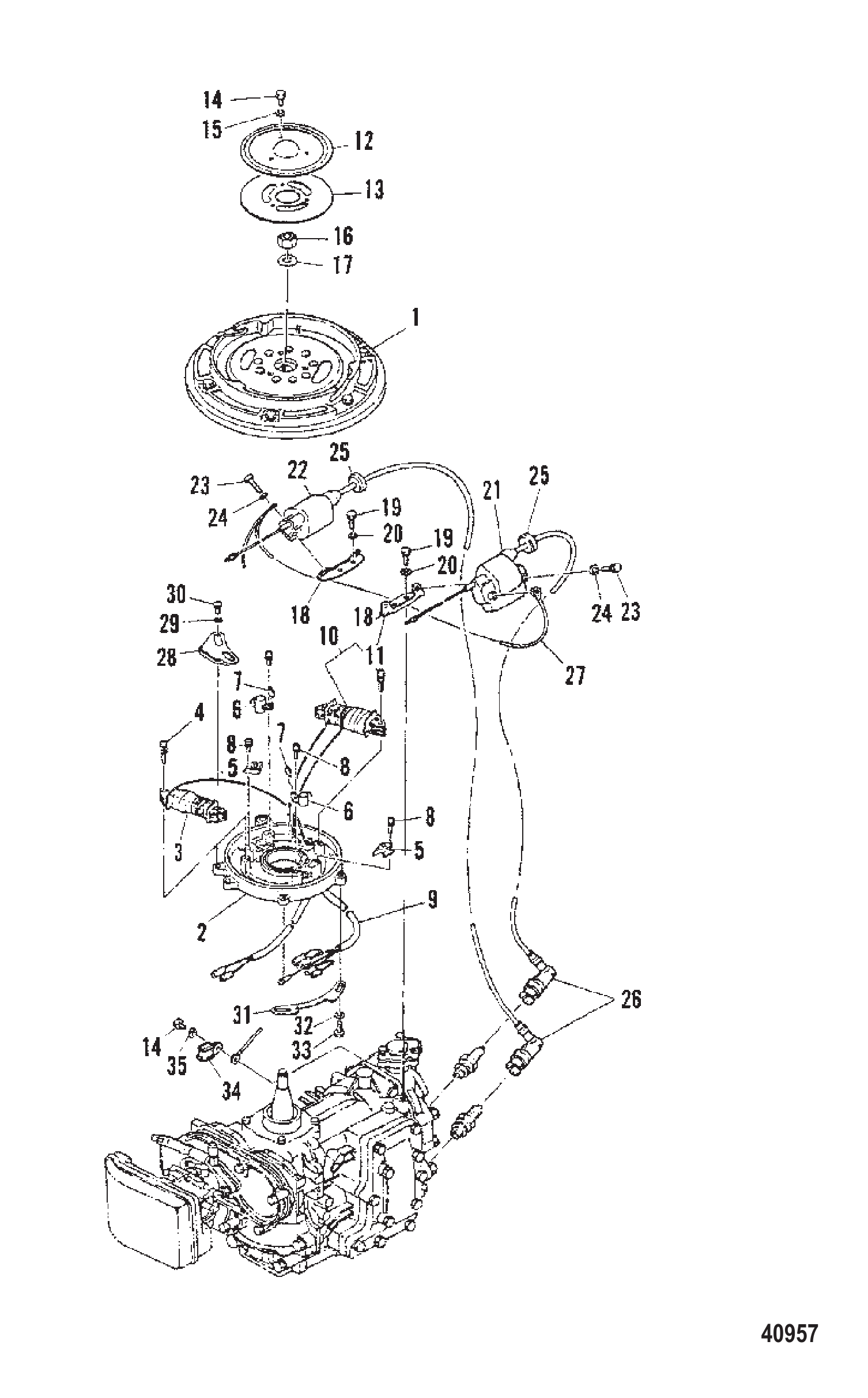

图 17飞轮(M-006085/ML-305360/E-251105/EL-552120及以下) FLYWHEEL (M-006085/ML-305360/E-251105/EL-552120 and Below)

REF	零件编号	中文名称	英文名称	数量
0-1	7953M	飞轮磁电机总成	FLYWHEEL MAGNETO ASSEMBLY	1
0-1	7954M	飞轮磁电机总成	FLYWHEEL MAGNETO ASSEMBLY	1
1	7955M	飞轮总成	FLYWHEEL ASSEMBLY	1
1	7956M	飞轮总成	FLYWHEEL ASSEMBLY	1
2	92592M	磁电机底座	BASE MAGNETO	1
3	83281M	点火线圈	COIL Ignition	1
3	83281T	点火线圈	IGNITION COIL	1
4	84309M	螺钉及垫圈	SCREW AND WASHER	2
4	83108M	螺钉	SCREW	2
5	80930M	断电器总成	BREAKER POINT ASSEMBLY	2
6	80558M	电容器	CONDENSER	2
7	80025M	润滑器	LUBRICATOR	2
8	80023M	螺钉	SCREW	4
8	82500M	螺钉(M4 x 8)	SCREW (M4 x 8)	4
9	92594M	引线	LEAD WIRE	1
10	83315M	照明线圈	COIL Lighting	1
11	84309M	螺钉及垫圈	SCREW AND WASHER	2
11	83108M	螺钉	SCREW	2
12	80689M	飞轮盖	COVER FLYWHEEL	1
12	80688M	盖板	COVER	1
13	80690M	飞轮盖衬垫	GASKET FLYWHEEL COVER	1
14	84303M	螺栓	BOLT	5
14	91772M	螺栓	BOLT	5
15	82198M	垫圈	WASHER	3
15	82213M	垫圈	WASHER	3
16	81770M	螺母	NUT	1
17	81814M	垫圈	WASHER	1
18	81657M	次级线圈支架	BRACKET SECONDARY COIL	2
19	84211M	螺栓	BOLT	4
20	82199M	锁紧垫圈	WASHER LOCK	4
20	82214M	垫圈	WASHER	4
21	92596M	次级点火线圈总成-#1缸	COIL ASSEMBLY Secondary Ignition - #1 Cylinder	1
22	92595M	次级点火线圈总成-#2缸	COIL ASSEMBLY Secondary Ignition - #2 Cylinder	1
23	82453M	螺栓	BOLT	4
23	82405M	螺栓	BOLT	4
24	82212M	锁紧垫圈	LOCKWASHER	4
25	82069M	护孔环	GROMMET	2
26	80935M	保护器(噪声抑制器)	PROTECTER (NOISE SUPPRESSOR)	2
26	815119M	火花塞帽	CAP Spark Plug	2
26	82788M	火花塞帽总成	CAP ASSEMBLY Spark Plug	OPT
26	63709A1	护套/端子套件	BOOT/TERMINAL KIT	OPT
27	96585M	电线	WIRE	1
28	92591M	凸轮	CAM	1
29	82196M	垫圈	WASHER	2
29	82211M	垫圈	WASHER	2
30	84313M	螺栓	BOLT	1
31	83305M	磁电机底座止动件	STOP MAGNETO BASE	1
31	99951M	停机开关	STOP	1
32	82198M	垫圈	WASHER	2
32	82213M	垫圈	WASHER	2
33	84303M	螺栓	BOLT	2
33	91772M	螺栓	BOLT	2
34	96348M	卡箍	CLAMP	1
35	82197M	垫圈	WASHER	1
35	82212M	锁紧垫圈	LOCKWASHER	1

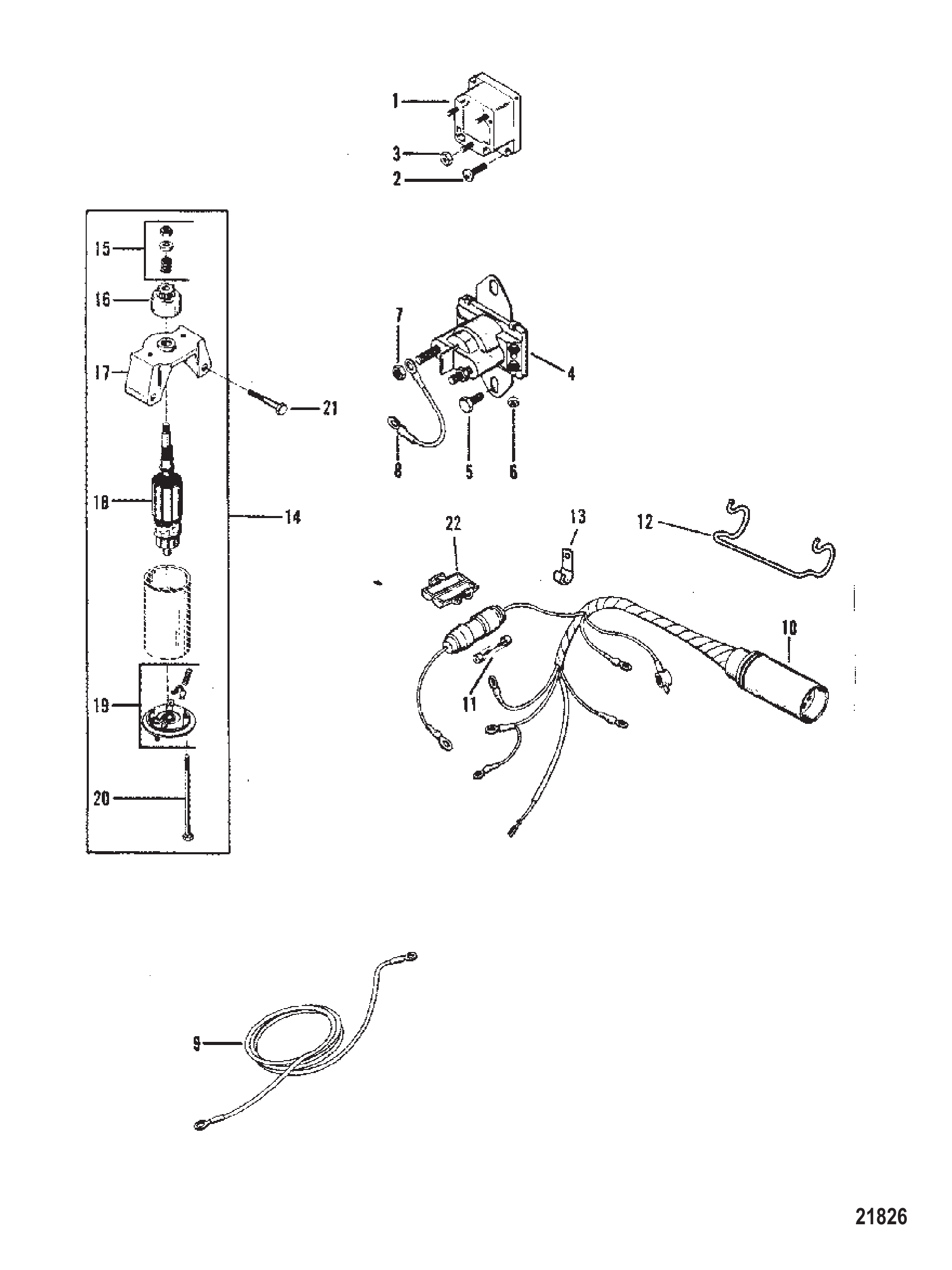

图 18电动启动组件 ELECTRIC START COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	816770	整流器	RECTIFIER	1
2	48409	螺丝(#10-16 x .625)不锈钢整流器至气缸体	SCREW (#10-16 x .625) Stainless Steel RECTIFIER TO CYLINDER BLOCK	2
3	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
4	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
4	8M0185149	启动电磁阀	SOLENOID START	1
5	4000327	螺钉(M6 x 14) 起动机电磁阀至曲轴箱	SCREW (M6 x 14) STARTER SOLENOID TO CRANKCASE	2
6	26419	螺母(#8-32)黄铜启动电磁阀端子	NUT (#8-32) Brass STARTER SOLENOID TERMINAL	2
7	64015	螺母(.250-20)启动电磁阀端子	NUT (.250-20) STARTER SOLENOID TERMINAL	2
8	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
9	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
9	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
9	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
9	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
10	92436A5	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
11	79091	保险丝20安培	FUSE 20 Ampere	1
11	8M0207796	保险丝20安培	FUSE 20 AMP	1
12	92753	固定座	RETAINER	1
13	55098	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	8M0033984	启动马达	STARTER MOTOR	1
15	96561	驱动套件	DRIVE KIT	1
16	96562	驱动器	DRIVE	1
17	96563	端盖	END CAP	1
17	96563T	端盖	END CAP	1
18	96565	电枢	ARMATURE	1
19	96564	端盖	END CAP	1
19	96564T	端盖	END CAP	1
20	96566	贯穿螺栓	THRU BOLT	1
21	421251	螺钉(M8 x 55) 起动机固定	SCREW (M8 x 55) STARTER MOTOR ATTACHING	2
21	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
22	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1

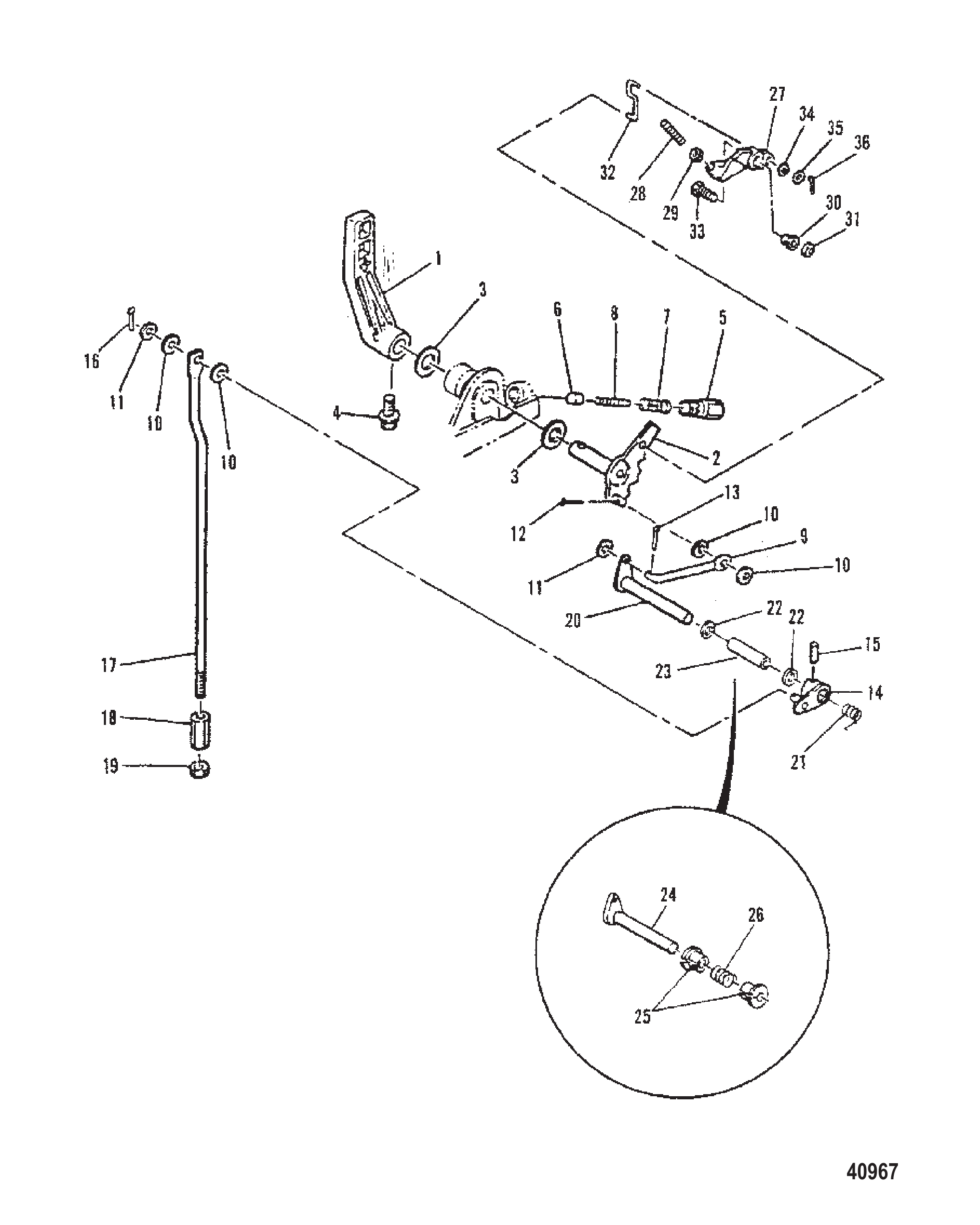

图 19换挡联动装置 GEAR SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	84865M	换挡手柄	HANDLE GEAR SHIFT	1
2	84653M	凸轮轴	CAM SHAFT	1
3	81851M	垫圈	WASHER	2
4	84830M	螺栓	BOLT	1
5	84459M	换挡定位器	RETAINER SHIFT DETENT	1
6	84460M	换挡凸轮柱塞	PLUNGER SHIFT CAM	1
7	84461M	压缩弹簧	SPRING COMPRESSION	1
8	84462M	压缩弹簧	SPRING COMPRESSION	1
9	81595M	换挡连杆	LINK ROD SHIFT	1
10	81843M	垫圈	WASHER	4
11	82211M	垫圈	WASHER	2
12	82125M	开口销	COTTER PIN	1
13	82124M	开口销	COTTER PIN	1
13	16189	开口销	COTTER PIN	1
13	82125M	开口销	COTTER PIN	1
14	84867M	换挡拉杆	LEVER SHIFT ROD	1
15	82155M	滚销	PIN ROLL	1
16	82127M	开口销	COTTER PIN	1
17	81596M	上换挡杆	SHIFT ROD UPPER	1
18	80652M	换挡连接器	CONNECTOR SHIFT	1
19	81767M	螺母	NUT	1
20	97139M	换挡拉杆	LEVER SHIFT ROD	1
21	97140M	张力弹簧	SPRING TENSION	1
22	81846M	垫圈	WASHER	2
23	97142M	轴环	COLLAR	1
24	84866M	换挡拉杆	LEVER SHIFT ROD	1
25	81946M	衬套	BUSHING	2
26	82108M	张力弹簧	SPRING TENSION	1
27	91648M	臂	ARM	1
28	41883M	螺柱	STUD	1
29	82378M	螺母	NUT	1
29	82388M	螺母 (M5)	NUT (M5)	1
30	83310M	轴环	COLLAR	1
31	81969M	垫圈	WASHER	1
32	91650M	连接杆	LINK	1
33	83539M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
33	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
34	81865M	波形垫圈	WASHER WAVE	2
35	82196M	垫圈	WASHER	2
35	82211M	垫圈	WASHER	2
36	82125M	开口销	COTTER PIN	2

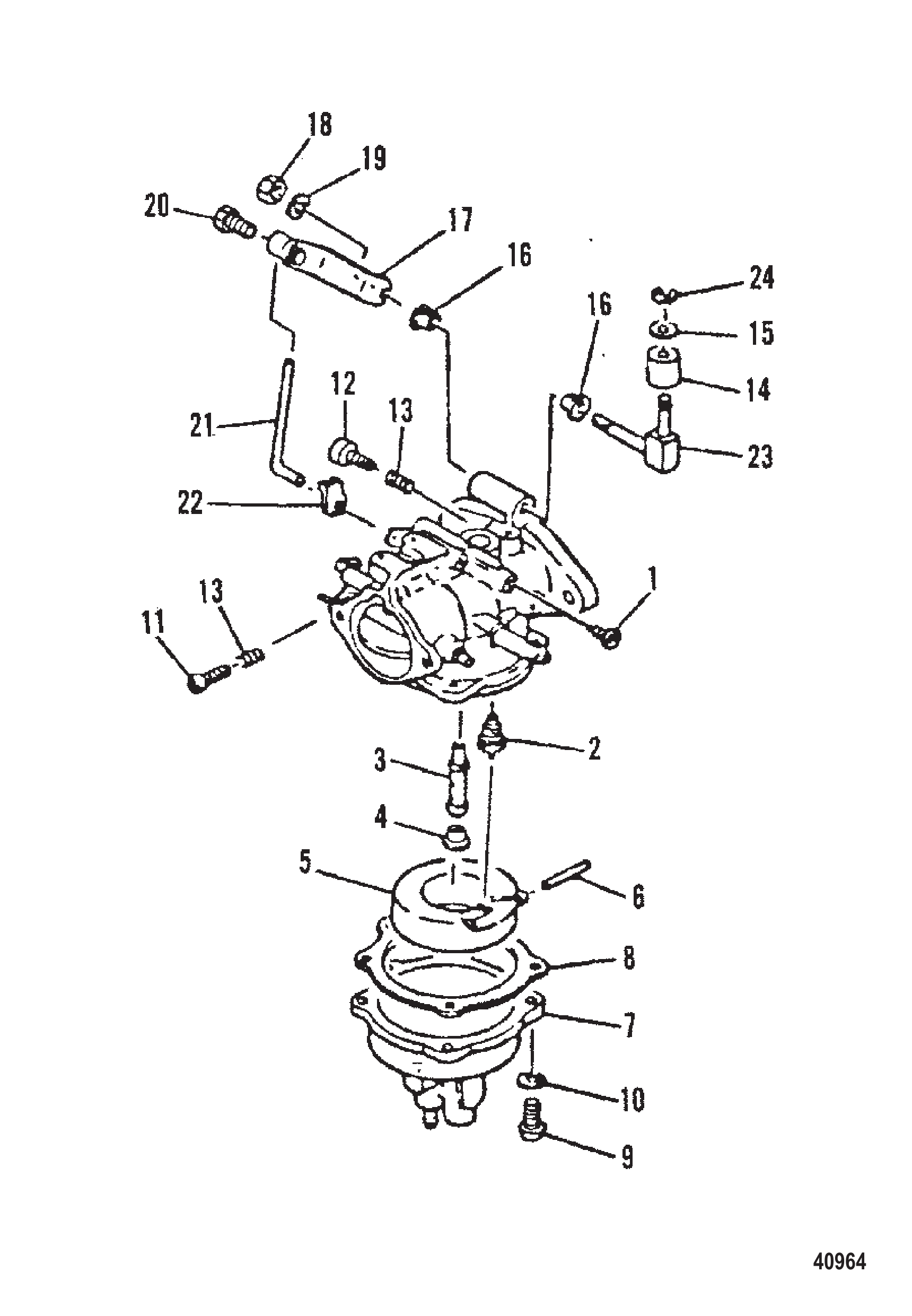

图 20化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
0-1	7952M	化油器总成	CARBURETOR ASSEMBLY	1
1	80578M	低速量孔(#60)	JET LOW SPEED (#60)	1
2	80593M	进油阀/阀座组件	VALVE/SEAT KIT Inlet	1
3	80576M	主喷嘴	NOZZLE MAIN	1
4	80582M	主量孔(#140)	JET MAIN (#140)	1
4	82580M	主量孔板(#145)	PLATE MAIN (#145)	1
5	80591M	浮子	FLOAT	1
6	80592M	浮子销	PIN FLOAT	1
6	84765M	浮子螺母	NUT FLOAT	1
6	11794M	销	PIN	1
7	83200M	浮子室	FLOAT BOWL
8	80590M	浮子室衬垫	GASKET FLOAT BOWL	1
9	82515M	螺钉	SCREW	4
10	82206M	锁紧垫圈	LOCKWASHER	4
11	82623M	怠速调节螺钉	SCREW IDLE SPEED	1
11	83509M	螺钉（M4×10）	SCREW (M4 x 10)	1
12	80573M	怠速混合气螺钉	SCREW IDLE MIXTURE	1
13	80575M	弹簧	SPRING	2
14	84454M	节气门轴衬套	BUSHING THROTTLE SHAFT	1
15	82209M	垫圈	WASHER	1
16	81941M	节气门轴衬套	BUSHING THROTTLE SHAFT	2
17	80622M	节流阀杆	LEVER THROTTLE	1
18	82379M	螺母	NUT	1
18	83763M	螺母	NUT	1
19	82208M	锁紧垫圈	WASHER LOCK	1
19	82186M	垫圈	WASHER	1
20	81558M	节气门杆定位螺钉	SET SCREW THROTTLE LEVER	1
20	83112M	螺钉	SCREW	1
21	83160M	节气门连杆	LINK ROD THROTTLE LEVER	1
22	81191M	支架	BRACKET	1
22	16333	卡扣拉杆	ROD Snap	1
23	84772M	节气门臂	ARM Throttle	1
23	811037M	节气门摇臂	THROTTLE ARM	1
24	82328M	卡环	RING Snap	1
-	84773M	化油器维修套件	REPAIR KIT Carburetor	1
-	811038M	化油器修理包	REPAIR KIT-CARB	1
-	92575M	衬垫套件	GASKET SET	1

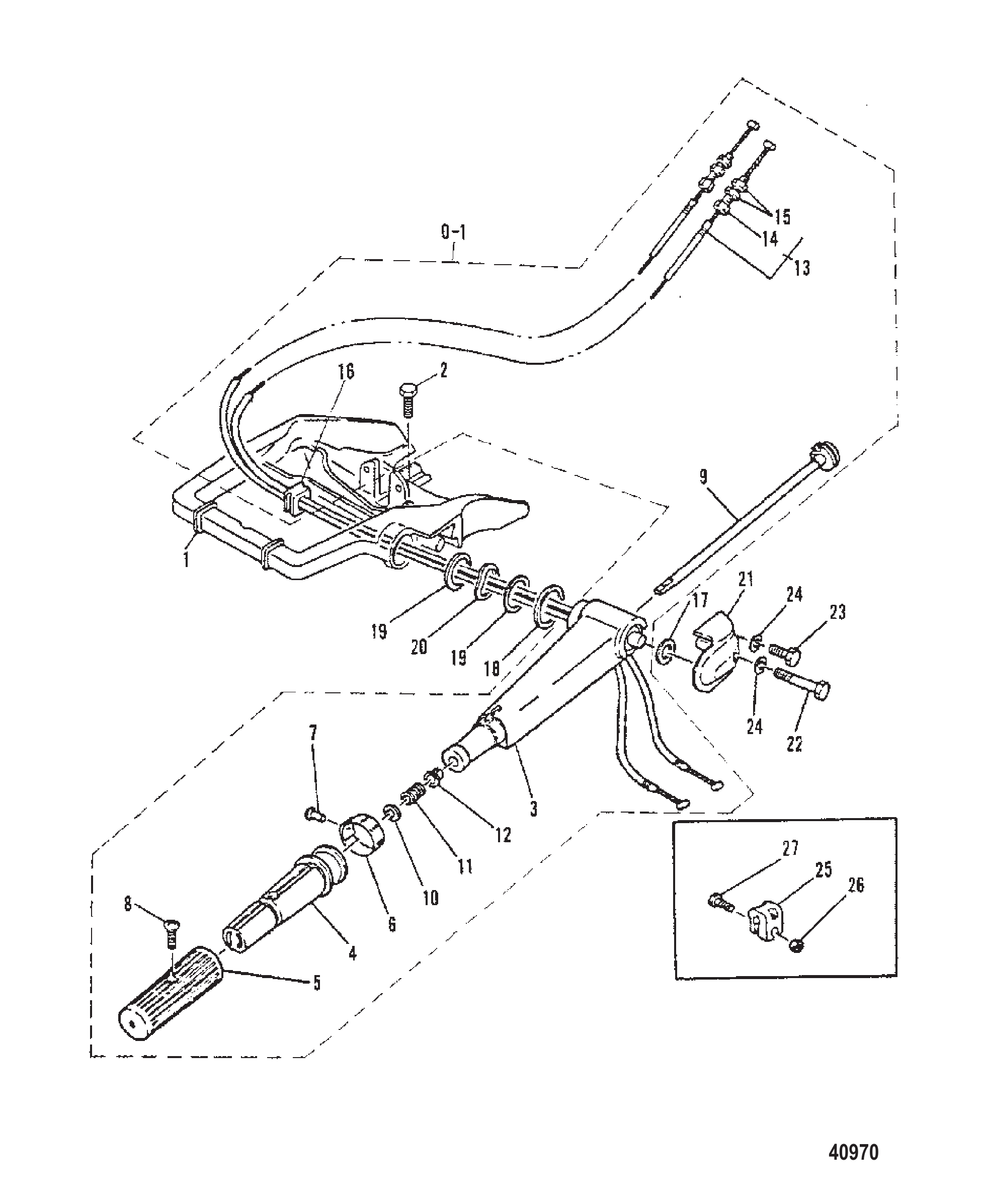

图 21转向手柄 STEERING HANDLE

REF	零件编号	中文名称	英文名称	数量
1	81138M	转向支架	BRACKET STEERING	1
1	19113M	支架	BRACKET	1
2	84830M	螺栓	BOLT	4
0-1	92570M	转向手柄总成	HANDLE ASSEMBLY Steering	1
0-1	95673M	转向手柄	STEERING HANDLE	1
3	84849M	转向手柄	STEERIG HANDLE	1
3	96664M	手柄	HANDLE	1
4	81585M	节气门握把	GRIP THROTTLE	1
5	95497M	橡胶手柄	HANDLE RUBBER	1
5	8M0080456	握把	GRIP	1
5	84854M	橡胶手柄	RUBBER HANDLE	1
5	8M0080456	握把	GRIP	1
6	42432M	节气门指示器	INDICATOR THROTTLE	1
6	97773M	节气门指示器	INDICATOR THROTTLE	1
6	92586M	节气门指示器	INDICATOR THROTTLE	1
6	97773M	指示器	INDICATOR	1
7	81907M	铆钉	RIVET	1
8	82483M	螺钉	SCREW	1
8	811916M	螺钉	SCREW	1
9	84856M	节流阀杆	LEVER THROTTLE	1
10	82204M	节气门轴垫圈	WASHER THROTTLE SHAFT	1
10	82220M	垫圈	WASHER	1
11	82095M	弹簧	SPRING	1
12	81945M	转向臂衬套	BUSHING STEERING ARM	1
13	41892M	油门拉索总成	CABLE ASSEMBLY Throttle	2
14	81747M	线缆螺栓	BOLT CABLE	2
14	815139M	螺栓	BOLT	2
15	81765M	螺母	NUT	4
16	82064M	护孔环	GROMMET	1
17	82119M	隔套	SPACER	1
18	81861M	隔套	SPACER	1
19	84850M	垫圈	WASHER	2
20	84851M	波形垫圈	WASHER WAVE	1
21	84852M	固定座	RETAINER	1
22	84853M	螺栓	BOLT	1
22	84931M	螺栓	BOLT	1
23	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
24	82214M	垫圈	WASHER	2
25	82895M	摩擦片	FRICTION PIECE	OPT
26	83056M	螺母	NUT	OPT
27	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	OPT

图 22螺旋桨图表 PROP CHART

REF	零件编号	中文名称	英文名称	数量
--	84977M	螺旋桨(14"螺距)(铝制)	PROPELLER (PITCH 14") (ALUMINUM)	1
--	82827M	螺旋桨(13"螺距)(铝制)	PROPELLER (PITCH 13") (ALUMINUM)	1
--	QA3814R	BLKDI 9 7/8R13	BLKDI 9 7/8R13	1
--	88168A4	螺旋桨(12"螺距)(钢制)	PROPELLER (PITCH 12") (STEEL)	1
--	82826M	螺旋桨(12"螺距)(铝制)	PROPELLER (PITCH 12") (ALUMINUM)	1
--	QA3812R	BLKD 9.9 R12P	BLKD 9.9 R12P	1
--	84976M	螺旋桨(11-1/4"螺距)(铝制)	PROPELLER (PITCH 11-1/4") (ALUMINUM)	1
--	QA3810R	BLKD 9.9 R11P	BLKD 9.9 R11P	1
--	81649M	螺旋桨(10-1/2"螺距)(铝制)	PROPELLER (PITCH 10-1/2") (ALUMINUM)	1
--	QA3808R	BLKD 9.9 R10P	BLKD 9.9 R10P	1
-	88166A4	螺旋桨(9"螺距)(钢制)	PROPELLER (PITCH 9") (STEEL)	1
--	81647M	螺旋桨(9"螺距)(铝制)	PROPELLER (PITCH 9") (ALUMINUM)	1
--	8M0057165	BLMX 9.9X9	BLMX 9.9X9	1
--	81648M	螺旋桨(8"螺距)(铝制)	PROPELLER (PITCH 8") (ALUMINUM)	1
--	8M0050007	BLMX 9 7/8R8	BLMX 9 7/8R8	1

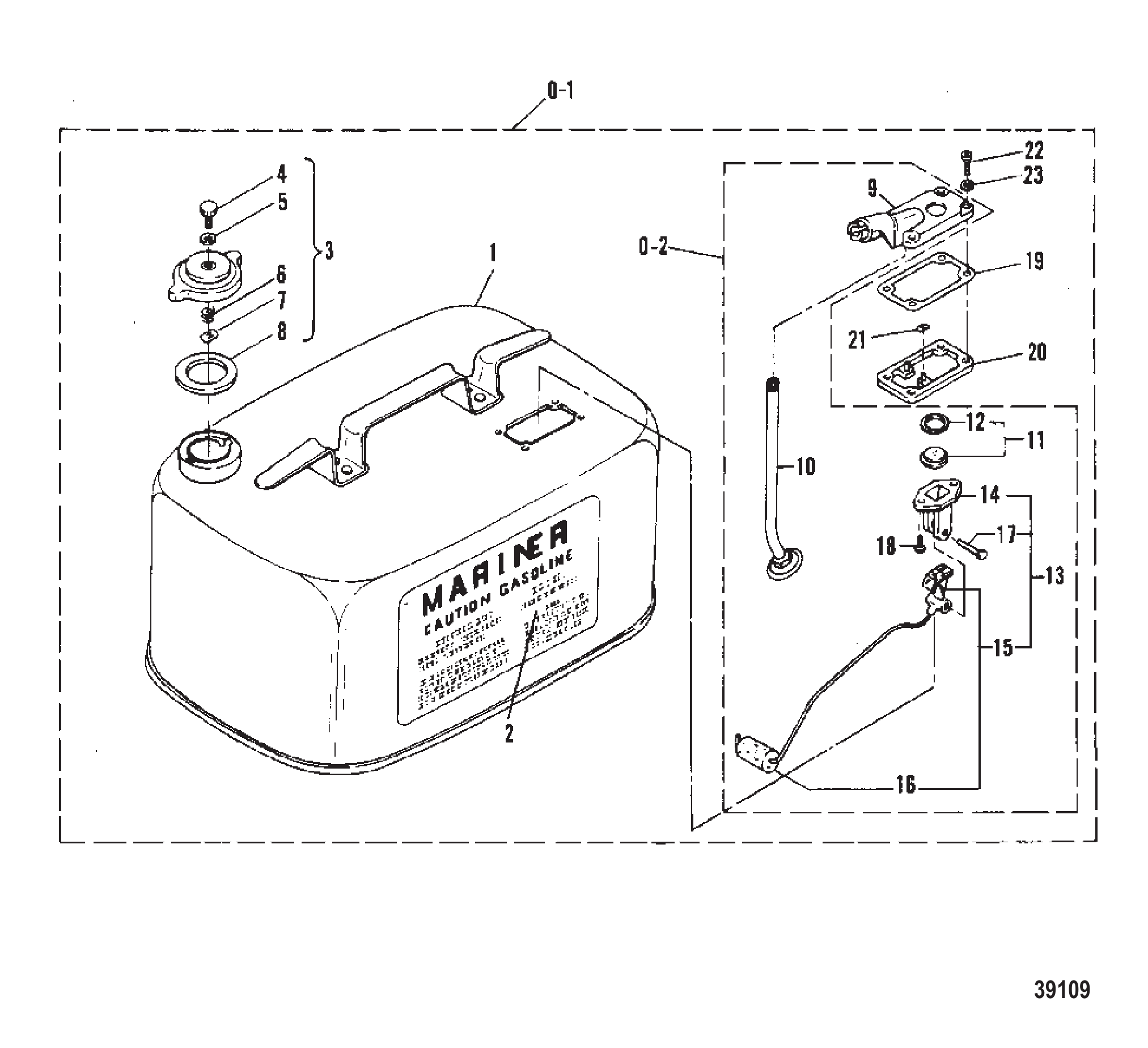

图 23燃油箱总成(非原装油箱) FUEL TANK ASSEMBLY (NOT ORIGINAL EQUIPMENT TANK)

REF	零件编号	中文名称	英文名称	数量
0-1	1529A21	燃油箱总成	TANK ASSEMBLY Fuel	1
1	1529	燃油箱	TANK Fuel	1
2	75881	燃油箱贴花	DECAL FUEL TANK	1
3	25392A2	加注口盖总成	CAP ASSEMBLY Filler	1
4	25575	螺钉 通气-加注口盖	SCREW VENT-FILLER CAP	1
5	49221	垫圈(.187 x .500 x .062)氯丁橡胶 通气螺钉	WASHER (.187 x .500 x .062) Neoprene VENT SCREW	1
6	22227	张力弹簧-通气螺钉	SPRING TENSION-VENT SCREW	1
7	28587	螺母 调速弹簧固定器	NUT SPEED-SPRING RETAINER	1
8	25568	衬垫 加注口盖至燃油箱	GASKET FILLER CAP TO FUEL TANK	1
0-2	64841A1	连接器/仪表总成	CONNECTOR/GAUGE ASSEMBLY COOMPLETE	1
9	64841A3	燃油箱盖	COVER FUEL TANK	1
10	33909A3	管	TUBE	1
11	54920A1	燃油表透镜总成	LENS ASSEMBLY FUEL GAUGE	1
12	54921	衬垫 燃油表透镜	GASKET FUEL GAUGE LENS	1
13	28897A2	燃油表总成	GAUGE ASSEMBLY Fuel	1
14	20430	燃油表固定架	RETAINER FUEL GAUGE	1
15	28897A1	指针与浮子总成	INDICATOR AND FLOAT ASSEMBLY	1
16	20427	燃油表浮子	FLOAT FUEL GUAGE	1
17	20426	铆钉 指针至固定架	RIVET INDICATOR TO RETAINER	1
18	62568	螺钉(#10-16 x .375) 固定架至燃油箱盖	SCREW (#10-16 x .375) RETAINER TO FUEL TANK COVER	2
19	28862	盖总成至框架衬垫	GASKET COVER ASS'Y TO FRAME	1
20	28860	框架固定件-燃油箱盖	FRAME RETAINING-FUEL TANK COVER	1
21	28903	框架至燃油箱固定螺母	NUT RETAINING FRAM TO FUEL TANK	2
22	20411	螺钉(.190-24 x .62) 燃油箱盖至燃油箱	SCREW (.190-24 x .62) FUEL TANK COVER TO FUEL TANK	4
23	74711	燃油箱盖紧固螺钉垫圈	WASHER FUEL TANK COVER FASTENING SCREW	4
