水星 Mercury 250/275 0C101891 THRU 0D224591 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-814697 · 共 34 个部位 · 1348 条零件

1化油器总成 2化油器软管与配件(序列号D000750及以上)3化油器板/簧片阀组(序列号D000749及以下)4化油器板/簧片阀组(序列号D000750及以上)5罩壳与前盖 6曲轴、活塞与连杆 7气缸体与端盖 8驱动轴壳体与排气管 9双机延伸套件(反转设计I)10双机延伸套件(反转设计II)11加浓阀(序列号D000749及以下)12排气歧管与气缸盖 13排气板 14飞轮/定子 15燃油泵(泵体黑色)16燃油泵(序列号D000749及以下)17燃油泵序列号D000750及以上/泵体白红色 18齿轮箱(驱动轴)(标准/反向旋转)19齿轮箱(螺旋桨轴)(反转)20齿轮箱(螺旋桨轴)(标准旋转)21液压泵(设计I型)22液压泵(设计II型)23液压泵与安装支架 24仪表装置 25钥匙开关总成 26杂项零件/附件 27喷油组件 28消音器与机罩支架 29启动电机与点火线圈 30启动电机总成 31旋转支架与转向臂 32节气门杆 33艉板支架 34线束、启动继电器与整流器

图 1化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7785A55	化油器总成(9-1)	CARBURETOR ASSEMBLY (9-1)	1
1	7785A56	化油器总成(9-2)	CARBURETOR ASSEMBLY (9-2)	1
1	7785A57	化油器总成(9-3)	CARBURETOR ASSEMBLY (9-3)	1
1	7785A58	化油器总成(9-4)	CARBURETOR ASSEMBLY (9-4)	1
1	7785A59	化油器总成(9-5)	CARBURETOR ASSEMBLY (9-5)	1
1	7785A60	化油器总成(9-6)	CARBURETOR ASSEMBLY (9-6)	1
1	7785A61	化油器总成(8-1)	CARBURETOR ASSEMBLY (8-1)	1
1	7785A62	化油器总成(8-2)	CARBURETOR ASSEMBLY (8-2)	1
1	7785A63	化油器总成(8-3)	CARBURETOR ASSEMBLY (8-3)	1
1	7785A64	化油器总成(8-4)	CARBURETOR ASSEMBLY (8-4)	1
1	7785A65	化油器总成(8-5)	CARBURETOR ASSEMBLY (8-5)	1
1	7785A66	化油器总成(8-6)	CARBURETOR ASSEMBLY (8-6)	1
2	6201	量孔(0.080)通风碗	JET (.080) VENT BOWL	6
3	NSS		NOT SOLD SEPARATE GASKET	6
4	9122	盖板	COVER PLATE	6
5	NSS		NOT SOLD SEPARATE SCREW	24
6	813274	喉管	VENTURI	6
6	9481	喉管	VENTURI	6
7	9478	燃油杯	BOWL Fuel	1
7	9478	燃油杯	BOWL Fuel	5
8	NSS		NOT SOLD SEPARATE SCREW	24
9	6199	主量孔塞	PLUG MAIN JET	6
10	NSS	主量孔垫片(不单独销售)	NOT SOLD SEPARATE GASKET, MAIN JET	6
11	6680	主量孔(0.078)燃油	JET (.078) MAIN FUEL	5
11	3517	主量孔(0.084)燃油	JET (.084) MAIN FUEL	1
11	6202	主量孔燃油	JET MAIN MAIN FUEL	1
11	3518	主量孔(0.082)燃油	JET (.082) MAIN FUEL	5
12	NSS	燃油碗垫片(不单独销售)	NOT SOLD SEPARATE GASKET, FUEL BOWL	6
13	813470	浮子	FLOAT	6
14	NSS	浮子销(不单独销售)	NOT SOLD SEPARATE FLOAT PIN	6
15	NSS	浮子杆(不单独销售)	NOT SOLD SEPARATE FLOAT LEVER	6
16	NSS	销(不单独销售)	NOT SOLD SEPARATE PIN	6
17	NSS	主喷嘴(不单独销售)	NOT SOLD SEPARATE MAIN NOZZLE	6
18	8318	进油针阀	NEEDLE Inlet	6
18	83181	阀座套件	VALVE SEAT KIT	6
19	NSS		NOT SOLD SEPARATE GASKET	6
20	9118	油门轴	SHAFT Throttle	1
20	9117	油门轴	SHAFT Throttle	5
21	814679	杠杆	LEVER	6
21	814677	油门杆	LEVER Throttle	1
22	NSS		NOT SOLD SEPARATE SCREW	6
23	NSS		NOT SOLD SEPARATE SPRING	6
24	NSS	隔套(不单独销售)	NOT SOLD SEPARATE SPACER	6
25	9480	油门阀	VALVE Throttle	6
26	NSS		NOT SOLD SEPARATE SCREW	12
27	886111	衬垫	GASKET	6
28	NSS	怠速空气量孔塞(不单独销售)	NOT SOLD SEPARATE PLUG, IDLE AIR JET	6
29	NSS		NOT SOLD SEPARATE GASKET	6
30	6487	主量孔(0.060)怠速	JET Main (.060) IDLE	6
30	7831	主量孔(0.058)怠速燃油	JET Main Fuel (.058) IDLE	6
-	9482	化油器维修套件	REPAIR KIT Carburetor	1
-	9062	化油器衬垫组	GASKET SET Carburetor	1
-	88605A89	衬垫套件	GASKET SET	1

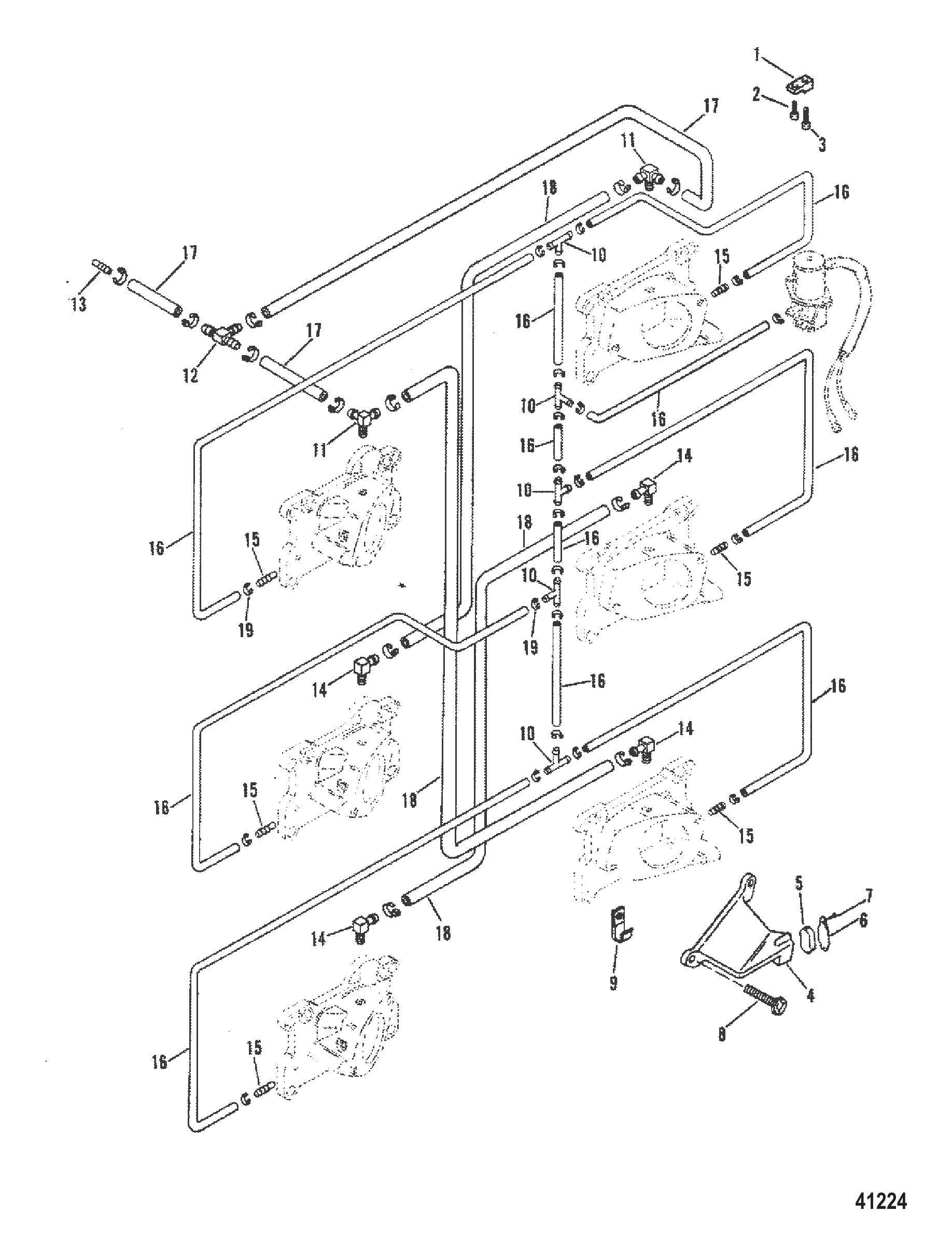

图 2化油器软管与配件(序列号D000750及以上) CARB HOSES AND FITTINGS (SERIAL #D000750 AND UP)

REF	零件编号	中文名称	英文名称	数量

图 3化油器板/簧片阀组(序列号D000749及以下) CARB PLATE/REED BLOCK (SERIAL #D000749 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	7785A55	化油器总成	CARBURETOR ASSEMBLY	1
1	7785A61	化油器总成	CARBURETOR ASSEMBLY	1
2	7785A56	化油器总成	CARBURETOR ASSEMBLY	1
2	7785A62	化油器总成	CARBURETOR ASSEMBLY	1
3	7785A57	化油器总成	CARBURETOR ASSEMBLY	1
3	7785A63	化油器总成	CARBURETOR ASSEMBLY	1
4	7785A58	化油器总成	CARBURETOR ASSEMBLY	1
4	7785A64	化油器总成	CARBURETOR ASSEMBLY	1
5	7785A59	化油器总成	CARBURETOR ASSEMBLY	1
5	7785A65	化油器总成	CARBURETOR ASSEMBLY	1
6	7785A60	化油器总成	CARBURETOR ASSEMBLY	1
6	7785A66	化油器总成	CARBURETOR ASSEMBLY	1
7	88586	油门连杆	LINK Throttle	2
8	933531	衬垫	GASKET	6
9	895981	油门杆	LEVER Throttle	1
10	6027	螺钉	SCREW	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	4
13	67748	滚轮	ROLLER	1
14	67297	U型销	PIN Clevis	7
15	26953	开口销	COTTER PIN	7
16	27736	垫圈	WASHER	7
17	88584	油门杆	LEVER Throttle	5
18	22523	螺钉(0.190-32×0.75)	SCREW (.190-32 x .75)	6
19	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	6
20	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	6
21	88585	油门杆	LEVER Throttle	1
22	8M0027809	挡板(左舷)	PLATE (PORT)	3
23	8M0027774	挡板(右舷)	PLATE (STARBOARD)	3
24	81516025	螺钉	SCREW	22
25	30720	螺钉(0.250-20×2.25)	SCREW (.250-20 x 2.25)	12
26	815158	螺柱	STUD	12
27	4002217	垫圈	WASHER	12
28	400265	螺母 (M8)	NUT (M8)	12
29	886252	衬垫(左舷)	GASKET (PORT)	3
30	886262	衬垫(右舷)	GASKET (STARBOARD)	3
31	884293	适配器	ADAPTER	6
32	657443	衬垫	GASKET	12
33	11645	簧片阀组	REED BLOCK	12
34	20500	螺柱	STUD	1
35	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
36	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	12
37	90198	螺钉	SCREW	12
-	88605A89	衬垫套件	GASKET SET	1

图 4化油器板/簧片阀组(序列号D000750及以上) CARB PLATE/REED BLOCK (SERIAL #D000750 AND ABOVE)

REF	零件编号	中文名称	英文名称	数量
1	8M0027773	左舷挡板(左舷)	PLATE-PORT (PORT)	3
2	886252	衬垫(左舷)	GASKET (PORT)	3
3	8M0027810	右舷挡板(右舷)	PLATE-STBD (STARBOARD)	3
4	886262	衬垫(右舷)	GASKET (STARBOARD)	3
5	20500	螺柱	STUD	1
6	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
7	884293	适配器	ADAPTER	6
8	657443	衬垫	GASKET	12
9	11645	簧片阀组	REED BLOCK	12
10	90198	螺钉	SCREW	12
11	30720	螺钉(0.250-20×2.25)	SCREW (.250-20 x 2.25)	12
12	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	12
13	81516025	螺钉	SCREW	22
14	815158	螺柱	STUD	12
15	4002217	垫圈	WASHER	12
16	400265	螺母 (M8)	NUT (M8)	12
17	933531	衬垫	GASKET	6
18	88586	油门连杆	LINK Throttle	2
19	895981	油门杆	LEVER Throttle	1
20	6027	螺钉	SCREW	1
21	67748	滚轮	ROLLER	1
22	88585	油门杆	LEVER Throttle	1
23	67297	U型销	PIN Clevis	7
24	26953	开口销	COTTER PIN	7
25	27736	垫圈	WASHER	7
26	88584	油门杆	LEVER Throttle	5
27	92501	螺钉	SCREW	6
28	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	6
29	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	6
30	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
31	16961	接头	FITTING	1
32	817518	三通	TEE	1
33	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
34	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
35	633001	卡箍	CLAMP	1
36	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
38	64015	螺母 (.250-20)	NUT (.250-20)	1
39	9912980	软管	HOSE	1
40	8162961	燃油滤清器	FILTER Fuel	1
41	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
-	88605A89	衬垫套件	GASKET SET	1

图 5罩壳与前盖 COWLS AND FRONT COVER

REF	零件编号	中文名称	英文名称	数量
1	7606A3	外罩总成	COWL ASSEMBLY	1
1	7606A7	外罩总成	COWL ASSEMBLY	1
1	7606A8	外罩总成	COWL ASSEMBLY	1
2	88354	密封件	SEAL	1
3	67258	垫	PAD	1
4	91837	覆盖件	BLANKET	1
5	150882	罩盖密封件	SEAL Cowl	1
6	88351	支架	BRACKET	2
7	88350	支架	BRACKET	2
8	4000355	螺钉(M8×35)	SCREW (M8 x 35)	8
9	88477	护罩	SHIELD	2
10	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	12
11	16859A2	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
12	30413	挂钩	HOOK	2
13	98026	铆钉	RIVET	8
14	15417A1	支架总成	BRACKET ASSEMBLY	2
15	7607A2	外罩总成	COWL ASSEMBLY	1
15	7607A3	外罩总成	COWL ASSEMBLY	1
15	7607A4	外罩总成	COWL ASSEMBLY	1
16	88359	密封件	SEAL	1
17	92015	覆盖件	BLANKET	1
18	47341A1	手动/应急启动绳和手柄套件 (用于手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)	1
19	7613A5	前盖组件	FRONT COVER ASSEMBLY	1
19	7613A6	前盖组件	FRONT COVER ASSEMBLY	1
19	7613A7	前盖组件	FRONT COVER ASSEMBLY	1
20	164581	隔音毯	SOUND BLANKET	1
21	61158T	挂钩	HOOK	1
22	75162	螺钉	SCREW	1

图 6曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	8784A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	88268	球轴承(下部)	BEARING Ball (LOWER)	1
3	89531	挡圈	RING Retaining	1
4	89938	密封件	SEAL	1
5	89939	阀座	SEAT	1
6	8M0027715	环	RING	7
7	88270	轴承座圈	RACE Bearing	2
8	88269	滚柱轴承	BEARING Roller	2
9	9530A3	活塞总成(右舷)	PISTON ASSEMBLY (STARBOARD)	3
9	9531A3	活塞总成(左舷)	PISTON ASSEMBLY (PORT)	3
9	816879A1	活塞总成	PISTON ASSEMBLY	3
9	816878A1	活塞总成	PISTON ASSEMBLY	3
10	18282A12	活塞环组	RING SET Piston	1
11	88466	锁紧环	LOCK RING	12
12	8185A10	连杆总成	CONNECTING ROD ASSEMBLY	6
13	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	12
14	43012A2	滚柱轴承总成	BEARING ASSEMBLY Roller	6
15	88263	止推垫片	THRUST WASHER	12
16	88258	滚针轴承	NEEDLE Roller Bearing	204
17	91800	半圆键	KEY Woodruff	1
18	814409A1	轴承总成	BEARING ASSEMBLY	1
18	816773A1	轴承总成	BEARING ASSEMBLY	1
19	41953	密封件	SEAL	1
20	410811	驱动齿轮	DRIVER GEAR	1
21	64067	O型圈	O-RING	1
22	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
23	52901	螺母(0.625-18)	NUT (.625-18)	1
-	92040A89	动力头总成	POWERHEAD ASSEMBLY	1
-	19398A93	动力头总成	POWERHEAD ASSEMBLY	1
-	88605A89	衬垫套件	GASKET SET	1

图 7气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	9550A14	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	9550A33	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
3	96887A2	止回阀总成	CHECK VALVE ASSEMBLY	1
4	42657A1	止回阀	CHECK VALVE	1
5	815159	螺柱	STUD	1
6	40120110	定位销	PIN Dowel	2
7	67296	销(轴承座圈)	PIN (BEARING RACE )	3
8	53862	衬垫	GASKET	2
9	14137	双头螺柱(162毫米)	STUD (162 MM)	6
10	14136	双头螺柱(110毫米)	STUD (110 MM)	2
11	910001	双头螺柱(60毫米)	STUD (60 MM)	2
12	400248	锁紧垫圈(M10)	LOCKWASHER (M10)	1
13	90517	螺母(M10)	NUT (M10)	1
14	81516290	螺钉(90毫米)	SCREW (90 MM)	1
15	815162170	螺钉(170毫米)	SCREW (170 MM)	2
16	91006	螺钉(105毫米)	SCREW (105 MM )	4
17	194373	端子排	TERMINAL BLOCK	1
18	4000329	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
19	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
20	814008	卡扣	CLIP	1
21	4002319	垫圈(内)	WASHER (INSIDE)	4
22	400258	不锈钢锁紧垫圈 (M10)	LOCKWASHER (M10) Stainless Steel	10
23	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	10
24	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
25	887821	支架(前)	BRACKET (FRONT)	1
26	40062127	螺钉	SCREW	2
27	56759	倒刺接头(压入式)(旧设计)	FITTING Barbed (PRESS-IN)(OLD DESIGN)	1
28	81516235	螺钉(35毫米)	SCREW (35 MM)	6
29	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
30	22627	卡扣	CLIP	1
31	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
32	69205	C形垫圈	C WASHER	1
33	42623	止回阀	CHECK VALVE	1
34	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
35	15133	压入式接头	FITTING (PRESS-IN)	1
36	96839	支架	BRACKET	1
37	40010127	螺钉	SCREW	1
38	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
39	78841	螺钉(.312-24 x 1.500)	SCREW (.312-24 x 1.500)	1
40	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	1
41	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
42	8792A1	下端盖总成	END CAP ASSEMBLY Lower	1
43	54815	油封	SEAL Oil	1
44	88955	O型圈	O-RING	1
45	81516025	螺钉	SCREW	4
46	9912688	管材(36英寸散装)(4-1/4英寸)	TUBING (36.00 Inches Bulk) (4-1/4")	1
47	813938	盖形螺母(#10-32)(旧设计)	CAP NUT (#10-32) (OLD DESIGN)	3
48	15133	接头	FITTING	12
49	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
50	14912	止回阀	CHECK VALVE	6
-	92040A89	动力头总成	POWERHEAD ASSEMBLY	1
-	19398A93	动力头总成	POWERHEAD ASSEMBLY	1
-	88605A89	衬垫套件	GASKET SET	1

图 8驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8437A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9099A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9673A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8437A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9099A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9673A4	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	57933	双头螺柱(.437-14/.437-20 x 2.190)	STUD (.437-14/.437-20 x 2.190)	4
3	57984	双头螺柱(.437-14/.437-20 x 2.380)	STUD (.437-14/.437-20 x 2.380)	1
4	54493	螺钉(.437-14 x 2.500)	SCREW (.437-14 x 2.500)	1
5	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	6
6	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	5
7	88758T	绑带	STRAP	1
7	88758T6	绑带	STRAP	1
8	67769	螺钉(.375-24 x 4.00)	SCREW (.375-24 x 4.00)	1
9	25269	螺母 (.375-24)	NUT (.375-24)	1
10	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
11	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
12	77327	支架	MOUNT	2
13	25067	缓冲垫	BUMPER	2
14	96853	螺钉(.500-20 x 6.380)	SCREW (.500-20 x 6.380)	2
15	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
16	49339	垫圈(.8125)	WASHER (.8125)	2
17	25096	螺母	NUT	2
18	67076	卡箍	CLAMP	2
19	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
20	400247	锁紧垫圈（M8）	LOCKWASHER (M8)	4
21	67077T	黑色盖	COVER Black	2
21	67077T6	盖板	COVER	2
22	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
23	35521	螺母	NUT	4
24	20433	定位销(.375 x 1.00)	PIN Dowel (.375 x 1.00)	2
25	888874	排气管	TUBE Exhaust	1
26	88883	密封件	SEAL	1
27	89417	护孔环	GROMMET	1
28	88884	管	TUBE	1
28	89098	管	TUBE	1
28	96128	水管	TUBE Water	1
29	89419	密封件	SEAL	1
-	88605A89	衬垫套件	GASKET SET	1

图 9双机延伸套件(反转设计I) DUAL ENGINE EXTENSION KIT (COUNTER ROTATION DESIGN I)

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	78862A2	密封套件	SEAL KIT	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	4
13	97933A1	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	979322	管	TUBE	1
17	42099	螺母(.562-18)	NUT (.562-18)	1

图 10双机延伸套件(反转设计II) DUAL ENGINE EXTENSION KIT (COUNTER ROTATION DESIGN II)

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
-	824891A1	双机延伸套件	DUAL ENGINE EXTENSION KIT	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2	导管总成电缆导向器	TUBE ASSEMBLY CABLE GUIDE	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
13	979331	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8149514	联轴器(18英寸)	COUPLER (18")	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	3
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 11加浓阀(序列号D000749及以下) ENRICHNER VALVE (SERIAL #D000749 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	13035	接头	FITTING	1
2	1430165	油管(38.00英寸散装)	TUBING (38.00 Inches Bulk)	3
3	13033	三通接头(.200外径)	TEE FITTING (.200 O.D.)	1
4	130341	接头(.200外径)	FITTING (.200 O.D.)	2
5	130342	三通(.131外径)	TEE (.131 O.D.)	4
6	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
7	9938779	软管(.077内径)	HOSE (.077 I.D.)	4
8	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	3
9	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	2
10	14403	接头	FITTING	2
11	59169	接头	FITTING	1
12	61001	J型卡扣	J CLIP	4
13	17498A1	支架	BRACKET	1
14	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
15	69205	C形垫圈	C WASHER	1
16	22627	卡扣	CLIP	1
17	81516040	螺钉	SCREW	2
18	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
19	633001	卡箍	CLAMP	1
20	9912688	管材(36英寸散装)(.125内径)	TUBING (36.00 Inches Bulk) (.125 I.D.)	1
21	93573	支架	BRACKET	1
22	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	3
23	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	3
24	20890	螺母 (.250-20)	NUT (.250-20)	1
25	45915	端子排	TERMINAL BLOCK	1
26	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	1
27	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1

图 12排气歧管与气缸盖 EXHAUST MANIFOLD AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	88834	支架	BRACKET	1
2	81516030	螺钉(30毫米)	SCREW (30 MM)	1
3	15093	双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00)	4
3	69016	双头螺柱(1.44英寸)	STUD (1.44")	4
4	49221	垫圈(.187 x .500 x .062)氯丁橡胶(大)	WASHER (.187 x .500 x .062) Neoprene (LARGE)	8
5	22887	垫圈(小)	WASHER (SMALL)	8
6	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	4
7	94110A1	盖板	COVER	1
7	941103	盖板	COVER	1
8	940601	衬垫	GASKET	1
9	81516025	螺钉(25毫米)	SCREW (25 MM)	17
10	38407	堵头(.500-14)	PLUG (.500-14)	1
11	90435	支架	MOUNT	4
12	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
13	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	8
14	41020A3	气缸盖	CYLINDER HEAD	2
15	88251	密封件	SEAL	2
16	88923	O型圈	O-RING	6
17	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	48
17	81516050	螺钉(50毫米)	SCREW (50 MM)	48
18	47483	J型卡扣	J CLIP	3
19	14586		THERMOSTAT (120 DEGREES)	2
20	62386	衬垫	GASKET	2
21	90390A1	盖板套件	COVER KIT	2
22	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
23	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
24	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	2
25	91836	三通	TEE	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
27	7765377	软管(24.5英寸散装)(3英寸)	HOSE (24.500 Inches Bulk) (3")	1
28	99127109	管线(57英寸散装)尾流指示器(4英寸)	LINE (57.00 Inches Bulk) TELL TAIL (4")	1
29	76256	喷嘴	NOZZLE	1
30	12415	温度传感器	SENDER Temperature	1
31	68307	堵头	PLUG	1
-	92040A89	动力头总成	POWERHEAD ASSEMBLY	1
-	19398A93	动力头总成	POWERHEAD ASSEMBLY	1
-	88605A89	衬垫套件	GASKET SET	1

图 13排气板 EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	437692	排气板	PLATE Exhaust	1
1	43769A3	排气板总成	PLATE ASSEMBLY Exhaust	1
2	64872	护孔环	GROMMET	2
3	65848	托架	CARRIER	2
4	86596	提升阀	POPPET VALVE	2
5	90392	弹簧	SPRING	2
6	88907	衬垫	GASKET	4
7	65664A1	隔板总成	PLATE ASSEMBLY	2
8	64877	隔膜	DIAPHRAGM	2
9	76451	垫圈	WASHER	2
10	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	2
11	65663A2	盖总成	COVER ASSEMBLY	2
12	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	4
13	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
14	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
15	81516265	螺栓(M10 x 65)	BOLT (M10 x 65)	1
16	438771	衬垫(上部)	GASKET (UPPER)	1
17	88355	密封件	SEAL	1
18	438782	衬垫(下部)	GASKET (LOWER)	1
19	88880A1	安装板	PLATE	1
20	890842	衬垫	GASKET	1
21	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	3
22	400247	锁紧垫圈（M8）	LOCKWASHER (M8)	3
23	968431	换档轴	SHIFT SHAFT	1
23	968432	换档轴	SHIFT SHAFT	1
23	968433	上换挡轴	SHIFT SHAFT Upper	1
24	65830	尼龙衬套	NYLINER	1
25	968413	杠杆	LEVER	1
26	96888	滚动销	PIN Roll	1
27	96848	换挡连杆	SHIFT LINK	1
28	26856	衬套	BUSHING	2
29	29720	波形垫圈	WAVE WASHER	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
31	96849	螺钉	SCREW	1
32	28770	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
33	29720	波形垫圈	WAVE WASHER	2
34	35045	螺母(.250-28)	NUT (.250-28)	1
-	88605A89	衬垫套件	GASKET SET	1
-	92040A89	动力头总成	POWERHEAD ASSEMBLY	1
-	19398A93	动力头总成	POWERHEAD ASSEMBLY	1

图 14飞轮/定子 FLYWHEEL/STATOR

REF	零件编号	中文名称	英文名称	数量
1	887831	飞轮盖	FLYWHEEL COVER	1
1	887832	飞轮盖	FLYWHEEL COVER	1
2	89219	堵头	PLUG	1
3	79022	标记	MARKER	1
4	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
5	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
6	45907	黄色塞	PLUG Yellow	1
7	7555A27	飞轮	FLYWHEEL	1
7	9865A6	飞轮	FLYWHEEL	1
8	32417	螺钉(.250-28 x .625)	SCREW (.250-28 x .625)	8
9	68997	螺钉(.312-24 x .750)	SCREW (.312-24 x .750)	8
9	89317	螺钉	SCREW	8
10	5454A64	定子总成	STATOR ASSEMBLY	1
10	9610A6	定子总成	STATOR ASSEMBLY	1
10	9610A22	定子总成	STATOR ASSEMBLY	1
11	77363	螺钉(#10-24 x 1.50)	SCREW (#10-24 x 1.50)	4
11	4008250	螺钉	SCREW	5
11	4008250	螺钉	SCREW	5
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
12	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	5
12	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	5
13	18736A20	调节器总成	REGULATOR ASSEMBLY	1
13	18736A20	调节器总成	REGULATOR ASSEMBLY	1
14	18717	密封件	SEAL	1
14	18717	密封件	SEAL	1
15	90149	螺钉	SCREW	4
15	90149	螺钉(1-5/8英寸)	SCREW (1-5/8")	4
16	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
16	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	815279T	电压调节器	REGULATOR Voltage	1
18	86885	螺钉（0.250-20 x 1.500）不锈钢	SCREW (.250-20 x 1.500) Stainless Steel	4
19	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
20	822446A1	线束总成	HARNESS ASSEMBLY	1
21	89004A7	触发板总成	TRIGGER PLATE ASSEMBLY	1
22	63153	J型卡扣	J CLIP	3
23	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2

图 15燃油泵(泵体黑色) FUEL PUMP (FUEL PUMP BODY IS BLACK)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE CHECK VALVE, RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE GASKET, BOOST	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS		NOT SOLD SEPARATE SPRING	1
9	NSS		NOT SOLD SEPARATE DIAPHRAGM	2
10	NSS		NOT SOLD SEPARATE GASKET, PULSE	1
11	NSS		NOT SOLD SEPARATE SPRING	1
12	NSS		NOT SOLD SEPARATE CAP	1
13	987691	底座衬垫	GASKET BASE	1
14	144303	底座	BASE	2
15	987752	安装板	PLATE	2
16	99664	弯头	ELBOW	2
17	9912980	软管	HOSE	1
18	19688	接头	FITTING	2
19	82130050	螺钉(M6 x 50)燃油泵至曲轴箱	SCREW (M6 x 50) FUEL PUMP TO CRANKCASE	2
20	16452	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	4
20	82104540	螺钉(M5 x 40)燃油泵	SCREW (M5 x 40) FUEL PUMP	2
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	1
23	19688	90度弯头	FITTING (90 DEGREES)	2
24	818993	三通接头	CONNECTOR Tee	1
25	4301625	油管(8.00英寸)	TUBING (8.00 Inches)	1
26	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
27	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
28	145091	护孔环	GROMMET	1
29	818994	止回阀	CHECK VALVE	1
30	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
-	88605A89	衬垫套件	GASKET SET	1
-	92040A89	动力头总成	POWERHEAD ASSEMBLY	1
-	19398A93	动力头总成	POWERHEAD ASSEMBLY	1

图 16燃油泵(序列号D000749及以下) FUEL PUMP (SERIAL #D000749 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	2
2	42990A10	膜片组件	DIAPHAGM KIT	2
3	987691	底座衬垫	GASKET BASE	2
4	NSS		NOT SOLD SEPARATE GASKET, PULSE	1
5	NSS		NOT SOLD SEPARATE DIAPHRAGM	2
6	NSS		NOT SOLD SEPARATE CAP	2
7	NSS		NOT SOLD SEPARATE SPRING	1
8	NSS		NOT SOLD SEPARATE RETAINER	2
9	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE CHECK VALVE, RUBBER	2
10	NSS		NOT SOLD SEPARATE CHECK VALVE	2
11	NSS		NOT SOLD SEPARATE GASKET	1
12	NSS		NOT SOLD SEPARATE CAP	1
13	NSS		NOT SOLD SEPARATE SPRING	2
14	144303	底座	BASE	2
15	98775A2	安装板	PLATE	2
16	16288	接头	FITTING	2
17	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
18	16452	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	4
19	4000310	螺钉(M5 x 40)	SCREW (M5 x 40)	4
20	4002314	垫圈	WASHER	4
21	16961	接头	FITTING	1
22	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	4
23	9912976	油管	TUBING	4
24	8162961	燃油滤清器	FILTER Fuel	1
25	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
26	19688	接头	FITTING	2
27	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	1
28	424251	三通	TEE	1
29	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
30	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
31	145091	护孔环	GROMMET	1
-	88605A89	衬垫套件	GASKET SET	1

图 17燃油泵序列号D000750及以上/泵体白红色 FUEL PUMP SERIAL #D000750 AND UP/FUEL PUMP BODY WHITE/RED

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	2
2	42990A10	膜片组件	DIAPHAGM KIT	2
3	987691	底座衬垫	GASKET BASE	2
4	NSS		NOT SOLD SEPARATE CAP	1
5	NSS		NOT SOLD SEPARATE DIAPHRAGM	2
6	NSS		NOT SOLD SEPARATE CAP	1
7	NSS		NOT SOLD SEPARATE SPRING	1
8	NSS		NOT SOLD SEPARATE RETAINER	2
9	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE CHECK VALVE, RUBBER	2
10	NSS		NOT SOLD SEPARATE CHECK VALVE	2
11	NSS		NOT SOLD SEPARATE SPRING	1
12	144303	底座	BASE	2
13	98775A2	安装板	PLATE	2
14	16288	接头	FITTING	2
15	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
16	16452	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	4
17	4000310	螺钉(M5 x 40)	SCREW (M5 x 40)	4
18	4002314	垫圈	WASHER	4
19	9912976	油管	TUBING	1
20	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	1
23	19688	90度弯头	FITTING (90 DEGREES)	2
24	424251	三通	TEE	1
25	4301625	油管(8.00英寸)	TUBING (8.00 Inches)	1
26	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
27	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
28	145091	护孔环	GROMMET	1
-	88605A89	衬垫套件	GASKET SET	1

图 18齿轮箱(驱动轴)(标准/反向旋转) GEAR HOUSING (DRIVESHAFT)(STANDARD/COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9554A12	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A6	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A7	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A22	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A10	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A11	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	9554A8	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	9554A9	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
1	9554A23	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	9554A24	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
2	85822A6	连接器	CONNECTOR	1
3	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
4	88384	滚柱轴承	BEARING Roller	1
5	40122	紧定螺钉	SET SCREW	1
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6A	814285	填充板	FILLER PLATE	1
7	37892	螺钉(.190-32 x 1.00)(磁性)	SCREW (.190-32 x 1.00) (MAGNETIC)	2
8	19183	纤维垫圈	WASHER Fiber	3
9	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
10	N.S.S.	不单独出售小齿轮(属于43-17064A2/A5或43-812975A1部件)	Not Sold Separate PINION GEAR (PART OF 43-17064A2 & A5 OR 43-812975A1)	1
11	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
12	35921	螺母(0.625-18)	NUT (.625-18)	1
13	816417A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
13	814809A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
13	814767A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
14	88655A1	垫片组	SHIM ASSEMBLY	AR
15	86748A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
16	88710	锁紧螺母	LOCKNUT	1
17	88657	O型圈	O-RING	1
18	88776A5	水泵底座总成	BASE ASSEMBLY Water Pump	1
19	14381	密封件	SEAL	1
20	907562	衬垫	GASKET	1
21	90755	安装板	PLATE	1
22	936662	衬垫	GASKET	1
23	88422	键	KEY	1
24	85647	叶轮	IMPELLER	1
25	90530A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	88397	密封件	SEAL	1
27	88581	导套	GUIDE	1
28	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
29	90753	绝缘体	INSULATOR	4
30	44197A2	轴	SHAFT	1
31	78907	挡圈（旧设计）	RING Retaining (OLD DESIGN)	1
32	29641	E型卡环	E RING	1
33	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
34	77631A2	衬套总成	BUSHING ASSEMBLY	1
35	8164641	油封	SEAL Oil	1
36	77674	垫圈(.35 x .75 x .12)(旧设计)	WASHER (.35 x .75 x .12) (OLD DESIGN)	1
37	66670A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
38	66672A1	垫片组	SHIM ASSEMBLY	AR
-	88605A89	衬垫套件	GASKET SET	1

图 19齿轮箱(螺旋桨轴)(反转) GEAR HOUSING (PROPELLER SHAFT) (COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9554A16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	9554A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9554A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
39	78956	换挡凸轮	SHIFT CAM	1
40	17264F2	平衡鳍板	TRIM TAB	1
41	90042	螺钉(.437-14 x 1.500)不锈钢	SCREW (.437-14 x 1.500) Stainless Steel	1
42	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
43	88523	杆	ROD	1
44	88579	弹簧	SPRING	2
45	78910	垫圈	WASHER	AR
46	78906	销	PIN	1
47	815362A1	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
48	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
49	815481	止推垫片	THRUST WASHER	1
50	815480	推力轴承	BEARING Thrust	1
51	N.S.S.	倒车齿轮(43-81975A1组件)	Not Sold Separate REVERSE GEAR (PART OF 43-81975A1)	1
52	815482	滚柱轴承	BEARING Roller	1
53	78909	定位销	PIN Detent	2
54	823580	棘轮	RATCHET	1
55	78905	十字销	PIN Cross	1
56	78962	弹簧	SPRING	2
57	812975A1	齿轮组	GEAR SET	1
58	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
58	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
58	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
58	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
58	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
58	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
58	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
58	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
58	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
58	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
58	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
58	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
58	1761526	垫片(0.230)	SPACER SHIM (.230)	AR
59	15841	滚柱轴承	BEARING Roller	1
60	17616	推力环	THRUST RING	1
61	31534	O型圈	O-RING	1
62	814604A1	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
63	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
64	18448	止推垫片	THRUST WASHER	2
65	15842	推力轴承	BEARING Thrust	2
66	812977	螺旋桨轴	PROPELLER SHAFT	1
67	812976A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承	BEARING Needle	1
69	76868	密封件	SEAL	2
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	13171	推力毂	THRUST HUB	1
73	835467Q01	止推垫片套件	THRUST WASHER KIT	1
74	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
75	31211A2	花键垫圈	WASHER Splined	1
75	31211Q03	垫圈总成	WASHER ASSEMBLY	1
76	816629	锁紧垫圈	TAB WASHER	1
76	816629Q	锁紧垫圈	TAB WASHER	1
77	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
77	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
78	95705	螺钉(.437-14×3.00)	SCREW (.437-14 x 3.00)	2
79	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	88605A89	衬垫套件	GASKET SET	1

图 20齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROPELLER SHAFT) (STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9554A12	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A6	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A7	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A22	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A10	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	9554A11	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	9554A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9554A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9554A9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9554A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9554A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9554A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
39	78956	换挡凸轮	SHIFT CAM	1
39	789562	换挡凸轮	SHIFT CAM	1
40	17264F2	平衡鳍板	TRIM TAB	1
40	803833T	平衡鳍板	TRIM TAB	1
41	90042	螺钉(.437-14 x 1.500)不锈钢	SCREW (.437-14 x 1.500) Stainless Steel	1
42	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
43	88523	杆	ROD	1
43	88523A1	连杆套件	ROD KIT	1
43	816519	杆	ROD	1
43	88523A1	连杆套件	ROD KIT	1
44	78906	销	PIN	2
44	8M0084245	弹簧定位销	PIN Spring Locator	2
45	88579	弹簧	SPRING	2
45	88579	弹簧	SPRING	1
46	78910	垫圈	WASHER	1
47	47397A1	垫片组	SHIM SET	AR
48	35928A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
48	35928T1	圆锥滚子轴承总成	BEARING ASSEMBLY Tapered Roller	1
49	17064A2	齿轮组件	GEAR ST	1
49	17064A5	齿轮组	GEAR SET	1
50	30895	滚针轴承	BEARING Needle	1
50	30895T	滚针轴承	BEARING Needle	1
51	823580	棘轮	RATCHET	1
52	78909	定位销	PIN Detent	2
53	78905	十字销	PIN Cross	1
53	8M0084243	十字销	PIN Cross	1
54	78962	弹簧	SPRING	2
55	93848	螺旋桨轴	PROPELLER SHAFT	1
56	N.S.S.	倒车齿轮(43-17064A2&A5组件)	Not Sold Separate REVERSE GEAR (PART OF 43-17064A2 & A5)	1
57	681001	止推环	RING Thrust	1
58	88957A1	滚珠轴承	BEARING Ball	1
58	88957T	滚珠轴承	BEARING Ball	1
59	31534	O型圈	O-RING	1
59	8M0214920	O型圈	O RING	1
60	88603A4	轴承座总成	CARRIER ASSEMBLY Bearing	1
60	813082A1	托架	CARRIER	1
61	30956	滚针轴承	BEARING Needle	1
61	30956T	滚针轴承	BEARING Needle	1
62	76868	密封件	SEAL	2
62	8M0248882	油封@5	SEAL-OIL @5	2
63	30281	键	KEY	1
64	79447	锁紧垫圈	TAB WASHER	1
65	79448	固定座	RETAINER	1
65	8M2011027	固定座	RETAINER	1
66	13171	推力毂	THRUST HUB	1
66	835467Q01	止推垫片套件	THRUST WASHER KIT	1
67	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
68	31211A2	花键垫圈	WASHER Splined	1
68	31211Q03	垫圈总成	WASHER ASSEMBLY	1
69	816629	锁紧垫圈	TAB WASHER	1
69	816629Q	锁紧垫圈	TAB WASHER	1
70	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
71	95705	螺钉(.437-14×3.00)	SCREW (.437-14 x 3.00)	2
72	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	88605A89	衬垫套件	GASKET SET	1

图 21液压泵(设计I型) HYDRAULIC PUMP (DESIGN I)

REF	零件编号	中文名称	英文名称	数量
-	92459A4	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	89492	适配器	ADAPTER	1
1	89492T	ORD 823653A 9	ORD 823653A 9	1
2	89493	联轴器	COUPLING	1
2	803852	联轴器	COUPLING	1
3	89494	手动释放装置	MANUAL RELEASE	AR
3	96598A1	手动释放装置	MANUAL RELEASE	AR
3	96598	手动释放装置	MANUAL RELEASE	AR
3	96598A1	手动释放装置	MANUAL RELEASE	AR
4	89495	水泵(含螺钉)	PUMP (INCLUDES SCREWS)	1
4	823653A9	液压泵维修包	PUMP KIT-HYD	1
5	89496	滤清器	FILTER	2
6	89498	O型圈	O-RING	1
7	89497	O型圈	O-RING	1
8	89499	量油尺	DIPSTICK	1
9	90587	储液罐	RESERVOIR	1
9	90587T	储液罐	RESERVOIR	1
10	90588	螺钉(含O型圈)	SCREW (INCLUDES O-RING)	1
11	90589	贯穿螺柱	THRU STUD	1
11	90590	贯穿螺柱	THRU STUD	1
-	17649A1	马达	MOTOR	1
-	17649A02	倾斜马达维修包	MOTOR KIT-TRIM	1
12	89484	驱动端端盖	END FRAME DRIVE END	1
13	89485	电枢	ARMATURE	1
14	89482	垫圈	WASHER	1
15	89486	磁场与框架组件	FIELD AND FRAME	1
16	89487	电刷架	BRUSH CARD	1
16	17649A1	马达	MOTOR	1
17	89488	换向器端端盖	END FRAME COMMUTATOR END	1
18	89483	贯穿螺栓	THRU BOLT	1
18	89489	贯穿螺栓	THRU BOLT	1
19	89481	螺母	NUT	6
-	812501A1	安全阀修理包	REPAIR KIT Relief Valve	1
-	99073A1	大修包	REPAIR KIT Overhaul	1
-	99073A2	倾斜装置重建包	REBUILD KIT-TRIM	1

图 22液压泵(设计II型) HYDRAULIC PUMP (DESIGN II)

REF	零件编号	中文名称	英文名称	数量
-	823653A5	液压泵总成	PUMP ASSEMBLY Hydraulic	1
01	801786	适配器	ADAPTER	1
02	89493	联轴器	COUPLING	1
02	803852	联轴器	COUPLING	1
03	96598	手动释放装置	MANUAL RELEASE	AR
03	96598A1	手动释放装置	MANUAL RELEASE	AR
04	801787	水泵(含螺钉)	PUMP (INCLUDES SCREWS)	1
05	89496	滤清器	FILTER	2
06	89498	O型圈	O-RING	1
07	89497	O型圈	O-RING	1
08	89499	量油尺	DIPSTICK	1
09	90587	储液罐	RESERVOIR	1
09	90587T	储液罐	RESERVOIR	1
10	90588	螺钉(含O型圈)	SCREW (INCLUDES O-RING)	1
-	17649A1	马达	MOTOR	1
-	17649A02	倾斜马达维修包	MOTOR KIT-TRIM	1
11	17632	端盖总成(含轴承)	END CAP ASSEMBLY (W/BEARING)	1
11	17632T	端盖总成	END CAP ASSEMBLY	1
12	17626	螺钉	SCREW	4
12	891736T	电机总成	MOTOR ASSEMBLY	4
13	17625	O型圈	O-RING	1
13	891736T	电机总成	MOTOR ASSEMBLY	1
14	17621	螺钉	SCREW	2
14	891736T	电机总成	MOTOR ASSEMBLY	2
15	17633	支架套件	HOLDER KIT	1
15	891736T	电机总成	MOTOR ASSEMBLY	1
16	17631A1	电刷套件	BRUSH KIT	1
16	891736T	电机总成	MOTOR ASSEMBLY	1
17	17623	电枢	ARMATURE	1
17	891736T	电机总成	MOTOR ASSEMBLY	1
18	17653	垫圈	WASHER	2
18	891736T	电机总成	MOTOR ASSEMBLY	2
19	17624	磁场框架总成	FIELD AND FRAME ASSEMBLY	1
19	891736T	电机总成	MOTOR ASSEMBLY	1
20	17622	盖板总成(含轴承)	COVER ASSEMBLY (W/BEARING)	1
20	891736T	电机总成	MOTOR ASSEMBLY	1
21	823444	螺钉	SCREW	2
-	812501A1	安全阀修理包	REPAIR KIT Relief Valve	1
-	99073A1	大修包	REPAIR KIT Overhaul	1
-	99073A2	倾斜装置重建包	REBUILD KIT-TRIM	1

图 23液压泵与安装支架 HYDRAULIC PUMP AND MOUNTING BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	92459A4	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1A	823653A5	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1A	823653A9	液压泵维修包	PUMP KIT-HYD	1
2	90318	支架	BRACKET	1
2	818567	支架	BRACKET	1
3	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	1
3	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	1
4	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	1
4A	57792	垫圈	WASHER	1
5	34059	螺母 (#10-32)	NUT (#10-32)	2
5	8267096	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
5A	34948	隔套	SPACER	1
6	86322A24	电缆总成(4英寸)	CABLE ASSEMBLY (4.00 Inches)	1
7	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	1
8	79138A9	电缆总成(6英尺)黑色-负极	CABLE ASSEMBLY (6.00 Feet) Black-Negative	1
9	55098	J型卡扣	J CLIP	1
9	8M0024808	J型夹	J-CLIP	1
10	79147A3	线束总成	HARNESS ASSEMBLY	1
11	79091	保险丝20安培	FUSE 20 Ampere	1
11	8M0207796	保险丝20安培	FUSE 20 AMP	1
12	95084A3	拉线总成	CABLE ASSEMBLY	1
13	96158	启动电磁阀	SOLENOID Starter	2
13	8M0185622	电磁阀	SOLENOID	2
14	88075	固定座	RETAINER	1
15	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	4
16	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
17	94275	连接杆	LINK	1
18	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	5
19	94330	螺母 (.250-20) 黄铜	NUT (.250-20) Brass	4
20	79023A10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
20	79023T10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
21	96457	酚醛垫圈(.27×.81×.062)	WASHER Phenolic (.27 x .81 x .062)	1
22	21825	螺母(.250-28)	NUT (.250-28)	1
23	86322A15	电缆总成(5.5英寸)黑色	CABLE ASSEMBLY (5.50 Inches) Black	1
24	79139A12	电缆总成红色-正极	CABLE ASSEMBLY Red-Positive	1
25	87762	支架	BRACKET	1
26	31830	螺栓(.375-24×1.75)	BOLT (.375-24 x 1.75)	2
27	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
28	46335	螺母 (.375-24)	NUT (.375-24)	2
29	87760	安装板	PLATE	1
29	87760T	安装板	MOUNTING PLATE	1
30	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
31	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
31	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
32	90271	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	2
33	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
34	96535	护套	BOOT	1
34	861680	绝缘体	INSULATOR	1
35	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	1
36	96993	液压软管	HOSE Hydraulic	1
36	96994	液压软管	HOSE Hydraulic	1
37	89024	液压软管	HOSE Hydraulic	1
37	89023	液压软管	HOSE Hydaulic	1
38	12602	护孔环	GROMMET	2
38	12602002	护孔环	GROMMET	2
39	87207	连接器	CONNECTOR	1
40	87871	盖板	COVER	1
40	87871T	盖板	COVER	1
41	87775	衬垫	GASKET	1
42	45507	护孔环	GROMMET	1
43	36070	螺钉(#10-32×1.25)	SCREW (#10-32 x 1.250)	4
44	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
45	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
46	79146	固定座	RETAINER	2
47	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
47	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
48	45915	端子排	TERMINAL BLOCK	1
49	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
-	65017A14	线束总成	HARNESS ASSEMBLY	1

图 24仪表装置 INSTRUMENTATION

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表	TACHOMETER	1
2	79101T	支架	BRACKET	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
6	86322A7	线缆总成(1.50英尺)黑色	CABLE ASSEMBLY (1.50 Feet) Black	1
6	86323A5	线缆总成(1.50英尺)紫色	CABLE ASSEMBLY (1.50 Feet) Purple	1
7	15113A4	配平表	TRIM GAUGE	1
7	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
8	79480	支架	BRACKET	1
9	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
10	79888	灯泡插座	SOCKET Light Bulb	1
11	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	15166A1	温度表	TEMPERATURE GAUGE	1
13	895287Q41	水温表套件(100-240℉)黑面橙白刻度黑框	WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel	1
14	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
15	79888	灯泡插座	SOCKET Light Bulb	1
16	26427	垫圈	WASHER	2
17	79480	支架	BRACKET	1
18	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
19	86323A2	电缆总成(2英尺)紫色	CABLE ASSEMBLY (2.00 Feet) Purple	1
19	61600A16	电缆总成(17英寸)黑色	CABLE ASSEMBLY (17.00 Inches) Black	1
19	88824A4	电缆总成(45英寸)棕褐色	CABLE ASSEMBLY (45.00 Inches) Tan	1
20	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
20	19674A07	开关/拉绳套件	SWITCH/LANYARD KIT	1
21	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
22	813679	适配器	ADAPTER	1
23	15920A54	拉绳总成	LANYARD ASSEMBLY	1
23	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
24	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
25	18321	安装夹	CLAMP Mounting	1
26	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
27	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
28	79146	固定座	RETAINER	AR
29	36492	变径衬套	BUSHING Reducer	1
30	15129A1	15PSI压力表套件(1-15PSI)	15 PSI GAUGE KIT (1-15 PSI)	1
30	895288Q41	水压表套件(1-15PSI)黑面橙刻度黑框	GAUGE KIT Water Pressure (1-15 PSI) Black Face, Orange Graduations, Black Bezel	1
31	88532A1	电缆总成(2英尺)深蓝	CABLE ASSEMBLY (2.00 Feet) Dark Blue	1
31	86322A16	电缆总成(2英尺)黑色	CABLE ASSEMBLY (2.00 Feet) Black	1
32	28624	T型接头	FITTING T	1
32	286241	接头	FITTING	1
33	63668	适配器	ADAPTER	1
34	63651	90度弯头	ELBOW (90 DEGREES)	1
35	63670	接头	FITTING	2
36	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
36	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
37	77863	接头	FITTING	1
38	640886	管材(53英尺散装)	TUBING (53.00 Feet Bulk)	1
38	64088A09	管材-50英尺散装	TUBING-50 FT BULK	1
39	95691	灯泡	LIGHT BULB	1
40	13631	插座	SOCKET	1
41	17654	支架	BRACKET	1
42	812497A2	二极管总成	DIODE ASSEMBLY	1
42	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
43	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

图 25钥匙开关总成 KEY SWITCH ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	816626A20	钥匙开关线束总成(20英尺)	HARNESS ASSEMBLY Key Switch (20.00 Feet)	1
2	90468A1	钥匙盖总成	COVER ASSEMBLY Key	2
3	76424	支架	BRACKET	1
4	55422	双头螺柱 (#10-32 x 2.00)	STUD (#10-32 x 2.00)	2
5	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
7	816479	安装板	PLATE	1
7	816479A3	板组件套件	PLATE KIT	1
8	88107	钥匙开关(钥匙见下方)	KEY SWITCH (SEE BELOW FOR KEY)	1
8	88107A5	钥匙开关套件	SWITCH KIT Key	1
9	93543	特殊螺母-镀铬黄铜	NUT Special - Chrome Brass	1
9	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
10	90311	开关面板(关-运行-启动)(按压阻风门)	INSERT Switch Plate (Off-Run-Start)(Push to Choke)	1
11	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
11	8M0210763	报警器	ALARM	1
11	68878A6	蜂鸣报警器总成	HORN ASSEMBLY Buzzer Alarm	1
12	68879	盖板	COVER	1
13	8127111	垫片(0.375)	SPACER (.375)	2
13	812711	隔套(0.250)	SPACER (.250)	2
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 26杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	814697	零件手册 250/275马力	PARTS MANUAL 250/275 HP	1
-	13487A89	贴花套件	DECAL SET	1
-	813039A90	贴花套件	DECAL SET	1
-	815631A91	贴花套件	DECAL SET	1
-	824960A94	贴花套件	DECAL SET	1
-	824959A94	贴花套件	DECAL SET	1
-	824960A94	贴花套件	DECAL SET	1
-	11227940	用户指南	OWNERS GUIDE	1
-	19388940	用户指南	OWNERS GUIDE	1

图 27喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	14460	油泵	PUMP Oil	1
2	34994	不锈钢螺钉(#10-32 x 1.00)	SCREW (#10-32 x 1.00) Stainless Steel	1
2	73013	螺钉 10-32 x 1.50	SCREW 10-32 x 1.50	1
3	1938516	连接杆	LINK	1
4	14525A3	适配器组件	ADAPTER ASSEMBLY	1
5	41083	从动齿轮	GEAR Driven	1
6	11379	O型圈	O-RING	1
7	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
8	4301625	油管(8.00英寸)	TUBING (8.00 Inches)	1
8	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
9	15136	储油罐	OIL RESERVOIR	1
10	63328	螺钉(0.312-18 x 3.00)	SCREW (.312-18 x 3.00)	2
11	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈	WASHER	6
13	67264	垫圈(橡胶)	WASHER (Rubber)	6
14	67268	衬套	BUSHING	3
15	14680	隔套	SPACER	3
16	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	2
17	43300A5	盖总成	CAP ASSEMBLY	1
18	43307	衬垫	GASKET	1
18	43307T	衬垫	GASKET	1
19	99022A1	浮子总成	FLOAT ASSEMBLY	1
19	8M0187298	浮子总成	FLOAT ASSY	1
20	99265	压入式螺母	PUSH NUT	1
21	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
21	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
22	415823	卡箍	CLAMP	2
23	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
23	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
24	42425	三通	TEE	1
25	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	1
26	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
26	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
27	87421	油箱	TANK	1
28	43298A2	盖总成	CAP ASSEMBLY	1
29	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
30	43295A5	壳体总成适配器	HOUSING ASSEMBLY Adaptor	1
30	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
30	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
30	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
31	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
32	99802	管	TUBE	1
33	12540A4	壳体总成	HOUSING ASSEMBLY	1
34	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
35	12540A3	壳体	HOUSING	1
36	12242A1	闩锁	LATCH	1
34	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
37	43278	接头（曲轴箱）	FITTING (CRANKCASE)	1
37	8781051	止回阀	CHECK VALVE	1
38	814811	垫圈	WASHER	2
39	73657	螺钉(0.312-18 x 1.50)	SCREW (.312-18 x 1.50)	1
-	92040A89	动力头总成	POWERHEAD ASSEMBLY	1
-	19398A93	动力头总成	POWERHEAD ASSEMBLY	1

图 28消音器与机罩支架 SOUND ATTENUATOR AND COWL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	883644	支架	BRACKET	1
2	85651	壳体	HOUSING	2
2	85650	壳体	HOUSING	2
3	34941	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	8
4	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
4	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
5	88361T	支架	BRACKET	1
5	88361T6	支架	BRACKET	1
6	14900A1	密封件	SEAL	2
7	88356	密封件	SEAL	1
8	4000335	螺钉(M6 x 50)	SCREW (M6 x 50)	4
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
10	13944A1	板/盖总成消音器	PLATE/COVER ASSEMBLY Sound Attenuator	1
11	898192	衬垫	GASKET	1
12	139441	盖板	COVER	1
13	90435	支架	MOUNT	2
14	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
14	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
15	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	4
16	67245T	支架	BRACKET	1
17	67272	护孔环	GROMMET	2
18	26550	卡箍	CLAMP	1
19	69205	C形垫圈	C WASHER	1
19	8M0084613	C形垫圈	C-WASHER	1
20	78291	螺钉(0.190-24 x 0.500)	SCREW (.190-24 x .500)	1
21	40062127	螺钉	SCREW	14
22	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	14
22	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	14
23	41124T1	支架	BRACKET	1
23	41124T6	支架	BRACKET	1
24	88357	密封件	SEAL	1
25	99391	固定座	RETAINER	1
26	88622	安装板	PLATE	1
27	67272	护孔环	GROMMET	2
28	88621	固定座	RETAINER	1
29	34994	不锈钢螺钉(#10-32 x 1.00)	SCREW (#10-32 x 1.00) Stainless Steel	2
30	76264	闩锁	LATCH	1
31	85367	弹簧	SPRING	1
32	67241	壳体	HOUSING	1
33	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	2
34	90435	支架	MOUNT	3
35	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
35	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
36	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6

图 29启动电机与点火线圈 STARTER MOTOR AND IGNITION COILS

REF	零件编号	中文名称	英文名称	数量
1	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	56703	轴环	COLLAR	2
2	8M0034918	轴环	COLLAR	2
3	68042	橡胶止挡	STOP Rubber	2
3	8M0043376	停机开关	STOP	2
4	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
5	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
6	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
6	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
7	68292	螺母(.312-18)	NUT (.312-18)	2
7	8M0204668	螺母(.312-18)	NUT (.312-18)	2
8	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
8	8M0230859	点火线圈总成	COIL IGNITION ASY	6
9	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
10	67614	盖板	COVER	3
11	88856	螺钉(0.190-32 x 2.00)	SCREW (.190-32 x 2.00)	12
12	60466A7	电缆总成接地线(黑)	CABLE ASSEMBLY Ground (BLACK)	6
13	813715A11	高压电缆总成	CABLE ASSEMBLY Hi Tension	1
14	63709A1	护套/端子套件	BOOT/TERMINAL KIT	6
15	136862	火花塞	SPARK PLUG	6
15	13686Q	NGK BU8H @10	NGK BU8H @10	6

图 30启动电机总成 Starter Motor Assembly

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660		PLATE Drive End	1
4	74968		BOLT Thru	2
5	NSS	非单独销售垫圈-贯穿螺栓	NOT SOLD SEPARATE Washer-Thru Bolt	1
6	79216	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	61787	电刷架	HOLDER Brush	2
8	898265014	电刷支架	HOLDER-BRUSH	2
9	68586		SCREW Brush and Holder	2
10	15386		END CAP Commutator	1
10	15386001	端盖	END CAP	1

图 31旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	9225A3	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	9225A4	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	87735	油封(下)	SEAL Oil (LOWER)	2
3	818764	衬套	BUSHING	2
4	74036	润滑脂接头	FITTING Grease	4
4	8M0169589	润滑脂接头	FITTING Grease	4
5	67668	隔套	SPACER	1
6	16483	定位销	PIN Dowel	2
6	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	2
7	88341	护孔环	GROMMET	2
8	85023	油封	SEAL Oil	2
9	87161	垫圈	WASHER	2
10	48171	O型圈(0.364 x 0.070)	O-RING (.364. x .070)	2
11	85030A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
11	85028A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
11	85030A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
11	85028A3	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
12	86600	衬套	BUSHING	1
13	85367	弹簧	SPRING	1
14	41052	柱塞	PLUNGER	1
15	88876	螺柱	STUD	1
16	86603	旋钮	KNOB	1
16	86603T6	旋钮	KNOB	1
17	864751	联轴器	COUPLING	1
18	69745	滚动销	PIN Roll	2
19	88049	弹簧	SPRING	1
20	93861	开口销	COTTER PIN	1
21	78854	波形垫圈	WAVE WASHER	1
22	96852T	下轭架	YOKE Bottom	1
22	96852F2	下轭架	YOKE Bottom	1
23	67684	挡圈	RING Retaining	1
24	67670	垫圈	WASHER	1
25	67706A46	旋转销总成	SWIVEL PIN ASSEMBLY	1
25	840792A1	旋转销总成	SWIVEL PIN ASSEMBLY	1
25	67706A47	旋转销总成	SWIVEL PIN ASSEMBLY	1
25	840792A1	旋转销总成	SWIVEL PIN ASSEMBLY	1
25	67706A46	旋转销总成	SWIVEL PIN ASSEMBLY	1
25	840792A1	旋转销总成	SWIVEL PIN ASSEMBLY	1
25	67706A47	旋转销总成	SWIVEL PIN ASSEMBLY	1
25	840792A1	旋转销总成	SWIVEL PIN ASSEMBLY	1
26	88659	螺钉	SCREW	2
26	8154521	螺钉	SCREW	2
27	77326	支架	MOUNT	2
27	773261	支架	MOUNT	2
28	66921	垫圈	WASHER	2
29	814432	垫圈	WASHER	2
29	78688	垫圈	WASHER	2
30	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
30	8M0204653	螺母	NUT	2
30	35000	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	2
31	888821	缓冲垫	BUMPER	1
31	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
32	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
32	92876A12	连杆总成	LINK ROD ASSEMBLY	1
33	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
33	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
34	33826	螺母	NUT	2
35	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
36	86485A7	调整传感器总成	SENDER ASSEMBLY Trim	1
36	86485A6	倾斜开关总成	TILT SWITCH ASSEMBLY	1
37	65017A19	线束总成(1母/1环/2公)	HARNESS ASSEMBLY (1 FEMALE/1 RING/2 MALES)	1
37	65017A14	线束总成(2母/2公)	HARNESS ASSEMBLY (2 FEMALE/2 MALE)	1
38	88342	绑带	STRAP	2
39	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	4
40	54457	J型卡扣	J CLIP	1
41	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	1
42	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
42	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
43	81516290	螺钉	SCREW	3
44	150311	卡箍	CLAMP	2
-	88605A89	衬垫套件	GASKET SET	1

图 32节气门杆 THROTTLE LEVER

REF	零件编号	中文名称	英文名称	数量
1	74897	枢轴	PIVOT	1
2	62459	球头总成	BALL JOINT ASSEMBLY	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
4	76035	杆	ROD	1
5	46438	螺母 (#10-32)	NUT (#10-32)	1
6	89811	杠杆	LEVER	1
7	75168	螺钉	SCREW	1
8	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
9	52023	盖帽	CAP	1
10	12405	螺钉(1-1/4英寸)	SCREW (1-1/4")	1
11	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
12	48039	盖帽	CAP	1
13	94818	杠杆	LEVER	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	衬套	BUSHING	1
16	55171	衬套	BUSHING	1
17	55162	弹簧	SPRING	1
18	68410	垫圈	WASHER	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	75168	螺钉	SCREW	2
20	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
21	52023	盖帽	CAP	2
22	39483	闩锁	LATCH	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	20099	弹簧	SPRING	1
26	35045	螺母(.250-28)	NUT (.250-28)	1
26	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
27	93259	杆	ROD	1
28	60572	套筒	BARREL	2
28	8M0221994	筒形接头	BARREL FITTING	2
29	8130011	节气门凸轮	CAM Throttle	1
30	26856	衬套	BUSHING	2
31	41122	滚珠丝杠(0.250-20 x 0.440)	BALL SCREW (.250-20 x .440)	1

图 33艉板支架 TRANSOM BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	7476T1	艉板支架	BRACKET Transom	1
1	7476T6	艉板支架	BRACKET Transom	1
2	7478T1	艉板支架	BRACKET Transom	1
2	7478T6	艉板支架	BRACKET Transom	1
3	677552	螺钉(0.500-20 x 6.500)	SCREW (.500-20 x 6.500)	2
4	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	2
4	8M0149747	螺钉	SCREW	2
4	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	2
5	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
5	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
6	8M0027784	螺母	NUT	4
6	82671117	螺母(.500-20)	NUT (.500-20)	4
7	87180	螺栓(0.500-20 x 11.00)	BOLT (.500-20 x 11.00)	1
8	20220	螺母(.500-20)	NUT (.500-20)	1
8	82671317	螺母(.500-20)	NUT (.500-20)	1
9	99170A1	倾斜管	TILT TUBE	1
9	99170A2	倾斜管套件	TUBE KIT Tilt	1
10	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
11	56041	螺母 (.875-14)	NUT (.875-14)	1
11	858869	螺母 (.875-14)	NUT (.875-14)	1
11	90068F2	螺母	NUT	1
11	859133	螺母(1.00-14)	NUT (1.00-14)	1
11	90068F3	螺母(1.00-14)	NUT (1.00-14)	1
11	859133	螺母(1.00-14)	NUT (1.00-14)	1
12	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
13	85026T	安装板	PLATE	2
13	85026T6	安装板	PLATE	2
14	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
16	85035T	隔套	SPACER	1
16	8M0237541	艉板隔套	SPACER Transom	1
16	85035T6	隔套	SPACER	1
16	85035T	隔套	SPACER	1
17	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	4
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
19	89949A1	隔板总成	PLATE ASSEMBLY	1
20	89996	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
20	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	4
21	88512	液压软管卡箍	CLAMP HYDRAULIC HOSE	4
21	75275	线束夹	CLAMP WIRING HARNESS	2
22	88829	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	6
24	79610A6	配平油缸总成(79879A1修理包)	TRIM CYLINDER ASSEMBLY (79879A1 REPAIR KIT)	1
24	79610A11	配平油缸(79879A1修理包)	TRIM CYLINDER (79879A1 REPAIR KIT)	1
24	79610A18	配平油缸	TRIM CYLINDER	1
25	86489	衬套	BUSHING	2
26	85022	垫圈(2.00 x 1.06 x 0.060)	WASHER (2.00 x 1.06 x .060)	2
27	30316	弹簧	SPRING	2
28	85020	枢轴销	PIN Pivot	2
28	85020T	枢轴销	PIN Pivot	2
29	85024	轴	SHAFT	1
30	86637	轴承	BEARING	2
31	91862	销	PIN	1
-	79879A1	配平油缸修理包	REPAIR KIT Trim Cylinder	1

图 34线束、启动继电器与整流器 WIRING HARNESS, STARTER SOLENOID AND RECTIFIER

REF	零件编号	中文名称	英文名称	数量
1	918822	点火板	IGNITION PLATE	1
2	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
3	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
4	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	2
5	47483	J型夹(1/2英寸)	J CLIP (1/2")	1
6	36042	垫圈	WASHER	6
7	67264	垫圈(橡胶)	WASHER (Rubber)	6
8	67268	衬套	BUSHING	3
9	33386A3	开关总成	SWITCH ASSEMLBY	1
10	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	1
11	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
12	36242	滚动销	PIN Roll	2
13	66986	端子排	TERMINAL BLOCK	1
14	22523	螺钉(0.190-32×0.75)	SCREW (.190-32 x .75)	1
15	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	1
16	92432A7	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
16	92432A6	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
17	79091	保险丝20安培	FUSE 20 Ampere	1
17	8M0207796	保险丝20安培	FUSE 20 AMP	1
18	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1
19	78799	温度传感器(19.50英寸)	SENDER Temperature (19.50 Inch)	1
20	13899	卡环	RING Snap	1
21	88751	卡箍	CLAMP	1
22	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
23	20533	垫圈	WASHER	1
24	88824A9	电缆总成(棕褐色-25英寸)	CABLE ASSEMBLY (TAN - 25")	1
24	88807A21	电缆总成(黑色-4-1/2英寸)	CABLE ASSEMBLY (BLACK -4-1/2")	1
24	88807A38	电缆总成(24英寸)	CABLE ASSEMBLY (24")	1
25	14857A7	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
25	14857A16	机油报警模块	MODULE-OILWARNING	1
26	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	2
27	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
27	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
28	88439A14	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
28	88439A2	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
29	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
29	853654A1	电磁阀	SOLENOID	1
30	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
31	39107	锁紧垫圈(0.312-24)	LOCKWASHER (.312-24)	1
32	93389A2	导线(黄色)	WIRE (YELLOW)	1
33	68292	螺母(.312-18)	NUT (.312-18)	1
33	8M0204668	螺母(.312-18)	NUT (.312-18)	1
34	90198	螺钉(5/8英寸)	SCREW (5/8")	2
34	20540	螺钉(.250-20 x .62)	SCREW (.250-20 x .62)	2
35	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
36	86926A11	限速器总成	SPEED LIMITER ASSEMBLY	1
37	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
38	42551A1	二极管总成	DIODE ASSEMBLY	1
39	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
40	90818	螺钉	SCREW	4
41	91912	衬套	BUSHING	4
42	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
43	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
44	92485A2	线圈到开关盒线束总成(#2,4和6)	HARNESS ASSEMBLY COIL TO SWITCH BOX (#2, 4 AND 6)	1
44	92486A2	线圈到开关盒线束总成(#1,3和5)	HARNESS ASSEMBLY COIL TO SWITCH BOX (#1,3 AND 5)	1
45	5790811	套管(10.00英寸散装)	SLEEVE (10.00 Inches Bulk)	1
