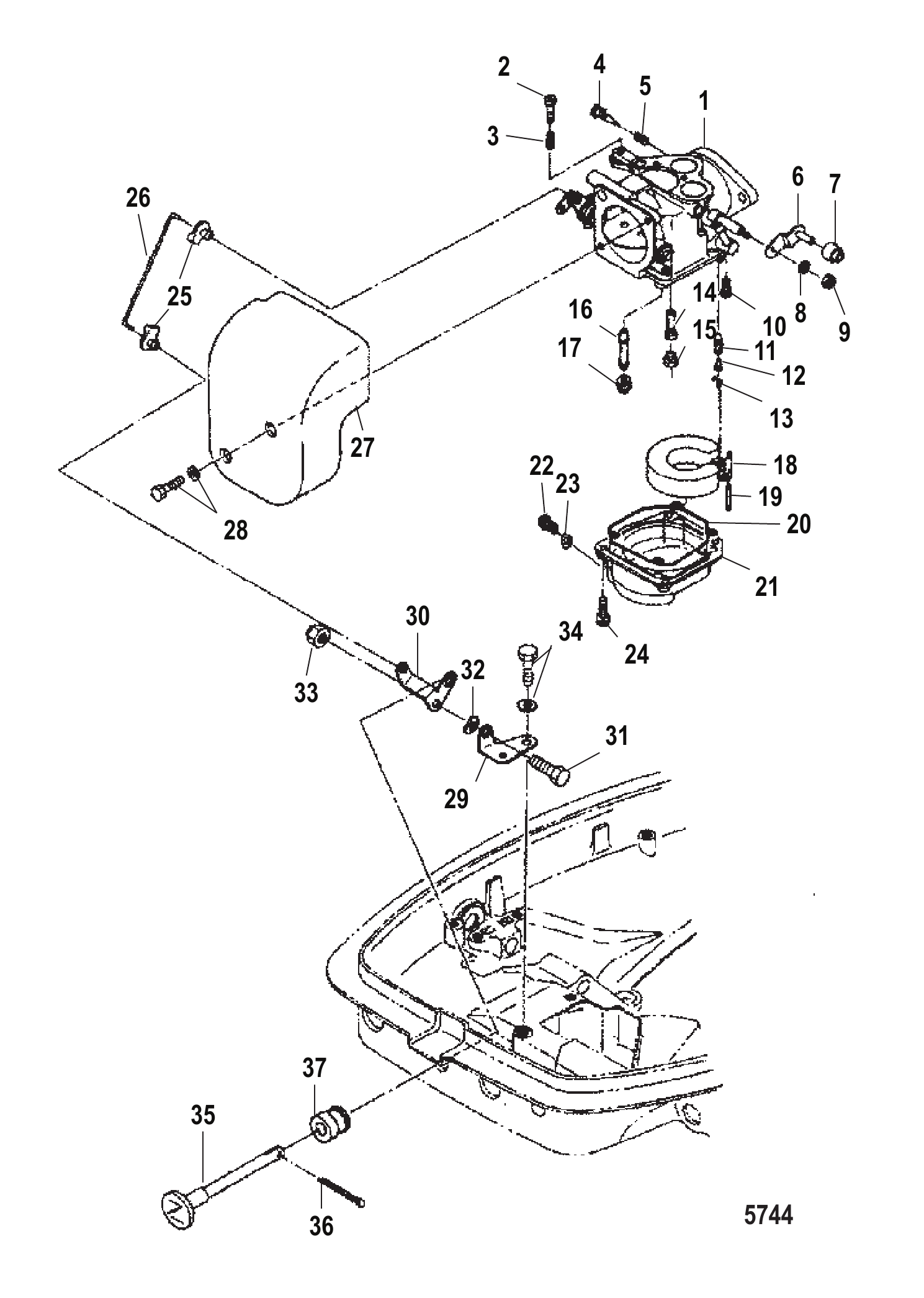

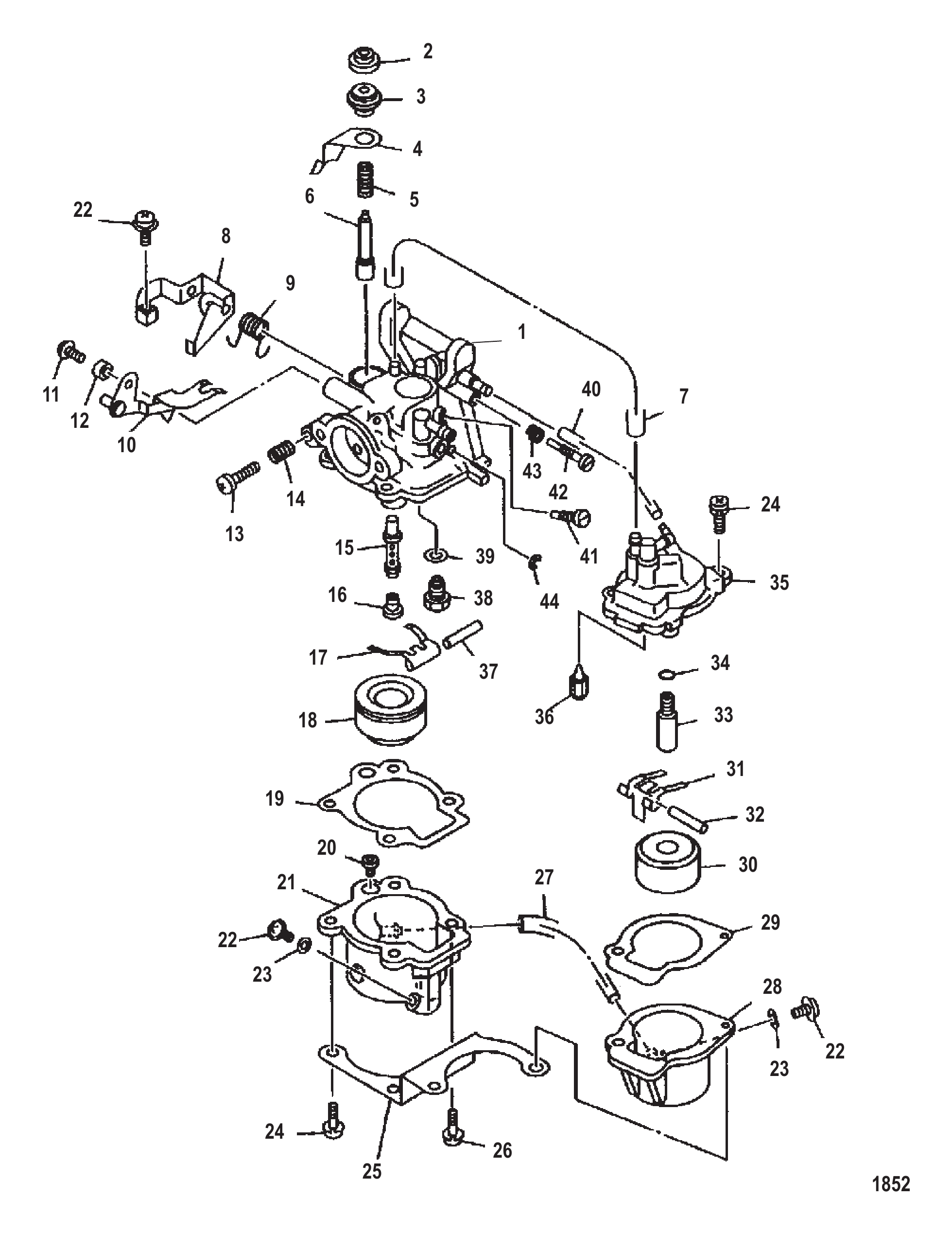

两冲程 化油器 · USA - Cat.# 90-854300 · 共 43 个部位 · 1680 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 853720A8 | 化油器 | CARBURETOR | 1 |
| 2 | 16263 | 螺钉 | SCREW | 1 |
| 3 | 16264 | 弹簧 | SPRING | 1 |
| 4 | 8129351 | 引导调节螺钉 | SCREW Pilot Adjust | 1 |
| 5 | 162661 | 弹簧 | SPRING | 1 |
| 6 | 952683 | 油门杆 | LEVER Throttle | 1 |
| 7 | 853788 | 滚轮 | ROLLER | 1 |
| 8 | 853723 | 锁紧垫圈 | LOCKWASHER | 1 |
| 9 | 853722 | 螺母 | NUT | 1 |
| 10 | 162571 | 螺钉 | SCREW | 1 |
| 11 | 162546 | 浮子阀 | VAVLE Float | 1 |
| 12 | 853721 | 阀门销 | PIN Valve | 1 |
| 13 | 16255 | 卡扣 | CLIP | 1 |
| 14 | 162511 | 引导喷口(#85) | JET Pilot (#85) | 1 |
| 15 | 16252 | 盖帽 | CAP | 1 |
| 16 | 8126501 | 主喷管 | MAIN NOZZLE | 1 |
| 17 | 162501 | 主喷口(#155) | JET Main (#155) | 1 |
| 18 | 162531 | 浮子 | FLOAT | 1 |
| 19 | 16256 | 销 | PIN | 1 |
| 20 | 162591 | O型圈 | O-RING | 1 |
| 21 | 162582 | 浮子室 | FLOAT BOWL | 1 |
| 22 | 162611 | 放油螺钉 | SCREW Drain | 1 |
| 23 | 8537092 | O型圈 | O-RING | 1 |
| 24 | 162601 | 螺钉 | SCREW | 4 |
| 25 | 16333 | 卡扣拉杆 | ROD Snap | 2 |
| 26 | 853727 | 阻风门连杆 | ROD Choke Link | 1 |
| 26 | 8M0170572 | 阻风门连杆 | ROD CHOKE LINK | 1 |
| 26 | 853727001 | 阻风门连杆 | ROD Choke Link | 1 |
| 26 | 8M0170572 | 阻风门连杆 | ROD CHOKE LINK | 1 |
| 27 | 8537281 | 盖板 | COVER | 1 |
| 28 | 168285 | 螺栓 | BOLT | 2 |
| 28 | 82304223 | 螺栓 | BOLT | 2 |
| 29 | 853726 | 阻风门杠杆支架 | BRACKET Choke Lever | 1 |
| 30 | 853725 | 阻风门杆 | LEVER Choke | 1 |
| 31 | 16223 | 螺栓(M6x14) | BOLT (M6 x 14) | 1 |
| 32 | 8537231 | 波形垫圈 | WAVE WASHER | 1 |
| 33 | 8537227 | 尼龙螺母 | NUT Nylon | 1 |
| 34 | 162111 | 螺栓 | BOLT | 2 |
| 34 | 8230427 | 螺栓总成(M6 x 12) | BOLT ASSEMBLY (M6 x 12) | 2 |
| 35 | 853724 | 阻风门旋钮 | KNOB Choke | 1 |
| 35 | 853724001 | 阻风门旋钮 | CHOKE KNOB | 1 |
| 36 | 8150261 | 开口销 | COTTER PIN | 1 |
| 37 | 8537093 | 衬套 | BUSHING | 1 |
| - | 853780A1 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

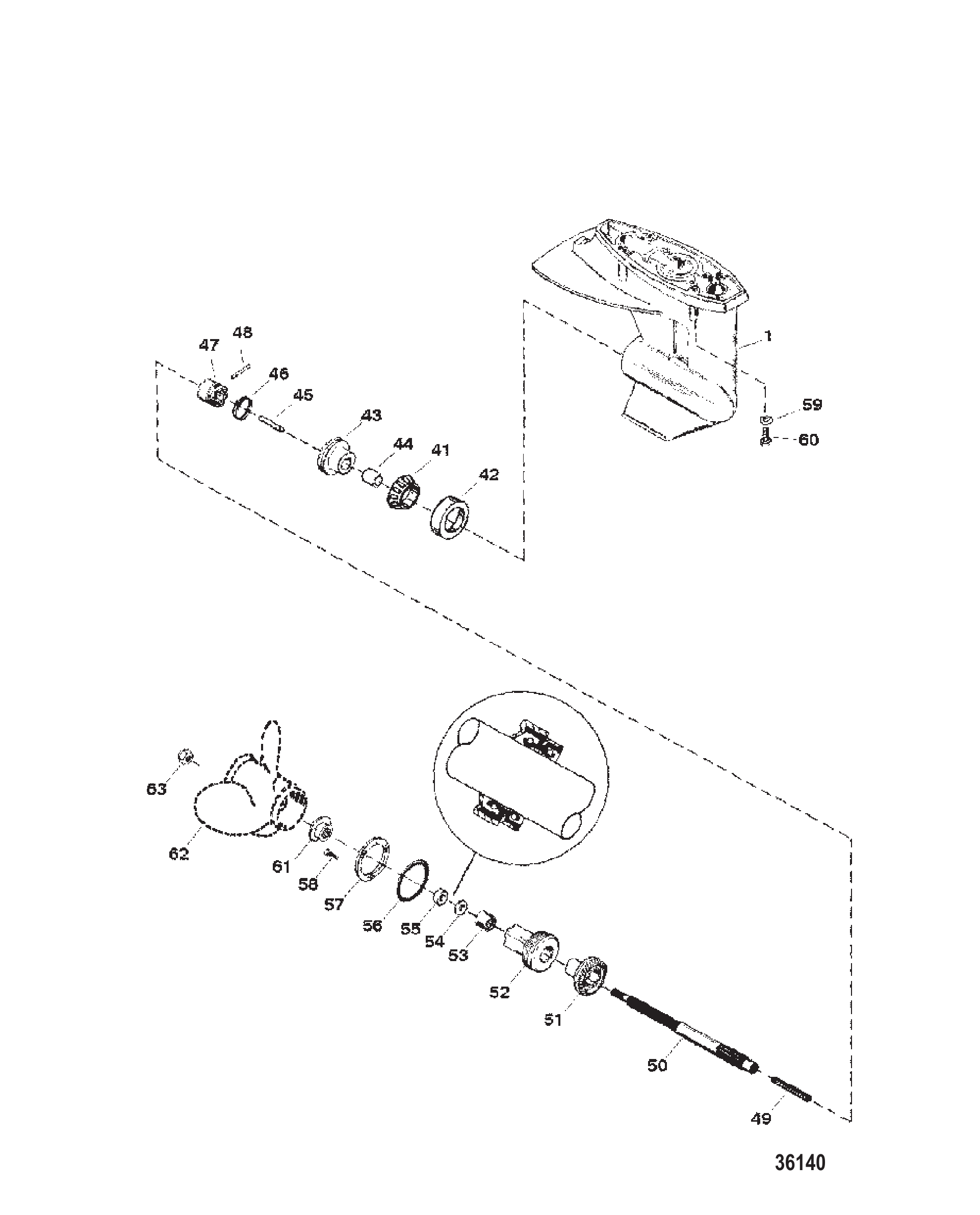

| 1 | 8669A42 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A43 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A44 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A45 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8669A22 | 齿轮箱总成基础型-灰色 | GEAR HOUSING ASSEMBLY Basic-Gray | 1 |
| 41 | 99328A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 42 | NSS | 滚子轴承杯(不单独销售) | NOT SOLD SEPARATE Cup-Roller Bearing | 1 |
| 43 | 44213A1 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 44 | 85557 | 衬套 | BUSHING | 1 |
| 45 | 85094 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 46 | 38114 | 弹簧 | SPRING | 1 |
| 47 | 410401 | 离合器 | CLUTCH | 1 |
| 48 | 85093 | 销 | PIN | 1 |
| 49 | 88680 | 弹簧 | SPRING | 1 |
| 50 | 8166231 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 51 | 99542 | 倒挡齿轮 | GEAR Reverse | 1 |
| 52 | 99906A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 53 | 21739 | 滚柱轴承 | BEARING Roller | 1 |
| 54 | 41132 | 油封(内) | SEAL Oil (INNER) | 1 |
| 55 | 41131 | 油封(外) | SEAL Oil (OUTER) | 1 |
| 56 | 85549 | O型圈 | O-RING | 1 |
| 57 | 87293 | 安装板 | PLATE | 1 |
| 58 | 90883 | 螺钉(M5×16) | SCREW (M5 x 16) | 3 |
| 59 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 4 |
| 60 | 65210 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 4 |
| 61 | 8M0027793 | 轮毂 | HUB | 1 |
| 62 | 19640A40 | BLACK MAX螺旋桨(铝-10.375 X 13.0 RH) | BLACK MAX PROPELLER (ALUM-10.375 X 13.0 RH) (BLACK MAX) | 1 |
| 62 | 19642A40 | 螺旋桨(铝-10.250 X 14.5 RH)(BLACK MAX) | PROPELLER (ALUM-10.250 X 14.5 RH) (BLACK MAX) | OPT |
| 62 | 19639A40 | BLACK MAX螺旋桨(铝-10.375 X 12.0 RH) | BLACK MAX PROPELLER (ALUM-10.375 X 12.0 RH) (BLACK MAX) | OPT |
| 62 | 19638A40 | BLACK MAX螺旋桨(铝-10.375 X 11.0 RH) | BLACK MAX PROPELLER (ALUM-10.375 X 11.0 RH) (BLACK MAX) | OPT |
| 62 | 19636A10 | BLACK MAX螺旋桨(铝-10.375 X 9.50 RH) | BLACK MAX PROPELLER (ALUM-10.375 X 9.50 RH) (BLACK MAX) | OPT |
| 62 | 43592A5 | 螺旋桨(不锈钢-10.375 X 18.0 RH)(CHOPPER) | PROPELLER (SS-10.375 X 18.0 RH) (CHOPPER) | OPT |
| 62 | 19644A5 | VENGEANCE螺旋桨(不锈钢-10.375 X 13.0 RH) | VENGEANCE PROPELLER (SS-10.375 X 13.0 RH) (VENGEANCE) | OPT |
| 63 | 4011912 | 螺旋桨螺母(M12黄铜)-不锈钢螺旋桨用 | PROP NUT (M12 BRASS)-FOR SS PROPELLERS | OPT |
| 63 | 88228 | 螺旋桨螺母(M12尼龙)-铝制螺旋桨用 | PROP NUT (M12 NYLON)-FOR ALUM PROPELLERS | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

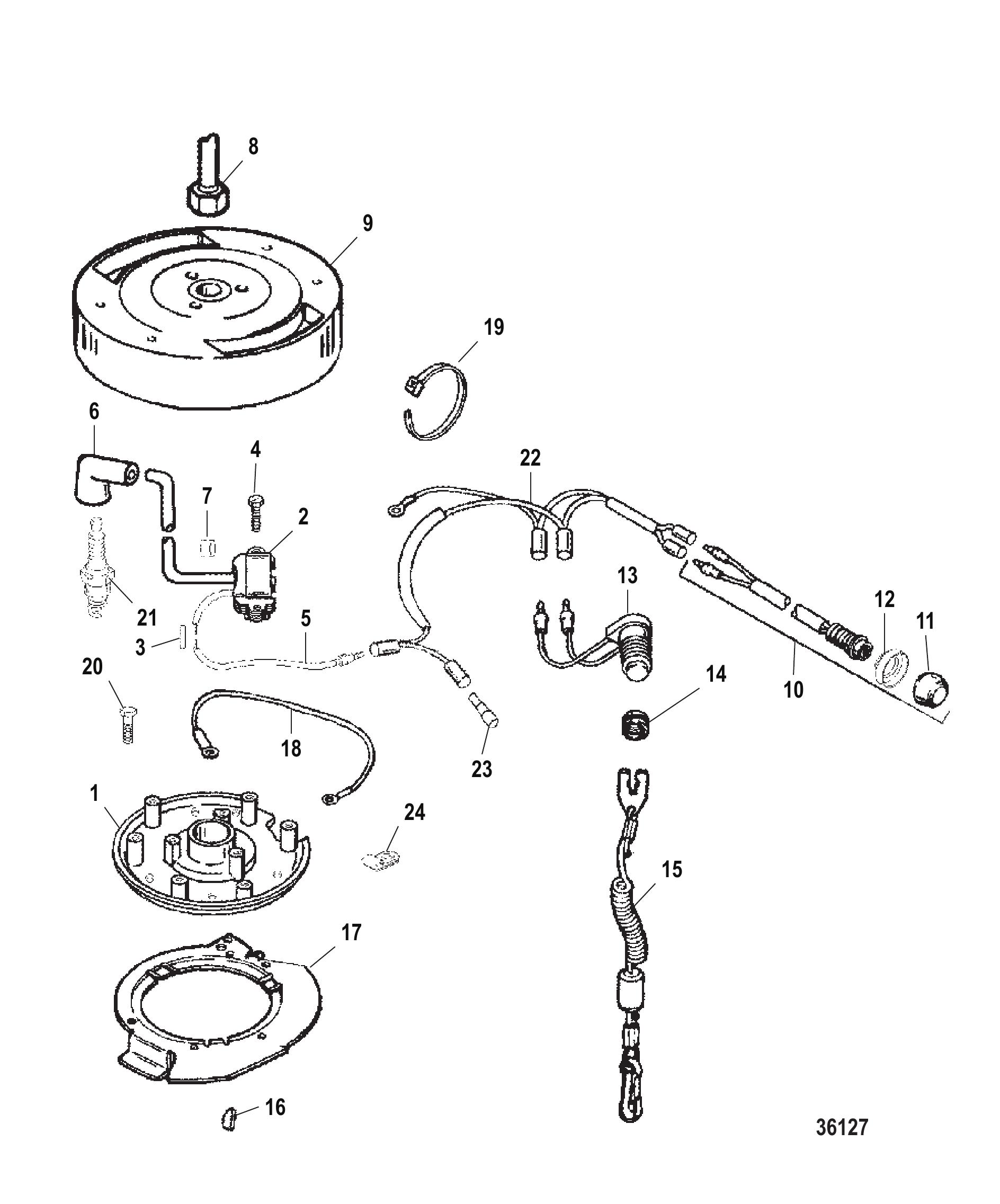

| - | 819155A2 | 定子总成(完整) | STATOR ASSEMBLY (COMPLETE) | 1 |
| 1 | 819155T | 定子板 | PLATE Stator | 1 |
| 2 | 850899T1 | 点火模块套件 | MODULE KIT Ignition | 3 |
| 3 | 830865 | 连接器(仅维修用) | CONNECTOR (SERVICE ONLY) | AR |
| 3 | 8M0204694 | 连接器 | CONNECTOR | AR |
| 4 | 824353 | 螺钉(#8-32 X .750)-点火模块安装 | SCREW (#8-32 X .750)-IGN MODULE MOUNT | 9 |
| 5 | 12479A60 | 模块到线束电缆总成 | CABLE ASSEMBLY Modules To Harness | 1 |
| 6 | 63709A1 | 护套/端子套件 | BOOT/TERMINAL KIT | 3 |
| 7 | 20117A1 | 点火电缆标记套件(#1)(#2)(#3) | MARKER SET Ignition Cables (#1) (#2) (#3) | 1 |
| 8 | F681091 | 专用螺母-飞轮 | NUT (SPECIAL)-FLYWHEEL | 1 |
| 9 | 824380T3 | 飞轮 | FLYWHEEL | 1 |
| 9 | 824380T4 | 飞轮 | FLYWHEEL | 1 |
| 10 | 824440A6 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 10 | 824440A14 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 11 | 824466A3 | 停机开关盖总成 | COVER ASSEMBLY Stop Switch | 1 |
| 12 | 824915 | 停机开关盖饰圈 | BEZEL Stop Switch Cover | 1 |
| 13 | 826214A1 | 紧急停止开关总成 | SWITCH ASSEMBLY Emergency Stop | 1 |
| 14 | F681188 | 专用螺母-停机开关套筒 | NUT (SPECIAL)-STOP SWITCH SLEEVE | 1 |
| 14 | 855594 | 螺母 | NUT | 1 |
| 15 | 819399A1 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 15 | 879104 | 带夹子的拉绳 | LANYARD W/CLIP | 1 |
| 16 | F458498-1 | 曲轴/飞轮键 | KEY Crankshaft/Flywheel | 1 |
| 17 | 8278961 | 节气门凸轮 | CAM Throttle | 1 |
| 18 | 821375A44 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 19 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | AR |
| 19 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 19 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 20 | 824358 | 螺钉(#10-24 x .500)(#10-24 X .500)-定子板 | SCREW (#10-24 x .500) (#10-24 X .500)-STATOR PLATE | 5 |
| 21 | 811 | 火花塞(CHAMPION # L82C) | SPARK PLUG (CHAMPION # L82C) | 3 |
| 21 | 896323 | SP #L82C @4 | SP #L82C @4 | 3 |
| 21 | 874 | 火花塞(RFI)(CHAMPION # RL82C) | SPARK PLUG (RFI) (CHAMPION # RL82C) | OPT |
| 21 | 896329874 | SP #RL82C @4 | SP #RL82C @4 | OPT |
| 22 | 79138A93 | 发动机停机线束总成 | HARNESS ASSEMBLY Engine Stop | 1 |
| 23 | 13541 | 公插头 | PLUG Male | 1 |
| 24 | 831275 | 卡箍 | CLAMP | 1 |

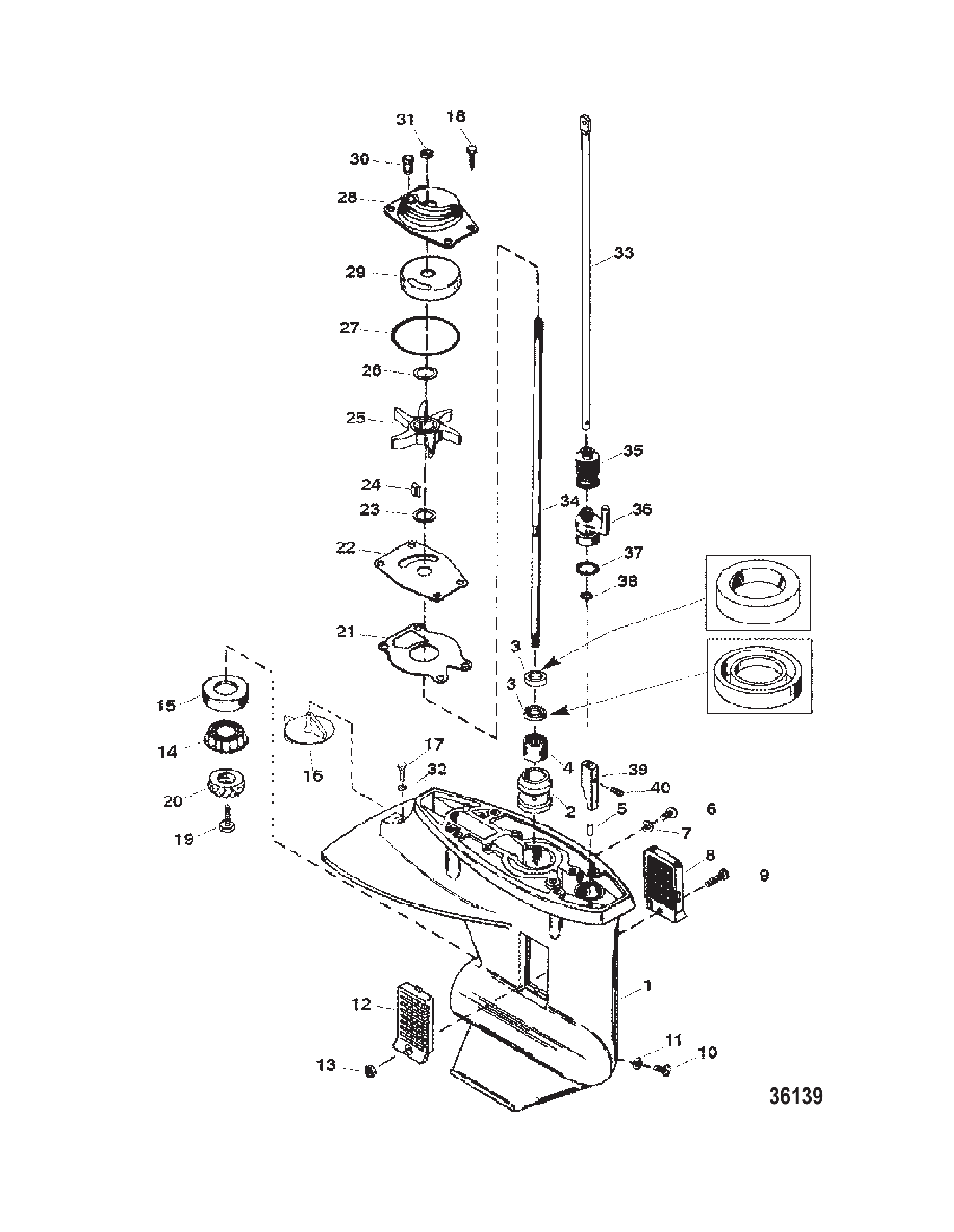

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

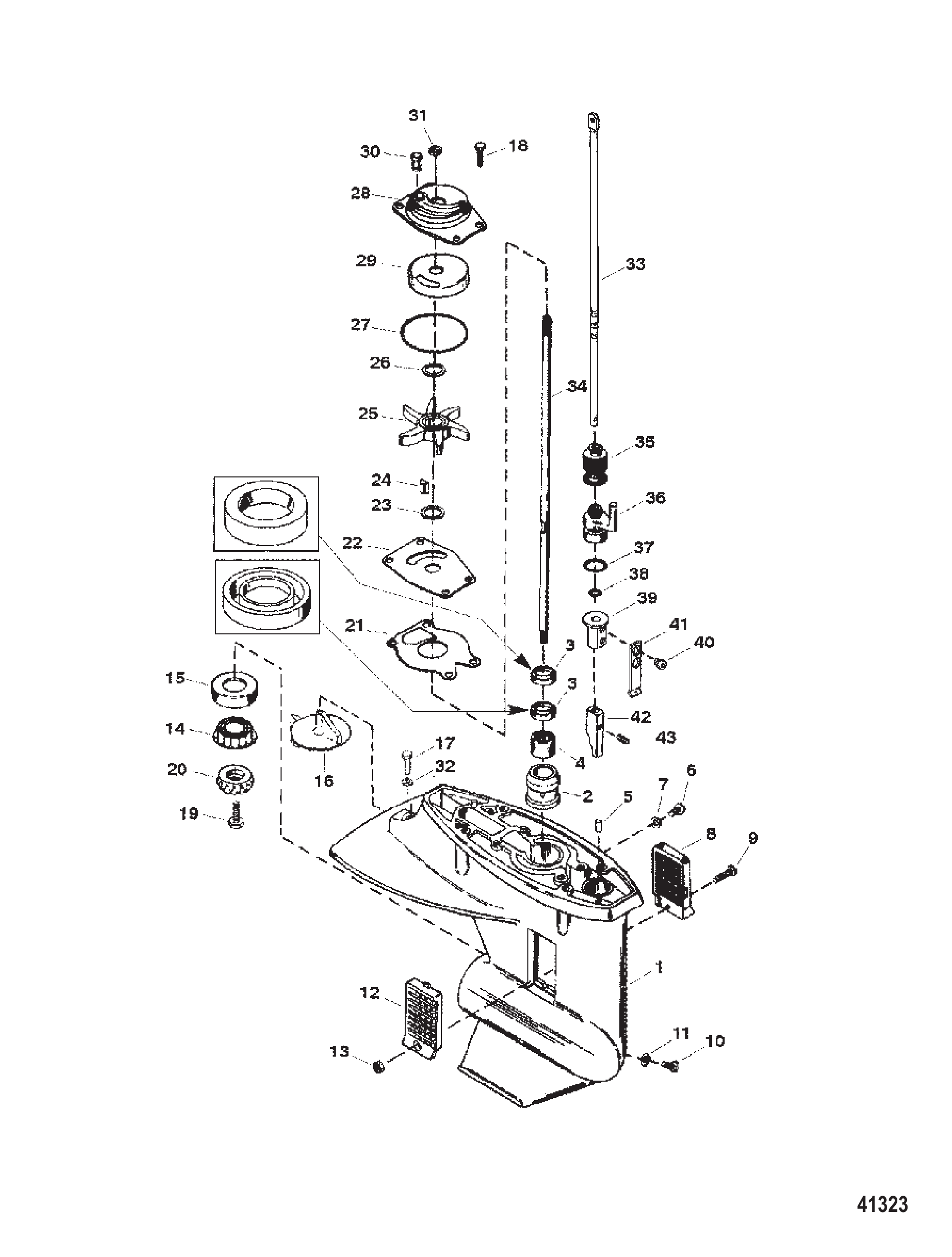

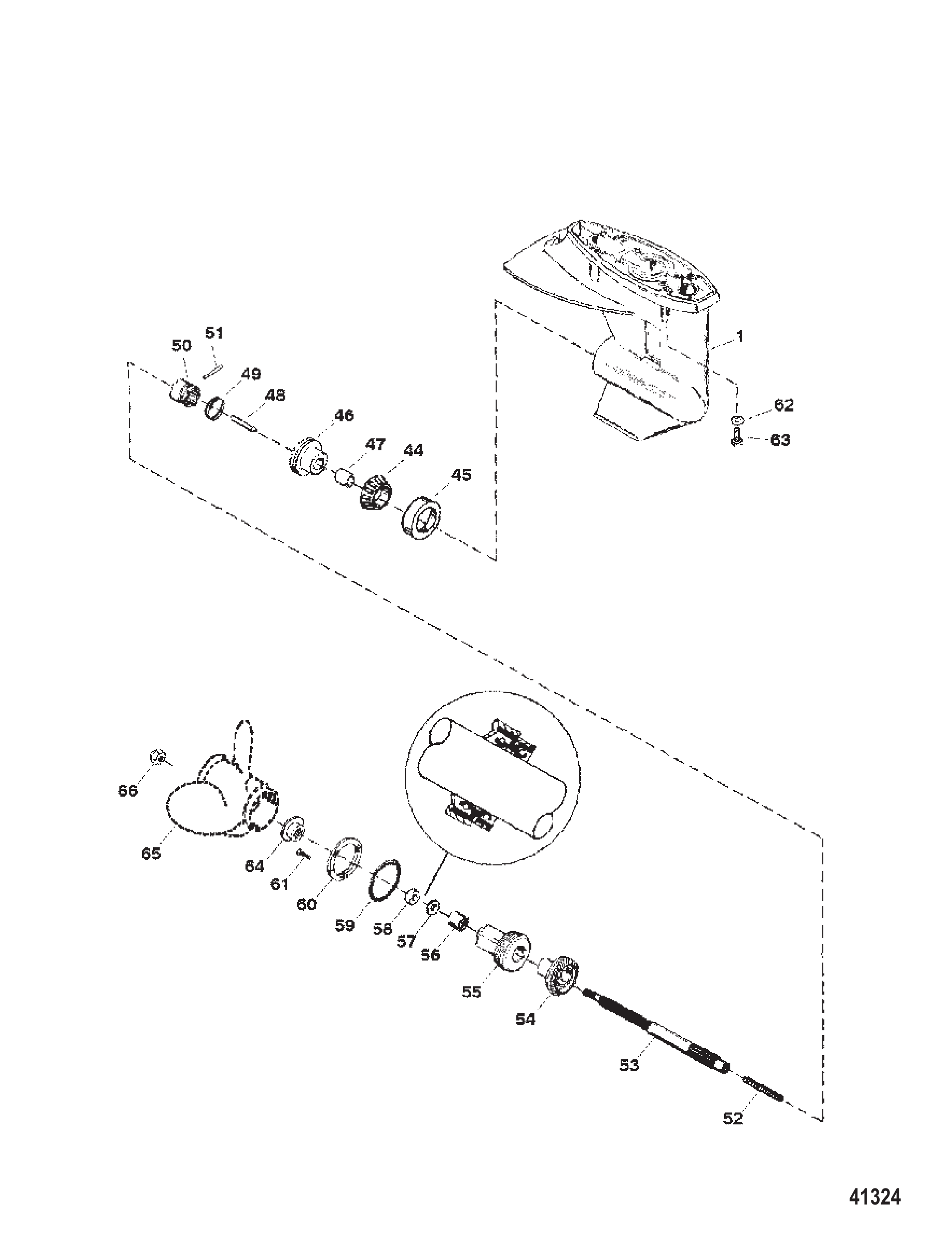

| 1 | 8669A35 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A36 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A37 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A38 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083538 | GC BASIC 25 2S | GC BASIC 25 2S | 1 |
| 1 | 8669A22 | 齿轮箱总成基础型-灰色 | GEAR HOUSING ASSEMBLY Basic-Gray | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 2 | NSS | NOT SOLD SEPARATE SLEEVE | 1 | |
| 3 | 99325 | 密封件 | SEAL | 2 |
| 4 | 41326 | 滚柱轴承 | BEARING Roller | 1 |
| 5 | 85500 | 定位销(.187 x .530) | PIN Dowel (.187 x .530) | 1 |
| 5 | 8M0084726 | 定位销 | PIN Dowel | 1 |
| 6 | 79953A2 | 螺丝套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) | 1 |
| 6 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 7 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 7 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 8 | 41133 | 进水口滤网 | SCREEN Water Inlet Port | 1 |
| 9 | 40031112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 1 |
| 10 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | 1 |
| 10 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 11 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 11 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 12 | 41134 | 滤网(右舷) | SCREEN (STARBOARD) | 1 |
| 13 | 400263 | 螺母(M5)滤网螺钉 | NUT (M5) SCREEN SCREW | 1 |
| 14 | 98294A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 15 | NSS | NOT SOLD SEPARATE CUP | 1 | |
| 16 | 984325 | 平衡鳍板 | TRIM TAB | 1 |
| 16 | 98432Q6 | 平衡鳍板 | TRIM TAB | 1 |
| 17 | 4000354 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 1 |
| 18 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 19 | 49908 | 螺钉(.250-28 x .750) | SCREW (.250-28 x .750) | 1 |
| 20 | 98302 | 小齿轮 | GEAR Pinion | 1 |
| 21 | 993261 | 衬垫 | GASKET | 1 |
| 22 | 85083 | 面板 | FACE PLATE | 1 |
| 23 | 8M0027721 | 垫圈 | WASHER | 1 |
| 23 | 8M0204722 | 垫圈 | WASHER | 1 |
| 24 | 85119 | 键 | KEY | 1 |
| 24 | 8M0214993 | 键@5 | KEY @5 | 1 |
| 25 | 850893 | 叶轮 | IMPELLER | 1 |
| 25 | 8M0204712 | 叶轮 | IMPELLER | 1 |
| 26 | 8M0027721 | 垫圈 | WASHER | 1 |
| 26 | 8M0204722 | 垫圈 | WASHER | 1 |
| 27 | 69202 | O型圈 | O-RING | 1 |
| 28 | 99157A1 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 28 | 99157A02 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 29 | NSS | NOT SOLD SEPARATE INSERT | 1 | |
| 30 | 85090 | 密封件 | SEAL | 1 |
| 30 | 85090001 | 密封件 | SEAL | 1 |
| 31 | 86203 | O型圈 | O-RING | 1 |
| 32 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 1 |
| 32 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 1 |
| 33 | 8191683 | 杆 | ROD | 1 |
| 33 | 8191684 | 杆 | ROD | 1 |
| 34 | 827024T | 驱动轴 | DRIVESHAFT | 1 |
| 34 | 827025T | 驱动轴 | DRIVESHAFT | 1 |
| 35 | 85552 | 护套 | BOOT | 1 |
| 35 | 85552001 | 护套 | BOOT | 1 |
| 36 | 93878 | 固定座 | RETAINER | 1 |
| 37 | 35276 | O型圈(.734 x .139) | O-RING (.734 x .139) | 1 |
| 38 | 85594 | O型圈(.239 x .174) | O-RING (.239 x .174) | 1 |
| 39 | 826250 | 套筒 | SLEEVE | 1 |
| 40 | 835461 | 螺钉(#10-32 X .190) | SCREW (#10-32 X .190) | 4 |
| 41 | 39627 | 弹簧 | SPRING | 2 |
| 42 | 85562A2 | 换挡凸轮 | SHIFT CAM | 1 |
| 43 | 85096 | 驱动销 | PIN Drive | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| - | 99157A2 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 99157T2 | 水泵套件 | PUMP KIT Water | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

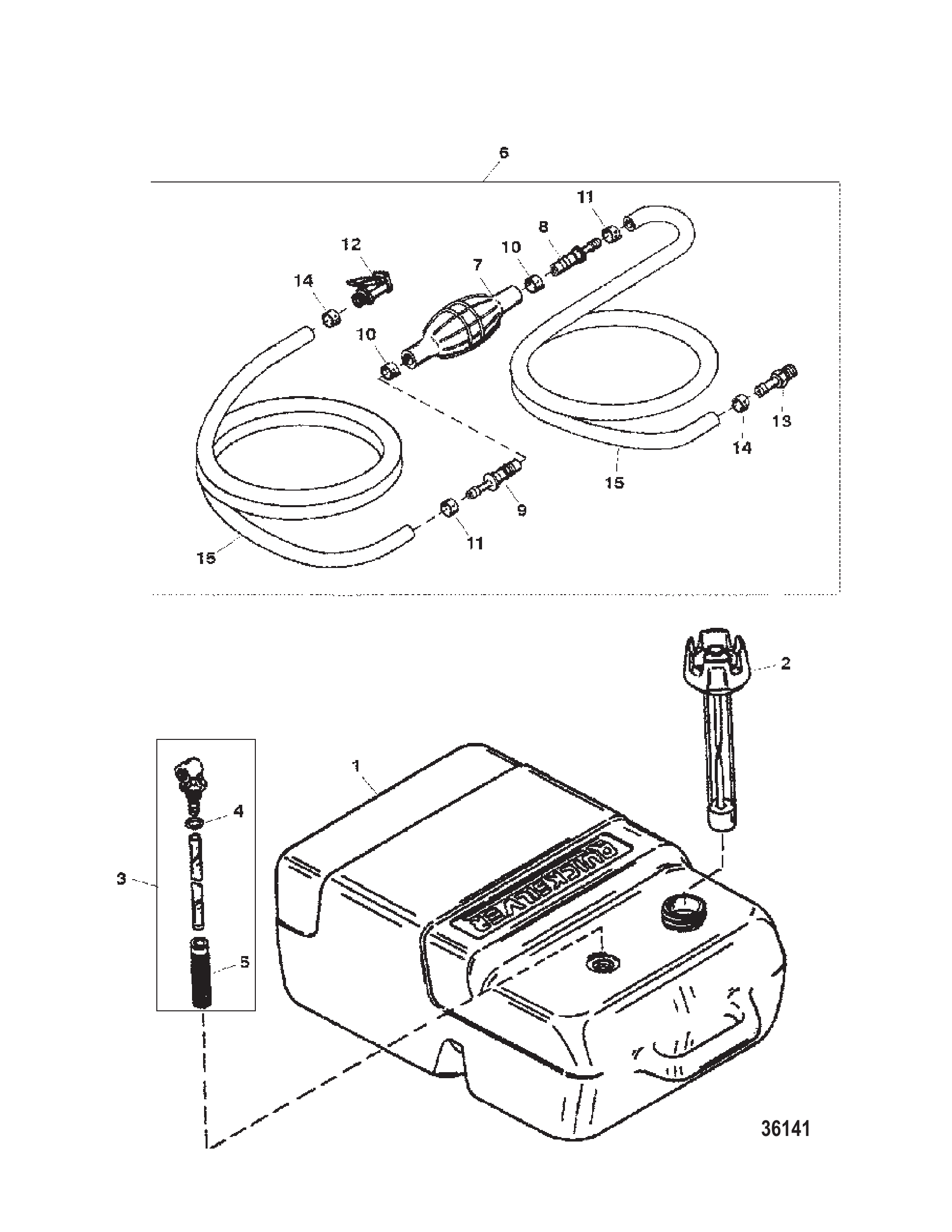

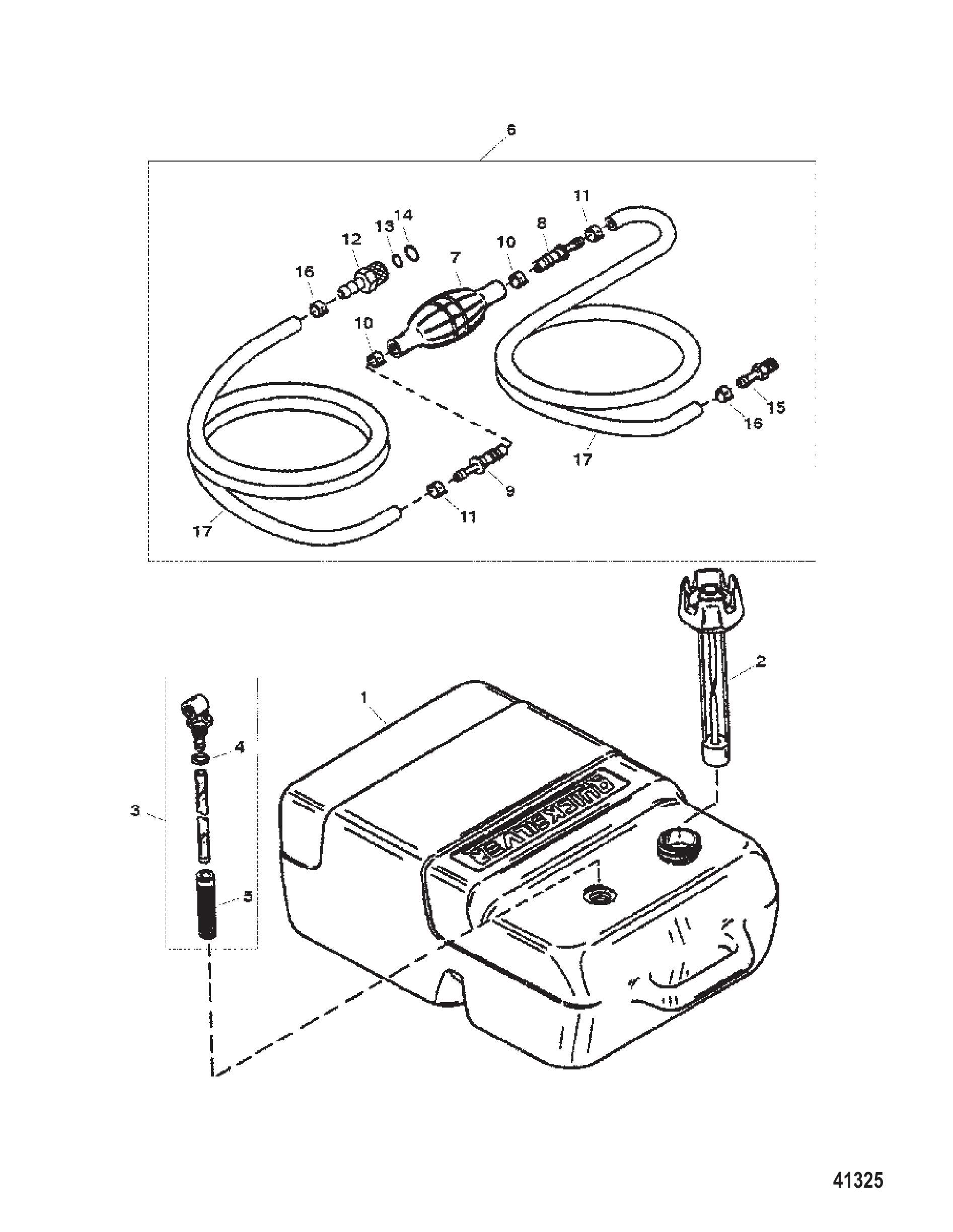

| 1 | 823504A1 | 燃油箱总成-塑料6.6加仑 | TANK ASSEMBLY Fuel - Plastic 6.6 Gallon | 1 |
| 1 | 859063A1 | 燃油箱总成 | TANK ASSEMBLY Fuel | 1 |
| 2 | 823536 | 油量表/油箱盖总成 | GAUGE/CAP ASSEMBLY | 1 |
| 2 | 816976Q1 | 燃油手动通气盖总成 | CAP ASSEMBLY Fuel-Manual Vent | 1 |
| 3 | 823532 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 3 | 8M0175545 | 燃油连接套件 6.6 | CONN KIT FUEL 6.6 | 1 |
| 4 | 823533 | O型圈 | O-RING | 1 |
| 5 | 823534 | 滤网 | SCREEN | 1 |
| 6 | 17146A8 | 燃油管路总成(8英尺)(内径0.312)(30英寸&60英寸) | LINE ASSEMBLY Fuel (8 Feet) (.312 I.D.)(30.00 IN. & 60.00 IN.) | 1 |
| 6 | 877681Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 7 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 7 | 13330Q07 | 注油泵总成 - Quicksilver品牌 | BULB ASSEMBLY Primer - Quicksilver Brand | 1 |
| 8 | 13331A1 | CHECK VALVE ASSEMBLY (INLET) | 1 | |
| 8 | 13331A3 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 9 | 13331A2 | CHECK VALVE ASSEMBLY (OUTLET) | 1 | |
| 9 | 13331A4 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 10 | 4158210 | CLAMP Nylon (LARGE) | 2 | |
| 11 | 415827 | CLAMP Nylon (SMALL) | 2 | |
| 11 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 12 | 13563A3 | 燃油管接头总成 | FITTING ASSEMBLY Fuel Line | 1 |
| 12 | 13563Q3 | 发动机端快速接头(水星) | QUICK DISCONNECT Engine End (Quicksilver) | 1 |
| 13 | 897711 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 13 | 89771Q2 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 14 | 415827 | CLAMP Nylon (SMALL) | 2 | |
| 14 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 15 | 1678978 | 软管(9.00英尺整卷)按需裁切 | HOSE (9.00 Feet Bulk) CUT AS REQ'D | AR |
| 15 | 85861079 | 软管(9.00英尺整卷) | HOSE (9.00 Feet Bulk) | AR |
| 15 | 16789100 | 软管(100.00英尺整卷)按需裁切 | HOSE (100.00 Feet Bulk) CUT AS REQ'D | AR |
| 15 | 858610100 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 823504A3 | 燃油箱总成(完整) | TANK ASSEMBLY Fuel (COMPLETE) | 1 |
| 1 | 823504A1 | 燃油箱总成-塑料6.6加仑 | TANK ASSEMBLY Fuel - Plastic 6.6 Gallon | 1 |
| 1 | 859063A1 | 燃油箱总成 | TANK ASSEMBLY Fuel | 1 |
| 2 | 823536 | 油量表/油箱盖总成 | GAUGE/CAP ASSEMBLY | 1 |
| 2 | 816976Q1 | 燃油手动通气盖总成 | CAP ASSEMBLY Fuel-Manual Vent | 1 |
| 3 | 823532 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 3 | 8M0175545 | 燃油连接套件 6.6 | CONN KIT FUEL 6.6 | 1 |
| 4 | 823533 | O型圈 | O-RING | 1 |
| 5 | 823534 | 滤网 | SCREEN | 1 |
| 6 | 820572A8 | 燃油管路总成(.312内径)(8.00英尺)(30.00英寸&60.00英寸) | LINE ASSEMBLY Fuel (.312 I.D.) (8.00 FT.) (30.00 IN. & 60.00 IN.) | 1 |
| 6 | 877684Q8 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| 7 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 7 | 13330Q07 | 注油泵总成 - Quicksilver品牌 | BULB ASSEMBLY Primer - Quicksilver Brand | 1 |
| 8 | 13331A1 | CHECK VALVE ASSEMBLY (INLET) | 1 | |
| 8 | 13331A3 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 9 | 13331A2 | CHECK VALVE ASSEMBLY (OUTLET) | 1 | |
| 9 | 13331A4 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 10 | 4158210 | CLAMP Nylon (LARGE) | 2 | |
| 11 | 415827 | CLAMP Nylon (SMALL) | 2 | |
| 11 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 12 | F197787-3 | 燃油接头 | COUPLER Fuel | 1 |
| 12 | F197787Q3 | 燃油接头总成 | COUPLER ASSEMBLY Fuel | 1 |
| 13 | F17815 | 小密封件 | SEAL (SMALL) | 1 |
| 14 | F17816 | 大密封件 | SEAL (LARGE) | 1 |
| 15 | 897711 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 15 | 89771Q2 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 16 | 415827 | CLAMP Nylon (SMALL) | 2 | |
| 16 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 17 | 1678978 | 软管(9.00英尺整卷)按需裁切 | HOSE (9.00 Feet Bulk) CUT AS REQ'D | AR |
| 17 | 85861079 | 软管(9.00英尺整卷) | HOSE (9.00 Feet Bulk) | AR |
| 17 | 16789100 | 软管(100.00英尺整卷)按需裁切 | HOSE (100.00 Feet Bulk) CUT AS REQ'D | AR |
| 17 | 858610100 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |

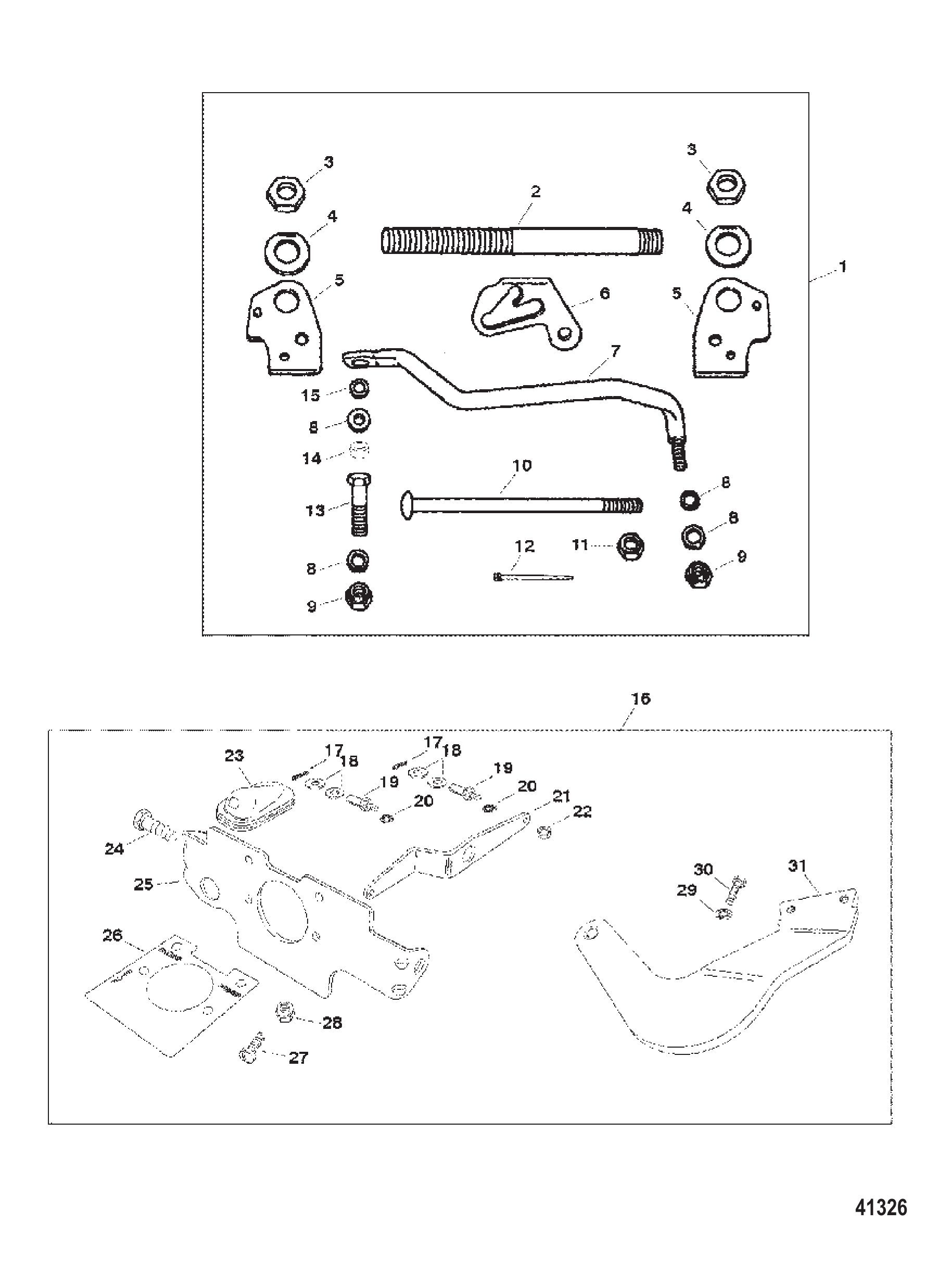

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

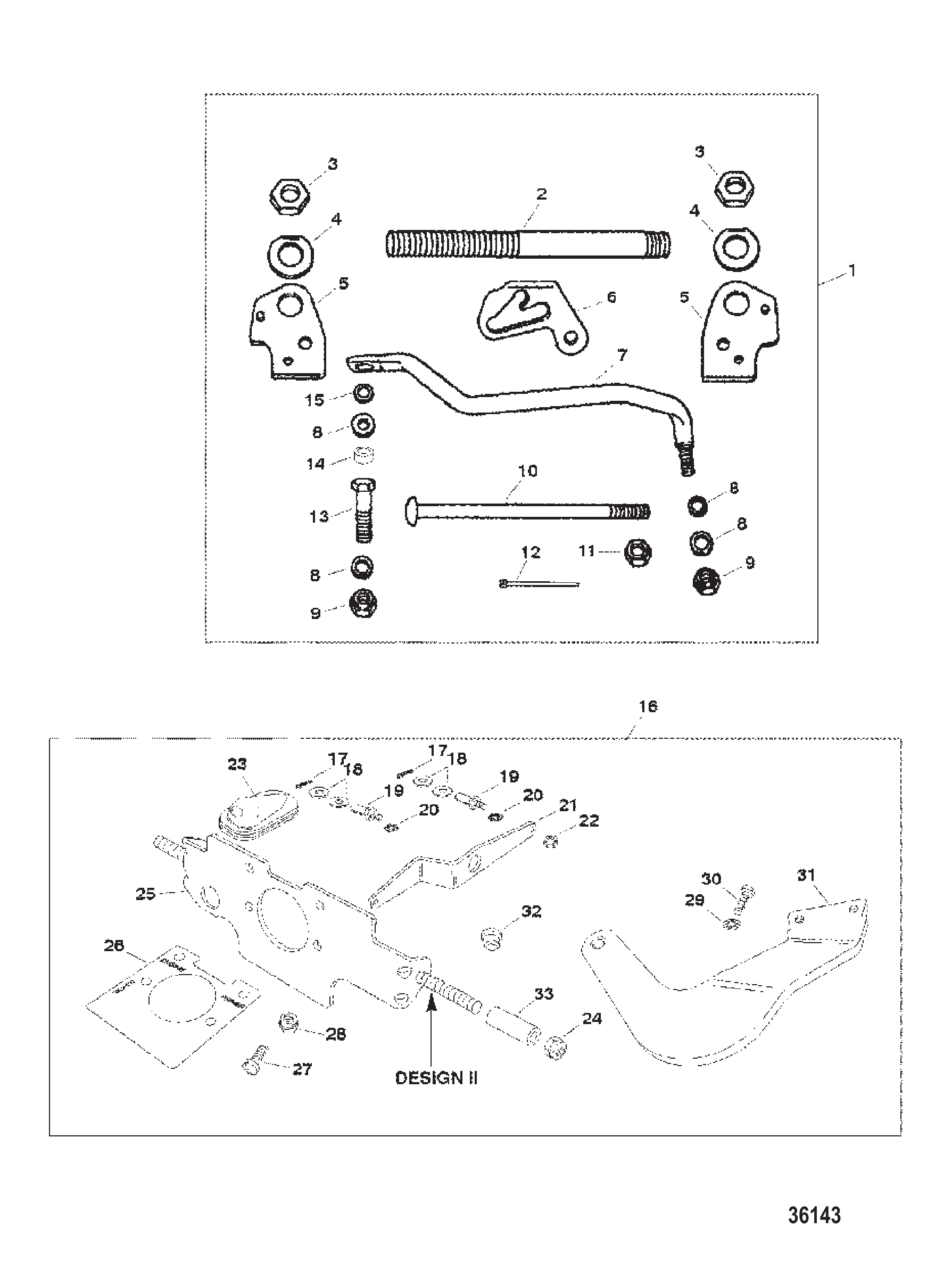

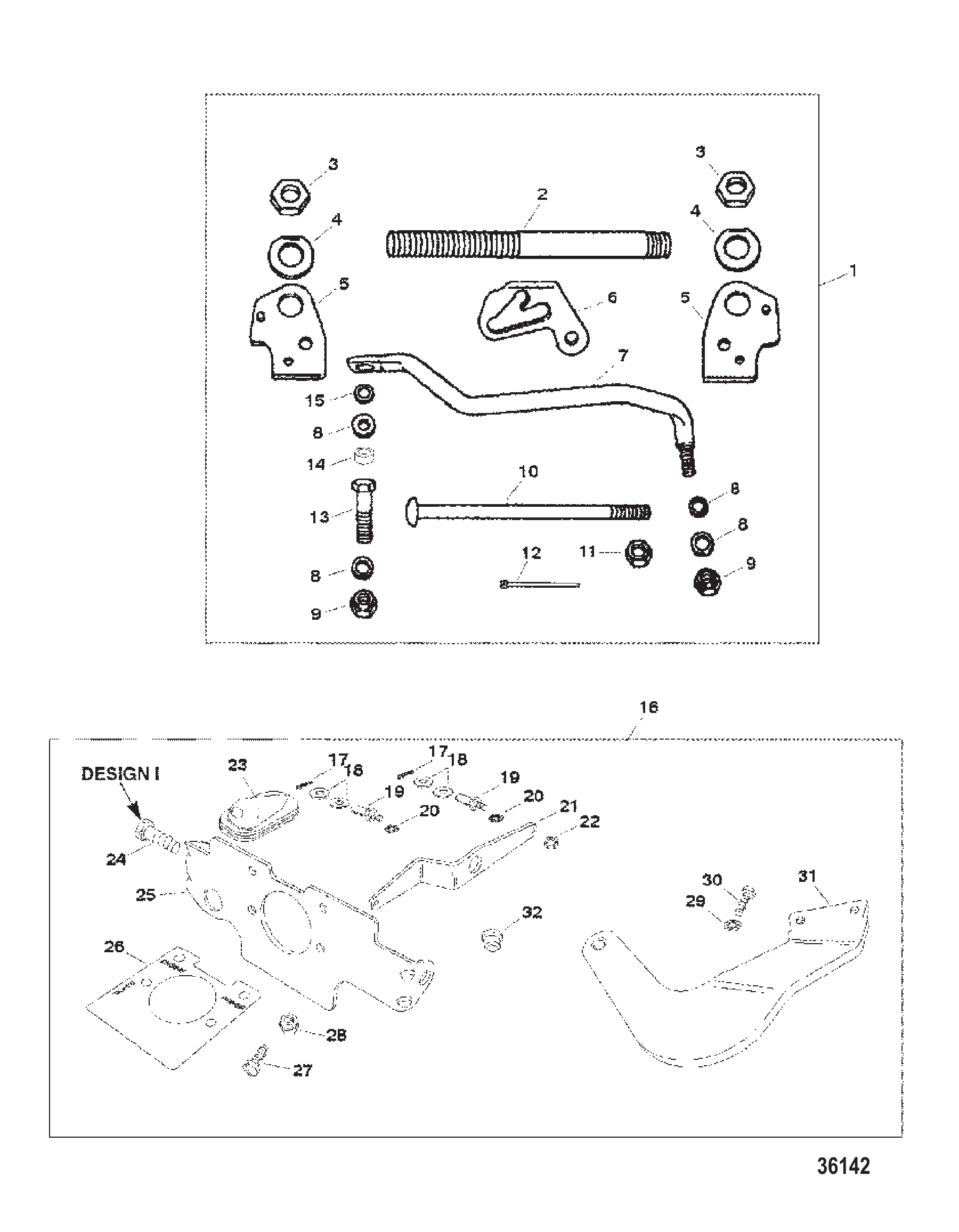

| 1 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 2 | 71565 | 导向套管 | TUBE Cable Guide | 1 |
| 3 | 37984 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 3 | 8M0041651 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 4 | 42100 | 锁紧垫圈 | TAB WASHER | 2 |
| 5 | 827890 | 线管支架 | BRACKET Cable Tube | 2 |
| 6 | F676541-2 | 倾斜锁 | LOCK Tilt | 1 |
| 7 | F676881 | 转向连杆 | LINK Steering | 1 |
| 7 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 8 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 4 |
| 9 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 9 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 10 | 850185 | 枢轴螺栓-艉支架（0.375-16×7.375） | BOLT Pivot - Stern Bracket (.375-16 X 7.375) | 1 |
| 11 | F7026 | 螺母（0.375-16） | NUT (.375-16) (.375-16) | 1 |
| 12 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 13 | 90072 | 螺钉(.375-24 x 1.750) | SCREW (.375-24 x 1.750) | 1 |
| 14 | F522359 | 隔套 | SPACER | 1 |
| 15 | F84215 | 隔套 | SPACER | 1 |
| 16 | 830771A5 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 830771A8 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 830771A6 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 830771A9 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 17 | 27769 | 开口销 | COTTER PIN | 2 |
| 17 | 26811 | 开口销 | COTTER PIN | 2 |
| 18 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 4 |
| 19 | 828819 | 油门控制螺柱 | STUD Throttle Control | 2 |
| 20 | F8058 | 锁紧垫圈 | LOCKWASHER | 2 |
| 21 | 8191481 | 油门杆 | LEVER Throttle | 1 |
| 22 | 29488 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 22 | 8M0204718 | 螺母 | NUT | 1 |
| 23 | 93527 | 护孔环 | GROMMET | 1 |
| 23 | 93527002 | 护孔环 | GROMMET | 1 |
| 24 | 830772 | 专用螺钉 | SCREW (SPECIAL) | 2 |
| 25 | 830058A4 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 25 | 855791A2 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 25 | 830058A5 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 25 | 855791A3 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 26 | 8192812 | 前板贴花 | DECAL Front Plate | 1 |
| 27 | 852453 | 螺钉(#10-24 x .560) | SCREW (#10-24 x .560) | 4 |
| 28 | F7009 | 螺母(#10-24) | NUT (#10-24) | 4 |
| 29 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 2 |
| 30 | 38837 | 螺钉(.312-18×1.12) | SCREW (.312-18 x 1.12) | 2 |
| 31 | 830006T2 | 遥控转向臂 | ARM Remote Steering | 1 |
| 31 | 830006T3 | 遥控转向臂 | ARM Remote Steering | 1 |
| 32 | 48323 | 堵头 | PLUG | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

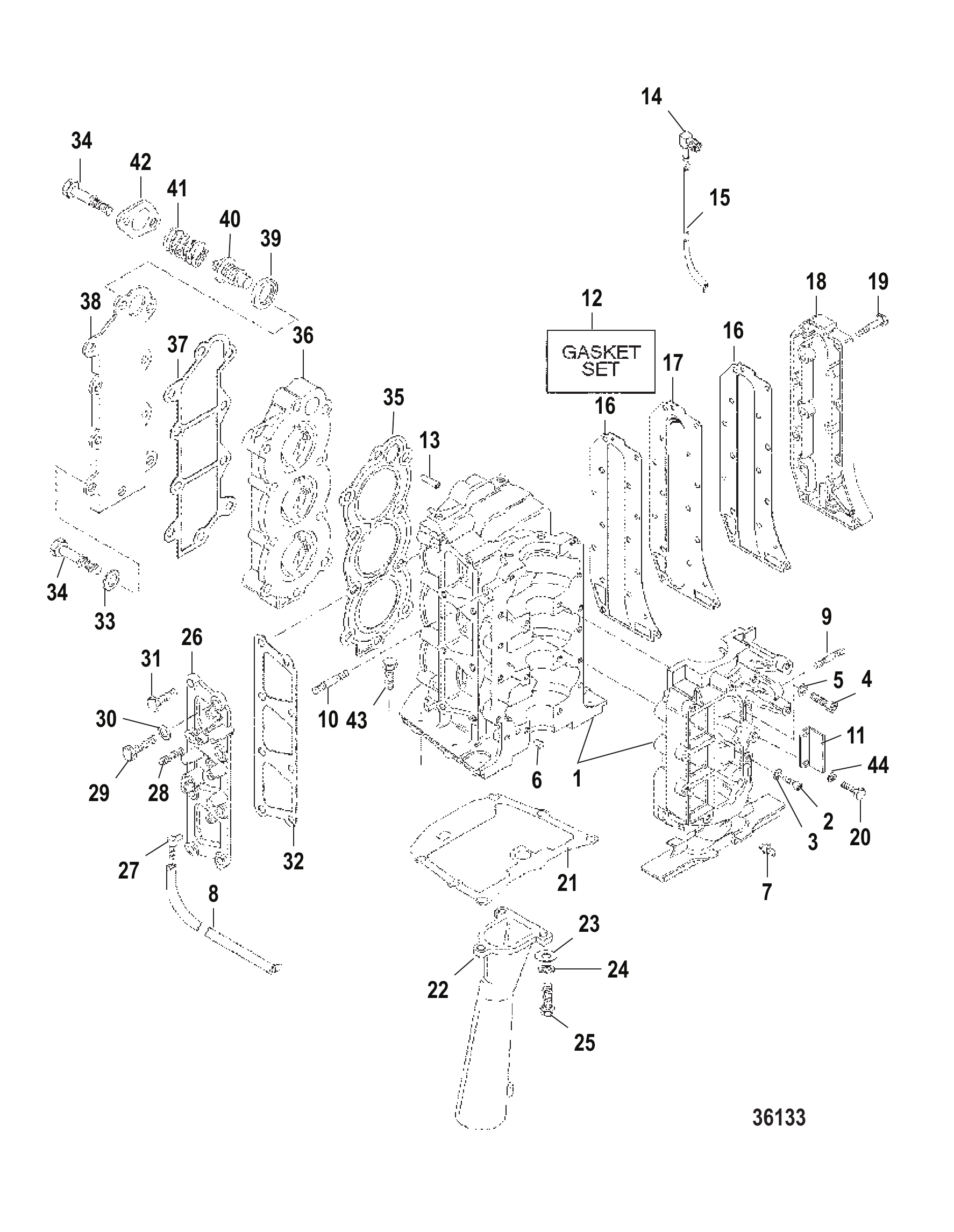

| 1 | 819240A3 | 动力头总成（完整） | POWERHEAD ASSEMBLY (COMPLETE) | 1 |
| 1 | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| 1 | 819240A2 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 1 | 819240A5 | 气缸总成 | CYLINDER ASSY | 1 |
| 2 | 92160 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 11 |
| 3 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 11 |
| 3 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 11 |
| 4 | 54523 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 6 |
| 5 | 20084 | 垫圈（0.328×0.562×0.062） | WASHER (.328 x .562 x .062) | 6 |
| 6 | F8559 | 销 | PIN | 1 |
| 7 | 426582 | 止回阀 | CHECK VALVE | 1 |
| 7 | 426585 | 止回阀 | CHECK VALVE | 1 |
| 8 | 99130122 | 管材（20英尺卷材/裁切2段15英寸+1段12.058英寸） | TUBING (20.00 Feet Bulk) (CUT 2 PCS-15.00 IN.)(CUT 1 PC-12.058 IN.) | 1 |
| 8 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 9 | 834759 | 特殊双头螺柱（0.312-24×1.14） | STUD (.312-24 X 1.14) Special | 1 |
| 10 | 826590 | 双头螺柱（0.250-20×1.690） | STUD (.250-20 x 1.690) | 1 |
| 11 | 834753 | 油门限位支架 | BRACKET Throttle Stop | 1 |
| 12 | 809516A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| 13 | 819243 | 水套管 | TUBE Water Jacket | 1 |
| 14 | 88780 | 示流管弯头 | ELBOW Tell-Tale Tubing | 1 |
| 14 | 887801 | 弯头配件90度(.0625-27) | FITTING Elbow 90 Degree (.0625-27) | 1 |
| 15 | 549507 | 示流软管（7英寸） | HOSE (7.00 IN.)-TELL TALE | 1 |
| 15 | 5495025 | 管材（25英尺卷材） | TUBING (25.00 Feet Bulk) | 1 |
| 16 | 819140 | 排气盖衬垫 | GASKET Exhaust Cover | 2 |
| 17 | 819152 | 排气板 | PLATE Exhaust | 1 |
| 18 | 819136T | 排气罩 | COVER Exhaust | 1 |
| 18 | 819136T1 | 排气盖 | COVER-EXHAUST | 1 |
| 19 | F1581 | 螺钉（0.250-20×1.250） | SCREW (.250-20 X 1.250) | 14 |
| 19 | 819110125 | 螺丝(.250-20 x 1.250) | SCREW (.250-20 x 1.250) | 14 |
| 20 | 90192 | 不锈钢接地线螺钉（0.250-20×0.750） | SCREW (.250-20 x .750) Stainless Steel GROUND WIRE | 1 |
| 21 | 819498 | 气缸安装衬垫 | GASKET Cylinder Mount | 1 |
| 22 | 819157T1 | 排气管 | TUBE Exhaust | 1 |
| 23 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 23 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 24 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 3 |
| 25 | 90192 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 3 |
| 26 | 819137T | 换气口盖总成 | COVER ASSEMBLY Transfer Port | 1 |
| 26 | 819137T1 | 换气口盖总成 | COVER ASSY-T SFER | 1 |
| 27 | 15133 | 接头 | FITTING | 3 |
| 28 | F681134 | 联锁杆螺柱 | STUD Interlock Lever | 1 |
| 29 | 90192 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 1 |
| 30 | 28927 | 垫圈 | WASHER | 1 |
| 30 | 26907 | 垫圈 | WASHER | 1 |
| 31 | F1535 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 7 |
| 32 | 819143 | 换气口盖垫片 | GASKET Transfer Port Cover | 1 |
| 33 | 814806 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 8 |
| 33 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 8 |
| 34 | F1882 | 螺钉(.312-18 x 2.125) | SCREW (.312-18 x 2.125) | 10 |
| 35 | 8191382 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| 36 | 819145T1 | 气缸盖 | CYLINDER HEAD | 1 |
| 36 | 819145T2 | 气缸盖 | HEAD-CYLINDER | 1 |
| 37 | 8191391 | 气缸盖罩衬垫 | GASKET Cylinder Head Cover | 1 |
| 38 | 819134T | 气缸盖罩 | COVER Cylinder Head | 1 |
| 39 | F658504 | 垫圈 | WASHER | 1 |
| 40 | F97068-2 | 节温器54°C(130°F) | THERMOSTAT 54°C (130°F) | 1 |
| 40 | 895338 | 节温器 62°C (143°F) | THERMOSTAT 62°C (143°F) | 1 |
| 41 | 819161 | 节温器弹簧 | SPRING Thermostat | 1 |
| 42 | 819439T | 节温器盖 | COVER Thermostat | 1 |
| 43 | 35386 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 6 |
| 44 | 78968 | 内锁紧垫圈(.250)接地螺钉 | LOCKWASHER Internal (.250) GROUND SCREW | 1 |
| - | 809516A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

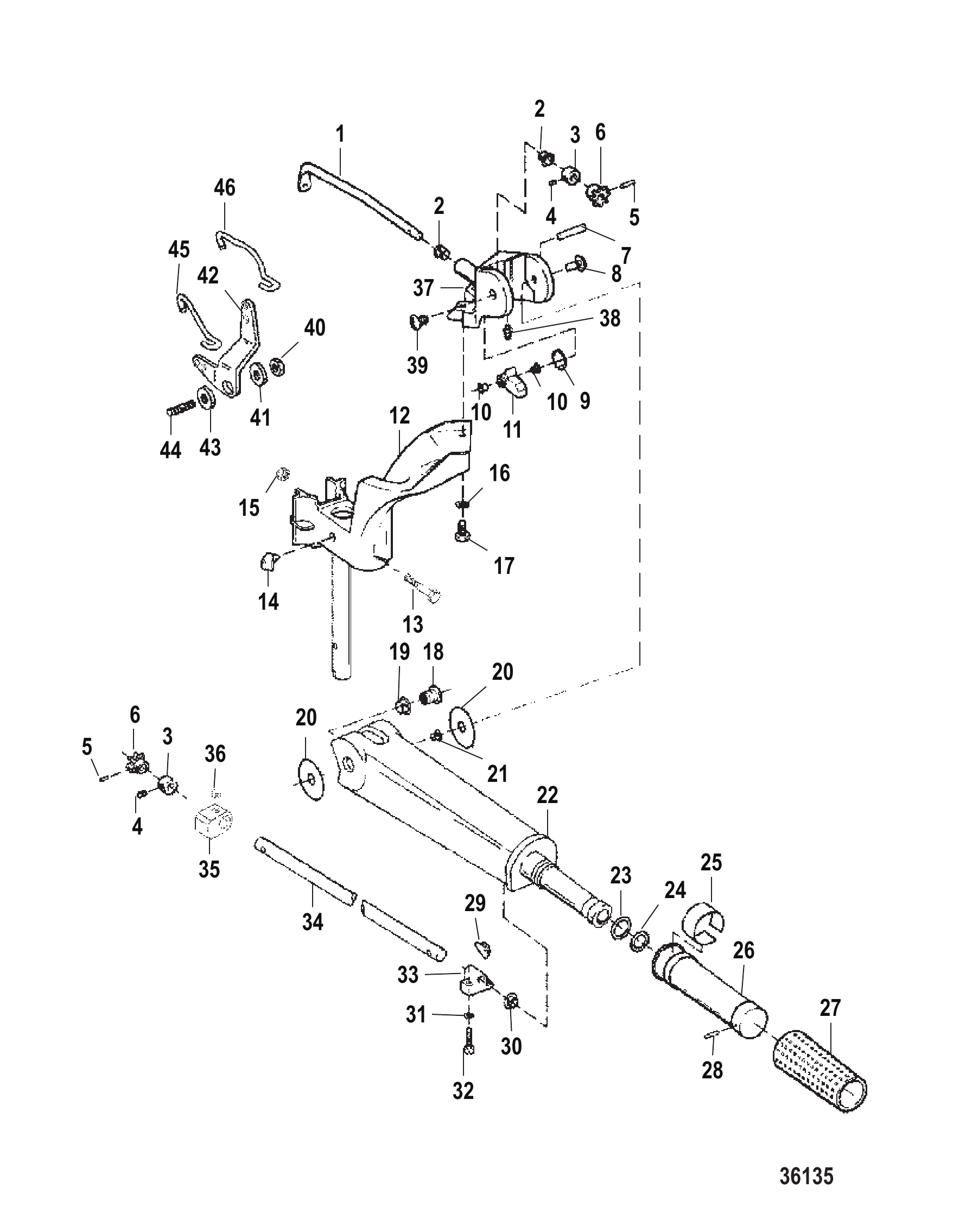

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 851928 | 油门控制轴 | SHAFT Throttle Control | 1 |
| 2 | 26841 | 衬套 | BUSHING | 2 |
| 3 | FA343178 | 转向轴固定套件 | RETAINER KIT Steering Shaft | 2 |
| 4 | 832794 | 定位螺丝(.250-28x0.250) | SET SCREW (.250-28 X .250) (.250-28 X .250) | 2 |
| 5 | 29908 | 销 | PIN | 2 |
| 6 | 8180091 | 转向轴齿轮 | GEAR Steering Shaft | 2 |
| 7 | F1807 | 槽销 | PIN Groove | 1 |
| 8 | 823595 | 专用螺钉 | SCREW (SPECIAL) | 1 |
| 9 | F286868 | 转向把手止动弹簧 | SPRING Steering Handle Stop | 1 |
| 10 | 26856 | 衬套 | BUSHING | 2 |
| 11 | F286490T | 转向把手止动块 | STOP Steering Handle | 1 |
| 12 | 835373A6 | 转向臂支架总成 | BRACKET ASSEMBLY Steering Arm | 1 |
| 12 | 835373A7 | 转向臂支架总成 | BRACKET ASSEMBLY Steering Arm | 1 |
| 13 | 828815 | 螺丝(.250-20x1.750) | SCREW (.250-20 x 1.750) (.250-20 X 1.750) | 1 |
| 14 | F286539 | 缓冲垫 | BUMPER | 1 |
| 15 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 15 | 8M0207776 | 螺母 | NUT | 1 |
| 16 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 2 |
| 17 | 38837 | 螺钉(.312-18×1.12) | SCREW (.312-18 x 1.12) | 2 |
| 18 | F2862241 | 转向把手枢轴衬套 | INSERT Steering Handle Pivot | 1 |
| 19 | 812707 | 衬套 | BUSHING | 1 |
| 20 | F286220 | 转向把手垫圈 | WASHER Steering Handle | 2 |
| 21 | 26856 | 衬套 | BUSHING | 1 |
| 22 | 819279T1 | 转向手柄 | HANDLE Steering | 1 |
| 22 | 819279T2 | 转向手柄 | HANDLE Steering | 1 |
| 23 | 21836 | O型圈(0.796x0.139)(大) | O-RING (.796 x .139) (LARGE) | 1 |
| 23 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 24 | 38101 | O型圈(0.674x0.103)(小) | O-RING (.674 x .103) (SMALL) | 1 |
| 25 | F712894 | 速度/档位指示标贴 | DECAL Speed/Shift Indicator | 1 |
| 26 | 828406A1 | 油门把手总成 | HANDLE/GRIP ASSEMBLY Throttle | 1 |
| 27 | 828406 | 油门/转向把手握把 | GRIP Throttle/Steering Handle | 1 |
| 28 | 72255 | 滚动销 | PIN Roll | 1 |
| 29 | 819227 | 转向手柄楔块 | WEDGE Steering Handle | 1 |
| 30 | 97896 | 衬套 | BUSHING | 1 |
| 31 | F8058 | 锁紧垫圈 | LOCKWASHER | 2 |
| 32 | F1829 | 螺丝(#10-24x0.875) | SCREW (#10-24 x .875) | 2 |
| 33 | F4878161 | 轴承 | BEARING | 1 |
| 34 | 819160 | 转向手柄轴 | SHAFT Steering Handle | 1 |
| 35 | 832759 | 节气门止动块 | STOP Throttle | 1 |
| 36 | 832794 | 定位螺丝(.250-28x0.250) | SET SCREW (.250-28 X .250) (.250-28 X .250) | 1 |
| 37 | 817751A7 | 转向支架总成 | BRACKET ASSEMBLY Steering | 1 |
| 37 | 817751A8 | 转向支架总成 | BRACKET ASSEMBLY Steering | 1 |
| 38 | F523274 | 润滑脂接头 | FITTING Grease | 1 |
| 39 | 823594 | 专用枢轴螺丝 | SCREW (SPECIAL)-PIVOT | 1 |
| 40 | 35814 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| 40 | 82670911 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| 41 | F286282 | 专用垫圈 | WASHER (SPECIAL) | 1 |
| 42 | 819148 | 磁电机控制杆 | LEVER Magneto Control | 1 |
| 43 | F183813 | 控制杆轴承 | BEARING Control Lever | 1 |
| 44 | 834759 | 专用螺柱(.312-24x1.140) | STUD (.312-24 X 1.14) Special (.312-24 X 1.140) | 1 |
| 45 | 826846 | 油门轴连杆 | LINK Throttle Shaft | 1 |
| 46 | 824142T | 油门凸轮连杆 | LINK Throttle Cam | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

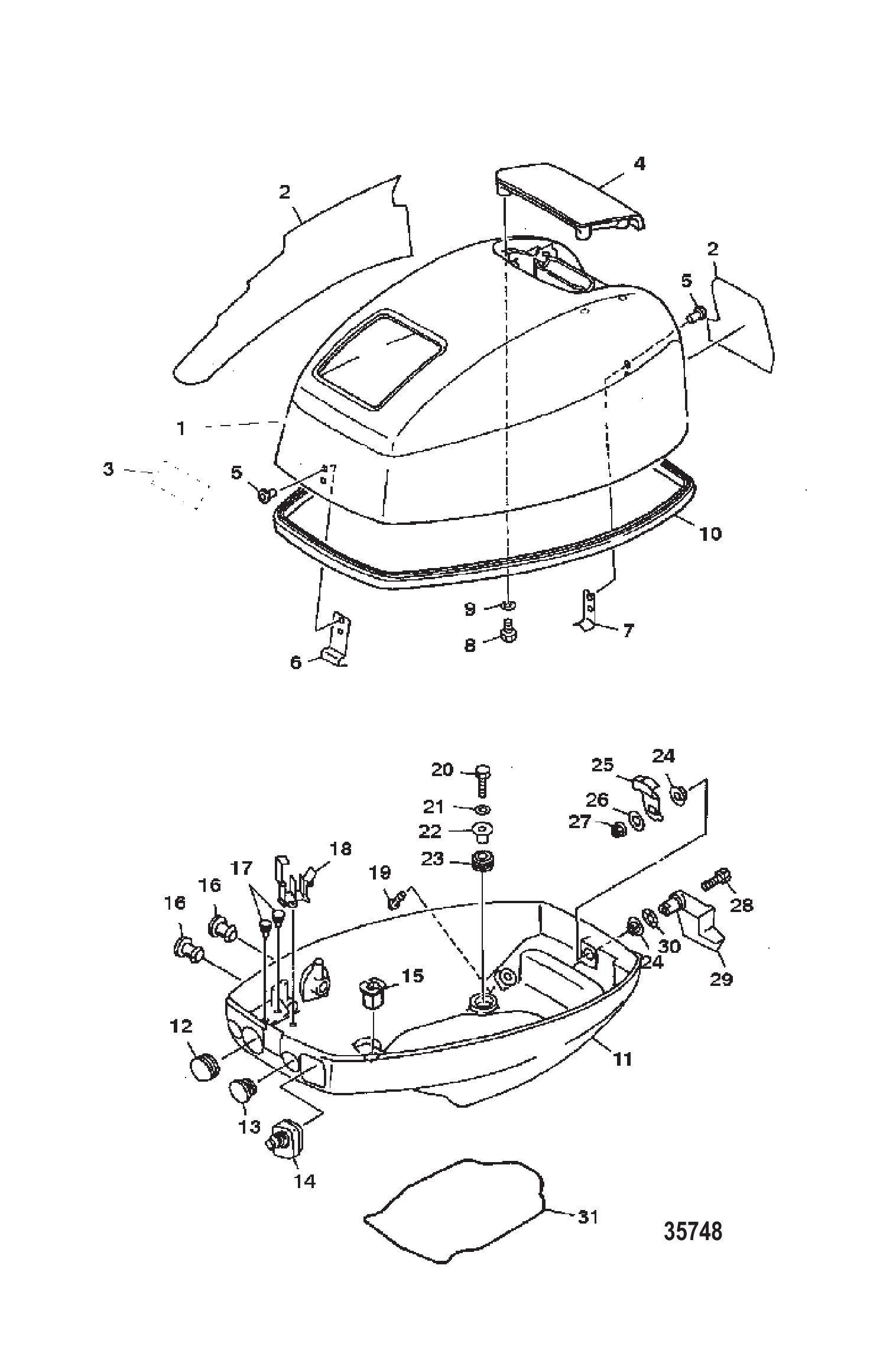

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 819135A5 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 819135A6 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 819447 | 挡板 | BAFFLE | 1 |
| 3 | 819130 | 前支架 | BRACKET Front | 1 |
| 4 | 819371 | 后罩固定座 | RETAINER Rear Cowl | 1 |
| 5 | 835499 | 螺钉（#8-32×0.440） | SCREW (#8-32 X .440) | 7 |
| 6 | 26995 | 防松垫圈(#8不锈钢) | LOCKWASHER (#8) Stainless Steel | 7 |
| 7 | 850042 | 螺母（#8-32） | NUT (#8-32) | 7 |
| 8 | F681759 | 锁扣滚轮 | ROLLER Latch | 1 |
| 9 | F681026 | 特殊螺钉-锁扣滚轮 | SCREW (SPECIAL)-LATCH ROLLER | 1 |
| 10 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 10 | 8M0207776 | 螺母 | NUT | 1 |
| 11 | F8155 | 垫圈 | WASHER | 2 |
| 12 | 854206A1 | 顶罩贴花套件 | DECAL SET Top Cowl | 1 |
| 12 | 854207A1 | 顶罩贴花套件 | DECAL SET Top Cowl | 1 |
| 13 | 819280A13 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 13 | 819280A14 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 14 | 819281 | 安装板 | PLATE | 1 |
| 15 | F392756 | 底罩顶部密封条（4.075英尺卷材/裁切3.783英尺） | SEAL Top Of Bottom Cowl (4.075 FT. BULK) (CUT 3.783 FT.) | 1 |
| 16 | 935271 | 控制线束护圈 | GROMMET Control Cable | 1 |
| 16 | 93527002 | 护孔环 | GROMMET | 1 |
| 17 | 827895 | 底罩密封条 | SEAL Bottom Cowl | 1 |
| 18 | 812707 | 衬套 | BUSHING | 2 |
| 19 | 854004A1 | 罩盖锁扣手柄总成 | HANDLE ASSEMBLY Cowl Latch | 1 |
| 19 | 854004A2 | 罩盖锁扣手柄总成 | HANDLE ASSEMBLY Cowl Latch | 1 |
| 20 | F2047 | 波形垫圈 | WASHER Wave | 1 |
| 21 | F481777 | 凸轮锁轴 | CAM Latch Shaft | 1 |
| 21 | 8M0001081 | 凸轮 | CAM | 1 |
| 22 | 71055 | 垫圈 | WASHER | 1 |
| 23 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 24 | 28635 | 不锈钢螺钉（0.250-20×0.620） | SCREW (.250-20 x .620) Stainless Steel (.250-20 X .625) | 1 |

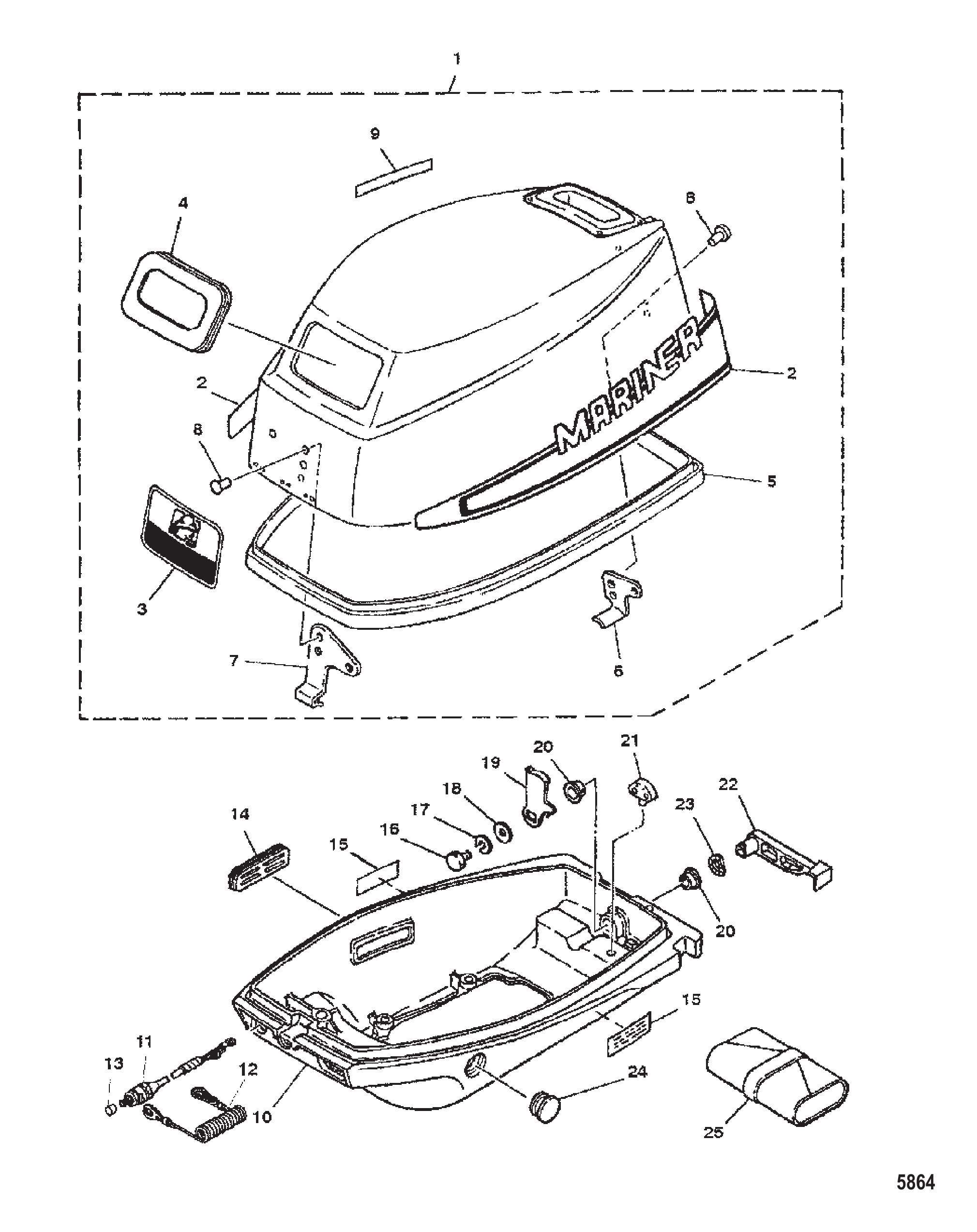

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9378M | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 95400M | 侧后标贴套装 | DECAL SET Side And Rear | 1 |
| 3 | 95401M | 前贴花 | DECAL Front | 1 |
| 4 | 91653M | 密封件 | SEAL | 1 |
| 5 | 95587M | 密封件 | SEAL | 1 |
| 6 | 94655M | 支架 | HOLDER | 1 |
| 7 | 94656M | 挂钩 | HOOK | 1 |
| 8 | 814489M | 铆钉 | RIVET | 4 |
| 9 | 81202M | 换挡指示贴花 | DECAL Shift Indicator | 1 |
| 10 | 9394M | 下机罩 | BOTTOM COWL | 1 |
| 11 | 851902M | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 12 | 97756M | 止动器 | STOPPER | 1 |
| 13 | 852837 | 盖帽 | CAP | 1 |
| 14 | 83277M | 护孔环 | GROMMET | 1 |
| 15 | 94730M | 侧面标贴 | DECAL Side | 2 |
| 16 | 91772M | 螺栓 | BOLT | 1 |
| 17 | 82214M | 垫圈 | WASHER | 1 |
| 17 | 881379 | 垫圈 | WASHER | 1 |
| 17 | 82214M | 垫圈 | WASHER | 1 |
| 18 | 81794M | 垫圈 | WASHER | 1 |
| 18 | 804339 | 垫圈 | WASHER | 1 |
| 18 | 81794M | 垫圈 | WASHER | 1 |
| 19 | 84914M | 卡箍 | CLAMP | 1 |
| 19 | 84914001 | 杠杆 | LEVER | 1 |
| 20 | 81949M | 衬套 | BUSHING | 2 |
| 21 | 80033M | 支架 | HOLDER | 1 |
| 22 | 95402M | 杠杆 | LEVER | 1 |
| 23 | 81869M | 垫圈 | WASHER | 1 |
| 24 | 84669M | 护孔环 | GROMMET | 1 |
| 25 | 81669M | 工具包 | TOOL KIT | 1 |
| 25 | 803581 | 工具包 | TOOL KIT | 1 |

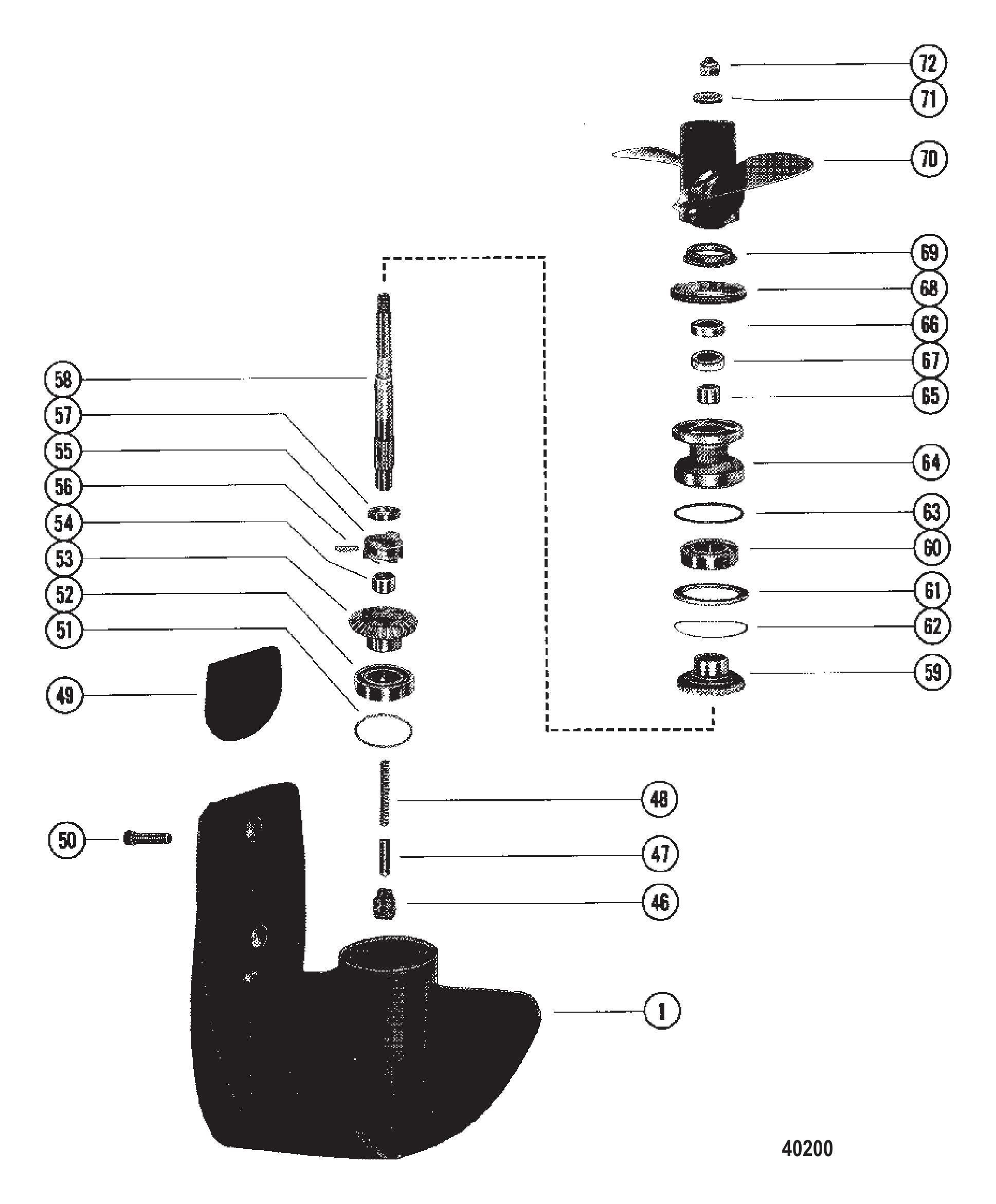

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8669A35 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A36 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A37 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A38 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083538 | GC BASIC 25 2S | GC BASIC 25 2S | 1 |
| 1 | 8669A22 | 齿轮箱总成基础型-灰色 | GEAR HOUSING ASSEMBLY Basic-Gray | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 44 | 99328A1 | 滚子轴承总成(锥形&外圈) | BEARING ASSEMBLY Roller (CONE & CUP) | 1 |
| 44 | 8M0103470 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 45 | NSS | NOT SOLD SEPARATE CUP | 1 | |
| 46 | 44213A1 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 46 | 44213T1 | 前进齿轮 | GEAR Forward | 1 |
| 47 | 85557 | 衬套 | BUSHING | 1 |
| 48 | 85094 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 49 | 38114 | 弹簧 | SPRING | 1 |
| 50 | 410401 | 离合器 | CLUTCH | 1 |
| 50 | 41040T1 | 离合器 | CLUTCH | 1 |
| 51 | 85093 | 销 | PIN | 1 |
| 51 | 8M0020999 | 十字销 | PIN CROSS | 1 |
| 52 | 88680 | 弹簧 | SPRING | 1 |
| 53 | 8166231 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 54 | 99542 | 倒挡齿轮 | GEAR Reverse | 1 |
| 54 | 99542T | 倒挡齿轮 | GEAR Reverse | 1 |
| 55 | 99906A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 55 | 99906T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 56 | 21739 | 滚柱轴承 | BEARING Roller | 1 |
| 57 | 41132 | 油封(内) | SEAL Oil (INNER) | 1 |
| 58 | 41131 | 油封(外) | SEAL Oil (OUTER) | 1 |
| 58 | 8M0245761 | 油封 | SEAL OIL | 1 |
| 59 | 85549 | O型圈 | O-RING | 1 |
| 60 | 87293 | 安装板 | PLATE | 1 |
| 61 | 90883 | 螺钉(M5×16) | SCREW (M5 x 16) | 3 |
| 62 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 4 |
| 62 | 8M0214963 | 垫圈 | WASHER | 4 |
| 63 | 65210 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 4 |
| 64 | 8M0027793 | 轮毂 | HUB | 1 |
| 64 | 858498 | 推力毂总成 | THRUST HUB ASSEMBLY | 1 |
| 65 | 19640A40 | BLACK MAX螺旋桨(铝-10.375 X 13.0 RH) | BLACK MAX PROPELLER (ALUM-10.375 X 13.0 RH) (BLACK MAX) | 1 |
| 65 | 19642A40 | 螺旋桨(铝-10.250 X 14.5 RH)(BLACK MAX) | PROPELLER (ALUM-10.250 X 14.5 RH) (BLACK MAX) | OPT |
| 65 | 19639A40 | BLACK MAX螺旋桨(铝-10.375 X 12.0 RH) | BLACK MAX PROPELLER (ALUM-10.375 X 12.0 RH) (BLACK MAX) | OPT |
| 65 | 19638A40 | BLACK MAX螺旋桨(铝-10.375 X 11.0 RH) | BLACK MAX PROPELLER (ALUM-10.375 X 11.0 RH) (BLACK MAX) | OPT |
| 65 | 19636A10 | BLACK MAX螺旋桨(铝-10.375 X 9.50 RH) | BLACK MAX PROPELLER (ALUM-10.375 X 9.50 RH) (BLACK MAX) | OPT |
| 65 | 43592A5 | 螺旋桨(不锈钢-10.375 X 18.0 RH)(CHOPPER) | PROPELLER (SS-10.375 X 18.0 RH) (CHOPPER) | OPT |
| 65 | 43592A61 | CII 10.38R18 | CII 10.38R18 | OPT |
| 65 | 19644A5 | VENGEANCE螺旋桨(不锈钢-10.375 X 13.0 RH) | VENGEANCE PROPELLER (SS-10.375 X 13.0 RH) (VENGEANCE) | OPT |
| 66 | 4011912 | 螺旋桨螺母(M12黄铜)-不锈钢螺旋桨用 | PROP NUT (M12 BRASS)-FOR SS PROPELLERS | OPT |
| 66 | 88228 | 螺旋桨螺母(M12尼龙)-铝制螺旋桨用 | PROP NUT (M12 NYLON)-FOR ALUM PROPELLERS | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

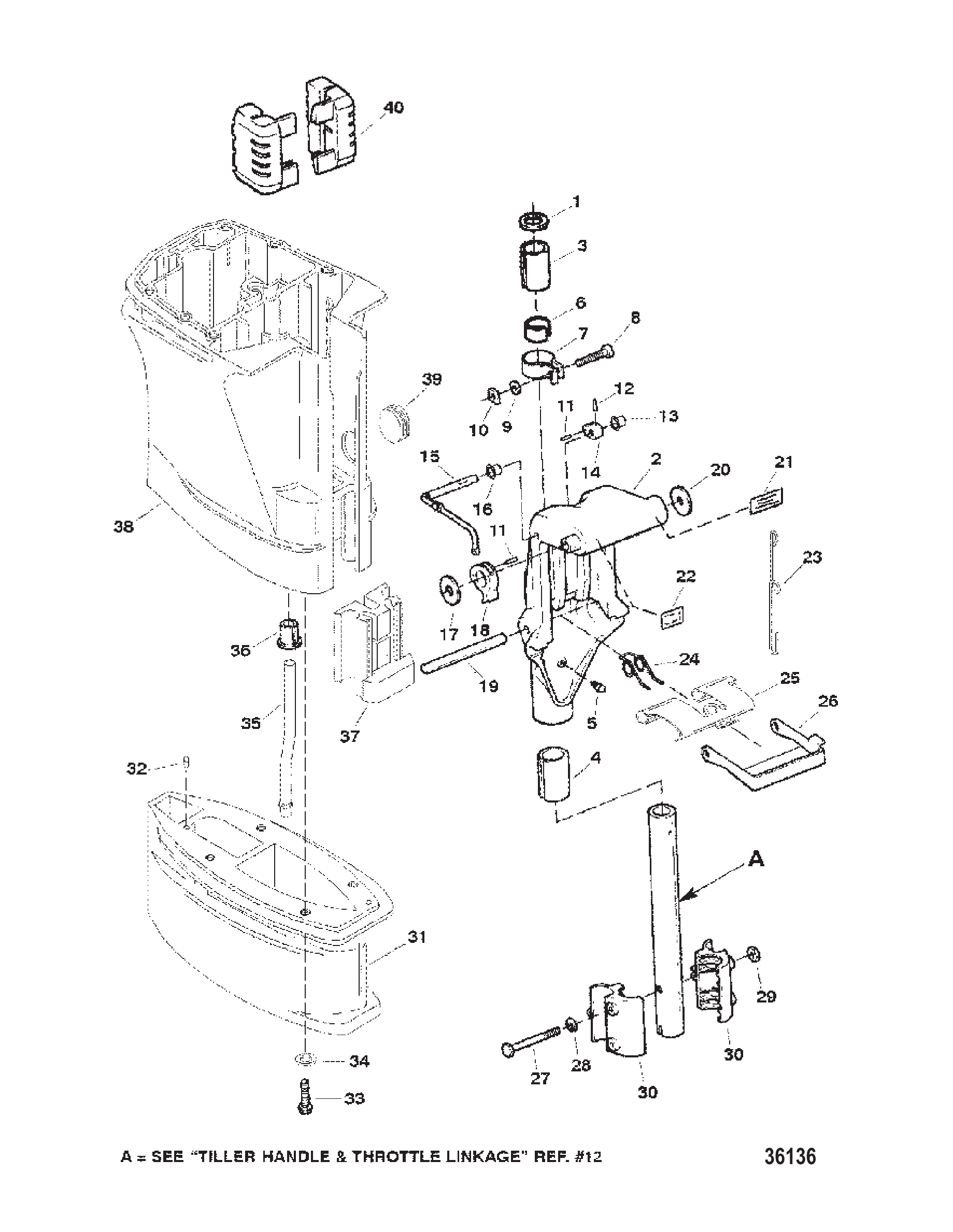

| 1 | F286011 | 旋转支架垫圈 | WASHER Swivel Bracket | 1 |
| 2 | 850049A3 | 旋转支架套件 | SWIVEL BRACKET KIT | 1 |
| 2 | 850049A4 | 旋转支架套件 | SWIVEL BRACKET KIT | 1 |
| 3 | F681169 | 轴承(1.125英寸)(上) | BEARING (1.125 IN.) (TOP) | 1 |
| 4 | F286169 | 轴承(1.750英寸)(下) | BEARING (1.750 IN.) (BOTTOM) | 1 |
| 5 | F213274 | 接头 | FITTING | 2 |
| 6 | F681631 | 摩擦块 | SHOE Friction | 1 |
| 7 | F286573-1 | 转向摩擦夹 | CLAMP Steering Friction | 1 |
| 8 | F1820 | 螺钉(.250-20×1.375) | SCREW (.250-20 x 1.375) | 1 |
| 9 | 12038 | 垫圈 | WASHER | 1 |
| 9 | 8M0207778 | 垫圈（0.344×0.625×0.063英寸） | WASHER .344 x .625 x.063 | 1 |
| 10 | F1608 | 螺母(.250-20) | NUT (.250-20) (.250-20) | 1 |
| 11 | F1794 | 弹簧销 | PIN Spring | 2 |
| 12 | F8538 | 弹簧销 | PIN Spring | 1 |
| 13 | 26856 | 衬套 | BUSHING | 1 |
| 14 | 833156 | 倒车锁杆 | LEVER Reverse Lock | 1 |
| 15 | 820095A2 | 倒挡锁中间杆总成 | LEVER ASSEMBLY Reverse Lock Intermediate | 1 |
| 16 | F536813 | 衬套 | BUSHING | 1 |
| 17 | F2037 | 垫圈 | WASHER | 1 |
| 18 | F286827 | 倒挡锁释放杆 | LEVER Reverse Lock Release | 1 |
| 19 | F1806 | 槽销 | PIN Groove | 1 |
| 20 | F2037 | 垫圈 | WASHER | 1 |
| 21 | 8180291 | 燃油混合比标贴 | DECAL Fuel Mix | 1 |
| 22 | 8302531 | 倾斜释放标贴 | DECAL Tilt Release | 1 |
| 23 | 852528 | 倒挡锁连杆 | LINK Reverse Lock Lever | 1 |
| 24 | F286300 | 倒挡锁弹簧 | SPRING Reverse Lock | 1 |
| 25 | 850259 | 倒车锁 | LOCK Reverse | 1 |
| 26 | 8301111 | 浅水驱动支架 | BRACKET Shallow Water Drive | 1 |
| 27 | FA1844 | 螺丝套件(.250-20x2.375) | SCREW KIT (.250-20 x 2.375) (.250-20 X 2.375) | 2 |
| 28 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 29 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 2 |
| 30 | 819320T1 | 下减震支架 | BRACKET Shock Mount Lower | 2 |
| 30 | 819320T2 | 下减震支架 | BRACKET Shock Mount Lower | 2 |
| 31 | 826361T2 | 隔套总成 | SPACER ASSEMBLY | 1 |
| 31 | 826361T3 | 隔套总成 | SPACER ASSEMBLY | 1 |
| 32 | 85500 | 定位销(.187 x .530) | PIN Dowel (.187 x .530) | 1 |
| 32 | 8M0084726 | 定位销 | PIN Dowel | 1 |
| 33 | 65210 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 4 |
| 34 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 4 |
| 34 | 8M0214963 | 垫圈 | WASHER | 4 |
| 35 | 819149 | 进水管道 | LINE Water Inlet | 1 |
| 35 | 8191491 | 进水管道 | LINE Water Inlet | 1 |
| 36 | F286914-1 | 进水管衬套 | SLEEVE Water Inlet Line | 1 |
| 37 | 8193192 | 下减震座 | SHOCK MOUNT Lower | 1 |
| 38 | 819215T3 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 38 | 819215T4 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 39 | F46899-1 | 盖板 | COVER | 1 |
| 40 | F517347 | 上减震座 | SHOCK MOUNT Upper | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

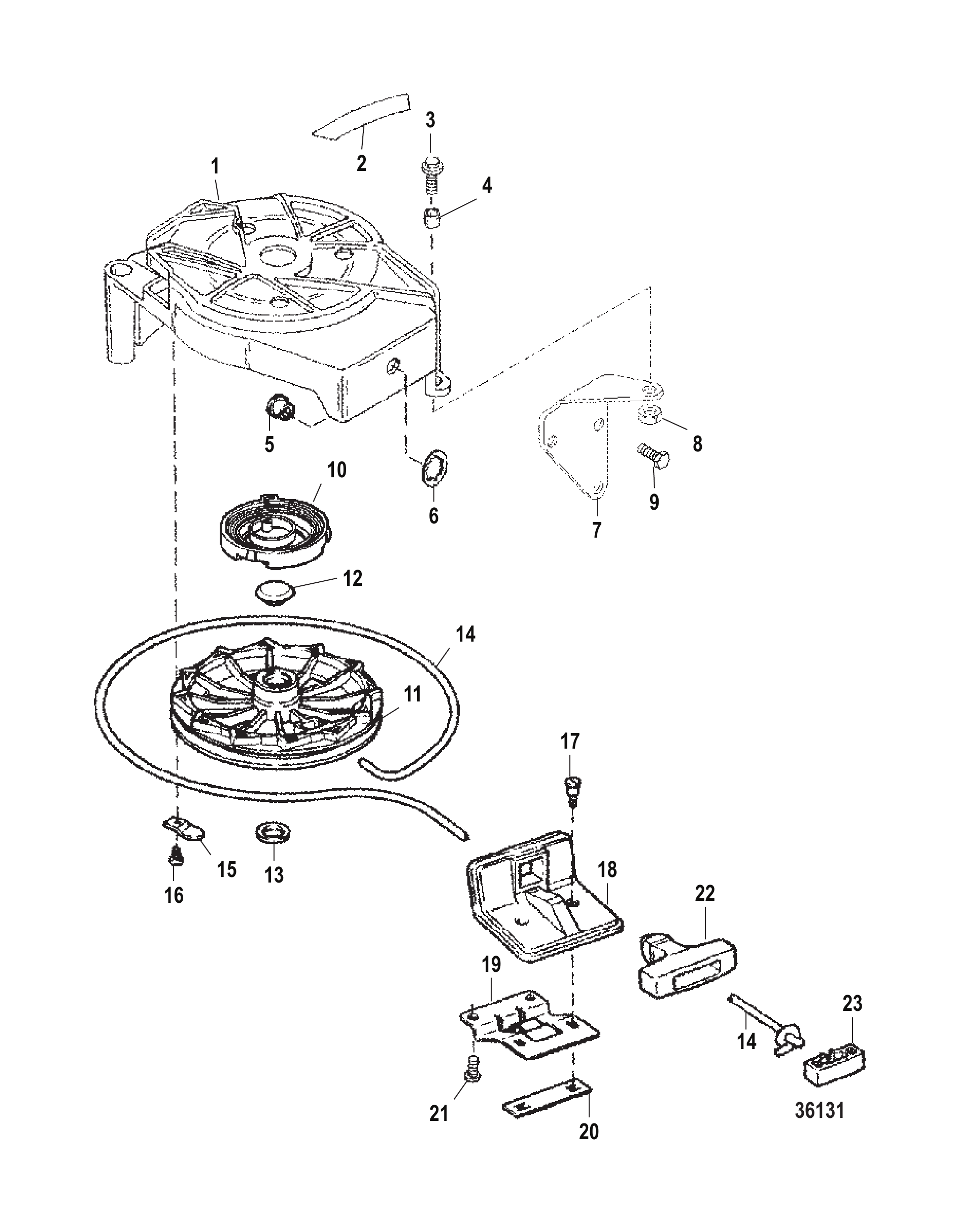

| 1 | F6814081 | 启动器壳体 | HOUSING Starter | 1 |
| 2 | 825149A1 | 换至空档贴花套件 | DECAL KIT Shift to Neutral | 1 |
| 3 | 90192 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 3 |
| 4 | F681405T | 启动器外壳嵌件 | INSERT Starter Housing | 3 |
| 5 | F681428 | 启动绳嵌件 | INSERT Starter Rope | 1 |
| 6 | 818853 | 挡圈 | RING Retaining | 1 |
| 7 | 819245T | 支架 | BRACKET | 1 |
| 7 | 819245T1 | 启动器外壳前支架 | BRACKET Starter Housing - Front | 1 |
| 8 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 8 | 8M0207776 | 螺母 | NUT | 1 |
| 9 | 98254 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 3 |
| 10 | F681970 | 启动器回位弹簧 | SPRING Starter Rewind | 1 |
| 11 | 42034A2 | 启动器回绕滑轮总成 | PULLEY ASSEMBLY Starter Rewind | 1 |
| 12 | 817362 | 盖帽 | CAP | 1 |
| 13 | 124941 | 滑轮轴承密封件 | SEAL Pulley Bearing | 1 |
| 14 | F681232 | 绳索(64.00/67.00英寸) | ROPE (64.00/67.00 IN.) | 1 |
| 14 | 12066T03 | 启动拉绳 | ROPE-STARTER | 1 |
| 15 | F681592 | 启动滑轮固定座 | RETAINER Starter Pulley | 3 |
| 16 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 3 |
| 17 | 819625 | 螺钉 | SCREW | 2 |
| 18 | FA681630T | 手柄支撑总成 | SUPPORT ASSEMBLY Handle | 1 |
| 19 | 8302821 | 手柄支撑板 | PLATE Handle Support | 1 |
| 20 | F6818741 | 手柄支撑板紧固件 | FASTENER Handle Support Plate | 1 |
| 21 | F2210 | 螺钉(.250-14 x .500) | SCREW (.250-14 x .500) | 2 |
| 22 | F681132 | 绳索手柄 | HANDLE Rope | 1 |
| 23 | F681817 | 绳索手柄固定座 | RETAINER Rope Handle | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

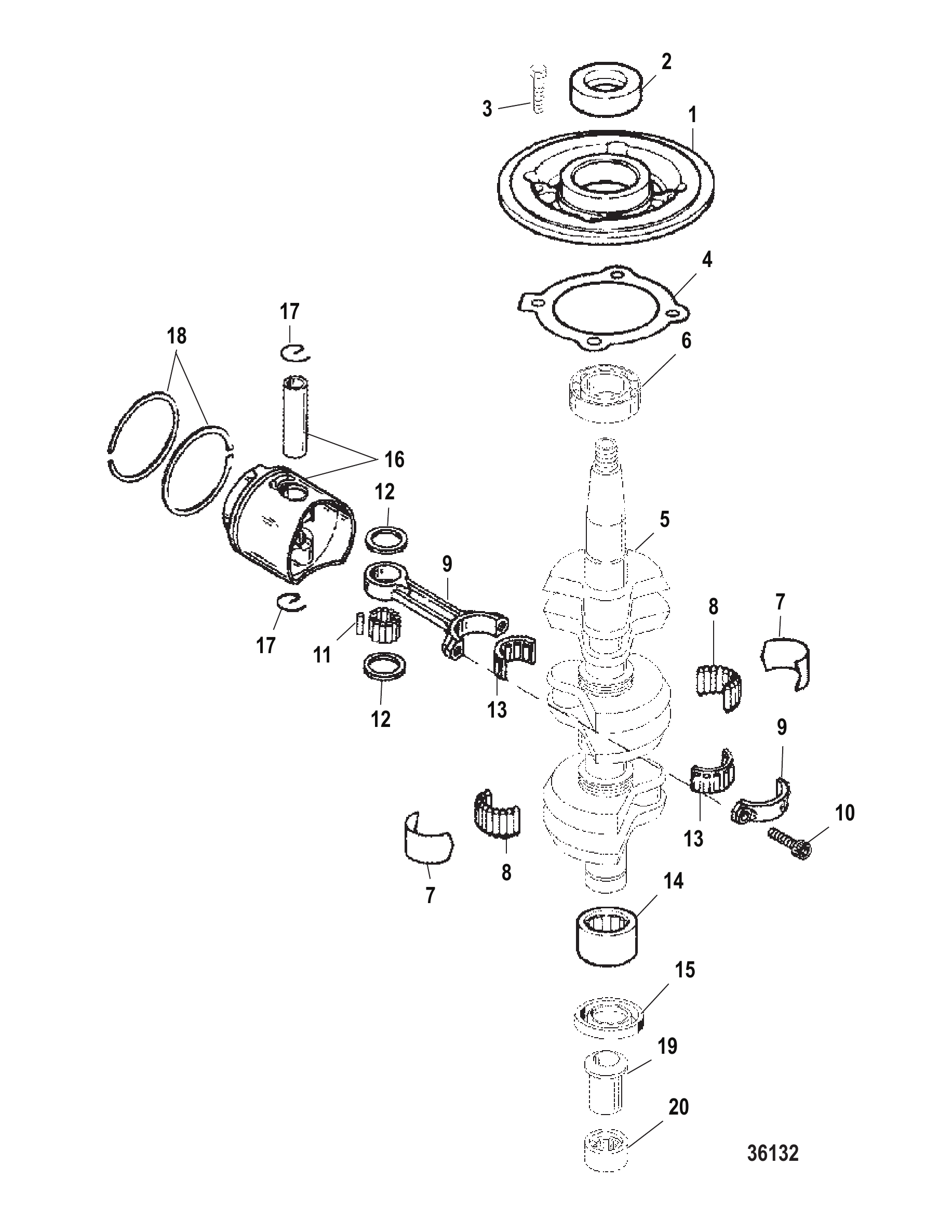

| 1 | 817753A4 | 曲轴保持架总成 | CAGE ASSEMBLY Crankshaft | 1 |
| 2 | 66302 | 油封 | SEAL Oil | 1 |
| 2 | 8M0214939 | 油封@3 | SEAL @3 | 1 |
| 3 | F1914 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 4 |
| 4 | F286277 | 曲轴轴承保持架垫片 | GASKET Crankshaft Bearing Cage | 1 |
| 5 | 819044A3 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 6 | F286028 | 滚珠轴承 | BEARING Ball | 1 |
| 7 | 819239 | 中央主滚柱衬套 | LINER Center Main Rollers | 4 |
| 8 | 819238 | 滚柱(16个/条) | ROLLERS (16 PER STRIP) | 4 |
| 9 | 8477A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 10 | 823460 | 螺钉(M5×16) | SCREW (M5 x 16) | 6 |
| 11 | 42186 | 滚针轴承 | BEARING Needle | 72 |
| 12 | 43348 | 推力轴承 | BEARING Thrust | 6 |
| 12 | 8M0012297 | 止推垫圈@2 | WASHER-THRST@2 | 6 |
| 13 | 42076A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 3 |
| 14 | 8191291 | 主轴承 | BEARING Main | 1 |
| 15 | 819214 | 曲轴下端密封 | SEAL Crankshaft Lower | 1 |
| 16 | 9747A8 | 活塞套件(标准) | PISTON KIT (STANDARD) | 3 |
| 17 | 422021 | 锁紧环 | LOCK RING | 6 |
| 18 | 18213A1 | 活塞环套装(2环)(标准) | RING SET (2 RINGS) (STANDARD) | 3 |
| 19 | 819293 | 驱动轴花键密封 | SEAL Driveshaft Spline | 1 |
| 20 | 8193101 | 驱动轴花键密封固定座 | RETAINER Driveshaft Spline Seal | 1 |
| - | 809516A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 2 | 71565 | 导向套管 | TUBE Cable Guide | 1 |
| 3 | 37984 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 3 | 8M0041651 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 4 | 42100 | 锁紧垫圈 | TAB WASHER | 2 |
| 5 | 827890 | 线管支架 | BRACKET Cable Tube | 2 |
| 6 | F676541-2 | 倾斜锁 | LOCK Tilt | 1 |
| 7 | F676881 | 转向连杆 | LINK Steering | 1 |
| 7 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 8 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 4 |
| 9 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 9 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 10 | 850185 | 枢轴螺栓-艉支架（0.375-16×7.375） | BOLT Pivot - Stern Bracket (.375-16 X 7.375) | 1 |
| 11 | F7026 | 螺母（0.375-16） | NUT (.375-16) (.375-16) | 1 |
| 12 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 13 | 90072 | 螺钉(.375-24 x 1.750) | SCREW (.375-24 x 1.750) | 1 |
| 14 | F522359 | 隔套 | SPACER | 1 |
| 15 | F84215 | 隔套 | SPACER | 1 |
| 16 | 830771A2 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 830771A8 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 830771A3 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 830771A9 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 17 | 27769 | 开口销 | COTTER PIN | 2 |
| 17 | 26811 | 开口销 | COTTER PIN | 2 |
| 18 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 4 |
| 19 | 828819 | 油门控制螺柱 | STUD Throttle Control | 2 |
| 20 | F8058 | 锁紧垫圈 | LOCKWASHER | 2 |
| 21 | 8191481 | 油门杆 | LEVER Throttle | 1 |
| 22 | 29488 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 22 | 8M0204718 | 螺母 | NUT | 1 |
| 23 | 93527 | 护孔环 | GROMMET | 1 |
| 23 | 93527002 | 护孔环 | GROMMET | 1 |
| 24 | 830772 | 专用螺钉 | SCREW (SPECIAL) | 2 |
| 25 | 830058A4 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 25 | 855791A2 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 25 | 830058A5 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 25 | 855791A3 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 26 | 8192812 | 前板贴花 | DECAL Front Plate | 1 |
| 27 | F1733 | 不锈钢螺钉(#10-24 x .562) | SCREW (#10-24 x .562) SS | 4 |
| 27 | 852453 | 螺钉(#10-24 x .560) | SCREW (#10-24 x .560) | 4 |
| 28 | F7009 | 螺母(#10-24) | NUT (#10-24) | 4 |
| 29 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 2 |
| 30 | 38837 | 螺钉(.312-18×1.12) | SCREW (.312-18 x 1.12) | 2 |
| 31 | 830006T2 | 遥控转向臂 | ARM Remote Steering | 1 |
| 31 | 830006T3 | 遥控转向臂 | ARM Remote Steering | 1 |

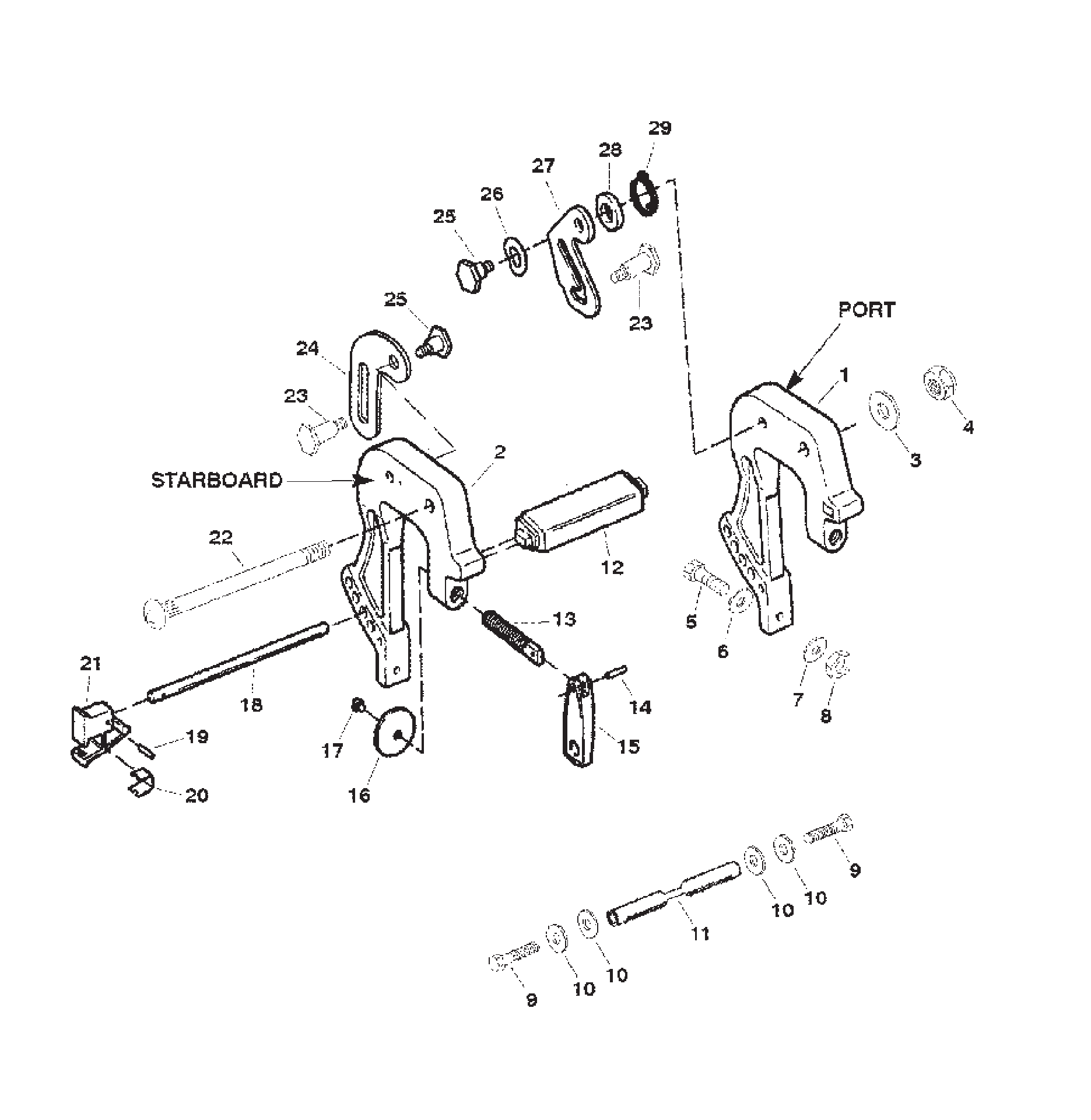

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 850073T2 | 艉支架（左舷） | BRACKET Stern (PORT) | 1 |
| 1 | 850073T4 | 艉支架（左舷） | BRACKET Stern (PORT) | 1 |
| 2 | 850073T3 | 艉支架（右舷） | BRACKET Stern (STARBOARD) | 1 |
| 2 | 850073T5 | 艉支架（右舷） | BRACKET Stern (STARBOARD) | 1 |
| 3 | 20553 | 垫圈(.406 x .734 x .063) | WASHER (.406 x .734 x .063) | 1 |
| 4 | F7026 | 螺母（0.375-16） | NUT (.375-16) (.375-16) | 1 |
| 5 | 832820 | 安装螺钉（0.250-20×3.00） | SCREW (.250-20 X 3.00)-MOUNTING | 2 |
| 6 | 29245 | 不锈钢薄垫圈（0.281×0.500×0.060）-安装用 | WASHER (.281 x .500 x .060) Stainless Steel (THIN)-MOUNTING | 2 |
| 6 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 7 | 67983 | 垫圈 | WASHER | 2 |
| 8 | 13855 | 安装螺母（0.250-20） | NUT (.250-20) MOUNTING | 2 |
| 8 | 8267118 | 螺母 (.250-20) | NUT (.250-20) | 2 |
| 9 | 4000332 | 螺钉(M6x35) | SCREW (M6 x 35) | 2 |
| 10 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 10 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 11 | 852963 | 隔套 | SPACER | 1 |
| 12 | 830564 | 搬运手柄 | HANDLE Carrying | 1 |
| 13 | 826248 | 艉支架螺钉 | SCREW Stern Bracket | 2 |
| 14 | 24198 | 滚动销 | PIN Roll | 2 |
| 15 | F424075T1 | 夹紧螺钉手柄 | HANDLE Clamp Screw | 2 |
| 15 | F424075T2 | 夹紧螺钉手柄 | HANDLE Clamp Screw | 2 |
| 16 | F24074 | 艉支架地脚螺钉 | FOOT Stern Bracket Screw | 2 |
| 17 | 69022 | 螺钉 (#10-32 x .500) 不锈钢 | SCREW (#10-32 x .500) Stainless Steel | 2 |
| 18 | 851924A2 | 倾斜销总成-艉支架 | PIN ASSEMBLY Tilt - Stern Bracket | 1 |
| 19 | 38489 | 滚动销 | PIN Roll | 1 |
| 20 | F286461 | 弹簧 | SPRING | 1 |
| 21 | 851929 | 锁杆手柄 | HANDLE Lock Bar | 1 |
| 22 | 850185 | 枢轴螺栓-艉支架（0.375-16×7.375） | BOLT Pivot - Stern Bracket (.375-16 X 7.375) | 1 |
| 23 | 819707 | 倾斜锁销（0.250-20） | PIN Tilt Lock (.250-20) | 2 |
| 24 | 826251 | 倾斜锁杆 | LEVER Tilt Lock | 1 |
| 25 | F286422-1 | 特殊螺钉（0.312-18） | SCREW (.312-18 Special) (.312-18) | 2 |
| 26 | 69150 | 波形垫圈 | WAVE WASHER | 1 |
| 27 | F429541 | 倾斜锁 | LOCK Tilt | 1 |
| 28 | 819226 | 倾斜锁隔套 | SPACER Tilt Lock | 1 |
| 29 | F286544-1 | 倾斜锁弹簧 | SPRING Tilt Lock | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | FT2991 | 钢丝刷 | BRUSH Wire | 1 |
| - | 803504T | 电刷 | BRUSH | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | FT2909 | 飞轮拆卸螺母 | KNOCK OFF NUT Flywheel Removal | 1 |
| - | 803601T | 拆卸工具 | KNOCK OFF TOOL | 1 |
| - | FT2989 | 飞轮楔形工具 | WEDGE TOOL Flywheel | 1 |
| - | 13663A1 | 活塞销安装工具 | INSTALLER TOOL Piston Pin | 1 |
| - | 13663T1 | 活塞销安装工具 | INSTALLER TOOL Piston Pin | 1 |
| - | FT2990-1 | 活塞与活塞销定位块 | BLOCK Piston And Piston Pin | 1 |
| - | FT8950 | 测试套件 | TESTER KIT | 1 |
| - | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| - | 34569A1 | 滑动锤拉拔器总成 | PULLER ASSEMBLY Slide Hammer | 1 |
| - | 938431 | 轴承座安装工具 | INSTALLER TOOL Bearing Carrier | 1 |
| - | 93843T1 | 轴承座安装工具 | INSTALLER TOOL Bearing Carrier | 1 |
| - | 27780 | 拉拔器 | PULLER | 1 |
| - | 31229A7 | 轴承拉拔器套件 | PULLER KIT Bearing | 1 |
| - | 36571 | 导向垫圈 | PILOT WASHER | 1 |
| - | 36571T | 导向垫圈 | PILOT WASHER | 1 |
| - | 29310 | 安装板 | PLATE | 1 |
| - | 31229 | 轴 | SHAFT | 1 |
| - | 24156 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| - | 34961 | 垫圈 (0.656 X 1.312 X 0.095) | WASHER (.656 X 1.312 X .095) | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | 850439 | 火花测试器 | SPARK TESTER | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| - | 99379 | 正时灯 | TIMING LIGHT | 1 |
| - | 59339 | 维修用转速表 | SERVICE TACHOMETER | 1 |
| - | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| - | 99750A1 | 万用表 | MULTI METER | 1 |
| - | 825265A1 | 针轴承润滑脂 (8盎司) | COMPOUND (8 Ounce) NEEDLE BEARINGS | 1 |
| - | 802868A1 | 润滑剂 | LUBRICANT | 1 |
| - | FT2987-1 | 润滑剂 | LUBRICANT | 1 |
| - | 898101390 | 防卡剂喷雾 | ARESOL ANTI-SEIZE | 1 |
| - | 901132 | 密封胶 RTV #1473 | SEALANT RTV #1473 | 1 |
| - | 809825 | RTV硅胶 (3盎司管装) 金属蓝 | RTV SILICONE (3 Ounce Tube) Metallic Blue | 1 |
| - | 809825 | RTV硅胶 (3盎司管装) 金属蓝 | RTV SILICONE (3 Ounce Tube) Metallic Blue | 1 |
| - | FT2962-2 | 密封胶 | SEALANT | 1 |
| - | 809818 | 乐泰222螺纹锁固剂 10毫升 | LOCTITE 222 THREADLOCKER 10ml | 1 |
| - | 809819 | 乐泰271螺纹锁固剂 10毫升 | LOCTITE 271 THREADLOCKER 10 ml | 1 |
| - | 809820 | 乐泰271螺纹锁固剂 50毫升 | LOCTITE 271 THREADLOCKER 50 ml | 1 |
| - | 850736A1 | 多功能润滑脂 2-4-C (8盎司管装) | MULTI LUBE 2 4 C (8 Ounce Tube) | 1 |
| - | 8M0240200 | 润滑脂 2-4-C @12 | LUBE 2-4-C @12 | 1 |
| - | 850737A1 | 齿轮油 (10盎司管装) | GEAR LUBE (10 Ounce Tube) | 1 |
| - | 802844Q1 | 齿轮油 | GEAR LUBE | 1 |
| - | 816391A4 | 润滑脂 | GREASE | 1 |
| - | 802869Q1 | ORD 92-8M0071841 | ORD 92-8M0071841 | 1 |

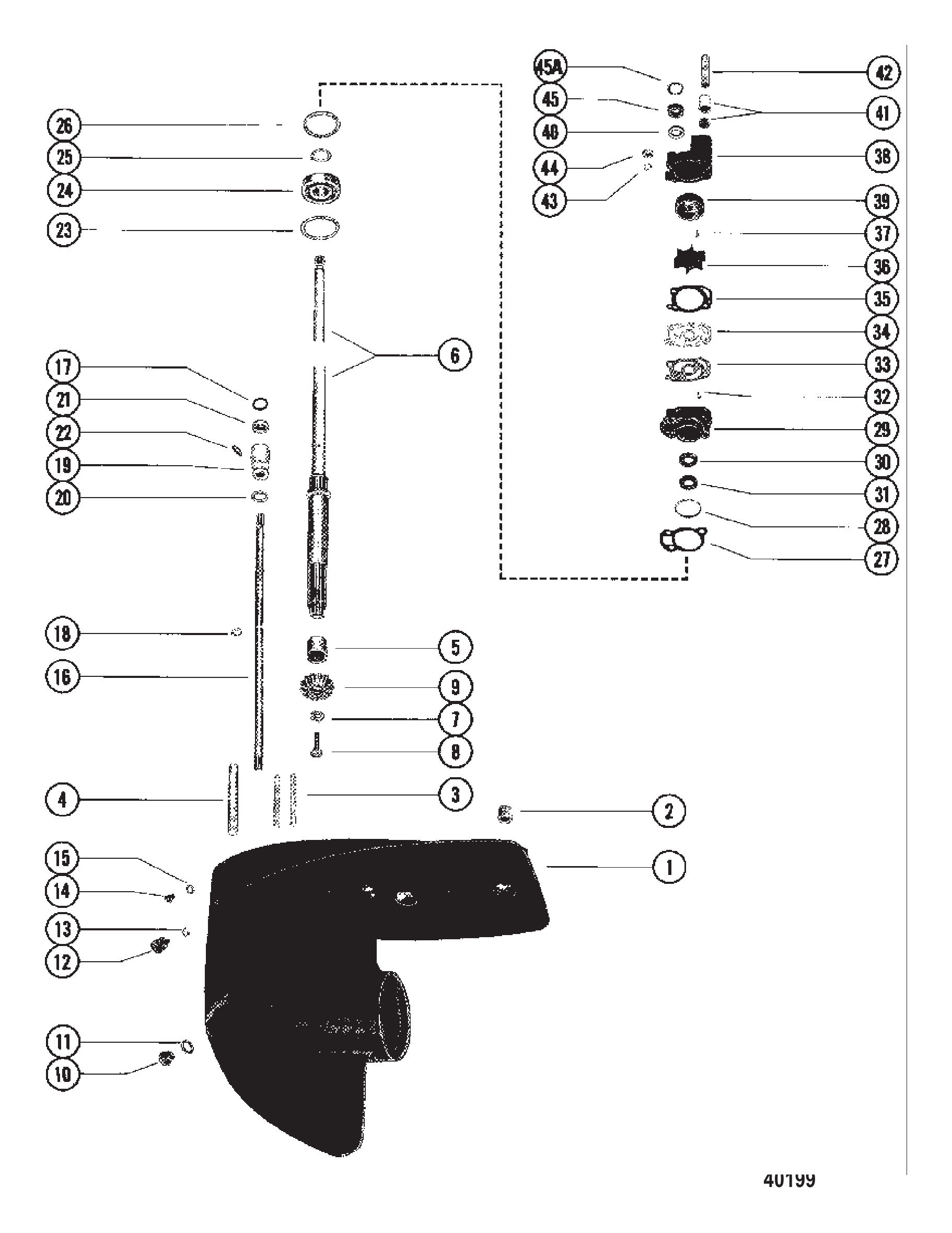

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8669A42 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A43 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A44 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A45 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8669A22 | 齿轮箱总成基础型-灰色 | GEAR HOUSING ASSEMBLY Basic-Gray | 1 |
| 2 | NSS | 不单独销售套筒 | NOT SOLD SEPARATE Sleeve | 1 |
| 3 | 99325 | 密封件 | SEAL | 2 |
| 4 | 41326 | 滚柱轴承 | BEARING Roller | 1 |
| 5 | 85500 | 定位销(.187 x .530) | PIN Dowel (.187 x .530) | 1 |
| 6 | 79953A2 | 螺丝套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) | 1 |
| 7 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 8 | 41133 | 进水口滤网 | SCREEN Water Inlet Port | 1 |
| 9 | 40031112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 1 |
| 10 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | 1 |
| 11 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 12 | 41134 | 滤网(右舷) | SCREEN (STARBOARD) | 1 |
| 13 | 400263 | 螺母(M5)滤网螺钉 | NUT (M5) SCREEN SCREW | 1 |
| 14 | 98294A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 15 | NSS | NOT SOLD SEPARATE Cup-roller Bearing | 1 | |
| 16 | 984325 | 平衡鳍板 | TRIM TAB | 1 |
| 17 | 4000354 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 1 |
| 18 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 19 | 49908 | 螺钉(.250-28 x .750) | SCREW (.250-28 x .750) | 1 |
| 20 | 98302 | 小齿轮 | GEAR Pinion | 1 |
| 21 | 993261 | 衬垫 | GASKET | 1 |
| 22 | 85083 | 面板 | FACE PLATE | 1 |
| 23 | 8M0027721 | 垫圈 | WASHER | 1 |
| 24 | 85119 | 键 | KEY | 1 |
| 25 | 850893 | 叶轮 | IMPELLER | 1 |
| 26 | 8M0027721 | 垫圈 | WASHER | 1 |
| 27 | 69202 | O型圈 | O-RING | 1 |
| 28 | 99157A1 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 29 | NSS | 不单独销售嵌件 | NOT SOLD SEPARATE Insert | 1 |
| 30 | 85090 | 密封件 | SEAL | 1 |
| 31 | 86203 | O型圈 | O-RING | 1 |
| 32 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 1 |
| 33 | 853939 | 换挡杆 | ROD Gear Shift | 1 |
| 33 | 853940 | 换挡杆 | ROD Gear Shift | 1 |
| 34 | 827024T | 驱动轴 | DRIVESHAFT | 1 |
| 34 | 827025T | 驱动轴 | DRIVESHAFT | 1 |
| 35 | 85552 | 护套 | BOOT | 1 |
| 36 | 93878 | 固定座 | RETAINER | 1 |
| 37 | 35276 | O型圈(.734 x .139) | O-RING (.734 x .139) | 1 |
| 38 | 85594 | O型圈(.239 x .174) | O-RING (.239 x .174) | 1 |
| 39 | 85562A2 | 换挡凸轮 | SHIFT CAM | 1 |
| 40 | 85096 | 驱动销 | PIN Drive | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| - | 99157A2 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 7837312 | 油漆(黑色)(355毫升)喷雾罐加拿大(12瓶装)外部零件-MERCURY | PAINT (Black) (355 ML) SPRAY CANADA (CASE OF 12) EXTERNAL PARTS-MERCURY | AR |
| - | 8279331 | 黑色油漆 | PAINT Black | AR |
| - | 82288612 | 油漆(黑色)(15毫升)刷瓶(12瓶装)外部零件-MERCURY | PAINT (Black) (15 ML) BRUSH BOTTLE (BOX OF 12) EXTERNAL PARTS-MERCURY | AR |
| - | 8279332 | 黑色油漆 | PAINT Black | AR |
| - | 77171A12 | 油漆镍灰色(12盎司)(355毫升)喷雾罐加拿大(12瓶装)外部零件-MARINER | PAINT Nickel Gray (12 Ounces) (355 ML) SPRAY CANADA (CASE OF 12) EXTERNAL PARTS-MARINER | AR |
| - | 82793310 | PAINT-GRAY @6 | PAINT-GRAY @6 | AR |
| - | 82614212 | 油漆镍灰色(0.5盎司)(15毫升)刷瓶(12瓶装)外部零件-MARINER | PAINT Nickel Gray (.5 Ounces) (15 ML) BRUSH BOTTLE (BOX OF 12) EXTERNAL PARTS-MARINER | AR |
| - | 82793311 | PAINT.6-GRAY@6 | PAINT.6-GRAY@6 | AR |
| - | 81910712 | 透明丙烯酸油漆(355毫升)喷雾罐加拿大(12瓶装)仅用于罩盖-MERCURY和MARINER | PAINT Clear Acrylic (355 ML) SPRAY CANADA (CASE OF 12) FOR COWL ONLY-MERCURY AND MARINER | AR |
| - | 82793353 | PAINT-CLEAR @6 | PAINT-CLEAR @6 | AR |
| - | 1878112 | 油漆(355毫升)喷雾罐装(12罐/箱) 全部动力头及铝制螺旋桨部件 | PAINT (355 ML) SPRAY CANADA (CASE OF 12) ALL POWERHEADS AND ALUM PROPELLER PARTS | AR |
| - | 82793350 | 黑色油漆 | PAINT Black | AR |
| - | 97842A12 | 银色油漆(12盎司)(355毫升)喷雾罐装(12罐/箱) 仅限换挡手柄-水星及马林纳发动机罩-仅限马林纳 | PAINT Silver (12 Ounces) (355 ML) SPRAY CANADA (CASE OF 12) GEAR SHIFT HANDLE ONLY-MERCURY AND MARINER COWL ONLY-MARINER | AR |
| - | 82793312 | 油漆-银色@6 | PAINT-SILVER@6 | AR |
| - | 82582312 | 银色油漆(0.5盎司)(15毫升)刷瓶装(12瓶/盒) 仅限换挡手柄-水星及马林纳发动机罩-仅限马林纳 | PAINT Silver (.5 Ounces) (15 ML) BRUSH BOTTLE (BOX OF 12) GEAR SHIFT HANDLE ONLY-MERCURY AND MARINER COWL ONLY-MARINER | AR |
| - | 82793313 | 油漆.6-银色@6 | PAINT.6-SILV@6 | AR |

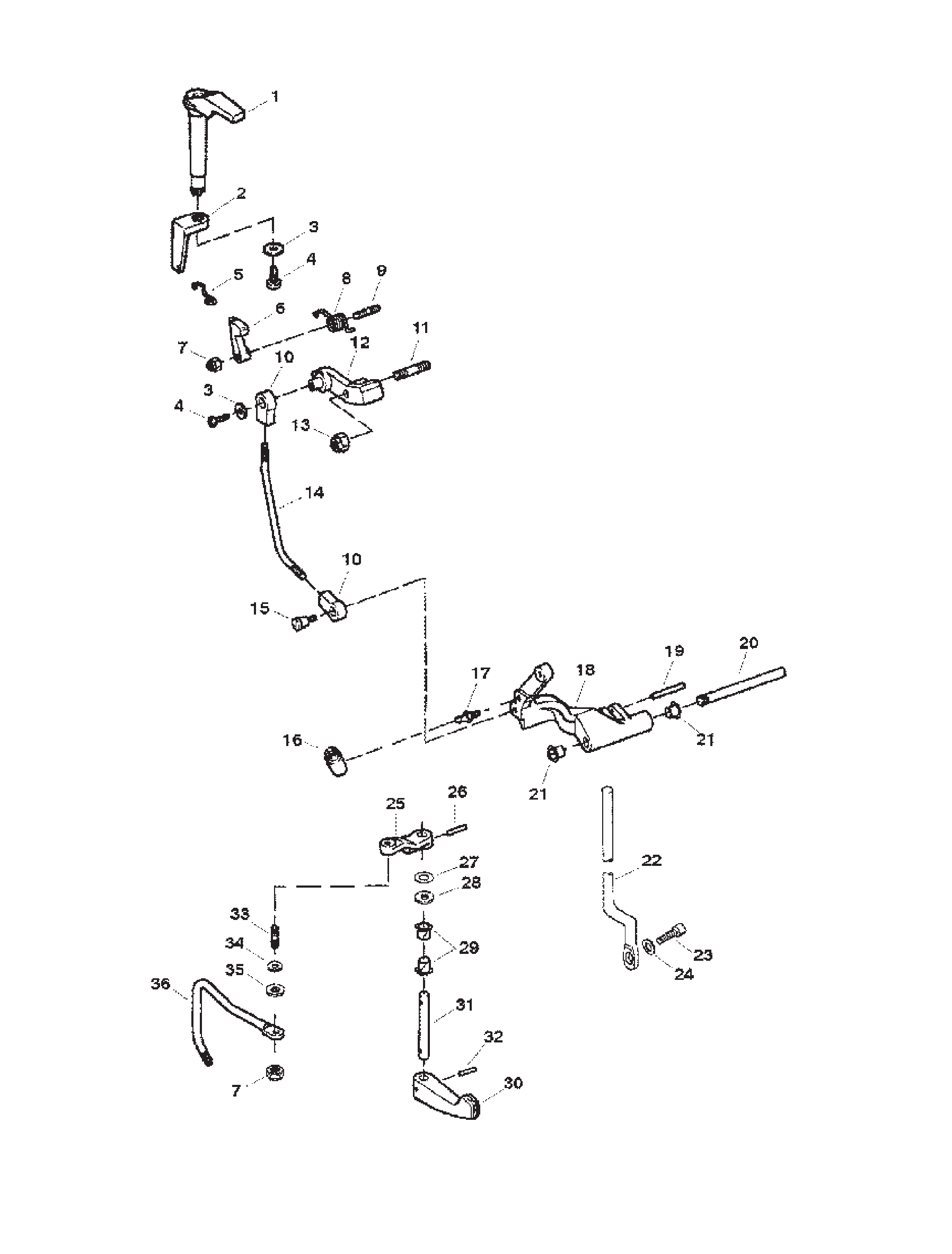

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F681490 | 启动滑轮联锁挡块 | STOP Starter Pulley Interlock | 1 |
| 2 | F681003-1 | 启动联锁臂 | ARM Starter Interlock | 1 |
| 3 | F8143 | 垫圈 | WASHER | 2 |
| 4 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 2 |
| 5 | F681263-1 | 启动联锁连杆 | LINK Starter Interlock | 1 |
| 6 | F681742 | 中间联锁杆 | LEVER Intermediate Interlock | 1 |
| 7 | 20110 | 螺母 (#10-32) | NUT (#10-32) | 2 |
| 8 | F681424 | 联锁杆弹簧 | SPRING Interlock Lever | 1 |
| 9 | F681134 | 联锁杆螺柱 | STUD Interlock Lever | 1 |
| 10 | 816514 | 火花控制轴承 | BEARING Spark Control | 2 |
| 11 | 826590 | 双头螺柱(.250-20 x 1.690) | STUD (.250-20 x 1.690) (.250-20 X 1.690) | 1 |
| 12 | 824357 | 空档速度联锁杆 | LEVER Neutral Speed Interlock | 1 |
| 13 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 13 | 8M0207776 | 螺母 | NUT | 1 |
| 14 | 819159 | 联锁杆 | ROD Interlock | 1 |
| 15 | 819625 | 螺钉 | SCREW | 1 |
| 16 | F286685 | 换挡杆连接器 | CONNECTOR Gear Shift Rod | 1 |
| 17 | F98273 | 螺柱 | STUD | 1 |
| 18 | 819508T | 换挡杆 | LEVER Gear Shift | 1 |
| 18 | 855621T | 换挡杆 | LEVER Gear Shift | 1 |
| 19 | 25319 | 销钉(.125 x 0.75英寸) | PIN (.125 x 0.75 Inches) | 1 |
| 20 | F286871T | 换挡杆销 | PIN Gear Shift Lever | 1 |
| 21 | 26841 | 衬套 | BUSHING | 2 |
| 22 | 8193781 | 上换挡杆 | ROD Upper Gear Shift | 1 |
| 23 | F1976 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 1 |
| 24 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 1 |
| 25 | 8203671 | 换挡手柄轴杆 | LEVER Shift Handle Shaft | 1 |
| 25 | 820367F1 | 杠杆 | LEVER | 1 |
| 26 | 25905 | 销 | PIN | 1 |
| 27 | 34632 | 垫圈 | WASHER | 1 |
| 28 | 36001 | 垫圈 | WASHER | 1 |
| 29 | 830054 | 衬套 | BUSHING | 2 |
| 30 | 819626A2 | 手柄总成(银色喷涂) | HANDLE ASSEMBLY (PAINTED SILVER) | 1 |
| 31 | 828931 | 轴 | SHAFT | 1 |
| 32 | 25905 | 销 | PIN | 1 |
| 33 | F286134 | 换挡杆螺柱 | STUD Gear Shift Lever | 1 |
| 34 | 34632 | 垫圈(#10) | WASHER (#10) | 1 |
| 35 | 830097 | 衬套 | BUSHING | 1 |
| 36 | 830096 | 连接杆 | LINK | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 2 | 71565 | 导向套管 | TUBE Cable Guide | 1 |
| 3 | 37984 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 3 | 8M0041651 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 4 | 42100 | 锁紧垫圈 | TAB WASHER | 2 |
| 5 | 827890 | 线管支架 | BRACKET Cable Tube | 2 |
| 6 | F676541-2 | 倾斜锁 | LOCK Tilt | 1 |
| 7 | F676881 | 转向连杆 | LINK Steering | 1 |
| 7 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 8 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 4 |
| 9 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 9 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 10 | 850185 | 枢轴螺栓-艉支架（0.375-16×7.375） | BOLT Pivot - Stern Bracket (.375-16 X 7.375) | 1 |
| 11 | F7026 | 螺母（0.375-16） | NUT (.375-16) (.375-16) | 1 |
| 12 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 13 | 90072 | 螺钉(.375-24 x 1.750) | SCREW (.375-24 x 1.750) | 1 |
| 14 | F522359 | 隔套 | SPACER | 1 |
| 15 | F84215 | 隔套 | SPACER | 1 |
| 16 | 830771A8 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 830771A9 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 17 | 27769 | 开口销 | COTTER PIN | 2 |
| 17 | 26811 | 开口销 | COTTER PIN | 2 |
| 18 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 4 |
| 19 | 828819 | 油门控制螺柱 | STUD Throttle Control | 2 |
| 20 | F8058 | 锁紧垫圈 | LOCKWASHER | 2 |
| 21 | 8191481 | 油门杆 | LEVER Throttle | 1 |
| 22 | 29488 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 22 | 8M0204718 | 螺母 | NUT | 1 |
| 23 | 93527 | 护孔环 | GROMMET | 1 |
| 23 | 93527002 | 护孔环 | GROMMET | 1 |
| 24 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 2 |
| 24 | 8M0207776 | 螺母 | NUT | 2 |
| 25 | 855791A2 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 25 | 855791A3 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 26 | 8192812 | 前板贴花 | DECAL Front Plate | 1 |
| 27 | 852453 | 螺钉(#10-24 x .560) | SCREW (#10-24 x .560) | 4 |
| 28 | F7009 | 螺母(#10-24) | NUT (#10-24) | 4 |
| 29 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 2 |
| 30 | 38837 | 螺钉(.312-18×1.12) | SCREW (.312-18 x 1.12) | 2 |
| 31 | 830006T2 | 遥控转向臂 | ARM Remote Steering | 1 |
| 31 | 830006T3 | 遥控转向臂 | ARM Remote Steering | 1 |
| 32 | 48323 | 堵头 | PLUG | 1 |
| 33 | 855648 | 套筒 | SLEEVE | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 840429 | 软管 | HOSE | 1 |
| 2 | 840437 | 卡扣 | CLIP | 1 |
| 3 | 855896T | 滤清器 | FILTER | 1 |
| 4 | 830756109 | 软管 (57.00英寸整卷) (裁切为3.50英寸长度) | HOSE (57.00 Inches Bulk) (Cut to 3.50 Inch Length) | 1 |
| 4 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 5 | 840436 | 卡扣 | CLIP | 1 |
| 6 | 840435 | 软管 | HOSE | 1 |
| 7 | 826544A1 | 管件套件 | TUBING KIT | 1 |
| 8 | 8568172 | 软管 | HOSE | 1 |
| 8 | 8M0064778 | 软管 | HOSE | 1 |
| 9 | 8583253 | 卡箍 | CLAMP | 1 |
| 10 | 822769 | 连接器 | CONNECTOR | 1 |
| 11 | 85583463 | 管材 (33.00英寸整卷) (裁切为15.00英寸长度) | TUBING (33.00 Inches Bulk) (Cut to 15.00 Inch Length) | 1 |
| 11 | 85583464 | 管材 (34.00英寸整卷) | TUBING (34.00 Inches Bulk) | 1 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 13 | 774572 | 软管 (48.00英寸整卷) (裁切为15.00英寸长度) | HOSE (48.00 Inches Bulk) (Cut to 15.00 Inch Length) | 1 |
| 14 | 13791 | 卡箍(15.7) | CLAMP (15.7) | 3 |
| 14 | 8M0214911 | 卡箍@5 | CLAMP @5 | 3 |
| 14 | 856880 | 软管卡箍（15.3） | CLAMP Hose (15.3) | 2 |
| 14 | 8M0214964 | 卡箍 | CLAMP | 2 |
| - | 840756A01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 840756A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 819150A1 | 进气歧管总成 | MANIFOLD ASSEMBLY Intake | 1 |
| 1 | 819150A4 | 进气歧管总成 | M FOLD ASY-INTAKE | 1 |
| 2 | 426981 | 止回阀 | CHECK VALVE | 2 |
| 2 | 426982 | 止回阀 | CHECK VALVE | 2 |
| 3 | 826622 | 双头螺柱(.250-20 x .910) 带防松涂层 | STUD (.250-20 x .910) (.250-20 X .910) WITH DRI LOK | 2 |
| 4 | 20890 | 化油器安装螺母(.250-20) | NUT (.250-20) CARBURETOR MOUNT | 2 |
| 5 | F1581 | 螺钉(.250-20 x 1.250) | SCREW (.250-20 X 1.250) (.250-20 X 1.250) | 7 |
| 5 | 819110125 | 螺丝(.250-20 x 1.250) | SCREW (.250-20 x 1.250) | 7 |
| 6 | 827308 | 簧片 | REED | 6 |
| 7 | 827307 | 簧片止挡 | STOP Reed | 6 |
| 8 | 819074 | 带锁紧垫圈的螺钉(#6-32 x .312) | SCREW WITH LOCKWASHER (#6-32 X .312) (#6-32 X .312) | 12 |
| 9 | 819142 | 簧片阀衬垫 | GASKET Reed Plate | 1 |
| 10 | 819153T | 簧片阀板 | PLATE Reed | 1 |
| 11 | 819141 | 进气歧管垫片 | GASKET Intake Manifold | 1 |
| - | 809516A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 852806T1 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 2 | 80196M | 盖板 | COVER | 1 |
| 3 | 852811 | 启动杆 | ROD Starter | 1 |
| 3 | 80197M | 盖帽 | CAP | 1 |
| 4 | 80199M | 安装板 | PLATE | 1 |
| 5 | 80194M | 弹簧 | SPRING | 1 |
| 6 | 80195M | 柱塞 | PLUNGER | 1 |
| 7 | 8527921 | 软管 | HOSE | 1 |
| 8 | 852807 | 油门杆 | LEVER Throttle | 1 |
| 9 | 80574M | 弹簧 | SPRING | 1 |
| 10 | 811245M | 杠杆 | LEVER | 1 |
| 11 | 83112M | 螺钉 | SCREW | 1 |
| 12 | 83115M | 轴环 | COLLAR | 1 |
| 13 | 827147M | 螺钉 | SCREW | 1 |
| 14 | 80193M | 弹簧 | SPRING | 1 |
| 15 | 8112431 | 主喷管 | MAIN NOZZLE | 1 |
| 16 | 8112441 | 主量孔 (#102) | JET Main (#102) | 1 |
| 17 | 80203M | 臂 | ARM | 1 |
| 18 | 80450M | 浮子 | FLOAT | 1 |
| 19 | 80740M | 衬垫 | GASKET | 1 |
| 20 | 811246M | 启动量孔 (#50) | JET Starting (#50) | 1 |
| 21 | 94735M | 本体 | BODY | 1 |
| 22 | 8527873 | 螺钉 | SCREW | 3 |
| 22 | 811248M | 螺钉 (M4 x 5) | SCREW (M4 x 5) | 3 |
| 23 | 80737M | 衬垫 | GASKET | 2 |
| 23 | 13999M | 衬垫 | GASKET | 2 |
| 24 | 8527872 | 螺钉 | SCREW | 4 |
| 25 | 852809 | 安装板 | PLATE | 1 |
| 26 | 81758M | 螺钉(M4 x 12) | SCREW (M4 x 12) | 2 |
| 27 | 94746M | 软管 | HOSE | 1 |
| 28 | 94744M | 本体 | BODY | 1 |
| 29 | 94691M | 衬垫 | GASKET | 1 |
| 30 | 94696M | 浮子 | FLOAT | 1 |
| 31 | 94697M | 臂 | ARM | 1 |
| 32 | 811249M | 浮子销 | PIN Float | 1 |
| 33 | 8112511 | 引导量孔 (#68) | JET Pilot (#68) | 1 |
| 34 | 94695M | O型圈 | O-RING | 1 |
| 35 | 852808 | 盖板 | COVER | 1 |
| 35 | 852808T | 盖板 | COVER | 1 |
| 36 | 95430M | 阀座 | VALVE SEAT | 1 |
| 37 | 80451M | 销 | PIN | 1 |
| 38 | 11930M | 阀座 | SEAT Valve | 1 |
| 39 | 80205M | 衬垫 | GASKET | 1 |
| 40 | 97591M | 软管 | HOSE | 1 |
| 41 | 91746M | 引导量孔 (#46) | JET Pilot (#46) | 1 |
| 42 | 80573M | 螺钉 | SCREW | 1 |
| 43 | 8095791 | 弹簧 | SPRING | 1 |
| 44 | 94722M | 挡圈 | RING Retaining | 1 |
| - | 811252A1 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| - | 811252T1 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| - | 852783A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 850073T2 | 艉支架（左舷） | BRACKET Stern (PORT) | 1 |
| 1 | 850073T4 | 艉支架（左舷） | BRACKET Stern (PORT) | 1 |
| 2 | 850073T3 | 艉支架（右舷） | BRACKET Stern (STARBOARD) | 1 |
| 2 | 850073T5 | 艉支架（右舷） | BRACKET Stern (STARBOARD) | 1 |
| 3 | 20553 | 垫圈(.406 x .734 x .063) | WASHER (.406 x .734 x .063) | 1 |
| 4 | F7026 | 螺母（0.375-16） | NUT (.375-16) (.375-16) | 1 |
| 5 | 832820 | 安装螺钉（0.250-20×3.00） | SCREW (.250-20 X 3.00)-MOUNTING | 2 |
| 6 | 29245 | 不锈钢薄垫圈（0.281×0.500×0.060）-安装用 | WASHER (.281 x .500 x .060) Stainless Steel (THIN)-MOUNTING | 2 |
| 6 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 7 | 67983 | 垫圈 | WASHER | 2 |
| 8 | 13855 | 安装螺母（0.250-20） | NUT (.250-20) MOUNTING | 2 |
| 8 | 8267118 | 螺母 (.250-20) | NUT (.250-20) | 2 |
| 9 | 4000332 | 螺钉(M6x35) | SCREW (M6 x 35) | 2 |
| 10 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 10 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 11 | 852963 | 隔套 | SPACER | 1 |
| 12 | 830564 | 搬运手柄 | HANDLE Carrying | 1 |
| 13 | 826248 | 艉支架螺钉 | SCREW Stern Bracket | 2 |
| 14 | 24198 | 滚动销 | PIN Roll | 2 |
| 15 | F424075T1 | 夹紧螺钉手柄 | HANDLE Clamp Screw | 2 |
| 15 | F424075T2 | 夹紧螺钉手柄 | HANDLE Clamp Screw | 2 |
| 16 | F24074 | 艉支架地脚螺钉 | FOOT Stern Bracket Screw | 2 |
| 17 | 69022 | 螺钉 (#10-32 x .500) 不锈钢 | SCREW (#10-32 x .500) Stainless Steel | 2 |
| 18 | 851924A2 | 倾斜销总成-艉支架 | PIN ASSEMBLY Tilt - Stern Bracket | 1 |
| 19 | 38489 | 滚动销 | PIN Roll | 1 |
| 20 | F286461 | 弹簧 | SPRING | 1 |
| 21 | 851929 | 锁杆手柄 | HANDLE Lock Bar | 1 |
| 22 | 850185 | 枢轴螺栓-艉支架（0.375-16×7.375） | BOLT Pivot - Stern Bracket (.375-16 X 7.375) | 1 |
| 23 | 819707 | 倾斜锁销（0.250-20） | PIN Tilt Lock (.250-20) | 2 |
| 24 | 826251 | 倾斜锁杆 | LEVER Tilt Lock | 1 |
| 25 | F286422-1 | 特殊螺钉（0.312-18） | SCREW (.312-18 Special) (.312-18) | 2 |
| 26 | 69150 | 波形垫圈 | WAVE WASHER | 1 |
| 27 | F429541 | 倾斜锁 | LOCK Tilt | 1 |
| 28 | 819226 | 倾斜锁隔套 | SPACER Tilt Lock | 1 |
| 29 | F286544-1 | 倾斜锁弹簧 | SPRING Tilt Lock | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 852762A1 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 852762A02 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 852825A1 | 贴花套件 (侧/后) | DECAL SET (SIDE/REAR) | 1 |
| 3 | 8528251 | 前贴花 | DECAL Front | 1 |
| 4 | 852766 | 模制件 | MOLDING | 1 |
| 5 | 814489M | 铆钉 | RIVET | 4 |
| 6 | 852764 | 挂钩 | HOOK | 1 |
| 7 | 8527641 | 挂钩 | HOOK | 1 |
| 8 | 826957M | 螺栓 | BOLT | 4 |
| 9 | 82214M | 垫圈 | WASHER | 4 |
| 10 | 852763 | 密封件 | SEAL | 1 |
| 11 | 852767 | 下机罩 | BOTTOM COWL | 1 |
| 12 | 83988M | 护孔环 | GROMMET | 1 |
| 13 | 18927M | 护孔环 | GROMMET | 1 |
| 14 | 852768 | 护孔环 | GROMMET | 1 |
| 15 | 96596M | 护孔环 | GROMMET | 1 |
| 16 | 11414M | 护孔环 | GROMMET | 2 |
| 17 | 16634M | 护孔环 | GROMMET | 2 |
| 18 | 852772 | 支架 | BRACKET | 1 |
| 19 | 852771 | 连接器 | CONNECTOR | 1 |
| 20 | 82405M | 螺栓 | BOLT | 4 |
| 21 | 82214M | 垫圈 | WASHER | 4 |
| 22 | 11420M | 轴环 | COLLAR | 4 |
| 23 | 11416M | 护孔环 | GROMMET | 4 |
| 23 | 11416T | 护孔环 | GROMMET | 4 |
| 24 | 11409M | 衬套 | BUSHING | 2 |
| 25 | 95463M | 卡箍 | CLAMP | 1 |
| 26 | 81794M | 垫圈 | WASHER | 1 |
| 27 | 82390M | 螺母 (M6) | NUT (M6) | 1 |
| 28 | 82405M | 螺栓 | BOLT | 1 |
| 29 | 8527691 | 杠杆 | LEVER | 1 |
| 30 | 81869M | 垫圈 | WASHER | 1 |
| 31 | 852770 | 密封件 | SEAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 852798A02 | 曲轴 | CRANKSHAFT | 1 |
| 2 | 852800 | 轴承 | BEARING | 3 |
| 3 | 827192M | 曲轴 | CRANK | 1 |
| 4 | 852799 | 曲轴 | CRANK | 1 |
| 5 | 8527991 | 曲轴 | CRANK | 1 |
| 6 | 8527992 | 曲轴 | CRANK | 1 |
| 7 | 852801001 | 密封件 | SEAL | 1 |
| 8 | 84625M | 销 | PIN | 2 |
| 9 | 812494M | 连杆 | CONNECTING ROD | 2 |
| 10 | 812495M | 轴承 | BEARING | 2 |
| 11 | 852803008 | 垫圈 | WASHER | 4 |
| 12 | 82141M | 弹簧销 | PIN Spring | 1 |
| 13 | 84637M | 卡簧 | CIRCLIP | 1 |
| 14 | 9580T | 活塞 | PISTON | 2 |
| 14 | 9581M | 活塞 | PISTON | AR |
| 14 | 9582M | 活塞 | PISTON | AR |
| 15 | 15320T | 活塞环组 | RING SET Piston | 2 |
| 15 | 18939T | 活塞环组 | RING SET Piston | AR |
| 15 | 15322T | 活塞环组 | RING SET Piston | AR |
| 16 | 825713 | 活塞销 | PIN Piston | 2 |
| 17 | 82349M | 滚针轴承 | BEARING Needle | 50 |
| 18 | 81823M | 垫圈 | WASHER | 4 |
| 19 | 82343M | 卡扣 | CLIP | 4 |
| 20 | 83936M | 油封 | SEAL Oil | 1 |
| 21 | 852802 | 隔套 | SPACER | 2 |
| 22 | 852803 | 垫圈 | WASHER | 1 |
| 23 | 852795 | 壳体 | HOUSING | 1 |
| 24 | 852797 | 油封 | SEAL Oil | 1 |
| 25 | 852796 | O型圈 | O-RING | 1 |
| 26 | 96606001 | 油封 | SEAL Oil | 2 |
| 27 | 852797001 | 油封 | SEAL Oil | 1 |
| 28 | 826957M | 螺栓 | BOLT | 1 |
| 29 | 82214M | 垫圈 | WASHER | 1 |
| 30 | 81914M | 键 | KEY | 1 |
| 30 | 8M0057164 | 键@2 | KEY @2 | 1 |
| - | 852761A02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 852783A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 819240A3 | 动力头总成（完整） | POWERHEAD ASSEMBLY (COMPLETE) | 1 |
| 1 | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| 1 | 819240A2 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 1 | 819240A5 | 气缸总成 | CYLINDER ASSY | 1 |
| 2 | 92160 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 11 |
| 3 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 11 |
| 3 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 11 |
| 4 | 54523 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 6 |
| 5 | 20084 | 垫圈（0.328×0.562×0.062） | WASHER (.328 x .562 x .062) | 6 |
| 6 | F8559 | 销 | PIN | 1 |
| 7 | 426582 | 止回阀 | CHECK VALVE | 1 |
| 7 | 426585 | 止回阀 | CHECK VALVE | 1 |
| 8 | 99130122 | 管材（20英尺卷材/裁切2段15英寸+1段12.058英寸） | TUBING (20.00 Feet Bulk) (CUT 2 PCS-15.00 IN.)(CUT 1 PC-12.058 IN.) | 1 |
| 8 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 9 | 834759 | 特殊双头螺柱（0.312-24×1.14） | STUD (.312-24 X 1.14) Special | 1 |
| 10 | 826590 | 双头螺柱（0.250-20×1.690） | STUD (.250-20 x 1.690) | 1 |
| 11 | 834753 | 油门限位支架 | BRACKET Throttle Stop | 1 |
| 12 | 809516A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| 13 | 819243 | 水套管 | TUBE Water Jacket | 1 |
| 14 | 88780 | 示流管弯头 | ELBOW Tell-Tale Tubing | 1 |
| 14 | 887801 | 弯头配件90度(.0625-27) | FITTING Elbow 90 Degree (.0625-27) | 1 |
| 15 | 549507 | 示流软管（7英寸） | HOSE (7.00 IN.)-TELL TALE | 1 |
| 15 | 5495025 | 管材（25英尺卷材） | TUBING (25.00 Feet Bulk) | 1 |
| 16 | 819140 | 排气盖衬垫 | GASKET Exhaust Cover | 2 |
| 17 | 819152 | 排气板 | PLATE Exhaust | 1 |
| 18 | 819136T | 排气罩 | COVER Exhaust | 1 |
| 18 | 819136T1 | 排气盖 | COVER-EXHAUST | 1 |
| 19 | F1581 | 螺钉（0.250-20×1.250） | SCREW (.250-20 X 1.250) | 14 |
| 19 | 819110125 | 螺丝(.250-20 x 1.250) | SCREW (.250-20 x 1.250) | 14 |
| 20 | 90192 | 不锈钢接地线螺钉（0.250-20×0.750） | SCREW (.250-20 x .750) Stainless Steel GROUND WIRE | 1 |
| 21 | 819498 | 气缸安装衬垫 | GASKET Cylinder Mount | 1 |
| 22 | 819157T1 | 排气管 | TUBE Exhaust | 1 |
| 23 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 23 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 24 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 3 |
| 25 | 90192 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 3 |
| 26 | 819137T | 换气口盖总成 | COVER ASSEMBLY Transfer Port | 1 |
| 26 | 819137T1 | 换气口盖总成 | COVER ASSY-T SFER | 1 |
| 27 | 15133 | 接头 | FITTING | 3 |
| 28 | F681134 | 联锁杆螺柱 | STUD Interlock Lever | 1 |
| 29 | 90192 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 1 |
| 30 | 28927 | 垫圈 | WASHER | 1 |
| 30 | 26907 | 垫圈 | WASHER | 1 |
| 31 | F1535 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 7 |
| 32 | 819143 | 换气口盖垫片 | GASKET Transfer Port Cover | 1 |
| 33 | 814806 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 8 |
| 33 | 8M0204690 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 8 |
| 34 | F1882 | 螺钉(.312-18 x 2.125) | SCREW (.312-18 x 2.125) | 10 |
| 35 | 8191382 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| 36 | 819145T1 | 气缸盖 | CYLINDER HEAD | 1 |
| 36 | 819145T2 | 气缸盖 | HEAD-CYLINDER | 1 |
| 37 | 8191391 | 气缸盖罩衬垫 | GASKET Cylinder Head Cover | 1 |
| 38 | 819134T | 气缸盖罩 | COVER Cylinder Head | 1 |
| 39 | F658504 | 垫圈 | WASHER | 1 |
| 40 | F97068-2 | 节温器54°C(130°F) | THERMOSTAT 54°C (130°F) | 1 |
| 40 | 895338 | 节温器 62°C (143°F) | THERMOSTAT 62°C (143°F) | 1 |
| 41 | 819161 | 节温器弹簧 | SPRING Thermostat | 1 |
| 42 | 819439T | 节温器盖 | COVER Thermostat | 1 |
| 43 | 35386 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 6 |
| 44 | 78968 | 内锁紧垫圈(.250)接地螺钉 | LOCKWASHER Internal (.250) GROUND SCREW | 1 |
| - | 809516A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8192131 | 燃油泵总成 | PUMP ASSEMBLY Fuel | 1 |
| 2 | 820748A1 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 3 | NSS | NOT SOLD SEPARATE WASHER | 2 | |
| 4 | 820749 | 螺钉(#10-24 X 1.250) | SCREW (#10-24 X 1.250) | 2 |
| 5 | 819499 | 螺钉(#10-24 X 1.625) | SCREW (#10-24 X 1.625) | 2 |
| 6 | 38933 | O型圈 | O-RING | 1 |
| 7 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | AR |
| 8 | 819398T | 软管(18.00英寸整卷)(裁切1.625英寸) | HOSE (18.00 IN. BULK) (CUT 1.625 IN.) | 1 |
| 9 | 819398T | 软管(18.00英寸整卷)(裁切3.125英寸) | HOSE (18.00 IN. BULK) (CUT 3.125 IN.) | 1 |
| 10 | 819398T | 软管(18.00英寸整卷)(裁切15.500英寸) | HOSE (18.00 IN. BULK) (CUT 15.500 IN.) | 1 |
| 11 | 851934 | 注油泵盖 | COVER Primer Bulb | 1 |
| 12 | F681046 | 注油泵球 | BULB Primer | 1 |
| 13 | 819398T | 软管(18.00英寸整卷)(裁切11.500英寸) | HOSE (18.00 IN. BULK) (CUT 11.500 IN.) | 1 |
| 14 | 816296 | 燃油滤清器 | FILTER Fuel | 1 |
| 14 | 816296Q03 | 燃油滤清器@3 | FILTER-FUEL @3 | 1 |
| 15 | F197767-2 | 燃油衬套 | BUSHING Fuel | 1 |
| - | 809516A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 823504A1 | 燃油箱总成-塑料6.6加仑 | TANK ASSEMBLY Fuel - Plastic 6.6 Gallon | 1 |
| 1 | 859063A1 | 燃油箱总成 | TANK ASSEMBLY Fuel | 1 |
| 2 | 823536 | 油量表/油箱盖总成 | GAUGE/CAP ASSEMBLY | 1 |
| 2 | 816976Q1 | 燃油手动通气盖总成 | CAP ASSEMBLY Fuel-Manual Vent | 1 |
| 3 | 823532 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 3 | 8M0175545 | 燃油连接套件 6.6 | CONN KIT FUEL 6.6 | 1 |
| 4 | 823533 | O型圈 | O-RING | 1 |
| 5 | 823534 | 滤网 | SCREEN | 1 |
| 6 | 17146A8 | 燃油管路总成(8英尺)(内径0.312)(30英寸&60英寸) | LINE ASSEMBLY Fuel (8 Feet) (.312 I.D.)(30.00 IN. & 60.00 IN.) | 1 |
| 6 | 877681Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 7 | 13330A3 | 注油泵总成 | BULB ASSEMBLY Primer | 1 |
| 7 | 13330Q07 | 注油泵总成 - Quicksilver品牌 | BULB ASSEMBLY Primer - Quicksilver Brand | 1 |
| 8 | 13331A1 | CHECK VALVE ASSEMBLY (INLET) | 1 | |
| 8 | 13331A3 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 9 | 13331A2 | CHECK VALVE ASSEMBLY (OUTLET) | 1 | |
| 9 | 13331A4 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 10 | 4158210 | CLAMP Nylon (LARGE) | 2 | |
| 11 | 415827 | CLAMP Nylon (SMALL) | 2 | |
| 11 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 12 | 13563A3 | 燃油管接头总成 | FITTING ASSEMBLY Fuel Line | 1 |
| 12 | 13563Q3 | 发动机端快速接头(水星) | QUICK DISCONNECT Engine End (Quicksilver) | 1 |
| 13 | 897711 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 13 | 89771Q2 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 14 | 415827 | CLAMP Nylon (SMALL) | 2 | |
| 14 | 41582Q7 | 卡箍 | CLAMP | 2 |
| 15 | 1678978 | 软管(9.00英尺整卷)按需裁切 | HOSE (9.00 Feet Bulk) CUT AS REQ'D | AR |
| 15 | 85861079 | 软管(9.00英尺整卷) | HOSE (9.00 Feet Bulk) | AR |
| 15 | 16789100 | 软管(100.00英尺整卷)按需裁切 | HOSE (100.00 Feet Bulk) CUT AS REQ'D | AR |
| 15 | 858610100 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 6006A3 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| - | 6006A4 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| - | 6006A15 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| - | 6006A16 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| 1 | 6006A5 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 2 | 20201 | 销 | PIN | 1 |
| 3 | 58137 | 双头螺栓(3-1/8英寸) | STUD (3-1/8 INCHES) | 3 |
| 4 | 58135 | 双头螺栓(4-13/16英寸) | STUD (4-13/16 INCHES) | 1 |
| 5 | 28157 | 传动轴滚柱轴承 | BEARING ROLLER-DRIVESHAFT | 1 |
| 6 | 75036A1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 6 | 93300A1 | 传动轴 | DRIVE SHAFT | 1 |
| 6 | 75035A1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 6 | 93301A1 | 传动轴 | DRIVE SHAFT | 1 |
| 6 | 88094A1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 6 | 88093A1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 7 | 49911 | 小齿轮螺钉锁紧垫圈 | TAB WASHER PINION GEAR SCREW | 1 |
| 8 | 49908 | 螺钉(.250-28 x .750) | SCREW (.250-28 x .750) | 1 |
| 9 | 45189 | 小齿轮 | GEAR PINION | 1 |
| 10 | 28634 | 螺钉(0.375-16) | SCREW (.375-16) | 1 |
| 10 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 11 | 20260 | 润滑脂加注螺钉垫圈 | WASHER GREASE FILLER SCREW | 1 |
| 11 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 12 | 48750 | 齿轮箱冲洗螺塞 | PLUG GEAR HOUSING FLUSHING | 1 |
| 13 | 49221 | 垫圈(0.187 x 0.500 x 0.062 氯丁橡胶) | WASHER (.187 x .500 x .062) Neoprene | 1 |
| 13 | 8M0204663 | 垫片@5 | WASHER @5 | 1 |
| 14 | 28653 | 螺丝(#10-32x0.25) | SCREW (#10-32 x 0.25) | 1 |
| 15 | 20262 | 润滑脂通气螺钉垫圈 | WASHER GREASE VENT SCREW | 1 |
| 15 | 19643 | 密封件 | SEAL | 1 |
| 16 | 56829A1 | 下换挡轴总成 | SHAFT ASSEMBLY SHIFT-LOWER | 1 |
| 16 | 56830A1 | 下换挡轴总成 | SHAFT ASSEMBLY SHIFT-LOWER | 1 |
| 17 | 38933 | 下换挡轴O型圈 | O-RING LOWER SHIFT SHAFT | 1 |
| 18 | 22899 | 挡圈 | RING Retaining | 1 |
| 19 | 30676A1 | 换挡轴衬套总成 | BUSHING ASSEMBLY SHIFT SHAFT | 1 |
| 20 | 26802 | O型圈(0.424x0.103)换挡轴衬套 | O-RING (.424 x .103) SHIFT SHAFT BUSHING | 1 |
| 21 | 30696 | 换挡轴衬套油封 | SEAL Oil SHIFT SHAFT BUSHING | 1 |
| 22 | 39149 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 1 |
| 23 | 20804A1 | 滚珠轴承至齿轮箱垫片组(0.002-3-5-10) | SHIM SET BALL BEARING TO GEAR HOUSIN (.002-3-5-10) | AR |
| 24 | 47158 | 传动轴滚珠轴承 | BEARING BALL-DRIVESHAFT | 1 |
| 24 | 69389 | 滚珠轴承 | BEARING Ball | 1 |
| 25 | 33463 | 滚珠轴承挡圈 | RING RETAINING-BALL BEARING | 1 |
| 26 | 20804A1 | 垫片组 | SHIM SET | AR |
| 27 | 39626 | 衬垫 | GASKET | 1 |
| 28 | 33466 | 水泵底座O型圈 | O-RING WATER PUMP BASE | 1 |
| 29 | 48744A1 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 30 | 20070 | 水泵底座油封 | SEAL Oil WATER PUMP BASE | 1 |
| 31 | 33467 | 水泵底座油封(弹簧加载) | SEAL Oil WATER PUMP BASE (SPRING LOADED) | 1 |
| 31 | 897154 | 油封@3 | SEAL-OIL @3 | 1 |
| 32 | 35973 | 定位销 | PIN Dowel | 2 |
| 33 | 39625 | 衬垫 | GASKET | 1 |
| 34 | 39624 | 安装板 | PLATE | 1 |
| 35 | 39623 | 衬垫 | GASKET | 1 |
| 35 | 396231 | 衬垫 | GASKET | 1 |
| 36 | 65958 | 叶轮(传动轴总成组件) | IMPELLER Component of Driveshaft Assembly | 1 |
| 36 | 89982 | 叶轮 | IMPELLER | 1 |
| 37 | 56661 | 键(传动轴总成组件) | KEY Component of Driveshaft Assembly | 1 |
| 38 | 77126A2 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 38 | 87458A2 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 38 | 87458A2 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 39 | 48754 | 水泵体嵌件 | INSERT WATER PUMP BODY | 1 |
| 40 | 20070 | 水泵体油封 | SEAL Oil WATER PUMP BODY | 1 |
| 41 | 33613 | 水泵体密封件 | SEAL WATER PUMP BODY | 1 |
| 41 | 86215 | 水管密封轴承 | BEARING WATER TUBE SEAL | 1 |
| 42 | 45170 | 进水管导向套 | SLEEVE GUIDE-WATER INLET TUBE | 1 |
| 43 | 36001 | 水泵双头螺栓垫圈 | WASHER WATER PUMP STUDS | 3 |
| 44 | 35814 | 螺母(0.312-24)不锈钢水泵双头螺栓 | NUT (.312-24) Stainless Steel WATER PUMP STUDS | 3 |
| 44 | 82670911 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 3 |
| 45 | 20684 | 环 | RING | 1 |
| 45A | 88198 | 传动轴O型圈 | O-RING DRIVESHAFT | 1 |
| - | 48744A3 | 水泵总成(完整) | WATER PUMP ASSEMBLY Complete | 1 |
| - | 66303A1 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 6006A3 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| - | 6006A4 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| - | 6006A15 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| - | 6006A16 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| 1 | 6006A5 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 46 | 58975 | 凸轮轴 | CAM SHAFT | 1 |
| 47 | 33438 | 凸轮从动件 | FOLLOWER CAM | 1 |
| 48 | 88435 | 凸轮从动件弹簧 | SPRING CAM FOLLOWER | 1 |
| 49 | 47820A1 | 齿轮箱阳极板总成 | PLATE ASSEMBLY ANODIC-GEAR HOUSING | 1 |
| 50 | 79436 | 螺钉 (.312-18 x 1.250) 不锈钢 | SCREW (.312-18 x 1.250) Stainless Steel | 1 |
| 51 | 20788A1 | 垫片组 | SHIM SET | AR |
| 52 | 25398 | 前进齿轮滚珠轴承 | BEARING BALL-FORWARD GEAR | 1 |
| 53 | 45227 | 前进齿轮 | GEAR Forward | 1 |
| 53 | 45227A5 | 前进齿轮总成 | FORWARD GEAR ASSY | 1 |
| 54 | 28157 | 前进齿轮滚柱轴承 | BEARING ROLLER-FORWARD GEAR | 1 |
| 55 | 53518A1 | 滑动离合器棘轮总成 | RATCHET ASSEMBLY SLIDING CLUTCH | 1 |
| 56 | 53372 | 棘轮到螺旋桨轴十字销 | PIN CROSS-RATCHET TO PROPELLER SHAFT | 1 |
| 57 | 53373 | 十字销固定弹簧 | SPRING RETAINING-CROSS PIN | 1 |
| 58 | 75366A2 | 螺旋桨轴总成 | PROPELLER SHAFT ASSEMBLY | 1 |
| 59 | 45229 | 倒挡齿轮 | GEAR Reverse | 1 |
| 60 | 25398 | 倒车齿轮滚珠轴承 | BEARING BALL-REVERSE GEAR | 1 |
| 61 | 71525 | 倒车齿轮止推套 | SLEEVE THRUST-REVERSE GEAR | 1 |
| 62 | 33431A1 | 垫片 | SHIM | AR |
| 63 | 33465 | 轴承座O型圈 | O-RING BEARING CARRIER | 1 |
| 63 | 8M0214925 | O型圈 | O RING | 1 |
| 64 | 72694A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 64 | 72694T1 | 轴承座总成 | CARRIER ASSY-BRG | 1 |
| 65 | 28157 | 轴承座滚柱轴承 | BEARING ROLLER-BEARING CARRIER | 1 |
| 66 | 26805 | 轴承座油封 | SEAL Oil BEARING CAARRIER | 1 |
| 67 | 66303 | 轴承座油封(弹簧加压式) | SEAL Oil BEARING CARRIER (SPRING LOADED) | 1 |
| 68 | 72710 | 齿轮箱盖 | COVER GEAR HOUSING | 1 |
| 69 | 85964 | 螺旋桨轴总成导向套 | COLLAR GUIDE Component of Propeller Shaft Assembly | 1 |
| 69 | 85964A1 | 止推垫片 | THRUST WASHER | 1 |
| 70 | 33480A1 | 螺旋桨总成(2叶-11"螺距) | PROPELLER ASSEMBLY (2 BLD-11" PITCH) | 1 |
| 70 | 34402A1 | 螺旋桨总成(2叶-青铜-11"螺距) | PROPELLER ASSEMBLY (2BLD-BRONZE-11" PITCH | OPT |
| 70 | 33482A1 | 螺旋桨总成(3叶-铝-9"螺距) | PROPELLER ASSEMBLY (3BLD-ALUM.-9" PITCH) | OPT |
| 70 | 86962A4 | 螺旋桨总成 | PROPELLER ASSEMBLY | OPT |
| 70 | 86962A4 | 螺旋桨总成(3叶-铝-9"螺距) | PROPELLER ASSEMBLY (3 BLD-ALUM.-9" PITCH) | 1 |
| 70 | 37316A1 | 螺旋桨总成(3叶-铝-7"螺距) | PROPELLER ASSEMBLY (3 BLD.-ALUM.-7" PITCH) | OPT |
| 70 | 65002A1 | 螺旋桨总成(2叶-11"螺距)-尼龙 | PROPELLER ASSEMBLY (2 BLD-11" PITCH)-NYLON | OPT |
| -- | 66607 | 推力毂(仅配合尼龙螺旋桨使用) | HUB THRUST (USE WITH NYLON PROP ONLY) | 1 |
| 71 | 65439 | 螺旋桨轴花键隔套 | SPACER SPLINE-PROPELLER SHAFT | 1 |
| 71 | 64075A1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| 72 | 89103 | 螺旋桨螺母 | NUT PROPELLER | 1 |
| 72 | 64075A1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 819155A2 | 定子总成(完整) | STATOR ASSEMBLY (COMPLETE) | 1 |
| 1 | 819155T | 定子板 | PLATE Stator | 1 |
| 2 | 850899T1 | 点火模块套件 | MODULE KIT Ignition | 3 |
| 3 | 830865 | 连接器(仅维修用) | CONNECTOR (SERVICE ONLY) | AR |
| 3 | 8M0204694 | 连接器 | CONNECTOR | AR |
| 4 | 824353 | 螺钉(#8-32 X .750)-点火模块安装 | SCREW (#8-32 X .750)-IGN MODULE MOUNT | 9 |
| 5 | 12479A60 | 模块到线束电缆总成 | CABLE ASSEMBLY Modules To Harness | 1 |
| 6 | 63709A1 | 护套/端子套件 | BOOT/TERMINAL KIT | 3 |
| 7 | 20117A1 | 点火电缆标记套件(#1)(#2)(#3) | MARKER SET Ignition Cables (#1) (#2) (#3) | 1 |
| 8 | F681091 | 专用螺母-飞轮 | NUT (SPECIAL)-FLYWHEEL | 1 |
| 9 | 824380T3 | 飞轮 | FLYWHEEL | 1 |
| 9 | 824380T4 | 飞轮 | FLYWHEEL | 1 |
| 10 | 824440A6 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 10 | 824440A14 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 11 | 824466A3 | 停机开关盖总成 | COVER ASSEMBLY Stop Switch | 1 |
| 12 | 824915 | 停机开关盖饰圈 | BEZEL Stop Switch Cover | 1 |
| 13 | 826214A1 | 紧急停止开关总成 | SWITCH ASSEMBLY Emergency Stop | 1 |
| 14 | F681188 | 专用螺母-停机开关套筒 | NUT (SPECIAL)-STOP SWITCH SLEEVE | 1 |
| 14 | 855594 | 螺母 | NUT | 1 |
| 15 | 819399A1 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 15 | 879104 | 带夹子的拉绳 | LANYARD W/CLIP | 1 |
| 16 | F458498-1 | 曲轴/飞轮键 | KEY Crankshaft/Flywheel | 1 |
| 17 | 8278961 | 节气门凸轮 | CAM Throttle | 1 |
| 18 | 821375A44 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 19 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | AR |
| 19 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 19 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 20 | 824358 | 螺钉(#10-24 x .500)(#10-24 X .500)-定子板 | SCREW (#10-24 x .500) (#10-24 X .500)-STATOR PLATE | 5 |
| 21 | 811 | 火花塞(CHAMPION # L82C) | SPARK PLUG (CHAMPION # L82C) | 3 |
| 21 | 896323 | SP #L82C @4 | SP #L82C @4 | 3 |
| 21 | 874 | 火花塞(RFI)(CHAMPION # RL82C) | SPARK PLUG (RFI) (CHAMPION # RL82C) | OPT |
| 21 | 896329874 | SP #RL82C @4 | SP #RL82C @4 | OPT |
| 22 | 79138A93 | 发动机停机线束总成 | HARNESS ASSEMBLY Engine Stop | 1 |
| 23 | 13541 | 公插头 | PLUG Male | 1 |
| 24 | 831275 | 卡箍 | CLAMP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 7837312 | 油漆(黑色)(355毫升)喷雾罐加拿大(12瓶装)外部零件-MERCURY | PAINT (Black) (355 ML) SPRAY CANADA (CASE OF 12) EXTERNAL PARTS-MERCURY | AR |
| - | 8279331 | 黑色油漆 | PAINT Black | AR |
| - | 82288612 | 油漆(黑色)(15毫升)刷瓶(12瓶装)外部零件-MERCURY | PAINT (Black) (15 ML) BRUSH BOTTLE (BOX OF 12) EXTERNAL PARTS-MERCURY | AR |
| - | 8279332 | 黑色油漆 | PAINT Black | AR |
| - | 77171A12 | 油漆镍灰色(12盎司)(355毫升)喷雾罐加拿大(12瓶装)外部零件-MARINER | PAINT Nickel Gray (12 Ounces) (355 ML) SPRAY CANADA (CASE OF 12) EXTERNAL PARTS-MARINER | AR |
| - | 82793310 | PAINT-GRAY @6 | PAINT-GRAY @6 | AR |
| - | 82614212 | 油漆镍灰色(0.5盎司)(15毫升)刷瓶(12瓶装)外部零件-MARINER | PAINT Nickel Gray (.5 Ounces) (15 ML) BRUSH BOTTLE (BOX OF 12) EXTERNAL PARTS-MARINER | AR |
| - | 82793311 | PAINT.6-GRAY@6 | PAINT.6-GRAY@6 | AR |
| - | 81910712 | 透明丙烯酸油漆(355毫升)喷雾罐加拿大(12瓶装)仅用于罩盖-MERCURY和MARINER | PAINT Clear Acrylic (355 ML) SPRAY CANADA (CASE OF 12) FOR COWL ONLY-MERCURY AND MARINER | AR |
| - | 82793353 | PAINT-CLEAR @6 | PAINT-CLEAR @6 | AR |
| - | 1878112 | 油漆(355毫升)喷雾罐装(12罐/箱) 全部动力头及铝制螺旋桨部件 | PAINT (355 ML) SPRAY CANADA (CASE OF 12) ALL POWERHEADS AND ALUM PROPELLER PARTS | AR |
| - | 82793350 | 黑色油漆 | PAINT Black | AR |
| - | 97842A12 | 银色油漆(12盎司)(355毫升)喷雾罐装(12罐/箱) 仅限换挡手柄-水星及马林纳发动机罩-仅限马林纳 | PAINT Silver (12 Ounces) (355 ML) SPRAY CANADA (CASE OF 12) GEAR SHIFT HANDLE ONLY-MERCURY AND MARINER COWL ONLY-MARINER | AR |
| - | 82793312 | 油漆-银色@6 | PAINT-SILVER@6 | AR |
| - | 82582312 | 银色油漆(0.5盎司)(15毫升)刷瓶装(12瓶/盒) 仅限换挡手柄-水星及马林纳发动机罩-仅限马林纳 | PAINT Silver (.5 Ounces) (15 ML) BRUSH BOTTLE (BOX OF 12) GEAR SHIFT HANDLE ONLY-MERCURY AND MARINER COWL ONLY-MARINER | AR |
| - | 82793313 | 油漆.6-银色@6 | PAINT.6-SILV@6 | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 819150A1 | 进气歧管总成 | MANIFOLD ASSEMBLY Intake | 1 |
| 1 | 819150A4 | 进气歧管总成 | M FOLD ASY-INTAKE | 1 |
| 2 | 426981 | 止回阀 | CHECK VALVE | 2 |
| 2 | 426982 | 止回阀 | CHECK VALVE | 2 |
| 3 | 826622 | 双头螺柱(.250-20 x .910) 带防松涂层 | STUD (.250-20 x .910) (.250-20 X .910) WITH DRI LOK | 2 |
| 4 | 20890 | 化油器安装螺母(.250-20) | NUT (.250-20) CARBURETOR MOUNT | 2 |
| 5 | F1581 | 螺钉(.250-20 x 1.250) | SCREW (.250-20 X 1.250) (.250-20 X 1.250) | 7 |
| 5 | 819110125 | 螺丝(.250-20 x 1.250) | SCREW (.250-20 x 1.250) | 7 |
| 6 | 827308 | 簧片 | REED | 6 |
| 7 | 827307 | 簧片止挡 | STOP Reed | 6 |
| 8 | 819074 | 带锁紧垫圈的螺钉(#6-32 x .312) | SCREW WITH LOCKWASHER (#6-32 X .312) (#6-32 X .312) | 12 |
| 9 | 819142 | 簧片阀衬垫 | GASKET Reed Plate | 1 |
| 10 | 819153T | 簧片阀板 | PLATE Reed | 1 |
| 11 | 819141 | 进气歧管垫片 | GASKET Intake Manifold | 1 |
| - | 809516A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 2 | 71565 | 导向套管 | TUBE Cable Guide | 1 |
| 3 | 37984 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 3 | 8M0041651 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 4 | 42100 | 锁紧垫圈 | TAB WASHER | 2 |
| 5 | 827890 | 线管支架 | BRACKET Cable Tube | 2 |
| 6 | F676541-2 | 倾斜锁 | LOCK Tilt | 1 |
| 7 | F676881 | 转向连杆 | LINK Steering | 1 |
| 7 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 8 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 4 |
| 9 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 9 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 10 | 850185 | 枢轴螺栓-艉支架（0.375-16×7.375） | BOLT Pivot - Stern Bracket (.375-16 X 7.375) | 1 |
| 11 | F7026 | 螺母（0.375-16） | NUT (.375-16) (.375-16) | 1 |
| 12 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 13 | 90072 | 螺钉(.375-24 x 1.750) | SCREW (.375-24 x 1.750) | 1 |
| 14 | F522359 | 隔套 | SPACER | 1 |
| 15 | F84215 | 隔套 | SPACER | 1 |
| 16 | 830771A5 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 830771A8 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 830771A6 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 830771A9 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 17 | 27769 | 开口销 | COTTER PIN | 2 |
| 17 | 26811 | 开口销 | COTTER PIN | 2 |
| 18 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 4 |
| 19 | 828819 | 油门控制螺柱 | STUD Throttle Control | 2 |
| 20 | F8058 | 锁紧垫圈 | LOCKWASHER | 2 |
| 21 | 8191481 | 油门杆 | LEVER Throttle | 1 |
| 22 | 29488 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 22 | 8M0204718 | 螺母 | NUT | 1 |
| 23 | 93527 | 护孔环 | GROMMET | 1 |
| 23 | 93527002 | 护孔环 | GROMMET | 1 |
| 24 | 830772 | 专用螺钉 | SCREW (SPECIAL) | 2 |
| 25 | 830058A4 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 25 | 855791A2 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 25 | 830058A5 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 25 | 855791A3 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 26 | 8192812 | 前板贴花 | DECAL Front Plate | 1 |
| 27 | 852453 | 螺钉(#10-24 x .560) | SCREW (#10-24 x .560) | 4 |
| 28 | F7009 | 螺母(#10-24) | NUT (#10-24) | 4 |
| 29 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 2 |
| 30 | 38837 | 螺钉(.312-18×1.12) | SCREW (.312-18 x 1.12) | 2 |
| 31 | 830006T2 | 遥控转向臂 | ARM Remote Steering | 1 |
| 31 | 830006T3 | 遥控转向臂 | ARM Remote Steering | 1 |
| 32 | 48323 | 堵头 | PLUG | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 2 | 71565 | 导向套管 | TUBE Cable Guide | 1 |
| 3 | 37984 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 3 | 8M0041651 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 4 | 42100 | 锁紧垫圈 | TAB WASHER | 2 |
| 5 | 827890 | 线管支架 | BRACKET Cable Tube | 2 |
| 6 | F676541-2 | 倾斜锁 | LOCK Tilt | 1 |
| 7 | F676881 | 转向连杆 | LINK Steering | 1 |
| 7 | 827889A2 | 遥控转向套件 | STEERING KIT Remote | 1 |
| 8 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 4 |
| 9 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 9 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 10 | 850185 | 枢轴螺栓-艉支架（0.375-16×7.375） | BOLT Pivot - Stern Bracket (.375-16 X 7.375) | 1 |
| 11 | F7026 | 螺母（0.375-16） | NUT (.375-16) (.375-16) | 1 |
| 12 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 13 | 90072 | 螺钉(.375-24 x 1.750) | SCREW (.375-24 x 1.750) | 1 |
| 14 | F522359 | 隔套 | SPACER | 1 |
| 15 | F84215 | 隔套 | SPACER | 1 |
| 16 | 830771A8 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 16 | 830771A9 | 遥控转换套件 | CONVERSION KIT Remote Control | 1 |
| 17 | 27769 | 开口销 | COTTER PIN | 2 |
| 17 | 26811 | 开口销 | COTTER PIN | 2 |
| 18 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 4 |
| 19 | 828819 | 油门控制螺柱 | STUD Throttle Control | 2 |
| 20 | F8058 | 锁紧垫圈 | LOCKWASHER | 2 |
| 21 | 8191481 | 油门杆 | LEVER Throttle | 1 |
| 22 | 29488 | 螺母 (#10-32) | NUT (#10-32) | 1 |
| 22 | 8M0204718 | 螺母 | NUT | 1 |
| 23 | 93527 | 护孔环 | GROMMET | 1 |
| 23 | 93527002 | 护孔环 | GROMMET | 1 |
| 24 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 2 |
| 24 | 8M0207776 | 螺母 | NUT | 2 |
| 25 | 855791A2 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 25 | 855791A3 | 遥控转向电缆锚定总成 | ANCHOR ASSEMBLY Remote Steering Cable | 1 |
| 26 | 8192812 | 前板贴花 | DECAL Front Plate | 1 |
| 27 | 852453 | 螺钉(#10-24 x .560) | SCREW (#10-24 x .560) | 4 |
| 28 | F7009 | 螺母(#10-24) | NUT (#10-24) | 4 |
| 29 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 2 |
| 30 | 38837 | 螺钉(.312-18×1.12) | SCREW (.312-18 x 1.12) | 2 |
| 31 | 830006T2 | 遥控转向臂 | ARM Remote Steering | 1 |
| 31 | 830006T3 | 遥控转向臂 | ARM Remote Steering | 1 |
| 32 | 48323 | 堵头 | PLUG | 1 |
| 33 | 855648 | 套筒 | SLEEVE | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F681490 | 启动滑轮联锁挡块 | STOP Starter Pulley Interlock | 1 |
| 2 | F681003-1 | 启动联锁臂 | ARM Starter Interlock | 1 |
| 3 | F8143 | 垫圈 | WASHER | 2 |
| 4 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 2 |
| 5 | F681263-1 | 启动联锁连杆 | LINK Starter Interlock | 1 |
| 6 | F681742 | 中间联锁杆 | LEVER Intermediate Interlock | 1 |
| 7 | 20110 | 螺母 (#10-32) | NUT (#10-32) | 2 |
| 8 | F681424 | 联锁杆弹簧 | SPRING Interlock Lever | 1 |
| 9 | F681134 | 联锁杆螺柱 | STUD Interlock Lever | 1 |
| 10 | 816514 | 火花控制轴承 | BEARING Spark Control | 2 |
| 11 | 826590 | 双头螺柱(.250-20 x 1.690) | STUD (.250-20 x 1.690) (.250-20 X 1.690) | 1 |
| 12 | 824357 | 空档速度联锁杆 | LEVER Neutral Speed Interlock | 1 |
| 13 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 13 | 8M0207776 | 螺母 | NUT | 1 |
| 14 | 819159 | 联锁杆 | ROD Interlock | 1 |
| 15 | 819625 | 螺钉 | SCREW | 1 |
| 16 | F286685 | 换挡杆连接器 | CONNECTOR Gear Shift Rod | 1 |
| 17 | F98273 | 螺柱 | STUD | 1 |
| 18 | 819508T | 换挡杆 | LEVER Gear Shift | 1 |
| 18 | 855621T | 换挡杆 | LEVER Gear Shift | 1 |
| 19 | 25319 | 销钉(.125 x 0.75英寸) | PIN (.125 x 0.75 Inches) | 1 |
| 20 | F286871T | 换挡杆销 | PIN Gear Shift Lever | 1 |
| 21 | 26841 | 衬套 | BUSHING | 2 |
| 22 | 8193781 | 上换挡杆 | ROD Upper Gear Shift | 1 |
| 23 | F1976 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 1 |
| 24 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 1 |
| 25 | 8203671 | 换挡手柄轴杆 | LEVER Shift Handle Shaft | 1 |
| 25 | 820367F1 | 杠杆 | LEVER | 1 |
| 26 | 25905 | 销 | PIN | 1 |
| 27 | 34632 | 垫圈 | WASHER | 1 |
| 28 | 36001 | 垫圈 | WASHER | 1 |
| 29 | 830054 | 衬套 | BUSHING | 2 |
| 30 | 819626A2 | 手柄总成(银色喷涂) | HANDLE ASSEMBLY (PAINTED SILVER) | 1 |
| 31 | 828931 | 轴 | SHAFT | 1 |
| 32 | 25905 | 销 | PIN | 1 |
| 33 | F286134 | 换挡杆螺柱 | STUD Gear Shift Lever | 1 |
| 34 | 34632 | 垫圈(#10) | WASHER (#10) | 1 |
| 35 | 830097 | 衬套 | BUSHING | 1 |
| 36 | 830096 | 连接杆 | LINK | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F6814081 | 启动器壳体 | HOUSING Starter | 1 |
| 2 | 825149A1 | 换至空档贴花套件 | DECAL KIT Shift to Neutral | 1 |
| 3 | 90192 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 3 |
| 4 | F681405T | 启动器外壳嵌件 | INSERT Starter Housing | 3 |
| 5 | F681428 | 启动绳嵌件 | INSERT Starter Rope | 1 |
| 6 | 818853 | 挡圈 | RING Retaining | 1 |
| 7 | 819245T | 支架 | BRACKET | 1 |
| 7 | 819245T1 | 启动器外壳前支架 | BRACKET Starter Housing - Front | 1 |
| 8 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 8 | 8M0207776 | 螺母 | NUT | 1 |
| 9 | 98254 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 3 |
| 10 | F681970 | 启动器回位弹簧 | SPRING Starter Rewind | 1 |
| 11 | 42034A2 | 启动器回绕滑轮总成 | PULLEY ASSEMBLY Starter Rewind | 1 |
| 12 | 817362 | 盖帽 | CAP | 1 |
| 13 | 124941 | 滑轮轴承密封件 | SEAL Pulley Bearing | 1 |
| 14 | F681232 | 绳索(64.00/67.00英寸) | ROPE (64.00/67.00 IN.) | 1 |
| 14 | 12066T03 | 启动拉绳 | ROPE-STARTER | 1 |
| 15 | F681592 | 启动滑轮固定座 | RETAINER Starter Pulley | 3 |
| 16 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 3 |
| 17 | 819625 | 螺钉 | SCREW | 2 |
| 18 | FA681630T | 手柄支撑总成 | SUPPORT ASSEMBLY Handle | 1 |
| 19 | 8302821 | 手柄支撑板 | PLATE Handle Support | 1 |
| 20 | F6818741 | 手柄支撑板紧固件 | FASTENER Handle Support Plate | 1 |
| 21 | F2210 | 螺钉(.250-14 x .500) | SCREW (.250-14 x .500) | 2 |
| 22 | F681132 | 绳索手柄 | HANDLE Rope | 1 |
| 23 | F681817 | 绳索手柄固定座 | RETAINER Rope Handle | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | F286011 | 旋转支架垫圈 | WASHER Swivel Bracket | 1 |
| 2 | 850049A3 | 旋转支架套件 | SWIVEL BRACKET KIT | 1 |
| 2 | 850049A4 | 旋转支架套件 | SWIVEL BRACKET KIT | 1 |
| 3 | F681169 | 轴承(1.125英寸)(上) | BEARING (1.125 IN.) (TOP) | 1 |
| 4 | F286169 | 轴承(1.750英寸)(下) | BEARING (1.750 IN.) (BOTTOM) | 1 |
| 5 | F213274 | 接头 | FITTING | 2 |
| 6 | F681631 | 摩擦块 | SHOE Friction | 1 |
| 7 | F286573-1 | 转向摩擦夹 | CLAMP Steering Friction | 1 |
| 8 | F1820 | 螺钉(.250-20×1.375) | SCREW (.250-20 x 1.375) | 1 |
| 9 | 12038 | 垫圈 | WASHER | 1 |
| 9 | 8M0207778 | 垫圈（0.344×0.625×0.063英寸） | WASHER .344 x .625 x.063 | 1 |
| 10 | F1608 | 螺母(.250-20) | NUT (.250-20) (.250-20) | 1 |
| 11 | F1794 | 弹簧销 | PIN Spring | 2 |
| 12 | F8538 | 弹簧销 | PIN Spring | 1 |
| 13 | 26856 | 衬套 | BUSHING | 1 |
| 14 | 833156 | 倒车锁杆 | LEVER Reverse Lock | 1 |
| 15 | 820095A2 | 倒挡锁中间杆总成 | LEVER ASSEMBLY Reverse Lock Intermediate | 1 |
| 16 | F536813 | 衬套 | BUSHING | 1 |
| 17 | F2037 | 垫圈 | WASHER | 1 |
| 18 | F286827 | 倒挡锁释放杆 | LEVER Reverse Lock Release | 1 |
| 19 | F1806 | 槽销 | PIN Groove | 1 |
| 20 | F2037 | 垫圈 | WASHER | 1 |
| 21 | 8180291 | 燃油混合比标贴 | DECAL Fuel Mix | 1 |
| 22 | 8302531 | 倾斜释放标贴 | DECAL Tilt Release | 1 |
| 23 | 852528 | 倒挡锁连杆 | LINK Reverse Lock Lever | 1 |
| 24 | F286300 | 倒挡锁弹簧 | SPRING Reverse Lock | 1 |
| 25 | 850259 | 倒车锁 | LOCK Reverse | 1 |
| 26 | 8301111 | 浅水驱动支架 | BRACKET Shallow Water Drive | 1 |
| 27 | FA1844 | 螺丝套件(.250-20x2.375) | SCREW KIT (.250-20 x 2.375) (.250-20 X 2.375) | 2 |
| 28 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 29 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 2 |
| 30 | 819320T1 | 下减震支架 | BRACKET Shock Mount Lower | 2 |
| 30 | 819320T2 | 下减震支架 | BRACKET Shock Mount Lower | 2 |
| 31 | 826361T2 | 隔套总成 | SPACER ASSEMBLY | 1 |
| 31 | 826361T3 | 隔套总成 | SPACER ASSEMBLY | 1 |
| 32 | 85500 | 定位销(.187 x .530) | PIN Dowel (.187 x .530) | 1 |
| 32 | 8M0084726 | 定位销 | PIN Dowel | 1 |
| 33 | 65210 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 4 |
| 34 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 4 |
| 34 | 8M0214963 | 垫圈 | WASHER | 4 |
| 35 | 819149 | 进水管道 | LINE Water Inlet | 1 |
| 35 | 8191491 | 进水管道 | LINE Water Inlet | 1 |
| 36 | F286914-1 | 进水管衬套 | SLEEVE Water Inlet Line | 1 |
| 37 | 8193192 | 下减震座 | SHOCK MOUNT Lower | 1 |
| 38 | 819215T3 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 38 | 819215T4 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 39 | F46899-1 | 盖板 | COVER | 1 |
| 40 | F517347 | 上减震座 | SHOCK MOUNT Upper | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 851928 | 油门控制轴 | SHAFT Throttle Control | 1 |
| 2 | 26841 | 衬套 | BUSHING | 2 |
| 3 | FA343178 | 转向轴固定套件 | RETAINER KIT Steering Shaft | 2 |
| 4 | 832794 | 定位螺丝(.250-28x0.250) | SET SCREW (.250-28 X .250) (.250-28 X .250) | 2 |
| 5 | 29908 | 销 | PIN | 2 |
| 6 | 8180091 | 转向轴齿轮 | GEAR Steering Shaft | 2 |
| 7 | F1807 | 槽销 | PIN Groove | 1 |
| 8 | 823595 | 专用螺钉 | SCREW (SPECIAL) | 1 |
| 9 | F286868 | 转向把手止动弹簧 | SPRING Steering Handle Stop | 1 |
| 10 | 26856 | 衬套 | BUSHING | 2 |
| 11 | F286490T | 转向把手止动块 | STOP Steering Handle | 1 |
| 12 | 835373A6 | 转向臂支架总成 | BRACKET ASSEMBLY Steering Arm | 1 |
| 12 | 835373A7 | 转向臂支架总成 | BRACKET ASSEMBLY Steering Arm | 1 |
| 13 | 828815 | 螺丝(.250-20x1.750) | SCREW (.250-20 x 1.750) (.250-20 X 1.750) | 1 |
| 14 | F286539 | 缓冲垫 | BUMPER | 1 |
| 15 | 814101 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 15 | 8M0207776 | 螺母 | NUT | 1 |
| 16 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 2 |
| 17 | 38837 | 螺钉(.312-18×1.12) | SCREW (.312-18 x 1.12) | 2 |
| 18 | F2862241 | 转向把手枢轴衬套 | INSERT Steering Handle Pivot | 1 |
| 19 | 812707 | 衬套 | BUSHING | 1 |
| 20 | F286220 | 转向把手垫圈 | WASHER Steering Handle | 2 |
| 21 | 26856 | 衬套 | BUSHING | 1 |
| 22 | 819279T1 | 转向手柄 | HANDLE Steering | 1 |
| 22 | 819279T2 | 转向手柄 | HANDLE Steering | 1 |
| 23 | 21836 | O型圈(0.796x0.139)(大) | O-RING (.796 x .139) (LARGE) | 1 |
| 23 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 24 | 38101 | O型圈(0.674x0.103)(小) | O-RING (.674 x .103) (SMALL) | 1 |
| 25 | F712894 | 速度/档位指示标贴 | DECAL Speed/Shift Indicator | 1 |
| 26 | 828406A1 | 油门把手总成 | HANDLE/GRIP ASSEMBLY Throttle | 1 |
| 27 | 828406 | 油门/转向把手握把 | GRIP Throttle/Steering Handle | 1 |
| 28 | 72255 | 滚动销 | PIN Roll | 1 |
| 29 | 819227 | 转向手柄楔块 | WEDGE Steering Handle | 1 |
| 30 | 97896 | 衬套 | BUSHING | 1 |
| 31 | F8058 | 锁紧垫圈 | LOCKWASHER | 2 |
| 32 | F1829 | 螺丝(#10-24x0.875) | SCREW (#10-24 x .875) | 2 |
| 33 | F4878161 | 轴承 | BEARING | 1 |
| 34 | 819160 | 转向手柄轴 | SHAFT Steering Handle | 1 |
| 35 | 832759 | 节气门止动块 | STOP Throttle | 1 |
| 36 | 832794 | 定位螺丝(.250-28x0.250) | SET SCREW (.250-28 X .250) (.250-28 X .250) | 1 |
| 37 | 817751A7 | 转向支架总成 | BRACKET ASSEMBLY Steering | 1 |
| 37 | 817751A8 | 转向支架总成 | BRACKET ASSEMBLY Steering | 1 |
| 38 | F523274 | 润滑脂接头 | FITTING Grease | 1 |
| 39 | 823594 | 专用枢轴螺丝 | SCREW (SPECIAL)-PIVOT | 1 |
| 40 | 35814 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| 40 | 82670911 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| 41 | F286282 | 专用垫圈 | WASHER (SPECIAL) | 1 |
| 42 | 819148 | 磁电机控制杆 | LEVER Magneto Control | 1 |
| 43 | F183813 | 控制杆轴承 | BEARING Control Lever | 1 |
| 44 | 834759 | 专用螺柱(.312-24x1.140) | STUD (.312-24 X 1.14) Special (.312-24 X 1.140) | 1 |
| 45 | 826846 | 油门轴连杆 | LINK Throttle Shaft | 1 |
| 46 | 824142T | 油门凸轮连杆 | LINK Throttle Cam | 1 |
| - | 819240A3 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 819240A6 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 824785T1 | 衬套和密封安装工具 | INSTALLER TOOL Bushing And Seal | 1 |
| - | 13664 | 轴承座安装工具, 6/15马力 | INSTALLER TOOL Bearing Carrier, 6/15 Hp | 1 |
| - | 83165T | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| - | 31229A7 | 轴承拉拔器套件 | PULLER KIT Bearing | 1 |
| - | 824787 | 衬套拆卸工具 | REMOVAL TOOL Bushing | 1 |
| - | 29287 | 量规工具 | GAUGE TOOL | 1 |
| - | 824788A1 | 轴承拆卸工具 | REMOVAL TOOL Bearing | 1 |
| - | 824790A1 | 驱动轴衬套安装工具 | INSTALLATION TOOL Driveshaft Bushing | 1 |
| - | 83163M | 飞轮固定工具 | HOLDER TOOL Flywheel | 1 |
| - | 8M0161873 | 固定工具 | HOLDER TOOL | 1 |
| - | 24937A1 | 固定工具 | HOLDER TOOL | 1 |
| - | 8M0161873 | 固定工具 | HOLDER TOOL | 1 |
| - | 24937A1 | 固定工具 | HOLDER TOOL | 1 |
| - | 83164M | 飞轮拉拔器 | FLYWHEEL PULLER | 1 |
| - | 8M0227579 | 飞轮拉拔器 | FLYWHEEL PULLER | 1 |
| - | 13655T | 心轴 | MANDREL | 1 |
| - | 99750A1 | 万用表 | MULTI METER | 1 |
| - | 13663T1 | 活塞销安装工具 | INSTALLER TOOL Piston Pin | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | 13662T1 | 动力头支架工具 | STAND TOOL Powerhead | 1 |
| - | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| - | 59339 | 维修用转速表 | SERVICE TACHOMETER | 1 |
| - | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| - | 34569A1 | 滑动锤拉拔器总成 | PULLER ASSEMBLY Slide Hammer | 1 |
| - | 850439T1 | TESTER Eight Chamber (Eight Chamber) | 1 | |
| - | 63998A1 | GAP TOOL Single Chamber (Single Chamber) | 1 | |
| - | 99379 | 正时灯 | TIMING LIGHT | 1 |
| - | 66274 | 扭矩扳手(0-150磅英寸) | TORQUE WRENCH (0-150 lb-in) | 1 |
| - | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| - | NSS | 不单独销售（膨胀杆）（Snap On #CG 40-4） | NOT SOLD SEPARATE (Expanding Rod) (Snap On #CG 40-4) | 1 |
| - | NSS | 不单独销售（夹头）（Snap On #CG 40-15） | NOT SOLD SEPARATE (Collet) (Snap On #CG 40-15) | 1 |
| - | NSS | 不单独销售（膨胀杆）（Snap On #CG40A6） | NOT SOLD SEPARATE (Expanding Rod)(Snap On #CG40A6) | 1 |
