两冲程 化油器 · USA - Cat.# 90-803127 · 共 56 个部位 · 2367 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

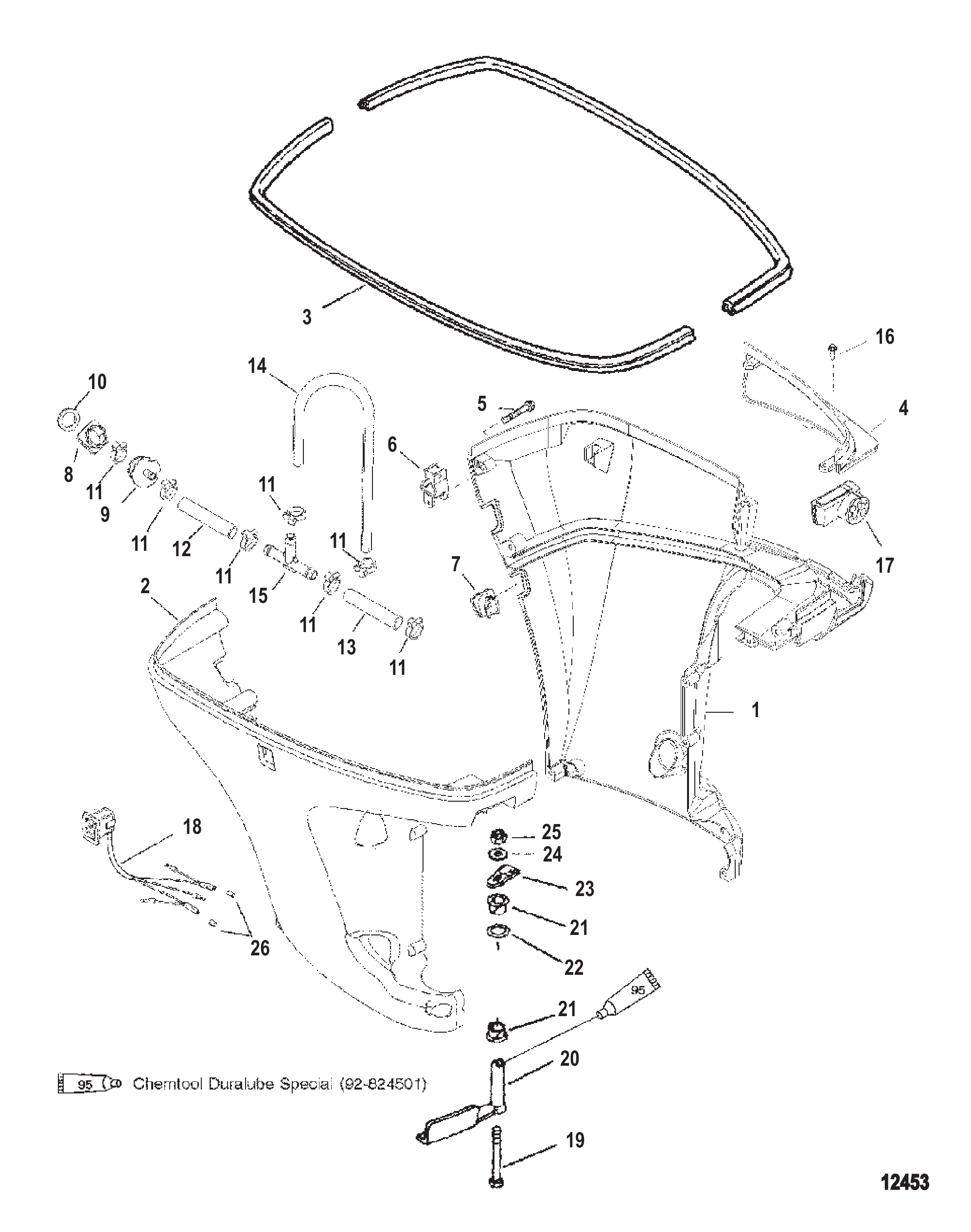

| 1 | 878587A1 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 2 | 858743A2 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 2 | 8M0113913 | 右舷下罩B | COWL-LOWER STBD B | 1 |
| 3 | 8253181 | 罩盖密封条(41英寸) | SEAL Cowl (41.00 Inches) | 2 |
| 3 | 8M0109217 | 罩盖密封条 | SEAL-COWL | 2 |
| 4 | 878547T | 嵌件 | INSERT | 1 |
| 5 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 8 |
| 6 | 831209 | 固定座 | RETAINER | 1 |
| 7 | 858742 | 怠速排气套 | BOOT Idle Exhaust | 1 |
| 8 | 859251 | 护孔环 | GROMMET | 1 |
| 8 | 8M0039078 | 护孔环 | GROMMET | 1 |
| 9 | 827948 | 接头 | FITTING | 1 |
| 10 | 855576 | 垫圈 | WASHER | 1 |
| 11 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 6 |
| 12 | 830756109 | 软管(57英寸整卷)(裁切至5英寸长度) | HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length) | 1 |
| 12 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 13 | 881535 | 软管(32.00英寸) | HOSE (32.00 Inches) | 1 |
| 14 | 9912688 | 管材(36.00英寸散装)(26.00英寸) | TUBING (36.00 Inches Bulk) (26.00 Inch) | 1 |
| 15 | 817518 | 三通 | TEE | 1 |
| 16 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 2 |
| 17 | 8587411 | 护孔环 | GROMMET | 1 |
| 17 | 889724 | 护孔环 | GROMMET | 1 |
| 18 | 856990 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 18 | 8M0235192 | 微调开关 | SWITCH TRIM | 1 |
| 19 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 1 |
| 20 | 821253F1 | 前手柄黑色 | FRONT HANDLE Black | 1 |
| 20 | 889740A02 | 手柄套件 | HANDLE KIT | 1 |
| 21 | 33589 | 衬套 | BUSHING | 2 |
| 22 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 23 | 8219423 | 棘爪 | PAWL | 1 |
| 24 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 1 |
| 25 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 26 | 13541 | 公插头 | PLUG Male | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

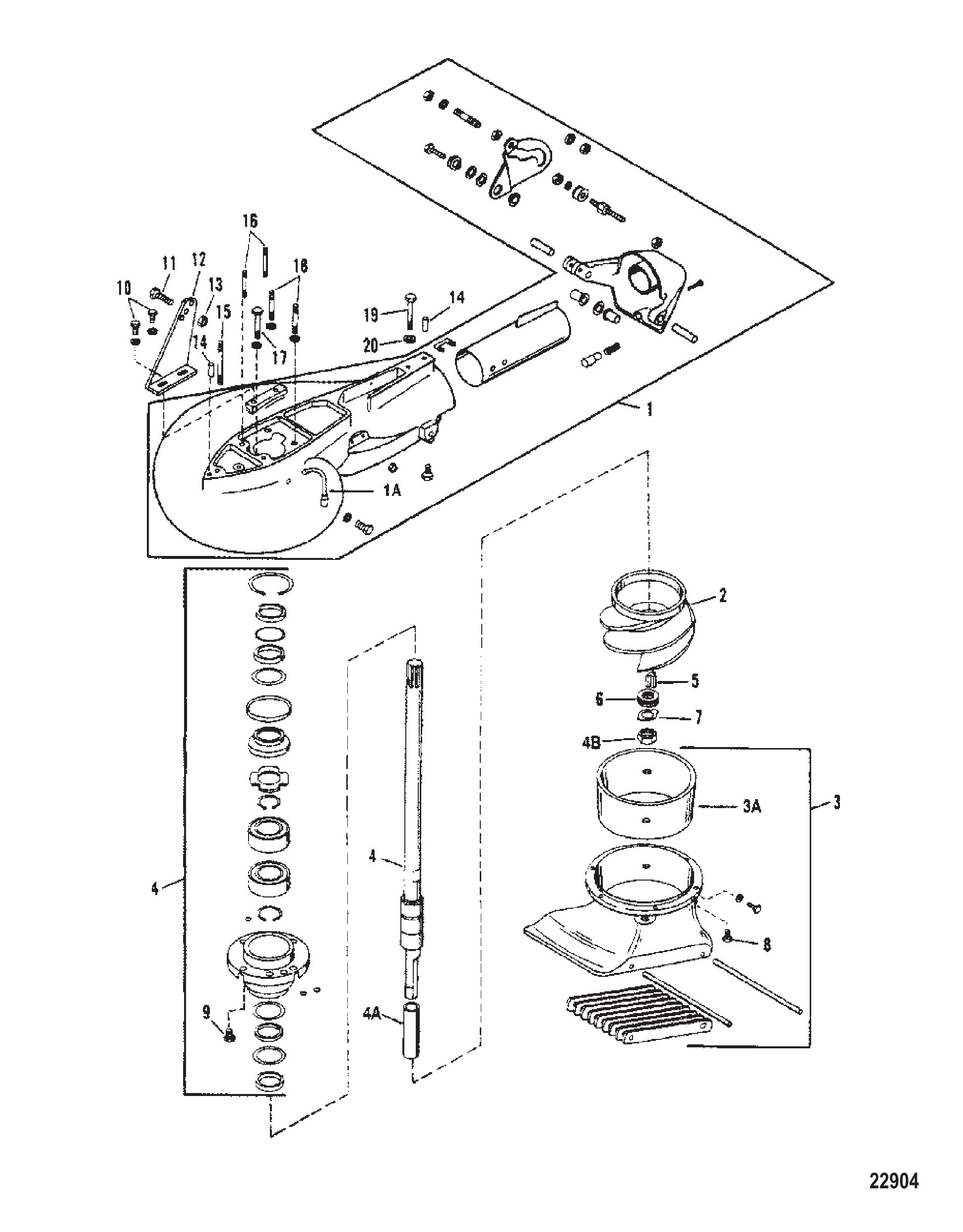

| - | 801400150 | 喷泵(黑色) | JET PUMP (BLACK) | 1 |
| - | 801401150 | 喷泵(灰色) | JET PUMP (GRAY) | 1 |
| - | 855766150 | 喷泵 | JET PUMP | 1 |
| 1 | 801411150 | 泵壳 | HOUSING Pump | 1 |
| 1A | 827490 | 润滑油管 | HOSE Lube | 1 |
| 2 | 801414150 | 叶轮 | IMPELLER | 1 |
| 2 | 803984T | 叶轮 | IMPELLER | 1 |
| 3 | 80141290 | 进气壳体 | HOUSING Intake | 1 |
| 3A | 8271883 | 衬套 | LINER | 1 |
| 4 | 801413150 | 驱动轴 | SHAFT Drive | 1 |
| 4A | 8271891 | 套筒 | SLEEVE | 1 |
| 4B | 8271901 | 螺母 | NUT | 1 |
| 5 | 801405875 | 键 | KEY | 1 |
| 6 | 801404875 | 叶轮垫片 | SHIM Impeller | 8 |
| 7 | 801403875 | 锁紧垫圈 | TAB WASHER | 1 |
| 8 | 847568 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 6 |
| 8 | 812618 | 不锈钢螺钉(.312-18 x 1.00)带尼龙垫 | SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch | 6 |
| 9 | 19923088 | 螺钉(.250-20 x .875) | SCREW (.250-20 x .875) | 4 |
| 10 | 19923062 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 2 |
| 11 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 1 |
| 12 | 801410 | 电缆支架 | BRACKET Cable Support | 1 |
| 13 | 67980 | 螺母(.312-18) | NUT (.312-18) | 1 |
| 13 | 82670910 | 不锈钢螺母(.312-18) | NUT (.312-18) Stainless Steel | 1 |
| 14 | 801407 | 定位销 | PIN Dowel | 2 |
| 15 | 78638 | 双头螺柱(.438 x 3.12) | STUD (.438 x 3.12) | 1 |
| 15 | 786382 | 螺柱(.437-14/.437-20 x 3.120) | STUD (.437-14/.437-20 x 3.120) | 1 |
| 16 | 579201 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 16 | 8M0133358 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 17 | 69064 | 螺栓(.312-18 x 2.750) | BOLT (.312-18 x 2.750) | 1 |
| 18 | 30667 | 双头螺栓(.250-20/.250-28×3.125) | STUD (.250-20/.250-28 x 3.125) | 2 |
| 18 | 306671 | 螺柱 | STUD | 2 |
| 19 | 68299 | 不锈钢螺钉(.375-16 x 3.00) | SCREW (.375-16 x 3.00) Stainless Steel | 1 |
| 20 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 1 |
| 20 | 8M0214963 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

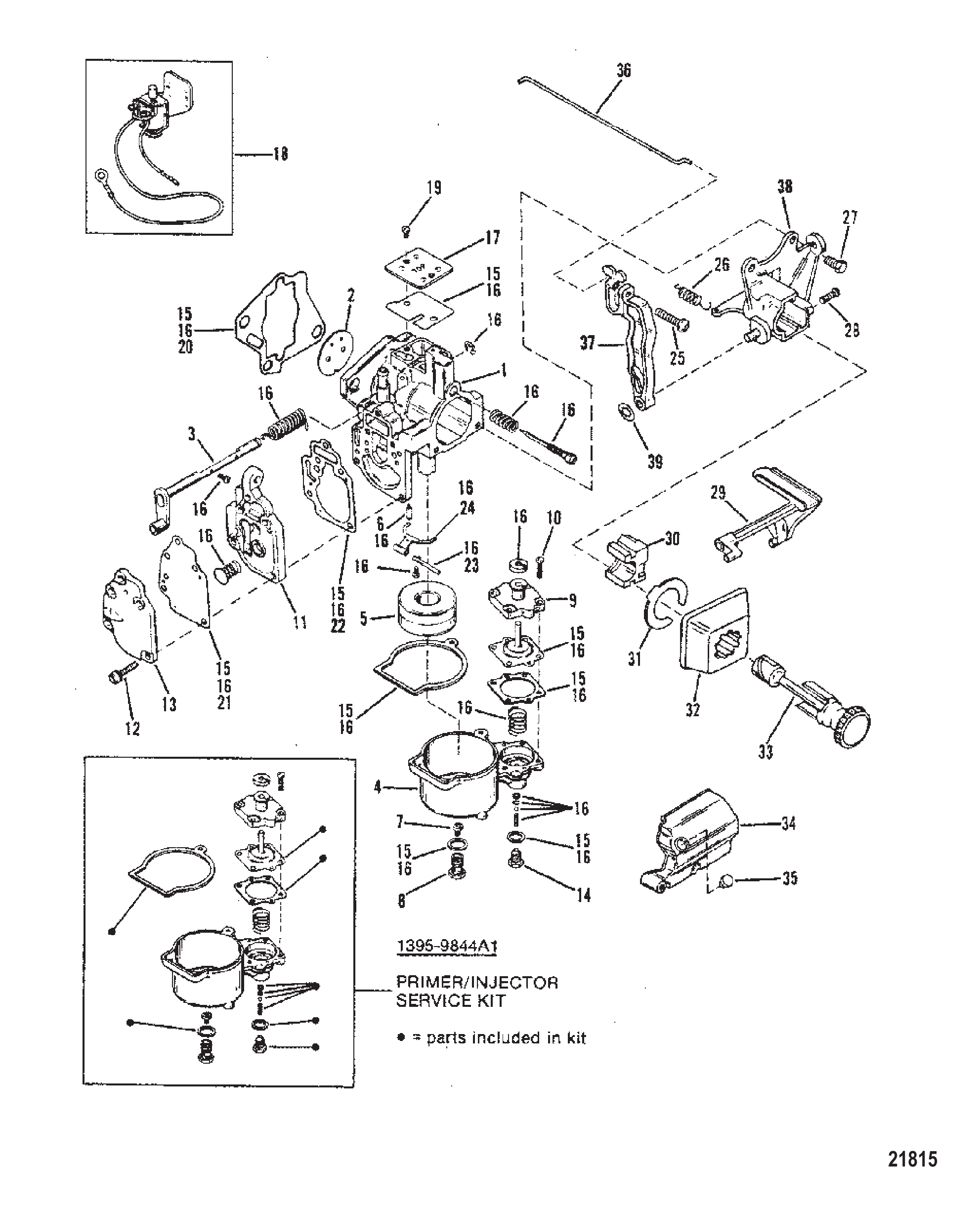

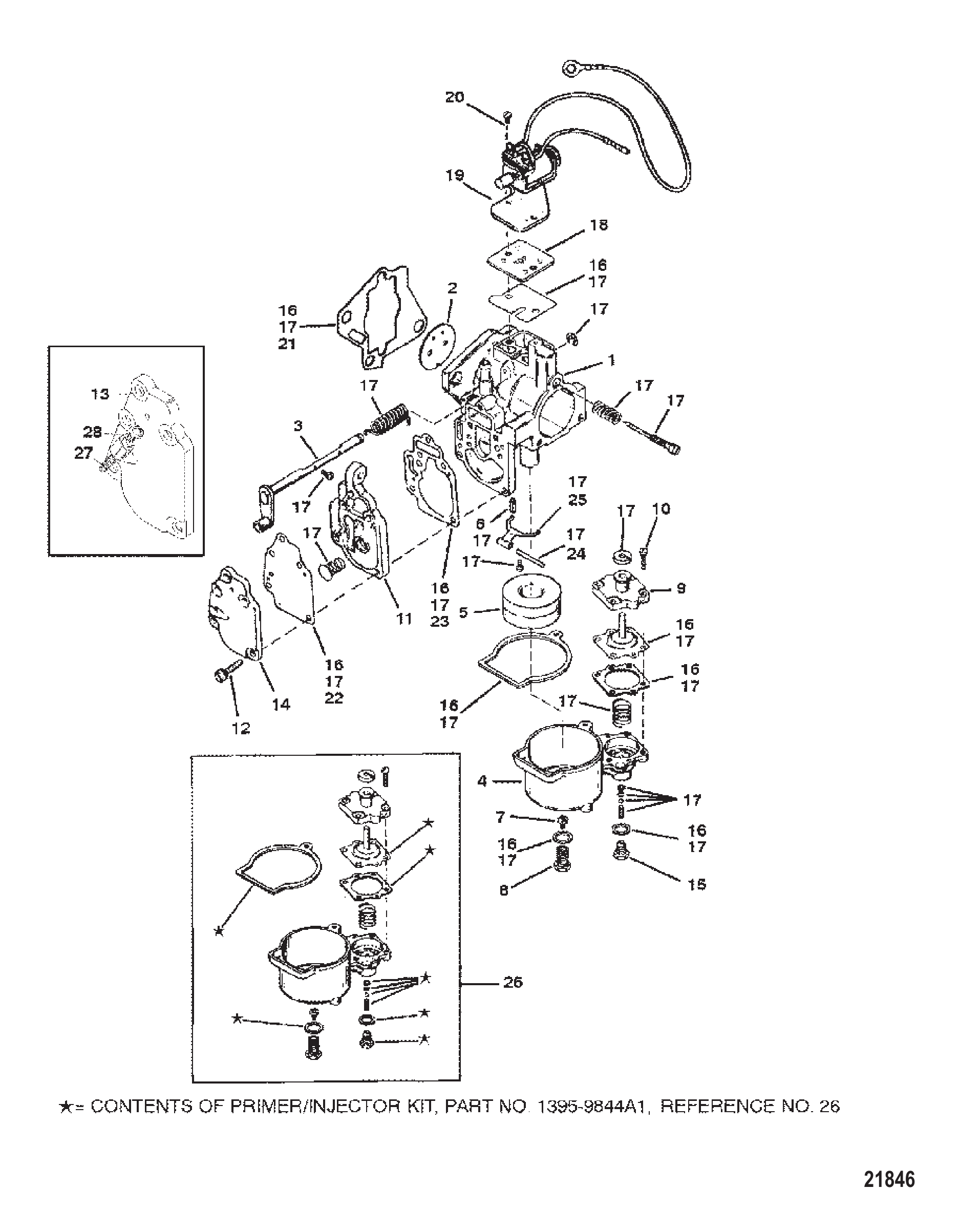

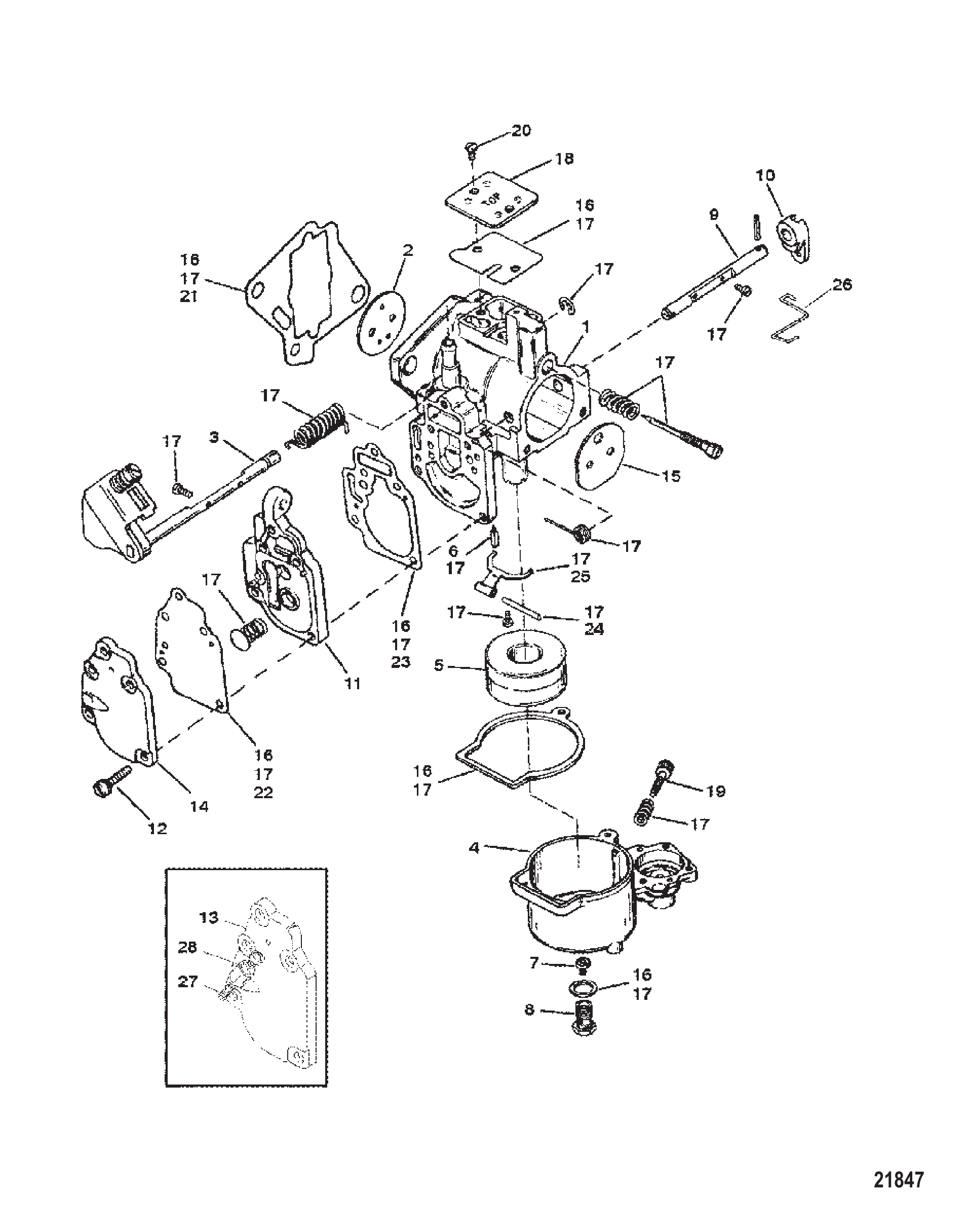

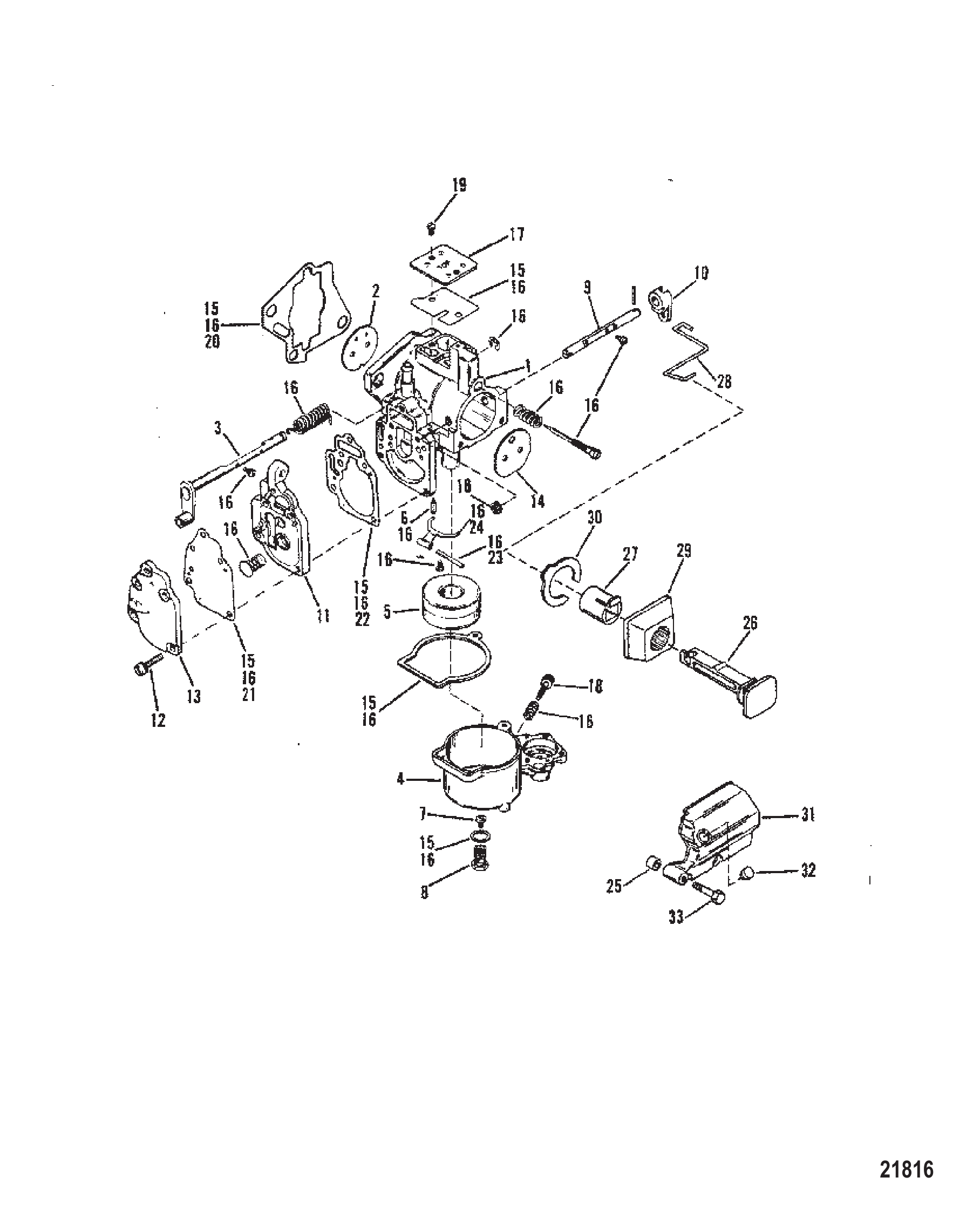

| 1 | 817405A2 | 化油器(WMC-35A) | CARBURETOR (WMC-35A) | 1 |
| 1 | 817405A5 | 化油器(WMC-35B) | CARBURETOR (WMC-35B) | 1 |
| 1 | 817405T6 | 化油器 | CARBURETOR | 1 |
| 1 | 817405A6 | 化油器(WMC-43) | CARBURETOR (WMC-43) | 1 |
| 1 | 817405T6 | 化油器 | CARBURETOR | 1 |
| 2 | 9646 | 油门阀 | VALVE Throttle | 1 |
| 3 | 9695 | 油门轴 | SHAFT Throttle | 1 |
| 4 | 811353 | 燃油杯 | BOWL Fuel | 1 |
| 5 | 9169 | 浮子 | FLOAT | 1 |
| 5 | 91691 | 浮子 | FLOAT | 1 |
| 6 | 9855 | 进油针阀 | VALVE INLET NEEDLE | 1 |
| 6 | 803861 | 进油针阀 | VALVE Inlet Needle | 1 |
| 7 | 6201 | 主量孔(.080) | JET (.080) MAIN FUEL | 1 |
| 8 | 9171 | 量孔固定塞 | PLUG JET RETAINER | 1 |
| 9 | 811354 | 阻风门轴 - WMC-35/35A | SHAFT Choke (WMC-35/35A) | 1 |
| 9 | 8113541 | 阻风门轴 | SHAFT Choke | 1 |
| 9 | 8113541 | 阻风门轴 - WMC-35B/43 | SHAFT Choke (WMC-35B/43) | 1 |
| 10 | 817406 | 阻风门杆 - WMC-35 | LEVER Choke (WMC-35) | 1 |
| 10 | 811805 | 阻风门杆 | LEVER Choke | 1 |
| 10 | 811805 | 阻风门杆 - WMC-35A/35B/43 | LEVER Choke (WMC-35A/35B/43) | 1 |
| 11 | 15827A1 | 燃油泵体 | BODY FUEL PUMP | 1 |
| 11 | 9702 | 盖/燃油泵套件 | COVER/FUEL PUMP KIT | 1 |
| 12 | 9643 | 燃油泵盖螺丝 | SCREW FUEL PUMP COVER | 5 |
| 13 | 9637 | 燃油泵盖 | COVER FUEL PUMP | 1 |
| 14 | 811355 | 阻风门阀 - WMC-35 | VALVE Choke (WMC-35) | 1 |
| 14 | 811806 | 阻风门阀 | VALVE Choke | 1 |
| 14 | 811806 | 阻风门阀 - WMC-35A/35B/43 | VALVE Choke (WMC-35A/35B/43) | 1 |
| 15 | 811357 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| 15 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 16 | 811356 | 维修包 - VMC 35/35A | REPAIR KIT (VMC 35/35A) | 1 |
| 16 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 16 | 823708 | 维修包 - WMC 35B | REPAIR KIT (WMC 35B) | 1 |
| 16 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 16 | 8113561 | 维修包 - WMC-43 | REPAIR KIT (WMC-43) | 1 |
| 16 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 17 | 9699 | 盖板 | PLATE COVER | 1 |
| 18 | 811360 | 浮子室放油螺钉 | SCREW Bowl Drain | 1 |
| 19 | 9696 | 盖板螺钉 | SCREW COVER PLATE | 2 |
| 20 | 414491 | 化油器衬垫 | GASKET CARBURETOR | 1 |
| 20 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| 21 | 9635 | 膜片/衬垫 | DIAPHRAGM/GASKET | 1 |
| 22 | 9633 | 衬垫 | GASKET | 1 |
| 23 | F10064 | 轴 | SHAFT | 1 |
| 24 | 824401 | 浮子杆 | LEVER Float | 1 |
| 25 | 41750 | 嵌件 | INSERT | 2 |
| 25 | 41750T | 嵌件 | INSERT | 2 |
| 26 | 817424 | 阻风门旋钮 | KNOB Choke | 1 |
| 27 | 817426 | 阻风门面板嵌件 | INSERT Choke Bezel | 1 |
| 28 | 817425 | 阻风门连杆 | LINK Choke | 1 |
| 29 | 172291 | 阻风门面板 | BEZEL Choke | 1 |
| 30 | 11278 | 固定夹 | CLIP Retaining | 1 |
| 31 | 17442 | 化油器盖 | COVER CARBURETOR | 1 |
| 32 | 47579 | 化油器盖塞 | PLUG CARBURETOR COVE | 1 |
| 33 | 40056110 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 2 |
| - | 422501 | 限流板 | RESTRICTOR PLATE | 1 |
| - | 757911 | 衬垫 | GASKET | 2 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 822261A92 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879732T89 | PH 20/25 | PH 20/25 | 1 |
| - | 90885A88 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879732T89 | PH 20/25 | PH 20/25 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

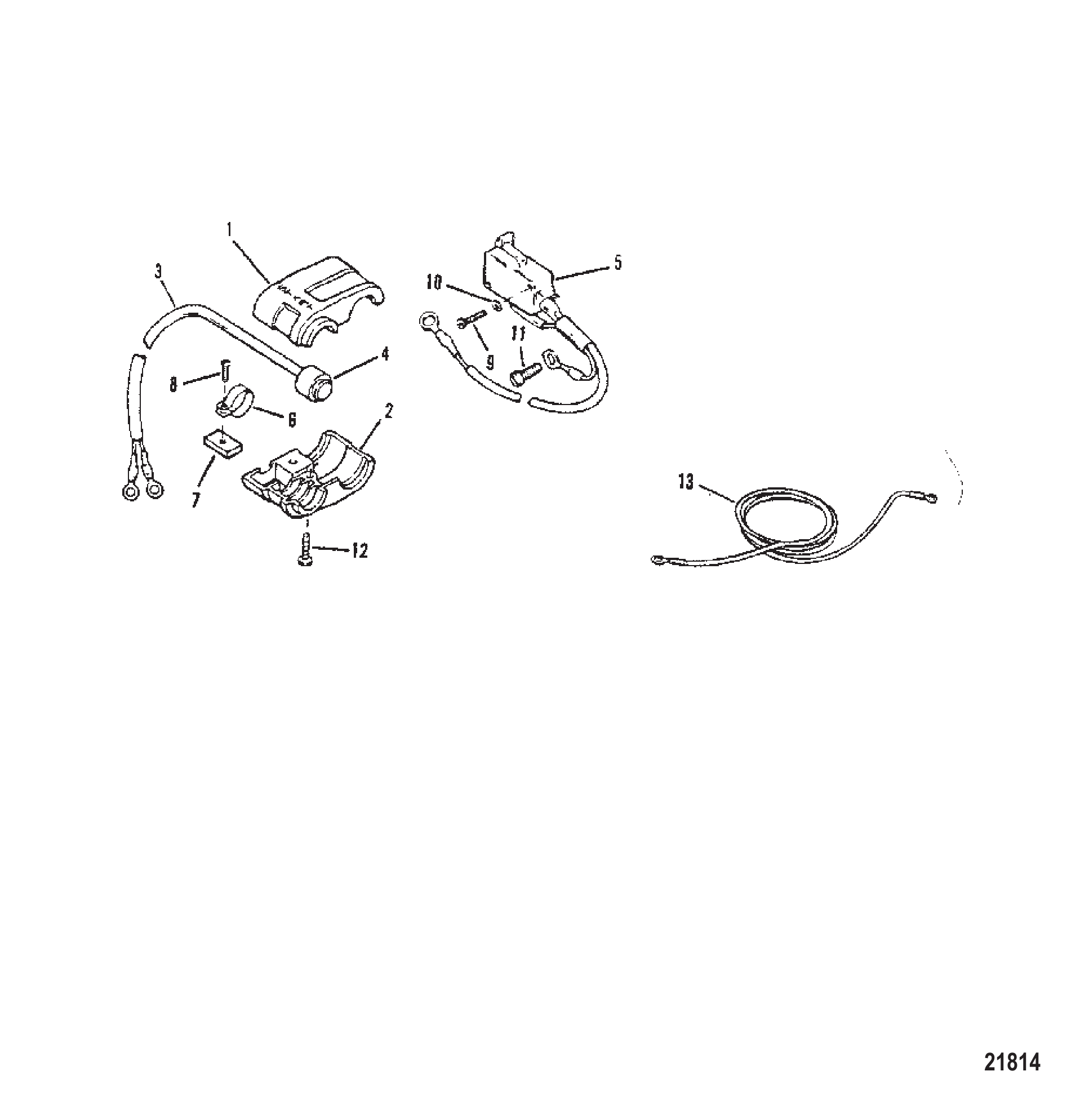

| 1 | 95815 | 启动开关上盖 | COVER START SWITCH (TOP) | 1 |
| 2 | 95828 | 启动开关下盖 | COVER START SWITCH (BOTTOM) | 1 |
| 3 | 95810A1 | 启动开关总成 | SWITCH ASSEMBLY Start | 1 |
| 4 | 55741 | 护套 | BOOT | 1 |
| 4 | 55741001 | 护套 | BOOT | 1 |
| 5 | 88890A2 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 6 | 95814 | 束带夹 | STRAP CLAMP | 1 |
| 7 | 95813 | 束带夹紧固件 | FASTENER CLAMP STRAP | 1 |
| 8 | 40056108 | 螺钉（M5×20） | SCREW (M5 x 20) | 1 |
| 8 | 40019108 | 螺钉（M5×20） | SCREW (M5 x 20) | 1 |
| 9 | 4005727 | 螺钉 | SCREW | 2 |
| 10 | 45771 | 垫圈 | WASHER | 2 |
| 11 | 62568 | 开关线螺丝(#10-16 x .375) | SCREW (#10-16 x .375) SWITCH WIRE | 1 |
| 12 | 69570 | 盖板螺丝(#10-16 x .750) | SCREW (#10-16 x .750) COVER | 1 |
| 13 | 79139A20 | 电缆总成（红色） | CABLE ASSEMBLY (RED) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

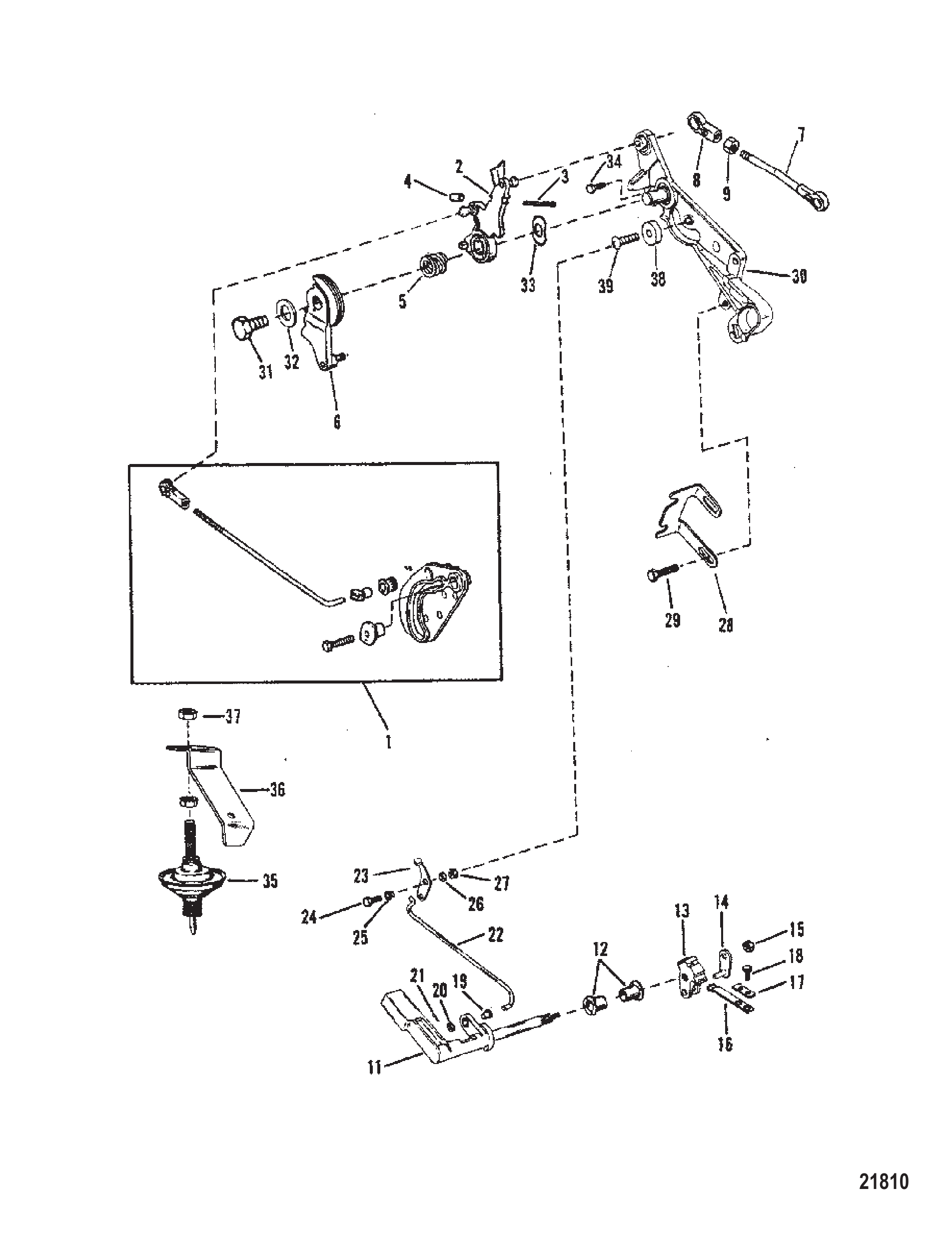

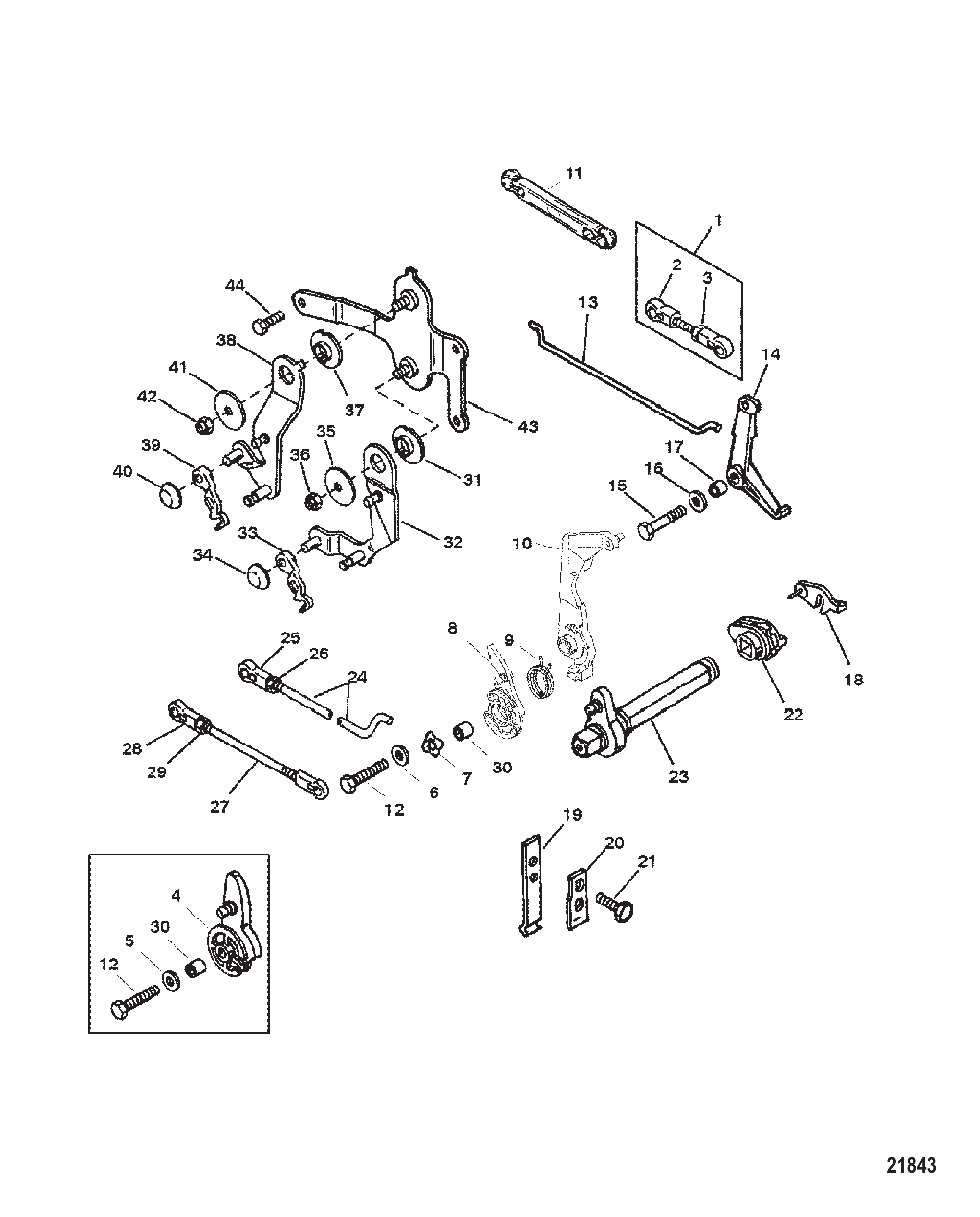

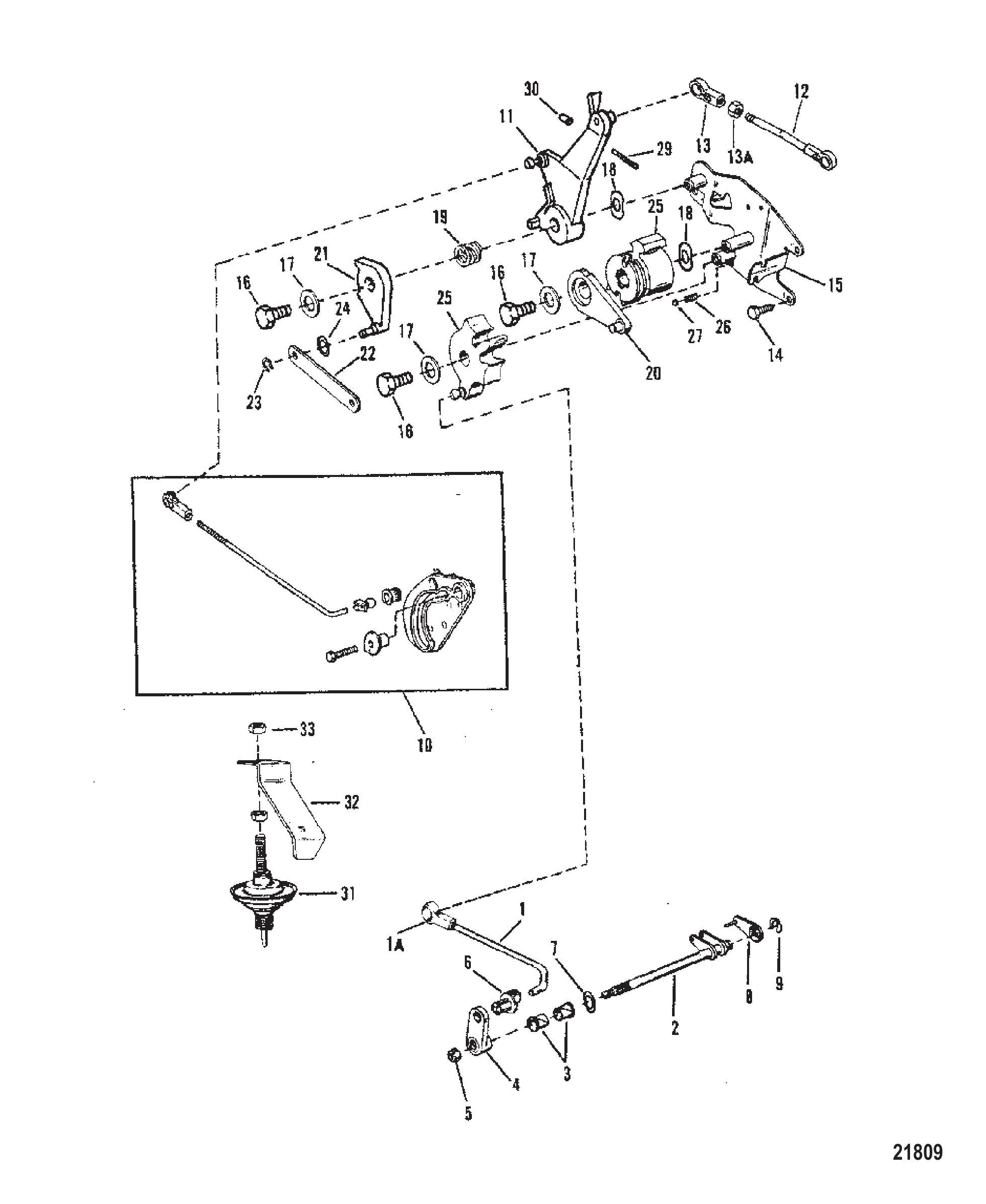

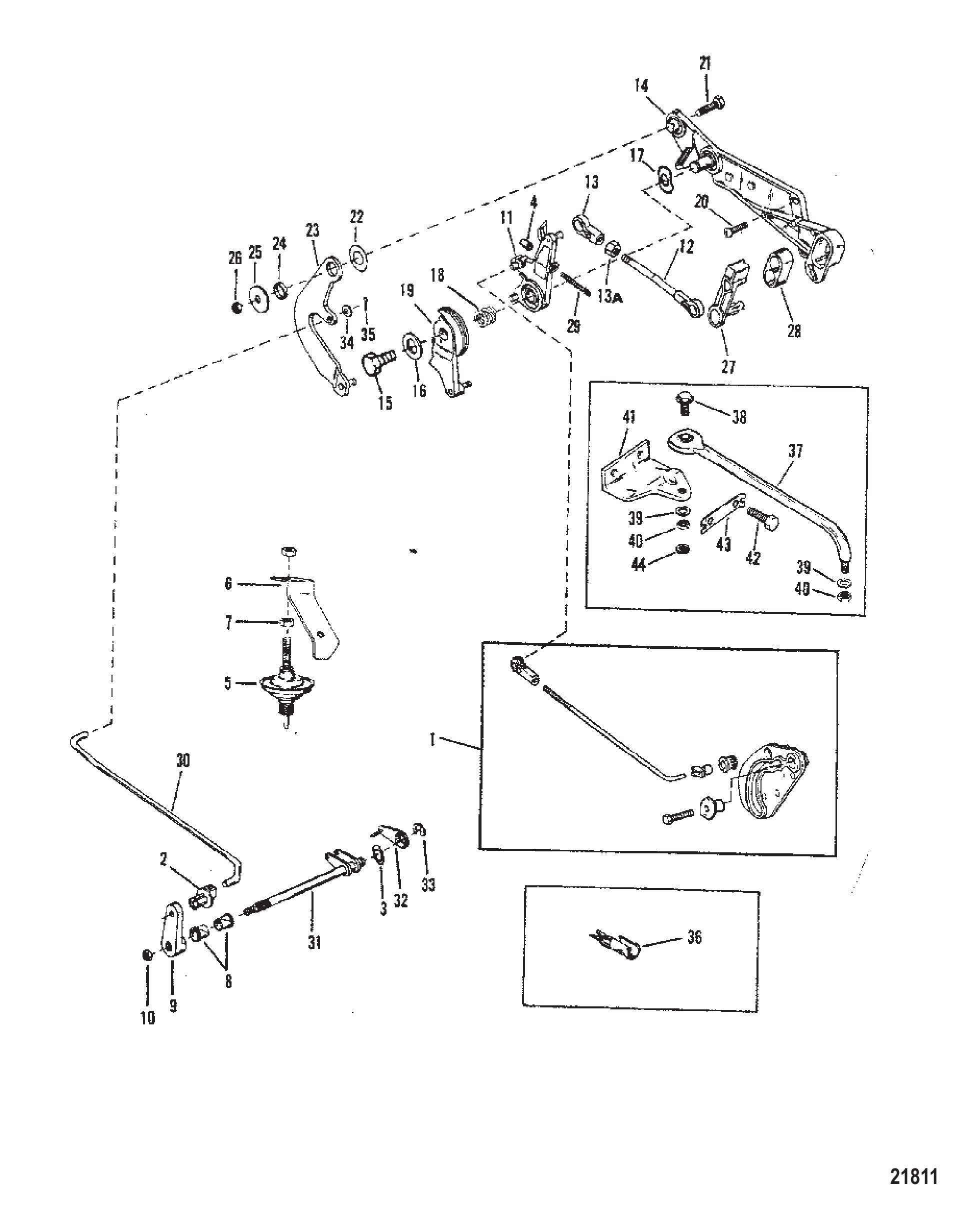

| 1 | 17764A2 | 节流连杆套件 | LINK KIT Throttle | 1 |
| 2 | 932481 | 衬套 | BUSHING | 1 |
| 2 | 8M0215006 | 旋转衬套 | BUSHING Swivel | 1 |
| 3 | 34632 | 垫圈 | WASHER | 1 |
| 4 | 48039 | 怠速止动螺钉帽 | CAP IDLE STOP SCREW | 1 |
| 5 | 92425 | 缓冲器（适用时使用） | DASHPOT (Use where Applicable) | 1 |
| 6 | 93001 | 支架（适用时使用） | BRACKET (Use where Applicable) | 1 |
| 7 | 28770 | 螺母（.312-24）不锈钢（适用时使用） | NUT (.312-24) Stainless Steel (Use where Applicable) | 2 |
| 8 | 60762 | 换挡轴衬套 | BUSHING SHIFT SHAFT | 2 |
| 9 | 17724 | 换挡轴杆 | LEVER SHIFT SHAFT | 1 |
| 9 | 17724A1 | 杠杆总成 | LEVER ASSEMBLY | 1 |
| 10 | 400633 | 换挡轴螺母(M5) | NUT (M5) SHIFT SHAFT | 1 |
| 10 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 11 | 43360 | 控制杆 | LEVER CONTROL | 1 |
| 11 | 433601 | 控制杆 | LEVER Control | 1 |
| 12 | 817429 | 正时连杆 | TIMING LINK | 1 |
| 13 | 817428 | 插座 | SOCKET | 2 |
| 13A | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| 14 | 42026A2 | 控制平台 | PLATFORM CONTROL | 1 |
| 15 | 16955 | 螺钉（M6 x 8）平台 | SCREW (M6 x 8) PLATFORM | 1 |
| 16 | 4002316 | 垫圈（6.60 x 17.0 x 1.5不锈钢）平台螺钉 | WASHER (6.60 X 17.0 X 1.5SS) PLATFORM SCREW | 1 |
| 16 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 17 | 69708 | 波形垫圈 | WAVE WASHER | 1 |
| 18 | 89540 | 点火提前弹簧 | SPRING SPARK ADVANCE | 1 |
| 19 | 42343 | 作动杆 | LEVER ACTUATING | 1 |
| 20 | 4000328 | 螺钉（M6 x 16）控制平台 | SCREW (M6 x 16) CONTROL PLATFORM | 1 |
| 20 | 8M0214928 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 20 | 4000329 | 螺钉（M6 x 20）控制平台 | SCREW (M6 x 20) CONTROL PLATFORM | 2 |
| 20 | 8M0206596 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 2 |
| 21 | 40007128 | 换挡杆与平台螺丝（M6 x 20） | SCREW (M6 x 20) SHIFT LEVER TO PLATFORM | 1 |
| 22 | 95093 | 换挡杆与平台垫圈 | WASHER SHIFT LEVER TO PLATFORM | 1 |
| 23 | 43424 | 换挡杆 | LEVER SHIFT | 1 |
| 24 | 95091 | 换挡杆至平台套管 | SLEEVE SHIFT LEVER TO PLATFORM | 1 |
| 25 | 35280 | 换挡杆螺钉垫片(0.255x0.620x0.030)不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel SHIFT LEVER SCREW | 1 |
| 26 | 401196 | 换挡杆螺钉螺母(M6) | NUT (M6) SHIFT LEVER SCREW | 1 |
| 27 | 42846A2 | 盖总成 | COVER ASSEMBLY | 1 |
| 28 | 39519 | 杯形固定器 | CUP RETAINER | 1 |
| 29 | 118591 | 螺钉（.190-32 x 1.750）怠速止动-控制杆 | SCREW (.190-32 x 1.750) IDLE STOP - CONTROL LEVER | 1 |
| 30 | 434441 | 换挡连杆 | SHIFT LINK | 1 |
| 30 | 434442 | 换挡连杆 | SHIFT LINK | 1 |
| 31 | 95027A6 | 水平换挡轴 | SHIFT SHAFT HORIZONTAL | 1 |
| 32 | 42156 | 换挡轴杆 | LEVER SHIFT SHAFT | 1 |
| 33 | 95019 | 挡圈（旧设计） | RING Retaining (OLD DESIGN) | 1 |
| 34 | 89302 | 换挡连杆垫片(0.203x0.406x0.040) | WASHER (.203 x .406 x .040) SHIFT LINK | 1 |
| 35 | 21071 | 换挡连杆开口销 | COTTER PIN SHIFT LINK | 1 |
| 35 | 210711 | 开口销 | COTTER PIN | 1 |
| 36 | 424291 | 拉线固定器 | RETAINER CABLE | 2 |
| 37 | 96487A2 | 转向连杆总成 | LINK ROD ASSEMBLY STEERING | 1 |
| 37 | 41323A03 | 转向连杆安装套件 | ATTACHING KIT Steering Link | 1 |
| 38 | 14000 | 螺钉（.375-24 x 1.25）连杆 | SCREW (.375-24 x 1.25) LINK ROD | 1 |
| 38 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 39 | 34931 | 垫圈（.406 x .734 x .063）不锈钢螺钉和连杆 | WASHER (.406 x .734 x .063) Stainless Steel SCREW AND LINK ROD | 2 |
| 40 | 34863 | 螺母（.375-24）螺钉和连杆 | NUT (.375-24) SCREW AND LINK ROD | 2 |
| 40 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 41 | 96186A2 | 安装支架总成 | BRACKET ASSEMBLY ATTACHING | 1 |
| 42 | 4000376 | 支架螺钉(M10x25) | SCREW (M10 x 25) BRACKET | 2 |
| 42 | 1993325 | 螺钉(M10x25mm) | SCREW (M10 x 25 mm) | 2 |
| 43 | 96201 | 钥匙带（旧设计） | STRAP Key (OLD DESIGN) | 1 |
| 44 | 400248 | 锁紧垫圈（M10）（新设计） | LOCKWASHER (M10) (NEW DESIGN) | 2 |

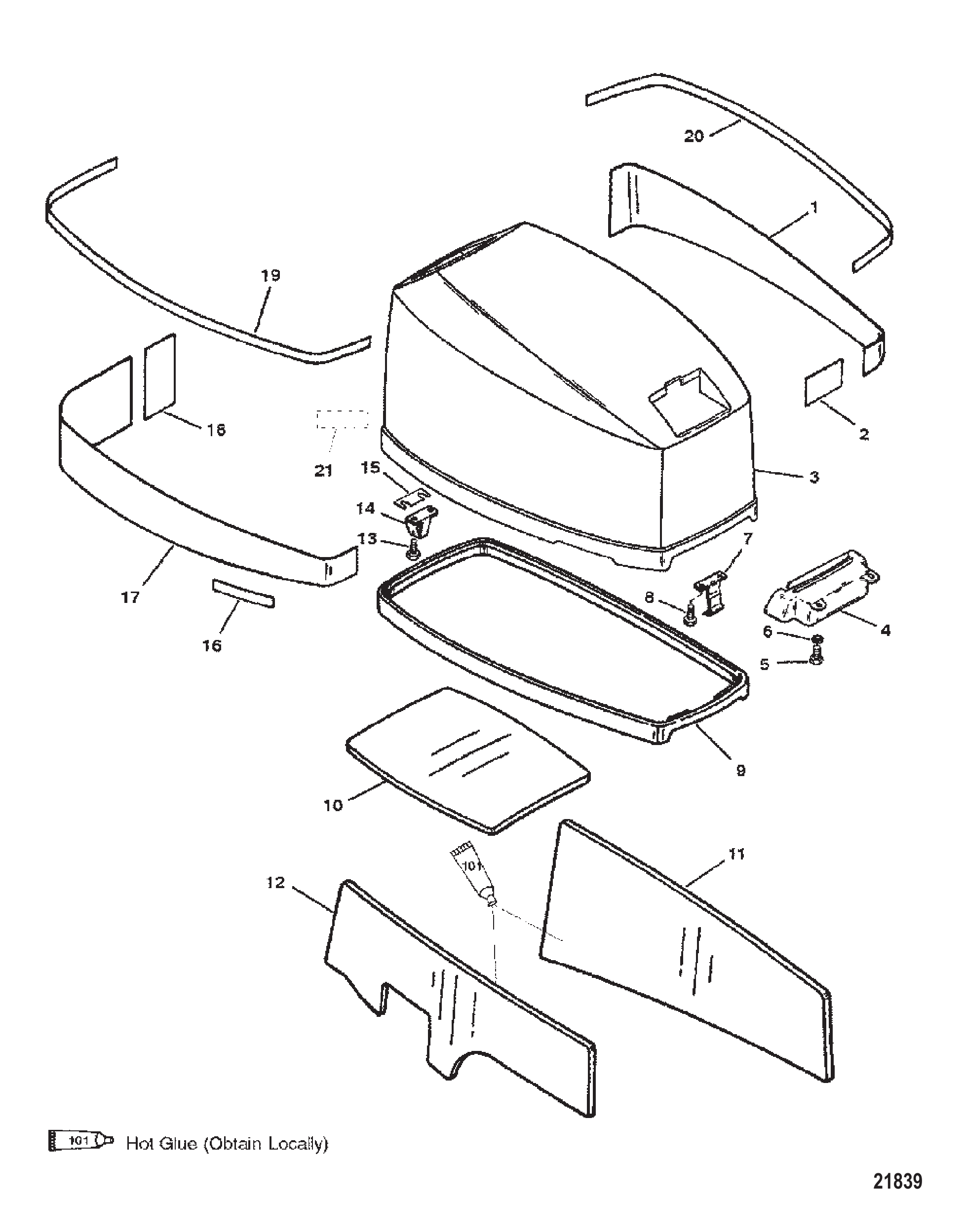

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

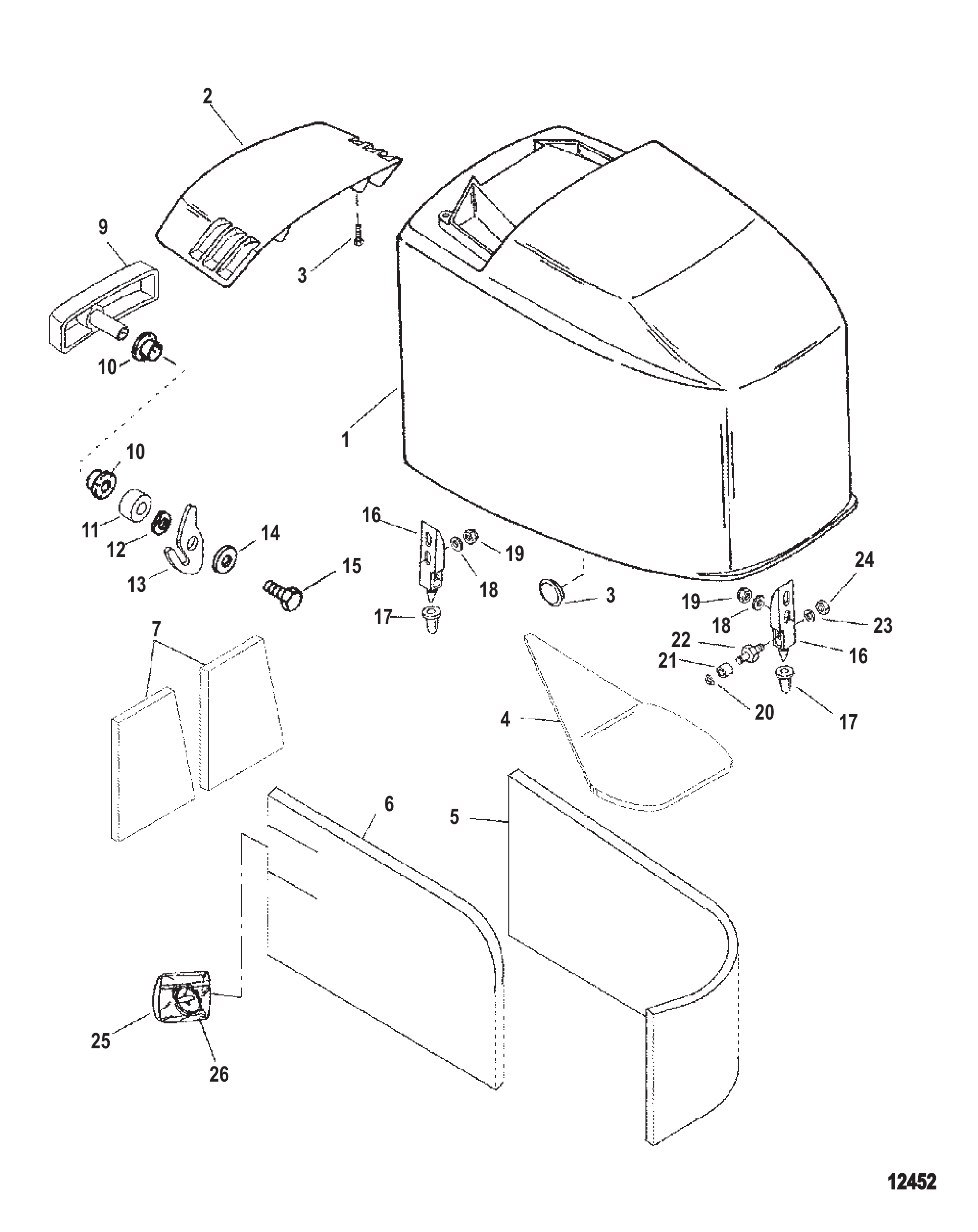

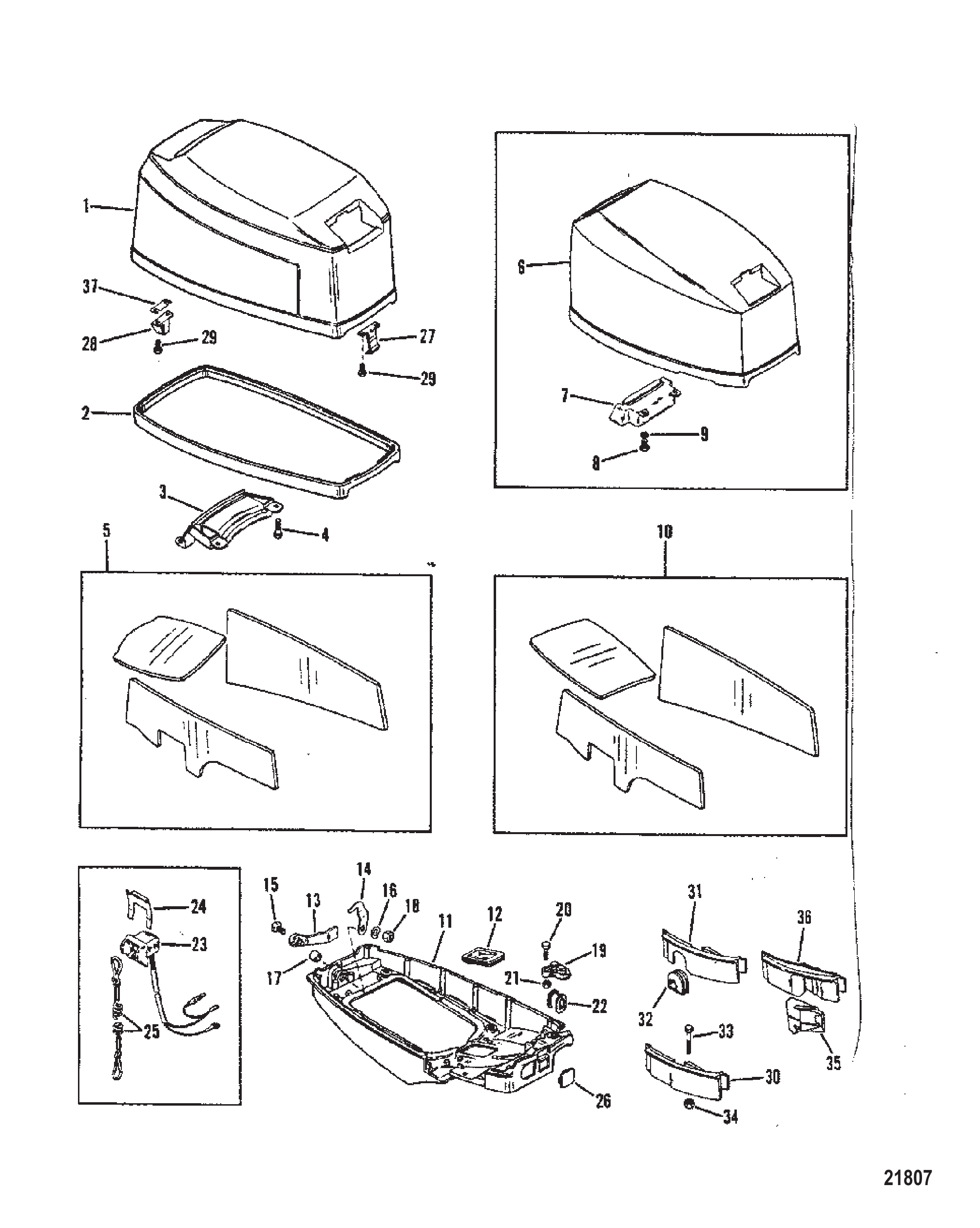

| 1 | 8869A23 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 17773A2 | 罩盖密封件 | SEAL Cowl | 1 |
| 2 | 8M0043411 | 罩盖密封条 | SEAL-COWL | 1 |
| 3 | 17539 | 机罩手柄 | HANDLE Cowl | 1 |
| 4 | 70332 | 机罩手柄螺钉(#10-16x0.5英寸) | SCREW (#10-16 x .500) COWL HANDLE | 4 |
| 4 | 95700 | 螺钉(#10-16 x .50) | SCREW (#10-16 x .50) | 4 |
| 5 | 815625A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 5 | 815625A02 | 隔音毯套装(预涂压敏胶) | SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive) | 1 |
| 6 | 9163A19 | 顶罩总成(黑色) | TOP COWL ASSEMBLY (BLACK) | 1 |
| 6 | 9163T19 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 6 | 9163A15 | 顶罩总成(灰色) | TOP COWL ASSEMBLY (GRAY) | 1 |
| 6 | 9163T21 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 6 | 9163A21 | 上机罩总成(银色) | TOP COWL ASSEMBLY (SILVER) | 1 |
| 6 | 9163T21 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 6 | 9163A20 | 上机罩总成(TRACKER) | TOP COWL ASSEMBLY (TRACKER) | 1 |
| 6 | 9163T20 | 顶盖总成-TRA | COWL ASSY-TOP-TRA | 1 |
| 2 | 17773A2 | 罩盖密封件 | SEAL Cowl | 1 |
| 2 | 8M0043411 | 罩盖密封条 | SEAL-COWL | 1 |
| 7 | 44311F3 | 护罩(黑色) | SHIELD (BLACK) | 1 |
| 7 | 44311F2 | 护罩(灰色) | SHIELD (GRAY) | 1 |
| 7 | 44311F3 | 护罩 | SHIELD | 1 |
| 7 | 44311F5 | 护罩(银色) | SHIELD (SILVER) | 1 |
| 7 | 44311F3 | 护罩 | SHIELD | 1 |
| 7 | 44311F4 | 护罩(TRACKER) | SHIELD (TRACKER) | 1 |
| 8 | 400018 | 护罩螺钉(M5x12) | SCREW (M5 x 12) SHIELD | 2 |
| 9 | 33786 | 护罩螺钉垫圈 | WASHER SHIELD SCREW | 2 |
| 9 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 2 |
| 10 | 815625A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 10 | 815625A02 | 隔音毯套装(预涂压敏胶) | SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive) | 1 |
| 11 | 9682A1 | 底罩(黑色) | BOTTOM COWL (BLACK) | 1 |
| 11 | 9682A11 | 下机罩-黑色 | BOTTOM COWL-BLACK | 1 |
| 11 | 9682A2 | 底罩(灰色) | BOTTOM COWL (GRAY) | 1 |
| 11 | 9682A12 | 下机罩-灰色 | BOTTOM COWL-GRAY | 1 |
| 11 | 9682A7 | 下机罩(TRACKER) | BOTTOM COWL (TRACKER) | 1 |
| 11 | 9682A13 | 下机罩-TRACK | BOTTOM COWL-TRACK | 1 |
| 12 | 17231 | 换挡轴护套 | GROMMET Shift Shaft | 1 |
| 13 | 17220 | 罩壳锁杆 | LEVER Cowl Latch | 1 |
| 14 | 816202 | 锁钩 | HOOK Latch | 1 |
| 15 | 40019130 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 1 |
| 16 | 37642 | 波形垫圈 | WAVE WASHER | 1 |
| 17 | 812707 | 尼龙衬套 | BUSHING NYLON | 1 |
| 18 | 17224 | 锁紧螺母 | NUT Latch Retaining | 1 |
| 19 | 17223 | 线束盖 | COVER Harness | 1 |
| 20 | 4000332 | 螺钉(M6x35) | SCREW (M6 x 35) | 1 |
| 21 | 401196 | 螺母 (M6) | NUT (M6) | 1 |
| 22 | 17226 | 线束护套 | GROMMET Wire Harness | 1 |
| 23 | 11083A6 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 24 | 120441 | 停止开关黄铜固定座 | RETAINER Brass STOP SWITCH | 1 |
| 24 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| 25 | 15920A54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 25 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 26 | 17230 | 开关孔堵头 | PLUG STOP SWITCH HOLE | 1 |
| 27 | 17221 | 盖锁扣 | LATCH Cowl | 1 |
| 28 | 812413A1 | 滚轮支架总成 | BRACKET ASSEMBLY Roller | 1 |
| 29 | 400033 | 锁扣与挂钩螺钉(M5x12) | SCREW (M5 x 12) LATCH AND HOOK | 4 |
| 30 | 17234T | 手柄盖(黑色) | COVER (HANDLE) (BLACK) | 1 |
| 30 | 17234F1 | 侧盖 | SIDE COVER | 1 |
| 30 | 17234T7 | 手柄盖(灰色) | COVER (HANDLE ) (GRAY) | 1 |
| 30 | 17234F6 | ORD 17234F 1 | ORD 17234F 1 | 1 |
| 31 | 17234F5 | 手柄盖(黑色) | COVER (HANDLE) (BLACK) | 1 |
| 31 | 17234F2 | 手柄盖(灰色) | COVER (HANDLE ) (GRAY) | 1 |
| 31 | 17234F5 | 盖板 | COVER | 1 |
| 32 | 17227 | 护孔环 | GROMMET | 1 |
| 33 | 4000329 | 螺钉(M6x20)(手动) | SCREW (M6 x 20) (MANUAL) | 1 |
| 33 | 8M0206596 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 1 |
| 33 | 4000334 | 螺钉(M6x45)(电动/手动遥控) | SCREW (M6 x 45) (ELECTRIC/MANUAL REMOTE CONTROL) | 1 |
| 34 | 401196 | 盖螺母(M6) | NUT (M6) COVER | 1 |
| 35 | 17627 | 护孔环 | GROMMET | 1 |
| 36 | 17233T | 盖(黑色) | COVER (BLACK) | 1 |
| 36 | 17233F1 | 盖板 | COVER | 1 |
| 36 | 17233F2 | 盖(灰色) | COVER (GRAY) | 1 |
| 36 | 17233F1 | 盖板 | COVER | 1 |
| 36 | 17233F3 | 盖(TRACKER) | COVER (TRACKER) | 1 |
| 36 | 17233F1 | 盖板 | COVER | 1 |
| 37 | 18517 | 罩盖锁扣垫片 | SHIM Cowl Latch | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 827328T9 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 827328T10 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 821256T1 | 黑色进气口 | INLET Air - Black | 1 |
| 2 | 821256T03 | 进气口 | INLET Air | 1 |
| 2 | 821256T2 | 银色进气口 | INLET Air - Silver | 1 |
| 3 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 4 | 859356A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 4 | 859356A02 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 5 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 1 |
| 6 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 1 |
| 7 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 2 |
| 8 | 823865 | 盖塞 | CAP PLUG | 2 |
| 9 | 831207T10 | 手柄 | HANDLE | 1 |
| 9 | 831207A16 | 罩盖锁手柄套件 | HANDLE KIT Cowl Latch | 1 |
| 10 | 812707 | 衬套 | BUSHING | 2 |
| 11 | 831214 | 隔套 | SPACER | 1 |
| 12 | 12134 | 波形垫圈 | WASHER Wave | 1 |
| 13 | F481777 | 凸轮锁轴 | CAM Latch Shaft | 1 |
| 13 | 8M0001081 | 凸轮 | CAM | 1 |
| 14 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 14 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 15 | 1993716 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 16 | 821249M2 | 前支架 | BRACKET Front | 3 |
| 16 | 8M0036792 | 支架 | BRACKET | 3 |
| 17 | 815477 | 缓冲器锁扣 | BUMPER Latch | 3 |
| 18 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 6 |
| 18 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 6 |
| 19 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 6 |
| 20 | 8237951 | 挡圈 | RING Retaining | 1 |
| 21 | 815263 | 滚轮 | ROLLER | 1 |
| 21 | 8M0207770 | 滚轮@3 | ROLLER @3 | 1 |
| 22 | 8155381 | 滚动销 | PIN Roll | 1 |
| 23 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 23 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 24 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |

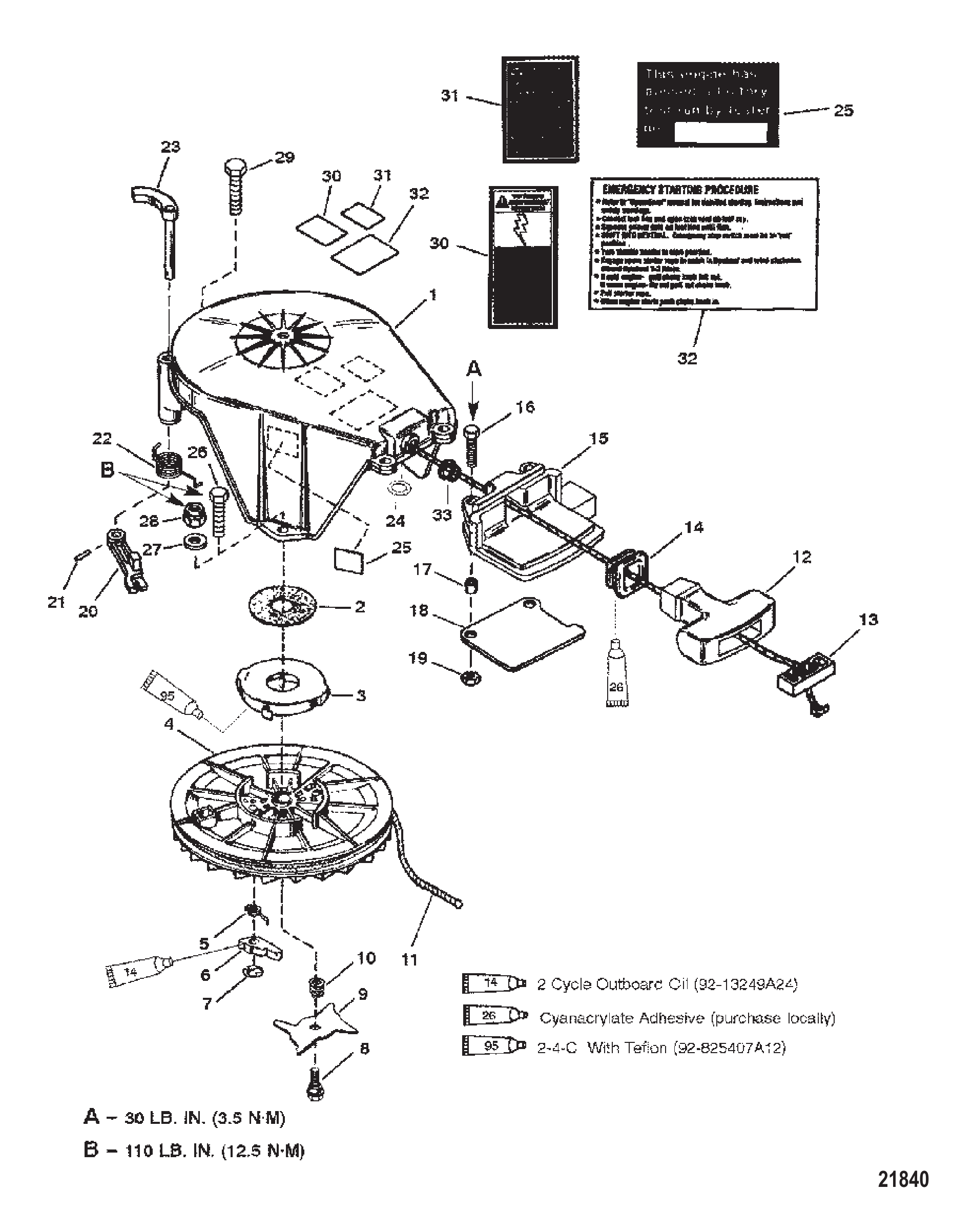

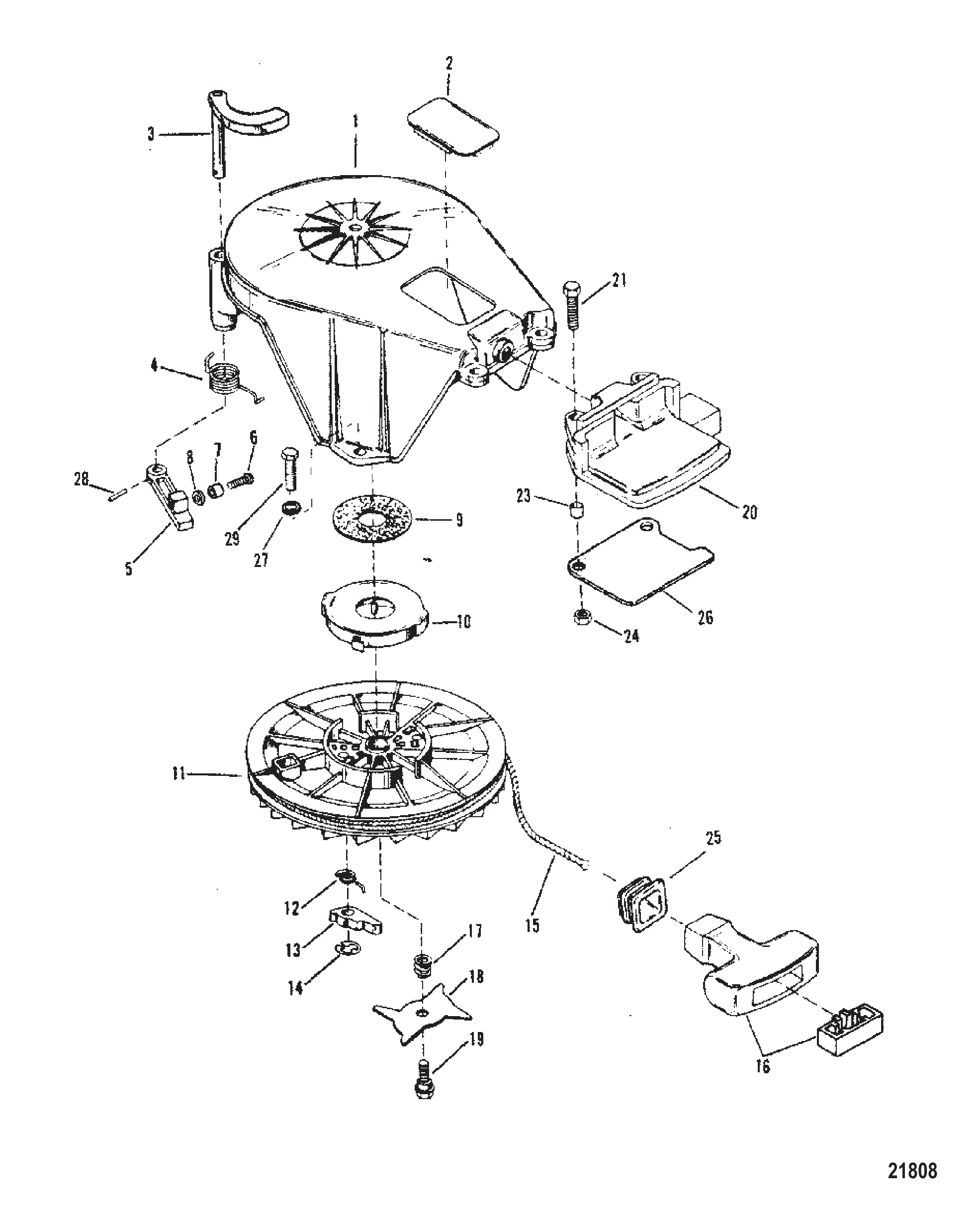

| 25 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 26 | 12066Q9 | 绳索 | ROPE | 1 |
| 26 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

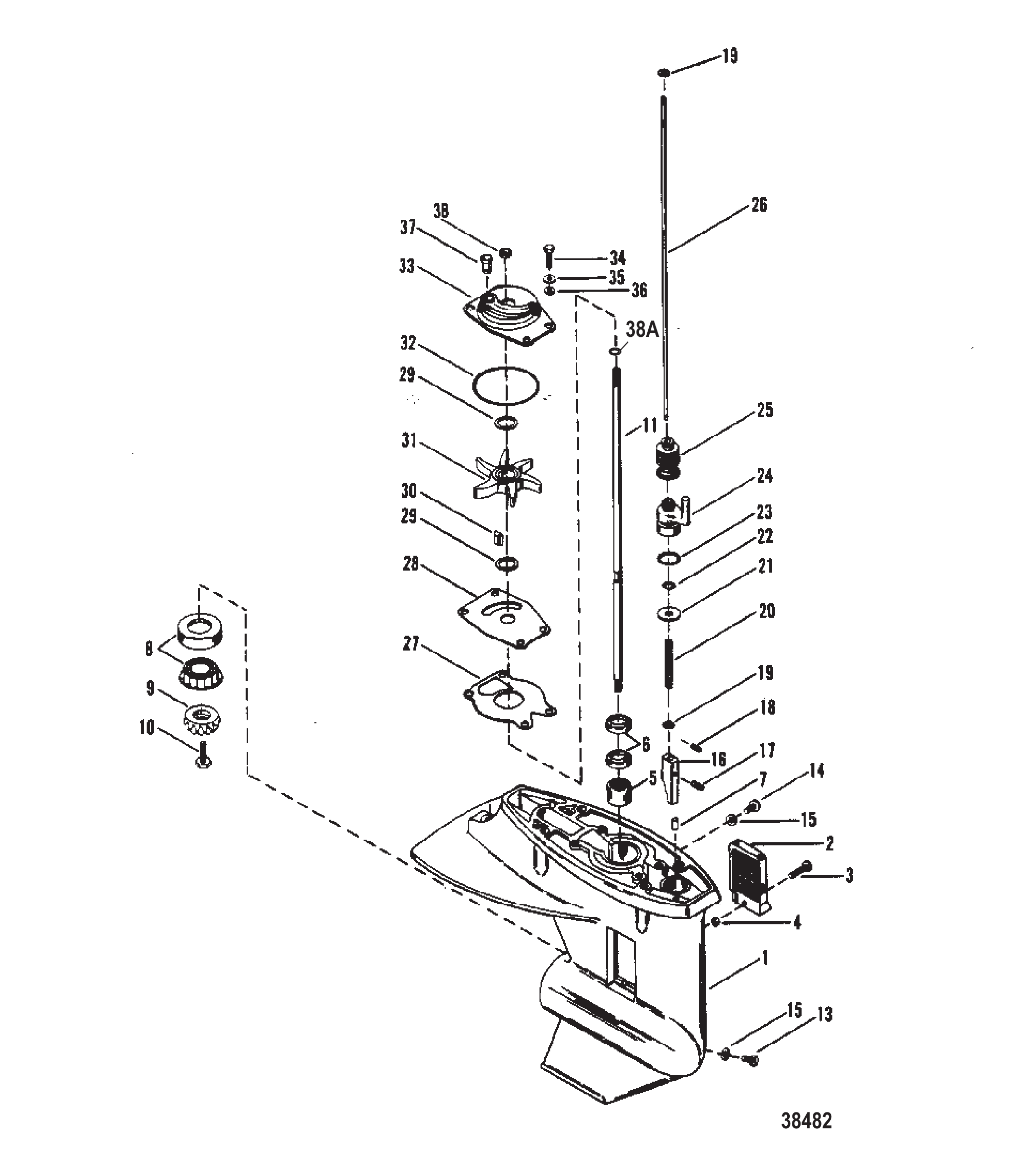

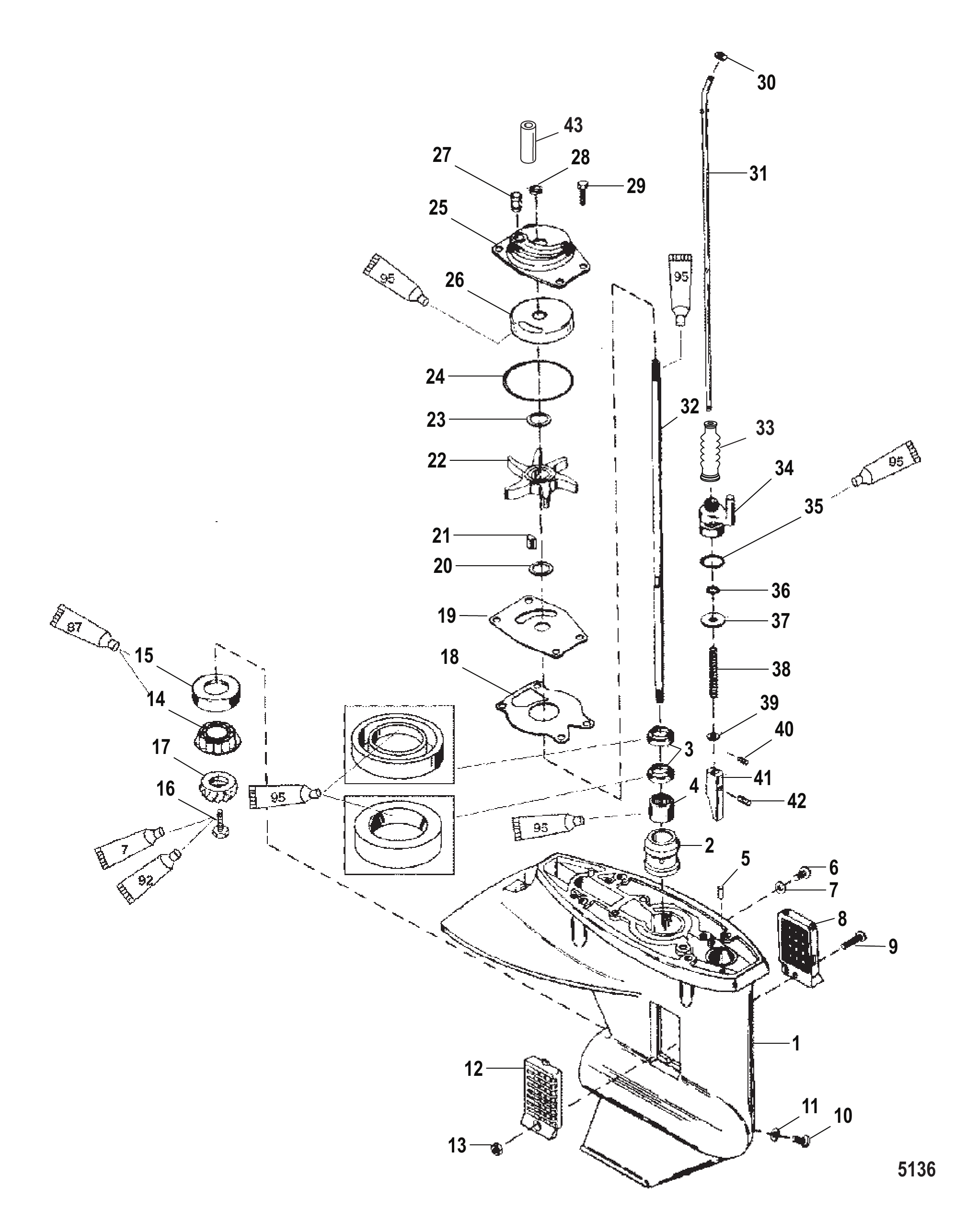

| - | 8669A13 | 齿轮箱总成(短型)(黑色) | GEAR HOUSING ASSEMBLY (SHORT) (BLACK) | 1 |
| - | 8669T13 | 齿轮箱外壳SH-BLK | GEAR HSG. SH-BLK | 1 |
| - | 8669A14 | 齿轮箱总成(长型)(黑色) | GEAR HOUSING ASSEMBLY (LONG) (BLACK) | 1 |
| - | 8669T14 | GC 20/25 2S LG | GC 20/25 2S LG | 1 |
| - | 8669A15 | 齿轮箱总成(短型)(灰色) | GEAR HOUSING ASSEMBLY (SHORT) (GRAY) | 1 |
| - | 8669T13 | 齿轮箱外壳SH-BLK | GEAR HSG. SH-BLK | 1 |
| - | 8669A16 | 齿轮箱总成(长型)(灰色) | GEAR HOUSING ASSEMBLY (LONG) (GRAY) | 1 |
| - | 8669T16 | ORD 1665-8669T14 | ORD 1665-8669T14 | 1 |
| - | 8669A23 | 齿轮箱总成(短型)(追踪者系列) | GEAR HOUSING ASSEMBLY (SHORT) (TRACKER) | 1 |
| - | 8669A24 | 齿轮箱总成(长型)(追踪者系列) | GEAR HOUSING ASSEMBLY (LONG) (TRACKER) | 1 |
| 1 | 8669A21 | 齿轮箱总成(基础黑色) | GEAR HOUSING ASSEMBLY Basic-Black (BLACK) | 1 |
| 1 | 8M0083538 | GC BASIC 25 2S | GC BASIC 25 2S | 1 |
| 1 | 8669A22 | 齿轮箱总成(基础灰色) | GEAR HOUSING ASSEMBLY Basic-Gray (GRAY) | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8669A25 | 齿轮箱总成(追踪者系列) | GEAR HOUSING ASSEMBLY (TRACKER) | 1 |
| 1 | 8669A39 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |

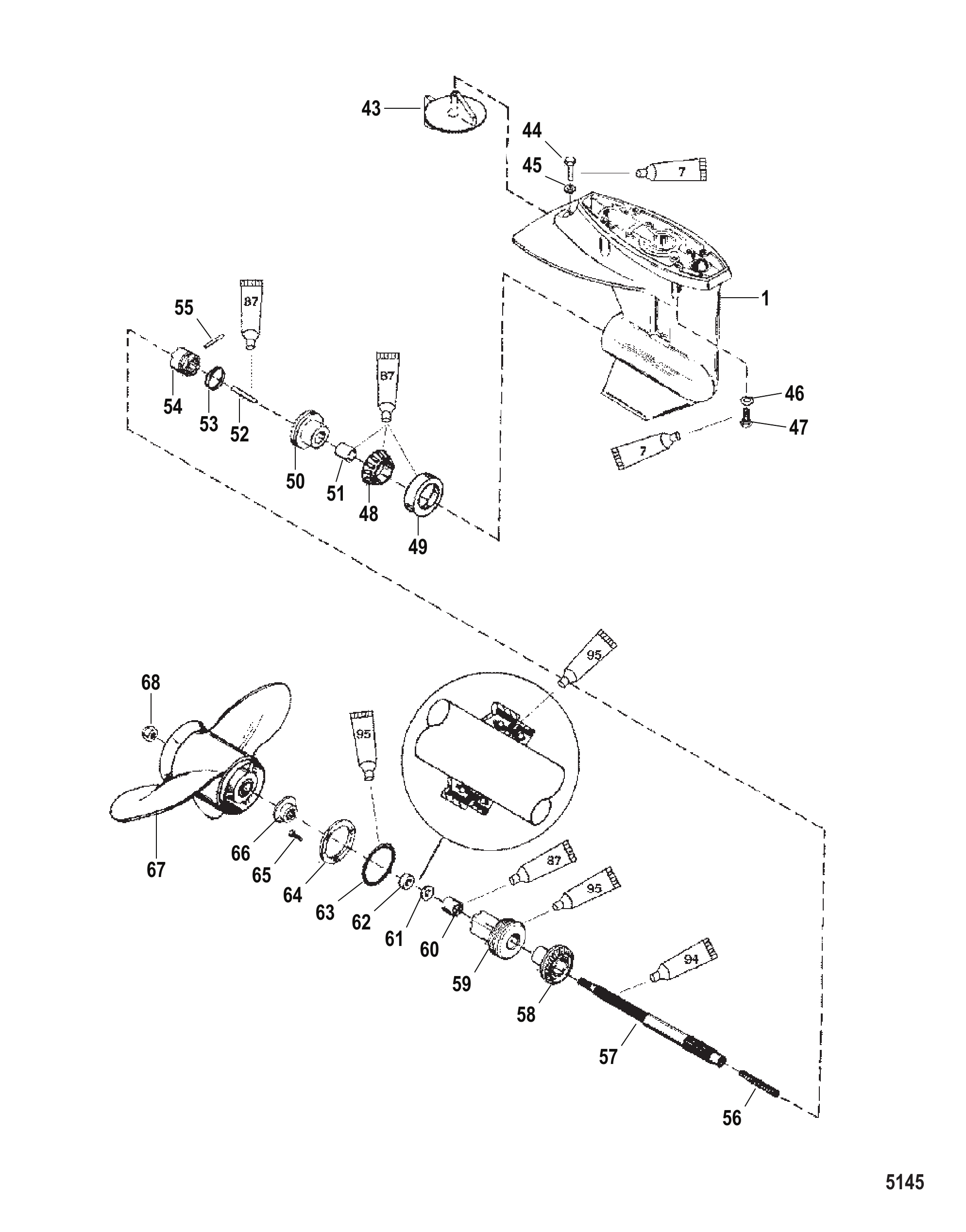

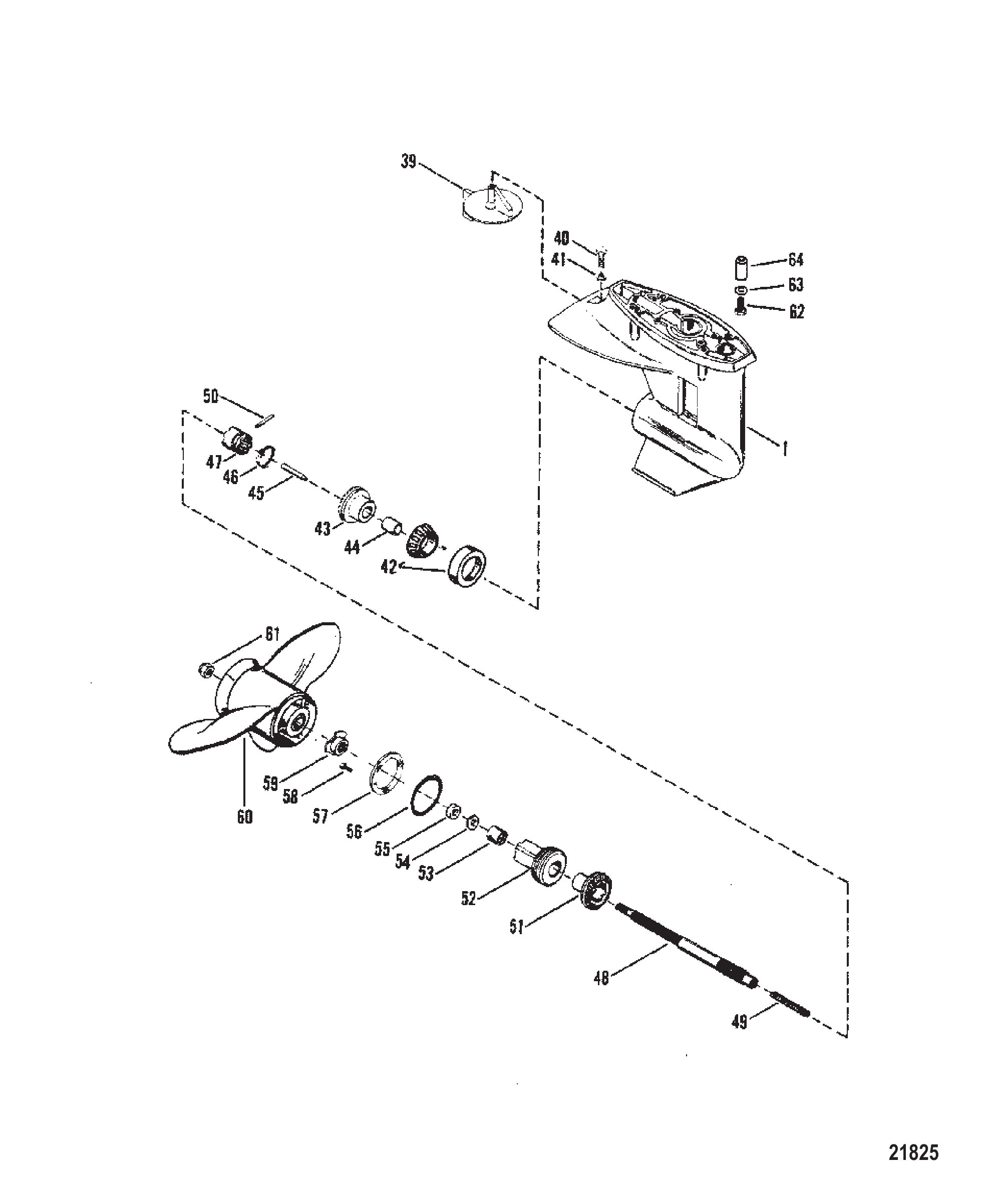

| 39 | 984325 | 平衡鳍板 | TRIM TAB | 1 |
| 39 | 98432Q6 | 平衡鳍板 | TRIM TAB | 1 |
| 40 | 4000354 | 螺钉(M8x30) 调整片 | SCREW (M8 x 30) TRIM TAB | 1 |
| 41 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 1 |
| 41 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 1 |
| 42 | 99328A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 42 | 8M0103470 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 43 | 44213A1 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 43 | 44213T1 | 前进齿轮 | GEAR Forward | 1 |
| 44 | 85557 | 衬套 | BUSHING | 1 |
| 45 | 85094 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 46 | 38114 | 弹簧 | SPRING | 1 |
| 47 | 41040 | 离合器(无标记) | CLUTCH (NO STAMPING) | 1 |
| 47 | 41040T | 离合器 | CLUTCH | 1 |
| 47 | 410401 | 离合器(标记52-41040--1) | CLUTCH (STAMPED 52-41040--1) | 1 |
| 47 | 41040T1 | 离合器 | CLUTCH | 1 |
| 48 | 816623 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 48 | 8166231 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 49 | 88680 | 弹簧 | SPRING | 1 |
| 50 | 85093 | 销 | PIN | 1 |
| 50 | 8M0020999 | 十字销 | PIN CROSS | 1 |
| 51 | 99542 | 倒挡齿轮 | GEAR Reverse | 1 |
| 51 | 99542T | 倒挡齿轮 | GEAR Reverse | 1 |
| 52 | 99906A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 52 | 99906T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 53 | 21739 | 滚柱轴承 | BEARING Roller | 1 |
| 54 | 41132 | 油封(内) | SEAL Oil (INNER) | 1 |
| 55 | 41131 | 油封(外) | SEAL Oil (OUTER) | 1 |
| 55 | 8M0245761 | 油封 | SEAL OIL | 1 |
| 56 | 85549 | O型圈 | O-RING | 1 |
| 57 | 87293 | 安装板 | PLATE | 1 |
| 58 | 90883 | 螺钉(M5×16) | SCREW (M5 x 16) | 3 |
| 59 | 8M0027793 | 轮毂 | HUB | 1 |
| 59 | 858498 | 推力毂总成 | THRUST HUB ASSEMBLY | 1 |
| 60 | 19640A40 | BLACK MAX螺旋桨 | BLACK MAX PROPELLER | 1 |
| 60 | 19638A40 | 黑金刚螺旋桨(海专业/马拉松25/超级15) | BLACK MAX PROPELLER (SEA PRO/MARATHON 25/SUPER 15) | 1 |
| 61 | 88228 | 螺旋桨螺母 | PROP NUT | 1 |
| 61 | 821280 | 螺母(海专业/马拉松25/超级15) | NUT (SEA PRO/MARATHON 25/SUPER 15) | 1 |
| 61 | 4013812 | 螺母(M12)不锈钢 | NUT (M12) Stainless Steel | 1 |
| 62 | 4000378 | 不锈钢螺钉(M10 x 35) | SCREW (M10 x 35) Stainless Steel | 4 |
| 62 | 87810178 | 螺钉(M10 x 35) | SCREW (M10 x 35) | 4 |
| 63 | 43328 | 垫圈 | WASHER | 4 |
| 64 | 41589 | 垫片(按需使用) | SPACER (USE WHERE APPLICABLE) | 4 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

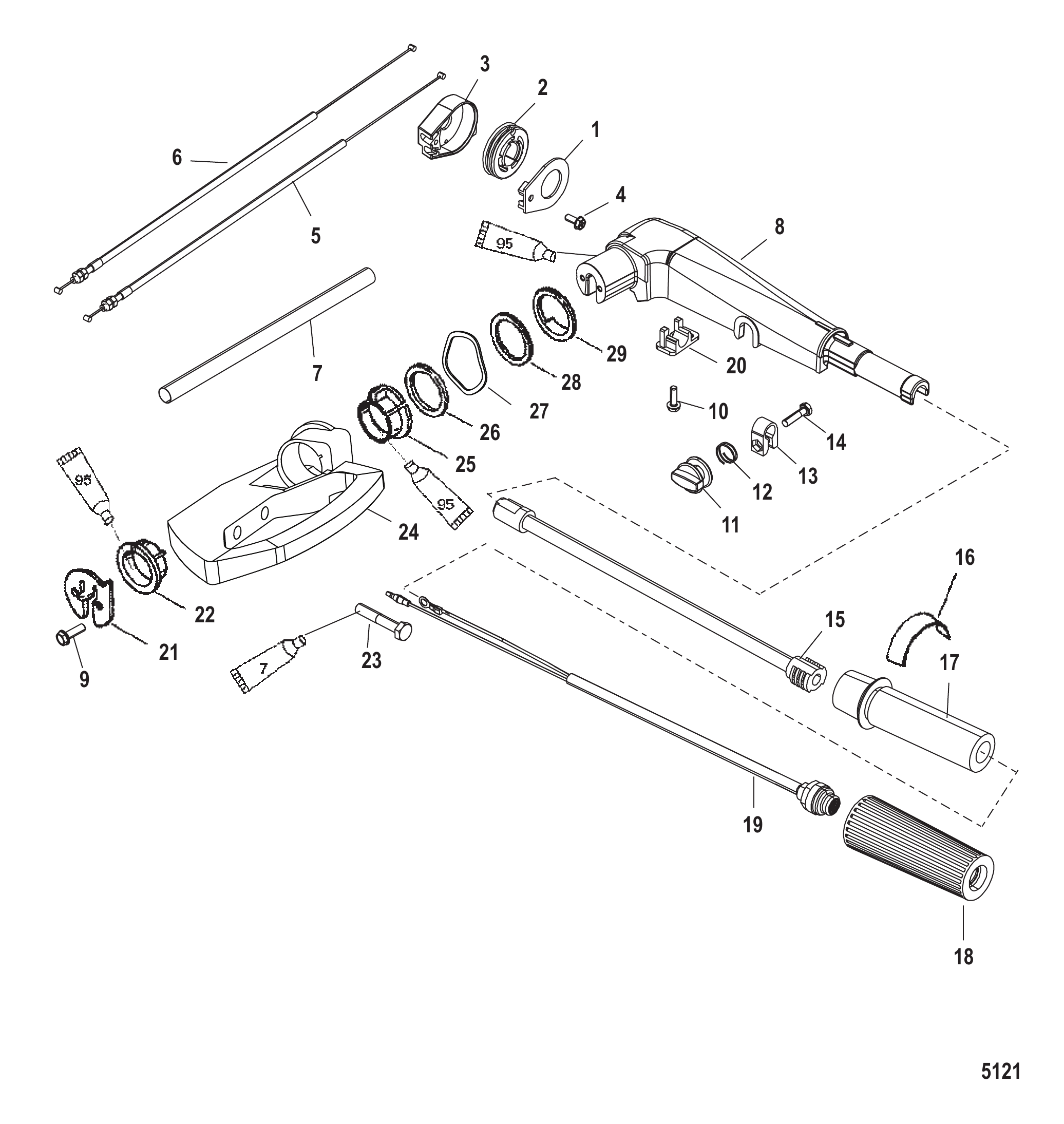

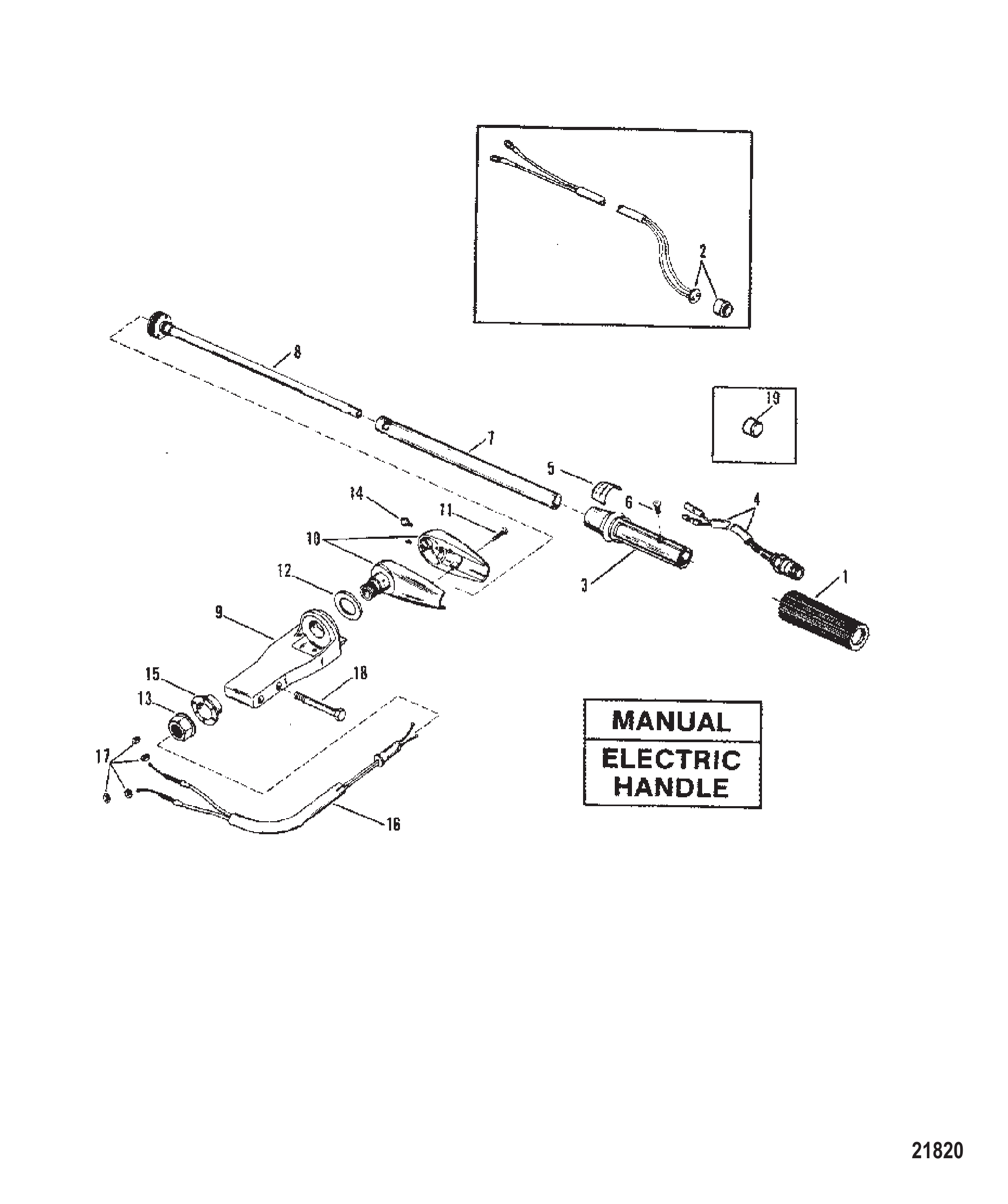

| 1 | 99589 | 握把 | GRIP | 1 |
| 2 | NLA | 停产 停止开关 | No Longer Available Stop Switch | 1 |
| 3 | 823609A10 | 停机开关套件-油门手柄 | SWITCH KIT Stop - Throttle Handle | 1 |
| 4 | 823609A1 | 停止开关总成（设计II-带金属锁环） | SWITCH ASSEMBLY Stop (DESIGN II -W/METAL LOCK RING) | 1 |
| 4 | 8M0104615 | 开关总成 | SWITCH ASSY | 1 |
| 5 | 140121 | 贴花（贴于管上） | DECAL (APPLY ON TUBE) | 1 |
| 5 | 140122 | 贴花（贴于管上-3.33英寸x1.25英寸）（灰色） | DECAL (APPLY ON TUBE - 3.33 Inches x 1.25 Inches)(GRAY) | 1 |
| 5 | 140123 | 贴花（贴于管上-3.15x2.50英寸）（灰色） | DECAL (APPLY ON TUBE - 3.15 x 2.50 Inches)(GRAY) | 1 |
| 5 | 140124 | 贴花（国际符号） | DECAL (INTERNATIONAL SYMBOLS) | 1 |
| 6 | 37342 | 螺钉（#12-14 x 0.375） | SCREW (#12-14 x .375) | 1 |
| 7 | 99333A2 | 管总成 | TUBE ASSEMBLY | 1 |
| 8 | 975501 | 管总成 | TUBE ASSEMBLY | 1 |
| 9 | 43447A1 | 支架总成（黑色） | BRACKET ASSEMBLY (BLACK) | 1 |
| 9 | 43447A3 | 转向支架总成 | BRACKET ASSEMBLY Steering | 1 |
| 9 | 43447A2 | 支架总成（灰色） | BRACKET ASSEMBLY (GRAY) | 1 |
| 9 | 43447A4 | 转向支架总成 | BRACKET ASSEMBLY Steering | 1 |
| 10 | NLA | 停产 支架（黑色）（订单号43447A3） | No Longer Available Bracket (BLACK) (Order 43447A3) | 1 |
| 10 | NLA | 停产 支架（灰色）（订单号43447A4） | No Longer Available Bracket (GRAY) (Order 43447A4) | 1 |
| 11 | 4005688 | 螺钉（M4×20） | SCREW (M4 x 20) | AR |
| 11 | 40019109 | 螺丝(M5 x 25) | SCREW (M5 x 25) | AR |
| 12 | 177821 | 垫圈14 | WASHER 14 | 1 |
| 13 | 90068F2 | 螺母（黑色） | NUT (Black) | 1 |
| 13 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 13 | 90068F3 | NUT (1.00-14) (Gray) | 1 | |
| 13 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 14 | 74036 | 润滑脂接头 | FITTING Grease | 1 |
| 14 | 8M0169589 | 润滑脂接头 | FITTING Grease | 1 |
| 15 | 85973 | 衬套 | BUSHING | 1 |

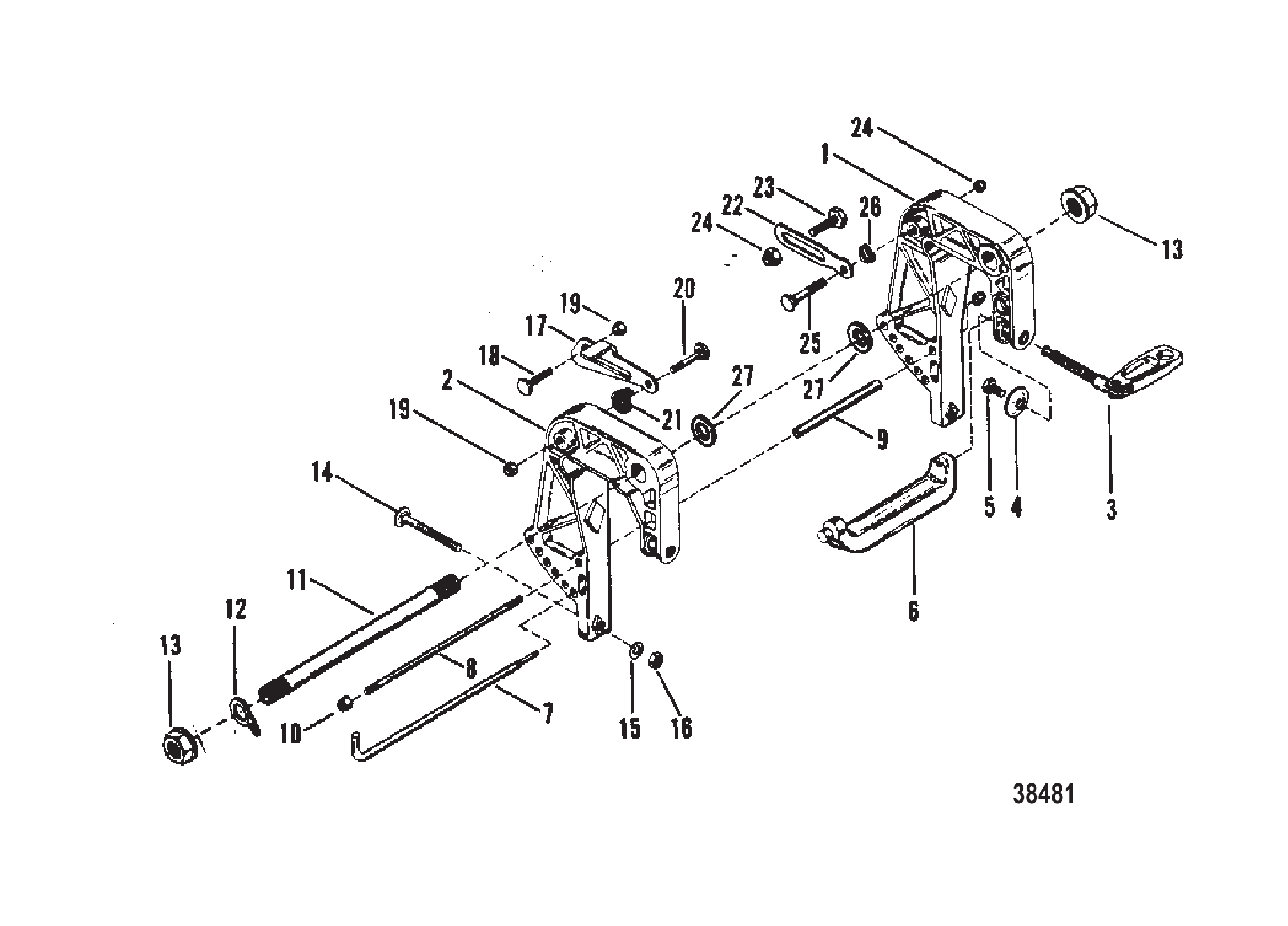

| 9 | 43447A3 | 转向支架总成（黑色） | BRACKET ASSEMBLY Steering (Black) | 1 |
| 9 | 43447A4 | 转向支架总成（灰色） | BRACKET ASSEMBLY Steering (Gray) | 1 |
| 9 | 43447A3 | 转向支架总成 | BRACKET ASSEMBLY Steering | 1 |
| 9 | 43447A5 | 转向支架总成（追踪器） | BRACKET ASSEMBLY Steering (Tracker) | 1 |
| 10 | 44397A15 | 支架总成（黑色） | BRACKET ASSEMBLY (BLACK) | 1 |
| 10 | 44397A16 | 支架总成（灰色） | BRACKET ASSEMBLY (GRAY) | 1 |
| 10 | 44397A22 | 支架总成（追踪器） | BRACKET ASSEMBLY (TRACKER) | 1 |
| 11 | 40011110 | 螺钉(M5×30不锈钢) | SCREW (M5 x 30) Stainless Steel | 3 |
| 12 | 177821 | 垫圈 | WASHER | 1 |
| 13 | 816880 | 螺母 | NUT | 1 |
| 14 | 74036 | 润滑脂接头 | FITTING Grease | 1 |
| 14 | 8M0169589 | 润滑脂接头 | FITTING Grease | 1 |
| 15 | 817026 | 衬套 | BUSHING | 1 |
| 16 | 432421 | 油门拉线（舵柄手柄换挡） | CABLE Throttle (TILLER HANDLE SHIFT) | 1 |
| 16 | 432422 | 油门拉线总成（侧换挡） | CABLE ASSEMBLY Throttle (SIDE SHIFT) | 1 |
| 17 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 4 |
| 18 | 4000384 | 螺钉(M10×80) | SCREW (M10 x 80) | 2 |
| 19 | 817634 | 塞子（SEA PRO/MARATHON 25/SUPER 15） | PLUG (SEA PRO/MARATHON 25/SUPER 15) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

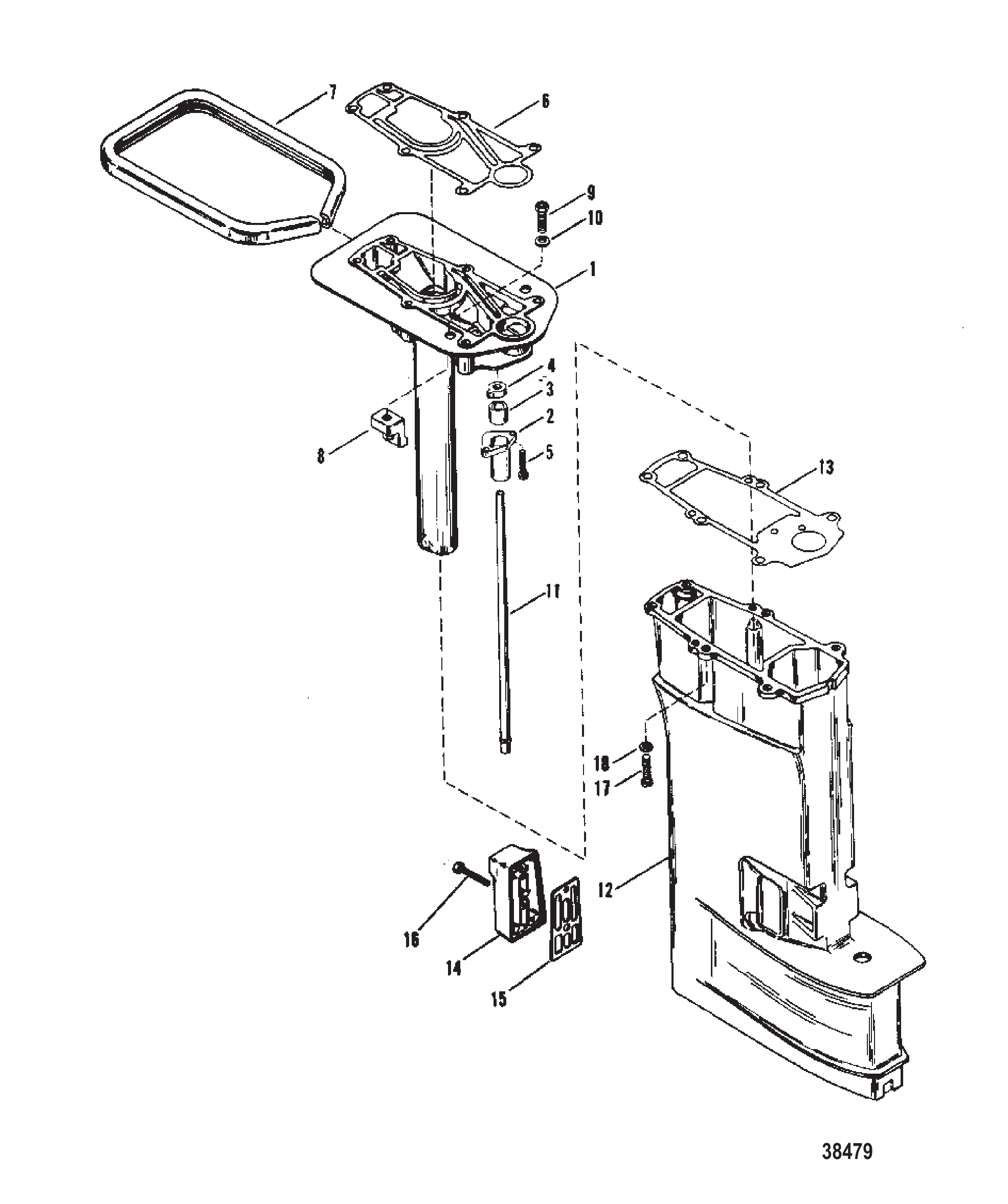

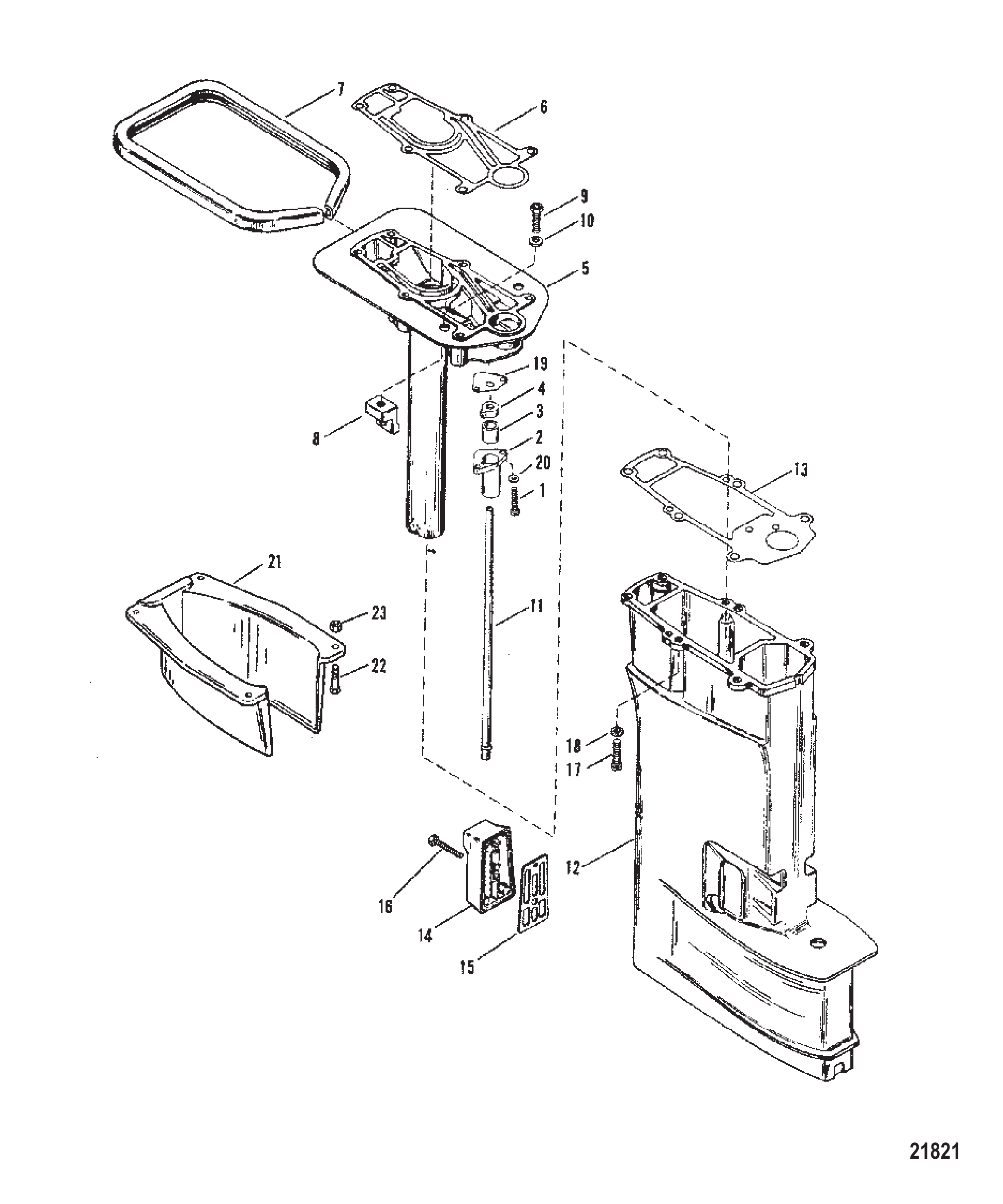

| 1 | 99702A3 | 适配板总成 | ADAPTOR PLATE ASSEMBLY | 1 |
| 1 | 99702A6 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 1 | 99702A7 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 2 | 96248A1 | 水管壳体总成 | HOUSING ASSEMBLY WATER TUBE | 1 |
| 3 | 25329 | 水管密封件 | SEAL WATER TUBE | 1 |
| 4 | 96247 | 水管隔套 | SPACER WATER TUBE | 1 |
| 4 | 889715 | 水管隔套 | SPACER Water Tube | 1 |
| 5 | 400035 | 螺钉 (M5 x 16) 壳体至适配板 | SCREW (M5 x 16) HOUSING TO ADAPTOR PLATE | 2 |
| 6 | 41670 | 适配板垫片 | GASKET ADAPTOR PLATE | 1 |
| 6 | 41670006 | 适配板垫片 | GASKET Adaptor Plate | 1 |
| 7 | 87357 | 适配板密封件 | SEAL Adaptor Plate | 1 |
| 7 | 158662 | 密封件 | SEAL | 1 |
| 8 | 41211 | 上支架托架 | BRACKET UPPER MOUNT | 2 |
| 9 | 40007128 | 上安装支架螺钉(M6x20) | SCREW (M6 x 20) UPPER MOUNT BRACKET | 2 |
| 10 | 29245 | 上安装支架不锈钢垫圈(0.281x0.5x0.06英寸) | WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT BRACKET | 2 |
| 10 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 11 | 85116 | 水管 | TUBE Water | 1 |
| 11 | 86292 | 水管 | TUBE Water | 1 |
| 12 | 9097A2 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9098A2 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9098T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097A3 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097T6 | 驱动轴壳体-灰色 | DRIVESHAFT HSG-GR | 1 |
| 12 | 9098A3 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9098A6 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 13 | 433371 | 驱动轴壳体衬垫 | GASKET DRIVERSHAFT HOUSING | 1 |
| 13 | 433374 | 驱动轴壳体垫片 | GASKET Drive Shaft Housing | 1 |
| 14 | 14534 | 怠速泄压盖 | COVER IDLE RELIEF | 1 |
| 15 | 14621 | 盖衬垫 | GASKET COVER | 1 |
| 16 | 14742 | 盖螺钉(.250-20 x 1.25) | SCREW (.250-20 x 1.25) COVER | 1 |
| 17 | 4000360 | 驱动轴壳体至板螺钉(60mm) | SCREW DRIVE SHAFT HOUSING TO PLATE (60MM) | 6 |
| 17 | 1993870 | 螺钉(M8 x 70) | SCREW (M8 x 70) | 6 |
| 18 | 4002317 | 驱动轴壳体螺钉垫圈(8.90 X 17.0 X 1.9不锈钢) | WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW | 6 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 17764A2 | 节流连杆套件 | LINK KIT Throttle | 1 |
| 2 | 110383 | 控制杆 | LEVER CONTROL | 1 |
| 3 | 118591 | 螺丝(.190-32 x 1.750)控制杆 | SCREW (.190-32 x 1.750) CONTROL LEVER | 1 |
| 4 | 48039 | 控制杆螺钉帽 | CAP CONTROL LEVER SCREW | 1 |
| 5 | 89540 | 点火提前弹簧 | SPRING SPARK ADVANCE | 1 |
| 6 | 42343 | 作动杆 | LEVER ACTUATING | 1 |
| 7 | 817429 | 正时连杆 | TIMING LINK | 1 |
| 8 | 817428 | 插座 | SOCKET | 2 |
| 9 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| 11 | 423301 | 换挡手柄 | HANDLE SHIFT | 1 |
| 12 | 60762 | 换挡手柄衬套 | BUSHING SHIFT HANDLE | 2 |
| 13 | 423291 | 换挡杆 | LEVER SHIFT | 1 |
| 14 | 42358 | 换挡杆背板 | BACKPLATE SHIFT LEVER | 1 |
| 15 | 400633 | 换挡杆螺母(M5) | NUT (M5) SHIFT LEVER | 1 |
| 15 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 16 | 39627 | 定位弹簧 | SPRING DETENT | 1 |
| 17 | 39601 | 定位弹簧板(旧设计) | PLATE DETENT SPRING (OLD DESIGN) | 1 |
| 18 | 400018 | 螺丝(M5 x 12)定位弹簧与板 | SCREW (M5 x 12) DETENT SPRING AND PLATE | 2 |
| 19 | 96202 | 换挡连杆衬套 | BUSHING SHIFT LINK | 1 |
| 20 | 89302 | 换挡连杆垫片(0.203x0.406x0.040) | WASHER (.203 x .406 x .040) SHIFT LINK | 1 |
| 21 | 21071 | 换挡连杆开口销 | COTTER PIN SHIFT LINK | 1 |
| 21 | 210711 | 开口销 | COTTER PIN | 1 |
| 22 | 11042 | 换挡连杆 | LINK SHIFT | 1 |
| 23 | 110501 | 节气门限位杆 | LEVER THROTTLE LIMIT | 1 |
| 24 | 400036 | 节气门限位杆螺钉(M5x20) | SCREW (M5 x 20) THROTTLE LIMIT LEVER | 1 |
| 25 | 85095 | 节气门限位杆衬套 | BUSHING THROTTLE LIMIT LEVER | 1 |
| 25 | 8M0214959 | 衬套@5 | BUSHING @5 | 1 |
| 26 | 89302 | 节气门限位螺钉垫片(0.203x0.406x0.040) | WASHER (.203 x .406 x .040) THROTTLE LIMIT SCREW | 1 |
| 27 | 400633 | 螺母(M5)节气门限位螺丝 | NUT (M5) THROTTLE LIMIT SCREW | 1 |
| 27 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 28 | 17848 | 支架 | BRACKET | 1 |
| 29 | 4000330 | 拉索支架螺钉(M6x25) | SCREW (M6 x 25) CABLE BRACKET | 2 |
| 29 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 30 | 42026A2 | 控制平台 | PLATFORM CONTROL | 1 |
| 31 | 16955 | 螺丝(M6 x 8) | SCREW (M6 x 8) | 1 |
| 32 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 32 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 33 | 69708 | 波形垫圈 | WAVE WASHER | 1 |
| 34 | 4000328 | 平台至模块螺钉(M6x16) | SCREW (M6 x 16) PLATFORM TO BLOCK | 1 |
| 34 | 8M0214928 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 35 | 92425 | 缓冲器(旧设计) | DASHPOT (OLD DESIGN) | 1 |
| 36 | 93001 | 缓冲器支架(旧设计) | BRACKET DASHPOT (OLD DESIGN) | 1 |
| 37 | 28770 | 螺母(.312-24)不锈钢缓冲器端子(旧设计) | NUT (.312-24) Stainless Steel DASHPOT TERMINAL (OLD DESIGN) | 2 |
| 38 | 821211 | 垫片(SUPER 15) | SPACER (SUPER 15) | 1 |
| 39 | 821210 | 螺丝(SUPER 15) | SCREW (SUPER 15) | 1 |

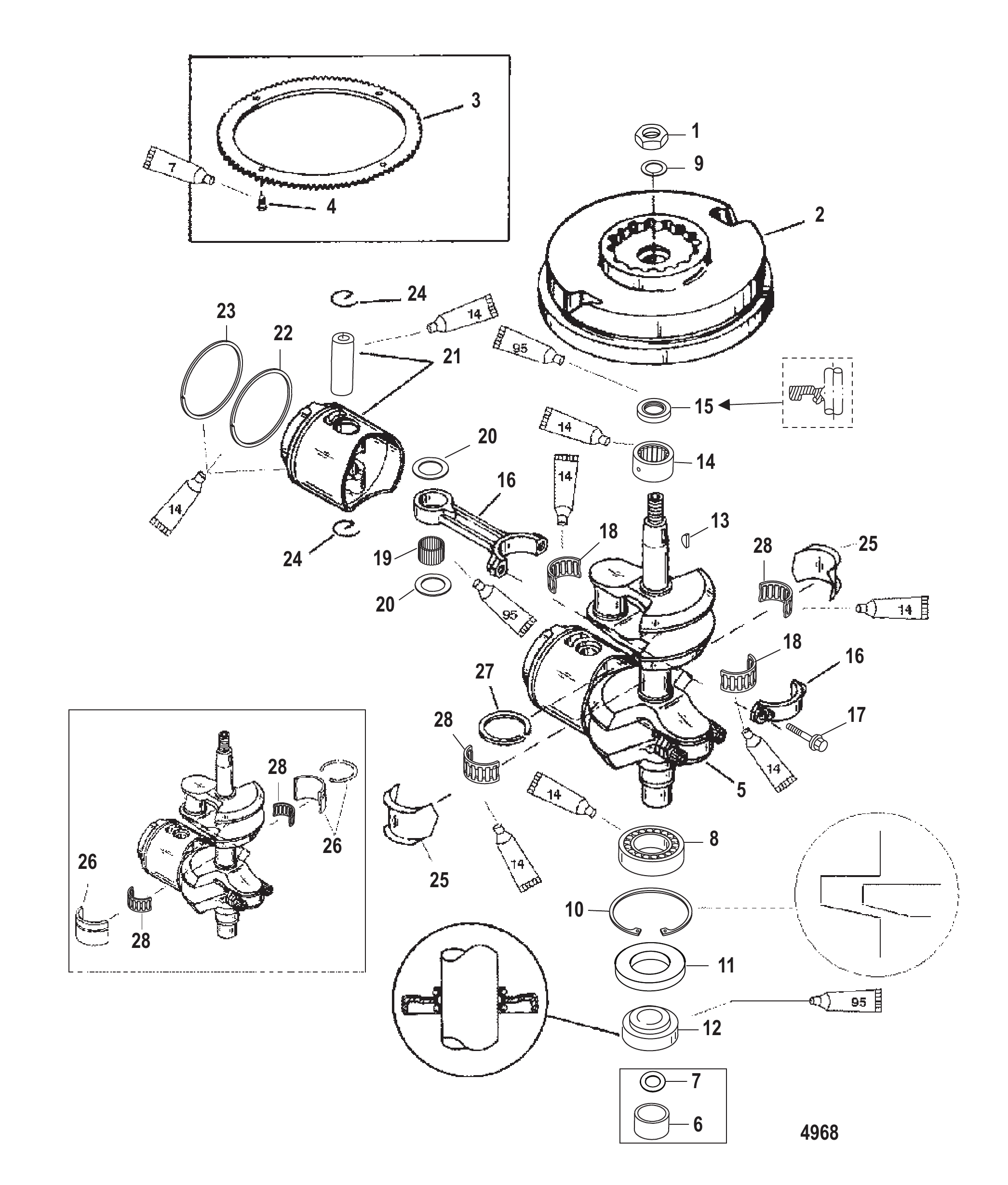

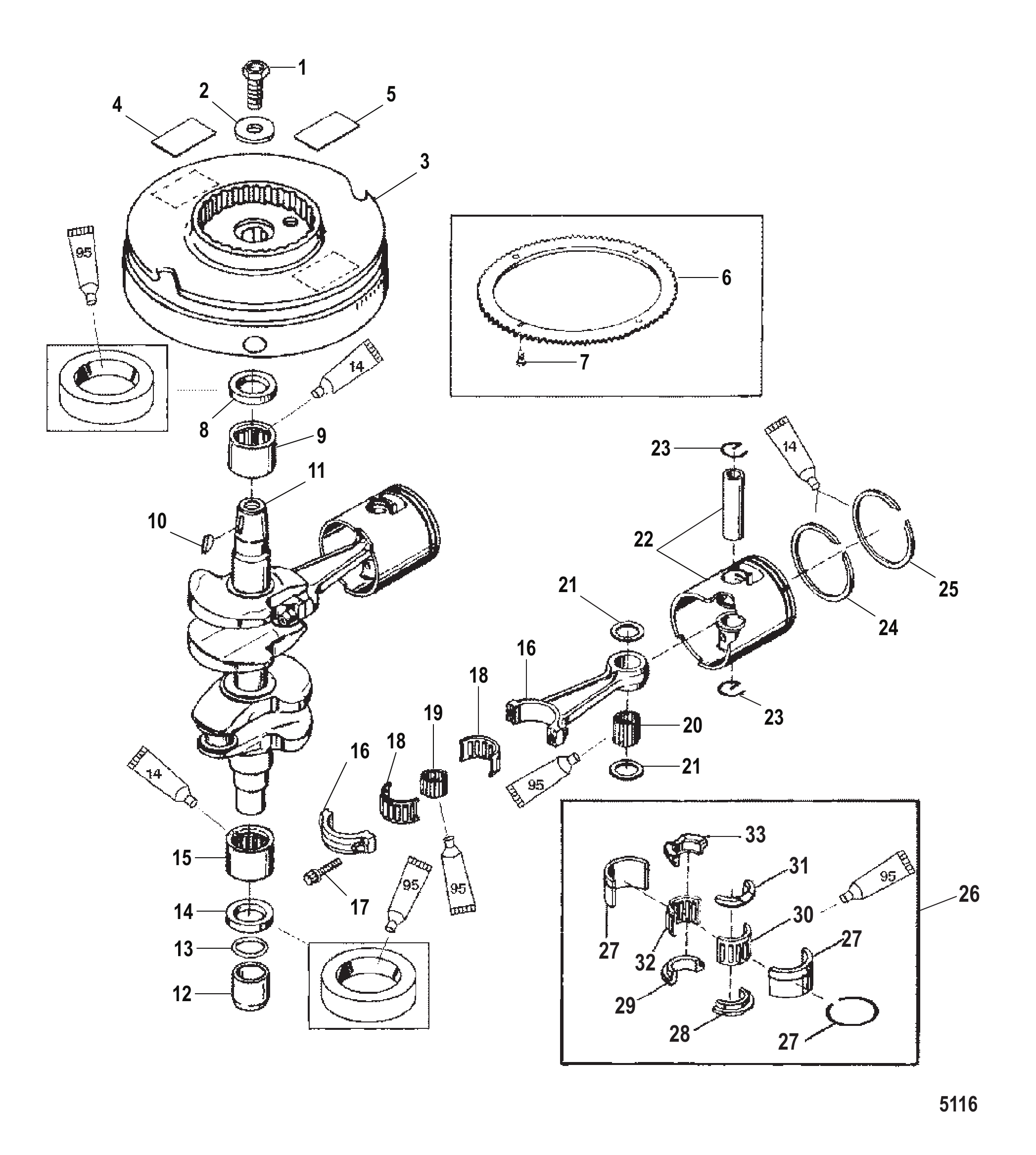

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

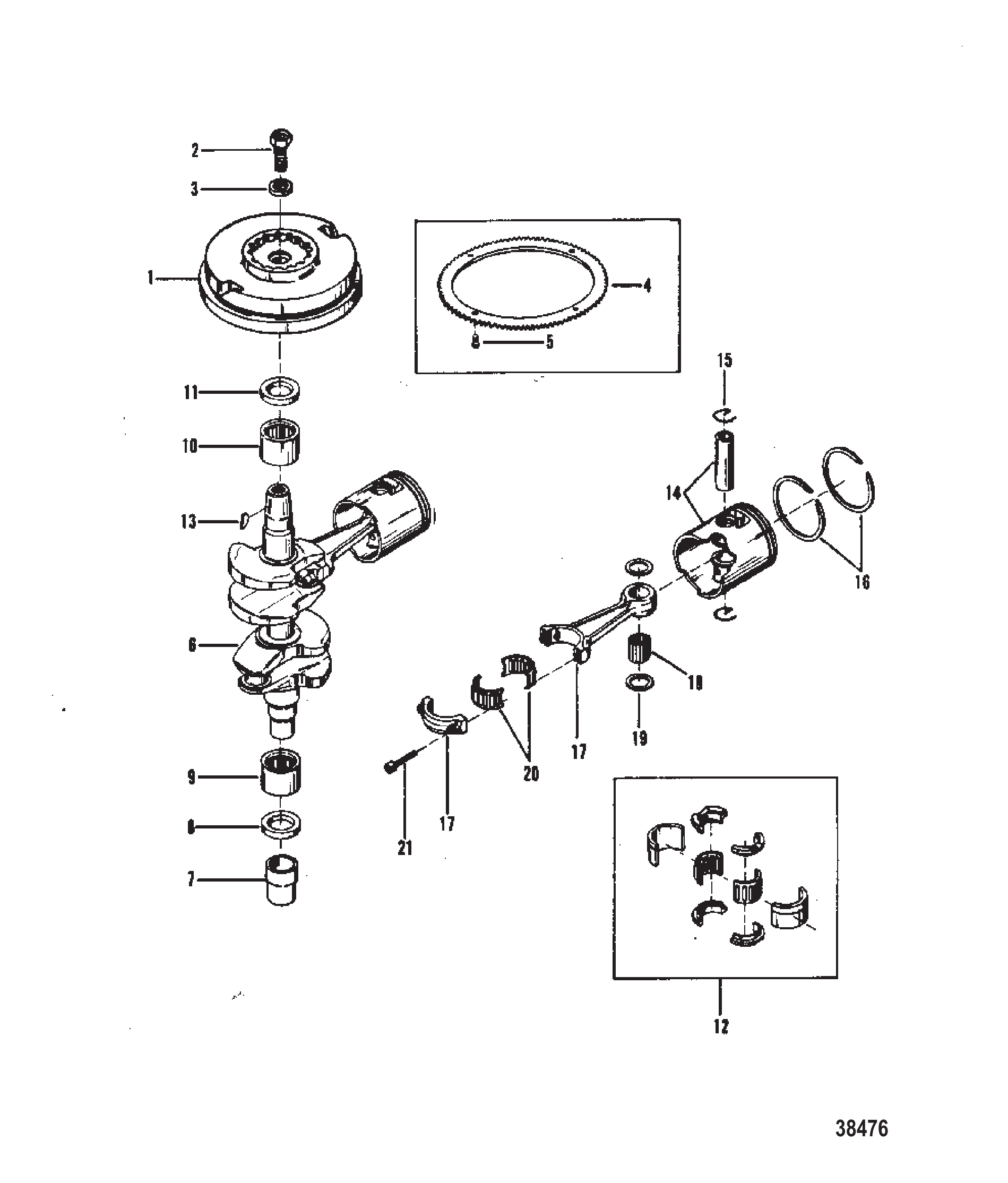

| 1 | 8274A6 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 1 | 859232T15 | 飞轮总成 | FLYWHEEL ASSY | 1 |
| 2 | 97359A1 | 螺钉总成 | SCREW ASSEMBLY | 1 |
| 3 | 86496 | WASHER FLYWHEEL SCREW | 1 | |
| 4 | 99301 | 飞轮齿圈 | RING GEAR FLYWHEEL | 1 |
| 5 | 40039106 | 螺钉(M5×13)齿圈至飞轮 | SCREW (M5 x 13) RING GEAR TO FLYWHEEL | 4 |
| 5 | 88190313 | 螺钉 (M5 x 13) | SCREW (M5 x 13) | 4 |
| 6 | 8978A2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 6 | 8978T2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 7 | 43507 | 曲轴油封 | SEAL CRANKSHAFT | 1 |
| 7 | 822445A1 | 耐磨套 | WEAR SLEEVE | 1 |
| 8 | 85107 | 曲轴下油封 | SEAL Oil CRANKSHAFR-LOWER | 1 |
| 9 | 85113 | 曲轴下滚柱轴承 | BEARING Roller CRANKSHAFT - LOWER | 1 |
| 9 | 85113T | 下滚柱轴承 | BEARING Roller - Lower | 1 |
| 10 | 85114 | 曲轴上滚柱轴承 | BEARING Roller - Upper CRANKSHAFT | 1 |
| 10 | 85114T | 上滚柱轴承 | BEARING Roller - Upper | 1 |
| 11 | 85974 | 曲轴上油封 | SEAL Oil CRANKSHAFT - UPPER | 1 |
| 11 | 859741 | 油封 | SEAL Oil | 1 |
| 12 | 86992A2 | 中心主轴承总成 | BEARING ASSEMBLY CENTER MAIN | 1 |
| 12 | 86992A5 | 中央主轴承总成 | BEARING ASSEMBLY Center Main | 1 |
| 13 | 20094 | 飞轮驱动半圆键 | KEY Woodruff FLYWHEEL DRIVE | 1 |
| 14 | 9104A3 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 14 | 9533T28 | 气缸体 | CYLINDER BLOCK | 2 |
| 14 | 9104A9 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 14 | 9104T19 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 15 | 47276 | 活塞销锁环 | LOCK RING PISTON PIN | 4 |
| 15 | 828119 | 活塞销锁环 | LOCK RING Piston Pin | 4 |
| 16 | 12810A12 | 活塞环组 | RING SET Piston | 1 |
| 16 | 8M0083677 | ORD 39-8M0096518 | ORD 39-8M0096518 | 1 |
| 17 | 8835A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 17 | 8835A4 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 18 | 98295 | 活塞端滚针轴承 | BEARING Needle PISTON END | 54 |
| 19 | 42025 | BEARING LOCATING - NEEDLE BEARING | 4 | |
| 19 | 8M0012294 | 止推垫圈 | WASHER-THRUST | 4 |
| 20 | 41620A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 20 | 879877A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 21 | 4008225 | 连杆螺钉(M6x25) | SCREW (M6 x 25) CONNECTING ROD | 4 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 90885A87 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879732T89 | PH 20/25 | PH 20/25 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

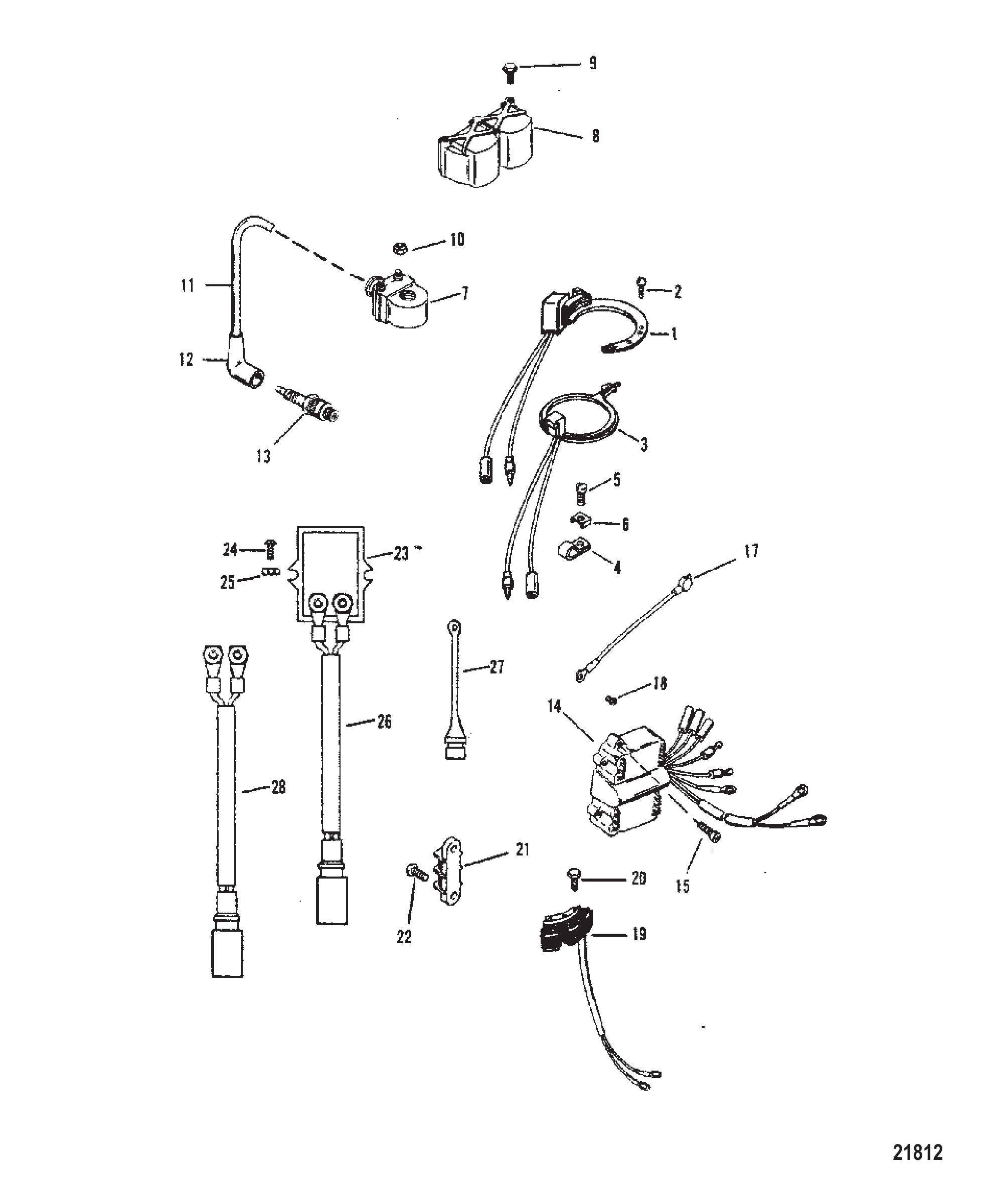

| 1 | 816770 | 整流器 | RECTIFIER | 1 |
| 1 | 8M0058226 | 整流器 | RECTIFIER | 1 |
| 2 | 48409 | 螺丝(#10-16 x .625)不锈钢整流器至气缸体 | SCREW (#10-16 x .625) Stainless Steel RECTIFIER TO CYLINDER BLOCK | 2 |
| 3 | 45076 | 螺母(#10-32)黄铜整流器端子 | NUT (#10-32) Brass RECTIFIER TERMINALS | 3 |
| 4 | 96054 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 4 | 8M0185149 | 启动电磁阀 | SOLENOID START | 1 |
| 5 | 4000327 | 螺钉(M6 x 14) 起动机电磁阀至曲轴箱 | SCREW (M6 x 14) STARTER SOLENOID TO CRANKCASE | 2 |
| 6 | 26419 | 螺母(#8-32)黄铜启动电磁阀端子 | NUT (#8-32) Brass STARTER SOLENOID TERMINAL | 2 |
| 7 | 64015 | 螺母(.250-20)启动电磁阀端子 | NUT (.250-20) STARTER SOLENOID TERMINAL | 2 |
| 8 | 88809A5 | 电线总成（黄色） | WIRE ASSEMBLY (YELLOW) | 1 |
| 9 | 88439A8 | 电池电缆总成(红色) | CABLE ASSEMBLY Battery (RED) | 1 |
| 9 | 88439A27 | 电缆总成红色-电池 | CABLE ASSEMBLY Red - Battery | 1 |
| 9 | 88439A6 | 电池电缆总成(黑色) | CABLE ASSEMBLY Battery (BLACK) | 1 |
| 9 | 88439A28 | 电缆总成电池-黑色 | CABLE ASSEMBLY Battery - Black | 1 |
| 10 | 92436A5 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 11 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 11 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 12 | 92753 | 固定座 | RETAINER | 1 |
| 13 | 55098 | J型卡扣 | J CLIP | 1 |
| 13 | 8M0024808 | J型夹 | J-CLIP | 1 |
| 14 | 90983A1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 14 | 8M0033984 | 启动马达 | STARTER MOTOR | 1 |
| 15 | 96561 | 驱动套件 | DRIVE KIT | 1 |
| 16 | 96562 | 驱动器 | DRIVE | 1 |
| 17 | 96563 | 端盖 | END CAP | 1 |
| 17 | 96563T | 端盖 | END CAP | 1 |
| 18 | 96565 | 电枢 | ARMATURE | 1 |
| 19 | 96564 | 端盖 | END CAP | 1 |
| 19 | 96564T | 端盖 | END CAP | 1 |
| 20 | 96566 | 贯穿螺栓 | THRU BOLT | 1 |
| 21 | 421251 | 螺钉(M8 x 55) 起动机固定 | SCREW (M8 x 55) STARTER MOTOR ATTACHING | 2 |
| 21 | 42125 | 螺钉(M8x55) | SCREW (M8 x 55) | 2 |
| 22 | 134731 | 保险丝座(旧设计) | HOLDER Fuse (OLD DESIGN) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8888A9 | 化油器(手动) - WMC-29 | CARBURETOR (MANUAL) - WMC-29 | 1 |
| 1 | 8888A10 | 化油器(手动) - WMC-36 | CARBURETOR (MANUAL) - WMC-36 | 1 |
| 1 | 8888T18 | 化油器 | CARBURETOR | 1 |
| 1 | 8676A11 | 化油器(电动) - WMC-30 | CARBURETOR (ELECTRIC) - WMC-30 | 1 |
| 1 | 8888T18 | 化油器 | CARBURETOR | 1 |
| 1 | 8676A12 | 化油器(电动) - WMC-37 | CARBURETOR (ELECTRIC) - WMC-37 | 1 |
| 1 | 8888T18 | 化油器 | CARBURETOR | 1 |
| 2 | 9640 | 油门阀 | VALVE Throttle | 1 |
| 3 | 9695 | 油门轴 | SHAFT Throttle | 1 |
| 4 | 9164 | 燃油杯 | BOWL Fuel | 1 |
| 5 | 9169 | 浮子 | FLOAT | 1 |
| 5 | 91691 | 浮子 | FLOAT | 1 |
| 6 | 9855 | 进油针阀 | VALVE INLET NEEDLE | 1 |
| 6 | 803861 | 进油针阀 | VALVE Inlet Needle | 1 |
| 7 | 5317 | 主量孔(.046) - WMC 29/30 | JET (.046) MAIN FUEL (WMC 29/30) | 1 |
| 7 | 7394 | 主量孔(.044) - WMC 36/37 | JET (.044) MAIN FUEL (WMC 36/37) | 1 |
| 8 | 9171 | 量孔固定塞 | PLUG JET RETAINER | 1 |
| 9 | 813618 | 隔膜盖 - WMC 29/30 | COVER DIAPHRAGM (WMC 29/30) | 1 |
| 10 | 9697 | 膜片盖螺丝 | SCREW DIAPHRAGM COVER | 4 |
| 11 | 15827A1 | 燃油泵体 | BODY FUEL PUMP | 1 |
| 11 | 9702 | 盖/燃油泵套件 | COVER/FUEL PUMP KIT | 1 |
| 12 | 9643 | 燃油泵盖螺丝 | SCREW FUEL PUMP COVER | 5 |
| 13 | 9637 | 燃油泵盖 | COVER FUEL PUMP | 1 |
| 14 | 9762 | 堵头 | PLUG | 1 |
| 15 | 9803 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 15 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 16 | 9802 | 维修包 - WMC 29/30 | REPAIR KIT (WMC 29/30) | 1 |
| 16 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 16 | 823649 | 维修包 - WMC 36/37 | REPAIR KIT (WMC 36/37) | 1 |
| 16 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 17 | 9699 | 盖板(手动) | PLATE COVER (MANUAL) | 1 |
| 18 | 823433 | 电动阻风门 | CHOKE Electric (ELECTRIC) | 1 |
| 19 | 9696 | 盖板螺钉 | SCREW COVER PLATE | 2 |
| 20 | 414491 | 化油器衬垫 | GASKET CARBURETOR | 1 |
| 20 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| 21 | 9635 | 膜片/衬垫 | DIAPHRAGM/GASKET | 1 |
| 22 | 9633 | 衬垫 | GASKET | 1 |
| 23 | F10064 | 轴 | SHAFT | 1 |
| 24 | 824401 | 浮子杆 | LEVER Float | 1 |
| 25 | 79964 | 螺钉(#6-32 x .750)快怠速杠杆 | SCREW (#6-32 x .750) FAST IDLE LEVER | 1 |
| 25 | 12110 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 26 | 11277 | 张力弹簧 | SPRING Tension | 1 |
| 27 | 40056110 | 螺钉(M5 x 30)启动泵支架 | SCREW (M5 x 30) PRIMER BRACKET | 2 |
| 27 | 400018 | 螺钉(M5x12) 注油器支架 | SCREW (M5 x 12) PRIMER BRACKET (M5 X 8 X 12 MM) | 2 |
| 28 | 79965 | 螺钉(#8-32 x .500)不锈钢启动泵支架 | SCREW (#8-32 x .500) Stainless Steel PRIMER BRACKET | 1 |
| 29 | 112731 | 启动泵杆 | LEVER Primer | 1 |
| 30 | 11280 | 凸轮块 | CAM BLOCK | 1 |
| 31 | 11278 | 固定夹 | CLIP Retaining | 1 |
| 32 | 172291 | 阻风门面板 | BEZEL Choke | 1 |
| 33 | 12802 | 启动泵旋钮 | KNOB PRIMER | 1 |
| 33 | 128022 | 启动泵旋钮 | PRIMER KNOB | 1 |
| 34 | 17442 | 化油器盖 | COVER CARBURETOR | 1 |
| 35 | 47579 | 化油器盖塞 | PLUG CARBURETOR COVER | 1 |
| 36 | 127331 | 怠速线 | IDLE WIRE | 1 |
| 36 | 127332 | 快怠速线 | WIRE Fast Idle | 1 |
| 37 | 128053 | 快怠速杆 | LEVER Fast Idle FAST IDLE | 1 |
| 38 | 12803 | 注油器支架 | BRACKET Primer PRIMER | 1 |
| 39 | 97877 | 快怠速杠杆推螺母 | PUSH NUT FAST IDLE LEVER | 1 |
| 39 | 821979 | 螺母 | NUT | 1 |
| - | 9844A1 | 启动泵/喷油器维修包 | SERVICE KIT Primer/Injector | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 822261A92 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879732T89 | PH 20/25 | PH 20/25 | 1 |
| - | 90885A88 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879732T89 | PH 20/25 | PH 20/25 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 86617A13 | 定子总成 | STATOR ASSEMBLY | 1 |
| 1 | 86617A20 | 定子总成 | STATOR ASSEMBLY | 1 |
| 2 | 4000120 | 螺丝(M5 x 25) | SCREW (M5 x 25) | 2 |
| 2 | 400015 | 螺钉(M5x10) 定子固定 | SCREW (M5 x 10) STATOR ATTACHING | 2 |
| 3 | 98450A5 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 3 | 98450A10 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 4 | 24836 | 触发器线夹 | CLIP TRIGGER LEADS | 1 |
| 4 | 22740 | 触发器线夹 | CLIP TRIGGER LEADS | 1 |
| 5 | 48408 | 螺钉(#10-16x0.5) 线夹至曲轴箱 | SCREW (#10-16 x .500) CLIP TO CRANKCASE | 1 |
| 6 | 69205 | C形垫圈线夹螺钉 | C WASHER CLIP SCREW | 1 |
| 6 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 7 | 7370A13 | 点火线圈总成 | COIL ASSEMBLY Ignition | 2 |
| 7 | 8M0230859 | 点火线圈总成 | COIL IGNITION ASY | 2 |
| 8 | 99762 | 点火线圈盖 | COVER IGNITION COIL | 1 |
| 8 | 997621 | 点火线圈盖 | COVER Ignition Coil | 1 |
| 9 | 4010555 | 螺钉(M5x55)不锈钢 点火线圈盖 | SCREW (M5 x 55) Stainless Steel IGNITION COIL COVER | 3 |
| 9 | 1994155 | 螺钉(M5 x 55) | SCREW (M5 x 55) | 3 |
| 10 | 45076 | 螺母 (#10-32) 黄铜线圈端子 | NUT (#10-32) Brass COIL TERMINAL | 4 |
| 11 | 813715A3 | 高压线 | HIGH TENSION LEADS | 1 |
| 11 | 813715A2 | 高压电缆组（5和8.25英寸） | CABLE SET High Tension (5 and 8.25 Inch) | 1 |
| 11 | 813715A2 | 高压线束组（5和8.25英寸）（商用发动机） | CABLE SET High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES) | 1 |
| 12 | 63709A1 | 火花塞护套/端子套件 | BOOT/TERMINAL KIT SPARK PLUG | 2 |
| 13 | 97180 | 火花塞（NGK #BUZHW） | SPARK PLUG (NGK #BUZHW) | 2 |
| 13 | 896329827 | SP #L76V @4 | SP #L76V @4 | 2 |
| 13 | 14103570 | 火花塞（NGK #BUZHW-2） | SPARK PLUG (NGK #BUZHW-2) | 2 |
| 13 | 14103Q | ORD 896329838 | ORD 896329838 | 2 |
| 13 | 136862 | 火花塞（NGK #BU8H） | SPARK PLUG (NGK #BU8H) | 2 |
| 13 | 13686Q | NGK BU8H @10 | NGK BU8H @10 | 2 |
| 13 | 8167372 | 火花塞(NGK BP8H-N-10) | SPARK PLUG (NGK #BP8H-N-10) | 2 |
| 13 | 816737Q | NGK BP8HN-10@10 | NGK BP8HN-10@10 | 2 |
| 13 | 8168372 | 火花塞(NGK #BPZ8H-N-10) | SPARK PLUG (NGK #BPZ8H-N-10) | 2 |
| 13 | 938 | SP #QL78YC @4 | SP #QL78YC @4 | 2 |
| 14 | 7452A15 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 14 | 7452A19 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 15 | 40019108 | 螺钉 (M5 x 20) 开关盒至气缸体 | SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK | 3 |
| 17 | 88807A10 | 辅助线束总成 | CABLE ASSEMBLY AUXILIARY | 2 |
| 18 | 48408 | 螺钉 (#10-16 x .500) 接地线 | SCREW (#10-16 x .500) GROUND WIRE | 1 |
| 19 | 86704A2 | 辅助定子总成 | STATOR ASSEMBLY AUXILIARY | 1 |
| 19 | 86704A10 | 辅助定子 | STATOR Auxiliary | 1 |
| 20 | 4000123 | 螺钉(M5 x 30)定子固定 | SCREW (M5 x 30) STATOR ATTACHING | 3 |
| 21 | 63813 | 端子排 | TERMINAL BLOCK | 1 |
| 21 | 638131 | 端子排 | TERMINAL BLOCK | 1 |
| 22 | 48409 | 螺钉(#10-16 x .625)不锈钢接线板 | SCREW (#10-16 x .625) Stainless Steel TERMINAL BLOCK | 2 |
| 23 | 95845 | 电压调节器 | REGULATOR Voltage | 1 |
| 23 | 95845T | 电压调节器 | REGULATOR-VOLTAGE | 1 |
| 24 | 92799 | 螺钉(#10-16x1.12) | SCREW (#10-16 x 1.12) | 2 |
| 25 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 26 | 74725A2 | 线束总成(黑/红) | HARNESS ASSEMBLY (BLACK/RED) | 1 |
| 27 | 71663 | 堵头 | PLUG | 1 |
| 28 | 65017A2 | 外部线束总成 | HARNESS ASSEMBLY (EXTERNAL) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

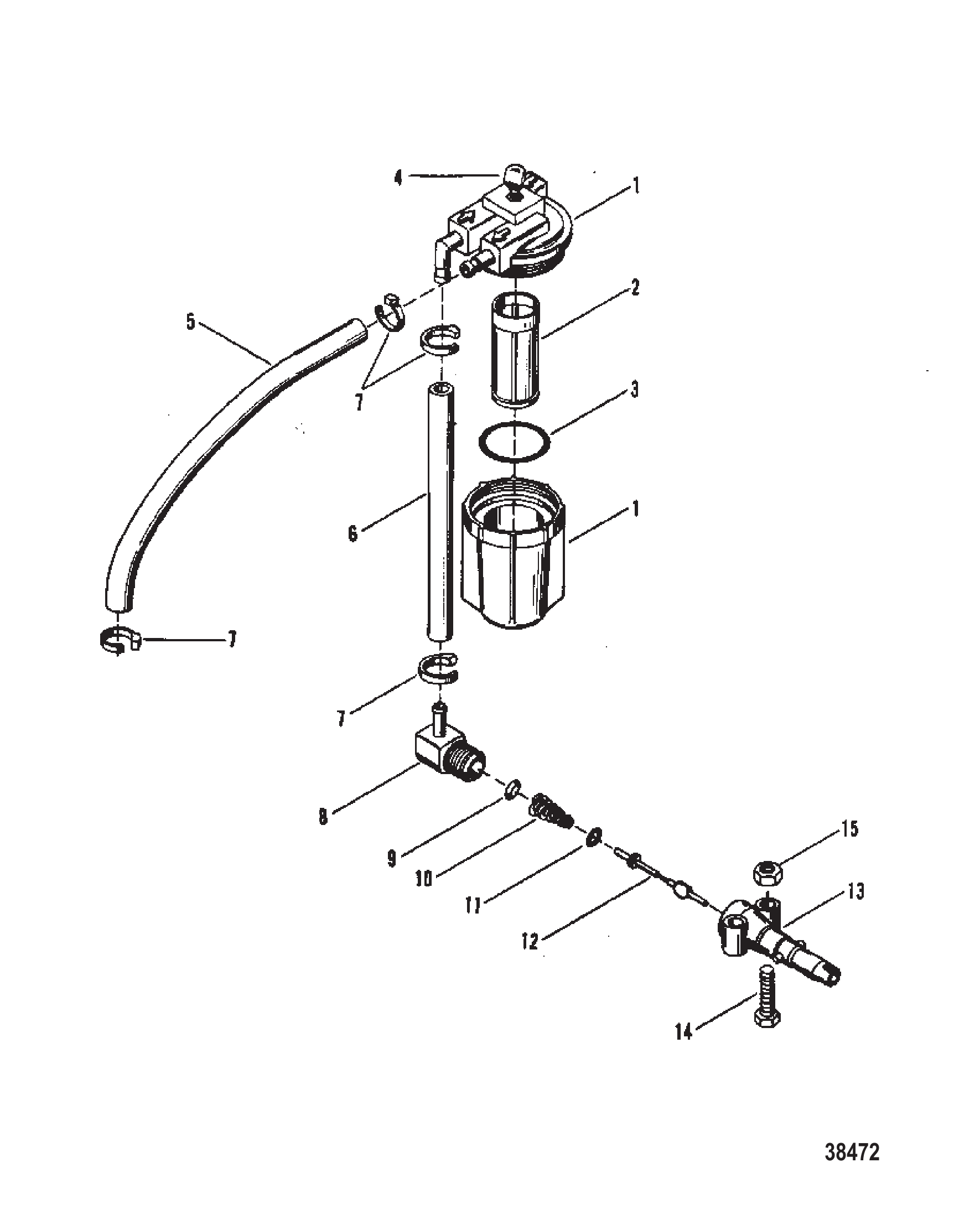

| 1 | 87946A13 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 1 | 889527A07 | 滤清器套件 | FILTER KIT | 1 |
| 2 | 87946A3 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 2 | 87946Q04 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 3 | 98277 | 燃油滤清器密封件 | SEAL FUEL FILTER | 1 |
| 3 | 897536 | 密封件 | SEAL | 1 |
| 4 | 91935 | 钢球 | BALL | 1 |
| 4 | 858731 | 球形燃油滤清器 | BALL Fuel Filter | 1 |
| 5 | 99127109 | 油管(57英寸散装)滤清器至化油器(7-1/2英寸) | LINE (57.00 Inches Bulk) FILTER TO CARBURETOR (7-1/2") | 1 |
| 5 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 6 | 99127109 | 油管(57英寸散装)滤清器至转接器(5-1/4英寸) | LINE (57.00 Inches Bulk) FILTER TO ADAPTOR (5-1/4) | 1 |
| 6 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 7 | 68424 | 燃油管卡箍 | CLAMP FUEL LINE | 4 |
| 8 | 98750 | 燃油管接头 | FITTING FUEL LINE | 1 |
| 9 | 30188 | 适配器垫片 | WASHER ADAPTOR | 1 |
| 10 | 23067 | 适配器阀杆弹簧 | SPRING ADAPTOR STEM | 1 |
| 10 | 23067T | 弹簧 | SPRING | 1 |
| 11 | 20415 | 适配器阀杆O型圈 | O-RING ADAPTOR STEM | 1 |
| 11 | 16524 | 燃油接头O型圈 | O-RING Fuel Connector | 1 |
| 12 | 23069 | 阀杆转接器 | STEM ADAPTOR | 1 |
| 13 | 22833 | 止回转接器总成 | ADAPTER CHECK UNIT | 1 |
| 14 | 4000332 | 螺丝(M6 x 35)转接器至底罩 | SCREW (M6 x 35) ADAPTOR TO BOTTOM COWL | 1 |
| 15 | 400634 | 螺母(M6)转接器螺丝 | NUT (M6) ADAPTOR SCREW | 1 |
| 15 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NOPART | 无零件清单 | NO PARTS LIST | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

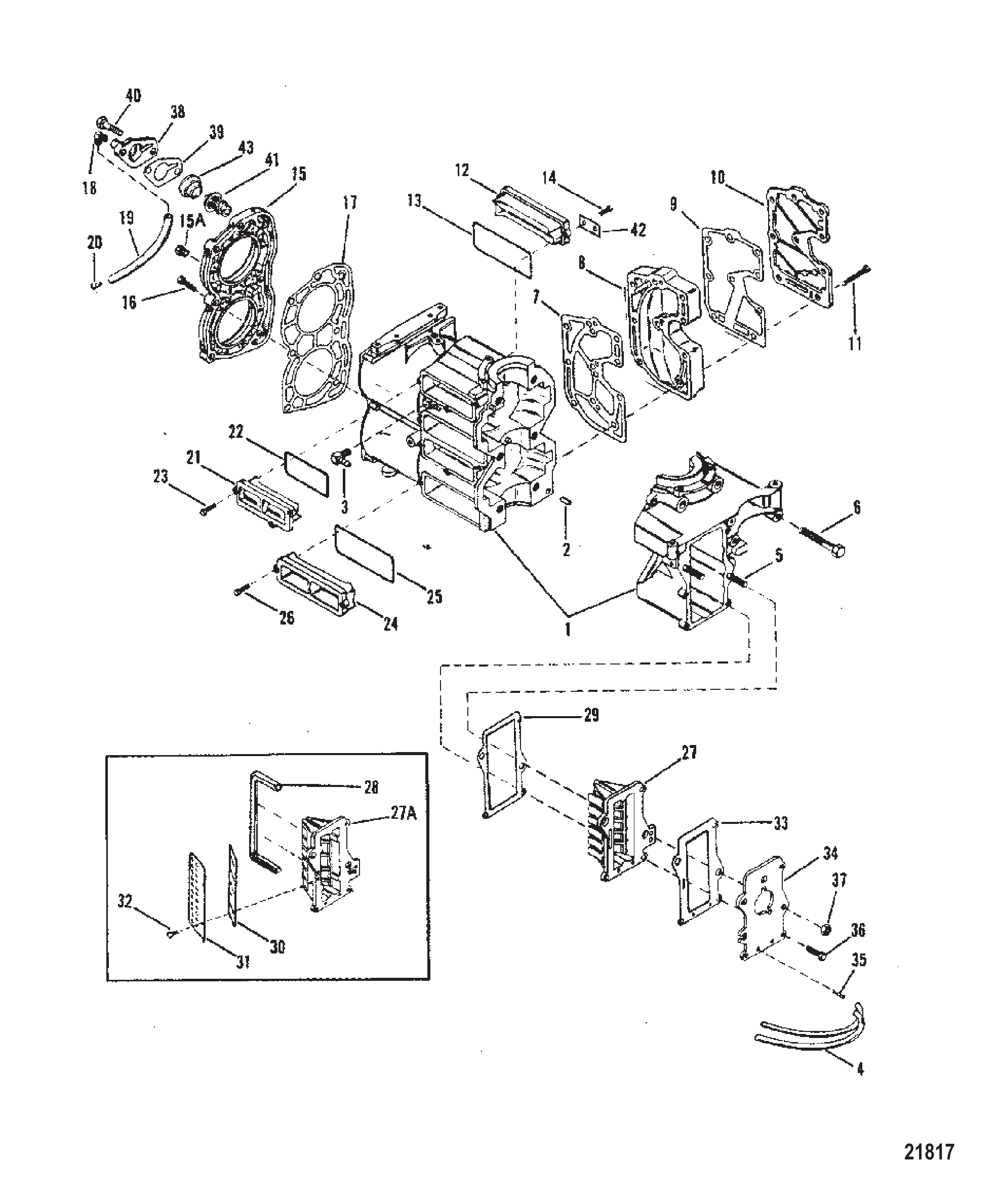

| 1 | 9533A3 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | NSS | 不单独销售 气缸体 | NOT SOLD SEPARATE Cylinder Block | 1 |
| 2 | 85171 | 定位销 | PIN Dowel | 3 |
| 3 | 15133 | 接头（45度） | FITTING (45 Degree) | 2 |
| 4 | 1383556 | 软管（切割至12.25英寸） | HOSE (Cut to 12.25 Inches) | 2 |
| 4 | 99130100 | 软管-48英寸 | TUBING-48 INCH | 2 |
| 5 | 42917 | 螺柱 | STUD | 2 |
| 5 | 429173 | 螺柱 | STUD | 2 |
| 6 | 40001209 | 螺丝(M10 x 60) | SCREW (M10 x 60) | 6 |
| 7 | 414757 | 衬垫 | GASKET | 1 |
| 7 | 892158 | 排气歧管衬垫 | GASKET Exhaust Manifold | 1 |
| 8 | 923291 | 排气歧管 | MANIFOLD Exhaust | 1 |
| 8 | 92329F03 | 排气歧管 | MANIFOLD Exhaust | 1 |
| 9 | 414994 | 衬垫 | GASKET | 1 |
| 9 | 892157 | 排气歧管盖衬垫 | GASKET Exhaust Manifold Cover | 1 |
| 10 | 923301 | 盖板 | COVER | 1 |
| 11 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 9 |
| 12 | 14407 | 盖板 | COVER | 2 |
| 12 | 144071 | 盖板 | COVER | 2 |
| 13 | 30503 | O型圈 | O-RING | 2 |
| 13 | 822370 | O型圈 (2.362×.103) | O-RING (2.362 x .103) | 2 |
| 14 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 4 |
| 15 | 8282A1 | 盖总成 | COVER ASSEMBLY | 1 |
| 16 | 4000331 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 5 |
| 17 | 863891 | 衬垫 | GASKET | 1 |
| 17 | 863893 | 衬垫 | GASKET | 1 |
| 18 | 99664 | 弯头 | ELBOW | 1 |
| 18 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 19 | 99127109 | 管路（57.00英寸散装） 示流器（切割至8英寸） | LINE (57.00 Inches Bulk) TELL TALE (Cut to 8 Inches) | 1 |
| 19 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 20 | 94848 | 接头 | FITTING | 1 |
| 21 | 14406 | 盖板 | COVER | 2 |
| 22 | 86391 | O型圈 | O-RING | 2 |
| 23 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 6 |
| 24 | 14408 | 盖板 | COVER | 2 |
| 25 | 822370 | O型圈 (2.362×.103) | O-RING (2.362 x .103) | 2 |
| 26 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 4 |
| 27 | 14112 | 簧片阀组（设计II） | REED BLOCK (DESIGN II) | 1 |
| 27 | 14112T | 簧片阀组 | REED BLOCK | 1 |
| 27A | 424712 | 簧片阀组（设计I） | REED BLOCK (DESIGN I) | 1 |
| 27A | 14112T | 簧片阀组 | REED BLOCK | 1 |
| 28 | 859771 | 密封件（设计I簧片阀组） | SEAL (DESIGN I REED BLOCK) | 1 |
| 28 | 85977002 | 密封件 | SEAL | 1 |
| 29 | 414172 | 衬垫 | GASKET | 1 |
| 30 | 816806 | 簧片 设计I簧片阀组 | REED Design I Reed Block | 2 |
| 31 | 897931 | 止动件 设计I簧片阀组 | STOP Reed Design I Reed Block | 2 |
| 32 | 4005785 | 螺钉 (M4 x 10)（设计I簧片阀组） | SCREW (M4 x 10) (Design I Reed Block | 4 |
| 33 | 414181 | 衬垫 | GASKET | 1 |
| 34 | 41420A2 | 安装板 | PLATE | 1 |
| 34 | 41420A3 | 化油器适配板总成 | PLATE ASSEMBLY Carb Adaptor | 1 |
| 35 | 56759 | 倒钩接头 | FITTING Barbed | 2 |
| 36 | 40019108 | 螺钉（M5×20） | SCREW (M5 x 20) | 3 |
| 37 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| 38 | 143171 | 盖板 | COVER | 1 |
| 39 | 143184 | 衬垫 | GASKET | 1 |
| 39 | 14318005 | 衬垫 | GASKET | 1 |
| 40 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 2 |
| 41 | 14586 | 节温器 | THERMOSTAT | 1 |
| 42 | 12627 | 绑带 | STRAP | 1 |
| 43 | 62386 | 衬垫 | GASKET | 1 |
| 43 | 8M0204714 | 衬垫@4 | GASKET @4 | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 822261A92 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879732T89 | PH 20/25 | PH 20/25 | 1 |
| - | 90885A88 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879732T89 | PH 20/25 | PH 20/25 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 17725A1 | 换挡连杆 | SHIFT LINK | 1 |
| 1A | 817428 | 插座 | SOCKET | 1 |
| 2 | 95027A6 | 水平换挡轴 | SHIFT SHAFT HORIZONTAL | 1 |
| 3 | 60762 | 衬套 | BUSHING | 2 |
| 4 | 17724 | 杠杆 | LEVER | 1 |
| 4 | 17724A1 | 杠杆总成 | LEVER ASSEMBLY | 1 |
| 5 | 400633 | 螺母 (M5) | NUT (M5) | 1 |
| 5 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 6 | 932481 | 衬套 | BUSHING | 1 |
| 6 | 8M0215006 | 旋转衬套 | BUSHING Swivel | 1 |
| 7 | 34632 | 垫圈 | WASHER | 1 |
| 8 | 42156 | 杠杆 | LEVER | 1 |
| 9 | 95019 | 挡圈（旧设计） | RING Retaining (OLD DESIGN) | 1 |
| 10 | 17764A2 | 节流连杆套件 | LINK KIT Throttle | 1 |
| 11 | 43360 | 杠杆 | LEVER | 1 |
| 11 | 433601 | 控制杆 | LEVER Control | 1 |
| 12 | 817429 | 正时连杆 | TIMING LINK | 1 |
| 13 | 817428 | 插座 | SOCKET | 2 |
| 13A | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| 14 | 4000328 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 3 |
| 14 | 8M0214928 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 3 |
| 15 | 12863A1 | 平台 | PLATFORM | 1 |
| 16 | 16955 | 螺丝(M6 x 8) | SCREW (M6 x 8) | 3 |
| 17 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 3 |
| 17 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 3 |
| 18 | 69708 | 波形垫圈 | WAVE WASHER | 2 |
| 19 | 89540 | 弹簧 | SPRING | 1 |
| 20 | 92362A1 | 杠杆 | LEVER | 1 |
| 21 | 937791 | 杠杆 | LEVER | 1 |
| 22 | 867171 | 连接杆 | LINK | 1 |
| 23 | 17680 | 挡圈 | RING Retaining | 2 |
| 24 | 29720 | 波形垫圈 | WAVE WASHER | 2 |
| 25 | 94085A1 | 齿轮 | GEAR | 1 |
| 26 | 93006 | 弹簧 | SPRING | 1 |
| 26 | 8M0215005 | 弹簧 | SPRING | 1 |
| 27 | 93008 | 钢球 | BALL | 1 |
| 29 | 118591 | 螺钉(0.190-32x1.750) | SCREW (.190-32 x 1.750) | 1 |
| 30 | 48039 | 盖帽 | CAP | 1 |
| 31 | 92425 | 缓冲器（适用时使用） | DASHPOT (Use where Applicable) | 1 |
| 32 | 93001 | 支架（适用时使用） | BRACKET (Use where Applicable) | 1 |
| 33 | 28770 | 螺母（.312-24）不锈钢（适用时使用） | NUT (.312-24) Stainless Steel (Use where Applicable) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

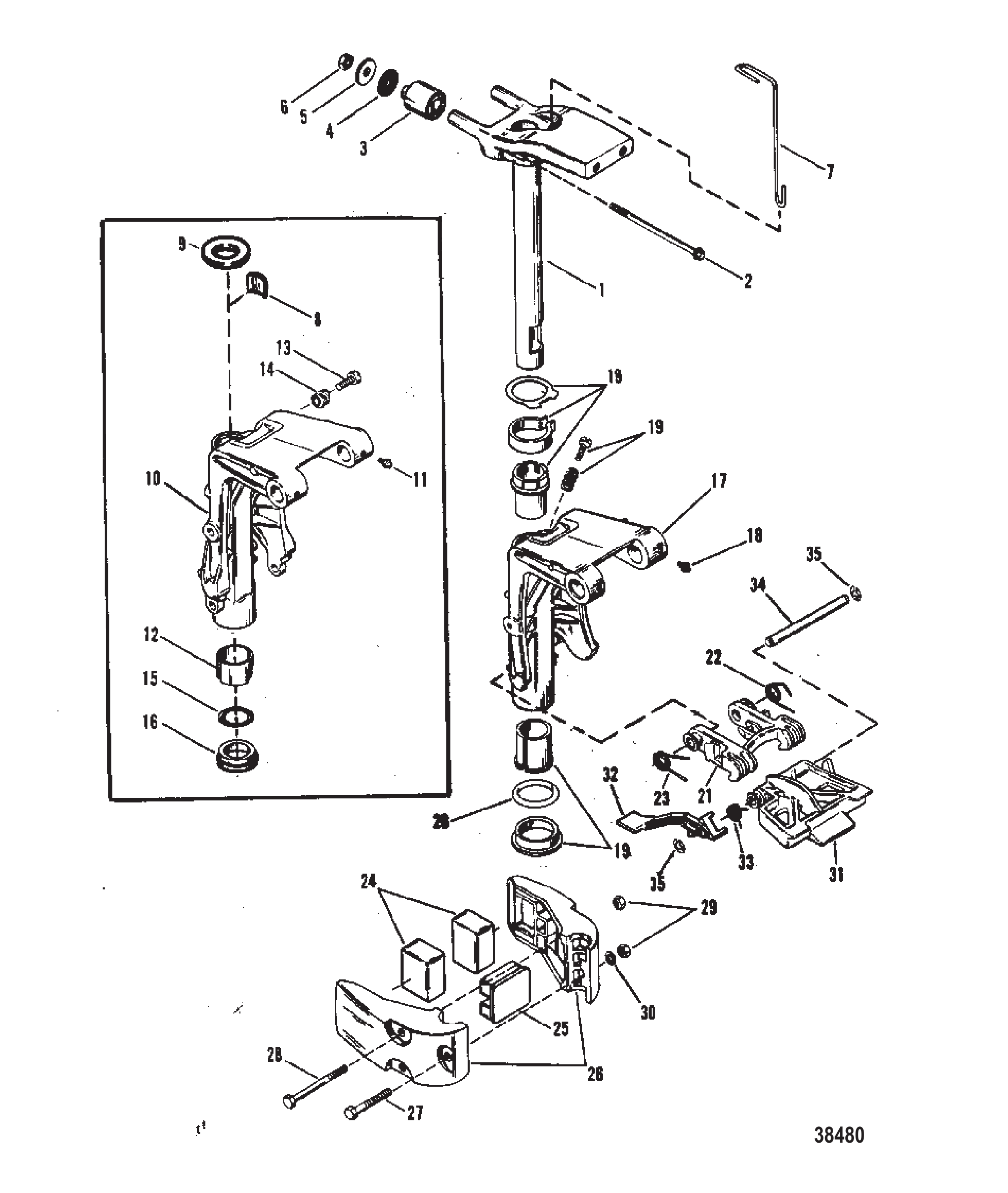

| 1 | 97544A5 | 水星转轴管总成 | SWIVEL TUBE ASSEMBLY Mercury | 1 |
| 1 | 97544A2 | 旋转管总成Mariner | SWIVEL TUBE ASSEMBLY Mariner | 1 |
| 2 | 12516 | 螺丝 M8×133.35(上支架) | SCREW (M8 x 133.35) UPPER MOUNT | 2 |
| 2 | 125161 | 螺丝 M8×133 | SCREW (M8 x 133) | 2 |
| 3 | 14894 | 上支架 | MOUNT UPPER | 2 |
| 4 | 85172 | 橡胶垫圈(上支架螺丝) | WASHER RUBBER - UPPER MOUNT SCREW | 2 |
| 5 | 43430 | 上部支架螺钉垫圈 | WASHER UPPER MOUNT SCREW | 2 |
| 6 | 90193 | 上部安装螺丝螺母 | NUT UPPER MOUNT SCREW | 2 |
| 6 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| 7 | 85157 | 倒挡钩杆 | ROD REVERSE HOOK | 1 |
| 8 | 85173 | 导向控制板 | PLATE PILOT CONTROL | 1 |
| 9 | 85104 | 垫圈 | WASHER | 1 |
| 10 | 8692A9 | 旋转支架 | SWIVEL BRACKET | 1 |
| 10 | 822237A1 | 转轴支架-黑色 | BRKT-SWIVEL-BLK | 1 |
| 10 | 8692A10 | 旋转支架 | SWIVEL BRACKET | 1 |
| 10 | 822237A2 | GRKT-旋转接头-灰色 | GRKT-SWIVEL-GRAY | 1 |
| 11 | 74036 | 润滑脂接头 | FITTING Grease | 3 |
| 11 | 8M0169589 | 润滑脂接头 | FITTING Grease | 3 |
| 12 | 95949 | 转轴支架衬套 | BUSHING SWIVEL BRACKET | 2 |
| 13 | 91908 | 舵柄控制螺丝 | SCREW PILOR CONTROL | 1 |
| 13 | 91807 | 螺钉 | SCREW | 1 |
| 14 | 96203 | 导向控制螺丝弹簧 | SPRING PILOT CONTROL SCREW | 1 |
| 15 | 86993 | 旋转管O型圈 | O-RING SWIVEL TUBE | 1 |
| 16 | 85154 | 转轴管衬套（下部） | BUSHING SWIVEL TUBE (LOWER) | 1 |
| 17 | 8692A9 | 旋转支架 | SWIVEL BRACKET | 1 |
| 17 | 822237A1 | 转轴支架-黑色 | BRKT-SWIVEL-BLK | 1 |
| 17 | 8692A10 | 旋转支架 | SWIVEL BRACKET | 1 |
| 17 | 822237A2 | GRKT-旋转接头-灰色 | GRKT-SWIVEL-GRAY | 1 |
| 18 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 18 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 19 | 11139A1 | 副舵柄夹箍总成 | CLAMP ASSEMBLY CO-PILOT | 1 |
| 19 | 11139A2 | 夹具总成 | CLAMP ASSEMBLY | 1 |
| 20 | 86993 | 旋转管O型圈 | O-RING SWIVEL TUBE | 1 |
| 21 | 98830A2 | 倒挡锁钩总成 | HOOK ASSEMBLY REVERSE LOCK | 1 |
| 22 | 96018 | 倒挡钩弹簧(左舷) | SPRING REVERSE HOOK - PORT | 1 |
| 23 | 97427 | 右舷倒车挂钩弹簧 | SPRING REVERSE HOOK - STARBOARD | 1 |
| 23 | 12755 | 倒挡钩弹簧-右舷 | SPRING REVERSE HOOK -STARBOARD | 1 |
| 23 | 879894 | 弹簧 | SPRING | 1 |
| 24 | 85122 | 下支架 | MOUNT LOWER | 2 |
| 24 | 85122001 | 下支架 | MOUNT Lower | 2 |
| 25 | 85123 | 前缓冲垫 | BUMPER Front | 1 |
| 25 | 85123001 | 前缓冲垫 | BUMPER Front | 1 |
| 26 | 95068A1 | 下安装盖 | COVER LOWER MOUNT | 1 |
| 26 | 95068A2 | 下安装盖 | COVER LOWER MOUNT | 1 |
| 27 | 4009259 | 下支架盖螺丝（60mm） | SCREW LOWER MOUNT COVER (60MM) | 1 |
| 27 | 1994360 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 1 |
| 28 | 4009263 | 下支架盖螺丝（100mm） | SCREW LOWER MOUNT COVER (100MM) | 2 |
| 28 | 19943100 | 螺丝(M8 x 100) | SCREW (M8 x 100) | 2 |
| 29 | 400213 | 下支架盖螺丝螺母（M8不锈钢） | NUT (M8) Stainless Steel LOWER MOUNT COVER SCREW | 3 |
| 30 | 36001 | 下部安装盖螺丝垫圈 | WASHER LOWER MOUNT COVER SCREW | 3 |
| 31 | 12756 | 拖钓支架 | BRACKET TROLL | 1 |
| 32 | 12758 | 控制杆 | LEVER CONTROL | 1 |
| 33 | 12754 | 弹簧 | SPRING | 1 |
| 34 | 13195 | 拖钓支架销 | PIN TROLL BRACKET | 1 |
| 35 | 13194 | 挡圈 | RING Retaining | 2 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8889A13 | 化油器(WMC-31A)(替代WMC31/32A) | CARBURETOR (WMC-31A) (REPLACES WMC31/32A) | 1 |
| 1 | 8677A13 | 化油器(WMC-32) | CARBURETOR (WMC-32) | 1 |
| 1 | 8889T22 | 化油器 | CARBURETOR | 1 |
| 2 | 9646 | 油门阀 | VALVE Throttle | 1 |
| 3 | 9695 | 油门轴 | SHAFT Throttle | 1 |
| 4 | 9164 | 燃油杯 | BOWL Fuel | 1 |
| 5 | 9169 | 浮子 | FLOAT | 1 |
| 5 | 91691 | 浮子 | FLOAT | 1 |
| 6 | 9855 | 进油针阀 | VALVE INLET NEEDLE | 1 |
| 6 | 803861 | 进油针阀 | VALVE Inlet Needle | 1 |
| 7 | 6201 | 主量孔(.080) | JET (.080) MAIN FUEL | 1 |
| 8 | 9171 | 量孔固定塞 | PLUG JET RETAINER | 1 |
| 9 | 813618 | 隔膜盖 - WMC 31/32 | COVER DIAPHRAGM (WMC 31/32) | 1 |
| 9 | 823648 | 隔膜盖 - WMC 31A/32A | COVER Diaphragm DIAPHRAGM (WMC 31 A/32A) | 1 |
| 10 | 9697 | 膜片盖螺丝 | SCREW DIAPHRAGM COVER | 4 |
| 11 | 15827A1 | 燃油泵体 | BODY FUEL PUMP | 1 |
| 11 | 9702 | 盖/燃油泵套件 | COVER/FUEL PUMP KIT | 1 |
| 12 | 9643 | 燃油泵盖螺丝 | SCREW FUEL PUMP COVER | 5 |
| 13 | 9637 | 燃油泵盖 | COVER FUEL PUMP | 1 |
| 14 | 9762 | 堵头 | PLUG | 1 |
| 15 | 9803 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 15 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 16 | 9802 | 维修包 - WMC 31/32 | REPAIR KIT (WMC 31/32) | 1 |
| 16 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 16 | 823707 | 维修包 - WMC 31A/32A | REPAIR KIT (WMC 31A/32A) | 1 |
| 16 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 17 | 9699 | 盖板(手动) | PLATE COVER (MANUAL) | 1 |
| 18 | 823433 | 电动阻风门 | CHOKE Electric (ELECTRIC) | 1 |
| 19 | 9696 | 盖板螺钉 | SCREW COVER PLATE | 2 |
| 20 | 414491 | 化油器衬垫 | GASKET CARBURETOR | 1 |
| 20 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| 21 | 9635 | 膜片/衬垫 | DIAPHRAGM/GASKET | 1 |
| 22 | 9633 | 衬垫 | GASKET | 1 |
| 23 | F10064 | 轴 | SHAFT | 1 |
| 24 | 824401 | 浮子杆 | LEVER Float | 1 |
| 25 | 79964 | 螺钉(#6-32 x .750)快怠速杠杆 | SCREW (#6-32 x .750) FAST IDLE LEVER | 1 |
| 25 | 12110 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 26 | 11277 | 张力弹簧 | SPRING Tension | 1 |
| 27 | 40056110 | 螺钉(M5 x 30)启动泵支架 | SCREW (M5 x 30) PRIMER BRACKET | 2 |
| 27 | 400018 | 螺钉(M5x12) 注油器支架 | SCREW (M5 x 12) PRIMER BRACKET | 2 |
| 28 | 79965 | 螺钉(#8-32 x .500)不锈钢启动泵支架 | SCREW (#8-32 x .500) Stainless Steel PRIMER BRACKET | 1 |
| 29 | 112731 | 注油器杆 | LEVER Primer PRIMER | 1 |
| 30 | 11280 | 凸轮块 | CAM BLOCK | 1 |
| 31 | 11278 | 固定夹 | CLIP Retaining | 1 |
| 32 | 172291 | 阻风门面板 | BEZEL Choke | 1 |
| 33 | 12802 | 启动泵旋钮 | KNOB PRIMER | 1 |
| 33 | 128022 | 启动泵旋钮 | PRIMER KNOB | 1 |
| 34 | 17442 | 盖板 | COVER | 1 |
| 35 | 47579 | 堵头 | PLUG | 1 |
| 36 | 127331 | 怠速线 | IDLE WIRE | 1 |
| 36 | 127332 | 快怠速线 | WIRE Fast Idle | 1 |
| 37 | 128053 | 快怠速杆 | LEVER Fast Idle | 1 |
| 38 | 12803 | 启动泵支架 | BRACKET Primer | 1 |
| 39 | 97877 | 快怠速杠杆推螺母 | PUSH NUT FAST IDLE LEVER | 1 |
| 39 | 821979 | 螺母 | NUT | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 9844A1 | 启动泵/喷油器维修包 | SERVICE KIT Primer/Injector | 1 |
| - | 822261A92 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879732T89 | PH 20/25 | PH 20/25 | 1 |
| - | 90885A88 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879732T89 | PH 20/25 | PH 20/25 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 42712A1 | 起动机壳体总成 | HOUSING ASSEMBLY Starter STARTER | 1 |
| 2 | 86971 | 起动机壳体盖（早期型号） | COVER STARTER HOUSING (EARLY MODELS) | 1 |
| 3 | 94019 | 锁杆 (上) | LEVER LOCK (UPPER) | 1 |
| 3 | 858925 | 锁止杆 | LEVER Lock | 1 |
| 4 | 12734 | 上锁杆弹簧 | SPRING UPPER LOCK LEVER | 1 |
| 5 | 938762 | 锁杆 (下) | LEVER LOCK (LOWER) | 1 |
| 5 | 93876T02 | 杠杆 | LEVER | 1 |
| 6 | 92799 | 螺钉（#10-16 x 1.12）下锁杆 | SCREW (#10-16 x 1.12) LOWER LOCK LEVER | 1 |
| 6 | 92051 | 螺钉（10-16 x 0.75） | SCREW (10-16 x .75) | 1 |
| 7 | 818142 | 衬套 | BUSHING | 1 |
| 8 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 1 |
| 9 | 90478 | PAD FELT | 1 | |
| 9 | 833161T | 毛毡垫 | PAD-FELT | 1 |
| 10 | 86857 | 启动器弹簧 | SPRING STARTER | 1 |
| 10 | 86857T01 | 弹簧 | SPRING | 1 |
| 11 | 42566 | 启动器滑轮 | SHEAVE STARTER | 1 |
| 11 | 825269T01 | 启动器滑轮总成 | SHEAVE STARTR ASU | 1 |
| 12 | 86851 | 凸轮弹簧 | SPRING CAM | 2 |
| 12 | 86851T02 | 弹簧 @2 | SPRING @2 | 2 |
| 13 | 86850 | 凸轮 | CAM | 2 |
| 13 | 868501 | 凸轮 | CAM | 2 |
| 14 | 86849 | 凸轮挡圈 | RING Retaining CAM | 2 |
| 14 | 86849T01 | 环 @2 | RING @2 | 2 |
| 15 | 12066A9 | 启动绳 | ROPE STARTER | 1 |
| 15 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| 16 | 85174A1 | 启动绳手柄总成 | HANDLE ASSEMBLY STARTER ROPE | 1 |
| 17 | 86852 | 凸轮弹簧 | SPRING CAM | 1 |
| 17 | 868523 | 弹簧 | SPRING | 1 |
| 18 | 86853 | 凸轮 | CAM | 1 |
| 18 | 86853T01 | 凸轮 | CAM | 1 |
| 19 | 97516 | 凸轮至启动器皮带轮螺丝 | SCREW CAM TO STARTER SHEAVE | 1 |
| 19 | 826253 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 1 |
| 20 | 426264 | 启动手柄支架 | SUPPORT STARTER HANDLE | 1 |
| 21 | 40019111 | 螺钉（M5 x 35）起动机壳体支撑 | SCREW (M5 x 35) SUPPORT TO STARTER HOUSING | 2 |
| 23 | 309772 | 支架螺丝隔套 | SPACER SUPPORT SCREW | 4 |
| 24 | 400633 | 支架螺丝螺母（M5） | NUT (M5) SUPPORT SCREW | 2 |
| 24 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 2 |
| 25 | 44180 | 绳索衬套 | BUSHING Rope | 1 |
| 26 | 17212 | 支架 | SUPPORT | 1 |
| 26 | 856154T01 | 支架 | SUPPORT | 1 |
| 27 | 23538 | 垫圈 | WASHER | 1 |
| 28 | 38489 | 锁杆滚销 | PIN Roll LOCK LEVER | 1 |
| 29 | 40011128 | 螺钉 (M6 x 20) 不锈钢启动器壳体固定 | SCREW (M6 x 20) Stainless Steel STARTER HOUSING ATTACHING | 2 |
| 29 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 29 | 40011131 | 螺钉（M6 x 35）不锈钢起动机壳体固定 | SCREW (M6 x 35) Stainless Steel STARTER HOUSING ATTACHING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 818591 | 螺母(M14) | NUT (M14) | 1 |
| 2 | 859231T4 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 2 | 859231T18 | 飞轮 | FLYWHEEL | 1 |
| 3 | 99301 | 齿圈 | RING GEAR | 1 |
| 4 | 88190313 | 螺钉 (M5 x 13) | SCREW (M5 x 13) | 4 |
| 5 | 8471A2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 5 | 8M0083309 | 曲轴总成 | CRANKSHAFT ASSY | 1 |
| 6 | 818630A1 | 套筒 | SLEEVE | 1 |
| 7 | NSS | 不单独销售（O型圈） | NOT SOLD SEPARATE (O Ring) | 1 |
| 8 | 41341 | 滚珠轴承 | BEARING Ball | 1 |
| 9 | 824451 | 垫圈(内径.610x外径.890x厚度.062) | WASHER (.610 Inside Diamter x .890 Outside Diameter x .062) | 1 |
| 10 | 42132 | 挡圈 | RING Retaining | 1 |
| 11 | 13031 | 垫圈 | WASHER | 1 |
| 12 | 125661 | 下油封 | SEAL Oil - Lower | 1 |
| 13 | 20094 | 半圆键 | KEY Woodruff | 1 |
| 14 | 878158 | 滚柱轴承 | BEARING Roller | 1 |
| 15 | 125671 | 上油封 | SEAL Oil - Upper | 1 |
| 16 | 8477A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 17 | 823460 | 螺钉(M5×16) | SCREW (M5 x 16) | 4 |
| 18 | 42076A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 19 | 42186 | 滚针轴承 | BEARING Needle | 48 |
| 20 | 43348 | 推力轴承 | BEARING Thrust | 4 |
| 20 | 8M0012297 | 止推垫圈@2 | WASHER-THRST@2 | 4 |
| 21 | 9756T2 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 21 | 9747T2 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 21 | 9747A4 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 22 | 18514A4 | 活塞环组 | RING SET Piston | 2 |
| 22 | 18212A4 | 活塞环组 | RING SET Piston | 2 |
| 22 | 18212A1 | 活塞环组 | RING SET Piston | 2 |
| 23 | NSS | 不单独销售 (活塞环-顶部) | NOT SOLD SEPARATE (Piston Ring-Top) | 2 |
| 23 | NSS | 不单独销售 (活塞环-顶部) | NOT SOLD SEPARATE (Piston Ring-Top) | 2 |
| 24 | 422021 | 锁紧环 | LOCK RING | 4 |
| 25 | 41373A1 | 中央主轴承套件 | BEARING KIT Center Main | 1 |
| 26 | 17794A1 | 轴承 | BEARING | 1 |
| 27 | 818901 | 密封件 | SEAL | 1 |
| 28 | 42076A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| - | 12893T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 811686T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 19072T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8669A11 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| - | 8669T13 | 齿轮箱外壳SH-BLK | GEAR HSG. SH-BLK | 1 |
| - | 8669A12 | 完整齿轮箱壳体 | GEAR HOUSNIG COMPLETE | 1 |
| - | 8669T14 | GC 20/25 2S LG | GC 20/25 2S LG | 1 |
| - | 8669A7 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| - | 8669T13 | 齿轮箱外壳SH-BLK | GEAR HSG. SH-BLK | 1 |
| - | 8669A9 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY COMPLETE | 1 |
| - | 8669T16 | ORD 1665-8669T14 | ORD 1665-8669T14 | 1 |
| 1 | 8669A10 | Mercury基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Mercury BASIC | |
| 1 | 8M0083538 | GC BASIC 25 2S | GC BASIC 25 2S | |
| 1 | 8669A8 | Mariner基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Mariner BASIC | 1 |
| 1 | 8669A22 | 齿轮箱总成基础型-灰色 | GEAR HOUSING ASSEMBLY Basic-Gray | 1 |
| 2 | 41134 | 进水口滤网 | SCREEN WATER INLET | 1 |
| 2 | 41133 | 进水口滤网 | SCREEN Water Inlet Port WATER INLET | 1 |
| 3 | 40031112 | 螺钉(M5 x 40)滤网至齿轮箱 | SCREW (M5 x 40) SCREEN TO GEAR HOUSING | 1 |
| 4 | 400263 | 滤网螺钉螺母(M5) | NUT (M5) SCREEEN SCREW | 1 |
| 5 | 41326 | 滚柱轴承上 | BEARING Roller UPPER | 1 |
| 6 | 99325 | 齿轮箱密封件 | SEAL GEAR HOUSING | 2 |
| 7 | 85500 | PIN Dowel (.187 x .530) GEAR HOUSING | 2 | |
| 7 | 8M0084726 | 定位销 | PIN Dowel | 2 |
| 8 | 98294A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 98302 | 小齿轮 | GEAR Pinion | 1 |
| 10 | 49908 | 小齿轮螺钉(0.250-28x0.75英寸) | SCREW (.250-28 x .750) PINION GEAR | 1 |
| 11 | 99199 | 驱动轴 | DRIVESHAFT | 1 |
| 11 | 99198 | 驱动轴 | DRIVESHAFT | 1 |
| 13 | 67892 | SCREW Magnetic DRAIN | 1 | |
| 13 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 14 | 79953 | SCREW (.375-16 x .250) GREASE FILLER | 1 | |
| 14 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 15 | 20260 | 放油/注油螺丝垫圈 | WASHER DRAIN AND FILLER SCREW | 2 |
| 15 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| 16 | 85562A1 | 换档凸轮总成 | CAM ASSEMBLY SHIFT | 1 |
| 17 | 85096 | 换档凸轮驱动销 | PIN Drive SHIFT CAM | 1 |
| 18 | 85593 | 换档轴销(.078 x .437) | PIN (.078 x .437) SHIFT SHAFT | 1 |
| 19 | 29245 | 不锈钢换档轴垫圈(.281 x .500 x .060) | WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT | 2 |
| 19 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 20 | 93007 | 换档轴弹簧 | SPRING SHIFT SHAFT | 1 |
| 21 | 85091 | 换档轴垫圈 | WASHER SHIFT SHAFT | 1 |
| 22 | 85594 | 轴套O型圈(0.239x0.174英寸) | O-RING (.239 x .174) SHIRT SHAFT | 1 |
| 23 | 35276 | O型圈(.734 x .139)换挡轴固定器 | O-RING (.734 x .139) SHIFT SHAFT RETAINER | 1 |
| 24 | 93878 | 换档轴固定环 | RETAINER SHIFT SHAFT | 1 |
| 25 | 85552 | 换档轴防尘罩 | BOOT SHIFT SHAFT | 1 |
| 25 | 85552001 | 护套 | BOOT | 1 |
| 26 | 85126 | 换档轴 | SHIFT SHAFT | 1 |
| 26 | 86293 | 换档轴 | SHIFT SHAFT | 1 |
| 27 | 99326 | 水泵衬垫 | GASKET WATER PUMP | 1 |
| 27 | 993261 | 衬垫 | GASKET | 1 |
| 28 | 85083 | 面板 | FACE PLATE | 1 |
| 29 | 86645 | 叶轮垫圈 | WASHER IMPELLER | 2 |
| 29 | 8M0204722 | 垫圈 | WASHER | 2 |
| 30 | 85119 | 叶轮驱动键 | KEY IMPELLER DRIVE | 1 |
| 30 | 8M0214993 | 键@5 | KEY @5 | 1 |
| 31 | 850891 | 叶轮 | IMPELLER | 1 |
| 31 | 8M0204712 | 叶轮 | IMPELLER | 1 |
| 31 | 8508920 | 叶轮(冷水型) | IMPELLER (COLD WATER) | OPT |
| 31 | 8M0204712 | 叶轮 | IMPELLER | OPT |
| 32 | 69202 | 水泵O型圈 | O-RING WATER PUMP | 1 |
| 33 | 99157A1 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 33 | 99157A02 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 34 | 400035 | 水泵至齿轮箱螺丝(M5 x 16) | SCREW (M5 x 16) WATER PUMP TO GEAR HOUSING | 4 |
| 35 | 89302 | 垫圈(.203 x .406 x .040)水泵螺丝 | WASHER (.203 x .406 x .040) WATER PUMP SCEW | 4 |
| 36 | 85095 | 水泵螺丝衬套 | BUSHING WATER PUMP SCREW | 4 |
| 36 | 8M0214959 | 衬套@5 | BUSHING @5 | 4 |
| 37 | 85090 | 水管密封件 | SEAL WATER TUBE | 1 |
| 37 | 85090001 | 密封件 | SEAL | 1 |
| 38 | 86203 | O型圈-传动轴橡胶件 | O-RING DRIVESHAFT - RUBBER | 1 |
| 38A | 99691 | O型圈 | O-RING | 1 |
| - | 99157A2 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 99157T2 | 水泵套件 | PUMP KIT Water | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 13286 | 零件手册18/20/25马力(XD) | PARTS MANUAL 18/20/25 H.P. (XD) | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 43170A84 | 贴花套件 | DECAL SET | 1 |
| - | 43477A85 | 贴花套件 | DECAL SET | 1 |
| - | 13480A86 | 贴花套件 | DECAL SET | 1 |
| - | 43173A84 | 贴花套件 | DECAL SET | 1 |
| - | 13239A86 | 贴花套件 | DECAL SET | 1 |
| - | 13480A86 | 贴花套件 | DECAL SET | 1 |
| - | 13239A86 | 贴花套件 | DECAL SET | 1 |
| - | 11181A85 | 贴花套件 | DECAL SET | 1 |
| - | 810461A92 | 贴花套件 | DECAL SET | 1 |
| - | 11627A85 | 贴花套件 | DECAL SET | 1 |
| - | 810461A92 | 贴花套件 | DECAL SET | 1 |
| - | 11044870 | 用户指南 | OWNERS GUIDE | 1 |
| - | 11046870 | 用户指南 | OWNERS GUIDE | 1 |
| - | 11046871 | 用户手册 | MANUAL-OWNERS | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8794A1 | 夹箍支架 | CLAMP BRACKET | 1 |
| 1 | 8794A5 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 1 | 8794A2 | 夹箍支架 | CLAMP BRACKET | 1 |
| 1 | 8794A6 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 8796A1 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 8794A5 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 8796A2 | 夹箍支架 | CLAMP BRACKET | 1 |
| 2 | 8794A6 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 3 | 92767A1 | 蝶形螺丝总成 (14 mm) | THUMB SCREW ASSEMBLY (14 mm) | 2 |
| 4 | 73719 | 蝶形螺丝垫圈 | WASHER THUMB SCREW | 2 |
| 4 | 818884 | 垫圈 | WASHER | 2 |
| 5 | 76804 | 垫圈固定螺丝 | SCREW WASHER ATTACHING | 2 |
| 5 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 6 | 41042 | 提手 | HANDLE CARRYING | 1 |
| 7 | 99929A1 | 倾斜销总成 | PIN ASSEMBLY Tilt | 1 |
| 8 | 99928 | 夹紧支架螺柱 | STUD CLAMP BRACKET | 1 |
| 9 | 41041 | 夹紧支架螺柱隔套 | SPACER CLAMP BRACKET STUD | 1 |
| 10 | 400213 | 螺母(M8)不锈钢夹紧支架螺柱 | NUT (M8) Stainless Steel CLAMP BRACKET STUD | 2 |
| 11 | 41171 | 倾斜管 | TILT TUBE | 1 |
| 11 | 8M0035075 | 倾斜管 | TILT TUBE | 1 |
| 12 | 30954 | 安全卡扣 | CLIP SAFETY | 1 |
| 12 | 8M0085928 | 卡扣 | CLIP | 1 |
| 13 | 93164 | 倾斜管螺母(.875) | NUT (.875) TILT TUBE | 2 |
| 14 | 69064 | 螺栓(.312-18 x 2.750)夹紧支架至艉板 | BOLT (.312-18 x 2.750) CLAMP BRACKET TO TRANSOM | 2 |
| 15 | 67981 | 夹紧支架螺栓垫圈 | WASHER CLAMP BRACKET BOLT | 2 |
| 16 | 67980 | 螺母(.312-18)夹紧支架螺栓 | NUT (.312-18) CLAMP BRACKET BOLT | 2 |
| 16 | 82670910 | 不锈钢螺母(.312-18) | NUT (.312-18) Stainless Steel | 2 |
| 17 | 96965 | 倾斜止动杆-右舷侧 | LEVER TILT STOP - STARBOARD SIDE | 1 |
| 18 | 41523 | 螺钉(.250-28 x 1.00)杆至旋转支架 | SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET | 1 |
| 19 | 36069 | 螺母-倾斜止动杆螺钉 | NUT TILT STOP LEVER SCREW | 2 |
| 20 | 41524 | 螺钉(.250-28 x 1.75)杆至夹紧支架 | SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET | 1 |
| 21 | 44581 | 倾斜止动杆螺钉弹簧 | SPRING TILT STOP LEVER SCREW | 1 |
| 22 | 90901 | 倾斜限位带-左舷侧 | STRAP TILT STOP - PORT SIDE | 1 |
| 23 | 41523 | 螺钉 (.250-28 x 1.00) 带至旋转支架 | SCREW (.250-28 x 1.00) STRAP TO SWIVEL BRACKET | 1 |
| 24 | 36069 | 倾斜止动带螺丝螺母 | NUT TILT STOP STRAP SCREW | 2 |
| 25 | 41524 | 螺钉 (.250-28 x 1.75) 带至夹紧支架 | SCREW (.250-28 x 1.75) STRAP TO CLAMP BRACKET | 1 |
| 26 | 31030 | WAVE WASHER TILT STOP STRAP SCREW | 1 | |
| 27 | 71421 | 倾斜管尼龙垫圈 | WASHER Nylon TILT TUBE | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 62351A10 | 蓄电池充电套件 | CHARGING KIT Battery | 1 |
| 0 | 52992A2 | 线缆滑轮安装套件 | ATTACHING KIT Cable And Pulley | 1 |
| 0 | 90983A3 | 电动起动机套件 | STARTER MOTOR KIT Electric | 1 |
| 0 | 90983A5 | 起动机转换套件 | CONVERSION KIT Starter Motor | 1 |
| 0 | 44357A2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| 0 | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| 0 | 827927A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | 1 |
| 0 | 877680Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 0 | 827927A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 0 | 877680Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 0 | 17146A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | 1 |
| 0 | 877681Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | 1 |
| 0 | 17146A12 | 燃油管路总成 (12英尺) | LINE ASSEMBLY Fuel (12 Feet) (12 FT.) | 1 |
| 0 | 877681Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 0 | 822379A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | 1 |
| 0 | 877683Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | 1 |
| 0 | 52148A1 | 副驾驶套件 | CO-PILOT KIT | 1 |
| 0 | 15000A7 | 钥匙开关套件 远程点火 | KEY SWITCH KIT Remote Ignition | 1 |
| 0 | 42282A3 | 照明线圈套件 | COIL KIT Lighting | 1 |
| 0 | 42282A4 | 照明线圈套件 | COIL KIT Lighting | 1 |
| 0 | 95845A5 | 照明调节器套件 | REGULATOR KIT Lighting | 1 |
| 0 | 14171A2 | 电机锁 | MOTOR LOCK | 1 |
| 0 | 14171Q2 | 电机锁 | MOTOR LOCK | 1 |
| 0 | 828019A1 | 油压传感器套件 | SENDER KIT Oil Pressure | 1 |
| 0 | 8M0068785 | 油压适配器套件 | ADPT KIT-OIL PRES | 1 |
| 0 | 822344A8 | 动力调整套件 | POWER TRIM KIT | 1 |
| 0 | 822344A13 | 动力调整套件 | POWER TRIM KIT | 1 |
| 0 | 822573A12 | 动力升降倾斜传感器套件 | SENDER KIT Power Trim | 1 |
| 0 | 826633A1 | 遥控器安装套件 | ATTACHING KIT Remote Control | 1 |
| 0 | 12756A1 | 浅水驱动套件 | DRIVE KIT Shallow Water | 1 |
| 0 | 821190A2 | 侧移转换套件 | CONVERSION KIT Side Shift | 1 |
| 0 | 816667A2 | 转向支架总成（不带提手） | BRACKET ASSEMBLY Steering (W/O CARRYING HANDLE) | 1 |
| 0 | 41323A2 | 转向连杆安装套件 | ATTACHING KIT Steering Link | 1 |
| 0 | 41323A03 | 转向连杆安装套件 | ATTACHING KIT Steering Link | 1 |
| 0 | 14586A3 | 节温器套件 | THERMOSTAT KIT | 1 |
| 0 | 98571A3 | 舵柄支架总成（用于副驾驶套件） | BRACKET ASSEMBLY Tiller Handle (FOR USE W/ CO-PILOT KIT) | 1 |
| 0 | 821468A7 | 舵柄套件 | TILLER HANDLE KIT | 1 |
| 0 | 821468A6 | 舵柄套件 | TILLER HANDLE KIT | 1 |
| 0 | 821468A7 | 舵柄套件 | TILLER HANDLE KIT | 1 |
| 0 | 823609A7 | 舵柄启动开关转换套件 | CONVERSION KIT Tiller Handle Start Switch | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9682A8 | 下机罩 | BOTTOM COWL | 1 |
| 1 | 9682A9 | 下机罩 | BOTTOM COWL | 1 |
| 1 | 9682A10 | 下机罩 | BOTTOM COWL | 1 |
| 2 | 17231 | 换挡轴护套 | GROMMET Shift Shaft | 1 |
| 3 | 4000332 | 螺钉(M6x35) | SCREW (M6 x 35) | 1 |
| 4 | 17223 | 线束盖 | COVER Harness | 1 |
| 5 | 401196 | 螺母 (M6) | NUT (M6) | 4 |
| 6 | 401196 | 螺母 (M6) | NUT (M6) | 1 |
| 7 | 17226 | 线束护套 | GROMMET Wire Harness | 1 |
| 8 | 826677A1 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 8 | 11083A6 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 9 | 120441 | 黄铜固定座 | RETAINER Brass | 1 |
| 9 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| 10 | 15920A54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 10 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 11 | 17230 | 堵头 | PLUG | 1 |
| 12 | 812832 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 12 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 13 | 39519 | 杯套 | CUP | 1 |
| 14 | 8243641 | 侧盖护套 | GROMMET Side Cover | 1 |
| 15 | 401196 | 螺母 (M6) | NUT (M6) | 1 |
| 16 | 401196 | 螺母 (M6) | NUT (M6) | 1 |
| 17 | 823837A8 | 侧盖 | SIDE COVER | 1 |
| 17 | 8M0053899 | 遥控装置 | REMOTE CONTROL | 1 |
| 17 | 823837A9 | 侧盖 | SIDE COVER | 1 |
| 17 | 823837A8 | 侧盖 | SIDE COVER | 1 |
| 17 | 823837A10 | 侧盖 | SIDE COVER | 1 |
| 17 | 8M0053899 | 遥控装置 | REMOTE CONTROL | 1 |
| 17 | 823837A2 | 侧盖 | SIDE COVER | 1 |
| 17 | 8M0053899 | 遥控装置 | REMOTE CONTROL | 1 |
| 17 | 823837A3 | 侧盖 | SIDE COVER | 1 |
| 17 | 823837A9 | 侧盖 | SIDE COVER | 1 |
| 17 | 823837A4 | 侧盖 | SIDE COVER | 1 |
| 17 | 8M0053899 | 遥控装置 | REMOTE CONTROL | 1 |
| 18 | 4000329 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 1 |
| 18 | 8M0206596 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 1 |
| 19 | 4000328 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 19 | 8M0214928 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 20 | 824367F1 | 侧盖 | SIDE COVER | 1 |
| 20 | 8M0054857 | 侧盖 | COVER-SIDE | 1 |
| 20 | 824367F2 | 侧盖 | SIDE COVER | 1 |
| 20 | 824367F1 | 侧盖 | SIDE COVER | 1 |
| 20 | 824367F3 | 侧盖 | SIDE COVER | 1 |
| 20 | 8M0054857 | 侧盖 | COVER-SIDE | 1 |
| 21 | 824362 | 护孔环 | GROMMET | 1 |
| 22 | 4000329 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 1 |
| 22 | 8M0206596 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 1 |
| 23 | 400264 | 螺母 (M6) | NUT (M6) | 1 |
| 23 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 24 | 824367F1 | 侧盖 | SIDE COVER | 1 |
| 24 | 8M0054857 | 侧盖 | COVER-SIDE | 1 |
| 24 | 824367F2 | 侧盖 | SIDE COVER | 1 |
| 24 | 824367F1 | 侧盖 | SIDE COVER | 1 |
| 25 | 824361 | 护孔环 | GROMMET | 1 |
| 26 | 4000329 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 1 |
| 26 | 8M0206596 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 1 |
| 27 | 400264 | 螺母 (M6) | NUT (M6) | 1 |
| 27 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 28 | 852530 | 螺钉（.250-20 x 1.50） | SCREW (.250-20 x 1.50) | 1 |
| 29 | 17220 | 罩壳锁杆 | LEVER Cowl Latch | 1 |
| 30 | 812707 | 衬套 | BUSHING | 1 |
| 31 | 816202 | 锁钩 | HOOK Latch | 1 |
| 32 | 37642 | 波形垫圈 | WAVE WASHER | 1 |
| 33 | 17224 | 锁紧螺母 | NUT Latch Retaining | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 823907A4 | 化油器 | CARBURETOR | 1 |
| 1 | 823907T12 | 化油器 (WMC-85A) | CARBURETOR (WMC-85A) | 1 |
| 1 | 817405A11 | 化油器 | CARBURETOR | 1 |
| 1 | 817405T23 | 化油器 | CARBURETOR | 1 |
| 1 | 8888A12 | 化油器 | CARBURETOR | 1 |
| 1 | 8888T20 | 化油器 | CARBURETOR | 1 |
| 1 | 8889A15 | 化油器 | CARBURETOR | 1 |
| 1 | 8889T21 | 化油器 | CARBURETOR | 1 |
| 2 | 815133 | 油门阀 | VALVE Throttle | 1 |
| 2 | 96461 | 油门阀 | VALVE Throttle | 1 |
| 3 | 803857 | 油门轴 | SHAFT Throttle | 1 |
| 3 | 9695 | 油门轴 | SHAFT Throttle | 1 |
| 3 | 96951 | 油门轴 | SHAFT Throttle | 1 |
| 4 | 9164 | 燃油杯 | BOWL Fuel | 1 |
| 5 | 91691 | 浮子 | FLOAT | 1 |
| 6 | 879194048 | 进气阀 | VALVE-INLET | 1 |
| 6 | 803861 | 进油针阀 | VALVE Inlet Needle | 1 |
| 7 | 7394 | 量孔 (.044) | JET (.044) | 1 |
| 7 | 3796 | 量孔 (.076) | JET (.076) | 1 |
| 8 | 9171 | 堵头 | PLUG | 1 |
| 9 | 823648 | 膜片盖 | COVER Diaphragm | 1 |
| 10 | 9697 | 螺钉 | SCREW | 4 |
| 11 | 15827A1 | 本体 | BODY | 1 |
| 11 | 9702 | 盖/燃油泵套件 | COVER/FUEL PUMP KIT | 1 |
| 12 | 9643 | 螺钉 | SCREW | 5 |
| 13 | 96371 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 14 | 9637 | 盖板 | COVER | 1 |
| 15 | 9762 | 堵头 | PLUG | 1 |
| 16 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 17 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 18 | 9699 | 板（手动） | PLATE (MANUAL) | 1 |
| 19 | 823433 | 电动阻风门 | CHOKE Electric (ELECTRIC) | 1 |
| 20 | 9696 | 螺钉 | SCREW | 2 |
| 21 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| 22 | 9635 | 膜片/衬垫 | DIAPHRAGM/GASKET | 1 |
| 23 | 9633 | 衬垫 | GASKET | 1 |
| 24 | F10064 | 轴 | SHAFT | 1 |
| 25 | 824401 | 浮子杆 | LEVER Float | 1 |
| 26 | 9844A1 | 启动泵/喷油器维修包 | SERVICE KIT Primer/Injector | 1 |
| 27 | 40019111 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 1 |
| 28 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 90885A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 804946T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 817405A12 | 化油器 | CARBURETOR | 1 |
| 1 | 817405A8 | 化油器 | CARBURETOR | 1 |
| 1 | 823907A3 | 化油器 | CARBURETOR | 1 |
| 1 | 823907T13 | 化油器 (WMC-86) | CARBURETOR (WMC-86) | 1 |
| 2 | 96461 | 油门阀 | VALVE Throttle | 1 |
| 2 | 815133 | 油门阀 | VALVE Throttle | 1 |
| 3 | 96951 | 油门轴 | SHAFT Throttle | 1 |
| 4 | 811353 | 燃油杯 | BOWL Fuel | 1 |
| 5 | 91691 | 浮子 | FLOAT | 1 |
| 6 | 879194048 | 进气阀 | VALVE-INLET | 1 |
| 6 | 803861 | 进油针阀 | VALVE Inlet Needle | 1 |
| 7 | 3796 | 量孔 (.076) | JET (.076) | 1 |
| 7 | 6201 | 量孔(.080) | JET (.080) | 1 |
| 7 | 5317 | 量孔(.046) | JET (.046) | 1 |
| 8 | 9171 | 堵头 | PLUG | 1 |
| 9 | 8113541 | 阻风门轴 | SHAFT Choke | 1 |
| 10 | 811805 | 阻风门杆 | LEVER Choke | 1 |
| 11 | 15827A1 | 本体 | BODY | 1 |
| 11 | 9702 | 盖/燃油泵套件 | COVER/FUEL PUMP KIT | 1 |
| 12 | 9643 | 螺钉 | SCREW | 5 |
| 13 | 96371 | 燃油泵盖 | COVER Fuel Pump | 1 |
| 14 | 9637 | 盖板 | COVER | 1 |
| 15 | 811806 | 阻风门阀 | VALVE Choke | 1 |
| 16 | 97611 | 衬垫/膜片套件 | GASKET/DIAPHRAGM KIT | 1 |
| 17 | 8237072 | 维修套件 | REPAIR KIT | 1 |
| 18 | 9699 | 安装板 | PLATE | 1 |
| 19 | 811360 | 浮子室放油螺钉 | SCREW Bowl Drain | 1 |
| 20 | 9696 | 螺钉 | SCREW | 2 |
| 21 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| 22 | 9635 | 膜片/衬垫 | DIAPHRAGM/GASKET | 1 |
| 23 | 9633 | 衬垫 | GASKET | 1 |
| 24 | F10064 | 轴 | SHAFT | 1 |
| 25 | 824401 | 浮子杆 | LEVER Float | 1 |
| 26 | 817425 | 阻风门连杆 | LINK Choke | 1 |
| 27 | 40019111 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 1 |
| 28 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 90885A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 804946T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1/2A | 8794A5 | 艉板支架总成（左/右舷）（黑色） | BRACKET ASSEMBLY Transom (PORT/STBD.) (BLACK) | 1 |
| 1/2A | 8794A6 | 艉板支架总成（左/右舷）（灰色） | BRACKET ASSEMBLY Transom (PORT/STBD.) (GRAY) | 1 |
| 1 | 8794A7 | 艉板支架总成(左舷)(黑色) | BRACKET ASSEMBLY Transom (PORT) (BLACK) | 1 |
| 2 | 8796A5 | 艉板支架总成（右舷）（黑色） | BRACKET ASSEMBLY Transom (STBD.) (BLACK) | 1 |
| 1 | 8794A8 | 艉板支架总成（左舷）（灰色） | BRACKET ASSEMBLY Transom (PORT)(GRAY) | 1 |
| 1 | 8794A7 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 8796A6 | 艉板支架总成（右舷）（灰色） | BRACKET ASSEMBLY Transom (STBD.)(GRAY) | 1 |
| 1 | 8794A9 | 艉板支架总成(左舷)(黑色) | BRACKET ASSEMBLY Transom (PORT) (BLACK) | 1 |
| 2 | 8796A7 | 艉板支架总成（右舷）（黑色） | BRACKET ASSEMBLY Transom (STBD.) (BLACK) | 1 |
| 1 | 8794A10 | 艉板支架总成（左舷）（灰色） | BRACKET ASSEMBLY Transom (PORT)(GRAY) | 1 |
| 1 | 8794A9 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 8796A8 | 艉板支架总成（右舷）（灰色） | BRACKET ASSEMBLY Transom (STBD.)(GRAY) | 1 |
| 2 | 8796A7 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 1 | 8794A11 | 艉板支架总成(左舷)(追踪者) | BRACKET ASSEMBLY Transom (PORT) (TRACKER) | 1 |
| 1 | 8794A9 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 8796A9 | 艉板支架总成（右舷）（TRACKER） | BRACKET ASSEMBLY Transom (STBD.) (TRACKER) | 1 |
| 2 | 8796A7 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 3 | 92767A1 | 蝶形螺丝总成 (14 mm) | THUMB SCREW ASSEMBLY (14 mm) | 2 |
| 3 | 92767A3 | 蝶形螺丝总成 (16 mm) | THUMB SCREW ASSEMBLY (16 mm) | 2 |
| 4 | 73719 | 蝶形螺丝垫圈 | WASHER THUMB SCREW | 2 |
| 4 | 818884 | 垫圈 | WASHER | 2 |
| 5 | 768041 | 垫圈固定螺丝 | SCREW WASHER ATTACHING | 2 |
| 5 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 6 | 41042 | 提手 | HANDLE CARRYING | 1 |
| 7 | 99929A1 | 倾斜销总成 | PIN ASSEMBLY Tilt | 1 |
| 7 | 56373A2 | 倾斜销总成 | PIN ASSEMBLY Tilt | 1 |
| 8 | 92995 | 弹簧 | SPRING | 1 |
| 9 | 41041 | 隔套 | SPACER | 1 |
| 10 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| 11 | 99928 | 螺柱 | STUD | 1 |
| 9 | 818538 | 隔套 | SPACER | 1 |
| 12 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 2 |
| 13 | 93164 | 倾斜管螺母(.875) | NUT (.875) TILT TUBE | 2 |
| 14 | 814945 | 螺钉 (.312-18 x 3.500) 不锈钢 夹紧支架至艉板 | SCREW (.312-18 x 3.500) Stainless Steel CLAMP BRACKET TO TRANSOM | 2 |
| 15 | 67981 | 夹紧支架螺栓垫圈 | WASHER CLAMP BRACKET BOLT | 2 |
| 16 | 815848 | 螺母 (.312) 夹紧支架螺栓 | NUT (.312) CLAMP BRACKET BOLT | 2 |
| 17 | 96965 | 倾斜止动杆-右舷 | LEVER TILT STOP - STARBOARD STAR | 1 |
| 18 | 41523 | 螺钉(.250-28 x 1.00)杆至旋转支架 | SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET | 1 |
| 19 | 35045 | 螺母(.250-28)倾斜止动杆螺钉 | NUT (.250-28) TILT STOP LEVER SCREW | 2 |
| 19 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 2 |
| 20 | 41524 | 螺钉(.250-28 x 1.75)杆至夹紧支架 | SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET | 1 |
| 21 | 44581 | 倾斜止动杆螺钉弹簧 | SPRING TILT STOP LEVER SCREW | 1 |
| 22 | 90901 | 倾斜限位带-左舷侧 | STRAP TILT STOP - PORT SIDE | 1 |
| 23 | 41523 | 螺钉 (.250-28 x 1.00) 带至旋转支架 | SCREW (.250-28 x 1.00) STRAP TO SWIVEL BRACKET | 1 |
| 24 | 35045 | 螺母 (.250-28) 倾斜止动带螺钉 | NUT (.250-28) TILT STOP STRAP SCREW | 2 |
| 24 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 2 |
| 25 | 41524 | 螺钉 (.250-28 x 1.75) 带至夹紧支架 | SCREW (.250-28 x 1.75) STRAP TO CLAMP BRACKET | 1 |
| 26 | 31030 | WAVE WASHER TILT STOP STRAP SCREW | 1 | |
| 27 | 71421 | 尼龙垫圈 倾斜管（尼龙） | WASHER Nylon TILT TUBE (NYLON) | 2 |
| 28 | 41171 | 倾斜管 | TILT TUBE | 1 |
| 28 | 8M0035075 | 倾斜管 | TILT TUBE | 1 |
| 29 | 30954 | 安全卡扣 | CLIP SAFETY | 1 |
| 29 | 8M0085928 | 卡扣 | CLIP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 97359A1 | 螺钉总成 | SCREW ASSEMBLY | 1 |
| 1 | 40001248 | 螺丝(M12 x 25) | SCREW (M12 x 25) | 1 |
| 2 | 86496 | 垫圈 | WASHER | 1 |
| 3 | 818354T12 | 飞轮 | FLYWHEEL | 1 |
| 3 | 859232T14 | 飞轮 | FLYWHEEL | 1 |
| 3 | 818354T10 | 飞轮 | FLYWHEEL | 1 |
| 3 | 859232T13 | 飞轮总成 | FLYWHEEL ASSY | 1 |
| 4 | NSS | 警告贴纸(不单独销售) | NOT SOLD SEPARATE Decal-Warning | 1 |
| 5 | NSS | 警告贴纸(不单独销售) | NOT SOLD SEPARATE Decal-Warning | 1 |
| 6 | 99301 | 齿圈 | RING GEAR | 1 |
| 7 | 40039106 | 螺钉 (M5 x 13) | SCREW (M5 x 13) | 4 |
| 7 | 88190313 | 螺钉 (M5 x 13) | SCREW (M5 x 13) | 4 |
| 8 | 859741 | 油封 | SEAL Oil | 1 |
| 9 | 85114T | 上滚柱轴承 | BEARING Roller - Upper | 1 |
| 10 | 20094 | 半圆键 | KEY Woodruff | 1 |
| 11 | 8978T2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 12 | 822445A1 | 耐磨套 | WEAR SLEEVE | 1 |
| 13 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 14 | 85107 | 下油封 | SEAL Oil Lower | 1 |
| 15 | 85113T | 下滚柱轴承 | BEARING Roller - Lower | 1 |
| 16 | 8835A4 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 17 | 91012 | 螺钉(0.250-28特殊) | SCREW (.250-28 Special) | 4 |
| 18 | 879877A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 19 | NSS | 滚轮(不单独销售) | NOT SOLD SEPARATE Roller | 24 |
| 20 | 98295 | 滚针轴承 | BEARING Needle | 54 |
| 21 | 42025 | 轴承 | BEARING | 4 |
| 21 | 8M0012294 | 止推垫圈 | WASHER-THRUST | 4 |
| 22 | 879878T5 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 22 | 9104T19 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 22 | 879878A6 | 活塞总成 | PISTON ASSEMBLY | 2 |
| 23 | 828119 | 活塞销锁环 | LOCK RING Piston Pin | 4 |
| 24 | 827491A12 | 活塞环组 | RING SET Piston | 1 |
| 24 | 18652A2 | 活塞环组 | RING SET Piston | 1 |
| 25 | NSS | 活塞环(不单独销售) | NOT SOLD SEPARATE Piston Ring | 2 |
| 26 | 86992A5 | 中央主轴承总成 | BEARING ASSEMBLY Center Main | 1 |
| 26 | 8M0113968 | 中央主轴承 | BEARING-CENTER/MA | 1 |
| 27 | NSS | 轴承（不单独销售） | NOT SOLD SEPARATE Bearing | 1 |
| 28 | NSS | 止推垫圈(不单独销售) | NOT SOLD SEPARATE Thrust Washer | 1 |
| 29 | NSS | 止推垫圈(不单独销售) | NOT SOLD SEPARATE Thrust Washer | 1 |
| 30 | NSS | 滚针轴承(不单独销售) | NOT SOLD SEPARATE Needle Roller | 1 |
| 31 | NSS | 止推垫圈(不单独销售) | NOT SOLD SEPARATE Thrust Washer | 1 |
| 32 | NSS | 滚针轴承(不单独销售) | NOT SOLD SEPARATE Needle Roller | 1 |
| 33 | NSS | 止推垫圈(不单独销售) | NOT SOLD SEPARATE Thrust Washer | 1 |
| 33 | NSS | 止推垫圈(不单独销售) | NOT SOLD SEPARATE Thrust Washer | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 804946T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9533A3 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | NSS | 不单独销售 气缸体 | NOT SOLD SEPARATE Cylinder Block | 1 |
| 2 | 85171 | 定位销 | PIN Dowel | 3 |
| 3 | 15133 | 接头（45度） | FITTING (45 Degree) | 2 |
| 4 | 1383556 | 软管（切割至12.25英寸） | HOSE (Cut to 12.25 Inches) | 2 |
| 4 | 99130100 | 软管-48英寸 | TUBING-48 INCH | 2 |
| 5 | 42917 | 螺柱 | STUD | 2 |
| 5 | 429173 | 螺柱 | STUD | 2 |
| 6 | 40001209 | 螺丝(M10 x 60) | SCREW (M10 x 60) | 6 |
| 7 | 414757 | 衬垫 | GASKET | 1 |
| 7 | 892158 | 排气歧管衬垫 | GASKET Exhaust Manifold | 1 |
| 8 | 923291 | 排气歧管 | MANIFOLD Exhaust | 1 |
| 8 | 92329F03 | 排气歧管 | MANIFOLD Exhaust | 1 |
| 9 | 414994 | 衬垫 | GASKET | 1 |
| 9 | 892157 | 排气歧管盖衬垫 | GASKET Exhaust Manifold Cover | 1 |
| 10 | 923301 | 盖板 | COVER | 1 |
| 11 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 9 |
| 12 | 14407 | 盖板 | COVER | 2 |
| 12 | 144071 | 盖板 | COVER | 2 |
| 13 | 30503 | O型圈 | O-RING | 2 |
| 13 | 822370 | O型圈 (2.362×.103) | O-RING (2.362 x .103) | 2 |
| 14 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 4 |
| 15 | 8282A1 | 盖总成 | COVER ASSEMBLY | 1 |
| 16 | 4000331 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 5 |
| 17 | 863891 | 衬垫 | GASKET | 1 |
| 17 | 863893 | 衬垫 | GASKET | 1 |
| 18 | 99664 | 弯头 | ELBOW | 1 |
| 18 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 19 | 99127109 | 管路（57.00英寸散装） 示流器（切割至8英寸） | LINE (57.00 Inches Bulk) TELL TALE (Cut to 8 Inches) | 1 |
| 19 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 20 | 94848 | 接头 | FITTING | 1 |
| 21 | 14406 | 盖板 | COVER | 2 |
| 22 | 86391 | O型圈 | O-RING | 2 |
| 23 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 6 |
| 24 | 14408 | 盖板 | COVER | 2 |
| 25 | 822370 | O型圈 (2.362×.103) | O-RING (2.362 x .103) | 2 |
| 26 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 4 |
| 27 | 14112 | 簧片阀组（设计II） | REED BLOCK (DESIGN II) | 1 |
| 27 | 14112T | 簧片阀组 | REED BLOCK | 1 |
| 27A | 424712 | 簧片阀组（设计I） | REED BLOCK (DESIGN I) | 1 |
| 27A | 14112T | 簧片阀组 | REED BLOCK | 1 |
| 28 | 859771 | 密封件（设计I簧片阀组） | SEAL (DESIGN I REED BLOCK) | 1 |
| 28 | 85977002 | 密封件 | SEAL | 1 |
| 29 | 414172 | 衬垫 | GASKET | 1 |
| 30 | 816806 | 簧片 设计I簧片阀组 | REED Design I Reed Block | 2 |
| 31 | 897931 | 止动件 设计I簧片阀组 | STOP Reed Design I Reed Block | 2 |
| 32 | 4005785 | 螺钉 (M4 x 10)（设计I簧片阀组） | SCREW (M4 x 10) (Design I Reed Block | 4 |
| 33 | 414181 | 衬垫 | GASKET | 1 |
| 34 | 41420A2 | 安装板 | PLATE | 1 |
| 34 | 41420A3 | 化油器适配板总成 | PLATE ASSEMBLY Carb Adaptor | 1 |
| 35 | 56759 | 倒钩接头 | FITTING Barbed | 2 |
| 36 | 40019108 | 螺钉（M5×20） | SCREW (M5 x 20) | 3 |
| 37 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| 38 | 143171 | 盖板 | COVER | 1 |
| 39 | 143184 | 衬垫 | GASKET | 1 |
| 39 | 14318005 | 衬垫 | GASKET | 1 |
| 40 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 2 |
| 41 | 14586 | 节温器 | THERMOSTAT | 1 |
| 42 | 12627 | 绑带 | STRAP | 1 |
| 43 | 62386 | 衬垫 | GASKET | 1 |
| 43 | 8M0204714 | 衬垫@4 | GASKET @4 | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 822261A92 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879732T89 | PH 20/25 | PH 20/25 | 1 |
| - | 90885A88 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879732T89 | PH 20/25 | PH 20/25 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 400035 | 螺丝 M5×16(配合参考号20使用) | SCREW (M5 x 16) (Use W/Reference #20) | 2 |
| 1 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 2 | 96248A1 | 水管壳体总成 | HOUSING ASSEMBLY WATER TUBE | 1 |
| 3 | 25329 | 水管密封件 | SEAL WATER TUBE | 1 |
| 4 | 96247 | 水管隔套 | SPACER WATER TUBE | 1 |
| 4 | 889715 | 水管隔套 | SPACER Water Tube | 1 |
| 5 | 99702A6 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 5 | 99702A7 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 6 | 416704 | 适配板垫片 | GASKET ADAPTOR PLATE | 1 |
| 6 | 41670006 | 适配板垫片 | GASKET Adaptor Plate | 1 |
| 7 | 158662 | 适配板密封件 | SEAL ADAPTOR PLATE | 1 |
| 8 | 41211 | 上支架托架 | BRACKET UPPER MOUNT | 2 |
| 9 | 40011128 | 螺丝 M6×20不锈钢(不配合参考号10使用) | SCREW (M6 x 20) Stainless Steel (Use Without Reference #10) | 2 |
| 9 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 9 | 40007128 | 螺丝 M6×20(配合参考号10使用) | SCREW (M6 x 20) (Use With Reference #10) | 2 |
| 10 | 29245 | 垫圈（0.281 x 0.500 x 0.060）不锈钢（适用处使用） | WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE) | 2 |
| 10 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 11 | 85116 | 水管(短轴) | TUBE Water (SHORT SHAFT) | 1 |
| 11 | 86292 | 水管(长轴) | TUBE Water (LONG SHAFT) | 1 |
| 12 | 9097A2 | 驱动轴壳体总成(短轴)(黑色) | HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (BLACK) | 1 |
| 12 | 9097T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9098A2 | 驱动轴壳体总成(长轴)(黑色) | HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (BLACK) | 1 |
| 12 | 9098T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097A3 | 驱动轴壳体总成(短轴)(灰色) | HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (GRAY) | 1 |
| 12 | 9097T6 | 驱动轴壳体-灰色 | DRIVESHAFT HSG-GR | 1 |
| 12 | 9098A3 | 驱动轴壳体总成(长轴)(灰色) | HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (GRAY) | 1 |
| 12 | 9098A6 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097A4 | 驱动轴壳体总成(短轴)(TRACKER) | HOUSING ASSEMBLY Driveshaft (SHORT) (TRACKER) | 1 |
| 12 | 9098A4 | 驱动轴壳体总成(长轴)(TRACKER) | HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER) | 1 |
| 12 | 9098T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 13 | 433373 | 驱动轴壳体垫片 | GASKET DRIVE SHAFT HOUSING | 1 |
| 13 | 433374 | 驱动轴壳体垫片 | GASKET Drive Shaft Housing | 1 |
| 14 | 14534 | 怠速泄压盖 | COVER IDLE RELIEF | 1 |
| 15 | 14621 | 盖衬垫 | GASKET COVER | 1 |
| 16 | 14742 | 盖螺钉(.250-20 x 1.25) | SCREW (.250-20 x 1.25) COVER | 1 |
| 17 | 4000360 | 驱动轴壳体至缸体螺钉(60mm) | SCREW DRIVE SHAFT HOUSING TO BLOCK (60 MM) | 6 |
| 17 | 1993870 | 螺钉(M8 x 70) | SCREW (M8 x 70) | 6 |
| 18 | 4002317 | 驱动轴壳体螺钉垫圈(8.90 X 17.0 X 1.9不锈钢) | WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW | 6 |
| 19 | 19583 | 衬垫(按需使用) | GASKET (USE WHERE APPLICABLE) | 1 |
| 19 | 433373 | 衬垫 | GASKET | 1 |
| 20 | 30164 | 壳体螺钉垫圈(.192 x .375 x .0312不锈钢) | WASHER (.192 x .375 x .0312) Stainless Steel HOUSING SCREW | 2 |
| 21 | 17258T | 配平盖(黑色) | TRIM COVER (BLACK) | 1 |
| 21 | 17258T6 | 配平盖(灰色) | TRIM COVER (GRAY) | 1 |
| 21 | 17258T | 配平盖 | TRIM COVER | 1 |
| 21 | 17258F4 | 配平盖(追踪器型) | TRIM COVER (TRACKER) | 1 |
| 21 | 17258T | 配平盖 | TRIM COVER | 1 |
| 22 | 40011128 | 配平盖螺钉(M6 x 20不锈钢) | SCREW (M6 x 20) Stainless Steel TRIM COVER | 4 |
| 22 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 23 | 401196 | 配平盖螺钉螺母(M6) | NUT (M6) TRIM COVER SCREW | 4 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 816770 | 整流器 | RECTIFIER | 1 |
| 1 | 8M0058226 | 整流器 | RECTIFIER | 1 |
| 2 | 48409 | 螺丝(#10-16 x .625)不锈钢整流器至气缸体 | SCREW (#10-16 x .625) Stainless Steel RECTIFIER TO CYLINDER BLOCK | 2 |
| 3 | 45076 | 螺母(#10-32)黄铜整流器端子 | NUT (#10-32) Brass RECTIFIER TERMINALS | 3 |
| 4 | 96054 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 4 | 8M0185149 | 启动电磁阀 | SOLENOID START | 1 |
| 5 | 4000327 | 螺钉(M6 x 14) 起动机电磁阀至曲轴箱 | SCREW (M6 x 14) STARTER SOLENOID TO CRANKCASE | 2 |
| 6 | 26419 | 螺母(#8-32)黄铜启动电磁阀端子 | NUT (#8-32) Brass STARTER SOLENOID TERMINAL | 2 |
| 7 | 64015 | 螺母(.250-20)启动电磁阀端子 | NUT (.250-20) STARTER SOLENOID TERMINAL | 2 |
| 8 | 88809A5 | 电线总成（黄色） | WIRE ASSEMBLY (YELLOW) | 1 |
| 9 | 88439A8 | 电池电缆总成(红色) | CABLE ASSEMBLY Battery (RED) | 1 |
| 9 | 88439A27 | 电缆总成红色-电池 | CABLE ASSEMBLY Red - Battery | 1 |
| 9 | 88439A6 | 电池电缆总成(黑色) | CABLE ASSEMBLY Battery (BLACK) | 1 |
| 9 | 88439A28 | 电缆总成电池-黑色 | CABLE ASSEMBLY Battery - Black | 1 |
| 10 | 92436A5 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 11 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 11 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 12 | 92753 | 固定座 | RETAINER | 1 |
| 13 | 55098 | J型卡扣 | J CLIP | 1 |
| 13 | 8M0024808 | J型夹 | J-CLIP | 1 |
| 14 | 90983A1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 14 | 8M0033984 | 启动马达 | STARTER MOTOR | 1 |
| 15 | 96561 | 驱动套件 | DRIVE KIT | 1 |
| 16 | 96562 | 驱动器 | DRIVE | 1 |
| 17 | 96563 | 端盖 | END CAP | 1 |
| 17 | 96563T | 端盖 | END CAP | 1 |
| 18 | 96565 | 电枢 | ARMATURE | 1 |
| 19 | 96564 | 端盖 | END CAP | 1 |
| 19 | 96564T | 端盖 | END CAP | 1 |
| 20 | 96566 | 贯穿螺栓 | THRU BOLT | 1 |
| 21 | 421251 | 螺钉(M8 x 55) 起动机固定 | SCREW (M8 x 55) STARTER MOTOR ATTACHING | 2 |
| 21 | 42125 | 螺钉(M8x55) | SCREW (M8 x 55) | 2 |
| 22 | 134731 | 保险丝座(旧设计) | HOLDER Fuse (OLD DESIGN) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 87946A15 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 2 | 858731 | 球形燃油滤清器 | BALL Fuel Filter | 1 |
| 3 | 87946Q04 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 4 | 98277 | 密封件 | SEAL | 1 |
| 4 | 897536 | 密封件 | SEAL | 1 |
| 5 | 830756109 | 软管 (57.00英寸整卷) (裁切为7.50英寸) | HOSE (57.00 Inches Bulk) (Cut to 7.50 Inch Length) | 1 |
| 5 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 6 | 830756109 | 软管 (57.00英寸整卷) (裁切为5.50英寸) | HOSE (57.00 Inches Bulk) (Cut to 5.50 Inch Length) | 1 |
| 6 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 7 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 8 | 127332 | 快怠速线 | WIRE Fast Idle | 1 |
| 9 | 11277 | 张力弹簧 | SPRING Tension | 1 |
| 10 | 128053 | 快怠速杆 | LEVER Fast Idle | 1 |
| 11 | 12803 | 启动泵支架 | BRACKET Primer | 1 |
| 12 | 174421 | 化油器盖 | COVER Carburetor | 1 |
| 13 | 47579 | 堵头 | PLUG | 1 |
| 14 | 40011110 | 螺钉(M5×30不锈钢) | SCREW (M5 x 30) Stainless Steel | 2 |
| 15 | 79965 | 螺丝 (#8-32 x .500) 不锈钢 | SCREW (#8-32 x .500) Stainless Steel | 1 |
| 16 | 79964 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 16 | 12110 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 1 |
| 17 | 821979 | 螺母 | NUT | 1 |
| 18 | 112731 | 启动泵杆 | LEVER Primer | 1 |
| 19 | 11280 | 凸轮块 | CAM BLOCK | 1 |
| 20 | 11278 | 固定夹 | CLIP Retaining | 1 |
| 21 | 172291 | 阻风门面板 | BEZEL Choke | 1 |
| 22 | 128022 | 启动泵旋钮 | PRIMER KNOB | 1 |
| 23 | 823907T9 | 化油器 (WMC-64) (20马力) | CARBURETOR (WMC-64) (20 Hp) | 1 |
| 23 | 823907T12 | 化油器 (WMC-85A) | CARBURETOR (WMC-85A) | 1 |
| 23 | 817405T16 | 化油器 (WMC-65) (25马力/喷口20) | CARBURETOR (WMC-65) (25 Hp/Jet 20 | 1 |
| 23 | 817405T23 | 化油器 | CARBURETOR | 1 |
| 24 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| 25 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| 26 | 15781A9 | 燃油连接套件 | CONNECTOR KIT Fuel | 1 |
| 27 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 1 |
| 27 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 1 |
| 28 | 18202 | 护孔环 | GROMMET | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 804946T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 87946A15 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 1 | 889527A07 | 滤清器套件 | FILTER KIT | 1 |
| 2 | 91935 | 钢球 | BALL | 1 |
| 2 | 858731 | 球形燃油滤清器 | BALL Fuel Filter | 1 |
| 3 | 87946A3 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 3 | 87946Q04 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 4 | 98277 | 密封件 | SEAL | 1 |
| 4 | 897536 | 密封件 | SEAL | 1 |
| 5 | 830756109 | 软管(57.00英寸整卷)(裁切至7.50英寸) | HOSE (57.00 Inches Bulk) (Cut to 7.50 Inches) | 1 |
| 5 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 6 | 830756109 | 软管（57.00英寸散装）（切割至5.50英寸） | HOSE (57.00 Inches Bulk) (Cut to 5.50 Inches | 1 |
| 6 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 7 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 7 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 8 | 18202 | 护孔环 | GROMMET | 1 |
| 9 | 15781A9 | 燃油连接套件 | CONNECTOR KIT Fuel | 1 |
| 10 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 1 |
| 10 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 1 |
| 11 | 11278 | 固定夹 | CLIP Retaining | 1 |
| 12 | 817426 | 阻风门面板嵌件 | INSERT Choke Bezel | 1 |
| 13 | 172291 | 阻风门面板 | BEZEL Choke | 1 |
| 14 | 817424 | 阻风门旋钮 | KNOB Choke | 1 |
| 15 | 817425 | 阻风门连杆 | LINK Choke | 1 |
| 16 | 174421 | 化油器盖 | COVER Carburetor | 1 |
| 17 | 47579 | 堵头 | PLUG | 1 |
| 18 | 40011110 | 螺钉(M5×30不锈钢) | SCREW (M5 x 30) Stainless Steel | 2 |
| 19 | 41750 | 嵌件 | INSERT | 2 |
| 19 | 41750T | 嵌件 | INSERT | 2 |
| 20 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 1 |
| 21 | 8243701 | 节气门止动块 | STOP Throttle | 1 |
| 22 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| 23 | 823907A3 | 化油器 | CARBURETOR | 1 |
| 23 | 823907T13 | 化油器 (WMC-86) | CARBURETOR (WMC-86) | 1 |
| 23 | 817405A12 | 化油器 | CARBURETOR | 1 |
| 23 | 817405T20 | 化油器 (WMC-88) | CARBURETOR (WMC-88) | 1 |
| 24 | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 90885A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 804946T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 192061 | 化油器衬垫 | GASKET Carburetor | 1 |
| - | 414172 | 簧片阀衬垫 | GASKET Reed Block | 1 |
| - | 414181 | 化油器适配板衬垫 | GASKET Carb Adaptor Plate | 1 |
| - | 822370 | O型圈 (2.362 x .103) 换气口盖 | O-RING (2.362 x .103) Transfer Cover Port | 2 |
| - | 86391 | 增压口盖O型圈 | O-RING Boost Port Cover | 2 |
| - | 863895 | 气缸盖罩衬垫 | GASKET Cylinder Head Cover | 1 |
| - | 143183 | 节温器盖衬垫 | GASKET Thermostat Cover | 1 |
| - | 14318005 | 衬垫 | GASKET | 1 |
| - | 62386 | 节温器衬垫 | GASKET Thermostat | 1 |
| - | 8M0204714 | 衬垫@4 | GASKET @4 | 1 |
| - | 822370 | O型圈 (2.362 x .103) 换气口盖 | O-RING (2.362 x .103) Transfer Port Cover | 2 |
| - | 414758 | 排气歧管衬垫 | GASKET Exhaust Manifold | 1 |
| - | 892158 | 排气歧管衬垫 | GASKET Exhaust Manifold | 1 |
| - | 414995 | 排气歧管盖衬垫 | GASKET Exhaust Manifold Cover | 1 |
| - | 892157 | 排气歧管盖衬垫 | GASKET Exhaust Manifold Cover | 1 |
| - | 822445A1 | 曲轴耐磨套 | WEAR SLEEVE Crankshaft | 1 |
| - | NSS | 不单独销售 O型圈, 曲轴耐磨套 | NOT SOLD SEPARATE O-Ring, Crankshaft Wear Sleeve | 1 |
| - | 86993 | 衬套套件O型圈 | O-RING Bushing Kit | 1 |
| - | 41670 | 驱动轴壳体适配板衬垫 | GASKET Drive Shaft Housing Adaptor Plate | 1 |
| - | 41670006 | 适配板垫片 | GASKET Adaptor Plate | 1 |
| - | 25329 | 进水管密封 | SEAL Water Inlet Tube | 1 |
| - | 433374 | 驱动轴壳体垫片 | GASKET Drive Shaft Housing | 1 |
| - | 14621 | 怠速泄压盖衬垫 | GASKET Idle Relief Cover | 1 |
| - | 993261 | 水泵底座衬垫 | GASKET Base Water Pump | 1 |
| - | 69202 | 水泵O型圈 | O-RING Water Pump | 1 |
| - | 85090 | 水管密封件 | SEAL Water Tube | 1 |
| - | 85090001 | 密封件 | SEAL | 1 |
| - | 86203 | 传动轴橡胶O型圈 | O-RING Drive Shaft Rubber | 1 |
| - | 35276 | 换挡轴O型圈(.734 x .139) | O-RING (.734 x .139) Shift Shaft (.734 x .139) | 1 |
| - | 85594 | 换挡轴O型圈(.239 x .174) | O-RING (.239 x .174) Shift Shaft (.239 x .174) | 1 |
| - | 85549 | 螺旋桨轴外油封O型圈 | O-RING Propeller Shaft Outer Oil Seal | 1 |
| - | 26722 | 换气口盖O型圈 | O-RING Transfer Port Cover | 2 |
| - | 414991 | 排气盖衬垫 | GASKET Exhaust Cover | 1 |
| - | 86389 | 缸头盖衬垫 | GASKET Head Cover | 1 |
| - | 86203 | 传动轴橡胶O型圈 | O-RING Drive Shaft Rubber | 1 |
| - | 88004 | 化油器衬垫 | GASKET Carburetor | 1 |
| - | 16524 | 燃油接头O型圈 | O-RING Fuel Connector | 1 |
| - | 99691 | 密封O型圈 | O-RING Seal | 1 |
| - | 85977 | 橡胶簧片阀密封 | SEAL Rubber Reed Block | 1 |
| - | 85977002 | 密封件 | SEAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8669T26 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8669T28 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083538 | GC BASIC 25 2S | GC BASIC 25 2S | 1 |
| 2 | 41121 | 套筒 | SLEEVE | 1 |
| 3 | 99325 | 密封件 | SEAL | 2 |
| 4 | 41326 | 滚柱轴承 | BEARING Roller | 1 |
| 5 | 85500 | 定位销(.187 x .530) | PIN Dowel (.187 x .530) | 2 |
| 5 | 8M0084726 | 定位销 | PIN Dowel | 2 |
| 6 | 79953Q2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 1 |
| 6 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 7 | 191832 | 垫圈 | WASHER | 1 |
| 7 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 8 | 41133 | 进水口滤网 | SCREEN Water Inlet Port | 1 |
| 9 | 40031112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 1 |
| 10 | 79953Q2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 1 |
| 10 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 10 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | 1 |
| 10 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 11 | 191832 | 垫圈 | WASHER | 1 |
| 11 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 12 | 41134 | 滤网 | SCREEN | 1 |
| 13 | 401365 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 14 | 98294A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 15 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 16 | 49908 | 螺钉(.250-28 x .750) | SCREW (.250-28 x .750) | 1 |
| 17 | 98302 | 小齿轮(12齿) | GEAR Pinion (12 Teeth) | 1 |
| 18 | 993261 | 衬垫 | GASKET | 1 |
| 19 | 85083 | 面板 | FACE PLATE | 1 |
| 20 | 8M0027721 | 垫圈 | WASHER | 1 |
| 20 | 8M0204722 | 垫圈 | WASHER | 1 |
| 21 | 85119 | 键 | KEY | 1 |
| 21 | 8M0214993 | 键@5 | KEY @5 | 1 |
| 22 | 8508910 | 叶轮 | IMPELLER | 1 |
| 22 | 8M0204712 | 叶轮 | IMPELLER | 1 |
| 23 | 8M0027721 | 垫圈 | WASHER | 1 |
| 23 | 8M0204722 | 垫圈 | WASHER | 1 |
| 24 | 69202 | O型圈 | O-RING | 1 |
| 25 | 99157A1 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 25 | 99157A02 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 26 | NSS | 不单独销售嵌件 | NOT SOLD SEPARATE Insert | 1 |
| 27 | 85090 | 密封件 | SEAL | 1 |
| 27 | 85090001 | 密封件 | SEAL | 1 |
| 28 | 86203 | 橡胶O型圈 | O-RING Rubber | 1 |
| 29 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 30 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 30 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 31 | 8M0027720 | 短换挡轴 | SHIFT SHAFT Short | 1 |
| 31 | 862933 | 换档轴 | SHIFT SHAFT | 1 |
| 32 | 99199 | 驱动轴 | DRIVESHAFT | 1 |
| 32 | 99198 | 驱动轴 | DRIVESHAFT | 1 |
| 33 | 85552 | 护套 | BOOT | 1 |
| 33 | 85552001 | 护套 | BOOT | 1 |
| 34 | 93878 | 固定座 | RETAINER | 1 |
| 35 | 35276 | O型圈(.734 x .139) | O-RING (.734 x .139) | 1 |
| 36 | 85594 | O型圈(.239 x .174) | O-RING (.239 x .174) | 1 |
| 37 | 85091 | 垫圈 | WASHER | 1 |
| 38 | 93007 | 弹簧 | SPRING | 1 |
| 39 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 39 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 40 | 85593 | 销(.078 x .437) | PIN (.078 x .437) | 1 |
| 41 | 85562A2 | 换挡凸轮 | SHIFT CAM | 1 |
| 42 | 85096 | 驱动销 | PIN Drive | 1 |
| 43 | 29804T | 套筒 | SLEEVE | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| - | 99157T2 | 水泵套件 | PUMP KIT Water | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8669A26 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8669T26 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8669A28 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8669T28 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8669A27 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8669T27 | ORD 1665-8669T26 | ORD 1665-8669T26 | 1 |
| - | 8669A29 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 8669T29 | ORD 1665-8669T28 | ORD 1665-8669T28 | 1 |
| - | 8669A30 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083538 | GC BASIC 25 2S | GC BASIC 25 2S | 1 |
| 1 | 8669A22 | 齿轮箱总成基础型-灰色 | GEAR HOUSING ASSEMBLY Basic-Gray | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8669A25 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 8669A39 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 43 | 984325 | 平衡鳍板 | TRIM TAB | 1 |
| 43 | 98432Q6 | 平衡鳍板 | TRIM TAB | 1 |
| 44 | 4000354 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 1 |
| 45 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 1 |
| 45 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 1 |
| 46 | 43328 | 垫圈 | WASHER | 4 |
| 47 | 4000378 | 不锈钢螺钉(M10 x 35) | SCREW (M10 x 35) Stainless Steel | 4 |
| 47 | 87810178 | 螺钉(M10 x 35) | SCREW (M10 x 35) | 4 |
| 48 | 99328A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 48 | 8M0103470 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 49 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 50 | 44213A1 | 前进齿轮总成（27齿） | GEAR ASSEMBLY Forward (27 TEETH) | 1 |
| 50 | 44213T1 | 前进齿轮 | GEAR Forward | 1 |
| 51 | 85557 | 衬套 | BUSHING | 1 |
| 52 | 85094 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 53 | 38114 | 弹簧 | SPRING | 1 |
| 54 | 410401 | 离合器 | CLUTCH | 1 |
| 54 | 41040T1 | 离合器 | CLUTCH | 1 |
| 55 | 85093 | 销 | PIN | 1 |
| 55 | 8M0020999 | 十字销 | PIN CROSS | 1 |
| 56 | 88680 | 弹簧 | SPRING | 1 |
| 57 | 8166231 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 58 | 99542 | 倒车齿轮（27齿） | GEAR Reverse (27 TEETH) | 1 |
| 58 | 99542T | 倒挡齿轮 | GEAR Reverse | 1 |
| 59 | 99906A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 59 | 99906T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 60 | 21739 | 滚柱轴承 | BEARING Roller | 1 |
| 61 | 41132 | 油封(内) | SEAL Oil (INNER) | 1 |
| 62 | 41131 | 油封(外) | SEAL Oil (OUTER) | 1 |
| 62 | 8M0245761 | 油封 | SEAL OIL | 1 |
| 63 | 85549 | O型圈 | O-RING | 1 |
| 64 | 87293 | 安装板 | PLATE | 1 |
| 65 | 90883 | 螺钉(M5×16) | SCREW (M5 x 16) | 3 |
| 66 | 8M0027793 | 轮毂 | HUB | 1 |
| 66 | 858498 | 推力毂总成 | THRUST HUB ASSEMBLY | 1 |
| 67 | 19640A40 | BLACK MAX螺旋桨 | BLACK MAX PROPELLER | 1 |
| 67 | 19638A40 | BLACK MAX螺旋桨 | BLACK MAX PROPELLER | 1 |
| 68 | 88228 | 螺旋桨螺母 | PROP NUT | 1 |
| 68 | 4011912 | 螺旋桨螺母 | PROP NUT | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 86617A13 | 定子总成 | STATOR ASSEMBLY | 1 |
| 1 | 86617A20 | 定子总成 | STATOR ASSEMBLY | 1 |
| 2 | 4000120 | 螺丝(M5 x 25) | SCREW (M5 x 25) | 2 |
| 2 | 400015 | 螺钉(M5x10) 定子固定 | SCREW (M5 x 10) STATOR ATTACHING | 2 |
| 3 | 98450A5 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 3 | 98450A10 | 触发器总成 | TRIGGER ASSEMBLY | 1 |
| 4 | 24836 | 触发器线夹 | CLIP TRIGGER LEADS | 1 |
| 4 | 22740 | 触发器线夹 | CLIP TRIGGER LEADS | 1 |
| 5 | 48408 | 螺钉(#10-16x0.5) 线夹至曲轴箱 | SCREW (#10-16 x .500) CLIP TO CRANKCASE | 1 |
| 6 | 69205 | C形垫圈线夹螺钉 | C WASHER CLIP SCREW | 1 |
| 6 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 7 | 7370A13 | 点火线圈总成 | COIL ASSEMBLY Ignition | 2 |
| 7 | 8M0230859 | 点火线圈总成 | COIL IGNITION ASY | 2 |
| 8 | 99762 | 点火线圈盖 | COVER IGNITION COIL | 1 |
| 8 | 997621 | 点火线圈盖 | COVER Ignition Coil | 1 |
| 9 | 4010555 | 螺钉(M5x55)不锈钢 点火线圈盖 | SCREW (M5 x 55) Stainless Steel IGNITION COIL COVER | 3 |
| 9 | 1994155 | 螺钉(M5 x 55) | SCREW (M5 x 55) | 3 |
| 10 | 45076 | 螺母 (#10-32) 黄铜线圈端子 | NUT (#10-32) Brass COIL TERMINAL | 4 |
| 11 | 813715A3 | 高压线 | HIGH TENSION LEADS | 1 |
| 11 | 813715A2 | 高压电缆组（5和8.25英寸） | CABLE SET High Tension (5 and 8.25 Inch) | 1 |
| 11 | 813715A2 | 高压线束组（5和8.25英寸）（商用发动机） | CABLE SET High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES) | 1 |
| 12 | 63709A1 | 火花塞护套/端子套件 | BOOT/TERMINAL KIT SPARK PLUG | 2 |
| 13 | 97180 | 火花塞（NGK #BUZHW） | SPARK PLUG (NGK #BUZHW) | 2 |
| 13 | 896329827 | SP #L76V @4 | SP #L76V @4 | 2 |
| 13 | 14103570 | 火花塞（NGK #BUZHW-2） | SPARK PLUG (NGK #BUZHW-2) | 2 |
| 13 | 14103Q | ORD 896329838 | ORD 896329838 | 2 |
| 13 | 136862 | 火花塞（NGK #BU8H） | SPARK PLUG (NGK #BU8H) | 2 |
| 13 | 13686Q | NGK BU8H @10 | NGK BU8H @10 | 2 |
| 13 | 8167372 | 火花塞(NGK BP8H-N-10) | SPARK PLUG (NGK #BP8H-N-10) | 2 |
| 13 | 816737Q | NGK BP8HN-10@10 | NGK BP8HN-10@10 | 2 |
| 13 | 8168372 | 火花塞(NGK #BPZ8H-N-10) | SPARK PLUG (NGK #BPZ8H-N-10) | 2 |
| 13 | 938 | SP #QL78YC @4 | SP #QL78YC @4 | 2 |
| 14 | 7452A15 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 14 | 7452A19 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 15 | 40019108 | 螺钉 (M5 x 20) 开关盒至气缸体 | SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK | 3 |
| 17 | 88807A10 | 辅助线束总成 | CABLE ASSEMBLY AUXILIARY | 2 |
| 18 | 48408 | 螺钉 (#10-16 x .500) 接地线 | SCREW (#10-16 x .500) GROUND WIRE | 1 |
| 19 | 86704A2 | 辅助定子总成 | STATOR ASSEMBLY AUXILIARY | 1 |
| 19 | 86704A10 | 辅助定子 | STATOR Auxiliary | 1 |
| 20 | 4000123 | 螺钉(M5 x 30)定子固定 | SCREW (M5 x 30) STATOR ATTACHING | 3 |
| 21 | 63813 | 端子排 | TERMINAL BLOCK | 1 |
| 21 | 638131 | 端子排 | TERMINAL BLOCK | 1 |
| 22 | 48409 | 螺钉(#10-16 x .625)不锈钢接线板 | SCREW (#10-16 x .625) Stainless Steel TERMINAL BLOCK | 2 |
| 23 | 95845 | 电压调节器 | REGULATOR Voltage | 1 |
| 23 | 95845T | 电压调节器 | REGULATOR-VOLTAGE | 1 |
| 24 | 92799 | 螺钉(#10-16x1.12) | SCREW (#10-16 x 1.12) | 2 |
| 25 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 26 | 74725A2 | 线束总成(黑/红) | HARNESS ASSEMBLY (BLACK/RED) | 1 |
| 27 | 71663 | 堵头 | PLUG | 1 |
| 28 | 65017A2 | 外部线束总成 | HARNESS ASSEMBLY (EXTERNAL) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 87599 | 螺母 | NUT | 1 |
| 2 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 1 |
| 3 | 8239522 | 换挡手柄 | SHIFT HANDLE | 1 |
| 4 | 828251 | 拉杆端头 | ROD END | 1 |
| 5 | 828252 | 弹簧 | SPRING | 2 |
| 6 | 846673 | 不锈钢垫圈(.265 x .500 x .060) | WASHER (.265 x .500 x .060) Stainless Steel | 2 |
| 7 | 56206 | 开口销 | COTTER PIN | 2 |
| 8 | 29598 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 2 |
| 9 | 828253 | 换挡杆 | LEVER Shift | 1 |
| 10 | 828254 | 螺钉 (#10-32 x .750) | SCREW (#10-32 x .750) | 1 |
| 11 | 828255 | 螺钉(#10-32 x 2.50) | SCREW (#10-32 x 2.50) | 1 |
| 12 | 828256 | 换挡连杆 | SHIFT ROD | 1 |
| 13 | 828257 | 拉杆端头 | ROD END | 1 |
| 14 | 828258 | 倾斜锁止杆 | TILT LATCH ROD | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 801400251 | 喷泵总成 | JET PUMP ASSEMBLY | 1 |
| - | 856143A4 | 喷泵总成 | JET PUMP ASSEMBLY | 1 |
| - | 856143A4 | 喷泵总成 | JET PUMP ASSEMBLY | 1 |
| 1 | 801411251 | 泵壳 | HOUSING Pump | 1 |
| 2 | 827490 | 润滑油管 | HOSE Lube | 1 |
| 3 | 878376 | 换挡连杆套件 | SHIFT LINKAGE KIT | 1 |
| 4 | 878381 | 凸轮 | CAM | 1 |
| 5 | 878378 | 倒车挡板(带缓冲) | GATE Reverse - With Bumper | 1 |
| 6 | 855708T25 | 叶轮 | IMPELLER | 1 |
| 7 | 80141225 | 进气壳体 | HOUSING Intake | 1 |
| 8 | 827188T | 衬套 | LINER | 1 |
| 9 | 80141325 | 驱动轴 | DRIVESHAFT | 1 |
| 9 | 8M0084536 | 驱动轴 | DRIVESHAFT | 1 |
| 10 | 879652 | 止推垫片 | THRUST WASHER | 1 |
| 11 | 879653 | 滚珠轴承 | BEARING Ball | 1 |
| 12 | 827189 | 套筒 | SLEEVE | 1 |
| 13 | 827190 | 螺母 | NUT | 1 |
| 14 | 801430 | 适配器 | ADAPTER | 1 |
| 15 | 801431 | 泵底座 | BASE Pump | 1 |
| 16 | 846500 | 不锈钢螺钉(#10-32 x 1.00) | SCREW (#10-32 x 1.00) Stainless Steel | 4 |
| 17 | 19925125 | 螺钉(.375-16 x 1.25) | SCREW (.375-16 x 1.25) | 1 |
| 18 | 34931 | 不锈钢垫圈(.406x.734x.063) | WASHER (.406 x .734 x .063) Stainless Steel | 1 |
| 19 | 19924200 | 螺钉(.312-18 x 2.00) | SCREW (.312-18 x 2.00) | 4 |
| 20 | 12038 | 垫圈 | WASHER | 4 |
| 20 | 8M0207778 | 垫圈（0.344×0.625×0.063英寸） | WASHER .344 x .625 x.063 | 4 |
| 21 | 801432 | 螺钉(M10 x 35) | SCREW (M10 x 35) | 4 |
| 22 | 801405625 | 叶轮键 | KEY Impeller | 1 |
| 23 | 801404625 | 叶轮垫片 | SHIM Impeller | 8 |
| 24 | 801403625 | 锁紧垫圈 | TAB WASHER | 1 |
| 25 | 90192 | 螺钉(.250-20 x .750)不锈钢 | SCREW (.250-20 x .750) Stainless Steel | 6 |
| 26 | F2211 | 不锈钢螺钉(#10-24 x .625) | SCREW (#10-24 x .625) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 85083 | 面板 | FACE PLATE | 1 |
| 2 | 8M0027721 | 垫圈 | WASHER | 1 |
| 2 | 8M0204722 | 垫圈 | WASHER | 1 |
| 3 | 85119 | 键 | KEY | 1 |
| 3 | 8M0214993 | 键@5 | KEY @5 | 1 |
| 4 | 850893 | 叶轮 | IMPELLER | 1 |
| 4 | 8M0204712 | 叶轮 | IMPELLER | 1 |
| 5 | 8M0027721 | 垫圈 | WASHER | 1 |
| 5 | 8M0204722 | 垫圈 | WASHER | 1 |
| 6 | 69202 | O型圈 | O-RING | 1 |
| 7 | 99157A1 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 7 | 99157A02 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 8 | NSS | 不单独销售嵌件 | NOT SOLD SEPARATE Insert | 1 |
| 9 | 85090 | 密封件 | SEAL | 1 |
| 9 | 85090001 | 密封件 | SEAL | 1 |
| 10 | 86203 | O-RING RUBBER | 1 | |
| 11 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 11 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 4 |
| 12 | 85095 | 衬套（与M5 x 16参考号11一起使用） | BUSHING (USE WITH M5 X 16 REF. #11) | 4 |
| 12 | 8M0214959 | 衬套@5 | BUSHING @5 | 4 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| - | 99157A2 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 99157T2 | 水泵套件 | PUMP KIT Water | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NOPART | 无零件清单 | NO PARTS LIST | 0 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 18583 | 零件手册 20马力/25马力 SEA PRO/MARATHON 25 SUPER 15 | PARTS MANUAL 20 H.P /25 H.P. SEA PRO /MARATHON 25 SUPER 15 | |
| - | 11044940 | 用户指南(黑色) | OWNERS GUIDE (BLACK) | |
| - | 11046940 | 用户指南(灰色) | OWNERS GUIDE (GRAY) | |
| - | 816756940 | 用户指南（SEA PRO 25） | OWNERS GUIDE (SEA PRO 25) | |
| - | 816758940 | 用户指南（MARATHON 25） | OWNERS GUIDE (MARATHON 25) | |
| - | 13480A88 | 贴花套装(BLACK-20)设计I | DECAL SET (BLACK-20) DESIGN I | |
| - | 13239A88 | 贴花套装(BLACK-25)设计I | DECAL SET (BLACK-25) DESIGN I | |
| - | 811304A91 | 贴花套装(SeaPro 25)设计I | DECAL SET (SeaPro 25) DESIGN I | |
| - | 821574A92 | 贴花套装(Black-Super 15) | DECAL SET (Black-Super 15) | |
| - | 810461A92 | 贴花套装(Gray 20/25) | DECAL SET (Gray 20/25) | 1 |
| - | 824091A94 | 贴花套装(BLACK-20)设计II | DECAL SET (BLACK-20) DESIGN II | |
| - | 824091A00 | 贴花套装(Black 20/Jet 20) | DECAL SET (Black 20/Jet 20) | |
| - | 808499A94 | 贴花套装(BLACK-25)设计II | DECAL SET (BLACK-25) DESIGN II | |
| - | 808499A00 | 贴花套装(Black 25) | DECAL SET (Black 25) | |
| - | 821574A94 | 贴花套装(BLACK-SUPER 15)设计II | DECAL SET (BLACK-SUPER 15) DESIGN II | |
| - | 826307A95 | 贴花套装 Black - Super 15/Seapro 15 XD | DECAL SET Black - Super 15/Seapro 15 XD | |
| - | 811304A94 | 贴花套装(BLACK SEA PRO 25)设计II | DECAL SET (BLACK SEA PRO 25) DESIGN II | |
| - | 811304A00 | 贴花套装(Black Seapro 25) | DECAL SET (Black Seapro 25) | |
| - | 824092A94 | 贴花套装(GRAY-20)设计II | DECAL SET (GRAY-20) DESIGN II | |
| - | 824092A03 | 贴花套装(Gray 20) | DECAL SET (Gray 20) | |
| - | 824088A94 | 贴花套装(GRAY-25)设计II | DECAL SET (GRAY-25) DESIGN II | |
| - | 824088A03 | 贴花套装(Gray 25) | DECAL SET (Gray 25) | |
| - | 811305A91 | 贴花套装(MARATHON 25) | DECAL SET (MARATHON 25) | |
| - | 8588361 | 贴花套装 Gray - Super 15/Marathon 15 XD/Marathon 25 | DECAL SET Gray - Super 15/Marathon 15 XD/Marathon 25 | |
| - | 821401A92 | 贴花套装(GRAY-SUPER 15) | DECAL SET (GRAY-SUPER 15) | |
| - | 8588361 | 贴花套装 Gray - Super 15/Marathon 15 XD/Marathon 25 | DECAL SET Gray - Super 15/Marathon 15 XD/Marathon 25 | |
| - | 13480A93 | 贴花套装(25 AMERICA) | DECAL SET (25 AMERICA) | |
| - | 824731A94 | 贴花套装(TRACKER 25) | DECAL SET (TRACKER 25) |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 90906A17 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| - | 90906A23 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 1 | 42712A3 | 启动器壳体总成 | HOUSING ASSEMBLY Starter | 1 |
| 1 | 86689A5 | 启动器壳体总成 | HOUSING ASSEMBLY Starter | 1 |
| 2 | 90478 | 垫 | PAD | 1 |
| 2 | 833161T | 毛毡垫 | PAD-FELT | 1 |
| 3 | 868571 | 弹簧 | SPRING | 1 |
| 3 | 86857T01 | 弹簧 | SPRING | 1 |
| 4 | 825269A1 | 启动滑轮 | SHEAVE Starter | 1 |
| 4 | 825269T01 | 启动器滑轮总成 | SHEAVE STARTR ASU | 1 |
| 5 | 86851 | 弹簧 | SPRING | 2 |
| 5 | 86851T02 | 弹簧 @2 | SPRING @2 | 2 |
| 6 | 868501 | 凸轮 | CAM | 2 |
| 7 | 868491 | 挡圈 | RING Retaining | 2 |
| 7 | 86849T01 | 环 @2 | RING @2 | 2 |
| 8 | 826253 | 螺钉(.250-20 x .625) | SCREW (.250-20 x .625) | 1 |
| 9 | 86853 | 凸轮 | CAM | 1 |
| 9 | 86853T01 | 凸轮 | CAM | 1 |
| 10 | 868521 | 凸轮弹簧 | SPRING Cam | 1 |
| 10 | 868523 | 弹簧 | SPRING | 1 |
| 11 | 12066A9 | 绳索 | ROPE | 1 |
| 11 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| 12 | 85174A1 | 手柄总成 | HANDLE ASSEMBLY | 1 |
| 13 | NSS | 固定座(不单独销售) | NOT SOLD SEPARATE Retainer | 1 |
| 14 | 44180 | 绳索衬套 | BUSHING Rope | 1 |
| 15 | 426264 | 支架 | SUPPORT | 1 |
| 16 | 40019111 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 2 |
| 17 | 309772 | 隔套 | SPACER | 4 |
| 18 | 17212 | 支架 | SUPPORT | 1 |
| 18 | 856154T01 | 支架 | SUPPORT | 1 |
| 19 | 400633 | 螺母 (M5) | NUT (M5) | 2 |
| 19 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 2 |
| 20 | 938762 | 下操纵杆 | LEVER (LOWER) | 1 |
| 20 | 93876T02 | 杠杆 | LEVER | 1 |
| 21 | 38489 | 滚动销 | PIN Roll | 1 |
| 22 | 823778 | 上锁止杆弹簧 | SPRING Upper Lock Lever | 1 |
| 23 | 94019 | 上操纵杆 | LEVER (UPPER) | 1 |
| 23 | 858925 | 锁止杆 | LEVER Lock | 1 |
| 24 | 818853 | 挡圈 | RING Retaining | 1 |
| 25 | NSS | 不单独销售 贴花-发动机测试 | NOT SOLD SEPARATE Decal-Engine Test | 1 |
| 26 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 2 |
| 26 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 27 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 3 |
| 28 | 8268336 | 螺母 (M6) | NUT (M6) | 3 |
| 28 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 3 |
| 29 | 40011131 | 螺钉(M6 x 35) 不锈钢 | SCREW (M6 x 35) Stainless Steel | 1 |
| 30 | NSS | 不单独销售 贴花-高压 | NOT SOLD SEPARATE Decal-High Voltage | 1 |
| 31 | NSS | 不单独销售 贴花-维修参考 | NOT SOLD SEPARATE Decal-Servicing Referral | 1 |
| 32 | NSS | 不单独销售 贴花-紧急启动程序 | NOT SOLD SEPARATE Decal-Emergency Start Procedures | 1 |
| 33 | 42690 | 衬套 | BUSHING | 1 |
| 33 | 8M0183792 | 绳索衬套 | ROPE BUSHING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822238A2 | 旋转头(黑色) | SWIVEL HEAD (BLACK) | 1 |
| 1 | 822238A3 | 旋转头(灰色) | SWIVEL HEAD (GRAY) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 2 | 8692A13 | 旋转支架(黑色) | SWIVEL BRACKET (BLACK) | 1 |
| 2 | 822237A3 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 8692A14 | 旋转支架(灰色) | SWIVEL BRACKET (GRAY) | 1 |
| 2 | 822237A4 | 旋转支架 | SWIVEL BRACKET | 1 |
| 3 | 74036 | 润滑脂接头 | FITTING Grease | 3 |
| 3 | 8M0169589 | 润滑脂接头 | FITTING Grease | 3 |
| 4 | 11139A2 | 夹具总成 | CLAMP ASSEMBLY | 1 |
| 5 | 86993 | 旋转管O型圈 | O-RING SWIVEL TUBE | 1 |
| 1 | 822238A5 | 旋转头(黑色) | SWIVEL HEAD (BLACK) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 1 | 822238A6 | 旋转头(灰色) | SWIVEL HEAD (GRAY) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 1 | 822238A7 | 旋转头(TRACKER) | SWIVEL HEAD (TRACKER) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 2 | 822237A3 | 旋转支架(黑色) | SWIVEL BRACKET (BLACK) | 1 |
| 2 | 822237A4 | 旋转支架(灰色) | SWIVEL BRACKET (GRAY) | 1 |
| 2 | 822237A3 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 822237A5 | 旋转支架(TRACKER) | SWIVEL BRACKET (TRACKER) | 1 |
| 2 | 822237A4 | 旋转支架 | SWIVEL BRACKET | 1 |
| 3 | 74036 | 润滑脂接头 | FITTING Grease | 3 |
| 3 | 8M0169589 | 润滑脂接头 | FITTING Grease | 3 |
| 4 | 85154A1 | 衬套套装 | BUSHING KIT | 1 |
| 5 | 86993 | O型圈 | O-RING | 1 |
| 6 | 821961 | 杆 | ROD | 1 |
| 7 | 8165621 | 圆盘 | DISC | 2 |
| 8 | 821958 | 旋转头板 | PLATE Swivel Head | 1 |
| 8 | 821958A1 | 板组件套件 | PLATE KIT | 1 |
| 9 | 768041 | 螺钉 | SCREW | 2 |
| 9 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 10 | 821957 | 制动板 | BRAKE PLATE | 1 |
| 11 | 29330 | 垫圈 | WASHER | 1 |
| 12 | 821959 | 手柄 | HANDLE | 1 |
| 13 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 1 |
| 13 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 14 | 12516 | 螺丝 M8×133.35(上支架) | SCREW (M8 x 133.35) UPPER MOUNT | 2 |
| 14 | 125161 | 螺丝 M8×133 | SCREW (M8 x 133) | 2 |
| 15 | 14894 | 上支架 | MOUNT UPPER | 2 |
| 16 | 85172 | 橡胶垫圈(上支架螺丝) | WASHER RUBBER - UPPER MOUNT SCREW | 2 |
| 17 | 43430 | 上部支架螺钉垫圈 | WASHER UPPER MOUNT SCREW | 2 |
| 18 | 400213 | 螺母 M8不锈钢(上支架螺丝) | NUT (M8) Stainless Steel UPPER MOUNT SCREW | 2 |
| 19 | 16554 | 倒挡钩杆 | ROD REVERSE HOOK | 1 |
| 20 | 98830A2 | 倒挡锁钩总成 | HOOK ASSEMBLY REVERSE LOCK | 1 |
| 21 | 96018 | 倒挡钩弹簧(左舷) | SPRING REVERSE HOOK - PORT | 1 |
| 22 | 97427 | 弹簧(右舷-电动) | SPRING (STARBOARD - ELECTRIC) | 1 |
| 22 | 12755 | 弹簧(右舷-手动/电动手柄) | SPRING (STBD - MANUAL/ELECTRIC HANDLE) | 1 |
| 22 | 879894 | 弹簧 | SPRING | 1 |
| 23 | 85122 | 下支架 | MOUNT LOWER | 2 |
| 23 | 85122001 | 下支架 | MOUNT Lower | 2 |
| 24 | 85123 | 前缓冲垫 | BUMPER Front | 1 |
| 24 | 85123001 | 前缓冲垫 | BUMPER Front | 1 |
| 25 | 17232A1 | 下支架盖(黑色) | COVER LOWER MOUNT (BLACK) | 1 |
| 25 | 17232A2 | 下支架盖(灰色) | COVER LOWER MOUNT (GRAY) | 1 |
| 25 | 17232A1 | 盖板 | COVER | 1 |
| 25 | 17232A3 | 下支架盖(TRACKER) | COVER LOWER MOUNT (TRACKER) | 1 |
| 26 | 4009259 | 螺丝 60mm | SCREW (60 MM) | 1 |
| 26 | 1994360 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 1 |
| 27 | 4009263 | 螺丝 100mm | SCREW (100 MM) | 2 |
| 27 | 19943100 | 螺丝(M8 x 100) | SCREW (M8 x 100) | 2 |
| 28 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 3 |
| 29 | 36001 | 垫圈 | WASHER | 3 |
| 30 | 12756 | 支架 | BRACKET | 1 |
| 31 | 12758 | 控制杆 | LEVER CONTROL | 1 |
| 32 | 12754 | 弹簧 | SPRING | 1 |
| 33 | 13195 | 销 | PIN | 1 |
| 34 | 13194 | 挡圈 | RING Retaining | 2 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 2 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 823857A1 | 火花调节连杆总成 | LINK ASSEMBLY Spark Adjustment | 1 |
| 2 | 817428 | 插座 | SOCKET | 2 |
| 3 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| 4 | 8237571 | 节气门凸轮 | CAM Throttle | 1 |
| 5 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 6 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| 7 | 99611 | 波形垫圈 | WAVE WASHER | 1 |
| 8 | 8319781 | 节气门凸轮 | CAM Throttle | 1 |
| 9 | 42164 | 弹簧 | SPRING | 1 |
| 10 | 831977 | 火花臂 | SPARK ARM | 1 |
| 10 | 888191 | 火花臂 | SPARK ARM | 1 |
| 11 | 832747 | 正时连杆 | TIMING LINK | 1 |
| 11 | 8327471 | 正时连杆 | TIMING LINK | 1 |
| 12 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 1 |
| 12 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 1 |
| 13 | 42161 | 互锁连杆 | LINK INTERLOCK | 1 |
| 14 | 8236103 | 联锁控制杆 | LEVER Interlock Control | 1 |
| 15 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 1 |
| 15 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 1 |
| 16 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 17 | 823806 | 衬套 | BUSHING | 1 |
| 18 | 823862 | 背板杆 | LEVER Backplate | 1 |
| 19 | 826077 | 定位弹簧 | SPRING Detent | 1 |
| 20 | 824994 | 板簧 | SPRING Plate | 1 |
| 21 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 22 | 8238632 | 水平换挡轴杆(左舷) | LEVER Horizontal Shift Shaft (PORT) | 1 |
| 23 | 8236011 | 换挡轴（水平） | SHIFT SHAFT (HORIZONTAL) | 1 |
| 24 | 825211A2 | 换挡杆总成 | SHIFT ROD ASSEMBLY | 1 |
| 24 | 881228A1 | 换挡杆总成 | SHIFT ROD ASSEMBLY | 1 |
| 25 | 817428 | 插座 | SOCKET | 1 |
| 26 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| 27 | 823893A2 | 节气门连杆总成 | LINK ASSEMBLY Throttle | 1 |
| 27 | 881227A3 | 节气门连杆总成 | LINK ASSEMBLY Throttle | 1 |
| 28 | 817428 | 插座 | SOCKET | 2 |
| 29 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| 30 | 823806 | 衬套 | BUSHING | 1 |
| 31 | 825319 | 尼龙衬套 | NYLINER | 1 |
| 32 | 8251681 | 换挡杆 | LEVER Shift | 1 |
| 33 | 822459 | 固定座 | RETAINER | 1 |
| 34 | 825677 | 压入式螺母 | PUSH NUT | 1 |
| 35 | 35280 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 36 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 36 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 37 | 825319 | 尼龙衬套 | NYLINER | 1 |
| 38 | 825169 | 油门杆 | LEVER Throttle | 1 |
| 39 | 822459 | 固定座 | RETAINER | 1 |
| 40 | 825677 | 压入式螺母 | PUSH NUT | 1 |
| 41 | 35280 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 42 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 42 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 43 | 8251701 | 安装支架 | BRACKET Mounting | 1 |
| 44 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 17764A2 | 节流连杆套件 | LINK KIT Throttle | 1 |
| 2 | 110383 | 控制杆 | LEVER CONTROL | 1 |
| 3 | 118591 | 螺丝(.190-32 x 1.750)控制杆 | SCREW (.190-32 x 1.750) CONTROL LEVER | 1 |
| 4 | 48039 | 控制杆螺钉帽 | CAP CONTROL LEVER SCREW | 1 |
| 5 | 89540 | 点火提前弹簧 | SPRING SPARK ADVANCE | 1 |
| 6 | 42343 | 作动杆 | LEVER ACTUATING | 1 |
| 7 | 817429 | 正时连杆 | TIMING LINK | 1 |
| 8 | 817428 | 插座 | SOCKET | 2 |
| 9 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| 11 | 423301 | 换挡手柄 | HANDLE SHIFT | 1 |
| 12 | 60762 | 换挡手柄衬套 | BUSHING SHIFT HANDLE | 2 |
| 13 | 423291 | 换挡杆 | LEVER SHIFT | 1 |
| 14 | 42358 | 换挡杆背板 | BACKPLATE SHIFT LEVER | 1 |
| 15 | 400633 | 换挡杆螺母(M5) | NUT (M5) SHIFT LEVER | 1 |
| 15 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 16 | 39627 | 定位弹簧 | SPRING DETENT | 1 |
| 17 | 39601 | 定位弹簧板(旧设计) | PLATE DETENT SPRING (OLD DESIGN) | 1 |
| 18 | 400018 | 螺丝(M5 x 12)定位弹簧与板 | SCREW (M5 x 12) DETENT SPRING AND PLATE | 2 |
| 19 | 96202 | 换挡连杆衬套 | BUSHING SHIFT LINK | 1 |
| 20 | 89302 | 换挡连杆垫片(0.203x0.406x0.040) | WASHER (.203 x .406 x .040) SHIFT LINK | 1 |
| 21 | 21071 | 换挡连杆开口销 | COTTER PIN SHIFT LINK | 1 |
| 21 | 210711 | 开口销 | COTTER PIN | 1 |
| 22 | 11042 | 换挡连杆 | LINK SHIFT | 1 |
| 23 | 110501 | 节气门限位杆 | LEVER THROTTLE LIMIT | 1 |
| 24 | 400036 | 节气门限位杆螺钉(M5x20) | SCREW (M5 x 20) THROTTLE LIMIT LEVER | 1 |
| 25 | 85095 | 节气门限位杆衬套 | BUSHING THROTTLE LIMIT LEVER | 1 |
| 25 | 8M0214959 | 衬套@5 | BUSHING @5 | 1 |
| 26 | 89302 | 节气门限位螺钉垫片(0.203x0.406x0.040) | WASHER (.203 x .406 x .040) THROTTLE LIMIT SCREW | 1 |
| 27 | 400633 | 螺母(M5)节气门限位螺丝 | NUT (M5) THROTTLE LIMIT SCREW | 1 |
| 27 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 28 | 17848 | 支架 | BRACKET | 1 |
| 29 | 4000330 | 拉索支架螺钉(M6x25) | SCREW (M6 x 25) CABLE BRACKET | 2 |
| 29 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 30 | 42026A2 | 控制平台 | PLATFORM CONTROL | 1 |
| 31 | 16955 | 螺丝(M6 x 8) | SCREW (M6 x 8) | 1 |
| 32 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 32 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 33 | 69708 | 波形垫圈 | WAVE WASHER | 1 |
| 34 | 4000328 | 平台至模块螺钉(M6x16) | SCREW (M6 x 16) PLATFORM TO BLOCK | 1 |
| 34 | 8M0214928 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 35 | 92425 | 缓冲器(旧设计) | DASHPOT (OLD DESIGN) | 1 |
| 36 | 93001 | 缓冲器支架(旧设计) | BRACKET DASHPOT (OLD DESIGN) | 1 |
| 37 | 28770 | 螺母(.312-24)不锈钢缓冲器端子(旧设计) | NUT (.312-24) Stainless Steel DASHPOT TERMINAL (OLD DESIGN) | 2 |
| 38 | 821211 | 垫片(SUPER 15) | SPACER (SUPER 15) | 1 |
| 39 | 821210 | 螺丝(SUPER 15) | SCREW (SUPER 15) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 17725A1 | 换挡连杆 | SHIFT LINK | 1 |
| 1A | 817428 | 插座 | SOCKET | 1 |
| 2 | 95027A6 | 水平换挡轴 | SHIFT SHAFT HORIZONTAL | 1 |
| 3 | 60762 | 衬套 | BUSHING | 2 |
| 4 | 17724 | 杠杆 | LEVER | 1 |
| 4 | 17724A1 | 杠杆总成 | LEVER ASSEMBLY | 1 |
| 5 | 400633 | 螺母 (M5) | NUT (M5) | 1 |
| 5 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 6 | 932481 | 衬套 | BUSHING | 1 |
| 6 | 8M0215006 | 旋转衬套 | BUSHING Swivel | 1 |
| 7 | 34632 | 垫圈 | WASHER | 1 |
| 8 | 42156 | 杠杆 | LEVER | 1 |
| 9 | 95019 | 挡圈（旧设计） | RING Retaining (OLD DESIGN) | 1 |
| 10 | 17764A2 | 节流连杆套件 | LINK KIT Throttle | 1 |
| 11 | 43360 | 杠杆 | LEVER | 1 |
| 11 | 433601 | 控制杆 | LEVER Control | 1 |
| 12 | 817429 | 正时连杆 | TIMING LINK | 1 |
| 13 | 817428 | 插座 | SOCKET | 2 |
| 13A | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| 14 | 4000328 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 3 |
| 14 | 8M0214928 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 3 |
| 15 | 12863A1 | 平台 | PLATFORM | 1 |
| 16 | 16955 | 螺丝(M6 x 8) | SCREW (M6 x 8) | 3 |
| 17 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 3 |
| 17 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 3 |
| 18 | 69708 | 波形垫圈 | WAVE WASHER | 2 |
| 19 | 89540 | 弹簧 | SPRING | 1 |
| 20 | 92362A1 | 杠杆 | LEVER | 1 |
| 21 | 937791 | 杠杆 | LEVER | 1 |
| 22 | 867171 | 连接杆 | LINK | 1 |
| 23 | 17680 | 挡圈 | RING Retaining | 2 |
| 24 | 29720 | 波形垫圈 | WAVE WASHER | 2 |
| 25 | 94085A1 | 齿轮 | GEAR | 1 |
| 26 | 93006 | 弹簧 | SPRING | 1 |
| 26 | 8M0215005 | 弹簧 | SPRING | 1 |
| 27 | 93008 | 钢球 | BALL | 1 |
| 29 | 118591 | 螺钉(0.190-32x1.750) | SCREW (.190-32 x 1.750) | 1 |
| 30 | 48039 | 盖帽 | CAP | 1 |
| 31 | 92425 | 缓冲器（适用时使用） | DASHPOT (Use where Applicable) | 1 |
| 32 | 93001 | 支架（适用时使用） | BRACKET (Use where Applicable) | 1 |
| 33 | 28770 | 螺母（.312-24）不锈钢（适用时使用） | NUT (.312-24) Stainless Steel (Use where Applicable) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 821468A4 | 舵柄 | TILLER HANDLE | 1 |
| - | 821468T4 | 舵柄 | TILLER HANDLE | 1 |
| - | 821468A5 | 舵柄 | TILLER HANDLE | 1 |
| - | 821468T5 | ORD 821468T 4 | ORD 821468T 4 | 1 |
| - | 821468A2 | 舵柄 | TILLER HANDLE | 1 |
| - | 821468T2 | 舵柄 | TILLER HANDLE | 1 |
| - | 821468A3 | 舵柄 | TILLER HANDLE | 1 |
| - | 821468T3 | 舵柄-灰色 | TILLER HANDLE-GR | 1 |
| 1 | 822148A4 | 盖板套件 | COVER KIT | 1 |
| 1 | 822148A2 | 盖板套件 | COVER KIT | 1 |
| 2 | 822150 | 滑轮 | PULLEY | 1 |
| 3 | NSS | 不单独销售外壳 | NOT SOLD SEPARATE Case | 1 |
| 4 | 812832 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 4 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 5 | 432423 | 节气门拉索 | CABLE Throttle | 1 |
| 5 | 43242T03 | 节气门拉索 | CABLE-THROTTLE | 1 |
| 5 | 432426 | 节气门拉索 | CABLE Throttle | 1 |
| 6 | 432423 | 节气门拉索 | CABLE Throttle | 1 |
| 6 | 43242T03 | 节气门拉索 | CABLE-THROTTLE | 1 |
| 6 | 432426 | 节气门拉索 | CABLE Throttle | 1 |
| 7 | 960099 | 套管(12.00英寸) | SLEEVE (12.00 Inches) | 1 |
| 8 | 821468A8 | 转向手柄臂总成 | ARM ASSEMBLY Steering Handle | 1 |
| 8 | 821468A66 | 转向手柄臂总成 | ARM ASSEMBLY Steering Handle | 1 |
| 8 | 821468A9 | 转向手柄臂总成 | ARM ASSEMBLY Steering Handle | 1 |
| 8 | 821468T9 | ORD 821468A66 | ORD 821468A66 | 1 |
| 9 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 9 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 10 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 1 |
| 11 | 821972 | 节气门旋钮 | KNOB Throttle | 1 |
| 11 | 821972T | 节气门旋钮 | KNOB Throttle | 1 |
| 12 | 96203 | 弹簧 | SPRING | 1 |
| 13 | 821971 | 节气门锁 | LOCK Throttle | 1 |
| 13 | 892995 | 节气门锁 | LOCK Throttle | 1 |
| 14 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 1 |
| 14 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 1 |
| 15 | 821463A1 | 舵柄管 | TILLER TUBE | 1 |
| 15 | 821463T01 | 舵柄管 | TUBE-TILLER | 1 |
| 16 | 8242002 | 贴花 | DECAL | 1 |
| 16 | 8242001 | 贴花 | DECAL | 1 |
| 16 | 8242004 | 贴花 | DECAL | 1 |
| 17 | 822429 | 节气门手柄 | HANDLE Throttle | 1 |
| 17 | 821465 | 节气门手柄 | HANDLE Throttle | 1 |
| 18 | 99589 | 握把 | GRIP | 1 |
| 18 | 8M0221732 | 外握把 | GRIP OUTER | 1 |
| 19 | 823609A1 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 19 | 8M0104615 | 开关总成 | SWITCH ASSY | 1 |
| 20 | 822441 | 固定座 | RETAINER | 1 |
| 21 | 822147 | 舵柄手柄板 | PLATE Tiller Handle | 1 |
| 21 | 8221471 | 安装板 | PLATE | 1 |
| 22 | 823939 | 衬套 | BUSHING | 1 |
| 23 | 4000384 | 螺钉(M10×80) | SCREW (M10 x 80) | 2 |
| 24 | 822841F1 | 支架（黑色） | BRACKET (BLACK) | 1 |
| 24 | 822841F2 | 支架（灰色） | BRACKET (GRAY) | 1 |
| 24 | 822841F1 | 支架 | BRACKET | 1 |
| 25 | 823939 | 衬套 | BUSHING | 1 |
| 26 | 822145 | 垫圈 | WASHER | 1 |
| 27 | 826792 | 波形垫圈 | WAVE WASHER | 1 |
| 28 | 822145 | 垫圈 | WASHER | 1 |
| 29 | 822146 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 938431 | 轴承座安装工具 | INSTALLER TOOL Bearing Carrier | 1 |
| - | 31229A7 | 轴承拉拔器套件 | PULLER KIT Bearing | 1 |
| - | 36392 | 化油器量具 | GAUGE TOOL Carburetor | 1 |
| - | 29287 | 量规工具 | GAUGE TOOL | 1 |
| - | 83164M | 飞轮拉拔器 | FLYWHEEL PULLER | 1 |
| - | 8M0227579 | 飞轮拉拔器 | FLYWHEEL PULLER | 1 |
| - | 76160A2 | 活塞销拆装工具 | INSTALL/REMOVE TOOL Piston Pin | 1 |
| - | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| - | 27780 | 拉拔器 | PULLER | 1 |
| - | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| - | 34569A1 | 滑动锤拉拔器总成 | PULLER ASSEMBLY Slide Hammer | 1 |
| - | 850439T1 | 八腔测试仪 | TESTER Eight Chamber (EIGHT CHAMBER) | 1 |
| - | 63998A1 | 单腔间隙工具 | GAP TOOL Single Chamber (SINGLE CHAMBER) | 1 |
| - | 66274 | 扭矩扳手(0-150磅英寸) | TORQUE WRENCH (0-150 lb-in) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | NSS | 不单独销售 贴花-贴花套件组件 | NOT SOLD SEPARATE Decal - Component of Decal Set | 1 |
| 2 | NSS | 不单独销售 贴花-贴花套件组件 | NOT SOLD SEPARATE Decal - Component of Decal Set | 1 |
| 3 | 9163A19 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 3 | 9163T19 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 3 | 9163A21 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 3 | 9163T21 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 3 | 9163A20 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 3 | 9163T20 | 顶盖总成-TRA | COWL ASSY-TOP-TRA | 1 |
| 4 | 44311F3 | 护罩（后部） | SHIELD (REAR) | 1 |
| 4 | 44311F2 | 护罩（后部） | SHIELD (REAR) | 1 |
| 4 | 44311F3 | 护罩 | SHIELD | 1 |
| 4 | 44311F5 | 护罩（后部） | SHIELD (REAR) | 1 |
| 4 | 44311F3 | 护罩 | SHIELD | 1 |
| 4 | 44311F4 | 护罩（后部） | SHIELD (REAR) | 1 |
| 5 | 400018 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 6 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 2 |
| 7 | 17221 | 盖锁扣 | LATCH Cowl | 1 |
| 8 | 400033 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 9 | 17773A2 | 罩盖密封件 | SEAL Cowl | 1 |
| 9 | 8M0043411 | 罩盖密封条 | SEAL-COWL | 1 |
| 10 | NSS | 不单独销售 隔音毯-顶部-参考编号12部件 | NOT SOLD SEPARATE Sound Blanket-Top-Part of Reference #12 | 1 |
| 11 | NSS | 不单独销售 隔音毯-左舷-参考编号12部件 | NOT SOLD SEPARATE Sound Blanket-Port-Part of Reference #12 | 1 |
| 12 | 815625A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 12 | 815625A02 | 隔音毯套装(预涂压敏胶) | SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive) | 1 |
| 13 | 400033 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 14 | 812413A1 | 滚轮支架总成 | BRACKET ASSEMBLY Roller | 1 |
| 15 | 18517 | 罩盖锁扣垫片 | SHIM Cowl Latch | AR |
| 16 | 111851 | 换挡贴花（适用时使用） | SHIFT DECAL (Use where Applicable) | 1 |
| 16 | 82408812 | 换挡贴花（适用时使用） | DECAL Shift (Use where Applicable) | 1 |
| 17 | NSS | 不单独销售 贴花-贴花套件组件 | NOT SOLD SEPARATE Decal - Component of Decal Set | 1 |
| 18 | NSS | 不单独销售 贴花-贴花套件组件 | NOT SOLD SEPARATE Decal - Component of Decal Set | 1 |
| 19 | NSS | 不单独销售 贴花-底部条纹 | NOT SOLD SEPARATE Decal-Bottom Stripe | 1 |
| 20 | NSS | 不单独销售 贴花-顶部条纹 | NOT SOLD SEPARATE Decal-Top Stripe | 1 |
| 21 | 8555775 | EPA标签信息贴花（顶盖内侧） | DECAL EPA Label Information (INSIDE TOP COWL) | 1 |
| 21 | 855577A5 | REF SOB 09-18 | REF SOB 09-18 | 1 |
| 21 | 855920 | EPA标签信息贴花（顶盖内侧） | DECAL EPA Label Information (INSIDE TOP COWL) | 1 |
