水星 Mercury 25, 25 MARATHON, SUPER 15 2 CYL 0B238464 THRU 0G044026 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-18583 · 共 49 个部位 · 2078 条零件

1化油器（25）2转向手柄总成（手动/电动手柄）3润滑图表 4线束和启动组件（电动手柄）5点火/电气组件 6化油器（20）7附件 8曲轴、活塞与飞轮 9油门与换挡联动装置（侧换挡）10气缸体与盖 11齿轮箱螺旋桨轴 12化油器（SeaPro/Marathon 25/ Super15）13顶罩 14下罩 15外罩 16喷泵总成 17反冲启动器总成（手动）18驱动轴壳体总成 19专用工具 20齿轮箱（驱动轴）21油门和换挡联动装置（舵柄换挡）22维修/支撑材料 23电动启动组件 24夹紧支架总成 25油门和换挡联动装置（电动/手动遥控）26旋转支架总成 27燃油滤清器总成 28曲轴活塞与飞轮 29化油器（20）30化油器（25）31化油器（SeaPro/Marathon 25/ Super15）32夹紧支架总成 33外罩 34曲轴、活塞与飞轮 35气缸体与盖 36驱动轴壳体总成 37电动启动组件 38燃油滤清器总成 39齿轮箱（驱动轴）40齿轮箱螺旋桨轴 41线束和启动组件（电动手柄）42点火/电气组件 43反冲启动器总成（手动）44维修/支撑材料 45转向手柄总成（手动/电动手柄）46旋转支架总成 47油门和换挡联动装置（电动/手动遥控）48油门与换挡联动装置（侧换挡）49油门和换挡联动装置（舵柄换挡）

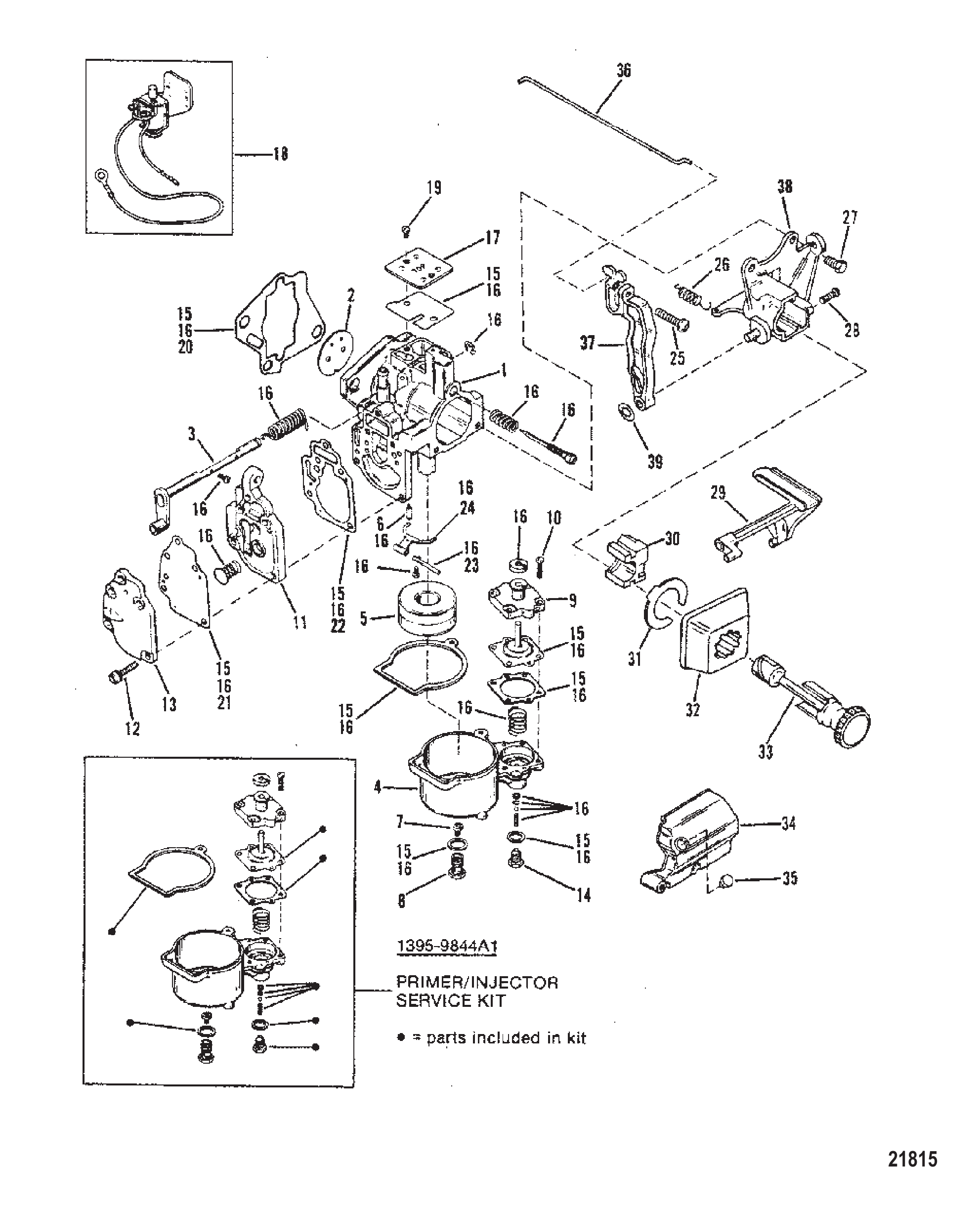

图 1化油器（25） Carburetor (25)

REF	零件编号	中文名称	英文名称	数量
1	8889A13	化油器(WMC-31A)(替代WMC31/32A)	CARBURETOR (WMC-31A) (REPLACES WMC31/32A)	1
1	8677A13	化油器(WMC-32)	CARBURETOR (WMC-32)	1
1	8889T22	化油器	CARBURETOR	1
2	9646	油门阀	VALVE Throttle	1
3	9695	油门轴	SHAFT Throttle	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	进油针阀	VALVE INLET NEEDLE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	6201	主量孔(.080)	JET (.080) MAIN FUEL	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	813618	隔膜盖 - WMC 31/32	COVER DIAPHRAGM (WMC 31/32)	1
9	823648	隔膜盖 - WMC 31A/32A	COVER Diaphragm DIAPHRAGM (WMC 31 A/32A)	1
10	9697	膜片盖螺丝	SCREW DIAPHRAGM COVER	4
11	15827A1	燃油泵体	BODY FUEL PUMP	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9637	燃油泵盖	COVER FUEL PUMP	1
14	9762	堵头	PLUG	1
15	9803	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	9802	维修包 - WMC 31/32	REPAIR KIT (WMC 31/32)	1
16	8237072	维修套件	REPAIR KIT	1
16	823707	维修包 - WMC 31A/32A	REPAIR KIT (WMC 31A/32A)	1
16	8237072	维修套件	REPAIR KIT	1
17	9699	盖板(手动)	PLATE COVER (MANUAL)	1
18	823433	电动阻风门	CHOKE Electric (ELECTRIC)	1
19	9696	盖板螺钉	SCREW COVER PLATE	2
20	414491	化油器衬垫	GASKET CARBURETOR	1
20	192061	化油器衬垫	GASKET Carburetor	1
21	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
22	9633	衬垫	GASKET	1
23	F10064	轴	SHAFT	1
24	824401	浮子杆	LEVER Float	1
25	79964	螺钉(#6-32 x .750)快怠速杠杆	SCREW (#6-32 x .750) FAST IDLE LEVER	1
25	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
26	11277	张力弹簧	SPRING Tension	1
27	40056110	螺钉(M5 x 30)启动泵支架	SCREW (M5 x 30) PRIMER BRACKET	2
27	400018	螺钉(M5x12) 注油器支架	SCREW (M5 x 12) PRIMER BRACKET	2
28	79965	螺钉(#8-32 x .500)不锈钢启动泵支架	SCREW (#8-32 x .500) Stainless Steel PRIMER BRACKET	1
29	112731	注油器杆	LEVER Primer PRIMER	1
30	11280	凸轮块	CAM BLOCK	1
31	11278	固定夹	CLIP Retaining	1
32	172291	阻风门面板	BEZEL Choke	1
33	12802	启动泵旋钮	KNOB PRIMER	1
33	128022	启动泵旋钮	PRIMER KNOB	1
34	17442	盖板	COVER	1
35	47579	堵头	PLUG	1
36	127331	怠速线	IDLE WIRE	1
36	127332	快怠速线	WIRE Fast Idle	1
37	128053	快怠速杆	LEVER Fast Idle	1
38	12803	启动泵支架	BRACKET Primer	1
39	97877	快怠速杠杆推螺母	PUSH NUT FAST IDLE LEVER	1
39	821979	螺母	NUT	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	9844A1	启动泵/喷油器维修包	SERVICE KIT Primer/Injector	1
-	822261A92	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1
-	90885A88	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1

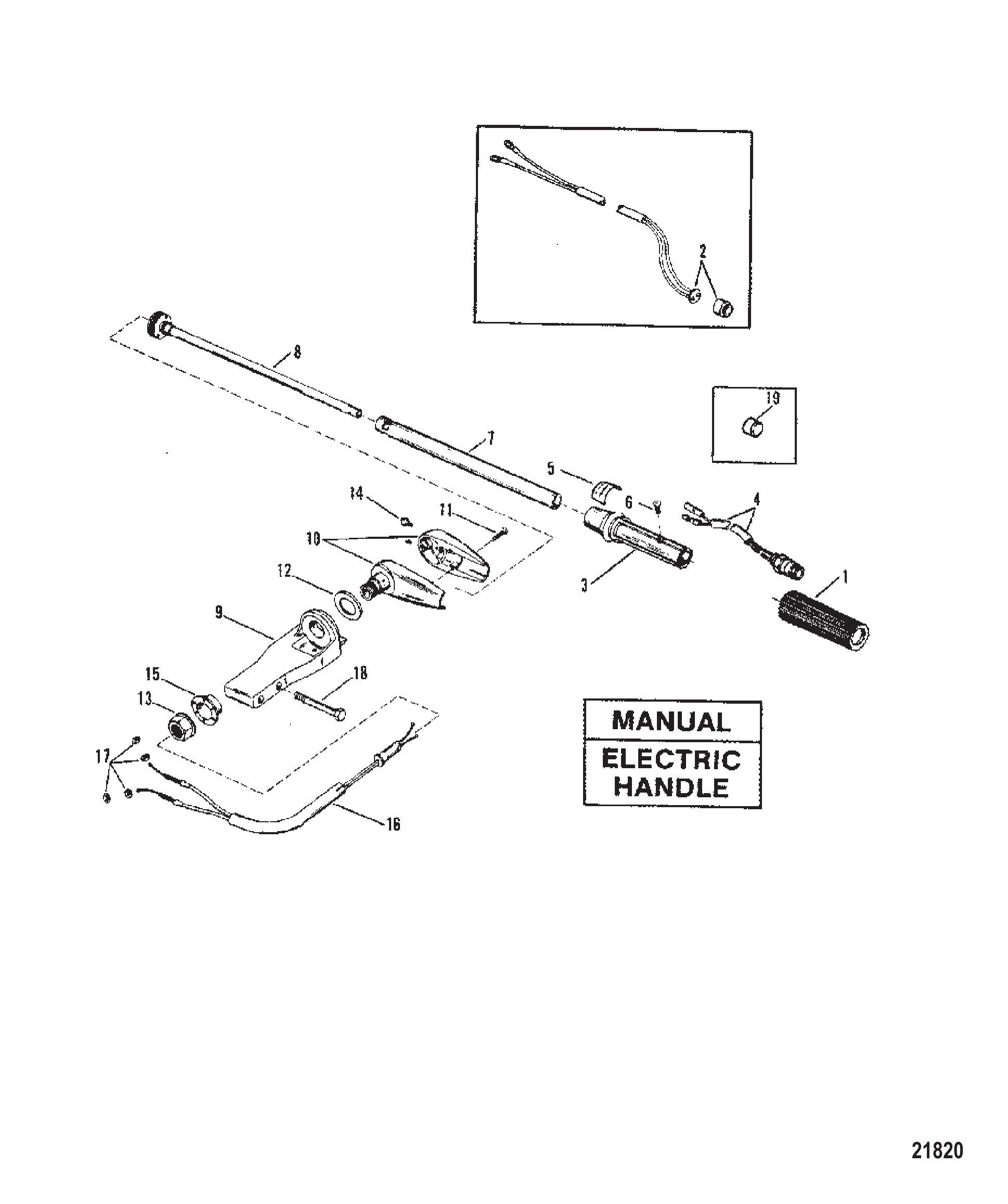

图 2转向手柄总成（手动/电动手柄） Steering Handle Assembly (Manual/Electric Handle)

REF	零件编号	中文名称	英文名称	数量
1	99589	握把	GRIP	1
2	NLA	停产停止开关	No Longer Available Stop Switch	1
3	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
4	823609A1	停止开关总成（设计II-带金属锁环）	SWITCH ASSEMBLY Stop (DESIGN II -W/METAL LOCK RING)	1
4	8M0104615	开关总成	SWITCH ASSY	1
5	140121	贴花（贴于管上）	DECAL (APPLY ON TUBE)	1
5	140122	贴花（贴于管上-3.33英寸x1.25英寸）（灰色）	DECAL (APPLY ON TUBE - 3.33 Inches x 1.25 Inches)(GRAY)	1
5	140123	贴花（贴于管上-3.15x2.50英寸）（灰色）	DECAL (APPLY ON TUBE - 3.15 x 2.50 Inches)(GRAY)	1
5	140124	贴花（国际符号）	DECAL (INTERNATIONAL SYMBOLS)	1
6	37342	螺钉（#12-14 x 0.375）	SCREW (#12-14 x .375)	1
7	99333A2	管总成	TUBE ASSEMBLY	1
8	975501	管总成	TUBE ASSEMBLY	1
9	43447A1	支架总成（黑色）	BRACKET ASSEMBLY (BLACK)	1
9	43447A3	转向支架总成	BRACKET ASSEMBLY Steering	1
9	43447A2	支架总成（灰色）	BRACKET ASSEMBLY (GRAY)	1
9	43447A4	转向支架总成	BRACKET ASSEMBLY Steering	1
10	NLA	停产支架（黑色）（订单号43447A3）	No Longer Available Bracket (BLACK) (Order 43447A3)	1
10	NLA	停产支架（灰色）（订单号43447A4）	No Longer Available Bracket (GRAY) (Order 43447A4)	1
11	4005688	螺钉（M4×20）	SCREW (M4 x 20)	AR
11	40019109	螺丝(M5 x 25)	SCREW (M5 x 25)	AR
12	177821	垫圈14	WASHER 14	1
13	90068F2	螺母（黑色）	NUT (Black)	1
13	859133	螺母(1.00-14)	NUT (1.00-14)	1
13	90068F3		NUT (1.00-14) (Gray)	1
13	859133	螺母(1.00-14)	NUT (1.00-14)	1
14	74036	润滑脂接头	FITTING Grease	1
14	8M0169589	润滑脂接头	FITTING Grease	1
15	85973	衬套	BUSHING	1
9	43447A3	转向支架总成（黑色）	BRACKET ASSEMBLY Steering (Black)	1
9	43447A4	转向支架总成（灰色）	BRACKET ASSEMBLY Steering (Gray)	1
9	43447A3	转向支架总成	BRACKET ASSEMBLY Steering	1
9	43447A5	转向支架总成（追踪器）	BRACKET ASSEMBLY Steering (Tracker)	1
10	44397A15	支架总成（黑色）	BRACKET ASSEMBLY (BLACK)	1
10	44397A16	支架总成（灰色）	BRACKET ASSEMBLY (GRAY)	1
10	44397A22	支架总成（追踪器）	BRACKET ASSEMBLY (TRACKER)	1
11	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	3
12	177821	垫圈	WASHER	1
13	816880	螺母	NUT	1
14	74036	润滑脂接头	FITTING Grease	1
14	8M0169589	润滑脂接头	FITTING Grease	1
15	817026	衬套	BUSHING	1
16	432421	油门拉线（舵柄手柄换挡）	CABLE Throttle (TILLER HANDLE SHIFT)	1
16	432422	油门拉线总成（侧换挡）	CABLE ASSEMBLY Throttle (SIDE SHIFT)	1
17	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	4
18	4000384	螺钉(M10×80)	SCREW (M10 x 80)	2
19	817634	塞子（SEA PRO/MARATHON 25/SUPER 15）	PLUG (SEA PRO/MARATHON 25/SUPER 15)	1

图 3润滑图表 Lube Chart

REF	零件编号	中文名称	英文名称	数量
-	NOPART	无零件清单	NO PARTS LIST	1

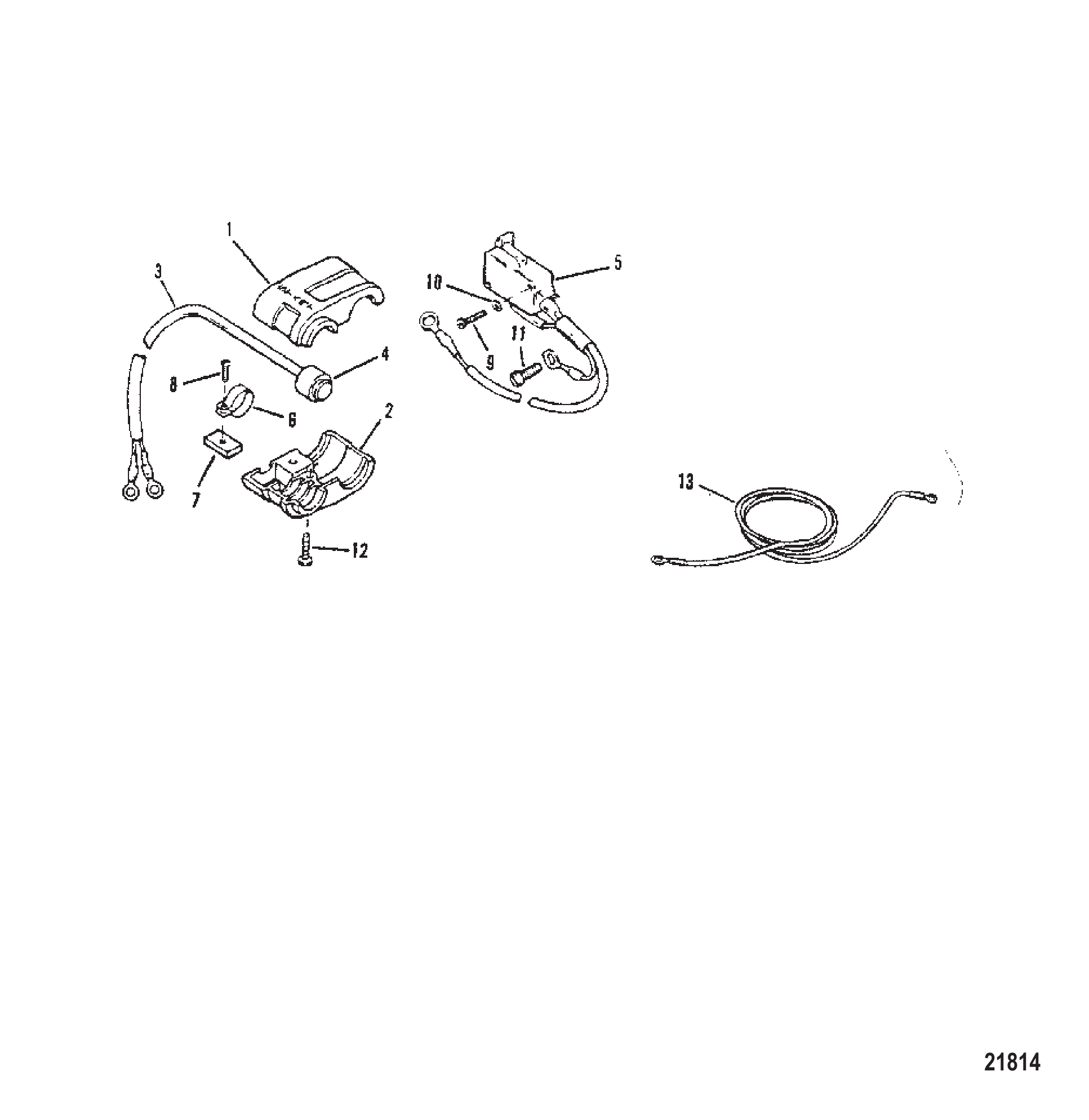

图 4线束和启动组件（电动手柄） Harness and Start Components (Electric Handle)

REF	零件编号	中文名称	英文名称	数量
1	95815	启动开关上盖	COVER START SWITCH (TOP)	1
2	95828	启动开关下盖	COVER START SWITCH (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
4	55741001	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	95814	束带夹	STRAP CLAMP	1
7	95813	束带夹紧固件	FASTENER CLAMP STRAP	1
8	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
8	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
9	4005727	螺钉	SCREW	2
10	45771	垫圈	WASHER	2
11	62568	开关线螺丝(#10-16 x .375)	SCREW (#10-16 x .375) SWITCH WIRE	1
12	69570	盖板螺丝(#10-16 x .750)	SCREW (#10-16 x .750) COVER	1
13	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1

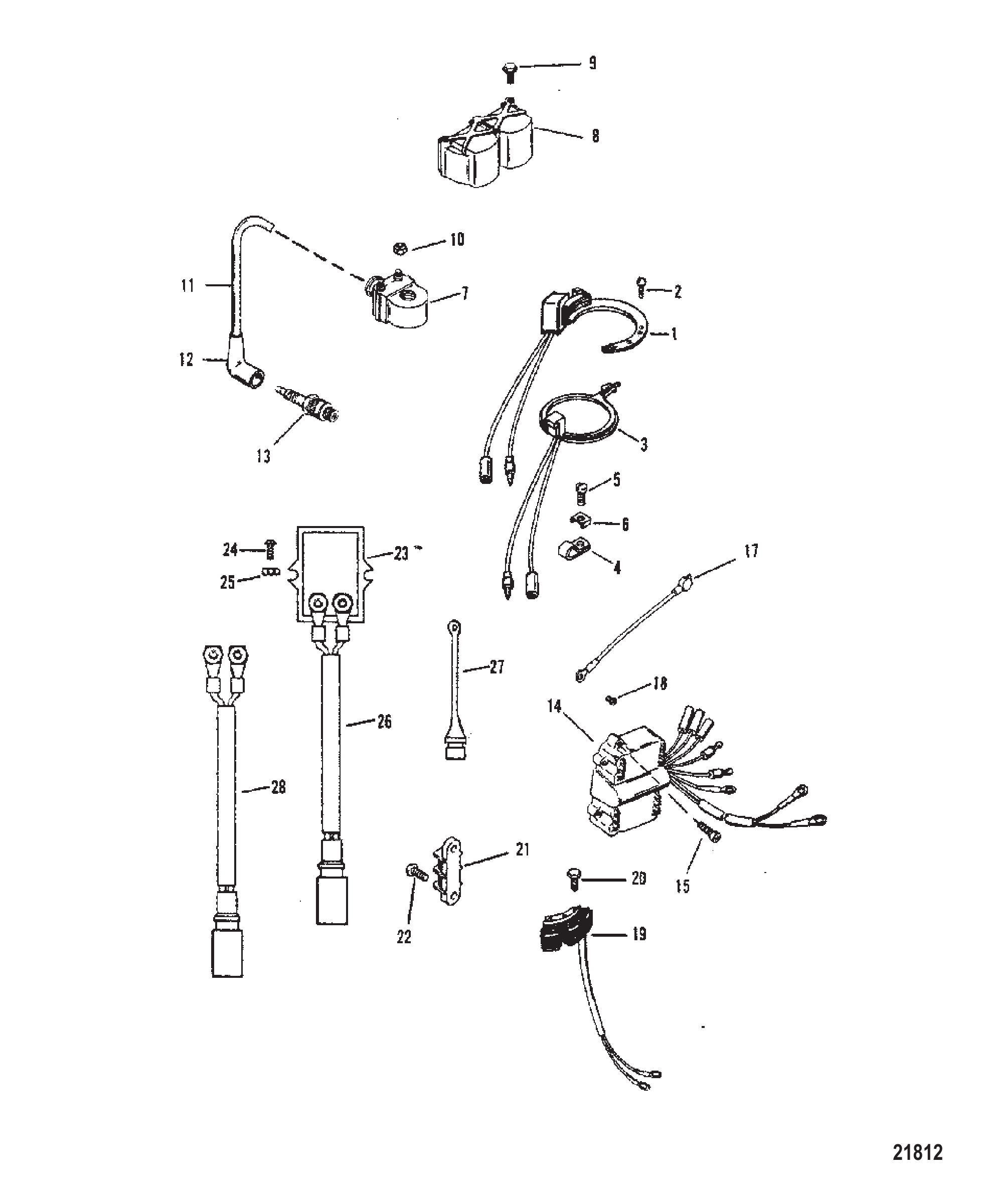

图 5点火/电气组件 Ignition/Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	86617A13	定子总成	STATOR ASSEMBLY	1
1	86617A20	定子总成	STATOR ASSEMBLY	1
2	4000120	螺丝(M5 x 25)	SCREW (M5 x 25)	2
2	400015	螺钉(M5x10) 定子固定	SCREW (M5 x 10) STATOR ATTACHING	2
3	98450A5	触发器总成	TRIGGER ASSEMBLY	1
3	98450A10	触发器总成	TRIGGER ASSEMBLY	1
4	24836	触发器线夹	CLIP TRIGGER LEADS	1
4	22740	触发器线夹	CLIP TRIGGER LEADS	1
5	48408	螺钉(#10-16x0.5) 线夹至曲轴箱	SCREW (#10-16 x .500) CLIP TO CRANKCASE	1
6	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	1
6	8M0084613	C形垫圈	C-WASHER	1
7	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	2
7	8M0230859	点火线圈总成	COIL IGNITION ASY	2
8	99762	点火线圈盖	COVER IGNITION COIL	1
8	997621	点火线圈盖	COVER Ignition Coil	1
9	4010555	螺钉(M5x55)不锈钢点火线圈盖	SCREW (M5 x 55) Stainless Steel IGNITION COIL COVER	3
9	1994155	螺钉(M5 x 55)	SCREW (M5 x 55)	3
10	45076	螺母 (#10-32) 黄铜线圈端子	NUT (#10-32) Brass COIL TERMINAL	4
11	813715A3	高压线	HIGH TENSION LEADS	1
11	813715A2	高压电缆组（5和8.25英寸）	CABLE SET High Tension (5 and 8.25 Inch)	1
11	813715A2	高压线束组（5和8.25英寸）（商用发动机）	CABLE SET High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES)	1
12	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
13	97180	火花塞（NGK #BUZHW）	SPARK PLUG (NGK #BUZHW)	2
13	896329827	SP #L76V @4	SP #L76V @4	2
13	14103570	火花塞（NGK #BUZHW-2）	SPARK PLUG (NGK #BUZHW-2)	2
13	14103Q	ORD 896329838	ORD 896329838	2
13	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	2
13	13686Q	NGK BU8H @10	NGK BU8H @10	2
13	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	2
13	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	2
13	8168372	火花塞(NGK #BPZ8H-N-10)	SPARK PLUG (NGK #BPZ8H-N-10)	2
13	938	SP #QL78YC @4	SP #QL78YC @4	2
14	7452A15	开关盒总成	SWITCHBOX ASSEMBLY	1
14	7452A19	开关盒总成	SWITCHBOX ASSEMBLY	1
15	40019108	螺钉 (M5 x 20) 开关盒至气缸体	SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK	3
17	88807A10	辅助线束总成	CABLE ASSEMBLY AUXILIARY	2
18	48408	螺钉 (#10-16 x .500) 接地线	SCREW (#10-16 x .500) GROUND WIRE	1
19	86704A2	辅助定子总成	STATOR ASSEMBLY AUXILIARY	1
19	86704A10	辅助定子	STATOR Auxiliary	1
20	4000123	螺钉(M5 x 30)定子固定	SCREW (M5 x 30) STATOR ATTACHING	3
21	63813	端子排	TERMINAL BLOCK	1
21	638131	端子排	TERMINAL BLOCK	1
22	48409	螺钉(#10-16 x .625)不锈钢接线板	SCREW (#10-16 x .625) Stainless Steel TERMINAL BLOCK	2
23	95845	电压调节器	REGULATOR Voltage	1
23	95845T	电压调节器	REGULATOR-VOLTAGE	1
24	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
25	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
26	74725A2	线束总成(黑/红)	HARNESS ASSEMBLY (BLACK/RED)	1
27	71663	堵头	PLUG	1
28	65017A2	外部线束总成	HARNESS ASSEMBLY (EXTERNAL)	1

图 6化油器（20） Carburetor (20)

REF	零件编号	中文名称	英文名称	数量
1	8888A9	化油器(手动) - WMC-29	CARBURETOR (MANUAL) - WMC-29	1
1	8888A10	化油器(手动) - WMC-36	CARBURETOR (MANUAL) - WMC-36	1
1	8888T18	化油器	CARBURETOR	1
1	8676A11	化油器(电动) - WMC-30	CARBURETOR (ELECTRIC) - WMC-30	1
1	8888T18	化油器	CARBURETOR	1
1	8676A12	化油器(电动) - WMC-37	CARBURETOR (ELECTRIC) - WMC-37	1
1	8888T18	化油器	CARBURETOR	1
2	9640	油门阀	VALVE Throttle	1
3	9695	油门轴	SHAFT Throttle	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	进油针阀	VALVE INLET NEEDLE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	5317	主量孔(.046) - WMC 29/30	JET (.046) MAIN FUEL (WMC 29/30)	1
7	7394	主量孔(.044) - WMC 36/37	JET (.044) MAIN FUEL (WMC 36/37)	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	813618	隔膜盖 - WMC 29/30	COVER DIAPHRAGM (WMC 29/30)	1
10	9697	膜片盖螺丝	SCREW DIAPHRAGM COVER	4
11	15827A1	燃油泵体	BODY FUEL PUMP	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9637	燃油泵盖	COVER FUEL PUMP	1
14	9762	堵头	PLUG	1
15	9803	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	9802	维修包 - WMC 29/30	REPAIR KIT (WMC 29/30)	1
16	8237072	维修套件	REPAIR KIT	1
16	823649	维修包 - WMC 36/37	REPAIR KIT (WMC 36/37)	1
16	8237072	维修套件	REPAIR KIT	1
17	9699	盖板(手动)	PLATE COVER (MANUAL)	1
18	823433	电动阻风门	CHOKE Electric (ELECTRIC)	1
19	9696	盖板螺钉	SCREW COVER PLATE	2
20	414491	化油器衬垫	GASKET CARBURETOR	1
20	192061	化油器衬垫	GASKET Carburetor	1
21	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
22	9633	衬垫	GASKET	1
23	F10064	轴	SHAFT	1
24	824401	浮子杆	LEVER Float	1
25	79964	螺钉(#6-32 x .750)快怠速杠杆	SCREW (#6-32 x .750) FAST IDLE LEVER	1
25	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
26	11277	张力弹簧	SPRING Tension	1
27	40056110	螺钉(M5 x 30)启动泵支架	SCREW (M5 x 30) PRIMER BRACKET	2
27	400018	螺钉(M5x12) 注油器支架	SCREW (M5 x 12) PRIMER BRACKET (M5 X 8 X 12 MM)	2
28	79965	螺钉(#8-32 x .500)不锈钢启动泵支架	SCREW (#8-32 x .500) Stainless Steel PRIMER BRACKET	1
29	112731	启动泵杆	LEVER Primer	1
30	11280	凸轮块	CAM BLOCK	1
31	11278	固定夹	CLIP Retaining	1
32	172291	阻风门面板	BEZEL Choke	1
33	12802	启动泵旋钮	KNOB PRIMER	1
33	128022	启动泵旋钮	PRIMER KNOB	1
34	17442	化油器盖	COVER CARBURETOR	1
35	47579	化油器盖塞	PLUG CARBURETOR COVER	1
36	127331	怠速线	IDLE WIRE	1
36	127332	快怠速线	WIRE Fast Idle	1
37	128053	快怠速杆	LEVER Fast Idle FAST IDLE	1
38	12803	注油器支架	BRACKET Primer PRIMER	1
39	97877	快怠速杠杆推螺母	PUSH NUT FAST IDLE LEVER	1
39	821979	螺母	NUT	1
-	9844A1	启动泵/喷油器维修包	SERVICE KIT Primer/Injector	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	822261A92	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1
-	90885A88	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1

图 7附件 Accessories

零件编号	中文名称	英文名称	数量
86306A01	适配器	ADAPTER	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

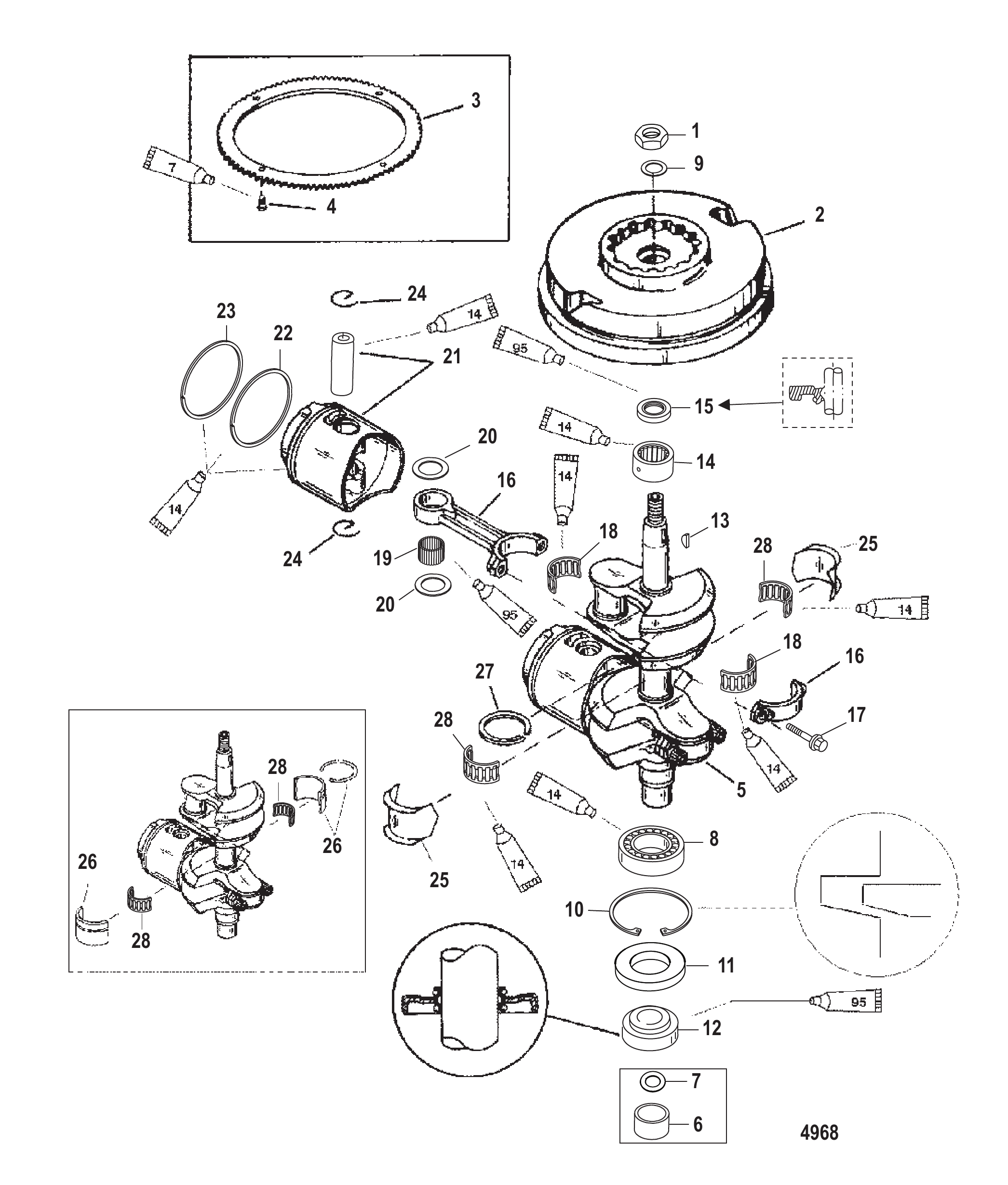

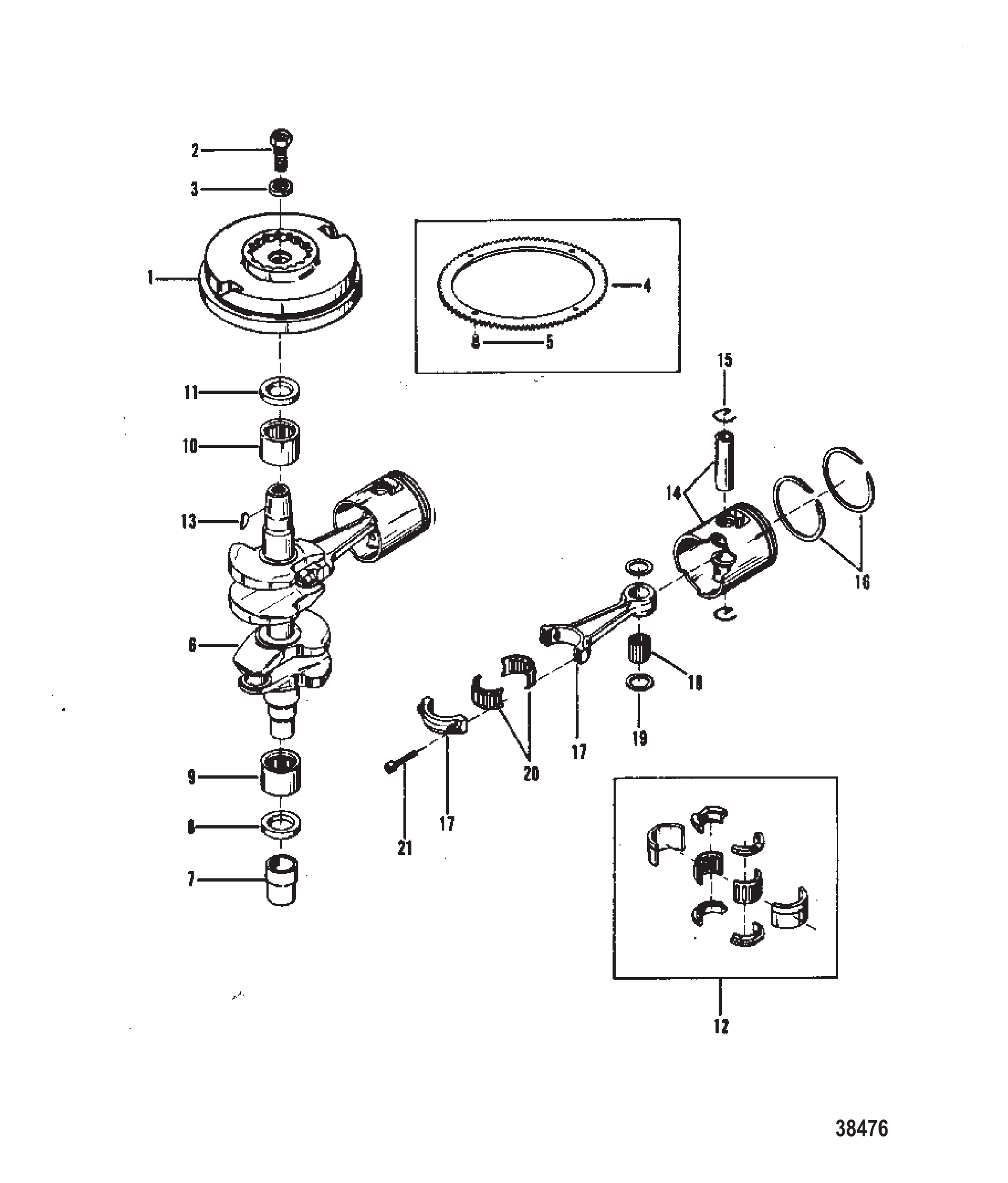

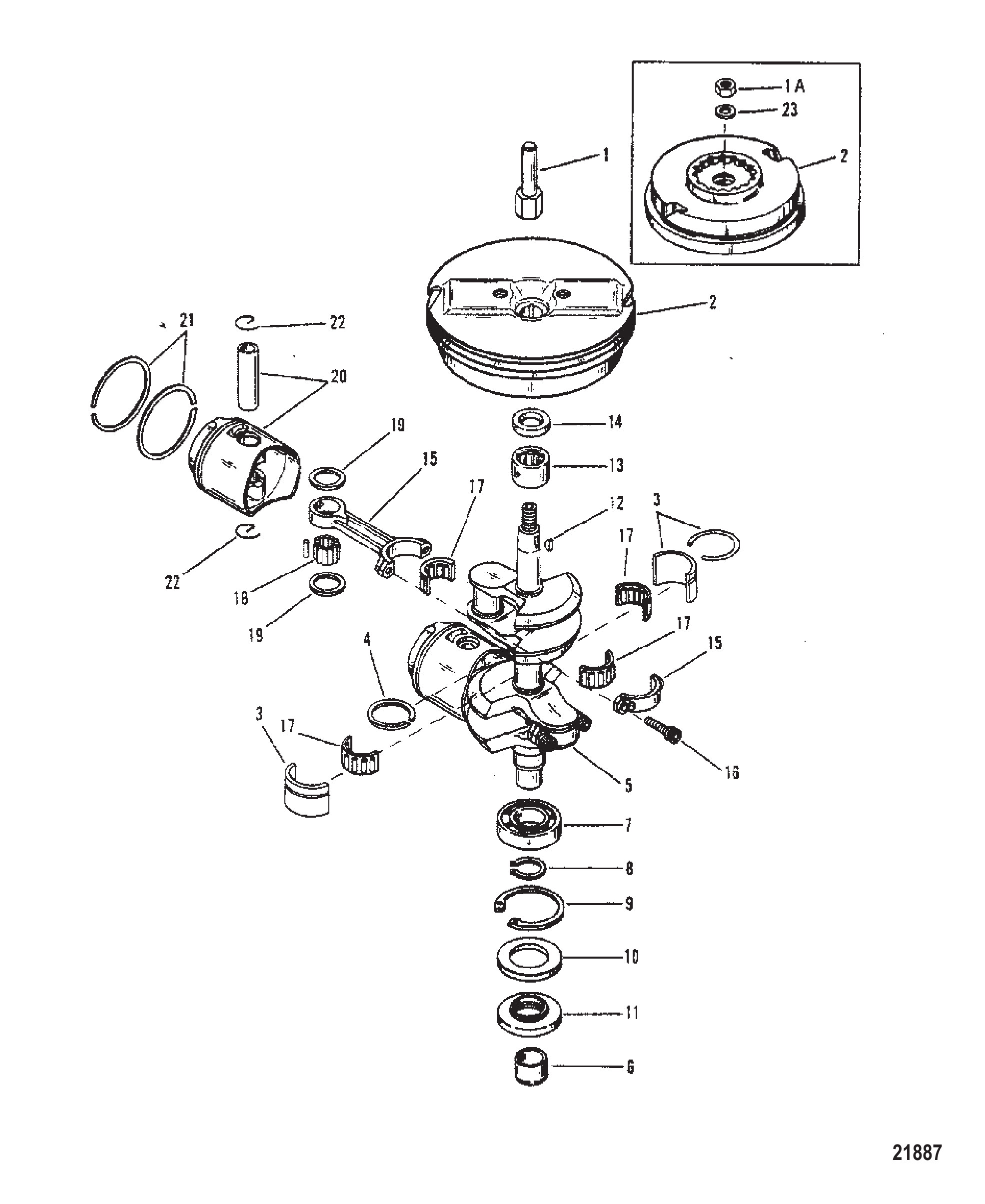

图 8曲轴、活塞与飞轮 Crankshaft, Pistons and Flywheel

REF	零件编号	中文名称	英文名称	数量
1	8274A6	飞轮总成	FLYWHEEL ASSEMBLY	1
1	859232T15	飞轮总成	FLYWHEEL ASSY	1
2	97359A1	螺钉总成	SCREW ASSEMBLY	1
3	86496		WASHER FLYWHEEL SCREW	1
4	99301	飞轮齿圈	RING GEAR FLYWHEEL	1
5	40039106	螺钉(M5×13)齿圈至飞轮	SCREW (M5 x 13) RING GEAR TO FLYWHEEL	4
5	88190313	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
6	8978A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
6	8978T2	曲轴总成	CRANKSHAFT ASSEMBLY	1
7	43507	曲轴油封	SEAL CRANKSHAFT	1
7	822445A1	耐磨套	WEAR SLEEVE	1
8	85107	曲轴下油封	SEAL Oil CRANKSHAFR-LOWER	1
9	85113	曲轴下滚柱轴承	BEARING Roller CRANKSHAFT - LOWER	1
9	85113T	下滚柱轴承	BEARING Roller - Lower	1
10	85114	曲轴上滚柱轴承	BEARING Roller - Upper CRANKSHAFT	1
10	85114T	上滚柱轴承	BEARING Roller - Upper	1
11	85974	曲轴上油封	SEAL Oil CRANKSHAFT - UPPER	1
11	859741	油封	SEAL Oil	1
12	86992A2	中心主轴承总成	BEARING ASSEMBLY CENTER MAIN	1
12	86992A5	中央主轴承总成	BEARING ASSEMBLY Center Main	1
13	20094	飞轮驱动半圆键	KEY Woodruff FLYWHEEL DRIVE	1
14	9104A3	活塞总成	PISTON ASSEMBLY	2
14	9533T28	气缸体	CYLINDER BLOCK	2
14	9104A9	活塞总成	PISTON ASSEMBLY	2
14	9104T19	活塞总成	PISTON ASSEMBLY	2
15	47276	活塞销锁环	LOCK RING PISTON PIN	4
15	828119	活塞销锁环	LOCK RING Piston Pin	4
16	12810A12	活塞环组	RING SET Piston	1
16	8M0083677	ORD 39-8M0096518	ORD 39-8M0096518	1
17	8835A2	连杆总成	CONNECTING ROD ASSEMBLY	2
17	8835A4	连杆总成	CONNECTING ROD ASSEMBLY	2
18	98295	活塞端滚针轴承	BEARING Needle PISTON END	54
19	42025		BEARING LOCATING - NEEDLE BEARING	4
19	8M0012294	止推垫圈	WASHER-THRUST	4
20	41620A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
20	879877A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
21	4008225	连杆螺钉(M6x25)	SCREW (M6 x 25) CONNECTING ROD	4
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	90885A87	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1

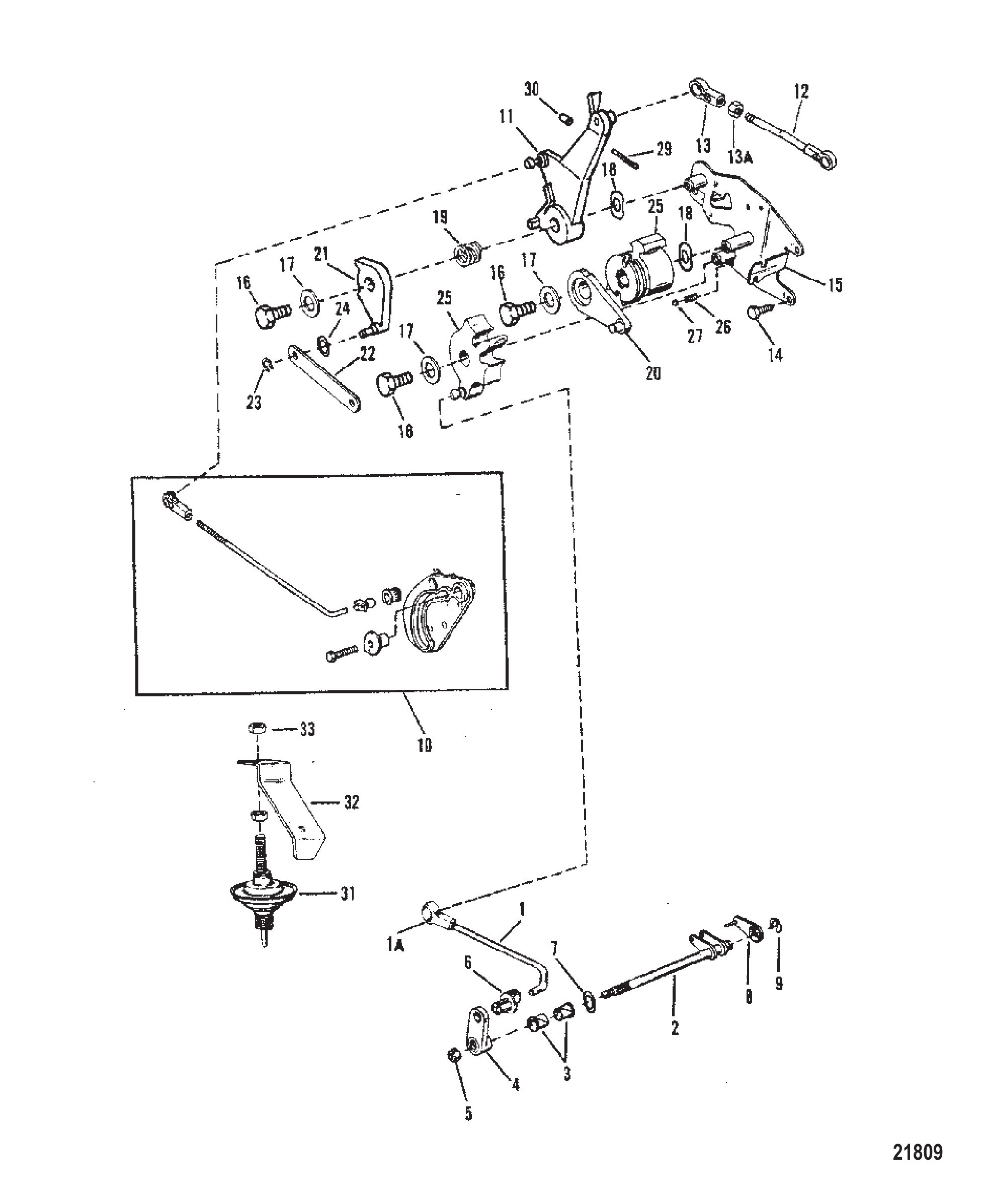

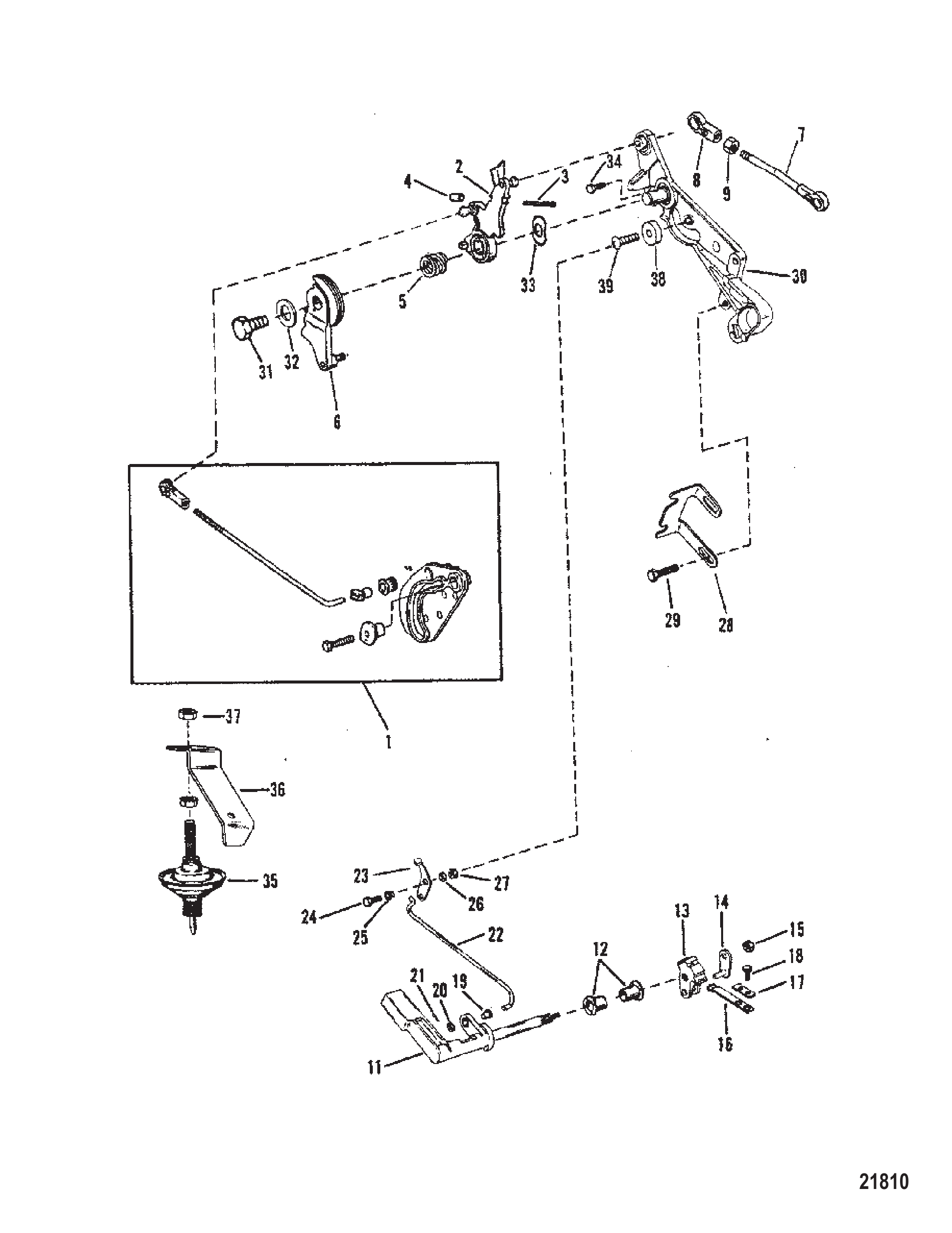

图 9油门与换挡联动装置（侧换挡） Throttle and Shift Linkage (Side Shift)

REF	零件编号	中文名称	英文名称	数量
1	17764A2	节流连杆套件	LINK KIT Throttle	1
2	110383	控制杆	LEVER CONTROL	1
3	118591	螺丝(.190-32 x 1.750)控制杆	SCREW (.190-32 x 1.750) CONTROL LEVER	1
4	48039	控制杆螺钉帽	CAP CONTROL LEVER SCREW	1
5	89540	点火提前弹簧	SPRING SPARK ADVANCE	1
6	42343	作动杆	LEVER ACTUATING	1
7	817429	正时连杆	TIMING LINK	1
8	817428	插座	SOCKET	2
9	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
11	423301	换挡手柄	HANDLE SHIFT	1
12	60762	换挡手柄衬套	BUSHING SHIFT HANDLE	2
13	423291	换挡杆	LEVER SHIFT	1
14	42358	换挡杆背板	BACKPLATE SHIFT LEVER	1
15	400633	换挡杆螺母(M5)	NUT (M5) SHIFT LEVER	1
15	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
16	39627	定位弹簧	SPRING DETENT	1
17	39601	定位弹簧板(旧设计)	PLATE DETENT SPRING (OLD DESIGN)	1
18	400018	螺丝(M5 x 12)定位弹簧与板	SCREW (M5 x 12) DETENT SPRING AND PLATE	2
19	96202	换挡连杆衬套	BUSHING SHIFT LINK	1
20	89302	换挡连杆垫片(0.203x0.406x0.040)	WASHER (.203 x .406 x .040) SHIFT LINK	1
21	21071	换挡连杆开口销	COTTER PIN SHIFT LINK	1
21	210711	开口销	COTTER PIN	1
22	11042	换挡连杆	LINK SHIFT	1
23	110501	节气门限位杆	LEVER THROTTLE LIMIT	1
24	400036	节气门限位杆螺钉(M5x20)	SCREW (M5 x 20) THROTTLE LIMIT LEVER	1
25	85095	节气门限位杆衬套	BUSHING THROTTLE LIMIT LEVER	1
25	8M0214959	衬套@5	BUSHING @5	1
26	89302	节气门限位螺钉垫片(0.203x0.406x0.040)	WASHER (.203 x .406 x .040) THROTTLE LIMIT SCREW	1
27	400633	螺母(M5)节气门限位螺丝	NUT (M5) THROTTLE LIMIT SCREW	1
27	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
28	17848	支架	BRACKET	1
29	4000330	拉索支架螺钉(M6x25)	SCREW (M6 x 25) CABLE BRACKET	2
29	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
30	42026A2	控制平台	PLATFORM CONTROL	1
31	16955	螺丝(M6 x 8)	SCREW (M6 x 8)	1
32	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
32	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
33	69708	波形垫圈	WAVE WASHER	1
34	4000328	平台至模块螺钉(M6x16)	SCREW (M6 x 16) PLATFORM TO BLOCK	1
34	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	1
35	92425	缓冲器(旧设计)	DASHPOT (OLD DESIGN)	1
36	93001	缓冲器支架(旧设计)	BRACKET DASHPOT (OLD DESIGN)	1
37	28770	螺母(.312-24)不锈钢缓冲器端子(旧设计)	NUT (.312-24) Stainless Steel DASHPOT TERMINAL (OLD DESIGN)	2
38	821211	垫片(SUPER 15)	SPACER (SUPER 15)	1
39	821210	螺丝(SUPER 15)	SCREW (SUPER 15)	1

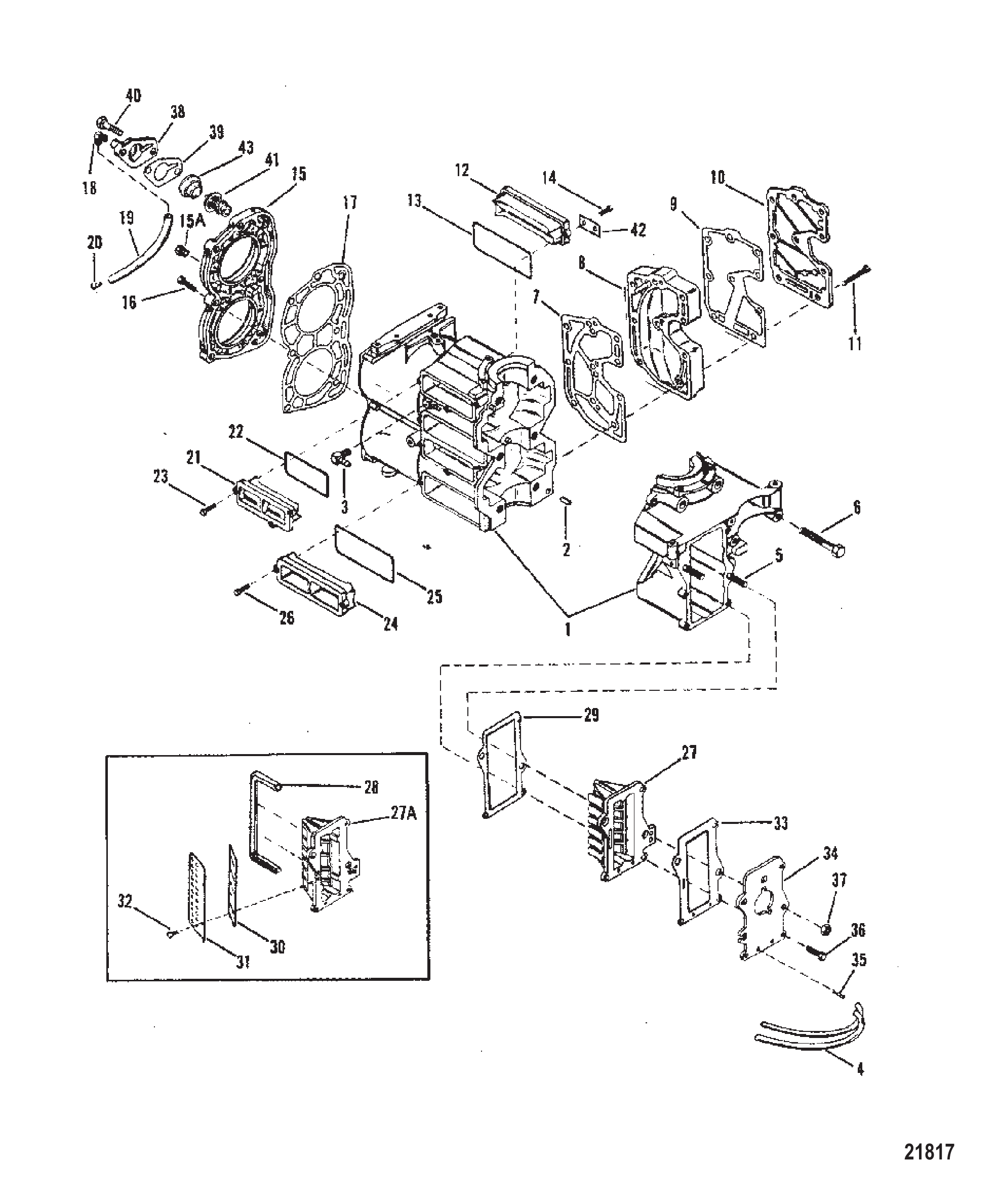

图 10气缸体与盖 Cylinder Block and Covers

REF	零件编号	中文名称	英文名称	数量
1	9533A3	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	NSS	不单独销售气缸体	NOT SOLD SEPARATE Cylinder Block	1
2	85171	定位销	PIN Dowel	3
3	15133	接头（45度）	FITTING (45 Degree)	2
4	1383556	软管（切割至12.25英寸）	HOSE (Cut to 12.25 Inches)	2
4	99130100	软管-48英寸	TUBING-48 INCH	2
5	42917	螺柱	STUD	2
5	429173	螺柱	STUD	2
6	40001209	螺丝(M10 x 60)	SCREW (M10 x 60)	6
7	414757	衬垫	GASKET	1
7	892158	排气歧管衬垫	GASKET Exhaust Manifold	1
8	923291	排气歧管	MANIFOLD Exhaust	1
8	92329F03	排气歧管	MANIFOLD Exhaust	1
9	414994	衬垫	GASKET	1
9	892157	排气歧管盖衬垫	GASKET Exhaust Manifold Cover	1
10	923301	盖板	COVER	1
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	9
12	14407	盖板	COVER	2
12	144071	盖板	COVER	2
13	30503	O型圈	O-RING	2
13	822370	O型圈 (2.362×.103)	O-RING (2.362 x .103)	2
14	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	4
15	8282A1	盖总成	COVER ASSEMBLY	1
16	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	5
17	863891	衬垫	GASKET	1
17	863893	衬垫	GASKET	1
18	99664	弯头	ELBOW	1
18	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
19	99127109	管路（57.00英寸散装）示流器（切割至8英寸）	LINE (57.00 Inches Bulk) TELL TALE (Cut to 8 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	94848	接头	FITTING	1
21	14406	盖板	COVER	2
22	86391	O型圈	O-RING	2
23	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	6
24	14408	盖板	COVER	2
25	822370	O型圈 (2.362×.103)	O-RING (2.362 x .103)	2
26	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	4
27	14112	簧片阀组（设计II）	REED BLOCK (DESIGN II)	1
27	14112T	簧片阀组	REED BLOCK	1
27A	424712	簧片阀组（设计I）	REED BLOCK (DESIGN I)	1
27A	14112T	簧片阀组	REED BLOCK	1
28	859771	密封件（设计I簧片阀组）	SEAL (DESIGN I REED BLOCK)	1
28	85977002	密封件	SEAL	1
29	414172	衬垫	GASKET	1
30	816806	簧片设计I簧片阀组	REED Design I Reed Block	2
31	897931	止动件设计I簧片阀组	STOP Reed Design I Reed Block	2
32	4005785	螺钉 (M4 x 10)（设计I簧片阀组）	SCREW (M4 x 10) (Design I Reed Block	4
33	414181	衬垫	GASKET	1
34	41420A2	安装板	PLATE	1
34	41420A3	化油器适配板总成	PLATE ASSEMBLY Carb Adaptor	1
35	56759	倒钩接头	FITTING Barbed	2
36	40019108	螺钉（M5×20）	SCREW (M5 x 20)	3
37	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
38	143171	盖板	COVER	1
39	143184	衬垫	GASKET	1
39	14318005	衬垫	GASKET	1
40	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
41	14586	节温器	THERMOSTAT	1
42	12627	绑带	STRAP	1
43	62386	衬垫	GASKET	1
43	8M0204714	衬垫@4	GASKET @4	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	822261A92	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1
-	90885A88	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1

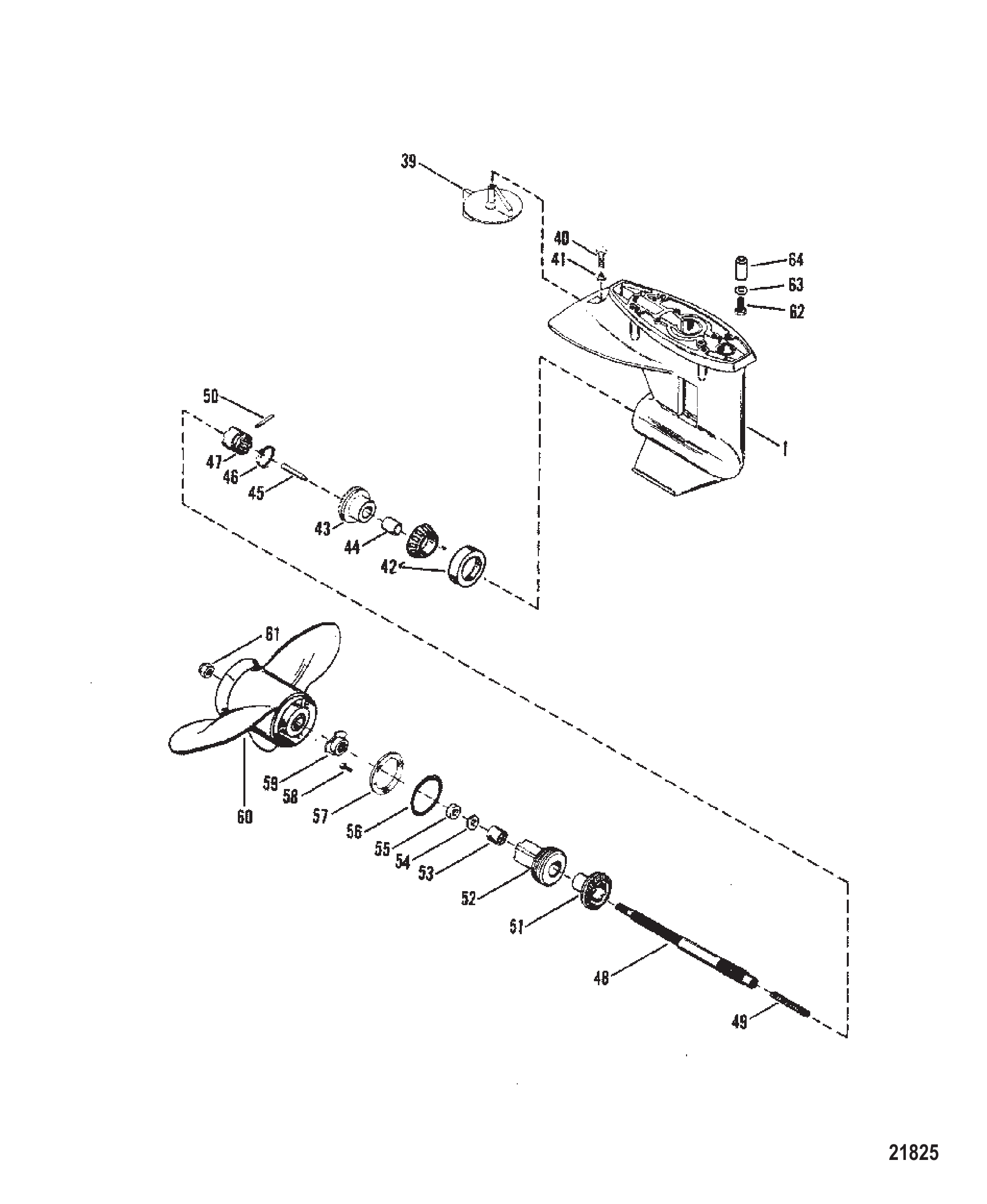

图 11齿轮箱螺旋桨轴 Gear Housing Propeller Shaft

REF	零件编号	中文名称	英文名称	数量
-	8669A13	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A14	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
-	8669A15	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A16	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	8669T16	ORD 1665-8669T14	ORD 1665-8669T14	1
-	8669A23	齿轮箱总成(短型)(追踪者系列)	GEAR HOUSING ASSEMBLY (SHORT) (TRACKER)	1
-	8669A24	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
1	8669A21	齿轮箱总成(基础黑色)	GEAR HOUSING ASSEMBLY Basic-Black (BLACK)	1
1	8M0083538	GC BASIC 25 2S	GC BASIC 25 2S	1
1	8669A22	齿轮箱总成(基础灰色)	GEAR HOUSING ASSEMBLY Basic-Gray (GRAY)	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8669A25	齿轮箱总成(追踪者系列)	GEAR HOUSING ASSEMBLY (TRACKER)	1
1	8669A39	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
39	984325	平衡鳍板	TRIM TAB	1
39	98432Q6	平衡鳍板	TRIM TAB	1
40	4000354	螺钉(M8x30) 调整片	SCREW (M8 x 30) TRIM TAB	1
41	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	1
41	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	1
42	99328A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
42	8M0103470	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
43	44213A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
43	44213T1	前进齿轮	GEAR Forward	1
44	85557	衬套	BUSHING	1
45	85094	凸轮从动件	FOLLOWER Cam	1
46	38114	弹簧	SPRING	1
47	41040	离合器(无标记)	CLUTCH (NO STAMPING)	1
47	41040T	离合器	CLUTCH	1
47	410401	离合器(标记52-41040--1)	CLUTCH (STAMPED 52-41040--1)	1
47	41040T1	离合器	CLUTCH	1
48	816623	螺旋桨轴	PROPELLER SHAFT	1
48	8166231	螺旋桨轴	PROPELLER SHAFT	1
49	88680	弹簧	SPRING	1
50	85093	销	PIN	1
50	8M0020999	十字销	PIN CROSS	1
51	99542	倒挡齿轮	GEAR Reverse	1
51	99542T	倒挡齿轮	GEAR Reverse	1
52	99906A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	99906T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	21739	滚柱轴承	BEARING Roller	1
54	41132	油封(内)	SEAL Oil (INNER)	1
55	41131	油封(外)	SEAL Oil (OUTER)	1
55	8M0245761	油封	SEAL OIL	1
56	85549	O型圈	O-RING	1
57	87293	安装板	PLATE	1
58	90883	螺钉(M5×16)	SCREW (M5 x 16)	3
59	8M0027793	轮毂	HUB	1
59	858498	推力毂总成	THRUST HUB ASSEMBLY	1
60	19640A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	1
60	19638A40	黑金刚螺旋桨(海专业/马拉松25/超级15)	BLACK MAX PROPELLER (SEA PRO/MARATHON 25/SUPER 15)	1
61	88228	螺旋桨螺母	PROP NUT	1
61	821280	螺母(海专业/马拉松25/超级15)	NUT (SEA PRO/MARATHON 25/SUPER 15)	1
61	4013812	螺母(M12)不锈钢	NUT (M12) Stainless Steel	1
62	4000378	不锈钢螺钉(M10 x 35)	SCREW (M10 x 35) Stainless Steel	4
62	87810178	螺钉(M10 x 35)	SCREW (M10 x 35)	4
63	43328	垫圈	WASHER	4
64	41589	垫片(按需使用)	SPACER (USE WHERE APPLICABLE)	4
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	85090A2	密封套件	SEAL KIT	1

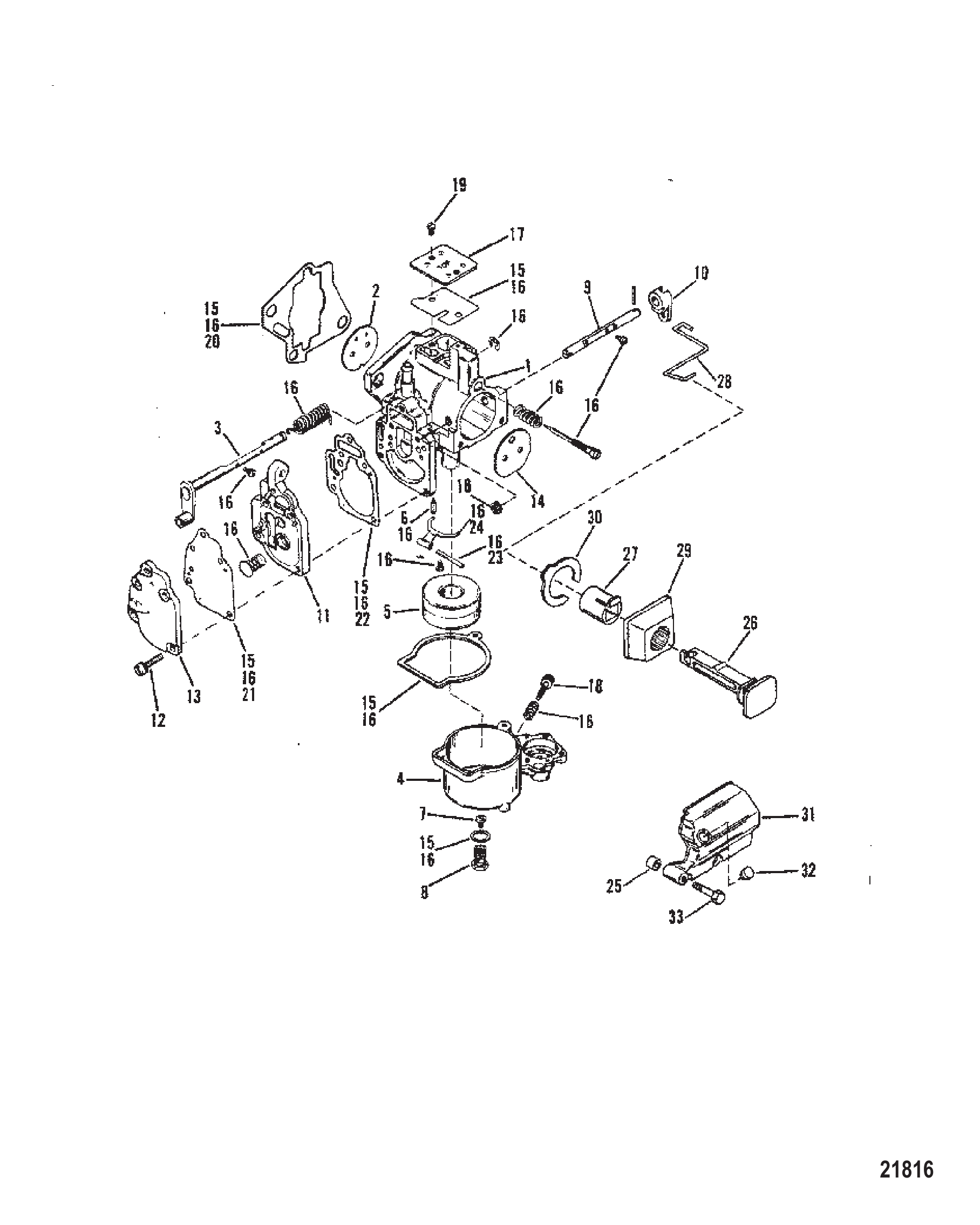

图 12化油器（SeaPro/Marathon 25/ Super15） Carburetor (SeaPro/Marathon 25/ Super15)

REF	零件编号	中文名称	英文名称	数量
1	817405A2	化油器(WMC-35A)	CARBURETOR (WMC-35A)	1
1	817405A5	化油器(WMC-35B)	CARBURETOR (WMC-35B)	1
1	817405T6	化油器	CARBURETOR	1
1	817405A6	化油器(WMC-43)	CARBURETOR (WMC-43)	1
1	817405T6	化油器	CARBURETOR	1
2	9646	油门阀	VALVE Throttle	1
3	9695	油门轴	SHAFT Throttle	1
4	811353	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	进油针阀	VALVE INLET NEEDLE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	6201	主量孔(.080)	JET (.080) MAIN FUEL	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	811354	阻风门轴 - WMC-35/35A	SHAFT Choke (WMC-35/35A)	1
9	8113541	阻风门轴	SHAFT Choke	1
9	8113541	阻风门轴 - WMC-35B/43	SHAFT Choke (WMC-35B/43)	1
10	817406	阻风门杆 - WMC-35	LEVER Choke (WMC-35)	1
10	811805	阻风门杆	LEVER Choke	1
10	811805	阻风门杆 - WMC-35A/35B/43	LEVER Choke (WMC-35A/35B/43)	1
11	15827A1	燃油泵体	BODY FUEL PUMP	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9637	燃油泵盖	COVER FUEL PUMP	1
14	811355	阻风门阀 - WMC-35	VALVE Choke (WMC-35)	1
14	811806	阻风门阀	VALVE Choke	1
14	811806	阻风门阀 - WMC-35A/35B/43	VALVE Choke (WMC-35A/35B/43)	1
15	811357	化油器衬垫组	GASKET SET Carburetor	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	811356	维修包 - VMC 35/35A	REPAIR KIT (VMC 35/35A)	1
16	8237072	维修套件	REPAIR KIT	1
16	823708	维修包 - WMC 35B	REPAIR KIT (WMC 35B)	1
16	8237072	维修套件	REPAIR KIT	1
16	8113561	维修包 - WMC-43	REPAIR KIT (WMC-43)	1
16	8237072	维修套件	REPAIR KIT	1
17	9699	盖板	PLATE COVER	1
18	811360	浮子室放油螺钉	SCREW Bowl Drain	1
19	9696	盖板螺钉	SCREW COVER PLATE	2
20	414491	化油器衬垫	GASKET CARBURETOR	1
20	192061	化油器衬垫	GASKET Carburetor	1
21	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
22	9633	衬垫	GASKET	1
23	F10064	轴	SHAFT	1
24	824401	浮子杆	LEVER Float	1
25	41750	嵌件	INSERT	2
25	41750T	嵌件	INSERT	2
26	817424	阻风门旋钮	KNOB Choke	1
27	817426	阻风门面板嵌件	INSERT Choke Bezel	1
28	817425	阻风门连杆	LINK Choke	1
29	172291	阻风门面板	BEZEL Choke	1
30	11278	固定夹	CLIP Retaining	1
31	17442	化油器盖	COVER CARBURETOR	1
32	47579	化油器盖塞	PLUG CARBURETOR COVE	1
33	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	2
-	422501	限流板	RESTRICTOR PLATE	1
-	757911	衬垫	GASKET	2
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	822261A92	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1
-	90885A88	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1

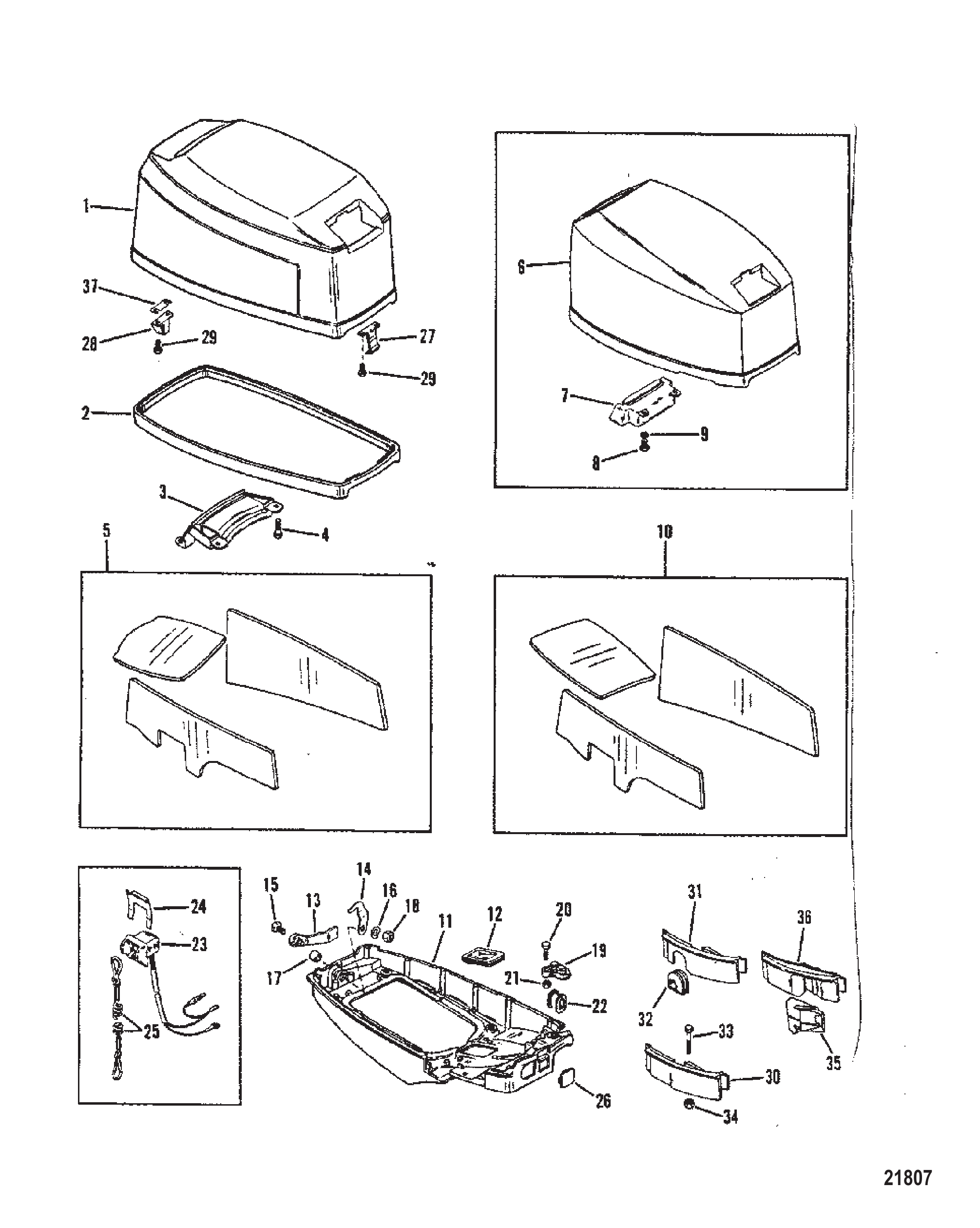

图 13顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	827328T9	顶盖总成	TOP COWL ASSEMBLY	1
1	827328T10	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	859356A1	隔音毯套装	SOUND BLANKET KIT	1
4	859356A02	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
6	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
7	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	2
8	823865	盖塞	CAP PLUG	2
9	831207T10	手柄	HANDLE	1
9	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
10	812707	衬套	BUSHING	2
11	831214	隔套	SPACER	1
12	12134	波形垫圈	WASHER Wave	1
13	F481777	凸轮锁轴	CAM Latch Shaft	1
13	8M0001081	凸轮	CAM	1
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
15	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
16	821249M2	前支架	BRACKET Front	3
16	8M0036792	支架	BRACKET	3
17	815477	缓冲器锁扣	BUMPER Latch	3
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
19	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
20	8237951	挡圈	RING Retaining	1
21	815263	滚轮	ROLLER	1
21	8M0207770	滚轮@3	ROLLER @3	1
22	8155381	滚动销	PIN Roll	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	12066Q9	绳索	ROPE	1
26	12066Q10	启动绳@2	ROPE-STARTER@2	1

图 14下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

图 15外罩 Cowls

REF	零件编号	中文名称	英文名称	数量
1	8869A23	顶盖总成	TOP COWL ASSEMBLY	1
2	17773A2	罩盖密封件	SEAL Cowl	1
2	8M0043411	罩盖密封条	SEAL-COWL	1
3	17539	机罩手柄	HANDLE Cowl	1
4	70332	机罩手柄螺钉(#10-16x0.5英寸)	SCREW (#10-16 x .500) COWL HANDLE	4
4	95700	螺钉(#10-16 x .50)	SCREW (#10-16 x .50)	4
5	815625A1	隔音毯套装	SOUND BLANKET KIT	1
5	815625A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
6	9163A19	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
6	9163T19	顶盖总成	TOP COWL ASSEMBLY	1
6	9163A15	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
6	9163T21	顶盖总成	TOP COWL ASSEMBLY	1
6	9163A21	上机罩总成(银色)	TOP COWL ASSEMBLY (SILVER)	1
6	9163T21	顶盖总成	TOP COWL ASSEMBLY	1
6	9163A20	上机罩总成(TRACKER)	TOP COWL ASSEMBLY (TRACKER)	1
6	9163T20	顶盖总成-TRA	COWL ASSY-TOP-TRA	1
2	17773A2	罩盖密封件	SEAL Cowl	1
2	8M0043411	罩盖密封条	SEAL-COWL	1
7	44311F3	护罩(黑色)	SHIELD (BLACK)	1
7	44311F2	护罩(灰色)	SHIELD (GRAY)	1
7	44311F3	护罩	SHIELD	1
7	44311F5	护罩(银色)	SHIELD (SILVER)	1
7	44311F3	护罩	SHIELD	1
7	44311F4	护罩(TRACKER)	SHIELD (TRACKER)	1
8	400018	护罩螺钉(M5x12)	SCREW (M5 x 12) SHIELD	2
9	33786	护罩螺钉垫圈	WASHER SHIELD SCREW	2
9	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	2
10	815625A1	隔音毯套装	SOUND BLANKET KIT	1
10	815625A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
11	9682A1	底罩(黑色)	BOTTOM COWL (BLACK)	1
11	9682A11	下机罩-黑色	BOTTOM COWL-BLACK	1
11	9682A2	底罩(灰色)	BOTTOM COWL (GRAY)	1
11	9682A12	下机罩-灰色	BOTTOM COWL-GRAY	1
11	9682A7	下机罩(TRACKER)	BOTTOM COWL (TRACKER)	1
11	9682A13	下机罩-TRACK	BOTTOM COWL-TRACK	1
12	17231	换挡轴护套	GROMMET Shift Shaft	1
13	17220	罩壳锁杆	LEVER Cowl Latch	1
14	816202	锁钩	HOOK Latch	1
15	40019130	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
16	37642	波形垫圈	WAVE WASHER	1
17	812707	尼龙衬套	BUSHING NYLON	1
18	17224	锁紧螺母	NUT Latch Retaining	1
19	17223	线束盖	COVER Harness	1
20	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
21	401196	螺母 (M6)	NUT (M6)	1
22	17226	线束护套	GROMMET Wire Harness	1
23	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
24	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
24	8M0032846	黄铜固定座	RETAINER Brass	1
25	15920A54	拉绳总成	LANYARD ASSEMBLY	1
25	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
26	17230	开关孔堵头	PLUG STOP SWITCH HOLE	1
27	17221	盖锁扣	LATCH Cowl	1
28	812413A1	滚轮支架总成	BRACKET ASSEMBLY Roller	1
29	400033	锁扣与挂钩螺钉(M5x12)	SCREW (M5 x 12) LATCH AND HOOK	4
30	17234T	手柄盖(黑色)	COVER (HANDLE) (BLACK)	1
30	17234F1	侧盖	SIDE COVER	1
30	17234T7	手柄盖(灰色)	COVER (HANDLE ) (GRAY)	1
30	17234F6	ORD 17234F 1	ORD 17234F 1	1
31	17234F5	手柄盖(黑色)	COVER (HANDLE) (BLACK)	1
31	17234F2	手柄盖(灰色)	COVER (HANDLE ) (GRAY)	1
31	17234F5	盖板	COVER	1
32	17227	护孔环	GROMMET	1
33	4000329	螺钉(M6x20)(手动)	SCREW (M6 x 20) (MANUAL)	1
33	8M0206596	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
33	4000334	螺钉(M6x45)(电动/手动遥控)	SCREW (M6 x 45) (ELECTRIC/MANUAL REMOTE CONTROL)	1
34	401196	盖螺母(M6)	NUT (M6) COVER	1
35	17627	护孔环	GROMMET	1
36	17233T	盖(黑色)	COVER (BLACK)	1
36	17233F1	盖板	COVER	1
36	17233F2	盖(灰色)	COVER (GRAY)	1
36	17233F1	盖板	COVER	1
36	17233F3	盖(TRACKER)	COVER (TRACKER)	1
36	17233F1	盖板	COVER	1
37	18517	罩盖锁扣垫片	SHIM Cowl Latch	AR

图 16喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	801400150	喷泵(黑色)	JET PUMP (BLACK)	1
-	801401150	喷泵(灰色)	JET PUMP (GRAY)	1
-	855766150	喷泵	JET PUMP	1
1	801411150	泵壳	HOUSING Pump	1
1A	827490	润滑油管	HOSE Lube	1
2	801414150	叶轮	IMPELLER	1
2	803984T	叶轮	IMPELLER	1
3	80141290	进气壳体	HOUSING Intake	1
3A	8271883	衬套	LINER	1
4	801413150	驱动轴	SHAFT Drive	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	847568	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
8	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
15	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
16	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
16	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
17	69064	螺栓(.312-18 x 2.750)	BOLT (.312-18 x 2.750)	1
18	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
18	306671	螺柱	STUD	2
19	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
20	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
20	8M0214963	垫圈	WASHER	1

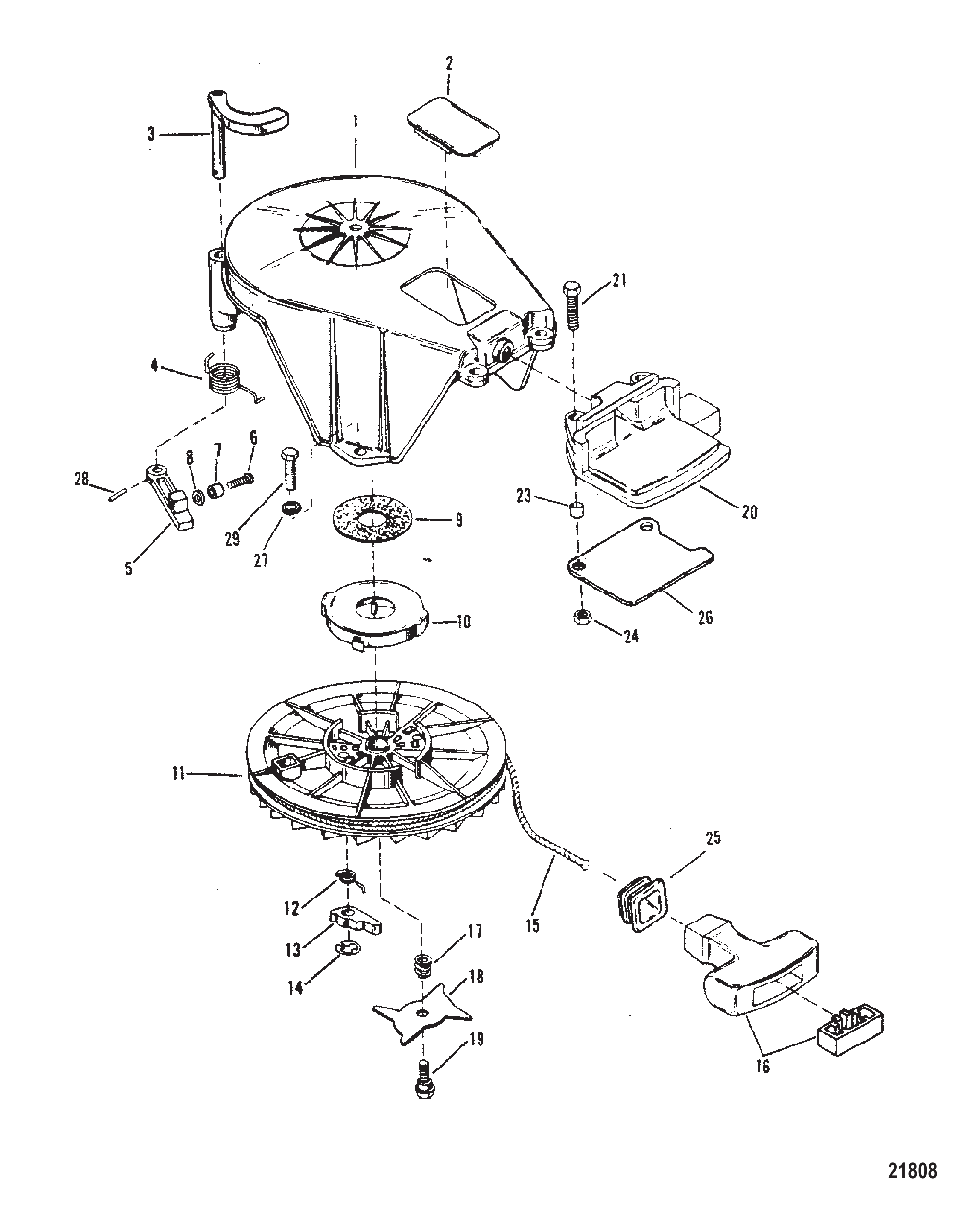

图 17反冲启动器总成（手动） Recoil Starter Assembly (MANUAL)

REF	零件编号	中文名称	英文名称	数量
1	42712A1	起动机壳体总成	HOUSING ASSEMBLY Starter STARTER	1
2	86971	起动机壳体盖（早期型号）	COVER STARTER HOUSING (EARLY MODELS)	1
3	94019	锁杆 (上)	LEVER LOCK (UPPER)	1
3	858925	锁止杆	LEVER Lock	1
4	12734	上锁杆弹簧	SPRING UPPER LOCK LEVER	1
5	938762	锁杆 (下)	LEVER LOCK (LOWER)	1
5	93876T02	杠杆	LEVER	1
6	92799	螺钉（#10-16 x 1.12）下锁杆	SCREW (#10-16 x 1.12) LOWER LOCK LEVER	1
6	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	1
7	818142	衬套	BUSHING	1
8	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
9	90478		PAD FELT	1
9	833161T	毛毡垫	PAD-FELT	1
10	86857	启动器弹簧	SPRING STARTER	1
10	86857T01	弹簧	SPRING	1
11	42566	启动器滑轮	SHEAVE STARTER	1
11	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
12	86851	凸轮弹簧	SPRING CAM	2
12	86851T02	弹簧 @2	SPRING @2	2
13	86850	凸轮	CAM	2
13	868501	凸轮	CAM	2
14	86849	凸轮挡圈	RING Retaining CAM	2
14	86849T01	环 @2	RING @2	2
15	12066A9	启动绳	ROPE STARTER	1
15	12066Q10	启动绳@2	ROPE-STARTER@2	1
16	85174A1	启动绳手柄总成	HANDLE ASSEMBLY STARTER ROPE	1
17	86852	凸轮弹簧	SPRING CAM	1
17	868523	弹簧	SPRING	1
18	86853	凸轮	CAM	1
18	86853T01	凸轮	CAM	1
19	97516	凸轮至启动器皮带轮螺丝	SCREW CAM TO STARTER SHEAVE	1
19	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
20	426264	启动手柄支架	SUPPORT STARTER HANDLE	1
21	40019111	螺钉（M5 x 35）起动机壳体支撑	SCREW (M5 x 35) SUPPORT TO STARTER HOUSING	2
23	309772	支架螺丝隔套	SPACER SUPPORT SCREW	4
24	400633	支架螺丝螺母（M5）	NUT (M5) SUPPORT SCREW	2
24	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2
25	44180	绳索衬套	BUSHING Rope	1
26	17212	支架	SUPPORT	1
26	856154T01	支架	SUPPORT	1
27	23538	垫圈	WASHER	1
28	38489	锁杆滚销	PIN Roll LOCK LEVER	1
29	40011128	螺钉 (M6 x 20) 不锈钢启动器壳体固定	SCREW (M6 x 20) Stainless Steel STARTER HOUSING ATTACHING	2
29	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	2
29	40011131	螺钉（M6 x 35）不锈钢起动机壳体固定	SCREW (M6 x 35) Stainless Steel STARTER HOUSING ATTACHING	1

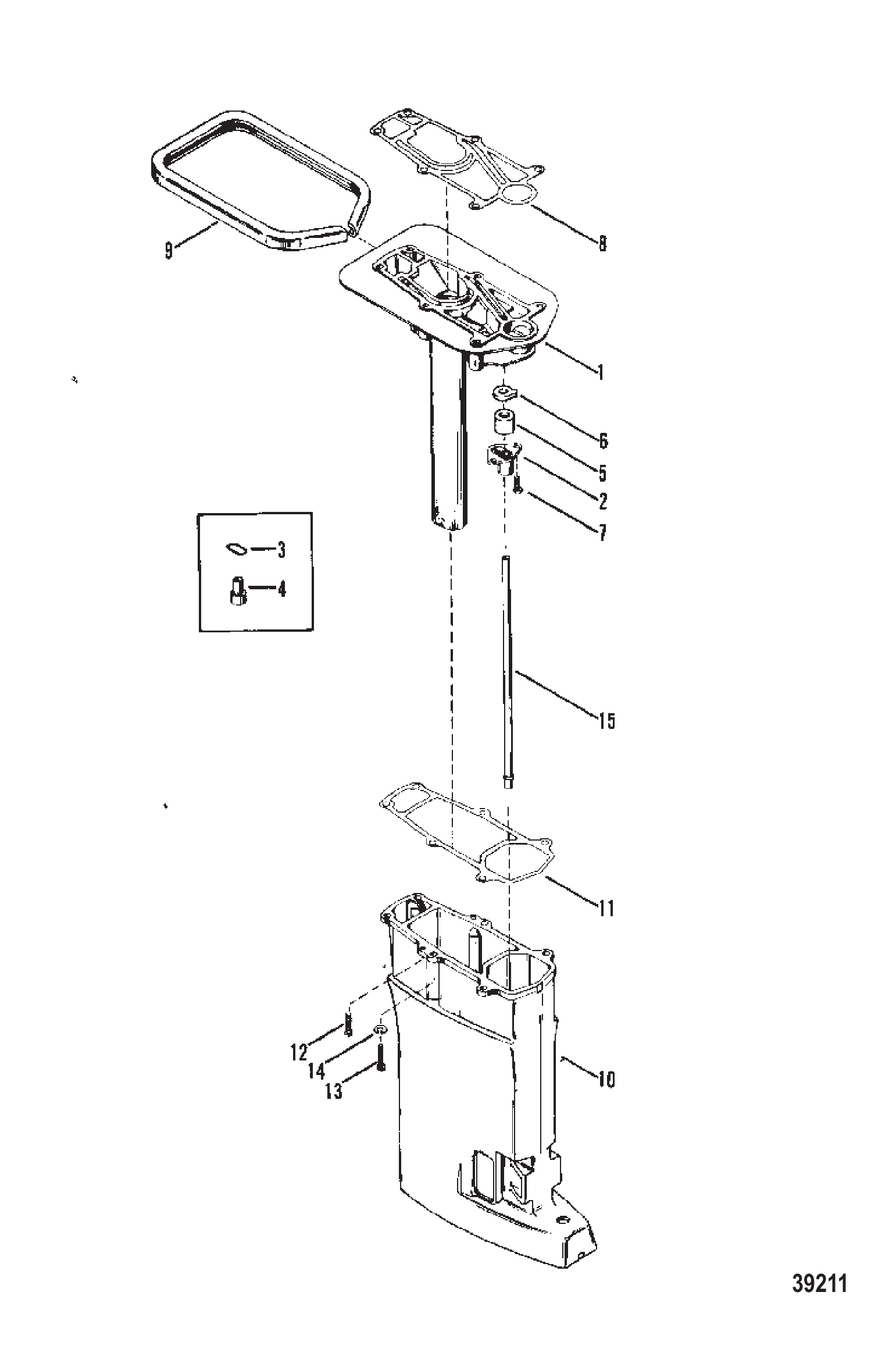

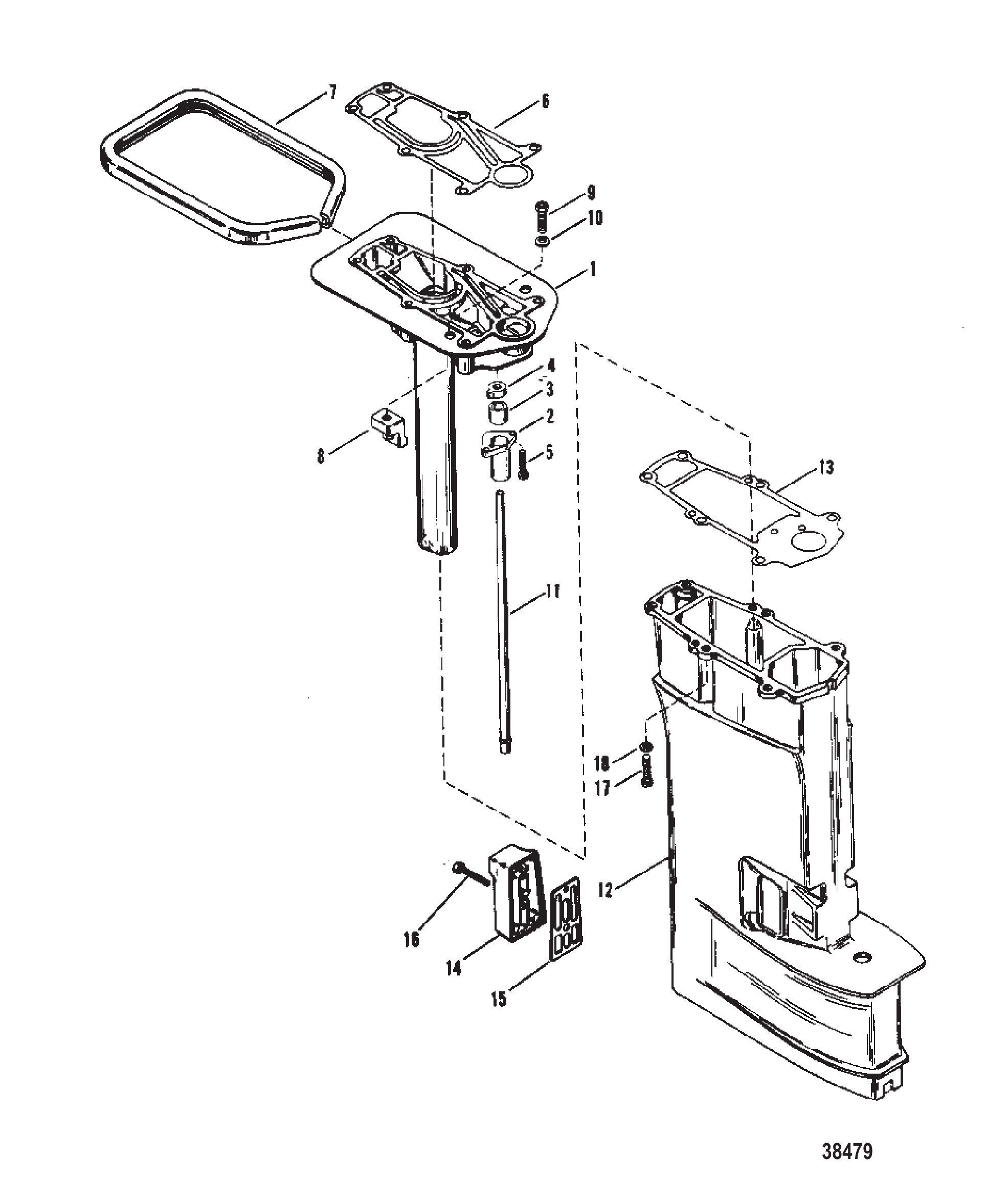

图 18驱动轴壳体总成 Driveshaft Housing Assembly

REF	零件编号	中文名称	英文名称	数量
1	99702A3	适配板总成	ADAPTOR PLATE ASSEMBLY	1
1	99702A6	适配板总成	ADAPTER PLATE ASSEMBLY	1
1	99702A7	适配板总成	ADAPTER PLATE ASSEMBLY	1
2	96248A1	水管壳体总成	HOUSING ASSEMBLY WATER TUBE	1
3	25329	水管密封件	SEAL WATER TUBE	1
4	96247	水管隔套	SPACER WATER TUBE	1
4	889715	水管隔套	SPACER Water Tube	1
5	400035	螺钉 (M5 x 16) 壳体至适配板	SCREW (M5 x 16) HOUSING TO ADAPTOR PLATE	2
6	41670	适配板垫片	GASKET ADAPTOR PLATE	1
6	41670006	适配板垫片	GASKET Adaptor Plate	1
7	87357	适配板密封件	SEAL Adaptor Plate	1
7	158662	密封件	SEAL	1
8	41211	上支架托架	BRACKET UPPER MOUNT	2
9	40007128	上安装支架螺钉(M6x20)	SCREW (M6 x 20) UPPER MOUNT BRACKET	2
10	29245	上安装支架不锈钢垫圈(0.281x0.5x0.06英寸)	WASHER (.281 x .500 x .060) Stainless Steel UPPER MOUNT BRACKET	2
10	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
11	85116	水管	TUBE Water	1
11	86292	水管	TUBE Water	1
12	9097A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9097T5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9098A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9098T5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9097A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9097T6	驱动轴壳体-灰色	DRIVESHAFT HSG-GR	1
12	9098A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9098A6	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
13	433371	驱动轴壳体衬垫	GASKET DRIVERSHAFT HOUSING	1
13	433374	驱动轴壳体垫片	GASKET Drive Shaft Housing	1
14	14534	怠速泄压盖	COVER IDLE RELIEF	1
15	14621	盖衬垫	GASKET COVER	1
16	14742	盖螺钉(.250-20 x 1.25)	SCREW (.250-20 x 1.25) COVER	1
17	4000360	驱动轴壳体至板螺钉(60mm)	SCREW DRIVE SHAFT HOUSING TO PLATE (60MM)	6
17	1993870	螺钉(M8 x 70)	SCREW (M8 x 70)	6
18	4002317	驱动轴壳体螺钉垫圈(8.90 X 17.0 X 1.9不锈钢)	WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW	6
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

图 19专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量

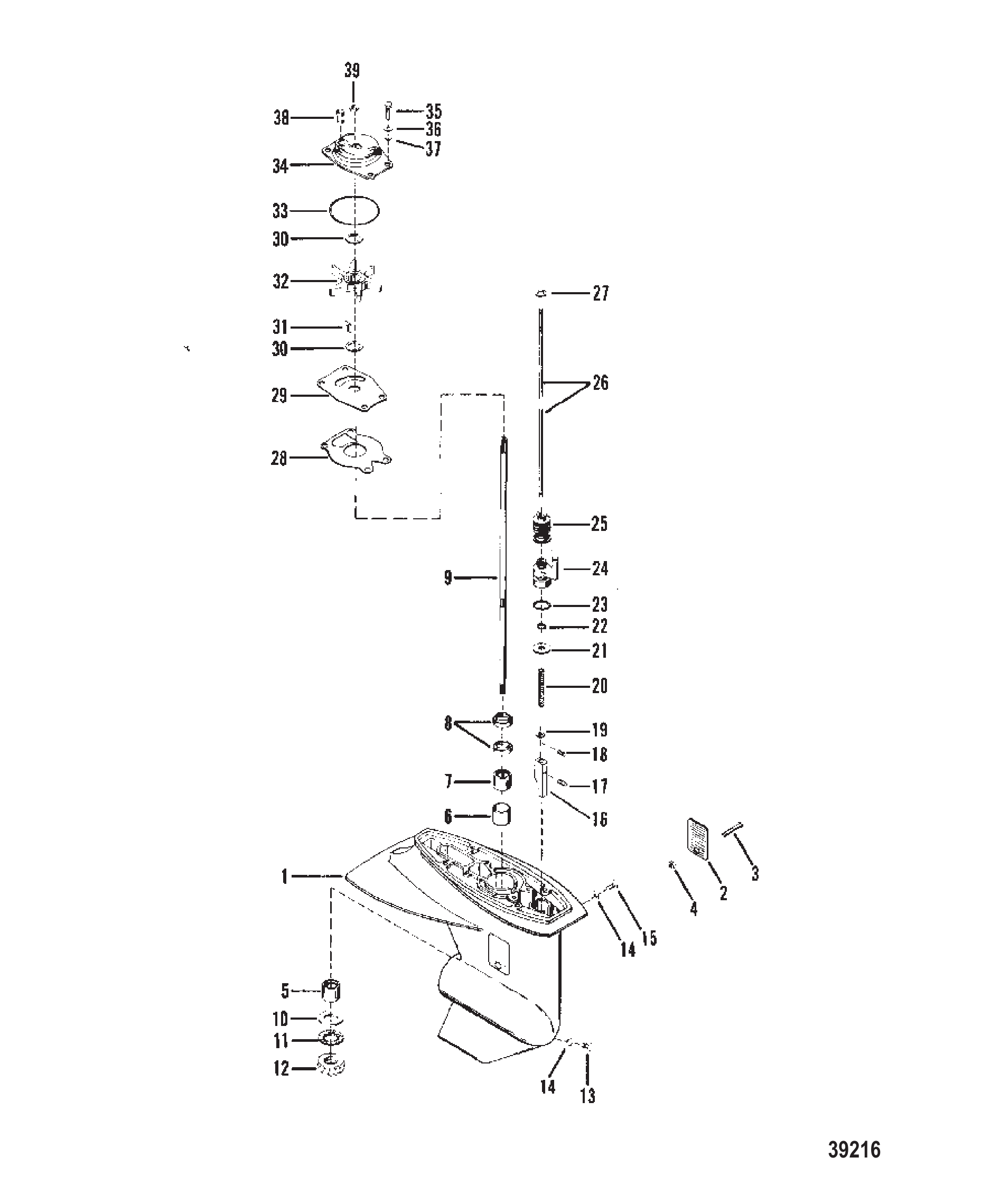

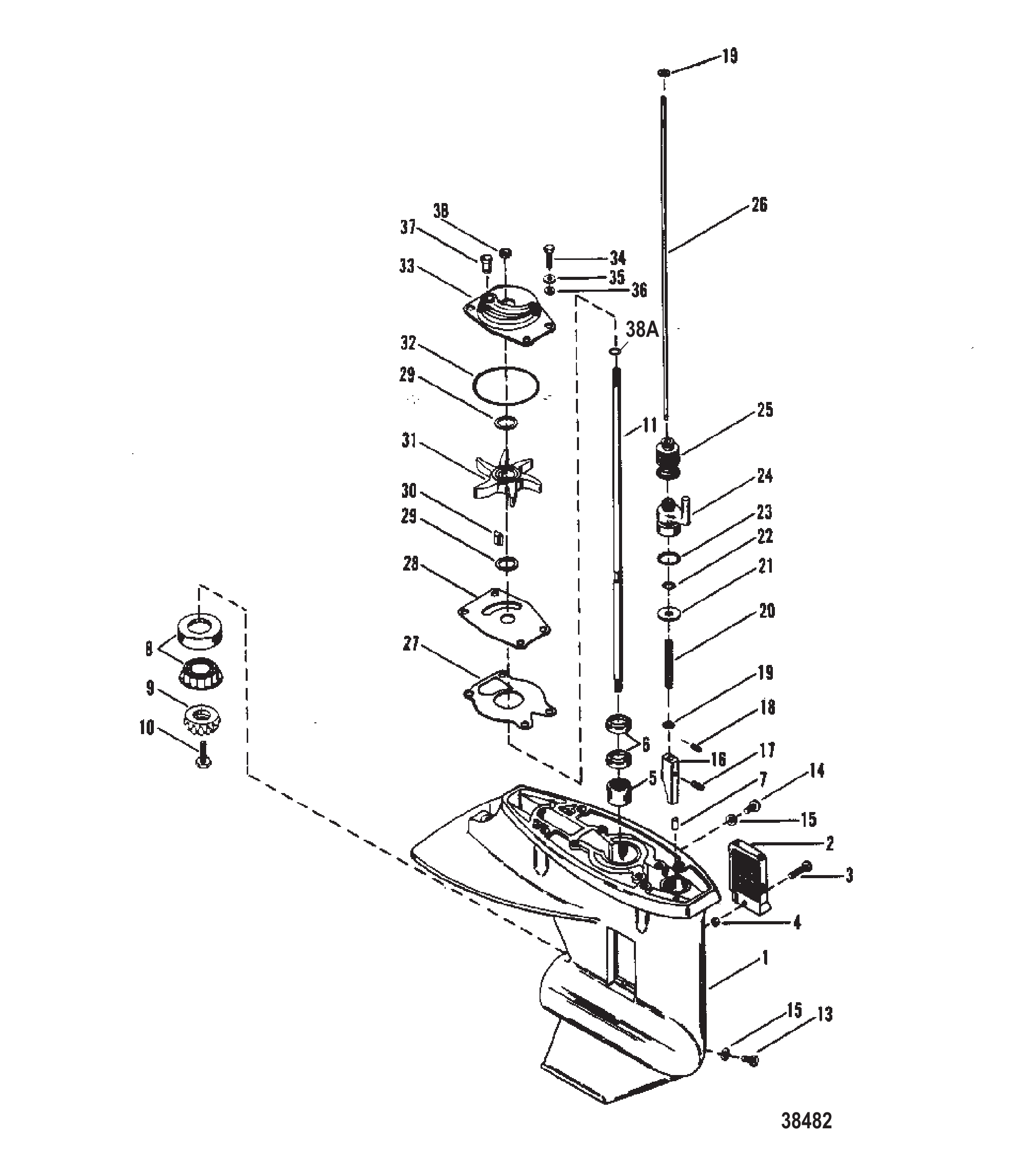

图 20齿轮箱（驱动轴） Gear Housing (Driveshaft)

REF	零件编号	中文名称	英文名称	数量
-	8669A11	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A12	完整齿轮箱壳体	GEAR HOUSNIG COMPLETE	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
-	8669A7	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A9	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T16	ORD 1665-8669T14	ORD 1665-8669T14	1
1	8669A10	Mercury基础齿轮箱总成	GEAR HOUSING ASSEMBLY Mercury BASIC
1	8M0083538	GC BASIC 25 2S	GC BASIC 25 2S
1	8669A8	Mariner基础齿轮箱总成	GEAR HOUSING ASSEMBLY Mariner BASIC	1
1	8669A22	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
2	41134	进水口滤网	SCREEN WATER INLET	1
2	41133	进水口滤网	SCREEN Water Inlet Port WATER INLET	1
3	40031112	螺钉(M5 x 40)滤网至齿轮箱	SCREW (M5 x 40) SCREEN TO GEAR HOUSING	1
4	400263	滤网螺钉螺母(M5)	NUT (M5) SCREEEN SCREW	1
5	41326	滚柱轴承上	BEARING Roller UPPER	1
6	99325	齿轮箱密封件	SEAL GEAR HOUSING	2
7	85500		PIN Dowel (.187 x .530) GEAR HOUSING	2
7	8M0084726	定位销	PIN Dowel	2
8	98294A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	98302	小齿轮	GEAR Pinion	1
10	49908	小齿轮螺钉(0.250-28x0.75英寸)	SCREW (.250-28 x .750) PINION GEAR	1
11	99199	驱动轴	DRIVESHAFT	1
11	99198	驱动轴	DRIVESHAFT	1
13	67892		SCREW Magnetic DRAIN	1
13	8M0058389	放油螺钉套件	SCREW KIT Drain	1
14	79953		SCREW (.375-16 x .250) GREASE FILLER	1
14	79953Q04	放油螺钉套件	SCREW KIT Drain	1
15	20260	放油/注油螺丝垫圈	WASHER DRAIN AND FILLER SCREW	2
15	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
16	85562A1	换档凸轮总成	CAM ASSEMBLY SHIFT	1
17	85096	换档凸轮驱动销	PIN Drive SHIFT CAM	1
18	85593	换档轴销(.078 x .437)	PIN (.078 x .437) SHIFT SHAFT	1
19	29245	不锈钢换档轴垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT	2
19	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
20	93007	换档轴弹簧	SPRING SHIFT SHAFT	1
21	85091	换档轴垫圈	WASHER SHIFT SHAFT	1
22	85594	轴套O型圈(0.239x0.174英寸)	O-RING (.239 x .174) SHIRT SHAFT	1
23	35276	O型圈(.734 x .139)换挡轴固定器	O-RING (.734 x .139) SHIFT SHAFT RETAINER	1
24	93878	换档轴固定环	RETAINER SHIFT SHAFT	1
25	85552	换档轴防尘罩	BOOT SHIFT SHAFT	1
25	85552001	护套	BOOT	1
26	85126	换档轴	SHIFT SHAFT	1
26	86293	换档轴	SHIFT SHAFT	1
27	99326	水泵衬垫	GASKET WATER PUMP	1
27	993261	衬垫	GASKET	1
28	85083	面板	FACE PLATE	1
29	86645	叶轮垫圈	WASHER IMPELLER	2
29	8M0204722	垫圈	WASHER	2
30	85119	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214993	键@5	KEY @5	1
31	850891	叶轮	IMPELLER	1
31	8M0204712	叶轮	IMPELLER	1
31	8508920	叶轮(冷水型)	IMPELLER (COLD WATER)	OPT
31	8M0204712	叶轮	IMPELLER	OPT
32	69202	水泵O型圈	O-RING WATER PUMP	1
33	99157A1	水泵总成	PUMP ASSEMBLY Water	1
33	99157A02	水泵总成	PUMP ASSEMBLY Water	1
34	400035	水泵至齿轮箱螺丝(M5 x 16)	SCREW (M5 x 16) WATER PUMP TO GEAR HOUSING	4
35	89302	垫圈(.203 x .406 x .040)水泵螺丝	WASHER (.203 x .406 x .040) WATER PUMP SCEW	4
36	85095	水泵螺丝衬套	BUSHING WATER PUMP SCREW	4
36	8M0214959	衬套@5	BUSHING @5	4
37	85090	水管密封件	SEAL WATER TUBE	1
37	85090001	密封件	SEAL	1
38	86203	O型圈-传动轴橡胶件	O-RING DRIVESHAFT - RUBBER	1
38A	99691	O型圈	O-RING	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
-	99157T2	水泵套件	PUMP KIT Water	1
-	85090A2	密封套件	SEAL KIT	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

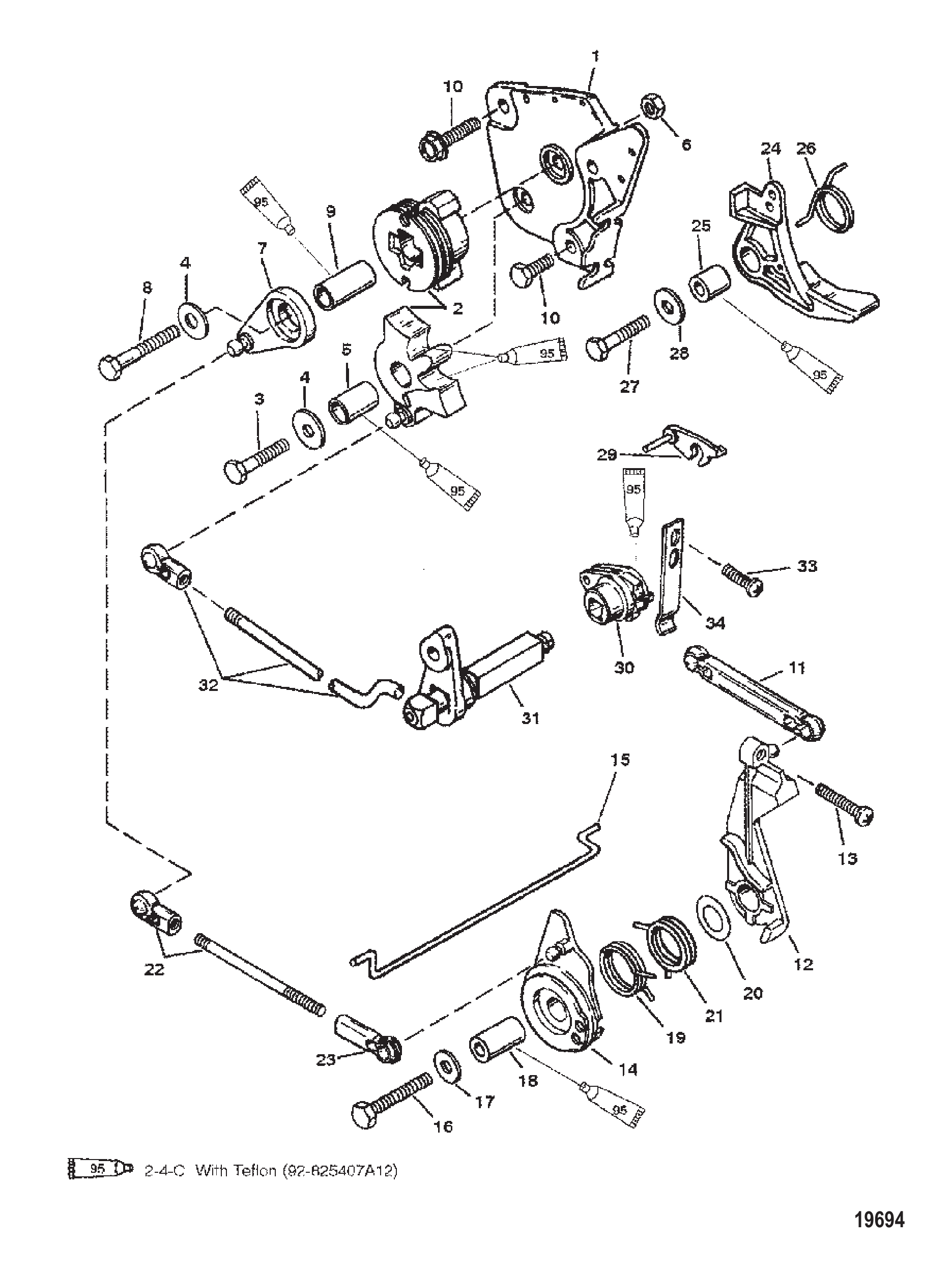

图 21油门和换挡联动装置（舵柄换挡） Throttle and Shift Linkage (Tiller Handle Shift)

REF	零件编号	中文名称	英文名称	数量
1	17725A1	换挡连杆	SHIFT LINK	1
1A	817428	插座	SOCKET	1
2	95027A6	水平换挡轴	SHIFT SHAFT HORIZONTAL	1
3	60762	衬套	BUSHING	2
4	17724	杠杆	LEVER	1
4	17724A1	杠杆总成	LEVER ASSEMBLY	1
5	400633	螺母 (M5)	NUT (M5)	1
5	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
6	932481	衬套	BUSHING	1
6	8M0215006	旋转衬套	BUSHING Swivel	1
7	34632	垫圈	WASHER	1
8	42156	杠杆	LEVER	1
9	95019	挡圈（旧设计）	RING Retaining (OLD DESIGN)	1
10	17764A2	节流连杆套件	LINK KIT Throttle	1
11	43360	杠杆	LEVER	1
11	433601	控制杆	LEVER Control	1
12	817429	正时连杆	TIMING LINK	1
13	817428	插座	SOCKET	2
13A	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
14	4000328	螺钉(M6 x 16)	SCREW (M6 x 16)	3
14	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	3
15	12863A1	平台	PLATFORM	1
16	16955	螺丝(M6 x 8)	SCREW (M6 x 8)	3
17	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
17	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	3
18	69708	波形垫圈	WAVE WASHER	2
19	89540	弹簧	SPRING	1
20	92362A1	杠杆	LEVER	1
21	937791	杠杆	LEVER	1
22	867171	连接杆	LINK	1
23	17680	挡圈	RING Retaining	2
24	29720	波形垫圈	WAVE WASHER	2
25	94085A1	齿轮	GEAR	1
26	93006	弹簧	SPRING	1
26	8M0215005	弹簧	SPRING	1
27	93008	钢球	BALL	1
29	118591	螺钉(0.190-32x1.750)	SCREW (.190-32 x 1.750)	1
30	48039	盖帽	CAP	1
31	92425	缓冲器（适用时使用）	DASHPOT (Use where Applicable)	1
32	93001	支架（适用时使用）	BRACKET (Use where Applicable)	1
33	28770	螺母（.312-24）不锈钢（适用时使用）	NUT (.312-24) Stainless Steel (Use where Applicable)	2

图 22维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	13286	零件手册18/20/25马力(XD)	PARTS MANUAL 18/20/25 H.P. (XD)	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	43170A84	贴花套件	DECAL SET	1
-	43477A85	贴花套件	DECAL SET	1
-	13480A86	贴花套件	DECAL SET	1
-	43173A84	贴花套件	DECAL SET	1
-	13239A86	贴花套件	DECAL SET	1
-	13480A86	贴花套件	DECAL SET	1
-	13239A86	贴花套件	DECAL SET	1
-	11181A85	贴花套件	DECAL SET	1
-	810461A92	贴花套件	DECAL SET	1
-	11627A85	贴花套件	DECAL SET	1
-	810461A92	贴花套件	DECAL SET	1
-	11044870	用户指南	OWNERS GUIDE	1
-	11046870	用户指南	OWNERS GUIDE	1
-	11046871	用户手册	MANUAL-OWNERS	1

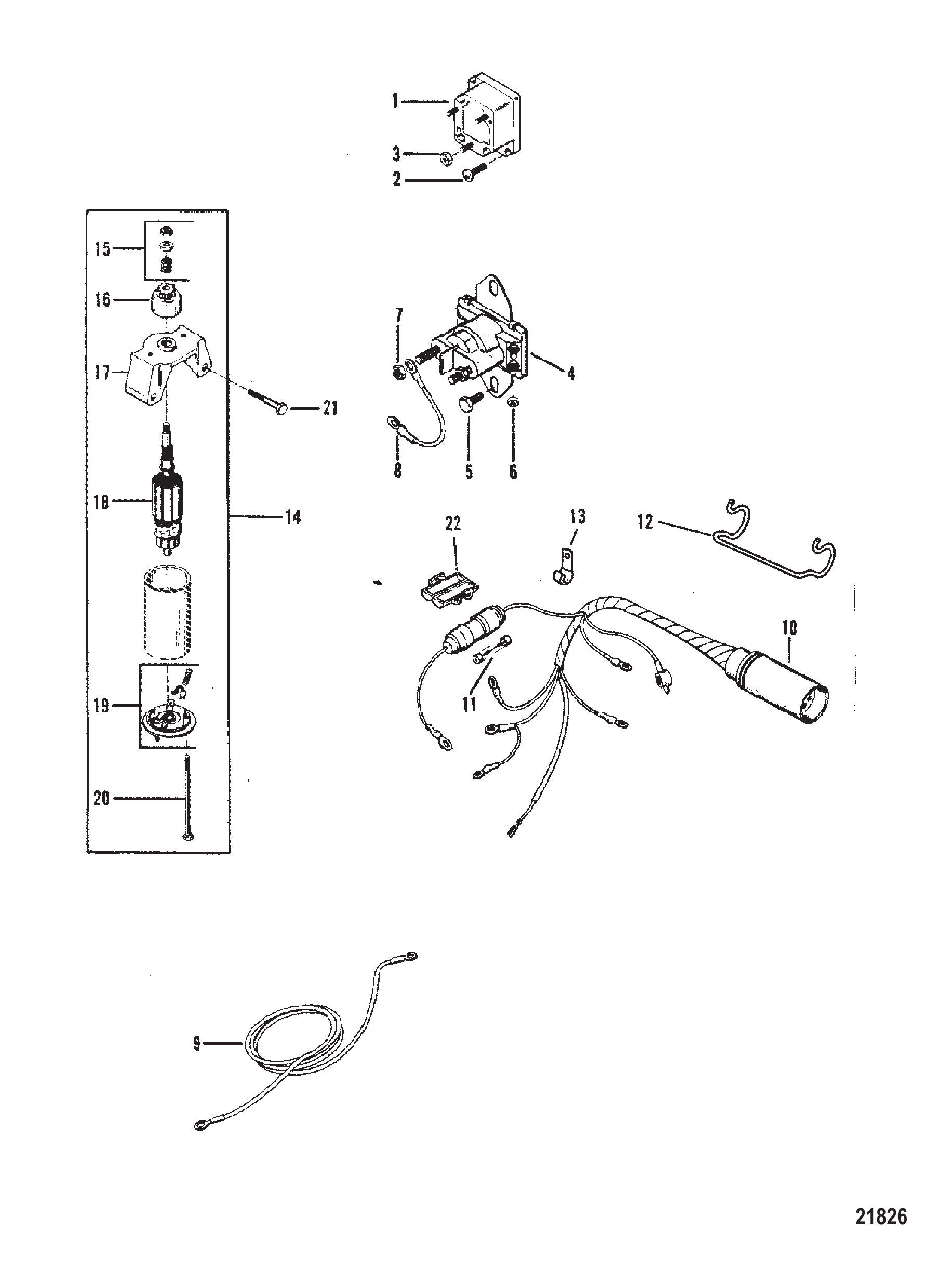

图 23电动启动组件 Electric Start Components

REF	零件编号	中文名称	英文名称	数量
1	816770	整流器	RECTIFIER	1
1	8M0058226	整流器	RECTIFIER	1
2	48409	螺丝(#10-16 x .625)不锈钢整流器至气缸体	SCREW (#10-16 x .625) Stainless Steel RECTIFIER TO CYLINDER BLOCK	2
3	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
4	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
4	8M0185149	启动电磁阀	SOLENOID START	1
5	4000327	螺钉(M6 x 14) 起动机电磁阀至曲轴箱	SCREW (M6 x 14) STARTER SOLENOID TO CRANKCASE	2
6	26419	螺母(#8-32)黄铜启动电磁阀端子	NUT (#8-32) Brass STARTER SOLENOID TERMINAL	2
7	64015	螺母(.250-20)启动电磁阀端子	NUT (.250-20) STARTER SOLENOID TERMINAL	2
8	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
9	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
9	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
9	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
9	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
10	92436A5	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
11	79091	保险丝20安培	FUSE 20 Ampere	1
11	8M0207796	保险丝20安培	FUSE 20 AMP	1
12	92753	固定座	RETAINER	1
13	55098	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	8M0033984	启动马达	STARTER MOTOR	1
15	96561	驱动套件	DRIVE KIT	1
16	96562	驱动器	DRIVE	1
17	96563	端盖	END CAP	1
17	96563T	端盖	END CAP	1
18	96565	电枢	ARMATURE	1
19	96564	端盖	END CAP	1
19	96564T	端盖	END CAP	1
20	96566	贯穿螺栓	THRU BOLT	1
21	421251	螺钉(M8 x 55) 起动机固定	SCREW (M8 x 55) STARTER MOTOR ATTACHING	2
21	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
22	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1

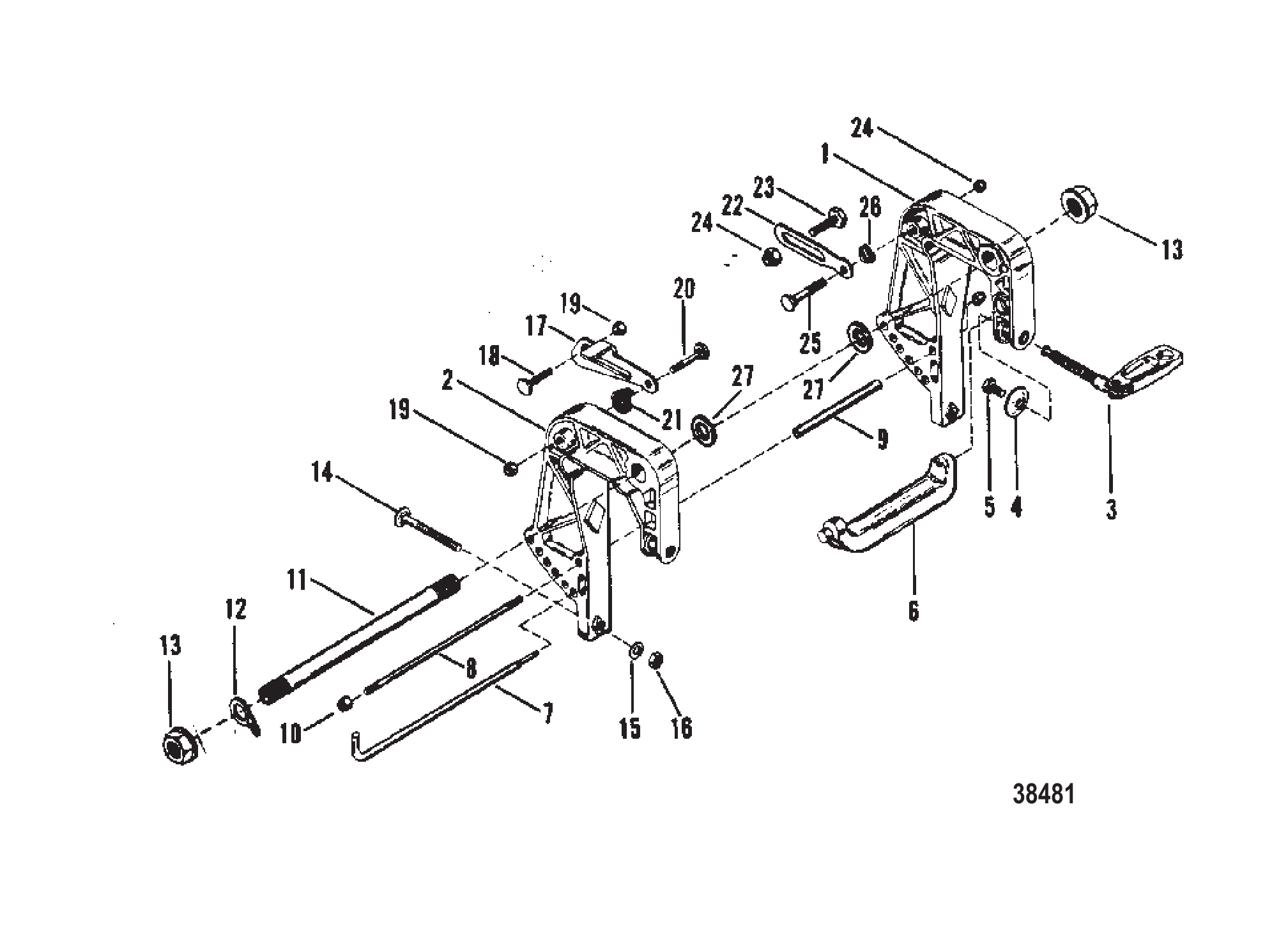

图 24夹紧支架总成 Clamp Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1	8794A1	夹箍支架	CLAMP BRACKET	1
1	8794A5	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8794A2	夹箍支架	CLAMP BRACKET	1
1	8794A6	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8796A1	夹箍支架	CLAMP BRACKET	1
2	8794A5	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8796A2	夹箍支架	CLAMP BRACKET	1
2	8794A6	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
4	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	818884	垫圈	WASHER	2
5	76804	垫圈固定螺丝	SCREW WASHER ATTACHING	2
5	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
6	41042	提手	HANDLE CARRYING	1
7	99929A1	倾斜销总成	PIN ASSEMBLY Tilt	1
8	99928	夹紧支架螺柱	STUD CLAMP BRACKET	1
9	41041	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
10	400213	螺母(M8)不锈钢夹紧支架螺柱	NUT (M8) Stainless Steel CLAMP BRACKET STUD	2
11	41171	倾斜管	TILT TUBE	1
11	8M0035075	倾斜管	TILT TUBE	1
12	30954	安全卡扣	CLIP SAFETY	1
12	8M0085928	卡扣	CLIP	1
13	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
14	69064	螺栓(.312-18 x 2.750)夹紧支架至艉板	BOLT (.312-18 x 2.750) CLAMP BRACKET TO TRANSOM	2
15	67981	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
16	67980	螺母(.312-18)夹紧支架螺栓	NUT (.312-18) CLAMP BRACKET BOLT	2
16	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	2
17	96965	倾斜止动杆-右舷侧	LEVER TILT STOP - STARBOARD SIDE	1
18	41523	螺钉(.250-28 x 1.00)杆至旋转支架	SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET	1
19	36069	螺母-倾斜止动杆螺钉	NUT TILT STOP LEVER SCREW	2
20	41524	螺钉(.250-28 x 1.75)杆至夹紧支架	SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET	1
21	44581	倾斜止动杆螺钉弹簧	SPRING TILT STOP LEVER SCREW	1
22	90901	倾斜限位带-左舷侧	STRAP TILT STOP - PORT SIDE	1
23	41523	螺钉 (.250-28 x 1.00) 带至旋转支架	SCREW (.250-28 x 1.00) STRAP TO SWIVEL BRACKET	1
24	36069	倾斜止动带螺丝螺母	NUT TILT STOP STRAP SCREW	2
25	41524	螺钉 (.250-28 x 1.75) 带至夹紧支架	SCREW (.250-28 x 1.75) STRAP TO CLAMP BRACKET	1
26	31030		WAVE WASHER TILT STOP STRAP SCREW	1
27	71421	倾斜管尼龙垫圈	WASHER Nylon TILT TUBE	2

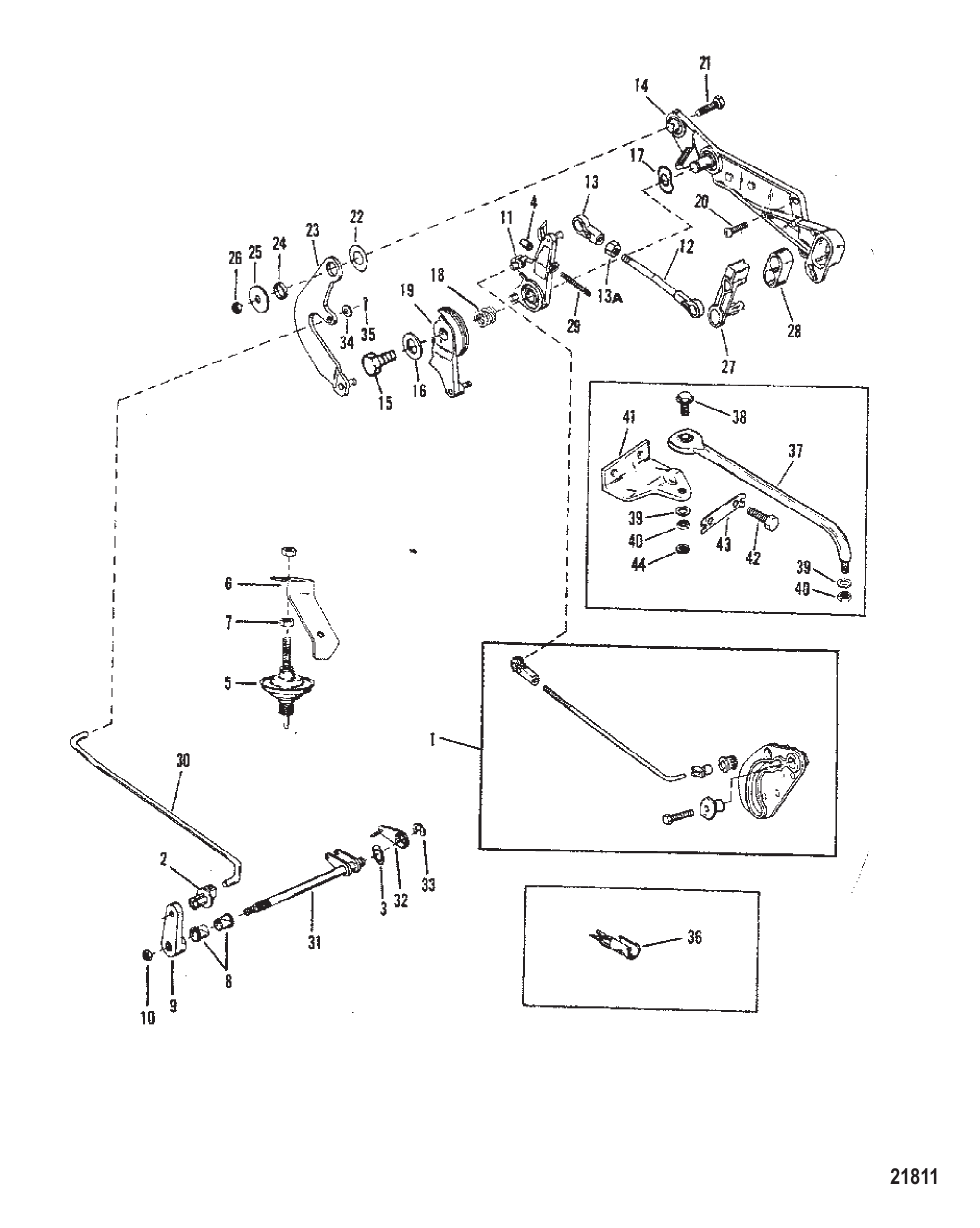

图 25油门和换挡联动装置（电动/手动遥控） Throttle and Shift Linkage (Electric/Manual Remote Control)

REF	零件编号	中文名称	英文名称	数量
1	17764A2	节流连杆套件	LINK KIT Throttle	1
2	932481	衬套	BUSHING	1
2	8M0215006	旋转衬套	BUSHING Swivel	1
3	34632	垫圈	WASHER	1
4	48039	怠速止动螺钉帽	CAP IDLE STOP SCREW	1
5	92425	缓冲器（适用时使用）	DASHPOT (Use where Applicable)	1
6	93001	支架（适用时使用）	BRACKET (Use where Applicable)	1
7	28770	螺母（.312-24）不锈钢（适用时使用）	NUT (.312-24) Stainless Steel (Use where Applicable)	2
8	60762	换挡轴衬套	BUSHING SHIFT SHAFT	2
9	17724	换挡轴杆	LEVER SHIFT SHAFT	1
9	17724A1	杠杆总成	LEVER ASSEMBLY	1
10	400633	换挡轴螺母(M5)	NUT (M5) SHIFT SHAFT	1
10	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
11	43360	控制杆	LEVER CONTROL	1
11	433601	控制杆	LEVER Control	1
12	817429	正时连杆	TIMING LINK	1
13	817428	插座	SOCKET	2
13A	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
14	42026A2	控制平台	PLATFORM CONTROL	1
15	16955	螺钉（M6 x 8）平台	SCREW (M6 x 8) PLATFORM	1
16	4002316	垫圈（6.60 x 17.0 x 1.5不锈钢）平台螺钉	WASHER (6.60 X 17.0 X 1.5SS) PLATFORM SCREW	1
16	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
17	69708	波形垫圈	WAVE WASHER	1
18	89540	点火提前弹簧	SPRING SPARK ADVANCE	1
19	42343	作动杆	LEVER ACTUATING	1
20	4000328	螺钉（M6 x 16）控制平台	SCREW (M6 x 16) CONTROL PLATFORM	1
20	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	1
20	4000329	螺钉（M6 x 20）控制平台	SCREW (M6 x 20) CONTROL PLATFORM	2
20	8M0206596	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
21	40007128	换挡杆与平台螺丝（M6 x 20）	SCREW (M6 x 20) SHIFT LEVER TO PLATFORM	1
22	95093	换挡杆与平台垫圈	WASHER SHIFT LEVER TO PLATFORM	1
23	43424	换挡杆	LEVER SHIFT	1
24	95091	换挡杆至平台套管	SLEEVE SHIFT LEVER TO PLATFORM	1
25	35280	换挡杆螺钉垫片(0.255x0.620x0.030)不锈钢	WASHER (.255 x .620 x .030) Stainless Steel SHIFT LEVER SCREW	1
26	401196	换挡杆螺钉螺母(M6)	NUT (M6) SHIFT LEVER SCREW	1
27	42846A2	盖总成	COVER ASSEMBLY	1
28	39519	杯形固定器	CUP RETAINER	1
29	118591	螺钉（.190-32 x 1.750）怠速止动-控制杆	SCREW (.190-32 x 1.750) IDLE STOP - CONTROL LEVER	1
30	434441	换挡连杆	SHIFT LINK	1
30	434442	换挡连杆	SHIFT LINK	1
31	95027A6	水平换挡轴	SHIFT SHAFT HORIZONTAL	1
32	42156	换挡轴杆	LEVER SHIFT SHAFT	1
33	95019	挡圈（旧设计）	RING Retaining (OLD DESIGN)	1
34	89302	换挡连杆垫片(0.203x0.406x0.040)	WASHER (.203 x .406 x .040) SHIFT LINK	1
35	21071	换挡连杆开口销	COTTER PIN SHIFT LINK	1
35	210711	开口销	COTTER PIN	1
36	424291	拉线固定器	RETAINER CABLE	2
37	96487A2	转向连杆总成	LINK ROD ASSEMBLY STEERING	1
37	41323A03	转向连杆安装套件	ATTACHING KIT Steering Link	1
38	14000	螺钉（.375-24 x 1.25）连杆	SCREW (.375-24 x 1.25) LINK ROD	1
38	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
39	34931	垫圈（.406 x .734 x .063）不锈钢螺钉和连杆	WASHER (.406 x .734 x .063) Stainless Steel SCREW AND LINK ROD	2
40	34863	螺母（.375-24）螺钉和连杆	NUT (.375-24) SCREW AND LINK ROD	2
40	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
41	96186A2	安装支架总成	BRACKET ASSEMBLY ATTACHING	1
42	4000376	支架螺钉(M10x25)	SCREW (M10 x 25) BRACKET	2
42	1993325	螺钉(M10x25mm)	SCREW (M10 x 25 mm)	2
43	96201	钥匙带（旧设计）	STRAP Key (OLD DESIGN)	1
44	400248	锁紧垫圈（M10）（新设计）	LOCKWASHER (M10) (NEW DESIGN)	2

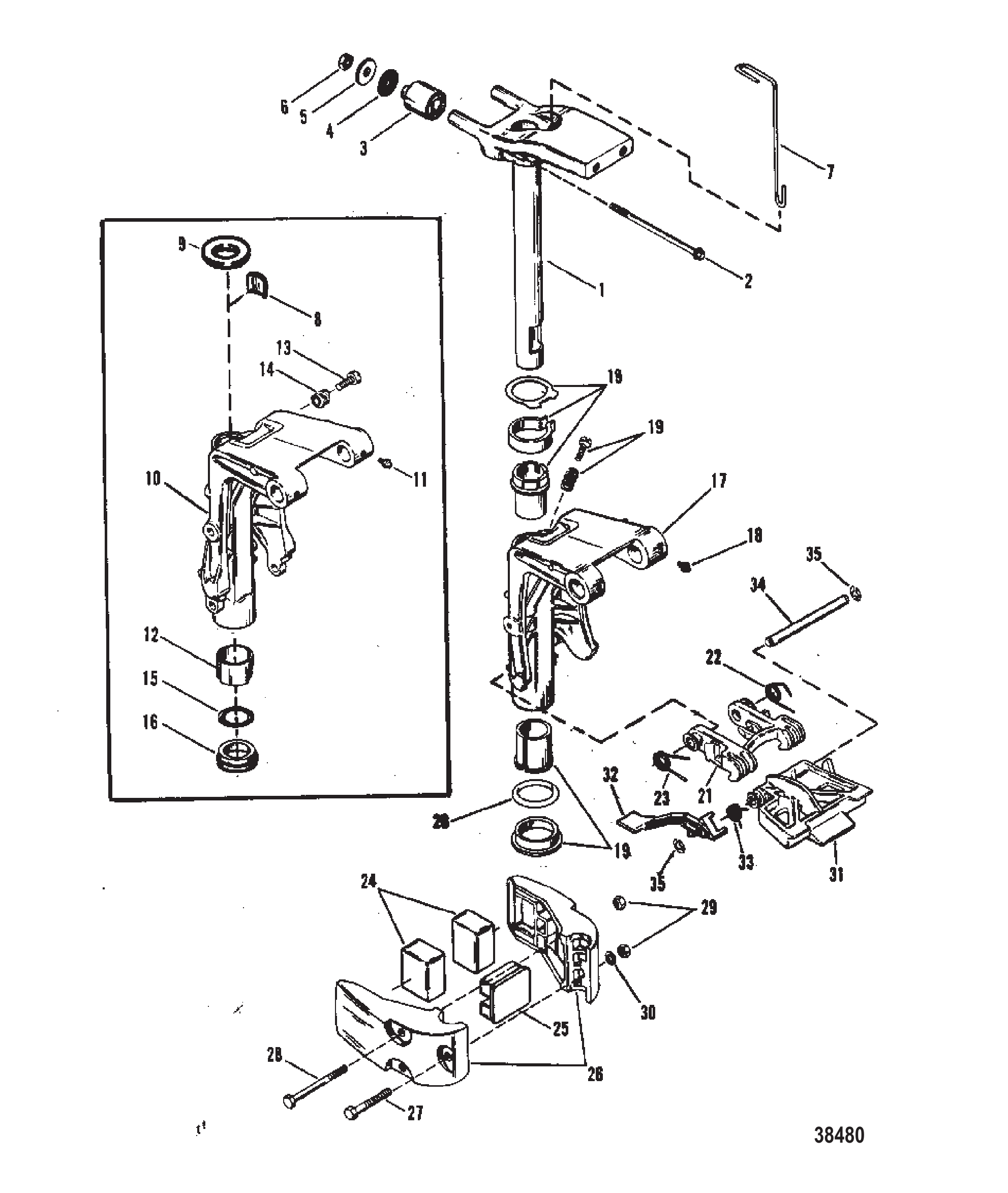

图 26旋转支架总成 Swivel Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1	97544A5	水星转轴管总成	SWIVEL TUBE ASSEMBLY Mercury	1
1	97544A2	旋转管总成Mariner	SWIVEL TUBE ASSEMBLY Mariner	1
2	12516	螺丝 M8×133.35(上支架)	SCREW (M8 x 133.35) UPPER MOUNT	2
2	125161	螺丝 M8×133	SCREW (M8 x 133)	2
3	14894	上支架	MOUNT UPPER	2
4	85172	橡胶垫圈(上支架螺丝)	WASHER RUBBER - UPPER MOUNT SCREW	2
5	43430	上部支架螺钉垫圈	WASHER UPPER MOUNT SCREW	2
6	90193	上部安装螺丝螺母	NUT UPPER MOUNT SCREW	2
6	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
7	85157	倒挡钩杆	ROD REVERSE HOOK	1
8	85173	导向控制板	PLATE PILOT CONTROL	1
9	85104	垫圈	WASHER	1
10	8692A9	旋转支架	SWIVEL BRACKET	1
10	822237A1	转轴支架-黑色	BRKT-SWIVEL-BLK	1
10	8692A10	旋转支架	SWIVEL BRACKET	1
10	822237A2	GRKT-旋转接头-灰色	GRKT-SWIVEL-GRAY	1
11	74036	润滑脂接头	FITTING Grease	3
11	8M0169589	润滑脂接头	FITTING Grease	3
12	95949	转轴支架衬套	BUSHING SWIVEL BRACKET	2
13	91908	舵柄控制螺丝	SCREW PILOR CONTROL	1
13	91807	螺钉	SCREW	1
14	96203	导向控制螺丝弹簧	SPRING PILOT CONTROL SCREW	1
15	86993	旋转管O型圈	O-RING SWIVEL TUBE	1
16	85154	转轴管衬套（下部）	BUSHING SWIVEL TUBE (LOWER)	1
17	8692A9	旋转支架	SWIVEL BRACKET	1
17	822237A1	转轴支架-黑色	BRKT-SWIVEL-BLK	1
17	8692A10	旋转支架	SWIVEL BRACKET	1
17	822237A2	GRKT-旋转接头-灰色	GRKT-SWIVEL-GRAY	1
18	74036	润滑脂接头	FITTING Grease	2
18	8M0169589	润滑脂接头	FITTING Grease	2
19	11139A1	副舵柄夹箍总成	CLAMP ASSEMBLY CO-PILOT	1
19	11139A2	夹具总成	CLAMP ASSEMBLY	1
20	86993	旋转管O型圈	O-RING SWIVEL TUBE	1
21	98830A2	倒挡锁钩总成	HOOK ASSEMBLY REVERSE LOCK	1
22	96018	倒挡钩弹簧(左舷)	SPRING REVERSE HOOK - PORT	1
23	97427	右舷倒车挂钩弹簧	SPRING REVERSE HOOK - STARBOARD	1
23	12755	倒挡钩弹簧-右舷	SPRING REVERSE HOOK -STARBOARD	1
23	879894	弹簧	SPRING	1
24	85122	下支架	MOUNT LOWER	2
24	85122001	下支架	MOUNT Lower	2
25	85123	前缓冲垫	BUMPER Front	1
25	85123001	前缓冲垫	BUMPER Front	1
26	95068A1	下安装盖	COVER LOWER MOUNT	1
26	95068A2	下安装盖	COVER LOWER MOUNT	1
27	4009259	下支架盖螺丝（60mm）	SCREW LOWER MOUNT COVER (60MM)	1
27	1994360	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
28	4009263	下支架盖螺丝（100mm）	SCREW LOWER MOUNT COVER (100MM)	2
28	19943100	螺丝(M8 x 100)	SCREW (M8 x 100)	2
29	400213	下支架盖螺丝螺母（M8不锈钢）	NUT (M8) Stainless Steel LOWER MOUNT COVER SCREW	3
30	36001	下部安装盖螺丝垫圈	WASHER LOWER MOUNT COVER SCREW	3
31	12756	拖钓支架	BRACKET TROLL	1
32	12758	控制杆	LEVER CONTROL	1
33	12754	弹簧	SPRING	1
34	13195	拖钓支架销	PIN TROLL BRACKET	1
35	13194	挡圈	RING Retaining	2
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

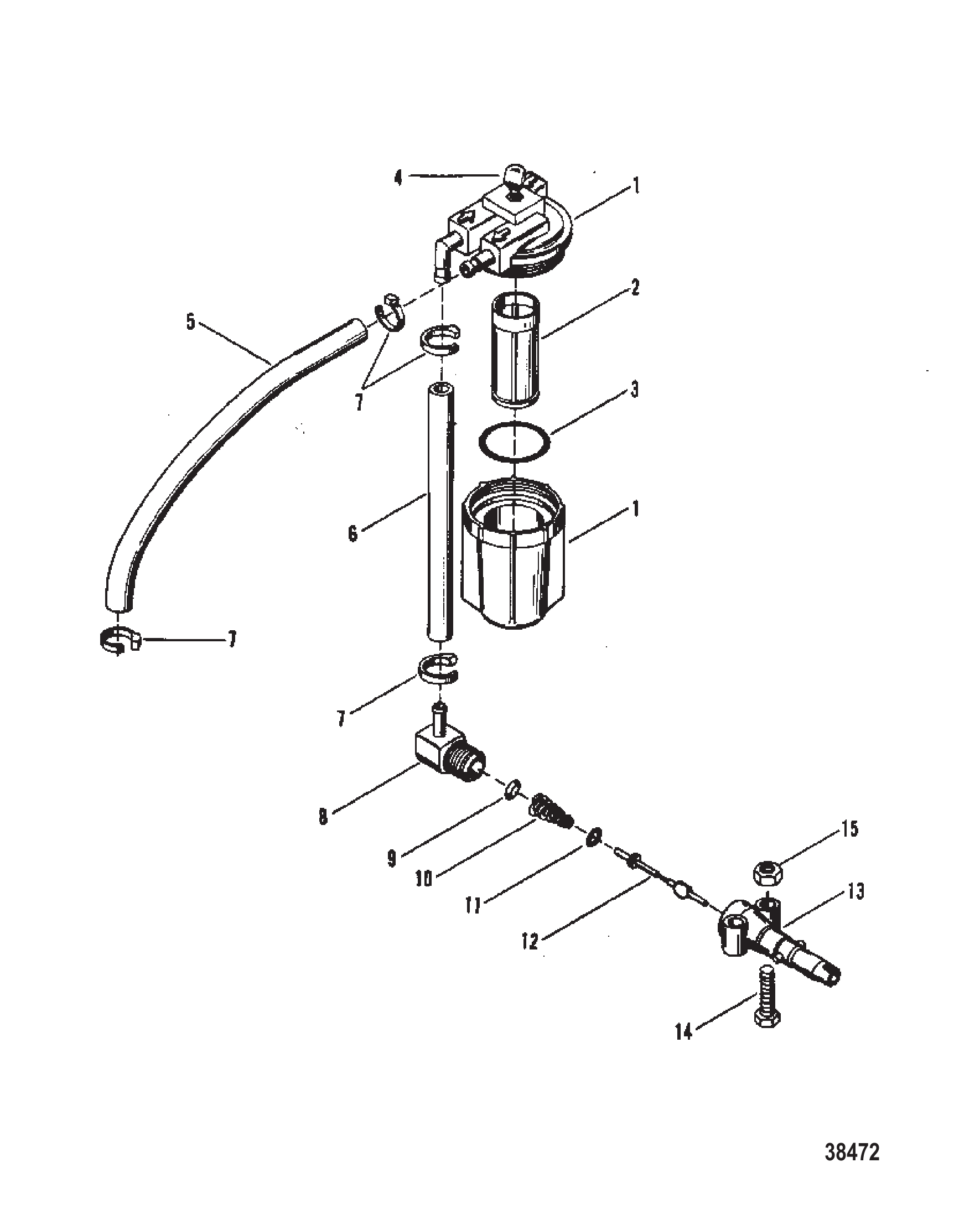

图 27燃油滤清器总成 Fuel Filter Assembly

REF	零件编号	中文名称	英文名称	数量
1	87946A13	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	87946A3	滤清器总成	FILTER ASSEMBLY	1
2	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
3	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
3	897536	密封件	SEAL	1
4	91935	钢球	BALL	1
4	858731	球形燃油滤清器	BALL Fuel Filter	1
5	99127109	油管(57英寸散装)滤清器至化油器(7-1/2英寸)	LINE (57.00 Inches Bulk) FILTER TO CARBURETOR (7-1/2")	1
5	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
6	99127109	油管(57英寸散装)滤清器至转接器(5-1/4英寸)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR (5-1/4)	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	68424	燃油管卡箍	CLAMP FUEL LINE	4
8	98750	燃油管接头	FITTING FUEL LINE	1
9	30188	适配器垫片	WASHER ADAPTOR	1
10	23067	适配器阀杆弹簧	SPRING ADAPTOR STEM	1
10	23067T	弹簧	SPRING	1
11	20415	适配器阀杆O型圈	O-RING ADAPTOR STEM	1
11	16524	燃油接头O型圈	O-RING Fuel Connector	1
12	23069	阀杆转接器	STEM ADAPTOR	1
13	22833	止回转接器总成	ADAPTER CHECK UNIT	1
14	4000332	螺丝(M6 x 35)转接器至底罩	SCREW (M6 x 35) ADAPTOR TO BOTTOM COWL	1
15	400634	螺母(M6)转接器螺丝	NUT (M6) ADAPTOR SCREW	1
15	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

图 28曲轴活塞与飞轮 Crankshaft Pistons and Flywheel

REF	零件编号	中文名称	英文名称	数量
1	818591	螺母(M14)	NUT (M14)	1
2	859231T4	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T18	飞轮	FLYWHEEL	1
3	99301	齿圈	RING GEAR	1
4	88190313	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	818630A1	套筒	SLEEVE	1
7	NSS	不单独销售（O型圈）	NOT SOLD SEPARATE (O Ring)	1
8	41341	滚珠轴承	BEARING Ball	1
9	824451	垫圈(内径.610x外径.890x厚度.062)	WASHER (.610 Inside Diamter x .890 Outside Diameter x .062)	1
10	42132	挡圈	RING Retaining	1
11	13031	垫圈	WASHER	1
12	125661	下油封	SEAL Oil - Lower	1
13	20094	半圆键	KEY Woodruff	1
14	878158	滚柱轴承	BEARING Roller	1
15	125671	上油封	SEAL Oil - Upper	1
16	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
17	823460	螺钉(M5×16)	SCREW (M5 x 16)	4
18	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
19	42186	滚针轴承	BEARING Needle	48
20	43348	推力轴承	BEARING Thrust	4
20	8M0012297	止推垫圈@2	WASHER-THRST@2	4
21	9756T2	活塞总成	PISTON ASSEMBLY	2
21	9747T2	活塞总成	PISTON ASSEMBLY	2
21	9747A4	活塞总成	PISTON ASSEMBLY	2
22	18514A4	活塞环组	RING SET Piston	2
22	18212A4	活塞环组	RING SET Piston	2
22	18212A1	活塞环组	RING SET Piston	2
23	NSS	不单独销售 (活塞环-顶部)	NOT SOLD SEPARATE (Piston Ring-Top)	2
23	NSS	不单独销售 (活塞环-顶部)	NOT SOLD SEPARATE (Piston Ring-Top)	2
24	422021	锁紧环	LOCK RING	4
25	41373A1	中央主轴承套件	BEARING KIT Center Main	1
26	17794A1	轴承	BEARING	1
27	818901	密封件	SEAL	1
28	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072T97	动力头总成	POWERHEAD ASSEMBLY	1

图 29化油器（20） Carburetor (20)

REF	零件编号	中文名称	英文名称	数量
1	8888A9	化油器(手动) - WMC-29	CARBURETOR (MANUAL) - WMC-29	1
1	8888A10	化油器(手动) - WMC-36	CARBURETOR (MANUAL) - WMC-36	1
1	8888T18	化油器	CARBURETOR	1
1	8676A11	化油器(电动) - WMC-30	CARBURETOR (ELECTRIC) - WMC-30	1
1	8888T18	化油器	CARBURETOR	1
1	8676A12	化油器(电动) - WMC-37	CARBURETOR (ELECTRIC) - WMC-37	1
1	8888T18	化油器	CARBURETOR	1
2	9640	油门阀	VALVE Throttle	1
3	9695	油门轴	SHAFT Throttle	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	进油针阀	VALVE INLET NEEDLE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	5317	主量孔(.046) - WMC 29/30	JET (.046) MAIN FUEL (WMC 29/30)	1
7	7394	主量孔(.044) - WMC 36/37	JET (.044) MAIN FUEL (WMC 36/37)	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	813618	隔膜盖 - WMC 29/30	COVER DIAPHRAGM (WMC 29/30)	1
10	9697	膜片盖螺丝	SCREW DIAPHRAGM COVER	4
11	15827A1	燃油泵体	BODY FUEL PUMP	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9637	燃油泵盖	COVER FUEL PUMP	1
14	9762	堵头	PLUG	1
15	9803	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	9802	维修包 - WMC 29/30	REPAIR KIT (WMC 29/30)	1
16	8237072	维修套件	REPAIR KIT	1
16	823649	维修包 - WMC 36/37	REPAIR KIT (WMC 36/37)	1
16	8237072	维修套件	REPAIR KIT	1
17	9699	盖板(手动)	PLATE COVER (MANUAL)	1
18	823433	电动阻风门	CHOKE Electric (ELECTRIC)	1
19	9696	盖板螺钉	SCREW COVER PLATE	2
20	414491	化油器衬垫	GASKET CARBURETOR	1
20	192061	化油器衬垫	GASKET Carburetor	1
21	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
22	9633	衬垫	GASKET	1
23	F10064	轴	SHAFT	1
24	824401	浮子杆	LEVER Float	1
25	79964	螺钉(#6-32 x .750)快怠速杠杆	SCREW (#6-32 x .750) FAST IDLE LEVER	1
25	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
26	11277	张力弹簧	SPRING Tension	1
27	40056110	螺钉(M5 x 30)启动泵支架	SCREW (M5 x 30) PRIMER BRACKET	2
27	400018	螺钉(M5x12) 注油器支架	SCREW (M5 x 12) PRIMER BRACKET (M5 X 8 X 12 MM)	2
28	79965	螺钉(#8-32 x .500)不锈钢启动泵支架	SCREW (#8-32 x .500) Stainless Steel PRIMER BRACKET	1
29	112731	启动泵杆	LEVER Primer	1
30	11280	凸轮块	CAM BLOCK	1
31	11278	固定夹	CLIP Retaining	1
32	172291	阻风门面板	BEZEL Choke	1
33	12802	启动泵旋钮	KNOB PRIMER	1
33	128022	启动泵旋钮	PRIMER KNOB	1
34	17442	化油器盖	COVER CARBURETOR	1
35	47579	化油器盖塞	PLUG CARBURETOR COVER	1
36	127331	怠速线	IDLE WIRE	1
36	127332	快怠速线	WIRE Fast Idle	1
37	128053	快怠速杆	LEVER Fast Idle FAST IDLE	1
38	12803	注油器支架	BRACKET Primer PRIMER	1
39	97877	快怠速杠杆推螺母	PUSH NUT FAST IDLE LEVER	1
39	821979	螺母	NUT	1
-	9844A1	启动泵/喷油器维修包	SERVICE KIT Primer/Injector	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	822261A92	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1
-	90885A88	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1

图 30化油器（25） Carburetor (25)

REF	零件编号	中文名称	英文名称	数量
1	8889A13	化油器(WMC-31A)(替代WMC31/32A)	CARBURETOR (WMC-31A) (REPLACES WMC31/32A)	1
1	8677A13	化油器(WMC-32)	CARBURETOR (WMC-32)	1
1	8889T22	化油器	CARBURETOR	1
2	9646	油门阀	VALVE Throttle	1
3	9695	油门轴	SHAFT Throttle	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	进油针阀	VALVE INLET NEEDLE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	6201	主量孔(.080)	JET (.080) MAIN FUEL	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	813618	隔膜盖 - WMC 31/32	COVER DIAPHRAGM (WMC 31/32)	1
9	823648	隔膜盖 - WMC 31A/32A	COVER Diaphragm DIAPHRAGM (WMC 31 A/32A)	1
10	9697	膜片盖螺丝	SCREW DIAPHRAGM COVER	4
11	15827A1	燃油泵体	BODY FUEL PUMP	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9637	燃油泵盖	COVER FUEL PUMP	1
14	9762	堵头	PLUG	1
15	9803	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	9802	维修包 - WMC 31/32	REPAIR KIT (WMC 31/32)	1
16	8237072	维修套件	REPAIR KIT	1
16	823707	维修包 - WMC 31A/32A	REPAIR KIT (WMC 31A/32A)	1
16	8237072	维修套件	REPAIR KIT	1
17	9699	盖板(手动)	PLATE COVER (MANUAL)	1
18	823433	电动阻风门	CHOKE Electric (ELECTRIC)	1
19	9696	盖板螺钉	SCREW COVER PLATE	2
20	414491	化油器衬垫	GASKET CARBURETOR	1
20	192061	化油器衬垫	GASKET Carburetor	1
21	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
22	9633	衬垫	GASKET	1
23	F10064	轴	SHAFT	1
24	824401	浮子杆	LEVER Float	1
25	79964	螺钉(#6-32 x .750)快怠速杠杆	SCREW (#6-32 x .750) FAST IDLE LEVER	1
25	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
26	11277	张力弹簧	SPRING Tension	1
27	40056110	螺钉(M5 x 30)启动泵支架	SCREW (M5 x 30) PRIMER BRACKET	2
27	400018	螺钉(M5x12) 注油器支架	SCREW (M5 x 12) PRIMER BRACKET	2
28	79965	螺钉(#8-32 x .500)不锈钢启动泵支架	SCREW (#8-32 x .500) Stainless Steel PRIMER BRACKET	1
29	112731	注油器杆	LEVER Primer PRIMER	1
30	11280	凸轮块	CAM BLOCK	1
31	11278	固定夹	CLIP Retaining	1
32	172291	阻风门面板	BEZEL Choke	1
33	12802	启动泵旋钮	KNOB PRIMER	1
33	128022	启动泵旋钮	PRIMER KNOB	1
34	17442	盖板	COVER	1
35	47579	堵头	PLUG	1
36	127331	怠速线	IDLE WIRE	1
36	127332	快怠速线	WIRE Fast Idle	1
37	128053	快怠速杆	LEVER Fast Idle	1
38	12803	启动泵支架	BRACKET Primer	1
39	97877	快怠速杠杆推螺母	PUSH NUT FAST IDLE LEVER	1
39	821979	螺母	NUT	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	9844A1	启动泵/喷油器维修包	SERVICE KIT Primer/Injector	1
-	822261A92	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1
-	90885A88	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1

图 31化油器（SeaPro/Marathon 25/ Super15） Carburetor (SeaPro/Marathon 25/ Super15)

REF	零件编号	中文名称	英文名称	数量
1	817405A2	化油器(WMC-35A)	CARBURETOR (WMC-35A)	1
1	817405A5	化油器(WMC-35B)	CARBURETOR (WMC-35B)	1
1	817405T6	化油器	CARBURETOR	1
1	817405A6	化油器(WMC-43)	CARBURETOR (WMC-43)	1
1	817405T6	化油器	CARBURETOR	1
2	9646	油门阀	VALVE Throttle	1
3	9695	油门轴	SHAFT Throttle	1
4	811353	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	进油针阀	VALVE INLET NEEDLE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	6201	主量孔(.080)	JET (.080) MAIN FUEL	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	811354	阻风门轴 - WMC-35/35A	SHAFT Choke (WMC-35/35A)	1
9	8113541	阻风门轴	SHAFT Choke	1
9	8113541	阻风门轴 - WMC-35B/43	SHAFT Choke (WMC-35B/43)	1
10	817406	阻风门杆 - WMC-35	LEVER Choke (WMC-35)	1
10	811805	阻风门杆	LEVER Choke	1
10	811805	阻风门杆 - WMC-35A/35B/43	LEVER Choke (WMC-35A/35B/43)	1
11	15827A1	燃油泵体	BODY FUEL PUMP	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9637	燃油泵盖	COVER FUEL PUMP	1
14	811355	阻风门阀 - WMC-35	VALVE Choke (WMC-35)	1
14	811806	阻风门阀	VALVE Choke	1
14	811806	阻风门阀 - WMC-35A/35B/43	VALVE Choke (WMC-35A/35B/43)	1
15	811357	化油器衬垫组	GASKET SET Carburetor	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	811356	维修包 - VMC 35/35A	REPAIR KIT (VMC 35/35A)	1
16	8237072	维修套件	REPAIR KIT	1
16	823708	维修包 - WMC 35B	REPAIR KIT (WMC 35B)	1
16	8237072	维修套件	REPAIR KIT	1
16	8113561	维修包 - WMC-43	REPAIR KIT (WMC-43)	1
16	8237072	维修套件	REPAIR KIT	1
17	9699	盖板	PLATE COVER	1
18	811360	浮子室放油螺钉	SCREW Bowl Drain	1
19	9696	盖板螺钉	SCREW COVER PLATE	2
20	414491	化油器衬垫	GASKET CARBURETOR	1
20	192061	化油器衬垫	GASKET Carburetor	1
21	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
22	9633	衬垫	GASKET	1
23	F10064	轴	SHAFT	1
24	824401	浮子杆	LEVER Float	1
25	41750	嵌件	INSERT	2
25	41750T	嵌件	INSERT	2
26	817424	阻风门旋钮	KNOB Choke	1
27	817426	阻风门面板嵌件	INSERT Choke Bezel	1
28	817425	阻风门连杆	LINK Choke	1
29	172291	阻风门面板	BEZEL Choke	1
30	11278	固定夹	CLIP Retaining	1
31	17442	化油器盖	COVER CARBURETOR	1
32	47579	化油器盖塞	PLUG CARBURETOR COVE	1
33	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	2
-	422501	限流板	RESTRICTOR PLATE	1
-	757911	衬垫	GASKET	2
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	822261A92	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1
-	90885A88	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1

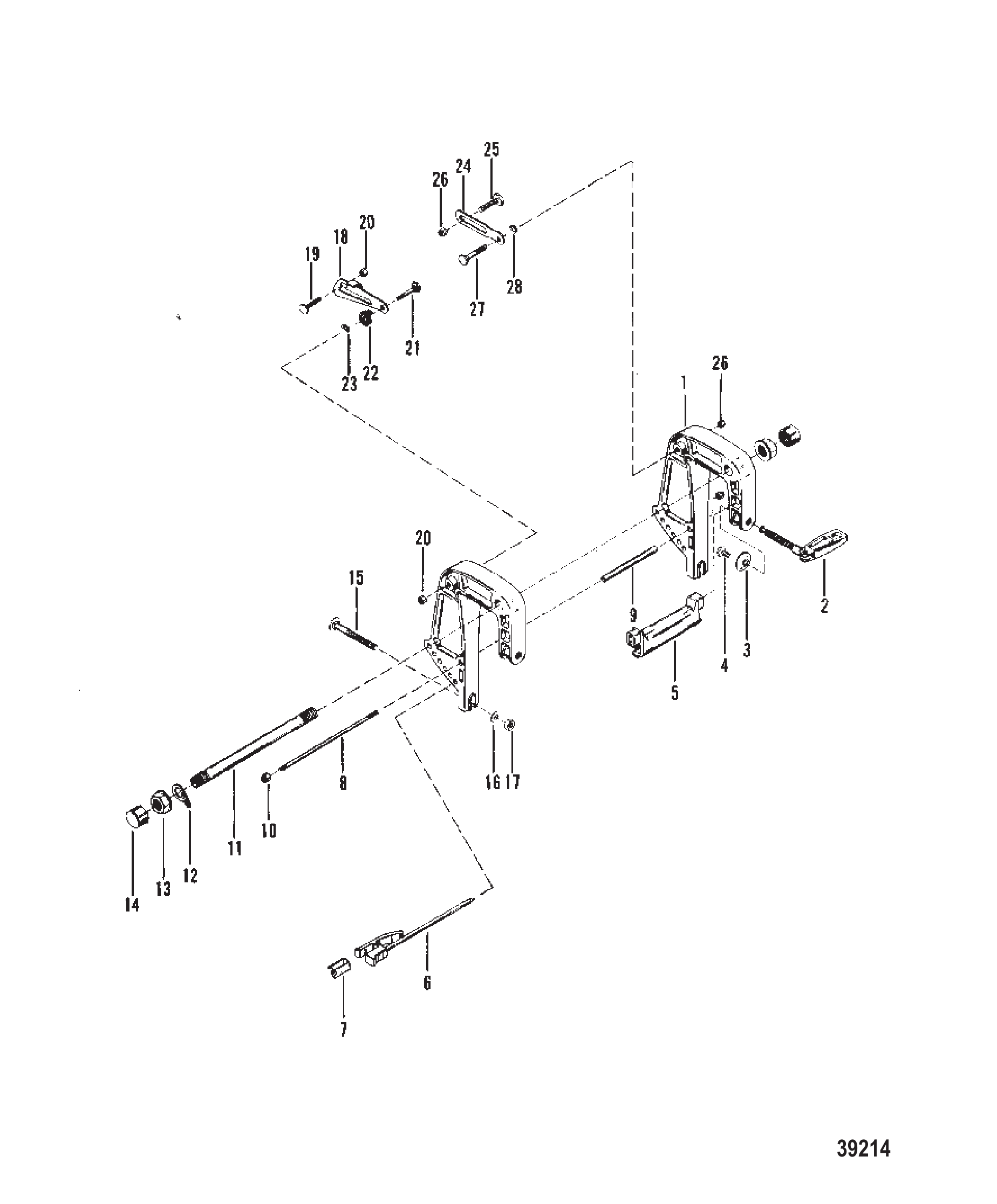

图 32夹紧支架总成 Clamp Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1	8466A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
1	8863A1	夹箍支架	CLAMP BRACKET	2
2	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
3	818884	垫圈	WASHER	2
4	76804	垫圈固定螺丝	SCREW WASHER ATTACHING	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	85155	提手	HANDLE CARRYING	1
6	99929A1	倾斜销总成	PIN ASSEMBLY Tilt	1
6	97296A1	倾斜销总成	PIN ASSEMBLY Tilt	1
6	99929A1	倾斜销总成	PIN ASSEMBLY Tilt	1
7	90884	倾斜销弹簧卡扣	CLIP Spring TILT PIN	1
8	85099	夹紧支架螺柱	STUD CLAMP BRACKET	1
9	85100	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
10	400213	螺母(M8)不锈钢夹紧支架螺柱	NUT (M8) Stainless Steel CLAMP BRACKET STUD	2
11	85151	倾斜管	TILT TUBE	1
12	30954	安全卡扣	CLIP SAFETY	1
12	8M0085928	卡扣	CLIP	1
13	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
14	53078	倾斜管端盖	CAP TILT TUBE	2
15	69064	螺栓(.312-18 x 2.750)夹紧支架至艉板	BOLT (.312-18 x 2.750) CLAMP BRACKET TO TRANSOM	2
16	67981	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
17	67980	螺母(.312-18)夹紧支架螺栓	NUT (.312-18) CLAMP BRACKET BOLT	2
17	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	2
18	96965	倾斜止动杆-左舷侧	LEVER TILT STOP - PORT SIDE	1
19	41433	螺钉(.250-28 x 1.00)杆至旋转支架	SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET	1
20	35045	螺母(.250-28)倾斜止动杆螺钉	NUT (.250-28) TILT STOP LEVER SCREW	1
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
21	41524	螺钉(.250-28 x 1.75)杆至夹紧支架	SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET	1
22	85167	倾斜止动杆螺钉弹簧	SPRING TILT STOP LEVER SCREW	1
22	44581	弹簧	SPRING	1
23	31030	倾斜止动杆螺钉波形垫圈	WAVE WASHER TILT STOP LEVER SCREW	1
24	90901	倾斜止动带-右舷侧	STRAP TILT STOP - STARBOARD SIDE	1
25	41433	螺钉(.250-28 x 1.00)杆至旋转支架	SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET	1
26	35045	螺母(.250-28)倾斜止动杆螺钉	NUT (.250-28) TILT STOP LEVER SCREW	1
26	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
27	41524	螺钉(.250-28 x 1.75)杆至夹紧支架	SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET	1
28	31030	倾斜止动杆螺钉波形垫圈	WAVE WASHER TILT STOP LEVER SCREW	1

图 33外罩 Cowls

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶盖总成	TOP COWL ASSEMBLY	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	机罩锁扣(无滚轮-参见编号4)	LATCH Cowl (W/O ROLLER-SEE REF #4)	1
5	817104A3	机罩锁扣总成(带滚轮-参见编号5)	LATCH ASSEMBLY Cowl (W/ROLLER-SEE REF.#5)	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护罩	SHIELD REAR	1
7	12873	后护罩	SHIELD REAR	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	下机罩(XR10/SEA PRO 10)	BOTTOM COWL (XR10/SEA PRO 10)	1
9	9204A2	下机罩(MAGNUM 10)	BOTTOM COWL (MAGNUM 10)	1
9	9204A6	下机罩(MARATHON 10)	BOTTOM COWL (MARATHON 10)	1
9	9204A2	下机罩	BOTTOM COWL	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	下机罩塞	PLUG BOTTOM COWL	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	机罩锁杆衬套	BUSHING COWL LATCH LEVER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

图 34曲轴、活塞与飞轮 Crankshaft, Pistons and Flywheel

REF	零件编号	中文名称	英文名称	数量
1	42691	飞轮轴	SHAFT FLYWHEEL	1
1A	818591	螺母(M14)	NUT (M14)	1
2	8908A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T6	飞轮	FLYWHEEL	1
2	818540A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T19	飞轮总成	FLYWHEEL ASY	1
3	17794A1	轴承	BEARING	1
4	818901	主轴承油封	SEAL MAIN BEARING	1
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	818630A1	套筒	SLEEVE	1
7	41341	曲轴下球轴承	BEARING Ball CRANKSHAFT-LOWER	1
8	20940	球轴承卡环(小)(旧设计)	RING Snap BALL BEARING (SMALL)(OLD DESIGN)	1
9	42132	球轴承挡圈	RING Retaining BALL BEARING	1
10	13031	下垫圈	WASHER LOWER	1
11	125661	曲轴下油封	SEAL Oil - Lower CRANKSHAFT	1
12	20094	飞轮驱动半圆键	KEY Woodruff FLYWHEEL DRIVE	1
13	41342	曲轴上滚柱轴承	BEARING Roller CRANKSHAFT-UPPER	1
13	878158	滚柱轴承	BEARING Roller	1
14	125671	曲轴上油封	SEAL Oil - Upper CRANKSHAFT	1
15	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
16	823460	连杆螺钉(M5x16)	SCREW (M5 x 16) CONNECTING ROD	4
17	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
18	42186	活塞端滚针轴承	BEARING Needle PISTON END	48
19	43348	推力轴承	BEARING Thrust	4
19	8M0012297	止推垫圈@2	WASHER-THRST@2	4
20	9747A2	活塞总成(标准)	PISTON ASSEMBLY (STANDARD)	2
20	9747T2	活塞总成	PISTON ASSEMBLY	2
20	9747A4	活塞总成(.015加大)	PISTON ASSEMBLY (.015 O.S.)	2
21	18212A4	活塞环组(标准)	RING SET Piston (STANDARD)	1
21	18212A1	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	2
22	42202	锁紧环	LOCK RING	4
23	824451	垫圈(内径.610x外径.890x厚度.062)	WASHER (.610 Inside Diamter x .890 Outside Diameter x .062)	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

图 35气缸体与盖 Cylinder Block and Covers

REF	零件编号	中文名称	英文名称	数量
1	9727A2	气缸体	CYLINDER BLOCK	1
1	9727T2	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	2
3	42463	化油器螺柱	STUD CARBURETOR	2
3	424632	双头螺柱(M8x37.1)	STUD (M8 x 37.1)	2
4	42698	泄放软管止回阀	CHECK VALVE BLEED HOSE	1
4	426982	止回阀	CHECK VALVE	1
5	1383556	泄放软管	HOSE BLEED	1
5	99130100	软管-48英寸	TUBING-48 INCH	1
6	42984	气缸体螺柱	STUD CYLINDER BLOCK	2
6	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
7	421251	螺钉(M8x55)曲轴箱至气缸体	SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK	6
7	42125	螺钉(M8x55)	SCREW (M8 x 55)	6
7A	17866	槽销	PIN Groove	1
8	400634	螺母(M6)气缸体螺柱	NUT (M6) CYLINDER BLOCK STUD	2
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
9	191861	动力头衬垫	GASKET Powerhead	1
10	42381A2	簧片阀总成	REED BLOCK ASSEMBLY	1
10	828435A3	簧片阀组	REED BLOCK	1
11	42657A1	止回阀	CHECK VALVE	1
11	42657A3	止回阀	CHECK VALVE	1
12	42137	簧片阀密封件	SEAL REED BLOCK	1
13	195982	簧片阀衬垫	GASKET REED BLOCK	1
14	4000171	螺钉(M6x16)簧片阀	SCREW (M6 x 16) REED BLOCK	3
15	4204410	簧片	REED	2
15	825141	簧片	REED	2
16	179031	簧片止挡	STOP Reed	2
16	828435A3	簧片阀组	REED BLOCK	2
17	4005764	螺钉(M3.5x8)簧片固定	SCREW (M3.5 x 8) REED ATTACHING	6
18	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
19	42521	排气盖	COVER EXHAUST	1
19	8M0048005	排气盖总成	COVER EXHAUST MAN	1
20	40062129	螺钉(M6x25)排气盖至气缸体	SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK	11
21	19185	排气盖衬垫	GASKET EXHAUST COVER	1
22	423651	挡板	PLATE Baffle	1
22	42365	挡板	PLATE Baffle	1
23	19184	挡板衬垫	GASKET BAFFLE PLATE	1
24	19107F1	进气盖	COVER Intake	1
24	17863A1	进气盖总成	COVER ASSEMBLY Intake	1
25	56759	倒钩接头	FITTING Barbed	1
25	15133	接头	FITTING	1
26	1383556	软管	HOSE	2
26	99130100	软管-48英寸	TUBING-48 INCH	2
27	59169	接头	FITTING	1
27	59169003	三通接头	FITTING Tee	1
28	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
29	192031	进气盖衬垫	GASKET INTAKE COVER	1
30	40062129	螺钉(M6x25)盖至气缸体	SCREW (M6 x 25) COVER TO CYLINDER BLOCK	3
31	99127109	示警管(57英寸散装)	LINE (57.00 Inches Bulk) TELL TALE	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
32	94848	下机罩示警软管接头	FITTING TELL TALE HOSE-BOTTON COWL	1
33	8906A1	盖总成	COVER ASSEMBLY	1
33	8906A02	盖总成	COVER ASSEMBLY	1
34	192071	衬垫	GASKET	1
34	19207002	衬垫	GASKET	1
35	146732	节温器盖	COVER THERMOSTAT	1
35	8M0039352	盖板	COVER	1
36	192051	衬垫	GASKET	1
36	19205002	衬垫	GASKET	1
37	40062129	螺钉(M6x25)	SCREW (M6 x 25)	2
38	14586	节温器(120度)	THERMOSTAT (120 Degree)	1
39	62386	节温器衬垫	GASKET THERMOSTAT	1
39	8M0204714	衬垫@4	GASKET @4	1
40	29111	直通接头	CONNECTOR (STRAIGHT)	1
40	291112	接头	FITTING	1
41	40062129	螺钉(M6x25)盖固定	SCREW (M6 x 25) COVER ATTACHING	6
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

图 36驱动轴壳体总成 Driveshaft Housing Assembly

REF	零件编号	中文名称	英文名称	数量
1	92165A4	隔板总成	PLATE ASSEMBLY	1
1	99702A3	适配板总成	ADAPTOR PLATE ASSEMBLY	1
2	85162	水管壳体	HOUSING WATER TUBE	1
2	96248A1	壳体总成	HOUSING ASSEMBLY	1
3	36390	水管壳体O型圈	O-RING WATER TUBE HOUSING	1
4	85164	水管密封件	SEAL WATER TUBE	1
2	96248A1	水管壳体总成	HOUSING ASSEMBLY WATER TUBE	1
5	25329	水管密封件	SEAL WATER TUBE	1
6	96247	水管隔套	SPACER WATER TUBE	1
6	889715	水管隔套	SPACER Water Tube	1
7	400035	螺钉 (M5 x 16) 壳体至适配板	SCREW (M5 x 16) HOUSING TO ADAPTOR PLATE	2
8	85111	适配板垫片	GASKET ADAPTOR PLATE	1
8	41670006	适配板垫片	GASKET Adaptor Plate	1
9	87357	适配板密封件	SEAL Adaptor Plate	1
9	158662	密封件	SEAL	1
10	7904A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
10	8747A1	壳体总成	HOUSING ASSEMBLY	1
10	7906A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
10	8749A1	壳体总成	HOUSING ASSEMBLY	1
10	8747A1	壳体总成	HOUSING ASSEMBLY	1
10	8749A1	壳体总成	HOUSING ASSEMBLY	1
11	85109	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
11	96286	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
11	433374	驱动轴壳体垫片	GASKET Drive Shaft Housing	1
12	400035	螺钉(M5 x 16)驱动轴壳体至板	SCREW (M5 x 16) DRIVESHAFT HOUSING TO PLATE	2
13	4000360	螺钉驱动轴壳体至板(60MM)	SCREW DRIVESHAFT HOUSING TO PLATE (60MM)	6
13	1993870	螺钉(M8 x 70)	SCREW (M8 x 70)	6
14	4002317	垫圈(8.90 X 17.0 X 1.9SS)驱动轴壳体螺钉	WASHER (8.90 X 17.0 X 1.9SS) DRIVESHAFT HOUSING SCREW	6
15	85116	水管	TUBE Water	1
15	86292	水管	TUBE Water	1
-	85168A80	衬垫套件	GASKET SET	1

图 37电动启动组件 Electric Start Components

REF	零件编号	中文名称	英文名称	数量
1	816770	整流器	RECTIFIER	1
1	8M0058226	整流器	RECTIFIER	1
2	48409	螺丝(#10-16 x .625)不锈钢整流器至气缸体	SCREW (#10-16 x .625) Stainless Steel RECTIFIER TO CYLINDER BLOCK	2
3	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
4	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
4	8M0185149	启动电磁阀	SOLENOID START	1
5	4000327	螺钉(M6 x 14) 起动机电磁阀至曲轴箱	SCREW (M6 x 14) STARTER SOLENOID TO CRANKCASE	2
6	26419	螺母(#8-32)黄铜启动电磁阀端子	NUT (#8-32) Brass STARTER SOLENOID TERMINAL	2
7	64015	螺母(.250-20)启动电磁阀端子	NUT (.250-20) STARTER SOLENOID TERMINAL	2
8	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
9	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
9	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
9	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
9	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
10	92436A5	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
11	79091	保险丝20安培	FUSE 20 Ampere	1
11	8M0207796	保险丝20安培	FUSE 20 AMP	1
12	92753	固定座	RETAINER	1
13	55098	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	8M0033984	启动马达	STARTER MOTOR	1
15	96561	驱动套件	DRIVE KIT	1
16	96562	驱动器	DRIVE	1
17	96563	端盖	END CAP	1
17	96563T	端盖	END CAP	1
18	96565	电枢	ARMATURE	1
19	96564	端盖	END CAP	1
19	96564T	端盖	END CAP	1
20	96566	贯穿螺栓	THRU BOLT	1
21	421251	螺钉(M8 x 55) 起动机固定	SCREW (M8 x 55) STARTER MOTOR ATTACHING	2
21	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
22	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1

图 38燃油滤清器总成 Fuel Filter Assembly

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	管路(57.00英寸散装)滤清器至化油器	LINE (57.00 Inches Bulk) FILTER TO CARBRETOR	1
5	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接套件	CONNECTOR KIT Fuel	1
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	1
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1

图 39齿轮箱（驱动轴） Gear Housing (Driveshaft)

REF	零件编号	中文名称	英文名称	数量
-	8157A7	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8157A8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
1	8157A6	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
2	98488	进水口滤网	SCREEN WATER INLET	1
2	98487	进水口滤网	SCREEN WATER INLET	1
3	40031112	螺钉(M5 x 40)滤网至齿轮箱	SCREW (M5 x 40) SCREEN TO GEAR HOUSING	1
4	400263	螺母(M5)滤网螺钉	NUT (M5) SCREEN SCREW	1
5	85559	滚柱轴承下(见备注)	BEARING Roller LOWER (SEE NOTE)	1
6	85092	上滚动轴承套	SLEEVE UPPER ROLLING BEARING	1
7	85558	滚柱轴承上	BEARING Roller UPPER	1
8	33467	齿轮箱油封	SEAL Oil GEAR HOUSING	2
8	897154	油封@3	SEAL-OIL @3	2
9	98084	驱动轴	DRIVESHAFT	1
9	98085	驱动轴	DRIVESHAFT	1
10	94056	止推垫圈-驱动轴	WASHER THRUST - DRIVESHAFT	AR
10	96524	止推垫圈-传动轴-见备注	WASHER THRUST - DRIVESHAFT - SEE NOTE	AR
10	98861A1	衬套套装	BUSHING KIT	AR
11	85560	推力轴承-传动轴(见备注)	BEARING Thrust DRIVESHAFT (SEE NOTE)	1
12	85132	小齿轮	GEAR Pinion	1
13	67892		SCREW Magnetic DRAIN	1
13	8M0058389	放油螺钉套件	SCREW KIT Drain	1
14	20260	放油/注油螺丝垫圈	WASHER DRAIN AND FILLER SCREW	2
14	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
15	79953		SCREW (.375-16 x .250) GREASE FILLER	1
15	79953Q04	放油螺钉套件	SCREW KIT Drain	1
16	85562A1	换档凸轮总成	CAM ASSEMBLY SHIFT	1
17	85096	换档凸轮驱动销	PIN Drive SHIFT CAM	1
18	85593	换档轴销(.078 x .437)	PIN (.078 x .437) SHIFT SHAFT	1
19	29245	不锈钢换档轴垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT	1
19	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
20	93007	换档轴弹簧	SPRING SHIFT SHAFT	1
21	85091	换档轴垫圈	WASHER SHIFT SHAFT	1
22	85594	换档轴O型圈(.239 x .174)	O-RING (.239 x .174) SHIFT SHAFT	1
23	20365	换档轴固定环O型圈	O-RING SHIFT SHAFT RETAINER	1
23	35276	O型圈(.734 x .139)	O-RING (.734 x .139)	1
24	93878	换档轴固定环	RETAINER SHIFT SHAFT	1
25	85552	换档轴防尘罩	BOOT SHIFT SHAFT	1
25	85552001	护套	BOOT	1
26	85126	换档轴	SHIFT SHAFT	1
26	86293	换档轴	SHIFT SHAFT	1
27	29245	不锈钢换档轴上垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT - UPPER	1
27	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
28	85087	水泵衬垫	GASKET WATER PUMP	1
28	993261	衬垫	GASKET	1
29	85083	面板	FACE PLATE	1
30	86645	叶轮垫圈	WASHER IMPELLER	2
30	8M0204722	垫圈	WASHER	2
31	85119	叶轮驱动键	KEY IMPELLER DRIVE	1
31	8M0214993	键@5	KEY @5	1
32	85089	叶轮	IMPELLER	1
32	8M0204712	叶轮	IMPELLER	1
33	69202	水泵O型圈	O-RING WATER PUMP	1
34	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
34	99157T2	水泵套件	PUMP KIT Water	1
35	400035	水泵至齿轮箱螺丝(M5 x 16)	SCREW (M5 x 16) WATER PUMP TO GEAR HOUSING	4
36	89302	水泵螺丝垫圈(.203 x .406 x .040)	WASHER (.203 x .406 x .040) WATER PUMP SCREW	4
37	85095	水泵螺丝衬套	BUSHING WATER PUMP SCREW	4
37	8M0214959	衬套@5	BUSHING @5	4
38	85090	水管密封件	SEAL WATER TUBE	1
38	85090001	密封件	SEAL	1
39	86203	橡胶传动轴O型圈	O-RING DRIVE SHAFT - RUBBER	1
-	85168A80	衬垫套件	GASKET SET	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
-	99157T2	水泵套件	PUMP KIT Water	1
-	85090A1	水泵密封套件	SEAL KIT Water Pump	1

图 40齿轮箱螺旋桨轴 Gear Housing Propeller Shaft

REF	零件编号	中文名称	英文名称	数量
-	8669A13	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A14	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
-	8669A15	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8669A16	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	8669T16	ORD 1665-8669T14	ORD 1665-8669T14	1
-	8669A23	齿轮箱总成(短型)(追踪者系列)	GEAR HOUSING ASSEMBLY (SHORT) (TRACKER)	1
-	8669A24	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
1	8669A21	齿轮箱总成(基础黑色)	GEAR HOUSING ASSEMBLY Basic-Black (BLACK)	1
1	8M0083538	GC BASIC 25 2S	GC BASIC 25 2S	1
1	8669A22	齿轮箱总成(基础灰色)	GEAR HOUSING ASSEMBLY Basic-Gray (GRAY)	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8669A25	齿轮箱总成(追踪者系列)	GEAR HOUSING ASSEMBLY (TRACKER)	1
1	8669A39	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
39	984325	平衡鳍板	TRIM TAB	1
39	98432Q6	平衡鳍板	TRIM TAB	1
40	4000354	螺钉(M8x30) 调整片	SCREW (M8 x 30) TRIM TAB	1
41	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	1
41	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	1
42	99328A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
42	8M0103470	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
43	44213A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
43	44213T1	前进齿轮	GEAR Forward	1
44	85557	衬套	BUSHING	1
45	85094	凸轮从动件	FOLLOWER Cam	1
46	38114	弹簧	SPRING	1
47	41040	离合器(无标记)	CLUTCH (NO STAMPING)	1
47	41040T	离合器	CLUTCH	1
47	410401	离合器(标记52-41040--1)	CLUTCH (STAMPED 52-41040--1)	1
47	41040T1	离合器	CLUTCH	1
48	816623	螺旋桨轴	PROPELLER SHAFT	1
48	8166231	螺旋桨轴	PROPELLER SHAFT	1
49	88680	弹簧	SPRING	1
50	85093	销	PIN	1
50	8M0020999	十字销	PIN CROSS	1
51	99542	倒挡齿轮	GEAR Reverse	1
51	99542T	倒挡齿轮	GEAR Reverse	1
52	99906A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	99906T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	21739	滚柱轴承	BEARING Roller	1
54	41132	油封(内)	SEAL Oil (INNER)	1
55	41131	油封(外)	SEAL Oil (OUTER)	1
55	8M0245761	油封	SEAL OIL	1
56	85549	O型圈	O-RING	1
57	87293	安装板	PLATE	1
58	90883	螺钉(M5×16)	SCREW (M5 x 16)	3
59	8M0027793	轮毂	HUB	1
59	858498	推力毂总成	THRUST HUB ASSEMBLY	1
60	19640A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	1
60	19638A40	黑金刚螺旋桨(海专业/马拉松25/超级15)	BLACK MAX PROPELLER (SEA PRO/MARATHON 25/SUPER 15)	1
61	88228	螺旋桨螺母	PROP NUT	1
61	821280	螺母(海专业/马拉松25/超级15)	NUT (SEA PRO/MARATHON 25/SUPER 15)	1
61	4013812	螺母(M12)不锈钢	NUT (M12) Stainless Steel	1
62	4000378	不锈钢螺钉(M10 x 35)	SCREW (M10 x 35) Stainless Steel	4
62	87810178	螺钉(M10 x 35)	SCREW (M10 x 35)	4
63	43328	垫圈	WASHER	4
64	41589	垫片(按需使用)	SPACER (USE WHERE APPLICABLE)	4
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	85090A2	密封套件	SEAL KIT	1

图 41线束和启动组件（电动手柄） Harness and Start Components (Electric Handle)

REF	零件编号	中文名称	英文名称	数量
1	95815	启动开关上盖	COVER START SWITCH (TOP)	1
2	95828	启动开关下盖	COVER START SWITCH (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
4	55741001	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	95814	束带夹	STRAP CLAMP	1
7	95813	束带夹紧固件	FASTENER CLAMP STRAP	1
8	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
8	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
9	4005727	螺钉	SCREW	2
10	45771	垫圈	WASHER	2
11	62568	开关线螺丝(#10-16 x .375)	SCREW (#10-16 x .375) SWITCH WIRE	1
12	69570	盖板螺丝(#10-16 x .750)	SCREW (#10-16 x .750) COVER	1
13	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1

图 42点火/电气组件 Ignition/Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	86617A13	定子总成	STATOR ASSEMBLY	1
1	86617A20	定子总成	STATOR ASSEMBLY	1
2	4000120	螺丝(M5 x 25)	SCREW (M5 x 25)	2
2	400015	螺钉(M5x10) 定子固定	SCREW (M5 x 10) STATOR ATTACHING	2
3	98450A5	触发器总成	TRIGGER ASSEMBLY	1
3	98450A10	触发器总成	TRIGGER ASSEMBLY	1
4	24836	触发器线夹	CLIP TRIGGER LEADS	1
4	22740	触发器线夹	CLIP TRIGGER LEADS	1
5	48408	螺钉(#10-16x0.5) 线夹至曲轴箱	SCREW (#10-16 x .500) CLIP TO CRANKCASE	1
6	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	1
6	8M0084613	C形垫圈	C-WASHER	1
7	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	2
7	8M0230859	点火线圈总成	COIL IGNITION ASY	2
8	99762	点火线圈盖	COVER IGNITION COIL	1
8	997621	点火线圈盖	COVER Ignition Coil	1
9	4010555	螺钉(M5x55)不锈钢点火线圈盖	SCREW (M5 x 55) Stainless Steel IGNITION COIL COVER	3
9	1994155	螺钉(M5 x 55)	SCREW (M5 x 55)	3
10	45076	螺母 (#10-32) 黄铜线圈端子	NUT (#10-32) Brass COIL TERMINAL	4
11	813715A3	高压线	HIGH TENSION LEADS	1
11	813715A2	高压电缆组（5和8.25英寸）	CABLE SET High Tension (5 and 8.25 Inch)	1
11	813715A2	高压线束组（5和8.25英寸）（商用发动机）	CABLE SET High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES)	1
12	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
13	97180	火花塞（NGK #BUZHW）	SPARK PLUG (NGK #BUZHW)	2
13	896329827	SP #L76V @4	SP #L76V @4	2
13	14103570	火花塞（NGK #BUZHW-2）	SPARK PLUG (NGK #BUZHW-2)	2
13	14103Q	ORD 896329838	ORD 896329838	2
13	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	2
13	13686Q	NGK BU8H @10	NGK BU8H @10	2
13	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	2
13	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	2
13	8168372	火花塞(NGK #BPZ8H-N-10)	SPARK PLUG (NGK #BPZ8H-N-10)	2
13	938	SP #QL78YC @4	SP #QL78YC @4	2
14	7452A15	开关盒总成	SWITCHBOX ASSEMBLY	1
14	7452A19	开关盒总成	SWITCHBOX ASSEMBLY	1
15	40019108	螺钉 (M5 x 20) 开关盒至气缸体	SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK	3
17	88807A10	辅助线束总成	CABLE ASSEMBLY AUXILIARY	2
18	48408	螺钉 (#10-16 x .500) 接地线	SCREW (#10-16 x .500) GROUND WIRE	1
19	86704A2	辅助定子总成	STATOR ASSEMBLY AUXILIARY	1
19	86704A10	辅助定子	STATOR Auxiliary	1
20	4000123	螺钉(M5 x 30)定子固定	SCREW (M5 x 30) STATOR ATTACHING	3
21	63813	端子排	TERMINAL BLOCK	1
21	638131	端子排	TERMINAL BLOCK	1
22	48409	螺钉(#10-16 x .625)不锈钢接线板	SCREW (#10-16 x .625) Stainless Steel TERMINAL BLOCK	2
23	95845	电压调节器	REGULATOR Voltage	1
23	95845T	电压调节器	REGULATOR-VOLTAGE	1
24	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
25	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
26	74725A2	线束总成(黑/红)	HARNESS ASSEMBLY (BLACK/RED)	1
27	71663	堵头	PLUG	1
28	65017A2	外部线束总成	HARNESS ASSEMBLY (EXTERNAL)	1

图 43反冲启动器总成（手动） Recoil Starter Assembly (MANUAL)

REF	零件编号	中文名称	英文名称	数量
1	42712A1	起动机壳体总成	HOUSING ASSEMBLY Starter STARTER	1
2	86971	起动机壳体盖（早期型号）	COVER STARTER HOUSING (EARLY MODELS)	1
3	94019	锁杆 (上)	LEVER LOCK (UPPER)	1
3	858925	锁止杆	LEVER Lock	1
4	12734	上锁杆弹簧	SPRING UPPER LOCK LEVER	1
5	938762	锁杆 (下)	LEVER LOCK (LOWER)	1
5	93876T02	杠杆	LEVER	1
6	92799	螺钉（#10-16 x 1.12）下锁杆	SCREW (#10-16 x 1.12) LOWER LOCK LEVER	1
6	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	1
7	818142	衬套	BUSHING	1
8	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
9	90478		PAD FELT	1
9	833161T	毛毡垫	PAD-FELT	1
10	86857	启动器弹簧	SPRING STARTER	1
10	86857T01	弹簧	SPRING	1
11	42566	启动器滑轮	SHEAVE STARTER	1
11	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
12	86851	凸轮弹簧	SPRING CAM	2
12	86851T02	弹簧 @2	SPRING @2	2
13	86850	凸轮	CAM	2
13	868501	凸轮	CAM	2
14	86849	凸轮挡圈	RING Retaining CAM	2
14	86849T01	环 @2	RING @2	2
15	12066A9	启动绳	ROPE STARTER	1
15	12066Q10	启动绳@2	ROPE-STARTER@2	1
16	85174A1	启动绳手柄总成	HANDLE ASSEMBLY STARTER ROPE	1
17	86852	凸轮弹簧	SPRING CAM	1
17	868523	弹簧	SPRING	1
18	86853	凸轮	CAM	1
18	86853T01	凸轮	CAM	1
19	97516	凸轮至启动器皮带轮螺丝	SCREW CAM TO STARTER SHEAVE	1
19	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
20	426264	启动手柄支架	SUPPORT STARTER HANDLE	1
21	40019111	螺钉（M5 x 35）起动机壳体支撑	SCREW (M5 x 35) SUPPORT TO STARTER HOUSING	2
23	309772	支架螺丝隔套	SPACER SUPPORT SCREW	4
24	400633	支架螺丝螺母（M5）	NUT (M5) SUPPORT SCREW	2
24	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2
25	44180	绳索衬套	BUSHING Rope	1
26	17212	支架	SUPPORT	1
26	856154T01	支架	SUPPORT	1
27	23538	垫圈	WASHER	1
28	38489	锁杆滚销	PIN Roll LOCK LEVER	1
29	40011128	螺钉 (M6 x 20) 不锈钢启动器壳体固定	SCREW (M6 x 20) Stainless Steel STARTER HOUSING ATTACHING	2
29	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	2
29	40011131	螺钉（M6 x 35）不锈钢起动机壳体固定	SCREW (M6 x 35) Stainless Steel STARTER HOUSING ATTACHING	1

图 44维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称
-	81639990	零件手册 XR-10/MAGNUM 10/SEA PRO 10/MARATHON 10	PARTS MANUAL XR-10/MAGNUM 10/SEA PRO 10/MARATHON 10
-	816290A90	标贴套装(XR10)	DECAL SET (XR10)
-	816291A92	标贴套装(MAGNUM 10)	DECAL SET (MAGNUM 10)
-	817633A91	标贴套装(SEA PRO 10)	DECAL SET (SEA PRO 10)
-	13361A91	标贴套装(MARATHON 10)	DECAL SET (MARATHON 10)
-	12048930	用户指南(XR 10)	OWNERS GUIDE (XR 10)
-	14138930	用户指南(MAGNUM 10)	OWNERS GUIDE (MAGNUM 10)
-	816755930	用户指南(SEA PRO 10)	OWNERS GUIDE (SEA PRO 10)
-	816757930	使用手册（马拉松10）	OWNERS GUIDE (MARATHON 10)

图 45转向手柄总成（手动/电动手柄） Steering Handle Assembly (Manual/Electric Handle)

REF	零件编号	中文名称	英文名称	数量
1	99589	握把	GRIP	1
2	NLA	停产停止开关	No Longer Available Stop Switch	1
3	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
4	823609A1	停止开关总成（设计II-带金属锁环）	SWITCH ASSEMBLY Stop (DESIGN II -W/METAL LOCK RING)	1
4	8M0104615	开关总成	SWITCH ASSY	1
5	140121	贴花（贴于管上）	DECAL (APPLY ON TUBE)	1
5	140122	贴花（贴于管上-3.33英寸x1.25英寸）（灰色）	DECAL (APPLY ON TUBE - 3.33 Inches x 1.25 Inches)(GRAY)	1
5	140123	贴花（贴于管上-3.15x2.50英寸）（灰色）	DECAL (APPLY ON TUBE - 3.15 x 2.50 Inches)(GRAY)	1
5	140124	贴花（国际符号）	DECAL (INTERNATIONAL SYMBOLS)	1
6	37342	螺钉（#12-14 x 0.375）	SCREW (#12-14 x .375)	1
7	99333A2	管总成	TUBE ASSEMBLY	1
8	975501	管总成	TUBE ASSEMBLY	1
9	43447A1	支架总成（黑色）	BRACKET ASSEMBLY (BLACK)	1
9	43447A3	转向支架总成	BRACKET ASSEMBLY Steering	1
9	43447A2	支架总成（灰色）	BRACKET ASSEMBLY (GRAY)	1
9	43447A4	转向支架总成	BRACKET ASSEMBLY Steering	1
10	NLA	停产支架（黑色）（订单号43447A3）	No Longer Available Bracket (BLACK) (Order 43447A3)	1
10	NLA	停产支架（灰色）（订单号43447A4）	No Longer Available Bracket (GRAY) (Order 43447A4)	1
11	4005688	螺钉（M4×20）	SCREW (M4 x 20)	AR
11	40019109	螺丝(M5 x 25)	SCREW (M5 x 25)	AR
12	177821	垫圈14	WASHER 14	1
13	90068F2	螺母（黑色）	NUT (Black)	1
13	859133	螺母(1.00-14)	NUT (1.00-14)	1
13	90068F3		NUT (1.00-14) (Gray)	1
13	859133	螺母(1.00-14)	NUT (1.00-14)	1
14	74036	润滑脂接头	FITTING Grease	1
14	8M0169589	润滑脂接头	FITTING Grease	1
15	85973	衬套	BUSHING	1
9	43447A3	转向支架总成（黑色）	BRACKET ASSEMBLY Steering (Black)	1
9	43447A4	转向支架总成（灰色）	BRACKET ASSEMBLY Steering (Gray)	1
9	43447A3	转向支架总成	BRACKET ASSEMBLY Steering	1
9	43447A5	转向支架总成（追踪器）	BRACKET ASSEMBLY Steering (Tracker)	1
10	44397A15	支架总成（黑色）	BRACKET ASSEMBLY (BLACK)	1
10	44397A16	支架总成（灰色）	BRACKET ASSEMBLY (GRAY)	1
10	44397A22	支架总成（追踪器）	BRACKET ASSEMBLY (TRACKER)	1
11	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	3
12	177821	垫圈	WASHER	1
13	816880	螺母	NUT	1
14	74036	润滑脂接头	FITTING Grease	1
14	8M0169589	润滑脂接头	FITTING Grease	1
15	817026	衬套	BUSHING	1
16	432421	油门拉线（舵柄手柄换挡）	CABLE Throttle (TILLER HANDLE SHIFT)	1
16	432422	油门拉线总成（侧换挡）	CABLE ASSEMBLY Throttle (SIDE SHIFT)	1
17	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	4
18	4000384	螺钉(M10×80)	SCREW (M10 x 80)	2
19	817634	塞子（SEA PRO/MARATHON 25/SUPER 15）	PLUG (SEA PRO/MARATHON 25/SUPER 15)	1

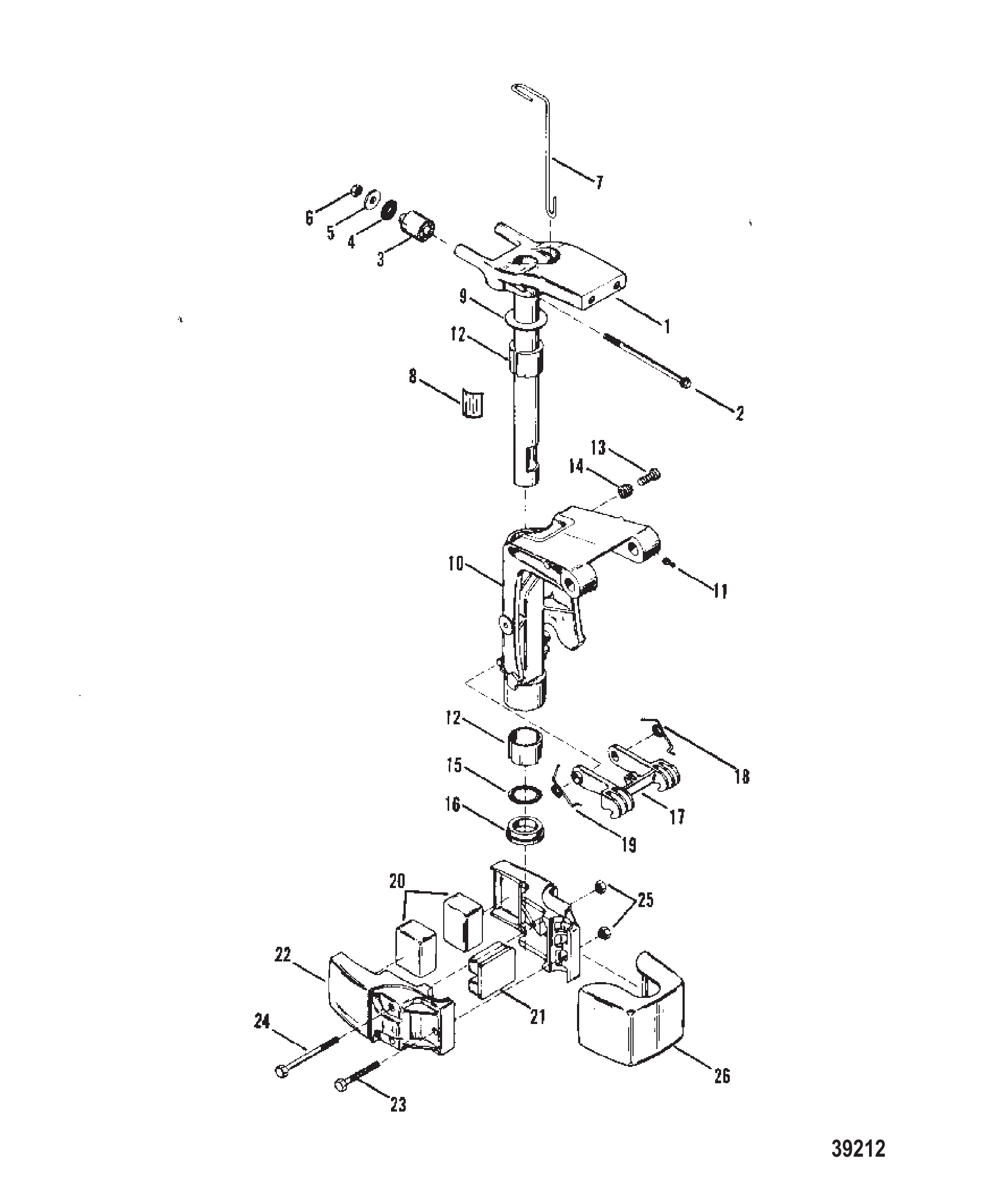

图 46旋转支架总成 Swivel Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1	97544A1	转轴管总成	SWIVEL TUBE ASSEMBLY	1
1	97544A5	水星转轴管总成	SWIVEL TUBE ASSEMBLY Mercury	1
2	87142	上支架螺丝（133mm）	SCREW UPPER MOUNT (133MM)	2
2	125161	螺丝 M8×133	SCREW (M8 x 133)	2
3	85102	上支架	MOUNT UPPER	2
3	14894	支架	MOUNT	2
4	85172	橡胶垫圈(上支架螺丝)	WASHER RUBBER - UPPER MOUNT SCREW	2
5	85106	上部支架螺钉垫圈	WASHER UPPER MOUNT SCREW	2
6	400213	螺母 M8不锈钢(上支架螺丝)	NUT (M8) Stainless Steel UPPER MOUNT SCREW	2
7	85157	倒挡钩杆	ROD REVERSE HOOK	1
8	85173	导向控制板	PLATE PILOT CONTROL	1
9	85104	转轴管垫圈	WASHER SWIVEL TUBE	1
10	8187A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
10	822237A1	转轴支架-黑色	BRKT-SWIVEL-BLK	1
11	74036	润滑脂接头	FITTING Grease	3
11	8M0169589	润滑脂接头	FITTING Grease	3
12	95949	转轴支架衬套	BUSHING SWIVEL BRACKET	2
13	91908	导向控制螺丝	SCREW PILOT CONTROL	1
13	91807	螺钉	SCREW	1
14	96203	导向控制螺丝弹簧	SPRING PILOT CONTROL SCREW	1
15	86993	旋转管O型圈	O-RING SWIVEL TUBE	1
16	85154	转轴管衬套（下部）	BUSHING SWIVEL TUBE (LOWER)	1
17	96045A1	倒挡锁钩总成	HOOK ASSEMBLY REVERSE LOCK	1
17	98830A2	挂钩总成	HOOK ASSEMBLY	1
18	96018	倒挡钩弹簧(左舷)	SPRING REVERSE HOOK - PORT	1
19	97427	右舷倒车挂钩弹簧	SPRING REVERSE HOOK - STARBOARD	1
20	85122	下支架	MOUNT LOWER	2
20	85122001	下支架	MOUNT Lower	2
21	85123	前缓冲垫	BUMPER Front	1
21	85123001	前缓冲垫	BUMPER Front	1
22	92168	下安装盖	COVER LOWER MOUNT	2
22	95068A1	盖板	COVER	2
23	40007155	下支架盖螺丝（55mm）	SCREW LOWER MOUNT COVER (55MM)	1
23	1994360	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
24	4000362	下支架盖螺丝（90mm）	SCREW LOWER MOUNT COVER (90MM)	2
22	95068A1	下安装盖	COVER LOWER MOUNT	1
23	4009259	下支架盖螺丝（60mm）	SCREW LOWER MOUNT COVER (60MM)	1
23	1994360	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
24	4009263	下支架盖螺丝（100mm）	SCREW LOWER MOUNT COVER (100MM)	2
24	19943100	螺丝(M8 x 100)	SCREW (M8 x 100)	2
25	400213	下支架盖螺丝螺母（M8不锈钢）	NUT (M8) Stainless Steel LOWER MOUNT COVER SCREW	3
26	85547	下支架盖（塑料）	COVER LOWER MOUNT (PLASTIC)	1
-	85168A80	衬垫套件	GASKET SET	1

图 47油门和换挡联动装置（电动/手动遥控） Throttle and Shift Linkage (Electric/Manual Remote Control)

REF	零件编号	中文名称	英文名称	数量
1	17764A2	节流连杆套件	LINK KIT Throttle	1
2	932481	衬套	BUSHING	1
2	8M0215006	旋转衬套	BUSHING Swivel	1
3	34632	垫圈	WASHER	1
4	48039	怠速止动螺钉帽	CAP IDLE STOP SCREW	1
5	92425	缓冲器（适用时使用）	DASHPOT (Use where Applicable)	1
6	93001	支架（适用时使用）	BRACKET (Use where Applicable)	1
7	28770	螺母（.312-24）不锈钢（适用时使用）	NUT (.312-24) Stainless Steel (Use where Applicable)	2
8	60762	换挡轴衬套	BUSHING SHIFT SHAFT	2
9	17724	换挡轴杆	LEVER SHIFT SHAFT	1
9	17724A1	杠杆总成	LEVER ASSEMBLY	1
10	400633	换挡轴螺母(M5)	NUT (M5) SHIFT SHAFT	1
10	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
11	43360	控制杆	LEVER CONTROL	1
11	433601	控制杆	LEVER Control	1
12	817429	正时连杆	TIMING LINK	1
13	817428	插座	SOCKET	2
13A	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
14	42026A2	控制平台	PLATFORM CONTROL	1
15	16955	螺钉（M6 x 8）平台	SCREW (M6 x 8) PLATFORM	1
16	4002316	垫圈（6.60 x 17.0 x 1.5不锈钢）平台螺钉	WASHER (6.60 X 17.0 X 1.5SS) PLATFORM SCREW	1
16	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
17	69708	波形垫圈	WAVE WASHER	1
18	89540	点火提前弹簧	SPRING SPARK ADVANCE	1
19	42343	作动杆	LEVER ACTUATING	1
20	4000328	螺钉（M6 x 16）控制平台	SCREW (M6 x 16) CONTROL PLATFORM	1
20	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	1
20	4000329	螺钉（M6 x 20）控制平台	SCREW (M6 x 20) CONTROL PLATFORM	2
20	8M0206596	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
21	40007128	换挡杆与平台螺丝（M6 x 20）	SCREW (M6 x 20) SHIFT LEVER TO PLATFORM	1
22	95093	换挡杆与平台垫圈	WASHER SHIFT LEVER TO PLATFORM	1
23	43424	换挡杆	LEVER SHIFT	1
24	95091	换挡杆至平台套管	SLEEVE SHIFT LEVER TO PLATFORM	1
25	35280	换挡杆螺钉垫片(0.255x0.620x0.030)不锈钢	WASHER (.255 x .620 x .030) Stainless Steel SHIFT LEVER SCREW	1
26	401196	换挡杆螺钉螺母(M6)	NUT (M6) SHIFT LEVER SCREW	1
27	42846A2	盖总成	COVER ASSEMBLY	1
28	39519	杯形固定器	CUP RETAINER	1
29	118591	螺钉（.190-32 x 1.750）怠速止动-控制杆	SCREW (.190-32 x 1.750) IDLE STOP - CONTROL LEVER	1
30	434441	换挡连杆	SHIFT LINK	1
30	434442	换挡连杆	SHIFT LINK	1
31	95027A6	水平换挡轴	SHIFT SHAFT HORIZONTAL	1
32	42156	换挡轴杆	LEVER SHIFT SHAFT	1
33	95019	挡圈（旧设计）	RING Retaining (OLD DESIGN)	1
34	89302	换挡连杆垫片(0.203x0.406x0.040)	WASHER (.203 x .406 x .040) SHIFT LINK	1
35	21071	换挡连杆开口销	COTTER PIN SHIFT LINK	1
35	210711	开口销	COTTER PIN	1
36	424291	拉线固定器	RETAINER CABLE	2
37	96487A2	转向连杆总成	LINK ROD ASSEMBLY STEERING	1
37	41323A03	转向连杆安装套件	ATTACHING KIT Steering Link	1
38	14000	螺钉（.375-24 x 1.25）连杆	SCREW (.375-24 x 1.25) LINK ROD	1
38	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
39	34931	垫圈（.406 x .734 x .063）不锈钢螺钉和连杆	WASHER (.406 x .734 x .063) Stainless Steel SCREW AND LINK ROD	2
40	34863	螺母（.375-24）螺钉和连杆	NUT (.375-24) SCREW AND LINK ROD	2
40	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
41	96186A2	安装支架总成	BRACKET ASSEMBLY ATTACHING	1
42	4000376	支架螺钉(M10x25)	SCREW (M10 x 25) BRACKET	2
42	1993325	螺钉(M10x25mm)	SCREW (M10 x 25 mm)	2
43	96201	钥匙带（旧设计）	STRAP Key (OLD DESIGN)	1
44	400248	锁紧垫圈（M10）（新设计）	LOCKWASHER (M10) (NEW DESIGN)	2

图 48油门与换挡联动装置（侧换挡） Throttle and Shift Linkage (Side Shift)

REF	零件编号	中文名称	英文名称	数量
1	421811	线缆支架	BRACKET Cable	1
2	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
3	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
4	4002314	垫圈	WASHER	1
5	421571	换挡手柄	SHIFT HANDLE	1
6	44459	护孔环	GROMMET	1
6	44459001	护孔环	GROMMET	1
7	8155501	换档轴	SHIFT SHAFT	1
8	42156	杠杆	LEVER	1
9	42153	杠杆	LEVER	1
10	39627	弹簧	SPRING	1
11	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
12	421671	正时连杆	TIMING LINK	1
13	421631	控制杆	LEVER Control	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	69708	波形垫圈	WAVE WASHER	1
16	42164	弹簧	SPRING	1
17	13676	弹簧	SPRING	1
18	421662	执行器	ACTUATOR	1
19	421621	衬套	BUSHING	1
20	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
21	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
22	42161	互锁连杆	LINK INTERLOCK	1
23	421592	杠杆	LEVER	1
24	42160	弹簧	SPRING	1
25	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
26	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
27	421581	衬套	BUSHING	1

图 49油门和换挡联动装置（舵柄换挡） Throttle and Shift Linkage (Tiller Handle Shift)

REF	零件编号	中文名称	英文名称	数量
1	421481	控制平台	CONTROL PLATFORM	1
1	8M0047593	控制平台	PLATFORM-CONTROL	1
2	94085A1	齿轮	GEAR	1
3	826650	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
4	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
4	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
5	42149	短隔套	SPACER (SHORT)	1
5	856737	隔套	SPACER	1
6	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
7	42151	主操纵杆	LEVER Primary	1
8	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9	42150	长隔套	SPACER (LONG)	1
9	856738	隔套	SPACER	1
10	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
11	421671	正时连杆	TIMING LINK	1
12	421631	控制杆	LEVER Control	1
13	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
14	421662	执行器	ACTUATOR	1
15	42161	互锁连杆	LINK INTERLOCK	1
16	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
17	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
18	421621	衬套	BUSHING	1
19	42164	弹簧	SPRING	1
20	69708	波形垫圈	WAVE WASHER	1
21	13676	弹簧	SPRING	1
22	19385A1	节气门连杆总成	LINK ASSEMBLY Throttle	1
22	8M0084745	节气门连杆总成	LINK ASY-THROTTLE	1
23	19384	插座	SOCKET	1
23	8M0084742	插座	SOCKET	1
24	421592	杠杆	LEVER	1
25	421581	衬套	BUSHING	1
26	42160	弹簧	SPRING	1
27	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
28	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
29	42156	杠杆	LEVER	1
30	42153	杠杆	LEVER	1
31	8155501	换档轴	SHIFT SHAFT	1
32	815567A1	换挡连杆	SHIFT LINK	1
32	815567T02	换挡连杆总成	SHIFT LINK ASSY	1
33	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
34	39627	弹簧	SPRING	1
