水星 Mercury 25 (2 CYL.) ARCHIVE CAT 43465 - 爆炸图零件明细

两冲程 化油器 · ARCHIVE CAT 43465 · 共 27 个部位 · 879 条零件

图 1齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7360A29	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7360A30	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7360A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	58138	齿轮箱螺柱(3.5英寸)	STUD GEAR HOUSING (3-1/2")	1
3	58136	水泵壳体螺柱(2.75英寸)	STUD WATER PUMP HOUSING (2-3/4")	2
4	22756	驱动轴滚柱轴承	BEARING Roller DRIVE SHAFT	1
5	20032	定位销	PIN Dowel LOCATING	1
6	33613	进水管橡胶密封	SEAL RUBBER - WATER INTAKE TUBE	1
7	86215	进水管尼龙轴承密封	BEARING NYLON - INTAKE TUBE SEAL	1
8	33425	进水滤网	SCREEN WATER INTAKE	1
9	25612	进水滤网螺丝	SCREW WATER INTAKE SCREEN	1
10	98696	小齿轮	GEAR Pinion	1
11	30377	小齿轮螺钉锁紧垫圈	TAB WASHER PINION GEAR SCREW	1
12	30376	小齿轮驱动轴螺丝(#12-28x0.75)	SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT	1
13	95873A1	驱动轴	DRIVESHAFT	1
13	95874A1	驱动轴	DRIVESHAFT	1
14	30527A1	滚珠轴承垫片组(0.002-3-5-10)	SHIM ASSEMBLY BALL BEARING (.002-3-5-10)	AR
15	70944	驱动轴滚珠轴承	BEARING Ball DRIVE SHAFT	1
16	30523	球轴承挡圈	RING Retaining BALL BEARING	1
17	30527A1	滚珠轴承垫片组(0.002-3-5-10)	SHIM ASSEMBLY BALL BEARING (.002-3-5-10)	AR
18	70941A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
18	70941T01	壳体总成	HOUSING ASY	1
18	92970A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
19	29439	O型圈	O-RING	1
20	30900	油封	SEAL Oil	1
20	30900T	密封件@2	SEAL @2	1
20	96063	油封	SEAL Oil	1
20	897153	油封@3	SEAL-OIL @3	1
21	70977	嵌件	INSERT	1
21	70977T	嵌件	INSERT	1
22	33613	进水管密封	SEAL WATER INTAKE TUBE	1
23	34293	进水管道	TUBE WATER INTAKE	1
24	56655	叶轮驱动键	KEY IMPELLER DRIVE	1
24	8M0032835	键	KEY	1
25	89981	叶轮	IMPELLER	1
25	89980	叶轮	IMPELLER	1
26	46895	水泵面板	FACE PLATE WATER PUMP	1
27	93224A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
28	36558	水泵盖密封件	SEAL WATER PUMP COVER	1
30	30913	水泵盖油封	SEAL Oil WATER PUMP COVER	1
31	20533	垫圈	WASHER	2
32	13438	水泵壳体螺柱螺母(.250-28)	NUT (.250-28) WATER PUMP HOUSING STUD	2
32	8267119	螺母(.250-28)	NUT (.250-28)	2
33	30526	橡胶环-离心甩水环	RING RUBBER - CENTRIFUGAL SLINGER	1
34	31792	进水管导向套	SLEEVE GUIDE - INLET TUBE	1
34	31792T	套管@5	SLEEVE @5	1
-	78139A80	衬垫套件	GASKET SET	1
-	70941A3	水泵维修套件	REPAIR KIT Water Pump	1
-	92970A5	水泵维修套件	REPAIR KIT Water Pump	1
-	77066A1	水泵密封套件	SEAL KIT Water Pump	1

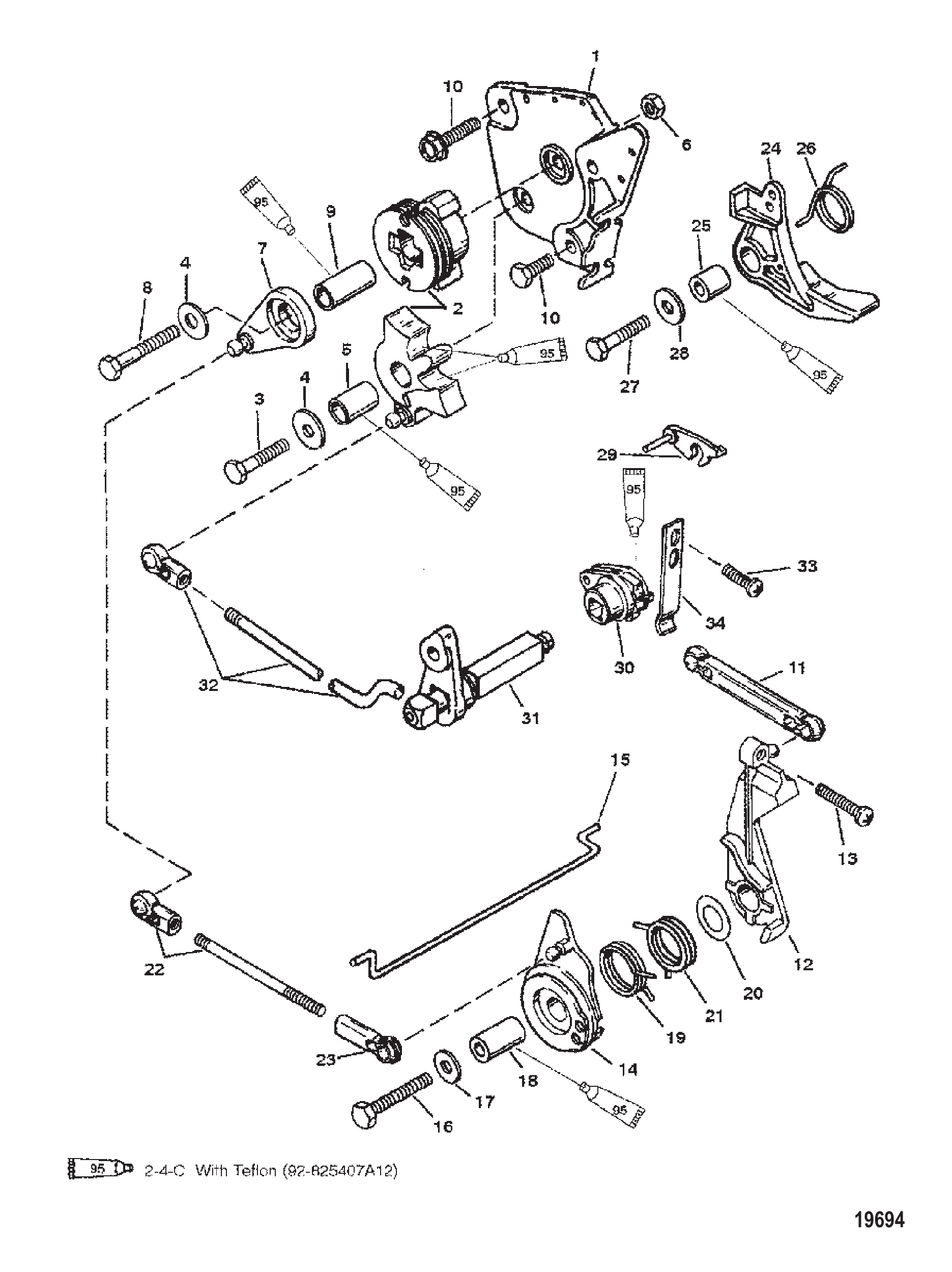

图 2油门与换挡联动装置（侧换挡） Throttle and Shift Linkage (Side Shift)

REF	零件编号	中文名称	英文名称	数量
1	421811	线缆支架	BRACKET Cable	1
2	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
3	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
4	4002314	垫圈	WASHER	1
5	421571	换挡手柄	SHIFT HANDLE	1
6	44459	护孔环	GROMMET	1
6	44459001	护孔环	GROMMET	1
7	8155501	换档轴	SHIFT SHAFT	1
8	42156	杠杆	LEVER	1
9	42153	杠杆	LEVER	1
10	39627	弹簧	SPRING	1
11	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
12	421671	正时连杆	TIMING LINK	1
13	421631	控制杆	LEVER Control	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	69708	波形垫圈	WAVE WASHER	1
16	42164	弹簧	SPRING	1
17	13676	弹簧	SPRING	1
18	421662	执行器	ACTUATOR	1
19	421621	衬套	BUSHING	1
20	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
21	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
22	42161	互锁连杆	LINK INTERLOCK	1
23	421592	杠杆	LEVER	1
24	42160	弹簧	SPRING	1
25	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
26	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
27	421581	衬套	BUSHING	1

图 3喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	801400150	喷泵(黑色)	JET PUMP (BLACK)	1
-	801401150	喷泵(灰色)	JET PUMP (GRAY)	1
-	855766150	喷泵	JET PUMP	1
1	801411150	泵壳	HOUSING Pump	1
1A	827490	润滑油管	HOSE Lube	1
2	801414150	叶轮	IMPELLER	1
2	803984T	叶轮	IMPELLER	1
3	80141290	进气壳体	HOUSING Intake	1
3A	8271883	衬套	LINER	1
4	801413150	驱动轴	SHAFT Drive	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	847568	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
8	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
15	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
16	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
16	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
17	69064	螺栓(.312-18 x 2.750)	BOLT (.312-18 x 2.750)	1
18	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
18	306671	螺柱	STUD	2
19	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
20	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
20	8M0214963	垫圈	WASHER	1

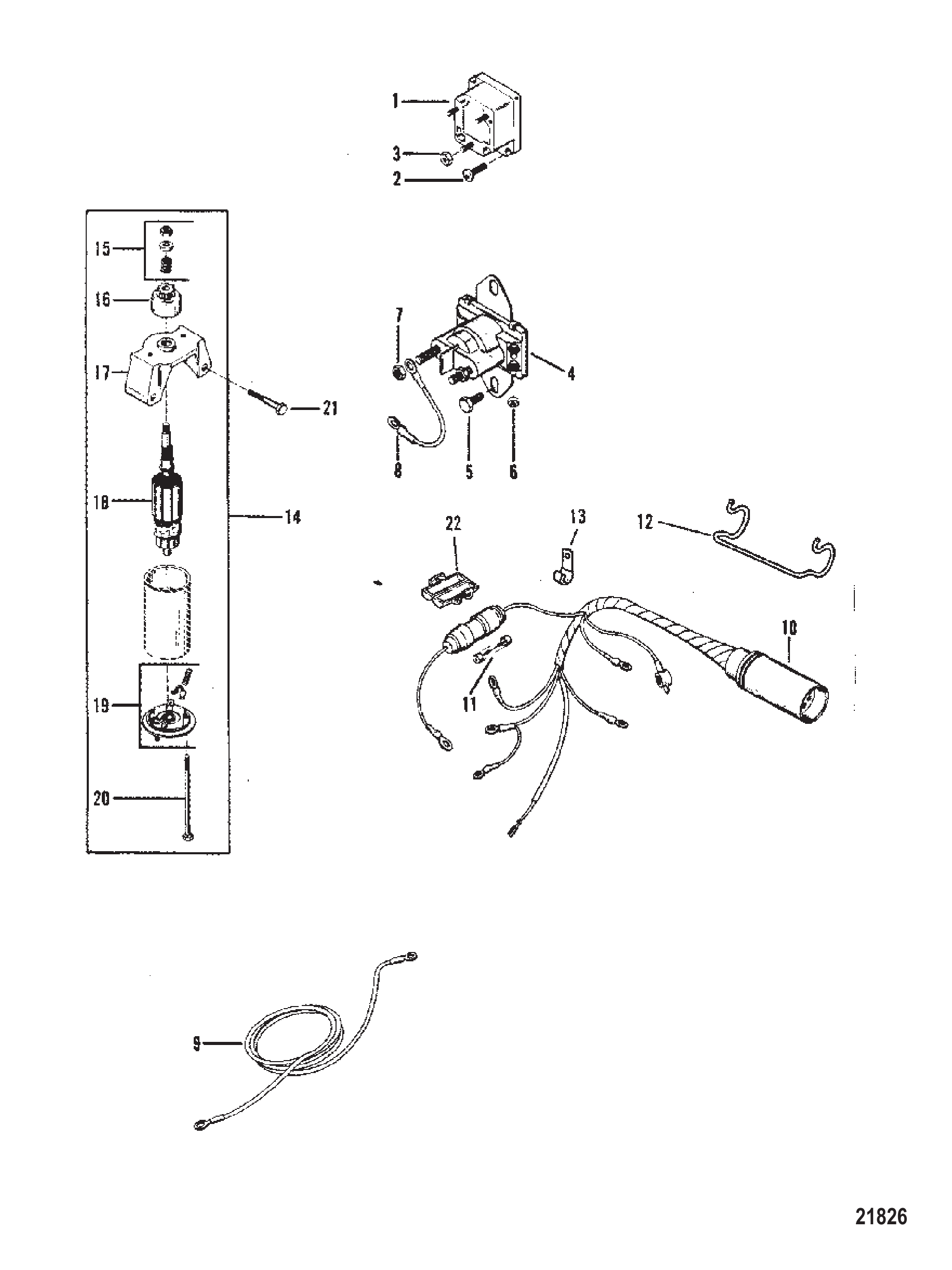

图 4电动启动组件 Electric Start Components

REF	零件编号	中文名称	英文名称	数量
1	816770	整流器	RECTIFIER	1
1	8M0058226	整流器	RECTIFIER	1
2	48409	螺丝(#10-16 x .625)不锈钢整流器至气缸体	SCREW (#10-16 x .625) Stainless Steel RECTIFIER TO CYLINDER BLOCK	2
3	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
4	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
4	8M0185149	启动电磁阀	SOLENOID START	1
5	4000327	螺钉(M6 x 14) 起动机电磁阀至曲轴箱	SCREW (M6 x 14) STARTER SOLENOID TO CRANKCASE	2
6	26419	螺母(#8-32)黄铜启动电磁阀端子	NUT (#8-32) Brass STARTER SOLENOID TERMINAL	2
7	64015	螺母(.250-20)启动电磁阀端子	NUT (.250-20) STARTER SOLENOID TERMINAL	2
8	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
9	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
9	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
9	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
9	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
10	92436A5	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
11	79091	保险丝20安培	FUSE 20 Ampere	1
11	8M0207796	保险丝20安培	FUSE 20 AMP	1
12	92753	固定座	RETAINER	1
13	55098	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	8M0033984	启动马达	STARTER MOTOR	1
15	96561	驱动套件	DRIVE KIT	1
16	96562	驱动器	DRIVE	1
17	96563	端盖	END CAP	1
17	96563T	端盖	END CAP	1
18	96565	电枢	ARMATURE	1
19	96564	端盖	END CAP	1
19	96564T	端盖	END CAP	1
20	96566	贯穿螺栓	THRU BOLT	1
21	421251	螺钉(M8 x 55) 起动机固定	SCREW (M8 x 55) STARTER MOTOR ATTACHING	2
21	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
22	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1

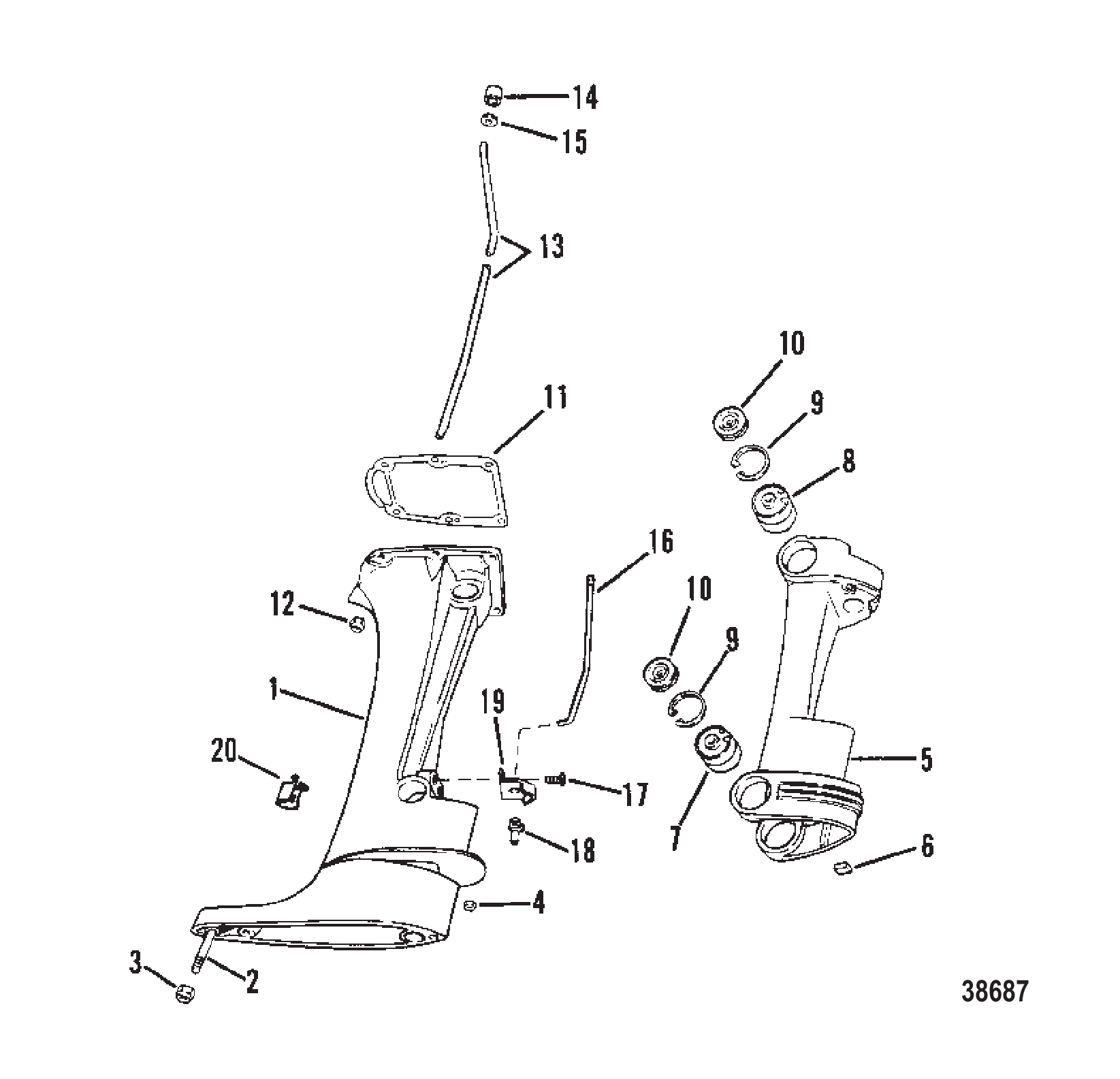

图 5驱动轴壳体总成 Driveshaft Housing Assembly

REF	零件编号	中文名称	英文名称	数量
1	8456A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8452A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	66373	驱动轴壳体至齿轮箱螺柱	STUD DRIVE SHAFT HOUSING TO GEAR HOUSING	1
3	35814	驱动轴壳体螺柱不锈钢螺母(.312-24)	NUT (.312-24) Stainless Steel DRIVE SHAFT HOUSING STUD	1
3	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
4	34863	齿轮箱螺柱螺母(.375-24)	NUT (.375-24) GEAR HOUSING STUD	1
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
5	8450A1	鞍座	SADDLE	1
6	64076	推力缓冲器-鞍座	BUMPER THRUST - SADDLE	1
7	79896A1	下支架	MOUNT LOWER	2
7	79896A1	下支架	MOUNT LOWER	2
8	79985A1	上部安装总成	MOUNT ASSEMBLY UPPER	2
8	79896A1	上支架	MOUNT UPPER	2
9	26406	上下安装环	RING UPPER AND LOWER MOUNT	4
10	79907	上下安装盖	COVER UPPER AND LOWER MOUNT	4
11	59079	衬垫	GASKET	1
12	24652	螺母(.250-28)	NUT (.250-28)	6
13	31940	出水管道	TUBE WATER OUTLET	1
13	32077	出水管道	TUBE WATER OUTLET	1
14	36556	出水管橡胶密封件(外径0.5英寸)	SEAL (.500 Inch Outside Diameter) RUBBER - WATER OUTLET TUBE	1
15	13127	出水管密封尼龙垫片	SPACER NYLON - OUTLET TUBE SEAL	1
16	71057	倒挡锁连杆	LINK ROD REVERSE LOCK	1
17	65414	螺钉	SCREW	2
18	65216	倒挡锁凸轮	CAM REVERSE LOCK	1
19	72007	倒挡锁凸轮固定座	RETAINER REVERSE LOCK CAM	1
20	93145	驱动轴挡块	BLOCK DRIVESHAFT	1
-	78139A80	衬垫套件	GASKET SET	1

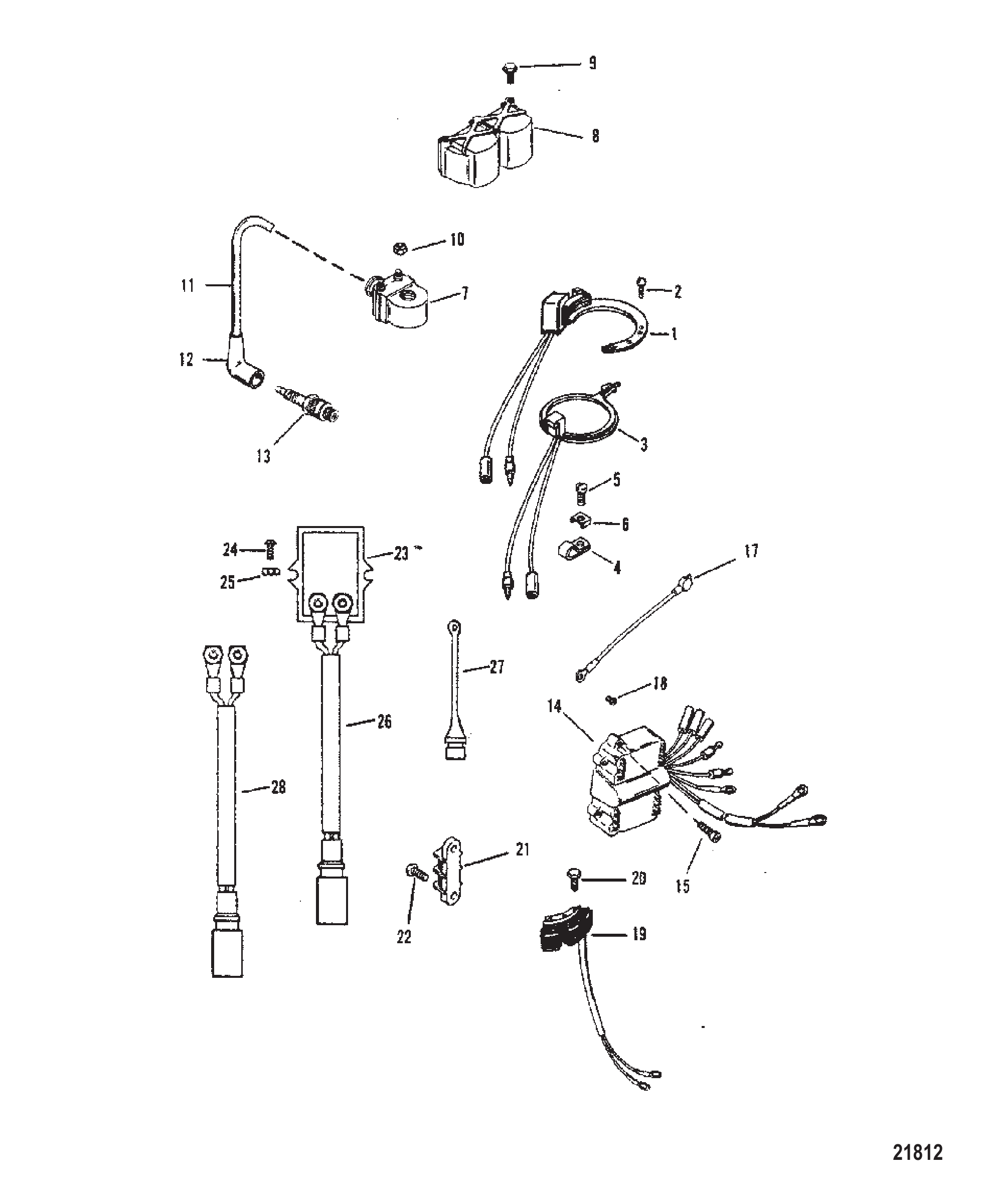

图 6点火/电气组件 Ignition/Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	86617A13	定子总成	STATOR ASSEMBLY	1
1	86617A20	定子总成	STATOR ASSEMBLY	1
2	4000120	螺丝(M5 x 25)	SCREW (M5 x 25)	2
2	400015	螺钉(M5x10) 定子固定	SCREW (M5 x 10) STATOR ATTACHING	2
3	98450A5	触发器总成	TRIGGER ASSEMBLY	1
3	98450A10	触发器总成	TRIGGER ASSEMBLY	1
4	24836	触发器线夹	CLIP TRIGGER LEADS	1
4	22740	触发器线夹	CLIP TRIGGER LEADS	1
5	48408	螺钉(#10-16x0.5) 线夹至曲轴箱	SCREW (#10-16 x .500) CLIP TO CRANKCASE	1
6	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	1
6	8M0084613	C形垫圈	C-WASHER	1
7	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	2
7	8M0230859	点火线圈总成	COIL IGNITION ASY	2
8	99762	点火线圈盖	COVER IGNITION COIL	1
8	997621	点火线圈盖	COVER Ignition Coil	1
9	4010555	螺钉(M5x55)不锈钢 点火线圈盖	SCREW (M5 x 55) Stainless Steel IGNITION COIL COVER	3
9	1994155	螺钉(M5 x 55)	SCREW (M5 x 55)	3
10	45076	螺母 (#10-32) 黄铜线圈端子	NUT (#10-32) Brass COIL TERMINAL	4
11	813715A3	高压线	HIGH TENSION LEADS	1
11	813715A2	高压电缆组（5和8.25英寸）	CABLE SET High Tension (5 and 8.25 Inch)	1
11	813715A2	高压线束组（5和8.25英寸）（商用发动机）	CABLE SET High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES)	1
12	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
13	97180	火花塞（NGK #BUZHW）	SPARK PLUG (NGK #BUZHW)	2
13	896329827	SP #L76V @4	SP #L76V @4	2
13	14103570	火花塞（NGK #BUZHW-2）	SPARK PLUG (NGK #BUZHW-2)	2
13	14103Q	ORD 896329838	ORD 896329838	2
13	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	2
13	13686Q	NGK BU8H @10	NGK BU8H @10	2
13	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	2
13	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	2
13	8168372	火花塞(NGK #BPZ8H-N-10)	SPARK PLUG (NGK #BPZ8H-N-10)	2
13	938	SP #QL78YC @4	SP #QL78YC @4	2
14	7452A15	开关盒总成	SWITCHBOX ASSEMBLY	1
14	7452A19	开关盒总成	SWITCHBOX ASSEMBLY	1
15	40019108	螺钉 (M5 x 20) 开关盒至气缸体	SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK	3
17	88807A10	辅助线束总成	CABLE ASSEMBLY AUXILIARY	2
18	48408	螺钉 (#10-16 x .500) 接地线	SCREW (#10-16 x .500) GROUND WIRE	1
19	86704A2	辅助定子总成	STATOR ASSEMBLY AUXILIARY	1
19	86704A10	辅助定子	STATOR Auxiliary	1
20	4000123	螺钉(M5 x 30)定子固定	SCREW (M5 x 30) STATOR ATTACHING	3
21	63813	端子排	TERMINAL BLOCK	1
21	638131	端子排	TERMINAL BLOCK	1
22	48409	螺钉(#10-16 x .625)不锈钢接线板	SCREW (#10-16 x .625) Stainless Steel TERMINAL BLOCK	2
23	95845	电压调节器	REGULATOR Voltage	1
23	95845T	电压调节器	REGULATOR-VOLTAGE	1
24	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
25	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
26	74725A2	线束总成(黑/红)	HARNESS ASSEMBLY (BLACK/RED)	1
27	71663	堵头	PLUG	1
28	65017A2	外部线束总成	HARNESS ASSEMBLY (EXTERNAL)	1

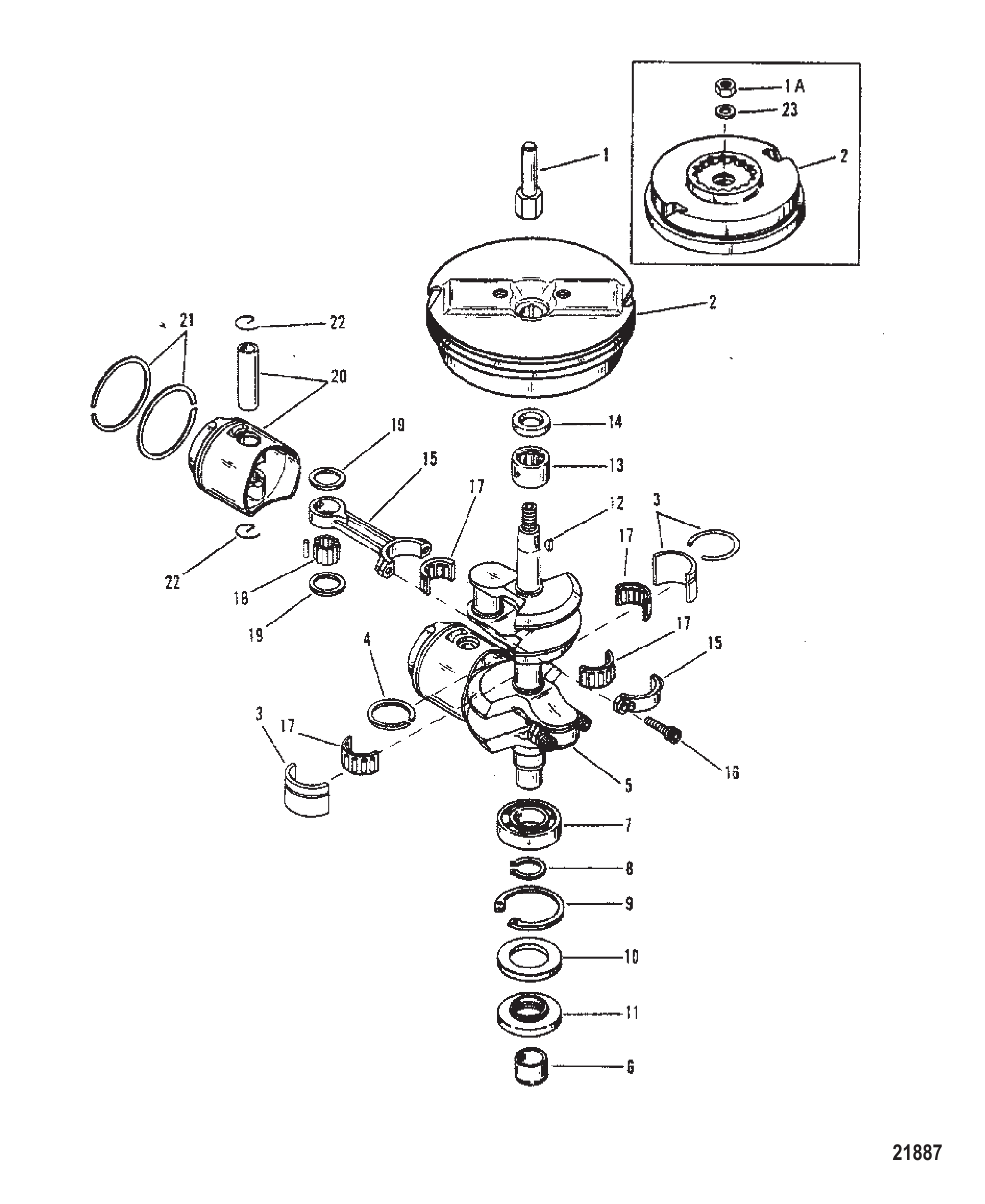

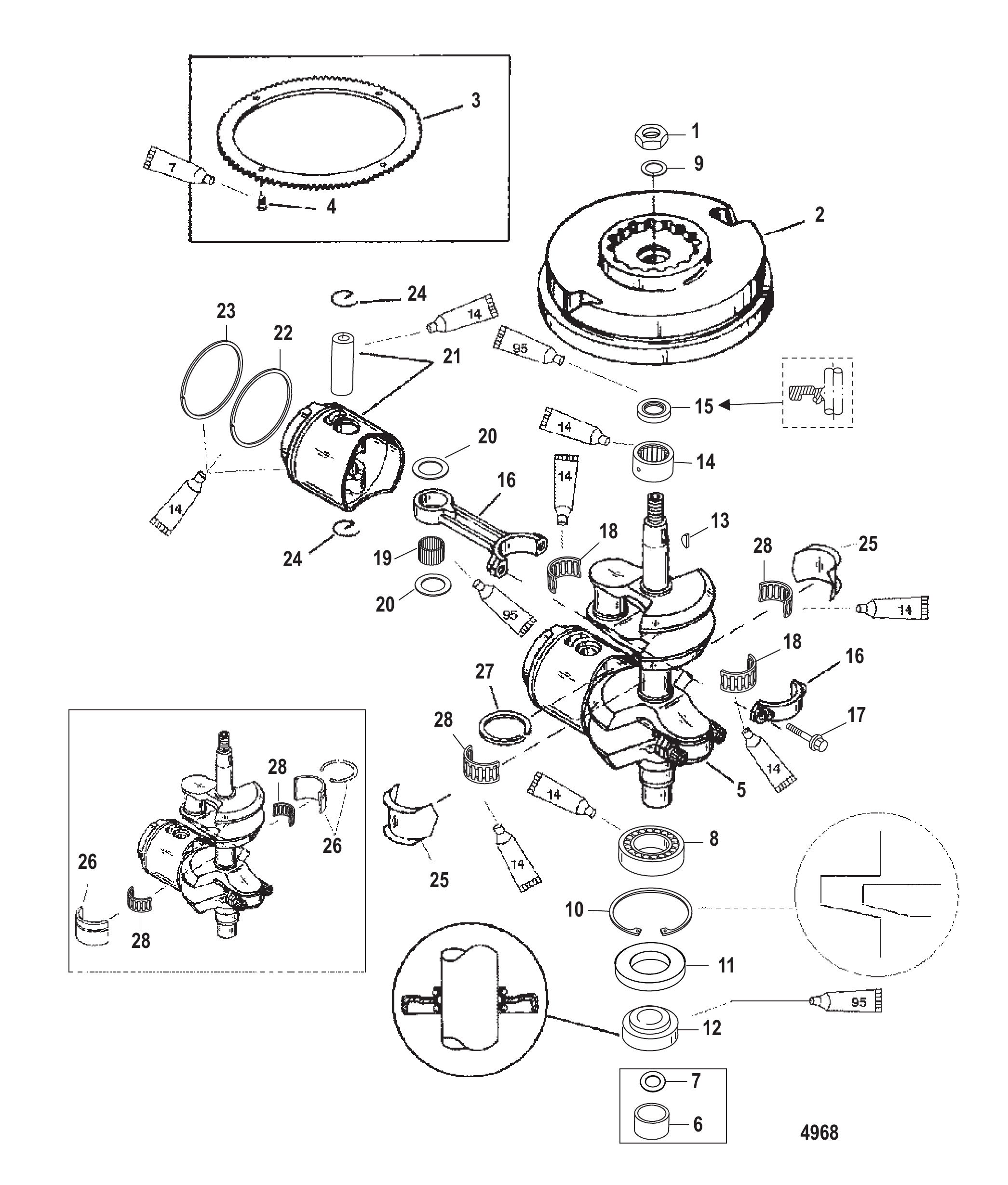

图 7曲轴活塞与飞轮 Crankshaft Pistons and Flywheel

REF	零件编号	中文名称	英文名称	数量
1	818591	螺母(M14)	NUT (M14)	1
2	859231T4	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T18	飞轮	FLYWHEEL	1
3	99301	齿圈	RING GEAR	1
4	88190313	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	818630A1	套筒	SLEEVE	1
7	NSS	不单独销售（O型圈）	NOT SOLD SEPARATE (O Ring)	1
8	41341	滚珠轴承	BEARING Ball	1
9	824451	垫圈(内径.610x外径.890x厚度.062)	WASHER (.610 Inside Diamter x .890 Outside Diameter x .062)	1
10	42132	挡圈	RING Retaining	1
11	13031	垫圈	WASHER	1
12	125661	下油封	SEAL Oil - Lower	1
13	20094	半圆键	KEY Woodruff	1
14	878158	滚柱轴承	BEARING Roller	1
15	125671	上油封	SEAL Oil - Upper	1
16	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
17	823460	螺钉(M5×16)	SCREW (M5 x 16)	4
18	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
19	42186	滚针轴承	BEARING Needle	48
20	43348	推力轴承	BEARING Thrust	4
20	8M0012297	止推垫圈@2	WASHER-THRST@2	4
21	9756T2	活塞总成	PISTON ASSEMBLY	2
21	9747T2	活塞总成	PISTON ASSEMBLY	2
21	9747A4	活塞总成	PISTON ASSEMBLY	2
22	18514A4	活塞环组	RING SET Piston	2
22	18212A4	活塞环组	RING SET Piston	2
22	18212A1	活塞环组	RING SET Piston	2
23	NSS	不单独销售 (活塞环-顶部)	NOT SOLD SEPARATE (Piston Ring-Top)	2
23	NSS	不单独销售 (活塞环-顶部)	NOT SOLD SEPARATE (Piston Ring-Top)	2
24	422021	锁紧环	LOCK RING	4
25	41373A1	中央主轴承套件	BEARING KIT Center Main	1
26	17794A1	轴承	BEARING	1
27	818901	密封件	SEAL	1
28	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072T97	动力头总成	POWERHEAD ASSEMBLY	1

图 8润滑图表 Lube Chart

REF	零件编号	中文名称	英文名称	数量
-	NOPART	无零件清单	NO PARTS LIST	1

图 9曲轴、活塞和飞轮 CRANKSHAFT, PISTONS AND FLYWHEEL

REF	零件编号	中文名称	英文名称	数量
1	42691	飞轮轴	SHAFT FLYWHEEL	1
1A	818591	螺母(M14)	NUT (M14)	1
2	8908A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T6	飞轮	FLYWHEEL	1
2	818540A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T19	飞轮总成	FLYWHEEL ASY	1
3	17794A1	轴承	BEARING	1
4	818901	主轴承油封	SEAL MAIN BEARING	1
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	818630A1	套筒	SLEEVE	1
7	41341	曲轴下球轴承	BEARING Ball CRANKSHAFT-LOWER	1
8	20940	球轴承卡环(小)(旧设计)	RING Snap BALL BEARING (SMALL)(OLD DESIGN)	1
9	42132	球轴承挡圈	RING Retaining BALL BEARING	1
10	13031	下垫圈	WASHER LOWER	1
11	125661	曲轴下油封	SEAL Oil - Lower CRANKSHAFT	1
12	20094	飞轮驱动半圆键	KEY Woodruff FLYWHEEL DRIVE	1
13	41342	曲轴上滚柱轴承	BEARING Roller CRANKSHAFT-UPPER	1
13	878158	滚柱轴承	BEARING Roller	1
14	125671	曲轴上油封	SEAL Oil - Upper CRANKSHAFT	1
15	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
16	823460	连杆螺钉(M5x16)	SCREW (M5 x 16) CONNECTING ROD	4
17	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
18	42186	活塞端滚针轴承	BEARING Needle PISTON END	48
19	43348	推力轴承	BEARING Thrust	4
19	8M0012297	止推垫圈@2	WASHER-THRST@2	4
20	9747A2	活塞总成(标准)	PISTON ASSEMBLY (STANDARD)	2
20	9747T2	活塞总成	PISTON ASSEMBLY	2
20	9747A4	活塞总成(.015加大)	PISTON ASSEMBLY (.015 O.S.)	2
21	18212A4	活塞环组(标准)	RING SET Piston (STANDARD)	1
21	18212A1	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	2
22	42202	锁紧环	LOCK RING	4
23	824451	垫圈(内径.610x外径.890x厚度.062)	WASHER (.610 Inside Diamter x .890 Outside Diameter x .062)	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

图 10燃油滤清器总成 FUEL FILTER ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	滤清器至化油器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO CARBURETOR	1
5	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接器套件(90度)(新设计)	CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN)	1
9	14187M	直通连接器(旧设计)	CONNECTOR (STRAIGHT) (OLD DESIGN)	1
10	4000331	适配器螺丝(M6x30)	SCREW (M6 x 30) ADAPTOR	AR
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	AR
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	AR

图 11附件 Accessories

REF	零件编号	中文名称	英文名称	数量
0	86306A01	适配器	ADAPTER	1
0	821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
0	8M0074845	ORD 8M0098264	ORD 8M0098264	1
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
0	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
0	883040A1	转速表模块套件	TACH MODULE KIT	1

图 12油门和换挡联动装置（舵柄换挡） Throttle and Shift Linkage (Tiller Handle Shift)

REF	零件编号	中文名称	英文名称	数量
1	421481	控制平台	CONTROL PLATFORM	1
1	8M0047593	控制平台	PLATFORM-CONTROL	1
2	94085A1	齿轮	GEAR	1
3	826650	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
4	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
4	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
5	42149	短隔套	SPACER (SHORT)	1
5	856737	隔套	SPACER	1
6	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
7	42151	主操纵杆	LEVER Primary	1
8	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9	42150	长隔套	SPACER (LONG)	1
9	856738	隔套	SPACER	1
10	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
11	421671	正时连杆	TIMING LINK	1
12	421631	控制杆	LEVER Control	1
13	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
14	421662	执行器	ACTUATOR	1
15	42161	互锁连杆	LINK INTERLOCK	1
16	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
17	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
18	421621	衬套	BUSHING	1
19	42164	弹簧	SPRING	1
20	69708	波形垫圈	WAVE WASHER	1
21	13676	弹簧	SPRING	1
22	19385A1	节气门连杆总成	LINK ASSEMBLY Throttle	1
22	8M0084745	节气门连杆总成	LINK ASY-THROTTLE	1
23	19384	插座	SOCKET	1
23	8M0084742	插座	SOCKET	1
24	421592	杠杆	LEVER	1
25	421581	衬套	BUSHING	1
26	42160	弹簧	SPRING	1
27	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
28	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
29	42156	杠杆	LEVER	1
30	42153	杠杆	LEVER	1
31	8155501	换档轴	SHIFT SHAFT	1
32	815567A1	换挡连杆	SHIFT LINK	1
32	815567T02	换挡连杆总成	SHIFT LINK ASSY	1
33	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
34	39627	弹簧	SPRING	1

图 13旋转支架总成 SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7324A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	旋转支架润滑接头	FITTING Grease SWIVEL BRACKET	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	64028	转轴支架衬套	BUSHING SWIVEL BRACKET	2
4	77334	副驾驶板	PLATE CO-PILOT	1
5	78038	副驾驶盘至鞍座螺钉(.250-20x1.75)	SCREW (.250-20 x 1.75) CO-PILOT DISC TO SADDLE	3
6	72845A1	副驾驶夹板总成	PLATE ASSEMBLY CLAMP - CO-PILOT	1
7	20203	摩擦盘	DISC FRICTION	4
8	36154	夹板调节螺钉(.250-28x1.380)	SCREW (.250-28 x 1.380) CLAMP PLATE ADJUSTING	1
9	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
10	25319	弹簧导向销(0.125x0.75英寸)	PIN (.125 x 0.75 Inches) SPRING GUIDE	1
11	879841	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
11	87984A1	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
12	41433	倾斜止动杆螺钉(.250-28x1.00)	SCREW (.250-28 x 1.00) TILT STOP LEVER	2
13	31030	杠杆锚定螺钉波形垫圈	WAVE WASHER LEVER ANCHOR SCREW	1
14	35888	倾斜止动杆螺钉不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel TILT STOP LEVER SCREW	2
15	72794	倒挡锁止块	STOP REVERSE LOCK	1
16	71056	螺丝(.250-28 x .560)倒车挡块至旋转支架	SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET	1
17	26992	锁紧垫圈(.250)不锈钢倒车挡块螺丝	LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW	1
18	71055	垫圈倒车挡块螺丝	WASHER REVERSE STOP SCREW	1
19	63554	导向弹簧	GUIDE SPRING	1
20	79744	拖钓支架控制杆	LEVER CONTROL - TROLL BRACKET	1
21	63631	拖钓支架杠杆波形垫圈	WAVE WASHER TROLL BRACKET LEVER	1
22	71419	倒挡锁止杆至开关支架	ROD REVERSE LOCK TO SWITCH BRACKET	1
23	26841	尼龙衬套-倒挡锁止杆连杆	BUSHING NYLON - REVERSE LOCK LEVER ROD	2
24	45882	倒挡锁止杆至连杆开口销	COTTER PIN REVERSE LOCK LEVER TO ROD	1
25	63628	倒挡锁止杆	LEVER REVERSE LOCK	1
25	63628T	杠杆	LEVER	1
26	61007	固定座-倒挡锁止杆	RETAINER ROD - REVERSE LOCK	1
27	63559	拖钓支架	BRACKET TROLL	1
27	63559T	支架	BRACKET	1
28	63630	拖钓支架延伸弹簧	SPRING EXTENSION - TROLL BRACKET	1
29	66559	旋转支架至鞍座管道	TUBE SWIVEL BRACKET TO SADDLE	1

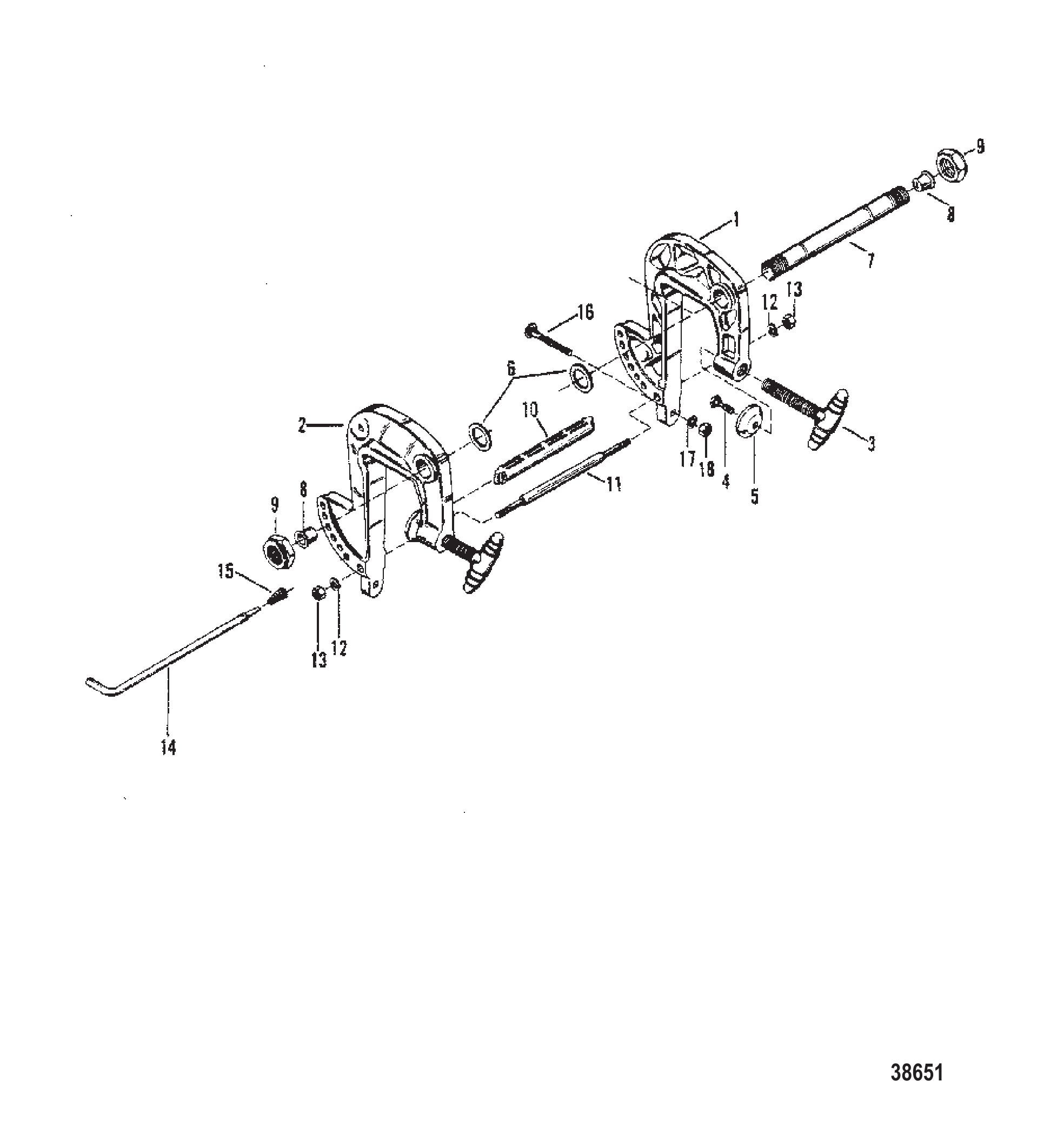

图 14夹紧支架总成 Clamp Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1	5570A3	夹紧支架总成(左舷)	CLAMP BRACKET ASSEMBLY (PORT)	1
2	5571A3	夹紧支架总成(右舷)	CLAMP BRACKET ASSEMBLY (STARBOARD)	1
3	77190A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	76804	蝶形螺钉	SCREW THUMB SCREW	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
5	818884	垫圈	WASHER	2
6	71421	倾斜管尼龙垫圈-夹紧至旋转支架	WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET	2
7	96962	倾斜管夹紧至旋转支架	TILT TUBE CLAMP TO SWIVEL BRACKET	1
8	39333	倾斜管塞	PLUG TILT TUBE	2
9	93164	倾斜管紧固螺母(.875)	NUT (.875) TILT TUBE FASTENING	2
10	71420	提手	HANDLE CARRYING	1
11	71417	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	71418A2	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
15	62143	倾斜锁止销弹簧	SPRING TILT LOCK PIN	1
16	67982	夹紧支架至船体螺栓	BOLT CLAMP BRACKET TO BOAT	2
17	67983	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
18	56374	夹紧支架螺钉螺母(.250-20)	NUT (.250-20) CLAMP BRACKET SCREW	2
18	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2

图 15下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

图 16驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8456A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8452A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	66373	驱动轴壳体至齿轮箱螺柱	STUD DRIVE SHAFT HOUSING TO GEAR HOUSING	1
3	35814	驱动轴壳体螺柱不锈钢螺母(.312-24)	NUT (.312-24) Stainless Steel DRIVE SHAFT HOUSING STUD	1
3	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
4	34863	齿轮箱螺柱螺母(.375-24)	NUT (.375-24) GEAR HOUSING STUD	1
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
5	8450A1	鞍座	SADDLE	1
6	64076	推力缓冲器-鞍座	BUMPER THRUST - SADDLE	1
7	79896A1	下支架	MOUNT LOWER	2
7	79896A1	下支架	MOUNT LOWER	2
8	79985A1	上部安装总成	MOUNT ASSEMBLY UPPER	2
8	79896A1	上支架	MOUNT UPPER	2
9	26406	上下安装环	RING UPPER AND LOWER MOUNT	4
10	79907	上下安装盖	COVER UPPER AND LOWER MOUNT	4
11	59079	衬垫	GASKET	1
12	24652	螺母(.250-28)	NUT (.250-28)	6
13	31940	出水管道	TUBE WATER OUTLET	1
13	32077	出水管道	TUBE WATER OUTLET	1
14	36556	出水管橡胶密封件(外径0.5英寸)	SEAL (.500 Inch Outside Diameter) RUBBER - WATER OUTLET TUBE	1
15	13127	出水管密封尼龙垫片	SPACER NYLON - OUTLET TUBE SEAL	1
16	71057	倒挡锁连杆	LINK ROD REVERSE LOCK	1
17	65414	螺钉	SCREW	2
18	65216	倒挡锁凸轮	CAM REVERSE LOCK	1
19	72007	倒挡锁凸轮固定座	RETAINER REVERSE LOCK CAM	1
20	93145	驱动轴挡块	BLOCK DRIVESHAFT	1
-	78139A80	衬垫套件	GASKET SET	1

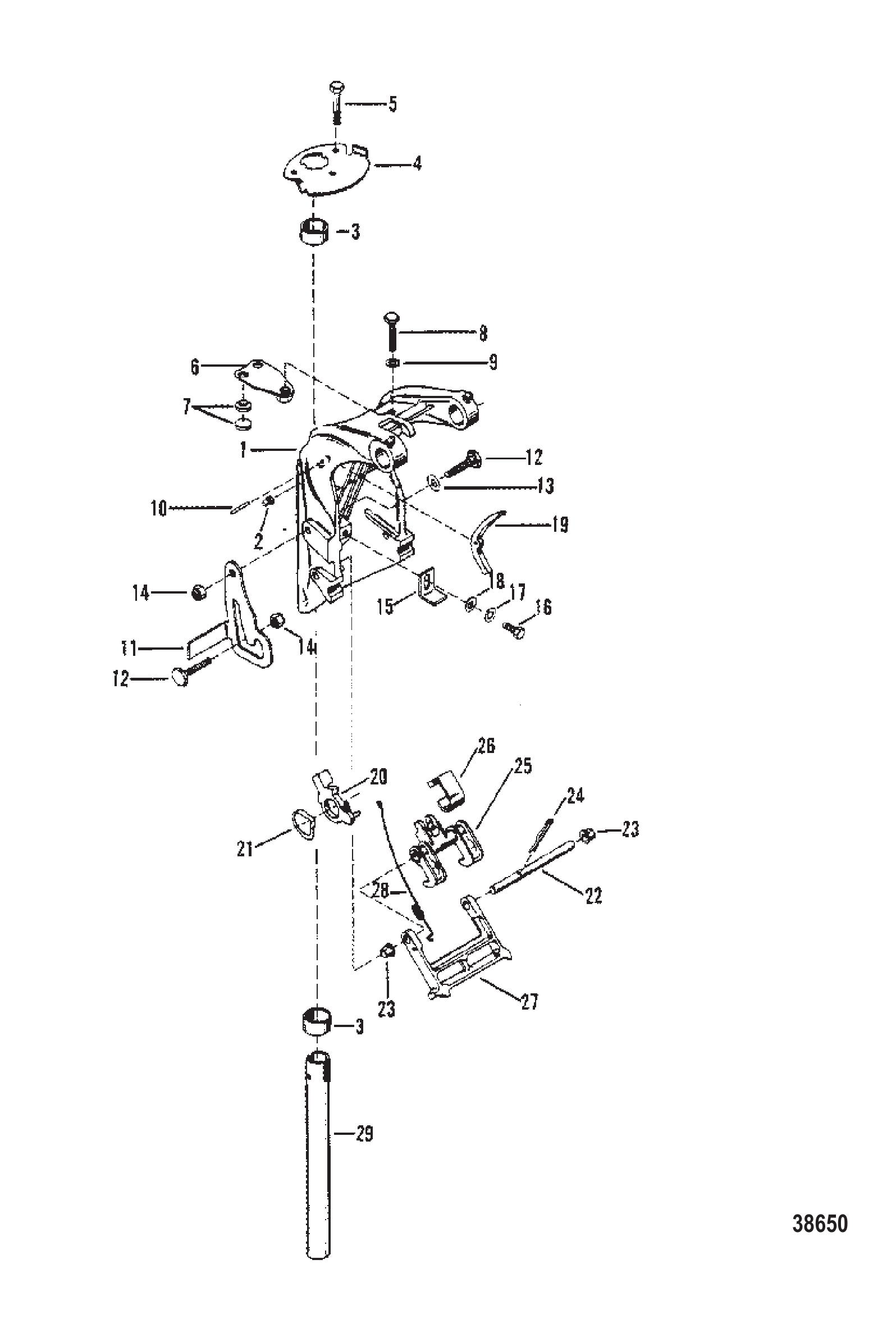

图 17旋转支架总成 Swivel Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1	7324A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	旋转支架润滑接头	FITTING Grease SWIVEL BRACKET	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	64028	转轴支架衬套	BUSHING SWIVEL BRACKET	2
4	77334	副驾驶板	PLATE CO-PILOT	1
5	78038	副驾驶盘至鞍座螺钉(.250-20x1.75)	SCREW (.250-20 x 1.75) CO-PILOT DISC TO SADDLE	3
6	72845A1	副驾驶夹板总成	PLATE ASSEMBLY CLAMP - CO-PILOT	1
7	20203	摩擦盘	DISC FRICTION	4
8	36154	夹板调节螺钉(.250-28x1.380)	SCREW (.250-28 x 1.380) CLAMP PLATE ADJUSTING	1
9	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
10	25319	弹簧导向销(0.125x0.75英寸)	PIN (.125 x 0.75 Inches) SPRING GUIDE	1
11	879841	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
11	87984A1	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
12	41433	倾斜止动杆螺钉(.250-28x1.00)	SCREW (.250-28 x 1.00) TILT STOP LEVER	2
13	31030	杠杆锚定螺钉波形垫圈	WAVE WASHER LEVER ANCHOR SCREW	1
14	35888	倾斜止动杆螺钉不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel TILT STOP LEVER SCREW	2
15	72794	倒挡锁止块	STOP REVERSE LOCK	1
16	71056	螺丝(.250-28 x .560)倒车挡块至旋转支架	SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET	1
17	26992	锁紧垫圈(.250)不锈钢倒车挡块螺丝	LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW	1
18	71055	垫圈倒车挡块螺丝	WASHER REVERSE STOP SCREW	1
19	63554	导向弹簧	GUIDE SPRING	1
20	79744	拖钓支架控制杆	LEVER CONTROL - TROLL BRACKET	1
21	63631	拖钓支架杠杆波形垫圈	WAVE WASHER TROLL BRACKET LEVER	1
22	71419	倒挡锁止杆至开关支架	ROD REVERSE LOCK TO SWITCH BRACKET	1
23	26841	尼龙衬套-倒挡锁止杆连杆	BUSHING NYLON - REVERSE LOCK LEVER ROD	2
24	45882	倒挡锁止杆至连杆开口销	COTTER PIN REVERSE LOCK LEVER TO ROD	1
25	63628	倒挡锁止杆	LEVER REVERSE LOCK	1
25	63628T	杠杆	LEVER	1
26	61007	固定座-倒挡锁止杆	RETAINER ROD - REVERSE LOCK	1
27	63559	拖钓支架	BRACKET TROLL	1
27	63559T	支架	BRACKET	1
28	63630	拖钓支架延伸弹簧	SPRING EXTENSION - TROLL BRACKET	1
29	66559	旋转支架至鞍座管道	TUBE SWIVEL BRACKET TO SADDLE	1

图 18杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

图 19顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	827328T9	顶盖总成	TOP COWL ASSEMBLY	1
1	827328T10	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	859356A1	隔音毯套装	SOUND BLANKET KIT	1
4	859356A02	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独销售 隔音毯	NOT SOLD SEPARATE Sound Blanket	1
6	NSS	不单独销售 隔音毯	NOT SOLD SEPARATE Sound Blanket	1
7	NSS	不单独销售 隔音毯	NOT SOLD SEPARATE Sound Blanket	2
8	823865	盖塞	CAP PLUG	2
9	831207T10	手柄	HANDLE	1
9	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
10	812707	衬套	BUSHING	2
11	831214	隔套	SPACER	1
12	12134	波形垫圈	WASHER Wave	1
13	F481777	凸轮锁轴	CAM Latch Shaft	1
13	8M0001081	凸轮	CAM	1
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
15	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
16	821249M2	前支架	BRACKET Front	3
16	8M0036792	支架	BRACKET	3
17	815477	缓冲器锁扣	BUMPER Latch	3
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
19	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
20	8237951	挡圈	RING Retaining	1
21	815263	滚轮	ROLLER	1
21	8M0207770	滚轮@3	ROLLER @3	1
22	8155381	滚动销	PIN Roll	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	12066Q9	绳索	ROPE	1
26	12066Q10	启动绳@2	ROPE-STARTER@2	1

图 20专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量

图 21齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成-标准旋转1.87:1传动比(完整)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)	1
1	9148A11	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	1
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	43999	滚子轴承(外径1.308)	BEARING Roller (1.308 O.D.)	2
57	73363	滚子轴承(外径1.313)	BEARING Roller (1.313 O.D.)	2
57	73363T	轴承	BEARING	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独出售(43-44104A2部件)	Not Sold Separate (PART OF 43-44104A2)	1
64	68100	止推环	RING THRUST	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承-倒档齿轮	BEARING Ball BALL-REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	轴承座定位键	KEY LOCATING-BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024	螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")	SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")	1
75	67891	填充块	FILLER BLOCK FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈-螺旋桨螺母	WASHER Splined SPLINED-PROPELLER NUT	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
83	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
-	89238A2	密封套件	SEAL KIT	1
-	14697A87	衬垫套件	GASKET SET

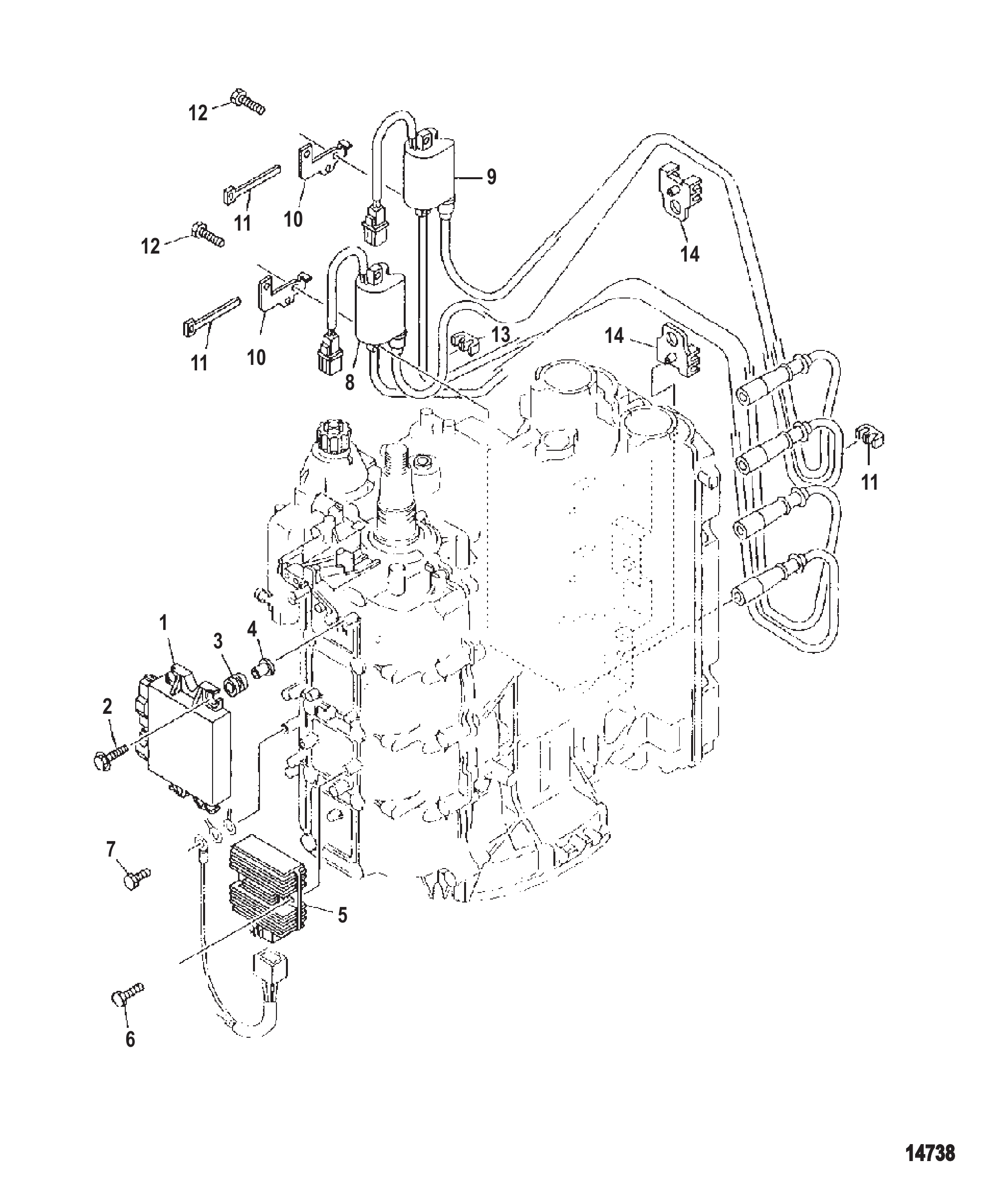

图 22点火组件 IGNITION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	880891T11	发动机控制单元ECU	ECU Engine Control Unit	1
1	880891T14	发动机控制单元ECU	ECU Engine Control Unit	1
1	880891T1	发动机控制总成	CONTROL ASSEMBLY Engine	1
1	880891T14	发动机控制单元ECU	ECU Engine Control Unit	1
2	804270	螺栓(M6×28)	BOLT (M6 x 28)	4
3	881304	护孔环	GROMMET	4
4	82851M	衬套	BUSHING	4
4	804344003	轴环	COLLAR	4
5	881346T	整流器/调节器总成	RECTIFIER/REGULATOR ASSEMBLY	1
6	853536	螺栓(M6x25)	BOLT (M6 x 25)	2
7	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
8	880893T10	点火线圈	COIL Ignition	1
8	8M0123821	点火线圈	IGNITION COIL	1
9	880892T	点火线圈	COIL Ignition	1
9	8M0121257	点火线圈	IGNITION COIL	1
10	881345	安装板	PLATE	2
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
12	853536	螺栓(M6x25)	BOLT (M6 x 25)	4
13	804276	卡箍	CLAMP	2
14	804277	卡箍	CLAMP	2

图 23外罩 COWLS

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	盖锁扣	LATCH Cowl	1
5	817104A3	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护板(黑色)	SHIELD REAR (BLACK)	1
7	12873	后护板(灰色)	SHIELD REAR (GRAY)	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	底罩(黑色)	BOTTOM COWL (BLACK)	1
9	9204A2	底罩(灰色)	BOTTOM COWL (GRAY)	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	底罩塞(手动)	PLUG BOTTOM COWL (MANUAL)	1
10	121532	底罩护线环(电动)	GROMMET Bottom Cowl (ELECTRIC)	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	罩壳锁杆衬套	BUSHING COWL LATCH LEVEER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

图 24化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	9503A20	化油器 (6)(WMC-66)	CARBURETOR (6)(WMC-66)	1
1	9503T21	化油器 (WMC-78A) (6)	CARBURETOR (WMC-78A) (6)	1
1	9266A21	化油器 (8)(WMC-74)	CARBURETOR (8)(WMC-74)	1
1	9266T22	化油器	CARBURETOR	1
1	9266T22	化油器 (8)(WMC-79A)	CARBURETOR (8)(WMC-79A)	1
1	8846T20	化油器 (WMC-61)	CARBURETOR (WMC-61)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	8846T25	化油器 (WMC-80A) (9.9)	CARBURETOR (WMC-80A) (9.9)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	9726T11	化油器 (15)(WMC-63)	CARBURETOR (15)(WMC-63)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器 (WMC-77) (15)	CARBURETOR (WMC-77) (15)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器 (WMC-83) (15)	CARBURETOR (WMC-83) (15)	1
2	9473	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	804707	轴	SHAFT	1
4	8M0138645	螺钉	SCREW	1
5	804996	弹簧	SPRING	1
6	813022	油门轴	SHAFT Throttle	1
6	19267	油门轴	SHAFT Throttle	1
7	F10167	环	RING	1
8	9164	燃油杯	BOWL Fuel	1
9	824401	浮子杆	LEVER Float	1
10	91691	浮子	FLOAT	1
11	F10064	轴	SHAFT	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	803861	进油针阀	VALVE Inlet Needle	1
14	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
14	5317	量孔(.046)	JET (.046)	1
14	6246	量孔(.048)	JET (.048)	1
14	6207	量孔(.072)	JET (.072)	1
15	9171	堵头	PLUG	1
16	813618	盖板	COVER	1
16	823648	膜片盖	COVER Diaphragm	1
17	9697	螺钉	SCREW	4
18	15827A1	本体	BODY	1
18	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
19	9643	螺钉	SCREW	5
20	9699	安装板	PLATE	1
21	44426	衬垫	GASKET	1
22	9696	螺钉	SCREW	2
23	96371	燃油泵盖	COVER Fuel Pump	1
23	9637	盖板	COVER	1
24	9633	衬垫	GASKET	1
25	9762	堵头	PLUG	1
26	192061	化油器衬垫	GASKET Carburetor	1
27	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
28	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
29	8237072	维修套件	REPAIR KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 25气缸体与盖 Cylinder Block and Covers

REF	零件编号	中文名称	英文名称	数量
1	8473A13	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T20	气缸体	CYLINDER BLOCK	1
1	8473A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T21	气缸体	CYLINDER BLOCK	1
1	9727A2	气缸体	CYLINDER BLOCK	1
1	9727T2	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	2
3	42463	化油器螺柱	STUD CARBURETOR	2
3	424632	双头螺柱(M8x37.1)	STUD (M8 x 37.1)	2
4	42698	泄放软管止回阀	CHECK VALVE BLEED HOSE	1
4	426982	止回阀	CHECK VALVE	1
5	1383556	泄放软管	HOSE BLEED	1
5	99130100	软管-48英寸	TUBING-48 INCH	1
6	42984	气缸体螺柱	STUD CYLINDER BLOCK	2
6	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
7	421251	螺钉(M8x55)曲轴箱至气缸体	SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK	6
7	42125	螺钉(M8x55)	SCREW (M8 x 55)	6
7A	17866	槽销	PIN Groove	1
8	400634	螺母(M6)气缸体螺柱	NUT (M6) CYLINDER BLOCK STUD	2
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
9	191861	动力头衬垫	GASKET Powerhead	1
10	42381A2	簧片阀总成	REED BLOCK ASSEMBLY	1
10	828435A3	簧片阀组	REED BLOCK	1
11	42657A1	止回阀	CHECK VALVE	1
11	42657A3	止回阀	CHECK VALVE	1
12	42137	簧片阀密封件	SEAL REED BLOCK	1
13	195981	簧片阀衬垫	GASKET REED BLOCK	1
13	195982	衬垫	GASKET	1
14	4000171	螺钉(M6x16)簧片阀	SCREW (M6 x 16) REED BLOCK	3
15	42044	簧片	REED	2
15	825141	簧片	REED	2
16	179031	簧片止挡	STOP Reed	2
16	828435A3	簧片阀组	REED BLOCK	2
17	4005764	螺钉(M3.5x8)簧片固定	SCREW (M3.5 x 8) REED ATTACHING	6
18	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
19	42521	排气盖	COVER EXHAUST	1
19	8M0048005	排气盖总成	COVER EXHAUST MAN	1
20	40062129	螺钉(M6x25)排气盖至气缸体	SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK	11
21	19185	排气盖衬垫	GASKET EXHAUST COVER	1
22	423651	挡板	PLATE Baffle	1
22	42365	挡板	PLATE Baffle	1
23	19184	挡板衬垫	GASKET BAFFLE PLATE	1
24	19107F1	进气盖	COVER Intake	1
25	56759	倒钩接头	FITTING Barbed	1
24	17863A1	进气盖总成	COVER ASSEMBLY Intake	1
25	15133	接头	FITTING	1
26	1383556	软管	HOSE	2
26	99130100	软管-48英寸	TUBING-48 INCH	2
27	59169	接头	FITTING	1
27	59169003	三通接头	FITTING Tee	1
28	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
29	192031	进气盖衬垫	GASKET INTAKE COVER	1
30	40062129	螺钉(M6x25)盖至气缸体	SCREW (M6 x 25) COVER TO CYLINDER BLOCK	3
31	99127109	示警管(57英寸散装)	LINE (57.00 Inches Bulk) TELL TALE	1
31	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
32	94848	示警软管接头-底部罩	FITTING TELL TALE HOSE-BOTTOM COWL	1
33	8906A1	盖总成	COVER ASSEMBLY	1
33	8906A02	盖总成	COVER ASSEMBLY	1
34	192071	衬垫	GASKET	1
34	19207002	衬垫	GASKET	1
35	146732	节温器盖	COVER THERMOSTAT	1
35	8M0039352	盖板	COVER	1
36	192051	衬垫	GASKET	1
36	19205002	衬垫	GASKET	1
37	40062129	螺钉(M6x25)	SCREW (M6 x 25)	2
38	14586	节温器(120)	THERMOSTAT (120)	1
39	62386	节温器衬垫	GASKET THERMOSTAT	1
39	8M0204714	衬垫@4	GASKET @4	1
40	29111	连接器(直型)(新设计)	CONNECTOR (STRAIGHT)(NEW DESIGN)	1
40	291112	接头	FITTING	1
40	99664	弯头(旧设计)	ELBOW (OLD DESIGN)	1
40	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
41	40062129	螺钉(M6x25)盖固定	SCREW (M6 x 25) COVER ATTACHING	6
-	12893A87	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	12893A92	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686A92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

图 26夹具支架总成 CLAMP BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	5570A3	夹紧支架总成(左舷)	CLAMP BRACKET ASSEMBLY (PORT)	1
2	5571A3	夹紧支架总成(右舷)	CLAMP BRACKET ASSEMBLY (STARBOARD)	1
3	77190A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	76804	蝶形螺钉	SCREW THUMB SCREW	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
5	818884	垫圈	WASHER	2
6	71421	倾斜管尼龙垫圈-夹紧至旋转支架	WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET	2
7	96962	倾斜管夹紧至旋转支架	TILT TUBE CLAMP TO SWIVEL BRACKET	1
8	39333	倾斜管塞	PLUG TILT TUBE	2
9	93164	倾斜管紧固螺母(.875)	NUT (.875) TILT TUBE FASTENING	2
10	71420	提手	HANDLE CARRYING	1
11	71417	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	71418A2	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
15	62143	倾斜锁止销弹簧	SPRING TILT LOCK PIN	1
16	67982	夹紧支架至船体螺栓	BOLT CLAMP BRACKET TO BOAT	2
17	67983	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
18	56374	夹紧支架螺钉螺母(.250-20)	NUT (.250-20) CLAMP BRACKET SCREW	2
18	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2

图 27维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
0	88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
0	881980	维修手册	SERVICE MANUAL	1
0	881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
0	10225030	用户手册	OWNERS MANUAL	1
0	858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
0	8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
0	880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
0	881828	星形头工具套件	STARBIT TOOL KIT	1
0	881649A01	贴花套件	DECAL SET	1
0	881649A05	贴花套件	DECAL SET	1
0	881840A01	贴花套件	DECAL SET	1
0	881840A03	贴花套件	DECAL SET	1
0	881840A03	贴花套件	DECAL SET	1
0	881840A05	贴花套件	DECAL SET	1
0	881650A01	贴花套件	DECAL SET	1
0	881650A03	贴花套件	DECAL SET	1
0	881650A03	贴花套件	DECAL SET	1
0	881702A01	贴花套件	DECAL SET	1
0	881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
0	881839A02	EPA标签信息贴花	Decal EPA Label Information	1
0	881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
0	816834A1	转速表	TACHOMETER	1
0	816932A1	温度表	TEMPERATURE GAUGE	1
0	86306	适配器	ADAPTER	1
0	86306A01	适配器	ADAPTER	1
0	817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
0	821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
0	8M0074845	ORD 8M0098264	ORD 8M0098264	1
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
0	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
0	883040A1	转速表模块套件	TACH MODULE KIT	1
