水星 Mercury 25 (2 CYL.) 9315316 THRU 9378115 - 爆炸图零件明细

两冲程化油器 · Belgium - Cat.# 90-90648 · 共 45 个部位 · 1630 条零件

1齿轮箱（驱动轴）2油门与换挡联动装置（侧换挡）3喷泵总成 4电动启动组件 5驱动轴壳体总成 6点火/电气组件 7曲轴活塞与飞轮 8润滑图表 9曲轴、活塞和飞轮 10燃油滤清器总成 11附件 12油门和换挡联动装置（舵柄换挡）13旋转支架总成 14夹紧支架总成 15下罩 16驱动轴外壳总成 17旋转支架总成 18杂项零件/附件 19顶罩 20专用工具 21齿轮箱(螺旋桨轴)22点火组件 23外罩 24化油器总成 25气缸体与盖 26夹具支架总成 27维修/支撑材料 28化油器总成 29夹具支架总成 30外罩 31曲轴、活塞和飞轮 32气缸体和盖 33驱动轴外壳总成 34电气组件（比利时发动机）35电气组件（电动）36燃油滤清器总成 37齿轮箱（驱动轴）38齿轮箱(螺旋桨轴)39点火组件 40杂项零件/附件 41启动器总成（手动）42转向手柄总成（手动）43旋转支架总成 44油门和换挡联动装置（电动）45油门和换挡联动装置（手动）

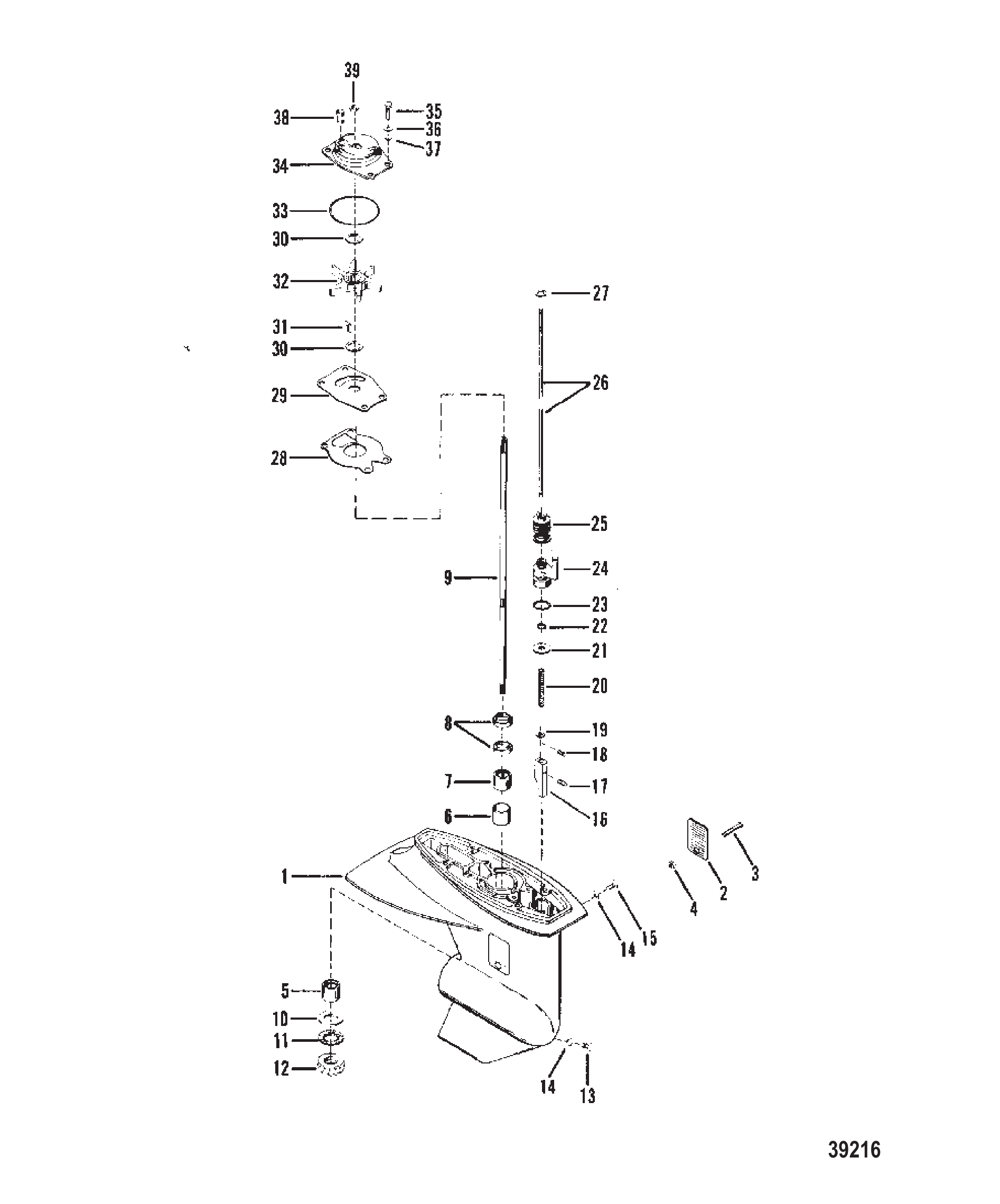

图 1齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	7360A29	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	7360A30	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	7360A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	58138	齿轮箱螺柱(3.5英寸)	STUD GEAR HOUSING (3-1/2")	1
3	58136	水泵壳体螺柱(2.75英寸)	STUD WATER PUMP HOUSING (2-3/4")	2
4	22756	驱动轴滚柱轴承	BEARING Roller DRIVE SHAFT	1
5	20032	定位销	PIN Dowel LOCATING	1
6	33613	进水管橡胶密封	SEAL RUBBER - WATER INTAKE TUBE	1
7	86215	进水管尼龙轴承密封	BEARING NYLON - INTAKE TUBE SEAL	1
8	33425	进水滤网	SCREEN WATER INTAKE	1
9	25612	进水滤网螺丝	SCREW WATER INTAKE SCREEN	1
10	98696	小齿轮	GEAR Pinion	1
11	30377	小齿轮螺钉锁紧垫圈	TAB WASHER PINION GEAR SCREW	1
12	30376	小齿轮驱动轴螺丝(#12-28x0.75)	SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT	1
13	95873A1	驱动轴	DRIVESHAFT	1
13	95874A1	驱动轴	DRIVESHAFT	1
14	30527A1	滚珠轴承垫片组(0.002-3-5-10)	SHIM ASSEMBLY BALL BEARING (.002-3-5-10)	AR
15	70944	驱动轴滚珠轴承	BEARING Ball DRIVE SHAFT	1
16	30523	球轴承挡圈	RING Retaining BALL BEARING	1
17	30527A1	滚珠轴承垫片组(0.002-3-5-10)	SHIM ASSEMBLY BALL BEARING (.002-3-5-10)	AR
18	70941A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
18	70941T01	壳体总成	HOUSING ASY	1
18	92970A1	水泵总成	HOUSING ASSEMBLY Water Pump	1
19	29439	O型圈	O-RING	1
20	30900	油封	SEAL Oil	1
20	30900T	密封件@2	SEAL @2	1
20	96063	油封	SEAL Oil	1
20	897153	油封@3	SEAL-OIL @3	1
21	70977	嵌件	INSERT	1
21	70977T	嵌件	INSERT	1
22	33613	进水管密封	SEAL WATER INTAKE TUBE	1
23	34293	进水管道	TUBE WATER INTAKE	1
24	56655	叶轮驱动键	KEY IMPELLER DRIVE	1
24	8M0032835	键	KEY	1
25	89981	叶轮	IMPELLER	1
25	89980	叶轮	IMPELLER	1
26	46895	水泵面板	FACE PLATE WATER PUMP	1
27	93224A1	水泵盖总成	COVER ASSEMBLY Water Pump	1
28	36558	水泵盖密封件	SEAL WATER PUMP COVER	1
30	30913	水泵盖油封	SEAL Oil WATER PUMP COVER	1
31	20533	垫圈	WASHER	2
32	13438	水泵壳体螺柱螺母(.250-28)	NUT (.250-28) WATER PUMP HOUSING STUD	2
32	8267119	螺母(.250-28)	NUT (.250-28)	2
33	30526	橡胶环-离心甩水环	RING RUBBER - CENTRIFUGAL SLINGER	1
34	31792	进水管导向套	SLEEVE GUIDE - INLET TUBE	1
34	31792T	套管@5	SLEEVE @5	1
-	78139A80	衬垫套件	GASKET SET	1
-	70941A3	水泵维修套件	REPAIR KIT Water Pump	1
-	92970A5	水泵维修套件	REPAIR KIT Water Pump	1
-	77066A1	水泵密封套件	SEAL KIT Water Pump	1

图 2油门与换挡联动装置（侧换挡） Throttle and Shift Linkage (Side Shift)

REF	零件编号	中文名称	英文名称	数量
1	421811	线缆支架	BRACKET Cable	1
2	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
3	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
4	4002314	垫圈	WASHER	1
5	421571	换挡手柄	SHIFT HANDLE	1
6	44459	护孔环	GROMMET	1
6	44459001	护孔环	GROMMET	1
7	8155501	换档轴	SHIFT SHAFT	1
8	42156	杠杆	LEVER	1
9	42153	杠杆	LEVER	1
10	39627	弹簧	SPRING	1
11	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
12	421671	正时连杆	TIMING LINK	1
13	421631	控制杆	LEVER Control	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	69708	波形垫圈	WAVE WASHER	1
16	42164	弹簧	SPRING	1
17	13676	弹簧	SPRING	1
18	421662	执行器	ACTUATOR	1
19	421621	衬套	BUSHING	1
20	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
21	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
22	42161	互锁连杆	LINK INTERLOCK	1
23	421592	杠杆	LEVER	1
24	42160	弹簧	SPRING	1
25	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
26	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
27	421581	衬套	BUSHING	1

图 3喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	801400150	喷泵(黑色)	JET PUMP (BLACK)	1
-	801401150	喷泵(灰色)	JET PUMP (GRAY)	1
-	855766150	喷泵	JET PUMP	1
1	801411150	泵壳	HOUSING Pump	1
1A	827490	润滑油管	HOSE Lube	1
2	801414150	叶轮	IMPELLER	1
2	803984T	叶轮	IMPELLER	1
3	80141290	进气壳体	HOUSING Intake	1
3A	8271883	衬套	LINER	1
4	801413150	驱动轴	SHAFT Drive	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	847568	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
8	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
15	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
16	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
16	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
17	69064	螺栓(.312-18 x 2.750)	BOLT (.312-18 x 2.750)	1
18	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
18	306671	螺柱	STUD	2
19	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
20	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
20	8M0214963	垫圈	WASHER	1

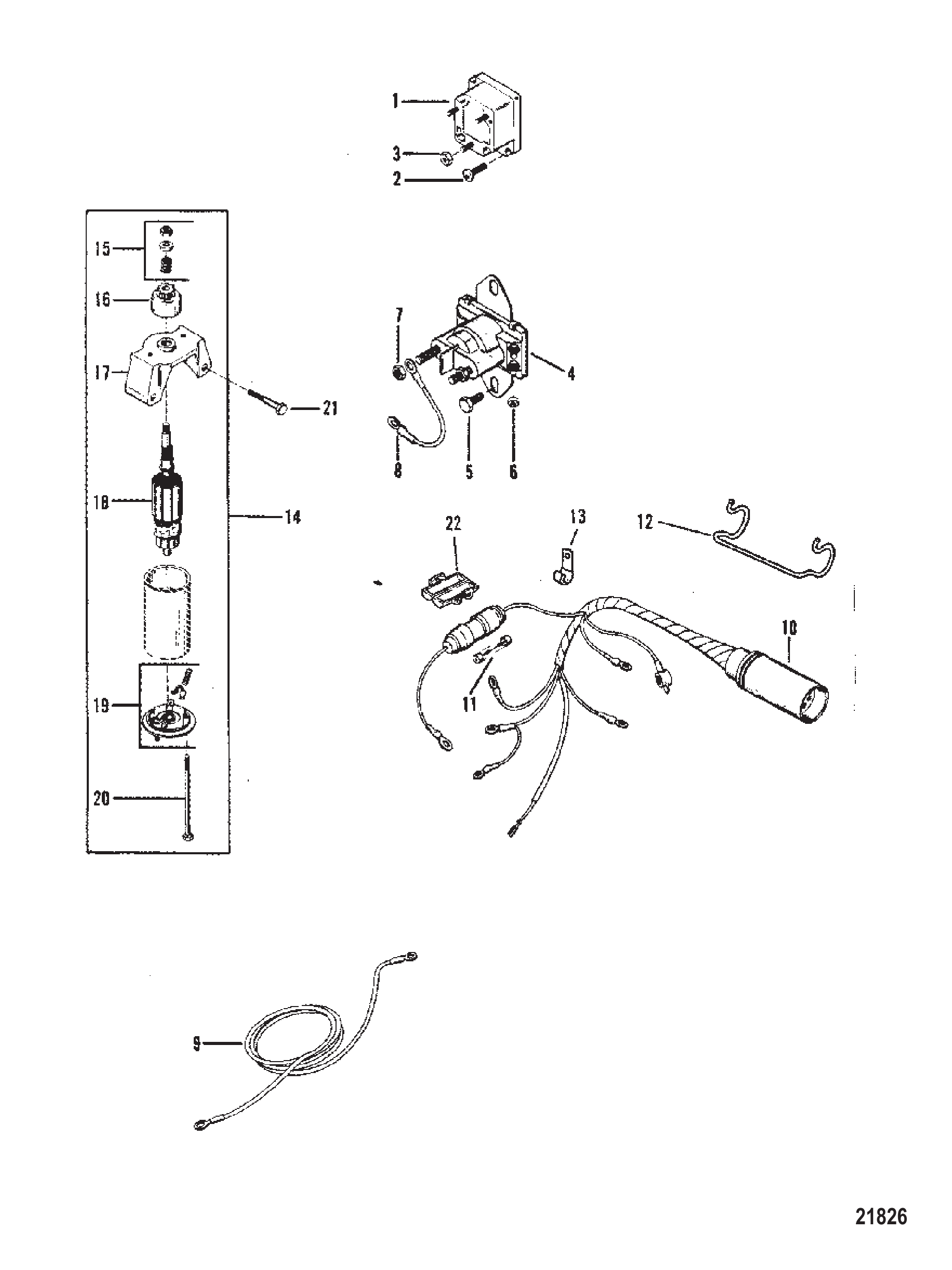

图 4电动启动组件 Electric Start Components

REF	零件编号	中文名称	英文名称	数量
1	816770	整流器	RECTIFIER	1
1	8M0058226	整流器	RECTIFIER	1
2	48409	螺丝(#10-16 x .625)不锈钢整流器至气缸体	SCREW (#10-16 x .625) Stainless Steel RECTIFIER TO CYLINDER BLOCK	2
3	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
4	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
4	8M0185149	启动电磁阀	SOLENOID START	1
5	4000327	螺钉(M6 x 14) 起动机电磁阀至曲轴箱	SCREW (M6 x 14) STARTER SOLENOID TO CRANKCASE	2
6	26419	螺母(#8-32)黄铜启动电磁阀端子	NUT (#8-32) Brass STARTER SOLENOID TERMINAL	2
7	64015	螺母(.250-20)启动电磁阀端子	NUT (.250-20) STARTER SOLENOID TERMINAL	2
8	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
9	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
9	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
9	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
9	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
10	92436A5	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
11	79091	保险丝20安培	FUSE 20 Ampere	1
11	8M0207796	保险丝20安培	FUSE 20 AMP	1
12	92753	固定座	RETAINER	1
13	55098	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	8M0033984	启动马达	STARTER MOTOR	1
15	96561	驱动套件	DRIVE KIT	1
16	96562	驱动器	DRIVE	1
17	96563	端盖	END CAP	1
17	96563T	端盖	END CAP	1
18	96565	电枢	ARMATURE	1
19	96564	端盖	END CAP	1
19	96564T	端盖	END CAP	1
20	96566	贯穿螺栓	THRU BOLT	1
21	421251	螺钉(M8 x 55) 起动机固定	SCREW (M8 x 55) STARTER MOTOR ATTACHING	2
21	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
22	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1

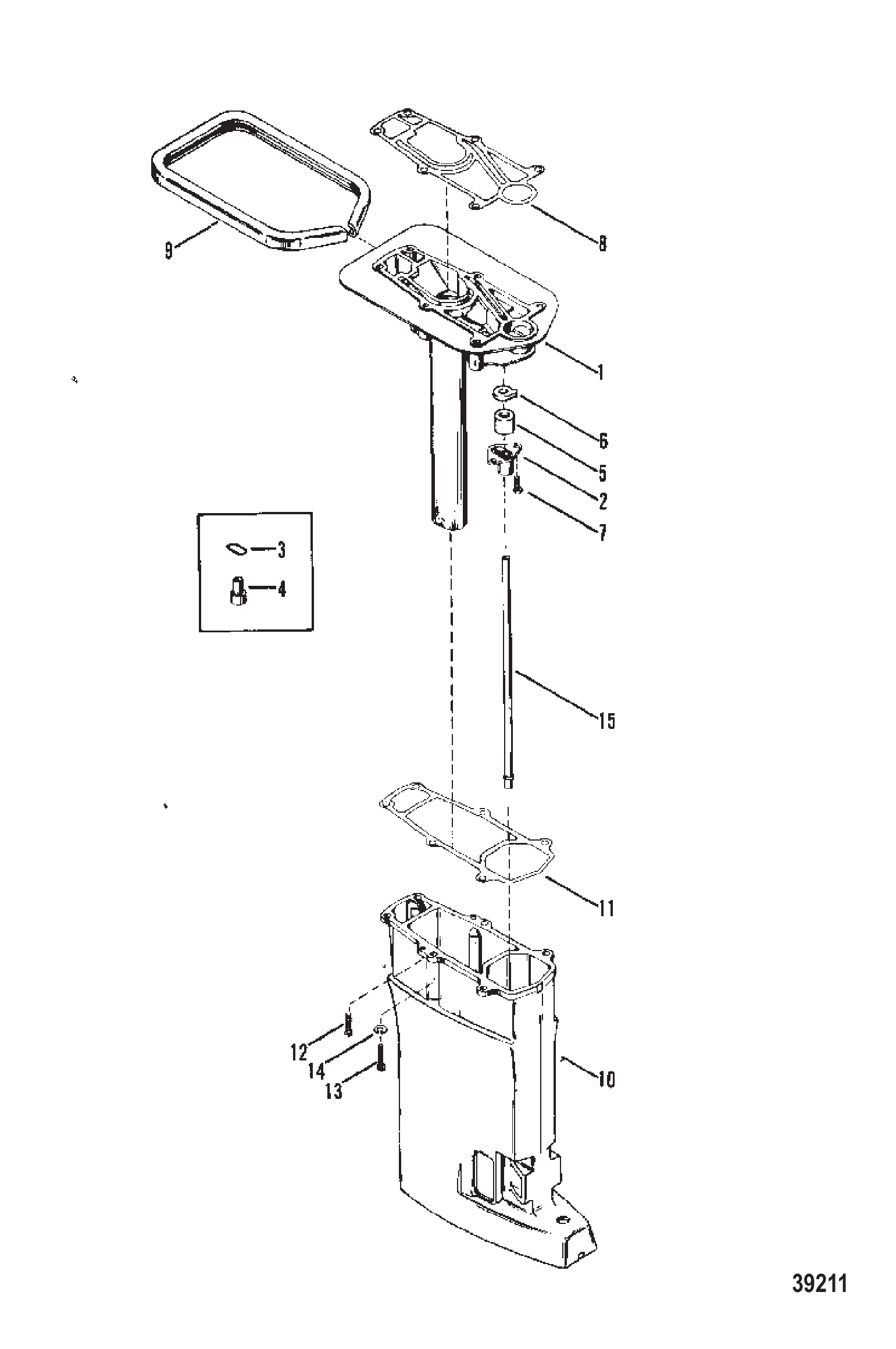

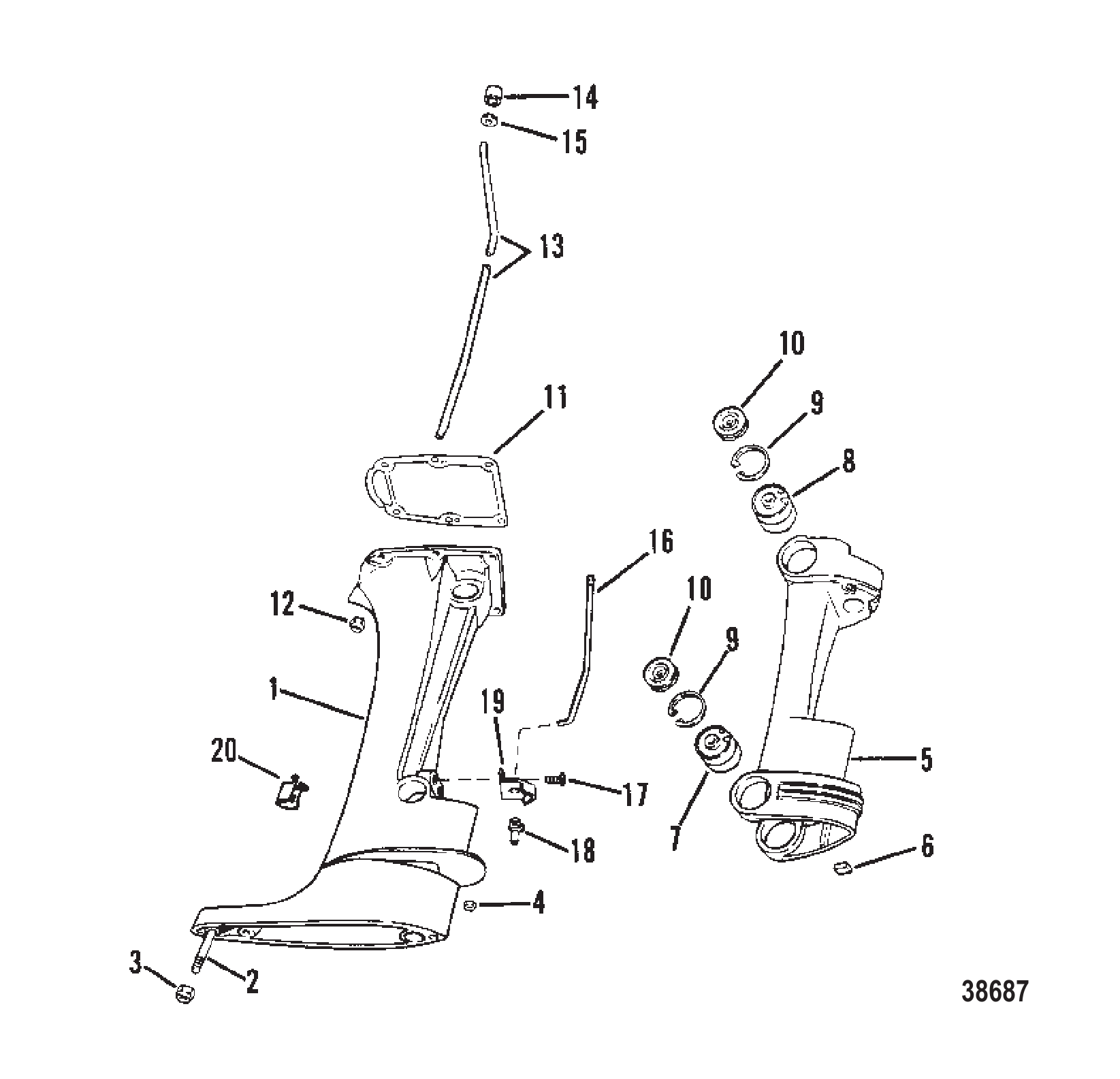

图 5驱动轴壳体总成 Driveshaft Housing Assembly

REF	零件编号	中文名称	英文名称	数量
1	8456A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8452A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	66373	驱动轴壳体至齿轮箱螺柱	STUD DRIVE SHAFT HOUSING TO GEAR HOUSING	1
3	35814	驱动轴壳体螺柱不锈钢螺母(.312-24)	NUT (.312-24) Stainless Steel DRIVE SHAFT HOUSING STUD	1
3	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
4	34863	齿轮箱螺柱螺母(.375-24)	NUT (.375-24) GEAR HOUSING STUD	1
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
5	8450A1	鞍座	SADDLE	1
6	64076	推力缓冲器-鞍座	BUMPER THRUST - SADDLE	1
7	79896A1	下支架	MOUNT LOWER	2
7	79896A1	下支架	MOUNT LOWER	2
8	79985A1	上部安装总成	MOUNT ASSEMBLY UPPER	2
8	79896A1	上支架	MOUNT UPPER	2
9	26406	上下安装环	RING UPPER AND LOWER MOUNT	4
10	79907	上下安装盖	COVER UPPER AND LOWER MOUNT	4
11	59079	衬垫	GASKET	1
12	24652	螺母(.250-28)	NUT (.250-28)	6
13	31940	出水管道	TUBE WATER OUTLET	1
13	32077	出水管道	TUBE WATER OUTLET	1
14	36556	出水管橡胶密封件(外径0.5英寸)	SEAL (.500 Inch Outside Diameter) RUBBER - WATER OUTLET TUBE	1
15	13127	出水管密封尼龙垫片	SPACER NYLON - OUTLET TUBE SEAL	1
16	71057	倒挡锁连杆	LINK ROD REVERSE LOCK	1
17	65414	螺钉	SCREW	2
18	65216	倒挡锁凸轮	CAM REVERSE LOCK	1
19	72007	倒挡锁凸轮固定座	RETAINER REVERSE LOCK CAM	1
20	93145	驱动轴挡块	BLOCK DRIVESHAFT	1
-	78139A80	衬垫套件	GASKET SET	1

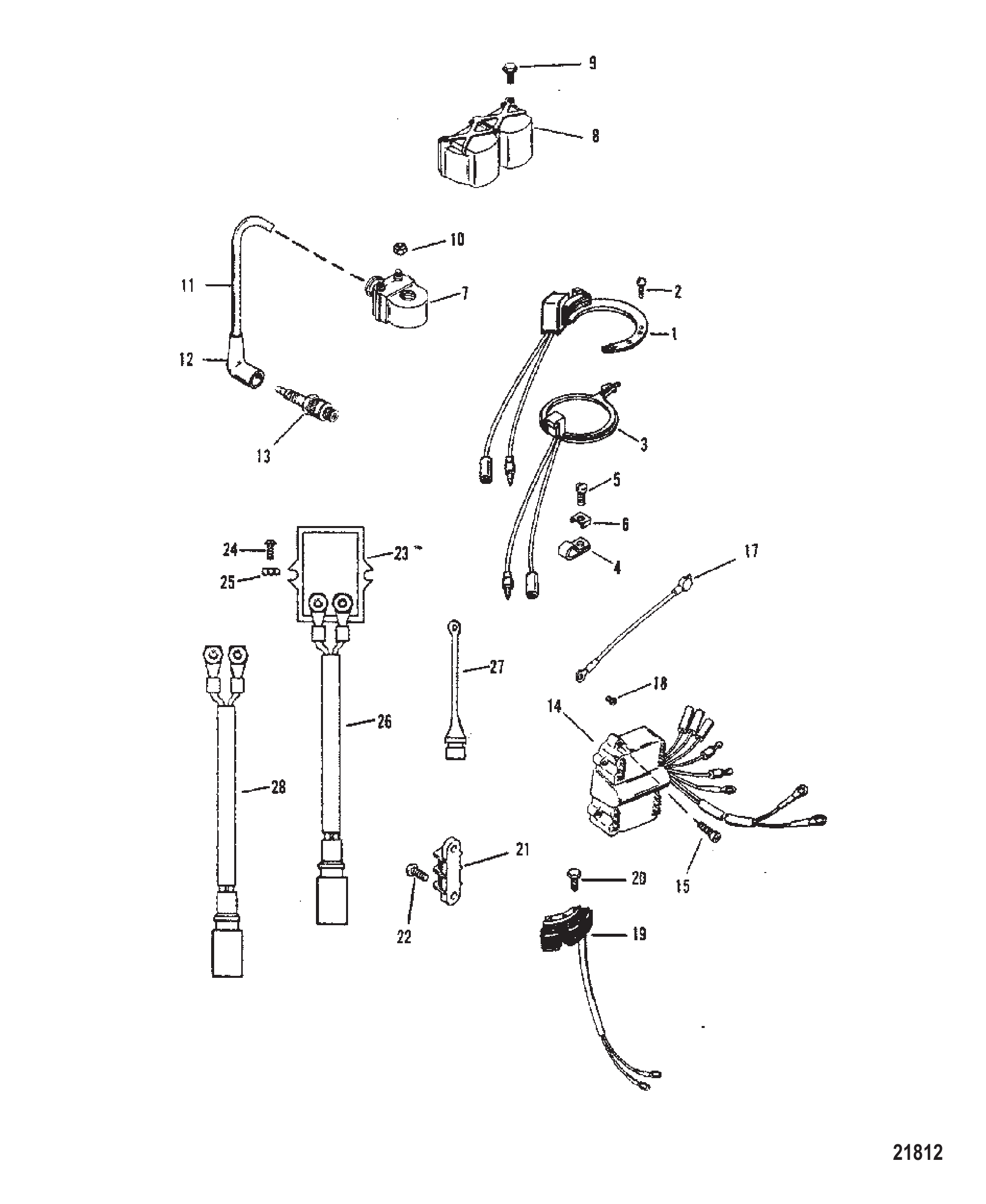

图 6点火/电气组件 Ignition/Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	86617A13	定子总成	STATOR ASSEMBLY	1
1	86617A20	定子总成	STATOR ASSEMBLY	1
2	4000120	螺丝(M5 x 25)	SCREW (M5 x 25)	2
2	400015	螺钉(M5x10) 定子固定	SCREW (M5 x 10) STATOR ATTACHING	2
3	98450A5	触发器总成	TRIGGER ASSEMBLY	1
3	98450A10	触发器总成	TRIGGER ASSEMBLY	1
4	24836	触发器线夹	CLIP TRIGGER LEADS	1
4	22740	触发器线夹	CLIP TRIGGER LEADS	1
5	48408	螺钉(#10-16x0.5) 线夹至曲轴箱	SCREW (#10-16 x .500) CLIP TO CRANKCASE	1
6	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	1
6	8M0084613	C形垫圈	C-WASHER	1
7	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	2
7	8M0230859	点火线圈总成	COIL IGNITION ASY	2
8	99762	点火线圈盖	COVER IGNITION COIL	1
8	997621	点火线圈盖	COVER Ignition Coil	1
9	4010555	螺钉(M5x55)不锈钢点火线圈盖	SCREW (M5 x 55) Stainless Steel IGNITION COIL COVER	3
9	1994155	螺钉(M5 x 55)	SCREW (M5 x 55)	3
10	45076	螺母 (#10-32) 黄铜线圈端子	NUT (#10-32) Brass COIL TERMINAL	4
11	813715A3	高压线	HIGH TENSION LEADS	1
11	813715A2	高压电缆组（5和8.25英寸）	CABLE SET High Tension (5 and 8.25 Inch)	1
11	813715A2	高压线束组（5和8.25英寸）（商用发动机）	CABLE SET High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES)	1
12	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
13	97180	火花塞（NGK #BUZHW）	SPARK PLUG (NGK #BUZHW)	2
13	896329827	SP #L76V @4	SP #L76V @4	2
13	14103570	火花塞（NGK #BUZHW-2）	SPARK PLUG (NGK #BUZHW-2)	2
13	14103Q	ORD 896329838	ORD 896329838	2
13	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	2
13	13686Q	NGK BU8H @10	NGK BU8H @10	2
13	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	2
13	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	2
13	8168372	火花塞(NGK #BPZ8H-N-10)	SPARK PLUG (NGK #BPZ8H-N-10)	2
13	938	SP #QL78YC @4	SP #QL78YC @4	2
14	7452A15	开关盒总成	SWITCHBOX ASSEMBLY	1
14	7452A19	开关盒总成	SWITCHBOX ASSEMBLY	1
15	40019108	螺钉 (M5 x 20) 开关盒至气缸体	SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK	3
17	88807A10	辅助线束总成	CABLE ASSEMBLY AUXILIARY	2
18	48408	螺钉 (#10-16 x .500) 接地线	SCREW (#10-16 x .500) GROUND WIRE	1
19	86704A2	辅助定子总成	STATOR ASSEMBLY AUXILIARY	1
19	86704A10	辅助定子	STATOR Auxiliary	1
20	4000123	螺钉(M5 x 30)定子固定	SCREW (M5 x 30) STATOR ATTACHING	3
21	63813	端子排	TERMINAL BLOCK	1
21	638131	端子排	TERMINAL BLOCK	1
22	48409	螺钉(#10-16 x .625)不锈钢接线板	SCREW (#10-16 x .625) Stainless Steel TERMINAL BLOCK	2
23	95845	电压调节器	REGULATOR Voltage	1
23	95845T	电压调节器	REGULATOR-VOLTAGE	1
24	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
25	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
26	74725A2	线束总成(黑/红)	HARNESS ASSEMBLY (BLACK/RED)	1
27	71663	堵头	PLUG	1
28	65017A2	外部线束总成	HARNESS ASSEMBLY (EXTERNAL)	1

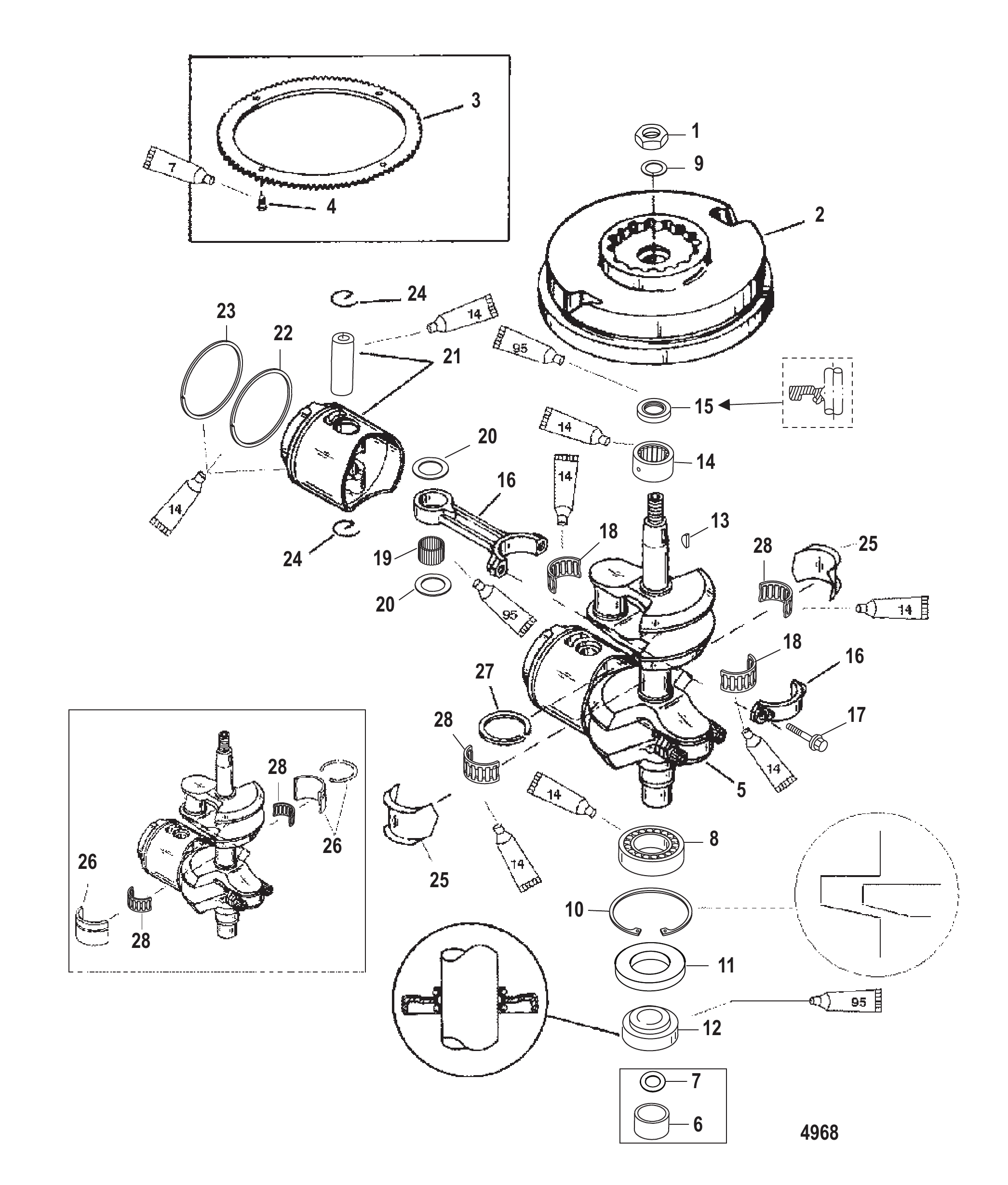

图 7曲轴活塞与飞轮 Crankshaft Pistons and Flywheel

REF	零件编号	中文名称	英文名称	数量
1	818591	螺母(M14)	NUT (M14)	1
2	859231T4	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T18	飞轮	FLYWHEEL	1
3	99301	齿圈	RING GEAR	1
4	88190313	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	818630A1	套筒	SLEEVE	1
7	NSS	不单独销售（O型圈）	NOT SOLD SEPARATE (O Ring)	1
8	41341	滚珠轴承	BEARING Ball	1
9	824451	垫圈(内径.610x外径.890x厚度.062)	WASHER (.610 Inside Diamter x .890 Outside Diameter x .062)	1
10	42132	挡圈	RING Retaining	1
11	13031	垫圈	WASHER	1
12	125661	下油封	SEAL Oil - Lower	1
13	20094	半圆键	KEY Woodruff	1
14	878158	滚柱轴承	BEARING Roller	1
15	125671	上油封	SEAL Oil - Upper	1
16	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
17	823460	螺钉(M5×16)	SCREW (M5 x 16)	4
18	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
19	42186	滚针轴承	BEARING Needle	48
20	43348	推力轴承	BEARING Thrust	4
20	8M0012297	止推垫圈@2	WASHER-THRST@2	4
21	9756T2	活塞总成	PISTON ASSEMBLY	2
21	9747T2	活塞总成	PISTON ASSEMBLY	2
21	9747A4	活塞总成	PISTON ASSEMBLY	2
22	18514A4	活塞环组	RING SET Piston	2
22	18212A4	活塞环组	RING SET Piston	2
22	18212A1	活塞环组	RING SET Piston	2
23	NSS	不单独销售 (活塞环-顶部)	NOT SOLD SEPARATE (Piston Ring-Top)	2
23	NSS	不单独销售 (活塞环-顶部)	NOT SOLD SEPARATE (Piston Ring-Top)	2
24	422021	锁紧环	LOCK RING	4
25	41373A1	中央主轴承套件	BEARING KIT Center Main	1
26	17794A1	轴承	BEARING	1
27	818901	密封件	SEAL	1
28	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072T97	动力头总成	POWERHEAD ASSEMBLY	1

图 8润滑图表 Lube Chart

REF	零件编号	中文名称	英文名称	数量
-	NOPART	无零件清单	NO PARTS LIST	1

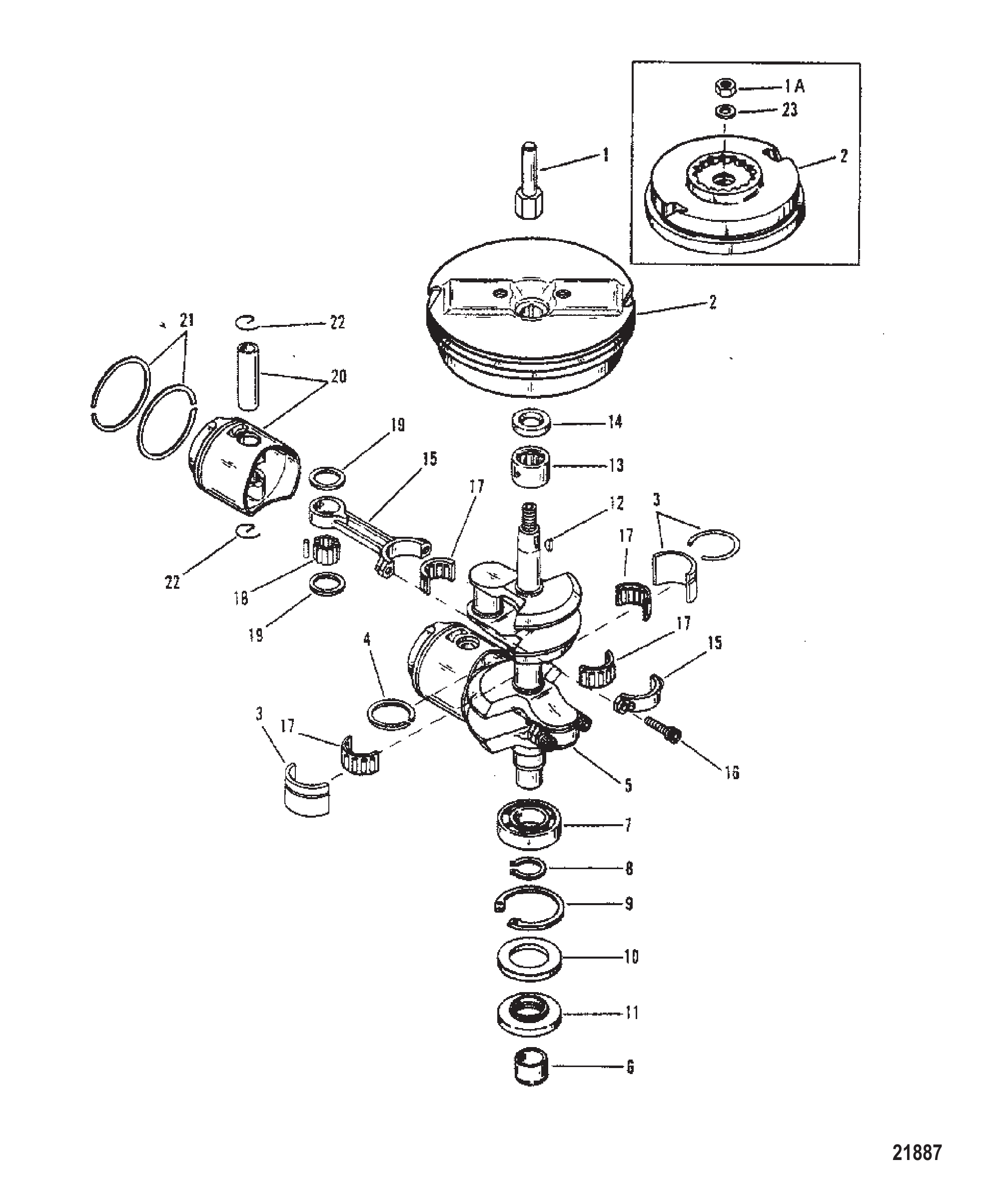

图 9曲轴、活塞和飞轮 CRANKSHAFT, PISTONS AND FLYWHEEL

REF	零件编号	中文名称	英文名称	数量
1	42691	飞轮轴	SHAFT FLYWHEEL	1
1A	818591	螺母(M14)	NUT (M14)	1
2	8908A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T6	飞轮	FLYWHEEL	1
2	818540A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T19	飞轮总成	FLYWHEEL ASY	1
3	17794A1	轴承	BEARING	1
4	818901	主轴承油封	SEAL MAIN BEARING	1
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	818630A1	套筒	SLEEVE	1
7	41341	曲轴下球轴承	BEARING Ball CRANKSHAFT-LOWER	1
8	20940	球轴承卡环(小)(旧设计)	RING Snap BALL BEARING (SMALL)(OLD DESIGN)	1
9	42132	球轴承挡圈	RING Retaining BALL BEARING	1
10	13031	下垫圈	WASHER LOWER	1
11	125661	曲轴下油封	SEAL Oil - Lower CRANKSHAFT	1
12	20094	飞轮驱动半圆键	KEY Woodruff FLYWHEEL DRIVE	1
13	41342	曲轴上滚柱轴承	BEARING Roller CRANKSHAFT-UPPER	1
13	878158	滚柱轴承	BEARING Roller	1
14	125671	曲轴上油封	SEAL Oil - Upper CRANKSHAFT	1
15	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
16	823460	连杆螺钉(M5x16)	SCREW (M5 x 16) CONNECTING ROD	4
17	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
18	42186	活塞端滚针轴承	BEARING Needle PISTON END	48
19	43348	推力轴承	BEARING Thrust	4
19	8M0012297	止推垫圈@2	WASHER-THRST@2	4
20	9747A2	活塞总成(标准)	PISTON ASSEMBLY (STANDARD)	2
20	9747T2	活塞总成	PISTON ASSEMBLY	2
20	9747A4	活塞总成(.015加大)	PISTON ASSEMBLY (.015 O.S.)	2
21	18212A4	活塞环组(标准)	RING SET Piston (STANDARD)	1
21	18212A1	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	2
22	42202	锁紧环	LOCK RING	4
23	824451	垫圈(内径.610x外径.890x厚度.062)	WASHER (.610 Inside Diamter x .890 Outside Diameter x .062)	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

图 10燃油滤清器总成 FUEL FILTER ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	滤清器至化油器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO CARBURETOR	1
5	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接器套件(90度)(新设计)	CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN)	1
9	14187M	直通连接器(旧设计)	CONNECTOR (STRAIGHT) (OLD DESIGN)	1
10	4000331	适配器螺丝(M6x30)	SCREW (M6 x 30) ADAPTOR	AR
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	AR
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	AR

图 11附件 Accessories

零件编号	中文名称	英文名称	数量
86306A01	适配器	ADAPTER	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

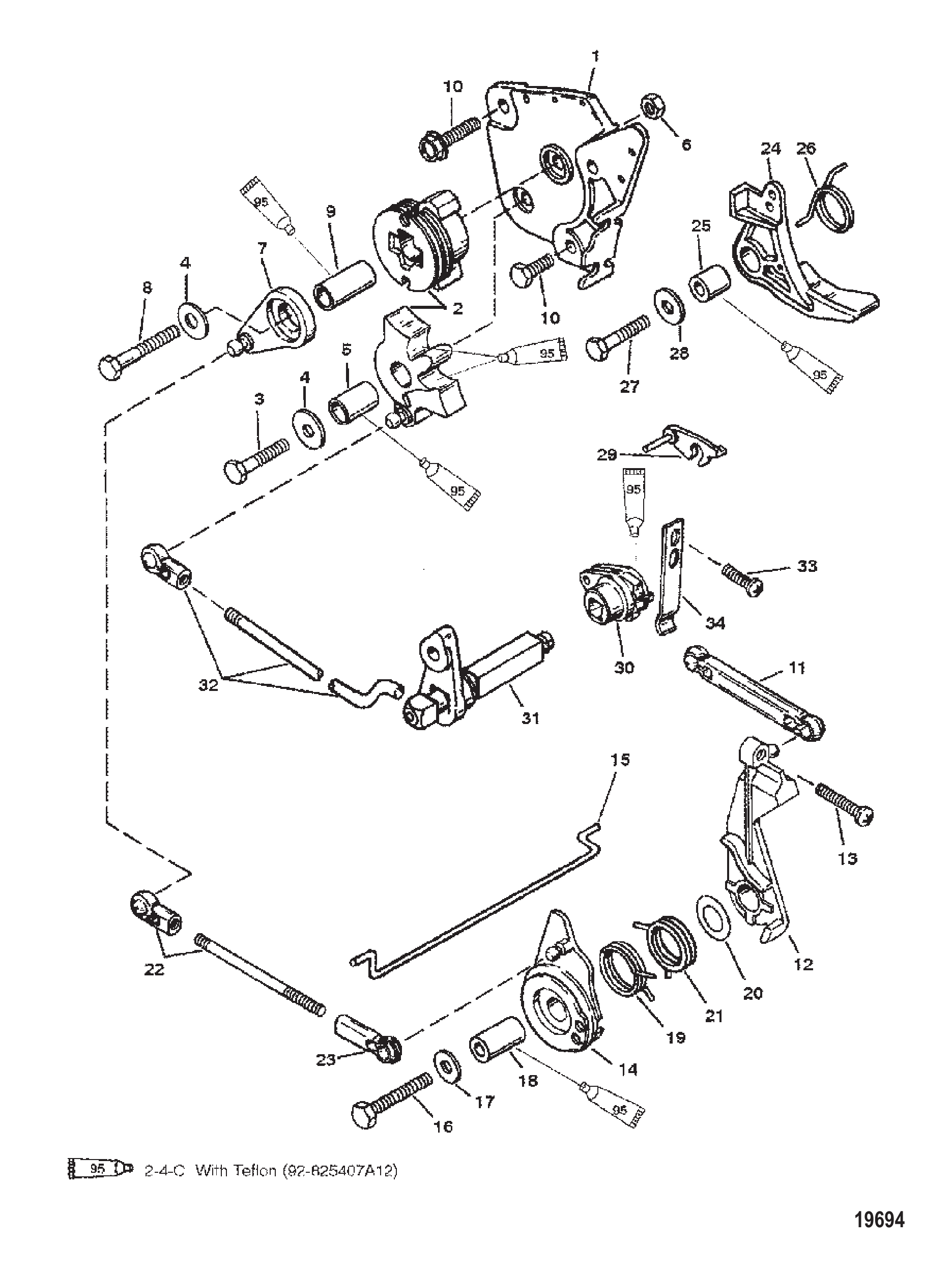

图 12油门和换挡联动装置（舵柄换挡） Throttle and Shift Linkage (Tiller Handle Shift)

REF	零件编号	中文名称	英文名称	数量
1	421481	控制平台	CONTROL PLATFORM	1
1	8M0047593	控制平台	PLATFORM-CONTROL	1
2	94085A1	齿轮	GEAR	1
3	826650	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
4	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
4	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
5	42149	短隔套	SPACER (SHORT)	1
5	856737	隔套	SPACER	1
6	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
7	42151	主操纵杆	LEVER Primary	1
8	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9	42150	长隔套	SPACER (LONG)	1
9	856738	隔套	SPACER	1
10	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
11	421671	正时连杆	TIMING LINK	1
12	421631	控制杆	LEVER Control	1
13	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
14	421662	执行器	ACTUATOR	1
15	42161	互锁连杆	LINK INTERLOCK	1
16	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
17	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
18	421621	衬套	BUSHING	1
19	42164	弹簧	SPRING	1
20	69708	波形垫圈	WAVE WASHER	1
21	13676	弹簧	SPRING	1
22	19385A1	节气门连杆总成	LINK ASSEMBLY Throttle	1
22	8M0084745	节气门连杆总成	LINK ASY-THROTTLE	1
23	19384	插座	SOCKET	1
23	8M0084742	插座	SOCKET	1
24	421592	杠杆	LEVER	1
25	421581	衬套	BUSHING	1
26	42160	弹簧	SPRING	1
27	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
28	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
29	42156	杠杆	LEVER	1
30	42153	杠杆	LEVER	1
31	8155501	换档轴	SHIFT SHAFT	1
32	815567A1	换挡连杆	SHIFT LINK	1
32	815567T02	换挡连杆总成	SHIFT LINK ASSY	1
33	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
34	39627	弹簧	SPRING	1

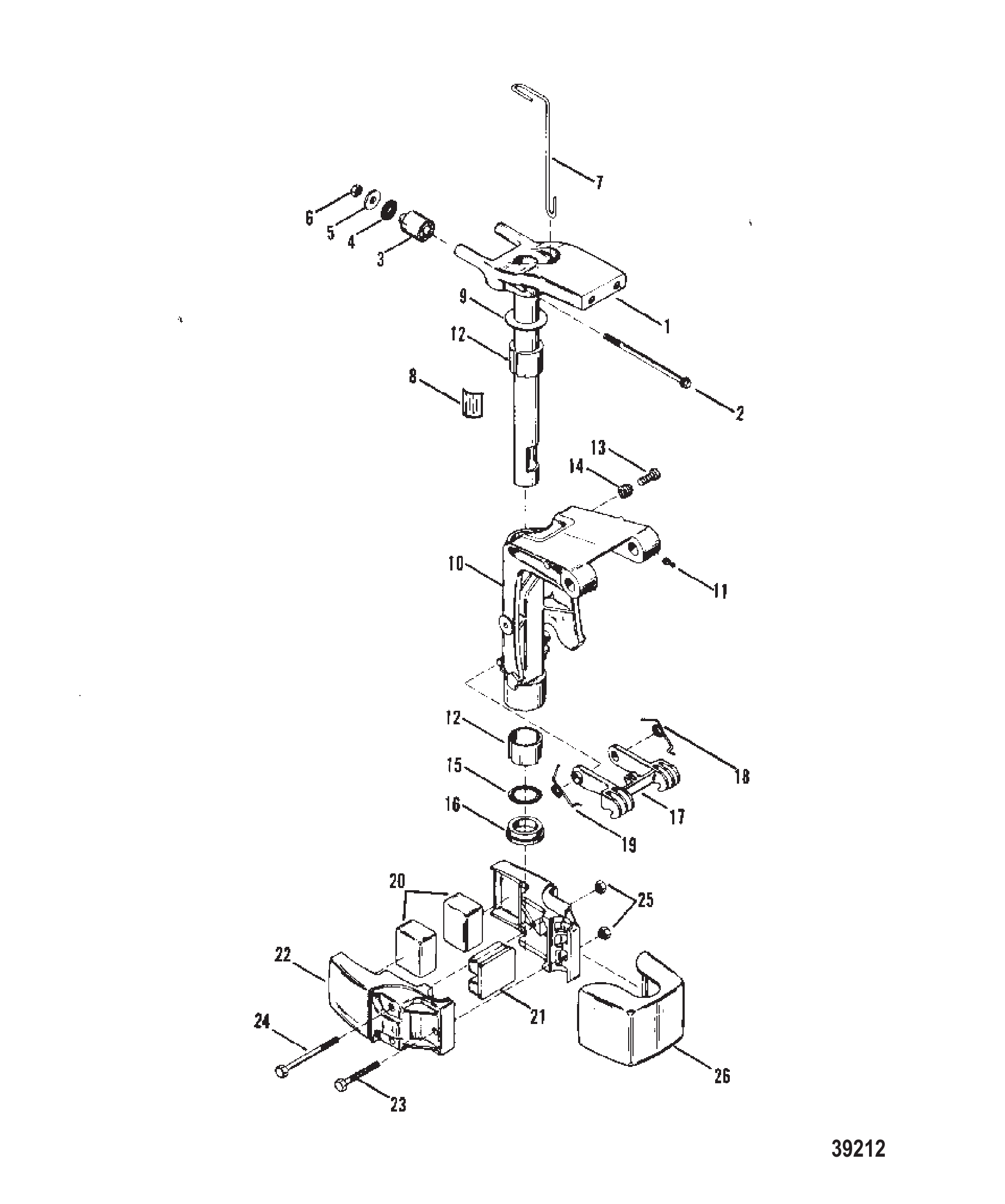

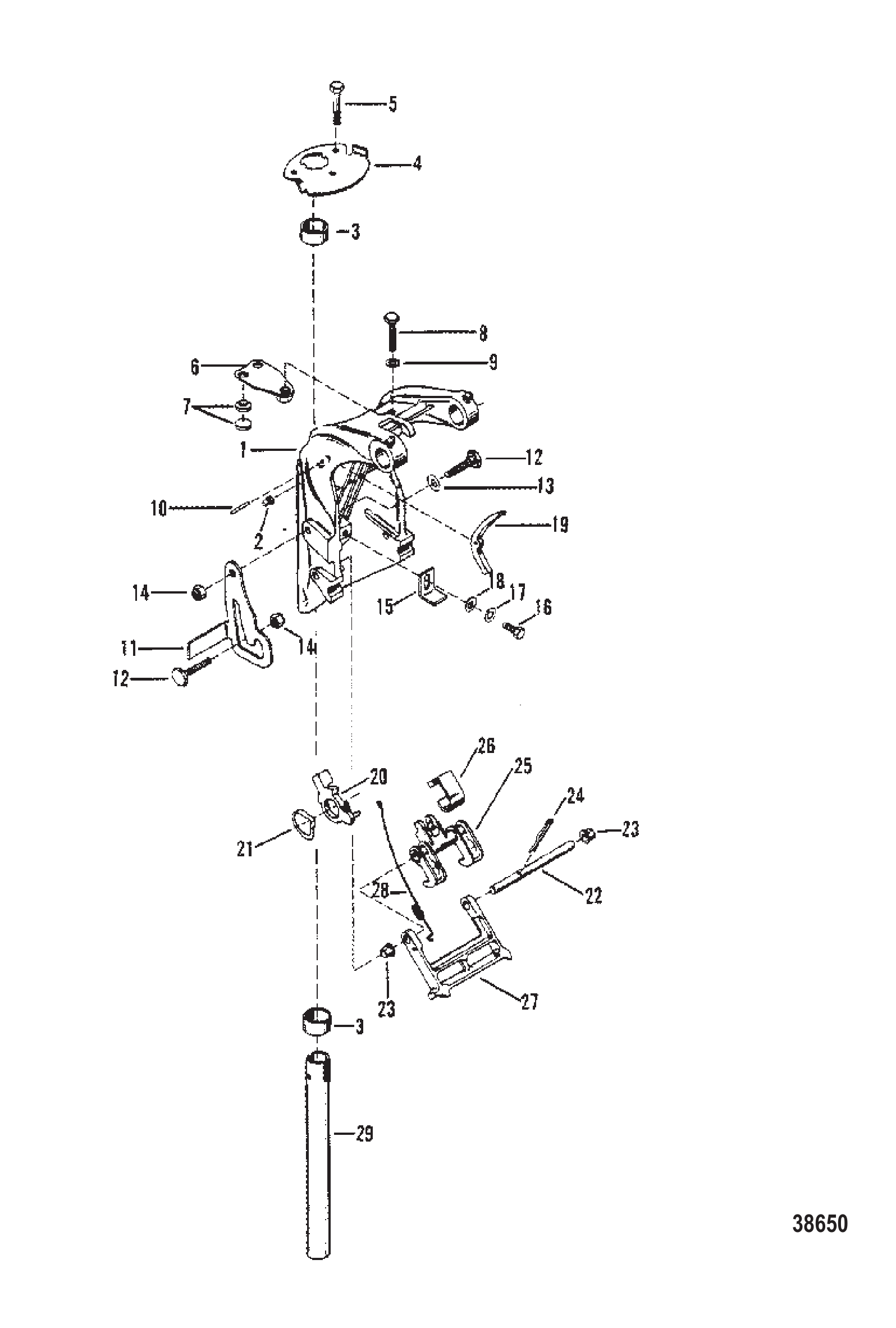

图 13旋转支架总成 SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7324A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	旋转支架润滑接头	FITTING Grease SWIVEL BRACKET	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	64028	转轴支架衬套	BUSHING SWIVEL BRACKET	2
4	77334	副驾驶板	PLATE CO-PILOT	1
5	78038	副驾驶盘至鞍座螺钉(.250-20x1.75)	SCREW (.250-20 x 1.75) CO-PILOT DISC TO SADDLE	3
6	72845A1	副驾驶夹板总成	PLATE ASSEMBLY CLAMP - CO-PILOT	1
7	20203	摩擦盘	DISC FRICTION	4
8	36154	夹板调节螺钉(.250-28x1.380)	SCREW (.250-28 x 1.380) CLAMP PLATE ADJUSTING	1
9	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
10	25319	弹簧导向销(0.125x0.75英寸)	PIN (.125 x 0.75 Inches) SPRING GUIDE	1
11	879841	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
11	87984A1	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
12	41433	倾斜止动杆螺钉(.250-28x1.00)	SCREW (.250-28 x 1.00) TILT STOP LEVER	2
13	31030	杠杆锚定螺钉波形垫圈	WAVE WASHER LEVER ANCHOR SCREW	1
14	35888	倾斜止动杆螺钉不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel TILT STOP LEVER SCREW	2
15	72794	倒挡锁止块	STOP REVERSE LOCK	1
16	71056	螺丝(.250-28 x .560)倒车挡块至旋转支架	SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET	1
17	26992	锁紧垫圈(.250)不锈钢倒车挡块螺丝	LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW	1
18	71055	垫圈倒车挡块螺丝	WASHER REVERSE STOP SCREW	1
19	63554	导向弹簧	GUIDE SPRING	1
20	79744	拖钓支架控制杆	LEVER CONTROL - TROLL BRACKET	1
21	63631	拖钓支架杠杆波形垫圈	WAVE WASHER TROLL BRACKET LEVER	1
22	71419	倒挡锁止杆至开关支架	ROD REVERSE LOCK TO SWITCH BRACKET	1
23	26841	尼龙衬套-倒挡锁止杆连杆	BUSHING NYLON - REVERSE LOCK LEVER ROD	2
24	45882	倒挡锁止杆至连杆开口销	COTTER PIN REVERSE LOCK LEVER TO ROD	1
25	63628	倒挡锁止杆	LEVER REVERSE LOCK	1
25	63628T	杠杆	LEVER	1
26	61007	固定座-倒挡锁止杆	RETAINER ROD - REVERSE LOCK	1
27	63559	拖钓支架	BRACKET TROLL	1
27	63559T	支架	BRACKET	1
28	63630	拖钓支架延伸弹簧	SPRING EXTENSION - TROLL BRACKET	1
29	66559	旋转支架至鞍座管道	TUBE SWIVEL BRACKET TO SADDLE	1

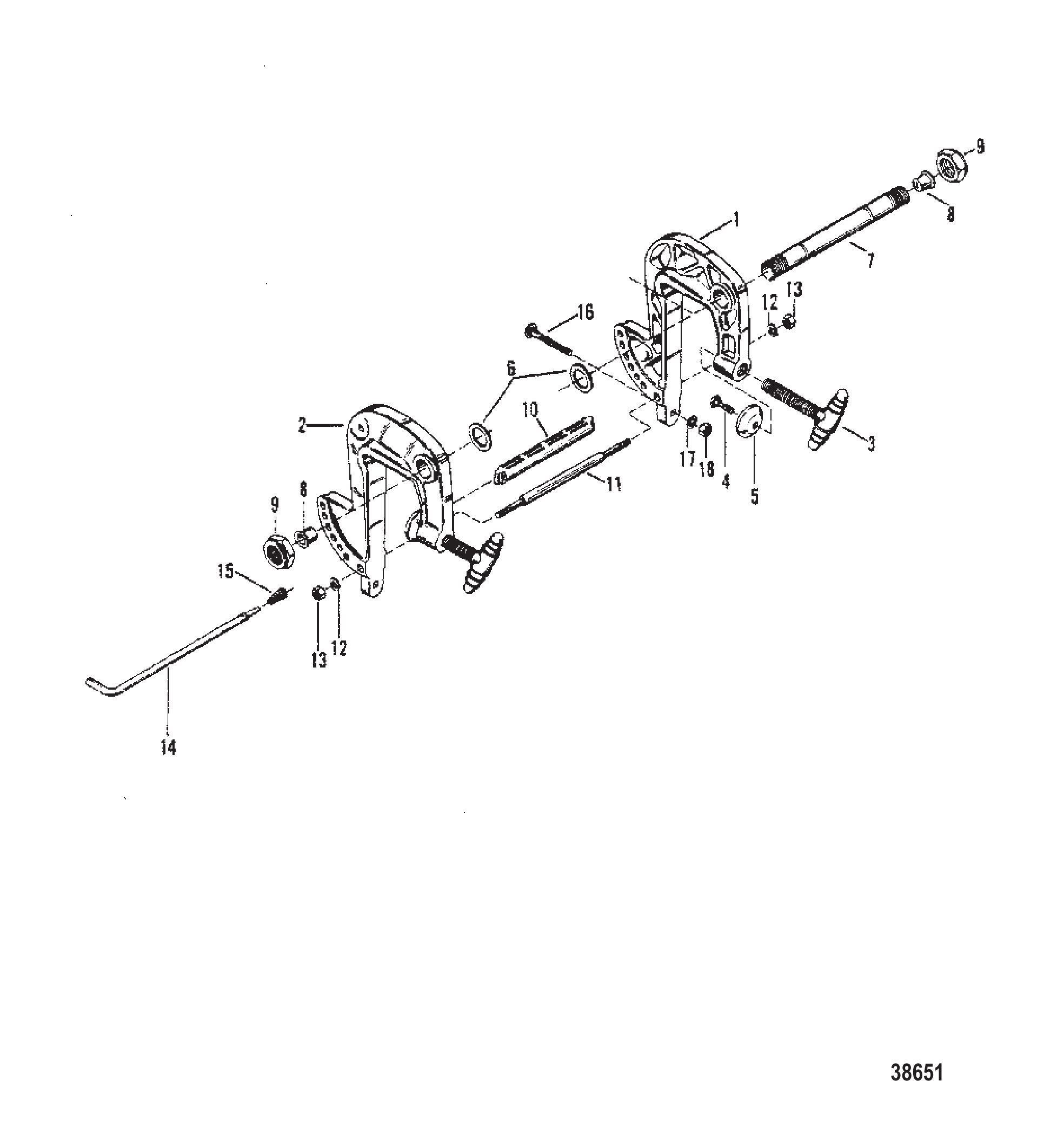

图 14夹紧支架总成 Clamp Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1	5570A3	夹紧支架总成(左舷)	CLAMP BRACKET ASSEMBLY (PORT)	1
2	5571A3	夹紧支架总成(右舷)	CLAMP BRACKET ASSEMBLY (STARBOARD)	1
3	77190A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	76804	蝶形螺钉	SCREW THUMB SCREW	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
5	818884	垫圈	WASHER	2
6	71421	倾斜管尼龙垫圈-夹紧至旋转支架	WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET	2
7	96962	倾斜管夹紧至旋转支架	TILT TUBE CLAMP TO SWIVEL BRACKET	1
8	39333	倾斜管塞	PLUG TILT TUBE	2
9	93164	倾斜管紧固螺母(.875)	NUT (.875) TILT TUBE FASTENING	2
10	71420	提手	HANDLE CARRYING	1
11	71417	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	71418A2	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
15	62143	倾斜锁止销弹簧	SPRING TILT LOCK PIN	1
16	67982	夹紧支架至船体螺栓	BOLT CLAMP BRACKET TO BOAT	2
17	67983	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
18	56374	夹紧支架螺钉螺母(.250-20)	NUT (.250-20) CLAMP BRACKET SCREW	2
18	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2

图 15下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

图 16驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8456A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8452A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	66373	驱动轴壳体至齿轮箱螺柱	STUD DRIVE SHAFT HOUSING TO GEAR HOUSING	1
3	35814	驱动轴壳体螺柱不锈钢螺母(.312-24)	NUT (.312-24) Stainless Steel DRIVE SHAFT HOUSING STUD	1
3	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
4	34863	齿轮箱螺柱螺母(.375-24)	NUT (.375-24) GEAR HOUSING STUD	1
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
5	8450A1	鞍座	SADDLE	1
6	64076	推力缓冲器-鞍座	BUMPER THRUST - SADDLE	1
7	79896A1	下支架	MOUNT LOWER	2
7	79896A1	下支架	MOUNT LOWER	2
8	79985A1	上部安装总成	MOUNT ASSEMBLY UPPER	2
8	79896A1	上支架	MOUNT UPPER	2
9	26406	上下安装环	RING UPPER AND LOWER MOUNT	4
10	79907	上下安装盖	COVER UPPER AND LOWER MOUNT	4
11	59079	衬垫	GASKET	1
12	24652	螺母(.250-28)	NUT (.250-28)	6
13	31940	出水管道	TUBE WATER OUTLET	1
13	32077	出水管道	TUBE WATER OUTLET	1
14	36556	出水管橡胶密封件(外径0.5英寸)	SEAL (.500 Inch Outside Diameter) RUBBER - WATER OUTLET TUBE	1
15	13127	出水管密封尼龙垫片	SPACER NYLON - OUTLET TUBE SEAL	1
16	71057	倒挡锁连杆	LINK ROD REVERSE LOCK	1
17	65414	螺钉	SCREW	2
18	65216	倒挡锁凸轮	CAM REVERSE LOCK	1
19	72007	倒挡锁凸轮固定座	RETAINER REVERSE LOCK CAM	1
20	93145	驱动轴挡块	BLOCK DRIVESHAFT	1
-	78139A80	衬垫套件	GASKET SET	1

图 17旋转支架总成 Swivel Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1	7324A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	旋转支架润滑接头	FITTING Grease SWIVEL BRACKET	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	64028	转轴支架衬套	BUSHING SWIVEL BRACKET	2
4	77334	副驾驶板	PLATE CO-PILOT	1
5	78038	副驾驶盘至鞍座螺钉(.250-20x1.75)	SCREW (.250-20 x 1.75) CO-PILOT DISC TO SADDLE	3
6	72845A1	副驾驶夹板总成	PLATE ASSEMBLY CLAMP - CO-PILOT	1
7	20203	摩擦盘	DISC FRICTION	4
8	36154	夹板调节螺钉(.250-28x1.380)	SCREW (.250-28 x 1.380) CLAMP PLATE ADJUSTING	1
9	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
10	25319	弹簧导向销(0.125x0.75英寸)	PIN (.125 x 0.75 Inches) SPRING GUIDE	1
11	879841	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
11	87984A1	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
12	41433	倾斜止动杆螺钉(.250-28x1.00)	SCREW (.250-28 x 1.00) TILT STOP LEVER	2
13	31030	杠杆锚定螺钉波形垫圈	WAVE WASHER LEVER ANCHOR SCREW	1
14	35888	倾斜止动杆螺钉不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel TILT STOP LEVER SCREW	2
15	72794	倒挡锁止块	STOP REVERSE LOCK	1
16	71056	螺丝(.250-28 x .560)倒车挡块至旋转支架	SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET	1
17	26992	锁紧垫圈(.250)不锈钢倒车挡块螺丝	LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW	1
18	71055	垫圈倒车挡块螺丝	WASHER REVERSE STOP SCREW	1
19	63554	导向弹簧	GUIDE SPRING	1
20	79744	拖钓支架控制杆	LEVER CONTROL - TROLL BRACKET	1
21	63631	拖钓支架杠杆波形垫圈	WAVE WASHER TROLL BRACKET LEVER	1
22	71419	倒挡锁止杆至开关支架	ROD REVERSE LOCK TO SWITCH BRACKET	1
23	26841	尼龙衬套-倒挡锁止杆连杆	BUSHING NYLON - REVERSE LOCK LEVER ROD	2
24	45882	倒挡锁止杆至连杆开口销	COTTER PIN REVERSE LOCK LEVER TO ROD	1
25	63628	倒挡锁止杆	LEVER REVERSE LOCK	1
25	63628T	杠杆	LEVER	1
26	61007	固定座-倒挡锁止杆	RETAINER ROD - REVERSE LOCK	1
27	63559	拖钓支架	BRACKET TROLL	1
27	63559T	支架	BRACKET	1
28	63630	拖钓支架延伸弹簧	SPRING EXTENSION - TROLL BRACKET	1
29	66559	旋转支架至鞍座管道	TUBE SWIVEL BRACKET TO SADDLE	1

图 18杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

图 19顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	827328T9	顶盖总成	TOP COWL ASSEMBLY	1
1	827328T10	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	859356A1	隔音毯套装	SOUND BLANKET KIT	1
4	859356A02	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
6	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
7	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	2
8	823865	盖塞	CAP PLUG	2
9	831207T10	手柄	HANDLE	1
9	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
10	812707	衬套	BUSHING	2
11	831214	隔套	SPACER	1
12	12134	波形垫圈	WASHER Wave	1
13	F481777	凸轮锁轴	CAM Latch Shaft	1
13	8M0001081	凸轮	CAM	1
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
15	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
16	821249M2	前支架	BRACKET Front	3
16	8M0036792	支架	BRACKET	3
17	815477	缓冲器锁扣	BUMPER Latch	3
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
19	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
20	8237951	挡圈	RING Retaining	1
21	815263	滚轮	ROLLER	1
21	8M0207770	滚轮@3	ROLLER @3	1
22	8155381	滚动销	PIN Roll	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	12066Q9	绳索	ROPE	1
26	12066Q10	启动绳@2	ROPE-STARTER@2	1

图 20专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量

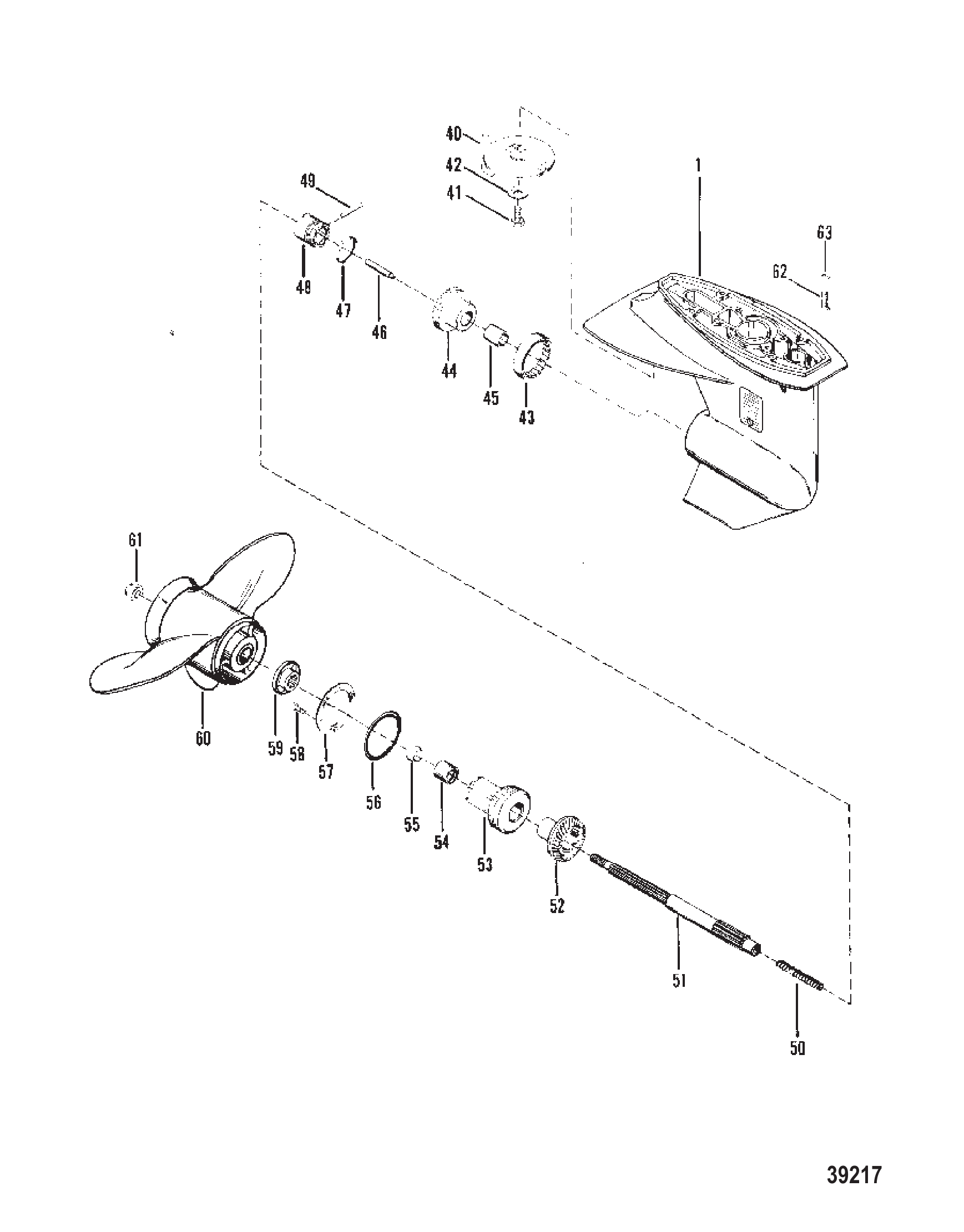

图 21齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成-标准旋转1.87:1传动比(完整)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)	1
1	9148A11	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	1
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	43999	滚子轴承(外径1.308)	BEARING Roller (1.308 O.D.)	2
57	73363	滚子轴承(外径1.313)	BEARING Roller (1.313 O.D.)	2
57	73363T	轴承	BEARING	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独出售(43-44104A2部件)	Not Sold Separate (PART OF 43-44104A2)	1
64	68100	止推环	RING THRUST	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承-倒档齿轮	BEARING Ball BALL-REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	轴承座定位键	KEY LOCATING-BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024	螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")	SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")	1
75	67891	填充块	FILLER BLOCK FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈-螺旋桨螺母	WASHER Splined SPLINED-PROPELLER NUT	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
83	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
-	89238A2	密封套件	SEAL KIT	1
-	14697A87	衬垫套件	GASKET SET

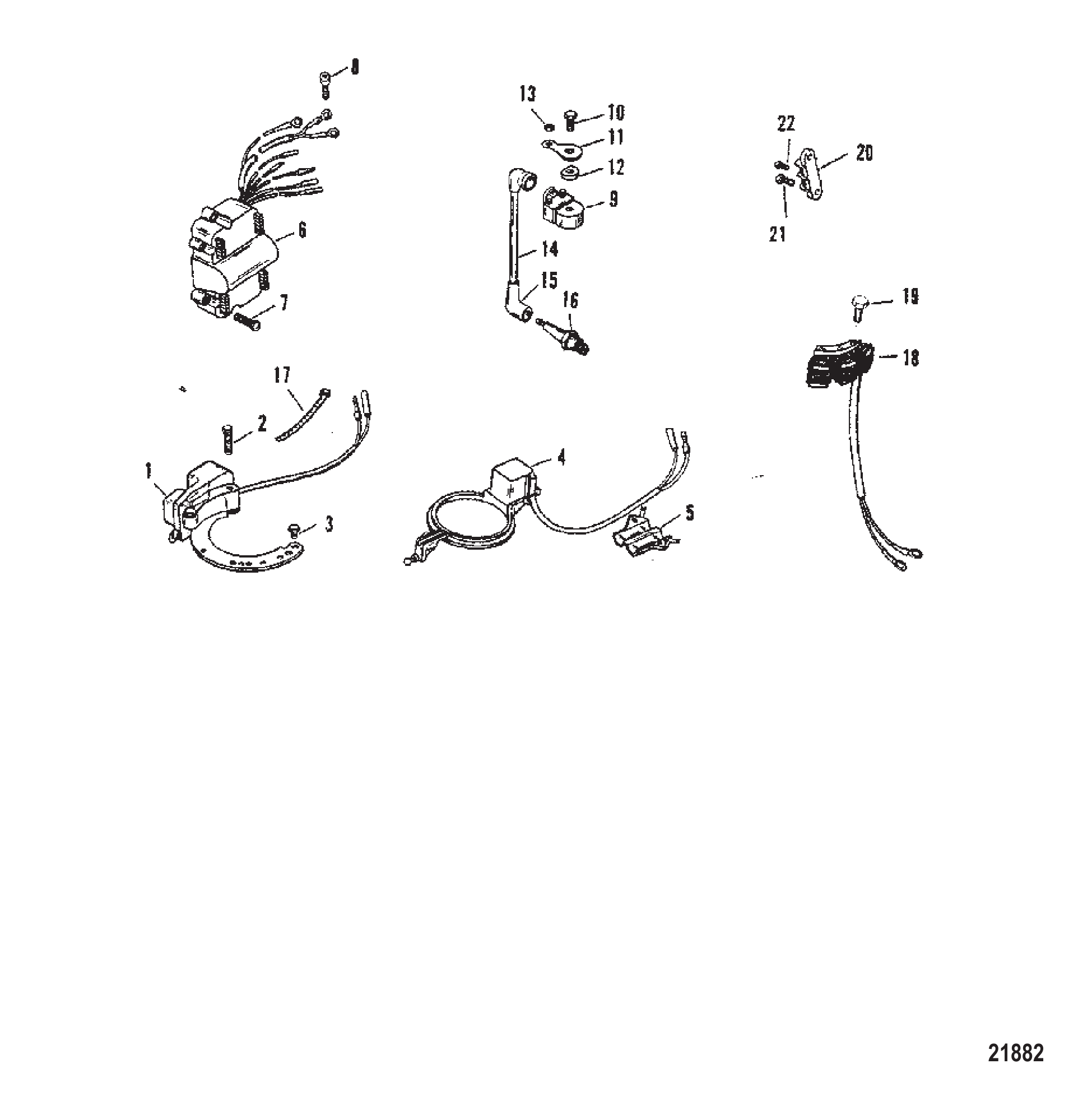

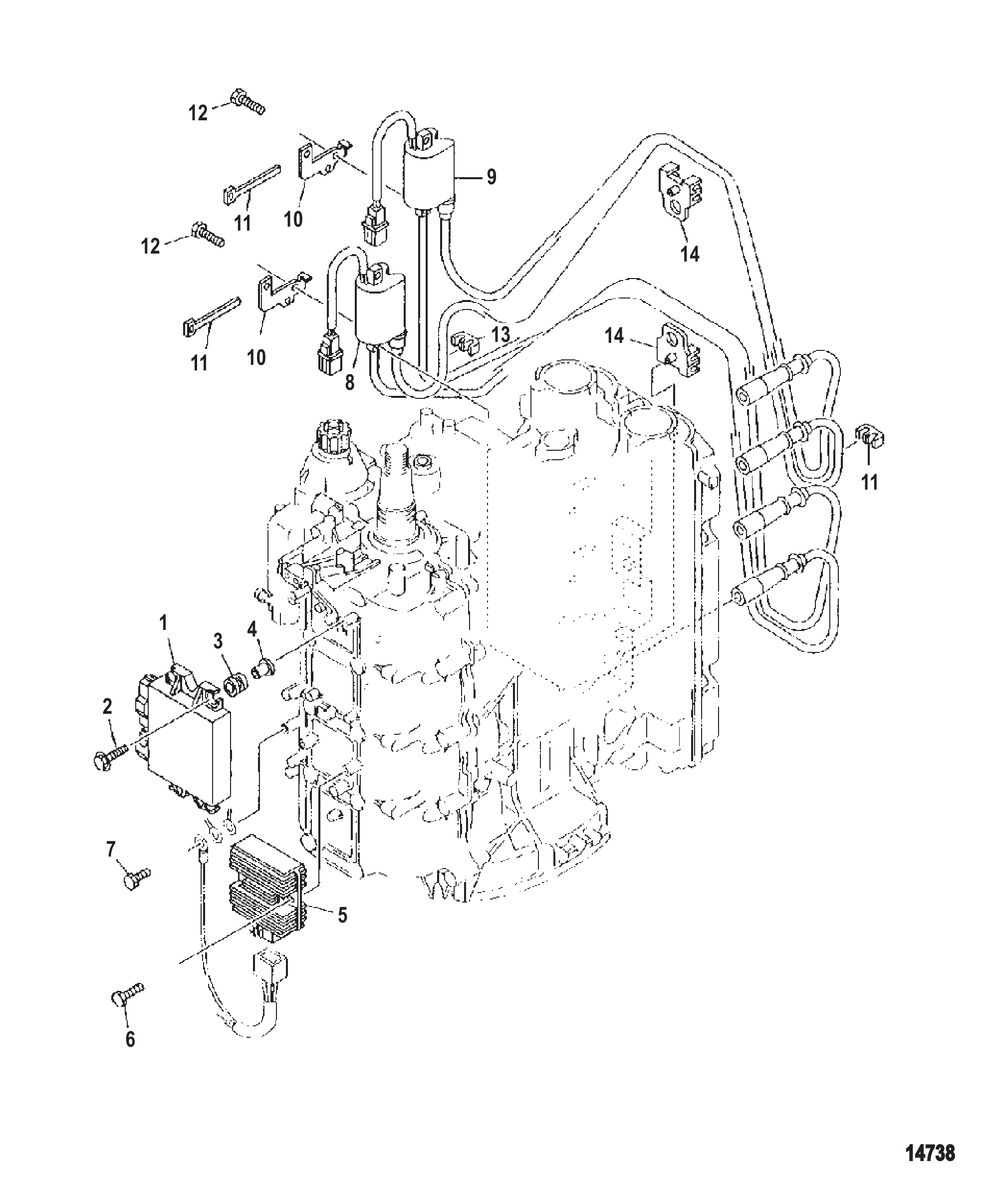

图 22点火组件 IGNITION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	880891T11	发动机控制单元ECU	ECU Engine Control Unit	1
1	880891T14	发动机控制单元ECU	ECU Engine Control Unit	1
1	880891T1	发动机控制总成	CONTROL ASSEMBLY Engine	1
1	880891T14	发动机控制单元ECU	ECU Engine Control Unit	1
2	804270	螺栓(M6×28)	BOLT (M6 x 28)	4
3	881304	护孔环	GROMMET	4
4	82851M	衬套	BUSHING	4
4	804344003	轴环	COLLAR	4
5	881346T	整流器/调节器总成	RECTIFIER/REGULATOR ASSEMBLY	1
6	853536	螺栓(M6x25)	BOLT (M6 x 25)	2
7	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
8	880893T10	点火线圈	COIL Ignition	1
8	8M0123821	点火线圈	IGNITION COIL	1
9	880892T	点火线圈	COIL Ignition	1
9	8M0121257	点火线圈	IGNITION COIL	1
10	881345	安装板	PLATE	2
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
12	853536	螺栓(M6x25)	BOLT (M6 x 25)	4
13	804276	卡箍	CLAMP	2
14	804277	卡箍	CLAMP	2

图 23外罩 COWLS

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	盖锁扣	LATCH Cowl	1
5	817104A3	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护板(黑色)	SHIELD REAR (BLACK)	1
7	12873	后护板(灰色)	SHIELD REAR (GRAY)	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	底罩(黑色)	BOTTOM COWL (BLACK)	1
9	9204A2	底罩(灰色)	BOTTOM COWL (GRAY)	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	底罩塞(手动)	PLUG BOTTOM COWL (MANUAL)	1
10	121532	底罩护线环(电动)	GROMMET Bottom Cowl (ELECTRIC)	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	罩壳锁杆衬套	BUSHING COWL LATCH LEVEER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

图 24化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	9503A20	化油器 (6)(WMC-66)	CARBURETOR (6)(WMC-66)	1
1	9503T21	化油器 (WMC-78A) (6)	CARBURETOR (WMC-78A) (6)	1
1	9266A21	化油器 (8)(WMC-74)	CARBURETOR (8)(WMC-74)	1
1	9266T22	化油器	CARBURETOR	1
1	9266T22	化油器 (8)(WMC-79A)	CARBURETOR (8)(WMC-79A)	1
1	8846T20	化油器 (WMC-61)	CARBURETOR (WMC-61)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	8846T25	化油器 (WMC-80A) (9.9)	CARBURETOR (WMC-80A) (9.9)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	9726T11	化油器 (15)(WMC-63)	CARBURETOR (15)(WMC-63)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器 (WMC-77) (15)	CARBURETOR (WMC-77) (15)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器 (WMC-83) (15)	CARBURETOR (WMC-83) (15)	1
2	9473	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	804707	轴	SHAFT	1
4	8M0138645	螺钉	SCREW	1
5	804996	弹簧	SPRING	1
6	813022	油门轴	SHAFT Throttle	1
6	19267	油门轴	SHAFT Throttle	1
7	F10167	环	RING	1
8	9164	燃油杯	BOWL Fuel	1
9	824401	浮子杆	LEVER Float	1
10	91691	浮子	FLOAT	1
11	F10064	轴	SHAFT	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	803861	进油针阀	VALVE Inlet Needle	1
14	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
14	5317	量孔(.046)	JET (.046)	1
14	6246	量孔(.048)	JET (.048)	1
14	6207	量孔(.072)	JET (.072)	1
15	9171	堵头	PLUG	1
16	813618	盖板	COVER	1
16	823648	膜片盖	COVER Diaphragm	1
17	9697	螺钉	SCREW	4
18	15827A1	本体	BODY	1
18	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
19	9643	螺钉	SCREW	5
20	9699	安装板	PLATE	1
21	44426	衬垫	GASKET	1
22	9696	螺钉	SCREW	2
23	96371	燃油泵盖	COVER Fuel Pump	1
23	9637	盖板	COVER	1
24	9633	衬垫	GASKET	1
25	9762	堵头	PLUG	1
26	192061	化油器衬垫	GASKET Carburetor	1
27	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
28	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
29	8237072	维修套件	REPAIR KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

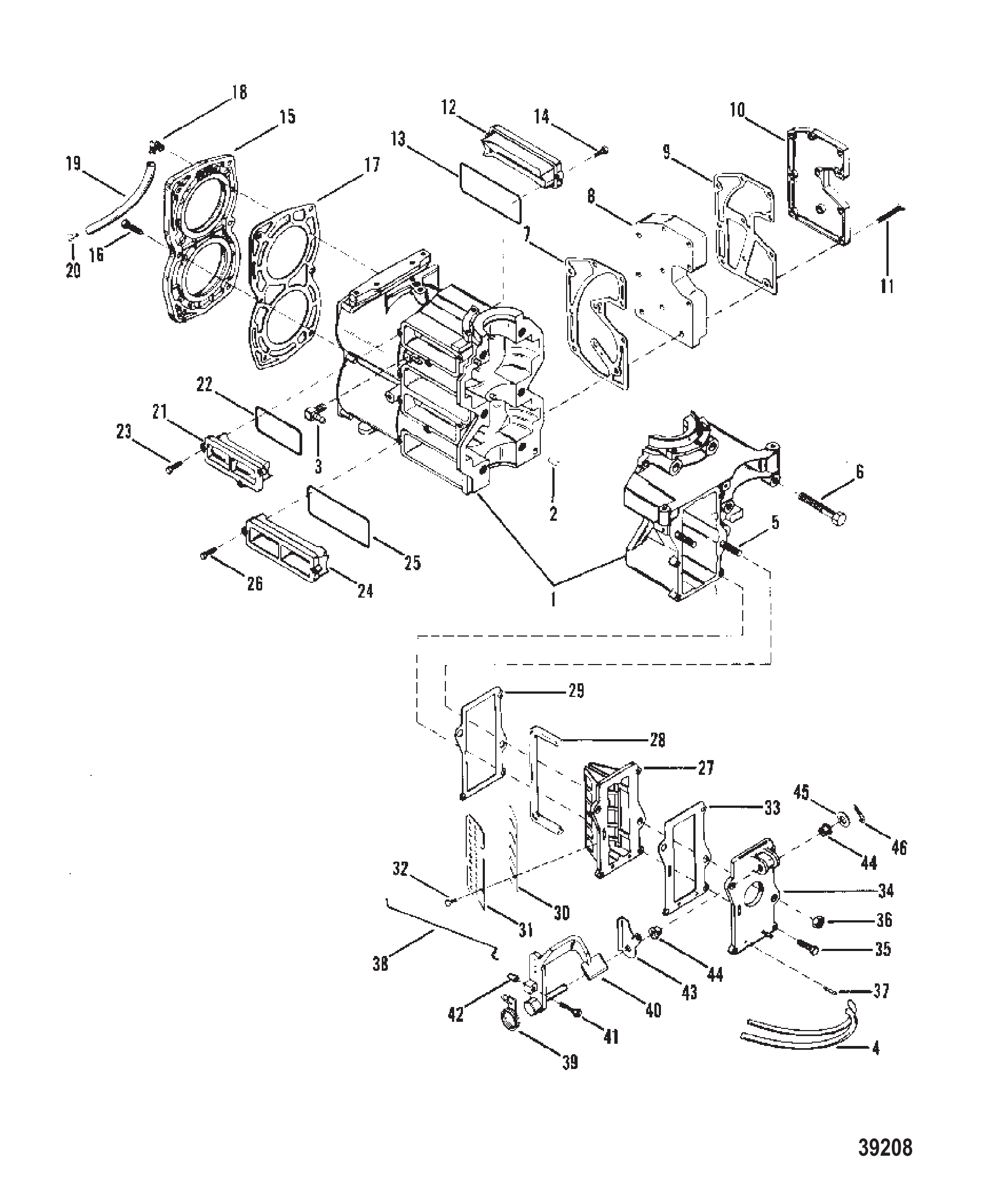

图 25气缸体与盖 Cylinder Block and Covers

REF	零件编号	中文名称	英文名称	数量
1	8473A13	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T20	气缸体	CYLINDER BLOCK	1
1	8473A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T21	气缸体	CYLINDER BLOCK	1
1	9727A2	气缸体	CYLINDER BLOCK	1
1	9727T2	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	2
3	42463	化油器螺柱	STUD CARBURETOR	2
3	424632	双头螺柱(M8x37.1)	STUD (M8 x 37.1)	2
4	42698	泄放软管止回阀	CHECK VALVE BLEED HOSE	1
4	426982	止回阀	CHECK VALVE	1
5	1383556	泄放软管	HOSE BLEED	1
5	99130100	软管-48英寸	TUBING-48 INCH	1
6	42984	气缸体螺柱	STUD CYLINDER BLOCK	2
6	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
7	421251	螺钉(M8x55)曲轴箱至气缸体	SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK	6
7	42125	螺钉(M8x55)	SCREW (M8 x 55)	6
7A	17866	槽销	PIN Groove	1
8	400634	螺母(M6)气缸体螺柱	NUT (M6) CYLINDER BLOCK STUD	2
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
9	191861	动力头衬垫	GASKET Powerhead	1
10	42381A2	簧片阀总成	REED BLOCK ASSEMBLY	1
10	828435A3	簧片阀组	REED BLOCK	1
11	42657A1	止回阀	CHECK VALVE	1
11	42657A3	止回阀	CHECK VALVE	1
12	42137	簧片阀密封件	SEAL REED BLOCK	1
13	195981	簧片阀衬垫	GASKET REED BLOCK	1
13	195982	衬垫	GASKET	1
14	4000171	螺钉(M6x16)簧片阀	SCREW (M6 x 16) REED BLOCK	3
15	42044	簧片	REED	2
15	825141	簧片	REED	2
16	179031	簧片止挡	STOP Reed	2
16	828435A3	簧片阀组	REED BLOCK	2
17	4005764	螺钉(M3.5x8)簧片固定	SCREW (M3.5 x 8) REED ATTACHING	6
18	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
19	42521	排气盖	COVER EXHAUST	1
19	8M0048005	排气盖总成	COVER EXHAUST MAN	1
20	40062129	螺钉(M6x25)排气盖至气缸体	SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK	11
21	19185	排气盖衬垫	GASKET EXHAUST COVER	1
22	423651	挡板	PLATE Baffle	1
22	42365	挡板	PLATE Baffle	1
23	19184	挡板衬垫	GASKET BAFFLE PLATE	1
24	19107F1	进气盖	COVER Intake	1
25	56759	倒钩接头	FITTING Barbed	1
24	17863A1	进气盖总成	COVER ASSEMBLY Intake	1
25	15133	接头	FITTING	1
26	1383556	软管	HOSE	2
26	99130100	软管-48英寸	TUBING-48 INCH	2
27	59169	接头	FITTING	1
27	59169003	三通接头	FITTING Tee	1
28	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
29	192031	进气盖衬垫	GASKET INTAKE COVER	1
30	40062129	螺钉(M6x25)盖至气缸体	SCREW (M6 x 25) COVER TO CYLINDER BLOCK	3
31	99127109	示警管(57英寸散装)	LINE (57.00 Inches Bulk) TELL TALE	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
32	94848	示警软管接头-底部罩	FITTING TELL TALE HOSE-BOTTOM COWL	1
33	8906A1	盖总成	COVER ASSEMBLY	1
33	8906A02	盖总成	COVER ASSEMBLY	1
34	192071	衬垫	GASKET	1
34	19207002	衬垫	GASKET	1
35	146732	节温器盖	COVER THERMOSTAT	1
35	8M0039352	盖板	COVER	1
36	192051	衬垫	GASKET	1
36	19205002	衬垫	GASKET	1
37	40062129	螺钉(M6x25)	SCREW (M6 x 25)	2
38	14586	节温器(120)	THERMOSTAT (120)	1
39	62386	节温器衬垫	GASKET THERMOSTAT	1
39	8M0204714	衬垫@4	GASKET @4	1
40	29111	连接器(直型)(新设计)	CONNECTOR (STRAIGHT)(NEW DESIGN)	1
40	291112	接头	FITTING	1
40	99664	弯头(旧设计)	ELBOW (OLD DESIGN)	1
40	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
41	40062129	螺钉(M6x25)盖固定	SCREW (M6 x 25) COVER ATTACHING	6
-	12893A87	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	12893A92	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686A92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

图 26夹具支架总成 CLAMP BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	5570A3	夹紧支架总成(左舷)	CLAMP BRACKET ASSEMBLY (PORT)	1
2	5571A3	夹紧支架总成(右舷)	CLAMP BRACKET ASSEMBLY (STARBOARD)	1
3	77190A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
4	76804	蝶形螺钉	SCREW THUMB SCREW	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
5	818884	垫圈	WASHER	2
6	71421	倾斜管尼龙垫圈-夹紧至旋转支架	WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET	2
7	96962	倾斜管夹紧至旋转支架	TILT TUBE CLAMP TO SWIVEL BRACKET	1
8	39333	倾斜管塞	PLUG TILT TUBE	2
9	93164	倾斜管紧固螺母(.875)	NUT (.875) TILT TUBE FASTENING	2
10	71420	提手	HANDLE CARRYING	1
11	71417	夹紧支架螺柱	STUD CLAMP BRACKET	1
12	26992	夹紧支架螺柱不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD	2
13	29598	夹紧支架螺柱不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel CLAMP BRACKET STUD	2
14	71418A2	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
15	62143	倾斜锁止销弹簧	SPRING TILT LOCK PIN	1
16	67982	夹紧支架至船体螺栓	BOLT CLAMP BRACKET TO BOAT	2
17	67983	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
18	56374	夹紧支架螺钉螺母(.250-20)	NUT (.250-20) CLAMP BRACKET SCREW	2
18	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2

图 27维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
881980	维修手册	SERVICE MANUAL	1
881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
10225030	用户手册	OWNERS MANUAL	1
858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
881828	星形头工具套件	STARBIT TOOL KIT	1
881649A01	贴花套件	DECAL SET	1
881649A05	贴花套件	DECAL SET	1
881840A01	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A05	贴花套件	DECAL SET	1
881650A01	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881702A01	贴花套件	DECAL SET	1
881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
881839A02	EPA标签信息贴花	Decal EPA Label Information	1
881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
816834A1	转速表	TACHOMETER	1
816932A1	温度表	TEMPERATURE GAUGE	1
86306	适配器	ADAPTER	1
86306A01	适配器	ADAPTER	1
817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

图 28化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	9503A20	化油器 (6)(WMC-66)	CARBURETOR (6)(WMC-66)	1
1	9503T21	化油器 (WMC-78A) (6)	CARBURETOR (WMC-78A) (6)	1
1	9266A21	化油器 (8)(WMC-74)	CARBURETOR (8)(WMC-74)	1
1	9266T22	化油器	CARBURETOR	1
1	9266T22	化油器 (8)(WMC-79A)	CARBURETOR (8)(WMC-79A)	1
1	8846T20	化油器 (WMC-61)	CARBURETOR (WMC-61)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	8846T25	化油器 (WMC-80A) (9.9)	CARBURETOR (WMC-80A) (9.9)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	9726T11	化油器 (15)(WMC-63)	CARBURETOR (15)(WMC-63)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器 (WMC-77) (15)	CARBURETOR (WMC-77) (15)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器 (WMC-83) (15)	CARBURETOR (WMC-83) (15)	1
2	9473	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	804707	轴	SHAFT	1
4	8M0138645	螺钉	SCREW	1
5	804996	弹簧	SPRING	1
6	813022	油门轴	SHAFT Throttle	1
6	19267	油门轴	SHAFT Throttle	1
7	F10167	环	RING	1
8	9164	燃油杯	BOWL Fuel	1
9	824401	浮子杆	LEVER Float	1
10	91691	浮子	FLOAT	1
11	F10064	轴	SHAFT	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	803861	进油针阀	VALVE Inlet Needle	1
14	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
14	5317	量孔(.046)	JET (.046)	1
14	6246	量孔(.048)	JET (.048)	1
14	6207	量孔(.072)	JET (.072)	1
15	9171	堵头	PLUG	1
16	813618	盖板	COVER	1
16	823648	膜片盖	COVER Diaphragm	1
17	9697	螺钉	SCREW	4
18	15827A1	本体	BODY	1
18	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
19	9643	螺钉	SCREW	5
20	9699	安装板	PLATE	1
21	44426	衬垫	GASKET	1
22	9696	螺钉	SCREW	2
23	96371	燃油泵盖	COVER Fuel Pump	1
23	9637	盖板	COVER	1
24	9633	衬垫	GASKET	1
25	9762	堵头	PLUG	1
26	192061	化油器衬垫	GASKET Carburetor	1
27	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
28	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
29	8237072	维修套件	REPAIR KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

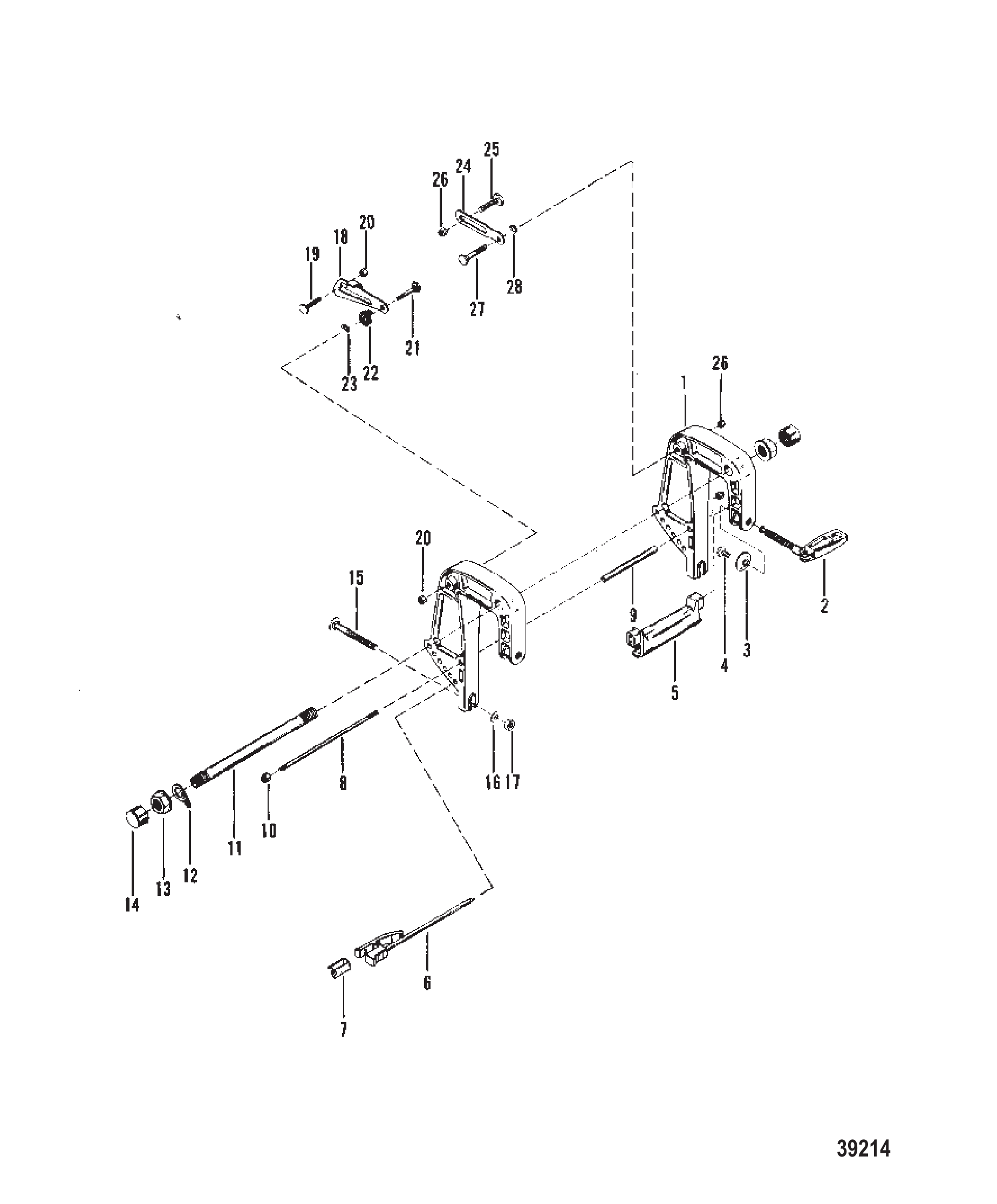

图 29夹具支架总成 CLAMP BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8466A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
1	8863A1	夹箍支架	CLAMP BRACKET	2
2	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
3	818884	垫圈	WASHER	2
4	76804	垫圈固定螺丝	SCREW WASHER ATTACHING	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	85155	提手	HANDLE CARRYING	1
6	99929A1	倾斜销总成	PIN ASSEMBLY Tilt	1
6	97296A1	倾斜销总成	PIN ASSEMBLY Tilt	1
6	99929A1	倾斜销总成	PIN ASSEMBLY Tilt	1
7	90884	倾斜销弹簧卡扣	CLIP Spring TILT PIN	1
8	85099	夹紧支架螺柱	STUD CLAMP BRACKET	1
9	85100	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
10	400213	螺母(M8)不锈钢夹紧支架螺柱	NUT (M8) Stainless Steel CLAMP BRACKET STUD	2
11	85151	倾斜管	TILT TUBE	1
12	30954	安全卡扣	CLIP SAFETY	1
12	8M0085928	卡扣	CLIP	1
13	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
14	53078	倾斜管端盖	CAP TILT TUBE	2
15	69064	螺栓(.312-18 x 2.750)夹紧支架至艉板	BOLT (.312-18 x 2.750) CLAMP BRACKET TO TRANSOM	2
16	67981	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
17	67980	螺母(.312-18)夹紧支架螺栓	NUT (.312-18) CLAMP BRACKET BOLT	2
17	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	2
18	96965	倾斜止动杆-左舷侧	LEVER TILT STOP - PORT SIDE	1
19	41433	螺钉(.250-28 x 1.00)杆至旋转支架	SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET	1
20	35045	螺母(.250-28)倾斜止动杆螺钉	NUT (.250-28) TILT STOP LEVER SCREW	1
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
21	41524	螺钉(.250-28 x 1.75)杆至夹紧支架	SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET	1
22	85167	倾斜止动杆螺钉弹簧	SPRING TILT STOP LEVER SCREW	1
22	44581	弹簧	SPRING	1
23	31030	倾斜止动杆螺钉波形垫圈	WAVE WASHER TILT STOP LEVER SCREW	1
24	90901	倾斜止动带-右舷侧	STRAP TILT STOP - STARBOARD SIDE	1
25	41433	螺钉(.250-28 x 1.00)杆至旋转支架	SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET	1
26	35045	螺母(.250-28)倾斜止动杆螺钉	NUT (.250-28) TILT STOP LEVER SCREW	1
26	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
27	41524	螺钉(.250-28 x 1.75)杆至夹紧支架	SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET	1
28	31030	倾斜止动杆螺钉波形垫圈	WAVE WASHER TILT STOP LEVER SCREW	1

图 30外罩 COWLS

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶盖总成	TOP COWL ASSEMBLY	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	机罩锁扣(无滚轮-参见编号4)	LATCH Cowl (W/O ROLLER-SEE REF #4)	1
5	817104A3	机罩锁扣总成(带滚轮-参见编号5)	LATCH ASSEMBLY Cowl (W/ROLLER-SEE REF.#5)	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护罩	SHIELD REAR	1
7	12873	后护罩	SHIELD REAR	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	下机罩(XR10/SEA PRO 10)	BOTTOM COWL (XR10/SEA PRO 10)	1
9	9204A2	下机罩(MAGNUM 10)	BOTTOM COWL (MAGNUM 10)	1
9	9204A6	下机罩(MARATHON 10)	BOTTOM COWL (MARATHON 10)	1
9	9204A2	下机罩	BOTTOM COWL	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	下机罩塞	PLUG BOTTOM COWL	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	机罩锁杆衬套	BUSHING COWL LATCH LEVER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

图 31曲轴、活塞和飞轮 CRANKSHAFT, PISTONS AND FLYWHEEL

REF	零件编号	中文名称	英文名称	数量
1	42691	飞轮轴	SHAFT FLYWHEEL	1
1A	818591	螺母(M14)	NUT (M14)	1
2	8908A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T6	飞轮	FLYWHEEL	1
2	818540A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T19	飞轮总成	FLYWHEEL ASY	1
3	17794A1	轴承	BEARING	1
4	818901	主轴承油封	SEAL MAIN BEARING	1
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	818630A1	套筒	SLEEVE	1
7	41341	曲轴下球轴承	BEARING Ball CRANKSHAFT-LOWER	1
8	20940	球轴承卡环(小)(旧设计)	RING Snap BALL BEARING (SMALL)(OLD DESIGN)	1
9	42132	球轴承挡圈	RING Retaining BALL BEARING	1
10	13031	下垫圈	WASHER LOWER	1
11	125661	曲轴下油封	SEAL Oil - Lower CRANKSHAFT	1
12	20094	飞轮驱动半圆键	KEY Woodruff FLYWHEEL DRIVE	1
13	41342	曲轴上滚柱轴承	BEARING Roller CRANKSHAFT-UPPER	1
13	878158	滚柱轴承	BEARING Roller	1
14	125671	曲轴上油封	SEAL Oil - Upper CRANKSHAFT	1
15	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
16	823460	连杆螺钉(M5x16)	SCREW (M5 x 16) CONNECTING ROD	4
17	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
18	42186	活塞端滚针轴承	BEARING Needle PISTON END	48
19	43348	推力轴承	BEARING Thrust	4
19	8M0012297	止推垫圈@2	WASHER-THRST@2	4
20	9747A2	活塞总成(标准)	PISTON ASSEMBLY (STANDARD)	2
20	9747T2	活塞总成	PISTON ASSEMBLY	2
20	9747A4	活塞总成(.015加大)	PISTON ASSEMBLY (.015 O.S.)	2
21	18212A4	活塞环组(标准)	RING SET Piston (STANDARD)	1
21	18212A1	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	2
22	42202	锁紧环	LOCK RING	4
23	824451	垫圈(内径.610x外径.890x厚度.062)	WASHER (.610 Inside Diamter x .890 Outside Diameter x .062)	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

图 32气缸体和盖 CYLINDER BLOCK AND COVER

REF	零件编号	中文名称	英文名称	数量
1	8196A3	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	9533T38	气缸体	CYLINDER BLOCK	1
1	8501A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	9533T38	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	3
3	71191	弯头泄放软管(45)	ELBOW BLEED HOSE (45)	2
3	15133	接头	FITTING	2
4	6058078	泄放软管(12-1/4英寸)	HOSE BLEED (12-1/4")	2
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
5	88929	化油器螺柱	STUD CARBURETOR	2
5	429173	螺柱	STUD	2
6	40001209	螺丝(M10 x 60)	SCREW (M10 x 60)	6
7	92331	排气歧管衬垫	GASKET EXHAUST MANIFOLD	1
7	892158	排气歧管衬垫	GASKET Exhaust Manifold	1
8	92329	排气歧管	MANIFOLD Exhaust	1
9	92332	排气盖衬垫	GASKET EXHAUST COVER	1
9	414991	衬垫	GASKET	1
10	92330	排气盖	COVER EXHAUST	1
10	92330T	盖板	COVER	1
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	10
12	92349	换气口盖	COVER TRANSFER PORT	2
12	144071	盖板	COVER	2
13	30503	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
13	822370	O型圈 (2.362×.103)	O-RING (2.362 x .103)	2
14	40057107	螺钉(M5×16)	SCREW (M5 x 16)	4
15	7415	气缸体盖	COVER CYLINDER BLOCK	1
15	8283A1	盖总成	COVER ASEMBLY	1
15	8283A1	气缸体盖总成	COVER ASEMBLY CYLINDER BLOCK	1
16	4000331	螺丝 (M6×30) 盖固定	SCREW (M6 x 30) COVER ATTACHING	6
16	4000330	螺钉(M6x25)盖固定	SCREW (M6 x 25) COVER ATTACHING	6
16	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	6
17	86389	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
18	25885	示警软管弯头	ELBOW TELL TALE HOSE	1
18	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
19	34395A1	指示软管(8英寸)	HOSE TELL TAL (8")	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	94848	示警软管接头 - 下罩	FITTING TELL TALE HOSE - BOTTOM COWL	1
21	92351	换气口盖	COVER TRANSFER PORT	2
21	14406	盖板	COVER	2
22	86391	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
23	40057107	螺钉(M5×16)	SCREW (M5 x 16)	6
24	92350	换气口盖	COVER TRANSFER PORT	2
25	33465	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
25	8M0214925	O型圈	O RING	2
26	40057107	螺钉(M5×16)	SCREW (M5 x 16)	4
27	90786	簧片阀组	REED BLOCK	1
27	14112T	簧片阀组	REED BLOCK	1
28	85977		SEAL Rubber REED BLOCK	1
28	85977002	密封件	SEAL	1
29	85978	簧片阀衬垫	GASKET REED BLOCK	1
29	414172	衬垫	GASKET	1
30	90791	簧片	REED	2
30	816806	簧片	REED	2
31	89793	簧片止挡	STOP Reed	2
31	897931	簧片止挡	STOP Reed	2
32	4005785	螺丝 (M4×10) 簧片固定	SCREW (M4 x 10) REED ATTACHING	4
33	85979	适配板垫片	GASKET ADAPTOR PLATE	1
33	414181	衬垫	GASKET	1
34	90785	化油器适配板	PLATE ADAPTOR - CARBURETOR	1
35	40057108	螺丝 (M5×20) 板至簧片座	SCREW (M5 x 20) PLATE TO REED BLOCK	3
35	40019108	螺钉（M5×20）	SCREW (M5 x 20)	3
36	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
37	56759	适配板倒刺接头 - 泄油软管	FITTING Barbed ADAPTOR PLATE - BLEED HOSE	2
38	93879	怠速线	IDLE WIRE	1
39	97176	阻风门弹簧	SPRING CHOKE	1
40	93877	阻风门/快怠速杠杆	LEVER CHOKE/FAST IDLE	1
40	42545	杠杆	LEVER	1
41	89580	调节螺丝-杠杆	SCREW ADJUSTING - LEVER	1
41	91073	螺钉	SCREW	1
41	91073	调节螺丝-杠杆	SCREW ADJUSTING - LEVER	1
42	48039	调节螺钉帽	CAP ADJUSTING SCREW	1
43	89602	驱动板	PLATE DRIVER	1
43	43220A1	杠杆总成	LEVER ASSY	1
43	96151A1	驱动板总成	PLATE ASSEMBLY DRIVER	1
43	43220A1	杠杆总成	LEVER ASSY	1
44	90798	阻风门/快怠速杠杆衬套	BUSHING CHOKE/FAST IDLE LEVER	2
44	26856	衬套	BUSHING	2
45	28463	阻风门/快怠速杠杆垫圈	WASHER CHOKE/FAST IDLE LEVER	1
46	93500	阻风门/快怠速杠杆开口销	COTTER PIN CHOKE/FAST IDLE LEVER	1
-	85168A80	衬垫套件	GASKET SET	1

图 33驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	92165A4	隔板总成	PLATE ASSEMBLY	1
1	99702A3	适配板总成	ADAPTOR PLATE ASSEMBLY	1
2	85162	水管壳体	HOUSING WATER TUBE	1
2	96248A1	壳体总成	HOUSING ASSEMBLY	1
3	36390	水管壳体O型圈	O-RING WATER TUBE HOUSING	1
4	85164	水管密封件	SEAL WATER TUBE	1
2	96248A1	水管壳体总成	HOUSING ASSEMBLY WATER TUBE	1
5	25329	水管密封件	SEAL WATER TUBE	1
6	96247	水管隔套	SPACER WATER TUBE	1
6	889715	水管隔套	SPACER Water Tube	1
7	400035	螺钉 (M5 x 16) 壳体至适配板	SCREW (M5 x 16) HOUSING TO ADAPTOR PLATE	2
8	85111	适配板垫片	GASKET ADAPTOR PLATE	1
8	41670006	适配板垫片	GASKET Adaptor Plate	1
9	87357	适配板密封件	SEAL Adaptor Plate	1
9	158662	密封件	SEAL	1
10	7904A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
10	8747A1	壳体总成	HOUSING ASSEMBLY	1
10	7906A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
10	8749A1	壳体总成	HOUSING ASSEMBLY	1
10	8747A1	壳体总成	HOUSING ASSEMBLY	1
10	8749A1	壳体总成	HOUSING ASSEMBLY	1
11	85109	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
11	96286	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
11	433374	驱动轴壳体垫片	GASKET Drive Shaft Housing	1
12	400035	螺钉(M5 x 16)驱动轴壳体至板	SCREW (M5 x 16) DRIVESHAFT HOUSING TO PLATE	2
13	4000360	螺钉驱动轴壳体至板(60MM)	SCREW DRIVESHAFT HOUSING TO PLATE (60MM)	6
13	1993870	螺钉(M8 x 70)	SCREW (M8 x 70)	6
14	4002317	垫圈(8.90 X 17.0 X 1.9SS)驱动轴壳体螺钉	WASHER (8.90 X 17.0 X 1.9SS) DRIVESHAFT HOUSING SCREW	6
15	85116	水管	TUBE Water	1
15	86292	水管	TUBE Water	1
-	85168A80	衬垫套件	GASKET SET	1

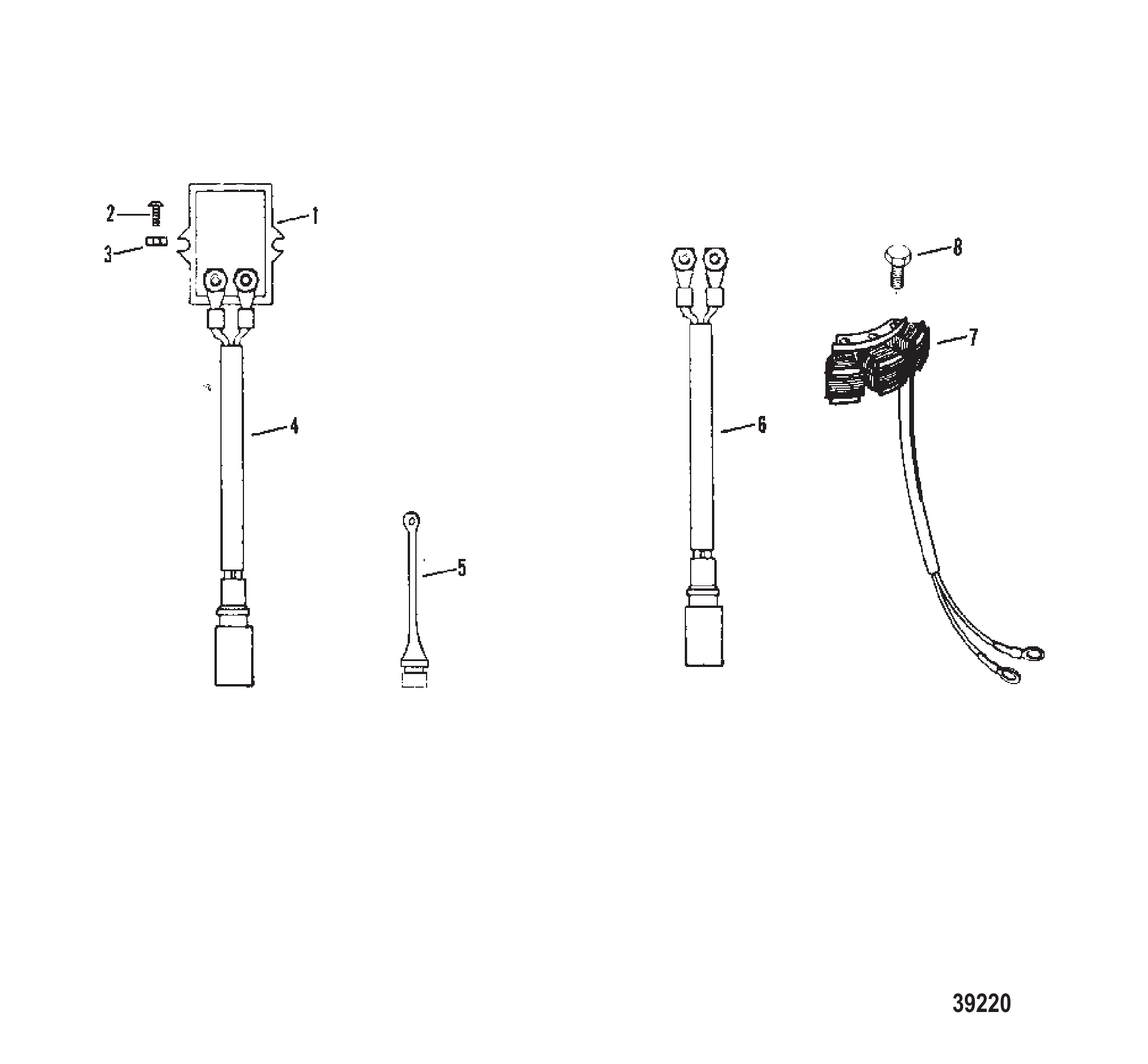

图 34电气组件（比利时发动机） ELECTRICAL COMPONENTS (BELGIUM ENGINES)

REF	零件编号	中文名称	英文名称	数量
1	95845	电压调节器	REGULATOR Voltage	1
1	95845T	电压调节器	REGULATOR-VOLTAGE	1
2	74841	螺钉	SCREW	2
3	45076	螺母(#10-32)黄铜电压调节器端子	NUT (#10-32) Brass VOLTAGE REGULATOR TERMINAL	2
4	74725A2	电压调节器线束总成(黑/红)	HARNESS ASSEMBLY VOLTAGE REGULATOR (BLACK/RED)	1
5	71663	线束插头	PLUG HARNESS	1
6	65017A2	照明线束总成(外部)	HARNESS ASSEMBLY LIGHTING (EXTERNAL)	1
7	86704A2	定子总成	STATOR ASSEMBLY	1
7	86704A10	辅助定子	STATOR Auxiliary	1
8	4000123	螺钉(M5 x 30)定子固定	SCREW (M5 x 30) STATOR ATTACHING	3

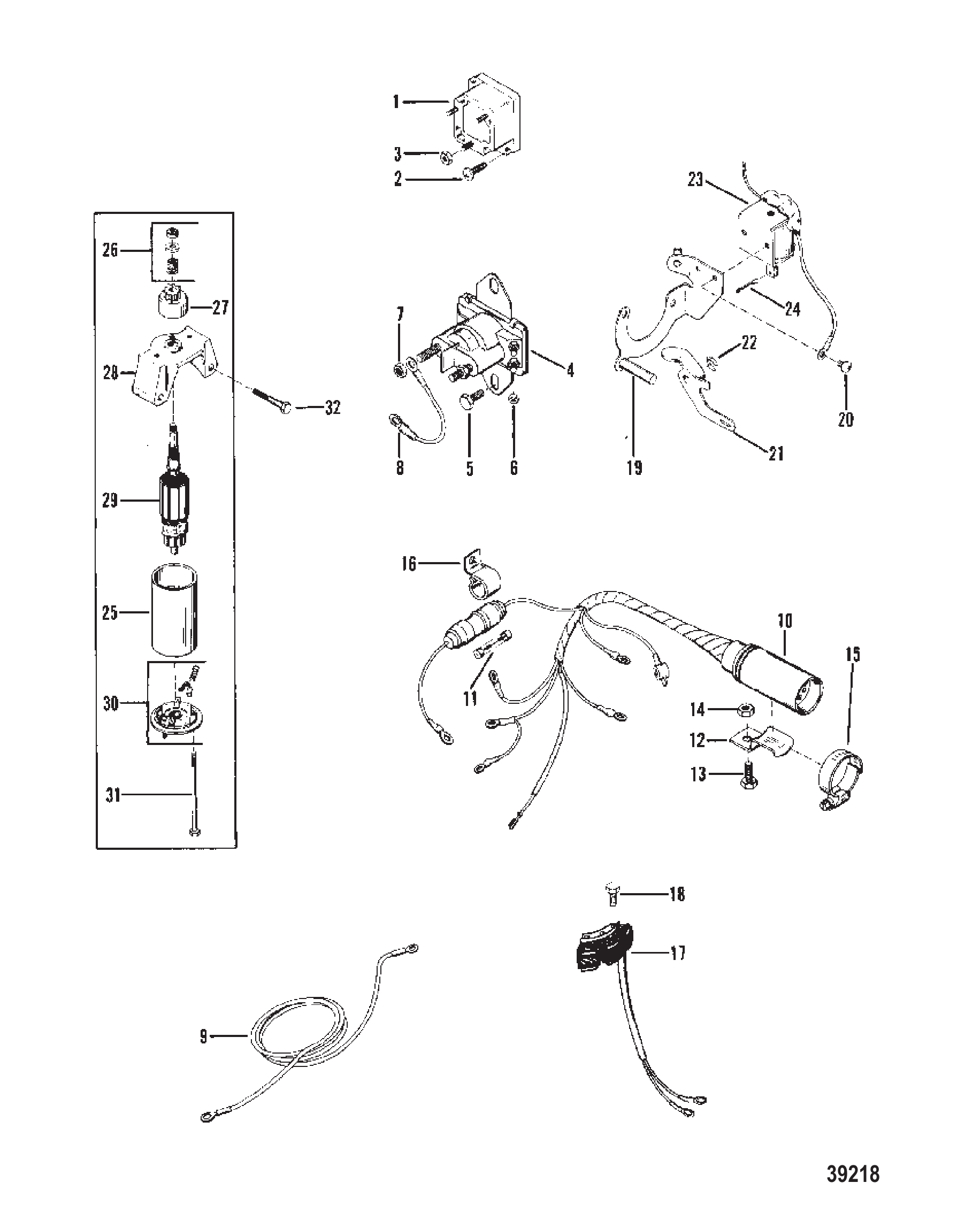

图 35电气组件（电动） ELECTRIC COMPONENTS (ELECTRIC)

REF	零件编号	中文名称	英文名称	数量
1	62351A2	整流器总成	RECTIFIER ASSEMBLY	1
1	8M0058226	整流器	RECTIFIER	1
2	48409	螺丝(#10-16 x .625)不锈钢整流器至气缸体	SCREW (#10-16 x .625) Stainless Steel RECTIFIER TO CYLINDER BLOCK	2
3	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
4	91975	启动电磁阀	SOLENOID Starter	1
4	8M0185149	启动电磁阀	SOLENOID START	1
5	4000168	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
5	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
6	26419	螺母(#8-32)黄铜启动电磁阀端子(10-32)	NUT (#8-32) Brass STARTER SOLENOID TERMINAL (10-32)	2
7	64015	螺母(.250-20)启动电磁阀端子(1/4-20)	NUT (.250-20) STARTER SOLENOID TERMINAL (1/4-20)	2
8	88809A5	黄色电线总成	WIRE ASSEMBLY YELLOW	1
9	88439A8	红色电池电缆总成	CABLE ASSEMBLY Battery RED	1
9	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
9	88439A6	黑色电池电缆总成	CABLE ASSEMBLY Battery BLACK	1
9	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
10	92436A3	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
10	92436A5	线束总成	HARNESS ASSEMBLY	1
11	95085	保险丝	FUSE	1
12	92439	线束支架	BRACKET WIRING HARNESS	1
13	4000327	螺丝(M6 x 14)支架	SCREW (M6 x 14) BRACKET	1
14	400212	螺母(M6)不锈钢支架螺丝	NUT (M6) Stainless Steel BRACKET SCREW	1
15	32779	线束夹	CLAMP WIRING HARNESS	1
15	815504310	蜗杆卡箍	CLAMP Worm Gear	1
16	55098	J型线束夹	J CLIP WIRING HARNESS	1
16	8M0024808	J型夹	J-CLIP	1
17	86704A2	辅助定子总成	STATOR ASSEMBLY AUXILIARY	1
17	86704A10	辅助定子	STATOR Auxiliary	1
18	4000123	螺钉(M5 x 30)定子固定	SCREW (M5 x 30) STATOR ATTACHING	3
19	94301A1	阻风门旋钮板总成	PLATE ASSEMBLY CHOKE KNOB	1
20	95088	板至电磁阀螺丝	SCREW PLATE TO SOLENOID	2
21	95020	阻风门杠杆	LEVER CHOKE	1
22	95019	阻风门杠杆至板固定环	RING Retaining CHOKE LEVER TO PLATE	1
23	94973A3	电磁阀总成	SOLENOID ASSEMBLY	1
24	21071	阻风门杠杆至电磁阀开口销	COTTER PIN CHOKE LEVER TO SOLENOID	1
24	210711	开口销	COTTER PIN	1
25	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
25	8M0033984	启动马达	STARTER MOTOR	1
26	96561	驱动套件	DRIVE KIT	1
27	96562	驱动器	DRIVE	1
28	96563	端盖	END CAP	1
28	96563T	端盖	END CAP	1
29	96565	电枢	ARMATURE	1
30	96564	带弹簧和电刷的换向器端盖	END CAP COMMUTATOR W/SPRINGS AND BRUSHES	1
30	96564T	端盖	END CAP	1
31	96566	贯穿螺栓	THRU BOLT	1
32	40001149	螺丝(M8 x 50)启动马达固定	SCREW (M8 x 50) STARTER MOTOR ATTACHING	2
32	4000358	螺钉(M8 x 50)	SCREW (M8 x 50)	2

图 36燃油滤清器总成 FUEL FILTER ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	管路(57.00英寸散装)滤清器至化油器	LINE (57.00 Inches Bulk) FILTER TO CARBRETOR	1
5	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接套件	CONNECTOR KIT Fuel	1
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	1
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1

图 37齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	8157A7	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8157A8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
1	8157A6	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
2	98488	进水口滤网	SCREEN WATER INLET	1
2	98487	进水口滤网	SCREEN WATER INLET	1
3	40031112	螺钉(M5 x 40)滤网至齿轮箱	SCREW (M5 x 40) SCREEN TO GEAR HOUSING	1
4	400263	螺母(M5)滤网螺钉	NUT (M5) SCREEN SCREW	1
5	85559	滚柱轴承下(见备注)	BEARING Roller LOWER (SEE NOTE)	1
6	85092	上滚动轴承套	SLEEVE UPPER ROLLING BEARING	1
7	85558	滚柱轴承上	BEARING Roller UPPER	1
8	33467	齿轮箱油封	SEAL Oil GEAR HOUSING	2
8	897154	油封@3	SEAL-OIL @3	2
9	98084	驱动轴	DRIVESHAFT	1
9	98085	驱动轴	DRIVESHAFT	1
10	94056	止推垫圈-驱动轴	WASHER THRUST - DRIVESHAFT	AR
10	96524	止推垫圈-传动轴-见备注	WASHER THRUST - DRIVESHAFT - SEE NOTE	AR
10	98861A1	衬套套装	BUSHING KIT	AR
11	85560	推力轴承-传动轴(见备注)	BEARING Thrust DRIVESHAFT (SEE NOTE)	1
12	85132	小齿轮	GEAR Pinion	1
13	67892		SCREW Magnetic DRAIN	1
13	8M0058389	放油螺钉套件	SCREW KIT Drain	1
14	20260	放油/注油螺丝垫圈	WASHER DRAIN AND FILLER SCREW	2
14	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
15	79953		SCREW (.375-16 x .250) GREASE FILLER	1
15	79953Q04	放油螺钉套件	SCREW KIT Drain	1
16	85562A1	换档凸轮总成	CAM ASSEMBLY SHIFT	1
17	85096	换档凸轮驱动销	PIN Drive SHIFT CAM	1
18	85593	换档轴销(.078 x .437)	PIN (.078 x .437) SHIFT SHAFT	1
19	29245	不锈钢换档轴垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT	1
19	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
20	93007	换档轴弹簧	SPRING SHIFT SHAFT	1
21	85091	换档轴垫圈	WASHER SHIFT SHAFT	1
22	85594	换档轴O型圈(.239 x .174)	O-RING (.239 x .174) SHIFT SHAFT	1
23	20365	换档轴固定环O型圈	O-RING SHIFT SHAFT RETAINER	1
23	35276	O型圈(.734 x .139)	O-RING (.734 x .139)	1
24	93878	换档轴固定环	RETAINER SHIFT SHAFT	1
25	85552	换档轴防尘罩	BOOT SHIFT SHAFT	1
25	85552001	护套	BOOT	1
26	85126	换档轴	SHIFT SHAFT	1
26	86293	换档轴	SHIFT SHAFT	1
27	29245	不锈钢换档轴上垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT - UPPER	1
27	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
28	85087	水泵衬垫	GASKET WATER PUMP	1
28	993261	衬垫	GASKET	1
29	85083	面板	FACE PLATE	1
30	86645	叶轮垫圈	WASHER IMPELLER	2
30	8M0204722	垫圈	WASHER	2
31	85119	叶轮驱动键	KEY IMPELLER DRIVE	1
31	8M0214993	键@5	KEY @5	1
32	85089	叶轮	IMPELLER	1
32	8M0204712	叶轮	IMPELLER	1
33	69202	水泵O型圈	O-RING WATER PUMP	1
34	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
34	99157T2	水泵套件	PUMP KIT Water	1
35	400035	水泵至齿轮箱螺丝(M5 x 16)	SCREW (M5 x 16) WATER PUMP TO GEAR HOUSING	4
36	89302	水泵螺丝垫圈(.203 x .406 x .040)	WASHER (.203 x .406 x .040) WATER PUMP SCREW	4
37	85095	水泵螺丝衬套	BUSHING WATER PUMP SCREW	4
37	8M0214959	衬套@5	BUSHING @5	4
38	85090	水管密封件	SEAL WATER TUBE	1
38	85090001	密封件	SEAL	1
39	86203	橡胶传动轴O型圈	O-RING DRIVE SHAFT - RUBBER	1
-	85168A80	衬垫套件	GASKET SET	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
-	99157T2	水泵套件	PUMP KIT Water	1
-	85090A1	水泵密封套件	SEAL KIT Water Pump	1

图 38齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	8157A7	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8157A8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
1	8157A6	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
40	94286	平衡鳍板	TRIM TAB	1
40	94286T1	平衡鳍板	TRIM TAB	1
41	4000352	平衡片螺丝(M8 x 20)	SCREW (M8 x 20) TRIM TAB	1
42	85169	平衡片螺丝锁紧垫圈	TAB WASHER TRIM TAB SCREW	1
43	85555A1	圆锥滚子轴承总成	BEARING ASSEMBLY Roller TAPERED	1
44	85135A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
45	85557	前进齿轮衬套	BUSHING FORWARD GEAR	1
46	85094	凸轮从动件	FOLLOWER Cam	1
47	38114	十字销固定弹簧	SPRING RETAINING - CROSS PIN	1
48	85133	滑动离合器	CLUTCH SLIDING	1
49	85093	离合器至螺旋桨轴销	PIN CLUTCH TO PROPELLER SHAFT	1
49	8M0020999	十字销	PIN CROSS	1
50	88680	螺旋桨轴压缩弹簧	SPRING COMPRESSION - PROPELLER SHAFT	1
51	85134	螺旋桨轴	PROPELLER SHAFT	1
51	8166231	螺旋桨轴	PROPELLER SHAFT	1
52	85131	倒挡齿轮	GEAR Reverse	1
52	99542A1	倒档齿轮	REVERSE GEAR	1
53	85136A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	99906T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
54	21739	滚柱轴承	BEARING Roller	1
55	98283	轴承座油封	SEAL Oil BEARING CARRIER	1
56	85549	轴承座O型圈	O-RING BEARING CARRIER	1
57	87293	齿轮箱盖板	PLATE GEAR HOUSING	1
58	91909	齿轮箱盖板螺丝(16MM)	SCREW COVER TO GEAR HOUSING (16MM)	3
58	90883	螺钉(M5×16)	SCREW (M5 x 16)	3
59	85128A1	螺旋桨推力毂总成	THRUST HUB ASSEMBLY PROPELLER	1
59	858498	推力毂总成	THRUST HUB ASSEMBLY	1
60	86848A4	螺旋桨总成	PROPELLER ASSEMBLY	1
60	19640A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	1
61	88228	螺旋桨螺母	PROP NUT	1
62	4000353	齿轮箱螺丝(M8 x 25)	SCREW (M8 x 25) GEAR HOUSING	4
63	4002317	齿轮箱螺丝垫圈(8.90 X 17.0 X 1.9SS)	WASHER (8.90 X 17.0 X 1.9SS) GEAR HOUSING SCREW	4
-	85168A80	衬垫套件	GASKET SET	1
-	85090A1	水泵密封套件	SEAL KIT Water Pump	1

图 39点火组件 IGNITION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	86617A13	定子总成	STATOR ASSEMBLY	1
1	86617A20	定子总成	STATOR ASSEMBLY	1
2	4000120	螺丝(M5 x 25)	SCREW (M5 x 25)	2
3	400015	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
3	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	1
4	98450A5	触发器总成	TRIGGER ASSEMBLY	1
4	98450A10	触发器总成	TRIGGER ASSEMBLY	1
5	11100	卡扣	CLIP	1
6	7452A15	开关盒总成	SWITCHBOX ASSEMBLY	1
6	7452A19	开关盒总成	SWITCHBOX ASSEMBLY	1
7	40019108	螺钉（M5×20）	SCREW (M5 x 20)	3
8	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
9	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	2
9	8M0230859	点火线圈总成	COIL IGNITION ASY	2
10	40112	螺钉（M6 x 45）	SCREW (M6 x 45)	2
11	88173	锁紧垫圈	TAB WASHER	2
12	88171	线圈衬套	BUSHING COIL	2
13	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
14	813715A2	高压电缆组（5和8.25英寸）	CABLE SET High Tension (5 and 8.25 Inch)	1
15	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
16	14814568	火花塞(NKG BPZ8HS-15)	SPARK PLUG (NKG #BPZ8HS-15)	2
16	19424	火花塞 (NGK#BP8HS-15)	SPARK PLUG (NGK#BP8HS-15)	2
16	8M0114746	SP BP8HS-15 @4	SP BP8HS-15 @4	2
17	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
17	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
18	86704A2	定子总成	STATOR ASSEMBLY	1
18	86704A10	辅助定子	STATOR Auxiliary	1
19	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3
20	63813	端子排	TERMINAL BLOCK	1
20	638131	端子排	TERMINAL BLOCK	1
21	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
22	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2

图 40杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

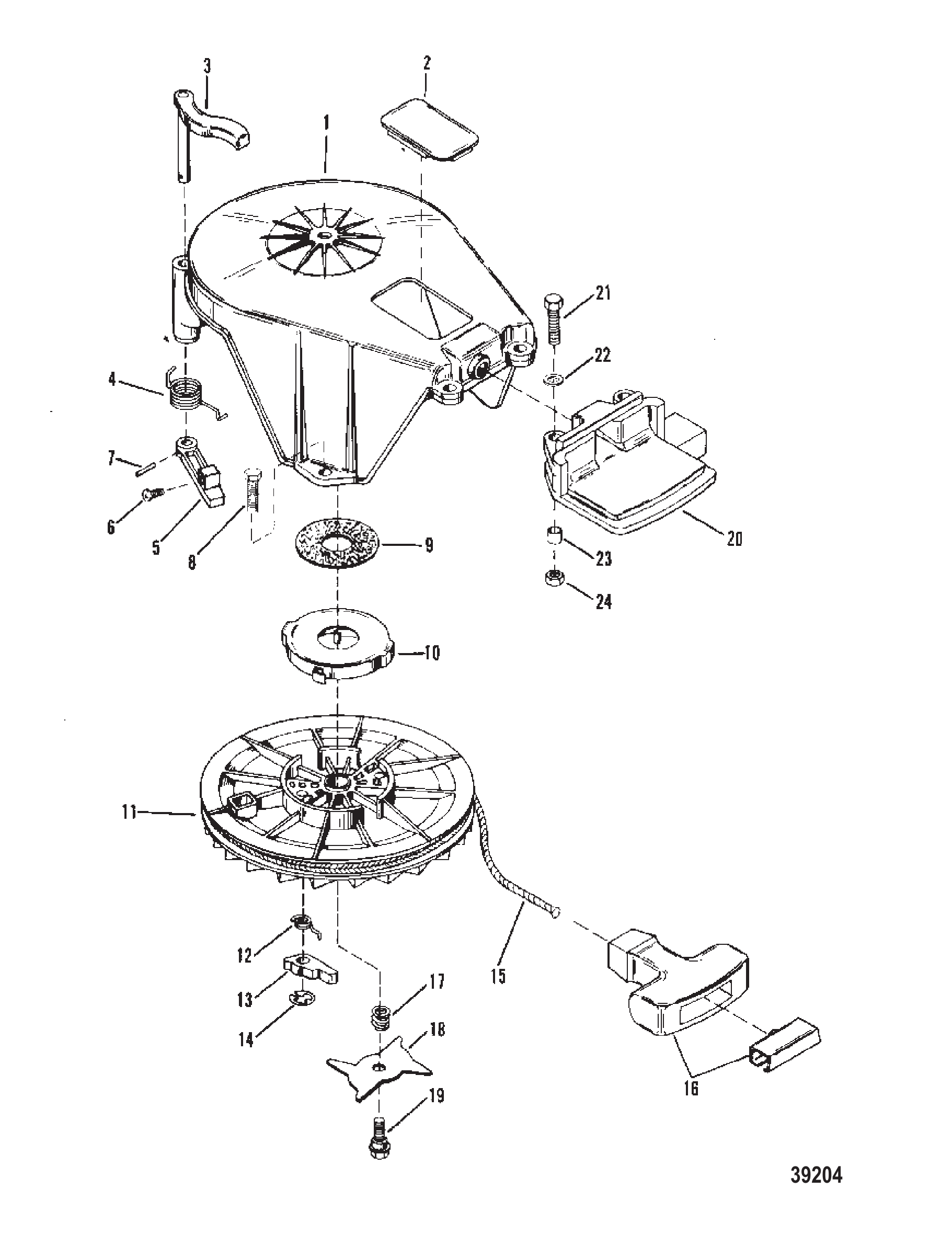

图 41启动器总成（手动） STARTER ASSEMBLY MANUAL

REF	零件编号	中文名称	英文名称	数量
1	90906	启动器外壳	HOUSING STARTER	1
1	86689A5	启动器壳体总成	HOUSING ASSEMBLY Starter	1
2	86971	启动器外壳盖	COVER STARTER HOUSING	1
3	94019	锁杆 (上)	LEVER LOCK (UPPER)	1
3	858925	锁止杆	LEVER Lock	1
4	89542	上锁杆弹簧	SPRING UPPER LOCK LEVER	1
4	12734	弹簧	SPRING	1
5	93876	锁杆 (下)	LEVER LOCK (LOWER)	1
5	93876T02	杠杆	LEVER	1
6	61802	下锁杆螺丝	SCREW LOWER LOCK LEVER	1
7	38489	锁杆滚销	PIN Roll LOCK LEVER	1
8	4000174	启动器外壳固定螺丝(M6 x 20)	SCREW (M6 x 20) STARTER HOUSING ATTACHING	2
8	8M0206596	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
8	4000183	启动器外壳固定螺丝(M6 x 35)	SCREW (M6 x 35) STARTER HOUSING ATTACHING	1
9	90478		PAD FELT	1
9	833161T	毛毡垫	PAD-FELT	1
10	86857	启动器弹簧	SPRING STARTER	1
10	86857T01	弹簧	SPRING	1
11	98443	启动器滑轮	SHEAVE STARTER	1
11	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
12	86851	凸轮弹簧	SPRING CAM	2
12	86851T02	弹簧 @2	SPRING @2	2
13	86850	凸轮	CAM	2
13	868501	凸轮	CAM	2
14	86849	凸轮挡圈	RING Retaining CAM	2
14	86849T01	环 @2	RING @2	2
15	86855	启动绳	ROPE STARTER	1
15	12066Q10	启动绳@2	ROPE-STARTER@2	1
16	85174A1	启动绳手柄总成	HANDLE ASSEMBLY STARTER ROPE	1
17	86852	凸轮弹簧	SPRING CAM	1
17	868523	弹簧	SPRING	1
18	86853	凸轮	CAM	1
18	86853T01	凸轮	CAM	1
19	97516	凸轮至启动器皮带轮螺丝	SCREW CAM TO STARTER SHEAVE	1
19	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
20	90902	启动手柄支架	SUPPORT STARTER HANDLE	1
20	426264	支架	SUPPORT	1
21	40057111	支架固定螺丝（35mm）	SCREW SUPPORT TO STARTER HOUSING (35MM)	2
21	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
22	4002213	支架螺丝垫圈	WASHER SUPPORT SCREW	4
22	4002313	垫圈	WASHER	4
23	30977	支架螺丝隔套	SPACER SUPPORT SCREW	4
23	309772	隔套	SPACER	4
24	400633	支架螺丝螺母（M5）	NUT (M5) SUPPORT SCREW	2
24	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2

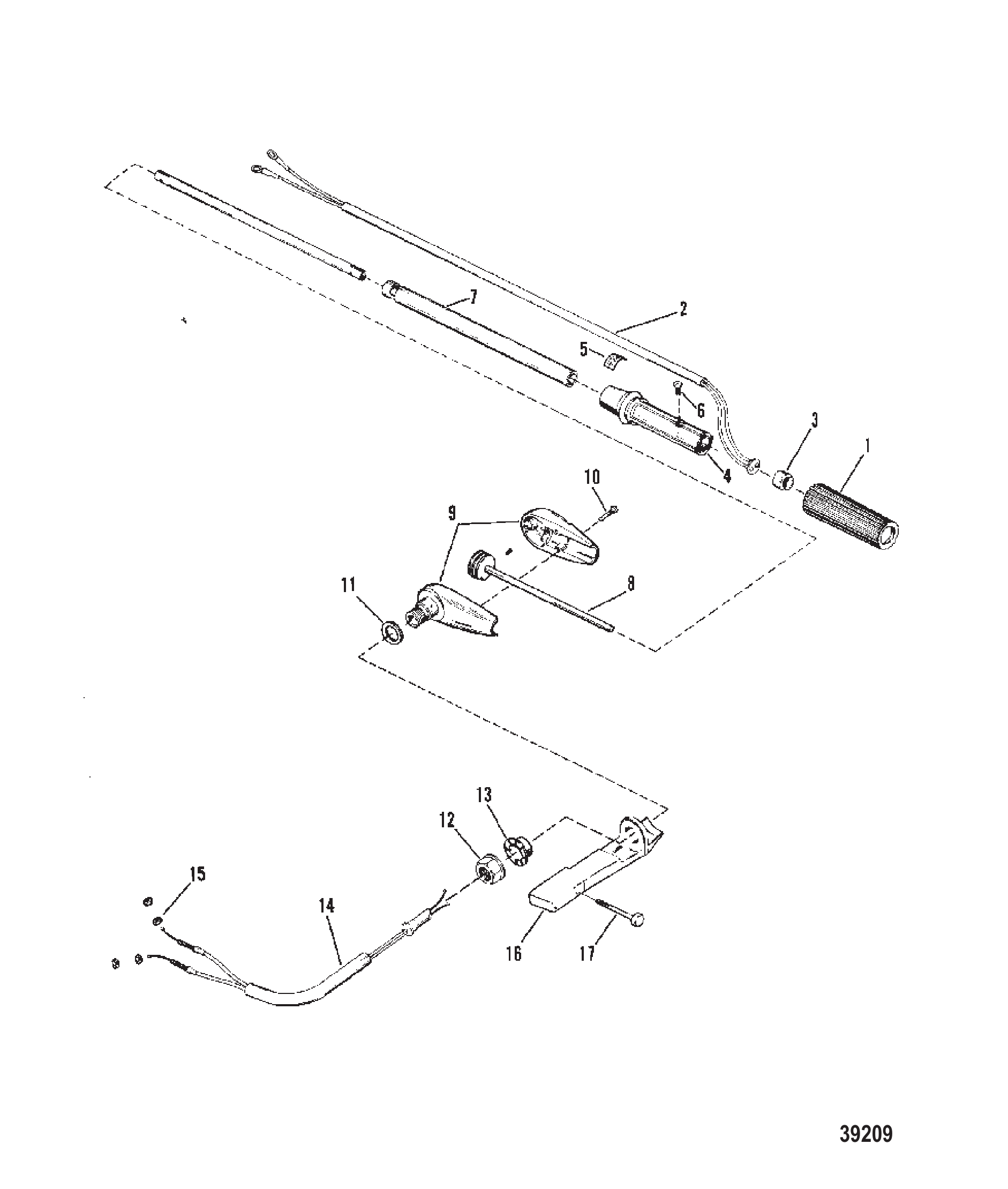

图 42转向手柄总成（手动） STEERING HANDLE ASSEMBLY (MANUAL)

REF	零件编号	中文名称	英文名称	数量
-	94185A3	转向手柄总成（25马力二冲程）	HANDLE ASSEMBLY Steering (25 Hp 2-Stroke)	1
-	94185A16	转向手柄	STEERING HANDLE	1
1	92770	橡胶握把	GRIP RUBBER	1
1	8M0221732	外握把	GRIP OUTER	1
2	89591A2	停机开关线束总成	HARNESS ASSEMBLY STOP SWITCH	1
2	89591A5	线束总成	HARNESS ASSEMBLY	1
3	55741A1	护套总成	BOOT ASSEMBLY	1
3	11099A1	护套总成	BOOT ASSEMBLY	1
4	96495A1	油门手柄总成	HANDLE ASSEMBLY THROTTLE	1
4	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
5	90385	油门手柄贴花	DECAL THROTTLE HANDLE	1
5	13239	贴花	DECAL	1
6	62568	油门手柄螺丝（#10-16 x 0.375）	SCREW (#10-16 x .375) THROTTLE HANDLE	1
7	99333A2	转向管总成	TUBE ASSEMBLY STEERING	1
8	97548A1	管总成	TUBE ASSEMBLY	1
8	975501	管总成	TUBE ASSEMBLY	1
8	41590A1	管总成	TUBE ASSEMBLY	1
8	975501	管总成	TUBE ASSEMBLY	1
9	94185A4	支架总成	BRACKET ASSEMBLY	1
9	44397A6	ORD 43447A 3	ORD 43447A 3	1
10	4005688	支架夹紧螺丝（M4 x 20）	SCREW (M4 x 20) BRACKET CLAMPING	3
11	57860	支架尼龙垫圈	WASHER NYLON - BRACKET	1
12	96787	支架螺母	NUT BRACKET	1
12	859133	螺母(1.00-14)	NUT (1.00-14)	1
13	85973	支架衬套	BUSHING BRACKET	1
14	93937	油门拉线	CABLE THROTTLE	1
14	43242	拉线总成	CABLE ASSEMBLY	1
15	400212	油门拉索不锈钢螺母（M6）	NUT (M6) Stainless Steel THROTTLE CABLE	4
16	96710A1	转向支架总成	BRACKET ASSEMBLY STEERING	1
16	43447A3	转向支架总成	BRACKET ASSEMBLY Steering	1
17	4000384	支架与转轴管螺丝（M10 x 80）	SCREW (M10 x 80) BRACKET TO SWIVEL TUBE	2

图 43旋转支架总成 SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	97544A1	转轴管总成	SWIVEL TUBE ASSEMBLY	1
1	97544A5	水星转轴管总成	SWIVEL TUBE ASSEMBLY Mercury	1
2	87142	上支架螺丝（133mm）	SCREW UPPER MOUNT (133MM)	2
2	125161	螺丝 M8×133	SCREW (M8 x 133)	2
3	85102	上支架	MOUNT UPPER	2
3	14894	支架	MOUNT	2
4	85172	橡胶垫圈(上支架螺丝)	WASHER RUBBER - UPPER MOUNT SCREW	2
5	85106	上部支架螺钉垫圈	WASHER UPPER MOUNT SCREW	2
6	400213	螺母 M8不锈钢(上支架螺丝)	NUT (M8) Stainless Steel UPPER MOUNT SCREW	2
7	85157	倒挡钩杆	ROD REVERSE HOOK	1
8	85173	导向控制板	PLATE PILOT CONTROL	1
9	85104	转轴管垫圈	WASHER SWIVEL TUBE	1
10	8187A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
10	822237A1	转轴支架-黑色	BRKT-SWIVEL-BLK	1
11	74036	润滑脂接头	FITTING Grease	3
11	8M0169589	润滑脂接头	FITTING Grease	3
12	95949	转轴支架衬套	BUSHING SWIVEL BRACKET	2
13	91908	导向控制螺丝	SCREW PILOT CONTROL	1
13	91807	螺钉	SCREW	1
14	96203	导向控制螺丝弹簧	SPRING PILOT CONTROL SCREW	1
15	86993	旋转管O型圈	O-RING SWIVEL TUBE	1
16	85154	转轴管衬套（下部）	BUSHING SWIVEL TUBE (LOWER)	1
17	96045A1	倒挡锁钩总成	HOOK ASSEMBLY REVERSE LOCK	1
17	98830A2	挂钩总成	HOOK ASSEMBLY	1
18	96018	倒挡钩弹簧(左舷)	SPRING REVERSE HOOK - PORT	1
19	97427	右舷倒车挂钩弹簧	SPRING REVERSE HOOK - STARBOARD	1
20	85122	下支架	MOUNT LOWER	2
20	85122001	下支架	MOUNT Lower	2
21	85123	前缓冲垫	BUMPER Front	1
21	85123001	前缓冲垫	BUMPER Front	1
22	92168	下安装盖	COVER LOWER MOUNT	2
22	95068A1	盖板	COVER	2
23	40007155	下支架盖螺丝（55mm）	SCREW LOWER MOUNT COVER (55MM)	1
23	1994360	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
24	4000362	下支架盖螺丝（90mm）	SCREW LOWER MOUNT COVER (90MM)	2
22	95068A1	下安装盖	COVER LOWER MOUNT	1
23	4009259	下支架盖螺丝（60mm）	SCREW LOWER MOUNT COVER (60MM)	1
23	1994360	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
24	4009263	下支架盖螺丝（100mm）	SCREW LOWER MOUNT COVER (100MM)	2
24	19943100	螺丝(M8 x 100)	SCREW (M8 x 100)	2
25	400213	下支架盖螺丝螺母（M8不锈钢）	NUT (M8) Stainless Steel LOWER MOUNT COVER SCREW	3
26	85547	下支架盖（塑料）	COVER LOWER MOUNT (PLASTIC)	1
-	85168A80	衬垫套件	GASKET SET	1

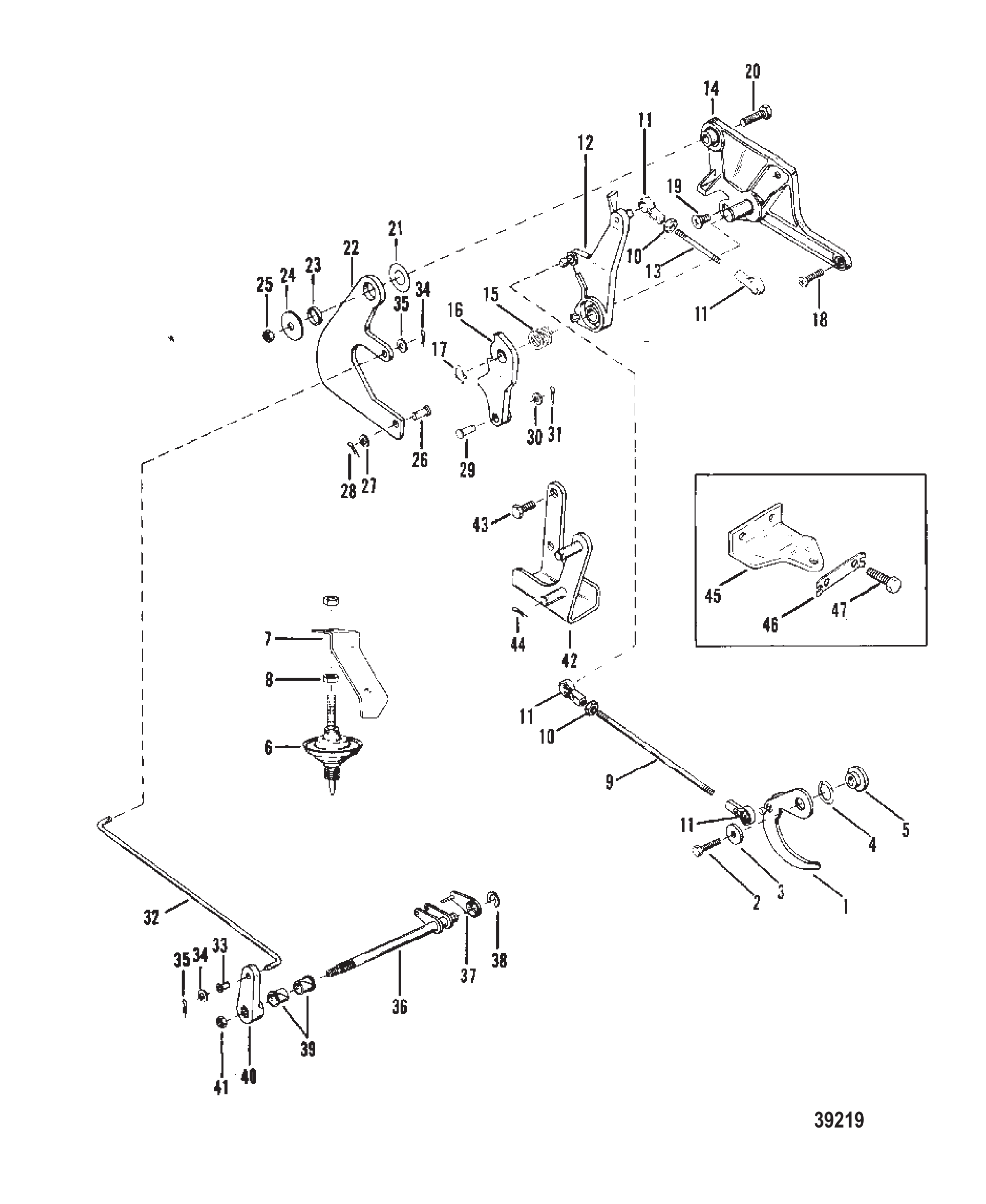

图 44油门和换挡联动装置（电动） THROTTLE AND SHIFT LINKAGE (ELECTRIC)

REF	零件编号	中文名称	英文名称	数量
1	87997A1	节气门凸轮	CAM Throttle	1
1	96096	节气门凸轮	CAM Throttle	1
2	4000114	油门凸轮与曲轴箱螺丝（M5 x 16）	SCREW (M5 x 16) THROTTLE CAM TO CRANKCASE	1
2	400035	螺钉(M5×16)	SCREW (M5 x 16)	1
3	87791	油门凸轮螺丝垫圈	WASHER THROTTLE CAM SCREW	1
4	69150	油门凸轮螺丝波形垫圈	WAVE WASHER THROTTLE CAM SCREW	1
5	86968	油门凸轮螺丝衬套	BUSHING THROTTLE CAM SCREW	1
5	17764A2	节流连杆套件	LINK KIT Throttle	1
6	92425	缓冲器	DASHPOT	1
7	93001	缓冲器支架	BRACKET DASHPOT	1
8	22053	缓冲器端子螺母（0.312-24）	NUT (.312-24) DASHPOT TERMINAL	2
9	98463A1	油门拉杆总成	ROD ASSEMBLY Throttle	1
9	98463A2	油门拉杆总成	ROD ASSEMBLY Throttle	1
10	68219	油门拉杆锁紧螺母（#10-32不锈钢）	NUT (#10-32) Stainless Steel LOCK-THROTTLE ROD	1
11	98465	油门拉杆套筒	SOCKET THROTTLE ROD	2
11	8M0084742	插座	SOCKET	2
12	92730	控制杆	LEVER CONTROL	1
13	98464A1	正时拉杆	TIMING ROD	1
13	817429	正时连杆	TIMING LINK	1
14	95037	控制平台	PLATFOM CONTROL	1
14	44299	平台	PLATFORM	1
15	89540	点火提前弹簧	SPRING SPARK ADVANCE	1
16	95034	作动杆	LEVER ACTUATING	1
17	46250	挡圈	RING Retaining	1
18	40057108	控制平台螺丝（M5 x 20）	SCREW (M5 x 20) CONTROL PLATFORM	2
18	40019108	螺钉（M5×20）	SCREW (M5 x 20)	2
19	40037126	控制平台螺丝（13mm）	SCREW CONTROL PLATFORM (13MM)	1
20	40007128	换挡杆与平台螺丝（M6 x 20）	SCREW (M6 x 20) SHIFT LEVER TO PLATFORM	1
21	95093	换挡杆与平台垫圈	WASHER SHIFT LEVER TO PLATFORM	1
22	95035	换挡杆	LEVER SHIFT	1
23	95091	换挡杆至平台套管	SLEEVE SHIFT LEVER TO PLATFORM	1
24	35280	换挡杆螺钉垫片(0.255x0.620x0.030)不锈钢	WASHER (.255 x .620 x .030) Stainless Steel SHIFT LEVER SCREW	1
25	400634	换挡杆螺钉螺母(M6)	NUT (M6) SHIFT LEVER SCREW	1
25	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	95029	换挡杆销	PIN SHIFT LEVER	1
27	71055	换挡杆销垫片	WASHER SHIFT LEVER PIN	1
28	21071	换挡杆销开口销	COTTER PIN SHIFT LEVER PIN	1
28	210711	开口销	COTTER PIN	1
29	95784	作动杆销	PIN ACTUATING LEVER	1
30	71055	作动杆销垫片	WASHER ACTUATING LEVER PIN	1
31	21071	作动杆销开口销	COTTER PIN ACTUATING LEVER PIN	1
31	210711	开口销	COTTER PIN	1
32	95025	换挡连杆	SHIFT LINK	1
33	96202	换挡连杆尼龙衬套	BUSHING NYLON - SHIFT LINK	1
34	89302	换挡连杆垫片(0.203x0.406x0.040)	WASHER (.203 x .406 x .040) SHIFT LINK	2
35	21071	换挡连杆开口销	COTTER PIN SHIFT LINK	2
35	210711	开口销	COTTER PIN	2
36	95027A1	水平换挡轴总成	SHIFT SHAFT ASSEMBLY HORIZONTAL	1
36	95027A6	换档轴	SHIFT SHAFT	1
37	95023	换挡轴杆	LEVER SHIFT SHAFT	1
38	95019	换挡轴杆固定环	RING Retaining LEVER TO SHIFT SHAFT	1
39	60762	换挡轴衬套	BUSHING SHIFT SHAFT	2
40	95024	换挡轴杆	LEVER SHIFT SHAFT	1
40	17724A1	杠杆总成	LEVER ASSEMBLY	1
41	400633	换挡轴螺母(M5)	NUT (M5) SHIFT SHAFT	1
41	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
42	95033	遥控支架	BRACKET REMOTE CONTROL	1
43	4000168	遥控支架螺钉(M6x14)	SCREW (M6 x 14) REMOTE CONTROL BRACKET	2
43	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
44	21071	遥控拉索开口销	COTTER PIN REMOTE CONTROL CABLES	2
44	210711	开口销	COTTER PIN	2
45	96186A1	安装支架总成	BRACKET ASSEMBLY ATTACHING	1
45	96186A2	支架总成	BRACKET ASSEMBLY	1
46	96201	钥匙带	STRAP Key	1
47	4000376	支架螺钉(M10x25)	SCREW (M10 x 25) BRACKET	2
47	1993325	螺钉(M10x25mm)	SCREW (M10 x 25 mm)	2

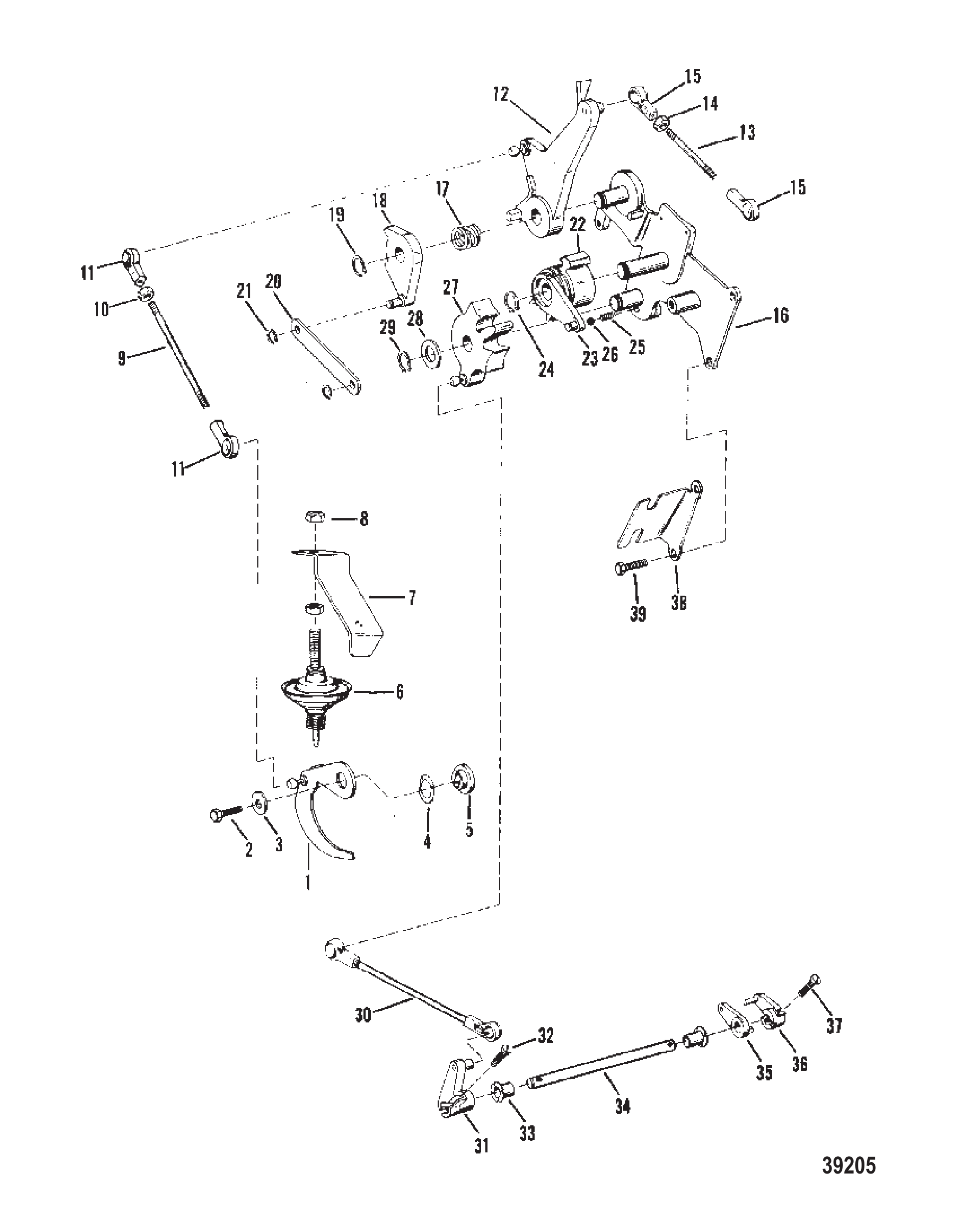

图 45油门和换挡联动装置（手动） THROTTLE AND SHIFT LINKAGE (MANUAL)

REF	零件编号	中文名称	英文名称	数量
1	87997A1	油门凸轮(与BC1A化油器配套使用)	CAM Throttle (USE WITH BC1A CARBURETOR)	1
1	96096	节气门凸轮	CAM Throttle	1
2	4000114	油门凸轮与曲轴箱螺丝（M5 x 16）	SCREW (M5 x 16) THROTTLE CAM TO CRANKCASE	1
2	400035	螺钉(M5×16)	SCREW (M5 x 16)	1
3	87791	油门凸轮螺丝垫圈	WASHER THROTTLE CAM SCREW	1
4	69150	油门凸轮螺丝波形垫圈	WAVE WASHER THROTTLE CAM SCREW	1
5	86968	油门凸轮螺丝衬套	BUSHING THROTTLE CAM SCREW	1
5	17764A2	节流连杆套件	LINK KIT Throttle	1
6	92425	缓冲器	DASHPOT	1
7	93001	缓冲器支架	BRACKET DASHPOT	1
8	22053	缓冲器端子螺母（0.312-24）	NUT (.312-24) DASHPOT TERMINAL	2
9	98463A1	油门拉杆总成	ROD ASSEMBLY Throttle	1
9	98463A2	油门拉杆总成	ROD ASSEMBLY Throttle	1
10	68219	节气门杆锁紧螺母(#10-32)不锈钢	NUT (#10-32) Stainless Steel LOCK - THROTTLE ROD	1
11	98465	油门拉杆套筒	SOCKET THROTTLE ROD	2
11	8M0084742	插座	SOCKET	2
12	92730	控制杆	LEVER CONTROL	1
13	98464A1	正时拉杆	TIMING ROD	1
13	817429	正时连杆	TIMING LINK	1
14	68219	螺母(#10-32)不锈钢锁紧-正时杆	NUT (#10-32) Stainless Steel LOCK - TIMING ROD	1
15	98465	正时杆套筒	SOCKET TIMING ROD	2
15	8M0084742	插座	SOCKET	2
16	93741	控制平台	PLATFORM CONTROL	1
16	12863A1	平台	PLATFORM	1
17	89540	点火提前弹簧	SPRING SPARK ADVANCE	1
18	93779	作动杆	LEVER ACTUATING	1
18	92362A1	杠杆	LEVER	1
19	46250	挡圈	RING Retaining	1
20	86717	节气门/提前连杆	LINK THROTTLE/ADVANCE	1
20	92362A1	杠杆	LEVER	1
21	86731	节气门/提前连杆固定环	RETANINING RING THROTTLE/ADVANCE LINK	2
22	94152	齿轮	GEAR	1
22	94085A1	齿轮	GEAR	1
23	92362	主杆	LEVER PRIMARY	1
23	92362A1	杠杆	LEVER	1
24	46250	主杆与齿轮固定环	RING Retaining PRIMARY LEVER AND GEAR	1
25	93006	定位球弹簧	SPRING DETENT BALL	1
25	8M0215005	弹簧	SPRING	1
26	93008	定位球	BALL DETENT	1
27	94085	换挡机构	GEAR SHIFT	1
27	94085A1	齿轮	GEAR	1
28	49339	换挡齿轮垫片(0.8125)	WASHER (.8125) SHIFT GEAR	1
29	46250	换挡齿轮固定环	RING Retaining SHIFT GEAR	1
30	962552	换挡连杆	SHIFT ROD	1
30	193852	连接杆	LINK	1
31	94084	换挡拉杆	LEVER SHIFT ROD	1
32	4001589	换挡杆	LEVER Shift Rod	1
33	60762	换挡轴衬套	BUSHING SHIFT SHAFT	2
34	87794	水平换挡轴	SHIFT SHAFT HORIZONTAL	1
35	93744	换挡轴杆	LEVER SHIFT SHAFT	1
36	93928	杠杆杆端	LEVER ROD END	1
37	4001588	螺丝(M4 x 20)杆端杠杆	SCREW (M4 x 20) ROD END LEVER	1
38	94186	节气门拉线支架	BRACKET THROTTLE CABLE	1
39	4000171	螺丝(M6 x 16)支架至气缸体	SCREW (M6 x 16) BRACKET TO CYLINDER BLOCK	3
