水星 Mercury 200, 20 ARCHIVE CAT 61797 - 爆炸图零件明细

两冲程化油器 · ARCHIVE CAT 61797 · 共 12 个部位 · 401 条零件

1化油器和阻风门总成 2下罩总成 3电气组件 4油门控制联动装置 5气缸体与曲轴箱总成 6化油器总成 7驱动轴外壳总成 8转向手柄总成 9齿轮箱总成螺旋桨轴 10换挡控制联动装置 11齿轮箱总成驱动轴 12杂项零件/附件

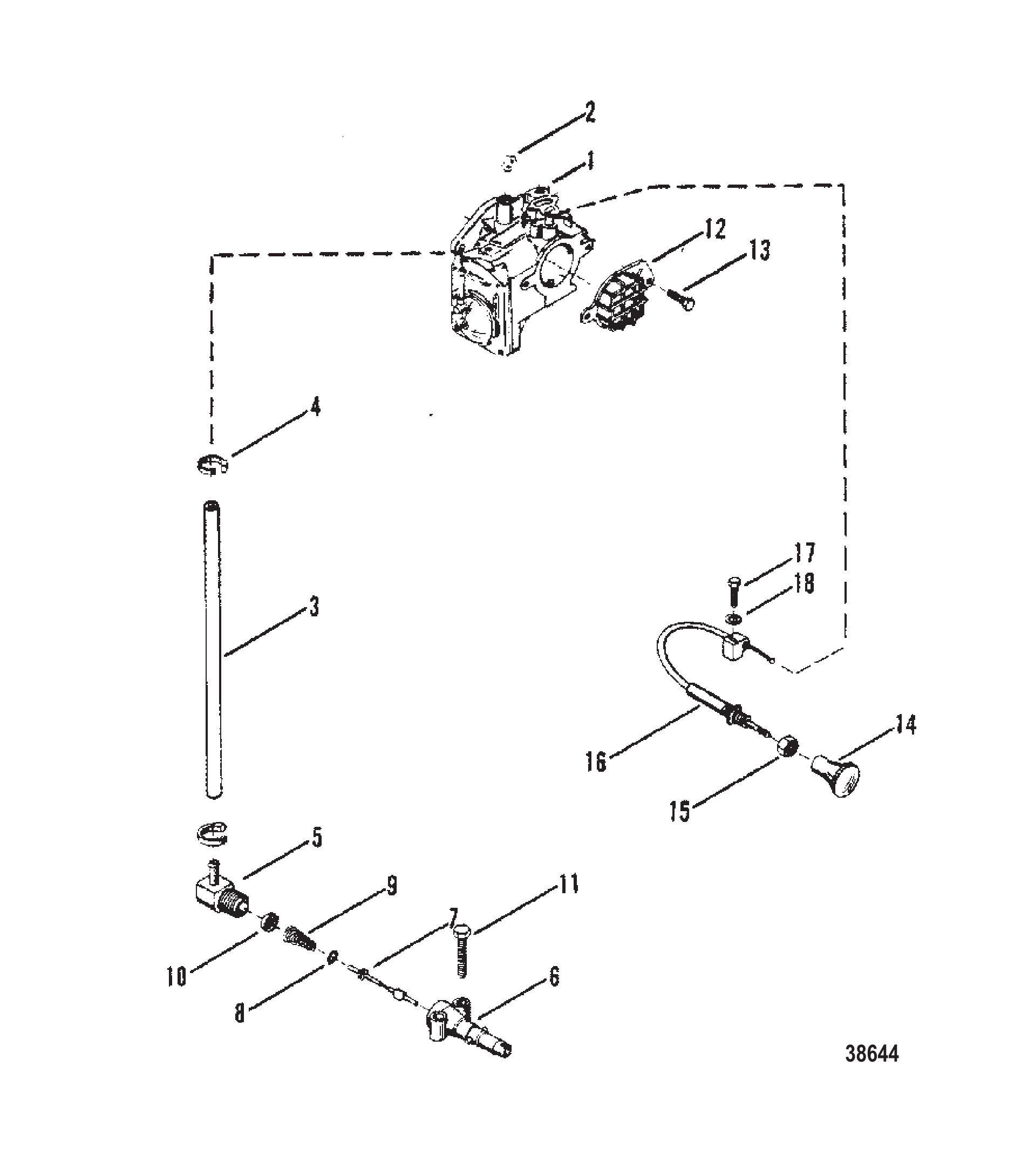

图 1化油器和阻风门总成 CARBURETOR AND CHOKE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7902	化油器总成	CARBURETOR ASSEMBLY	1
1	8783A14	化油器	CARBURETOR	1
1	8783A4	化油器总成	CARBURETOR ASSEMBLY	1
1	8783A14	化油器	CARBURETOR	1
1	7909	化油器总成	CARBURETOR ASSEMBLY	1
1	8782A13	化油器	CARBURETOR	1
1	8782A3	化油器总成	CARBURETOR ASSEMBLY	1
1	8782A13	化油器	CARBURETOR	1
2	24652	化油器安装螺母(.250-28)	NUT (.250-28) CARBURETOR ATTACHING	2
3	99127109	适配器至化油器管路(57英寸散装)	LINE (57.00 Inches Bulk) ADAPTOR TO CARBURETOR	1
3	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
4	68424	燃油管固定夹	CLAMP FUEL LINE ATTACHING	2
5	63981	燃油管转接头	FITTING FUEL LINE TO ADAPTOR	1
6	22833	适配器止回单元(燃油管)	ADAPTER CHECK UNIT (FUEL LINE)	1
7	23069	适配器阀杆止回单元	STEM CHECK UNIT ADAPTOR	1
8	20415	适配器阀杆O型圈	O-RING ADAPTOR STEM	1
8	16524	燃油接头O型圈	O-RING Fuel Connector	1
9	23067	适配器阀杆弹簧	SPRING ADAPTOR STEM	1
9	23067T	弹簧	SPRING	1
10	30188	适配器垫片	WASHER ADAPTOR	1
11	37923	适配器至下罩盖螺钉(.250-28x1.250)	SCREW (.250-28 x 1.250) ADAPTOR TO BOTTOM COWL	1
12	65552	化油器滤网	SCREEN CARBURETOR	1
13	69022	滤网至化油器不锈钢螺钉(#10-32x0.500)	SCREW (#10-32 x .500) Stainless Steel SCREEN TO CARBURETOR	2
14	86381	阻风门旋钮	KNOB CHOKE	1
15	73710	阻风门拉索至下罩盖螺母	NUT CHOKE CABLE TO BOTTOM COWL	1
16	72465	阻风门拉索	CABLE Choke	1
17	45862	阻风门拉索至化油器螺钉(#10-32x0.875)	SCREW (#10-32 x .875) CHOKE CABLE TO CARBURETOR	1
18	34680	阻风门拉索螺钉垫片	WASHER CHOKE CABLE SCREW	1
-	89014A80	衬垫套件	GASKET SET

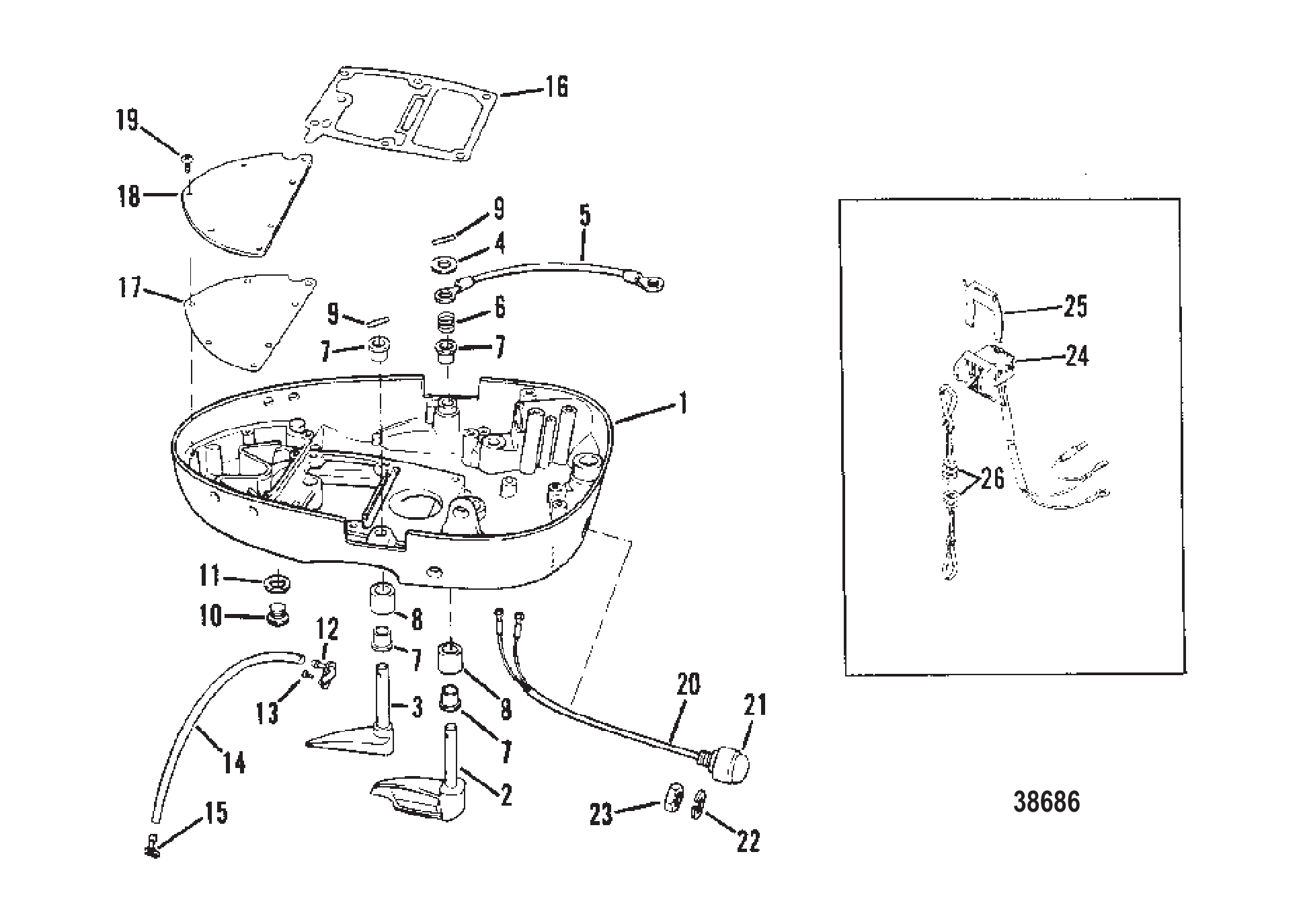

图 2下罩总成 BOTTOM COWL ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7711A4	下机罩	BOTTOM COWL	1
2	36187A1	夹紧杆总成-左舷	LEVER ASSEMBLY CLAMPING - PORT	1
3	36188A1	夹紧杆总成-右舷	LEVER ASSEMBLY CLAMPING - STARBOARD	1
4	55891	夹紧杆紧固件	FASTENER CLAMPING LEVER	2
5	60871A7	接地带总成	STRAP ASSEMBLY Ground	1
6	63399	接地带弹簧	SPRING GROUNG STRAP	1
7	26819	尼龙衬套-夹紧杆	BUSHING NYLON - CLAMPING LEVER	4
8	31293	橡胶衬套-夹紧杆	BUSHING RUBBER - CLAMPING LEVER	2
9	58997	夹紧杆滚柱销(0.164x0.750)	PIN Roll (.164 x .750) CLAMPING LEVER	2
10	79953	下罩盖冲洗孔螺钉(0.375-16x0.250)	SCREW (.375-16 x .250) BOTTOM COWL FLUSHING HOLE	1
10	79953Q04	放油螺钉套件	SCREW KIT Drain	1
11	20260	下罩盖冲洗孔螺钉垫片	WASHER BOTTOM COWL FLUSHING HOLE SCREW	1
11	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
12	56712	示流喷嘴	NOZZLE TELL TALE	1
13	35519	示流喷嘴至下罩盖螺钉(#10-16x0.500)	SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL	1
14	34395A1	示位软管(7-1/4英寸)	HOSE TELL TALE (7-1/4")	1
14	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
15	99664	示位弯头-软管至气缸体	ELBOW TELL TALE - HOSE TO CYLINDER BLOCK	1
15	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
16	89937	衬垫	GASKET	1
17	55847	衬垫	GASKET	1
18	55936	排气减压盖	COVER EXHAUST RELIEF	1
19	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	9
20	69508A31	停机开关总成	SWITCH ASSEMBLY Stop	1
21	99525A1	盖总成	COVER ASSEMBLY	1
22	69845	锁紧垫圈	LOCKWASHER	1
23	69844	停机开关螺母	NUT STOP SWITCH	1
24	11083A9	停机开关总成	SWITCH ASSEMBLY Stop	1
25	12044	挡圈	RETANER	1
25	8M0032846	黄铜固定座	RETAINER Brass	1
26	86352A54	拉绳总成	LANYARD ASSEMBLY	1
26	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
-	78139A80	衬垫套件	GASKET SET	1

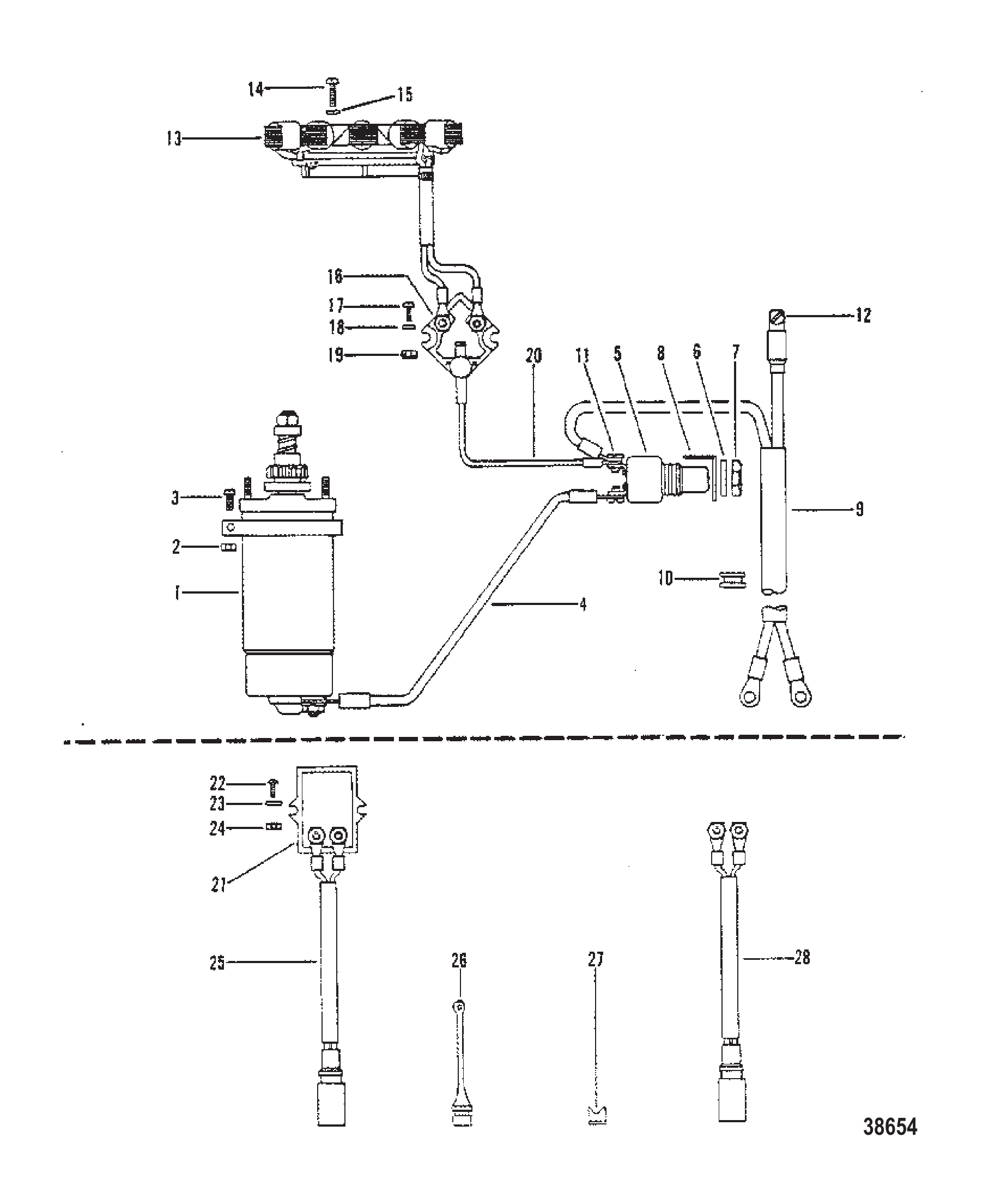

图 3电气组件 ELECTRIC COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	78011	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	55511	螺钉(.312-18 x 1.500)	SCREW (.312-18 x 1.500)	2
3	26993	锁紧垫圈(.312)启动电机螺钉	LOCKWASHER (.312) STARTER MOTOR SCREW	2
3	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
4	76741A1	启动开关线束总成(黄色)	WIRE ASSEMBLY STARTING SWITCH (YELLOW)	1
5	73883	启动开关总成	SWITCH ASSEMBLY Starting	1
6	30516	启动开关垫圈	WASHER STARTING SWITCH	1
7	74394	启动开关螺母	NUT STARTING SWITCH	1
8	74515	启动开关护套	PROTECTOR STARTING SWITCH	1
9	72535A4	蓄电池电缆总成	CABLE ASSEMBLY BATTERY	1
10	86361	蓄电池电缆护圈	GROMMET BATTERY CABLE	1
11	45742	蓄电池电缆固定螺钉(.190-32 x .312)	SCREW (.190-32 x .312) BATTERY CABLE ATTACHING	1
12	98253	蓄电池电缆固定螺钉(.250-20 x .500)	SCREW (.250-20 x .500) BATTERY CABLE ATTACHING	1
13	74367A12	照明定子总成	LIGHTING STATOR ASSEMBLY	1
13	74367A15	定子	STATOR	1
14	73696	照明定子固定螺钉(1-5/8英寸)	SCREW LIGHTING STATOR ATTACHING (1-5/8")	2
15	26996	锁紧垫圈(#10)不锈钢照明定子螺钉	LOCKWASHER (#10) Stainless Steel LIGHTING STATOR SCREW	2
16	62351A2	整流器总成	RECTIFIER ASSEMBLY	1
16	8M0058226	整流器	RECTIFIER	1
17	48408	整流器螺钉(#10-16 x .500)	SCREW (#10-16 x .500) RECTIFIER	2
18	62769	整流器螺钉隔套	SPACER RECTIFIER SCREW	1
19	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINAL	3
20	61393A9	线束总成	WIRE ASSEMBLY	1
21	95845	电压调节器	REGULATOR Voltage	1
21	95845T	电压调节器	REGULATOR-VOLTAGE	1
22	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
23	62769	电压调节器螺钉隔套	SPACER VOLTAGE REGULATOR SCREW	2
24	45076	螺母(#10-32)黄铜电压调节器端子	NUT (#10-32) Brass VOLTAGE REGULATOR TERMINAL	2
25	74725A2	线束总成(黑/红)	HARNESS ASSEMBLY (BLACK/RED)	1
26	71663	线束插头	PLUG HARNESS	1
27	74361	线束至下罩插头	PLUG HARNESS TO BOTTOM COWL	1
28	65017A4	照明线束总成(外部)	HARNESS ASSEMBLY LIGHTING (EXTERNAL)	1
13	74367A12	照明定子总成	LIGHTING STATOR ASSEMBLY	1
13	74367A15	定子	STATOR	1

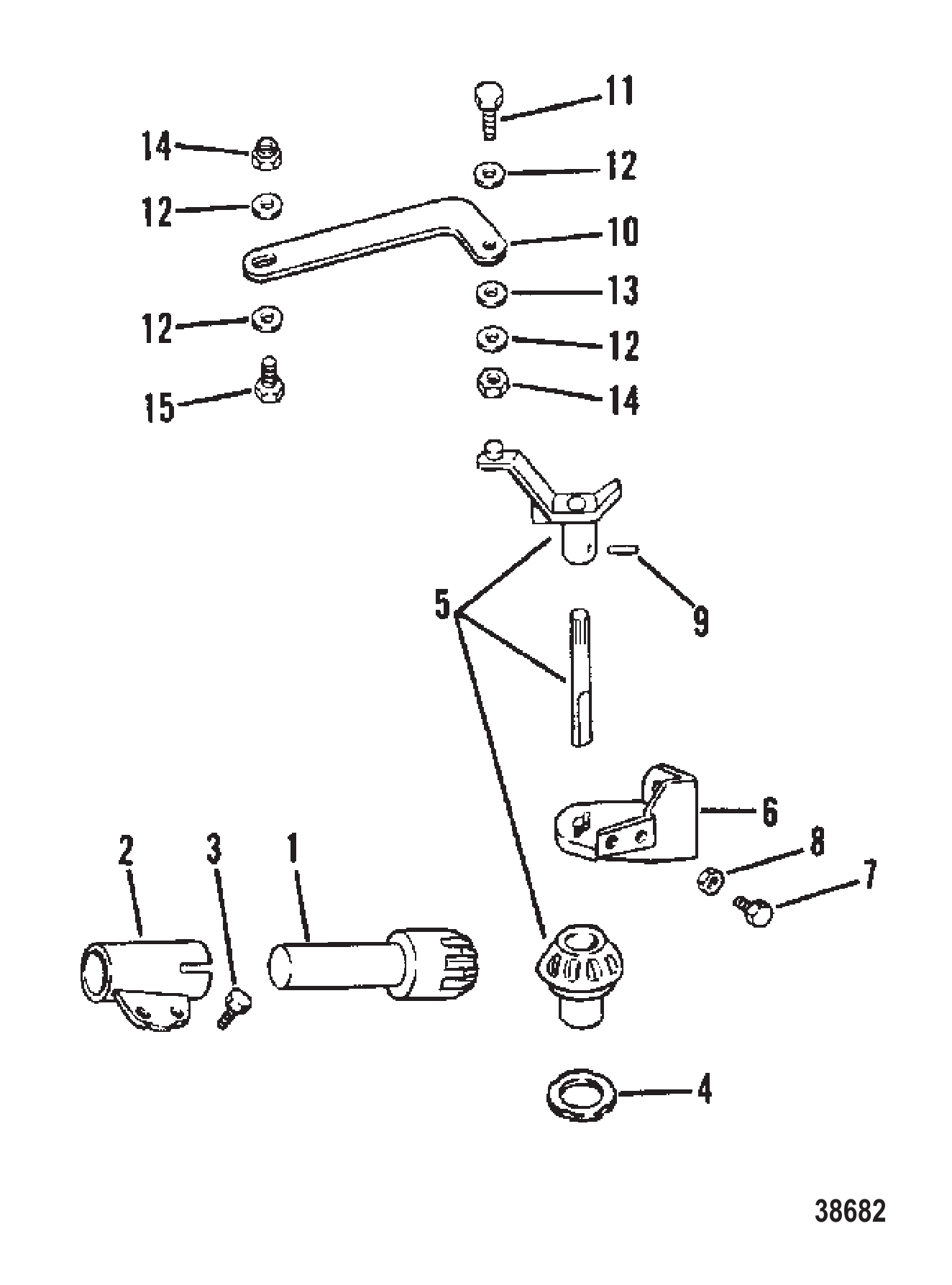

图 4油门控制联动装置 THROTTLE CONTROL LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	60856	节气门控制齿轮	GEAR THROTTLE CONTROL	1
2	60885	水平齿轮壳体	HOUSING HORIZONTAL GEAR	1
2	60885T	壳体	HOUSING	1
3	47910	螺钉(1/4-28 x 5/8)	SCREW (1/4-28 x 5/8)	2
3	96138	螺钉(.250-28 x .620)	SCREW (.250-28 x .620)	2
4	64653A1	小齿轮至下罩垫片组	SHIM ASSEMBLY PINION GEAR TO BOTTOM COWL	1
5	42666A3	齿轮与轴总成	GEAR AND SHAFT ASSEMBLY	1
6	62099	节气门控制杆支架	BRACKET THROTTLE CONTROL LEVER	1
6	62099T	支架	BRACKET	1
7	23015	节气门调节螺钉(.190-32 x 1.00)	SCREW (.190-32 x 1.00) ADJUSTING - THROTTLE	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
9	69745	垂直轴滚销	PIN Roll LEVER TO VERTICAL SHAFT	1
10	60920	节气门杆至定子板连杆	LINK THROTTLE LEVER TO STATOR PLATE	1
11	34696	螺钉(#8-32 x .750)	SCREW (#8-32 x .750)	1
12	34392	垫圈	WASHER	3
13	29720	波形垫圈	WAVE WASHER	1
14	28656	螺母	NUT	2
15	56027	螺钉	SCREW	1

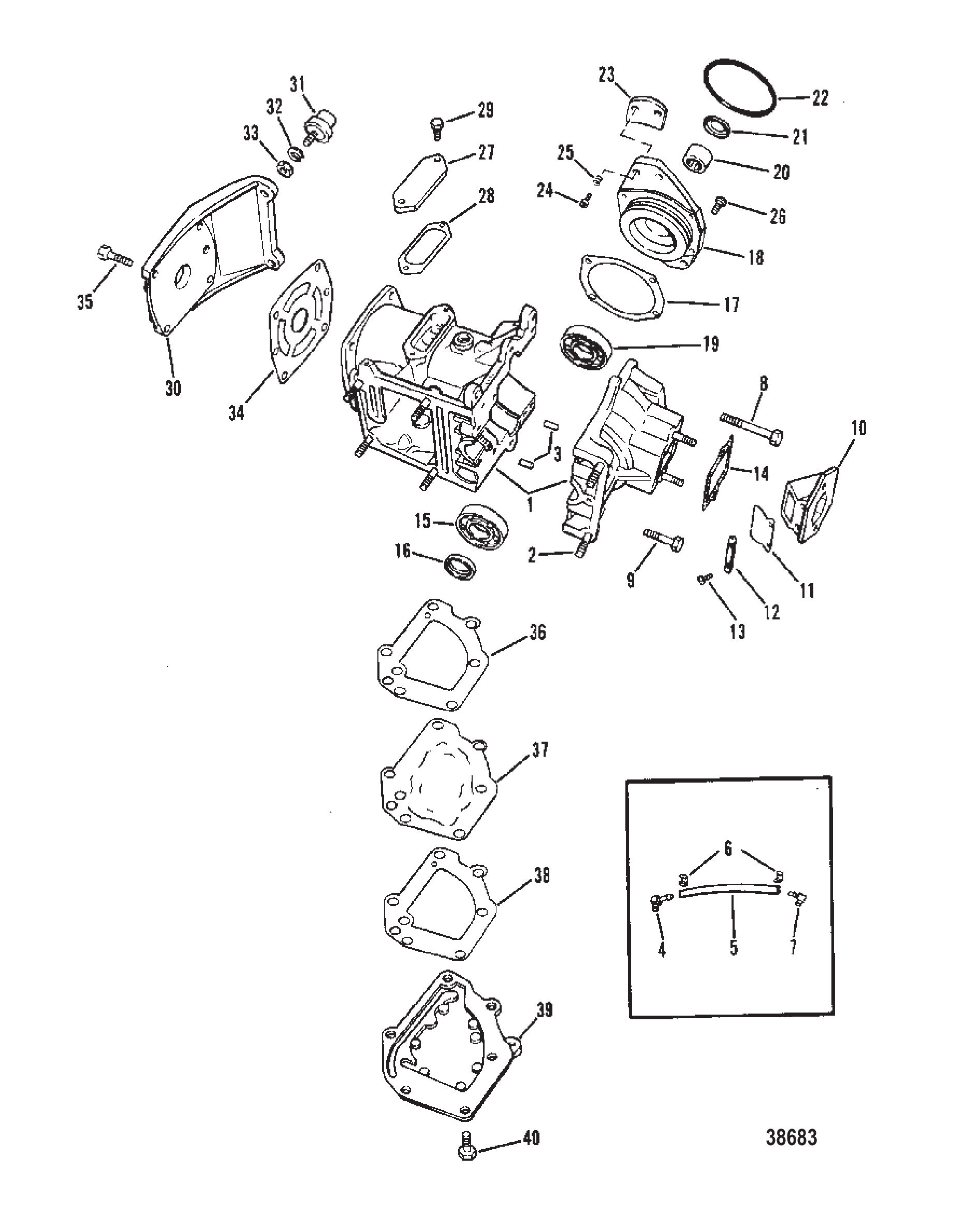

图 5气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8694A3	气缸体	CYLINDER BLOCK	1
2	66021	螺柱	STUD	8
3	85500	曲轴箱至气缸体定位销(.187 x .530)	PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK	2
3	8M0084726	定位销	PIN Dowel	2
4	89275	泄放接头	FITTING BLEED DRAIN	1
5	9912688	泄放管(36英寸散装)	TUBING (36.00 Inches Bulk) BLEED DRAIN	1
6	68424	泄放软管固定夹	CLAMP BLEED HOSE ATTACHING	2
7	88780	泄放示位管弯头	ELBOW Tell-Tale Tubing BLEED DRAIN	1
7	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	1
8	73280	曲轴箱至气缸体螺钉(1-1/2英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1-1/2")	2
9	76621	曲轴箱至气缸体螺钉(1英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1")	8
10	70726	簧片阀组	REED BLOCK	1
11	35836	簧片进气阀	REED INLET VALVE	2
12	22215	簧片压板	RETAINER REED	2
13	28430	螺钉(#6-32 x .25)	SCREW (#6-32 x .25)	4
14	35739	簧片阀组至曲轴箱垫片	GASKET REED BLOCK TO CRANKCASE	1
14	357391	衬垫	GASKET	1
15	72961	曲轴箱滚珠轴承(下)	BEARING Ball CRANKCASE (LOWER)	1
16	56397	曲轴箱油封(下)	SEAL Oil CRANKCASE (LOWER)	1
17	31412A1	垫片	SHIM	AR
18	6352A1	上轴承壳体总成	HOUSING ASSEMBLY Bearing UPPER	1
19	72961	上轴承壳体滚珠轴承	BEARING Ball UPPER BEARING HOUSING	1
20	31410	上轴承壳体滚柱轴承	BEARING Roller UPPER BEARING HOUSING	1
21	66301	上轴承壳体油封	SEAL Oil UPPER BEARING HOUSING	1
22	20863	上轴承壳体O型圈	O-RING UPPER BEARING HOUSING	1
23	34598	压紧夹	CLAMP HOLD DOWN	2
24	36205	螺钉(#10-24 x .563)	SCREW (#10-24 x .563)	4
25	34731	压环弹簧夹	SPRING HOLD DOWN RING CLAMP	4
26	39002	螺钉(1/2英寸)	SCREW (1/2")	4
27	35658	换气口盖	COVER TRANSFER COVER	1
28	35657	换气口盖垫片	GASKET TRANSFER PORT COVER	1
29	20720	螺钉(.190-24 x .62)	SCREW (.190-24 x .62)	2
30	7070A1	气缸体盖总成	COVER ASSEMBLY CYLINDER BLOCK	1
31	66019	橡胶支座-盖板至上罩	MOUNT RUBBER - COVER TO TOP COWL	2
32	20202	橡胶支座锁紧垫圈	LOCKWASHER RUBBER MOUNT	2
33	22053	螺母(.312-24)橡胶支座至盖板	NUT (.312-24) RUBBER MOUNT TO COVER	2
34	416151	盖板至气缸体衬垫	GASKET COVER TO CYLINDER BLOCK	1
35	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	4
35	8M0214943	螺钉	SCREW	4
36	416141	气缸体至挡板衬垫	GASKET CYLINDER BLOCK TO BAFFLE PLATE	1
37	46234	挡板-排气歧管	PLATE BAFFLE - EXHAUST MANIFOLD	1
38	416141	衬垫	GASKET	1
39	46171	排气歧管盖	COVER EXHAUST MANIFOLD	1
40	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	6
-	78139A80	衬垫套件	GASKET SET
-	87096A79	动力头总成	POWERHEAD ASSEMBLY	1

图 6化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	9503A20	化油器 (6)(WMC-66)	CARBURETOR (6)(WMC-66)	1
1	9503T21	化油器 (WMC-78A) (6)	CARBURETOR (WMC-78A) (6)	1
1	9266A21	化油器 (8)(WMC-74)	CARBURETOR (8)(WMC-74)	1
1	9266T22	化油器	CARBURETOR	1
1	9266T22	化油器 (8)(WMC-79A)	CARBURETOR (8)(WMC-79A)	1
1	8846T20	化油器 (WMC-61)	CARBURETOR (WMC-61)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	8846T25	化油器 (WMC-80A) (9.9)	CARBURETOR (WMC-80A) (9.9)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	9726T11	化油器 (15)(WMC-63)	CARBURETOR (15)(WMC-63)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器 (WMC-77) (15)	CARBURETOR (WMC-77) (15)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器 (WMC-83) (15)	CARBURETOR (WMC-83) (15)	1
2	9473	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	804707	轴	SHAFT	1
4	8M0138645	螺钉	SCREW	1
5	804996	弹簧	SPRING	1
6	813022	油门轴	SHAFT Throttle	1
6	19267	油门轴	SHAFT Throttle	1
7	F10167	环	RING	1
8	9164	燃油杯	BOWL Fuel	1
9	824401	浮子杆	LEVER Float	1
10	91691	浮子	FLOAT	1
11	F10064	轴	SHAFT	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	803861	进油针阀	VALVE Inlet Needle	1
14	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
14	5317	量孔(.046)	JET (.046)	1
14	6246	量孔(.048)	JET (.048)	1
14	6207	量孔(.072)	JET (.072)	1
15	9171	堵头	PLUG	1
16	813618	盖板	COVER	1
16	823648	膜片盖	COVER Diaphragm	1
17	9697	螺钉	SCREW	4
18	15827A1	本体	BODY	1
18	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
19	9643	螺钉	SCREW	5
20	9699	安装板	PLATE	1
21	44426	衬垫	GASKET	1
22	9696	螺钉	SCREW	2
23	96371	燃油泵盖	COVER Fuel Pump	1
23	9637	盖板	COVER	1
24	9633	衬垫	GASKET	1
25	9762	堵头	PLUG	1
26	192061	化油器衬垫	GASKET Carburetor	1
27	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
28	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
29	8237072	维修套件	REPAIR KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

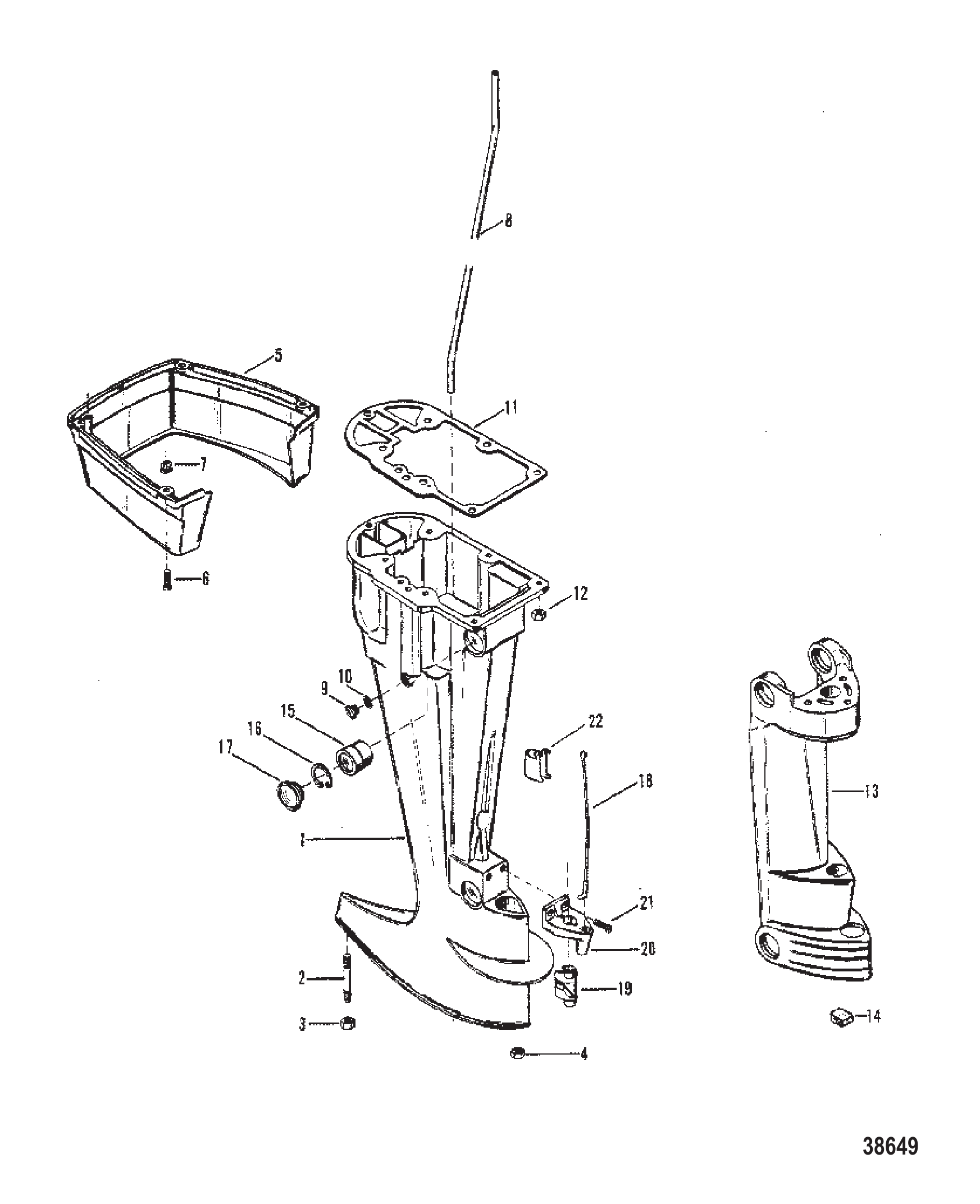

图 7驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8451A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8453A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	66373	螺柱	STUD	1
3	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
3	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
4	34863	螺母 (.375-24)	NUT (.375-24)	1
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
5	96515	装饰盖	COVER TRIM	1
5	96515F1	配平盖	TRIM COVER	1
6	69013	螺钉(#10-16 x .880)装饰盖	SCREW (#10-16 x .880) TRIM COVER	4
7	92012	装饰盖螺钉衬套	GROMMET TRIM COVER SCREW	4
7	8M0079730	密封圈套件	GROMMET KIT	4
8	39061	水管	TUBE WATER	1
8	39062	水管	TUBE WATER	1
9	79953	螺钉(.375-16 x .250)平头-驱动轴壳体	SCREW (.375-16 x .250) FLUSH - DRIVE SHAFT HOUSING	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	20260	密封垫圈-平头螺钉	WASHER SEALING - FLUSH SCREW	1
10	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
11	39050	衬垫	GASKET	1
12	24652	螺母(.250-28)	NUT (.250-28)	6
13	8448A2	鞍座总成	SADDLE ASSEMBLY	1
14	64076	推力缓冲器-鞍座	BUMPER THRUST - SADDLE	1
15	79896A1	上下支座	MOUNT LOWER AND UPPER	4
15	79896A1	上支架	MOUNT UPPER	2
15	79895A1	下支架	MOUNT LOWER	2
16	26406	挡圈-上下支座	RING RETAINING - UPPER AND LOWER MOUNT	4
17	79907	下安装盖	COVER LOWER MOUNT	2
18	71057	倒挡锁连杆	LINK ROD REVERSE LOCK	1
19	65216	倒挡锁凸轮	CAM REVERSE LOCK	1
20	72007	倒挡锁凸轮固定座	RETAINER REVERSE LOCK CAM	1
21	65414	凸轮固定座螺钉(3/4")	SCREW CAM RETAINER (3/4")	2
22	93145	驱动轴座	BLOCK DRIVE SHAFT	1
-	89014A80	衬垫套件	GASKET SET	1

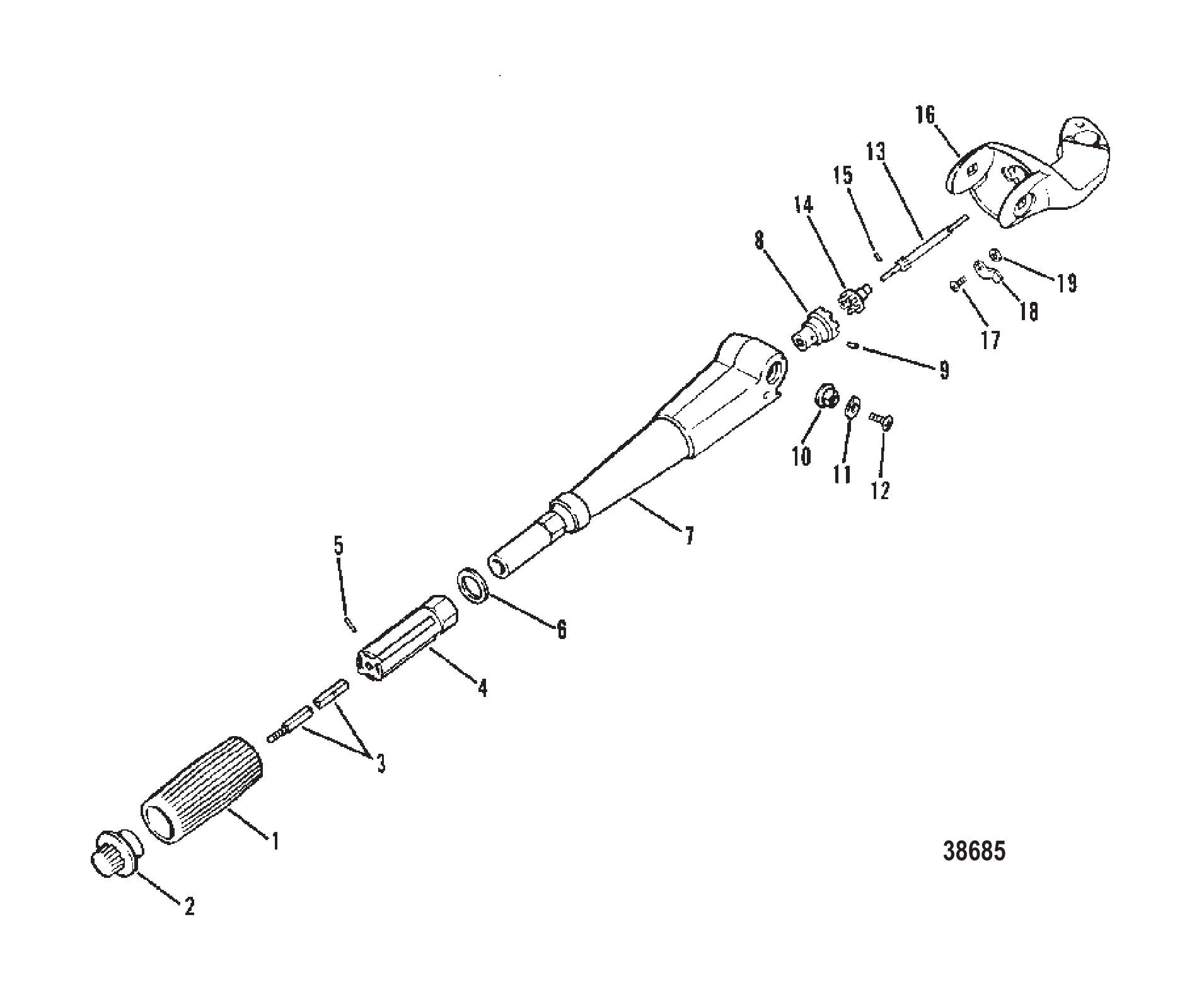

图 8转向手柄总成 STEERING HANDLE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	60850A6	转向手柄总成	HANDLE ASSEMBLY Steering COMPLETE	1
1	60854	油门手柄握把	GRIP HANDLE - THROTTLE	1
2	62251	油门手柄端盖	CAP HANDLE THROTTLE	1
3	66393	轴	SHAFT	1
4	66394A1	油门轴手柄总成	HANDLE ASSEMBLY THROTTLE SHAFT	1
5	46152	油门手柄销	PIN THROTTLE HANDLE	1
6	62252	油门手柄至转向臂垫圈	WASHER THROTTLE HANDLE TO STEERING ARM	1
7	60850	转向手柄臂	ARM STEERING HANDLE	1
8	60852	油门轴齿轮	GEAR THROTTLE SHAFT	1
9	27088	球齿轮至油门轴销	PIN BALL GEAR TO THROTTLE SHAFT	1
10	48003	转向手柄枢轴至支架	PIVOT STEEIRNG HANDLE TO BRACKET	2
11	48002015	手柄枢轴至支架垫片(.015)	SHIM HANDLE PIVOT TO BRACKET (.015)	AR
12	96138	螺钉(.250-28 x .620)手柄至臂支架	SCREW (.250-28 x .620) HANDLE TO ARM BRACKET	2
13	60857A2	万向节总成	UNIVERSAL JOINT ASSEMBLY	1
14	60852	万向节齿轮	GEAR UNIVERSAL JOINT	1
15	27088	球齿轮至万向节销	PIN BALL GEAR TO UNIVERSAL JOINT	1
16	96130A1	转向臂支架	BRACKET STEERING ARM	1
17	62233	螺钉(#10-16 x .625)定位弹簧至支架	SCREW (#10-16 x .625) DETENT SPRING TO BRACKET	2
18	72847	定位弹簧-转向手柄	SPRING DETENT - STEERING HANDLE	2
19	30164	垫圈(.192 x .375 x .0312)不锈钢定位弹簧螺钉	WASHER (.192 x .375 x .0312) Stainless Steel DETENT SPRING SCREW	4

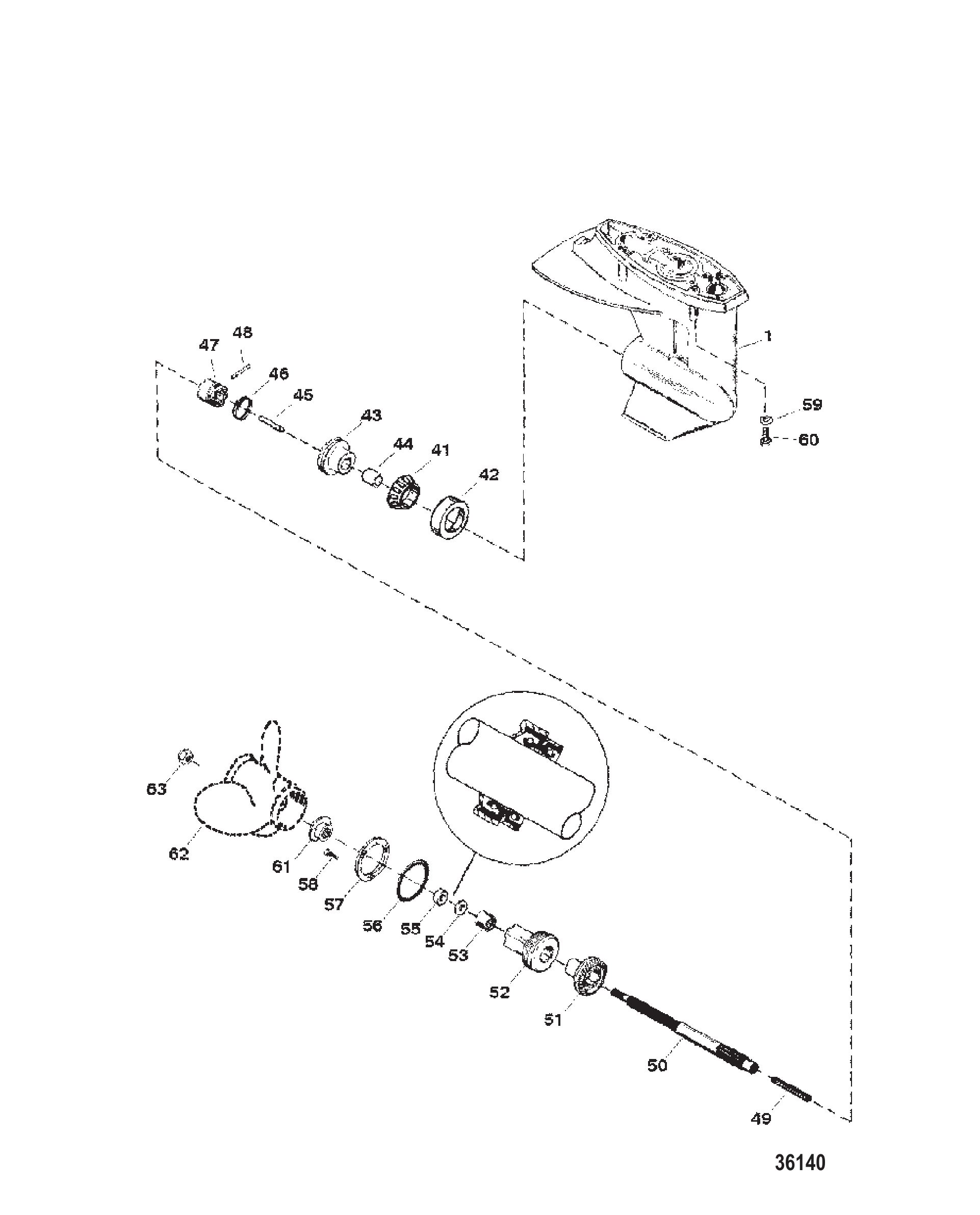

图 9齿轮箱总成螺旋桨轴 GEAR HOUSING ASSEMBLY PROPELLER SHAFT

REF	零件编号	中文名称	英文名称	数量
1	8669A42	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A43	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A44	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A45	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8669A22	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
41	99328A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
42	NSS	滚子轴承杯(不单独销售)	NOT SOLD SEPARATE Cup-Roller Bearing	1
43	44213A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
44	85557	衬套	BUSHING	1
45	85094	凸轮从动件	FOLLOWER Cam	1
46	38114	弹簧	SPRING	1
47	410401	离合器	CLUTCH	1
48	85093	销	PIN	1
49	88680	弹簧	SPRING	1
50	8166231	螺旋桨轴	PROPELLER SHAFT	1
51	99542	倒挡齿轮	GEAR Reverse	1
52	99906A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	21739	滚柱轴承	BEARING Roller	1
54	41132	油封(内)	SEAL Oil (INNER)	1
55	41131	油封(外)	SEAL Oil (OUTER)	1
56	85549	O型圈	O-RING	1
57	87293	安装板	PLATE	1
58	90883	螺钉(M5×16)	SCREW (M5 x 16)	3
59	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	4
60	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	4
61	8M0027793	轮毂	HUB	1
62	19640A40	BLACK MAX螺旋桨(铝-10.375 X 13.0 RH)	BLACK MAX PROPELLER (ALUM-10.375 X 13.0 RH) (BLACK MAX)	1
62	19642A40	螺旋桨(铝-10.250 X 14.5 RH)(BLACK MAX)	PROPELLER (ALUM-10.250 X 14.5 RH) (BLACK MAX)	OPT
62	19639A40	BLACK MAX螺旋桨(铝-10.375 X 12.0 RH)	BLACK MAX PROPELLER (ALUM-10.375 X 12.0 RH) (BLACK MAX)	OPT
62	19638A40	BLACK MAX螺旋桨(铝-10.375 X 11.0 RH)	BLACK MAX PROPELLER (ALUM-10.375 X 11.0 RH) (BLACK MAX)	OPT
62	19636A10	BLACK MAX螺旋桨(铝-10.375 X 9.50 RH)	BLACK MAX PROPELLER (ALUM-10.375 X 9.50 RH) (BLACK MAX)	OPT
62	43592A5	螺旋桨(不锈钢-10.375 X 18.0 RH)(CHOPPER)	PROPELLER (SS-10.375 X 18.0 RH) (CHOPPER)	OPT
62	19644A5	VENGEANCE螺旋桨(不锈钢-10.375 X 13.0 RH)	VENGEANCE PROPELLER (SS-10.375 X 13.0 RH) (VENGEANCE)	OPT
63	4011912	螺旋桨螺母(M12黄铜)-不锈钢螺旋桨用	PROP NUT (M12 BRASS)-FOR SS PROPELLERS	OPT
63	88228	螺旋桨螺母(M12尼龙)-铝制螺旋桨用	PROP NUT (M12 NYLON)-FOR ALUM PROPELLERS	1
-	85090A2	密封套件	SEAL KIT	1

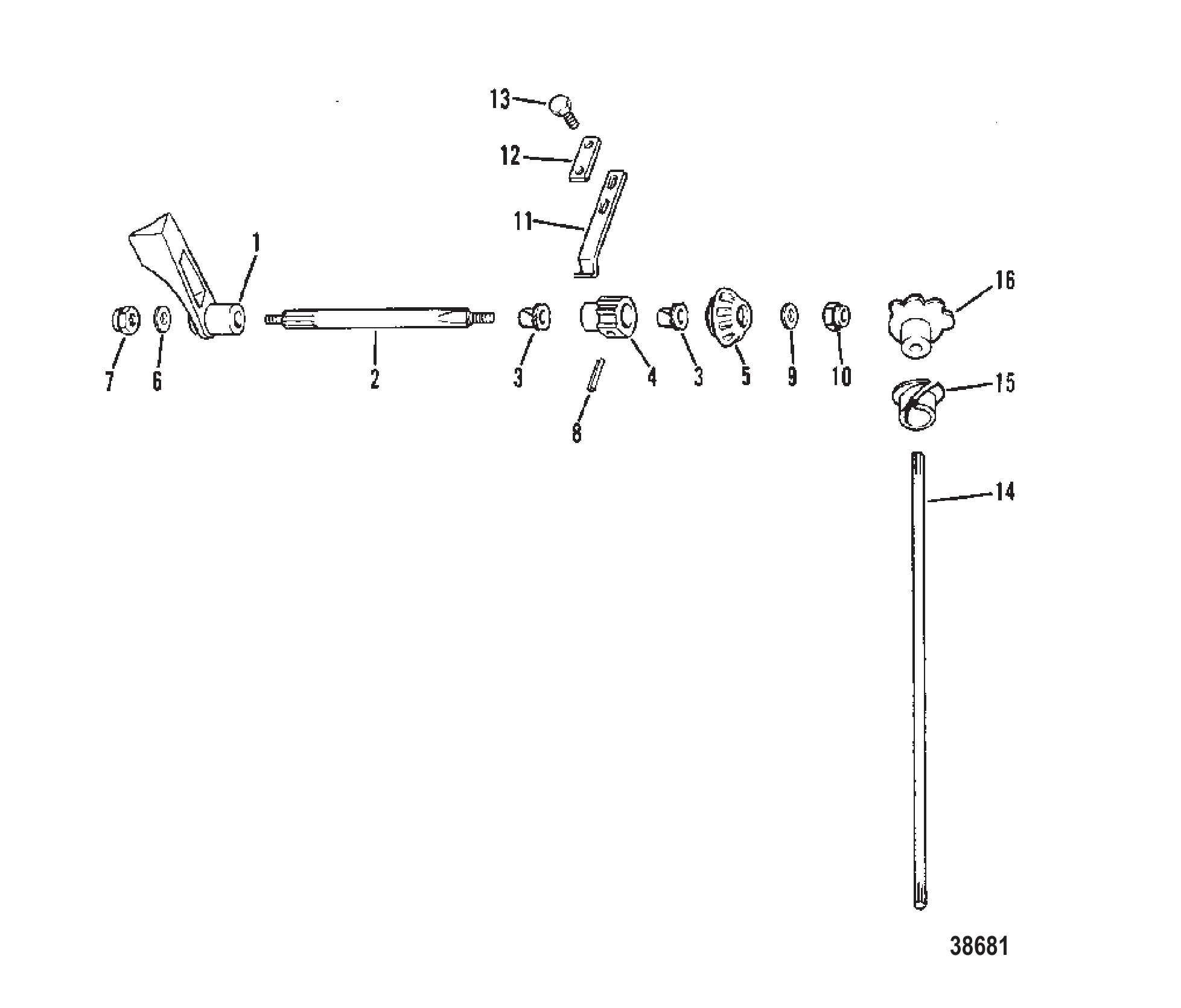

图 10换挡控制联动装置 SHIFT CONTROL LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	66376	换挡控制手柄	HANDLE SHIFT CONTROL	1
2	66378	控制手柄轴	SHAFT CONTROL HANDLE	1
3	66375	尼龙衬套-换挡控制手柄	BUSHING NYLON - SHIFT CONTROL HANDLE	2
4	66414	换挡轴凸轮	CAM SHIFT SHAFT	1
5	66377	换挡控制手柄扇形齿轮	SECTOR GEAR SHIFT CONTROL HANDLE	1
6	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
6	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
7	39305	螺母	NUT	1
7	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
8	25905	定位凸轮至换挡轴销	PIN DETENT CAM TO SHIFT SHAFT	1
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
10	20361	螺母(.250-28)	NUT (.250-28)	1
10	8267089	螺母(.250-28)	NUT (.250-28)	1
11	39627	定位弹簧-曲轴箱	SPRING DETENT - CRANKCASE	1
12	39601	定位弹簧板	PLATE DETENT SPRING	1
13	25764	螺钉(.190-32 x .50)	SCREW (.190-32 x .50)	2
14	71660	换挡轴上段	SHIFT SHAFT UPPER	1
15	30677	尼龙衬套-换挡控制轴	BUSHING NYLON - SHIFT CONTROL SHAFT	1
16	86686A1	扇形齿轮换挡轴	SECTOR GEAR SHIFT SHAFT	1

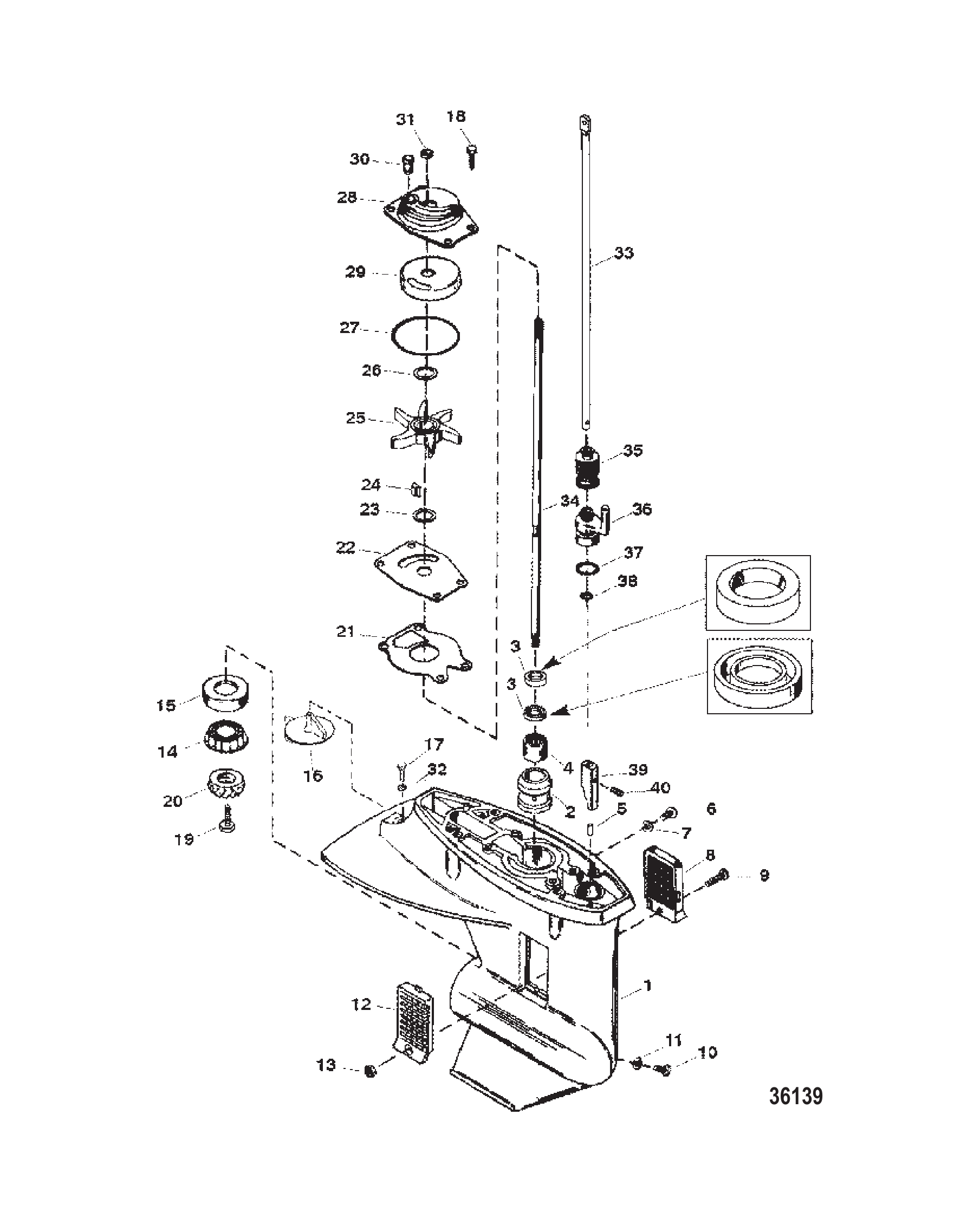

图 11齿轮箱总成驱动轴 GEAR HOUSING ASSEMBLY DRIVESHAFT

REF	零件编号	中文名称	英文名称	数量
1	8669A42	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A43	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A44	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A45	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8669A22	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
2	NSS	不单独销售套筒	NOT SOLD SEPARATE Sleeve	1
3	99325	密封件	SEAL	2
4	41326	滚柱轴承	BEARING Roller	1
5	85500	定位销(.187 x .530)	PIN Dowel (.187 x .530)	1
6	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
7	19183	纤维垫圈	WASHER Fiber	1
8	41133	进水口滤网	SCREEN Water Inlet Port	1
9	40031112	螺钉(M5 x 40)	SCREW (M5 x 40)	1
10	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
11	19183	纤维垫圈	WASHER Fiber	1
12	41134	滤网(右舷)	SCREEN (STARBOARD)	1
13	400263	螺母(M5)滤网螺钉	NUT (M5) SCREEN SCREW	1
14	98294A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
15	NSS		NOT SOLD SEPARATE Cup-roller Bearing	1
16	984325	平衡鳍板	TRIM TAB	1
17	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
18	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	4
19	49908	螺钉(.250-28 x .750)	SCREW (.250-28 x .750)	1
20	98302	小齿轮	GEAR Pinion	1
21	993261	衬垫	GASKET	1
22	85083	面板	FACE PLATE	1
23	8M0027721	垫圈	WASHER	1
24	85119	键	KEY	1
25	850893	叶轮	IMPELLER	1
26	8M0027721	垫圈	WASHER	1
27	69202	O型圈	O-RING	1
28	99157A1	水泵总成	PUMP ASSEMBLY Water	1
29	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
30	85090	密封件	SEAL	1
31	86203	O型圈	O-RING	1
32	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	1
33	853939	换挡杆	ROD Gear Shift	1
33	853940	换挡杆	ROD Gear Shift	1
34	827024T	驱动轴	DRIVESHAFT	1
34	827025T	驱动轴	DRIVESHAFT	1
35	85552	护套	BOOT	1
36	93878	固定座	RETAINER	1
37	35276	O型圈(.734 x .139)	O-RING (.734 x .139)	1
38	85594	O型圈(.239 x .174)	O-RING (.239 x .174)	1
39	85562A2	换挡凸轮	SHIFT CAM	1
40	85096	驱动销	PIN Drive	1
-	85090A2	密封套件	SEAL KIT	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1

图 12杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET
