水星 Mercury 200, 20 8045199 & Up - 爆炸图零件明细

两冲程化油器 · Australia - Cat.# 90-75538 · 共 32 个部位 · 1225 条零件

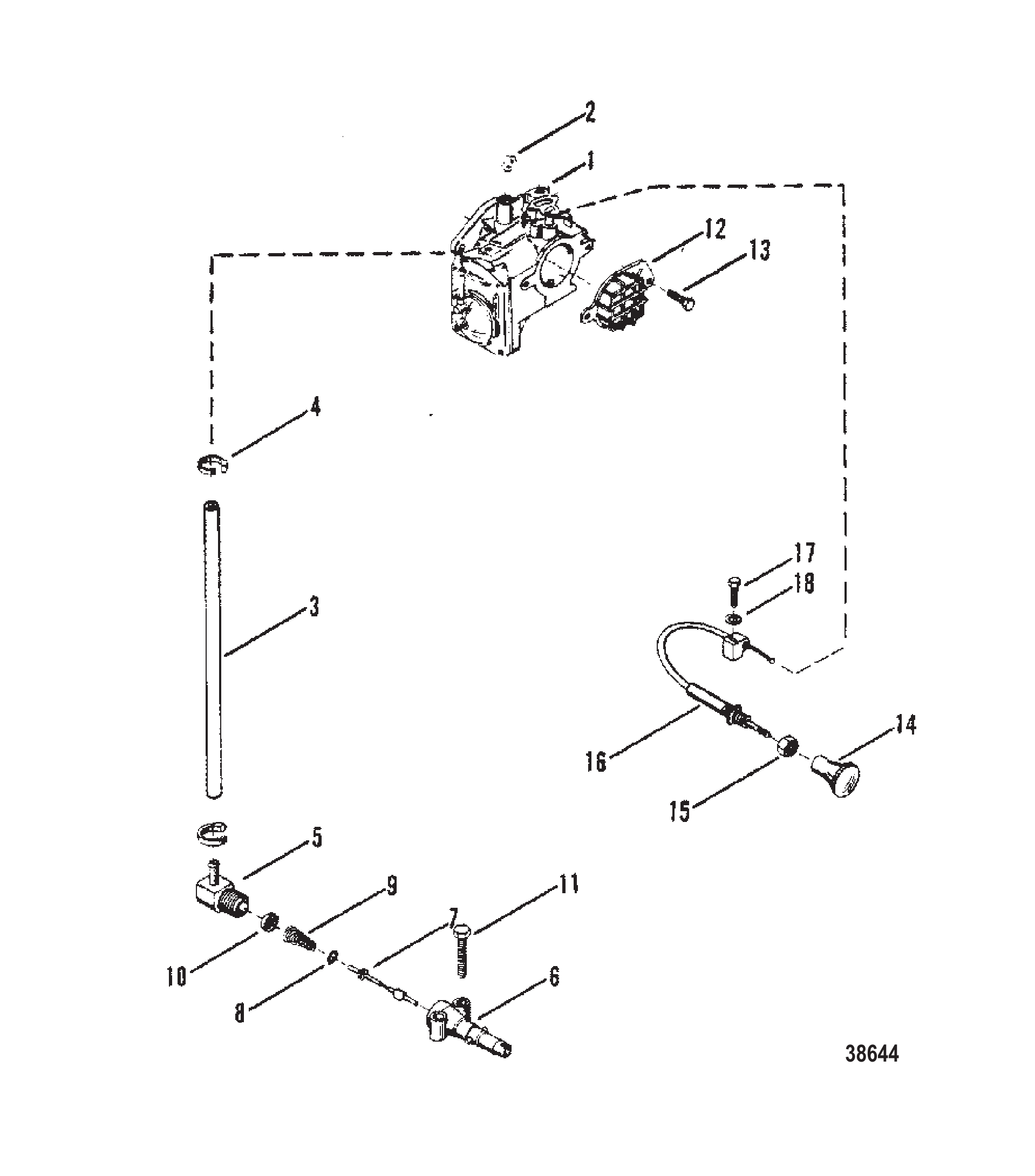

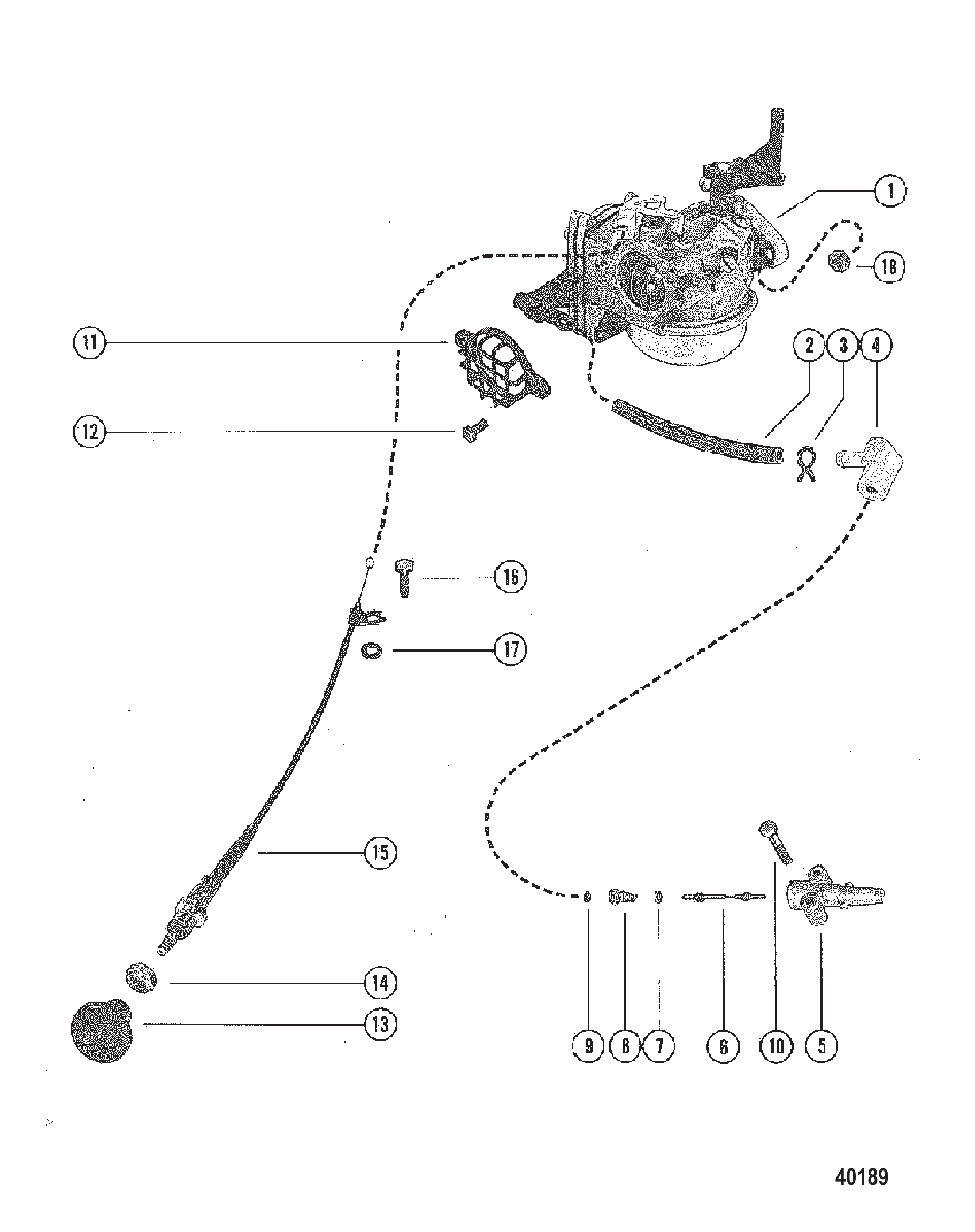

图 1化油器和阻风门总成 CARBURETOR AND CHOKE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7902	化油器总成	CARBURETOR ASSEMBLY	1
1	8783A14	化油器	CARBURETOR	1
1	8783A4	化油器总成	CARBURETOR ASSEMBLY	1
1	8783A14	化油器	CARBURETOR	1
1	7909	化油器总成	CARBURETOR ASSEMBLY	1
1	8782A13	化油器	CARBURETOR	1
1	8782A3	化油器总成	CARBURETOR ASSEMBLY	1
1	8782A13	化油器	CARBURETOR	1
2	24652	化油器安装螺母(.250-28)	NUT (.250-28) CARBURETOR ATTACHING	2
3	99127109	适配器至化油器管路(57英寸散装)	LINE (57.00 Inches Bulk) ADAPTOR TO CARBURETOR	1
3	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
4	68424	燃油管固定夹	CLAMP FUEL LINE ATTACHING	2
5	63981	燃油管转接头	FITTING FUEL LINE TO ADAPTOR	1
6	22833	适配器止回单元(燃油管)	ADAPTER CHECK UNIT (FUEL LINE)	1
7	23069	适配器阀杆止回单元	STEM CHECK UNIT ADAPTOR	1
8	20415	适配器阀杆O型圈	O-RING ADAPTOR STEM	1
8	16524	燃油接头O型圈	O-RING Fuel Connector	1
9	23067	适配器阀杆弹簧	SPRING ADAPTOR STEM	1
9	23067T	弹簧	SPRING	1
10	30188	适配器垫片	WASHER ADAPTOR	1
11	37923	适配器至下罩盖螺钉(.250-28x1.250)	SCREW (.250-28 x 1.250) ADAPTOR TO BOTTOM COWL	1
12	65552	化油器滤网	SCREEN CARBURETOR	1
13	69022	滤网至化油器不锈钢螺钉(#10-32x0.500)	SCREW (#10-32 x .500) Stainless Steel SCREEN TO CARBURETOR	2
14	86381	阻风门旋钮	KNOB CHOKE	1
15	73710	阻风门拉索至下罩盖螺母	NUT CHOKE CABLE TO BOTTOM COWL	1
16	72465	阻风门拉索	CABLE Choke	1
17	45862	阻风门拉索至化油器螺钉(#10-32x0.875)	SCREW (#10-32 x .875) CHOKE CABLE TO CARBURETOR	1
18	34680	阻风门拉索螺钉垫片	WASHER CHOKE CABLE SCREW	1
-	89014A80	衬垫套件	GASKET SET

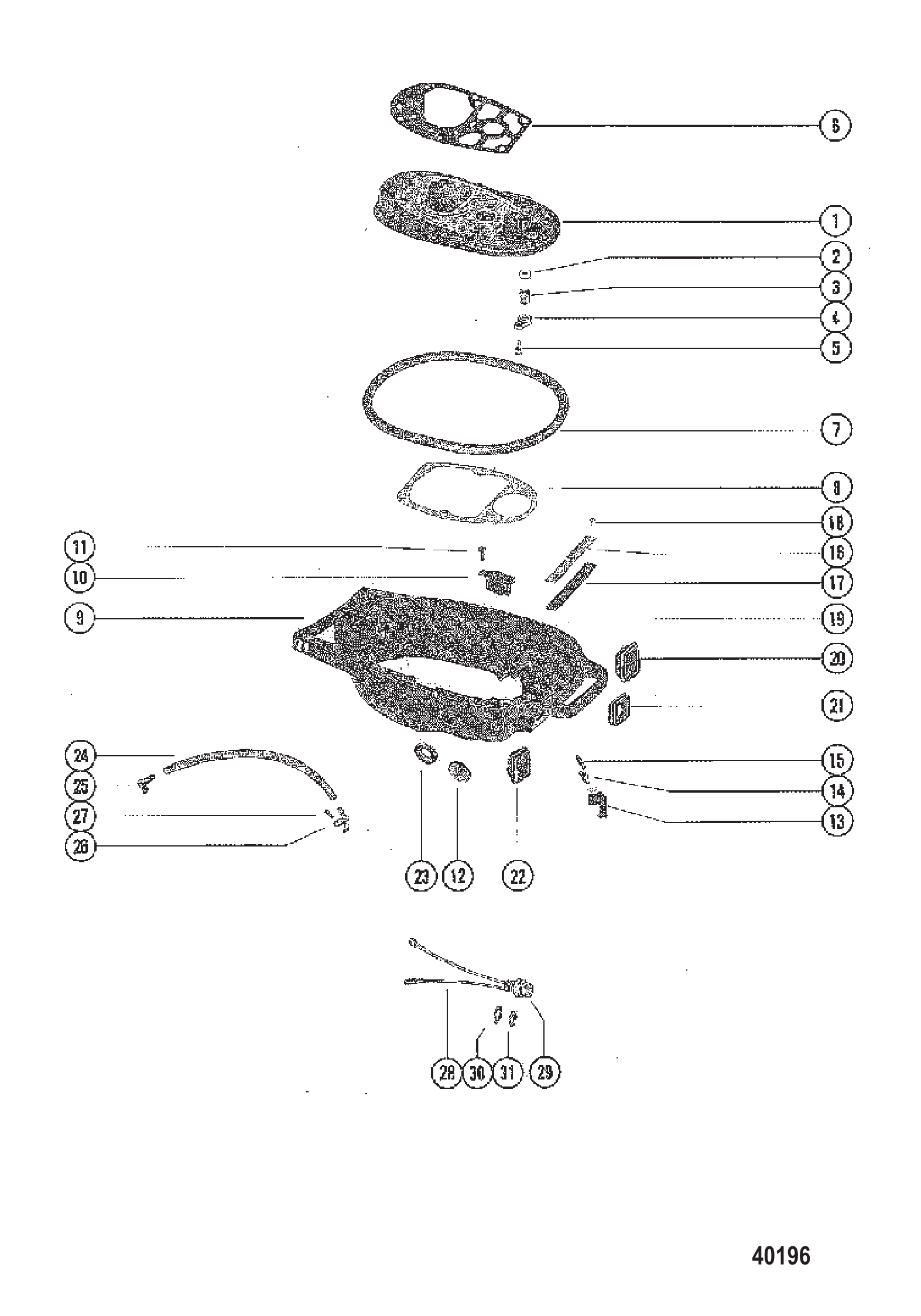

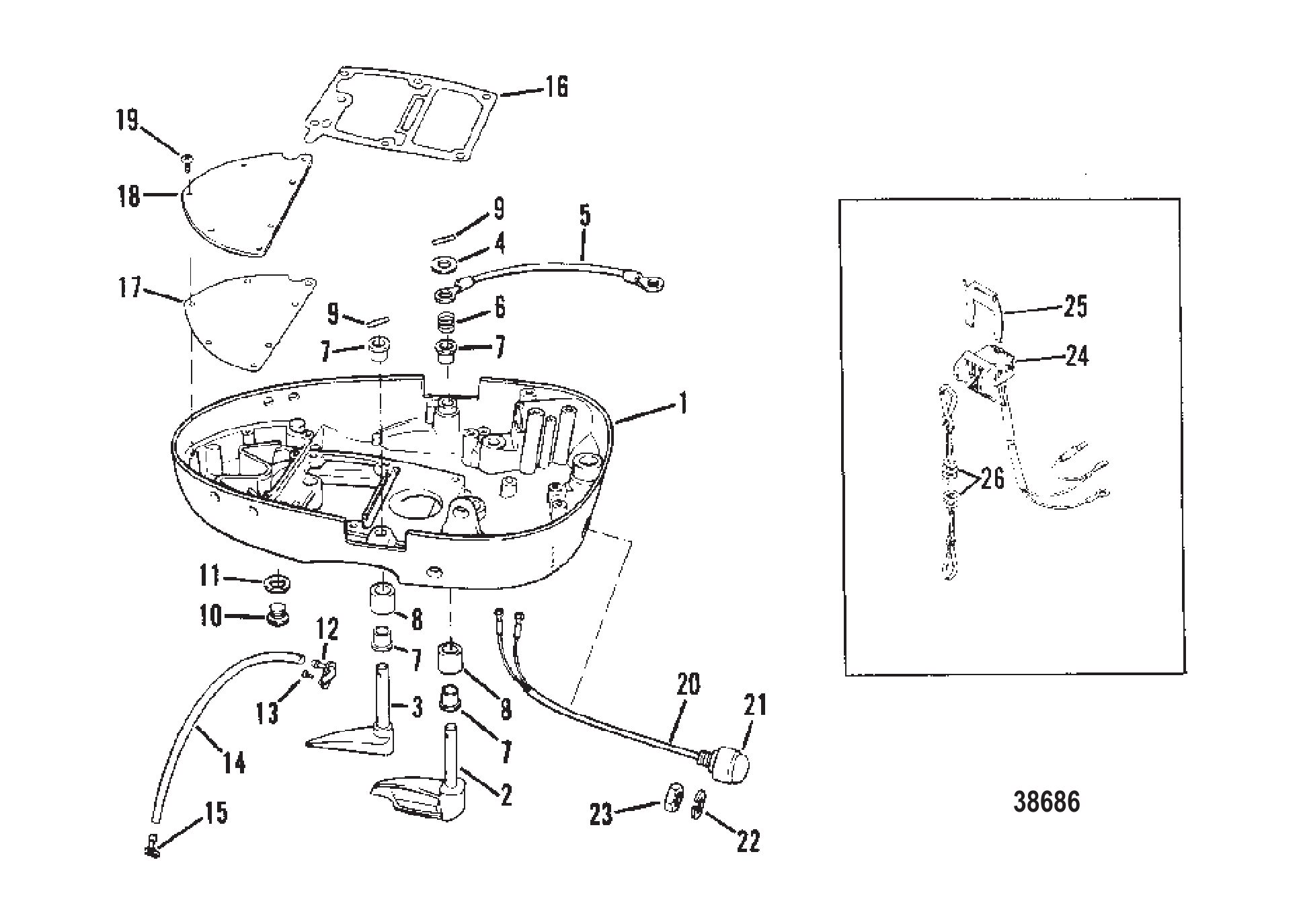

图 2下罩总成 BOTTOM COWL ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7711A4	下机罩	BOTTOM COWL	1
2	36187A1	夹紧杆总成-左舷	LEVER ASSEMBLY CLAMPING - PORT	1
3	36188A1	夹紧杆总成-右舷	LEVER ASSEMBLY CLAMPING - STARBOARD	1
4	55891	夹紧杆紧固件	FASTENER CLAMPING LEVER	2
5	60871A7	接地带总成	STRAP ASSEMBLY Ground	1
6	63399	接地带弹簧	SPRING GROUNG STRAP	1
7	26819	尼龙衬套-夹紧杆	BUSHING NYLON - CLAMPING LEVER	4
8	31293	橡胶衬套-夹紧杆	BUSHING RUBBER - CLAMPING LEVER	2
9	58997	夹紧杆滚柱销(0.164x0.750)	PIN Roll (.164 x .750) CLAMPING LEVER	2
10	79953	下罩盖冲洗孔螺钉(0.375-16x0.250)	SCREW (.375-16 x .250) BOTTOM COWL FLUSHING HOLE	1
10	79953Q04	放油螺钉套件	SCREW KIT Drain	1
11	20260	下罩盖冲洗孔螺钉垫片	WASHER BOTTOM COWL FLUSHING HOLE SCREW	1
11	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
12	56712	示流喷嘴	NOZZLE TELL TALE	1
13	35519	示流喷嘴至下罩盖螺钉(#10-16x0.500)	SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL	1
14	34395A1	示位软管(7-1/4英寸)	HOSE TELL TALE (7-1/4")	1
14	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
15	99664	示位弯头-软管至气缸体	ELBOW TELL TALE - HOSE TO CYLINDER BLOCK	1
15	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
16	89937	衬垫	GASKET	1
17	55847	衬垫	GASKET	1
18	55936	排气减压盖	COVER EXHAUST RELIEF	1
19	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	9
20	69508A31	停机开关总成	SWITCH ASSEMBLY Stop	1
21	99525A1	盖总成	COVER ASSEMBLY	1
22	69845	锁紧垫圈	LOCKWASHER	1
23	69844	停机开关螺母	NUT STOP SWITCH	1
24	11083A9	停机开关总成	SWITCH ASSEMBLY Stop	1
25	12044	挡圈	RETANER	1
25	8M0032846	黄铜固定座	RETAINER Brass	1
26	86352A54	拉绳总成	LANYARD ASSEMBLY	1
26	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
-	78139A80	衬垫套件	GASKET SET	1

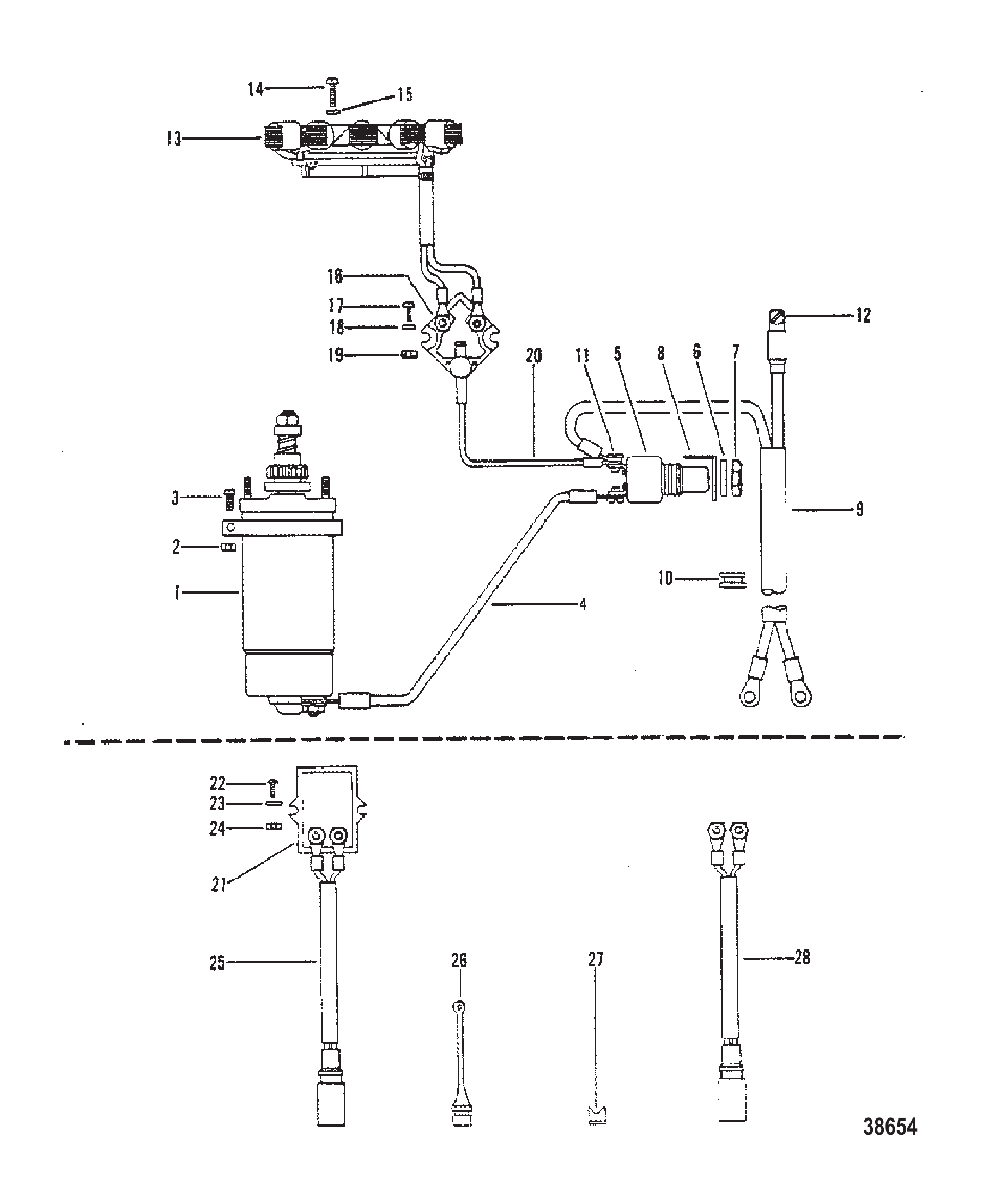

图 3电气组件 ELECTRIC COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	78011	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	55511	螺钉(.312-18 x 1.500)	SCREW (.312-18 x 1.500)	2
3	26993	锁紧垫圈(.312)启动电机螺钉	LOCKWASHER (.312) STARTER MOTOR SCREW	2
3	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
4	76741A1	启动开关线束总成(黄色)	WIRE ASSEMBLY STARTING SWITCH (YELLOW)	1
5	73883	启动开关总成	SWITCH ASSEMBLY Starting	1
6	30516	启动开关垫圈	WASHER STARTING SWITCH	1
7	74394	启动开关螺母	NUT STARTING SWITCH	1
8	74515	启动开关护套	PROTECTOR STARTING SWITCH	1
9	72535A4	蓄电池电缆总成	CABLE ASSEMBLY BATTERY	1
10	86361	蓄电池电缆护圈	GROMMET BATTERY CABLE	1
11	45742	蓄电池电缆固定螺钉(.190-32 x .312)	SCREW (.190-32 x .312) BATTERY CABLE ATTACHING	1
12	98253	蓄电池电缆固定螺钉(.250-20 x .500)	SCREW (.250-20 x .500) BATTERY CABLE ATTACHING	1
13	74367A12	照明定子总成	LIGHTING STATOR ASSEMBLY	1
13	74367A15	定子	STATOR	1
14	73696	照明定子固定螺钉(1-5/8英寸)	SCREW LIGHTING STATOR ATTACHING (1-5/8")	2
15	26996	锁紧垫圈(#10)不锈钢照明定子螺钉	LOCKWASHER (#10) Stainless Steel LIGHTING STATOR SCREW	2
16	62351A2	整流器总成	RECTIFIER ASSEMBLY	1
16	8M0058226	整流器	RECTIFIER	1
17	48408	整流器螺钉(#10-16 x .500)	SCREW (#10-16 x .500) RECTIFIER	2
18	62769	整流器螺钉隔套	SPACER RECTIFIER SCREW	1
19	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINAL	3
20	61393A9	线束总成	WIRE ASSEMBLY	1
21	95845	电压调节器	REGULATOR Voltage	1
21	95845T	电压调节器	REGULATOR-VOLTAGE	1
22	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
23	62769	电压调节器螺钉隔套	SPACER VOLTAGE REGULATOR SCREW	2
24	45076	螺母(#10-32)黄铜电压调节器端子	NUT (#10-32) Brass VOLTAGE REGULATOR TERMINAL	2
25	74725A2	线束总成(黑/红)	HARNESS ASSEMBLY (BLACK/RED)	1
26	71663	线束插头	PLUG HARNESS	1
27	74361	线束至下罩插头	PLUG HARNESS TO BOTTOM COWL	1
28	65017A4	照明线束总成(外部)	HARNESS ASSEMBLY LIGHTING (EXTERNAL)	1
13	74367A12	照明定子总成	LIGHTING STATOR ASSEMBLY	1
13	74367A15	定子	STATOR	1

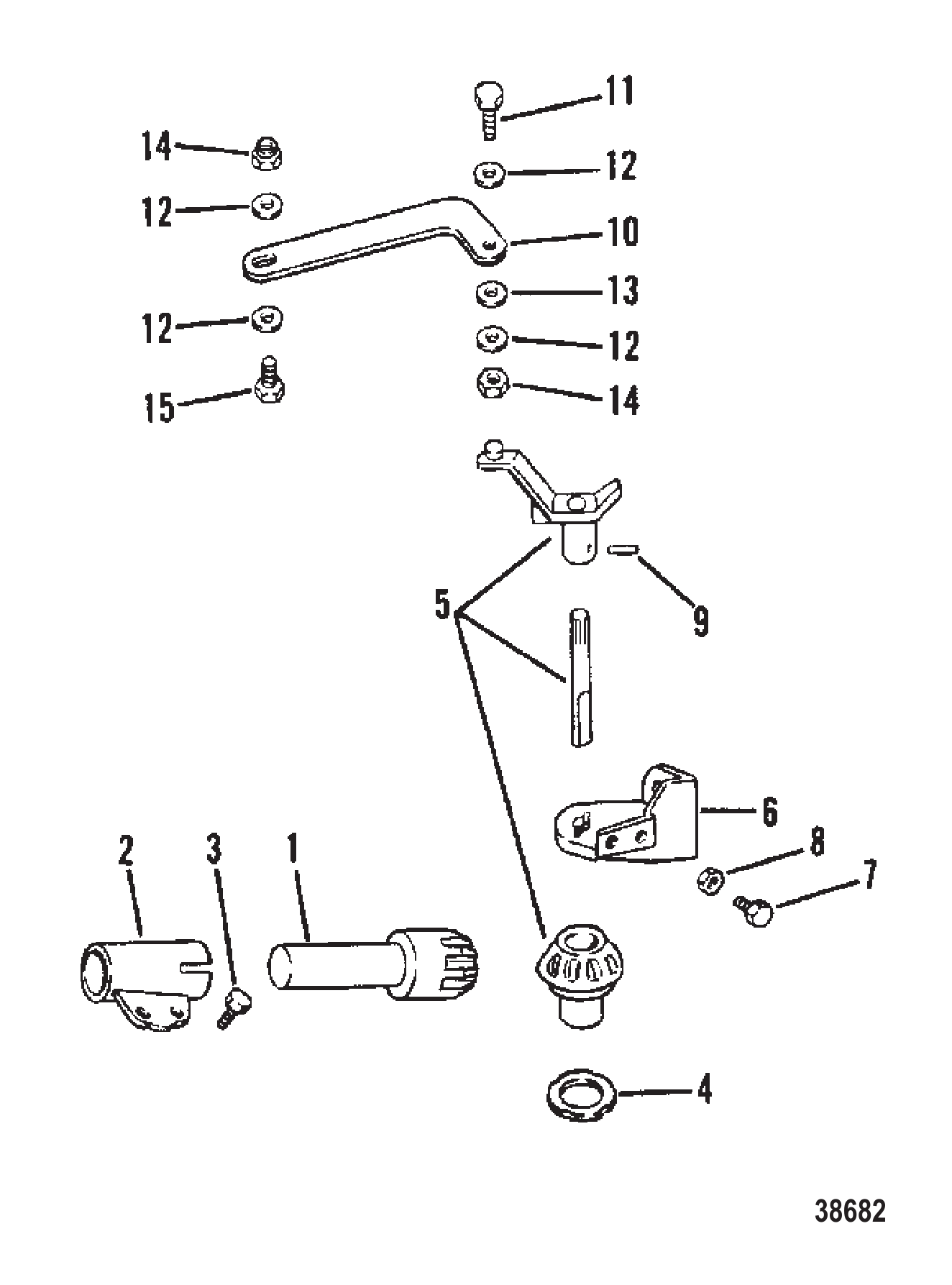

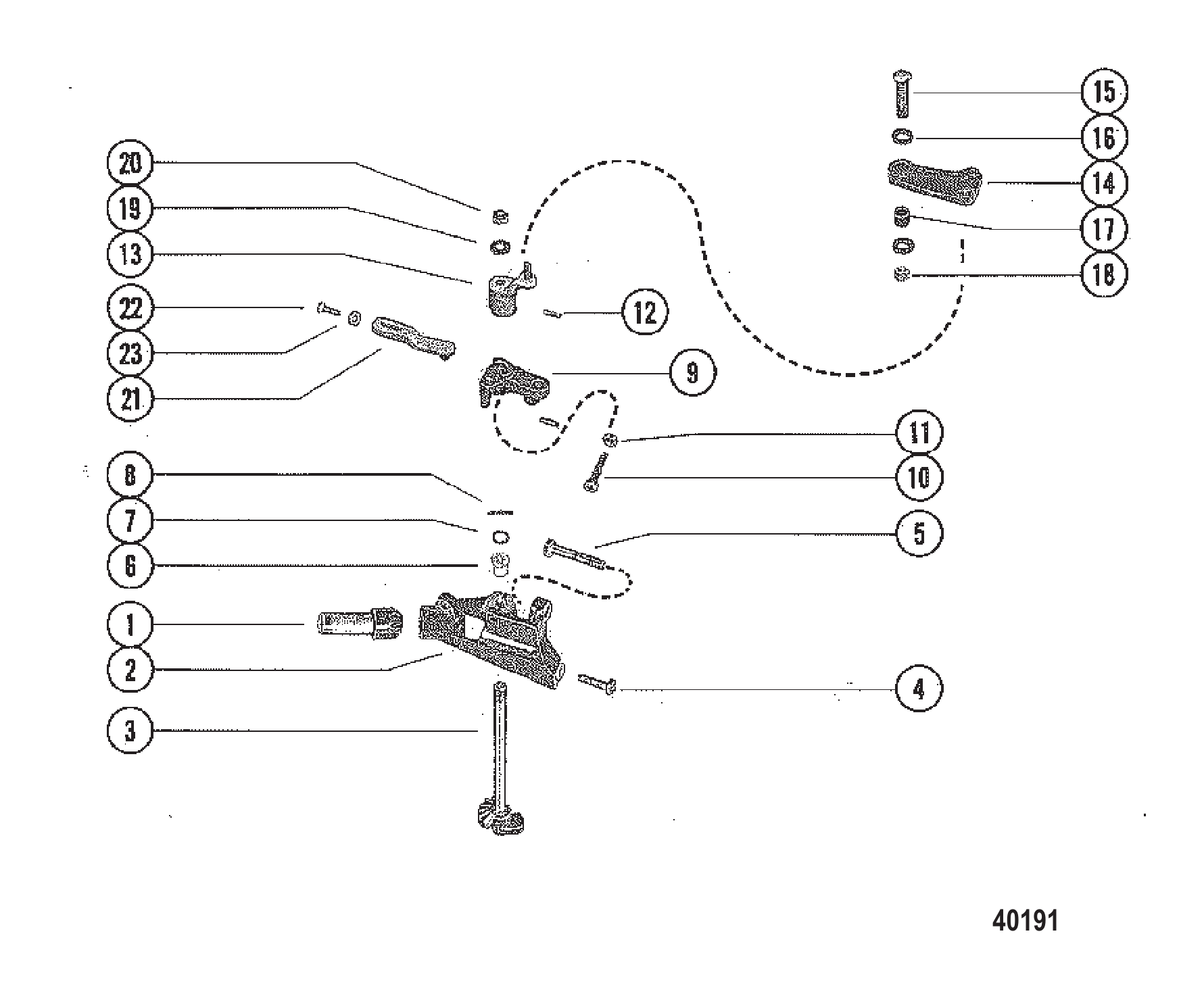

图 4油门控制联动装置 THROTTLE CONTROL LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	60856	节气门控制齿轮	GEAR THROTTLE CONTROL	1
2	60885	水平齿轮壳体	HOUSING HORIZONTAL GEAR	1
2	60885T	壳体	HOUSING	1
3	47910	螺钉(1/4-28 x 5/8)	SCREW (1/4-28 x 5/8)	2
3	96138	螺钉(.250-28 x .620)	SCREW (.250-28 x .620)	2
4	64653A1	小齿轮至下罩垫片组	SHIM ASSEMBLY PINION GEAR TO BOTTOM COWL	1
5	42666A3	齿轮与轴总成	GEAR AND SHAFT ASSEMBLY	1
6	62099	节气门控制杆支架	BRACKET THROTTLE CONTROL LEVER	1
6	62099T	支架	BRACKET	1
7	23015	节气门调节螺钉(.190-32 x 1.00)	SCREW (.190-32 x 1.00) ADJUSTING - THROTTLE	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
9	69745	垂直轴滚销	PIN Roll LEVER TO VERTICAL SHAFT	1
10	60920	节气门杆至定子板连杆	LINK THROTTLE LEVER TO STATOR PLATE	1
11	34696	螺钉(#8-32 x .750)	SCREW (#8-32 x .750)	1
12	34392	垫圈	WASHER	3
13	29720	波形垫圈	WAVE WASHER	1
14	28656	螺母	NUT	2
15	56027	螺钉	SCREW	1

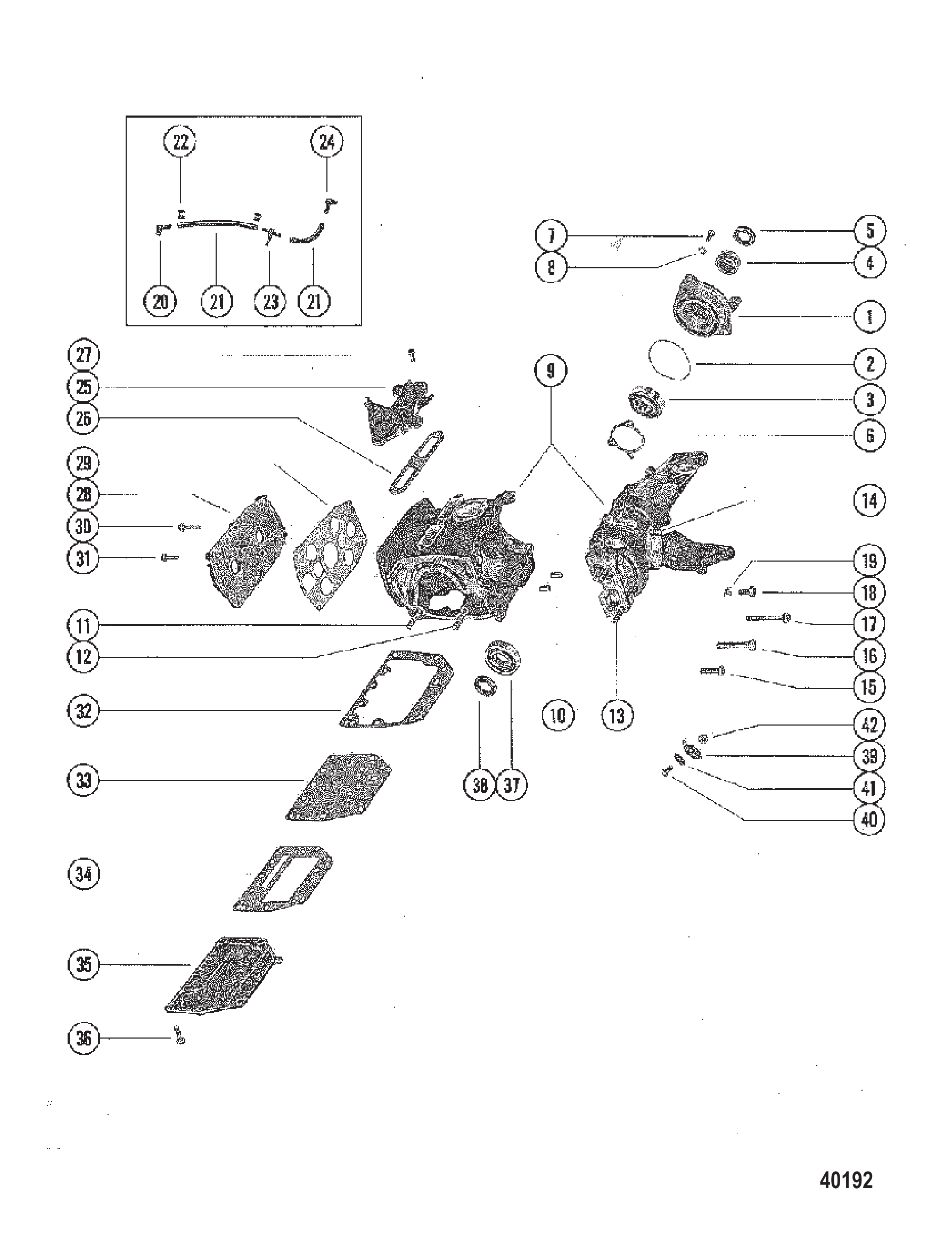

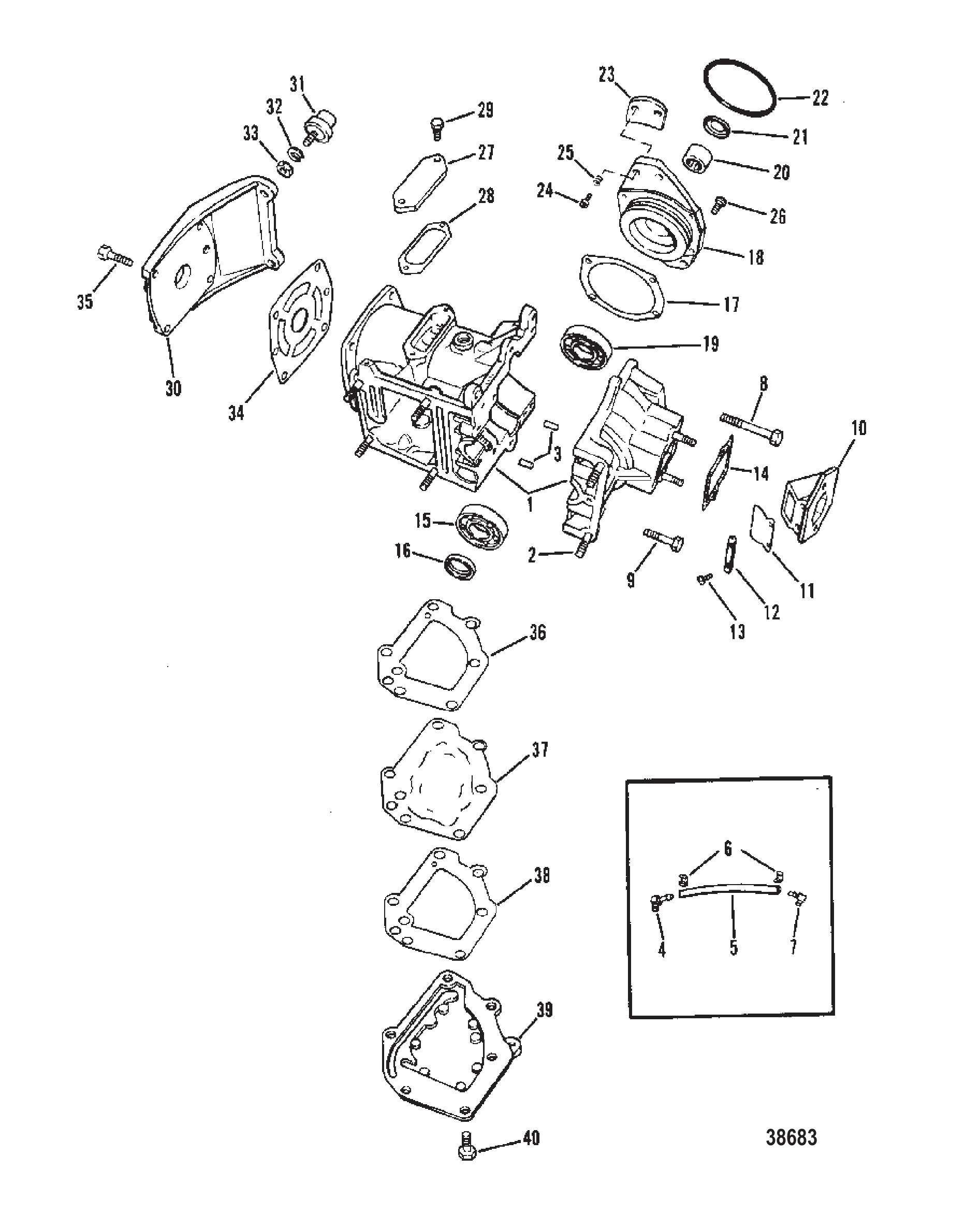

图 5气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8694A3	气缸体	CYLINDER BLOCK	1
2	66021	螺柱	STUD	8
3	85500	曲轴箱至气缸体定位销(.187 x .530)	PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK	2
3	8M0084726	定位销	PIN Dowel	2
4	89275	泄放接头	FITTING BLEED DRAIN	1
5	9912688	泄放管(36英寸散装)	TUBING (36.00 Inches Bulk) BLEED DRAIN	1
6	68424	泄放软管固定夹	CLAMP BLEED HOSE ATTACHING	2
7	88780	泄放示位管弯头	ELBOW Tell-Tale Tubing BLEED DRAIN	1
7	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	1
8	73280	曲轴箱至气缸体螺钉(1-1/2英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1-1/2")	2
9	76621	曲轴箱至气缸体螺钉(1英寸)	SCREW CRANKCASE TO CYLINDER BLOCK (1")	8
10	70726	簧片阀组	REED BLOCK	1
11	35836	簧片进气阀	REED INLET VALVE	2
12	22215	簧片压板	RETAINER REED	2
13	28430	螺钉(#6-32 x .25)	SCREW (#6-32 x .25)	4
14	35739	簧片阀组至曲轴箱垫片	GASKET REED BLOCK TO CRANKCASE	1
14	357391	衬垫	GASKET	1
15	72961	曲轴箱滚珠轴承(下)	BEARING Ball CRANKCASE (LOWER)	1
16	56397	曲轴箱油封(下)	SEAL Oil CRANKCASE (LOWER)	1
17	31412A1	垫片	SHIM	AR
18	6352A1	上轴承壳体总成	HOUSING ASSEMBLY Bearing UPPER	1
19	72961	上轴承壳体滚珠轴承	BEARING Ball UPPER BEARING HOUSING	1
20	31410	上轴承壳体滚柱轴承	BEARING Roller UPPER BEARING HOUSING	1
21	66301	上轴承壳体油封	SEAL Oil UPPER BEARING HOUSING	1
22	20863	上轴承壳体O型圈	O-RING UPPER BEARING HOUSING	1
23	34598	压紧夹	CLAMP HOLD DOWN	2
24	36205	螺钉(#10-24 x .563)	SCREW (#10-24 x .563)	4
25	34731	压环弹簧夹	SPRING HOLD DOWN RING CLAMP	4
26	39002	螺钉(1/2英寸)	SCREW (1/2")	4
27	35658	换气口盖	COVER TRANSFER COVER	1
28	35657	换气口盖垫片	GASKET TRANSFER PORT COVER	1
29	20720	螺钉(.190-24 x .62)	SCREW (.190-24 x .62)	2
30	7070A1	气缸体盖总成	COVER ASSEMBLY CYLINDER BLOCK	1
31	66019	橡胶支座-盖板至上罩	MOUNT RUBBER - COVER TO TOP COWL	2
32	20202	橡胶支座锁紧垫圈	LOCKWASHER RUBBER MOUNT	2
33	22053	螺母(.312-24)橡胶支座至盖板	NUT (.312-24) RUBBER MOUNT TO COVER	2
34	416151	盖板至气缸体衬垫	GASKET COVER TO CYLINDER BLOCK	1
35	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	4
35	8M0214943	螺钉	SCREW	4
36	416141	气缸体至挡板衬垫	GASKET CYLINDER BLOCK TO BAFFLE PLATE	1
37	46234	挡板-排气歧管	PLATE BAFFLE - EXHAUST MANIFOLD	1
38	416141	衬垫	GASKET	1
39	46171	排气歧管盖	COVER EXHAUST MANIFOLD	1
40	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	6
-	78139A80	衬垫套件	GASKET SET
-	87096A79	动力头总成	POWERHEAD ASSEMBLY	1

图 6化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	9503A20	化油器 (6)(WMC-66)	CARBURETOR (6)(WMC-66)	1
1	9503T21	化油器 (WMC-78A) (6)	CARBURETOR (WMC-78A) (6)	1
1	9266A21	化油器 (8)(WMC-74)	CARBURETOR (8)(WMC-74)	1
1	9266T22	化油器	CARBURETOR	1
1	9266T22	化油器 (8)(WMC-79A)	CARBURETOR (8)(WMC-79A)	1
1	8846T20	化油器 (WMC-61)	CARBURETOR (WMC-61)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	8846T25	化油器 (WMC-80A) (9.9)	CARBURETOR (WMC-80A) (9.9)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	9726T11	化油器 (15)(WMC-63)	CARBURETOR (15)(WMC-63)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器 (WMC-77) (15)	CARBURETOR (WMC-77) (15)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器 (WMC-83) (15)	CARBURETOR (WMC-83) (15)	1
2	9473	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	804707	轴	SHAFT	1
4	8M0138645	螺钉	SCREW	1
5	804996	弹簧	SPRING	1
6	813022	油门轴	SHAFT Throttle	1
6	19267	油门轴	SHAFT Throttle	1
7	F10167	环	RING	1
8	9164	燃油杯	BOWL Fuel	1
9	824401	浮子杆	LEVER Float	1
10	91691	浮子	FLOAT	1
11	F10064	轴	SHAFT	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	803861	进油针阀	VALVE Inlet Needle	1
14	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
14	5317	量孔(.046)	JET (.046)	1
14	6246	量孔(.048)	JET (.048)	1
14	6207	量孔(.072)	JET (.072)	1
15	9171	堵头	PLUG	1
16	813618	盖板	COVER	1
16	823648	膜片盖	COVER Diaphragm	1
17	9697	螺钉	SCREW	4
18	15827A1	本体	BODY	1
18	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
19	9643	螺钉	SCREW	5
20	9699	安装板	PLATE	1
21	44426	衬垫	GASKET	1
22	9696	螺钉	SCREW	2
23	96371	燃油泵盖	COVER Fuel Pump	1
23	9637	盖板	COVER	1
24	9633	衬垫	GASKET	1
25	9762	堵头	PLUG	1
26	192061	化油器衬垫	GASKET Carburetor	1
27	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
28	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
29	8237072	维修套件	REPAIR KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

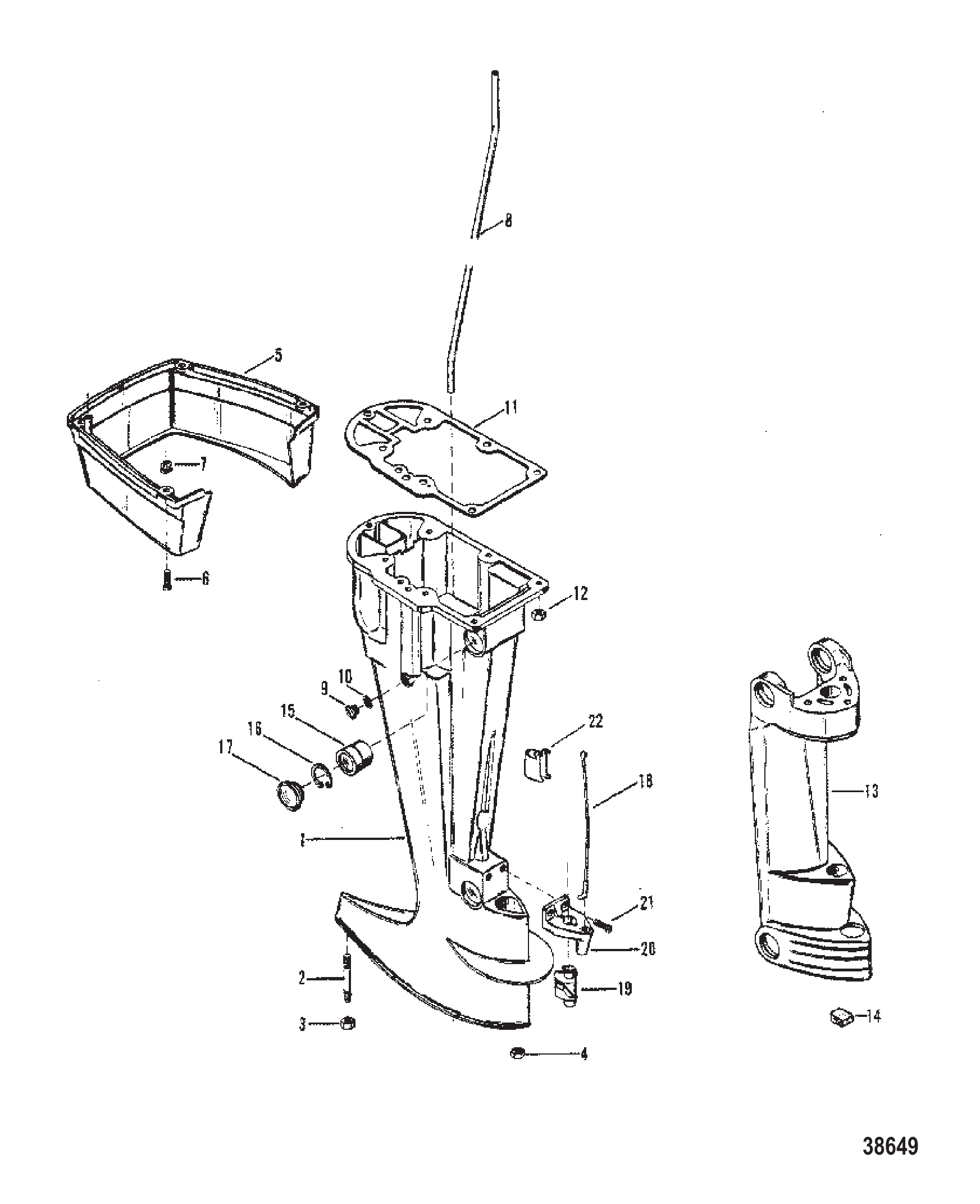

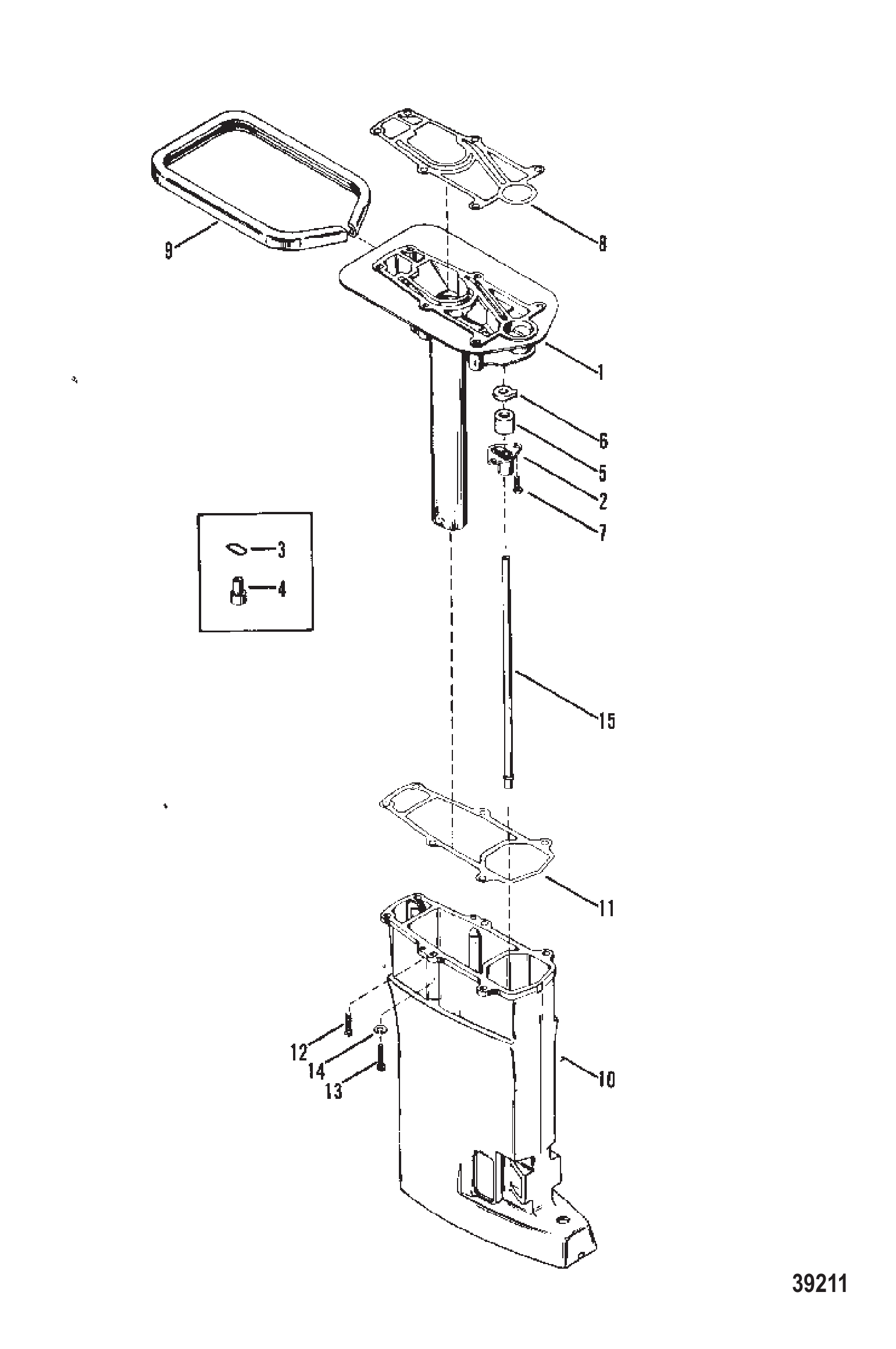

图 7驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8451A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8453A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	66373	螺柱	STUD	1
3	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
3	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
4	34863	螺母 (.375-24)	NUT (.375-24)	1
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
5	96515	装饰盖	COVER TRIM	1
5	96515F1	配平盖	TRIM COVER	1
6	69013	螺钉(#10-16 x .880)装饰盖	SCREW (#10-16 x .880) TRIM COVER	4
7	92012	装饰盖螺钉衬套	GROMMET TRIM COVER SCREW	4
7	8M0079730	密封圈套件	GROMMET KIT	4
8	39061	水管	TUBE WATER	1
8	39062	水管	TUBE WATER	1
9	79953	螺钉(.375-16 x .250)平头-驱动轴壳体	SCREW (.375-16 x .250) FLUSH - DRIVE SHAFT HOUSING	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	20260	密封垫圈-平头螺钉	WASHER SEALING - FLUSH SCREW	1
10	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
11	39050	衬垫	GASKET	1
12	24652	螺母(.250-28)	NUT (.250-28)	6
13	8448A2	鞍座总成	SADDLE ASSEMBLY	1
14	64076	推力缓冲器-鞍座	BUMPER THRUST - SADDLE	1
15	79896A1	上下支座	MOUNT LOWER AND UPPER	4
15	79896A1	上支架	MOUNT UPPER	2
15	79895A1	下支架	MOUNT LOWER	2
16	26406	挡圈-上下支座	RING RETAINING - UPPER AND LOWER MOUNT	4
17	79907	下安装盖	COVER LOWER MOUNT	2
18	71057	倒挡锁连杆	LINK ROD REVERSE LOCK	1
19	65216	倒挡锁凸轮	CAM REVERSE LOCK	1
20	72007	倒挡锁凸轮固定座	RETAINER REVERSE LOCK CAM	1
21	65414	凸轮固定座螺钉(3/4")	SCREW CAM RETAINER (3/4")	2
22	93145	驱动轴座	BLOCK DRIVE SHAFT	1
-	89014A80	衬垫套件	GASKET SET	1

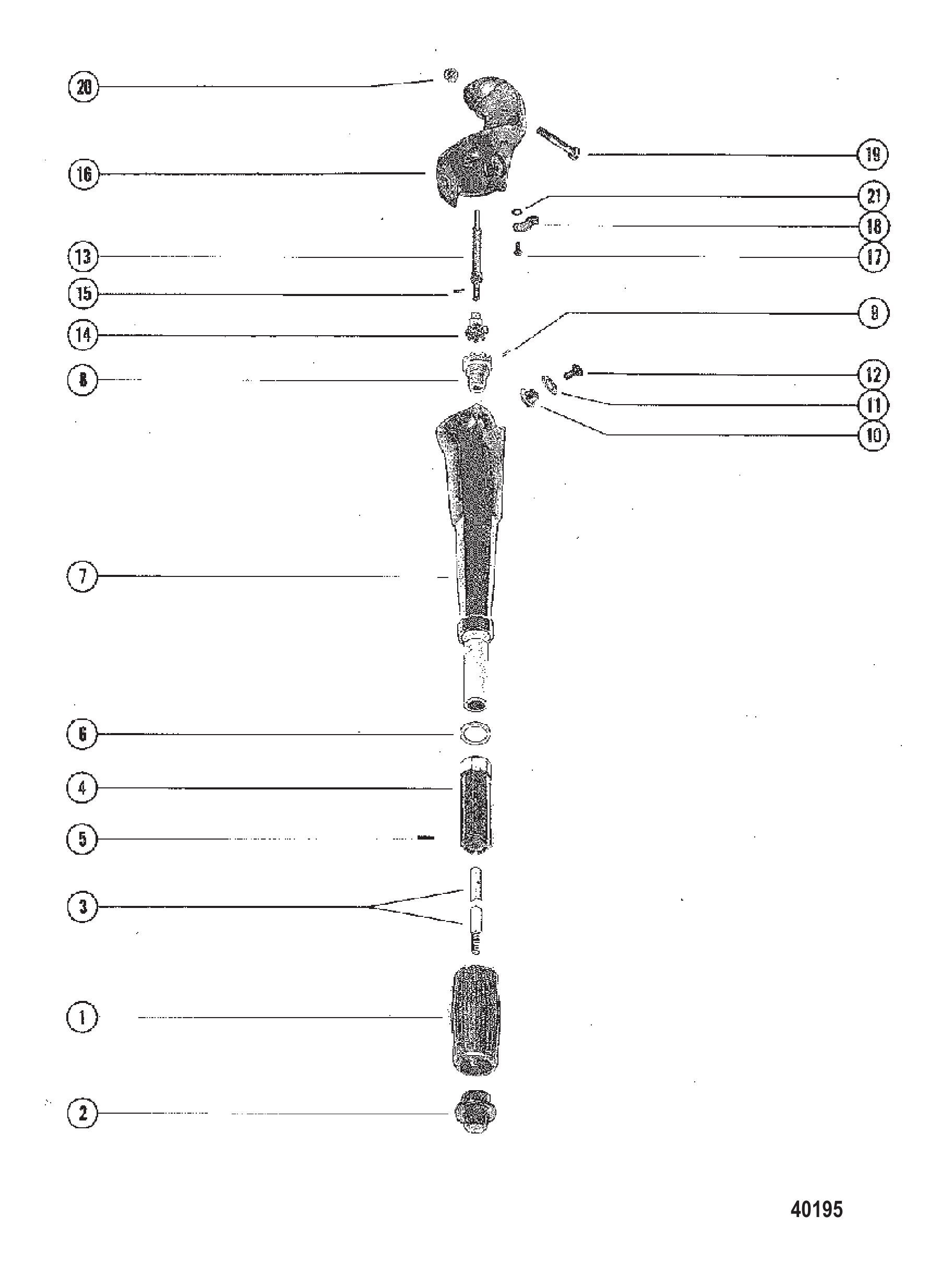

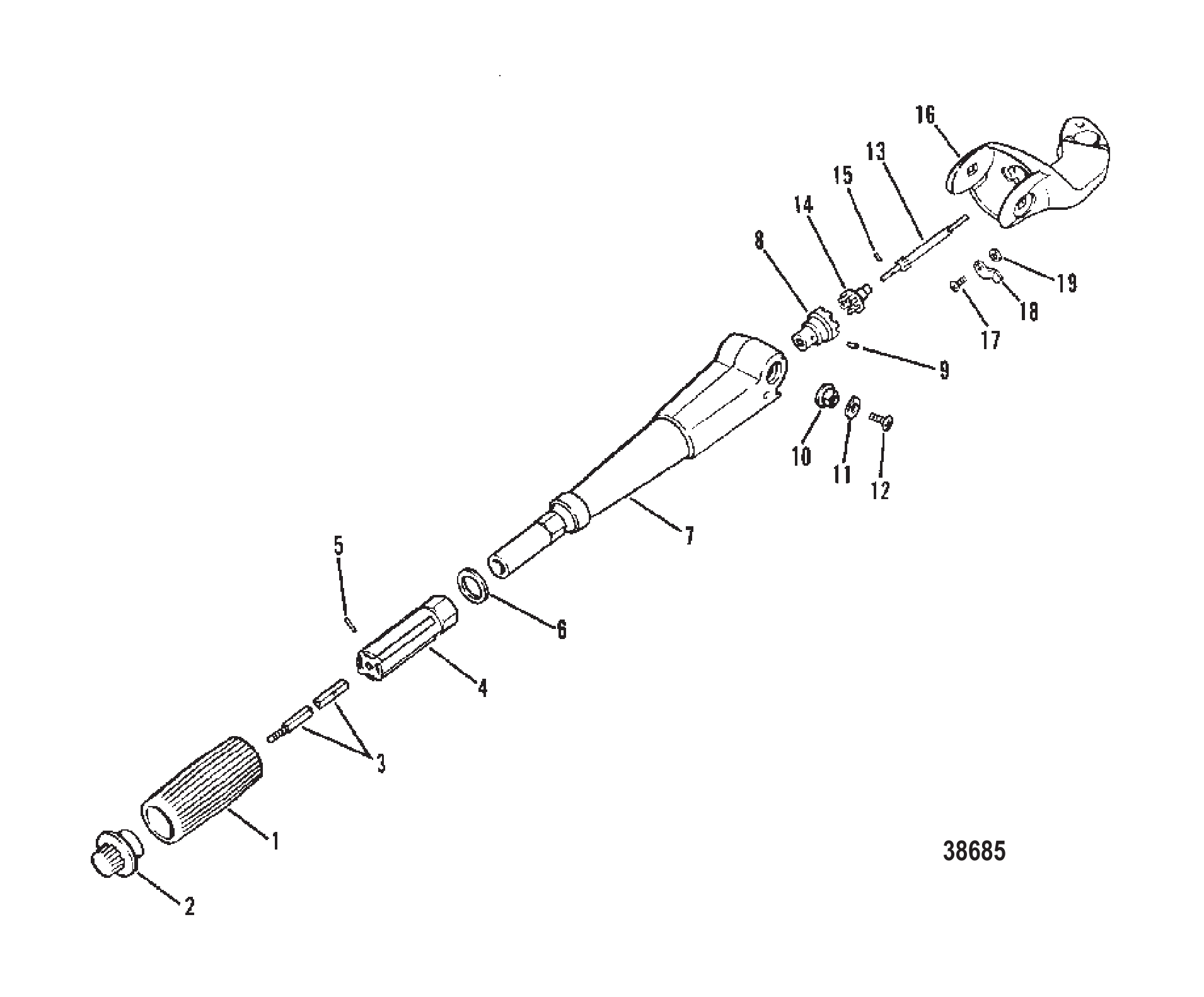

图 8转向手柄总成 STEERING HANDLE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	60850A6	转向手柄总成	HANDLE ASSEMBLY Steering COMPLETE	1
1	60854	油门手柄握把	GRIP HANDLE - THROTTLE	1
2	62251	油门手柄端盖	CAP HANDLE THROTTLE	1
3	66393	轴	SHAFT	1
4	66394A1	油门轴手柄总成	HANDLE ASSEMBLY THROTTLE SHAFT	1
5	46152	油门手柄销	PIN THROTTLE HANDLE	1
6	62252	油门手柄至转向臂垫圈	WASHER THROTTLE HANDLE TO STEERING ARM	1
7	60850	转向手柄臂	ARM STEERING HANDLE	1
8	60852	油门轴齿轮	GEAR THROTTLE SHAFT	1
9	27088	球齿轮至油门轴销	PIN BALL GEAR TO THROTTLE SHAFT	1
10	48003	转向手柄枢轴至支架	PIVOT STEEIRNG HANDLE TO BRACKET	2
11	48002015	手柄枢轴至支架垫片(.015)	SHIM HANDLE PIVOT TO BRACKET (.015)	AR
12	96138	螺钉(.250-28 x .620)手柄至臂支架	SCREW (.250-28 x .620) HANDLE TO ARM BRACKET	2
13	60857A2	万向节总成	UNIVERSAL JOINT ASSEMBLY	1
14	60852	万向节齿轮	GEAR UNIVERSAL JOINT	1
15	27088	球齿轮至万向节销	PIN BALL GEAR TO UNIVERSAL JOINT	1
16	96130A1	转向臂支架	BRACKET STEERING ARM	1
17	62233	螺钉(#10-16 x .625)定位弹簧至支架	SCREW (#10-16 x .625) DETENT SPRING TO BRACKET	2
18	72847	定位弹簧-转向手柄	SPRING DETENT - STEERING HANDLE	2
19	30164	垫圈(.192 x .375 x .0312)不锈钢定位弹簧螺钉	WASHER (.192 x .375 x .0312) Stainless Steel DETENT SPRING SCREW	4

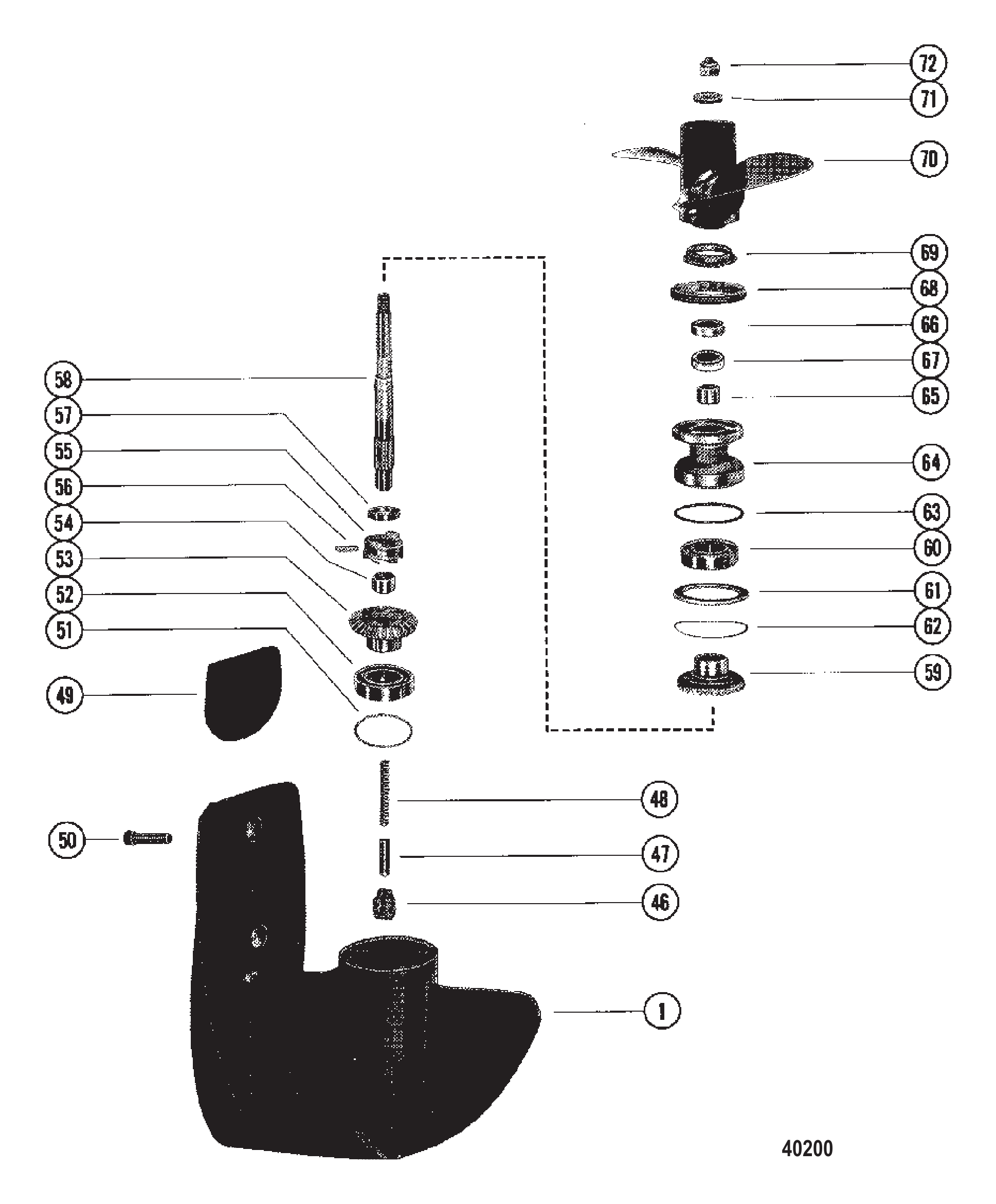

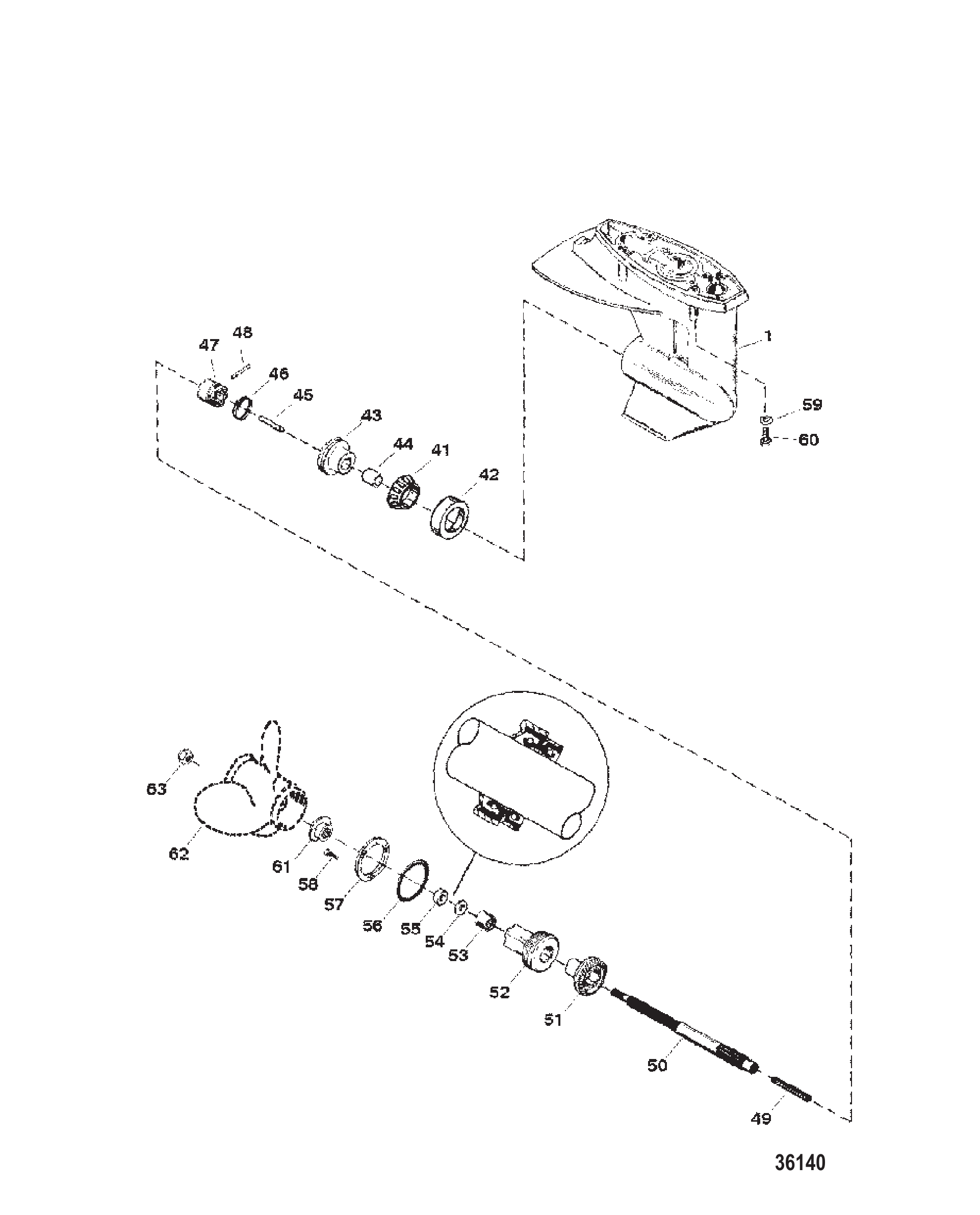

图 9齿轮箱总成螺旋桨轴 GEAR HOUSING ASSEMBLY PROPELLER SHAFT

REF	零件编号	中文名称	英文名称	数量
1	8669A42	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A43	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A44	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A45	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8669A22	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
41	99328A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
42	NSS	滚子轴承杯(不单独销售)	NOT SOLD SEPARATE Cup-Roller Bearing	1
43	44213A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
44	85557	衬套	BUSHING	1
45	85094	凸轮从动件	FOLLOWER Cam	1
46	38114	弹簧	SPRING	1
47	410401	离合器	CLUTCH	1
48	85093	销	PIN	1
49	88680	弹簧	SPRING	1
50	8166231	螺旋桨轴	PROPELLER SHAFT	1
51	99542	倒挡齿轮	GEAR Reverse	1
52	99906A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	21739	滚柱轴承	BEARING Roller	1
54	41132	油封(内)	SEAL Oil (INNER)	1
55	41131	油封(外)	SEAL Oil (OUTER)	1
56	85549	O型圈	O-RING	1
57	87293	安装板	PLATE	1
58	90883	螺钉(M5×16)	SCREW (M5 x 16)	3
59	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	4
60	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	4
61	8M0027793	轮毂	HUB	1
62	19640A40	BLACK MAX螺旋桨(铝-10.375 X 13.0 RH)	BLACK MAX PROPELLER (ALUM-10.375 X 13.0 RH) (BLACK MAX)	1
62	19642A40	螺旋桨(铝-10.250 X 14.5 RH)(BLACK MAX)	PROPELLER (ALUM-10.250 X 14.5 RH) (BLACK MAX)	OPT
62	19639A40	BLACK MAX螺旋桨(铝-10.375 X 12.0 RH)	BLACK MAX PROPELLER (ALUM-10.375 X 12.0 RH) (BLACK MAX)	OPT
62	19638A40	BLACK MAX螺旋桨(铝-10.375 X 11.0 RH)	BLACK MAX PROPELLER (ALUM-10.375 X 11.0 RH) (BLACK MAX)	OPT
62	19636A10	BLACK MAX螺旋桨(铝-10.375 X 9.50 RH)	BLACK MAX PROPELLER (ALUM-10.375 X 9.50 RH) (BLACK MAX)	OPT
62	43592A5	螺旋桨(不锈钢-10.375 X 18.0 RH)(CHOPPER)	PROPELLER (SS-10.375 X 18.0 RH) (CHOPPER)	OPT
62	19644A5	VENGEANCE螺旋桨(不锈钢-10.375 X 13.0 RH)	VENGEANCE PROPELLER (SS-10.375 X 13.0 RH) (VENGEANCE)	OPT
63	4011912	螺旋桨螺母(M12黄铜)-不锈钢螺旋桨用	PROP NUT (M12 BRASS)-FOR SS PROPELLERS	OPT
63	88228	螺旋桨螺母(M12尼龙)-铝制螺旋桨用	PROP NUT (M12 NYLON)-FOR ALUM PROPELLERS	1
-	85090A2	密封套件	SEAL KIT	1

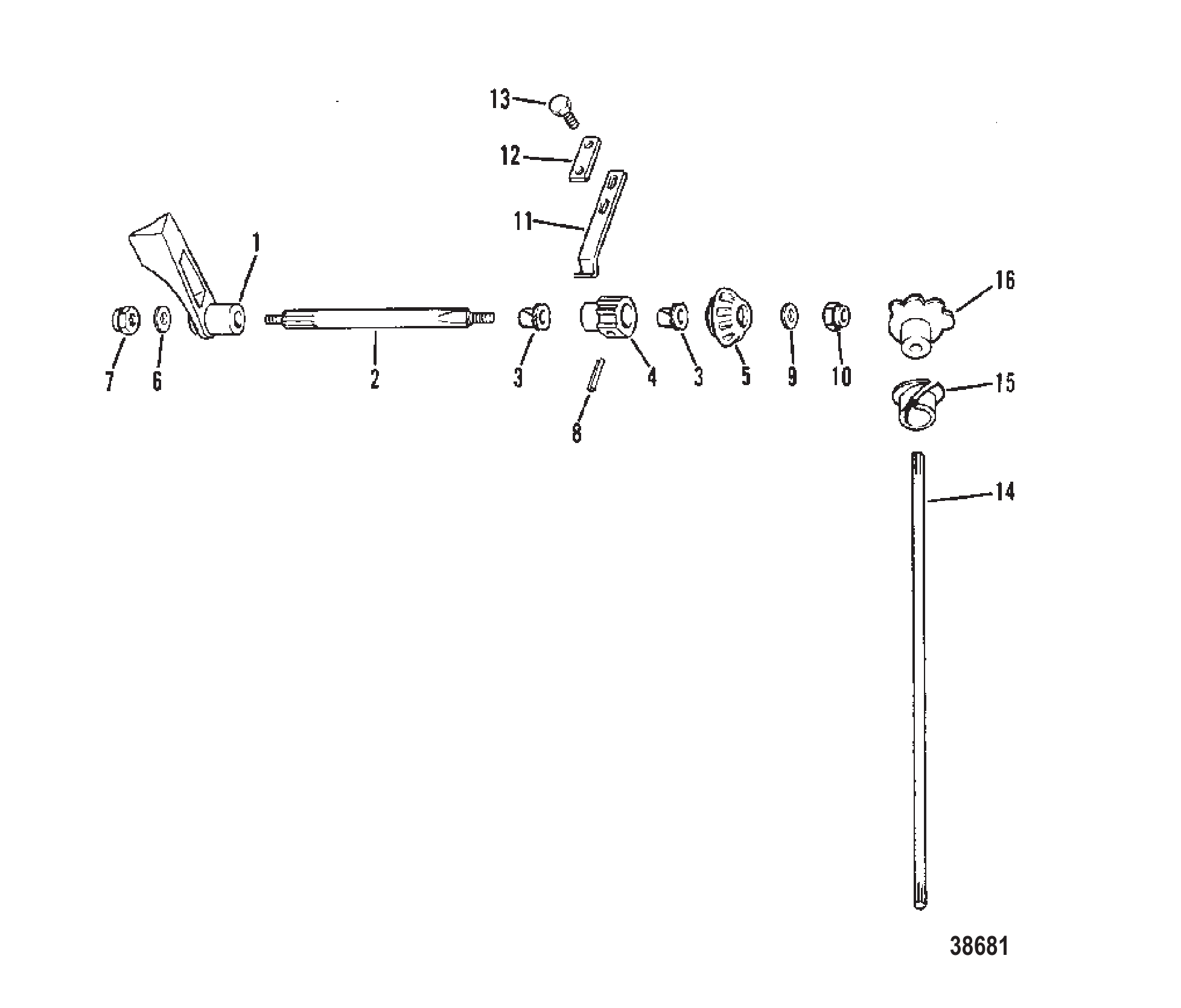

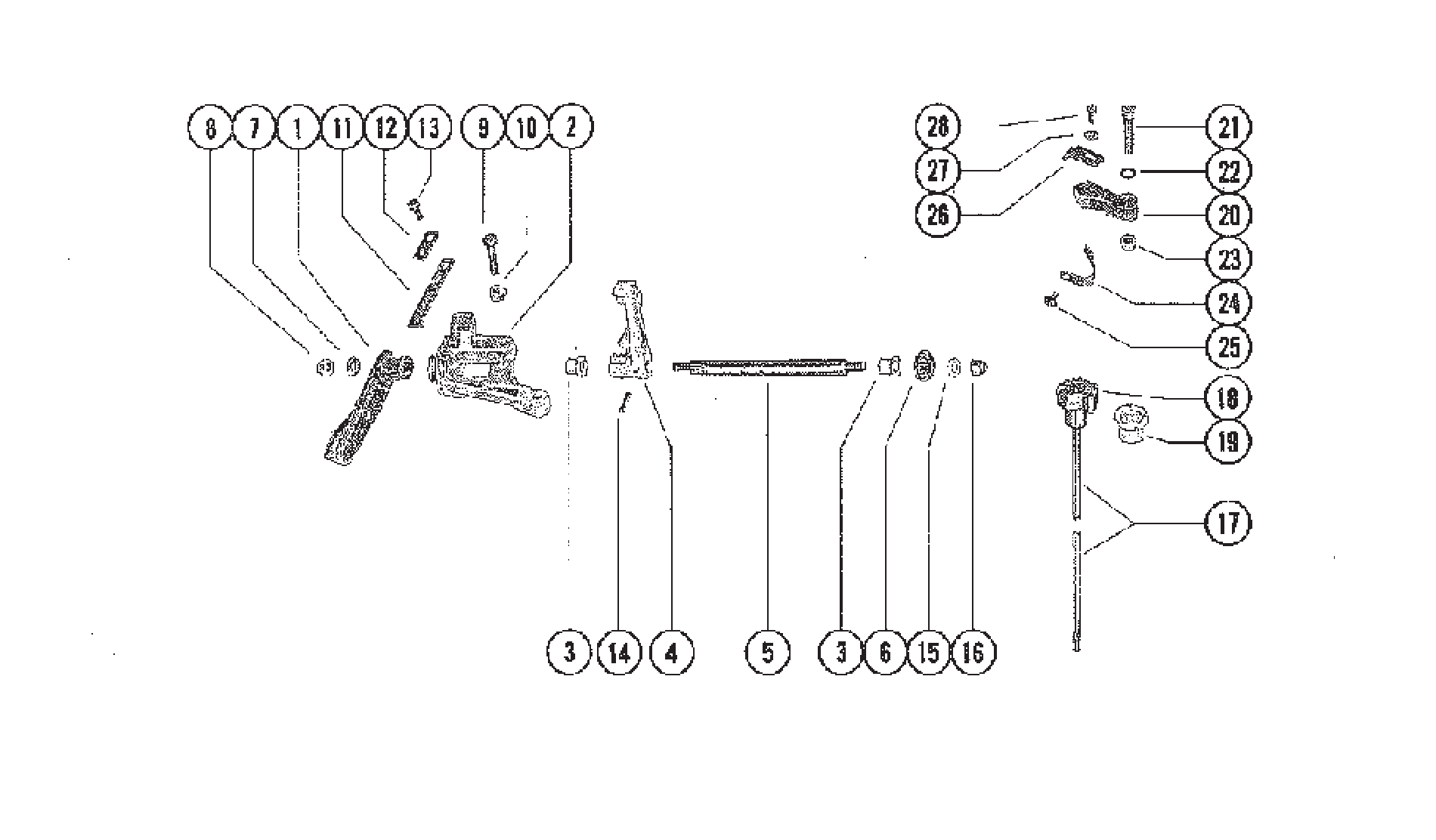

图 10换挡控制联动装置 SHIFT CONTROL LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	66376	换挡控制手柄	HANDLE SHIFT CONTROL	1
2	66378	控制手柄轴	SHAFT CONTROL HANDLE	1
3	66375	尼龙衬套-换挡控制手柄	BUSHING NYLON - SHIFT CONTROL HANDLE	2
4	66414	换挡轴凸轮	CAM SHIFT SHAFT	1
5	66377	换挡控制手柄扇形齿轮	SECTOR GEAR SHIFT CONTROL HANDLE	1
6	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
6	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
7	39305	螺母	NUT	1
7	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
8	25905	定位凸轮至换挡轴销	PIN DETENT CAM TO SHIFT SHAFT	1
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
10	20361	螺母(.250-28)	NUT (.250-28)	1
10	8267089	螺母(.250-28)	NUT (.250-28)	1
11	39627	定位弹簧-曲轴箱	SPRING DETENT - CRANKCASE	1
12	39601	定位弹簧板	PLATE DETENT SPRING	1
13	25764	螺钉(.190-32 x .50)	SCREW (.190-32 x .50)	2
14	71660	换挡轴上段	SHIFT SHAFT UPPER	1
15	30677	尼龙衬套-换挡控制轴	BUSHING NYLON - SHIFT CONTROL SHAFT	1
16	86686A1	扇形齿轮换挡轴	SECTOR GEAR SHIFT SHAFT	1

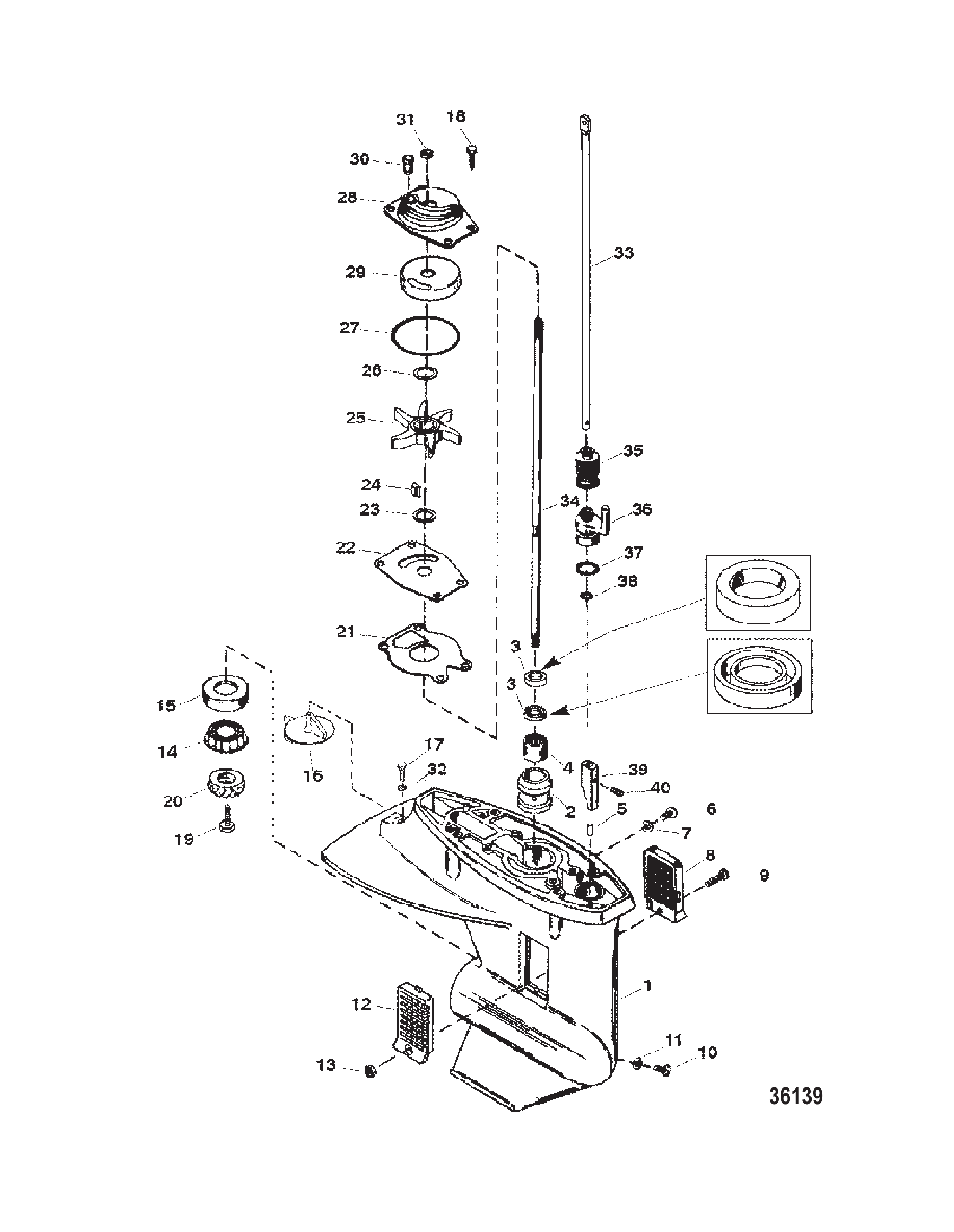

图 11齿轮箱总成驱动轴 GEAR HOUSING ASSEMBLY DRIVESHAFT

REF	零件编号	中文名称	英文名称	数量
1	8669A42	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A43	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A44	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A45	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8669A22	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
2	NSS	不单独销售套筒	NOT SOLD SEPARATE Sleeve	1
3	99325	密封件	SEAL	2
4	41326	滚柱轴承	BEARING Roller	1
5	85500	定位销(.187 x .530)	PIN Dowel (.187 x .530)	1
6	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
7	19183	纤维垫圈	WASHER Fiber	1
8	41133	进水口滤网	SCREEN Water Inlet Port	1
9	40031112	螺钉(M5 x 40)	SCREW (M5 x 40)	1
10	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
11	19183	纤维垫圈	WASHER Fiber	1
12	41134	滤网(右舷)	SCREEN (STARBOARD)	1
13	400263	螺母(M5)滤网螺钉	NUT (M5) SCREEN SCREW	1
14	98294A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
15	NSS		NOT SOLD SEPARATE Cup-roller Bearing	1
16	984325	平衡鳍板	TRIM TAB	1
17	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
18	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	4
19	49908	螺钉(.250-28 x .750)	SCREW (.250-28 x .750)	1
20	98302	小齿轮	GEAR Pinion	1
21	993261	衬垫	GASKET	1
22	85083	面板	FACE PLATE	1
23	8M0027721	垫圈	WASHER	1
24	85119	键	KEY	1
25	850893	叶轮	IMPELLER	1
26	8M0027721	垫圈	WASHER	1
27	69202	O型圈	O-RING	1
28	99157A1	水泵总成	PUMP ASSEMBLY Water	1
29	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
30	85090	密封件	SEAL	1
31	86203	O型圈	O-RING	1
32	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	1
33	853939	换挡杆	ROD Gear Shift	1
33	853940	换挡杆	ROD Gear Shift	1
34	827024T	驱动轴	DRIVESHAFT	1
34	827025T	驱动轴	DRIVESHAFT	1
35	85552	护套	BOOT	1
36	93878	固定座	RETAINER	1
37	35276	O型圈(.734 x .139)	O-RING (.734 x .139)	1
38	85594	O型圈(.239 x .174)	O-RING (.239 x .174)	1
39	85562A2	换挡凸轮	SHIFT CAM	1
40	85096	驱动销	PIN Drive	1
-	85090A2	密封套件	SEAL KIT	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1

图 12杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

图 13下罩总成 BOTTOM COWL ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	66416A2	安装板总成	PLATE ASSEMBLY MOUNTING	1
1	88381A3	隔板总成	PLATE ASSEMBLY	1
1	88381A3	安装板总成	PLATE ASSEMBLY MOUNTING	1
2	86215	尼龙轴承-进水管	BEARING NYLON - WATER INLET TUBE	1
3	25329	橡胶密封圈-进水管	SEAL RUBBER - WATER INLET TUBE	1
4	33513	进水管密封圈固定座	RETAINER WATER INLET TUBE SEAL	1
5	20540	螺钉(.250-20 x .62)	SCREW (.250-20 x .62)	1
6	39401	动力头至安装板衬垫	GASKET POWERHEAD TO MOUNTING PLATE	1
7	39622	安装板至下罩密封件	SEAL MOUNTING PLATE TO BOTTOM COWL	1
8	39402	衬垫	GASKET	1
9	6419A2	下罩总成	BOTTOM COWL ASSEMBLY	1
9	7065A2	下罩总成	BOTTOM COWL ASSEMBLY	1
9	7065A2	下罩总成	BOTTOM COWL ASSEMBLY	1
10	48472	线束孔盖	COVER HARNESS HOLE	1
11	61802	螺钉(7/8英寸)	SCREW (7/8")	2
12	32297	下机罩塞	PLUG BOTTOM COWL	1
12	824928001	橡胶塞	PLUG Rubber	1
13	76176	前盖操纵杆	LEVER FRONT COVER	1
14	76177	前盖操纵杆弹簧	SPRING FRONT COVER LEVER	1
15	26541	滚销-操纵杆至下罩	PIN Roll LEVER TO BOTTOM COWL	1
16	46266A2	下罩盖板总成	COVER PLATE ASSEMBLY BOTTOM COWL	1
17	39591	隔音垫-盖板	PAD SOUND - COVER PLATE	1
18	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	3
20	78497	油门线护套-下罩	BOOT THROTTLE CABLE - BOTTOM COWL	1
21	39778	燃油适配器护圈-下罩	GROMMET FUEL ADAPTOR - BOTTOM COWL	1
22	39780	换挡线护套-下罩	BOOT SHIFT CABLE - BOTTOM COWL	1
23	39058	换挡手柄密封-下罩	SEAL SHIFT HANDLE - BOTTOM COWL	1
24	34395A1	软管(11英寸)	HOSE (11 INCHES)	1
24	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
25	25885	弯头-缸体曲轴箱总成部件	ELBOW Component of Cylinder Block and Crankcase Assembly	1
25	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
26	52889	喷嘴-下罩总成部件	NOZZLE Component of Bottom Cowl Assembly	1
27	48409	螺钉(#10-16 x .625)不锈钢-下罩总成部件	SCREW (#10-16 x .625) Stainless Steel Component of Bottom Cowl Assembly	1
28	69508A7	停机开关总成	SWITCH ASSEMBLY Stop	1
28	69508A31	停机开关总成	SWITCH ASSEMBLY Stop	1
29	69509A1	停止开关盖总成	COVER ASSEMBLY STOP SWITCH	1
29	99525A1	盖总成	COVER ASSEMBLY	1
30	69845	停止开关锁紧垫圈	LOCKWASHER STOP SWITCH	1
31	69844	停机开关螺母	NUT STOP SWITCH	1

图 14化油器和阻风门总成 CARBURETOR AND CHOKE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	6063A2	化油器总成(完整)	CARBURETOR ASSEMBLY COMPLETE	1
1	6650A3	化油器总成	CARBURETOR ASSEMBLY	1
1	6650A3	化油器总成(完整)	CARBURETOR ASSEMBLY COMPLETE	1
2	70432	燃油适配器至化油器管路(9-3/4英寸)	LINE Fuel ADAPTOR TO CARGURETOR (9-3/4")	1
2	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
3	68424	燃油软管固定夹	CLAMP FUEL HOSE ATTACHING	2
4	63981	燃油管转接头	FITTING FUEL LINE TO ADAPTOR	1
5	22833	适配器止回单元(燃油管)	ADAPTER CHECK UNIT (FUEL LINE)	1
6	23069	适配器阀杆止回单元	STEM CHECK UNIT ADAPTOR	1
7	20415	适配器阀杆O型圈	O-RING ADAPTOR STEM	1
7	16524	燃油接头O型圈	O-RING Fuel Connector	1
8	23067	适配器阀杆弹簧	SPRING ADAPTOR STEM	1
8	23067T	弹簧	SPRING	1
9	30188	适配器垫片	WASHER ADAPTOR	1
10	37923	适配器至下罩盖螺钉(.250-28x1.250)	SCREW (.250-28 x 1.250) ADAPTOR TO BOTTOM COWL	1
11	65552	化油器滤网	SCREEN CARBURETOR	1
12	69022	滤网至化油器不锈钢螺钉(#10-32x0.500)	SCREW (#10-32 x .500) Stainless Steel SCREEN TO CARBURETOR	2
13	86381	阻风门旋钮	KNOB CHOKE	1
13	86874	阻风门按钮	BUTTON CHOKE	1
14	73710	阻风门拉索至下罩盖螺母	NUT CHOKE CABLE TO BOTTOM COWL	1
15	72465	阻风门拉索	CABLE Choke	1
16	69020	阻风门拉索至化油器螺钉(#10-32x0.875)	SCREW (#10-32 x .875) CHOKE CABLE TO CARBURETOR	1
16	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
17	56681	垫圈(.203 x .500 x .032)阻风门线螺钉	WASHER (.203 x .500 x .032) CHOKE CABLE SCREW	1
17	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
18	20083	螺母(5/16-24)化油器固定	NUT (5/16-24) CARBURETOR ATTACHING	2
18	22053	螺母(.312-24)	NUT (.312-24)	2

图 15化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	9503A20	化油器 (6)(WMC-66)	CARBURETOR (6)(WMC-66)	1
1	9503T21	化油器 (WMC-78A) (6)	CARBURETOR (WMC-78A) (6)	1
1	9266A21	化油器 (8)(WMC-74)	CARBURETOR (8)(WMC-74)	1
1	9266T22	化油器	CARBURETOR	1
1	9266T22	化油器 (8)(WMC-79A)	CARBURETOR (8)(WMC-79A)	1
1	8846T20	化油器 (WMC-61)	CARBURETOR (WMC-61)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	8846T25	化油器 (WMC-80A) (9.9)	CARBURETOR (WMC-80A) (9.9)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	9726T11	化油器 (15)(WMC-63)	CARBURETOR (15)(WMC-63)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器 (WMC-77) (15)	CARBURETOR (WMC-77) (15)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器 (WMC-83) (15)	CARBURETOR (WMC-83) (15)	1
2	9473	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	804707	轴	SHAFT	1
4	8M0138645	螺钉	SCREW	1
5	804996	弹簧	SPRING	1
6	813022	油门轴	SHAFT Throttle	1
6	19267	油门轴	SHAFT Throttle	1
7	F10167	环	RING	1
8	9164	燃油杯	BOWL Fuel	1
9	824401	浮子杆	LEVER Float	1
10	91691	浮子	FLOAT	1
11	F10064	轴	SHAFT	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	803861	进油针阀	VALVE Inlet Needle	1
14	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
14	5317	量孔(.046)	JET (.046)	1
14	6246	量孔(.048)	JET (.048)	1
14	6207	量孔(.072)	JET (.072)	1
15	9171	堵头	PLUG	1
16	813618	盖板	COVER	1
16	823648	膜片盖	COVER Diaphragm	1
17	9697	螺钉	SCREW	4
18	15827A1	本体	BODY	1
18	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
19	9643	螺钉	SCREW	5
20	9699	安装板	PLATE	1
21	44426	衬垫	GASKET	1
22	9696	螺钉	SCREW	2
23	96371	燃油泵盖	COVER Fuel Pump	1
23	9637	盖板	COVER	1
24	9633	衬垫	GASKET	1
25	9762	堵头	PLUG	1
26	192061	化油器衬垫	GASKET Carburetor	1
27	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
28	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
29	8237072	维修套件	REPAIR KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

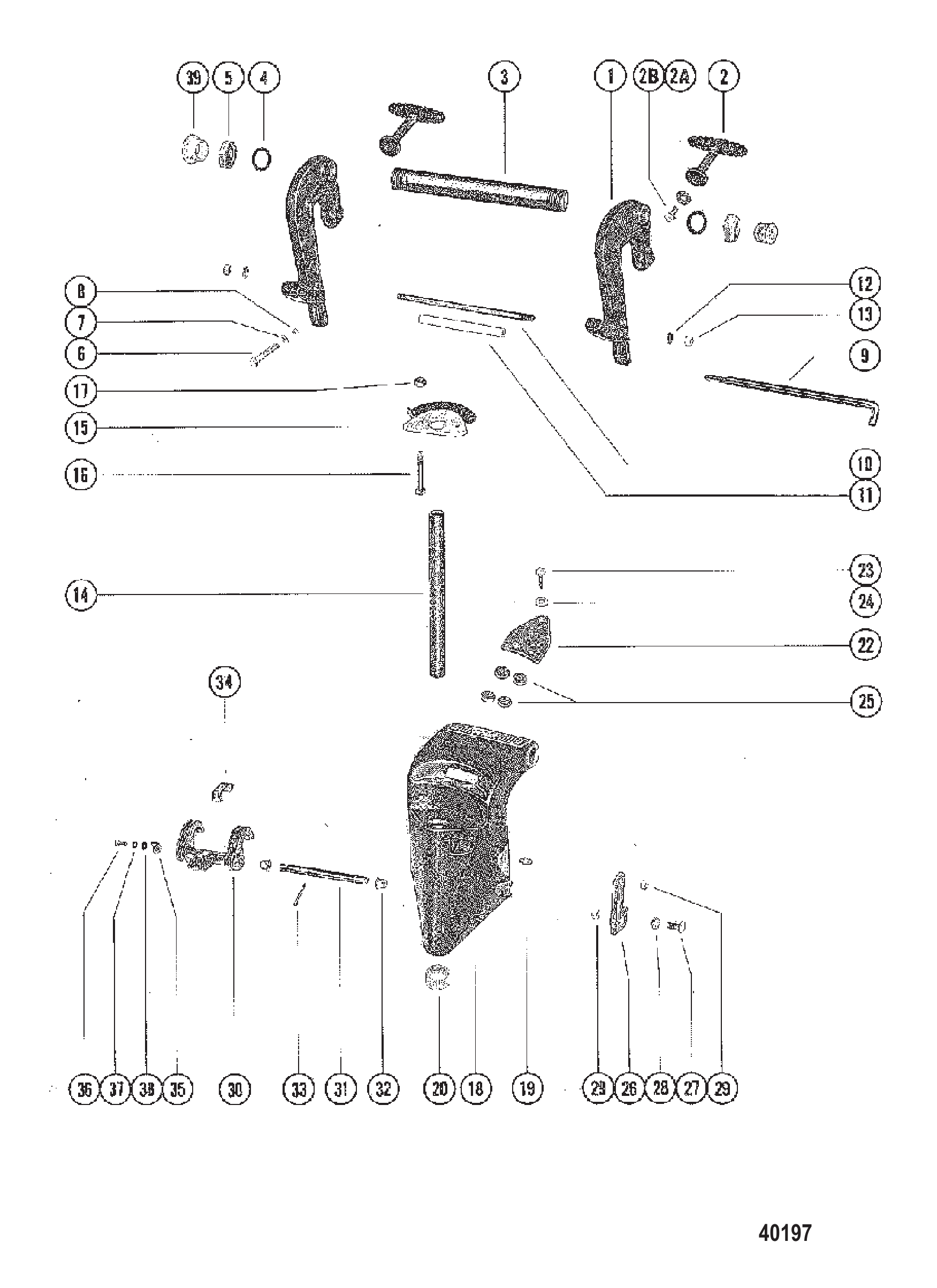

图 16夹紧和旋转支架总成 CLAMP AND SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	5632A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
1	5632A3	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
2	74159A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
2	77190A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
1	5632A3	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
2	77190A3	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
2A	73719	垫圈	WASHER	2
2A	818884	垫圈	WASHER	2
2B	76804	螺钉	SCREW	2
2B	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
3	74249	倾斜管夹支架	TILT TUBE CLAMP BRACKET	1
4	71421	尼龙垫圈-倾斜管夹支架	WASHER Nylon CLAMP BRACKET TILT TUBE	2
5	56041	螺母(.875-14)倾斜管紧固	NUT (.875-14) TILT TUBE FASTENING	2
5	858869	螺母 (.875-14)	NUT (.875-14)	2
6	67979	螺栓-夹支架至艉板(2 3/4英寸)	BOLT CLAMP BRACKET TO TRANSOM(2 3/4")	2
7	67981	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
8	67980	螺母(.312-18)夹支架螺钉	NUT (.312-18) CLAMP BRACKET SCREW	2
8	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	2
9	56373A1	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
9	56373A2	倾斜销总成	PIN ASSEMBLY Tilt	1
10	59620	螺柱-夹支架(8英寸)	STUD CLAMP BRACKET (8")	1
11	59621	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
11	59621T	隔套	SPACER	1
12	26993	锁紧垫圈(.312)夹支架螺柱	LOCKWASHER (.312) CLAMP BRACKET STUD	2
12	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
13	28770	螺母(.312-24)不锈钢-夹支架螺柱	NUT (.312-24) Stainless Steel CLAMP BRACKET STUD	2
14	66557	旋转销	SWIVEL PIN	1
15	33423	副驾驶盘	DISC Co-Pilot	1
16	26132	螺钉(2 1/2英寸)	SCREW (2 1/2")	3
16	35385	螺钉(.312-18 x 1-3/4)	SCREW (.312-18 x 1-3/4)	3
17	46793	螺母(5/16-24)	NUT (5/16-24)	3
17	29250	螺母(.312-24)	NUT (.312-24)	3
18	6036A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
18	6667A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
18	6667A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
19	74036	润滑脂接头	FITTING Grease	3
19	8M0169589	润滑脂接头	FITTING Grease	3
20	64651	转轴支架衬套	BUSHING SWIVEL BRACKET	2
22	73014A1	副驾驶板总成	PLATE ASSEMBLY CO-PILOT	1
23	78841	螺钉(.312-24 x 1.500)	SCREW (.312-24 x 1.500)	1
24	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	1
25	20203	圆盘	DISC	4
26	63310A1	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
27	63311	固定螺钉-操纵杆至旋转支架	SCREW RETAINING - LEVER TO SWIVEL BRACKET	2
27	41433	螺钉(.250-28 x 1.00)	SCREW (.250-28 x 1.00)	2
28	31030	波形垫圈	WAVE WASHER	1
29	36069	螺母-倾斜止动杆螺钉	NUT TILT STOP LEVER SCREW	2
30	61012	倒挡锁止杆	LEVER REVERSE LOCK	1
31	26092	倒挡锁止杆连杆	ROD REVERSE LOCK LEVER	1
32	26841	尼龙衬套-倒挡锁止杆连杆	BUSHING NYLON - REVERSE LOCK LEVER ROD	2
33	45882	开口销-倒挡锁止杆连杆	COTTER PIN REVERSE LOCK LEVER ROD	1
34	61007	固定座-倒挡锁止杆	RETAINER ROD - REVERSE LOCK	1
35	70241	倒挡锁止块	STOP REVERSE LOCK	1
36	71056	螺丝(.250-28 x .560)倒车挡块至旋转支架	SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET	1
37	26992	锁紧垫圈(.250)不锈钢倒车挡块螺丝	LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW	1
38	71055	垫圈倒车挡块螺丝	WASHER REVERSE STOP SCREW	1
39	39333	倾斜管塞	PLUG TILT TUBE	2

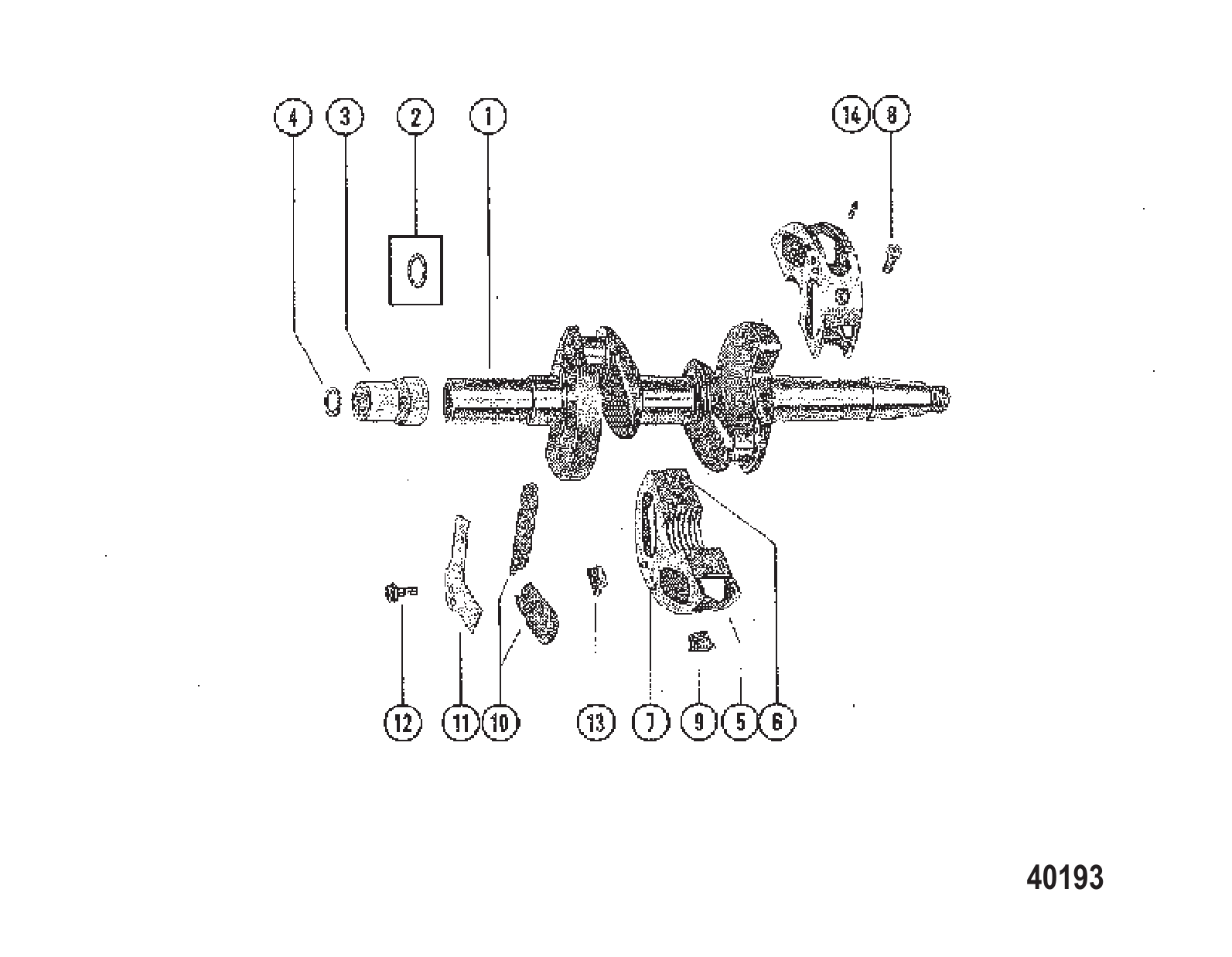

图 17曲轴和中心主轴承总成 CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	6099	曲轴	CRANKSHAFT	1
2	73315	曲轴油封	SEAL CRANKSHAFT	1
1	7631A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
3	88224A1	托架总成	CARRIER ASSEMBLY	1
4	88740	毛毡垫圈-托架	WASHER FELT - CARRIER	1
5	3267A25	主轴承总成	BEARING ASSEMBLY Main	1
5	3267T25	簧片阀总成	REED BLOCK ASSY	1
6	20032	定位销中心主轴承	PIN Dowel CENTER MAIN BEARING	2
7	65855	定位销簧片止动	PIN Dowel REED STOP	8
8	45775	螺丝(#12-28 x .560)	SCREW (#12-28 x .560)	2
9	45774	螺母中心主轴承夹紧螺丝	NUT CENTER MAIN BEARING CLAMPING SCREW	2
10	56704A1	簧片组中心主轴承(配对)	REED SET CENTER MAIN BEARING (MATCHED)	1
10	88498A1	簧片组	REED SET	1
11	64632	止动簧片主轴承簧片阀	STOP Reed MAIN BEARING REED VALVE	4
12	77280	螺丝(.190-32 x .560)簧片止动安装	SCREW (.190-32 x .560) REED STOP MOUNTING	4
13	20110	螺母(#10-32)簧片止动安装螺丝	NUT (#10-32) REED STOP MOUNTING SCREW	4
14	20032	定位销主轴承至气缸体	PIN Dowel MAIN BEARING TO CYLINDER BLOCK	1

图 18气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	6437A1	曲轴箱顶盖总成	CRANKCASE TOP ASSEMBLY	1
2	20071	O型圈曲轴箱顶盖	O-RING CRANKCASE TOP	1
3	63326	滚珠轴承-曲轴箱顶盖(上部)	BEARING BALL - CRANKCASE TOP (UPPER)	1
3	63326T	滚珠轴承	BEARING-BALL	1
4	20594	滚柱轴承-曲轴箱顶盖(上部)	BEARING ROLLER - CRANKCASE TOP (UPPER)	1
5	66300	油封曲轴箱顶盖(上部)	SEAL Oil CRANKCASE TOP (UPPER)	1
6	56191A1	垫片	SHIM	AR
7	73456	螺丝曲轴箱顶盖至气缸体(5/8")	SCREW CRANKCASE TOP TO CYLINDR BLOCK (5/8")	3
7	86750	螺丝(.312-18 x .620)	SCREW (.312-18 x .620)	3
8	75670	锁紧垫圈曲轴箱顶盖螺丝	TAB WASHER CRANKCSAE TOP SCREW	3
9	6430A3	气缸体与曲轴箱总成	CYLINDER BLOCK AND CRANKCASE ASSEMBLY	1
10	23784	定位销曲轴箱至气缸体	PIN Dowel CRANKCASE TO CYLINDER BLOCK	2
11	72743	双头螺柱(2 1/8")	STUD (2 1/8")	2
12	78986	双头螺柱(.312-18/.312-24 x 1.750)	STUD (.312-18/.312-24 x 1.750)	2
12	8M0034434	螺柱	STUD	2
13	78986	双头螺柱(.312-18/.312-24 x 1.750)	STUD (.312-18/.312-24 x 1.750)	2
13	8M0034434	螺柱	STUD	2
14	72742	双头螺柱(.312-18/.324-24 x 1.090)	STUD (.312-18/.324-24 x 1.090)	2
15	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
16	35385	螺钉(.312-18 x 1-3/4)	SCREW (.312-18 x 1-3/4)	2
17	67450	螺丝(.312-18 x 2.250)	SCREW (.312-18 x 2.250)	2
18	26801	螺丝(.375-16 x .62)适用处使用	SCREW (.375-16 x .62) Use where Applicable	1
18	98260	螺钉(.375-16 x .620)	SCREW (.375-16 x .620)	1
19	20091	锁紧垫圈适用处使用	TAB WASHER Use where Applicable	1
20	77207	泄放接头	FITTING BLEED DRAIN	1
20	42863	止回阀	CHECK VALVE	1
21	54936	泄放软管	HOSE BLEED DRAIN	2
21	9938779	软管	HOSE	2
22	56223	泄放软管固定夹	CLAMP BLEED HOSE ATTACHING	4
23	78917	三通喷射	TEE INJECTION	1
24	78915	弯头泄放	ELBOW BLEED DRIAN	1
25	76347	换气口盖	COVER TRANSFER PORT	1
26	27936	换气口盖垫片	GASKET TRANSFER PORT COVER	1
26	279361	衬垫	GASKET	1
27	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
27	24646	螺丝(5/8英寸)	SCREW (5/8 Inch)	2
28	3567	气缸体盖	COVER CYLINDER BLOCK	1
29	78410	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
30	76596	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	2
31	76630	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	4
31	8M0214943	螺钉	SCREW	4
32	78411	气缸体至挡板衬垫	GASKET CYLINDER BLOCK TO BAFFLE PLATE	1
33	39308	挡板-排气歧管	PLATE BAFFLE - EXHAUST MANIFOLD	1
34	78409	衬垫挡板至歧管盖	GASKET BAFFLE PLATE TO MANIFOLD COVER	1
35	73458	排气歧管盖	COVER EXHAUST MANIFOLD	1
35	88797	盖板	COVER	1
35	88797	排气歧管盖	COVER EXHAUST MANIFOLD	1
36	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	7
37	63326	滚珠轴承-曲轴箱(下部)	BEARING BALL - CRANKCASE (LOWER)	1
37	63326T	滚珠轴承	BEARING-BALL	1
38	66302	曲轴箱油封(下)	SEAL Oil CRANKCASE (LOWER)	1
38	8M0214939	油封@3	SEAL @3	1
39	76255	正时指示器	INDICATOR TIMING	1
40	20784	螺丝指示器至曲轴箱	SCREW INDICATOR TO CRANKCASE	1
41	29245	垫圈(.281 x .500 x .060)不锈钢指示器螺丝	WASHER (.281 x .500 x .060) Stainless Steel INDICATOR SCREW	1
41	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
42	35888	螺母(.250-28)不锈钢指示器螺丝	NUT (.250-28) Stainless Steel INDICATOR SCREW	1
-	75392A77	动力头总成	POWERHEAD ASSEMBLY	1
-	75392A80	动力头总成	POWERHEAD ASSEMBLY	1

图 19驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	92165A4	隔板总成	PLATE ASSEMBLY	1
1	99702A3	适配板总成	ADAPTOR PLATE ASSEMBLY	1
2	85162	水管壳体	HOUSING WATER TUBE	1
2	96248A1	壳体总成	HOUSING ASSEMBLY	1
3	36390	水管壳体O型圈	O-RING WATER TUBE HOUSING	1
4	85164	水管密封件	SEAL WATER TUBE	1
2	96248A1	水管壳体总成	HOUSING ASSEMBLY WATER TUBE	1
5	25329	水管密封件	SEAL WATER TUBE	1
6	96247	水管隔套	SPACER WATER TUBE	1
6	889715	水管隔套	SPACER Water Tube	1
7	400035	螺钉 (M5 x 16) 壳体至适配板	SCREW (M5 x 16) HOUSING TO ADAPTOR PLATE	2
8	85111	适配板垫片	GASKET ADAPTOR PLATE	1
8	41670006	适配板垫片	GASKET Adaptor Plate	1
9	87357	适配板密封件	SEAL Adaptor Plate	1
9	158662	密封件	SEAL	1
10	7904A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
10	8747A1	壳体总成	HOUSING ASSEMBLY	1
10	7906A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
10	8749A1	壳体总成	HOUSING ASSEMBLY	1
10	8747A1	壳体总成	HOUSING ASSEMBLY	1
10	8749A1	壳体总成	HOUSING ASSEMBLY	1
11	85109	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
11	96286	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
11	433374	驱动轴壳体垫片	GASKET Drive Shaft Housing	1
12	400035	螺钉(M5 x 16)驱动轴壳体至板	SCREW (M5 x 16) DRIVESHAFT HOUSING TO PLATE	2
13	4000360	螺钉驱动轴壳体至板(60MM)	SCREW DRIVESHAFT HOUSING TO PLATE (60MM)	6
13	1993870	螺钉(M8 x 70)	SCREW (M8 x 70)	6
14	4002317	垫圈(8.90 X 17.0 X 1.9SS)驱动轴壳体螺钉	WASHER (8.90 X 17.0 X 1.9SS) DRIVESHAFT HOUSING SCREW	6
15	85116	水管	TUBE Water	1
15	86292	水管	TUBE Water	1
-	85168A80	衬垫套件	GASKET SET	1

图 20电气组件 ELECTRIC COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	95815	上盖	COVER (TOP)	1
2	95828	下盖	COVER (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
4	55741001	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1
10	95814	绑带	STRAP	1
11	95813	紧固件	FASTENER	1
12	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
12	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
13	4005727	螺钉	SCREW	2
14	45771	垫圈	WASHER	2
15	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
16	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
17	816770	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
19	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
20	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
20	8M0185149	启动电磁阀	SOLENOID START	1
21	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	64015	螺母 (.250-20)	NUT (.250-20)	2
24	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
25	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
25	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
25	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
25	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
26	92439	支架(旧设计)	BRACKET (OLD DESIGN)	1
27	4000327	螺钉(M6×14)(旧设计)	SCREW (M6 x 14) (OLD DESIGN)	1
28	35044	垫圈(0.281×0.625×0.065)不锈钢(旧设计)	WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)	1
29	400212	螺母(M6)不锈钢(旧设计)	NUT (M6) Stainless Steel (OLD DESIGN)	1
30	815504310	蜗轮卡箍(旧设计)	CLAMP Worm Gear (OLD DESIGN)	1
31	86704A2	定子总成	STATOR ASSEMBLY	1
31	86704A10	辅助定子	STATOR Auxiliary	1
32	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3
33	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
33	8M0033984	启动马达	STARTER MOTOR	1
34	96561	驱动套件	DRIVE KIT	1
35	96562	驱动器	DRIVE	1
36	96563	端盖	END CAP	1
36	96563T	端盖	END CAP	1
37	96565	电枢	ARMATURE	1
38	96564	端盖	END CAP	1
38	96564T	端盖	END CAP	1
39	96566	贯穿螺栓	THRU BOLT	1
40	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
40	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
41	424291	固定座	RETAINER	1
42	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
43	79091	保险丝20安培	FUSE 20 Ampere	1
43	8M0207796	保险丝20安培	FUSE 20 AMP	1
44	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1
45	12152	固定座	RETAINER	1
46	92753	固定座	RETAINER	1
47	55098	J型卡扣	J CLIP	1
47	8M0024808	J型夹	J-CLIP	1

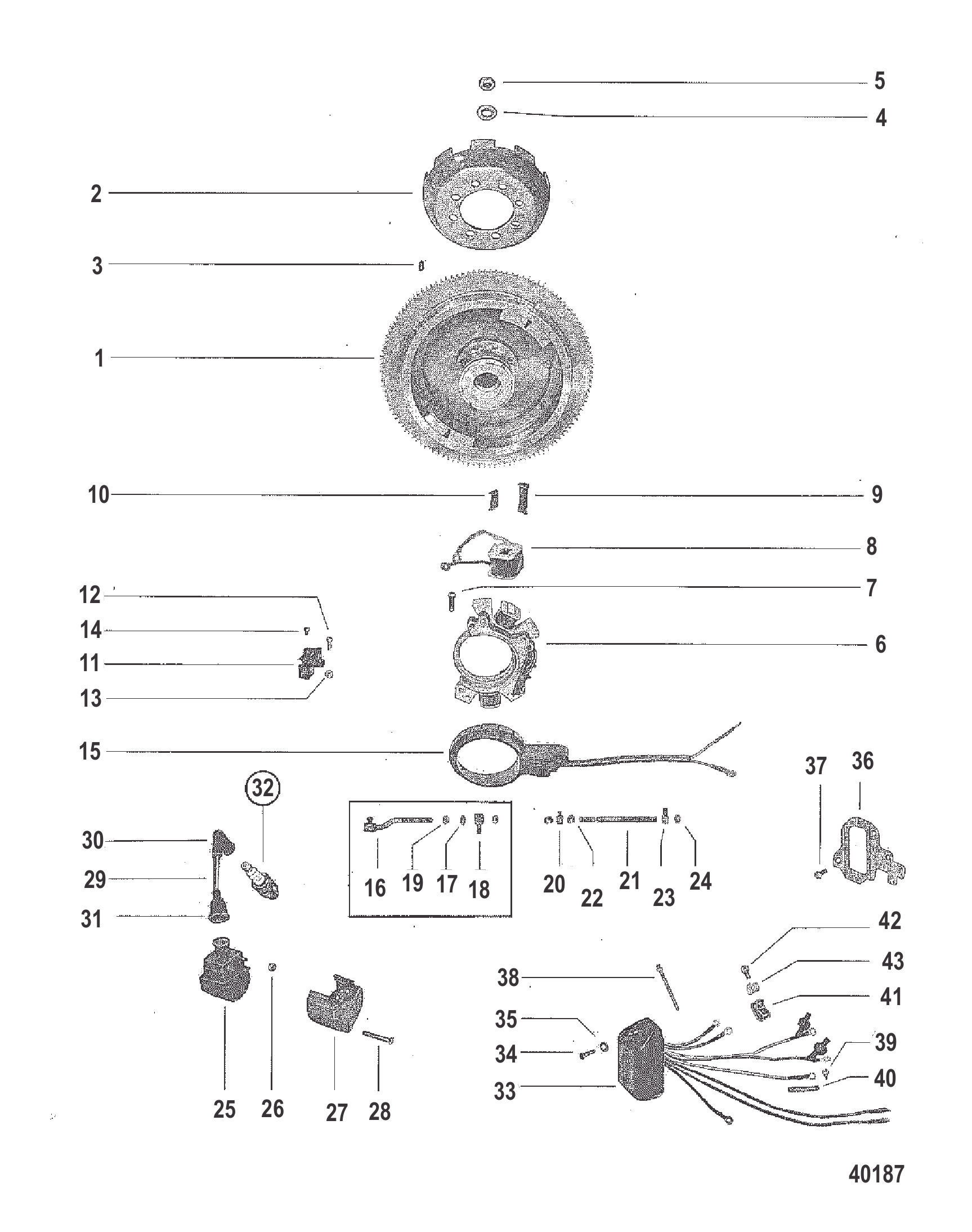

图 21飞轮、点火线圈和开关盒 FLYWHEEL, IGNITION COIL AND SWITCH BOX

REF	零件编号	中文名称	英文名称	数量
1	6193A2	飞轮总成	FLYWHEEL ASSEMBLY	1
1	6601A2	飞轮总成	FLYWHEEL ASSEMBLY	1
1	6303A2	飞轮总成	FLYWHEEL ASSEMBLY	1
1	6598A2	飞轮总成	FLYWHEEL ASSEMBLY	1
1	6118A6	飞轮总成	FLYWHEEL ASSEMBLY	1
1	6601A2	飞轮总成	FLYWHEEL ASSEMBLY	1
1	6600A2	飞轮总成	FLYWHEEL ASSEMBLY	1
1	6601A2	飞轮总成	FLYWHEEL ASSEMBLY	1
1	6598A2	飞轮总成	FLYWHEEL ASSEMBLY	1
1	6601A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	65721	飞轮棘轮总成	RATCHET ASSEMBLY FLYWHEEL	1
3	20094	飞轮驱动半圆键	KEY Woodruff FLYWHEEL DRIVE	1
4	65891	垫圈飞轮螺母	WASHER FLYWHEEL NUT	1
5	22339	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
5	8M0214915	螺母	NUT	1
6	5209A3	定子总成	STATOR ASSEMBLY	1
6	5209A9	叠片总成	LAMINATION ASSY	1
7	66707	螺丝定子至端盖(7/8")	SCREW STATOR TO END CAP (7/8")	3
7	35400	螺丝定子至端盖(3/8")	SCREW STATOR TO END CAP (3/8")	1
8	6119A1	线圈总成(5-1/2"和6-3/8"引线)	COIL ASSEMBLY (5-1/2" AND 6-3/8" LEADS)	1
8	6120A1	线圈总成(1-3/4"和3-1/2"引线)	COIL ASSEMBLY (1-3/4" AND 3-1/2" LEADS)	1
9	59538	卡箍线圈固定	CLIP COIL RETAINING	2
9	59538T	卡箍@2	CLIP @2	2
10	56927	卡箍线圈固定	CLIP COIL RETAINING	2
11	74474	接线端子排定子	TERMINAL BLOCK STATOR	1
11	85365	端子排	TERMINAL BLOCK	1
12	20646	螺丝(.190-32 x .62)接线端子排至定子	SCREW (.190-32 x .62) TERMINAL BLOCK TO STATOR	1
12	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	1
13	46438	螺母(#10-32)接线端子排螺丝	NUT (#10-32) TERMINAL BLOCK SCREW	1
14	22654	螺丝(.190-32 x .38)引线至接线端子排	SCREW (.190-32 x .38) LEADS TO TERMINAL BLOCK	1
15	74324A3	触发器总成	TRIGGER ASSEMBLY	1
15	89312A3	触发器总成	TRIGGER ASSEMBLY	1
15	89312A3	触发器总成	TRIGGER ASSEMBLY	1
16	74454	旋转连杆至触发器	SWIVEL LINK TO TRIGGER	1
17	30164	垫圈(0.192x0.375x0.0312)不锈钢节气门连杆	WASHER (.192 x .375 x .0312) Stainless Steel THROTTLE LINK	1
18	33973	旋转式节气门连杆	SWIVEL THROTTLE LINK	1
19	45812	螺母(#10-32)不锈钢节气门连杆	NUT (#10-32) Stainless Steel THROTTLE LINK	2
19	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
20	79364	旋转连杆至触发器	SWIVEL LINK TO TRIGGER	1
21	79365	点火提前连杆	LINK SPARK ADVANCE	1
22	79366	旋转连杆固定环	RING Retaining SWIVEL TO LINK	2
23	79363	旋转式点火提前连杆	SWIVEL SPARK ADVANCE LINK	1
24	68219	螺母(#10-32)不锈钢点火提前连杆	NUT (#10-32) Stainless Steel SPARK ADVANCE LINK	1
25	5748A2	点火线圈总成	COIL ASSEMBLY IGNITION	2
25	8M0166172	点火线圈	IGNITION COIL	2
26	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	4
27	76254	点火线圈盖	COVER IGNITION COIL	2
28	45914	螺钉(2英寸)	SCREW (2")	6
28	60464	螺钉	SCREW	6
29	63212A2	高压导线总成	LEAD ASSEMBLY HIGH TENSION	2
29	813715A1	引线	LEAD WIRE	2
30	71006A1	火花塞护套	PROTECTOR SPARK PLUG	2
30	63709A1	护套/端子套件	BOOT/TERMINAL KIT	2
31	2854	点火线圈护套	BOOT IGNITION COIL	2
31	2854T01	护套@3	BOOT @3	2
32	58194	火花塞(ACV#70FFK)	SPARK PLUG (ACV#70FFK)	2
32	896329833	SP #L78V @4	SP #L78V @4	2
32	75739	火花塞	SPARK PLUG	2
32	14103Q	ORD 896329838	ORD 896329838	2
33	6222A4	开关盒总成	SWITCHBOX ASSEMBLY	1
33	6222A10	开关盒总成	SWITCHBOX ASSEMBLY	1
34	48409	螺钉(#10-16x0.625)不锈钢开关盒至安装板	SCREW (#10-16 x .625) Stainless Steel SWITCH BOX TO PLATE	2
35	56681	垫圈(0.203x0.500x0.032)开关盒螺钉	WASHER (.203 x .500 x .032) SWITCH BOX SCREW	2
35	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
36	75899	开关盒安装板	PLATE SWITCH BOX	1
37	69052	开关盒安装板固定螺钉(1/2英寸)	SCREW SWITCH BOX PLATE ATTACHING (1/2")	3
37	98256	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	3
38	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	3
39	45218	螺钉(#10-32x0.380)开关盒导线	SCREW (#10-32 x .380) SWITCH BOX LEADS	1
40	579082	开关盒导线套管	SLEEVE SWITCH BOX LEADS	2
40	5790811	套管(10.00英寸散装)	SLEEVE (10.00 Inches Bulk)	2
41	23567	开关盒线束卡扣	CLIP SWITCH BOX WIRES	2
42	62568	螺钉(#10-16x0.375)卡扣固定	SCREW (#10-16 x .375) CLIP ATTACHING	2
43	69205	C形垫圈卡扣固定螺钉	C WASHER CLIP ATTACHING SCREW	2
43	8M0084613	C形垫圈	C-WASHER	2

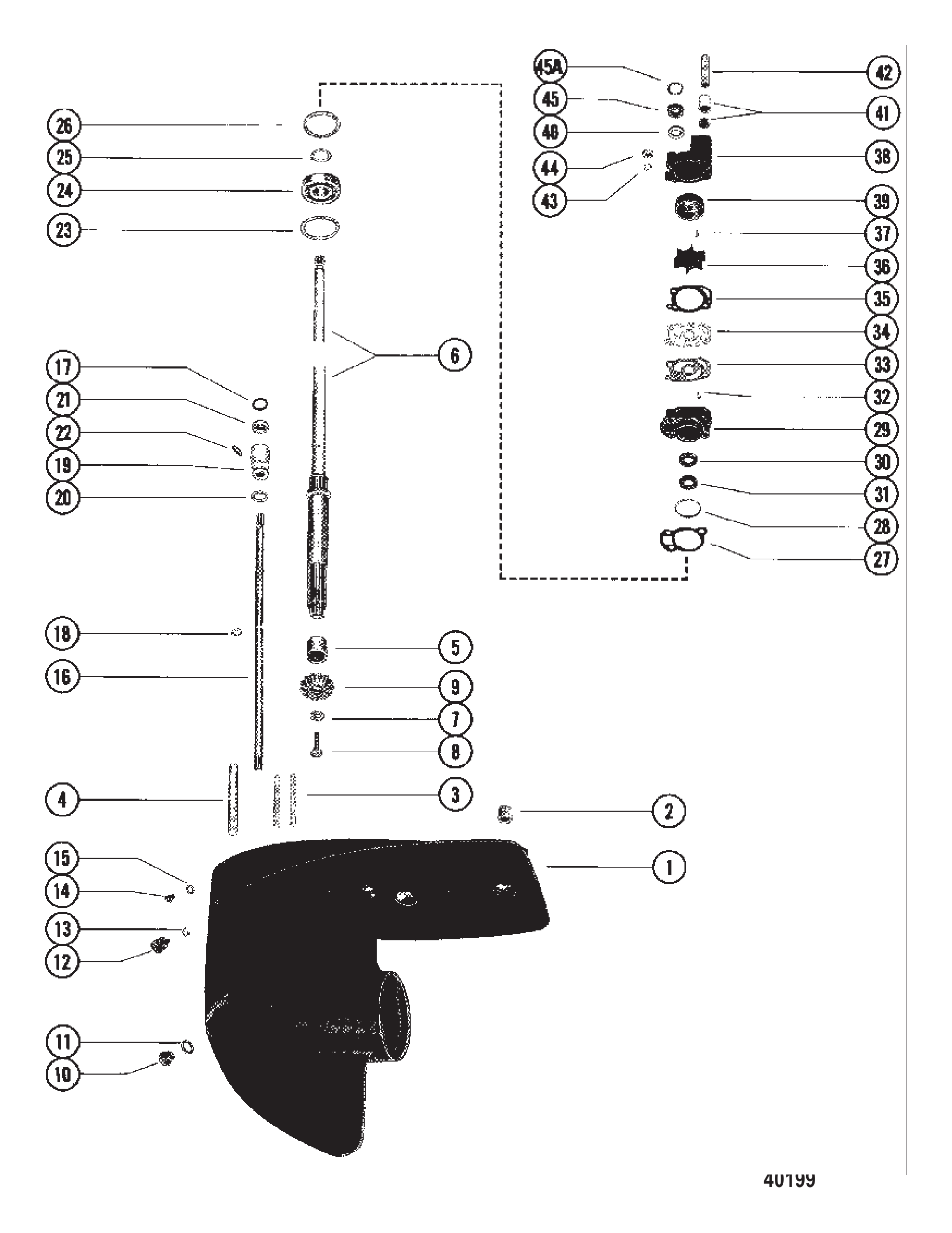

图 22齿轮箱总成驱动轴 GEAR HOUSING ASSEMBLY DRIVESHAFT

REF	零件编号	中文名称	英文名称	数量
-	6006A3	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	6006A4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	6006A15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	6006A16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	6006A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	20201	销	PIN	1
3	58137	双头螺栓(3-1/8英寸)	STUD (3-1/8 INCHES)	3
4	58135	双头螺栓(4-13/16英寸)	STUD (4-13/16 INCHES)	1
5	28157	传动轴滚柱轴承	BEARING ROLLER-DRIVESHAFT	1
6	75036A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
6	93300A1	传动轴	DRIVE SHAFT	1
6	75035A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
6	93301A1	传动轴	DRIVE SHAFT	1
6	88094A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
6	88093A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
7	49911	小齿轮螺钉锁紧垫圈	TAB WASHER PINION GEAR SCREW	1
8	49908	螺钉(.250-28 x .750)	SCREW (.250-28 x .750)	1
9	45189	小齿轮	GEAR PINION	1
10	28634	螺钉(0.375-16)	SCREW (.375-16)	1
10	79953Q04	放油螺钉套件	SCREW KIT Drain	1
11	20260	润滑脂加注螺钉垫圈	WASHER GREASE FILLER SCREW	1
11	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
12	48750	齿轮箱冲洗螺塞	PLUG GEAR HOUSING FLUSHING	1
13	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	1
13	8M0204663	垫片@5	WASHER @5	1
14	28653	螺丝(#10-32x0.25)	SCREW (#10-32 x 0.25)	1
15	20262	润滑脂通气螺钉垫圈	WASHER GREASE VENT SCREW	1
15	19643	密封件	SEAL	1
16	56829A1	下换挡轴总成	SHAFT ASSEMBLY SHIFT-LOWER	1
16	56830A1	下换挡轴总成	SHAFT ASSEMBLY SHIFT-LOWER	1
17	38933	下换挡轴O型圈	O-RING LOWER SHIFT SHAFT	1
18	22899	挡圈	RING Retaining	1
19	30676A1	换挡轴衬套总成	BUSHING ASSEMBLY SHIFT SHAFT	1
20	26802	O型圈(0.424x0.103)换挡轴衬套	O-RING (.424 x .103) SHIFT SHAFT BUSHING	1
21	30696	换挡轴衬套油封	SEAL Oil SHIFT SHAFT BUSHING	1
22	39149	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
23	20804A1	滚珠轴承至齿轮箱垫片组(0.002-3-5-10)	SHIM SET BALL BEARING TO GEAR HOUSIN (.002-3-5-10)	AR
24	47158	传动轴滚珠轴承	BEARING BALL-DRIVESHAFT	1
24	69389	滚珠轴承	BEARING Ball	1
25	33463	滚珠轴承挡圈	RING RETAINING-BALL BEARING	1
26	20804A1	垫片组	SHIM SET	AR
27	39626	衬垫	GASKET	1
28	33466	水泵底座O型圈	O-RING WATER PUMP BASE	1
29	48744A1	水泵底座总成	BASE ASSEMBLY Water Pump	1
30	20070	水泵底座油封	SEAL Oil WATER PUMP BASE	1
31	33467	水泵底座油封(弹簧加载)	SEAL Oil WATER PUMP BASE (SPRING LOADED)	1
31	897154	油封@3	SEAL-OIL @3	1
32	35973	定位销	PIN Dowel	2
33	39625	衬垫	GASKET	1
34	39624	安装板	PLATE	1
35	39623	衬垫	GASKET	1
35	396231	衬垫	GASKET	1
36	65958	叶轮(传动轴总成组件)	IMPELLER Component of Driveshaft Assembly	1
36	89982	叶轮	IMPELLER	1
37	56661	键(传动轴总成组件)	KEY Component of Driveshaft Assembly	1
38	77126A2	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	87458A2	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	87458A2	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48754	水泵体嵌件	INSERT WATER PUMP BODY	1
40	20070	水泵体油封	SEAL Oil WATER PUMP BODY	1
41	33613	水泵体密封件	SEAL WATER PUMP BODY	1
41	86215	水管密封轴承	BEARING WATER TUBE SEAL	1
42	45170	进水管导向套	SLEEVE GUIDE-WATER INLET TUBE	1
43	36001	水泵双头螺栓垫圈	WASHER WATER PUMP STUDS	3
44	35814	螺母(0.312-24)不锈钢水泵双头螺栓	NUT (.312-24) Stainless Steel WATER PUMP STUDS	3
44	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	3
45	20684	环	RING	1
45A	88198	传动轴O型圈	O-RING DRIVESHAFT	1
-	48744A3	水泵总成(完整)	WATER PUMP ASSEMBLY Complete	1
-	66303A1	密封套件	SEAL KIT	1

图 23齿轮箱总成螺旋桨轴 GEAR HOUSING ASSEMBLY PROPELLER SHAFT

REF	零件编号	中文名称	英文名称	数量
-	6006A3	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	6006A4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	6006A15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	6006A16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
1	6006A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
46	58975	凸轮轴	CAM SHAFT	1
47	33438	凸轮从动件	FOLLOWER CAM	1
48	88435	凸轮从动件弹簧	SPRING CAM FOLLOWER	1
49	47820A1	齿轮箱阳极板总成	PLATE ASSEMBLY ANODIC-GEAR HOUSING	1
50	79436	螺钉 (.312-18 x 1.250) 不锈钢	SCREW (.312-18 x 1.250) Stainless Steel	1
51	20788A1	垫片组	SHIM SET	AR
52	25398	前进齿轮滚珠轴承	BEARING BALL-FORWARD GEAR	1
53	45227	前进齿轮	GEAR Forward	1
53	45227A5	前进齿轮总成	FORWARD GEAR ASSY	1
54	28157	前进齿轮滚柱轴承	BEARING ROLLER-FORWARD GEAR	1
55	53518A1	滑动离合器棘轮总成	RATCHET ASSEMBLY SLIDING CLUTCH	1
56	53372	棘轮到螺旋桨轴十字销	PIN CROSS-RATCHET TO PROPELLER SHAFT	1
57	53373	十字销固定弹簧	SPRING RETAINING-CROSS PIN	1
58	75366A2	螺旋桨轴总成	PROPELLER SHAFT ASSEMBLY	1
59	45229	倒挡齿轮	GEAR Reverse	1
60	25398	倒车齿轮滚珠轴承	BEARING BALL-REVERSE GEAR	1
61	71525	倒车齿轮止推套	SLEEVE THRUST-REVERSE GEAR	1
62	33431A1	垫片	SHIM	AR
63	33465	轴承座O型圈	O-RING BEARING CARRIER	1
63	8M0214925	O型圈	O RING	1
64	72694A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
64	72694T1	轴承座总成	CARRIER ASSY-BRG	1
65	28157	轴承座滚柱轴承	BEARING ROLLER-BEARING CARRIER	1
66	26805	轴承座油封	SEAL Oil BEARING CAARRIER	1
67	66303	轴承座油封(弹簧加压式)	SEAL Oil BEARING CARRIER (SPRING LOADED)	1
68	72710	齿轮箱盖	COVER GEAR HOUSING	1
69	85964	螺旋桨轴总成导向套	COLLAR GUIDE Component of Propeller Shaft Assembly	1
69	85964A1	止推垫片	THRUST WASHER	1
70	33480A1	螺旋桨总成(2叶-11"螺距)	PROPELLER ASSEMBLY (2 BLD-11" PITCH)	1
70	34402A1	螺旋桨总成(2叶-青铜-11"螺距)	PROPELLER ASSEMBLY (2BLD-BRONZE-11" PITCH	OPT
70	33482A1	螺旋桨总成(3叶-铝-9"螺距)	PROPELLER ASSEMBLY (3BLD-ALUM.-9" PITCH)	OPT
70	86962A4	螺旋桨总成	PROPELLER ASSEMBLY	OPT
70	86962A4	螺旋桨总成(3叶-铝-9"螺距)	PROPELLER ASSEMBLY (3 BLD-ALUM.-9" PITCH)	1
70	37316A1	螺旋桨总成(3叶-铝-7"螺距)	PROPELLER ASSEMBLY (3 BLD.-ALUM.-7" PITCH)	OPT
70	65002A1	螺旋桨总成(2叶-11"螺距)-尼龙	PROPELLER ASSEMBLY (2 BLD-11" PITCH)-NYLON	OPT
--	66607	推力毂(仅配合尼龙螺旋桨使用)	HUB THRUST (USE WITH NYLON PROP ONLY)	1
71	65439	螺旋桨轴花键隔套	SPACER SPLINE-PROPELLER SHAFT	1
71	64075A1	螺旋桨螺母套件	PROP NUT KIT	1
72	89103	螺旋桨螺母	NUT PROPELLER	1
72	64075A1	螺旋桨螺母套件	PROP NUT KIT	1

图 24杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

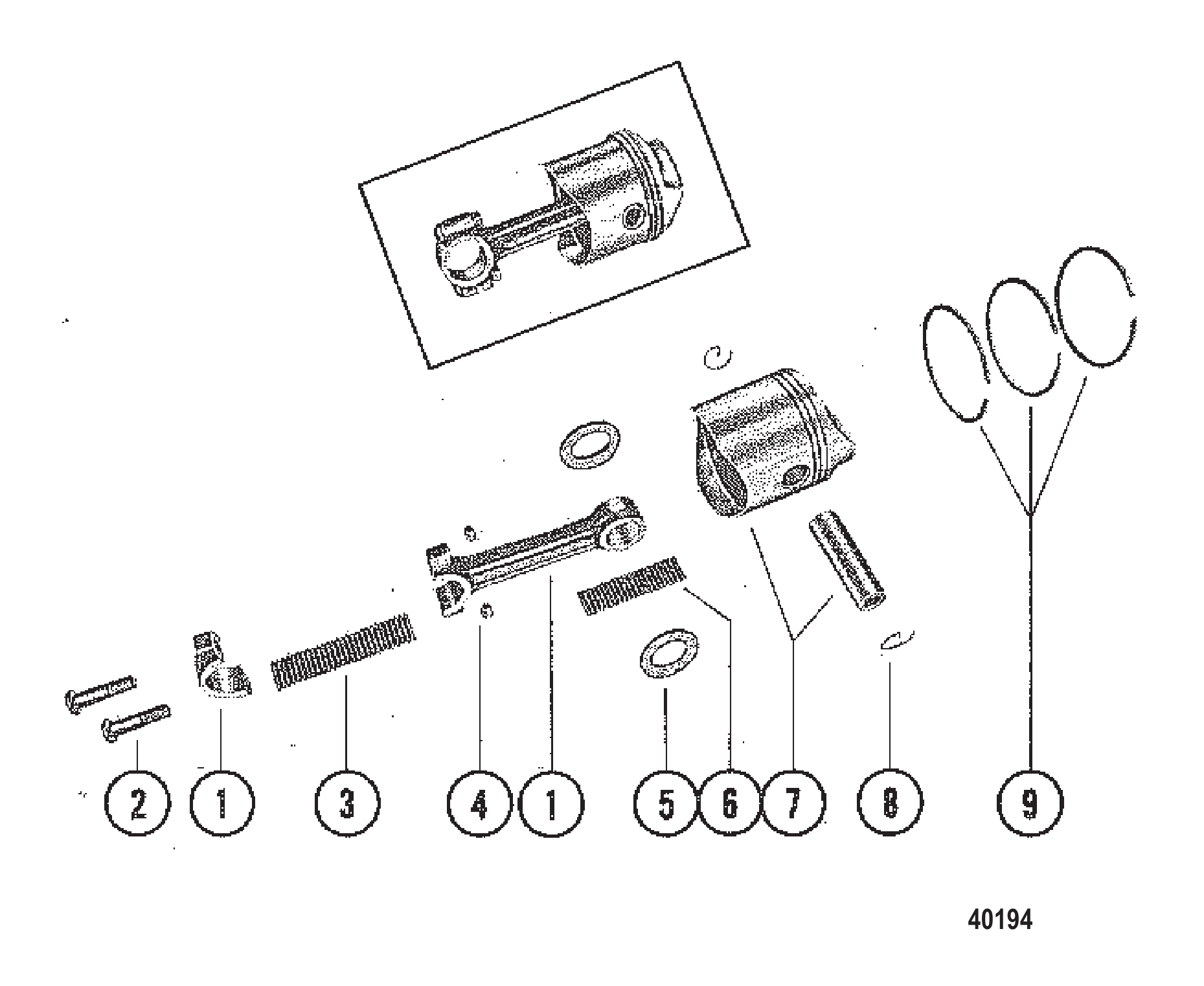

图 25活塞和连杆总成 PISTON AND CONNECTING ROD ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	3195A2	连杆总成	CONNECTING ROD ASSEMBLY	2
1	7621A3	连杆总成	CONNECTING ROD ASSEMBLY	2
2	45379	连杆螺钉	SCREW CONNECTING ROD	4
3	20046	曲柄销滚针轴承	BEARING Needle CRANKPIN	50
3	20046T	滚针轴承	BEARING Needle	50
4	20061	连杆螺钉螺母	NUT CONNECTING ROD SCREW	4
5	47275	滚针轴承挡圈	WASHER NEEDLE BEARING RETAINING	4
6	20063	活塞销滚针轴承	BEARING Needle PISTON PIN	54
7	5172A6	活塞总成	PISTON ASSEMBLY	2
7	9229A7	活塞总成	PISTON ASSEMBLY	2
7	3366A2	活塞总成	PISTON ASSEMBLY	2
7	9229A10	活塞总成	PISTON ASSEMBLY	2
8	47276	活塞销锁环	LOCK RING PISTON PIN	4
8	828119	活塞销锁环	LOCK RING Piston Pin	4
9	27841A12	活塞环组-标准	RING SET Piston - Standard	1
9	28616A12	活塞环组	RING SET Piston	1

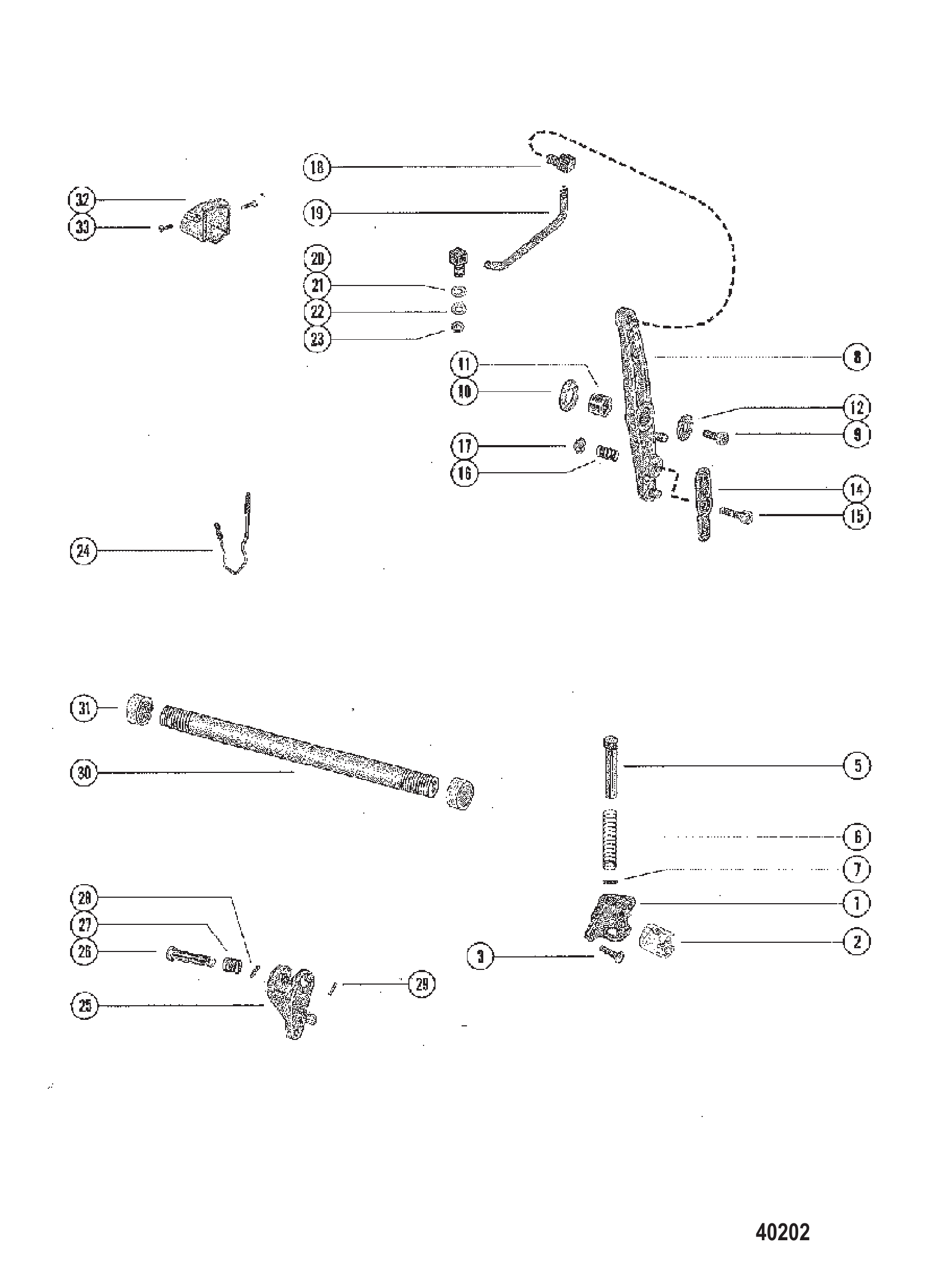

图 26遥控附件零件（电动） REMOTE CONTROL ATTACHMENT PARTS (ELECTRIC)

REF	零件编号	中文名称	英文名称	数量
1	46415	油门线固定座	SOCKET ANCHOR-THROTTLE CABLE	1
2	39646	固定座尼龙衬套	LINER NYLON-ANCHOR SOCKET	1
3	20456	螺钉	SCREW	2
3	32228	螺钉（#10-32 X 0.625）	SCREW (#10-32 x .625)	2
5	39456	杠杆	LEVER	1
6	39455	锁定杆压簧	SPRING COMPRESSION-LOCKING LEVER	1
7	23928	锁定杆滚销	PIN ROLL-LOCKING LEVER	1
7	239281	滚动销	PIN Roll	1
8	46411	油门控制杆	LEVER THROTTLE CONTROL	1
9	69052	螺钉	SCREW	1
9	98256	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	1
10	21900	垫圈	WASHER	1
11	39648	油门控制杆螺钉套	SLEEVE THROTTLE CONTROL LEVER SCREW	1
12	39649	垫圈	WASHER	1
12	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
14	39483	油门线固定卡扣	LATCH THROTTLE CABLE FASTENING	1
15	22486	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
15	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
16	20099	卡扣螺钉弹簧	SPRING LATCH SCREW	1
17	20586	螺母 (.250-28) 卡扣螺钉	NUT (.250-28) LATCH SCREW	1
17	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
18	27947	油门控制杆到连杆的旋转接头	SWIVEL THROTTLE CONTROL LEVER TO LINK ROD	1
19	79013	油门控制杆旋转连杆	LINK ROD THROTTLE CONTROL LEVER SWIVEL	1
20	27948	油门凸轮旋转套连杆	SWIVEL SLEEVE AND LINK TO THROTTLE CAM	1
21	25806	旋转套连杆波形垫圈	WAVE WASHER SLEEVE AND LINK SWIVEL	1
22	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	20361	螺母(.250-28)	NUT (.250-28)	1
23	8267089	螺母(.250-28)	NUT (.250-28)	1
24	49012	换挡线固定弹簧	SPRING SHIFT CABLE RETAINER	1
25	79095	换挡控制U型夹	CLEVIS SHIFT CONTROL	1
26	39456	杠杆	LEVER	1
27	39455	弹簧	SPRING	1
28	23928	滚销	PIN ROLL	1
28	239281	滚动销	PIN Roll	1
29	63480	开口销	COTTER PIN	1
30	30664	管	TUBE	1
30	8M0041936	倾斜管	TILT TUBE	1
31	33468	倾斜管隔套	SPACER TILT TUBE	2
32	79886	转向臂盖	COVER STEERING ARM	1
33	28638	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2

图 27换挡控制联动装置 SHIFT CONTROL LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	72946	换挡控制尼龙手柄	HANDLE NYLON - SHIFT CONTROL	1
2	66412	换挡轴安装支架	BRACKET MOUNTING - SHIFT SHAFT	1
3	66375	换挡轴尼龙衬套	BUSHING NYLON - SHIFT SHAFT	2
4	76994	换挡控制杆	LEVER SHIFT CONTROL	1
5	66379	换挡轴(水平)	SHAFT SHIFT (HORIZONTAL)	1
6	66377	扇形齿轮换挡轴	SECTOR GEAR SHIFT SHAFT	1
7	29245	垫圈 (.281 x .500 x .060) 不锈钢换挡控制手柄	WASHER (.281 x .500 x .060) Stainless Steel SHIFT CONTROL HANDLE	1
7	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
8	39305	换挡手柄到换挡轴螺母	NUT SHIFT CONTROL HANDLE TO SHIFT SHAFT	1
8	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
9	56500	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	2
10	46887	螺母 (1/4-28) 安装支架螺钉	NUT (1/4-28) MOUNTING BRACKET SCREW	2
10	8M0207775	螺母 @5	NUT @5	2
11	39627	安装支架定位弹簧	SPRING DETENT - MOUNTING BRACKET	1
12	39601	定位弹簧板	PLATE DETENT SPRING	1
13	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
14	25905	销	PIN	1
15	29245	不锈钢换档轴垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT	1
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
16	35888	螺母 (.250-28) 不锈钢扇形齿轮到换挡轴	NUT (.250-28) Stainless Steel SECTOR GEAR TO SHIFT SHAFT	1
17	61009A1	换挡控制轴总成(垂直)	SHAFT ASSEMBLY Shift Control VERTICAL	1
18	58972	换挡控制轴齿轮扇区	GEAR SECTOR - SHIFT CONTROL SHAFT	1
19	30677	尼龙衬套-换挡控制轴	BUSHING NYLON - SHIFT CONTROL SHAFT	1
20	58979	空档限速器从动件	FOLLOWER NEUTRAL SPEED LIMITER	1
21	24644	螺钉(.250-28 x 1.38)	SCREW (.250-28 x 1.38)	1
22	28212	限速器从动件螺钉垫片	SHIM LIMITER FOLLOWER SCREW	1
23	46887	螺母(1/4-28)限速器从动件螺钉	NUT (1/4-28) LIMITER FOLLOWER SCREW	1
23	8M0207775	螺母 @5	NUT @5	1
24	29675	空档限速器从动件弹簧	SPRING NEUTRAL SPEED LIMITER FOLLOWER	1
24	29675A1	杠杆总成	LEVER ASSY	1
25	35268	弹簧至限速器从动件螺钉(3/8")	SCREW SPRING TO LIMITER FOLLOWER (3/8")	1
25	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
26	72857	超速限位器	STOP OVER-SPEED LIMITER	1
27	24676	垫圈(.200 x .440 x .032)限位器止动螺钉	WASHER (.200 x .440 x .032) LIMITER STOP SCREW	1
28	46898	限位器止动至从动件螺钉(7/16")	SCREW LIMITER STOP TO FOLLOWER (7/16")	1
28	35400	螺钉	SCREW	1

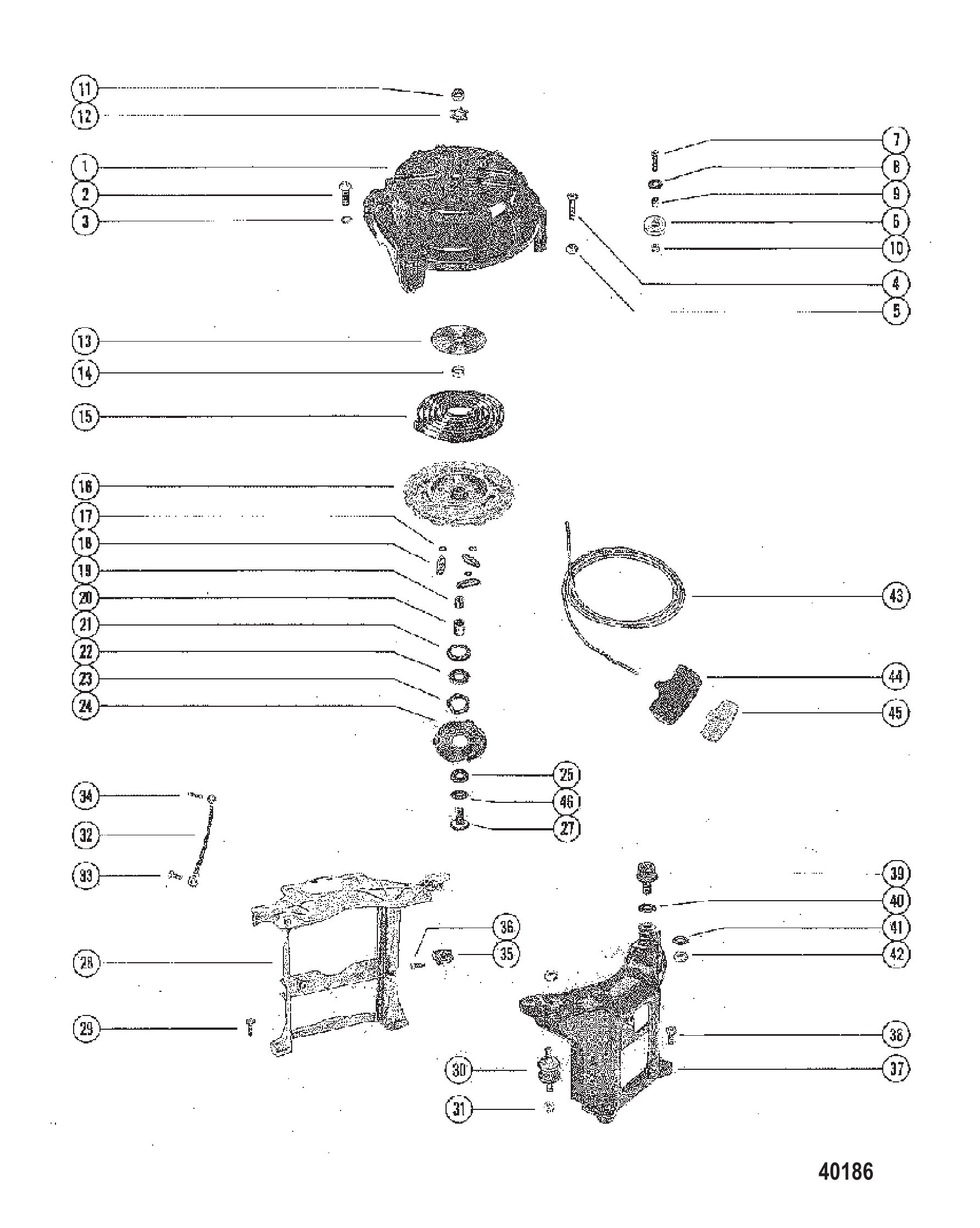

图 28起动机总成 STARTER ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	75349A2	启动器壳体总成(手动)	HOUSING ASSEMBLY STARTER (MANUAL)	1
2	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	1
3	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
3	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
4	56500	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	1
4	69029	螺钉(.250-28 x 1.750)	SCREW (.250-28 x 1.750)	1
5	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
6	55860	启动器拉索滑轮	PULLEY STARTER CABLE	1
7	37892	滑轮至启动器螺钉(.190-32 x 1.00)	SCREW (.190-32 x 1.00) PULLEY TO STARTER	1
8	53111	滑轮螺钉固定座	RETAINER PULLEY SCREW	1
8	94121	固定座	RETAINER	1
9	30977	滑轮螺钉间隔套	SPACER PULLEY SCRW	1
9	309772	隔套	SPACER	1
10	20110	螺母(#10-32)滑轮螺钉	NUT (#10-32) PULLEY SCREW	1
11	20166	滑轮轴螺母(左旋螺纹)	NUT SHEAVE SHAFT (LEFT HAND THREAD)	1
12	61004	滑轮轴螺母锁紧垫圈	TAB WASHER SHEAVE SHAFT NUT	1
13	65890	启动器弹簧固定座	RETAINER STARTER SPRING	1
14	28912		BUSHING SHEAVE SHAFT	1
15	29340A1	启动器回位弹簧	SPRING STARTER REWIND	1
15	29340T02	回卷弹簧	SPRING-RECOIL	1
16	76321A1	启动器滑轮总成	SHEAVE ASSEMBLY Starter	1
17	36206	波形垫圈-启动器棘爪	WAVE WASHER WAVE - STARTER PAWL	3
18	30596	启动器棘爪	PAWL STARTER	3
19	28919	尼龙衬套-滑轮轴间隔套	BUSHING NYLON - SHEAVE SHAFT SPACER	1
20	61005	滑轮轴间隔套	SPACER SHEAVE SHAFT	1
21	26179	固定座	RETAINER	1
22	35559	垫圈	WASHER	1
23	20160	波形垫圈	WAVE WASHER	1
24	30595	安装板	PLATE	1
25	57860	垫圈	WASHER	1
27	61003	滑轮轴	SHAFT SHEAVE	1
28	76300	顶罩安装支架(后部)	BRACKET MOUNTING - TOP COWL (REAR)	1
29	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	2
30	57927	橡胶支座-支撑架	MOUNT RUBBER - SUPPORT BRACKET	3
31	20361	螺母(.250-28)	NUT (.250-28)	6
31	8267089	螺母(.250-28)	NUT (.250-28)	6
32	46934A1	后支架接地线总成	WIRE ASSEMBLY Ground REAR BRACKET	1
32	76181	后支架接地线总成	WIRE ASSEMBLY Ground REAR BRACKET	1
33	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
34	69052	螺钉	SCREW	1
34	98256	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	1
35	60299	高压线固定座	RETAINER HIGH TENSION WIRES	2
36	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
37	76097	顶罩安装支架(前部)	BRACKET MOUNTING - TOP COWL (FRONT)	1
38	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	2
39	60577	橡胶支座-支撑架	MOUNT RUBBER - SUPPORT BRACKET	4
40	21631	垫圈(.255 x .625 x .0312)橡胶支座	WASHER (.255 x .625 x .0312) RUBBER MOUNT	AR
40	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	AR
41	26992	不锈钢锁紧垫圈(.250)橡胶支座	LOCKWASHER (.250) Stainless Steel RUBBER MOUNT	4
42	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	4
43	28985A1	启动器拉索总成(手动)	CABLE ASSEMBLY Starter (MANUAL)	1
43	12066Q10	启动绳@2	ROPE-STARTER@2	1
44	30782	启动器拉索手柄(手动)	HANDLE STARTER CABLE (MANUAL)	1
44	77998	启动拉索手柄(手动)	HANDLE START CABLE (MANUAL)	1
44	79470A1	绳索固定组件	RETAINER KIT Rope	1
45	28748	固定座(手动)	RETAINER (MANUAL)	1
45	79470A1	绳索固定组件	RETAINER KIT Rope	1
45	77997A1	固定座总成	RETAINER ASSEMBLY	1
45	79470A1	绳索固定组件	RETAINER KIT Rope	1
44/45	79470A1	绳索固定组件(手动)	RETAINER KIT Rope (MANUAL)	1
46	20219	滑轮轴垫片-手动	SHIM SHEAVE SHAFT - MANUAL	AR

图 29转向手柄总成 STEERING HANDLE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	60850A6	转向手柄总成	HANDLE ASSEMBLY Steering COMPLETE	1
-	60850A6	转向手柄总成	HANDLE ASSEMBLY Steering COMPLETE	1
1	60854	油门手柄握把	GRIP HANDLE - THROTTLE	1
1	60854	油门手柄握把	GRIP HANDLE - THROTTLE	1
2	62251	盖帽	CAP	1
2	62251	盖帽	CAP	1
3	66393	节流阀轴	SHAFT THROTTLE	1
3	66393	节流阀轴	SHAFT THROTTLE	1
4	66394A1	手柄总成	HANDLE ASSEMBLY	1
4	66394A1	手柄总成	HANDLE ASSEMBLY	1
5	46152	销	PIN	1
5	46152	销	PIN	1
6	62252	垫圈	WASHER	1
6	62252	垫圈	WASHER	1
7	60850	臂	ARM	1
7	60850	臂	ARM	1
8	60852	齿轮	GEAR	1
8	60852	齿轮	GEAR	1
9	27088	销	PIN	1
9	27088	销	PIN	1
10	48003	枢轴	PIVOT	2
10	48003	枢轴	PIVOT	2
11	48002015	垫片(.015)	SHIM (.015)	AR
11	48002015	垫片(.015)	SHIM (.015)	AR
12	64074	螺钉(.250-28 x .620)	SCREW (.250-28 x .620)	2
12	64074	螺钉(.250-28 x .620)	SCREW (.250-28 x .620)	2
13	60857A2	万向节总成	UNIVERSAL JOINT ASSEMBLY	1
13	60857A2	万向节总成	UNIVERSAL JOINT ASSEMBLY	1
14	60852	齿轮	GEAR	1
14	60852	齿轮	GEAR	1
15	77564	销	PIN	1
15	77564	销	PIN	1
16	68766A2	转向臂支架	BRACKET STEERING ARM	1
17	62233	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	2
18	72847	定位弹簧-转向手柄	SPRING DETENT - STEERING HANDLE	2
19	26132	支架至鞍座螺钉(2 1/2")	SCREW BRACKET TO SADDLE (2 1/2")	3
19	35385	螺钉(.312-18 x 1-3/4)	SCREW (.312-18 x 1-3/4)	3
20	46793	螺母(5/16-24)支架螺钉	NUT (5/16-24) BRACKET SCREW	3
20	29250	螺母(.312-24)	NUT (.312-24)	3
21	30164	垫圈(.192 x .375 x .0312)不锈钢定位弹簧螺钉	WASHER (.192 x .375 x .0312) Stainless Steel DETENT SPRING SCREW	2

图 30油门控制联动装置 THROTTLE CONTROL LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	60856	节流控制小齿轮	GEAR PINON - THROTTLE CONTROL	1
2	76357	节流控制壳体	HOUSING THROTTLE CONTROL	1
3	60863	节流阀轴及齿轮	SHAFT AND GEAR THROTTLE	1
4 & 5	76213	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
6	33462	衬套	BUSHING	1
7	48679	节流阀轴及齿轮垫圈	WASHER THROTTLE SHAFT AND GEAR	1
7	20086	垫圈(.390 x .620 x .060)	WASHER (.390 x .620 x .060)	1
8	36325	节流阀轴及齿轮销	PIN THROTTLE SHAFT AND GEAR	1
9	46413	垂直轴节流阀杆	LEVER Throttle VERTICAL SHAFT	1
10	72755	螺钉	SCREW	2
11	64484	垂直轴节流阀杆螺钉螺母	NUT VERTICAL SHAFT THROTTLE LEVER SCREW	2
11	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
12	24865	销	PIN	2
13	60864	定子板杆-垂直轴	LEVER STATOR PLATE - VERTICAL SHAFT	1
14	64631	定子板控制杆	LEVER STATOR PLATE CONTROL	1
15	69029	螺钉(.250-28 x 1.750)	SCREW (.250-28 x 1.750)	1
16	57029	启动器壳体螺钉垫圈	WASHER STARTER HOUSING SCREW	2
16	71055	垫圈	WASHER	2
17	46406	定子板控制杆衬套	BUSHING STATOR PLATE CONTROL LEVER	1
18	35888	螺母(.250-28)不锈钢起动机壳至曲轴箱螺钉	NUT (.250-28) Stainless Steel STARTER HOUSING TO CRANKCASE SCREW	1
19	24664	垫圈(M4 x 20) 轴与齿轮	WASHER (M4 x 20) SHAFT AND GEAR	1
20	20586	螺母(.250-28) 轴与齿轮	NUT (.250-28) SHAFT AND GEAR	1
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
21	46405	节气门联动杆	LINK THROTTLE CLUSTER	1
22	69010	螺钉节气门联动杆(7/8")	SCREW THROTTLE CLUSTER LINK (7/8")	1
22	69011	螺钉 (#10-32 x 1.00)	SCREW (#10-32 x 1.00)	1
23	68219	螺母(#10-32)不锈钢防松-节气门联动杆螺钉	NUT (#10-32) Stainless Steel JAM - THROTTLE CLUSTER LINK SCREW	1

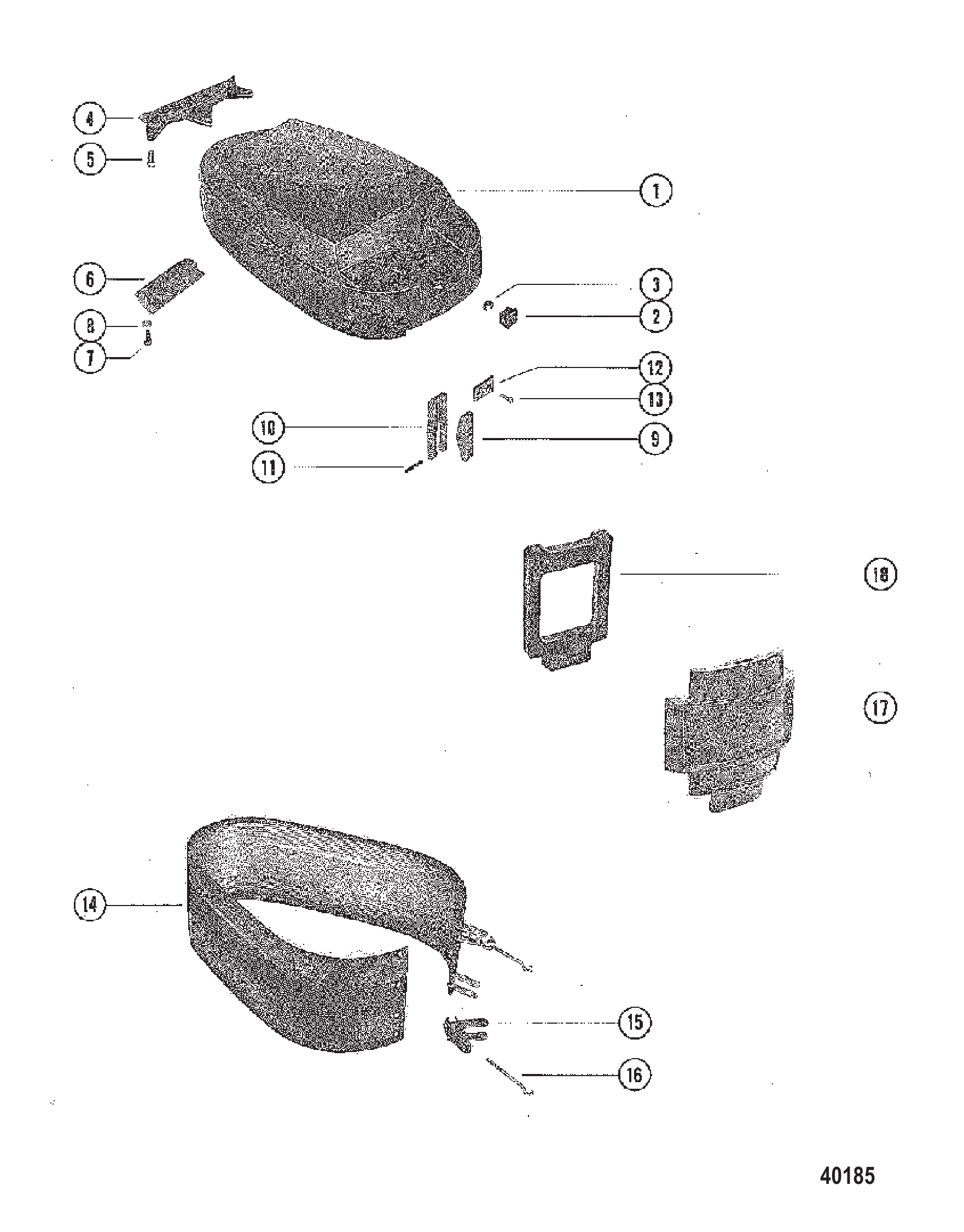

图 31顶罩、环绕罩和前盖 TOP COWL, WRAP AROUND COWL AND FRONT COVER

REF	零件编号	中文名称	英文名称	数量
1	6338	顶盖总成	TOP COWL ASSEMBLY	1
1	6603	顶盖总成	TOP COWL ASSEMBLY	1
1	6337A2	顶盖总成	TOP COWL ASSEMBLY	1
1	6602A2	顶盖总成	TOP COWL ASSEMBLY	1
1	6603	顶盖总成	TOP COWL ASSEMBLY	1
1	6602A2	顶盖总成	TOP COWL ASSEMBLY	1
2	73537	导绳器嵌件	INSERT ROPE GUIDE	1
2	77859A1	导绳器	ROPE GUIDE	1
2	73537	导绳器嵌件	INSERT ROPE GUIDE	1
2	77859A1	导绳器	ROPE GUIDE	1
3	72168	挡圈	RING RETAINING	1
3	72168	挡圈	RING RETAINING	1
4	39400	后护罩-顶盖	SHIELD REAR - TOP COWL	1
5	37370	螺钉(#10-32 x .580) 后护罩至顶盖	SCREW (#10-32 x .580) REAR SHIELD TO TOP COWL	3
6	55455	顶盖锁钩-后部	HOOK TOP COWL LATCH - REAR	1
7	22956	螺钉(.250-28 x .880) 后锁钩至顶盖	SCREW (.250-28 x .880) REAR HOOK TO TOP COWL	2
8	26992	锁紧垫圈(.250)不锈钢后锁钩螺钉	LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW	2
9	52737	顶盖锁杆	LEVER COWL LATCH	1
9	94918F1	杠杆	LEVER	1
10	52739	顶盖锁杆铰链	HINGE COWL LATCH LEVER	1
11	58998	铰链销至锁杆	PIN HINGE TO LEVER	1
12	75973	铰链板	PLATE HINGE	1
13	38055	螺钉(.190-32 x .620) 铰链板	SCREW (.190-32 x .620) HINGE PLATE	2
14	2706A5	整体环绕式顶盖总成	WRAP AROUND COWL ASSEMBLY COMPLETE	1
15	46785A1	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
16	30413	挂钩	HOOK	2
17	6395A2	前盖总成	FRONT COVER ASSEMBLY COMPLETE	1
17	6604A3	前盖组件	FRONT COVER ASSEMBLY	1
17	6604A3	前盖总成	FRONT COVER ASSEMBLY COMPLETE	1
18	76995	隔音毯	BLANKET SOUND ABSORBING	1

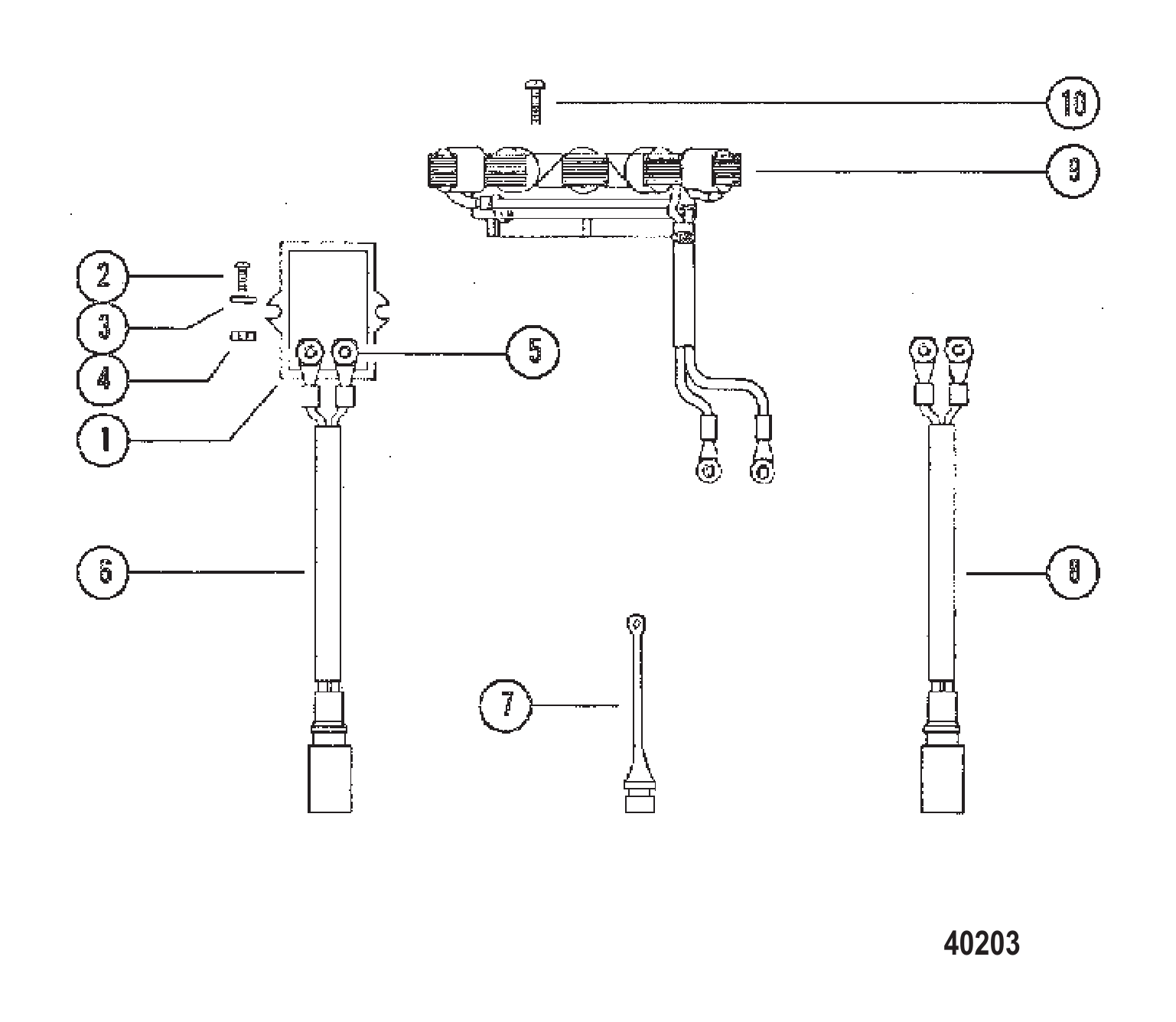

图 32电压调节器（仅比利时） VOLTAGE REGULATOR (BELGUIM ONLY)

REF	零件编号	中文名称	英文名称	数量
1	75076	电压调节器	REGULATOR Voltage	1
1	95845T	电压调节器	REGULATOR-VOLTAGE	1
2	58185	螺钉 (#10-32 x 1.00)	SCREW (#10-32 x 1.00)	2
3	62769	电压调节器螺钉隔套	SPACER VOLTAGE REGULATOR SCREW	2
4	27164	螺母及锁紧垫圈(#10-32) 电压调节器螺钉	NUT AND LOCKWASHER (#10-32) VOLTAGE REGULATOR SCREW	2
5	45076	螺母(#10-32)黄铜电压调节器端子	NUT (#10-32) Brass VOLTAGE REGULATOR TERMINALS	3
6	74899	线束总成电压调节器(黄/红)	HARNESS ASSEMBLY VOLTAGE REGULATOR (YELLOW/RED)	1
7	71663	线束插头	PLUG HARNESS	1
8	65017A2	照明线束总成(外部)	HARNESS ASSEMBLY LIGHTING (EXTERNAL)	1
9	74367A9	照明定子总成	LIGHTING STATOR ASSEMBLY	1
10	30173	螺钉照明定子固定(1 5/8")	SCREW LIGHTING STATOR ATTACHING (1 5/8")	2
10	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
10	66707	螺钉照明定子固定(7/8")	SCREW LIGHTING STATOR ATTACHING (7/8")	3
