水星 Mercury 20 JET 9807909 THRU 0P016999 - 爆炸图零件明细

两冲程化油器 · Belgium - Cat.# 90-1858394 · 共 28 个部位 · 1220 条零件

1附件 2下罩 3化油器（20/25/JET 20）4化油器（SeaPro/Marathon 15/25 & Super 15）5夹紧支架总成 6曲轴、活塞与飞轮 7气缸体与盖 8驱动轴壳体总成 9电动启动组件 10燃油系统组件 11燃油系统组件（商用发动机）12齿轮箱（驱动轴）（2.25:1 齿轮比）13齿轮箱螺旋桨轴-2.25:1齿轮比 14点火/电气组件 15喷水推进联动装置（序列号 0G157845 及以下）16喷水推进联动装置（序列号 0G157846 及以上）17喷水推进泵总成（序列号 0G157845 及以下）18喷水推进泵总成（序列号 0G157846 及以上）19喷水推进泵组件 20维修/支撑材料 21启动器总成（手动）22旋转支架总成 23油门和换挡联动装置（遥控）24油门与换挡联动装置（侧换挡）25油门和换挡联动装置（舵柄换挡）26舵柄总成 27专用工具 28顶罩

图 1附件 Accessories

零件编号	中文名称	英文名称	数量
62351A10	蓄电池充电套件	CHARGING KIT Battery	1
52992A2	线缆滑轮安装套件	ATTACHING KIT Cable And Pulley	1
90983A3	电动起动机套件	STARTER MOTOR KIT Electric	1
90983A5	起动机转换套件	CONVERSION KIT Starter Motor	1
44357A2	冲洗附件	FLUSHING ATTACHMENT	1
44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成 (12英尺)	LINE ASSEMBLY Fuel (12 Feet) (12 FT.)	1
877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
52148A1	副驾驶套件	CO-PILOT KIT	1
15000A7	钥匙开关套件远程点火	KEY SWITCH KIT Remote Ignition	1
42282A3	照明线圈套件	COIL KIT Lighting	1
42282A4	照明线圈套件	COIL KIT Lighting	1
95845A5	照明调节器套件	REGULATOR KIT Lighting	1
14171A2	电机锁	MOTOR LOCK	1
14171Q2	电机锁	MOTOR LOCK	1
828019A1	油压传感器套件	SENDER KIT Oil Pressure	1
8M0068785	油压适配器套件	ADPT KIT-OIL PRES	1
822344A8	动力调整套件	POWER TRIM KIT	1
822344A13	动力调整套件	POWER TRIM KIT	1
822573A12	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
826633A1	遥控器安装套件	ATTACHING KIT Remote Control	1
12756A1	浅水驱动套件	DRIVE KIT Shallow Water	1
821190A2	侧移转换套件	CONVERSION KIT Side Shift	1
816667A2	转向支架总成（不带提手）	BRACKET ASSEMBLY Steering (W/O CARRYING HANDLE)	1
41323A2	转向连杆安装套件	ATTACHING KIT Steering Link	1
41323A03	转向连杆安装套件	ATTACHING KIT Steering Link	1
14586A3	节温器套件	THERMOSTAT KIT	1
98571A3	舵柄支架总成（用于副驾驶套件）	BRACKET ASSEMBLY Tiller Handle (FOR USE W/ CO-PILOT KIT)	1
821468A7	舵柄套件	TILLER HANDLE KIT	1
821468A6	舵柄套件	TILLER HANDLE KIT	1
821468A7	舵柄套件	TILLER HANDLE KIT	1
823609A7	舵柄启动开关转换套件	CONVERSION KIT Tiller Handle Start Switch	1

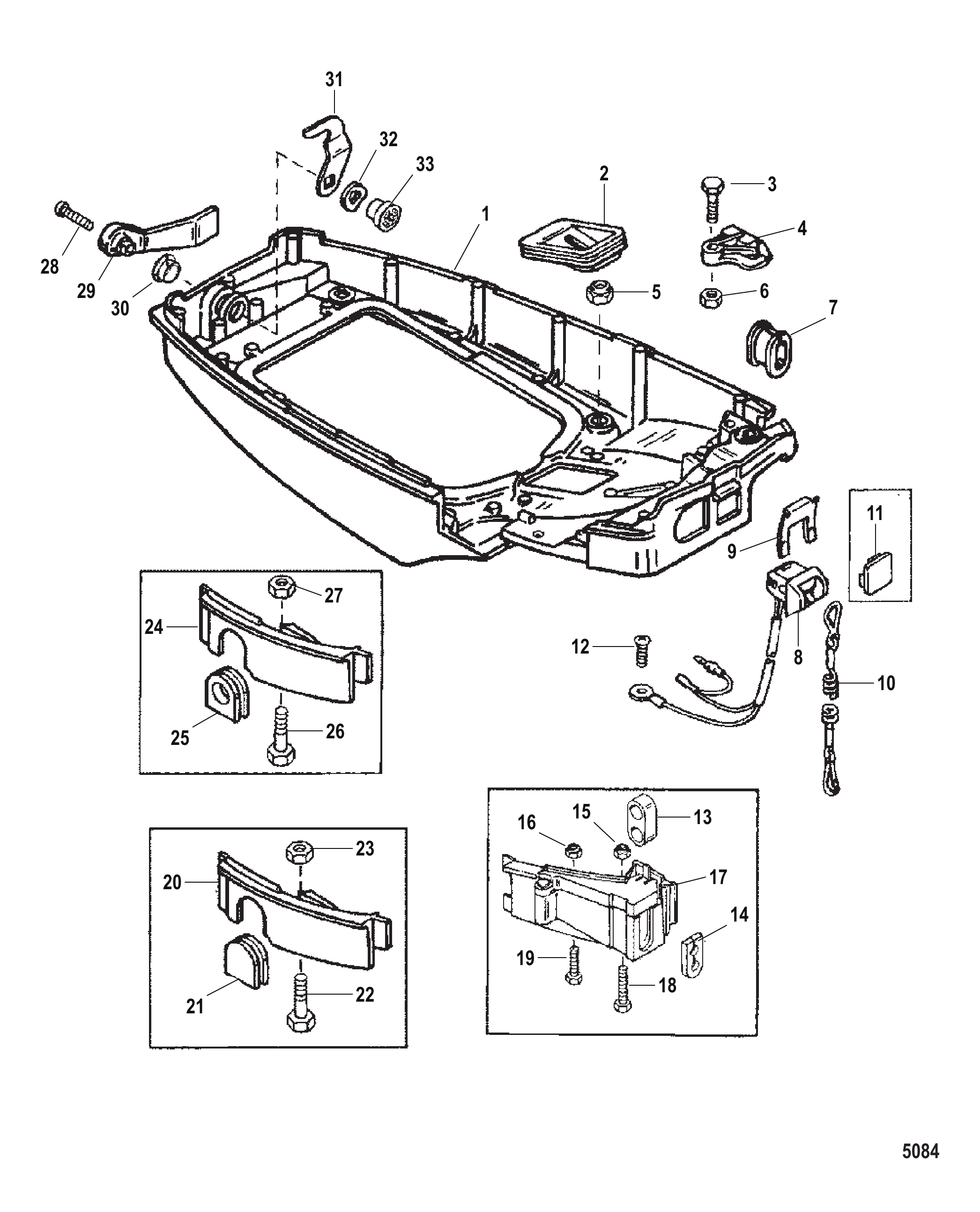

图 2下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	9682A8	下机罩	BOTTOM COWL	1
1	9682A9	下机罩	BOTTOM COWL	1
1	9682A10	下机罩	BOTTOM COWL	1
2	17231	换挡轴护套	GROMMET Shift Shaft	1
3	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
4	17223	线束盖	COVER Harness	1
5	401196	螺母 (M6)	NUT (M6)	4
6	401196	螺母 (M6)	NUT (M6)	1
7	17226	线束护套	GROMMET Wire Harness	1
8	826677A1	停机开关总成	SWITCH ASSEMBLY Stop	1
8	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
9	120441	黄铜固定座	RETAINER Brass	1
9	8M0032846	黄铜固定座	RETAINER Brass	1
10	15920A54	拉绳总成	LANYARD ASSEMBLY	1
10	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
11	17230	堵头	PLUG	1
12	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
12	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
13	39519	杯套	CUP	1
14	8243641	侧盖护套	GROMMET Side Cover	1
15	401196	螺母 (M6)	NUT (M6)	1
16	401196	螺母 (M6)	NUT (M6)	1
17	823837A8	侧盖	SIDE COVER	1
17	8M0053899	遥控装置	REMOTE CONTROL	1
17	823837A9	侧盖	SIDE COVER	1
17	823837A8	侧盖	SIDE COVER	1
17	823837A10	侧盖	SIDE COVER	1
17	8M0053899	遥控装置	REMOTE CONTROL	1
17	823837A2	侧盖	SIDE COVER	1
17	8M0053899	遥控装置	REMOTE CONTROL	1
17	823837A3	侧盖	SIDE COVER	1
17	823837A9	侧盖	SIDE COVER	1
17	823837A4	侧盖	SIDE COVER	1
17	8M0053899	遥控装置	REMOTE CONTROL	1
18	4000329	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
18	8M0206596	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
19	4000328	螺钉(M6 x 16)	SCREW (M6 x 16)	1
19	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	1
20	824367F1	侧盖	SIDE COVER	1
20	8M0054857	侧盖	COVER-SIDE	1
20	824367F2	侧盖	SIDE COVER	1
20	824367F1	侧盖	SIDE COVER	1
20	824367F3	侧盖	SIDE COVER	1
20	8M0054857	侧盖	COVER-SIDE	1
21	824362	护孔环	GROMMET	1
22	4000329	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
22	8M0206596	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
23	400264	螺母 (M6)	NUT (M6)	1
23	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
24	824367F1	侧盖	SIDE COVER	1
24	8M0054857	侧盖	COVER-SIDE	1
24	824367F2	侧盖	SIDE COVER	1
24	824367F1	侧盖	SIDE COVER	1
25	824361	护孔环	GROMMET	1
26	4000329	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
26	8M0206596	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
27	400264	螺母 (M6)	NUT (M6)	1
27	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
28	852530	螺钉（.250-20 x 1.50）	SCREW (.250-20 x 1.50)	1
29	17220	罩壳锁杆	LEVER Cowl Latch	1
30	812707	衬套	BUSHING	1
31	816202	锁钩	HOOK Latch	1
32	37642	波形垫圈	WAVE WASHER	1
33	17224	锁紧螺母	NUT Latch Retaining	1

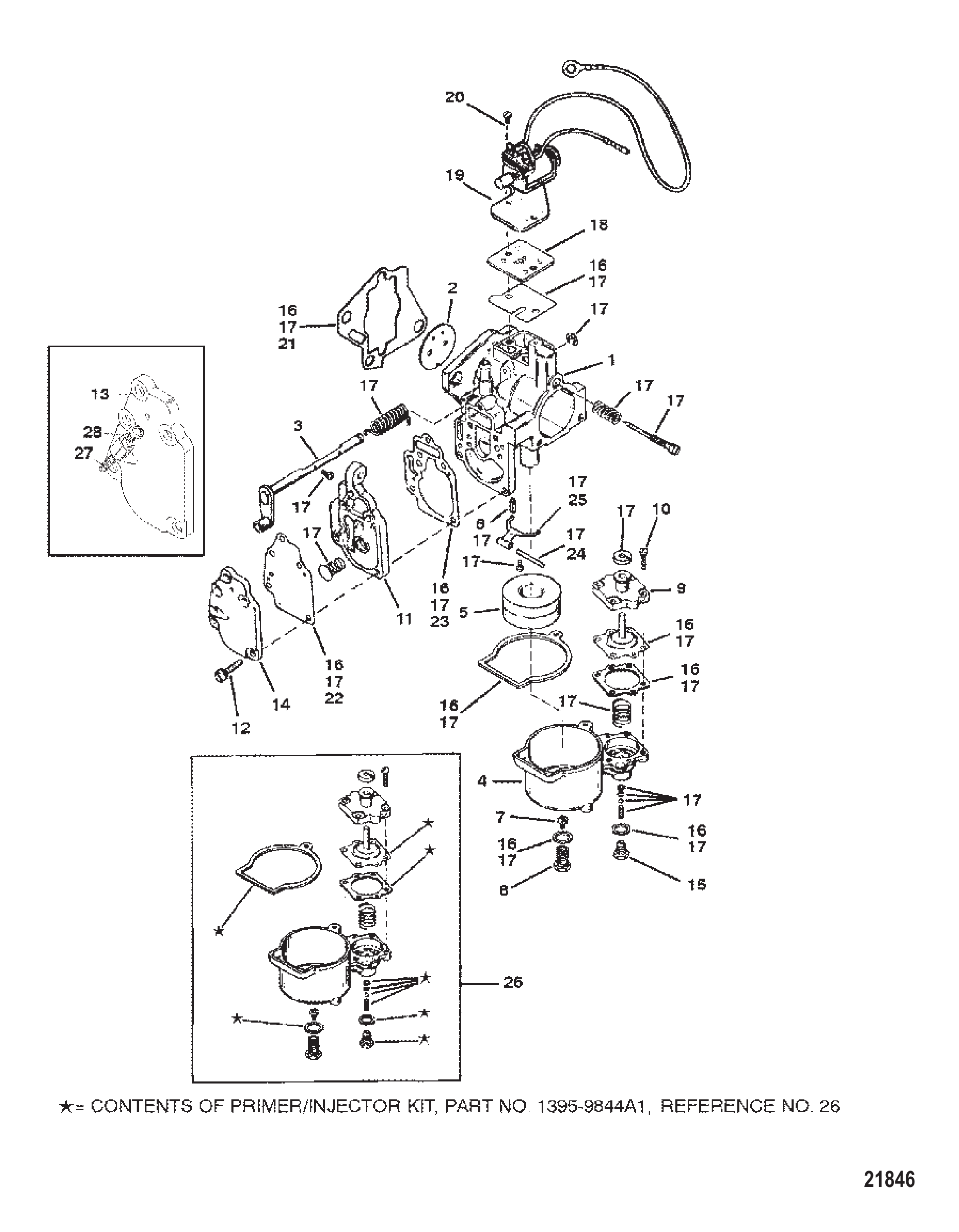

图 3化油器（20/25/JET 20） Carburetor (20/25/JET 20)

REF	零件编号	中文名称	英文名称	数量
1	823907A4	化油器	CARBURETOR	1
1	817405A11	化油器	CARBURETOR	1
1	817405T23	化油器	CARBURETOR	1
1	8888A12	化油器	CARBURETOR	1
1	8888T20	化油器	CARBURETOR	1
1	8889A15	化油器	CARBURETOR	1
1	8889T21	化油器	CARBURETOR	1
2	815133	油门阀	VALVE Throttle	1
2	96461	油门阀	VALVE Throttle	1
3	803857	油门轴	SHAFT Throttle	1
3	9695	油门轴	SHAFT Throttle	1
3	96951	油门轴	SHAFT Throttle	1
4	9164	燃油杯	BOWL Fuel	1
5	91691	浮子	FLOAT	1
6	879194048	进气阀	VALVE-INLET	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	7394	量孔 (.044)	JET (.044)	1
7	3796	量孔 (.076)	JET (.076)	1
8	9171	堵头	PLUG	1
9	823648	膜片盖	COVER Diaphragm	1
10	9697	螺钉	SCREW	4
11	15827A1	本体	BODY	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	螺钉	SCREW	5
13	96371	燃油泵盖	COVER Fuel Pump	1
14	9637	盖板	COVER	1
15	9762	堵头	PLUG	1
16	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
17	8237072	维修套件	REPAIR KIT	1
18	9699	板（手动）	PLATE (MANUAL)	1
19	823433	电动阻风门	CHOKE Electric (ELECTRIC)	1
20	9696	螺钉	SCREW	2
21	192061	化油器衬垫	GASKET Carburetor	1
22	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
23	9633	衬垫	GASKET	1
24	F10064	轴	SHAFT	1
25	824401	浮子杆	LEVER Float	1
26	9844A1	启动泵/喷油器维修包	SERVICE KIT Primer/Injector	1
27	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
28	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	90885A97	动力头总成	POWERHEAD ASSEMBLY	1
-	804946T02	动力头总成	POWERHEAD ASSEMBLY	1

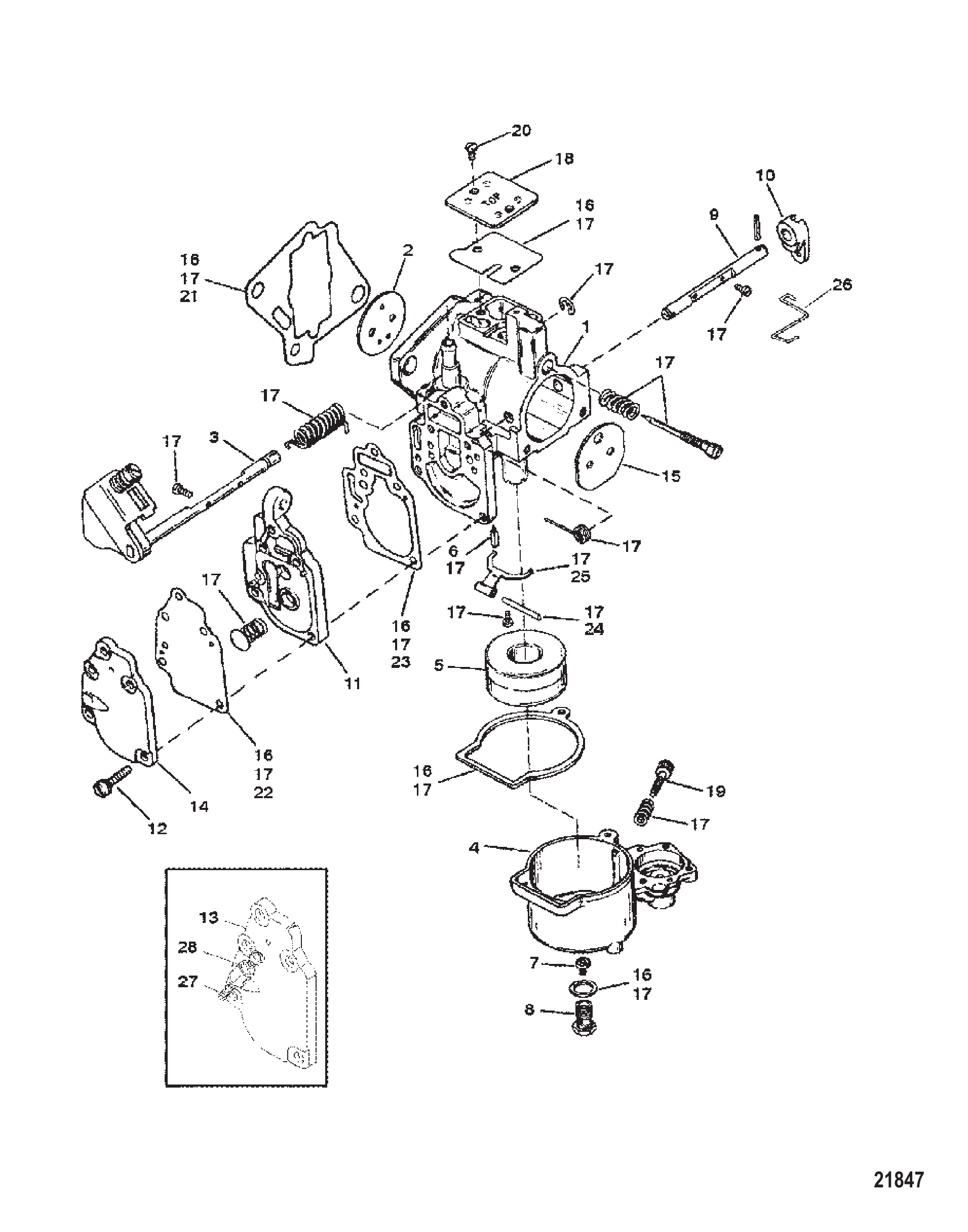

图 4化油器（SeaPro/Marathon 15/25 & Super 15） Carburetor (SeaPro/Marathon 15/25 & Super 15)

REF	零件编号	中文名称	英文名称	数量
1	817405A12	化油器	CARBURETOR	1
1	817405A8	化油器	CARBURETOR	1
1	823907A3	化油器	CARBURETOR	1
1	823907T13	化油器 (WMC-86)	CARBURETOR (WMC-86)	1
2	96461	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
3	96951	油门轴	SHAFT Throttle	1
4	811353	燃油杯	BOWL Fuel	1
5	91691	浮子	FLOAT	1
6	879194048	进气阀	VALVE-INLET	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	3796	量孔 (.076)	JET (.076)	1
7	6201	量孔(.080)	JET (.080)	1
7	5317	量孔(.046)	JET (.046)	1
8	9171	堵头	PLUG	1
9	8113541	阻风门轴	SHAFT Choke	1
10	811805	阻风门杆	LEVER Choke	1
11	15827A1	本体	BODY	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	螺钉	SCREW	5
13	96371	燃油泵盖	COVER Fuel Pump	1
14	9637	盖板	COVER	1
15	811806	阻风门阀	VALVE Choke	1
16	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
17	8237072	维修套件	REPAIR KIT	1
18	9699	安装板	PLATE	1
19	811360	浮子室放油螺钉	SCREW Bowl Drain	1
20	9696	螺钉	SCREW	2
21	192061	化油器衬垫	GASKET Carburetor	1
22	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
23	9633	衬垫	GASKET	1
24	F10064	轴	SHAFT	1
25	824401	浮子杆	LEVER Float	1
26	817425	阻风门连杆	LINK Choke	1
27	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
28	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	90885A97	动力头总成	POWERHEAD ASSEMBLY	1
-	804946T02	动力头总成	POWERHEAD ASSEMBLY	1

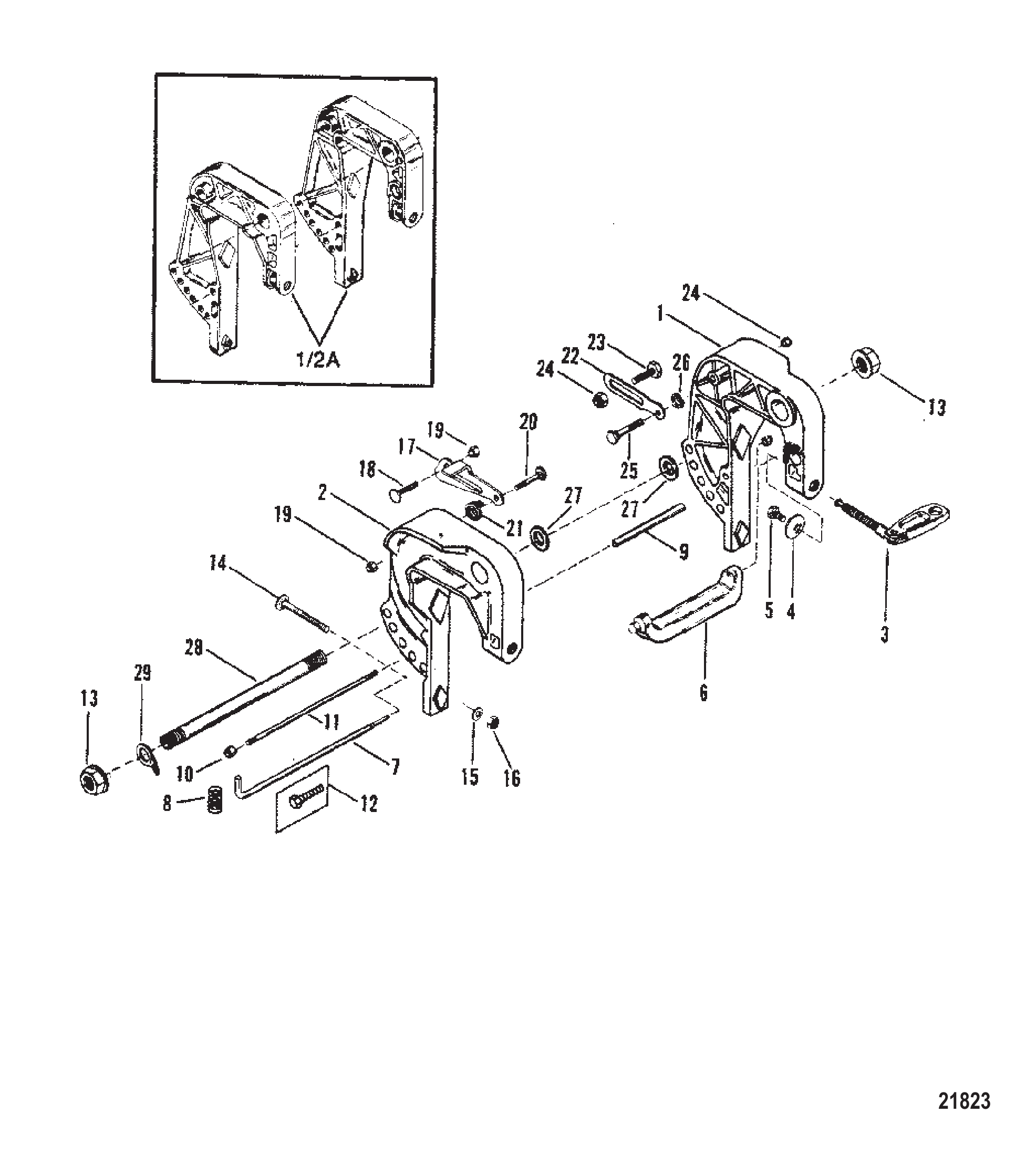

图 5夹紧支架总成 Clamp Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1/2A	8794A5	艉板支架总成（左/右舷）（黑色）	BRACKET ASSEMBLY Transom (PORT/STBD.) (BLACK)	1
1/2A	8794A6	艉板支架总成（左/右舷）（灰色）	BRACKET ASSEMBLY Transom (PORT/STBD.) (GRAY)	1
1	8794A7	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
2	8796A5	艉板支架总成（右舷）（黑色）	BRACKET ASSEMBLY Transom (STBD.) (BLACK)	1
1	8794A8	艉板支架总成（左舷）（灰色）	BRACKET ASSEMBLY Transom (PORT)(GRAY)	1
1	8794A7	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8796A6	艉板支架总成（右舷）（灰色）	BRACKET ASSEMBLY Transom (STBD.)(GRAY)	1
1	8794A9	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
2	8796A7	艉板支架总成（右舷）（黑色）	BRACKET ASSEMBLY Transom (STBD.) (BLACK)	1
1	8794A10	艉板支架总成（左舷）（灰色）	BRACKET ASSEMBLY Transom (PORT)(GRAY)	1
1	8794A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8796A8	艉板支架总成（右舷）（灰色）	BRACKET ASSEMBLY Transom (STBD.)(GRAY)	1
2	8796A7	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8794A11	艉板支架总成(左舷)(追踪者)	BRACKET ASSEMBLY Transom (PORT) (TRACKER)	1
1	8794A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8796A9	艉板支架总成（右舷）（TRACKER）	BRACKET ASSEMBLY Transom (STBD.) (TRACKER)	1
2	8796A7	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	92767A3	蝶形螺丝总成 (16 mm)	THUMB SCREW ASSEMBLY (16 mm)	2
4	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	818884	垫圈	WASHER	2
5	768041	垫圈固定螺丝	SCREW WASHER ATTACHING	2
5	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
6	41042	提手	HANDLE CARRYING	1
7	99929A1	倾斜销总成	PIN ASSEMBLY Tilt	1
7	56373A2	倾斜销总成	PIN ASSEMBLY Tilt	1
8	92995	弹簧	SPRING	1
9	41041	隔套	SPACER	1
10	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
11	99928	螺柱	STUD	1
9	818538	隔套	SPACER	1
12	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
13	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
14	814945	螺钉 (.312-18 x 3.500) 不锈钢夹紧支架至艉板	SCREW (.312-18 x 3.500) Stainless Steel CLAMP BRACKET TO TRANSOM	2
15	67981	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
16	815848	螺母 (.312) 夹紧支架螺栓	NUT (.312) CLAMP BRACKET BOLT	2
17	96965	倾斜止动杆-右舷	LEVER TILT STOP - STARBOARD STAR	1
18	41523	螺钉(.250-28 x 1.00)杆至旋转支架	SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET	1
19	35045	螺母(.250-28)倾斜止动杆螺钉	NUT (.250-28) TILT STOP LEVER SCREW	2
19	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
20	41524	螺钉(.250-28 x 1.75)杆至夹紧支架	SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET	1
21	44581	倾斜止动杆螺钉弹簧	SPRING TILT STOP LEVER SCREW	1
22	90901	倾斜限位带-左舷侧	STRAP TILT STOP - PORT SIDE	1
23	41523	螺钉 (.250-28 x 1.00) 带至旋转支架	SCREW (.250-28 x 1.00) STRAP TO SWIVEL BRACKET	1
24	35045	螺母 (.250-28) 倾斜止动带螺钉	NUT (.250-28) TILT STOP STRAP SCREW	2
24	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
25	41524	螺钉 (.250-28 x 1.75) 带至夹紧支架	SCREW (.250-28 x 1.75) STRAP TO CLAMP BRACKET	1
26	31030		WAVE WASHER TILT STOP STRAP SCREW	1
27	71421	尼龙垫圈倾斜管（尼龙）	WASHER Nylon TILT TUBE (NYLON)	2
28	41171	倾斜管	TILT TUBE	1
28	8M0035075	倾斜管	TILT TUBE	1
29	30954	安全卡扣	CLIP SAFETY	1
29	8M0085928	卡扣	CLIP	1

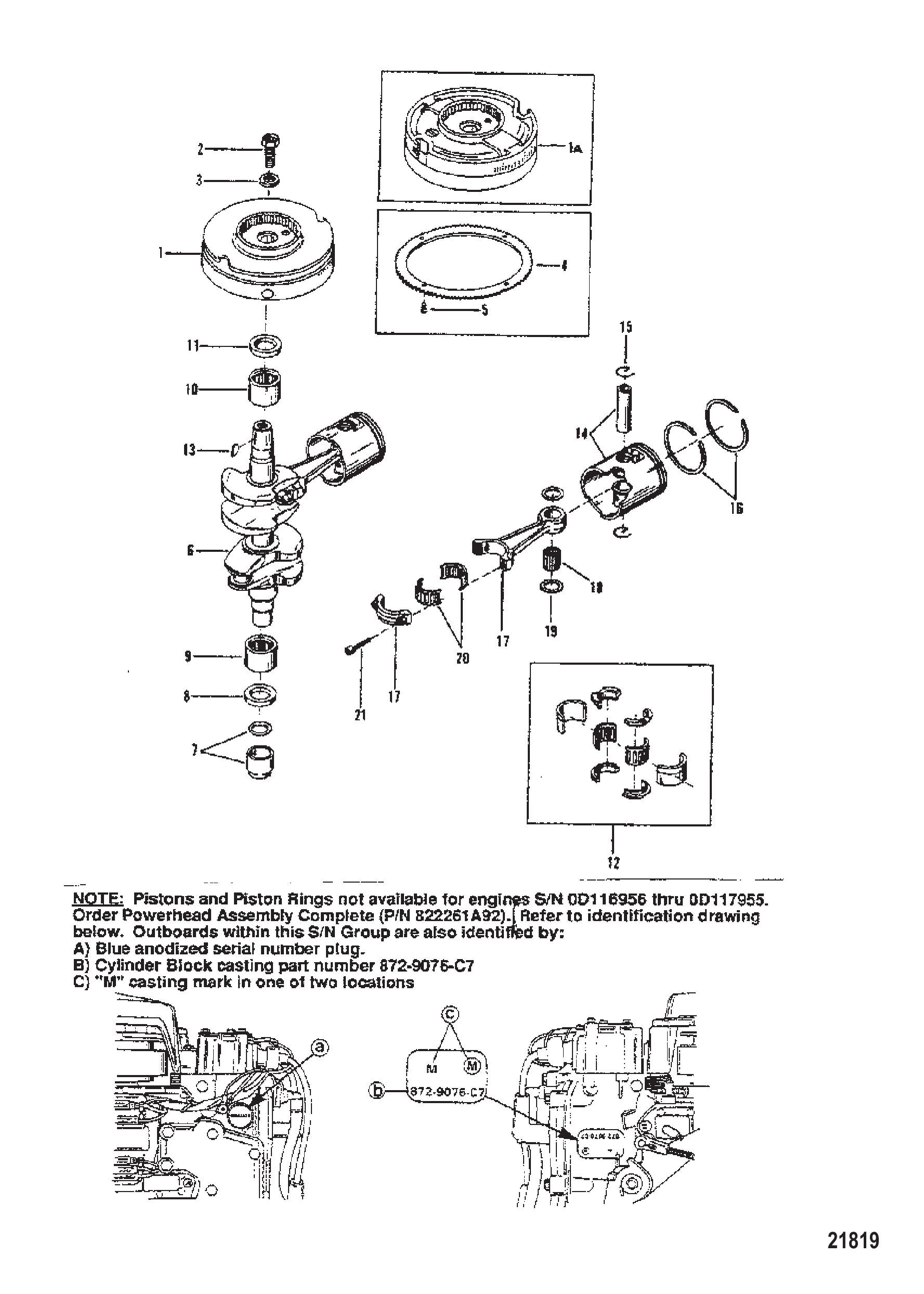

图 6曲轴、活塞与飞轮 Crankshaft, Pistons and Flywheel

REF	零件编号	中文名称	英文名称	数量
1A	8274A6	飞轮总成（设计I）	FLYWHEEL ASSEMBLY (DESIGN I)	1
1	818354A2	飞轮（设计II）	FLYWHEEL (DESIGN II)	1
1	859232T15	飞轮总成	FLYWHEEL ASSY	1
2	97359A1		SCREW ASSEMBLY FLYWHEEL TO CRANKSHAFT	1
3	86496		WASHER FLYWHEEL SCREW	1
4	99301	飞轮齿圈-电动	RING GEAR FLYWHEEL -ELECTRIC	1
5	40039106	螺钉 (M5 x 13) 齿圈至飞轮-电动	SCREW (M5 x 13) RING GEAR TO FLYWHEEL -ELECTRIC	4
5	88190313	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
6	8978A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
6	8978T2	曲轴总成	CRANKSHAFT ASSEMBLY	1
7	822445A1	耐磨套	WEAR SLEEVE	1
8	85107	曲轴下油封	SEAL Oil CRANKSHAFT - LOWER	1
9	85113		BEARING Roller LOWER	1
9	85113T	下滚柱轴承	BEARING Roller - Lower	1
10	85114		BEARING Roller - Upper UPPER	1
10	85114T	上滚柱轴承	BEARING Roller - Upper	1
11	859741	曲轴上油封	SEAL Oil CRANKSHAFT-UPPER	1
12	86992A3	中心主轴承总成	BEARING ASSEMBLY CENTER MAIN	1
12	86992A5	中央主轴承总成	BEARING ASSEMBLY Center Main	1
13	20094	飞轮驱动半圆键	KEY Woodruff FLYWHEEL DRIVE	1
14	9104A17	活塞总成	PISTON ASSEMBLY	2
14	9104T19	活塞总成	PISTON ASSEMBLY	2
15	47276	活塞销锁环	LOCK RING PISTON PIN	4
15	828119	活塞销锁环	LOCK RING Piston Pin	4
16	17286A12	活塞环组	RING SET Piston	1
16	827491A12	活塞环组	RING SET Piston	1
17	8835A2	连杆总成	CONNECTING ROD ASSEMBLY	2
17	8835A4	连杆总成	CONNECTING ROD ASSEMBLY	2
18	98295	活塞端滚针轴承	BEARING Needle PISTON END	54
19	42025		BEARING LOCATING - NEEDLE BEARING	4
19	8M0012294	止推垫圈	WASHER-THRUST	4
20	41620A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
20	879877A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
21	4008225	螺钉 (M6 x 25)（公制螺纹）	SCREW (M6 x 25) (METRIC THREAD)	4
21	F1012	螺钉（标准螺纹）	SCREW (STANDARD THREAD)	4
-	90885A88	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	879732T89	PH 20/25	PH 20/25	1
-	822261A92	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

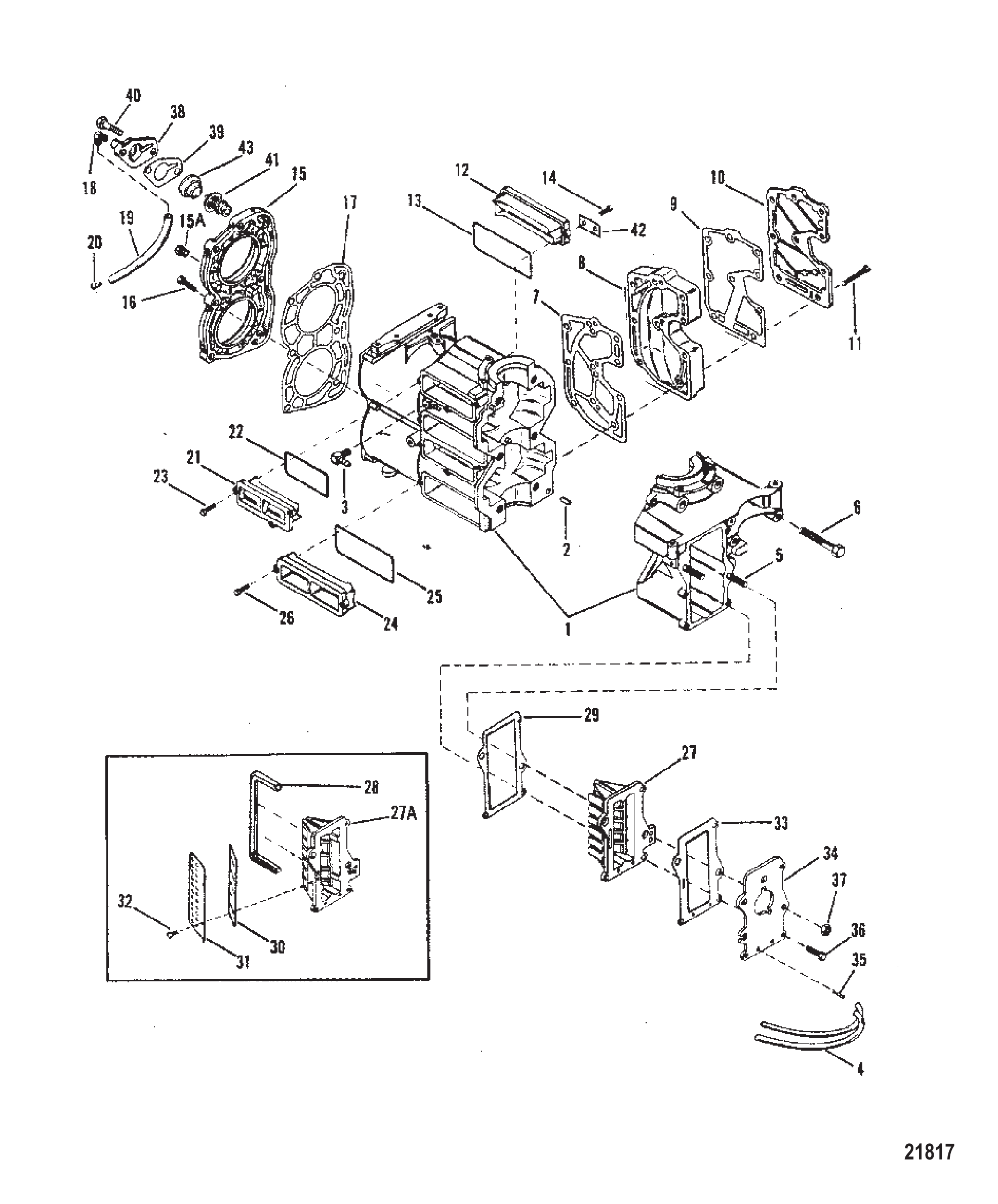

图 7气缸体与盖 Cylinder Block and Covers

REF	零件编号	中文名称	英文名称	数量
1	9533A3	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	NSS	不单独销售气缸体	NOT SOLD SEPARATE Cylinder Block	1
2	85171	定位销	PIN Dowel	3
3	15133	接头（45度）	FITTING (45 Degree)	2
4	1383556	软管（切割至12.25英寸）	HOSE (Cut to 12.25 Inches)	2
4	99130100	软管-48英寸	TUBING-48 INCH	2
5	42917	螺柱	STUD	2
5	429173	螺柱	STUD	2
6	40001209	螺丝(M10 x 60)	SCREW (M10 x 60)	6
7	414757	衬垫	GASKET	1
7	892158	排气歧管衬垫	GASKET Exhaust Manifold	1
8	923291	排气歧管	MANIFOLD Exhaust	1
8	92329F03	排气歧管	MANIFOLD Exhaust	1
9	414994	衬垫	GASKET	1
9	892157	排气歧管盖衬垫	GASKET Exhaust Manifold Cover	1
10	923301	盖板	COVER	1
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	9
12	14407	盖板	COVER	2
12	144071	盖板	COVER	2
13	30503	O型圈	O-RING	2
13	822370	O型圈 (2.362×.103)	O-RING (2.362 x .103)	2
14	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	4
15	8282A1	盖总成	COVER ASSEMBLY	1
16	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	5
17	863891	衬垫	GASKET	1
17	863893	衬垫	GASKET	1
18	99664	弯头	ELBOW	1
18	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
19	99127109	管路（57.00英寸散装）示流器（切割至8英寸）	LINE (57.00 Inches Bulk) TELL TALE (Cut to 8 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	94848	接头	FITTING	1
21	14406	盖板	COVER	2
22	86391	O型圈	O-RING	2
23	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	6
24	14408	盖板	COVER	2
25	822370	O型圈 (2.362×.103)	O-RING (2.362 x .103)	2
26	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	4
27	14112	簧片阀组（设计II）	REED BLOCK (DESIGN II)	1
27	14112T	簧片阀组	REED BLOCK	1
27A	424712	簧片阀组（设计I）	REED BLOCK (DESIGN I)	1
27A	14112T	簧片阀组	REED BLOCK	1
28	859771	密封件（设计I簧片阀组）	SEAL (DESIGN I REED BLOCK)	1
28	85977002	密封件	SEAL	1
29	414172	衬垫	GASKET	1
30	816806	簧片设计I簧片阀组	REED Design I Reed Block	2
31	897931	止动件设计I簧片阀组	STOP Reed Design I Reed Block	2
32	4005785	螺钉 (M4 x 10)（设计I簧片阀组）	SCREW (M4 x 10) (Design I Reed Block	4
33	414181	衬垫	GASKET	1
34	41420A2	安装板	PLATE	1
34	41420A3	化油器适配板总成	PLATE ASSEMBLY Carb Adaptor	1
35	56759	倒钩接头	FITTING Barbed	2
36	40019108	螺钉（M5×20）	SCREW (M5 x 20)	3
37	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
38	143171	盖板	COVER	1
39	143184	衬垫	GASKET	1
39	14318005	衬垫	GASKET	1
40	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
41	14586	节温器	THERMOSTAT	1
42	12627	绑带	STRAP	1
43	62386	衬垫	GASKET	1
43	8M0204714	衬垫@4	GASKET @4	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	822261A92	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1
-	90885A88	动力头总成	POWERHEAD ASSEMBLY	1
-	879732T89	PH 20/25	PH 20/25	1

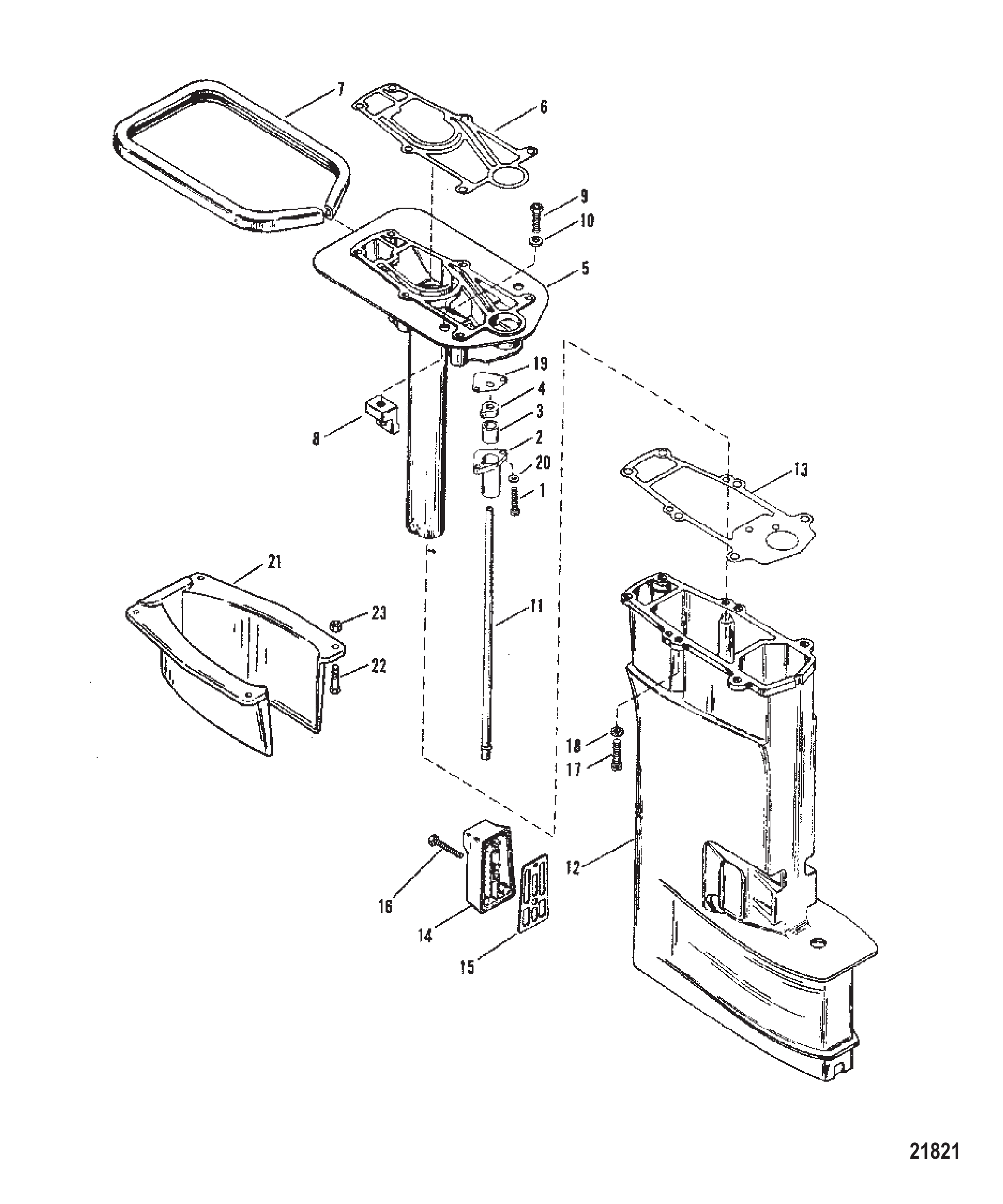

图 8驱动轴壳体总成 Driveshaft Housing Assembly

REF	零件编号	中文名称	英文名称	数量
1	400035	螺丝 M5×16(配合参考号20使用)	SCREW (M5 x 16) (Use W/Reference #20)	2
1	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
2	96248A1	水管壳体总成	HOUSING ASSEMBLY WATER TUBE	1
3	25329	水管密封件	SEAL WATER TUBE	1
4	96247	水管隔套	SPACER WATER TUBE	1
4	889715	水管隔套	SPACER Water Tube	1
5	99702A6	适配板总成	ADAPTER PLATE ASSEMBLY	1
5	99702A7	适配板总成	ADAPTER PLATE ASSEMBLY	1
6	416704	适配板垫片	GASKET ADAPTOR PLATE	1
6	41670006	适配板垫片	GASKET Adaptor Plate	1
7	158662	适配板密封件	SEAL ADAPTOR PLATE	1
8	41211	上支架托架	BRACKET UPPER MOUNT	2
9	40011128	螺丝 M6×20不锈钢(不配合参考号10使用)	SCREW (M6 x 20) Stainless Steel (Use Without Reference #10)	2
9	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	2
9	40007128	螺丝 M6×20(配合参考号10使用)	SCREW (M6 x 20) (Use With Reference #10)	2
10	29245	垫圈（0.281 x 0.500 x 0.060）不锈钢（适用处使用）	WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE)	2
10	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
11	85116	水管(短轴)	TUBE Water (SHORT SHAFT)	1
11	86292	水管(长轴)	TUBE Water (LONG SHAFT)	1
12	9097A2	驱动轴壳体总成(短轴)(黑色)	HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (BLACK)	1
12	9097T5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9098A2	驱动轴壳体总成(长轴)(黑色)	HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (BLACK)	1
12	9098T5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9097A3	驱动轴壳体总成(短轴)(灰色)	HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (GRAY)	1
12	9097T6	驱动轴壳体-灰色	DRIVESHAFT HSG-GR	1
12	9098A3	驱动轴壳体总成(长轴)(灰色)	HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (GRAY)	1
12	9098A6	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
12	9097A4	驱动轴壳体总成(短轴)(TRACKER)	HOUSING ASSEMBLY Driveshaft (SHORT) (TRACKER)	1
12	9098A4	驱动轴壳体总成(长轴)(TRACKER)	HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER)	1
12	9098T5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
13	433373	驱动轴壳体垫片	GASKET DRIVE SHAFT HOUSING	1
13	433374	驱动轴壳体垫片	GASKET Drive Shaft Housing	1
14	14534	怠速泄压盖	COVER IDLE RELIEF	1
15	14621	盖衬垫	GASKET COVER	1
16	14742	盖螺钉(.250-20 x 1.25)	SCREW (.250-20 x 1.25) COVER	1
17	4000360	驱动轴壳体至缸体螺钉(60mm)	SCREW DRIVE SHAFT HOUSING TO BLOCK (60 MM)	6
17	1993870	螺钉(M8 x 70)	SCREW (M8 x 70)	6
18	4002317	驱动轴壳体螺钉垫圈(8.90 X 17.0 X 1.9不锈钢)	WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW	6
19	19583	衬垫(按需使用)	GASKET (USE WHERE APPLICABLE)	1
19	433373	衬垫	GASKET	1
20	30164	壳体螺钉垫圈(.192 x .375 x .0312不锈钢)	WASHER (.192 x .375 x .0312) Stainless Steel HOUSING SCREW	2
21	17258T	配平盖(黑色)	TRIM COVER (BLACK)	1
21	17258T6	配平盖(灰色)	TRIM COVER (GRAY)	1
21	17258T	配平盖	TRIM COVER	1
21	17258F4	配平盖(追踪器型)	TRIM COVER (TRACKER)	1
21	17258T	配平盖	TRIM COVER	1
22	40011128	配平盖螺钉(M6 x 20不锈钢)	SCREW (M6 x 20) Stainless Steel TRIM COVER	4
22	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
23	401196	配平盖螺钉螺母(M6)	NUT (M6) TRIM COVER SCREW	4
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

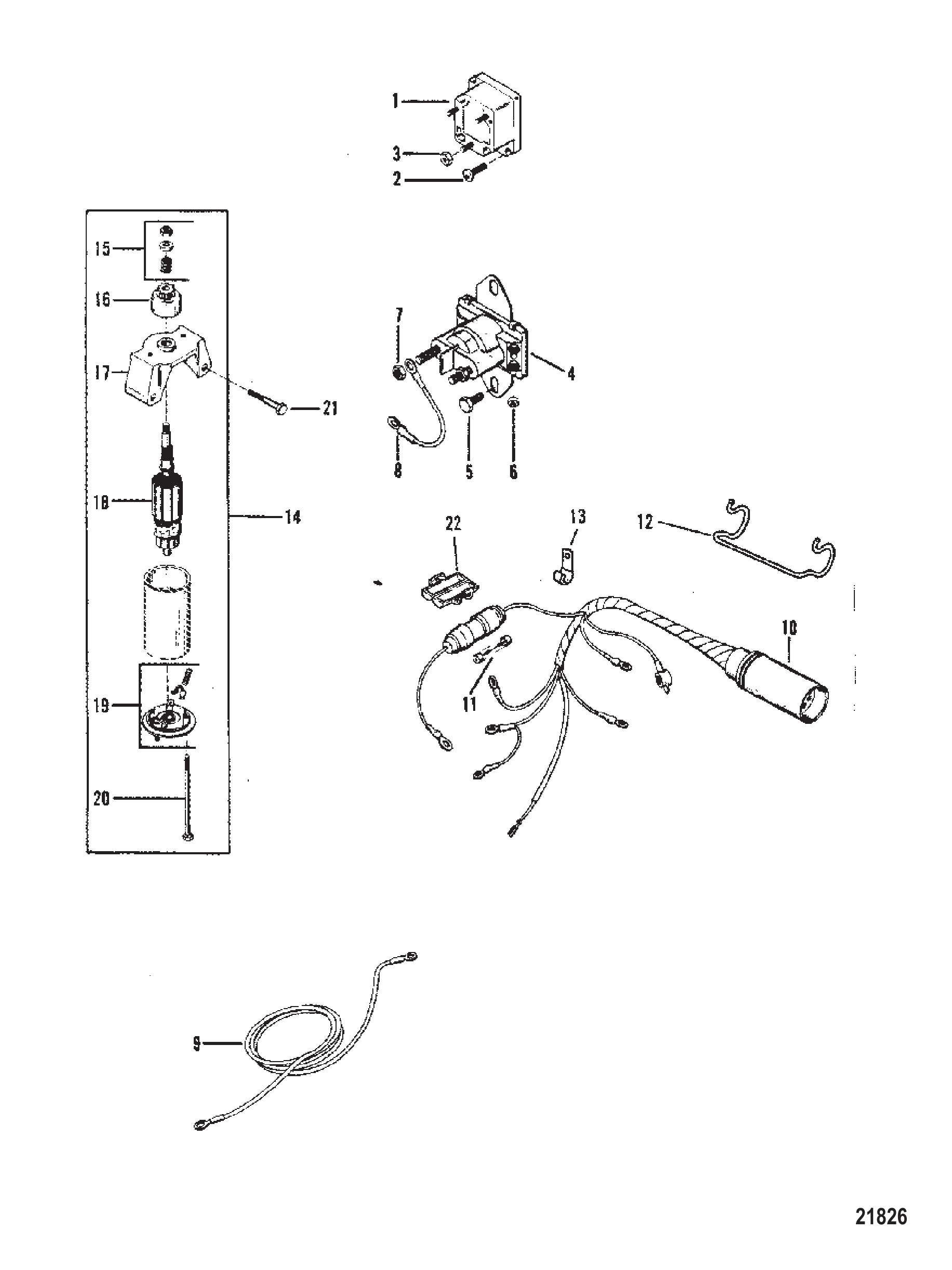

图 9电动启动组件 Electric Start Components

REF	零件编号	中文名称	英文名称	数量
1	816770	整流器	RECTIFIER	1
1	8M0058226	整流器	RECTIFIER	1
2	48409	螺丝(#10-16 x .625)不锈钢整流器至气缸体	SCREW (#10-16 x .625) Stainless Steel RECTIFIER TO CYLINDER BLOCK	2
3	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
4	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
4	8M0185149	启动电磁阀	SOLENOID START	1
5	4000327	螺钉(M6 x 14) 起动机电磁阀至曲轴箱	SCREW (M6 x 14) STARTER SOLENOID TO CRANKCASE	2
6	26419	螺母(#8-32)黄铜启动电磁阀端子	NUT (#8-32) Brass STARTER SOLENOID TERMINAL	2
7	64015	螺母(.250-20)启动电磁阀端子	NUT (.250-20) STARTER SOLENOID TERMINAL	2
8	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
9	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
9	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
9	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
9	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
10	92436A5	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
11	79091	保险丝20安培	FUSE 20 Ampere	1
11	8M0207796	保险丝20安培	FUSE 20 AMP	1
12	92753	固定座	RETAINER	1
13	55098	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	8M0033984	启动马达	STARTER MOTOR	1
15	96561	驱动套件	DRIVE KIT	1
16	96562	驱动器	DRIVE	1
17	96563	端盖	END CAP	1
17	96563T	端盖	END CAP	1
18	96565	电枢	ARMATURE	1
19	96564	端盖	END CAP	1
19	96564T	端盖	END CAP	1
20	96566	贯穿螺栓	THRU BOLT	1
21	421251	螺钉(M8 x 55) 起动机固定	SCREW (M8 x 55) STARTER MOTOR ATTACHING	2
21	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
22	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1

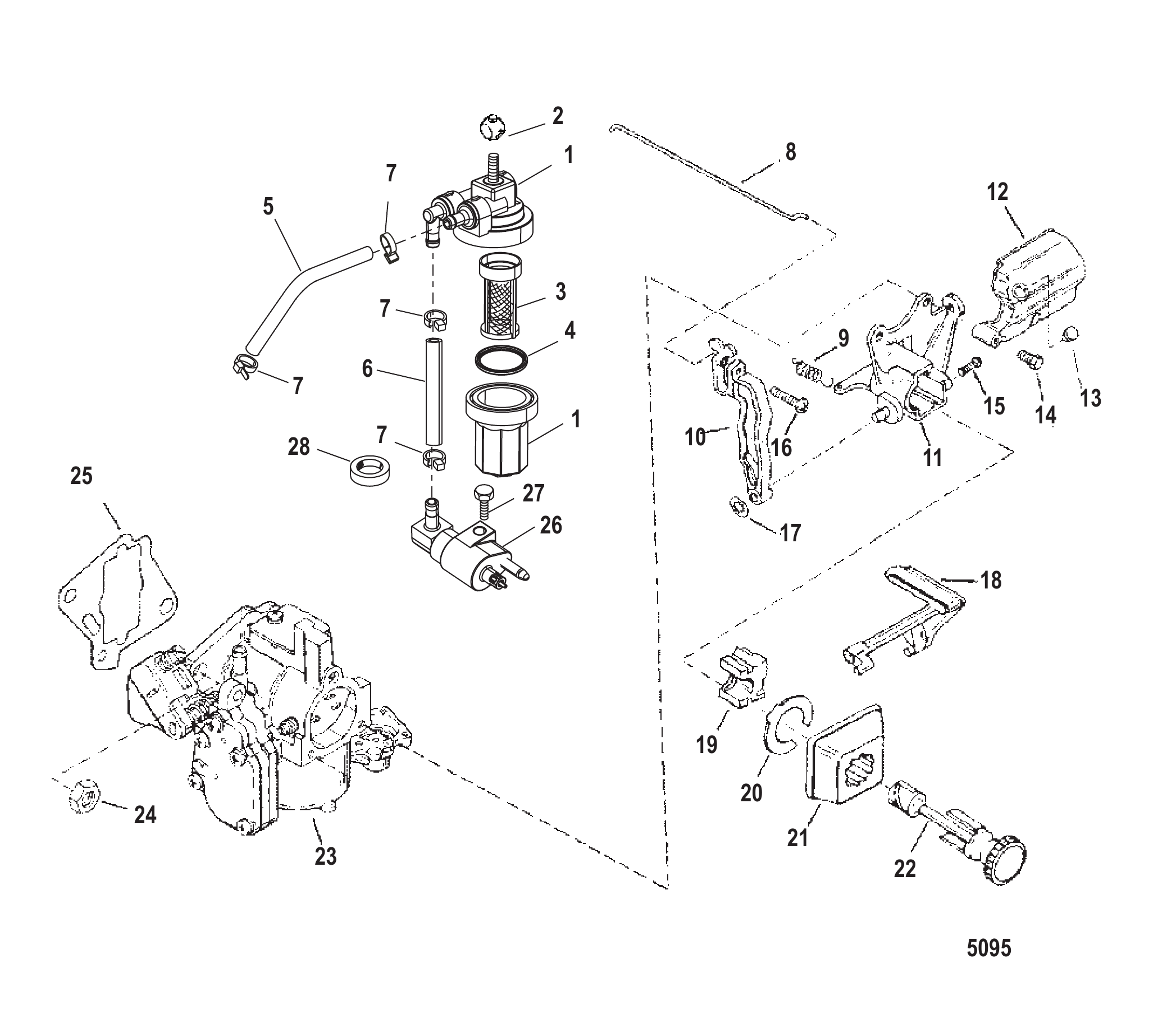

图 10燃油系统组件 Fuel Stystem Components

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
2	91935	钢球	BALL	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	密封件	SEAL	1
4	897536	密封件	SEAL	1
5	830756109	软管(57.00英寸整卷)(裁切至7.50英寸)	HOSE (57.00 Inches Bulk) (Cut to 7.50 Inches)	1
5	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
6	830756109	软管(57.00英寸整卷)(裁切至5.50英寸)	HOSE (57.00 Inches Bulk) (Cut to 5.50 Inches)	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	127331	怠速线	IDLE WIRE	1
8	127332	快怠速线	WIRE Fast Idle	1
8	825063	快怠速线	WIRE Fast Idle	1
8	825063	快怠速线	WIRE Fast Idle	1
9	11277	张力弹簧	SPRING Tension	1
9	112771	张力弹簧	SPRING Tension	1
9	112771	张力弹簧	SPRING Tension	1
10	128053	快怠速杆	LEVER Fast Idle	1
10	128054	快怠速杆	LEVER Fast Idle	1
10	128054	快怠速杆	LEVER Fast Idle	1
11	12803	启动泵支架	BRACKET Primer	1
12	174421	化油器盖	COVER Carburetor	1
13	47579	堵头	PLUG	1
14	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	2
15	79965	螺丝 (#8-32 x .500) 不锈钢	SCREW (#8-32 x .500) Stainless Steel	1
16	79964	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
16	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
17	821979	螺母	NUT	1
18	112731	启动泵杆	LEVER Primer	1
19	11280	凸轮块	CAM BLOCK	1
20	11278	固定夹	CLIP Retaining	1
21	172291	阻风门面板	BEZEL Choke	1
22	128022	启动泵旋钮	PRIMER KNOB	1
23	823907A4	化油器	CARBURETOR	1
23	823907T12	化油器 (WMC-85A)	CARBURETOR (WMC-85A)	1
23	817405A11	化油器	CARBURETOR	1
23	817405T23	化油器	CARBURETOR	1
23	8888A12	化油器	CARBURETOR	1
23	8888T20	化油器	CARBURETOR	1
23	8889A15	化油器	CARBURETOR	1
23	8889T21	化油器	CARBURETOR	1
23	8889A15	化油器	CARBURETOR	1
23	8889T21	化油器	CARBURETOR	1
24	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
25	192061	化油器衬垫	GASKET Carburetor	1
26	15781A9	燃油连接套件	CONNECTOR KIT Fuel	1
27	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
27	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1
28	18202	护孔环	GROMMET	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	90885A97	动力头总成	POWERHEAD ASSEMBLY	1
-	804946T02	动力头总成	POWERHEAD ASSEMBLY	1

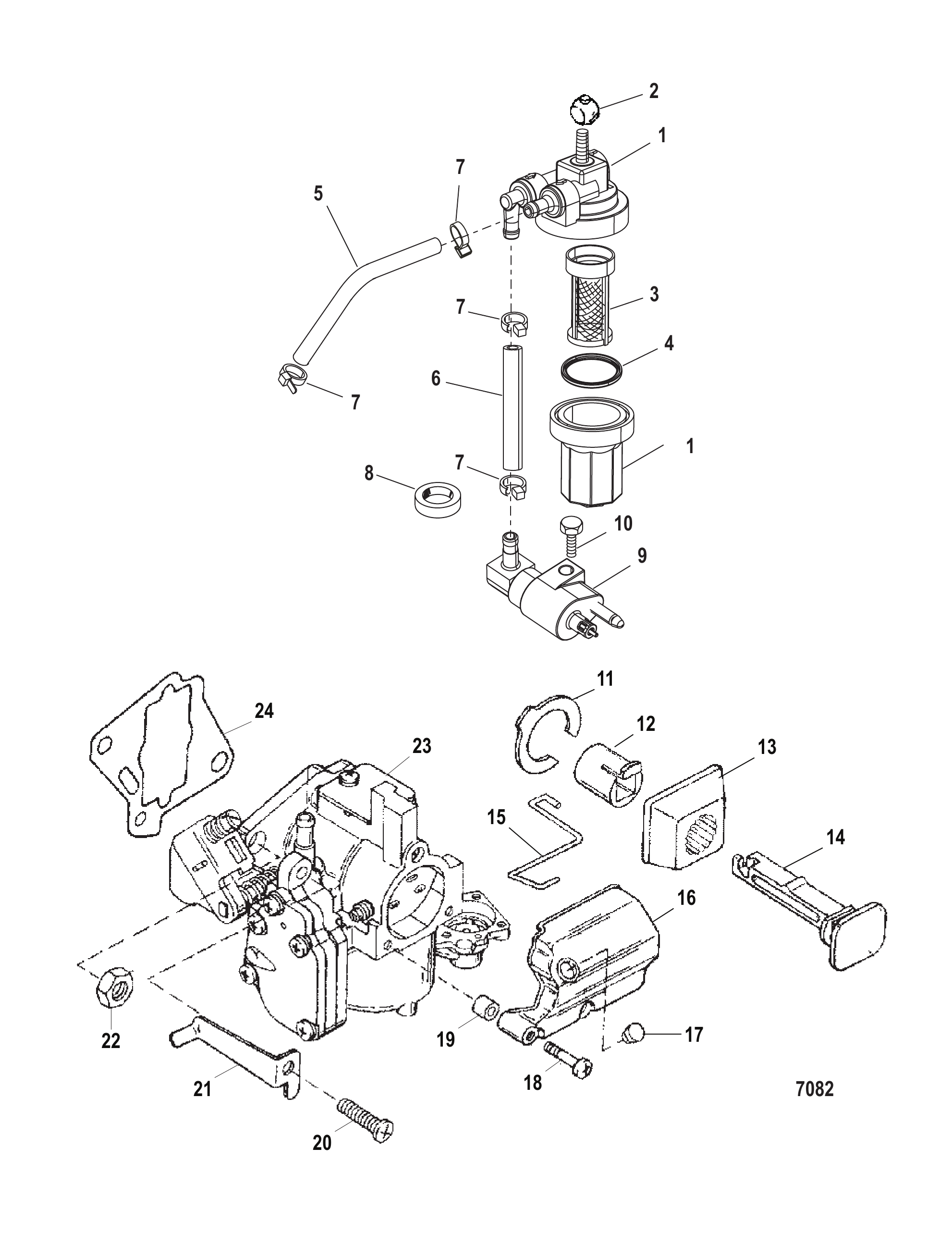

图 11燃油系统组件（商用发动机） Fuel System Components (Commercial Engines)

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	钢球	BALL	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	密封件	SEAL	1
4	897536	密封件	SEAL	1
5	830756109	软管(57.00英寸整卷)(裁切至7.50英寸)	HOSE (57.00 Inches Bulk) (Cut to 7.50 Inches)	1
5	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
6	830756109	软管（57.00英寸散装）（切割至5.50英寸）	HOSE (57.00 Inches Bulk) (Cut to 5.50 Inches	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接套件	CONNECTOR KIT Fuel	1
10	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1
11	11278	固定夹	CLIP Retaining	1
12	817426	阻风门面板嵌件	INSERT Choke Bezel	1
13	172291	阻风门面板	BEZEL Choke	1
14	817424	阻风门旋钮	KNOB Choke	1
15	817425	阻风门连杆	LINK Choke	1
16	174421	化油器盖	COVER Carburetor	1
17	47579	堵头	PLUG	1
18	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	2
19	41750	嵌件	INSERT	2
19	41750T	嵌件	INSERT	2
20	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	1
21	8243701	节气门止动块	STOP Throttle	1
22	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
23	823907A3	化油器	CARBURETOR	1
23	823907T13	化油器 (WMC-86)	CARBURETOR (WMC-86)	1
23	817405A12	化油器	CARBURETOR	1
23	817405T20	化油器 (WMC-88)	CARBURETOR (WMC-88)	1
24	192061	化油器衬垫	GASKET Carburetor	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	90885A97	动力头总成	POWERHEAD ASSEMBLY	1
-	804946T02	动力头总成	POWERHEAD ASSEMBLY	1

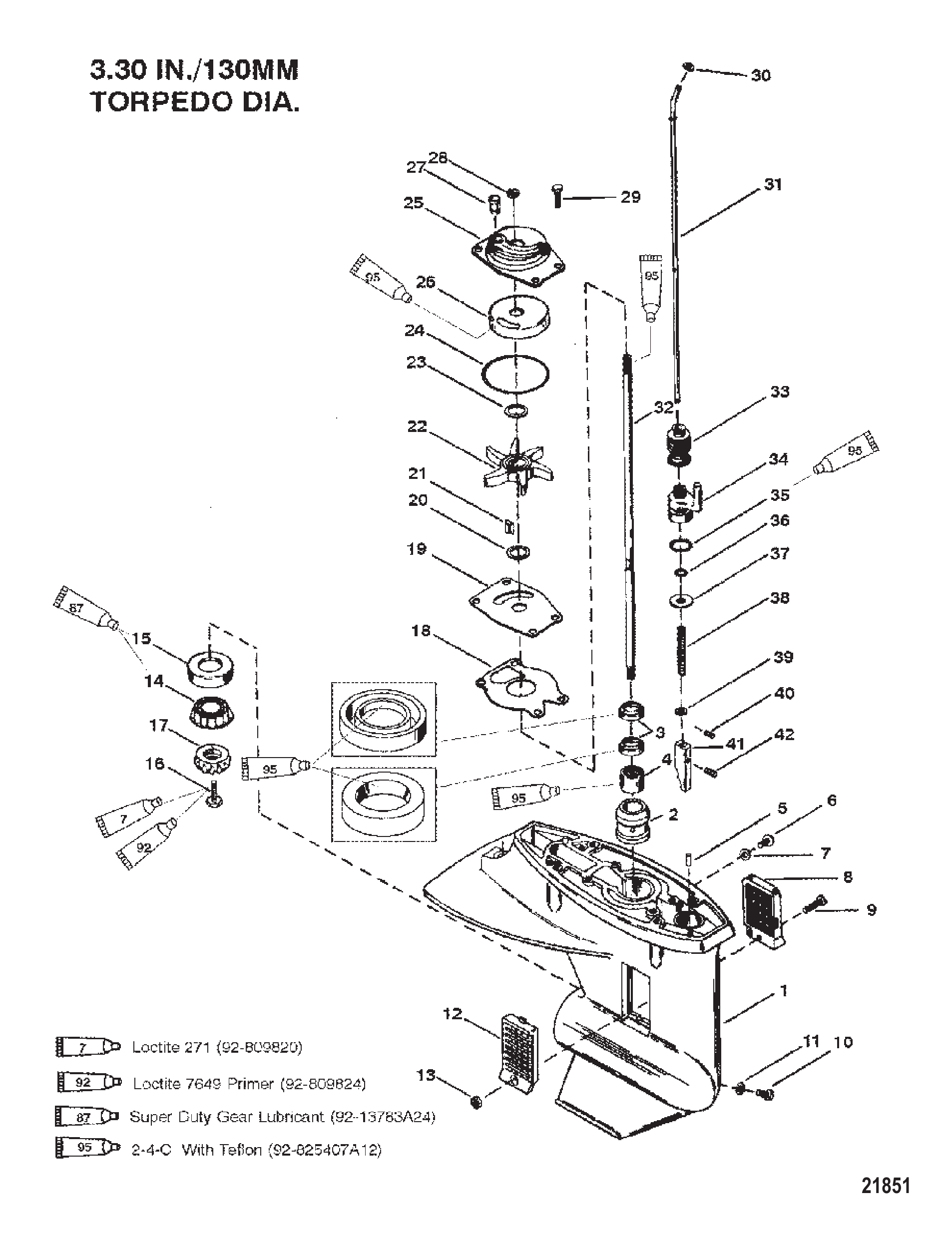

图 12齿轮箱（驱动轴）（2.25:1 齿轮比） Gear Housing (Driveshaft)(2.25:1 Gear Ratio)

REF	零件编号	中文名称	英文名称	数量
-	8669A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669T26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669A27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669T27	ORD 1665-8669T26	ORD 1665-8669T26	1
-	8669A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669T29	ORD 1665-8669T28	ORD 1665-8669T28	1
-	8669A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083538	GC BASIC 25 2S	GC BASIC 25 2S	1
1	8669A22	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8669A25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A39	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	NSS	不单独销售套筒	NOT SOLD SEPARATE Sleeve	1
3	99325	密封件	SEAL	2
4	41326	滚柱轴承	BEARING Roller	1
5	85500	定位销(.187 x .530)	PIN Dowel (.187 x .530)	2
5	8M0084726	定位销	PIN Dowel	2
6	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
6	79953Q04	放油螺钉套件	SCREW KIT Drain	1
7	19183	纤维垫圈	WASHER Fiber	1
7	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
8	41133	进水口滤网	SCREEN Water Inlet Port	1
9	40031112	螺钉(M5 x 40)	SCREW (M5 x 40)	1
10	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
10	8M0058389	放油螺钉套件	SCREW KIT Drain	1
11	19183	纤维垫圈	WASHER Fiber	1
11	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
12	41134	滤网	SCREEN	1
13	400263	螺母 (M5)	NUT (M5)	1
14	98294A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
15	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
16	49908	螺钉(.250-28 x .750)	SCREW (.250-28 x .750)	1
17	98302	齿轮小齿轮 (12齿)	GEAR Pinion (12 TEETH)	1
18	993261	衬垫	GASKET	1
19	85083	面板	FACE PLATE	1
20	8M0027721	垫圈	WASHER	1
20	8M0204722	垫圈	WASHER	1
21	85119	键	KEY	1
21	8M0214993	键@5	KEY @5	1
22	850893	叶轮	IMPELLER	1
22	8M0204712	叶轮	IMPELLER	1
23	8M0027721	垫圈	WASHER	1
23	8M0204722	垫圈	WASHER	1
24	69202	O型圈	O-RING	1
25	99157A1	水泵总成	PUMP ASSEMBLY Water	1
25	99157A02	水泵总成	PUMP ASSEMBLY Water	1
26	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
27	85090	密封件	SEAL	1
27	85090001	密封件	SEAL	1
28	86203		O-RING RUBBER	1
29	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	4
30	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
30	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
31	8M0027720	短换挡轴	SHIFT SHAFT Short	1
31	862933	换档轴	SHIFT SHAFT	1
32	99199	驱动轴	DRIVESHAFT	1
32	99198	驱动轴	DRIVESHAFT	1
33	85552	护套	BOOT	1
33	85552001	护套	BOOT	1
34	93878	固定座	RETAINER	1
35	35276	O型圈(.734 x .139)	O-RING (.734 x .139)	1
36	85594	O型圈(.239 x .174)	O-RING (.239 x .174)	1
37	85091	垫圈	WASHER	1
38	93007	弹簧	SPRING	1
39	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
39	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
40	85593	销(.078 x .437)	PIN (.078 x .437)	1
41	85562A2	换挡凸轮	SHIFT CAM	1
42	85096	驱动销	PIN Drive	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	85090A2	密封套件	SEAL KIT	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
-	99157T2	水泵套件	PUMP KIT Water	1

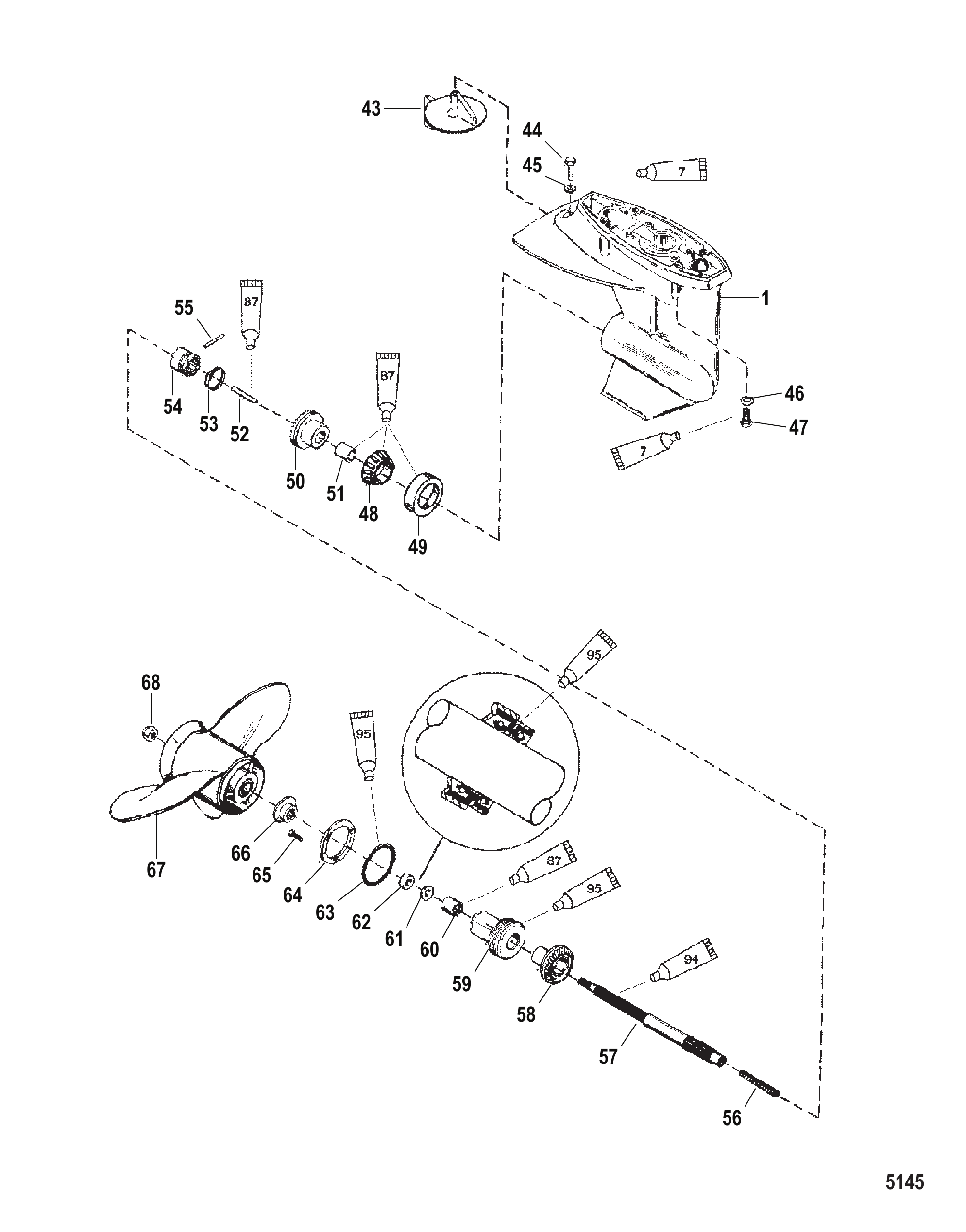

图 13齿轮箱螺旋桨轴-2.25:1齿轮比 Gear Housing Propeller Shaft - 2.25:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	8669A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669T26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669A27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669T27	ORD 1665-8669T26	ORD 1665-8669T26	1
-	8669A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8669T29	ORD 1665-8669T28	ORD 1665-8669T28	1
-	8669A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083538	GC BASIC 25 2S	GC BASIC 25 2S	1
1	8669A22	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
1	8669A21	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8669A25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8669A39	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
43	984325	平衡鳍板	TRIM TAB	1
43	98432Q6	平衡鳍板	TRIM TAB	1
44	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
45	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	1
45	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	1
46	43328	垫圈	WASHER	4
47	4000378	不锈钢螺钉(M10 x 35)	SCREW (M10 x 35) Stainless Steel	4
47	87810178	螺钉(M10 x 35)	SCREW (M10 x 35)	4
48	99328A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
48	8M0103470	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
49	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
50	44213A1	前进齿轮总成（27齿）	GEAR ASSEMBLY Forward (27 TEETH)	1
50	44213T1	前进齿轮	GEAR Forward	1
51	85557	衬套	BUSHING	1
52	85094	凸轮从动件	FOLLOWER Cam	1
53	38114	弹簧	SPRING	1
54	410401	离合器	CLUTCH	1
54	41040T1	离合器	CLUTCH	1
55	85093	销	PIN	1
55	8M0020999	十字销	PIN CROSS	1
56	88680	弹簧	SPRING	1
57	8166231	螺旋桨轴	PROPELLER SHAFT	1
58	99542	倒车齿轮（27齿）	GEAR Reverse (27 TEETH)	1
58	99542T	倒挡齿轮	GEAR Reverse	1
59	99906A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
59	99906T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
60	21739	滚柱轴承	BEARING Roller	1
61	41132	油封(内)	SEAL Oil (INNER)	1
62	41131	油封(外)	SEAL Oil (OUTER)	1
62	8M0245761	油封	SEAL OIL	1
63	85549	O型圈	O-RING	1
64	87293	安装板	PLATE	1
65	90883	螺钉(M5×16)	SCREW (M5 x 16)	3
66	8M0027793	轮毂	HUB	1
66	858498	推力毂总成	THRUST HUB ASSEMBLY	1
67	19640A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	1
67	19638A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	1
68	88228	螺旋桨螺母	PROP NUT	1
68	4011912	螺旋桨螺母	PROP NUT	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
-	85090A2	密封套件	SEAL KIT	1

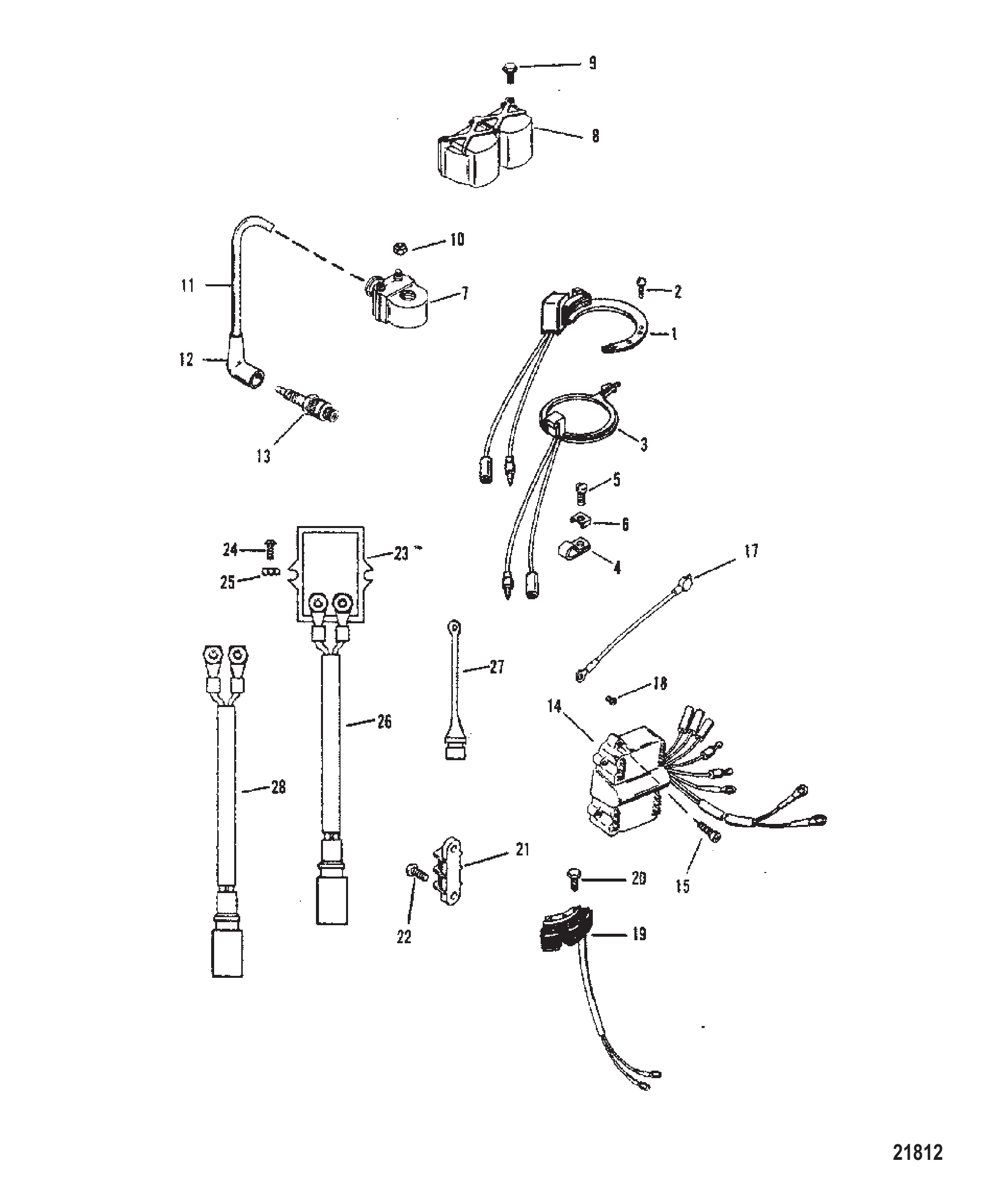

图 14点火/电气组件 Ignition/Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	86617A13	定子总成	STATOR ASSEMBLY	1
1	86617A20	定子总成	STATOR ASSEMBLY	1
2	4000120	螺丝(M5 x 25)	SCREW (M5 x 25)	2
2	400015	螺钉(M5x10) 定子固定	SCREW (M5 x 10) STATOR ATTACHING	2
3	98450A5	触发器总成	TRIGGER ASSEMBLY	1
3	98450A10	触发器总成	TRIGGER ASSEMBLY	1
4	24836	触发器线夹	CLIP TRIGGER LEADS	1
4	22740	触发器线夹	CLIP TRIGGER LEADS	1
5	48408	螺钉(#10-16x0.5) 线夹至曲轴箱	SCREW (#10-16 x .500) CLIP TO CRANKCASE	1
6	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	1
6	8M0084613	C形垫圈	C-WASHER	1
7	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	2
7	8M0230859	点火线圈总成	COIL IGNITION ASY	2
8	99762	点火线圈盖	COVER IGNITION COIL	1
8	997621	点火线圈盖	COVER Ignition Coil	1
9	4010555	螺钉(M5x55)不锈钢点火线圈盖	SCREW (M5 x 55) Stainless Steel IGNITION COIL COVER	3
9	1994155	螺钉(M5 x 55)	SCREW (M5 x 55)	3
10	45076	螺母 (#10-32) 黄铜线圈端子	NUT (#10-32) Brass COIL TERMINAL	4
11	813715A3	高压线	HIGH TENSION LEADS	1
11	813715A2	高压电缆组（5和8.25英寸）	CABLE SET High Tension (5 and 8.25 Inch)	1
11	813715A2	高压线束组（5和8.25英寸）（商用发动机）	CABLE SET High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES)	1
12	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
13	97180	火花塞（NGK #BUZHW）	SPARK PLUG (NGK #BUZHW)	2
13	896329827	SP #L76V @4	SP #L76V @4	2
13	14103570	火花塞（NGK #BUZHW-2）	SPARK PLUG (NGK #BUZHW-2)	2
13	14103Q	ORD 896329838	ORD 896329838	2
13	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	2
13	13686Q	NGK BU8H @10	NGK BU8H @10	2
13	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	2
13	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	2
13	8168372	火花塞(NGK #BPZ8H-N-10)	SPARK PLUG (NGK #BPZ8H-N-10)	2
13	938	SP #QL78YC @4	SP #QL78YC @4	2
14	7452A15	开关盒总成	SWITCHBOX ASSEMBLY	1
14	7452A19	开关盒总成	SWITCHBOX ASSEMBLY	1
15	40019108	螺钉 (M5 x 20) 开关盒至气缸体	SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK	3
17	88807A10	辅助线束总成	CABLE ASSEMBLY AUXILIARY	2
18	48408	螺钉 (#10-16 x .500) 接地线	SCREW (#10-16 x .500) GROUND WIRE	1
19	86704A2	辅助定子总成	STATOR ASSEMBLY AUXILIARY	1
19	86704A10	辅助定子	STATOR Auxiliary	1
20	4000123	螺钉(M5 x 30)定子固定	SCREW (M5 x 30) STATOR ATTACHING	3
21	63813	端子排	TERMINAL BLOCK	1
21	638131	端子排	TERMINAL BLOCK	1
22	48409	螺钉(#10-16 x .625)不锈钢接线板	SCREW (#10-16 x .625) Stainless Steel TERMINAL BLOCK	2
23	95845	电压调节器	REGULATOR Voltage	1
23	95845T	电压调节器	REGULATOR-VOLTAGE	1
24	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
25	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
26	74725A2	线束总成(黑/红)	HARNESS ASSEMBLY (BLACK/RED)	1
27	71663	堵头	PLUG	1
28	65017A2	外部线束总成	HARNESS ASSEMBLY (EXTERNAL)	1

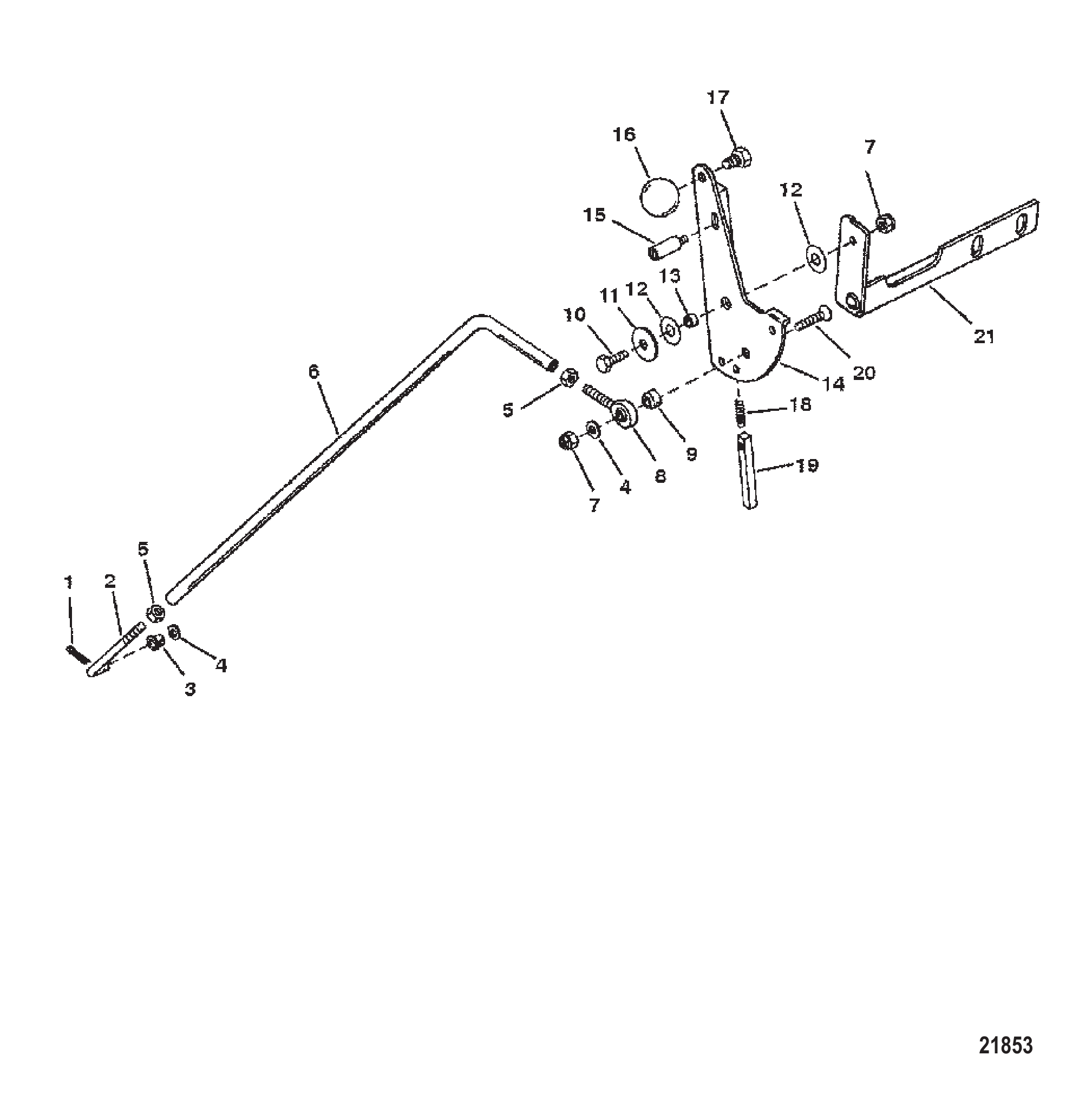

图 15喷水推进联动装置（序列号 0G157845 及以下） Jet Linkage (S/N 0G157845 & Below)

REF	零件编号	中文名称	英文名称	数量
1	21071	开口销	COTTER PIN	1
2	801428	拉杆端头	ROD END	1
3	90770	衬套	BUSHING	1
4	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	2
5	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
6	801429	换挡连杆	SHIFT ROD	1
7	56374	螺母 (.250-20)	NUT (.250-20)	2
7	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
8	801426	拉杆端头	ROD END	1
9	801425	隔套	SPACER	1
10	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
11	801422	垫圈	WASHER	1
12	801421	垫圈	WASHER	2
13	801420	衬套	BUSHING	1
14	801423	杠杆总成	LEVER ASSEMBLY	1
15	827369	螺钉	SCREW	1
16	801424	旋钮	KNOB	1
17	88743	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	1
18	78810	弹簧	SPRING	1
19	827370	轴	SHAFT	1
20	821035	螺钉(1/4-20 X 1-1/4)	SCREW (1/4-20 X 1-1/4)	1
21	801419	杠杆安装座	LEVER MOUNT	1

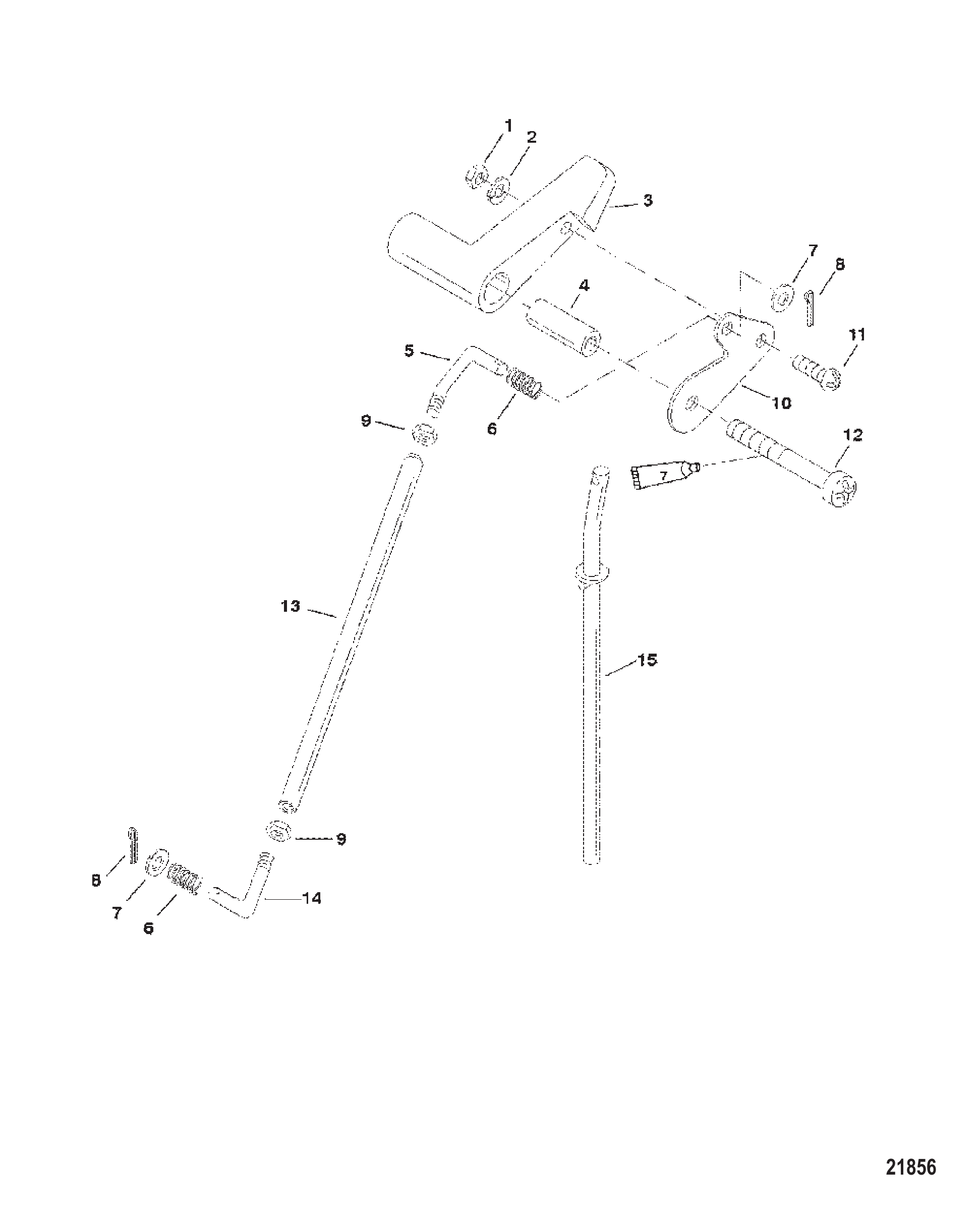

图 16喷水推进联动装置（序列号 0G157846 及以上） Jet Linkage (S/N 0G157846 & Up)

REF	零件编号	中文名称	英文名称	数量
1	87599	螺母	NUT	1
2	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	1
3	8239521	换挡手柄(不与参考号#4配套使用)	SHIFT HANDLE (USE WITHOUT REF. #4)	1
3	8239522	换挡手柄(与参考号#4配套使用)	SHIFT HANDLE (USE WITH REF. #4)	1
4	809473	间隔套筒	SPACER Sleeve	1
5	828251	拉杆端头	ROD END	1
6	828252	弹簧	SPRING	2
7	846673	不锈钢垫圈(.265 x .500 x .060)	WASHER (.265 x .500 x .060) Stainless Steel	2
8	56206	开口销	COTTER PIN	2
9	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
10	828253	换挡杆	LEVER Shift	1
11	828254	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
12	828255	螺钉(#10-32 x 2.50)	SCREW (#10-32 x 2.50)	1
13	828256	换挡连杆	SHIFT ROD	1
14	828257	拉杆端头	ROD END	1
15	828258	倾斜锁止杆	TILT LATCH ROD	1

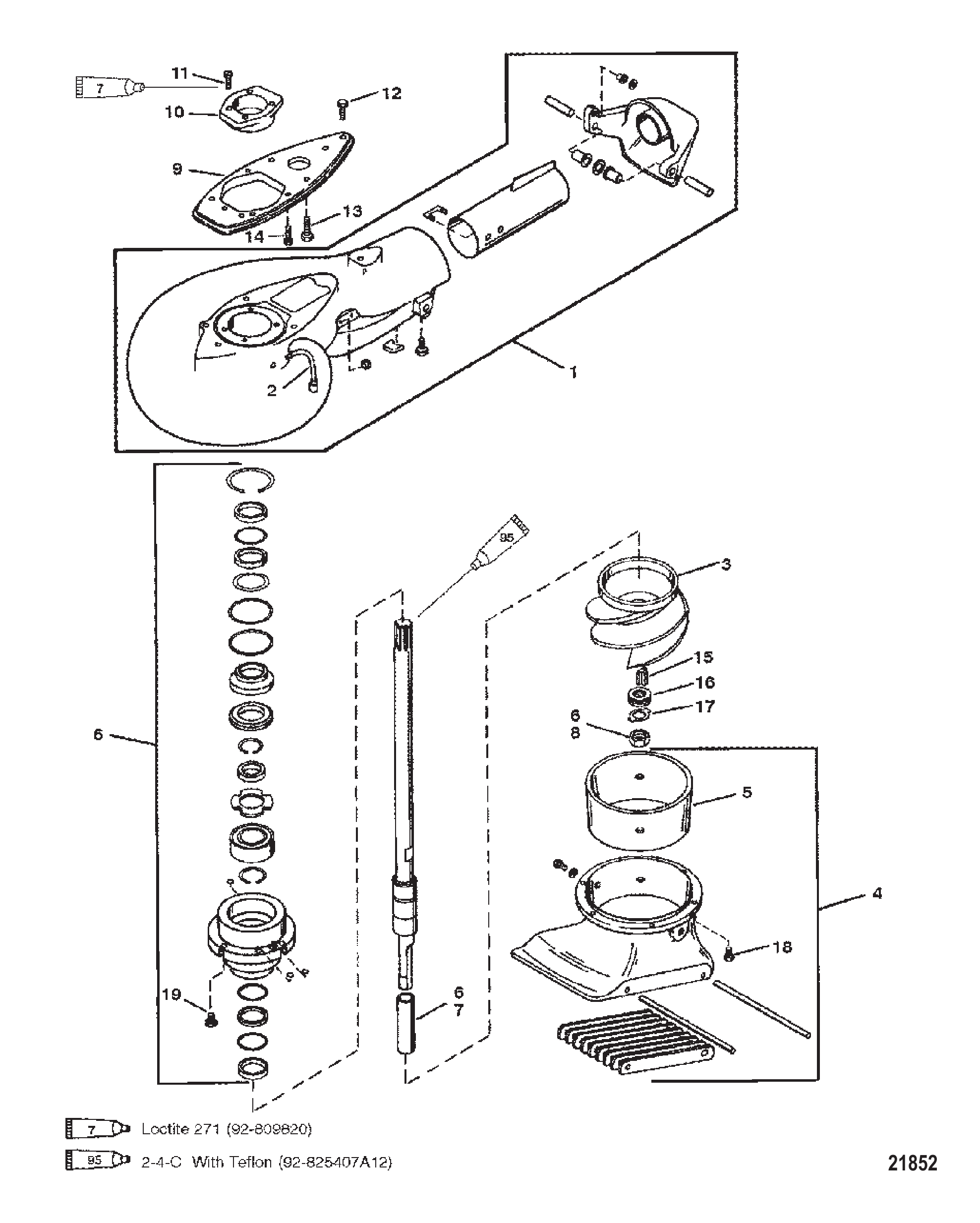

图 17喷水推进泵总成（序列号 0G157845 及以下） Jet Pump Assembly (S/N 0G157845 & Below)

REF	零件编号	中文名称	英文名称	数量
-	801400A1	喷泵总成	JET PUMP ASSEMBLY	1
-	801401A1	喷泵总成	JET PUMP ASSEMBLY	1
1	80141125	泵壳	HOUSING Pump	1
2	827490	润滑油管	HOSE Lube	1
3	80141425	叶轮	IMPELLER	1
3	855708T25	叶轮	IMPELLER	1
4	80141225	进气壳体	HOUSING Intake	1
5	827188	衬套	LINER	1
5	827188T	衬套	LINER	1
6	80141325	驱动轴	DRIVESHAFT	1
6	8M0084536	驱动轴	DRIVESHAFT	1
7	827189	套筒	SLEEVE	1
8	827190	螺母	NUT	1
9	801430	适配器	ADAPTER	1
10	801431	泵底座	BASE Pump	1
11	846500	不锈钢螺钉(#10-32 x 1.00)	SCREW (#10-32 x 1.00) Stainless Steel	4
12	19925125	螺钉(.375-16 x 1.25)	SCREW (.375-16 x 1.25)	1
13	19924200	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	4
14	801432	螺钉(M10 x 35)	SCREW (M10 x 35)	4
15	801405625	叶轮键	KEY Impeller	1
16	801404625	叶轮垫片	SHIM Impeller	8
17	801403625	锁紧垫圈	TAB WASHER	1
18	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
19	F2211	不锈钢螺钉(#10-24 x .625)	SCREW (#10-24 x .625) Stainless Steel	2

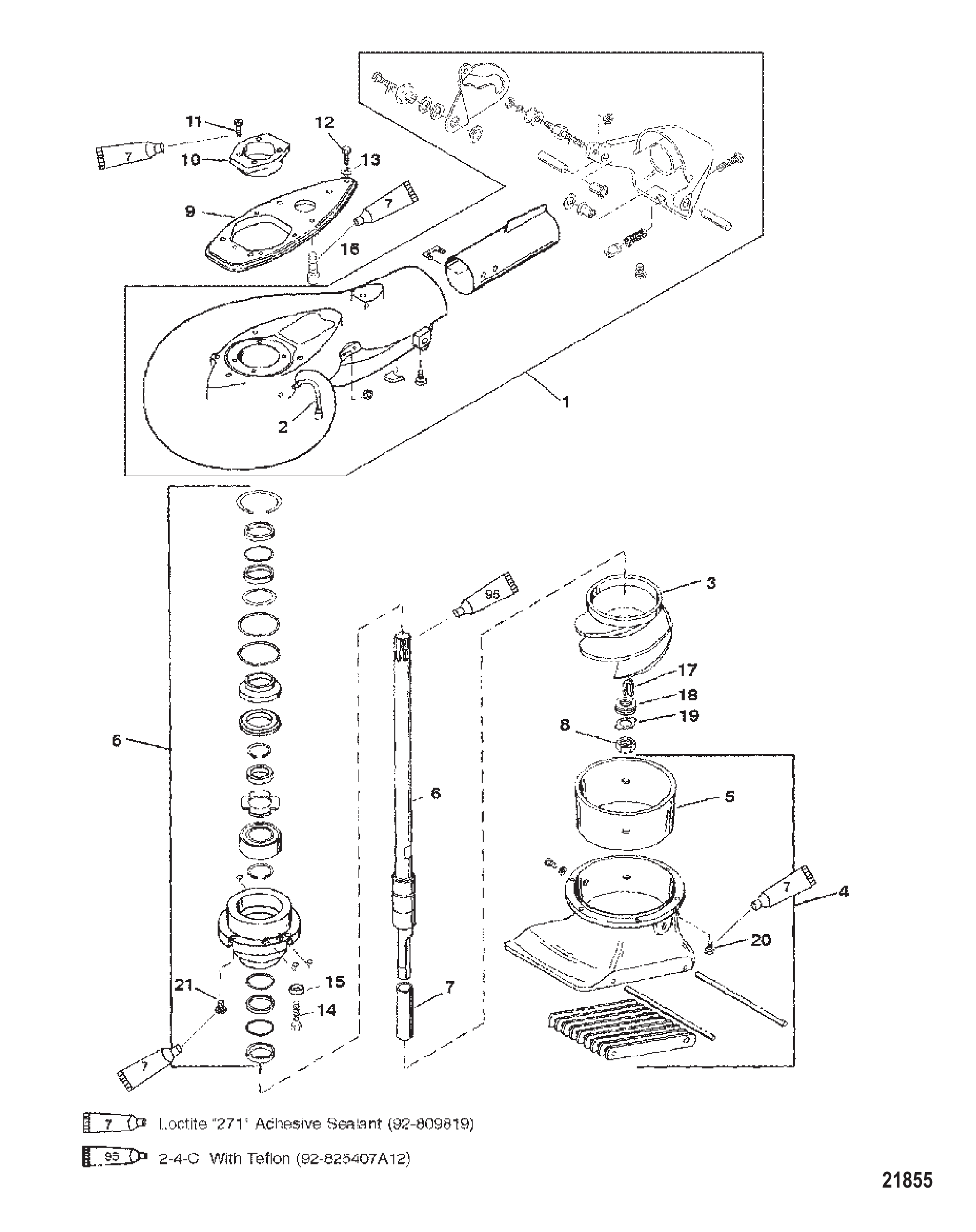

图 18喷水推进泵总成（序列号 0G157846 及以上） Jet Pump Assembly (S/N 0G157846 & Up)

REF	零件编号	中文名称	英文名称	数量
-	801400251	喷泵总成	JET PUMP ASSEMBLY	1
1	801411251	泵壳	HOUSING Pump	1
2	827490	润滑油管	HOSE Lube	1
3	80141425	叶轮	IMPELLER	1
3	855708T25	叶轮	IMPELLER	1
4	80141225	进气壳体	HOUSING Intake	1
5	827188	衬套	LINER	1
5	827188T	衬套	LINER	1
6	80141325	驱动轴	DRIVESHAFT	1
6	8M0084536	驱动轴	DRIVESHAFT	1
7	827189	套筒	SLEEVE	1
8	827190	螺母	NUT	1
9	801430	适配器	ADAPTER	1
10	801431	泵底座	BASE Pump	1
11	846500	不锈钢螺钉(#10-32 x 1.00)	SCREW (#10-32 x 1.00) Stainless Steel	4
12	19925125	螺钉(.375-16 x 1.25)	SCREW (.375-16 x 1.25)	1
13	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
14	19924200	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	4
15	12038	垫圈	WASHER	4
15	8M0207778	垫圈（0.344×0.625×0.063英寸）	WASHER .344 x .625 x.063	4
16	801432	螺钉(M10 x 35)	SCREW (M10 x 35)	4
17	801405625	叶轮键	KEY Impeller	1
18	801404625	叶轮垫片	SHIM Impeller	8
19	801403625	锁紧垫圈	TAB WASHER	1
20	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
21	F2211	不锈钢螺钉(#10-24 x .625)	SCREW (#10-24 x .625) Stainless Steel	2

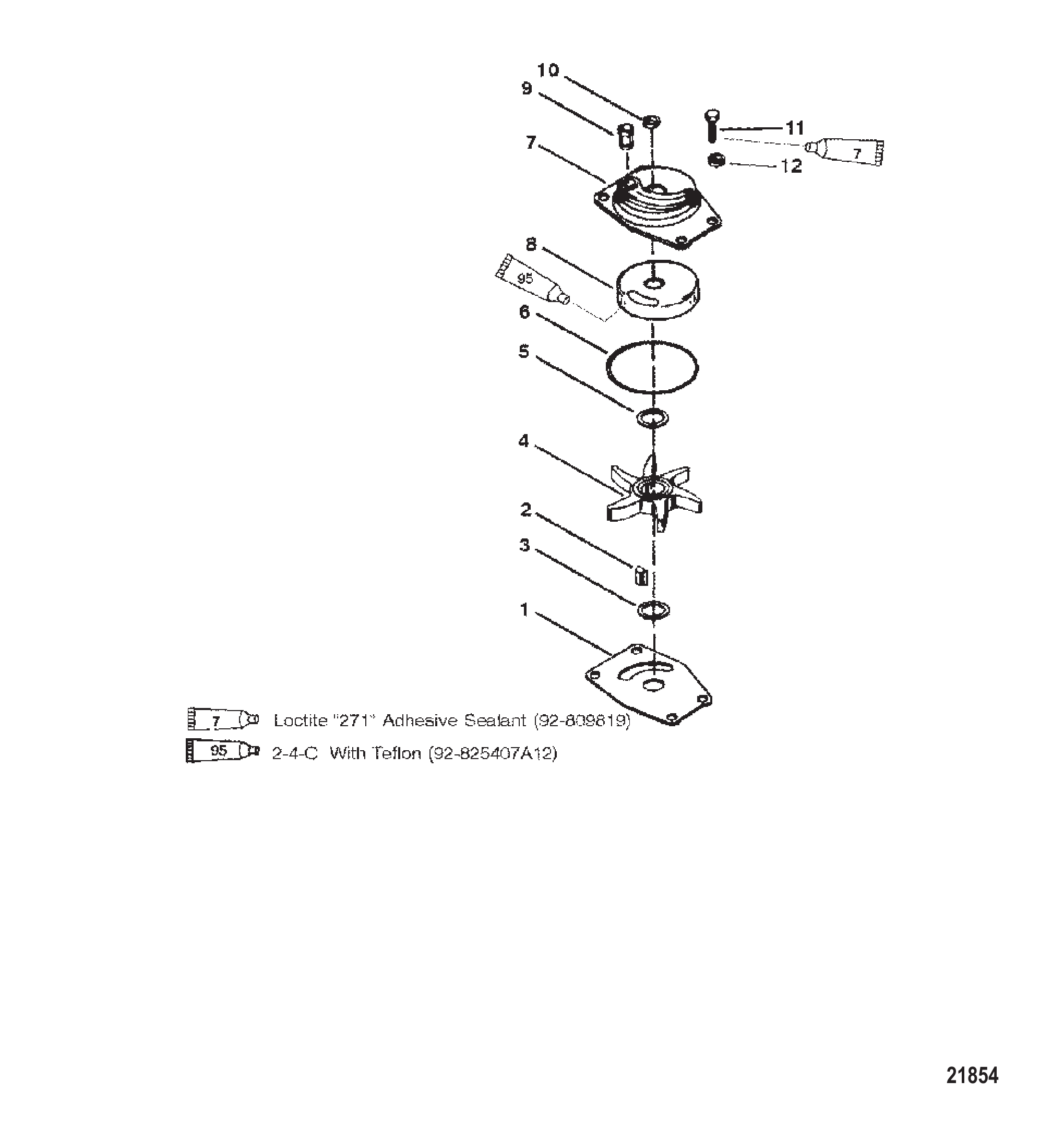

图 19喷水推进泵组件 Jet Water Pump Components

REF	零件编号	中文名称	英文名称	数量
1	85083	面板	FACE PLATE	1
2	8M0027721	垫圈	WASHER	1
2	8M0204722	垫圈	WASHER	1
3	85119	键	KEY	1
3	8M0214993	键@5	KEY @5	1
4	850893	叶轮	IMPELLER	1
4	8M0204712	叶轮	IMPELLER	1
5	8M0027721	垫圈	WASHER	1
5	8M0204722	垫圈	WASHER	1
6	69202	O型圈	O-RING	1
7	99157A1	水泵总成	PUMP ASSEMBLY Water	1
7	99157A02	水泵总成	PUMP ASSEMBLY Water	1
8	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
9	85090	密封件	SEAL	1
9	85090001	密封件	SEAL	1
10	86203		O-RING RUBBER	1
11	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	4
11	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	4
12	85095	衬套（与M5 x 16参考号11一起使用）	BUSHING (USE WITH M5 X 16 REF. #11)	4
12	8M0214959	衬套@5	BUSHING @5	4
-	85090A2	密封套件	SEAL KIT	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
-	99157T2	水泵套件	PUMP KIT Water	1

图 20维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	18583	零件手册 20马力/25马力 SEA PRO/MARATHON 25 SUPER 15	PARTS MANUAL 20 H.P /25 H.P. SEA PRO /MARATHON 25 SUPER 15
-	11044940	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	11046940	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	816756940	用户指南（SEA PRO 25）	OWNERS GUIDE (SEA PRO 25)
-	816758940	用户指南（MARATHON 25）	OWNERS GUIDE (MARATHON 25)
-	13480A88	贴花套装(BLACK-20)设计I	DECAL SET (BLACK-20) DESIGN I
-	13239A88	贴花套装(BLACK-25)设计I	DECAL SET (BLACK-25) DESIGN I
-	811304A91	贴花套装(SeaPro 25)设计I	DECAL SET (SeaPro 25) DESIGN I
-	821574A92	贴花套装(Black-Super 15)	DECAL SET (Black-Super 15)
-	810461A92	贴花套装(Gray 20/25)	DECAL SET (Gray 20/25)	1
-	824091A94	贴花套装(BLACK-20)设计II	DECAL SET (BLACK-20) DESIGN II
-	824091A00	贴花套装(Black 20/Jet 20)	DECAL SET (Black 20/Jet 20)
-	808499A94	贴花套装(BLACK-25)设计II	DECAL SET (BLACK-25) DESIGN II
-	808499A00	贴花套装(Black 25)	DECAL SET (Black 25)
-	821574A94	贴花套装(BLACK-SUPER 15)设计II	DECAL SET (BLACK-SUPER 15) DESIGN II
-	826307A95	贴花套装 Black - Super 15/Seapro 15 XD	DECAL SET Black - Super 15/Seapro 15 XD
-	811304A94	贴花套装(BLACK SEA PRO 25)设计II	DECAL SET (BLACK SEA PRO 25) DESIGN II
-	811304A00	贴花套装(Black Seapro 25)	DECAL SET (Black Seapro 25)
-	824092A94	贴花套装(GRAY-20)设计II	DECAL SET (GRAY-20) DESIGN II
-	824092A03	贴花套装(Gray 20)	DECAL SET (Gray 20)
-	824088A94	贴花套装(GRAY-25)设计II	DECAL SET (GRAY-25) DESIGN II
-	824088A03	贴花套装(Gray 25)	DECAL SET (Gray 25)
-	811305A91	贴花套装(MARATHON 25)	DECAL SET (MARATHON 25)
-	8588361	贴花套装 Gray - Super 15/Marathon 15 XD/Marathon 25	DECAL SET Gray - Super 15/Marathon 15 XD/Marathon 25
-	821401A92	贴花套装(GRAY-SUPER 15)	DECAL SET (GRAY-SUPER 15)
-	8588361	贴花套装 Gray - Super 15/Marathon 15 XD/Marathon 25	DECAL SET Gray - Super 15/Marathon 15 XD/Marathon 25
-	13480A93	贴花套装(25 AMERICA)	DECAL SET (25 AMERICA)
-	824731A94	贴花套装(TRACKER 25)	DECAL SET (TRACKER 25)

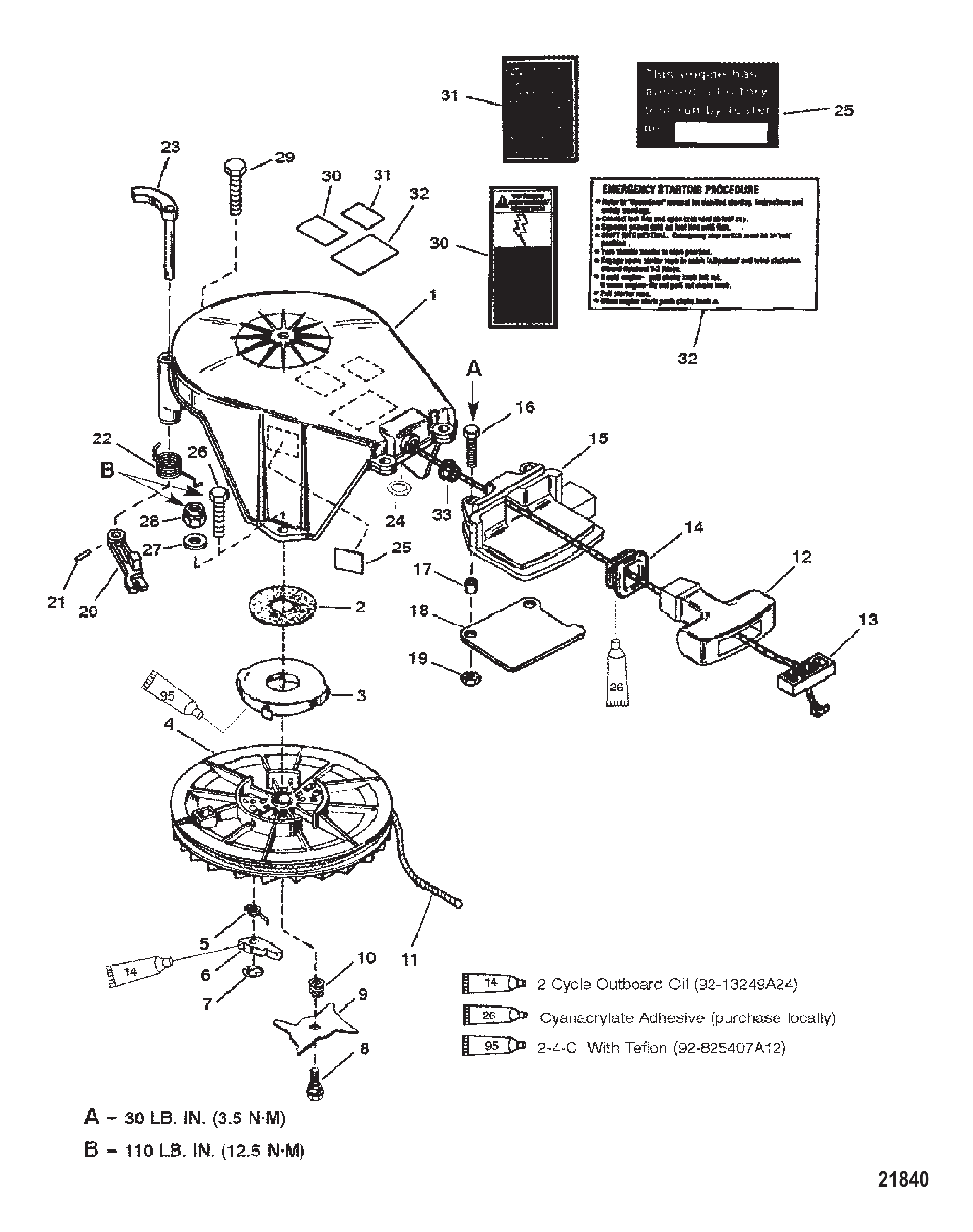

图 21启动器总成（手动） Starter Assembly (Manual)

REF	零件编号	中文名称	英文名称	数量
-	90906A17	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	90906A23	手拉启动器总成	STARTER ASSEMBLY Recoil	1
1	42712A3	启动器壳体总成	HOUSING ASSEMBLY Starter	1
1	86689A5	启动器壳体总成	HOUSING ASSEMBLY Starter	1
2	90478	垫	PAD	1
2	833161T	毛毡垫	PAD-FELT	1
3	868571	弹簧	SPRING	1
3	86857T01	弹簧	SPRING	1
4	825269A1	启动滑轮	SHEAVE Starter	1
4	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
5	86851	弹簧	SPRING	2
5	86851T02	弹簧 @2	SPRING @2	2
6	868501	凸轮	CAM	2
7	868491	挡圈	RING Retaining	2
7	86849T01	环 @2	RING @2	2
8	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
9	86853	凸轮	CAM	1
9	86853T01	凸轮	CAM	1
10	868521	凸轮弹簧	SPRING Cam	1
10	868523	弹簧	SPRING	1
11	12066A9	绳索	ROPE	1
11	12066Q10	启动绳@2	ROPE-STARTER@2	1
12	85174A1	手柄总成	HANDLE ASSEMBLY	1
13	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	1
14	44180	绳索衬套	BUSHING Rope	1
15	426264	支架	SUPPORT	1
16	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
17	309772	隔套	SPACER	4
18	17212	支架	SUPPORT	1
18	856154T01	支架	SUPPORT	1
19	400633	螺母 (M5)	NUT (M5)	2
19	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2
20	938762	下操纵杆	LEVER (LOWER)	1
20	93876T02	杠杆	LEVER	1
21	38489	滚动销	PIN Roll	1
22	823778	上锁止杆弹簧	SPRING Upper Lock Lever	1
23	94019	上操纵杆	LEVER (UPPER)	1
23	858925	锁止杆	LEVER Lock	1
24	818853	挡圈	RING Retaining	1
25	NSS	不单独销售贴花-发动机测试	NOT SOLD SEPARATE Decal-Engine Test	1
26	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	2
26	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	2
27	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	3
28	8268336	螺母 (M6)	NUT (M6)	3
28	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
29	40011131	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	1
30	NSS	不单独销售贴花-高压	NOT SOLD SEPARATE Decal-High Voltage	1
31	NSS	不单独销售贴花-维修参考	NOT SOLD SEPARATE Decal-Servicing Referral	1
32	NSS	不单独销售贴花-紧急启动程序	NOT SOLD SEPARATE Decal-Emergency Start Procedures	1
33	42690	衬套	BUSHING	1
33	8M0183792	绳索衬套	ROPE BUSHING	1

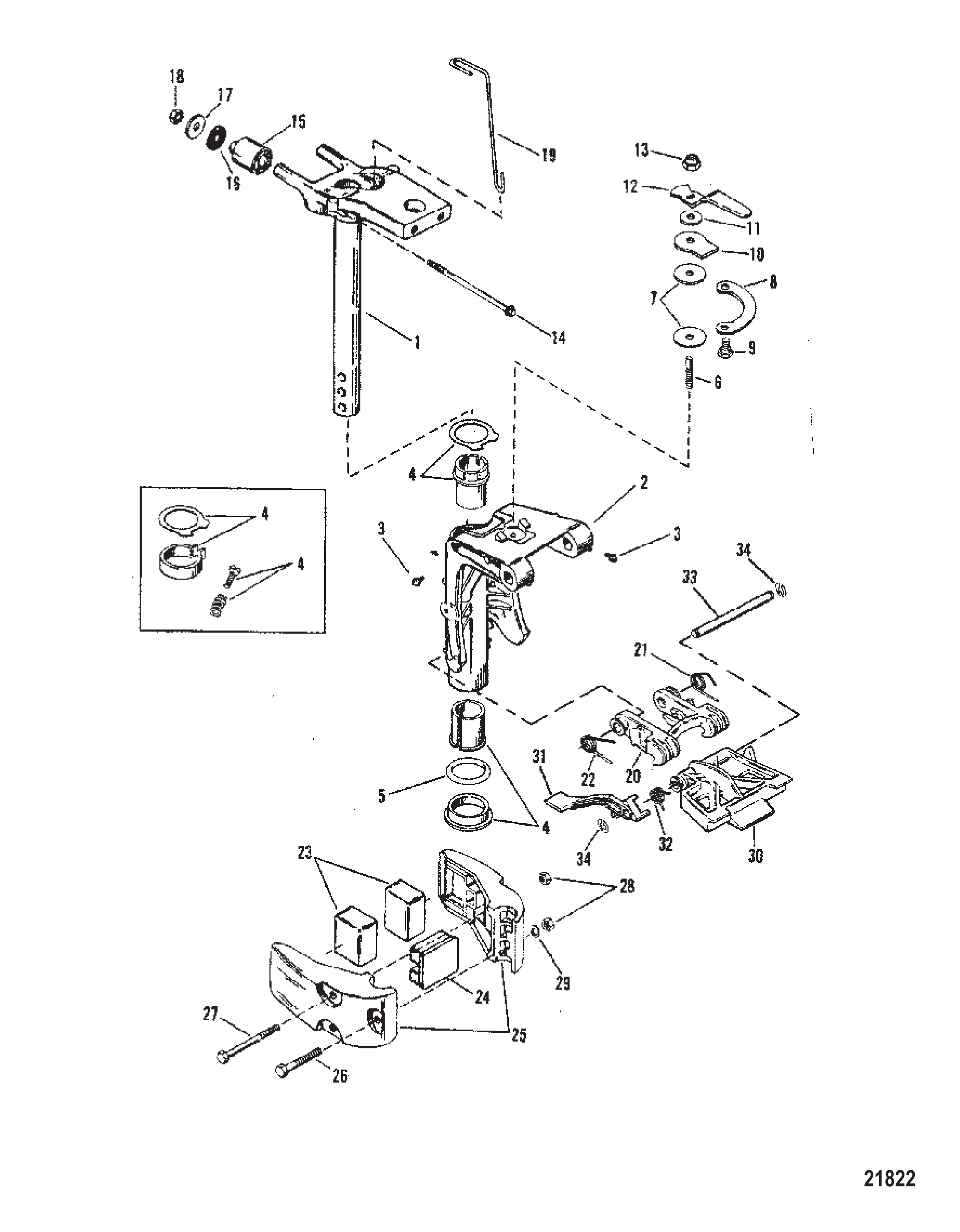

图 22旋转支架总成 Swivel Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1	822238A2	旋转头(黑色)	SWIVEL HEAD (BLACK)	1
1	822238A3	旋转头(灰色)	SWIVEL HEAD (GRAY)	1
1	822238A9	旋转头	SWIVEL HEAD	1
2	8692A13	旋转支架(黑色)	SWIVEL BRACKET (BLACK)	1
2	822237A3	旋转支架	SWIVEL BRACKET	1
2	8692A14	旋转支架(灰色)	SWIVEL BRACKET (GRAY)	1
2	822237A4	旋转支架	SWIVEL BRACKET	1
3	74036	润滑脂接头	FITTING Grease	3
3	8M0169589	润滑脂接头	FITTING Grease	3
4	11139A2	夹具总成	CLAMP ASSEMBLY	1
5	86993	旋转管O型圈	O-RING SWIVEL TUBE	1
1	822238A5	旋转头(黑色)	SWIVEL HEAD (BLACK)	1
1	822238A9	旋转头	SWIVEL HEAD	1
1	822238A6	旋转头(灰色)	SWIVEL HEAD (GRAY)	1
1	822238A9	旋转头	SWIVEL HEAD	1
1	822238A7	旋转头(TRACKER)	SWIVEL HEAD (TRACKER)	1
1	822238A9	旋转头	SWIVEL HEAD	1
2	822237A3	旋转支架(黑色)	SWIVEL BRACKET (BLACK)	1
2	822237A4	旋转支架(灰色)	SWIVEL BRACKET (GRAY)	1
2	822237A3	旋转支架	SWIVEL BRACKET	1
2	822237A5	旋转支架(TRACKER)	SWIVEL BRACKET (TRACKER)	1
2	822237A4	旋转支架	SWIVEL BRACKET	1
3	74036	润滑脂接头	FITTING Grease	3
3	8M0169589	润滑脂接头	FITTING Grease	3
4	85154A1	衬套套装	BUSHING KIT	1
5	86993	O型圈	O-RING	1
6	821961	杆	ROD	1
7	8165621	圆盘	DISC	2
8	821958	旋转头板	PLATE Swivel Head	1
8	821958A1	板组件套件	PLATE KIT	1
9	768041	螺钉	SCREW	2
9	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
10	821957	制动板	BRAKE PLATE	1
11	29330	垫圈	WASHER	1
12	821959	手柄	HANDLE	1
13	34863	螺母 (.375-24)	NUT (.375-24)	1
13	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
14	12516	螺丝 M8×133.35(上支架)	SCREW (M8 x 133.35) UPPER MOUNT	2
14	125161	螺丝 M8×133	SCREW (M8 x 133)	2
15	14894	上支架	MOUNT UPPER	2
16	85172	橡胶垫圈(上支架螺丝)	WASHER RUBBER - UPPER MOUNT SCREW	2
17	43430	上部支架螺钉垫圈	WASHER UPPER MOUNT SCREW	2
18	400213	螺母 M8不锈钢(上支架螺丝)	NUT (M8) Stainless Steel UPPER MOUNT SCREW	2
19	16554	倒挡钩杆	ROD REVERSE HOOK	1
20	98830A2	倒挡锁钩总成	HOOK ASSEMBLY REVERSE LOCK	1
21	96018	倒挡钩弹簧(左舷)	SPRING REVERSE HOOK - PORT	1
22	97427	弹簧(右舷-电动)	SPRING (STARBOARD - ELECTRIC)	1
22	12755	弹簧(右舷-手动/电动手柄)	SPRING (STBD - MANUAL/ELECTRIC HANDLE)	1
22	879894	弹簧	SPRING	1
23	85122	下支架	MOUNT LOWER	2
23	85122001	下支架	MOUNT Lower	2
24	85123	前缓冲垫	BUMPER Front	1
24	85123001	前缓冲垫	BUMPER Front	1
25	17232A1	下支架盖(黑色)	COVER LOWER MOUNT (BLACK)	1
25	17232A2	下支架盖(灰色)	COVER LOWER MOUNT (GRAY)	1
25	17232A1	盖板	COVER	1
25	17232A3	下支架盖(TRACKER)	COVER LOWER MOUNT (TRACKER)	1
26	4009259	螺丝 60mm	SCREW (60 MM)	1
26	1994360	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
27	4009263	螺丝 100mm	SCREW (100 MM)	2
27	19943100	螺丝(M8 x 100)	SCREW (M8 x 100)	2
28	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	3
29	36001	垫圈	WASHER	3
30	12756	支架	BRACKET	1
31	12758	控制杆	LEVER CONTROL	1
32	12754	弹簧	SPRING	1
33	13195	销	PIN	1
34	13194	挡圈	RING Retaining	2
-	41499A87	衬垫套件	GASKET SET	2
-	41499A88	衬垫套件	GASKET SET	2

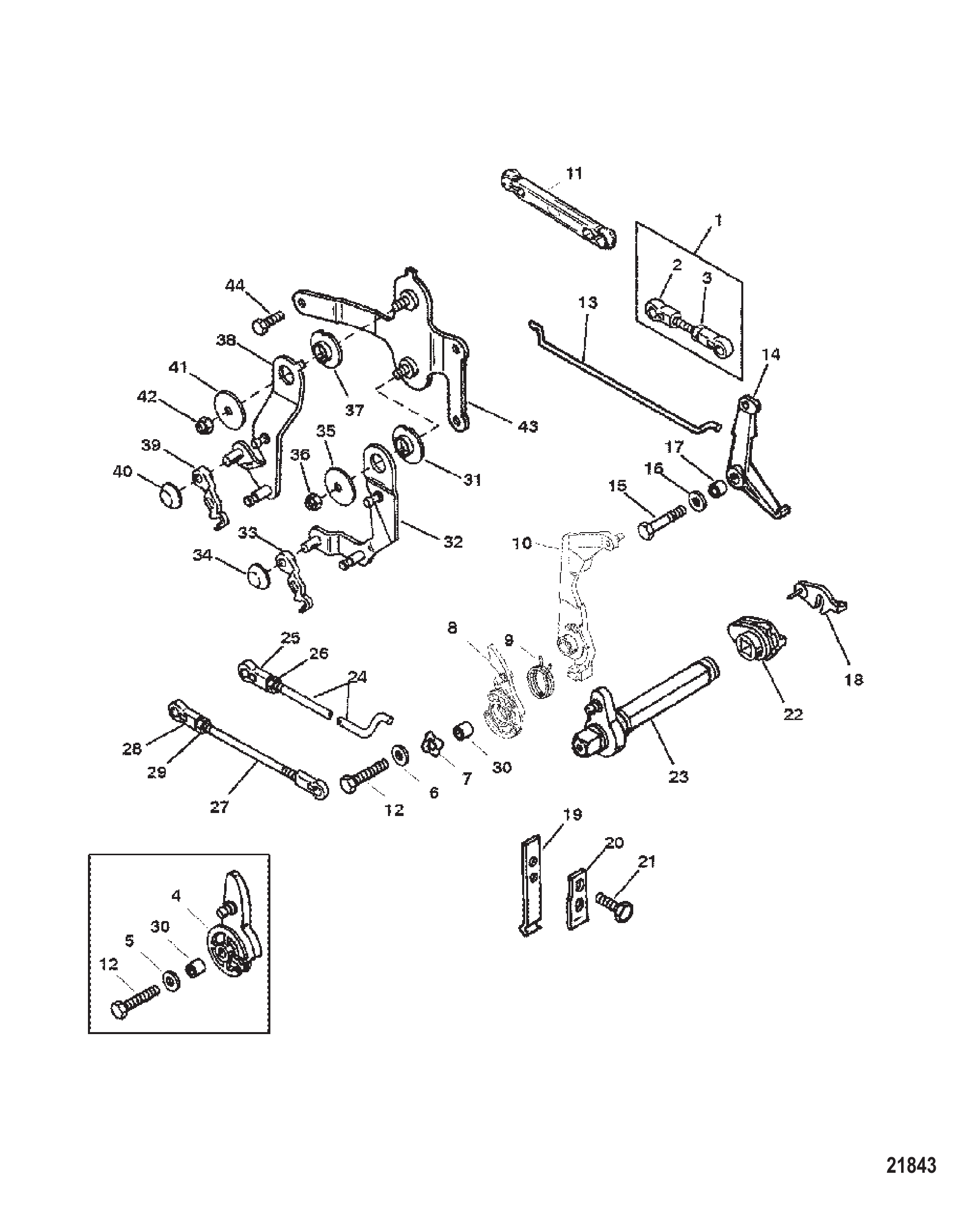

图 23油门和换挡联动装置（遥控） Throttle and Shift Linkage (Remote Control)

REF	零件编号	中文名称	英文名称	数量
1	823857A1	火花调节连杆总成	LINK ASSEMBLY Spark Adjustment	1
2	817428	插座	SOCKET	2
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
4	8237571	节气门凸轮	CAM Throttle	1
5	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
6	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
7	99611	波形垫圈	WAVE WASHER	1
8	8319781	节气门凸轮	CAM Throttle	1
9	42164	弹簧	SPRING	1
10	831977	火花臂	SPARK ARM	1
10	888191	火花臂	SPARK ARM	1
11	832747	正时连杆	TIMING LINK	1
11	8327471	正时连杆	TIMING LINK	1
12	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
12	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1
13	42161	互锁连杆	LINK INTERLOCK	1
14	8236103	联锁控制杆	LEVER Interlock Control	1
15	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
15	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1
16	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
17	823806	衬套	BUSHING	1
18	823862	背板杆	LEVER Backplate	1
19	826077	定位弹簧	SPRING Detent	1
20	824994	板簧	SPRING Plate	1
21	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
22	8238632	水平换挡轴杆(左舷)	LEVER Horizontal Shift Shaft (PORT)	1
23	8236011	换挡轴（水平）	SHIFT SHAFT (HORIZONTAL)	1
24	825211A2	换挡杆总成	SHIFT ROD ASSEMBLY	1
24	881228A1	换挡杆总成	SHIFT ROD ASSEMBLY	1
25	817428	插座	SOCKET	1
26	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
27	823893A2	节气门连杆总成	LINK ASSEMBLY Throttle	1
27	881227A3	节气门连杆总成	LINK ASSEMBLY Throttle	1
28	817428	插座	SOCKET	2
29	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
30	823806	衬套	BUSHING	1
31	825319	尼龙衬套	NYLINER	1
32	8251681	换挡杆	LEVER Shift	1
33	822459	固定座	RETAINER	1
34	825677	压入式螺母	PUSH NUT	1
35	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
36	8268336	螺母 (M6)	NUT (M6)	1
36	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
37	825319	尼龙衬套	NYLINER	1
38	825169	油门杆	LEVER Throttle	1
39	822459	固定座	RETAINER	1
40	825677	压入式螺母	PUSH NUT	1
41	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
42	8268336	螺母 (M6)	NUT (M6)	1
42	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
43	8251701	安装支架	BRACKET Mounting	1
44	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	3

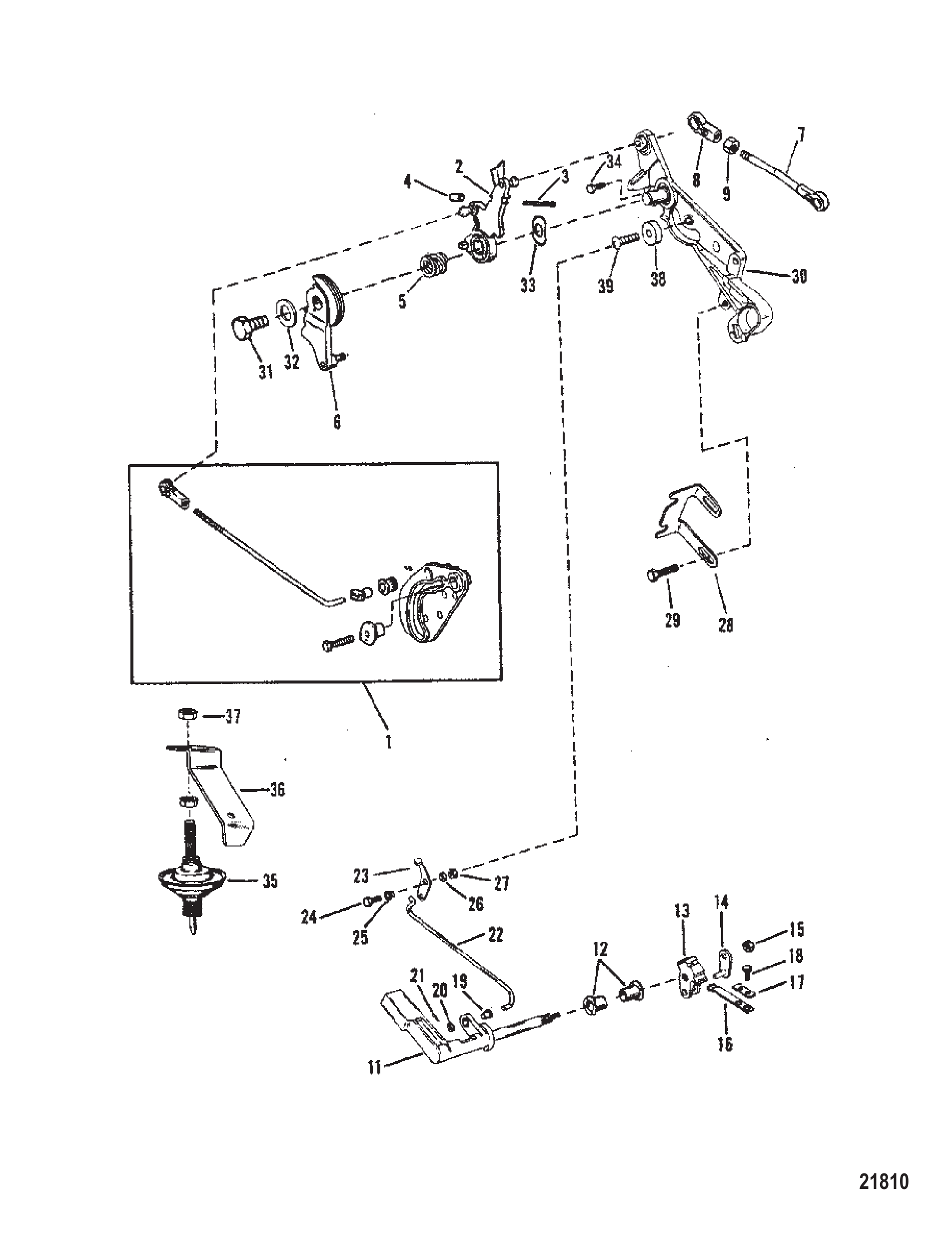

图 24油门与换挡联动装置（侧换挡） Throttle and Shift Linkage (Side Shift)

REF	零件编号	中文名称	英文名称	数量
1	17764A2	节流连杆套件	LINK KIT Throttle	1
2	110383	控制杆	LEVER CONTROL	1
3	118591	螺丝(.190-32 x 1.750)控制杆	SCREW (.190-32 x 1.750) CONTROL LEVER	1
4	48039	控制杆螺钉帽	CAP CONTROL LEVER SCREW	1
5	89540	点火提前弹簧	SPRING SPARK ADVANCE	1
6	42343	作动杆	LEVER ACTUATING	1
7	817429	正时连杆	TIMING LINK	1
8	817428	插座	SOCKET	2
9	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
11	423301	换挡手柄	HANDLE SHIFT	1
12	60762	换挡手柄衬套	BUSHING SHIFT HANDLE	2
13	423291	换挡杆	LEVER SHIFT	1
14	42358	换挡杆背板	BACKPLATE SHIFT LEVER	1
15	400633	换挡杆螺母(M5)	NUT (M5) SHIFT LEVER	1
15	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
16	39627	定位弹簧	SPRING DETENT	1
17	39601	定位弹簧板(旧设计)	PLATE DETENT SPRING (OLD DESIGN)	1
18	400018	螺丝(M5 x 12)定位弹簧与板	SCREW (M5 x 12) DETENT SPRING AND PLATE	2
19	96202	换挡连杆衬套	BUSHING SHIFT LINK	1
20	89302	换挡连杆垫片(0.203x0.406x0.040)	WASHER (.203 x .406 x .040) SHIFT LINK	1
21	21071	换挡连杆开口销	COTTER PIN SHIFT LINK	1
21	210711	开口销	COTTER PIN	1
22	11042	换挡连杆	LINK SHIFT	1
23	110501	节气门限位杆	LEVER THROTTLE LIMIT	1
24	400036	节气门限位杆螺钉(M5x20)	SCREW (M5 x 20) THROTTLE LIMIT LEVER	1
25	85095	节气门限位杆衬套	BUSHING THROTTLE LIMIT LEVER	1
25	8M0214959	衬套@5	BUSHING @5	1
26	89302	节气门限位螺钉垫片(0.203x0.406x0.040)	WASHER (.203 x .406 x .040) THROTTLE LIMIT SCREW	1
27	400633	螺母(M5)节气门限位螺丝	NUT (M5) THROTTLE LIMIT SCREW	1
27	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
28	17848	支架	BRACKET	1
29	4000330	拉索支架螺钉(M6x25)	SCREW (M6 x 25) CABLE BRACKET	2
29	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
30	42026A2	控制平台	PLATFORM CONTROL	1
31	16955	螺丝(M6 x 8)	SCREW (M6 x 8)	1
32	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
32	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
33	69708	波形垫圈	WAVE WASHER	1
34	4000328	平台至模块螺钉(M6x16)	SCREW (M6 x 16) PLATFORM TO BLOCK	1
34	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	1
35	92425	缓冲器(旧设计)	DASHPOT (OLD DESIGN)	1
36	93001	缓冲器支架(旧设计)	BRACKET DASHPOT (OLD DESIGN)	1
37	28770	螺母(.312-24)不锈钢缓冲器端子(旧设计)	NUT (.312-24) Stainless Steel DASHPOT TERMINAL (OLD DESIGN)	2
38	821211	垫片(SUPER 15)	SPACER (SUPER 15)	1
39	821210	螺丝(SUPER 15)	SCREW (SUPER 15)	1

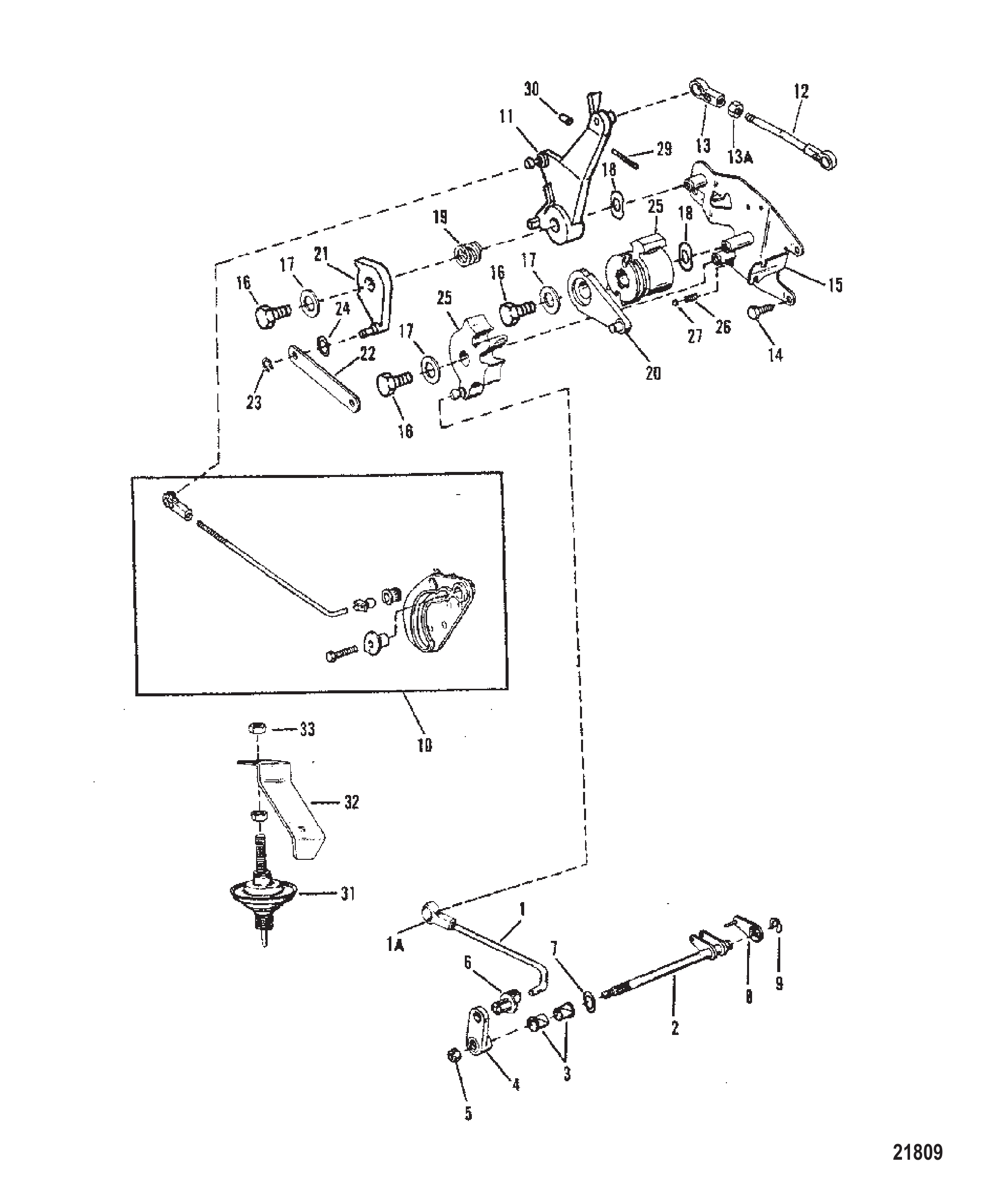

图 25油门和换挡联动装置（舵柄换挡） Throttle and Shift Linkage (Tiller Handle Shift)

REF	零件编号	中文名称	英文名称	数量
1	17725A1	换挡连杆	SHIFT LINK	1
1A	817428	插座	SOCKET	1
2	95027A6	水平换挡轴	SHIFT SHAFT HORIZONTAL	1
3	60762	衬套	BUSHING	2
4	17724	杠杆	LEVER	1
4	17724A1	杠杆总成	LEVER ASSEMBLY	1
5	400633	螺母 (M5)	NUT (M5)	1
5	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
6	932481	衬套	BUSHING	1
6	8M0215006	旋转衬套	BUSHING Swivel	1
7	34632	垫圈	WASHER	1
8	42156	杠杆	LEVER	1
9	95019	挡圈（旧设计）	RING Retaining (OLD DESIGN)	1
10	17764A2	节流连杆套件	LINK KIT Throttle	1
11	43360	杠杆	LEVER	1
11	433601	控制杆	LEVER Control	1
12	817429	正时连杆	TIMING LINK	1
13	817428	插座	SOCKET	2
13A	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
14	4000328	螺钉(M6 x 16)	SCREW (M6 x 16)	3
14	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	3
15	12863A1	平台	PLATFORM	1
16	16955	螺丝(M6 x 8)	SCREW (M6 x 8)	3
17	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
17	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	3
18	69708	波形垫圈	WAVE WASHER	2
19	89540	弹簧	SPRING	1
20	92362A1	杠杆	LEVER	1
21	937791	杠杆	LEVER	1
22	867171	连接杆	LINK	1
23	17680	挡圈	RING Retaining	2
24	29720	波形垫圈	WAVE WASHER	2
25	94085A1	齿轮	GEAR	1
26	93006	弹簧	SPRING	1
26	8M0215005	弹簧	SPRING	1
27	93008	钢球	BALL	1
29	118591	螺钉(0.190-32x1.750)	SCREW (.190-32 x 1.750)	1
30	48039	盖帽	CAP	1
31	92425	缓冲器（适用时使用）	DASHPOT (Use where Applicable)	1
32	93001	支架（适用时使用）	BRACKET (Use where Applicable)	1
33	28770	螺母（.312-24）不锈钢（适用时使用）	NUT (.312-24) Stainless Steel (Use where Applicable)	2

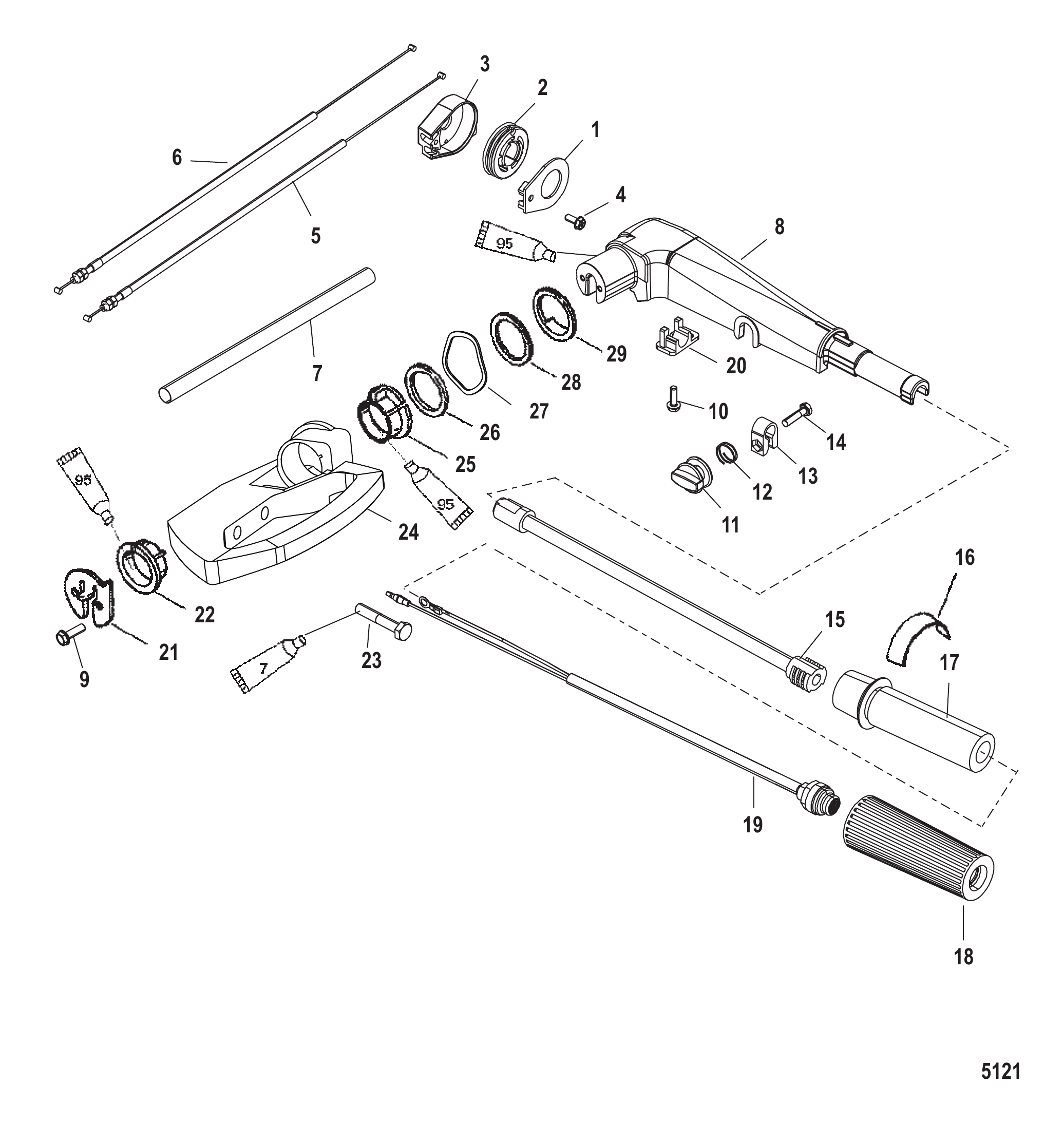

图 26舵柄总成 Tiller Handle Assembly

REF	零件编号	中文名称	英文名称	数量
-	821468A4	舵柄	TILLER HANDLE	1
-	821468T4	舵柄	TILLER HANDLE	1
-	821468A5	舵柄	TILLER HANDLE	1
-	821468T5	ORD 821468T 4	ORD 821468T 4	1
-	821468A2	舵柄	TILLER HANDLE	1
-	821468T2	舵柄	TILLER HANDLE	1
-	821468A3	舵柄	TILLER HANDLE	1
-	821468T3	舵柄-灰色	TILLER HANDLE-GR	1
1	822148A4	盖板套件	COVER KIT	1
1	822148A2	盖板套件	COVER KIT	1
2	822150	滑轮	PULLEY	1
3	NSS	不单独销售外壳	NOT SOLD SEPARATE Case	1
4	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
4	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
5	432423	节气门拉索	CABLE Throttle	1
5	43242T03	节气门拉索	CABLE-THROTTLE	1
5	432426	节气门拉索	CABLE Throttle	1
6	432423	节气门拉索	CABLE Throttle	1
6	43242T03	节气门拉索	CABLE-THROTTLE	1
6	432426	节气门拉索	CABLE Throttle	1
7	960099	套管(12.00英寸)	SLEEVE (12.00 Inches)	1
8	821468A8	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
8	821468A66	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
8	821468A9	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
8	821468T9	ORD 821468A66	ORD 821468A66	1
9	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
9	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
10	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	1
11	821972	节气门旋钮	KNOB Throttle	1
11	821972T	节气门旋钮	KNOB Throttle	1
12	96203	弹簧	SPRING	1
13	821971	节气门锁	LOCK Throttle	1
13	892995	节气门锁	LOCK Throttle	1
14	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
14	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1
15	821463A1	舵柄管	TILLER TUBE	1
15	821463T01	舵柄管	TUBE-TILLER	1
16	8242002	贴花	DECAL	1
16	8242001	贴花	DECAL	1
16	8242004	贴花	DECAL	1
17	822429	节气门手柄	HANDLE Throttle	1
17	821465	节气门手柄	HANDLE Throttle	1
18	99589	握把	GRIP	1
18	8M0221732	外握把	GRIP OUTER	1
19	823609A1	停机开关总成	SWITCH ASSEMBLY Stop	1
19	8M0104615	开关总成	SWITCH ASSY	1
20	822441	固定座	RETAINER	1
21	822147	舵柄手柄板	PLATE Tiller Handle	1
21	8221471	安装板	PLATE	1
22	823939	衬套	BUSHING	1
23	4000384	螺钉(M10×80)	SCREW (M10 x 80)	2
24	822841F1	支架（黑色）	BRACKET (BLACK)	1
24	822841F2	支架（灰色）	BRACKET (GRAY)	1
24	822841F1	支架	BRACKET	1
25	823939	衬套	BUSHING	1
26	822145	垫圈	WASHER	1
27	826792	波形垫圈	WAVE WASHER	1
28	822145	垫圈	WASHER	1
29	822146	垫圈	WASHER	1

图 27专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量
-	938431	轴承座安装工具	INSTALLER TOOL Bearing Carrier	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	36392	化油器量具	GAUGE TOOL Carburetor	1
-	29287	量规工具	GAUGE TOOL	1
-	83164M	飞轮拉拔器	FLYWHEEL PULLER	1
-	8M0227579	飞轮拉拔器	FLYWHEEL PULLER	1
-	76160A2	活塞销拆装工具	INSTALL/REMOVE TOOL Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	27780	拉拔器	PULLER	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	850439T1	八腔测试仪	TESTER Eight Chamber (EIGHT CHAMBER)	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber (SINGLE CHAMBER)	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1

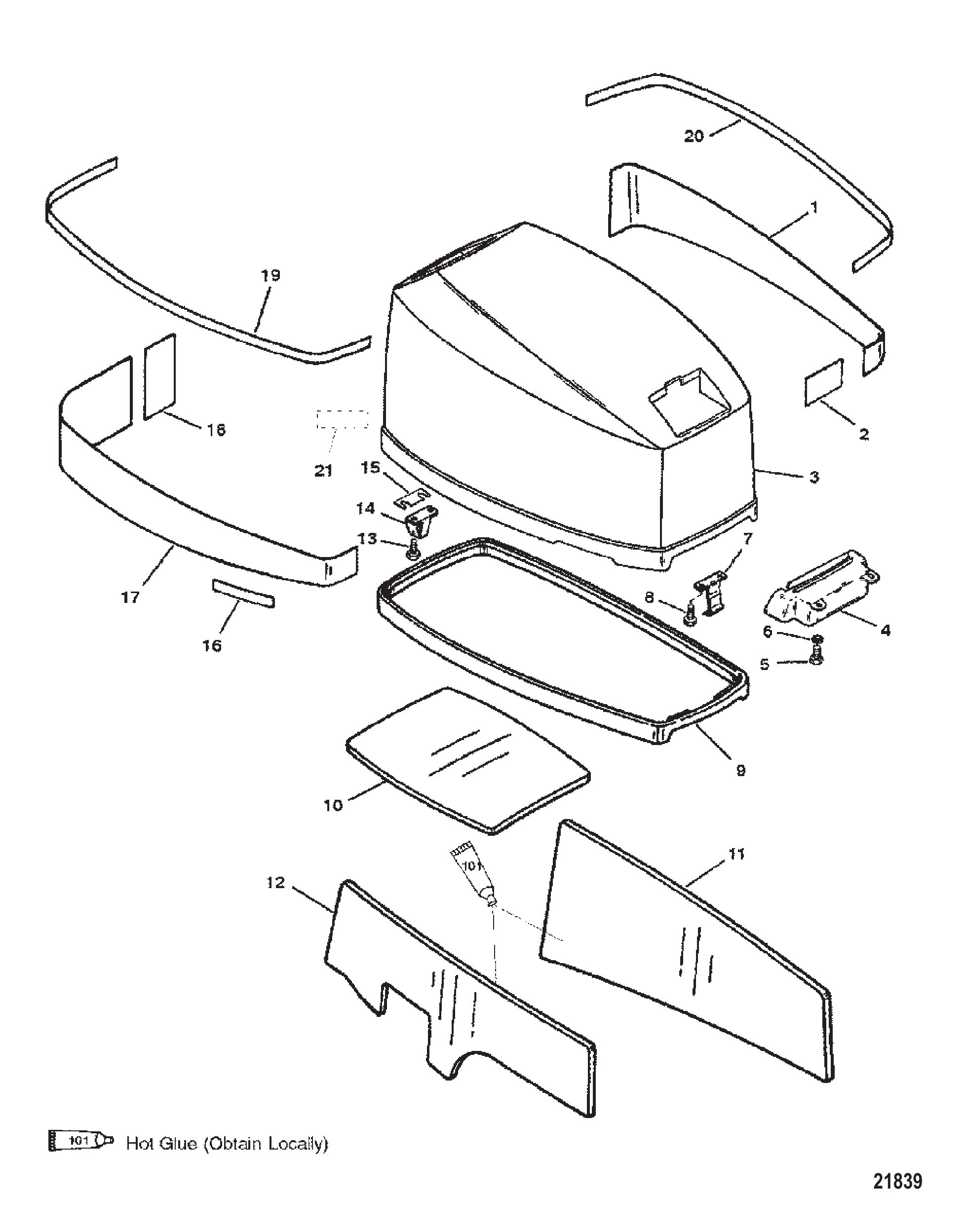

图 28顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	NSS	不单独销售贴花-贴花套件组件	NOT SOLD SEPARATE Decal - Component of Decal Set	1
2	NSS	不单独销售贴花-贴花套件组件	NOT SOLD SEPARATE Decal - Component of Decal Set	1
3	9163A19	顶盖总成	TOP COWL ASSEMBLY	1
3	9163T19	顶盖总成	TOP COWL ASSEMBLY	1
3	9163A21	顶盖总成	TOP COWL ASSEMBLY	1
3	9163T21	顶盖总成	TOP COWL ASSEMBLY	1
3	9163A20	顶盖总成	TOP COWL ASSEMBLY	1
3	9163T20	顶盖总成-TRA	COWL ASSY-TOP-TRA	1
4	44311F3	护罩（后部）	SHIELD (REAR)	1
4	44311F2	护罩（后部）	SHIELD (REAR)	1
4	44311F3	护罩	SHIELD	1
4	44311F5	护罩（后部）	SHIELD (REAR)	1
4	44311F3	护罩	SHIELD	1
4	44311F4	护罩（后部）	SHIELD (REAR)	1
5	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	2
6	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	2
7	17221	盖锁扣	LATCH Cowl	1
8	400033	螺钉(M5 x 12)	SCREW (M5 x 12)	2
9	17773A2	罩盖密封件	SEAL Cowl	1
9	8M0043411	罩盖密封条	SEAL-COWL	1
10	NSS	不单独销售隔音毯-顶部-参考编号12部件	NOT SOLD SEPARATE Sound Blanket-Top-Part of Reference #12	1
11	NSS	不单独销售隔音毯-左舷-参考编号12部件	NOT SOLD SEPARATE Sound Blanket-Port-Part of Reference #12	1
12	815625A1	隔音毯套装	SOUND BLANKET KIT	1
12	815625A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
13	400033	螺钉(M5 x 12)	SCREW (M5 x 12)	2
14	812413A1	滚轮支架总成	BRACKET ASSEMBLY Roller	1
15	18517	罩盖锁扣垫片	SHIM Cowl Latch	AR
16	111851	换挡贴花（适用时使用）	SHIFT DECAL (Use where Applicable)	1
16	82408812	换挡贴花（适用时使用）	DECAL Shift (Use where Applicable)	1
17	NSS	不单独销售贴花-贴花套件组件	NOT SOLD SEPARATE Decal - Component of Decal Set	1
18	NSS	不单独销售贴花-贴花套件组件	NOT SOLD SEPARATE Decal - Component of Decal Set	1
19	NSS	不单独销售贴花-底部条纹	NOT SOLD SEPARATE Decal-Bottom Stripe	1
20	NSS	不单独销售贴花-顶部条纹	NOT SOLD SEPARATE Decal-Top Stripe	1
21	8555775	EPA标签信息贴花（顶盖内侧）	DECAL EPA Label Information (INSIDE TOP COWL)	1
21	855577A5	REF SOB 09-18	REF SOB 09-18	1
21	855920	EPA标签信息贴花（顶盖内侧）	DECAL EPA Label Information (INSIDE TOP COWL)	1
