水星 Mercury 2.2M HP 8075603 THRU 1Q008199 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-43122 · 共 7 个部位 · 234 条零件

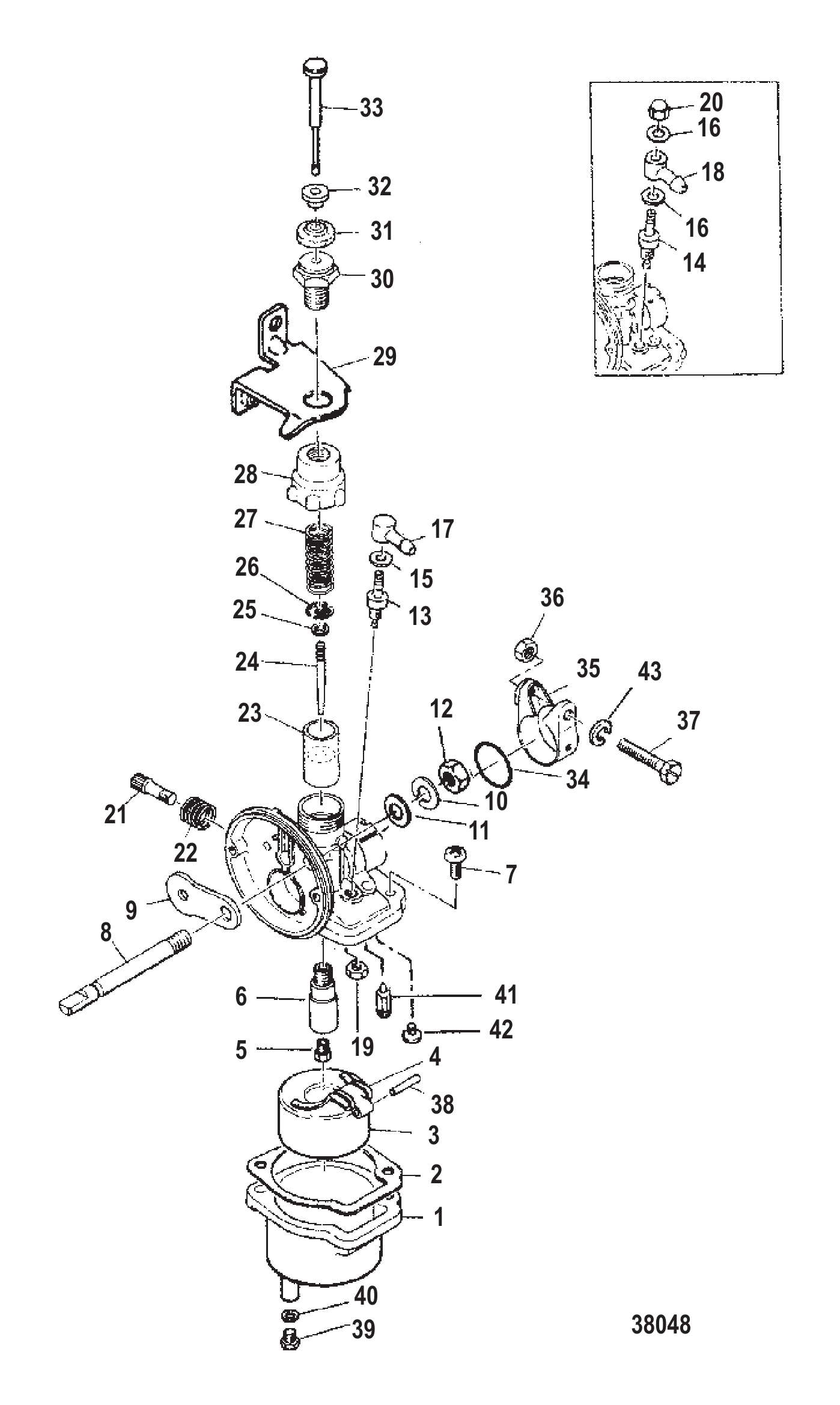

图 1化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
0-1	813479M	化油器	CARBURETOR	1
0-1	814458M	化油器总成	CARBURETOR ASSEMBLY	1
0-1	813479M	化油器	CARBURETOR	1
0-1	7859M	化油器总成	CARBURETOR ASSEMBLY	1
0-1	813479M	化油器	CARBURETOR	1
1	813480M	浮子室	FLOAT BOWL	1
1	13997M	浮子室	FLOAT BOWL	1
1	82832M	浮子室	FLOAT BOWL	1
2	810781M	浮子室衬垫	GASKET FLOAT BOWL	1
2	80344M	浮子室衬垫	GASKET FLOAT BOWL	1
2	94691M	衬垫	GASKET	1
3	810786M	浮子	FLOAT	1
3	80345M	浮子	FLOAT	1
4	80346M	浮子臂浮子	FLOAT ARM FLOAT	1
5	810783M	主量孔 (#96)	JET MAIN (# 96)	1
5	92510M	主量孔 (#96)	JET MAIN (# 96)	1
6	810782M	主喷嘴	NOZZLE MAIN	1
6	92511M	主喷嘴	NOZZLE MAIN	1
7	83509M	螺钉（M4×10）	SCREW (M4 x 10)	2
8	92513M	阻风门杠杆	LEVER CHOKE	1
9	814459M	阻风门阀	VALVE CHOKE	1
9	92514M	阻风门阀	VALVE CHOKE	1
10	92515M	锁紧垫圈	LOCKWASHER	1
11	96335M	垫圈	WASHER	1
12	96336M	螺母	NUT	1
13	41853M	进油阀/阀座组件	VALVE/SEAT KIT Inlet	1
13	82601M	进油阀/阀座组件	VALVE/SEAT KIT Inlet	1
14	80347M	进油阀/阀座组件	VALVE/SEAT KIT Inlet	1
15	41854M	阀座垫片	GASKET VALVE SEAT	1
16	80327M	阀座垫片	GASKET VALVE SEAT	2
17	41855M	连接器	CONNECTOR	1
18	80326M	连接器	CONNECTOR	1
19	41856M	阀座螺母	NUT VALVE SEAT	1
20	80348M	阀座螺母	NUT VALVE SEAT	1
21	80328M	怠速调节螺钉	SCREW PILOT ADJUSTING	1
22	814460M	怠速调节弹簧	SPRING PILOT ADJUSTING	1
22	80329M	怠速调节弹簧	SPRING PILOT ADJUSTING	1
22	814460M	弹簧	SPRING	1
23	11912M	节气门阀	VALVE THROTTLE	1
23	80333M	油门阀	VALVE Throttle	1
24	814461M	针阀	VALVE NEEDLE	1
24	41857M	针阀	VALVE NEEDLE	1
25	80324M	阀夹	CLIP VALVE	1
26	80323M	阀座弹簧	SEAT SPRING	1
27	82599M	节气门阀弹簧	SPRING THROTTLE VALVE	1
28	80325M	主体盖	COVER MAIN BODY	1
29	92516M	节气门线固定器	RETAINER THROTTLE WIRE	1
30	80336M	节气门螺钉	SCREW Throttle	1
31	80196M	盖板	COVER	1
32	92518M	隔套	SPACER	1
33	92519M	节气门柱塞	PLUNGER THROTTLE	1
34	80332M	O型圈	O-RING	1
35	813481M	出口夹	CLIP OUTLET	1
35	41858M	出口夹	CLIP OUTLET	1
35	813481M	卡扣	CLIP	1
36	813482M	螺母	NUT	1
36	92517M	螺母	NUT	1
37	810784M	螺钉	SCREW	1
37	80321M	螺钉	SCREW	1
38	810785M	浮子销	PIN FLOAT	1
38	82804M	浮子销	PIN Float	1
38	811249M	浮子销	PIN Float	1
39	13998M	放油阀	VALVE DRAIN	1
39	14183M	放油螺塞(M4×5)	PLUG Drain (M4 x 5)	1
40	13999M	衬垫	GASKET	1
41	813483M	针阀	VALVE NEEDLE	1
42	81348M	杆	ROD	1
43	82211M	垫圈	WASHER	1
-	813485M	化油器维修套件	REPAIR KIT Carburetor	1
-	41859M	化油器维修套件	REPAIR KIT Carburetor	1
-	41859M	化油器维修套件	REPAIR KIT Carburetor	1

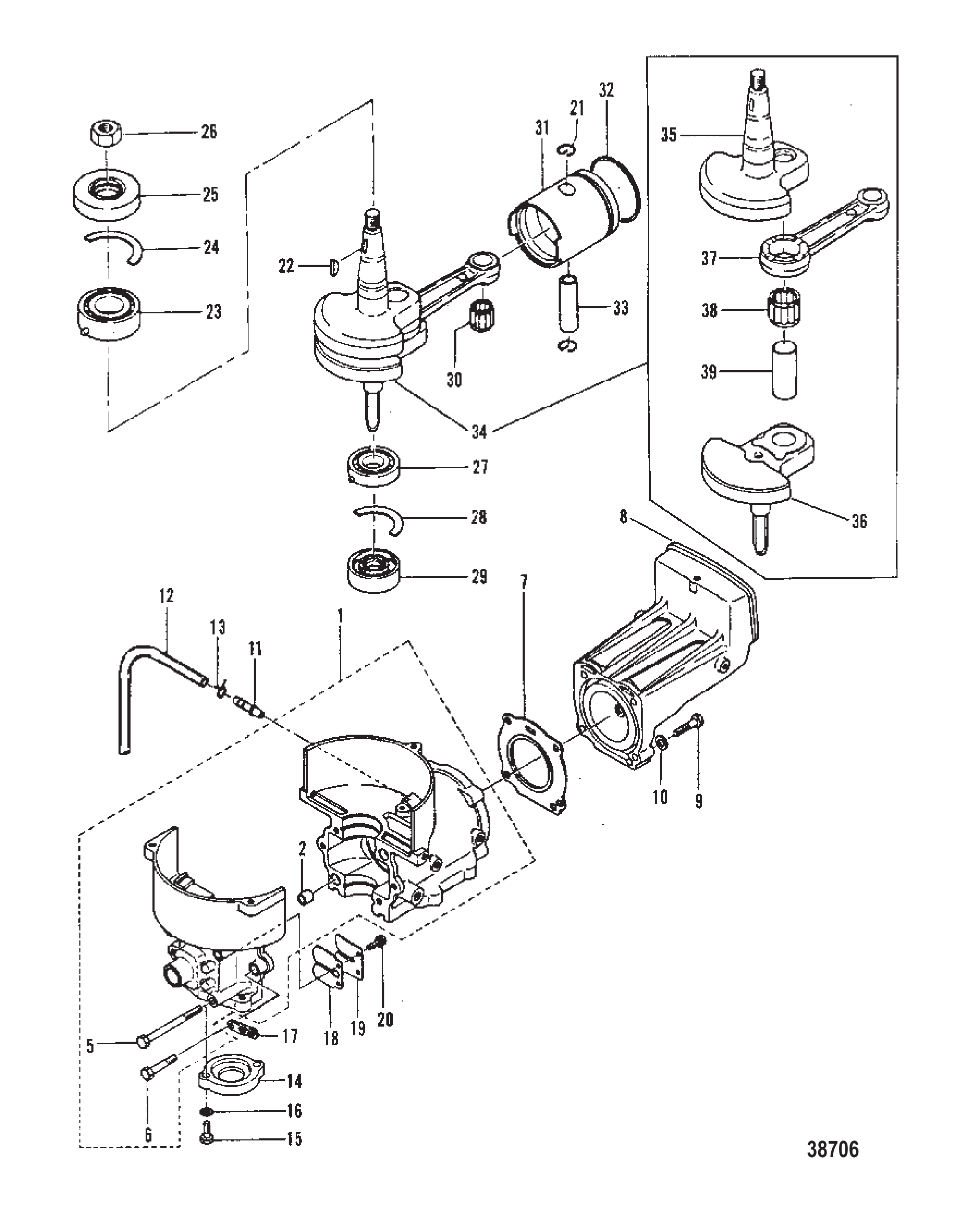

图 2气缸体、曲轴和活塞 CYLINDER BLOCK, CRANKSHAFT AND PISTON

REF	零件编号	中文名称	英文名称	数量
1	9151	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	95218	定位销	PIN Dowel	2
5	95221	曲轴箱至缸体螺栓	BOLT CRANKCASE TO BLOCK	4
6	95298	曲轴箱至缸体螺栓	BOLT CRANKCASE TO BLOCK	2
7	95299	气缸盖衬垫	GASKET CYLINDER HEAD	1
8	9152	气缸盖	CYLINDER HEAD	1
9	95300	气缸盖螺钉	SCREW CYLINDER HEAD	4
10	95222	气缸盖螺钉垫圈	WASHER CYLINDER HEAD SCREW	4
11	95301	排水软管接头	CONNECTOR DRAIN HOSE	1
12	95223	软管 (150 mm)	HOSE (150 mm)	1
13	95224	排水软管夹	CLIP DRAIN HOSE	1
14	95225	曲轴箱壳体	HOUSING CRANKCASE	1
15	95302	壳体螺钉	SCREW HOUSING	2
16	95303	壳体螺钉垫圈	WASHER HOUSING SCREW	2
17	95306	导线夹	CLAMP LEAD WIRE	1
18	95226	簧片阀	REED VALVE	1
19	95304	簧片阀止挡	STOP REED VALVE	1
20	95305	簧片阀螺钉	SCREW REED VALVE	2
21	95236	活塞销卡簧	CLIP PISTON PIN	2
22	95229	曲轴键	KEY CRANKSHAFT	1
23	95228	曲轴上球轴承	BEARING Ball CRANKSHAFT (UPPER)	1
24	95230	曲轴上挡板	PLATE CRANKSHAFT (UPPER)	1
25	95232	曲轴上油封	SEAL Oil CRANKSHAFT (UPPER)	1
26	95233	曲轴螺母	NUT CRANKSHAFT	1
27	95307	曲轴下球轴承	BEARING Ball CRANKSHAFT (LOWER)	1
28	95231	曲轴下挡板	PLATE CRANKSHAFT (LOWER)	1
29	95308	曲轴下油封	SEAL Oil CRANKSHAFT (LOWER)	1
30	95227	连杆滚子轴承	BEARING Roller CONNECTING ROD	1
31	9154	活塞	PISTON	1
31	9183	活塞	PISTON	AR
32	95234	活塞环	RING Piston	1
32	95309	活塞环	RING Piston	AR
33	95235	活塞销	PIN Piston	1
34	9153	曲轴总成	CRANKSHAFT ASSEMBLY	1
35	813049	曲轴	CRANKSHAFT	1
36	813268	曲轴	CRANKSHAFT	1
37	813269	连杆	CONNECTING ROD	1
38	813270	轴承	BEARING	1
39	813271	曲轴销	PIN Crank	1
-	19251	动力头总成	POWERHEAD ASSEMBLY	1

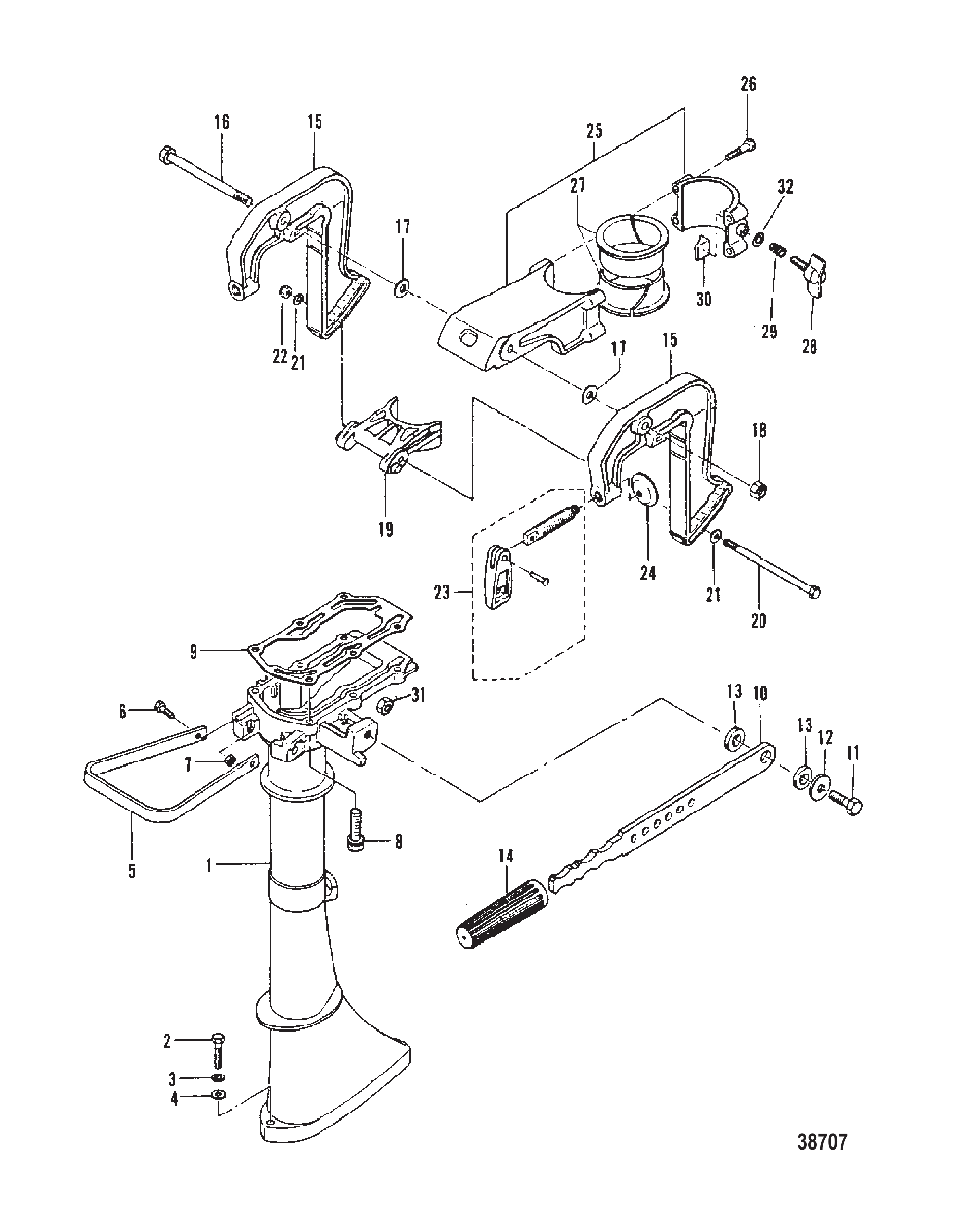

图 3驱动轴壳体和夹紧支架 DRIVESHAFT HOUSING AND CLAMP BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	9157	驱动轴壳体	HOUSING Driveshaft	1
2	95362	驱动轴壳体螺钉	SCREW DRIVESHAFT HOUSING	2
3	95303	壳体螺钉垫圈	WASHER HOUSING SCREW	2
4	95349	壳体螺钉垫圈	WASHER HOUSING SCREW	2
5	95276	提手	CARRYING HANDLE	1
6	95366	搬运手柄螺栓	BOLT CARRYING HANDLE	2
7	95367	搬运手柄螺栓螺母	NUT CARRYING HANDLE BOLT	2
8	95340	驱动轴壳体螺钉	SCREW DRIVESHAFT HOUSING	6
9	95341	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
10	95273	转向手柄	HANDLE Steering	1
11	95363	转向手柄螺钉	SCREW STEERING HANDLE	1
12	95275	转向手柄板	PLATE STEERING HANDLE	1
13	95364	减震橡胶	DAMPER RUBBER	2
14	95274	转向手柄握把	GRIP STEERING HANDLE	1
15	9159	夹箍支架	CLAMP BRACKET	2
16	95373	夹紧支架螺栓	BOLT CLAMP BRACKET	1
17	95375	夹紧支架螺钉垫圈	WASHER CLAMP BRACKET SCREW	2
18	95374	夹紧支架螺钉尼龙螺母	NUT Nylon CLAMP BRACKET SCREW	1
19	95278	推力支架	BRACKET THRUST	1
20	95376	推力支架螺钉	SCREW THRUST BRACKET	1
21	95349	支架螺钉垫圈	WASHER BRACKET SCREW	2
22	95377	支架螺钉螺母	NUT BRACKET SCREW	1
23	95378	蝶形螺钉总成	THUMB SCREW ASSEMBLY	2
24	95379	蝶形螺钉垫	PAD THUMB SCREW	2
25	9160	旋转支架 (3407-811204 C型夹半部)	SWIVEL BRACKET (3407-811204 C-CLAMP HALF)	1
26	95380	旋转支架螺钉	SCREW SWIVEL BRACKET	4
27	95381	转轴支架衬套	BUSHING SWIVEL BRACKET	2
28	95382	调节螺钉	SCREW ADJUSTING	1
29	95383	调节螺丝弹簧	SPRING ADJUSTING SCREW	1
30	95279	摩擦垫	PAD FRICTION	1
31	95397	转向手柄螺母	NUT STEERING HANDLE	1
32	95349	调节螺丝垫圈	WASHER ADJUSTING SCREW	1

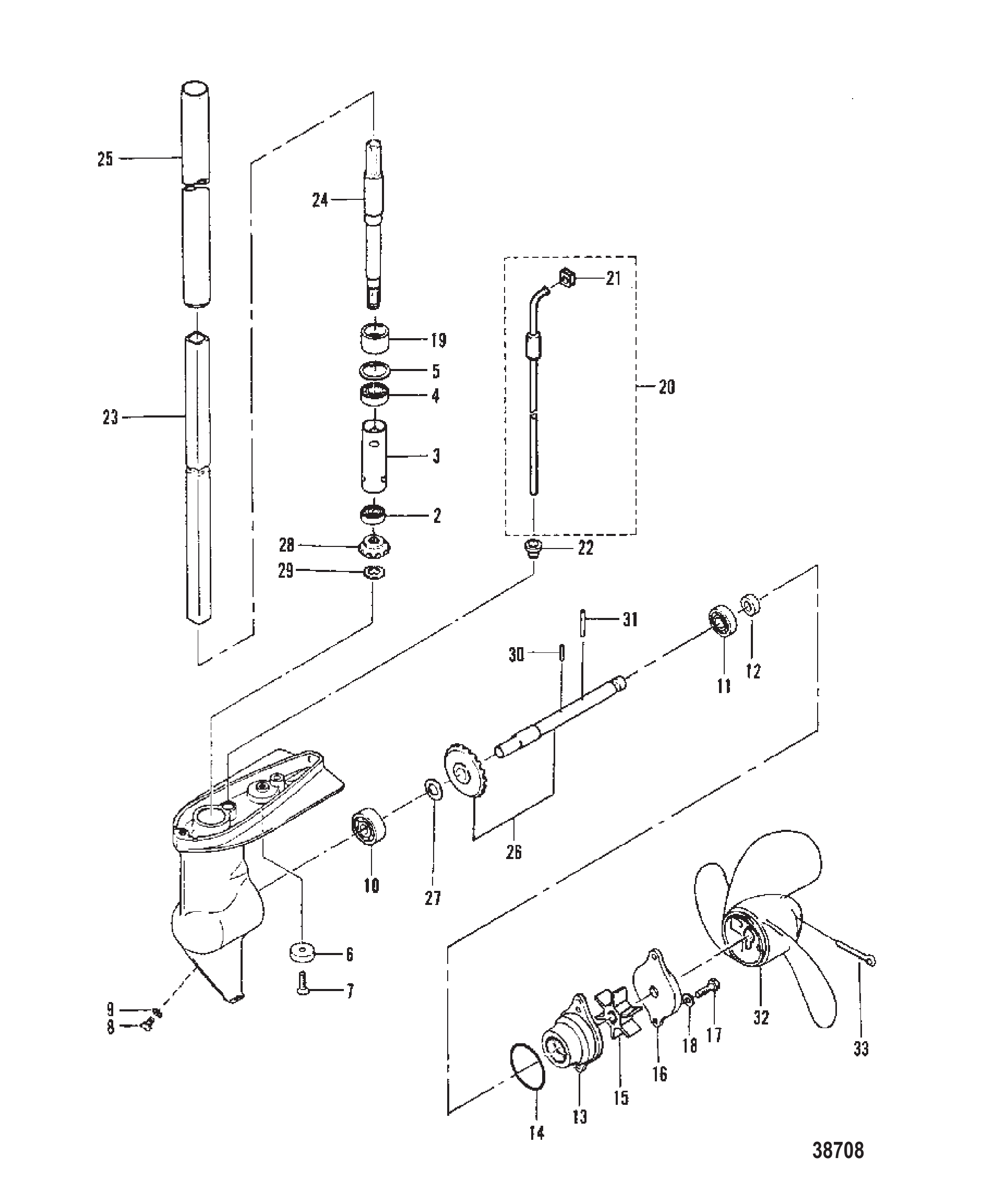

图 4齿轮箱总成(完整) GEAR HOUSING ASSEMBLY COMPLETE

REF	零件编号	中文名称	英文名称	数量
1	9158	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	95342	传动轴球轴承(下)	BEARING Ball DRIVESHAFT (LOWER)	1
3	95343	隔套	SPACER	1
4	95344	传动轴球轴承(上)	BEARING Ball DRIVESHAFT (UPPER)	1
5	95345	球轴承卡环	RING Snap BALL BEARING	1
6	95271	阳极块	ANODE	1
7	95346	阳极螺丝	SCREW ANODE	1
8	95368	油塞	PLUG OIL	2
9	95220	油塞垫片	GASKET OIL PLUG	2
10	95347	螺旋桨轴轴承	BEARING PROPELLER SHAFT	1
11	95344	螺旋桨轴球轴承	BEARING Ball PROPELLER SHAFT	1
12	95348	螺旋桨轴油封	SEAL Oil PROPELLER SHAFT	1
13	95287	水泵	PUMP Water	1
14	95288	水泵O型圈	O-RING WATER PUMP	1
15	95289	叶轮	IMPELLER	1
16	95272	齿轮箱盖	COVER GEAR HOUSING	1
17	95302	盖板螺丝	SCREW COVER	2
18	95349	盖板螺丝垫圈	WASHER COVER SCREW	2
19	95350	传动轴油封	SEAL Oil DRIVESHAFT	1
20	95359	水管总成	TUBE ASSEMBLY Water	1
21	95360	水管护套(上)	GROMMET WATER TUBE (UPPER)	1
22	95361	水管衬套(下)	BUSHING WATERTUBE (LOWER)	1
23	95290	传动轴(上)	DRIVESHAFT (UPPER)	1
24	95369	传动轴(下)	DRIVESHAFT (LOWER)	1
25	95277	传动轴管	PIPE DRIVESHAFT	1
26	95291	螺旋桨轴(带锥齿轮)	PROPELLER SHAFT (WITH BEVEL GEAR)	1
27	95292	锥齿轮垫片	SHIM BEVEL GEAR	AR
28	95293	小齿轮	GEAR Pinion	1
29	95370	小齿轮卡环	RING Snap PINION GEAR	1
30	95371	叶轮键	KEY IMPELLER	1
31	95372	螺旋桨剪切销	SHEAR PIN PROPELLER	1
32	952941	螺旋桨	PROPELLER	1
33	95295	螺旋桨开口销	COTTER PIN PROPELLER	1

图 5杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	43122	零件手册2.2马力	PARTS MANUAL 2.2 Hp
-	44113890	用户手册	OWNERS MANUAL
-	44156A84	贴花套件	DECAL SET
-	13476A86	贴花套件	DECAL SET
-	95399	工具包	TOOL KIT

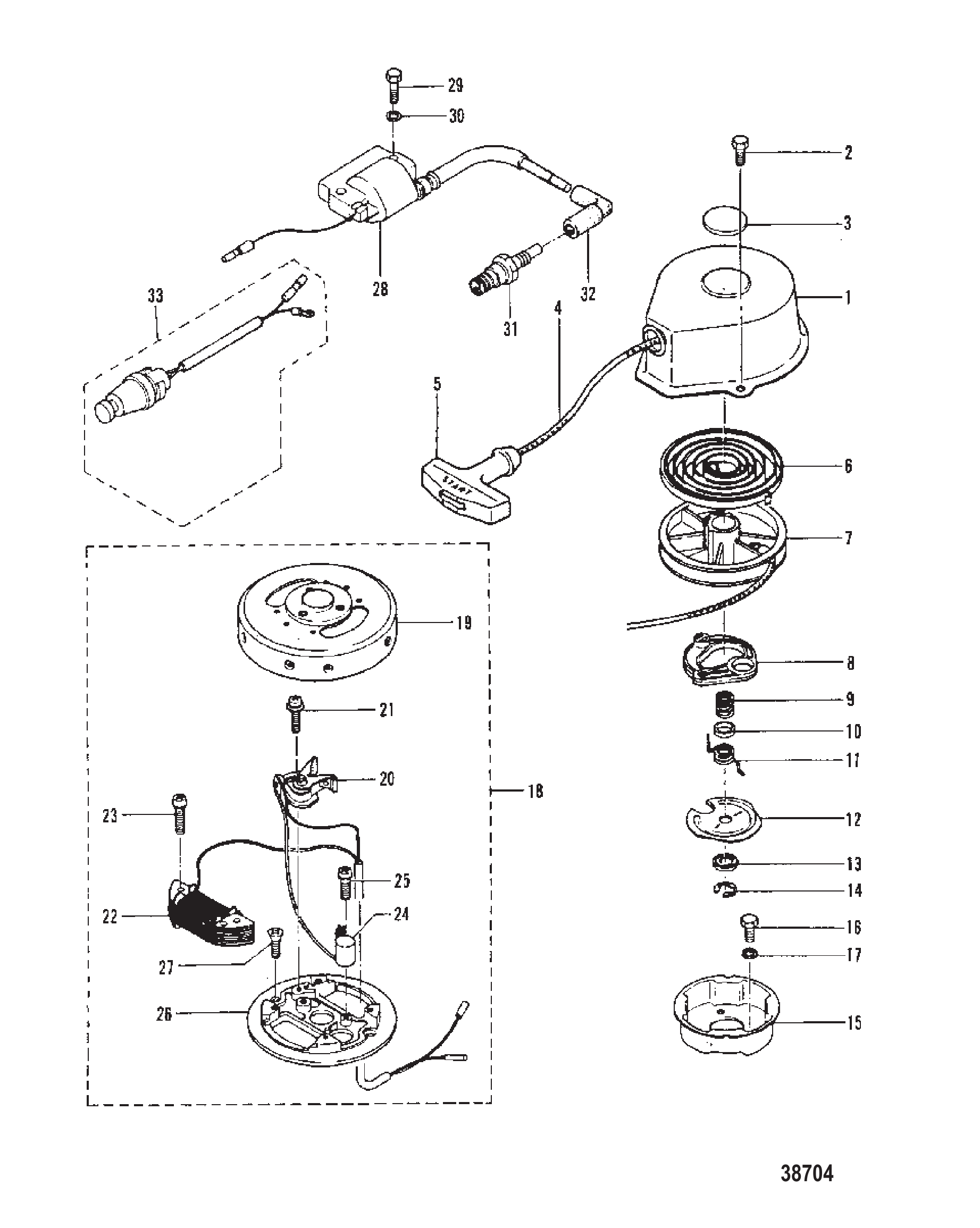

图 6反冲启动器和点火组件 RECOIL STARTER AND IGNITION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	95244	启动器壳体	HOUSING Starter	1
2	95396	启动器壳体螺栓	BOLT STARTER HOUSING	2
3	95251	启动器壳体塞	PLUG STARTER HOUSING	1
4	12066A9	绳索	ROPE	1
5	95249	启动绳手柄	HANDLE Starter STARTER ROPE	1
6	95284	回位弹簧	SPRING RECOIL	1
7	95245	启动滑轮	SHEAVE Starter	1
8	95246	棘轮	RATCHET	1
9	95315	摩擦弹簧	SPRING FRICTION	1
10	95247	盖板	COVER	1
11	95316	复位弹簧	SPRING RETURN	1
12	95248	摩擦片	FRICTION PLATE	1
13	95317	止推垫片	THRUST WASHER	1
14	95318	E型卡环	E RING	1
15	95250	启动器滑轮	PULLEY STARTER	1
16	95319	启动器滑轮螺丝	SCREW STARTER PULLEY	3
17	95320	滑轮螺丝垫圈	WASHER PULLEY SCREW	3
18	9155	飞轮磁电机总成	FLYWHEEL MAGNETO ASSEMBLY	1
19	9184	飞轮	FLYWHEEL	1
20	95237	断电器	BREAKER	1
21	95311	断电器螺丝	SCREW BREAKER	1
22	95241	励磁线圈	COIL Exciter	1
23	95313	励磁线圈螺丝	SCREW EXCITER COIL	1
24	95240	电容器	CONDENSER	1
25	95312	电容器螺丝	SCREW CONDENSER	1
26	95239	磁电机底座	BASE MAGNETO	1
27	95310	磁电机底座螺丝	SCREW MAGNETO BASE	2
28	95242	点火线圈	COIL Ignition	1
29	95314	点火线圈螺丝	SCREW IGNITION COIL	2
30	95320	点火线圈螺丝垫圈	WASHER IGNITION COIL SCREW	2
31	95297	火花塞(CHAMPION RL-87YC)	SPARK PLUG (CHAMPION RL-87YC)	1
32	95282	火花塞帽	CAP SPARK PLUG	1
33	95283	停机开关总成	SWITCH ASSEMBLY Stop	1

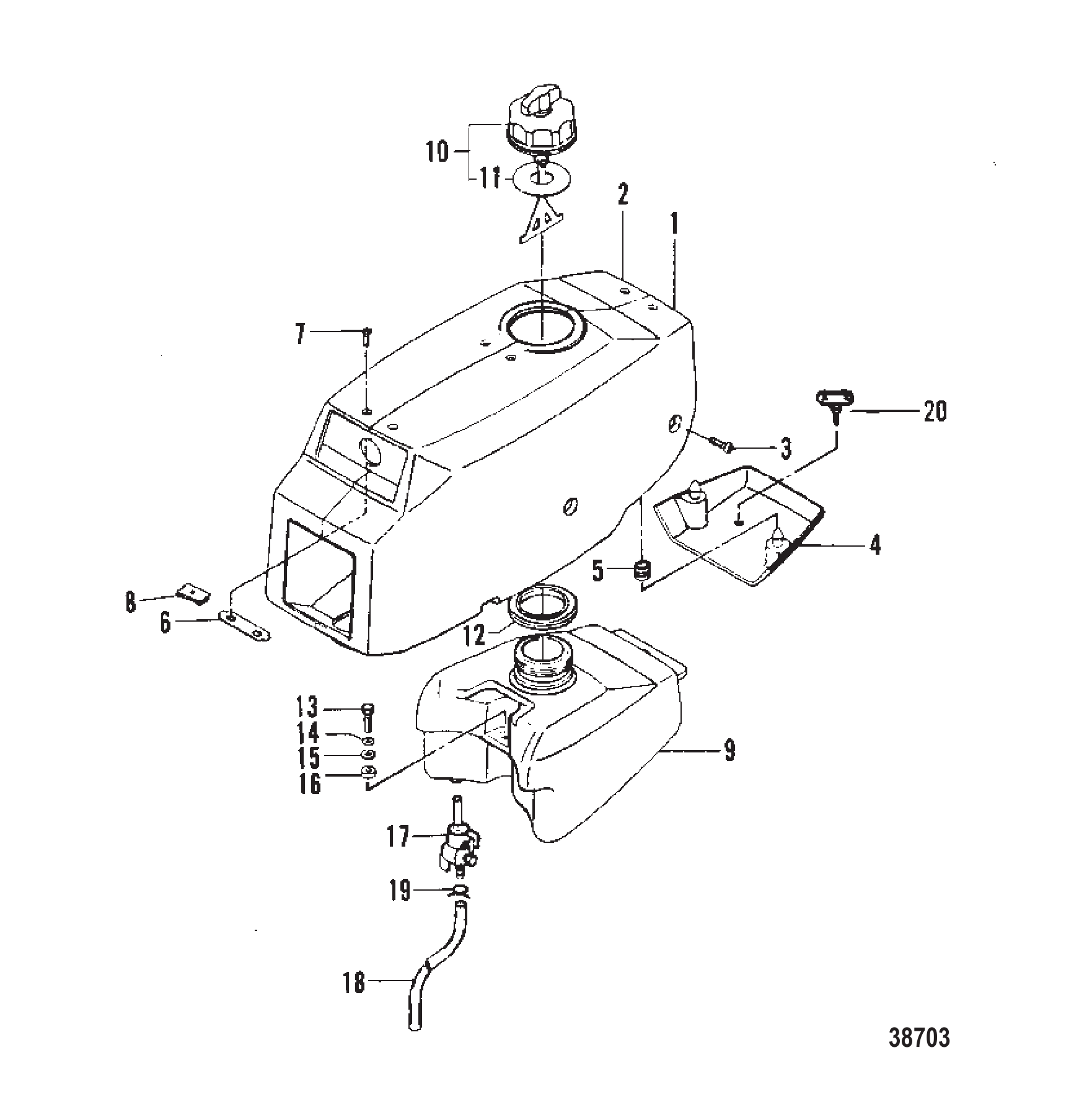

图 7顶罩和燃油箱 TOP COWL AND FUEL TANK

REF	零件编号	中文名称	英文名称	数量
1	9161	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
2	9185	顶罩总成(右舷)	TOP COWL ASSEMBLY STARBOARD	1
3	95384	顶罩螺丝	SCREW TOP COWL	6
4	95281	顶罩盖	COVER TOP COWL	1
5	95387	护孔环	GROMMET	2
6	95280	顶罩板	PLATE TOP COWL	4
7	95386	顶罩板螺栓	BOLT PLATE TO TOP COWL	8
8	95385	板螺母	NUT PLATE SCREW	8
9	9162	燃油箱	TANK Fuel	1
10	812912	燃油箱盖总成	CAP ASSEMBLY FUEL TANK	1
11	95388	盖衬垫	GASKET CAP	1
12	95389	燃油箱橡胶密封	SEAL RUBBER, FUEL TANK	1
13	95391	燃油箱螺钉	SCREW FUEL TANK	2
14	95320	燃油箱螺钉垫圈	WASHER FUEL TANK SCREW	2
15	95392	燃油箱螺钉垫圈	WASHER FUEL TANK SCREW	2
16	95390	燃油箱螺钉隔套	SPACER FUEL TANK SCREW	2
17	95393	燃油阀	VALVE FUEL	1
18	95394	燃油管(250毫米)	LINE Fuel (250 mm)	1
19	95395	不锈钢燃油管卡箍	CLIP Stainless Steel FUEL LINE	2
20	95398	护孔圈盖	GROMMET COVER	1
