水星 Mercury 18XD HP 9378151 THRU 9507380 - 爆炸图零件明细

两冲程 化油器 · Belgium - Cat.# 90-13286 · 共 48 个部位 · 1972 条零件

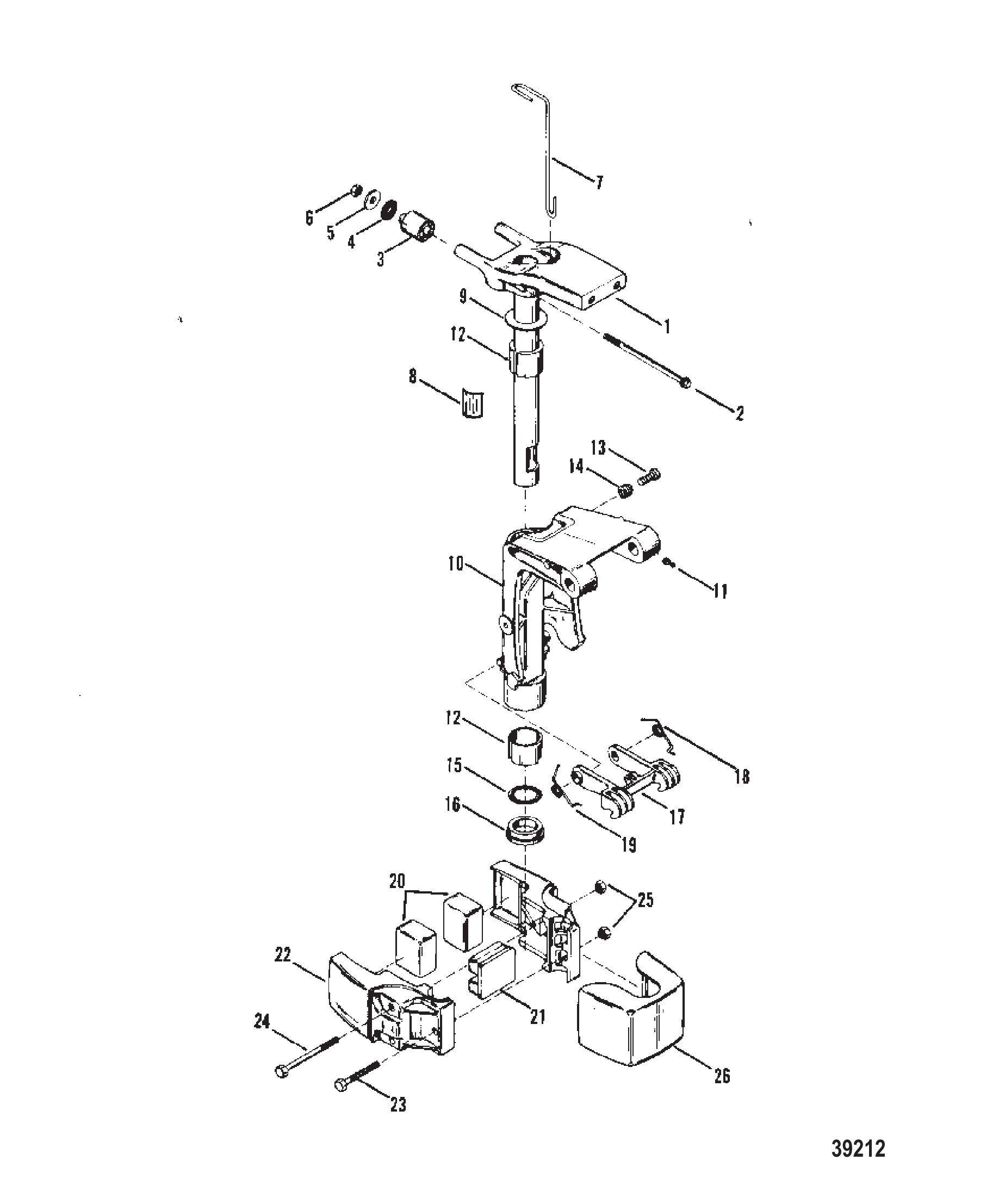

图 1旋转支架总成 SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	97544A1	转轴管总成	SWIVEL TUBE ASSEMBLY	1
1	97544A5	水星转轴管总成	SWIVEL TUBE ASSEMBLY Mercury	1
2	87142	上支架螺丝（133mm）	SCREW UPPER MOUNT (133MM)	2
2	125161	螺丝 M8×133	SCREW (M8 x 133)	2
3	85102	上支架	MOUNT UPPER	2
3	14894	支架	MOUNT	2
4	85172	橡胶垫圈(上支架螺丝)	WASHER RUBBER - UPPER MOUNT SCREW	2
5	85106	上部支架螺钉垫圈	WASHER UPPER MOUNT SCREW	2
6	400213	螺母 M8不锈钢(上支架螺丝)	NUT (M8) Stainless Steel UPPER MOUNT SCREW	2
7	85157	倒挡钩杆	ROD REVERSE HOOK	1
8	85173	导向控制板	PLATE PILOT CONTROL	1
9	85104	转轴管垫圈	WASHER SWIVEL TUBE	1
10	8187A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
10	822237A1	转轴支架-黑色	BRKT-SWIVEL-BLK	1
11	74036	润滑脂接头	FITTING Grease	3
11	8M0169589	润滑脂接头	FITTING Grease	3
12	95949	转轴支架衬套	BUSHING SWIVEL BRACKET	2
13	91908	导向控制螺丝	SCREW PILOT CONTROL	1
13	91807	螺钉	SCREW	1
14	96203	导向控制螺丝弹簧	SPRING PILOT CONTROL SCREW	1
15	86993	旋转管O型圈	O-RING SWIVEL TUBE	1
16	85154	转轴管衬套（下部）	BUSHING SWIVEL TUBE (LOWER)	1
17	96045A1	倒挡锁钩总成	HOOK ASSEMBLY REVERSE LOCK	1
17	98830A2	挂钩总成	HOOK ASSEMBLY	1
18	96018	倒挡钩弹簧(左舷)	SPRING REVERSE HOOK - PORT	1
19	97427	右舷倒车挂钩弹簧	SPRING REVERSE HOOK - STARBOARD	1
20	85122	下支架	MOUNT LOWER	2
20	85122001	下支架	MOUNT Lower	2
21	85123	前缓冲垫	BUMPER Front	1
21	85123001	前缓冲垫	BUMPER Front	1
22	92168	下安装盖	COVER LOWER MOUNT	2
22	95068A1	盖板	COVER	2
23	40007155	下支架盖螺丝（55mm）	SCREW LOWER MOUNT COVER (55MM)	1
23	1994360	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
24	4000362	下支架盖螺丝（90mm）	SCREW LOWER MOUNT COVER (90MM)	2
22	95068A1	下安装盖	COVER LOWER MOUNT	1
23	4009259	下支架盖螺丝（60mm）	SCREW LOWER MOUNT COVER (60MM)	1
23	1994360	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
24	4009263	下支架盖螺丝（100mm）	SCREW LOWER MOUNT COVER (100MM)	2
24	19943100	螺丝(M8 x 100)	SCREW (M8 x 100)	2
25	400213	下支架盖螺丝螺母（M8不锈钢）	NUT (M8) Stainless Steel LOWER MOUNT COVER SCREW	3
26	85547	下支架盖（塑料）	COVER LOWER MOUNT (PLASTIC)	1
-	85168A80	衬垫套件	GASKET SET	1

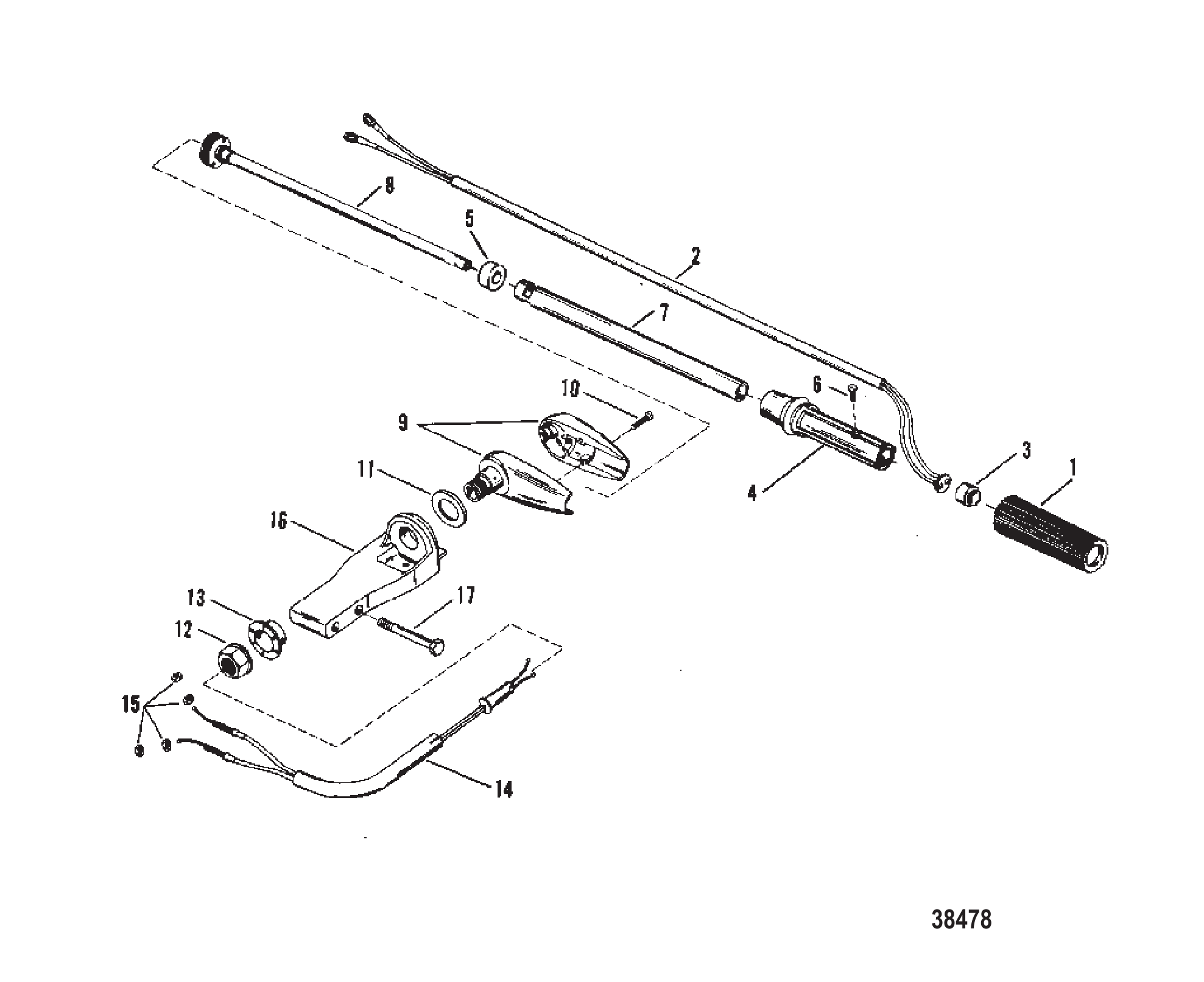

图 2转向手柄总成（Mariner）（手动） STEERING HANDLE ASSEMBLY (MARINER)(MANUAL)

REF	零件编号	中文名称	英文名称	数量
1	99589	橡胶握把	GRIP RUBBER	1
1	8M0221732	外握把	GRIP OUTER	1
2	89591A5	停机开关线束总成	HARNESS ASSEMBLY STOP SWITCH	1
3	11099A1	停机开关护套总成	BOOT ASSEMBLY STOP SWITCH	1
4	14170A1	油门手柄总成	HANDLE ASSEMBLY THROTTLE	1
4	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
5	11193	转向手柄环	RING STEERING HANDLE	1
6	62568	油门手柄螺丝（#10-16 x 0.375）	SCREW (#10-16 x .375) THROTTLE HANDLE	1
7	99333A2	转向管总成	TUBE ASSEMBLY STEERING	1
8	41590A1	管总成	TUBE ASSEMBLY	1
8	975501	管总成	TUBE ASSEMBLY	1
9	94185A8	支架总成	BRACKET ASSEMBLY	1
9	44397A7	ORD 43447A 4	ORD 43447A 4	1
10	4005688	支架夹紧螺丝（M4 x 20）	SCREW (M4 x 20) BRACKET CLAMPING	3
11	57860	支架尼龙垫圈	WASHER NYLON - BRACKET	1
12	34862	支架螺母（1.00-14）	NUT (1.00-14) BRACKET	1
12	859133	螺母(1.00-14)	NUT (1.00-14)	1
13	85973	支架衬套	BUSHING BRACKET	1
14	43242	油门拉索总成	CABLE ASSEMBLY THROTTLE	1
15	400212	油门拉索不锈钢螺母（M6）	NUT (M6) Stainless Steel THROTTLE CABLE	4
16	43447A2	转向支架总成	BRACKET ASSEMBLY STEERING	1
16	43447A4	转向支架总成	BRACKET ASSEMBLY Steering	1
17	4000384	支架与转轴管螺丝（M10 x 80）	SCREW (M10 x 80) BRACKET TO SWIVEL TUBE	2

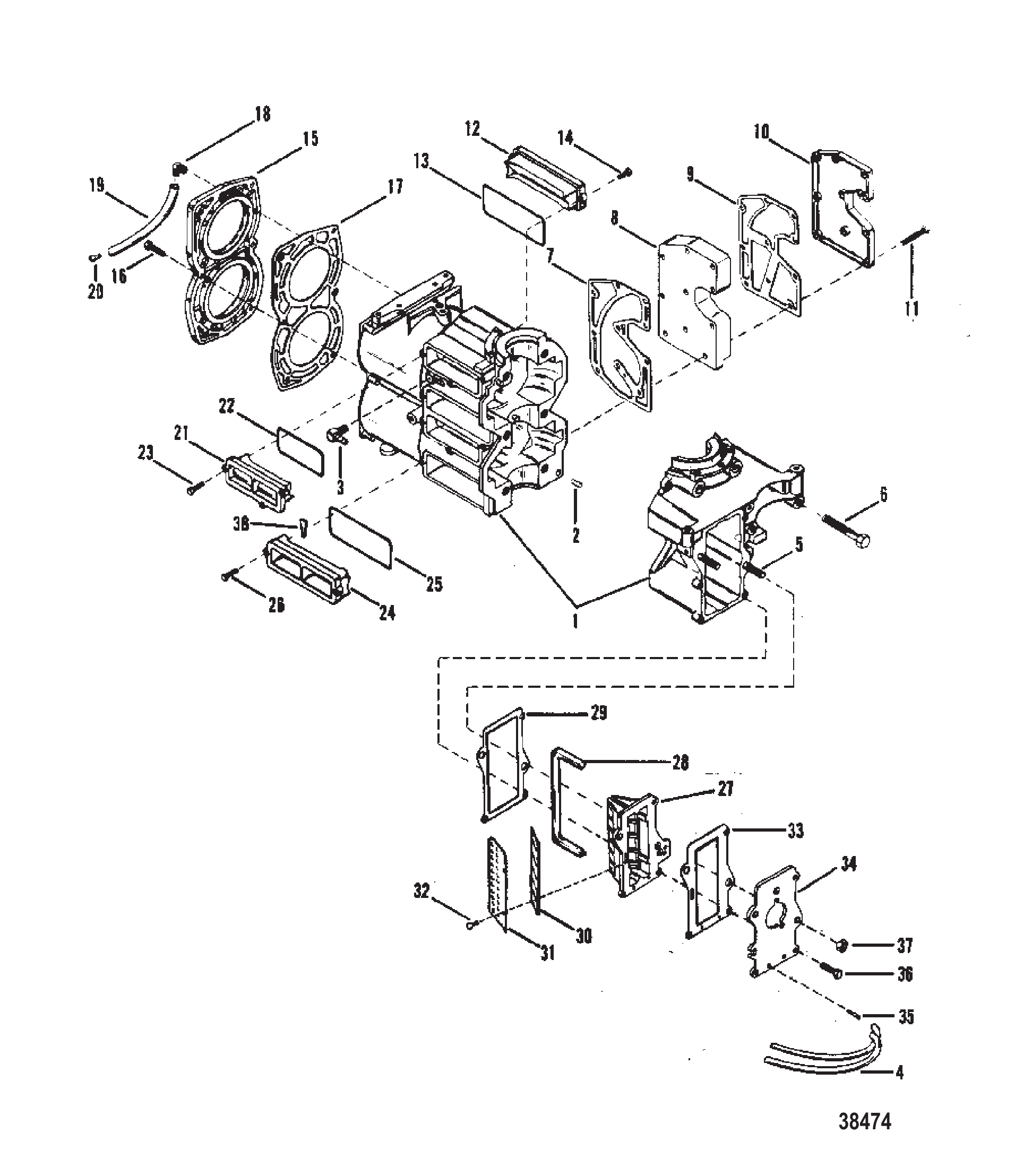

图 3气缸体（美国-0B114230/加拿大-0A719660/比利时-9467987 及以下） BLOCK (US-0B114230/Can-0A719660/Bel-9467987 and Below)

REF	零件编号	中文名称	英文名称	数量
1	9077A4	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	9533T38	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	3
3	71191	泄油软管弯头 (45度)	ELBOW BLEED HOSE (45 DEG.)	2
3	15133	接头	FITTING	2
4	99130122	泄油管 (20英尺散装) (12-1/4")	TUBING (20.00 Feet Bulk) BLEED (12-1/4")	2
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
5	42917	化油器螺柱	STUD CARBURETOR	2
5	429173	螺柱	STUD	2
6	40001209	螺丝 (M10×60) 曲轴箱至气缸体	SCREW (M10 x 60) CRANKCASE TO CYLINDER BLOCK	6
7	414751	排气歧管衬垫	GASKET EXHAUST MANIFOLD	1
7	892158	排气歧管衬垫	GASKET Exhaust Manifold	1
8	92329	排气歧管	MANIFOLD Exhaust	1
9	414991	排气盖衬垫	GASKET SCHAUST COVER	1
10	92330T	排气盖	COVER ECHAUST	1
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	10
12	14407	换气口盖	COVER TRANSFER PORT	2
12	144071	盖板	COVER	2
13	30503	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
13	822370	O型圈 (2.362×.103)	O-RING (2.362 x .103)	2
14	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	4
15	8283A1	气缸体盖总成	COVER ASEMBLY CYLINDER BLOCK	1
16	4000331	螺丝 (M6×30) 盖固定	SCREW (M6 x 30) COVER ATTACHING	6
17	86389	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
18	99664	示警软管弯头	ELBOW TELL TALE HOSE	1
18	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
19	34395A1	示警软管 (8")	HOSE TELL TALE (8")	1
19	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
20	94848	示警软管接头 - 下罩	FITTING TELL TALE HOSE - BOTTOM COWL	1
21	92351	换气口盖	COVER TRANSFER PORT	2
21	14406	盖板	COVER	2
22	86391	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
23	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	6
24	92350	换气口盖	COVER TRANSFER PORT	2
25	33465	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
25	8M0214925	O型圈	O RING	2
26	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	4
27	42471	簧片阀组	REED BLOCK	1
27	14112T	簧片阀组	REED BLOCK	1
28	85977		SEAL Rubber REED BLOCK	1
28	85977002	密封件	SEAL	1
29	41417	簧片阀衬垫	GASKET REED BLOCK	1
29	414172	衬垫	GASKET	1
30	99319	簧片	REED	2
30	816806	簧片	REED	2
31	89793	簧片止挡	STOP Reed	2
31	897931	簧片止挡	STOP Reed	2
32	4005785	螺丝 (M4×10) 簧片固定	SCREW (M4 x 10) REED ATTACHING	4
33	41418	适配板垫片	GASKET ADAPTOR PLATE	1
33	414181	衬垫	GASKET	1
34	41420A1	化油器适配板	PLATE ADAPTOR - CARBURETOR	1
34	41420A3	化油器适配板总成	PLATE ASSEMBLY Carb Adaptor	1
35	56759	适配板倒刺接头 - 泄油软管	FITTING Barbed ADAPTOR PLATE - BLEED HOSE	2
36	40057108	螺丝 (M5×20) 板至簧片座	SCREW (M5 x 20) PLATE TO REED BLOCK	3
36	40019108	螺钉（M5×20）	SCREW (M5 x 20)	3
37	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
38	F1646	换气口盖密封件	SEAL TRANSFER PORT COVER	2
38	85577	螺丝 (2.25英寸)	SCREW (2.25 In.)	2
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

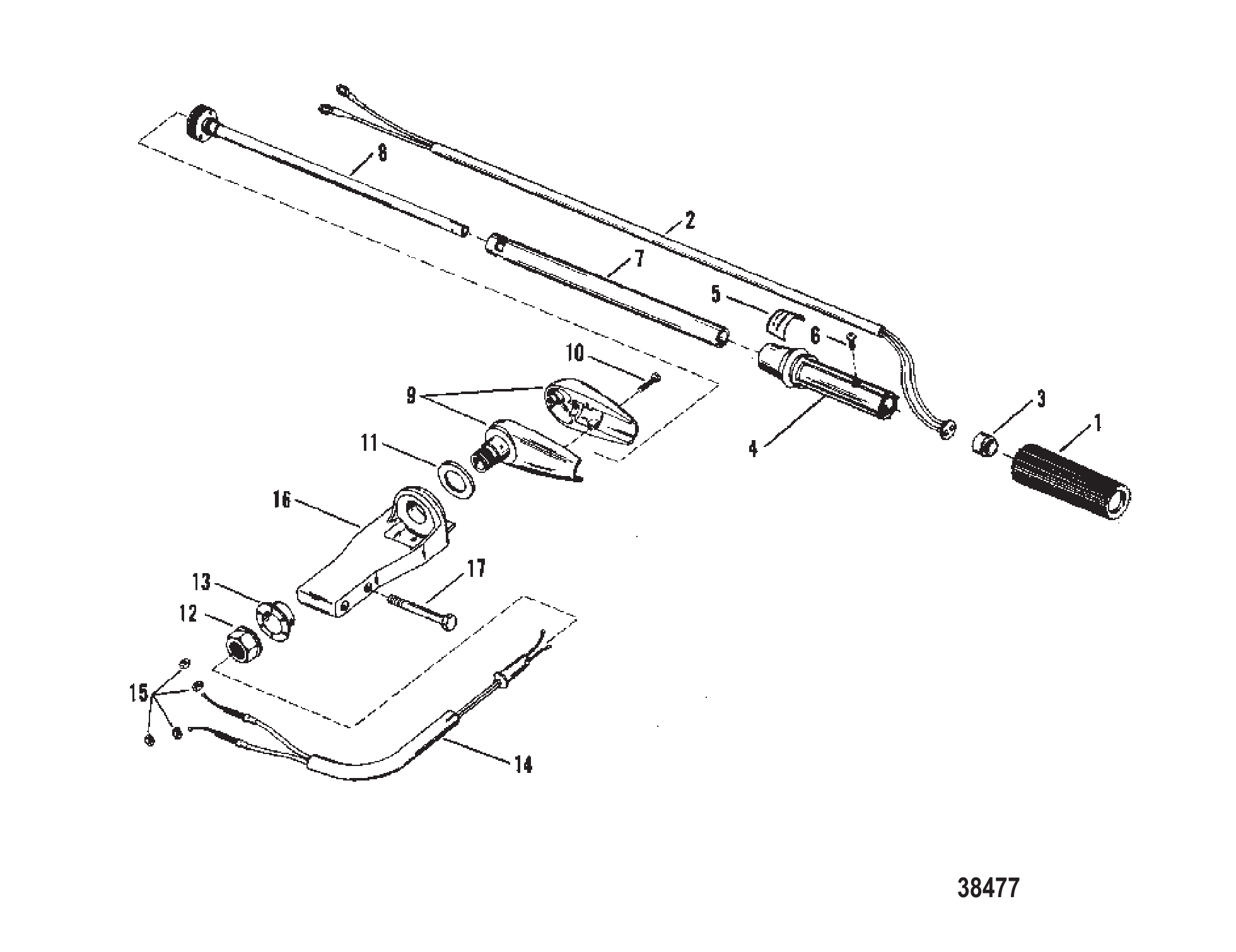

图 4转向手柄总成（Mercury）（手动） STEERING HANDLE ASSEMBLY (MERCURY) (MANUAL)

REF	零件编号	中文名称	英文名称	数量
-	94185A3	转向手柄总成（25马力二冲程）	HANDLE ASSEMBLY Steering (25 Hp 2-Stroke)	1
-	94185A16	转向手柄	STEERING HANDLE	1
1	99589	橡胶握把	GRIP RUBBER	1
1	8M0221732	外握把	GRIP OUTER	1
2	89591A5	停机开关线束总成	HARNESS ASSEMBLY STOP SWITCH	1
3	11099A1	停机开关护套总成	BOOT ASSEMBLY STOP SWITCH	1
4	14025A1	油门手柄总成	HANDLE ASSEMBLY THROTTLE	1
4	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
5	42424	油门标识贴	DECAL THROTTLE	1
5	13239	贴花	DECAL	1
5	140121	油门标识贴	DECAL THROTTLE	1
6	62568	油门手柄螺丝（#10-16 x 0.375）	SCREW (#10-16 x .375) THROTTLE HANDLE	1
7	99333A2	转向管总成	TUBE ASSEMBLY STEERING	1
8	41590A1	管总成	TUBE ASSEMBLY	1
8	975501	管总成	TUBE ASSEMBLY	1
9	94185A4	支架总成	BRACKET ASSEMBLY	1
9	44397A6	ORD 43447A 3	ORD 43447A 3	1
10	4005688	支架夹紧螺丝（M4 x 20）	SCREW (M4 x 20) BRACKET CLAMPING	3
11	57860	支架尼龙垫圈	WASHER NYLON - BRACKET	1
12	34862	支架螺母（1.00-14）	NUT (1.00-14) BRACKET	1
12	859133	螺母(1.00-14)	NUT (1.00-14)	1
13	85973	支架衬套	BUSHING BRACKET	1
14	43242	油门拉索总成	CABLE ASSEMBLY THROTTLE	1
15	400212	油门拉索不锈钢螺母（M6）	NUT (M6) Stainless Steel THROTTLE CABLE	4
16	43447A1	转向支架总成	BRACKET ASSEMBLY STEERING	1
16	43447A3	转向支架总成	BRACKET ASSEMBLY Steering	1
17	4000384	支架与转轴管螺丝（M10 x 80）	SCREW (M10 x 80) BRACKET TOSWIVEL TUBE	1

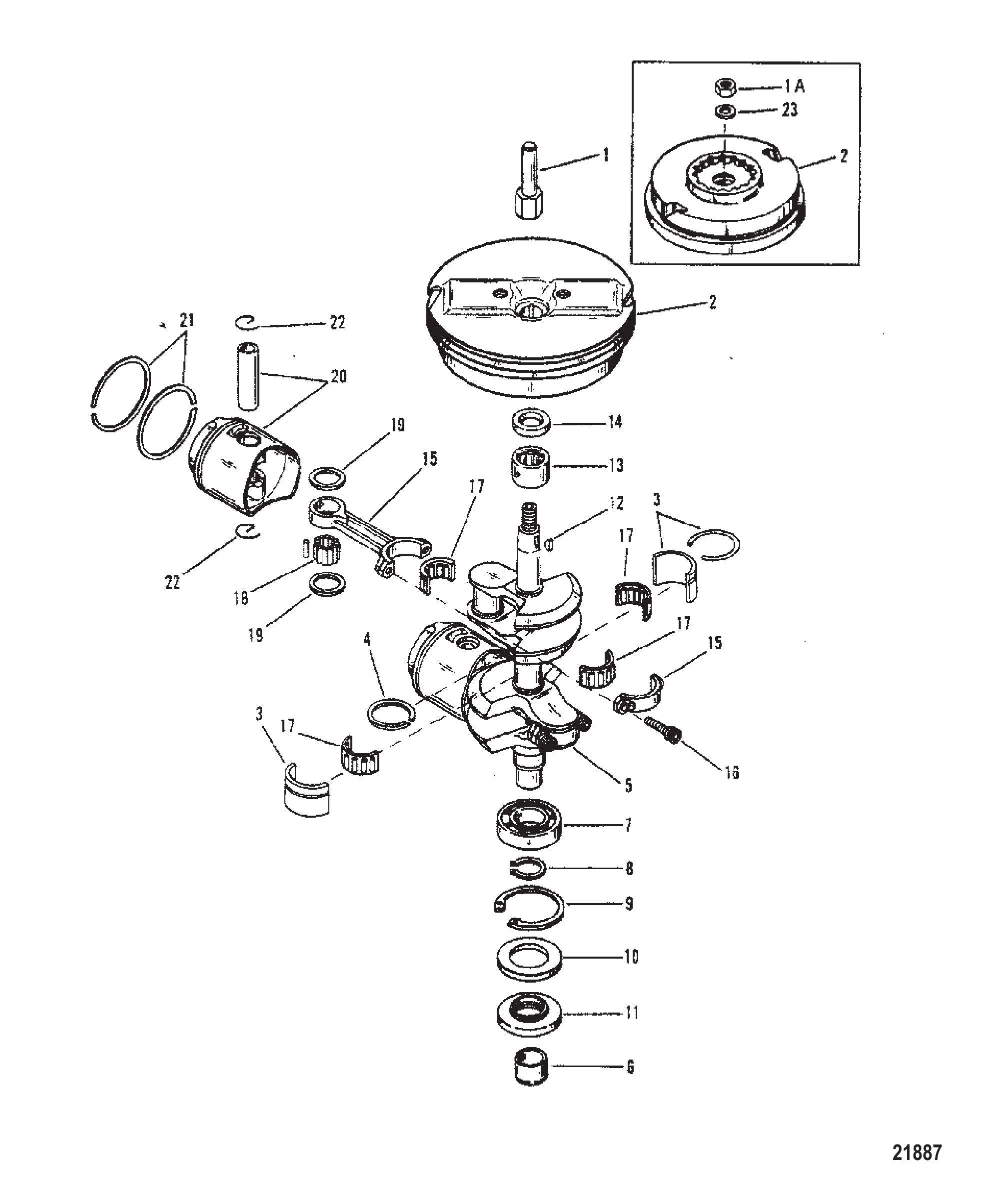

图 5曲轴、活塞和飞轮 CRANKSHAFT, PISTONS AND FLYWHEEL

REF	零件编号	中文名称	英文名称	数量
1	42691	飞轮轴	SHAFT FLYWHEEL	1
1A	818591	螺母(M14)	NUT (M14)	1
2	8908A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T6	飞轮	FLYWHEEL	1
2	818540A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T19	飞轮总成	FLYWHEEL ASY	1
3	17794A1	轴承	BEARING	1
4	818901	主轴承油封	SEAL MAIN BEARING	1
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	818630A1	套筒	SLEEVE	1
7	41341	曲轴下球轴承	BEARING Ball CRANKSHAFT-LOWER	1
8	20940	球轴承卡环(小)(旧设计)	RING Snap BALL BEARING (SMALL)(OLD DESIGN)	1
9	42132	球轴承挡圈	RING Retaining BALL BEARING	1
10	13031	下垫圈	WASHER LOWER	1
11	125661	曲轴下油封	SEAL Oil - Lower CRANKSHAFT	1
12	20094	飞轮驱动半圆键	KEY Woodruff FLYWHEEL DRIVE	1
13	41342	曲轴上滚柱轴承	BEARING Roller CRANKSHAFT-UPPER	1
13	878158	滚柱轴承	BEARING Roller	1
14	125671	曲轴上油封	SEAL Oil - Upper CRANKSHAFT	1
15	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
16	823460	连杆螺钉(M5x16)	SCREW (M5 x 16) CONNECTING ROD	4
17	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
18	42186	活塞端滚针轴承	BEARING Needle PISTON END	48
19	43348	推力轴承	BEARING Thrust	4
19	8M0012297	止推垫圈@2	WASHER-THRST@2	4
20	9747A2	活塞总成(标准)	PISTON ASSEMBLY (STANDARD)	2
20	9747T2	活塞总成	PISTON ASSEMBLY	2
20	9747A4	活塞总成(.015加大)	PISTON ASSEMBLY (.015 O.S.)	2
21	18212A4	活塞环组(标准)	RING SET Piston (STANDARD)	1
21	18212A1	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	2
22	42202	锁紧环	LOCK RING	4
23	824451	垫圈(内径.610x外径.890x厚度.062)	WASHER (.610 Inside Diamter x .890 Outside Diameter x .062)	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

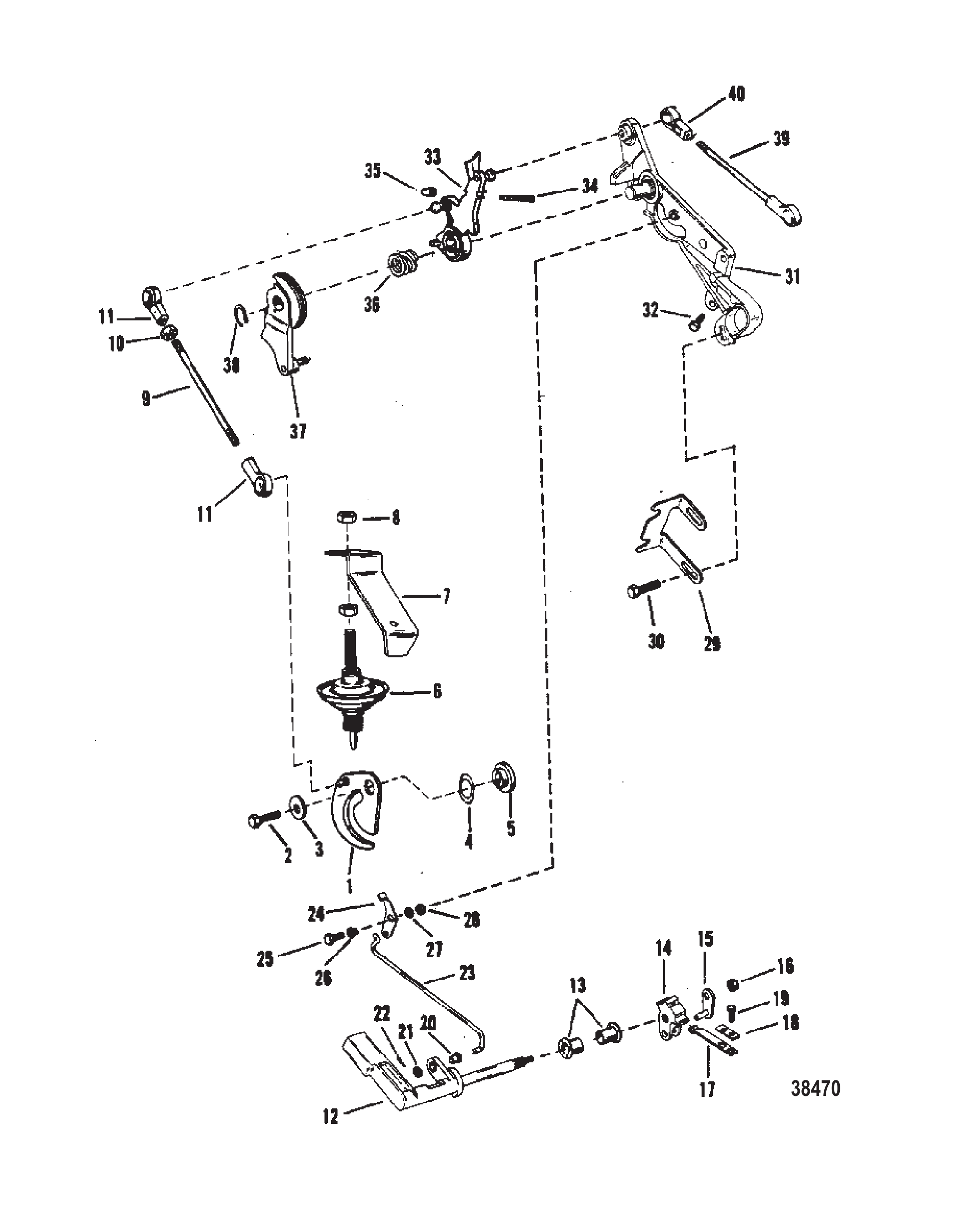

图 6油门和换挡联动装置（Mariner）（手动） THROTTLE AND SHIFT LINKAGE (MARINER)(MANUAL)

REF	零件编号	中文名称	英文名称	数量
1	42903	节气门凸轮	CAM Throttle	1
1	17764A2	节流连杆套件	LINK KIT Throttle	1
1	429032	节气门凸轮	CAM Throttle	1
1	17764A2	节流连杆套件	LINK KIT Throttle	1
2	4000114	螺钉(M5×16)	SCREW (M5 x 16)	1
2	400035	螺钉(M5×16)	SCREW (M5 x 16)	1
2	4000117	螺钉（M5×20）	SCREW (M5 x 20)	1
3	87791	油门凸轮螺丝垫圈	WASHER THROTTLE CAM SCREW	1
4	69150	油门凸轮螺丝波形垫圈	WAVE WASHER THROTTLE CAM SCREW	1
5	14656A1	油门凸轮螺丝衬套	BUSHING THROTTLE CAM SCREW	1
5	17764A2	节流连杆套件	LINK KIT Throttle	1
6	92425	缓冲器	DASHPOT	1
7	93001	缓冲器支架	BRACKET DASHPOT	1
8	22053	缓冲器端子螺母（0.312-24）	NUT (.312-24) DASHPOT TERMINAL	2
9	98463A2	油门拉杆总成	ROD ASSEMBLY Throttle	1
10	68219	节气门杆锁紧螺母(#10-32)不锈钢	NUT (#10-32) Stainless Steel LOCK - THROTTLE ROD	1
11	98465	油门拉杆套筒	SOCKET THROTTLE ROD	2
11	8M0084742	插座	SOCKET	2
12	423301	换挡手柄	HANDLE SHIFT	1
13	60762	换挡手柄衬套	BUSHING SHIFT HANDLE	2
14	423291	换挡杆	LEVER SHIFT	1
15	42358	换挡杆背板	BACKPLATE SHIFT LEVER	1
16	400633	换挡杆螺母(M5)	NUT (M5) SHIFT LEVER	1
16	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
17	39627	定位弹簧	SPRING DETENT	1
18	39601	定位弹簧板	PLATE DETENT SPRING	1
19	400011	定位弹簧及板螺钉(M5x8)	SCREW (M5 x 8) DETENT SPRING AND PLATE	2
20	96202	换挡连杆衬套	BUSHING SHIFT LINK	1
21	89302	换挡连杆垫片(0.203x0.406x0.040)	WASHER (.203 x .406 x .040) SHIFT LINK	1
22	21071	换挡连杆开口销	COTTER PIN SHIFT LINK	1
22	210711	开口销	COTTER PIN	1
23	11042	换挡连杆	LINK SHIFT	1
24	110501	节气门限位杆	LEVER THROTTLE LIMIT	1
25	4000117	节气门限位杆螺钉(M5x20)	SCREW (M5 x 20) THROTTLE LIMIT LEVER	1
26	85095	节气门限位杆衬套	BUSHING THROTTLE LIMIT LEVER	1
26	8M0214959	衬套@5	BUSHING @5	1
27	89302	节气门限位螺钉垫片(0.203x0.406x0.040)	WASHER (.203 x .406 x .040) THROTTLE LIMIT SCREW	1
28	400633	螺母 (M5)	NUT (M5)	1
28	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
29	11039	拉索支架	BRACKET CABLE	1
30	4000178	拉索支架螺钉(M6x25)	SCREW (M6 x 25) CABLE BRACKET	2
30	4000177	螺钉	SCREW	2
31	420262	控制平台	PLATFORM CONTROL	1
31	42026A2	平台	PLATFORM	1
32	4000171	平台至模块螺钉(M6x16)	SCREW (M6 x 16) PLATFORM TO BLOCK	1
33	110382	控制杆	LEVER CONTROL	1
33	110383	杠杆	LEVER	1
34	11859	控制杆螺钉(0.190-32x1.75)	SCREW (.190-32 x 1.75) CONTROL LEVER	1
34	118591	螺钉(0.190-32x1.750)	SCREW (.190-32 x 1.750)	1
35	48039	控制杆螺钉帽	CAP CONTROL LEVER SCREW	1
36	89540	点火提前弹簧	SPRING SPARK ADVANCE	1
37	42343	作动杆	LEVER ACTUATING	1
38	46250	作动杆固定环	RING Retaining ACTUATING LEVER	1
39	98464A5	正时拉杆	TIMING ROD	1
39	817429	正时连杆	TIMING LINK	1
40	98465	正时连杆套筒	SOCKET TIMING LINK	1
40	8M0084742	插座	SOCKET	1

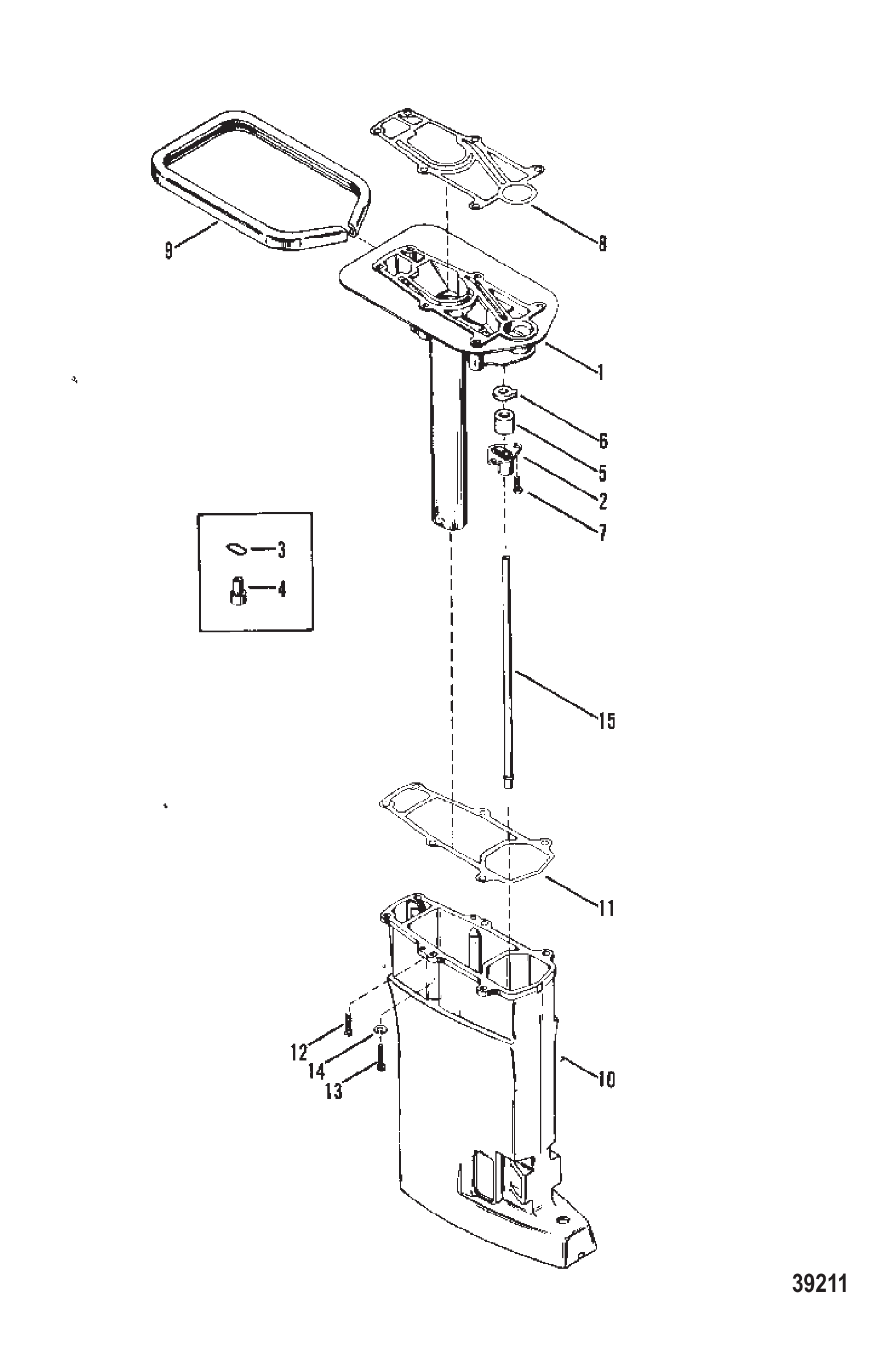

图 7驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	92165A4	隔板总成	PLATE ASSEMBLY	1
1	99702A3	适配板总成	ADAPTOR PLATE ASSEMBLY	1
2	85162	水管壳体	HOUSING WATER TUBE	1
2	96248A1	壳体总成	HOUSING ASSEMBLY	1
3	36390	水管壳体O型圈	O-RING WATER TUBE HOUSING	1
4	85164	水管密封件	SEAL WATER TUBE	1
2	96248A1	水管壳体总成	HOUSING ASSEMBLY WATER TUBE	1
5	25329	水管密封件	SEAL WATER TUBE	1
6	96247	水管隔套	SPACER WATER TUBE	1
6	889715	水管隔套	SPACER Water Tube	1
7	400035	螺钉 (M5 x 16) 壳体至适配板	SCREW (M5 x 16) HOUSING TO ADAPTOR PLATE	2
8	85111	适配板垫片	GASKET ADAPTOR PLATE	1
8	41670006	适配板垫片	GASKET Adaptor Plate	1
9	87357	适配板密封件	SEAL Adaptor Plate	1
9	158662	密封件	SEAL	1
10	7904A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
10	8747A1	壳体总成	HOUSING ASSEMBLY	1
10	7906A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
10	8749A1	壳体总成	HOUSING ASSEMBLY	1
10	8747A1	壳体总成	HOUSING ASSEMBLY	1
10	8749A1	壳体总成	HOUSING ASSEMBLY	1
11	85109	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
11	96286	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
11	433374	驱动轴壳体垫片	GASKET Drive Shaft Housing	1
12	400035	螺钉(M5 x 16)驱动轴壳体至板	SCREW (M5 x 16) DRIVESHAFT HOUSING TO PLATE	2
13	4000360	螺钉驱动轴壳体至板(60MM)	SCREW DRIVESHAFT HOUSING TO PLATE (60MM)	6
13	1993870	螺钉(M8 x 70)	SCREW (M8 x 70)	6
14	4002317	垫圈(8.90 X 17.0 X 1.9SS)驱动轴壳体螺钉	WASHER (8.90 X 17.0 X 1.9SS) DRIVESHAFT HOUSING SCREW	6
15	85116	水管	TUBE Water	1
15	86292	水管	TUBE Water	1
-	85168A80	衬垫套件	GASKET SET	1

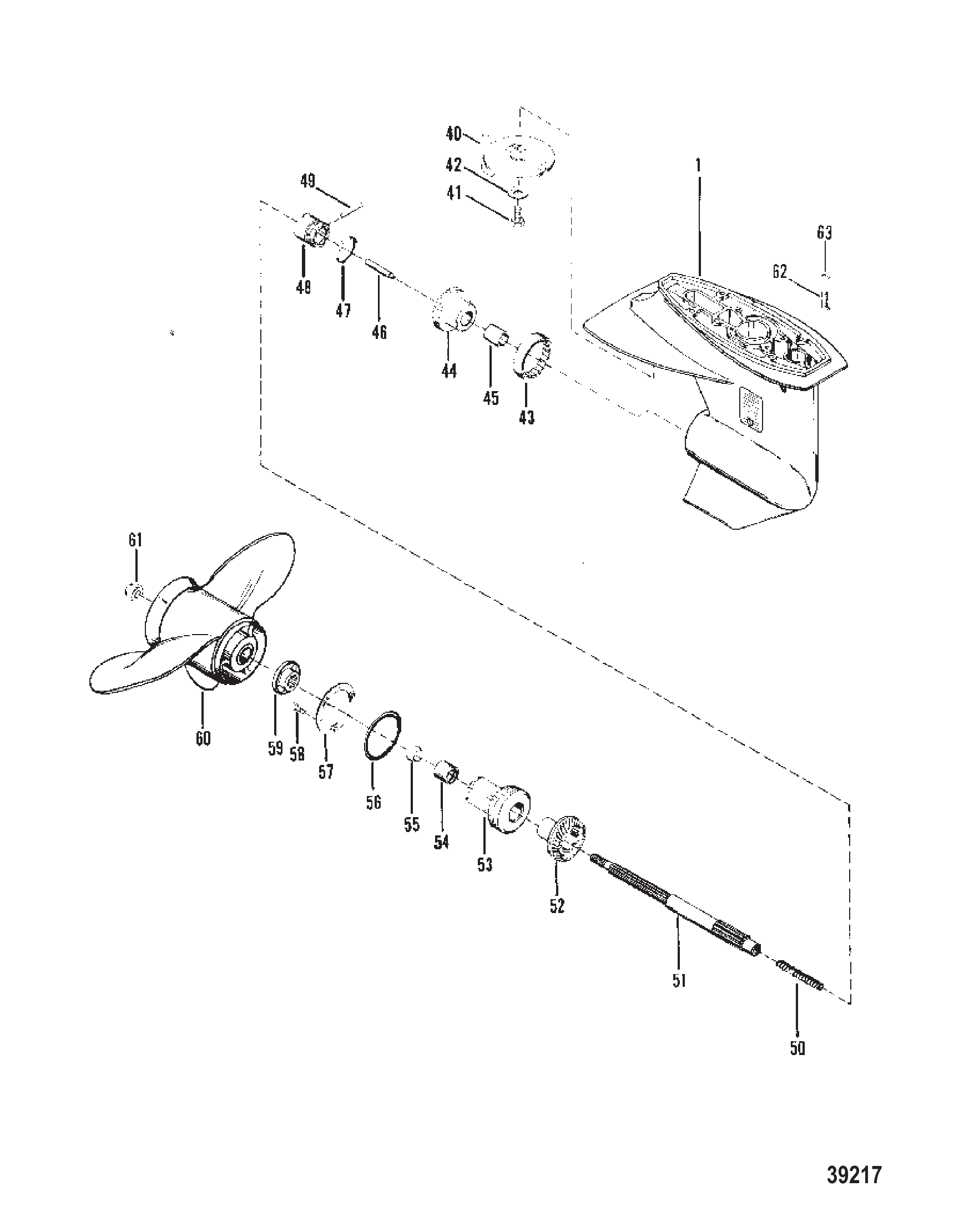

图 8齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	8157A7	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8157A8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
1	8157A6	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
40	94286	平衡鳍板	TRIM TAB	1
40	94286T1	平衡鳍板	TRIM TAB	1
41	4000352	平衡片螺丝(M8 x 20)	SCREW (M8 x 20) TRIM TAB	1
42	85169	平衡片螺丝锁紧垫圈	TAB WASHER TRIM TAB SCREW	1
43	85555A1	圆锥滚子轴承总成	BEARING ASSEMBLY Roller TAPERED	1
44	85135A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
45	85557	前进齿轮衬套	BUSHING FORWARD GEAR	1
46	85094	凸轮从动件	FOLLOWER Cam	1
47	38114	十字销固定弹簧	SPRING RETAINING - CROSS PIN	1
48	85133	滑动离合器	CLUTCH SLIDING	1
49	85093	离合器至螺旋桨轴销	PIN CLUTCH TO PROPELLER SHAFT	1
49	8M0020999	十字销	PIN CROSS	1
50	88680	螺旋桨轴压缩弹簧	SPRING COMPRESSION - PROPELLER SHAFT	1
51	85134	螺旋桨轴	PROPELLER SHAFT	1
51	8166231	螺旋桨轴	PROPELLER SHAFT	1
52	85131	倒挡齿轮	GEAR Reverse	1
52	99542A1	倒档齿轮	REVERSE GEAR	1
53	85136A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	99906T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
54	21739	滚柱轴承	BEARING Roller	1
55	98283	轴承座油封	SEAL Oil BEARING CARRIER	1
56	85549	轴承座O型圈	O-RING BEARING CARRIER	1
57	87293	齿轮箱盖板	PLATE GEAR HOUSING	1
58	91909	齿轮箱盖板螺丝(16MM)	SCREW COVER TO GEAR HOUSING (16MM)	3
58	90883	螺钉(M5×16)	SCREW (M5 x 16)	3
59	85128A1	螺旋桨推力毂总成	THRUST HUB ASSEMBLY PROPELLER	1
59	858498	推力毂总成	THRUST HUB ASSEMBLY	1
60	86848A4	螺旋桨总成	PROPELLER ASSEMBLY	1
60	19640A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	1
61	88228	螺旋桨螺母	PROP NUT	1
62	4000353	齿轮箱螺丝(M8 x 25)	SCREW (M8 x 25) GEAR HOUSING	4
63	4002317	齿轮箱螺丝垫圈(8.90 X 17.0 X 1.9SS)	WASHER (8.90 X 17.0 X 1.9SS) GEAR HOUSING SCREW	4
-	85168A80	衬垫套件	GASKET SET	1
-	85090A1	水泵密封套件	SEAL KIT Water Pump	1

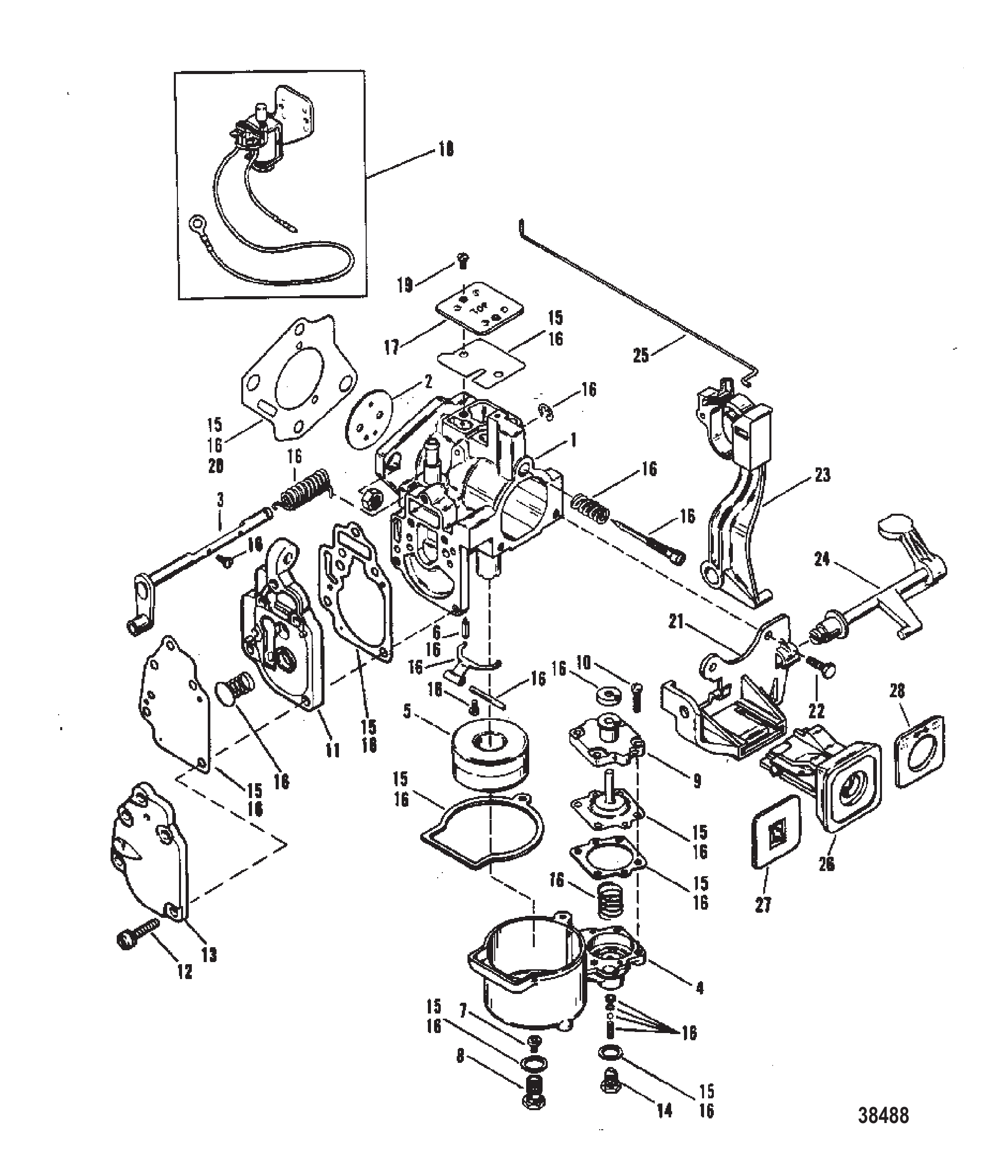

图 9化油器（WMC-13/13A/14/14A/15/15A/16/16A） CARBURETOR (WMC-13/13A/14/14A/15/15A/16/16A)

REF	零件编号	中文名称	英文名称	数量
1	8888A7	化油器	CARBURETOR	1
1	8888A16	化油器维修包	CARBURETOR KIT	1
1	8676A9	化油器	CARBURETOR	1
1	8888A16	化油器维修包	CARBURETOR KIT	1
1	8889A9	化油器	CARBURETOR	1
1	8889A20	化油器维修包	CARBURETOR KIT	1
1	8667A11	活塞总成	PISTON ASSEMBLY	1
1	848389A4	活塞总成	PISTON ASSY	1
2	9640	油门阀	VALVE Throttle	1
2	9646	油门阀	VALVE Throttle	1
3	9167	油门轴	SHAFT Throttle	1
3	9695	油门轴	SHAFT Throttle	1
3	9695	油门轴	SHAFT Throttle	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9170	进油针阀	VALVE INLET NEEDLE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	5317	主燃油喷嘴(.046)	JET (.046) MAIN FUEL	1
7	6201	量孔(.080)	JET (.080)	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	9165	膜片盖	COVER DIAPHRAGM	1
9	813618	盖板	COVER	1
10	9174	膜片盖螺丝	SCREW DIAPHRAGM COVER	4
10	9697	螺钉	SCREW	4
10	9697	膜片盖螺丝	SCREW DIAPHRAGM COVER	4
11	15827A1	燃油泵体	BODY FUEL PUMP	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9637	燃油泵盖	COVER FUEL PUMP	1
14	9535	堵头	PLUG	1
14	879194017	塞套件	PLUG KIT	1
15	9645	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	9644	维修零件包	REPAIR PARTS KIT	1
16	8237072	维修套件	REPAIR KIT	1
17	9699	盖板	PLATE COVER	1
17	9177	安装板	PLATE	1
18	9182	电动阻风门	CHOKE Electric	1
18	823433	电动阻风门	CHOKE Electric	1
18	9701	电动阻风门	CHOKE Electric	1
18	823433	电动阻风门	CHOKE Electric	1
19	9172	盖板螺钉	SCREW COVER PLATE	2
19	9696	螺钉	SCREW	2
19	9696	螺钉	SCREW	2
20	41449	化油器衬垫	GASKET CARBURETOR	1
20	192061	化油器衬垫	GASKET Carburetor	1
21	41717	注油器支架	BRACKET PRIMER	1
21	41717T	支架	BRACKET	1
22	400018	螺丝 (M5×12) 支架至化油器	SCREW (M5 x 12) BRACKET TO CARBURETOR	2
23	42515A1	快怠速杆总成	LEVER ASSEMBLY FAST IDLE	1
24	41703	注油杆	LEVER PRIMER	1
25	12733	怠速线	IDLE WIRE	1
26	110242	注油器执行器	ACTUATOR PRIMER	1
27	12654	指示牌	INSTRUCTION PLATE	1
28	12653	指示牌	INSTRUCTION PLATE	1

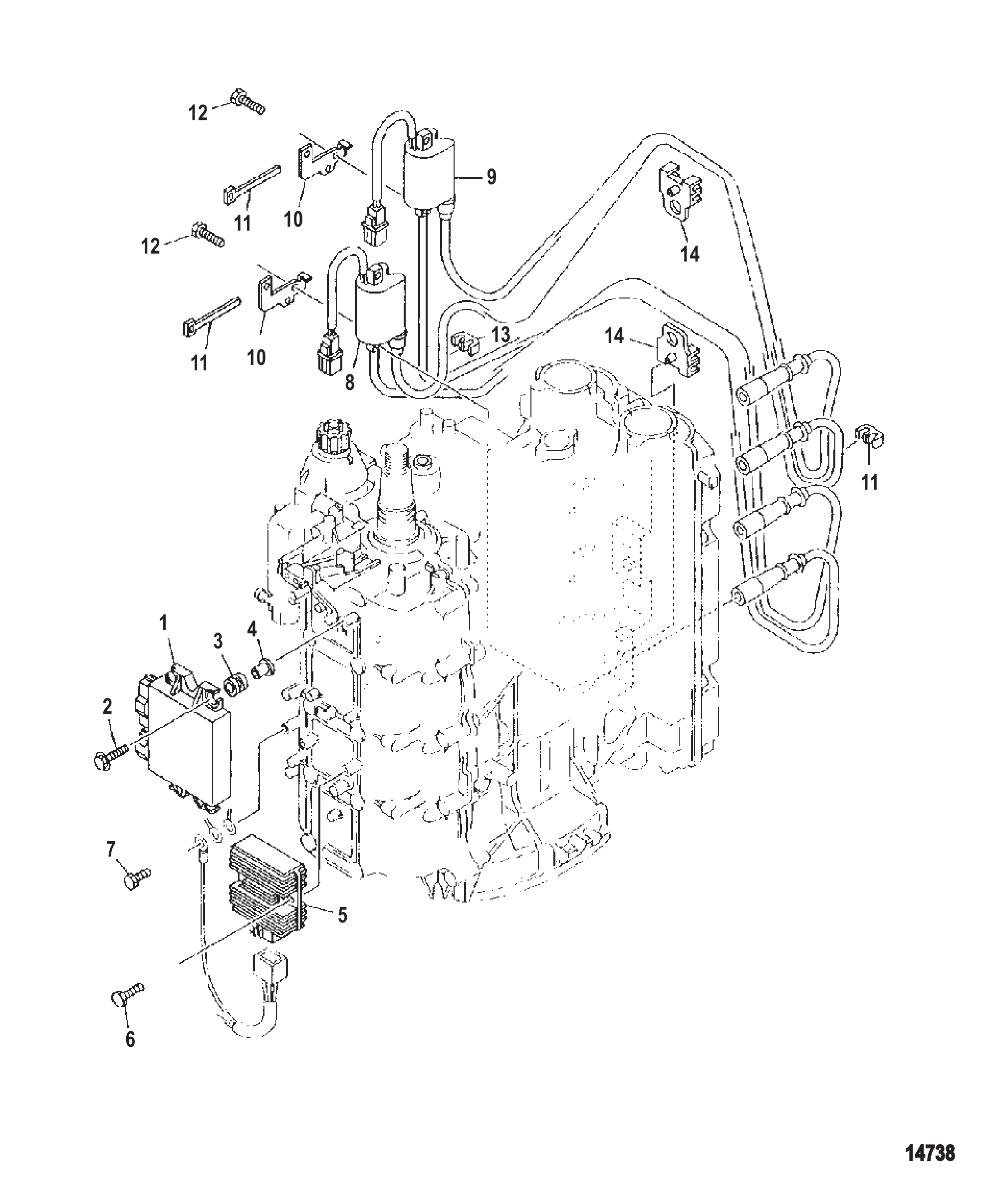

图 10点火组件 IGNITION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	880891T11	发动机控制单元ECU	ECU Engine Control Unit	1
1	880891T14	发动机控制单元ECU	ECU Engine Control Unit	1
1	880891T1	发动机控制总成	CONTROL ASSEMBLY Engine	1
1	880891T14	发动机控制单元ECU	ECU Engine Control Unit	1
2	804270	螺栓(M6×28)	BOLT (M6 x 28)	4
3	881304	护孔环	GROMMET	4
4	82851M	衬套	BUSHING	4
4	804344003	轴环	COLLAR	4
5	881346T	整流器/调节器总成	RECTIFIER/REGULATOR ASSEMBLY	1
6	853536	螺栓(M6x25)	BOLT (M6 x 25)	2
7	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
8	880893T10	点火线圈	COIL Ignition	1
8	8M0123821	点火线圈	IGNITION COIL	1
9	880892T	点火线圈	COIL Ignition	1
9	8M0121257	点火线圈	IGNITION COIL	1
10	881345	安装板	PLATE	2
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
12	853536	螺栓(M6x25)	BOLT (M6 x 25)	4
13	804276	卡箍	CLAMP	2
14	804277	卡箍	CLAMP	2

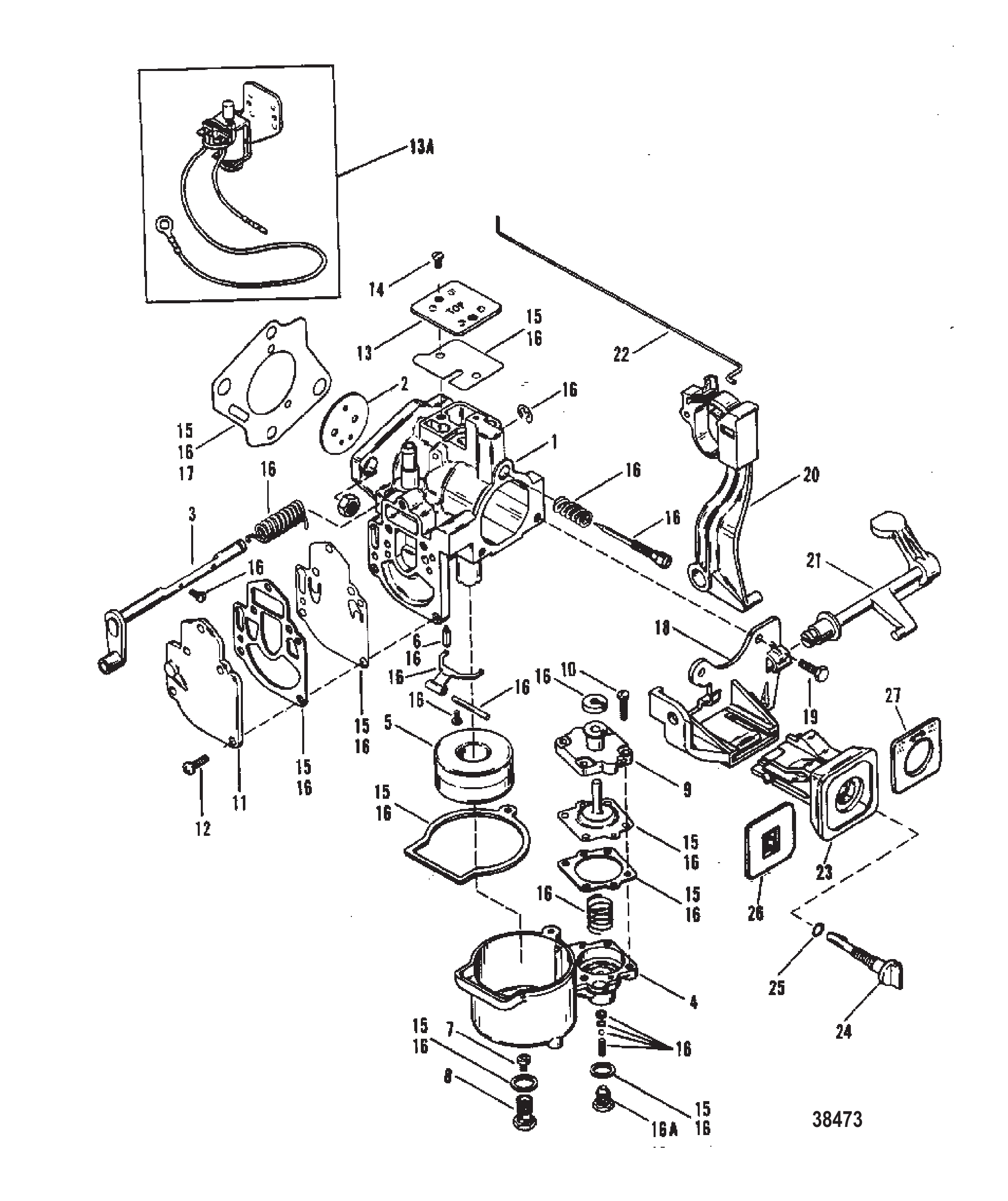

图 11化油器（WMC-9/10/11/12/24/25/26/27） CARBURETOR (WMC-9/10/11/12/24/25/26/27)

REF	零件编号	中文名称	英文名称	数量
1	8888A7	化油器	CARBURETOR	1
1	8888A16	化油器维修包	CARBURETOR KIT	1
1	8676A5	化油器	CARBURETOR	1
1	8888A16	化油器维修包	CARBURETOR KIT	1
1	8889A4	化油器	CARBURETOR	1
1	8889A20	化油器维修包	CARBURETOR KIT	1
1	8889A9	化油器	CARBURETOR	1
1	8889A20	化油器维修包	CARBURETOR KIT	1
1	8677A7	化油器	CARBURETOR	1
1	8677A11	化油器	CARBURETOR	1
1	8677A11	化油器	CARBURETOR	1
2	9168	油门阀	VALVE Throttle	1
2	9640	油门阀	VALVE Throttle	1
2	9180	油门阀	VALVE Throttle	1
2	9646	油门阀	VALVE Throttle	1
3	9167	油门轴	SHAFT Throttle	1
3	9695	油门轴	SHAFT Throttle	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9170	进油针阀	VALVE INLET NEEDLE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	5317	主燃油喷嘴(.046)	JET (.046) MAIN FUEL	1
7	6201	量孔(.080)	JET (.080)	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	9165	隔膜盖	COVER DIPHRAGM	1
9	813618	盖板	COVER	1
10	9174	隔膜盖螺丝	SCREW DIAPRAGM COVER	4
10	9697	螺钉	SCREW	4
11	9375	燃油泵盖	COVER FUEL PUMP	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9173	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9177	盖板(手动)	PLATE COVER (MANUAL)	1
13A	9182	电动阻风门	CHOKE Electric	1
13A	823433	电动阻风门	CHOKE Electric	1
14	9172	盖板螺钉	SCREW COVER PLATE	2
14	9696	螺钉	SCREW	2
15	9377	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	9376	维修套件	REPAIR KIT	1
16	96481	维修套件	REPAIR KIT	1
16	9647	维修零件包	REPAIR PARTS KIT	1
16	8237072	维修套件	REPAIR KIT	1
16A	9535	堵头	PLUG	1
16A	879194017	塞套件	PLUG KIT	1
17	41449	化油器衬垫	GASKET CARBURETOR	1
17	192061	化油器衬垫	GASKET Carburetor	1
18	41717	注油器支架	BRACKET PRIMER	1
18	41717T	支架	BRACKET	1
19	400018	螺丝 (M5×12) 支架至化油器	SCREW (M5 x 12) BRACKET TO CARBURETOR	2
20	42515A1	快怠速杆总成	LEVER ASSEMBLY FAST IDLE	1
21	41703	注油杆	LEVER PRIMER	1
22	12733	怠速线	IDLE WIRE	1
23	110241	注油器执行器	ACTUATOR PRIMER	1
24	11043	快怠速旋钮-早期水星型号	KNOB FAST IDLE - EARLY MARINER MODELS	1
25	62702	O型圈(.301 x .070)	O-RING (.301 x .070)	1
25	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	1
26	12654	指示牌	INSTRUCTION PLATE	1
27	12653	指示牌	INSTRUCTION PLATE	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

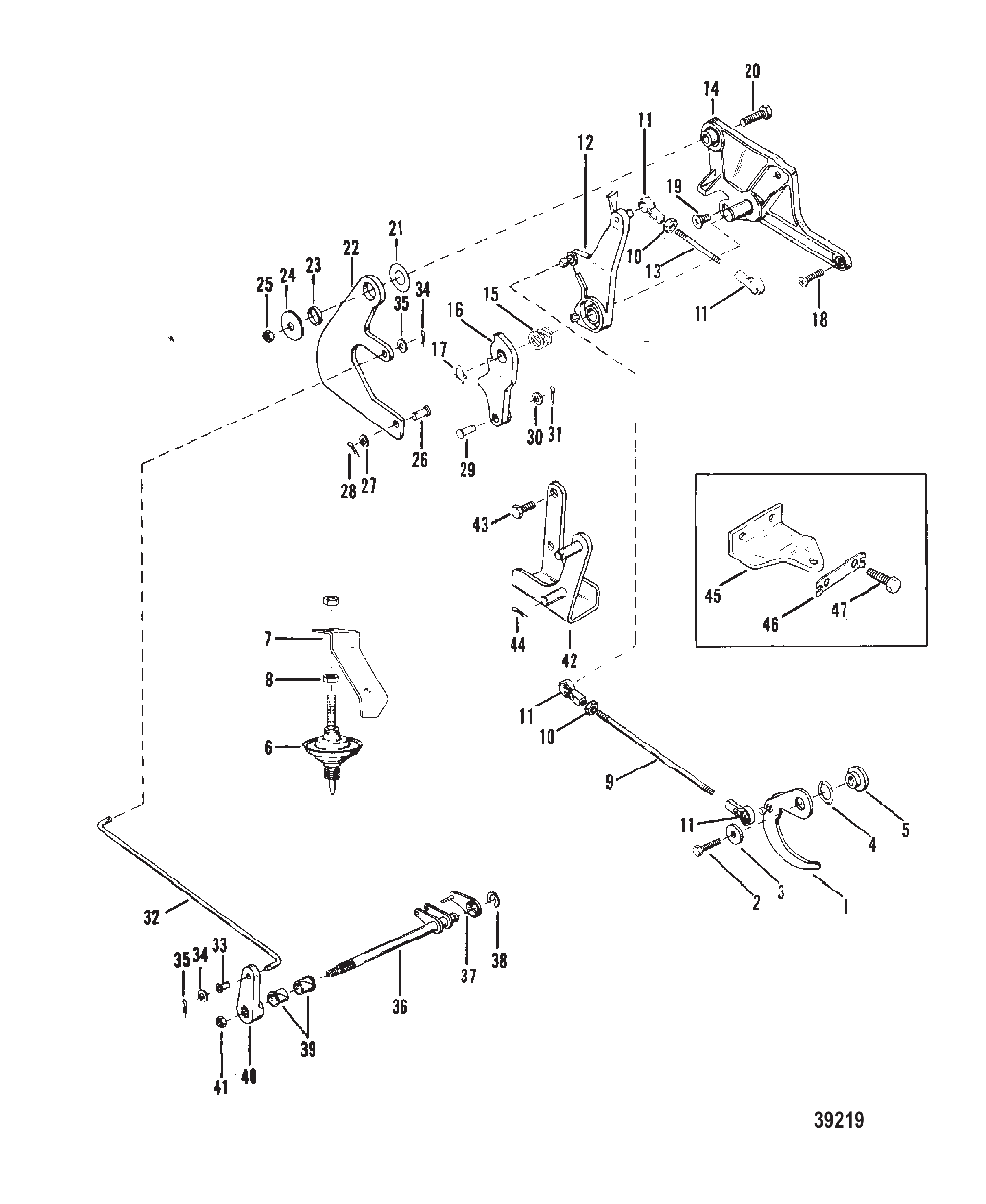

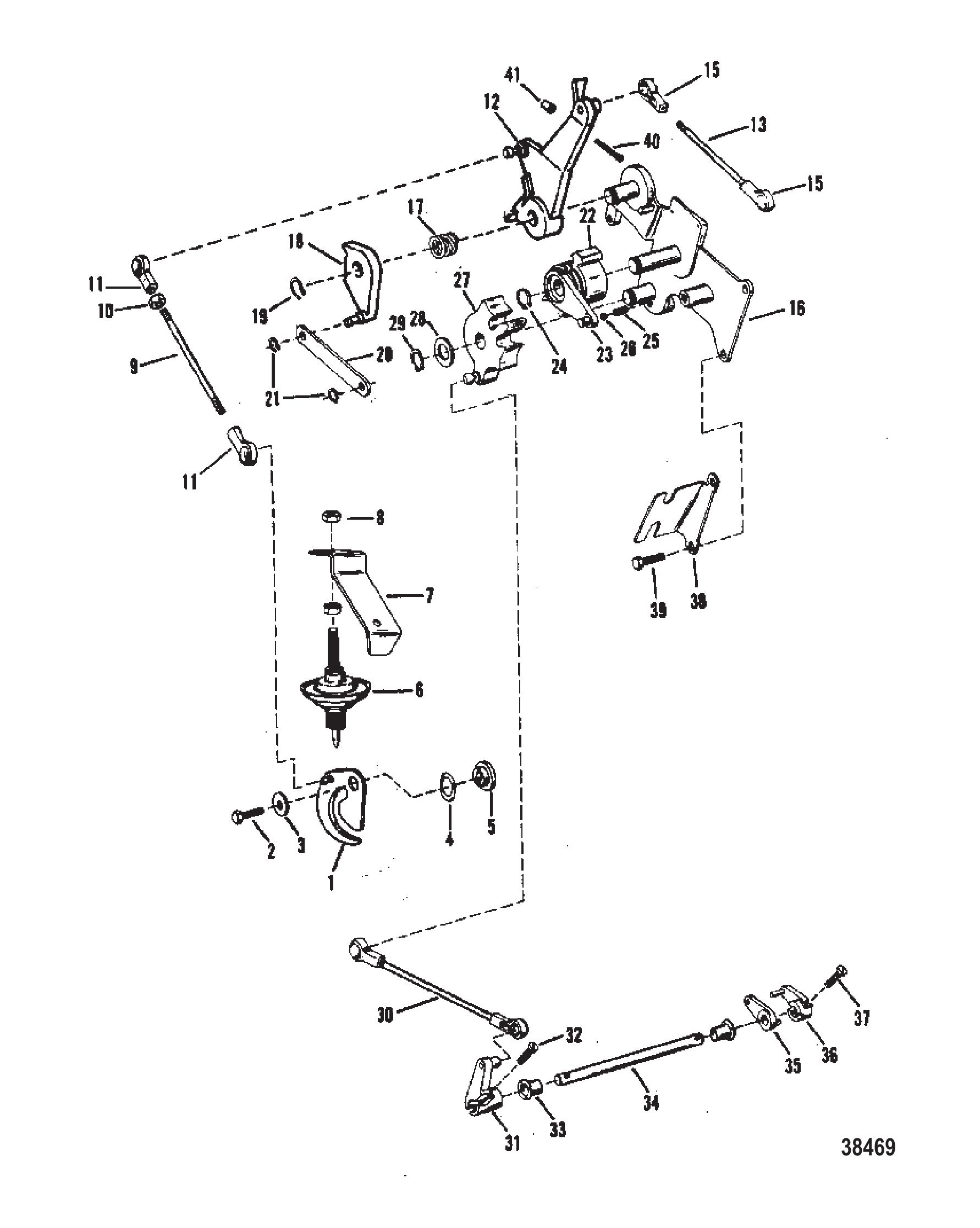

图 12油门和换挡联动装置（Mercury）（手动） THROTTLE AND SHIFT LINKAGE (MERCURY)(MANUAL)

REF	零件编号	中文名称	英文名称	数量
1	42903	节气门凸轮	CAM Throttle	1
1	17764A2	节流连杆套件	LINK KIT Throttle	1
1	429032	节气门凸轮	CAM Throttle	1
1	17764A2	节流连杆套件	LINK KIT Throttle	1
2	4000114	螺钉(M5×16)	SCREW (M5 x 16)	1
2	400035	螺钉(M5×16)	SCREW (M5 x 16)	1
2	4000117	螺钉（M5×20）	SCREW (M5 x 20)	1
3	87791	油门凸轮螺丝垫圈	WASHER THROTTLE CAM SCREW	1
4	69150	油门凸轮螺丝波形垫圈	WAVE WASHER THROTTLE CAM SCREW	1
5	14656A1	油门凸轮螺丝衬套	BUSHING THROTTLE CAM SCREW	1
5	17764A2	节流连杆套件	LINK KIT Throttle	1
6	92425	缓冲器	DASHPOT	1
7	93001	缓冲器支架	BRACKET DASHPOT	1
8	22053	阻尼器端子螺母(0.312-24)	NUT (.312-24) SADHPOT TERMINAL	2
9	98463A2	油门拉杆总成	ROD ASSEMBLY Throttle	1
10	68219	油门拉杆锁紧螺母（#10-32不锈钢）	NUT (#10-32) Stainless Steel LOCK-THROTTLE ROD	1
11	98465	油门拉杆套筒	SOCKET THROTTLE ROD	2
11	8M0084742	插座	SOCKET	2
12	43360	控制杆	LEVER CONTROL	1
12	433601	控制杆	LEVER Control	1
13	98464A5	正时拉杆	TIMING ROD	1
13	817429	正时连杆	TIMING LINK	1
15	98465	正时杆套筒	SOCKET TIMING ROD	1
15	8M0084742	插座	SOCKET	1
16	12863A1	控制平台	PLATFORM CONTROL	1
17	89540	点火提前弹簧	SPRING SPARK ADVANCE	1
18	93779	作动杆	LEVER ACTUATIN	1
18	92362A1	杠杆	LEVER	1
19	46250	作动与控制杆固定环	RING Retaining ACTUATING AND CONTROL LEVER	1
20	86717	节气门/提前连杆	LINK THROTTLE/ADVANCE	1
20	92362A1	杠杆	LEVER	1
21	86731	节气门/提前连杆固定环	RETANINING RING THROTTLE/ADVANCE LINK	2
22	94152	齿轮	GEAR	1
22	94085A1	齿轮	GEAR	1
23	92362	主杆	LEVER PRIMARY	1
23	92362A1	杠杆	LEVER	1
24	46250	主杆与齿轮固定环	RING Retaining PRIMARY LEVER AND GEAR	1
24	93006	定位球弹簧	SPRING DETENT BALL	1
24	8M0215005	弹簧	SPRING	1
26	93008	定位球	BALL DETENT	1
27	94085	换挡齿轮套	GEAR SHIRT	1
27	94085A1	齿轮	GEAR	1
28	49339	换挡齿轮垫片(0.8125)	WASHER (.8125) SHIFT GEAR	1
29	46250	换挡齿轮固定环	RING Retaining SHIFT GEAR	1
30	962552	换挡连杆	SHIFT ROD	1
30	193852	连接杆	LINK	1
31	94084	换挡拉杆	LEVER SHIFT ROD	1
32	4001589	换挡杆	LEVER Shift Rod	1
33	60762	换挡轴衬套	BUSHING SHIFT SHAFT	2
34	87794	水平换挡轴	SHIFT SHAFT HORIZONITAL	1
35	93744	换挡轴杆	LEVER SHIFT SHAFT	1
36	93928	杠杆杆端	LEVER ROD END	1
37	4001588	螺丝(M4 x 20)杆端杠杆	SCREW (M4 x 20) ROD END LEVER	1
38	94186	油门线支架(早期型号)	BRACKET THROTTLE CABLE (EARLY MODELS)	1
39	4000171	螺丝(M6 x 16)支架至气缸体	SCREW (M6 x 16) BRACKET TO CYLINDER BLOCK	3
40	11859	螺丝(.190-32 x 1.75)怠速止动-控制杆	SCREW (.190-32 x 1.75) IDLE STOP - CONTROL LEVER	1
40	118591	螺钉(0.190-32x1.750)	SCREW (.190-32 x 1.750)	1
41	48039	控制杆螺钉帽	CAP CONTROL LEVER SCREW	1

图 13服务/支持材料 SERVICE/SUPPORT MATERIAL

REF	零件编号	中文名称	英文名称	数量
0	88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
0	881980	维修手册	SERVICE MANUAL	1
0	881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
0	10225030	用户手册	OWNERS MANUAL	1
0	858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
0	8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
0	880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
0	881828	星形头工具套件	STARBIT TOOL KIT	1
0	881649A01	贴花套件	DECAL SET	1
0	881649A05	贴花套件	DECAL SET	1
0	881840A01	贴花套件	DECAL SET	1
0	881840A03	贴花套件	DECAL SET	1
0	881840A03	贴花套件	DECAL SET	1
0	881840A05	贴花套件	DECAL SET	1
0	881650A01	贴花套件	DECAL SET	1
0	881650A03	贴花套件	DECAL SET	1
0	881650A03	贴花套件	DECAL SET	1
0	881702A01	贴花套件	DECAL SET	1
0	881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
0	881839A02	EPA标签信息贴花	Decal EPA Label Information	1
0	881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
0	816834A1	转速表	TACHOMETER	1
0	816932A1	温度表	TEMPERATURE GAUGE	1
0	86306	适配器	ADAPTER	1
0	86306A01	适配器	ADAPTER	1
0	817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
0	821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
0	8M0074845	ORD 8M0098264	ORD 8M0098264	1
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
0	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
0	883040A1	转速表模块套件	TACH MODULE KIT	1

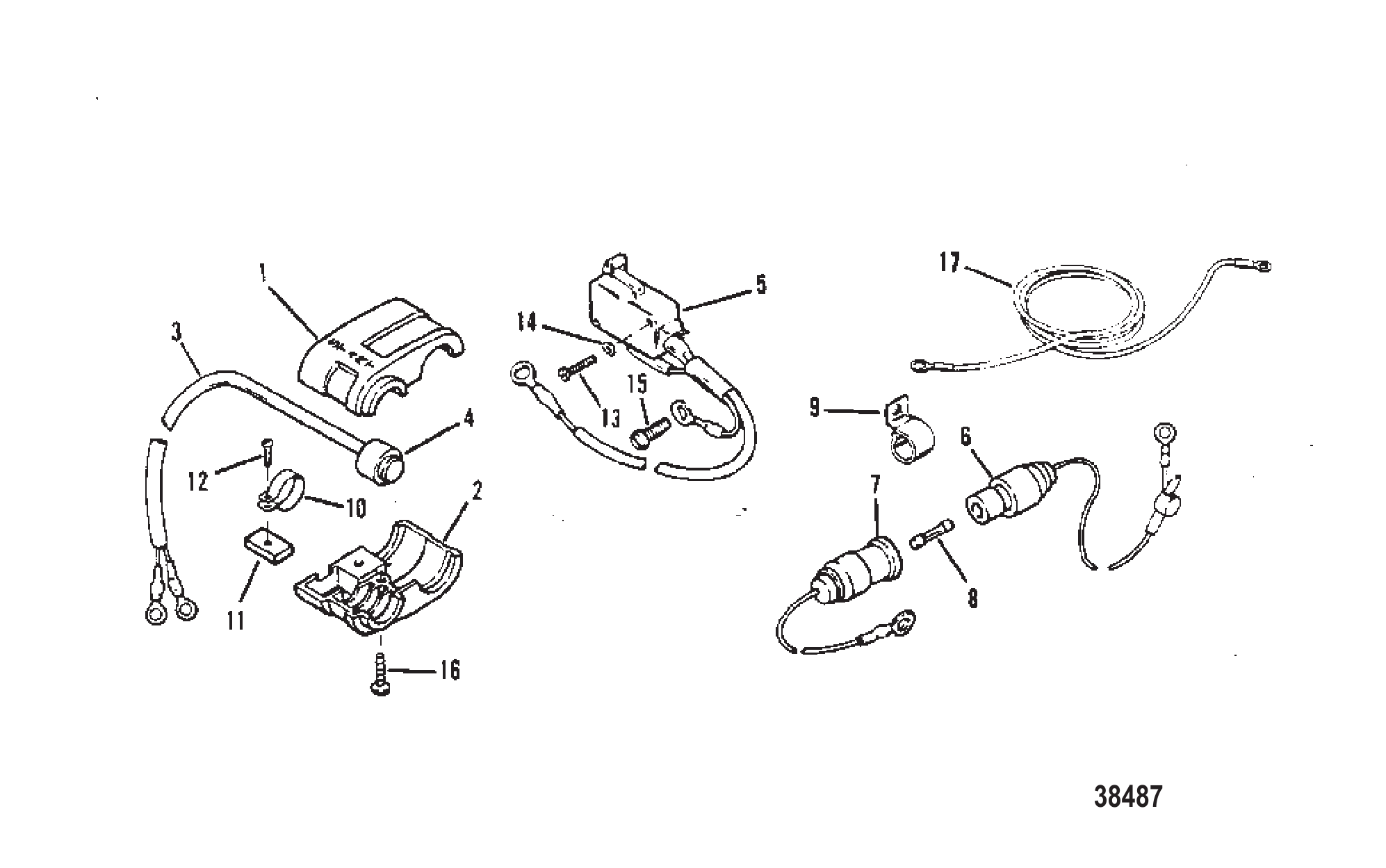

图 14线束和启动组件 HARNESS AND START COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	95815	启动开关上盖	COVER START SWITCH (TOP)	1
2	95828	启动开关下盖	COVER START SWITCH (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	11099A1	启动开关防尘罩总成	BOOT ASSEMBLY START SWITCH	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
5	93479A4	开关总成	SWITCH ASSEMBLY	1
6	95084A2	保险丝线束总成-早期型号	CABLE ASSEMBLY FUSE - EARLY MODELS	1
7	95084A3	保险丝线束总成-早期型号	CABLE ASSEMBLY FUSE - EARLY MODELS	1
8	79091	20安培保险丝-早期型号	FUSE 20 Ampere EARLY MODELS	1
8	8M0207796	保险丝20安培	FUSE 20 AMP	1
9	55098	J型线夹总成-早期型号	J CLIP WIRE ASSEMBLY - EARLY MODELS	1
9	8M0024808	J型夹	J-CLIP	1
10	95814	束带夹	STRAP CLAMP	1
11	95813	束带夹紧固件	FASTENER CLAMP STRAP	1
12	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
12	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
13	4005727	螺钉	SCREW	2
14	45771	垫圈	WASHER	2
15	62568	开关线螺丝(#10-16 x .375)	SCREW (#10-16 x .375) SWITCH WIRE	1
16	69570	盖板螺丝(#10-16 x .750)	SCREW (#10-16 x .750) COVER	1
17	79139A20	红色线束总成-后期型号	CABLE ASSEMBLY (RED) - LATER MODELS	1

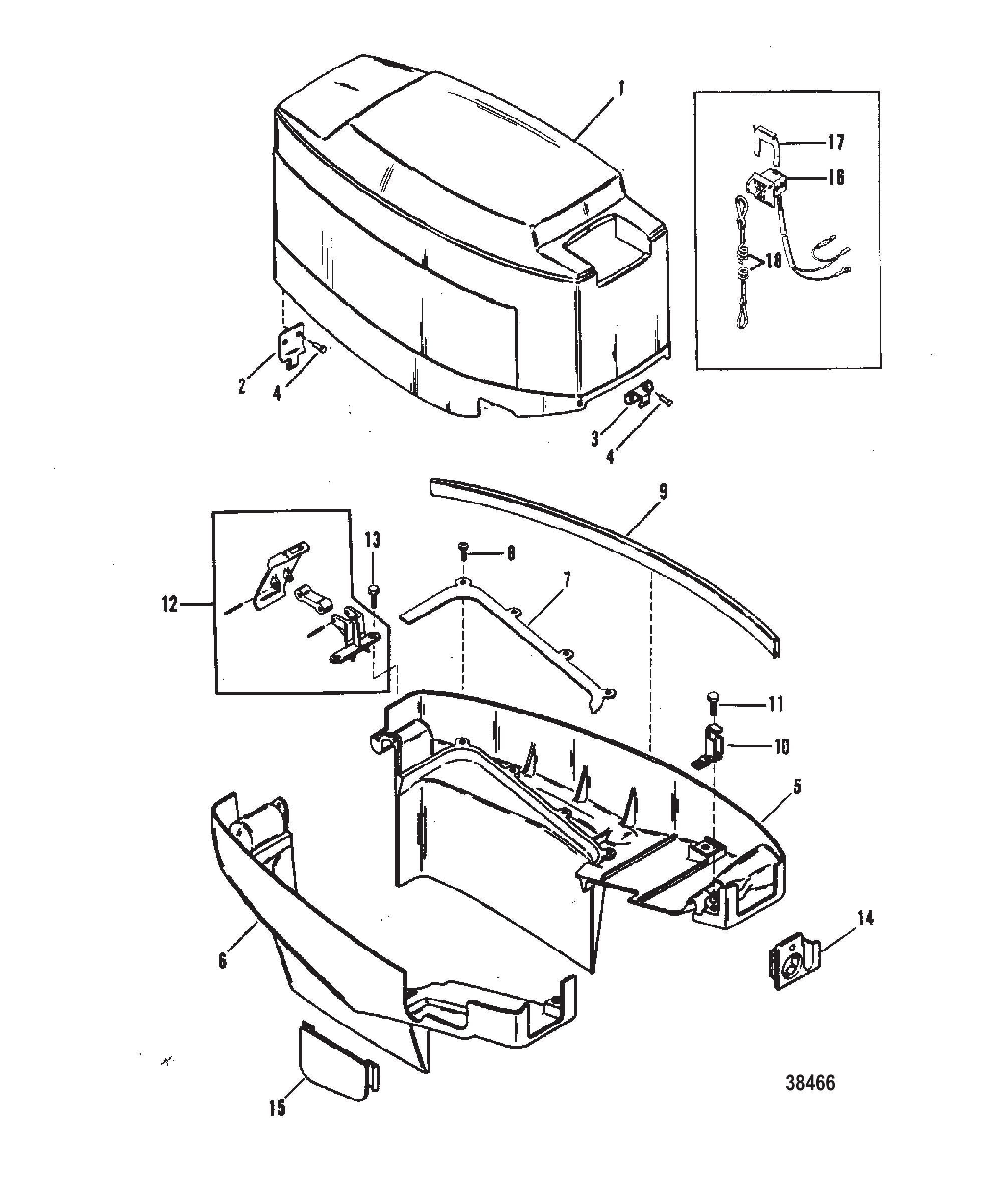

图 15外罩（Mercury） COWLS (MERCURY)

REF	零件编号	中文名称	英文名称	数量
1	8869A8	顶盖总成	TOP COWL ASSEMBLY	1
1	9163A22	顶罩-黑色	COWL-TOP-BLACK	1
2	43515	机罩铰链锁扣	HINGE COWL LATCH	1
3	43555	顶罩支架	BRACKET TOP COWL	1
4	400018	螺钉(M5 x 12)铰链至顶罩	SCREW (M5 x 12) HINGE TO TOP COWL	4
5	9107A2	底罩总成左舷	BOTTOM COWL ASSEMBLY PORT	1
6	9108A1	底罩总成右舷	BOTTOM COWL ASSEMBLY STARBOARD	1
7	85982	底罩板	PLATE BOTTOM COWL	2
7	15865	安装板	PLATE	2
8	70332	螺钉(#10-16 x .500)板至底罩	SCREW (#10-16 x .500) PLATE TO BOTTOM COWL	8
8	95700	螺钉(#10-16 x .50)	SCREW (#10-16 x .50)	8
9	15067A1	底罩密封条	SEAL BOTTOM COWL	2
10	43514	底罩锁扣	LATCH BOTTOM COWL	1
11	400018	螺钉(M5 x 12)锁扣至底罩	SCREW (M5 x 12) LATCH TO BOTTOM COWL	2
12	43554A5	后机罩锁扣	LATCH COWL-REAR	1
13	400018	螺钉(M5 x 12)支架至底罩	SCREW (M5 x 12) BRACKET TO BOTTOM COWL	2
14	11281	燃油入口盖	COVER FUEL INLET	1
15	41604	底罩板	PLATE BOTTOM COWL	1
15	416041	底罩板	PLATE BOTTOM COWL	1
16	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
17	12044	止动开关固定座	RETANER STOP SWITCH	1
17	8M0032846	黄铜固定座	RETAINER Brass	1
18	15920A54	拉绳总成	LANYARD ASSEMBLY	1
18	15920Q54	拉绳总成	LANYARD ASSEMBLY	1

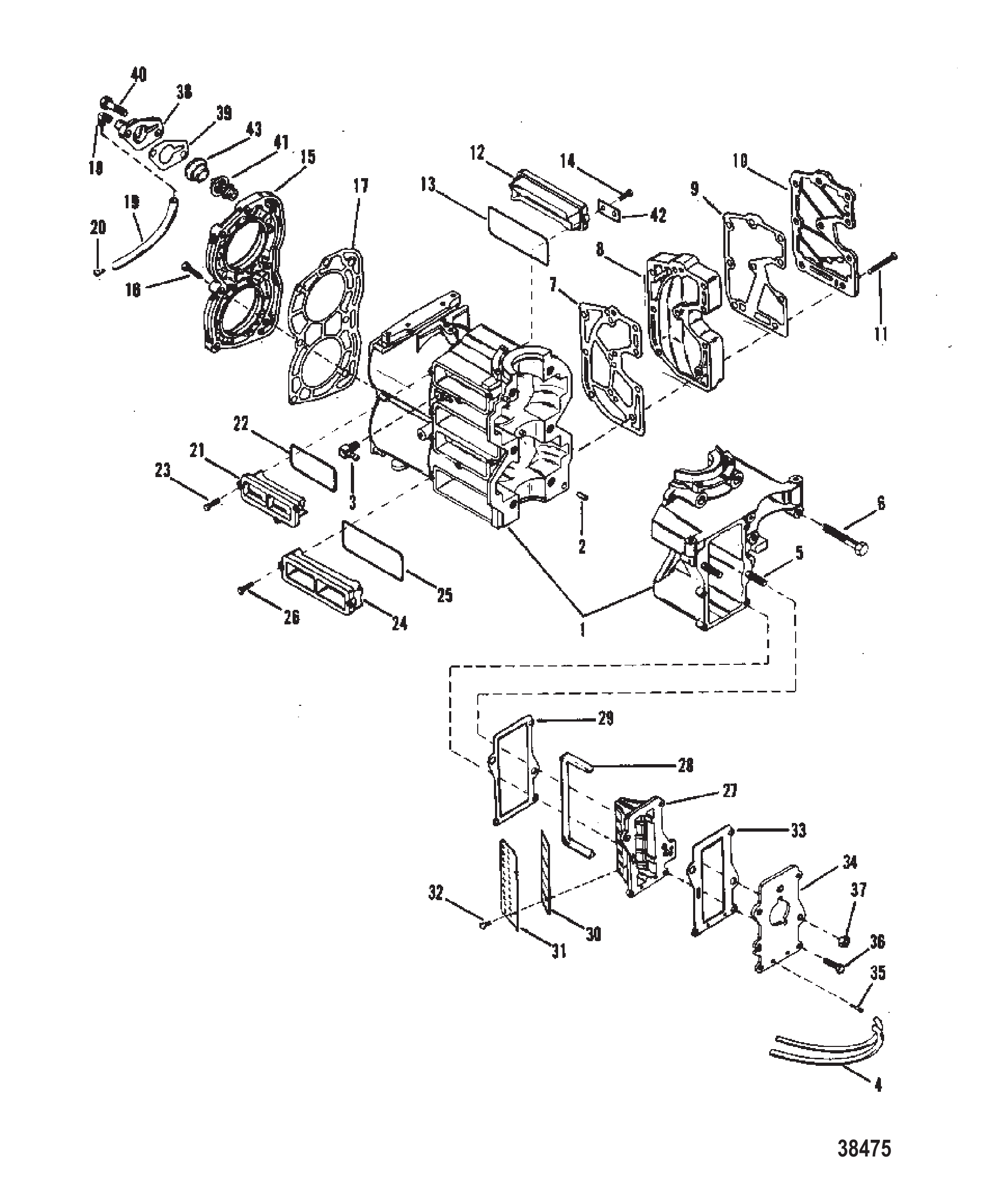

图 16气缸体（美国-0B114231/加拿大-0A719661/比利时-9467988 及以上） BLOCK (US-0B114231/Can-0A719661/Bel-9467988 and Up)

REF	零件编号	中文名称	英文名称	数量
1	9533A3	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	9533T39	ORD 872- 9533T38	ORD 872- 9533T38	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	3
3	15133	泄油软管接头 (45度)	FITTING BLEED HOSE (45 DEG.)	2
4	99130122	泄油管 (20英尺散装) (12-1/4")	TUBING (20.00 Feet Bulk) BLEED (12-1/4")	2
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
5	42917	化油器螺柱	STUD CARBURETOR	2
5	429173	螺柱	STUD	2
6	40001209	螺丝 (M10×60) 曲轴箱至气缸体	SCREW (M10 x 60) CRANKCASE TO CYLINDER BLOCK	6
7	414753	排气歧管衬垫	GASKET EXJAUST MANIFOLD	1
7	892158	排气歧管衬垫	GASKET Exhaust Manifold	1
8	923291	排气歧管	MANIFOLD Exhaust	1
8	92329F03	排气歧管	MANIFOLD Exhaust	1
9	414993	排气盖衬垫	GASKET EXHAUST COVER	1
9	892157	排气歧管盖衬垫	GASKET Exhaust Manifold Cover	1
10	923301	排气盖	COVER EXHAUST	1
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	10
12	14407	换气口盖	COVER TRANSFER PORT	2
12	144071	盖板	COVER	2
13	30503	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
13	822370	O型圈 (2.362×.103)	O-RING (2.362 x .103)	2
14	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	4
15	82821	气缸体盖总成	COVER ASEMBLY CYLINDER BLOCK	1
15	8282A1	盖总成	COVER ASSEMBLY	1
16	4000331	螺丝 (M6×30) 盖固定	SCREW (M6 x 30) COVER ATTACHING	5
17	863891	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
17	863893	衬垫	GASKET	1
18	99664	示警软管弯头	ELBOW TELL TALE HOSE	1
18	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
19	34395A1	示警软管 (8")	HOSE TELL TALE (8")	1
19	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
20	94848	示警软管接头 - 下罩	FITTING TELL TALE HOSE - BOTTOM COWL	1
21	14406	换气口盖	COVER TRANSFER PORT	2
22	86391	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
23	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	6
24	14408	换气口盖	COVER TRANSFER PORT	2
25	26722	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
26	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	4
27	42471	簧片阀组	REED BLOCK	1
27	14112T	簧片阀组	REED BLOCK	1
28	85977		SEAL Rubber REED BLOCK	1
28	85977002	密封件	SEAL	1
29	41417	衬垫	GASKET	1
29	414172	衬垫	GASKET	1
30	99319	簧片	REED	2
30	816806	簧片	REED	2
31	89793	簧片止挡	STOP Reed	2
31	897931	簧片止挡	STOP Reed	2
32	4005785	螺丝 (M4×10) 簧片固定	SCREW (M4 x 10) REED ATTACHING	4
33	41418	适配板垫片	GASKET ADAPTOR PLATE	1
33	414181	衬垫	GASKET	1
34	41420A1	化油器板	PLATE CARBURETOR	1
34	41420A3	化油器适配板总成	PLATE ASSEMBLY Carb Adaptor	1
35	56759	适配板倒刺接头 - 泄油软管	FITTING Barbed ADAPTOR PLATE - BLEED HOSE	2
36	40057108	螺丝 (M5×20) 板至簧片座	SCREW (M5 x 20) PLATE TO REED BLOCK	3
36	40019108	螺钉（M5×20）	SCREW (M5 x 20)	3
37	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
38	143171	节温器盖	COVER THERMOSTAT	1
39	14318	节温器盖衬垫	GASKET THERMOSTAT COVER	1
39	14318005	衬垫	GASKET	1
40	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
41	14586	节温器	THERMOSTAT	1
42	12627	绑带	STRAP	1
43	62386	节温器衬垫	GASKET THERMOSTAT	1
43	8M0204714	衬垫@4	GASKET @4	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

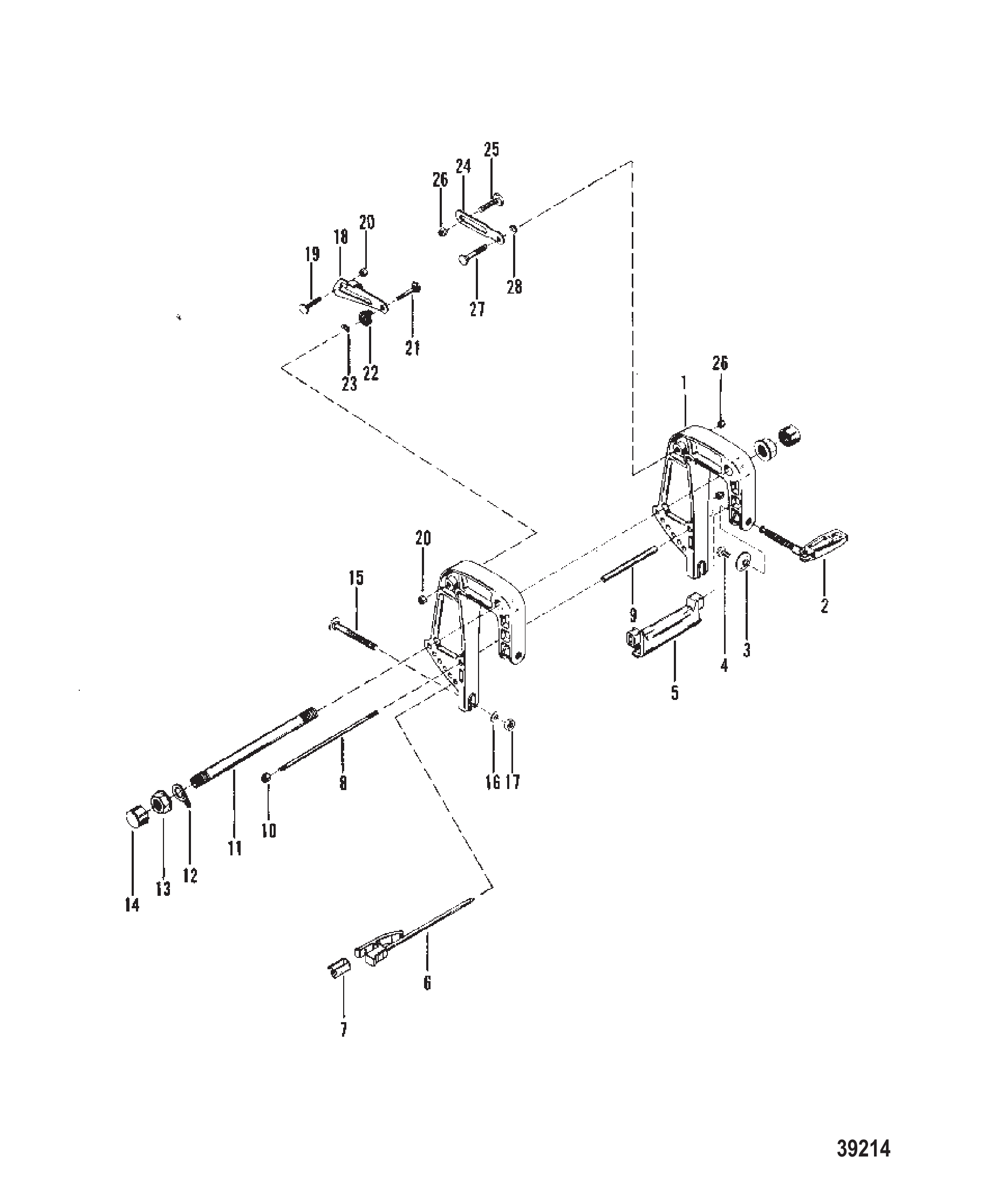

图 17夹具支架总成 CLAMP BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8466A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
1	8863A1	夹箍支架	CLAMP BRACKET	2
2	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
3	818884	垫圈	WASHER	2
4	76804	垫圈固定螺丝	SCREW WASHER ATTACHING	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	85155	提手	HANDLE CARRYING	1
6	99929A1	倾斜销总成	PIN ASSEMBLY Tilt	1
6	97296A1	倾斜销总成	PIN ASSEMBLY Tilt	1
6	99929A1	倾斜销总成	PIN ASSEMBLY Tilt	1
7	90884	倾斜销弹簧卡扣	CLIP Spring TILT PIN	1
8	85099	夹紧支架螺柱	STUD CLAMP BRACKET	1
9	85100	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
10	400213	螺母(M8)不锈钢夹紧支架螺柱	NUT (M8) Stainless Steel CLAMP BRACKET STUD	2
11	85151	倾斜管	TILT TUBE	1
12	30954	安全卡扣	CLIP SAFETY	1
12	8M0085928	卡扣	CLIP	1
13	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
14	53078	倾斜管端盖	CAP TILT TUBE	2
15	69064	螺栓(.312-18 x 2.750)夹紧支架至艉板	BOLT (.312-18 x 2.750) CLAMP BRACKET TO TRANSOM	2
16	67981	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
17	67980	螺母(.312-18)夹紧支架螺栓	NUT (.312-18) CLAMP BRACKET BOLT	2
17	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	2
18	96965	倾斜止动杆-左舷侧	LEVER TILT STOP - PORT SIDE	1
19	41433	螺钉(.250-28 x 1.00)杆至旋转支架	SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET	1
20	35045	螺母(.250-28)倾斜止动杆螺钉	NUT (.250-28) TILT STOP LEVER SCREW	1
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
21	41524	螺钉(.250-28 x 1.75)杆至夹紧支架	SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET	1
22	85167	倾斜止动杆螺钉弹簧	SPRING TILT STOP LEVER SCREW	1
22	44581	弹簧	SPRING	1
23	31030	倾斜止动杆螺钉波形垫圈	WAVE WASHER TILT STOP LEVER SCREW	1
24	90901	倾斜止动带-右舷侧	STRAP TILT STOP - STARBOARD SIDE	1
25	41433	螺钉(.250-28 x 1.00)杆至旋转支架	SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET	1
26	35045	螺母(.250-28)倾斜止动杆螺钉	NUT (.250-28) TILT STOP LEVER SCREW	1
26	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
27	41524	螺钉(.250-28 x 1.75)杆至夹紧支架	SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET	1
28	31030	倾斜止动杆螺钉波形垫圈	WAVE WASHER TILT STOP LEVER SCREW	1

图 18油门和换挡联动装置（电动） THROTTLE AND SHIFT LINKAGE (ELECTRIC)

REF	零件编号	中文名称	英文名称	数量
1	87997A1	节气门凸轮	CAM Throttle	1
1	96096	节气门凸轮	CAM Throttle	1
2	4000114	油门凸轮与曲轴箱螺丝（M5 x 16）	SCREW (M5 x 16) THROTTLE CAM TO CRANKCASE	1
2	400035	螺钉(M5×16)	SCREW (M5 x 16)	1
3	87791	油门凸轮螺丝垫圈	WASHER THROTTLE CAM SCREW	1
4	69150	油门凸轮螺丝波形垫圈	WAVE WASHER THROTTLE CAM SCREW	1
5	86968	油门凸轮螺丝衬套	BUSHING THROTTLE CAM SCREW	1
5	17764A2	节流连杆套件	LINK KIT Throttle	1
6	92425	缓冲器	DASHPOT	1
7	93001	缓冲器支架	BRACKET DASHPOT	1
8	22053	缓冲器端子螺母（0.312-24）	NUT (.312-24) DASHPOT TERMINAL	2
9	98463A1	油门拉杆总成	ROD ASSEMBLY Throttle	1
9	98463A2	油门拉杆总成	ROD ASSEMBLY Throttle	1
10	68219	油门拉杆锁紧螺母（#10-32不锈钢）	NUT (#10-32) Stainless Steel LOCK-THROTTLE ROD	1
11	98465	油门拉杆套筒	SOCKET THROTTLE ROD	2
11	8M0084742	插座	SOCKET	2
12	92730	控制杆	LEVER CONTROL	1
13	98464A1	正时拉杆	TIMING ROD	1
13	817429	正时连杆	TIMING LINK	1
14	95037	控制平台	PLATFOM CONTROL	1
14	44299	平台	PLATFORM	1
15	89540	点火提前弹簧	SPRING SPARK ADVANCE	1
16	95034	作动杆	LEVER ACTUATING	1
17	46250	挡圈	RING Retaining	1
18	40057108	控制平台螺丝（M5 x 20）	SCREW (M5 x 20) CONTROL PLATFORM	2
18	40019108	螺钉（M5×20）	SCREW (M5 x 20)	2
19	40037126	控制平台螺丝（13mm）	SCREW CONTROL PLATFORM (13MM)	1
20	40007128	换挡杆与平台螺丝（M6 x 20）	SCREW (M6 x 20) SHIFT LEVER TO PLATFORM	1
21	95093	换挡杆与平台垫圈	WASHER SHIFT LEVER TO PLATFORM	1
22	95035	换挡杆	LEVER SHIFT	1
23	95091	换挡杆至平台套管	SLEEVE SHIFT LEVER TO PLATFORM	1
24	35280	换挡杆螺钉垫片(0.255x0.620x0.030)不锈钢	WASHER (.255 x .620 x .030) Stainless Steel SHIFT LEVER SCREW	1
25	400634	换挡杆螺钉螺母(M6)	NUT (M6) SHIFT LEVER SCREW	1
25	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	95029	换挡杆销	PIN SHIFT LEVER	1
27	71055	换挡杆销垫片	WASHER SHIFT LEVER PIN	1
28	21071	换挡杆销开口销	COTTER PIN SHIFT LEVER PIN	1
28	210711	开口销	COTTER PIN	1
29	95784	作动杆销	PIN ACTUATING LEVER	1
30	71055	作动杆销垫片	WASHER ACTUATING LEVER PIN	1
31	21071	作动杆销开口销	COTTER PIN ACTUATING LEVER PIN	1
31	210711	开口销	COTTER PIN	1
32	95025	换挡连杆	SHIFT LINK	1
33	96202	换挡连杆尼龙衬套	BUSHING NYLON - SHIFT LINK	1
34	89302	换挡连杆垫片(0.203x0.406x0.040)	WASHER (.203 x .406 x .040) SHIFT LINK	2
35	21071	换挡连杆开口销	COTTER PIN SHIFT LINK	2
35	210711	开口销	COTTER PIN	2
36	95027A1	水平换挡轴总成	SHIFT SHAFT ASSEMBLY HORIZONTAL	1
36	95027A6	换档轴	SHIFT SHAFT	1
37	95023	换挡轴杆	LEVER SHIFT SHAFT	1
38	95019	换挡轴杆固定环	RING Retaining LEVER TO SHIFT SHAFT	1
39	60762	换挡轴衬套	BUSHING SHIFT SHAFT	2
40	95024	换挡轴杆	LEVER SHIFT SHAFT	1
40	17724A1	杠杆总成	LEVER ASSEMBLY	1
41	400633	换挡轴螺母(M5)	NUT (M5) SHIFT SHAFT	1
41	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
42	95033	遥控支架	BRACKET REMOTE CONTROL	1
43	4000168	遥控支架螺钉(M6x14)	SCREW (M6 x 14) REMOTE CONTROL BRACKET	2
43	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
44	21071	遥控拉索开口销	COTTER PIN REMOTE CONTROL CABLES	2
44	210711	开口销	COTTER PIN	2
45	96186A1	安装支架总成	BRACKET ASSEMBLY ATTACHING	1
45	96186A2	支架总成	BRACKET ASSEMBLY	1
46	96201	钥匙带	STRAP Key	1
47	4000376	支架螺钉(M10x25)	SCREW (M10 x 25) BRACKET	2
47	1993325	螺钉(M10x25mm)	SCREW (M10 x 25 mm)	2

图 19燃油滤清器总成 FUEL FILTER ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	滤清器至化油器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO CARBURETOR	1
5	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接器套件(90度)(新设计)	CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN)	1
9	14187M	直通连接器(旧设计)	CONNECTOR (STRAIGHT) (OLD DESIGN)	1
10	4000331	适配器螺丝(M6x30)	SCREW (M6 x 30) ADAPTOR	AR
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	AR
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	AR

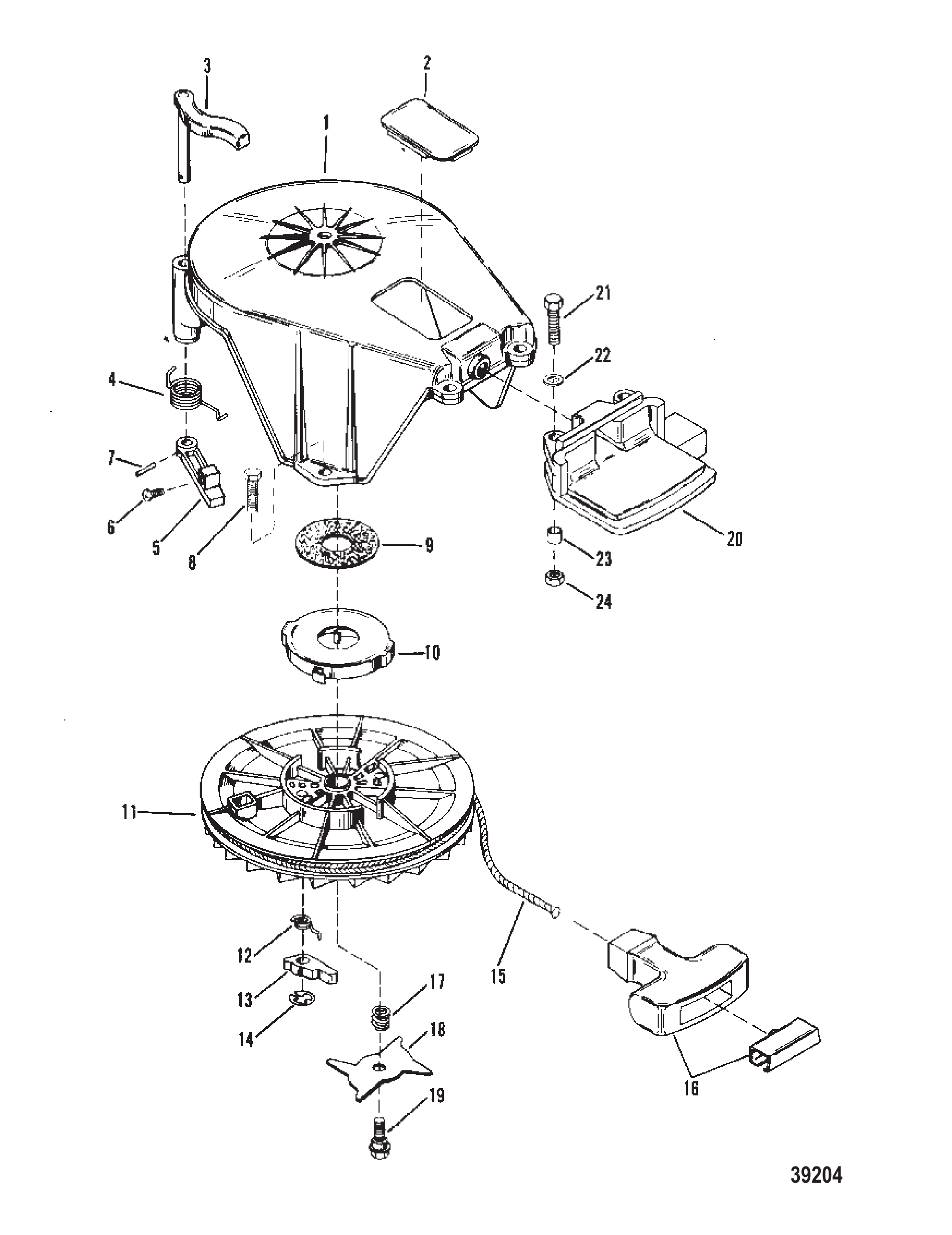

图 20启动器总成（手动） STARTER ASSEMBLY MANUAL

REF	零件编号	中文名称	英文名称	数量
1	90906	启动器外壳	HOUSING STARTER	1
1	86689A5	启动器壳体总成	HOUSING ASSEMBLY Starter	1
2	86971	启动器外壳盖	COVER STARTER HOUSING	1
3	94019	锁杆 (上)	LEVER LOCK (UPPER)	1
3	858925	锁止杆	LEVER Lock	1
4	89542	上锁杆弹簧	SPRING UPPER LOCK LEVER	1
4	12734	弹簧	SPRING	1
5	93876	锁杆 (下)	LEVER LOCK (LOWER)	1
5	93876T02	杠杆	LEVER	1
6	61802	下锁杆螺丝	SCREW LOWER LOCK LEVER	1
7	38489	锁杆滚销	PIN Roll LOCK LEVER	1
8	4000174	启动器外壳固定螺丝(M6 x 20)	SCREW (M6 x 20) STARTER HOUSING ATTACHING	2
8	8M0206596	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
8	4000183	启动器外壳固定螺丝(M6 x 35)	SCREW (M6 x 35) STARTER HOUSING ATTACHING	1
9	90478		PAD FELT	1
9	833161T	毛毡垫	PAD-FELT	1
10	86857	启动器弹簧	SPRING STARTER	1
10	86857T01	弹簧	SPRING	1
11	98443	启动器滑轮	SHEAVE STARTER	1
11	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
12	86851	凸轮弹簧	SPRING CAM	2
12	86851T02	弹簧 @2	SPRING @2	2
13	86850	凸轮	CAM	2
13	868501	凸轮	CAM	2
14	86849	凸轮挡圈	RING Retaining CAM	2
14	86849T01	环 @2	RING @2	2
15	86855	启动绳	ROPE STARTER	1
15	12066Q10	启动绳@2	ROPE-STARTER@2	1
16	85174A1	启动绳手柄总成	HANDLE ASSEMBLY STARTER ROPE	1
17	86852	凸轮弹簧	SPRING CAM	1
17	868523	弹簧	SPRING	1
18	86853	凸轮	CAM	1
18	86853T01	凸轮	CAM	1
19	97516	凸轮至启动器皮带轮螺丝	SCREW CAM TO STARTER SHEAVE	1
19	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
20	90902	启动手柄支架	SUPPORT STARTER HANDLE	1
20	426264	支架	SUPPORT	1
21	40057111	支架固定螺丝（35mm）	SCREW SUPPORT TO STARTER HOUSING (35MM)	2
21	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
22	4002213	支架螺丝垫圈	WASHER SUPPORT SCREW	4
22	4002313	垫圈	WASHER	4
23	30977	支架螺丝隔套	SPACER SUPPORT SCREW	4
23	309772	隔套	SPACER	4
24	400633	支架螺丝螺母（M5）	NUT (M5) SUPPORT SCREW	2
24	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2

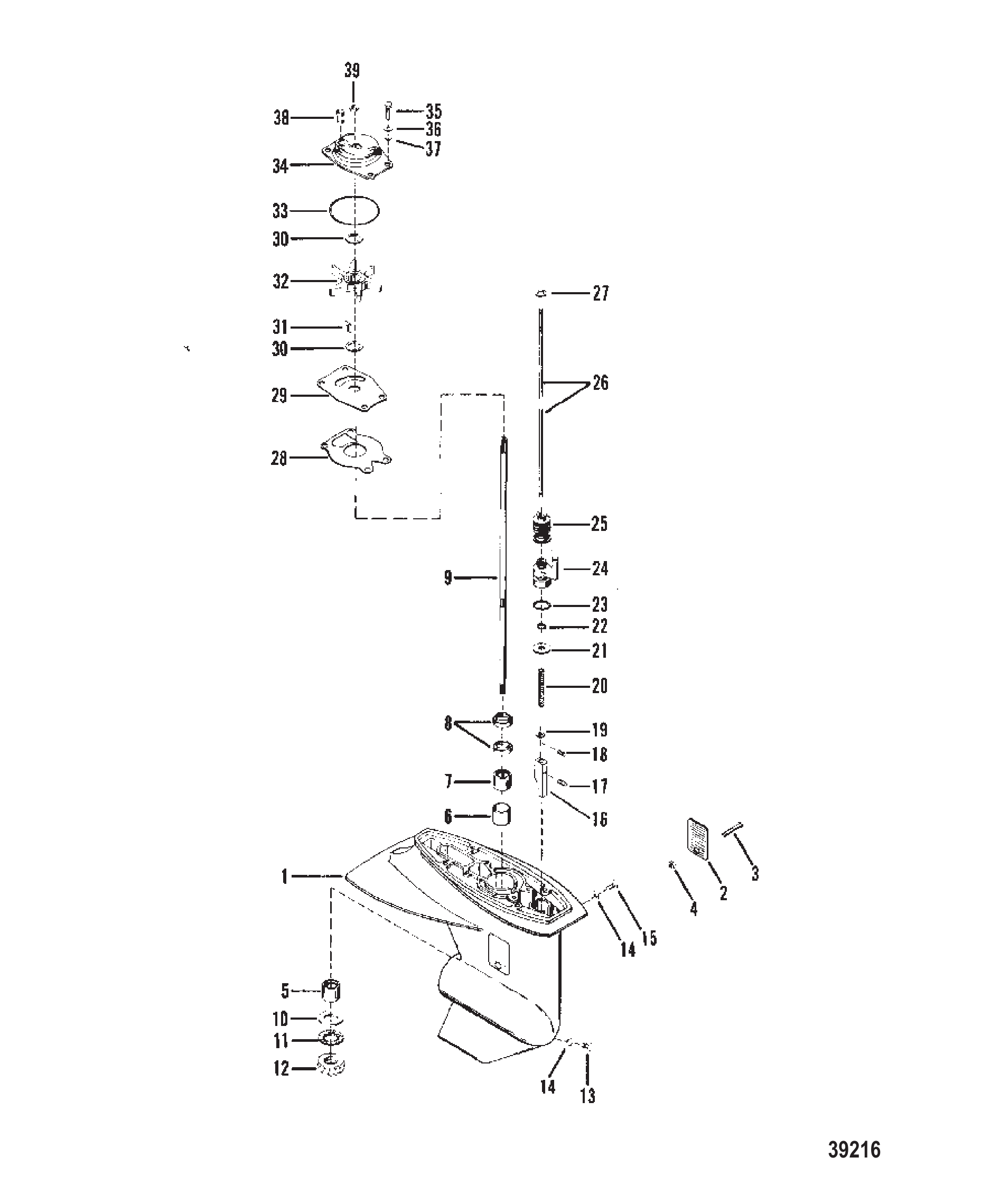

图 21齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	8157A7	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8157A8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
1	8157A6	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
2	98488	进水口滤网	SCREEN WATER INLET	1
2	98487	进水口滤网	SCREEN WATER INLET	1
3	40031112	螺钉(M5 x 40)滤网至齿轮箱	SCREW (M5 x 40) SCREEN TO GEAR HOUSING	1
4	400263	螺母(M5)滤网螺钉	NUT (M5) SCREEN SCREW	1
5	85559	滚柱轴承下(见备注)	BEARING Roller LOWER (SEE NOTE)	1
6	85092	上滚动轴承套	SLEEVE UPPER ROLLING BEARING	1
7	85558	滚柱轴承上	BEARING Roller UPPER	1
8	33467	齿轮箱油封	SEAL Oil GEAR HOUSING	2
8	897154	油封@3	SEAL-OIL @3	2
9	98084	驱动轴	DRIVESHAFT	1
9	98085	驱动轴	DRIVESHAFT	1
10	94056	止推垫圈-驱动轴	WASHER THRUST - DRIVESHAFT	AR
10	96524	止推垫圈-传动轴-见备注	WASHER THRUST - DRIVESHAFT - SEE NOTE	AR
10	98861A1	衬套套装	BUSHING KIT	AR
11	85560	推力轴承-传动轴(见备注)	BEARING Thrust DRIVESHAFT (SEE NOTE)	1
12	85132	小齿轮	GEAR Pinion	1
13	67892		SCREW Magnetic DRAIN	1
13	8M0058389	放油螺钉套件	SCREW KIT Drain	1
14	20260	放油/注油螺丝垫圈	WASHER DRAIN AND FILLER SCREW	2
14	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
15	79953		SCREW (.375-16 x .250) GREASE FILLER	1
15	79953Q04	放油螺钉套件	SCREW KIT Drain	1
16	85562A1	换档凸轮总成	CAM ASSEMBLY SHIFT	1
17	85096	换档凸轮驱动销	PIN Drive SHIFT CAM	1
18	85593	换档轴销(.078 x .437)	PIN (.078 x .437) SHIFT SHAFT	1
19	29245	不锈钢换档轴垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT	1
19	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
20	93007	换档轴弹簧	SPRING SHIFT SHAFT	1
21	85091	换档轴垫圈	WASHER SHIFT SHAFT	1
22	85594	换档轴O型圈(.239 x .174)	O-RING (.239 x .174) SHIFT SHAFT	1
23	20365	换档轴固定环O型圈	O-RING SHIFT SHAFT RETAINER	1
23	35276	O型圈(.734 x .139)	O-RING (.734 x .139)	1
24	93878	换档轴固定环	RETAINER SHIFT SHAFT	1
25	85552	换档轴防尘罩	BOOT SHIFT SHAFT	1
25	85552001	护套	BOOT	1
26	85126	换档轴	SHIFT SHAFT	1
26	86293	换档轴	SHIFT SHAFT	1
27	29245	不锈钢换档轴上垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT - UPPER	1
27	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
28	85087	水泵衬垫	GASKET WATER PUMP	1
28	993261	衬垫	GASKET	1
29	85083	面板	FACE PLATE	1
30	86645	叶轮垫圈	WASHER IMPELLER	2
30	8M0204722	垫圈	WASHER	2
31	85119	叶轮驱动键	KEY IMPELLER DRIVE	1
31	8M0214993	键@5	KEY @5	1
32	85089	叶轮	IMPELLER	1
32	8M0204712	叶轮	IMPELLER	1
33	69202	水泵O型圈	O-RING WATER PUMP	1
34	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
34	99157T2	水泵套件	PUMP KIT Water	1
35	400035	水泵至齿轮箱螺丝(M5 x 16)	SCREW (M5 x 16) WATER PUMP TO GEAR HOUSING	4
36	89302	水泵螺丝垫圈(.203 x .406 x .040)	WASHER (.203 x .406 x .040) WATER PUMP SCREW	4
37	85095	水泵螺丝衬套	BUSHING WATER PUMP SCREW	4
37	8M0214959	衬套@5	BUSHING @5	4
38	85090	水管密封件	SEAL WATER TUBE	1
38	85090001	密封件	SEAL	1
39	86203	橡胶传动轴O型圈	O-RING DRIVE SHAFT - RUBBER	1
-	85168A80	衬垫套件	GASKET SET	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
-	99157T2	水泵套件	PUMP KIT Water	1
-	85090A1	水泵密封套件	SEAL KIT Water Pump	1

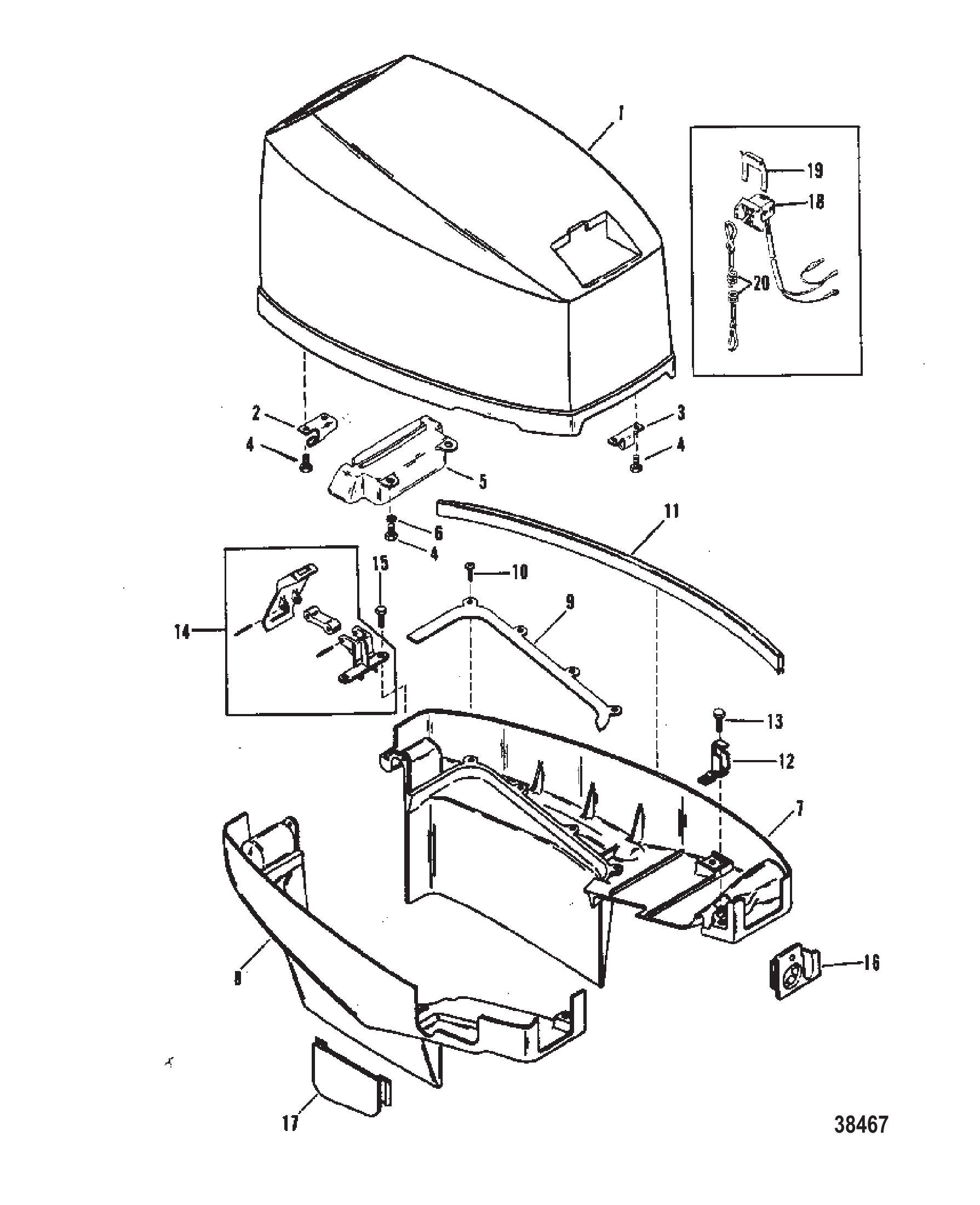

图 22外罩（Mariner） COWLS (MARINER)

REF	零件编号	中文名称	英文名称	数量
1	9163A8	顶盖总成	TOP COWL ASSEMBLY	1
2	43515	机罩铰链锁扣	HINGE COWL LATCH	1
3	43555	顶罩支架	BRACKET TOP COWL	1
4	400018	螺钉(M5 x 12)铰链至顶罩	SCREW (M5 x 12) HINGE TO TOP COWL	6
5	443111	顶罩护板	SHIELD TOP COWL	1
5	44311F2	护罩	SHIELD	1
6	33786	护罩螺钉垫圈	WASHER SHIELD SCREW	2
6	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	2
7	9107A3	底罩左舷	BOTTOM COWL PORT	1
7	9107A4	下机罩	BOTTOM COWL	1
7	9107A4	底罩左舷	BOTTOM COWL PORT	1
8	9108A3	底罩右舷	BOTTOM COWL STARBOARD	1
9	85982	底罩板	PLATE BOTTOM COWL	2
9	15865	安装板	PLATE	2
10	70332	螺钉(#10-16 x .500)板至底罩	SCREW (#10-16 x .500) PLATE TO BOTTOM COWL	8
10	95700	螺钉(#10-16 x .50)	SCREW (#10-16 x .50)	8
11	15067A1	底罩密封条	SEAL BOTTOM COWL	2
12	43514	底罩锁扣	LATCH BOTTOM COWL	1
13	400018	螺钉(M5 x 12)锁扣至底罩	SCREW (M5 x 12) LATCH TO BOTTOM COWL	2
14	43554A4	后机罩锁扣	LATCH COWL-REAR	1
14	43554A5	闩锁	LATCH	1
15	400018	螺钉(M5 x 12)支架至底罩	SCREW (M5 x 12) BRACKET TO BOTTOM COWL	2
16	11281	燃油入口盖	COVER FUEL INLET	1
17	416052	底罩板	PLATE BOTTOM COWL	1
17	416051	底罩板	PLATE BOTTOM COWL	1
18	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
19	12044	止动开关固定座	RETANER STOP SWITCH	1
19	8M0032846	黄铜固定座	RETAINER Brass	1
20	15920A54	拉绳总成	LANYARD ASSEMBLY	1
20	15920Q54	拉绳总成	LANYARD ASSEMBLY	1

图 23电气组件 ELECTRIC COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	95815	上盖	COVER (TOP)	1
2	95828	下盖	COVER (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
4	55741001	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1
10	95814	绑带	STRAP	1
11	95813	紧固件	FASTENER	1
12	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
12	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
13	4005727	螺钉	SCREW	2
14	45771	垫圈	WASHER	2
15	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
16	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
17	816770	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
19	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
20	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
20	8M0185149	启动电磁阀	SOLENOID START	1
21	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	64015	螺母 (.250-20)	NUT (.250-20)	2
24	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
25	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
25	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
25	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
25	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
26	92439	支架(旧设计)	BRACKET (OLD DESIGN)	1
27	4000327	螺钉(M6×14)(旧设计)	SCREW (M6 x 14) (OLD DESIGN)	1
28	35044	垫圈(0.281×0.625×0.065)不锈钢(旧设计)	WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)	1
29	400212	螺母(M6)不锈钢(旧设计)	NUT (M6) Stainless Steel (OLD DESIGN)	1
30	815504310	蜗轮卡箍(旧设计)	CLAMP Worm Gear (OLD DESIGN)	1
31	86704A2	定子总成	STATOR ASSEMBLY	1
31	86704A10	辅助定子	STATOR Auxiliary	1
32	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3
33	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
33	8M0033984	启动马达	STARTER MOTOR	1
34	96561	驱动套件	DRIVE KIT	1
35	96562	驱动器	DRIVE	1
36	96563	端盖	END CAP	1
36	96563T	端盖	END CAP	1
37	96565	电枢	ARMATURE	1
38	96564	端盖	END CAP	1
38	96564T	端盖	END CAP	1
39	96566	贯穿螺栓	THRU BOLT	1
40	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
40	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
41	424291	固定座	RETAINER	1
42	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
43	79091	保险丝20安培	FUSE 20 Ampere	1
43	8M0207796	保险丝20安培	FUSE 20 AMP	1
44	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1
45	12152	固定座	RETAINER	1
46	92753	固定座	RETAINER	1
47	55098	J型卡扣	J CLIP	1
47	8M0024808	J型夹	J-CLIP	1

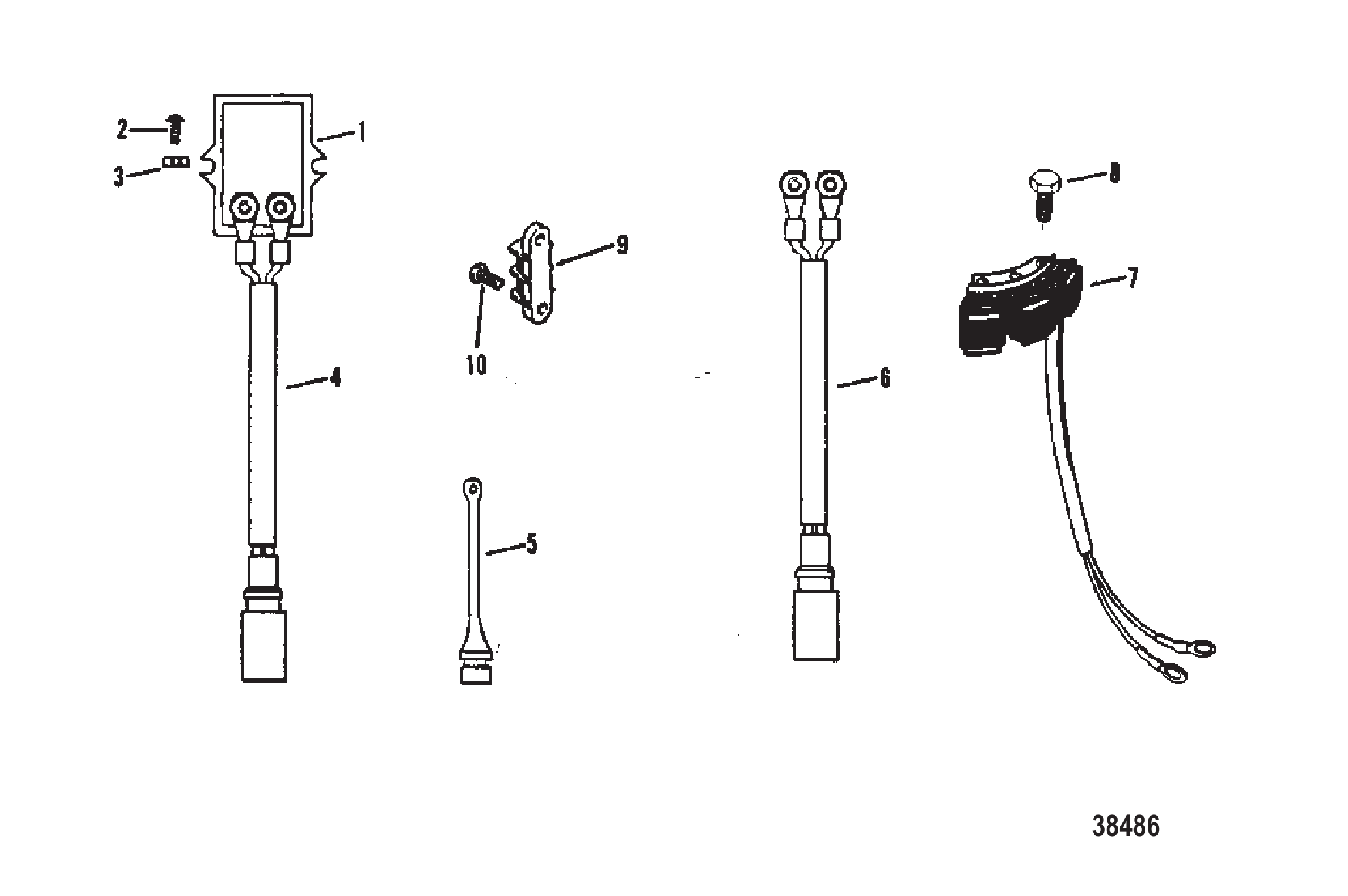

图 24电气组件 - 比利时发动机 ELECTRICAL - BELGIUM ENGINES

REF	零件编号	中文名称	英文名称	数量
1	95845	电压调节器	REGULATOR Voltage	1
1	95845T	电压调节器	REGULATOR-VOLTAGE	1
2	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
3	45076	螺母(#10-32)黄铜电压调节器端子	NUT (#10-32) Brass VOLTAGE REGULATOR TERMINAL	2
4	74725A2	线束总成	HARNESS ASSEMBLY	1
5	71663	线束插头	PLUG HARNESS	1
6	65017A2	照明线束总成(外部)	HARNESS ASSEMBLY LIGHTING (EXTERNAL)	1
7	86704A2	定子总成	STATOR ASSEMBLY	1
7	86704A10	辅助定子	STATOR Auxiliary	1
8	4000123	螺钉(M5 x 30)定子固定	SCREW (M5 x 30) STATOR ATTACHING	3
9	63813	端子排	TERMINAL BLOCK	1
9	638131	端子排	TERMINAL BLOCK	1
10	48409	螺钉(#10-16 x .625)不锈钢接线板	SCREW (#10-16 x .625) Stainless Steel TERMINAL BLOCK	2

图 25气缸体（美国-0B114230/加拿大-0A719660/比利时-9467987 及以下） BLOCK (US-0B114230/Can-0A719660/Bel-9467987 and Below)

REF	零件编号	中文名称	英文名称	数量
1	9077A4	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	9533T38	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	3
3	71191	泄油软管弯头 (45度)	ELBOW BLEED HOSE (45 DEG.)	2
3	15133	接头	FITTING	2
4	99130122	泄油管 (20英尺散装) (12-1/4")	TUBING (20.00 Feet Bulk) BLEED (12-1/4")	2
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
5	42917	化油器螺柱	STUD CARBURETOR	2
5	429173	螺柱	STUD	2
6	40001209	螺丝 (M10×60) 曲轴箱至气缸体	SCREW (M10 x 60) CRANKCASE TO CYLINDER BLOCK	6
7	414751	排气歧管衬垫	GASKET EXHAUST MANIFOLD	1
7	892158	排气歧管衬垫	GASKET Exhaust Manifold	1
8	92329	排气歧管	MANIFOLD Exhaust	1
9	414991	排气盖衬垫	GASKET SCHAUST COVER	1
10	92330T	排气盖	COVER ECHAUST	1
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	10
12	14407	换气口盖	COVER TRANSFER PORT	2
12	144071	盖板	COVER	2
13	30503	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
13	822370	O型圈 (2.362×.103)	O-RING (2.362 x .103)	2
14	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	4
15	8283A1	气缸体盖总成	COVER ASEMBLY CYLINDER BLOCK	1
16	4000331	螺丝 (M6×30) 盖固定	SCREW (M6 x 30) COVER ATTACHING	6
17	86389	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
18	99664	示警软管弯头	ELBOW TELL TALE HOSE	1
18	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
19	34395A1	示警软管 (8")	HOSE TELL TALE (8")	1
19	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
20	94848	示警软管接头 - 下罩	FITTING TELL TALE HOSE - BOTTOM COWL	1
21	92351	换气口盖	COVER TRANSFER PORT	2
21	14406	盖板	COVER	2
22	86391	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
23	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	6
24	92350	换气口盖	COVER TRANSFER PORT	2
25	33465	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
25	8M0214925	O型圈	O RING	2
26	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	4
27	42471	簧片阀组	REED BLOCK	1
27	14112T	簧片阀组	REED BLOCK	1
28	85977		SEAL Rubber REED BLOCK	1
28	85977002	密封件	SEAL	1
29	41417	簧片阀衬垫	GASKET REED BLOCK	1
29	414172	衬垫	GASKET	1
30	99319	簧片	REED	2
30	816806	簧片	REED	2
31	89793	簧片止挡	STOP Reed	2
31	897931	簧片止挡	STOP Reed	2
32	4005785	螺丝 (M4×10) 簧片固定	SCREW (M4 x 10) REED ATTACHING	4
33	41418	适配板垫片	GASKET ADAPTOR PLATE	1
33	414181	衬垫	GASKET	1
34	41420A1	化油器适配板	PLATE ADAPTOR - CARBURETOR	1
34	41420A3	化油器适配板总成	PLATE ASSEMBLY Carb Adaptor	1
35	56759	适配板倒刺接头 - 泄油软管	FITTING Barbed ADAPTOR PLATE - BLEED HOSE	2
36	40057108	螺丝 (M5×20) 板至簧片座	SCREW (M5 x 20) PLATE TO REED BLOCK	3
36	40019108	螺钉（M5×20）	SCREW (M5 x 20)	3
37	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
38	F1646	换气口盖密封件	SEAL TRANSFER PORT COVER	2
38	85577	螺丝 (2.25英寸)	SCREW (2.25 In.)	2
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1

图 26气缸体（美国-0B114231/加拿大-0A719661/比利时-9467988 及以上） BLOCK (US-0B114231/Can-0A719661/Bel-9467988 and Up)

REF	零件编号	中文名称	英文名称	数量
1	9533A3	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	9533T39	ORD 872- 9533T38	ORD 872- 9533T38	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	3
3	15133	泄油软管接头 (45度)	FITTING BLEED HOSE (45 DEG.)	2
4	99130122	泄油管 (20英尺散装) (12-1/4")	TUBING (20.00 Feet Bulk) BLEED (12-1/4")	2
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
5	42917	化油器螺柱	STUD CARBURETOR	2
5	429173	螺柱	STUD	2
6	40001209	螺丝 (M10×60) 曲轴箱至气缸体	SCREW (M10 x 60) CRANKCASE TO CYLINDER BLOCK	6
7	414753	排气歧管衬垫	GASKET EXJAUST MANIFOLD	1
7	892158	排气歧管衬垫	GASKET Exhaust Manifold	1
8	923291	排气歧管	MANIFOLD Exhaust	1
8	92329F03	排气歧管	MANIFOLD Exhaust	1
9	414993	排气盖衬垫	GASKET EXHAUST COVER	1
9	892157	排气歧管盖衬垫	GASKET Exhaust Manifold Cover	1
10	923301	排气盖	COVER EXHAUST	1
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	10
12	14407	换气口盖	COVER TRANSFER PORT	2
12	144071	盖板	COVER	2
13	30503	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
13	822370	O型圈 (2.362×.103)	O-RING (2.362 x .103)	2
14	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	4
15	82821	气缸体盖总成	COVER ASEMBLY CYLINDER BLOCK	1
15	8282A1	盖总成	COVER ASSEMBLY	1
16	4000331	螺丝 (M6×30) 盖固定	SCREW (M6 x 30) COVER ATTACHING	5
17	863891	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
17	863893	衬垫	GASKET	1
18	99664	示警软管弯头	ELBOW TELL TALE HOSE	1
18	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
19	34395A1	示警软管 (8")	HOSE TELL TALE (8")	1
19	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
20	94848	示警软管接头 - 下罩	FITTING TELL TALE HOSE - BOTTOM COWL	1
21	14406	换气口盖	COVER TRANSFER PORT	2
22	86391	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
23	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	6
24	14408	换气口盖	COVER TRANSFER PORT	2
25	26722	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
26	40057107	螺丝 (M5×16) 盖至气缸体	SCREW (M5 x 16) COVER TO CYLINDER BLOCK	4
27	42471	簧片阀组	REED BLOCK	1
27	14112T	簧片阀组	REED BLOCK	1
28	85977		SEAL Rubber REED BLOCK	1
28	85977002	密封件	SEAL	1
29	41417	衬垫	GASKET	1
29	414172	衬垫	GASKET	1
30	99319	簧片	REED	2
30	816806	簧片	REED	2
31	89793	簧片止挡	STOP Reed	2
31	897931	簧片止挡	STOP Reed	2
32	4005785	螺丝 (M4×10) 簧片固定	SCREW (M4 x 10) REED ATTACHING	4
33	41418	适配板垫片	GASKET ADAPTOR PLATE	1
33	414181	衬垫	GASKET	1
34	41420A1	化油器板	PLATE CARBURETOR	1
34	41420A3	化油器适配板总成	PLATE ASSEMBLY Carb Adaptor	1
35	56759	适配板倒刺接头 - 泄油软管	FITTING Barbed ADAPTOR PLATE - BLEED HOSE	2
36	40057108	螺丝 (M5×20) 板至簧片座	SCREW (M5 x 20) PLATE TO REED BLOCK	3
36	40019108	螺钉（M5×20）	SCREW (M5 x 20)	3
37	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
38	143171	节温器盖	COVER THERMOSTAT	1
39	14318	节温器盖衬垫	GASKET THERMOSTAT COVER	1
39	14318005	衬垫	GASKET	1
40	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
41	14586	节温器	THERMOSTAT	1
42	12627	绑带	STRAP	1
43	62386	节温器衬垫	GASKET THERMOSTAT	1
43	8M0204714	衬垫@4	GASKET @4	1
-	41499A87	衬垫套件	GASKET SET	1
-	41499A88	衬垫套件	GASKET SET	1
