水星 Mercury 18 HP ARCHIVE CAT 43465 - 爆炸图零件明细

两冲程 化油器 · ARCHIVE CAT 43465 · 共 18 个部位 · 740 条零件

图 1化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	9503A20	化油器 (6)(WMC-66)	CARBURETOR (6)(WMC-66)	1
1	9503T21	化油器 (WMC-78A) (6)	CARBURETOR (WMC-78A) (6)	1
1	9266A21	化油器 (8)(WMC-74)	CARBURETOR (8)(WMC-74)	1
1	9266T22	化油器	CARBURETOR	1
1	9266T22	化油器 (8)(WMC-79A)	CARBURETOR (8)(WMC-79A)	1
1	8846T20	化油器 (WMC-61)	CARBURETOR (WMC-61)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	8846T25	化油器 (WMC-80A) (9.9)	CARBURETOR (WMC-80A) (9.9)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	9726T11	化油器 (15)(WMC-63)	CARBURETOR (15)(WMC-63)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器 (WMC-77) (15)	CARBURETOR (WMC-77) (15)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器 (WMC-83) (15)	CARBURETOR (WMC-83) (15)	1
2	9473	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	804707	轴	SHAFT	1
4	8M0138645	螺钉	SCREW	1
5	804996	弹簧	SPRING	1
6	813022	油门轴	SHAFT Throttle	1
6	19267	油门轴	SHAFT Throttle	1
7	F10167	环	RING	1
8	9164	燃油杯	BOWL Fuel	1
9	824401	浮子杆	LEVER Float	1
10	91691	浮子	FLOAT	1
11	F10064	轴	SHAFT	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	803861	进油针阀	VALVE Inlet Needle	1
14	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
14	5317	量孔(.046)	JET (.046)	1
14	6246	量孔(.048)	JET (.048)	1
14	6207	量孔(.072)	JET (.072)	1
15	9171	堵头	PLUG	1
16	813618	盖板	COVER	1
16	823648	膜片盖	COVER Diaphragm	1
17	9697	螺钉	SCREW	4
18	15827A1	本体	BODY	1
18	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
19	9643	螺钉	SCREW	5
20	9699	安装板	PLATE	1
21	44426	衬垫	GASKET	1
22	9696	螺钉	SCREW	2
23	96371	燃油泵盖	COVER Fuel Pump	1
23	9637	盖板	COVER	1
24	9633	衬垫	GASKET	1
25	9762	堵头	PLUG	1
26	192061	化油器衬垫	GASKET Carburetor	1
27	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
28	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
29	8237072	维修套件	REPAIR KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

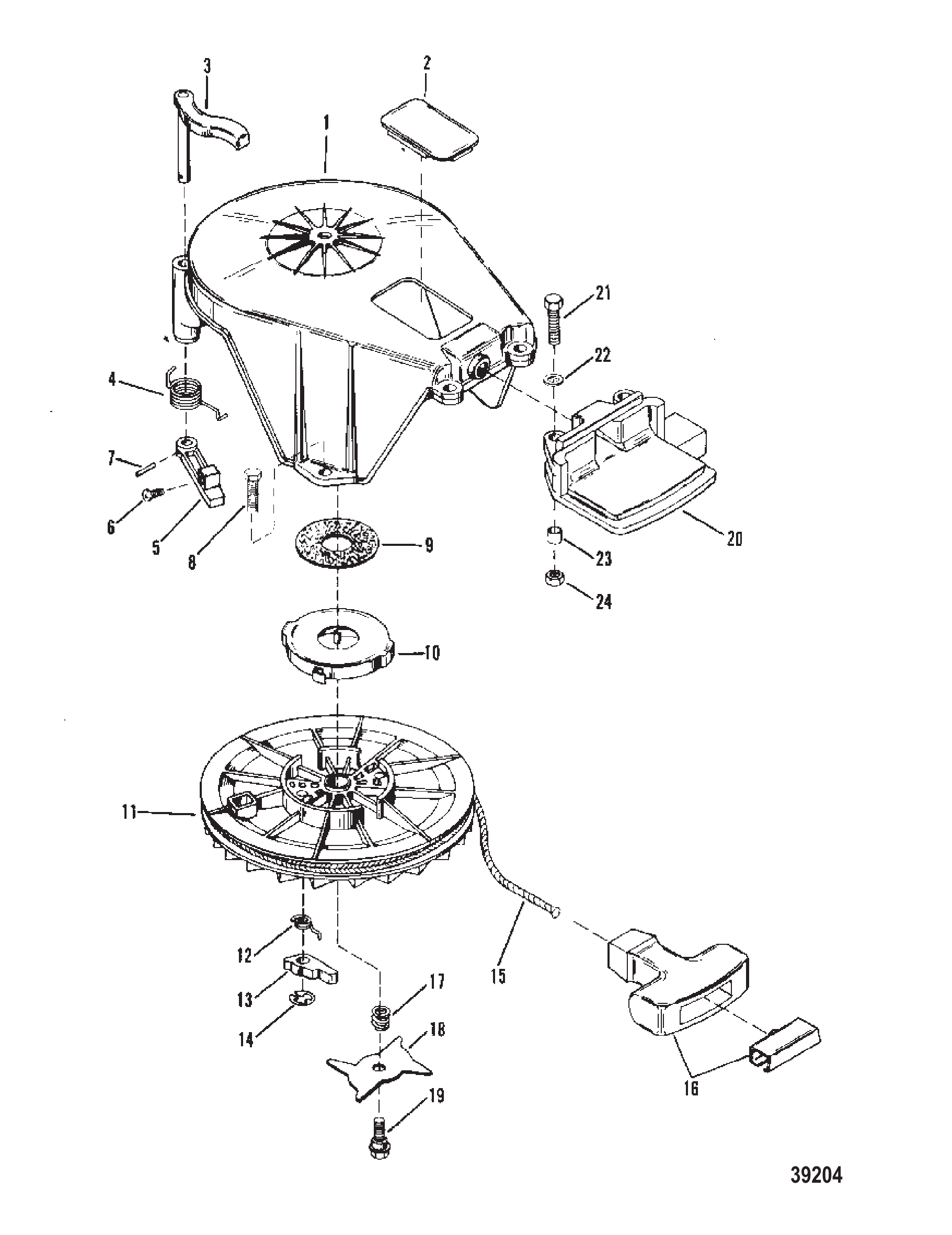

图 2启动器总成（手动） STARTER ASSEMBLY MANUAL

REF	零件编号	中文名称	英文名称	数量
1	90906	启动器外壳	HOUSING STARTER	1
1	86689A5	启动器壳体总成	HOUSING ASSEMBLY Starter	1
2	86971	启动器外壳盖	COVER STARTER HOUSING	1
3	94019	锁杆 (上)	LEVER LOCK (UPPER)	1
3	858925	锁止杆	LEVER Lock	1
4	89542	上锁杆弹簧	SPRING UPPER LOCK LEVER	1
4	12734	弹簧	SPRING	1
5	93876	锁杆 (下)	LEVER LOCK (LOWER)	1
5	93876T02	杠杆	LEVER	1
6	61802	下锁杆螺丝	SCREW LOWER LOCK LEVER	1
7	38489	锁杆滚销	PIN Roll LOCK LEVER	1
8	4000174	启动器外壳固定螺丝(M6 x 20)	SCREW (M6 x 20) STARTER HOUSING ATTACHING	2
8	8M0206596	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
8	4000183	启动器外壳固定螺丝(M6 x 35)	SCREW (M6 x 35) STARTER HOUSING ATTACHING	1
9	90478		PAD FELT	1
9	833161T	毛毡垫	PAD-FELT	1
10	86857	启动器弹簧	SPRING STARTER	1
10	86857T01	弹簧	SPRING	1
11	98443	启动器滑轮	SHEAVE STARTER	1
11	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
12	86851	凸轮弹簧	SPRING CAM	2
12	86851T02	弹簧 @2	SPRING @2	2
13	86850	凸轮	CAM	2
13	868501	凸轮	CAM	2
14	86849	凸轮挡圈	RING Retaining CAM	2
14	86849T01	环 @2	RING @2	2
15	86855	启动绳	ROPE STARTER	1
15	12066Q10	启动绳@2	ROPE-STARTER@2	1
16	85174A1	启动绳手柄总成	HANDLE ASSEMBLY STARTER ROPE	1
17	86852	凸轮弹簧	SPRING CAM	1
17	868523	弹簧	SPRING	1
18	86853	凸轮	CAM	1
18	86853T01	凸轮	CAM	1
19	97516	凸轮至启动器皮带轮螺丝	SCREW CAM TO STARTER SHEAVE	1
19	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
20	90902	启动手柄支架	SUPPORT STARTER HANDLE	1
20	426264	支架	SUPPORT	1
21	40057111	支架固定螺丝（35mm）	SCREW SUPPORT TO STARTER HOUSING (35MM)	2
21	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
22	4002213	支架螺丝垫圈	WASHER SUPPORT SCREW	4
22	4002313	垫圈	WASHER	4
23	30977	支架螺丝隔套	SPACER SUPPORT SCREW	4
23	309772	隔套	SPACER	4
24	400633	支架螺丝螺母（M5）	NUT (M5) SUPPORT SCREW	2
24	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2

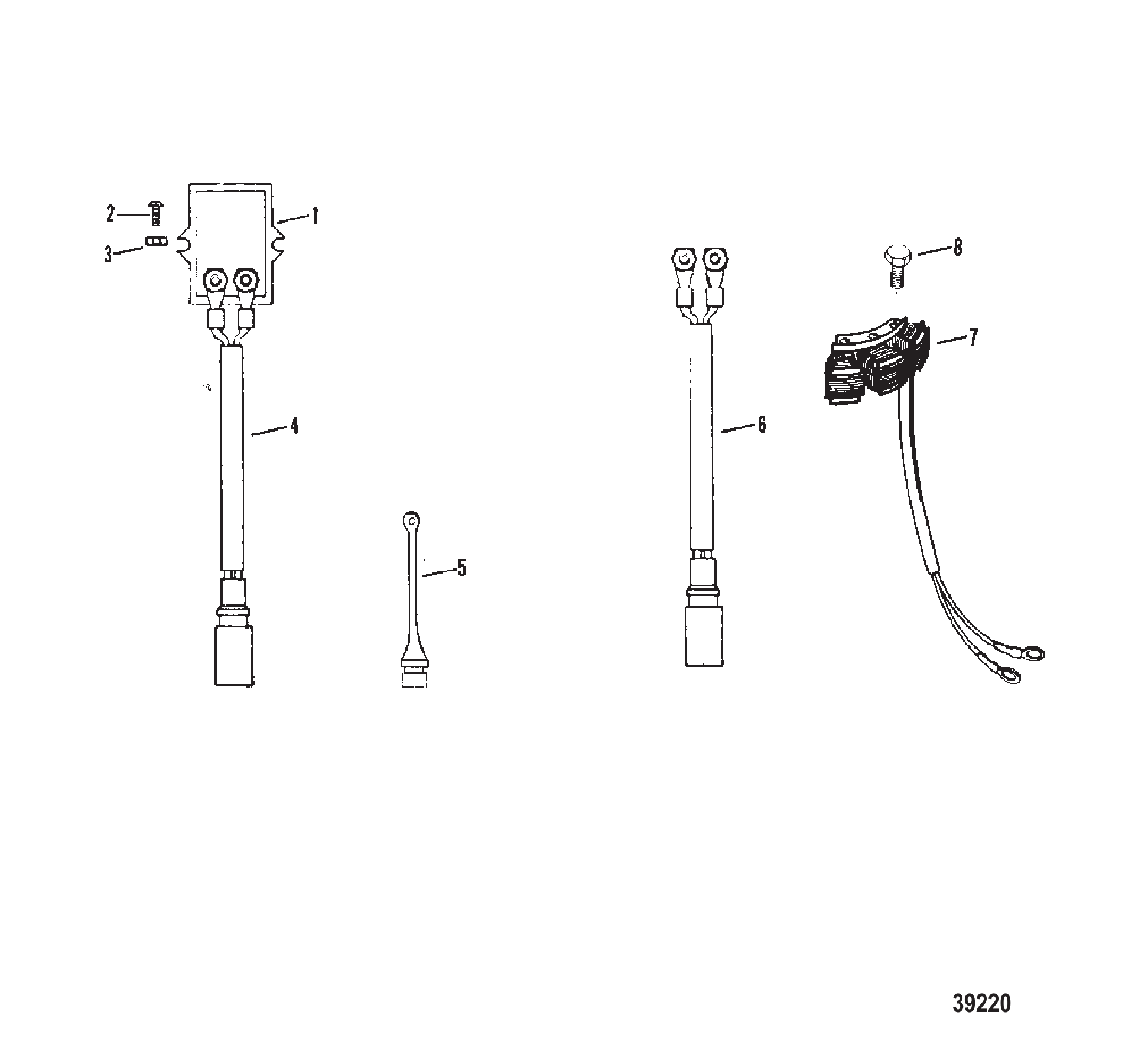

图 3电气组件（比利时发动机） ELECTRICAL COMPONENTS (BELGIUM ENGINES)

REF	零件编号	中文名称	英文名称	数量
1	95845	电压调节器	REGULATOR Voltage	1
1	95845T	电压调节器	REGULATOR-VOLTAGE	1
2	74841	螺钉	SCREW	2
3	45076	螺母(#10-32)黄铜电压调节器端子	NUT (#10-32) Brass VOLTAGE REGULATOR TERMINAL	2
4	74725A2	电压调节器线束总成(黑/红)	HARNESS ASSEMBLY VOLTAGE REGULATOR (BLACK/RED)	1
5	71663	线束插头	PLUG HARNESS	1
6	65017A2	照明线束总成(外部)	HARNESS ASSEMBLY LIGHTING (EXTERNAL)	1
7	86704A2	定子总成	STATOR ASSEMBLY	1
7	86704A10	辅助定子	STATOR Auxiliary	1
8	4000123	螺钉(M5 x 30)定子固定	SCREW (M5 x 30) STATOR ATTACHING	3

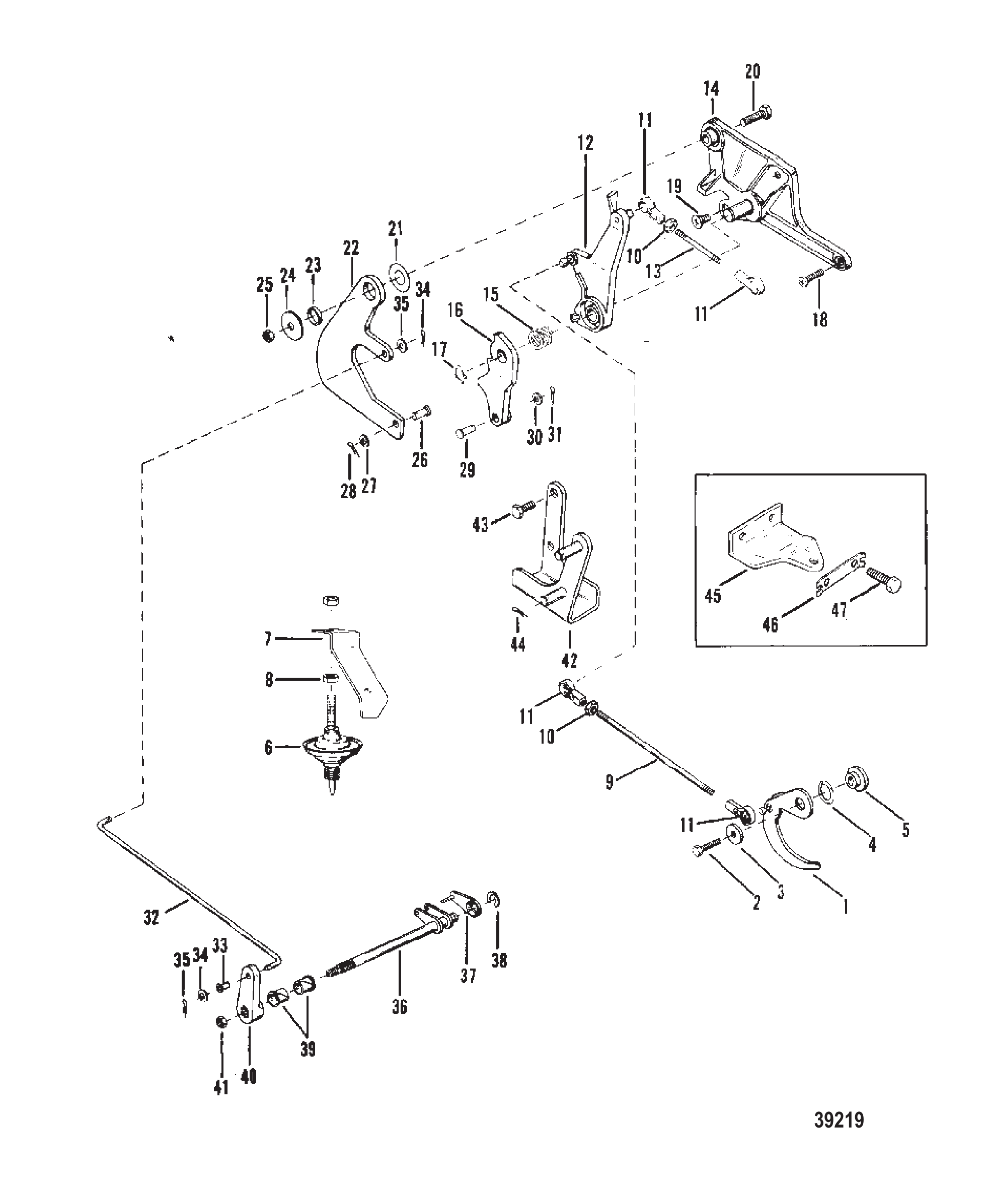

图 4油门和换挡联动装置（电动） THROTTLE AND SHIFT LINKAGE (ELECTRIC)

REF	零件编号	中文名称	英文名称	数量
1	87997A1	节气门凸轮	CAM Throttle	1
1	96096	节气门凸轮	CAM Throttle	1
2	4000114	油门凸轮与曲轴箱螺丝（M5 x 16）	SCREW (M5 x 16) THROTTLE CAM TO CRANKCASE	1
2	400035	螺钉(M5×16)	SCREW (M5 x 16)	1
3	87791	油门凸轮螺丝垫圈	WASHER THROTTLE CAM SCREW	1
4	69150	油门凸轮螺丝波形垫圈	WAVE WASHER THROTTLE CAM SCREW	1
5	86968	油门凸轮螺丝衬套	BUSHING THROTTLE CAM SCREW	1
5	17764A2	节流连杆套件	LINK KIT Throttle	1
6	92425	缓冲器	DASHPOT	1
7	93001	缓冲器支架	BRACKET DASHPOT	1
8	22053	缓冲器端子螺母（0.312-24）	NUT (.312-24) DASHPOT TERMINAL	2
9	98463A1	油门拉杆总成	ROD ASSEMBLY Throttle	1
9	98463A2	油门拉杆总成	ROD ASSEMBLY Throttle	1
10	68219	油门拉杆锁紧螺母（#10-32不锈钢）	NUT (#10-32) Stainless Steel LOCK-THROTTLE ROD	1
11	98465	油门拉杆套筒	SOCKET THROTTLE ROD	2
11	8M0084742	插座	SOCKET	2
12	92730	控制杆	LEVER CONTROL	1
13	98464A1	正时拉杆	TIMING ROD	1
13	817429	正时连杆	TIMING LINK	1
14	95037	控制平台	PLATFOM CONTROL	1
14	44299	平台	PLATFORM	1
15	89540	点火提前弹簧	SPRING SPARK ADVANCE	1
16	95034	作动杆	LEVER ACTUATING	1
17	46250	挡圈	RING Retaining	1
18	40057108	控制平台螺丝（M5 x 20）	SCREW (M5 x 20) CONTROL PLATFORM	2
18	40019108	螺钉（M5×20）	SCREW (M5 x 20)	2
19	40037126	控制平台螺丝（13mm）	SCREW CONTROL PLATFORM (13MM)	1
20	40007128	换挡杆与平台螺丝（M6 x 20）	SCREW (M6 x 20) SHIFT LEVER TO PLATFORM	1
21	95093	换挡杆与平台垫圈	WASHER SHIFT LEVER TO PLATFORM	1
22	95035	换挡杆	LEVER SHIFT	1
23	95091	换挡杆至平台套管	SLEEVE SHIFT LEVER TO PLATFORM	1
24	35280	换挡杆螺钉垫片(0.255x0.620x0.030)不锈钢	WASHER (.255 x .620 x .030) Stainless Steel SHIFT LEVER SCREW	1
25	400634	换挡杆螺钉螺母(M6)	NUT (M6) SHIFT LEVER SCREW	1
25	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	95029	换挡杆销	PIN SHIFT LEVER	1
27	71055	换挡杆销垫片	WASHER SHIFT LEVER PIN	1
28	21071	换挡杆销开口销	COTTER PIN SHIFT LEVER PIN	1
28	210711	开口销	COTTER PIN	1
29	95784	作动杆销	PIN ACTUATING LEVER	1
30	71055	作动杆销垫片	WASHER ACTUATING LEVER PIN	1
31	21071	作动杆销开口销	COTTER PIN ACTUATING LEVER PIN	1
31	210711	开口销	COTTER PIN	1
32	95025	换挡连杆	SHIFT LINK	1
33	96202	换挡连杆尼龙衬套	BUSHING NYLON - SHIFT LINK	1
34	89302	换挡连杆垫片(0.203x0.406x0.040)	WASHER (.203 x .406 x .040) SHIFT LINK	2
35	21071	换挡连杆开口销	COTTER PIN SHIFT LINK	2
35	210711	开口销	COTTER PIN	2
36	95027A1	水平换挡轴总成	SHIFT SHAFT ASSEMBLY HORIZONTAL	1
36	95027A6	换档轴	SHIFT SHAFT	1
37	95023	换挡轴杆	LEVER SHIFT SHAFT	1
38	95019	换挡轴杆固定环	RING Retaining LEVER TO SHIFT SHAFT	1
39	60762	换挡轴衬套	BUSHING SHIFT SHAFT	2
40	95024	换挡轴杆	LEVER SHIFT SHAFT	1
40	17724A1	杠杆总成	LEVER ASSEMBLY	1
41	400633	换挡轴螺母(M5)	NUT (M5) SHIFT SHAFT	1
41	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
42	95033	遥控支架	BRACKET REMOTE CONTROL	1
43	4000168	遥控支架螺钉(M6x14)	SCREW (M6 x 14) REMOTE CONTROL BRACKET	2
43	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
44	21071	遥控拉索开口销	COTTER PIN REMOTE CONTROL CABLES	2
44	210711	开口销	COTTER PIN	2
45	96186A1	安装支架总成	BRACKET ASSEMBLY ATTACHING	1
45	96186A2	支架总成	BRACKET ASSEMBLY	1
46	96201	钥匙带	STRAP Key	1
47	4000376	支架螺钉(M10x25)	SCREW (M10 x 25) BRACKET	2
47	1993325	螺钉(M10x25mm)	SCREW (M10 x 25 mm)	2

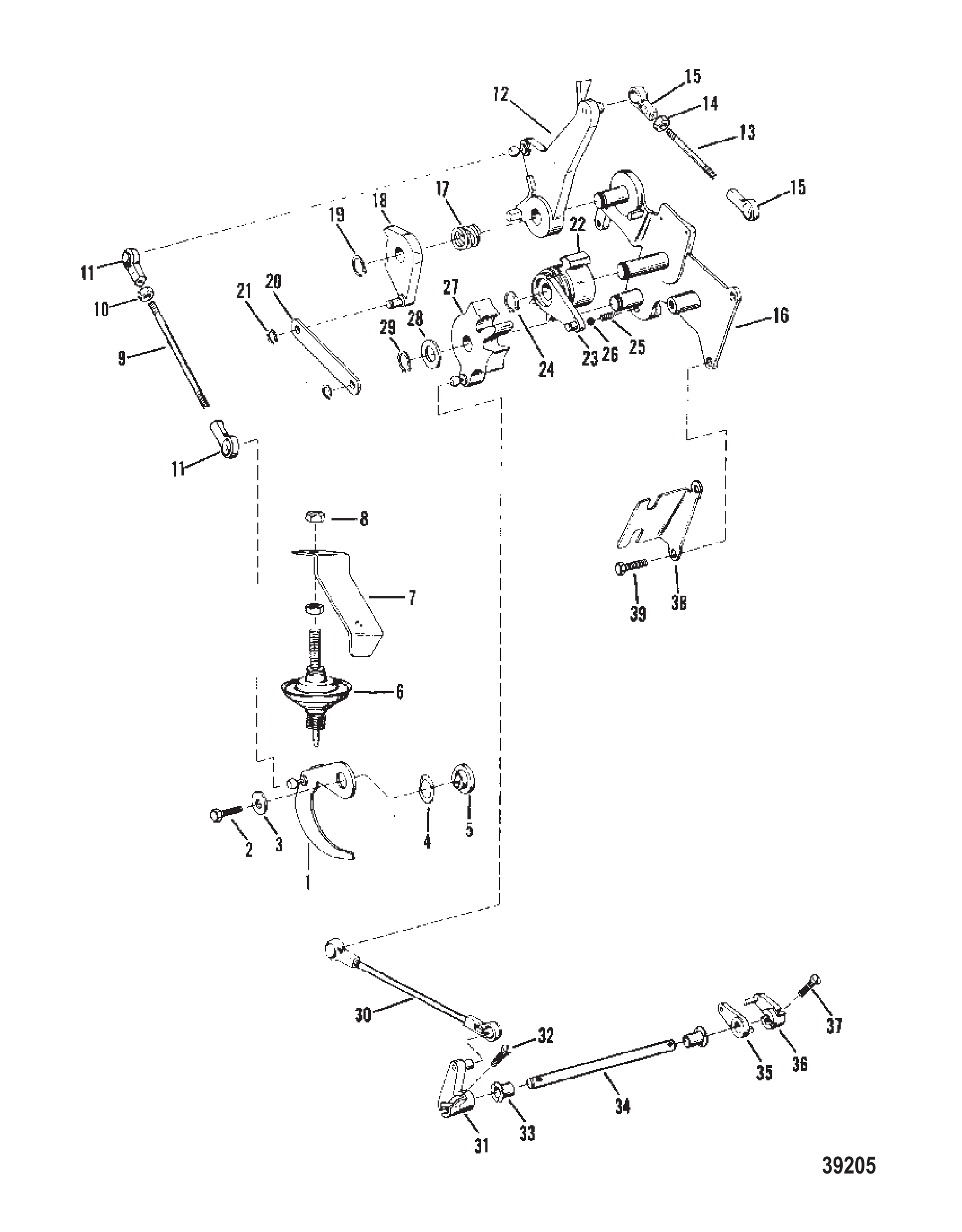

图 5油门和换挡联动装置（手动） THROTTLE AND SHIFT LINKAGE (MANUAL)

REF	零件编号	中文名称	英文名称	数量
1	87997A1	油门凸轮(与BC1A化油器配套使用)	CAM Throttle (USE WITH BC1A CARBURETOR)	1
1	96096	节气门凸轮	CAM Throttle	1
2	4000114	油门凸轮与曲轴箱螺丝（M5 x 16）	SCREW (M5 x 16) THROTTLE CAM TO CRANKCASE	1
2	400035	螺钉(M5×16)	SCREW (M5 x 16)	1
3	87791	油门凸轮螺丝垫圈	WASHER THROTTLE CAM SCREW	1
4	69150	油门凸轮螺丝波形垫圈	WAVE WASHER THROTTLE CAM SCREW	1
5	86968	油门凸轮螺丝衬套	BUSHING THROTTLE CAM SCREW	1
5	17764A2	节流连杆套件	LINK KIT Throttle	1
6	92425	缓冲器	DASHPOT	1
7	93001	缓冲器支架	BRACKET DASHPOT	1
8	22053	缓冲器端子螺母（0.312-24）	NUT (.312-24) DASHPOT TERMINAL	2
9	98463A1	油门拉杆总成	ROD ASSEMBLY Throttle	1
9	98463A2	油门拉杆总成	ROD ASSEMBLY Throttle	1
10	68219	节气门杆锁紧螺母(#10-32)不锈钢	NUT (#10-32) Stainless Steel LOCK - THROTTLE ROD	1
11	98465	油门拉杆套筒	SOCKET THROTTLE ROD	2
11	8M0084742	插座	SOCKET	2
12	92730	控制杆	LEVER CONTROL	1
13	98464A1	正时拉杆	TIMING ROD	1
13	817429	正时连杆	TIMING LINK	1
14	68219	螺母(#10-32)不锈钢锁紧-正时杆	NUT (#10-32) Stainless Steel LOCK - TIMING ROD	1
15	98465	正时杆套筒	SOCKET TIMING ROD	2
15	8M0084742	插座	SOCKET	2
16	93741	控制平台	PLATFORM CONTROL	1
16	12863A1	平台	PLATFORM	1
17	89540	点火提前弹簧	SPRING SPARK ADVANCE	1
18	93779	作动杆	LEVER ACTUATING	1
18	92362A1	杠杆	LEVER	1
19	46250	挡圈	RING Retaining	1
20	86717	节气门/提前连杆	LINK THROTTLE/ADVANCE	1
20	92362A1	杠杆	LEVER	1
21	86731	节气门/提前连杆固定环	RETANINING RING THROTTLE/ADVANCE LINK	2
22	94152	齿轮	GEAR	1
22	94085A1	齿轮	GEAR	1
23	92362	主杆	LEVER PRIMARY	1
23	92362A1	杠杆	LEVER	1
24	46250	主杆与齿轮固定环	RING Retaining PRIMARY LEVER AND GEAR	1
25	93006	定位球弹簧	SPRING DETENT BALL	1
25	8M0215005	弹簧	SPRING	1
26	93008	定位球	BALL DETENT	1
27	94085	换挡机构	GEAR SHIFT	1
27	94085A1	齿轮	GEAR	1
28	49339	换挡齿轮垫片(0.8125)	WASHER (.8125) SHIFT GEAR	1
29	46250	换挡齿轮固定环	RING Retaining SHIFT GEAR	1
30	962552	换挡连杆	SHIFT ROD	1
30	193852	连接杆	LINK	1
31	94084	换挡拉杆	LEVER SHIFT ROD	1
32	4001589	换挡杆	LEVER Shift Rod	1
33	60762	换挡轴衬套	BUSHING SHIFT SHAFT	2
34	87794	水平换挡轴	SHIFT SHAFT HORIZONTAL	1
35	93744	换挡轴杆	LEVER SHIFT SHAFT	1
36	93928	杠杆杆端	LEVER ROD END	1
37	4001588	螺丝(M4 x 20)杆端杠杆	SCREW (M4 x 20) ROD END LEVER	1
38	94186	节气门拉线支架	BRACKET THROTTLE CABLE	1
39	4000171	螺丝(M6 x 16)支架至气缸体	SCREW (M6 x 16) BRACKET TO CYLINDER BLOCK	3

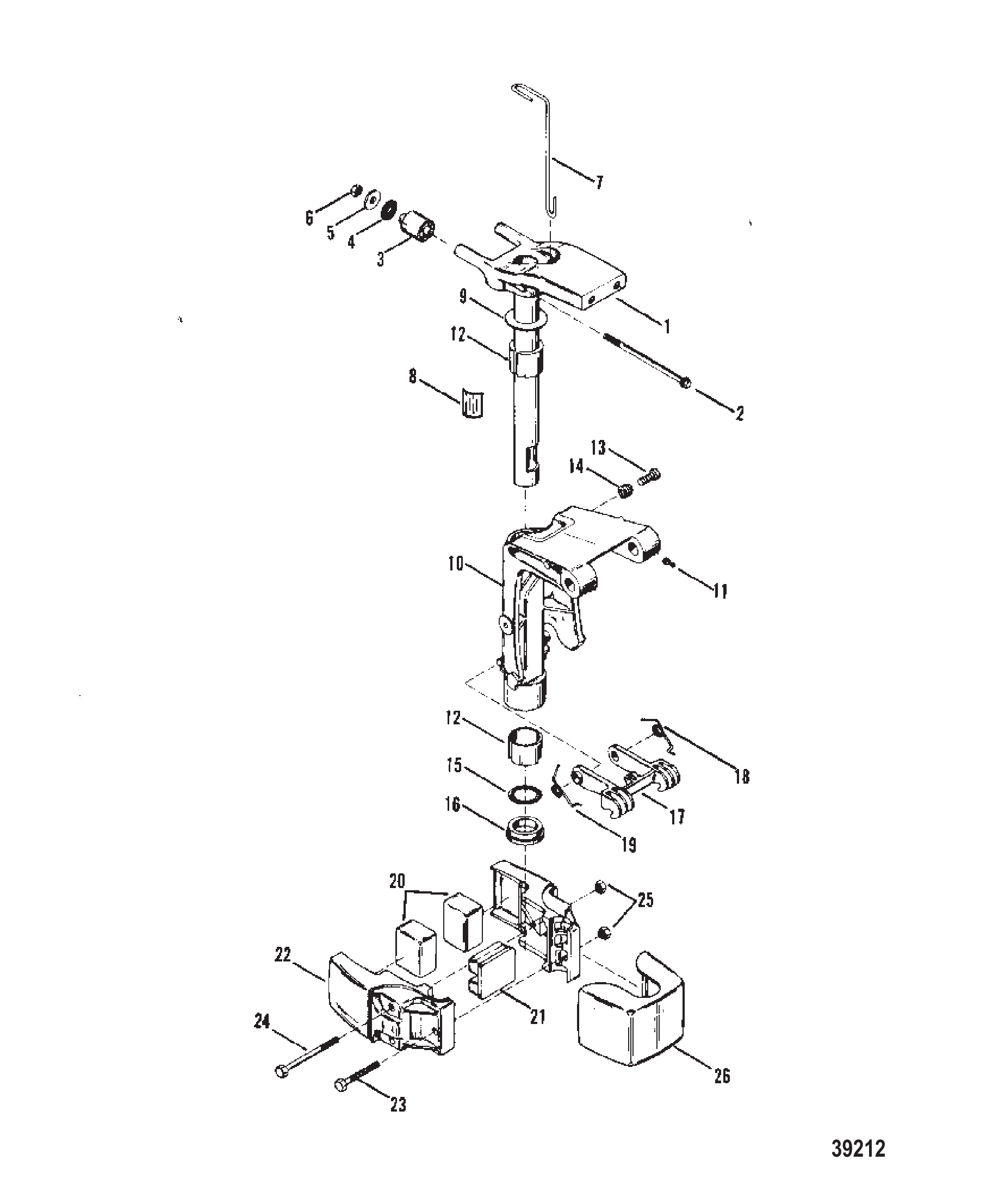

图 6旋转支架总成 SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	97544A1	转轴管总成	SWIVEL TUBE ASSEMBLY	1
1	97544A5	水星转轴管总成	SWIVEL TUBE ASSEMBLY Mercury	1
2	87142	上支架螺丝（133mm）	SCREW UPPER MOUNT (133MM)	2
2	125161	螺丝 M8×133	SCREW (M8 x 133)	2
3	85102	上支架	MOUNT UPPER	2
3	14894	支架	MOUNT	2
4	85172	橡胶垫圈(上支架螺丝)	WASHER RUBBER - UPPER MOUNT SCREW	2
5	85106	上部支架螺钉垫圈	WASHER UPPER MOUNT SCREW	2
6	400213	螺母 M8不锈钢(上支架螺丝)	NUT (M8) Stainless Steel UPPER MOUNT SCREW	2
7	85157	倒挡钩杆	ROD REVERSE HOOK	1
8	85173	导向控制板	PLATE PILOT CONTROL	1
9	85104	转轴管垫圈	WASHER SWIVEL TUBE	1
10	8187A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
10	822237A1	转轴支架-黑色	BRKT-SWIVEL-BLK	1
11	74036	润滑脂接头	FITTING Grease	3
11	8M0169589	润滑脂接头	FITTING Grease	3
12	95949	转轴支架衬套	BUSHING SWIVEL BRACKET	2
13	91908	导向控制螺丝	SCREW PILOT CONTROL	1
13	91807	螺钉	SCREW	1
14	96203	导向控制螺丝弹簧	SPRING PILOT CONTROL SCREW	1
15	86993	旋转管O型圈	O-RING SWIVEL TUBE	1
16	85154	转轴管衬套（下部）	BUSHING SWIVEL TUBE (LOWER)	1
17	96045A1	倒挡锁钩总成	HOOK ASSEMBLY REVERSE LOCK	1
17	98830A2	挂钩总成	HOOK ASSEMBLY	1
18	96018	倒挡钩弹簧(左舷)	SPRING REVERSE HOOK - PORT	1
19	97427	右舷倒车挂钩弹簧	SPRING REVERSE HOOK - STARBOARD	1
20	85122	下支架	MOUNT LOWER	2
20	85122001	下支架	MOUNT Lower	2
21	85123	前缓冲垫	BUMPER Front	1
21	85123001	前缓冲垫	BUMPER Front	1
22	92168	下安装盖	COVER LOWER MOUNT	2
22	95068A1	盖板	COVER	2
23	40007155	下支架盖螺丝（55mm）	SCREW LOWER MOUNT COVER (55MM)	1
23	1994360	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
24	4000362	下支架盖螺丝（90mm）	SCREW LOWER MOUNT COVER (90MM)	2
22	95068A1	下安装盖	COVER LOWER MOUNT	1
23	4009259	下支架盖螺丝（60mm）	SCREW LOWER MOUNT COVER (60MM)	1
23	1994360	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
24	4009263	下支架盖螺丝（100mm）	SCREW LOWER MOUNT COVER (100MM)	2
24	19943100	螺丝(M8 x 100)	SCREW (M8 x 100)	2
25	400213	下支架盖螺丝螺母（M8不锈钢）	NUT (M8) Stainless Steel LOWER MOUNT COVER SCREW	3
26	85547	下支架盖（塑料）	COVER LOWER MOUNT (PLASTIC)	1
-	85168A80	衬垫套件	GASKET SET	1

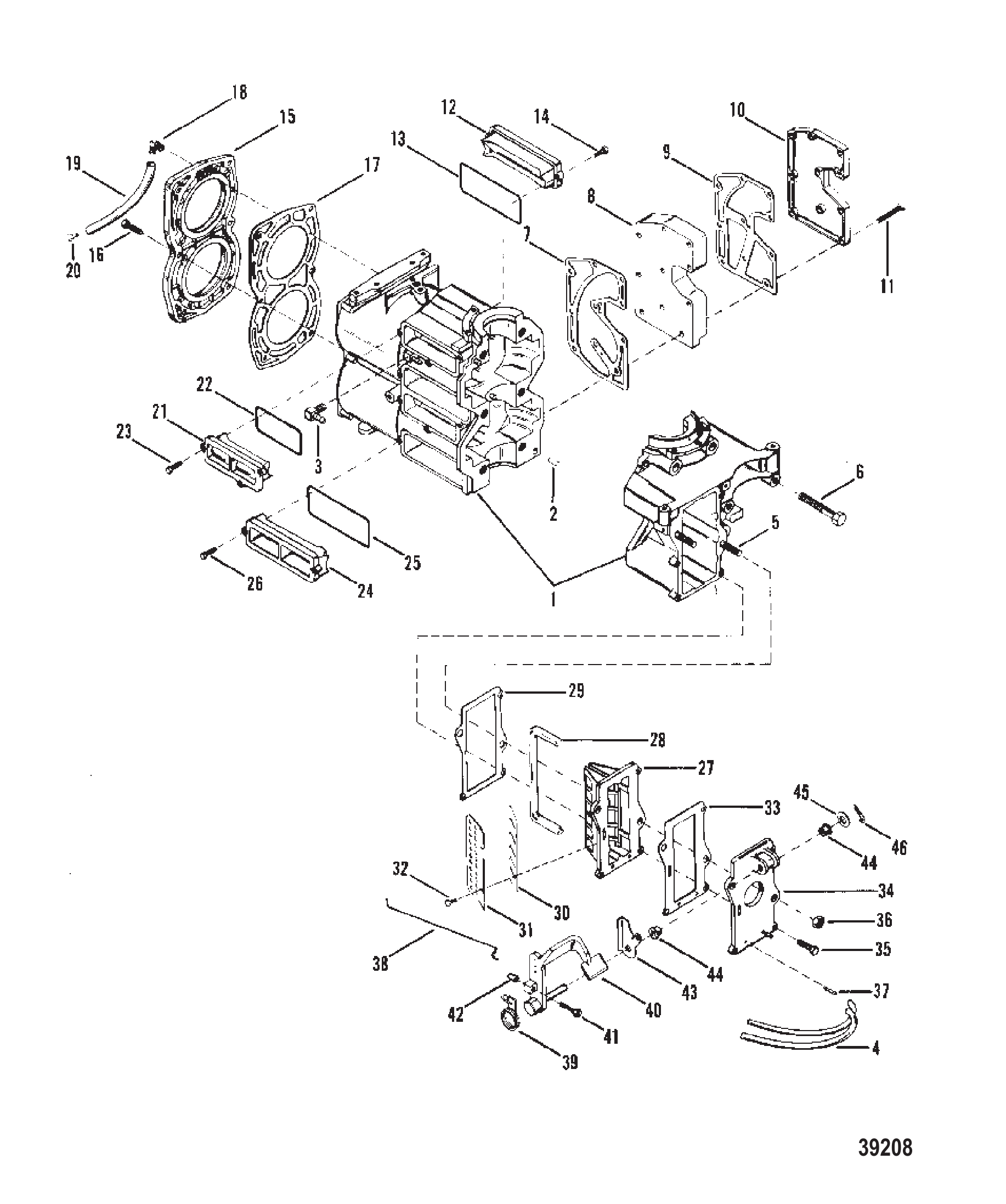

图 7气缸体和盖 CYLINDER BLOCK AND COVER

REF	零件编号	中文名称	英文名称	数量
1	8196A3	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	9533T38	气缸体	CYLINDER BLOCK	1
1	8501A2	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	9533T38	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	3
3	71191	弯头泄放软管(45)	ELBOW BLEED HOSE (45)	2
3	15133	接头	FITTING	2
4	6058078	泄放软管(12-1/4英寸)	HOSE BLEED (12-1/4")	2
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
5	88929	化油器螺柱	STUD CARBURETOR	2
5	429173	螺柱	STUD	2
6	40001209	螺丝(M10 x 60)	SCREW (M10 x 60)	6
7	92331	排气歧管衬垫	GASKET EXHAUST MANIFOLD	1
7	892158	排气歧管衬垫	GASKET Exhaust Manifold	1
8	92329	排气歧管	MANIFOLD Exhaust	1
9	92332	排气盖衬垫	GASKET EXHAUST COVER	1
9	414991	衬垫	GASKET	1
10	92330	排气盖	COVER EXHAUST	1
10	92330T	盖板	COVER	1
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	10
12	92349	换气口盖	COVER TRANSFER PORT	2
12	144071	盖板	COVER	2
13	30503	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
13	822370	O型圈 (2.362×.103)	O-RING (2.362 x .103)	2
14	40057107	螺钉(M5×16)	SCREW (M5 x 16)	4
15	7415	气缸体盖	COVER CYLINDER BLOCK	1
15	8283A1	盖总成	COVER ASEMBLY	1
15	8283A1	气缸体盖总成	COVER ASEMBLY CYLINDER BLOCK	1
16	4000331	螺丝 (M6×30) 盖固定	SCREW (M6 x 30) COVER ATTACHING	6
16	4000330	螺钉(M6x25)盖固定	SCREW (M6 x 25) COVER ATTACHING	6
16	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	6
17	86389	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
18	25885	示警软管弯头	ELBOW TELL TALE HOSE	1
18	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
19	34395A1	指示软管(8英寸)	HOSE TELL TAL (8")	1
19	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
20	94848	示警软管接头 - 下罩	FITTING TELL TALE HOSE - BOTTOM COWL	1
21	92351	换气口盖	COVER TRANSFER PORT	2
21	14406	盖板	COVER	2
22	86391	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
23	40057107	螺钉(M5×16)	SCREW (M5 x 16)	6
24	92350	换气口盖	COVER TRANSFER PORT	2
25	33465	换气口盖O型圈	O-RING TRANSFER PORT COVER	2
25	8M0214925	O型圈	O RING	2
26	40057107	螺钉(M5×16)	SCREW (M5 x 16)	4
27	90786	簧片阀组	REED BLOCK	1
27	14112T	簧片阀组	REED BLOCK	1
28	85977		SEAL Rubber REED BLOCK	1
28	85977002	密封件	SEAL	1
29	85978	簧片阀衬垫	GASKET REED BLOCK	1
29	414172	衬垫	GASKET	1
30	90791	簧片	REED	2
30	816806	簧片	REED	2
31	89793	簧片止挡	STOP Reed	2
31	897931	簧片止挡	STOP Reed	2
32	4005785	螺丝 (M4×10) 簧片固定	SCREW (M4 x 10) REED ATTACHING	4
33	85979	适配板垫片	GASKET ADAPTOR PLATE	1
33	414181	衬垫	GASKET	1
34	90785	化油器适配板	PLATE ADAPTOR - CARBURETOR	1
35	40057108	螺丝 (M5×20) 板至簧片座	SCREW (M5 x 20) PLATE TO REED BLOCK	3
35	40019108	螺钉（M5×20）	SCREW (M5 x 20)	3
36	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
37	56759	适配板倒刺接头 - 泄油软管	FITTING Barbed ADAPTOR PLATE - BLEED HOSE	2
38	93879	怠速线	IDLE WIRE	1
39	97176	阻风门弹簧	SPRING CHOKE	1
40	93877	阻风门/快怠速杠杆	LEVER CHOKE/FAST IDLE	1
40	42545	杠杆	LEVER	1
41	89580	调节螺丝-杠杆	SCREW ADJUSTING - LEVER	1
41	91073	螺钉	SCREW	1
41	91073	调节螺丝-杠杆	SCREW ADJUSTING - LEVER	1
42	48039	调节螺钉帽	CAP ADJUSTING SCREW	1
43	89602	驱动板	PLATE DRIVER	1
43	43220A1	杠杆总成	LEVER ASSY	1
43	96151A1	驱动板总成	PLATE ASSEMBLY DRIVER	1
43	43220A1	杠杆总成	LEVER ASSY	1
44	90798	阻风门/快怠速杠杆衬套	BUSHING CHOKE/FAST IDLE LEVER	2
44	26856	衬套	BUSHING	2
45	28463	阻风门/快怠速杠杆垫圈	WASHER CHOKE/FAST IDLE LEVER	1
46	93500	阻风门/快怠速杠杆开口销	COTTER PIN CHOKE/FAST IDLE LEVER	1
-	85168A80	衬垫套件	GASKET SET	1

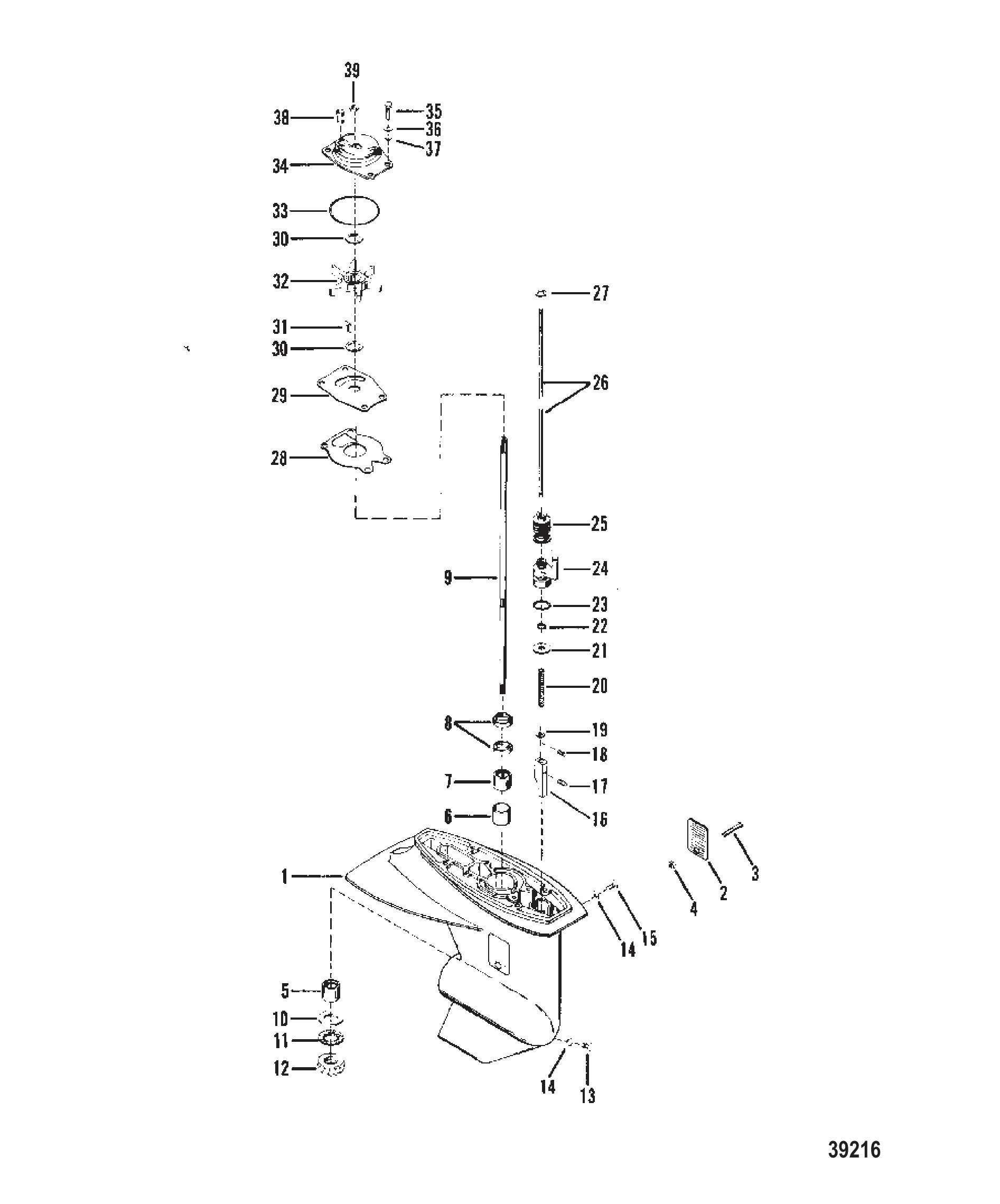

图 8齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	8157A7	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8157A8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
1	8157A6	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
2	98488	进水口滤网	SCREEN WATER INLET	1
2	98487	进水口滤网	SCREEN WATER INLET	1
3	40031112	螺钉(M5 x 40)滤网至齿轮箱	SCREW (M5 x 40) SCREEN TO GEAR HOUSING	1
4	400263	螺母(M5)滤网螺钉	NUT (M5) SCREEN SCREW	1
5	85559	滚柱轴承下(见备注)	BEARING Roller LOWER (SEE NOTE)	1
6	85092	上滚动轴承套	SLEEVE UPPER ROLLING BEARING	1
7	85558	滚柱轴承上	BEARING Roller UPPER	1
8	33467	齿轮箱油封	SEAL Oil GEAR HOUSING	2
8	897154	油封@3	SEAL-OIL @3	2
9	98084	驱动轴	DRIVESHAFT	1
9	98085	驱动轴	DRIVESHAFT	1
10	94056	止推垫圈-驱动轴	WASHER THRUST - DRIVESHAFT	AR
10	96524	止推垫圈-传动轴-见备注	WASHER THRUST - DRIVESHAFT - SEE NOTE	AR
10	98861A1	衬套套装	BUSHING KIT	AR
11	85560	推力轴承-传动轴(见备注)	BEARING Thrust DRIVESHAFT (SEE NOTE)	1
12	85132	小齿轮	GEAR Pinion	1
13	67892		SCREW Magnetic DRAIN	1
13	8M0058389	放油螺钉套件	SCREW KIT Drain	1
14	20260	放油/注油螺丝垫圈	WASHER DRAIN AND FILLER SCREW	2
14	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
15	79953		SCREW (.375-16 x .250) GREASE FILLER	1
15	79953Q04	放油螺钉套件	SCREW KIT Drain	1
16	85562A1	换档凸轮总成	CAM ASSEMBLY SHIFT	1
17	85096	换档凸轮驱动销	PIN Drive SHIFT CAM	1
18	85593	换档轴销(.078 x .437)	PIN (.078 x .437) SHIFT SHAFT	1
19	29245	不锈钢换档轴垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT	1
19	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
20	93007	换档轴弹簧	SPRING SHIFT SHAFT	1
21	85091	换档轴垫圈	WASHER SHIFT SHAFT	1
22	85594	换档轴O型圈(.239 x .174)	O-RING (.239 x .174) SHIFT SHAFT	1
23	20365	换档轴固定环O型圈	O-RING SHIFT SHAFT RETAINER	1
23	35276	O型圈(.734 x .139)	O-RING (.734 x .139)	1
24	93878	换档轴固定环	RETAINER SHIFT SHAFT	1
25	85552	换档轴防尘罩	BOOT SHIFT SHAFT	1
25	85552001	护套	BOOT	1
26	85126	换档轴	SHIFT SHAFT	1
26	86293	换档轴	SHIFT SHAFT	1
27	29245	不锈钢换档轴上垫圈(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT - UPPER	1
27	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
28	85087	水泵衬垫	GASKET WATER PUMP	1
28	993261	衬垫	GASKET	1
29	85083	面板	FACE PLATE	1
30	86645	叶轮垫圈	WASHER IMPELLER	2
30	8M0204722	垫圈	WASHER	2
31	85119	叶轮驱动键	KEY IMPELLER DRIVE	1
31	8M0214993	键@5	KEY @5	1
32	85089	叶轮	IMPELLER	1
32	8M0204712	叶轮	IMPELLER	1
33	69202	水泵O型圈	O-RING WATER PUMP	1
34	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
34	99157T2	水泵套件	PUMP KIT Water	1
35	400035	水泵至齿轮箱螺丝(M5 x 16)	SCREW (M5 x 16) WATER PUMP TO GEAR HOUSING	4
36	89302	水泵螺丝垫圈(.203 x .406 x .040)	WASHER (.203 x .406 x .040) WATER PUMP SCREW	4
37	85095	水泵螺丝衬套	BUSHING WATER PUMP SCREW	4
37	8M0214959	衬套@5	BUSHING @5	4
38	85090	水管密封件	SEAL WATER TUBE	1
38	85090001	密封件	SEAL	1
39	86203	橡胶传动轴O型圈	O-RING DRIVE SHAFT - RUBBER	1
-	85168A80	衬垫套件	GASKET SET	1
-	99157A2	水泵维修套件	REPAIR KIT Water Pump	1
-	99157T2	水泵套件	PUMP KIT Water	1
-	85090A1	水泵密封套件	SEAL KIT Water Pump	1

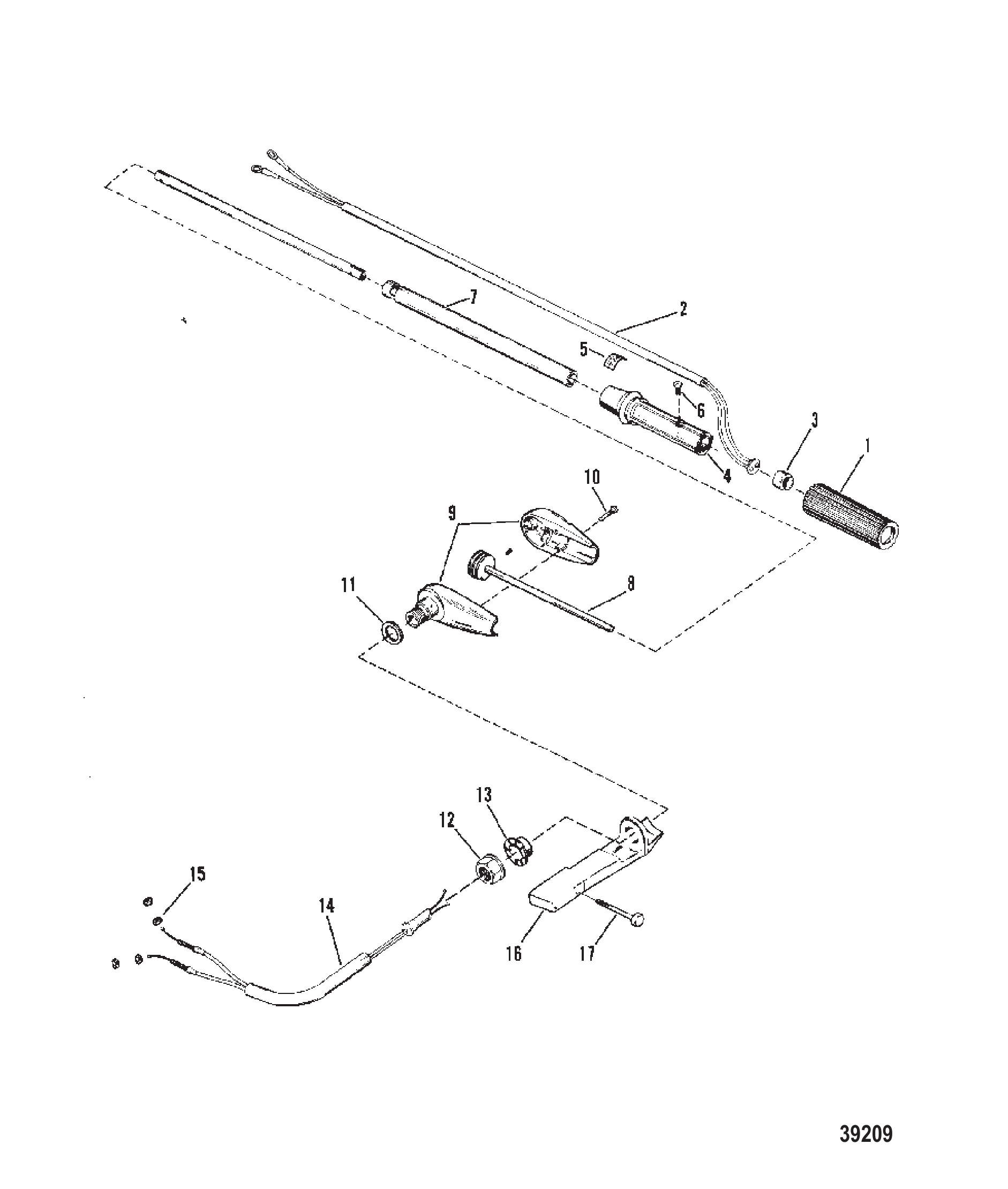

图 9转向手柄总成（手动） STEERING HANDLE ASSEMBLY (MANUAL)

REF	零件编号	中文名称	英文名称	数量
-	94185A3	转向手柄总成（25马力二冲程）	HANDLE ASSEMBLY Steering (25 Hp 2-Stroke)	1
-	94185A16	转向手柄	STEERING HANDLE	1
1	92770	橡胶握把	GRIP RUBBER	1
1	8M0221732	外握把	GRIP OUTER	1
2	89591A2	停机开关线束总成	HARNESS ASSEMBLY STOP SWITCH	1
2	89591A5	线束总成	HARNESS ASSEMBLY	1
3	55741A1	护套总成	BOOT ASSEMBLY	1
3	11099A1	护套总成	BOOT ASSEMBLY	1
4	96495A1	油门手柄总成	HANDLE ASSEMBLY THROTTLE	1
4	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
5	90385	油门手柄贴花	DECAL THROTTLE HANDLE	1
5	13239	贴花	DECAL	1
6	62568	油门手柄螺丝（#10-16 x 0.375）	SCREW (#10-16 x .375) THROTTLE HANDLE	1
7	99333A2	转向管总成	TUBE ASSEMBLY STEERING	1
8	97548A1	管总成	TUBE ASSEMBLY	1
8	975501	管总成	TUBE ASSEMBLY	1
8	41590A1	管总成	TUBE ASSEMBLY	1
8	975501	管总成	TUBE ASSEMBLY	1
9	94185A4	支架总成	BRACKET ASSEMBLY	1
9	44397A6	ORD 43447A 3	ORD 43447A 3	1
10	4005688	支架夹紧螺丝（M4 x 20）	SCREW (M4 x 20) BRACKET CLAMPING	3
11	57860	支架尼龙垫圈	WASHER NYLON - BRACKET	1
12	96787	支架螺母	NUT BRACKET	1
12	859133	螺母(1.00-14)	NUT (1.00-14)	1
13	85973	支架衬套	BUSHING BRACKET	1
14	93937	油门拉线	CABLE THROTTLE	1
14	43242	拉线总成	CABLE ASSEMBLY	1
15	400212	油门拉索不锈钢螺母（M6）	NUT (M6) Stainless Steel THROTTLE CABLE	4
16	96710A1	转向支架总成	BRACKET ASSEMBLY STEERING	1
16	43447A3	转向支架总成	BRACKET ASSEMBLY Steering	1
17	4000384	支架与转轴管螺丝（M10 x 80）	SCREW (M10 x 80) BRACKET TO SWIVEL TUBE	2

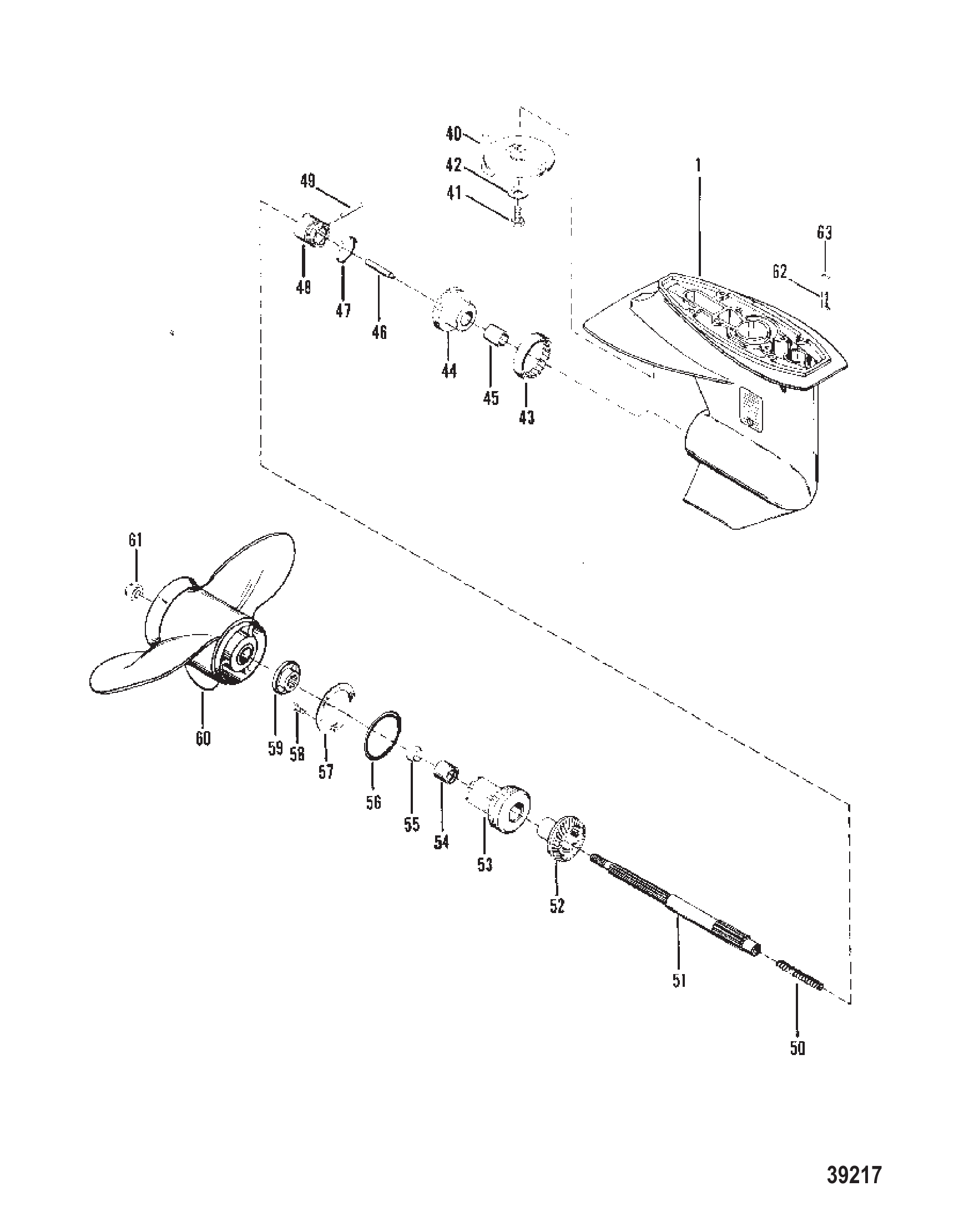

图 10齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	8157A7	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T13	齿轮箱外壳SH-BLK	GEAR HSG. SH-BLK	1
-	8157A8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY COMPLETE	1
-	8669T14	GC 20/25 2S LG	GC 20/25 2S LG	1
1	8157A6	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY BASIC	1
40	94286	平衡鳍板	TRIM TAB	1
40	94286T1	平衡鳍板	TRIM TAB	1
41	4000352	平衡片螺丝(M8 x 20)	SCREW (M8 x 20) TRIM TAB	1
42	85169	平衡片螺丝锁紧垫圈	TAB WASHER TRIM TAB SCREW	1
43	85555A1	圆锥滚子轴承总成	BEARING ASSEMBLY Roller TAPERED	1
44	85135A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
45	85557	前进齿轮衬套	BUSHING FORWARD GEAR	1
46	85094	凸轮从动件	FOLLOWER Cam	1
47	38114	十字销固定弹簧	SPRING RETAINING - CROSS PIN	1
48	85133	滑动离合器	CLUTCH SLIDING	1
49	85093	离合器至螺旋桨轴销	PIN CLUTCH TO PROPELLER SHAFT	1
49	8M0020999	十字销	PIN CROSS	1
50	88680	螺旋桨轴压缩弹簧	SPRING COMPRESSION - PROPELLER SHAFT	1
51	85134	螺旋桨轴	PROPELLER SHAFT	1
51	8166231	螺旋桨轴	PROPELLER SHAFT	1
52	85131	倒挡齿轮	GEAR Reverse	1
52	99542A1	倒档齿轮	REVERSE GEAR	1
53	85136A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	99906T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
54	21739	滚柱轴承	BEARING Roller	1
55	98283	轴承座油封	SEAL Oil BEARING CARRIER	1
56	85549	轴承座O型圈	O-RING BEARING CARRIER	1
57	87293	齿轮箱盖板	PLATE GEAR HOUSING	1
58	91909	齿轮箱盖板螺丝(16MM)	SCREW COVER TO GEAR HOUSING (16MM)	3
58	90883	螺钉(M5×16)	SCREW (M5 x 16)	3
59	85128A1	螺旋桨推力毂总成	THRUST HUB ASSEMBLY PROPELLER	1
59	858498	推力毂总成	THRUST HUB ASSEMBLY	1
60	86848A4	螺旋桨总成	PROPELLER ASSEMBLY	1
60	19640A40	BLACK MAX螺旋桨	BLACK MAX PROPELLER	1
61	88228	螺旋桨螺母	PROP NUT	1
62	4000353	齿轮箱螺丝(M8 x 25)	SCREW (M8 x 25) GEAR HOUSING	4
63	4002317	齿轮箱螺丝垫圈(8.90 X 17.0 X 1.9SS)	WASHER (8.90 X 17.0 X 1.9SS) GEAR HOUSING SCREW	4
-	85168A80	衬垫套件	GASKET SET	1
-	85090A1	水泵密封套件	SEAL KIT Water Pump	1

图 11杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

图 12外罩 COWLS

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	盖锁扣	LATCH Cowl	1
5	817104A3	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护板(黑色)	SHIELD REAR (BLACK)	1
7	12873	后护板(灰色)	SHIELD REAR (GRAY)	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	底罩(黑色)	BOTTOM COWL (BLACK)	1
9	9204A2	底罩(灰色)	BOTTOM COWL (GRAY)	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	底罩塞(手动)	PLUG BOTTOM COWL (MANUAL)	1
10	121532	底罩护线环(电动)	GROMMET Bottom Cowl (ELECTRIC)	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	罩壳锁杆衬套	BUSHING COWL LATCH LEVEER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

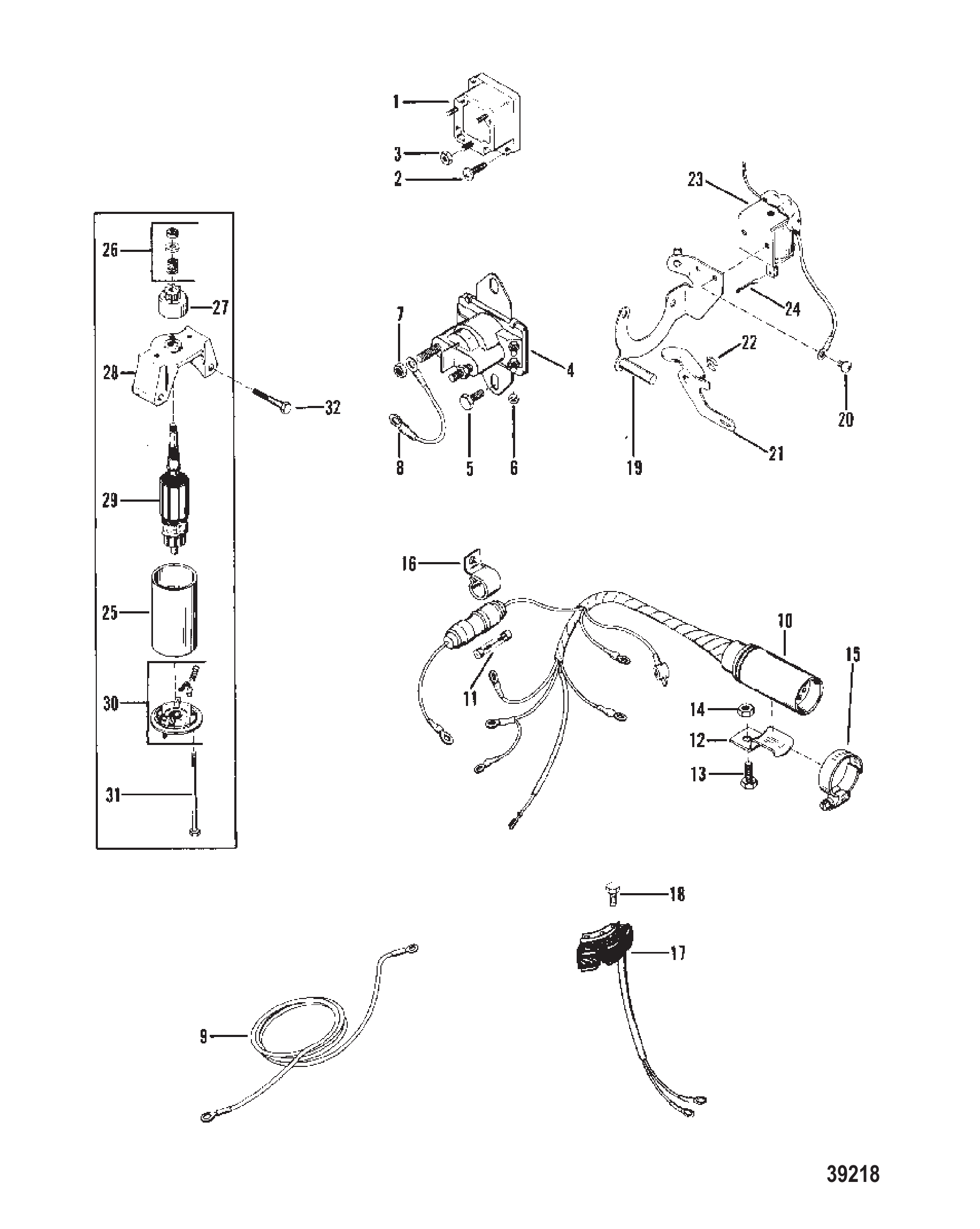

图 13电气组件（电动） ELECTRIC COMPONENTS (ELECTRIC)

REF	零件编号	中文名称	英文名称	数量
1	62351A2	整流器总成	RECTIFIER ASSEMBLY	1
1	8M0058226	整流器	RECTIFIER	1
2	48409	螺丝(#10-16 x .625)不锈钢整流器至气缸体	SCREW (#10-16 x .625) Stainless Steel RECTIFIER TO CYLINDER BLOCK	2
3	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
4	91975	启动电磁阀	SOLENOID Starter	1
4	8M0185149	启动电磁阀	SOLENOID START	1
5	4000168	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
5	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
6	26419	螺母(#8-32)黄铜启动电磁阀端子(10-32)	NUT (#8-32) Brass STARTER SOLENOID TERMINAL (10-32)	2
7	64015	螺母(.250-20)启动电磁阀端子(1/4-20)	NUT (.250-20) STARTER SOLENOID TERMINAL (1/4-20)	2
8	88809A5	黄色电线总成	WIRE ASSEMBLY YELLOW	1
9	88439A8	红色电池电缆总成	CABLE ASSEMBLY Battery RED	1
9	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
9	88439A6	黑色电池电缆总成	CABLE ASSEMBLY Battery BLACK	1
9	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
10	92436A3	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
10	92436A5	线束总成	HARNESS ASSEMBLY	1
11	95085	保险丝	FUSE	1
12	92439	线束支架	BRACKET WIRING HARNESS	1
13	4000327	螺丝(M6 x 14)支架	SCREW (M6 x 14) BRACKET	1
14	400212	螺母(M6)不锈钢支架螺丝	NUT (M6) Stainless Steel BRACKET SCREW	1
15	32779	线束夹	CLAMP WIRING HARNESS	1
15	815504310	蜗杆卡箍	CLAMP Worm Gear	1
16	55098	J型线束夹	J CLIP WIRING HARNESS	1
16	8M0024808	J型夹	J-CLIP	1
17	86704A2	辅助定子总成	STATOR ASSEMBLY AUXILIARY	1
17	86704A10	辅助定子	STATOR Auxiliary	1
18	4000123	螺钉(M5 x 30)定子固定	SCREW (M5 x 30) STATOR ATTACHING	3
19	94301A1	阻风门旋钮板总成	PLATE ASSEMBLY CHOKE KNOB	1
20	95088	板至电磁阀螺丝	SCREW PLATE TO SOLENOID	2
21	95020	阻风门杠杆	LEVER CHOKE	1
22	95019	阻风门杠杆至板固定环	RING Retaining CHOKE LEVER TO PLATE	1
23	94973A3	电磁阀总成	SOLENOID ASSEMBLY	1
24	21071	阻风门杠杆至电磁阀开口销	COTTER PIN CHOKE LEVER TO SOLENOID	1
24	210711	开口销	COTTER PIN	1
25	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
25	8M0033984	启动马达	STARTER MOTOR	1
26	96561	驱动套件	DRIVE KIT	1
27	96562	驱动器	DRIVE	1
28	96563	端盖	END CAP	1
28	96563T	端盖	END CAP	1
29	96565	电枢	ARMATURE	1
30	96564	带弹簧和电刷的换向器端盖	END CAP COMMUTATOR W/SPRINGS AND BRUSHES	1
30	96564T	端盖	END CAP	1
31	96566	贯穿螺栓	THRU BOLT	1
32	40001149	螺丝(M8 x 50)启动马达固定	SCREW (M8 x 50) STARTER MOTOR ATTACHING	2
32	4000358	螺钉(M8 x 50)	SCREW (M8 x 50)	2

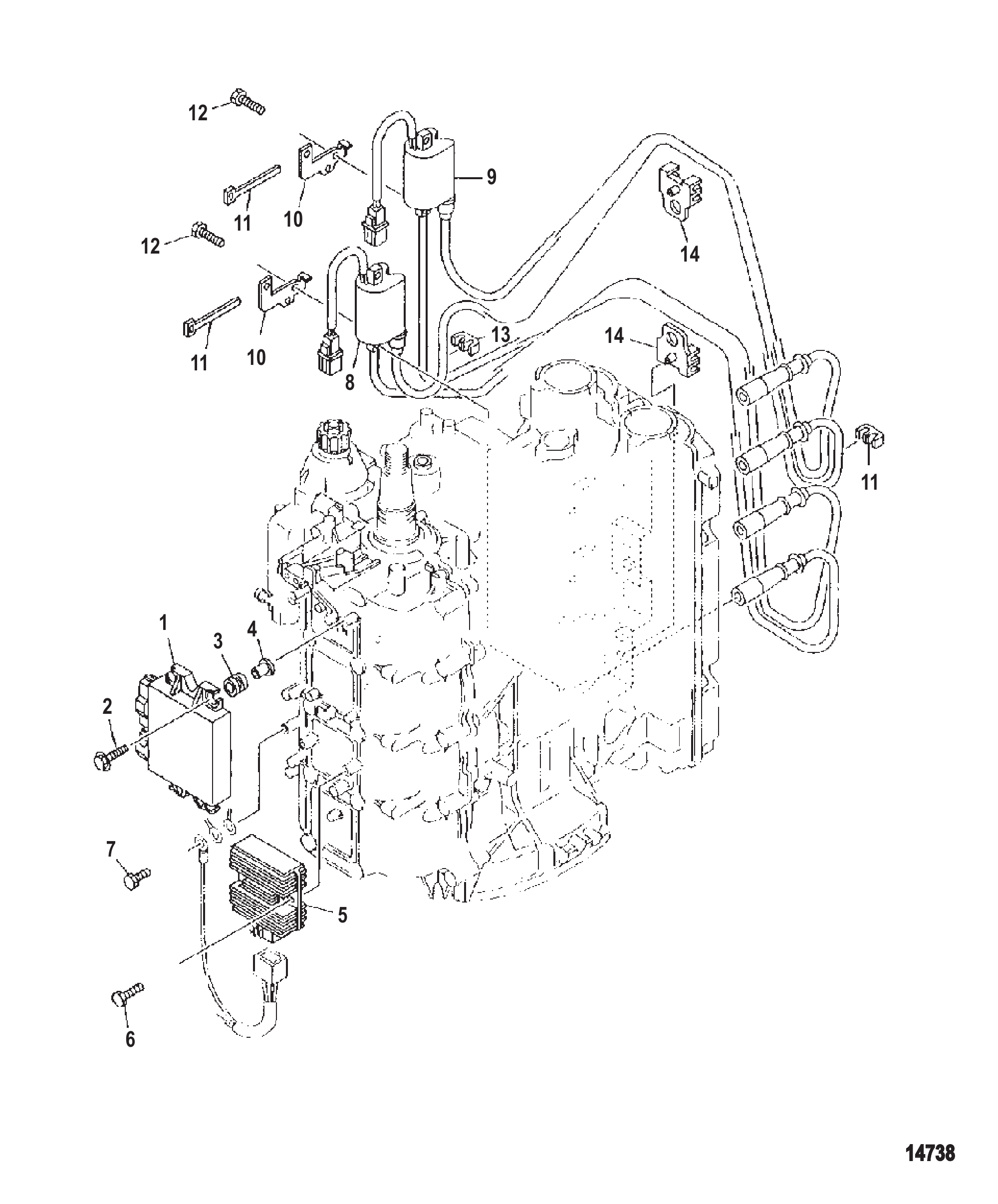

图 14点火组件 IGNITION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	880891T11	发动机控制单元ECU	ECU Engine Control Unit	1
1	880891T14	发动机控制单元ECU	ECU Engine Control Unit	1
1	880891T1	发动机控制总成	CONTROL ASSEMBLY Engine	1
1	880891T14	发动机控制单元ECU	ECU Engine Control Unit	1
2	804270	螺栓(M6×28)	BOLT (M6 x 28)	4
3	881304	护孔环	GROMMET	4
4	82851M	衬套	BUSHING	4
4	804344003	轴环	COLLAR	4
5	881346T	整流器/调节器总成	RECTIFIER/REGULATOR ASSEMBLY	1
6	853536	螺栓(M6x25)	BOLT (M6 x 25)	2
7	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
8	880893T10	点火线圈	COIL Ignition	1
8	8M0123821	点火线圈	IGNITION COIL	1
9	880892T	点火线圈	COIL Ignition	1
9	8M0121257	点火线圈	IGNITION COIL	1
10	881345	安装板	PLATE	2
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
12	853536	螺栓(M6x25)	BOLT (M6 x 25)	4
13	804276	卡箍	CLAMP	2
14	804277	卡箍	CLAMP	2

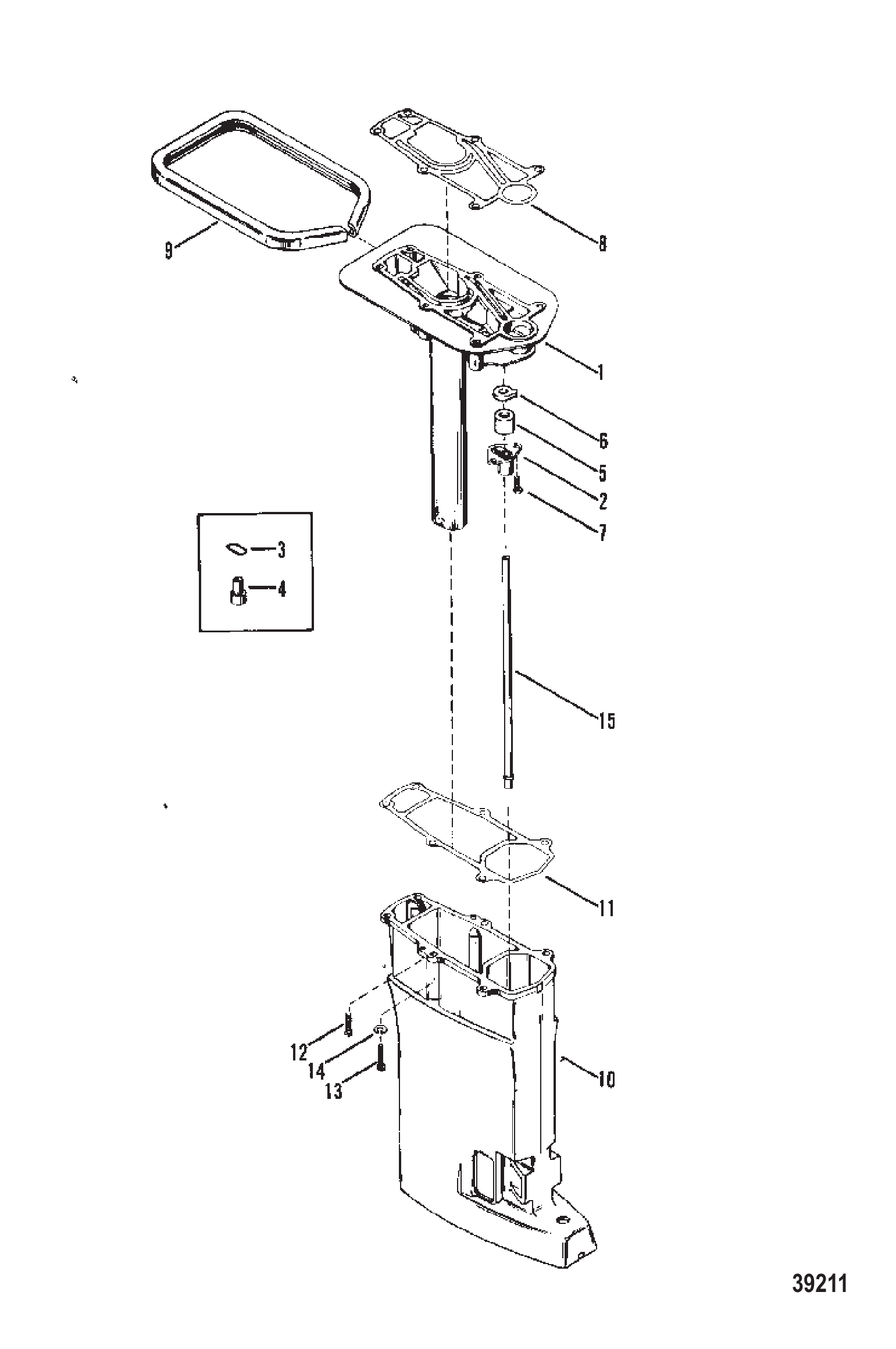

图 15驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	92165A4	隔板总成	PLATE ASSEMBLY	1
1	99702A3	适配板总成	ADAPTOR PLATE ASSEMBLY	1
2	85162	水管壳体	HOUSING WATER TUBE	1
2	96248A1	壳体总成	HOUSING ASSEMBLY	1
3	36390	水管壳体O型圈	O-RING WATER TUBE HOUSING	1
4	85164	水管密封件	SEAL WATER TUBE	1
2	96248A1	水管壳体总成	HOUSING ASSEMBLY WATER TUBE	1
5	25329	水管密封件	SEAL WATER TUBE	1
6	96247	水管隔套	SPACER WATER TUBE	1
6	889715	水管隔套	SPACER Water Tube	1
7	400035	螺钉 (M5 x 16) 壳体至适配板	SCREW (M5 x 16) HOUSING TO ADAPTOR PLATE	2
8	85111	适配板垫片	GASKET ADAPTOR PLATE	1
8	41670006	适配板垫片	GASKET Adaptor Plate	1
9	87357	适配板密封件	SEAL Adaptor Plate	1
9	158662	密封件	SEAL	1
10	7904A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
10	8747A1	壳体总成	HOUSING ASSEMBLY	1
10	7906A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
10	8749A1	壳体总成	HOUSING ASSEMBLY	1
10	8747A1	壳体总成	HOUSING ASSEMBLY	1
10	8749A1	壳体总成	HOUSING ASSEMBLY	1
11	85109	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
11	96286	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
11	433374	驱动轴壳体垫片	GASKET Drive Shaft Housing	1
12	400035	螺钉(M5 x 16)驱动轴壳体至板	SCREW (M5 x 16) DRIVESHAFT HOUSING TO PLATE	2
13	4000360	螺钉驱动轴壳体至板(60MM)	SCREW DRIVESHAFT HOUSING TO PLATE (60MM)	6
13	1993870	螺钉(M8 x 70)	SCREW (M8 x 70)	6
14	4002317	垫圈(8.90 X 17.0 X 1.9SS)驱动轴壳体螺钉	WASHER (8.90 X 17.0 X 1.9SS) DRIVESHAFT HOUSING SCREW	6
15	85116	水管	TUBE Water	1
15	86292	水管	TUBE Water	1
-	85168A80	衬垫套件	GASKET SET	1

图 16燃油滤清器总成 FUEL FILTER ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	滤清器至化油器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO CARBURETOR	1
5	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接器套件(90度)(新设计)	CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN)	1
9	14187M	直通连接器(旧设计)	CONNECTOR (STRAIGHT) (OLD DESIGN)	1
10	4000331	适配器螺丝(M6x30)	SCREW (M6 x 30) ADAPTOR	AR
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	AR
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	AR

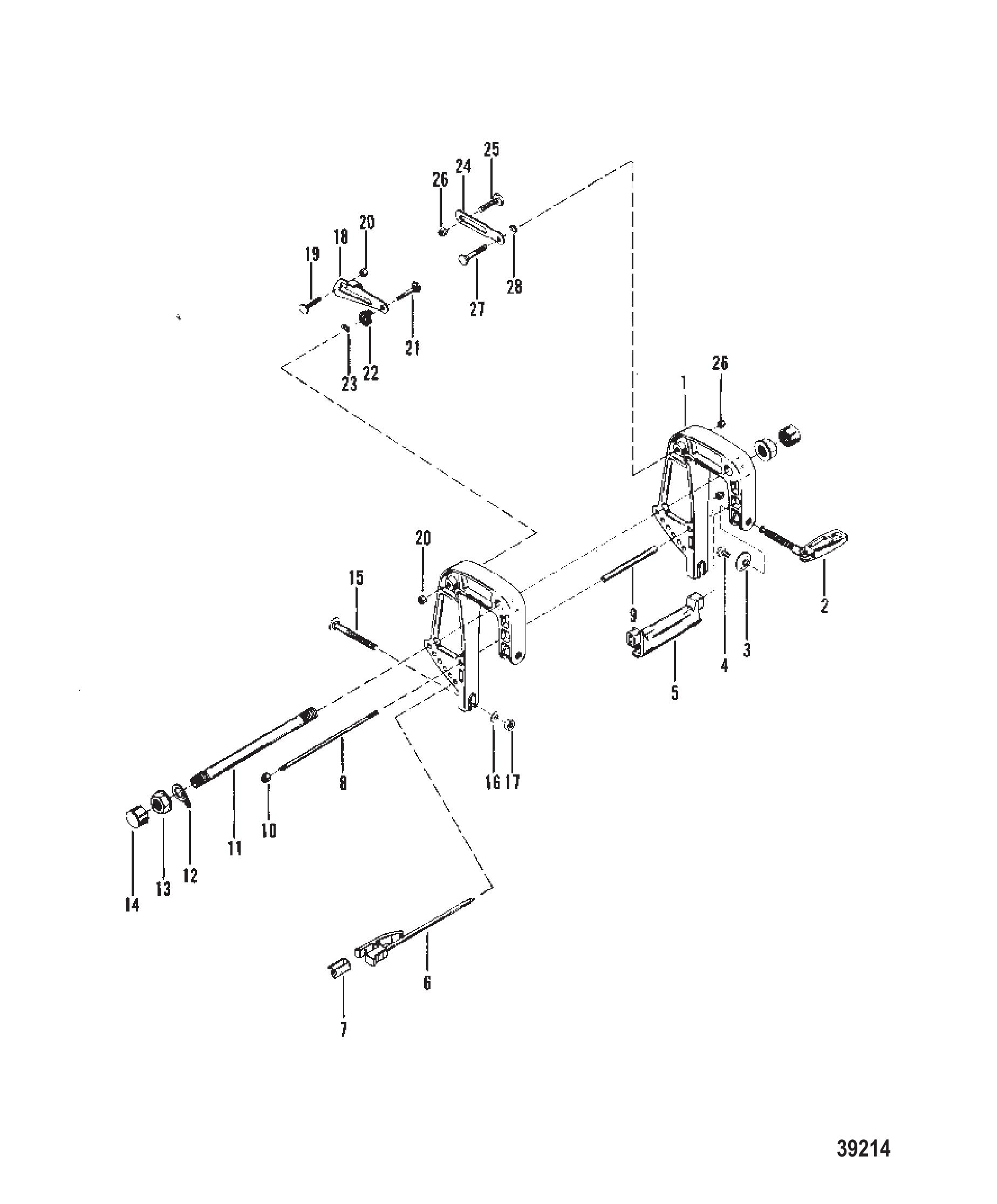

图 17夹具支架总成 CLAMP BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8466A2	夹具支架总成	CLAMP BRACKET ASSEMBLY	2
1	8863A1	夹箍支架	CLAMP BRACKET	2
2	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
3	818884	垫圈	WASHER	2
4	76804	垫圈固定螺丝	SCREW WASHER ATTACHING	2
4	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
5	85155	提手	HANDLE CARRYING	1
6	99929A1	倾斜销总成	PIN ASSEMBLY Tilt	1
6	97296A1	倾斜销总成	PIN ASSEMBLY Tilt	1
6	99929A1	倾斜销总成	PIN ASSEMBLY Tilt	1
7	90884	倾斜销弹簧卡扣	CLIP Spring TILT PIN	1
8	85099	夹紧支架螺柱	STUD CLAMP BRACKET	1
9	85100	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
10	400213	螺母(M8)不锈钢夹紧支架螺柱	NUT (M8) Stainless Steel CLAMP BRACKET STUD	2
11	85151	倾斜管	TILT TUBE	1
12	30954	安全卡扣	CLIP SAFETY	1
12	8M0085928	卡扣	CLIP	1
13	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
14	53078	倾斜管端盖	CAP TILT TUBE	2
15	69064	螺栓(.312-18 x 2.750)夹紧支架至艉板	BOLT (.312-18 x 2.750) CLAMP BRACKET TO TRANSOM	2
16	67981	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
17	67980	螺母(.312-18)夹紧支架螺栓	NUT (.312-18) CLAMP BRACKET BOLT	2
17	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	2
18	96965	倾斜止动杆-左舷侧	LEVER TILT STOP - PORT SIDE	1
19	41433	螺钉(.250-28 x 1.00)杆至旋转支架	SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET	1
20	35045	螺母(.250-28)倾斜止动杆螺钉	NUT (.250-28) TILT STOP LEVER SCREW	1
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
21	41524	螺钉(.250-28 x 1.75)杆至夹紧支架	SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET	1
22	85167	倾斜止动杆螺钉弹簧	SPRING TILT STOP LEVER SCREW	1
22	44581	弹簧	SPRING	1
23	31030	倾斜止动杆螺钉波形垫圈	WAVE WASHER TILT STOP LEVER SCREW	1
24	90901	倾斜止动带-右舷侧	STRAP TILT STOP - STARBOARD SIDE	1
25	41433	螺钉(.250-28 x 1.00)杆至旋转支架	SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET	1
26	35045	螺母(.250-28)倾斜止动杆螺钉	NUT (.250-28) TILT STOP LEVER SCREW	1
26	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
27	41524	螺钉(.250-28 x 1.75)杆至夹紧支架	SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET	1
28	31030	倾斜止动杆螺钉波形垫圈	WAVE WASHER TILT STOP LEVER SCREW	1

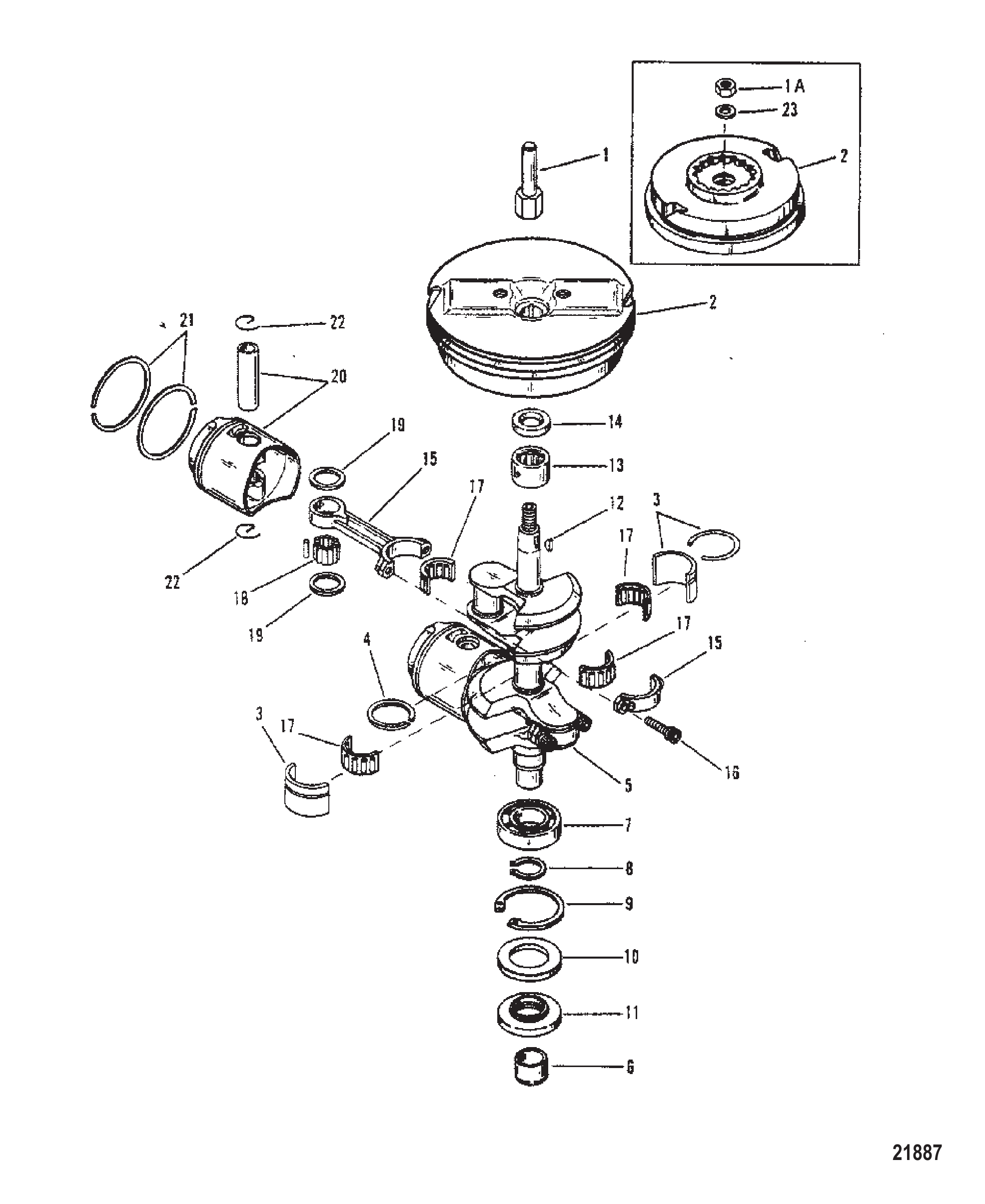

图 18曲轴、活塞和飞轮 CRANKSHAFT, PISTONS AND FLYWHEEL

REF	零件编号	中文名称	英文名称	数量
1	42691	飞轮轴	SHAFT FLYWHEEL	1
1A	818591	螺母(M14)	NUT (M14)	1
2	8908A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T6	飞轮	FLYWHEEL	1
2	818540A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T19	飞轮总成	FLYWHEEL ASY	1
3	17794A1	轴承	BEARING	1
4	818901	主轴承油封	SEAL MAIN BEARING	1
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	818630A1	套筒	SLEEVE	1
7	41341	曲轴下球轴承	BEARING Ball CRANKSHAFT-LOWER	1
8	20940	球轴承卡环(小)(旧设计)	RING Snap BALL BEARING (SMALL)(OLD DESIGN)	1
9	42132	球轴承挡圈	RING Retaining BALL BEARING	1
10	13031	下垫圈	WASHER LOWER	1
11	125661	曲轴下油封	SEAL Oil - Lower CRANKSHAFT	1
12	20094	飞轮驱动半圆键	KEY Woodruff FLYWHEEL DRIVE	1
13	41342	曲轴上滚柱轴承	BEARING Roller CRANKSHAFT-UPPER	1
13	878158	滚柱轴承	BEARING Roller	1
14	125671	曲轴上油封	SEAL Oil - Upper CRANKSHAFT	1
15	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
16	823460	连杆螺钉(M5x16)	SCREW (M5 x 16) CONNECTING ROD	4
17	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
18	42186	活塞端滚针轴承	BEARING Needle PISTON END	48
19	43348	推力轴承	BEARING Thrust	4
19	8M0012297	止推垫圈@2	WASHER-THRST@2	4
20	9747A2	活塞总成(标准)	PISTON ASSEMBLY (STANDARD)	2
20	9747T2	活塞总成	PISTON ASSEMBLY	2
20	9747A4	活塞总成(.015加大)	PISTON ASSEMBLY (.015 O.S.)	2
21	18212A4	活塞环组(标准)	RING SET Piston (STANDARD)	1
21	18212A1	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	2
22	42202	锁紧环	LOCK RING	4
23	824451	垫圈(内径.610x外径.890x厚度.062)	WASHER (.610 Inside Diamter x .890 Outside Diameter x .062)	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1
