水星 Mercury 15 HP SEAPRO 9927000 THRU 0P016999 - 爆炸图零件明细

两冲程 化油器 · Belgium - Cat.# 90-81639994 · 共 19 个部位 · 795 条零件

图 1附件 Accessories

REF	零件编号	中文名称	英文名称	数量
0	877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
0	877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
0	858109Q12	燃油软管总成(12英尺)-带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect	1
0	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
0	858104Q08	燃油软管总成(8英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect Engine End Only	1
0	877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
0	858106Q12	燃油软管总成(12英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect Engine End Only	1
0	877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
0	858108Q12	燃油软管总成(8英尺)-无接头	HOSE ASSEMBLY Fuel (8 Feet) - No Fittings	1
0	90983A5	起动机转换套件	CONVERSION KIT Starter Motor	1
0	823609A7	舵柄启动开关转换套件	CONVERSION KIT Tiller Handle Start Switch	1
0	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
0	42805A6	遥控安装套件(6/8/9/9/15马力)	ATTACHING KIT Remote Control (6/8/9/9/15 Hp)	1
0	821190A3	侧移转换套件	CONVERSION KIT Side Shift	1
0	12426A7	延长套件	EXTENSION KIT	1
0	830578A1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
0	828517A1	化油器防冰套件	ANTI-ICING KIT Carburetor	1
0	14586A3	节温器套件	THERMOSTAT KIT	1
0	7370A40	高能点火套件	HIGH ENERGY IGNITION KIT	1
0	42282A4	照明线圈套件	COIL KIT Lighting	1
0	95845A5	照明调节器套件	REGULATOR KIT Lighting	1
0	62351A10	蓄电池充电套件	CHARGING KIT Battery	1
0	12612Q2	冲洗附件	FLUSHING ATTACHMENT	1
0	14171Q2	电机锁	MOTOR LOCK	1
0	11606A1	右舷安装套件	ATTACHING KIT Starboard	1
0	11606A2	左舷安装套件	ATTACHING KIT Port	1
0	12569A1	线缆滑轮安装套件	ATTACHING KIT Cable And Pulley	1

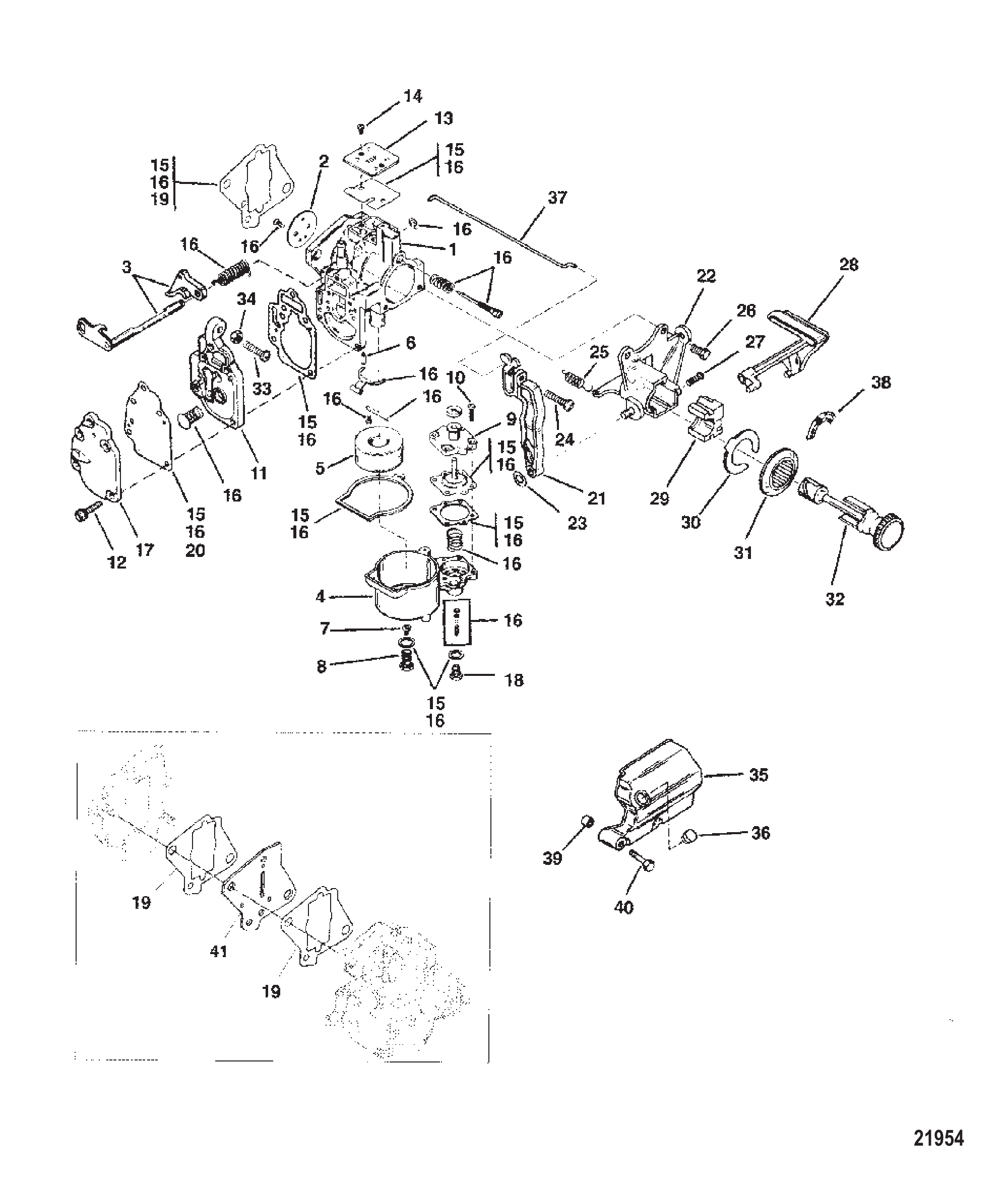

图 2化油器（XR10/Magnum 10） Carburetor (XR10/Magnum 10)

REF	零件编号	中文名称	英文名称	数量
1	8846A14	化油器	CARBURETOR	1
1	827005A1	化油器	CARBURETOR	1
1	827005T08	化油器(WMC-81)	CARBURETOR (WMC-81)	1
1	827005A2	化油器	CARBURETOR	1
1	827005T08	化油器(WMC-81)	CARBURETOR (WMC-81)	1
1	9726A5	化油器	CARBURETOR	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
2	815133	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	813022	节气门轴(含螺钉/弹簧)	SHAFT Throttle (INCLS. SCREW/SPRING)	1
3	19267	节气门轴 (含螺丝和弹簧)	SHAFT Throttle (INCLS. SCREW & SPRING)	1
4	9164	燃油杯	BOWL Fuel	1
5	91691	浮子	FLOAT	1
6	879194048	进气阀	VALVE-INLET	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	6359	量孔(.052)	JET (.052)	1
-	6207	量孔(.072)	JET (.072)	1
8	9171	堵头	PLUG	1
9	813618	盖板	COVER	1
9	823648	膜片盖	COVER Diaphragm	1
10	9697	螺钉	SCREW	4
11	15827A1	本体	BODY	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	螺钉	SCREW	5
13	9699	安装板	PLATE	1
14	9696	螺钉	SCREW	2
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	8237072	维修套件	REPAIR KIT	1
17	9637	盖板	COVER	1
18	9762	堵头	PLUG	1
19	192061	化油器衬垫	GASKET Carburetor	1
20	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
21	128053	快怠速杆	LEVER Fast Idle	1
22	12803	启动泵支架	BRACKET Primer	1
23	821979	螺母	NUT	1
24	79964	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
24	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
25	11277	张力弹簧	SPRING Tension	1
26	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	2
27	79965	螺丝 (#8-32 x .500) 不锈钢	SCREW (#8-32 x .500) Stainless Steel	1
28	112731	启动泵杆	LEVER Primer	1
29	11280	凸轮块	CAM BLOCK	1
30	11278	固定夹	CLIP Retaining	1
31	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
32	128022	启动泵旋钮	PRIMER KNOB	1
33	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
34	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
35	174421	化油器盖	COVER Carburetor	1
36	47579	堵头	PLUG	1
37	445541	怠速线	IDLE WIRE	1
38	12970	贴纸 (慢/快)	DECAL (SLOW/FAST)	1
38	129701	贴花	DECAL	1
39	41750	嵌件	INSERT	1
39	41750T	嵌件	INSERT	1
40	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
41	125681	限流板	RESTRICTOR PLATE	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

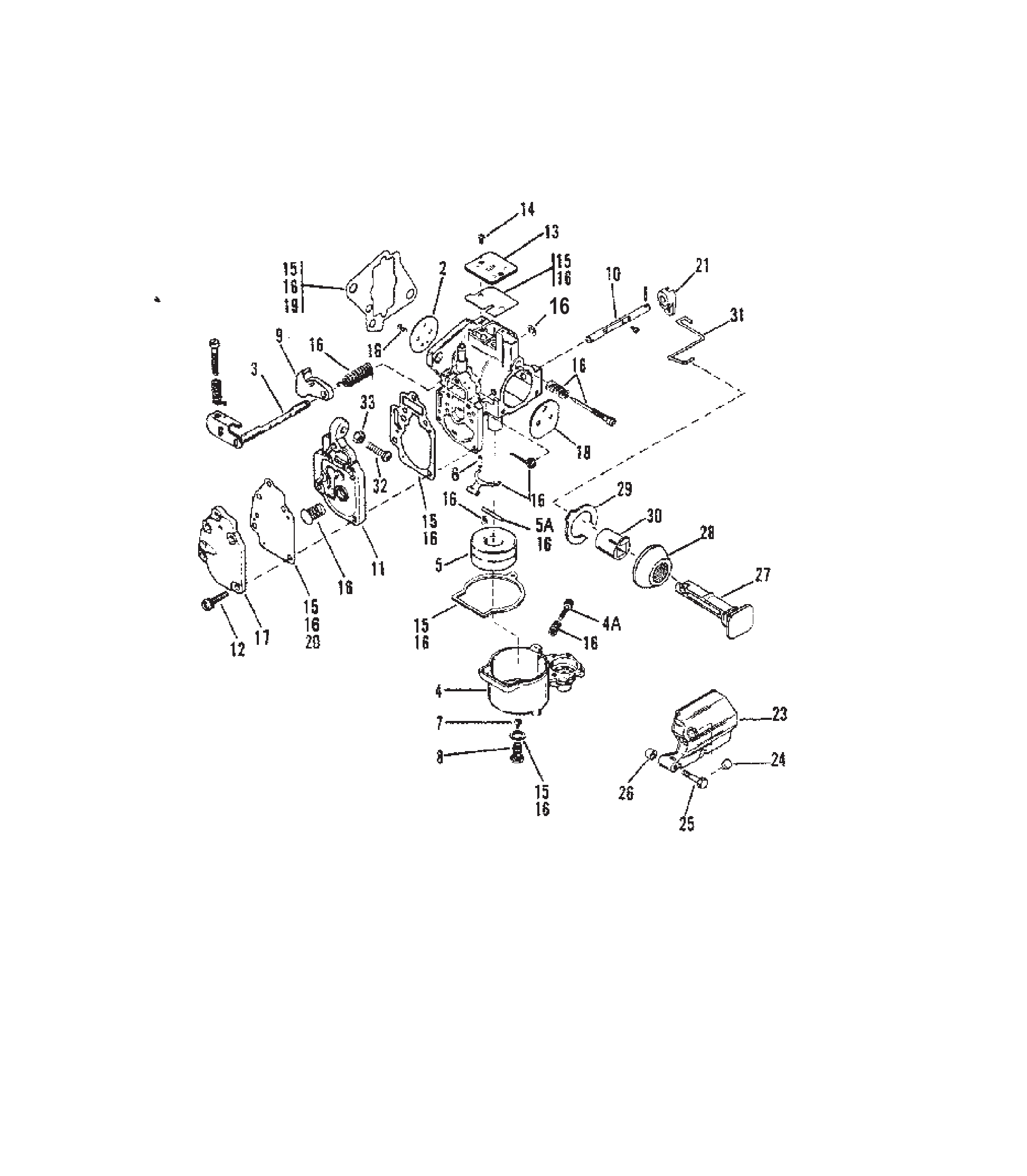

图 3化油器 SeaPro/Marathon10 & 15 Carburetor SeaPro/Marathon10 & 15

REF	零件编号	中文名称	英文名称	数量
1	817404A4	化油器	CARBURETOR	1
1	817404A6	化油器	CARBURETOR	1
1	817404T09	化油器(WMC-82A)	CARBURETOR (WMC-82A)	1
1	817404A7	化油器	CARBURETOR	1
1	817404T09	化油器(WMC-82A)	CARBURETOR (WMC-82A)	1
1	851908A1	化油器	CARBURETOR	1
1	851908T06	化油器(WMC-84A)	CARBURETOR (WMC-84A)	1
1	851908A2	化油器	CARBURETOR	1
1	851908T06	化油器(WMC-84A)	CARBURETOR (WMC-84A)	1
2	823716	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
3	19267	节气门轴 (含螺丝和弹簧)	SHAFT Throttle (INCLS. SCREW & SPRING)	1
3	813022	节气门轴 (含螺丝和弹簧)	SHAFT Throttle (INCLS. SCREW & SPRING)	1
4	811353	燃油杯	BOWL Fuel	1
4A	811360	浮子室放油螺钉	SCREW Bowl Drain	1
5	91691	浮子	FLOAT	1
5A	F10064	轴	SHAFT	1
6	879194048	进气阀	VALVE-INLET	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	4216	量孔(.064)	JET (.064)	1
7	6359	量孔(.052)	JET (.052)	1
7	6207	量孔(.072)	JET (.072)	1
8	9171	堵头	PLUG	1
9	811352	油门杆	LEVER Throttle	1
9	NSS	不单独出售-节气门杆(属于参考号3部件)	NOT SOLD SEPARATE Throttle Lever (Part of Reference #3)	1
10	8113541	阻风门轴	SHAFT Choke	1
11	15827A1	本体	BODY	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	螺钉	SCREW	5
13	9699	安装板	PLATE	1
14	9696	螺钉	SCREW	2
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	8237072	维修套件	REPAIR KIT	1
17	9637	盖板	COVER	1
18	811806	阻风门阀	VALVE Choke	1
19	192061	化油器衬垫(适用时使用)	GASKET Carburetor (USE WHERE APPLICABLE)	1
20	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
21	811805	阻风门杆	LEVER Choke	1
23	174421	化油器盖	COVER Carburetor	1
24	47579	堵头	PLUG	1
25	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	2
26	41750	嵌件	INSERT	2
26	41750T	嵌件	INSERT	2
27	817424	阻风门旋钮	KNOB Choke	1
28	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
29	11278	固定夹	CLIP Retaining	1
30	817426	阻风门面板嵌件	INSERT Choke Bezel	1
31	817425	阻风门连杆	LINK Choke	1
32	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
33	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1
-	19072A97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072T97	动力头总成	POWERHEAD ASSEMBLY	1

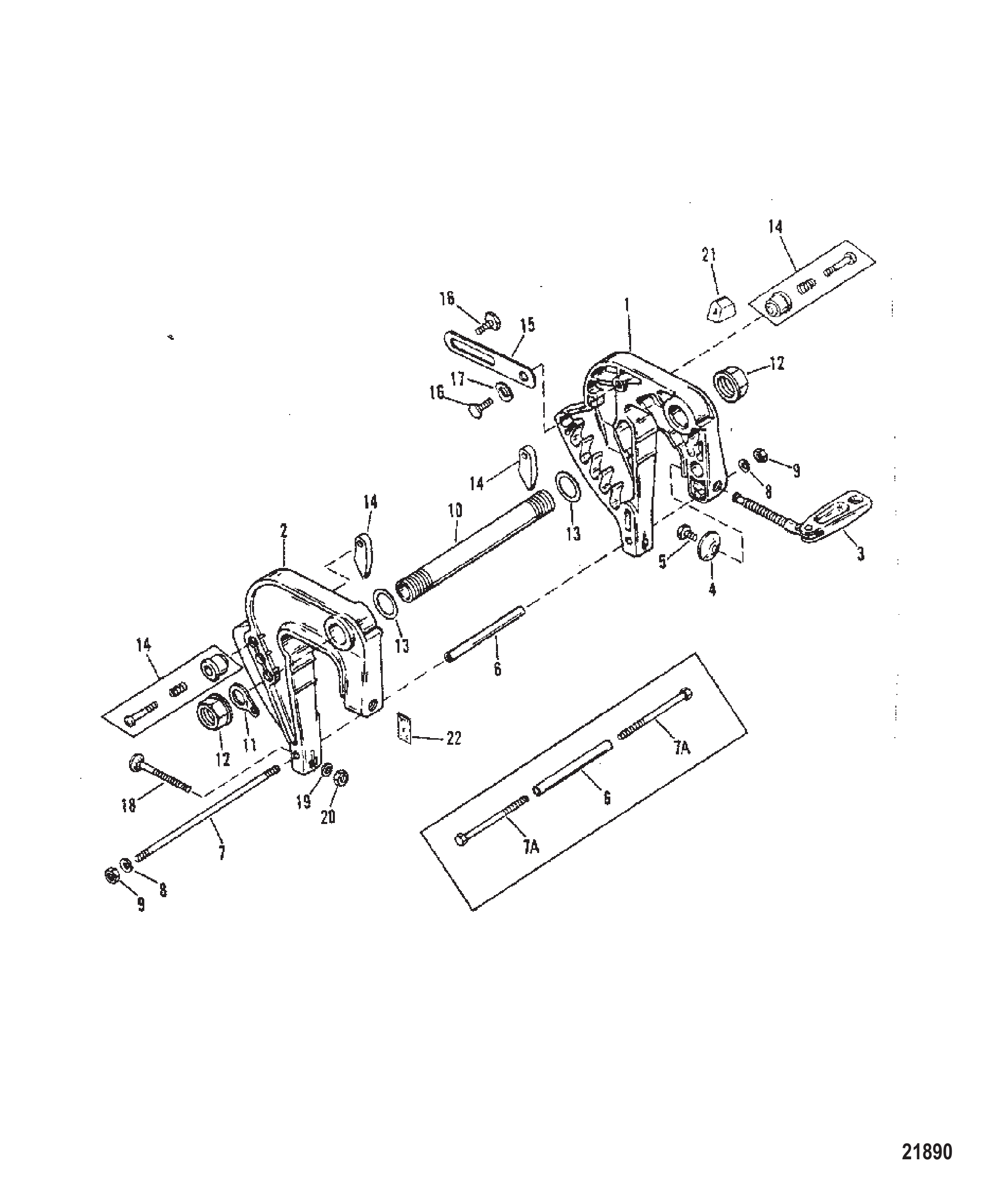

图 4夹紧支架 Clamp Bracket

REF	零件编号	中文名称	英文名称	数量
1	8894A5	夹具支架总成 (左舷) (黑色)	CLAMP BRACKET ASSEMBLY (PORT) (BLACK)	1
1	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	8894A6	夹具支架总成 (左舷) (灰色)	CLAMP BRACKET ASSEMBLY (PORT) (GRAY)	1
1	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A3	夹具支架总成 (右舷) (黑色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)	1
2	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A4	夹具支架总成 (右舷) (灰色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)	1
2	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
3	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	92767A3	蝶形螺丝总成 (16 mm)	THUMB SCREW ASSEMBLY (16 mm)	2
4	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	818884	垫圈	WASHER	2
5	768041	垫圈固定螺丝	SCREW WASHER ATTACHING	2
5	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
6	43431	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
6	818539	隔套	SPACER	1
6	8M0084719	隔套	SPACER	1
7	42129	夹紧支架螺柱	STUD CLAMP BRACKET	1
7A	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
8	400256	夹紧支架螺柱防松垫圈(M6)	LOCKWASHER (M6) CLAMP BRACKET STUD	2
9	400212	夹紧支架螺柱不锈钢螺母(M6)	NUT (M6) Stainless Steel CLAMP BRACKET STUD	2
10	42078	倾斜管	TILT TUBE	1
11	30954	安全卡扣	CLIP SAFETY	1
11	8M0085928	卡扣	CLIP	1
12	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
13	71421	倾斜管尼龙垫圈	WASHER Nylon TILT TUBE	2
14	42390A1	倾斜回位杆总成	LEVER ASSEMBLY Tilt Return	2
15	90901	倾斜限位带-左舷侧	STRAP TILT STOP - PORT SIDE	1
16	42498	限位带至夹紧支架螺钉(M6x1.0)	SCREW (M6 x 1.0) STRAP TO CLAMP BRACKET	2
17	31030	倾斜限位带螺钉波形垫圈	WAVE WASHER TILT STOP STRAT SCREW	1
18	43216	夹紧支架至艉板螺栓(.250-20x3.50)	BOLT (.250-20 x 3.50) CLAMP TO TRANSOM	2
19	67983	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
21	814427	倾斜锁定滑块(新设计)	SHUTTLE TILT LOCK (NEW DESIGN)	1
22	12869	倾斜位置标贴	DECAL Tilt Position	1

图 5外罩 Cowls

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	盖锁扣	LATCH Cowl	1
5	817104A3	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护板(黑色)	SHIELD REAR (BLACK)	1
7	12873	后护板(灰色)	SHIELD REAR (GRAY)	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	底罩(黑色)	BOTTOM COWL (BLACK)	1
9	9204A2	底罩(灰色)	BOTTOM COWL (GRAY)	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	底罩塞(手动)	PLUG BOTTOM COWL (MANUAL)	1
10	121532	底罩护线环(电动)	GROMMET Bottom Cowl (ELECTRIC)	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	罩壳锁杆衬套	BUSHING COWL LATCH LEVEER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

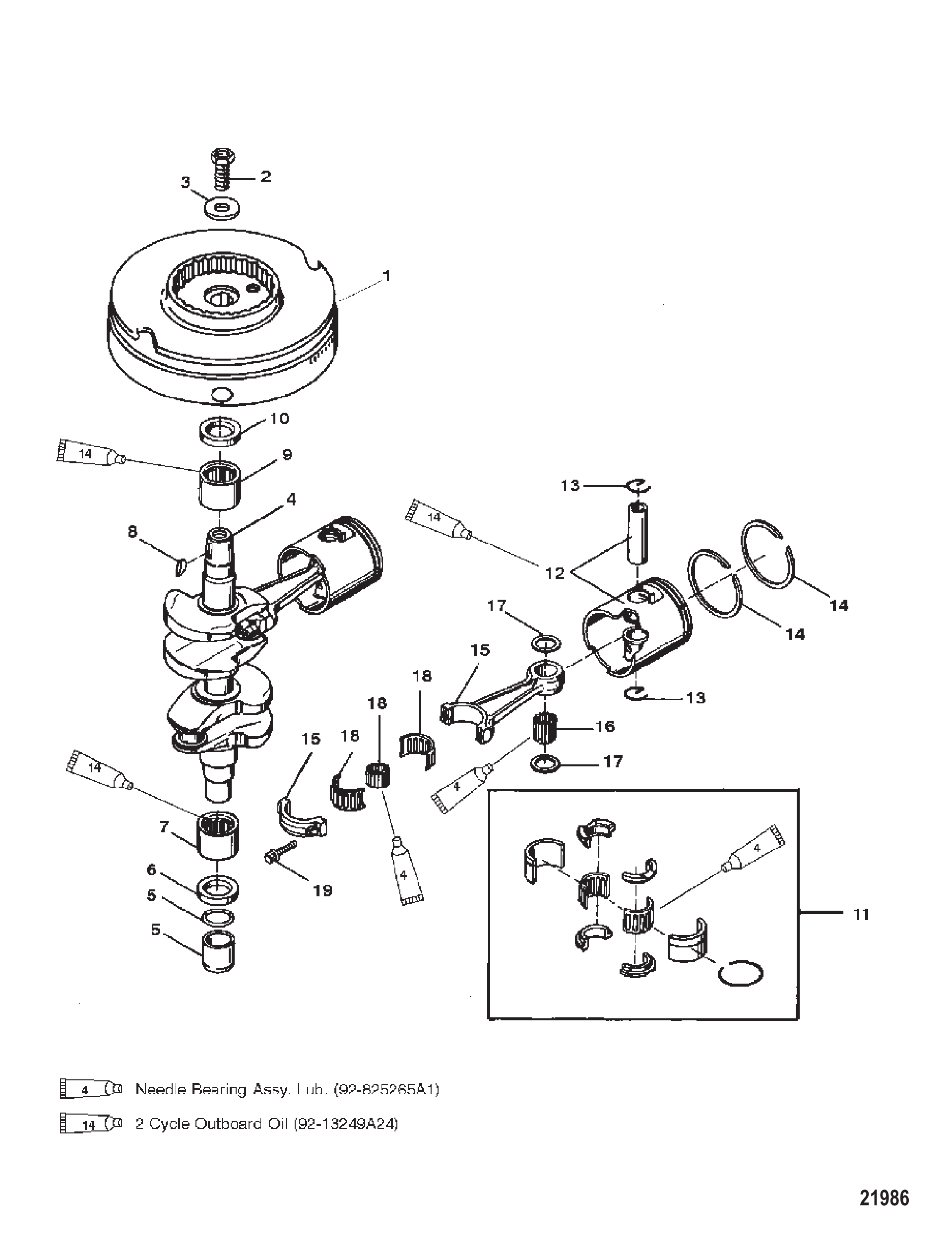

图 6曲轴、活塞与飞轮 Crankshaft, Pistons and Flywheel

REF	零件编号	中文名称	英文名称	数量
1	818354A2	飞轮	FLYWHEEL	1
2	97359A1	飞轮至曲轴螺钉总成	SCREW ASSEMBLY Flywheel to Crankshaft	1
3	86496	飞轮螺钉垫圈	WASHER Flywheel Screw	1
4	823105A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
4	823105T1	曲轴总成	CRANKFHAFT ASSY	1
5	822445A2	耐磨套	WEAR SLEEVE	1
6	85107	曲轴下油封	SEAL Oil Crankshaft - Lower	1
7	85113	下滚柱轴承	BEARING Roller Lower	1
7	85113T	下滚柱轴承	BEARING Roller - Lower	1
8	20094		KEY Woodruff Flywheel Drive	1
9	85114	上上滚柱轴承	BEARING Roller - Upper Upper	1
9	85114T	上滚柱轴承	BEARING Roller - Upper	1
10	859741	曲轴上油封	SEAL Oil Crankshaft-Upper	1
11	86992A5	中央主轴承总成	BEARING ASSEMBLY Center Main	1
11	8M0113968	中央主轴承	BEARING-CENTER/MA	1
12	9104A19	活塞总成	PISTON ASSEMBLY	2
12	9104T19	活塞总成	PISTON ASSEMBLY	2
12	821968A3	活塞总成	PISTON ASSEMBLY	2
12	879878T5	活塞总成	PISTON ASSEMBLY	2
13	47276	锁紧环	LOCK RING	4
13	828119	活塞销锁环	LOCK RING Piston Pin	4
14	827491A12	活塞环组	RING SET Piston	1
15	8835A2	连杆总成	CONNECTING ROD ASSEMBLY	2
15	8835A4	连杆总成	CONNECTING ROD ASSEMBLY	2
16	98295	活塞端滚针轴承	BEARING Needle Piston End	54
17	42025	定位滚针轴承	BEARING Locating - Needle Bearing	4
17	8M0012294	止推垫圈	WASHER-THRUST	4
18	41620A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
18	879877A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
19	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	4
-	41670A94	衬垫套件	GASKET SET	1
-	808618A94	动力头总成	POWERHEAD ASSEMBLY	1
-	879731T97	PH 15 2S	PH 15 2S	1
-	808618A95	动力头总成	POWERHEAD ASSEMBLY	1
-	879731T97	PH 15 2S	PH 15 2S	1

图 7气缸体与盖 Cylinder Block and Covers

REF	零件编号	中文名称	英文名称	数量
1	8473A13	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T20	气缸体	CYLINDER BLOCK	1
1	8473A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T21	气缸体	CYLINDER BLOCK	1
1	9727A2	气缸体	CYLINDER BLOCK	1
1	9727T2	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	2
3	42463	化油器螺柱	STUD CARBURETOR	2
3	424632	双头螺柱(M8x37.1)	STUD (M8 x 37.1)	2
4	42698	泄放软管止回阀	CHECK VALVE BLEED HOSE	1
4	426982	止回阀	CHECK VALVE	1
5	1383556	泄放软管	HOSE BLEED	1
5	99130100	软管-48英寸	TUBING-48 INCH	1
6	42984	气缸体螺柱	STUD CYLINDER BLOCK	2
6	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
7	421251	螺钉(M8x55)曲轴箱至气缸体	SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK	6
7	42125	螺钉(M8x55)	SCREW (M8 x 55)	6
7A	17866	槽销	PIN Groove	1
8	400634	螺母(M6)气缸体螺柱	NUT (M6) CYLINDER BLOCK STUD	2
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
9	191861	动力头衬垫	GASKET Powerhead	1
10	42381A2	簧片阀总成	REED BLOCK ASSEMBLY	1
10	828435A3	簧片阀组	REED BLOCK	1
11	42657A1	止回阀	CHECK VALVE	1
11	42657A3	止回阀	CHECK VALVE	1
12	42137	簧片阀密封件	SEAL REED BLOCK	1
13	195981	簧片阀衬垫	GASKET REED BLOCK	1
13	195982	衬垫	GASKET	1
14	4000171	螺钉(M6x16)簧片阀	SCREW (M6 x 16) REED BLOCK	3
15	42044	簧片	REED	2
15	825141	簧片	REED	2
16	179031	簧片止挡	STOP Reed	2
16	828435A3	簧片阀组	REED BLOCK	2
17	4005764	螺钉(M3.5x8)簧片固定	SCREW (M3.5 x 8) REED ATTACHING	6
18	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
19	42521	排气盖	COVER EXHAUST	1
19	8M0048005	排气盖总成	COVER EXHAUST MAN	1
20	40062129	螺钉(M6x25)排气盖至气缸体	SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK	11
21	19185	排气盖衬垫	GASKET EXHAUST COVER	1
22	423651	挡板	PLATE Baffle	1
22	42365	挡板	PLATE Baffle	1
23	19184	挡板衬垫	GASKET BAFFLE PLATE	1
24	19107F1	进气盖	COVER Intake	1
25	56759	倒钩接头	FITTING Barbed	1
24	17863A1	进气盖总成	COVER ASSEMBLY Intake	1
25	15133	接头	FITTING	1
26	1383556	软管	HOSE	2
26	99130100	软管-48英寸	TUBING-48 INCH	2
27	59169	接头	FITTING	1
27	59169003	三通接头	FITTING Tee	1
28	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
29	192031	进气盖衬垫	GASKET INTAKE COVER	1
30	40062129	螺钉(M6x25)盖至气缸体	SCREW (M6 x 25) COVER TO CYLINDER BLOCK	3
31	99127109	示警管(57英寸散装)	LINE (57.00 Inches Bulk) TELL TALE	1
31	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
32	94848	示警软管接头-底部罩	FITTING TELL TALE HOSE-BOTTOM COWL	1
33	8906A1	盖总成	COVER ASSEMBLY	1
33	8906A02	盖总成	COVER ASSEMBLY	1
34	192071	衬垫	GASKET	1
34	19207002	衬垫	GASKET	1
35	146732	节温器盖	COVER THERMOSTAT	1
35	8M0039352	盖板	COVER	1
36	192051	衬垫	GASKET	1
36	19205002	衬垫	GASKET	1
37	40062129	螺钉(M6x25)	SCREW (M6 x 25)	2
38	14586	节温器(120)	THERMOSTAT (120)	1
39	62386	节温器衬垫	GASKET THERMOSTAT	1
39	8M0204714	衬垫@4	GASKET @4	1
40	29111	连接器(直型)(新设计)	CONNECTOR (STRAIGHT)(NEW DESIGN)	1
40	291112	接头	FITTING	1
40	99664	弯头(旧设计)	ELBOW (OLD DESIGN)	1
40	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
41	40062129	螺钉(M6x25)盖固定	SCREW (M6 x 25) COVER ATTACHING	6
-	12893A87	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	12893A92	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686A92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

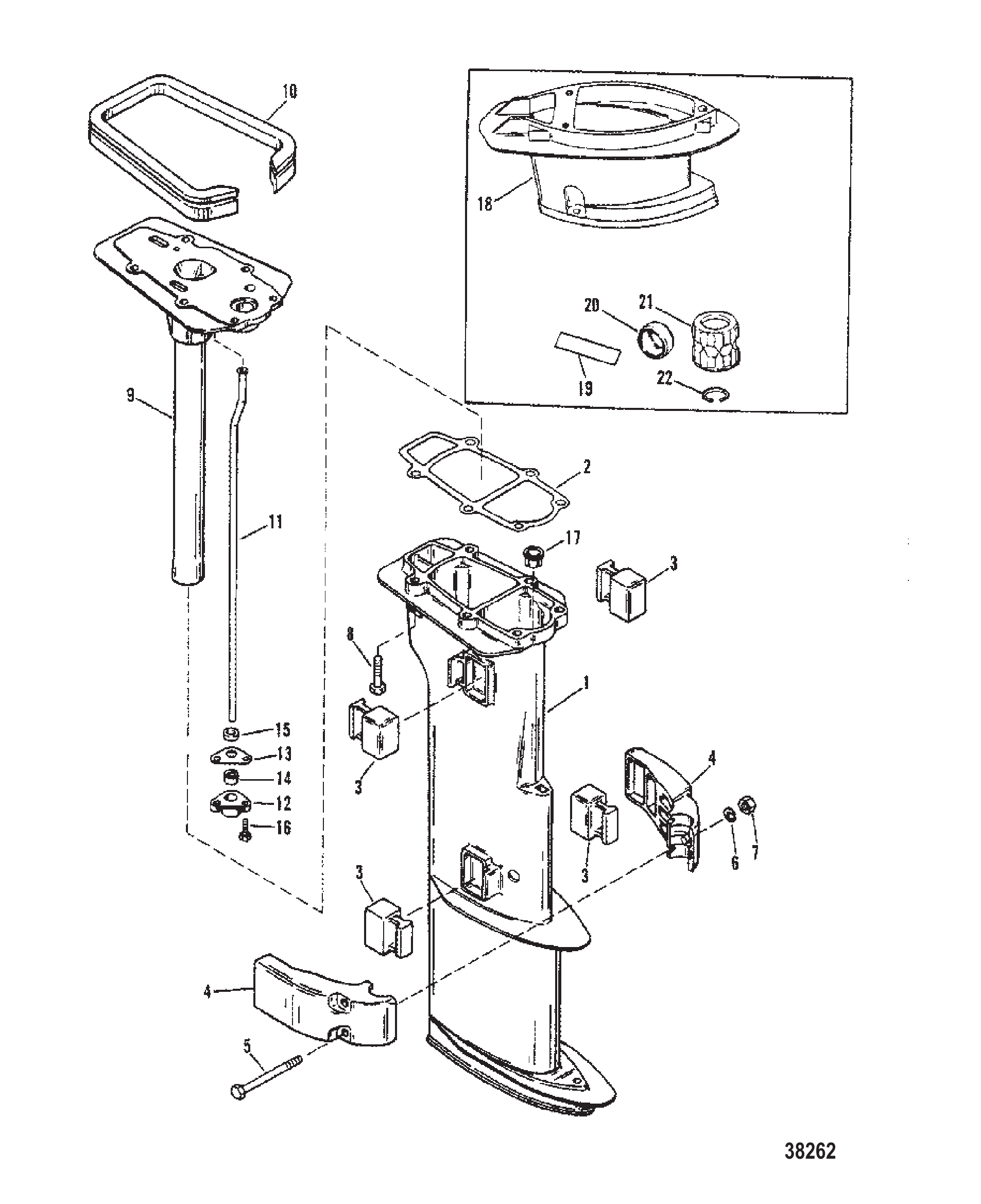

图 8驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	8827A3	壳体总成(短型)(黑色)	HOUSING ASSEMBLY (SHORT) (BLACK)	1
1	822154A1	壳体总成	HOUSING ASSEMBLY	1
1	8829A3	壳体总成(长型)(黑色)	HOUSING ASSEMBLY (LONG) (BLACK)	1
1	822155A1	壳体总成	HOUSING ASSEMBLY	1
1	8827A4	壳体总成(短型)(灰色)	HOUSING ASSEMBLY (SHORT) (GRAY)	1
1	822154A2	壳体总成	HOUSING ASSEMBLY	1
1	8829A4	壳体总成(长型)(灰色)	HOUSING ASSEMBLY (LONG) (GRAY)	1
1	822155A2	壳体总成	HOUSING ASSEMBLY	1
2	195991	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
2	195992	驱动轴壳体衬垫	GASKET Driveshaft Housing	1
3	421891	支架	MOUNT	4
3	8M0039074	支架	MOUNT	4
4	N.L.A.	已停产的安装盖(见备注)	NO LONGER AVAILABLE COVER-MOUNT (SEE NOTE)	2
4	42374F6	安装盖(黑色)	COVER Mount (BLACK)	2
4	42374F5	安装盖(灰色)	COVER MOUNT (GRAY)	2
4	42374F6	安装盖	COVER Mount	2
5	4009238	螺钉(M6x80)安装盖	SCREW (M6 x 80) MOUNT COVER	2
6	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
7	400212	螺母(M6)不锈钢盖螺钉	NUT (M6) Stainless Steel COVER SCREW	2
8	40011131	螺钉(M6x35)不锈钢驱动轴壳体至安装板	SCREW (M6 x 35) Stainless Steel DRIVESHAFT HOUSING TO PLATE	4
9	413448	适配板(无管)(6/8)	ADAPTER PLATE (NO TUBE) (6/8)	1
9	41344A4	适配板总成(1英寸内径管)	ADAPTER PLATE ASSEMBLY (1"I.D. TUBE)	1
9	41344A3	适配板总成(1-1/8英寸内径管)(15)	ADAPTER PLATE ASSEMBLY (1-1/8"I.D. TUBE) (15)	1
10	11287	适配板密封件	SEAL Adapter Plate	1
10	11287001	适配板密封件	SEAL Adapter Plate	1
11	42123	水管(短型)	TUBE Water (SHORT)	1
11	42122	水管(长型)	TUBE Water (LONG)	1
11	421231	水管(加长型)	TUBE Water (X-LONG)	1
12	42371	水管固定座	HOLDER WATER TUBE	1
13	192012	水管壳体衬垫	GASKET WATER TUBE HOUSING	1
14	42380	水管密封件	SEAL WATER TUBE	1
14	42380001	水管密封件	SEAL Water Tube	1
15	42465	水管隔套	SPACER WATER TUBE	1
16	40011107	螺钉(M5x16)不锈钢壳体至适配板	SCREW (M5 x 16) Stainless Steel HOUSING TO ADAPTOR PLATE	2
17	445551	轴承座(长型)	BLOCK Bearing (LONG)	1
18	124262	驱动轴延长壳体(加长型)	HOUSING Drive Shaft Extension (X-LONG)	1
19	123691	衬套(加长型)	BUSHING X-LONG	1
20	123702	轴承壳体(加长型)	HOUSING BEARING (X-LONG)	1
21	14107	轴承护圈(加长型)	RETAINER BEARING (X-LONG)	1
21	14107001	固定座	RETAINER	1
22	14094	卡环(加长型)	RING Snap X-LONG	1
-	42213A14	旋转管更换总成(黑色)	SWIVEL TUBE REPLACEMENT COMPLETE (BLACK)	1
-	42213A15	旋转管更换总成(灰色)	SWIVEL TUBE REPLACEMENT COMPLETE (GRAY)	1
-	42213A14	旋转管更换件	SWIVEL TUBE REPLACEMENT	1

图 9燃油滤清器总成 Fuel Filter Assembly

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	滤清器至化油器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO CARBURETOR	1
5	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接器套件(90度)(新设计)	CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN)	1
9	14187M	直通连接器(旧设计)	CONNECTOR (STRAIGHT) (OLD DESIGN)	1
10	4000331	适配器螺丝(M6x30)	SCREW (M6 x 30) ADAPTOR	AR
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	AR
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	AR

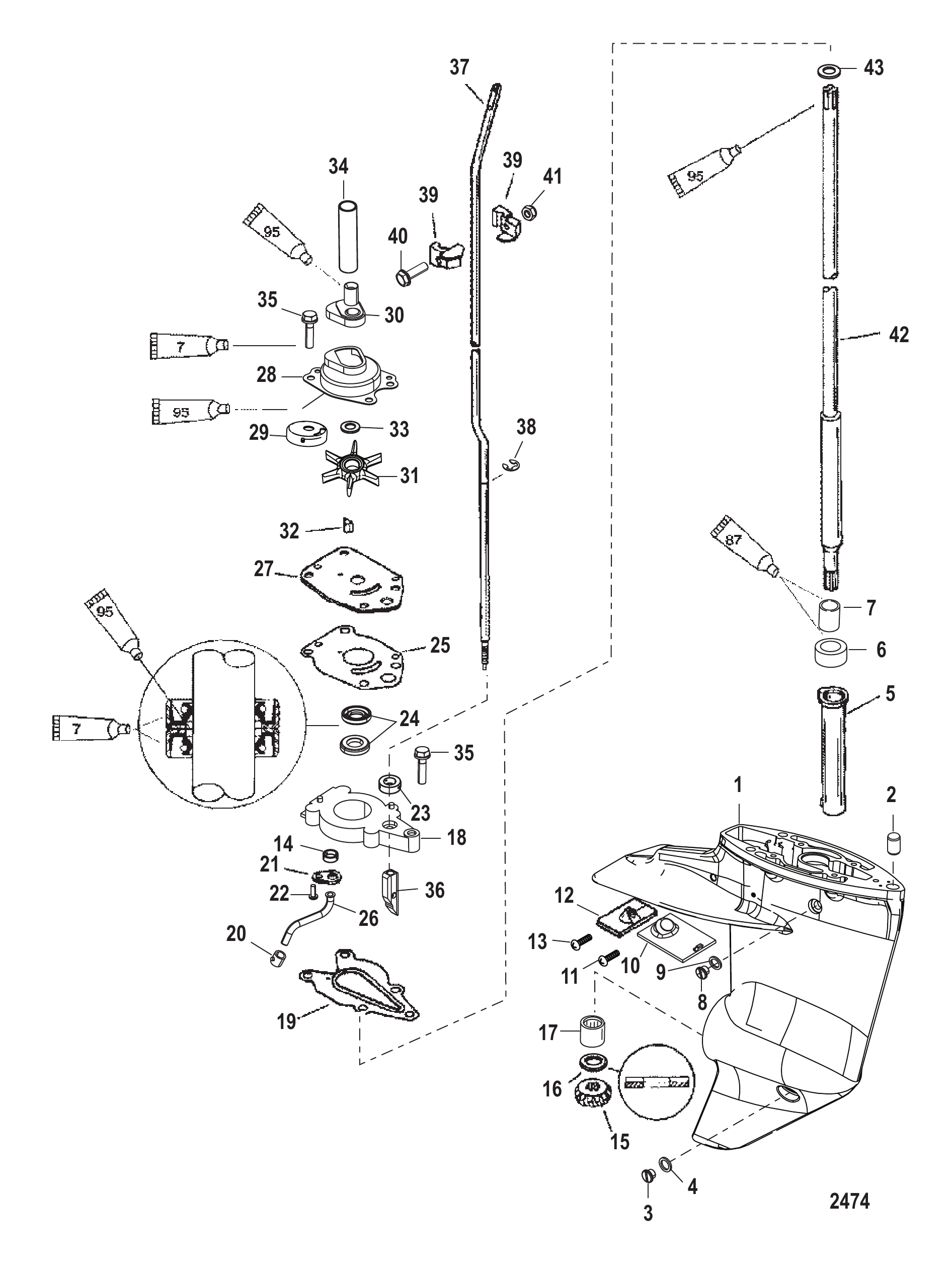

图 10齿轮箱（驱动轴）（2.00:1齿轮比） Gear Housing (Driveshaft)(2.00:1 Gear Ratio)

REF	零件编号	中文名称	英文名称	数量
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083312	GC BASIC9.9/15 4S	GC BASIC9.9/15 4S	1
2	12009	衬套 (0.31 x 0.45 x 0.50)	BUSHING (.31 x .45 x .50)	1
3	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
3	79953Q04	放油螺钉套件	SCREW KIT Drain	1
3	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
3	8M0058389	放油螺钉套件	SCREW KIT Drain	1
4	191832	垫圈	WASHER	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	822244A1	衬套总成	SLEEVE ASSEMBLY	1
6	823944	套筒	SLEEVE	1
7	823943	衬套	BUSHING	1
8	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	191832	垫圈	WASHER	1
9	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
10	421991	滤网	SCREEN	1
11	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
12	42121A2	阳极总成	ANODE ASSEMBLY	1
12	42121Q02	铝阳极@2	ANODE(ALUM) @2	1
13	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
14	42133	密封件	SEAL	1
15	8219251	小齿轮-13-26	GEAR Pinion - 13-26	1
16	41369	垫圈	WASHER	1
17	22756	滚柱轴承	BEARING Roller	1
18	42040T5	水泵底座总成	BASE ASSEMBLY Water Pump	1
19	192043	衬垫	GASKET	1
20	33613	密封件	SEAL	1
21	42375	固定座	RETAINER	1
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	822236	四角密封环	QUAD RING	1
24	413651	油封	SEAL Oil	2
25	19202	水泵板衬垫	GASKET Water Pump Plate	1
25	19202001	衬垫	GASKET	1
26	42185A1	水管总成	TUBE ASSEMBLY Water	1
27	42200	面板	FACE PLATE	1
28	42089A2	盖总成	COVER ASSEMBLY	1
29	NSS	不单独销售(嵌件)	NOT SOLD SEPARATE (Insert)	1
30	421021	密封件	SEAL	1
31	420382	叶轮	IMPELLER	1
31	42038Q02	叶轮	IMPELLER	1
32	42376A2	键总成	KEY ASSEMBLY	1
32	8M0173458	叶轮键	KEY IMPELLER	1
33	16448	垫圈	WASHER	2
34	444671	导套	GUIDE	1
35	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	5
36	42039	凸轮	CAM	1
37	42145	换档轴	SHIFT SHAFT	1
37	8M0026064	换档轴-短	SHAFT-SHIFT SHORT	1
37	42146	换档轴	SHIFT SHAFT	1
37	8M0026065	换档轴-长	SHAFT-SHIFT-LONG	1
38	42389	E型卡环	E RING	1
39	42126	导套	GUIDE	2
39	8M0036770	导套	GUIDE	2
40	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	1
41	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
42	823389	驱动轴	DRIVESHAFT	1
42	823390	驱动轴	DRIVESHAFT	1
43	822248	止推垫片	THRUST WASHER	1
-	41365A3	密封套件	SEAL KIT	1
-	42089A5	水泵套件	PUMP KIT Water	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

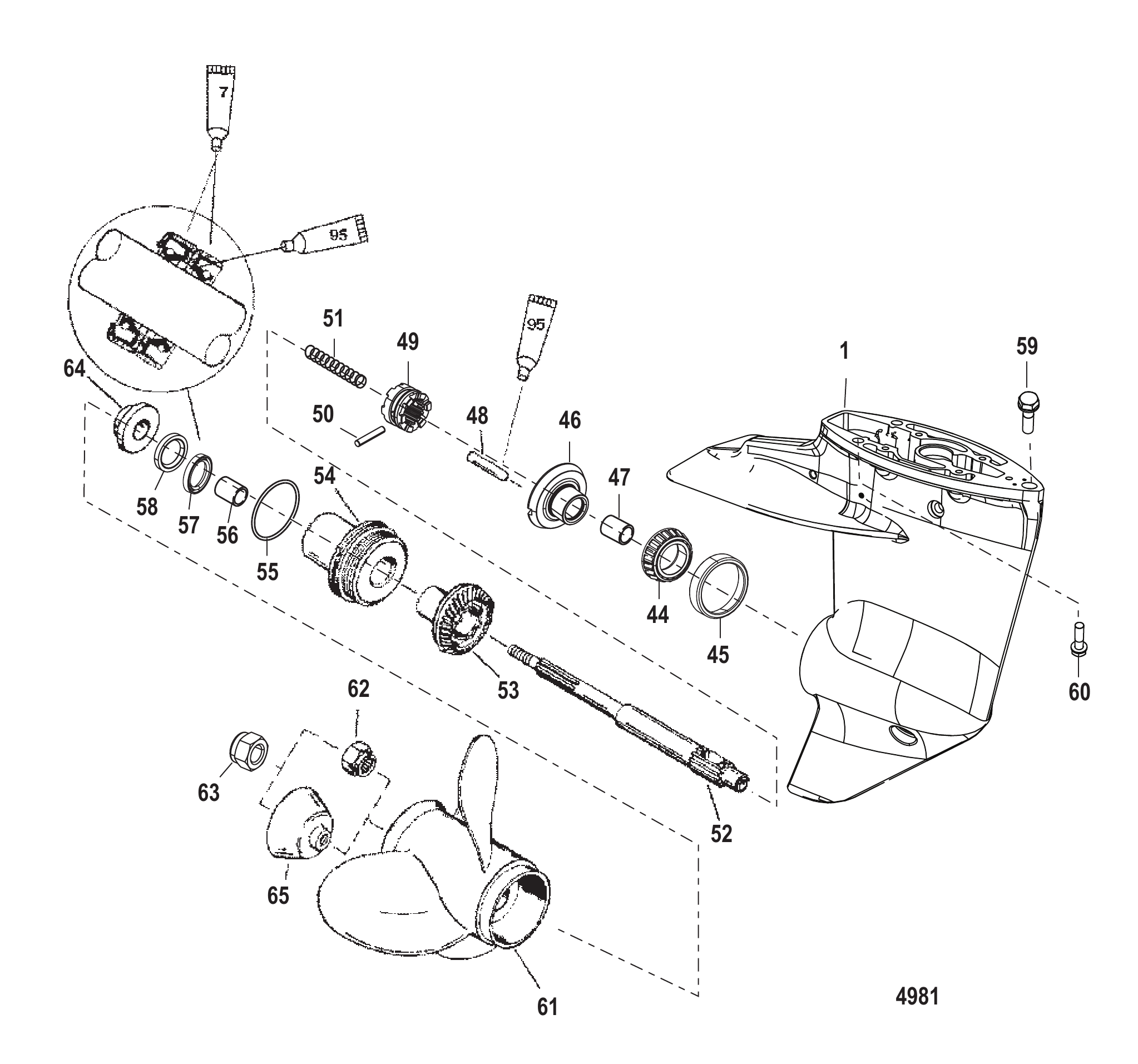

图 11齿轮箱螺旋桨轴-2.00:1齿轮比 Gear Housing Propeller Shaft - 2.00:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083312	GC BASIC9.9/15 4S	GC BASIC9.9/15 4S	1
44	821321A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
45	NSS	不单独销售(杯状件)	NOT SOLD SEPARATE (Cup)	1
46	821924A1		GEAR ASSEMBLY Forward (26 Teeth)	1
47	41367	衬套	BUSHING	1
48	813139	凸轮从动件	FOLLOWER Cam	1
49	821930A1	离合器总成	CLUTCH ASSEMBLY	1
50	823951	十字销	PIN Cross	1
51	42204	弹簧	SPRING	1
52	821929	螺旋桨轴	PROPELLER SHAFT	1
53	821926T1	倒档齿轮-13/26	GEAR Reverse - 13/26	1
54	42144T3	轴承座	CARRIER Bearing	1
55	33145	O型圈(1.984x0.139)	O-RING (1.984 x .139)	1
55	8M0214923	O型圈(1.98x1.39)	O-RING (1.98 x 1.39)	1
56	821927	衬套	BUSHING	1
57	99325	密封件	SEAL	1
58	821928	油封	SEAL Oil	1
59	82407110	螺钉(M8 x 50)	SCREW (M8 x 50)	1
60	8240717	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
61	828152A12	黑色MAX螺旋桨9.3x7右旋铝3叶	BLACK MAX PROPELLER 9.3 X 7 RH AL 3 BL	1
61	828156A12	黑色MAX螺旋桨9x9右旋铝3叶	BLACK MAX PROPELLER 9 X 9 RH AL 3 BL	1
61	828150A12	黑色MAX螺旋桨 9.8 x 6.5 右旋铝3叶	BLACK MAX PROPELLER 9.8 X 6.5 RH AL 3 BL	1
62	420911	隔套	SPACER	1
63	40140	螺母(M10)	NUT (M10)	1
64	8219321	推力毂	THRUST HUB	1
65	822559A1	倒挡排气块杯总成	CUP ASSEMBLY Reverse Exhaust Block	1
65	822559Q01	杯套	CUP	1
-	41365A3	密封套件	SEAL KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

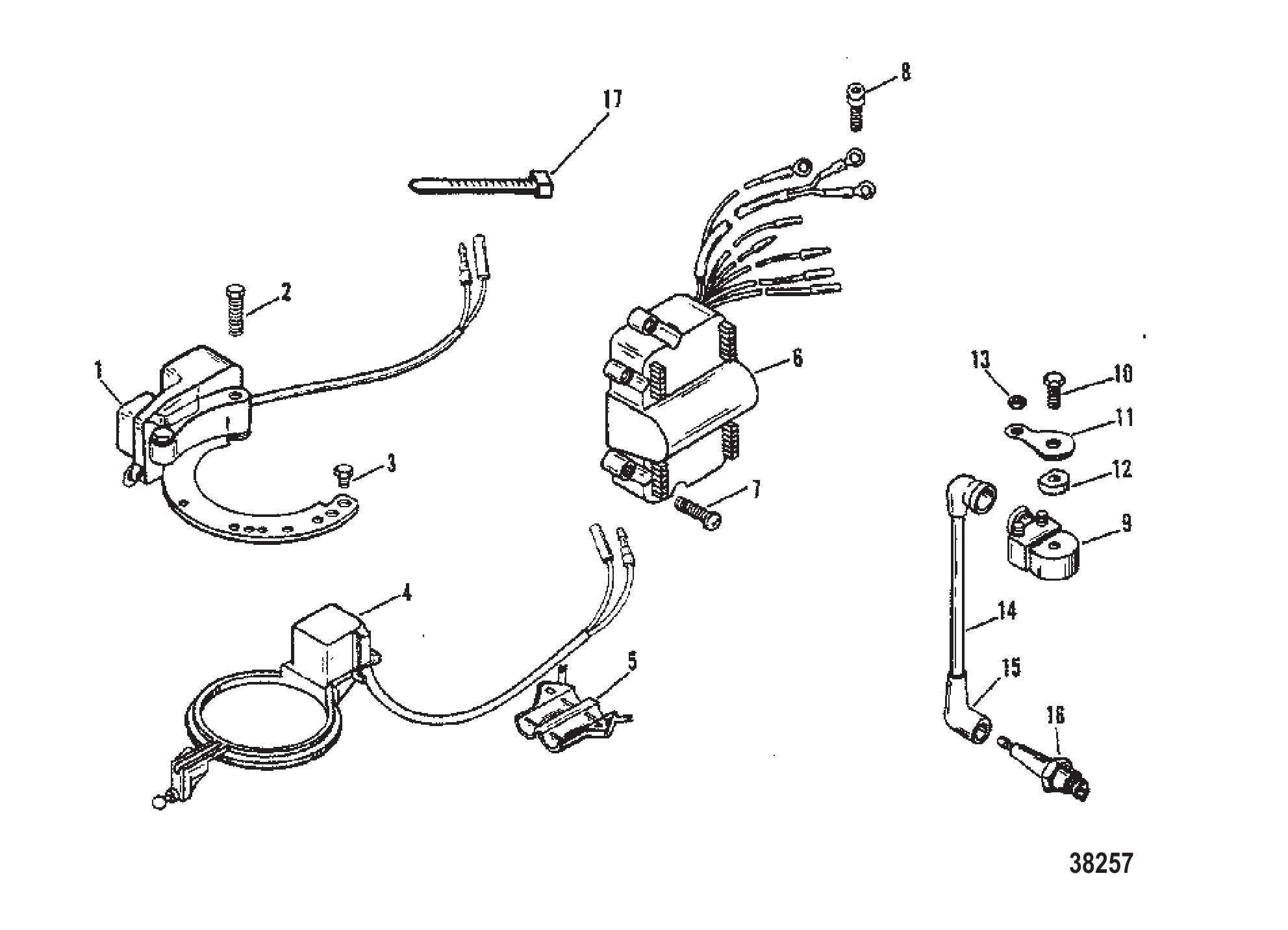

图 12点火组件 Ignition Components

REF	零件编号	中文名称	英文名称	数量
1	86617A13	定子总成	STATOR ASSEMBLY	1
1	86617A20	定子总成	STATOR ASSEMBLY	1
2	4000120	螺丝(M5 x 25)	SCREW (M5 x 25)	2
3	400018	螺钉 (M5 x 12) (手动)	SCREW (M5 x 12) (MANUAL)	1
4	98450A5	触发器总成	TRIGGER ASSEMBLY	1
4	98450A10	触发器总成	TRIGGER ASSEMBLY	1
5	11100	触发线夹	CLIP TRIGGER LEAD	1
6	7452A15	开关盒总成	SWITCHBOX ASSEMBLY	1
6	7452A19	开关盒总成	SWITCHBOX ASSEMBLY	1
7	40019108	螺钉 (M5 x 20) 开关盒至气缸体	SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK	2
8	48408	螺钉 (#10-16 x .500) 接地线	SCREW (#10-16 x .500) GROUND WIRE	1
9	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	2
9	8M0230859	点火线圈总成	COIL IGNITION ASY	2
10	40112	螺钉 (M6 x 45) 点火线圈	SCREW (M6 x 45) IGNITION COIL	2
11	88173	锁紧垫圈	TAB WASHER	2
12	88171	线圈衬套	BUSHING COIL	2
13	45076	螺母 (#10-32) 黄铜线圈端子	NUT (#10-32) Brass COIL TERMINAL	4
14	813715A2	高压线组 (5和8.25英寸) 高压	CABLE SET High Tension (5 and 8.25 Inch) HIGH TENSION	1
15	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
16	12343	火花塞 (NGK #BP8HS-10)	SPARK PLUG (NGK #BP8HS-10)	2
16	8M0114745	SP BP8HS-10 @4	SP BP8HS-10 @4	2
16	8167372	火花塞 (NGK#BP8H-N-10)	SPARK PLUG (NGK#BP8H-N-10	2
16	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	2
16	14814548	火花塞 (NGK #BPZ8HS-10) (加拿大/比利时)	SPARK PLUG (NGK # BPZ8HS-10) (CAN./BEL.)	2
16	938	SP #QL78YC @4	SP #QL78YC @4	2
16	8168372	火花塞 (NGK#BPZ-8H-N-10-加拿大/比利时)	SPARK PLUG (NGK#BPZ-8H-N-10-CAN/BEL.)	2
16	938	SP #QL78YC @4	SP #QL78YC @4	2
16	19424	火花塞 (NGK#BP8HS-15)	SPARK PLUG (NGK#BP8HS-15)	2
16	8M0114746	SP BP8HS-15 @4	SP BP8HS-15 @4	2
16	14814568	火花塞 (NGK#BPZ8HS-15)	SPARK PLUG (NGK#BPZ8HS-15)	2
17	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	1
17	8M0214940	扎带	TIE STRAP	1

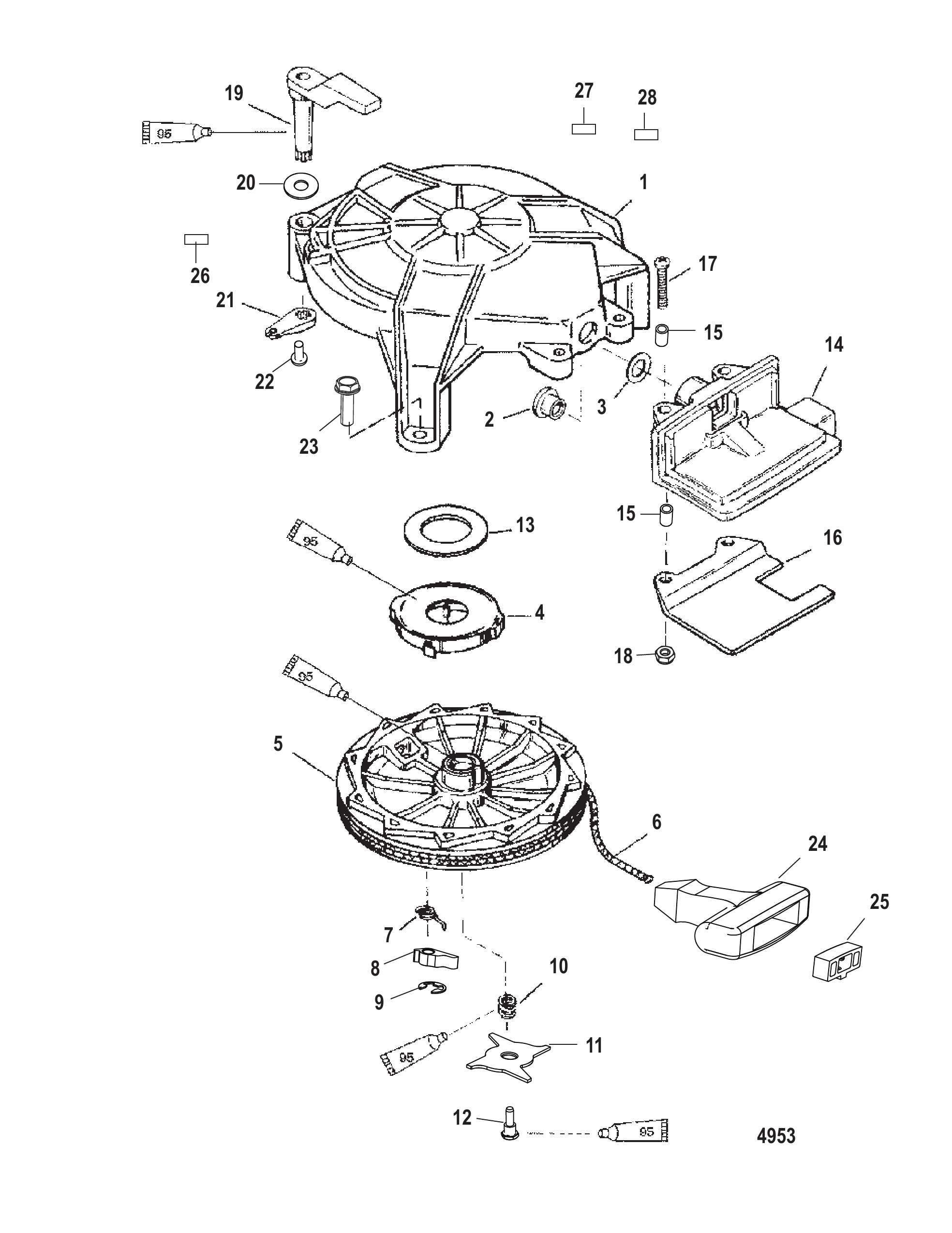

图 13手动启动器 Manual Starter

REF	零件编号	中文名称	英文名称	数量
-	42207A7	手拉启动器总成	STARTER ASSEMBLY Recoil	1
1	8M0070659	手动启动器壳体总成	HOUSING ASSEMLBY Manual Starter	1
1	422072	启动器壳体	HOUSING Starter	1
1	42207T02	ORD 8M0070659	ORD 8M0070659	1
2	42690	衬套	BUSHING	1
2	8M0183792	绳索衬套	ROPE BUSHING	1
3	818853	挡圈	RING Retaining	1
4	868571	弹簧	SPRING	1
4	86857T01	弹簧	SPRING	1
5	42034A4	启动器滑轮总成	PULLEY ASSEMBLY Starter	1
5	42034T04	滑轮-启动器	SHEAVE-STARTER	1
6	8500571	启动绳	ROPE Starter	1
6	8M0110703	启动拉绳	ROPE-STARTER	1
7	868512	弹簧	SPRING	2
7	86851T02	弹簧 @2	SPRING @2	2
8	868501	凸轮	CAM	2
9	868491	挡圈	RING Retaining	2
9	86849T01	环 @2	RING @2	2
10	868523	弹簧	SPRING	1
11	868531	凸轮	CAM	1
11	86853T01	凸轮	CAM	1
12	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
13	833161	毛毡垫	FELT PAD	1
13	833161T	毛毡垫	PAD-FELT	1
14	19018	支架	REST	1
14	19018T	支架-启动器手柄	REST-STARTER HDL	1
15	309772	隔套	SPACER	4
16	12674	支架	SUPPORT	1
17	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
18	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2
19	42171		LEVER (Upper)	1
19	42171T	杠杆	LEVER	1
20	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
20	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
21	42173		LEVER (Lower)	1
21	42173T	杠杆	LEVER	1
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	3
23	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	3
24	85174A1	手柄总成	HANDLE ASSEMBLY	1
25	NSS	不单独销售(固定环)	NOT SOLD SEPARATE (Retainer)	1
26	NSS	不单独销售(维修指引标贴)	NOT SOLD SEPARATE (Decal-Servicing Referral)	1
27	8272822	高压警告标贴	DECAL Warning High Voltage	1
28	NSS	不单独销售(应急启动步骤标贴)	NOT SOLD SEPARATE (Decal-Emergency Starting Procedure)	1

图 14维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
0	803024	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp	1
0	827242R1	维修手册 6/8/9.9/15 (二冲程)	SERVICE MANUAL 6/8/9.9/15 (2-Stroke)	1
0	827242R02	维修手册 6/8/9.9/15 (二冲程)	SERVICE MANUAL 6/8/9.9/15 (2-Stroke)	1
0	10104040	用户指南	OWNERS GUIDE	1
0	808522A00	贴花套件	DECAL SET	1
0	8M0098673	贴花套件	DECAL SET	1
0	808526A00	贴花套件	DECAL SET	1
0	8M0098673	贴花套件	DECAL SET	1
0	12836A00	贴花套件	DECAL SET	1
0	8M0098673	贴花套件	DECAL SET	1
0	13478A00	贴花套件	DECAL SET	1
0	8M0098673	贴花套件	DECAL SET	1
0	808522A96	贴花套件	DECAL SET	1
0	808522A00	贴花套件	DECAL SET	1
0	808526A96	贴花套件	DECAL SET	1
0	808526A00	贴花套件	DECAL SET	1
0	12836A96	贴花套件	DECAL SET	1
0	12836A00	贴花套件	DECAL SET	1
0	808523A96	贴花套件	DECAL SET	1
0	808524A03	贴花套件	DECAL SET	1
0	808545A03	贴花套件	DECAL SET	1
0	808525A03	贴花套件	DECAL SET	1
0	808546A03	贴花套件	DECAL SET	1
0	808560A03	贴花套件	DECAL SET	1
0	808524A01	贴花套件	DECAL SET	1
0	808524A03	贴花套件	DECAL SET	1
0	808545A01	贴花套件	DECAL SET	1
0	808545A03	贴花套件	DECAL SET	1
0	808525A01	贴花套件	DECAL SET	1
0	808525A03	贴花套件	DECAL SET	1
0	808546A01	贴花套件	DECAL SET	1
0	808546A03	贴花套件	DECAL SET	1
0	808560A01	贴花套件	DECAL SET	1
0	808560A03	贴花套件	DECAL SET	1
0	808524A97	贴花套件	DECAL SET	1
0	808524A03	贴花套件	DECAL SET	1
0	808545A97	贴花套件	DECAL SET	1
0	808545A03	贴花套件	DECAL SET	1
0	808545A97	贴花套件	DECAL SET	1
0	808545A03	贴花套件	DECAL SET	1
0	808546A97	贴花套件	DECAL SET	1
0	808546A03	贴花套件	DECAL SET	1
0	824740A96	贴花套件	DECAL SET	1
0	830155A00	贴花套件	DECAL SET	1
0	830156A01	贴花套件	DECAL SET	1
0	830156A03	贴花套件	DECAL SET	1
0	830156A03	贴花套件	DECAL SET	1
0	856985A3	EPA标签信息贴花	DECAL EPA Label Information	1
0	856985A4	EPA标签信息贴花	DECAL EPA Label Information	1
0	804659A00	EPA标签信息贴花	DECAL EPA Label Information	1
0	804662A00	EPA标签信息贴花	DECAL EPA Label Information	1
0	804659A01	EPA标签信息贴花	DECAL EPA Label Information	1
0	804662A01	EPA标签信息贴花	DECAL EPA Label Information	1
0	804659A02	EPA标签信息贴花	DECAL EPA Label Information	1
0	804659A03	EPA标签信息贴花	DECAL EPA Label Information	1
0	804659A04	EPA标签信息贴花	DECAL EPA Label Information	1
0	804662A02	EPA标签信息贴花	DECAL EPA Label Information	1
0	804662A03	EPA标签信息贴花	DECAL EPA Label Information	1
0	804662A04	EPA标签信息贴花	DECAL EPA Label Information	1

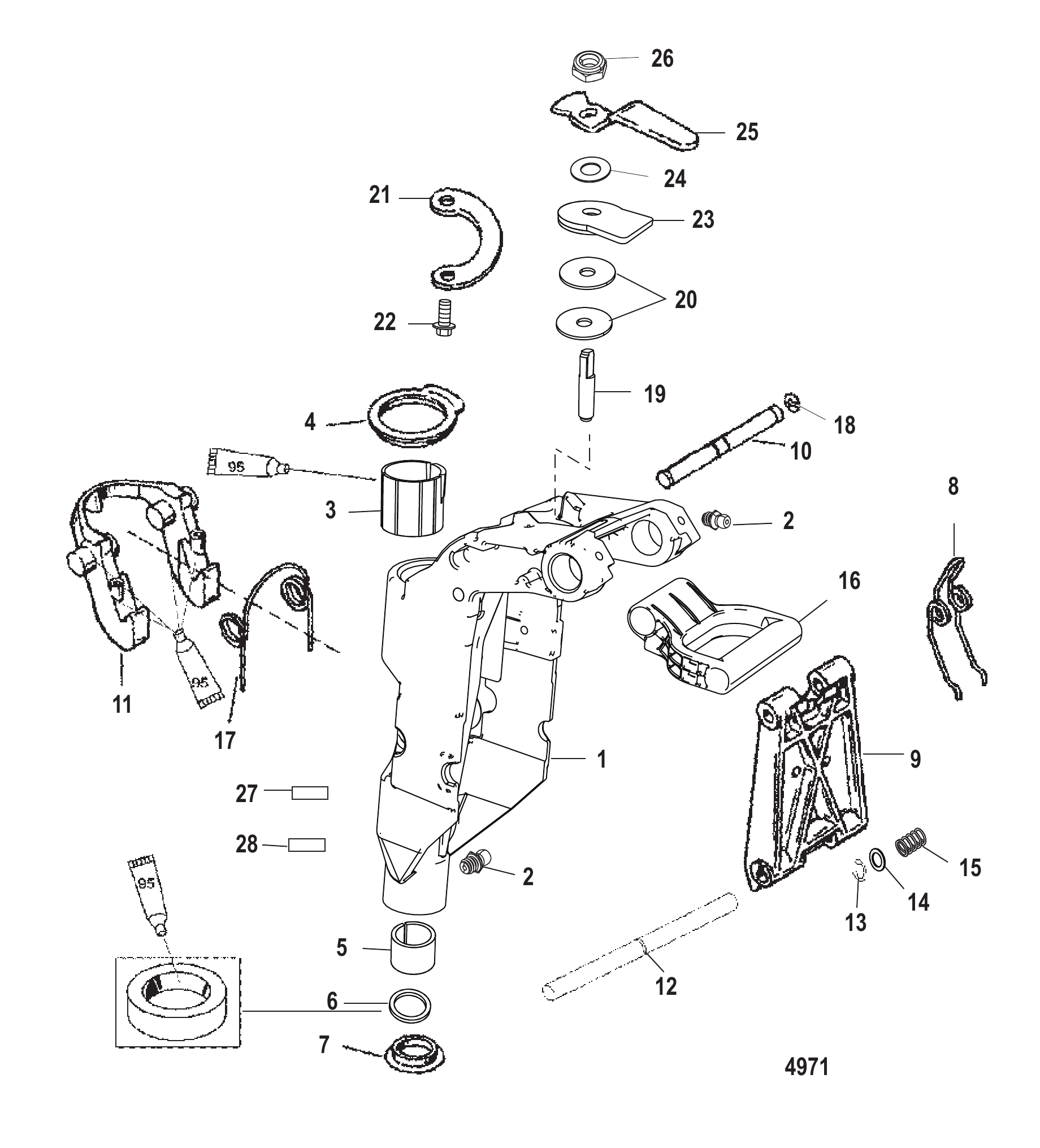

图 15旋转支架 Swivel Bracket

REF	零件编号	中文名称	英文名称	数量
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	润滑脂接头	FITTING Grease	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	421402	轴承	BEARING	1
4	420801	推力轴承-上	BEARING Thrust - Upper	1
4	42080T01	轴承	BEARING	1
5	42139	衬套	BUSHING	1
6	42077	密封件	SEAL	1
7	42373	止推垫片	THRUST WASHER	1
8	421301	弹簧	SPRING	1
9	420824	支架	BRACKET	1
9	42082T04	支架	BRACKET	1
10	420811	销	PIN	1
11	421411	倒挡锁钩	HOOK Reverse Lock	1
11	8M0075731	倒挡钩	HOOK Reverse	1
12	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
13	832720	挡圈	RING Retaining	1
14	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
15	42128	弹簧	SPRING	1
16	42085F4	提手	CARRYING HANDLE	1
16	420852	手柄-黑色	HANDLE-BLACK	1
17	42127	弹簧	SPRING	1
18	13194	挡圈	RING Retaining	2
19	821961	杆	ROD	1
20	8165621	圆盘	DISC	2
21	821958A1	板组件套件	PLATE KIT	1
22	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	2
23	821957	制动板	BRAKE PLATE	1
24	29330	垫圈	WASHER	1
25	821959	手柄	HANDLE	1
26	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
26	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
27	8237011	副驾驶贴花	DECAL Co-Pilot	1
28	NSS	不单独销售(序列号覆膜标贴)	NOT SOLD SEPARATE (Decal-Serial Overlaminate)	1

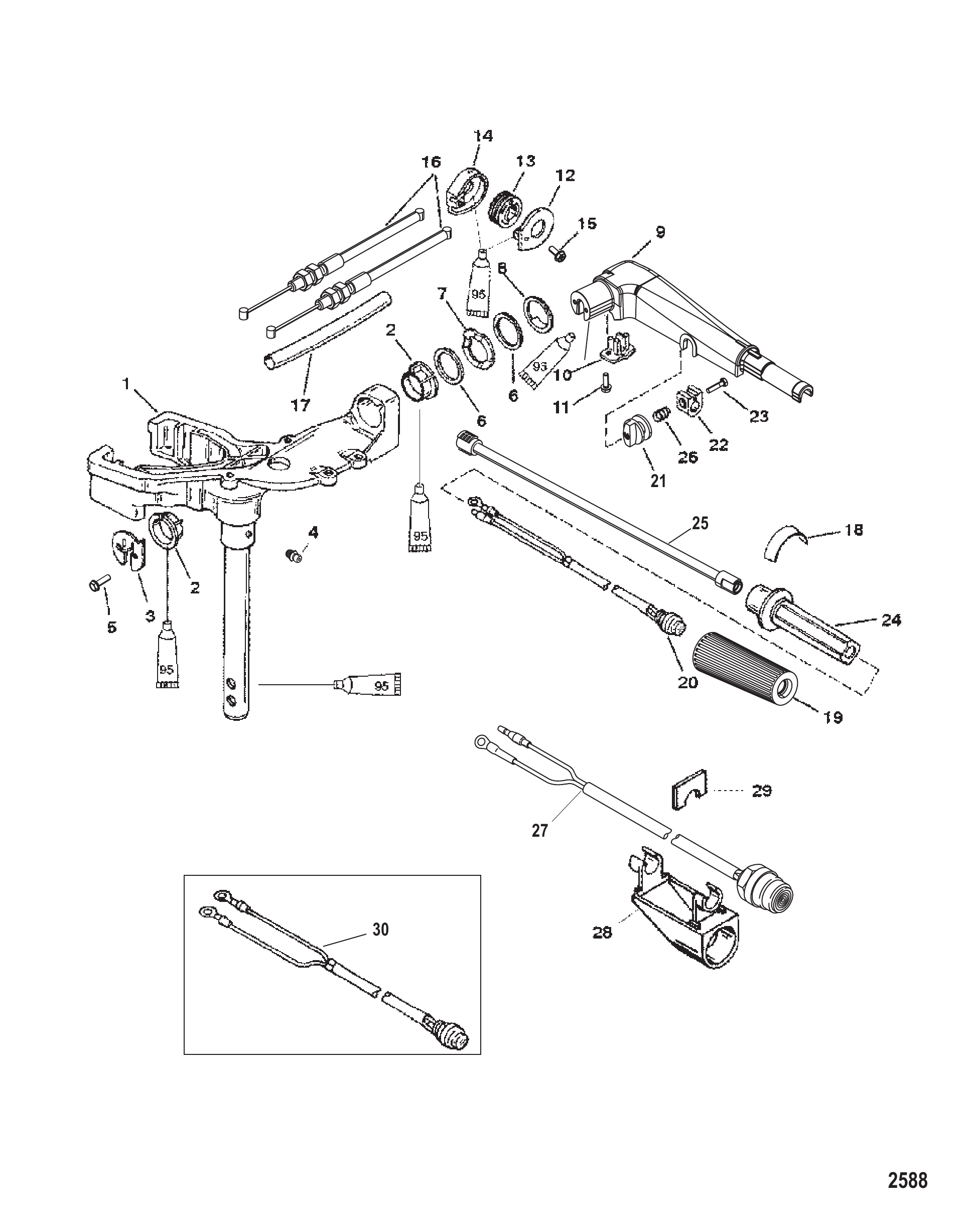

图 16旋转头与转向手柄 Swivel Head and Steering Handle

REF	零件编号	中文名称	英文名称	数量
1	42213A24	旋转头	SWIVEL HEAD	1
2	823939	衬套	BUSHING	2
3	8221471	安装板	PLATE	1
4	74036	润滑脂接头	FITTING Grease	1
4	8M0169589	润滑脂接头	FITTING Grease	1
5	4010516	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
6	822145	垫圈	WASHER	2
7	826792	波形垫圈	WAVE WASHER	1
8	822146	垫圈	WASHER	1
9	821468A66	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
10	822441	固定座	RETAINER	1
11	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	1
12	822148A3	盖板套件	COVER KIT	1
13	822150	滑轮	PULLEY	1
14	NSS	不单独销售(滑轮壳体)	NOT SOLD SEPARATE (Pulley Case)	1
15	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
16	4324218	节气门拉索	CABLE Throttle	2
16	43242T18	节气门拉索	CABLE-THROTTLE	2
17	9600910	套筒	SLEEVE	1
18	8242002	贴花	DECAL	1
19	99589	握把	GRIP	1
19	8M0221732	外握把	GRIP OUTER	1
20	823609A17	停机开关总成	SWITCH ASSEMBLY Stop	1
20	8M0104615	开关总成	SWITCH ASSY	1
21	821972	节气门旋钮	KNOB Throttle	1
21	821972T	节气门旋钮	KNOB Throttle	1
22	821971	节气门锁	LOCK Throttle	1
22	892995	节气门锁	LOCK Throttle	1
23	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
23	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1
24	822429	节气门手柄	HANDLE Throttle	1
25	821463A1	舵柄管	TILLER TUBE	1
25	821463T01	舵柄管	TUBE-TILLER	1
26	96203	弹簧	SPRING	1
27	823609A18	启动/停止开关总成	SWITCH ASSEMBLY Start/Stop	1
28	8239172	壳体	HOUSING	1
28	889734	开关壳体	HOUSING Switch	1
29	824918	卡扣	CLIP	1
30	823609A6	启动/停止开关总成	SWITCH ASSEMBLY Start/Stop	1

图 17油门与换挡联动装置（侧换挡） Throttle and Shift Linkage (Side Shift)

REF	零件编号	中文名称	英文名称	数量
1	421811	线缆支架	BRACKET Cable	1
2	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
3	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
4	4002314	垫圈	WASHER	1
5	421571	换挡手柄	SHIFT HANDLE	1
6	44459	护孔环	GROMMET	1
6	44459001	护孔环	GROMMET	1
7	8155501	换档轴	SHIFT SHAFT	1
8	42156	杠杆	LEVER	1
9	42153	杠杆	LEVER	1
10	39627	弹簧	SPRING	1
11	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
12	421671	正时连杆	TIMING LINK	1
13	421631	控制杆	LEVER Control	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	69708	波形垫圈	WAVE WASHER	1
16	42164	弹簧	SPRING	1
17	13676	弹簧	SPRING	1
18	421662	执行器	ACTUATOR	1
19	421621	衬套	BUSHING	1
20	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
21	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
22	42161	互锁连杆	LINK INTERLOCK	1
23	421592	杠杆	LEVER	1
24	42160	弹簧	SPRING	1
25	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
26	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
27	421581	衬套	BUSHING	1

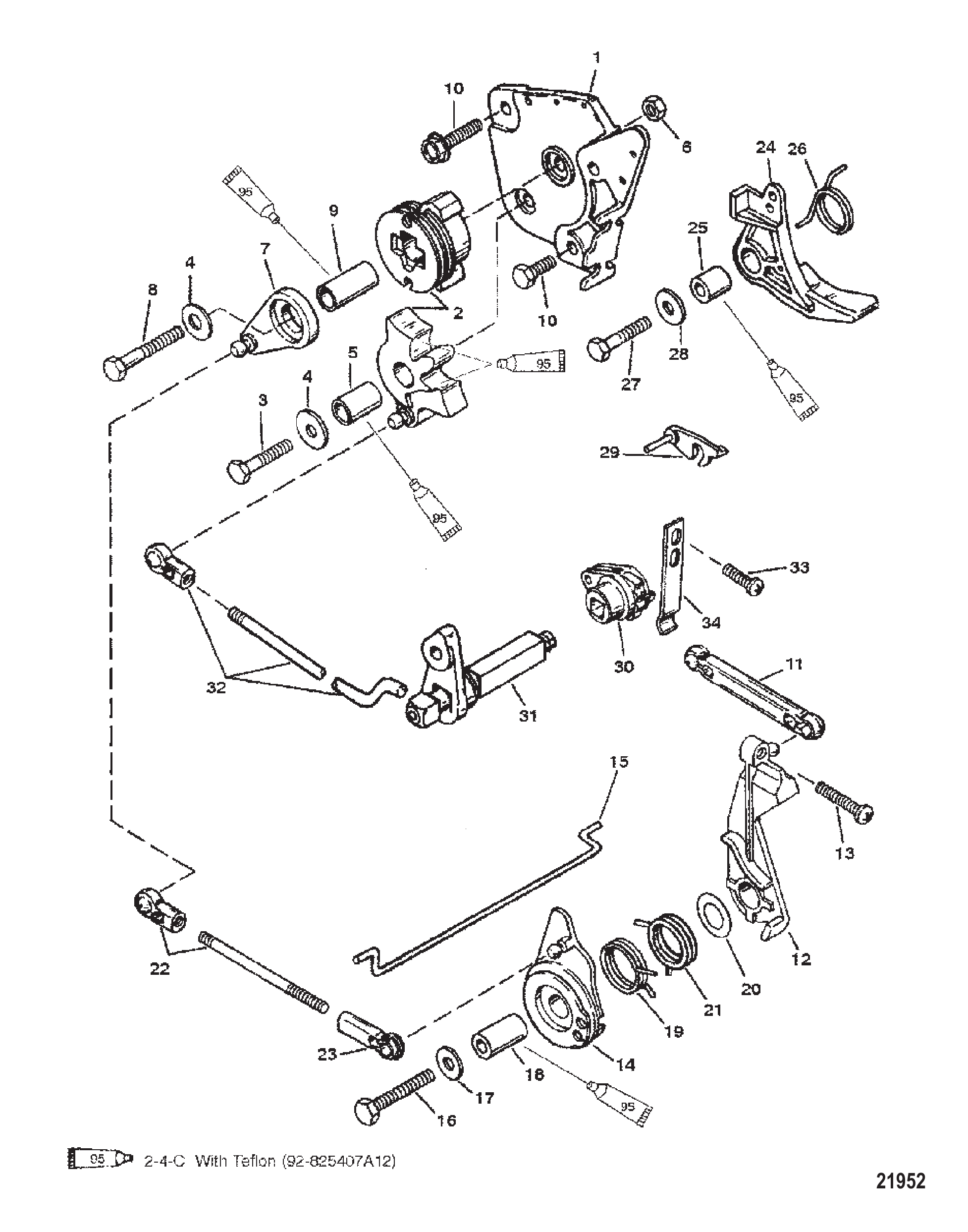

图 18油门与换挡联动装置（舵柄型号） Throttle and Shift Linkage (Tiller Handle Models)

REF	零件编号	中文名称	英文名称	数量
1	421481	控制平台	CONTROL PLATFORM	1
2	94085A1	齿轮	GEAR	1
3	826650	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
4	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
4	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
5	42149	短隔套	SPACER (SHORT)	1
5	856737	隔套	SPACER	1
6	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
7	42151	主操纵杆	LEVER Primary	1
8	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9	42150	长隔套	SPACER (LONG)	1
9	856738	隔套	SPACER	1
10	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
11	421671	正时连杆	TIMING LINK	1
12	421631	控制杆	LEVER Control	1
13	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
14	421662	执行器	ACTUATOR	1
15	42161	互锁连杆	LINK INTERLOCK	1
16	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
17	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
18	421621	衬套	BUSHING	1
19	42164	弹簧	SPRING	1
20	69708	波形垫圈	WAVE WASHER	1
21	13676	弹簧	SPRING	1
22	19385A1	节气门连杆总成	LINK ASSEMBLY Throttle	1
22	8M0084745	节气门连杆总成	LINK ASY-THROTTLE	1
23	19384	插座	SOCKET	1
23	8M0084742	插座	SOCKET	1
24	421592	杠杆	LEVER	1
25	421581	衬套	BUSHING	1
26	42160	弹簧	SPRING	1
27	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
28	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
29	42156	杠杆	LEVER	1
30	42153	杠杆	LEVER	1
31	8155501	换档轴	SHIFT SHAFT	1
32	815567A1	换挡连杆	SHIFT LINK	1
32	815567T02	换挡连杆总成	SHIFT LINK ASSY	1
33	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
34	39627	弹簧	SPRING	1

图 19专用工具 Tools-Special

REF	零件编号	中文名称	英文名称	数量
-	824785A1	衬套和密封安装工具	INSTALLER TOOL Bushing And Seal	1
-	13664	轴承座安装工具, 6/15马力	INSTALLER TOOL Bearing Carrier, 6/15 Hp	1
-	83165M	轴承拉拔器总成	PULLER ASSEMBLY Bearing	1
-	83165T	拉拔器总成	PULLER ASSEMBLY	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	824787	衬套拆卸工具	REMOVAL TOOL Bushing	1
-	36392	化油器量具	GAUGE TOOL Carburetor	1
-	29287	量规工具	GAUGE TOOL	1
-	824788A1	轴承拆卸工具	REMOVAL TOOL Bearing	1
-	824790A1	驱动轴衬套安装工具	INSTALLATION TOOL Driveshaft Bushing	1
-	83163M	飞轮固定工具	HOLDER TOOL Flywheel	1
-	8M0161873	固定工具	HOLDER TOOL	1
-	24937A1	固定工具	HOLDER TOOL	1
-	8M0161873	固定工具	HOLDER TOOL	1
-	24937A1	固定工具	HOLDER TOOL	1
-	83164M	飞轮拉拔器	FLYWHEEL PULLER	1
-	8M0227579	飞轮拉拔器	FLYWHEEL PULLER	1
-	13655	心轴	MANDREL	1
-	13655T	心轴	MANDREL	1
-	99750A1	万用表	MULTI METER	1
-	13663A1	活塞销安装工具	INSTALLER TOOL Piston Pin	1
-	13663T1	活塞销安装工具	INSTALLER TOOL Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	13662A1	动力头支架工具	STAND TOOL Powerhead	1
-	13662T1	动力头支架工具	STAND TOOL Powerhead	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	24283	卡簧钳	PLIERS Snap Ring	1
-	850439T1	八腔测试仪	TESTER Eight Chamber (EIGHT CHAMBER)	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber (SINGLE CHAMBER)	1
-	99379	正时灯	TIMING LIGHT	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	NSS	非单独销售膨胀杆(Snap-On #CG 40-4)	NOT SOLD SEPARATE Expanding Rod (Snap-On #CG 40-4)	1
-	NSS	非单独销售夹头(Snap-On #CG 40-15)	NOT SOLD SEPARATE Collet (Snap-On #CG 40-15)	1
-	NSS	非单独销售膨胀杆(Snap-On #CG40A6)	NOT SOLD SEPARATE Expanding Rod (Snap-On #CG40A6)	1
