水星 Mercury 15 HP SEAPRO 0G044365 THRU 0G437999 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-80863794 · 共 16 个部位 · 686 条零件

图 1附件 Accessories

REF	零件编号	中文名称	英文名称	数量
0	877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
0	877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
0	858109Q12	燃油软管总成(12英尺)-带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect	1
0	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
0	858104Q08	燃油软管总成(8英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect Engine End Only	1
0	877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
0	858106Q12	燃油软管总成(12英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect Engine End Only	1
0	877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
0	858108Q12	燃油软管总成(8英尺)-无接头	HOSE ASSEMBLY Fuel (8 Feet) - No Fittings	1
0	90983A5	起动机转换套件	CONVERSION KIT Starter Motor	1
0	823609A7	舵柄启动开关转换套件	CONVERSION KIT Tiller Handle Start Switch	1
0	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
0	42805A6	遥控安装套件(6/8/9/9/15马力)	ATTACHING KIT Remote Control (6/8/9/9/15 Hp)	1
0	821190A3	侧移转换套件	CONVERSION KIT Side Shift	1
0	12426A7	延长套件	EXTENSION KIT	1
0	830578A1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
0	828517A1	化油器防冰套件	ANTI-ICING KIT Carburetor	1
0	14586A3	节温器套件	THERMOSTAT KIT	1
0	7370A40	高能点火套件	HIGH ENERGY IGNITION KIT	1
0	42282A4	照明线圈套件	COIL KIT Lighting	1
0	95845A5	照明调节器套件	REGULATOR KIT Lighting	1
0	62351A10	蓄电池充电套件	CHARGING KIT Battery	1
0	12612Q2	冲洗附件	FLUSHING ATTACHMENT	1
0	14171Q2	电机锁	MOTOR LOCK	1
0	11606A1	右舷安装套件	ATTACHING KIT Starboard	1
0	11606A2	左舷安装套件	ATTACHING KIT Port	1
0	12569A1	线缆滑轮安装套件	ATTACHING KIT Cable And Pulley	1

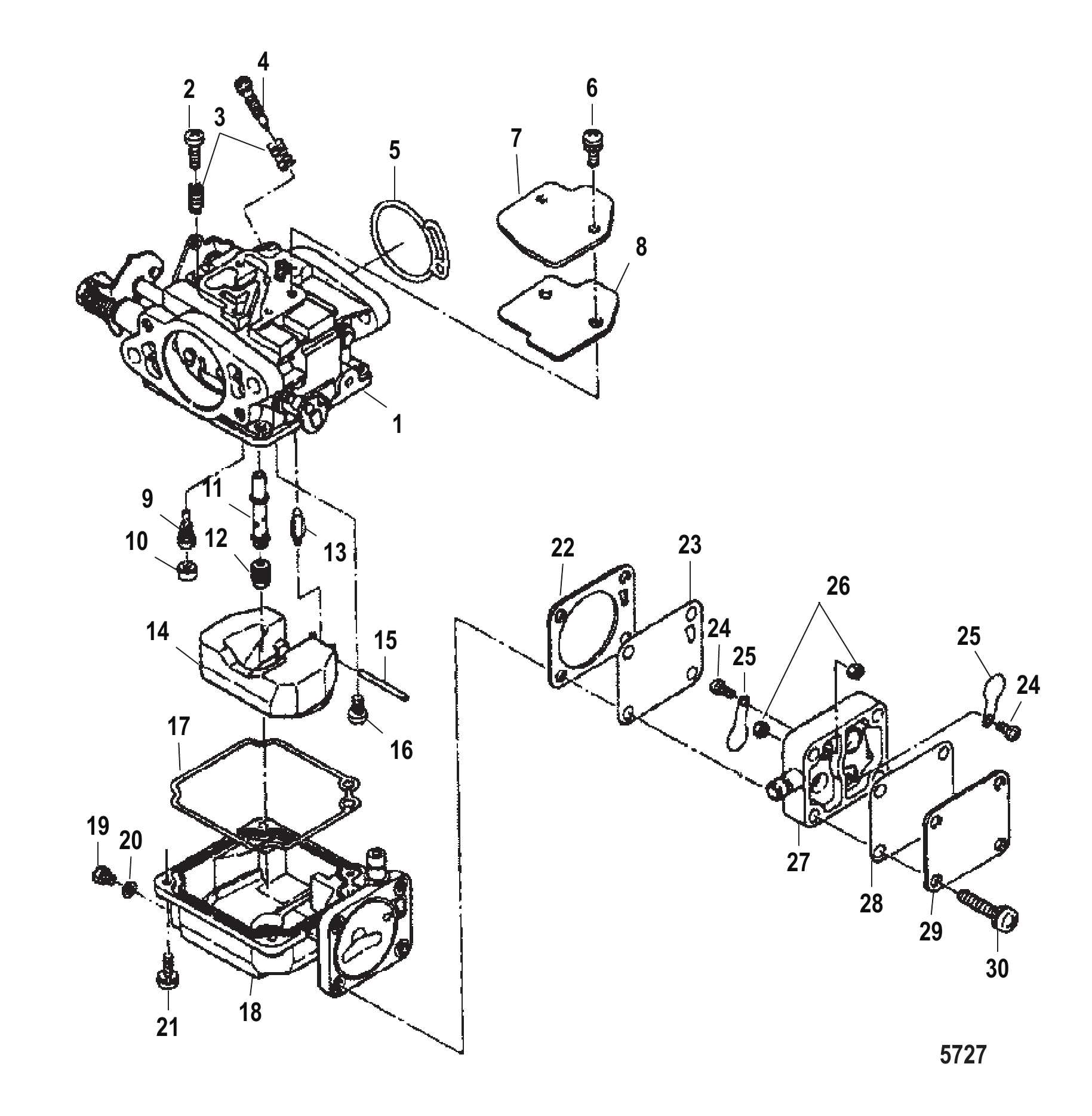

图 2化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	803687A1	化油器	CARBURETOR	1
2	162631	螺钉	SCREW	1
2	8M0054702	螺钉	SCREW	1
3	162641	弹簧(11毫米)	SPRING (11 mm)	2
3	803509A17	螺钉弹簧套装(18毫米)	SCREW AND SPRING KIT (18 mm)	2
4	803690	调节螺钉	SCREW Adjusting	1
5	161783	O型圈	O-RING
6	8555421	螺钉	SCREW	2
6	809571003	螺钉	SCREW	2
7	8555401	化油器盖	COVER Carburetor	1
8	8555412	衬垫	GASKET	1
9	803689	怠速量孔(#80)	JET Pilot (#80)	1
10	855566	堵头	PLUG	1
11	803692	主喷管	MAIN NOZZLE	1
12	803688	主量孔(#110)	JET Main (#110)	1
13	162542	浮子针阀	FLOAT NEEDLE	1
13	162545	浮子针阀	FLOAT NEEDLE	1
14	162532	浮子	FLOAT	1
15	162561	销	PIN	1
16	8536981	螺钉	SCREW	1
17	855567	衬垫	GASKET	1
18	803691	浮子室	FLOAT BOWL	1
19	162613	放油螺钉	SCREW Drain	1
19	803509013	放油螺钉	SCREW Drain	1
20	8555671	衬垫	GASKET	1
20	8M0224378	衬垫	GASKET	1
21	162603	螺钉	SCREW	4
22	8555691	衬垫	GASKET	1
23	8537312	隔膜	DIAPHRAGM	1
24	851813	螺钉	SCREW	2
25	851812	止回阀	CHECK VALVE	2
26	851814	螺母	NUT	2
27	8537291	泵壳	HOUSING Pump	1
28	855569	衬垫	GASKET	1
29	803693	盖板	COVER	1
29	855568	盖板	COVER	1
30	162604	螺钉	SCREW	4
30	8M0062252	螺钉	SCREW	4
-	803826A1	化油器维修套件	REPAIR KIT Carburetor	1
-	8M0039870	化油器修理包	REPAIR KIT-CARB	1
-	803663A99	动力头衬垫套件	GASKET SET Powerhead	1
-	8M0231500	衬垫套件	GASKET SET	1
-	803663A01	动力头衬垫套件	GASKET SET Powerhead	1
-	8M0065497	衬垫套件	GASKET SET	1

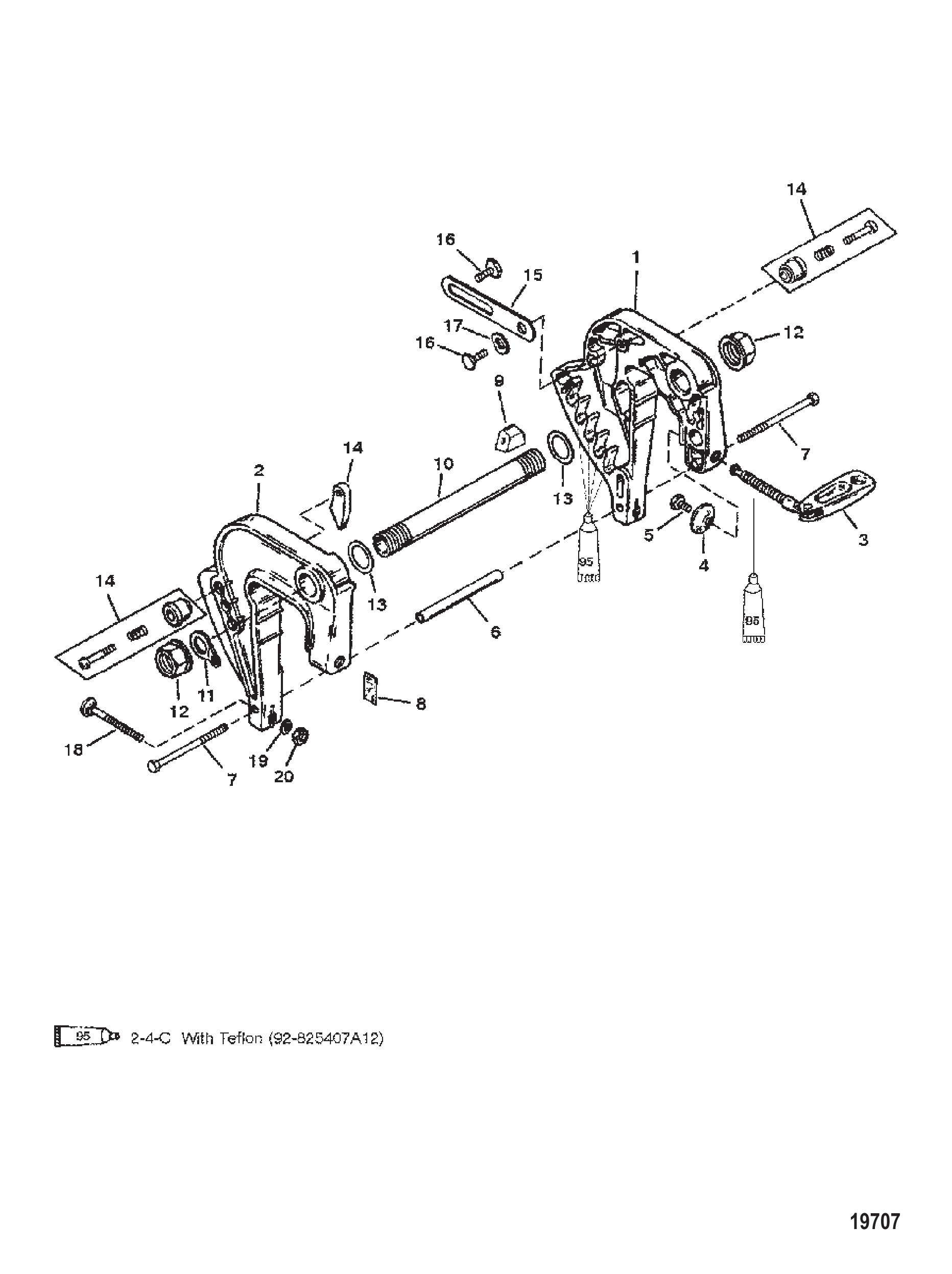

图 3夹紧支架总成 Clamp Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1	8894A8	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	8894A9	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	8894A8	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A6	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A7	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A6	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
3	92767A3	蝶形螺丝总成 (16 mm)	THUMB SCREW ASSEMBLY (16 mm)	2
4	73719		WASHER Thumb Screw	2
4	818884	垫圈	WASHER	2
5	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
6	818539	隔套	SPACER	1
6	8M0084719	隔套	SPACER	1
7	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
8	12869	倾斜位置标贴	DECAL Tilt Position	1
9	814427	倾斜锁定滑块	SHUTTLE Tilt Lock	1
10	42078	倾斜管	TILT TUBE	1
11	30954		CLIP Safety	1
11	8M0085928	卡扣	CLIP	1
12	93164		NUT (.875) Tilt Tube	2
13	71421		WASHER Nylon Tilt Tube	2
14	42390A1	倾斜回位杆总成	LEVER ASSEMBLY Tilt Return	2
15	90901		STRAP Tilt Stop - Port Side	1
16	42498		SCREW (M6 x 1.0) Strap to Clamp Bracket	2
17	31030	倾斜止动带螺钉波形垫圈	WAVE WASHER Tilt Stop Strap Screw	1
18	43216	螺栓 (.250-20 x 3.50) 夹紧支架至艉板	BOLT (.250-20 x 3.50) Clamp Bracket to Transom	2
19	67983		WASHER Clamp Bracket Bolt	2
20	13855	螺母 (.250-20) 夹紧支架螺栓	NUT (.250-20) Clamp Bracket Bolt	2
20	8267118	螺母 (.250-20)	NUT (.250-20)	2

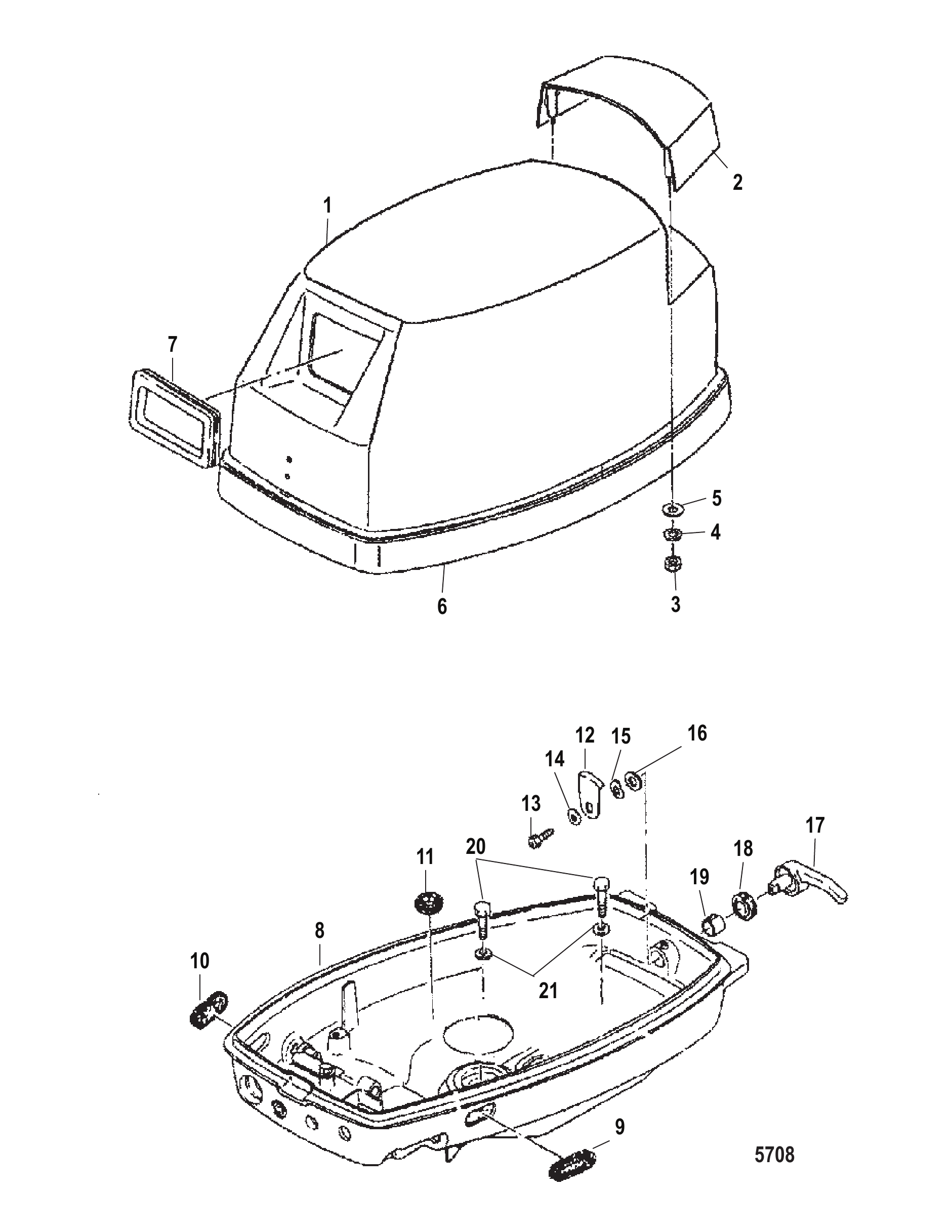

图 4外罩 Cowling

REF	零件编号	中文名称	英文名称	数量
1	803792A1	顶罩总成(黑色带贴花)	TOP COWL ASSEMBLY (Black-Decaled)	1
1	803792A2	顶罩总成(银色带贴花)	TOP COWL ASSEMBLY (Silver-Decaled	1
1	8M0073909	银色顶罩	TOP COWL-SILVER	1
1	803792A10	顶罩总成黑色-无贴花	TOP COWL ASSEMBLY Black - Without Decals	1
1	8M0073908	ORD 100-8M0074337	ORD 100-8M0074337	1
1	803792A11	顶罩总成银色-无贴花	TOP COWL ASSEMBLY Silver - Without Decals	1
1	8M0073909	银色顶罩	TOP COWL-SILVER	1
2	803793	顶罩盖	CAP Cowl	1
2	8M0129134	倾斜手柄	TILT HANDLE	1
2	8037931	顶罩盖	CAP Cowl	1
2	8M0128843	倾斜手柄	TILT HANDLE	1
3	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	4
4	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	4
5	953921	不锈钢垫圈	WASHER Stainless Steel	1
6	803794	密封件	SEAL	1
6	8M0073255	顶罩密封条	COWL SEAL	1
7	162281	橡胶密封件	SEAL Rubber	1
7	8M0065066	密封件	SEAL	1
8	803791	下机罩	BOTTOM COWL	1
9	162311	护孔环	GROMMET	1
10	162312	护孔环	GROMMET	1
11	8036675	油封	SEAL Oil	1
12	162221	挂钩	HOOK	1
13	16223	螺栓(M6x14)	BOLT (M6 x 14)	1
14	953921	不锈钢垫圈	WASHER Stainless Steel	1
15	16221	波形垫圈	WAVE WASHER	1
16	953922	垫圈	WASHER	1
17	162186	挂钩杆	HOOK LEVER	1
18	16219	密封件	SEAL	1
19	163365	衬套	BUSHING	1
20	16705	螺栓	BOLT	2
21	16826	不锈钢垫圈	WASHER Stainless Steel	2
-	803663A99	动力头衬垫套件	GASKET SET Powerhead	1
-	8M0231500	衬垫套件	GASKET SET	1
-	803663A01	动力头衬垫套件	GASKET SET Powerhead	1
-	8M0065497	衬垫套件	GASKET SET	1

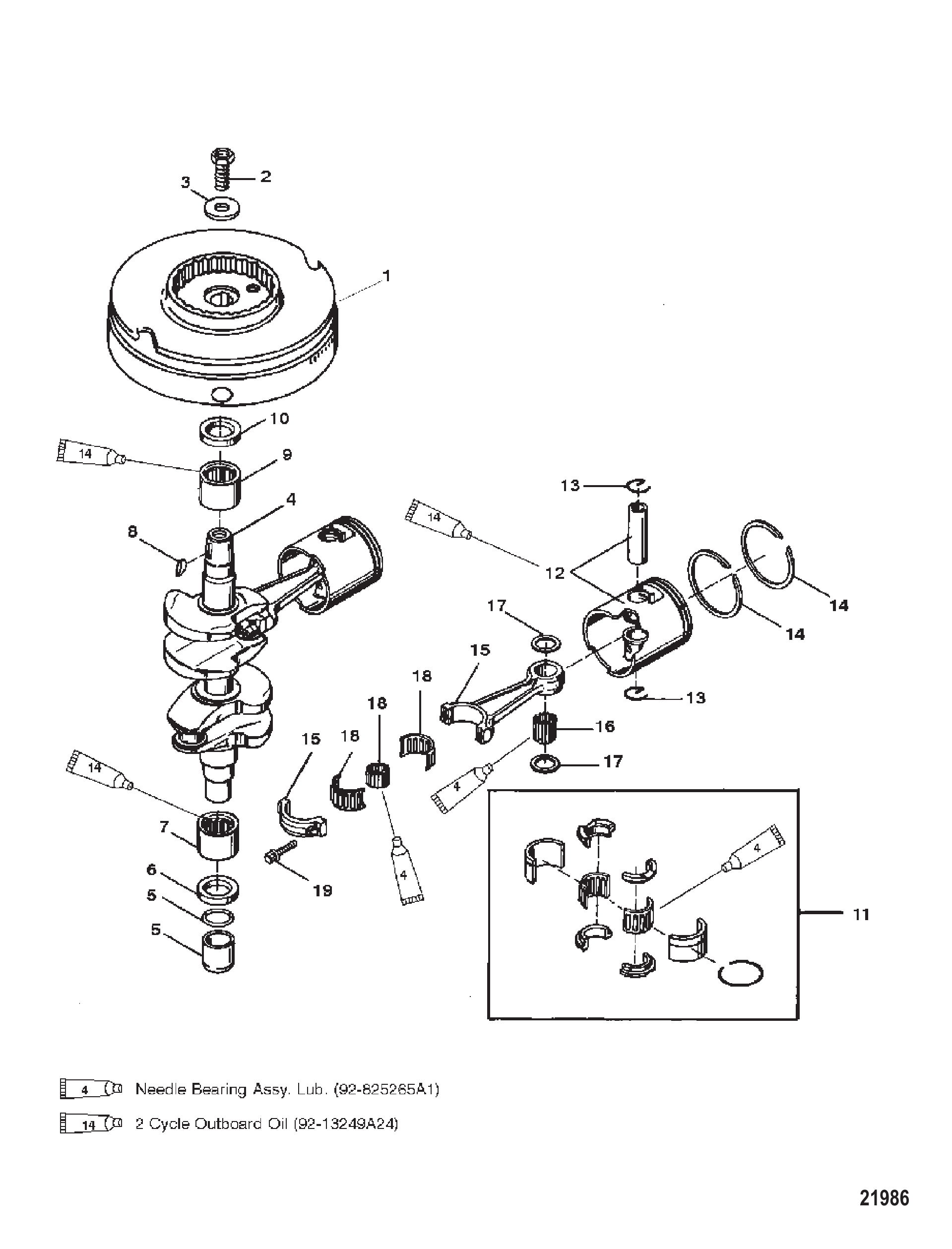

图 5曲轴、活塞与飞轮 Crankshaft, Pistons and Flywheel

REF	零件编号	中文名称	英文名称	数量
1	818354A2	飞轮	FLYWHEEL	1
2	97359A1	飞轮至曲轴螺钉总成	SCREW ASSEMBLY Flywheel to Crankshaft	1
3	86496	飞轮螺钉垫圈	WASHER Flywheel Screw	1
4	823105A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
4	823105T1	曲轴总成	CRANKFHAFT ASSY	1
5	822445A2	耐磨套	WEAR SLEEVE	1
6	85107	曲轴下油封	SEAL Oil Crankshaft - Lower	1
7	85113	下滚柱轴承	BEARING Roller Lower	1
7	85113T	下滚柱轴承	BEARING Roller - Lower	1
8	20094		KEY Woodruff Flywheel Drive	1
9	85114	上上滚柱轴承	BEARING Roller - Upper Upper	1
9	85114T	上滚柱轴承	BEARING Roller - Upper	1
10	859741	曲轴上油封	SEAL Oil Crankshaft-Upper	1
11	86992A5	中央主轴承总成	BEARING ASSEMBLY Center Main	1
11	8M0113968	中央主轴承	BEARING-CENTER/MA	1
12	9104A19	活塞总成	PISTON ASSEMBLY	2
12	9104T19	活塞总成	PISTON ASSEMBLY	2
12	821968A3	活塞总成	PISTON ASSEMBLY	2
12	879878T5	活塞总成	PISTON ASSEMBLY	2
13	47276	锁紧环	LOCK RING	4
13	828119	活塞销锁环	LOCK RING Piston Pin	4
14	827491A12	活塞环组	RING SET Piston	1
15	8835A2	连杆总成	CONNECTING ROD ASSEMBLY	2
15	8835A4	连杆总成	CONNECTING ROD ASSEMBLY	2
16	98295	活塞端滚针轴承	BEARING Needle Piston End	54
17	42025	定位滚针轴承	BEARING Locating - Needle Bearing	4
17	8M0012294	止推垫圈	WASHER-THRUST	4
18	41620A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
18	879877A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
19	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	4
-	41670A94	衬垫套件	GASKET SET	1
-	808618A94	动力头总成	POWERHEAD ASSEMBLY	1
-	879731T97	PH 15 2S	PH 15 2S	1
-	808618A95	动力头总成	POWERHEAD ASSEMBLY	1
-	879731T97	PH 15 2S	PH 15 2S	1

图 6气缸体与盖 Cylinder Block and Covers

REF	零件编号	中文名称	英文名称	数量
1	8473A13	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T20	气缸体	CYLINDER BLOCK	1
1	8473A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T21	气缸体	CYLINDER BLOCK	1
1	9727A2	气缸体	CYLINDER BLOCK	1
1	9727T2	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	2
3	42463	化油器螺柱	STUD CARBURETOR	2
3	424632	双头螺柱(M8x37.1)	STUD (M8 x 37.1)	2
4	42698	泄放软管止回阀	CHECK VALVE BLEED HOSE	1
4	426982	止回阀	CHECK VALVE	1
5	1383556	泄放软管	HOSE BLEED	1
5	99130100	软管-48英寸	TUBING-48 INCH	1
6	42984	气缸体螺柱	STUD CYLINDER BLOCK	2
6	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
7	421251	螺钉(M8x55)曲轴箱至气缸体	SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK	6
7	42125	螺钉(M8x55)	SCREW (M8 x 55)	6
7A	17866	槽销	PIN Groove	1
8	400634	螺母(M6)气缸体螺柱	NUT (M6) CYLINDER BLOCK STUD	2
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
9	191861	动力头衬垫	GASKET Powerhead	1
10	42381A2	簧片阀总成	REED BLOCK ASSEMBLY	1
10	828435A3	簧片阀组	REED BLOCK	1
11	42657A1	止回阀	CHECK VALVE	1
11	42657A3	止回阀	CHECK VALVE	1
12	42137	簧片阀密封件	SEAL REED BLOCK	1
13	195981	簧片阀衬垫	GASKET REED BLOCK	1
13	195982	衬垫	GASKET	1
14	4000171	螺钉(M6x16)簧片阀	SCREW (M6 x 16) REED BLOCK	3
15	42044	簧片	REED	2
15	825141	簧片	REED	2
16	179031	簧片止挡	STOP Reed	2
16	828435A3	簧片阀组	REED BLOCK	2
17	4005764	螺钉(M3.5x8)簧片固定	SCREW (M3.5 x 8) REED ATTACHING	6
18	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
19	42521	排气盖	COVER EXHAUST	1
19	8M0048005	排气盖总成	COVER EXHAUST MAN	1
20	40062129	螺钉(M6x25)排气盖至气缸体	SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK	11
21	19185	排气盖衬垫	GASKET EXHAUST COVER	1
22	423651	挡板	PLATE Baffle	1
22	42365	挡板	PLATE Baffle	1
23	19184	挡板衬垫	GASKET BAFFLE PLATE	1
24	19107F1	进气盖	COVER Intake	1
25	56759	倒钩接头	FITTING Barbed	1
24	17863A1	进气盖总成	COVER ASSEMBLY Intake	1
25	15133	接头	FITTING	1
26	1383556	软管	HOSE	2
26	99130100	软管-48英寸	TUBING-48 INCH	2
27	59169	接头	FITTING	1
27	59169003	三通接头	FITTING Tee	1
28	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
29	192031	进气盖衬垫	GASKET INTAKE COVER	1
30	40062129	螺钉(M6x25)盖至气缸体	SCREW (M6 x 25) COVER TO CYLINDER BLOCK	3
31	99127109	示警管(57英寸散装)	LINE (57.00 Inches Bulk) TELL TALE	1
31	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
32	94848	示警软管接头-底部罩	FITTING TELL TALE HOSE-BOTTOM COWL	1
33	8906A1	盖总成	COVER ASSEMBLY	1
33	8906A02	盖总成	COVER ASSEMBLY	1
34	192071	衬垫	GASKET	1
34	19207002	衬垫	GASKET	1
35	146732	节温器盖	COVER THERMOSTAT	1
35	8M0039352	盖板	COVER	1
36	192051	衬垫	GASKET	1
36	19205002	衬垫	GASKET	1
37	40062129	螺钉(M6x25)	SCREW (M6 x 25)	2
38	14586	节温器(120)	THERMOSTAT (120)	1
39	62386	节温器衬垫	GASKET THERMOSTAT	1
39	8M0204714	衬垫@4	GASKET @4	1
40	29111	连接器(直型)(新设计)	CONNECTOR (STRAIGHT)(NEW DESIGN)	1
40	291112	接头	FITTING	1
40	99664	弯头(旧设计)	ELBOW (OLD DESIGN)	1
40	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
41	40062129	螺钉(M6x25)盖固定	SCREW (M6 x 25) COVER ATTACHING	6
-	12893A87	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	12893A92	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686A92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

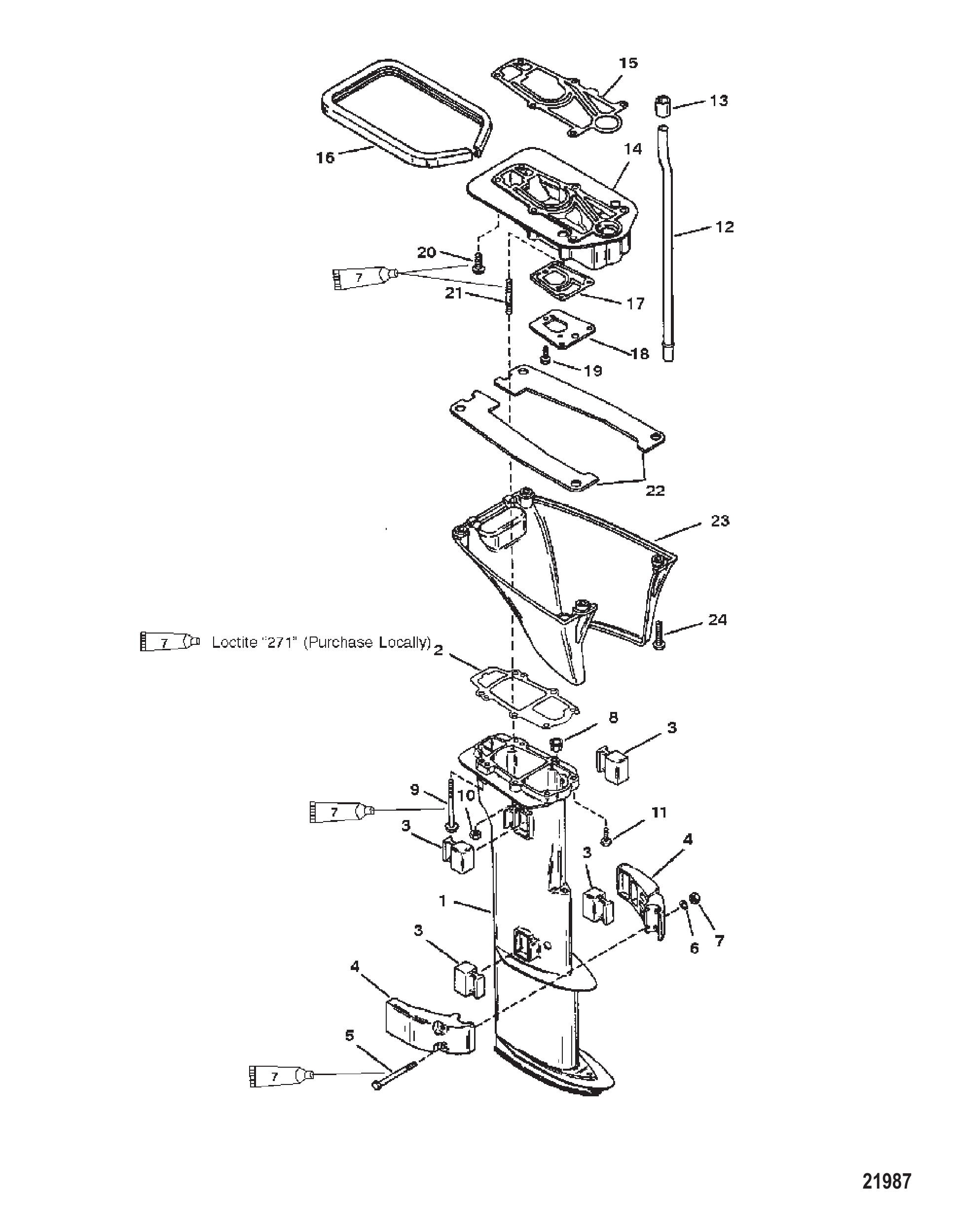

图 7驱动轴壳体总成 Driveshaft Housing Assembly

REF	零件编号	中文名称	英文名称	数量
1	822154A1	壳体总成(短型)(黑色)	HOUSING ASSEMBLY (SHORT) (BLACK)	1
1	822155A1	壳体总成(长型)(黑色)	HOUSING ASSEMBLY (LONG) (BLACK)	1
1	822154A2	壳体总成(短型)(灰色)	HOUSING ASSEMBLY (SHORT) (GRAY)	1
1	822155A2	壳体总成(长型)(灰色)	HOUSING ASSEMBLY (LONG) (GRAY)	1
2	195992	驱动轴壳体衬垫	GASKET Driveshaft Housing	1
3	421892	支架	MOUNT	4
3	8M0039074	支架	MOUNT	4
4	42374F6	安装盖(黑色)	COVER Mount (BLACK)	2
4	42374F5		COVER Mount (GRAY)	2
4	42374F6	安装盖	COVER Mount	2
5	4009238		SCREW (M6 x 80) Mount Cover	2
6	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
7	400212		NUT (M6) Stainless Steel Cover Screw	2
8	445551	轴承座(长型)	BLOCK Bearing (LONG)	1
9	4010775	螺钉 (M8 x 75)	SCREW (M8 x 75)	2
10	400634	螺母 (M6)	NUT (M6)	2
10	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
11	40011131	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	2
12	421233	水管(短型)	TUBE Water (SHORT)	1
12	421222	水管(长型)	TUBE Water (LONG)	1
13	42380	水管密封件	SEAL Water Tube	1
13	42380001	水管密封件	SEAL Water Tube	1
14	8215752	适配板	ADAPTER PLATE	1
15	416705	适配板垫片	GASKET Adaptor Plate	1
15	41670006	适配板垫片	GASKET Adaptor Plate	1
16	158664	适配板密封件	SEAL Adaptor Plate	1
17	822153	排气管衬垫	GASKET Exhaust Tube	1
17	8221531	衬垫	GASKET	1
18	822152	安装板	PLATE	1
19	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	3
19	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	3
20	8240717	螺钉 (M8 x 30)	SCREW (M8 x 30)	4
21	42984	螺柱 (M6 x 1 x 40)	STUD (M6 x 1 x 40)	2
21	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
22	8161411	微调盖板	PLATE Trim Cover	2
23	821863F2	配平盖(黑色)	TRIM COVER (BLACK)	1
23	821863F3	配平盖(灰色)	TRIM COVER (GRAY)	1
24	40011130	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	4
-	41670A94	衬垫套件	GASKET SET	1

图 8燃油滤清器总成 Fuel Filter Assembly

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	滤清器至化油器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO CARBURETOR	1
5	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接器套件(90度)(新设计)	CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN)	1
9	14187M	直通连接器(旧设计)	CONNECTOR (STRAIGHT) (OLD DESIGN)	1
10	4000331	适配器螺丝(M6x30)	SCREW (M6 x 30) ADAPTOR	AR
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	AR
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	AR

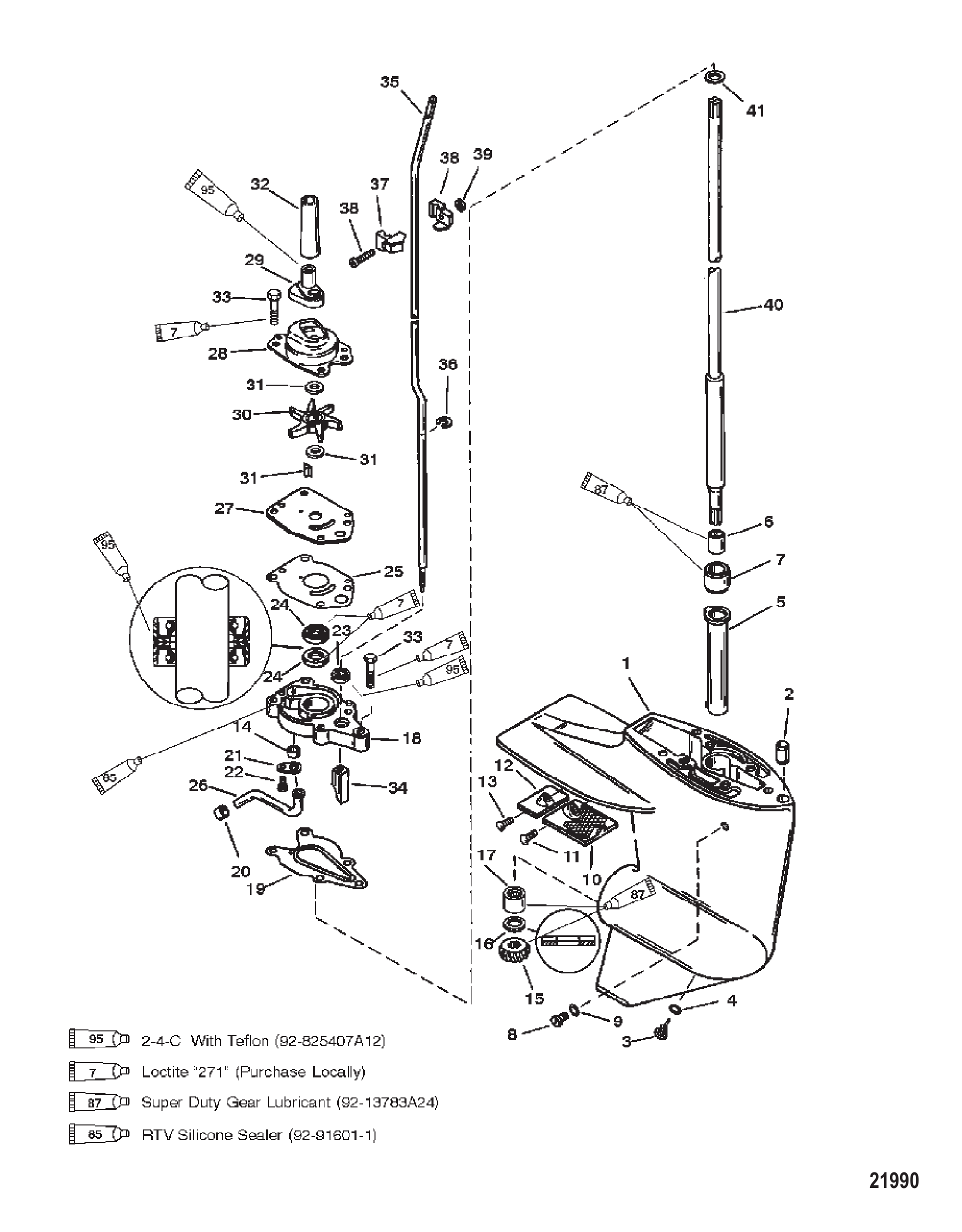

图 9齿轮箱（驱动轴） Gear Housing (Driveshaft)

REF	零件编号	中文名称	英文名称	数量
-	8833A21	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8833A22	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8833T22	齿轮长壳体-黑色	GEAR HSG-LONG-BLK	1
-	8833A23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8833T23	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A24	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8833T24	ORD 1666-8833T22	ORD 1666-8833T22	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083312	GC BASIC9.9/15 4S	GC BASIC9.9/15 4S	1
1	8833A18	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
2	12009	衬套 (0.31 x 0.45 x 0.50)	BUSHING (.31 x .45 x .50)	1
3	67892	磁性螺钉	SCREW Magnetic	1
3	8M0058389	放油螺钉套件	SCREW KIT Drain	1
4	19183	纤维垫圈	WASHER Fiber	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	822244A1	衬套总成	SLEEVE ASSEMBLY	1
6	823944	套筒	SLEEVE	1
7	823943	衬套	BUSHING	1
8	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	19183	纤维垫圈	WASHER Fiber	1
9	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
10	421991	滤网	SCREEN	1
11	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
12	42121A2	阳极总成	ANODE ASSEMBLY	1
12	42121Q02	铝阳极@2	ANODE(ALUM) @2	1
13	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
14	42133	密封件	SEAL	1
15	8219251	小齿轮-13-26	GEAR Pinion - 13-26	1
16	41369	止推垫圈	WASHER Thrust	1
17	22756	滚柱轴承	BEARING Roller	1
18	42040A5	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	42040T5	水泵底座总成	BASE ASSEMBLY Water Pump	1
19	192042	衬垫	GASKET	1
19	192043	衬垫	GASKET	1
20	33613	密封件	SEAL	1
21	42375	固定座	RETAINER	1
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	822236	四角密封环	QUAD RING	1
24	413651	油封	SEAL Oil	2
25	19202	水泵板衬垫	GASKET Water Pump Plate	1
25	19202001	衬垫	GASKET	1
26	42185A1	水管总成	TUBE ASSEMBLY Water	1
27	42200	面板	FACE PLATE	1
28	42089A2	盖总成	COVER ASSEMBLY	1
29	421021	密封件	SEAL	1
30	420382	叶轮	IMPELLER	1
30	42038Q02	叶轮	IMPELLER	1
31	42376A2	键总成	KEY ASSEMBLY	1
31	8M0173458	叶轮键	KEY IMPELLER	1
32	444671	导套	GUIDE	1
33	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	5
33	8M0214957	螺钉	SCREW	5
34	42039	换档凸轮	CAM Shift	1
35	822249	换档轴	SHIFT SHAFT	1
35	822250	换档轴	SHIFT SHAFT	1
36	42389	E型卡环	E RING	1
37	42126	导套	GUIDE	2
37	8M0036770	导套	GUIDE	2
38	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	1
39	400633	螺母 (M5)	NUT (M5)	1
39	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
40	825151	驱动轴	DRIVESHAFT	1
40	825152	驱动轴	DRIVESHAFT	1
41	822248	止推垫片	THRUST WASHER	1
-	41365A3	密封套件	SEAL KIT	1
-	42089A5	水泵套件	PUMP KIT Water	1
-	41670A94	衬垫套件	GASKET SET	1

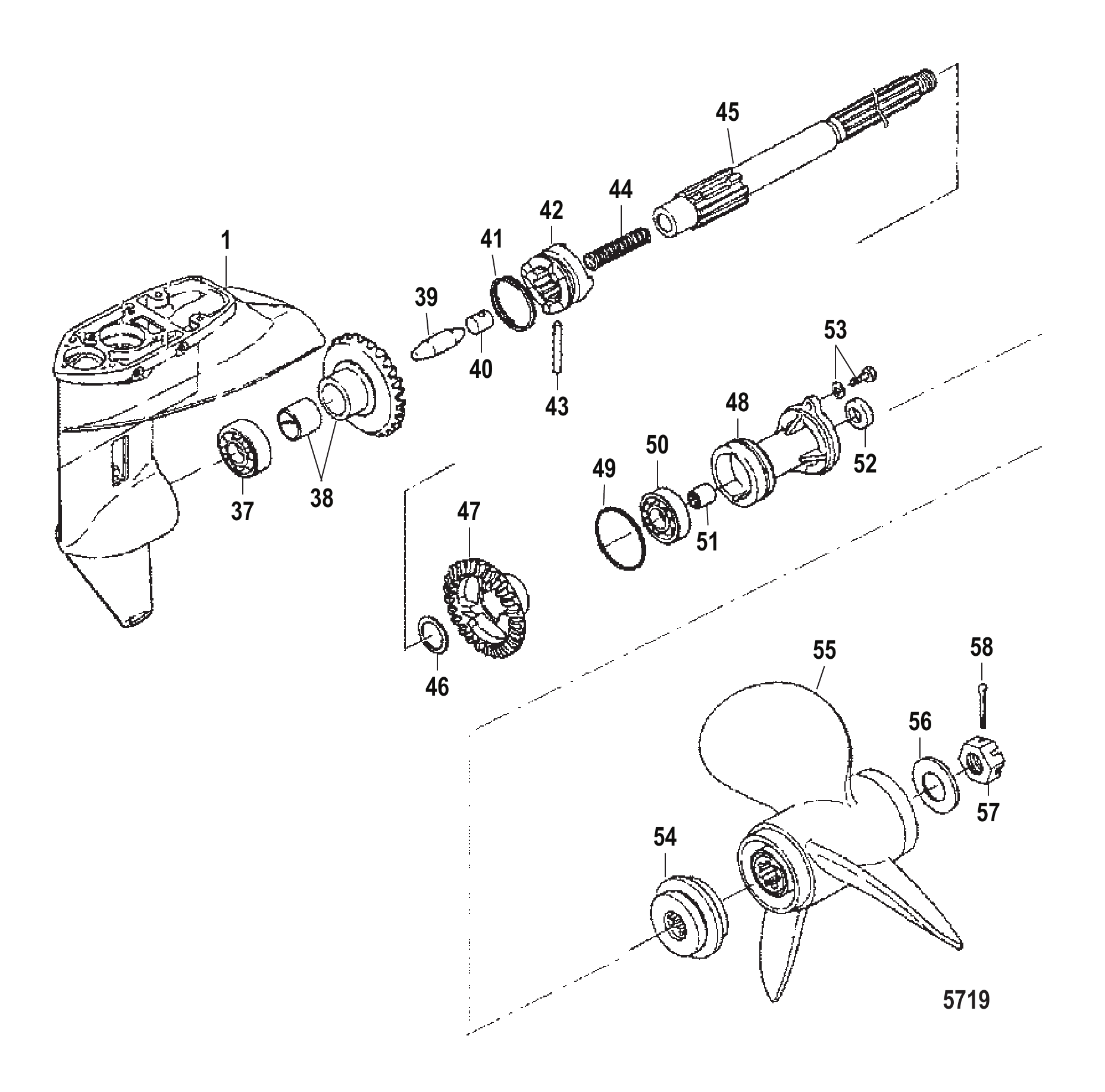

图 10齿轮箱螺旋桨轴 Gear Housing Propeller Shaft

REF	零件编号	中文名称	英文名称	数量
-	803729A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	803729A2	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8M0070904	GC 9.9-15-18 2S L	GC 9.9-15-18 2S L	1
1	803729A3	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	895154T06	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
37	161321	滚珠轴承	BEARING Ball	1
37	16132T01	滚珠轴承	BEARING Ball	1
38	803739	前进齿轮	GEAR Forward	1
38	8M0183172	前进齿轮	FORWARD GEAR	1
39	803747	推杆	PUSH ROD	1
40	853764	支架	HOLDER	1
40	853764003	固定座	RETAINER	1
41	803746	弹簧	SPRING	1
42	803745	离合器	CLUTCH	1
43	160851	销	PIN	1
44	176672	弹簧	SPRING	1
45	803744	螺旋桨轴	PROPELLER SHAFT	1
45	8M0088568	螺旋桨轴	PROPELLER SHAFT	1
46	803742	垫圈	WASHER	1
47	803741	倒挡齿轮	GEAR Reverse	1
47	8M0183196	倒档齿轮	REVERSE GEAR	1
48	803732A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
48	8M0070877	轴承座	CARRIER-BEARING	1
49	803735	O型圈	O-RING	1
49	8M0087846	O型圈	O-RING	1
50	161321	滚珠轴承	BEARING Ball	1
50	16132T01	滚珠轴承	BEARING Ball	1
51	803734	滚针轴承	BEARING Needle	1
52	161622	油封	SEAL Oil	1
53	823042	螺栓	BOLT	2
54	803743	推力座	THRUST HOLDER	1
54	8M0143215	推力座	THRUST HOLDER	1
55	879781	螺旋桨6	PROPELLER 6	1
55	879781A10	BLACK MAX螺旋桨(6螺距)	BLACK MAX PROPELLER (6 Pitch)	1
55	879779	螺旋桨7	PROPELLER 7	1
55	8M0075313	BLMX 9.2X7	BLMX 9.2X7	1
55	879780	螺旋桨8	PROPELLER 8	1
55	897748A11	BLACK MAX螺旋桨9.5 x 8	BLACK MAX PROPELLER 9.5 x 8	1
55	803832	螺旋桨8.5	PROPELLER 8.5	1
55	803832A10	螺旋桨(8.5螺距)	PROPELLER (8.5 Pitch)	1
55	8038321	螺旋桨9	PROPELLER 9	1
55	897750A11	BLACK MAX螺旋桨9.25 x 9	BLACK MAX PROPELLER 9.25 x 9	1
-	879782	橡胶衬套	RUBBER HUB	1
-	8M0075314	橡胶衬套	HUB-RUBBER	1
56	161402	垫圈	WASHER	1
57	161471	螺旋桨螺母	PROP NUT	1
58	8150264	开口销	COTTER PIN	1
-	803728A99	下部单元衬垫套件	GASKET SET Lower Unit	1
-	8M0082884	衬垫套件	GASKET SET	1

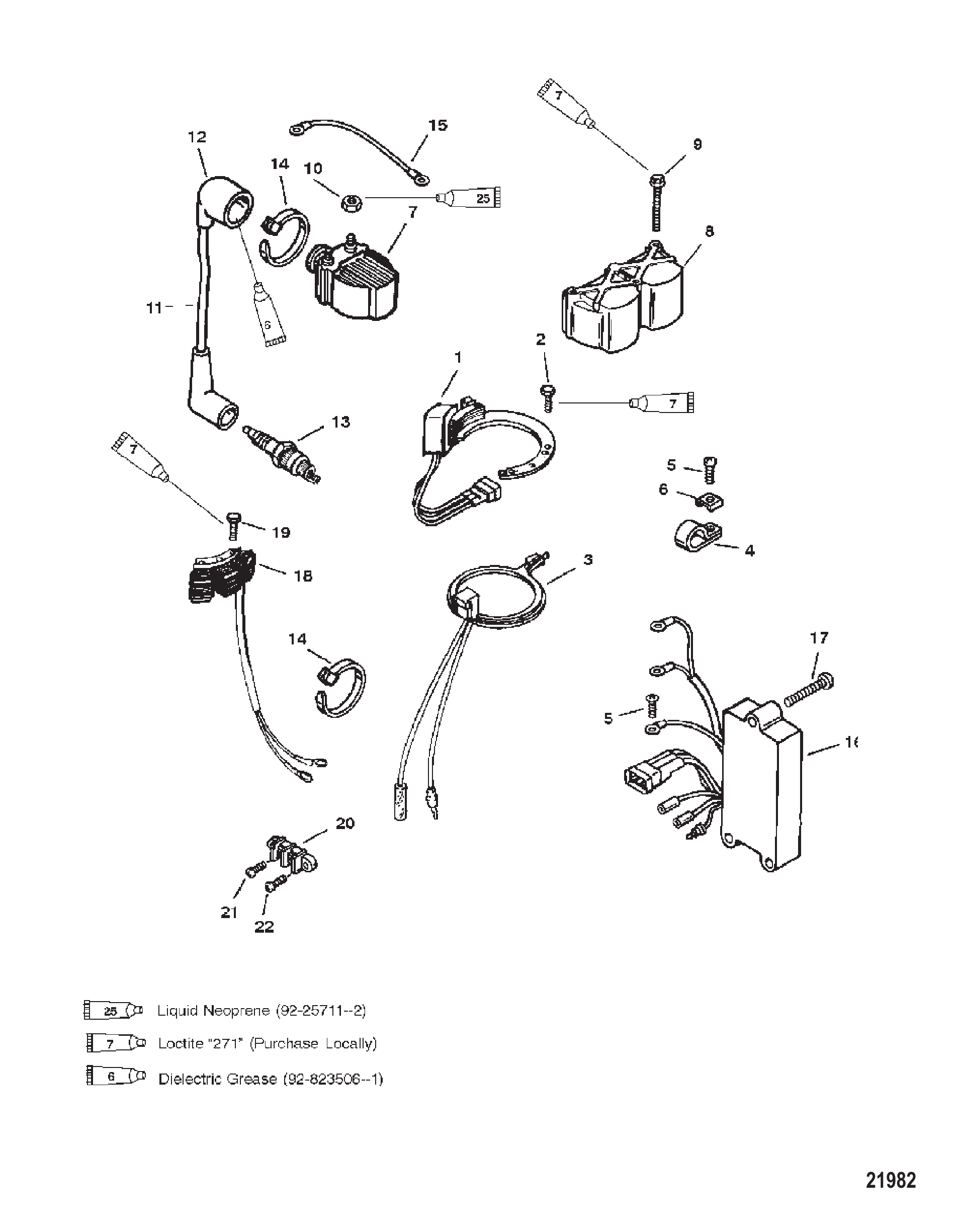

图 11点火/电气组件 Ignition/Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	86617A17	定子总成	STATOR ASSEMBLY	1
2	4000120	螺丝(M5 x 25)	SCREW (M5 x 25)	2
3	98450A5	触发器总成	TRIGGER ASSEMBLY	1
3	98450A10	触发器总成	TRIGGER ASSEMBLY	1
4	22740	卡扣	CLIP	1
5	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	3
6	69205	C形垫圈	C WASHER	1
6	8M0084613	C形垫圈	C-WASHER	1
7	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	2
7	8M0230859	点火线圈总成	COIL IGNITION ASY	2
8	99762	盖板	COVER	1
8	997621	点火线圈盖	COVER Ignition Coil	1
9	1994155	螺钉(M5 x 55)	SCREW (M5 x 55)	3
10	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
11	813715A2	高压电缆组（5和8.25英寸）	CABLE SET High Tension (5 and 8.25 Inch)	1
12	63709A1	护套/端子套件	BOOT/TERMINAL KIT	2
13	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	2
13	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	2
13	8168372	火花塞(NGK #BPZ8H-N-10)	SPARK PLUG (NGK #BPZ8H-N-10)	2
13	938	SP #QL78YC @4	SP #QL78YC @4	2
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
15	88807A10	接地线总成	CABLE ASSEMBLY Ground	2
16	18495A14	开关盒总成	SWITCHBOX ASSEMBLY	1
16	18495A30	开关盒总成	SWITCHBOX ASSEMBLY	1
17	40011111	不锈钢螺钉(M5 x 35)	SCREW (M5 x 35) Stainless Steel	3
18	86704A2	定子总成	STATOR ASSEMBLY	1
18	86704A10	辅助定子	STATOR Auxiliary	1
19	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3
20	638131	端子排	TERMINAL BLOCK	1
21	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
22	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2

图 12维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
0	803024	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp	1
0	827242R1	维修手册 6/8/9.9/15 (二冲程)	SERVICE MANUAL 6/8/9.9/15 (2-Stroke)	1
0	827242R02	维修手册 6/8/9.9/15 (二冲程)	SERVICE MANUAL 6/8/9.9/15 (2-Stroke)	1
0	10104040	用户指南	OWNERS GUIDE	1
0	808522A00	贴花套件	DECAL SET	1
0	8M0098673	贴花套件	DECAL SET	1
0	808526A00	贴花套件	DECAL SET	1
0	8M0098673	贴花套件	DECAL SET	1
0	12836A00	贴花套件	DECAL SET	1
0	8M0098673	贴花套件	DECAL SET	1
0	13478A00	贴花套件	DECAL SET	1
0	8M0098673	贴花套件	DECAL SET	1
0	808522A96	贴花套件	DECAL SET	1
0	808522A00	贴花套件	DECAL SET	1
0	808526A96	贴花套件	DECAL SET	1
0	808526A00	贴花套件	DECAL SET	1
0	12836A96	贴花套件	DECAL SET	1
0	12836A00	贴花套件	DECAL SET	1
0	808523A96	贴花套件	DECAL SET	1
0	808524A03	贴花套件	DECAL SET	1
0	808545A03	贴花套件	DECAL SET	1
0	808525A03	贴花套件	DECAL SET	1
0	808546A03	贴花套件	DECAL SET	1
0	808560A03	贴花套件	DECAL SET	1
0	808524A01	贴花套件	DECAL SET	1
0	808524A03	贴花套件	DECAL SET	1
0	808545A01	贴花套件	DECAL SET	1
0	808545A03	贴花套件	DECAL SET	1
0	808525A01	贴花套件	DECAL SET	1
0	808525A03	贴花套件	DECAL SET	1
0	808546A01	贴花套件	DECAL SET	1
0	808546A03	贴花套件	DECAL SET	1
0	808560A01	贴花套件	DECAL SET	1
0	808560A03	贴花套件	DECAL SET	1
0	808524A97	贴花套件	DECAL SET	1
0	808524A03	贴花套件	DECAL SET	1
0	808545A97	贴花套件	DECAL SET	1
0	808545A03	贴花套件	DECAL SET	1
0	808545A97	贴花套件	DECAL SET	1
0	808545A03	贴花套件	DECAL SET	1
0	808546A97	贴花套件	DECAL SET	1
0	808546A03	贴花套件	DECAL SET	1
0	824740A96	贴花套件	DECAL SET	1
0	830155A00	贴花套件	DECAL SET	1
0	830156A01	贴花套件	DECAL SET	1
0	830156A03	贴花套件	DECAL SET	1
0	830156A03	贴花套件	DECAL SET	1
0	856985A3	EPA标签信息贴花	DECAL EPA Label Information	1
0	856985A4	EPA标签信息贴花	DECAL EPA Label Information	1
0	804659A00	EPA标签信息贴花	DECAL EPA Label Information	1
0	804662A00	EPA标签信息贴花	DECAL EPA Label Information	1
0	804659A01	EPA标签信息贴花	DECAL EPA Label Information	1
0	804662A01	EPA标签信息贴花	DECAL EPA Label Information	1
0	804659A02	EPA标签信息贴花	DECAL EPA Label Information	1
0	804659A03	EPA标签信息贴花	DECAL EPA Label Information	1
0	804659A04	EPA标签信息贴花	DECAL EPA Label Information	1
0	804662A02	EPA标签信息贴花	DECAL EPA Label Information	1
0	804662A03	EPA标签信息贴花	DECAL EPA Label Information	1
0	804662A04	EPA标签信息贴花	DECAL EPA Label Information	1

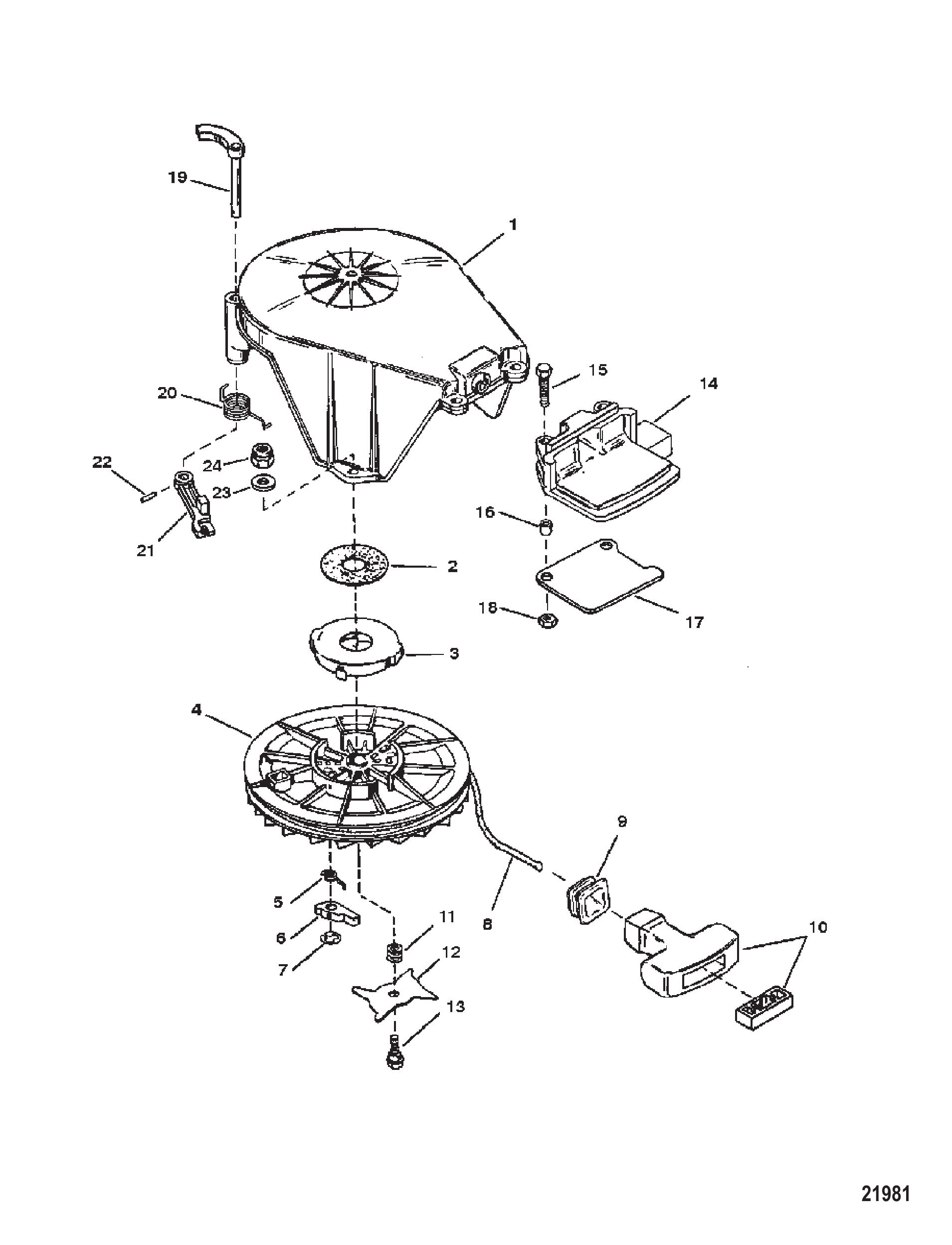

图 13启动器总成（手动） Starter Assembly (Manual)

REF	零件编号	中文名称	英文名称	数量
-	90906A17	手拉启动器总成	STARTER ASSEMBLY Recoil Complete	1
1	42712A2	启动器壳体总成	HOUSING ASSEMBLY Starter	1
1	86689A5	启动器壳体总成	HOUSING ASSEMBLY Starter	1
2	90478	毛毡垫	PAD Felt	1
2	833161T	毛毡垫	PAD-FELT	1
3	86857	弹簧	SPRING	1
3	86857T01	弹簧	SPRING	1
4	825269	滑轮	SHEAVE	1
4	825269T01	启动器滑轮总成	SHEAVE STARTR ASU	1
5	86851	弹簧	SPRING	2
5	86851T02	弹簧 @2	SPRING @2	2
6	86850	凸轮	CAM	2
6	868501	凸轮	CAM	2
7	86849	挡圈	RING Retaining	2
7	86849T01	环 @2	RING @2	2
8	12066A9	启动绳	ROPE Starter	1
8	12066Q10	启动绳@2	ROPE-STARTER@2	1
9	44180	绳索衬套	BUSHING Rope	1
10	85174A1	手柄总成	HANDLE ASSEMBLY	1
11	86852	弹簧	SPRING	1
11	868523	弹簧	SPRING	1
12	86853	凸轮	CAM	1
12	86853T01	凸轮	CAM	1
13	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
14	426264	支架	SUPPORT	1
15	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
16	309772	隔套	SPACER	4
17	17212	支架	SUPPORT	1
17	856154T01	支架	SUPPORT	1
18	400633	螺母 (M5)	NUT (M5)	2
18	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2
19	94019	上锁止杆	LEVER Lock (UPPER)	1
19	858925	锁止杆	LEVER Lock	1
20	823778	上锁止杆弹簧	SPRING Upper Lock Lever	1
21	938762	下锁止杆	LEVER Lock (LOWER)	1
21	93876T02	杠杆	LEVER	1
22	38489	滚动销	PIN Roll	1
23	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	3
24	400634	螺母 (M6)	NUT (M6)	3
24	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3

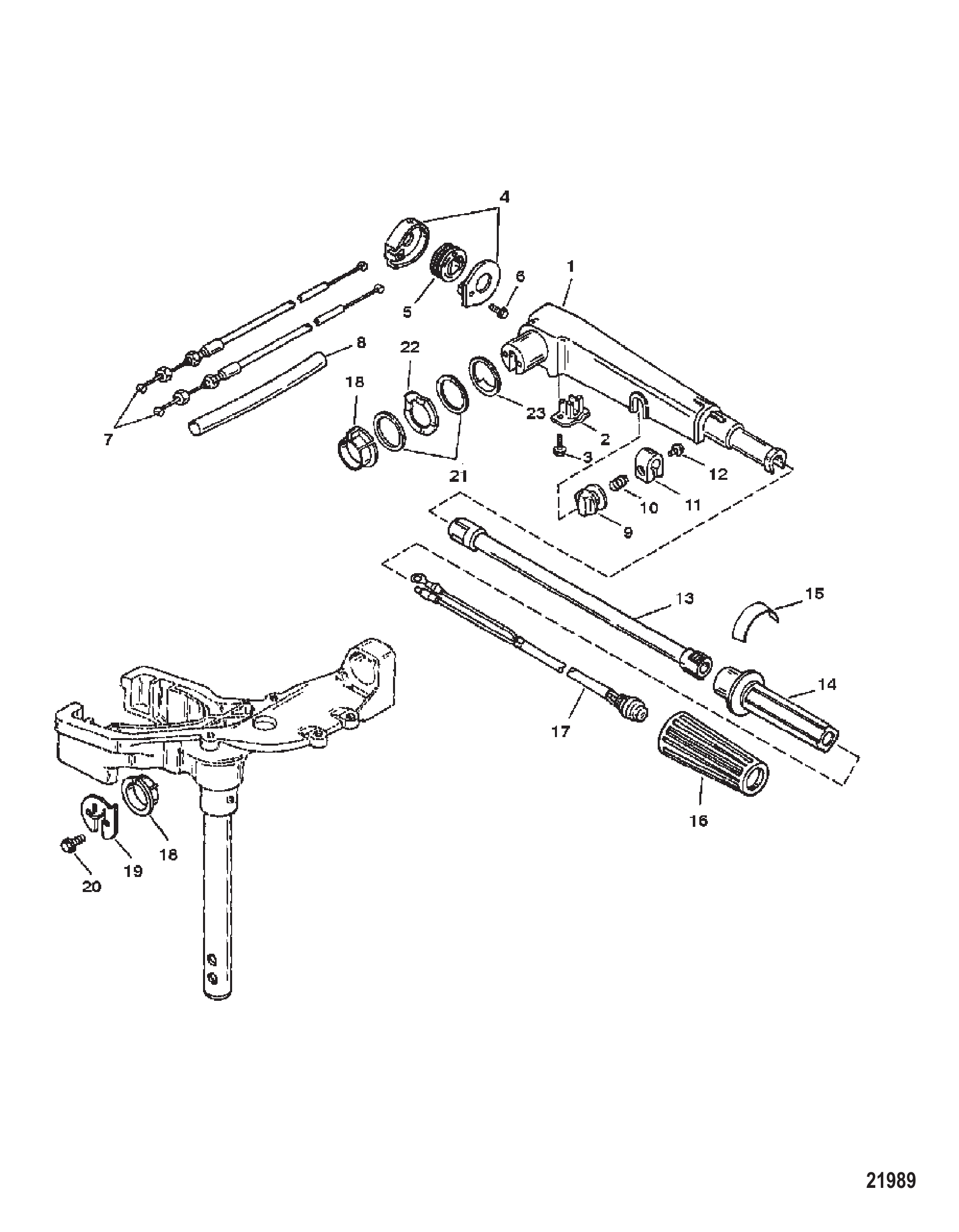

图 14转向手柄 Steering Handle

REF	零件编号	中文名称	英文名称	数量
-	821468A2	舵柄总成	TILLER HANDLE Complete	1
-	821468A3	舵柄总成	TILLER HANDLE Complete	1
-	821468T3	舵柄-灰色	TILLER HANDLE-GR	1
1	821468A8	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
1	821468A66	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
1	821468A9	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
1	821468T9	ORD 821468A66	ORD 821468A66	1
2	822441	固定座	RETAINER	1
3	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	1
4	822148A2	盖板套件	COVER KIT	1
5	822150	滑轮	PULLEY	1
6	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
6	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
7	432426	节气门拉索	CABLE Throttle	2
8	960099	套管(12.00英寸)	SLEEVE (12.00 Inches)	1
9	821972	节气门旋钮	KNOB Throttle	1
9	821972T	节气门旋钮	KNOB Throttle	1
10	96203	弹簧	SPRING	1
11	821971	节气门锁	LOCK Throttle	1
11	892995	节气门锁	LOCK Throttle	1
12	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
12	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1
13	821463A1	舵柄管	TILLER TUBE	1
13	821463T01	舵柄管	TUBE-TILLER	1
14	821465	节气门手柄	HANDLE Throttle	1
15	8242001	贴花	DECAL	1
15	8242004	贴花	DECAL	1
16	99589	握把	GRIP	1
16	8M0221732	外握把	GRIP OUTER	1
17	823609A1	停机开关总成	SWITCH ASSEMBLY Stop	1
17	8M0104615	开关总成	SWITCH ASSY	1
18	823939	衬套	BUSHING	2
19	822147	舵柄手柄板	PLATE Tiller Handle	1
19	8221471	安装板	PLATE	1
20	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	2
20	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	2
20	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
21	822145	垫圈	WASHER	2
22	826792	波形垫圈	WAVE WASHER	1
23	822146	垫圈	WASHER	1

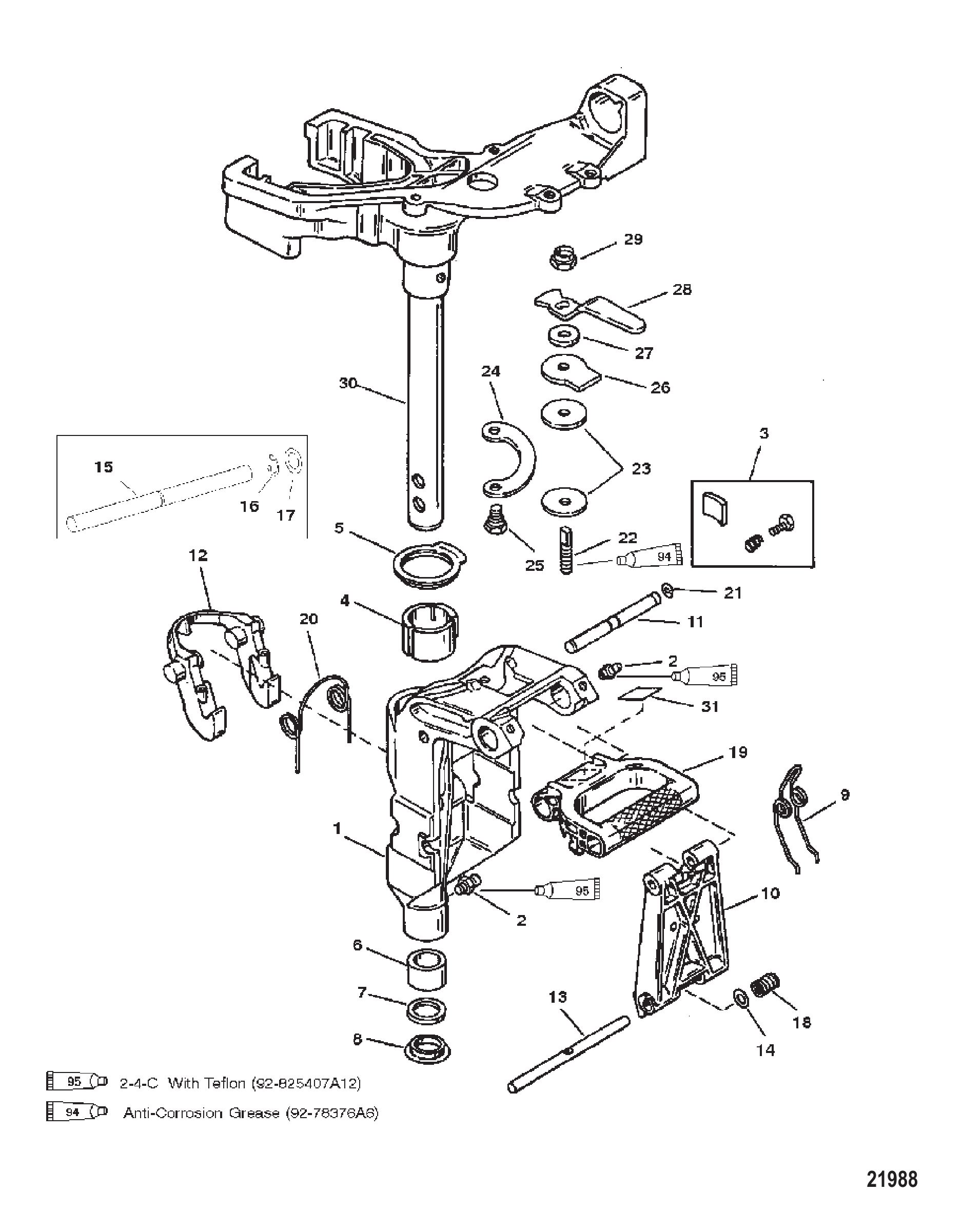

图 15旋转支架总成 Swivel Bracket Assembly

REF	零件编号	中文名称	英文名称	数量
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A9	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	润滑脂接头	FITTING Grease	4
2	8M0169589	润滑脂接头	FITTING Grease	4
3	42124A2	副驾驶板总成	PLATE ASSEMBLY Co-Pilot	1
4	421402	轴承	BEARING	1
5	420801	推力轴承-上	BEARING Thrust - Upper	1
5	42080T01	轴承	BEARING	1
6	42139	下轴套	BUSHING Lower	1
7	42077	密封件	SEAL	1
8	42373		THRUST WASHER Lower	1
9	421301	弹簧	SPRING	1
10	420824	支架	BRACKET	1
10	42082T04	支架	BRACKET	1
11	420811	销	PIN	1
12	421411	倒挡锁钩	HOOK Reverse Lock	1
12	8M0075731	倒挡钩	HOOK Reverse	1
13	42083	枢轴销	PIN Pivot	1
13	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
14	8M0027716		WASHER (.390 x .600 x .032) Stainless Steel Pivot Pin	1
15	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
16	N.S.S	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	1
17	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
18	42128	弹簧	SPRING	1
19	42085F1	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
16	42085F2	提手	CARRYING HANDLE	1
16	42085F5	提手	CARRYING HANDLE	1
20	42127		SPRING Reverse Hook	1
21	13194	挡圈	RING Retaining	2
22	821961	杆	ROD	1
23	8165621	圆盘	DISC	2
24	821958A1	板组件套件	PLATE KIT	1
25	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	2
26	821957	制动板	BRAKE PLATE	1
27	29330	垫圈	WASHER	1
28	821959	手柄	HANDLE	1
29	34863	螺母 (.375-24)	NUT (.375-24)	1
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
30	42213A24	旋转头	SWIVEL HEAD	1
30	42213A25	旋转头	SWIVEL HEAD	1
31	8237011	副驾驶贴花	DECAL Co-Pilot	1

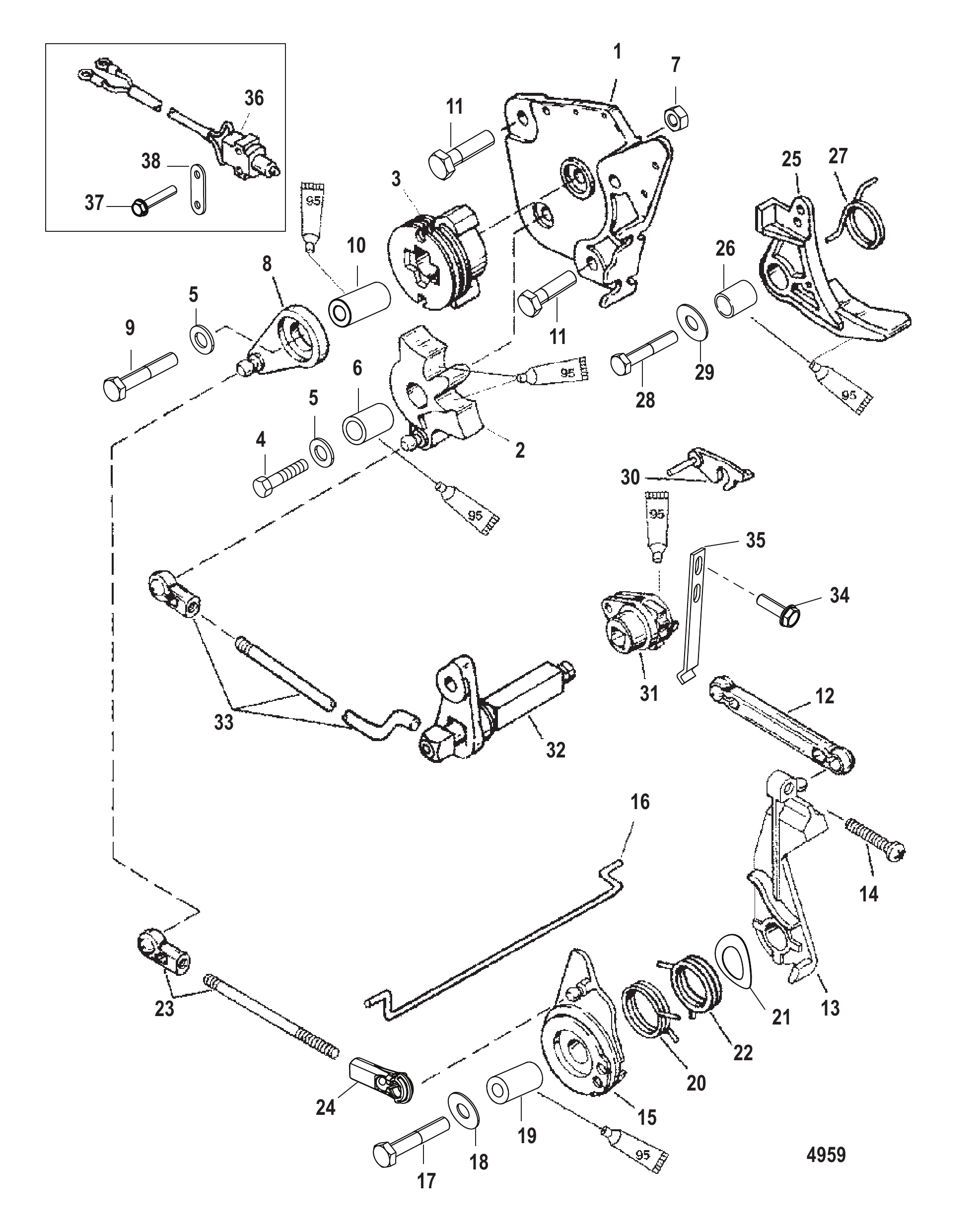

图 16油门和换挡联动装置 Throttle and Shift Linkage

REF	零件编号	中文名称	英文名称	数量
1	421483	控制平台	CONTROL PLATFORM	1
1	8M0047593	控制平台	PLATFORM-CONTROL	1
2	94085A1	齿轮	GEAR	1
3	NSS	不单独销售（齿轮）	NOT SOLD SEPARATE (Gear)	1
4	826650	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
5	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
5	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
6	856737	垫片（短）	SPACER (Short)	1
7	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
8	42151	主操纵杆	LEVER Primary	1
9	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
10	856738	垫片（长）	SPACER (Long)	1
11	4000328	螺钉(M6 x 16)	SCREW (M6 x 16)	2
11	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	2
12	421671	正时连杆	TIMING LINK	1
13	421631	控制杆	LEVER Control	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	421662	执行器	ACTUATOR	1
16	42161	互锁连杆	LINK INTERLOCK	1
17	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
18	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
19	421621	衬套	BUSHING	1
20	42164	弹簧	SPRING	1
21	69708	波形垫圈	WAVE WASHER	1
22	13676	弹簧	SPRING	1
23	19385A1	节气门连杆总成	LINK ASSEMBLY Throttle	1
23	8M0084745	节气门连杆总成	LINK ASY-THROTTLE	1
24	19384	插座	SOCKET	1
24	8M0084742	插座	SOCKET	1
25	421592	杠杆	LEVER	1
26	421581	衬套	BUSHING	1
27	42160	弹簧	SPRING	1
28	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
29	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
30	42156	杠杆	LEVER	1
31	42153	杠杆	LEVER	1
32	8155501	换档轴	SHIFT SHAFT	1
33	815567A1	换挡连杆	SHIFT LINK	1
33	815567T02	换挡连杆总成	SHIFT LINK ASSY	1
34	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
35	39627	弹簧	SPRING	1
36	813960A4	开关总成	SWITCH ASSEMBLY	1
37	88075020	螺丝(M3 x 20)	SCREW (M3 x 20)	2
38	824923	安装板	PLATE	1
