水星 Mercury 15 HP MARATHON 0P017000 THRU 0P325499 - 爆炸图零件明细

两冲程 化油器 · Belgium - Cat.# 90-802804 · 共 24 个部位 · 888 条零件

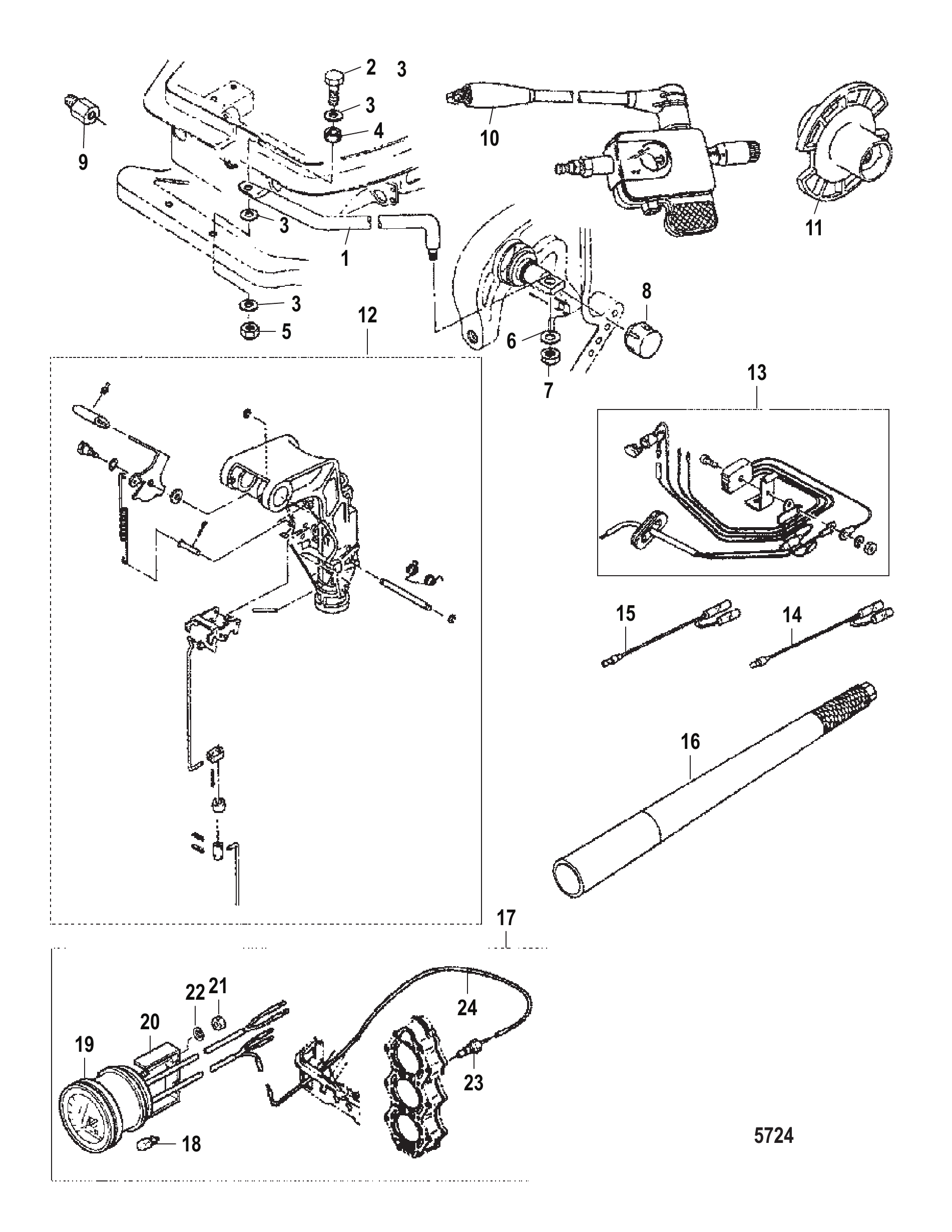

图 1附件 Accessories

REF	零件编号	中文名称	英文名称	数量
1	803795A1	转向连杆套装	DRAG LINK KIT	1
2	8230423	螺栓	BOLT	1
3	16192	垫圈	WASHER	3
4	803796	轴环	COLLAR	1
5	95374	尼龙螺母	NUT Nylon	1
6	9539210	垫圈	WASHER	1
7	161473	尼龙螺母	NUT Nylon	1
8	853825	盖帽	CAP	1
9	853826	隔套	SPACER	1
10	803799A1	点火检测器	IGNITION CHECKER	1
11	803800	测试螺旋桨	TEST PROP	1
12	803797A1	倒挡锁止套装	LOCK KIT Reverse	1
13	803798A1	整流器套装	RECTIFIER KIT	1
13	8M0123939	整流器套装	RECTIFIER KIT	1
14	853799A4	黄色线缆总成	CABLE ASSEMBLY Yellow	1
15	853799A3	白色线缆总成	CABLE ASSEMBLY White	1
16	853828	手柄(0.8米)	HANDLE (0.8 Meters) (0.8M)	1
16	8538281	手柄(1.0米)	HANDLE (1.0 Meters) (1.0M)	1
17	804632A1	水温表	TEMPERATURE GAUGE Water	1
17	804632T01	温度表	GAUGE-TEMP	1
18	804634	灯泡	BULB	1
19	802613	减震器	DAMPER	1
20	804635	支架	BRACKET	1
21	802617	螺母	NUT	2
22	168181	锁紧垫圈	LOCKWASHER	2
23	804636	水温传感器	SENSOR Water Temperature	1
24	804637	引线	LEAD WIRE	1

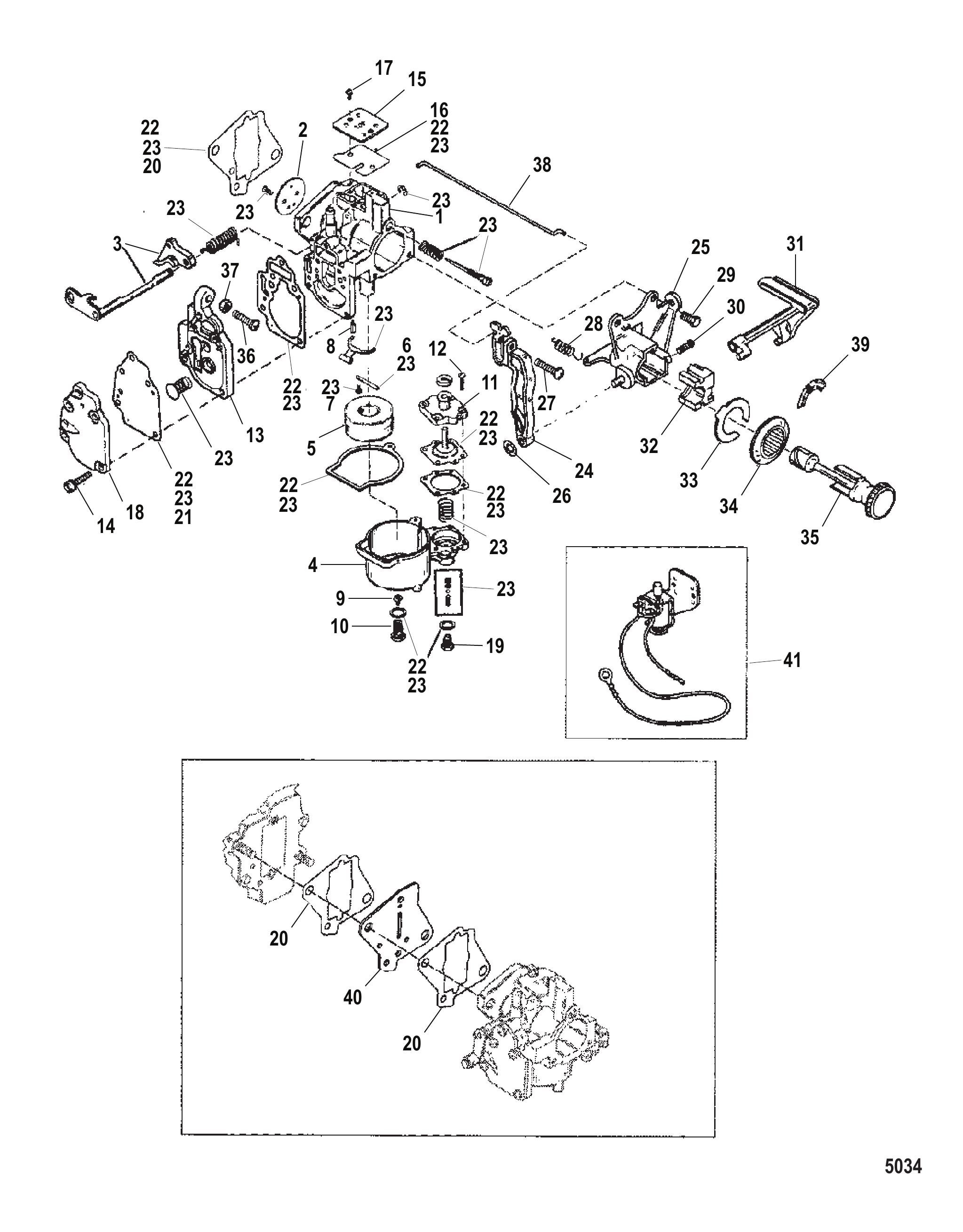

图 2化油器（10/XR/Magnum 10/Viking） Carburetor (10/XR/Magnum 10/Viking)

REF	零件编号	中文名称	英文名称	数量
1	827005T5	化油器(WMC-62)(10/10 Sailpower/XR/Magnum)	CARBURETOR (WMC-62) (10/10 Sailpower/XR/Magnum)	1
1	827005T08	化油器(WMC-81)(10/10 Sailpower/XR/Magnum)	CARBURETOR (WMC-81) (10/10 Sailpower/XR/Magnum)	1
1	9726T11	化油器(WMC-63-Viking)	CARBURETOR (WMC-63-Viking)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器(WMC-77)(Viking)	CARBURETOR (WMC-77) (Viking)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器(WMC-83)(Viking)	CARBURETOR (WMC-83) (Viking)	1
2	815133	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	813022	节气门轴(含螺钉和弹簧)	SHAFT Throttle (Includes Srew and Spring)	1
3	19267	节气门轴(含螺钉和弹簧)	SHAFT Throttle (Includes Srew and Spring)	1
4	9164	燃油杯	BOWL Fuel	1
5	91691	浮子	FLOAT	1
6	F10064	轴	SHAFT	1
7	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
8	803861	进油针阀	VALVE Inlet Needle	1
9	6359	量孔(.052)	JET (.052)	1
9	6207	量孔(.072)	JET (.072)	1
10	9171	堵头	PLUG	1
11	823648	膜片盖	COVER Diaphragm	1
12	9697	螺钉	SCREW	4
13	15827A1	本体	BODY	1
13	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
14	9643	螺钉	SCREW	5
15	9699	安装板	PLATE	1
16	44426	衬垫	GASKET	1
17	9696	螺钉	SCREW	2
18	9637	盖板	COVER	1
19	9762	堵头	PLUG	1
20	192061	化油器衬垫	GASKET Carburetor	1
21	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
22	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
23	8237072	维修套件	REPAIR KIT	1
24	128053	快怠速杆	LEVER Fast Idle	1
25	12803	启动泵支架	BRACKET Primer	1
26	821979	螺母	NUT	1
27	79964	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
27	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
28	11277	张力弹簧	SPRING Tension	1
29	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	2
30	79965	螺丝 (#8-32 x .500) 不锈钢	SCREW (#8-32 x .500) Stainless Steel	1
31	112731	启动泵杆	LEVER Primer	1
32	11280	凸轮块	CAM BLOCK	1
33	11278	固定夹	CLIP Retaining	1
34	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
35	128022	启动泵旋钮	PRIMER KNOB	1
36	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
37	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
38	445541	怠速线	IDLE WIRE	1
39	129701	标识贴(慢/快)	DECAL (Slow/Fast)	1
40	125681	限流板	RESTRICTOR PLATE	1
41	823433	电动阻风门	CHOKE Electric	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	19072T97	动力头总成	POWERHEAD ASSEMBLY	1

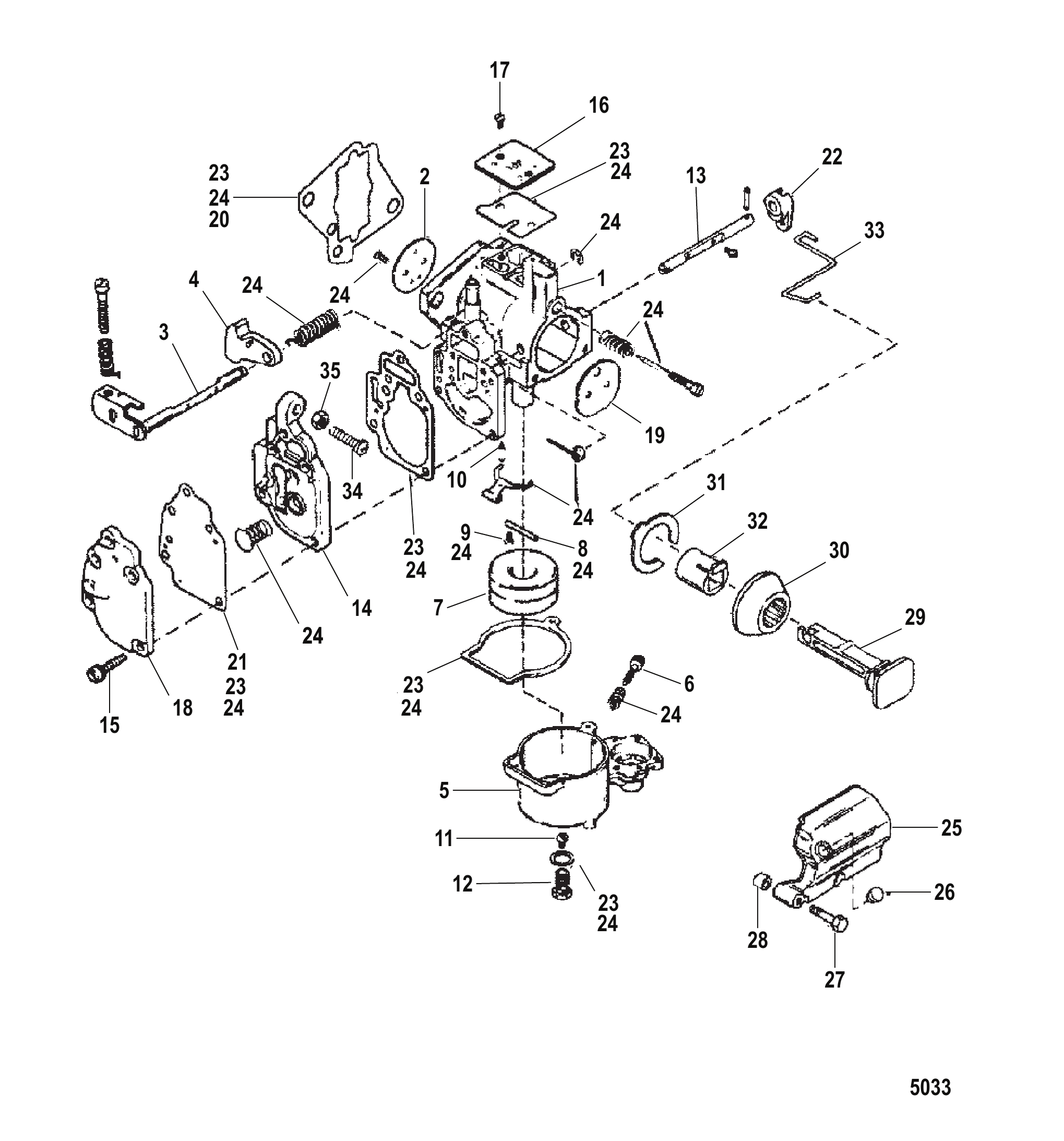

图 3化油器(Seapro/Marathon 10和15) Carburetor (Seapro/Marathon 10 and 15)

REF	零件编号	中文名称	英文名称	数量
1	817404T7	化油器(WMC-50B)(Seapro/Marathon 10)	CARBURETOR (WMC-50B) (Seapro/Marathon 10)	1
1	817404T09	化油器(WMC-82A)(Seapro/Marathon 10)	CARBURETOR (WMC-82A) (Seapro/Marathon 10)	1
1	851908T2	化油器(WMC-55A-Seapro/Marthon 15)	CARBURETOR (WMC-55A-Seapro/Marthon 15)	1
1	851908T06	化油器(WMC-84A)	CARBURETOR (WMC-84A)	1
1	851908T4	化油器(WMC-60)(Seapro/Marathon 15)	CARBURETOR (WMC-60) (Seapro/Marathon 15)	1
1	851908T06	化油器(WMC-84A)	CARBURETOR (WMC-84A)	1
1	851908T06	化油器(WMC-84A)(Seapro/Marathon 15)	CARBURETOR (WMC-84A) Seapro/Marathon 15)	1
2	823716	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
3	19267	节气门轴（含螺钉和弹簧）	SHAFT Throttle (Includes Screw and Spring)	1
3	813022	节气门轴（含螺钉和弹簧）	SHAFT Throttle (Includes Screw and Spring)	1
4	NSS	不单独销售（节气门杆）	NOT SOLD SEPARATE (Throttle Lever)	1
5	811353	燃油杯	BOWL Fuel	1
6	811360	浮子室放油螺钉	SCREW Bowl Drain	1
7	91691	浮子	FLOAT	1
8	F10064	轴	SHAFT	1
9	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
10	803861	进油针阀	VALVE Inlet Needle	1
11	6359	量孔(.052)	JET (.052)	1
11	6207	量孔(.072)	JET (.072)	1
12	9171	堵头	PLUG	1
13	8113541	阻风门轴	SHAFT Choke	1
14	15827A1	本体	BODY	1
14	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
15	9643	螺钉	SCREW	5
16	9699	安装板	PLATE	1
17	9696	螺钉	SCREW	2
18	9637	盖板	COVER	1
18	96371	燃油泵盖	COVER Fuel Pump	1
19	811806	阻风门阀	VALVE Choke	1
20	192061	化油器衬垫	GASKET Carburetor	1
21	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
22	811805	阻风门杆	LEVER Choke	1
23	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
24	8237072	维修套件	REPAIR KIT	1
25	174421	化油器盖	COVER Carburetor	1
26	47579	堵头	PLUG	1
27	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	2
28	41750	嵌件	INSERT	2
28	41750T	嵌件	INSERT	2
29	817424	阻风门旋钮	KNOB Choke	1
30	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
31	11278	固定夹	CLIP Retaining	1
32	817426	阻风门面板嵌件	INSERT Choke Bezel	1
33	817425	阻风门连杆	LINK Choke	1
34	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
35	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	19072T97	动力头总成	POWERHEAD ASSEMBLY	1

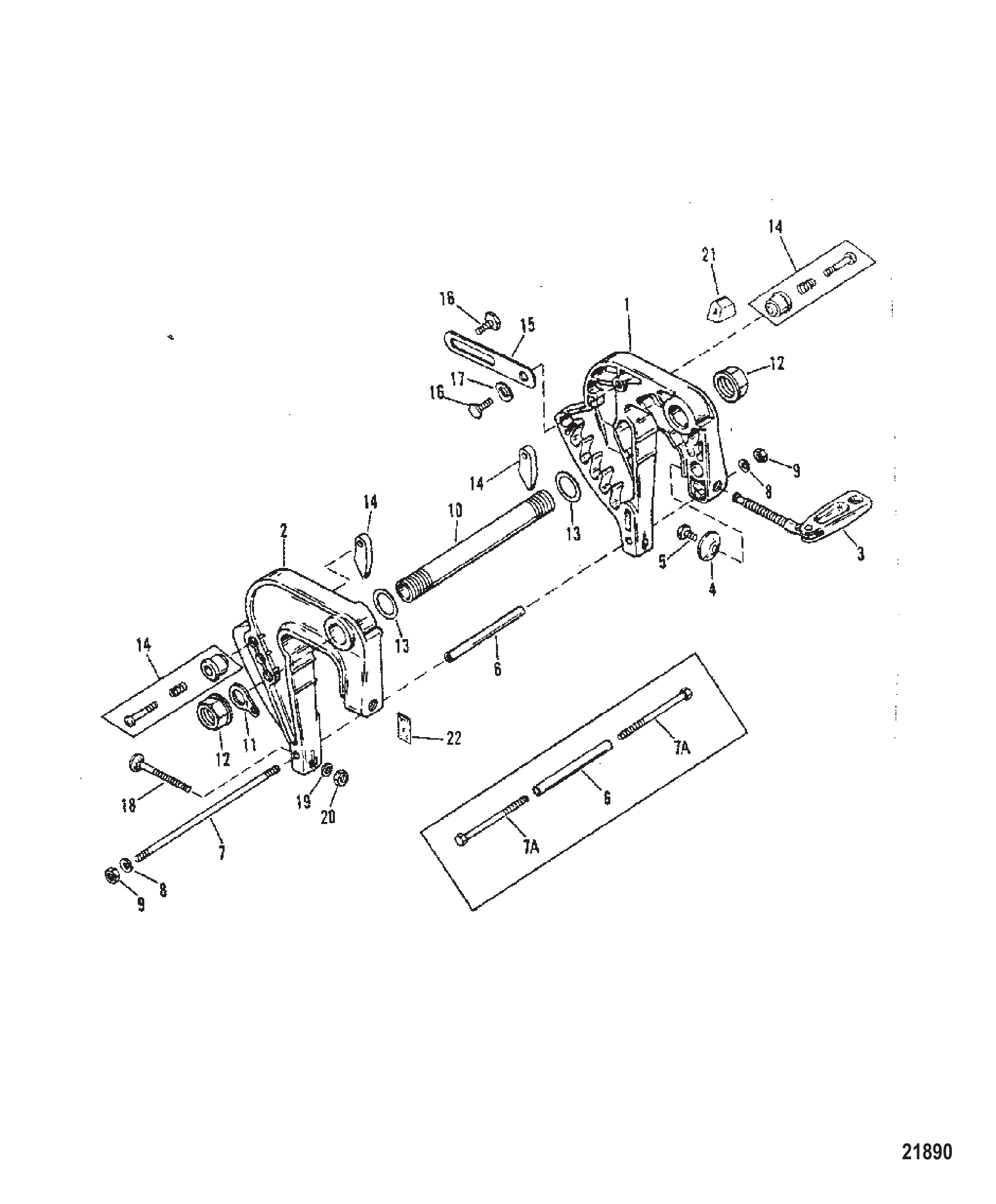

图 4夹紧支架 Clamp Bracket

REF	零件编号	中文名称	英文名称	数量
1	8894A5	夹具支架总成 (左舷) (黑色)	CLAMP BRACKET ASSEMBLY (PORT) (BLACK)	1
1	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	8894A6	夹具支架总成 (左舷) (灰色)	CLAMP BRACKET ASSEMBLY (PORT) (GRAY)	1
1	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A3	夹具支架总成 (右舷) (黑色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)	1
2	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A4	夹具支架总成 (右舷) (灰色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)	1
2	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
3	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	92767A3	蝶形螺丝总成 (16 mm)	THUMB SCREW ASSEMBLY (16 mm)	2
4	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	818884	垫圈	WASHER	2
5	768041	垫圈固定螺丝	SCREW WASHER ATTACHING	2
5	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
6	43431	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
6	818539	隔套	SPACER	1
6	8M0084719	隔套	SPACER	1
7	42129	夹紧支架螺柱	STUD CLAMP BRACKET	1
7A	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
8	400256	夹紧支架螺柱防松垫圈(M6)	LOCKWASHER (M6) CLAMP BRACKET STUD	2
9	400212	夹紧支架螺柱不锈钢螺母(M6)	NUT (M6) Stainless Steel CLAMP BRACKET STUD	2
10	42078	倾斜管	TILT TUBE	1
11	30954	安全卡扣	CLIP SAFETY	1
11	8M0085928	卡扣	CLIP	1
12	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
13	71421	倾斜管尼龙垫圈	WASHER Nylon TILT TUBE	2
14	42390A1	倾斜回位杆总成	LEVER ASSEMBLY Tilt Return	2
15	90901	倾斜限位带-左舷侧	STRAP TILT STOP - PORT SIDE	1
16	42498	限位带至夹紧支架螺钉(M6x1.0)	SCREW (M6 x 1.0) STRAP TO CLAMP BRACKET	2
17	31030	倾斜限位带螺钉波形垫圈	WAVE WASHER TILT STOP STRAT SCREW	1
18	43216	夹紧支架至艉板螺栓(.250-20x3.50)	BOLT (.250-20 x 3.50) CLAMP TO TRANSOM	2
19	67983	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
21	814427	倾斜锁定滑块(新设计)	SHUTTLE TILT LOCK (NEW DESIGN)	1
22	12869	倾斜位置标贴	DECAL Tilt Position	1

图 5外罩 Cowls

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	盖锁扣	LATCH Cowl	1
5	817104A3	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护板(黑色)	SHIELD REAR (BLACK)	1
7	12873	后护板(灰色)	SHIELD REAR (GRAY)	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	底罩(黑色)	BOTTOM COWL (BLACK)	1
9	9204A2	底罩(灰色)	BOTTOM COWL (GRAY)	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	底罩塞(手动)	PLUG BOTTOM COWL (MANUAL)	1
10	121532	底罩护线环(电动)	GROMMET Bottom Cowl (ELECTRIC)	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	罩壳锁杆衬套	BUSHING COWL LATCH LEVEER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

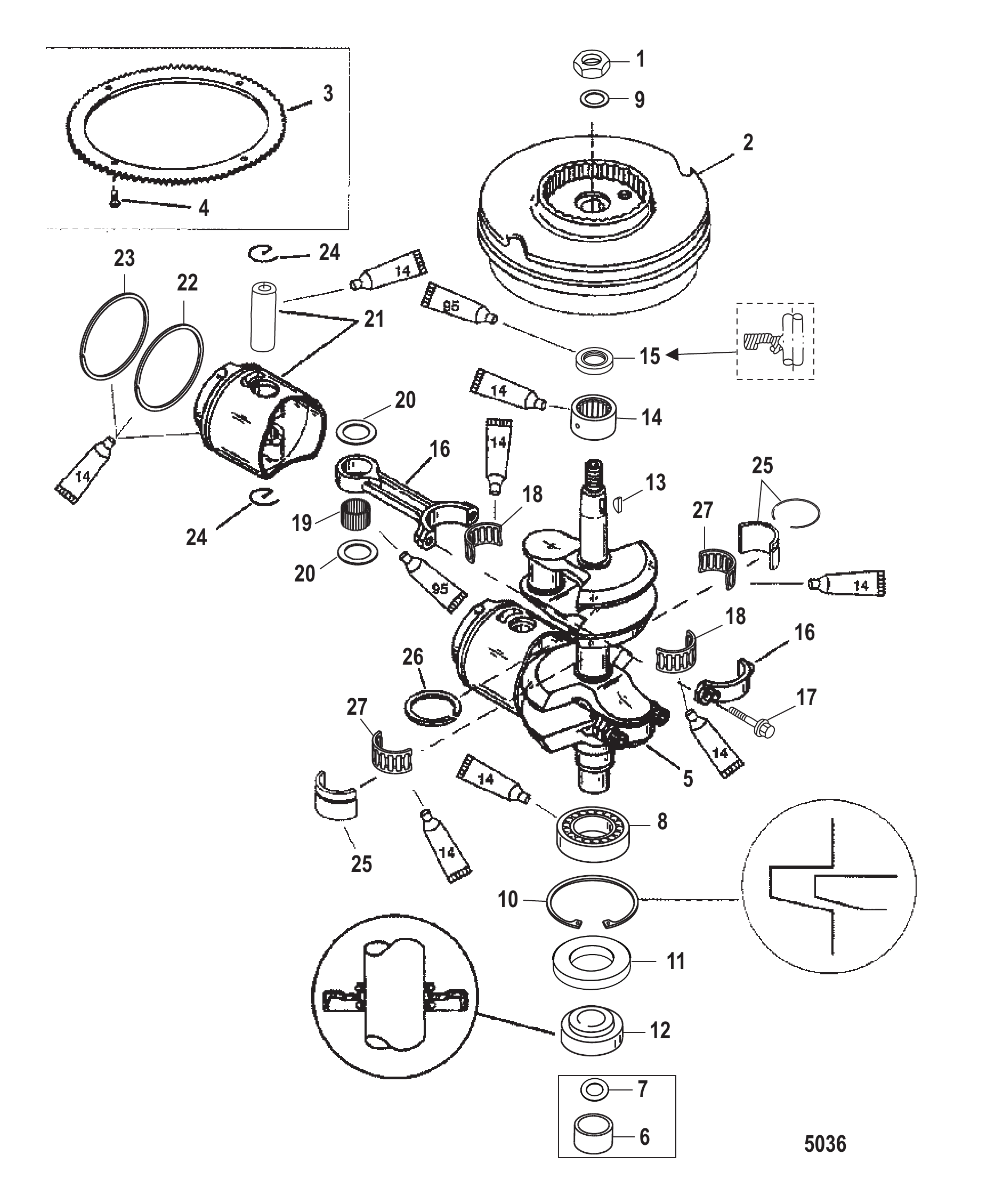

图 6曲轴(活塞和飞轮) Crankshaft (Pistons and Flywheel)

REF	零件编号	中文名称	英文名称	数量
1	818591	螺母(M14)	NUT (M14)	1
2	859231T4	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T18	飞轮	FLYWHEEL	1
2	859231T2	飞轮	FLYWHEEL	1
2	859231T17	飞轮	FLYWHEEL	1
3	99301	齿圈	RING GEAR	1
4	88190313	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	818630A1	套筒	SLEEVE	1
7	NSS	不单独销售（O型圈）	NOT SOLD SEPARATE (O Ring)	1
8	41341	滚珠轴承	BEARING Ball	1
9	824451	垫圈(内径.610x外径.890x厚度.062)	WASHER (.610 Inside Diamter x .890 Outside Diameter x .062)	1
10	42132	挡圈	RING Retaining	1
11	13031	垫圈	WASHER	1
12	125661	下油封	SEAL Oil - Lower	1
13	20094	半圆键	KEY Woodruff	1
14	878158	滚柱轴承	BEARING Roller	1
15	125671	上油封	SEAL Oil - Upper	1
16	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
17	823460	螺钉(M5×16)	SCREW (M5 x 16)	4
18	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
19	42186	滚针轴承	BEARING Needle	48
20	43348	推力轴承	BEARING Thrust	4
20	8M0012297	止推垫圈@2	WASHER-THRST@2	4
21	9747T2	活塞总成	PISTON ASSEMBLY	2
21	9747A4	活塞总成	PISTON ASSEMBLY	2
22	18212A4	活塞环组	RING SET Piston	2
22	18212A1	活塞环组	RING SET Piston	2
23	NSS	不单独销售（活塞环-顶部）	NOT SOLD SEPARATE (Piston Ring - Top)	2
24	422021	锁紧环	LOCK RING	4
25	17794A1	轴承	BEARING	1
26	818901	密封件	SEAL	1
27	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
-	19072T97	动力头总成	POWERHEAD ASSEMBLY	1

图 7气缸体与盖 Cylinder Block and Covers

REF	零件编号	中文名称	英文名称	数量
1	8473A13	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T20	气缸体	CYLINDER BLOCK	1
1	8473A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T21	气缸体	CYLINDER BLOCK	1
1	9727A2	气缸体	CYLINDER BLOCK	1
1	9727T2	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	2
3	42463	化油器螺柱	STUD CARBURETOR	2
3	424632	双头螺柱(M8x37.1)	STUD (M8 x 37.1)	2
4	42698	泄放软管止回阀	CHECK VALVE BLEED HOSE	1
4	426982	止回阀	CHECK VALVE	1
5	1383556	泄放软管	HOSE BLEED	1
5	99130100	软管-48英寸	TUBING-48 INCH	1
6	42984	气缸体螺柱	STUD CYLINDER BLOCK	2
6	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
7	421251	螺钉(M8x55)曲轴箱至气缸体	SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK	6
7	42125	螺钉(M8x55)	SCREW (M8 x 55)	6
7A	17866	槽销	PIN Groove	1
8	400634	螺母(M6)气缸体螺柱	NUT (M6) CYLINDER BLOCK STUD	2
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
9	191861	动力头衬垫	GASKET Powerhead	1
10	42381A2	簧片阀总成	REED BLOCK ASSEMBLY	1
10	828435A3	簧片阀组	REED BLOCK	1
11	42657A1	止回阀	CHECK VALVE	1
11	42657A3	止回阀	CHECK VALVE	1
12	42137	簧片阀密封件	SEAL REED BLOCK	1
13	195981	簧片阀衬垫	GASKET REED BLOCK	1
13	195982	衬垫	GASKET	1
14	4000171	螺钉(M6x16)簧片阀	SCREW (M6 x 16) REED BLOCK	3
15	42044	簧片	REED	2
15	825141	簧片	REED	2
16	179031	簧片止挡	STOP Reed	2
16	828435A3	簧片阀组	REED BLOCK	2
17	4005764	螺钉(M3.5x8)簧片固定	SCREW (M3.5 x 8) REED ATTACHING	6
18	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
19	42521	排气盖	COVER EXHAUST	1
19	8M0048005	排气盖总成	COVER EXHAUST MAN	1
20	40062129	螺钉(M6x25)排气盖至气缸体	SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK	11
21	19185	排气盖衬垫	GASKET EXHAUST COVER	1
22	423651	挡板	PLATE Baffle	1
22	42365	挡板	PLATE Baffle	1
23	19184	挡板衬垫	GASKET BAFFLE PLATE	1
24	19107F1	进气盖	COVER Intake	1
25	56759	倒钩接头	FITTING Barbed	1
24	17863A1	进气盖总成	COVER ASSEMBLY Intake	1
25	15133	接头	FITTING	1
26	1383556	软管	HOSE	2
26	99130100	软管-48英寸	TUBING-48 INCH	2
27	59169	接头	FITTING	1
27	59169003	三通接头	FITTING Tee	1
28	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
29	192031	进气盖衬垫	GASKET INTAKE COVER	1
30	40062129	螺钉(M6x25)盖至气缸体	SCREW (M6 x 25) COVER TO CYLINDER BLOCK	3
31	99127109	示警管(57英寸散装)	LINE (57.00 Inches Bulk) TELL TALE	1
31	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
32	94848	示警软管接头-底部罩	FITTING TELL TALE HOSE-BOTTOM COWL	1
33	8906A1	盖总成	COVER ASSEMBLY	1
33	8906A02	盖总成	COVER ASSEMBLY	1
34	192071	衬垫	GASKET	1
34	19207002	衬垫	GASKET	1
35	146732	节温器盖	COVER THERMOSTAT	1
35	8M0039352	盖板	COVER	1
36	192051	衬垫	GASKET	1
36	19205002	衬垫	GASKET	1
37	40062129	螺钉(M6x25)	SCREW (M6 x 25)	2
38	14586	节温器(120)	THERMOSTAT (120)	1
39	62386	节温器衬垫	GASKET THERMOSTAT	1
39	8M0204714	衬垫@4	GASKET @4	1
40	29111	连接器(直型)(新设计)	CONNECTOR (STRAIGHT)(NEW DESIGN)	1
40	291112	接头	FITTING	1
40	99664	弯头(旧设计)	ELBOW (OLD DESIGN)	1
40	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
41	40062129	螺钉(M6x25)盖固定	SCREW (M6 x 25) COVER ATTACHING	6
-	12893A87	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	12893A92	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686A92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

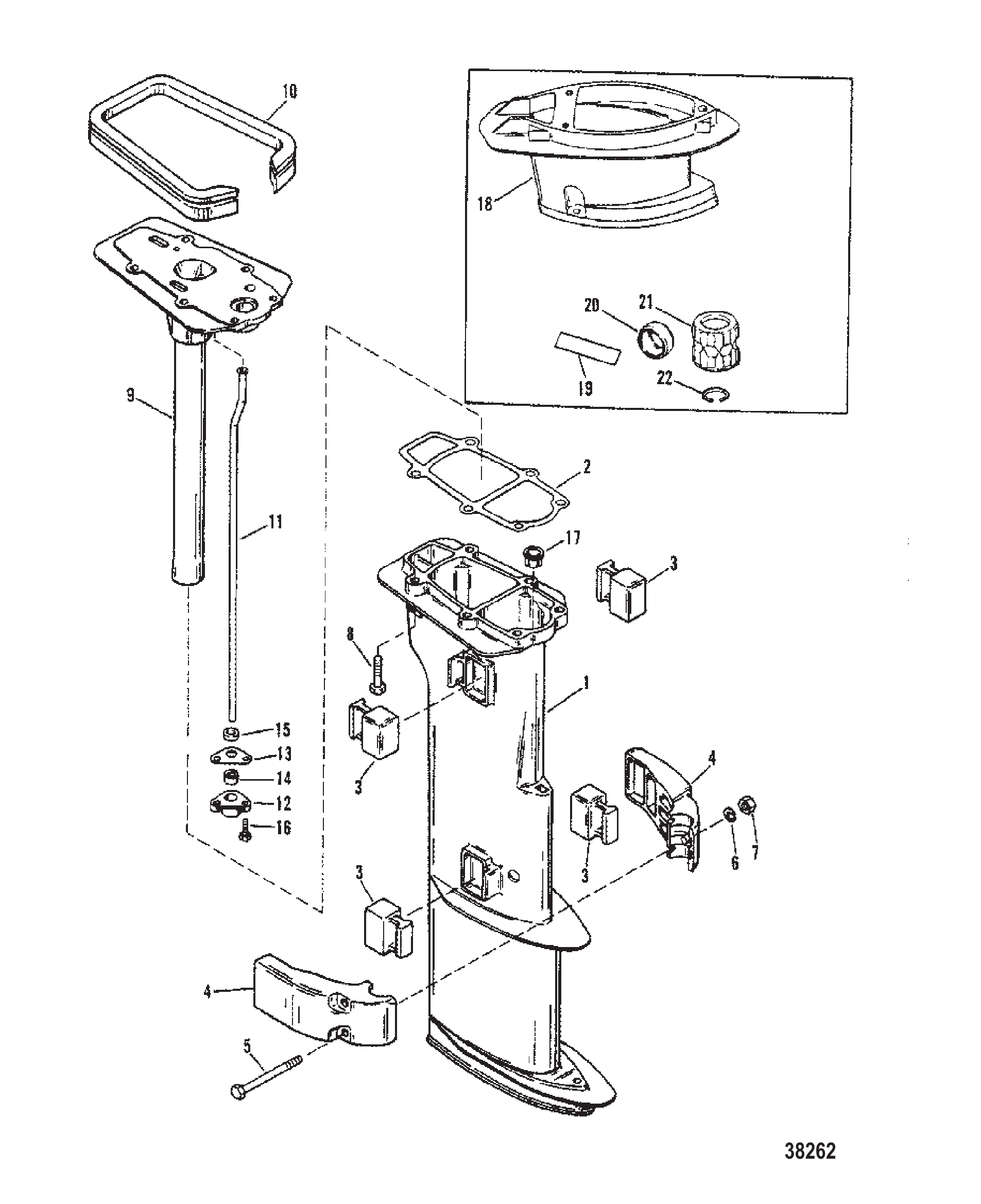

图 8驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	8827A3	壳体总成(短型)(黑色)	HOUSING ASSEMBLY (SHORT) (BLACK)	1
1	822154A1	壳体总成	HOUSING ASSEMBLY	1
1	8829A3	壳体总成(长型)(黑色)	HOUSING ASSEMBLY (LONG) (BLACK)	1
1	822155A1	壳体总成	HOUSING ASSEMBLY	1
1	8827A4	壳体总成(短型)(灰色)	HOUSING ASSEMBLY (SHORT) (GRAY)	1
1	822154A2	壳体总成	HOUSING ASSEMBLY	1
1	8829A4	壳体总成(长型)(灰色)	HOUSING ASSEMBLY (LONG) (GRAY)	1
1	822155A2	壳体总成	HOUSING ASSEMBLY	1
2	195991	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
2	195992	驱动轴壳体衬垫	GASKET Driveshaft Housing	1
3	421891	支架	MOUNT	4
3	8M0039074	支架	MOUNT	4
4	N.L.A.	已停产的安装盖(见备注)	NO LONGER AVAILABLE COVER-MOUNT (SEE NOTE)	2
4	42374F6	安装盖(黑色)	COVER Mount (BLACK)	2
4	42374F5	安装盖(灰色)	COVER MOUNT (GRAY)	2
4	42374F6	安装盖	COVER Mount	2
5	4009238	螺钉(M6x80)安装盖	SCREW (M6 x 80) MOUNT COVER	2
6	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
7	400212	螺母(M6)不锈钢盖螺钉	NUT (M6) Stainless Steel COVER SCREW	2
8	40011131	螺钉(M6x35)不锈钢驱动轴壳体至安装板	SCREW (M6 x 35) Stainless Steel DRIVESHAFT HOUSING TO PLATE	4
9	413448	适配板(无管)(6/8)	ADAPTER PLATE (NO TUBE) (6/8)	1
9	41344A4	适配板总成(1英寸内径管)	ADAPTER PLATE ASSEMBLY (1"I.D. TUBE)	1
9	41344A3	适配板总成(1-1/8英寸内径管)(15)	ADAPTER PLATE ASSEMBLY (1-1/8"I.D. TUBE) (15)	1
10	11287	适配板密封件	SEAL Adapter Plate	1
10	11287001	适配板密封件	SEAL Adapter Plate	1
11	42123	水管(短型)	TUBE Water (SHORT)	1
11	42122	水管(长型)	TUBE Water (LONG)	1
11	421231	水管(加长型)	TUBE Water (X-LONG)	1
12	42371	水管固定座	HOLDER WATER TUBE	1
13	192012	水管壳体衬垫	GASKET WATER TUBE HOUSING	1
14	42380	水管密封件	SEAL WATER TUBE	1
14	42380001	水管密封件	SEAL Water Tube	1
15	42465	水管隔套	SPACER WATER TUBE	1
16	40011107	螺钉(M5x16)不锈钢壳体至适配板	SCREW (M5 x 16) Stainless Steel HOUSING TO ADAPTOR PLATE	2
17	445551	轴承座(长型)	BLOCK Bearing (LONG)	1
18	124262	驱动轴延长壳体(加长型)	HOUSING Drive Shaft Extension (X-LONG)	1
19	123691	衬套(加长型)	BUSHING X-LONG	1
20	123702	轴承壳体(加长型)	HOUSING BEARING (X-LONG)	1
21	14107	轴承护圈(加长型)	RETAINER BEARING (X-LONG)	1
21	14107001	固定座	RETAINER	1
22	14094	卡环(加长型)	RING Snap X-LONG	1
-	42213A14	旋转管更换总成(黑色)	SWIVEL TUBE REPLACEMENT COMPLETE (BLACK)	1
-	42213A15	旋转管更换总成(灰色)	SWIVEL TUBE REPLACEMENT COMPLETE (GRAY)	1
-	42213A14	旋转管更换件	SWIVEL TUBE REPLACEMENT	1

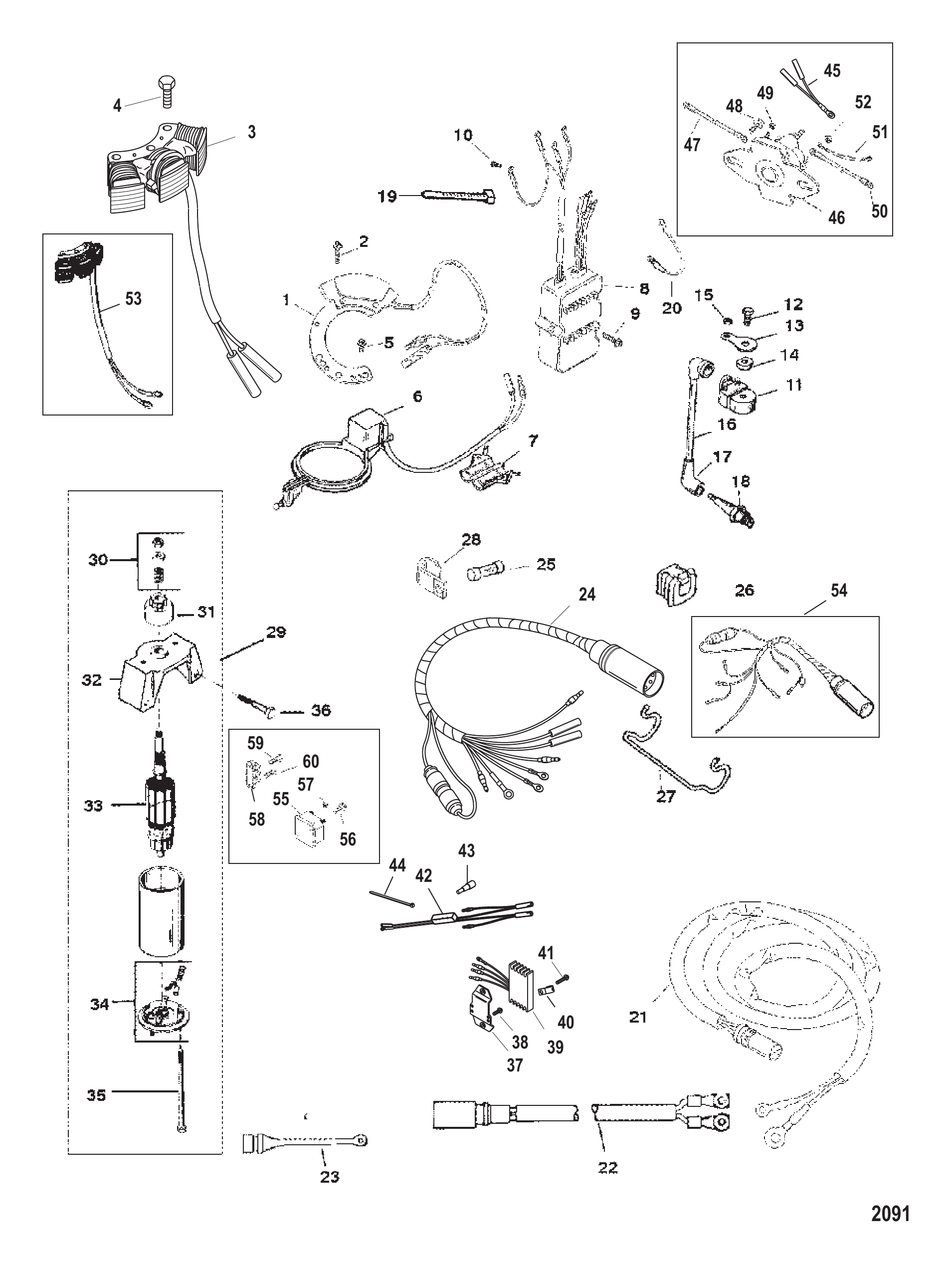

图 9电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	855721A4	定子总成	STATOR ASSEMBLY	1
2	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	2
3	86704T11	辅助定子	STATOR AUXILIARY	1
4	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	3
5	4013910	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
6	98450A10	触发器总成	TRIGGER ASSEMBLY	1
7	11100	卡扣	CLIP	1
8	855713A3	开关盒总成	SWITCHBOX ASSEMBLY	1
8	855713A4	开关盒总成	SWITCHBOX ASSEMBLY	1
9	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	3
10	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
11	832757A4	线圈套件	COIL KIT	2
11	8M0230859	点火线圈总成	COIL IGNITION ASY	2
12	40112	螺钉（M6 x 45）	SCREW (M6 x 45)	2
13	88173	锁紧垫圈	TAB WASHER	2
14	88171	衬套	BUSHING	2
15	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
16	813715A2	高压电缆组（5和8.25英寸）	CABLE SET High Tension (5 and 8.25 Inch)	1
16	NSS	不单独销售（高压引线总成）	NOT SOLD SEPARATE (Lead Assembly-High Tension)	1
17	63709A1	护套/端子套件	BOOT/TERMINAL KIT	2
18	19424	火花塞 (NGK#BP8HS-15)	SPARK PLUG (NGK#BP8HS-15)	2
18	8M0114746	SP BP8HS-15 @4	SP BP8HS-15 @4	2
18	14814568	火花塞（NGK#BPZ-8HS-15）	SPARK PLUG (NGK#BPZ-8HS-15)	2
19	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
19	8M0214940	扎带	TIE STRAP	AR
20	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
21	65017A10	线束总成电池端（62英寸-黑/红）	HARNESS ASSEMBLY Battery End (62 Inch - Black/Red)	1
22	74725A2	线束总成（20英寸-黑/红）	HARNESS ASSEMBLY (20 Inch _ Black/Red)	1
23	71663	堵头	PLUG	1
24	12334A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
25	79091	保险丝20安培	FUSE 20 Ampere	1
25	8M0207796	保险丝20安培	FUSE 20 AMP	1
26	12152	固定座	RETAINER	1
27	92753	固定座	RETAINER	1
28	55098	J型卡扣	J CLIP	1
28	8M0024808	J型夹	J-CLIP	1
29	90983T1	启动电机总成	STARTER MOTOR ASSEMBLY	1
29	8M0033984	启动马达	STARTER MOTOR	1
30	96561	驱动套件	DRIVE KIT	1
31	96562	驱动器	DRIVE	1
32	96563T	端盖	END CAP	1
33	96565	电枢	ARMATURE	1
34	96564T	端盖	END CAP	1
35	96566	贯穿螺栓	THRU BOLT	2
36	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
36	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
37	883073	安装板	PLATE Mounting	1
38	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
39	853358T1	整流器	RECTIFIER	1
40	54457	J型卡扣	J CLIP	1
41	82129130	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
42	17461T11	转速表适配器模块套件	MODULE KIT Tachometer Adaptor	1
43	13541	公插头	PLUG Male	AR
44	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
45	11149A54	适配器线束总成	HARNESS ASSEMBLY Adaptor	1
46	850189T	启动电磁阀	SOLENOID Starter	1
46	8M0185143	启动电磁阀	SOLENOID START	1
47	88439A28	电缆总成电池-黑色（负极）	CABLE ASSEMBLY Battery - Black (Negative)	1
48	4000328	螺钉(M6 x 16)	SCREW (M6 x 16)	2
48	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	2
49	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
50	88439A27	电缆总成红色-电池（正极）	CABLE ASSEMBLY Red - Battery (Positive)	1
51	88809A5		WIRE ASSEMBLY (Yellow)	1
52	64015	螺母 (.250-20)	NUT (.250-20)	2
53	86704A10	辅助定子	STATOR Auxiliary	1
54	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
55	816770T	整流器	RECTIFIER	1
55	8M0058226	整流器	RECTIFIER	1
56	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
57	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
58	638131	端子排	TERMINAL BLOCK	1
59	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
60	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2

图 10燃油滤清器总成 Fuel Filter Assembly

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	滤清器至化油器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO CARBURETOR	1
5	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接器套件(90度)(新设计)	CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN)	1
9	14187M	直通连接器(旧设计)	CONNECTOR (STRAIGHT) (OLD DESIGN)	1
10	4000331	适配器螺丝(M6x30)	SCREW (M6 x 30) ADAPTOR	AR
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	AR
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	AR

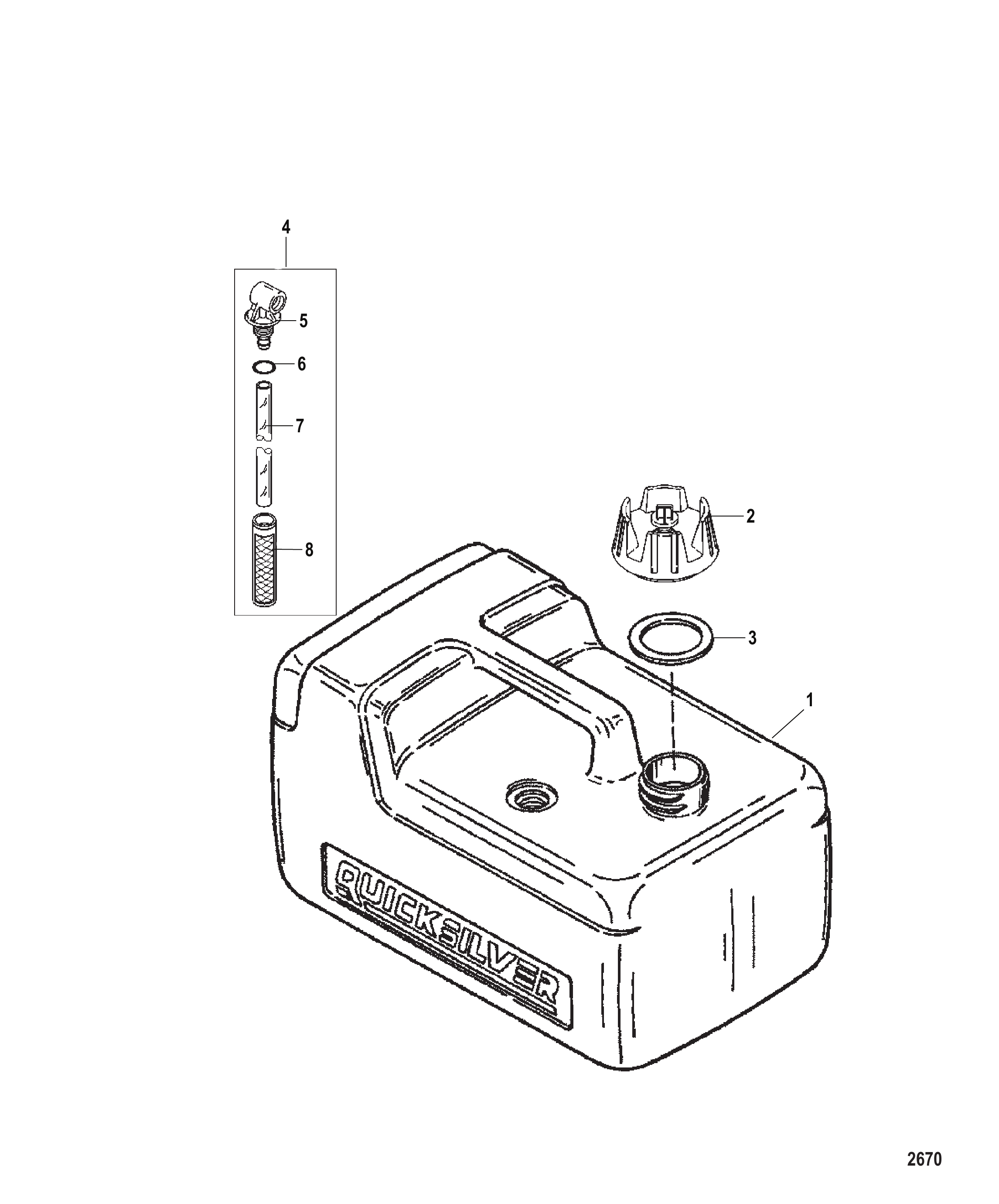

图 11燃油箱总成（3.2加仑） Fuel Tank Assembly (3.2 Gallon)

REF	零件编号	中文名称	英文名称	数量
1	859060A2	燃油箱总成	TANK ASSEMBLY Fuel Fuel	1
2	816976Q1	燃油箱盖总成-手动通风	CAP ASSEMBLY Fuel-Manual Vent Fuel	1
3	8169771	燃油箱盖衬垫	GASKET Fuel Cap Fuel Cap	1
4	823531A1	燃油管路连接套件	CONNECTOR KIT Fuel Fuel	1
4	8M0175544	燃油连接套件3.2	CONN KIT FUEL 3.2	1
5	NSS	不单独出售(连接器)	NOT SOLD SEPARATE (Connector)	1
6	823533	O型圈	O-RING	1
7	NSS	不单独出售(管路)	NOT SOLD SEPARATE (Tube)	1
8	823534	燃油滤清器滤网	SCREEN Fuel Filter	1

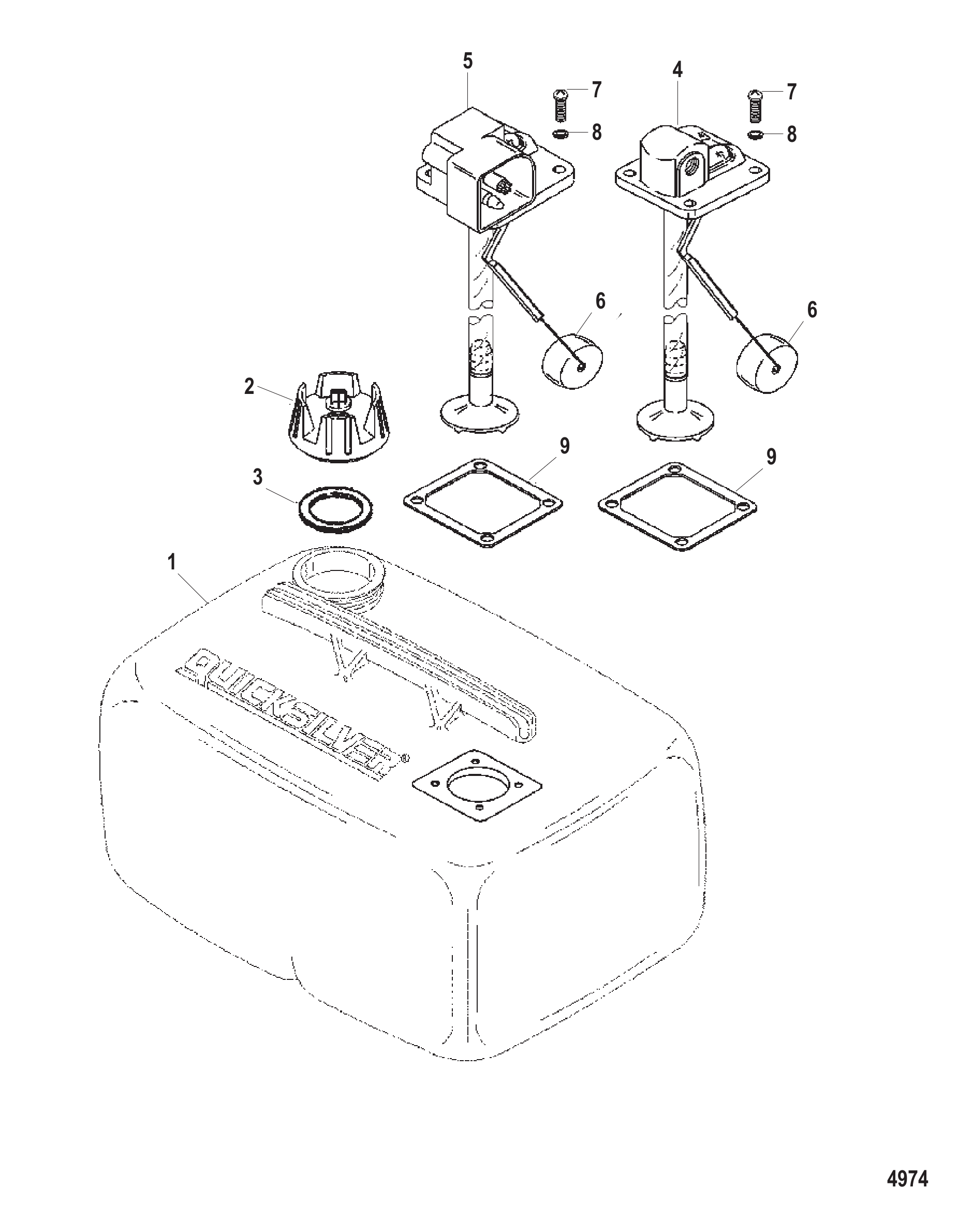

图 12燃油箱总成（6.6加仑） Fuel Tank Assembly (6.6 Gallon)

REF	零件编号	中文名称	英文名称	数量
1	859065A1	燃油箱总成	TANK ASSEMBLY Fuel Fuel	1
1	859065A3	燃油箱总成	TANK ASSEMBLY Fuel Fuel	1
2	816976Q1	燃油箱盖总成-手动通风	CAP ASSEMBLY Fuel-Manual Vent Fuel	1
3	816977	燃油箱盖衬垫	GASKET Fuel Cap Fuel Cap	1
3	8169771	燃油盖衬垫	GASKET Fuel Cap	1
4	859059A3	燃油吸油总成	PICK UP ASSEMBLY Fuel	1
4	8M0047609	带表吸油总成	PICK UP ASSEMBLY With Gauge	1
5	859066A3	燃油吸油总成	PICK UP ASSEMBLY Fuel	1
5	8M0084090	吸油总成	PICK UP ASSY	1
6	859056	浮子	FLOAT	1
7	40056107	螺钉(M5×16)	SCREW (M5 x 16)	4
8	859080	纤维垫圈	WASHER (Fiber)	4
9	859072	吸油体衬垫	GASKET Pick UP Body	1

图 13衬垫组件-完整-动力头与下部单元 Gasket Set Components-Complete-Powerhead and Lower Unit

REF	零件编号	中文名称	英文名称	数量
-	42364A92	发动机全套衬垫	GASKET SET Engine Complete	1
-	195982	簧片阀衬垫	GASKET Reed Block	1
-	19184		GASKET Baffle Plate	1
-	19185	排气盖衬垫	GASKET Exhaust Cover	1
-	192071	气缸体盖衬垫	GASKET Cylinder Block Cover	1
-	19207002	衬垫	GASKET	1
-	192031		GASKET Intake Cover	1
-	192051	节温器盖衬垫	GASKET Thermostat Cover	1
-	19205002	衬垫	GASKET	1
-	191861	动力头适配板至缸体衬垫	GASKET Powerhead Adapter Plate to Block	1
-	42380	水管密封件	SEAL Water Tube	1
-	42380001	水管密封件	SEAL Water Tube	1
-	192012	水管衬垫	GASKET Water Tube	1
-	195992	驱动轴壳体衬垫	GASKET Driveshaft Housing Driveshaft Housing	1
-	33145	O型圈(1.984x0.139)	O-RING (1.984 x .139)	1
-	8M0214923	O型圈(1.98x1.39)	O-RING (1.98 x 1.39)	1
-	33613	进水管密封	SEAL Water Inlet Tube	1
-	192043	水泵底座衬垫	GASKET Water Pump Base	1
-	42133	密封件	SEAL	1
-	822236	方形密封圈	QUAD RING Quad	1
-	421021	泵壳至水管密封	SEAL Pump Hsg to Water Tube	1
-	19202	水泵板衬垫	GASKET Water Pump Plate	1
-	19202001	衬垫	GASKET	1
-	19643	密封件	SEAL	1
-	191833	密封件	SEAL	2
-	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	192061	化油器衬垫	GASKET Carburetor	1
-	62386	衬垫	GASKET	1
-	8M0204714	衬垫@4	GASKET @4	1
-	NSS	不单独出售 (水泵底座)	NOT SOLD SEPARATE (Base-Water Pump)	1

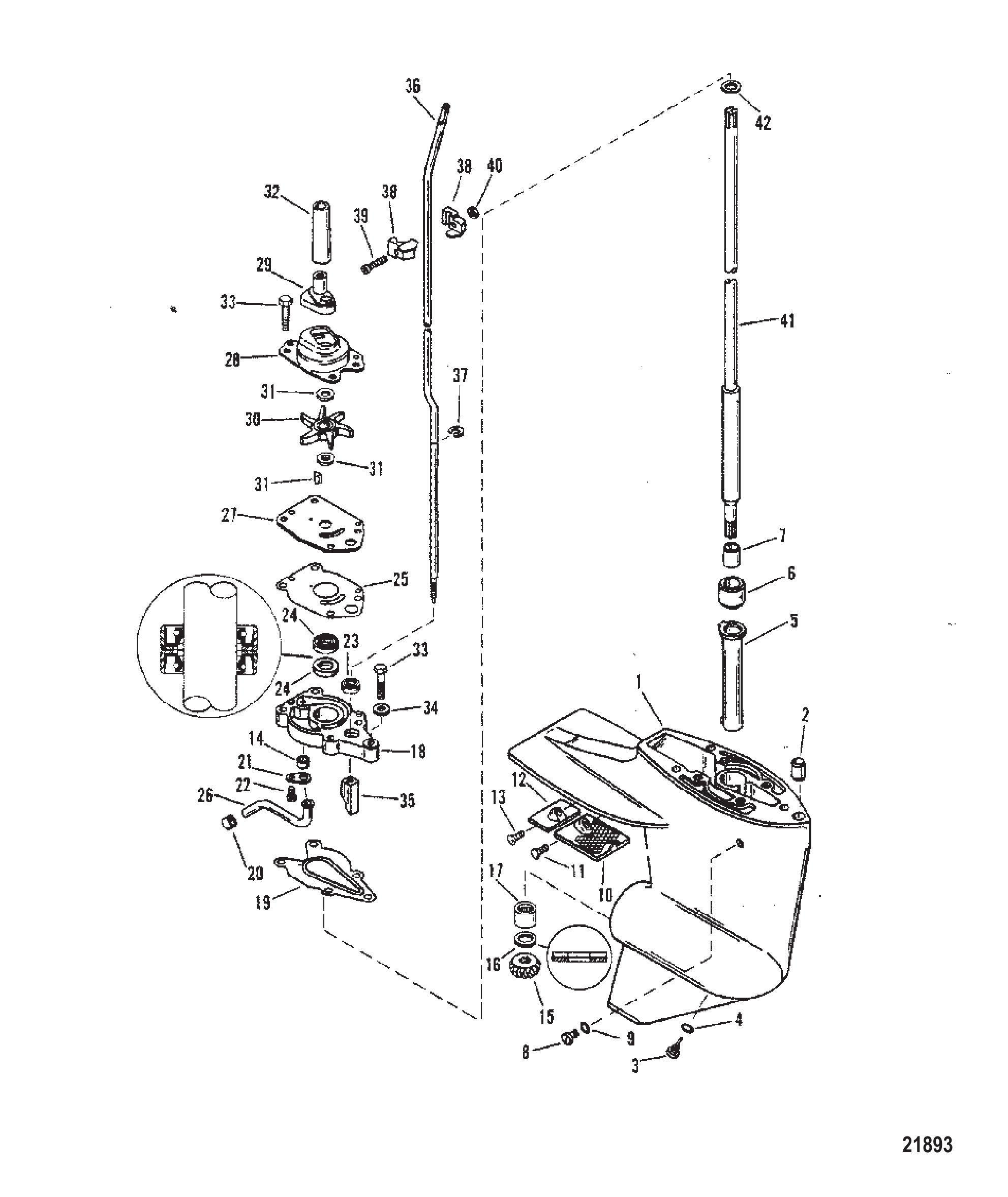

图 14齿轮箱（驱动轴）（2.00:1齿轮比） Gear Housing (Driveshaft)(2.00:1 Gear Ratio)

REF	零件编号	中文名称	英文名称	数量
-	8833A13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083312	GC BASIC9.9/15 4S	GC BASIC9.9/15 4S	1
1	8833A18	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
2	12009	衬套 (0.31 x 0.45 x 0.50)	BUSHING (.31 x .45 x .50)	1
3	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
3	8M0058389	放油螺钉套件	SCREW KIT Drain	1
4	19183	纤维垫圈	WASHER Fiber	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	822244A1	衬套总成	SLEEVE ASSEMBLY	1
6	823944	套筒	SLEEVE	1
7	823943	衬套	BUSHING	1
8	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	19183	纤维垫圈	WASHER Fiber	1
9	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
10	421991	滤网	SCREEN	1
11	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	2
12	42121A2	阳极总成	ANODE ASSEMBLY	1
12	42121Q02	铝阳极@2	ANODE(ALUM) @2	1
13	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
14	42133	密封件	SEAL	1
15	8219251	小齿轮-13-26	GEAR Pinion - 13-26	1
16	41369	垫圈	WASHER	1
17	22756	滚柱轴承	BEARING Roller	1
18	42040A5	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	42040T5	水泵底座总成	BASE ASSEMBLY Water Pump	1
19	192042	衬垫	GASKET	1
19	192043	衬垫	GASKET	1
20	33613	密封件	SEAL	1
21	42375	固定座	RETAINER	1
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	822236	四角密封环	QUAD RING	1
24	413651	油封	SEAL Oil	2
25	19202	水泵板衬垫	GASKET Water Pump Plate	1
25	19202001	衬垫	GASKET	1
26	42185A1	水管总成	TUBE ASSEMBLY Water	1
27	42200	面板	FACE PLATE	1
28	42089A2	盖总成	COVER ASSEMBLY	1
29	421021	密封件	SEAL	1
30	420382	叶轮	IMPELLER	1
30	42038Q02	叶轮	IMPELLER	1
31	42376A2	键总成	KEY ASSEMBLY	1
31	8M0173458	叶轮键	KEY IMPELLER	1
32	444671	导套	GUIDE	1
33	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	5
33	8M0214957	螺钉	SCREW	5
34	29245	垫圈（0.281 x 0.500 x 0.060）不锈钢（适用处使用）	WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE)	1
34	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
35	42039	凸轮	CAM	1
36	42145	换档轴	SHIFT SHAFT	1
36	8M0026064	换档轴-短	SHAFT-SHIFT SHORT	1
36	42146	换档轴	SHIFT SHAFT	1
36	8M0026065	换档轴-长	SHAFT-SHIFT-LONG	1
37	42389	E型卡环	E RING	1
38	42126	导套	GUIDE	2
38	8M0036770	导套	GUIDE	2
39	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	1
40	400633	螺母 (M5)	NUT (M5)	1
40	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
41	823389	驱动轴	DRIVESHAFT	1
41	823390	驱动轴	DRIVESHAFT	1
42	822248	止推垫片	THRUST WASHER	1
-	42089A5	水泵套件	PUMP KIT Water	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	41365A3	密封套件	SEAL KIT	1

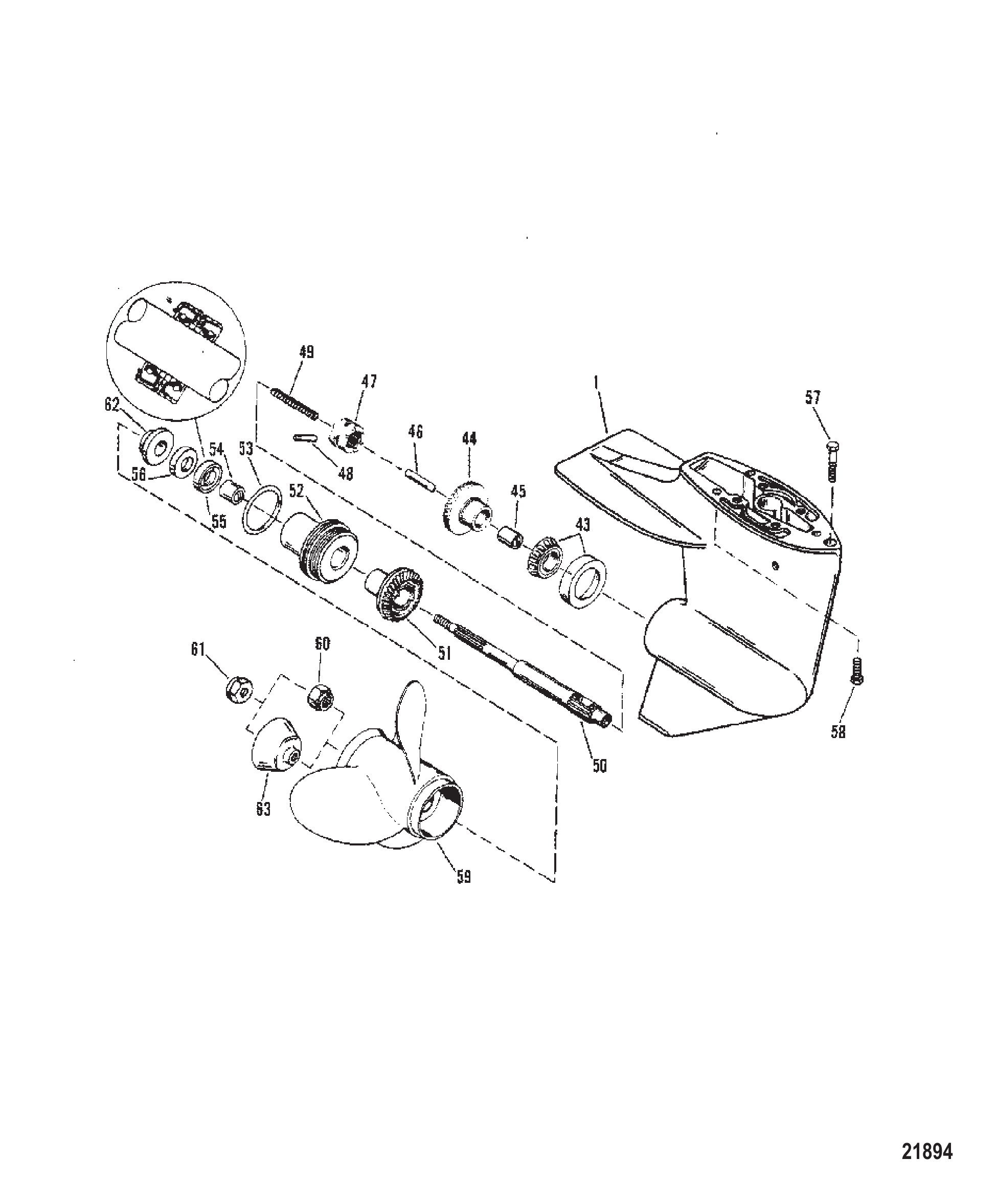

图 15齿轮箱螺旋桨轴-2.00:1齿轮比 Gear Housing Propeller Shaft - 2.00:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	8833A13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083312	GC BASIC9.9/15 4S	GC BASIC9.9/15 4S	1
1	8833A18	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
43	821321A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
44	821924A1	前进齿轮总成 (26齿)	GEAR ASSEMBLY Forward (26 TEETH)	1
45	41367	衬套	BUSHING	1
46	813139	凸轮从动件	FOLLOWER Cam	1
47	821930A1	离合器总成	CLUTCH ASSEMBLY	1
48	823951	十字销	PIN Cross	1
49	42204	弹簧	SPRING	1
50	821929	螺旋桨轴	PROPELLER SHAFT	1
51	8219261	倒档齿轮-13/26	GEAR Reverse - 13/26	1
51	821926T1	倒档齿轮-13/26	GEAR Reverse - 13/26	1
52	42144A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	42144T3	轴承座	CARRIER Bearing	1
53	33145	O型圈(1.984x0.139)	O-RING (1.984 x .139)	1
53	8M0214923	O型圈(1.98x1.39)	O-RING (1.98 x 1.39)	1
54	821927	衬套	BUSHING	1
55	99325	密封件	SEAL	1
56	821928	油封	SEAL Oil	1
57	82407110	螺钉(M8 x 50)	SCREW (M8 x 50)	1
58	8240717	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
59	828156A12	黑色MAX螺旋桨9x9右旋铝3叶	BLACK MAX PROPELLER 9 X 9 RH AL 3 BL	1
60	420911	隔套	SPACER	1
61	13914	螺母(M10)	NUT (M10)	1
61	40140	螺母(M10)	NUT (M10)	1
62	821932	推力毂	THRUST HUB	1
62	8219321	推力毂	THRUST HUB	1
63	822559A1	倒挡排气块杯总成	CUP ASSEMBLY Reverse Exhaust Block	1
63	822559Q01	杯套	CUP	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	41365A3	密封套件	SEAL KIT	1

图 16润滑图表 Lube Chart

REF	零件编号	中文名称	英文名称	数量
NOPART	NO PARTS LIST

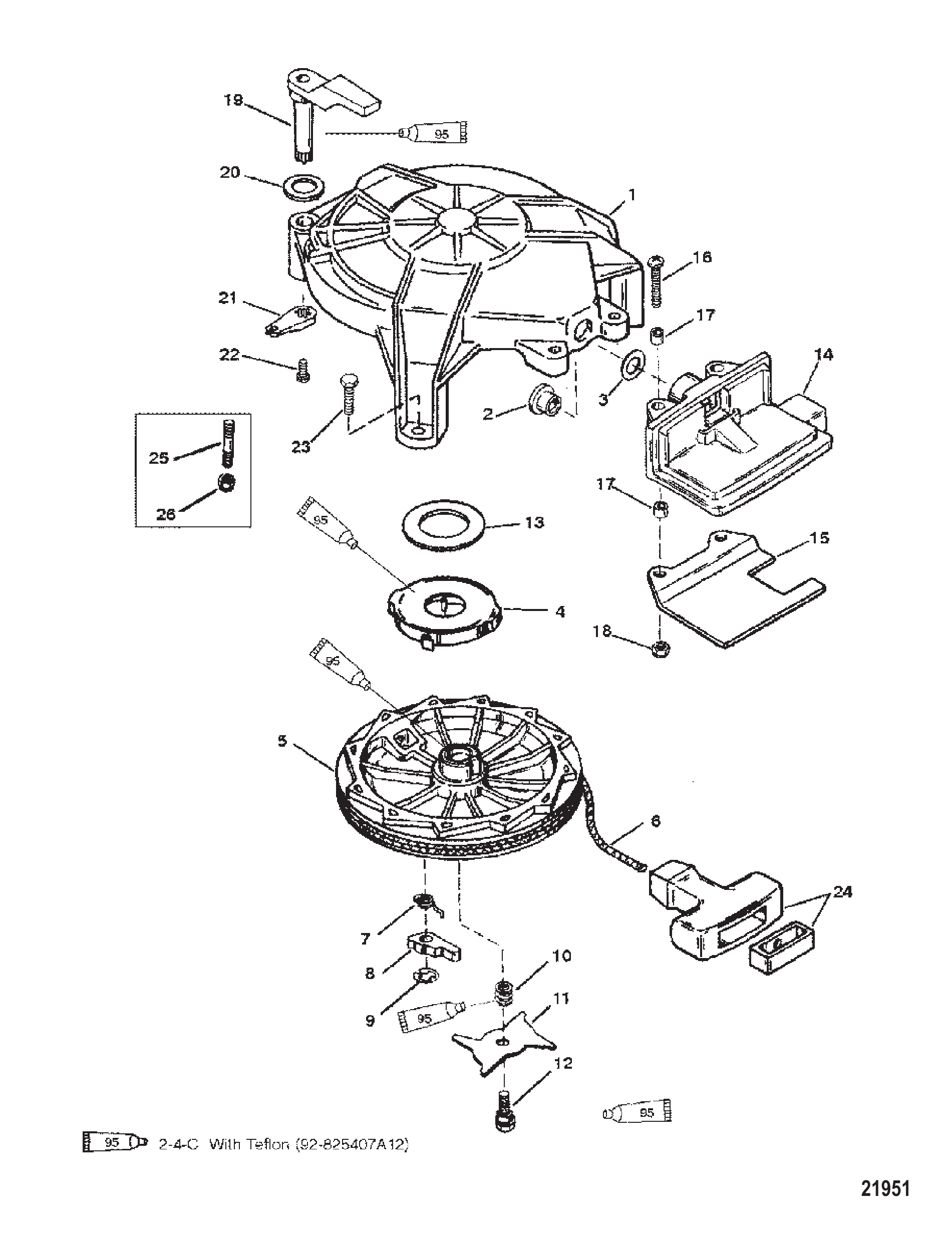

图 17手动启动器 Manual Starter

REF	零件编号	中文名称	英文名称	数量
-	42207A6	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	42207A7	手拉启动器总成	STARTER ASSEMBLY Recoil	1
1	8M0070659	手动启动器壳体总成	HOUSING ASSEMLBY Manual Starter	1
1	422072	启动器壳体	HOUSING Starter	1
1	42207T02	ORD 8M0070659	ORD 8M0070659	1
2	42690	衬套	BUSHING	1
2	8M0183792	绳索衬套	ROPE BUSHING	1
3	818853	挡圈	RING Retaining	1
4	868571	弹簧	SPRING	1
4	86857T01	弹簧	SPRING	1
5	4203450	启动器滑轮	PULLEY Starter	1
5	42034T04	滑轮-启动器	SHEAVE-STARTER	1
6	12066A9	绳索	ROPE	1
6	12066Q10	启动绳@2	ROPE-STARTER@2	1
7	86851	弹簧	SPRING	2
7	86851T02	弹簧 @2	SPRING @2	2
8	868501	凸轮	CAM	2
9	868491	挡圈	RING Retaining	2
9	86849T01	环 @2	RING @2	2
10	86852	弹簧	SPRING	1
10	868523	弹簧	SPRING	1
11	86853	凸轮	CAM	1
11	86853T01	凸轮	CAM	1
12	818838	螺钉	SCREW	1
12	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
13	90478	垫	PAD	1
13	833161T	毛毡垫	PAD-FELT	1
14	19018	支架	REST	1
14	19018T	支架-启动器手柄	REST-STARTER HDL	1
15	12674	支架	SUPPORT	1
16	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
17	309772	隔套	SPACER	4
18	400633	螺母 (M5)	NUT (M5)	2
18	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2
19	42171	上操纵杆	LEVER (UPPER)	1
19	42171T	杠杆	LEVER	1
20	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
20	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
21	42173	下操纵杆	LEVER (LOWER)	1
21	42173T	杠杆	LEVER	1
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	3
23	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	3
24	85174A1	手柄总成	HANDLE ASSEMBLY	1
25	8161945	螺柱(M6×32)	STUD (M6 x 32)	3
26	8268336	螺母 (M6)	NUT (M6)	3
26	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3

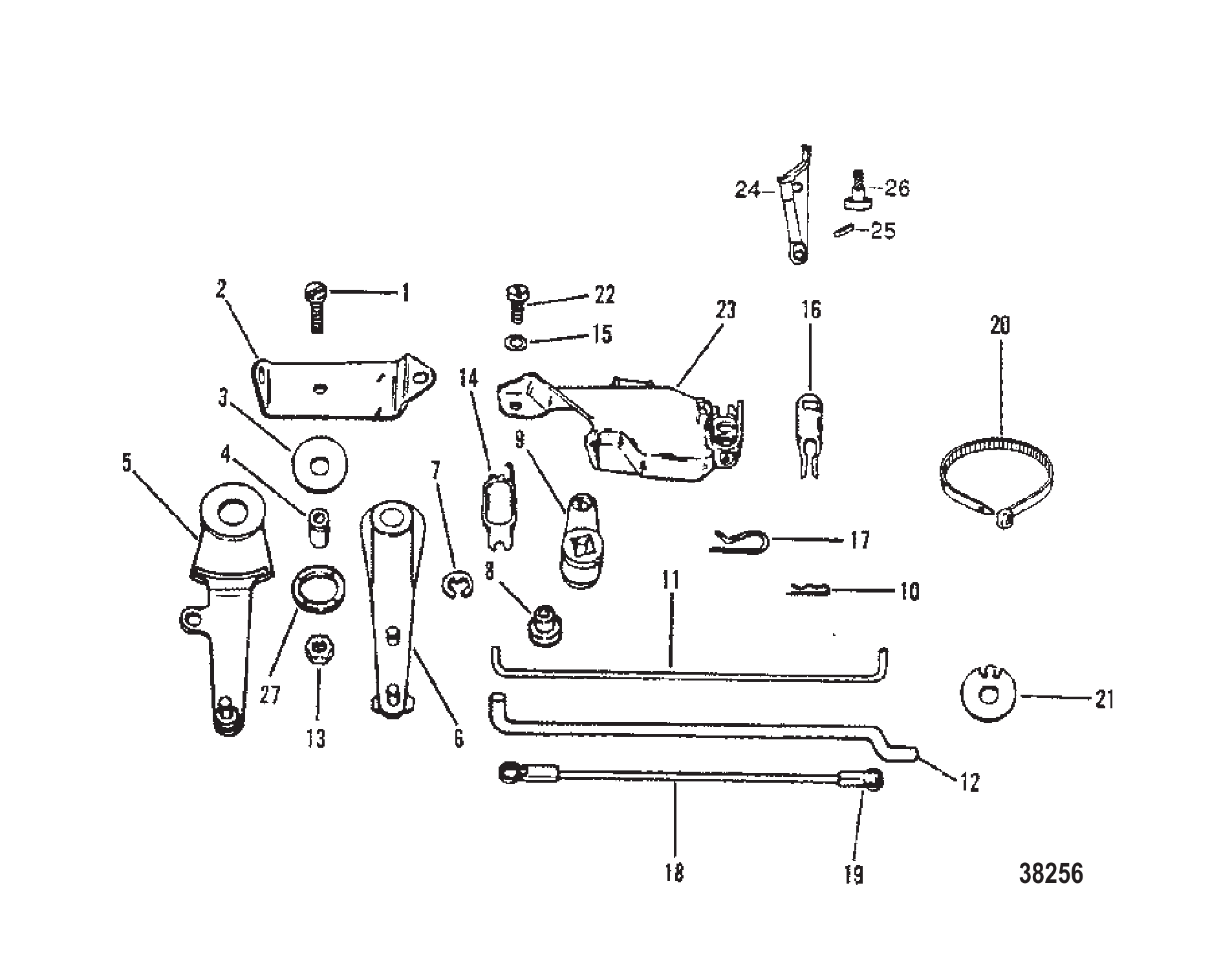

图 18遥控连接组件 Remote Control Attaching Components

REF	零件编号	中文名称	英文名称	数量
1	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
2	42809	控制臂支架	BRACKET Control Arm	1
3	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
3	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
3	12132	垫圈(0.520x1.500x0.06)	WASHER (.520 x 1.500 x .06)	1
3	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
4	42806	衬套	BUSHING	1
4	823807	衬套	BUSHING	1
5	42810A2	控制臂	CONTROL ARM	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
5	42810A4	控制臂	CONTROL ARM	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
6	428071	节气门控制臂	ARM Throttle Control	1
6	428071	节气门控制臂	ARM Throttle Control	1
7	61319	E型卡环	E RING	1
8	12136	衬套	BUSHING	1
8	889731	衬套	BUSHING	1
9	42800	杠杆	LEVER	1
10	21071	开口销	COTTER PIN	1
10	210711	开口销	COTTER PIN	1
11	42741	换挡连杆	SHIFT LINK	1
11	815550A1	换档轴	SHIFT SHAFT	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
8	12136	衬套	BUSHING	1
8	889731	衬套	BUSHING	1
10	21071	开口销	COTTER PIN	1
10	210711	开口销	COTTER PIN	1
12	8155691	换挡连杆	SHIFT LINK	1
12	878169	换挡连杆	SHIFT LINK	1
13	400634	螺母 (M6)	NUT (M6)	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	428021	固定座	RETAINER	1
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	424291	固定座	RETAINER	2
17	11372	卡扣	CLIP	1
18	19385A2	节气门连杆总成	LINK ASSEMBLY Throttle	1
18	8M0084741	节气门连杆总成	LINK ASY-THROTTLE	1
19	19384	插座	SOCKET	1
19	8M0084742	插座	SOCKET	1
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	11371	锁紧垫圈（旧设计）	TAB WASHER (OLD DESIGN)	1
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
23	42805A3	支架总成	BRACKET ASSEMBLY	1
24	11373	锁销	PIN Latch	1
25	23928	销	PIN	1
25	239281	滚动销	PIN Roll	1
26	42975	传动螺钉	DRIVE SCREW	1
27	12134	波形垫圈	WASHER Wave	1

图 19维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
0	803827	零件手册15/18马力（双缸）国际版	PARTS MANUAL 15/18 HP (2 Cylinder) International	1
0	888737A02	贴花套件	DECAL SET	1
0	8M0098712	服务套件贴纸	DECAL-SERVICE KIT	1
0	857117A00	贴花套件	DECAL SET	1
0	857116A99	贴花套件	DECAL SET	1
0	857116A03	贴花套件	DECAL SET	1
0	857116A01	贴花套件	DECAL SET	1
0	857116A03	贴花套件	DECAL SET	1
0	857116A03	贴花套件	DECAL SET	1

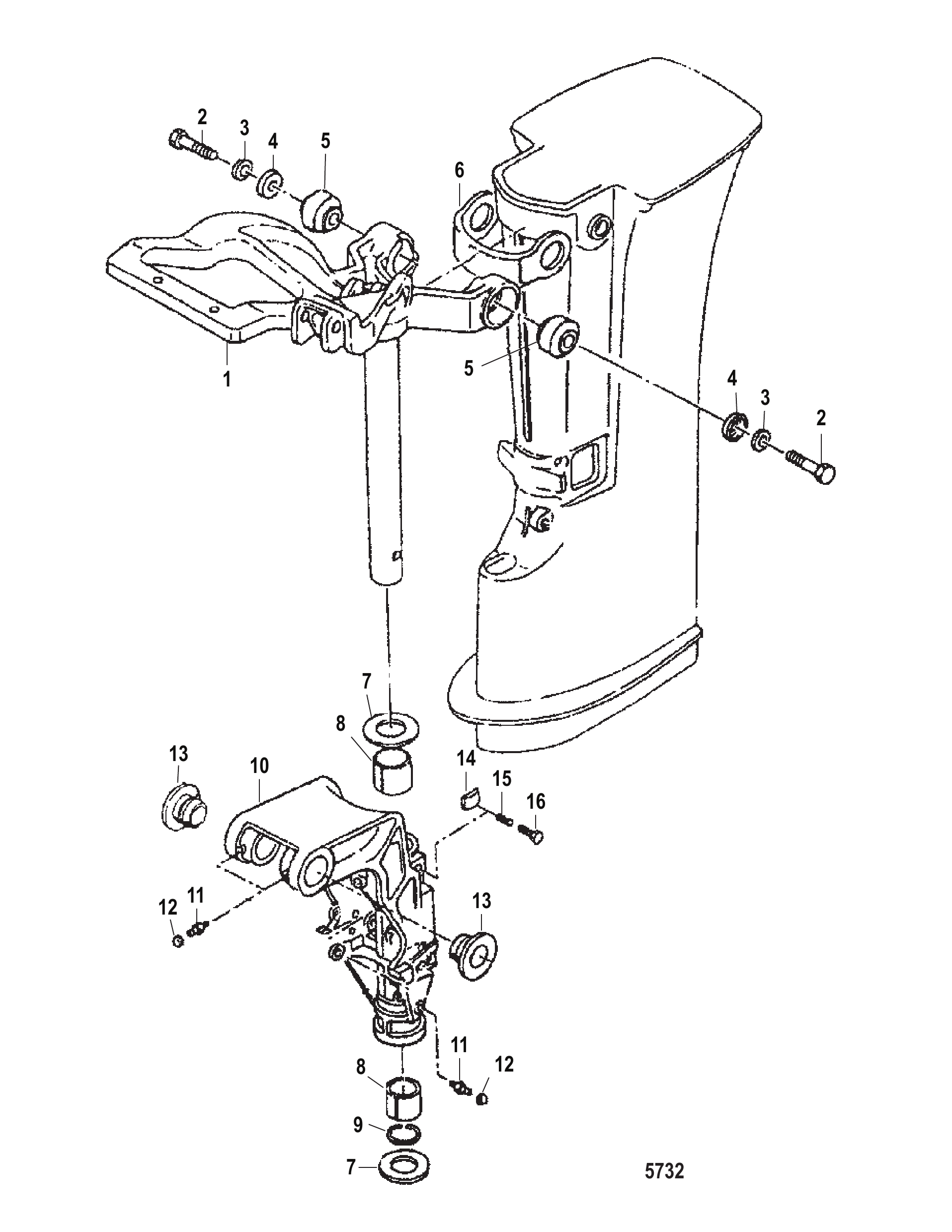

图 20旋转支架 Swivel Bracket

REF	零件编号	中文名称	英文名称	数量
1	803773	转向轴	SHAFT Steering	1
2	803777	螺栓	BOLT	2
3	168261	垫圈	WASHER	2
4	8538221	垫圈	WASHER	2
4	8M0056392	垫圈	WASHER	2
5	8037752	橡胶支架（上）	MOUNT Rubber (Upper)	2
5	8M0153613	支架	MOUNT	2
6	803778	减震橡胶	DAMPER RUBBER	1
7	803774	推力板	THRUST PLATE	2
8	163363	衬套	BUSHING	2
9	161091	O型圈	O-RING	1
10	803772	旋转支架	SWIVEL BRACKET	1
10	8M0099819	旋转支架套件	SWIVEL BRACKET KT	1
11	824969	润滑脂接头	FITTING Grease	2
12	808599	盖帽	CAP	2
13	8537435	衬套	BUSHING	2
14	162052	摩擦片	FRICTION PLATE	1
15	953831	弹簧	SPRING	1
16	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	1

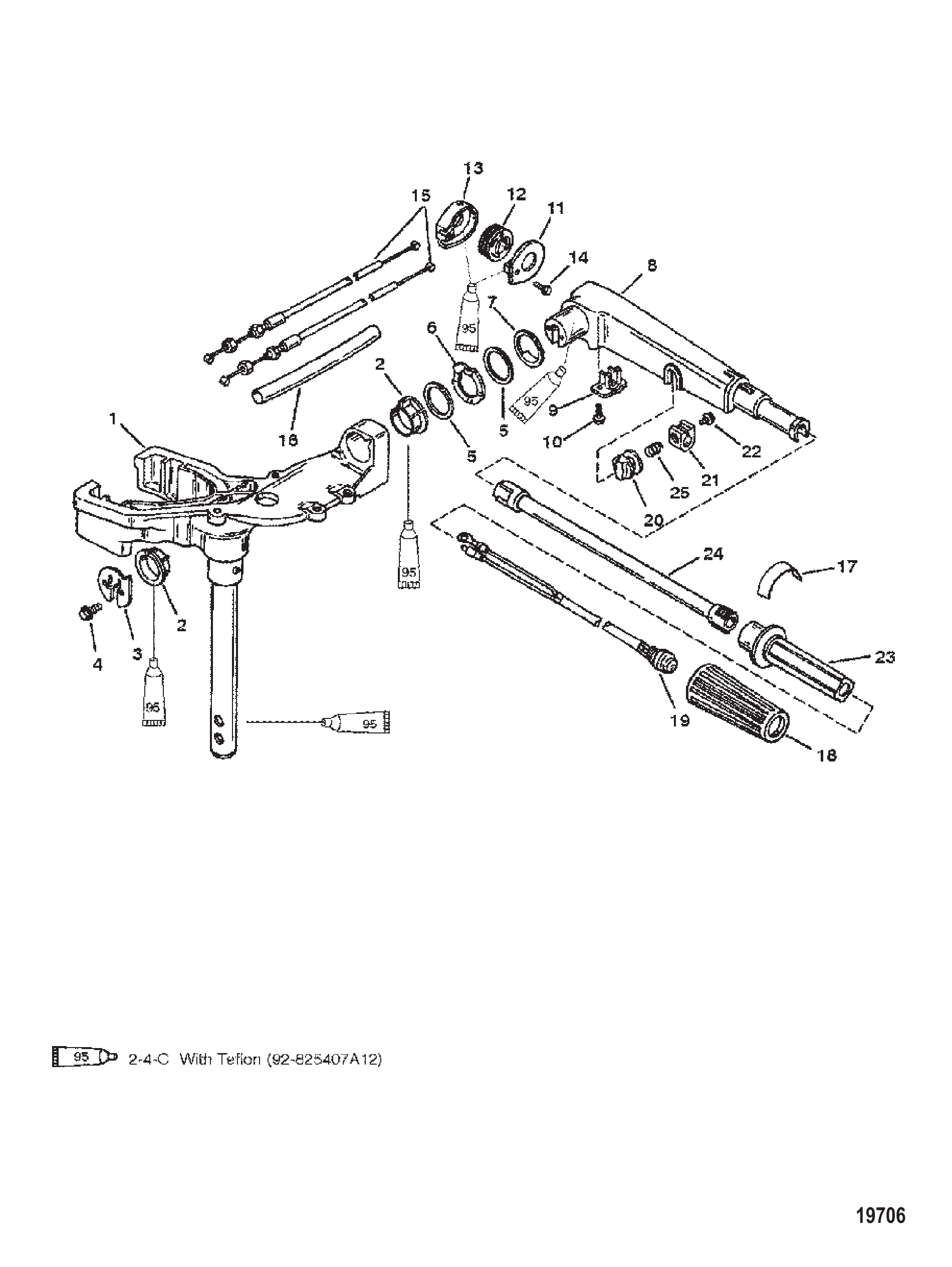

图 21旋转头与转向手柄 Swivel Head and Steering Handle

REF	零件编号	中文名称	英文名称	数量
1	42213A24	旋转头	SWIVEL HEAD	1
1	42213A25	旋转头	SWIVEL HEAD	1
2	823939	衬套	BUSHING	2
3	822147	舵柄手柄板	PLATE Tiller Handle	1
3	8221471	安装板	PLATE	1
4	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
4	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
5	822145	垫圈	WASHER	2
6	826792	波形垫圈	WAVE WASHER	1
7	822146	垫圈	WASHER	1
8	821468A8	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
8	821468A66	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
8	821468A9	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
8	821468T9	ORD 821468A66	ORD 821468A66	1
9	822441	固定座	RETAINER	1
10	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	1
11	822148A3	盖板套件	COVER KIT	1
11	822148A2	盖板套件	COVER KIT	1
12	822150	滑轮	PULLEY	1
13	NSS	不单独出售-滑轮壳体(属于参考号11部件)	NOT SOLD SEPARATE Pulley Case (PART OF REF. #11)	1
14	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
14	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
15	432429	节气门拉索	CABLE Throttle	2
15	43242T09	节气门拉索	CABLE-THROTTLE	2
15	432426	节气门拉索	CABLE Throttle	2
16	9600910	套筒	SLEEVE	1
16	960099	套管(12.00英寸)	SLEEVE (12.00 Inches)	1
17	8242002	贴花	DECAL	1
17	8242001	贴花	DECAL	1
17	8242004	贴花	DECAL	1
18	99589	握把	GRIP	1
18	8M0221732	外握把	GRIP OUTER	1
19	823609A1	停机开关总成	SWITCH ASSEMBLY Stop	1
19	8M0104615	开关总成	SWITCH ASSY	1
20	821972	节气门旋钮	KNOB Throttle	1
20	821972T	节气门旋钮	KNOB Throttle	1
21	821971	节气门锁	LOCK Throttle	1
21	892995	节气门锁	LOCK Throttle	1
22	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
22	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1
23	822429	节气门手柄	HANDLE Throttle	1
23	821465	节气门手柄	HANDLE Throttle	1
24	821463A1	舵柄管	TILLER TUBE	1
24	821463T01	舵柄管	TUBE-TILLER	1
25	96203	弹簧	SPRING	1

图 22油门与换挡联动装置（侧换挡） Throttle and Shift Linkage (Side Shift)

REF	零件编号	中文名称	英文名称	数量
1	421811	线缆支架	BRACKET Cable	1
2	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
3	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
4	4002314	垫圈	WASHER	1
5	421571	换挡手柄	SHIFT HANDLE	1
6	44459	护孔环	GROMMET	1
6	44459001	护孔环	GROMMET	1
7	8155501	换档轴	SHIFT SHAFT	1
8	42156	杠杆	LEVER	1
9	42153	杠杆	LEVER	1
10	39627	弹簧	SPRING	1
11	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
12	421671	正时连杆	TIMING LINK	1
13	421631	控制杆	LEVER Control	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	69708	波形垫圈	WAVE WASHER	1
16	42164	弹簧	SPRING	1
17	13676	弹簧	SPRING	1
18	421662	执行器	ACTUATOR	1
19	421621	衬套	BUSHING	1
20	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
21	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
22	42161	互锁连杆	LINK INTERLOCK	1
23	421592	杠杆	LEVER	1
24	42160	弹簧	SPRING	1
25	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
26	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
27	421581	衬套	BUSHING	1

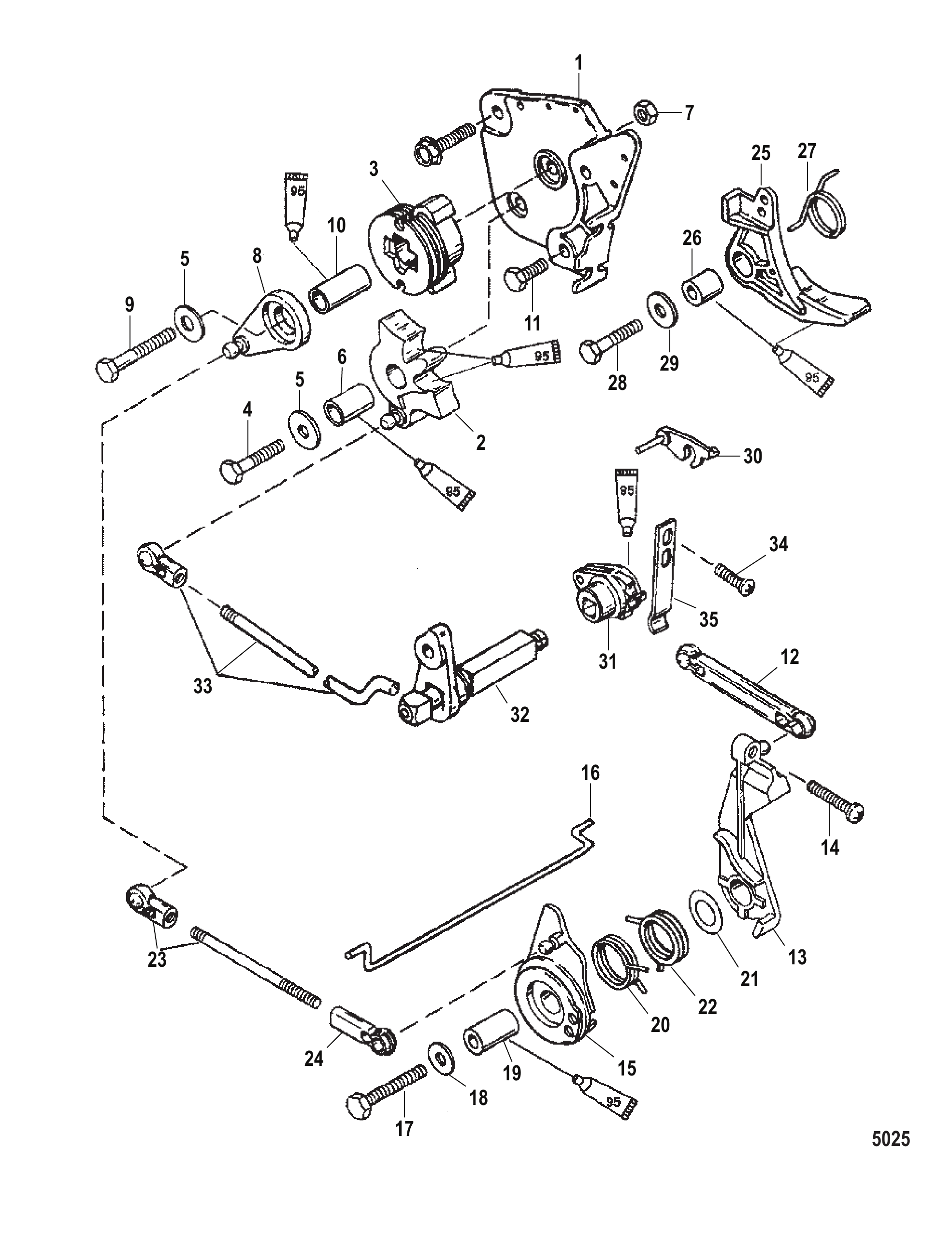

图 23油门换挡联动机构(舵柄) Throttle and Shift Linkage (Tiller Handle)

REF	零件编号	中文名称	英文名称	数量
1	421483	控制平台	CONTROL PLATFORM	1
2	94085A1	齿轮	GEAR	1
3	NSS	不单独销售（齿轮）	NOT SOLD SEPARATE (Gear)	1
4	826650	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
5	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
5	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
6	856737	垫片（短）	SPACER (Short)	1
7	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
8	42151	主操纵杆	LEVER Primary	1
9	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
10	856738	垫片（长）	SPACER (Long)	1
11	4000328	螺钉(M6 x 16)	SCREW (M6 x 16)	2
11	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	2
12	421671	正时连杆	TIMING LINK	1
13	421631	控制杆	LEVER Control	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	421662	执行器	ACTUATOR	1
16	42161	互锁连杆	LINK INTERLOCK	1
17	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
18	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
19	421621	衬套	BUSHING	1
20	42164	弹簧	SPRING	1
21	69708	波形垫圈	WAVE WASHER	1
22	13676	弹簧	SPRING	1
23	19385A1	节气门连杆总成	LINK ASSEMBLY Throttle	1
23	8M0084745	节气门连杆总成	LINK ASY-THROTTLE	1
24	19384	插座	SOCKET	1
24	8M0084742	插座	SOCKET	1
25	421592	杠杆	LEVER	1
26	421581	衬套	BUSHING	1
27	42160	弹簧	SPRING	1
28	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
29	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
30	42156	杠杆	LEVER	1
31	42153	杠杆	LEVER	1
32	8155501	换档轴	SHIFT SHAFT	1
33	815567A1	换挡连杆	SHIFT LINK	1
33	815567T02	换挡连杆总成	SHIFT LINK ASSY	1
34	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
35	39627	弹簧	SPRING	1

图 24专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量
-	824785T1	衬套和密封安装工具	INSTALLER TOOL Bushing And Seal	1
-	13664	轴承座安装工具, 6/15马力	INSTALLER TOOL Bearing Carrier, 6/15 Hp	1
-	83165T	拉拔器总成	PULLER ASSEMBLY	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	824787	衬套拆卸工具	REMOVAL TOOL Bushing	1
-	29287	量规工具	GAUGE TOOL	1
-	824788A1	轴承拆卸工具	REMOVAL TOOL Bearing	1
-	824790A1	驱动轴衬套安装工具	INSTALLATION TOOL Driveshaft Bushing	1
-	83163M	飞轮固定工具	HOLDER TOOL Flywheel	1
-	8M0161873	固定工具	HOLDER TOOL	1
-	24937A1	固定工具	HOLDER TOOL	1
-	8M0161873	固定工具	HOLDER TOOL	1
-	24937A1	固定工具	HOLDER TOOL	1
-	83164M	飞轮拉拔器	FLYWHEEL PULLER	1
-	8M0227579	飞轮拉拔器	FLYWHEEL PULLER	1
-	13655T	心轴	MANDREL	1
-	99750A1	万用表	MULTI METER	1
-	13663T1	活塞销安装工具	INSTALLER TOOL Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	13662T1	动力头支架工具	STAND TOOL Powerhead	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	850439T1		TESTER Eight Chamber (Eight Chamber)	1
-	63998A1		GAP TOOL Single Chamber (Single Chamber)	1
-	99379	正时灯	TIMING LIGHT	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	NSS	不单独销售（膨胀杆）（Snap On #CG 40-4）	NOT SOLD SEPARATE (Expanding Rod) (Snap On #CG 40-4)	1
-	NSS	不单独销售（夹头）（Snap On #CG 40-15）	NOT SOLD SEPARATE (Collet) (Snap On #CG 40-15)	1
-	NSS	不单独销售（膨胀杆）（Snap On #CG40A6）	NOT SOLD SEPARATE (Expanding Rod)(Snap On #CG40A6)	1
