水星 Mercury 125 4 CYL 0T980000 THRU 1B214144 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-803168001 · 共 34 个部位 · 1375 条零件

图 1附件 Accessories

REF	零件编号	中文名称	英文名称	数量
-	15969A3	甲板加油套件	DECK FILL KIT Oil	1
-	812497A2	二极管总成双引擎	DIODE ASSEMBLY Dual Engine	1
-	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	852400	冲洗接头	FLUSH COUPLING	1
-	19674Q2	开关/拉绳套件	SWITCH/LANYARD KIT	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	41729A3	软管延长套件	HOSE EXTENSION KIT	1
-	17334A2	视觉警报系统低油位/过热	VISUAL WARNING SYSTEM Low Oil/Overheat	1
-	859019A1	智能转速表套件 0-7000转(灰色表盘黑色边框)	SMART TACH KIT 0-7000 RPM (Grey Face and Black Bezel)	1
-	859314A1	线束总成智能转速表	HARNESS ASSEMBLY SmartTach Gauge	1
-	859067A1	智能转速表套件 0-7000转(白色表盘边框)	SMART TACH KIT 0-7000 RPM (White Face and Bezel)	1
-	859314A1	线束总成智能转速表	HARNESS ASSEMBLY SmartTach Gauge	1
-	877561A2	线束总成	HARNESS ASSEMBLY	1
-	815366A5	电池隔离器套件	ISOLATOR KIT Battery	1
-	8M0094239	安装套件 KT-ISOLTR	INSTALL KT-ISOLTR	1

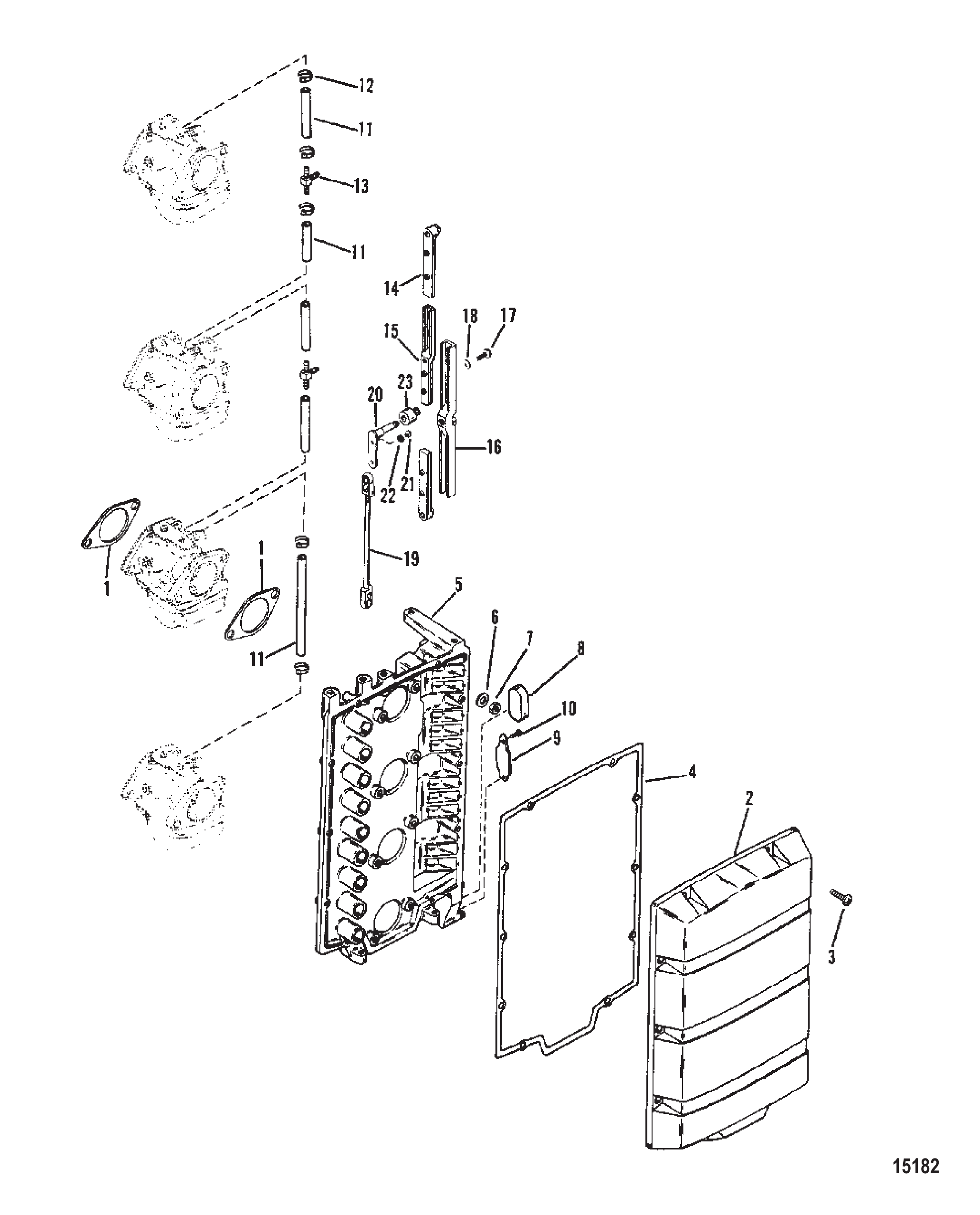

图 2衰减板 Attenuator Plate

REF	零件编号	中文名称	英文名称	数量
1	151723	衬垫	GASKET	8
2	44342T	盖板	COVER	1
2	44342A1	盖板	COVER	1
3	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	10
4	NLA	已停产垫片(旧设计)	No Longer Available Gasket, Old Design	1
5	443403	衰减器板	PLATE Attenuator	1
5	44340A2	衰减器板总成	PLATE ASSEMBLY Attenuator	1
6	4002217	垫圈	WASHER	8
7	823861	螺母	NUT	8
7	826365	螺母 (M8)	NUT (M8)	8
8	39519	杯套	CUP	1
9	98889	闩锁	LATCH	1
10	42975	传动螺钉	DRIVE SCREW	2
11	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	AR
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	17762	异径三通	REDUCING TEE	2
14	988861	连接杆	LINK	2
14	98886T01	油门调节连杆	LINK-THRTL ADJUST	2
15	44336	节气门上连杆	LINK Throttle Upper	1
16	98887	节气门主连杆	LINK Throttle Main	1
16	98887T	连接杆	LINK	1
17	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	6
18	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	6
18	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	6
19	193859	连杆	LINK ROD	1
20	11399A1	臂总成	ARM ASSEMBLY	1
21	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
22	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
22	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
23	67748	滚轮	ROLLER	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

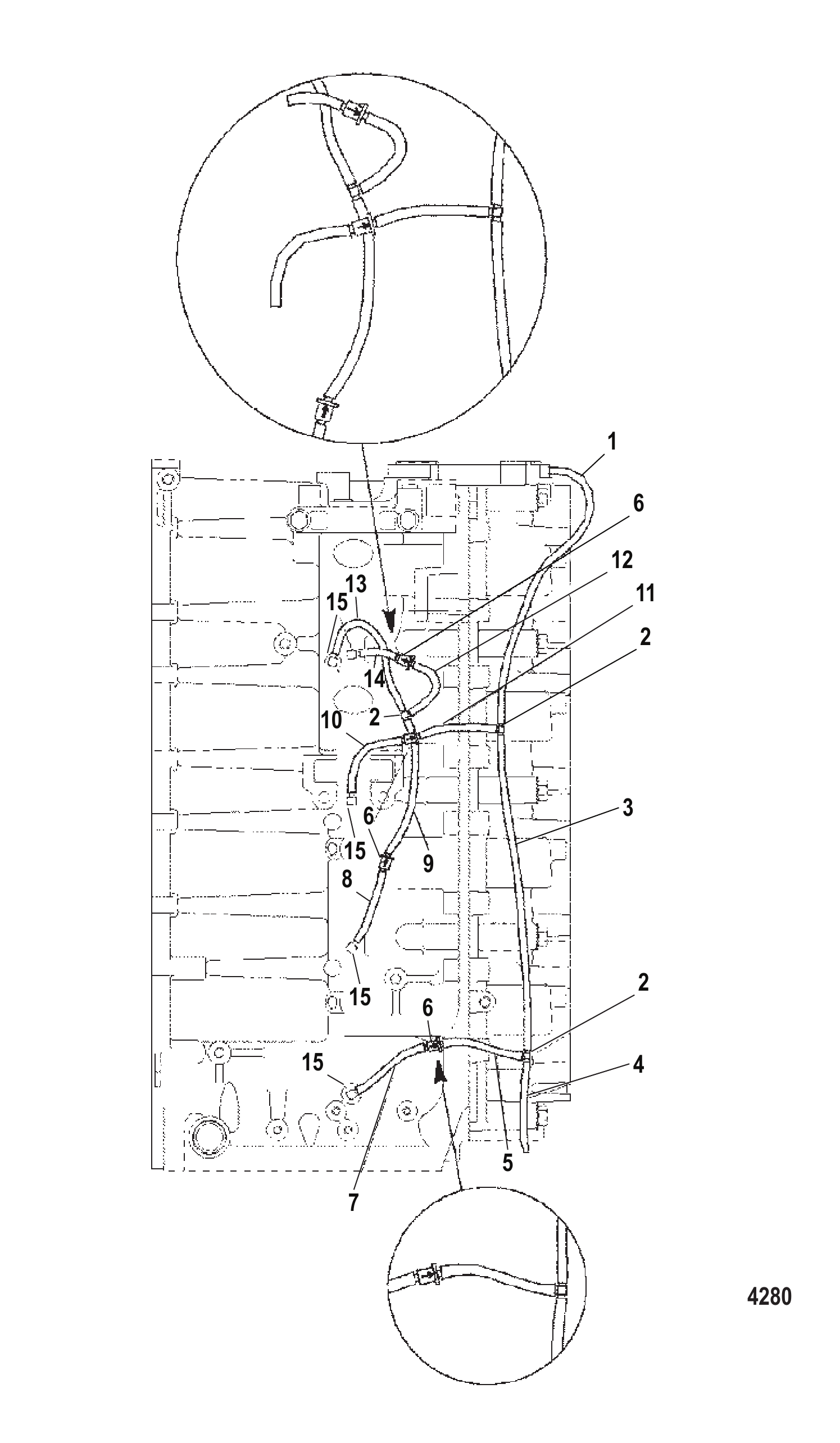

图 3泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
2	591692	三通接头	FITTING Tee	3
2	59169003	三通接头	FITTING Tee	3
3	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	149126	止回阀	CHECK VALVE	4
7	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
8	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
8	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
9	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
9	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
10	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
11	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
12	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
14	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	15133	接头	FITTING	5
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791R97	PH 100-125 2S -RM	PH 100-125 2S -RM	1

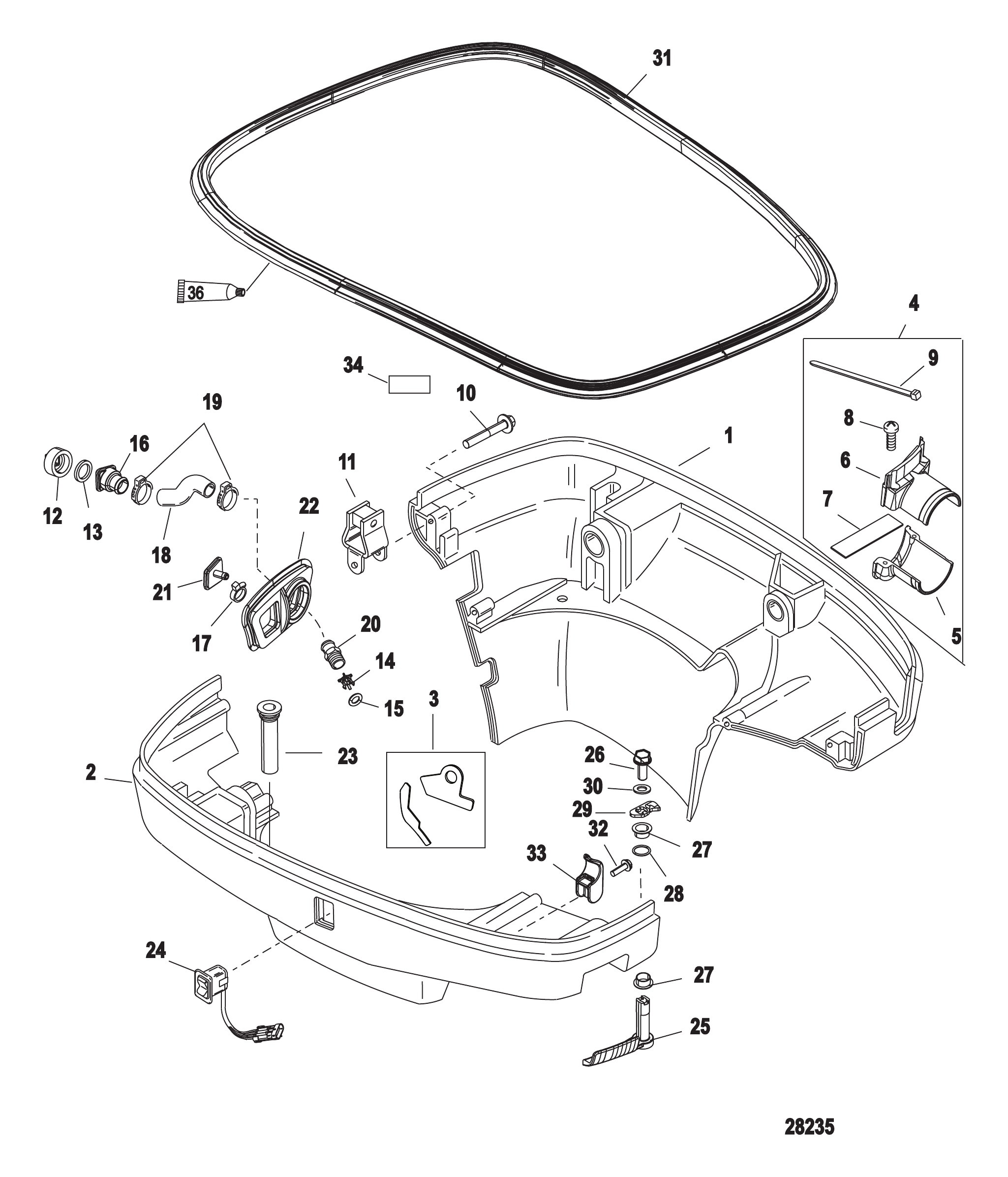

图 4下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	834814A1	下罩盖（左舷）	BOTTOM COWL Port	1
2	834815A1	下罩盖（右舷）	BOTTOM COWL Starboard	1
2	8M0107322	机罩-底部右舷	COWL-BOTTOM, STBD	1
3	879147A11	下罩盖衬垫套装	GASKET SET Bottom Cowl	1
4	875266A2	索具套件	RIGGING KIT	1
5	859435	底部嵌件	INSERT Bottom	1
5	859435T	嵌件	INSERT	1
6	859434	顶部嵌件	INSERT Top	1
6	859434T	嵌件	INSERT	1
7	859343	泡沫垫	FOAM	1
8	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
10	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
11	831209	固定座	RETAINER	1
12	821908	堵头	PLUG	1
13	821915	垫圈	WASHER	1
14	8219631	止回阀	CHECK VALVE	1
15	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
16	821952	接头	FITTING	1
17	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
18	8320782	软管	HOSE	1
18	8M0039077	成型软管	HOSE-MOLDED	1
19	850896	卡箍 (28.6)	CLAMP (28.6)	2
20	8320763	接头	FITTING	1
21	821904	示流器接头	FITTING Tell-Tale	1
21	8M0077650	示流器接头	FITTING Tell-Tale	1
22	889847	怠速排气套	BOOT Idle Exhaust	1
23	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
24	896620001	升降倾斜开关	SWITCH Trim	1
24	8M0235191	升降倾斜开关	SWITCH Trim	1
25	889740A02	手柄套件	HANDLE KIT	1
26	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
26	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
27	335891	衬套	BUSHING	2
28	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
29	8219423	前手柄棘爪	PAWL Front Handle	1
30	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
31	8M0000413	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	1
31	8M0111278	密封件	SEAL	1
32	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
33	822873	卡扣	CLIP	1
34	NSS	不单独销售贴纸-低排放	NOT SOLD SEPARATE Decal-Low Emission	1

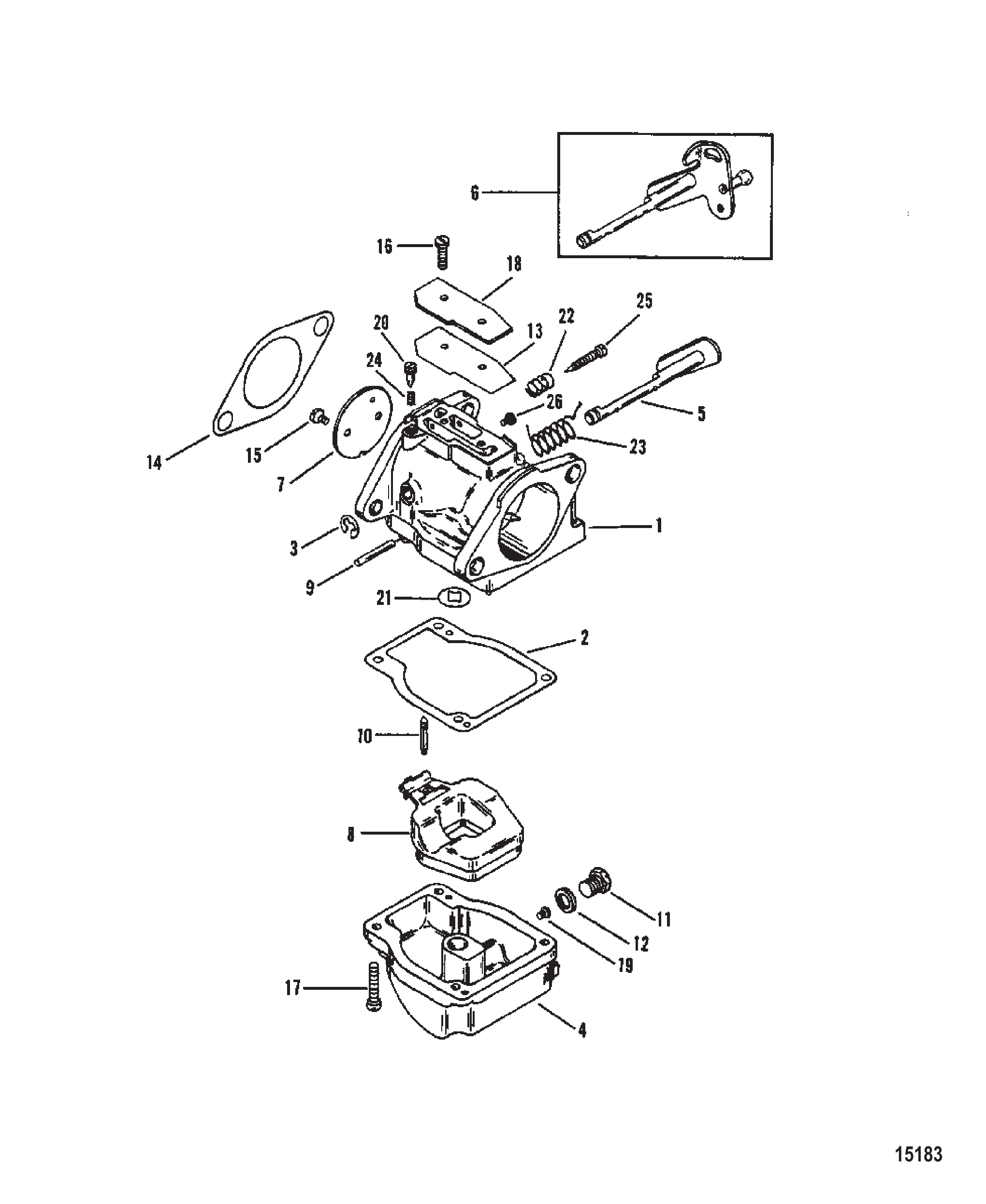

图 5化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	9532A12	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9532A13	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9532A14	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9532A15	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9012A77	化油器115-WME-21B	CARBURETOR 115-WME-21B	1
1	9012T77	化油器	CARBURETOR	1
1	9012A78	化油器115-WME-21B	CARBURETOR 115-WME-21B	1
1	9012T78	化油器	CARBURETOR	1
1	9012A79	化油器115-WME-21B	CARBUBETOR 115-WME-21B	1
1	9012T79	化油器	CARBURETOR	1
1	9012A80	化油器115-WME-21B	CARBURETOR 115-WME-21B	1
1	9012T80	化油器	CARBURETOR	1
2	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
3	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	4
4	9590	燃油杯	BOWL Fuel	4
4	811693	燃油杯	BOWL Fuel	4
4	811693	燃油杯(WME-20A&B/21A&B)	BOWL Fuel (WME-20A&B/21A&B)	4
5	9591	节流阀轴(WME-1/3/4)	SHAFT Throttle (WME-1/3/4)	3
6	19270	节流阀轴(WME-2)	SHAFT Throttle (WME-2)	1
7	9724	节流阀(100)	VALVE Throttle (100)	4
7	813619	节流阀(115)	VALVE Throttle (115)	4
8	9594	浮子	FLOAT	4
9	NSS		NOT SOLD SEPARATE Float Shaft	4
10	9595	进油针阀	VALVE Inlet Needle	4
10	879194011	进油阀	VALVE Inlet	4
11	9596	堵头	PLUG	4
11	95961	油杯放油塞	PLUG Bowl Drain	4
11	811694	塞子套件(WME-20A&B/21A&B)	PLUG KIT (WME-20A&B/21A&B)	4
12	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
13	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
14	151723	衬垫	GASKET	4
14	151724	衬垫	GASKET	4
15	NSS	螺丝(不单独销售)	NOT SOLD SEPARATE Screw	8
16	9597	螺丝(WME-11/14)	SCREW (WME-11/14)	8
16	811220	盖板螺丝(WME-20/21)	SCREW Cover Plate (WME-20/21)	8
17	5132	螺钉	SCREW	16
17	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	16
18	9598	盖板(WME-11/14)	COVER PLATE (WME-11/14)	4
18	811221	盖板(WME-20/21)	COVER PLATE (WME-20/21)	4
19	5225	主量孔(.054)(100)	JET Main (.054) (100)	4
19	5213	主量孔(.056)(100)	JET Main (.056) (100)	4
19	6680	喷孔 (.078) (WME1/2)-115 WME-14	JET (.078) (WME1/2)-115 WME-14	2
19	3796	喷孔 (.076) (WME 3/4) -115 WME-14	JET (.076) (WME 3/4) -115 WME-14	2
19	3796	喷孔 (.076) (115)	JET (.076) (115)	4
19	6680	喷孔 (.078) (115)	JET (.078) (115)	4
20	NSS		NOT SOLD SEPARATE Idle Needle	4
21	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
22	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	2
23	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	4
24	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	4
25	NSS		NOT SOLD SEPARATE Idle Needle	2
26	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	2
-	9602	衬垫套件 (WME-11/14)	GASKET KIT (WME-11/14)	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	811223	化油器衬垫组 (WME-20/21)	GASKET SET Carburetor (WME-20/21)	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	823635	维修套件 (WME-11/14) 和 (WME-20/21)	REPAIR KIT (WME-11/14) And (WME-20/21)	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

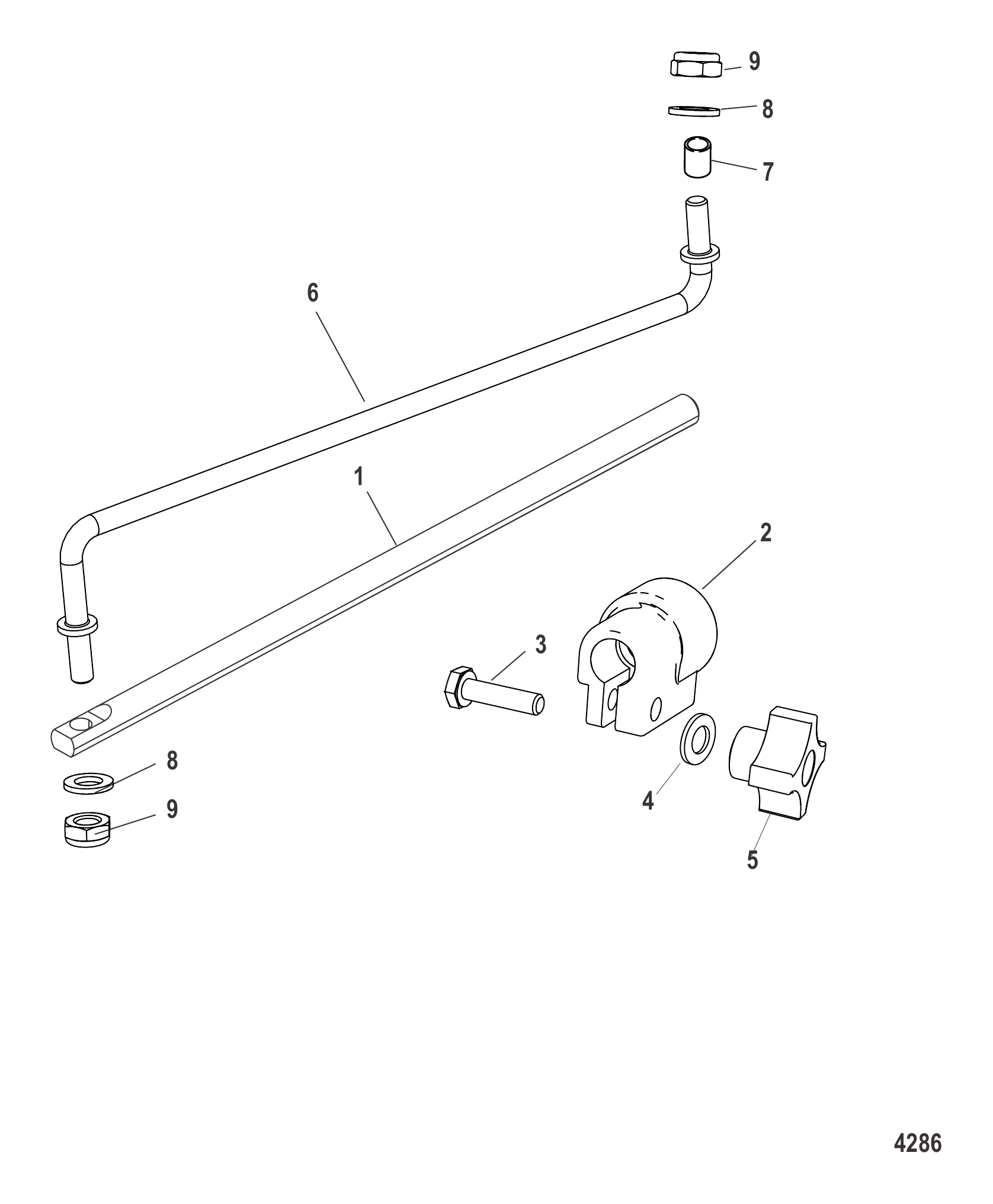

图 6副驾驶装置 Co-Pilot

REF	零件编号	中文名称	英文名称	数量
-	52148A7	副驾驶装置总成	CO-PILOT ASSEMBLY	1
1	521481	导向杆	PILOT ROD	1
2	8M0103848	螺母总成	NUT ASSEMBLY	1
3	56500	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	1
4	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
5	821621	叉形旋钮	KNOB Prong	1
6	873491	杆	ROD	1
7	521512	衬套	BUSHING	1
8	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
8	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
9	826709111	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	2

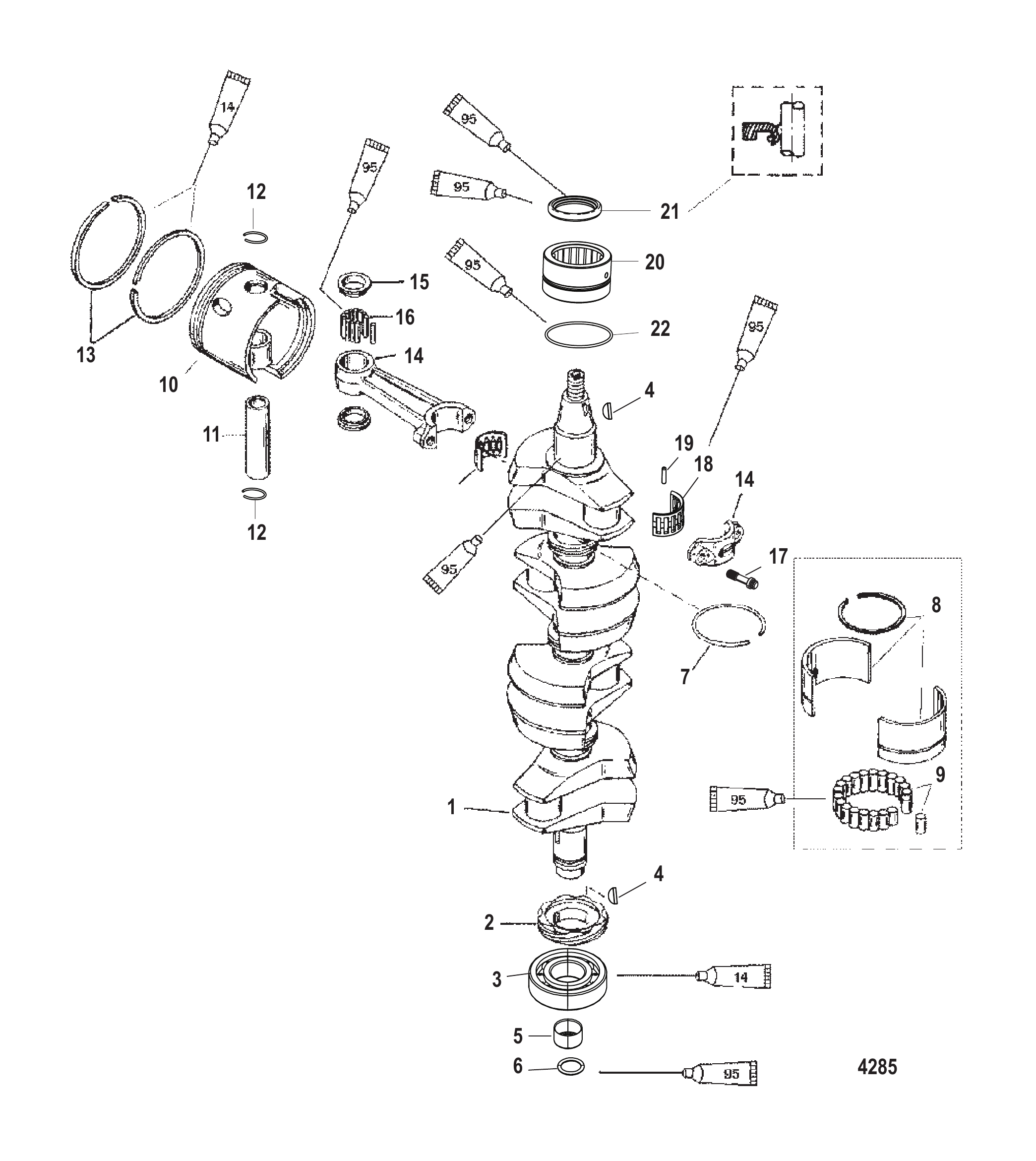

图 7曲轴、活塞与连杆 Crankshaft Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9193T5	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43019A1	齿轮总成	GEAR ASSEMBLY	1
3	43011T	下滚珠轴承	BEARING Ball Lower	1
4	91800	半圆键	KEY Woodruff	2
5	786611	耐磨套	WEAR SLEEVE	1
6	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
7	818412A4	环组件	RING ASSEMBLY	2
8	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
9	NSS	不单独销售滚柱轴承	NOT SOLD SEPARATE Roller Bearing	96
10	826191T4	活塞总成	PISTON ASSEMBLY	4
10	821896A3	活塞总成	PISTON ASSEMBLY	AR
10	821896A4	活塞总成	PISTON ASSEMBLY	AR
11	NSS	不单独销售	NOT SOLD SEPARATE	4
12	857196	锁紧环	LOCK RING	8
13	822321A12	活塞环套件-标准	RING KIT Piston - Standard	1
13	822321A1	活塞环套件-加大0.015	RING KIT Piston - .015 Oversize	AR
13	822321A2	活塞环组	RING SET Piston	AR
14	818846T6	连杆总成	CONNECTING ROD ASSEMBLY	4
15	812876	垫圈	WASHER	8
15	8M0012298	止推垫片	THRUST WASHER	8
16	818391	滚针轴承	BEARING Needle	116
16	8M0214954	滚针轴承@200	BRG-NEEDLE @200	116
17	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	8
18	43012A04	轴承总成	BEARING ASSEMBLY	4
18	8M0235070	轴承保持架	CAGE BEARING	4
19	NSS	不单独销售滚柱轴承	NOT SOLD SEPARATE Roller Bearing	64
20	43013T3	上滚柱轴承总成	BEARING ASSEMBLY Roller Upper	1
21	43993	油封	SEAL Oil	1
21	8M0214932	密封件	SEAL	1
22	858225	O型圈	O-RING	1
22	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	13461A99	衬垫套件	GASKET SET	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791R97	PH 100-125 2S -RM	PH 100-125 2S -RM	1

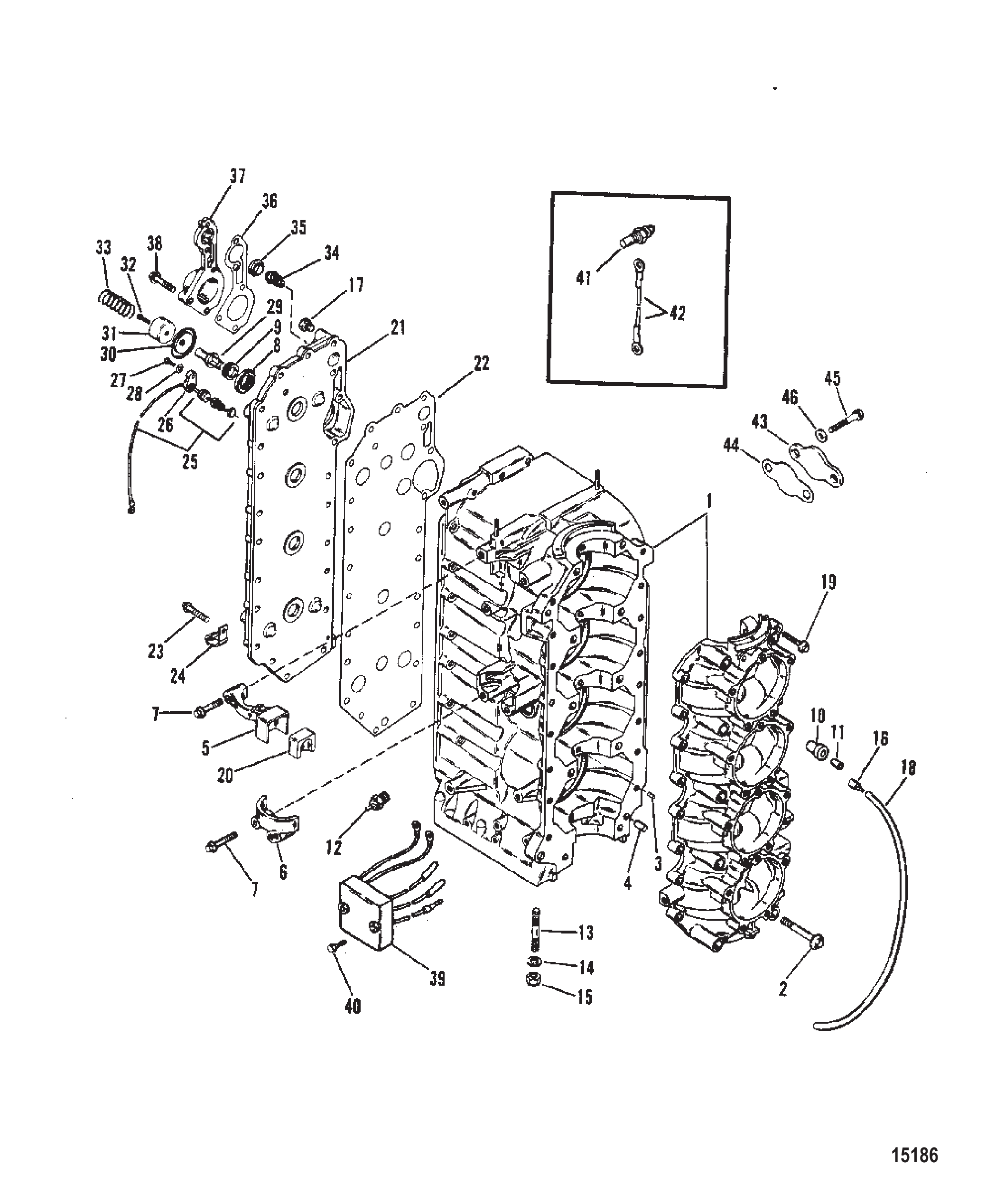

图 8气缸体与曲轴箱 Cylinder Block and Crankcase

REF	零件编号	中文名称	英文名称	数量
1	9191A13	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	4009680	螺钉(M10×80)	SCREW (M10 x 80)	10
3	67296	轴承座销	PIN Bearing Race	4
3	8M0036405	销	PIN	4
4	20033	定位销	PIN Dowel	1
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
5	42884	上盖	COVER Top	1
5	428841	盖板	COVER	1
6	76867	下盖	COVER Bottom	1
7	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	4
8	65848	托架	CARRIER	1
9	64872	护孔环	GROMMET	1
10	814204A1	排气系统套件	BLEED SYSTEM KIT	1
10	813801A1	托架总成	CARRIER ASSEMBLY	1
11	42657A1	止回阀	CHECK VALVE	3
11	42657A3	止回阀	CHECK VALVE	3
12	146531	止回阀	CHECK VALVE	2
12	891664	止回阀	CHECK VALVE	2
13	821676	螺柱(M6)	STUD (M6)	8
13	821676A1	螺柱套件	STUD KIT	8
14	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	8
14	8M0214963	垫圈	WASHER	8
15	13914	螺母(M10)	NUT (M10)	8
15	40140	螺母(M10)	NUT (M10)	8
16	42623	压入式止回阀	CHECK VALVE Press-In	1
16	426233	止回阀	CHECK VALVE	1
17	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
17	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
18	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
18	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
19	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	16
20	99162	护套	BOOT	1
20	99162001	护套	BOOT	1
21	9196A1	盖板	COVER	1
21	9196A2	盖板	COVER	1
22	443283	衬垫	GASKET	1
22	443284	衬垫	GASKET	1
23	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	18
24	814634	卡箍	CLAMP	6
25	78799	温度传感器(19.50英寸)	SENDER Temperature (19.50 Inch)	1
25	787991	温度传感器(37.50英寸)	SENDER Temperature (37.50 Inch)	1
26	44552	固定座	RETAINER	1
26	889733	固定座	RETAINER	1
27	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	1
28	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
28	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
29	86596T	提升阀	POPPET VALVE	1
30	64877	隔膜	DIAPHRAGM	1
30	648771	隔膜	DIAPHRAGM	1
31	94182	垫圈	WASHER	1
32	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
33	18336	弹簧	SPRING	1
33	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
34	75692	节温器(143度)	THERMOSTAT (143 Degrees)	1
34	14586	节温器(120度)	THERMOSTAT (120 Degrees)	1
35	62386	衬垫	GASKET	1
35	8M0204714	衬垫@4	GASKET @4	1
36	430063	衬垫	GASKET	1
36	430068	衬垫	GASKET	1
37	428852	盖板	COVER	1
37	8M0047619	盖板	COVER	1
38	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
38	81742755	螺钉(M8x55)	SCREW (M8 x 55)	4
39	14857A7	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
39	14857A16	机油报警模块	MODULE-OILWARNING	1
40	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	2
41	12415	温度传感器	SENDER Temperature	1
42	88824A6	Sea Ray/动力艇线缆总成	CABLE ASSEMBLY Sea Ray/ Powerboat	1
43	12621	盖板	COVER	1
44	126201	衬垫	GASKET	1
45	40007106	螺钉 (M5 x 13)	SCREW (M5 x 13)	2
46	4002314	垫圈	WASHER	2

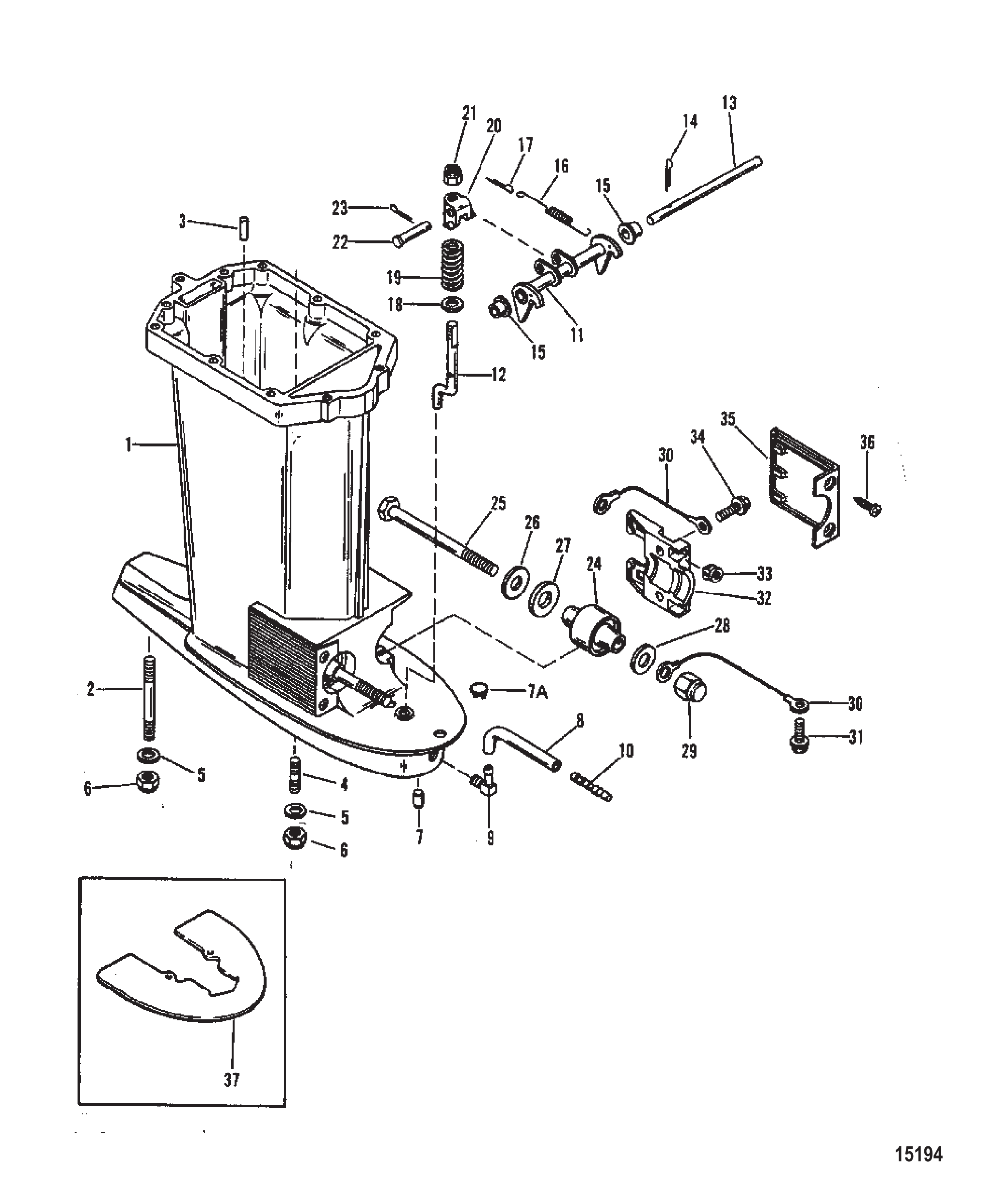

图 9驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	8974A14	黑色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Black	1
1	8974A15	灰色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Gray	1
1	8974T23	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8974A20	牡蛎色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Oyster	1
1	8974T23	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	长螺柱(M10×100)	STUD (M10 x 100) Long	1
2	903502	超长螺柱(M10×227)	STUD (M10 x 227) X-Long	1
3	23784	定位销	PIN Dowel	2
4	903504	长螺柱	STUD Long	4
4	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
4	903503	超长螺柱(M10×190)	STUD (M10 x 190) X-Long	4
5	43042	牡蛎色垫片(3件套)	WASHER Quantity Of Three On Oyster	5
5	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	5
6	13914	螺母(M10)	NUT (M10)	5
6	40140	螺母(M10)	NUT (M10)	5
7	429222	非动力升降导向件	GUIDE Non Power Trim	1
7A	429221	动力升降黑色/灰色堵头	PLUG Power Trim, Black, Gray	1
7A	158641	动力升降牡蛎色堵头	PLUG Power Trim, Oyster	1
8	85822A4	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
9	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
9	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
10	85822	直通接头	CONNECTOR Straight	1
10	85822T	直通接头	CONNECTOR Straight	1
11	14664A1		HOOK ASSEMBLY Reverse Non Power Trim	1
11	14664A2	倒挡挂钩总成	HOOK ASSEMBLY Reverse	1
12	16686		PUSH ROD Non Power Trim	1
13	99606	非动力升降轴	SHAFT Non Power Trim	1
14	45882	非动力升降开口销	COTTER PIN Non Power Trim	1
15	69132	非动力升降衬套	BUSHING Non Power Trim	2
16	996261	非动力升降弹簧	SPRING Non Power Trim	1
17	47959	非动力升降开口销	COTTER PIN Non Power Trim	1
18	70132	不锈钢垫片(0.323×0.563×0.063)非动力升降	WASHER (.323 x .563 x .063) Stainless Steel Non Power Trim	1
18	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	1
19	16733	非动力升降弹簧	SPRING Non Power Trim	1
20	99636	非动力升降轭架	YOKE Non Power Trim	1
20	996361	轭架	YOKE	1
21	35814	不锈钢螺母(0.312-24)非动力升降	NUT (.312-24) Stainless Steel Non Power Trim	1
21	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
22	99663	非动力升降U型销	PIN Clevis Non Power Trim	1
23	25191	非动力升降开口销	COTTER PIN Non Power Trim	1
24	44343	支架	MOUNT	2
24	44343T1	支架	MOUNT	2
25	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
25	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
26	28051	早期型号垫片	WASHER Early Models	2
27	28053	早期型号垫片	WASHER Early Models	2
28	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
29	43528	螺母(M12)	NUT (M12)	2
29	8M0204662	螺母	NUT	2
30	88238A1	接地线总成	CABLE ASSEMBLY Ground	2
30	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
31	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
32	93192	卡箍	CLAMP	2
32	8M0036730	卡箍	CLAMP	2
33	35521	螺母	NUT	4
34	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	4
35	67077T	黑色盖板	COVER Black Black	2
35	8M4500752	盖板	COVER	2
35	67077T6	灰色盖板	COVER Gray	2
35	67077F1	灰色盖板	COVER Gray	2
35	67077T10	牡蛎色盖板	COVER Oyster	2
35	67077F1	灰色盖板	COVER Gray	2
36	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
37	18579T10	Sea Ray牡蛎色防溅板	SPLASH PLATE Sea Ray, Oyster	1
37	18579T6	防溅板	SPLASH PLATE	1
37	18579T6	Sea Ray灰色防溅板	SPLASH PLATE Sea Ray, Gray	1
-	12092A3	黑色超长传动轴壳体垫片套件	SPACER KIT Drive Shaft Housing, X-Long, Black	1
-	12092A4	灰色超长传动轴壳体垫片套件	SPACER KIT Drive Shaft Housing, X-Long, Gray	1

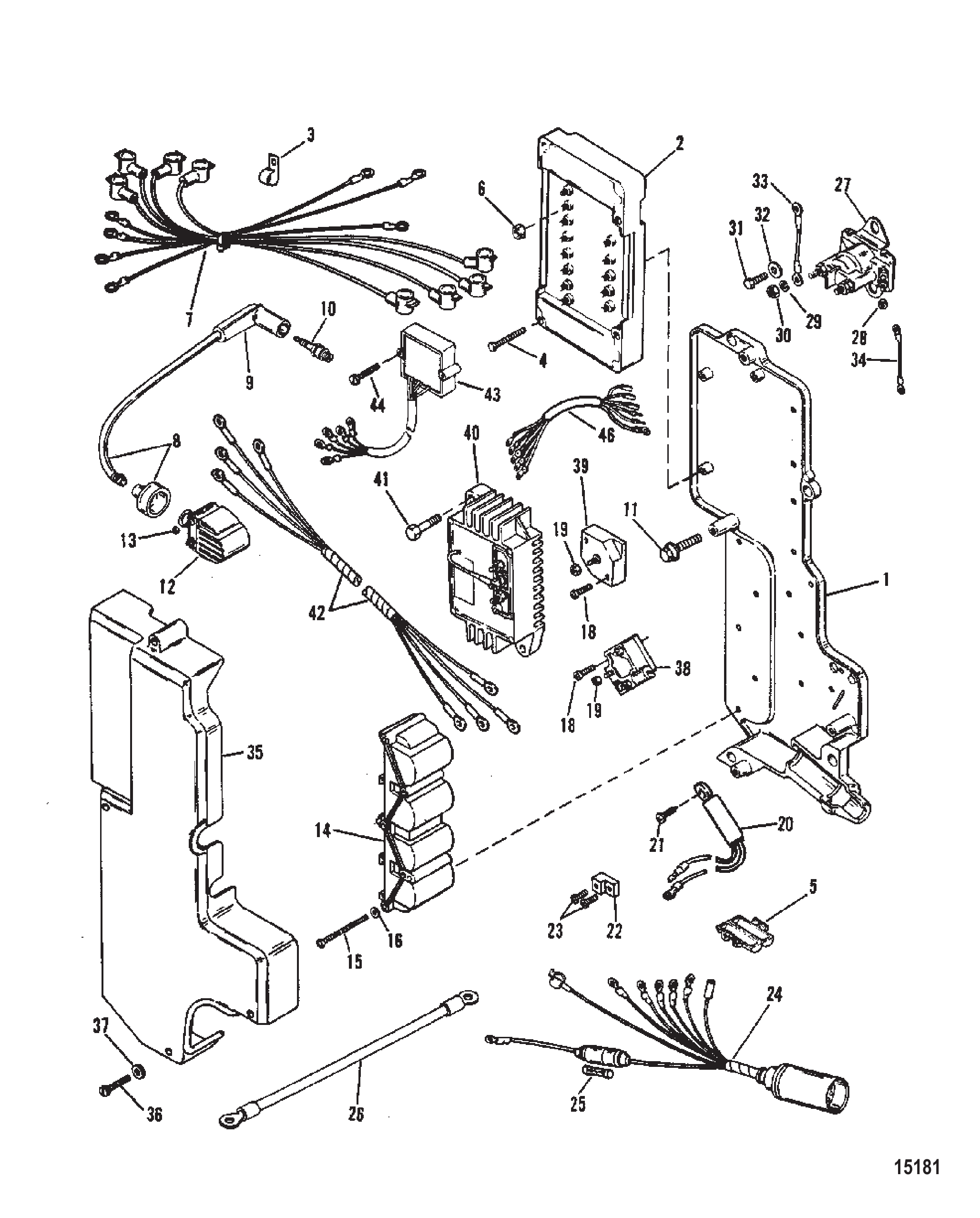

图 10电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	443314	点火板	IGNITION PLATE	1
2	5772A5	开关盒总成	SWITCHBOX ASSEMBLY	1
2	5772A7	开关盒总成	SWITCHBOX ASSEMBLY	1
3	63153	J型卡扣	J CLIP	1
4	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	4
5	134731	保险丝座旧款	HOLDER Fuse Old Design	1
6	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	13
7	43442A3	主线路束总成	HARNESS ASSEMBLY Primary	1
8	813715A8	点火电缆组	CABLE SET Ignition	1
9	63709A1	护套/端子套件	BOOT/TERMINAL KIT	4
10	97180	火花塞	SPARK PLUG	4
10	896329827	SP #L76V @4	SP #L76V @4	4
10	14103550	火花塞 (NGK-BUZHW)	SPARK PLUG (NGK-BUZHW)	4
10	896329898	SP #QL76V @4	SP #QL76V @4	4
10	8167372	火花塞	SPARK PLUG	4
10	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	4
10	8168372	火花塞	SPARK PLUG	4
10	938	SP #QL78YC @4	SP #QL78YC @4	4
11	82155025	螺丝(M8 x 25 mm)不锈钢	SCREW (M8 x 25 mm) Stainless Steel	4
12	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	4
12	8M0230859	点火线圈总成	COIL IGNITION ASY	4
13	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	8
14	87554	盖板	COVER	1
15	40007114	螺钉(M5×50)	SCREW (M5 x 50)	5
16	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	5
18	40056107	螺钉(M5×16)	SCREW (M5 x 16)	2
19	45067	螺母	NUT	3
20	16731A1	汞开关旧款	MERCURY SWITCH Old Design	1
20	16731T01	开关总成	SWITCH ASSY	1
21	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
22	45915	端子排	TERMINAL BLOCK	2
23	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
24	43443A3	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
24	43443A7	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
24	43443A9	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
25	79091	保险丝20安培	FUSE 20 Ampere	1
25	8M0207796	保险丝20安培	FUSE 20 AMP	1
26	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
26	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
27	818998A1	启动电磁阀 (#8-32/.250-20 端子)	SOLENOID Starter (#8-32/.250-20 Terminals)	1
27	8M0185146	电磁阀总成	SOLENOID ASSEMBLY	1
28	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
29	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
30	64015	螺母 (.250-20)	NUT (.250-20)	2
27	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
-	818968	衬套	BUSHING	2
-	8M0214955	衬套	BUSHING	2
28	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
29	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
30	68292	螺母(.312-18)	NUT (.312-18)	2
30	8M0204668	螺母(.312-18)	NUT (.312-18)	2
31	40007106	螺钉 (M5 x 13)	SCREW (M5 x 13)	2
32	4002314	垫圈	WASHER	2
33	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	1
34	88808A21	线束总成 (6.00 英寸) 红色	WIRE ASSEMBLY (6.00 Inches) Red	1
34	88808A18	线束总成 (3.00 英寸) 红色	WIRE ASSEMBLY (3.00 Inches) Red	1
35	13550T1	盖板	COVER	1
36	40011114	螺钉 (M5 x 50) 不锈钢	SCREW (M5 x 50) Stainless Steel	3
36	40007114	螺钉(M5×50)	SCREW (M5 x 50)	3
36	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	3
37	89302	垫圈 (.203 x .406 x .040) 适用处使用	WASHER (.203 x .406 x .040) Use Where Applicable	4
38	816770	整流器	RECTIFIER	1
38	8M0058226	整流器	RECTIFIER	1
39	17602A1	接线端子排黑色, 见备注	TERMINAL BLOCK Black, See Note	1
39	17602A2	接线端子排灰色, 见备注	TERMINAL BLOCK Gray, See Note	1
39	17602T02	接线端子总成	TERMINAL BLOCK ASSEMBLY	1
40	815279A2	电压调节器套件	VOLTAGE REGULATOR KIT	1
41	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	3
42	12201A2	线束总成	HARNESS ASSEMBLY	1
43	815279A2	电压调节器套件	VOLTAGE REGULATOR KIT	1
43	815279T	电压调节器	REGULATOR Voltage	1
43	8M0084173	电压调节器	VOLTAGE REGULATOR	1
44	4010635	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	2
46	821546A1	线束总成	HARNESS ASSEMBLY	1
46	821546A3	线束总成	HARNESS ASSEMBLY	1

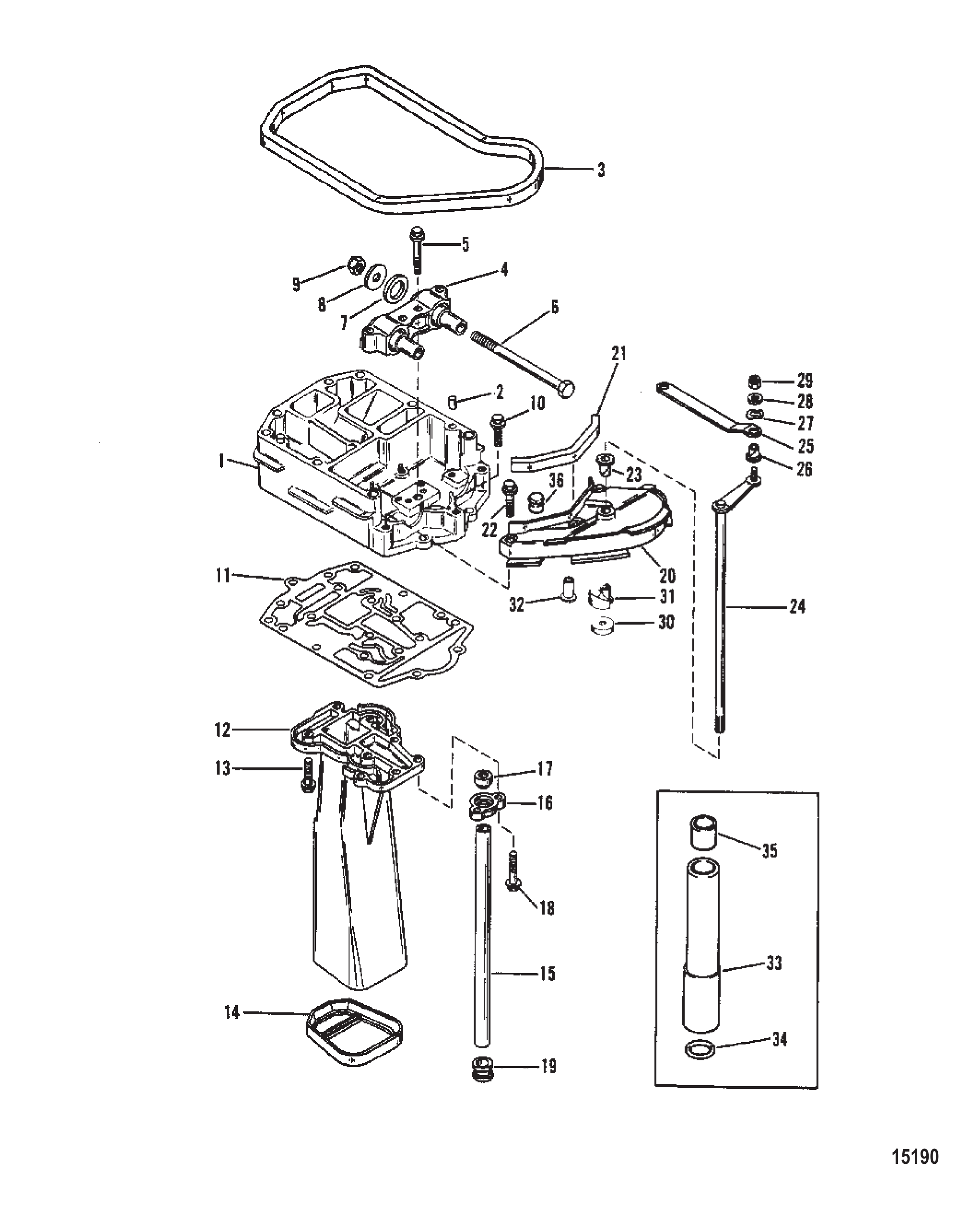

图 11排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	42954A2	排气板总成	PLATE ASSEMBLY Exhaust	1
1	42954A4	排气板总成	PLATE ASSEMBLY Exhaust	1
2	23784	定位销	PIN Dowel	3
3	42939	密封件	SEAL	1
4	443441	支架(3.25英寸)	MOUNT (3.25 Inch)	1
4	443442	支架(2.375英寸)	MOUNT (2.375 Inch)	1
4	881900T03	支架	MOUNT	1
5	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	4
6	42974	螺栓(M12×175)	BOLT (M12 x 175)	2
6	8M0238139	螺钉	SCREW	2
7	93416	垫圈	WASHER	2
7	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
8	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
9	90099	螺母(M12)	NUT (M12)	2
9	896963	螺母(M12)	NUT (M12)	2
10	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	2
10	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1
11	430083	衬垫	GASKET	1
11	430086	衬垫	GASKET	1
12	429662	排气管	TUBE Exhaust	1
12	429663	排气管	TUBE Exhaust	1
12	87917216T	排气管	TUBE-EXHAUST	1
13	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	6
14	42962	密封件	SEAL	1
14	8M0039075	密封件	SEAL	1
15	430141	长型水管	TUBE Water Long	1
15	430142	超长型水管	TUBE Water X-Long	1
16	99019	卡箍	CLAMP	1
17	42941	上水管密封件	SEAL Water Tube Upper	1
17	42941001	水管密封件	SEAL Water Tube	1
18	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
19	93221	护孔环	GROMMET	1
19	93221002	护孔环	GROMMET	1
20	42953A2	黑色下支架总成	BRACKET ASSEMBLY Lower, Black	1
20	42953A3	灰色下支架总成	BRACKET ASSEMBLY Lower, Gray	1
20	42953A4	牡蛎色下支架总成	BRACKET ASSEMBLY Lower, Oyster	1
20	42953A3	支架总成	BRACKET ASSEMBLY	1
21	43405	密封件	SEAL	1
22	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	3
23	48237	衬套	BUSHING	1
24	79932A9	上换挡轴总成	SHIFT SHAFT ASSEMBLY Upper	1
25	42912A1	换挡连杆	SHIFT LINK	1
26	48475	双法兰衬套	BUSHING Double Flange	2
26	42994	单法兰衬套	BUSHING Single Flange	1
27	29720	旧式波形垫圈	WAVE WASHER Old Design	1
28	24664	旧式垫片(M4×20)	WASHER (M4 x 20) Old Design	1
29	400634	螺母 (M6)	NUT (M6)	1
29	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
30	43041	长垫片	SPACER Long	1
30	813745	隔套	SPACER	1
30	11289	超长垫片	SPACER X-Long	1
31	43053	非动力升降联轴器	COUPLING Non Power Trim	1
32	43585	动力升降联轴器	COUPLING Power Trim	1
33	17243A1	加长型延伸水管总成	TUBE ASSEMBLY Water - Extension X-Long	1
34	21836	O型圈(.796 x .139)加长型	O-RING (.796 x .139) X-Long	1
34	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
35	38970	密封件加长型	SEAL X-Long	1
36	19564	衬套旧款	GROMMET Old Design	1
36	8M0179867	护孔环	GROMMET	1

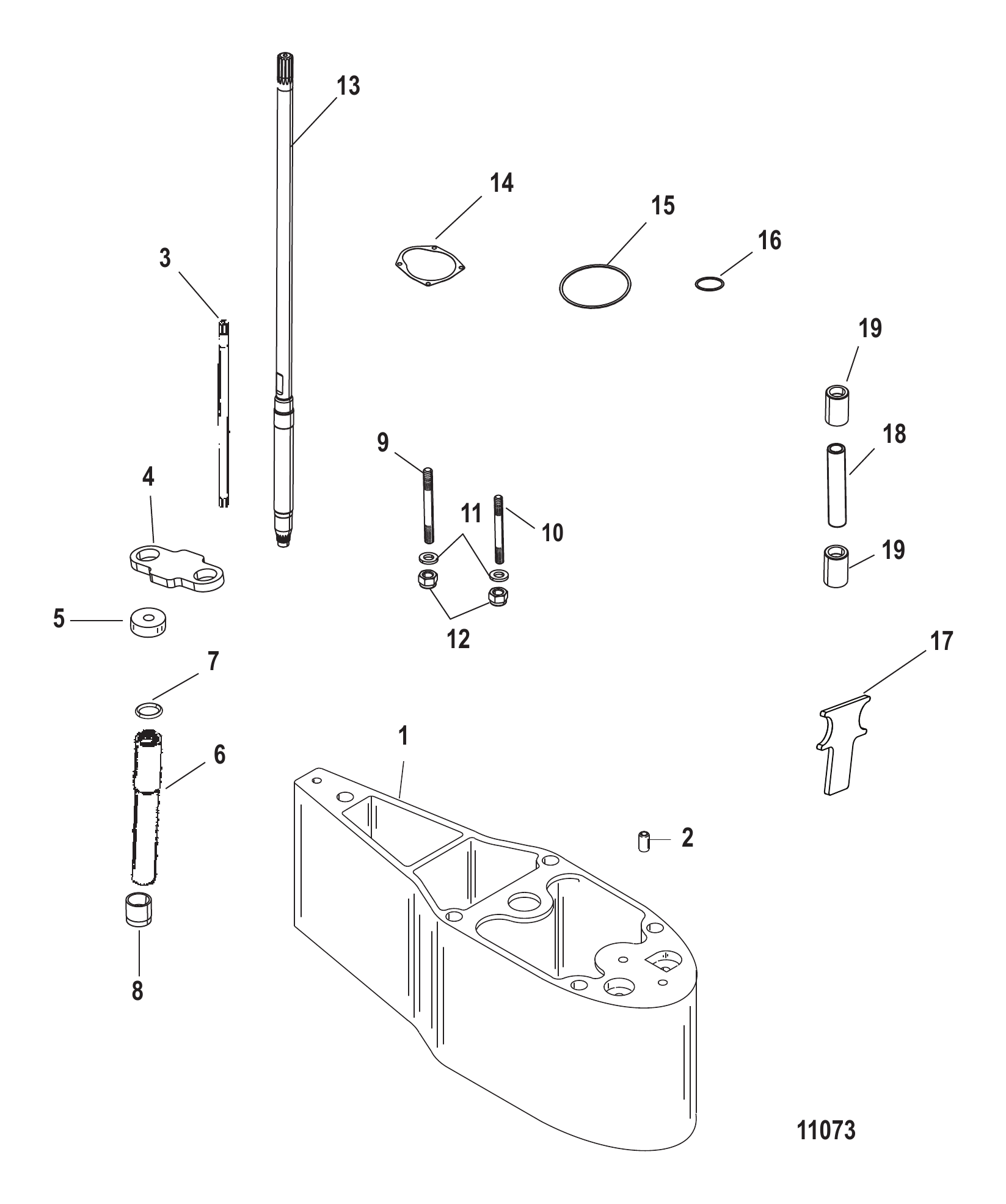

图 12延长套件 Extension Kit

REF	零件编号	中文名称	英文名称	数量
-	12092A13	黑色延长套件	EXTENSION KIT Black	1
1	12092A3	黑色垫片套件	SPACER KIT Black	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
2	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	853908A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
4	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
5	11289	隔套	SPACER	1
6	17243A1	延长型水管总成	TUBE ASSEMBLY Water - Extension	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	38970	密封件	SEAL	1
9	903503	双头螺柱(M10×190)	STUD (M10 x 190)	4
10	903502	双头螺柱(M10×227)	STUD (M10 x 227)	1
11	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	5
12	40140	螺母(M10)	NUT (M10)	5
13	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
14	430341	铝盖垫片	GASKET Aluminum Cover	1
15	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
15	8M0214974	O型圈	O RING	1
16	457101	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
16	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
17	88882	上轭缓冲垫	BUMPER Top Yoke	1
18	8289371	水管	TUBE Water	1
18	8M4501430	水管	TUBE Water	1
19	430232	密封件	SEAL	2

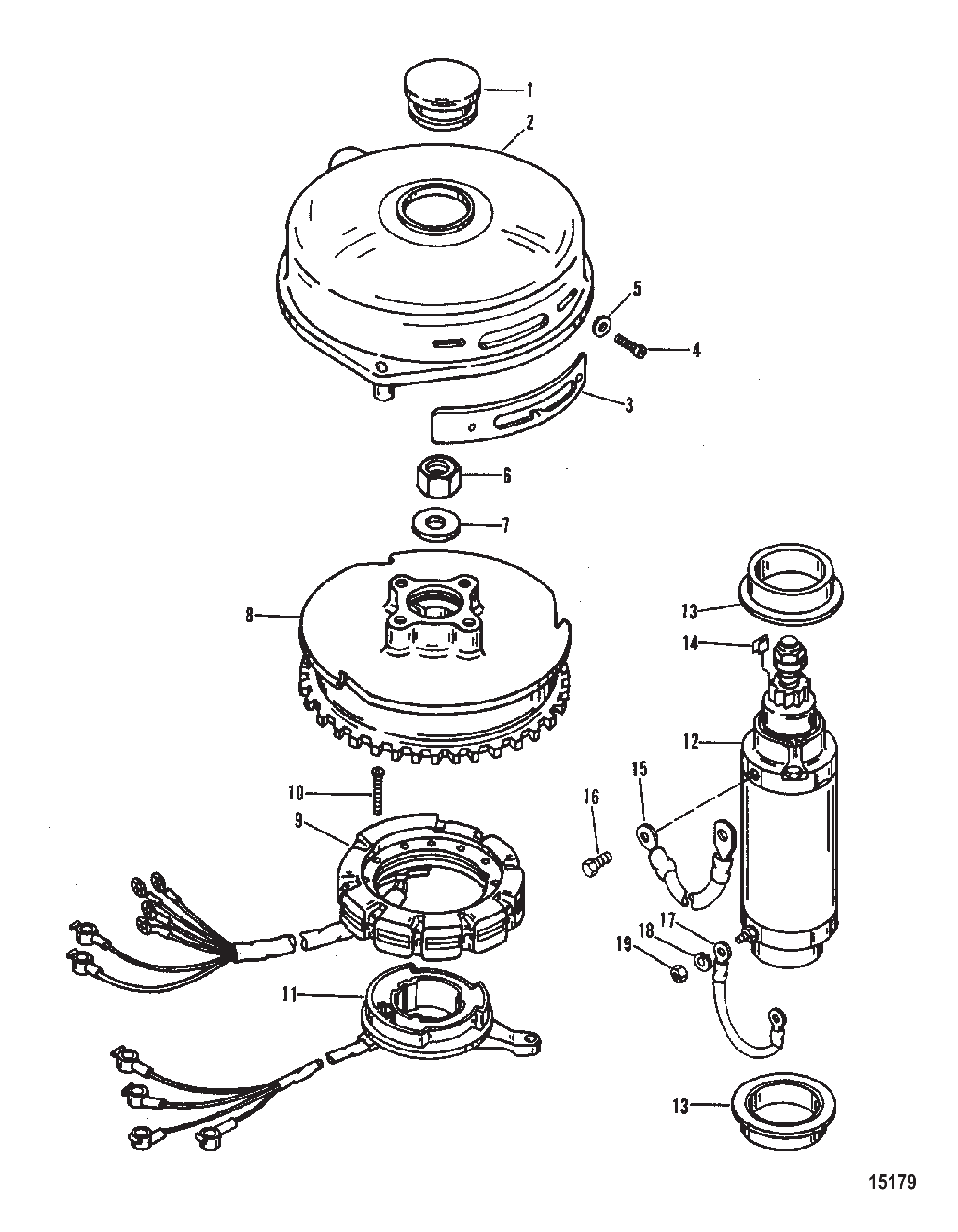

图 13飞轮与启动电机 Flywheel and Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	45907	黄色塞	PLUG Yellow	1
2	42956A1	盖总成	COVER ASSEMBLY	1
3	79022	标记	MARKER	1
4	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
5	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
6	42979	螺母(M16)	NUT (M16)	1
7	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
7	33001	垫圈	WASHER	1
8	9008A9	飞轮总成	FLYWHEEL ASSEMBLY	1
8	859236T12	飞轮总成	FLYWHEEL ASSY	1
9	8778A23	定子	STATOR	1
9	9710A11	定子	STATORS	1
9	9710A45	定子	STATOR	1
10	4007325	螺丝(M5 x 25)	SCREW (M5 x 25)	4
11	99021A6	触发器总成	TRIGGER ASSEMBLY	1
12	660151	启动电机总成	STARTER MOTOR ASSEMBLY	1
12	893892T	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	57247	停机开关	STOP	2
14	8M0043376	停机开关	STOP	2
15	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
16	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
17	93389A13	黑色导线	WIRE Black	1
17	93388A6	线缆总成(5.500英寸)	CABLE ASSEMBLY (5.500 Inches)	1
18	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
19	64015	螺母 (.250-20)	NUT (.250-20)	1

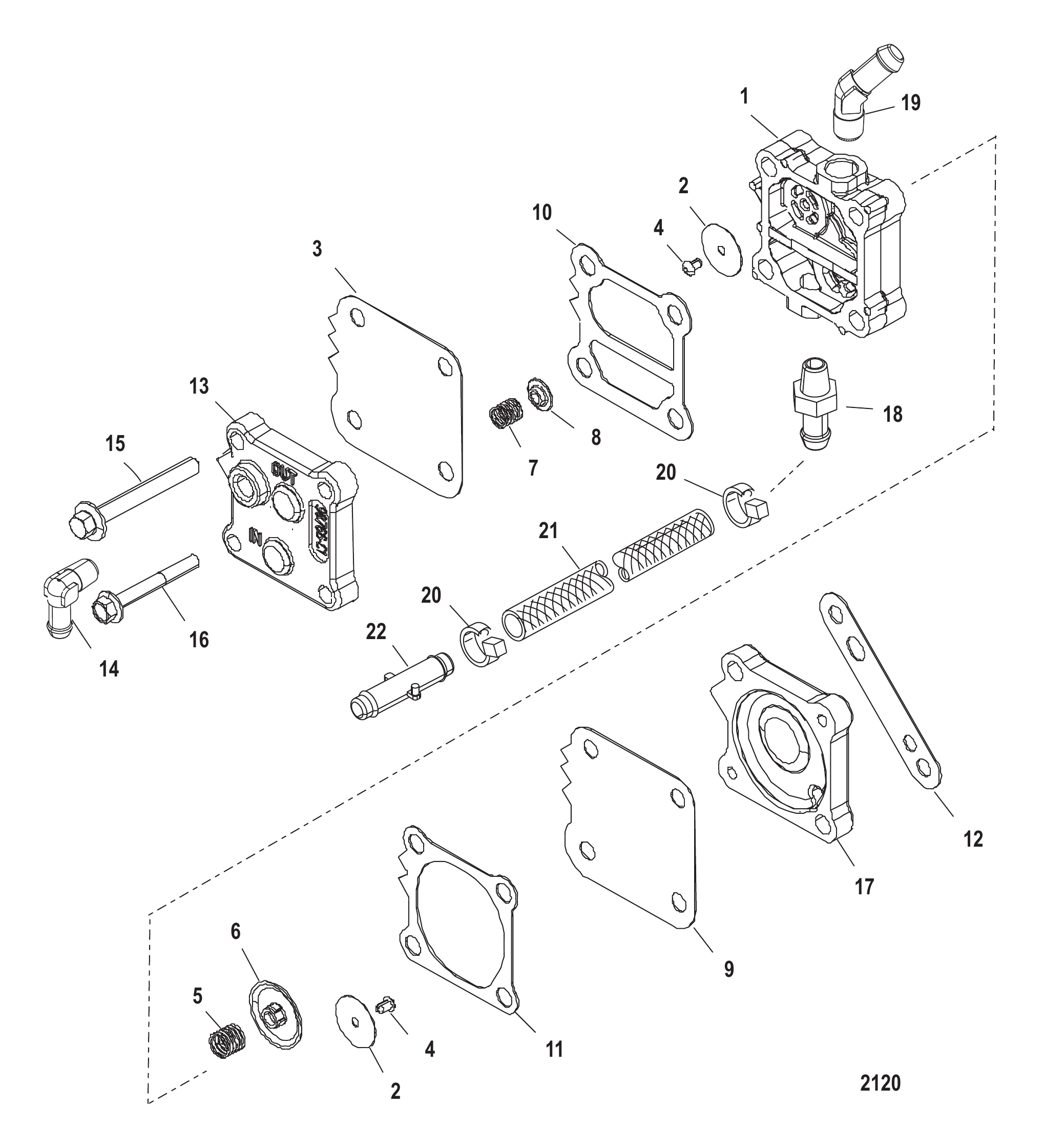

图 14燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
-	14360T75	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	NSS	不单独销售-燃油泵本体	NOT SOLD SEPARATE Body-Fuel Pump	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
4	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
5	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
6	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
11	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
12	987691	衬垫	GASKET	1
12	8M0204705	衬垫@2	GASKET @2	1
13	987752	安装板	PLATE	1
14	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
15	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
16	82130050	螺钉(M6×50)泵至曲轴箱	SCREW (M6 x 50) Pump to Crankcase	2
17	144303	底座	BASE	1
18	291112	接头	FITTING	1
19	782792	45度弯头接头(1.25)	FITTING Elbow 45 Degree (1.25)	1
19	8M0207781	弯头	ELBOW	1
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
21	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
21	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
22	822769	连接器	CONNECTOR	1
-	814754A00	发动机垫片组	GASKET SET Engine	1
-	8M0046714	衬垫套件	GASKET SET	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

图 15衬垫套件(发动机大修) Gasket Set Components (Engine Overhaul)

REF	零件编号	中文名称	英文名称	数量
-	13461A99	衬垫套件	GASKET SET	1
-	812775007	排气板至气缸体衬垫	GASKET Exhaust Plate to Cylinder Block	1
-	812775006	排气挡板至排气盖衬垫	GASKET Exhaust Baffle to Exhaust Cover	1
-	89224	O型圈 (2.862 内径)	O-RING (2.862 I.D.)	1
-	823683	O型圈 (1.989 x .070) (1.989 内径)	O-RING (1.989 x .070) (1.989 I.D.)	1
-	443284	气缸盖衬垫	GASKET Cover Cylinder Block	1
-	62386001	衬垫	GASKET	1
-	8M0204714	衬垫@4	GASKET @4	1
-	430068	节温器盖衬垫	GASKET Cover, Thermostat	1
-	NSS	不单独销售增压	NOT SOLD SEPARATE Boost	1
-	NSS	不单独销售增压室	NOT SOLD SEPARATE Boost Chamber	1
-	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
-	NSS	不单独销售脉冲室	NOT SOLD SEPARATE Pluse Chamber	1
-	987691	燃油泵衬垫	GASKET Fuel Pump	1
-	8M0204705	衬垫@2	GASKET @2	1
-	139376	簧片阀/曲轴衬垫	GASKET Reed Block/Crank	8
-	62705	O型圈 (.739 内径)	O-RING (.739 I.D.)	2
-	8M0204667	O型圈×2	O RING @2	2
-	33466	O型圈 (1.362 内径)	O-RING (1.362 I.D.)	1
-	430086	排气板/排气管衬垫	GASKET Exhaust Plate/Exhaust Tube	1
-	42941001	水管密封件	SEAL Water Tube	1
-	93221002	护孔环	GROMMET	1
-	430075	气缸体至排气板衬垫	GASKET Cylinder Block to Exhaust Plate	1
-	457101	O型圈 (1.424 x .103) (1.424 内径)	O-RING (1.424 x .103) (1.424 I.D.)	1
-	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
-	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	1
-	97386	O型圈 (3.609 x .139) (3.609 内径)	O-RING (3.609 x .139) (3.609 I.D.)	1
-	8M0214974	O型圈	O RING	1
-	430341	上水泵铝盖衬垫	GASKET Aluminum Cover Water Pump, Upper	1
-	430472	盖至齿轮箱衬垫	GASKET Cover to Gearcase	1
-	8M0214931	衬垫	GASKET	1
-	8172771	上水泵衬垫	GASKET Water Pump, Upper Water Pump, Upper	1
-	430331	面板至盖板衬垫	GASKET Face Plate to Cover	1
-	191833	密封件	SEAL	3
-	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
-	19643	密封件	SEAL	1
-	151724	化油器衬垫	GASKET Carburetor	8
-	42998	主压缩弹簧	SPRING Compression, Main	1
-	NSS	弹簧端部(不单独销售)	NOT SOLD SEPARATE Spring End	1
-	NSS	弹簧端部(不单独销售)	NOT SOLD SEPARATE Spring End	1
-	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
-	17311	止回阀固定座	RETAINER Check Valve	2
-	NSS	增压压缩件(不单独销售)	NOT SOLD SEPARATE Compression, Boost	1
-	NSS	弹簧端部(不单独销售)	NOT SOLD SEPARATE Spring End	1
-	134612	歧管盖衬垫	GASKET Manifold Cover	2
-	139581	44324C1与44325C1排气挡板及盖板专用衬垫	GASKET Use With 44324C1 And 44325C1 Exhaust Baffle Plate and Cover	2
-	858225	O型圈(内径2.112)	O-RING (2.112 I.D.)	11

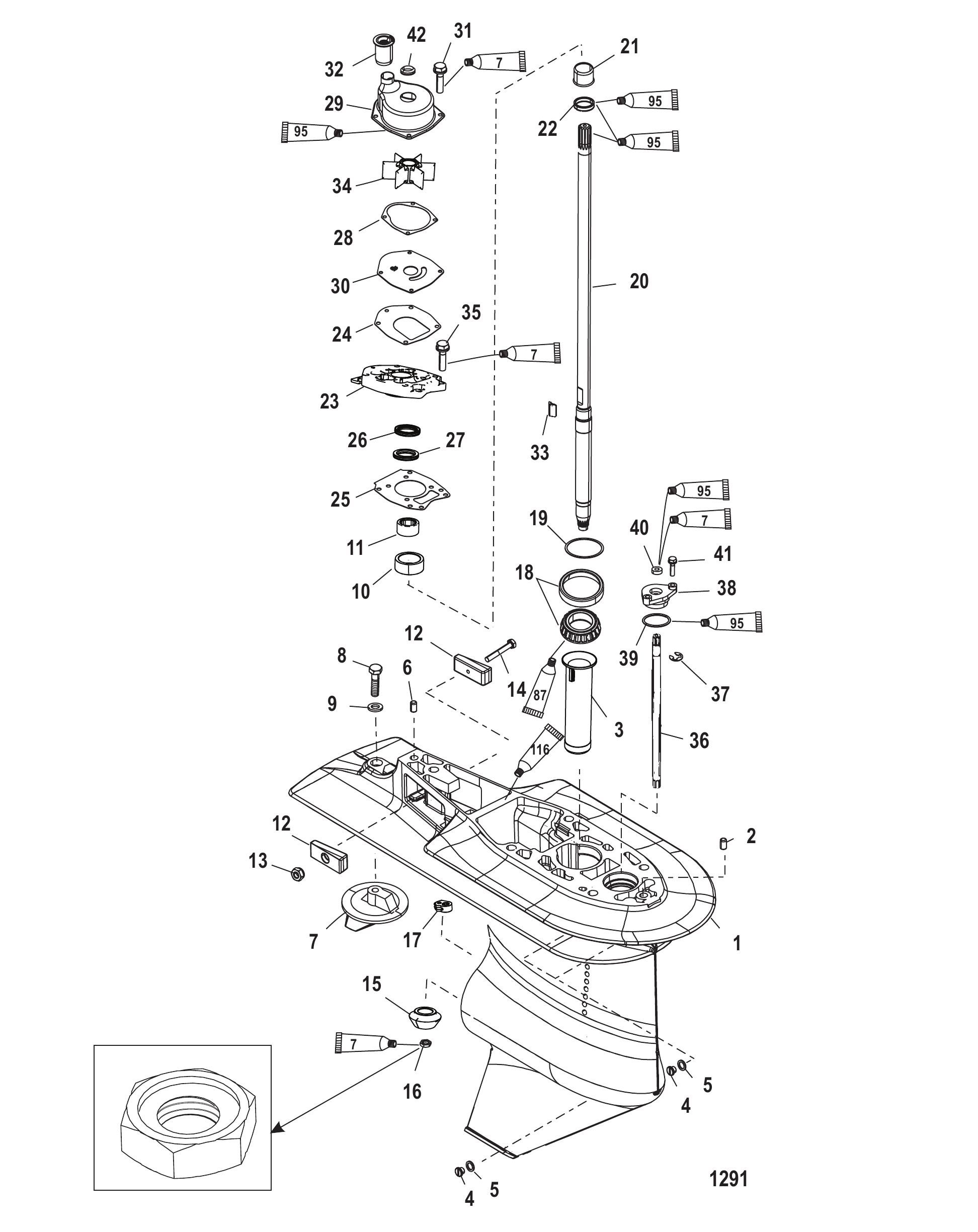

图 16齿轮箱(驱动轴)(2.07:1减速比) Gear Housing (Driveshaft)(2.07:1 Gear Ratio)

REF	零件编号	中文名称	英文名称	数量
-	9011J6	齿轮箱总成 (长型)	GEAR HOUSING ASSEMBLY (Long)	1
-	9011J9	齿轮箱总成 (超长型)	GEAR HOUSING ASSEMBLY (X-Long)	1
-	9011J15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043		PIN Dowel - With Hole (.375 x .625) (Front)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	3
4	79953Q04	放油螺钉套件	SCREW KIT Drain	3
4	67892A05	磁性放油螺塞套件	PLUG KIT Drain (Magnetic)	OPT
4	8M0058389	放油螺钉套件	SCREW KIT Drain	OPT
5	191833	密封件	SEAL	3
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
6	43044		PIN Dowel - Without Hole (.375 x .625) (Rear)	1
7	31640T5	平衡鳍板	TRIM TAB	1
7	8M0236553	平衡鳍板	TRIM TAB	1
8	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
9	451761	垫圈(.453 x .812 x .105)黑色氧化	WASHER (.453 x .812 x .105) Black Oxide	1
10	43040T1	托架总成	CARRIER ASSEMBLY	1
11	NSS	滚针轴承(不单独销售)	NOT SOLD SEPARATE Needle Bearing	1
12	826134Q	阳极块	ANODE	2
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	NSS	小齿轮(14齿)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (14 Teeth)	1
15	NSS	小齿轮(12齿)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (12 Teeth)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	850307	换挡凸轮控制	CAM Shift Control	1
18	883047A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
19	44492A1	垫片组 (0.006至0.048)	SHIM SET (006 Thru 048)	1
19	8M0063265	垫片组	SHIM SET	1
20	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	NSS	密封环(不单独销售)	NOT SOLD SEPARATE Seal Ring	1
23	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
24	430331	衬垫	GASKET	1
25	430472	衬垫	GASKET	1
25	8M0214931	衬垫	GASKET	1
26	43035		SEAL Oil (Upper)	1
26	8M0245495	油封	OIL SEAL	1
27	43036		SEAL Oil (Lower)	1
28	8172771	水泵上垫片	GASKET Water Pump, Upper	1
29	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
30	8172761	面板	FACEPLATE	1
30	8M0204709	面板	FACEPLATE	1
31	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
32	430232	密封件	SEAL	1
33	43037	键	KEY	1
33	8M0204723	键	KEY	1
34	43026T2	叶轮	IMPELLER	1
35	82684425	螺钉(M6x25)	SCREW (M6 x 25)	6
36	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	853908A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	457101	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	82684425	螺钉(M6x25)	SCREW (M6 x 25)	2
42	816575	端面密封	FACE SEAL	1
42	861415	端面密封	SEAL Face	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A99	衬垫套件	GASKET SET	1

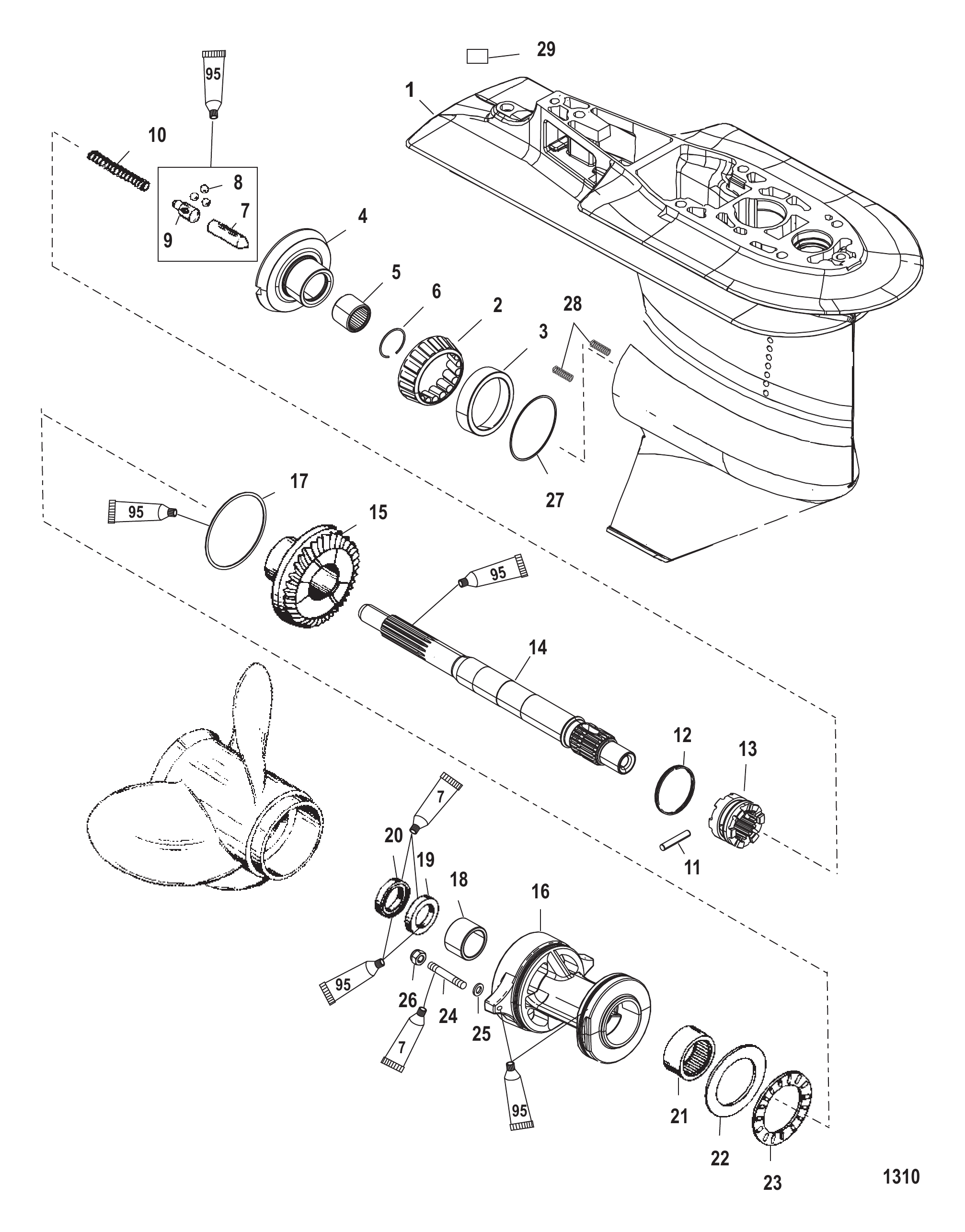

图 17齿轮箱螺旋桨轴-2.07:1减速比 Gear Housing Propeller Shaft - 2.07:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	9011J6	齿轮箱总成 (完整)(长型-20英寸款) 鱼雷体直径4.25英寸/107.95毫米	GEAR HOUSING ASSEMBLY (Complete)(Long-20 Inch Model) Torpedo Diameter - 4.25 Inch / 107.95 mm	1
-	9011J9	齿轮箱总成 (完整)(超长型-25英寸款) 鱼雷体直径4.25英寸/107.95毫米	GEAR HOUSING ASSEMBLY (Complete)(X-Long-25 Inch Model) Torpedo Diameter - 4.25 Inch / 107.95 mm	1
-	9011J15	齿轮箱总成 (完整) 鱼雷体直径4.25英寸/107.95毫米	GEAR HOUSING ASSEMBLY (Complete) Torpedo Diameter - 4.25 Inch / 107.95 mm	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
3	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
4	881260A3	前进齿轮-29齿	GEAR Forward - 29 Teeth	1
4	882813A3	前进齿轮与小齿轮套件(28齿)	GEAR KIT Forward And Pinion 28 Teeth	1
5	30895T	滚针轴承	BEARING Needle	1
6	856823	挡圈	RING Retaining	1
7	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
8	44530	钢球	BALL	3
9	NSS	滑动件(不单独销售)	NOT SOLD SEPARATE Slide	1
10	850327	弹簧	SPRING	1
11	30632	十字销	PIN Cross	1
11	8M0100263	十字销	PIN Cross	1
12	30893	弹簧	SPRING	1
13	850048T	离合器	CLUTCH	1
14	850308	螺旋桨轴	PROPELLER SHAFT	1
14	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
15	850036T	倒车齿轮-29齿	GEAR Reverse - 29 Teeth	1
15	882814T	倒车齿轮-28齿	GEAR Reverse - 28 Teeth	1
16	12596T2	轴承座总成	CARRIER ASSEMBLY Bearing	1
16	8M0168901	轴承座总成	CARRIER ASSY.	1
17	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
17	8M0214974	O型圈	O RING	1
18	30956T	滚针轴承	BEARING Needle	1
19	70080	油封(内)	SEAL Oil (Inner)	1
19	8M0205728	密封件	SEAL	1
20	70081		SEAL Oil (Outer)	1
20	8M0205729	密封件	SEAL	1
21	12578T	滚柱轴承	BEARING Roller	1
22	12577	止推垫片	THRUST WASHER	1
23	12576	推力轴承	BEARING Thrust	1
24	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
24	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
25	855941	垫圈(.323 x .590 x .112)不锈钢	WASHER (.323 x .590 x .112) Stainless Steel	2
26	401378	螺母 (M8)	NUT (M8)	2
27	44491A1	垫片组 (0.006至0.038)	SHIM SET (006 Thru 038)	1
27	8M0063266	垫片组	SHIM SET	1
28	8227731	螺纹嵌件	INSERT Threaded	2
29	NSS	齿轮箱/小齿轮标识贴(不单独销售)	NOT SOLD SEPARATE Decal-G/H Pinion Indent	1
-	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
-	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
-	13461A99	衬垫套件	GASKET SET	1

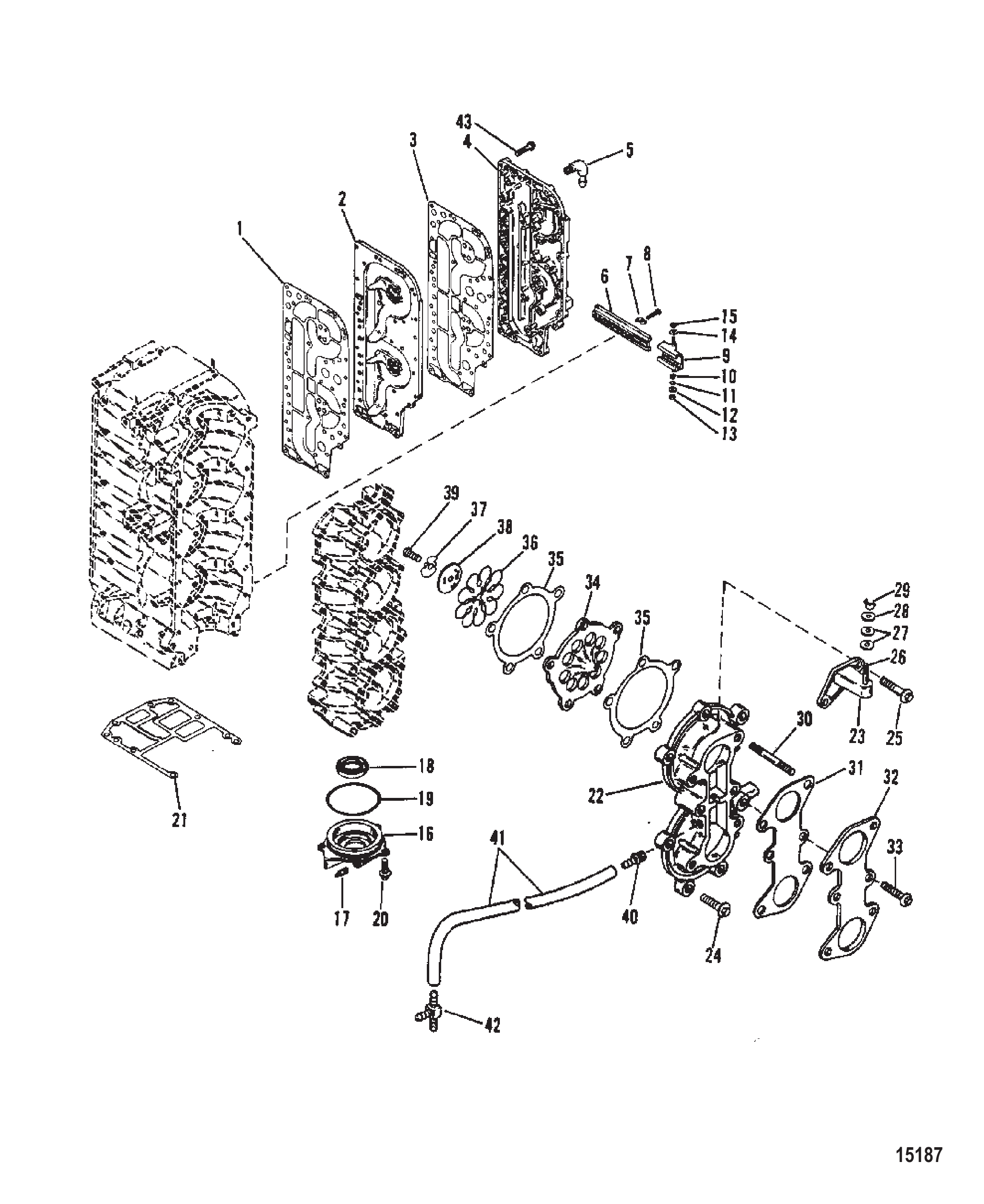

图 18进气歧管与簧片阀组 Induction Manifold and Reed Block

REF	零件编号	中文名称	英文名称	数量
1	139581	衬垫(配合44324C1和44325C1使用)	GASKET Use With 44324C1 And 44325C1	1
2	44324T	挡板(铸件号44324C1)	PLATE Baffle Casting Number 44324C1	1
3	139581	衬垫(配合44324C1和44325C1使用)	GASKET Use With 44324C1 And 44325C1	1
4	44325T	盖板(铸件号44325C1)	COVER Casting Number 44325C1	1
4	44325A1	排气盖板套件	COVER/PLATE KIT Exhaust	1
1	8127751	衬垫(配合44324C2和44325C2使用)	GASKET Use With 44324C2 And 44325C2	1
1	8127755	衬垫	GASKET	1
2	44324T1	挡板(铸件号44324C2)	PLATE Baffle Casting Number 44324C2	1
2	44325A1	排气盖板套件	COVER/PLATE KIT Exhaust	1
3	812775	衬垫(配合44324C2和44325C2使用)	GASKET Use With 44324C2 And 44325C2	1
3	8127754	衬垫	GASKET	1
4	44325T1	盖板(铸件号44325C2)	COVER Casting Number 44325C2	1
4	44325A1	排气盖板套件	COVER/PLATE KIT Exhaust	1
5	99664	弯头	ELBOW	1
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
7	42981	锁紧垫圈	TAB WASHER	2
8	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
9	98885	滑块	SLIDE	1
9	988851	滑块	SLIDE	1
10	42994	衬套	BUSHING	1
11	29720	波形垫圈	WAVE WASHER	1
12	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
13	400634	螺母 (M6)	NUT (M6)	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	35459	垫圈	WASHER	1
15	400634	螺母 (M6)	NUT (M6)	1
15	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
16	9004A3	下端盖总成	END CAP ASSEMBLY Lower	1
16	858552T2	下端盖总成	CAP ASSEMBLY Lower End	1
17	42658	止回阀	CHECK VALVE	1
17	426585	止回阀	CHECK VALVE	1
18	41953	密封件	SEAL	1
19	89224	O型圈	O-RING	1
20	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	3
21	430073	衬垫	GASKET	1
21	430075	衬垫	GASKET	1
22	13545A1	进气歧管总成	MANIFOLD ASSEMBLY Induction	2
23	42923	支架	BRACKET	1
24	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	12
25	81742740	螺钉 (M8 x 40)	SCREW (M8 x 40)	2
26	93419	螺柱	STUD	3
26	8M0045410	螺柱	STUD	3
27	492211	垫圈	WASHER	3
27	8M0204663	垫片@5	WASHER @5	3
28	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	3
28	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	3
29	816873	蝶形螺母	WING NUT	3
29	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
30	429851	螺柱	STUD	8
30	824470	螺柱 (M8 x 1.25)	STUD (M8 x 1.25)	8
31	134612	衬垫	GASKET	2
32	13460	盖板	COVER	2
33	81742755	螺钉(M8x55)	SCREW (M8 x 55)	4
34	42963A11	簧片阀总成	REED BLOCK ASSEMBLY	4
34	8M0219198	簧片阀总成	REED BLOCK ASSY	4
35	139376	衬垫	GASKET	8
36	43018A1	簧片组	REED SET	4
37	42982	锁紧垫圈	TAB WASHER	4
37	429821	锁紧垫圈	TAB WASHER	4
38	42924	固定座	RETAINER	4
39	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	4
40	130351	直通接头	FITTING Straight	2
41	1430165	油管(38.00英寸散装)	TUBING (38.00 Inches Bulk)	1
42	13033	三通接头	TEE FITTING	1
43	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	35

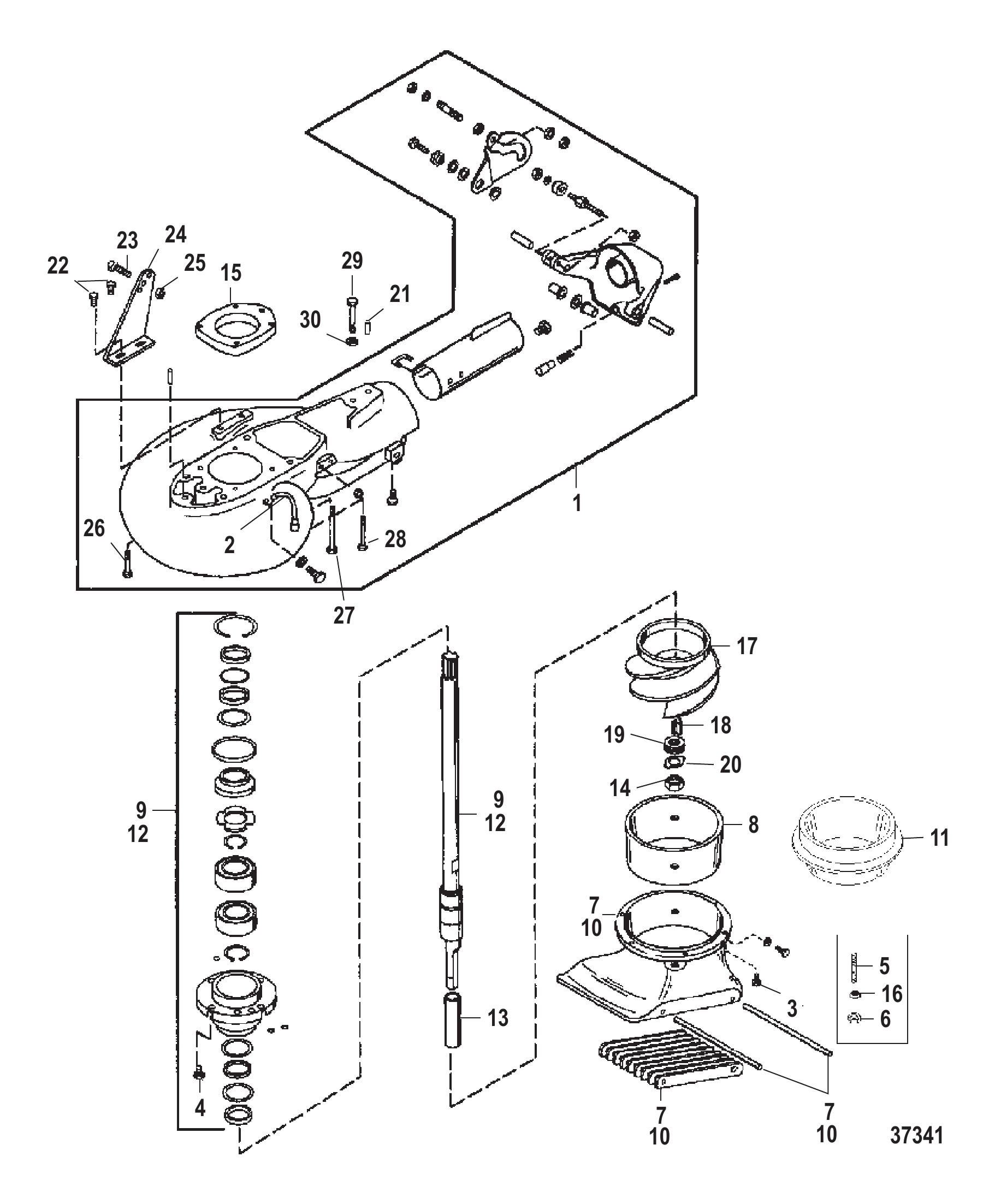

图 19喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	801400115	喷泵总成	JET PUMP ASSEMBLY	1
-	856143A1	喷泵总成	JET PUMP ASSEMBLY	1
-	856143A1	喷泵总成	JET PUMP ASSEMBLY	1
1	85576790	泵壳	HOUSING Pump	1
1	855767T90	泵壳	HOUSING Pump	1
1	80141190	泵壳	HOUSING Pump	1
1	801411T90	泵壳总成	HOUSING ASSY-PUMP	1
2	827490	润滑油管	HOSE Lube	1
3	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
4	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
4	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
5	855840	双头螺柱(.312-18 x 1.81)	STUD (.312-18 x 1.81)	6
6	67980	螺母(.312-18)	NUT (.312-18)	6
6	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	6
7	80141290	进气壳体	HOUSING Intake	1
8	8271883	衬套	LINER	1
9	80141390	驱动轴	DRIVESHAFT	1
10	85576890	进气壳体	HOUSING Intake	1
11	855771	衬套	LINER	1
12	85576990	驱动轴	DRIVESHAFT	1
13	8271891	套筒	SLEEVE	1
14	8271901	螺母	NUT	1
15	808747	泵适配器	ADAPTER Pump	1
16	36001	垫圈	WASHER	6
17	801414115	叶轮	IMPELLER	1
17	855708115	叶轮	IMPELLER	1
17	855708115	叶轮	IMPELLER	1
18	801405875	键	KEY	1
19	801404875	叶轮垫片	SHIM Impeller	8
20	801403875	锁紧垫圈	TAB WASHER	1
21	801407	定位销	PIN Dowel	2
22	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
23	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
24	801410	电缆支架	BRACKET Cable Support	1
25	67980	螺母(.312-18)	NUT (.312-18)	1
25	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
26	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
27	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
28	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
29	843575	螺丝(.375-16 x 4.00)不锈钢	SCREW (.375-16 x 4.00) Stainless Steel	1
30	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
30	8M0214963	垫圈	WASHER	1

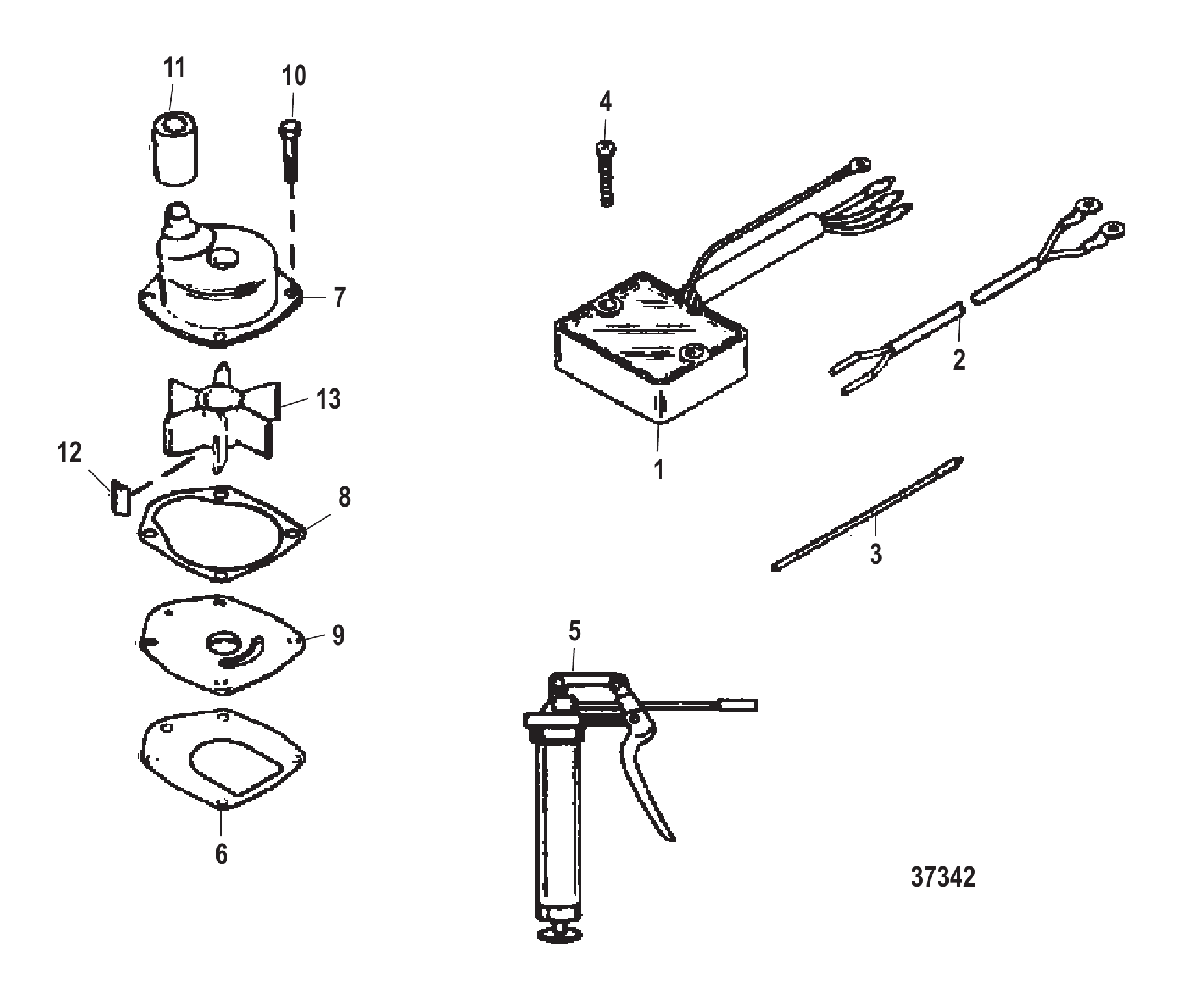

图 20喷泵组件 Jet Pump Components

REF	零件编号	中文名称	英文名称	数量
1	821889A51	转速限制器	REV LIMITER	1
2	823147A7	转速限制器线束总成	HARNESS ASSEMBLY Rev Limiter	1
3	11149A8	适配器线束总成	HARNESS ASSEMBLY Adapter	1
4	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
5	30500A2	润滑脂套装	GREASE KIT	1
5	30500K2	注脂枪与润滑剂	GUN AND LUBE	1
6	430331	衬垫	GASKET	1
7	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
8	817277	衬垫	GASKET	1
8	8172771	水泵上垫片	GASKET Water Pump, Upper	1
9	817276	面板	FACEPLATE	1
9	8M0204709	面板	FACEPLATE	1
10	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
11	430232	密封件	SEAL	1
12	43037	键	KEY	1
12	8M0204723	键	KEY	1
13	430262	叶轮	IMPELLER	1
13	43026T2	叶轮	IMPELLER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 21钥匙对照表 Key Chart

零件编号	中文名称	英文名称	数量
894911	点火钥匙(1A)	KEY Ignition (1A)	1
894912	点火钥匙(1B)	KEY Ignition (1B)	1
894913	点火钥匙(1C)	KEY Ignition (1C)	1
894914	点火钥匙(1D)	KEY Ignition (1D)	1
894915	点火钥匙(1E)	KEY Ignition (1E)	1
894916	点火钥匙(1F)	KEY Ignition (1F)	1
894917	点火钥匙(2A)	KEY Ignition (2A)	1
894918	点火钥匙(2B)	KEY Ignition (2B)	1
894919	点火钥匙(2C)	KEY Ignition (2C)	1
8949110	点火钥匙(2D)	KEY Ignition (2D)	1
8949111	点火钥匙(2E)	KEY Ignition (2E)	1
8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 22润滑图表 Lube Chart

REF	零件编号	中文名称	英文名称	数量
NOPART	NO PARTS LIST

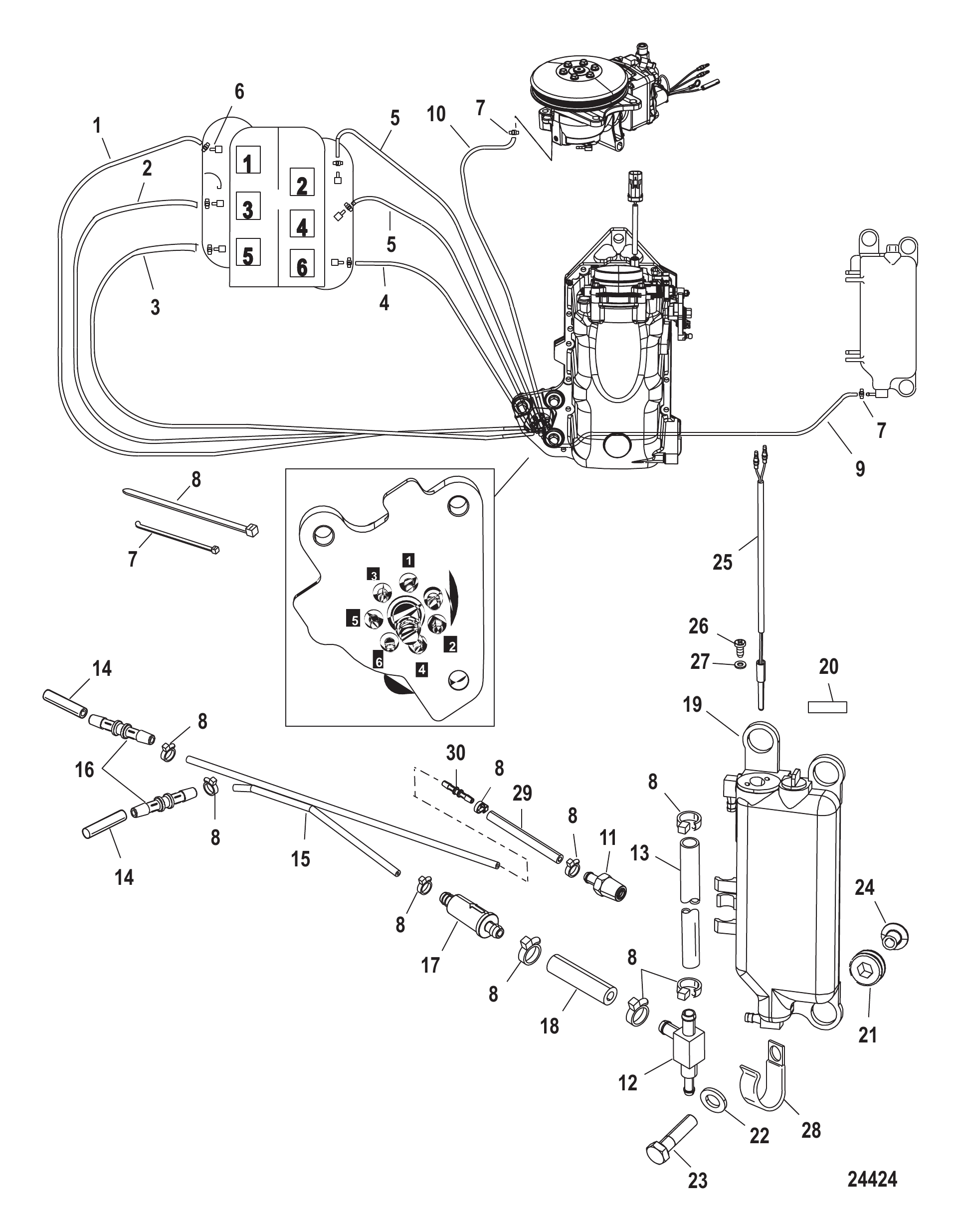

图 23机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	85606065	管材(38.00英寸整卷)裁至24英寸	TUBING (38.00 Inches Bulk) Cut to 24 Inches	1
2	85606065	管材(38.00英寸整卷)裁至18-1/2英寸	TUBING (38.00 Inches Bulk) Cut to 18-1/2 Inches	1
2	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
3	85606065	管材(38.00英寸整卷)裁至16-1/2英寸	TUBING (38.00 Inches Bulk) Cut to 16-1/2 Inches	1
3	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
4	85606065	管材(38.00英寸整卷)裁至24-1/2英寸	TUBING (38.00 Inches Bulk) Cut to 24-1/2 Inches	1
4	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
5	85606065	管材(38.00英寸整卷)裁至27英寸	TUBING (38.00 Inches Bulk) Cut to 27 Inches	2
5	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	2
6	858805	止回阀	CHECK VALVE	6
7	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
7	8M0214940	扎带	TIE STRAP	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
8	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
9	892830053	软管(24.00英寸编织型)	HOSE (24.00 Inches Braided)	1
10	85583466	软管(40.00英寸整卷)裁至32英寸	HOSE (40.00 Inches Bulk) Cut to 32 Inches	1
10	8M0054213	软管	HOSE	1
11	8781051	止回阀(连接缸体)	CHECK VALVE To Block	1
12	424254	接头	FITTING	1
12	8M0207780	接头	FITTING	1
13	830756109	软管(57.00英寸整卷)裁至6英寸	HOSE (57.00 Inches Bulk) Cut to 6 Inches	1
13	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
14	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	2
15	875289	软管	HOSE	1
16	858955	连接器	CONNECTOR	2
17	875284001	滤清器-机油在线式	FILTER Oil - In Line	1
17	875284T01	滤清器-机油在线式	FILTER Oil - In Line	1
18	875283	软管(2.00英寸)	HOSE (2.00 Inches)	1
19	833069T9	储液罐总成	RESERVOIR ASSEMBLY	1
19	8M0063190	油箱总成	OIL TANK ASSY	1
20	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
21	855362001	护孔环	GROMMET	3
22	49436	垫圈	WASHER	3
23	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
24	855364	衬套	BUSHING	3
25	856156A2	开关总成	SWITCH ASSEMBLY	1
25	856156T02	开关总成	SWITCH ASSEMBLY	1
26	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
27	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
28	814634	卡箍	CLAMP	1
29	830756109	软管(57.00英寸整卷)裁至4-3/4英寸	HOSE (57.00 Inches Bulk) Cut to 4-3/4 Inches	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	858955	连接器	CONNECTOR	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

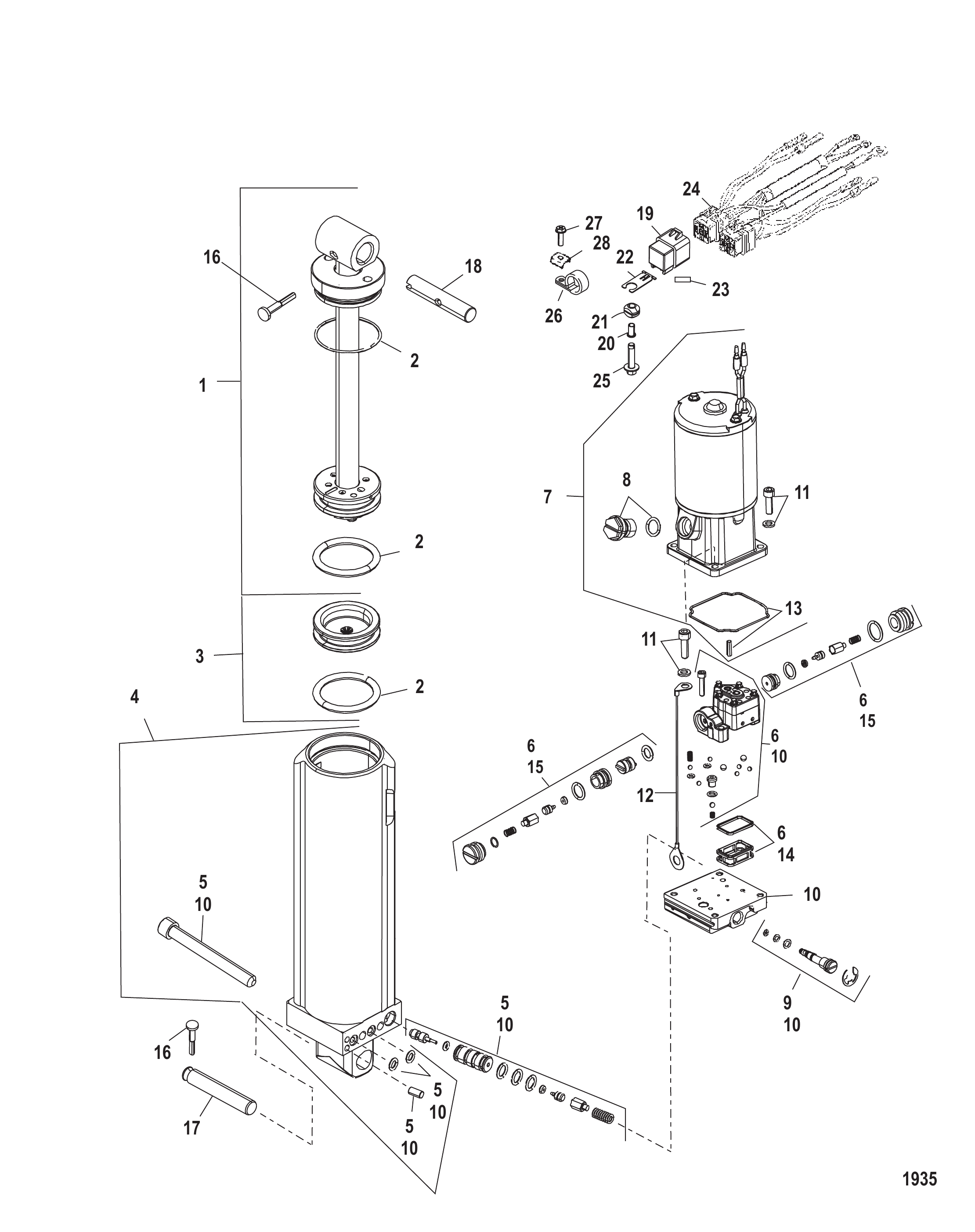

图 24动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830250T5	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	螺丝套件(电机)	SCREW KIT (MOTOR)	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1		O-RING KIT (Complete Trim)	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	828151A1	继电器总成	RELAY ASSEMBLY	2
19	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
20	818968	衬套	BUSHING	2
20	8M0214955	衬套	BUSHING	2
21	818967	护孔环	GROMMET	2
21	8M0207785	护孔环	GROMMET	2
22	828102	支架	BRACKET	2
22	8M0207771	安装支架	BRACKET Mounting	2
23	NSS	微调继电器标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Trim Relay	2
24	819514A15	升降线束总成	HARNESS ASSEMBLY Trim	1
24	8M0092077	升降线束总成	HARNESS ASSEMBLY Trim	1
25	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
26	22740	卡扣	CLIP	2
27	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
28	69205	C形垫圈	C WASHER	1
28	8M0084613	C形垫圈	C-WASHER	1

图 25维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	803502007	零件手册135/150/175 DFI-2.5L	PARTS MANUAL 135/150/175 DFI - 2.5L	1
-	10199070	操作/安装手册	OPERATION/INSTALLATION MANUAL	1
-	10199080	操作手册135/150/175英文版	OPERATION MANUAL 135/150/175, English	1
-	10299082	操作员手册	MANUAL-OPERATOR	1
-	10299091	操作手册135-175/150-175 ProXS Optimax	OPERATION MANUAL 135-175/150-175 ProXS Optimax	1
-	8M0055670	操作手册	OPERATION MANUAL	1
-	10199D70	用户手册135/150/175 DFI法文版	OWNERS MANUAL 135/150/175 DFI, French	1
-	10199J70	用户手册135/150/175 DFI西班牙文版	OWNERS MANUAL 135/150/175 DFI, Spanish	1
-	10260081	操作手册喷泵110 Optimax	OPERATION MANUAL Jet 110 Optimax	1
-	10260090	操作手册喷泵110 Optimax	OPERATION MANUAL Jet 110 Optimax	1
-	8M0055668	操作手册	OPERATION MANUAL	1
-	8M0077319	操作手册2.5L Opti	OPERATION MANUAL 2.5L Opti	1
-	8M0080077	操作手册2.5L Opti	OPERATION MANUAL 2.5L Opti	1
-	859494R1	维修手册	SERVICE MANUAL	1
-	8M0057453	服务手册舷外机115-175DFI	SM O/B 115-175DFI	1
-	804657A06	EPA标签信息贴花	DECAL EPA Label Information	1
-	804657A07	贴纸-EPA标签信息(135)	DECAL EPA Label Information (135)	1
-	804657A08	贴纸-EPA标签信息(135)	DECAL EPA Label Information (135)	1
-	883929A06	EPA标签信息贴花	DECAL EPA Label Information	1
-	883929A07	贴纸-EPA标签信息(150/175)	DECAL EPA Label Information (150/175)	1
-	883929A08	贴纸-EPA标签信息(150/175)	DECAL EPA Label Information (150/175)	1
-	NSS	贴纸-EPA(2009年起)(不单独销售)	NOT SOLD SEPARATE DECAL, EPA (2009 & Up)	1

图 26启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	NSS	贯穿螺栓(不单独销售)	NOT SOLD SEPARATE Thru Bolt	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
7	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
8	8272822	警告标贴	DECAL Warning	1
9	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
10	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	8M0034918	轴环	COLLAR	1
14	879845	停机开关	STOP	1
14	8M0043276	停机开关	STOP	1

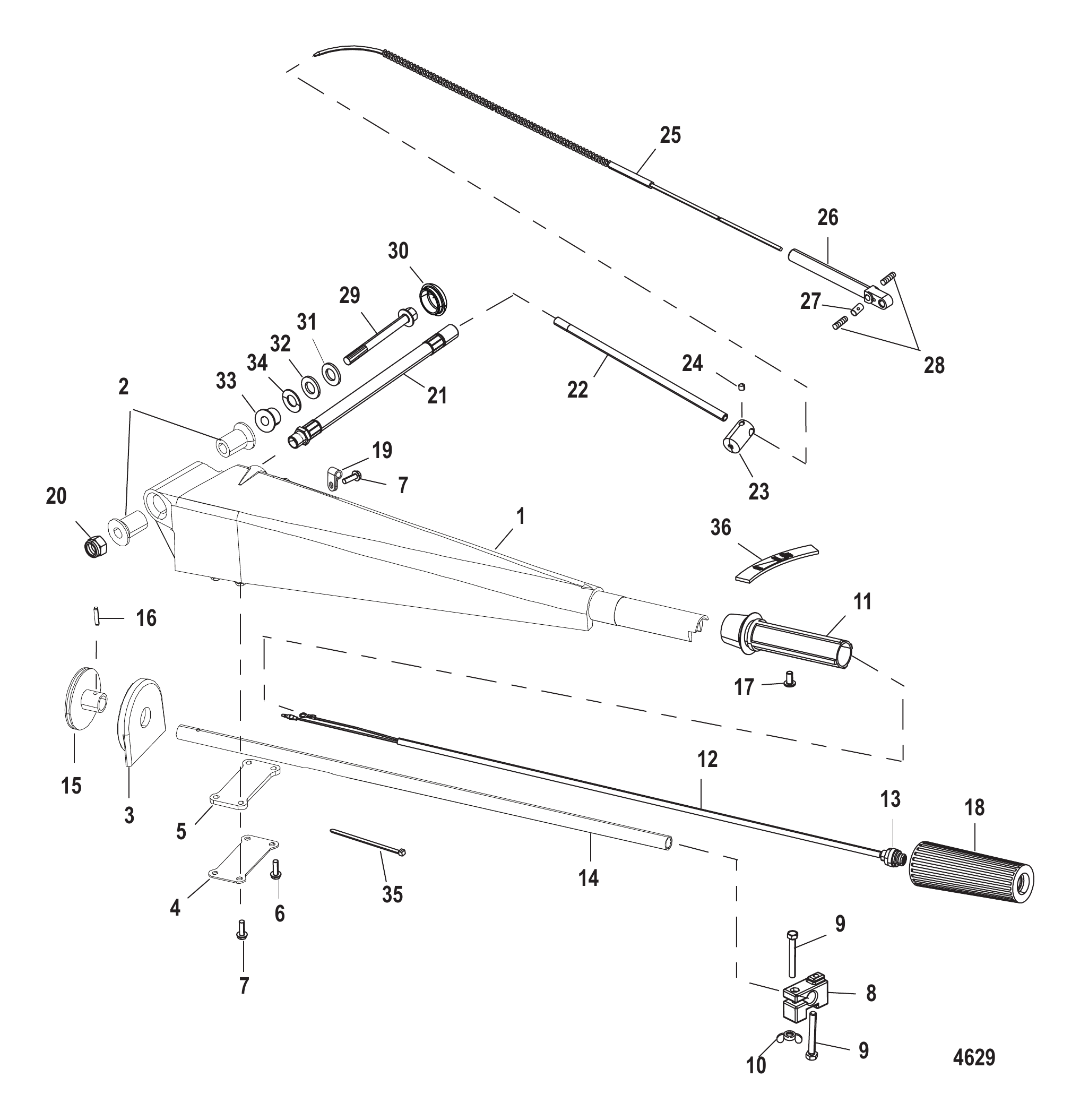

图 27转向手柄 Steering Handle

REF	零件编号	中文名称	英文名称	数量
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
NS	74036	润滑脂接头	FITTING Grease	1
NS	8M0169589	润滑脂接头	FITTING Grease	1
2	429922	衬套	BUSHING	2
2	42992T02	衬套	BUSHING	2
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
7	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
8	12013	卡箍	CLAMP	1
8	889729	卡箍	CLAMP	1
9	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
10	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
11	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	823609A5	停机开关总成	SWITCH ASSEMBLY Stop	1
12	8M0104612	开关总成	SWITCH ASSY	1
13	NSS	绝缘件(不单独销售)	NOT SOLD SEPARATE Insulator	1
14	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
15	NSS	驱动轮(不单独销售)	NOT SOLD SEPARATE Drive Wheel	1
16	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
17	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
18	99589	握把	GRIP	1
18	8M0221732	外握把	GRIP OUTER	1
19	648551	卡箍	CLAMP	2
20	40140	螺母(M10)	NUT (M10)	1
21	785512	导管	CONDUIT	1
21	8885242	导管	CONDUIT	1
22	895663	导向管	GUIDE TUBE	1
23	89578	套筒	BARREL	1
24	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
25	120191	拉线总成	CABLE ASSEMBLY	1
26	434332	导套	GUIDE	1
27	20007	锚定件	ANCHOR	1
28	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
28	8M0204644	螺钉组	SCREW SET	2
29	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
30	48416	盖帽	CAP	1
31	4002319	垫圈	WASHER	1
32	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
33	146011	隔套	SPACER	1
34	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1
34	8M0214963	垫圈	WASHER	1
35	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
36	NSS	节气门标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Throttle	1
-	12022A34	舵柄套件	TILLER HANDLE KIT	1
-	12022A41	转向手柄套件	STEERING HANDLE KIT	1

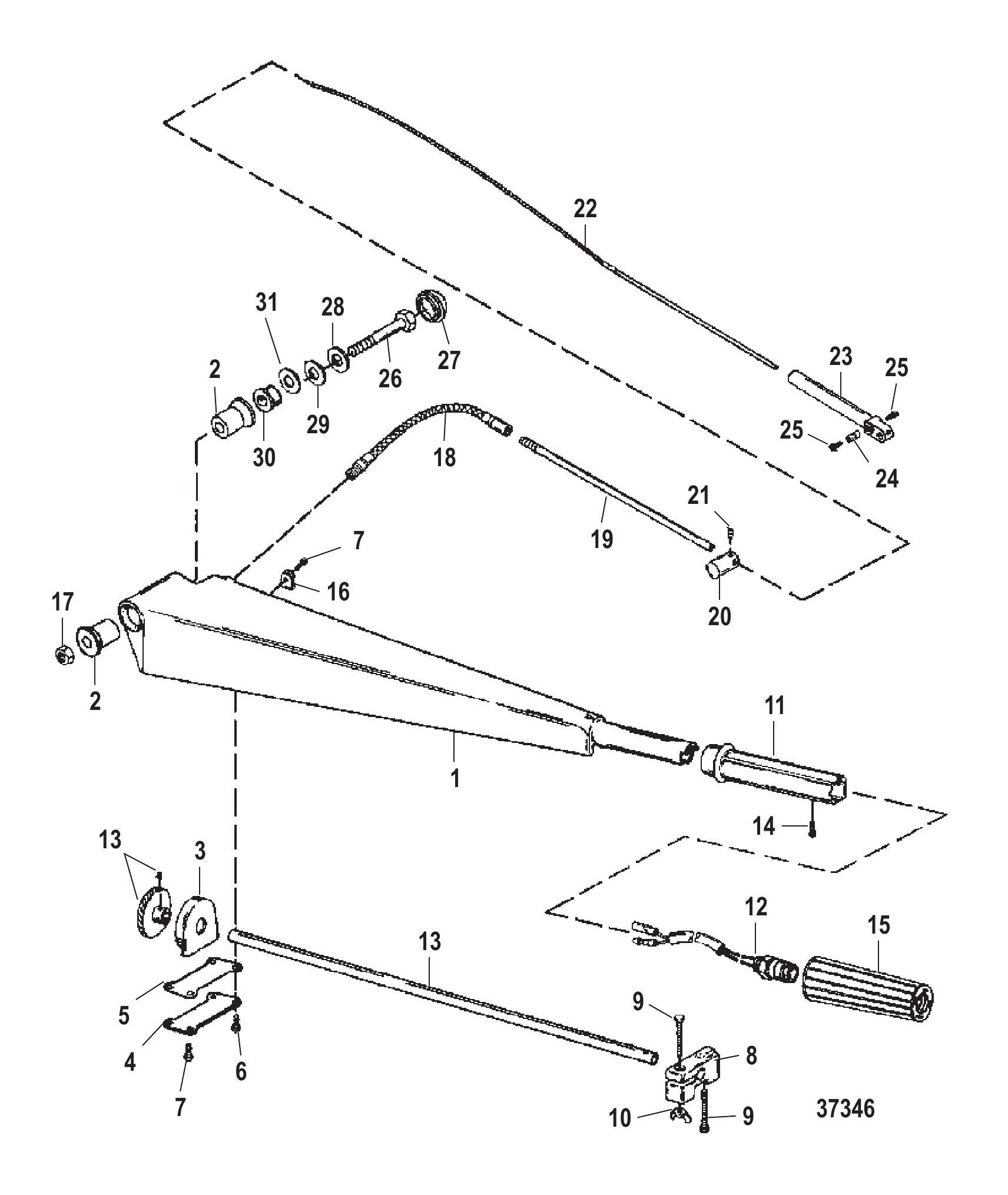

图 28转向手柄组件 Steering Handle Components

REF	零件编号	中文名称	英文名称	数量
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A4	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
-	74036	润滑脂接头	FITTING Grease	1
-	8M0169589	润滑脂接头	FITTING Grease	1
2	429922	衬套	BUSHING	2
2	42992T02	衬套	BUSHING	2
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
6	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
7	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
7	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
8	12013	卡箍	CLAMP	1
8	889729	卡箍	CLAMP	1
9	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
10	816873	蝶形螺母	WING NUT	1
10	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
11	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	823609A5	停机开关总成	SWITCH ASSEMBLY Stop	1
12	8M0104612	开关总成	SWITCH ASSY	1
13	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
14	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
15	99589	握把	GRIP	1
15	8M0221732	外握把	GRIP OUTER	1
16	648551	卡箍	CLAMP	2
17	13914	螺母(M10)	NUT (M10)	1
17	40140	螺母(M10)	NUT (M10)	1
18	785512	导管	CONDUIT	1
18	8885242	导管	CONDUIT	1
19	895663	导向管	GUIDE TUBE	1
20	89578	套筒	BARREL	1
21	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
22	120191	拉线总成	CABLE ASSEMBLY	1
23	434332	导套	GUIDE	1
24	20007	锚定件	ANCHOR	1
25	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
25	8M0204644	螺钉组	SCREW SET	2
26	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
27	48416	盖帽	CAP	1
28	4002319	垫圈	WASHER	1
29	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
30	14601	隔套	SPACER	1
30	146011	隔套	SPACER	1
31	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
31	8M0214963	垫圈	WASHER	1

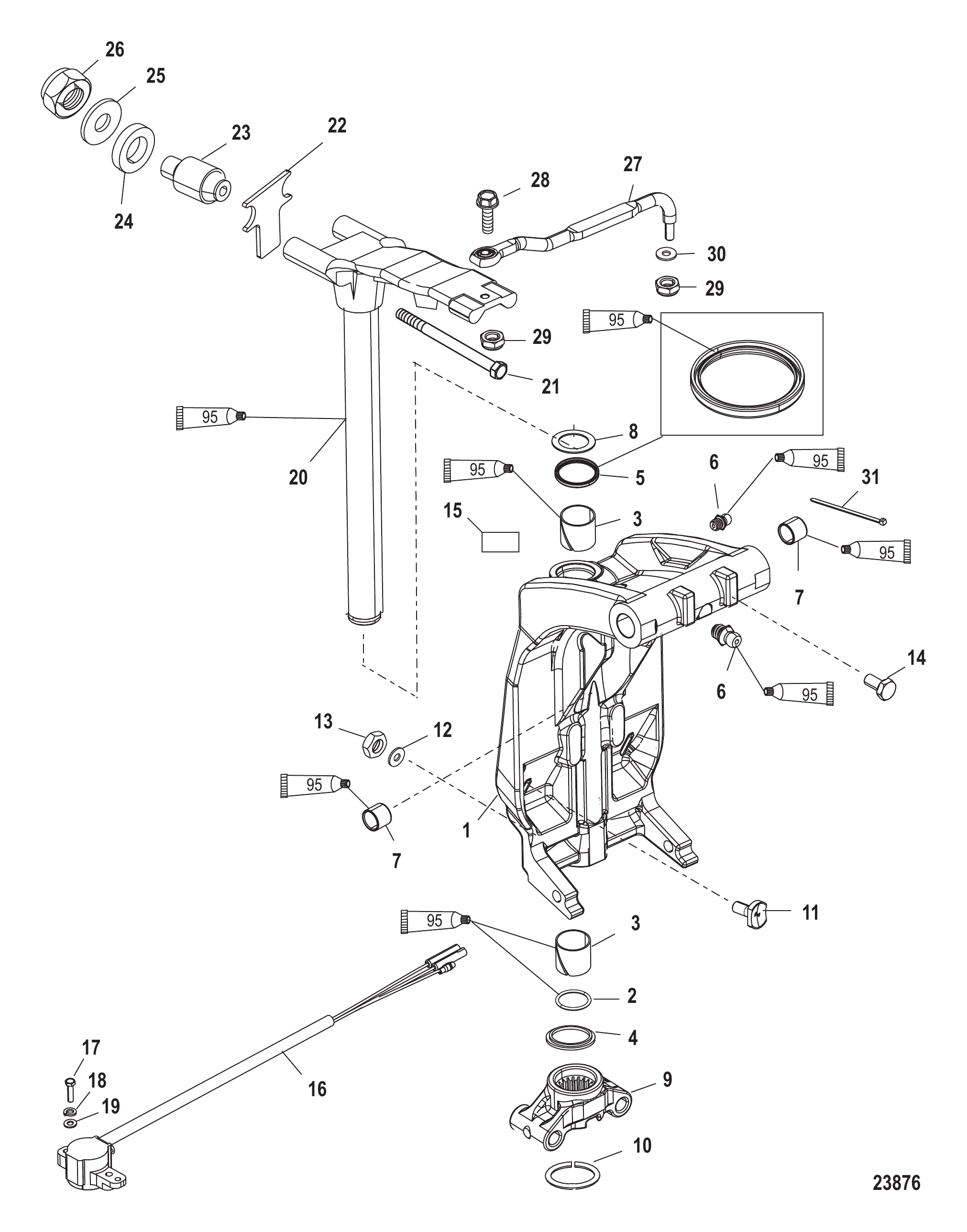

图 29旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	下油封	SEAL Oil Lower	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	878182T01	下轭架	YOKE Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
15	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
16	896688001	数字式配平传感器总成	SENDER ASSEMBLY Trim Digital	1
16	821180A6	模拟式配平传感器总成	SENDER ASSEMBLY Trim Analog	1
16	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	8M0132731	旋转销总成	SWIVEL PIN ASSY	1
21	8M0000491	螺钉(.437-20 x 7.500)	SCREW (.437-20 x 7.500)	2
21	8M0176309	螺钉	SCREW	2
22	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
23	77326	支架	MOUNT	2
24	66921	垫圈	WASHER	2
25	78688	垫圈	WASHER	2
26	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
26	8M0204653	螺母	NUT	2
27	92876A12	连杆总成	LINK ROD ASSEMBLY	1
28	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
29	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
29	8M0042636	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
30	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
31	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

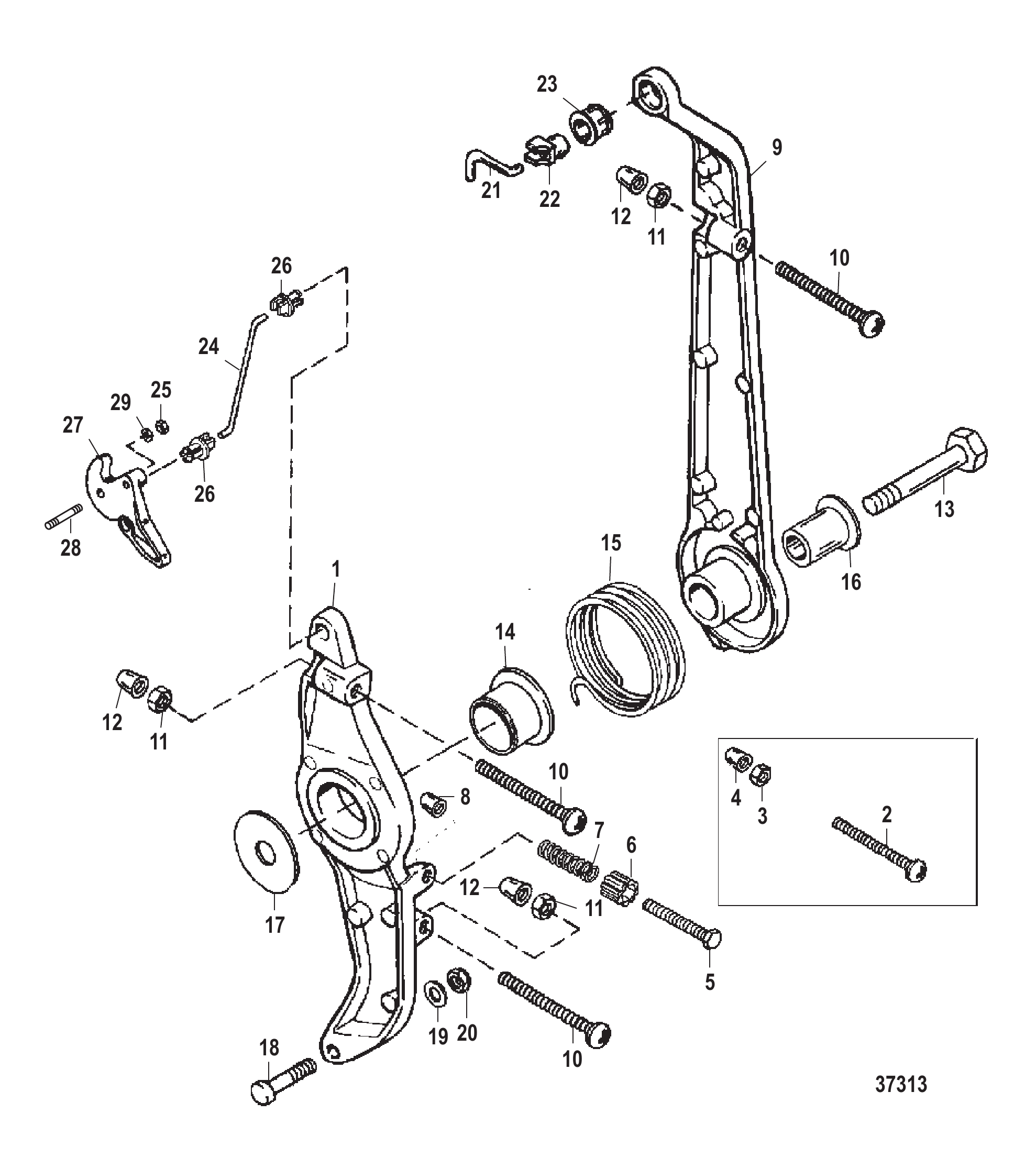

图 30油门杆及联动装置 Throttle Lever and Linkage

REF	零件编号	中文名称	英文名称	数量
1	44333	油门杆	LEVER Throttle	1
2	817582	调节螺钉(M5 x 35)	SCREW Adjusting (M5 x 35)	1
3	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
4	48039	盖帽	CAP	1
5	827009	螺钉(M5 x 40)	SCREW (M5 x 40)	1
6	826264	盖帽	CAP	1
7	826382	弹簧	SPRING	1
8	48039	盖帽	CAP	1
9	44335	点火提前杆	LEVER Spark Advance	1
9	884307T	杠杆	LEVER	1
10	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	3
11	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
12	42942	盖帽	CAP	3
13	4007180	螺丝(M10 x 45)	SCREW (M10 x 45)	1
14	55171	衬套	BUSHING	1
15	86310	弹簧	SPRING	1
15	73375	弹簧	SPRING	1
16	812930A1	衬套	BUSHING	1
17	42980	垫圈	WASHER	1
18	42927	嵌件	INSERT	1
19	35459	垫圈	WASHER	1
20	8268336	螺母 (M6)	NUT (M6)	1
20	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
21	44338	点火提前杆	SPARK ADVANCE ROD	1
21	878170	点火提前杆	ROD Spark Advance	1
22	93421	旋转球头	SWIVEL BALL	1
23	93254	旋转底座	SWIVEL BASE	1
24	44337	连接杆	LINK	1
24	878173	连接杆	LINK	1
25	8268336	螺母 (M6)	NUT (M6)	1
25	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	932481	衬套	BUSHING	2
26	8M0215006	旋转衬套	BUSHING Swivel	2
27	14518T1	节气门凸轮	CAM Throttle	1
27	14518A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
27	14518A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
28	42984	螺柱	STUD	1
28	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
28	8161946	螺柱	STUD	1
28	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
29	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1

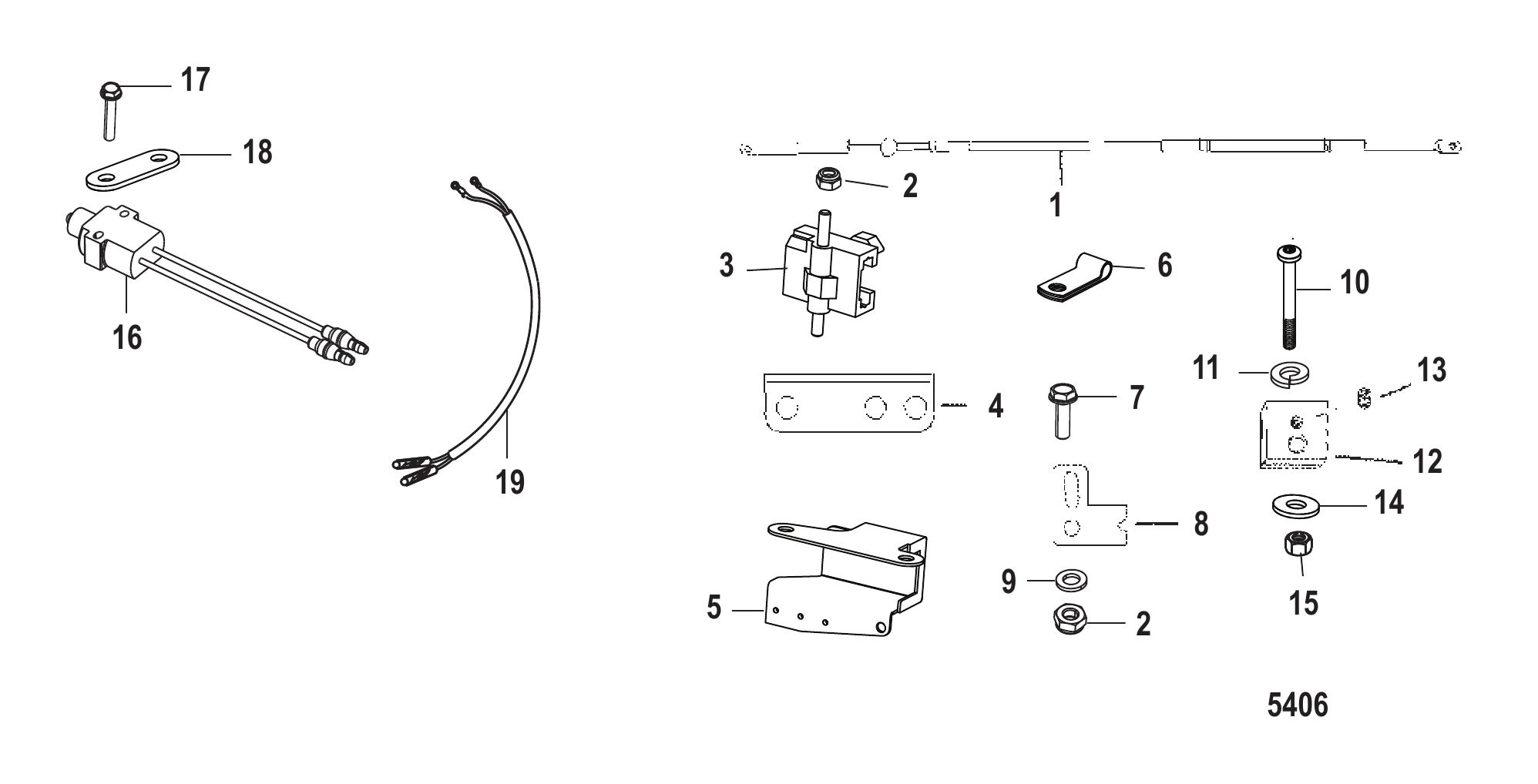

图 31舵柄适配器套件（JET 80） Tiller Handle Adapter Kit (Jet 80)

REF	零件编号	中文名称	英文名称	数量
-	850000A3	舵柄适配器套件65 JET	TILLER HANDLE ADAPTER KIT 65 JET	1
1	832001A6	换挡线缆总成	CABLE ASSEMBLY Shift	1
2	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
3	988851	滑块	SLIDE	1
4	828095	支架	BRACKET	1
5	824930T3	支架	BRACKET	1
6	805444	卡扣	CLIP	1
6	8054441	卡扣	CLIP	1
7	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
8	828096	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
10	71958	螺丝(.250-28 x 1.75)	SCREW (.250-28 x 1.75)	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	828094	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
13	72734	紧定螺丝(#10-32 x .310)	SET SCREW (#10-32 x .310)	1
14	35459	垫圈	WASHER	1
15	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
16	813960A3	开关	SWITCH	1
16	8M0052927	开关总成	SWITCH ASSY	1
17	4001168	不锈钢螺丝(M3.5 x 20)	SCREW (M3.5 x 20) Stainless Steel	2
17	88075020	螺丝(M3 x 20)	SCREW (M3 x 20)	2
18	824923	安装板	PLATE	1
19	824934A1	拉线总成	CABLE ASSEMBLY	1

图 32专用工具 Tools (Special)

REF	零件编号	中文名称	英文名称	数量
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	99750A1	万用表	MULTI METER	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	99379	正时灯	TIMING LIGHT	1
-	825207A2	线束总成	HARNESS ASSEMBLY	1
-	112301	对正工具	ALIGNMENT TOOL	1
-	NSS	不单独销售 (卡扣式 - CG41-14)	NOT SOLD SEPARATE (SNAP ON - CG41-14)	1
-	NSS	不单独销售 (卡扣式 - CG41-11)	NOT SOLD SEPARATE (SNAP ON - CG41-11)	1
-	822778A3	下压力套件	DOWN PRESSURE KIT	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	29287	量规工具	GAUGE TOOL	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	812549T	动力头支架	STAND Powerhead	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	78473	背隙测量仪	INDICATOR TOOL Backlash	1
-	8M0053505	背隙指示工具	TOOL Indicator, Backlash	1
-	196601	背隙测量仪	INDICATOR TOOL Backlash	1
-	31106T	轴承安装心轴杯	MANDREL Bearing Driver Cup	1
-	13945	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14309T02	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14311A04	预紧力工具	TOOL Preload	1
-	83165T	拉拔器总成	PULLER ASSEMBLY	1
-	14308T02	轴承座圈驱动器	BEARING RACE DRIVER	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	24156	螺母(0.625-18)	NUT (.625-18)	1
-	15755T	滚针轴承驱动器	NEEDLE BEARING DRIVER	1
-	36569T	驱动头工具	DRIVE HEAD TOOL	1
-	37323	滚针轴承导杆工具	DRIVER ROD TOOL Needle Bearings	1
-	37350T	导向心轴	PILOT MANDREL	1
-	43506T	轴承固定工具	RETAINING TOOL Bearing	1
-	83155	千分表转接套件	ADAPTER KIT Dial Indicator	1
-	8M0237356	适配器套件	ADAPTER KIT	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	56775T	传动轴固定工具	HOLDING TOOL Driveshaft	1
-	826872	轴承安装工具	INSTALLER TOOL Bearing	1
-	13949	油封安装工具	DRIVER TOOL Oil Seal	1
-	31108T	油封驱动器	DRIVER Oil Seal	1
-	12349A2	小齿轮定位工具	LOCATION TOOL Pinion	1
-	12349A05	小齿轮定位工具	TOOL Pinion Locating	1
-	46086A1	拉拔器爪头总成	PULLER JAW ASSEMBLY	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	85560	推力轴承	BEARING Thrust	1
-	14310T1	耐磨套驱动器	WEAR SLEEVE DRIVER	1

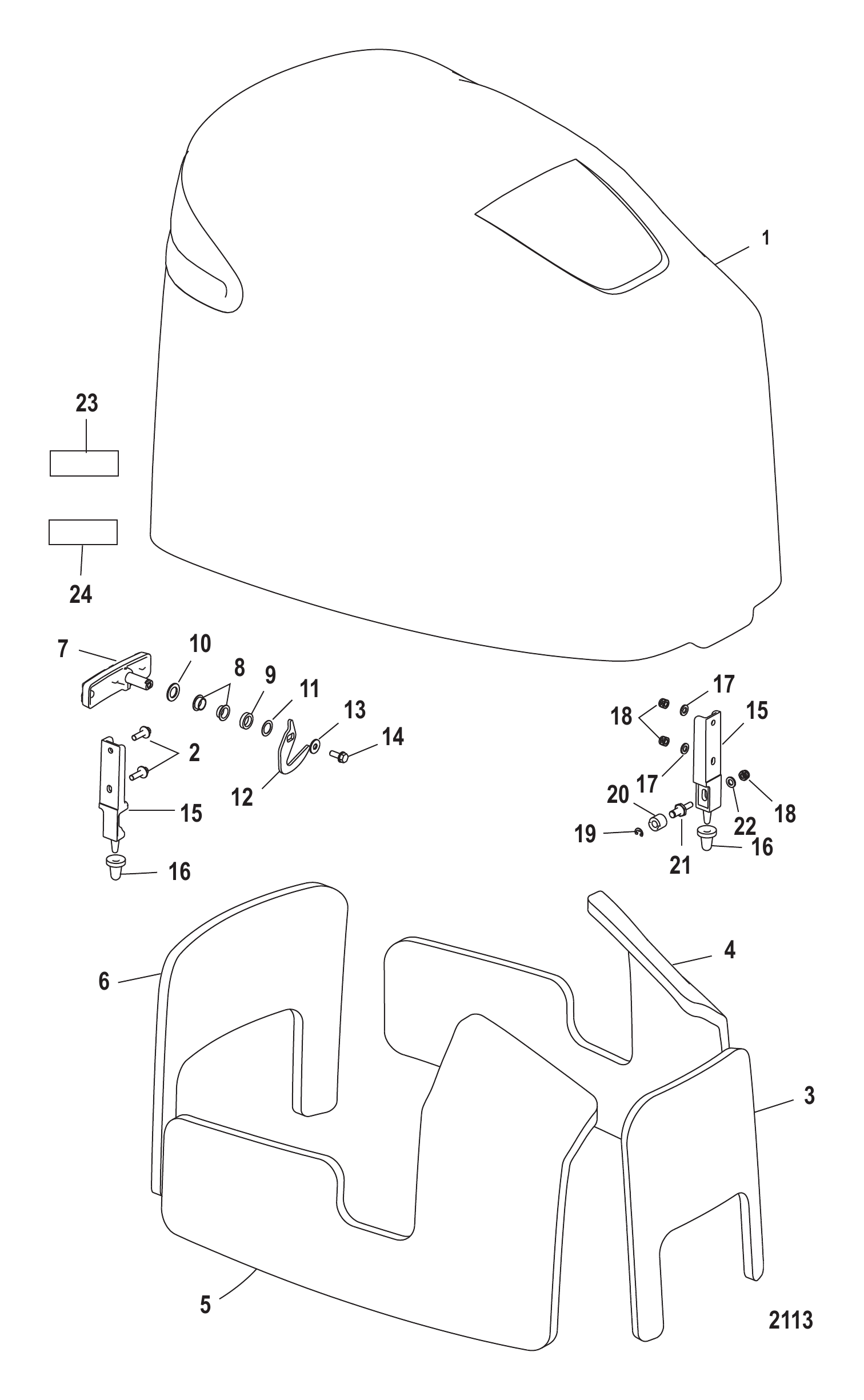

图 33顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	883013T02	顶盖总成黑色含除马力外所有贴花	TOP COWL ASSEMBLY Black Includes all Decals except Horsepower	1
1	883058T02	银色顶罩总成	TOP COWL ASSEMBLY Silver	1
1	8M0075376	顶盖总成 Mercury 无贴花	TOP COWL ASSEMBLY Mercury, Without decals	1
1	8M0075378	顶盖总成 Mariner 无贴花	TOP COWL ASSEMBLY Mariner, Without decals	1
-	888167	填充块	BLOCK Filler	1
2	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
3	883019A02	隔音毯套装	SOUND BLANKET KIT	1
4	NSS	不单独销售隔音垫-左舷	NOT SOLD SEPARATE Sound Blanket-Port	1
5	NSS	不单独销售隔音垫-右舷	NOT SOLD SEPARATE Sound Blanket-Starboard	1
6	NSS	不单独销售隔音垫-后部	NOT SOLD SEPARATE Sound Blanket-Rear	1
7	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
8	812707	衬套	BUSHING	2
9	8312141	隔套	SPACER	1
10	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
10	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
11	12134	波形垫圈	WASHER Wave	1
12	8M0001081	凸轮	CAM	1
13	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
13	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
14	8M0009253	螺钉(M6 x 16) 含在手柄套件中	SCREW (M6 x 16) Included with Handle Kit	1
14	8M0174577	螺钉	SCREW	1
15	821249M2	前支架	BRACKET Front	3
15	8M0036792	支架	BRACKET	3
16	815477	缓冲器锁扣	BUMPER Latch	3
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
18	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
19	8237951	挡圈	RING Retaining	1
20	815263	滚轮	ROLLER	1
20	8M0207770	滚轮@3	ROLLER @3	1
21	8155381	滚动销	PIN Roll	1
22	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	NSS	不单独销售-反向旋转标识	NOT SOLD SEPARATE Decal-Counter Rotation	1
24	NSS	不单独销售贴花-磨合	NOT SOLD SEPARATE Decal-Break-In	1
-	854292A07	贴花套件	DECAL SET	1
-	892565002	贴花马力(135)	DECAL Horsepower (135)	1
-	8M0061182	ORD 37-8M0115001	ORD 37-8M0115001	1
-	854294A07	贴花套件	DECAL SET	1
-	892565003	贴花马力(150)	DECAL Horsepower (150)	1
-	8M0061183	ORD 37-8M0115001	ORD 37-8M0115001	1
-	879756A07	贴花套件	DECAL SET	1
-	892565004	贴花马力(175)	DECAL Horsepower (175)	1
-	8M0061184	ORD 37-8M0115001	ORD 37-8M0115001	1
-	854295A03	贴花套件	DECAL SET	1
-	854297A03	贴花套件	DECAL SET	1
-	879757A03	贴花套件	DECAL SET	1
-	826331A08	贴花套件喷泵驱动110(2.5L)	DECAL SET Jet Drive 110 (2.5L)	1

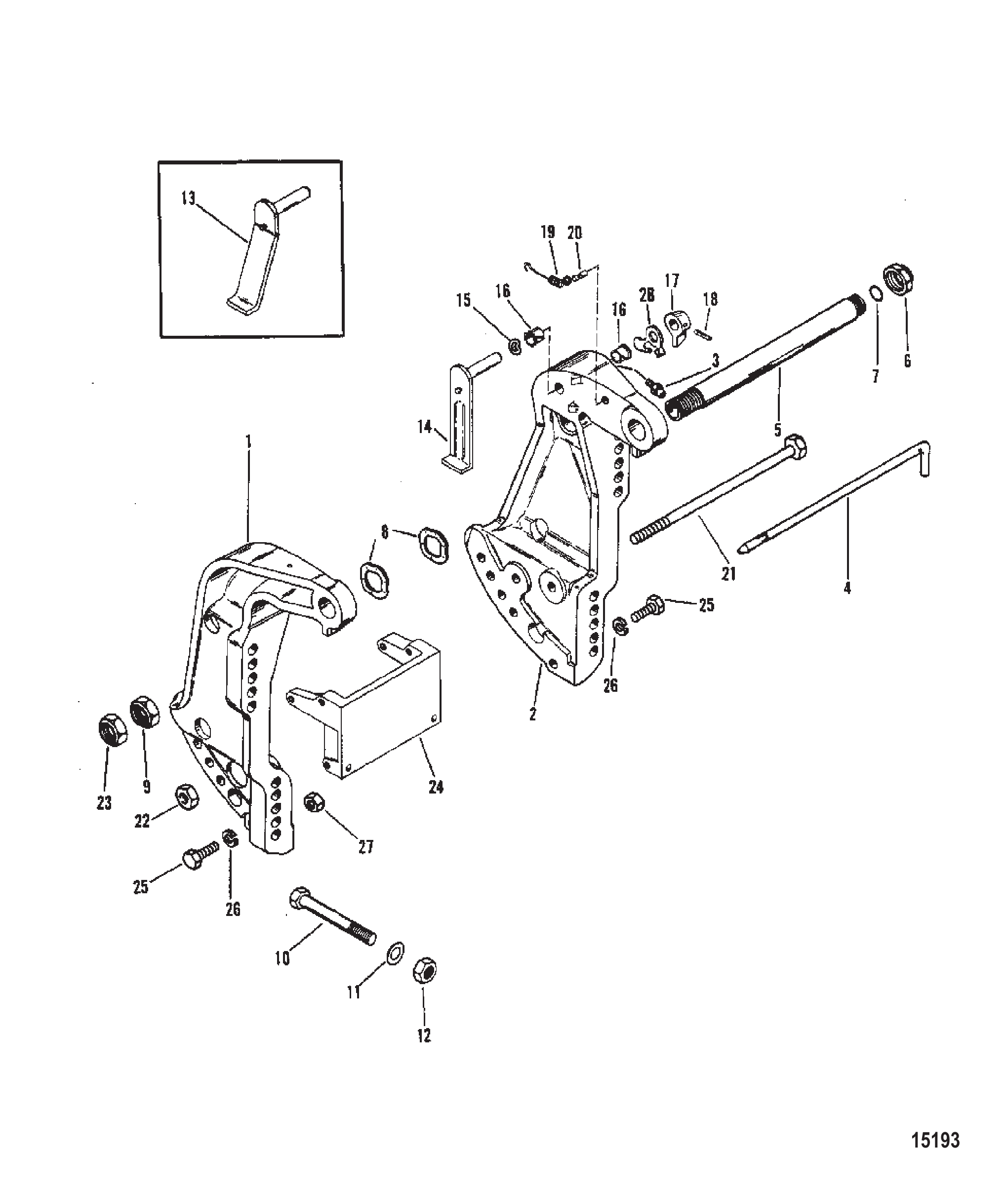

图 34艉板支架 Transom Bracket

REF	零件编号	中文名称	英文名称	数量
1	8718F7	艉板支架右舷, 黑色	BRACKET Transom Starboard, Black	1
2	8716A8	艉板支架总成左舷, 黑色	BRACKET ASSEMBLY Transom Port, Black	1
1	8718F8	艉板支架右舷, 灰色	BRACKET Transom Starboard, Gray	1
2	8716A9	艉板支架总成左舷, 灰色	BRACKET ASSEMBLY Transom Port, Gray	1
1	8718A3	艉板支架总成右舷, 牡蛎色	BRACKET ASSEMBLY Transom Starboard, Oyster	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A7	艉板支架总成左舷, 牡蛎色	BRACKET ASSEMBLY Transom Port, Oyster	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂加注口接头	FITTING Grease Port	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	49930A1	非动力倾斜锁止销总成	PIN ASSEMBLY Tilt Lock Non Power Trim	1
4	8M0026068	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
5	99170A1	动力倾斜管	TILT TUBE Power Trim	1
5	99170A2	倾斜管套件	TUBE KIT Tilt	1
6	90068F2	螺母黑色	NUT Black	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	90068F3	螺母 (1.00-14) 灰色	NUT (1.00-14) Gray	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
8	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
9	56041	螺母 (.875-14)	NUT (.875-14)	1
9	858869	螺母 (.875-14)	NUT (.875-14)	1
10	814259	螺钉 (.500-20 x 4.00)	SCREW (.500-20 x 4.00)	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	24501	上垫圈, Sea Ray专用	WASHER Upper, Sea Ray	2
12	8M0027784	螺母	NUT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	非动力及三油缸动力倾斜操纵杆总成	LEVER ASSEMBLY Non Power Trim And Three Ram Power Trim	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	821176A1	单油缸动力倾斜锁止杆总成	LEVER ASSEMBLY Tilt Lock Single Ram Power Trim	1
14	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	99611	波形垫圈	WAVE WASHER	1
16	65830	尼龙衬套	NYLINER	2
17	99633	旋钮	KNOB	1
17	99633T10	旋钮牡蛎色	KNOB Oyster	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99622	弹簧	SPRING	1
20	99604	槽销	PIN Groove	1
21	96930A1	动力倾斜螺栓总成	BOLT ASSEMBLY Power Trim	1
22	23161	螺母 (.375-24) 动力倾斜	NUT (.375-24) Power Trim	1
23	37984	螺母 (.875-14) 动力倾斜	NUT (.875-14) Power Trim	1
23	8M0041651	螺母 (.875-14)	NUT (.875-14)	1
24	818771F1	锚支架黑色	BRACKET Anchor Black	1
24	8M0086406	锚支架	BRACKET Anchor	1
24	818771T6	锚支架灰色	BRACKET Anchor Gray	1
24	818771T8	ORD 818771T 1	ORD 818771T 1	1
25	4000377	螺钉 (M10 x 30) 单油缸动力倾斜	SCREW (M10 x 30) Single Ram PowerTrim	6
26	400258	锁紧垫圈 (M10) 不锈钢单油缸动力倾斜	LOCKWASHER (M10) Stainless Steel Single Ram Power Trim	6
27	40114	螺母 (M10 x 1.5) 单油缸动力倾斜	NUT (M10 x 1.5) Single Ram Power Trim	1
28	814207	停机开关	STOP	1
