水星 Mercury 125 4 CYL 0G760300 THRU 0T979999 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-803168 · 共 37 个部位 · 1514 条零件

1附件2衰减板3泄放系统4下罩5化油器6副驾驶装置7曲轴、活塞与连杆8气缸体与曲轴箱9驱动轴壳体 USA-0T800999/BEL-0P267999 及以下10驱动轴壳体 USA-0T801000/BEL-0P268000 及以上11电气组件12排气板（序列号 USA-0T800999/BEL-0P267999 及以下）13排气板（序列号 USA-0T801000/BEL-0P268000 及以上）14飞轮与启动电机15燃油泵16发动机大修衬垫组件17驱动齿轮箱 USA-0T627234/BEL-0P215668 及以下18驱动齿轮箱 2.07:1 USA-0T627235/BEL-0P215669 及以上19推进齿轮箱 2.07:1 USA-0T627235/BEL-0P215669 及以上20推进齿轮箱 USA-0T627234/BEL-0P215668 及以下21进气歧管与簧片阀组22喷泵总成23喷泵组件24钥匙对照表25机油喷射组件26动力升降倾斜组件27维修/支撑材料28启动电机29转向手柄30转向手柄组件31旋转支架与转向臂32油门杆及联动装置33舵柄适配器套件（JET 80）34专用工具35顶罩36艉板支架（序列号 USA-0T800999/BEL-0P267999 及以下）37艉板支架（序列号 USA-0T801000/BEL-0P268000 及以上）
图 1附件 Accessories
附件 Accessories
REF零件编号中文名称英文名称数量
-15969A3甲板加油套件DECK FILL KIT Oil1
-812497A2二极管总成 双引擎DIODE ASSEMBLY Dual Engine1
-898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-852400冲洗接头FLUSH COUPLING1
-19674Q2开关/拉绳套件SWITCH/LANYARD KIT1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-41729A3软管延长套件HOSE EXTENSION KIT1
-17334A2视觉警报系统 低油位/过热VISUAL WARNING SYSTEM Low Oil/Overheat1
-859019A1智能转速表套件 0-7000转(灰色表盘黑色边框)SMART TACH KIT 0-7000 RPM (Grey Face and Black Bezel)1
-859314A1线束总成 智能转速表HARNESS ASSEMBLY SmartTach Gauge1
-859067A1智能转速表套件 0-7000转(白色表盘边框)SMART TACH KIT 0-7000 RPM (White Face and Bezel)1
-859314A1线束总成 智能转速表HARNESS ASSEMBLY SmartTach Gauge1
-877561A2线束总成HARNESS ASSEMBLY1
-815366A5电池隔离器套件ISOLATOR KIT Battery1
-8M0094239安装套件 KT-ISOLTRINSTALL KT-ISOLTR1
图 2衰减板 Attenuator Plate
衰减板 Attenuator Plate
REF零件编号中文名称英文名称数量
1151723衬垫GASKET8
244342T盖板COVER1
244342A1盖板COVER1
348409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel10
4NLA已停产垫片(旧设计)No Longer Available Gasket, Old Design1
5443403衰减器板PLATE Attenuator1
544340A2衰减器板总成PLATE ASSEMBLY Attenuator1
64002217垫圈WASHER8
7823861螺母NUT8
7826365螺母 (M8)NUT (M8)8
839519杯套CUP1
998889闩锁LATCH1
1042975传动螺钉DRIVE SCREW2
119912878软管 (.187) (26.00英寸散装)HOSE (.187) (26.00 Inches Bulk)AR
12816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
12816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1317762异径三通REDUCING TEE2
14988861连接杆LINK2
1498886T01油门调节连杆LINK-THRTL ADJUST2
1544336节气门上连杆LINK Throttle Upper1
1698887节气门主连杆LINK Throttle Main1
1698887T连接杆LINK1
1748409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel6
1856681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)6
188M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)6
19193859连杆LINK ROD1
2011399A1臂总成ARM ASSEMBLY1
2140056103螺钉 (M5 x 6)SCREW (M5 x 6)1
2256681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
228M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
2367748滚轮ROLLER1
-13461A90衬垫套件GASKET SET1
-13461A99衬垫套件GASKET SET1
图 3泄放系统 Bleed System
泄放系统 Bleed System
REF零件编号中文名称英文名称数量
199130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
2591692三通接头FITTING Tee3
259169003三通接头FITTING Tee3
399130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
3892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
499130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
4892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
599130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
5892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
6149126止回阀CHECK VALVE4
799130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
7892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
899130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
8892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
999130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
9892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1099130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
10892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1199130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
11892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1299130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
12892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1399130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
13892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1499130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
14892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1515133接头FITTING5
-17791T97动力头总成POWERHEAD ASSEMBLY1
-17791R97PH 100-125 2S -RMPH 100-125 2S -RM1
图 4下罩 Bottom Cowl
下罩 Bottom Cowl
REF零件编号中文名称英文名称数量
1834814A1下罩盖（左舷）BOTTOM COWL Port1
2834815A1下罩盖（右舷）BOTTOM COWL Starboard1
28M0107322机罩-底部 右舷COWL-BOTTOM, STBD1
3879147A11下罩盖衬垫套装GASKET SET Bottom Cowl1
4875266A2索具套件RIGGING KIT1
5859435底部嵌件INSERT Bottom1
5859435T嵌件INSERT1
6859434顶部嵌件INSERT Top1
6859434T嵌件INSERT1
7859343泡沫垫FOAM1
892799螺钉(#10-16x1.12)SCREW (#10-16 x 1.12)2
9816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
1082130040螺钉(M6 x 40)SCREW (M6 x 40)4
11831209固定座RETAINER1
12821908堵头PLUG1
13821915垫圈WASHER1
148219631止回阀CHECK VALVE1
1530641O型圈(0.299x0.103)O-RING (.299 x .103)1
16821952接头FITTING1
17816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
188320782软管HOSE1
188M0039077成型软管HOSE-MOLDED1
19850896卡箍 (28.6)CLAMP (28.6)2
208320763接头FITTING1
21821904示流器接头FITTING Tell-Tale1
218M0077650示流器接头FITTING Tell-Tale1
22889847怠速排气套BOOT Idle Exhaust1
23817519A1排水单向阀总成CHECK VALVE ASSEMBLY Drain2
24896620001升降倾斜开关SWITCH Trim1
248M0235191升降倾斜开关SWITCH Trim1
25889740A02手柄套件HANDLE KIT1
2688552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel1
268M0103805螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel1
27335891衬套BUSHING2
2848462O型圈 (.614 x .070)O-RING (.614 x .070)1
298219423前手柄棘爪PAWL Front Handle1
3069057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
318M0000413罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)1
318M0111278密封件SEAL1
328214281螺钉(#10-16x0.625)SCREW (#10-16 x .625)1
33822873卡扣CLIP1
34NSS不单独销售 贴纸-低排放NOT SOLD SEPARATE Decal-Low Emission1
图 5化油器 Carburetor
化油器 Carburetor
REF零件编号中文名称英文名称数量
19532A12化油器100 WME-20BCARBURETOR 100 WME-20B1
19532A13化油器100 WME-20BCARBURETOR 100 WME-20B1
19532A14化油器100 WME-20BCARBURETOR 100 WME-20B1
19532A15化油器100 WME-20BCARBURETOR 100 WME-20B1
19012A77化油器115-WME-21BCARBURETOR 115-WME-21B1
19012T77化油器CARBURETOR1
19012A78化油器115-WME-21BCARBURETOR 115-WME-21B1
19012T78化油器CARBURETOR1
19012A79化油器115-WME-21BCARBUBETOR 115-WME-21B1
19012T79化油器CARBURETOR1
19012A80化油器115-WME-21BCARBURETOR 115-WME-21B1
19012T80化油器CARBURETOR1
2NSS垫片(不单独销售)NOT SOLD SEPARATE Gasket4
3NSS非单独销售挡圈NOT SOLD SEPARATE Retaining Ring4
49590燃油杯BOWL Fuel4
4811693燃油杯BOWL Fuel4
4811693燃油杯(WME-20A&B/21A&B)BOWL Fuel (WME-20A&B/21A&B)4
59591节流阀轴(WME-1/3/4)SHAFT Throttle (WME-1/3/4)3
619270节流阀轴(WME-2)SHAFT Throttle (WME-2)1
79724节流阀(100)VALVE Throttle (100)4
7813619节流阀(115)VALVE Throttle (115)4
89594浮子FLOAT4
9NSSNOT SOLD SEPARATE Float Shaft4
109595进油针阀VALVE Inlet Needle4
10879194011进油阀VALVE Inlet4
119596堵头PLUG4
1195961油杯放油塞PLUG Bowl Drain4
11811694塞子套件(WME-20A&B/21A&B)PLUG KIT (WME-20A&B/21A&B)4
12NSS垫片(不单独销售)NOT SOLD SEPARATE Gasket4
13NSS垫片(不单独销售)NOT SOLD SEPARATE Gasket4
14151723衬垫GASKET4
14151724衬垫GASKET4
15NSS螺丝(不单独销售)NOT SOLD SEPARATE Screw8
169597螺丝(WME-11/14)SCREW (WME-11/14)8
16811220盖板螺丝(WME-20/21)SCREW Cover Plate (WME-20/21)8
175132螺钉SCREW16
17808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)16
189598盖板(WME-11/14)COVER PLATE (WME-11/14)4
18811221盖板(WME-20/21)COVER PLATE (WME-20/21)4
195225主量孔(.054)(100)JET Main (.054) (100)4
195213主量孔(.056)(100)JET Main (.056) (100)4
196680喷孔 (.078) (WME1/2)-115 WME-14JET (.078) (WME1/2)-115 WME-142
193796喷孔 (.076) (WME 3/4) -115 WME-14JET (.076) (WME 3/4) -115 WME-142
193796喷孔 (.076) (115)JET (.076) (115)4
196680喷孔 (.078) (115)JET (.078) (115)4
20NSSNOT SOLD SEPARATE Idle Needle4
21NSS垫片(不单独销售)NOT SOLD SEPARATE Gasket4
22NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring2
23NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring4
24NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring4
25NSSNOT SOLD SEPARATE Idle Needle2
26NSS不单独销售 塞NOT SOLD SEPARATE Plug2
-9602衬垫套件 (WME-11/14)GASKET KIT (WME-11/14)1
-8112231化油器衬垫组GASKET SET Carburetor1
-811223化油器衬垫组 (WME-20/21)GASKET SET Carburetor (WME-20/21)1
-8112231化油器衬垫组GASKET SET Carburetor1
-823635维修套件 (WME-11/14) 和 (WME-20/21)REPAIR KIT (WME-11/14) And (WME-20/21)1
-8236354化油器维修套件REPAIR KIT Carburetor1
-13461A90衬垫套件GASKET SET1
-13461A99衬垫套件GASKET SET1

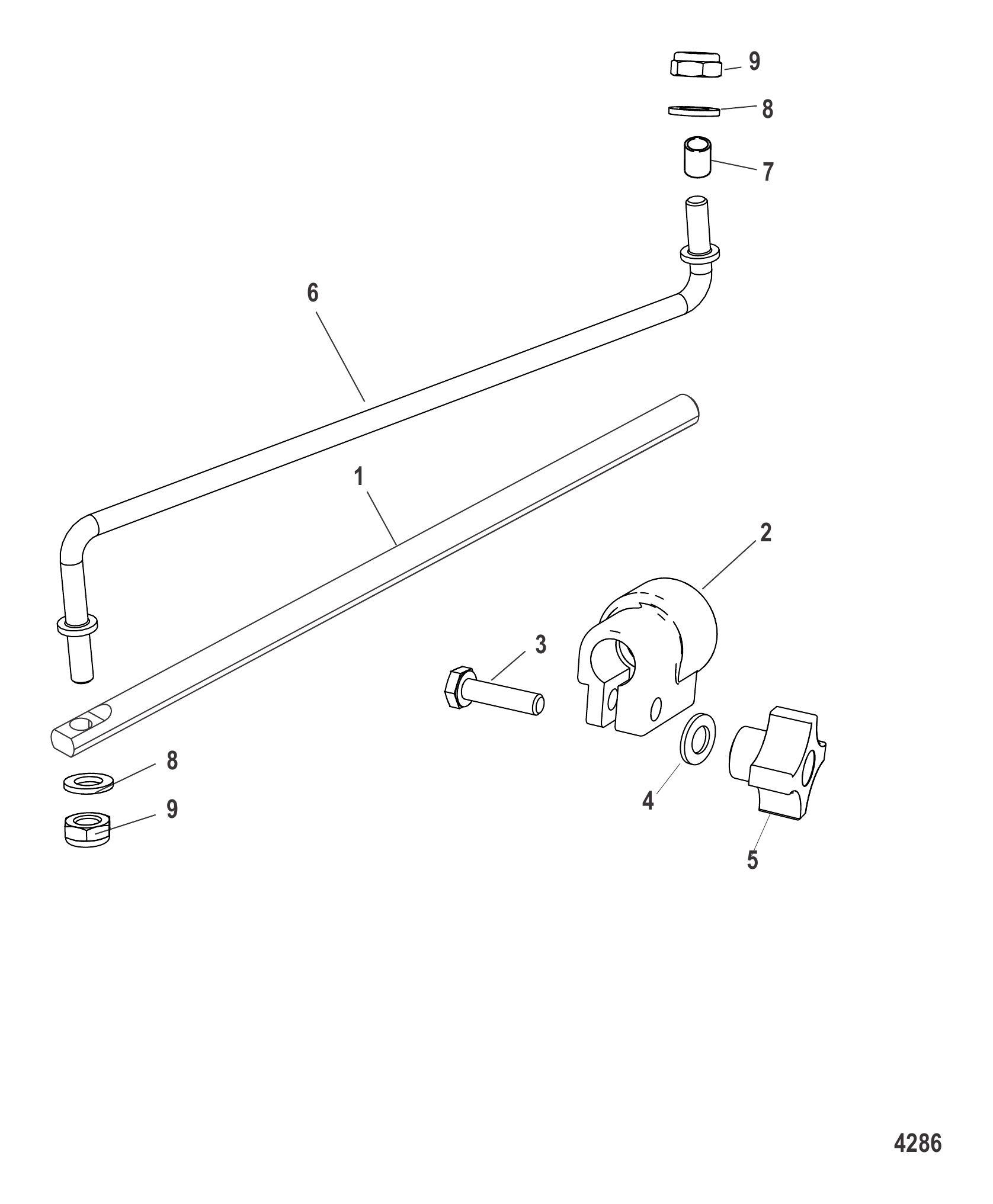

图 6副驾驶装置 Co-Pilot
副驾驶装置 Co-Pilot
REF零件编号中文名称英文名称数量
-52148A7副驾驶装置总成CO-PILOT ASSEMBLY1
1521481导向杆PILOT ROD1
28M0103848螺母总成NUT ASSEMBLY1
356500螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)1
477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
5821621叉形旋钮KNOB Prong1
6873491杆ROD1
7521512衬套BUSHING1
870132垫圈(0.323×0.563×0.063)不锈钢WASHER (.323 x .563 x .063) Stainless Steel2
88M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)2
9826709111螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel2
图 7曲轴、活塞与连杆 Crankshaft Pistons and Connecting Rods
曲轴、活塞与连杆 Crankshaft Pistons and Connecting Rods
REF零件编号中文名称英文名称数量
19193T5曲轴总成CRANKSHAFT ASSEMBLY1
243019A1齿轮总成GEAR ASSEMBLY1
343011T下滚珠轴承BEARING Ball Lower1
491800半圆键KEY Woodruff2
5786611耐磨套WEAR SLEEVE1
635126O型圈(.859 x .139)O-RING (.859 x .139)1
7818412A4环组件RING ASSEMBLY2
842943A1滚柱轴承总成BEARING ASSEMBLY Roller3
9NSS不单独销售 滚柱轴承NOT SOLD SEPARATE Roller Bearing96
10826191T4活塞总成PISTON ASSEMBLY4
10821896A3活塞总成PISTON ASSEMBLYAR
10821896A4活塞总成PISTON ASSEMBLYAR
11NSS不单独销售NOT SOLD SEPARATE4
12857196锁紧环LOCK RING8
13822321A12活塞环套件-标准RING KIT Piston - Standard1
13822321A1活塞环套件-加大0.015RING KIT Piston - .015 OversizeAR
13822321A2活塞环组RING SET PistonAR
14818846T6连杆总成CONNECTING ROD ASSEMBLY4
15812876垫圈WASHER8
158M0012298止推垫片THRUST WASHER8
16818391滚针轴承BEARING Needle116
168M0214954滚针轴承@200BRG-NEEDLE @200116
1794320螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)8
1843012A04轴承总成BEARING ASSEMBLY4
188M0235070轴承保持架CAGE BEARING4
19NSS不单独销售 滚柱轴承NOT SOLD SEPARATE Roller Bearing64
2043013T3上滚柱轴承总成BEARING ASSEMBLY Roller Upper1
2143993油封SEAL Oil1
218M0214932密封件SEAL1
22858225O型圈O-RING1
22823683O型圈(1.989 x .070)O-RING (1.989 x .070)1
-13461A99衬垫套件GASKET SET1
-17791T97动力头总成POWERHEAD ASSEMBLY1
-17791R97PH 100-125 2S -RMPH 100-125 2S -RM1
图 8气缸体与曲轴箱 Cylinder Block and Crankcase
气缸体与曲轴箱 Cylinder Block and Crankcase
REF零件编号中文名称英文名称数量
19191A13气缸体总成CYLINDER BLOCK ASSEMBLY1
24009680螺钉(M10×80)SCREW (M10 x 80)10
367296轴承座销PIN Bearing Race4
38M0036405销PIN4
420033定位销PIN Dowel1
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
542884上盖COVER Top1
5428841盖板COVER1
676867下盖COVER Bottom1
781742750螺钉(M8 x 50)SCREW (M8 x 50)4
865848托架CARRIER1
964872护孔环GROMMET1
10814204A1排气系统套件BLEED SYSTEM KIT1
10813801A1托架总成CARRIER ASSEMBLY1
1142657A1止回阀CHECK VALVE3
1142657A3止回阀CHECK VALVE3
12146531止回阀CHECK VALVE2
12891664止回阀CHECK VALVE2
13821676螺柱(M6)STUD (M6)8
13821676A1螺柱套件STUD KIT8
1445175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)8
148M0214963垫圈WASHER8
1513914螺母(M10)NUT (M10)8
1540140螺母(M10)NUT (M10)8
1642623压入式止回阀CHECK VALVE Press-In1
16426233止回阀CHECK VALVE1
1732802管塞 (.125-27)PLUG Pipe (.125-27)1
17328022黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
1899130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
18892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1982127335螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)16
2099162护套BOOT1
2099162001护套BOOT1
219196A1盖板COVER1
219196A2盖板COVER1
22443283衬垫GASKET1
22443284衬垫GASKET1
2382127335螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)18
24814634卡箍CLAMP6
2578799温度传感器(19.50英寸)SENDER Temperature (19.50 Inch)1
25787991温度传感器(37.50英寸)SENDER Temperature (37.50 Inch)1
2644552固定座RETAINER1
26889733固定座RETAINER1
2748409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel1
2856681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
288M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
2986596T提升阀POPPET VALVE1
3064877隔膜DIAPHRAGM1
30648771隔膜DIAPHRAGM1
3194182垫圈WASHER1
3269570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
3318336弹簧SPRING1
3342996不锈钢弹簧SPRING (Stainless Steel)1
3475692节温器(143度)THERMOSTAT (143 Degrees)1
3414586节温器(120度)THERMOSTAT (120 Degrees)1
3562386衬垫GASKET1
358M0204714衬垫@4GASKET @41
36430063衬垫GASKET1
36430068衬垫GASKET1
37428852盖板COVER1
378M0047619盖板COVER1
3882127335螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)1
3881742755螺钉(M8x55)SCREW (M8 x 55)4
3914857A7机油报警模块总成MODULE ASSEMBLY Oil Warning1
3914857A16机油报警模块MODULE-OILWARNING1
404010630不锈钢螺钉(M6x30)SCREW (M6 x 30) Stainless Steel2
4112415温度传感器SENDER Temperature1
4288824A6Sea Ray/动力艇线缆总成CABLE ASSEMBLY Sea Ray/ Powerboat1
4312621盖板COVER1
44126201衬垫GASKET1
4540007106螺钉 (M5 x 13)SCREW (M5 x 13)2
464002314垫圈WASHER2
图 9驱动轴壳体 USA-0T800999/BEL-0P267999 及以下 Driveshaft Housing USA-0T800999/ BEL-0P267999 and Below
驱动轴壳体 USA-0T800999/BEL-0P267999 及以下 Driveshaft Housing USA-0T800999/ BEL-0P267999 and Below
REF零件编号中文名称英文名称数量
18974T23驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18974A26驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
2903501双头螺柱(M10×100)STUD (M10 x 100)1
29035015双头螺柱(M10×227)STUD (M10 x 227)1
323784定位销PIN Dowel2
49035012双头螺柱(M10×63)STUD (M10 x 63)4
49035016双头螺柱(M10×190)STUD (M10 x 190)4
48M0034462双头螺柱(M10×190)STUD (M10 x 190)4
5856774垫圈(0.406×0.750×0.105)不锈钢WASHER (.406 x .750 x .105) Stainless Steel5
58M0214963垫圈WASHER5
640140螺母(M10)NUT (M10)5
712092A3隔套套件SPACER KIT1
843043定位销 - 带孔 (.375 x .625) (带孔)PIN Dowel - With Hole (.375 x .625) (With Hole)1
88M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
843044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
985822A4速度计传感器总成PICKUP ASSEMBLY Speedometer1
104333590度接头(.125-27)尼龙CONNECTOR 90 Degree (.125-27) Nylon1
1043335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal1
1185822直通接头CONNECTOR Straight1
1185822T直通接头CONNECTOR Straight1
1244343T1支架MOUNT2
1342973螺栓(M12×154)BOLT (M12 x 154)2
13898835001螺钉(M12 x 154)SCREW (M12 x 154)2
1430119垫圈(外径0.875英寸)WASHER (.875 Inch Outside Diameter)2
1543528螺母(M12)NUT (M12)2
158M0204662螺母NUT2
1688238A10接地线总成CABLE ASSEMBLY Ground2
1741508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
1893192卡箍CLAMP2
188M0036730卡箍CLAMP2
1935521螺母NUT4
204010725螺钉 (M8 x 25)SCREW (M8 x 25)4
2167077T黑色盖COVER Black2
218M4500752盖板COVER2
2288417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
图 10驱动轴壳体 USA-0T801000/BEL-0P268000 及以上 Driveshaft Housing USA-0T801000/ BEL-0P268000 and Up
驱动轴壳体 USA-0T801000/BEL-0P268000 及以上 Driveshaft Housing USA-0T801000/ BEL-0P268000 and Up
REF零件编号中文名称英文名称数量
1881913T01驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1881913T02驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
2903501双头螺柱(M10×100)STUD (M10 x 100)1
29035015双头螺柱(M10×227)STUD (M10 x 227)1
39035012双头螺柱(M10×63)STUD (M10 x 63)4
39035016双头螺柱(M10×190)STUD (M10 x 190)4
38M0034462双头螺柱(M10×190)STUD (M10 x 190)4
4856774垫圈(0.406×0.750×0.105)不锈钢WASHER (.406 x .750 x .105) Stainless Steel5
48M0214963垫圈WASHER5
540140螺母(M10)NUT (M10)5
685822A4速度计传感器总成PICKUP ASSEMBLY Speedometer1
74333590度接头(.125-27)尼龙CONNECTOR 90 Degree (.125-27) Nylon1
743335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal1
885822直通接头CONNECTOR Straight1
885822T直通接头CONNECTOR Straight1
9881916支架MOUNT2
1042973螺栓(M12×154)BOLT (M12 x 154)2
10898835001螺钉(M12 x 154)SCREW (M12 x 154)2
1130119垫圈(外径0.875英寸)WASHER (.875 Inch Outside Diameter)2
1243528螺母(M12)NUT (M12)2
128M0204662螺母NUT2
1388238A10接地线总成CABLE ASSEMBLY Ground2
1441508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
15881917卡箍CLAMP2
158M0036786卡箍CLAMP2
1635521螺母NUT4
17889833025螺钉 (M8 x 25 毫米)SCREW (M8 x 25 MM)4
18882752盖板COVER2
188M4500754盖板COVER2
1988417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
2028421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
208M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
21881976氯丁橡胶垫圈WASHER Neoprene2
2212092A3隔套套件SPACER KIT1
2343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
2343043定位销 - 带孔 (.375 x .625) (带孔)PIN Dowel - With Hole (.375 x .625) (With Hole)1
238M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
24892214平板垫圈PLATE WASHER2
25889557驱动轴壳体塞PLUG Driveshaft Housing2
258M0026580堵头PLUG2
图 11电气组件 Electrical Components
电气组件 Electrical Components
REF零件编号中文名称英文名称数量
1443314点火板IGNITION PLATE1
25772A5开关盒总成SWITCHBOX ASSEMBLY1
25772A7开关盒总成SWITCHBOX ASSEMBLY1
363153J型卡扣J CLIP1
440011110螺钉(M5×30不锈钢)SCREW (M5 x 30) Stainless Steel4
5134731保险丝座 旧款HOLDER Fuse Old Design1
645076黄铜螺母(#10-32)NUT (#10-32) Brass13
743442A3主线路束总成HARNESS ASSEMBLY Primary1
8813715A8点火电缆组CABLE SET Ignition1
963709A1护套/端子套件BOOT/TERMINAL KIT4
1097180火花塞SPARK PLUG4
10896329827SP #L76V @4SP #L76V @44
1014103550火花塞 (NGK-BUZHW)SPARK PLUG (NGK-BUZHW)4
10896329898SP #QL76V @4SP #QL76V @44
108167372火花塞SPARK PLUG4
10816737QNGK BP8HN-10@10NGK BP8HN-10@104
108168372火花塞SPARK PLUG4
10938SP #QL78YC @4SP #QL78YC @44
1182155025螺丝(M8 x 25 mm)不锈钢SCREW (M8 x 25 mm) Stainless Steel4
127370A13点火线圈总成COIL ASSEMBLY Ignition4
128M0230859点火线圈总成COIL IGNITION ASY4
1345076黄铜螺母(#10-32)NUT (#10-32) Brass8
1487554盖板COVER1
1540007114螺钉(M5×50)SCREW (M5 x 50)5
1689302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)5
1840056107螺钉(M5×16)SCREW (M5 x 16)2
1945067螺母NUT3
2016731A1汞开关 旧款MERCURY SWITCH Old Design1
2016731T01开关总成SWITCH ASSY1
2140056107螺钉(M5×16)SCREW (M5 x 16)1
2245915端子排TERMINAL BLOCK2
2348408螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)4
2443443A3发动机线束总成HARNESS ASSEMBLY Engine Wiring1
2443443A7发动机线束总成HARNESS ASSEMBLY Engine Wiring1
2443443A9发动机线束总成HARNESS ASSEMBLY Engine Wiring1
2579091保险丝20安培FUSE 20 Ampere1
258M0207796保险丝20安培FUSE 20 AMP1
2688439A3正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
2688439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
27818998A1启动电磁阀 (#8-32/.250-20 端子)SOLENOID Starter (#8-32/.250-20 Terminals)1
278M0185146电磁阀总成SOLENOID ASSEMBLY1
2826419黄铜螺母 (#8-32)NUT (#8-32) Brass2
2926992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
3064015螺母 (.250-20)NUT (.250-20)2
27817109A2电磁阀总成(#10-32/.3125-18端子)SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)1
-818968衬套BUSHING2
-8M0214955衬套BUSHING2
2845076黄铜螺母(#10-32)NUT (#10-32) Brass2
2953166锁紧垫圈 (.312)LOCKWASHER (.312)2
3068292螺母(.312-18)NUT (.312-18)2
308M0204668螺母(.312-18)NUT (.312-18)2
3140007106螺钉 (M5 x 13)SCREW (M5 x 13)2
324002314垫圈WASHER2
3388807A6黑色电缆总成 (3.50 英寸)CABLE ASSEMBLY (3.50 Inches) Black1
3488808A21线束总成 (6.00 英寸) 红色WIRE ASSEMBLY (6.00 Inches) Red1
3488808A18线束总成 (3.00 英寸) 红色WIRE ASSEMBLY (3.00 Inches) Red1
3513550T1盖板COVER1
3640011114螺钉 (M5 x 50) 不锈钢SCREW (M5 x 50) Stainless Steel3
3640007114螺钉(M5×50)SCREW (M5 x 50)3
3640011110螺钉(M5×30不锈钢)SCREW (M5 x 30) Stainless Steel3
3789302垫圈 (.203 x .406 x .040) 适用处使用WASHER (.203 x .406 x .040) Use Where Applicable4
38816770整流器RECTIFIER1
388M0058226整流器RECTIFIER1
3917602A1接线端子排 黑色, 见备注TERMINAL BLOCK Black, See Note1
3917602A2接线端子排 灰色, 见备注TERMINAL BLOCK Gray, See Note1
3917602T02接线端子总成TERMINAL BLOCK ASSEMBLY1
40815279A2电压调节器套件VOLTAGE REGULATOR KIT1
414010630不锈钢螺钉(M6x30)SCREW (M6 x 30) Stainless Steel3
4212201A2线束总成HARNESS ASSEMBLY1
43815279A2电压调节器套件VOLTAGE REGULATOR KIT1
43815279T电压调节器REGULATOR Voltage1
438M0084173电压调节器VOLTAGE REGULATOR1
444010635螺钉(M6 x 35) 不锈钢SCREW (M6 x 35) Stainless Steel2
46821546A1线束总成HARNESS ASSEMBLY1
46821546A3线束总成HARNESS ASSEMBLY1
图 12排气板（序列号 USA-0T800999/BEL-0P267999 及以下） Exhaust Plate (S/N USA-0T800999/BEL-0P267999 and Below)
排气板（序列号 USA-0T800999/BEL-0P267999 及以下） Exhaust Plate (S/N USA-0T800999/BEL-0P267999 and Below)
REF零件编号中文名称英文名称数量
142954A5排气板总成PLATE ASSEMBLY Exhaust1
223784定位销PIN Dowel3
340011151不锈钢螺钉(M8×35)SCREW (M8 x 35) Stainless Steel2
340011158不锈钢螺钉(M8×70)SCREW (M8 x 70) Stainless Steel1
4881900T支架MOUNT1
4881900T03支架MOUNT1
54010750螺钉(M8 x 50)SCREW (M8 x 50)4
642974螺栓(M12×175)BOLT (M12 x 175)2
68M0238139螺钉SCREW2
7934161氯丁橡胶垫圈WASHER Neoprene2
732834垫圈(0.9375x1.750x0.172)WASHER (.9375 x 1.750 x .172)2
828421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
88M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
9859129螺母(M12)NUT (M12)2
9896963螺母(M12)NUT (M12)2
10430086衬垫GASKET1
11429664排气管TUBE Exhaust1
1187917216T排气管TUBE-EXHAUST1
1240011151不锈钢螺钉(M8×35)SCREW (M8 x 35) Stainless Steel6
1342962密封件SEAL1
138M0039075密封件SEAL1
14894171护孔环GROMMET1
1489417004护孔环GROMMET1
158812011水管 - 长型 (13.21 英寸)TUBE Water - Long (13.21 Inches)1
158M0042791长型水管TUBE-WATER-LONG1
158812012水管 - 加长型 (18.21 英寸)TUBE Water - X Long (18.21 Inches)1
158M0042792水管-XLTUBE-WATER-XL1
16824661卡箍CLAMP1
17814080上密封件SEAL Upper1
17814080001密封件SEAL1
184010750螺钉(M8 x 50)SCREW (M8 x 50)2
1942953A5下支架总成BRACKET ASSEMBLY Lower1
2043405密封件SEAL1
2119565护孔环GROMMET1
2119565002护孔环GROMMET1
2281742750螺钉(M8 x 50)SCREW (M8 x 50)3
2348237衬套BUSHING1
2479932A20换挡轴总成SHIFT SHAFT ASSEMBLY1
2542912A3换挡连杆SHIFT LINK1
2648475衬套BUSHING2
27401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
28813745隔套SPACER1
2811289隔套SPACER1
2943585联轴器COUPLING1
-13461A99衬垫套件GASKET SET1
图 13排气板（序列号 USA-0T801000/BEL-0P268000 及以上） Exhaust Plate (S/N USA-0T801000/ BEL-0P268000 and Up)
排气板（序列号 USA-0T801000/BEL-0P268000 及以上） Exhaust Plate (S/N USA-0T801000/ BEL-0P268000 and Up)
REF零件编号中文名称英文名称数量
1881912T01排气板PLATE Exhaust1
223784定位销PIN Dowel4
3881973固定座RETAINER1
4881915001支架MOUNT2
4881915002支架MOUNT2
5881975螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)4
642974螺栓(M12×175)BOLT (M12 x 175)2
68M0238139螺钉SCREW2
7859129螺母(M12)NUT (M12)2
7896963螺母(M12)NUT (M12)2
8813745隔套SPACER1
811289隔套SPACER1
943585联轴器COUPLING1
10430086衬垫GASKET1
1142966T07排气管TUBE Exhaust1
1240011151不锈钢螺钉(M8×35)SCREW (M8 x 35) Stainless Steel6
1342962密封件SEAL1
138M0039075密封件SEAL1
14894171护孔环GROMMET1
1489417004护孔环GROMMET1
158812011水管 - 长型 (13.21 英寸)TUBE Water - Long (13.21 Inches)1
158M0042791长型水管TUBE-WATER-LONG1
158812012水管 - 加长型 (18.21 英寸)TUBE Water - X Long (18.21 Inches)1
158M0042792水管-XLTUBE-WATER-XL1
16824661卡箍CLAMP1
17814080密封件SEAL1
17814080001密封件SEAL1
18889833045螺钉 (M8 x 45)SCREW (M8 x 45)2
19881918T上支架夹CLAMP Bracket, Upper Mount1
19881918T03卡箍CLAMP1
2019565护孔环GROMMET1
2019565002护孔环GROMMET1
2148237衬套BUSHING1
2279932A20换挡轴总成SHIFT SHAFT ASSEMBLY1
2342912A3换挡连杆SHIFT LINK1
2448475衬套BUSHING2
2569056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel1
26401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
2740011151不锈钢螺钉(M8×35)SCREW (M8 x 35) Stainless Steel2
2840011158不锈钢螺钉(M8×70)SCREW (M8 x 70) Stainless Steel1
图 14飞轮与启动电机 Flywheel and Starter Motor
飞轮与启动电机 Flywheel and Starter Motor
REF零件编号中文名称英文名称数量
145907黄色塞PLUG Yellow1
242956A1盖总成COVER ASSEMBLY1
379022标记MARKER1
437572螺钉 (.190-32 x .380)SCREW (.190-32 x .380)2
572761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel2
642979螺母(M16)NUT (M16)1
768229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
733001垫圈WASHER1
89008A9飞轮总成FLYWHEEL ASSEMBLY1
8859236T12飞轮总成FLYWHEEL ASSY1
98778A23定子STATOR1
99710A11定子STATORS1
99710A45定子STATOR1
104007325螺丝(M5 x 25)SCREW (M5 x 25)4
1199021A6触发器总成TRIGGER ASSEMBLY1
12660151启动电机总成STARTER MOTOR ASSEMBLY1
12893892T启动电机总成STARTER MOTOR ASSEMBLY1
1356703轴环COLLAR2
138M0034918轴环COLLAR2
1457247停机开关STOP2
148M0043376停机开关STOP2
1593388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
1669035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
1793389A13黑色导线WIRE Black1
1793388A6线缆总成(5.500英寸)CABLE ASSEMBLY (5.500 Inches)1
1826992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
1964015螺母 (.250-20)NUT (.250-20)1
图 15燃油泵 Fuel Pump
燃油泵 Fuel Pump
REF零件编号中文名称英文名称数量
-14360T75燃油泵总成PUMP ASSEMBLY Fuel1
1NSS不单独销售-燃油泵本体NOT SOLD SEPARATE Body-Fuel Pump1
2857005A1膜片组件DIAPHRAGM KIT1
3NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
4NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer2
5NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
6NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
7NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
8NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
9NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
10NSS增压垫片(不单独销售)NOT SOLD SEPARATE Gasket-Boost1
11NSS脉冲垫片(不单独销售)NOT SOLD SEPARATE Gasket-Pulse1
12987691衬垫GASKET1
128M0204705衬垫@2GASKET @21
13987752安装板PLATE1
1499664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
1582104540螺钉(M5 x 40)SCREW (M5 x 40)2
1682130050螺钉(M6×50)泵至曲轴箱SCREW (M6 x 50) Pump to Crankcase2
17144303底座BASE1
18291112接头FITTING1
1978279245度弯头接头(1.25)FITTING Elbow 45 Degree (1.25)1
198M0207781弯头ELBOW1
20816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
21856822A2软管套管总成(18.00英寸)HOSE AND SLEEVE ASSEMBLY (18.00 Inches)1
218M0043979软管套管总成HOSE AND SLEEVE ASSEMBLY1
22822769连接器CONNECTOR1
-814754A00发动机垫片组GASKET SET Engine1
-8M0046714衬垫套件GASKET SET1
-879808T07动力头总成POWERHEAD ASSEMBLY1
-879809T07动力头总成POWERHEAD ASSEMBLY1
图 16发动机大修衬垫组件 Gasket Set Components Engine Overhaul
发动机大修衬垫组件 Gasket Set Components Engine Overhaul
REF零件编号中文名称英文名称数量
-13461A99衬垫套件GASKET SET1
0812775007挡板至气缸体衬垫GASKET Baffle Plate to Cylinder Block1
0812775006排气挡板至排气盖衬垫GASKET Exhaust Baffle to Exhaust Cover1
089224O型圈 (2.862 内径)O-RING (2.862 I.D.)1
0823683O型圈 (1.989 x .070) (1.989 内径)O-RING (1.989 x .070) (1.989 I.D.)1
0443284气缸盖衬垫GASKET Cover Cylinder Block1
062386节温器衬垫GASKET Thermostat1
08M0204714衬垫@4GASKET @41
0430068节温器盖衬垫GASKET Cover, Thermostat1
0NSS不单独销售 增压NOT SOLD SEPARATE Boost1
0NSS不单独销售 增压室NOT SOLD SEPARATE Boost Chamber1
0NSS不单独销售 燃油泵NOT SOLD SEPARATE Fuel Pump1
0NSS不单独销售 脉冲室NOT SOLD SEPARATE Pluse Chamber1
0987691燃油泵衬垫GASKET Fuel Pump1
08M0204705衬垫@2GASKET @21
0139376簧片阀/曲轴衬垫GASKET Reed Block/Crank8
062705O型圈 (.739 内径)O-RING (.739 I.D.)2
08M0204667O型圈×2O RING @22
033466O型圈 (1.362 内径)O-RING (1.362 I.D.)1
0430086排气板/排气管衬垫GASKET Exhaust Plate/Exhaust Tube1
042941上水管密封SEAL Water Tube Water Tube, Upper1
042941001水管密封件SEAL Water Tube1
093221衬套 水管GROMMET Water Tube1
093221002护孔环GROMMET1
0430075气缸体至排气板衬垫GASKET Cylinder Block to Exhaust Plate1
0457101O型圈 (1.424 x .103) (1.424 内径)O-RING (1.424 x .103) (1.424 I.D.)1
08M0204681特殊O型圈1.424x0.103O-RING 1.424 x .103, Special1
0NSS不单独销售 密封件NOT SOLD SEPARATE Seal1
097386O型圈 (3.609 x .139) (3.609 内径)O-RING (3.609 x .139) (3.609 I.D.)1
08M0214974O型圈O RING1
0430341上水泵铝盖衬垫GASKET Aluminum Cover Water Pump, Upper1
0430472盖至齿轮箱衬垫GASKET Cover to Gearcase1
08M0214931衬垫GASKET1
08172771上水泵衬垫GASKET Water Pump, Upper Water Pump, Upper1
0430331面板至盖板衬垫GASKET Face Plate to Cover1
0191833密封件SEAL3
08M0187157蓝色密封件@15SEAL-BLUE @153
019643密封件SEAL1
0151724化油器衬垫GASKET Carburetor8
042998主压缩弹簧SPRING Compression, Main1
0NSS弹簧端部(不单独销售)NOT SOLD SEPARATE Spring End1
0NSS弹簧端部(不单独销售)NOT SOLD SEPARATE Spring End1
0NSS止回阀(不单独销售)NOT SOLD SEPARATE Check Valve2
017311止回阀固定座RETAINER Check Valve2
0NSS增压压缩件(不单独销售)NOT SOLD SEPARATE Compression, Boost1
0NSS弹簧端部(不单独销售)NOT SOLD SEPARATE Spring End1
0134612歧管盖衬垫GASKET Manifold Cover2
013958144324C1与44325C1排气挡板及盖板专用衬垫GASKET Use With 44324C1 And 44325C1 Exhaust Baffle Plate and Cover2
0858225O型圈(内径2.112)O-RING (2.112 I.D.)11
图 17驱动齿轮箱 USA-0T627234/BEL-0P215668 及以下 Gear Housing Drive-USA-0T627234/BEL-0P215668 and Below
驱动齿轮箱 USA-0T627234/BEL-0P215668 及以下 Gear Housing Drive-USA-0T627234/BEL-0P215668 and Below
REF零件编号中文名称英文名称数量
-9011G51齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9011G49齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9011J9齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G57齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9011J15齿轮箱总成GEAR HOUSING ASSEMBLY1
19011G59基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
243043PIN Dowel - With Hole (.375 x .625) (Front)1
28M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
343046注油管TUBE Oiler1
479953Q2排水螺钉套件(.375-16 x .250)SCREW KIT (.375-16 x .250) Drain3
479953Q04放油螺钉套件SCREW KIT Drain3
467892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/DrainOPT
48M0058389放油螺钉套件SCREW KIT DrainOPT
5191832垫圈WASHER3
58M0187157蓝色密封件@15SEAL-BLUE @153
643044PIN Dowel - Without Hole (.375 x .625) (Rear)1
731640T5平衡鳍板TRIM TAB1
78M0236553平衡鳍板TRIM TAB1
8825427不锈钢螺钉(0.437-14x1.250)SCREW (.437-14 x 1.250) Stainless Steel1
9451761垫圈(.453 x .812 x .105)黑色氧化WASHER (.453 x .812 x .105) Black Oxide1
1043040T1托架总成CARRIER ASSEMBLY1
11NSS不单独销售NOT SOLD SEPARATE1
12826134Q阳极块ANODE2
13401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
144000333螺钉(M6 x 40)SCREW (M6 x 40)1
1519672T小齿轮(14齿)(属43-850035A3部件)GEAR Pinion (Also part of 43-850035A3)(14 Teetj)1
15881260A5小齿轮/前进齿轮总成GEAR ASSEMBLY Pinion/Forward1
1544484T小齿轮(13齿)(属43-850033A2部件)GEAR Pinion (13 Teeth) (Also part of 43-850033A2)(13 Teeth)1
1635921螺母(0.625-18)NUT (.625-18)1
17850307换挡凸轮控制CAM Shift Control1
1842677A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
18883047A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
1944492A1垫片组SHIM SET1
198M0063265垫片组SHIM SET1
2043031A1驱动轴总成DRIVESHAFT ASSEMBLY1
2043032A4驱动轴总成DRIVESHAFT ASSEMBLY1
2142461A1套筒/环套件SLEEVE/RING KIT1
22NSS不单独销售NOT SOLD SEPARATE1
2343055A4水泵盖总成COVER ASSEMBLY Water Pump1
238M0113262水泵盖总成COVER ASSEMBLY Water Pump1
24430331衬垫GASKET1
25430472衬垫GASKET1
258M0214931衬垫GASKET1
2643035上部油封SEAL Oil Upper1
268M0245495油封OIL SEAL1
2743036下油封SEAL Oil Lower1
288172771水泵上垫片GASKET Water Pump, Upper1
29817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
308172761面板FACEPLATE1
308M0204709面板FACEPLATE1
3182684430螺钉 (M6 x 30)SCREW (M6 x 30)4
32430232密封件SEAL1
3343037键KEY1
338M0204723键KEY1
3443026T2叶轮IMPELLER1
3582684425螺钉(M6x25)SCREW (M6 x 25)6
36853906A1换挡轴总成SHIFT SHAFT ASSEMBLY1
36853908A1换挡轴总成SHIFT SHAFT ASSEMBLY1
3729641E型卡环E RING1
3843052A4衬套总成BUSHING ASSEMBLY1
3945710O型圈(1.424x0.103)O-RING (1.424 x .103)1
398M0204681特殊O型圈1.424x0.103O-RING 1.424 x .103, Special1
408164641油封SEAL Oil1
408M0246145油封OIL SEAL1
4182684425螺钉(M6x25)SCREW (M6 x 25)2
42816575端面密封FACE SEAL1
42861415端面密封SEAL Face1
-43035A4齿轮箱密封套件SEAL KIT Gear Housing1
-43024A7水泵维修套件REPAIR KIT Water Pump1
-8M0113799水泵修理包REPAIR KIT-W/P1
-13461A99衬垫套件GASKET SET1
-43026T11水泵叶轮维修套件REPAIR KIT Water Pump Impeller1
-8M0100526水泵叶轮维修套件REPAIR KIT Water Impeller1
图 18驱动齿轮箱 2.07:1 USA-0T627235/BEL-0P215669 及以上 Gear Housing Drive 2.07:1 USA-0T627235/BEL-0P215669 and Up
驱动齿轮箱 2.07:1 USA-0T627235/BEL-0P215669 及以上 Gear Housing Drive 2.07:1 USA-0T627235/BEL-0P215669 and Up
REF零件编号中文名称英文名称数量
-9011J6齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (COMPLETE)1
-9011J9齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (COMPLETE)1
-9011J15齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (COMPLETE)1
19011G59基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
243043定位销-带孔(.375 x .625)(前)PIN Dowel - With Hole (.375 x .625) (FRONT)1
28M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
343046注油管TUBE Oiler1
479953Q2排水螺钉套件(.375-16 x .250)SCREW KIT (.375-16 x .250) Drain3
479953Q04放油螺钉套件SCREW KIT Drain3
467892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/DrainOPT
48M0058389放油螺钉套件SCREW KIT DrainOPT
5191832垫圈WASHER3
58M0187157蓝色密封件@15SEAL-BLUE @153
643044定位销-无孔(.375 x .625)(后)PIN Dowel - Without Hole (.375 x .625) (REAR)1
731640T5平衡鳍板TRIM TAB1
78M0236553平衡鳍板TRIM TAB1
8825427不锈钢螺钉(0.437-14x1.250)SCREW (.437-14 x 1.250) Stainless Steel1
9451761垫圈(.453 x .812 x .105)黑色氧化WASHER (.453 x .812 x .105) Black Oxide1
1043040T1托架总成CARRIER ASSEMBLY1
11NSS滚针轴承(不单独销售)NOT SOLD SEPARATE Needle Bearing1
12826134Q阳极块ANODE2
13401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
144000333螺钉(M6 x 40)SCREW (M6 x 40)1
15NSS小齿轮(14齿)(不单独销售)NOT SOLD SEPARATE Pinion Gear (14 Teeth)1
15NSS小齿轮(12齿)(不单独销售)NOT SOLD SEPARATE Pinion Gear (12 Teeth)1
1635921螺母(0.625-18)NUT (.625-18)1
17850307换挡凸轮控制CAM Shift Control1
18883047A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
1944492A1垫片组SHIM SET1
198M0063265垫片组SHIM SET1
2043031A1驱动轴总成DRIVESHAFT ASSEMBLY1
2043032A4驱动轴总成DRIVESHAFT ASSEMBLY1
2142461A1套筒/环套件SLEEVE/RING KIT1
22NSS密封环(不单独销售)NOT SOLD SEPARATE Seal Ring1
2343055A4水泵盖总成COVER ASSEMBLY Water Pump1
238M0113262水泵盖总成COVER ASSEMBLY Water Pump1
24430331衬垫GASKET1
25430472衬垫GASKET1
258M0214931衬垫GASKET1
2643035油封(上)SEAL Oil (UPPER)1
268M0245495油封OIL SEAL1
2743036油封(下)SEAL Oil (LOWER)1
288172771水泵上垫片GASKET Water Pump, Upper1
29817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
308172761面板FACEPLATE1
308M0204709面板FACEPLATE1
3182684430螺钉 (M6 x 30)SCREW (M6 x 30)4
32430232密封件SEAL1
3343037键KEY1
338M0204723键KEY1
3443026T2叶轮IMPELLER1
3582684425螺钉(M6x25)SCREW (M6 x 25)6
36853906A1换挡轴总成SHIFT SHAFT ASSEMBLY1
36853908A1换挡轴总成SHIFT SHAFT ASSEMBLY1
3729641E型卡环E RING1
3843052A4衬套总成BUSHING ASSEMBLY1
3945710O型圈(1.424x0.103)O-RING (1.424 x .103)1
398M0204681特殊O型圈1.424x0.103O-RING 1.424 x .103, Special1
408164641油封SEAL Oil1
408M0246145油封OIL SEAL1
4182684425螺钉(M6x25)SCREW (M6 x 25)2
42816575端面密封FACE SEAL1
42861415端面密封SEAL Face1
-43035A4齿轮箱密封套件SEAL KIT Gear Housing1
-43024A7水泵维修套件REPAIR KIT Water Pump1
-8M0113799水泵修理包REPAIR KIT-W/P1
-13461A99衬垫套件GASKET SET1
-43026T11水泵叶轮维修套件REPAIR KIT Water Pump Impeller1
-8M0100526水泵叶轮维修套件REPAIR KIT Water Impeller1
图 19推进齿轮箱 2.07:1 USA-0T627235/BEL-0P215669 及以上 Gear Housing Prop 2.07:1 USA-0T627235/BEL-0P215669 and Up
推进齿轮箱 2.07:1 USA-0T627235/BEL-0P215669 及以上 Gear Housing Prop 2.07:1 USA-0T627235/BEL-0P215669 and Up
REF零件编号中文名称英文名称数量
-9011J6齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9011J9齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9011J15齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (COMPLETE)1
19011G59基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
230894A1圆锥轴承组BEARING SET Cup And Cone1
3NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
4881260A3前进齿轮-29齿GEAR Forward - 29 Teeth1
4882813A3前进齿轮与小齿轮套件(28齿)GEAR KIT Forward And Pinion 28 Teeth1
530895T滚针轴承BEARING Needle1
6856823挡圈RING Retaining1
7850315A1凸轮从动件套件FOLLOWER KIT Cam1
844530钢球BALL3
9NSS滑动件(不单独销售)NOT SOLD SEPARATE Slide1
10850327弹簧SPRING1
1130632十字销PIN Cross1
118M0100263十字销PIN Cross1
1230893弹簧SPRING1
13850048T离合器CLUTCH1
14850308螺旋桨轴PROPELLER SHAFT1
148M0140445螺旋桨轴PROPELLER SHAFT1
15850036T倒车齿轮-29齿GEAR Reverse - 29 Teeth1
15882814T倒车齿轮-28齿GEAR Reverse - 28 Teeth1
1612596T2轴承座总成CARRIER ASSEMBLY Bearing1
168M0168901轴承座总成CARRIER ASSY.1
1797386O型圈 (3.609 x .139)O-RING (3.609 x .139)1
178M0214974O型圈O RING1
1830956T滚针轴承BEARING Needle1
1970080内部油封SEAL Oil Inner1
198M0205728密封件SEAL1
2070081外油封SEAL Oil Outer1
208M0205729密封件SEAL1
2112578T滚柱轴承BEARING Roller1
2212577止推垫片THRUST WASHER1
2312576推力轴承BEARING Thrust1
24429172双头螺柱(M8×48)STUD (M8 x 48)2
248M0034456双头螺柱(M8×1.25×48)STUD (M8 X 1.25 X 48)2
25855941垫圈(.323 x .590 x .112)不锈钢WASHER (.323 x .590 x .112) Stainless Steel2
26401378螺母 (M8)NUT (M8)2
2744491A1垫片组SHIM SET1
278M0063266垫片组SHIM SET1
288227731螺纹嵌件INSERT Threaded2
29NSS齿轮箱/小齿轮标识贴(不单独销售)NOT SOLD SEPARATE Decal-G/H Pinion Indent1
-43035A4齿轮箱密封套件SEAL KIT Gear Housing1
-13461A99衬垫套件GASKET SET1
图 20推进齿轮箱 USA-0T627234/BEL-0P215668 及以下 Gear Housing Prop USA-0T627234/BEL-0P215668 and Below
推进齿轮箱 USA-0T627234/BEL-0P215668 及以下 Gear Housing Prop USA-0T627234/BEL-0P215668 and Below
REF零件编号中文名称英文名称数量
-9011G51齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9011G49齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9011J9齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G57齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (COMPLETE)1
-9011J15齿轮箱总成GEAR HOUSING ASSEMBLY1
19011G59基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
230894A1圆锥轴承组BEARING SET Cup And Cone1
3NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
4859473A5前进齿轮总成(29齿)GEAR ASSEMBLY Forward (29 TEETH)1
4881260A5小齿轮/前进齿轮总成GEAR ASSEMBLY Pinion/Forward1
4859472A3前进齿轮总成-30齿GEAR ASSEMBLY Forward - 30 Teeth1
530895T滚针轴承BEARING Needle1
6856823挡圈RING Retaining1
7850315A1凸轮从动件套件FOLLOWER KIT Cam1
844530钢球BALL3
9NSS滑动件(不单独销售)NOT SOLD SEPARATE Slide1
10850327弹簧SPRING1
1130632十字销PIN Cross1
118M0100263十字销PIN Cross1
1230893弹簧SPRING1
13850048T离合器CLUTCH1
14850308螺旋桨轴PROPELLER SHAFT1
148M0140445螺旋桨轴PROPELLER SHAFT1
15850036T倒车齿轮-29齿GEAR Reverse - 29 Teeth1
15850034T倒车齿轮(30齿)GEAR Reverse (30 Teeth)1
1612596T2轴承座总成CARRIER ASSEMBLY Bearing1
168M0168901轴承座总成CARRIER ASSY.1
1797386O型圈 (3.609 x .139)O-RING (3.609 x .139)1
178M0214974O型圈O RING1
1830956T滚针轴承BEARING Needle1
1970080油封(内)SEAL Oil (INNER)1
198M0205728密封件SEAL1
2070081油封(外)SEAL Oil (OUTER)1
208M0205729密封件SEAL1
2112578T滚柱轴承BEARING Roller1
2212577止推垫片THRUST WASHER1
2312576推力轴承BEARING Thrust1
24429172双头螺柱(M8×48)STUD (M8 x 48)2
248M0034456双头螺柱(M8×1.25×48)STUD (M8 X 1.25 X 48)2
25855941垫圈(.323 x .590 x .112)不锈钢WASHER (.323 x .590 x .112) Stainless Steel2
26401378螺母 (M8)NUT (M8)2
2744491A1垫片组SHIM SET1
278M0063266垫片组SHIM SET1
288227731螺纹嵌件INSERT Threaded2
29NSS齿轮箱/小齿轮标识贴(不单独销售)NOT SOLD SEPARATE Decal-G/H Pinion Indent1
-43035A4齿轮箱密封套件SEAL KIT Gear Housing1
-13461A99衬垫套件GASKET SET1
图 21进气歧管与簧片阀组 Inducition Manifold and Reed Block
进气歧管与簧片阀组 Inducition Manifold and Reed Block
REF零件编号中文名称英文名称数量
144325A1排气盖板套件COVER/PLATE KIT Exhaust1
2NSS排气板(不单独销售)NOT SOLD SEPARATE Exhaust Plate1
3812775007挡板至气缸体衬垫GASKET Baffle Plate to Cylinder Block1
4812775006排气挡板至排气盖衬垫GASKET Exhaust Baffle to Exhaust Cover1
582127335螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)35
699664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
742881A1换挡拨叉总成SHIFT RAIL ASSEMBLY1
842981锁紧垫圈TAB WASHER2
940001134螺钉 (M8 x 25)SCREW (M8 x 25)2
10988851滑块SLIDE1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
1235459垫圈WASHER1
13401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
14430075衬垫GASKET1
159004T3下端盖总成END CAP ASSEMBLY Lower1
15858552T2下端盖总成CAP ASSEMBLY Lower End1
15858552T2下端盖总成CAP ASSEMBLY Lower End1
16426585止回阀CHECK VALVE1
1741953密封件SEAL1
17419533油封SEAL Oil1
1889224O型圈O-RING1
194010825螺丝(M10 x 25)六角法兰-不锈钢SCREW (M10 x 25) Hex Flange - Stainless Steel3
2013033三通接头TEE FITTING1
211430165油管(38.00英寸 散装)TUBING (38.00 Inches Bulk)2
22130351直通接头FITTING (STRAIGHT)2
2313545A1进气歧管总成MANIFOLD ASSEMBLY Induction2
24827514支架BRACKET1
2582127335螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)12
2681742740螺钉 (M8 x 40)SCREW (M8 x 40)2
278161949双头螺柱(M6 x 44)STUD (M6 x 44)2
2849221垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)WASHER (.187 x .500 x .062) Neoprene2
288M0204663垫片@5WASHER @52
29816872蝶形螺母WING NUT2
3040001167螺钉(M8 x 110)(#4气缸)SCREW (M8 x 110) (#4 CYLINDER)2
31824470双头螺柱(M8 x 1.25)(#1,2,3气缸)STUD (M8 x 1.25) (#1, 2, 3 CYLINDER)6
32134612衬垫GASKET2
3313460盖板COVER2
3481742755螺钉(M8x55)SCREW (M8 x 55)4
3542963A11簧片阀总成REED BLOCK ASSEMBLY4
358M0219198簧片阀总成REED BLOCK ASSY4
36NSS定位销(不单独销售)NOT SOLD SEPARATE Dowel Pin24
37139376衬垫GASKET8
3843018A1簧片组REED SET4
39429821锁紧垫圈TAB WASHER4
4042924固定座RETAINER4
4188421471螺钉(M6 x 16)SCREW (M6 x 16)4
42856985A9EPA标签信息贴花DECAL EPA Label Information1
42804667A00EPA标签信息贴花DECAL EPA Label Information1
42804667A01EPA标签信息贴花DECAL EPA Label Information1
42804667A02EPA标签信息贴花DECAL EPA Label Information1
42804667A03EPA标签信息贴花DECAL EPA Label Information1
42804667A04EPA标签信息贴花DECAL EPA Label Information1
-13461A99衬垫套件GASKET SET1
-17791T97动力头总成POWERHEAD ASSEMBLY1
-17791R97PH 100-125 2S -RMPH 100-125 2S -RM1
图 22喷泵总成 Jet Pump Assembly
喷泵总成 Jet Pump Assembly
REF零件编号中文名称英文名称数量
-801400115喷泵总成JET PUMP ASSEMBLY1
-856143A1喷泵总成JET PUMP ASSEMBLY1
-856143A1喷泵总成JET PUMP ASSEMBLY1
185576790泵壳HOUSING Pump1
1855767T90泵壳HOUSING Pump1
180141190泵壳HOUSING Pump1
1801411T90泵壳总成HOUSING ASSY-PUMP1
2827490润滑油管HOSE Lube1
3848497螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)6
419923088螺钉(.250-20 x .875)SCREW (.250-20 x .875)4
4848497螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)4
5855840双头螺柱(.312-18 x 1.81)STUD (.312-18 x 1.81)6
667980螺母(.312-18)NUT (.312-18)6
682670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel6
780141290进气壳体HOUSING Intake1
88271883衬套LINER1
980141390驱动轴DRIVESHAFT1
1085576890进气壳体HOUSING Intake1
11855771衬套LINER1
1285576990驱动轴DRIVESHAFT1
138271891套筒SLEEVE1
148271901螺母NUT1
15808747泵适配器ADAPTER Pump1
1636001垫圈WASHER6
17801414115叶轮IMPELLER1
17855708115叶轮IMPELLER1
17855708115叶轮IMPELLER1
18801405875键KEY1
19801404875叶轮垫片SHIM Impeller8
20801403875锁紧垫圈TAB WASHER1
21801407定位销PIN Dowel2
2219923062螺钉(.250-20 x .625)SCREW (.250-20 x .625)2
2360411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
24801410电缆支架BRACKET Cable Support1
2567980螺母(.312-18)NUT (.312-18)1
2582670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
264010860不锈钢六角法兰螺钉(M10 x 60)SCREW (M10 x 60) Hex Flange - Stainless Steel2
274010890不锈钢六角法兰螺钉(M10 x 90)SCREW (M10 x 90) Hex Flange - Stainless Steel1
284010870不锈钢六角法兰螺钉(M10 x 70)SCREW (M10 x 70) Hex Flange - Stainless Steel1
29843575螺丝(.375-16 x 4.00)不锈钢SCREW (.375-16 x 4.00) Stainless Steel1
3045175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
308M0214963垫圈WASHER1
图 23喷泵组件 Jet Pump Components
喷泵组件 Jet Pump Components
REF零件编号中文名称英文名称数量
1821889A51转速限制器REV LIMITER1
2823147A7转速限制器线束总成HARNESS ASSEMBLY Rev Limiter1
311149A8适配器线束总成HARNESS ASSEMBLY Adapter1
482130050螺钉(M6 x 50)SCREW (M6 x 50)2
530500A2润滑脂套装GREASE KIT1
530500K2注脂枪与润滑剂GUN AND LUBE1
6430331衬垫GASKET1
7817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
8817277衬垫GASKET1
88172771水泵上垫片GASKET Water Pump, Upper1
9817276面板FACEPLATE1
98M0204709面板FACEPLATE1
1082684430螺钉 (M6 x 30)SCREW (M6 x 30)4
11430232密封件SEAL1
1243037键KEY1
128M0204723键KEY1
13430262叶轮IMPELLER1
1343026T2叶轮IMPELLER1
-43035A4齿轮箱密封套件SEAL KIT Gear Housing1
-43024A7水泵维修套件REPAIR KIT Water Pump1
-8M0113799水泵修理包REPAIR KIT-W/P1
-13461A90衬垫套件GASKET SET1
-13461A99衬垫套件GASKET SET1
图 24钥匙对照表 Key Chart
钥匙对照表 Key Chart
REF零件编号中文名称英文名称数量
0894911点火钥匙(1A)KEY Ignition (1A)1
0894912点火钥匙(1B)KEY Ignition (1B)1
0894913点火钥匙(1C)KEY Ignition (1C)1
0894914点火钥匙(1D)KEY Ignition (1D)1
0894915点火钥匙(1E)KEY Ignition (1E)1
0894916点火钥匙(1F)KEY Ignition (1F)1
0894917点火钥匙(2A)KEY Ignition (2A)1
0894918点火钥匙(2B)KEY Ignition (2B)1
0894919点火钥匙(2C)KEY Ignition (2C)1
08949110点火钥匙(2D)KEY Ignition (2D)1
08949111点火钥匙(2E)KEY Ignition (2E)1
08949112点火钥匙(2F)KEY Ignition (2F)1
图 25机油喷射组件 Oil Injection Components
机油喷射组件 Oil Injection Components
REF零件编号中文名称英文名称数量
185606065管材(38.00英寸整卷)裁至24英寸TUBING (38.00 Inches Bulk) Cut to 24 Inches1
285606065管材(38.00英寸整卷)裁至18-1/2英寸TUBING (38.00 Inches Bulk) Cut to 18-1/2 Inches1
28M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)1
385606065管材(38.00英寸整卷)裁至16-1/2英寸TUBING (38.00 Inches Bulk) Cut to 16-1/2 Inches1
38M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)1
485606065管材(38.00英寸整卷)裁至24-1/2英寸TUBING (38.00 Inches Bulk) Cut to 24-1/2 Inches1
48M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)1
585606065管材(38.00英寸整卷)裁至27英寸TUBING (38.00 Inches Bulk) Cut to 27 Inches2
58M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)2
6858805止回阀CHECK VALVE6
769355扎带(5.50英寸)TIE STRAP (5.50 Inches)AR
78M0214940扎带TIE STRAPAR
8816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
856762扎带(4.00英寸)TIE STRAP (4.00 Inches)AR
9892830053软管(24.00英寸编织型)HOSE (24.00 Inches Braided)1
1085583466软管(40.00英寸整卷)裁至32英寸HOSE (40.00 Inches Bulk) Cut to 32 Inches1
108M0054213软管HOSE1
118781051止回阀(连接缸体)CHECK VALVE To Block1
12424254接头FITTING1
128M0207780接头FITTING1
13830756109软管(57.00英寸整卷)裁至6英寸HOSE (57.00 Inches Bulk) Cut to 6 Inches1
138M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
14NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap2
15875289软管HOSE1
16858955连接器CONNECTOR2
17875284001滤清器-机油在线式FILTER Oil - In Line1
17875284T01滤清器-机油在线式FILTER Oil - In Line1
18875283软管(2.00英寸)HOSE (2.00 Inches)1
19833069T9储液罐总成RESERVOIR ASSEMBLY1
198M0063190油箱总成OIL TANK ASSY1
20NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
21855362001护孔环GROMMET3
2249436垫圈WASHER3
2360411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)3
24855364衬套BUSHING3
25856156A2开关总成SWITCH ASSEMBLY1
25856156T02开关总成SWITCH ASSEMBLY1
2658376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
2772761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
28814634卡箍CLAMP1
29830756109软管(57.00英寸整卷)裁至4-3/4英寸HOSE (57.00 Inches Bulk) Cut to 4-3/4 Inches1
298M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
30858955连接器CONNECTOR1
-879808T07动力头总成POWERHEAD ASSEMBLY1
-879809T07动力头总成POWERHEAD ASSEMBLY1
图 26动力升降倾斜组件 Power Trim Components
动力升降倾斜组件 Power Trim Components
REF零件编号中文名称英文名称数量
-830250T5动力升降泵总成PUMP ASSEMBLY Power Trim1
1811666A1减震杆套件SHOCK ROD KIT1
18M0171821减震杆套件SHOCK ROD KIT1
2809872A2O型圈维修包O-RING KIT Rebuild1
28M0171819O型圈套件O-RING KIT1
3810776A1记忆活塞总成PISTON ASSEMBLY Memory1
38M0171822记忆活塞套件MEMORY PISTON KIT1
4811669A1气缸总成CYLINDER ASSEMBLY1
4893916A01气缸总成CYLINDER ASSEMBLY1
5809873A1配平限位阀套件VALVE KIT Trim Limit1
5893905A02阀套件VALVE KIT1
6809874A1泵总成PUMP ASSEMBLY1
6893906A02泵总成PUMP ASSEMBLY1
7809885A2电机套件MOTOR KIT1
7893907A02电机套件MOTOR KIT1
88134351堵头PLUG1
9813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
9893929A01安全阀套件VALVE KIT Relief1
10809875A1歧管套件MANIFOLD KIT1
10893909A02歧管套件MANIFOLD KIT1
11809876A1螺丝套件(电机)SCREW KIT (MOTOR)1
1288238A18拉线总成CABLE ASSEMBLY1
13809877A1驱动轴/密封套件DRIVESHAFT/SEAL KIT1
14809878A1滤清器套件FILTER KIT1
14893912A02滤清器套件FILTER KIT1
15809879A1提升阀套件POPPET KIT1
15893913A02提升阀套件POPPET KIT1
-809880A1O-RING KIT (Complete Trim)1
-893914A02O型圈套件O-RING KIT1
16821539三叶销PIN Trilobe2
17818898锚销PIN Anchor1
18996251轴SHAFT1
1899625002轴SHAFT1
19828151A1继电器总成RELAY ASSEMBLY2
198M0207773调整继电器总成RELAY ASSEMBLY Trim2
20818968衬套BUSHING2
208M0214955衬套BUSHING2
21818967护孔环GROMMET2
218M0207785护孔环GROMMET2
22828102支架BRACKET2
228M0207771安装支架BRACKET Mounting2
23NSS微调继电器标识贴(不单独销售)NOT SOLD SEPARATE Decal-Trim Relay2
24819514A15升降线束总成HARNESS ASSEMBLY Trim1
248M0092077升降线束总成HARNESS ASSEMBLY Trim1
2582129125螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
2622740卡扣CLIP2
27878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
2869205C形垫圈C WASHER1
288M0084613C形垫圈C-WASHER1
图 27维修/支撑材料 Service/Support Material
维修/支撑材料 Service/Support Material
REF零件编号中文名称英文名称数量
-803502007零件手册135/150/175 DFI-2.5LPARTS MANUAL 135/150/175 DFI - 2.5L1
-10199070操作/安装手册OPERATION/INSTALLATION MANUAL1
-10199080操作手册135/150/175英文版OPERATION MANUAL 135/150/175, English1
-10299082操作员手册MANUAL-OPERATOR1
-10299091操作手册135-175/150-175 ProXS OptimaxOPERATION MANUAL 135-175/150-175 ProXS Optimax1
-8M0055670操作手册OPERATION MANUAL1
-10199D70用户手册135/150/175 DFI法文版OWNERS MANUAL 135/150/175 DFI, French1
-10199J70用户手册135/150/175 DFI西班牙文版OWNERS MANUAL 135/150/175 DFI, Spanish1
-10260081操作手册喷泵110 OptimaxOPERATION MANUAL Jet 110 Optimax1
-10260090操作手册喷泵110 OptimaxOPERATION MANUAL Jet 110 Optimax1
-8M0055668操作手册OPERATION MANUAL1
-8M0077319操作手册2.5L OptiOPERATION MANUAL 2.5L Opti1
-8M0080077操作手册2.5L OptiOPERATION MANUAL 2.5L Opti1
-859494R1维修手册SERVICE MANUAL1
-8M0057453服务手册舷外机115-175DFISM O/B 115-175DFI1
-804657A06EPA标签信息贴花DECAL EPA Label Information1
-804657A07贴纸-EPA标签信息(135)DECAL EPA Label Information (135)1
-804657A08贴纸-EPA标签信息(135)DECAL EPA Label Information (135)1
-883929A06EPA标签信息贴花DECAL EPA Label Information1
-883929A07贴纸-EPA标签信息(150/175)DECAL EPA Label Information (150/175)1
-883929A08贴纸-EPA标签信息(150/175)DECAL EPA Label Information (150/175)1
-NSS贴纸-EPA(2009年起)(不单独销售)NOT SOLD SEPARATE DECAL, EPA (2009 & Up)1
图 28启动电机 Starter Motor
启动电机 Starter Motor
REF零件编号中文名称英文名称数量
1892339T01启动电机总成STARTER MOTOR ASSEMBLY1
2NSS贯穿螺栓(不单独销售)NOT SOLD SEPARATE Thru Bolt2
3880805A1齿轮套件GEAR KIT1
4809463A1电磁阀组件SOLENOID KIT1
58M0065258电刷组BRUSH SET1
669035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
793388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
88272822警告标贴DECAL Warning1
9400255锁紧垫圈(M5)LOCKWASHER (M5)1
10400211不锈钢螺母(M5)NUT (M5) Stainless Steel1
1126993锁紧垫圈 (.312)LOCKWASHER (.312)1
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
12400213不锈钢螺母 (M8)NUT (M8) Stainless Steel1
138M0034918轴环COLLAR1
14879845停机开关STOP1
148M0043276停机开关STOP1
图 29转向手柄 Steering Handle
转向手柄 Steering Handle
REF零件编号中文名称英文名称数量
112020A3转向臂手柄总成HANDLE ASSEMBLY Steering Arm1
NS74036润滑脂接头FITTING Grease1
NS8M0169589润滑脂接头FITTING Grease1
2429922衬套BUSHING2
242992T02衬套BUSHING2
348414壳体HOUSING1
448519安装板PLATE1
548518衬垫GASKET1
6878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
7878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)4
812013卡箍CLAMP1
8889729卡箍CLAMP1
940007112螺钉(M5 x 40)SCREW (M5 x 40)2
10816874蝶形螺母 (#10-32)WING NUT (#10-32)1
11823609A15停机开关套件-油门手柄SWITCH KIT Stop - Throttle Handle1
12823609A5停机开关总成SWITCH ASSEMBLY Stop1
128M0104612开关总成SWITCH ASSY1
13NSS绝缘件(不单独销售)NOT SOLD SEPARATE Insulator1
1412018A4油门拉线管总成TUBE ASSEMBLY Throttle1
15NSS驱动轮(不单独销售)NOT SOLD SEPARATE Drive Wheel1
16NSS弹性销(不单独销售)NOT SOLD SEPARATE Roll Pin1
1762568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
1899589握把GRIP1
188M0221732外握把GRIP OUTER1
19648551卡箍CLAMP2
2040140螺母(M10)NUT (M10)1
21785512导管CONDUIT1
218885242导管CONDUIT1
22895663导向管GUIDE TUBE1
2389578套筒BARREL1
24824081紧定螺钉(#10-32)SET SCREW (#10-32)1
25120191拉线总成CABLE ASSEMBLY1
26434332导套GUIDE1
2720007锚定件ANCHOR1
2820518紧定螺钉(#8-32)SET SCREW (#8-32)2
288M0204644螺钉组SCREW SET2
29823567105螺丝(M10 x 105)六角法兰-不锈钢SCREW (M10 x 105) Hex Flange - Stainless Steel1
3048416盖帽CAP1
314002319垫圈WASHER1
3212024垫圈(0.402 x 0.787 x 0.039 贝氏)WASHER (.402 x .787 x .039 Bellevi)1
33146011隔套SPACER1
34856774垫圈(0.406×0.750×0.105)不锈钢WASHER (.406 x .750 x .105) Stainless Steel1
348M0214963垫圈WASHER1
35816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
36NSS节气门标识贴(不单独销售)NOT SOLD SEPARATE Decal-Throttle1
-12022A34舵柄套件TILLER HANDLE KIT1
-12022A41转向手柄套件STEERING HANDLE KIT1
图 30转向手柄组件 Steering Handle Components
转向手柄组件 Steering Handle Components
REF零件编号中文名称英文名称数量
112020A3转向臂手柄总成HANDLE ASSEMBLY Steering Arm1
112020A4转向臂手柄总成HANDLE ASSEMBLY Steering Arm1
112020A3转向臂手柄总成HANDLE ASSEMBLY Steering Arm1
-74036润滑脂接头FITTING Grease1
-8M0169589润滑脂接头FITTING Grease1
2429922衬套BUSHING2
242992T02衬套BUSHING2
348414壳体HOUSING1
448519安装板PLATE1
548518衬垫GASKET1
68128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
6878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
7812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)4
7878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)4
812013卡箍CLAMP1
8889729卡箍CLAMP1
940007112螺钉(M5 x 40)SCREW (M5 x 40)2
10816873蝶形螺母WING NUT1
10816874蝶形螺母 (#10-32)WING NUT (#10-32)1
11823609A15停机开关套件-油门手柄SWITCH KIT Stop - Throttle Handle1
12823609A5停机开关总成SWITCH ASSEMBLY Stop1
128M0104612开关总成SWITCH ASSY1
1312018A4油门拉线管总成TUBE ASSEMBLY Throttle1
1462568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
1599589握把GRIP1
158M0221732外握把GRIP OUTER1
16648551卡箍CLAMP2
1713914螺母(M10)NUT (M10)1
1740140螺母(M10)NUT (M10)1
18785512导管CONDUIT1
188885242导管CONDUIT1
19895663导向管GUIDE TUBE1
2089578套筒BARREL1
21824081紧定螺钉(#10-32)SET SCREW (#10-32)1
22120191拉线总成CABLE ASSEMBLY1
23434332导套GUIDE1
2420007锚定件ANCHOR1
2520518紧定螺钉(#8-32)SET SCREW (#8-32)2
258M0204644螺钉组SCREW SET2
26823567105螺丝(M10 x 105)六角法兰-不锈钢SCREW (M10 x 105) Hex Flange - Stainless Steel1
2748416盖帽CAP1
284002319垫圈WASHER1
2912024垫圈(0.402 x 0.787 x 0.039 贝氏)WASHER (.402 x .787 x .039 Bellevi)1
3014601隔套SPACER1
30146011隔套SPACER1
3145175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
318M0214963垫圈WASHER1
图 31旋转支架与转向臂 Swivel Bracket and Steering Arm
旋转支架与转向臂 Swivel Bracket and Steering Arm
REF零件编号中文名称英文名称数量
18710T20黑色旋转支架总成SWIVEL BRACKET ASSEMBLY Black1
233504O型圈O-RING1
28M0214926O型圈 @10O RING @101
3818764衬套BUSHING2
4816039隔套SPACER1
587735下油封SEAL Oil Lower1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
8816432止推垫片THRUST WASHER1
9878182T01下轭架YOKE Bottom1
1067684挡圈RING Retaining1
11996301冲击板STRIKER PLATE2
118M0045383冲击板STRIKER PLATE2
1258643锁紧垫圈 (.375)LOCKWASHER (.375)2
1346335螺母 (.375-24)NUT (.375-24)2
1464014螺钉(.250-28x.500)SCREW (.250-28 x .500)2
15NSS不单独销售-序列号覆膜标贴NOT SOLD SEPARATE Decal-Serial Overlaminate1
16896688001数字式配平传感器总成SENDER ASSEMBLY Trim Digital1
16821180A6模拟式配平传感器总成SENDER ASSEMBLY Trim Analog1
168M0074846ORDER 8M0098273ORDER 8M00982731
17852368螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
1826996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel2
1989302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
20826432A2转向臂旋转销总成-不锈钢SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel1
208M0132731旋转销总成SWIVEL PIN ASSY1
218M0000491螺钉(.437-20 x 7.500)SCREW (.437-20 x 7.500)2
218M0176309螺钉SCREW2
228M0000516上轭缓冲垫BUMPER Top Yoke1
2377326支架MOUNT2
2466921垫圈WASHER2
2578688垫圈WASHER2
2634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
268M0204653螺母NUT2
2792876A12连杆总成LINK ROD ASSEMBLY1
28849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
29826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel1
298M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
298M0042636黄铜螺母 (.375-24)NUT (.375-24) Brass1
298M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
3037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
31816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
图 32油门杆及联动装置 Throttle Lever and Linkage
油门杆及联动装置 Throttle Lever and Linkage
REF零件编号中文名称英文名称数量
144333油门杆LEVER Throttle1
2817582调节螺钉(M5 x 35)SCREW Adjusting (M5 x 35)1
3400211不锈钢螺母(M5)NUT (M5) Stainless Steel1
448039盖帽CAP1
5827009螺钉(M5 x 40)SCREW (M5 x 40)1
6826264盖帽CAP1
7826382弹簧SPRING1
848039盖帽CAP1
944335点火提前杆LEVER Spark Advance1
9884307T杠杆LEVER1
10814776调节螺钉(M6 x 55)SCREW Adjusting (M6 x 55)3
11400212螺母(M6)不锈钢NUT (M6) Stainless Steel3
1242942盖帽CAP3
134007180螺丝(M10 x 45)SCREW (M10 x 45)1
1455171衬套BUSHING1
1586310弹簧SPRING1
1573375弹簧SPRING1
16812930A1衬套BUSHING1
1742980垫圈WASHER1
1842927嵌件INSERT1
1935459垫圈WASHER1
208268336螺母 (M6)NUT (M6)1
20401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
2144338点火提前杆SPARK ADVANCE ROD1
21878170点火提前杆ROD Spark Advance1
2293421旋转球头SWIVEL BALL1
2393254旋转底座SWIVEL BASE1
2444337连接杆LINK1
24878173连接杆LINK1
258268336螺母 (M6)NUT (M6)1
25401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
26932481衬套BUSHING2
268M0215006旋转衬套BUSHING Swivel2
2714518T1节气门凸轮CAM Throttle1
2714518A2节气门凸轮总成CAM ASSEMBLY Throttle1
2714518A2节气门凸轮总成CAM ASSEMBLY Throttle1
2842984螺柱STUD1
288161949双头螺柱(M6 x 44)STUD (M6 x 44)1
288161946螺柱STUD1
288161949双头螺柱(M6 x 44)STUD (M6 x 44)1
2969056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel1
图 33舵柄适配器套件（JET 80） Tiller Handle Adapter Kit (Jet 80)
舵柄适配器套件（JET 80） Tiller Handle Adapter Kit (Jet 80)
REF零件编号中文名称英文名称数量
-850000A3舵柄适配器套件65 JETTILLER HANDLE ADAPTER KIT 65 JET1
1832001A6换挡线缆总成CABLE ASSEMBLY Shift1
2401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
3988851滑块SLIDE1
4828095支架BRACKET1
5824930T3支架BRACKET1
6805444卡扣CLIP1
68054441卡扣CLIP1
740011126不锈钢螺丝(M6 x 13)SCREW (M6 x 13) Stainless Steel1
8828096换挡线缆固定块BLOCK Shift Cable-Retaining1
929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
98M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
1071958螺丝(.250-28 x 1.75)SCREW (.250-28 x 1.75)1
1126992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
12828094换挡线缆固定块BLOCK Shift Cable-Retaining1
1372734紧定螺丝(#10-32 x .310)SET SCREW (#10-32 x .310)1
1435459垫圈WASHER1
1535888不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
16813960A3开关SWITCH1
168M0052927开关总成SWITCH ASSY1
174001168不锈钢螺丝(M3.5 x 20)SCREW (M3.5 x 20) Stainless Steel2
1788075020螺丝(M3 x 20)SCREW (M3 x 20)2
18824923安装板PLATE1
19824934A1拉线总成CABLE ASSEMBLY1
图 34专用工具 Tools Special
专用工具 Tools Special
REF零件编号中文名称英文名称数量
-36392化油器量具GAUGE TOOL Carburetor1
-52344飞轮固定器工具(齿型)FLYWHEEL HOLDER TOOL Teeth Type1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-99750A1万用表MULTI METER1
-52024A1开关总成SWITCH ASSEMBLY1
-59339维修用转速表SERVICE TACHOMETER1
-892647A01DMT万用表套件MULTI-METER KIT DMT1
-850439T1八腔测试仪TESTER Eight Chamber1
-63998A1单腔间隙工具GAP TOOL Single Chamber1
-850439火花测试器SPARK TESTER1
-850439T1八腔测试仪TESTER Eight Chamber1
-99379正时灯TIMING LIGHT1
-825207A1TPI/CDM测试线束总成HARNESS ASSEMBLY TPI/CDM Test1
-112301对正工具ALIGNMENT TOOL1
-NSS夹头(不单独销售)(SNAP ON - CG41-14)NOT SOLD SEPARATE Collet (SNAP ON - CG41-14)1
-NSS膨胀杆(不单独销售)(SNAP ON - CG41-11)NOT SOLD SEPARATE Expanding Rod (SNAP ON - CG41-11)1
-822778A3下压力套件DOWN PRESSURE KIT1
-99750A1万用表MULTI METER1
-74951扳手SPANNER WRENCH1
-63209加热灯HEAT LAMP1
-29287量规工具GAUGE TOOL1
-52344飞轮固定器工具(齿型)FLYWHEEL HOLDER TOOL Teeth Type1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-90455吊环LIFTING EYE1
-904551吊环LIFTING EYE1
-77109A3安装工具套件INSTALLER KIT1
-74607A3活塞销安装套件INSTALLER KIT Piston Pin1
-24697活塞环扩张工具EXPANDER TOOL Piston Ring1
-812549动力头支架STAND Powerhead1
-812549T动力头支架STAND Powerhead1
-24161飞轮拉拔器盖工具CAP TOOL Flywheel Puller1
-66274扭矩扳手(0-150磅英寸)TORQUE WRENCH (0-150 lb-in)1
图 35顶罩 Top Cowl
顶罩 Top Cowl
REF零件编号中文名称英文名称数量
1883013T02顶盖总成 黑色 含除马力外所有贴花TOP COWL ASSEMBLY Black Includes all Decals except Horsepower1
1883058T02银色顶罩总成TOP COWL ASSEMBLY Silver1
18M0075376顶盖总成 Mercury 无贴花TOP COWL ASSEMBLY Mercury, Without decals1
18M0075378顶盖总成 Mariner 无贴花TOP COWL ASSEMBLY Mariner, Without decals1
-888167填充块BLOCK Filler1
282130020螺钉 (M6 x 20)SCREW (M6 x 20)4
3883019A02隔音毯套装SOUND BLANKET KIT1
4NSS不单独销售 隔音垫-左舷NOT SOLD SEPARATE Sound Blanket-Port1
5NSS不单独销售 隔音垫-右舷NOT SOLD SEPARATE Sound Blanket-Starboard1
6NSS不单独销售 隔音垫-后部NOT SOLD SEPARATE Sound Blanket-Rear1
7831207A16罩盖锁手柄套件HANDLE KIT Cowl Latch1
8812707衬套BUSHING2
98312141隔套SPACER1
1019605垫圈(.520 x .850 x .060) 尼龙-黑色WASHER (.520 x .850 x .060) Nylon - Black1
108M0042643垫圈(.520 x .850 x .060) 尼龙 黑色WASHER (.520 x .850 x .060) Nylon, Black1
1112134波形垫圈WASHER Wave1
128M0001081凸轮CAM1
134002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
138M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
148M0009253螺钉(M6 x 16) 含在手柄套件中SCREW (M6 x 16) Included with Handle Kit1
148M0174577螺钉SCREW1
15821249M2前支架BRACKET Front3
158M0036792支架BRACKET3
16815477缓冲器锁扣BUMPER Latch3
1729245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
178M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
18401366螺母(M6)不锈钢NUT (M6) Stainless Steel3
198237951挡圈RING Retaining1
20815263滚轮ROLLER1
208M0207770滚轮@3ROLLER @31
218155381滚动销PIN Roll1
2229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
228M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
23NSS不单独销售-反向旋转标识NOT SOLD SEPARATE Decal-Counter Rotation1
24NSS不单独销售 贴花-磨合NOT SOLD SEPARATE Decal-Break-In1
-854292A07贴花套件DECAL SET1
-892565002贴花 马力(135)DECAL Horsepower (135)1
-8M0061182ORD 37-8M0115001ORD 37-8M01150011
-854294A07贴花套件DECAL SET1
-892565003贴花 马力(150)DECAL Horsepower (150)1
-8M0061183ORD 37-8M0115001ORD 37-8M01150011
-879756A07贴花套件DECAL SET1
-892565004贴花 马力(175)DECAL Horsepower (175)1
-8M0061184ORD 37-8M0115001ORD 37-8M01150011
-854295A03贴花套件DECAL SET1
-854297A03贴花套件DECAL SET1
-879757A03贴花套件DECAL SET1
-826331A08贴花套件 喷泵驱动110(2.5L)DECAL SET Jet Drive 110 (2.5L)1
图 36艉板支架（序列号 USA-0T800999/BEL-0P267999 及以下） Transom Bracket (S/N USA-0T800999/ Bel-0P267999 and Below)
艉板支架（序列号 USA-0T800999/BEL-0P267999 及以下） Transom Bracket (S/N USA-0T800999/ Bel-0P267999 and Below)
REF零件编号中文名称英文名称数量
1828334F1艉板支架BRACKET Transom1
2828333A3艉板支架总成BRACKET ASSEMBLY Transom1
2828333T07艉板支架总成-左舷BRACKET ASSEMBLY Transom - Port1
398727润滑脂接头FITTING Grease1
38M0169588润滑脂接头FITTING Grease1
499170A2倾斜管套件TUBE KIT Tilt1
4826125A1倾斜管TILT TUBE1
4826125A1倾斜管TILT TUBE1
5859133螺母(1.00-14)NUT (1.00-14)1
582671327螺母(1.0-14)NUT (1.0-14)1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 (.612 x .103)O-RING (.612 x .103)1
788750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
8858869螺母 (.875-14)NUT (.875-14)1
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1054012垫圈(0.530×0.870×0.105不锈钢)WASHER (.530 x .870 x .105) Stainless Steel4
108M0204665垫圈(0.530×0.880×0.104 630不锈钢)WASHER (.530 x .880 x .104) 630 Stainless Steel4
1128421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
1282671117螺母(.500-20)NUT (.500-20)4
13830899张力弹簧SPRING Tension1
14821176T1倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
148M0109798倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1565830尼龙衬套NYLINER2
16830900压缩弹簧SPRING Compression1
1799633旋钮KNOB1
1899615槽销PIN Groove1
1999617销PIN1
19893709销PIN1
20818771T1锚支架BRACKET Anchor1
208M0086406锚支架BRACKET Anchor1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
2340114螺母(M10 x 1.5)NUT (M10 x 1.5)1
24818298Q1阳极套件ANODE KIT1
254000330螺钉(M6x25)SCREW (M6 x 25)2
258M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
268M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
图 37艉板支架（序列号 USA-0T801000/BEL-0P268000 及以上） Transom Bracket (S/N USA-0T801000/ Bel-0P268000 and Up)
艉板支架（序列号 USA-0T801000/BEL-0P268000 及以上） Transom Bracket (S/N USA-0T801000/ Bel-0P268000 and Up)
REF零件编号中文名称英文名称数量
1828334F1艉板支架BRACKET Transom1
2828333A3艉板支架总成BRACKET ASSEMBLY Transom1
2828333T07艉板支架总成-左舷BRACKET ASSEMBLY Transom - Port1
398727润滑脂接头FITTING Grease1
38M0169588润滑脂接头FITTING Grease1
499170A2倾斜管套件TUBE KIT Tilt1
4826125A1倾斜管TILT TUBE1
4826125A1倾斜管TILT TUBE1
5859133螺母(1.00-14)NUT (1.00-14)1
582671327螺母(1.0-14)NUT (1.0-14)1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 (.612 x .103)O-RING (.612 x .103)1
788750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
8858869螺母 (.875-14)NUT (.875-14)1
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1054012垫圈(0.530×0.870×0.105不锈钢)WASHER (.530 x .870 x .105) Stainless Steel4
108M0204665垫圈(0.530×0.880×0.104 630不锈钢)WASHER (.530 x .880 x .104) 630 Stainless Steel4
1128421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
1282671117螺母(.500-20)NUT (.500-20)4
13830899张力弹簧SPRING Tension1
14821176T1倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
148M0109798倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1565830尼龙衬套NYLINER2
16830900压缩弹簧SPRING Compression1
1799633旋钮KNOB1
1899615槽销PIN Groove1
1999617销PIN1
19893709销PIN1
20818771T1锚支架BRACKET Anchor1
208M0086406锚支架BRACKET Anchor1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
2340114螺母(M10 x 1.5)NUT (M10 x 1.5)1
248182981阳极块ANODE1
24818298Q1阳极套件ANODE KIT1
254000330螺钉(M6x25)SCREW (M6 x 25)2
258M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
268M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
2722740卡扣CLIP2
2869205C形垫圈C WASHER1
288M0084613C形垫圈C-WASHER1
29878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
30830250T5动力升降泵总成PUMP ASSEMBLY Power Trim1
308M0171818动力调整总成POWER TRIM ASSY1
31996251轴SHAFT1
3199625002轴SHAFT1
32818898锚销PIN Anchor1
33821539三叶销PIN Trilobe2
