两冲程 化油器 · ARCHIVE CAT 86167 · 共 20 个部位 · 712 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9148A47 | 齿轮箱总成(基础款)(黑色) | GEAR HOUSING ASSEMBLY (BASIC) (BLACK) | 1 |
| 1 | 9148A48 | 齿轮箱总成(基础款)(灰色) | GEAR HOUSING ASSEMBLY (BASIC) (GRAY) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 1 | 9148A49 | 齿轮箱总成(基础款)(追踪者) | GEAR HOUSING ASSEMBLY (BASIC) (TRACKER) | 1 |
| 1 | 9148T49 | 齿轮箱壳体-TR型 | GEAR HSG-BASIC-TR | 1 |
| 2 | 85822A10 | 连接器总成(适用时使用) | CONNECTOR ASSEMBLY (USE WHERE APPLICABLE) | 1 |
| 3 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 4 | 78638 | 双头螺栓(.438×3.12)(长型) | STUD (.438 x 3.12) (LONG) | 1 |
| 4 | 786382 | 螺柱(.437-14/.437-20 x 3.120) | STUD (.437-14/.437-20 x 3.120) | 1 |
| 4 | 18978 | 双头螺栓(.438×3.69)(加长型) | STUD (.438 x 3.69) (X-LONG) | 1 |
| 4 | 8M0034464 | 螺柱 | STUD | 1 |
| 5 | 579201 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 5 | 8M0133358 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 6 | 56297 | 双头螺栓(.312×3.38) | STUD (.312 x 3.38) | 1 |
| 6 | 8M0034463 | 螺柱(.312-24 x 3.38) | STUD (.312-24 x 3.38) | 1 |
| 7 | 30667 | 双头螺栓(.250-20/.250-28×3.125) | STUD (.250-20/.250-28 x 3.125) | 2 |
| 7 | 306671 | 螺柱 | STUD | 2 |
| 8 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 43998 | 衬套(旧设计) | SLEEVE (OLD DESIGN) | 1 |
| 9A | 826134 | 阳极块 | ANODE | 2 |
| 9A | 826134Q | 阳极块 | ANODE | 2 |
| 9B | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 9C | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 9C | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 11 | 440001 | 驱动轴(长型) | DRIVESHAFT (LONG) | 1 |
| 11 | 897624T | 长驱动轴 | DRIVESHAFT Long | 1 |
| 11 | 442091 | 驱动轴(加长型) | DRIVESHAFT (X-LONG) | 1 |
| 11 | 897625T | 加长驱动轴 | DRIVESHAFT X-Long | 1 |
| 11 | 16292 | 驱动轴(20英寸) | DRIVESHAFT (20") | 1 |
| 11 | 815237 | 驱动轴(25英寸) | DRIVESHAFT (25") | 1 |
| 12 | N.S.S. | 不单独销售小齿轮(前进齿轮组部件) | Not Sold Separate Pinion Gear (Part of Forward Gear Set) | 1 |
| 13 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 14 | 826375 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 14 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 15 | 42637A1 | 垫片组 | SHIM SET | AR |
| 15 | 8M0063267 | 垫片组 | SHIM SET | AR |
| 16 | 36387A1 | 轴承总成(滚子/外圈) | BEARING ASSEMBLY Roller/Cup | 1 |
| 16 | 8M0146566 | 杯/锥轴承总成 | BEARING ASSEMBLY Cup/Cone | 1 |
| 17 | 824519 | 固定座 | RETAINER | 1 |
| 17 | 8245191 | 固定座 | RETAINER | 1 |
| 18 | 42579A3 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 18 | 8M0077147 | 带水泵底座总成 | BASE ASSY-W/P | 1 |
| 19 | 426311 | 衬垫 | GASKET | 1 |
| 19 | 8M0204678 | 衬垫 | GASKET | 1 |
| 20 | 90011 | O型圈(2.175 x 0.175) | O-RING (2.175 x .175) | 1 |
| 20 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 21 | 89238 | 油封 | SEAL Oil | 1 |
| 22 | 16977 | 油封 | SEAL Oil | 1 |
| 23 | 856081 | 衬垫 | GASKET | 1 |
| 23 | 8M0090319 | 衬垫@5 | GASKET @5 | 1 |
| 24 | 856091 | 衬垫 | GASKET | 1 |
| 24 | 858524 | 衬垫 | GASKET | 1 |
| 25 | 32435 | 面板 | FACE PLATE | 1 |
| 25 | 8M0204677 | 面板 | PLATE-FACE | 1 |
| 26 | 96148A1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 26 | 96148T1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 27 | 48752 | 嵌件 | INSERT | 1 |
| 27 | 48752T | 嵌件 | INSERT | 1 |
| 28 | 38970 | 密封件 | SEAL | 1 |
| 29 | 899841 | 叶轮 | IMPELLER | 1 |
| 29 | 89984T3 | 叶轮 | IMPELLER | 1 |
| 30 | 56654 | 键 | KEY | 1 |
| 30 | 8M0214992 | 键@5 | KEY @5 | 1 |
| 31 | 96411 | 螺钉(#14-8×2.25) | SCREW (#14-8 x 2.25) | 1 |
| 31 | 8M0215009 | 螺钉 | SCREW | 1 |
| 32 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 32 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 33 | 13438 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 33 | 8267119 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 34 | 36001 | 垫圈 | WASHER | 1 |
| 35 | 13436 | 螺母 | NUT | 1 |
| 37 | 29804 | 套筒 | SLEEVE | 1 |
| 37 | 29804T | 套筒 | SLEEVE | 1 |
| 38 | 789022 | 换挡轴(不带E型环使用) | SHIFT SHAFT (USE W/O E-RING) | 1 |
| 38 | 78902 | 轴 | SHAFT | 1 |
| 38 | 789022 | 换档轴 | SHIFT SHAFT | 1 |
| 39 | 29641 | E型卡环 | E RING | 1 |
| 41 | 25439 | O型圈(.862×0.103) | O-RING (.862 x .103) | 1 |
| 42 | 77631A2 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 43 | 8164641 | 油封 | SEAL Oil | 1 |
| 43 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 44 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 45 | 79953 | 螺钉(0.375-16x0.250) | SCREW (.375-16 x .250) | 1 |
| 45 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 46 | 67892 | 磁性螺钉 | SCREW Magnetic | 1 |
| 46 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 47 | 19183 | 纤维垫圈 | WASHER Fiber | 2 |
| 47 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 96148A5 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 96148A8 | 水泵维修套件 | WATER PUMP REPAIR KIT | 1 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

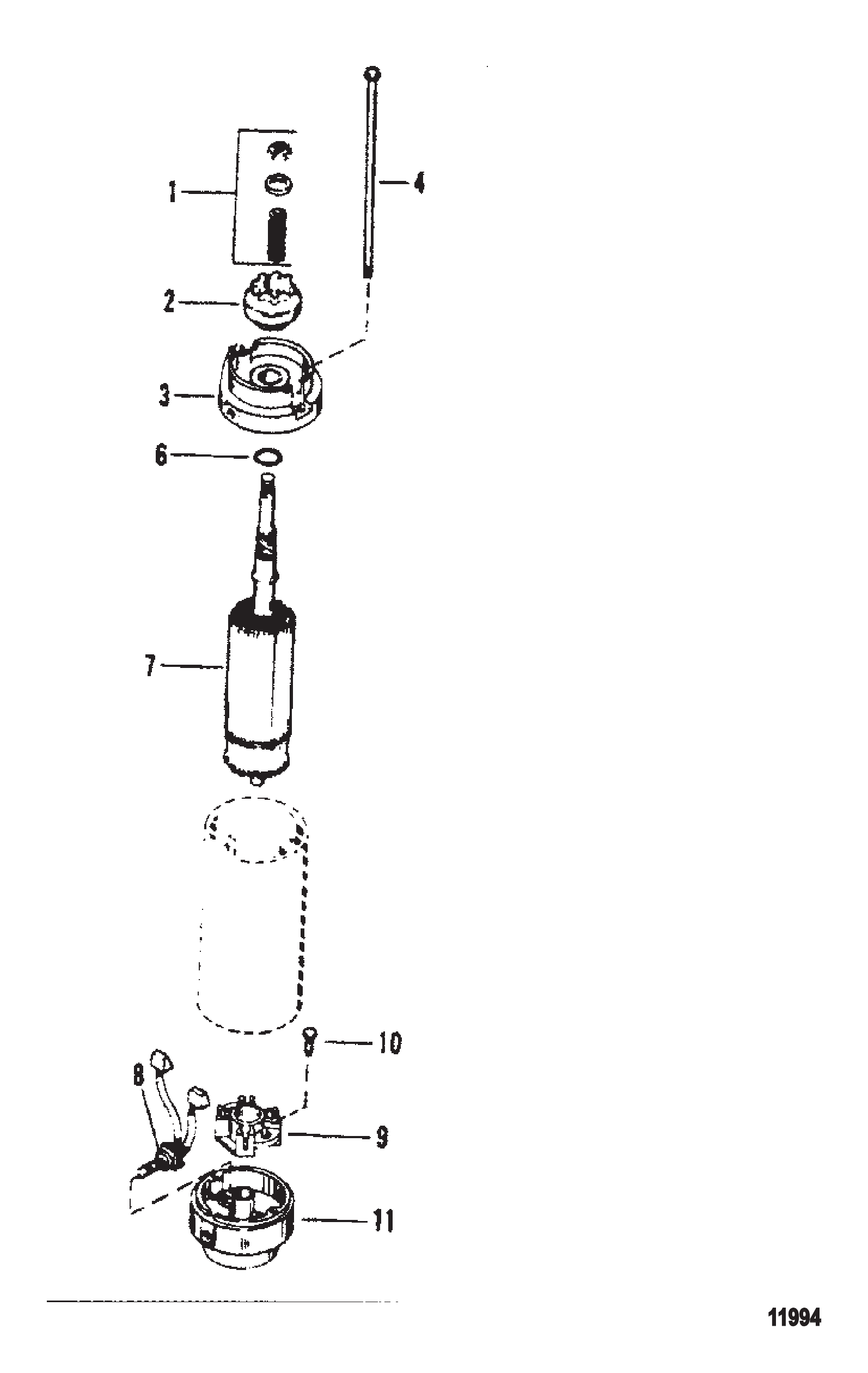

| - | 79472 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| - | 893893 | 启动马达 | STARTER MOTOR | 1 |
| 1 | 90645 | 驱动套件 | DRIVE KIT | 1 |
| 2 | 75661 | 驱动小齿轮总成 | PINION ASSEMBLY Drive | 1 |
| 2 | 13310T1 | 小齿轮总成 | PINION ASSEMBLY | 1 |
| 3 | 75660 | 驱动端板 | PLATE DRIVE END | 1 |
| 4 | 74968 | 贯穿螺栓 | BOLT THRU | 2 |
| 6 | N.S.S. | 不单独出售垫圈 | Not Sold Separate Washer | 1 |
| 7 | 79216 | 电枢 | ARMATURE | 1 |
| 8 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 9 | 61787 | 电刷架 | HOLDER BRUSH | 2 |
| 9 | 898265014 | 电刷支架 | HOLDER-BRUSH | 2 |
| 10 | N.S.S. | 不单独出售螺钉 | Not Sold Separate Screw | 2 |
| 11 | 15386 | 换向器端盖 | END CAP COMMUTATOR | 1 |
| 11 | 15386001 | 端盖 | END CAP | 1 |

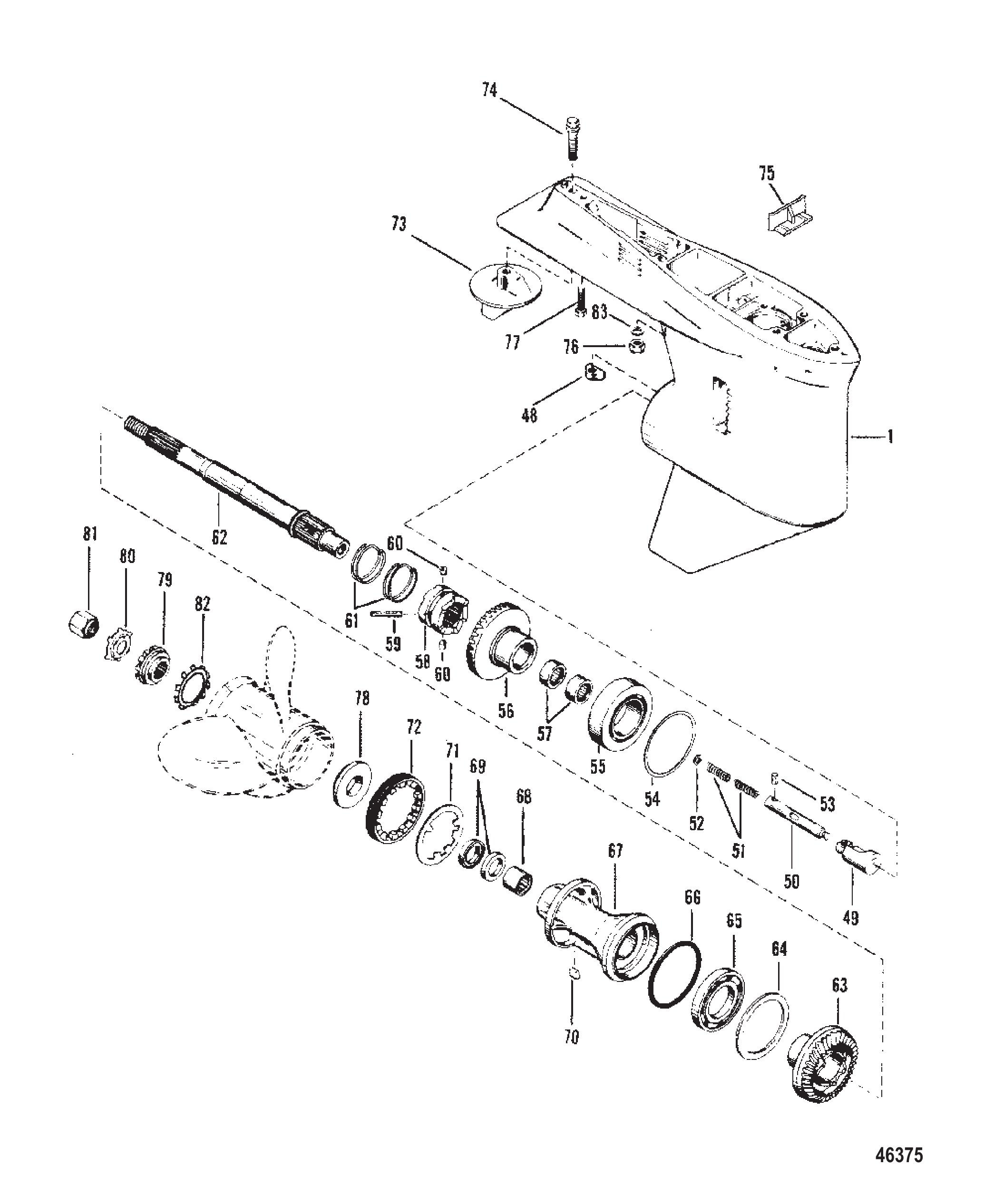

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A8 | 齿轮箱总成-标准旋转1.87:1传动比(完整) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE) | 1 |
| 1 | 9148A11 | 齿轮箱总成(基础) | GEAR HOUSING ASSEMBLY (BASIC) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 48 | 78956 | 换挡凸轮 | SHIFT CAM | 1 |
| 48 | 789562 | 换挡凸轮 | SHIFT CAM | 1 |
| 49 | 89594A1 | 凸轮从动件总成 | FOLLOWER ASSEMBLY CAM | 1 |
| 50 | 79911 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 50 | 79911A1 | 杆 | ROD | 1 |
| 51 | 79910 | 压缩弹簧 | SPRING COMPRESSION | 2 |
| 52 | 78910 | 压缩弹簧垫圈 | WASHER COMPRESSION SPRING | 1 |
| 53 | 78906 | PIN SPRING LOCATOR | 1 | |
| 53 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 54 | 47397A1 | 轴承外圈垫片组(.002-3-5-10) | SHIM SET BEARING OUTER RACE (.002-3-5-10) | AR |
| 55 | 78172A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 56 | 44104A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 56 | 44104T2 | 齿轮组 | GEAR SET | 1 |
| 57 | 43999 | 滚子轴承(外径1.308) | BEARING Roller (1.308 O.D.) | 2 |
| 57 | 73363 | 滚子轴承(外径1.313) | BEARING Roller (1.313 O.D.) | 2 |
| 57 | 73363T | 轴承 | BEARING | 2 |
| 58 | 78959 | 棘轮滑动离合器 | RATCHET SLIDING CLUTCH | 1 |
| 58 | 823174T | ORD 8M0100493 | ORD 8M0100493 | 1 |
| 59 | 78905 | 棘轮到螺旋桨轴十字销 | PIN Cross RATCHET TO PROPELLER SHAFT | 1 |
| 59 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 60 | 78909 | 棘轮定位销 | PIN Detent RATCHET | 2 |
| 61 | 78962 | 十字销固定弹簧 | SPRING RETAINING-CROSS PIN | 2 |
| 62 | 94148 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 63 | N.S.S. | 不单独出售(43-44104A2部件) | Not Sold Separate (PART OF 43-44104A2) | 1 |
| 64 | 68100 | 止推环 | RING THRUST | 1 |
| 64 | 681001 | 止推环 | RING Thrust | 1 |
| 65 | 88957A1 | 滚珠轴承-倒档齿轮 | BEARING Ball BALL-REVERSE GEAR | 1 |
| 65 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 66 | 31534 | 轴承座O型圈 | O-RING BEARING CARRIER | 1 |
| 66 | 8M0214920 | O型圈 | O RING | 1 |
| 67 | 43567A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 67 | 43567T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 68 | 30956 | 滚针轴承-轴承座 | BEARING Needle BEARING CARRIER | 1 |
| 68 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 69 | 76868 | 轴承座密封 | SEAL BEARING CARRIER | 2 |
| 69 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 2 |
| 70 | 30281 | 轴承座定位键 | KEY LOCATING-BEARING CARRIER | 1 |
| 71 | 79447 | 齿轮箱盖锁紧垫圈 | TAB WASHER GEAR HOUSING COVER | 1 |
| 72 | 79448 | 齿轮箱固定座 | RETAINER GEAR HOUSING | 1 |
| 72 | 8M2011027 | 固定座 | RETAINER | 1 |
| 73 | 31640A1 | TRIM TAB ASSEMBLY GEAR HOUSING | 1 | |
| 73 | 31640Q4 | 平衡鳍板 | TRIM TAB | 1 |
| 74 | 66024 | 螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4") | SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4") | 1 |
| 75 | 67891 | 填充块 | FILLER BLOCK FILLER BLOCK | 1 |
| 75 | 8M0039169 | 填充块 | FILLER BLOCK | 1 |
| 76 | 34933 | 螺母(.437-20)不锈钢驱动轴壳体螺柱 | NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| 76 | 8M0204653 | 螺母 | NUT | 2 |
| 77 | 65210 | 螺钉(.375-16 x 1.00)齿轮箱 | SCREW (.375-16 x 1.00) GEAR HOUSING | 1 |
| 78 | 13171 | 推力毂 | THRUST HUB | 1 |
| 78 | 835467Q01 | 止推垫片套件 | THRUST WASHER KIT | 1 |
| 79 | 31211A2 | 花键垫圈-螺旋桨螺母 | WASHER Splined SPLINED-PROPELLER NUT | 1 |
| 79 | 31211Q03 | 垫圈总成 | WASHER ASSEMBLY | 1 |
| 80 | 31210 | 螺旋桨螺母锁紧垫圈 | TAB WASHER PROPELLER NUT | 1 |
| 80 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 81 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 81 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 82 | 423511 | 螺旋桨轴齿形锁紧垫圈 | LOCKWASHER Toothed PROPELLER SHAFT | 1 |
| 83 | 45176 | 垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱 | WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 14697A87 | 衬垫套件 | GASKET SET |

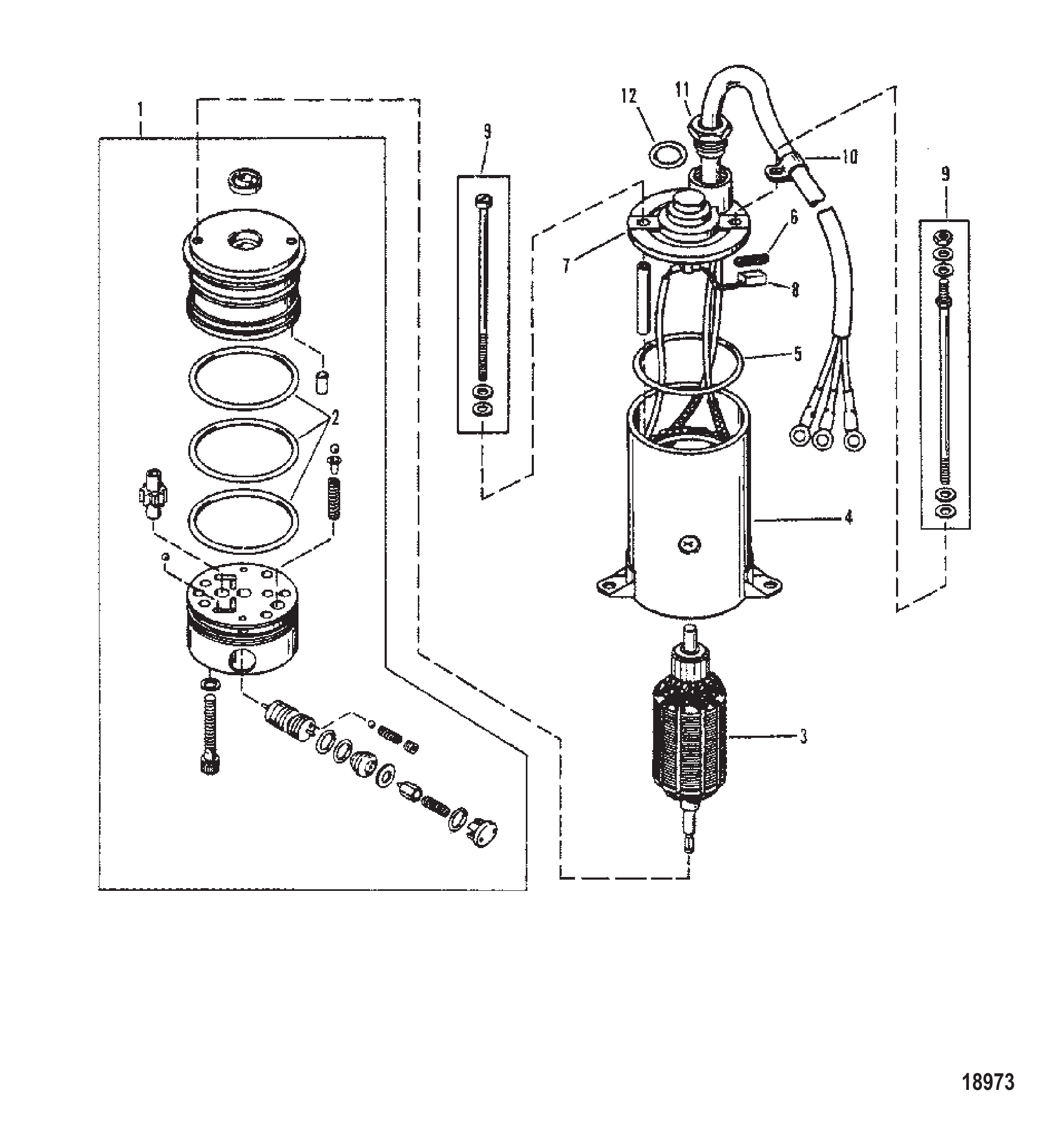

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 99186 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 1 | 8995 | 泵总成 | PUMP ASSEMBLY | 1 |
| 1 | 826729A10 | ORD 8M0143217 | ORD 8M0143217 | 1 |
| 2 | 8996 | O型圈套件 | O-RING KIT | 1 |
| 3 | 8986 | 电枢 | ARMATURE | 1 |
| 4 | 8987 | 机架与磁场 | FRAME AND FIELD | 1 |
| 4 | 99186 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 5 | 8992 | 缸盖O型圈 | O-RING HEAD | 1 |
| 6 | 8993 | 电刷弹簧套件 | SPRING KIT BRUSH | 1 |
| 7 | 8988 | 换向器端盖 | HEAD COMMUTATOR END | 1 |
| 8 | 8989 | 电刷套件 | BRUSH KIT | 1 |
| 9 | 8994 | 贯穿螺栓套件 | THRU BOLT KIT | 1 |
| 10 | 8985 | 导线夹 | CLAMP LEAD WIRE | 1 |
| 11 | 8990 | 螺母密封垫 | NUT PACKING | 1 |
| 12 | 8991 | O型圈螺母密封 | O-RING PACKING NUT | 1 |

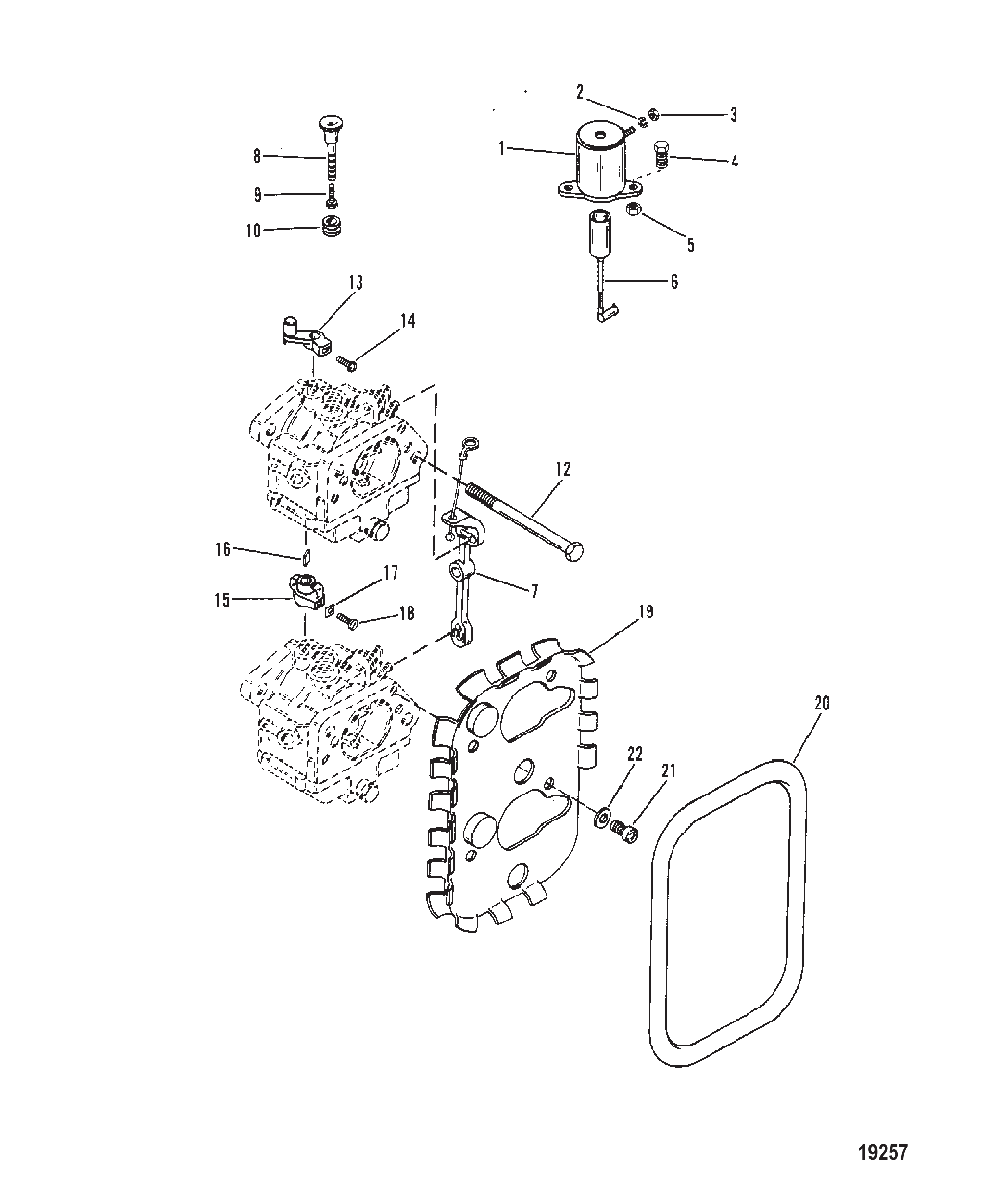

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 60549A7 | 阻风门电磁阀总成 | SOLENOID ASSEMBLY Choke | 1 |
| 2 | 26996 | 锁紧垫圈(#10)不锈钢阻风门电磁阀端子 | LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL | 1 |
| 3 | 68219 | 螺母(#10-32)不锈钢阻风门电磁阀端子 | NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL | 1 |
| 4 | 33524 | 螺钉(.312-24 x .620)阻风门电磁阀 | SCREW (.312-24 x .620) CHOKE SOLENOID | 1 |
| 5 | 29250 | 螺母(.312-24)阻风门电磁阀螺钉 | NUT (.312-24) CHOKE SOLENOID SCREWS | 2 |
| 6 | 89008A2 | 阻风门电磁阀柱塞总成 | PLUNGER ASSEMBLY CHOKE SOLENOID | 1 |
| 7 | 76076A1 | 阻风门拉杆总成 | ROD ASSEMBLY Choke | 1 |
| 8 | 90242A1 | 旋钮总成 | KNOB ASSEMBLY | 1 |
| 9 | 35519 | 螺钉(#10-16 x .500)阻风门旋钮线 | SCREW (#10-16 x .500) WIRE TO CHOKE KNOB | 1 |
| 10 | 20116 | 阻风门旋钮护圈 | GROMMET CHOKE KNOB | 1 |
| 12 | 52743 | 螺钉(.312-18 x 3.750)化油器至曲轴箱 | SCREW (.312-18 x 3.750) CARBURETOR TO CRANKCASE | 4 |
| 13 | 77583 | 节流阀杆 | LEVER THROTTLE | 1 |
| 14 | 60293 | 螺钉(#5-40 x .500)杆至化油器 | SCREW (#5-40 x .500) LEVER TO CARBURETOR | 1 |
| 15 | 60292A1 | 联轴器总成 | COUPLING ASSEMBLY | 1 |
| 16 | 89694 | 节流阀轴联轴器键 | KEY THROTTLE SHAFT COUPLING | 1 |
| 17 | 92500 | 推式螺母滚轮-联轴器 | PUSH NUT ROLLER - COUPLING | 1 |
| 18 | 60293 | 螺钉(#5-40 x .500)卷边垫圈至联轴器 | SCREW (#5-40 x .500) ROLLED WASHER TO COUPLING | 1 |
| 19 | 91996A1 | 化油器板总成 | PLATE ASSEMBLY CARBURETOR | 1 |
| 20 | 71090 | 化油器板密封件 | SEAL CARBURETOR PLATE | 1 |
| 21 | 20367 | 螺钉板至化油器(7/16") | SCREW PLATE TO CARBURETOR (7/16") | 4 |
| 22 | 29245 | 垫圈(.281 x .500 x .060)不锈钢板螺钉 | WASHER (.281 x .500 x .060) Stainless Steel PLATE SCREW | 4 |
| 22 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |

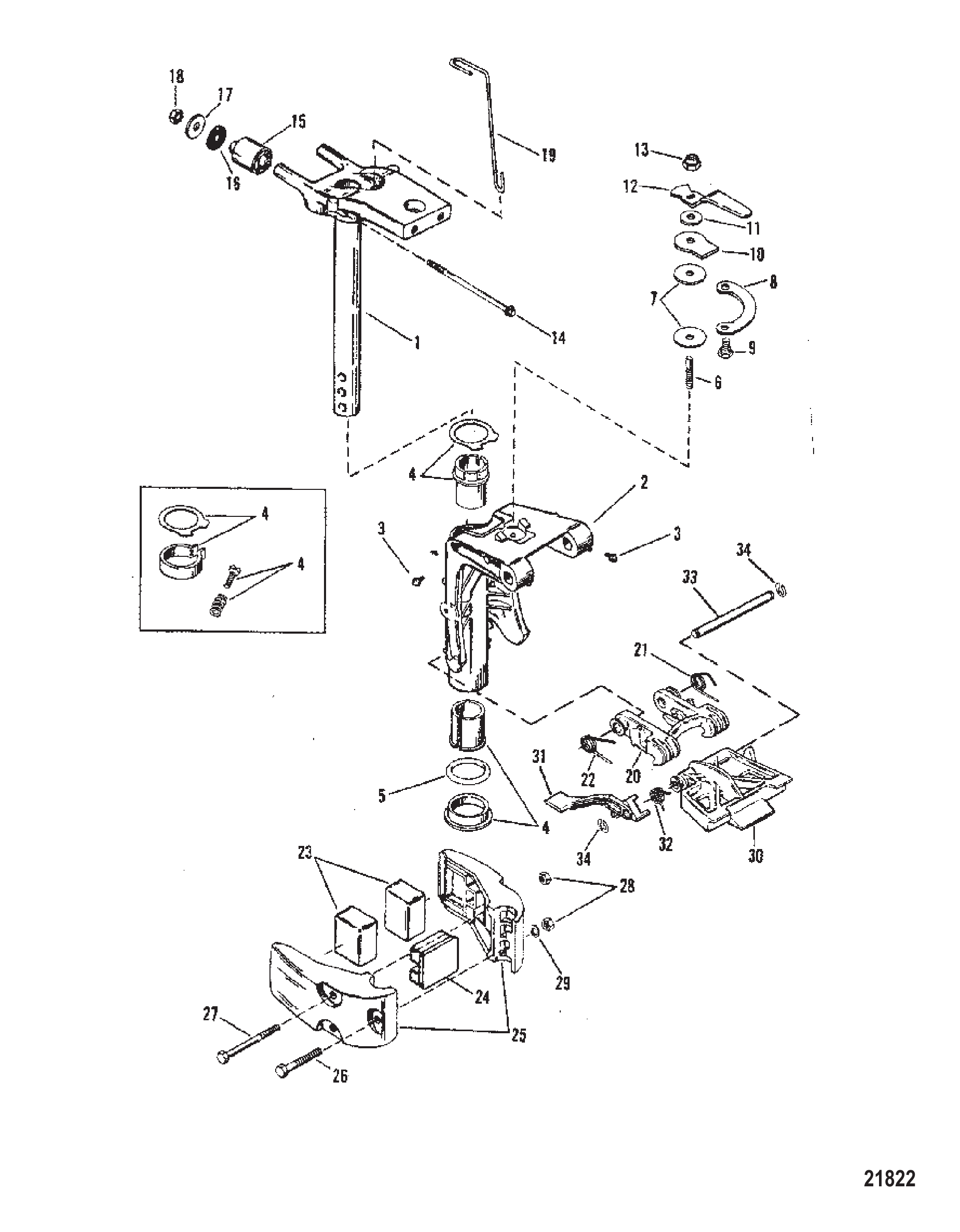

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

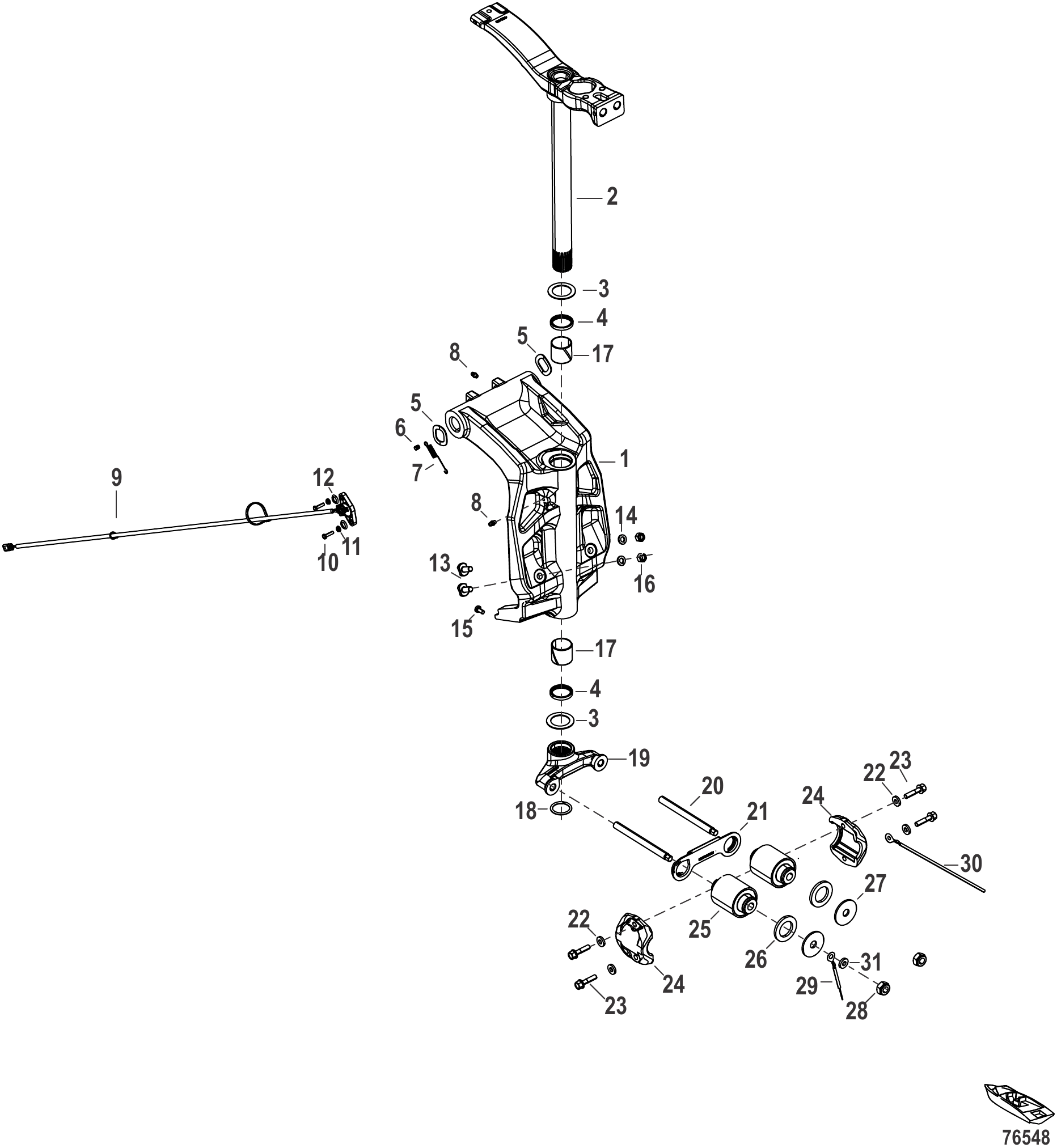

| 1 | 8M0142794 | 旋转支架 | SWIVEL BRACKET | 1 |
| 1 | 8M0161581 | 旋转支架 | SWIVEL BRACKET | 1 |
| 1 | 8M0156259 | 旋转支架 | SWIVEL BRACKET | 1 |
| 1 | 8M0161582 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 8M0142803 | 转向臂黑色 | STEERING ARM Black | 1 |
| 2 | 8M0146931 | 转向臂银色 | STEERING ARM Silver | 1 |
| 3 | 816432 | 止推垫片 | THRUST WASHER | 2 |
| 4 | 8M0034870 | 旋转管密封件 | SEAL Swivel Tube | 2 |
| 5 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 6 | 893709 | 销 | PIN | 1 |
| 7 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 8 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 8 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 9 | 8M0142805 | 配平位置传感器 | TRIM POSITION SENSOR | 1 |
| 10 | 852368 | 螺钉（#10-24 X 0.750） | SCREW (#10-24 x .750) | 2 |
| 11 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| 12 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 13 | 8M0045383 | 冲击板 | STRIKER PLATE | 2 |
| 14 | 58643 | 锁紧垫圈 (.375) | LOCKWASHER (.375) | 2 |
| 15 | 73286 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 16 | 46335 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 17 | 8M0141339 | 旋转管枢轴衬套 | BUSHING Swivel Tube Pivot | 1 |
| 17 | 8M0220988 | 旋转管枢轴衬套 | BUSHING Swivel Tube Pivot | 1 |
| 18 | 67684 | 挡圈 | RING Retaining | 1 |
| 19 | 8M0142797 | 轭架 | YOKE | 1 |
| 20 | 8M0142798 | 双头螺栓(M14 x 146) | STUD (M14 x 146) | 2 |
| 21 | 8M0142796 | 缓冲器支架 | MOUNT Snubber | 1 |
| 22 | 847541 | 垫圈 | WASHER | 4 |
| 23 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 4 |
| 23 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 24 | 8M0142802 | 下支架盖 | COVER Lower Mount | 2 |
| 24 | 8M0241406 | 下支架盖 | COVER Lower Mount | 2 |
| 25 | 813771003 | 下支架 | MOUNT Lower | 2 |
| 26 | 8M0142795 | 垫圈(1.25 x 19) | WASHER (1.25 x 19) | 2 |
| 27 | 815432 | 垫圈(.562 x 2.00 x .125) | WASHER (.562 x 2.00 x .125) | 2 |
| 28 | 896602 | 螺母(M14) | NUT (M14) | 2 |
| 29 | 8M0142799 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 30 | 8M0147677 | 电缆总成10英寸 | CABLE ASSEMBLY 10 IN | 1 |
| 30 | 8M0160545 | 电缆总成10英寸 | CABLE ASSEMBLY 10 IN | 1 |
| 31 | 825190 | 垫圈 | WASHER | 1 |

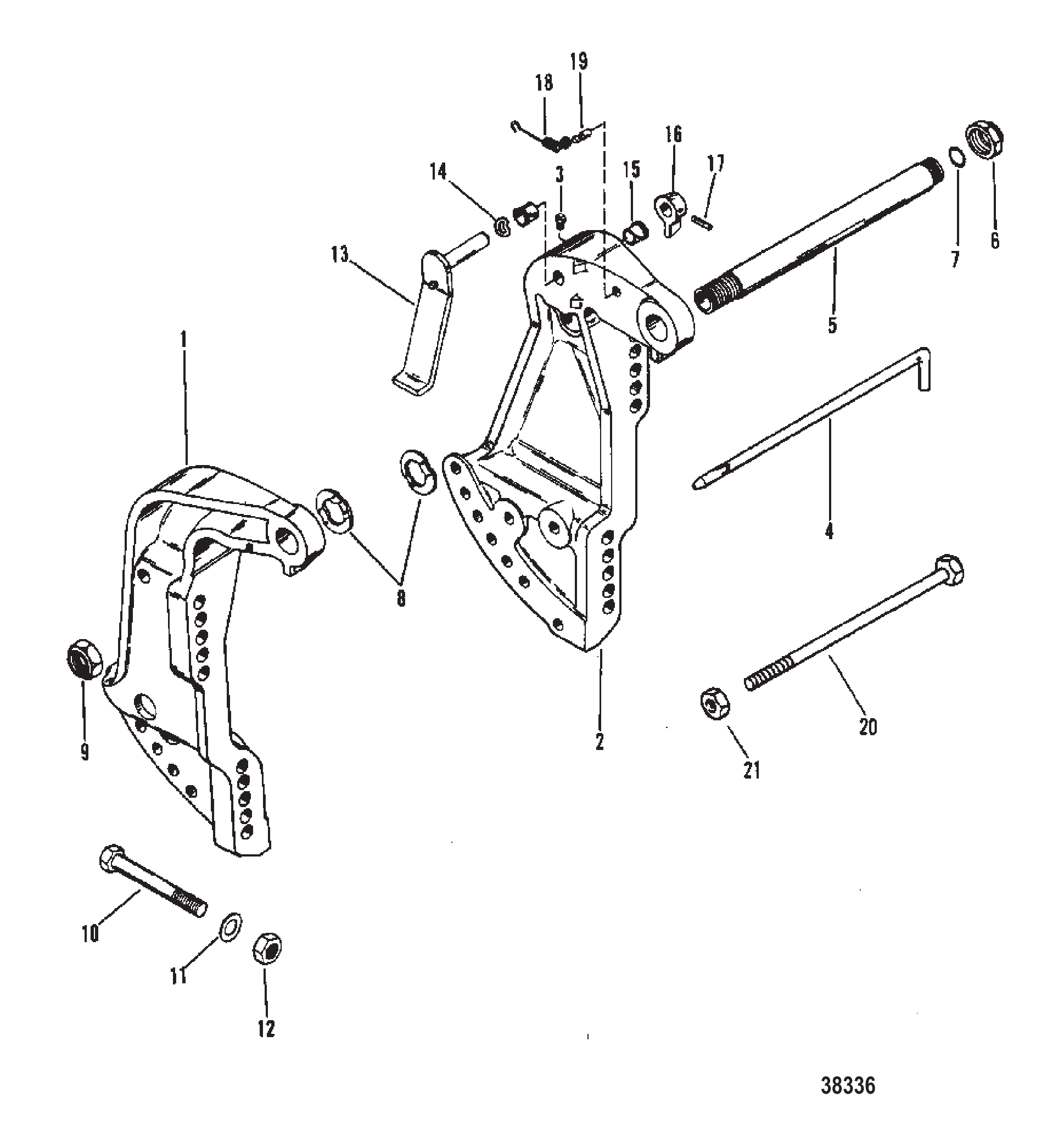

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8718A1 | 艉板支架总成(右舷) | BRACKET ASSEMBLY Transom (STARBOARD) | 1 |
| 1 | 8718A2 | 艉板支架总成(右舷) | BRACKET ASSEMBLY Transom (STARBOARD) | 1 |
| 2 | 8716A1 | 艉板支架总成(左舷) | BRACKET ASSEMBLY Transom (PORT) | 1 |
| 2 | 8716A2 | 艉板支架总成(左舷) | BRACKET ASSEMBLY Transom (PORT) | 1 |
| 3 | 98727 | 润滑配件左舷艉板支架 | FITTING Grease PORT TRANSOM BRACKET | 1 |
| 4 | 49930A1 | 倾斜锁销总成(非动力配平) | PIN ASSEMBLY Tilt Lock (NON-POWER TRIM) | 1 |
| 5 | 99170A1 | 倾斜管 | TILT TUBE | 1 |
| 6 | 34862 | 螺母(1.00-14)倾斜管 | NUT (1.00-14) TILT TUBE | 1 |
| 7 | 45711 | O-RING (.612 x .103) TILT TUBE | 2 | |
| 8 | 88750 | 波形垫圈(1.62 x 1.05)倾斜管 | WASHER Wave (1.62 x 1.05) TILT TUBE | 2 |
| 9 | 56041 | 螺母(.875-14)倾斜管 | NUT (.875-14) TILT TUBE | 1 |
| 10 | 677551 | 螺钉(.500-20 x 4.500)艉板支架至艉板 | SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM | 4 |
| 11 | 28421 | 垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT | 4 |
| 12 | 8M0027784 | 艉板支架螺栓螺母 | NUT TRANSOM BRACKET BOLT | 4 |
| 13 | 99629A2 | 倾斜锁杆总成 | LEVER ASSEMBLY TILT LOCK | 1 |
| 14 | 99611 | 倾斜杆波形垫圈 | WAVE WASHER TILT LEVER | 1 |
| 15 | 65830 | 倾斜杆尼龙衬套 | NYLINER TILT LEVER | 2 |
| 16 | 99633 | 倾斜锁杆旋钮 | KNOB TILT LOCK LEVER | 1 |
| 16 | 99633T6 | 倾斜锁杆旋钮 | KNOB TILT LOCK LEVER | 1 |
| 17 | 99615 | 槽销 | PIN Groove | 1 |
| 18 | 99622 | 弹簧 | SPRING | 1 |
| 19 | 99604 | 槽销 | PIN Groove | 1 |
| 20 | 96930A1 | 倾斜锁螺栓总成 | BOLT ASSEMBLY TILT LOCK | 1 |
| 21 | 23161 | 螺母 (.375-24) | NUT (.375-24) | 1 |

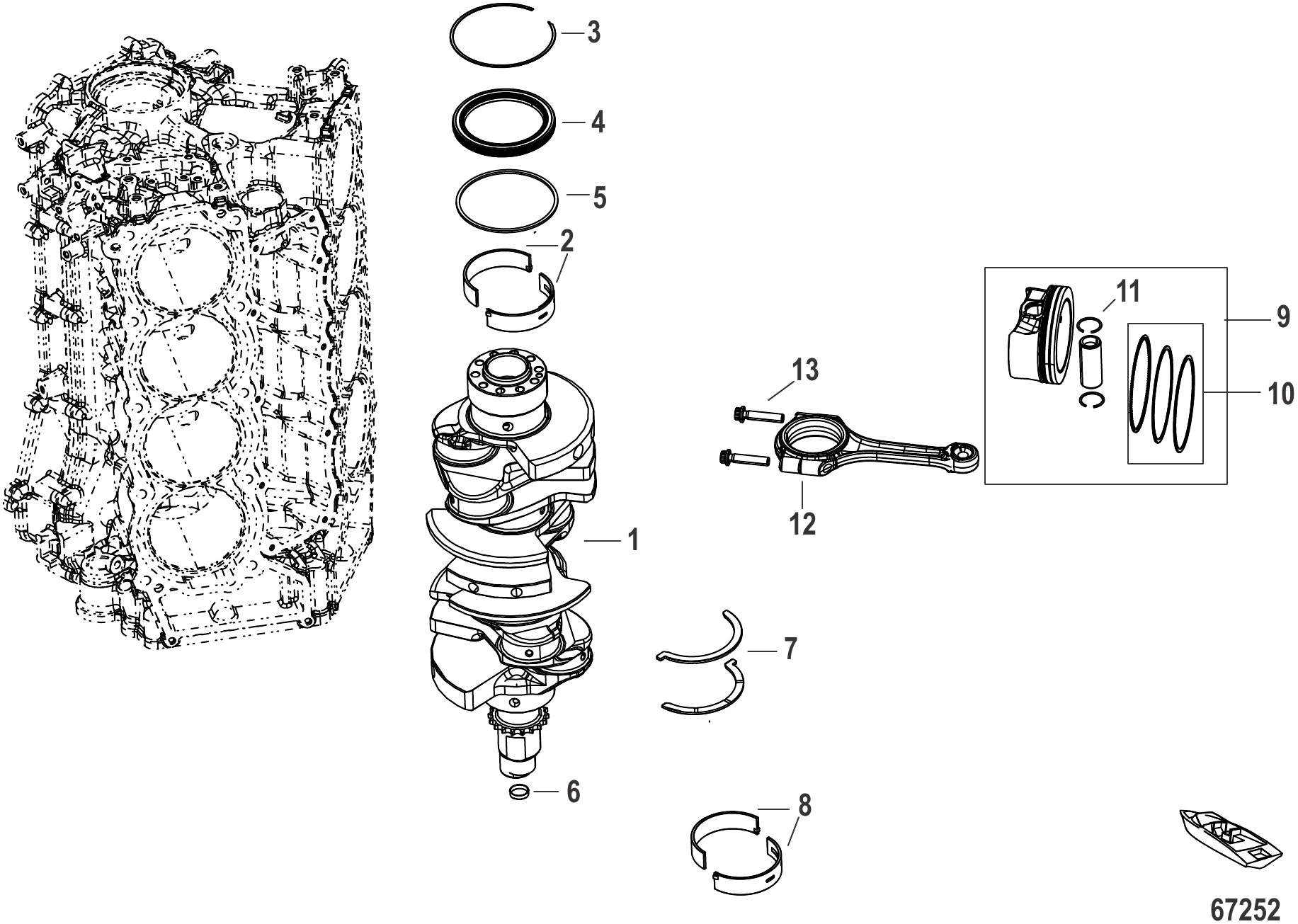

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0142417 | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8M0147976 | 主轴承绿色 | BEARING MAIN Green | AR |
| 2 | 8M0147977 | 主轴承蓝色 | BEARING MAIN Blue | AR |
| 2 | 8M0147978 | 主轴承白色 | BEARING MAIN White | AR |
| 2 | 8M0147979 | 主轴承橙色 | BEARING MAIN Orange | AR |
| 3 | 8M0142386 | 挡圈 | RING RETAINING | 1 |
| 4 | 8M0142379 | 主轴承油封 | SEAL Main Bearing | 1 |
| 4 | 8M0168880 | 主轴承油封 | SEAL Main Bearing | 1 |
| 5 | 8M0142385 | 隔套 | SPACER | 1 |
| 6 | 8M0034912 | O型圈 3.78×21.32 | O-RING 3.78 X 21.32 | 1 |
| 7 | 8M0142424 | 止推垫圈 | WASHER THRUST | 2 |
| 8 | 8M0148077 | 连杆轴承(绿色) | BEARING Connecting Rod, Green | AR |
| 8 | 8M0217817 | 连杆轴承(绿色) | BEARING Connecting Rod, Green | AR |
| 8 | 8M0148078 | 连杆轴承(蓝色) | BEARING Connecting Rod, Blue | AR |
| 8 | 8M0217818 | 连杆轴承(蓝色) | BEARING Connecting Rod, Blue | AR |
| 8 | 8M0148079 | 连杆轴承(白色) | BEARING Connecting Rod, White | AR |
| 8 | 8M0217819 | 连杆轴承(白色) | BEARING Connecting Rod, White | AR |
| 9 | 8M0142575 | 活塞总成 | PISTON ASSEMBLY | 8 |
| 9 | 8M0200040 | 活塞总成 | PISTON ASSEMBLY | 8 |
| 10 | 8M0142381 | 活塞环组件 | PISTON RING ASSEMBLY | 8 |
| 11 | 8M0142383 | 卡簧 | CIRCLIP | 16 |
| 12 | 8M0142418 | 连杆 | CONNECTING ROD | 8 |
| 12 | 8M0159647 | 连杆 | CONNECTING ROD | 8 |
| 13 | 8M6002637 | 连杆螺栓 | BOLT Connecting Rod | 16 |
| 13 | 8M0159648 | 连杆螺栓 | BOLT, CONNECTING ROD | 16 |
| - | 8M0142279 | 长缸体总成 | LONG BLOCK | 1 |
| - | 8M0171851 | 翻新动力头总成(不含电控模块) | REMAN POWERHEAD ASSEMBLY Dressed without PCM | 1 |
| - | 8M0206534 | 翻新动力头总成(不含电控模块) | REMAN POWERHEAD ASSEMBLY Dressed without PCM | 1 |
| - | 8M0147117 | 动力头垫片套装 | POWERHEAD GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822238A2 | 旋转头(黑色) | SWIVEL HEAD (BLACK) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 1 | 822238A3 | 旋转头(灰色) | SWIVEL HEAD (GRAY) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 2 | 8692A13 | 旋转支架(黑色) | SWIVEL BRACKET (BLACK) | 1 |
| 2 | 822237A3 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 8692A14 | 旋转支架(灰色) | SWIVEL BRACKET (GRAY) | 1 |
| 2 | 822237A4 | 旋转支架 | SWIVEL BRACKET | 1 |
| 3 | 74036 | 润滑脂接头 | FITTING Grease | 3 |
| 3 | 8M0169589 | 润滑脂接头 | FITTING Grease | 3 |
| 4 | 11139A2 | 夹具总成 | CLAMP ASSEMBLY | 1 |
| 5 | 86993 | 旋转管O型圈 | O-RING SWIVEL TUBE | 1 |
| 1 | 822238A5 | 旋转头(黑色) | SWIVEL HEAD (BLACK) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 1 | 822238A6 | 旋转头(灰色) | SWIVEL HEAD (GRAY) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 1 | 822238A7 | 旋转头(TRACKER) | SWIVEL HEAD (TRACKER) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 2 | 822237A3 | 旋转支架(黑色) | SWIVEL BRACKET (BLACK) | 1 |
| 2 | 822237A4 | 旋转支架(灰色) | SWIVEL BRACKET (GRAY) | 1 |
| 2 | 822237A3 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 822237A5 | 旋转支架(TRACKER) | SWIVEL BRACKET (TRACKER) | 1 |
| 2 | 822237A4 | 旋转支架 | SWIVEL BRACKET | 1 |
| 3 | 74036 | 润滑脂接头 | FITTING Grease | 3 |
| 3 | 8M0169589 | 润滑脂接头 | FITTING Grease | 3 |
| 4 | 85154A1 | 衬套套装 | BUSHING KIT | 1 |
| 5 | 86993 | O型圈 | O-RING | 1 |
| 6 | 821961 | 杆 | ROD | 1 |
| 7 | 8165621 | 圆盘 | DISC | 2 |
| 8 | 821958 | 旋转头板 | PLATE Swivel Head | 1 |
| 8 | 821958A1 | 板组件套件 | PLATE KIT | 1 |
| 9 | 768041 | 螺钉 | SCREW | 2 |
| 9 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 10 | 821957 | 制动板 | BRAKE PLATE | 1 |
| 11 | 29330 | 垫圈 | WASHER | 1 |
| 12 | 821959 | 手柄 | HANDLE | 1 |
| 13 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 1 |
| 13 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 14 | 12516 | 螺丝 M8×133.35(上支架) | SCREW (M8 x 133.35) UPPER MOUNT | 2 |
| 14 | 125161 | 螺丝 M8×133 | SCREW (M8 x 133) | 2 |
| 15 | 14894 | 上支架 | MOUNT UPPER | 2 |
| 16 | 85172 | 橡胶垫圈(上支架螺丝) | WASHER RUBBER - UPPER MOUNT SCREW | 2 |
| 17 | 43430 | 上部支架螺钉垫圈 | WASHER UPPER MOUNT SCREW | 2 |
| 18 | 400213 | 螺母 M8不锈钢(上支架螺丝) | NUT (M8) Stainless Steel UPPER MOUNT SCREW | 2 |
| 19 | 16554 | 倒挡钩杆 | ROD REVERSE HOOK | 1 |
| 20 | 98830A2 | 倒挡锁钩总成 | HOOK ASSEMBLY REVERSE LOCK | 1 |
| 21 | 96018 | 倒挡钩弹簧(左舷) | SPRING REVERSE HOOK - PORT | 1 |
| 22 | 97427 | 弹簧(右舷-电动) | SPRING (STARBOARD - ELECTRIC) | 1 |
| 22 | 12755 | 弹簧(右舷-手动/电动手柄) | SPRING (STBD - MANUAL/ELECTRIC HANDLE) | 1 |
| 22 | 879894 | 弹簧 | SPRING | 1 |
| 23 | 85122 | 下支架 | MOUNT LOWER | 2 |
| 23 | 85122001 | 下支架 | MOUNT Lower | 2 |
| 24 | 85123 | 前缓冲垫 | BUMPER Front | 1 |
| 24 | 85123001 | 前缓冲垫 | BUMPER Front | 1 |
| 25 | 17232A1 | 下支架盖(黑色) | COVER LOWER MOUNT (BLACK) | 1 |
| 25 | 17232A2 | 下支架盖(灰色) | COVER LOWER MOUNT (GRAY) | 1 |
| 25 | 17232A1 | 盖板 | COVER | 1 |
| 25 | 17232A3 | 下支架盖(TRACKER) | COVER LOWER MOUNT (TRACKER) | 1 |
| 26 | 4009259 | 螺丝 60mm | SCREW (60 MM) | 1 |
| 26 | 1994360 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 1 |
| 27 | 4009263 | 螺丝 100mm | SCREW (100 MM) | 2 |
| 27 | 19943100 | 螺丝(M8 x 100) | SCREW (M8 x 100) | 2 |
| 28 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 3 |
| 29 | 36001 | 垫圈 | WASHER | 3 |
| 30 | 12756 | 支架 | BRACKET | 1 |
| 31 | 12758 | 控制杆 | LEVER CONTROL | 1 |
| 32 | 12754 | 弹簧 | SPRING | 1 |
| 33 | 13195 | 销 | PIN | 1 |
| 34 | 13194 | 挡圈 | RING Retaining | 2 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 2 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 2 |

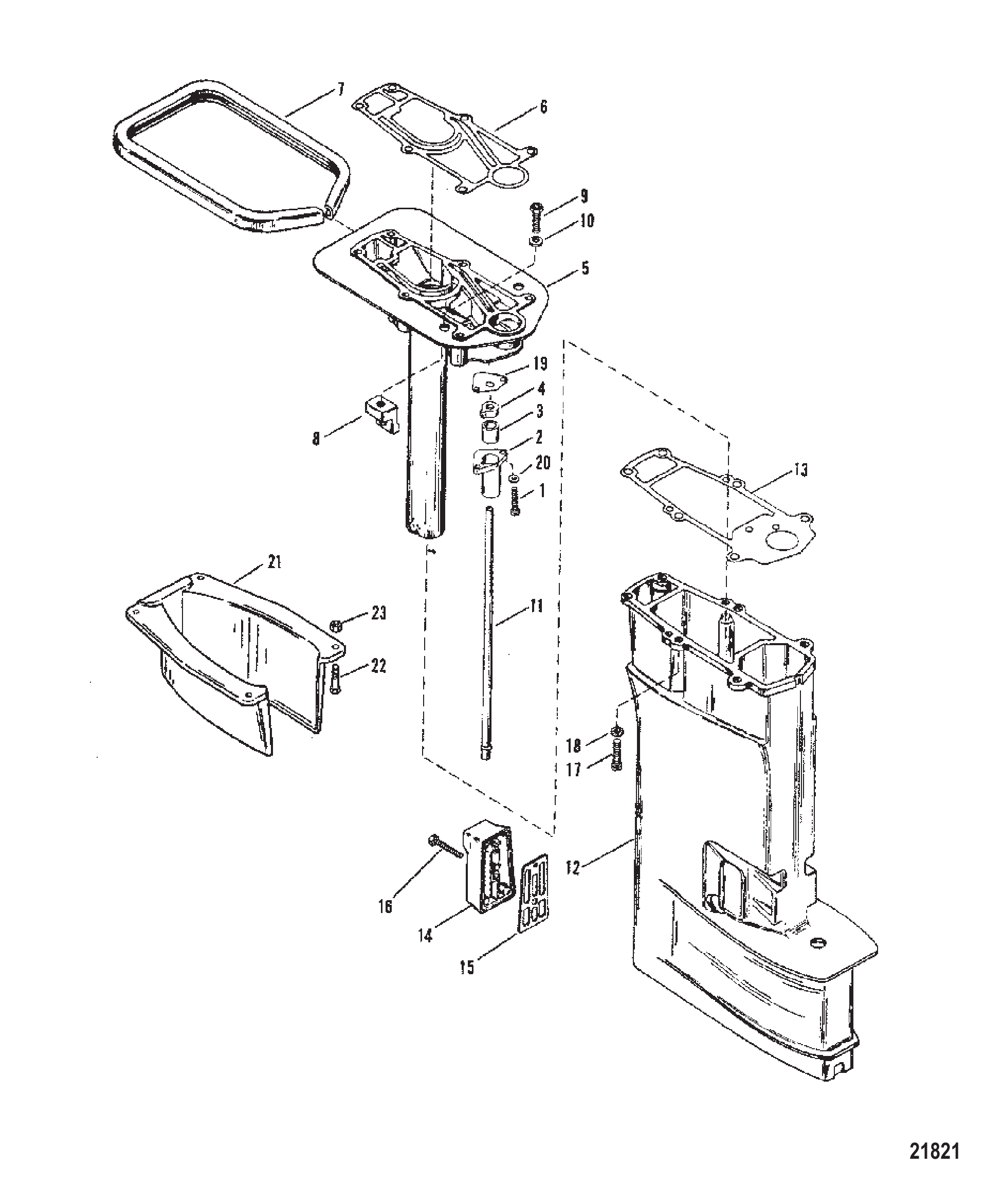

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 400035 | 螺丝 M5×16(配合参考号20使用) | SCREW (M5 x 16) (Use W/Reference #20) | 2 |
| 1 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 2 | 96248A1 | 水管壳体总成 | HOUSING ASSEMBLY WATER TUBE | 1 |
| 3 | 25329 | 水管密封件 | SEAL WATER TUBE | 1 |
| 4 | 96247 | 水管隔套 | SPACER WATER TUBE | 1 |
| 4 | 889715 | 水管隔套 | SPACER Water Tube | 1 |
| 5 | 99702A6 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 5 | 99702A7 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 6 | 416704 | 适配板垫片 | GASKET ADAPTOR PLATE | 1 |
| 6 | 41670006 | 适配板垫片 | GASKET Adaptor Plate | 1 |
| 7 | 158662 | 适配板密封件 | SEAL ADAPTOR PLATE | 1 |
| 8 | 41211 | 上支架托架 | BRACKET UPPER MOUNT | 2 |
| 9 | 40011128 | 螺丝 M6×20不锈钢(不配合参考号10使用) | SCREW (M6 x 20) Stainless Steel (Use Without Reference #10) | 2 |
| 9 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 9 | 40007128 | 螺丝 M6×20(配合参考号10使用) | SCREW (M6 x 20) (Use With Reference #10) | 2 |
| 10 | 29245 | 垫圈（0.281 x 0.500 x 0.060）不锈钢（适用处使用） | WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE) | 2 |
| 10 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 11 | 85116 | 水管(短轴) | TUBE Water (SHORT SHAFT) | 1 |
| 11 | 86292 | 水管(长轴) | TUBE Water (LONG SHAFT) | 1 |
| 12 | 9097A2 | 驱动轴壳体总成(短轴)(黑色) | HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (BLACK) | 1 |
| 12 | 9097T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9098A2 | 驱动轴壳体总成(长轴)(黑色) | HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (BLACK) | 1 |
| 12 | 9098T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097A3 | 驱动轴壳体总成(短轴)(灰色) | HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (GRAY) | 1 |
| 12 | 9097T6 | 驱动轴壳体-灰色 | DRIVESHAFT HSG-GR | 1 |
| 12 | 9098A3 | 驱动轴壳体总成(长轴)(灰色) | HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (GRAY) | 1 |
| 12 | 9098A6 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097A4 | 驱动轴壳体总成(短轴)(TRACKER) | HOUSING ASSEMBLY Driveshaft (SHORT) (TRACKER) | 1 |
| 12 | 9098A4 | 驱动轴壳体总成(长轴)(TRACKER) | HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER) | 1 |
| 12 | 9098T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 13 | 433373 | 驱动轴壳体垫片 | GASKET DRIVE SHAFT HOUSING | 1 |
| 13 | 433374 | 驱动轴壳体垫片 | GASKET Drive Shaft Housing | 1 |
| 14 | 14534 | 怠速泄压盖 | COVER IDLE RELIEF | 1 |
| 15 | 14621 | 盖衬垫 | GASKET COVER | 1 |
| 16 | 14742 | 盖螺钉(.250-20 x 1.25) | SCREW (.250-20 x 1.25) COVER | 1 |
| 17 | 4000360 | 驱动轴壳体至缸体螺钉(60mm) | SCREW DRIVE SHAFT HOUSING TO BLOCK (60 MM) | 6 |
| 17 | 1993870 | 螺钉(M8 x 70) | SCREW (M8 x 70) | 6 |
| 18 | 4002317 | 驱动轴壳体螺钉垫圈(8.90 X 17.0 X 1.9不锈钢) | WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW | 6 |
| 19 | 19583 | 衬垫(按需使用) | GASKET (USE WHERE APPLICABLE) | 1 |
| 19 | 433373 | 衬垫 | GASKET | 1 |
| 20 | 30164 | 壳体螺钉垫圈(.192 x .375 x .0312不锈钢) | WASHER (.192 x .375 x .0312) Stainless Steel HOUSING SCREW | 2 |
| 21 | 17258T | 配平盖(黑色) | TRIM COVER (BLACK) | 1 |
| 21 | 17258T6 | 配平盖(灰色) | TRIM COVER (GRAY) | 1 |
| 21 | 17258T | 配平盖 | TRIM COVER | 1 |
| 21 | 17258F4 | 配平盖(追踪器型) | TRIM COVER (TRACKER) | 1 |
| 21 | 17258T | 配平盖 | TRIM COVER | 1 |
| 22 | 40011128 | 配平盖螺钉(M6 x 20不锈钢) | SCREW (M6 x 20) Stainless Steel TRIM COVER | 4 |
| 22 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 23 | 401196 | 配平盖螺钉螺母(M6) | NUT (M6) TRIM COVER SCREW | 4 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 99186T | 泵与电机总成 | PUMP AND MOTOR | 1 |
| 1 | 12659 | 机架与磁场套件 | FRAME AND FIELD KIT | 1 |
| 1 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 2 | 12665 | 电刷弹簧套件 | SPRING KIT Brush | 1 |
| 3 | 13506 | 电刷卡套件 | BRUSH CARD KIT | 1 |
| 3 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 4 | 12662 | 泵与端架套件 | PUMP AND END FRAME KIT | 1 |
| 4 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 5 | 12663 | 泵密封套件 | SEAL KIT Pump | 1 |
| 5 | 126631 | 泵密封套件 | SEAL KIT Pump | 1 |
| 6 | 12660 | 端架套件 | END FRAME KIT | 1 |
| 6 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 7 | 12661 | 电枢套件 | ARMATURE KIT | 1 |
| 7 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 8 | 12664 | 贯穿螺栓套件 | THRU BOLT KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0118298 | 配平油缸套件 | TRIM CYLINDER KIT | 2 |
| 2 | 8M0118299 | 升降杆套件 | TRIM ROD KIT | 2 |
| 3 | 896158A01 | O型圈套件 | O-RING KIT | 2 |
| 4 | 896159A01 | 活塞套件 | PISTON KIT | 2 |
| 5 | 896166A01 | 配平歧管套件 | MANIFOLD KIT Trim | 1 |
| 6 | 896165A01 | 配平止回套件PO型 | CHECK KIT Trim PO | 1 |
| 7 | 896160A01 | O型圈套件 | O-RING KIT | 1 |
| 8 | 8M0010183 | O型圈 | O-RING | 1 |
| 8 | 8M0204938 | O型圈 | O-RING | 1 |
| 9 | 896163A01 | 配平泵套件 | PUMP KIT Trim | 1 |
| 10 | 896164A01 | 配平过滤器套件 | TRIM FILTER KIT | 1 |
| 11 | 896162A01 | 配平颈套件 | TRIM NECK KIT | 1 |
| 12 | 895854A01 | O型圈套件 | O-RING KIT | 1 |
| 13 | 893419 | 盖套件 | CAP KIT | 1 |
| 14 | 893420A01 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 14 | 8M0224397 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 15 | 8M0224410 | O型圈套件 | ORING KIT | 1 |
| 16 | 8M0184377 | 卡环 | SNAP RING | 1 |
| 17 | 893408A01 | 配平销套件 | PIN KIT Trim | 1 |
| 18 | 896161A02 | 配平电机套件 | TRIM MOTOR KIT | 1 |
| 19 | 896167A01 | 储液罐套件 | RESERVOIR KIT | 1 |

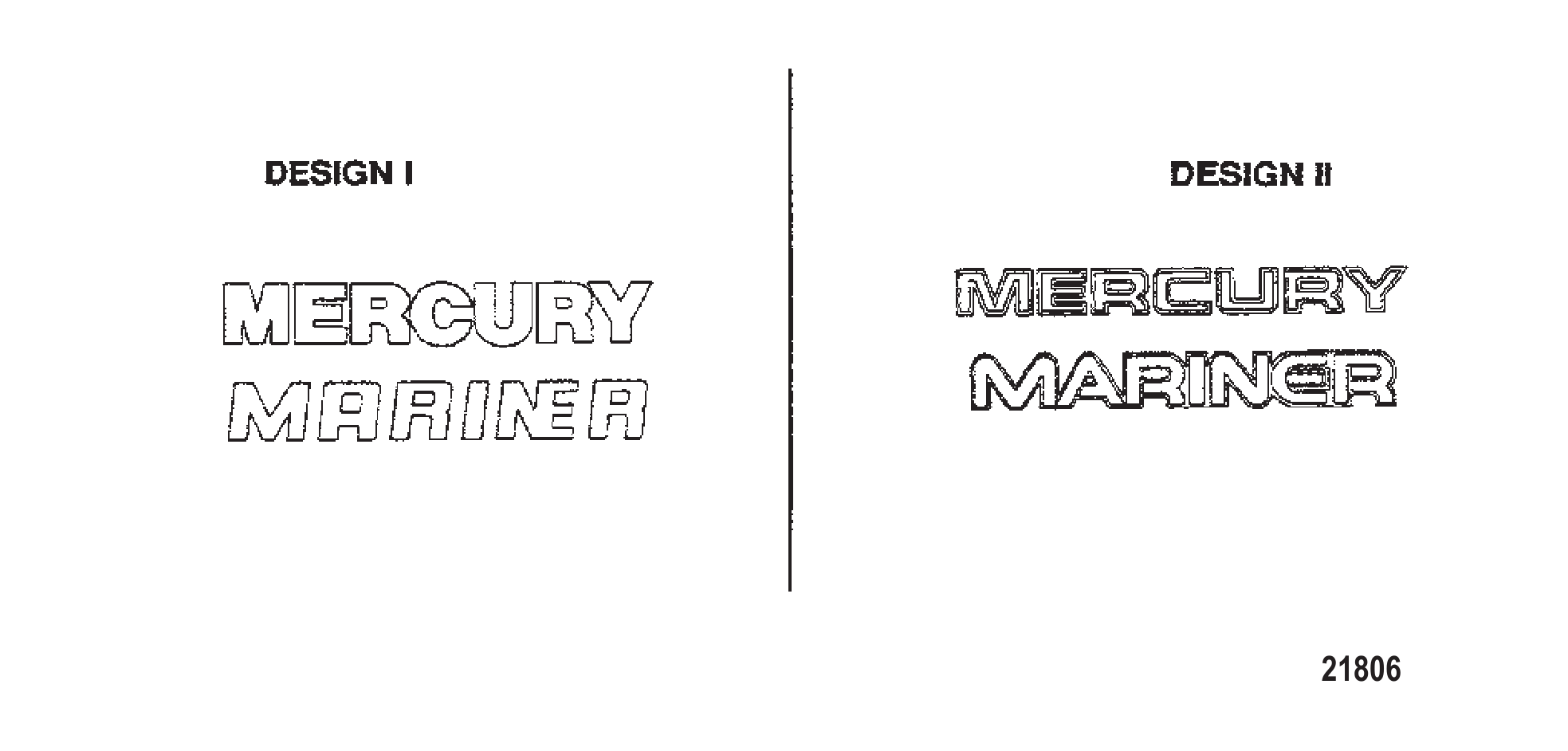

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 81609892 | 零件手册135/150/175/200/XR6/MAGNUM III | PARTS MANUAL 135/150/175/200/XR6/MAGNUM III | 1 |
| - | 813220A89 | 贴花套装(黑色135/150/175) | DECAL SET (BLACK 135/150/175) | |
| - | 812563A92 | 贴花套装(XR6) | DECAL SET (XR6) | |
| - | 808552A94 | 贴花套件 | DECAL SET | |
| - | 812563A93 | 贴花套装(黑色200) | DECAL SET (BLACK 200) | |
| - | 813036A92 | 贴花套装(灰色135/150) | DECAL SET (GRAY 135/150) | |
| - | 813034A92 | 贴花套装(MAGNUM III) | DECAL SET (MAGNUM III) | |
| - | 813034A94 | 贴花套件 | DECAL SET | |
| - | 813037A92 | 贴花套装(灰色175) | DECAL SET (GRAY 175) | |
| - | 813037A94 | 贴花套件 | DECAL SET | |
| - | 815630A90 | 贴花套装(灰色200) | DECAL SET (GRAY 200) | |
| - | 813220A94 | 贴花套装(黑色135) | DECAL SET (BLACK 135) | |
| - | 824103A94 | 贴花套装(黑色150) | DECAL SET (BLACK 150) | |
| - | 824911A94 | 贴花套装(黑色175) | DECAL SET (BLACK 175) | |
| - | 808552A94 | 贴花套装(XR6) | DECAL SET (XR6) | |
| - | 812563A94 | 贴花套装(黑色200加长) | DECAL SET (BLACK 200 LONG) | |
| - | 808562A94 | 贴花套装(黑色200 XL/CXL) | DECAL SET (BLACK 200 XL/CXL) | |
| - | 813036A94 | 贴花套装(灰色135) | DECAL SET (GRAY 135) | |
| - | 824104A94 | 贴花套装(灰色150) | DECAL SET (GRAY 150) | |
| - | 824911A94 | 贴花套装(灰色175) | DECAL SET (GRAY 175) | |
| - | 808552A94 | 贴花套装(XR6) | DECAL SET (XR6) | |
| - | 812563A94 | 贴花套装(黑色200加长) | DECAL SET (BLACK 200 LONG) | |
| - | 808562A94 | 贴花套装(黑色200 XL/CXL) | DECAL SET (BLACK 200 XL/CXL) | |
| - | 813036A94 | 贴花套装(灰色135) | DECAL SET (GRAY 135) | |
| - | 824104A94 | 贴花套装(灰色150) | DECAL SET (GRAY 150) | |
| - | 813034A94 | 贴花套装(MAGNUM III) | DECAL SET (MAGNUM III) | |
| - | 813037A94 | 贴花套装(灰色175) | DECAL SET (GRAY 175) | |
| - | 815630A94 | 贴花套装(灰色200加长) | DECAL SET (GRAY 200 LONG) | |
| - | 808563A94 | 贴花套装(灰色200 XL/CXL) | DECAL SET (GRAY 200 XL/CXL) | |
| - | 824736A94 | 贴花套装(TRACKER 150) | DECAL SET (TRACKER 150) | |
| - | 808620A94 | 贴花套装(TRACKER 175) | DECAL SET (TRACKER 175) | |
| - | 808681A94 | 贴花套装(TRACKER 200) | DECAL SET (TRACKER 200) | |
| - | 826331A95 | 贴花套装(黑色105喷泵) | DECAL SET (BLACK 105 JET) | |
| - | 826332A95 | 贴花套装(灰色105喷泵) | DECAL SET (GRAY 105 JET) | |
| - | 826333A95 | 贴花套装（黑色140喷泵） | DECAL SET (BLACK 140 JET) | |
| - | 826334A95 | 贴花套装（灰色140喷泵） | DECAL SET (GRAY 140 JET) | |
| - | 11149940 | 用户手册（黑色） | OWNERS MANUAL (BLACK) | |
| - | 11142940 | 用户手册（灰色） | OWNERS MANUAL (GRAY) | |
| - | 826598940 | 用户手册（黑色喷泵） | OWNERS MANUAL (BLACK JET) | |
| - | 826603940 | 用户手册（灰色喷泵） | OWNERS MANUAL (GRAY JET) |

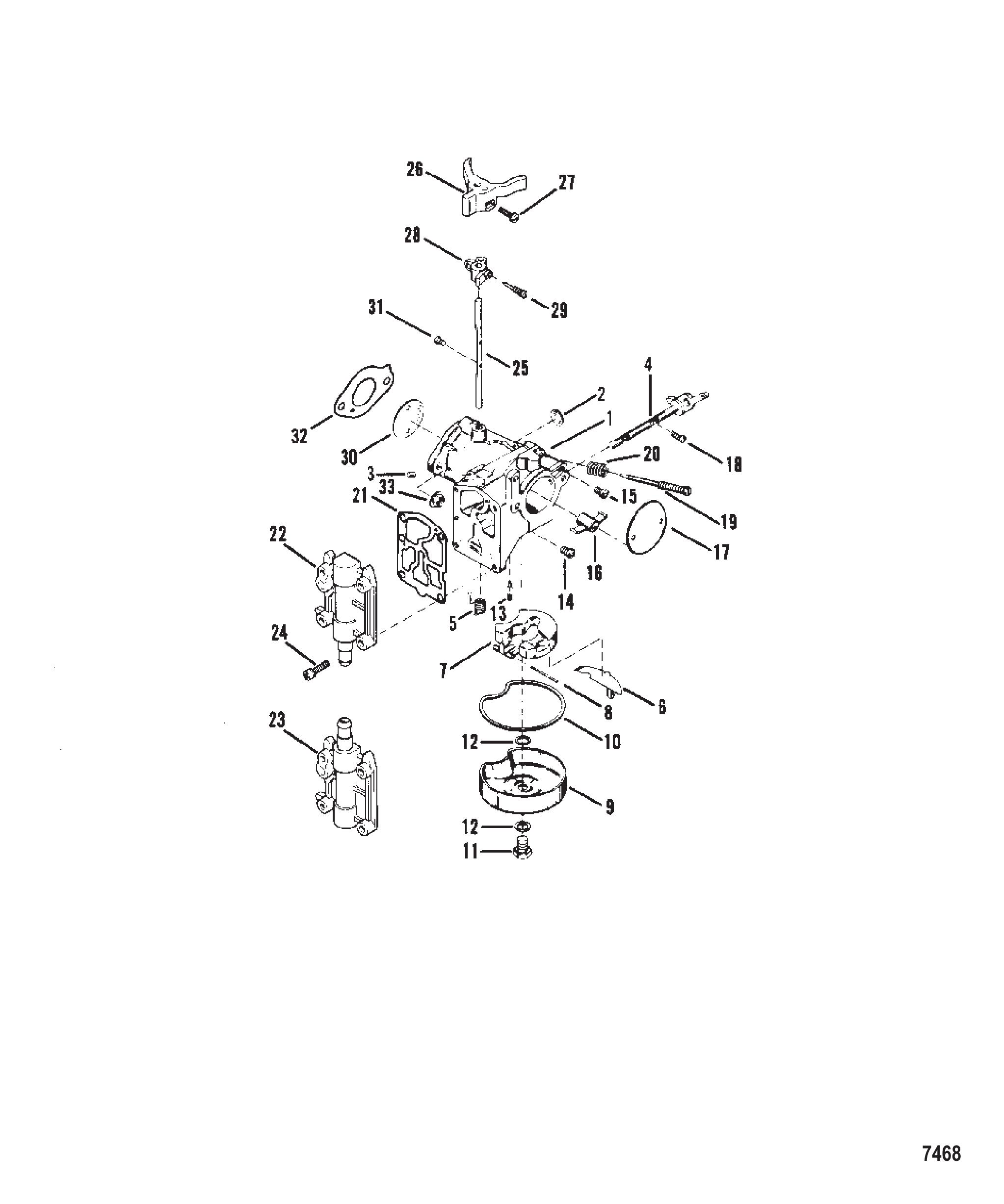

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6517A33 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 6517A34 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 6517A64 | 化油器KT-底置 | CARBURETOR KT-BOT | 1 |
| 2 | NSS | 大型主体通道(不单独销售) | NOT SOLD SEPARATE Large Body Channel | 2 |
| 3 | NSS | 主体通道(不单独销售) | NOT SOLD SEPARATE Body Channel | 6 |
| 4 | 96773A1 | 阻风门轴总成 | SHAFT ASSEMBLY Choke | 2 |
| 4 | 9296A1 | 阻风门轴套件 | CHOKE SHAFT KIT | 2 |
| 5 | NSS | 回位-节气门轴(不单独销售) | NOT SOLD SEPARATE Return-Throttle Shaft | 2 |
| 6 | 7211A1 | 燃油杯挡板 | BAFFLE Fuel Bowl | 2 |
| 6 | 814483 | 燃油杯挡板 | BAFFLE Fuel Bowl | 2 |
| 7 | 9293 | 浮子 | FLOAT | 2 |
| 8 | NSS | 浮子固定件(不单独销售) | NOT SOLD SEPARATE Float Retaining | 2 |
| 9 | 5127 | 燃油杯 | BOWL Fuel | 2 |
| 10 | NSS | 燃油杯(不单独销售) | NOT SOLD SEPARATE Fuel Bowl | 2 |
| 11 | 9652 | 燃油杯至化油器螺钉 | SCREW Fuel Bowl to Carburetor | 2 |
| 12 | NSS | 燃油杯螺钉(不单独销售) | NOT SOLD SEPARATE Fuel Bowl Screw | 4 |
| 13 | 9022 | 进油针阀及弹簧 | NEEDLE AND SPRING Inlet | 2 |
| 14 | 1457 | 主量孔(.057) | JET Main Fuel (.057) | 2 |
| 15 | 7335 | 省油量孔(.098) | JET (.098) Economizer (.098) | 2 |
| 16 | 64677 | 喉管 | VENTURI | 2 |
| 17 | 8665 | 阻风门片 | SHUTTER Choke | 2 |
| 18 | NSS | 阻风门片至轴连接件(不单独销售) | NOT SOLD SEPARATE Choke Shutter to Choke Shaft | 4 |
| 19 | NSS | 怠速混合气调节件(不单独销售) | NOT SOLD SEPARATE Idle Mixture | 2 |
| 20 | NSS | 怠速混合气螺钉(不单独销售) | NOT SOLD SEPARATE Idle Mixture Screw | 2 |
| 21 | NSS | 不单独销售 燃油泵 | NOT SOLD SEPARATE Fuel Pump | 2 |
| 22 | 9653 | 盖板(上化油器) | COVER Plate (Upper Carburetor) | 1 |
| 23 | 9654 | 盖板(下化油器) | COVER Plate (Lower Carburetor) | 1 |
| 24 | 5132 | 滤清器体至化油器螺钉 | SCREW Strainer Body to Carburetor | 8 |
| 24 | 808612 | 螺钉及垫圈 (#8-32 x .750) | SCREW AND WASHER (#8-32 x .750) | 8 |
| 25 | 9020 | 油门轴 | SHAFT Throttle | 1 |
| 25 | 9656 | 油门轴 | SHAFT Throttle | 1 |
| 26 | 92880 | 节气门杠杆(上化油器) | LEVER Throttle (Upper Carburetor) | 1 |
| 27 | 20847 | 节气门杠杆螺钉(上化油器) | SCREW Throttle Lever (Upper Carburetor) | 2 |
| 27 | 6027 | 螺钉 | SCREW | 2 |
| 28 | 97 | 节气门杠杆(下化油器) | LEVER Throttle (Lower Carburetor) | 1 |
| 28 | 8146791 | 油门杆 | LEVER Throttle | 1 |
| 29 | 6027 | 节气门杠杆螺钉(下化油器) | SCREW Throttle Lever (Lower Carburetor) | 1 |
| 30 | 9649 | 节气门片 | SHUTTER Throttle | 2 |
| 31 | NSS | 节气门片至轴连接件(不单独销售) | NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft | 4 |
| 32 | 757911 | 化油器法兰衬垫 | GASKET Carburetor Flange | 2 |
| 33 | 64809 | 化油器安装柱螺母 | NUT Carburetor Mounting Stud | 4 |
| -- | 9650 | 维修套件 | REPAIR KIT | 2 |
| -- | 9651 | 衬垫套件 | GASKET SET | 2 |

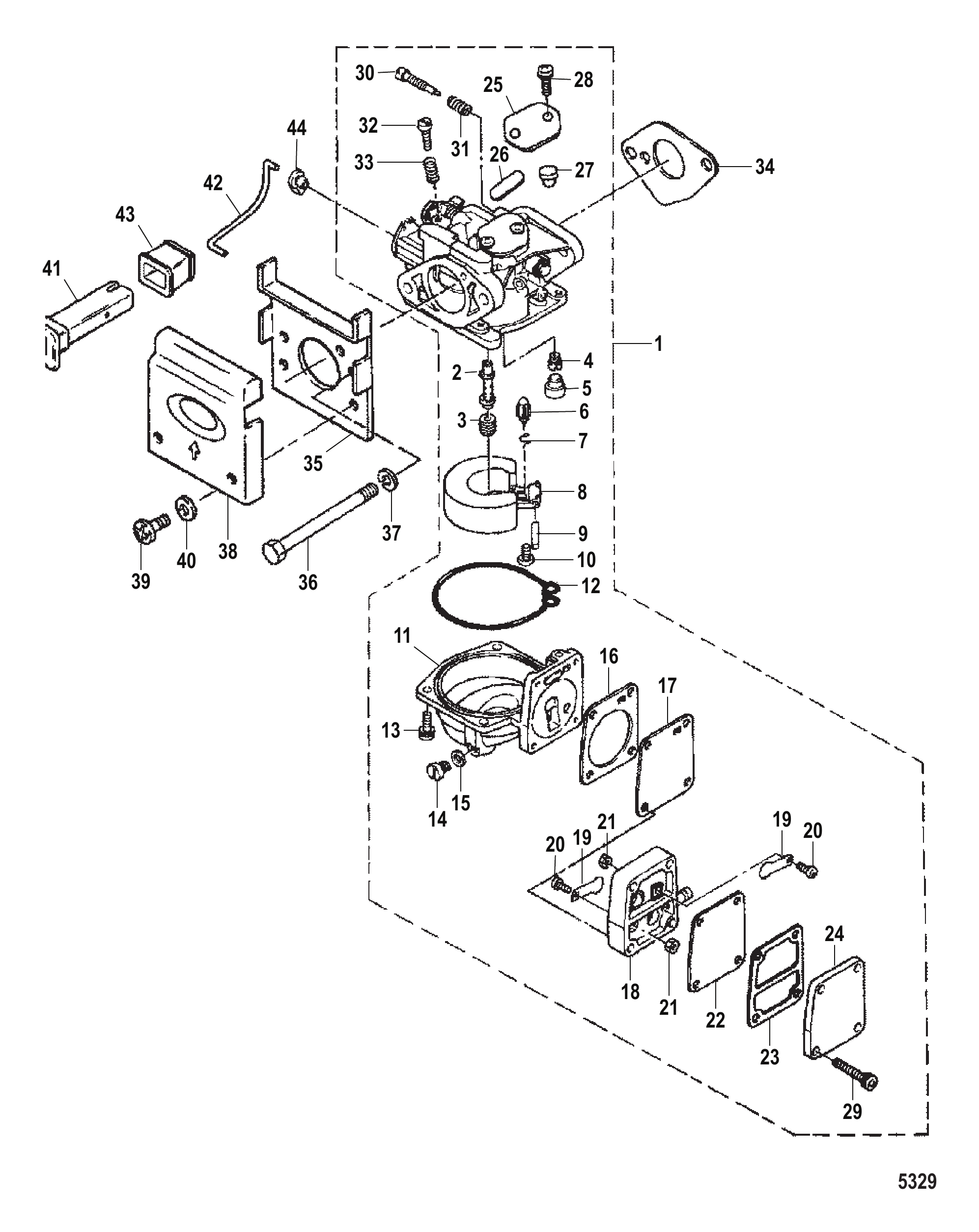

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 812647T1 | 化油器 | CARBURETOR | 1 |
| 1 | 812648T | 化油器 | CARBURETOR | 1 |
| 2 | 812650 | 主喷管 | MAIN NOZZLE | 1 |
| 3 | 19249 | 主量孔(#80) | JET Main (#80) | 1 |
| 4 | 162512 | 引导量孔(#55) | JET Pilot (#55) | 1 |
| 4 | 16251 | 喷口导流器(#52) | JET Pilot (#52) | 1 |
| 5 | 16252 | 盖帽 | CAP | 1 |
| 6 | 16254 | 浮子阀 | FLOAT VALVE | 1 |
| 7 | 16255 | 卡扣 | CLIP | 1 |
| 8 | 16253 | 浮子 | FLOAT | 1 |
| 9 | 16256 | 销 | PIN | 1 |
| 10 | 16257 | 螺钉 | SCREW | 1 |
| 11 | 16258 | 浮子室 | FLOAT BOWL | 1 |
| 12 | 16259 | O型圈 | O-RING | 1 |
| 13 | 16260 | 螺钉(M4 x 12) | SCREW (M4 x 12) | 4 |
| 14 | 16261 | 放油螺钉 | SCREW Drain | 1 |
| 15 | 16262 | 衬垫 | GASKET | 1 |
| 16 | 16326 | 衬垫 | GASKET | 1 |
| 17 | 16325 | 隔膜 | DIAPHRAGM | 1 |
| 18 | 16268 | 泵体 | BODY Pump | 1 |
| 19 | 16269 | 止回阀 | CHECK VALVE | 2 |
| 20 | 16270 | 螺钉 | SCREW | 2 |
| 21 | 16271 | 螺母 | NUT | 2 |
| 22 | 16275 | 隔膜 | DIAPHRAGM | 1 |
| 23 | 16274 | 衬垫 | GASKET | 1 |
| 24 | 16272 | 泵盖 | COVER Pump | 1 |
| 25 | 855540 | 化油器盖 | COVER Carburetor | 1 |
| 26 | 855541 | 衬垫 | GASKET | 1 |
| 27 | 8555411 | 衬垫 | GASKET | 1 |
| 28 | 855542 | 螺钉 | SCREW | 2 |
| 29 | 16273 | 螺钉 | SCREW | 4 |
| 29 | 162606 | 螺钉 | SCREW | 4 |
| 30 | 16265 | 调节螺钉 | SCREW Adjusting | 1 |
| 30 | 812935 | 调节螺钉 | SCREW Adjusting | 1 |
| 31 | 16266 | 弹簧 | SPRING | 1 |
| 32 | 16263 | 螺钉 | SCREW | 1 |
| 33 | 16264 | 弹簧 | SPRING | 1 |
| 34 | 16327 | 衬垫 | GASKET | 1 |
| 35 | 16328 | 支架 | BRACKET | 1 |
| 36 | 16329 | 螺栓(M6 x 85) | BOLT (M6 x 85) | 2 |
| 36 | 16329002 | 螺栓 | BOLT | 2 |
| 37 | 16818 | 锁紧垫圈 | LOCKWASHER | 2 |
| 38 | 812936 | 挡板 | PLATE Baffle | 1 |
| 39 | 16334 | 螺钉 | SCREW | 2 |
| 40 | 16335 | 垫圈 | WASHER | 2 |
| 41 | 163312 | 阻风门拉杆 | ROD Choke | 1 |
| 42 | 827662 | 阻风门连杆 | LINK Choke | 1 |
| 43 | 163321 | 护孔环 | GROMMET | 1 |
| 44 | 16333 | 卡扣拉杆 | ROD Snap | 1 |
| - | 855546A1 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| - | 16115A1 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |

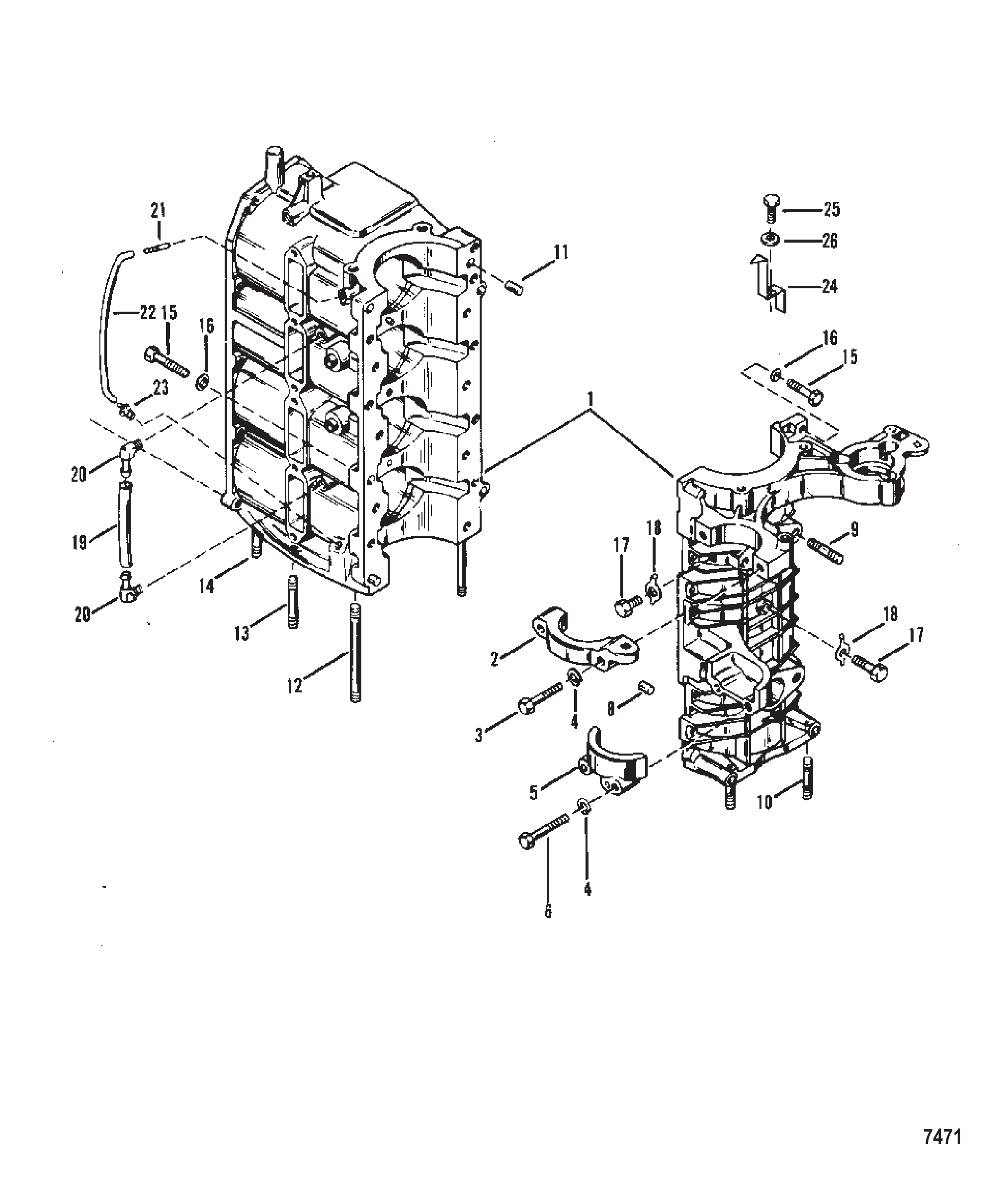

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8981A6 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 72038 | 启动电机上支架 | BRACKET Upper Starter Motor | 1 |
| 3 | 73279 | 支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch) | 2 |
| 4 | 26993 | 支架螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Bracket Screw | 4 |
| 4 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 5 | 76867 | 启动电机下盖 | COVER Lower Starter Motor | 1 |
| 6 | 73279 | 盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch) | 2 |
| 8 | 20032 | 缸体至主轴承定位销 | PIN Dowel Cylinder block to main bearing | 2 |
| 9 | 68164 | 化油器双头螺柱(1.25英寸) | STUD Carburetor (1.25 Inch) | 4 |
| 9 | 64936 | 螺柱 | STUD | 4 |
| 10 | 68165 | 曲轴箱至驱动轴壳体双头螺柱(1.625英寸) | STUD Crankcase to Driveshaft Housing (1.625 Inch) | 2 |
| 11 | 20033 | 曲轴箱至缸体定位销 | PIN Dowel Crankcase to Cylinder Block | 2 |
| 11 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 12 | 87901 | 缸体至驱动轴壳体双头螺柱(4英寸) | STUD Cylinder block to drive shaft housing (4 Inch) | 2 |
| 13 | 68166 | 缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸) | STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch) | 2 |
| 14 | 68167 | 缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸) | STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch) | 2 |
| 15 | 73657 | 曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸) | SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch) | 13 |
| 15 | 31984 | 曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸) | SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch) | 3 |
| 15 | 73275 | 曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸) | SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch) | 2 |
| 16 | 70132 | 曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063) | WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw | 17 |
| 16 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 17 |
| 17 | 20359 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 1 |
| 17 | 98260 | 螺钉(.375-16 x .620) | SCREW (.375-16 x .620) | 2 |
| 18 | 20091 | 中央轴承锁紧螺钉止动垫圈 | TAB WASHER Center Bearing Locking Screw | 3 |
| 19 | 99127109 | 平衡管(57英寸散装)-主轴承(5.50英寸) | LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch) | 1 |
| 19 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 20 | 99664 | 平衡管至缸体弯头 | ELBOW Balance Tube to Cylinder Block | 2 |
| 20 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 2 |
| 21 | 65857 | 上部泄放软管接头 | CONNECTOR Upper Bleed Hose | 1 |
| 21 | 56759 | 倒钩接头 | FITTING Barbed | 1 |
| 22 | 9938779 | 气缸泄放软管(11英寸) | HOSE Cylinder Bleed (11 Inch) | 1 |
| 23 | 42867 | 下部泄放软管止回阀 | CHECK VALVE Lower Bleed Hose | 1 |
| 23 | 428671 | 止回阀 | CHECK VALVE | 1 |
| 24 | 99156 | 正时指示器 | INDICATOR Timing | 1 |
| 25 | 39349 | 指示器至曲轴箱不锈钢螺钉(.312-18 x .750) | SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase | 1 |
| 26 | 26993 | 指示器螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Indicator Screw | 1 |
| 26 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| - | 97469A87 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 97469T87 | 船用动力头 | POWERHEAD MARINE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0145606 | 零件手册 250/300 4.6L V8 四冲程 VERADO/300 4.6L V8 四冲程 SEAPRO VERADO | PARTS MANUAL 250/300 4.6L V8 4 Stroke VERADO/300 4.6L V8 4 Stroke SEAPRO VERADO | 1 |
| - | 8M0142590 | 维修手册 4.6L V8 SeaPro | SERVICE MANUAL 4.6L V8 SeaPro | 1 |
| - | 8M0182077 | 维修手册 | SERVICE MANUAL | 1 |
| - | 8M0145935 | 安装手册 V8 AMS | INSTALLATION MANUAL V8 AMS | 1 |
| - | 8M0156798 | 安装手册 | MANUAL-INSTALL | 1 |
| - | 8M0145543 | 操作手册 V8 AMS DTS | OPERATION MANUAL V8 AMS DTS | 1 |
| - | 8M0175493 | 操作手册 | MANUAL-OPERATION | 1 |
| - | 8M0146617 | 诊断维修手册 | SERVICE MANUAL Diagnostic | 1 |
| - | 8M0182076 | 诊断手册 | DIAGNOSTIC MANUAL | 1 |
| - | NSS | 不单独销售贴纸, EPA | NOT SOLD SEPARATE DECAL, EPA | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

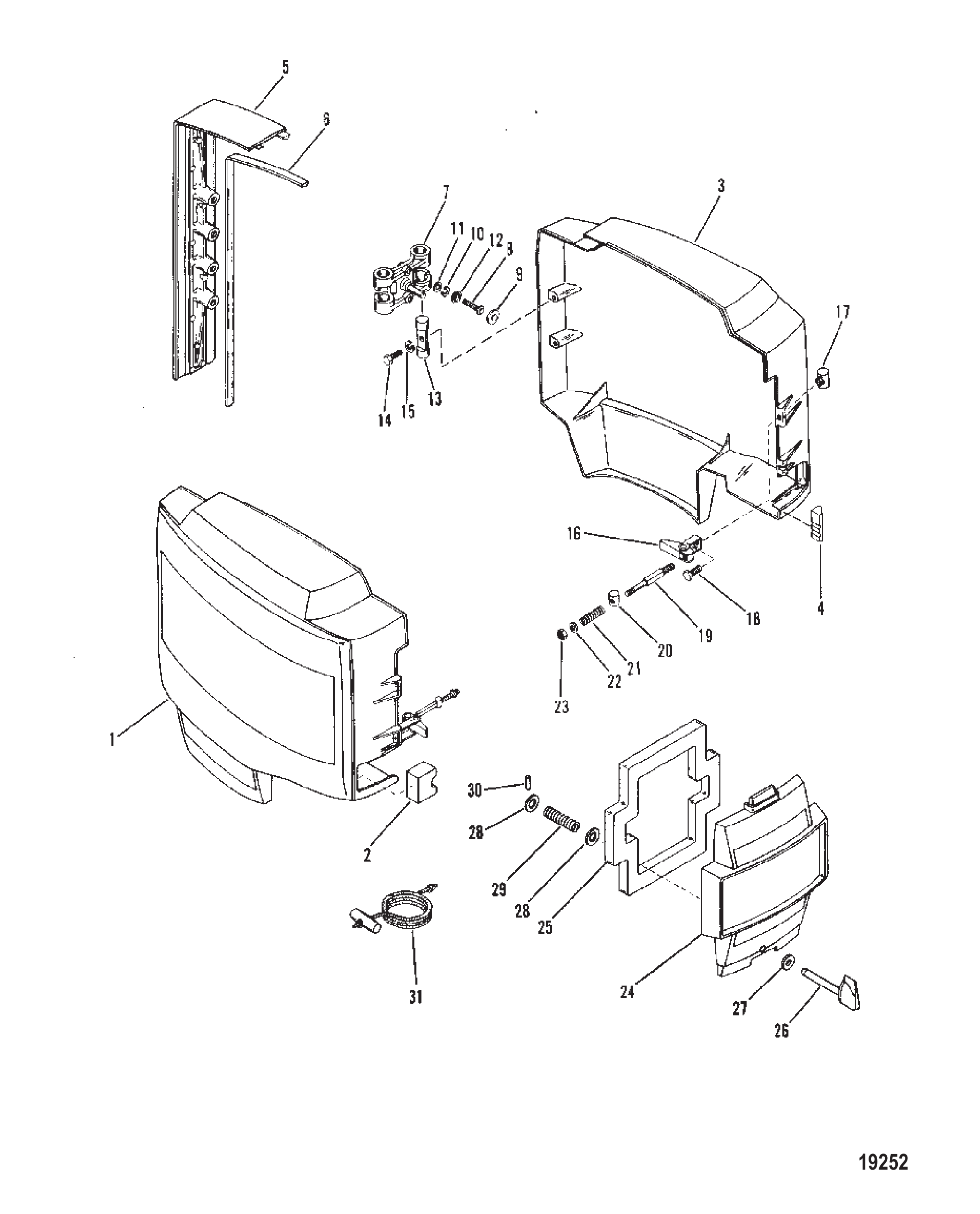

| 1 | 6228A1 | 顶罩总成(右舷黑色) | TOP COWL ASSEMBLY (STARBOARD BLACK) | 1 |
| 1 | 6228A3 | 顶罩总成(右舷灰色) | TOP COWL ASSEMBLY (STARBOARD GRAY) | 1 |
| 2 | 60297 | 燃油接头密封圈-罩 | SEAL FUEL CONNECTOR -COWL | 1 |
| 3 | 6227A1 | 顶罩总成(左舷黑色) | TOP COWL ASSEMBLY (PORT BLACK) | 1 |
| 3 | 6227A17 | 顶罩总成(左舷灰色) | TOP COWL ASSEMBLY (PORT GRAY) | 1 |
| 4 | 60298 | 控制电缆密封圈-罩 | SEAL CONTROL CABLES-COWL | 1 |
| 5 | 89717T | 罩体密封后支架 | BRACKET COWL SEALING-REAR | 1 |
| 6 | 698761 | 后支架密封圈 | SEAL REAR BRACKET | 2 |
| 7 | 90980 | 罩体铰链支架 | BRACKET COWL HINGE | 2 |
| 8 | 45561 | 铰链支架下部螺钉(.250-20 x 1.12) | SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER | 2 |
| 8 | 455611 | 螺钉(.250-20 x 1.120) | SCREW (.250-20 x 1.120) | 2 |
| 8 | 75794 | 铰链支架上部螺钉(1-1/8英寸) | SCREW HINGE BRACKET-UPPER (1-1/8") | 2 |
| 9 | 75805 | 铰链支架螺钉帽(上部) | CAP HINGE BRACKET SCREW (UPPER) | 2 |
| 10 | 26992 | 铰链支架螺钉不锈钢锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW | 4 |
| 11 | 37998 | 铰链支架螺钉垫圈 | WASHER HINGE BRACKET SCREW | 4 |
| 12 | 75806 | 铰链支架螺钉垫圈(上部) | WASHER HINGE BRACKET SCREW (UPPER) | 2 |
| 13 | 90979 | 机罩铰链销 | PIN COWL HINGE | 4 |
| 14 | 28782 | 螺钉(.312-18 x .880)不锈钢 铰链销至机罩 | SCREW (.312-18 x .880) Stainless Steel PIN TO COWL | 4 |
| 15 | 26993 | 锁紧垫圈(.312)铰链销固定螺钉 | LOCKWASHER (.312) PIN ATTACHING SCREW | 4 |
| 15 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 16 | 46785A5 | 罩壳锁扣总成 | LATCH ASSEMBLY Cowl | 2 |
| 17 | 62628 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 18 | 31312 | 螺钉(#10-32 x 0.875)锁扣总成至筒体 | SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL | 2 |
| 19 | 15222 | 机罩锁扣调节杆 | BAR ADJUSTMENT-COWL LATCH | 2 |
| 20 | 62629 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 21 | 62624 | 机罩锁扣张力弹簧 | SPRING TENSION-COWL LATCH | 2 |
| 22 | 30164 | 垫圈(.192 x .375 x .0312)不锈钢 调节杆至筒体 | WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 45812 | 螺母(#10-32)不锈钢 调节杆至筒体 | NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 859124 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 24 | 8774A6 | 前盖(黑色) | FRONT COVER (BLACK) | 1 |
| 24 | 8774A7 | 前盖(灰色) | FRONT COVER (GRAY) | 1 |
| 25 | 795511 | 隔音毯 | BLANKET SOUND ABSORBING | 1 |
| 26 | 14333 | 旋钮 | KNOB | 1 |
| 27 | 30771 | 垫圈 | WASHER | 2 |
| 28 | 75246 | 垫圈 | WASHER | 2 |
| 29 | 30772 | 弹簧 | SPRING | 1 |
| 30 | 29077 | 滚动销 | PIN Roll | 1 |
| 31 | 47341A1 | 拉绳与手柄套件 手动/应急启动(仅限手动启动) | ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY) | 1 |
| 31 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

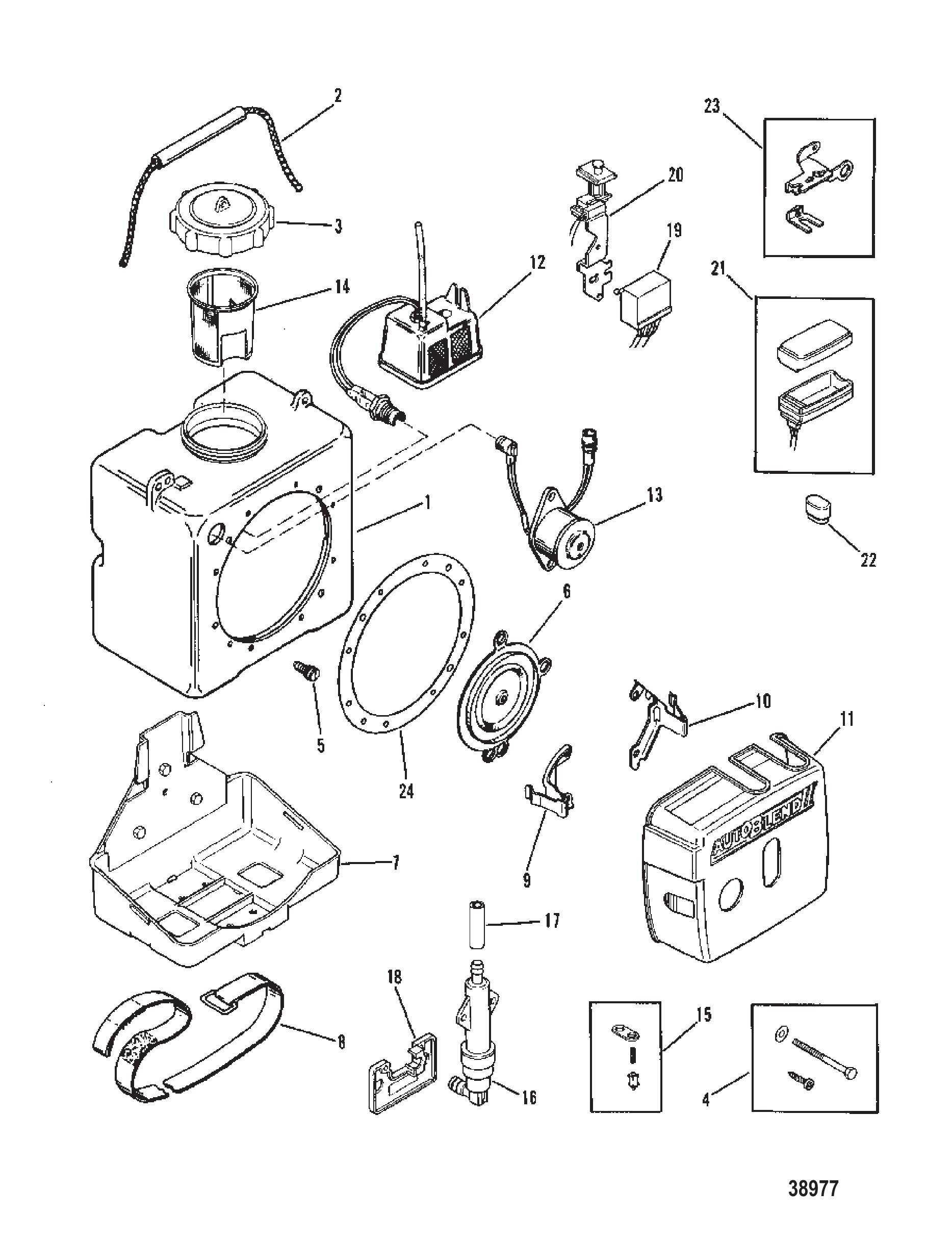

| - | 130195 | 自动混合装置 | AUTO BLEND ASSEMBLY | 1 |
| 1 | 16612 | 油箱套件 机油 | TANK KIT Oil | 1 |
| 2 | 13996 | 手柄套件 | HANDLE KIT | 1 |
| 3 | 16619 | 机油箱盖 | CAP OIL TANK | 1 |
| 4 | 16614 | 五金件套件 | HARDWARE KIT | 1 |
| 5 | 13979 | 放油塞套件 | PLUG KIT Drain | 1 |
| 6 | 16611 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 7 | 16620 | 安装支架套件 | BRACKET KIT Mounting | 1 |
| 8 | 13993 | 箍带 | BAND | 1 |
| 9 | 13983 | 支架(左) | BRACKET (LEFT) | 1 |
| 10 | 13984 | 支架(右) | BRACKET (RIGHT) | 1 |
| 11 | 16626 | 盖板 | COVER | 1 |
| 12 | 16624 | 机油滤清器及液位传感器套件 | SENSOR KIT Oil Filter And Level | 1 |
| 13 | 16625 | 喇叭套件 | HORN KIT | 1 |
| 14 | 16618 | 机油滤网 | STRAINER Oil | 1 |
| 15 | 16615 | 止回阀套件 | CHECK VALVE KIT | 1 |
| 16 | 18576 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 17 | 13992 | 乙烯基软管 | VINYL TUBE | 1 |
| 18 | 16621 | 安装板 | PLATE | 1 |
| 19 | 16627 | 模块套件 | MODULE KIT | 1 |
| 20 | 16628 | 测试按钮套件 | TEST BUTTON KIT | 1 |
| 21 | 16629 | 电池盒套件(使用9伏电池) | CASE KIT Battery (USE 9 VOLT BATTERY) | 1 |
| 22 | 16630 | 密封圈套件 | GROMMET KIT | 1 |
| 23 | 16631 | 支架套件 | BRACKET KIT | 1 |
| 24 | 16616 | 衬垫套件 | GASKET KIT | 1 |
