水星 Mercury 105 JET 0G303046 THRU 0G760299 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-81609896 · 共 110 个部位 · 5060 条零件

图 1附件 Accessories

REF	零件编号	中文名称	英文名称	数量
-	14171A1	电机锁	MOTOR LOCK	1

图 2蓄能器 ACCUMULATOR

REF	零件编号	中文名称	英文名称	数量
1	8231752	化油器总成	CARBURETOR ASSEMBLY	1
1	8230402	化油器总成	CARBURETOR ASSEMBLY	1
1	823040A2	化油器	CARBURETOR	1
1	8M0203718	化油器	CARBURETOR	1
2	95252	油门拉线	WIRE Throttle	1
3	95321	螺栓	BOLT	1
4	95253	支架	BRACKET	1
5	95254	盖帽	CAP	1
6	95322	弹簧	SPRING	1
7	95255	安装板	PLATE	1
8	95323	E型卡环	E RING	1
9	815126A1	量孔针阀	JET NEEDLE	1
9	823041	量孔针阀	JET NEEDLE	1
9	8151262	量孔针阀	JET NEEDLE	1
9	8151263	量孔针阀	JET NEEDLE	1
9	8151261	量孔针阀	JET NEEDLE	1
10	95257	油门阀	VALVE Throttle	1
10	952573	油门阀	VALVE Throttle	1
11	815126A1	量孔针阀	JET NEEDLE	1
12	95324	衬垫	GASKET	1
13	95259	浮子	FLOAT	1
14	95260	浮子室	FLOAT BOWL	1
15	95327	铰链销	PIN Hinge	1
16	952621	铰链	HINGE	1
17	815029	主量孔(#92)	MAIN JET (#92)	1
17	8150291	主量孔(#80)	MAIN JET (#80)	1
18	95325	螺钉	SCREW	1
18	953251	放油螺钉	SCREW Drain	1
19	95326	衬垫	GASKET	1
19	953261	衬垫	GASKET	1
19	95326	衬垫	GASKET	1
20	95263	针阀	VALVE Needle	1
20	95263A1	针阀套件	NEEDLE VALVE KIT	1
20	952631	针阀	NEEDLE VALVE	1
21	95264	阀座	SEAT	1
21	95263A1	针阀套件	NEEDLE VALVE KIT	1
21	952641	针阀座	SEAT Needle Valve	1
21	8M0171808	阀座	SEAT VALVE	1
22	95328	螺钉	SCREW	1
23	95329	弹簧	SPRING	1
24	95266	阻风门杠杆	LEVER Shutter	1
25	95331	螺钉	SCREW	1
26	95265	阻风门板	PLATE Choke	1
27	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	1
28	95330	螺母	NUT	1
29	95332	卡箍	CLAMP	1
30	95333	螺钉	SCREW	1
31	811601	O型圈	O-RING	1
32	815071	螺钉	SCREW	2
33	95268	油门杆	LEVER Throttle	1
34	815072	螺钉	SCREW	1
35	95238	锁紧垫圈	LOCKWASHER	1
36	95336	衬垫	GASKET	2
37	95286	轴环	COLLAR	1
37	952672	支架	BRACKET	1
37	952867	轴环	COLLAR	1
38	95267	支架	BRACKET	1
38	952867	轴环	COLLAR	1
38	952672	支架	BRACKET	1
39	95269	旋钮	KNOB	2
40	95338	螺钉	SCREW	2
41	815073	盖板	COVER	1
41	815132	盖板	COVER	1
41	8151321	盖板	COVER	1
41	815073	盖板	COVER	1
42	8150731	盖板	COVER	1
42	8150732	盖板	COVER	1
43	95339	螺钉	SCREW	1
-	95263A1	针阀套件	NEEDLE VALVE KIT	1
-	855546A2	化油器维修套件	REPAIR KIT Carburetor	1
-	8M0171816	化油器修理包	CARB REPAIR KIT	1
-	815076A1	动力头衬垫套件	GASKET SET Powerhead	1
-	898101928	衬垫套装-PH	GASKET SET-PH	1

图 3缓冲板与油门杆 Attenuator Plate And Throttle Levers

REF	零件编号	中文名称	英文名称	数量
-	14171A1	电机锁	MOTOR LOCK	1

图 4泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
-	14171A1	电机锁	MOTOR LOCK	1

图 5下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	828044A1	下罩壳(黑色)	BOTTOM COWL Black	1
1	828044A2	下罩壳总成(灰色)	BOTTOM COWL ASSEMBLY Gray	1
1	828044A1	下罩壳(黑色)	BOTTOM COWL Black	1
2	828045A1	下罩壳(黑色)	BOTTOM COWL Black	1
2	828045A2	下罩壳总成(灰色)	BOTTOM COWL ASSEMBLY Gray	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
15	827332	软管	HOSE	1
16	F698772	蜗杆卡箍	CLAMP Worm Gear	1
17	815504212	蜗杆卡箍	CLAMP Worm Gear	1
18	60522	气缸体弯头(45度)	ELBOW Cylinder Block (45 DEGREES)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
17	815504212	蜗杆卡箍	CLAMP Worm Gear	2
18	832076	气缸体弯头	ELBOW Cylinder Block	1
18	8320761	止回阀接头	FITTING Check Valve	1
19	821904	示流器接头	FITTING Tell-Tale	1
19	8M0077650	示流器接头	FITTING Tell-Tale	1
20	830756109	软管(57英寸整卷)(裁切至8英寸)	HOSE (57.00 Inches Bulk) (Cut to 8 IN.)	1
20	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
21	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
21	889847	怠速排气套	BOOT Idle Exhaust	1
22	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
23	8124431	固定座	RETAINER	1
23	8M0032848	开关固定座	RETAINER Switch	1
24	850691	开关	SWITCH	1
24	8M0235192	微调开关	SWITCH TRIM	1
25	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
26	821253F1	前手柄黑色	FRONT HANDLE Black	1
26	889740A02	手柄套件	HANDLE KIT	1
26	821253F2	前手柄	FRONT HANDLE	1
26	889740A02	手柄套件	HANDLE KIT	1
27	335891	衬套	BUSHING	2
28	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
29	8219423	棘爪	PAWL	1
30	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
31	401196	螺母 (M6)	NUT (M6)	1
32	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
33	822873	卡扣	CLIP	1

图 6化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	9744A16	下罩壳总成(黑色)(无贴花)	BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)	1
1	9744A17	下罩壳总成(灰色)(无贴花)	BOTTOM COWL ASSEMBLY Gray (Without Decals)	1
1	9744A18	下罩壳总成(追踪者)(无贴花)	BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)	1
2	9745A5	下罩壳总成(黑色)(无贴花)	BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)	1
2	9745A6	下罩壳总成(灰色)(无贴花)	BOTTOM COWL ASSEMBLY (GRAY)(Without Decals)	1
2	9745A7	下罩壳总成(追踪者)(无贴花)	BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)	1
3	18701A1	密封套件	SEAL KIT	1
4	18699	螺钉(.250-20 x 1.320)(右舷)	SCREW (.250-20 x 1.320) (STARBOARD)	4
5	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
6	813613	接头	FITTING	1
7	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
8	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	18286A40	开关总成	SWITCH ASSEMBLY	1
11	8124431	固定座	RETAINER	1
12	815914	三通接头	T-FITTING	1
13	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	1
14	19648A3	手柄总成(黑色)	HANDLE ASSEMBLY (BLACK)	1
14	19648A4	手柄总成(灰色)	HANDLE ASSEMBLY (GRAY)	1
14	19648A7	手柄总成(追踪者型)	HANDLE ASSEMBLY (TRACKER)	1
15	19647A3	手柄总成(黑色)	HANDLE ASSEMBLY (BLACK)	1
15	19647A4	手柄总成(灰色)	HANDLE ASSEMBLY (GRAY)	1
15	19647A7	手柄总成(追踪者型)	HANDLE ASSEMBLY (TRACKER)	1
16	65830	尼龙衬套	NYLINER	6
17	99611	波形垫圈	WAVE WASHER	3
18	19369	棘爪	PAWL	1
19	19370	棘爪	PAWL	1
20	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	3
21	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
22	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
23	19749	卡箍	CLAMP	1
24	197481	卡箍	CLAMP	1
25	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
26	18872A1	盖板总成(黑色)	COVER ASSEMBLY (BLACK)	1
26	18872A2	盖板总成(灰色)	COVER ASSEMBLY (GRAY)	1
26	18872A4	盖板总成(追踪者型)	COVER ASSEMBLY (TRACKER)	1
27	8136921	锁紧螺母	LOCKNUT	2
28	8130764	前手柄	FRONT HANDLE	1
29	181921	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	1
30	19666	衬套	BUSHING	1
31	18727	杆	ROD	1

图 7化油器（WMH-21/22/23/24/25/28） CARBURETOR (WMH-21/22/23/24/25/28)

REF	零件编号	中文名称	英文名称	数量
1	818650A16	化油器上部	CARBURETOR Top	1
1	818650A17	化油器中部	CARBURETOR Center	1
1	818650A18	化油器下部	CARBURETOR Bottom	1
1	818650A10	化油器上部	CARBURETOR Top	1
1	818650A11	化油器中部	CARBURETOR Center	1
1	818650A12	化油器下部	CARBURETOR Bottom	1
1	821684A1	化油器上部	CARBURETOR Top	1
1	821684A2	化油器中部	CARBURETOR Center	1
1	821684A3	化油器下部	CARBURETOR Bottom	1
1	818650A7	化油器上部	CARBURETOR Top	1
1	818650A8	化油器中部	CARBURETOR Center	1
1	818650A9	化油器下部	CARBURETOR Bottom	1
1	818650A4	化油器上部	CARBURETOR Top	1
1	818650A5	化油器中部	CARBURETOR Center	1
1	818650A6	化油器下部	CARBURETOR Bottom	1
2	810779	盖帽	CAP	6
3	NSS	不单独销售怠速混合螺钉/弹簧	NOT SOLD SEPARATE Idle Mixture Screw/Spring	6
5	677511	衬垫	GASKET	3
6	815633060	量孔 (.060) (.056 - 150/135 - WMH-24)	JET (.060) (.056 - 150/135 - WMH-24)	6
6	815633070	量孔 (.070 - 135 - WMH-28)	JET (.070 - 135 - WMH-28)	6
6	7570	量孔 .040 (175)	JET .040 (175)	6
6	815633050	量孔 (.050) (XR6/MAGNUMIII/200)	JET (.050) (XR6/MAGNUMIII/200)	6
7	810721	节气门杆 (上部/中部)	LEVER Throttle (TOP/CENTER)	2
7	810722	节气门杆 (下部)	LEVER Throttle (BOTTOM)	1
8	811284	隔套	SPACER	3
9	810745	垫圈	WASHER	3
10	810744	螺母	NUT	3
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	3
12	8423	量孔 (.094) (.094 -150)	JET (.094) (.094 -150)	3
12	5815	量孔 (.086) (XR6/MAGNUM III)	JET (.086) (XR6/MAGNUM III)	3
12	7335	量孔 (.098) (175)	JET (.098) (175)	3
12	6247	主量孔 (.090) (200/135 - WMH-24)	JET Main (.090) (200/135 - WMH-24)	3
13	6487	主量孔 (.060) (135 - WMH-24)	JET Main (.060) (135 - WMH-24)	3
13	5213	主量孔 (.056) (150/135 - WMH-28)	JET Main (.056) (150/135 - WMH-28)	3
13	6246	量孔 (.048) (175)	JET (.048) (175)	3
13	6028	量孔 (.050) (XR6/MAGNUM III)	JET (.050) (XR6/MAGNUM III)	3
13	5317	量孔 (.046) (200)	JET (.046) (200)	3
14	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
15	810738	浮子总成	FLOAT ASSEMBLY	3
16	F10064	轴	SHAFT	3
17	NSS	不单独销售浮子螺钉	NOT SOLD SEPARATE Screw-Float	3
18	811690	阀座套件	VALVE SEAT KIT	3
19	NSS	不单独销售阀座垫片	NOT SOLD SEPARATE Gasket-Valve Seat	3
20	823623	燃油杯(顶部)	BOWL Fuel (TOP)	1
20	823624	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
21	9596	堵头	PLUG	15
22	NSS	不单独销售动力/渐进喷口垫片	NOT SOLD SEPARATE Gasket-Power/Progression Jet	AR
23	6487	主喷口(.060)(150/135-WMH-24)	JET Main (.060) (150/135 - WMH-24)	6
23	4217	主喷口(.062)(135-WMH-28)	JET Main (.062) (135 - WMH-28)	6
23	5225	主喷口(.054)(XR6/MAGNUM III)	JET Main (.054) (XR6/MAGNUM III)	6
23	4216	喷口(.064)(175/200)	JET (.064) (175/200)	6
24	823629	动力喷口(150/135-WMH-24)	POWER JET (150/135 - WMH-24)	6
24	808584	动力喷口(135-WMH-28)	POWER JET (135 - WMH-28)	6
24	823625	动力喷口(XR6/MAGNUM III)	POWER JET (XR6/MAGNUM III)	6
24	823626	动力喷口(175)	POWER JET (175)	6
24	823627	动力喷口(200)	POWER JET (200)	6
25	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	18
26	7900	三通接头(顶部/中部)	TEE FITTING (TOP/CENTER)	2
27	7901	弯头(底部)	ELBOW (BOTTOM)	1
-	8107492	化油器垫片套件	GASKET KIT Carburetor	1
-	8116912	化油器维修套件	REPAIR KIT Carburetor	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 8化油器（WMH-30/31/32/33/34） CARBURETOR (WMH-30/31/32/33/34)

REF	零件编号	中文名称	英文名称	数量
1	818650A28	化油器上部	CARBURETOR Top	1
1	818650A29	化油器中部	CARBURETOR Center	1
1	818650A55	化油器底部(30A)	CARBURETOR Bottom (30A)	1
1	818650A31	化油器上部	CARBURETOR Top	1
1	818650A32	化油器中部	CARBURETOR Center	1
1	818650A56	化油器底部(31A)	CARBURETOR Bottom (31A)	1
1	818650A34	化油器上部	CARBURETOR Top	1
1	818650A35	化油器中部	CARBURETOR Center	1
1	818650A57	化油器底部(32A)	CARBURETOR Bottom (32A)	1
1	818650A37	化油器上部	CARBURETOR Top	1
1	818650A38	化油器中部	CARBURETOR Center	1
1	818650A58	化油器底部(33A)	CARBURETOR Bottom (33A)	1
1	818650A52	化油器上部	CARBURETOR Top	1
1	818650A53	化油器中部	CARBURETOR Center	1
1	818650A59	化油器底部(34A)	CARBURETOR Bottom (34A)	1
2	810779	盖帽	CAP	6
3	NSS	不单独销售怠速混合螺钉/弹簧	NOT SOLD SEPARATE Idle Mixture Screw/Spring	6
5	677511	衬垫	GASKET	3
6	815633060	喷口(.060)(.056-135)	JET (.060) (.056 - 135)	6
6	7570	喷口.040(XR6/MAGNUM III)	JET .040 (XR6/MAGNUM III)	6
6	815633050	喷口(.050)(150/175/200)	JET (.050) (150/175/200)	6
7	810721	节气门杆 (上部/中部)	LEVER Throttle (TOP/CENTER)	2
7	810722	节流阀杆(底部-WMH系列)	LEVER Throttle (BOTTOM - WMH-SERIES)	1
7	8107221	节流阀杆(底部-WMH-A系列)	LEVER Throttle (BOTTOM - WMH-A SERIES)	1
8	811284	隔套	SPACER	3
9	810745	垫圈	WASHER	3
10	810744	螺母	NUT	3
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	3
12	5815	喷口(.086)(150)	JET (.086) (150)	3
12	6247	主喷口(.090)(XR6/MAGNUM III)	JET Main (.090) (XR6/MAGNUM III)	3
12	3517	喷口(.084)(135/175/200)	JET (.084) (135/175/200)	3
13	5225	主喷口(.054)(135)	JET Main (.054) (135)	3
13	6359	喷口(.052)(150)	JET (.052) (150)	3
13	6246	量孔 (.048) (175)	JET (.048) (175)	3
13	7831	燃油主喷口(.058)(XR6/MAGNUM III)	JET Main Fuel (.058) (XR6/MAGNUM III)	3
13	5317	量孔 (.046) (200)	JET (.046) (200)	3
14	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
15	810738	浮子总成	FLOAT ASSEMBLY	3
16	F10064	轴	SHAFT	3
17	NSS	不单独销售浮子螺钉	NOT SOLD SEPARATE Screw-Float	3
18	811690	阀座套件	VALVE SEAT KIT	3
19	NSS	不单独销售阀座垫片	NOT SOLD SEPARATE Gasket-Valve Seat	3
20	823623	燃油杯(顶部)	BOWL Fuel (TOP)	1
20	823624	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
21	9596	堵头	PLUG	15
22	NSS	不单独销售动力/渐进喷口垫片	NOT SOLD SEPARATE Gasket-Power/Progression Jet	AR
23	4215	燃油主喷口(.066)(135)	JET Main Fuel (.066) (135)	6
23	4217	主喷口(.062)(150/XR6/MAGNUM III)	JET Main (.062) (150/XR6/MAGNUM III)	6
23	4216	喷口(.064)(175)	JET (.064) (175)	6
23	4215	燃油主喷口(.066)(200-顶部)	JET Main Fuel (.066) (200 - TOP)	2
23	4216	喷口(.064)(200-中部/底部)	JET (.064) (200 - CENTER/BOTTOM)	4
24	808584	动力喷口	POWER JET	6
25	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	18
26	7900	三通接头(顶部/中部)	TEE FITTING (TOP/CENTER)	2
27	7901	弯头(底部)	ELBOW (BOTTOM)	1
-	8107492	化油器垫片套件	GASKET KIT Carburetor	1
-	8116912	化油器维修套件	REPAIR KIT Carburetor	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 9化油器（WMH-12A/12B/13/13B/14A/15/16） CARBURETOR (WMH - 12A/12B/13/13B/14A/15/16)

REF	零件编号	中文名称	英文名称	数量
1	9672A50	化油器上部	CARBURETOR Top	1
1	9672A51	化油器中部	CARBURETOR Center	1
1	9672A52	化油器下部	CARBURETOR Bottom	1
1	9672A35	化油器上部	CARBURETOR Top	1
1	9672A36	化油器中部	CARBURETOR Center	1
1	9672A37	化油器下部	CARBURETOR Bottom	1
1	813682A13	化油器上部	CARBURETOR Top	1
1	813682A14	化油器中部	CARBURETOR Center	1
1	813682A15	化油器下部	CARBURETOR Bottom	1
1	9672A41	化油器上部	CARBURETOR Top	1
1	9672A42	化油器中部	CARBURETOR Center	1
1	9672A43	化油器下部	CARBURETOR Bottom	1
1	9672A44	化油器上部	CARBURETOR Top	1
1	9672A45	化油器中部	CARBURETOR Center	1
1	9672A46	化油器下部	CARBURETOR Bottom	1
2	810779	盖帽	CAP	6
3	NSS	不单独销售怠速混合螺钉/弹簧	NOT SOLD SEPARATE Idle Mixture Screw/Spring	6
4	811803	堵头固定件	PLUG Retainer	3
5	677511	衬垫	GASKET	3
6	815633048	量孔(.048)	JET (.048)	3
6	815633070	喷口(.070-175)	JET (.070 - 175)	3
6	815633050	喷口(.050)(XR6/MAGNUM III/200)	JET (.050) (XR6/MAGNUM III/200)	3
7	810721	节气门杆 (上部/中部)	LEVER Throttle (TOP/CENTER)	2
7	810722	节气门杆 (下部)	LEVER Throttle (BOTTOM)	1
8	811284	隔套	SPACER	3
9	810745	垫圈	WASHER	3
10	810744	螺母	NUT	3
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	3
12	6249	主喷口(.096)	JET Main (.096)	3
12	5815	喷口(.086)	JET (.086)	3
12	6201	量孔(.080)	JET (.080)	3
12	6247	主量孔(0.090)	JET Main (.090)	3
13	6246	量孔(.048)	JET (.048)	3
13	5317	量孔(.046)	JET (.046)	3
13	6359	量孔(.052)	JET (.052)	3
14	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
15	810738	浮子总成	FLOAT ASSEMBLY	3
16	NSS		NOT SOLD SEPARATE Float Shaft	3
17	NSS	不单独销售浮子螺钉	NOT SOLD SEPARATE Screw-Float	3
18	811690	阀座套件	VALVE SEAT KIT	3
19	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	3
20	811687	燃油杯(顶部)	BOWL Fuel (TOP)	1
20	811688	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
21	9596	堵头	PLUG	12
22	NSS	不单独销售动力/渐进喷口垫片	NOT SOLD SEPARATE Gasket-Power/Progression Jet	12
23	5225	主量孔(.054)	JET Main (.054)	6
23	4217	主量孔(.062)	JET Main (.062)	6
23	4216	量孔(.064)	JET (.064)	6
23	4215	燃油主量孔(.066)	JET Main Fuel (.066)	6
24	811689	动力喷口	POWER JET	6
24	811807	动力喷口	POWER JET	6
24	811925	动力喷口	POWER JET	6
25	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	15
26	7900	三通接头(顶部/中部)	TEE FITTING (TOP/CENTER)	2
27	7901	弯头(底部)	ELBOW (BOTTOM)	1
-	8107492	化油器垫片套件	GASKET KIT Carburetor	1
-	811691	化油器维修套件	REPAIR KIT Carburetor	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 10阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS

REF	零件编号	中文名称	英文名称	数量
1	817495A1	消音板总成	PLATE ASSEMBLY Sound Attenuator	1
2	892211	衬垫	GASKET	3
3	88489	螺钉(.250-28 x 2.500)	SCREW (.250-28 x 2.500)	6
3	884891	螺钉(.250-28 x 2.500)带尼龙垫-不锈钢	SCREW (.250-28 x 2.500) With Nylon Patch - Stainless Steel	6
4	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	6
5	815784	盖帽	CAP	3
6	18180	油门连杆	LINK Throttle	1
7	18181	连杆(带短轴)	LINK (W/STUB SHAFT)	3
6A	825204A1	节流连杆套件	LINK KIT Throttle	1
7	18181	连杆(带短轴)	LINK (W/STUB SHAFT)	1
7A	181811	连杆(带球轴)	LINK (W/BALL SHAFT)	2
8	18178	滚轮	ROLLER	1
9	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	3
10	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
11	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	3
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 11曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	球轴承(下部)	BEARING Ball (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	54196A6	托架总成	CARRIER ASSEMBLY	1
8	65800	填料	PACKING	1
9	67377	曲轴密封环	RING Sealing CRANKSHAFT	7
9	67377T	密封环	RING Sealing	7
10	16756A6	轴承套件	BEARING KIT	2
11	7441A32	活塞(右舷-标准)	PISTON (STARBOARD-STANDARD)	3
11	7441T32	活塞	PISTON	3
11	7443A11	活塞(右舷-0.015加大)	PISTON (STARBOARD-.015 O.S.)	AR
11	7445A11	活塞(右舷-0.030加大)	PISTON (STARBOARD-.030 OS.)	AR
11	7445T11	活塞	PISTON	AR
11	7442A32	活塞(左舷-标准)	PISTON (PORT-STANDARD)	3
11	7442T32	活塞	PISTON	3
11	7444A11	活塞(左舷-0.015加大)	PISTON (PORT-.015 O.S.)	AR
11	7446A11	活塞(左舷-0.030加大)	PISTON (PORT-.030 O.S.)	AR
11	9738A7	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A8	活塞总成(右舷-0.015加大)	PISTON ASSEMBLY (STARBOARD-.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A7	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A8	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	9737A10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9738A9	活塞总成标准型(右舷-标准)	PISTON ASSEMBLY Standard (STARBOARD-STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A10	活塞总成0.015加大(右舷-0.015加大)	PISTON ASSEMBLY .015 Oversize (STARBOARD-.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A9	活塞总成标准型(左舷-标准)	PISTON ASSEMBLY Standard (PORT-STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A10	活塞总成0.015加大(左舷-0.015加大)	PISTON ASSEMBLY .015 Oversize (PORT-.015 O.S.)	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
12	815515A12	活塞环组(标准)(1-1/2毫米)	RING SET Piston (STD.) (1-1/2 MM)	1
12	815268A4	活塞环组(0.015加大)(1-1/2毫米)	RING SET Piston (.015 O.S.) (1-1/2 MM)	AR
12	822321A12	活塞环套件-标准(标准)(2毫米)	RING KIT Piston - Standard (STD.) (2MM)	1
12	822321A1	活塞环套件-0.015加大(0.015加大)(2毫米)	RING KIT Piston - .015 Oversize (.015 O.S.) (2MM)	2
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	818141A2	连杆套件	CONNECTING ROD KIT	6
14	818141A13	连杆总成	CONNECTING ROD ASSEMBLY	6
15	763491	螺钉(.312-24 x .875)	SCREW (.312-24 x .875)	12
16	812876	垫圈	WASHER	12
16	8M0012298	止推垫片	THRUST WASHER	12
17	17514A2	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	822553	滚针轴承	BEARING Needle	174
18	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 12曲轴活塞与连杆 Crankshaft Pistons And Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9744A16	下罩壳总成(黑色)(无贴花)	BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)	1
1	9744A17	下罩壳总成(灰色)(无贴花)	BOTTOM COWL ASSEMBLY Gray (Without Decals)	1
1	9744A18	下罩壳总成(追踪者)(无贴花)	BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)	1
2	9745A5	下罩壳总成(黑色)(无贴花)	BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)	1
2	9745A6	下罩壳总成(灰色)(无贴花)	BOTTOM COWL ASSEMBLY (GRAY)(Without Decals)	1
2	9745A7	下罩壳总成(追踪者)(无贴花)	BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)	1
3	18701A1	密封套件	SEAL KIT	1
4	18699	螺钉(.250-20 x 1.320)(右舷)	SCREW (.250-20 x 1.320) (STARBOARD)	4
5	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
6	813613	接头	FITTING	1
7	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
8	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	18286A40	开关总成	SWITCH ASSEMBLY	1
11	8124431	固定座	RETAINER	1
12	815914	三通接头	T-FITTING	1
13	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	1
14	19648A3	手柄总成(黑色)	HANDLE ASSEMBLY (BLACK)	1
14	19648A4	手柄总成(灰色)	HANDLE ASSEMBLY (GRAY)	1
14	19648A7	手柄总成(追踪者型)	HANDLE ASSEMBLY (TRACKER)	1
15	19647A3	手柄总成(黑色)	HANDLE ASSEMBLY (BLACK)	1
15	19647A4	手柄总成(灰色)	HANDLE ASSEMBLY (GRAY)	1
15	19647A7	手柄总成(追踪者型)	HANDLE ASSEMBLY (TRACKER)	1
16	65830	尼龙衬套	NYLINER	6
17	99611	波形垫圈	WAVE WASHER	3
18	19369	棘爪	PAWL	1
19	19370	棘爪	PAWL	1
20	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	3
21	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
22	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
23	19749	卡箍	CLAMP	1
24	197481	卡箍	CLAMP	1
25	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
26	18872A1	盖板总成(黑色)	COVER ASSEMBLY (BLACK)	1
26	18872A2	盖板总成(灰色)	COVER ASSEMBLY (GRAY)	1
26	18872A4	盖板总成(追踪者型)	COVER ASSEMBLY (TRACKER)	1
27	8136921	锁紧螺母	LOCKNUT	2
28	8130764	前手柄	FRONT HANDLE	1
29	181921	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	1
30	19666	衬套	BUSHING	1
31	18727	杆	ROD	1

图 13气缸体与端盖 Cylinder Block And End Caps

REF	零件编号	中文名称	英文名称	数量
1	9765A13	气缸体(135/150)	CYLINDER BLOCK (135/150)	1
1	9763A17	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
1	9763A17	气缸体(175)	CYLINDER BLOCK (175)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A61	气缸体(200)	CYLINDER BLOCK (200)	1
1	9763T61	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(150 TRACKER)	CYLINDER BLOCK ( 150 TRACKER)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
2	76175	双头螺柱(1-7/8")(旧款)	STUD (1-7/8") (OLD DESIGN)	4
2	818138	双头螺柱(1-3/4")	STUD (1-3/4")	2 or 6
2	8M0034455	螺柱1.750	STUD 1.750	2 or 6
3	67065	双头螺柱(5-1/2")	STUD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	双头螺柱(6-3/4")	STUD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	42249	上盖	COVER (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	828213	螺钉(.312-18 x 1.500)六角法兰	SCREW (.312-18 x 1.500) Hex Flange	2
8	73657	螺钉(.312-18 x 1.50)(配13-26993垫片)	SCREW (.312-18 x 1.50) (Use with 13-26993 washer)	2
9	26993	锁紧垫圈(.312)(配10-73657螺钉)	LOCKWASHER (.312) (Use with 10-73657 screw)	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	下盖	COVER (LOWER)	1
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11	828214	螺钉(.312-18 x 2.00)六角法兰	SCREW (.312-18 x 2.00) Hex Flange	2
11A	99448	衬套	BUSHING	1
12	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
13	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
13	858521T1	端盖总成	END CAP ASSEMBLY	1
14	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
15	16756A4	轴承套件	BEARING KIT	1
16	41953	密封件	SEAL	1
17	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
17	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
19	63153	J型卡扣	J CLIP	1
20	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
21	15093	双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00)	2
21	8M0034435	螺柱	STUD	2
22	67269	隔套	SPACER	1
23	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	3
23	8M0204663	垫片@5	WASHER @5	3
25	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
26	42248	支架	BRACKET	1
26	422482	支架	BRACKET	1
27	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
28	7809A1	端盖总成	END CAP ASSEMBLY	1
28	7809T1	端盖总成	END CAP ASSEMBLY	1
29	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
30	41953	密封件	SEAL	2
31	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
32	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
33	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
34	64015	螺母 (.250-20)	NUT (.250-20)	1
35	26852	尼龙帽	CAP Nylon	1
36	87076A10	怠速控制器	IDLE SPEED CONTROL	1
38	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
38	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
39	38833	垫圈	WASHER	3
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 14气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	9765A13	气缸体(135/150)	CYLINDER BLOCK (135/150)	1
1	9763A17	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
1	9763A17	气缸体(175)	CYLINDER BLOCK (175)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A61	气缸体(200)	CYLINDER BLOCK (200)	1
1	9763T61	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(150 TRACKER)	CYLINDER BLOCK ( 150 TRACKER)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
2	76175	双头螺柱(1-7/8")(旧款)	STUD (1-7/8") (OLD DESIGN)	4
2	818138	双头螺柱(1-3/4")	STUD (1-3/4")	2 or 6
2	8M0034455	螺柱1.750	STUD 1.750	2 or 6
3	67065	双头螺柱(5-1/2")	STUD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	双头螺柱(6-3/4")	STUD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	42249	上盖	COVER (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	828213	螺钉(.312-18 x 1.500)六角法兰	SCREW (.312-18 x 1.500) Hex Flange	2
8	73657	螺钉(.312-18 x 1.50)(配13-26993垫片)	SCREW (.312-18 x 1.50) (Use with 13-26993 washer)	2
9	26993	锁紧垫圈(.312)(配10-73657螺钉)	LOCKWASHER (.312) (Use with 10-73657 screw)	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	下盖	COVER (LOWER)	1
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11	828214	螺钉(.312-18 x 2.00)六角法兰	SCREW (.312-18 x 2.00) Hex Flange	2
11A	99448	衬套	BUSHING	1
12	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
13	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
13	858521T1	端盖总成	END CAP ASSEMBLY	1
14	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
15	16756A4	轴承套件	BEARING KIT	1
16	41953	密封件	SEAL	1
17	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
17	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
19	63153	J型卡扣	J CLIP	1
20	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
21	15093	双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00)	2
21	8M0034435	螺柱	STUD	2
22	67269	隔套	SPACER	1
23	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	3
23	8M0204663	垫片@5	WASHER @5	3
25	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
26	42248	支架	BRACKET	1
26	422482	支架	BRACKET	1
27	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
28	7809A1	端盖总成	END CAP ASSEMBLY	1
28	7809T1	端盖总成	END CAP ASSEMBLY	1
29	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
30	41953	密封件	SEAL	2
31	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
32	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
33	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
34	64015	螺母 (.250-20)	NUT (.250-20)	1
35	26852	尼龙帽	CAP Nylon	1
36	87076A10	怠速控制器	IDLE SPEED CONTROL	1
38	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
38	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
39	38833	垫圈	WASHER	3
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 15驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A10	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	8343A11	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	8343A12	传动轴壳体总成(TRACKER)	HOUSING ASSEMBLY Driveshaft (TRACKER)	1
1	8343T12	D型轴套-追踪者	D SHAFT HSG-TRACK	1
1	813563A1	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
1	8343A13	传动轴壳体总成(JET)(黑色)	HOUSING ASSEMBLY Driveshaft (JET) (BLACK)	1
1	8343A14	传动轴壳体总成(JET)(灰色)	HOUSING ASSEMBLY Driveshaft (JET) (GRAY)	1
1	8343A13	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
4	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	支架(加长型)(JET)	MOUNT (LONG)(JET)	2
5	77327	支架	MOUNT	2
5	77327	支架(TRACKER/XR6/MAGNUM III/超长型)	MOUNT (TRACKER/XR6/MAGNUM III/X-LONG)	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	28040	螺母(.500-20)	NUT (.500-20)	2
7	898832	螺母(.500-20)	NUT (.500-20)	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	卡箍	CLAMP	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
11	67077T	黑色盖(黑色)	COVER Black (BLACK)	2
11	8M4500752	盖板	COVER	2
11	67077T6	盖(灰色)	COVER (GRAY)	2
11	67077F1	灰色盖板	COVER Gray	2
11	67077F2	盖(TRACKER)	COVER (TRACKER)	2
11	8M4500752	盖板	COVER	2
12	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
13	35521	螺母	NUT	4
14	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
16	48926	垫圈	WASHER	1
17	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
17	8M0204653	螺母	NUT	1
18	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
19	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
19	8M0204653	螺母	NUT	2
20	64649	堵头	PLUG	1
21	18276	排气管	TUBE Exhaust	1
21	18276T	排气管	EXHAUST TUBE	1
22	66350	下密封件	SEAL (LOWER)	1
22	66350001	密封件	SEAL	1
23	177261	上密封件	SEAL (UPPER)	1
23	8M0039076	密封件	SEAL	1
24	67295	水管(加长型)(JET)	TUBE Water (LONG)(JET)	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
24	74729	管(超长型)	TUBE (X-LONG)	1
24	8M0042790	水管	TUBE-WATER	1
25	991732	衬垫	GASKET	1
25	991734	衬垫	GASKET	1
26	18233A3	隔板总成	PLATE ASSEMBLY	1
26	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
27	8147012	密封件	SEAL	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68011	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
30	20033	定位销	PIN Dowel	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	密封件	SEAL	1
32	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
33	183071	衬垫	GASKET	1
33	183076	衬垫	GASKET	1
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
35	69254	螺母	NUT	4
36	812834	排气管延长段	EXTENSION Exhaust	1
36	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
36	41942F3	排气管延长段(150/200)(JET)	EXTENSION Exhaust (150/200)(JET)	1
36	879288T71	排气管延长段	EXTENSION Exhaust	1
37	78246	衬垫	GASKET	1
37	782461	衬垫	GASKET	1
38	814618	护套	BOOT	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 16驱动轴壳与排气管 Drive Shaft Housing And Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	9765A13	气缸体(135/150)	CYLINDER BLOCK (135/150)	1
1	9763A17	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763A23	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763A17	气缸体(175)	CYLINDER BLOCK (175)	1
1	9763A61	气缸体(200)	CYLINDER BLOCK (200)	1
1	9763A23	气缸体(150 TRACKER)	CYLINDER BLOCK ( 150 TRACKER)	1
2	76175	双头螺柱(1-7/8")(旧款)	STUD (1-7/8") (OLD DESIGN)	4
2	818138	双头螺柱(1-3/4")	STUD (1-3/4")	2 or 6
3	67065	双头螺柱(5-1/2")	STUD (5-1/2")	2
3	78438	双头螺柱(6-3/4")	STUD (6-3/4")	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
6	11338	衬垫	GASKET	2
7	42249	上盖	COVER (UPPER)	1
8	828213	螺钉(.312-18 x 1.500)六角法兰	SCREW (.312-18 x 1.500) Hex Flange	2
8	73657	螺钉(.312-18 x 1.50)(配13-26993垫片)	SCREW (.312-18 x 1.50) (Use with 13-26993 washer)	2
9	26993	锁紧垫圈(.312)(配10-73657螺钉)	LOCKWASHER (.312) (Use with 10-73657 screw)	4
10	76867	下盖	COVER (LOWER)	1
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11	828214	螺钉(.312-18 x 2.00)六角法兰	SCREW (.312-18 x 2.00) Hex Flange	2
11A	99448	衬套	BUSHING	1
12	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
13	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
14	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
15	16756A4	轴承套件	BEARING KIT	1
16	41953	密封件	SEAL	1
17	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
19	63153	J型卡扣	J CLIP	1
20	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
21	15093	双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00)	2
22	67269	隔套	SPACER	1
23	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	3
25	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
26	42248	支架	BRACKET	1
27	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
28	7809A1	端盖总成	END CAP ASSEMBLY	1
29	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
30	41953	密封件	SEAL	2
31	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
32	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
33	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
34	64015	螺母 (.250-20)	NUT (.250-20)	1
35	26852	尼龙帽	CAP Nylon	1
36	87076A10	怠速控制器	IDLE SPEED CONTROL	1
38	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
39	38833	垫圈	WASHER	3
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1

图 17双机延伸套件 Dual Engine Extension Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	4
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 18双机延伸套件 DUAL ENGINE EXTENSION KIT

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	4
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 19排气歧管与排气板 Exhaust Manifold And Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8185622	分隔板	PLATE Divider	1
2	827323A2	分隔板	DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	814634	卡箍	CLAMP	4
5	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
5	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
6	814430	管接头(.500-14)	FITTING (.500-14)	1
6	8144301	接头	FITTING	1
7	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
7	920071	90度弯头	FITTING (90 Degree)	1
8	830756109	软管(57.00英寸整卷)(裁切至23.5英寸)	HOSE (57.00 Inches Bulk) (Cut to 23.5 Inches)	1
8	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	68729	盖板	COVER	1
10	8M0039767	盖板	COVER	1
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
12	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
13	76451	垫圈	WASHER	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安装板	PLATE	1
17	78690	衬垫	GASKET	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧(黑色)	SPRING (Black)	1
19	85303	垫圈	WASHER	1
20	14480	提动阀	POPPET	1
21	64872	护孔环	GROMMET	1
22	65848	托架	CARRIER	1
23	991763	衬垫	GASKET	1
23	991764	衬垫	GASKET	1
24	18260A2	排气板总成	PLATE ASSEMBLY Exhaust	1
24	18260T2	排气板总成	PLATE ASSEMBLY Exhaust	1
25	897721	连接器(.125-27)(直型)	CONNECTOR (.125-27) (STRAIGHT)	1
25	89772Q1	连接器(.125-27)	CONNECTOR (.125-27)	1
26	20033	定位销	PIN Dowel	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母	NUT	6
32	27132	衬套	BUSHING	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	126021	护孔环	GROMMET	1
34	12602002	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
36	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A3	支架总成	BRACKET ASSEMBLY	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	4
40	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
41	187031	垫圈	WASHER	4
42	18778	护孔环	GROMMET	4
42	18778001	护孔环	GROMMET	4
43	18578A6	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 20排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8185622	分隔板	PLATE Divider	1
2	827323A2	分隔板	DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	814634	卡箍	CLAMP	4
5	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
5	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
6	814430	管接头(.500-14)	FITTING (.500-14)	1
6	8144301	接头	FITTING	1
7	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
7	920071	90度弯头	FITTING (90 Degree)	1
8	830756109	软管(57.00英寸整卷)(裁切至23.5英寸)	HOSE (57.00 Inches Bulk) (Cut to 23.5 Inches)	1
8	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	68729	盖板	COVER	1
10	8M0039767	盖板	COVER	1
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
12	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
13	76451	垫圈	WASHER	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安装板	PLATE	1
17	78690	衬垫	GASKET	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧(黑色)	SPRING (Black)	1
19	85303	垫圈	WASHER	1
20	14480	提动阀	POPPET	1
21	64872	护孔环	GROMMET	1
22	65848	托架	CARRIER	1
23	991763	衬垫	GASKET	1
23	991764	衬垫	GASKET	1
24	18260A2	排气板总成	PLATE ASSEMBLY Exhaust	1
24	18260T2	排气板总成	PLATE ASSEMBLY Exhaust	1
25	897721	连接器(.125-27)(直型)	CONNECTOR (.125-27) (STRAIGHT)	1
25	89772Q1	连接器(.125-27)	CONNECTOR (.125-27)	1
26	20033	定位销	PIN Dowel	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母	NUT	6
32	27132	衬套	BUSHING	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	126021	护孔环	GROMMET	1
34	12602002	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
36	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A3	支架总成	BRACKET ASSEMBLY	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	4
40	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
41	187031	垫圈	WASHER	4
42	18778	护孔环	GROMMET	4
42	18778001	护孔环	GROMMET	4
43	18578A6	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 21飞轮/启动电机 Flywheel/Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	堵头	PLUG	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A2	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A19	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
19	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1

图 22飞轮/启动马达 FLYWHEEL/STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	堵头	PLUG	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A2	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A19	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
19	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1

图 23燃油管路 Fuel Lines

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
9	817632A2	飞轮	FLYWHEEL	1
9	817632A12	飞轮	FLYWHEEL	1
10	9610A19	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
15	56703	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1

图 24燃油管路（用于 WMH-30/31/32/33/34 化油器） FUEL LINES (Use With WMH -30/31/32/33/34 Carburetors)

REF	零件编号	中文名称	英文名称	数量
1	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
2	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
3	812782	密封件	SEAL	1
4	9912980	软管	HOSE	AR
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	AR
5	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
6	818993	三通接头	CONNECTOR Tee	1
7	18175	软管	HOSE	1
8	818994	止回阀	CHECK VALVE	1
8	8189941	止回阀	CHECK VALVE	1
9	82381325	管材(10.00英寸散装)	TUBING (10.00 Inches Bulk)	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	824001	软管	HOSE	1
10	830762	软管	HOSE	1
11	8162961	燃油滤清器	FILTER Fuel	1
11	816296Q2	燃油滤清器	FILTER Fuel	1
12	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	677511	衬垫	GASKET	3
14	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
14	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
16	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6
17	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
18	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
19	633001	卡箍	CLAMP	1
20	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
21	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
22	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
22	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
23	45915	端子排	TERMINAL BLOCK	1
24	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
24	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
24	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
24	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 25燃油管路（用于 WMH-12A/B 至 WMH-28 化油器） FUEL LINES (Use With WMH-12A/B thru WMH-28 Carburtors)

REF	零件编号	中文名称	英文名称	数量
1	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
2	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
3	812782	密封件	SEAL	1
4	9912980	软管	HOSE	AR
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	AR
5	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
6	818993	三通接头	CONNECTOR Tee	1
7	18175	软管	HOSE	1
8	818994	止回阀	CHECK VALVE	1
8	8189941	止回阀	CHECK VALVE	1
9	82381325	管材(10.00英寸散装)	TUBING (10.00 Inches Bulk)	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	8162961	燃油滤清器	FILTER Fuel	1
10	816296Q2	燃油滤清器	FILTER Fuel	1
11	677511	衬垫	GASKET	3
12	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
12	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
13	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
13	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
14	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
16	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6
17	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	3
18	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
18	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
19	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
20	633001	卡箍	CLAMP	1
21	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
22	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
23	45915	端子排	TERMINAL BLOCK	1
24	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	1
24	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	1
25	824001	软管	HOSE	1
25	830762	软管	HOSE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 26燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	14360A78	燃油泵套件	PUMP KIT Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE CHECK VALVE, RUBBER	2
4	NSS		NOT SOLD SEPARATE CHECK VALVE	2
5	NSS		NOT SOLD SEPARATE RETAINER	2
6	NSS		NOT SOLD SEPARATE GASKET, BOOST	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	NSS		NOT SOLD SEPARATE SPRING	1
9	NSS		NOT SOLD SEPARATE DIAPHRAGM	2
10	NSS		NOT SOLD SEPARATE GASKET, PULSE	1
11	NSS		NOT SOLD SEPARATE SPRING	1
12	NSS		NOT SOLD SEPARATE CAP	1
13	987691	衬垫	GASKET	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303	底座	BASE	1
15	987752	安装板	PLATE	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	83075780	管材(28英寸整卷)(裁切6英寸)	TUBING (28.00 Inches Bulk) (Cut to 6 IN.)	1
17	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
18	83075780	管材(28英寸整卷)(裁切10-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 10-1/2 IN.)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
21	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
22	822769	连接器	CONNECTOR	1
23	1350385	管材(33英寸整卷)(15-1/2英寸)(19英寸)	TUBING (33.00 Inches Bulk) (15-1/2 IN.)(19 IN.)	2
24	18458A4	滤清器套件	FILTER KIT	1
24	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
25	828586	探头	PROBE	1
25	8M0204710	探头	PROBE	1
26	13170A3	底座	BASE	1
27	897712	直型连接器(.250-18)	CONNECTOR (.250-18) (STRAIGHT)	1
27	89771Q2	连接器(.250-18)	CONNECTOR (.250-18)	1
28	136071	弯头	ELBOW	1
29	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
29	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 27齿轮箱（驱动轴-反向-序列号0G437999及以下） Gear Housing (Driveshaft-Counter-S/N-0G437999 & Below)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
5	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
6	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
10	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	衬垫	GASKET	1
14	144303	底座	BASE	1
15	987752	安装板	PLATE	1
16	99664	弯头	ELBOW	1
17	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
18	99664	弯头	ELBOW	1
19	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
20	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	42990A10	膜片组件	DIAPHAGM KIT	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1

图 28齿轮箱（螺旋桨轴-反向-序列号0G437999及以下） Gear Housing (Propshaft-Counter-S/N-0G437999 & Below)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
5	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
6	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
10	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	衬垫	GASKET	1
14	144303	底座	BASE	1
15	987752	安装板	PLATE	1
16	99664	弯头	ELBOW	1
17	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
18	99664	弯头	ELBOW	1
19	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
20	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	42990A10	膜片组件	DIAPHAGM KIT	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1

图 29齿轮箱对照表 GEAR HOUSING CHART

REF	零件编号	中文名称	英文名称	数量
-	9148A18	齿轮箱总成标准旋转2:1速比(长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG)(BLACK)	1
-	9148A19	齿轮箱总成标准旋转2:1速比(加长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG)(BLACK)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A20	齿轮箱总成标准旋转2:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG)(GRAY)	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A21	齿轮箱总成标准旋转2:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG)(GRAY)	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
-	9148A40	齿轮箱总成 2.3:1速比(高海拔)(黑色)	GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE) (BLACK)	1
-	9148A78	齿轮箱总成(速比2.3:1)	GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio	1
-	9148A41	齿轮箱总成 2.3:1速比(高海拔)(灰色)	GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE) (GRAY)	1
-	9148A79	齿轮箱总成(速比2.3:1)	GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio	1
-	814247A3	齿轮箱总成 1.78:1速比-黑色(黑色)	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black (BLACK)	1
-	814247T3	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	814247A4	齿轮箱总成 1.78:1速比-灰色(灰色)	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray (GRAY)	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	9148A9	齿轮箱总成标准旋转1.87:1速比(加长型)追踪者	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) TRACKER	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A10	齿轮箱总成标准旋转1.87:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (GRAY)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A13	齿轮箱总成标准旋转1.87:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (GRAY)	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A45	齿轮箱总成标准旋转1.87:1速比追踪者	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio TRACKER	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A27	齿轮箱总成反向旋转(加长型)(黑色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (BLACK)	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A28	齿轮箱总成反向旋转(加长型)(灰色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (GRAY)	1
-	9148T89	齿轮箱壳体-CXL-灰色	GEAR HSG-CXL-GRAY	1
-	9148A30	齿轮箱总成反向旋转(加长型)(黑色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (BLACK)	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A31	齿轮箱总成反向旋转(加长型)(灰色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (GRAY)	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1
-	9148A65	齿轮箱总成标准旋转2:1速比(长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A67	齿轮箱总成标准旋转2:1速比(加长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (BLACK)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A66	齿轮箱总成标准旋转2:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (GRAY)	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A68	齿轮箱总成标准旋转2:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
-	9148A78	齿轮箱总成 2.3:1速比(高海拔)(黑色)	GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE)(BLACK)	1
-	9148A79	齿轮箱总成 2.3:1速比(高海拔)(灰色)	GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE)(GRAY)	1
-	9148A69	齿轮箱总成标准旋转1.87:1速比(长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG)(BLACK)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A72	齿轮箱总成标准旋转1.87:1速比(加长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (BLACK)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A70	齿轮箱总成标准旋转1.87:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (GRAY)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A73	齿轮箱总成标准旋转1.87:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG)(GRAY)	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A71	齿轮箱总成标准旋转1.87:1速比追踪者	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio TRACKER	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A74	齿轮箱总成反向旋转(加长型)(黑色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(BLACK)	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A75	齿轮箱总成反向旋转(加长型)(灰色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(GRAY)	1
-	9148T89	齿轮箱壳体-CXL-灰色	GEAR HSG-CXL-GRAY	1
-	9148A76	齿轮箱总成反向旋转(加长型)(黑色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (BLACK)	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A77	齿轮箱总成反向旋转(加长型)(灰色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(GRAY)	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1

图 30齿轮箱图表（序列号0G437999及以下） Gear Housing Chart (S/N-0G437999 & Below)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
5	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
6	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
10	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	衬垫	GASKET	1
14	144303	底座	BASE	1
15	987752	安装板	PLATE	1
16	99664	弯头	ELBOW	1
17	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
18	99664	弯头	ELBOW	1
19	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
20	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	42990A10	膜片组件	DIAPHAGM KIT	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1

图 31齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
2	85822A1	速度表连接器总成	CONNECTOR ASSEMBLY Speedometer	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	85500	定位销(.187 x .530)齿轮箱	PIN Dowel (.187 x .530) Gear Housing	2
3	8M0084726	定位销	PIN Dowel	2
4	33778	水泵/底座柱螺栓(2.625英寸)	STUD Water Pump/Base (2.625 Inch)	3
5	57933	柱螺栓(.437-14/.437-20 x 2.190)齿轮箱	STUD (.437-14/.437-20 x 2.190) Gear Housing	2
5	8M0034453	柱螺栓(7/16 x 2.19)	STUD (7/16 x 2.19)	2
6	62091	传动轴滚柱轴承	BEARING Roller Driveshaft	1
6	62091T	轴承	BEARING	1
7	72849A1	进水滤网总成	SCREEN ASSEMBLY Water Intake	1
8	36070	螺钉(#10-32 x 1.250)进水滤网至齿轮箱	SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing	1
9	45812	螺母(#10-32)不锈钢进水滤网螺钉	NUT (#10-32) Stainless Steel Water Intake Screen Screw	1
9	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
10	92815	排气管支撑板	PLATE Support - Exhaust Tube	1
11	37721	排气管密封件	SEAL Exhaust Tube	1
11	37721001	密封件@2	SEAL @2	1
12	98097	传动轴小齿轮	GEAR Pinion Driveshaft	1
12	98097T	小齿轮	GEAR-PINION	1
13	55910	螺母(.437-20)小齿轮至传动轴	NUT (.437-20) Pinion Gear to Driveshaft	1
14	19552	水泵底座衬垫	GASKET Water Pump Base	1
15	26722	O型圈	O-RING	1
16	77177A1	水泵底座总成	BASE ASSEMBLY Water Pump	1
17	90562	密封件(1.254 x .312)	SEAL (1.254 x .312)	1
18	79831	油封	SEAL Oil	1
19	35973	定位销	PIN Dowel	2
20	19553	下衬垫	GASKET Lower	1
21	54705	面板	FACE PLATE	1
21	32768	面板	FACEPLATE	1
22	19551	上衬垫	GASKET Upper	1
23	89983	叶轮	IMPELLER	1
23	89983T	叶轮	IMPELLER	1
24	56662	叶轮驱动键	KEY Impeller Drive	1
24	8M0032837	键@5	KEY @5	1
25	77822A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	48753	嵌件	INSERT	1
27	38452	橡胶密封件	SEAL Rubber	1
28	38453	尼龙垫圈	WASHER Nylon	1
29	29245	垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓	WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs	3
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
30	13438	螺母(.250-28)水泵体与底座柱螺栓	NUT (.250-28) Water Pump Body and Base Studs	3
30	8267119	螺母(.250-28)	NUT (.250-28)	3
31	20273	橡胶O型圈	O-RING Rubber	1
32	78654A1	传动轴座总成	SEAT ASSEMBLY Driveshaft	1
33	86304	花键密封件-传动轴	SEAL Splined - Driveshaft	1
34	79953	螺钉(.375-16 x .250)润滑脂加注口	SCREW (.375-16 x .250) Grease Filler	1
34	79953Q04	放油螺钉套件	SCREW KIT Drain	1
35	67892	磁性放油螺钉	SCREW Magnetic Drain	1
35	8M0058389	放油螺钉套件	SCREW KIT Drain	1
36	19183	纤维垫圈(加注/放油螺钉)	WASHER Fiber Filler/Drain Screw	2
36	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
37	88181	润滑套筒-传动轴	SLEEVE Lubrication - Driveshaft	1
38	92881A1	轴承垫片组(齿轮箱用)(.002-3-5-10-20)	SHIM SET Bearing to Gear Housing(.002-3-5-10-20)	AR
39	77420A1	圆锥滚子轴承总成-传动轴	BEARING ASSEMBLY Roller Tapered - Driveshaft	1
39	8M0166756	轴承总成	BEARING ASSEMBLY	1
40	88025A2	驱动轴总成	DRIVESHAFT ASSEMLBY	1
40	98179	驱动轴	DRIVESHAFT	1
40	88024A2	驱动轴总成	DRIVESHAFT ASSEMBLY	1
40	98180	驱动轴	DRIVESHAFT	1
41	20254	驱动轴压缩弹簧	SPRING Compression - Driveshaft	1
42	30545	驱动轴销	PIN Driveshaft	1
43	76063A1	换挡轴总成	SHAFT ASSEMBLY Shift	1
44	29641	换挡轴E型卡环	E RING Shift Shaft	1
45	25439	O型圈(.862 x .103)换挡轴衬套	O-RING (.862 x .103) Shift Shaft Bushing	1
46	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
47	76384	换挡轴衬套油封	SEAL Oil Shift Shaft Bushing	1
47	8M0246145	油封	OIL SEAL	1
48	77674	橡胶垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing	1
49	78036	倒挡锁定底座	BASE Reverse Locking	1
50	433081	倒挡锁定凸轮	CAM Reverse Locking	1
50	43308T1	凸轮	CAM	1
-	77177A3	水泵套件	WATER PUMP KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 32齿轮箱（推进轴）- 反向旋转 GEAR HOUSING (PROPSHAFT) - COUNTER ROTATION

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)	1
1	9148A48	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC) (GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
47	78956	换挡凸轮	SHIFT CAM	1
47	789562	换挡凸轮	SHIFT CAM	1
48	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
49	799111	杆	ROD	1
49	79911A1	杆	ROD	1
50	79910	弹簧	SPRING	2
51	78910	垫圈	WASHER	AR
52	78906	销	PIN	1
52	8M0084245	弹簧定位销	PIN Spring Locator	1
53	14469	轴承杯	CUP Bearing	1
53	14469T	轴承杯	CUP Bearing	1
54	88957A1	滚珠轴承	BEARING Ball	1
54	88957T	滚珠轴承	BEARING Ball	1
55	N.S.S.	倒车齿轮(不单独销售)(属于43-18572A1或43-18475A1部件)	Not Sold Separate Reverse Gear (PART OF 43-18572A1 OR 43-18475A1)	1
56	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
57	78909	定位销	PIN Detent	2
58	823174	离合器	CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78962	弹簧	SPRING	2
61	18572A1	前进齿轮总成(135/150)	GEAR ASSEMBLY Forward (135/150)	1
61	18572T1	齿轮组	GEAR SET	1
61	18475A1	前进齿轮总成(175/200)	GEAR ASSEMBLY Forward (175/200)	1
61	18475T1	齿轮组	GEAR SET	1
62	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
62	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
62	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
62	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
62	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
62	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
62	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
62	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
62	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
62	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
62	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
62	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
62	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
63	15841	滚柱轴承	BEARING Roller	1
64	17616	推力环	THRUST RING	1
65	31534	O型圈	O-RING	1
65	8M0214920	O型圈	O RING	1
66	18447A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
66	18447T2	适配器总成	ADAPTOR ASSEMBLY	1
67	15843	滚柱轴承	BEARING Roller	1
67	15843T	滚针轴承	BEARING Needle	1
68	18448	止推垫片	THRUST WASHER	2
69	15842	推力轴承	BEARING Thrust	2
70	18446	螺旋桨轴	PROPELLER SHAFT	1
71	818896A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	818896T2	轴承座	BEARING CARRIER	1
72	30956	滚针轴承	BEARING Needle	1
72	30956T	滚针轴承	BEARING Needle	1
73	76868	密封件	SEAL	1
73	8M0248882	油封@5	SEAL-OIL @5	1
73A	76868	密封件	SEAL	1
73A	8M0248882	油封@5	SEAL-OIL @5	1
74	183231	锁紧垫圈	TAB WASHER	1
75	79448	固定座	RETAINER	1
75	8M2011027	固定座	RETAINER	1
76	30281	键	KEY	1
77	316404	平衡板(用于无阳极齿轮箱)	TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)	1
77	31640Q4	平衡鳍板	TRIM TAB	1
77	316405	配平板(与带阳极齿轮箱配套使用)	TRIM TAB (USE WITH GEAR HOUSING W/ANODES)	1
77	8M0236553	平衡鳍板	TRIM TAB	1
78	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
78	8M0204686	螺钉	SCREW	1
79	67891	填充块	FILLER BLOCK	1
79	8M0039169	填充块	FILLER BLOCK	1
80	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
81	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
81	8M0204653	螺母	NUT	2
82	13171	推力毂	THRUST HUB	1
82	835467Q01	止推垫片套件	THRUST WASHER KIT	1
83	31211A2	花键垫圈	WASHER Splined	1
83	31211Q03	垫圈总成	WASHER ASSEMBLY	1
84	816629	锁紧垫圈	TAB WASHER	1
84	816629Q	锁紧垫圈	TAB WASHER	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
87	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 33齿轮箱（驱动轴）- 反向旋转 GEAR HOUSING (DRIVESHAFT) - COUNTER ROTATION

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)	1
1	9148A48	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC) (GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A10	连接器总成(适用时使用)	CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	18978	双头螺栓(.438×3.69)	STUD (.438 x 3.69)	1
4	8M0034464	螺柱	STUD	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	衬套(旧设计)	SLEEVE (OLD DESIGN)	1
9A	826134	阳极块	ANODE	2
9A	826134Q	阳极块	ANODE	2
9B	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9C	8268336	螺母 (M6)	NUT (M6)	1
9C	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	442091	驱动轴	DRIVESHAFT
11	897625T	加长驱动轴	DRIVESHAFT X-Long
12	N.S.S.	不单独销售小齿轮(43-18572A1或43-18475A1部件)	Not Sold Separate Pinion Gear (PART OF 43-18572A1 OR 43-18475A1)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	衬垫	GASKET	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	衬垫	GASKET	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	789022	换挡轴(不带E型环使用)	SHIFT SHAFT (USE W/O E-RING)	1
38	78902	轴	SHAFT	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	19183	纤维垫圈	WASHER Fiber	2
40	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	8164641	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
45	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892	磁性螺钉	SCREW Magnetic	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 34齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)	1
1	9148A48	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC) (GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A49	齿轮箱总成(基础款)(追踪者)	GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)	1
1	9148T49	齿轮箱壳体-TR型	GEAR HSG-BASIC-TR	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
50	79911A1	杆	ROD	1
51	79910	弹簧	SPRING	1
52	78910	垫圈	WASHER	AR
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44102A2	前进齿轮总成(135/150)(含倒挡齿轮)	GEAR ASSEMBLY Forward (135/150) (INCLS. REVERSE GEAR)	1
56	44102A7	齿轮组(135/150)(不含倒挡齿轮)	GEAR SET (135/150) (DOES NOT INCL. REVERSE GEAR)	1
56	16294A2	高海拔齿轮组-2.3:1传动比	GEAR SET HIGH ALTITUDE - 2.3:1 GEAR RATIO	1
56	16294A5	齿轮组	GEAR SET	1
56	44104A2	前进齿轮总成(175/200/XR6/玛格南III)(含倒挡齿轮)	GEAR ASSEMBLY Forward (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR)	1
56	44104T2	齿轮组	GEAR SET	1
56	44104A8	齿轮组(175/200/XR6/玛格南III)(不含倒挡齿轮)	GEAR SET (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR)	1
57	549281	滚柱轴承	BEARING Roller	1
58	823174	离合器	CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78909	定位销	PIN Detent	2
61	78962	弹簧	SPRING	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独销售倒挡齿轮(前进齿轮组部件)	Not Sold Separate Reverse Gear (Part of Forward Gear Set	1
63	824987A2	倒挡齿轮总成(135/150)	GEAR ASSEMBLY Reverse (135/150)	1
63	824986A2	倒挡齿轮总成(175/200/XR6/玛格南III)	GEAR ASSEMBLY Reverse (175/200/XR6/MAG. III)	1
63A	824108	隔套	SPACER	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承	BEARING Ball	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承	BEARING Needle	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	密封件	SEAL	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	316404	平衡板(用于无阳极齿轮箱)	TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)	1
73	31640Q4	平衡鳍板	TRIM TAB	1
73	316405	配平板(与带阳极齿轮箱配套使用)	TRIM TAB (USE WITH GEAR HOUSING W/ANODES)	1
73	8M0236553	平衡鳍板	TRIM TAB	1
74	806327	螺钉(.437-14 x 1.750)(1-5/8")	SCREW (.437-14 x 1.750) (1-5/8")	1
74	8M0204686	螺钉	SCREW	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 35齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO)

REF	零件编号	中文名称	英文名称	数量
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
2	85822A10	连接器总成(适用时使用)	CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)	1
2A	43998	衬套(旧设计)	SLEEVE (OLD DESIGN)	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	35934A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	67892	磁性螺钉	SCREW Magnetic	1
10	8M0058389	放油螺钉套件	SCREW KIT Drain	1
11	815168	驱动轴	DRIVESHAFT	1
12	N.S.S.	小齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Pinion Gear (PART OF 43-16279A2)	1
13	19183	纤维垫圈	WASHER Fiber	2
13	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	衬垫	GASKET	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	衬垫	GASKET	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	8152641	换挡轴(不带E型环使用)	SHIFT SHAFT (USE W/O E-RING)	1
38	815264	换挡轴下段	SHIFT SHAFT LOWER	1
38	8152641	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
41	77631A2	衬套总成	BUSHING ASSEMBLY	1
42	8164641	油封	SEAL Oil	1
42	8M0246145	油封	OIL SEAL	1
43	77674	垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) SHIFT SHAFT BUSHING	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 36齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)

REF	零件编号	中文名称	英文名称	数量
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	弹簧	SPRING	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承	BEARING Needle	1
50	30895T	滚针轴承	BEARING Needle	1
51	822539	离合器	CLUTCH	1
51	822539T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	N.S.S.	倒车齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Reverse Gear (PART OF 43-16279A2)	1
56	76358	止推垫片	THRUST WASHER	1
57	29976	O型圈	O-RING	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承	BEARING Needle	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281	键	KEY	1
63	52700	锁紧垫圈	TAB WASHER	1
64	52699	盖板	COVER	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
68	816629	锁紧垫圈	TAB WASHER	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	316404	平衡鳍板	TRIM TAB	1
70	31640Q4	平衡鳍板	TRIM TAB	1
71	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
71	8M0204686	螺钉	SCREW	1
72	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
73	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 37点火线圈/电压调节器 Ignition Coil/Voltage Regulator

REF	零件编号	中文名称	英文名称	数量
1	195872	安装板	MOUNTING PLATE	1
2	33778	螺柱	STUD	4
3	19661	衬套	BUSHING	4
4	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
5	13438	螺母(.250-28)	NUT (.250-28)	4
5	8267119	螺母(.250-28)	NUT (.250-28)	4
6	88807A35	拉线总成	CABLE ASSEMBLY	1
7	815279T	电压调节器	REGULATOR Voltage	2
7	8M0084173	电压调节器	VOLTAGE REGULATOR	2
8	818997A1	电磁阀总成	SOLENOID ASSEMBLY	1
8	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	1
9	97861	绝缘体	INSULATOR	2
10	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	3
10	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	3
11	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	3
12	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
12	8M0207776	螺母	NUT	3
13	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
14	94330	螺母 (.250-20) 黄铜	NUT (.250-20) Brass	4
15	69738A9	线束总成 (2,4,6)	HARNESS ASSEMBLY (2,4,6)	1
15	69739A6	线束总成 (1,3,5)	HARNESS ASSEMBLY (1,3,5)	1
16	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	43542	盖板	COVER	2
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
18	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
19	90048	螺钉 (#10-32 x 2.125)	SCREW (#10-32 x 2.125)	12
20	90078	螺母 (#10-32)	NUT (#10-32)	14
21	813715A9	点火线缆套件	CABLE KIT Ignition	1
22	63709A1	护套/端子套件	BOOT/TERMINAL KIT	6
23	136862	火花塞 (NGK-BU8H)	SPARK PLUG (NGK-BU8H)	6
23	13686Q	NGK BU8H @10	NGK BU8H @10	6
23	14103568	火花塞 (NGK-BUZ8H - 加拿大/比利时)	SPARK PLUG (NGK-BUZ8H - CANADA/BELGIUM)	6
23	896329885	SP #L6VC @4	SP #L6VC @4	6
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
25	88807A13	拉线总成	CABLE ASSEMBLY	8
26	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
27	87379A14	电线总成 (2.750英寸)	WIRE ASSEMBLY (2.750 Inches)	1
28	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	12
29	826802A4	线束总成	HARNESS ASSEMBLY	1
30	828151	继电器	RELAY	2
30	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
31	828102	支架	BRACKET	2
31	8M0207771	安装支架	BRACKET Mounting	2
32	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
32	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
33	818968	衬套	BUSHING	2
33	8M0214955	衬套	BUSHING	2
34	818967	护孔环	GROMMET	2
34	8M0207785	护孔环	GROMMET	2
35	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	2
36	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
36	8M0207776	螺母	NUT	2

图 38点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR

REF	零件编号	中文名称	英文名称	数量
1	195872	安装板	MOUNTING PLATE	1
2	33778	螺柱	STUD	4
3	19661	衬套	BUSHING	4
4	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
5	13438	螺母(.250-28)	NUT (.250-28)	4
5	8267119	螺母(.250-28)	NUT (.250-28)	4
6	88807A35	拉线总成	CABLE ASSEMBLY	1
7	815279T	电压调节器	REGULATOR Voltage	2
7	8M0084173	电压调节器	VOLTAGE REGULATOR	2
8	818997A1	电磁阀总成	SOLENOID ASSEMBLY	1
8	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	1
9	97861	绝缘体	INSULATOR	2
10	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	3
10	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	3
11	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	3
12	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
12	8M0207776	螺母	NUT	3
13	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
14	94330	螺母 (.250-20) 黄铜	NUT (.250-20) Brass	4
15	69738A9	线束总成 (2,4,6)	HARNESS ASSEMBLY (2,4,6)	1
15	69739A6	线束总成 (1,3,5)	HARNESS ASSEMBLY (1,3,5)	1
16	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	43542	盖板	COVER	2
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
18	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
19	90048	螺钉 (#10-32 x 2.125)	SCREW (#10-32 x 2.125)	12
20	90078	螺母 (#10-32)	NUT (#10-32)	14
21	813715A9	点火线缆套件	CABLE KIT Ignition	1
22	63709A1	护套/端子套件	BOOT/TERMINAL KIT	6
23	136862	火花塞 (NGK-BU8H)	SPARK PLUG (NGK-BU8H)	6
23	13686Q	NGK BU8H @10	NGK BU8H @10	6
23	14103568	火花塞 (NGK-BUZ8H - 加拿大/比利时)	SPARK PLUG (NGK-BUZ8H - CANADA/BELGIUM)	6
23	896329885	SP #L6VC @4	SP #L6VC @4	6
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
25	88807A13	拉线总成	CABLE ASSEMBLY	8
26	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
27	87379A14	电线总成 (2.750英寸)	WIRE ASSEMBLY (2.750 Inches)	1
28	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	12
29	826802A4	线束总成	HARNESS ASSEMBLY	1
30	828151	继电器	RELAY	2
30	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
31	828102	支架	BRACKET	2
31	8M0207771	安装支架	BRACKET Mounting	2
32	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
32	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
33	818968	衬套	BUSHING	2
33	8M0214955	衬套	BUSHING	2
34	818967	护孔环	GROMMET	2
34	8M0207785	护孔环	GROMMET	2
35	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	2
36	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
36	8M0207776	螺母	NUT	2

图 39仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
1	19674A07	开关/拉绳套件	SWITCH/LANYARD KIT	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

图 40喷射组件 Jet Components

REF	零件编号	中文名称	英文名称	数量
1	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
2	38833	垫圈	WASHER	3
3	94304	隔套	SPACER	3
4	13381	安装板	PLATE	1
5	821889A20	转速限制器	REV LIMITER	1
5	821889A30	转速限制器	REV LIMITER	1
6	823147A5	适配器线束总成 - 转速限制器	HARNESS ASSEMBLY Adaptor - Rev Limiter	1
7	801402	润滑脂套装	GREASE KIT	1
7	30500A2	润滑脂套装	GREASE KIT	1
8	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
8	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
9	426311	衬垫	GASKET	1
9	8M0204678	衬垫	GASKET	1
10	89238	油封	SEAL Oil	1
11	16977	油封	SEAL Oil	1
12	856081	衬垫	GASKET	1
12	8M0090319	衬垫@5	GASKET @5	1
13	856091	衬垫	GASKET	1
13	858524	衬垫	GASKET	1
14	32435	面板	FACE PLATE	1
14	8M0204677	面板	PLATE-FACE	1
15	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
15	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
16	48752	嵌件	INSERT	1
16	48752T	嵌件	INSERT	1
17	38970	密封件	SEAL	1
18	899841	叶轮	IMPELLER	1
18	89984T3	叶轮	IMPELLER	1
19	56654	键	KEY	1
19	8M0214992	键@5	KEY @5	1
20	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
20	8M0215009	螺钉	SCREW	1
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
22	13438	螺母(.250-28)	NUT (.250-28)	2
22	8267119	螺母(.250-28)	NUT (.250-28)	2
23	19924275	螺钉 (.312-18 x 2.75)	SCREW (.312-18 x 2.75)	1
24	36001	垫圈	WASHER	1
25	29804	套筒	SLEEVE	1
25	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 41喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	801400150	喷泵(黑色)	JET PUMP (BLACK)	1
-	801401150	喷泵(灰色)	JET PUMP (GRAY)	1
-	855766150	喷泵	JET PUMP	1
1	801411150	泵壳	HOUSING Pump	1
1A	827490	润滑油管	HOSE Lube	1
2	801414150	叶轮	IMPELLER	1
2	803984T	叶轮	IMPELLER	1
3	80141290	进气壳体	HOUSING Intake	1
3A	8271883	衬套	LINER	1
4	801413150	驱动轴	SHAFT Drive	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	847568	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
8	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
15	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
16	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
16	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
17	69064	螺栓(.312-18 x 2.750)	BOLT (.312-18 x 2.750)	1
18	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
18	306671	螺柱	STUD	2
19	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
20	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
20	8M0214963	垫圈	WASHER	1

图 42杂项信息 Miscellaneous Information

REF	零件编号	中文名称	英文名称	数量
-	801400150	喷泵(黑色)	JET PUMP (BLACK)	1
-	801401150	喷泵(灰色)	JET PUMP (GRAY)	1
1	801411150	泵壳	HOUSING Pump	1
1A	827490	润滑油管	HOSE Lube	1
2	801414150	叶轮	IMPELLER	1
3	80141290	进气壳体	HOUSING Intake	1
3A	8271883	衬套	LINER	1
4	801413150	驱动轴	SHAFT Drive	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	847568	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
14	801407	定位销	PIN Dowel	2
15	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
16	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
17	69064	螺栓(.312-18 x 2.750)	BOLT (.312-18 x 2.750)	1
18	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
19	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
20	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1

图 43杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	81609892	零件手册135/150/175/200/XR6/MAGNUM III	PARTS MANUAL 135/150/175/200/XR6/MAGNUM III	1
-	813220A89	贴花套装(黑色135/150/175)	DECAL SET (BLACK 135/150/175)
-	812563A92	贴花套装(XR6)	DECAL SET (XR6)
-	808552A94	贴花套件	DECAL SET
-	812563A93	贴花套装(黑色200)	DECAL SET (BLACK 200)
-	813036A92	贴花套装(灰色135/150)	DECAL SET (GRAY 135/150)
-	813034A92	贴花套装(MAGNUM III)	DECAL SET (MAGNUM III)
-	813034A94	贴花套件	DECAL SET
-	813037A92	贴花套装(灰色175)	DECAL SET (GRAY 175)
-	813037A94	贴花套件	DECAL SET
-	815630A90	贴花套装(灰色200)	DECAL SET (GRAY 200)
-	813220A94	贴花套装(黑色135)	DECAL SET (BLACK 135)
-	824103A94	贴花套装(黑色150)	DECAL SET (BLACK 150)
-	824911A94	贴花套装(黑色175)	DECAL SET (BLACK 175)
-	808552A94	贴花套装(XR6)	DECAL SET (XR6)
-	812563A94	贴花套装(黑色200加长)	DECAL SET (BLACK 200 LONG)
-	808562A94	贴花套装(黑色200 XL/CXL)	DECAL SET (BLACK 200 XL/CXL)
-	813036A94	贴花套装(灰色135)	DECAL SET (GRAY 135)
-	824104A94	贴花套装(灰色150)	DECAL SET (GRAY 150)
-	824911A94	贴花套装(灰色175)	DECAL SET (GRAY 175)
-	808552A94	贴花套装(XR6)	DECAL SET (XR6)
-	812563A94	贴花套装(黑色200加长)	DECAL SET (BLACK 200 LONG)
-	808562A94	贴花套装(黑色200 XL/CXL)	DECAL SET (BLACK 200 XL/CXL)
-	813036A94	贴花套装(灰色135)	DECAL SET (GRAY 135)
-	824104A94	贴花套装(灰色150)	DECAL SET (GRAY 150)
-	813034A94	贴花套装(MAGNUM III)	DECAL SET (MAGNUM III)
-	813037A94	贴花套装(灰色175)	DECAL SET (GRAY 175)
-	815630A94	贴花套装(灰色200加长)	DECAL SET (GRAY 200 LONG)
-	808563A94	贴花套装(灰色200 XL/CXL)	DECAL SET (GRAY 200 XL/CXL)
-	824736A94	贴花套装(TRACKER 150)	DECAL SET (TRACKER 150)
-	808620A94	贴花套装(TRACKER 175)	DECAL SET (TRACKER 175)
-	808681A94	贴花套装(TRACKER 200)	DECAL SET (TRACKER 200)
-	826331A95	贴花套装(黑色105喷泵)	DECAL SET (BLACK 105 JET)
-	826332A95	贴花套装(灰色105喷泵)	DECAL SET (GRAY 105 JET)
-	826333A95	贴花套装（黑色140喷泵）	DECAL SET (BLACK 140 JET)
-	826334A95	贴花套装（灰色140喷泵）	DECAL SET (GRAY 140 JET)
-	11149940	用户手册（黑色）	OWNERS MANUAL (BLACK)
-	11142940	用户手册（灰色）	OWNERS MANUAL (GRAY)
-	826598940	用户手册（黑色喷泵）	OWNERS MANUAL (BLACK JET)
-	826603940	用户手册（灰色喷泵）	OWNERS MANUAL (GRAY JET)

图 44机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12430A4	传感器总成	SENSOR ASSEMBLY	1
2	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
2	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
3	41470A26	报警模块总成	WARNING MODULE ASSEMBLY	1
4	38833	垫圈	WASHER	3
5	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
5	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
6	815698	油泵（135/150）	PUMP Oil (135/150)	1
6	815698T	油泵	PUMP Oil	1
6	815699	油泵总成（XR6/MAGNUM III/175/200）	PUMP ASSEMBLY Oil (XR6/MAGNUM III/175/200)	1
6	815699T	油泵总成	PUMP ASSEMBLY Oil	1
7	8141032	蜗杆衬套	BUSHING Worm	1
8	11379	O型圈	O-RING	1
9	41429A2	轴承总成	BEARING ASSEMBLY	1
10	14563	从动齿轮	GEAR Driven	1
11	1938516	连接杆	LINK	1
12	42813	螺钉（#10-32 X 0.380）	SCREW (#10-32 X .380)	1
13	32228	螺钉（#10-32 X 0.625）	SCREW (#10-32 x .625)	1
13	41507	螺钉（#10-32 X 1.120）	SCREW (#10-32 x 1.120)	1
14	87421	油箱	TANK	1
15	43298A2	盖总成	CAP ASSEMBLY	1
16	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
17	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
17	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
18	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
19	99802	管	TUBE	1
20	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
21	43278	接头（曲轴箱）	FITTING (CRANKCASE)	1
21	8781051	止回阀	CHECK VALVE	1
22	12335A1	支架套件	BRACKET KIT	1
23	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
24	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	994433	油箱	RESERVOIR Oil	1
25	994436	储液罐	RESERVOIR	1
26	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
26	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
27	42118	垫圈	WASHER	6
28	42117	护孔环	GROMMET	3
29	42116	衬套	BUSHING	3
30	82381436	油管（散装15.500英寸）（裁切至4.75英寸）	TUBING (15.500 Inches Bulk) (Cut to 4.75 Inches)	1
30	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
31	43300A9	盖总成	CAP ASSEMBLY	1
32	43307	衬垫	GASKET	1
32	43307T	衬垫	GASKET	1
33	99022A1	浮子总成	FLOAT ASSEMBLY	1
33	8M0187298	浮子总成	FLOAT ASSY	1
34	99265	压入式螺母	PUSH NUT	1
35	415824	卡箍	CLAMP	2
36	415823	卡箍	CLAMP	2
37	830756109	软管（散装57.00英寸）（裁切至5.25英寸）	HOSE (57.00 Inches Bulk) (Cut to 5.25 Inches)	1
37	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
38	42425	三通	TEE	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 45喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	830889A4	油箱总成	TANK ASSEMBLY	1
2	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
3	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
5	814449A3	盖总成	CAP ASSEMBLY	1
6	42999	衬垫	GASKET	1
6	42999T	衬垫	GASKET	1
7	856156A2	开关总成	SWITCH ASSEMBLY	1
7	856156T02	开关总成	SWITCH ASSEMBLY	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
8	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
9	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
10	855362	护孔环	GROMMET	3
10	855362001	护孔环	GROMMET	3
11	855364	衬套	BUSHING	3
-	8742A20	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
-	8742A22	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
12	87421	油箱	TANK	1
13	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
13	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
14	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
15	43298A2	盖总成	CAP ASSEMBLY	2
16	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
17	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
18	99802	管	TUBE	1
19	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
20	12335A1	支架套件	BRACKET KIT	1
21	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

图 46动力转向组件（遥控） POWER STEERING COMPONENTS (REMOTE)

REF	零件编号	中文名称	英文名称	数量
1	17771	支架	MOUNT	1
2	59702	螺钉 (.250-28 x .875) 不锈钢	SCREW (.250-28 x .875) Stainless Steel	4
3	88404	锁紧垫圈	TAB WASHER	4
4	78862A2	密封套件	SEAL KIT	1
4	19624A1	密封套件	SEAL KIT	1
5	71565A2	管总成	TUBE ASSEMBLY	1
6	17776	联轴器	COUPLING	1
7	817040	螺钉 (.375-24 x 2.75)	SCREW (.375-24 x 2.75)	1
8	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
9	90092	螺钉	SCREW	1
9	856722	螺钉	SCREW	1
10	34863	螺母 (.375-24)	NUT (.375-24)	2
10	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
11	42100	锁紧垫圈	TAB WASHER	2
12	37984	螺母 (.875-14)	NUT (.875-14)	2
12	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
13	811290	蓄能器 (参见蓄能器分解图)	ACCUMULATOR (See Accumulator for Breakdown)	1
14	817372	支架	BRACKET	1
15	16862	螺钉 (.250-10 x 1.25)	SCREW (.250-10 x 1.25)	4
16	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	4000383	螺钉 (M10 x 70)	SCREW (M10 x 70)	2
18	4002319	垫圈	WASHER	4
19	13914	螺母(M10)	NUT (M10)	2
19	40140	螺母(M10)	NUT (M10)	2
20	8112891	执行器	ACTUATOR	1
20	828588A2	执行器套件	ACTUATOR KIT	1
21	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1
22	17405	隔套	SPACER	2
23	34863	螺母 (.375-24)	NUT (.375-24)	3
23	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3
24	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
24	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
25	92876A4	连杆总成	LINK ROD ASSEMBLY	1
26	68300	垫圈 (.88 x .39 x .06)	WASHER (..88 x .39 x .06)	1
27	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
27	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
28	43450	垫圈	WASHER	2
28	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	2
29	8268336	螺母 (M6)	NUT (M6)	2
29	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
30	811292	卡箍	CLAMP	1
31	818182	螺钉	SCREW	2
32	400263	螺母 (M5)	NUT (M5)	2
33	811291	支架	BRACKET	1
34	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
35	197491	卡箍	CLAMP	1
36	18211	继电器开关	RELAY SWITCH	1
37	18244A1	线束总成	HARNESS ASSEMBLY	1
38	18124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
39	90329	护孔环	GROMMET	1
40	309772	隔套	SPACER	1
41	816994	支架	BRACKET	1
42	42118	垫圈	WASHER	1
43	29488	螺母 (#10-32)	NUT (#10-32)	1
43	8M0204718	螺母	NUT	1
44	81563024	贴花	DECAL	1

图 47动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	818186A6	动力升降总成	POWER TRIM ASSEMBLY	1
-	826729A10	ORD 8M0143217	ORD 8M0143217	1
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	811605F	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	811608	升降倾斜活塞杆套件 (螺栓型-参见备注)	ROD KIT Trim And Tilt Piston (BOLT TYPE- SEE NOTE)	1
5	823553	升降活塞杆套件 (螺母型)	ROD KIT Trim Piston (NUT TYPE)	1
5	823553T	升降活塞杆	ROD Trim Piston	1
6	811606	导向套件	GUIDE KIT	1
6	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
7	811607A1	维修套件	REPAIR KIT	1
8	811610A1	止回阀套件	CHECK VALVE KIT	1
8	823553T	升降活塞杆	ROD Trim Piston	1
9	99638A1	导向器总成	GUIDE ASSEMBLY	2
9	8M0021648	端盖总成	END CAP ASSEMBLY	2
10	43397A6	动力升降活塞/杆总成 (左舷)	PISTON/ROD ASSEMBLY Power Trim (PORT)	1
10	878413A1	活塞总成	PISTON ASSEMBLY	1
10	43398A3	动力升降活塞/杆总成 (右舷)	PISTON/ROD ASSEMBLY Power Trim (STARBOARD)	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
12	821539	三叶销	PIN Trilobe	1
13	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
13	893929A01	安全阀套件	VALVE KIT Relief	1
14	812844	E型卡环	E RING	1
14	815949001	E形环	E-RING	1
15	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
16	43450	垫圈	WASHER	4
16	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
17	811611	盖板	COVER	1
18	811612A2	O型圈套件	O-RING KIT	1
18	811612A3	O型圈套件	O-RING KIT	1
19	811628	升降电机 (参见动力升降电机分解图)	TRIM MOTOR (See Breakdown on Power Trim Motor)	1
19	878265A6	改装套件-配平	RETROFIT KIT-TRIM	1
19A	828708	电机总成 (参见动力升降电机分解图)	MOTOR ASSEMBLY (See Breakdown on Power Trim Motor)	1
19A	878265A4	配平电机	TRIM MOTOR	1
20	811619	驱动轴	DRIVESHAFT	1
20	828710	驱动接头	DRIVE JOINT	1
21	996251	轴	SHAFT	1
21	99625002	轴	SHAFT	1
22	811615	螺钉 (长)	SCREW (LONG)	2
22	828709	螺钉 (长)	SCREW (LONG)	2
22	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
22	811616	螺钉 (短)	SCREW (SHORT)	2
23	811613	塞子总成	PLUG ASSEMBLY	1
24	811617F	泵	PUMP	1
24	811617T1	泵	PUMP	1
25	811614	轴总成	SHAFT ASSEMBLY	1
25	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
26	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	996301	冲击板	STRIKER PLATE	2
30	8M0045383	冲击板	STRIKER PLATE	2
31	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
32	46335	螺母 (.375-24)	NUT (.375-24)	2
33	44431	槽销	PIN Groove	1
33	878267	销	PIN	1
34	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
35	4002319	垫圈	WASHER	6
36	22875	卡扣	CLIP	2
36	26550	卡箍	CLAMP	2
37	69205	C形垫圈	C WASHER	2
37	8M0084613	C形垫圈	C-WASHER	2
38	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
38	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2

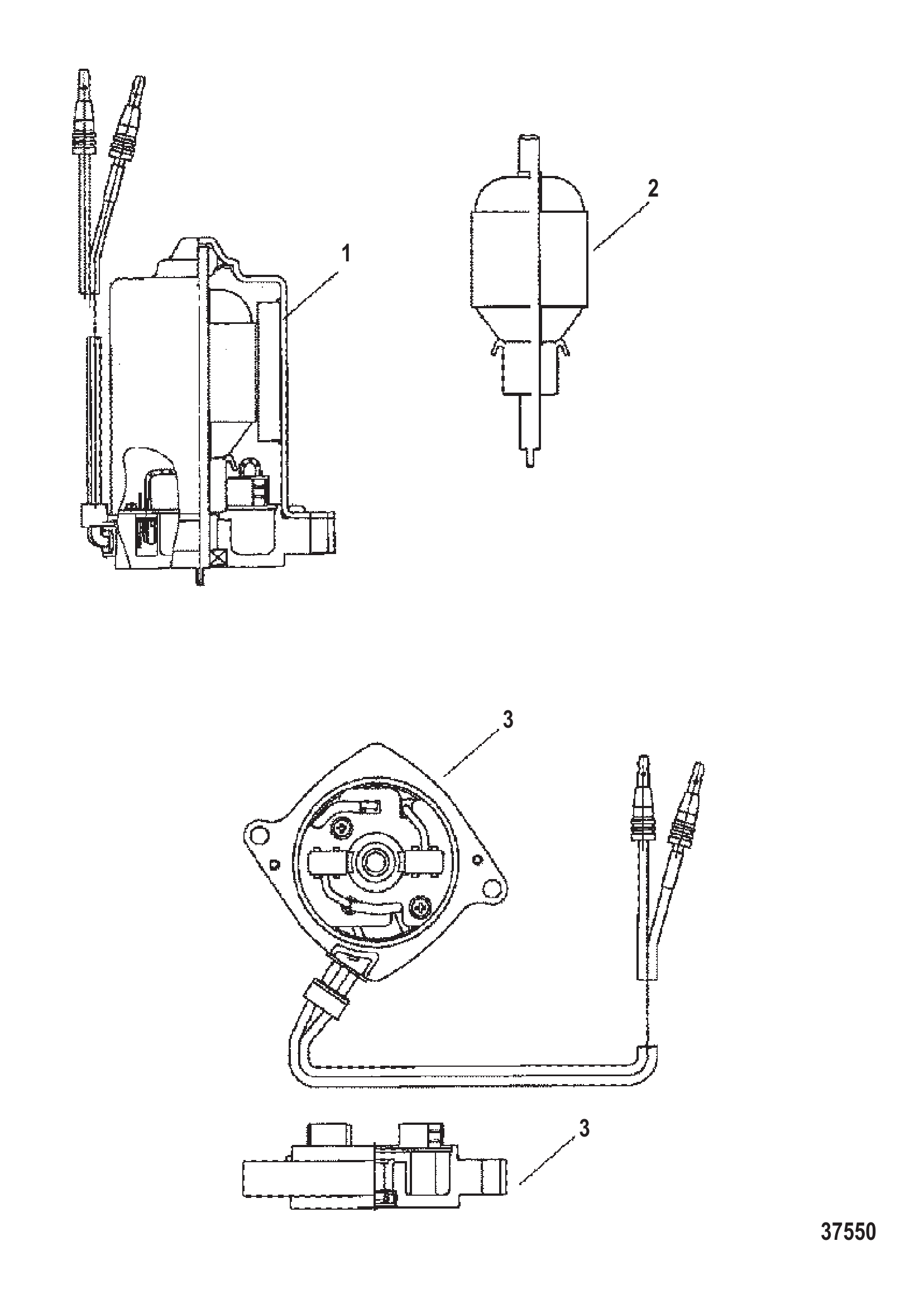

图 48动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
-	828708	电机总成	MOTOR ASSEMBLY	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 49动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	818186A6	动力升降总成	POWER TRIM ASSEMBLY	1
-	826729A10	ORD 8M0143217	ORD 8M0143217	1
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	811605F	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	811608	升降倾斜活塞杆套件 (螺栓型-参见备注)	ROD KIT Trim And Tilt Piston (BOLT TYPE- SEE NOTE)	1
5	823553	升降活塞杆套件 (螺母型)	ROD KIT Trim Piston (NUT TYPE)	1
5	823553T	升降活塞杆	ROD Trim Piston	1
6	811606	导向套件	GUIDE KIT	1
6	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
7	811607A1	维修套件	REPAIR KIT	1
8	811610A1	止回阀套件	CHECK VALVE KIT	1
8	823553T	升降活塞杆	ROD Trim Piston	1
9	99638A1	导向器总成	GUIDE ASSEMBLY	2
9	8M0021648	端盖总成	END CAP ASSEMBLY	2
10	43397A6	动力升降活塞/杆总成 (左舷)	PISTON/ROD ASSEMBLY Power Trim (PORT)	1
10	878413A1	活塞总成	PISTON ASSEMBLY	1
10	43398A3	动力升降活塞/杆总成 (右舷)	PISTON/ROD ASSEMBLY Power Trim (STARBOARD)	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
12	821539	三叶销	PIN Trilobe	1
13	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
13	893929A01	安全阀套件	VALVE KIT Relief	1
14	812844	E型卡环	E RING	1
14	815949001	E形环	E-RING	1
15	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
16	43450	垫圈	WASHER	4
16	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
17	811611	盖板	COVER	1
18	811612A2	O型圈套件	O-RING KIT	1
18	811612A3	O型圈套件	O-RING KIT	1
19	811628	升降电机 (参见动力升降电机分解图)	TRIM MOTOR (See Breakdown on Power Trim Motor)	1
19	878265A6	改装套件-配平	RETROFIT KIT-TRIM	1
19A	828708	电机总成 (参见动力升降电机分解图)	MOTOR ASSEMBLY (See Breakdown on Power Trim Motor)	1
19A	878265A4	配平电机	TRIM MOTOR	1
20	811619	驱动轴	DRIVESHAFT	1
20	828710	驱动接头	DRIVE JOINT	1
21	996251	轴	SHAFT	1
21	99625002	轴	SHAFT	1
22	811615	螺钉 (长)	SCREW (LONG)	2
22	828709	螺钉 (长)	SCREW (LONG)	2
22	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
22	811616	螺钉 (短)	SCREW (SHORT)	2
23	811613	塞子总成	PLUG ASSEMBLY	1
24	811617F	泵	PUMP	1
24	811617T1	泵	PUMP	1
25	811614	轴总成	SHAFT ASSEMBLY	1
25	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
26	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	996301	冲击板	STRIKER PLATE	2
30	8M0045383	冲击板	STRIKER PLATE	2
31	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
32	46335	螺母 (.375-24)	NUT (.375-24)	2
33	44431	槽销	PIN Groove	1
33	878267	销	PIN	1
34	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
35	4002319	垫圈	WASHER	6
36	22875	卡扣	CLIP	2
36	26550	卡箍	CLAMP	2
37	69205	C形垫圈	C WASHER	2
37	8M0084613	C形垫圈	C-WASHER	2
38	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
38	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2

图 50动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 51动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 52簧片阀组与气缸盖 Reed Block And Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	18787F1	气缸盖	CYLINDER HEAD	2
1	184888	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F1	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F1	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	187851	衬垫	GASKET	2
2	18785T	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
3	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	24
4	25909	垫圈 (.406 x .812 x .065) (适用时使用)	WASHER (.406 x .812 x .065) (USE WHERE APPLICABLE)	24
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	90390A1	盖板套件	COVER KIT	2
7	75692	节温器	THERMOSTAT	2
8	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	3
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	3
11	68728	接头	FITTING	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	97465	温度传感器 (右舷)	SENDER Temperature (STBD.)	1
14	43517A9	隔板总成	PLATE ASSEMBLY	1
15	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
16	146972	衬垫	GASKET	1
17	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
18	75953	簧片阀组	REED BLOCK	6
19	75362A1	簧片组件	REED ASSEMBLY	6
20	961832	簧片夹	CLAMP Reed	12
21	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	60
22	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
23	96529	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	6
24	814612	热空气阀 (旧设计)	VALVE Thermal Air (OLD DESIGN)	1
25	23567	卡扣	CLIP	1
26	69205	C形垫圈	C WASHER	1
26	8M0084613	C形垫圈	C-WASHER	1
27	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
27	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
28	13536A7	温度传感器总成 (左舷) (2线)	SENSOR ASSEMBLY Temperature (PORT) (2-WIRE)	1
28A	13536A6	温度传感器总成 (左舷) (4线)	SENSOR ASSEMBLY Temperature (PORT) (4-WIRE)	1
29	137151	固定座	RETAINER	2
30	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
31	56759	倒钩接头	FITTING Barbed	4
32	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
33	42698	止回阀 (压入式 13/16")	CHECK VALVE (PRESS-IN 13/16")	7
33	426982	止回阀	CHECK VALVE	7
33	42623	止回阀 (压入式 11/16")	CHECK VALVE (PRESS-IN 11/16")	1
33	426233	止回阀	CHECK VALVE	1
34	822715	弯头配件 (压入式)	FITTING Elbow (PRESS-IN)	6
35	55098	J型卡扣	J CLIP	1
35	8M0024808	J型夹	J-CLIP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 53簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	18787F1	气缸盖	CYLINDER HEAD	2
1	184888	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F1	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F1	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	187851	衬垫	GASKET	2
2	18785T	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
3	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	24
4	25909	垫圈 (.406 x .812 x .065) (适用时使用)	WASHER (.406 x .812 x .065) (USE WHERE APPLICABLE)	24
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	90390A1	盖板套件	COVER KIT	2
7	75692	节温器	THERMOSTAT	2
8	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	3
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	3
11	68728	接头	FITTING	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	97465	温度传感器 (右舷)	SENDER Temperature (STBD.)	1
14	43517A9	隔板总成	PLATE ASSEMBLY	1
15	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
16	146972	衬垫	GASKET	1
17	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
18	75953	簧片阀组	REED BLOCK	6
19	75362A1	簧片组件	REED ASSEMBLY	6
20	961832	簧片夹	CLAMP Reed	12
21	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	60
22	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
23	96529	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	6
24	814612	热空气阀 (旧设计)	VALVE Thermal Air (OLD DESIGN)	1
25	23567	卡扣	CLIP	1
26	69205	C形垫圈	C WASHER	1
26	8M0084613	C形垫圈	C-WASHER	1
27	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
27	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
28	13536A7	温度传感器总成 (左舷) (2线)	SENSOR ASSEMBLY Temperature (PORT) (2-WIRE)	1
28A	13536A6	温度传感器总成 (左舷) (4线)	SENSOR ASSEMBLY Temperature (PORT) (4-WIRE)	1
29	137151	固定座	RETAINER	2
30	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
31	56759	倒钩接头	FITTING Barbed	4
32	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
33	42698	止回阀 (压入式 13/16")	CHECK VALVE (PRESS-IN 13/16")	7
33	426982	止回阀	CHECK VALVE	7
33	42623	止回阀 (压入式 11/16")	CHECK VALVE (PRESS-IN 11/16")	1
33	426233	止回阀	CHECK VALVE	1
34	822715	弯头配件 (压入式)	FITTING Elbow (PRESS-IN)	6
35	55098	J型卡扣	J CLIP	1
35	8M0024808	J型夹	J-CLIP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

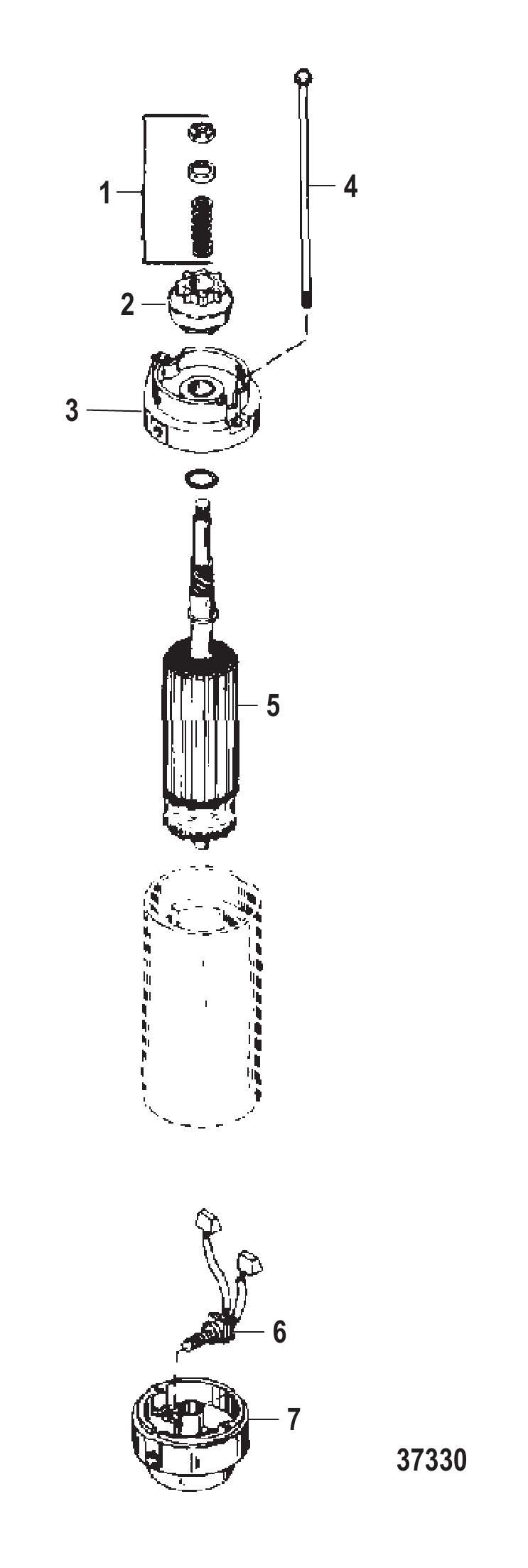

图 54启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	8M0142679	起动机	STARTER	1
1	8M0187292	起动机	STARTER	1
2	8M0070367	管状支架 8MM	MOUNT - TUBULAR 8MM	6
2	8M0154659	管状支架 8MM	MOUNT TUBULAR 8 mm	6
3	8M0070369	垫圈（内径8.3 X 外径11.8）	SPACER (8.3 I.D. X 11.8 O.D.)	2
4	8M0070368	垫圈（内径8.3 X 外径11.8）	SPACER (8.3 I.D. X 11.8 O.D.)	1
5	8M0056666	起动机接地带	GROUND STRAP Starter	1
6	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
7	43430	垫圈	WASHER	3
8	8M0142896	螺钉(M8 x 80)	SCREW (M8 x 80)	2
8	8M0188530	螺钉 M8 X 80 六角凸缘头	SCREW M8 X 80 HEX FLG HD	2
9	88552645	螺钉（M8X45）	SCREW (M8X45)	1
10	8M0142680	热柱支架	BRACKET HOT STUD	1
11	8M0080651	螺钉 (M6 x 20)	SCREW (M6 x 20)	3
12	40011145	螺钉（M8 X 10）不锈钢	SCREW (M8 x 10) Stainless Steel	1
13	8M0146003	螺母 M8 X 1.25 六角	NUT M8 x 1.25 Hex	4
14	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	2
15	8M0142681	电缆总成起动机-正极	CABLE ASSEMBLY Starter - Postitive	1
16	88439A46	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
17	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
18	8M0146902	电缆总成起动机-负极	CABLE ASSEMBLY Starter - Negative	1
19	40011148	螺钉(M8 x 20)	SCREW (M8 x 20)	1
19	8M0214929	螺钉(M8 x 20)	SCREW (M8 x 20)	1
20	88439A26	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
21	8M0142687	热柱盖	COVER Hot Stud	1

图 55转向连接套件 STEERING ATTACHING KIT

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装包 (单)	ATTACHING KIT Steering (SINGLE)	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	88319	联轴器	COUPLING	1
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
11	34863	螺母 (.375-24)	NUT (.375-24)	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 56旋转支架与转向臂 Swivel Bracket And Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710A20	旋转支架总成（黑色）	SWIVEL BRACKET ASSEMBLY (BLACK)	1
1	8710A21	旋转支架总成（灰色）	SWIVEL BRACKET ASSEMBLY (GRAY)	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
1	8710A22	旋转支架总成（追踪者）	SWIVEL BRACKET ASSEMBLY (TRACKER)	1
2	87735	油封(下)	SEAL Oil (LOWER)	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	33504	O型圈	O-RING	1
5	8M0214926	O型圈 @10	O RING @10	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	78689	螺钉（0.437-20 X 7.50）	SCREW (.437-20 x 7.50)	2
9	8M0176309	螺钉	SCREW	2
10	78687	支架(加长型)(JET)	MOUNT (LONG)(JET)	2
10	78687T	支架	MOUNT	2
10	77326	支架（加长型-XR6/MAGNUM III/追踪者）	MOUNT (X-LONG - XR6/MAGNUM III/TRACKER)	2
11	66921	垫圈	WASHER	2
12	814432	垫圈	WASHER	2
12	78688	垫圈	WASHER	2
13	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
13	8M0204653	螺母	NUT	2
14	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
14	92876A12	连杆总成	LINK ROD ASSEMBLY	1
15	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
15	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
16	34863	螺母 (.375-24)	NUT (.375-24)	2
16	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
17	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
18	67706A55	转向臂旋转销总成（黑色）	SWIVEL PIN ASSEMBLY Steering Arm (BLACK)	1
18	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
18	67706A56	转向臂旋转销总成（灰色）	SWIVEL PIN ASSEMBLY Steering Arm (GRAY)	1
18	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
18	67706A61	旋转销总成（追踪者）	SWIVEL PIN ASSEMBLY (TRACKER)	1
18	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
19	86580A1	底部轭架总成（黑色）	YOKE ASSEMBLY Bottom (BLACK)	1
19	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	86580A2	底部轭架总成（灰色）	YOKE ASSEMBLY Bottom (GRAY)	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
19	86580F3	底部轭架（追踪者）	YOKE Bottom (TRACKER)	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
20	67684	挡圈	RING Retaining	1
21	54457	J型卡扣	J CLIP	1
22	888821	缓冲垫	BUMPER	1
22	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
23	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
24	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
24	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
25	56682	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
25	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
26	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
27	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2

图 57旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

图 58油门杆与换挡轴 Throttle Lever And Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	55171	衬套	BUSHING	1
2	62459	球头总成	BALL JOINT ASSEMBLY	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
4	76035	杆	ROD	1
5	46438	螺母 (#10-32)	NUT (#10-32)	1
6	41094A3	杠杆总成 (设计I)	LEVER ASSEMBLY (DESIGN I)	1
6	823705A1	点火提前杠杆 (设计II)	LEVER Spark Advance (DESIGN II)	1
7	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
8	64015	螺母 (.250-20)	NUT (.250-20)	1
9	26852	尼龙帽	CAP Nylon	1
10	93254	旋转底座	SWIVEL BASE	1
11	93421	旋转球头	SWIVEL BALL	1
12	823706	连接杆	LINK	1
13	74897	枢轴	PIVOT	1
13	74897T	枢轴	PIVOT	1
14	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
15	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
16	48039	盖帽	CAP	1
17	823235	弹簧	SPRING	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
20	64015	螺母 (.250-20)	NUT (.250-20)	1
21	26852	尼龙帽	CAP Nylon	1
22	39483	闩锁	LATCH	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	弹簧	SPRING	1
25	35045	螺母(.250-28)	NUT (.250-28)	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	41095	杠杆	LEVER	1
26	410952	杠杆	LEVER	1
27	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
28	55164	衬套	BUSHING	1
29	14638	套筒	BARREL	1
30	814929	杆	ROD	1
31	932481	衬套	BUSHING	1
31	8M0215006	旋转衬套	BUSHING Swivel	1
32	35045	螺母(.250-28)	NUT (.250-28)	1
32	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
33	20353	螺柱 (.250-28 x 1.750)	STUD (.250-28 x 1.750)	1
34	815539T	节气门凸轮	CAM Throttle	1
35	814283A2	支架总成	BRACKET ASSEMBLY	1
36	39519	杯套	CUP	1
37	42975	传动螺钉	DRIVE SCREW	2
38	98889	闩锁	LATCH	1
39	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	3
39	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
40	79932A11	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
40	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
40	79932A12	换挡轴总成 (加长)	SHIFT SHAFT ASSEMBLY (X-LONG)	1
40	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
41	814284	导向块	GUIDE BLOCK	1
42	20099	弹簧	SPRING	1
43	67073A1	连杆总成	LINK ROD ASSEMBLY	1
44	52100	耐磨板	WEAR PLATE	1
45	38279	闩锁	LATCH	1
45	8M0036768	闩锁	LATCH	1
46	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
47	35045	螺母(.250-28)	NUT (.250-28)	1
47	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
48	26600	衬套	BUSHING	1
49	29720	波形垫圈	WAVE WASHER	1
50	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
51	35045	螺母(.250-28)	NUT (.250-28)	1
51	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
52	814281A1	怠速稳定换挡套件	IDLE STABILIZING SHIFT KIT	1
53	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
54	27882	垫圈	WASHER	2
55	17461A3	电阻模块	RESISTOR MODULE	1

图 59油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	55171	衬套	BUSHING	1
2	62459	球头总成	BALL JOINT ASSEMBLY	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
4	76035	杆	ROD	1
5	46438	螺母 (#10-32)	NUT (#10-32)	1
6	41094A3	杠杆总成 (设计I)	LEVER ASSEMBLY (DESIGN I)	1
6	823705A1	点火提前杠杆 (设计II)	LEVER Spark Advance (DESIGN II)	1
7	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
8	64015	螺母 (.250-20)	NUT (.250-20)	1
9	26852	尼龙帽	CAP Nylon	1
10	93254	旋转底座	SWIVEL BASE	1
11	93421	旋转球头	SWIVEL BALL	1
12	823706	连接杆	LINK	1
13	74897	枢轴	PIVOT	1
13	74897T	枢轴	PIVOT	1
14	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
15	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
16	48039	盖帽	CAP	1
17	823235	弹簧	SPRING	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
20	64015	螺母 (.250-20)	NUT (.250-20)	1
21	26852	尼龙帽	CAP Nylon	1
22	39483	闩锁	LATCH	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	弹簧	SPRING	1
25	35045	螺母(.250-28)	NUT (.250-28)	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	41095	杠杆	LEVER	1
26	410952	杠杆	LEVER	1
27	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
28	55164	衬套	BUSHING	1
29	14638	套筒	BARREL	1
30	814929	杆	ROD	1
31	932481	衬套	BUSHING	1
31	8M0215006	旋转衬套	BUSHING Swivel	1
32	35045	螺母(.250-28)	NUT (.250-28)	1
32	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
33	20353	螺柱 (.250-28 x 1.750)	STUD (.250-28 x 1.750)	1
34	815539T	节气门凸轮	CAM Throttle	1
35	814283A2	支架总成	BRACKET ASSEMBLY	1
36	39519	杯套	CUP	1
37	42975	传动螺钉	DRIVE SCREW	2
38	98889	闩锁	LATCH	1
39	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	3
39	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
40	79932A11	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
40	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
40	79932A12	换挡轴总成 (加长)	SHIFT SHAFT ASSEMBLY (X-LONG)	1
40	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
41	814284	导向块	GUIDE BLOCK	1
42	20099	弹簧	SPRING	1
43	67073A1	连杆总成	LINK ROD ASSEMBLY	1
44	52100	耐磨板	WEAR PLATE	1
45	38279	闩锁	LATCH	1
45	8M0036768	闩锁	LATCH	1
46	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
47	35045	螺母(.250-28)	NUT (.250-28)	1
47	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
48	26600	衬套	BUSHING	1
49	29720	波形垫圈	WAVE WASHER	1
50	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
51	35045	螺母(.250-28)	NUT (.250-28)	1
51	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
52	814281A1	怠速稳定换挡套件	IDLE STABILIZING SHIFT KIT	1
53	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
54	27882	垫圈	WASHER	2
55	17461A3	电阻模块	RESISTOR MODULE	1

图 60专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量
1	55171	衬套	BUSHING	1
2	62459	球头总成	BALL JOINT ASSEMBLY	1
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
4	76035	杆	ROD	1
5	46438	螺母 (#10-32)	NUT (#10-32)	1
6	41094A3	杠杆总成 (设计I)	LEVER ASSEMBLY (DESIGN I)	1
6	823705A1	点火提前杠杆 (设计II)	LEVER Spark Advance (DESIGN II)	1
7	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
8	64015	螺母 (.250-20)	NUT (.250-20)	1
9	26852	尼龙帽	CAP Nylon	1
10	93254	旋转底座	SWIVEL BASE	1
11	93421	旋转球头	SWIVEL BALL	1
12	823706	连接杆	LINK	1
13	74897	枢轴	PIVOT	1
14	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
15	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
16	48039	盖帽	CAP	1
17	823235	弹簧	SPRING	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
20	64015	螺母 (.250-20)	NUT (.250-20)	1
21	26852	尼龙帽	CAP Nylon	1
22	39483	闩锁	LATCH	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	弹簧	SPRING	1
25	35045	螺母(.250-28)	NUT (.250-28)	1
26	41095	杠杆	LEVER	1
27	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
28	55164	衬套	BUSHING	1
29	14638	套筒	BARREL	1
30	814929	杆	ROD	1
31	932481	衬套	BUSHING	1
32	35045	螺母(.250-28)	NUT (.250-28)	1
33	20353	螺柱 (.250-28 x 1.750)	STUD (.250-28 x 1.750)	1
34	815539T	节气门凸轮	CAM Throttle	1
35	814283A2	支架总成	BRACKET ASSEMBLY	1
36	39519	杯套	CUP	1
37	42975	传动螺钉	DRIVE SCREW	2
38	98889	闩锁	LATCH	1
39	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	3
40	79932A11	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
40	79932A12	换挡轴总成 (加长)	SHIFT SHAFT ASSEMBLY (X-LONG)	1
41	814284	导向块	GUIDE BLOCK	1
42	20099	弹簧	SPRING	1
43	67073A1	连杆总成	LINK ROD ASSEMBLY	1
44	52100	耐磨板	WEAR PLATE	1
45	38279	闩锁	LATCH	1
46	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
47	35045	螺母(.250-28)	NUT (.250-28)	1
48	26600	衬套	BUSHING	1
49	29720	波形垫圈	WAVE WASHER	1
50	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
51	35045	螺母(.250-28)	NUT (.250-28)	1
52	814281A1	怠速稳定换挡套件	IDLE STABILIZING SHIFT KIT	1
53	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
54	27882	垫圈	WASHER	2
55	17461A3	电阻模块	RESISTOR MODULE	1

图 61顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	55171	衬套	BUSHING	1
2	62459	球头总成	BALL JOINT ASSEMBLY	1
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
4	76035	杆	ROD	1
5	46438	螺母 (#10-32)	NUT (#10-32)	1
6	41094A3	杠杆总成 (设计I)	LEVER ASSEMBLY (DESIGN I)	1
6	823705A1	点火提前杠杆 (设计II)	LEVER Spark Advance (DESIGN II)	1
7	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
8	64015	螺母 (.250-20)	NUT (.250-20)	1
9	26852	尼龙帽	CAP Nylon	1
10	93254	旋转底座	SWIVEL BASE	1
11	93421	旋转球头	SWIVEL BALL	1
12	823706	连接杆	LINK	1
13	74897	枢轴	PIVOT	1
14	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
15	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
16	48039	盖帽	CAP	1
17	823235	弹簧	SPRING	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
20	64015	螺母 (.250-20)	NUT (.250-20)	1
21	26852	尼龙帽	CAP Nylon	1
22	39483	闩锁	LATCH	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	弹簧	SPRING	1
25	35045	螺母(.250-28)	NUT (.250-28)	1
26	41095	杠杆	LEVER	1
27	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
28	55164	衬套	BUSHING	1
29	14638	套筒	BARREL	1
30	814929	杆	ROD	1
31	932481	衬套	BUSHING	1
32	35045	螺母(.250-28)	NUT (.250-28)	1
33	20353	螺柱 (.250-28 x 1.750)	STUD (.250-28 x 1.750)	1
34	815539T	节气门凸轮	CAM Throttle	1
35	814283A2	支架总成	BRACKET ASSEMBLY	1
36	39519	杯套	CUP	1
37	42975	传动螺钉	DRIVE SCREW	2
38	98889	闩锁	LATCH	1
39	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	3
40	79932A11	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
40	79932A12	换挡轴总成 (加长)	SHIFT SHAFT ASSEMBLY (X-LONG)	1
41	814284	导向块	GUIDE BLOCK	1
42	20099	弹簧	SPRING	1
43	67073A1	连杆总成	LINK ROD ASSEMBLY	1
44	52100	耐磨板	WEAR PLATE	1
45	38279	闩锁	LATCH	1
46	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
47	35045	螺母(.250-28)	NUT (.250-28)	1
48	26600	衬套	BUSHING	1
49	29720	波形垫圈	WAVE WASHER	1
50	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
51	35045	螺母(.250-28)	NUT (.250-28)	1
52	814281A1	怠速稳定换挡套件	IDLE STABILIZING SHIFT KIT	1
53	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
54	27882	垫圈	WASHER	2
55	17461A3	电阻模块	RESISTOR MODULE	1

图 62上罩与前护板 TOP COWL AND FRONT SHIELD

REF	零件编号	中文名称	英文名称	数量
1	9742A88	顶盖总成 (黑色)(无贴花)	TOP COWL ASSEMBLY (BLACK)(Without Decals)	1
1	9743A11	顶盖总成 (银色)(无贴花)	TOP COWL ASSEMBLY (SILVER)(Without Decals)	1
1	9743T11	顶罩	TOP COWL	1
1	9742A92	顶盖总成 (XR6)(无贴花)	TOP COWL ASSEMBLY (XR6)(Without Decals)	1
1	9742T92	顶盖总成-黑色	TOP COWL ASY-BLK	1
1	9742A93	顶盖总成 (MAGNUM III -灰色)(无贴花)	TOP COWL ASSEMBLY (MAGNUM III -GRAY)(Without Decals)	1
1	9743T10	顶罩	TOP COWL	1
1	9743A10	顶盖总成 (MAGNUM III-银色)(无贴花)	TOP COWL ASSEMBLY (MAGNUM III-SILVER)(Without Decals)	1
1	9743T10	顶罩	TOP COWL	1
1	9743A8	顶盖总成 (150 TRACKER)(无贴花)	TOP COWL ASSEMBLY (150 TRACKER)(Without Decals)	1
1	9743A13	顶盖总成 (175/200 TRACKER)(无贴花)	TOP COWL ASSEMBLY (175/200 TRACKER)(Without Decals)	1
2	812784	密封件	SEAL	1
3	815478	密封件	SEAL	1
4	814823A1	隔音套件	SOUND BLANKT KIT	1
4	815225A1	隔音毯套装	SOUND BLANKET KIT	1
5	815227	隔音毯	SOUND BLANKET	1
6	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
7	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
7	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
8	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
9	815848	螺母 (.312)	NUT (.312)	2
10	184741	支架	BRACKET	2
11	18506	护孔环	GROMMET	3
11	18506001	护孔环	GROMMET	3
12	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
13	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
14	813096	挂钩	HOOK	2
14	813096A2	挂钩套件	HOOK KIT	2
15	36001	垫圈	WASHER	2
16	813074	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	13194	挡圈	RING Retaining	2
14	813096A2	挂钩套件	HOOK KIT	2
16	815263	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	8237951	挡圈	RING Retaining	2
18	816992	螺钉	SCREW	8
19	187021	定位器	LOCATOR	1
20	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
20	893763	滚轮锁扣支架	BRACKET Roller Latch	1
21	816838	隔套	SPACER	1
22	47341A1	手动/应急启动绳和手柄套件 (用于手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)	1
22	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
23	18755A1	前护罩总成 (黑色)(无贴花)	FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)	1
23	18755A2	前护罩总成 (灰色)(无贴花)	FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)	1
23	18755A4	前护罩总成 (银色)(无贴花)	FRONT SHIELD ASSEMBLY (SILVER)(Without Decals)	1
23	18755A3	前护罩总成 (TRACKER)(无贴花)	FRONT SHIELD ASSEMBLY (TRACKER)(Without Decals)	1
24	77137	螺钉 (.190-16 x .620)	SCREW (.190-16 x .620)	4
25	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
25	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
26	813562	密封件	SEAL	1

图 63艉板支架 TRANSOM BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	8718F7	艉板支架 (右舷) (黑色)	BRACKET Transom (STARBOARD) (BLACK)	1
1	8718F8	艉板支架(右舷)(灰色)	BRACKET Transom (STARBOARD) (GRAY)	1
1	8718F10	艉板支架(右舷)(追踪者)	BRACKET Transom (STARBOARD) (TRACKER)	1
2	8716A8	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
2	8716A9	艉板支架总成(左舷)(灰色)	BRACKET ASSEMBLY Transom (PORT) (GRAY)	1
2	8716A10	艉板支架总成(左舷)(追踪者)	BRACKET ASSEMBLY Transom (PORT) (TRACKER)	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	37984	螺母 (.875-14)	NUT (.875-14)	1
4	8M0041651	螺母 (.875-14)	NUT (.875-14)	1
5	99170A2	倾斜管套件(碳钢)	TUBE KIT Tilt (CARBON STEEL)	AR
5	826125A1	倾斜管	TILT TUBE	AR
5	826125A1	倾斜管(不锈钢)	TILT TUBE (STAINLESS STEEL)	AR
6	826135	锁紧螺母(1.00-14)尼龙嵌件(黑色)	NUT Lock (1.00-14) Nylon Insert (BLACK)	1
6	90068F3	螺母(1.00-14)(灰色)	NUT (1.00-14) (GRAY)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	90068F4	螺母(1.00-14)(追踪者)	NUT (1.00-14) (TRACKER)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
8	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
9	826164	螺母 (.875-14)	NUT (.875-14)	1
9	8M0231351	锁紧螺母	NUT Lock	1
10	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	螺母	NUT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	杠杆总成	LEVER ASSEMBLY	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈	WAVE WASHER	1
15	65830	尼龙衬套	NYLINER	2
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	螺栓总成	BOLT ASSEMBLY	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
22	814207	停机开关	STOP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 64艉板支架（序列号0G589999及以下） Transom Brackets (S/N-0G589999 & Below)

REF	零件编号	中文名称	英文名称	数量
1	55171	衬套	BUSHING	1
2	62459	球头总成	BALL JOINT ASSEMBLY	1
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
4	76035	杆	ROD	1
5	46438	螺母 (#10-32)	NUT (#10-32)	1
6	41094A3	杠杆总成 (设计I)	LEVER ASSEMBLY (DESIGN I)	1
6	823705A1	点火提前杠杆 (设计II)	LEVER Spark Advance (DESIGN II)	1
7	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
8	64015	螺母 (.250-20)	NUT (.250-20)	1
9	26852	尼龙帽	CAP Nylon	1
10	93254	旋转底座	SWIVEL BASE	1
11	93421	旋转球头	SWIVEL BALL	1
12	823706	连接杆	LINK	1
13	74897	枢轴	PIVOT	1
14	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
15	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
16	48039	盖帽	CAP	1
17	823235	弹簧	SPRING	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
20	64015	螺母 (.250-20)	NUT (.250-20)	1
21	26852	尼龙帽	CAP Nylon	1
22	39483	闩锁	LATCH	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	弹簧	SPRING	1
25	35045	螺母(.250-28)	NUT (.250-28)	1
26	41095	杠杆	LEVER	1
27	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
28	55164	衬套	BUSHING	1
29	14638	套筒	BARREL	1
30	814929	杆	ROD	1
31	932481	衬套	BUSHING	1
32	35045	螺母(.250-28)	NUT (.250-28)	1
33	20353	螺柱 (.250-28 x 1.750)	STUD (.250-28 x 1.750)	1
34	815539T	节气门凸轮	CAM Throttle	1
35	814283A2	支架总成	BRACKET ASSEMBLY	1
36	39519	杯套	CUP	1
37	42975	传动螺钉	DRIVE SCREW	2
38	98889	闩锁	LATCH	1
39	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	3
40	79932A11	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
40	79932A12	换挡轴总成 (加长)	SHIFT SHAFT ASSEMBLY (X-LONG)	1
41	814284	导向块	GUIDE BLOCK	1
42	20099	弹簧	SPRING	1
43	67073A1	连杆总成	LINK ROD ASSEMBLY	1
44	52100	耐磨板	WEAR PLATE	1
45	38279	闩锁	LATCH	1
46	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
47	35045	螺母(.250-28)	NUT (.250-28)	1
48	26600	衬套	BUSHING	1
49	29720	波形垫圈	WAVE WASHER	1
50	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
51	35045	螺母(.250-28)	NUT (.250-28)	1
52	814281A1	怠速稳定换挡套件	IDLE STABILIZING SHIFT KIT	1
53	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
54	27882	垫圈	WASHER	2
55	17461A3	电阻模块	RESISTOR MODULE	1

图 65艉板支架（序列号0G590000及以上） Transom Brackets (S/N-0G590000 & Up)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂加注口接头	FITTING Grease Port	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 66艉板安装动力转向套件 TRANSOM MOUNT POWER STEERING KIT

REF	零件编号	中文名称	英文名称	数量
-	17443A11	动力转向套件	POWER STEERING KIT	1
1	811290	蓄能器	ACCUMULATOR	1
2	17772	螺柱	STUD	3
3	4002319	垫圈	WASHER	3
4	13914	螺母(M10)	NUT (M10)	3
4	40140	螺母(M10)	NUT (M10)	3
5	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1
6	17405	隔套	SPACER	2
7	34863	螺母 (.375-24)	NUT (.375-24)	3
7	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3
8	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
8	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
9	92876A4	连杆总成	LINK ROD ASSEMBLY	1
10	68300	垫圈 (.88 x .39 x .06)	WASHER (..88 x .39 x .06)	1
11	8112891	执行器	ACTUATOR	1
11	828588A2	执行器套件	ACTUATOR KIT	1
-	811632	维修套件	REPAIR KIT	1
-	811632A1	维修套件	REPAIR KIT	1
12	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
12	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
13	43450	垫圈	WASHER	2
13	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	2
14	8268336	螺母 (M6)	NUT (M6)	2
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
15	811292	卡箍	CLAMP	1
16	818182	螺钉	SCREW	2
17	400263	螺母 (M5)	NUT (M5)	2
18	81742755	螺钉(M8x55)	SCREW (M8 x 55)	1
19	66751	垫片(0.250x0.390x0.630)不锈钢	SPACER (.250 x .390 x .630) Stainless Steel	1
19	8M0151156	隔套	SPACER	1
20	811291	支架	BRACKET	1
21	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
22	88404	锁紧垫圈	TAB WASHER	6
23	18211	继电器开关	RELAY SWITCH	1
24	18244A1	线束总成	HARNESS ASSEMBLY	1
25	18124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
26	90329	护孔环	GROMMET	1
27	309772	隔套	SPACER	1
28	816994	支架	BRACKET	1
29	42118	垫圈	WASHER	1
30	29488	螺母 (#10-32)	NUT (#10-32)	1
30	8M0204718	螺母	NUT	1
31	197491	卡箍	CLAMP	1
32	81563024	贴花	DECAL	1

图 67线束/启动继电器 Wiring Harness/Starter Solenoid

REF	零件编号	中文名称	英文名称	数量
1	434292	点火板	IGNITION PLATE	1
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
4	94453	衬套	BUSHING	2
5	62310A2	拉线总成	CABLE ASSEMBLY	1
6	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
7	60871A10	线束总成	WIRE ASSEMBLY	2
8	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	3
8	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	螺钉(1.25)	SCREW (1.25)	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈	WASHER	6
13	67264	垫圈(橡胶)	WASHER (Rubber)	6
14	67268	衬套	BUSHING	3
15	91865A1	线缆总成(3英寸-白/黑)	CABLE ASSEMBLY (3" - WHITE/BLACK)	1
15	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
16	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
16	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
17	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
18	814634	卡箍(旧款)	CLAMP (OLD DESIGN)	1
19A	826730A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
19	96220A16	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
20	79091	保险丝20安培	FUSE 20 Ampere	1
20	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	78866	绝缘体	INSULATOR	1
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
25	68258A4	启动电磁阀总成(设计I型)	SOLENOID ASSEMBLY Starter (DESIGN I)	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母(.312-18)	NUT (.312-18)	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
29	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
32	194372	端子排	TERMINAL BLOCK	1
33	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
34	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
35	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
36	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
37	818968	衬套	BUSHING	2
37	8M0214955	衬套	BUSHING	2

图 68线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID

REF	零件编号	中文名称	英文名称	数量
1	434292	点火板	IGNITION PLATE	1
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
4	94453	衬套	BUSHING	2
5	62310A2	拉线总成	CABLE ASSEMBLY	1
6	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
7	60871A10	线束总成	WIRE ASSEMBLY	2
8	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	3
8	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	螺钉(1.25)	SCREW (1.25)	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈	WASHER	6
13	67264	垫圈(橡胶)	WASHER (Rubber)	6
14	67268	衬套	BUSHING	3
15	91865A1	线缆总成(3英寸-白/黑)	CABLE ASSEMBLY (3" - WHITE/BLACK)	1
15	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
16	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
16	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
17	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
18	814634	卡箍(旧款)	CLAMP (OLD DESIGN)	1
19A	826730A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
19	96220A16	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
20	79091	保险丝20安培	FUSE 20 Ampere	1
20	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	78866	绝缘体	INSULATOR	1
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
25	68258A4	启动电磁阀总成(设计I型)	SOLENOID ASSEMBLY Starter (DESIGN I)	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母(.312-18)	NUT (.312-18)	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
29	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
32	194372	端子排	TERMINAL BLOCK	1
33	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
34	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
35	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
36	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
37	818968	衬套	BUSHING	2
37	8M0214955	衬套	BUSHING	2

图 69附件 Accessories

零件编号	中文名称	英文名称	数量
828155A5	化油器防冰套件	ANTI-ICING KIT Carburetor	1
12092A10	延长套件	EXTENSION KIT	1
12092A11	延长套件	EXTENSION KIT	1
12092A10	延长套件	EXTENSION KIT	1
44357A2	冲洗附件	FLUSHING ATTACHMENT	1
44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
88334A2	防腐电极套件	MERCATHODE KIT	1
8M0180081	防腐电极套件	MERCATHODE KIT	1
86300A5	防腐电极监测器	MERCATHODE MONITOR	1
850000A3	舵柄适配器套件65 JET	TILLER HANDLE ADAPTER KIT 65 JET	1
12022A18	舵柄套件	TILLER HANDLE KIT	1
12022A19	舵柄套件	TILLER HANDLE KIT	1
12022A18	舵柄套件	TILLER HANDLE KIT	1
12022A34	舵柄套件	TILLER HANDLE KIT	1
12022A41	转向手柄套件	STEERING HANDLE KIT	1
12022A35	舵柄套件	TILLER HANDLE KIT	1
12022A41	转向手柄套件	STEERING HANDLE KIT	1
17334A2	视觉警告系统(低油位/过热)	VISUAL WARNING SYSTEM (LOW OIL/OVERHEAT)	1
88825A6	电压调节器套件	REGULATOR KIT Voltage	1

图 70缓冲板与油门杆 Attenuator Plate And Throttle Levers

REF	零件编号	中文名称	英文名称	数量
1	817495A1	消音板总成	PLATE ASSEMBLY Sound Attenuator	1
2	892211	衬垫	GASKET	3
3	88489	螺钉(.250-28 x 2.500)	SCREW (.250-28 x 2.500)	6
3	884891	螺钉(.250-28 x 2.500)带尼龙垫-不锈钢	SCREW (.250-28 x 2.500) With Nylon Patch - Stainless Steel	6
4	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	6
5	815784	盖帽	CAP	3
6	828277A1	连杆套件	LINKAGE KIT	1
7	8M0203923	油门杆	THROTTLE LEVER Throttle Level	1
8	8M0203922	油门杆	THROTTLE LEVER Throttle Level	1
9	NSS	油门连杆(不单独销售)	NOT SOLD SEPARATE Throtlle Link	1
10	18178	滚轮	ROLLER	1
11	15124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	3
12	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
13	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	3
14	NSS	警示贴纸-空气箱(不单独销售)	NOT SOLD SEPARATE Decal-Caution Airbox	1
15	85557712	EPA标签信息贴花	DECAL EPA Label Information	1
15	855577A12	REF SOB 09-18	REF SOB 09-18	1
15	85557713	EPA标签信息贴花	DECAL EPA Label Information	1
15	855577A13	REF SOB 09-18	REF SOB 09-18	1
15	855920	EPA标签信息贴花	DECAL EPA Label Information	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 71泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
2	591692	三通接头	FITTING Tee	3
2	59169003	三通接头	FITTING Tee	3
3	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	149126	止回阀	CHECK VALVE	4
7	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
8	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
8	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
9	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
9	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
10	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
11	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
12	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
14	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	15133	接头	FITTING	5
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791R97	PH 100-125 2S -RM	PH 100-125 2S -RM	1

图 72下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	821873A1	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
1	821873A2	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
1	821873A3	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
2	822556	护孔环	GROMMET	1
2	822556003	护孔环	GROMMET	1
3	8253182	密封条(36.00英寸)	SEAL (36.00 Inches)	1
3	8M0109216	罩盖密封	SEAL- COWL	1
4	8238052	下罩密封条	SEAL Lower Cowl	1
5	821874A1	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
5	8M0107328	底部罩盖-左舷	COWL-BOTTOM, PORT	1
5	821874A2	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
5	821874A3	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
6	822555	护孔环	GROMMET	1
6	822555001	护孔环	GROMMET	1
7	8253182	密封条(36.00英寸)	SEAL (36.00 Inches)	1
7	8M0109216	罩盖密封	SEAL- COWL	1
8	8238052	下罩密封条	SEAL Lower Cowl	1
9	850691	开关	SWITCH	1
9	8M0235192	微调开关	SWITCH TRIM	1
10	8124431	固定件(适用处使用)	RETAINER (USE WHERE APPLICABLE)	1
10	8M0032848	开关固定座	RETAINER Switch	1
11	813613	接头	FITTING	1
12	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
12	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
13	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	3
15	820000A2	手柄	HANDLE	1
15	8M0041366	手柄总成-黑色	HANDLE ASSY-BLACK	1
15	820000A3	手柄	HANDLE	1
15	820000A2	手柄	HANDLE	1
15	820000A6	手柄	HANDLE	1
15	820000A2	手柄	HANDLE	1
16	812707	衬套	BUSHING	2
17	F2047	波形垫圈	WASHER Wave	1
18	F481777	凸轮锁轴	CAM Latch Shaft	1
18	8M0001081	凸轮	CAM	1
19	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
19	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
22	8223631	固定座	RETAINER	1
22	822363T1	固定座	RETAINER	1
23	8268336	螺母 (M6)	NUT (M6)	2
23	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
24	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
24	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2

图 73化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	9532A12	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9532A13	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9532A14	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9532A15	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9012A77	化油器115-WME-21B	CARBURETOR 115-WME-21B	1
1	9012T77	化油器	CARBURETOR	1
1	9012A78	化油器115-WME-21B	CARBURETOR 115-WME-21B	1
1	9012T78	化油器	CARBURETOR	1
1	9012A79	化油器115-WME-21B	CARBUBETOR 115-WME-21B	1
1	9012T79	化油器	CARBURETOR	1
1	9012A80	化油器115-WME-21B	CARBURETOR 115-WME-21B	1
1	9012T80	化油器	CARBURETOR	1
2	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
3	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	4
4	9590	燃油杯	BOWL Fuel	4
4	811693	燃油杯	BOWL Fuel	4
4	811693	燃油杯(WME-20A&B/21A&B)	BOWL Fuel (WME-20A&B/21A&B)	4
5	9591	节流阀轴(WME-1/3/4)	SHAFT Throttle (WME-1/3/4)	3
6	19270	节流阀轴(WME-2)	SHAFT Throttle (WME-2)	1
7	9724	节流阀(100)	VALVE Throttle (100)	4
7	813619	节流阀(115)	VALVE Throttle (115)	4
8	9594	浮子	FLOAT	4
9	NSS		NOT SOLD SEPARATE Float Shaft	4
10	9595	进油针阀	VALVE Inlet Needle	4
10	879194011	进油阀	VALVE Inlet	4
11	9596	堵头	PLUG	4
11	95961	油杯放油塞	PLUG Bowl Drain	4
11	811694	塞子套件(WME-20A&B/21A&B)	PLUG KIT (WME-20A&B/21A&B)	4
12	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
13	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
14	151723	衬垫	GASKET	4
14	151724	衬垫	GASKET	4
15	NSS	螺丝(不单独销售)	NOT SOLD SEPARATE Screw	8
16	9597	螺丝(WME-11/14)	SCREW (WME-11/14)	8
16	811220	盖板螺丝(WME-20/21)	SCREW Cover Plate (WME-20/21)	8
17	5132	螺钉	SCREW	16
17	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	16
18	9598	盖板(WME-11/14)	COVER PLATE (WME-11/14)	4
18	811221	盖板(WME-20/21)	COVER PLATE (WME-20/21)	4
19	5225	主量孔(.054)(100)	JET Main (.054) (100)	4
19	5213	主量孔(.056)(100)	JET Main (.056) (100)	4
19	6680	喷孔 (.078) (WME1/2)-115 WME-14	JET (.078) (WME1/2)-115 WME-14	2
19	3796	喷孔 (.076) (WME 3/4) -115 WME-14	JET (.076) (WME 3/4) -115 WME-14	2
19	3796	喷孔 (.076) (115)	JET (.076) (115)	4
19	6680	喷孔 (.078) (115)	JET (.078) (115)	4
20	NSS		NOT SOLD SEPARATE Idle Needle	4
21	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
22	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	2
23	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	4
24	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	4
25	NSS		NOT SOLD SEPARATE Idle Needle	2
26	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	2
-	9602	衬垫套件 (WME-11/14)	GASKET KIT (WME-11/14)	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	811223	化油器衬垫组 (WME-20/21)	GASKET SET Carburetor (WME-20/21)	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	823635	维修套件 (WME-11/14) 和 (WME-20/21)	REPAIR KIT (WME-11/14) And (WME-20/21)	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 74曲轴活塞与连杆 Crankshaft Pistons And Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9193T5	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43019A1	齿轮总成	GEAR ASSEMBLY	1
3	43011T	下滚珠轴承	BEARING Ball Lower	1
4	91800	半圆键	KEY Woodruff	2
5	786611	耐磨套	WEAR SLEEVE	1
6	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
7	818412A4	环组件	RING ASSEMBLY	2
8	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
9	NSS	不单独销售滚柱轴承	NOT SOLD SEPARATE Roller Bearing	96
10	826191T4	活塞总成	PISTON ASSEMBLY	4
10	821896A3	活塞总成	PISTON ASSEMBLY	AR
10	821896A4	活塞总成	PISTON ASSEMBLY	AR
11	NSS	不单独销售	NOT SOLD SEPARATE	4
12	857196	锁紧环	LOCK RING	8
13	822321A12	活塞环套件-标准	RING KIT Piston - Standard	1
13	822321A1	活塞环套件-加大0.015	RING KIT Piston - .015 Oversize	AR
13	822321A2	活塞环组	RING SET Piston	AR
14	818846T6	连杆总成	CONNECTING ROD ASSEMBLY	4
15	812876	垫圈	WASHER	8
15	8M0012298	止推垫片	THRUST WASHER	8
16	818391	滚针轴承	BEARING Needle	116
16	8M0214954	滚针轴承@200	BRG-NEEDLE @200	116
17	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	8
18	43012A04	轴承总成	BEARING ASSEMBLY	4
18	8M0235070	轴承保持架	CAGE BEARING	4
19	NSS	不单独销售滚柱轴承	NOT SOLD SEPARATE Roller Bearing	64
20	43013T3	上滚柱轴承总成	BEARING ASSEMBLY Roller Upper	1
21	43993	油封	SEAL Oil	1
21	8M0214932	密封件	SEAL	1
22	858225	O型圈	O-RING	1
22	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	13461A99	衬垫套件	GASKET SET	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791R97	PH 100-125 2S -RM	PH 100-125 2S -RM	1

图 75气缸体与端盖 Cylinder Block And End Caps

REF	零件编号	中文名称	英文名称	数量
1	9765A13	气缸体(135/150)	CYLINDER BLOCK (135/150)	1
1	9763A17	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
1	9763A17	气缸体(175)	CYLINDER BLOCK (175)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A61	气缸体(200)	CYLINDER BLOCK (200)	1
1	9763T61	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(150 TRACKER)	CYLINDER BLOCK ( 150 TRACKER)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
2	76175	双头螺柱(1-7/8")(旧款)	STUD (1-7/8") (OLD DESIGN)	4
2	818138	双头螺柱(1-3/4")	STUD (1-3/4")	2 or 6
2	8M0034455	螺柱1.750	STUD 1.750	2 or 6
3	67065	双头螺柱(5-1/2")	STUD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	双头螺柱(6-3/4")	STUD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	42249	上盖	COVER (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	828213	螺钉(.312-18 x 1.500)六角法兰	SCREW (.312-18 x 1.500) Hex Flange	2
8	73657	螺钉(.312-18 x 1.50)(配13-26993垫片)	SCREW (.312-18 x 1.50) (Use with 13-26993 washer)	2
9	26993	锁紧垫圈(.312)(配10-73657螺钉)	LOCKWASHER (.312) (Use with 10-73657 screw)	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	下盖	COVER (LOWER)	1
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11	828214	螺钉(.312-18 x 2.00)六角法兰	SCREW (.312-18 x 2.00) Hex Flange	2
11A	99448	衬套	BUSHING	1
12	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
13	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
13	858521T1	端盖总成	END CAP ASSEMBLY	1
14	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
15	16756A4	轴承套件	BEARING KIT	1
16	41953	密封件	SEAL	1
17	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
17	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
19	63153	J型卡扣	J CLIP	1
20	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
21	15093	双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00)	2
21	8M0034435	螺柱	STUD	2
22	67269	隔套	SPACER	1
23	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	3
23	8M0204663	垫片@5	WASHER @5	3
25	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
26	42248	支架	BRACKET	1
26	422482	支架	BRACKET	1
27	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
28	7809A1	端盖总成	END CAP ASSEMBLY	1
28	7809T1	端盖总成	END CAP ASSEMBLY	1
29	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
30	41953	密封件	SEAL	2
31	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
32	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
33	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
34	64015	螺母 (.250-20)	NUT (.250-20)	1
35	26852	尼龙帽	CAP Nylon	1
36	87076A10	怠速控制器	IDLE SPEED CONTROL	1
38	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
38	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
39	38833	垫圈	WASHER	3
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 76驱动轴壳与排气管 Drive Shaft Housing And Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
1	8343A13	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A14	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A13	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	78249	支架	MOUNT	2
5	77327	支架	MOUNT	2
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下部密封件	SEAL Lower	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL Upper	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A3	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	183071	衬垫	GASKET	1
37	183076	衬垫	GASKET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 77双机延伸套件 Dual Engine Extension Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	4
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 78排气歧管与排气板 Exhaust Manifold And Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8185622	分隔板	PLATE Divider	1
2	827323A2	分隔板	DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	814634	卡箍	CLAMP	4
5	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
5	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
6	814430	管接头(.500-14)	FITTING (.500-14)	1
6	8144301	接头	FITTING	1
7	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
7	920071	90度弯头	FITTING (90 Degree)	1
8	830756109	软管(57.00英寸整卷)(裁切至23.5英寸)	HOSE (57.00 Inches Bulk) (Cut to 23.5 Inches)	1
8	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	68729	盖板	COVER	1
10	8M0039767	盖板	COVER	1
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
12	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
13	76451	垫圈	WASHER	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安装板	PLATE	1
17	78690	衬垫	GASKET	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧(黑色)	SPRING (Black)	1
19	85303	垫圈	WASHER	1
20	14480	提动阀	POPPET	1
21	64872	护孔环	GROMMET	1
22	65848	托架	CARRIER	1
23	991763	衬垫	GASKET	1
23	991764	衬垫	GASKET	1
24	18260A2	排气板总成	PLATE ASSEMBLY Exhaust	1
24	18260T2	排气板总成	PLATE ASSEMBLY Exhaust	1
25	897721	连接器(.125-27)(直型)	CONNECTOR (.125-27) (STRAIGHT)	1
25	89772Q1	连接器(.125-27)	CONNECTOR (.125-27)	1
26	20033	定位销	PIN Dowel	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母	NUT	6
32	27132	衬套	BUSHING	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	126021	护孔环	GROMMET	1
34	12602002	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
36	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A3	支架总成	BRACKET ASSEMBLY	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	4
40	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
41	187031	垫圈	WASHER	4
42	18778	护孔环	GROMMET	4
42	18778001	护孔环	GROMMET	4
43	18578A6	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 79飞轮/启动电机 Flywheel/Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	堵头	PLUG	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A2	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A19	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
19	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1

图 80燃油管路 Fuel Lines

REF	零件编号	中文名称	英文名称	数量
1	82381329	管材(12.00英寸整料)(裁切为4.50英寸)	TUBING (12.00 Inches Bulk) (Cut to 4.50 Inch Length)	1
2	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	1
3	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	15
3	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	15
4	818993	三通接头	CONNECTOR Tee	1
5	830760	软管	HOSE	1
6	8189941	止回阀	CHECK VALVE	1
7	83075780	管材(28.00英寸整料)(裁切为2.00英寸)	TUBING (28.00 Inches Bulk) (Cut to 2.00 Inch Length)	1
7	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
8	830762	软管	HOSE	1
9	8162961	燃油滤清器	FILTER Fuel	1
9	816296Q2	燃油滤清器	FILTER Fuel	1
10	830756109	软管(57.00英寸整料)(裁切为11.00英寸)	HOSE (57.00 Inches Bulk) (Cut to 11.00 Inch Length)	1
10	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
11	830756109	软管(57.00英寸整料)(裁切为4.50英寸)	HOSE (57.00 Inches Bulk) (Cut to 4.50 Inch Length)	2
11	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
12	828292	衬垫	GASKET	3
13	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
13	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
14	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
15	20361	螺母(.250-28)	NUT (.250-28)	6
15	8267089	螺母(.250-28)	NUT (.250-28)	6
16	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
17	99130122	管材(20.00英尺整料)(裁切为9.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 9.00 Inch Length)	1
17	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
18	9912878	软管(0.187英寸)(26.00英寸整料)(裁切为4.50英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4.50 Inch Length)	2
19	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	1
20	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
21	633001	卡箍	CLAMP	1
21	633003	卡箍	CLAMP	1
22	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
23	9912688	管材(36.00英寸整料)(裁切为4.50英寸)	TUBING (36.00 Inches Bulk) (Cut to 4.50 Inch Length)	1
24	9912688	管材(36.00英寸整料)(裁切为3.75英寸)	TUBING (36.00 Inches Bulk) (Cut to 3.75 Inch Length)	1
25	45915	端子排	TERMINAL BLOCK	1
26	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
26	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
25	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
25	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 81燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	1
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	衬垫	GASKET	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303	底座	BASE	1
15	987752	安装板	PLATE	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
18	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
19	83075780	管材(28英寸整卷)(裁切为4英寸)	TUBING (28.00 Inches Bulk) (Cut to 4 IN.)	1
19	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
20	83075780	管材(28英寸整卷)(裁切为8-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 8-1/2 IN.)	1
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
21	83075780	管材(28英寸整卷)(裁切为2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2 IN.)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	99664	曲轴箱弯头	ELBOW To Crankcase	1
22	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
23	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	8162961	燃油滤清器	FILTER Fuel	1
24	816296Q2	燃油滤清器	FILTER Fuel	1
25	822554	成型软管	MOLDED HOSE	1
26	8189941	机油泵止回阀	CHECK VALVE To Oil Pump	1
27	18887	卡箍	CLAMP	1
27	188871	卡箍	CLAMP	1
28	822771	连接器	CONNECTOR	1
29	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
29	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
-	16524	燃油接头O型圈	O-RING Fuel Connector	1
30	145091	护孔环	GROMMET	1
31	4010635	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	1
32	1430165	管材(38英寸整卷)(裁切为15英寸)	TUBING (38.00 Inches Bulk) (Cut to 15 IN.)	2
33	1430165	管材(38英寸整卷)(裁切为13英寸)	TUBING (38.00 Inches Bulk) (Cut to 13 IN.)	1
34	1430165	管材(38英寸整卷)(裁切为1-1/4英寸)	TUBING (38.00 Inches Bulk) (Cut to 1-1/4 IN.)	1
35	17608	流量限制器	FLOW RESTRICTOR	1
36	830570	三通接头	FITTING Tee	2
37	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	1
37	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
38	99130122	管材(20英尺整卷)(裁切为2-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 2-1/2 IN.)	2
38	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
39	18206	滤清器	FILTER	1
39	8M0207786	滤清器	FILTER	1
40	14687A2	加速泵总成	PUMP ASSEMBLY Accelerator	1
40	14687A4	加速泵总成	PUMP ASSEMBLY Accelerator	1
-	811287	维修套件	REPAIR KIT	1
41	4009416	螺钉(M6 x 16)	SCREW (M6 x 16)	2
42	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
43	43739	加浓阀	VALVE Enrichner	1
43	819503A2	电磁阀组件	SOLENOID KIT	1
44	437391	加浓阀	VALVE Enrichiner	1
44	819503A1	电磁阀总成-加浓阀	SOLENOID ASSEMBLY Enrichner Valve	1
45	1430165	管材(38英寸整卷)接上三通	TUBING (38.00 Inches Bulk) To Upper Tee	1
45	9912688	管材(36英寸整卷)接上三通	TUBING (36.00 Inches Bulk) To Upper Tee	1
46	9912688	管材(36英寸整卷)(裁切为5-1/4英寸)接下三通	TUBING (36.00 Inches Bulk) (Cut to 5-1/4 IN.) To Lower Tee	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1
-	17791A97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1

图 82齿轮箱（驱动轴-反向-序列号0G437999及以下） Gear Housing (Driveshaft-Counter-S/N-0G437999 & Below)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A48	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	NSS	管材(不单独销售)	NOT SOLD SEPARATE Tubing	1
4	NSS	连接器(不单独销售)	NOT SOLD SEPARATE Connector	1
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
7	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
8	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
9	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
10	67891	填充块	FILLER BLOCK	1
11	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
12	826134	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
15	NSS	小齿轮(43-18572A1组件)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (Part Of 43-18572A 1)	1
15	NSS	小齿轮(43-18475A1组件)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (Part Of 43-18475A 1)	1
16	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	42637A1	垫片组	SHIM SET	AR
19	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
20	19183	纤维垫圈	WASHER Fiber	2
21	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
22	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
23	789022	换档轴	SHIFT SHAFT	1
24	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
25	77631A2	衬套总成	BUSHING ASSEMBLY	1
26	8164641	油封	SEAL Oil	1
27	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
28	442091	驱动轴	DRIVESHAFT	1
29	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
30	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
31	824519	固定座	RETAINER	1
32	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
33	426311	衬垫	GASKET	1
34	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
35	89238	油封	SEAL Oil	1
36	16977	油封	SEAL Oil	1
37	856081	衬垫	GASKET	1
38	856091	衬垫	GASKET	1
39	32435	面板	FACE PLATE	1
40	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
41	48752	嵌件	INSERT	1
42	38970	密封件	SEAL	1
43	899841	叶轮	IMPELLER	1
44	56654	键	KEY	1
45	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
46	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
47	13438	螺母(.250-28)	NUT (.250-28)	2
48	36001	垫圈	WASHER	1
49	13436	螺母	NUT	1
50	29804	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	89238A2	密封套件	SEAL KIT	1

图 83齿轮箱（驱动轴-反向-序列号0G438000及以上） Gear Housing (Driveshaft-Counter-S/N-0G438000 & Up)

REF	零件编号	中文名称	英文名称	数量
1	9148A93	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
5	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
8	67891	填充块	FILLER BLOCK	1
9	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	826134	阳极块	ANODE	2
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
12	8268336	螺母 (M6)	NUT (M6)	1
13	NSS	小齿轮(43-828703A1组件)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (Part Of 43-828703A 1)	1
13	NSS	小齿轮(43-828701A1组件)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (Part Of 43-828701A 1)	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	42637A1	垫片组	SHIM SET	AR
17	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
19	19183	纤维垫圈	WASHER Fiber	2
20	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
21	789022	换档轴	SHIFT SHAFT	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	77631A2	衬套总成	BUSHING ASSEMBLY	1
24	8164641	油封	SEAL Oil	1
25	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
26	442091	驱动轴	DRIVESHAFT	1
27	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
28	824519	固定座	RETAINER	1
29	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
30	426311	衬垫	GASKET	1
31	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	89238	油封	SEAL Oil	1
33	16977	油封	SEAL Oil	1
34	856081	衬垫	GASKET	1
35	856091	衬垫	GASKET	1
36	32435	面板	FACE PLATE	1
37	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	48752	嵌件	INSERT	1
39	38970	密封件	SEAL	1
40	899841	叶轮	IMPELLER	1
41	56654	键	KEY	1
42	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
43	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	13438	螺母(.250-28)	NUT (.250-28)	2
45	36001	垫圈	WASHER	1
46	13436	螺母	NUT	1
47	29804	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	89238A2	密封套件	SEAL KIT	1

图 84齿轮箱（驱动轴-标准-序列号0G437999及以下） Gear Housing (Driveshaft-Standard-S/N-0G437999 & Below)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A48	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	NSS	管材(不单独销售)	NOT SOLD SEPARATE Tubing	1
4	NSS	连接器(不单独销售)	NOT SOLD SEPARATE Connector	1
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
6	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
7	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
8	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
9	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
10	67891	填充块	FILLER BLOCK	1
11	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
12	826134	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
15	NSS	小齿轮(43-44102A7组件)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (Part Of 43-44102A7)	1
15	NSS	小齿轮(43-44104A8组件)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (Part Of 43-44104A8)	1
15	NSS	小齿轮(43-16294A2组件)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (Part Of 43-16294A2)	1
16	92721	垫圈(0.965×0.630)(不适用于高海拔)	WASHER (.965 x .630) Not Used With High Altitude	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
17	87364	螺母	NUT	1
18	42637A1	垫片组	SHIM SET	AR
19	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
20	19183	纤维垫圈	WASHER Fiber	2
21	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
22	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
23	789022	换档轴	SHIFT SHAFT	1
24	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
25	77631A2	衬套总成	BUSHING ASSEMBLY	1
26	8164641	油封	SEAL Oil	1
27	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
28	440001	驱动轴	DRIVESHAFT	1
28	442091	驱动轴	DRIVESHAFT	1
28	16292	驱动轴	DRIVESHAFT	1
29	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
30	NSS	锥形杯(不单独销售)	NOT SOLD SEPARATE Cup-Tapered	1
31	824519	固定座	RETAINER	1
32	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
33	426311	衬垫	GASKET	1
34	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
35	89238	油封	SEAL Oil	1
36	16977	油封	SEAL Oil	1
37	856081	衬垫	GASKET	1
38	856091	衬垫	GASKET	1
39	32435	面板	FACE PLATE	1
40	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
41	48752	嵌件	INSERT	1
42	38970	密封件	SEAL	1
43	899841	叶轮	IMPELLER	1
44	56654	键	KEY	1
45	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
46	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
47	13438	螺母(.250-28)	NUT (.250-28)	2
48	36001	垫圈	WASHER	1
49	13436	螺母	NUT	1
50	29804	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	89238A2	密封套件	SEAL KIT	1

图 85齿轮箱（驱动轴-标准-序列号0G438000及以上） Gear Housing (Driveshaft-Standard-S/N-0G438000 & Up)

REF	零件编号	中文名称	英文名称	数量
1	9148A93	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
5	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
8	67891	填充块	FILLER BLOCK	1
9	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	826134	阳极块	ANODE	2
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
12	8268336	螺母 (M6)	NUT (M6)	1
13	NSS	小齿轮(43-828176A2组件)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (Part Of 43-828176A 2)	1
13	NSS	小齿轮(43-828174A2组件)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (Part Of 43-828174A 2)	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	42637A1	垫片组	SHIM SET	AR
17	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
19	19183	纤维垫圈	WASHER Fiber	2
20	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
21	789022	换档轴	SHIFT SHAFT	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	77631A2	衬套总成	BUSHING ASSEMBLY	1
24	8164641	油封	SEAL Oil	1
25	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
26	440001	驱动轴	DRIVESHAFT	1
26	442091	驱动轴	DRIVESHAFT	1
27	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
28	824519	固定座	RETAINER	1
29	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
30	426311	衬垫	GASKET	1
31	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	89238	油封	SEAL Oil	1
33	16977	油封	SEAL Oil	1
34	856081	衬垫	GASKET	1
35	856091	衬垫	GASKET	1
36	32435	面板	FACE PLATE	1
37	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	48752	嵌件	INSERT	1
39	38970	密封件	SEAL	1
40	899841	叶轮	IMPELLER	1
41	56654	键	KEY	1
42	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
43	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	13438	螺母(.250-28)	NUT (.250-28)	2
45	36001	垫圈	WASHER	1
46	13436	螺母	NUT	1
47	29804	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	89238A2	密封套件	SEAL KIT	1

图 86齿轮箱（螺旋桨轴-反向-序列号0G437999及以下） Gear Housing (Propshaft-Counter-S/N-0G437999 & Below)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A48	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
51	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
52	789562	换挡凸轮	SHIFT CAM	1
53	799111	杆	ROD	1
54	78906	销	PIN	1
55	79910	弹簧	SPRING	2
56	78910	垫圈	WASHER	AR
57	14469	轴承杯	CUP Bearing	1
58	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
59	NSS	倒车齿轮(43-18572A1组件)(不单独销售)	NOT SOLD SEPARATE Reverse Gear (Part Of 43-18572A 1)	1
59	NSS	倒车齿轮(43-18475A1组件)(不单独销售)	NOT SOLD SEPARATE Reverse Gear (Part Of 43-18475A 1)	1
60	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
61	823174	离合器	CLUTCH	1
62	78909	定位销	PIN Detent	2
63	78905	十字销	PIN Cross	1
64	78962	弹簧	SPRING	2
65	18572A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
65	18475A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
66	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
66	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
66	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
66	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
66	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
66	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
66	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
66	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
66	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
66	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
66	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
66	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
66	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR

图 87齿轮箱（螺旋桨轴-反向-序列号0G438000及以上） Gear Housing (Propshaft-Counter-S/N-0G438000 & Up)

REF	零件编号	中文名称	英文名称	数量
1	9148A93	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
48	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
49	789562	换挡凸轮	SHIFT CAM	1
50	828287	杆	ROD	1
51	44491A1	垫片组	SHIM SET	AR
52	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
53	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
54	815481	止推垫片	THRUST WASHER	1
55	815480	推力轴承	BEARING Thrust	1
56	828704A2	倒车齿轮总成-14/28齿	GEAR ASSEMBLY Reverse - 14/28	1
56	828702A2	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
57	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
58	30893	弹簧	SPRING	1
59	828288	滑动离合器	SLIDING CLUTCH	1
60	30632	十字销	PIN Cross	1
61	828356	定位销	PIN Detent	1
62	828951	螺旋桨轴	PROPELLER SHAFT	1
63	828703A1	前进齿轮总成-14/28齿	GEAR ASSEMBLY Forward - 14/28	1
63	828701A1	前进齿轮总成-15/28齿	GEAR ASSEMBLY Forward - 15/28	1
64	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
64	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
64	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
64	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
64	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
64	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
64	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
64	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
64	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
64	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
64	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
64	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
64	1761526	垫片(0.230)	SPACER SHIM (.230)	AR

图 88齿轮箱（螺旋桨轴-标准-序列号0G437999及以下） Gear Housing (Propshaft-Standard-S/N-0G437999 And Below)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A48	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
51	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
52	789562	换挡凸轮	SHIFT CAM	1
53	79911A1	杆	ROD	1
54	79910	弹簧	SPRING	1
55	78906	销	PIN	1
56	78910	垫圈	WASHER	AR
57	44104A8	齿轮组	GEAR SET	1
57	44102A7	齿轮组	GEAR SET	1
57	16294A5	齿轮组	GEAR SET	1
58	549281	滚柱轴承	BEARING Roller	1
59	47397A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
60	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
61	823174	离合器	CLUTCH	1
62	78905	十字销	PIN Cross	1
63	78909	定位销	PIN Detent	2
64	78962	弹簧	SPRING	2
65	94148	螺旋桨轴	PROPELLER SHAFT	1
66	824986A2	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
66	824987A2	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
66	NSS	倒车齿轮(不单独销售)	NOT SOLD SEPARATE Reverse Gear	1
67	824108	垫片(不适用于高海拔)	SPACER Not Used With High Altitude	1
68	681001	止推环	RING Thrust	1
69	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
70	31534	O型圈	O-RING	1
71	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
72	30956	滚针轴承	BEARING Needle	1
73	76868	密封件	SEAL	2
74	30281	键	KEY	1
75	79447	锁紧垫圈	TAB WASHER	1
76	79448	固定座	RETAINER	1
77	316405	平衡鳍板	TRIM TAB	1
78	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
79	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
80	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
81	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
82	8354671	推力毂	THRUST HUB	1
83	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
84	31211A2	花键垫圈	WASHER Splined	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	816629	锁紧垫圈	TAB WASHER	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 89齿轮箱（螺旋桨轴-标准-序列号0G438000及以上） Gear Housing (Propshaft-Standard-S/N-0G438000 & Up)

REF	零件编号	中文名称	英文名称	数量
1	9148A93	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
48	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
49	789562	换挡凸轮	SHIFT CAM	1
50	828287	杆	ROD	1
51	828174A2	齿轮组	GEAR SET	1
51	878613A2	前进齿轮总成 1.87:1 - 15/28齿	GEAR ASSEMBLY Forward 1.87:1 - 15/28	1
51	828176A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
51	878615A2	前进齿轮总成 2:1 - 14/28齿	GEAR ASSEMBLY Forward 2:1 - 14/28	1
52	44491A1	垫片组(0.006-7-9-10-20)	SHIM SET (.006-7-9-10-20)	AR
52	8M0063266	垫片组	SHIM SET	AR
53	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
54	30895	滚针轴承	BEARING Needle	1
54	30895T	滚针轴承	BEARING Needle	1
55	828288	滑动离合器	SLIDING CLUTCH	1
55	859340T	离合器	CLUTCH	1
56	30632	十字销	PIN Cross	1
56	8M0100263	十字销	PIN Cross	1
57	828356	定位销	PIN Detent	1
58	30893	弹簧	SPRING	1
59	94148	螺旋桨轴	PROPELLER SHAFT	1
60	828175A1	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
60	828177A1	倒车齿轮总成-14/28齿	GEAR ASSEMBLY Reverse - 14/28	1
61	824108	隔套	SPACER	1
62	681001	止推环	RING Thrust	1
63	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
63	88957T	滚珠轴承	BEARING Ball	1
64	31534	O型圈	O-RING	1
64	8M0214920	O型圈	O RING	1
65	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
65	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
66	30956	滚针轴承	BEARING Needle	1
66	30956T	滚针轴承	BEARING Needle	1
67	14077	内侧油封	SEAL Oil Inside	1
68	76868	外侧密封件	SEAL Outside	1
68	8M0248882	油封@5	SEAL-OIL @5	1
69	30281	键	KEY	1
70	79447	锁紧垫圈	TAB WASHER	1
71	79448	固定座	RETAINER	1
71	8M2011027	固定座	RETAINER	1
72	316405	平衡鳍板	TRIM TAB	1
72	8M0236553	平衡鳍板	TRIM TAB	1
72	76214A5	阳极套件	ANODE KIT	1
72	76214Q5	阳极套件	ANODE KIT	1
73	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
73	8M0204686	螺钉	SCREW	1
74	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
75	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	8354671	推力毂	THRUST HUB	1
77	835467Q01	止推垫片套件	THRUST WASHER KIT	1
78	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
80	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	816629	锁紧垫圈	TAB WASHER	1
81	816629Q	锁紧垫圈	TAB WASHER	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 90齿轮箱图表（序列号0G437999及以下） Gear Housing Chart (S/N-0G437999 & Below)

REF	零件编号	中文名称	英文名称	数量
-	9148A65	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A67	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A66	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A68	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
-	9148A78	齿轮箱总成(速比2.3:1)	GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio	1
-	9148A79	齿轮箱总成(速比2.3:1)	GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio	1
-	9148A69	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A72	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A70	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A73	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A74	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A75	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T89	齿轮箱壳体-CXL-灰色	GEAR HSG-CXL-GRAY	1
-	9148A76	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A77	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1

图 91齿轮箱图表（序列号0G438000及以上） Gear Housing Chart (S/N-0G438000 & Up)

REF	零件编号	中文名称	英文名称	数量
-	9148A81	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A82	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A87	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A88	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
-	9148A84	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A85	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A90	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A91	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A83	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A89	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T89	齿轮箱壳体-CXL-灰色	GEAR HSG-CXL-GRAY	1
-	9148A86	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A92	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1

图 92点火线圈/电压调节器 Ignition Coil/Voltage Regulator

REF	零件编号	中文名称	英文名称	数量
1	195872	安装板	MOUNTING PLATE	1
2	33778	螺柱	STUD	4
3	19661	衬套	BUSHING	4
4	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
5	13438	螺母(.250-28)	NUT (.250-28)	4
5	8267119	螺母(.250-28)	NUT (.250-28)	4
6	88807A35	拉线总成	CABLE ASSEMBLY	1
7	815279T	电压调节器	REGULATOR Voltage	2
7	8M0084173	电压调节器	VOLTAGE REGULATOR	2
8	818997A1	电磁阀总成	SOLENOID ASSEMBLY	1
8	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	1
9	97861	绝缘体	INSULATOR	2
10	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	3
10	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	3
11	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	3
12	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
12	8M0207776	螺母	NUT	3
13	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
14	94330	螺母 (.250-20) 黄铜	NUT (.250-20) Brass	4
15	69738A9	线束总成 (2,4,6)	HARNESS ASSEMBLY (2,4,6)	1
15	69739A6	线束总成 (1,3,5)	HARNESS ASSEMBLY (1,3,5)	1
16	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	43542	盖板	COVER	2
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
18	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
19	90048	螺钉 (#10-32 x 2.125)	SCREW (#10-32 x 2.125)	12
20	90078	螺母 (#10-32)	NUT (#10-32)	14
21	813715A9	点火线缆套件	CABLE KIT Ignition	1
22	63709A1	护套/端子套件	BOOT/TERMINAL KIT	6
23	136862	火花塞 (NGK-BU8H)	SPARK PLUG (NGK-BU8H)	6
23	13686Q	NGK BU8H @10	NGK BU8H @10	6
23	14103568	火花塞 (NGK-BUZ8H - 加拿大/比利时)	SPARK PLUG (NGK-BUZ8H - CANADA/BELGIUM)	6
23	896329885	SP #L6VC @4	SP #L6VC @4	6
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
25	88807A13	拉线总成	CABLE ASSEMBLY	8
26	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
27	87379A14	电线总成 (2.750英寸)	WIRE ASSEMBLY (2.750 Inches)	1
28	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	12
29	826802A4	线束总成	HARNESS ASSEMBLY	1
30	828151	继电器	RELAY	2
30	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
31	828102	支架	BRACKET	2
31	8M0207771	安装支架	BRACKET Mounting	2
32	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
32	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
33	818968	衬套	BUSHING	2
33	8M0214955	衬套	BUSHING	2
34	818967	护孔环	GROMMET	2
34	8M0207785	护孔环	GROMMET	2
35	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	2
36	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
36	8M0207776	螺母	NUT	2

图 93仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

图 94喷射组件 Jet Components

REF	零件编号	中文名称	英文名称	数量
1	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
2	38833	垫圈	WASHER	3
3	94304	隔套	SPACER	3
4	13381	安装板	PLATE	1
5	821889A20	转速限制器	REV LIMITER	1
5	821889A30	转速限制器	REV LIMITER	1
6	823147A5	适配器线束总成 - 转速限制器	HARNESS ASSEMBLY Adaptor - Rev Limiter	1
7	801402	润滑脂套装	GREASE KIT	1
7	30500A2	润滑脂套装	GREASE KIT	1
8	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
8	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
9	426311	衬垫	GASKET	1
9	8M0204678	衬垫	GASKET	1
10	89238	油封	SEAL Oil	1
11	16977	油封	SEAL Oil	1
12	856081	衬垫	GASKET	1
12	8M0090319	衬垫@5	GASKET @5	1
13	856091	衬垫	GASKET	1
13	858524	衬垫	GASKET	1
14	32435	面板	FACE PLATE	1
14	8M0204677	面板	PLATE-FACE	1
15	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
15	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
16	48752	嵌件	INSERT	1
16	48752T	嵌件	INSERT	1
17	38970	密封件	SEAL	1
18	899841	叶轮	IMPELLER	1
18	89984T3	叶轮	IMPELLER	1
19	56654	键	KEY	1
19	8M0214992	键@5	KEY @5	1
20	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
20	8M0215009	螺钉	SCREW	1
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
22	13438	螺母(.250-28)	NUT (.250-28)	2
22	8267119	螺母(.250-28)	NUT (.250-28)	2
23	19924275	螺钉 (.312-18 x 2.75)	SCREW (.312-18 x 2.75)	1
24	36001	垫圈	WASHER	1
25	29804	套筒	SLEEVE	1
25	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 95喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	801400115	喷泵总成	JET PUMP ASSEMBLY	1
-	856143A1	喷泵总成	JET PUMP ASSEMBLY	1
-	856143A1	喷泵总成	JET PUMP ASSEMBLY	1
1	85576790	泵壳	HOUSING Pump	1
1	855767T90	泵壳	HOUSING Pump	1
1	80141190	泵壳	HOUSING Pump	1
1	801411T90	泵壳总成	HOUSING ASSY-PUMP	1
2	827490	润滑油管	HOSE Lube	1
3	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
4	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
4	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
5	855840	双头螺柱(.312-18 x 1.81)	STUD (.312-18 x 1.81)	6
6	67980	螺母(.312-18)	NUT (.312-18)	6
6	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	6
7	80141290	进气壳体	HOUSING Intake	1
8	8271883	衬套	LINER	1
9	80141390	驱动轴	DRIVESHAFT	1
10	85576890	进气壳体	HOUSING Intake	1
11	855771	衬套	LINER	1
12	85576990	驱动轴	DRIVESHAFT	1
13	8271891	套筒	SLEEVE	1
14	8271901	螺母	NUT	1
15	808747	泵适配器	ADAPTER Pump	1
16	36001	垫圈	WASHER	6
17	801414115	叶轮	IMPELLER	1
17	855708115	叶轮	IMPELLER	1
17	855708115	叶轮	IMPELLER	1
18	801405875	键	KEY	1
19	801404875	叶轮垫片	SHIM Impeller	8
20	801403875	锁紧垫圈	TAB WASHER	1
21	801407	定位销	PIN Dowel	2
22	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
23	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
24	801410	电缆支架	BRACKET Cable Support	1
25	67980	螺母(.312-18)	NUT (.312-18)	1
25	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
26	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
27	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
28	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
29	843575	螺丝(.375-16 x 4.00)不锈钢	SCREW (.375-16 x 4.00) Stainless Steel	1
30	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
30	8M0214963	垫圈	WASHER	1

图 96杂项信息 Miscellaneous Information

零件编号	中文名称	英文名称	数量
81609896	零件手册 135/150/175/200 XR6 MAGNUM III 105-140 JET 零件	PARTS MANUAL 135/150/175/200 XR6 MAGNUM III 105-140 JET Parts	1
10126980	用户手册	OWNERS MANUAL	1
10140980	用户手册	OWNERS MANUAL	1
824052R2	维修手册	SERVICE MANUAL	1
824052R3	SM O/B V6 135-225	SM O/B V6 135-225	1
813220A96	贴花套件	DECAL SET	1
813220A00	贴花套件	DECAL SET	1
830169A96	贴花套件	DECAL SET	1
830169A00	贴花套件	DECAL SET	1
824103A96	贴花套件	DECAL SET	1
809687A96	贴花套件	DECAL SET	1
809687A99	贴花套件	DECAL SET	1
802577A98	贴花套件	DECAL SET	1
824911A96	贴花套件	DECAL SET	1
824911A00	贴花套件	DECAL SET	1
809688A96	贴花套件	DECAL SET	1
809688A00	贴花套件	DECAL SET	1
808552A96	贴花套件	DECAL SET	1
808552A00	贴花套件	DECAL SET	1
812563A96	贴花套件	DECAL SET	1
812563A00	贴花套件	DECAL SET	1
808562A96	贴花套件	DECAL SET	1
808562A03	贴花套件	DECAL SET	1
826331A96	贴花套件	DECAL SET	1
826333A96	贴花套件	DECAL SET	1
826333A00	贴花套件	DECAL SET	1
813036A96	贴花套件	DECAL SET	1
813036A97	贴花套件	DECAL SET	1
824106A96	贴花套件	DECAL SET	1
850397A00	贴花套件	DECAL SET	1
824104A96	贴花套件	DECAL SET	1
850398A97	贴花套件	DECAL SET	1
809707A96	贴花套件	DECAL SET	1
809707A97	贴花套件	DECAL SET	1
813034A96	贴花套件	DECAL SET	1
813034A01	贴花套件	DECAL SET	1
813037A96	贴花套件	DECAL SET	1
813037A97	贴花套件	DECAL SET	1
809705A96	贴花套件	DECAL SET	1
809705A97	贴花套件	DECAL SET	1
815630A96	贴花套件	DECAL SET	1
808563A03	贴花套件	DECAL SET	1
808563A96	贴花套件	DECAL SET	1
808563A03	贴花套件	DECAL SET	1
826332A96	贴花套件	DECAL SET	1
826332A97	贴花套件	DECAL SET	1
826334A96	贴花套件	DECAL SET	1
826334A97	贴花套件	DECAL SET	1
813036A97	贴花套件	DECAL SET	1
850397A97	贴花套件	DECAL SET	1
850397A00	贴花套件	DECAL SET	1
850398A97	贴花套件	DECAL SET	1
809707A97	贴花套件	DECAL SET	1
802578A98	贴花套件	DECAL SET	1
813034A97	贴花套件	DECAL SET	1
813034A01	贴花套件	DECAL SET	1
813037A97	贴花套件	DECAL SET	1
809705A97	贴花套件	DECAL SET	1
815630A97	贴花套件	DECAL SET	1
808563A03	贴花套件	DECAL SET	1
808563A97	贴花套件	DECAL SET	1
808563A03	贴花套件	DECAL SET	1
826332A97	贴花套件	DECAL SET	1
826334A97	贴花套件	DECAL SET	1
824911A25	贴纸条纹卷 25英尺 - 需6英尺	DECAL Striping Roll Of 25 Feet. - Need 6 Feet	1
824736A96	贴花套件	DECAL SET	1
808620A96	贴花套件	DECAL SET	1
809846A96	贴花套件	DECAL SET	1
808681A96	贴花套件	DECAL SET	1
808681A01	贴花套件	DECAL SET	1
809849A96	贴花套件	DECAL SET	1
809850A96	贴花套件	DECAL SET	1
809851A96	贴花套件	DECAL SET	1
809852A96	贴花套件	DECAL SET	1
85557712	EPA标签信息贴花	DECAL EPA Label Information	1
855577A12	REF SOB 09-18	REF SOB 09-18	1
85557713	EPA标签信息贴花	DECAL EPA Label Information	1
855577A13	REF SOB 09-18	REF SOB 09-18	1
855920	EPA标签信息贴花	DECAL EPA Label Information	1

图 97机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	8628A7	油箱总成	TANK ASSEMBLY Oil	1
2	99160	上部护套	BOOT Upper	1
2	99160001	护套	BOOT	1
3	NLA	旧款盖板(已停产)	No Longer Available Cover, Old Design	1
4	988951	上部支架	BRACKET Upper	1
4	988952	油箱颈支架	BRACKET Oil Tank Neck	1
5	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	2
6	42653A3	盖总成	CAP ASSEMBLY	1
7	42999	衬垫	GASKET	1
7	42999T	衬垫	GASKET	1
8	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
9	12886A5	开关总成	SWITCH ASSEMBLY	1
9	12886A6	开关总成	SWITCH ASSEMBLY	1
10	430204	从动齿轮	GEAR Driven	1
11	62705	O型圈	O-RING	2
11	8M0204667	O型圈×2	O RING @2	2
12	4301625	油管(8.00英寸)	TUBING (8.00 Inches)	1
12	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
13	44345T	油泵	PUMP Oil	1
13	44345T3	油泵	PUMP Oil	1
14	17335A3	适配器组件	ADAPTER ASSEMBLY	1
15	17597	衬套	BUSHING	1
16	17596	衬套	BUSHING	1
17	4009340	螺钉	SCREW	2
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
18	42888	油箱底座支架	BRACKET Oil Tank Base	1
19	56291	护孔环	GROMMET	1
20	82155050	螺钉(M8x50)不锈钢	SCREW (M8 x 50) Stainless Steel	2
21	99161	护套	BOOT	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
22	8M0214940	扎带	TIE STRAP	AR
23	4301736	管路(配合编号24使用)	TUBING Use With Reference Number 24	3
23	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	3
24	73318	塑料三通	TEE Plastic	1
23	4301736	管路(配合编号25使用)	TUBING Use With Reference Number 25	2
23	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	2
25	44456	三孔接头	FITTING Three Hole	1
26	9004934	管路(14.50英寸散装)(配合编号25使用)	TUBING (14.50 Inches Bulk) Use With Reference Number 25	1
26	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
27	814200	管夹(配合编号25使用)	CLAMP Use With Reference Number 25	2
28	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
28	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1

图 98动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 99动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	818186A6	动力升降总成	POWER TRIM ASSEMBLY	1
-	826729A10	ORD 8M0143217	ORD 8M0143217	1
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	811605F	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	811608	升降倾斜活塞杆套件 (螺栓型-参见备注)	ROD KIT Trim And Tilt Piston (BOLT TYPE- SEE NOTE)	1
5	823553	升降活塞杆套件 (螺母型)	ROD KIT Trim Piston (NUT TYPE)	1
5	823553T	升降活塞杆	ROD Trim Piston	1
6	811606	导向套件	GUIDE KIT	1
6	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
7	811607A1	维修套件	REPAIR KIT	1
8	811610A1	止回阀套件	CHECK VALVE KIT	1
8	823553T	升降活塞杆	ROD Trim Piston	1
9	99638A1	导向器总成	GUIDE ASSEMBLY	2
9	8M0021648	端盖总成	END CAP ASSEMBLY	2
10	43397A6	动力升降活塞/杆总成 (左舷)	PISTON/ROD ASSEMBLY Power Trim (PORT)	1
10	878413A1	活塞总成	PISTON ASSEMBLY	1
10	43398A3	动力升降活塞/杆总成 (右舷)	PISTON/ROD ASSEMBLY Power Trim (STARBOARD)	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
12	821539	三叶销	PIN Trilobe	1
13	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
13	893929A01	安全阀套件	VALVE KIT Relief	1
14	812844	E型卡环	E RING	1
14	815949001	E形环	E-RING	1
15	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
16	43450	垫圈	WASHER	4
16	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
17	811611	盖板	COVER	1
18	811612A2	O型圈套件	O-RING KIT	1
18	811612A3	O型圈套件	O-RING KIT	1
19	811628	升降电机 (参见动力升降电机分解图)	TRIM MOTOR (See Breakdown on Power Trim Motor)	1
19	878265A6	改装套件-配平	RETROFIT KIT-TRIM	1
19A	828708	电机总成 (参见动力升降电机分解图)	MOTOR ASSEMBLY (See Breakdown on Power Trim Motor)	1
19A	878265A4	配平电机	TRIM MOTOR	1
20	811619	驱动轴	DRIVESHAFT	1
20	828710	驱动接头	DRIVE JOINT	1
21	996251	轴	SHAFT	1
21	99625002	轴	SHAFT	1
22	811615	螺钉 (长)	SCREW (LONG)	2
22	828709	螺钉 (长)	SCREW (LONG)	2
22	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
22	811616	螺钉 (短)	SCREW (SHORT)	2
23	811613	塞子总成	PLUG ASSEMBLY	1
24	811617F	泵	PUMP	1
24	811617T1	泵	PUMP	1
25	811614	轴总成	SHAFT ASSEMBLY	1
25	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
26	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	996301	冲击板	STRIKER PLATE	2
30	8M0045383	冲击板	STRIKER PLATE	2
31	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
32	46335	螺母 (.375-24)	NUT (.375-24)	2
33	44431	槽销	PIN Groove	1
33	878267	销	PIN	1
34	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
35	4002319	垫圈	WASHER	6
36	22875	卡扣	CLIP	2
36	26550	卡箍	CLAMP	2
37	69205	C形垫圈	C WASHER	2
37	8M0084613	C形垫圈	C-WASHER	2
38	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
38	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2

图 100动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 101动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
-	811628	配平电机	TRIM MOTOR	1
1	811624	机架与磁场套件	FRAME AND FIELD KIT	1
2	811625	电刷卡套件	BRUSH CARD KIT	1
3	811623	端架套件	END FRAME KIT	1
4	811626	密封套件	SEAL KIT	1
5	811627	电枢套件	ARMATURE KIT	1
5	811628	配平电机	TRIM MOTOR	1

图 102簧片阀组与气缸盖 Reed Block And Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	18787F1	气缸盖	CYLINDER HEAD	2
1	184888	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F1	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F1	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	187851	衬垫	GASKET	2
2	18785T	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
3	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	24
4	25909	垫圈 (.406 x .812 x .065) (适用时使用)	WASHER (.406 x .812 x .065) (USE WHERE APPLICABLE)	24
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	90390A1	盖板套件	COVER KIT	2
7	75692	节温器	THERMOSTAT	2
8	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	3
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	3
11	68728	接头	FITTING	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	97465	温度传感器 (右舷)	SENDER Temperature (STBD.)	1
14	43517A9	隔板总成	PLATE ASSEMBLY	1
15	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
16	146972	衬垫	GASKET	1
17	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
18	75953	簧片阀组	REED BLOCK	6
19	75362A1	簧片组件	REED ASSEMBLY	6
20	961832	簧片夹	CLAMP Reed	12
21	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	60
22	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
23	96529	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	6
24	814612	热空气阀 (旧设计)	VALVE Thermal Air (OLD DESIGN)	1
25	23567	卡扣	CLIP	1
26	69205	C形垫圈	C WASHER	1
26	8M0084613	C形垫圈	C-WASHER	1
27	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
27	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
28	13536A7	温度传感器总成 (左舷) (2线)	SENSOR ASSEMBLY Temperature (PORT) (2-WIRE)	1
28A	13536A6	温度传感器总成 (左舷) (4线)	SENSOR ASSEMBLY Temperature (PORT) (4-WIRE)	1
29	137151	固定座	RETAINER	2
30	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
31	56759	倒钩接头	FITTING Barbed	4
32	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
33	42698	止回阀 (压入式 13/16")	CHECK VALVE (PRESS-IN 13/16")	7
33	426982	止回阀	CHECK VALVE	7
33	42623	止回阀 (压入式 11/16")	CHECK VALVE (PRESS-IN 11/16")	1
33	426233	止回阀	CHECK VALVE	1
34	822715	弯头配件 (压入式)	FITTING Elbow (PRESS-IN)	6
35	55098	J型卡扣	J CLIP	1
35	8M0024808	J型夹	J-CLIP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 103启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	660153	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	15383	驱动套件	DRIVE KIT	1
2	133101	驱动器	DRIVE	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	安装板	PLATE	1
4	15384	贯穿螺栓	THRU BOLT	2
5	15385	电枢	ARMATURE	1
6	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
6	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	15386	端盖	END CAP	1
7	15386001	端盖	END CAP	1

图 104旋转支架与转向臂 Swivel Bracket And Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710A20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
1	8710A21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33466	O型圈	O-RING	1
5	67668	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A2	黑色圆端旋转销总成	SWIVEL PIN ASSEMBLY Round End, Black	1
9	99661A4	灰色水手圆端旋转销总成	SWIVEL PIN ASSEMBLY Mariner Round End, Gray	1
9	99661A7	牡蛎色旋转销总成	SWIVEL PIN ASSEMBLY Oyster	1
9	99661A18	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A18	灰色旋转销总成	SWIVEL PIN ASSEMBLY Gray	1
9	99661A26	黑色短端旋转销总成	SWIVEL PIN ASSEMBLY Stub End, Black	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A27	灰色短端旋转销总成	SWIVEL PIN ASSEMBLY Stub End, Gray	1
9	99661A36	ORD 99661A35	ORD 99661A35	1
10	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	34863	螺母 (.375-24)	NUT (.375-24)	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
14	888821	加长缓冲器	BUMPER X-Long	1
14	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
15	78854	波形垫圈	WAVE WASHER	1
16	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
16	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
16	42961A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
16	42961T2	ORD 42961A06	ORD 42961A06	1
16	42961A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
17	67684	挡圈	RING Retaining	1
18	67670	垫圈	WASHER	1
19	99653	支架	BRACKET	1
20	99619	下轴	SHAFT Lower	1
21	821539	三叶销	PIN Trilobe	2
22	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
23	400258	不锈钢锁紧垫圈 (M10)	LOCKWASHER (M10) Stainless Steel	6
24	818298A1	阳极套件	ANODE KIT	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000332	螺钉(M6x35)	SCREW (M6 x 35)	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	99724A2	黑色减震器	SHOCK ABSORBER Black	1
27	99724T15	减震器-黑色	SHOCK ABSORBER-BL	1
27	99724A3	灰色减震器	SHOCK ABSORBER Gray	1
27	99724T15	减震器-黑色	SHOCK ABSORBER-BL	1
27	99724A10	牡蛎色减震器	SHOCK ABSORBER Oyster	1
27	99724T15	减震器-黑色	SHOCK ABSORBER-BL	1
28	821207	衬套	BUSHING	2
29	99625	上轴	SHAFT Upper	1
29	99625002	轴	SHAFT	1
30	821180A3	Sea Ray配平传感器总成	SENDER ASSEMBLY Trim Sea Ray	1
30	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
31	56682	Sea Ray螺钉(#10-24x.750)	SCREW (#10-24 x .750) Sea Ray	2
31	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
32	26996	Sea Ray不锈钢锁紧垫圈(#10)	LOCKWASHER (#10) Stainless Steel Sea Ray	2
33	89302	Sea Ray垫圈(.203x.406x.040)	WASHER (.203 x .406 x .040) Sea Ray	2
34	11288	底部轭架加长缓冲器	BUMPER Bottom Yoke X-Long	1
34	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1

图 105油门杆与换挡轴 Throttle Lever And Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	55171	衬套	BUSHING	1
2	62459	球头总成	BALL JOINT ASSEMBLY	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
4	76035	杆	ROD	1
5	46438	螺母 (#10-32)	NUT (#10-32)	1
6	41094A3	杠杆总成 (设计I)	LEVER ASSEMBLY (DESIGN I)	1
6	823705A1	点火提前杠杆 (设计II)	LEVER Spark Advance (DESIGN II)	1
7	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
8	64015	螺母 (.250-20)	NUT (.250-20)	1
9	26852	尼龙帽	CAP Nylon	1
10	93254	旋转底座	SWIVEL BASE	1
11	93421	旋转球头	SWIVEL BALL	1
12	823706	连接杆	LINK	1
13	74897	枢轴	PIVOT	1
13	74897T	枢轴	PIVOT	1
14	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
15	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
16	48039	盖帽	CAP	1
17	823235	弹簧	SPRING	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
20	64015	螺母 (.250-20)	NUT (.250-20)	1
21	26852	尼龙帽	CAP Nylon	1
22	39483	闩锁	LATCH	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	弹簧	SPRING	1
25	35045	螺母(.250-28)	NUT (.250-28)	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	41095	杠杆	LEVER	1
26	410952	杠杆	LEVER	1
27	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
28	55164	衬套	BUSHING	1
29	14638	套筒	BARREL	1
30	814929	杆	ROD	1
31	932481	衬套	BUSHING	1
31	8M0215006	旋转衬套	BUSHING Swivel	1
32	35045	螺母(.250-28)	NUT (.250-28)	1
32	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
33	20353	螺柱 (.250-28 x 1.750)	STUD (.250-28 x 1.750)	1
34	815539T	节气门凸轮	CAM Throttle	1
35	814283A2	支架总成	BRACKET ASSEMBLY	1
36	39519	杯套	CUP	1
37	42975	传动螺钉	DRIVE SCREW	2
38	98889	闩锁	LATCH	1
39	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	3
39	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
40	79932A11	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
40	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
40	79932A12	换挡轴总成 (加长)	SHIFT SHAFT ASSEMBLY (X-LONG)	1
40	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
41	814284	导向块	GUIDE BLOCK	1
42	20099	弹簧	SPRING	1
43	67073A1	连杆总成	LINK ROD ASSEMBLY	1
44	52100	耐磨板	WEAR PLATE	1
45	38279	闩锁	LATCH	1
45	8M0036768	闩锁	LATCH	1
46	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
47	35045	螺母(.250-28)	NUT (.250-28)	1
47	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
48	26600	衬套	BUSHING	1
49	29720	波形垫圈	WAVE WASHER	1
50	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
51	35045	螺母(.250-28)	NUT (.250-28)	1
51	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
52	814281A1	怠速稳定换挡套件	IDLE STABILIZING SHIFT KIT	1
53	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
54	27882	垫圈	WASHER	2
55	17461A3	电阻模块	RESISTOR MODULE	1

图 106专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量
-	36392	化油器量具	GAUGE TOOL Carburetor	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	99379	正时灯	TIMING LIGHT	1
-	825207A1	TPI/CDM测试线束总成	HARNESS ASSEMBLY TPI/CDM Test	1
-	112301	对正工具	ALIGNMENT TOOL	1
-	NSS	夹头(不单独销售)(SNAP ON - CG41-14)	NOT SOLD SEPARATE Collet (SNAP ON - CG41-14)	1
-	NSS	膨胀杆(不单独销售)(SNAP ON - CG41-11)	NOT SOLD SEPARATE Expanding Rod (SNAP ON - CG41-11)	1
-	822778A3	下压力套件	DOWN PRESSURE KIT	1
-	99750A1	万用表	MULTI METER	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	29287	量规工具	GAUGE TOOL	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	812549	动力头支架	STAND Powerhead	1
-	812549T	动力头支架	STAND Powerhead	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1

图 107顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	828354T8	顶罩总成(黑色)	TOP COWL ASSEMBLY Black	1
1	828354T9	银色顶罩总成	TOP COWL ASSEMBLY Silver	1
1	828354A10	银色顶罩与黑色盖总成	TOP COWL ASSEMBLY Silver Cowl And Black Cap	1
2	828716A2	盖帽	CAP	1
3	828352	密封件	SEAL	1
4	8283511	密封件	SEAL	1
5	821875F1	上盖	CAP Upper	1
5	8218751	上盖-黑色	CAP-UPPER-BLACK	1
5	821875F2	上盖	CAP Upper	1
5	821875F1	上盖	CAP Upper	1
6	819813T1	盖板锁扣支架	BRACKET Cover Latch	1
7	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
7	893763	滚轮锁扣支架	BRACKET Roller Latch	1
8	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
9	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
10	F481434	罩盖锁扣导架	GUIDE Cowl Latch Bracket	2
11	91925	压入式螺母	PUSH NUT	4
12	822512	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
13	823865	盖塞	CAP PLUG	2
14	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
15	823830	支架	SUPPORT	2
16	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	2
17	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
18	8233941	支架	BRACKET	1
19	8237515	螺母(M4)	NUT (M4)	2
20	823583A1	隔音毯套装	SOUND BLANKET KIT	1
20	823583A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
21	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
22	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 108艉板支架（序列号0G589999及以下） Transom Brackets (S/N-0G589999 & Below)

REF	零件编号	中文名称	英文名称	数量
1	8718F7	艉板支架	BRACKET Transom	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂加注口接头	FITTING Grease Port	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	47525	螺母 (.875-14) 底部	NUT (.875-14) Bottom	1
5	826125A1	倾斜管	TILT TUBE	1
6	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
7	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
8	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
9	826164	螺母 (.875-14)	NUT (.875-14)	1
9	8M0231351	锁紧螺母	NUT Lock	1
10	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	螺母	NUT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	杠杆总成	LEVER ASSEMBLY	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈	WAVE WASHER	1
15	65830	尼龙衬套	NYLINER	2
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	螺栓总成	BOLT ASSEMBLY	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
22	814207	停机开关	STOP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 109艉板支架（序列号0G590000及以上） Transom Brackets (S/N-0G590000 & Up)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂加注口接头	FITTING Grease Port	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 110线束/启动继电器 Wiring Harness/Starter Solenoid

REF	零件编号	中文名称	英文名称	数量
1	434292	点火板	IGNITION PLATE	1
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
4	94453	衬套	BUSHING	2
5	62310A2	拉线总成	CABLE ASSEMBLY	1
6	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
7	60871A10	线束总成	WIRE ASSEMBLY	2
8	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	3
8	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	螺钉(1.25)	SCREW (1.25)	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈	WASHER	6
13	67264	垫圈(橡胶)	WASHER (Rubber)	6
14	67268	衬套	BUSHING	3
15	91865A1	线缆总成(3英寸-白/黑)	CABLE ASSEMBLY (3" - WHITE/BLACK)	1
15	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
16	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
16	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
17	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
18	814634	卡箍(旧款)	CLAMP (OLD DESIGN)	1
19A	826730A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
19	96220A16	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
20	79091	保险丝20安培	FUSE 20 Ampere	1
20	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	78866	绝缘体	INSULATOR	1
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
25	68258A4	启动电磁阀总成(设计I型)	SOLENOID ASSEMBLY Starter (DESIGN I)	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母(.312-18)	NUT (.312-18)	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
29	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
32	194372	端子排	TERMINAL BLOCK	1
33	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
34	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
35	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
36	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
37	818968	衬套	BUSHING	2
37	8M0214955	衬套	BUSHING	2
