水星 Mercury 100 4 CYL 0P017000 THRU 0P058999 - 爆炸图零件明细

两冲程化油器 · Belgium - Cat.# 90-803168 · 共 121 个部位 · 4943 条零件

1衰减板 2喷泵组件 3油门杆与联动装置 4顶罩（序列号USA-0G301750/BEL-9885504及以下）5转向手柄组件 6动力升降倾斜泵 7钥匙对照表 8飞轮与启动电机 9进气歧管与簧片阀组 10喷泵总成 11启动电机（博世）12机油喷射系统（USA:0G301750/BEL:9885504及以下）13燃油泵（配直列止回阀，参考编号24）14气缸体与曲轴箱 15动力升降倾斜组件（单液压缸设计）16曲轴活塞及连杆(#638-8532--1)17旋转支架与转向臂 18动力升降倾斜组件 19转向手柄 20泄放系统 21顶罩 22专用工具 23专用工具 24动力升降倾斜装置（黄色注油塞）（G359968/9934137及以上）25飞轮/启动电机（USA-0G438000/BEL-9927000及以上）26动力升降倾斜电机 27齿轮箱（螺旋桨轴）（6爪倒车离合器）28喷泵总成 29启动电机 30机油喷射系统（USA-0G301751/BEL-9885505及以上）31附件 32曲轴、活塞与连杆 33进气歧管与簧片阀组 34驱动轴壳体 35电气组件（USA-0G438000/BEL-9937000及以上）36喷泵组件 37艉板支架（序列号USA-0G589999/BEL-9973099及以下）38齿轮箱对照表（2.07:1/2.31:1齿轮比）39动力升降倾斜装置（黑色注油塞）（G359967/9934136及以下）40齿轮箱驱动轴 41化油器WME-32/32A/33/34/40/40A 42泄放系统（序列号USA-0G301751/BEL-9885505及以上）43杂项零件/附件 44化油器 45齿轮箱（螺旋桨轴）（3爪倒车离合器）46电气组件 47外罩安装支架 48顶罩（序列号USA-0G301751/BEL-9885505及以上）49艉板支架 50电气组件（USA-0G437999/BEL-9926999及以下）51维修/支撑材料 52副驾驶装置 53气缸体与曲轴箱 54飞轮与启动电机 55油门与联动装置 56燃油泵 57驱动轴壳体 58艉板支架（序列号USA-0G590000/BEL-9973100及以上）59外罩与前盖 60排气板 61启动马达 62曲轴活塞及连杆(646-818846)63下机罩 64齿轮箱（驱动轴）（6爪倒车离合器）65燃油泵 66曲轴、活塞与连杆 67化油器WME-50/51/52/79/80/81 68齿轮箱螺旋桨轴 69转向手柄组件 70附件 71飞轮/启动马达 USA:0G437999/BEL:9926999 及以下 72旋转支架与转向臂（8709C6 / 818904C）73齿轮箱（驱动轴）（3爪反向离合器）74燃油泵（配90度止回阀，参考编号16）75机油喷射组件 76动力升降倾斜组件（三液压缸设计I型）77舵柄适配器套件（JET 80）78油门杆及联动装置 79旋转支架与转向臂 80气缸体与曲轴箱 81动力升降倾斜组件（三液压缸设计II型）82缓冲板 83下罩 84排气板 85附件 86衰减板 87泄放系统 88下罩 89化油器 90副驾驶装置 91曲轴、活塞与连杆 92气缸体与曲轴箱 93驱动轴壳体 USA-0T800999/BEL-0P267999 及以下 94驱动轴壳体 USA-0T801000/BEL-0P268000 及以上 95电气组件 96排气板（序列号 USA-0T800999/BEL-0P267999 及以下）97排气板（序列号 USA-0T801000/BEL-0P268000 及以上）98飞轮与启动电机 99燃油泵 100发动机大修衬垫组件 101驱动齿轮箱 USA-0T627234/BEL-0P215668 及以下 102驱动齿轮箱 2.07:1 USA-0T627235/BEL-0P215669 及以上 103推进齿轮箱 2.07:1 USA-0T627235/BEL-0P215669 及以上 104推进齿轮箱 USA-0T627234/BEL-0P215668 及以下 105进气歧管与簧片阀组 106喷泵总成 107喷泵组件 108钥匙对照表 109机油喷射组件 110动力升降倾斜组件 111维修/支撑材料 112启动电机 113转向手柄 114转向手柄组件 115旋转支架与转向臂 116油门杆及联动装置 117舵柄适配器套件（JET 80）118专用工具 119顶罩 120艉板支架（序列号 USA-0T800999/BEL-0P267999 及以下）121艉板支架（序列号 USA-0T801000/BEL-0P268000 及以上）

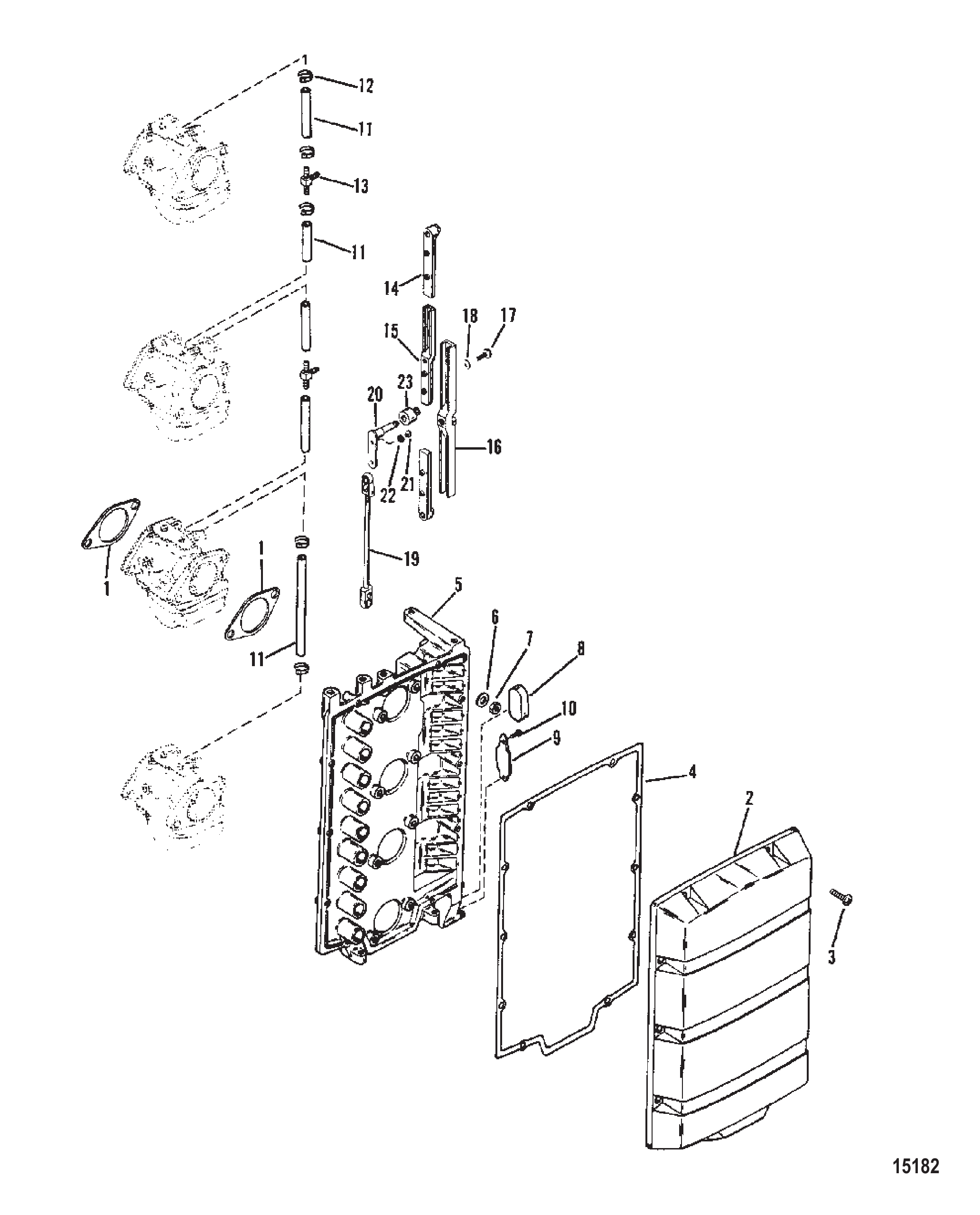

图 1衰减板 Attenuator Plate

REF	零件编号	中文名称	英文名称	数量
1	151723	衬垫	GASKET	8
2	44342T	盖板	COVER	1
2	44342A1	盖板	COVER	1
3	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	10
4	NLA	已停产垫片(旧设计)	No Longer Available Gasket, Old Design	1
5	443403	衰减器板	PLATE Attenuator	1
5	44340A2	衰减器板总成	PLATE ASSEMBLY Attenuator	1
6	4002217	垫圈	WASHER	8
7	823861	螺母	NUT	8
7	826365	螺母 (M8)	NUT (M8)	8
8	39519	杯套	CUP	1
9	98889	闩锁	LATCH	1
10	42975	传动螺钉	DRIVE SCREW	2
11	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	AR
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	17762	异径三通	REDUCING TEE	2
14	988861	连接杆	LINK	2
14	98886T01	油门调节连杆	LINK-THRTL ADJUST	2
15	44336	节气门上连杆	LINK Throttle Upper	1
16	98887	节气门主连杆	LINK Throttle Main	1
16	98887T	连接杆	LINK	1
17	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	6
18	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	6
18	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	6
19	193859	连杆	LINK ROD	1
20	11399A1	臂总成	ARM ASSEMBLY	1
21	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
22	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
22	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
23	67748	滚轮	ROLLER	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 2喷泵组件 Jet Pump Components

REF	零件编号	中文名称	英文名称	数量
1	821889A51	转速限制器	REV LIMITER	1
2	823147A7	转速限制器线束总成	HARNESS ASSEMBLY Rev Limiter	1
3	11149A8	适配器线束总成	HARNESS ASSEMBLY Adapter	1
4	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
5	30500A2	润滑脂套装	GREASE KIT	1
5	30500K2	注脂枪与润滑剂	GUN AND LUBE	1
6	430331	衬垫	GASKET	1
7	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
8	817277	衬垫	GASKET	1
8	8172771	水泵上垫片	GASKET Water Pump, Upper	1
9	817276	面板	FACEPLATE	1
9	8M0204709	面板	FACEPLATE	1
10	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
11	430232	密封件	SEAL	1
12	43037	键	KEY	1
12	8M0204723	键	KEY	1
13	430262	叶轮	IMPELLER	1
13	43026T2	叶轮	IMPELLER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

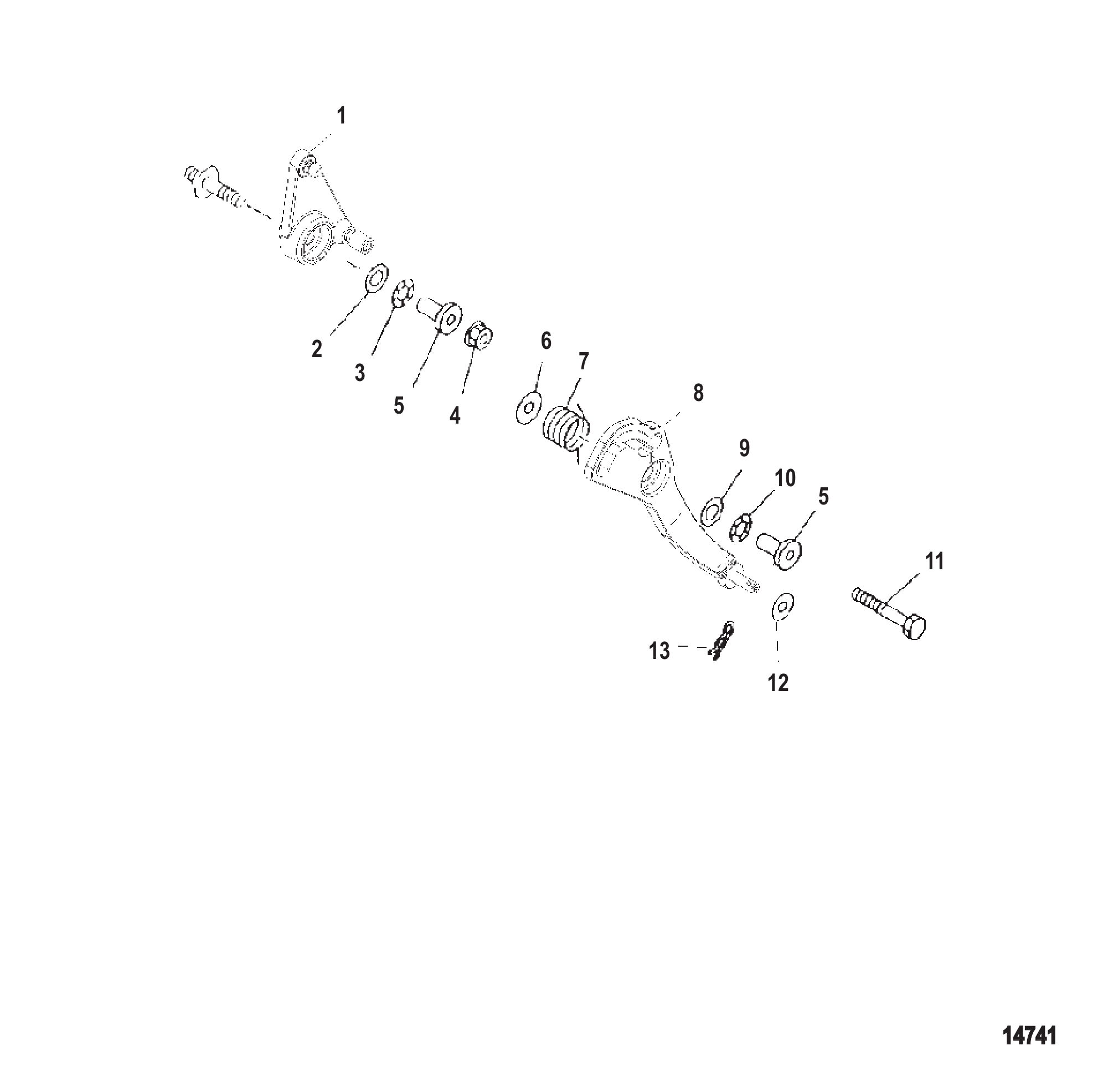

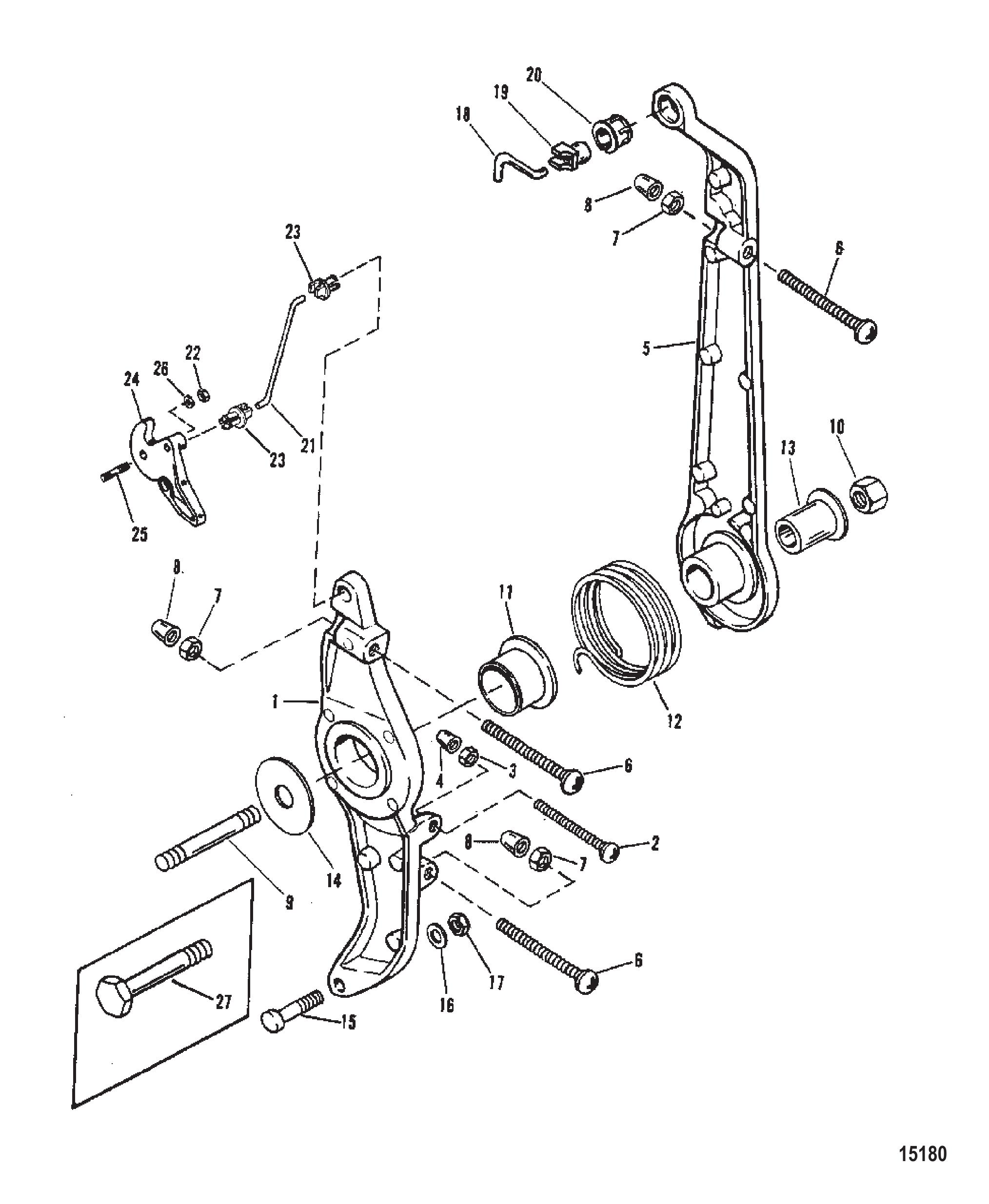

图 3油门杆与联动装置 THROTTLE LEVER AND LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	878550	油门杆	LEVER Throttle	1
2	84974M	垫圈	WASHER	1
3	81868M	波形垫圈	WAVE WASHER	1
4	8528162	螺母	NUT	1
5	881378	轴环	COLLAR	2
6	94524M	垫圈	WASHER	1
7	804343	弹簧	SPRING	1
8	878548	节气门控制杆	LEVER Throttle Control	1
9	84974M	垫圈	WASHER	1
10	81868M	波形垫圈	WAVE WASHER	1
11	881375	螺栓 (M6 x 30)	BOLT (M6 x 30)	1
12	35459	垫圈	WASHER	1
13	859746	开口销	COTTER PIN	1

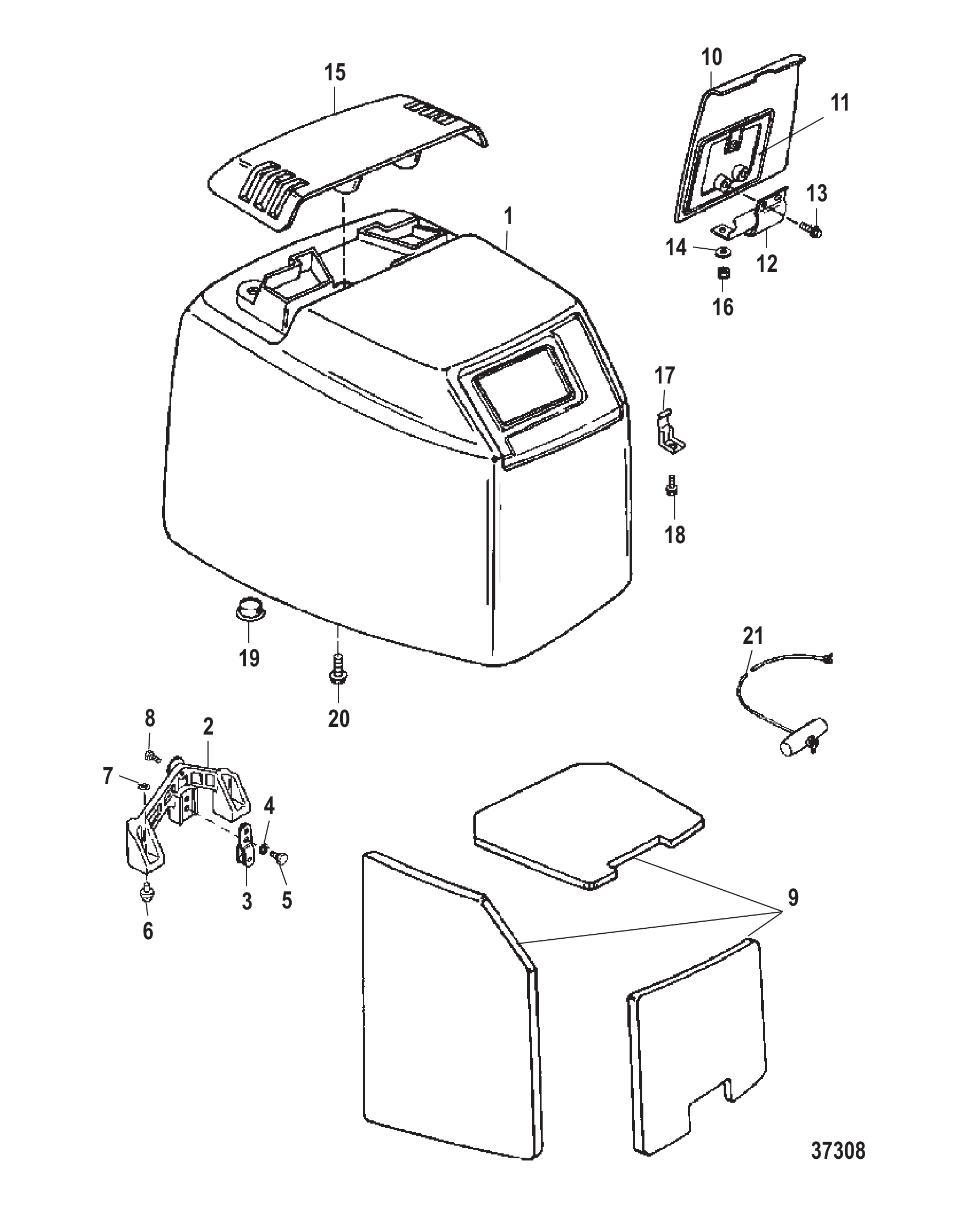

图 4顶罩（序列号USA-0G301750/BEL-9885504及以下） TOP COWL (S/N-USA-0G301750/ BEL-9885504 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	828354A11	顶盖总成	TOP COWL ASSEMBLY	1
1	828354A12	顶盖总成	TOP COWL ASSEMBLY	1
1	828354A13	顶盖总成	TOP COWL ASSEMBLY	1
2	8198131	盖板锁扣支架	BRACKET Cover Latch	1
2	819813T1	盖板锁扣支架	BRACKET Cover Latch	1
3	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
3	893763	滚轮锁扣支架	BRACKET Roller Latch	1
4	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
5	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
6	F481434	罩盖锁扣导架	GUIDE Cowl Latch Bracket	2
7	91925	压入式螺母	PUSH NUT	4
8	822512	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
9	823583A1	隔音毯套装	SOUND BLANKET KIT	1
9	823583A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
10	821912A1	检修门	TRAP DOOR	1
10	821912A2	检修门	TRAP DOOR	1
10	821912A3	检修门	TRAP DOOR	1
11	8239671	检修门密封条	SEAL Trap Door	1
12	8220551	铰链销	PIN Hinge	1
13	82104512	螺钉(M5 x 12)	SCREW (M5 x 12)	2
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
15	821875F1	上盖	CAP Upper	1
15	8218751	上盖-黑色	CAP-UPPER-BLACK	1
15	821875F2	上盖	CAP Upper	1
15	821875F1	上盖	CAP Upper	1
15	821875F3	上盖	CAP Upper	1
15	821875F1	上盖	CAP Upper	1
16	8268336	螺母 (M6)	NUT (M6)	2
16	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
17	8239601	卡扣	CATCH	1
18	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
18	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
19	823865	盖塞	CAP PLUG	2
20	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
21	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

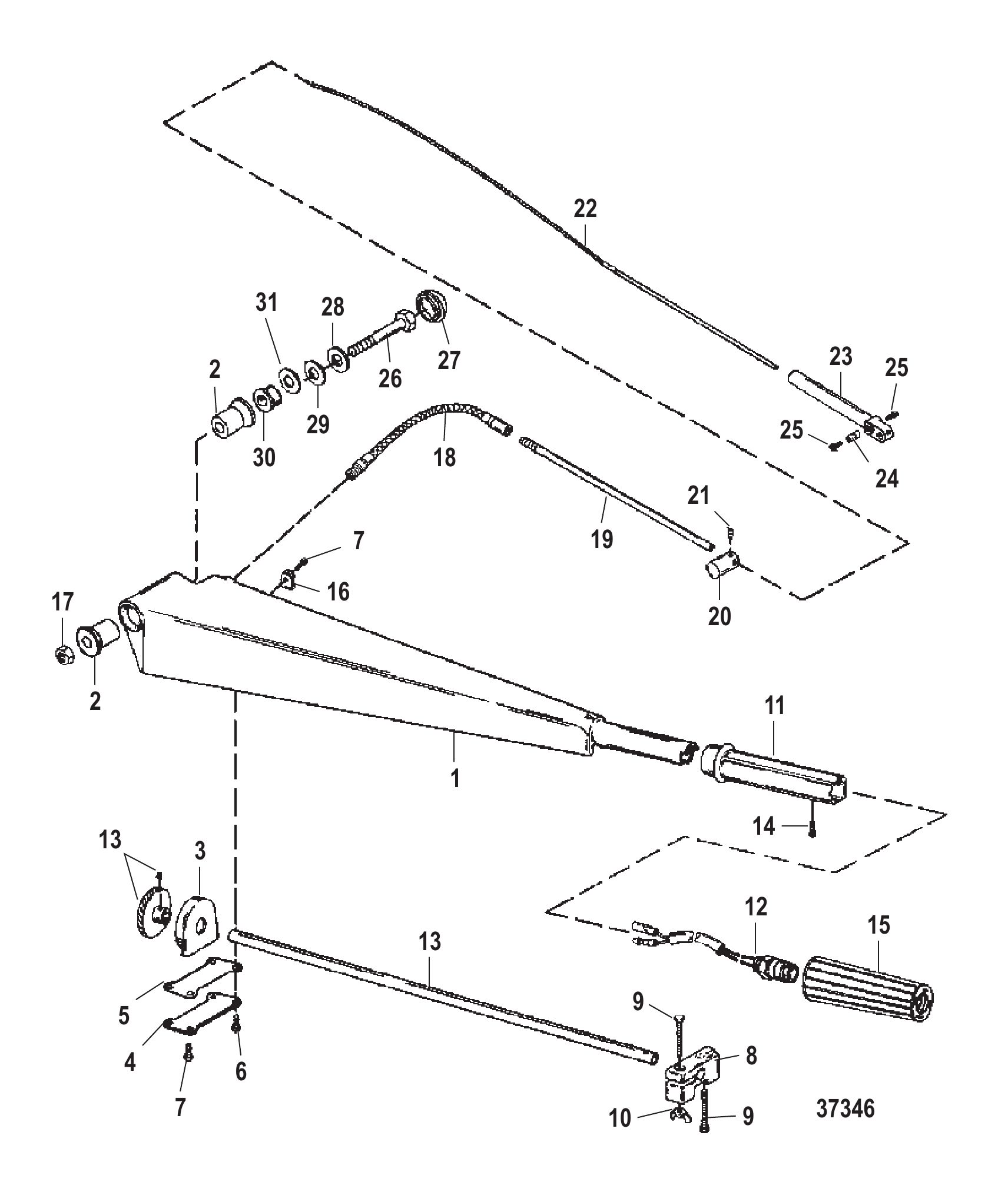

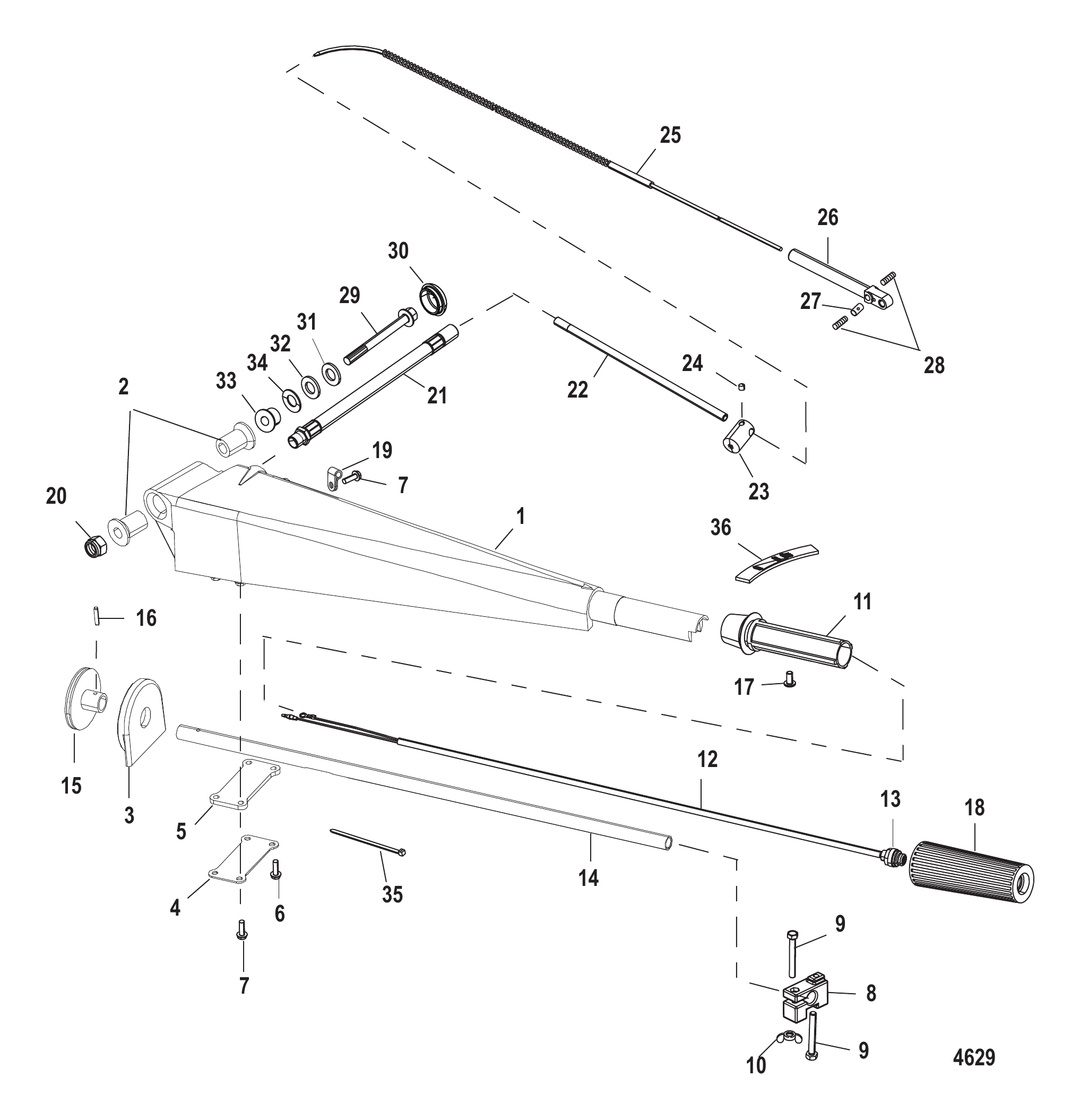

图 5转向手柄组件 STEERING HANDLE COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12020T	转向臂	ARM Steering	1
1	12020T6	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A4	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
2	12018A1	油门拉线管总成	TUBE ASSEMBLY Throttle	1
2	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	72169	板用螺钉(#10-24 x 0.500)	SCREW (#10-24 x .500) PLATE	4
7	12013	油门夹	CLAMP THROTTLE	1
7	889729	卡箍	CLAMP	1
8	40007112	油门夹螺钉(M5 x 40)	SCREW (M5 x 40) THROTTLE CLAMP	2
9	90052	油门夹蝶形螺母	WING NUT THROTTLE CLAMP SCREW	1
9	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
10	96495A2	油门手柄总成	HANDLE ASSEMBLY Throttle	1
10	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
11	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
12	15823A4	停机开关总成	SWITCH ASSEMBLY Stop	1
12	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
13	11099A1	护套总成	BOOT ASSEMBLY	1
14	99589	握把	GRIP	1
14	8M0221732	外握把	GRIP OUTER	1
15	26538	卡扣	CLIP	1
15	648552	卡扣	CLIP	1
16	72169	卡箍螺钉(#10-24 x 0.500)	SCREW (#10-24 x .500) CLIP	1
17	785512	导管	CONDUIT	1
17	8885242	导管	CONDUIT	1
18	895661	导向管	GUIDE TUBE	1
18	8M0026078	导向管	TUBE-GUIDE	1
19	89578	套筒	BARREL	1
20	89601	螺钉	SCREW	1
20	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
21	12019	拉线总成	CABLE ASSEMBLY	1
22	29880	导向拉线	GUIDE CABLE	1
22	8M0204660	导套	GUIDE	1
23	20007	锚定件	ANCHOR	1
24	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
24	8M0204644	螺钉组	SCREW SET	2
25	4000386	螺钉(M10 x 100)	SCREW (M10 x 100)	1
26	48416	盖帽	CAP	1
27	4002319	垫圈	WASHER	1
28	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
29	14601	隔套	SPACER	1
29	146011	隔套	SPACER	1
30	42992	衬套	BUSHING	2
30	812930A1	衬套	BUSHING	2
31	400204	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
31	400214	螺母(M10不锈钢)	NUT (M10) Stainless Steel	1

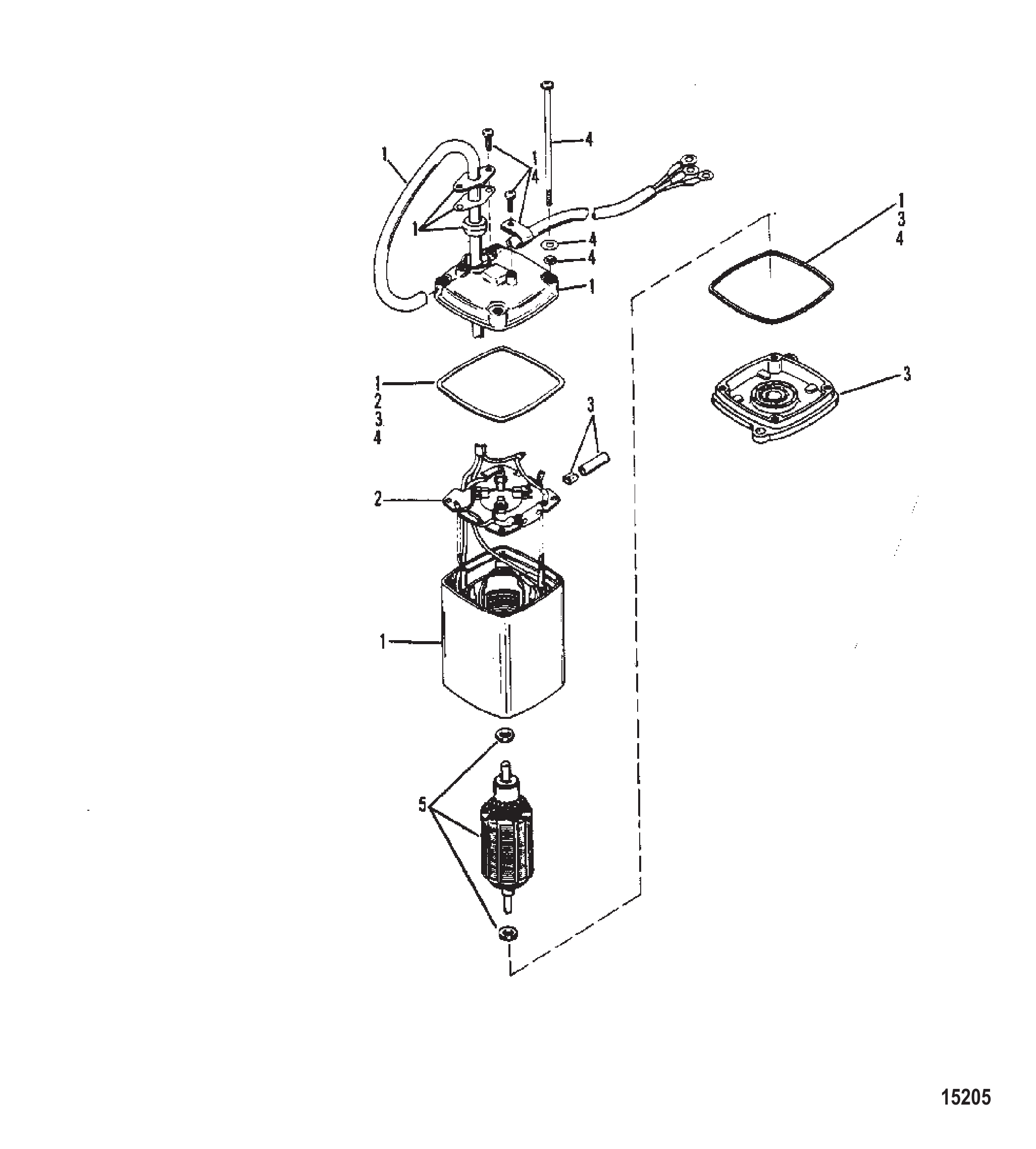

图 6动力升降倾斜泵 Power Trim Pump

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
5	12663	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
7	12661	电枢套件	ARMATURE KIT	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 7钥匙对照表 Key Chart

零件编号	中文名称	英文名称	数量
894911	点火钥匙(1A)	KEY Ignition (1A)	1
894912	点火钥匙(1B)	KEY Ignition (1B)	1
894913	点火钥匙(1C)	KEY Ignition (1C)	1
894914	点火钥匙(1D)	KEY Ignition (1D)	1
894915	点火钥匙(1E)	KEY Ignition (1E)	1
894916	点火钥匙(1F)	KEY Ignition (1F)	1
894917	点火钥匙(2A)	KEY Ignition (2A)	1
894918	点火钥匙(2B)	KEY Ignition (2B)	1
894919	点火钥匙(2C)	KEY Ignition (2C)	1
8949110	点火钥匙(2D)	KEY Ignition (2D)	1
8949111	点火钥匙(2E)	KEY Ignition (2E)	1
8949112	点火钥匙(2F)	KEY Ignition (2F)	1

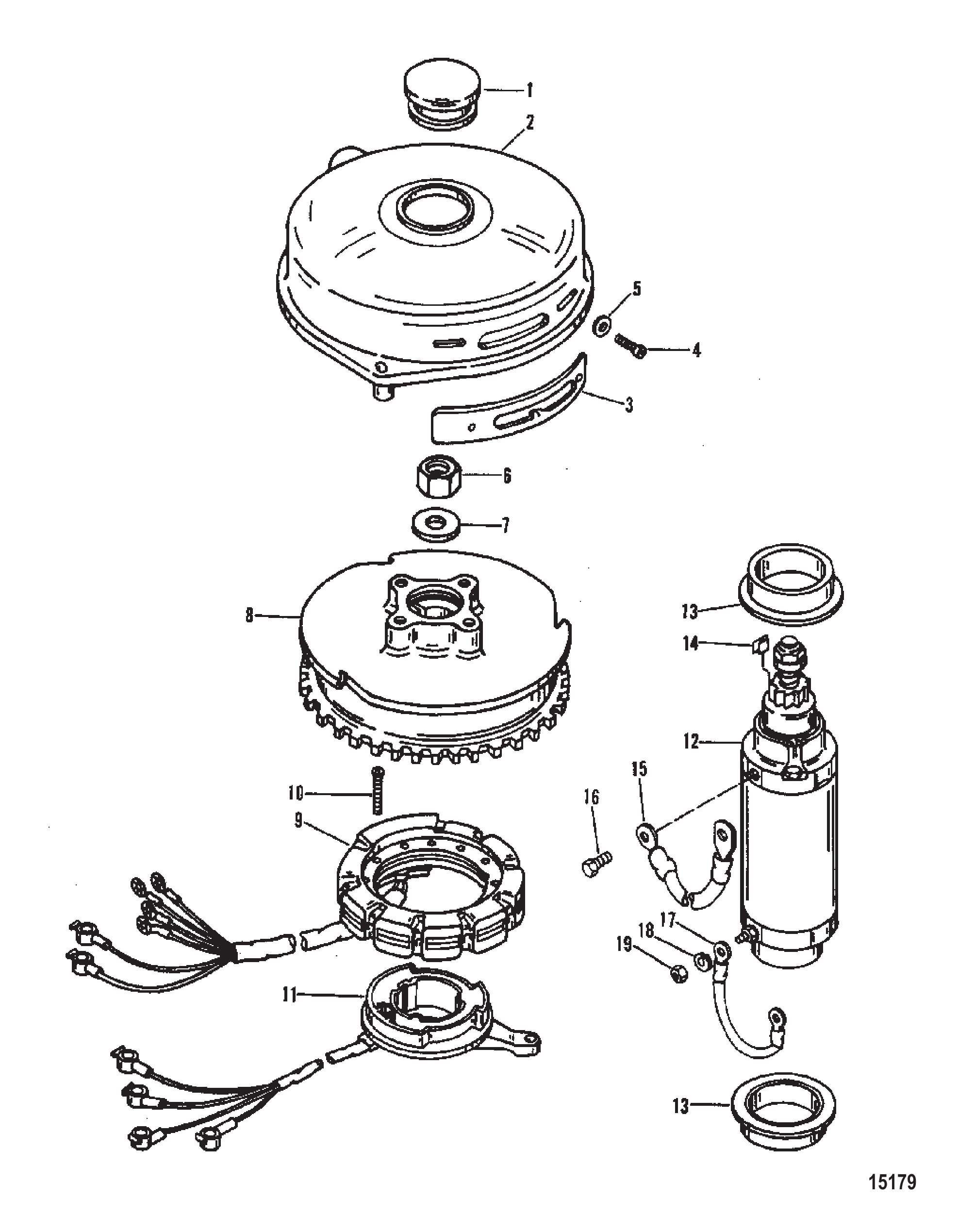

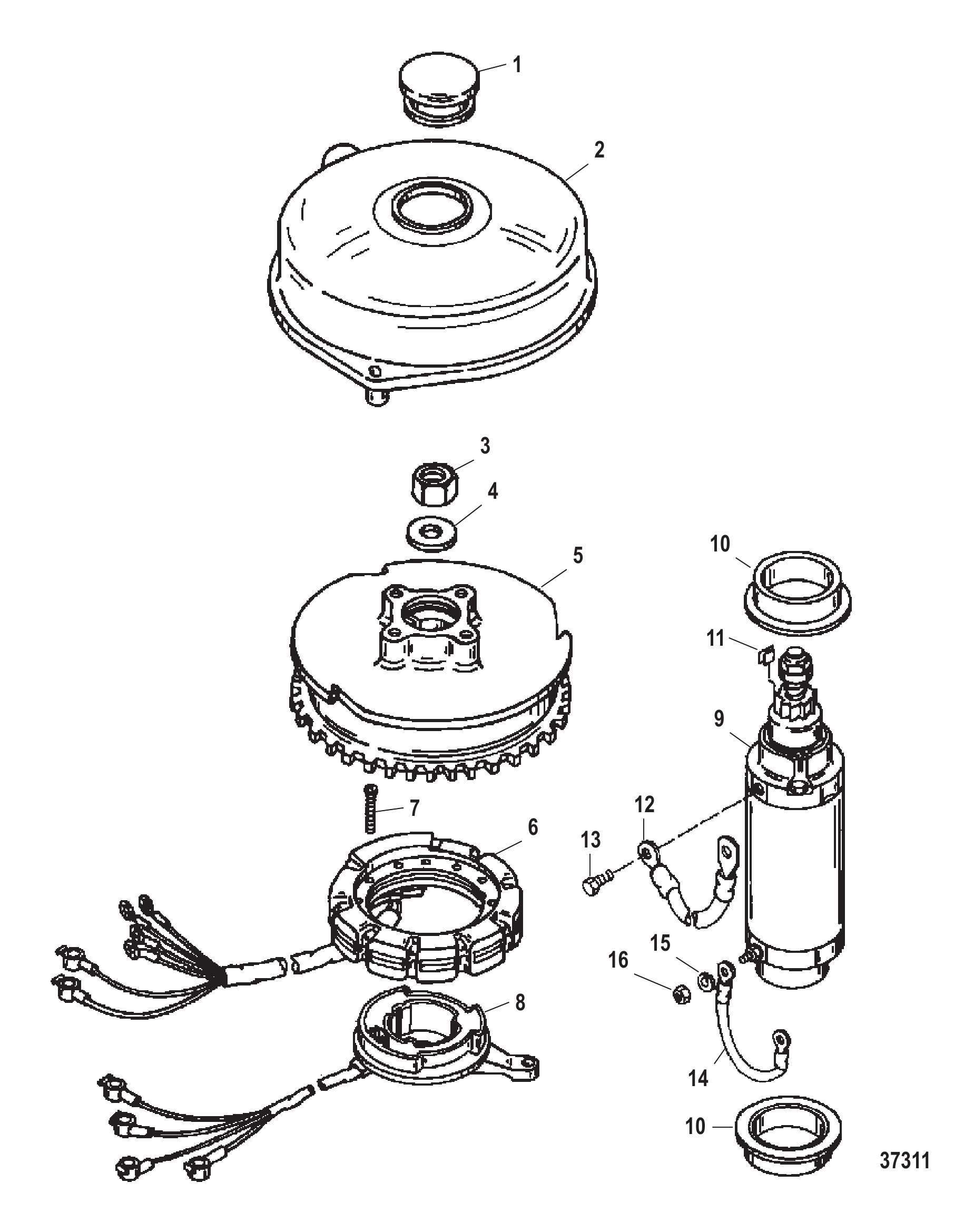

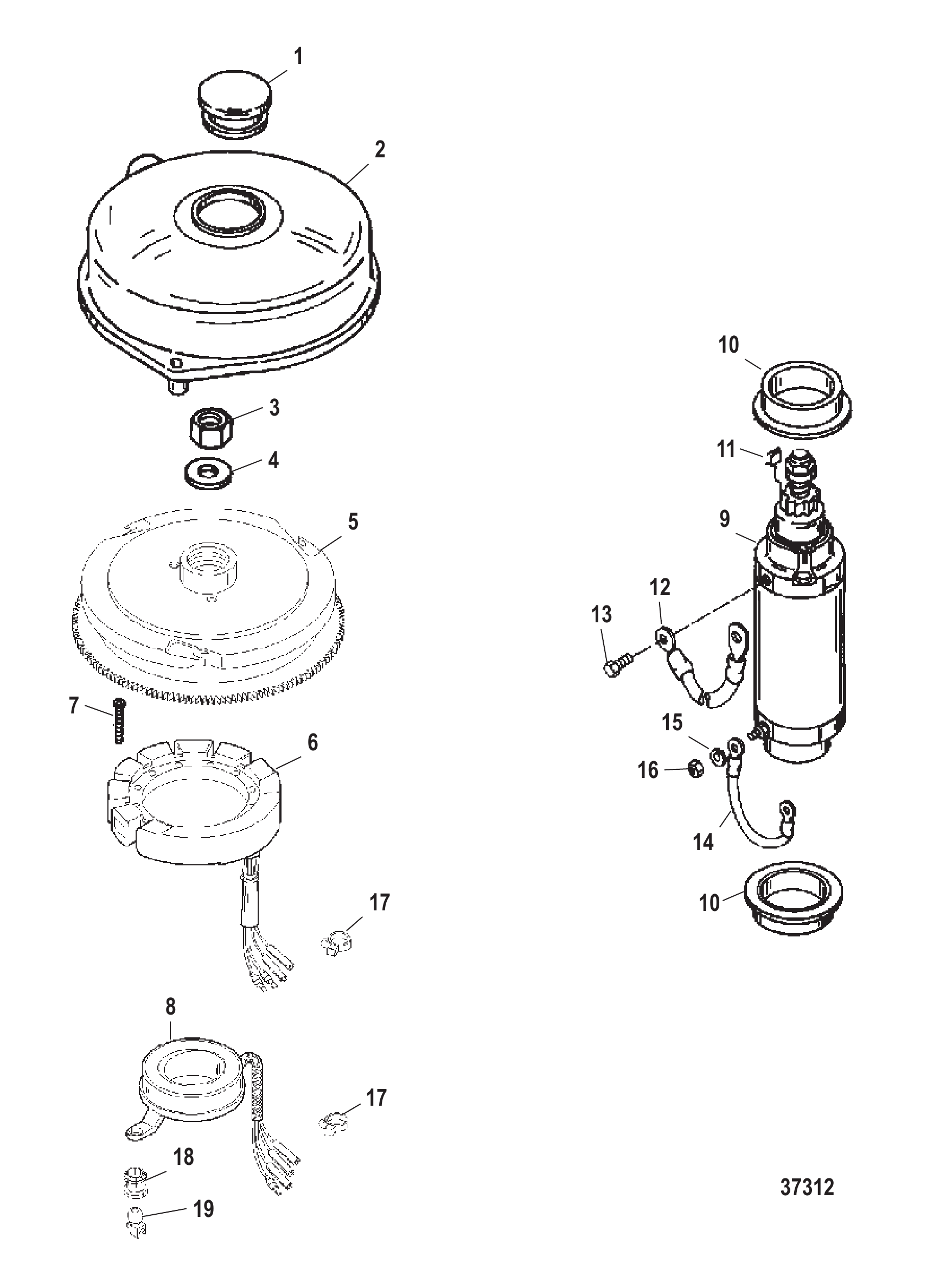

图 8飞轮与启动电机 Flywheel And Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
2	42956A1	飞轮盖总成	COVER ASSEMBLY FLYWHEEL	1
3	79022	正时标记	MARKER TIMING	1
4	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
5	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
6	42979	螺母(M16)飞轮	NUT (M16) FLYWHEEL	1
7	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	9008A16	飞轮总成	FLYWHEEL ASSEMBLY	1
9	8778A10	定子总成	STATOR ASSEMBLY	1
10	4007325	螺钉(M5x25)定子	SCREW (M5 x 25) STATOR	4
11	99021A3	触发器总成	TRIGGER ASSEMBLY	1
12	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	56703	启动电机轴环	COLLAR STARTER MOTOR	2
14	57247	启动电机橡胶止动块	STOP RUBBER-STARTER MOTOR	2
15	93388A1	电缆总成(6.00英寸) 黑色起动机至安装板	CABLE ASSEMBLY (6.00 Inches) Black STARTER MOTOR TO PLATE	1
16	69035	螺钉与锁紧垫圈(.250-20 x .625) 不锈钢导线至起动机	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel WIRE TO STARTER MOTOR	1
17	88439A20	起动机导线(黑色)	WIRE STARTER MOTOR (BLACK)	1
18	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
19	64015	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1

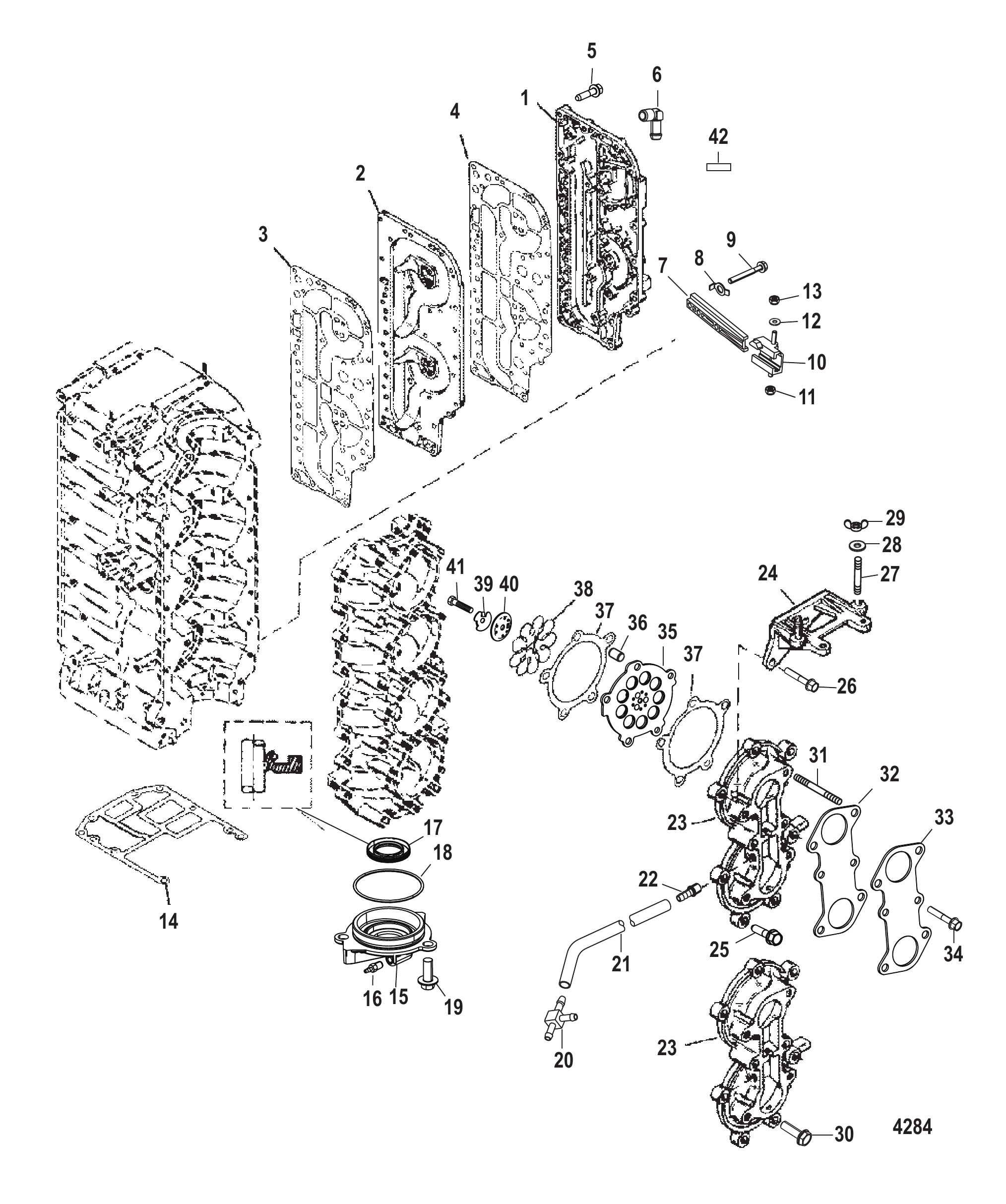

图 9进气歧管与簧片阀组 Induction Manifold And Reed Block

REF	零件编号	中文名称	英文名称	数量
1	812865	衬垫	GASKET	1
2	9812A9	下端盖总成	END CAP ASSEMBLY Lower	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A2	支架总成	BRACKET ASSEMBLY	1
7	19077A3	支架总成	BRACKET ASSEMBLY	1
8	8161941	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	19076A3	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
14	19725	弯头(55号件含2个)	ELBOW (QTY. OF 2 ON 55)	1
15	812869	衬垫	GASKET	1
16	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
17	19075A2	簧片阀总成	REED BLOCK ASSEMBLY	1
17	8M0219197	簧片阀总成	REED BLOCK ASSY	1
18	812868	衬垫	GASKET	1
19	812880A1	簧片组(0.008厚度)	REED SET (0.008 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
19	812880A2	簧片组件(0.010厚度)	REED ASSEMBLY (0.010 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
20	42982	锁紧垫圈	TAB WASHER	3
20	429821	锁紧垫圈	TAB WASHER	3
21	812879	固定座	RETAINER	3
21	812879002	簧片压板	RETAINER Reed	3
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
23	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
24	42981	锁紧垫圈	TAB WASHER	2
25	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
26	988851	滑块	SLIDE	1
27	48475	衬套(II型)	BUSHING (DESIGN II)	1
27	42994	衬套	BUSHING	1
28	29720	波形垫圈	WAVE WASHER	1
29	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
30	400634	螺母 (M6)	NUT (M6)	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	400634	螺母 (M6)	NUT (M6)	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	15026	进气歧管盖	CAP (FOR USE ON INDUCTION MANIFOLD)	3
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

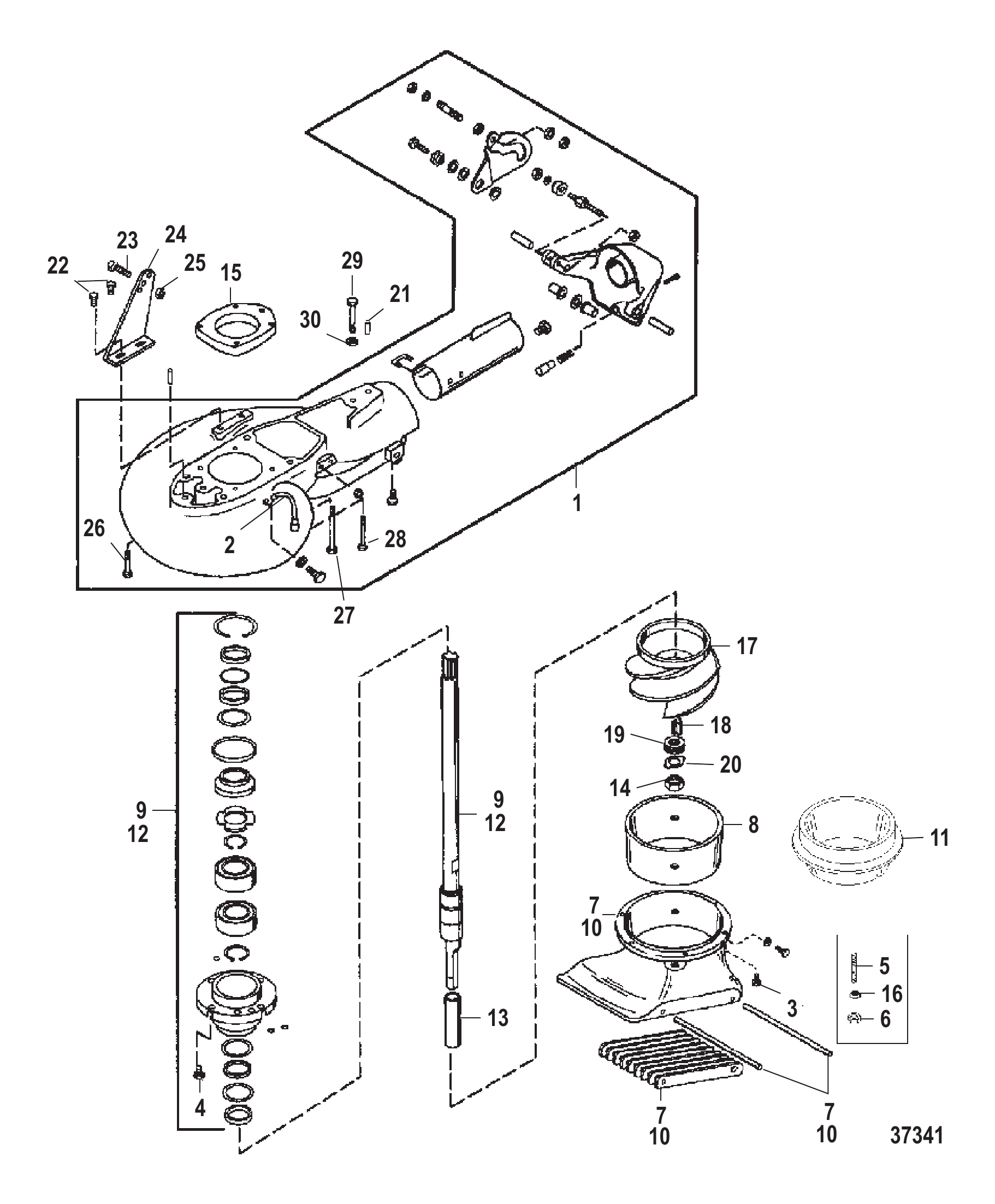

图 10喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	80140060	喷射泵组件(黑色)	JET PUMP ASSEMBLY (BLACK)	1
-	80140160	喷射泵组件(灰色)	JET PUMP ASSEMBLY (GRAY)	1
-	8M0230714	喷射泵总成	JET PUMP ASSY	1
1	80141160	泵壳	HOUSING Pump	1
1	801411T60	泵壳体	HOUSING PUMP	1
1A	827490	润滑油管	HOSE Lube	1
2	80141460	叶轮	IMPELLER	1
2	8M0230713	叶轮	IMPELLER	1
3	80141260	进气壳体	HOUSING Intake	1
3A	8271882	衬套	LINER	1
4	80141360	驱动轴	DRIVESHAFT	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	818146	螺钉(.312-18 X .88)	SCREW (.312-18 X .88)	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
16	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
17	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
18	95802	不锈钢螺钉(.375-16 x 2.750)	SCREW (.375-16 x 2.750) Stainless Steel	1
19	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
19	8M0214963	垫圈	WASHER	1

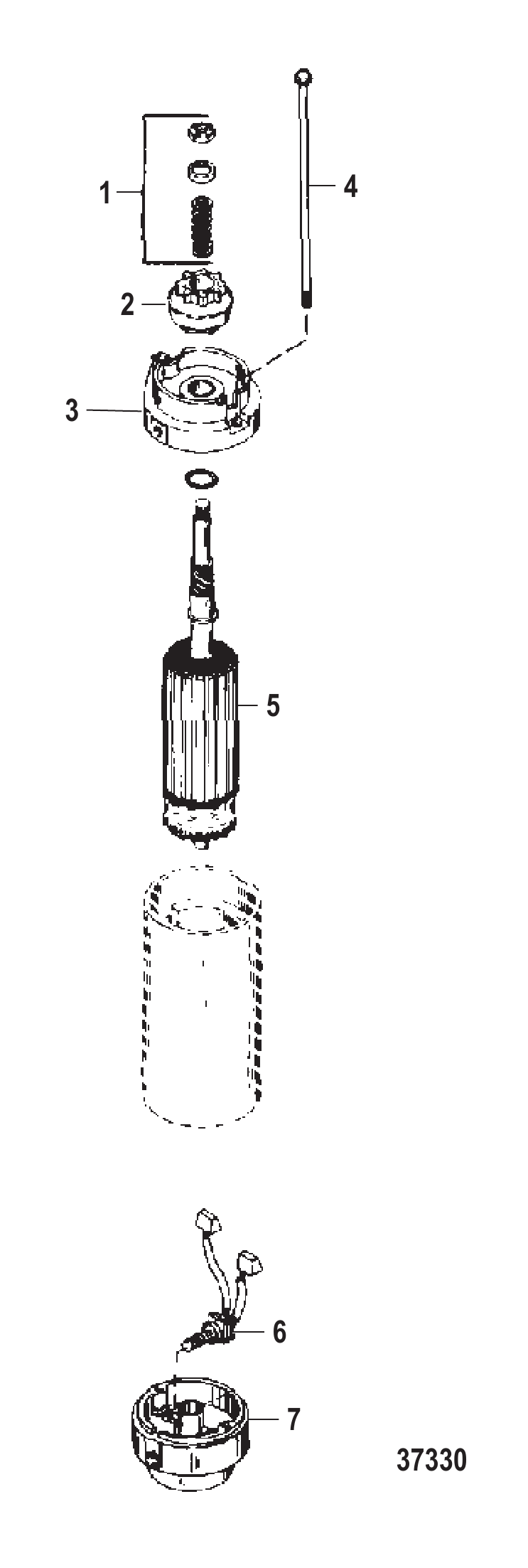

图 11启动电机（博世） Starter Motor (Bosch)

REF	零件编号	中文名称	英文名称	数量
-	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	75385	贯穿螺栓	BOLT THRU	2
6	75386	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387	绝缘衬套	BUSHING INSULATING	1
9	38013	输入柱垫圈	WASHER INPUT STUD	1
10	26992	不锈钢输入柱锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel INPUT STUD	1
11	20890	输入柱螺母(.250-20)	NUT (.250-20) INPUT STUD	1
12	61787	电刷架	HOLDER BRUSH	2
13	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
14	75383	换向器端盖	END CAP COMMUTATOR	1

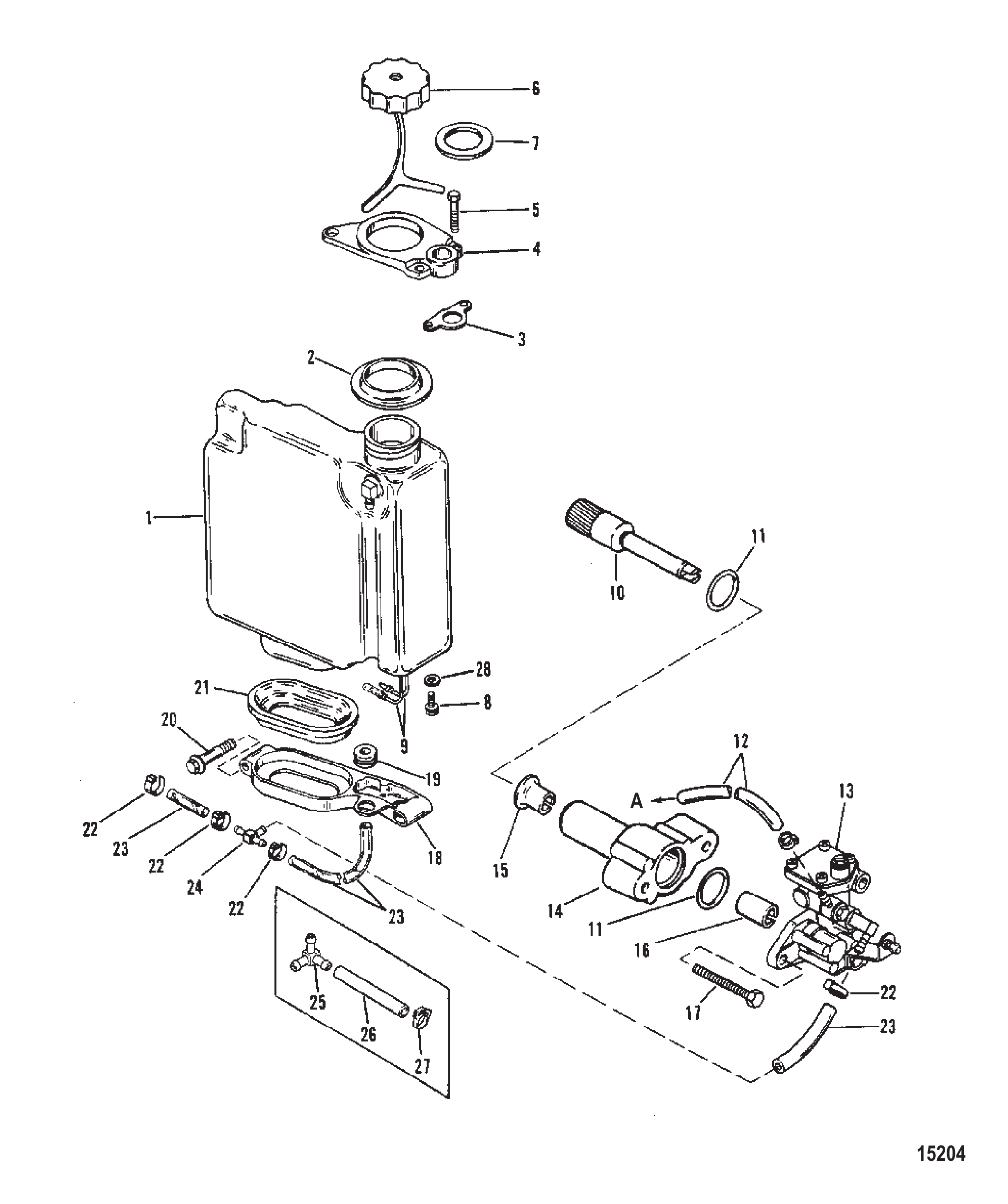

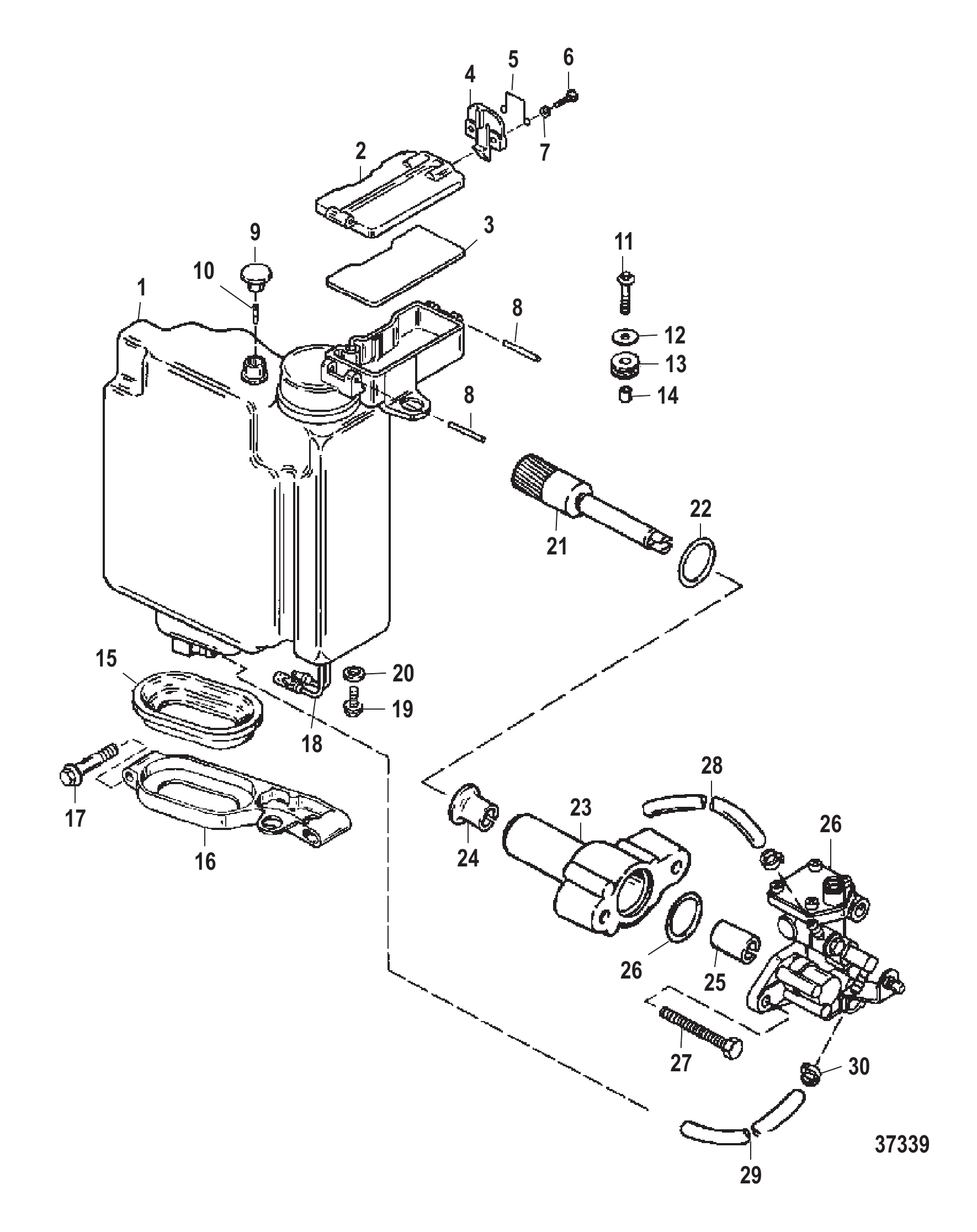

图 12机油喷射系统（USA:0G301750/BEL:9885504及以下） OIL INJECTION (USA:0G301750/BEL:9885504 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	828362A3	油箱总成	TANK ASSEMBLY Oil	1
2	821902A1	盖总成	COVER ASSEMBLY	1
3	8220612	衬垫	GASKET	1
4	824612	闩锁	LATCH	1
5	824611	弹簧	SPRING	1
6	4005666	螺钉(M3.5 x 13)	SCREW (M3.5 x 13)	2
7	27882	垫圈	WASHER	2
8	822059	槽销	PIN Groove	1
8	825259	滚销(.093 X 1.250)	PIN Roll (.093 X 1.250)	1
9	19299A1	通风组件	VENT ASSEMBLY	1
10	64871	阀门	VALVE	1
11	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	1
12	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
12	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
13	42117	护孔环	GROMMET	1
14	42116	衬套	BUSHING	1
15	99161	护套	BOOT	1
16	42888	油箱底座支架	BRACKET Oil Tank Base	1
17	82155050	螺钉(M8x50)不锈钢	SCREW (M8 x 50) Stainless Steel	2
18	12886A6	开关总成	SWITCH ASSEMBLY	1
19	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
20	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
21	430204	从动齿轮	GEAR Driven	1
22	62705	O型圈	O-RING	2
22	8M0204667	O型圈×2	O RING @2	2
23	17335A3	适配器组件	ADAPTER ASSEMBLY	1
24	17597	衬套	BUSHING	1
25	17596	衬套	BUSHING	1
26	443453	油泵	PUMP Oil	1
26	44345T3	油泵	PUMP Oil	1
27	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
28	82381329	油泵用管(12英寸散装)(5-1/2英寸)	TUBING (12.00 Inches Bulk) (5-1/2 IN.) to Oil Pump	1
28	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
29	82381455	管材(25英寸散装)(11英寸)	TUBING (25.00 Inches Bulk) (11 IN.)	1
30	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
30	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
30	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
30	8M0214940	扎带	TIE STRAP	AR
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

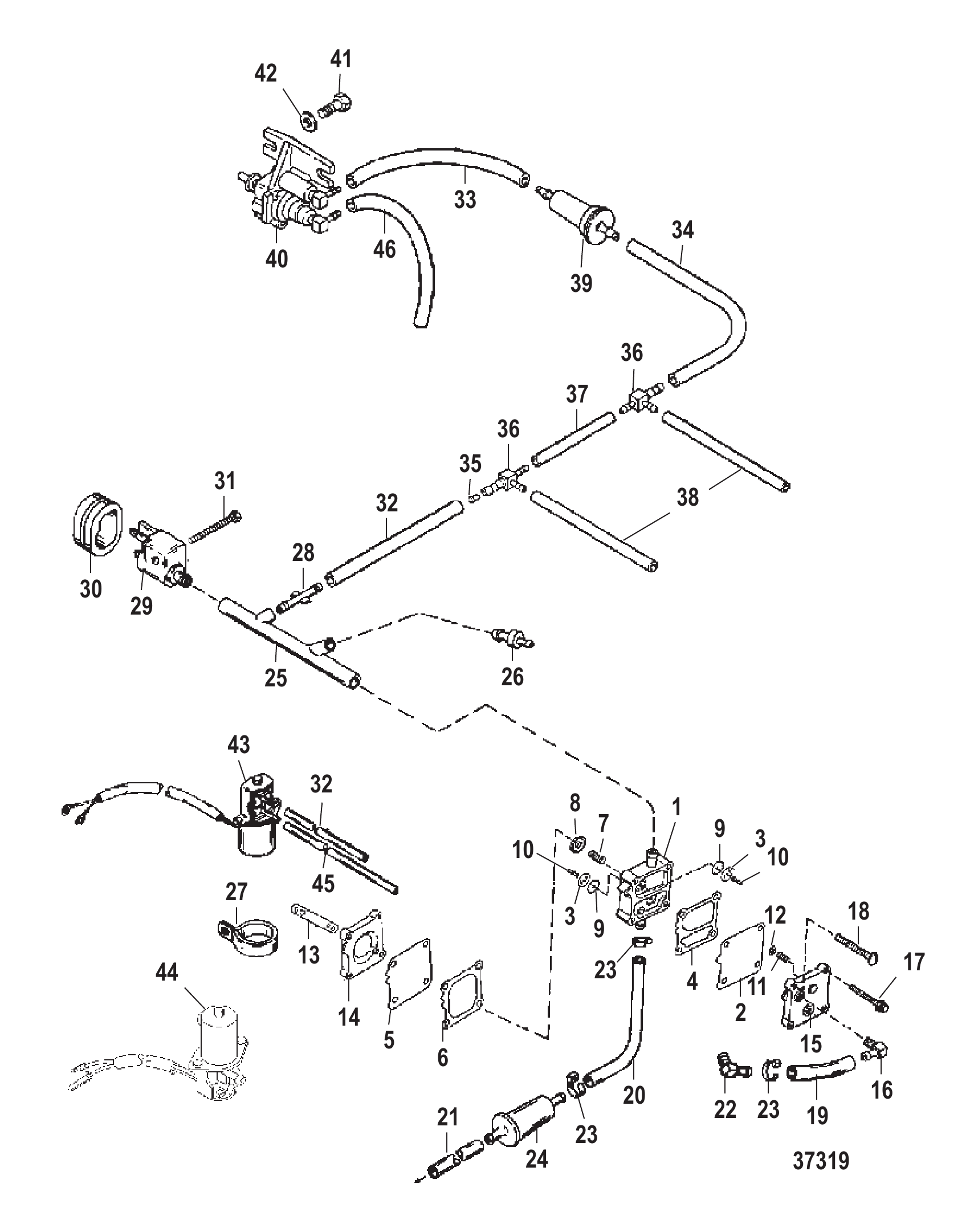

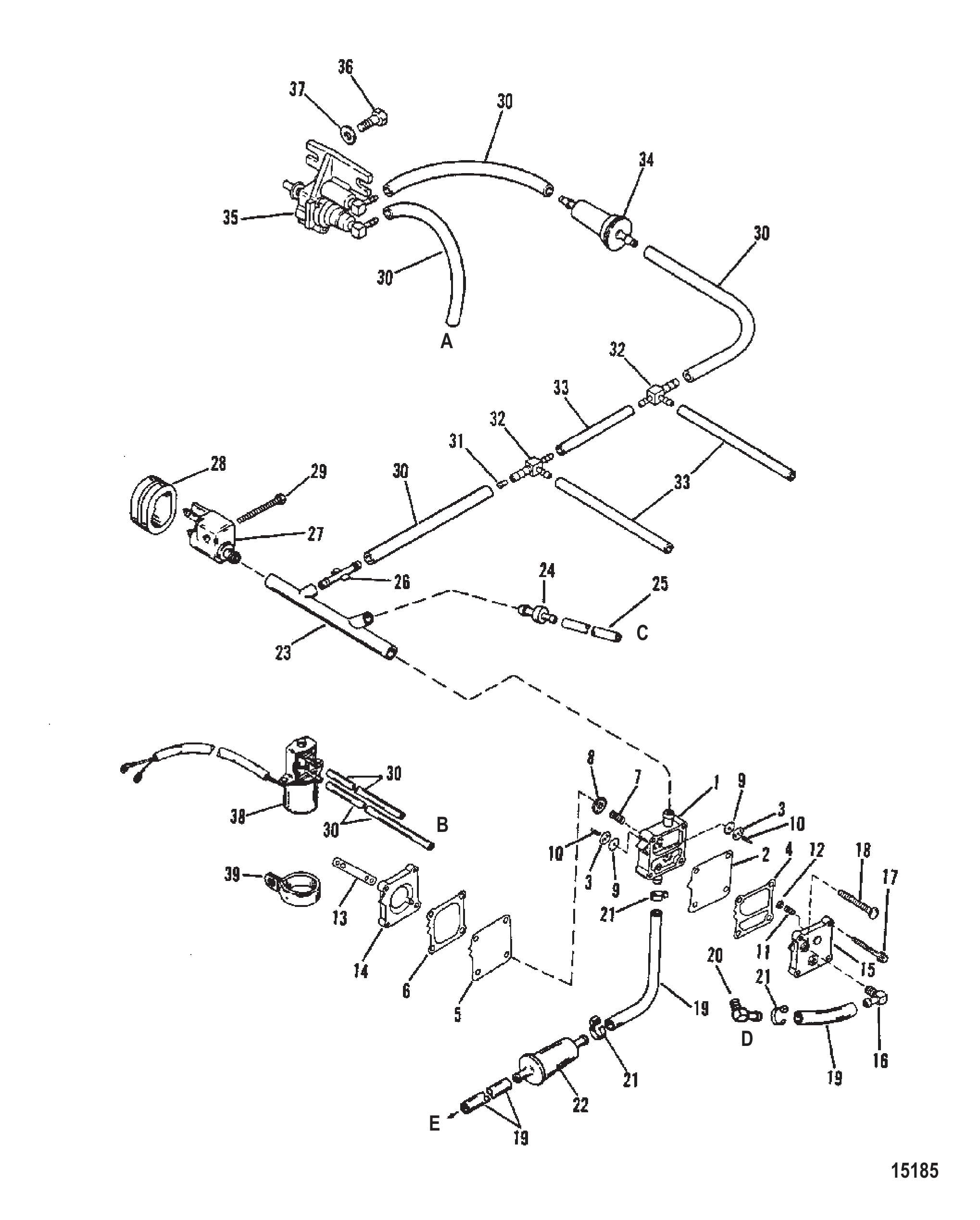

图 13燃油泵（配直列止回阀，参考编号24） Fuel Pump (Use With Inline Check Valve Reference Number 24)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket, Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket, Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	衬垫	GASKET	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303	底座	BASE	1
15	987752	安装板	PLATE	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	4009340	燃油泵螺钉	SCREW Fuel Pump	2
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
18	40057134	螺钉(M6 x 50) 泵体至缸体	SCREW (M6 x 50) Pump To Block	2
19	9912976	油管	TUBING	AR
19	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	AR
20	99664	弯头	ELBOW	1
20	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816296	燃油滤清器	FILTER Fuel	1
22	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
23	822554	成型软管	MOLDED HOSE	1
24	818994	止回阀	CHECK VALVE	1
24	8189941	止回阀	CHECK VALVE	1
25	4301625	油管(8.00英寸)	TUBING (8.00 Inches)	1
25	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
26	822771	连接器	CONNECTOR	1
27	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
27	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
28	145091	护孔环	GROMMET	1
29	4010635	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	1
30	1430165	油管(38.00英寸散装)	TUBING (38.00 Inches Bulk)	AR
31	17608	流量限制器	FLOW RESTRICTOR	1
32	17768	三通接头	TEE FITTING	2
32	830570	三通接头	FITTING Tee	2
33	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	3
33	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
34	14991	燃油滤清器	FILTER Fuel	1
34	8M0207786	滤清器	FILTER	1
35	14687A2	加速泵总成维修包 1395-811287	PUMP ASSEMBLY Accelerator Repair Kit, 1395-811287	1
35	14687A4	加速泵总成	PUMP ASSEMBLY Accelerator	1
36	4009416	螺钉(M6 x 16)	SCREW (M6 x 16)	2
37	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
38	43739	加浓阀	VALVE Enrichner	1
38	819503A2	电磁阀组件	SOLENOID KIT	1
39	18887	卡箍	CLAMP	1
-	42990A10	膜片组件	DIAPHAGM KIT	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1
-	17791A92	动力头总成	POWERHEAD ASSEMBLY	1
-	17791T92	PH 100/115 4缸	PH 100/115 4CYL	1
1	13461A90	衬垫套件	GASKET SET	1
1	13461A99	衬垫套件	GASKET SET	1

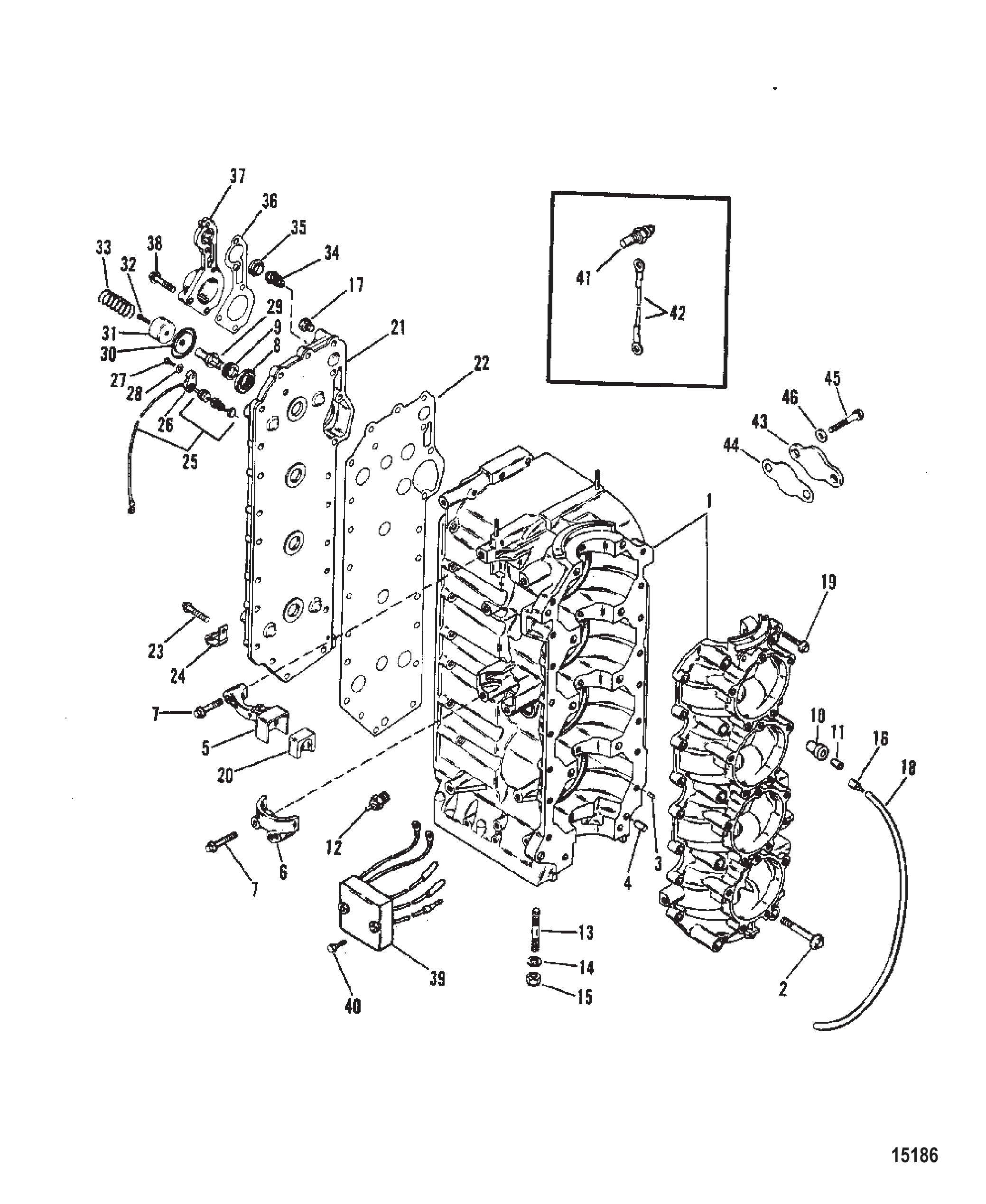

图 14气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE

REF	零件编号	中文名称	英文名称	数量
1	9755A9	气缸体	CYLINDER BLOCK	1
1	9755A14	气缸体	CYLINDER BLOCK	1
1	9755T14	气缸体	CYLINDER BLOCK	1
1	9755A10	气缸体	CYLINDER BLOCK	1
1	9755T10	气缸体	CYLINDER BLOCK	1
1	9755A15	气缸体	CYLINDER BLOCK	1
1	9755T15	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	42658	止回阀	CHECK VALVE	1
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材(20英尺散装)(16英寸)	TUBING (20.00 Feet Bulk) (16")	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
6	426233	止回阀	CHECK VALVE	1
7	812888A1	托架总成	CARRIER ASSEMBLY	2
8	42657A1	止回阀	CHECK VALVE	2
8	42657A3	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	20033	定位销	PIN Dowel (LOCATING)	1
12	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
13	812870	主轴承座中心销	PIN Center Main (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	18597	盖板	COVER	1
15	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
16	65848	托架	CARRIER	1
17	64872	护孔环	GROMMET	1
18	8128671	衬垫	GASKET	1
18	8128672	衬垫	GASKET	1
19	8161941	螺柱	STUD	2
19	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
20	18598	管塞	PIPE PLUG	4
20	185981	管塞(.375-18)	PLUG Pipe (.375-18)	4
21	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
22	81742720	螺钉(M8 x 20)(55号件用3个)	SCREW (M8 x 20) (QTY. OF 3 ON 55)	4
22	40011149	不锈钢螺钉(M8 x 25)(55号件用3个)	SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)	4
22A	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
23	8128821	提动阀	POPPET	1
24	812887	隔膜	DIAPHRAGM	1
24	8128871	隔膜	DIAPHRAGM	1
24	812887002	隔膜	DIAPHRAGM	1
25	94182	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	90392	弹簧	SPRING	1
27	18336	弹簧	SPRING	1
27	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
28	75692	节温器	THERMOSTAT	1
28	14586	节温器	THERMOSTAT	1
29	62386	衬垫	GASKET	1
29	8M0204714	衬垫@4	GASKET @4	1
30	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
30	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	99664	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	78279	弯头	ELBOW	1
38	8M0207781	弯头	ELBOW	1
39	19074	盖板	COVER	1
39	190741	盖板	COVER	1
39	8M0036859	盖板	COVER	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129961	盖板	COVER	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
45	821595	吊环	LIFTING EYE	1
46	821616	螺钉	SCREW	1
46	821606	螺钉	SCREW	1
47	400265	螺母 (M8)	NUT (M8)	1
47	401368	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

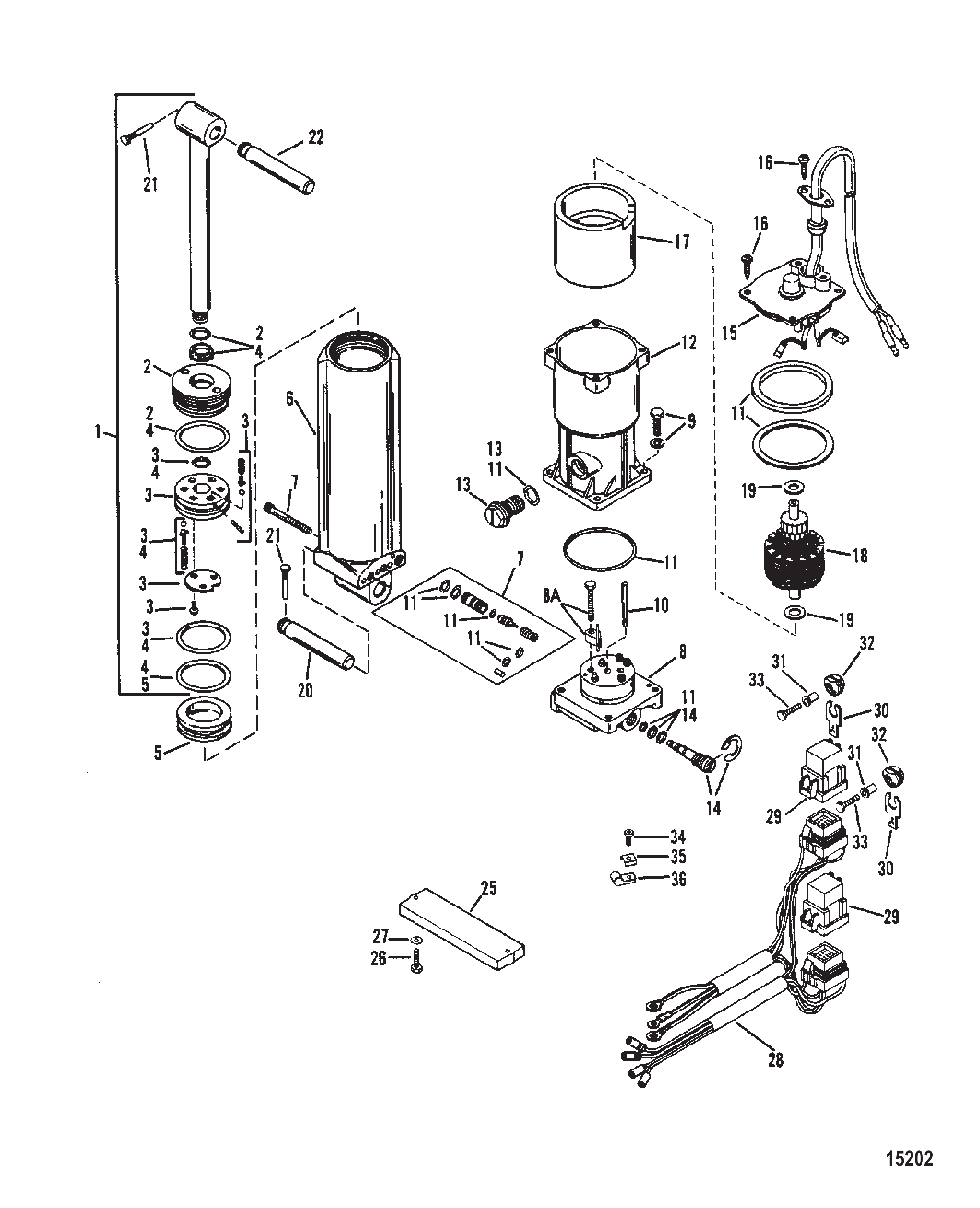

图 15动力升降倾斜组件（单液压缸设计） Power Trim Components (Single Ram Power Trim)

REF	零件编号	中文名称	英文名称	数量
-	818903A1	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	811667	升降减震活塞	PISTON Trim Shock	1
4	811668A1	气缸修理包	CYLINDER REBUILD KIT	1
4	811666A1	减震杆套件	SHOCK ROD KIT	1
5	810776	记忆活塞套件	PISTON KIT Memory	1
6	811669	气缸套件	CYLINDER KIT	1
6	893916A01	气缸总成	CYLINDER ASSEMBLY	1
7	811678A1	螺钉与密封套件	SCREW AND SEAL KIT	1
7	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
8	8116702	泵/歧管	PUMP/MANIFOLD	1
8	8116705	ORD 809901A 1	ORD 809901A 1	1
8A	823180	摇臂	ROCKER ARM	1
8A	823180A1	摇臂套件	ROCKER ARM KIT	1
9	813436	螺钉套件	SCREW KIT	1
10	811671	驱动轴	DRIVESHAFT	1
11	811672A2	O型圈套件	O-RING KIT	1
11	811672A4	O型圈套件	O RING KIT	1
12	811673	储液罐	RESERVOIR	1
12	809901A1	泵/电机总成	PUMP/MOTOR ASSEMBLY	1
13	813435	塞套件	PLUG KIT	1
13	8134351	堵头	PLUG	1
14	813442A1	安全阀套件	RELIEF VALVE KIT	1
14	893929A01	安全阀套件	VALVE KIT Relief	1
15	811677	储液罐盖套件	CAP KIT Reservoir	1
15	809885A1	电机套件	MOTOR KIT	1
16	813446	螺钉	SCREW	1
17	811674	储液罐/马达	RESERVOIR/MOTOR	1
17	809885A1	电机套件	MOTOR KIT	1
18	811675	电枢	ARMATURE	1
19	811676	止推垫片套件	THRUST WASHER KIT	1
20	818898	锚销	PIN Anchor	1
21	821539	三叶销	PIN Trilobe	2
22	99625	轴	SHAFT	1
22	99625002	轴	SHAFT	1
25	818298A1	阳极套件	ANODE KIT	1
25	818298Q1	阳极套件	ANODE KIT	1
26	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
26	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
27	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
28	819514A4	升降线束总成	HARNESS ASSEMBLY Trim	1
29	821509	继电器	RELAY	2
29	821509T01	继电器	RELAY	2
30	821382	支架	BRACKET	2
30	828151A1	继电器总成	RELAY ASSEMBLY	2
31	818968	衬套	BUSHING	2
31	8M0214955	衬套	BUSHING	2
32	818967	护孔环	GROMMET	2
32	8M0207785	护孔环	GROMMET	2
33	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
34	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
35	69205	C形垫圈	C WASHER	2
35	8M0084613	C形垫圈	C-WASHER	2
36	22740	卡扣	CLIP	2
-	79139A22	红色线束总成	WIRE ASSEMBLY Red	1

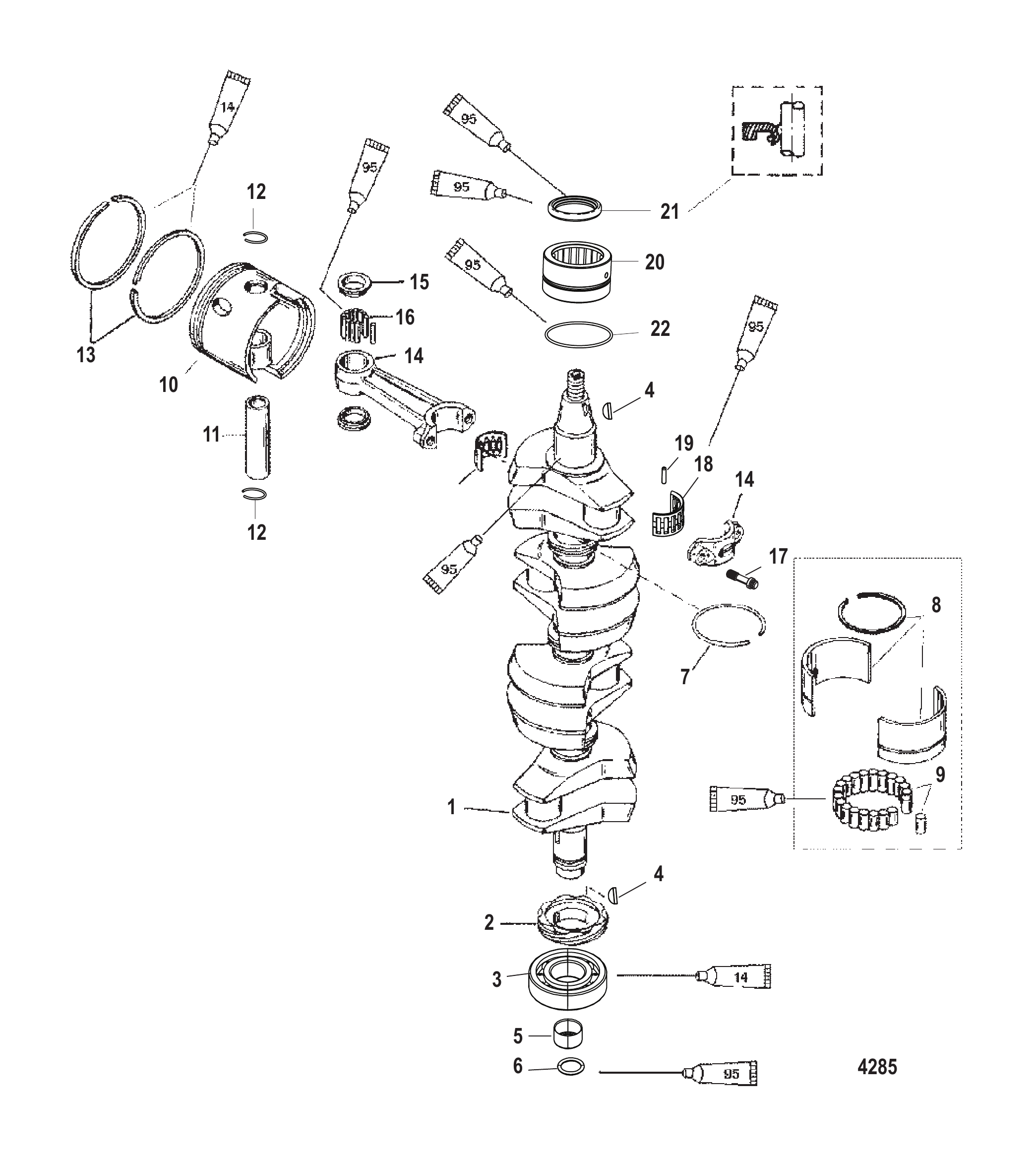

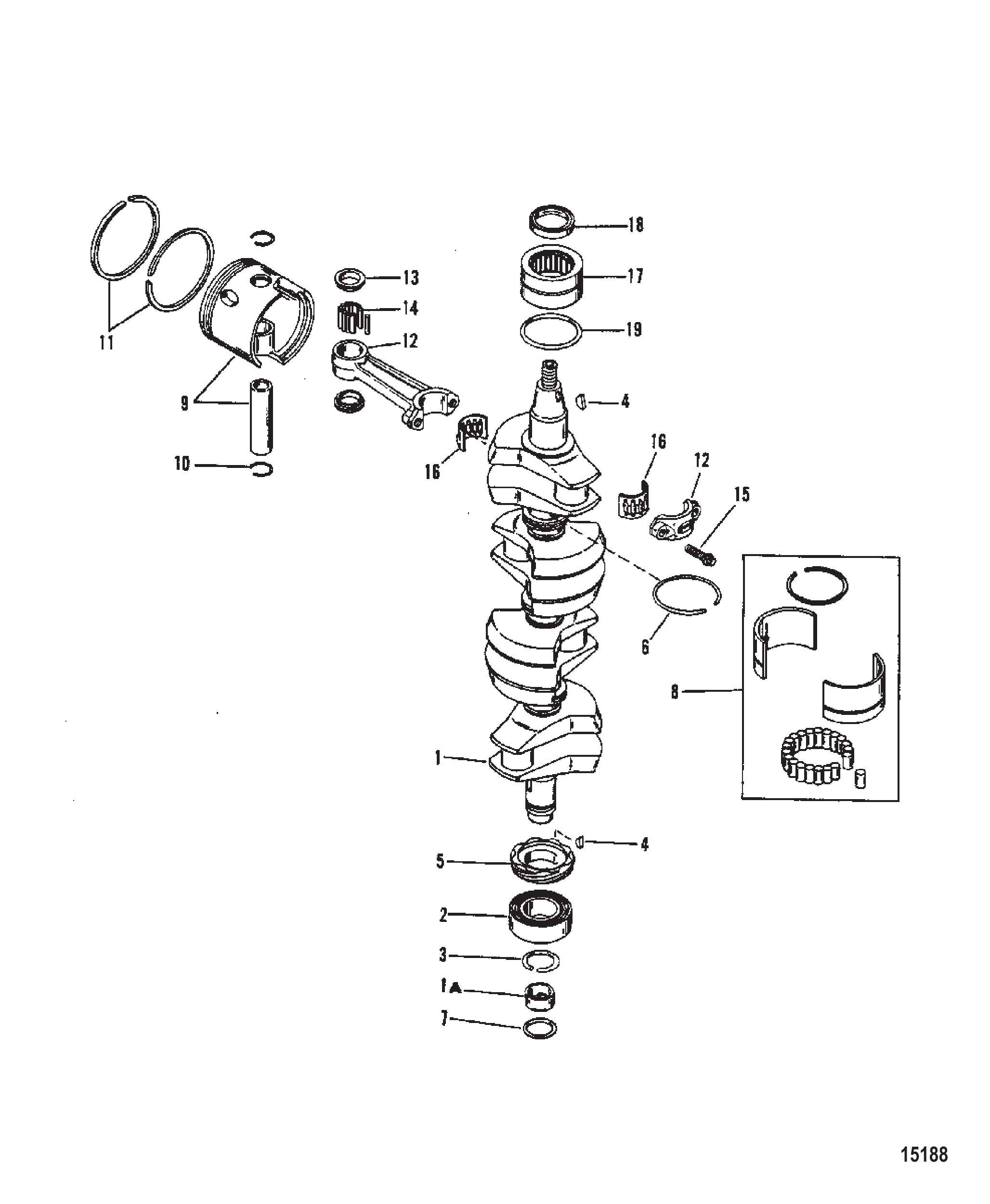

图 16曲轴活塞及连杆(#638-8532--1) Crankshaft Pistons And Connecting Rods (#638-8532--1)

REF	零件编号	中文名称	英文名称	数量
1	9193A3	曲轴总成	CRANKSHAFT ASSEMBLY	1
1A	786611	耐磨套	WEAR SLEEVE	1
2	43011	下滚珠轴承	BEARING Ball Lower	1
2	43011T	滚珠轴承	BEARING Ball	1
3	93412	旧式挡圈	RING Retaining Old Design	1
4	91800	半圆键	KEY Woodruff	2
5	43019A1	齿轮总成	GEAR ASSEMBLY	1
6	42079A4	环组件	RING ASSEMBLY	2
7	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
8	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
9	9009A13	活塞总成	PISTON ASSEMBLY	4
9	9009T13	标准活塞总成	PISTON ASSY-STD	4
9	9009A6	活塞总成	PISTON ASSEMBLY	AR
9	9009A7	活塞总成	PISTON ASSEMBLY	AR
10	52035	锁环	RING Lock	8
10	857196	锁紧环	LOCK RING	8
11	96170A12	活塞环组	RING SET Piston	1
11	96170A3	活塞环组	RING SET Piston	AR
11	96170A4	活塞环组	RING SET Piston	AR
12	9002A6	连杆总成	CONNECTING ROD ASSEMBLY	4
13	47247	垫圈	WASHER	8
13	8M0032839	垫片@5	WASHER @5	8
14	88258	滚针轴承	NEEDLE Roller Bearing	116
14	8M0204715	滚针@102	NEEDLES-BRG @102	116
15	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	8
16	43012A1	轴承/保持架套件	BEARING/CAGE KIT	4
16	8M0235070	轴承保持架	CAGE BEARING	4
17	43013A1	上滚柱轴承总成	BEARING ASSEMBLY Roller Upper	1
17	43013T3	滚柱轴承总成	BEARING ASSEMBLY Roller	1
18	43993	油封	SEAL Oil	1
18	8M0214932	密封件	SEAL	1
19	64067	O型圈	O-RING	1
19	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	17791A92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete
-	17791T92	PH 100/115 4缸	PH 100/115 4CYL

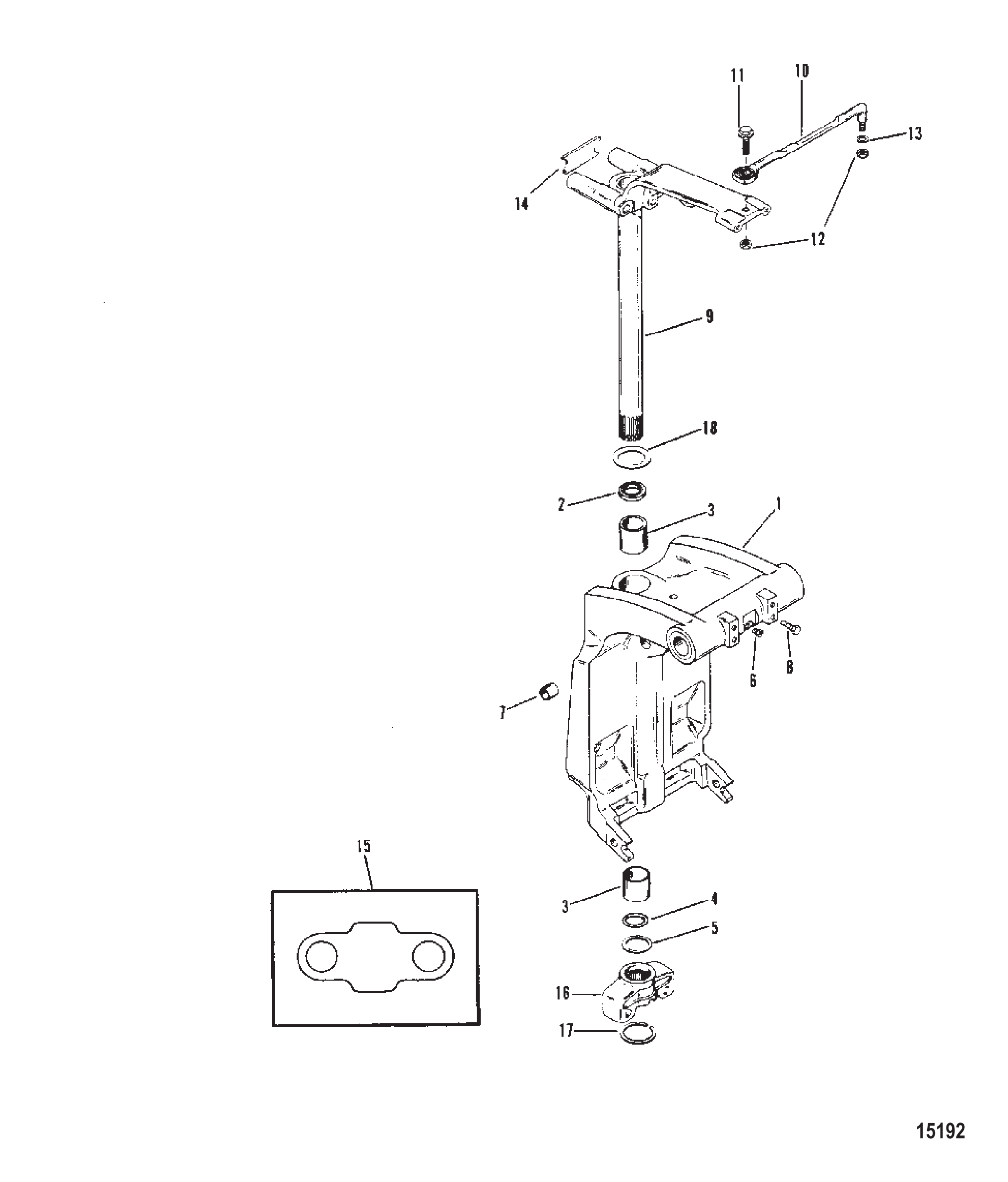

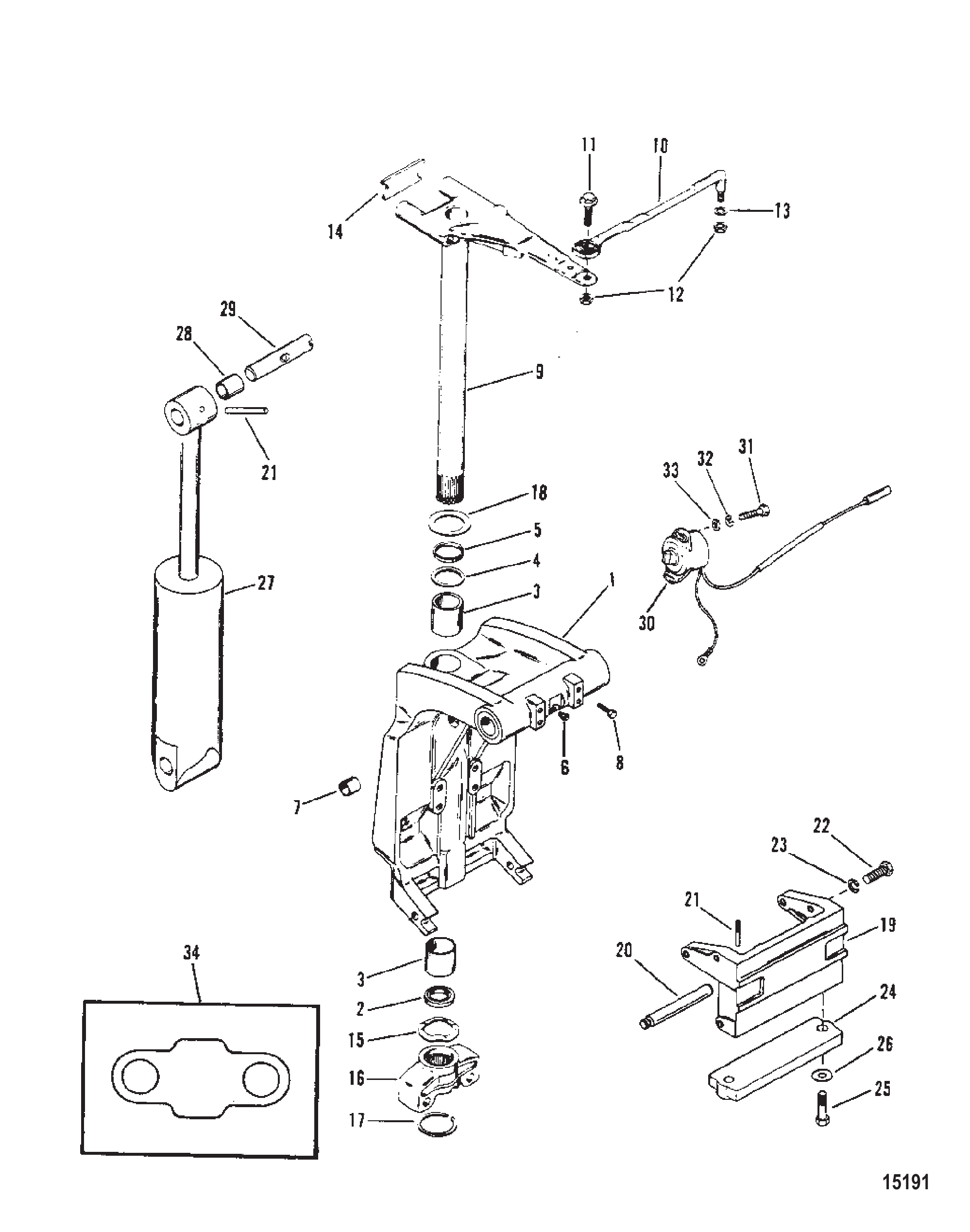

图 17旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

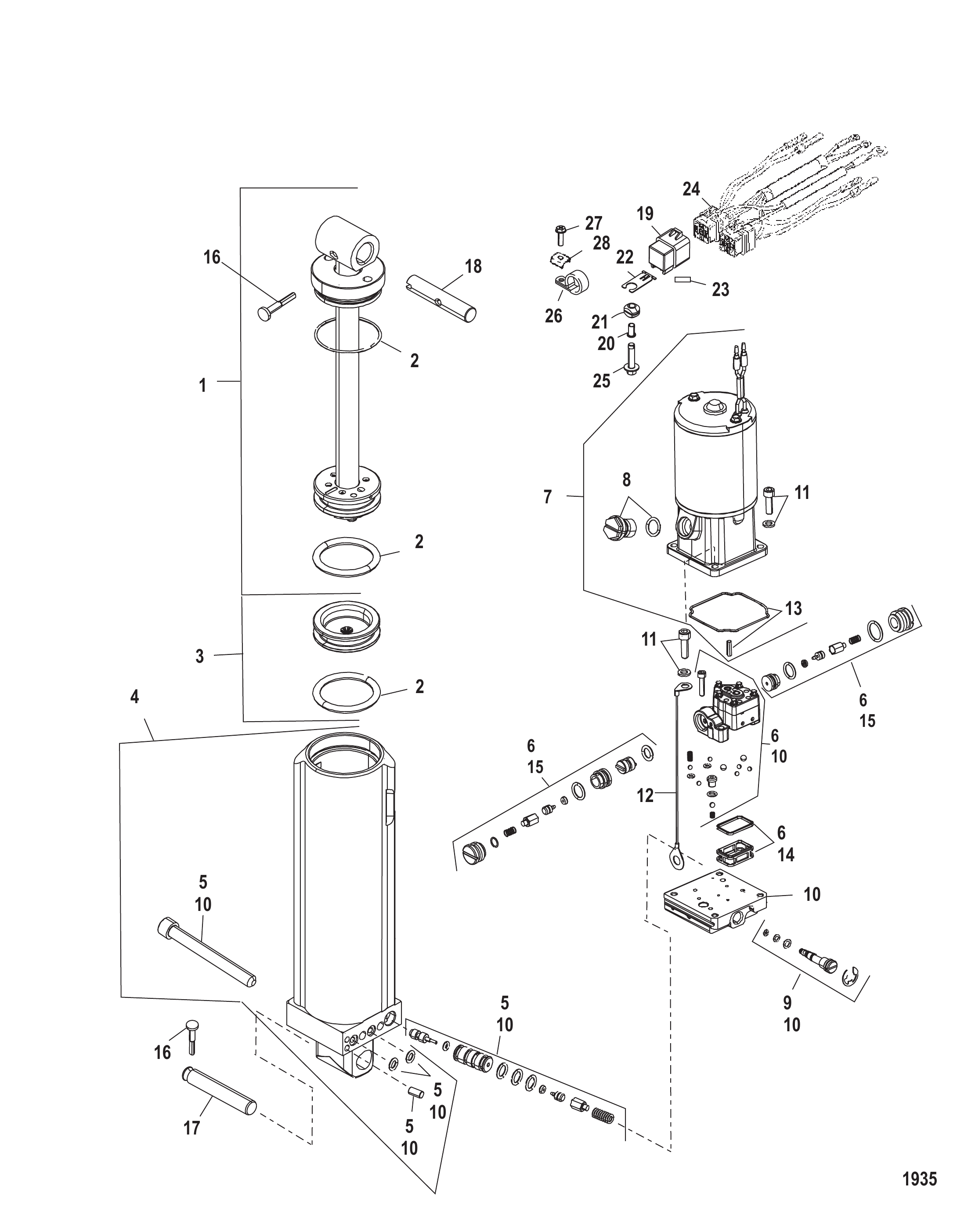

图 18动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

图 19转向手柄 Steering Handle

REF	零件编号	中文名称	英文名称	数量
1	83093M	转向手柄	HANDLE Steering	1
2	82895M	摩擦片	FRICTION PIECE	1
3	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
4	83056M	螺母	NUT	1
5	80504M	握把	GRIP	1
6	811916M	螺钉	SCREW	1
7	80509M	橡胶件	RUBBER	1
8	95606M	指示器	INDICATOR	1
9	82220M	垫圈	WASHER	1
10	82095M	弹簧	SPRING	1
11	81945M	衬套	BUSHING	1
12	81280M	杠杆	LEVER	1
13	95614M	盖帽	CAP	1
14	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
15	881379	垫圈	WASHER	2
15	82214M	垫圈	WASHER	2
16	80506M	隔套	SPACER	1
16	80507M	隔套	SPACER	1
16	898103217	垫片 @5	SPACER @5	1
16	80508M	隔套	SPACER	1
17	82118M	隔套	SPACER	1
18	82121M	隔套	SPACER	1
19	82272M	O型圈	O-RING	1
20	95405M	油门拉索总成	CABLE ASSEMBLY Throttle	2
21	81778M	螺母	NUT	2
22	81761M	螺母	NUT	6
23	81037M	撑杆	STAY	1
24	81373M	护孔环	GROMMET	1
25	81054M	转向支架	BRACKET Steering	1
26	80510M	隔套	SPACER	2
27	80515M	护孔环	GROMMET	4
28	804159	螺栓 (M8 x 35)	BOLT (M8 x 35)	2
29	82956M	衬套	BUSHING	2
30	827043M	螺栓	BOLT	1

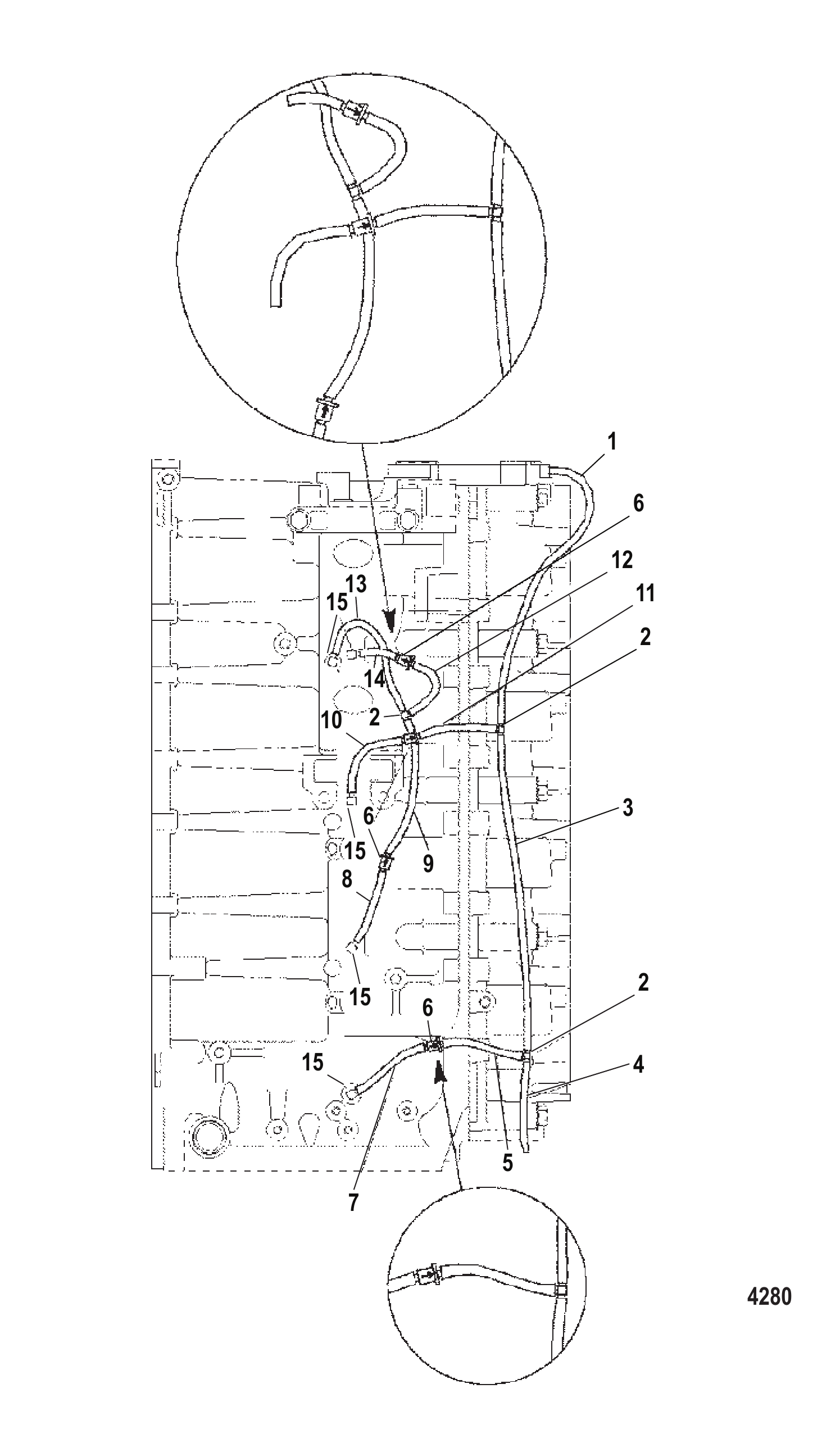

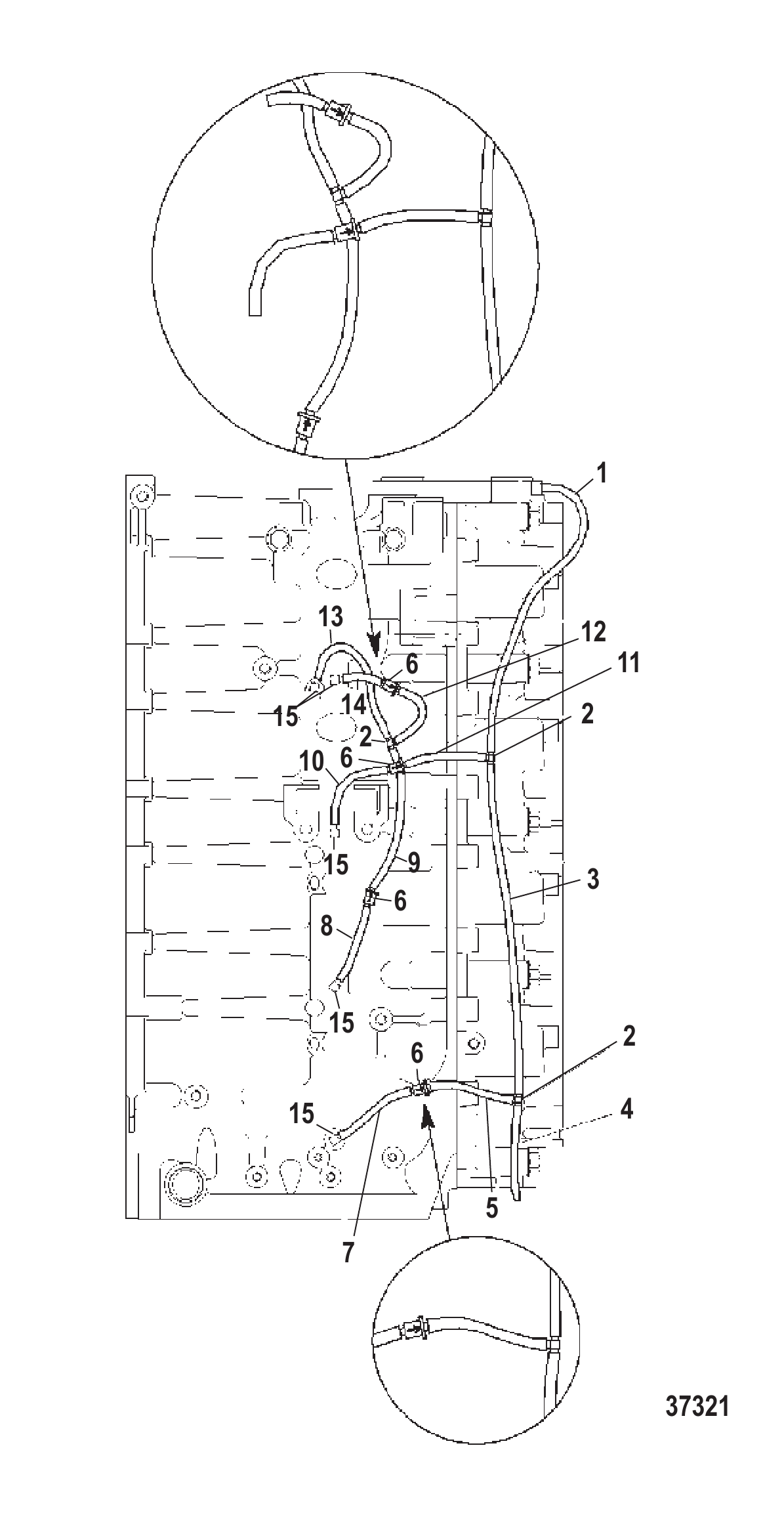

图 20泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	99130122	泄放管(20.00英尺散装)	TUBING (20.00 Feet Bulk) BLEED	1
2	59169	接头	FITTING	4
2	59169003	三通接头	FITTING Tee	4
3	42698	止回阀 (压入式 - 13/16"长)	CHECK VALVE (PRESS-IN - 13/16" LONG)	7
3	426982	止回阀	CHECK VALVE	7
4	42623	止回阀 (压入式 - 11/16"长)	CHECK VALVE (PRESS-IN - 11/16" LONG)	1
4	426233	止回阀	CHECK VALVE	1
5	15133	压入式接头	FITTING (PRESS-IN)	6
6	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
7	15026	黄色弯头盖	CAP ELBOW (YELLOW)	4
8	18205	三通	TEE	1
9	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
10	18206	滤清器	FILTER	1
10	8M0207786	滤清器	FILTER	1

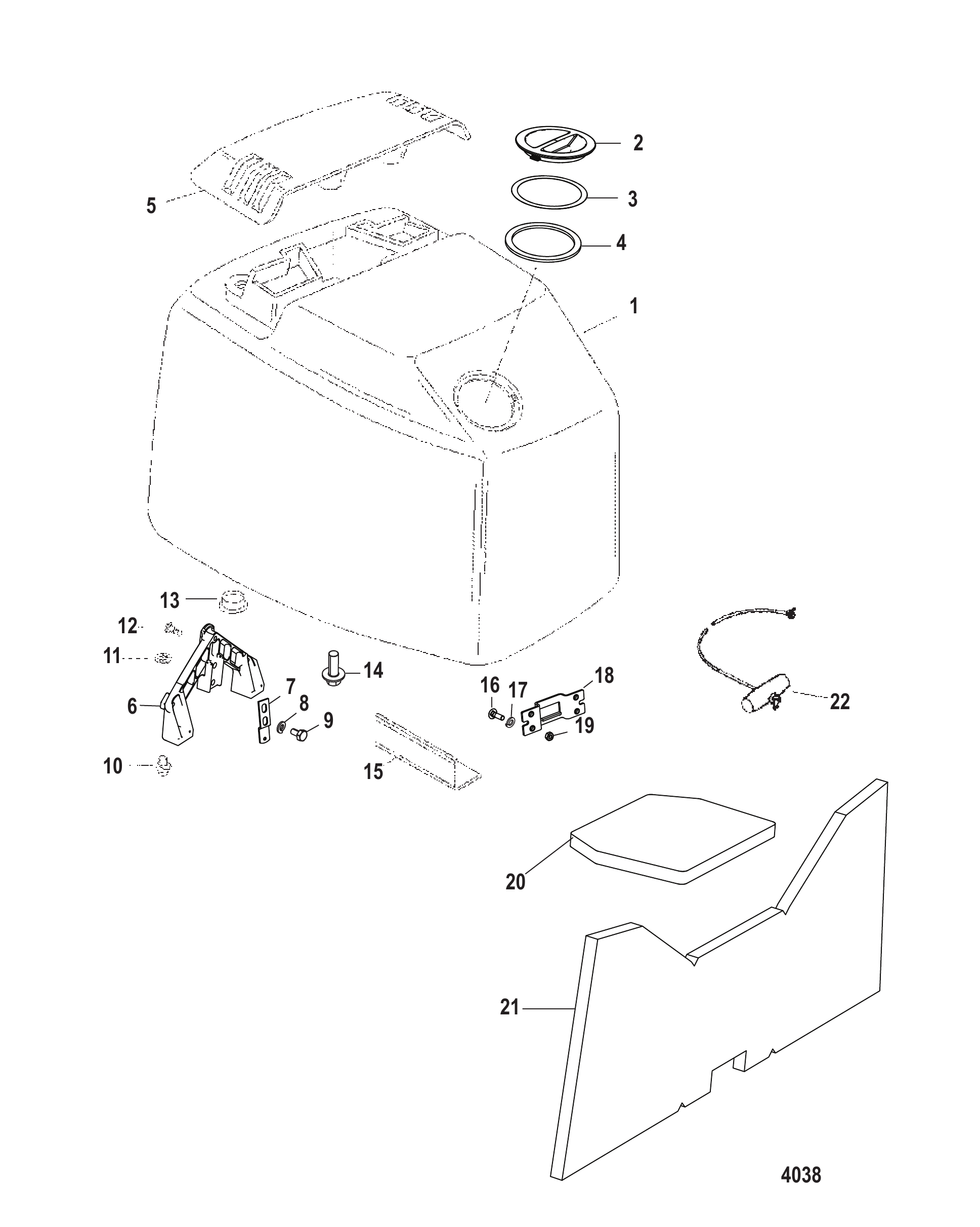

图 21顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	827328T9	顶盖总成	TOP COWL ASSEMBLY	1
1	827328T10	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	859356A1	隔音毯套装	SOUND BLANKET KIT	1
4	859356A02	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
6	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
7	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	2
8	823865	盖塞	CAP PLUG	2
9	831207T10	手柄	HANDLE	1
9	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
10	812707	衬套	BUSHING	2
11	831214	隔套	SPACER	1
12	12134	波形垫圈	WASHER Wave	1
13	F481777	凸轮锁轴	CAM Latch Shaft	1
13	8M0001081	凸轮	CAM	1
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
15	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
16	821249M2	前支架	BRACKET Front	3
16	8M0036792	支架	BRACKET	3
17	815477	缓冲器锁扣	BUMPER Latch	3
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
19	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
20	8237951	挡圈	RING Retaining	1
21	815263	滚轮	ROLLER	1
21	8M0207770	滚轮@3	ROLLER @3	1
22	8155381	滚动销	PIN Roll	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	12066Q9	绳索	ROPE	1
26	12066Q10	启动绳@2	ROPE-STARTER@2	1

图 22专用工具 TOOLS SPECIAL

REF	零件编号	中文名称	英文名称	数量
-	815366A3	电池隔离器套件	ISOLATOR KIT Battery	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	89045	适配器	ADAPTER	1
-	890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	14443A1	测试线束总成	HARNESS ASSEMBLY Test	1
-	99379	正时灯	TIMING LIGHT	1
-	29287	量规工具	GAUGE TOOL	1
-	55919	驱动头	DRIVER HEAD	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	52952A1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	65494	环压缩工具(2.0升)	COMPRESSOR TOOL Ring (2.0L)	1
-	65494T	环压缩工具	COMPRESSOR TOOL Ring	1
-	818773	活塞环压缩工具(2.5升)	COMPRESSOR TOOL Piston Ring (2.5L)	1
-	818773T	活塞环压缩工具(3.50)	COMPRESSOR TOOL Piston Ring (3.50)	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	30591A1	动力头支架工具	STAND TOOL Powerhead	1
-	30591T1	支架工具	STAND TOOL	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	112301	对正工具	ALIGNMENT TOOL	1
-	99750A1	万用表	MULTI METER	1
-	52915A6	测试仪表套件	TEST GAUGE KIT	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	44487A1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1

图 23专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量

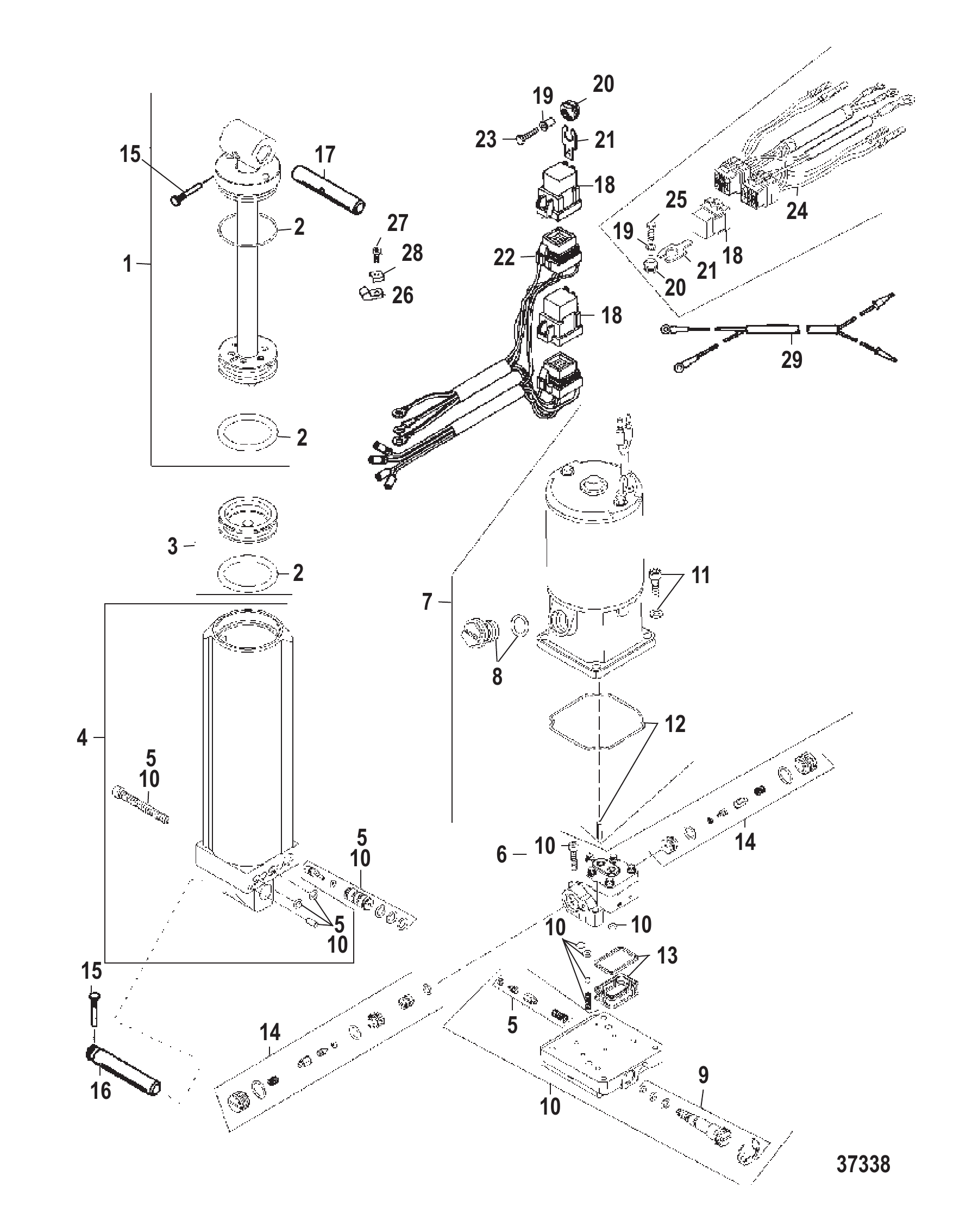

图 24动力升降倾斜装置（黄色注油塞）（G359968/9934137及以上） POWER TRIM (YELLOW FILL PLUG)(G359968/9934137 AND UP

REF	零件编号	中文名称	英文名称	数量
-	830250A3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	螺丝套件(电机)	SCREW KIT (MOTOR)	1
12	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
13	809878A1	滤清器套件	FILTER KIT	1
13	893912A02	滤清器套件	FILTER KIT	1
14	809879A1	提升阀套件	POPPET KIT	1
14	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	O型圈套件(完整调整)	O-RING KIT (COMPLETE TRIM)	1
-	893914A02	O型圈套件	O-RING KIT	1
15	821539	三叶销	PIN Trilobe	2
16	818898	锚销	PIN Anchor	1
17	996251	轴	SHAFT	1
17	99625002	轴	SHAFT	1
18	828151A1	继电器总成	RELAY ASSEMBLY	2
18	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
19	818968	衬套	BUSHING	2
19	8M0214955	衬套	BUSHING	2
20	818967	护孔环	GROMMET	2
20	8M0207785	护孔环	GROMMET	2
21	828102	支架	BRACKET	2
21	8M0207771	安装支架	BRACKET Mounting	2
22	819514A4	升降线束总成	HARNESS ASSEMBLY Trim	1
23	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
24	819514A15	升降线束总成	HARNESS ASSEMBLY Trim	1
24	8M0092077	升降线束总成	HARNESS ASSEMBLY Trim	1
25	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
26	22740	卡扣	CLIP	2
27	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	2
27	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	2
28	69205	C形垫圈	C WASHER	2
28	8M0084613	C形垫圈	C-WASHER	2
29	17201A2	电缆总成 (17.00 英寸)	CABLE ASSEMBLY (17.00 Inches)	1

图 25飞轮/启动电机（USA-0G438000/BEL-9927000及以上） FLYWHEEL/ STARTER MOTOR USA-0G438000/BEL-9927000 AND UP

REF	零件编号	中文名称	英文名称	数量
1	45907	黄色塞	PLUG Yellow	1
2	812777T1	盖总成	COVER ASSEMBLY	1
3	42979	螺母(M16)	NUT (M16)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	9008A64	飞轮总成	FLYWHEEL ASSEMBLY	1
5	878227T2	飞轮总成	FLYWHEEL ASSEMBLY	1
6	832075A4	点火定子套件	IGNITION STATOR KIT	1
6	832075A21	定子总成	STATOR ASSEMBLY	1
7	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
7	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
8	854513T	触发器总成	TRIGGER ASSEMBLY	1
9	660153	启动电机总成	STARTER MOTOR ASSEMBLY	1
9	893892T	启动电机总成	STARTER MOTOR ASSEMBLY	1
10	56703	轴环	COLLAR	2
10	8M0034918	轴环	COLLAR	2
11	57247	停机开关	STOP	2
11	8M0043376	停机开关	STOP	2
12	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
13	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
14	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
16	64015	螺母 (.250-20)	NUT (.250-20)	1
17	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	3
18	93254	旋转底座	SWIVEL BASE	1
19	93421	旋转球头	SWIVEL BALL	1

图 26动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
-	811628	配平电机	TRIM MOTOR	1
1	811624	机架与磁场套件	FRAME AND FIELD KIT	1
2	811625	电刷卡套件	BRUSH CARD KIT	1
3	811623	端架套件	END FRAME KIT	1
4	811626	密封套件	SEAL KIT	1
5	811627	电枢套件	ARMATURE KIT	1
5	811628	配平电机	TRIM MOTOR	1

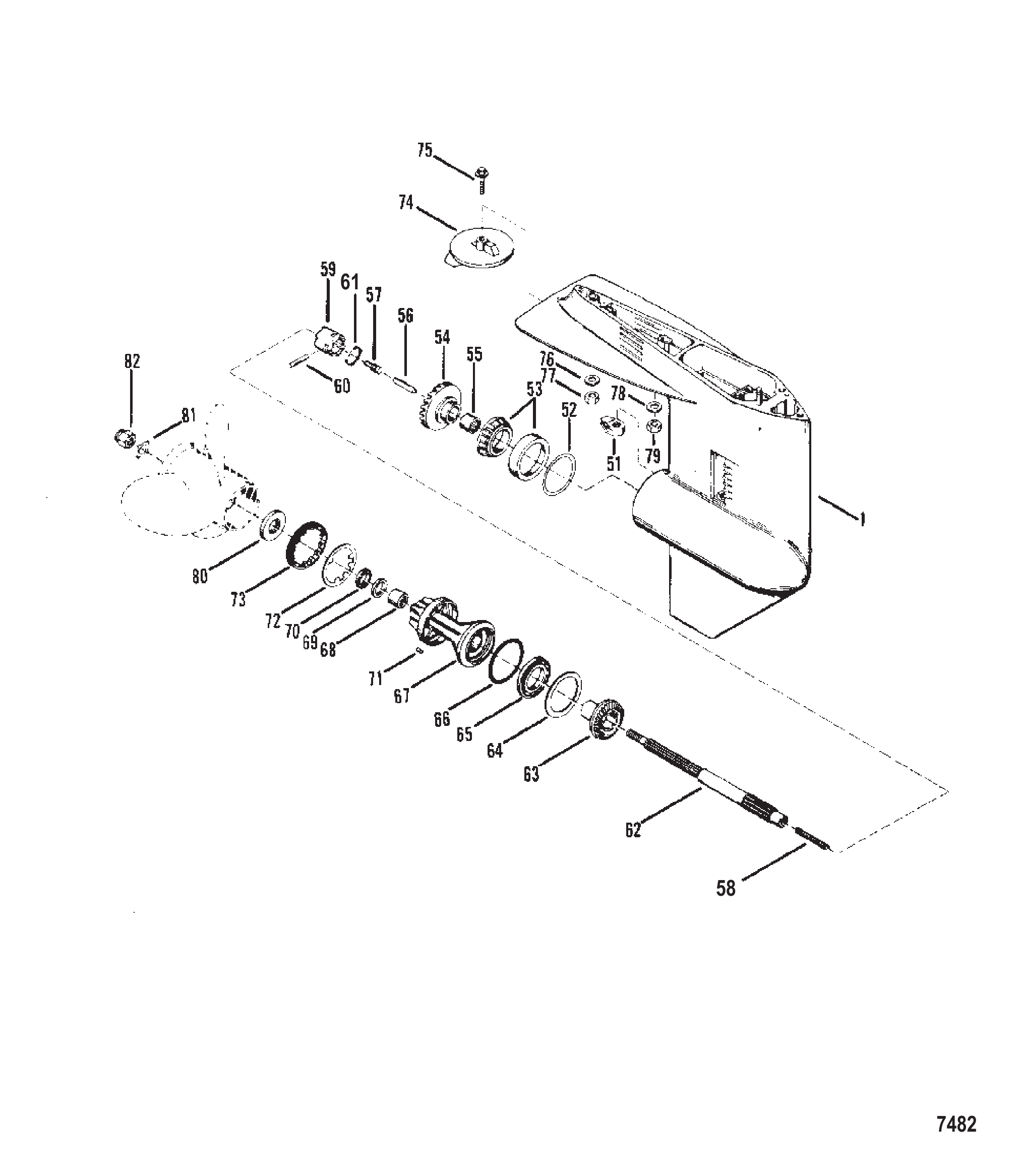

图 27齿轮箱（螺旋桨轴）（6爪倒车离合器） GEAR HOUSING (PROP SHAFT)(6 JAW REVERSE CLUTCH)

REF	零件编号	中文名称	英文名称	数量
1	9011G8	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G9	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G60	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
41	850035A3	前进齿轮套件(29齿)	GEAR KIT Forward (29 TEETH)	1
41	881260A5	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
41	850033A2	前进齿轮套件(30齿)	GEAR KIT Forward (30 TEETH)	1
41	859472A3	前进齿轮总成-30齿	GEAR ASSEMBLY Forward - 30 Teeth	1
42	44491A1	垫片组	SHIM SET	1
42	8M0063266	垫片组	SHIM SET	1
43	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
44	30895	滚针轴承	BEARING Needle	1
44	30895T	滚针轴承	BEARING Needle	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	44530	钢球	BALL	3
47	850327	弹簧	SPRING	1
48	850048	离合器	CLUTCH	1
48	850048T	离合器	CLUTCH	1
49	30632	十字销	PIN Cross	1
49	8M0100263	十字销	PIN Cross	1
50	30893	弹簧	SPRING	1
51	850308	螺旋桨轴	PROPELLER SHAFT	1
51	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
52	850036	倒车齿轮(29齿)	GEAR Reverse (29 Teeth)	1
52	850036T	倒车齿轮-29齿	GEAR Reverse - 29 Teeth	1
52	850034	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
52	850034T	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
53	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	8M0168901	轴承座总成	CARRIER ASSY.	1
54	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
54	8M0214974	O型圈	O RING	1
55	30956	滚针轴承	BEARING Needle	1
55	30956T	滚针轴承	BEARING Needle	1
56	70080	油封(内)	SEAL Oil (INNER)	1
56	8M0205728	密封件	SEAL	1
57	70081	油封(外)	SEAL Oil (OUTER)	1
57	8M0205729	密封件	SEAL	1
58	12578	滚针轴承	BEARING Needle	1
58	12578T	滚柱轴承	BEARING Roller	1
59	12577	止推垫片	THRUST WASHER	1
60	12576	推力轴承	BEARING Thrust	1
61	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
61	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
62	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
62	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
63	401198	螺母 (M8)	NUT (M8)	2
63	401378	螺母 (M8)	NUT (M8)	2
64	13191A1	止推垫片	THRUST WASHER	1
64	13191Q01	止推垫片	THRUST WASHER	1
65	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
65	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
66	816629	锁紧垫圈	TAB WASHER	1
66	816629Q	锁紧垫圈	TAB WASHER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 28喷泵总成 JET PUMP ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	80140060	喷射泵组件(黑色)	JET PUMP ASSEMBLY (BLACK)	1
-	80140160	喷射泵组件(灰色)	JET PUMP ASSEMBLY (GRAY)	1
-	8M0230714	喷射泵总成	JET PUMP ASSY	1
1	80141160	泵壳	HOUSING Pump	1
1	801411T60	泵壳体	HOUSING PUMP	1
1A	827490	润滑油管	HOSE Lube	1
2	80141460	叶轮	IMPELLER	1
2	8M0230713	叶轮	IMPELLER	1
3	80141260	进气壳体	HOUSING Intake	1
3A	8271882	衬套	LINER	1
4	80141360	驱动轴	DRIVESHAFT	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	818146	螺钉(.312-18 X .88)	SCREW (.312-18 X .88)	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
16	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
17	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
18	95802	不锈钢螺钉(.375-16 x 2.750)	SCREW (.375-16 x 2.750) Stainless Steel	1
19	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
19	8M0214963	垫圈	WASHER	1

图 29启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量

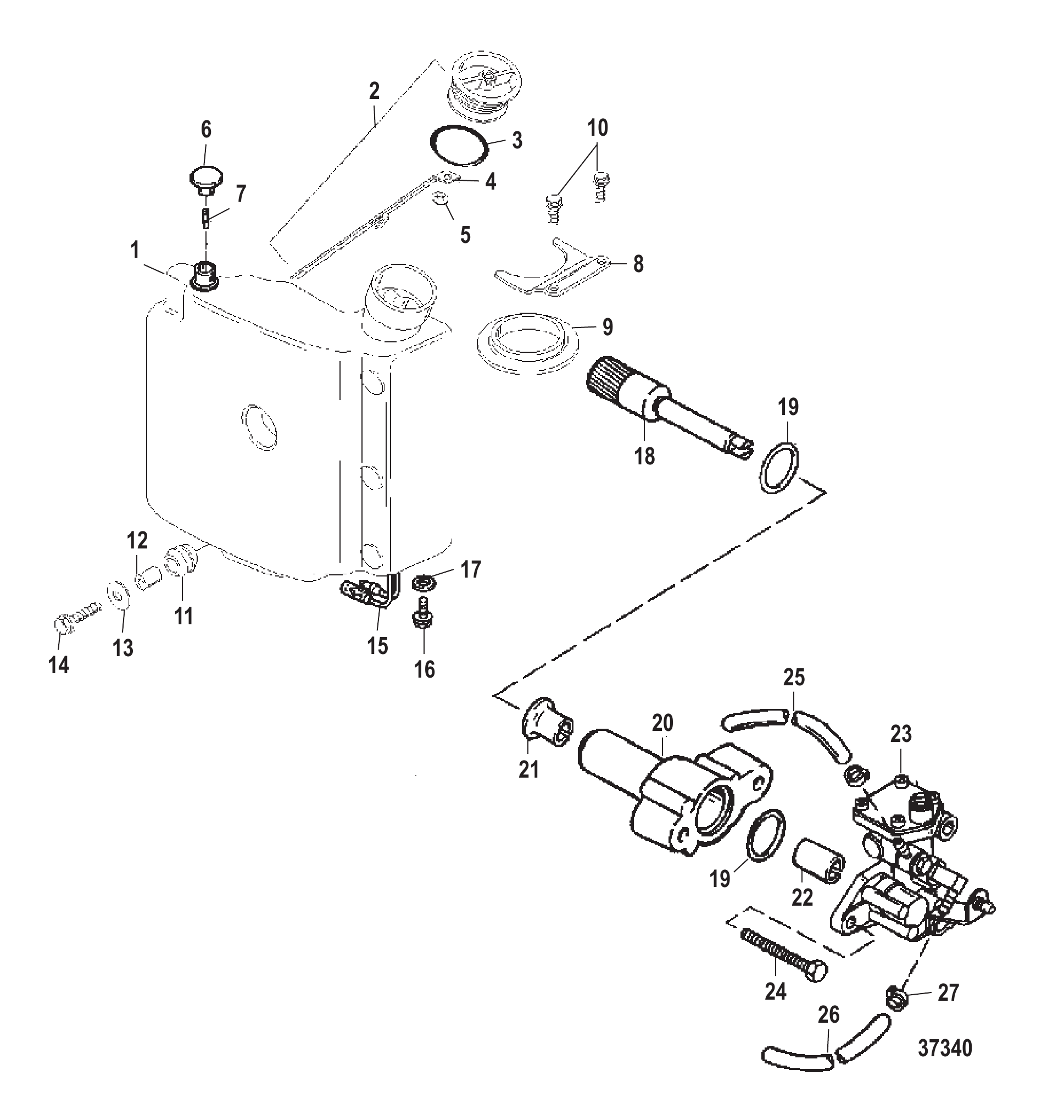

图 30机油喷射系统（USA-0G301751/BEL-9885505及以上） OIL INJECTION (USA-0G301751/BEL-9885505 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	828362A2	油箱总成	TANK ASSEMBLY Oil	1
2	828475A1	盖帽	CAP	1
3	26318	O型圈	O-RING	1
3	26318T	O型圈	O-RING	1
4	828793	量油尺	DIPSTICK	1
5	113161	螺母	NUT	1
5	65110	螺母	NUT	1
6	19299A1	通风组件	VENT ASSEMBLY	1
7	64871	阀门	VALVE	1
8	8287201	支架	BRACKET	1
9	99160	护套	BOOT	1
9	99160001	护套	BOOT	1
10	4010620	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	2
11	825380	护孔环	GROMMET	1
11	825380001	护孔环	GROMMET	1
12	828350	衬套	BUSHING	1
13	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	1
14	81893435	螺钉(M8×35)	SCREW (M8 x 35)	1
14	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
15	12886A6	开关总成	SWITCH ASSEMBLY	1
16	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
17	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
18	430204	从动齿轮	GEAR Driven	1
19	62705	O型圈	O-RING	2
19	8M0204667	O型圈×2	O RING @2	2
20	17335A3	适配器组件	ADAPTER ASSEMBLY	1
21	17597	衬套	BUSHING	1
22	17596	衬套	BUSHING	1
23	443453	油泵	PUMP Oil	1
23	44345T3	油泵	PUMP Oil	1
24	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
25	82381329	油管(12英寸散装)(6英寸)至油泵	TUBING (12.00 Inches Bulk) (6 IN.) To Oil Pump	1
25	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
26	82381455	管材(25英寸散装)(11英寸)	TUBING (25.00 Inches Bulk) (11 IN.)	1
27	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
27	8M0214940	扎带	TIE STRAP	AR
27	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 31附件 ACCESSORIES

REF	零件编号	中文名称	英文名称	数量

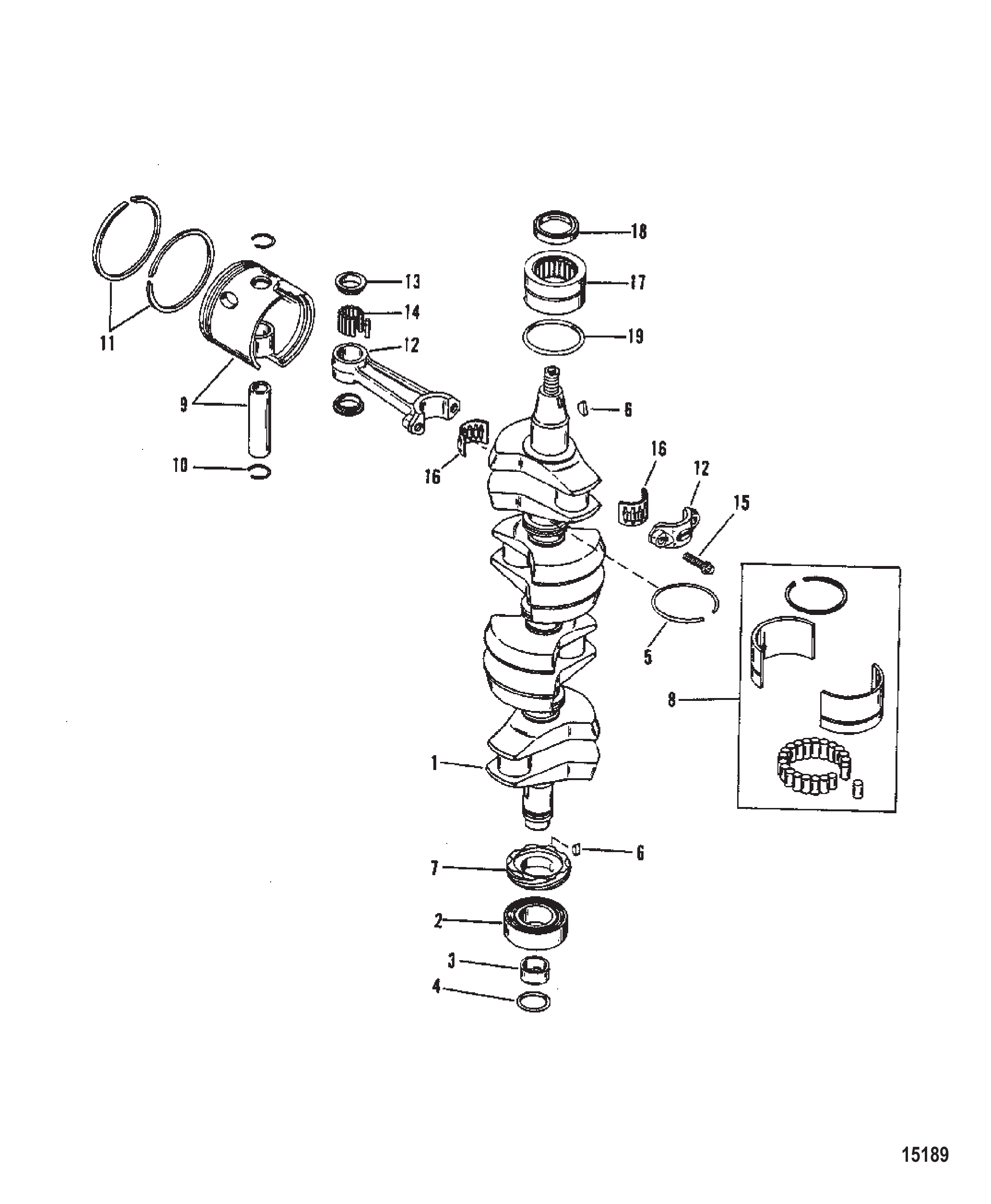

图 32曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9611A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	63742	滚珠轴承	BEARING Ball	1
2	63742T	滚珠轴承	BEARING Ball	1
3	812877	挡圈	RING Retaining	1
4	91800	半圆键	KEY Woodruff	2
5	43019A2	齿轮总成	GEAR ASSEMBLY	1
6	812873A1	滚子轴承总成(顶部)	BEARING ASSEMBLY Roller (TOP)	1
7	419531	油封	SEAL Oil	1
8	812881A1	滚子轴承总成(中部)	BEARING ASSEMBLY Roller (CENTER)	2
9	9613A1	活塞总成	PISTON ASSEMBLY	3
9	9613T1	活塞	PISTON	3
9	9613A2	活塞总成	PISTON ASSEMBLY	AR
9	9613T2	活塞总成0.015	PISTON ASSY .015	AR
9	9613A3	活塞总成	PISTON ASSEMBLY	AR
9	9613T3	活塞	PISTON	AR
10	52035	锁环	RING Lock	6
10	857196	锁紧环	LOCK RING	6
11	19721A6	活塞环组	RING SET Piston	1
11	19721A1	活塞环组	RING SET Piston	AR
11	19721A2	活塞环组	RING SET Piston	AR
12	9612A2	连杆总成	CONNECTING ROD ASSEMBLY	3
12	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
13	812876	垫圈	WASHER	6
13	8M0012298	止推垫片	THRUST WASHER	6
14	47270	轴承	BEARING	8
14	8M0214934	滚针轴承@200	BRG-NEEDLE @200	8
15	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
16	17514A1	轴承套件	BEARING KIT	3
16	8M0234886	轴承保持架	CAGE BEARING	3
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 33进气歧管与簧片阀组 INDUCTION MANIFOLD AND REED BLOCK

REF	零件编号	中文名称	英文名称	数量
1	812865	衬垫	GASKET	1
2	9812A9	下端盖总成	END CAP ASSEMBLY Lower	1
2	9812T9	下端盖总成	END CAP ASSEMBLY Lower	1
3	66301	油封	SEAL Oil	1
4	41953	密封件	SEAL	1
5	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
5	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
6	81742720	螺钉(M8 x 20)	SCREW (M8 x 20)	3
7	19077A2	支架总成	BRACKET ASSEMBLY	1
7	19077A3	支架总成	BRACKET ASSEMBLY	1
8	8161941	螺柱	STUD	2
8	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
9	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
9	8M0204663	垫片@5	WASHER @5	2
10	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
11	816872	蝶形螺母	WING NUT	2
12	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
13	19076A3	进气歧管总成	MANIFOLD ASSEMBLY Induction	1
14	19725	弯头(55号件含2个)	ELBOW (QTY. OF 2 ON 55)	1
15	812869	衬垫	GASKET	1
16	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
17	19075A2	簧片阀总成	REED BLOCK ASSEMBLY	1
17	8M0219197	簧片阀总成	REED BLOCK ASSY	1
18	812868	衬垫	GASKET	1
19	812880A1	簧片组(0.008厚度)	REED SET (0.008 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
19	812880A2	簧片组件(0.010厚度)	REED ASSEMBLY (0.010 THICK)	3
19	812880A03	簧片组件	REED ASSEMBLY	3
20	42982	锁紧垫圈	TAB WASHER	3
20	429821	锁紧垫圈	TAB WASHER	3
21	812879	固定座	RETAINER	3
21	812879002	簧片压板	RETAINER Reed	3
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	3
23	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
24	42981	锁紧垫圈	TAB WASHER	2
25	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
26	988851	滑块	SLIDE	1
27	48475	衬套(II型)	BUSHING (DESIGN II)	1
27	42994	衬套	BUSHING	1
28	29720	波形垫圈	WAVE WASHER	1
29	24664	垫圈 (M4 x 20)	WASHER (M4 x 20)	1
30	400634	螺母 (M6)	NUT (M6)	1
30	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
31	35459	垫圈	WASHER	1
32	400634	螺母 (M6)	NUT (M6)	1
32	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
-	15026	进气歧管盖	CAP (FOR USE ON INDUCTION MANIFOLD)	3
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

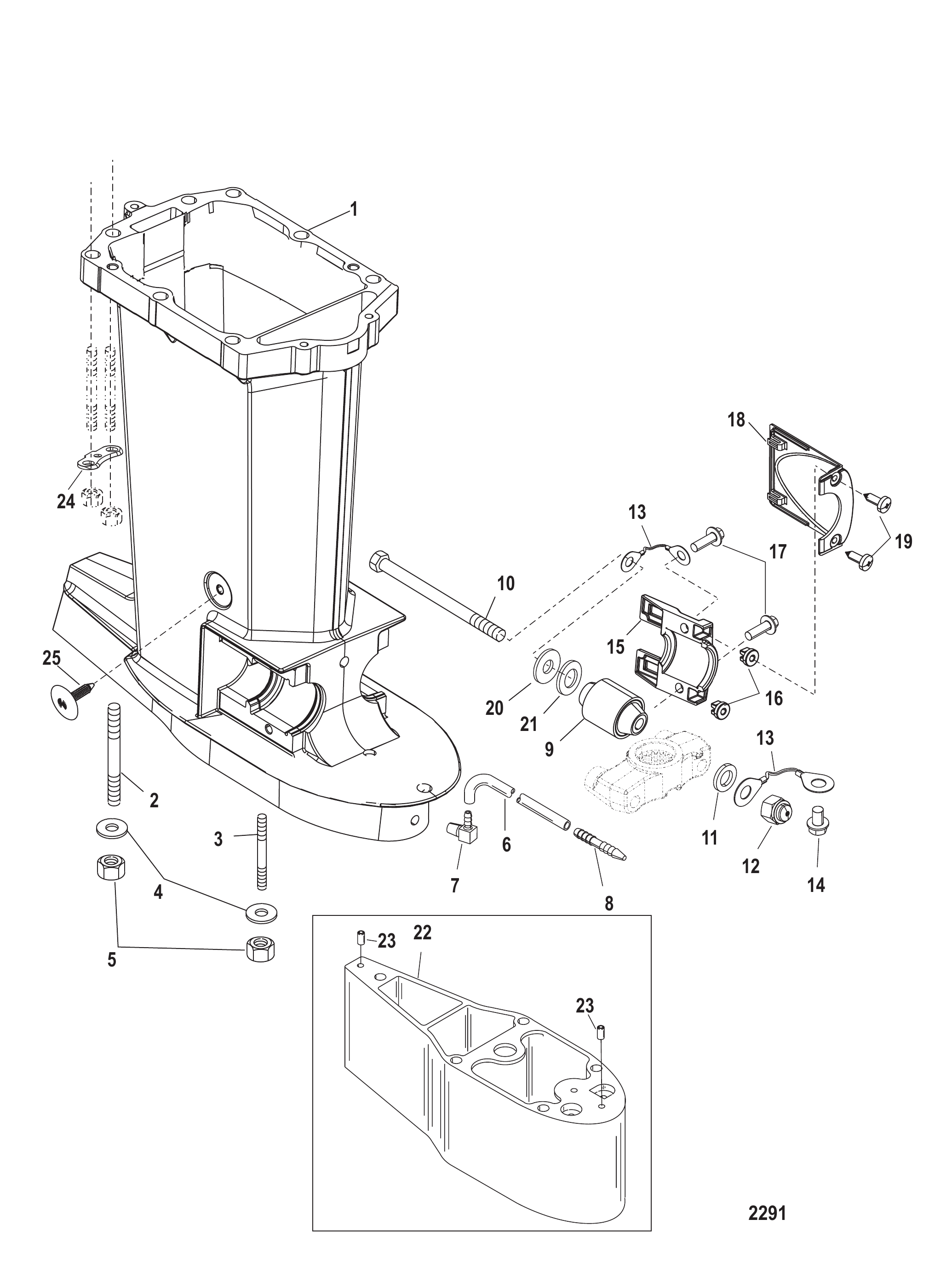

图 34驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	858576T03	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
3	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
3	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	8M0214963	垫圈	WASHER	5
5	40140	螺母(M10)	NUT (M10)	5
6	85822A15	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
7	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
8	85822	直通接头	CONNECTOR Straight	1
8	85822T	直通接头	CONNECTOR Straight	1
9	44343T1	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
10	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
11	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
12	43528	螺母(M12)	NUT (M12)	2
12	8M0204662	螺母	NUT	2
13	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
14	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
15	858916T	卡箍	CLAMP	2
16	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
17	858745	盖帽	CAP	4
17	8M0142713	支撑盖帽	CAP Chap Support	4
18	859550	衬套	BUSHING	1
19	24873	定位销	PIN Alignment	1
20	855622	接头	FITTING	1
21	12092A3	隔套套件	SPACER KIT	1
22	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
22	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
23	813745	隔套	SPACER	1
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

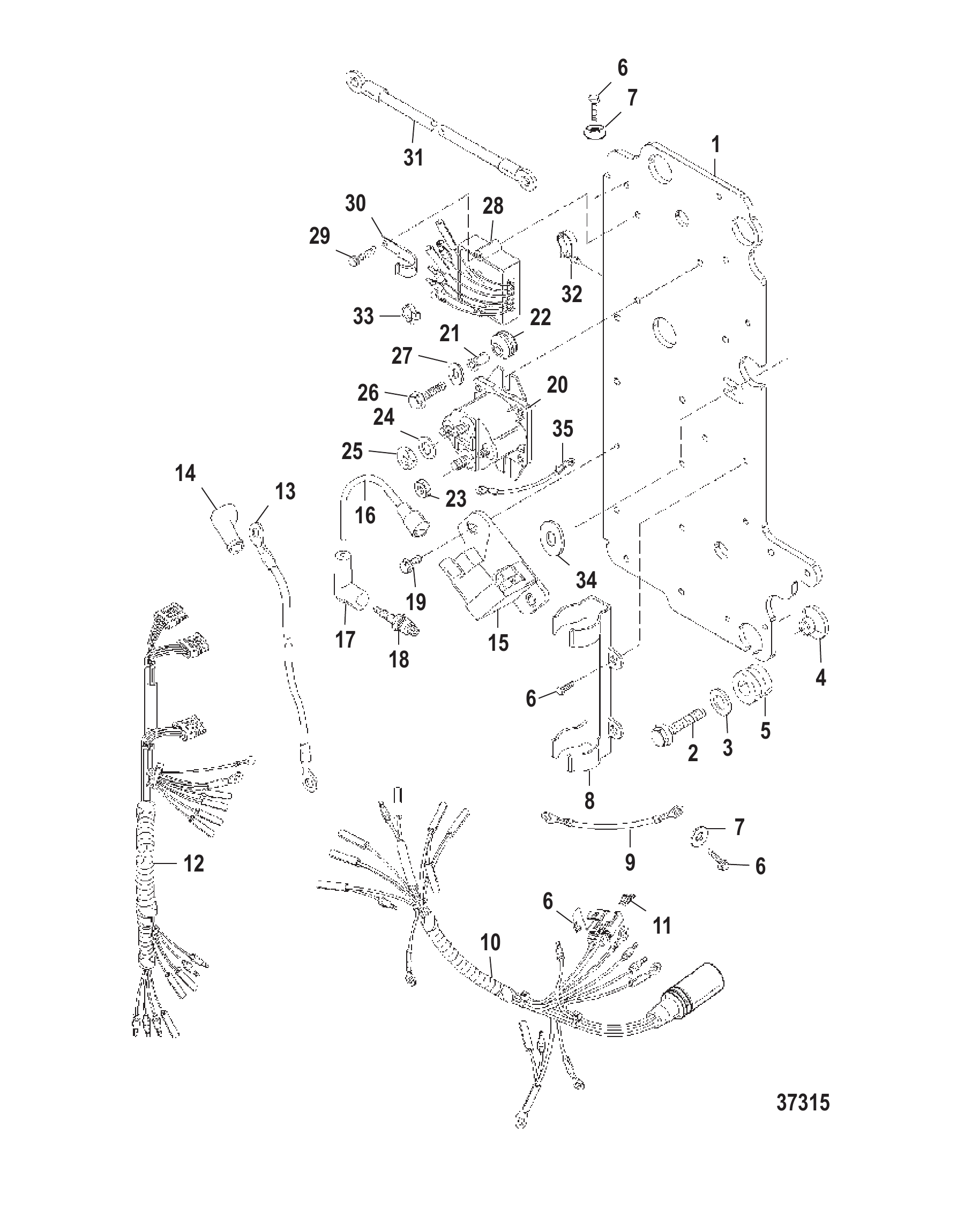

图 35电气组件（USA-0G438000/BEL-9937000及以上） ELECTRICAL COMPONENTS USA-0G438000/BEL-9937000 AND UP

REF	零件编号	中文名称	英文名称	数量
1	832753	点火板	IGNITION PLATE	1
2	40011150	螺钉(M8×30)不锈钢	SCREW (M8 x 30) Stainless Steel	3
3	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	3
4	850234	衬套	BUSHING	3
4	8502341	衬套	BUSHING	3
5	833155	护孔环	GROMMET	3
6	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	5
7	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
8	826115	卡箍	CLAMP	1
8	8261151	连接器卡箍	CLAMP Connector	1
9	88807A44	电缆总成(10英寸)	CABLE ASSEMBLY (10 IN.)	1
10	850043A2	发动机线束总成	HARNESS ASSEMBLY Engine	1
11	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
12	850045A2	点火线束总成	HARNESS ASSEMBLY Ignition	1
13	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
14	830233	红色绝缘护套	BOOT Insulator - Red	1
15	827509A4	CDM模块总成	CDM MODULE ASSEMBLY	4
15	827509A10	CDM模块总成	CDM MODULE ASSEMBLY	4
15	827509A10	CDM模块总成	CDM MODULE ASSEMBLY	4
16	821945A61	高压电缆总成	CABLE ASSEMBLY Hi Tension	4
17	63709A1	护套/端子套件	BOOT/TERMINAL KIT	4
18	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	4
18	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	4
18	8168372	火花塞(NGK BPZ8H-N-10)	SPARK PLUG (NGK#BPZ8H-N-10)	4
18	938	SP #QL78YC @4	SP #QL78YC @4	4
19	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	8
20	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
21	818968	衬套	BUSHING	2
21	8M0214955	衬套	BUSHING	2
22	822179	护孔环	GROMMET	2
23	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
24	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
24	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
25	68292	螺母(.312-18)	NUT (.312-18)	2
25	8M0204668	螺母(.312-18)	NUT (.312-18)	2
26	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
27	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
27	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
28	854515	电压调节器	REGULATOR Voltage	1
28	8M0084173	电压调节器	VOLTAGE REGULATOR	1
29	82129135	螺钉(M6x35)	SCREW (M6 x 35)	2
30	54457	J型卡扣	J CLIP	1
31	93388A8	黑色电缆总成(12.5英寸)	CABLE ASSEMBLY (12.5 Inchs) Black	1
32	834813	卡箍	CLAMP	2
33	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
33	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
34	36001	垫圈	WASHER	1
35	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1

图 36喷泵组件 JET PUMP COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	821889A51	转速限制器	REV LIMITER	1
2	823147A7	转速限制器线束总成	HARNESS ASSEMBLY Rev Limiter	1
3	11149A8	适配器线束总成	HARNESS ASSEMBLY Adapter	1
4	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
5	30500A2	润滑脂套装	GREASE KIT	1
5	30500K2	注脂枪与润滑剂	GUN AND LUBE	1
6	430331	衬垫	GASKET	1
7	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
8	817277	衬垫	GASKET	1
8	8172771	水泵上垫片	GASKET Water Pump, Upper	1
9	817276	面板	FACEPLATE	1
9	8M0204709	面板	FACEPLATE	1
10	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
11	430232	密封件	SEAL	1
12	43037	键	KEY	1
12	8M0204723	键	KEY	1
13	430262	叶轮	IMPELLER	1
13	43026T2	叶轮	IMPELLER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 37艉板支架（序列号USA-0G589999/BEL-9973099及以下） TRANSOM BRACKET (S/N-USA-0G589999/BEL-9973099 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	8718F7	艉板支架	BRACKET Transom	1
1	8718F8	艉板支架	BRACKET Transom	1
1	8718F10	艉板支架	BRACKET Transom	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A10	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	814207	停机开关	STOP	1
13	821176A1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈	WAVE WASHER	1
15	65830	尼龙衬套	NYLINER	2
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	螺栓总成	BOLT ASSEMBLY	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
22	818771F1	锚支架	BRACKET Anchor	1
22	8M0086406	锚支架	BRACKET Anchor	1
22	818771F6	锚支架	BRACKET Anchor	1
22	818771T8	ORD 818771T 1	ORD 818771T 1	1
22	818771F8	锚支架	BRACKET Anchor	1
22	818771T8	ORD 818771T 1	ORD 818771T 1	1
23	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
24	4002319	垫圈	WASHER	6
25	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
26	818298A1	阳极套件	ANODE KIT	1
26	818298Q1	阳极套件	ANODE KIT	1
27	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
27	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
28	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
28	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2

图 38齿轮箱对照表（2.07:1/2.31:1齿轮比） GEAR HOUSING CHART (2.07:1/2.31:1 GEAR RATIO)

REF	零件编号	中文名称	英文名称	数量
-	9011G10	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J6	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G98	ORD 1667-9011J6	ORD 1667- 9011J6	1
-	9011G13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J12	ORD1667-9011J9	ORD1667- 9011J 9	1
-	9011G27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G81	ORD 1667-9011J45	ORD 1667-9011J45	1
-	9011G1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G2	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J18	ORD 1667-9011J15	ORD 1667-9011J15	1
-	9011G39	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J7	GC 100-125 LG BLK	GC 100-125 LG BLK	1
-	9011G40	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J10	GC 100-125 KL BLK	GC 100-125 KL BLK	1
-	9011G41	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G99	ORD 1667-9011J7	ORD 1667-9011J7	1
-	9011G42	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G81	ORD 1667-9011J45	ORD 1667-9011J45	1
-	9011G33	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J16	GC 100-125 LB BLK	GC 100-125 LB BLK	1
-	9011G36	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J19	ORD 1667-9011J16	ORD 1667-9011J16	1

图 39动力升降倾斜装置（黑色注油塞）（G359967/9934136及以下） POWER TRIM (BLACK FILL PLUG)(G359967/9934136 AND BELOW

REF	零件编号	中文名称	英文名称	数量
-	824051	配平泵总成	PUMP ASSEMBLY Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813432A3	气缸密封套件	SEAL KIT Cylinder	1
4	810776	记忆活塞套件	PISTON KIT Memory	1
5	811669A1	气缸总成	CYLINDER ASSEMBLY	1
5	893916A01	气缸总成	CYLINDER ASSEMBLY	1
6	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
7	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
8	823180A1	摇臂套件	ROCKER ARM KIT	1
8	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
9	813436	螺钉套件	SCREW KIT	1
10	8116711	驱动轴	DRIVESHAFT	1
11	811626A3	密封套件(含箱体螺栓)	SEAL KIT (W/CASE BOLTS)	1
11	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
12	8116731	储液罐套件	RESERVOIR KIT	1
12	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
13	813435	塞套件	PLUG KIT	1
13	8134351	堵头	PLUG	1
14	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
14	893929A01	安全阀套件	VALVE KIT Relief	1
15	8116241	机架与磁场套件	FRAME AND FIELD KIT	1
15	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
16	8116271	电枢套件	ARMATURE KIT	1
16	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
17	12665	电刷弹簧套件	SPRING KIT Brush	1
18	811625	电刷卡套件	BRUSH CARD KIT	1
19	818898	锚销	PIN Anchor	1
20	821539	三叶销	PIN Trilobe	2
21	996251	轴	SHAFT	1
21	99625002	轴	SHAFT	1
22	818298A1	阳极套件	ANODE KIT	1
22	818298Q1	阳极套件	ANODE KIT	1
23	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
23	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
24	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
24	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
25	17201A2	电缆总成 (17.00 英寸)	CABLE ASSEMBLY (17.00 Inches)	1
26	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
26	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
27	69205	C形垫圈	C WASHER	2
27	8M0084613	C形垫圈	C-WASHER	2
28	22875	卡扣	CLIP	2
29	818997A1	电磁阀总成	SOLENOID ASSEMBLY	2
29	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	2
30	818968	衬套	BUSHING	4
30	8M0214955	衬套	BUSHING	4
31	818967	护孔环	GROMMET	4
31	8M0207785	护孔环	GROMMET	4
32	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	4
33	4002314	垫圈	WASHER	4
34	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
35	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
36	64015	螺母 (.250-20)	NUT (.250-20)	4

图 40齿轮箱驱动轴 Gear Housing Driveshaft

REF	零件编号	中文名称	英文名称	数量
-	9011A25	黑色长型齿轮箱总成	GEAR HOUSING ASSEMBLY Long, Black	1
-	9011A27	黑色加长型齿轮箱总成	GEAR HOUSING ASSEMBLY X-Long, Black	1
-	9011J10	GC 100-125 KL BLK	GC 100-125 KL BLK	1
-	9011A26	灰色长型齿轮箱总成	GEAR HOUSING ASSEMBLY Long, Gray	1
-	9011G99	ORD 1667-9011J7	ORD 1667-9011J7	1
-	9011A28	灰色加长型齿轮箱总成	GEAR HOUSING ASSEMBLY X-Long, Gray	1
-	9011G42	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A30	牡蛎色长型齿轮箱总成	GEAR HOUSING ASSEMBLY Long, Oyster	1
-	9011G99	ORD 1667-9011J7	ORD 1667-9011J7	1
-	9011A49	牡蛎色加长型齿轮箱总成	GEAR HOUSING ASSEMBLY X-Long, Oyster	1
-	9011G42	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011A6	齿轮箱总成黑色	GEAR HOUSING ASSEMBLY Black	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A8	齿轮箱总成灰色	GEAR HOUSING ASSEMBLY Gray	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
1	9011A29	牡蛎色齿轮箱总成	GEAR HOUSING ASSEMBLY Oyster	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
2	43043	带孔定位销(.375×.625)前部-X长型用2件	PIN Dowel - With Hole (.375 x .625) Front, Quantity Of Two On X-Long	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	28653	螺钉(#10-32×0.25)新设计-用于参考号6,7	SCREW (#10-32 x 0.25) New Design Used For Reference Number 6, 7	1
4	19643	密封件	SEAL	1
5	79953	磁性螺钉(.375-16×0.250)	SCREW (.375-16 x .250) Magnetic	1
5	79953Q04	放油螺钉套件	SCREW KIT Drain	1
6	19183	纤维垫圈	WASHER Fiber	3
6	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
7	67892	磁性螺钉	SCREW Magnetic	2
7	8M0058389	放油螺钉套件	SCREW KIT Drain	2
8	43044	无孔定位销(.375×.625)后部-X长型用2件	PIN Dowel - Without Hole (.375 x .625) Rear, Quantity Of Two On X-Long	1
9	316403	平衡鳍板	TRIM TAB	1
9	31640Q4	平衡鳍板	TRIM TAB	1
10	15942	螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250)	1
10	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
11	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
12	43040A1	托架总成	CARRIER ASSEMBLY	1
12	43040T1	托架总成	CARRIER ASSEMBLY	1
12A	43046	注油管	TUBE Oiler	1
13	19672A1	小齿轮总成	GEAR ASSEMBLY Pinion	1
13	881259A1	齿轮组	GEAR SET	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	76039	换挡凸轮控制	CAM Shift Control	1
15	760394	换挡凸轮控制	CAM Shift Control	1
16	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
17	44492A1	垫片组	SHIM SET	1
17	8M0063265	垫片组	SHIM SET	1
18	43031A1	长型驱动轴总成	DRIVESHAFT ASSEMBLY Long	1
18	43032A4	驱动轴总成 X加长型	DRIVESHAFT ASSEMBLY X-Long	1
19	42461A1	套筒/环套件	SLEEVE/RING KIT	1
20	43055A4	水泵铝盖总成	COVER ASSEMBLY Water Pump Aluminum Cover	1
20	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
21	430472	铝盖垫片	GASKET Aluminum Cover	1
21	8M0214931	衬垫	GASKET	1
22	43036	下油封-铝盖	SEAL Oil Lower, Aluminum Cover	1
23	43035	上油封-铝盖	SEAL Oil Upper, Aluminum Cover	1
23	8M0245495	油封	OIL SEAL	1
24	430331	铝盖垫片	GASKET Aluminum Cover	1
25	430341	铝盖垫片	GASKET Aluminum Cover	1
25	817277	衬垫	GASKET	1
25	8172771	水泵上垫片	GASKET Water Pump, Upper	1
20	19282A1	塑料盖总成	COVER ASSEMBLY Plastic Cover	1
20	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
20	19282A2	铝盖总成	COVER ASSEMBLY Aluminum Cover	1
20	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
22	43036	下油封-塑料盖	SEAL Oil Lower, Plastic Cover	1
23	43035	上油封-塑料盖	SEAL Oil Upper, Plastic Cover	1
23	8M0245495	油封	OIL SEAL	1
25	430341	铝盖塑料盖垫片	GASKET Aluminum Cover Plastic Cover	1
26	43024A3	水泵总成（配合参考号30和31使用）	PUMP ASSEMBLY Water Use With Reference Number 30 And 31	1
26	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
27	NLA	817275A2	No Longer Available Order 817275A2	1
28	4000332	螺丝(M6x35)（配合参考号30和31使用）	SCREW (M6 x 35) Use With Reference Number 30 And 31	4
29	43023	油封（配合参考号30和31使用）	SEAL Use With Reference Number 30 And 31	1
29	8M0204658	密封件	SEAL	1
30	4002315	垫圈(6.60x12.5x1.5mm不锈钢)（配合参考号30和31使用）	WASHER (6.60 X 12.5 X 1.5 mm -SS) Use With Reference Number 30 And 31	4
31	43045	绝缘垫（配合参考号30和31使用）	INSULATOR Use With Reference Number 30 And 31	4
31	8M0204659	绝缘体@4	INSULATOR @4	4
26	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
27	817276	面板（不配合参考号30和31使用）	FACEPLATE Use Without Reference Number 30 And 31	1
27	8M0204709	面板	FACEPLATE	1
28	40011130	螺丝(M6x30不锈钢)（不配合参考号30和31使用）	SCREW (M6 x 30) Stainless Steel Use Without Reference Number 30 And 31	4
29	43023	油封（不配合参考号30和31使用）	SEAL Use Without Reference Number 30 And 31	1
29	8M0204658	密封件	SEAL	1
32	43037	键	KEY	1
32	8M0204723	键	KEY	1
33	430262	叶轮	IMPELLER	1
33	43026T2	叶轮	IMPELLER	1
34	4000330	螺钉(M6x25)	SCREW (M6 x 25)	6
34	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	6
35	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
35	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
36	43048A1	换挡轴总成长型	SHIFT SHAFT ASSEMBLY Long	1
36	43049A1	换挡轴总成 X加长型	SHIFT SHAFT ASSEMBLY X-Long	1
37	29641	E型卡环	E RING	1
38	43052A1	衬套总成	BUSHING ASSEMBLY	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	2
41	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	2

图 41化油器WME-32/32A/33/34/40/40A CARBURETOR WME-32/32A/33/34/40/40A

REF	零件编号	中文名称	英文名称	数量
1	821679A34	化油器	CARBURETOR	1
1	821679A35	化油器	CARBURETOR	1
1	823799T40	化油器	CARBURETOR	1
1	821679A36	化油器	CARBURETOR	1
1	823799T41	化油器	CARBURETOR	1
1	821679A37	化油器	CARBURETOR	1
1	823799T42	化油器	CARBURETOR	1
1	821946A10	化油器	CARBURETOR	1
1	884586T07	化油器(WME 111-1)	CARBURETOR (WME 111-1)	1
1	821946A11	化油器	CARBURETOR	1
1	884586T08	化油器(WME 111-2)	CARBURETOR (WME 111-2)	1
1	821946A12	化油器	CARBURETOR	1
1	884586T09	化油器(WME 111-3)	CARBURETOR (WME 111-3)	1
1	821946A13	化油器	CARBURETOR	1
1	884586T10	化油器(WME 111-4)	CARBURETOR (WME 111-4)	1
1	824902A9	化油器	CARBURETOR	1
1	884586T07	化油器(WME 111-1)	CARBURETOR (WME 111-1)	1
1	824902A10	化油器	CARBURETOR	1
1	884586T08	化油器(WME 111-2)	CARBURETOR (WME 111-2)	1
1	824902A11	化油器	CARBURETOR	1
1	884586T09	化油器(WME 111-3)	CARBURETOR (WME 111-3)	1
1	824902A12	化油器	CARBURETOR	1
1	884586T10	化油器(WME 111-4)	CARBURETOR (WME 111-4)	1
1	821680A1	化油器	CARBURETOR	1
1	884587T07	化油器(125-WME 112-1)	CARBURETOR (125-WME 112-1)	1
1	821680A2	化油器	CARBURETOR	1
1	884587T08	化油器(125-WME 112-2)	CARBURETOR (125-WME 112-2)	1
1	821680A3	化油器	CARBURETOR	1
1	884587T09	化油器(125-WME 112-3)	CARBURETOR (125-WME 112-3)	1
1	821680A4	化油器	CARBURETOR	1
1	884587T10	化油器(125-WME 112-4)	CARBURETOR (125-WME 112-4)	1
2	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	4
3	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	4
4	811693	燃油杯	BOWL Fuel	AR
4	811696	燃油杯	BOWL Fuel	1
5	823632	油门轴	SHAFT Throttle	3
6	8236321	油门轴	SHAFT Throttle	1
7	97241	油门阀	VALVE Throttle	4
8	9594	浮子	FLOAT	4
9	F10064	轴	SHAFT	4
10	879194011	进油阀	VALVE Inlet	4
11	811694	塞套件	PLUG KIT	4
12	802731	油封组(含4个油封)	SEAL (CONSISTS OF 4 SEALS)	1
13	NSS		NOT SOLD SEPARATE Gasket-Cover Plate	4
14	151723	衬垫	GASKET	4
14	151724	衬垫	GASKET	4
15	F10155	节气门螺丝	SCREW Throttle Valve	8
16	811220	盖板螺丝	SCREW Cover Plate	8
17	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	16
18	811221	盖板	COVER PLATE	4
19	5317	量孔(.046)	JET (.046)	1
19	6246	量孔(.048)	JET (.048)	1
19	6028	量孔(.050)	JET (.050)	1
19	6359	量孔(.052)	JET (.052)	2
19	5225	主量孔(.054)	JET Main (.054)	1
19	5213	主量孔(.056)	JET Main (.056)	2
19	4217	主量孔(.062)	JET Main (.062)	1
19	4215	燃油主量孔(.066)	JET Main Fuel (.066)	1
19	6029	量孔(.068)	JET (.068)	AR
19	6030	量孔(.070)	JET (.070)	1
19	6207	量孔(.072)	JET (.072)	1
20	808738	衬垫	GASKET	4
21	NSS		NOT SOLD SEPARATE Spring-Idle Needle	4
22	NSS		NOT SOLD SEPARATE Spring-Throttle Return	4
23	NSS		NOT SOLD SEPARATE Idle Needle	4
24	823634	螺钉	SCREW	2
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 42泄放系统（序列号USA-0G301751/BEL-9885505及以上） BLEED SYSTEM S/#-USA-0G301751/BEL-9885505 AND UP

REF	零件编号	中文名称	英文名称	数量
1	99130122	管材(20英尺整卷)(9英寸)	TUBING (20.00 Feet Bulk) (9 IN.)	1
2	59169	接头	FITTING	3
2	59169003	三通接头	FITTING Tee	3
3	99130122	管材(20英尺整卷)(9英寸)	TUBING (20.00 Feet Bulk) (9 IN.)	1
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	99130122	管材(20英尺整卷)(4.5英寸)	TUBING (20.00 Feet Bulk) (4-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	149126	止回阀	CHECK VALVE	4
7	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
8	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
8	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
9	99130122	管材(20英尺整卷)(4.5英寸)	TUBING (20.00 Feet Bulk) (4-1/2 IN.)	1
9	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
10	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
11	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
12	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20英尺整卷)(6英寸)	TUBING (20.00 Feet Bulk) (6 IN.)	1
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
14	99130122	管材(20英尺整卷)(1.5英寸)	TUBING (20.00 Feet Bulk) (1-1/2 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	15133	接头	FITTING	5
-	17791A97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1

图 43杂项零件/附件 Miscellaneous Parts/Accessories

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

图 44化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	821679A17	化油器	CARBURETOR	1
1	821679A18	化油器	CARBURETOR	1
1	821679T18	化油器	CARBURETOR	1
1	821679A19	化油器	CARBURETOR	1
1	821679T19	化油器	CARBURETOR	1
1	821946A24	化油器	CARBURETOR	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A25	化油器	CARBURETOR	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A26	化油器	CARBURETOR	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A27	化油器	CARBURETOR	1
1	821946T42	化油器	CARBURETOR	1
1	821946A28	化油器	CARBURETOR	1
1	821946T43	化油器	CARBURETOR	1
1	821946A29	化油器	CARBURETOR	1
1	821946T44	化油器	CARBURETOR	1
2	823634	螺丝(上/下部)	SCREW (UPPER/BOTTOM)	2
3	823632	油门轴	SHAFT Throttle	1
4	823633	油门轴	SHAFT Throttle	1
4	823636	油门轴	SHAFT Throttle	1
3	823632	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
5	NSS	不单独销售油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	3
6	6247	主量孔(0.090)	JET Main (.090)	3
7	NSS	不单独销售怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
8	NSS	不单独销售怠速针弹簧	NOT SOLD SEPARATE SPRING-IDLE NEEDLE	3
9	NSS	不单独销售盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杠杆(WME43/45-底部)	LEVER Oil Pump (WME43/45 - BOTTOM)	1
14	8086121	杠杆固定螺钉(WME43/45-底部)	SCREW Lever Retainer (WME43/45 - BOTTOM)	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	879194023	节气门阀	VALVE-THROTTLE	3
17	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	3
18	F10064	轴	SHAFT	3
19	NSS	不单独销售喷油嘴衬垫	NOT SOLD SEPARATE GASKET-NOZZLE WELL	3
20	NSS	不单独销售燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
24	811695	燃油杯	BOWL Fuel	1
24	811693	燃油杯	BOWL Fuel	2
25	811694	塞套件	PLUG KIT	3
26	NSS	排水碗密封件(不单独销售)	NOT SOLD SEPARATE SEAL-BOWL DRAIN	3
27	6246	量孔(.048)	JET (.048)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
27	4217	主量孔(.062)	JET Main (.062)	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

图 45齿轮箱（螺旋桨轴）（3爪倒车离合器） GEAR HOUSING (PROP SHAFT)(3 JAW REVERSE CLUTCH)

REF	零件编号	中文名称	英文名称	数量
1	9011A73	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011A74	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
1	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T80	ORD 1667-9011T73	ORD 1667-9011T73	1
42	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
43	NSS	前进齿轮(不单独销售/属于43-19672A1部件)	NOT SOLD SEPARATE Forward Gear(PART OF 43-19672A1)	1
43	12634A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
43	12634T02	齿轮总成	GEAR ASSEMBLY	1
44	30895	滚针轴承	BEARING Needle	1
44	30895T	滚针轴承	BEARING Needle	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	44530	钢球	BALL	3
47	30622	弹簧	SPRING	1
48	822539	离合器	CLUTCH	1
48	822539T	离合器	CLUTCH	1
49	30632	十字销	PIN Cross	1
49	8M0100263	十字销	PIN Cross	1
50	30893	弹簧	SPRING	1
51	12238T	螺旋桨轴	PROPELLER SHAFT	1
52	NSS	倒车齿轮(不单独销售/属于43-19672A1部件)	NOT SOLD SEPARATE Reverse Gear (PART OF 43-19672A1)	1
52	12635	倒挡齿轮	GEAR Reverse	1
52	12635T	倒挡齿轮	GEAR-REVERSE	1
53	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	8M0168901	轴承座总成	CARRIER ASSY.	1
54	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
54	8M0214974	O型圈	O RING	1
55	30956	滚针轴承	BEARING Needle	1
55	30956T	滚针轴承	BEARING Needle	1
56	76868	内密封件	SEAL (INNER)	1
56	8M0248882	油封@5	SEAL-OIL @5	1
57	70081	油封(外)	SEAL Oil (OUTER)	1
57	8M0205729	密封件	SEAL	1
58	12578	滚针轴承	BEARING Needle	1
58	12578T	滚柱轴承	BEARING Roller	1
59	12577	止推垫片	THRUST WASHER	1
60	12576	推力轴承	BEARING Thrust	1
61	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
61	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
62	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
62	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
63	401198	螺母 (M8)	NUT (M8)	2
63	401378	螺母 (M8)	NUT (M8)	2
64	44491A1	垫片组	SHIM SET	1
64	8M0063266	垫片组	SHIM SET	1
65	13191A1	止推垫片	THRUST WASHER	1
65	13191Q01	止推垫片	THRUST WASHER	1
66	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
66	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
67	816629	锁紧垫圈	TAB WASHER	1
67	816629Q	锁紧垫圈	TAB WASHER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 46电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	881363T	盖板	COVER	1
2	881364T2	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
2	881364T1	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
3	804291	保险丝20安培	FUSE 20 Ampere	4
3	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
4	80429110	30安保险丝	FUSE 30 Ampere	4
4	8M0057159	30A保险丝	FUSE-30A	4
0	891824010	保险丝盖	COVER Fuse	4
0	891824020	保险丝盖	COVER Fuse	4
5	804289	保险丝拔取器	PULLER Fuse	1
6	881362	支架	BRACKET	1
7	8813511	螺钉	SCREW	1
8	881352T	继电器	RELAY	1
8	8M0098898	继电器	RELAY	1
9	82214M	垫圈	WASHER	2
10	881355	锁紧垫圈	LOCKWASHER	2
10	82212M	锁紧垫圈	LOCKWASHER	2
11	881354	螺钉	SCREW	2
11	96671M	螺钉	SCREW	2
12	804284	护套	BOOT	2
12	804284001	护套	BOOT	2
13	881350T	继电器	RELAY	1
14	881351	螺钉	SCREW	1
15	881353	卡箍	CLAMP	1
16	8813511	螺钉	SCREW	1
17	881359T	支架	BRACKET	1
17	881363A01	盖/支架套件	COVER/BRACKET KIT	1
18	881361	卡箍	CLAMP	1
19	881360	卡箍	CLAMP	1
20	804270	螺栓(M6×28)	BOLT (M6 x 28)	5
21	881304	护孔环	GROMMET	5
22	82851M	衬套	BUSHING	5
22	804344003	轴环	COLLAR	5
23	881356T1	继电器总成	RELAY ASSEMBLY	1
23	882751A3	升降继电器套件	RELAY KIT Trim	1
24	881357	引线	LEAD WIRE	1
25	881358	盖帽	CAP	1
26	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	825702	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
27	8257021	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
28	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
29	88439A33	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
30	88439A10	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
31	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
32	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
32	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
33	858723T1	适配器/升降线束总成	HARNESS ASSEMBLY Adapter/Trim	1
34	858914T1	升降马达适配器线束总成	HARNESS ASSEMBLY Trim Motor Adaptor	1
35	858740T4	遥控适配器线束总成	HARNESS ASSEMBLY Adapter Assembly Remote	1
36	92753	固定座	RETAINER	1
37	859249T1	连接器	CONNECTOR	1
38	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
39	8272822	高压警告标贴	DECAL Warning High Voltage	1
40	881865	挂档启动警示标贴	DECAL Caution-Start in Gear Start in Gear	1
41	828151A2	升降继电器套件	TRIM RELAY KIT	1
41	882751A3	升降继电器套件	RELAY KIT Trim	1
42	826802A24	升降线束总成	HARNESS ASSEMBLY Trim	1
43	828151A1	继电器总成	RELAY ASSEMBLY	2
43	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
44	818967	护孔环	GROMMET	1
44	8M0207785	护孔环	GROMMET	1
45	818968	衬套	BUSHING	1
45	8M0214955	衬套	BUSHING	1
46	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
47	828102	支架	BRACKET	1
47	8M0207771	安装支架	BRACKET Mounting	1
48	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
49	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
49	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
50	823807	衬套	BUSHING	1

图 47外罩安装支架 Cowl Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
1	42965A1	盖密封支架总成	BRACKET ASSEMBLY COWL SEAL	1
1	42965A2	盖密封支架总成	BRACKET ASSEMBLY COWL SEAL	1
2	183061	支架密封条	SEAL BRACKET	2
3	42935	密封件	SEAL	1
4	42908	限位器	RESTRAINT	1
5	400015	限位器螺钉 (M5 x 10)	SCREW (M5 x 10) RESTRAINT	1
6	43423	限位器螺钉垫圈	WASHER RESTRAINT SCREW	1
6	42118	垫圈	WASHER	1
7	42907	示警器接头	CONNECTOR TELL TALE	1
8	9912976	示警器软管	TUBING TELL TALE	1
8	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
9	73498	卡箍	CLAMP	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
10	932641	壳体铰链	HOUSING HINGE	2
10	932642	壳体	HOUSING	2
11	4009560	壳体螺钉	SCREW HOUSING	4
11	8M0103817	螺钉 (M8 x 60)	SCREW (M8 x 60)	4
12	93853	壳体螺钉垫圈	WASHER HOUSING SCREW	8
12	814803	垫圈	WASHER	8
13	53705	壳体螺钉垫圈	WASHER HOUSING SCREW	8
13	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	8
14	88033	壳体螺钉衬套	GROMMET HOUSING SCREW	4
15	14395	壳体螺钉轴套	BUSHING HOUSING SCREW	4
16	4000120	壳体至支架螺钉 (M5 x 25)	SCREW (M5 x 25) HOUSING TO BRACKET	2
17	43423	壳体螺钉垫圈	WASHER HOUSING SCREW	2
17	42118	垫圈	WASHER	2
18	42952T	前支架支撑	BRACKET SUPPORT (FRONT)	1
18	42952T6	前支架支撑	BRACKET SUPPORT (FRONT)	1
19	67260	控制线密封套	SEAL CONTROL CABLES	1
20	67272	支架衬套	GROMMET BRACKET	2
21	88621	控制线固定座	RETAINER CONTROL CABLES	1
21	99447T	控制线固定座	RETAINER CONTROL CABLES	1
21	99447	固定座	RETAINER	1
22	40057109	固定座螺钉 (M5 x 25)	SCREW (M5 x 25) RETAINER	2
22	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
23	4011135	支架螺钉 (M8 x 1.25 x 35)	SCREW (M8 x 1.25 x 35) BRACKET	2
23	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
24	93853	支架螺钉垫圈	WASHER BRACKET SCREW	4
24	814803	垫圈	WASHER	4
25	53705	支架螺钉垫圈	WASHER BRACKET SCREW	4
25	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4
26	88033	支架衬套	GROMMET BRACKET	2
27	14395	支架螺钉轴套	BUSHING BRACKET SCREW	2

图 48顶罩（序列号USA-0G301751/BEL-9885505及以上） TOP COWL (S/N-USA-0G301751/BEL-9885505 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	828354A8	顶盖总成	TOP COWL ASSEMBLY	1
1	828354A9	顶盖总成	TOP COWL ASSEMBLY	1
1	828354T9	银色顶罩总成	TOP COWL ASSEMBLY Silver	1
1	828354A10	银色顶罩与黑色盖总成	TOP COWL ASSEMBLY Silver Cowl And Black Cap	1
2	828716A2	盖帽	CAP	1
3	828352	密封件	SEAL	1
4	8283511	密封件	SEAL	1
5	821875F1	上盖	CAP Upper	1
5	8218751	上盖-黑色	CAP-UPPER-BLACK	1
5	821875F2	上盖	CAP Upper	1
5	821875F1	上盖	CAP Upper	1
6	8198131	盖板锁扣支架	BRACKET Cover Latch	1
6	819813T1	盖板锁扣支架	BRACKET Cover Latch	1
7	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
7	893763	滚轮锁扣支架	BRACKET Roller Latch	1
8	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
9	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
10	F481434	罩盖锁扣导架	GUIDE Cowl Latch Bracket	2
11	91925	压入式螺母	PUSH NUT	4
12	822512	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
13	823865	盖塞	CAP PLUG	2
14	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
15	823830	支架	SUPPORT	2
16	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	2
17	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
18	8233941	支架	BRACKET	1
19	8237515	螺母(M4)	NUT (M4)	2
20	823583A1	隔音毯套装	SOUND BLANKET KIT	1
20	823583A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
21	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 49艉板支架 Transom Bracket

REF	零件编号	中文名称	英文名称	数量
1	828334F1	艉板支架	BRACKET Transom	1
2	828333A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	828333T07	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
4	826125A1	倾斜管	TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
5	82671327	螺母(1.0-14)	NUT (1.0-14)	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	830899	张力弹簧	SPRING Tension	1
14	821176T1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1
20	818771T1	锚支架	BRACKET Anchor	1
20	8M0086406	锚支架	BRACKET Anchor	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2

图 50电气组件（USA-0G437999/BEL-9926999及以下） ELECTRICAL COMPONENTS USA-0G437999/BEL-9926999 AND BELOW

REF	零件编号	中文名称	英文名称	数量
-	13541	公插头	PLUG Male	2
1	443314	点火板	IGNITION PLATE	1
2	5772A7	开关盒总成	SWITCHBOX ASSEMBLY	1
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	13
4	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	4
5	63153	J型卡扣	J CLIP	1
6	43442A3	主线路束总成	HARNESS ASSEMBLY Primary	1
7	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	4
7	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	4
7	8168372	火花塞(加拿大/比利时 NGK#BPZ8H-N-10)	SPARK PLUG (CAN/BELGIUM NGK#BPZ8H-N-10)	4
7	938	SP #QL78YC @4	SP #QL78YC @4	4
8	813715A8	点火电缆组	CABLE SET Ignition	1
8	821945A57	高压电缆总成	CABLE ASSEMBLY Hi Tension	1
9	63709A1	护套/端子套件	BOOT/TERMINAL KIT	4
10	815279T	电压调节器	REGULATOR Voltage	1
10	8M0084173	电压调节器	VOLTAGE REGULATOR	1
11	4010635	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	2
12	832757A4	线圈套件	COIL KIT	4
12	8M0230859	点火线圈总成	COIL IGNITION ASY	4
13	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	8
14	87554	盖板	COVER	1
15	40007114	螺钉(M5×50)	SCREW (M5 x 50)	5
16	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	5
17	821546A3	线束总成	HARNESS ASSEMBLY	1
18	824912A3	电缆总成(6-1/2英寸)	CABLE ASSEMBLY (6-1/2 IN.)	1
18	824912A4	电缆总成(4-3/4英寸)	CABLE ASSEMBLY (4-3/4 IN.)	1
19	40007107	螺钉(M5×16)	SCREW (M5 x 16)	2
20	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
21	17602A2	端子排	TERMINAL BLOCK	1
21	17602T02	接线端子总成	TERMINAL BLOCK ASSEMBLY	1
22	82155025	螺丝(M8 x 25 mm)不锈钢	SCREW (M8 x 25 mm) Stainless Steel	4
23	45915	端子排	TERMINAL BLOCK	2
24	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
25	43443A9	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
26	79091	保险丝20安培	FUSE 20 Ampere	1
26	8M0207796	保险丝20安培	FUSE 20 AMP	1
27	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
27	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
28	13550T1	盖板	COVER	1
29	40007114	螺钉(M5×50)	SCREW (M5 x 50)	3
29	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	1
30	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
31	818968	衬套	BUSHING	2
31	8M0214955	衬套	BUSHING	2
32	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
33	4002314	垫圈	WASHER	2
34	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	AR
35	87379A34	电线(4.25英寸红色/按需使用)	WIRE (4.25 Inch) Red (USE WHERE APPLICABLE)	1
35	79139A22	线束总成	WIRE ASSEMBLY	1
36	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
37	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
38	68292	螺母(.312-18)	NUT (.312-18)	2
38	8M0204668	螺母(.312-18)	NUT (.312-18)	2

图 51维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
881980	维修手册	SERVICE MANUAL	1
881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
10225030	用户手册	OWNERS MANUAL	1
858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
881828	星形头工具套件	STARBIT TOOL KIT	1
881649A01	贴花套件	DECAL SET	1
881649A05	贴花套件	DECAL SET	1
881840A01	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A05	贴花套件	DECAL SET	1
881650A01	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881702A01	贴花套件	DECAL SET	1
881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
881839A02	EPA标签信息贴花	Decal EPA Label Information	1
881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
816834A1	转速表	TACHOMETER	1
816932A1	温度表	TEMPERATURE GAUGE	1
86306	适配器	ADAPTER	1
86306A01	适配器	ADAPTER	1
817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

图 52副驾驶装置 Co-Pilot

REF	零件编号	中文名称	英文名称	数量
-	52148A3	副驾驶装置总成	CO-PILOT ASSEMBLY	1
1	52148	导向杆	PILOT ROD	1
2	52155A1	螺母总成	NUT ASSEMBLY	1
2	8M0103848	螺母总成	NUT ASSEMBLY	1
3	36154	螺钉(.250-28 x 1.380)	SCREW (.250-28 x 1.380)	1
4	52152	蝶形螺母	WING NUT	1
5	873491	杆	ROD	1
6	52151	衬套	BUSHING	1
6	521512	衬套	BUSHING	1
7	20722	垫圈(.328 x .625 x .060)	WASHER (.328 x .625 x .060)	1
8	45592	螺母(.312-24)	NUT (.312-24)	1
8	826709111	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
9	20722	垫圈(.328 x .625 x .060)	WASHER (.328 x .625 x .060)	1
10	45592	螺母(.312-24)	NUT (.312-24)	1
10	826709111	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1

图 53气缸体与曲轴箱 Cylinder Block and Crankcase

REF	零件编号	中文名称	英文名称	数量
1	9755A9	气缸体	CYLINDER BLOCK	1
1	9755A14	气缸体	CYLINDER BLOCK	1
1	9755T14	气缸体	CYLINDER BLOCK	1
1	9755A10	气缸体	CYLINDER BLOCK	1
1	9755T10	气缸体	CYLINDER BLOCK	1
1	9755A15	气缸体	CYLINDER BLOCK	1
1	9755T15	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	42658	止回阀	CHECK VALVE	1
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材(20英尺散装)(16英寸)	TUBING (20.00 Feet Bulk) (16")	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
6	426233	止回阀	CHECK VALVE	1
7	812888A1	托架总成	CARRIER ASSEMBLY	2
8	42657A1	止回阀	CHECK VALVE	2
8	42657A3	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	20033	定位销	PIN Dowel (LOCATING)	1
12	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
13	812870	主轴承座中心销	PIN Center Main (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	18597	盖板	COVER	1
15	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
16	65848	托架	CARRIER	1
17	64872	护孔环	GROMMET	1
18	8128671	衬垫	GASKET	1
18	8128672	衬垫	GASKET	1
19	8161941	螺柱	STUD	2
19	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
20	18598	管塞	PIPE PLUG	4
20	185981	管塞(.375-18)	PLUG Pipe (.375-18)	4
21	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
22	81742720	螺钉(M8 x 20)(55号件用3个)	SCREW (M8 x 20) (QTY. OF 3 ON 55)	4
22	40011149	不锈钢螺钉(M8 x 25)(55号件用3个)	SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)	4
22A	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
23	8128821	提动阀	POPPET	1
24	812887	隔膜	DIAPHRAGM	1
24	8128871	隔膜	DIAPHRAGM	1
24	812887002	隔膜	DIAPHRAGM	1
25	94182	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	90392	弹簧	SPRING	1
27	18336	弹簧	SPRING	1
27	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
28	75692	节温器	THERMOSTAT	1
28	14586	节温器	THERMOSTAT	1
29	62386	衬垫	GASKET	1
29	8M0204714	衬垫@4	GASKET @4	1
30	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
30	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	99664	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	78279	弯头	ELBOW	1
38	8M0207781	弯头	ELBOW	1
39	19074	盖板	COVER	1
39	190741	盖板	COVER	1
39	8M0036859	盖板	COVER	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129961	盖板	COVER	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
45	821595	吊环	LIFTING EYE	1
46	821616	螺钉	SCREW	1
46	821606	螺钉	SCREW	1
47	400265	螺母 (M8)	NUT (M8)	1
47	401368	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 54飞轮与启动电机 Flywheel and Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
2	42956A1	飞轮盖总成	COVER ASSEMBLY FLYWHEEL	1
3	79022	正时标记	MARKER TIMING	1
4	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
5	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
6	42979	螺母(M16)飞轮	NUT (M16) FLYWHEEL	1
7	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	9008A16	飞轮总成	FLYWHEEL ASSEMBLY	1
9	8778A10	定子总成	STATOR ASSEMBLY	1
10	4007325	螺钉(M5x25)定子	SCREW (M5 x 25) STATOR	4
11	99021A3	触发器总成	TRIGGER ASSEMBLY	1
12	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	56703	启动电机轴环	COLLAR STARTER MOTOR	2
14	57247	启动电机橡胶止动块	STOP RUBBER-STARTER MOTOR	2
15	93388A1	电缆总成(6.00英寸) 黑色起动机至安装板	CABLE ASSEMBLY (6.00 Inches) Black STARTER MOTOR TO PLATE	1
16	69035	螺钉与锁紧垫圈(.250-20 x .625) 不锈钢导线至起动机	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel WIRE TO STARTER MOTOR	1
17	88439A20	起动机导线(黑色)	WIRE STARTER MOTOR (BLACK)	1
18	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
19	64015	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1

图 55油门与联动装置 Throttle And Linkage

REF	零件编号	中文名称	英文名称	数量
1	44333	油门杆	LEVER Throttle	1
2	814775	调节螺钉(5mm)	SCREW Adjusting (5 mm)	1
2	817582	调节螺钉(M5 x 35)	SCREW Adjusting (M5 x 35)	1
3	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
4	48039	盖帽	CAP	1
5	44335	点火提前杆	LEVER Spark Advance	1
5	884307T	杠杆	LEVER	1
6	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	3
7	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
8	42942	盖帽	CAP	3
9	42986	螺柱	STUD	1
10	90517	螺母(M10)	NUT (M10)	1
11	55171	衬套	BUSHING	1
12	86310	弹簧	SPRING	1
12	73375	弹簧	SPRING	1
13	812930A1	衬套	BUSHING	1
14	42980	垫圈	WASHER	1
15	42927	嵌件	INSERT	1
16	35459	垫圈	WASHER	1
17	400634	螺母 (M6)	NUT (M6)	1
17	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
18	44338	点火提前杆	SPARK ADVANCE ROD	1
18	878170	点火提前杆	ROD Spark Advance	1
19	93421	旋转球头	SWIVEL BALL	2
20	93254	旋转底座	SWIVEL BASE	2
21	44337	连接杆	LINK	1
21	878173	连接杆	LINK	1
22	400634	螺母 (M6)	NUT (M6)	1
22	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
23	932481	衬套	BUSHING	2
23	8M0215006	旋转衬套	BUSHING Swivel	2
24	14518T1	节气门凸轮	CAM Throttle	1
24	14518A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
25	42984	螺柱	STUD	1
25	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
26	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
27	4007180	螺钉 (M10 x 45) 设计II型	SCREW (M10 x 45) Design II	1

图 56燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

图 57驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	858576T03	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
3	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
3	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	8M0214963	垫圈	WASHER	5
5	40140	螺母(M10)	NUT (M10)	5
6	85822A15	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
7	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
8	85822	直通接头	CONNECTOR Straight	1
8	85822T	直通接头	CONNECTOR Straight	1
9	44343T1	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
10	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
11	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
12	43528	螺母(M12)	NUT (M12)	2
12	8M0204662	螺母	NUT	2
13	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
14	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
15	858916T	卡箍	CLAMP	2
16	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
17	858745	盖帽	CAP	4
17	8M0142713	支撑盖帽	CAP Chap Support	4
18	859550	衬套	BUSHING	1
19	24873	定位销	PIN Alignment	1
20	855622	接头	FITTING	1
21	12092A3	隔套套件	SPACER KIT	1
22	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
22	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
23	813745	隔套	SPACER	1
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

图 58艉板支架（序列号USA-0G590000/BEL-9973100及以上） TRANSOM BRACKET (S/N-USA-0G590000/BEL-9973100 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	828334F1	艉板支架	BRACKET Transom	1
1	828334F2	艉板支架	BRACKET Transom	1
2	828333A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	828333T07	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
2	828333A4	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	830899	张力弹簧	SPRING Tension	1
13	821176A1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1
19	818771F1	锚支架	BRACKET Anchor	1
19	8M0086406	锚支架	BRACKET Anchor	1
19	818771F6	锚支架	BRACKET Anchor	1
19	818771T8	ORD 818771T 1	ORD 818771T 1	1
20	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
21	4002319	垫圈	WASHER	6
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	6
22	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
23	818298A1	阳极套件	ANODE KIT	1
23	818298Q1	阳极套件	ANODE KIT	1
24	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
24	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
25	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
25	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2

图 59外罩与前盖 Cowls And Front Cover

REF	零件编号	中文名称	英文名称	数量
1	9006A2	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
1	9006A3	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
2	429404	上盖密封条	SEAL UPPER COWL	3
3	12401	后盖密封条	SEAL COWL (REAR)	1
4	90274	密封件	SEAL	1
5	42958	进气口护罩	SHIELD AIR INLET	1
6	48409	护罩螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel SHIELD	3
7	4002213	护罩螺钉垫圈	WASHER SHIELD SCREW	3
7	4002313	垫圈	WASHER	3
8	435331	隔音毯	SOUND BLANKET	1
9	9070A1	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A4	顶盖总成	TOP COWL ASSEMBLY	1
9	9070A2	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A5	顶盖总成	TOP COWL ASSEMBLY	1
9	9005A1	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A4	顶盖总成	TOP COWL ASSEMBLY	1
9	9005A2	右舷盖总成	COWL ASSEMBLY STARBOARD	1
9	9070A5	顶盖总成	TOP COWL ASSEMBLY	1
10	60297	密封件	SEAL	1
11	11315A1	油位计总成	OIL LEVEL GAUGE ASSEMBLY	1
12	42957	进气口护罩	SHIELD AIR INLET	1
13	48409	护罩螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel SHIELD	3
14	4002213	护罩螺钉垫圈	WASHER SHIELD SCREW	3
14	4002313	垫圈	WASHER	3
15	435342	隔音毯	SOUND BLANKET	1
16	87985	下支架	BRACKET (LOWER)	2
16	879851	支架	BRACKET	2
17	87987	上支架	BRACKET (UPPER)	2
17	879871	支架	BRACKET	2
18	4009525	支架螺钉	SCREW BRACKET	8
18	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	8
19	12081	盖锁扣	LATCH Cowl	1
19	120811	盖锁扣	LATCH Cowl	1
20	48409	锁扣螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel LATCH	3
21	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start (MANUAL STARTING)	1
21	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
22	43138A2	水星盖总成	COVER ASSEMBLY MERCURY	1
22	43138A3	水手盖总成	COVER ASSEMBLY MARINER	1
23	12356	缓冲垫	BUMPER	1
24	17288	盖弹簧	SPRING COVER	1
25	43137A1	支架总成	BRACKET ASSEMBLY	1
26	434181	快速螺母	SPEED NUT	3
27	15432	支架固定座	RETAINER BRACKET	1
28	43134	支架销	PIN BRACKET	2
29	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	4
30	53705	垫圈	WASHER	4
30	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4

图 60排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	858582T	适配板总成	ADAPTER PLATE ASSEMBLY	1
2	23784	定位销	PIN Dowel	7
3	880090	接头	FITTING	1
4	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
5	126021	护孔环	GROMMET	1
5	12602002	护孔环	GROMMET	1
6	8585831	衬垫	GASKET	1
7	858572T	油底壳	SUMP Oil	1
7	858572T01	油底壳	SUMP Oil	1
8	858584A1	排气管总成	TUBE ASSEMBLY Exhaust	1
9	881295	O型圈	O-RING	1
10	894171	护孔环	GROMMET	1
10	89417004	护孔环	GROMMET	1
11	858575	水管	TUBE Water	1
11	8M0026130	水管	TUBE Water	1
11	8585751	水管	TUBE Water	1
11	8M0026129	水管	TUBE Water	1
12	814080	上密封件	SEAL Upper	1
12	814080001	密封件	SEAL	1
13	858571T	机油吸油管	TUBE Oil Pick Up	1
14	859082	O型圈	O-RING	1
15	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
15	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
16	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	12
16	8M0214957	螺钉	SCREW	12
17	8596021	量油尺	DIPSTICK	1
18	48237	衬套	BUSHING	1
19	858577A2	换档轴	SHIFT SHAFT	1
19	858577A3	换档杆总成	LEVER ASSY-SHIFT	1
20	859177A3	换挡连杆	SHIFT LINK	1
21	NSS	不单独销售衬套	NOT SOLD SEPARATE Bushing	1
22	879997	换档滑块	SHIFT SLIDER	1
23	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
24	813745	隔套	SPACER	1
24	11289	隔套	SPACER	1
25	43585	联轴器	COUPLING	1
26	859746	开口销	COTTER PIN	2
27	858573	密封件	SEAL	1
27	8M0039073	密封件	SEAL	1
28	8288181	放油塞	PLUG Drain	1
29	828816	衬垫	GASKET	1
29	8M0204692	衬垫@5	GASKET @5	1
30	82483213	螺钉(M6 x 60)	SCREW (M6 x 60)	4

图 61启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
-	881368T1	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	881368T2	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	804314T	定子	STATOR	1
2	804313T	电枢	ARMATURE	1
3	881369T1	电刷支架总成	HOLDER ASSEMBLY Brush	1
4	804316	电刷组	BRUSH SET	1
5	804317	弹簧	SPRING	4
6	881370T	支架	BRACKET	1
7	804337	螺钉(M4×16)	SCREW (M4 x 16)	2
8	804335	贯穿螺栓(M6×120)	THRU BOLT (M6 x 120)	2
9	804321T1	齿轮套件	GEAR KIT	1
10	804322	离合器	CLUTCH	1
11	804330	垫圈套件	WASHER KIT	1
12	804324	支架	BRACKET	1
13	804326	齿圈	RING GEAR	1
14	804327	衬垫	GASKET	1
15	804325	轴承	BEARING	1
16	804323	小齿轮轴	SHAFT Pinion	1
17	804329	惰轮	IDLER GEAR	3
17	804329001	惰轮	GEAR Idler	3
18	804328	支架	BRACKET	1
19	804331T	盖板	COVER	1
20	804336	螺栓(M6×52)	BOLT (M6 x 52)	2
21	804319	小齿轮	PINION	1
22	804320	小齿轮止动组	STOP SET Pinion	1
23	804332	杠杆套件	LEVER KIT	1
24	804334	盖板	COVER	1
25	881371T	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
26	804605	螺栓(M8×45)	BOLT (M8 x 45)	3
27	881373	接线端子	TERMINAL	1
28	881377	锁紧垫圈	LOCKWASHER	1
29	82382M	螺母	NUT	1
30	881372	螺母	NUT	1
31	881374	盖板	COVER	1

图 62曲轴活塞及连杆(646-818846) Crankshaft Pistons And Connecting Rods (646-818846)

REF	零件编号	中文名称	英文名称	数量
1	9193A3	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43011	下滚珠轴承	BEARING Ball Lower	1
2	43011T	滚珠轴承	BEARING Ball	1
3	786611	耐磨套	WEAR SLEEVE	1
4	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
5	818412A4	环组件	RING ASSEMBLY	2
6	91800	半圆键	KEY Woodruff	2
7	43019A1	齿轮总成	GEAR ASSEMBLY	1
8	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
9	815965A4	活塞总成	PISTON ASSEMBLY	4
9	815965T4	活塞总成	PISTON ASSY	4
9	815965A5	活塞总成	PISTON ASSEMBLY	AR
9	815965A6	活塞总成	PISTON ASSEMBLY	AR
10	52035	锁环	RING Lock	8
10	857196	锁紧环	LOCK RING	8
11	96170A12	活塞环组	RING SET Piston	1
11	96170A3	活塞环组	RING SET Piston	AR
11	96170A4	活塞环组	RING SET Piston	AR
12	818846A3	连杆总成	CONNECTING ROD ASSEMBLY	4
12	818846T6	连杆总成	CONNECTING ROD ASSEMBLY	4
13	812876	垫圈	WASHER	8
13	8M0012298	止推垫片	THRUST WASHER	8
14	818391	滚针轴承	BEARING Needle	116
14	8M0214954	滚针轴承@200	BRG-NEEDLE @200	116
15	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	8
16	816567A1	滚柱轴承总成	BEARING ASSEMBLY Roller	4
16	8M0235070	轴承保持架	CAGE BEARING	4
17	43013A1	上滚柱轴承总成	BEARING ASSEMBLY Roller Upper	1
17	43013T3	滚柱轴承总成	BEARING ASSEMBLY Roller	1
18	43993	油封	SEAL Oil	1
18	8M0214932	密封件	SEAL	1
19	64067	O型圈	O-RING	1
19	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	17791A92	动力头总成	POWERHEAD ASSEMBLY	1
-	17791T92	PH 100/115 4缸	PH 100/115 4CYL	1

图 63下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

图 64齿轮箱（驱动轴）（6爪倒车离合器） GEAR HOUSING (DRIVESHAFT)(6 JAW REVERSE CLUTCH)

REF	零件编号	中文名称	英文名称	数量
1	9011G8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G60	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
3	79953Q04	放油螺钉套件	SCREW KIT Drain	2
4	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
4	8M0058389	放油螺钉套件	SCREW KIT Drain	1
5	19183	纤维垫圈	WASHER Fiber	3
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
6	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
7	316405	平衡鳍板	TRIM TAB	1
7	8M0236553	平衡鳍板	TRIM TAB	1
8	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
9	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
10	43040A1	托架总成	CARRIER ASSEMBLY	1
10	43040T1	托架总成	CARRIER ASSEMBLY	1
11	43046	注油管	TUBE Oiler	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	19672	小齿轮(同属43-850035A3)(14齿)	GEAR Pinion (ALSO PART OF 43-850035A3)(14 TEETH)	1
15	881260A5	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
15	44484	小齿轮(13齿)(属43-850033A2)	GEAR Pinion (13 Teeth) (PART OF 43-850033A2)	1
15	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	850307	换挡凸轮控制	CAM Shift Control	1
18	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
18	883047A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
19	44492A1	垫片组	SHIM SET	1
19	8M0063265	垫片组	SHIM SET	1
20	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
22	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	430472	衬垫	GASKET	1
23	8M0214931	衬垫	GASKET	1
24	43036	油封(下)	SEAL Oil (LOWER)	1
25	43035	油封(上)	SEAL Oil (UPPER)	1
25	8M0245495	油封	OIL SEAL	1
26	430331	衬垫	GASKET	1
27	817277	衬垫	GASKET	1
27	8172771	水泵上垫片	GASKET Water Pump, Upper	1
28	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
29	817276	面板	FACEPLATE	1
29	8M0204709	面板	FACEPLATE	1
30	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
30	8M0214957	螺钉	SCREW	4
31	430232	密封件	SEAL	1
32	43037	键	KEY	1
32	8M0204723	键	KEY	1
33	430262	叶轮	IMPELLER	1
33	43026T2	叶轮	IMPELLER	1
34	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
35	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	853908A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	29641	E型卡环	E RING	1
37	43052A4	衬套总成	BUSHING ASSEMBLY	1
38	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
38	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
39	8164641	油封	SEAL Oil	1
39	8M0246145	油封	OIL SEAL	1
40	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 65燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

图 66曲轴、活塞与连杆 Crankshaft Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	880894T	曲轴	CRANKSHAFT	1
2	8040992	油封	SEAL Oil	1
3	8041002	油封	SEAL Oil	1
4	804101T	轴承	BEARING	4
4	804101T10	轴承	BEARING	4
4	804101T20	轴承	BEARING	4
5	804102T	轴承	BEARING	5
5	804102T10	轴承	BEARING	5
5	804102T20	轴承	BEARING	5
5	804102T30	轴承	BEARING	5
6	804103T	轴承	BEARING	1
6	804103T10	轴承	BEARING	1
6	804103T20	轴承	BEARING	1
7	880895T1	活塞总成	PISTON ASSEMBLY	4
7	880895A14	活塞/连杆总成	PISTON/CONN ROD	4
7	880895T10	活塞总成	PISTON ASSEMBLY	AR
7	880895A16	活塞/连杆总成	PISTON/CONN ROD	AR
8	880896	螺栓(M8 x 38)	BOLT (M8 x 38)	8
9	880897T1	活塞环组	RING SET Piston	4
9	880897T02	活塞环组	RING SET Piston	4
9	880898T1	活塞环组	RING SET Piston	AR
9	880898T02	活塞环组	RING SET Piston	AR
10	880899T	轴承	BEARING	8
10	880899T10	轴承	BEARING	8
10	880899T20	轴承	BEARING	8
10	880899T30	轴承	BEARING	8
-	881421T01	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T02	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

图 67化油器WME-50/51/52/79/80/81 CARBURETOR WME-50/51/52/79/80/81

REF	零件编号	中文名称	英文名称	数量
1	821679A29	化油器	CARBURETOR	1
1	821679A30	化油器	CARBURETOR	1
1	823799T40	化油器	CARBURETOR	1
1	821679A31	化油器	CARBURETOR	1
1	823799T41	化油器	CARBURETOR	1
1	821679A32	化油器	CARBURETOR	1
1	823799T42	化油器	CARBURETOR	1
1	824902A5	化油器	CARBURETOR	1
1	884586T07	化油器(WME 111-1)	CARBURETOR (WME 111-1)	1
1	824902A6	化油器	CARBURETOR	1
1	884586T08	化油器(WME 111-2)	CARBURETOR (WME 111-2)	1
1	824902A7	化油器	CARBURETOR	1
1	884586T09	化油器(WME 111-3)	CARBURETOR (WME 111-3)	1
1	824902A8	化油器	CARBURETOR	1
1	884586T10	化油器(WME 111-4)	CARBURETOR (WME 111-4)	1
1	821680A5	化油器	CARBURETOR	1
1	884587T07	化油器(125-WME 112-1)	CARBURETOR (125-WME 112-1)	1
1	821680A6	化油器	CARBURETOR	1
1	884587T08	化油器(125-WME 112-2)	CARBURETOR (125-WME 112-2)	1
1	821680A7	化油器	CARBURETOR	1
1	884587T09	化油器(125-WME 112-3)	CARBURETOR (125-WME 112-3)	1
1	821680A8	化油器	CARBURETOR	1
1	884587T10	化油器(125-WME 112-4)	CARBURETOR (125-WME 112-4)	1
1	823799A19	化油器	CARBURETOR	1
1	823799T39	化油器	CARBURETOR	1
1	823799A20	化油器	CARBURETOR	1
1	823799T40	化油器	CARBURETOR	1
1	823799A21	化油器	CARBURETOR	1
1	823799T41	化油器	CARBURETOR	1
1	823799A22	化油器	CARBURETOR	1
1	823799T42	化油器	CARBURETOR	1
1	824902A19	化油器	CARBURETOR	1
1	884586T07	化油器(WME 111-1)	CARBURETOR (WME 111-1)	1
1	824902A20	化油器	CARBURETOR	1
1	884586T08	化油器(WME 111-2)	CARBURETOR (WME 111-2)	1
1	824902A21	化油器	CARBURETOR	1
1	884586T09	化油器(WME 111-3)	CARBURETOR (WME 111-3)	1
1	824902A22	化油器	CARBURETOR	1
1	884586T10	化油器(WME 111-4)	CARBURETOR (WME 111-4)	1
1	824894A4	化油器	CARBURETOR	1
1	884587T07	化油器(125-WME 112-1)	CARBURETOR (125-WME 112-1)	1
1	824894A5	化油器	CARBURETOR	1
1	884587T08	化油器(125-WME 112-2)	CARBURETOR (125-WME 112-2)	1
1	824894A6	化油器	CARBURETOR	1
1	884587T09	化油器(125-WME 112-3)	CARBURETOR (125-WME 112-3)	1
1	824894A7	化油器	CARBURETOR	1
1	884587T10	化油器(125-WME 112-4)	CARBURETOR (125-WME 112-4)	1
2	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	4
3	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	4
4	811693	燃油杯	BOWL Fuel	4
5	823632	节流阀轴(WME-1/3/4)	SHAFT Throttle (WME-1/3/4)	3
6	8236321	节流阀轴(WME-2)	SHAFT Throttle (WME-2)	1
7	8087461	节流阀杆(WME-1/3/4)	LEVER Throttle (WME-1/3/4)	3
8	97241	油门阀	VALVE Throttle	4
8	97244	油门阀	VALVE Throttle	4
9	9594	浮子	FLOAT	4
10	F10064	轴	SHAFT	4
11	879194011	进油阀	VALVE Inlet	4
12	811694	塞套件	PLUG KIT	4
13	802731	油封组(含4个油封)	SEAL (CONSISTS OF 4 SEALS)	1
14	NSS		NOT SOLD SEPARATE Gasket-Cover Plate	4
15	151723	衬垫	GASKET	4
15	151724	衬垫	GASKET	4
16	F10155	节气门螺丝	SCREW Throttle Valve	8
17	811220	盖板螺丝	SCREW Cover Plate	8
18	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	16
19	811221	盖板	COVER PLATE	4
20	6359	量孔(.052)	JET (.052)	1
20	6028	量孔(.050)	JET (.050)	2
20	6359	量孔(.052)	JET (.052)	1
20	4217	主量孔(.062)	JET Main (.062)	3
20	4216	量孔(.064)	JET (.064)	1
20	6030	量孔(.070)	JET (.070)	1
20	6201	量孔(.080)	JET (.080)	2
20	3518	量孔(.082)	JET (.082)	1
20	6359	量孔(.052)	JET (.052)	1
20	6028	量孔(.050)	JET (.050)	2
20	6359	量孔(.052)	JET (.052)	1
20	6487	主量孔(0.060)	JET Main (.060)	1
20	4216	量孔(.064)	JET (.064)	1
20	4217	主量孔(.062)	JET Main (.062)	3
20	6030	量孔(.070)	JET (.070)	1
20	6201	量孔(.080)	JET (.080)	2
20	3518	量孔(.082)	JET (.082)	1
21	808738	衬垫	GASKET	4
22	NSS		NOT SOLD SEPARATE Spring-Idle Needle	2
23	NSS		NOT SOLD SEPARATE Spring-Throttle Return	4
24	NSS		NOT SOLD SEPARATE Idle Needle	2
25	823634	螺钉	SCREW	3
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 68齿轮箱螺旋桨轴 Gear Housing Propeller Shaft

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
51	76039	换挡凸轮控制	CAM Shift Control	1
51	760394	换挡凸轮控制	CAM Shift Control	1
52	38374A1	轴承杯与齿轮箱调整垫片组(.002-3-5-10)	SHIM SET Bearing Cup to Gear Housing (.002-3-5-10)	AR
53	38356A1	轴承套件	BEARING SET	1
54	55608A4	前进齿轮总成	GEAR ASSEMBLY Forward	1
54	55608T4	前进齿轮总成	GEAR ASSY-FORWARD	1
55	21739	前进齿轮滚柱轴承	BEARING Roller Foward Gear	1
56	38441	凸轮从动件	FOLLOWER Cam	1
57	20843	十字销滑套	SLIDE Cross Pin	1
58	38114	十字销固定弹簧	SPRING Retaining - Cross Pin	1
59	92911	滑动离合器棘轮	RATCHET Sliding Clutch	1
59	92911T	离合器	CLUTCH	1
60	38113	棘轮到螺旋桨轴十字销	PIN Cross Ratchet to Propeller Shaft	1
60	8M0020942	十字销@2	PIN-CROSS @2	1
61	39845	凸轮从动件压缩弹簧	SPRING Compression - Cam Follower	1
62	75365	螺旋桨轴	PROPELLER SHAFT	1
63	79158	倒挡齿轮	GEAR Reverse	1
63	79158T	倒挡齿轮	GEAR-REVERSE	1
64	32004	倒档齿轮止推垫片	WASHER Thrust - Reverse Gear	1
65	20839	倒档齿轮滚珠轴承	BEARING Ball Reverse Gear	1
65	20839T	滚珠轴承	BEARING Ball	1
66	31986	轴承座O型圈	O-RING Bearing Carrier	1
67	69386A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	69386T1	轴承座总成	CARRIER ASSY-BRG	1
68	21700	轴承座滚针轴承	BEARING Needle Bearing Carrier	1
69	69188	轴承座油封	SEAL Oil Bearing Carrier	1
69	8M0205511	油封	SEAL Oil	1
70	69189	轴承座油封	SEAL Oil Bearing Carrier	1
70	8M0203757	油封	SEAL Oil	1
71	30281	轴承座定位键	KEY Locating - Bearing Carrier	1
72	53012	齿轮箱盖锁紧垫片	TAB WASHER Gear Housing Cover	1
73	87763	齿轮箱螺母	NUT Gear Housing	1
74	31640A1	齿轮箱平衡片总成	TRIM TAB ASSEMBLY Gear Housing	1
74	31640Q4	平衡鳍板	TRIM TAB	1
75	66024	平衡片固定螺丝(.437-14 x 1.75)	SCREW (.437-14 x 1.75) Trim Tab to Gear Housing	1
76	45175	驱动轴壳体螺柱垫片(.406 x .750 x .104)(0.375英寸)	WASHER (.406 x .750 x .104) Driveshaft Housing Stud (0.375 Inch)	1
76	8M0214963	垫圈	WASHER	1
77	34863	驱动轴壳体螺柱螺母(.375-24)	NUT (.375-24) Driveshaft Housing Stud	1
77	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
78	65791	壳体与螺柱垫片(0.437英寸)	WASHER Housing to Stud (0.437 Inch)	1
79	34933	不锈钢螺柱螺母(.437-20)	NUT (.437-20) Stainless Steel Stud	1
79	8M0204653	螺母	NUT	1
80	73345A1	前止推垫片	THRUST WASHER Front	1
81	76281	螺旋桨螺母锁紧垫片	TAB WASHER Propeller Nut	1
81	8M0214942	锁紧垫片	WASHER Tab	1
82	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
82	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

图 69转向手柄组件 Steering Handle Components

REF	零件编号	中文名称	英文名称	数量
1	12020T	转向臂	ARM Steering	1
1	12020T6	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
2	12018A1	油门拉线管总成	TUBE ASSEMBLY Throttle	1
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	72169	板用螺钉(#10-24 x 0.500)	SCREW (#10-24 x .500) PLATE	4
7	12013	油门夹	CLAMP THROTTLE	1
8	40007112	油门夹螺钉(M5 x 40)	SCREW (M5 x 40) THROTTLE CLAMP	2
9	90052	油门夹蝶形螺母	WING NUT THROTTLE CLAMP SCREW	1
10	96495A2	油门手柄总成	HANDLE ASSEMBLY Throttle	1
11	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
12	15823A4	停机开关总成	SWITCH ASSEMBLY Stop	1
13	11099A1	护套总成	BOOT ASSEMBLY	1
14	99589	握把	GRIP	1
15	26538	卡扣	CLIP	1
16	72169	卡箍螺钉(#10-24 x 0.500)	SCREW (#10-24 x .500) CLIP	1
17	785512	导管	CONDUIT	1
18	895661	导向管	GUIDE TUBE	1
19	89578	套筒	BARREL	1
20	89601	螺钉	SCREW	1
21	12019	拉线总成	CABLE ASSEMBLY	1
22	29880	导向拉线	GUIDE CABLE	1
23	20007	锚定件	ANCHOR	1
24	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
25	4000386	螺钉(M10 x 100)	SCREW (M10 x 100)	1
26	48416	盖帽	CAP	1
27	4002319	垫圈	WASHER	1
28	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
29	14601	隔套	SPACER	1
30	42992	衬套	BUSHING	2
31	400204	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1

图 70附件 Accessories

零件编号	中文名称	英文名称	数量
86306A01	适配器	ADAPTER	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

图 71飞轮/启动马达 USA:0G437999/BEL:9926999 及以下 FLYWHEEL/STARTER MOTOR USA:0G437999/BEL:9926999 AND BELOW

REF	零件编号	中文名称	英文名称	数量
1	45907	黄色塞	PLUG Yellow	1
2	812777T1	盖总成	COVER ASSEMBLY	1
3	42979	螺母(M16)	NUT (M16)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	9008A62	飞轮总成	FLYWHEEL ASSEMBLY	1
5	859236T13	飞轮总成	FLYWHEEL ASSY	1
6	9710A45	定子	STATOR	1
7	4007325	螺丝(M5 x 25)	SCREW (M5 x 25)	4
8	99021A6	触发器总成	TRIGGER ASSEMBLY	1
9	660153	启动电机总成	STARTER MOTOR ASSEMBLY	1
9	893892T	启动电机总成	STARTER MOTOR ASSEMBLY	1
10	56703	轴环	COLLAR	2
10	8M0034918	轴环	COLLAR	2
11	57247	停机开关	STOP	2
11	8M0043376	停机开关	STOP	2
12	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
13	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
14	93388A6	线缆总成(5.500英寸)	CABLE ASSEMBLY (5.500 Inches)	1
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
16	64015	螺母 (.250-20)	NUT (.250-20)	1

图 72旋转支架与转向臂（8709C6 / 818904C） Swivel Bracket and Steering Arm (8709C6 / 818904C)

REF	零件编号	中文名称	英文名称	数量
1	8710A20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
1	8M0102865	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
1	8710A21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
1	818904A1	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
1	8M0220957	旋转支架总成	SWIVEL BRKT ASSY	1
1	818904A2	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
1	818904T2	支架总成-灰色	BRACKET ASY-GRAY	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	黑色旋转销总成	SWIVEL PIN ASSEMBLY Black	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A27	灰色旋转销总成	SWIVEL PIN ASSEMBLY Gray	1
9	99661A36	ORD 99661A35	ORD 99661A35	1
10	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	34863	螺母 (.375-24)	NUT (.375-24)	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
14	888821	加长缓冲器	BUMPER X-Long	1
14	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
15	11288	底部轭架加长缓冲器	BUMPER Bottom Yoke X-Long	1
15	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
16	42961A1	黑色底部轭架总成	YOKE ASSEMBLY Bottom Black	1
16	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
16	42961A2	灰色底部轭架总成	YOKE ASSEMBLY Bottom Gray	1
16	42961T2	ORD 42961A06	ORD 42961A06	1
17	67684	挡圈	RING Retaining	1
18	816432	止推垫片	THRUST WASHER	1

图 73齿轮箱（驱动轴）（3爪反向离合器） GEAR HOUSING (DRIVESHAFT)(3 JAW REVERSE CLUTCH)

REF	零件编号	中文名称	英文名称	数量
1	9011A73	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011A74	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
1	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T80	ORD 1667-9011T73	ORD 1667-9011T73	1
2	43043	定位销-带孔(.375 x .625)(前)(X-LONG上2个)	PIN Dowel - With Hole (.375 x .625) (FRONT) (QTY. OF 2 ON X-LONG)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
3	79953Q04	放油螺钉套件	SCREW KIT Drain	2
4	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
4	8M0058389	放油螺钉套件	SCREW KIT Drain	1
5	19183	纤维垫圈	WASHER Fiber	3
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
6	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
7	316404	平衡鳍板	TRIM TAB	1
7	31640Q4	平衡鳍板	TRIM TAB	1
8	316405	平衡鳍板	TRIM TAB	1
8	8M0236553	平衡鳍板	TRIM TAB	1
9	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
11	43040A1	托架总成	CARRIER ASSEMBLY	1
11	43040T1	托架总成	CARRIER ASSEMBLY	1
12	43046	注油管	TUBE Oiler	1
13	826134	阳极块	ANODE	2
13	826134Q	阳极块	ANODE	2
14	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	8268336	螺母 (M6)	NUT (M6)	1
15	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
16	19672A1	小齿轮总成	GEAR ASSEMBLY Pinion	1
16	881259A1	齿轮组	GEAR SET	1
16	44484	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
16	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	76039	换挡凸轮控制	CAM Shift Control	1
18	760394	换挡凸轮控制	CAM Shift Control	1
19	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
20	44492A1	垫片组	SHIM SET	1
20	8M0063265	垫片组	SHIM SET	1
21	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
22	42461A1	套筒/环套件	SLEEVE/RING KIT	1
23	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
24	430472	衬垫	GASKET	1
24	8M0214931	衬垫	GASKET	1
25	43036	油封(下)	SEAL Oil (LOWER)	1
26	43035	油封(上)	SEAL Oil (UPPER)	1
26	8M0245495	油封	OIL SEAL	1
27	430331	衬垫	GASKET	1
28	817277	衬垫	GASKET	1
28	8172771	水泵上垫片	GASKET Water Pump, Upper	1
29	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
30	817276	面板	FACEPLATE	1
30	8M0204709	面板	FACEPLATE	1
31	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
31	8M0214957	螺钉	SCREW	4
32	430232	密封件	SEAL	1
33	43037	键	KEY	1
33	8M0204723	键	KEY	1
34	430262	叶轮	IMPELLER	1
34	43026T2	叶轮	IMPELLER	1
35	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
36	43048A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	43049A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 74燃油泵（配90度止回阀，参考编号16） Fuel Pump (Use With 90 Degree Check Valve Reference #16)

REF	零件编号	中文名称	英文名称	数量
1	14360A41	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42909A3	膜片组件	DIAPHRAGM KIT	1
2	42909A4	膜片组件	DIAPHRAGM KIT	1
3	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket, Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket, Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	衬垫	GASKET	1
13	8M0204705	衬垫@2	GASKET @2	1
14	98768	底座	BASE	1
15	98775A1	安装板	PLATE	1
16	42481	止回阀	CHECK VALVE	1
16	424811	阀门	VALVE	1
17	19688	接头	FITTING	1
18	4009340	螺钉	SCREW	2
18	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
19	40057134	螺钉(M6 x 50)	SCREW (M6 x 50)	2
20	9912976	油管	TUBING	4
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	4
21	8162961	燃油滤清器	FILTER Fuel	1
21	816296Q2	燃油滤清器	FILTER Fuel	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
22	8M0214940	扎带	TIE STRAP	AR
23	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
23	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
24	145091	护孔环	GROMMET	1
25	4010635	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	1
26	43739	加浓阀	VALVE Enrichner	1
26	819503A2	电磁阀组件	SOLENOID KIT	1
27	1430165	油管(38.00英寸散装)	TUBING (38.00 Inches Bulk)	6
28	F1887	卡箍	CLAMP	1
30	19688	接头	FITTING	1
31	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
32	68434	弹簧(旧款)	SPRING Old Design	1
33	17607	三通接头	TEE FITTING	1
34	17608	流量限制器	FLOW RESTRICTOR	1
35	17768	三通接头	TEE FITTING	2
35	830570	三通接头	FITTING Tee	2
36	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	3
36	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
37	14991	燃油滤清器	FILTER Fuel	1
37	8M0207786	滤清器	FILTER	1
38	14687A2	加速泵总成维修包 1395-811287	PUMP ASSEMBLY Accelerator Repair Kit, 1395-811287	1
38	14687A4	加速泵总成	PUMP ASSEMBLY Accelerator	1
39	4009416	螺钉(M6 x 16)	SCREW (M6 x 16)	2
40	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
41	13791	卡箍(15.7) 旧款(新款请参考编号22)	CLAMP (15.7) Old Design, New Design Use Reference Number 22	4
41	8M0214911	卡箍@5	CLAMP @5	4
42	56800	管塞(.0625-27) 非喷油型	PLUG Pipe (.0625-27) Non Oil Injection	1
-	42909A3	膜片组件	DIAPHRAGM KIT	1
-	42909A4	膜片组件	DIAPHRAGM KIT	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 75机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	830889A4	油箱总成	TANK ASSEMBLY	1
2	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
3	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
5	814449A3	盖总成	CAP ASSEMBLY	1
6	42999	衬垫	GASKET	1
6	42999T	衬垫	GASKET	1
7	856156A2	开关总成	SWITCH ASSEMBLY	1
7	856156T02	开关总成	SWITCH ASSEMBLY	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
8	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
9	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
10	855362	护孔环	GROMMET	3
10	855362001	护孔环	GROMMET	3
11	855364	衬套	BUSHING	3
-	8742A20	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
-	8742A22	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
12	87421	油箱	TANK	1
13	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
13	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
14	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
15	43298A2	盖总成	CAP ASSEMBLY	2
16	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
17	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
18	99802	管	TUBE	1
19	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
20	12335A1	支架套件	BRACKET KIT	1
21	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

图 76动力升降倾斜组件（三液压缸设计I型） Power Trim Components (Three Ram Power Trim Design I)

REF	零件编号	中文名称	英文名称	数量
1	99659A21	黑色歧管总成	MANIFOLD ASSEMBLY Black	1
1	99659A22	灰色歧管总成	MANIFOLD ASSEMBLY Gray	1
1	99659A49	牡蛎色歧管总成	MANIFOLD ASSEMBLY Oyster	1
1	99659A22	歧管总成	MANIFOLD ASSEMBLY	1
2	99616	管塞	PIPE PLUG	11
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	11
3	41493A7	黑色升降油缸总成	TRIM CYLINDER ASSEMBLY Black	1
3	41493A4	灰色升降油缸总成	TRIM CYLINDER ASSEMBLY Gray	1
3	41493A7	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
3	41493A8	牡蛎色升降油缸总成	TRIM CYLINDER ASSEMBLY Oyster	1
3	41493A7	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
4	41492A1	导向器总成	GUIDE ASSEMBLY	1
5	41478A1	维修套件	REPAIR KIT	1
6	41482A2	止回阀套件	CHECK VALVE KIT	1
7	99638A1	导向器总成	GUIDE ASSEMBLY	2
7	8M0021648	端盖总成	END CAP ASSEMBLY	2
8	43397A6	左舷动力升降活塞/连杆总成	PISTON/ROD ASSEMBLY Power Trim Port	1
8	878413A1	活塞总成	PISTON ASSEMBLY	1
9	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
10	43398A3	右舷动力升降活塞/连杆总成	PISTON/ROD ASSEMBLY Power Trim Starboard	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	821539	上三叶销	PIN Trilobe Upper	1
12	812843A1	阀门总成	VALVE ASSEMBLY	1
12	893929A01	安全阀套件	VALVE KIT Relief	1
12A	812844	E型卡环	E RING	1
12A	815949001	E形环	E-RING	1
13	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
14	43450	垫圈	WASHER	4
14	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
15	99642	盖板	COVER	1
16	48462A2	O型圈套件	O-RING KIT	1
16	48462A4	O型圈套件	O RING KIT	1
17	99609A1	塞子总成	PLUG ASSEMBLY	1
18	99641A1	轴总成	SHAFT ASSEMBLY	1
18	99641A02	轴总成	SHAFT ASSY	1
19	99616	管塞	PIPE PLUG	2
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
20	4008820	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
22	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
22	826729A10	ORD 8M0143217	ORD 8M0143217	1
23	99625	轴	SHAFT	1
23	99625002	轴	SHAFT	1
24	818298A1	阳极套件	ANODE KIT	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000332	螺钉(M6x35)	SCREW (M6 x 35)	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	996301	冲击板	STRIKER PLATE	2
27	8M0045383	冲击板	STRIKER PLATE	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	46335	螺母 (.375-24)	NUT (.375-24)	2
30	17201A2	电缆总成 (17.00 英寸)	CABLE ASSEMBLY (17.00 Inches)	1
31	87379A34	红色导线 (4.25 英寸)	WIRE (4.25 Inch) Red	1
31	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	2
31	79139A22	线束总成	WIRE ASSEMBLY	1
32	818998A1	启动电磁阀 (#8-32/.250-20 端子)	SOLENOID Starter (#8-32/.250-20 Terminals)	2
32	8M0185146	电磁阀总成	SOLENOID ASSEMBLY	2
33	40007106	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
34	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
35	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
36	64015	螺母 (.250-20)	NUT (.250-20)	4
37	4002314	垫圈	WASHER	4
38	22875	卡扣	CLIP	2
39	69205	C形垫圈	C WASHER	2
39	8M0084613	C形垫圈	C-WASHER	2
40	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
41	44431	下槽销	PIN Groove Lower	1
41	878267	销	PIN	1
42	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
43	400258	不锈钢锁紧垫圈 (M10)	LOCKWASHER (M10) Stainless Steel	6

图 77舵柄适配器套件（JET 80） TILLER HANDLE ADAPTOR KIT (JET 80)

REF	零件编号	中文名称	英文名称	数量
-	850000A3	舵柄适配器套件65 JET	TILLER HANDLE ADAPTER KIT 65 JET	1
1	832001A6	换挡线缆总成	CABLE ASSEMBLY Shift	1
2	8268336	螺母 (M6)	NUT (M6)	2
2	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
3	988851	滑块	SLIDE	1
4	828095	支架	BRACKET	1
5	8249303	支架	BRACKET	1
5	824930T3	支架	BRACKET	1
6	64646	卡扣	CLIP	1
7	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
8	828096	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
10	71958	螺丝(.250-28 x 1.75)	SCREW (.250-28 x 1.75)	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	828094	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
13	72734	紧定螺丝(#10-32 x .310)	SET SCREW (#10-32 x .310)	1
14	35459	垫圈	WASHER	1
15	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
16	813960A3	开关	SWITCH	1
16	8M0052927	开关总成	SWITCH ASSY	1
17	4001168	不锈钢螺丝(M3.5 x 20)	SCREW (M3.5 x 20) Stainless Steel	2
17	88075020	螺丝(M3 x 20)	SCREW (M3 x 20)	2
18	824923	安装板	PLATE	1
19	824934A1	拉线总成	CABLE ASSEMBLY	1

图 78油门杆及联动装置 Throttle Lever and Linkage

REF	零件编号	中文名称	英文名称	数量
1	878550	油门杆	LEVER Throttle	1
2	84974M	垫圈	WASHER	1
3	81868M	波形垫圈	WAVE WASHER	1
4	8528162	螺母	NUT	1
5	881378	轴环	COLLAR	2
6	94524M	垫圈	WASHER	1
7	804343	弹簧	SPRING	1
8	878548	节气门控制杆	LEVER Throttle Control	1
9	84974M	垫圈	WASHER	1
10	81868M	波形垫圈	WAVE WASHER	1
11	881375	螺栓 (M6 x 30)	BOLT (M6 x 30)	1
12	35459	垫圈	WASHER	1
13	859746	开口销	COTTER PIN	1

图 79旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

图 80气缸体与曲轴箱 Cylinder Block And Crankcase

REF	零件编号	中文名称	英文名称	数量
1	9755A9	气缸体	CYLINDER BLOCK	1
1	9755A14	气缸体	CYLINDER BLOCK	1
1	9755T14	气缸体	CYLINDER BLOCK	1
1	9755A10	气缸体	CYLINDER BLOCK	1
1	9755T10	气缸体	CYLINDER BLOCK	1
1	9755A15	气缸体	CYLINDER BLOCK	1
1	9755T15	气缸体	CYLINDER BLOCK	1
2	81742780	螺钉(M8 x 80)	SCREW (M8 x 80)	8
3	81742730	螺钉 (M8 x 30)	SCREW (M8 x 30)	6
4	42658	止回阀	CHECK VALVE	1
4	426585	止回阀	CHECK VALVE	1
5	99130122	管材(20英尺散装)(16英寸)	TUBING (20.00 Feet Bulk) (16")	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	42623	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
6	426233	止回阀	CHECK VALVE	1
7	812888A1	托架总成	CARRIER ASSEMBLY	2
8	42657A1	止回阀	CHECK VALVE	2
8	42657A3	止回阀	CHECK VALVE	2
9	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	1
10	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	42942	盖帽	CAP	1
12	20033	定位销	PIN Dowel (LOCATING)	1
12	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
13	812870	主轴承座中心销	PIN Center Main (BEARING RACE)	3
13	8M0084653	定位销	PIN - DOWEL	3
14	18597	盖板	COVER	1
15	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
16	65848	托架	CARRIER	1
17	64872	护孔环	GROMMET	1
18	8128671	衬垫	GASKET	1
18	8128672	衬垫	GASKET	1
19	8161941	螺柱	STUD	2
19	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
20	18598	管塞	PIPE PLUG	4
20	185981	管塞(.375-18)	PLUG Pipe (.375-18)	4
21	817430110	螺钉(M10 x 110)	SCREW (M10 x 110)	6
22	81742720	螺钉(M8 x 20)(55号件用3个)	SCREW (M8 x 20) (QTY. OF 3 ON 55)	4
22	40011149	不锈钢螺钉(M8 x 25)(55号件用3个)	SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55)	4
22A	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
23	8128821	提动阀	POPPET	1
24	812887	隔膜	DIAPHRAGM	1
24	8128871	隔膜	DIAPHRAGM	1
24	812887002	隔膜	DIAPHRAGM	1
25	94182	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	90392	弹簧	SPRING	1
27	18336	弹簧	SPRING	1
27	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
28	75692	节温器	THERMOSTAT	1
28	14586	节温器	THERMOSTAT	1
29	62386	衬垫	GASKET	1
29	8M0204714	衬垫@4	GASKET @4	1
30	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
30	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
31	787992	温度传感器	SENDER Temperature	1
32	44552	固定座	RETAINER	1
32	889733	固定座	RETAINER	1
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
34	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
35	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
35	8M0204663	垫片@5	WASHER @5	2
36	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
37	816872	蝶形螺母	WING NUT	2
38	99664	弯头	ELBOW	1
38	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
38	78279	弯头	ELBOW	1
38	8M0207781	弯头	ELBOW	1
39	19074	盖板	COVER	1
39	190741	盖板	COVER	1
39	8M0036859	盖板	COVER	1
40	65857	连接器	CONNECTOR	1
40	56759	倒钩接头	FITTING Barbed	1
41	8129961	盖板	COVER	1
41	8129962	盖板	COVER	1
42	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
43	40011108	不锈钢螺钉 (M5 x 20)	SCREW (M5 x 20) Stainless Steel	2
45	821595	吊环	LIFTING EYE	1
46	821616	螺钉	SCREW	1
46	821606	螺钉	SCREW	1
47	400265	螺母 (M8)	NUT (M8)	1
47	401368	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
-	812867A97	衬垫套件	GASKET SET	1
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

图 81动力升降倾斜组件（三液压缸设计II型） Power Trim Components (Three Ram Power Trim Design II)

REF	零件编号	中文名称	英文名称	数量
-	818186A3	完整动力升降总成	POWER TRIM ASSEMBLY Complete	1
1	811604T	歧管总成	MANIFOLD ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	99616	管塞	PIPE PLUG	9
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	811605F	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	811608	螺栓式升降倾斜活塞连杆套件	ROD KIT Trim And Tilt Piston Bolt Type	1
5	811609	螺母式升降活塞连杆	ROD Trim Piston Nut Type	1
5	823553T	升降活塞杆	ROD Trim Piston	1
6	811606	导向套件	GUIDE KIT	1
6	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
7	811607A1	维修套件	REPAIR KIT	1
8	811610A1	止回阀套件	CHECK VALVE KIT	1
8	823553T	升降活塞杆	ROD Trim Piston	1
9	99638A1	导向器总成	GUIDE ASSEMBLY	2
9	8M0021648	端盖总成	END CAP ASSEMBLY	2
10	43397A6	左舷动力升降活塞/连杆总成	PISTON/ROD ASSEMBLY Power Trim Port	1
10	878413A1	活塞总成	PISTON ASSEMBLY	1
10	43398A3	右舷动力升降活塞/连杆总成	PISTON/ROD ASSEMBLY Power Trim Starboard	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
12	821539	三叶销	PIN Trilobe	1
13	811618	阀总成	VALVE ASSEMBY	1
13	893929A01	安全阀套件	VALVE KIT Relief	1
14	812844	E型卡环	E RING	1
14	815949001	E形环	E-RING	1
15	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
16	43450	垫圈	WASHER	4
16	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
17	811611	盖板	COVER	1
18	811612A1	O型圈套件	O-RING KIT	1
18	811612A3	O型圈套件	O-RING KIT	1
19	811613	塞子总成	PLUG ASSEMBLY	1
20	811614	轴总成	SHAFT ASSEMBLY	1
20	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
21	99616	管塞	PIPE PLUG	2
21	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
22	811628	配平电机	TRIM MOTOR	1
22	878265A6	改装套件-配平	RETROFIT KIT-TRIM	1
23	811615	长螺钉	SCREW Long	2
23	811616	短螺钉	SCREW Short	2
24	811617F	泵	PUMP	1
24	811617T1	泵	PUMP	1
25	811619	驱动轴	DRIVESHAFT	1
26	99625	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	996301	冲击板	STRIKER PLATE	2
30	8M0045383	冲击板	STRIKER PLATE	2
31	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
32	46335	螺母 (.375-24)	NUT (.375-24)	2
33	44431	槽销	PIN Groove	1
33	878267	销	PIN	1
34	4000377	歧管螺钉(M10x30)	SCREW (M10 x 30) Manifold	6
35	400258	不锈钢锁紧垫圈 (M10)	LOCKWASHER (M10) Stainless Steel	6
36	22875	泵线夹	CLIP Pump Wire	2
37	69205	C形垫圈	C WASHER	2
37	8M0084613	C形垫圈	C-WASHER	2
38	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2

图 82缓冲板 ATTENUATOR PLATE

REF	零件编号	中文名称	英文名称	数量
1	19662	消音器	ATTENUATOR Sound	1
2	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	4
3	815784	盖帽	CAP	1
4	812889	密封件	SEAL	3
5	812874	消音板	PLATE Sound Attenuator	2
6	4000363	螺丝(M8 x 100)	SCREW (M8 x 100)	6
7	821145	油门连杆	LINK Throttle	1
7	825204T03	连接杆	LINK	1
8	812883	调节连杆	LINK Adjusting	2
9	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
10	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
10	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
11	11399A1	臂总成	ARM ASSEMBLY	1
12	67748	滚轮	ROLLER	1
13	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
14	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
14	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
15	9912878	软管(.187)(26.00英寸散装)(4-1/4")	HOSE (.187) (26.00 Inches Bulk) (4-1/4")	2
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	8144461	法兰衬垫	GASKET Flange	3
18	8252043	油门连杆	LINK Throttle	1
18	825204T03	连接杆	LINK	1
-	812867A97	衬垫套件	GASKET SET	1

图 83下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

图 84排气板 EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	858582T	适配板总成	ADAPTER PLATE ASSEMBLY	1
2	23784	定位销	PIN Dowel	7
3	880090	接头	FITTING	1
4	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
5	126021	护孔环	GROMMET	1
5	12602002	护孔环	GROMMET	1
6	8585831	衬垫	GASKET	1
7	858572T	油底壳	SUMP Oil	1
7	858572T01	油底壳	SUMP Oil	1
8	858584A1	排气管总成	TUBE ASSEMBLY Exhaust	1
9	881295	O型圈	O-RING	1
10	894171	护孔环	GROMMET	1
10	89417004	护孔环	GROMMET	1
11	858575	水管	TUBE Water	1
11	8M0026130	水管	TUBE Water	1
11	8585751	水管	TUBE Water	1
11	8M0026129	水管	TUBE Water	1
12	814080	上密封件	SEAL Upper	1
12	814080001	密封件	SEAL	1
13	858571T	机油吸油管	TUBE Oil Pick Up	1
14	859082	O型圈	O-RING	1
15	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
15	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
16	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	12
16	8M0214957	螺钉	SCREW	12
17	8596021	量油尺	DIPSTICK	1
18	48237	衬套	BUSHING	1
19	858577A2	换档轴	SHIFT SHAFT	1
19	858577A3	换档杆总成	LEVER ASSY-SHIFT	1
20	859177A3	换挡连杆	SHIFT LINK	1
21	NSS	不单独销售衬套	NOT SOLD SEPARATE Bushing	1
22	879997	换档滑块	SHIFT SLIDER	1
23	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
24	813745	隔套	SPACER	1
24	11289	隔套	SPACER	1
25	43585	联轴器	COUPLING	1
26	859746	开口销	COTTER PIN	2
27	858573	密封件	SEAL	1
27	8M0039073	密封件	SEAL	1
28	8288181	放油塞	PLUG Drain	1
29	828816	衬垫	GASKET	1
29	8M0204692	衬垫@5	GASKET @5	1
30	82483213	螺钉(M6 x 60)	SCREW (M6 x 60)	4

图 85附件 Accessories

零件编号	中文名称	英文名称	数量
828155A5	化油器防冰套件	ANTI-ICING KIT Carburetor	1
12092A10	延长套件	EXTENSION KIT	1
12092A11	延长套件	EXTENSION KIT	1
12092A10	延长套件	EXTENSION KIT	1
44357A2	冲洗附件	FLUSHING ATTACHMENT	1
44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
88334A2	防腐电极套件	MERCATHODE KIT	1
8M0180081	防腐电极套件	MERCATHODE KIT	1
86300A5	防腐电极监测器	MERCATHODE MONITOR	1
850000A3	舵柄适配器套件65 JET	TILLER HANDLE ADAPTER KIT 65 JET	1
12022A18	舵柄套件	TILLER HANDLE KIT	1
12022A19	舵柄套件	TILLER HANDLE KIT	1
12022A18	舵柄套件	TILLER HANDLE KIT	1
12022A34	舵柄套件	TILLER HANDLE KIT	1
12022A41	转向手柄套件	STEERING HANDLE KIT	1
12022A35	舵柄套件	TILLER HANDLE KIT	1
12022A41	转向手柄套件	STEERING HANDLE KIT	1
17334A2	视觉警告系统(低油位/过热)	VISUAL WARNING SYSTEM (LOW OIL/OVERHEAT)	1
88825A6	电压调节器套件	REGULATOR KIT Voltage	1

图 86衰减板 Attenuator Plate

REF	零件编号	中文名称	英文名称	数量
1	151723	衬垫	GASKET	8
2	44342T	盖板	COVER	1
2	44342A1	盖板	COVER	1
3	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	10
4	NLA	已停产垫片(旧设计)	No Longer Available Gasket, Old Design	1
5	443403	衰减器板	PLATE Attenuator	1
5	44340A2	衰减器板总成	PLATE ASSEMBLY Attenuator	1
6	4002217	垫圈	WASHER	8
7	823861	螺母	NUT	8
7	826365	螺母 (M8)	NUT (M8)	8
8	39519	杯套	CUP	1
9	98889	闩锁	LATCH	1
10	42975	传动螺钉	DRIVE SCREW	2
11	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	AR
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	17762	异径三通	REDUCING TEE	2
14	988861	连接杆	LINK	2
14	98886T01	油门调节连杆	LINK-THRTL ADJUST	2
15	44336	节气门上连杆	LINK Throttle Upper	1
16	98887	节气门主连杆	LINK Throttle Main	1
16	98887T	连接杆	LINK	1
17	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	6
18	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	6
18	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	6
19	193859	连杆	LINK ROD	1
20	11399A1	臂总成	ARM ASSEMBLY	1
21	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
22	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
22	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
23	67748	滚轮	ROLLER	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 87泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
2	591692	三通接头	FITTING Tee	3
2	59169003	三通接头	FITTING Tee	3
3	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	149126	止回阀	CHECK VALVE	4
7	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
8	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
8	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
9	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
9	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
10	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
11	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
12	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
14	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	15133	接头	FITTING	5
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791R97	PH 100-125 2S -RM	PH 100-125 2S -RM	1

图 88下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	821873A1	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
1	821873A2	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
1	821873A3	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
2	822556	护孔环	GROMMET	1
2	822556003	护孔环	GROMMET	1
3	8253182	密封条(36.00英寸)	SEAL (36.00 Inches)	1
3	8M0109216	罩盖密封	SEAL- COWL	1
4	8238052	下罩密封条	SEAL Lower Cowl	1
5	821874A1	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
5	8M0107328	底部罩盖-左舷	COWL-BOTTOM, PORT	1
5	821874A2	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
5	821874A3	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
6	822555	护孔环	GROMMET	1
6	822555001	护孔环	GROMMET	1
7	8253182	密封条(36.00英寸)	SEAL (36.00 Inches)	1
7	8M0109216	罩盖密封	SEAL- COWL	1
8	8238052	下罩密封条	SEAL Lower Cowl	1
9	850691	开关	SWITCH	1
9	8M0235192	微调开关	SWITCH TRIM	1
10	8124431	固定件(适用处使用)	RETAINER (USE WHERE APPLICABLE)	1
10	8M0032848	开关固定座	RETAINER Switch	1
11	813613	接头	FITTING	1
12	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
12	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
13	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	3
15	820000A2	手柄	HANDLE	1
15	8M0041366	手柄总成-黑色	HANDLE ASSY-BLACK	1
15	820000A3	手柄	HANDLE	1
15	820000A2	手柄	HANDLE	1
15	820000A6	手柄	HANDLE	1
15	820000A2	手柄	HANDLE	1
16	812707	衬套	BUSHING	2
17	F2047	波形垫圈	WASHER Wave	1
18	F481777	凸轮锁轴	CAM Latch Shaft	1
18	8M0001081	凸轮	CAM	1
19	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
19	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
22	8223631	固定座	RETAINER	1
22	822363T1	固定座	RETAINER	1
23	8268336	螺母 (M6)	NUT (M6)	2
23	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
24	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
24	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2

图 89化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	9532A12	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9532A13	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9532A14	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9532A15	化油器100 WME-20B	CARBURETOR 100 WME-20B	1
1	9012A77	化油器115-WME-21B	CARBURETOR 115-WME-21B	1
1	9012T77	化油器	CARBURETOR	1
1	9012A78	化油器115-WME-21B	CARBURETOR 115-WME-21B	1
1	9012T78	化油器	CARBURETOR	1
1	9012A79	化油器115-WME-21B	CARBUBETOR 115-WME-21B	1
1	9012T79	化油器	CARBURETOR	1
1	9012A80	化油器115-WME-21B	CARBURETOR 115-WME-21B	1
1	9012T80	化油器	CARBURETOR	1
2	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
3	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	4
4	9590	燃油杯	BOWL Fuel	4
4	811693	燃油杯	BOWL Fuel	4
4	811693	燃油杯(WME-20A&B/21A&B)	BOWL Fuel (WME-20A&B/21A&B)	4
5	9591	节流阀轴(WME-1/3/4)	SHAFT Throttle (WME-1/3/4)	3
6	19270	节流阀轴(WME-2)	SHAFT Throttle (WME-2)	1
7	9724	节流阀(100)	VALVE Throttle (100)	4
7	813619	节流阀(115)	VALVE Throttle (115)	4
8	9594	浮子	FLOAT	4
9	NSS		NOT SOLD SEPARATE Float Shaft	4
10	9595	进油针阀	VALVE Inlet Needle	4
10	879194011	进油阀	VALVE Inlet	4
11	9596	堵头	PLUG	4
11	95961	油杯放油塞	PLUG Bowl Drain	4
11	811694	塞子套件(WME-20A&B/21A&B)	PLUG KIT (WME-20A&B/21A&B)	4
12	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
13	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
14	151723	衬垫	GASKET	4
14	151724	衬垫	GASKET	4
15	NSS	螺丝(不单独销售)	NOT SOLD SEPARATE Screw	8
16	9597	螺丝(WME-11/14)	SCREW (WME-11/14)	8
16	811220	盖板螺丝(WME-20/21)	SCREW Cover Plate (WME-20/21)	8
17	5132	螺钉	SCREW	16
17	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	16
18	9598	盖板(WME-11/14)	COVER PLATE (WME-11/14)	4
18	811221	盖板(WME-20/21)	COVER PLATE (WME-20/21)	4
19	5225	主量孔(.054)(100)	JET Main (.054) (100)	4
19	5213	主量孔(.056)(100)	JET Main (.056) (100)	4
19	6680	喷孔 (.078) (WME1/2)-115 WME-14	JET (.078) (WME1/2)-115 WME-14	2
19	3796	喷孔 (.076) (WME 3/4) -115 WME-14	JET (.076) (WME 3/4) -115 WME-14	2
19	3796	喷孔 (.076) (115)	JET (.076) (115)	4
19	6680	喷孔 (.078) (115)	JET (.078) (115)	4
20	NSS		NOT SOLD SEPARATE Idle Needle	4
21	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	4
22	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	2
23	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	4
24	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	4
25	NSS		NOT SOLD SEPARATE Idle Needle	2
26	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	2
-	9602	衬垫套件 (WME-11/14)	GASKET KIT (WME-11/14)	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	811223	化油器衬垫组 (WME-20/21)	GASKET SET Carburetor (WME-20/21)	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	823635	维修套件 (WME-11/14) 和 (WME-20/21)	REPAIR KIT (WME-11/14) And (WME-20/21)	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 90副驾驶装置 Co-Pilot

REF	零件编号	中文名称	英文名称	数量
-	52148A7	副驾驶装置总成	CO-PILOT ASSEMBLY	1
1	521481	导向杆	PILOT ROD	1
2	8M0103848	螺母总成	NUT ASSEMBLY	1
3	56500	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	1
4	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
5	821621	叉形旋钮	KNOB Prong	1
6	873491	杆	ROD	1
7	521512	衬套	BUSHING	1
8	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
8	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
9	826709111	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	2

图 91曲轴、活塞与连杆 Crankshaft Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9193T5	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43019A1	齿轮总成	GEAR ASSEMBLY	1
3	43011T	下滚珠轴承	BEARING Ball Lower	1
4	91800	半圆键	KEY Woodruff	2
5	786611	耐磨套	WEAR SLEEVE	1
6	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
7	818412A4	环组件	RING ASSEMBLY	2
8	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
9	NSS	不单独销售滚柱轴承	NOT SOLD SEPARATE Roller Bearing	96
10	826191T4	活塞总成	PISTON ASSEMBLY	4
10	821896A3	活塞总成	PISTON ASSEMBLY	AR
10	821896A4	活塞总成	PISTON ASSEMBLY	AR
11	NSS	不单独销售	NOT SOLD SEPARATE	4
12	857196	锁紧环	LOCK RING	8
13	822321A12	活塞环套件-标准	RING KIT Piston - Standard	1
13	822321A1	活塞环套件-加大0.015	RING KIT Piston - .015 Oversize	AR
13	822321A2	活塞环组	RING SET Piston	AR
14	818846T6	连杆总成	CONNECTING ROD ASSEMBLY	4
15	812876	垫圈	WASHER	8
15	8M0012298	止推垫片	THRUST WASHER	8
16	818391	滚针轴承	BEARING Needle	116
16	8M0214954	滚针轴承@200	BRG-NEEDLE @200	116
17	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	8
18	43012A04	轴承总成	BEARING ASSEMBLY	4
18	8M0235070	轴承保持架	CAGE BEARING	4
19	NSS	不单独销售滚柱轴承	NOT SOLD SEPARATE Roller Bearing	64
20	43013T3	上滚柱轴承总成	BEARING ASSEMBLY Roller Upper	1
21	43993	油封	SEAL Oil	1
21	8M0214932	密封件	SEAL	1
22	858225	O型圈	O-RING	1
22	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	13461A99	衬垫套件	GASKET SET	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791R97	PH 100-125 2S -RM	PH 100-125 2S -RM	1

图 92气缸体与曲轴箱 Cylinder Block and Crankcase

REF	零件编号	中文名称	英文名称	数量
1	9191A13	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	4009680	螺钉(M10×80)	SCREW (M10 x 80)	10
3	67296	轴承座销	PIN Bearing Race	4
3	8M0036405	销	PIN	4
4	20033	定位销	PIN Dowel	1
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
5	42884	上盖	COVER Top	1
5	428841	盖板	COVER	1
6	76867	下盖	COVER Bottom	1
7	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	4
8	65848	托架	CARRIER	1
9	64872	护孔环	GROMMET	1
10	814204A1	排气系统套件	BLEED SYSTEM KIT	1
10	813801A1	托架总成	CARRIER ASSEMBLY	1
11	42657A1	止回阀	CHECK VALVE	3
11	42657A3	止回阀	CHECK VALVE	3
12	146531	止回阀	CHECK VALVE	2
12	891664	止回阀	CHECK VALVE	2
13	821676	螺柱(M6)	STUD (M6)	8
13	821676A1	螺柱套件	STUD KIT	8
14	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	8
14	8M0214963	垫圈	WASHER	8
15	13914	螺母(M10)	NUT (M10)	8
15	40140	螺母(M10)	NUT (M10)	8
16	42623	压入式止回阀	CHECK VALVE Press-In	1
16	426233	止回阀	CHECK VALVE	1
17	32802	管塞 (.125-27)	PLUG Pipe (.125-27)	1
17	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
18	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
18	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
19	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	16
20	99162	护套	BOOT	1
20	99162001	护套	BOOT	1
21	9196A1	盖板	COVER	1
21	9196A2	盖板	COVER	1
22	443283	衬垫	GASKET	1
22	443284	衬垫	GASKET	1
23	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	18
24	814634	卡箍	CLAMP	6
25	78799	温度传感器(19.50英寸)	SENDER Temperature (19.50 Inch)	1
25	787991	温度传感器(37.50英寸)	SENDER Temperature (37.50 Inch)	1
26	44552	固定座	RETAINER	1
26	889733	固定座	RETAINER	1
27	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	1
28	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
28	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
29	86596T	提升阀	POPPET VALVE	1
30	64877	隔膜	DIAPHRAGM	1
30	648771	隔膜	DIAPHRAGM	1
31	94182	垫圈	WASHER	1
32	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
33	18336	弹簧	SPRING	1
33	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
34	75692	节温器(143度)	THERMOSTAT (143 Degrees)	1
34	14586	节温器(120度)	THERMOSTAT (120 Degrees)	1
35	62386	衬垫	GASKET	1
35	8M0204714	衬垫@4	GASKET @4	1
36	430063	衬垫	GASKET	1
36	430068	衬垫	GASKET	1
37	428852	盖板	COVER	1
37	8M0047619	盖板	COVER	1
38	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
38	81742755	螺钉(M8x55)	SCREW (M8 x 55)	4
39	14857A7	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
39	14857A16	机油报警模块	MODULE-OILWARNING	1
40	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	2
41	12415	温度传感器	SENDER Temperature	1
42	88824A6	Sea Ray/动力艇线缆总成	CABLE ASSEMBLY Sea Ray/ Powerboat	1
43	12621	盖板	COVER	1
44	126201	衬垫	GASKET	1
45	40007106	螺钉 (M5 x 13)	SCREW (M5 x 13)	2
46	4002314	垫圈	WASHER	2

图 93驱动轴壳体 USA-0T800999/BEL-0P267999 及以下 Driveshaft Housing USA-0T800999/ BEL-0P267999 and Below

REF	零件编号	中文名称	英文名称	数量
1	8974T23	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8974A26	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	23784	定位销	PIN Dowel	2
4	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
4	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
5	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
5	8M0214963	垫圈	WASHER	5
6	40140	螺母(M10)	NUT (M10)	5
7	12092A3	隔套套件	SPACER KIT	1
8	43043	定位销 - 带孔 (.375 x .625) (带孔)	PIN Dowel - With Hole (.375 x .625) (With Hole)	1
8	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
8	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
9	85822A4	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
10	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
10	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
11	85822	直通接头	CONNECTOR Straight	1
11	85822T	直通接头	CONNECTOR Straight	1
12	44343T1	支架	MOUNT	2
13	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
13	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
14	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
15	43528	螺母(M12)	NUT (M12)	2
15	8M0204662	螺母	NUT	2
16	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
17	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
18	93192	卡箍	CLAMP	2
18	8M0036730	卡箍	CLAMP	2
19	35521	螺母	NUT	4
20	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
21	67077T	黑色盖	COVER Black	2
21	8M4500752	盖板	COVER	2
22	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4

图 94驱动轴壳体 USA-0T801000/BEL-0P268000 及以上 Driveshaft Housing USA-0T801000/ BEL-0P268000 and Up

REF	零件编号	中文名称	英文名称	数量
1	881913T01	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	881913T02	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
3	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
3	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	8M0214963	垫圈	WASHER	5
5	40140	螺母(M10)	NUT (M10)	5
6	85822A4	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
7	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
8	85822	直通接头	CONNECTOR Straight	1
8	85822T	直通接头	CONNECTOR Straight	1
9	881916	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
10	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
11	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
12	43528	螺母(M12)	NUT (M12)	2
12	8M0204662	螺母	NUT	2
13	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
14	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
15	881917	卡箍	CLAMP	2
15	8M0036786	卡箍	CLAMP	2
16	35521	螺母	NUT	4
17	889833025	螺钉 (M8 x 25 毫米)	SCREW (M8 x 25 MM)	4
18	882752	盖板	COVER	2
18	8M4500754	盖板	COVER	2
19	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
20	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
20	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
21	881976	氯丁橡胶垫圈	WASHER Neoprene	2
22	12092A3	隔套套件	SPACER KIT	1
23	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
23	43043	定位销 - 带孔 (.375 x .625) (带孔)	PIN Dowel - With Hole (.375 x .625) (With Hole)	1
23	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
24	892214	平板垫圈	PLATE WASHER	2
25	889557	驱动轴壳体塞	PLUG Driveshaft Housing	2
25	8M0026580	堵头	PLUG	2

图 95电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	443314	点火板	IGNITION PLATE	1
2	5772A5	开关盒总成	SWITCHBOX ASSEMBLY	1
2	5772A7	开关盒总成	SWITCHBOX ASSEMBLY	1
3	63153	J型卡扣	J CLIP	1
4	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	4
5	134731	保险丝座旧款	HOLDER Fuse Old Design	1
6	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	13
7	43442A3	主线路束总成	HARNESS ASSEMBLY Primary	1
8	813715A8	点火电缆组	CABLE SET Ignition	1
9	63709A1	护套/端子套件	BOOT/TERMINAL KIT	4
10	97180	火花塞	SPARK PLUG	4
10	896329827	SP #L76V @4	SP #L76V @4	4
10	14103550	火花塞 (NGK-BUZHW)	SPARK PLUG (NGK-BUZHW)	4
10	896329898	SP #QL76V @4	SP #QL76V @4	4
10	8167372	火花塞	SPARK PLUG	4
10	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	4
10	8168372	火花塞	SPARK PLUG	4
10	938	SP #QL78YC @4	SP #QL78YC @4	4
11	82155025	螺丝(M8 x 25 mm)不锈钢	SCREW (M8 x 25 mm) Stainless Steel	4
12	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	4
12	8M0230859	点火线圈总成	COIL IGNITION ASY	4
13	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	8
14	87554	盖板	COVER	1
15	40007114	螺钉(M5×50)	SCREW (M5 x 50)	5
16	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	5
18	40056107	螺钉(M5×16)	SCREW (M5 x 16)	2
19	45067	螺母	NUT	3
20	16731A1	汞开关旧款	MERCURY SWITCH Old Design	1
20	16731T01	开关总成	SWITCH ASSY	1
21	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
22	45915	端子排	TERMINAL BLOCK	2
23	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
24	43443A3	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
24	43443A7	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
24	43443A9	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
25	79091	保险丝20安培	FUSE 20 Ampere	1
25	8M0207796	保险丝20安培	FUSE 20 AMP	1
26	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
26	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
27	818998A1	启动电磁阀 (#8-32/.250-20 端子)	SOLENOID Starter (#8-32/.250-20 Terminals)	1
27	8M0185146	电磁阀总成	SOLENOID ASSEMBLY	1
28	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
29	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
30	64015	螺母 (.250-20)	NUT (.250-20)	2
27	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
-	818968	衬套	BUSHING	2
-	8M0214955	衬套	BUSHING	2
28	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
29	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
30	68292	螺母(.312-18)	NUT (.312-18)	2
30	8M0204668	螺母(.312-18)	NUT (.312-18)	2
31	40007106	螺钉 (M5 x 13)	SCREW (M5 x 13)	2
32	4002314	垫圈	WASHER	2
33	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	1
34	88808A21	线束总成 (6.00 英寸) 红色	WIRE ASSEMBLY (6.00 Inches) Red	1
34	88808A18	线束总成 (3.00 英寸) 红色	WIRE ASSEMBLY (3.00 Inches) Red	1
35	13550T1	盖板	COVER	1
36	40011114	螺钉 (M5 x 50) 不锈钢	SCREW (M5 x 50) Stainless Steel	3
36	40007114	螺钉(M5×50)	SCREW (M5 x 50)	3
36	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	3
37	89302	垫圈 (.203 x .406 x .040) 适用处使用	WASHER (.203 x .406 x .040) Use Where Applicable	4
38	816770	整流器	RECTIFIER	1
38	8M0058226	整流器	RECTIFIER	1
39	17602A1	接线端子排黑色, 见备注	TERMINAL BLOCK Black, See Note	1
39	17602A2	接线端子排灰色, 见备注	TERMINAL BLOCK Gray, See Note	1
39	17602T02	接线端子总成	TERMINAL BLOCK ASSEMBLY	1
40	815279A2	电压调节器套件	VOLTAGE REGULATOR KIT	1
41	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	3
42	12201A2	线束总成	HARNESS ASSEMBLY	1
43	815279A2	电压调节器套件	VOLTAGE REGULATOR KIT	1
43	815279T	电压调节器	REGULATOR Voltage	1
43	8M0084173	电压调节器	VOLTAGE REGULATOR	1
44	4010635	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	2
46	821546A1	线束总成	HARNESS ASSEMBLY	1
46	821546A3	线束总成	HARNESS ASSEMBLY	1

图 96排气板（序列号 USA-0T800999/BEL-0P267999 及以下） Exhaust Plate (S/N USA-0T800999/BEL-0P267999 and Below)

REF	零件编号	中文名称	英文名称	数量
1	42954A5	排气板总成	PLATE ASSEMBLY Exhaust	1
2	23784	定位销	PIN Dowel	3
3	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	2
3	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1
4	881900T	支架	MOUNT	1
4	881900T03	支架	MOUNT	1
5	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	4
6	42974	螺栓(M12×175)	BOLT (M12 x 175)	2
6	8M0238139	螺钉	SCREW	2
7	934161	氯丁橡胶垫圈	WASHER Neoprene	2
7	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
8	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
9	859129	螺母(M12)	NUT (M12)	2
9	896963	螺母(M12)	NUT (M12)	2
10	430086	衬垫	GASKET	1
11	429664	排气管	TUBE Exhaust	1
11	87917216T	排气管	TUBE-EXHAUST	1
12	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	6
13	42962	密封件	SEAL	1
13	8M0039075	密封件	SEAL	1
14	894171	护孔环	GROMMET	1
14	89417004	护孔环	GROMMET	1
15	8812011	水管 - 长型 (13.21 英寸)	TUBE Water - Long (13.21 Inches)	1
15	8M0042791	长型水管	TUBE-WATER-LONG	1
15	8812012	水管 - 加长型 (18.21 英寸)	TUBE Water - X Long (18.21 Inches)	1
15	8M0042792	水管-XL	TUBE-WATER-XL	1
16	824661	卡箍	CLAMP	1
17	814080	上密封件	SEAL Upper	1
17	814080001	密封件	SEAL	1
18	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
19	42953A5	下支架总成	BRACKET ASSEMBLY Lower	1
20	43405	密封件	SEAL	1
21	19565	护孔环	GROMMET	1
21	19565002	护孔环	GROMMET	1
22	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	3
23	48237	衬套	BUSHING	1
24	79932A20	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
25	42912A3	换挡连杆	SHIFT LINK	1
26	48475	衬套	BUSHING	2
27	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
28	813745	隔套	SPACER	1
28	11289	隔套	SPACER	1
29	43585	联轴器	COUPLING	1
-	13461A99	衬垫套件	GASKET SET	1

图 97排气板（序列号 USA-0T801000/BEL-0P268000 及以上） Exhaust Plate (S/N USA-0T801000/ BEL-0P268000 and Up)

REF	零件编号	中文名称	英文名称	数量
1	881912T01	排气板	PLATE Exhaust	1
2	23784	定位销	PIN Dowel	4
3	881973	固定座	RETAINER	1
4	881915001	支架	MOUNT	2
4	881915002	支架	MOUNT	2
5	881975	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
6	42974	螺栓(M12×175)	BOLT (M12 x 175)	2
6	8M0238139	螺钉	SCREW	2
7	859129	螺母(M12)	NUT (M12)	2
7	896963	螺母(M12)	NUT (M12)	2
8	813745	隔套	SPACER	1
8	11289	隔套	SPACER	1
9	43585	联轴器	COUPLING	1
10	430086	衬垫	GASKET	1
11	42966T07	排气管	TUBE Exhaust	1
12	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	6
13	42962	密封件	SEAL	1
13	8M0039075	密封件	SEAL	1
14	894171	护孔环	GROMMET	1
14	89417004	护孔环	GROMMET	1
15	8812011	水管 - 长型 (13.21 英寸)	TUBE Water - Long (13.21 Inches)	1
15	8M0042791	长型水管	TUBE-WATER-LONG	1
15	8812012	水管 - 加长型 (18.21 英寸)	TUBE Water - X Long (18.21 Inches)	1
15	8M0042792	水管-XL	TUBE-WATER-XL	1
16	824661	卡箍	CLAMP	1
17	814080	密封件	SEAL	1
17	814080001	密封件	SEAL	1
18	889833045	螺钉 (M8 x 45)	SCREW (M8 x 45)	2
19	881918T	上支架夹	CLAMP Bracket, Upper Mount	1
19	881918T03	卡箍	CLAMP	1
20	19565	护孔环	GROMMET	1
20	19565002	护孔环	GROMMET	1
21	48237	衬套	BUSHING	1
22	79932A20	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
23	42912A3	换挡连杆	SHIFT LINK	1
24	48475	衬套	BUSHING	2
25	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
26	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
27	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	2
28	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1

图 98飞轮与启动电机 Flywheel and Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	45907	黄色塞	PLUG Yellow	1
2	42956A1	盖总成	COVER ASSEMBLY	1
3	79022	标记	MARKER	1
4	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
5	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
6	42979	螺母(M16)	NUT (M16)	1
7	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
7	33001	垫圈	WASHER	1
8	9008A9	飞轮总成	FLYWHEEL ASSEMBLY	1
8	859236T12	飞轮总成	FLYWHEEL ASSY	1
9	8778A23	定子	STATOR	1
9	9710A11	定子	STATORS	1
9	9710A45	定子	STATOR	1
10	4007325	螺丝(M5 x 25)	SCREW (M5 x 25)	4
11	99021A6	触发器总成	TRIGGER ASSEMBLY	1
12	660151	启动电机总成	STARTER MOTOR ASSEMBLY	1
12	893892T	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	57247	停机开关	STOP	2
14	8M0043376	停机开关	STOP	2
15	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
16	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
17	93389A13	黑色导线	WIRE Black	1
17	93388A6	线缆总成(5.500英寸)	CABLE ASSEMBLY (5.500 Inches)	1
18	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
19	64015	螺母 (.250-20)	NUT (.250-20)	1

图 99燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	1
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	衬垫	GASKET	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303	底座	BASE	1
15	987752	安装板	PLATE	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
18	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
19	83075780	管材(28英寸整卷)(裁切为4英寸)	TUBING (28.00 Inches Bulk) (Cut to 4 IN.)	1
19	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
20	83075780	管材(28英寸整卷)(裁切为8-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 8-1/2 IN.)	1
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
21	83075780	管材(28英寸整卷)(裁切为2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2 IN.)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	99664	曲轴箱弯头	ELBOW To Crankcase	1
22	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
23	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	8162961	燃油滤清器	FILTER Fuel	1
24	816296Q2	燃油滤清器	FILTER Fuel	1
25	822554	成型软管	MOLDED HOSE	1
26	8189941	机油泵止回阀	CHECK VALVE To Oil Pump	1
27	18887	卡箍	CLAMP	1
27	188871	卡箍	CLAMP	1
28	822771	连接器	CONNECTOR	1
29	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
29	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
-	16524	燃油接头O型圈	O-RING Fuel Connector	1
30	145091	护孔环	GROMMET	1
31	4010635	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	1
32	1430165	管材(38英寸整卷)(裁切为15英寸)	TUBING (38.00 Inches Bulk) (Cut to 15 IN.)	2
33	1430165	管材(38英寸整卷)(裁切为13英寸)	TUBING (38.00 Inches Bulk) (Cut to 13 IN.)	1
34	1430165	管材(38英寸整卷)(裁切为1-1/4英寸)	TUBING (38.00 Inches Bulk) (Cut to 1-1/4 IN.)	1
35	17608	流量限制器	FLOW RESTRICTOR	1
36	830570	三通接头	FITTING Tee	2
37	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	1
37	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
38	99130122	管材(20英尺整卷)(裁切为2-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 2-1/2 IN.)	2
38	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
39	18206	滤清器	FILTER	1
39	8M0207786	滤清器	FILTER	1
40	14687A2	加速泵总成	PUMP ASSEMBLY Accelerator	1
40	14687A4	加速泵总成	PUMP ASSEMBLY Accelerator	1
-	811287	维修套件	REPAIR KIT	1
41	4009416	螺钉(M6 x 16)	SCREW (M6 x 16)	2
42	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
43	43739	加浓阀	VALVE Enrichner	1
43	819503A2	电磁阀组件	SOLENOID KIT	1
44	437391	加浓阀	VALVE Enrichiner	1
44	819503A1	电磁阀总成-加浓阀	SOLENOID ASSEMBLY Enrichner Valve	1
45	1430165	管材(38英寸整卷)接上三通	TUBING (38.00 Inches Bulk) To Upper Tee	1
45	9912688	管材(36英寸整卷)接上三通	TUBING (36.00 Inches Bulk) To Upper Tee	1
46	9912688	管材(36英寸整卷)(裁切为5-1/4英寸)接下三通	TUBING (36.00 Inches Bulk) (Cut to 5-1/4 IN.) To Lower Tee	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1
-	17791A97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1

图 100发动机大修衬垫组件 Gasket Set Components Engine Overhaul

REF	零件编号	中文名称	英文名称	数量
-	13461A99	衬垫套件	GASKET SET	1
0	812775007	挡板至气缸体衬垫	GASKET Baffle Plate to Cylinder Block	1
0	812775006	排气挡板至排气盖衬垫	GASKET Exhaust Baffle to Exhaust Cover	1
0	89224	O型圈 (2.862 内径)	O-RING (2.862 I.D.)	1
0	823683	O型圈 (1.989 x .070) (1.989 内径)	O-RING (1.989 x .070) (1.989 I.D.)	1
0	443284	气缸盖衬垫	GASKET Cover Cylinder Block	1
0	62386	节温器衬垫	GASKET Thermostat	1
0	8M0204714	衬垫@4	GASKET @4	1
0	430068	节温器盖衬垫	GASKET Cover, Thermostat	1
0	NSS	不单独销售增压	NOT SOLD SEPARATE Boost	1
0	NSS	不单独销售增压室	NOT SOLD SEPARATE Boost Chamber	1
0	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
0	NSS	不单独销售脉冲室	NOT SOLD SEPARATE Pluse Chamber	1
0	987691	燃油泵衬垫	GASKET Fuel Pump	1
0	8M0204705	衬垫@2	GASKET @2	1
0	139376	簧片阀/曲轴衬垫	GASKET Reed Block/Crank	8
0	62705	O型圈 (.739 内径)	O-RING (.739 I.D.)	2
0	8M0204667	O型圈×2	O RING @2	2
0	33466	O型圈 (1.362 内径)	O-RING (1.362 I.D.)	1
0	430086	排气板/排气管衬垫	GASKET Exhaust Plate/Exhaust Tube	1
0	42941	上水管密封	SEAL Water Tube Water Tube, Upper	1
0	42941001	水管密封件	SEAL Water Tube	1
0	93221	衬套水管	GROMMET Water Tube	1
0	93221002	护孔环	GROMMET	1
0	430075	气缸体至排气板衬垫	GASKET Cylinder Block to Exhaust Plate	1
0	457101	O型圈 (1.424 x .103) (1.424 内径)	O-RING (1.424 x .103) (1.424 I.D.)	1
0	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
0	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	1
0	97386	O型圈 (3.609 x .139) (3.609 内径)	O-RING (3.609 x .139) (3.609 I.D.)	1
0	8M0214974	O型圈	O RING	1
0	430341	上水泵铝盖衬垫	GASKET Aluminum Cover Water Pump, Upper	1
0	430472	盖至齿轮箱衬垫	GASKET Cover to Gearcase	1
0	8M0214931	衬垫	GASKET	1
0	8172771	上水泵衬垫	GASKET Water Pump, Upper Water Pump, Upper	1
0	430331	面板至盖板衬垫	GASKET Face Plate to Cover	1
0	191833	密封件	SEAL	3
0	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
0	19643	密封件	SEAL	1
0	151724	化油器衬垫	GASKET Carburetor	8
0	42998	主压缩弹簧	SPRING Compression, Main	1
0	NSS	弹簧端部(不单独销售)	NOT SOLD SEPARATE Spring End	1
0	NSS	弹簧端部(不单独销售)	NOT SOLD SEPARATE Spring End	1
0	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
0	17311	止回阀固定座	RETAINER Check Valve	2
0	NSS	增压压缩件(不单独销售)	NOT SOLD SEPARATE Compression, Boost	1
0	NSS	弹簧端部(不单独销售)	NOT SOLD SEPARATE Spring End	1
0	134612	歧管盖衬垫	GASKET Manifold Cover	2
0	139581	44324C1与44325C1排气挡板及盖板专用衬垫	GASKET Use With 44324C1 And 44325C1 Exhaust Baffle Plate and Cover	2
0	858225	O型圈(内径2.112)	O-RING (2.112 I.D.)	11

图 101驱动齿轮箱 USA-0T627234/BEL-0P215668 及以下 Gear Housing Drive-USA-0T627234/BEL-0P215668 and Below

REF	零件编号	中文名称	英文名称	数量
-	9011G51	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (Complete)	1
-	9011G49	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (Complete)	1
-	9011J9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G57	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (Complete)	1
-	9011J15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043		PIN Dowel - With Hole (.375 x .625) (Front)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	3
4	79953Q04	放油螺钉套件	SCREW KIT Drain	3
4	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	OPT
4	8M0058389	放油螺钉套件	SCREW KIT Drain	OPT
5	191832	垫圈	WASHER	3
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
6	43044		PIN Dowel - Without Hole (.375 x .625) (Rear)	1
7	31640T5	平衡鳍板	TRIM TAB	1
7	8M0236553	平衡鳍板	TRIM TAB	1
8	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
9	451761	垫圈(.453 x .812 x .105)黑色氧化	WASHER (.453 x .812 x .105) Black Oxide	1
10	43040T1	托架总成	CARRIER ASSEMBLY	1
11	NSS	不单独销售	NOT SOLD SEPARATE	1
12	826134Q	阳极块	ANODE	2
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	19672T	小齿轮(14齿)(属43-850035A3部件)	GEAR Pinion (Also part of 43-850035A3)(14 Teetj)	1
15	881260A5	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
15	44484T	小齿轮(13齿)(属43-850033A2部件)	GEAR Pinion (13 Teeth) (Also part of 43-850033A2)(13 Teeth)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	850307	换挡凸轮控制	CAM Shift Control	1
18	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
18	883047A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
19	44492A1	垫片组	SHIM SET	1
19	8M0063265	垫片组	SHIM SET	1
20	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	NSS	不单独销售	NOT SOLD SEPARATE	1
23	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
24	430331	衬垫	GASKET	1
25	430472	衬垫	GASKET	1
25	8M0214931	衬垫	GASKET	1
26	43035	上部油封	SEAL Oil Upper	1
26	8M0245495	油封	OIL SEAL	1
27	43036	下油封	SEAL Oil Lower	1
28	8172771	水泵上垫片	GASKET Water Pump, Upper	1
29	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
30	8172761	面板	FACEPLATE	1
30	8M0204709	面板	FACEPLATE	1
31	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
32	430232	密封件	SEAL	1
33	43037	键	KEY	1
33	8M0204723	键	KEY	1
34	43026T2	叶轮	IMPELLER	1
35	82684425	螺钉(M6x25)	SCREW (M6 x 25)	6
36	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	853908A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	82684425	螺钉(M6x25)	SCREW (M6 x 25)	2
42	816575	端面密封	FACE SEAL	1
42	861415	端面密封	SEAL Face	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A99	衬垫套件	GASKET SET	1
-	43026T11	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1

图 102驱动齿轮箱 2.07:1 USA-0T627235/BEL-0P215669 及以上 Gear Housing Drive 2.07:1 USA-0T627235/BEL-0P215669 and Up

REF	零件编号	中文名称	英文名称	数量
-	9011J6	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (COMPLETE)	1
-	9011J9	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (COMPLETE)	1
-	9011J15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (COMPLETE)	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	43046	注油管	TUBE Oiler	1
4	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	3
4	79953Q04	放油螺钉套件	SCREW KIT Drain	3
4	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	OPT
4	8M0058389	放油螺钉套件	SCREW KIT Drain	OPT
5	191832	垫圈	WASHER	3
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
6	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
7	31640T5	平衡鳍板	TRIM TAB	1
7	8M0236553	平衡鳍板	TRIM TAB	1
8	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
9	451761	垫圈(.453 x .812 x .105)黑色氧化	WASHER (.453 x .812 x .105) Black Oxide	1
10	43040T1	托架总成	CARRIER ASSEMBLY	1
11	NSS	滚针轴承(不单独销售)	NOT SOLD SEPARATE Needle Bearing	1
12	826134Q	阳极块	ANODE	2
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	NSS	小齿轮(14齿)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (14 Teeth)	1
15	NSS	小齿轮(12齿)(不单独销售)	NOT SOLD SEPARATE Pinion Gear (12 Teeth)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	850307	换挡凸轮控制	CAM Shift Control	1
18	883047A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
19	44492A1	垫片组	SHIM SET	1
19	8M0063265	垫片组	SHIM SET	1
20	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	NSS	密封环(不单独销售)	NOT SOLD SEPARATE Seal Ring	1
23	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
24	430331	衬垫	GASKET	1
25	430472	衬垫	GASKET	1
25	8M0214931	衬垫	GASKET	1
26	43035	油封(上)	SEAL Oil (UPPER)	1
26	8M0245495	油封	OIL SEAL	1
27	43036	油封(下)	SEAL Oil (LOWER)	1
28	8172771	水泵上垫片	GASKET Water Pump, Upper	1
29	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
30	8172761	面板	FACEPLATE	1
30	8M0204709	面板	FACEPLATE	1
31	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
32	430232	密封件	SEAL	1
33	43037	键	KEY	1
33	8M0204723	键	KEY	1
34	43026T2	叶轮	IMPELLER	1
35	82684425	螺钉(M6x25)	SCREW (M6 x 25)	6
36	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	853908A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	82684425	螺钉(M6x25)	SCREW (M6 x 25)	2
42	816575	端面密封	FACE SEAL	1
42	861415	端面密封	SEAL Face	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A99	衬垫套件	GASKET SET	1
-	43026T11	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1

图 103推进齿轮箱 2.07:1 USA-0T627235/BEL-0P215669 及以上 Gear Housing Prop 2.07:1 USA-0T627235/BEL-0P215669 and Up

REF	零件编号	中文名称	英文名称	数量
-	9011J6	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (Complete)	1
-	9011J9	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (Complete)	1
-	9011J15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (COMPLETE)	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
3	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
4	881260A3	前进齿轮-29齿	GEAR Forward - 29 Teeth	1
4	882813A3	前进齿轮与小齿轮套件(28齿)	GEAR KIT Forward And Pinion 28 Teeth	1
5	30895T	滚针轴承	BEARING Needle	1
6	856823	挡圈	RING Retaining	1
7	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
8	44530	钢球	BALL	3
9	NSS	滑动件(不单独销售)	NOT SOLD SEPARATE Slide	1
10	850327	弹簧	SPRING	1
11	30632	十字销	PIN Cross	1
11	8M0100263	十字销	PIN Cross	1
12	30893	弹簧	SPRING	1
13	850048T	离合器	CLUTCH	1
14	850308	螺旋桨轴	PROPELLER SHAFT	1
14	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
15	850036T	倒车齿轮-29齿	GEAR Reverse - 29 Teeth	1
15	882814T	倒车齿轮-28齿	GEAR Reverse - 28 Teeth	1
16	12596T2	轴承座总成	CARRIER ASSEMBLY Bearing	1
16	8M0168901	轴承座总成	CARRIER ASSY.	1
17	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
17	8M0214974	O型圈	O RING	1
18	30956T	滚针轴承	BEARING Needle	1
19	70080	内部油封	SEAL Oil Inner	1
19	8M0205728	密封件	SEAL	1
20	70081	外油封	SEAL Oil Outer	1
20	8M0205729	密封件	SEAL	1
21	12578T	滚柱轴承	BEARING Roller	1
22	12577	止推垫片	THRUST WASHER	1
23	12576	推力轴承	BEARING Thrust	1
24	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
24	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
25	855941	垫圈(.323 x .590 x .112)不锈钢	WASHER (.323 x .590 x .112) Stainless Steel	2
26	401378	螺母 (M8)	NUT (M8)	2
27	44491A1	垫片组	SHIM SET	1
27	8M0063266	垫片组	SHIM SET	1
28	8227731	螺纹嵌件	INSERT Threaded	2
29	NSS	齿轮箱/小齿轮标识贴(不单独销售)	NOT SOLD SEPARATE Decal-G/H Pinion Indent	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	13461A99	衬垫套件	GASKET SET	1

图 104推进齿轮箱 USA-0T627234/BEL-0P215668 及以下 Gear Housing Prop USA-0T627234/BEL-0P215668 and Below

REF	零件编号	中文名称	英文名称	数量
-	9011G51	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (Complete)	1
-	9011G49	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (Complete)	1
-	9011J9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G57	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY (COMPLETE)	1
-	9011J15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G59	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
3	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
4	859473A5	前进齿轮总成(29齿)	GEAR ASSEMBLY Forward (29 TEETH)	1
4	881260A5	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
4	859472A3	前进齿轮总成-30齿	GEAR ASSEMBLY Forward - 30 Teeth	1
5	30895T	滚针轴承	BEARING Needle	1
6	856823	挡圈	RING Retaining	1
7	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
8	44530	钢球	BALL	3
9	NSS	滑动件(不单独销售)	NOT SOLD SEPARATE Slide	1
10	850327	弹簧	SPRING	1
11	30632	十字销	PIN Cross	1
11	8M0100263	十字销	PIN Cross	1
12	30893	弹簧	SPRING	1
13	850048T	离合器	CLUTCH	1
14	850308	螺旋桨轴	PROPELLER SHAFT	1
14	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
15	850036T	倒车齿轮-29齿	GEAR Reverse - 29 Teeth	1
15	850034T	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
16	12596T2	轴承座总成	CARRIER ASSEMBLY Bearing	1
16	8M0168901	轴承座总成	CARRIER ASSY.	1
17	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
17	8M0214974	O型圈	O RING	1
18	30956T	滚针轴承	BEARING Needle	1
19	70080	油封(内)	SEAL Oil (INNER)	1
19	8M0205728	密封件	SEAL	1
20	70081	油封(外)	SEAL Oil (OUTER)	1
20	8M0205729	密封件	SEAL	1
21	12578T	滚柱轴承	BEARING Roller	1
22	12577	止推垫片	THRUST WASHER	1
23	12576	推力轴承	BEARING Thrust	1
24	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
24	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
25	855941	垫圈(.323 x .590 x .112)不锈钢	WASHER (.323 x .590 x .112) Stainless Steel	2
26	401378	螺母 (M8)	NUT (M8)	2
27	44491A1	垫片组	SHIM SET	1
27	8M0063266	垫片组	SHIM SET	1
28	8227731	螺纹嵌件	INSERT Threaded	2
29	NSS	齿轮箱/小齿轮标识贴(不单独销售)	NOT SOLD SEPARATE Decal-G/H Pinion Indent	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	13461A99	衬垫套件	GASKET SET	1

图 105进气歧管与簧片阀组 Inducition Manifold and Reed Block

REF	零件编号	中文名称	英文名称	数量
1	44325A1	排气盖板套件	COVER/PLATE KIT Exhaust	1
2	NSS	排气板(不单独销售)	NOT SOLD SEPARATE Exhaust Plate	1
3	812775007	挡板至气缸体衬垫	GASKET Baffle Plate to Cylinder Block	1
4	812775006	排气挡板至排气盖衬垫	GASKET Exhaust Baffle to Exhaust Cover	1
5	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	35
6	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
7	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
8	42981	锁紧垫圈	TAB WASHER	2
9	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
10	988851	滑块	SLIDE	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	35459	垫圈	WASHER	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	430075	衬垫	GASKET	1
15	9004T3	下端盖总成	END CAP ASSEMBLY Lower	1
15	858552T2	下端盖总成	CAP ASSEMBLY Lower End	1
15	858552T2	下端盖总成	CAP ASSEMBLY Lower End	1
16	426585	止回阀	CHECK VALVE	1
17	41953	密封件	SEAL	1
17	419533	油封	SEAL Oil	1
18	89224	O型圈	O-RING	1
19	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	3
20	13033	三通接头	TEE FITTING	1
21	1430165	油管(38.00英寸散装)	TUBING (38.00 Inches Bulk)	2
22	130351	直通接头	FITTING (STRAIGHT)	2
23	13545A1	进气歧管总成	MANIFOLD ASSEMBLY Induction	2
24	827514	支架	BRACKET	1
25	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	12
26	81742740	螺钉 (M8 x 40)	SCREW (M8 x 40)	2
27	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
28	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
28	8M0204663	垫片@5	WASHER @5	2
29	816872	蝶形螺母	WING NUT	2
30	40001167	螺钉(M8 x 110)(#4气缸)	SCREW (M8 x 110) (#4 CYLINDER)	2
31	824470	双头螺柱(M8 x 1.25)(#1,2,3气缸)	STUD (M8 x 1.25) (#1, 2, 3 CYLINDER)	6
32	134612	衬垫	GASKET	2
33	13460	盖板	COVER	2
34	81742755	螺钉(M8x55)	SCREW (M8 x 55)	4
35	42963A11	簧片阀总成	REED BLOCK ASSEMBLY	4
35	8M0219198	簧片阀总成	REED BLOCK ASSY	4
36	NSS	定位销(不单独销售)	NOT SOLD SEPARATE Dowel Pin	24
37	139376	衬垫	GASKET	8
38	43018A1	簧片组	REED SET	4
39	429821	锁紧垫圈	TAB WASHER	4
40	42924	固定座	RETAINER	4
41	88421471	螺钉(M6 x 16)	SCREW (M6 x 16)	4
42	856985A9	EPA标签信息贴花	DECAL EPA Label Information	1
42	804667A00	EPA标签信息贴花	DECAL EPA Label Information	1
42	804667A01	EPA标签信息贴花	DECAL EPA Label Information	1
42	804667A02	EPA标签信息贴花	DECAL EPA Label Information	1
42	804667A03	EPA标签信息贴花	DECAL EPA Label Information	1
42	804667A04	EPA标签信息贴花	DECAL EPA Label Information	1
-	13461A99	衬垫套件	GASKET SET	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791R97	PH 100-125 2S -RM	PH 100-125 2S -RM	1

图 106喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	801400115	喷泵总成	JET PUMP ASSEMBLY	1
-	856143A1	喷泵总成	JET PUMP ASSEMBLY	1
-	856143A1	喷泵总成	JET PUMP ASSEMBLY	1
1	85576790	泵壳	HOUSING Pump	1
1	855767T90	泵壳	HOUSING Pump	1
1	80141190	泵壳	HOUSING Pump	1
1	801411T90	泵壳总成	HOUSING ASSY-PUMP	1
2	827490	润滑油管	HOSE Lube	1
3	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
4	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
4	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
5	855840	双头螺柱(.312-18 x 1.81)	STUD (.312-18 x 1.81)	6
6	67980	螺母(.312-18)	NUT (.312-18)	6
6	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	6
7	80141290	进气壳体	HOUSING Intake	1
8	8271883	衬套	LINER	1
9	80141390	驱动轴	DRIVESHAFT	1
10	85576890	进气壳体	HOUSING Intake	1
11	855771	衬套	LINER	1
12	85576990	驱动轴	DRIVESHAFT	1
13	8271891	套筒	SLEEVE	1
14	8271901	螺母	NUT	1
15	808747	泵适配器	ADAPTER Pump	1
16	36001	垫圈	WASHER	6
17	801414115	叶轮	IMPELLER	1
17	855708115	叶轮	IMPELLER	1
17	855708115	叶轮	IMPELLER	1
18	801405875	键	KEY	1
19	801404875	叶轮垫片	SHIM Impeller	8
20	801403875	锁紧垫圈	TAB WASHER	1
21	801407	定位销	PIN Dowel	2
22	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
23	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
24	801410	电缆支架	BRACKET Cable Support	1
25	67980	螺母(.312-18)	NUT (.312-18)	1
25	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
26	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
27	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
28	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
29	843575	螺丝(.375-16 x 4.00)不锈钢	SCREW (.375-16 x 4.00) Stainless Steel	1
30	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
30	8M0214963	垫圈	WASHER	1

图 107喷泵组件 Jet Pump Components

REF	零件编号	中文名称	英文名称	数量
1	821889A51	转速限制器	REV LIMITER	1
2	823147A7	转速限制器线束总成	HARNESS ASSEMBLY Rev Limiter	1
3	11149A8	适配器线束总成	HARNESS ASSEMBLY Adapter	1
4	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
5	30500A2	润滑脂套装	GREASE KIT	1
5	30500K2	注脂枪与润滑剂	GUN AND LUBE	1
6	430331	衬垫	GASKET	1
7	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
8	817277	衬垫	GASKET	1
8	8172771	水泵上垫片	GASKET Water Pump, Upper	1
9	817276	面板	FACEPLATE	1
9	8M0204709	面板	FACEPLATE	1
10	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
11	430232	密封件	SEAL	1
12	43037	键	KEY	1
12	8M0204723	键	KEY	1
13	430262	叶轮	IMPELLER	1
13	43026T2	叶轮	IMPELLER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 108钥匙对照表 Key Chart

零件编号	中文名称	英文名称	数量
894911	点火钥匙(1A)	KEY Ignition (1A)	1
894912	点火钥匙(1B)	KEY Ignition (1B)	1
894913	点火钥匙(1C)	KEY Ignition (1C)	1
894914	点火钥匙(1D)	KEY Ignition (1D)	1
894915	点火钥匙(1E)	KEY Ignition (1E)	1
894916	点火钥匙(1F)	KEY Ignition (1F)	1
894917	点火钥匙(2A)	KEY Ignition (2A)	1
894918	点火钥匙(2B)	KEY Ignition (2B)	1
894919	点火钥匙(2C)	KEY Ignition (2C)	1
8949110	点火钥匙(2D)	KEY Ignition (2D)	1
8949111	点火钥匙(2E)	KEY Ignition (2E)	1
8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 109机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	8628A7	油箱总成	TANK ASSEMBLY Oil	1
2	99160	上部护套	BOOT Upper	1
2	99160001	护套	BOOT	1
3	NLA	旧款盖板(已停产)	No Longer Available Cover, Old Design	1
4	988951	上部支架	BRACKET Upper	1
4	988952	油箱颈支架	BRACKET Oil Tank Neck	1
5	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	2
6	42653A3	盖总成	CAP ASSEMBLY	1
7	42999	衬垫	GASKET	1
7	42999T	衬垫	GASKET	1
8	12896	螺钉(#8-18 x .310)	SCREW (#8-18 x .310)	1
9	12886A5	开关总成	SWITCH ASSEMBLY	1
9	12886A6	开关总成	SWITCH ASSEMBLY	1
10	430204	从动齿轮	GEAR Driven	1
11	62705	O型圈	O-RING	2
11	8M0204667	O型圈×2	O RING @2	2
12	4301625	油管(8.00英寸)	TUBING (8.00 Inches)	1
12	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
13	44345T	油泵	PUMP Oil	1
13	44345T3	油泵	PUMP Oil	1
14	17335A3	适配器组件	ADAPTER ASSEMBLY	1
15	17597	衬套	BUSHING	1
16	17596	衬套	BUSHING	1
17	4009340	螺钉	SCREW	2
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
18	42888	油箱底座支架	BRACKET Oil Tank Base	1
19	56291	护孔环	GROMMET	1
20	82155050	螺钉(M8x50)不锈钢	SCREW (M8 x 50) Stainless Steel	2
21	99161	护套	BOOT	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
22	8M0214940	扎带	TIE STRAP	AR
23	4301736	管路(配合编号24使用)	TUBING Use With Reference Number 24	3
23	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	3
24	73318	塑料三通	TEE Plastic	1
23	4301736	管路(配合编号25使用)	TUBING Use With Reference Number 25	2
23	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	2
25	44456	三孔接头	FITTING Three Hole	1
26	9004934	管路(14.50英寸散装)(配合编号25使用)	TUBING (14.50 Inches Bulk) Use With Reference Number 25	1
26	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
27	814200	管夹(配合编号25使用)	CLAMP Use With Reference Number 25	2
28	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
28	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1

图 110动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830250T5	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	螺丝套件(电机)	SCREW KIT (MOTOR)	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1		O-RING KIT (Complete Trim)	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	828151A1	继电器总成	RELAY ASSEMBLY	2
19	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
20	818968	衬套	BUSHING	2
20	8M0214955	衬套	BUSHING	2
21	818967	护孔环	GROMMET	2
21	8M0207785	护孔环	GROMMET	2
22	828102	支架	BRACKET	2
22	8M0207771	安装支架	BRACKET Mounting	2
23	NSS	微调继电器标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Trim Relay	2
24	819514A15	升降线束总成	HARNESS ASSEMBLY Trim	1
24	8M0092077	升降线束总成	HARNESS ASSEMBLY Trim	1
25	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
26	22740	卡扣	CLIP	2
27	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
28	69205	C形垫圈	C WASHER	1
28	8M0084613	C形垫圈	C-WASHER	1

图 111维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
1779394	零件手册100/115/125马力80喷泵(4缸)	PARTS MANUAL 100/115/125 Hp 80 Jet (4 Cylinder)	1
830234R2	维修手册	SERVICE MANUAL	1
8M0127990	维修手册	MANUAL-SERVICE	1
823404A94	贴花套件	DECAL SET	1
823404A96	贴花套件	DECAL SET	1
823407A94	贴花套件	DECAL SET	1
823407A00	贴花套装(黑色115-红色)	DECAL SET (Black 115 - Red)	1
823410A94	贴花套件	DECAL SET	1
823410A00	贴花套装(黑色125-红色)	DECAL SET (Black 125 - Red)	1
826321A95	贴花套件	DECAL SET	1
826321A00	贴花套装(黑色80喷射)	DECAL SET (Black 80 Jet)	1
823404A96	贴花套件	DECAL SET	1
823407A96	贴花套件	DECAL SET	1
823407A00	贴花套装(黑色115-红色)	DECAL SET (Black 115 - Red)	1
809718A96	贴花套件	DECAL SET	1
823410A96	贴花套件	DECAL SET	1
823410A00	贴花套装(黑色125-红色)	DECAL SET (Black 125 - Red)	1
809719A96	贴花套件	DECAL SET	1
826321A96	贴花套件	DECAL SET	1
826321A00	贴花套装(黑色80喷射)	DECAL SET (Black 80 Jet)	1
823411A94	贴花套件	DECAL SET	1
823411A97	贴花套件	DECAL SET	1
823412A94	贴花套件	DECAL SET	1
823412A03	贴花套装(灰色115)	DECAL SET (Gray 115)	1
823413A94	贴花套件	DECAL SET	1
823413A03	贴花套装(灰色125)	DECAL SET (Gray 125)	1
826330A95	贴花套件	DECAL SET	1
826330A97	贴花套件	DECAL SET	1
823411A97	贴花套件	DECAL SET	1
823412A97	贴花套件	DECAL SET	1
823412A03	贴花套装(灰色115)	DECAL SET (Gray 115)	1
850445A97	贴花套件	DECAL SET	1
823412A03	贴花套装(灰色115)	DECAL SET (Gray 115)	1
823413A97	贴花套件	DECAL SET	1
823413A03	贴花套装(灰色125)	DECAL SET (Gray 125)	1
850446A97	贴花套件	DECAL SET	1
823413A03	贴花套装(灰色125)	DECAL SET (Gray 125)	1
826330A97	贴花套件	DECAL SET	1
824911	贴条(整卷)	DECAL STRIPE (BULK ROLL)	1
824911A25	条纹贴花	DECAL Striping	1
824735A94	贴花套件	DECAL SET	1
808623A94	贴花套件	DECAL SET	1
824735A96	贴花套件	DECAL SET	1
808623A96	贴花套件	DECAL SET	1
10180980	用户手册	OWNERS MANUAL	1
10162980	用户手册	OWNERS MANUAL	1
10138980	用户手册	OWNERS MANUAL	1
85557711	EPA标签信息贴花	DECAL EPA Label Information	1
855577A11	REF SOB 09-18	REF SOB 09-18	1

图 112启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	660153	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	15383	驱动套件	DRIVE KIT	1
2	133101	驱动器	DRIVE	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	安装板	PLATE	1
4	15384	贯穿螺栓	THRU BOLT	2
5	15385	电枢	ARMATURE	1
6	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
6	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	15386	端盖	END CAP	1
7	15386001	端盖	END CAP	1

图 113转向手柄 Steering Handle

REF	零件编号	中文名称	英文名称	数量
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
NS	74036	润滑脂接头	FITTING Grease	1
NS	8M0169589	润滑脂接头	FITTING Grease	1
2	429922	衬套	BUSHING	2
2	42992T02	衬套	BUSHING	2
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
7	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
8	12013	卡箍	CLAMP	1
8	889729	卡箍	CLAMP	1
9	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
10	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
11	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	823609A5	停机开关总成	SWITCH ASSEMBLY Stop	1
12	8M0104612	开关总成	SWITCH ASSY	1
13	NSS	绝缘件(不单独销售)	NOT SOLD SEPARATE Insulator	1
14	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
15	NSS	驱动轮(不单独销售)	NOT SOLD SEPARATE Drive Wheel	1
16	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
17	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
18	99589	握把	GRIP	1
18	8M0221732	外握把	GRIP OUTER	1
19	648551	卡箍	CLAMP	2
20	40140	螺母(M10)	NUT (M10)	1
21	785512	导管	CONDUIT	1
21	8885242	导管	CONDUIT	1
22	895663	导向管	GUIDE TUBE	1
23	89578	套筒	BARREL	1
24	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
25	120191	拉线总成	CABLE ASSEMBLY	1
26	434332	导套	GUIDE	1
27	20007	锚定件	ANCHOR	1
28	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
28	8M0204644	螺钉组	SCREW SET	2
29	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
30	48416	盖帽	CAP	1
31	4002319	垫圈	WASHER	1
32	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
33	146011	隔套	SPACER	1
34	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1
34	8M0214963	垫圈	WASHER	1
35	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
36	NSS	节气门标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Throttle	1
-	12022A34	舵柄套件	TILLER HANDLE KIT	1
-	12022A41	转向手柄套件	STEERING HANDLE KIT	1

图 114转向手柄组件 Steering Handle Components

REF	零件编号	中文名称	英文名称	数量
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A4	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
-	74036	润滑脂接头	FITTING Grease	1
-	8M0169589	润滑脂接头	FITTING Grease	1
2	429922	衬套	BUSHING	2
2	42992T02	衬套	BUSHING	2
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
6	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
7	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
7	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
8	12013	卡箍	CLAMP	1
8	889729	卡箍	CLAMP	1
9	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
10	816873	蝶形螺母	WING NUT	1
10	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
11	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	823609A5	停机开关总成	SWITCH ASSEMBLY Stop	1
12	8M0104612	开关总成	SWITCH ASSY	1
13	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
14	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
15	99589	握把	GRIP	1
15	8M0221732	外握把	GRIP OUTER	1
16	648551	卡箍	CLAMP	2
17	13914	螺母(M10)	NUT (M10)	1
17	40140	螺母(M10)	NUT (M10)	1
18	785512	导管	CONDUIT	1
18	8885242	导管	CONDUIT	1
19	895663	导向管	GUIDE TUBE	1
20	89578	套筒	BARREL	1
21	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
22	120191	拉线总成	CABLE ASSEMBLY	1
23	434332	导套	GUIDE	1
24	20007	锚定件	ANCHOR	1
25	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
25	8M0204644	螺钉组	SCREW SET	2
26	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
27	48416	盖帽	CAP	1
28	4002319	垫圈	WASHER	1
29	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
30	14601	隔套	SPACER	1
30	146011	隔套	SPACER	1
31	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
31	8M0214963	垫圈	WASHER	1

图 115旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710A20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
1	8710A21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33466	O型圈	O-RING	1
5	67668	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A2	黑色圆端旋转销总成	SWIVEL PIN ASSEMBLY Round End, Black	1
9	99661A4	灰色水手圆端旋转销总成	SWIVEL PIN ASSEMBLY Mariner Round End, Gray	1
9	99661A7	牡蛎色旋转销总成	SWIVEL PIN ASSEMBLY Oyster	1
9	99661A18	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A18	灰色旋转销总成	SWIVEL PIN ASSEMBLY Gray	1
9	99661A26	黑色短端旋转销总成	SWIVEL PIN ASSEMBLY Stub End, Black	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A27	灰色短端旋转销总成	SWIVEL PIN ASSEMBLY Stub End, Gray	1
9	99661A36	ORD 99661A35	ORD 99661A35	1
10	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	34863	螺母 (.375-24)	NUT (.375-24)	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
14	888821	加长缓冲器	BUMPER X-Long	1
14	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
15	78854	波形垫圈	WAVE WASHER	1
16	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
16	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
16	42961A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
16	42961T2	ORD 42961A06	ORD 42961A06	1
16	42961A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
17	67684	挡圈	RING Retaining	1
18	67670	垫圈	WASHER	1
19	99653	支架	BRACKET	1
20	99619	下轴	SHAFT Lower	1
21	821539	三叶销	PIN Trilobe	2
22	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
23	400258	不锈钢锁紧垫圈 (M10)	LOCKWASHER (M10) Stainless Steel	6
24	818298A1	阳极套件	ANODE KIT	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000332	螺钉(M6x35)	SCREW (M6 x 35)	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	99724A2	黑色减震器	SHOCK ABSORBER Black	1
27	99724T15	减震器-黑色	SHOCK ABSORBER-BL	1
27	99724A3	灰色减震器	SHOCK ABSORBER Gray	1
27	99724T15	减震器-黑色	SHOCK ABSORBER-BL	1
27	99724A10	牡蛎色减震器	SHOCK ABSORBER Oyster	1
27	99724T15	减震器-黑色	SHOCK ABSORBER-BL	1
28	821207	衬套	BUSHING	2
29	99625	上轴	SHAFT Upper	1
29	99625002	轴	SHAFT	1
30	821180A3	Sea Ray配平传感器总成	SENDER ASSEMBLY Trim Sea Ray	1
30	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
31	56682	Sea Ray螺钉(#10-24x.750)	SCREW (#10-24 x .750) Sea Ray	2
31	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
32	26996	Sea Ray不锈钢锁紧垫圈(#10)	LOCKWASHER (#10) Stainless Steel Sea Ray	2
33	89302	Sea Ray垫圈(.203x.406x.040)	WASHER (.203 x .406 x .040) Sea Ray	2
34	11288	底部轭架加长缓冲器	BUMPER Bottom Yoke X-Long	1
34	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1

图 116油门杆及联动装置 Throttle Lever and Linkage

REF	零件编号	中文名称	英文名称	数量
1	44333	油门杆	LEVER Throttle	1
2	817582	调节螺钉(M5 x 35)	SCREW Adjusting (M5 x 35)	1
3	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
4	48039	盖帽	CAP	1
5	827009	螺钉(M5 x 40)	SCREW (M5 x 40)	1
6	826264	盖帽	CAP	1
7	826382	弹簧	SPRING	1
8	48039	盖帽	CAP	1
9	44335	点火提前杆	LEVER Spark Advance	1
9	884307T	杠杆	LEVER	1
10	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	3
11	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
12	42942	盖帽	CAP	3
13	4007180	螺丝(M10 x 45)	SCREW (M10 x 45)	1
14	55171	衬套	BUSHING	1
15	86310	弹簧	SPRING	1
15	73375	弹簧	SPRING	1
16	812930A1	衬套	BUSHING	1
17	42980	垫圈	WASHER	1
18	42927	嵌件	INSERT	1
19	35459	垫圈	WASHER	1
20	8268336	螺母 (M6)	NUT (M6)	1
20	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
21	44338	点火提前杆	SPARK ADVANCE ROD	1
21	878170	点火提前杆	ROD Spark Advance	1
22	93421	旋转球头	SWIVEL BALL	1
23	93254	旋转底座	SWIVEL BASE	1
24	44337	连接杆	LINK	1
24	878173	连接杆	LINK	1
25	8268336	螺母 (M6)	NUT (M6)	1
25	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	932481	衬套	BUSHING	2
26	8M0215006	旋转衬套	BUSHING Swivel	2
27	14518T1	节气门凸轮	CAM Throttle	1
27	14518A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
27	14518A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
28	42984	螺柱	STUD	1
28	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
28	8161946	螺柱	STUD	1
28	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
29	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1

图 117舵柄适配器套件（JET 80） Tiller Handle Adapter Kit (Jet 80)

REF	零件编号	中文名称	英文名称	数量
-	850000A3	舵柄适配器套件65 JET	TILLER HANDLE ADAPTER KIT 65 JET	1
1	832001A6	换挡线缆总成	CABLE ASSEMBLY Shift	1
2	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
3	988851	滑块	SLIDE	1
4	828095	支架	BRACKET	1
5	824930T3	支架	BRACKET	1
6	805444	卡扣	CLIP	1
6	8054441	卡扣	CLIP	1
7	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
8	828096	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
10	71958	螺丝(.250-28 x 1.75)	SCREW (.250-28 x 1.75)	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	828094	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
13	72734	紧定螺丝(#10-32 x .310)	SET SCREW (#10-32 x .310)	1
14	35459	垫圈	WASHER	1
15	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
16	813960A3	开关	SWITCH	1
16	8M0052927	开关总成	SWITCH ASSY	1
17	4001168	不锈钢螺丝(M3.5 x 20)	SCREW (M3.5 x 20) Stainless Steel	2
17	88075020	螺丝(M3 x 20)	SCREW (M3 x 20)	2
18	824923	安装板	PLATE	1
19	824934A1	拉线总成	CABLE ASSEMBLY	1

图 118专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量
-	36392	化油器量具	GAUGE TOOL Carburetor	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	99379	正时灯	TIMING LIGHT	1
-	825207A1	TPI/CDM测试线束总成	HARNESS ASSEMBLY TPI/CDM Test	1
-	112301	对正工具	ALIGNMENT TOOL	1
-	NSS	夹头(不单独销售)(SNAP ON - CG41-14)	NOT SOLD SEPARATE Collet (SNAP ON - CG41-14)	1
-	NSS	膨胀杆(不单独销售)(SNAP ON - CG41-11)	NOT SOLD SEPARATE Expanding Rod (SNAP ON - CG41-11)	1
-	822778A3	下压力套件	DOWN PRESSURE KIT	1
-	99750A1	万用表	MULTI METER	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	29287	量规工具	GAUGE TOOL	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	812549	动力头支架	STAND Powerhead	1
-	812549T	动力头支架	STAND Powerhead	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1

图 119顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	828354T8	顶罩总成(黑色)	TOP COWL ASSEMBLY Black	1
1	828354T9	银色顶罩总成	TOP COWL ASSEMBLY Silver	1
1	828354A10	银色顶罩与黑色盖总成	TOP COWL ASSEMBLY Silver Cowl And Black Cap	1
2	828716A2	盖帽	CAP	1
3	828352	密封件	SEAL	1
4	8283511	密封件	SEAL	1
5	821875F1	上盖	CAP Upper	1
5	8218751	上盖-黑色	CAP-UPPER-BLACK	1
5	821875F2	上盖	CAP Upper	1
5	821875F1	上盖	CAP Upper	1
6	819813T1	盖板锁扣支架	BRACKET Cover Latch	1
7	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
7	893763	滚轮锁扣支架	BRACKET Roller Latch	1
8	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
9	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
10	F481434	罩盖锁扣导架	GUIDE Cowl Latch Bracket	2
11	91925	压入式螺母	PUSH NUT	4
12	822512	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
13	823865	盖塞	CAP PLUG	2
14	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
15	823830	支架	SUPPORT	2
16	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	2
17	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
18	8233941	支架	BRACKET	1
19	8237515	螺母(M4)	NUT (M4)	2
20	823583A1	隔音毯套装	SOUND BLANKET KIT	1
20	823583A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
21	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
22	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 120艉板支架（序列号 USA-0T800999/BEL-0P267999 及以下） Transom Bracket (S/N USA-0T800999/ Bel-0P267999 and Below)

REF	零件编号	中文名称	英文名称	数量
1	828334F1	艉板支架	BRACKET Transom	1
2	828333A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	828333T07	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
4	826125A1	倾斜管	TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
5	82671327	螺母(1.0-14)	NUT (1.0-14)	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	830899	张力弹簧	SPRING Tension	1
14	821176T1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1
20	818771T1	锚支架	BRACKET Anchor	1
20	8M0086406	锚支架	BRACKET Anchor	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2

图 121艉板支架（序列号 USA-0T801000/BEL-0P268000 及以上） Transom Bracket (S/N USA-0T801000/ Bel-0P268000 and Up)

REF	零件编号	中文名称	英文名称	数量
1	828334F1	艉板支架	BRACKET Transom	1
2	828333A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	828333T07	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
4	826125A1	倾斜管	TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
5	82671327	螺母(1.0-14)	NUT (1.0-14)	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	830899	张力弹簧	SPRING Tension	1
14	821176T1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1
20	818771T1	锚支架	BRACKET Anchor	1
20	8M0086406	锚支架	BRACKET Anchor	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
24	8182981	阳极块	ANODE	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	22740	卡扣	CLIP	2
28	69205	C形垫圈	C WASHER	1
28	8M0084613	C形垫圈	C-WASHER	1
29	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
30	830250T5	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
30	8M0171818	动力调整总成	POWER TRIM ASSY	1
31	996251	轴	SHAFT	1
31	99625002	轴	SHAFT	1
32	818898	锚销	PIN Anchor	1
33	821539	三叶销	PIN Trilobe	2
