Yamaha — vmax - f185b / f185bet1l

Exploded diagrams and part specifications.

1VMAX Upper Casing 2VMAX Intake 1 3VMAX Intake 2 4VMAX Intake 3 5VMAX Electrical 1 6VMAX Electrical 2 7VMAX Electrical 3 8VMAX Electrical 4 9VMAX Electrical 5 10VMAX Oil Pan 11VMAX Optional Parts 1 12VMAX Optional Parts 2 13VMAX Crankshaft & Piston 14VMAX Control 15VMAX Cylinder & Crankcase 1 16VMAX Cylinder & Crankcase 2 17VMAX Cylinder & Crankcase 3 18VMAX Cylinder & Crankcase 4 19VMAX Switch & Panel 20VMAX Starting Motor 21VMAX Steering Guide 22VMAX Generator 23VMAX Periodic Maintenance Parts 24VMAX Top Cowling 25VMAX Valve 26VMAX Power Trim & Tilt Assembly 1 27VMAX Power Trim & Tilt Assembly 2 28VMAX Fuel 29VMAX Fuel Injection Pump 30VMAX Fuel Tank 31VMAX Bracket 1 32VMAX Bracket 2 33VMAX Bottom Cowling 1 34VMAX Bottom Cowling 2 35VMAX Bottom Cowling 3 36VMAX Meter 37VMAX Repair Kit 1 38VMAX Repair Kit 2 39VMAX Remote Control Assembly 40VMAX Remote Control Box 41VMAX Lower Casing & Drive 1 42VMAX Lower Casing & Drive 2

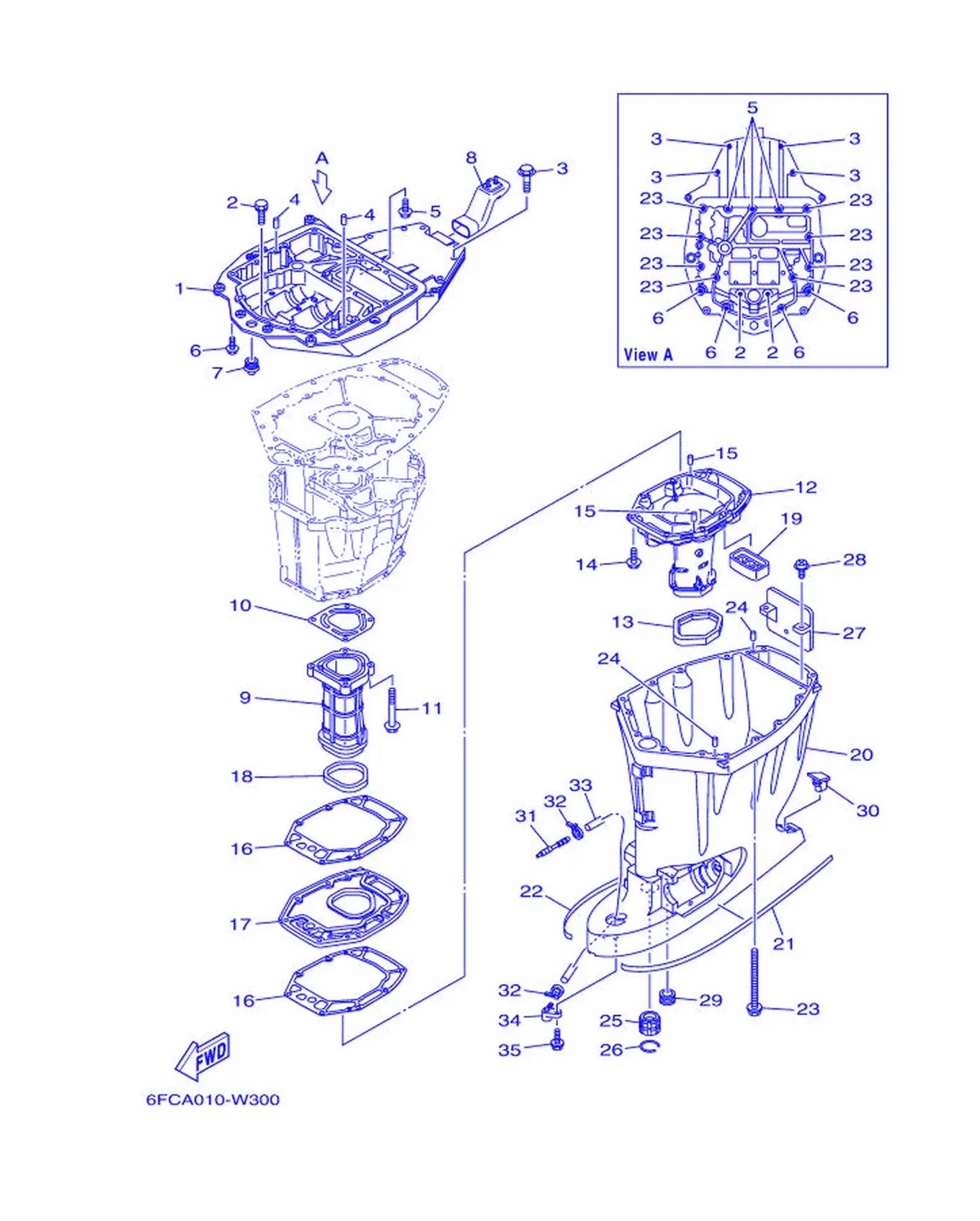

Fig. 1VMAX Upper Casing

REF	Part No.	Name	Qty
1	63P-41137-07-CA	Guide, Exhaust	1
2	90119-08182	Bolt, with Washer	2
3	97E75-10545	Bolt, Hexagon with Washer Deep Recess	4
4	93608-16M16	Pin, Dowel	2
5	90119-08189	Bolt, with Washer	3
6	97E75-10535	Bolt, Hexagon with Washer Deep Recess	4
7	6E5-42724-01	Grommet	1
8	6DA-42769-01	Seal, Rubber	1
9	63P-41131-02	Manifold, Exhaust 1	1
10	63P-41133-A0	Gasket, Exhaust Manifold	1
11	97E75-08560	Bolt, Hexagon with Washer Deep Recess	4
12	6DA-14711-11	Muffler 1	1
13	69J-45123-00	Gasket,Muffler	1
14	97E75-08535	Bolt, Hexagon with Washer Deep Recess	8
15	93606-19M23	Pin, Dowel	2
16	63P-41134-A1	Gasket, Exhaust Manifold	2
17	63P-45181-02	Plate	1
18	63P-41138-00	Seal, Exhaust 1	1
19	69J-45127-01	Seal	1
20	6DA-45111-10-8D	Casing, Upper	1
21	6N9-42791-41	Mark 1	1
22	6N9-42792-41	Mark 2	1
23	90119-10007	Bolt, With Washer	8
24	93608-16M16	Pin, Dowel	2
25	6E5-45318-00	Bushing,Drive Shaft	1
26	93420-36M01	Circlip	1
27	69J-14624-01	Cover,Exhaust	1
28	97980-06216	Screw, With Washer	2
29	6E5-44366-01	Damper, Water Seal 2	1
30	6C5-45155-02	Cap	1
31	6E5-83558-00	End, Nipple	1
32	90465-11M10	Clamp	2
33	90445-07010	Hose (L1330)	1
34	63P-45379-00	Nipple,Hose	1
35	90119-06287	Bolt, with Washer	1

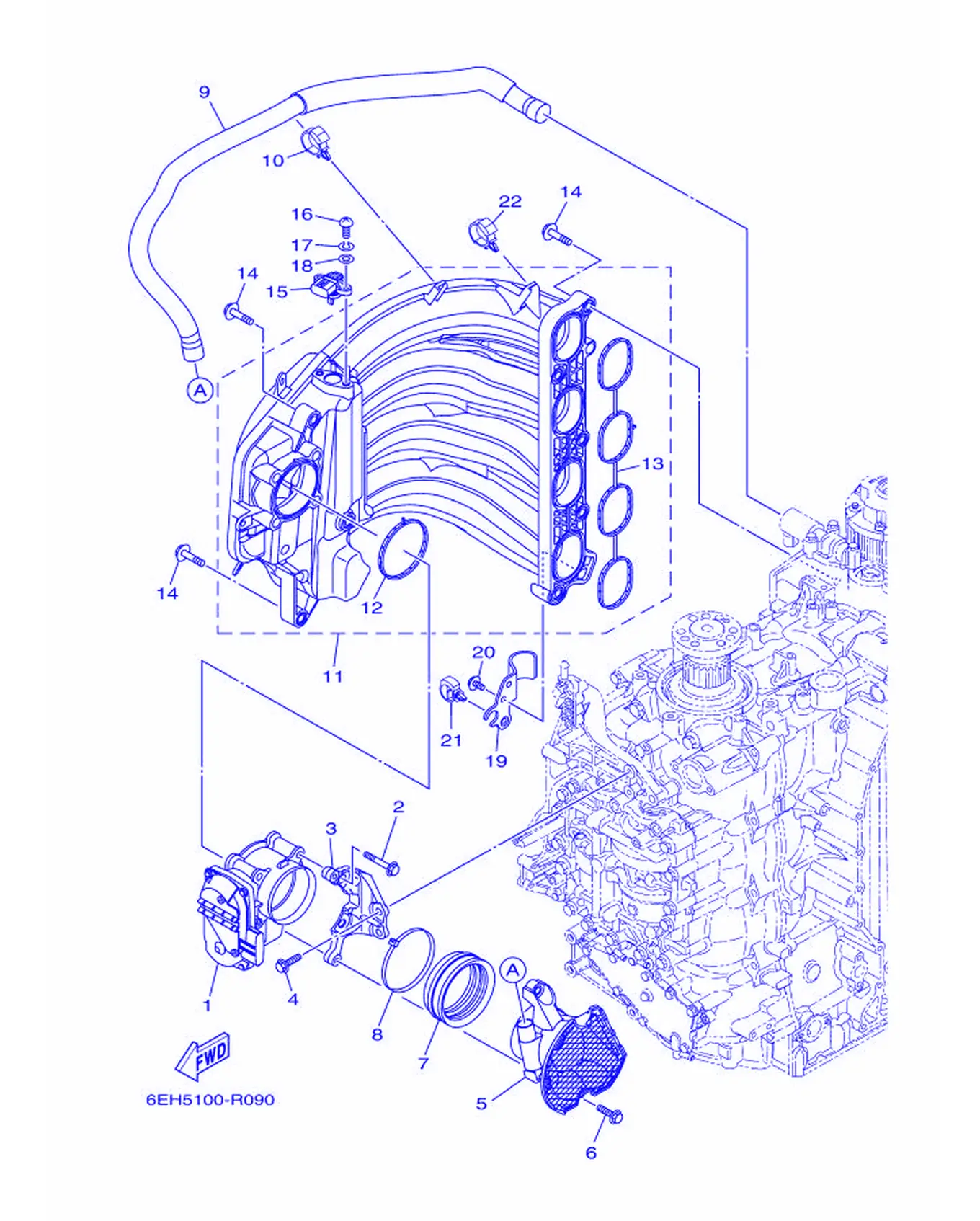

Fig. 2VMAX Intake 1

REF	Part No.	Name	Qty
1	6DA-13751-02	Body, Throttle 1	1
2	97E75-08560	Bolt, Hexagon with Washer Deep Recess	4
3	6DA-13152-00	Stay 2	1
4	95D75-06025	Bolt, Flange Deep Recess	2
5	6DA-14440-00	Silencer Assembly, Intake	1
6	95D75-06025	Bolt, Flange Deep Recess	2
7	6P2-1441J-01	Pipe, Silencer	1
8	90464-99004	Clamp	1
9	6DA-15373-00	Pipe, Breather	1
10	90464-12183	Clamp	1
11	6DA-13641-00	Manifold, Intake 1	1
12	6DA-13646-00	Gasket, Manifold 2	1
13	6DA-13645-00	Gasket, Manifold 1	1
14	90119-08020	Bolt, With Washer	9
15	68F-83688-10	SensorAssembly	1
16	97885-05016	Screw, Pan Head	2
17	92995-05100	Washer	2
18	92995-05600	Washer	2
19	6DA-13881-00	Cover 1	1
20	95D95-06012	Bolt, Flange Deep Recess	2
21	90464-20181	Clamp	1
22	90464-12183	Clamp	1

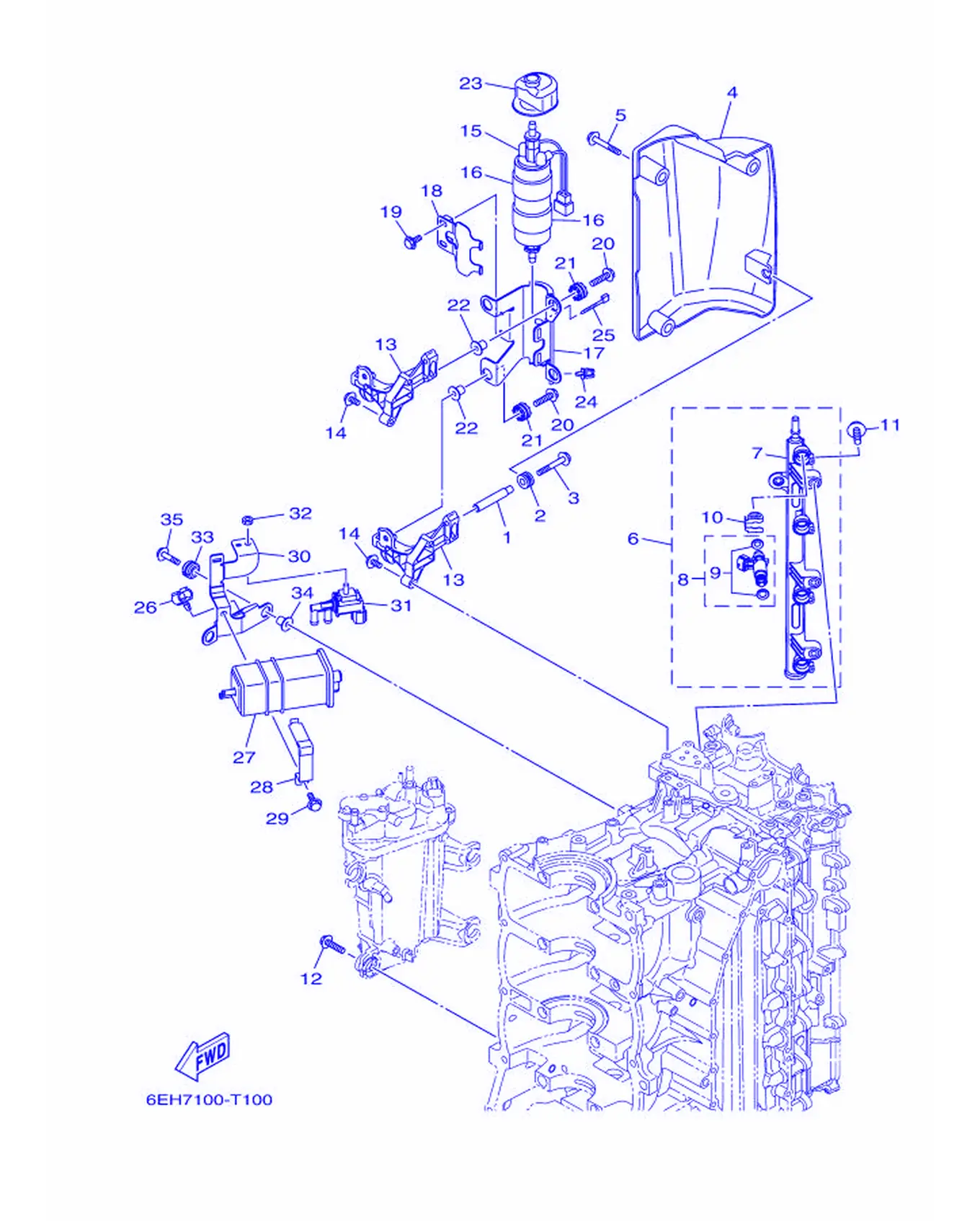

Fig. 3VMAX Intake 2

REF	Part No.	Name	Qty
1	90387-06283	Collar	1
2	90480-12314	Grommet	1
3	90105-06054	Bolt, Flange	1
4	6DA-13564-01	Cover, Manifold	1
5	95D95-06020	Bolt, Flange Deep Recess	3
6	6DA-13160-02	Delivery Pipe Assembly 1	1
7	6DA-13161-02	Pipe, Delivery 1	1
8	6DA-13761-01	Injector Assembly	4
9	6AW-1410B-00	Packing Kit	1
10	6AW-13577-10	Clip	4
11	90105-06M08	Bolt, Flange	3
12	90119-06299	Bolt, with Washer	4
13	6DA-24425-00	Bracket, Fuel Pump 1	2
14	90105-06M08	Bolt, Flange	4
15	6GR-24410-02	Fuel Pump Assembly	1
16	6DA-24492-01	Bush, Fuel Pump	2
17	6DA-24491-00	Bracket, Fuel Pump	1
18	6DA-24426-00	Bracket, Fuel Pump 2	1
19	95D95-06012	Bolt, Flange Deep Recess	2
20	90119-06309	Bolt, with Washer	4
21	60V-85516-00	Spacer	4
22	90387-06289	Color	4
23	6DA-24462-00	Cap, Blind	1
24	90464-11121	Clamp	1
25	90465-11M10	Clamp	1
26	90464-09130	Clamp	1
27	6P2-24170-00	Canister Assembly	1
28	63P-2419A-01	Holder	1
29	95D95-06016	Bolt, Flange Deep Recess	1
30	6DA-2134X-00	Bracket, Canister	1
31	6C5-86120-00	SolenoidValveAssembly	1
32	95380-06600	Nut, Hexagon	1
33	90480-14031	Grommet	2
34	90387-06289	Color	2
35	90119-06309	Bolt, with Washer	2

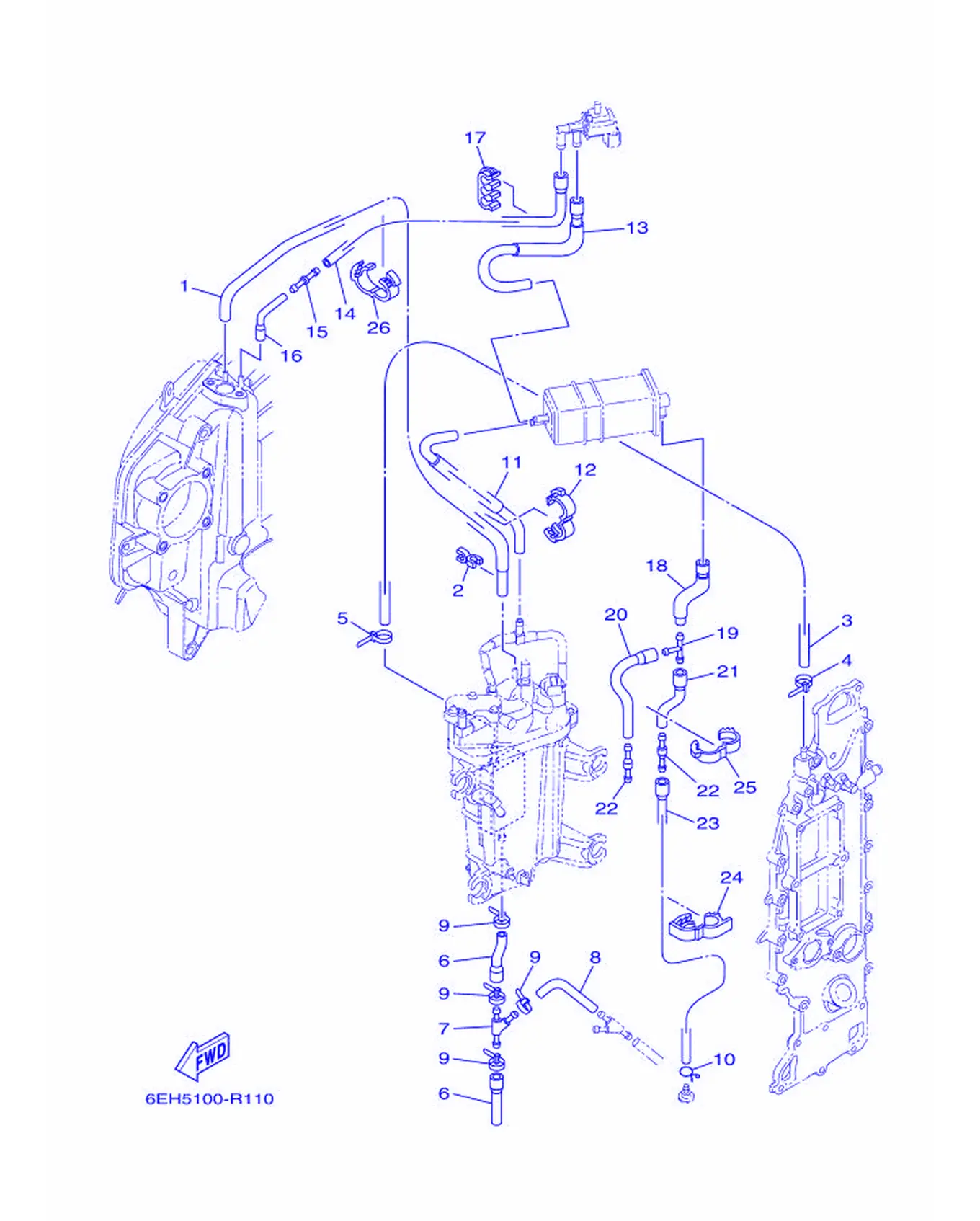

Fig. 4VMAX Intake 3

REF	Part No.	Name	Qty
1	6DA-13532-00	Hose, Vacuum Sensing 3	1
2	90464-07M41	Clamp	1
3	90445-09120	Hose (L600)	1
4	90465-11M10	Clamp	1
5	90465-11M10	Clamp	1
6	6DA-12576-00	Hose 1	2
7	6CE-24377-00	Pipe, Joint 2	1
8	90445-10056	Hose (L85)	1
9	90465-11M10	Clamp	4
10	90467-09M09	Clip	1
11	6DA-1475A-00	Pipe 1	1
12	90464-16001	Clamp	1
13	6DA-1475F-00	Pipe 3	1
14	6DA-2416A-00	Hose	1
15	6CB-14989-00	Orifice, Air Vent	1
16	6DA-1475G-00	Pipe 4	1
17	90464-10011	Clamp	1
18	6DA-13545-00	Hose 1	1
19	688-24378-00	Pipe,Joint	1
20	68V-13546-10	Hose 2	1
21	6DA-13548-00	Hose, Air 4	1
22	6E5-21744-00	Breather	2
23	6DA-13547-00	Hose 3	1
24	90464-18004	Clamp	1
25	90464-16001	Clamp	1
26	90464-16001	Clamp	1

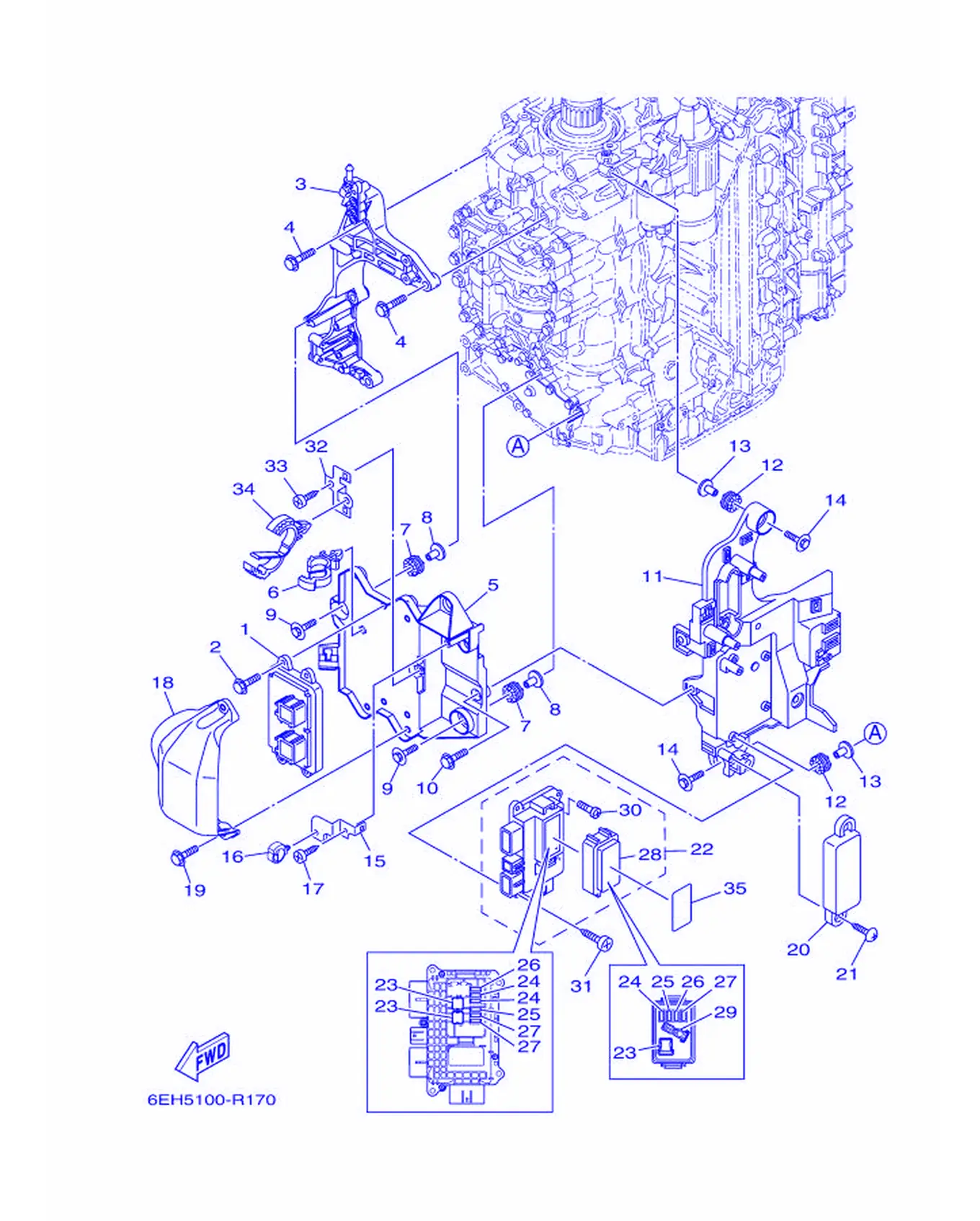

Fig. 5VMAX Electrical 1

REF	Part No.	Name	Qty
1	6FH-8591A-12	Engine Control Unit Assembly	1
2	95D95-06020	Bolt, Flange Deep Recess	4
3	6DA-85991-01	Bracket, Unit	1
4	95D75-08035	Bolt, Flange Deep Recess	4
5	6DA-81948-01	Bracket	1
6	90464-12183	Clamp	1
7	68F-85516-01	Spacer	3
8	90387-06176	Color	3
9	68F-85119-00	Bolt	3
10	95D95-06016	Bolt, Flange Deep Recess	2
11	6DA-81952-10	Holder, Relay	1
12	68F-85516-01	Spacer	3
13	90387-06176	Color	3
14	68F-85119-00	Bolt	3
15	6DA-85548-10	Holder	1
16	90464-20181	Clamp	1
17	97780-60620	Screw, Tapping	1
18	6DA-81639-01	Cover	1
19	95D95-06020	Bolt, Flange Deep Recess	2
20	6DA-8252U-01	Cover	1
21	90169-05M00	Screw, Truss Head Tapping	2
22	6DA-82170-12	Fuse Box Assembly	1
23	6CB-82151-41	Fuse (60A)	3
24	6CB-82151-00	Fuse (10A)	3
25	6CB-82151-10	Fuse (15A)	2
26	6CB-82151-20	Fuse (20A)	2
27	6CB-82151-30	Fuse (30A)	3
28	6CB-85544-10	Cover	1
29	6CB-2812A-00	Puller, Fuse	1
30	6P2-82113-00	Screw (M3)	5
31	97780-50620	Screw, Tapping	4
32	6DA-8257V-00	Connector Plate	1
33	97780-60620	Screw, Tapping	1
34	90464-32002	Clamp	1
35	6DA-81919-11	Graphic, Regulator	1

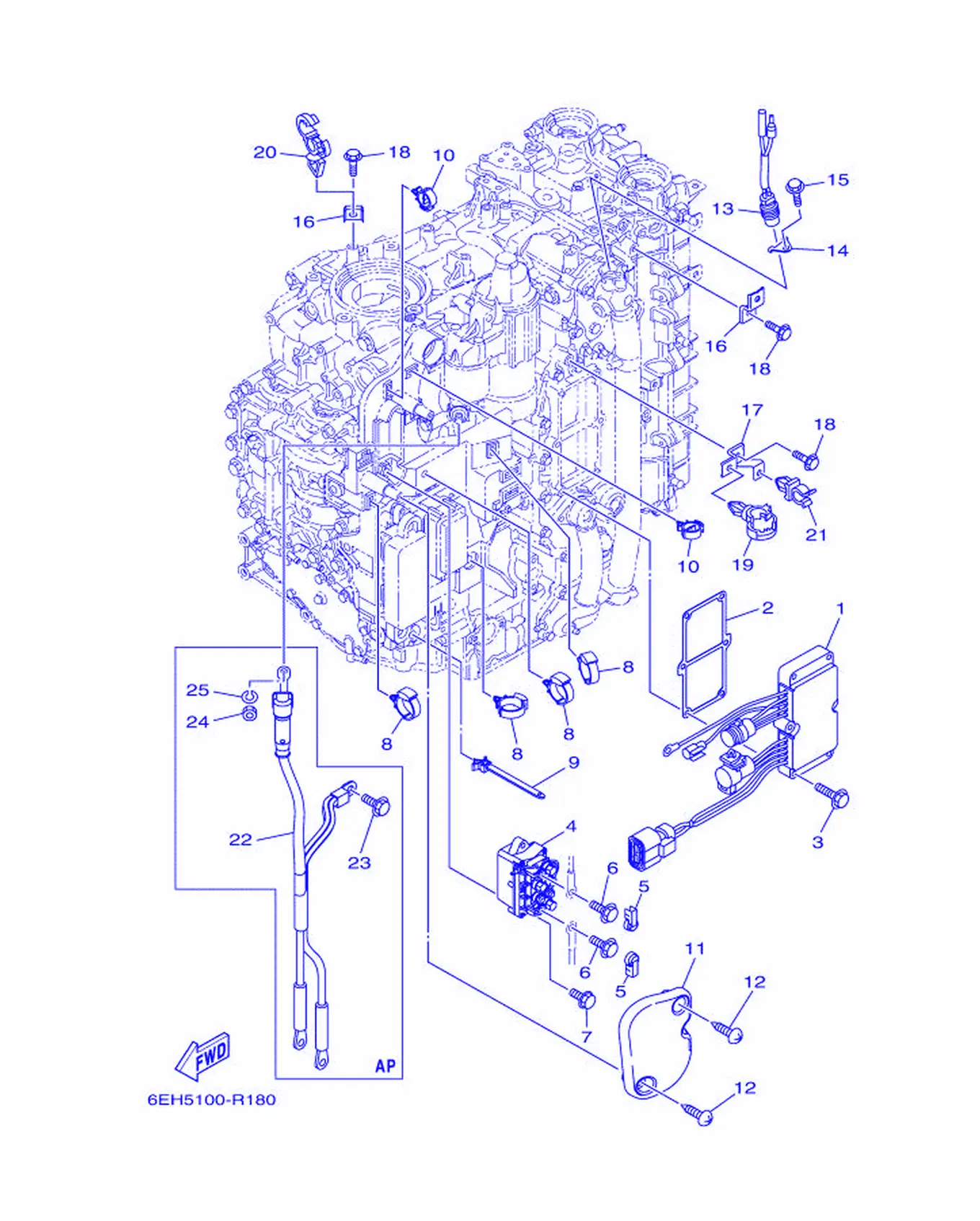

Fig. 6VMAX Electrical 2

REF	Part No.	Name	Qty
1	6DA-81960-10	Rectifier and Regulator Assembly	1
2	6DA-81975-01	Rectifier Fitting Plate	1
3	97E95-06535	Bolt, Hexagon with Washer Deep Recess	6
4	63P-W8195-00	Relay Assembly	1
5	6P2-8183X-00	Cap, Terminal	2
6	97E95-06610	Bolt, Hexagon with Washer Deep Recess	2
7	97E95-06520	Bolt, Hexagon with Washer Deep Recess	2
8	90464-12183	Clamp	4
9	90464-12089	Clamp	1
10	90464-18246	Clamp	2
11	6DA-81942-01	Cover	1
12	90169-05M00	Screw, Truss Head Tapping	2
13	6P2-82560-01	Thermo Switch Assembly	1
14	6E9-82588-00	Plate	1
15	95D95-06012	Bolt, Flange Deep Recess	1
16	6DA-82388-00	Plate	2
17	6DA-82389-00	Plate 2	1
18	95D95-06016	Bolt, Flange Deep Recess	3
19	90464-20181	Clamp	1
20	90464-13249	Clamp	1
21	90464-09008	Clamp	1
22	6DA-82105-J2	Battery Cable	1
23	95D95-08016	Bolt, Flange Deep Recess	1
24	95333-08600	Nut	1
25	92903-08100	Washer,Spring	1

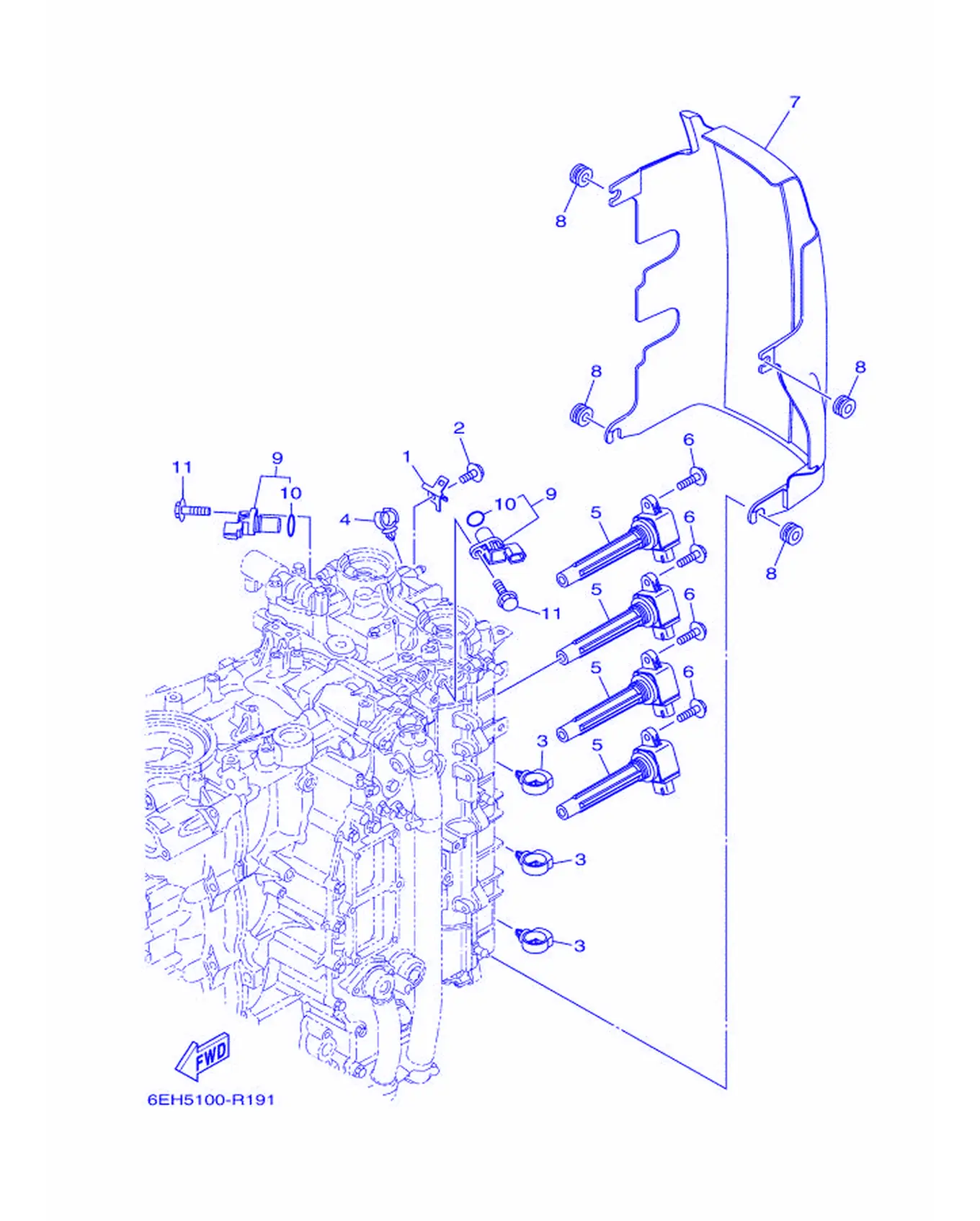

Fig. 7VMAX Electrical 3

REF	Part No.	Name	Qty
1	6D8-82389-01	Plate 2	1
2	95D95-06012	Bolt, Flange Deep Recess	1
3	90464-20181	Clamp	3
4	90464-13249	Clamp	1
5	6CB-82310-02	Ignition Coil Assembly	4
6	95D95-06025	Bolt, Flange Deep Recess	4
7	6DA-82314-01	Cover, Ignition Coil	1
8	90480-12314	Grommet	4
9	6P2-85896-00	Sensor, Cam Position	2
10	6P2-85075-00	O-ring	1
11	97E95-06520	Bolt, Hexagon with Washer Deep Recess	2

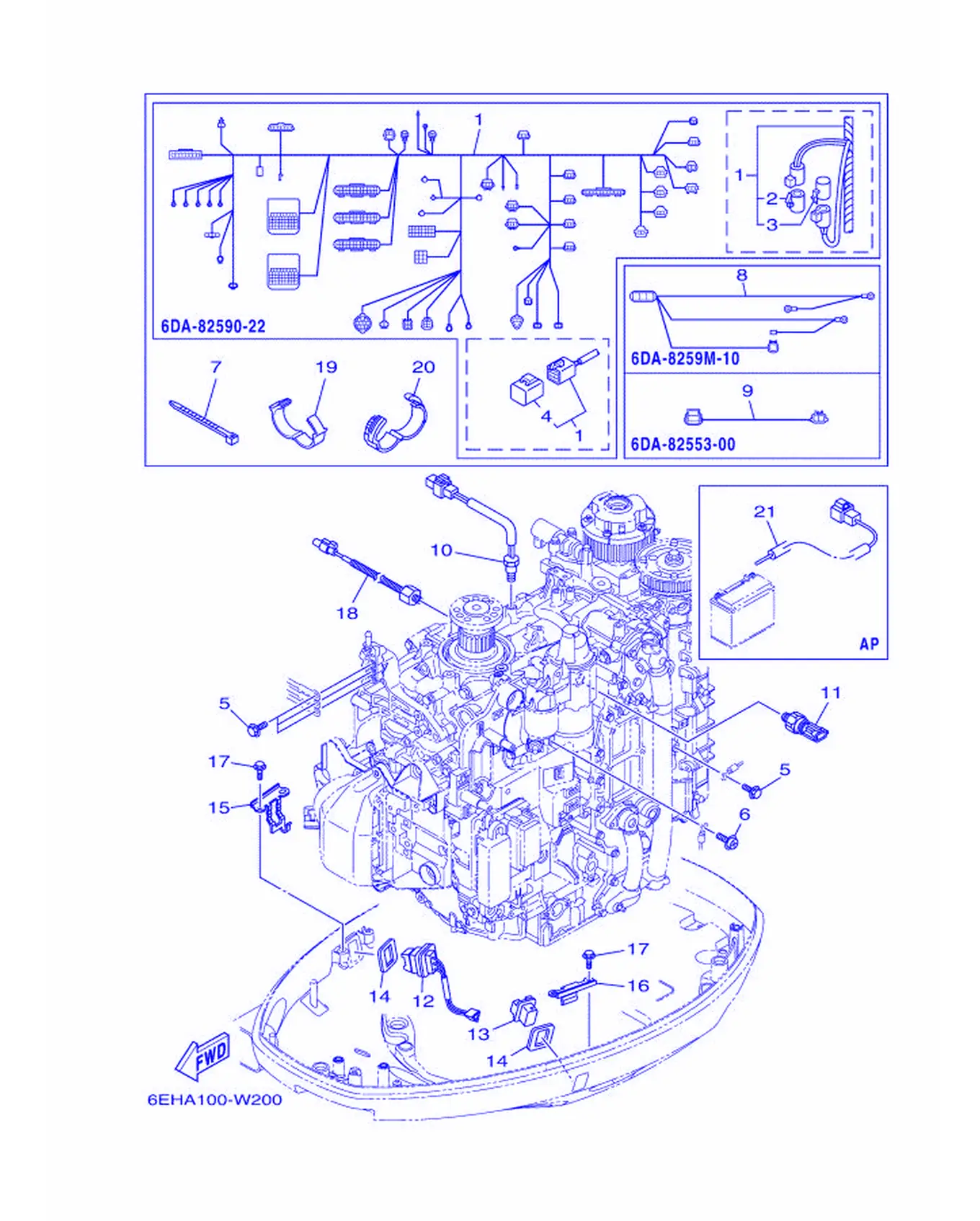

Fig. 8VMAX Electrical 4

REF	Part No.	Name	Qty
1	6DA-82590-22	Wire Harness Assembly	1
2	6DA-82582-00	Cap 1 (Female)	1
3	6DA-82582-10	Cap 1 (Male)	1
4	6Y8-82582-11	Cap 1 (4 Pin)	1
5	97E95-06516	Bolt, Hexagon with Washer Deep Recess	4
6	97985-04308	Screw, Washer	1
7	90465-11M59	Clamp	1
8	6DA-8259M-10	Wire Harness Assembly 2	1
9	6DA-82553-00	Extension, Wire Lead	1
10	6CB-85790-00	Thermo Sensor Assembly	1
11	6AW-83651-01	Sender, Oil Pressure	1
12	69J-82563-01	Trim & Tilt Switch Assembly	1
13	69J-42723-01	Cover, Bottom	1
14	69J-82587-01	Gasket	2
15	63P-83614-01	Bracket	1
16	6DA-83614-00	Bracket	1
17	95D95-06012	Bolt, Flange Deep Recess	4
18	6CJ-85780-02	Sensor, Knock	1
19	90464-26001	Clamp	5
20	90464-28003	Clamp	2
21	69J-81949-03	Wire, Lead (Isolator, 3.8M)	1

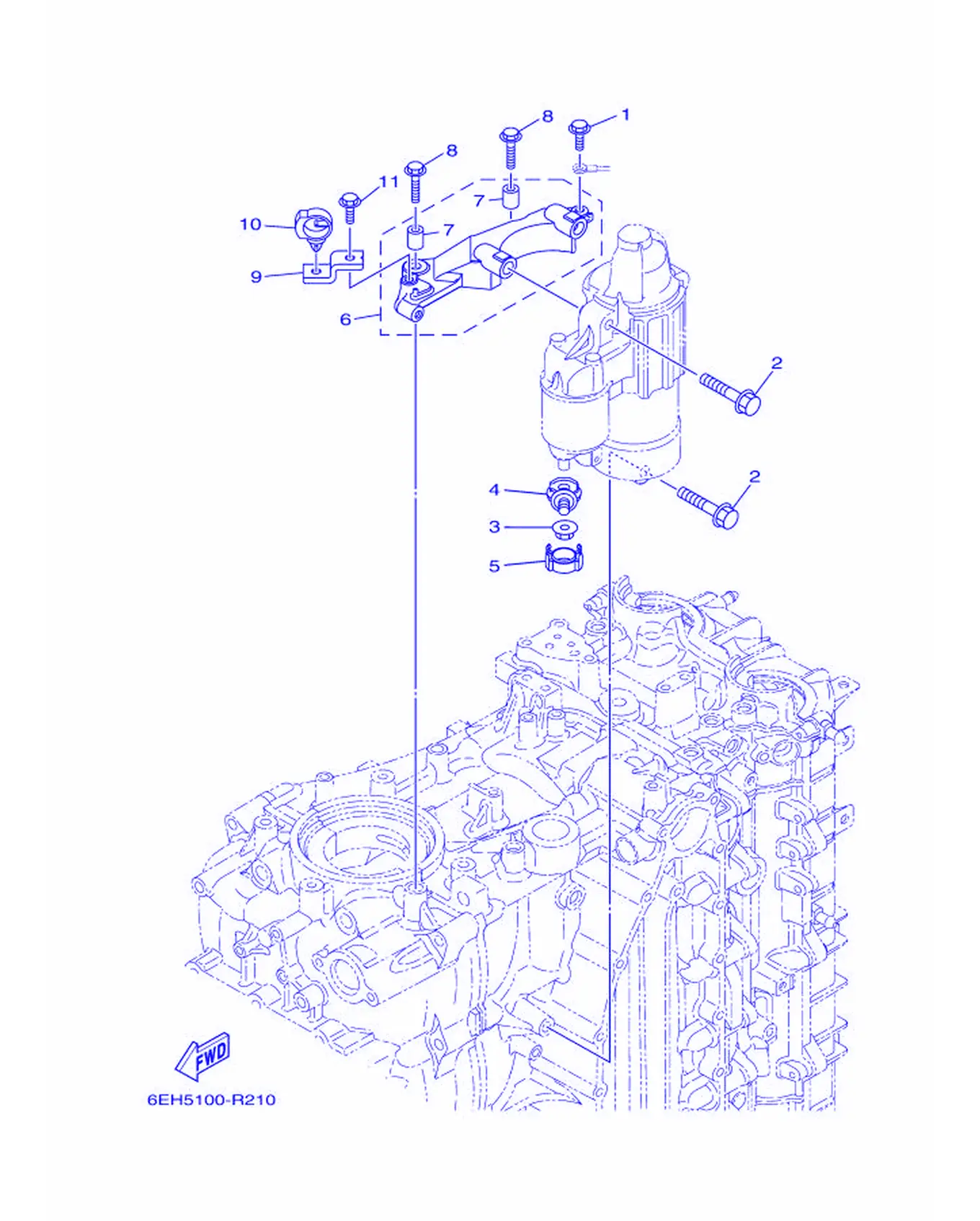

Fig. 9VMAX Electrical 5

REF	Part No.	Name	Qty
1	97E95-06516	Bolt, Hexagon with Washer Deep Recess	1
2	97513-08545	Bolt, with Washer	3
3	90179-08003	Nut	1
4	60V-81925-00	Terminal	1
5	68F-82582-00	Cover,WireHarness	1
6	6DA-81822-00	Bracket, Starting Motor	1
7	99590-10114	Pin, Dowel	2
8	90105-08M87	Bolt, Flange	2
9	6DA-82388-00	Plate	1
10	90464-20181	Clamp	1
11	95D95-06016	Bolt, Flange Deep Recess	1

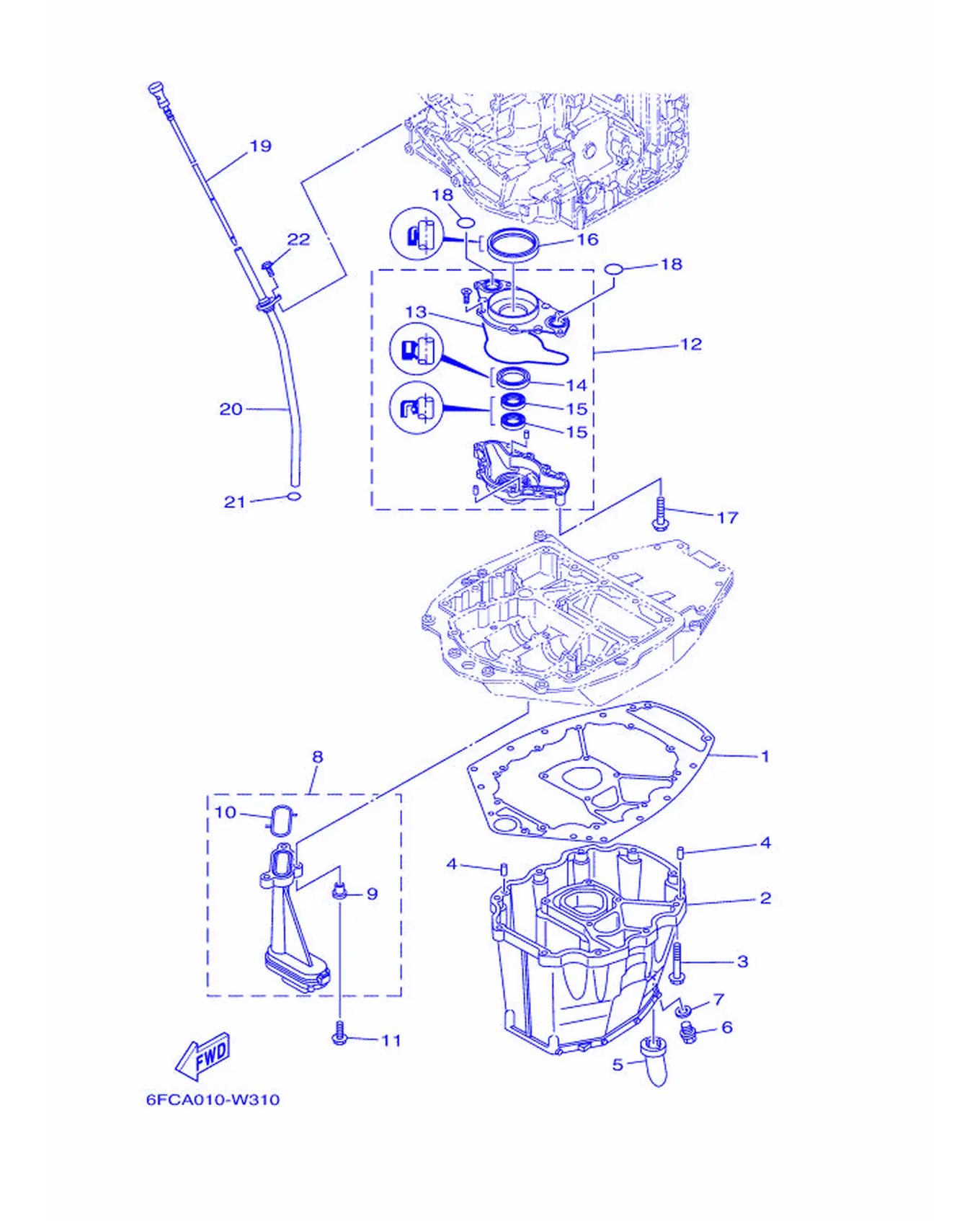

Fig. 10VMAX Oil Pan

REF	Part No.	Name	Qty
1	63P-15312-02	Gasket, Oil Pan	1
2	63P-15311-04-CA	Oil Pan	1
3	97E75-08535	Bolt, Hexagon with Washer Deep Recess	10
4	93608-16M16	Pin, Dowel	2
5	63P-15316-01	Damper 1	1
6	90340-14M06	Plug, Straight Screw	1
7	90430-14M09	Gasket	1
8	63P-13411-00	Strainer,Oil	1
9	90387-06263	Color	3
10	63P-13415-00	Seal, Oil Strainer	1
11	95812-06025	Bolt, Flange	3
12	6DA-13300-00	Oil Pump Assembly	1
13	6DA-13329-00	Gasket, Pump Cover	1
14	6AW-13119-00	Oil Seal	1
15	69J-13631-00	Oil Seal	2
16	6CB-11355-00	Seal, Cylinder 1	1
17	97E75-06540	Bolt, Hexagon with Washer Deep Recess	4
18	93210-25552	O-ring	2
19	6DA-15362-00	Plug, Oil Level	1
20	6DA-15377-00	Guide, Inlet	1
21	93210-19MJ3	O-ring	1
22	95D95-06016	Bolt, Flange Deep Recess	1

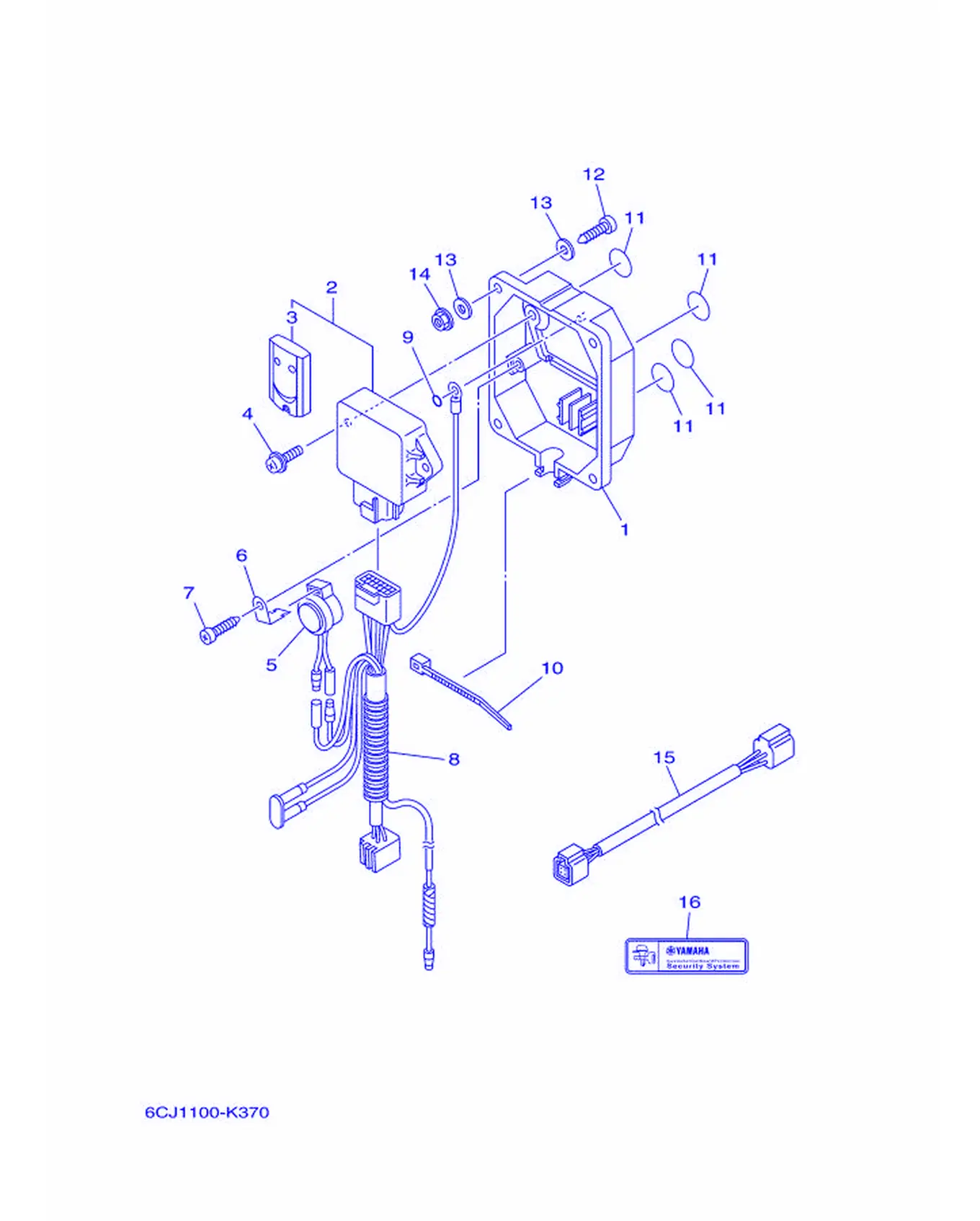

Fig. 11VMAX Optional Parts 1

REF	Part No.	Name	Qty
1	6Y8-86267-00	CaseComplete 1	1
2	6Y8-86260-20	Remote Control Unit Assembly	1
3	6AA-86261-10	Transmitter Complete	2
4	97980-06216	Screw, With Washer	2
5	6X4-83383-00	Buzzer	1
6	6X4-83386-00	Stay, Buzzer	1
7	97780-60620	Screw, Tapping	1
8	6Y8-82509-10	Wire, Sub Lead	1
9	93210-04279	O-ring	1
10	90465-11M10	Clamp	1
11	6Y8-8454G-00	Patch 1	4
12	90167-06M00	Screw, Tapping	4
12	97880-06035	Screw, Pan Head	4
13	90201-06M30	Washer,Plate	8
14	95780-06300	Nut, Flange	4
15	6Y8-82521-11	Pigtail Bus Wire (2FT)	1
16	6Y8-48277-00	Sticker 1	3

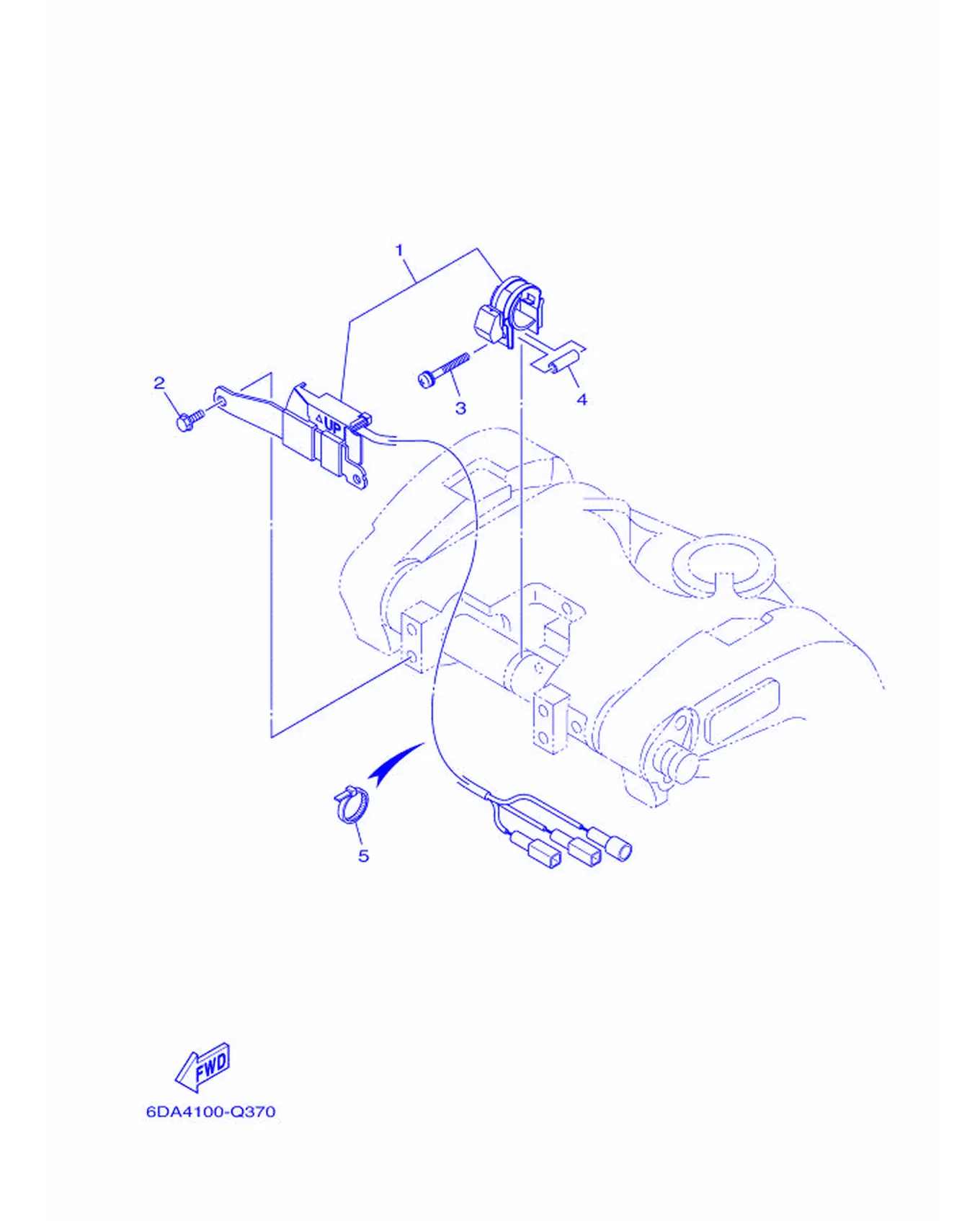

Fig. 12VMAX Optional Parts 2

REF	Part No.	Name	Qty
1	63P-825E0-02	Tilt Limit Switch Assembly	1
2	97E95-06516	Bolt, Hexagon with Washer Deep Recess	2
3	90159-05059	Screw, With Washer	1
4	90387-05004	Color	1
5	90465-11M10	Clamp	5

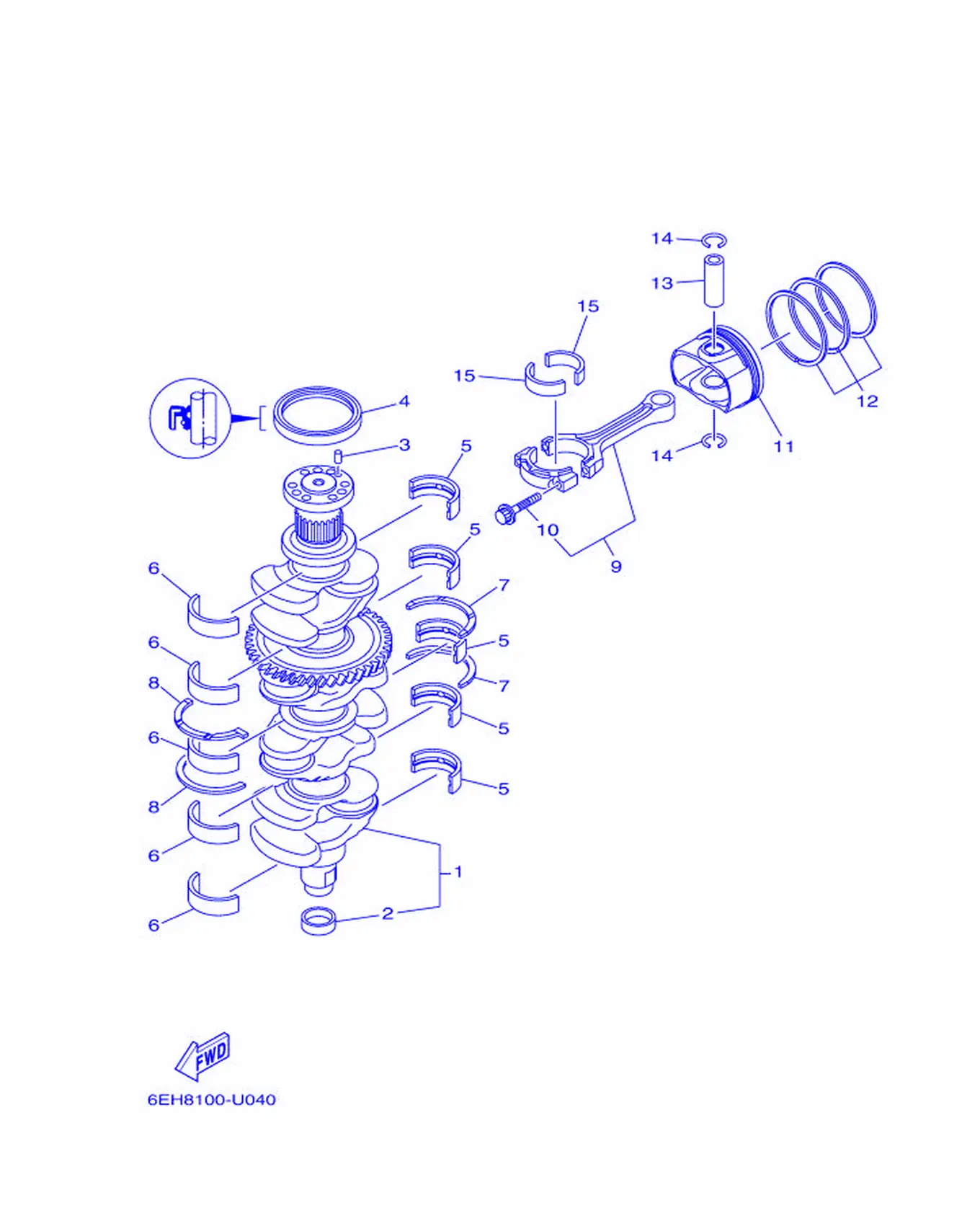

Fig. 13VMAX Crankshaft & Piston

VMAX 曲轴与活塞 VMAX Crankshaft & Piston Fig.

REF	Part No.	Name	Qty
1	6DA-11410-00	Crankshaft	1
2	6CB-11478-00	Collar	1
3	93606-12019	Pin, Dowel	1
4	93102-85008	Oil Seal	1
5	6DA-11416-00	Crankshaft Plain Bearing 1	5
5	6DA-11416-10	Crankshaft Plain Bearing 1	5
5	6DA-11416-20	Crankshaft Plain Bearing 1	5
6	6DA-11417-00	Crankshaft Plain Bearing 2	5
6	6DA-11417-10	Crankshaft Plain Bearing 2	5
6	6DA-11417-20	Crankshaft Plain Bearing 2	5
7	6DA-11426-00	Bearing, Thrust 1	2
8	6DA-11427-00	Bearing, Thrust 2	2
9	6CB-W1165-10	Connecting Rod Assembly	4
10	63P-11654-10	Bolt, Connecting Rod	2
11	6DA-11631-21-94	Piston (STD)	4
12	6CB-11603-00	Piston Ring Set (STD)	4
13	6CB-11633-00	Pin, Piston	4
14	K0F-A3233-00	Ring, Hole Snap	8
15	6JD-11656-00	Connecting Rod Plain Bearing	8
15	6JD-11656-10	Connecting Rod Plain Bearing	8
15	6JD-11656-20	Connecting Rod Plain Bearing	8

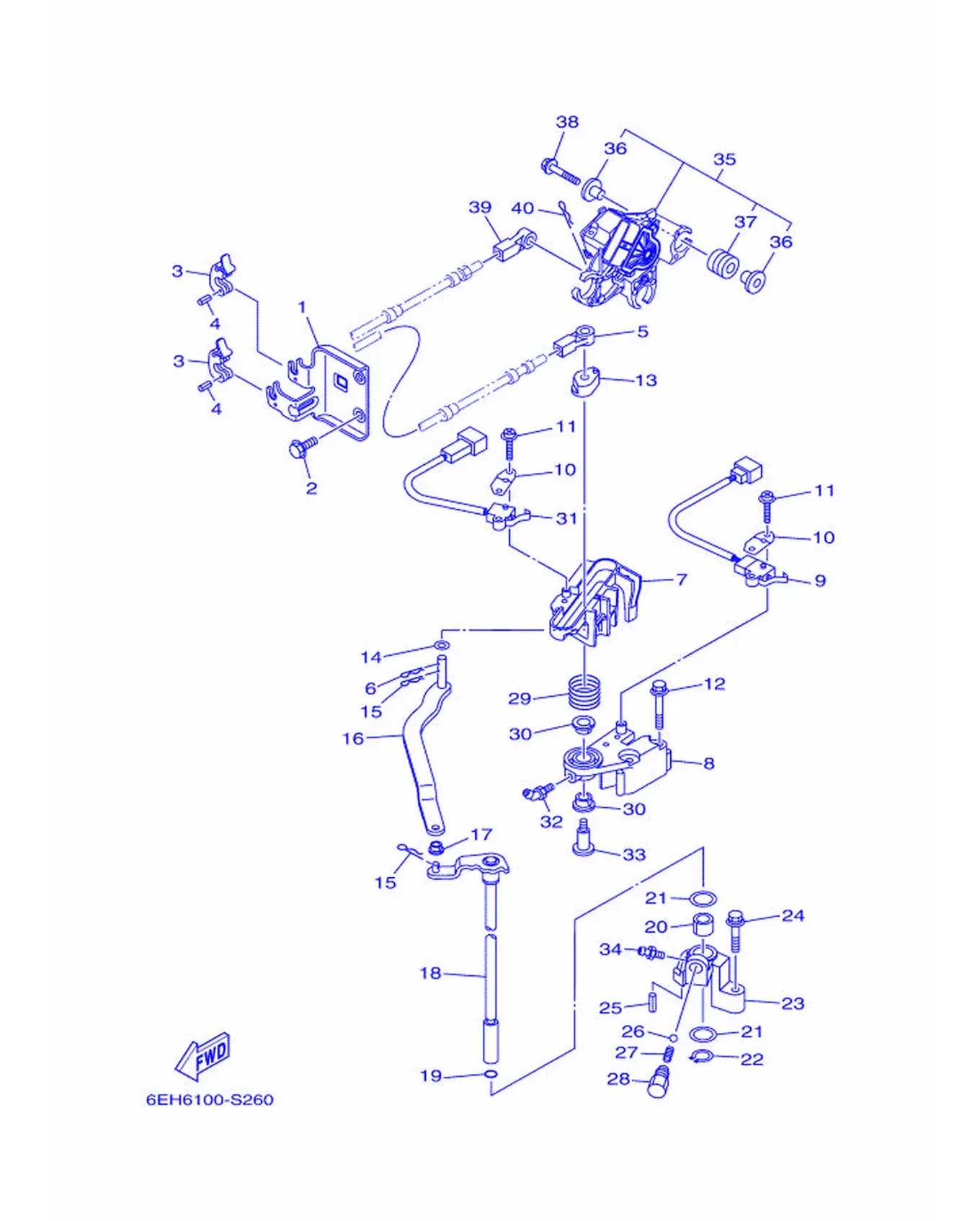

Fig. 14VMAX Control

REF	Part No.	Name	Qty
1	6DA-48531-00	Bracket, Remote Control 1	1
2	95D95-08020	Bolt, Flange Deep Recess	2
3	6E5-48538-00	Clamp, Cable 1	2
4	91690-30010	Pin,Spring	2
5	6E5-48344-00	Cable End, Remote Control	1
6	90468-18008	Clip	1
7	6DA-44176-00	Bracket	1
8	63P-44117-01	Bracket	1
9	69J-8259F-00	SwitchAssembly	1
10	61A-82588-01	Plate	2
11	97985-04116	Screw, With Washer	4
12	97E95-06550	Bolt, Hexagon with Washer Deep Recess	2
13	63P-44122-00	Bushing, Shift Rod Lever	1
14	90202-08M20	Washer,Plate	1
15	90468-18008	Clip	2
16	6DA-44121-00	Lever, Shift Rod	1
17	90386-06M12	Bushing	1
18	6DA-44120-12	Handle Gear Shift Assembly	1
19	93210-09165	O-ring	1
20	90386-16M66	Bushing	1
21	90202-16061	Washer,Plate	2
22	93410-16006	Circlip	1
23	63P-44118-00	Bracket	1
24	97E75-06535	Bolt, Hexagon with Washer Deep Recess	1
25	91690-30010	Pin,Spring	1
26	93501-04M02	Ball	1
27	90501-12082	Spring, Compression	1
28	648-42715-00	Bushing	1
29	90508-20M31	Spring, Torsion	1
30	90386-12069	Bushing	2
31	60V-8259F-01	Switch Assembly	1
32	93700-06M01	Nipple, Grease	1
33	90109-08019	Bolt	1
34	93700-06M03	Nipple, Grease	1
35	6DA-8A410-02	Sensor Unit	1
36	69J-13716-00	Color	6
37	6CB-13593-00	Damper	3
38	90119-06297	Bolt, with Washer	3
39	6E5-48344-00	Cable End, Remote Control	1
40	90468-18008	Clip	1

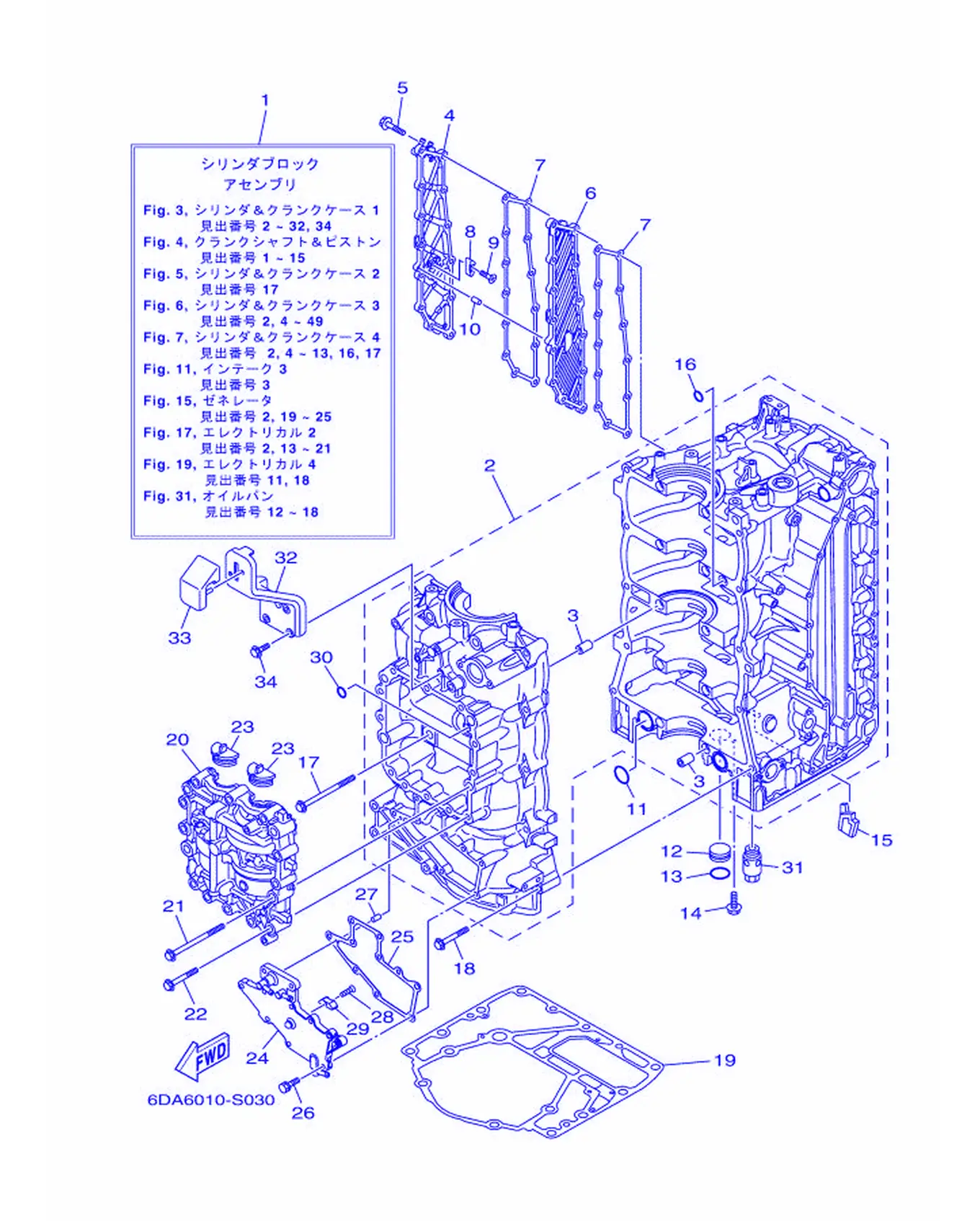

Fig. 15VMAX Cylinder & Crankcase 1

VMAX 气缸与曲轴箱 1 VMAX Cylinder & Crankcase 1 Fig.

REF	Part No.	Name	Qty
1	6DA-W009B-16-9S	Cylinder Block Assembly	1
2	6DA-15109-01-9S	Crankcase Assembly	1
3	91814-18002	Pin, Dowel	10
4	6DA-15414-00-9S	Cover 1	1
5	90105-06028	Bolt, Flange	13
6	6DA-15423-00-9S	Cover 2	1
7	6DA-15353-01	Gasket, Drain	2
8	6E5-11325-00	Anode	1
9	98780-04016	Screw, Flat Head	1
10	91690-40010	Pin,Spring	1
11	93210-25552	O-ring	2
12	90338-25004	Plug	1
13	93210-25647	O-ring	1
14	90119-06276	Bolt, with Washer	1
15	6DA-14664-01	Grommet, Water Jacket	1
16	93210-12648	O-ring	1
17	90105-10406	Bolt, Flange	10
18	90119-08M66	Bolt, With Washer	10
19	63P-11351-04	Gasket, Cylinder	1
20	6DA-11500-00	Balancer Assembly	1
21	90105-10406	Bolt, Flange	4
22	90105-08175	Bolt, Flange	12
23	63P-11512-00	Seal, Crank Cover	2
24	6DA-15411-00-9S	Cover, Crankcase 1	1
25	6DA-15451-01	Gasket, Crankcase Cover	1
26	90119-06MA3	Bolt, With Washer	10
27	91690-40010	Pin,Spring	1
28	98780-04016	Screw, Flat Head	1
29	6E5-11325-00	Anode	1
30	93210-08001	O-ring	1
31	63P-13490-00	Relief Valve Assembly	1
32	6DA-42744-00	Stay	1
33	6DA-42662-01	Damper	1
34	90105-06196	Bolt, Flange	3

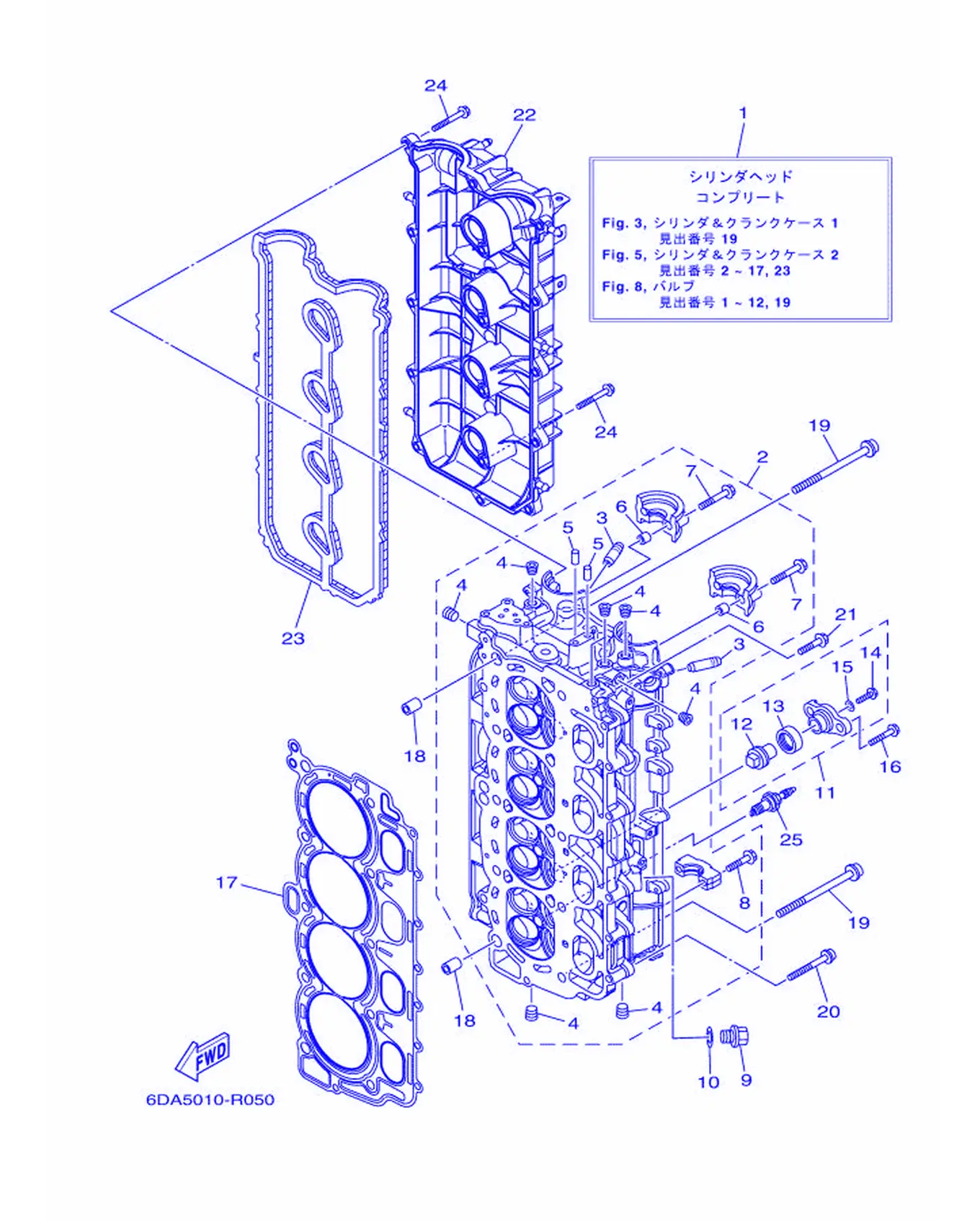

Fig. 16VMAX Cylinder & Crankcase 2

VMAX 气缸与曲轴箱 2 VMAX Cylinder & Crankcase 2 Fig.

REF	Part No.	Name	Qty
1	6DA-W009A-06-9S	Cylinder Head Complete	1
2	6DA-11110-02-9S	Cylinder Head Assembly	1
3	6DA-11133-10	Guide,Valve 1	16
4	90344-51019	Plug, Taper Screw	8
5	93606-12019	Pin, Dowel	2
6	91809-08006	Sleeve Guide Dowel	4
7	90119-07001	Bolt, with Washer	4
8	90119-07234	Bolt, with Washer	16
9	90340-14M06	Plug, Straight Screw	1
10	90430-14115	Gasket	1
11	6ML-11301-00	Anode Cover Assembly	2
12	6ML-11325-00	Anode	1
13	67F-11328-01	Grommet	1
14	90105-06M07	Bolt, Flange	1
15	90430-06M03	Gasket	1
16	95D95-08025	Bolt, Flange Deep Recess	4
17	6DA-11181-00	Gasket, Cylinder Head 1	1
18	90387-11005	Collar	2
19	90149-11001	Screw	10
20	90105-08175	Bolt, Flange	8
21	90105-06151	Bolt, Flange	1
22	6DA-11191-00	Cover, Cylinder Head 1	1
23	6DA-11193-00	Gasket, Head Cover 1	1
24	95D95-06030	Bolt, Flange Deep Recess	16
25	94709-00400	Plug, Spark (NGK LFR6A-11)	4

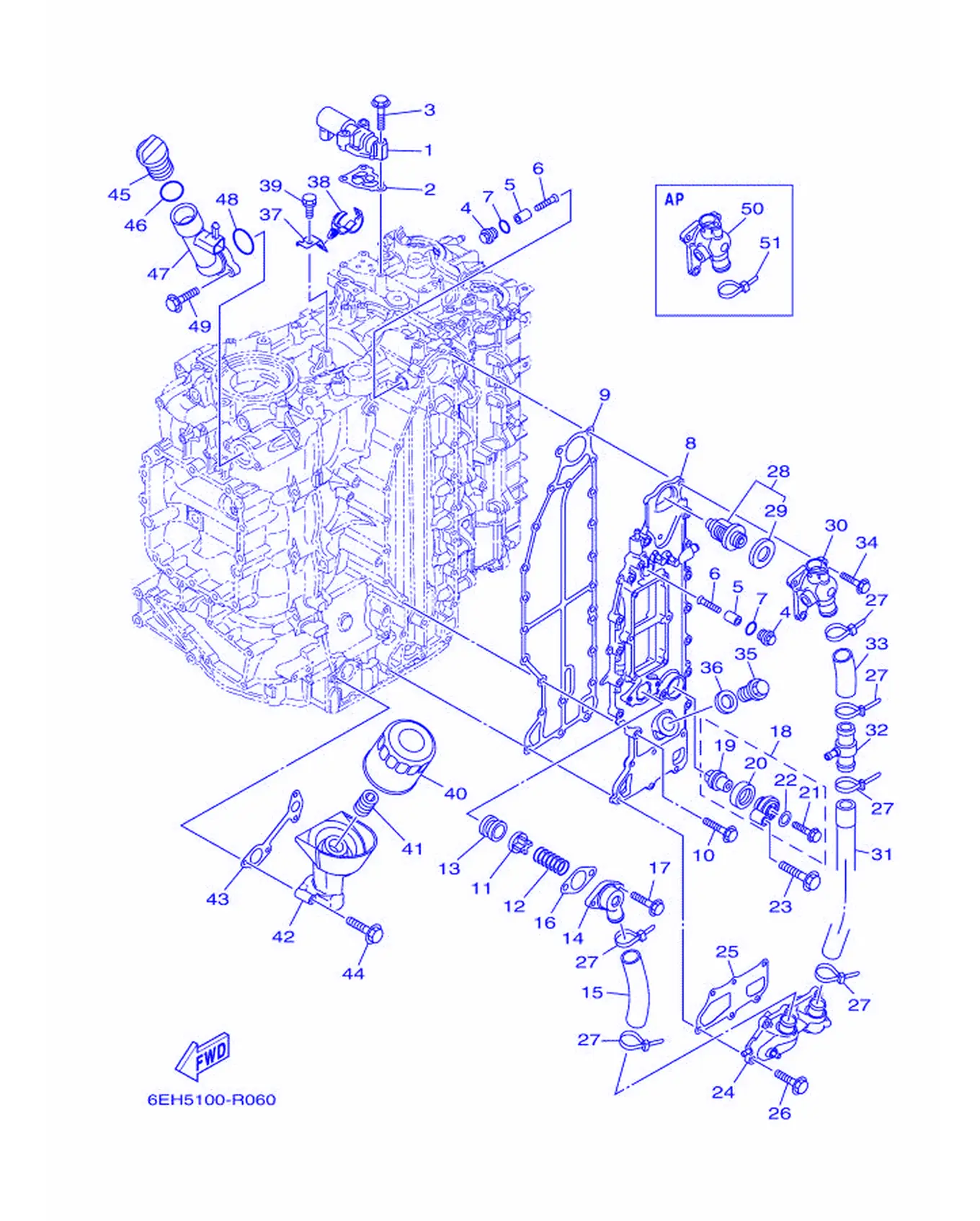

Fig. 17VMAX Cylinder & Crankcase 3

VMAX 气缸与曲轴箱 3 VMAX Cylinder & Crankcase 3 Fig.

REF	Part No.	Name	Qty
1	6CB-86120-00	Solenoid Valve Assembly	1
2	6CB-1242F-00	Gasket Filter	1
3	90105-06035	Bolt, Flange	3
4	6G8-11197-B0	Blind Plug	2
5	68T-11325-00	Anode	2
6	90151-05M05	Screw, Countersunk	2
7	93210-13M63	O-ring	2
8	6DA-41113-00-9S	Outer Cover, Exhaust	1
9	6DA-41114-01	Gasket, Exhaust Outer Cover	1
10	90105-06028	Bolt, Flange	14
11	60H-12416-00	Valve, Pressure Control	1
12	90501-16M11	Spring, Compression	1
13	90480-20M05	Grommet	1
14	6G5-11372-00	Cover, Bypass 2	1
15	6DA-1243A-00	Hose 1	1
16	60V-11382-A0	Gasket 2	1
17	90119-06MA3	Bolt, With Washer	2
18	69J-11301-02	Anode Cover Assembly	1
19	6ML-11325-00	Anode	1
20	67F-11328-01	Grommet	1
21	90105-06M07	Bolt, Flange	1
22	90430-06M03	Gasket	1
23	97E75-08540	Bolt, Hexagon with Washer Deep Recess	1
24	6DA-12527-00-9S	Cover, Water Bypass	1
25	6DA-11381-01	Gasket 1	1
26	90105-06028	Bolt, Flange	6
27	90465-11M59	Clamp	6
28	6DA-12411-01	Thermostat	1
29	6AW-12412-00	Seal, Thermostat	1
30	6DA-12413-B0-9S	Cover, Thermostat	1
31	6DA-1243E-00	Hose 2	1
32	6CE-24378-00	Pipe, Joint 3	1
33	6DA-1244H-00	Hose 5	1
34	90105-06028	Bolt, Flange	3
35	90340-18M09	Plug, Straight Screw	1
36	90201-186F1	Washer,Plate	1
37	6DA-12491-00	Clamp 1	1
38	90464-20181	Clamp	1
39	90119-06078	Bolt, with Washer	1
40	69J-13440-05	Element Assembly, Oil Cleaner	1
41	6S5-12858-00	Bolt, Union	1
42	6DA-13446-01	Connector	1
43	6DA-13475-00	Gasket	1
44	90105-06151	Bolt, Flange	4
45	6G8-15363-00	Plug,Oil	1
46	93210-24M79	O-ring	1
47	6DA-15319-00	Joint	1
48	93210-357A3	O-ring	1
49	90105-06037	Bolt, Flange	2
50	6DA-1241B-B0-9S	Cover, Thermostat 2	1
51	90465-11M59	Clamp	1

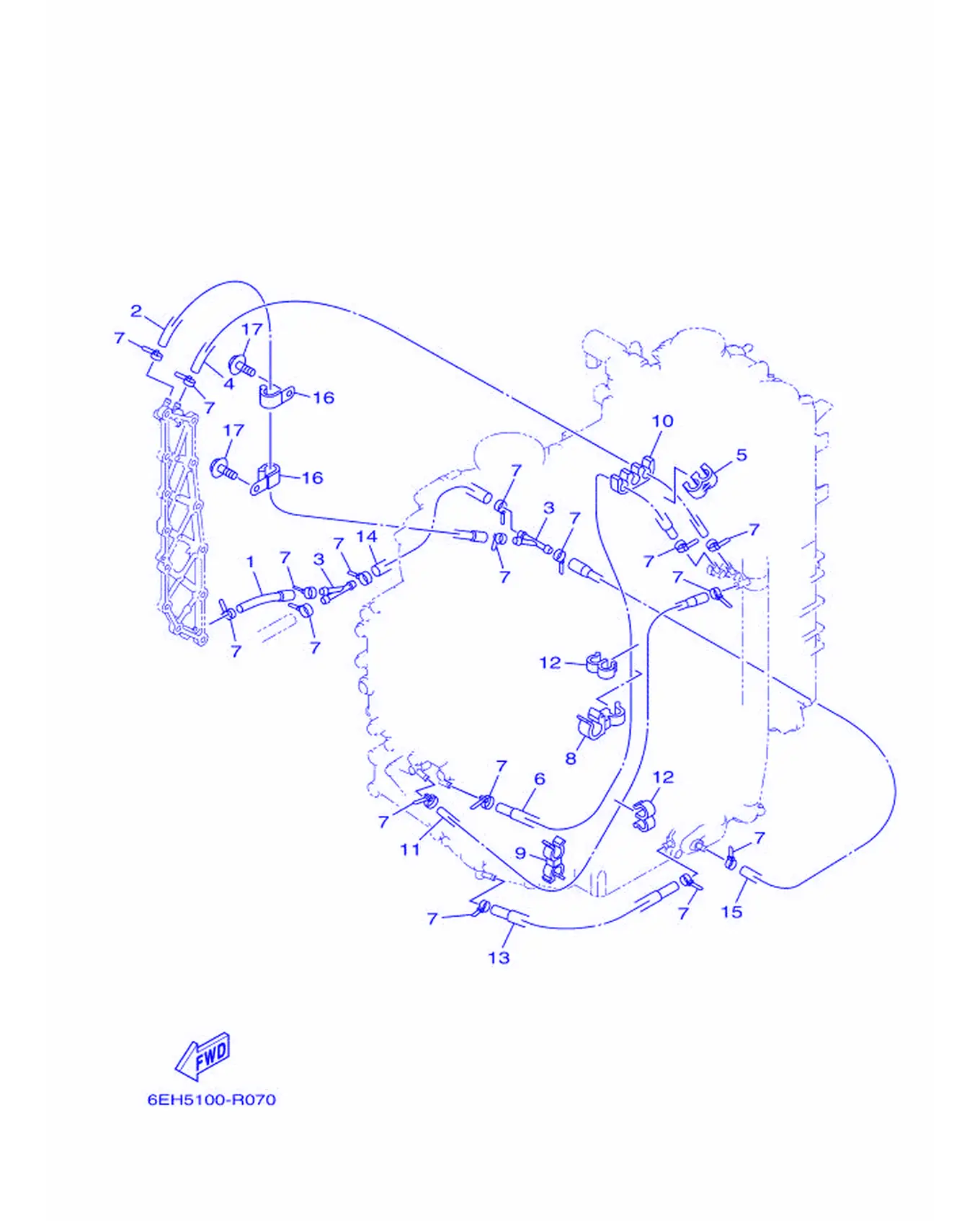

Fig. 18VMAX Cylinder & Crankcase 4

VMAX 气缸与曲轴箱 4 VMAX Cylinder & Crankcase 4 Fig.

REF	Part No.	Name	Qty
1	6DA-12576-00	Hose 1	1
2	6DA-12589-00	Hose 6	1
3	6CE-24377-00	Pipe, Joint 2	2
4	90445-09008	Hose (L470)	1
5	90464-09M21	Clamp	1
6	6DA-12578-00	Hose 3	1
7	90465-11M10	Clamp	17
8	90464-12010	Clamp	1
9	90464-09142	Clamp	1
10	90464-09020	Clamp	1
11	6DA-12579-00	Hose 4	1
12	90464-09M31	Clamp	2
13	6DA-12552-00	Hose 8	1
14	90445-10057	Hose (L170)	1
15	6DA-12589-00	Hose 6	1
16	90465-08M83	Clamp	2
17	95D95-06012	Bolt, Flange Deep Recess	2

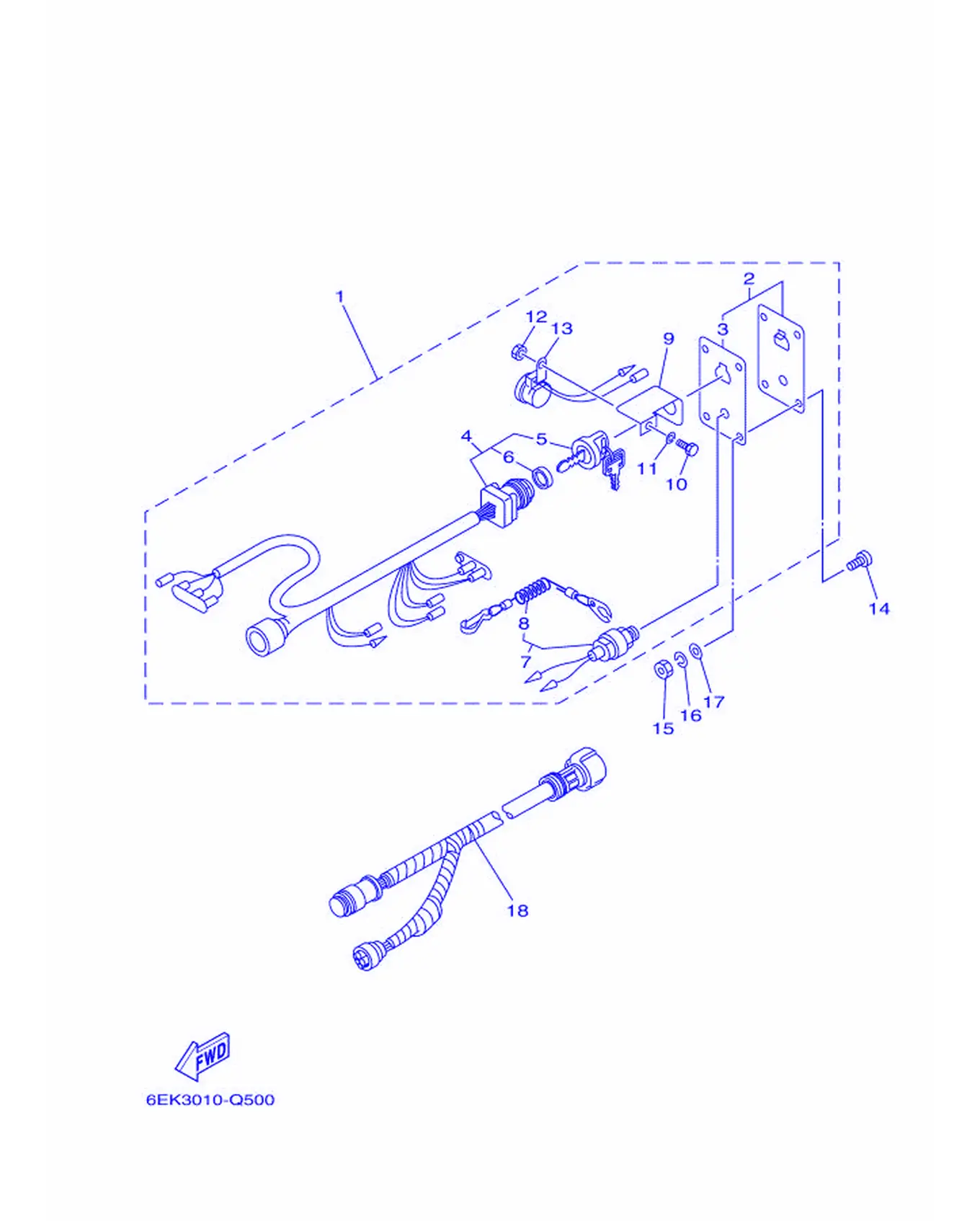

Fig. 19VMAX Switch & Panel

REF	Part No.	Name	Qty
1	6R5-82570-0A	Panel Switch Assembly	1
2	704-82571-02	Panel, Switch	1
3	6R5-82588-01	Plate	1
4	6R5-82510-04	Main Switch Assembly	1
5	676-82577-01	Cap, Key	1
6	703-82532-00	Cap	1
7	688-82575-02	Engine Stop Switch Assembly	1
8	682-82556-00	Stopper	1
9	64D-82581-00	Stay, Cord Clamp	1
10	97303-05012	Bolt	1
11	92903-05100	Washer,Spring	1
12	95303-05700	Nut	1
13	6R5-83383-00	Buzzer	1
14	90149-05M05	Screw	4
15	95303-05600	Nut	4
16	92903-05100	Washer,Spring	4
17	92903-05600	Washer,Plate	4
18	688-8258A-70	Extension, Wire Harness	1

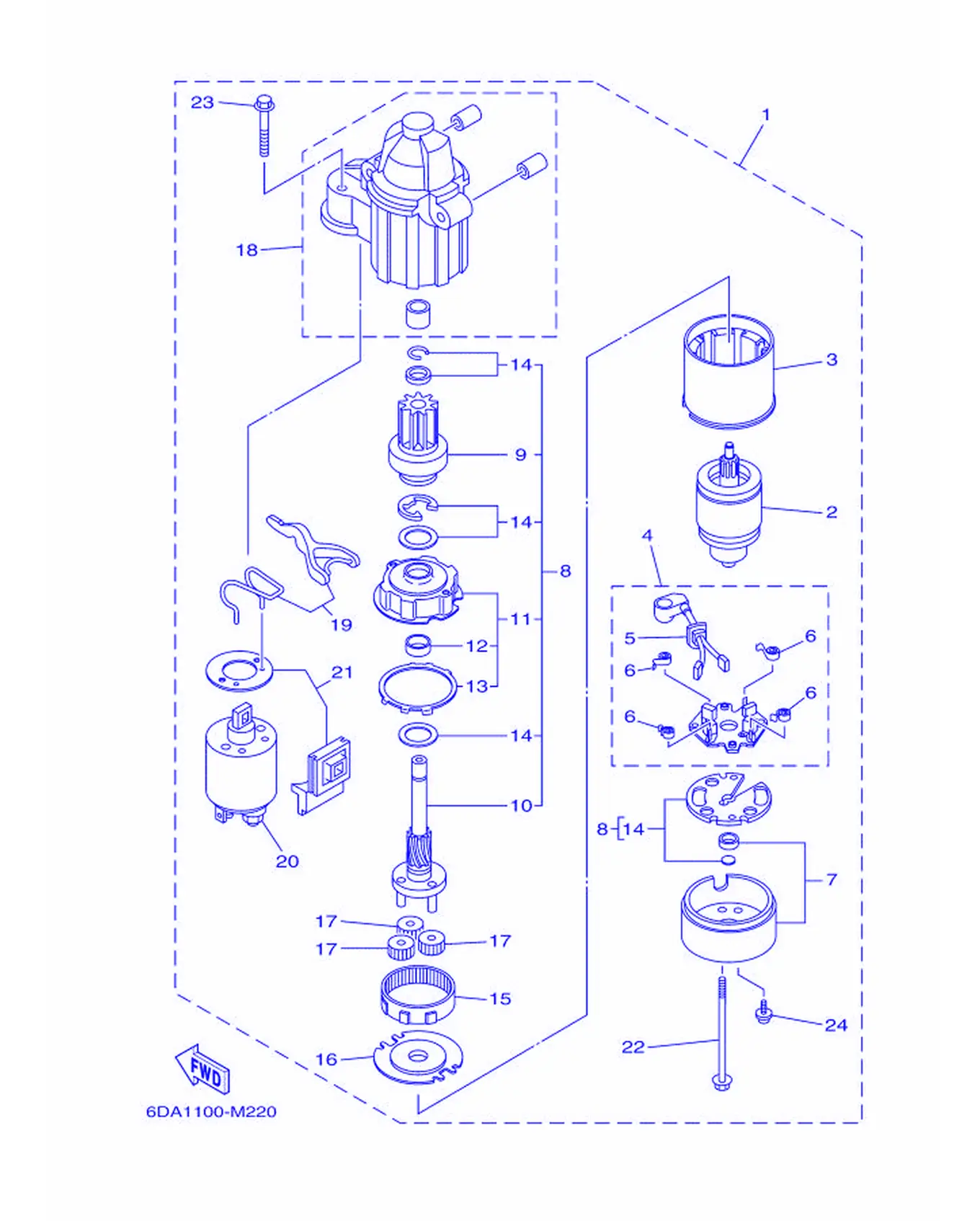

Fig. 20VMAX Starting Motor

REF	Part No.	Name	Qty
1	6CB-81800-02	Starting Motor Assembly	1
2	67F-81850-00	Armature Assembly	1
3	67F-81810-00	Stator Assembly	1
4	69J-81840-11	Brush Holder Assembly	1
5	69J-81801-11	Brush Set	1
6	67F-81813-00	Spring, Brush	4
7	6CB-81820-00	Rear Bracket Assembly	1
8	6CB-81807-00	Gear Assembly, Starting Motor	1
9	6CB-81832-00	Clutch, Overrun	1
10	6CB-81836-00	Shaft, Pinion	1
11	67F-81821-00	Bracket, Center 1	1
12	67F-81841-00	Bearing	1
13	67F-8183R-00	Gasket	1
14	6CB-81809-00	Washer Kit	1
15	67F-81891-00	Gear, Ring	1
16	67F-81830-00	Bracket, Center 2	1
17	60V-8183T-00	Gear, Idler	3
18	6CB-81842-00	Cover	1
19	6C5-81839-00	LeverAssembly	1
20	6C5-81941-01	StarterRelayAssembly	1
21	6C5-81869-00	Cover, Dust	1
22	6CB-81826-00	Bolt	2
23	69J-81828-00	Bolt 2	2
24	67F-81846-00	Screw	2

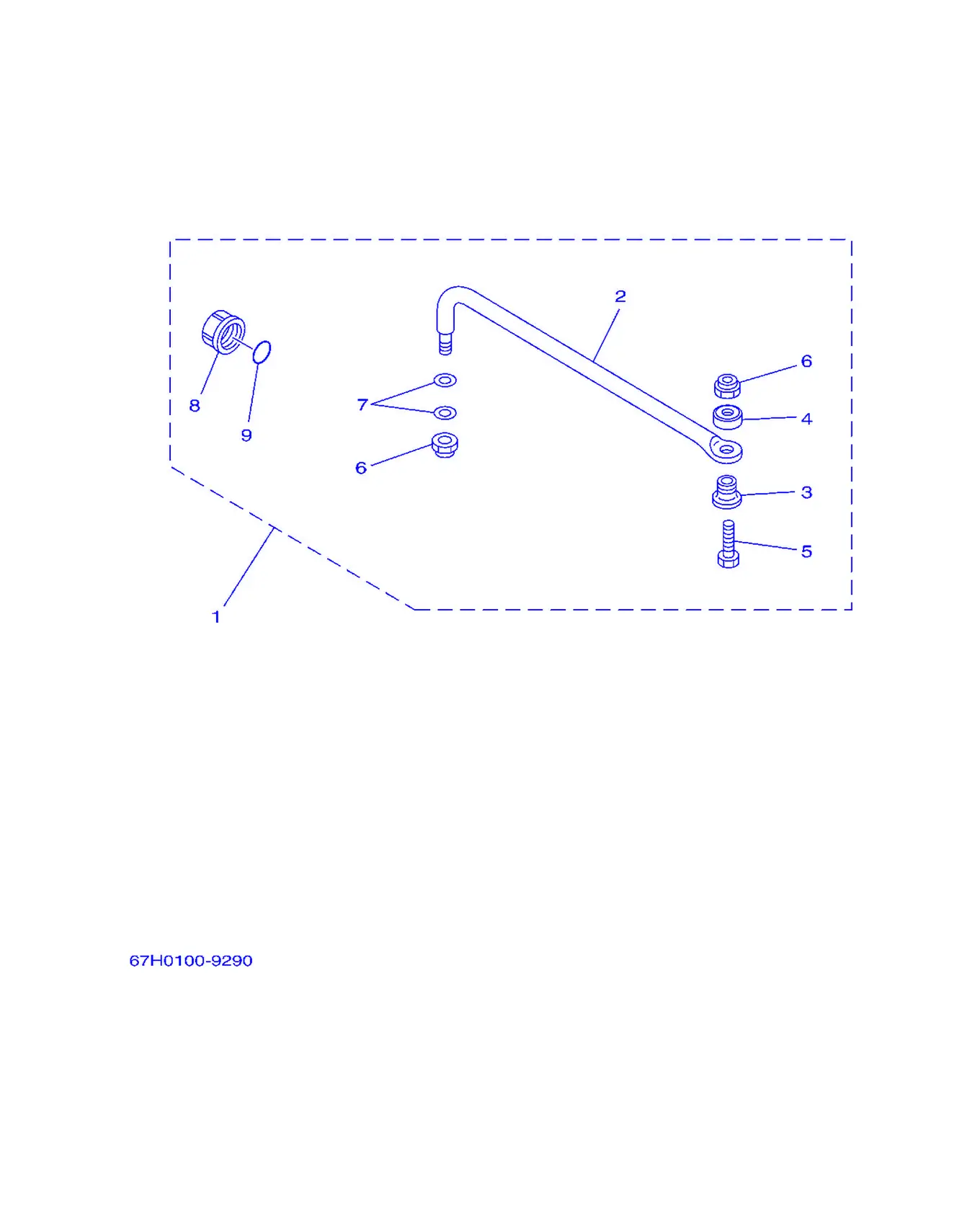

Fig. 21VMAX Steering Guide

REF	Part No.	Name	Qty
1	6E5-61350-02	SteeringGuideAttachment	1
2	6E5-61351-01	Rod, Steering Link	1
3	90387-10M61	Collar	1
4	90560-12M01	Spacer	1
5	6E5-61355-00	Bolt	1
6	90185-09M01	Nut, Self-Locking	2
7	90201-10M20	Washer,Plate	2
8	6E5-43145-01	Cap, Clamp Bracket	1
9	93210-16275	O-ring	1

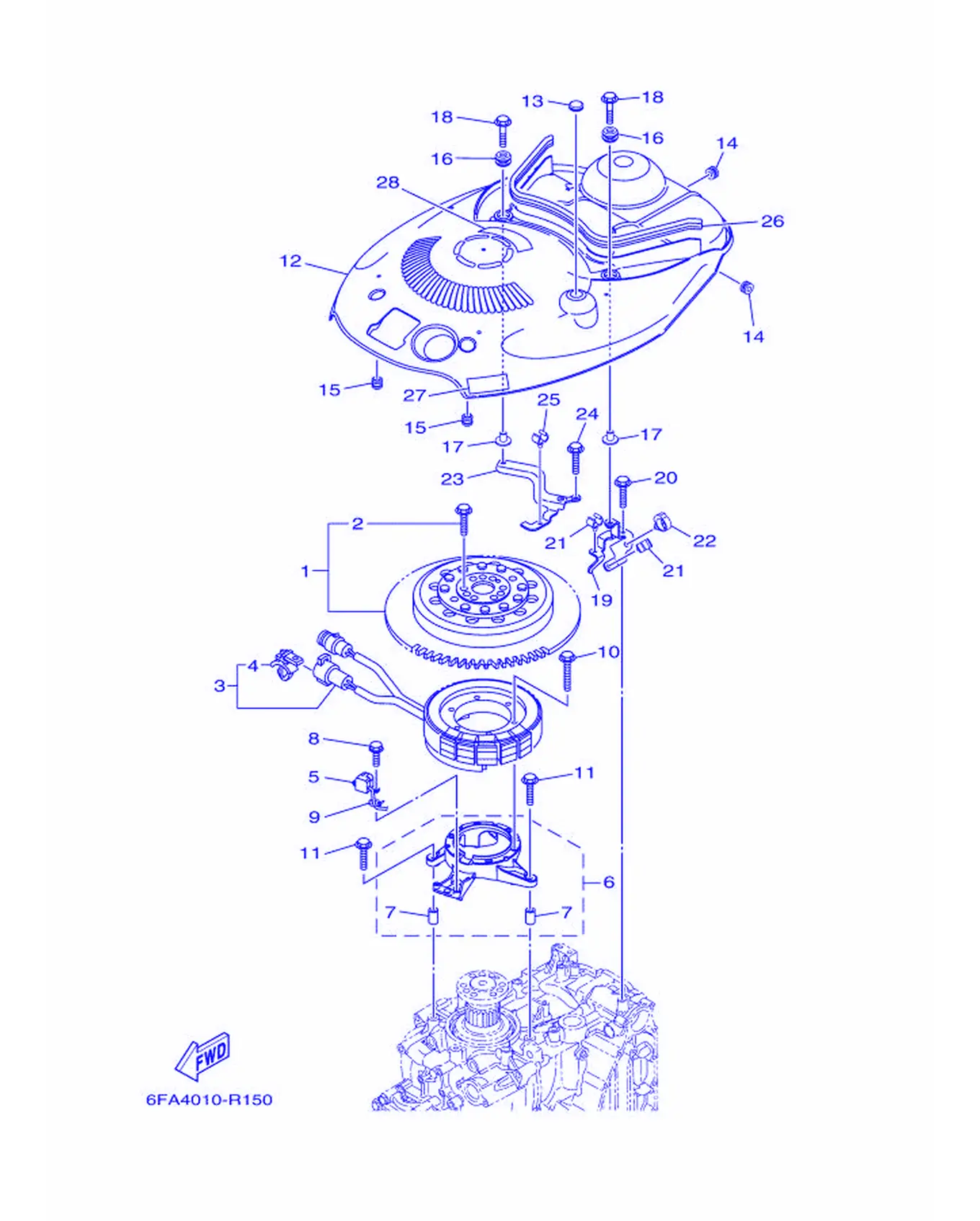

Fig. 22VMAX Generator

REF	Part No.	Name	Qty
1	6DA-W8145-00	Rotor Assembly (with Bolt)	1
2	6EK-W9010-00	BoltSet	1
3	6DA-81410-00	Starter Assembly	1
4	90464-12002	Clamp	1
5	6CB-85580-01	Coil, Pulser	1
6	6DA-85561-00	Base, Magnet	1
7	99530-08012	Pin, Dowel	2
8	97595-05520	Bolt, with Washer	2
9	90465-13M97	Clamp	1
10	95022-06035	Bolt, Flange	6
11	95D95-06030	Bolt, Flange Deep Recess	4
12	6DA-81337-01	Cover, Flywheel	1
13	90480-16025	Grommet	1
14	90480-12314	Grommet	2
15	6A0-82317-01	Damper, Ignition Coil	2
16	6BG-42748-01	Grommet	2
17	90387-06M69	Color	2
18	90119-06291	Bolt, with Washer	2
19	6DA-8132G-01	Plate	1
20	95D95-06016	Bolt, Flange Deep Recess	1
21	90464-09130	Clamp	2
22	90464-20181	Clamp	1
23	6DA-82398-01	Plate 3	1
24	95D95-06016	Bolt, Flange Deep Recess	2
25	90464-09130	Clamp	1
26	6DA-42617-00	Damper, Foam	1
27	63P-13437-02	Mark, Corrosion	1
28	6EE-81994-01	Label, Safety	1

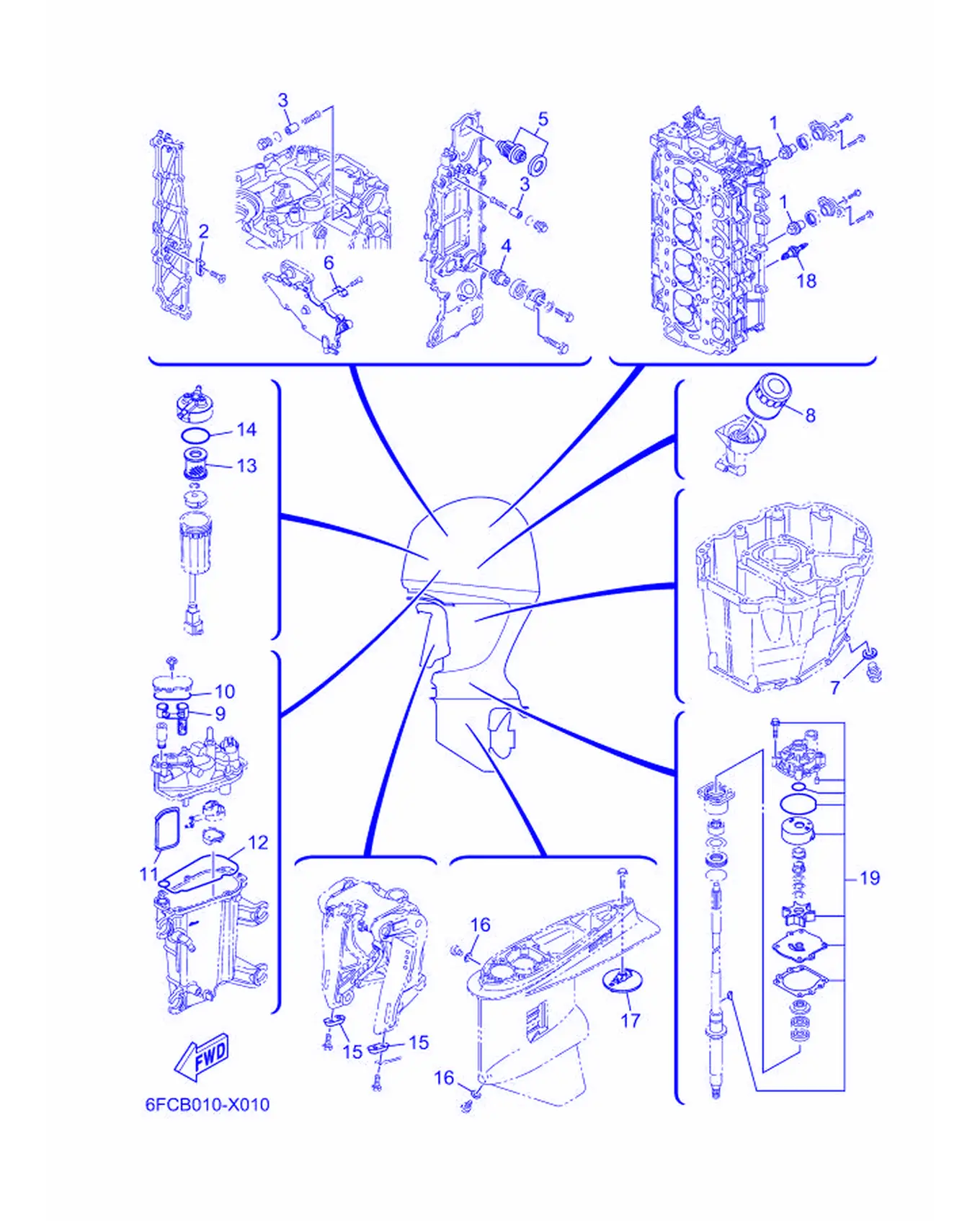

Fig. 23VMAX Periodic Maintenance Parts

VMAX 定期更换件 VMAX Periodic Maintenance Parts Fig.

REF	Part No.	Name	Qty
1	6ML-11325-00	Anode	2
2	6E5-11325-00	Anode	1
3	68T-11325-00	Anode	2
4	6ML-11325-00	Anode	1
5	6DA-12411-01	Thermostat	1
6	6E5-11325-00	Anode	1
7	90430-14M09	Gasket	1
8	69J-13440-05	Element Assembly, Oil Cleaner	1
9	6CB-24501-01	Filter, Fuel	1
10	6CB-13016-00	O-ring	1
11	6LH-13915-00	Filter	1
12	6CB-14984-00	Gasket,FloatChamber	1
13	6P3-24563-02	Element, Filter	1
14	6P3-24564-00	Gasket	1
15	65W-45251-00	Anode	2
16	90430-08003	Gasket	2
17	6CE-45373-00	Anode	1
18	94709-00400	Plug, Spark (NGK LFR6A-11)	4
19	61A-W0078-A4	Water Pump Repair Kit	1

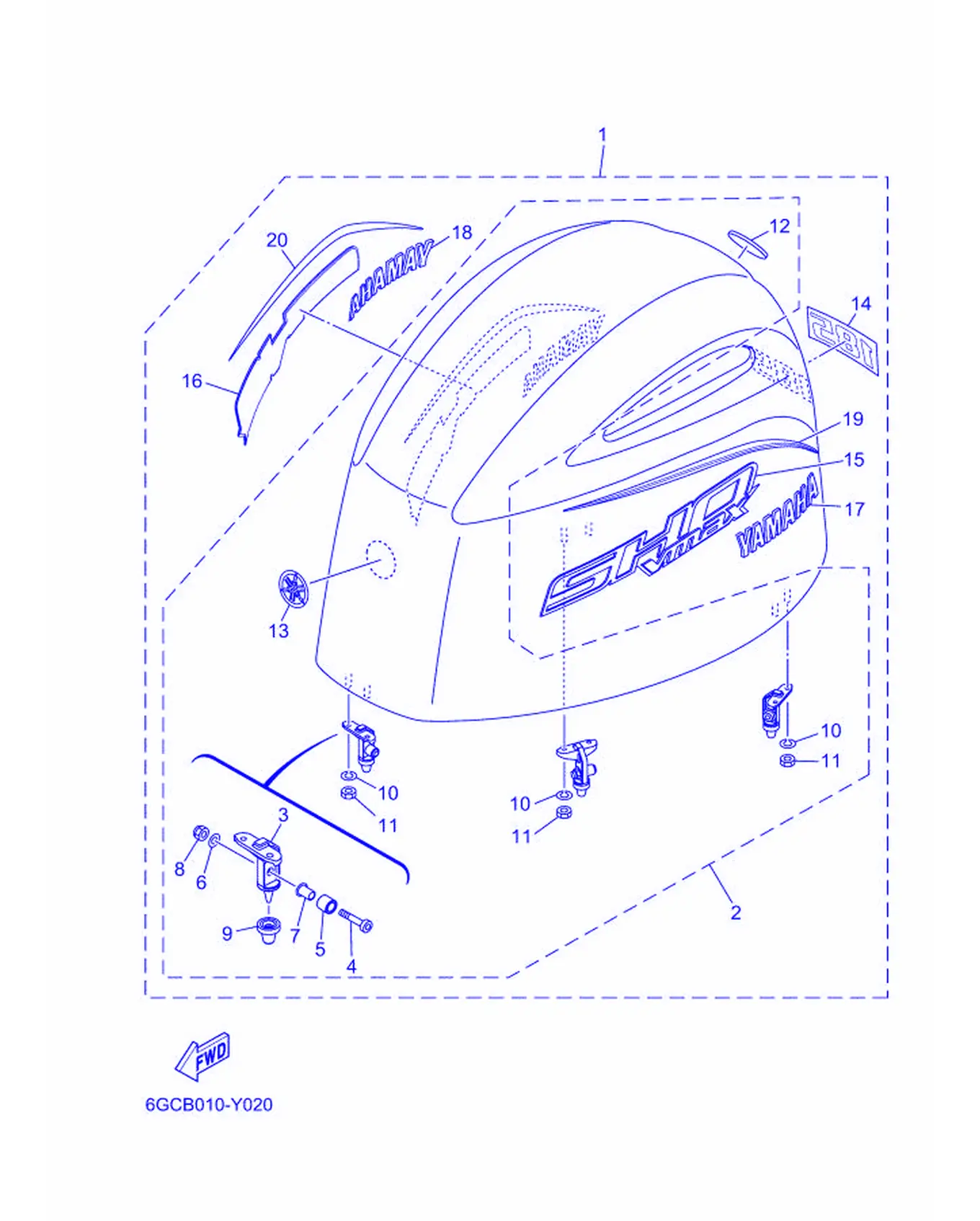

Fig. 24VMAX Top Cowling

REF	Part No.	Name	Qty
1	6GC-42610-10-NA	Top Coupling Assembly	1
2	6EH-4261A-10-NA	Top Cowling (Graphic)	1
3	6CB-42647-B0	Holder, Clamp Band	3
4	90111-08078	Bolt	3
5	90387-10094	Collar	3
6	92990-08600	Washer,Plate	3
7	90387-08M45	Color	3
8	95780-08300	Nut, Flange	3
9	6AW-42663-01	Damper 2	3
10	92990-06100	Washer,Spring	6
11	95380-06600	Nut, Hexagon	6
12	6DA-42697-00	Tuning Fork Mark	1
13	6EH-42697-00	Tuning Fork Mark	1
14	6GC-42678-10	Graphic, Rear	1
15	6EH-42675-10	Graphic, Side 1	1
16	6EH-42676-10	Graphic, Side 2	1
17	6EH-2153A-00	Emblem, Yamaha	1
18	6EH-2153B-00	Emblem, Yamaha	1
19	6EH-42683-00	Mark, Coupling	1
20	6EH-42684-00	Mark, Coupling	1

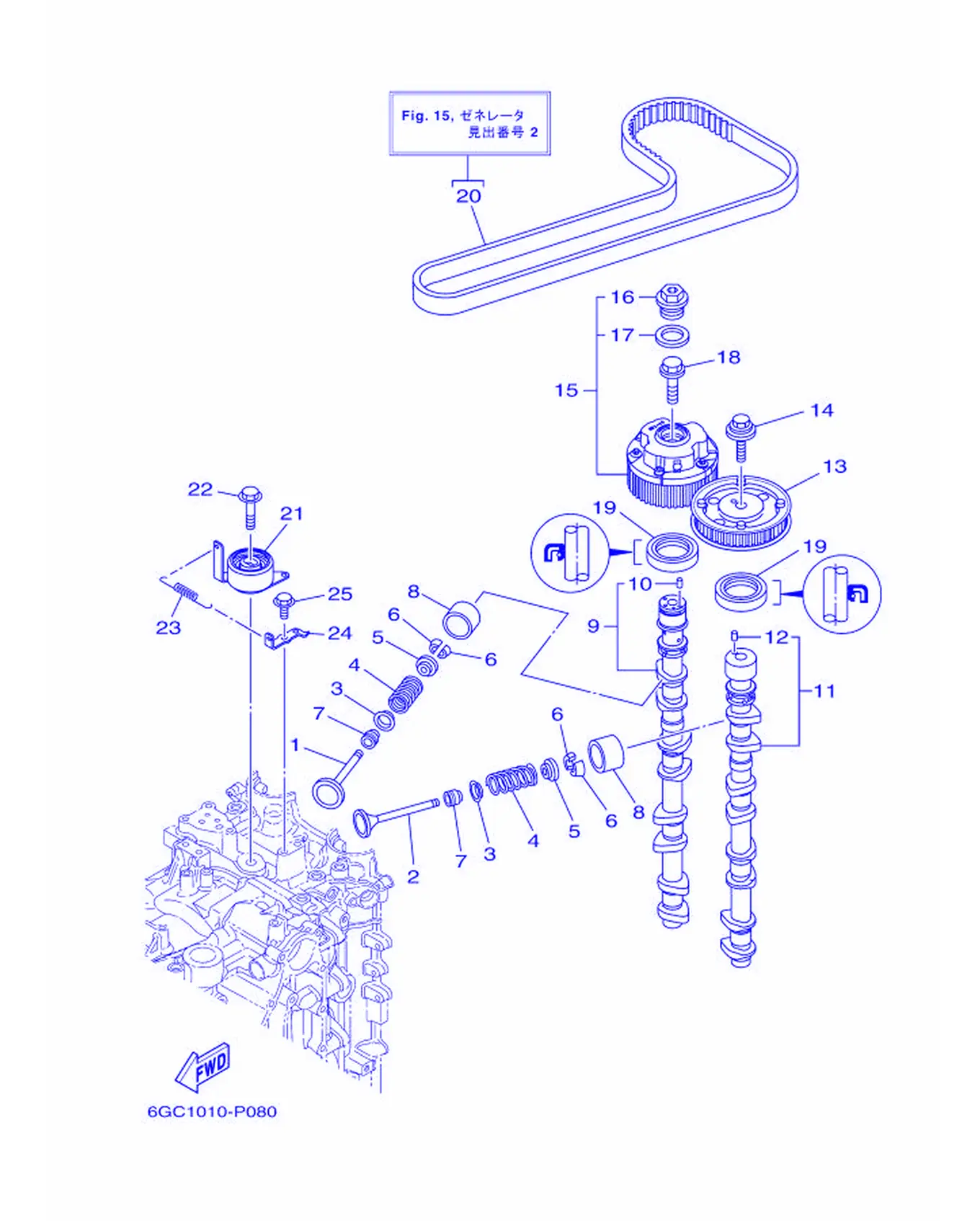

Fig. 25VMAX Valve

REF	Part No.	Name	Qty
1	6CB-12111-00	Valve, Intake	8
2	6DA-12121-00	Valve, Exhaust	8
3	K0F-A3743-00	Seat, ValveSpring	16
4	6CB-12113-00	Spring, Valve Inner	16
5	K0F-A3741-00	Retainer, ValveSpring	16
6	K0F-A3742-00	Lock, ValveSpringRetainer	32
7	51Y-12119-00	Seal, Valve Stem	16
8	K0F-A3751-00	Lifter, Valve (3.000)	16
8	K0F-A3751-10	Lifter, Valve (3.025)	16
8	K0F-A3751-20	Lifter, Valve (3.050)	16
8	K0F-A3751-30	Lifter, Valve (3.075)	16
8	K0F-A3751-40	Lifter, Valve (3.100)	16
8	K0F-A3751-50	Lifter, Valve (3.122)	16
8	K0F-A3751-60	Lifter, Valve (3.142)	16
8	K0F-A3751-70	Lifter, Valve (3.162)	16
9	6DA-12171-01	Camshaft 1	1
10	93605-10108	Pin, Dowel	1
11	6DA-12181-02	Camshaft 2	1
12	93605-10108	Pin, Dowel	1
13	6FA-115A0-00	Driven Gear Assembly	1
14	90119-10050	Bolt, With Washer	1
15	6P2-12645-22	Pulley Assembly 1	1
16	6P2-12623-00	Bolt	1
17	6P2-12663-00	Gasket	1
18	6P2-12615-00	Bolt	1
19	93102-38008	OilSeal	2
20	6DA-W4624-00	Belt (Rotor Bolt Included)	1
21	6DA-11590-00	Tensioner Assembly	1
22	90119-10M07	Bolt, With Washer	1
23	90506-18025	Spring, Tension	1
24	6DA-11595-00	Valve Plate	1
25	97E75-06516	Bolt, Hexagon with Washer Deep Recess	1

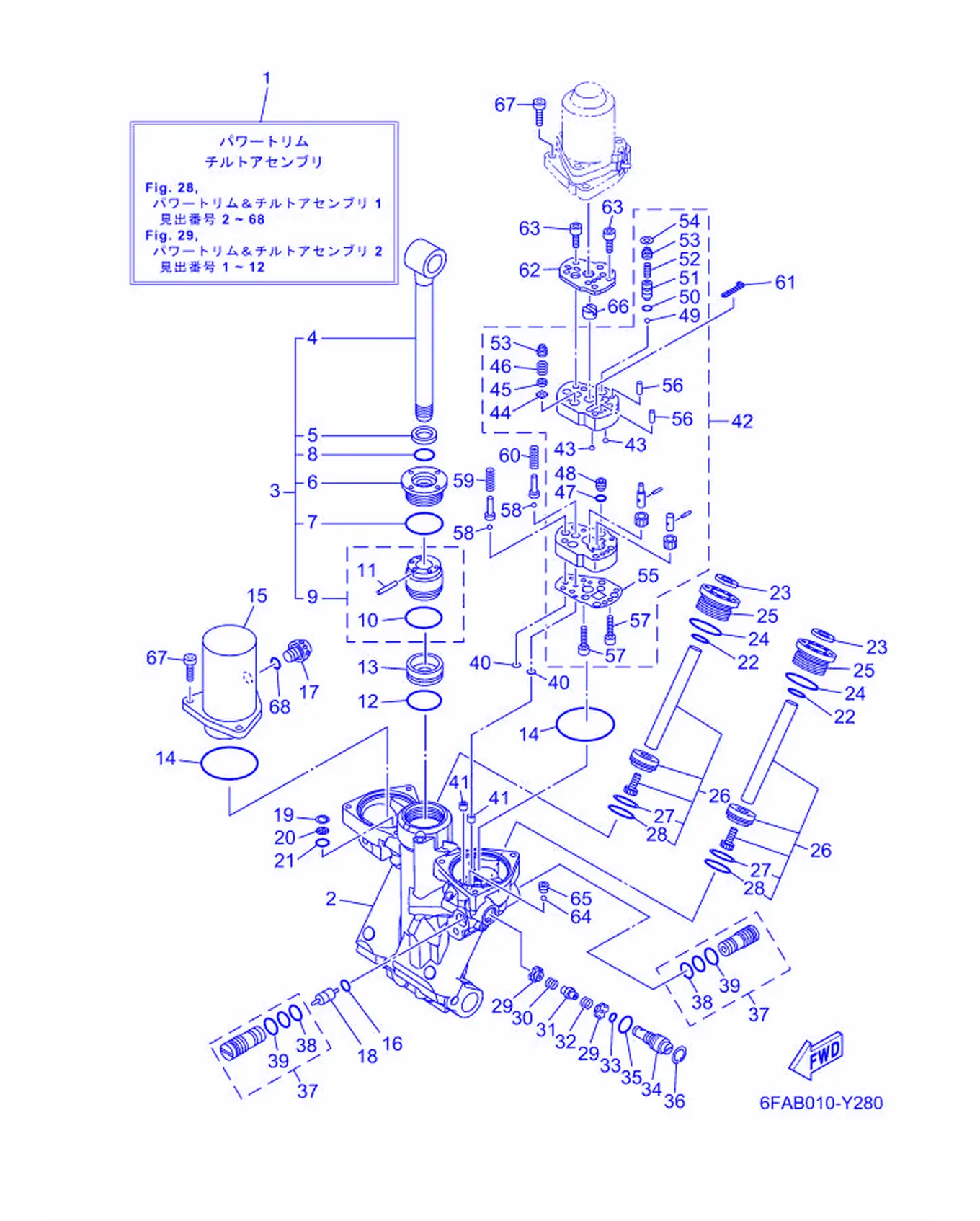

Fig. 26VMAX Power Trim & Tilt Assembly 1

VMAX 动力倾斜与升降总成 1 VMAX Power Trim & Tilt Assembly 1 Fig.

REF	Part No.	Name	Qty
1	6CB-43800-13	Power Trim & Tilt Assembly	1
2	6CB-4380L-13	Housing, Trim & Tilt Sub-Assembly	1
3	63P-43810-21	Tilt Piston Sub-Assembly	1
4	63P-43801-10	Rod	1
5	93106-19001	Oil Seal	1
6	63P-43811-20	Screw, Cylinder End	1
7	63P-43861-20	O-ring	1
8	63P-43863-10	O-ring	1
9	63P-4380P-20	Piston Sub Assembly	1
10	6H1-43862-00	O-ring	1
11	91609-16010	Pin, Spring	1
12	6H1-43862-00	O-ring	1
13	63P-43814-20	Piston, Free	1
14	93210-68N50	O-ring	2
15	63P-4382C-20	Body, Reservoir 2	1
16	93210-09165	O-ring	1
17	6CJ-43829-20	Reserve Plug	1
18	6H1-43841-11	Piston, Shuttle	1
19	63P-43876-10	Ring, Snap	1
20	63P-43816-10	Filter 1	1
21	93210-11N52	O-ring	1
22	6D8-43863-00	O-ring	2
23	63P-43812-20	Seal, Dust	2
24	63P-43862-10	O-ring	2
25	63P-43821-21	Screw, Trim Cylinder End	2
26	63P-43820-20	Trim Piston Sub-Assembly	2
27	62X-43871-00	Ring, Back Up	1
28	93210-29375	O-ring	1
29	63P-43847-10	Seat, Manual Valve	2
30	63P-43854-10	Spring, Manual Release	1
31	63P-4382A-10	Adapter 1	1
32	63P-4384H-10	Spring	1
33	69J-4389J-00	O-ring	1
34	63P-43845-20	Screw, Manual Release	1
35	93210-12327	O-ring	1
36	61A-43876-01	Ring, Snap	1
37	63P-43802-21	Valve Sub-Assembly	2
38	93210-12N52	O-ring	1
39	6H1-43866-01	O-ring	1
40	93210-064A5	O-ring	2
41	63P-4381C-20	Filter 3	2
42	63P-43830-20	Gear Pump Assembly	1
43	93503-16003	Ball	2
44	6H1-4384G-11	Seal, Relief Valve	1
45	6H1-43844-10	Pin, Valve Support	1
46	6H1-43856-10	Spring, Down Relief	1
47	93210-07N51	O-ring	1
48	63P-43851-20	Seat, Relief Valve	1
49	93501-08001	Ball	1
50	93210-064A5	O-ring	1
51	63P-43844-20	Pin, Valve Support	1
52	69J-43855-00	Spring	1
53	63P-43843-10	Screw, Valve Lock	2
54	63P-43338-10	Washer, Wave	1
55	63P-4384G-20	Seal, Relief Valve	1
56	93604-10011	Pin, Dowel	2
57	91312-04020	Bolt, Hexagon Socket Head	2
58	93501-08001	Ball	2
59	63P-43857-10	Spring	1
60	63P-4385H-10	Spring,Seal	1
61	6CJ-43816-00	Filter 1	1
62	63P-4381J-10	Plate	1
63	91312-05035	Bolt, Hexagon Socket Head	4
64	93505-32038	Ball	1
65	61A-43878-00	Bolt, Socket	1
66	69J-43831-00	Connector,Shaft	1
67	91380-06025	Bolt	6
68	6CJ-43861-10	O-ring	1

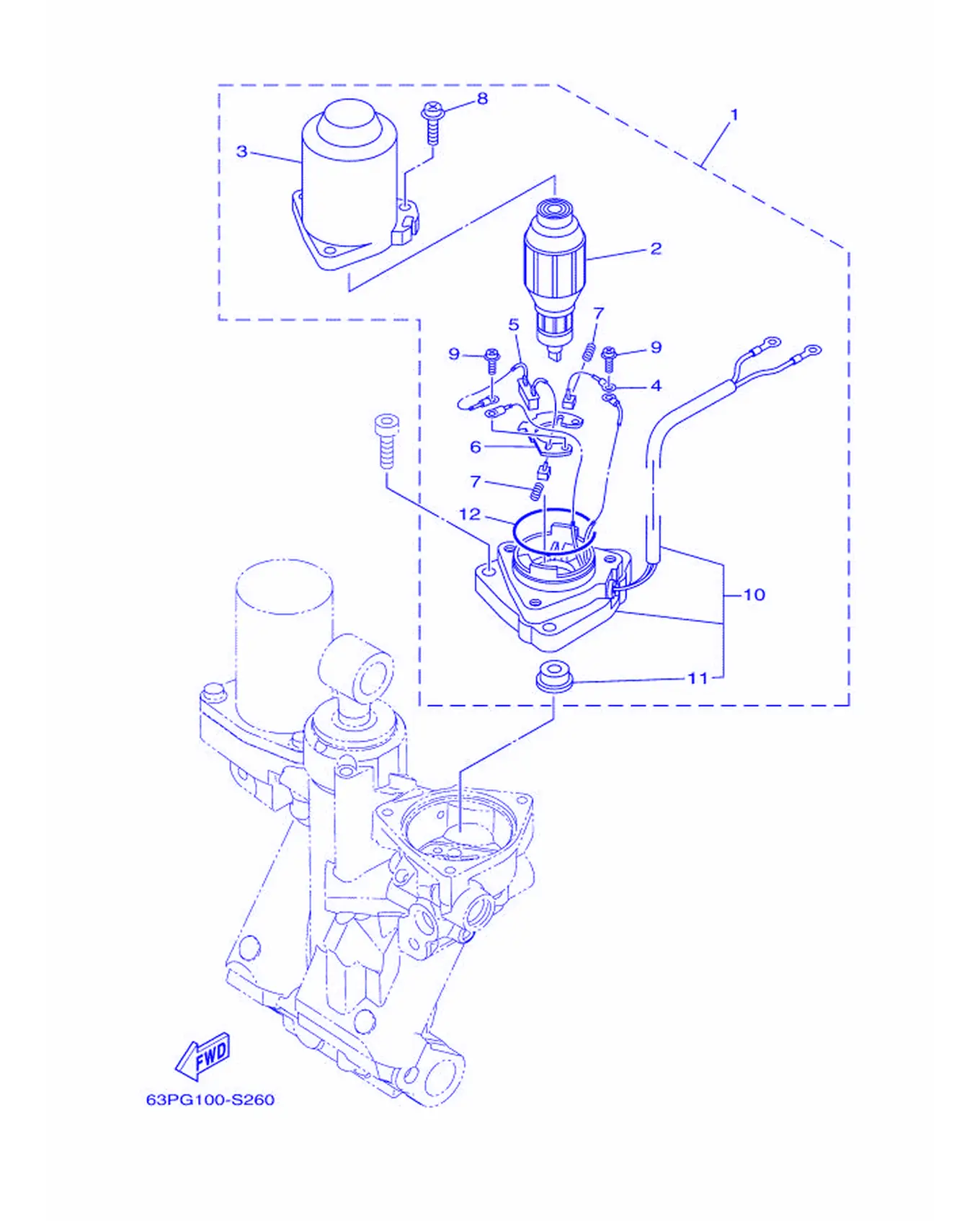

Fig. 27VMAX Power Trim & Tilt Assembly 2

VMAX 动力倾斜与升降总成 2 VMAX Power Trim & Tilt Assembly 2 Fig.

REF	Part No.	Name	Qty
1	6KW-43880-01	Motor Assembly	1
2	6EK-43805-01	Armature Assembly	1
3	6EK-43804-11	Starter Assembly	1
4	6EK-43892-00	Brush 2	1
5	63P-82181-20	Circuit Breaker Complete	1
6	6EK-4380F-00	Plate, Brush Holder	1
7	62X-4386K-00	Spring, Brush	2
8	63P-43879-10	Screw, Washer	3
9	97602-04316	Screw, Pan Head Washer	2
10	63P-43881-22	Frame, End	1
11	6EK-43882-00	Oil Seal	1
12	6EK-43862-01	O-ring	1

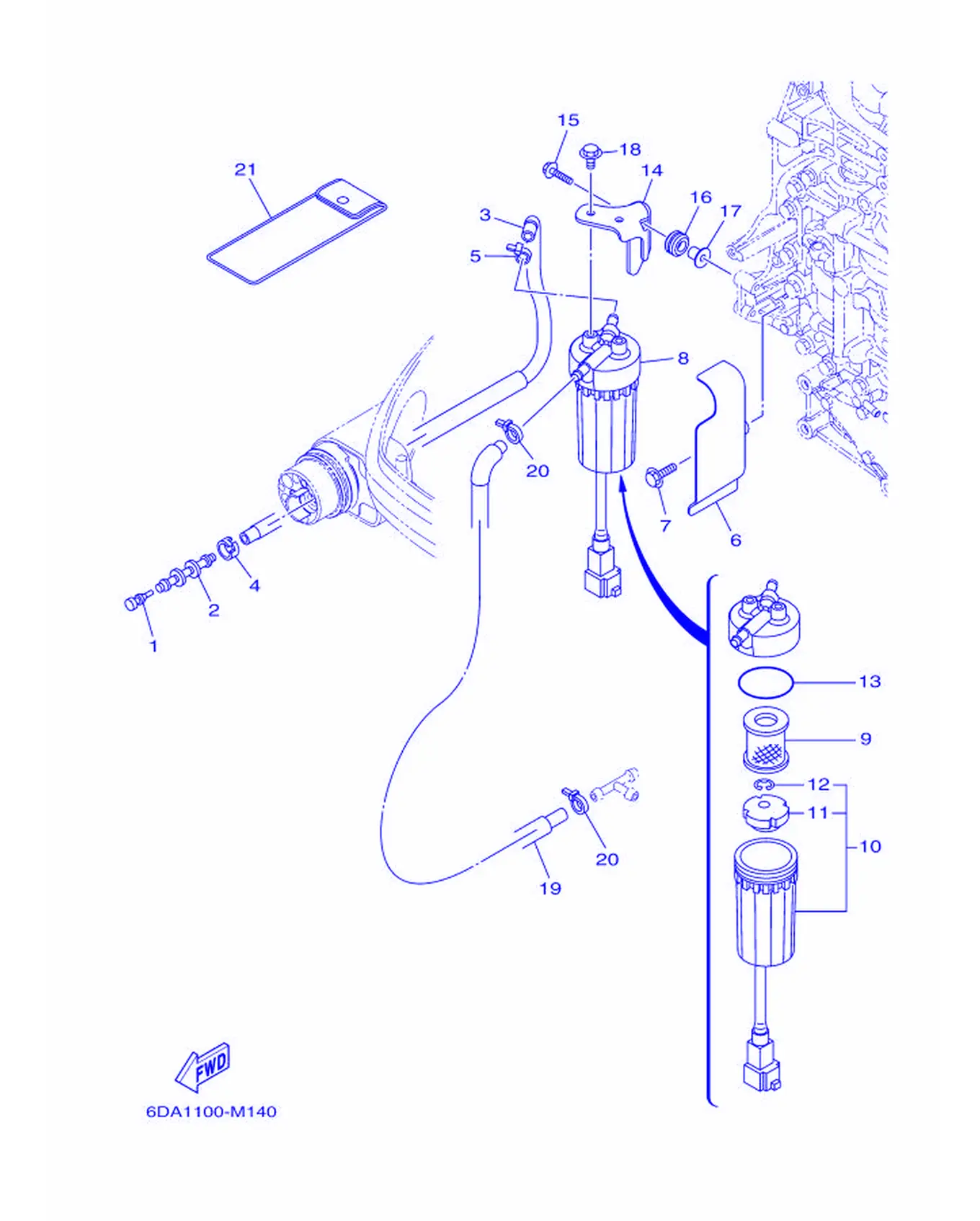

Fig. 28VMAX Fuel

REF	Part No.	Name	Qty
1	689-85547-01	Damper	1
2	6AW-24377-01	Pipe, Joint 2	1
3	6DA-24314-10	Pipe 4	1
4	6E5-24351-51	Band 1	1
5	90465-11M10	Clamp	1
6	6DA-24596-01	Cover	1
7	95D95-06025	Bolt, Flange Deep Recess	2
8	6P3-24560-04	Filter Assembly	1
9	6P3-24563-02	Element, Filter	1
10	6P3-24562-03	Cup, Filter	1
11	6P3-24469-00	Float, Water Level	1
12	6P3-24519-00	Clip	1
13	6P3-24564-00	Gasket	1
14	6DA-24566-00	Bracket, Filter	1
15	90119-06309	Bolt, with Washer	2
16	90480-15013	Grommet	2
17	90387-06289	Color	2
18	95D95-06012	Bolt, Flange Deep Recess	2
19	6DA-24313-10	Pipe 3	1
20	90465-11M10	Clamp	2
21	69J-28100-03	Tool Kit	1

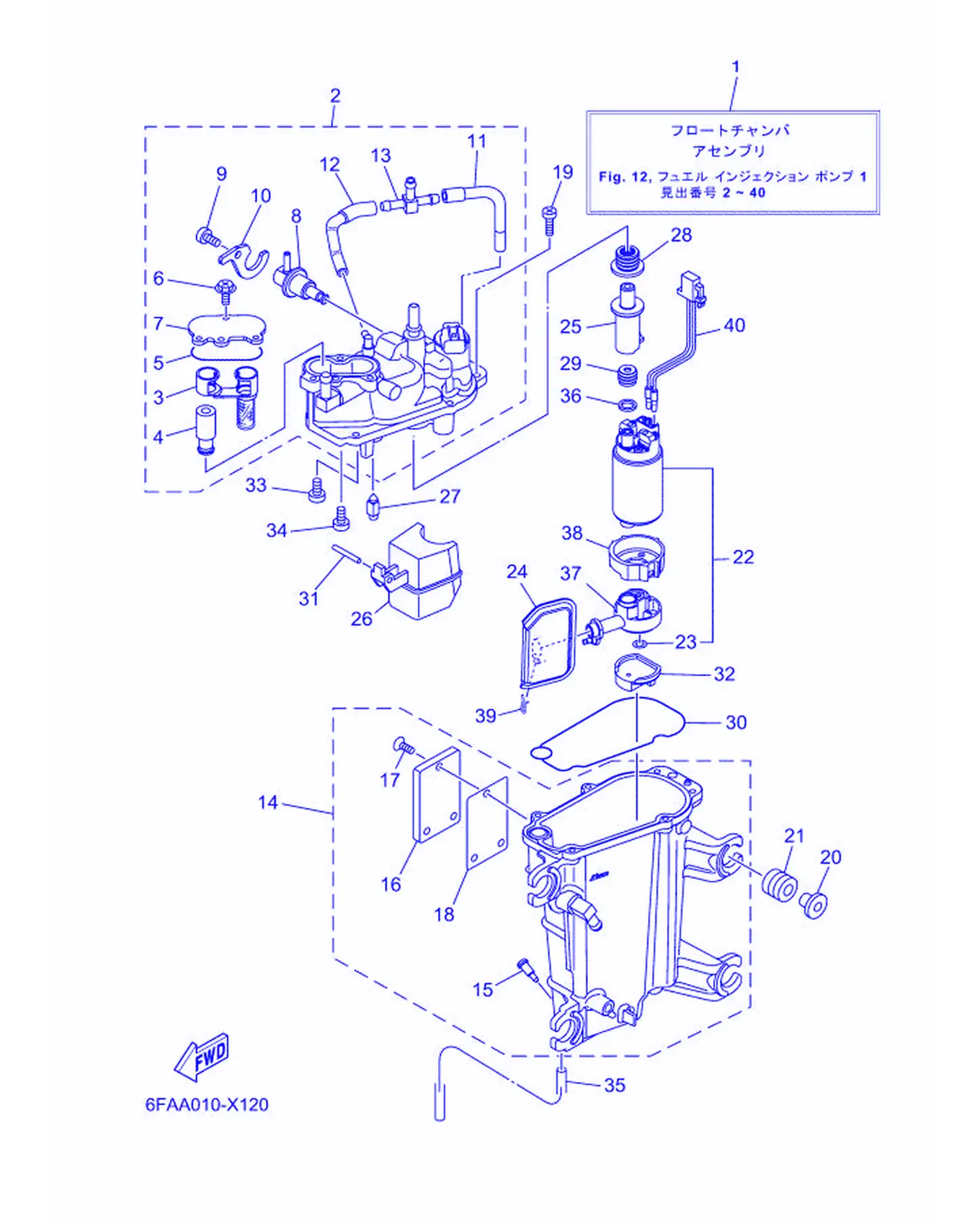

Fig. 29VMAX Fuel Injection Pump

VMAX 燃油喷射泵 VMAX Fuel Injection Pump Fig.

REF	Part No.	Name	Qty
1	6LH-14180-00	Float Chamber Assembly	1
2	6DA-14182-00	Cover, Float Chamber	1
3	6CB-24501-01	Filter, Fuel	1
4	6CB-24460-00	Relief Valve Assembly	1
5	6CB-13016-00	O-ring	1
6	6CB-14216-00	Screw	3
7	6CB-24217-00	Cover	1
8	6CB-13906-01	Regulator, Pressure	1
9	6CB-14564-00	Screw	1
10	6DA-14146-00	Plate	1
11	6DA-13892-00	Hose, Air 2	1
12	6DA-13893-00	Hose, Air 3	1
13	69J-24379-00	Pipe,Joint 4	1
14	6LH-14181-00	Body, Float Chamber 1	1
15	6P2-14191-00	Drain Plug	1
16	6EK-24452-00	Cover	1
17	6K8-14591-10	Screw	3
18	6CB-24482-00	Gasket 1	1
19	63P-14567-00	Screw	6
20	63P-13716-00	Collar	4
21	6CB-13593-00	Damper	4
22	6LH-W1390-00	Fuel Pump Kit	1
23	6C5-14127-10	Clip	1
24	6LH-13915-00	Filter	1
25	6LH-13132-00	Joint	1
26	6CB-14985-00	Float	1
27	6CB-14546-00	Valve,Needle	1
28	6LH-1447B-00	Bushing 1	1
29	6LH-13781-00	Damper, Pump	1
30	6CB-14984-00	Gasket,FloatChamber	1
31	6P2-14386-00	Pin,Float	1
32	6LH-13784-00	Cover, Pump	1
33	4SV-24453-00	Screw	1
34	98507-04008	Screw, Pan Head	1
35	6P2-14149-00	Pipe	1
36	6LH-13716-00	Collar	1
37	6LH-13938-00	Pipe	1
38	6LH-24492-00	Bush, Fuel Pump	1
39	6FM-14137-00	Clip	1
40	6LH-87226-00	Wire Harness Assembly	1

Fig. 30VMAX Fuel Tank

REF	Part No.	Name	Qty
1	6YJ-W2420-J3	Fuel Tank Assembly (24L)	1
2	6YJ-24610-01	Cap Assembly	1
3	6Y1-24260-30	Fuel Meter Assembly	1
4	90157-05M19	Screw, Pan Head	4
5	6Y1-24329-00	Seal	4
6	6Y1-24268-01	Gasket, Fuel Meter	1
7	6YJ-24167-00	Strainer	1
8	6Y2-24306-57	Fuel Pipe Complete 1	1
9	6E5-24305-06	Fuel Pipe Joint Complete	1
10	93210-08287	O-ring	1
11	6Y2-24305-06	Fuel Pipe Joint Complete	1
12	93210-08287	O-ring	1
13	90445-13M25	Hose (L2050)	1
14	6E5-24351-51	Band 1	4
15	90445-13M24	Hose (L850)	1
16	6Y2-24360-60	Primer Pump Assembly	1

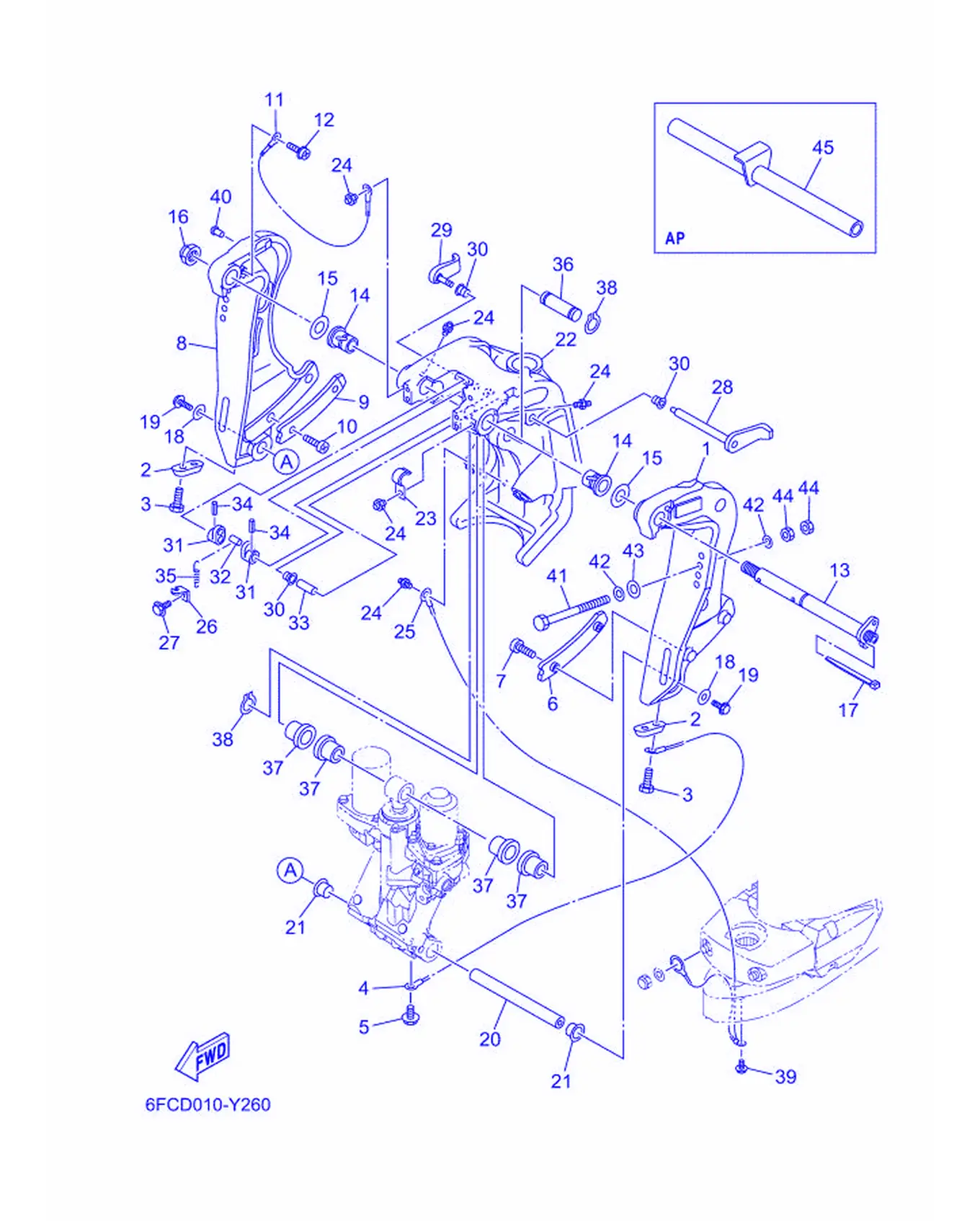

Fig. 31VMAX Bracket 1

REF	Part No.	Name	Qty
1	6CB-43111-10-8D	Bracket, Clamp 1	1
2	65W-45251-00	Anode	2
3	90101-06020	Bolt, Hexagon	4
4	6E5-82148-00	Wire,Lead 4	1
5	97E95-06510	Bolt, Hexagon with Washer Deep Recess	1
6	61A-43132-01	Washer, Friction	1
7	97885-06010	Screw, Pan Head	2
8	6CB-43112-10-8D	Bracket, Clamp 2	1
9	61A-43133-01	Washer, Friction	1
10	97885-06010	Screw, Pan Head	2
11	6E5-82148-00	Wire,Lead 4	1
12	97985-06212	Screw, With Washer	1
13	64E-43131-30	Bolt,ClampBracket	1
14	90386-25M31	Bushing	2
15	90201-26M59	Washer,Plate	2
16	90185-22M11	Nut, Self-Locking	1
17	90465-11M10	Clamp	1
18	90201-10060	Washer,Plate	2
19	90119-10054	Bolt, with Washer	2
20	6BC-43818-00	Pin, Lower Shock Mount	1
21	90386-22M98	Bushing	2
22	64E-43311-10-8D	Bracket, Swivel 1	1
23	90465-08M63	Clamp	1
24	93700-06002	Nipple, Grease	5
25	66K-82149-00	Wire,Lead 3	1
26	6G5-43144-00	Hook,Spring	1
27	97E95-06512	Bolt, Hexagon with Washer Deep Recess	1
28	6G5-43181-02	Lever, Tilt Stop	1
29	6G5-43185-02	Lever, Tilt Stop	1
30	90386-10M16	Bushing	3
31	6G5-43148-00	Collar, Distance	2
32	90249-06M19	Pin	1
33	90387-10M05	Color	1
34	91690-30020	Pin,Spring	2
35	90506-16003	Spring, Tension	1
36	64E-43126-10	Pin, Upper Shock Mount	1
37	90386-22M98	Bushing	4
38	93410-22M11	Circlip	2
39	95D95-06010	Bolt, Flange Deep Recess	1
40	90269-02M08	Rivet	2
41	90101-12065	Bolt (L:130MM)	4
42	90201-13M01	Washer,Plate	8
43	90201-12426	Washer,Plate	4
44	95380-12600	Nut	8
45	6CB-43611-00	Shaft, Tilt Lock	1

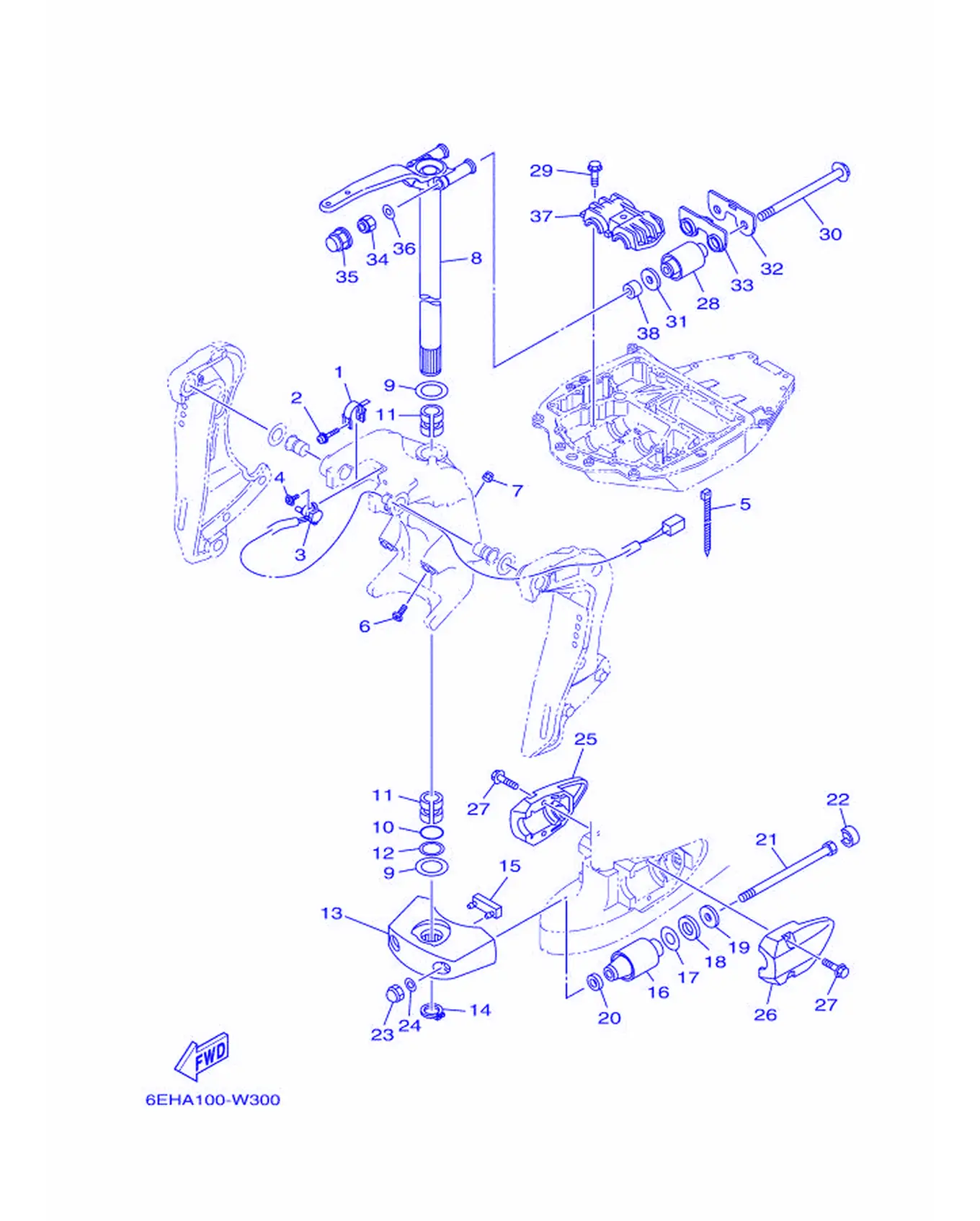

Fig. 32VMAX Bracket 2

REF	Part No.	Name	Qty
1	64E-43139-11	Cam, Trim Sender	1
2	90159-05059	Screw, With Washer	1
3	67H-83672-02	Trim Sender	1
4	97985-06216	Screw, With Washer	2
5	90465-11M10	Clamp	3
6	61A-43376-00	Bolt, Thrust Receiver	2
7	95780-10300	Nut, Flange	2
8	6DA-42510-10-8D	Steering Bracket Assembly	1
9	90201-38M60	Washer,Plate	2
10	93210-37MH7	O-ring	1
11	90386-38M32	Bushing	2
12	90202-40M47	Washer,Plate	1
13	68V-44551-00-8D	Housing, Lower Mount Rubber 1	1
14	93410-36102	Circlip	1
15	61A-44575-01	Damper, Lower Mount Rubber	1
16	60V-44555-00	Mount Damper, Lower Side	2
17	90201-35008	Washer,Plate	2
18	90202-32M19	Washer,Plate	2
19	90201-16M55	Washer,Plate	2
20	90201-15M58	Washer,Plate	2
21	90101-14005	Bolt, Hexagon	2
22	69J-44533-00	Damper, Upper Mount Rubber	2
23	90176-14002	Nut, Cap	2
24	92995-14600	Washer	2
25	63P-44553-00-8D	Cover, Lower Mount	1
26	63P-44556-00-8D	Cover, Lower Mount 2	1
27	90119-10058	Bolt, with Washer	4
28	6DA-44514-00	Mount Damper, Upper Side	2
29	90119-10024	Bolt, With Washer	3
30	90105-14009	Bolt, Flange	2
31	90201-16M01	Washer,Plate	2
32	6DA-44526-00	Plate	1
33	6DA-44532-00	Stopper, Upper Mount	1
34	90185-14M00	Nut, Self-Locking	2
35	6DA-44194-00	Cap	2
36	92995-14600	Washer	2
37	63P-44511-00	Cover, Upper Mount Rubber	1
38	90387-14004	Color	2

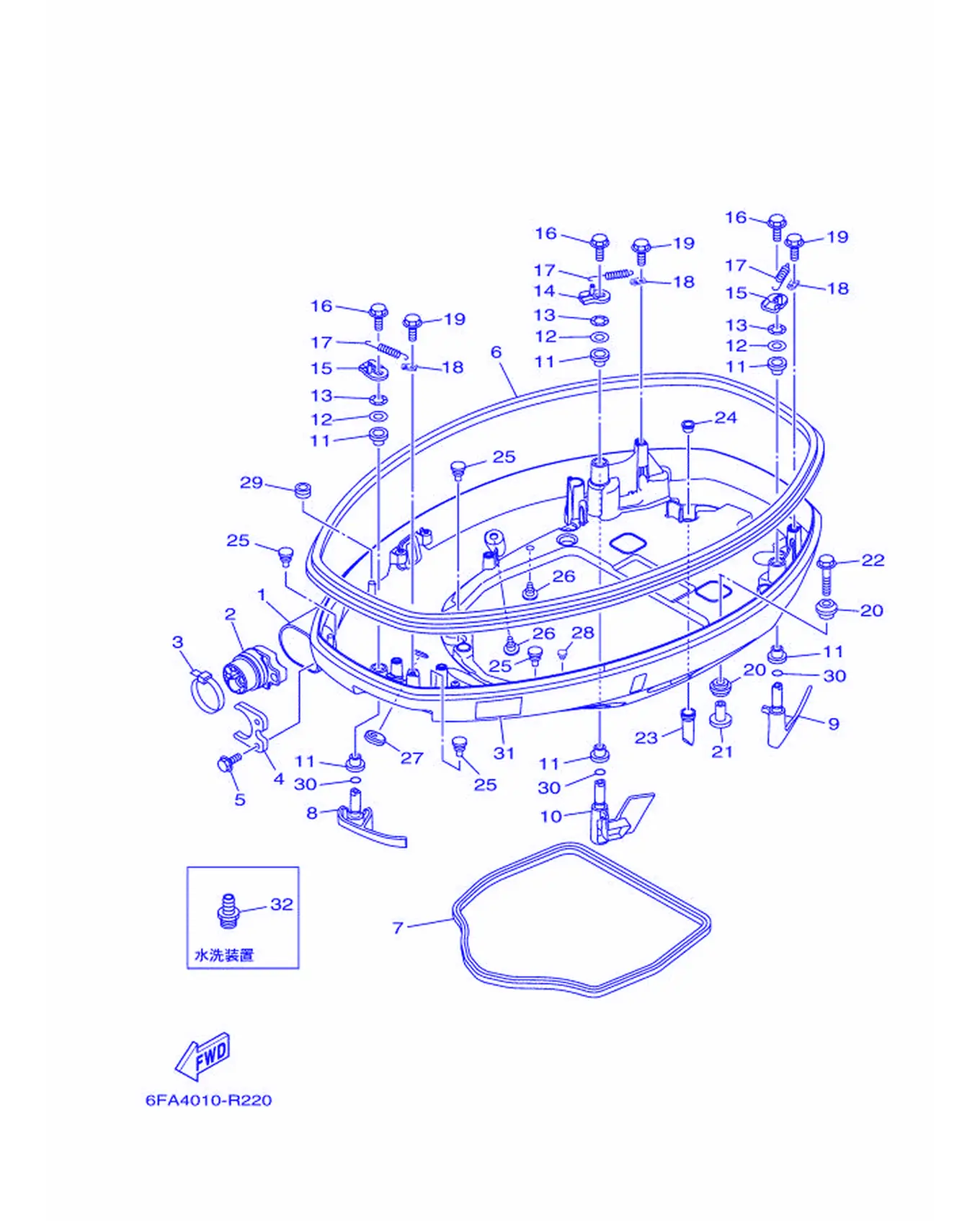

Fig. 33VMAX Bottom Cowling 1

REF	Part No.	Name	Qty
1	6DA-42710-00-8D	Bottom Cowling Assembly	1
2	6DA-42725-03	Grommet	1
3	90465-13M30	Clamp	1
4	6CB-42761-00	Stopper	1
5	95D95-06014	Bolt, Flange Deep Recess	2
6	6DA-42615-00	Seal	1
7	63P-42716-01	Rubber Seal 1	1
8	6DA-42815-01-8D	Lever, Clamp 1	1
9	6DA-42816-02-8D	Lever, Clamp 2	1
10	6DA-42817-02-8D	Lever, Clamp 3	1
11	90386-15M73	Bushing	6
12	90201-156J2	Washer, Plate	3
13	90206-15M18	Washer, Wave	3
14	6CB-42818-00	Lever, Clamp 4	1
15	6CB-42819-00	Lever, Clamp 5	2
16	95D95-08012	Bolt, Flange Deep Recess	3
17	90506-22001	Spring, Tension	3
18	66T-43144-00	Hook,Spring	3
19	95D95-06012	Bolt, Flange Deep Recess	3
20	90480-22M81	Grommet	8
21	90387-08M37	Color	4
22	90119-08187	Bolt, with Washer	4
23	6DA-42717-01	Rubber, Seal 2	4
24	6DA-42384-00	Seal, Cap	4
25	6H4-42748-01	Grommet	4
26	6P2-44391-00	Nipple,Hose	2
27	6KA-42727-00	Grommet	1
28	90269-07003	Rivet	1
29	90480-13163	Grommet	1
30	93210-13M63	O-ring	3
31	6EE-42794-01	Label, Warning (General)	1
32	69J-12584-00	Joint,Hose 3	1

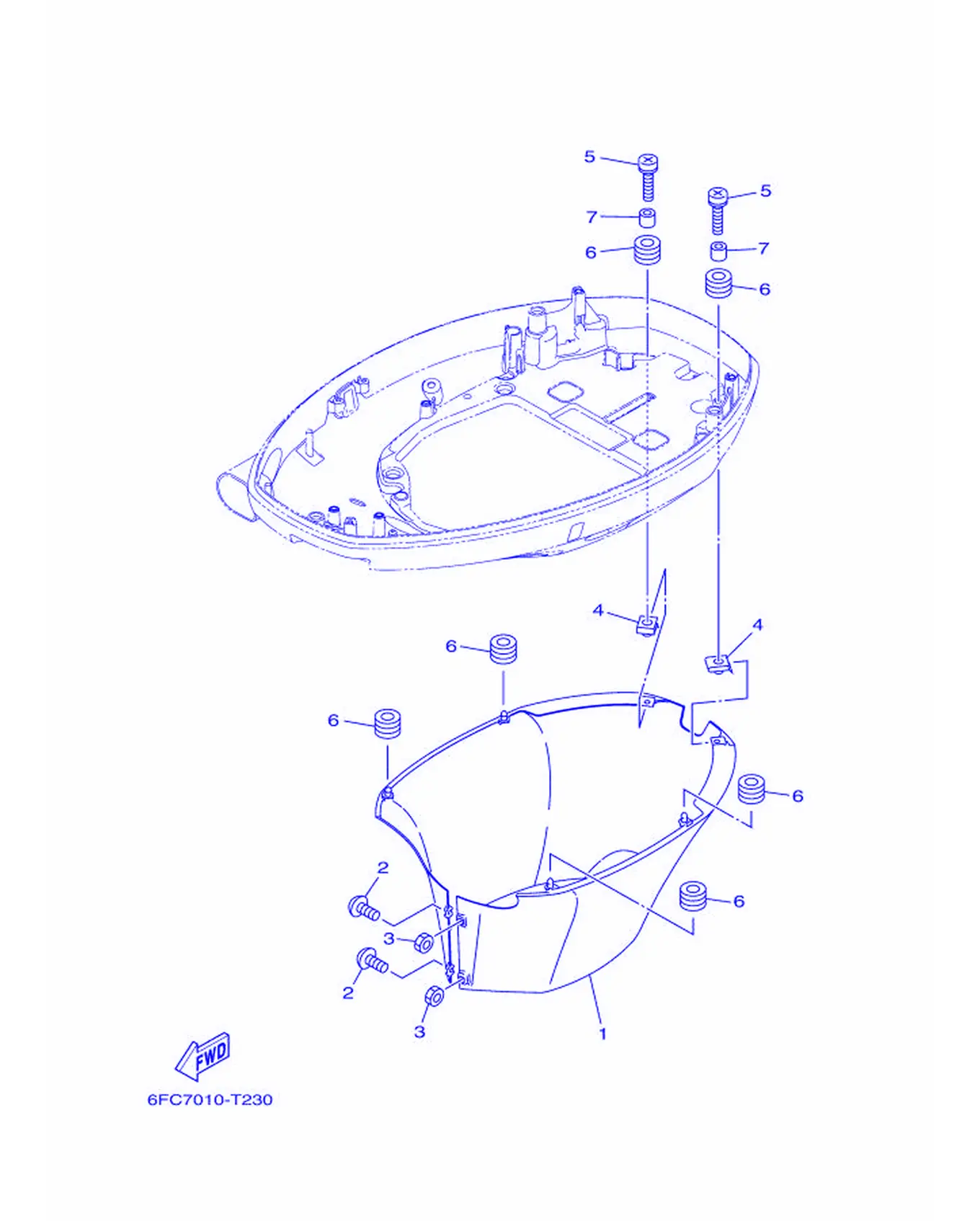

Fig. 34VMAX Bottom Cowling 2

REF	Part No.	Name	Qty
1	6DA-42741-11-8D	Apron 1	1
2	90159-06M28	Screw, With Washer	2
3	95380-06600	Nut, Hexagon	2
4	90183-061A8	Nut, Spring	2
5	90159-06053	Screw, Washer	2
6	90480-13M24	Grommet	6
7	90387-06M43	Color	2

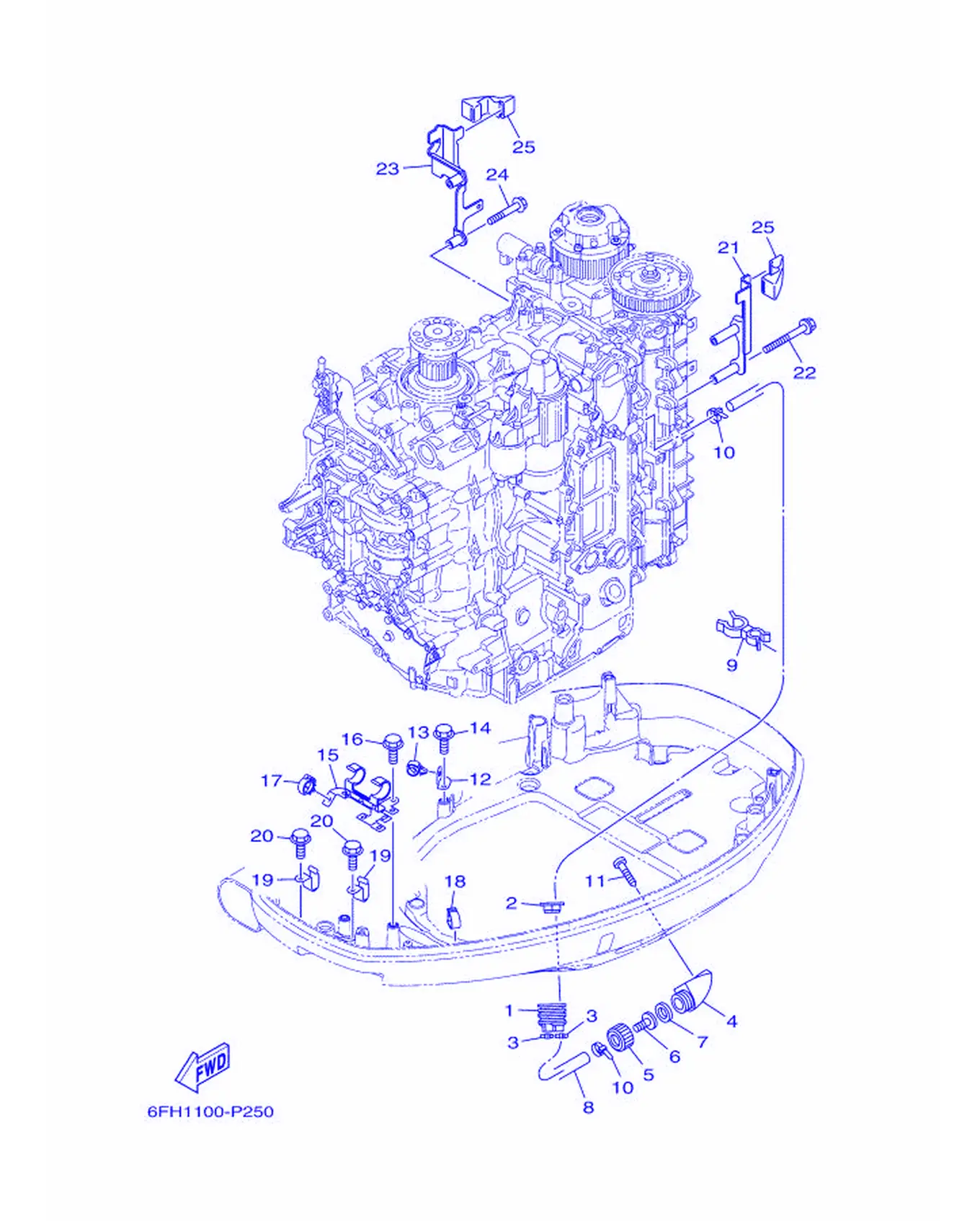

Fig. 35VMAX Bottom Cowling 3

REF	Part No.	Name	Qty
1	6H1-42726-22	Grommet	1
2	6BG-42384-00	Seal, Cap	1
3	90465-11M10	Clamp	2
4	6AW-12572-00	Adapter	1
5	6R3-12581-00	Joint,Hose 1	1
6	6AW-12582-00	Joint, Hose 2	1
7	6R3-12583-00	Gasket,HoseJoint	1
8	6DA-42541-00	Pipe 1	1
9	90464-21256	Clamp	1
10	90465-11M10	Clamp	2
11	97780-60520	Screw, Tapping	2
12	63P-42756-00	Stay, Clamp	1
13	90464-13249	Clamp	1
14	95D95-06012	Bolt, Flange Deep Recess	1
15	6DA-8366G-00	Bracket 3	1
16	95D95-06012	Bolt, Flange Deep Recess	2
17	90464-18246	Clamp	1
18	90464-18004	Clamp	1
19	90462-12013	Clamp	2
20	95D95-06012	Bolt, Flange Deep Recess	2
21	6DA-11998-00	Bracket 1	1
22	95D95-06065	Bolt, Flange Deep Recess	2
23	6DA-11999-00	Bracket 2	1
24	95D95-06040	Bolt, Flange Deep Recess	2
25	6CB-42662-02	Damper	2

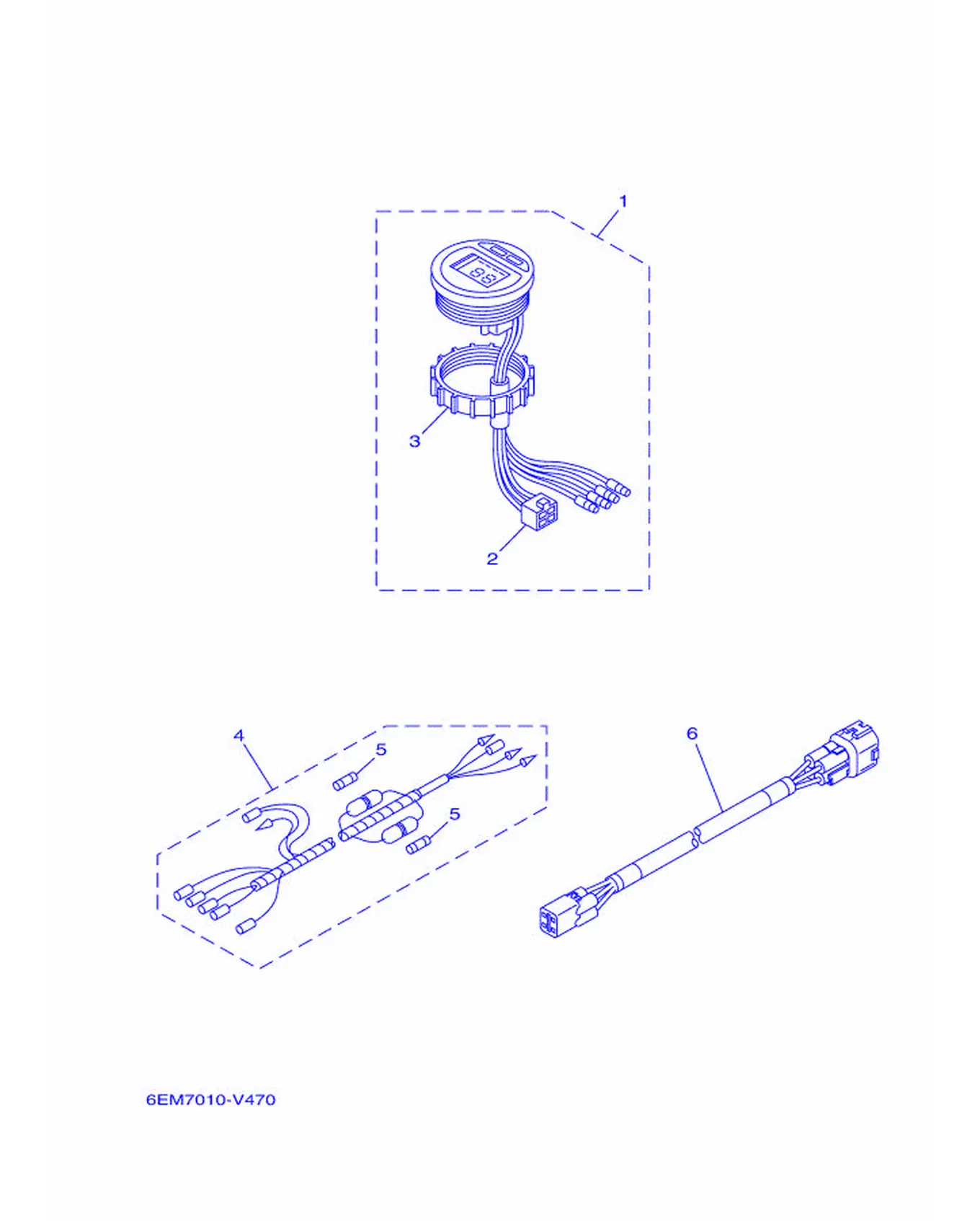

Fig. 36VMAX Meter

REF	Part No.	Name	Qty
1	6Y5-8350T-E3	Tachometer Assembly	1
2	9E450-04533	Connector	1
3	6Y8-84383-00	Nut, Ring	1
4	6Y5-83553-M1	Wire, Lead (L=2.5M)	1
5	6G1-82151-01	Fuse (10A)	2
6	6Y5-83653-20	Wire, Lead (L=7.0M)	1

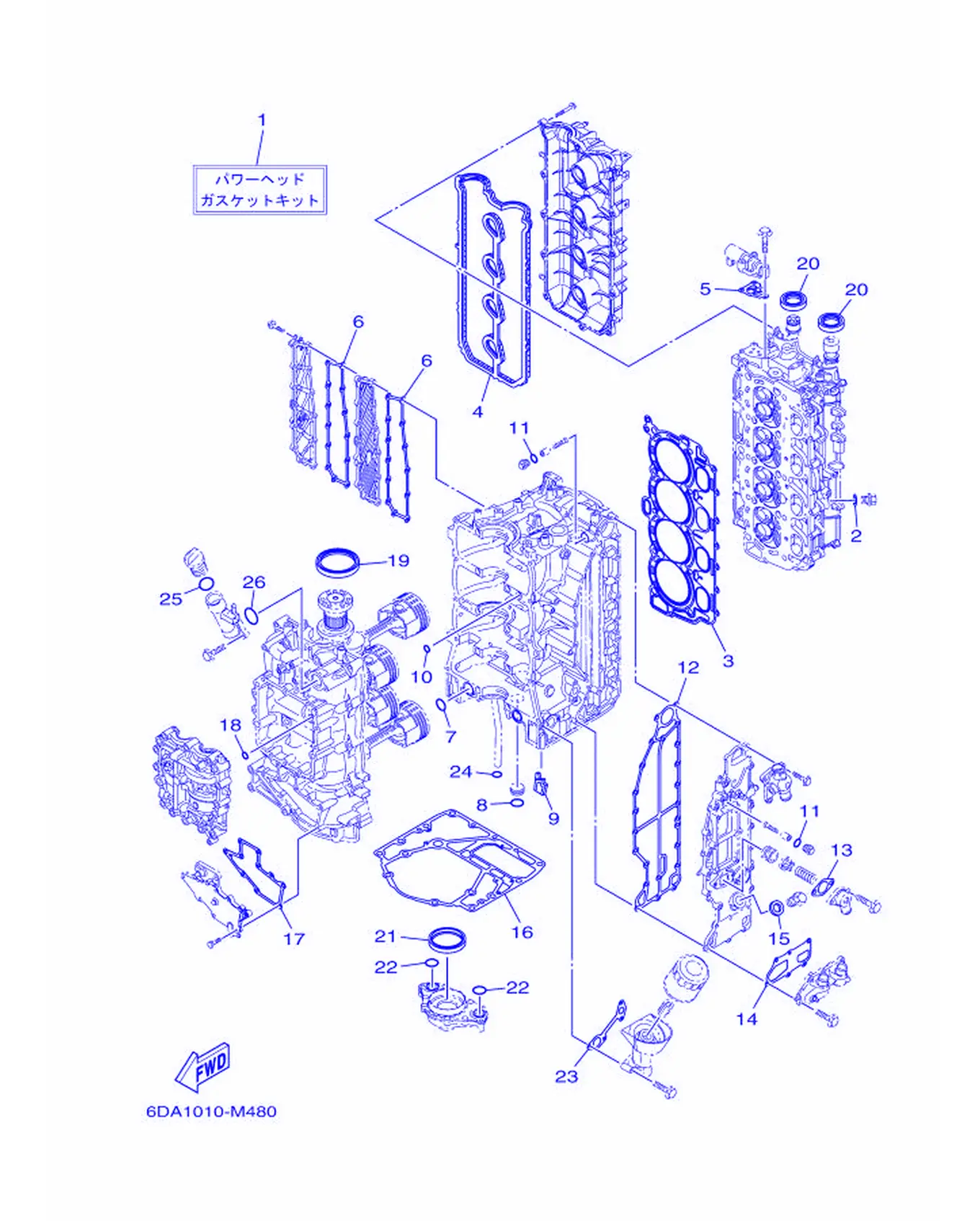

Fig. 37VMAX Repair Kit 1

REF	Part No.	Name	Qty
1	6DA-W0001-02	Power Head Gasket Kit	1
2	90430-14115	Gasket	1
3	6DA-11181-00	Gasket, Cylinder Head 1	1
4	6DA-11193-00	Gasket, Head Cover 1	1
5	6CB-1242F-00	Gasket Filter	1
6	6DA-15353-01	Gasket, Drain	2
7	93210-25552	O-ring	2
8	93210-25647	O-ring	1
9	6DA-14664-01	Grommet, Water Jacket	1
10	93210-12648	O-ring	1
11	93210-13M63	O-ring	2
12	6DA-41114-01	Gasket, Exhaust Outer Cover	1
13	60V-11382-A0	Gasket 2	1
14	6DA-11381-01	Gasket 1	1
15	90201-186F1	Washer,Plate	1
16	63P-11351-04	Gasket, Cylinder	1
17	6DA-15451-01	Gasket, Crankcase Cover	1
18	93210-08001	O-ring	1
19	93102-85008	Oil Seal	1
20	93102-38008	OilSeal	2
21	6CB-11355-00	Seal, Cylinder 1	1
22	93210-25552	O-ring	2
23	6DA-13475-00	Gasket	1
24	93210-19MJ3	O-ring	1
25	93210-24M79	O-ring	1
26	93210-357A3	O-ring	1

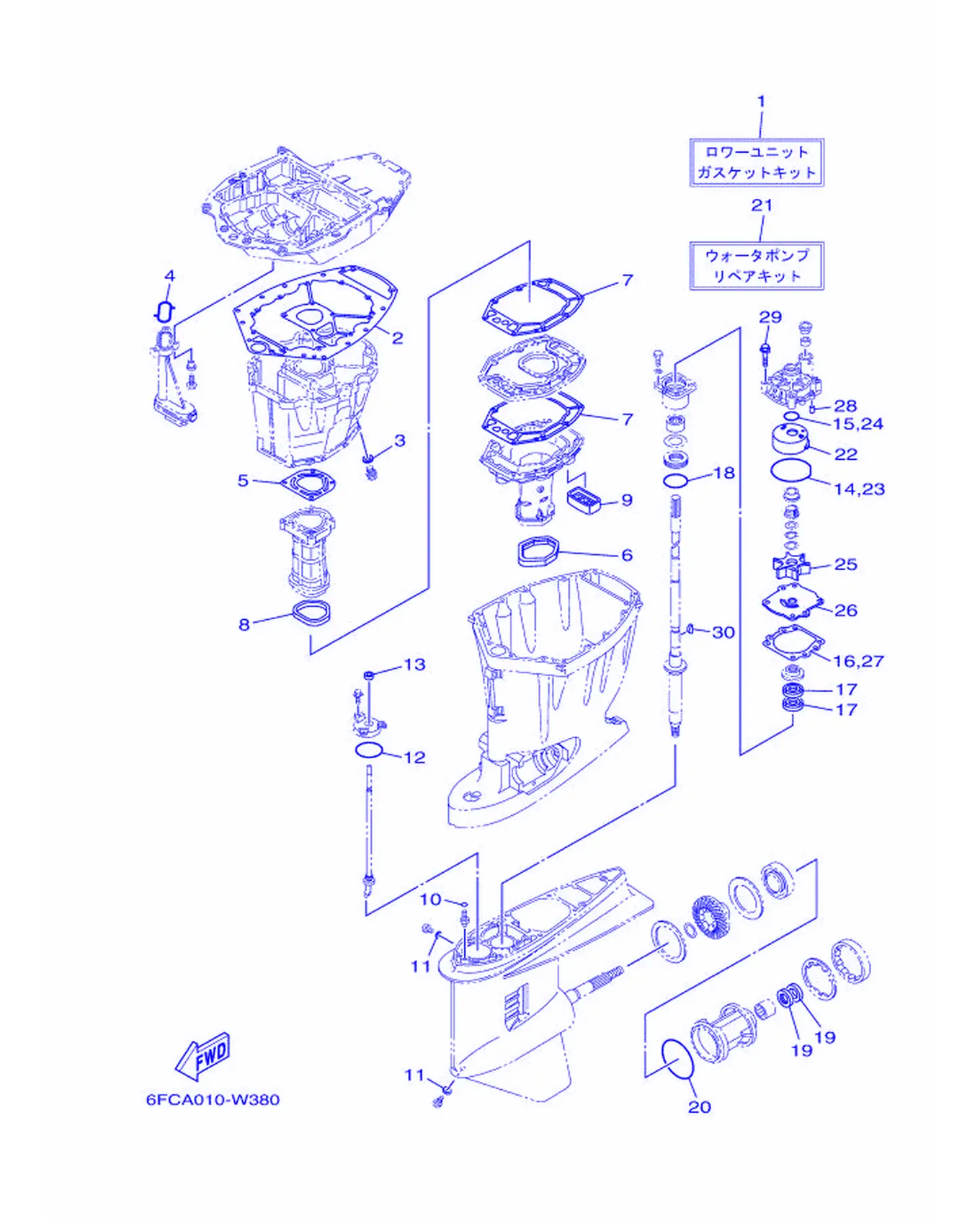

Fig. 38VMAX Repair Kit 2

REF	Part No.	Name	Qty
1	63P-W0001-22	Lower Unit Gasket Kit	1
2	63P-15312-02	Gasket, Oil Pan	1
3	90430-14M09	Gasket	1
4	63P-13415-00	Seal, Oil Strainer	1
5	63P-41133-A0	Gasket, Exhaust Manifold	1
6	69J-45123-00	Gasket,Muffler	1
7	63P-41134-A1	Gasket, Exhaust Manifold	2
8	63P-41138-00	Seal, Exhaust 1	1
9	69J-45127-01	Seal	1
10	93210-07003	O-ring	2
11	90430-08003	Gasket	2
12	93210-58144	O-ring	1
13	93106-09014	OilSeal	1
14	93210-86M38	O-ring	1
15	93210-37160	O-ring	1
16	6E5-44315-A0	Gasket,Water Pump	1
17	93101-28M16	OilSeal	2
18	93210-55M14	O-ring	1
19	93101-30M17	OilSeal	2
20	93210-97M55	O-ring	1
21	61A-W0078-A4	Water Pump Repair Kit	1
22	61A-44322-02	Insert, Cartridge	1
23	93210-86M38	O-ring	1
24	93210-37160	O-ring	1
25	6E5-44352-01	Impeller	1
26	6G5-44323-01	Outer Plate, Cartridge	1
27	6E5-44315-A0	Gasket,Water Pump	1
28	93606-12019	Pin, Dowel	2
29	90119-08191	Bolt, with Washer	4
30	90280-04M05	Key, Woodruff	1

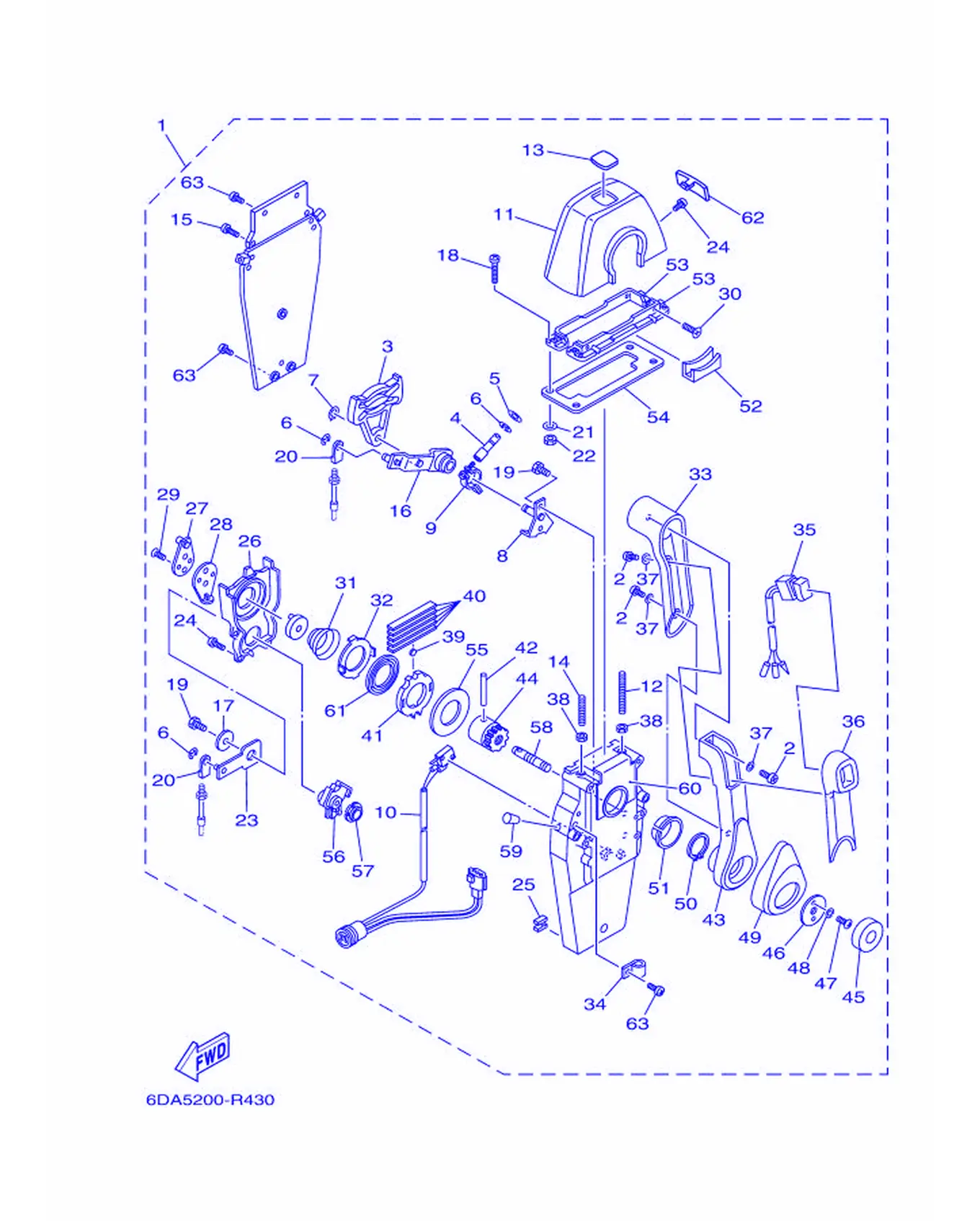

Fig. 39VMAX Remote Control Assembly

VMAX 遥控总成 VMAX Remote Control Assembly Fig.

REF	Part No.	Name	Qty
1	704-48205-R2	Remote Control Assembly (R/H)	1
2	704-48129-11	Screw 3	3
3	EL8-48251-00	Plate,Cam	1
4	704-48265-00	Shaft, Friction	1
5	701-48246-00	Spacer	1
6	93430-06024	Circlip	4
7	EL8-48259-00	Circlip 1	1
8	704-48262-00	Shaft,Throttle	1
9	704-48264-00	Throttle, Friction	1
10	704-82540-40	Neutral Switch Assembly	1
11	704-48119-50	Cover	1
12	EL8-48281-00	Screw	1
13	704-48215-61	Graphic	1
14	704-48281-00	Screw	1
15	97890-05025	Screw, Pan Head	2
16	704-48261-00	Arm,Throttle	1
17	EL8-48191-00	Washer 1	1
18	704-48283-00	Screw	4
19	97380-06018	Bolt	3
20	703-48345-01	Cable End, Remote Control	2
21	704-48287-00	Washer	4
22	95380-05600	Nut	4
23	704-48271-00	Arm, Shift	1
24	EL8-48127-00	Screw 1	10
25	703-48358-01	Anchor, Cable	1
26	704-48231-00	Housing, Cap	1
27	EL8-48241-00	Arm, Drive	1
28	EL8-48254-00	Stopper, Throttle	1
29	92780-06020	Screw, Flat Head	2
30	98780-05018	Screw, Flat Head	4
31	EL8-48244-00	Spring, Free Axel	1
32	EL8-48245-00	Plate, Lock	1
33	704-48222-10	Grip,ControlLever	1
34	704-82594-00	Clamp	1
35	704-82563-60	Trim & Tilt Switch Assembly	1
36	704-48229-30	Grip,ControlLever	1
37	92990-05300	Washer, Internal Tooth	3
38	95380-06600	Nut, Hexagon	2
39	701-48248-00	Roller, Free Accelerator	1
40	704-48238-00	Spring, Detent	5
41	704-48232-P1	Gear	1
42	EL8-48164-00	Pin 2	1
43	704-48221-R0	Lever, Control	1
44	704-48242-10	Shaft, Drive	1
45	704-48225-R0	Cover	1
46	704-48192-00	Washer 2	1
47	97890-06018	Screw, Pan Head	2
48	92990-06300	Washer, Internal Tooth	2
49	704-48224-R0	Cover,ControlLever	1
50	EL8-48279-00	Circlip 2	1
51	704-48234-00	Bushing 1	1
52	704-48219-R0	Cover,Lead	1
53	704-48144-10	Plate, Stopper 2	2
54	704-48176-01	Grommet	1
55	704-48192-P0	Washer 2	1
56	704-48233-00	Gear 2	1
57	704-48235-00	Bushing	1
58	704-48153-00	Shaft, Free Axel	1
59	704-48166-00	Plug	1
60	704-48284-P0	Grommet	1
61	704-48178-10	Plate, Shift	1
62	704-48167-20	Plug	1
63	97890-05016	Screw, Pan Head	3

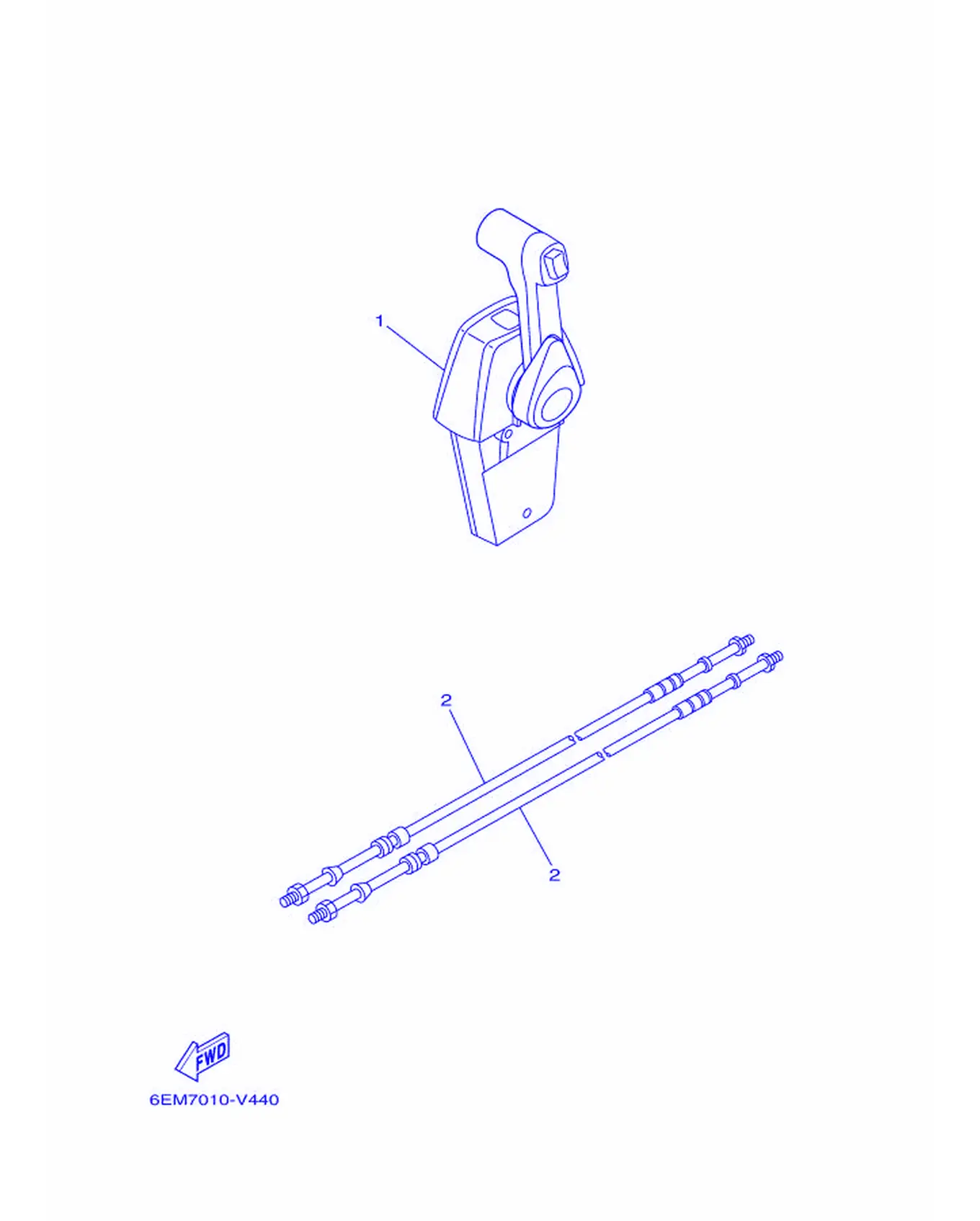

Fig. 40VMAX Remote Control Box

REF	Part No.	Name	Qty
1	704-48205-R2	Remote Control Assembly (R/H)	1
2	701-48320-50	Cable, Remote Control	2
2	701-48320-60	Cable, Remote Control	2
2	701-48320-80	Cable, Remote Control	2
2	701-48350-00	Cable, Remote Control	2
2	701-48350-20	Cable, Remote Control	2

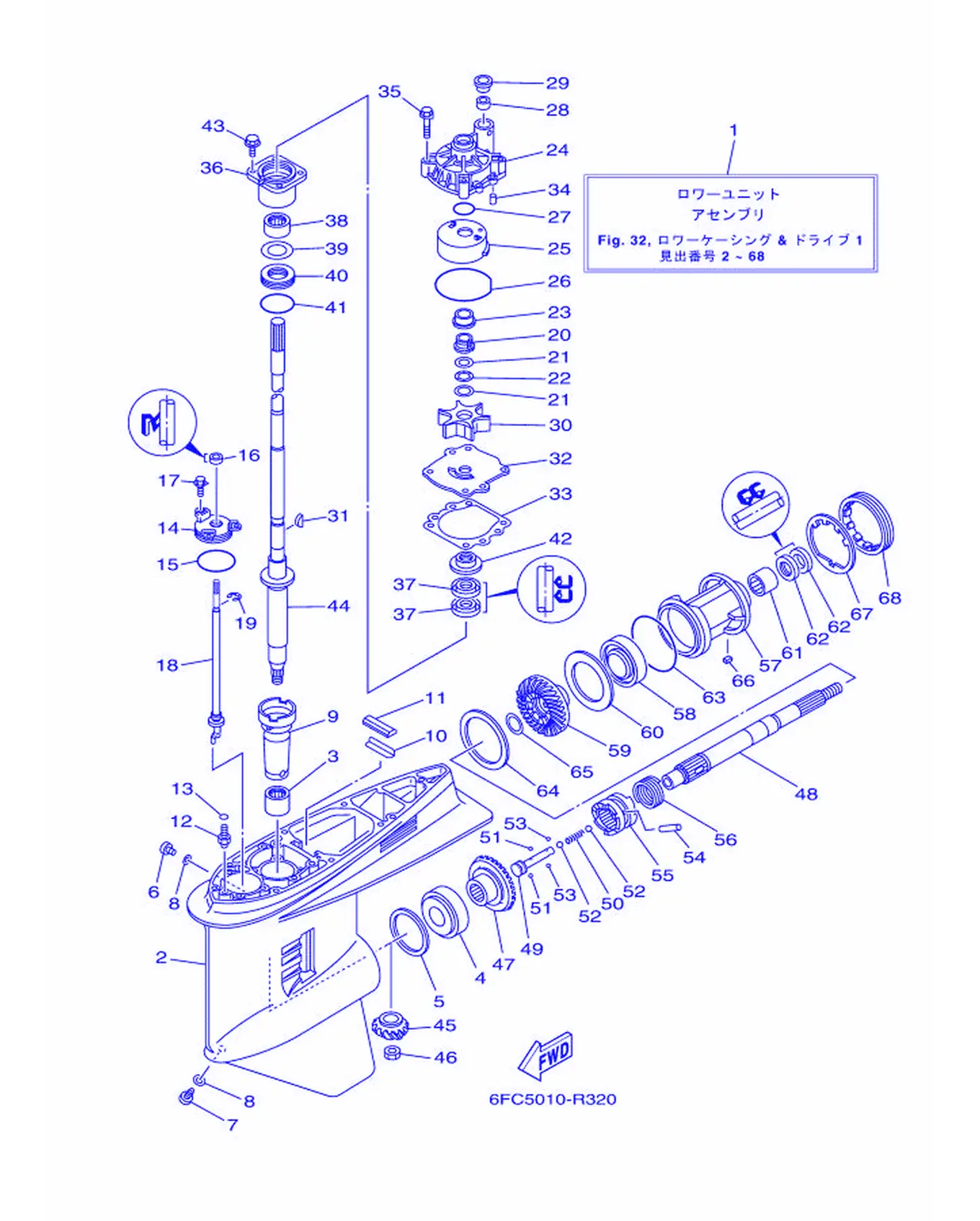

Fig. 41VMAX Lower Casing & Drive 1

VMAX 下部壳体与传动 1 VMAX Lower Casing & Drive 1 Fig.

REF	Part No.	Name	Qty
1	6FH-45300-03-NA	Lower Unit Assembly	1
2	6J9-45301-07-NA	Casing,Lower	1
3	93311-928U5	Bearing	1
4	93332-000V3	Bearing	1
5	6G5-45567-01	Shim (T:0.10MM)	1
5	6G5-45567-10	Shim (T:0.12MM)	1
5	6G5-45567-20	Shim (T:0.15MM)	1
5	6G5-45567-30	Shim (T:0.18MM)	1
5	6G5-45567-40	Shim (T:0.30MM)	1
5	6G5-45567-50	Shim (T:0.40MM)	1
5	6G5-45567-60	Shim (T:0.50MM)	1
6	90340-08002	Plug, Straight Screw	1
7	688-45341-10	Plug, Drain	1
8	90430-08003	Gasket	2
9	6G5-45536-01	Sleeve,Drive Shaft	1
10	663-45376-00	Guide,SealDamper	1
11	688-45375-00	Damper,Seal	1
12	63P-45378-00	Nipple,Hose	1
13	93210-07003	O-ring	1
14	6E5-45321-00	Plate	1
15	93210-58144	O-ring	1
16	93106-09014	OilSeal	1
17	90119-06286	Bolt, with Washer	3
18	63P-44150-01	Shift Cam Assembly	1
19	99001-08600	Circlip	1
20	61A-45538-00	Spacer 1	1
21	90201-22M01	Washer,Plate	2
22	90206-22M19	Washer, Wave	1
23	61A-45527-00	Color,Drive Shaft	1
24	61A-44311-01	Housing,Water Pump	1
25	61A-44322-02	Insert, Cartridge	1
26	93210-86M38	O-ring	1
27	93210-37160	O-ring	1
28	6E5-44365-01	Damper, Water Seal 1	1
29	6E5-44312-00	Cover,Water PumpHousing	1
30	6E5-44352-01	Impeller	1
31	90280-04M05	Key, Woodruff	1
32	6G5-44323-01	Outer Plate, Cartridge	1
33	6E5-44315-A0	Gasket,Water Pump	1
34	93606-12019	Pin, Dowel	2
35	90119-08191	Bolt, with Washer	4
36	6E5-45331-00-9S	Housing,Bearing	1
37	93101-28M16	OilSeal	2
38	93317-330U2	Bearing	1
39	6E5-45587-01	Shim (T:0.10MM)	1
40	93341-930V2	Bearing	1
41	93210-55M14	O-ring	1
42	6E5-45344-00	Cover,OilSeal	1
43	97E95-08525	Bolt, Hexagon with Washer Deep Recess	4
44	63P-45501-01	Drive ShaftComplete	1
45	6DA-45551-00	Pinion (14T)	1
46	90170-16M01	Nut	1
47	6DA-45560-00	Gear 1 (26T)	1
48	6J9-45611-01	Shaft,Propeller	1
49	6E5-45634-02	Slide, Shift	1
50	90501-16M37	Spring, Compression	1
51	93507-32009	Ball	2
52	93511-32017	Ball	2
53	93503-16003	Ball	2
54	90250-08M07	Pin, Straight	1
55	6DA-45631-01	Clutch, Dog	1
56	6E5-45633-01	Ring, Cross Pin	1
57	6J9-45332-00-CA	Housing,Bearing	1
58	93306-209U0	Bearing	1
59	6DA-45571-00	Gear 2 (26T)	1
60	6G5-45576-10	Washer, Thrust	1
61	93315-43061	Bearing	1
62	93101-30M17	OilSeal	2
63	93210-97M55	O-ring	1
64	6G5-45577-02	Shim (T:0.10MM)	1
64	6G5-45577-10	Shim (T:0.12MM)	1
64	6G5-45577-20	Shim (T:0.15MM)	1
64	6G5-45577-30	Shim (T:0.18MM)	1
64	6G5-45577-40	Shim (T:0.30MM)	1
64	6G5-45577-50	Shim (T:0.40MM)	1
64	6G5-45577-60	Shim (T:0.50MM)	1
65	90201-30M92	Washer,Plate	1
66	90282-04M00	Key, Straight	1
67	6G5-45383-01	Washer, Claw	1
68	6G5-45384-02	Nut	1

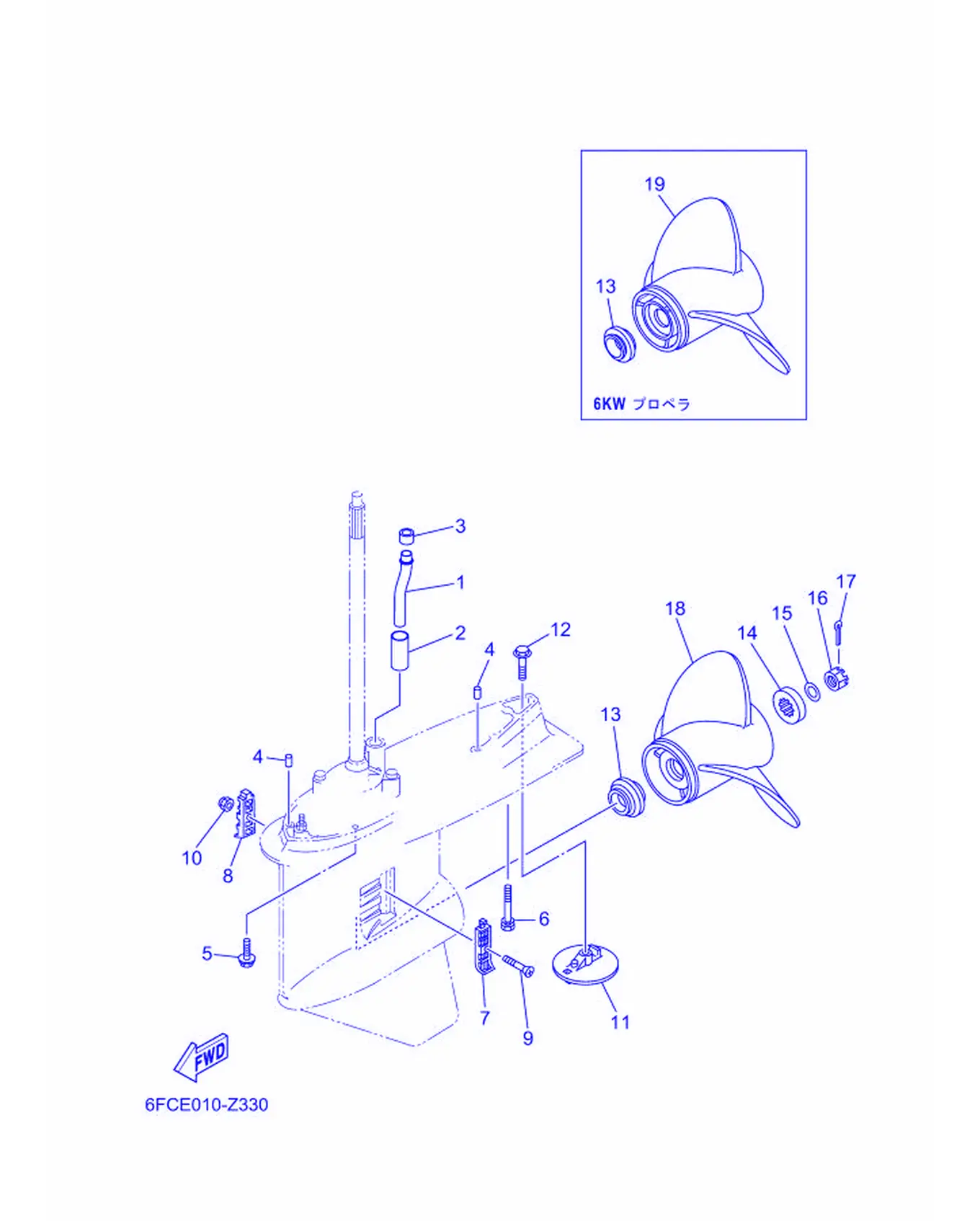

Fig. 42VMAX Lower Casing & Drive 2

VMAX 下部壳体与传动 2 VMAX Lower Casing & Drive 2 Fig.

REF	Part No.	Name	Qty
1	6DA-44361-10	Tube, Water 1	1
2	90445-23002	Hose (L59)	1
3	6E5-44365-01	Damper, Water Seal 1	1
4	93608-16M16	Pin, Dowel	2
5	97E95-10645	Bolt, Hexagon with Washer Deep Recess	6
6	90119-10072	Bolt, with Washer	1
7	6J9-45214-00	Cover, Water Inlet	1
8	6J9-45215-00	Cover, Water Inlet	1
9	90152-05M08	Screw, Countersunk	1
10	90185-05002	Nut, Self-Locking	1
11	6CE-45373-00	Anode	1
12	90105-10M00	Bolt, Flange	1
13	6E5-45987-01	Spacer	1
13	6KW-45987-00	Spacer 1	1
14	688-45997-01	Spacer	1
15	92990-18200	Washer	1
16	90171-18M04	Nut, Castle	1
17	91490-40030	Pin, Cotter	1
18	6J9-45976-10	Propeller (3X14-1/2 X21 -M)	1
18	66K-45976-B0	Propeller (SS 3X14-1/2X21-M)	1
18	66K-45974-B0	Propeller (3X14-1/2X23-M2)	1
18	66K-45972-B0	Propeller (3X14-1/2X25-M2)	1
18	66K-45970-B0	Propeller (3X14-1/2X27-M1)	1
18	6CB-45932-11	Propeller (3X15-1/8X22-T2)	1
18	6CB-45974-11	Propeller (3X15-1/8X23-T2)	1
18	6CB-45930-11	Propeller (3X15-1/8X24-T2)	1
18	6CB-45972-11	Propeller (3X15-1/8X25-T2)	1
18	6CB-45978-11	Propeller (3X15-1/8X26-T2)	1
18	6CB-45970-11	Propeller (3X15-1/8X27-T2)	1
19	6KW-45932-00	Propeller (3X15-1/8X22-T3)	1
