Yamaha — h3.1b / h3.1bsp5l

Exploded diagrams and part specifications.

1DEC 1 (Single)2DEC 2 (Twin)3DEC 3 (Flush Side Mount)4DEC 4 (Single_Main Station)5DEC 5 (Twin_Main Station)6DEC 6 (Flush Mount_Main Station)7Electrical 1 8Electrical 2 9Electrical 3 10Electrical 4 11Optional Parts 1 12Optional Parts 2 13Optional Parts 3 14Top Cowling 15Drive Unit 16Power Tilt Assembly 17Bracket 1 18Bracket 2

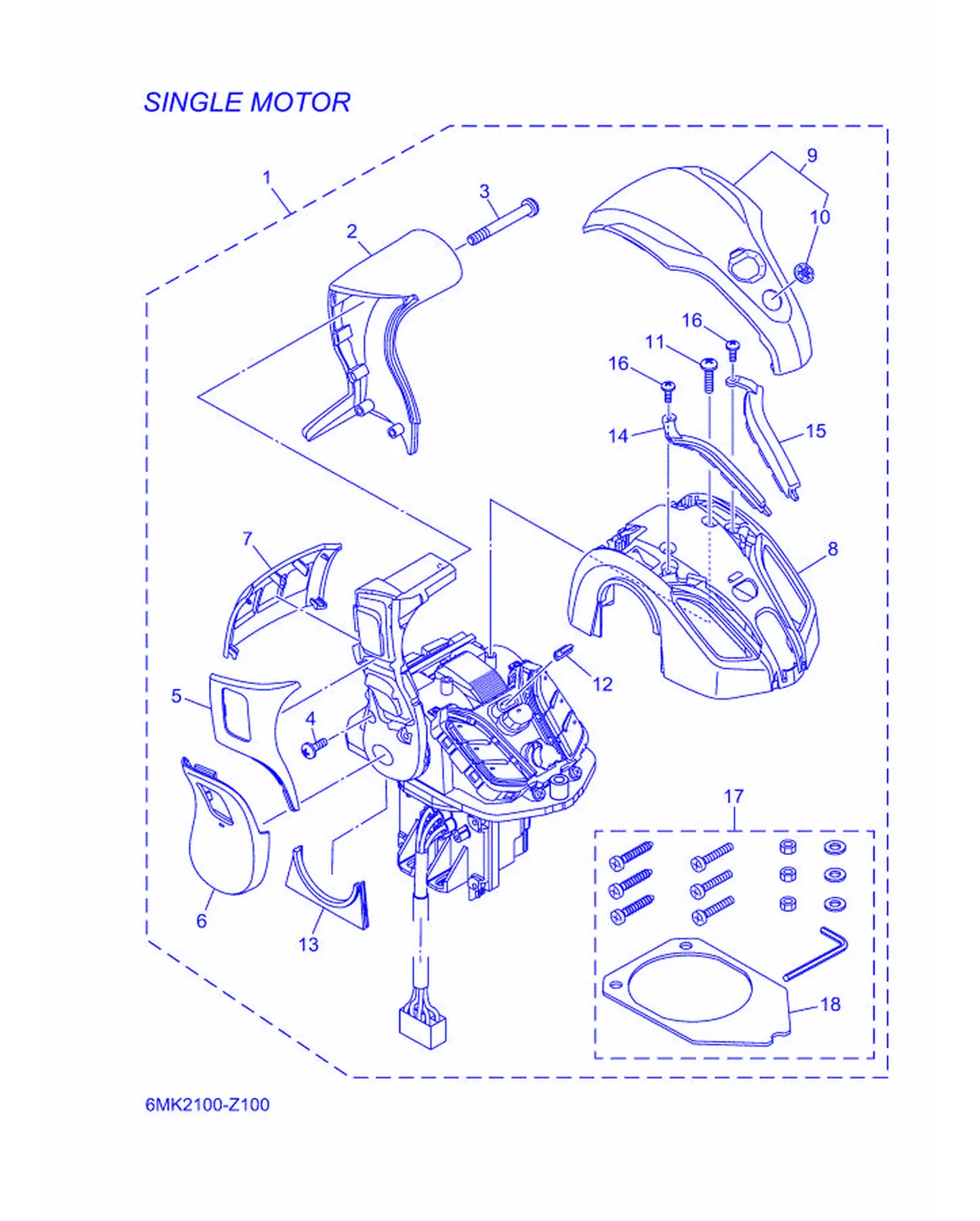

Fig. 1DEC 1 (Single)

REF	Part No.	Name	Qty
1	6X9-48A01-11	Remote Control Box Assembly 2	1
2	6X9-4822A-10	Grip, Lever Single	1
3	6X9-48127-20	Screw 1	1
4	6X9-44189-20	Screw	2
5	6X9-48224-00	Cover,ControlLever	1
6	6X9-48225-00	Cover	1
7	6X9-4811C-10	Cover, Single	1
8	6X9-43679-00	Cover	1
9	6X9-48400-10	Cover Assembly	1
10	6X9-42697-00	Tuning Fork Mark	1
11	6X9-44189-00	Screw	2
12	6X9-83532-00	Lens, Pilot	1
13	6X9-48219-00	Cover,Lead	1
14	6X9-84411-00	Lens, Illuminate 1	1
15	6X9-84412-00	Lens, Illuminate 2	1
16	6X9-44189-10	Screw	2
17	6X9-48901-10	Parts Set 1	1
18	6X9-48176-10	Grommet	1

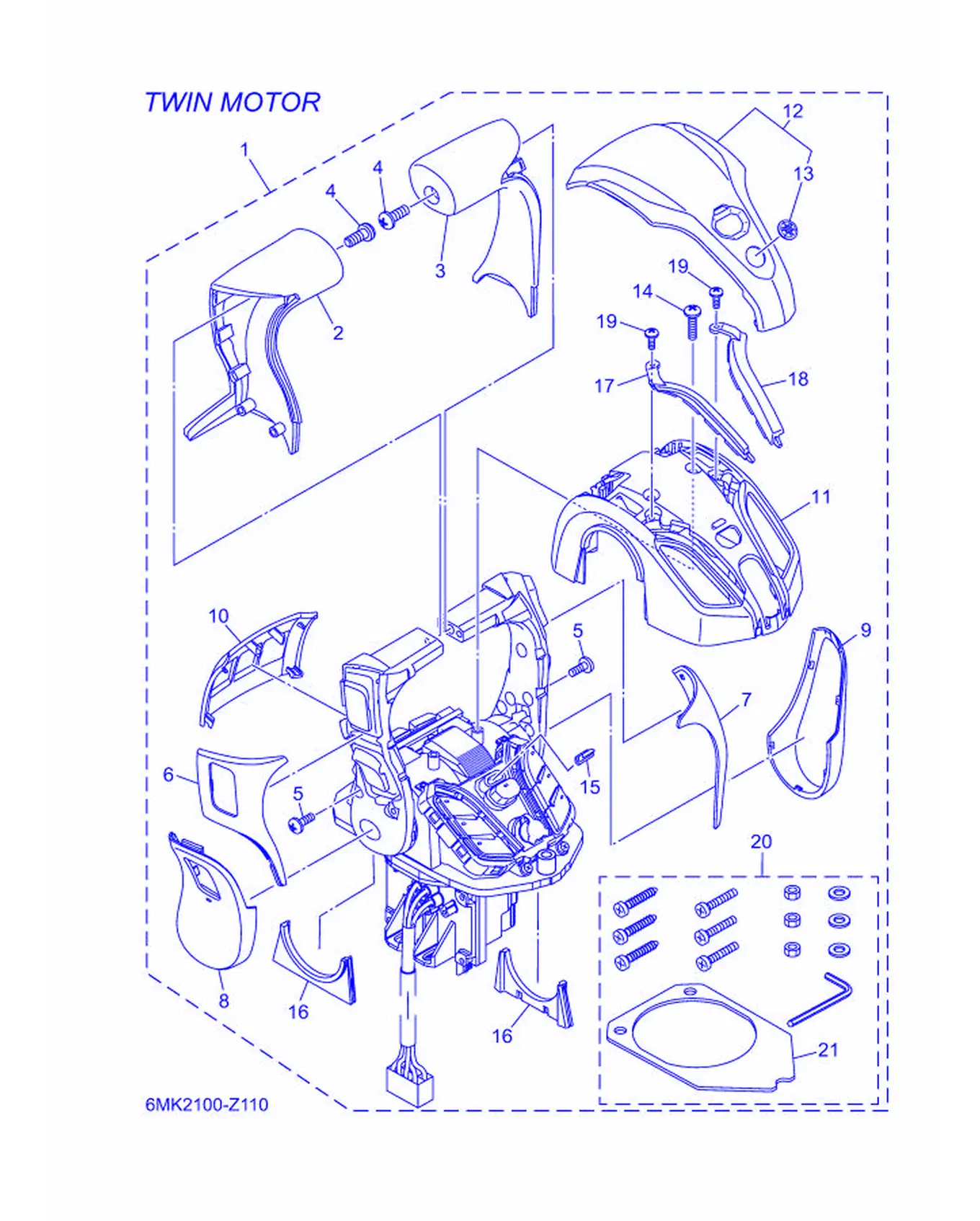

Fig. 2DEC 2 (Twin)

REF	Part No.	Name	Qty
1	6X9-48A02-11	Remote Control Box Assembly 3	1
2	6X9-4822B-10	Grip, Lever Multi	1
3	6X9-48222-10	Grip,ControlLever	1
4	6X9-48127-10	Screw 1	2
5	6X9-44189-20	Screw	4
6	6X9-48224-00	Cover,ControlLever	1
7	6X9-48224-10	Cover,ControlLever	1
8	6X9-48225-00	Cover	1
9	6X9-48225-10	Cover	1
10	6X9-48119-10	Cover	1
11	6X9-43679-10	Cover	1
12	6X9-48400-10	Cover Assembly	1
13	6X9-42697-00	Tuning Fork Mark	1
14	6X9-44189-00	Screw	2
15	6X9-83532-00	Lens, Pilot	1
16	6X9-48219-00	Cover,Lead	2
17	6X9-84411-00	Lens, Illuminate 1	1
18	6X9-84412-00	Lens, Illuminate 2	1
19	6X9-44189-10	Screw	2
20	6X9-48901-10	Parts Set 1	1
21	6X9-48176-10	Grommet	1

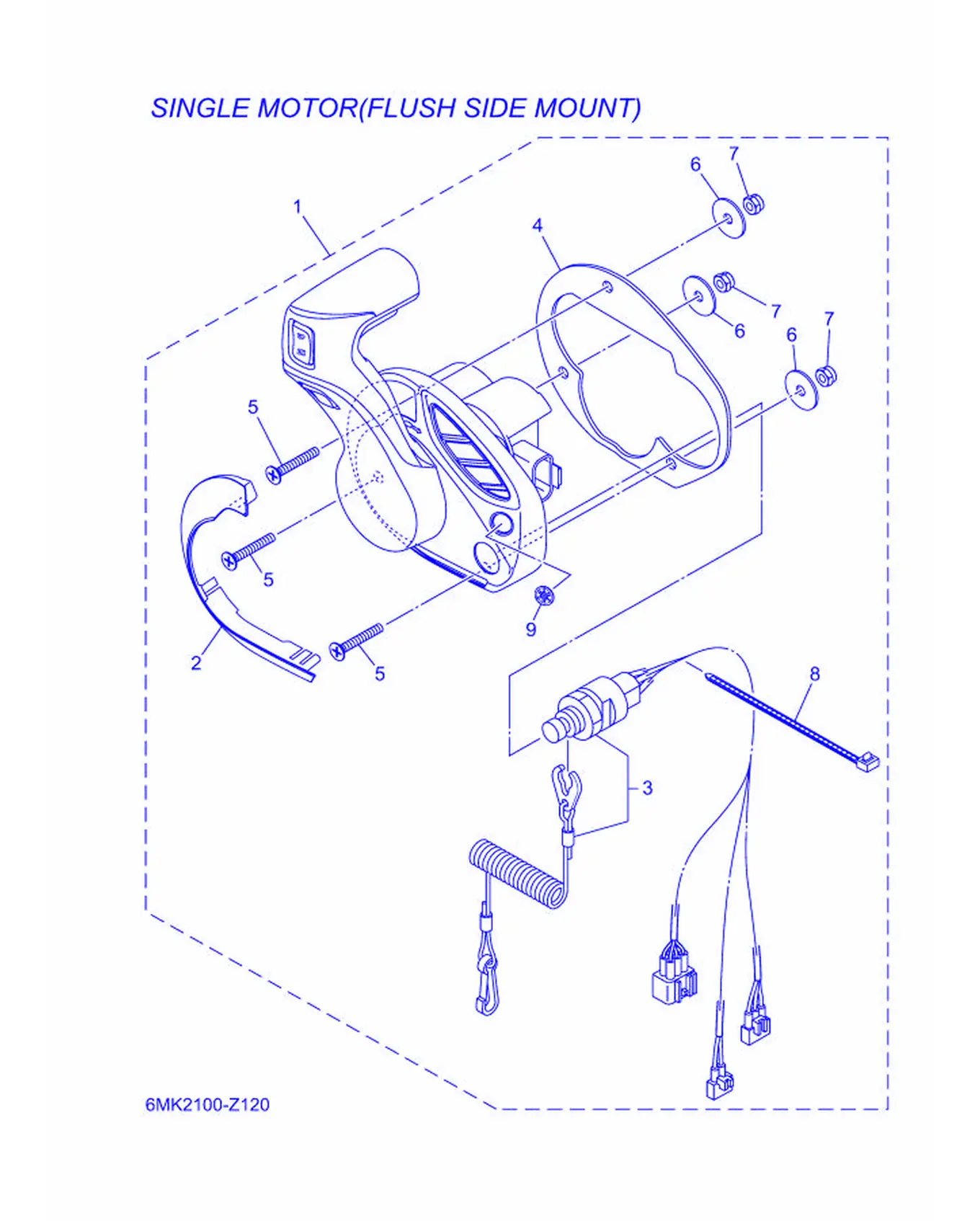

Fig. 3DEC 3 (Flush Side Mount)

DEC 3 (冲洗侧安装) DEC 3 (Flush Side Mount) Fig.

REF	Part No.	Name	Qty
1	6X9-48A00-02	Remote Control Box Assembly 1	1
2	6X9-48166-00	Plug	1
3	6X7-82575-01	Engine Stop Switch Assembly	1
4	6X9-4823B-00	Packing 2	1
5	98780-06035	Screw, Flat Head	3
5	97780-06230	Screw, Tapping	3
6	701-48287-00	Washer	3
7	6X0-48156-00	Nut 1	3
8	6X9-42821-00	Band, Clamp	1
9	6X9-42697-00	Tuning Fork Mark	1

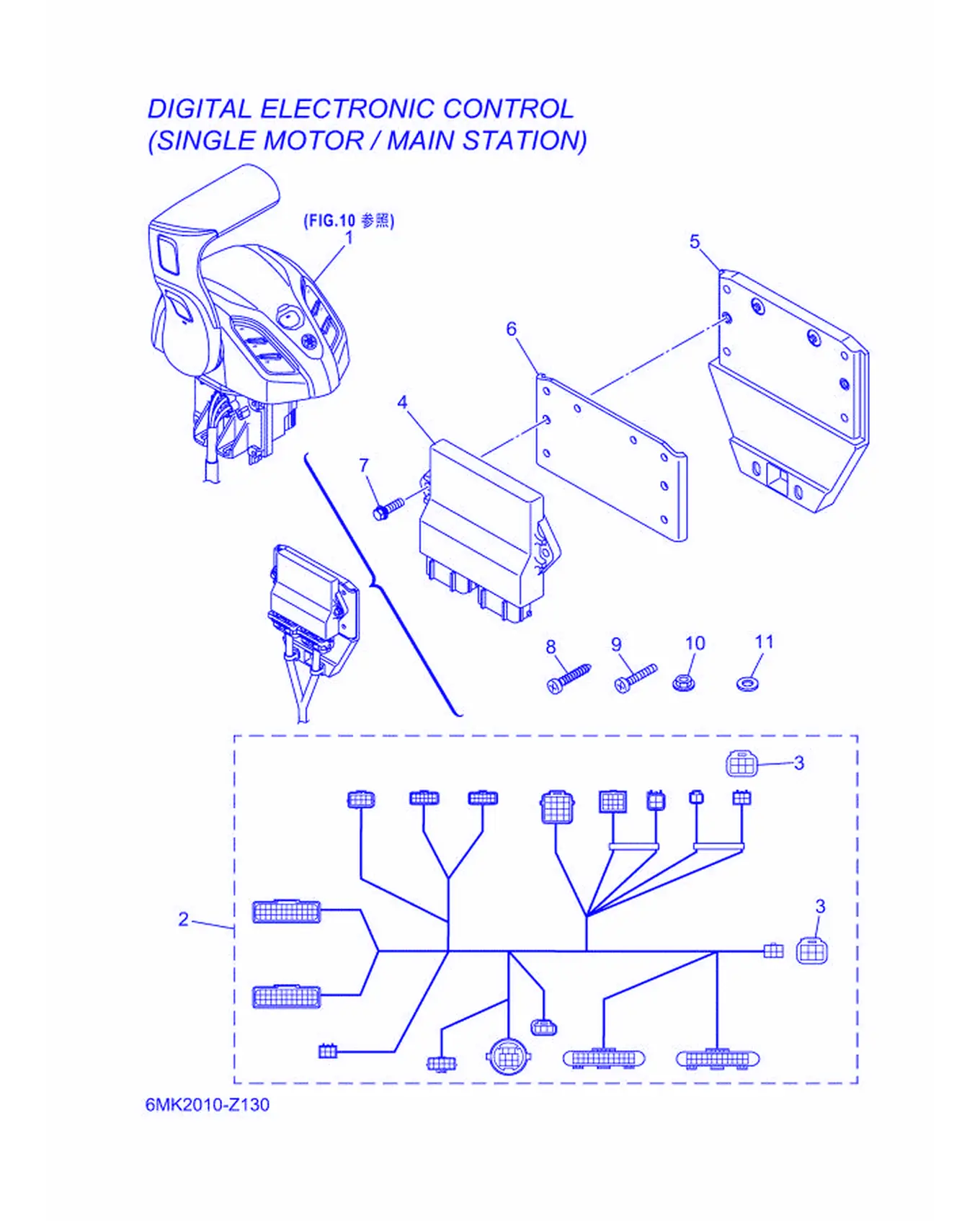

Fig. 4DEC 4 (Single_Main Station)

DEC 4 (单机_主控站) DEC 4 (Single_Main Station) Fig.

REF	Part No.	Name	Qty
1	6X9-48A01-11	Remote Control Box Assembly 2	1
2	6X9-82580-61	Wire Harness Assembly 2	1
3	6Y8-85371-01	End of Line Resistor	2
4	6X6-85590-B0	Control Unit Assembly	1
5	6X9-48211-10	Housing 1	1
6	6X9-4821B-00	Housing 3	1
7	90105-06106	Bolt, Flange	2
8	6X9-48128-00	Screw 2	5
9	90157-06M13	Screw, Pan Head	5
10	95780-06300	Nut, Flange	5
11	90201-065F1	Washer, Plate	5

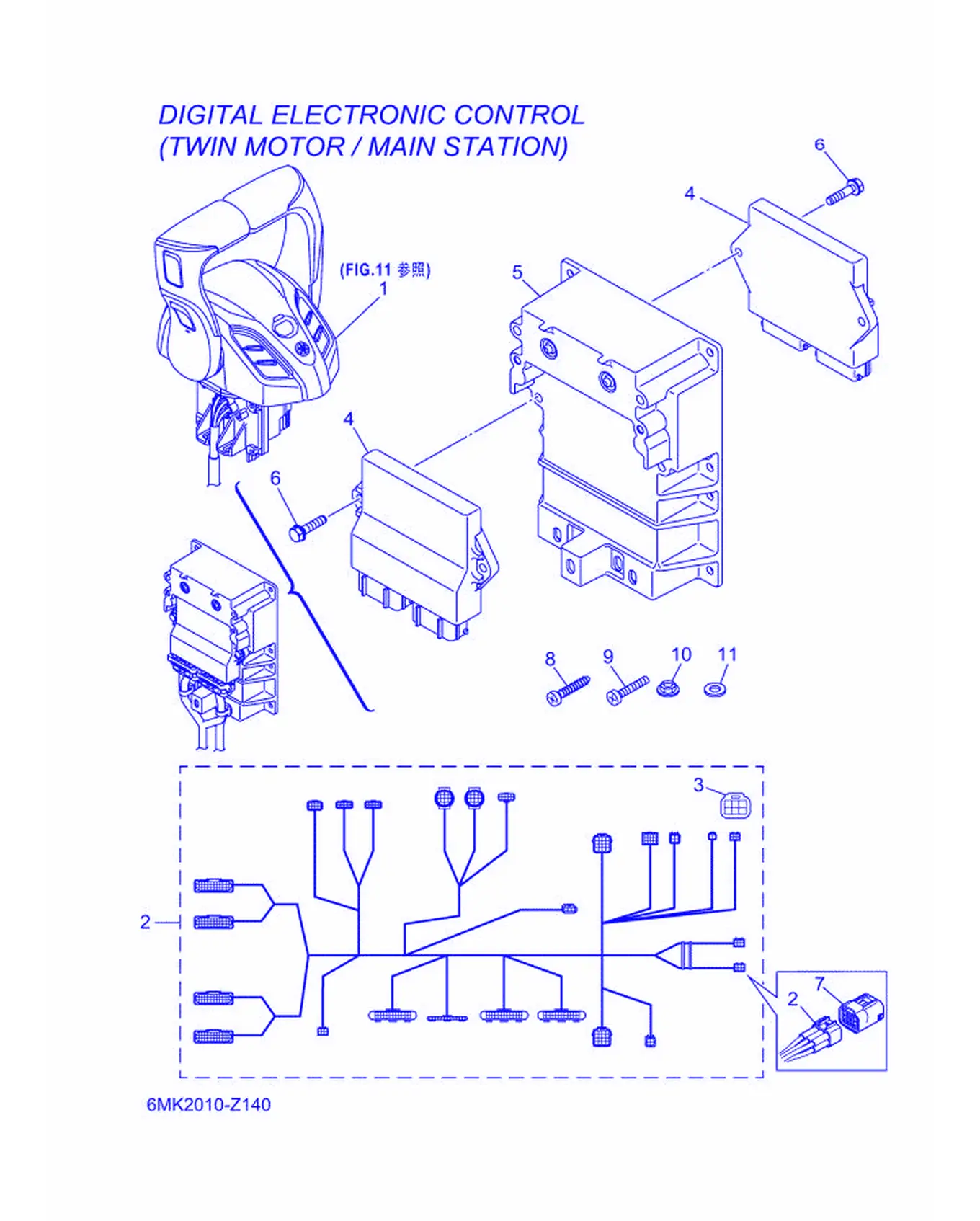

Fig. 5DEC 5 (Twin_Main Station)

DEC 5 (双机_主控站) DEC 5 (Twin_Main Station) Fig.

REF	Part No.	Name	Qty
1	6X9-48A02-11	Remote Control Box Assembly 3	1
2	6X9-82580-71	Wire Harness Assembly 2	1
3	6Y8-85371-01	End of Line Resistor	1
4	6X6-85590-B0	Control Unit Assembly	2
5	6X9-4821A-10	Housing 2	1
6	6X9-48171-00	Bolt	4
7	6Y8-85371-01	End of Line Resistor	1
8	6X9-48128-00	Screw 2	8
9	90157-06M13	Screw, Pan Head	8
10	95780-06300	Nut, Flange	8
11	90201-065F1	Washer, Plate	8

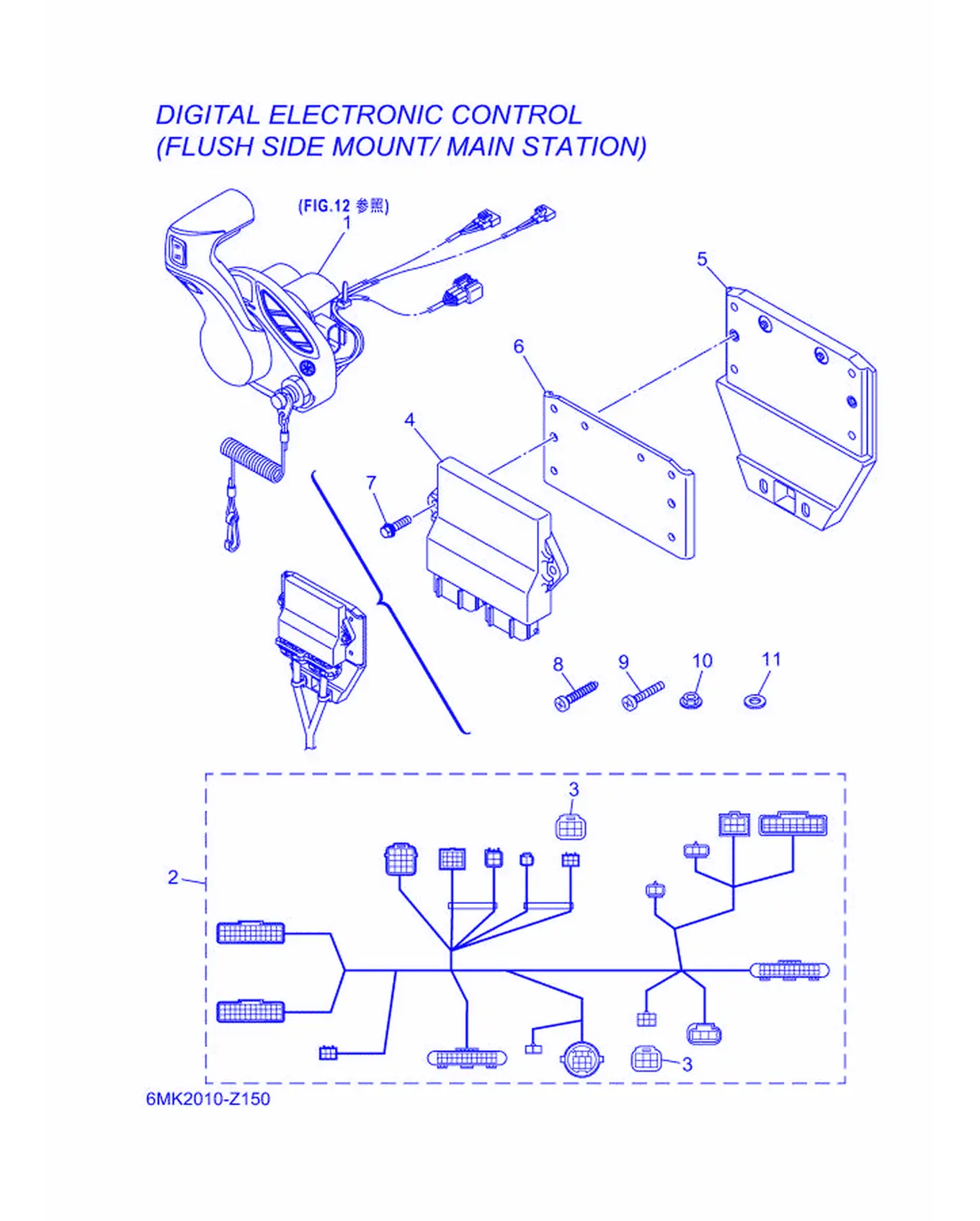

Fig. 6DEC 6 (Flush Mount_Main Station)

DEC 6 (冲洗安装_主控站) DEC 6 (Flush Mount_Main Station) Fig.

REF	Part No.	Name	Qty
1	6X9-48A00-02	Remote Control Box Assembly 1	1
2	6X9-82580-H1	Wire Harness Assembly 2	1
3	6Y8-85371-01	End of Line Resistor	2
4	6X6-85590-B0	Control Unit Assembly	1
5	6X9-48211-10	Housing 1	1
6	6X9-4821B-00	Housing 3	1
7	90105-06106	Bolt, Flange	2
8	6X9-48128-00	Screw 2	5
9	90157-06M13	Screw, Pan Head	5
10	95780-06300	Nut, Flange	5
11	90201-065F1	Washer, Plate	5

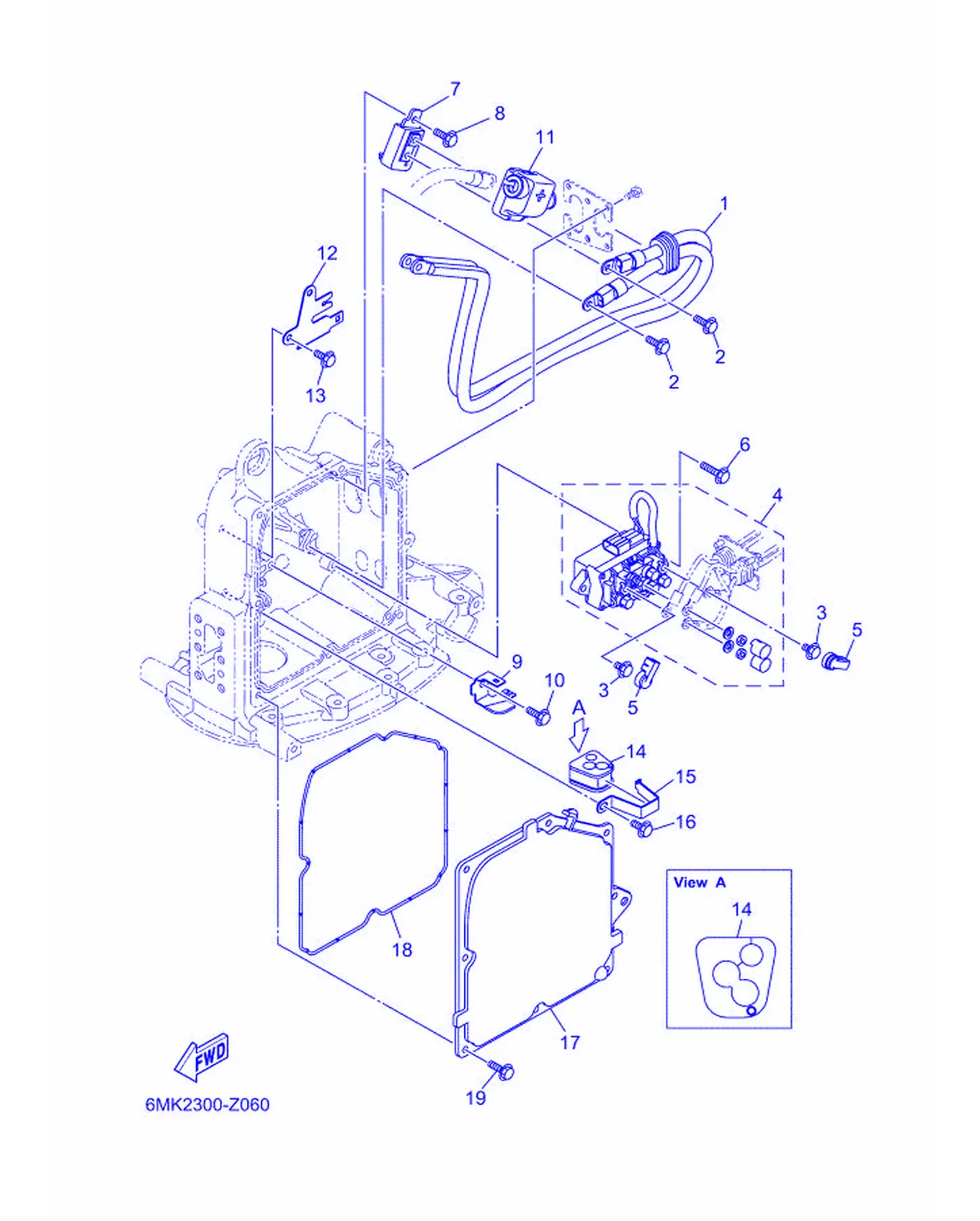

Fig. 7Electrical 1

REF	Part No.	Name	Qty
1	6MK-82211-00	Wire, High Voltage Lead 1	1
2	95D95-06016	Bolt, Flange Deep Recess	2
3	97E95-06610	Bolt, Hexagon with Washer Deep Recess	2
4	6AW-W8195-10	Relay Assembly	1
5	6P2-8183X-00	Cap, Terminal	2
6	95D95-06025	Bolt, Flange Deep Recess	2
7	6BG-81925-00	Terminal	1
8	95D95-06016	Bolt, Flange Deep Recess	1
9	6MK-82389-00	Plate 2	1
10	95D95-06016	Bolt, Flange Deep Recess	1
11	6MK-82119-00	Cover, Reed Wire	1
12	6MK-82398-00	Plate 3	1
13	95D95-06016	Bolt, Flange Deep Recess	2
14	6MK-81336-00	Grommet	1
15	6MK-67727-00	Clamp Plate 1	1
16	95D95-06016	Bolt, Flange Deep Recess	1
17	6MK-81916-00	Cover, Terminal	1
18	6MK-81921-00	Gasket, Terminal	1
19	95D95-06020	Bolt, Flange Deep Recess	8

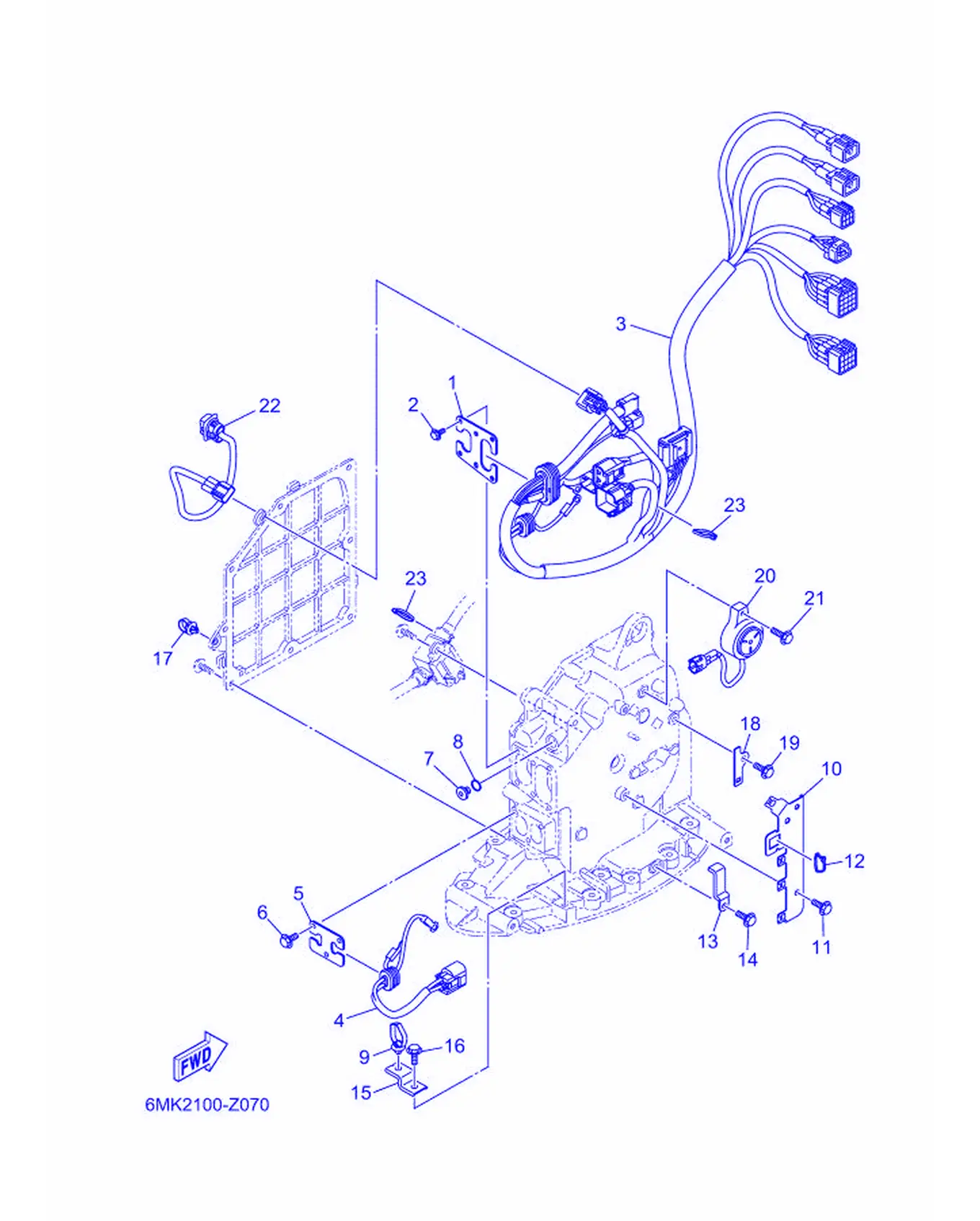

Fig. 8Electrical 2

REF	Part No.	Name	Qty
1	6MK-82388-10	Plate	1
2	97595-05512	Bolt, With Washer	6
3	6MK-82590-10	Wire Harness Assembly	1
4	6MK-82553-00	Extension, Wire Lead	1
5	6MK-82388-00	Plate	1
6	97595-05512	Bolt, With Washer	3
7	90340-08003	Plug, Straight Screw	1
8	93210-09165	O-ring	1
9	90464-36007	Clamp	1
10	6MK-68368-00	Clamp	1
11	95D95-06016	Bolt, Flange Deep Recess	2
12	90465-11M59	Clamp	1
13	90462-20005	Clamp	1
14	95D95-06016	Bolt, Flange Deep Recess	1
15	6DA-82388-00	Plate	1
16	95D95-06016	Bolt, Flange Deep Recess	1
17	90464-36007	Clamp	1
18	6MK-67879-00	Stay	1
19	95D95-06016	Bolt, Flange Deep Recess	1
20	6KA-83383-01	Buzzer	1
21	90119-05M04	Bolt, With Washer	1
22	6GR-82563-00	Trim & Tilt Switch Assembly	1
23	90465-11M59	Clamp	2

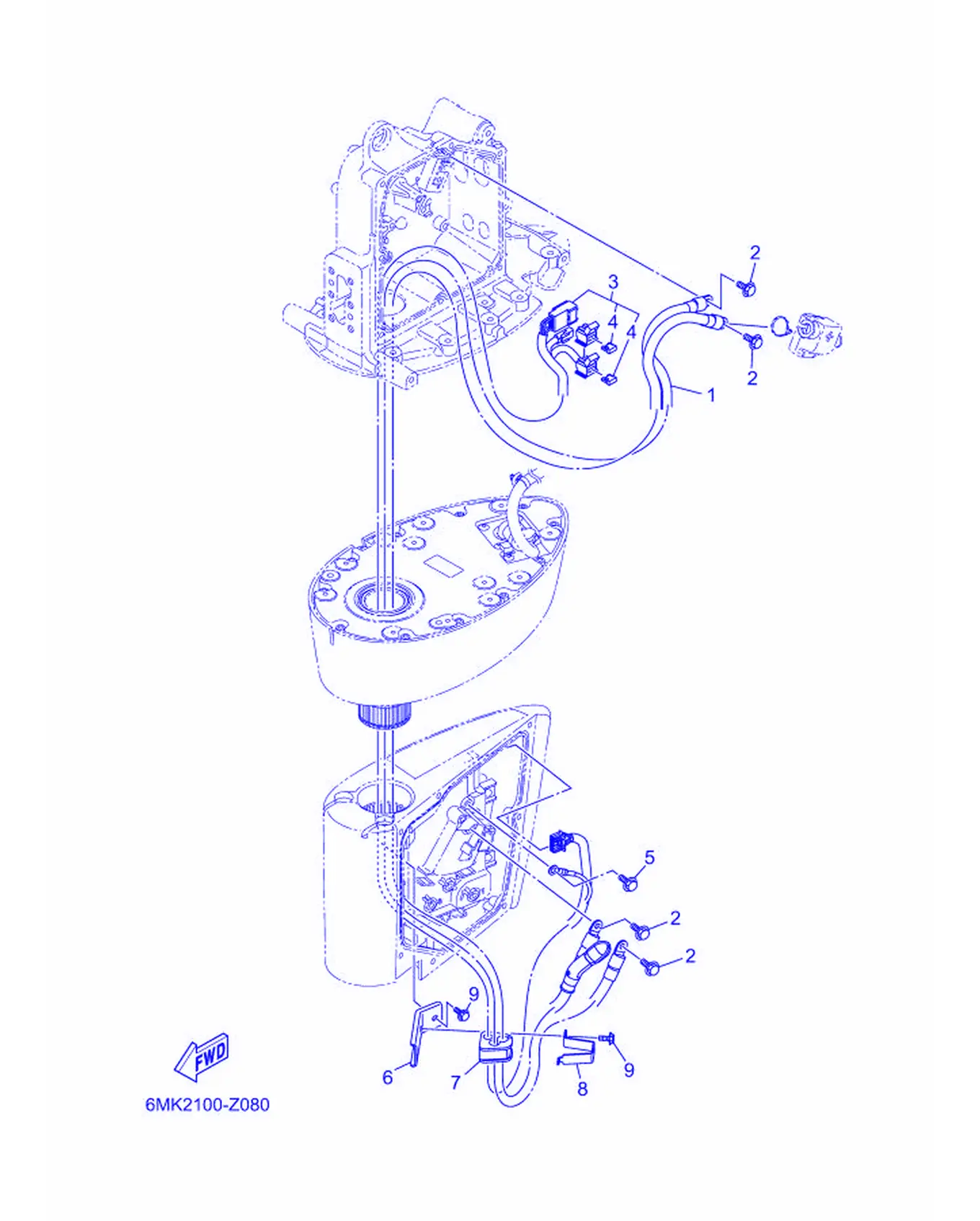

Fig. 9Electrical 3

REF	Part No.	Name	Qty
1	6MK-82211-10	Wire, High Voltage Lead 1	1
2	95D95-06016	Bolt, Flange Deep Recess	4
3	6MK-8259M-00	Wire Harness Assembly 2	1
4	6CB-82151-00	Fuse (10A)	2
5	95D95-06016	Bolt, Flange Deep Recess	1
6	6MK-82588-00	Plate	1
7	6MK-81336-00	Grommet	1
8	6MK-67727-00	Clamp Plate 1	1
9	95D95-06012	Bolt, Flange Deep Recess	2

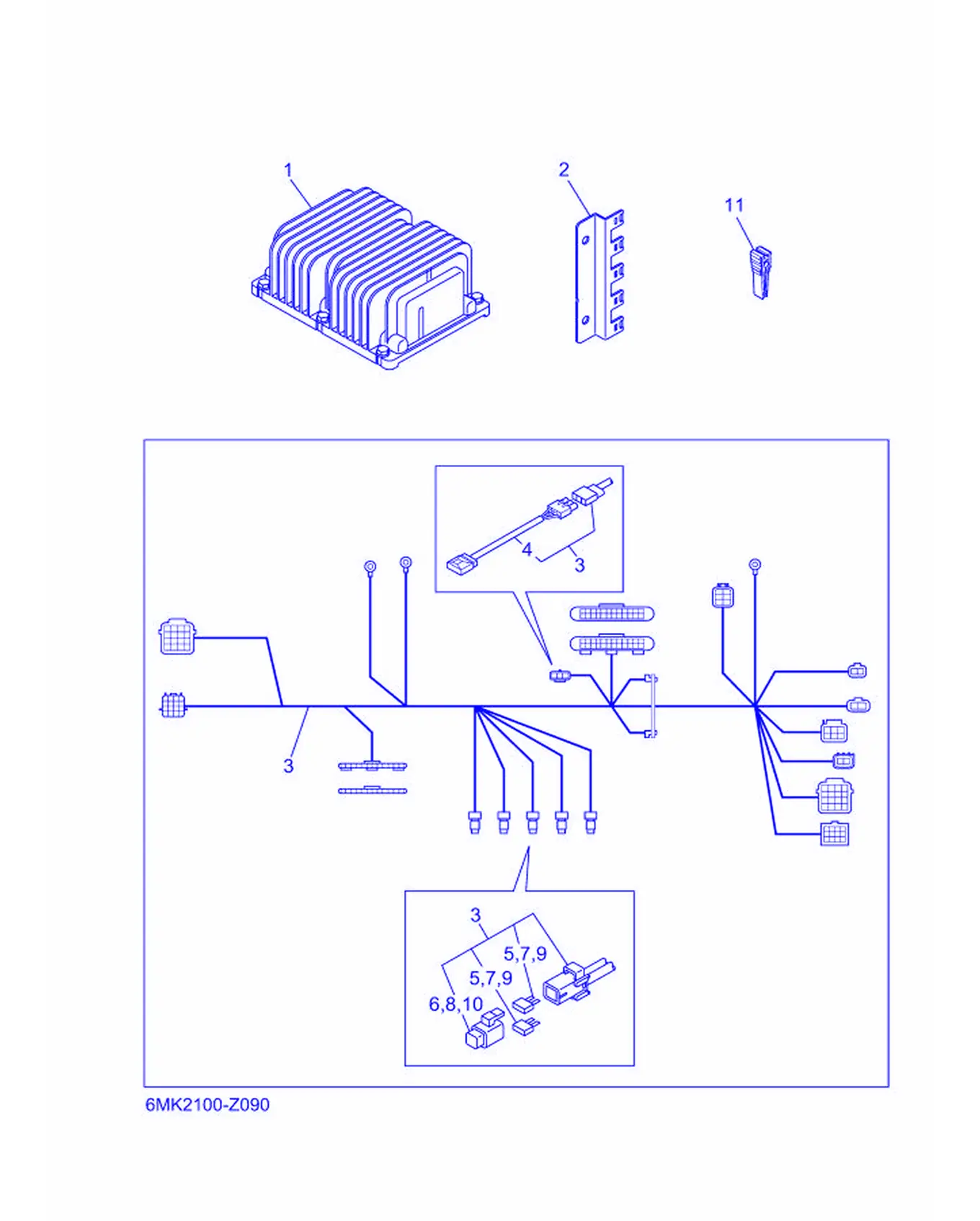

Fig. 10Electrical 4

REF	Part No.	Name	Qty
1	6MK-86600-10	DC-DC Converter Assembly	1
2	6MK-8350E-00	Bracket	1
3	6MK-82590-00	Wire Harness Assembly	1
4	6CE-81980-01	Diode Assembly	1
5	67F-82151-10	Fuse (30A)	6
6	67F-8215B-20	Cap (Green)	3
7	67F-82151-50	Fuse (15A)	2
8	67F-8215B-00	Cap (Black)	1
9	67F-82151-20	Fuse (5A)	2
10	69J-8215B-00	Cap (Brown)	1
11	67F-2812A-00	Puller, Fuse	1

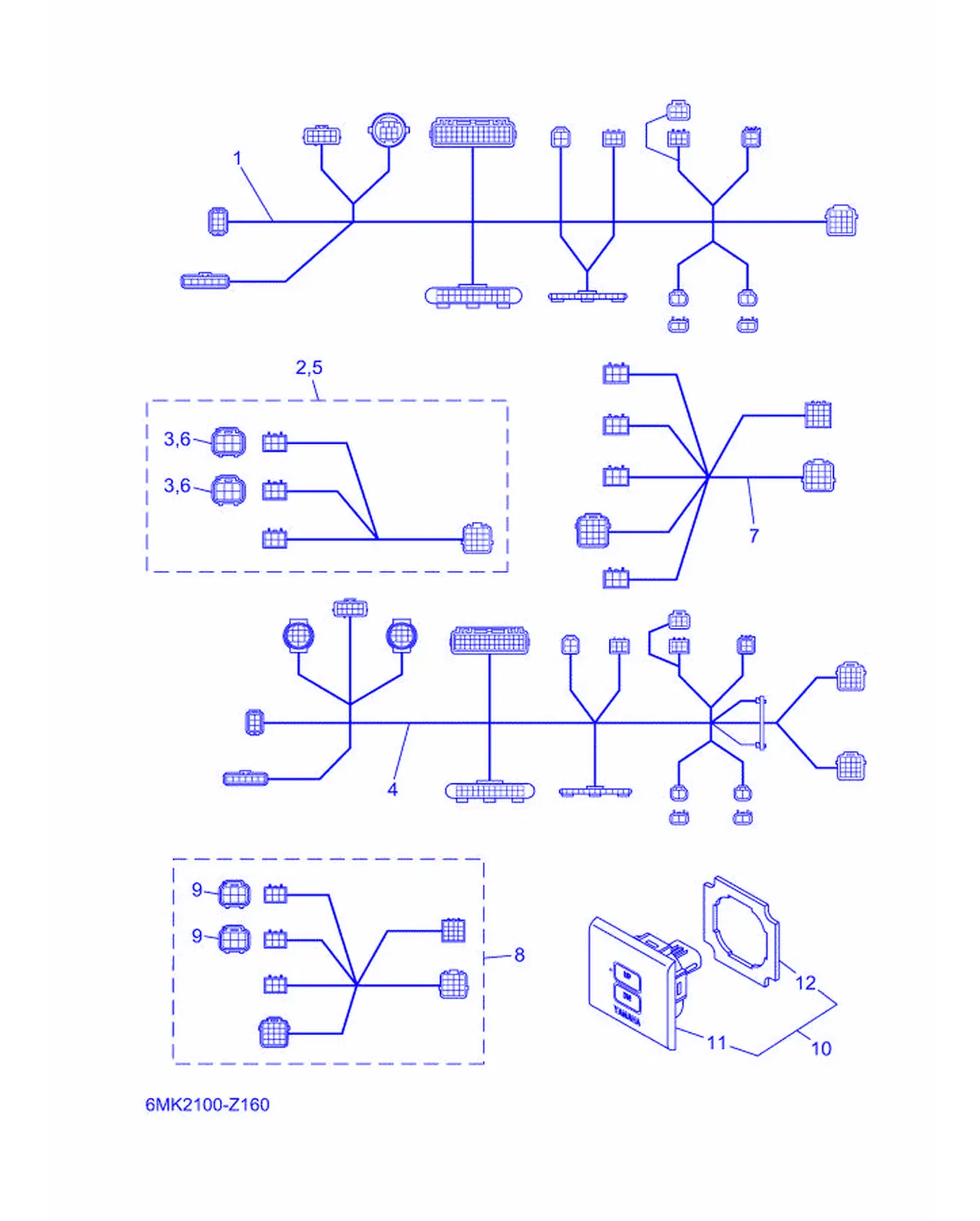

Fig. 11Optional Parts 1

REF	Part No.	Name	Qty
1	6MK-82580-00	Wire Harness Assembly 2	1
2	6MK-8259N-00	Wire Harness Assembly 3	1
3	6Y8-85371-01	End of Line Resistor	2
4	6MK-82580-10	Wire Harness Assembly 2	1
5	6MK-8259N-00	Wire Harness Assembly 3	2
6	6Y8-85371-01	End of Line Resistor	2
7	6MK-8259N-40	Wire Harness Assembly 3	1
8	6MK-8259N-30	Wire Harness Assembly 3	1
9	6Y8-85371-01	End of Line Resistor	2
10	6MK-82570-00	Panel Switch Assembly	1
11	6X9-82571-01	Panel, Switch	1
12	6X9-22480-00	SealAssembly	1

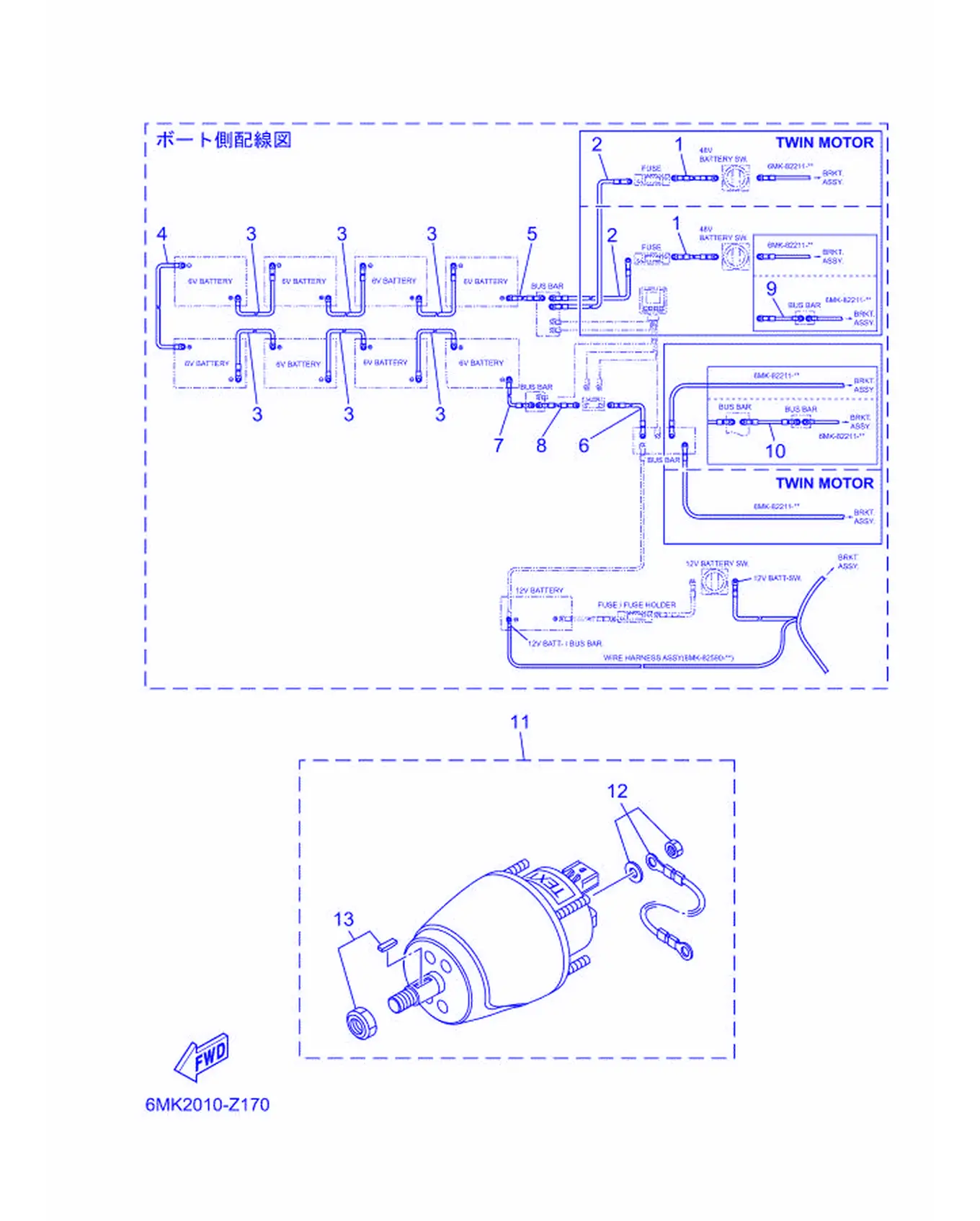

Fig. 12Optional Parts 2

REF	Part No.	Name	Qty
1	6MK-82223-00	Wire, High Voltage Plus Lead 2	1
1	6MK-82223-00	Wire, High Voltage Plus Lead 2	2
2	6MK-82223-10	Wire, High Voltage Plus Lead 2	1
2	6MK-82223-10	Wire, High Voltage Plus Lead 2	2
3	6MK-82212-30	Wire, High Voltage Lead 2	6
3	6MK-82212-00	Wire, High Voltage Lead 2	6
4	6MK-82212-40	Wire, High Voltage Lead 2	1
4	6MK-82212-10	Wire, High Voltage Lead 2	1
5	6MK-82223-50	Wire, High Voltage Plus Lead 2	1
5	6MK-82223-30	Wire, High Voltage Plus Lead 2	1
6	6MK-82224-00	Wire, High Voltage Minus Lead 2	1
6	6MK-82224-30	Wire, High Voltage Minus Lead 2	1
7	6MK-82224-10	Wire, High Voltage Minus Lead 2	1
7	6MK-82224-50	Wire, High Voltage Minus Lead 2	1
8	6MK-82224-G0	Wire, High Voltage Minus Lead 2	1
9	6MK-82223-20	Wire, High Voltage Plus Lead 2	1
9	6MK-82223-60	Wire, High Voltage Plus Lead 2	1
9	6MK-82223-70	Wire, High Voltage Plus Lead 2	1
10	6MK-82224-20	Wire, High Voltage Minus Lead 2	1
10	6MK-82224-60	Wire, High Voltage Minus Lead 2	1
10	6MK-82224-70	Wire, High Voltage Minus Lead 2	1
11	6JM-615A0-10	Helm Assembly	1
12	6X9-42409-00	Repair Kit 8	1
13	6X9-4240A-00	Repair Kit 9	1

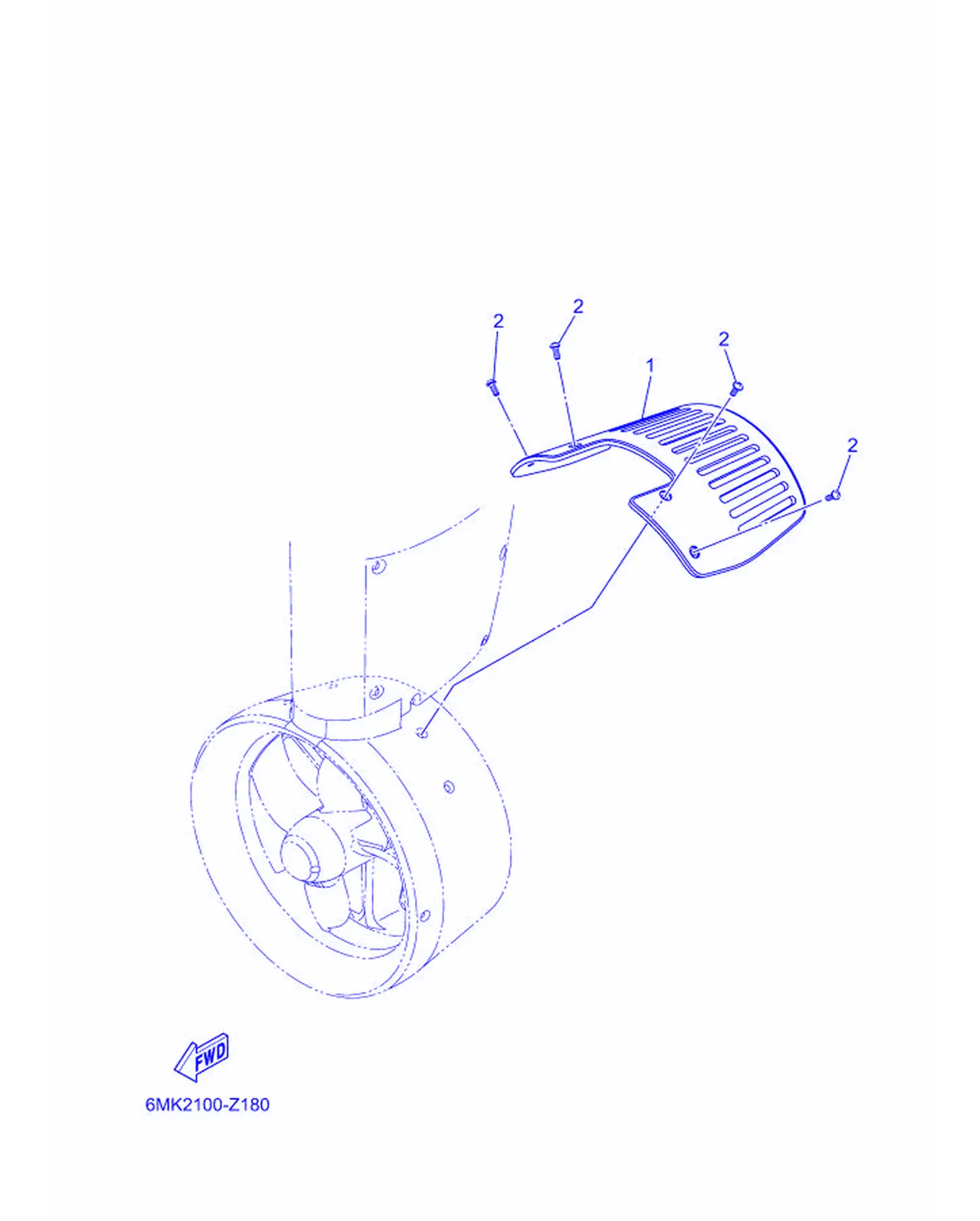

Fig. 13Optional Parts 3

REF	Part No.	Name	Qty
1	6MK-44554-00-P0	Plate	1
2	90159-06M03	Screw, With Washer	4

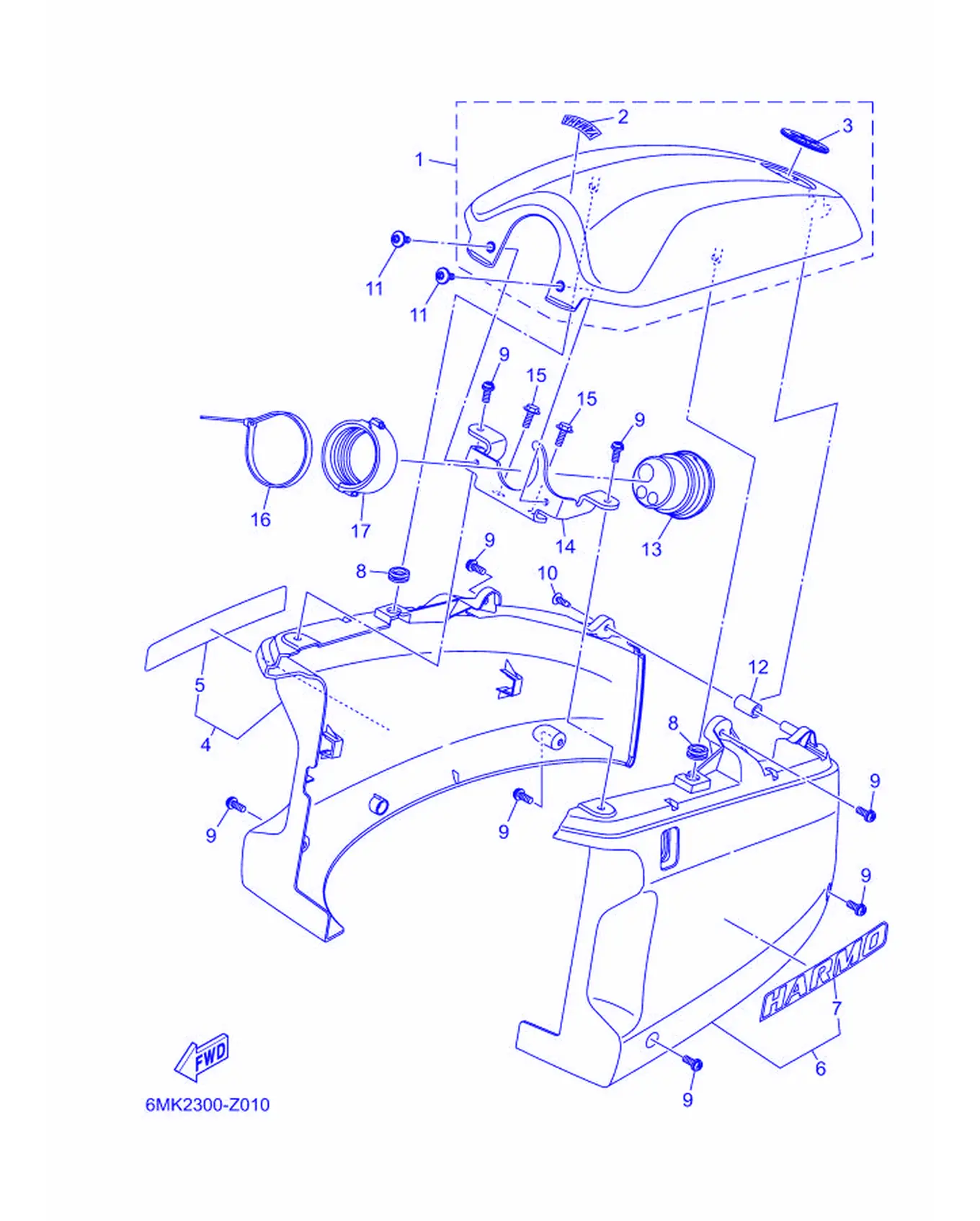

Fig. 14Top Cowling

REF	Part No.	Name	Qty
1	6MK-Y427V-00-P0	Apron Cover Complete Assembly	1
2	6MK-42677-00	Graphic, Front	1
3	6LB-42697-00	Tuning Fork Mark	1
4	6MK-Y427E-00-P0	Apron 1 Assembly	1
5	6MK-42675-00	Graphic, Side 1	1
6	6MK-Y427H-00-P0	Apron 2 Assembly	1
7	6MK-42675-00	Graphic, Side 1	1
8	90480-14M17	Grommet	2
9	90159-06062	Screw, Washer	8
10	97780-50016	Screw, Tapping	1
11	90111-06144	Bolt	2
12	6MK-42768-00	Damper	1
13	6MK-42725-00	Grommet	1
14	6MK-42761-00	Stopper	1
15	95D95-06016	Bolt, Flange Deep Recess	2
16	90464-20258	Clamp	1
17	68F-42753-00	Fastener	1

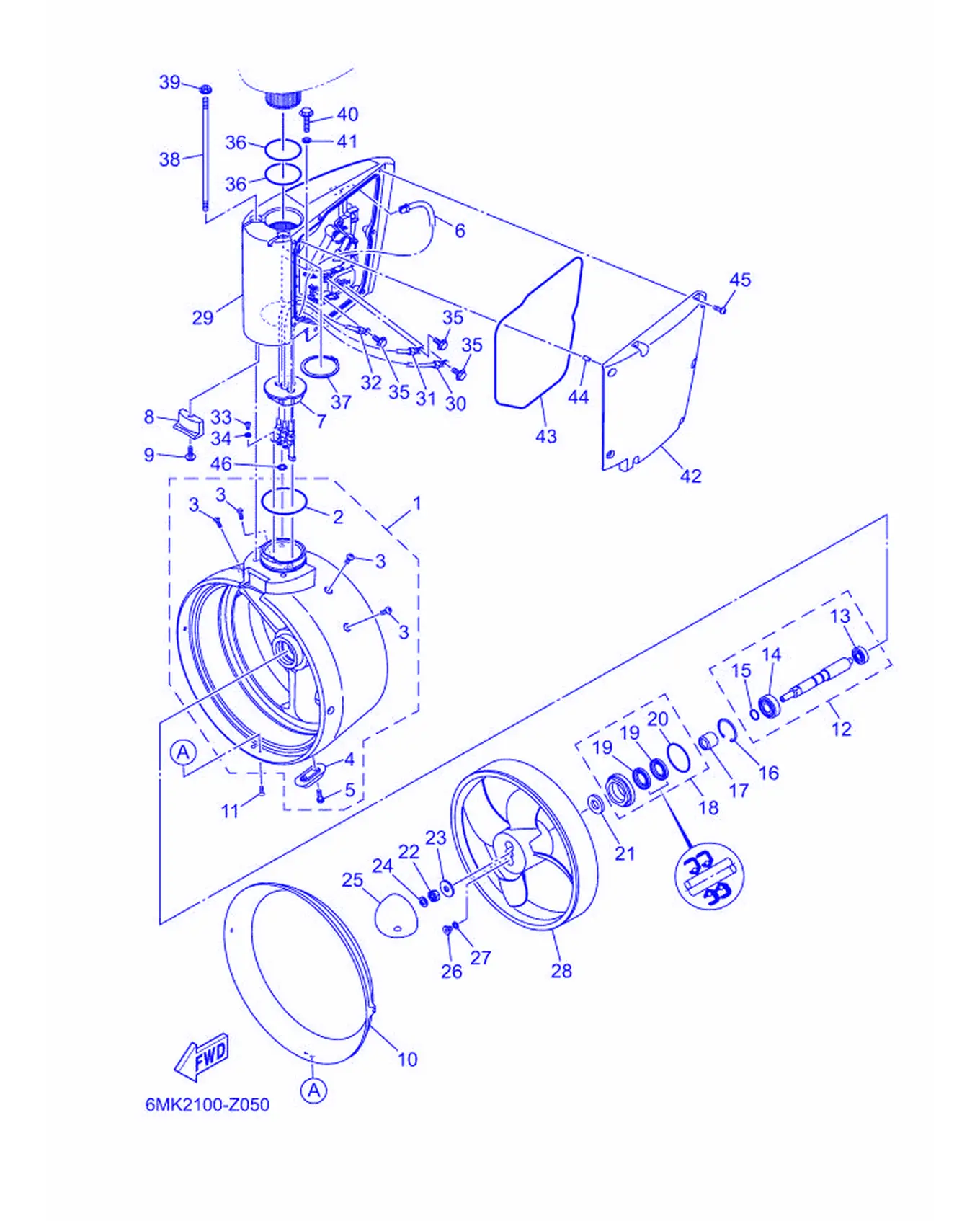

Fig. 15Drive Unit

REF	Part No.	Name	Qty
1	6MK-W1269-00-P0	Duct Assembly	1
2	93210-69MG6	O-ring	1
3	90111-06115	Bolt	4
4	65W-45251-00	Anode	1
5	90101-06020	Bolt, Hexagon	2
6	6MK-8259L-00	Wire Harness Assembly 1	1
7	6MK-81364-00	Grommet	1
8	6MK-12691-00-P0	Duct 1	1
9	90110-06038	Bolt, Hexagon Socket Head	1
10	6MK-12692-00-P0	Duct, 2	1
11	90152-05015	Screw, Countersunk	3
12	6MK-Y456A-00	Propeller Shaft Assembly	1
13	93306-20004	Bearing	1
14	93306-20301	Bearing	1
15	93210-14167	O-ring	1
16	93420-40094	Circlip	1
17	6JM-45651-00	Collar, Propeller Shaft	1
18	6MK-Y456B-00	Cap Assembly	1
19	93101-25M28	OilSeal	2
20	93210-49046	O-ring	1
21	90201-17M00	Washer,Plate	1
22	90171-10M01	Nut, Castle	1
23	90201-10085	Washer, Plate	1
24	92995-10600	Washer	1
25	6MK-45985-00-P0	Cap, Propeller	1
26	90340-08003	Plug, Straight Screw	2
27	90430-08003	Gasket	2
28	6MK-44390-00-P0	Impeller Complete	1
29	6MK-W4771-00-P0	Housing Assembly	1
30	6MK-82213-00	Wire, High Voltage Lead 3	1
31	6MK-82213-10	Wire, High Voltage Lead 3	1
32	6MK-82213-20	Wire, High Voltage Lead 3	1
33	91380-05010	Bolt	3
34	92990-05600	Washer,Plate	3
35	95D95-06016	Bolt, Flange Deep Recess	3
36	93210-55M14	O-ring	2
37	93410-60100	Circlip	1
38	90116-08092	Bolt, Stud	2
39	90179-08M34	Nut	2
40	95D75-08035	Bolt, Flange Deep Recess	1
41	90210-08017	Washer, Seal	1
42	6MK-47721-00-P0	Cover, Housing	1
43	6MK-42414-00	O-ring	1
44	93606-12019	Pin, Dowel	1
45	90111-06203	Bolt	7
46	92990-08400	Washer	1

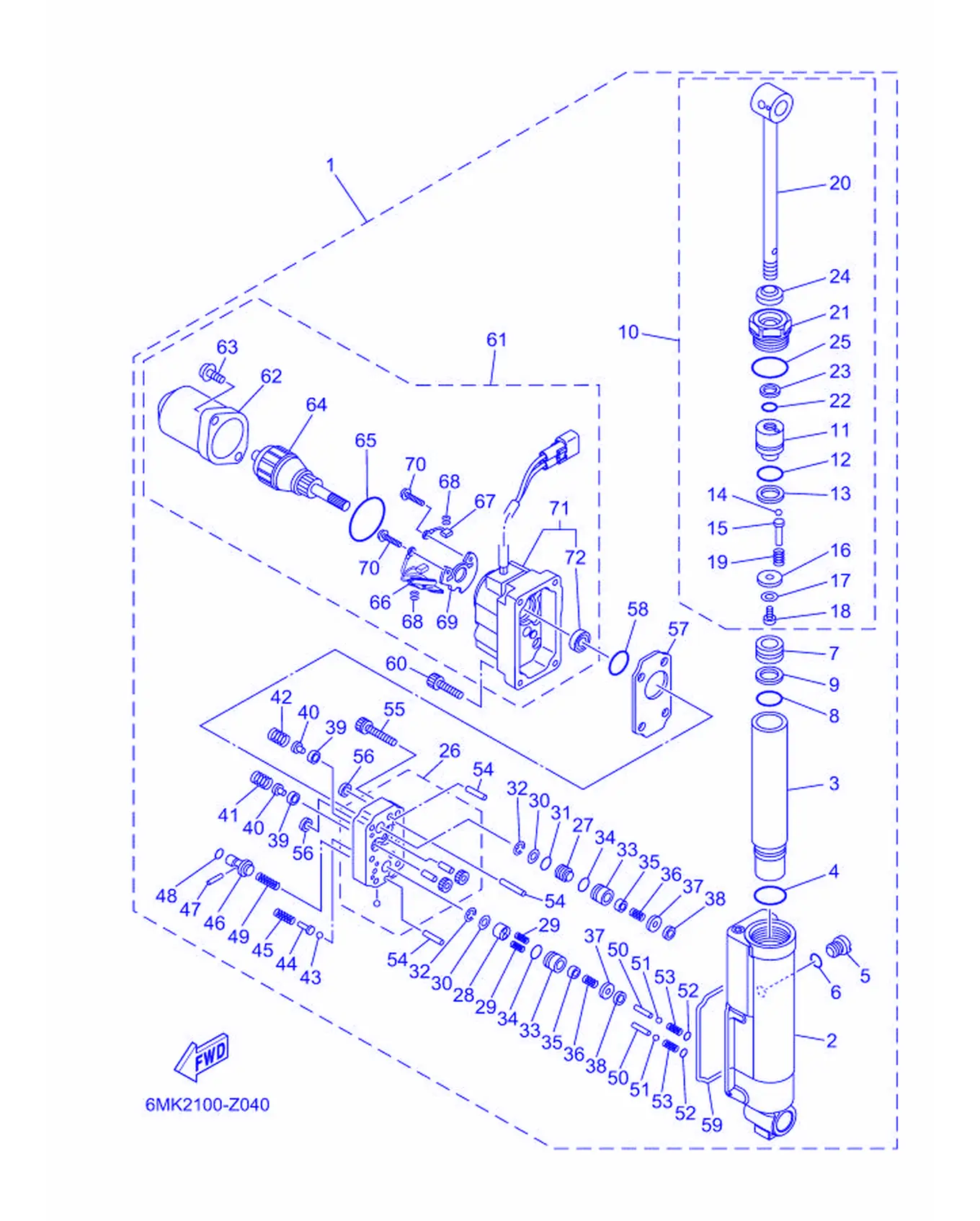

Fig. 16Power Tilt Assembly

REF	Part No.	Name	Qty
1	6MK-43840-00-8D	Power Tilt Assembly	1
2	6MK-4380K-00	Cylinder, Tilt Sub-assembly	1
3	6AH-22471-00	Cylinder, Shock Absorber	1
4	93210-320A7	O-ring	1
5	6H1-4388E-11	Plug, Taper Screw	1
6	93210-07003	O-ring	1
7	6AH-43814-00	Piston, Free	1
8	93210-24709	O-ring	1
9	6C5-43871-00	Ring, Back Up	1
10	6MK-43810-00	Tilt Piston Sub-Assembly	1
11	6AH-4380D-00	Piston Complete	1
12	93210-24709	O-ring	1
13	6C5-43871-00	Ring, Back Up	1
14	93501-08001	Ball	5
15	6AH-4386A-00	Pin, Absorber Valve	5
16	6AH-4385E-00	Plate, Piston	1
17	92902-06200	Washer	1
18	6AH-43878-00	Bolt, Socket	1
19	6AH-43857-00	Spring	5
20	6MK-43801-00	Rod	1
21	6AH-43811-00	Screw, Cylinder End	1
22	6H1-43866-01	O-ring	1
23	69A-43871-00	Ring, Back Up	1
24	69A-43812-00	Seal, Dust	1
25	62X-43862-00	O-ring	1
26	6AH-43830-00	Gear Pump Assembly	1
27	69A-43841-00	Piston, Shuttle	1
28	69A-4384M-00	Piston, Shuttle 2	1
29	62Y-43894-00	Spring, Shuttle Return	2
30	69A-4384F-00	Seal, Main Valve	2
31	6H1-43883-00	O-ring	1
32	99002-03600	Circlip	2
33	69G-4382G-00	Valve Seat	2
34	93210-12N52	O-ring	2
35	6T4-43808-00	Seat Valve Complete 1	2
36	69G-43853-00	Spring	2
37	69G-4388F-00	Spacer	2
38	69J-4381C-00	Filter 3	2
39	6H1-4384G-11	Seal, Relief Valve	2
40	6H1-43844-10	Pin, Valve Support	2
41	6F2-43855-00	Spring	1
42	6H1-43856-10	Spring, Down Relief	1
43	93501-08001	Ball	2
44	69A-4386A-00	Pin, Absorber Valve	2
45	69A-43824-00	Spring, Down Relief 2	2
46	69A-43848-10	Rod, Manual Release	1
47	93602-15250	Pin, Dowel	1
48	93210-06001	O-ring	1
49	6AH-43854-00	Spring, Manual Release	1
50	69A-4381G-00	Pin 1	2
51	93501-08001	Ball	2
52	6H1-43883-00	O-ring	2
53	69A-4384H-00	Spring	2
54	93606-14081	Pin, Dowel	2
55	91312-05025	Bolt, Hexagon Socket Head	6
56	69J-4381C-00	Filter 3	2
57	6AH-4381J-00	Plate	1
58	N35-43862-10	O-ring	1
59	69A-23129-00	Gasket, Drain Plug	1
60	69A-43878-00	Bolt, Socket	4
61	6MK-43880-00	Motor Assembly	1
62	6AH-43804-00	Starter Assembly	1
63	67C-43879-10	Screw, Washer	2
64	67C-43805-11	Armature Assembly	1
65	67C-43862-10	O-ring	1
66	67C-82181-10	Circuit Breaker Complete	1
67	67C-43892-10	Brush 2	1
68	67C-4386K-10	Spring, Brush	2
69	67C-4380F-10	Plate, Brush Holder	1
70	97602-04316	Screw, Pan Head Washer	2
71	6MK-43881-01	Frame, End	1
72	67C-43882-10	Oil Seal	1

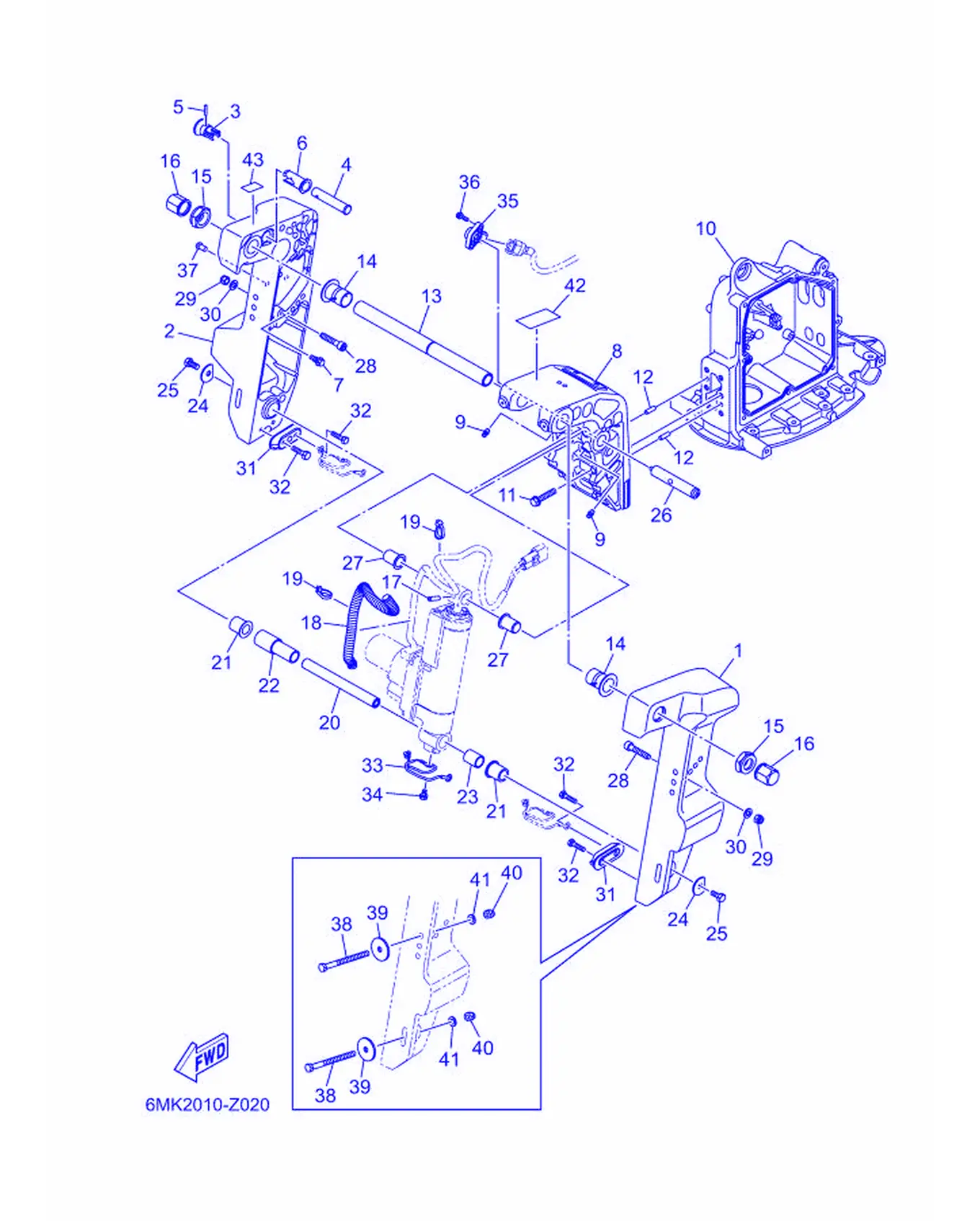

Fig. 17Bracket 1

REF	Part No.	Name	Qty
1	6MK-43111-00-P0	Bracket, Clamp 1	1
2	6MK-43112-00-P0	Bracket, Clamp 2	1
3	6FM-43192-00	Knob, Stopper	1
4	6MK-43191-00	Shaft, Stopper	1
5	91690-30018	Pin,Spring	1
6	6FM-43189-00	Bushing	1
7	90109-06MA1	Bolt	1
8	6MK-43311-00-P0	Bracket, Swivel 1	1
9	93700-06002	Nipple, Grease	2
10	6MK-43312-00	Bracket, Swivel 2	1
11	90119-08176	Bolt, with Washer	6
12	93606-19M23	Pin, Dowel	2
13	6MK-43131-00	Bolt, Clamp Bracket	1
14	90386-22MA4	Bushing	2
15	90185-22M11	Nut, Self-Locking	2
16	6G5-43145-01	Cap,ClampBracket	2
17	91690-60022	Pin, Spring	1
18	90447-10011	Tube	1
19	90464-35132	Clamp	2
20	6MK-43818-00	Pin, Lower Shock Mount	1
21	90386-16MA7	Bushing	2
22	90386-16003	Bushing	1
23	90387-16003	Color	1
24	90209-08014	Washer	2
25	97080-08016	Bolt	2
26	6MK-43126-00	Pin, Upper Shock Mount	1
27	90387-16037	Collar	2
28	90110-08121	Bolt, Hexagon Socket Head	2
29	95380-08600	Nut	2
30	92990-08600	Washer,Plate	2
31	65W-45251-00	Anode	2
32	90101-06020	Bolt, Hexagon	4
33	63V-82127-00	Wire,Lead 2	1
34	97E95-06510	Bolt, Hexagon with Washer Deep Recess	1
35	6GR-85887-00	Sensor, Angle	1
36	97595-05516	Bolt, with Washer	2
37	90269-02M08	Rivet	2
38	90101-08M88	Bolt, Hexagon	4
39	90201-08MA4	Washer,Plate	4
40	90185-08057	Nut, Self-Locking	4
41	92990-08600	Washer,Plate	4
42	6MK-42794-01	Label, Warning (General)	1
43	6AH-81996-01	Mark	1

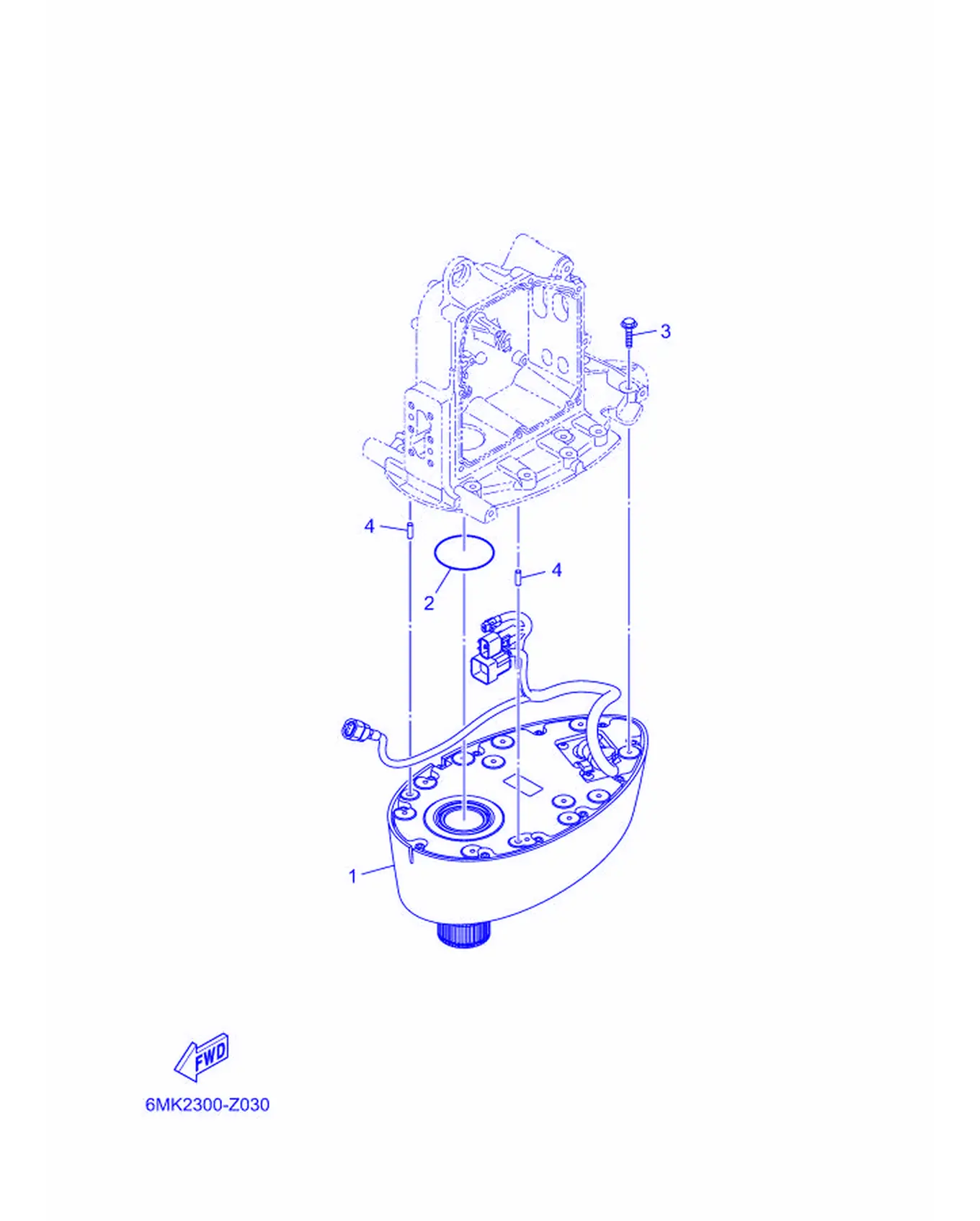

Fig. 18Bracket 2

REF	Part No.	Name	Qty
1	6MK-238B0-00-P0	Power Steering Actuator Assembly	1
2	93210-63006	O-ring	1
3	95D95-06030	Bolt, Flange Deep Recess	12
4	93606-19M23	Pin, Dowel	2
