Yamaha — f9.9c / f9.9cwhpl

Exploded diagrams and part specifications.

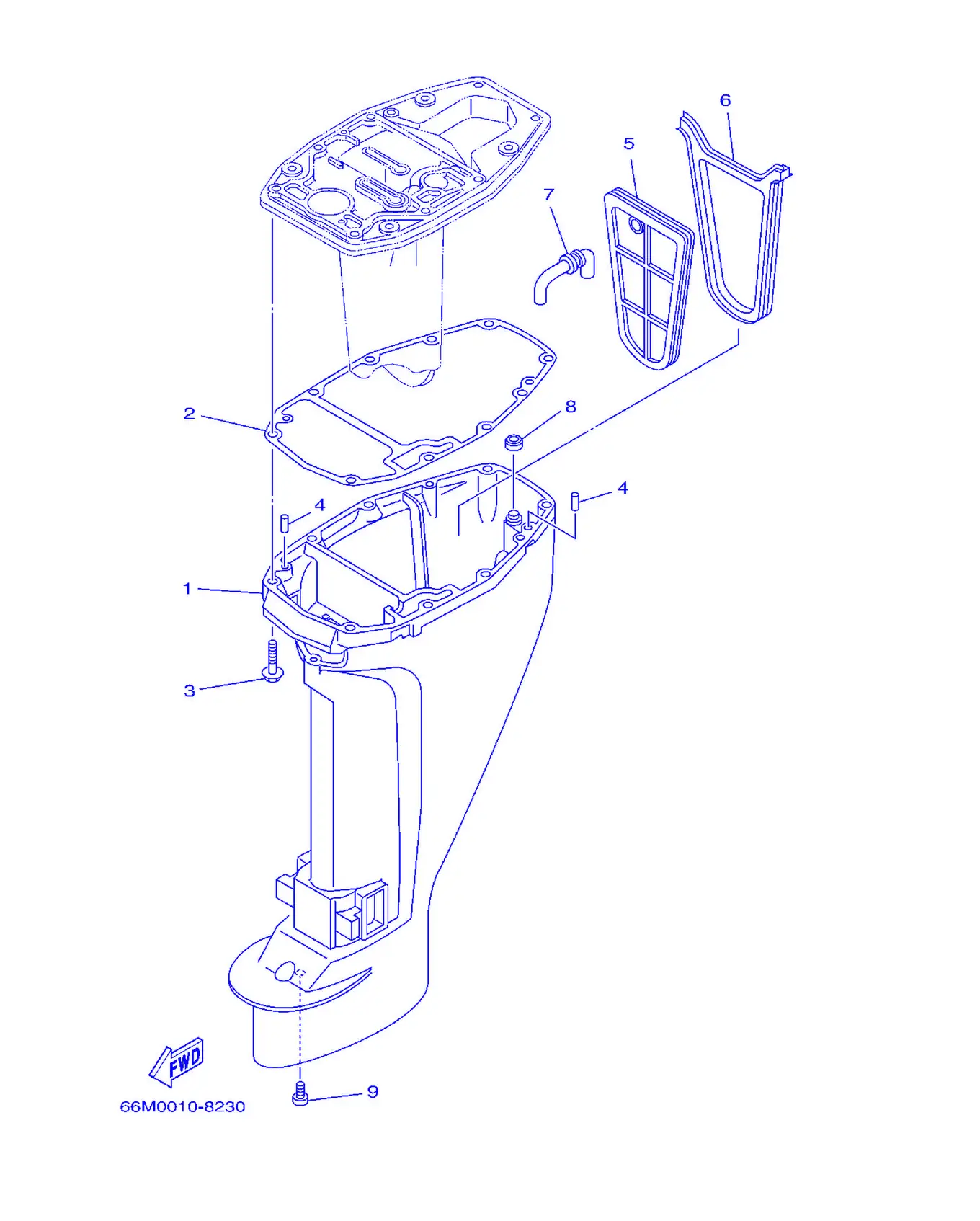

Fig. 1Upper Casing

REF	Part No.	Name	Qty
1	66M-45111-10-4D	Casing,Upper	1
2	66M-45113-00	Gasket,UpperCasing	1
3	97575-08545	Bolt, With Washer	6
4	93606-12019	Pin, Dowel	2
5	66M-45126-00	Plate,SealDamper	1
6	66M-45115-00	Gasket,UpperCasing	1
7	66M-45136-00	Pipe	1
8	66M-45128-00	Seal 2	1
9	90157-06M06	Screw, Pan Head	1

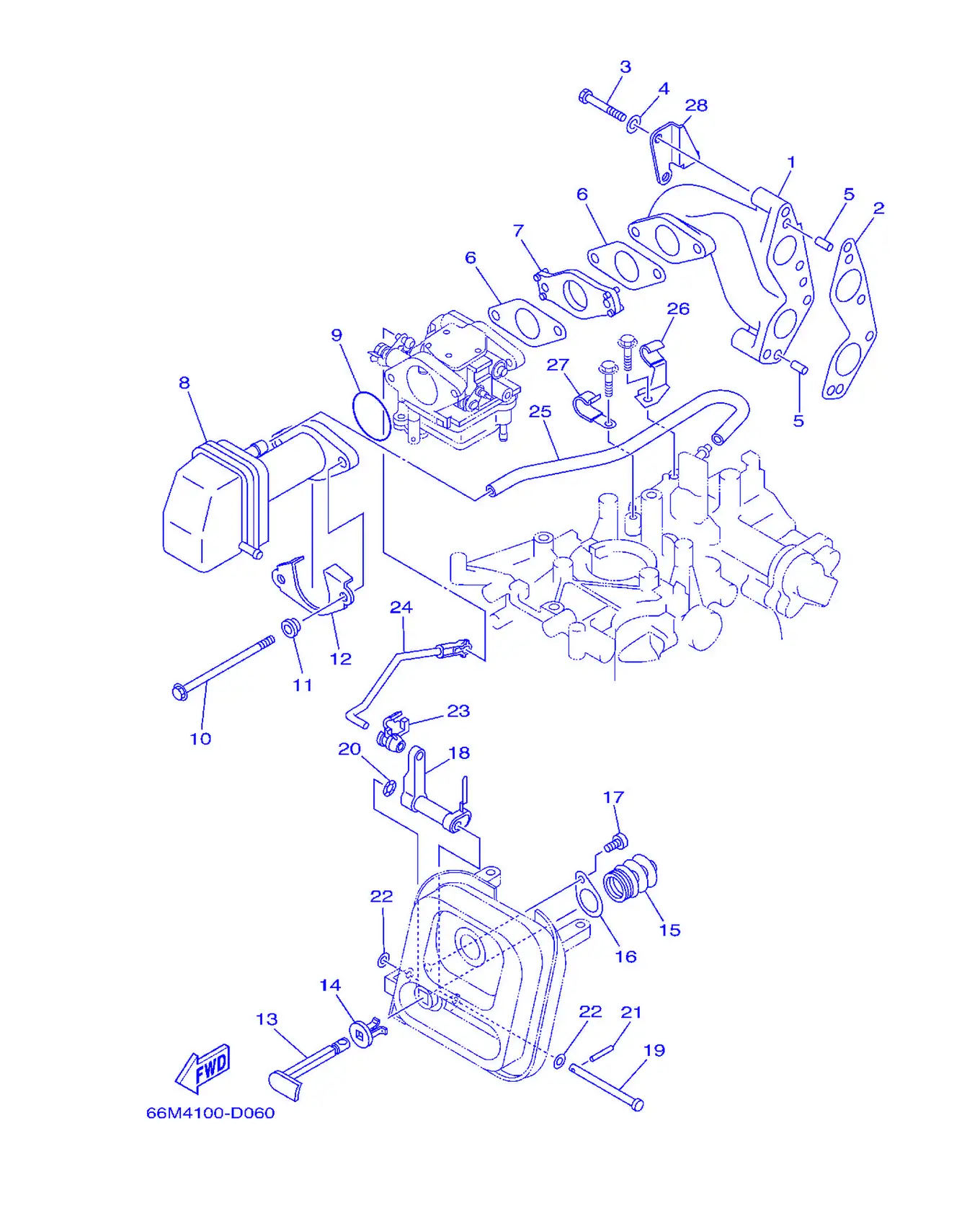

Fig. 2Intake

REF	Part No.	Name	Qty
1	66M-13641-10-94	Manifold 1	1
2	66M-13645-00	Gasket,Manifold 1	1
3	97095-06040	Bolt	4
4	92995-06600	Washer	4
5	93606-12019	Pin, Dowel	2
6	66M-13646-00	Gasket,Manifold 2	2
7	66M-14271-00	Insulator	1
8	66M-14440-00	SilencerAssembly,Intake	1
9	93210-35M86	O-ring	1
10	90119-06M76	Bolt, With Washer	2
11	90387-06M79	Color	2
12	66M-14477-00	Plate	1
13	66M-41271-00	Knob, Choke	1
14	689-41273-00	Grommet	1
15	66M-41292-00	Bushing 2	1
16	66M-41298-00	Washer 2	1
17	97780-50510	Screw, Tapping	1
18	66M-41252-00	Lever, Choke 1	1
19	90240-05M20	Pin, Clevis	1
20	90206-05005	Washer, Wave	1
21	91690-20016	Pin,Spring	1
22	90202-05088	Washer,Plate	2
23	6R5-41237-00	Joint, Link	1
24	66M-41256-00	Rod, Choke 1	1
25	66M-15373-00	Pipe, Breather	1
26	90465-08M82	Clamp	1
27	90465-08M83	Clamp	1
28	6D4-24566-00	Bracket, Filter	1

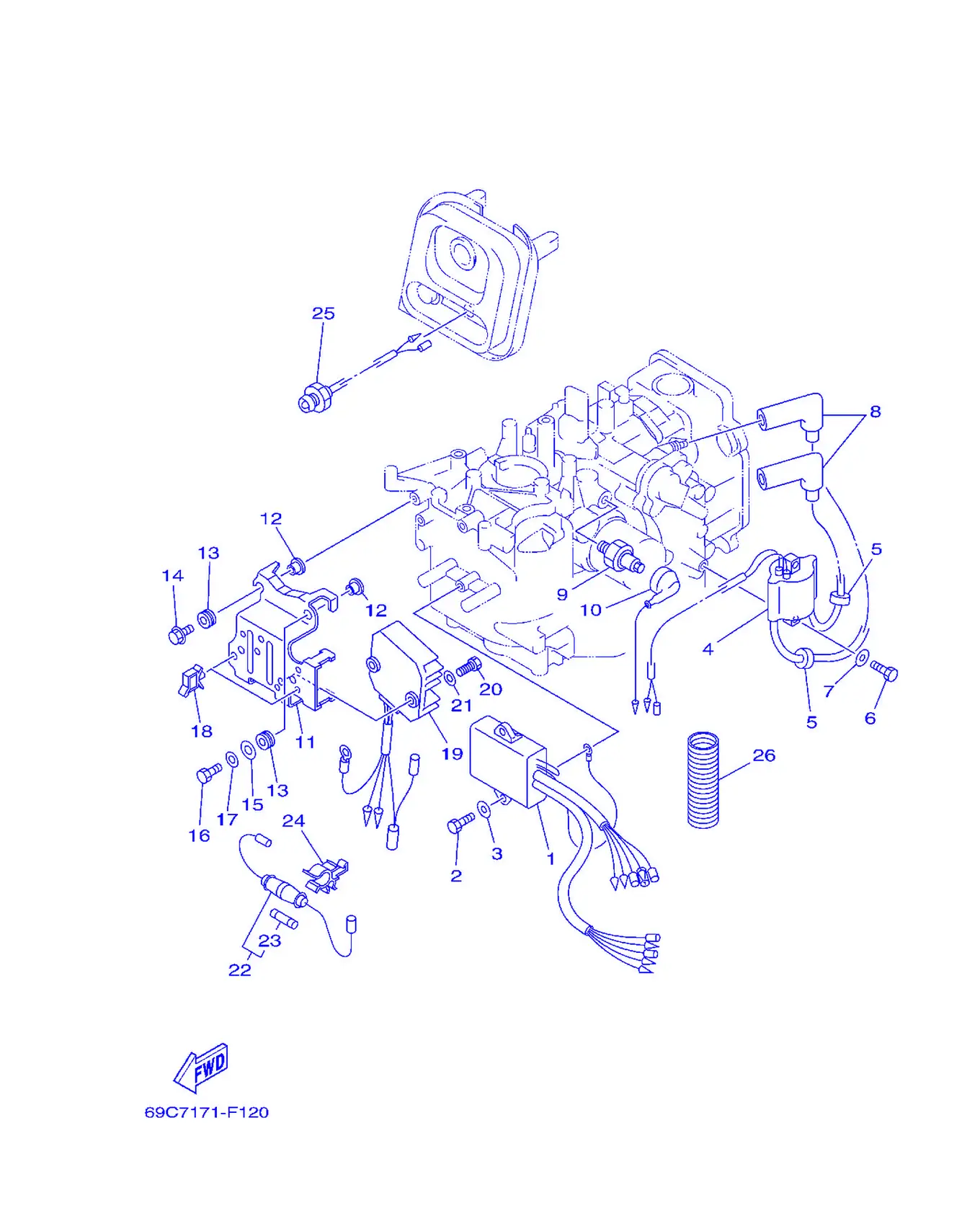

Fig. 3Electrical 1

REF	Part No.	Name	Qty
1	66M-85540-01	C.D.I. Unit Assembly	1
2	97095-06020	Bolt	2
3	92995-06600	Washer	2
4	66M-85570-00	Ignition Coil Assembly	1
5	90480-25161	Grommet	2
6	97095-06020	Bolt	2
7	92995-06600	Washer	2
8	6G8-82370-30	PlugCapAssembly	2
9	62Y-82504-10	Oil Pressure Switch Assembly	1
10	66M-82127-10	Wire,Lead 2	1
11	69A-85542-10	Bracket	1
12	90387-06M05	Color	4
13	90480-13M24	Grommet	4
14	95895-06020	Bolt, Flange	3
15	90201-06M05	Washer,Plate	1
16	97095-06025	Bolt	1
17	92995-06600	Washer	1
18	90464-09M13	Clamp	2
19	6G8-81960-A1	Rectifier and Regulator	1
20	97095-06016	Bolt	3
21	92995-06600	Washer	3
22	6G8-82150-00	FuseHolderAssembly	1
23	663-82151-00	Fuse (12V-20A)	1
24	6G5-82152-00	Holder,Fuse	1
25	65W-85410-01	Emergency Signal Light Assembly	1
26	6H1-83557-00	Tube	1

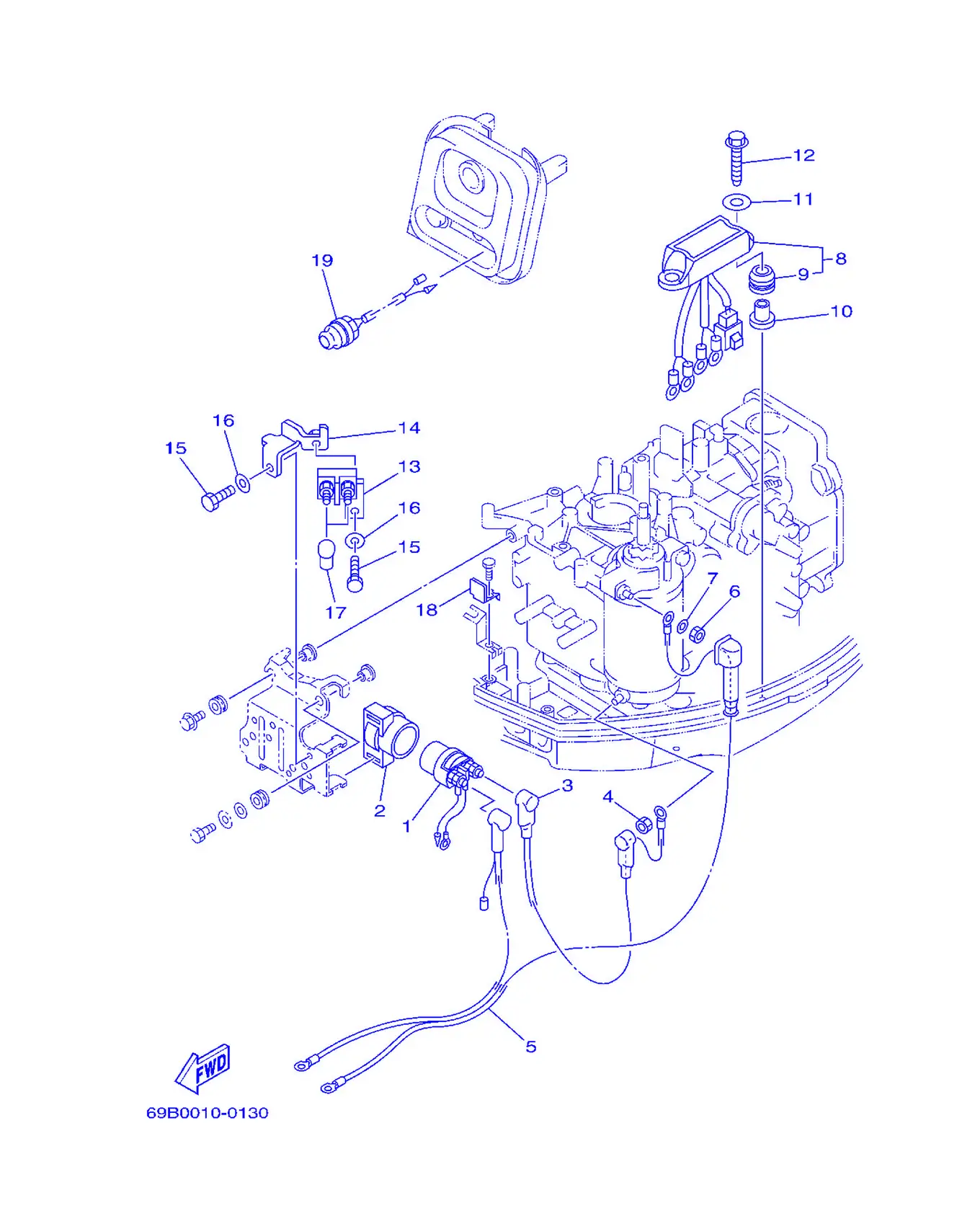

Fig. 4Electrical 2

REF	Part No.	Name	Qty
1	6G1-81941-10	StarterRelayAssembly	1
2	6G1-81952-00	Holder, Relay	1
3	66M-82117-00	Wire,Lead	1
4	65W-8182B-00	Nut, Special	1
5	66M-82105-J0	WireHarness	1
6	95380-08700	Nut	1
7	92990-08600	Washer,Plate	1
8	69A-81950-00	RelayAssembly	1
9	90480-09M12	Grommet	2
10	90387-06M03	Color	2
11	90201-06416	Washer,Plate	2
12	90109-06MA2	Bolt	2
13	6H5-81920-00	Terminal Assembly	1
14	69A-81929-00	Bracket, Terminal	1
15	97095-06012	Bolt	2
16	92995-06600	Washer	2
17	6G5-82119-00	Cover,LeadWire	2
18	90465-08M81	Clamp	1
19	65W-81870-00	Starting Switch Assembly	1

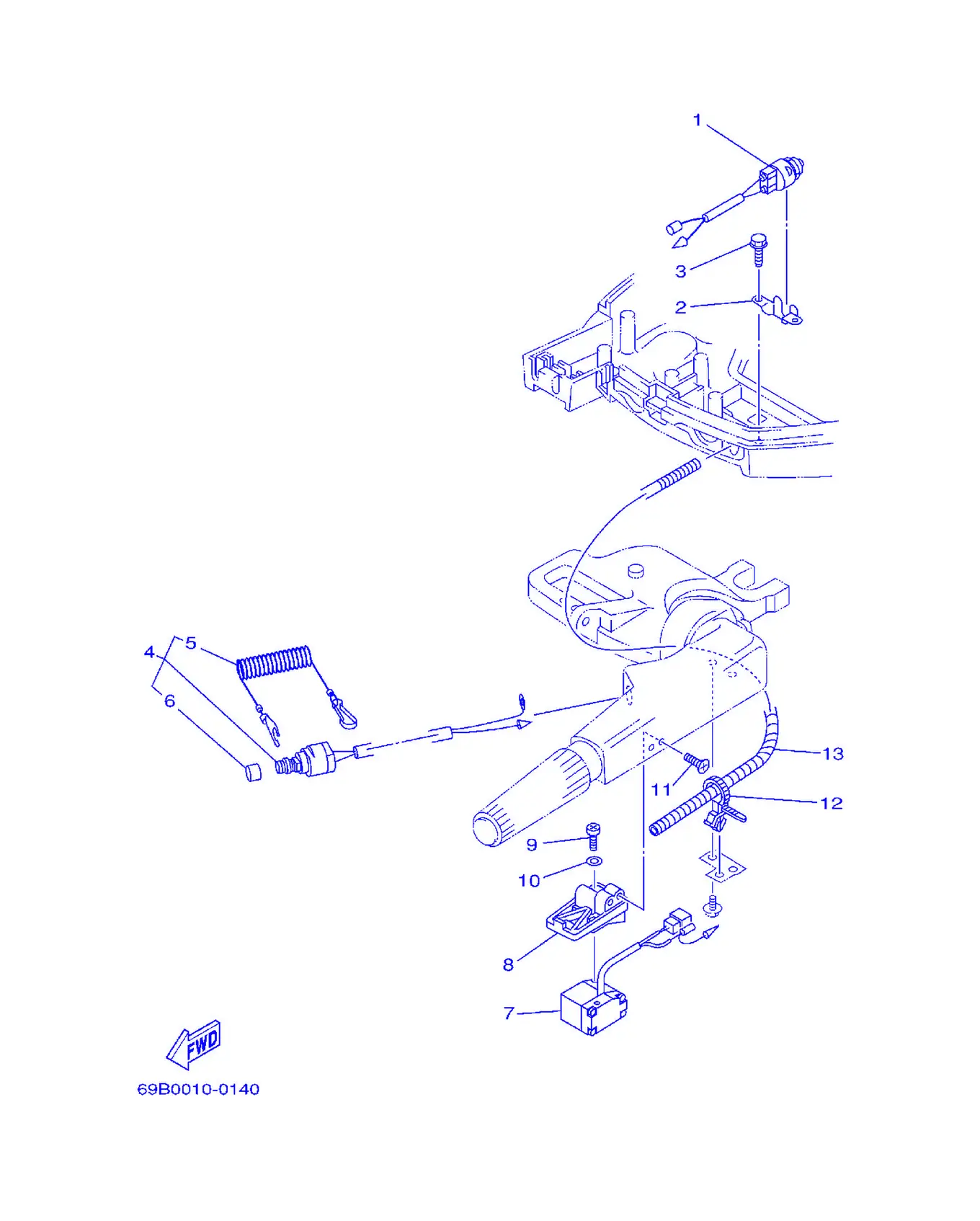

Fig. 5Electrical 3

REF	Part No.	Name	Qty
1	6H3-82540-01	Neutral Switch Assembly	1
2	6J8-82554-00	Stay, Neutral Switch	1
3	90109-06M86	Bolt	2
4	65W-82575-01	Engine Stop Switch Assembly	1
5	682-82556-00	Stopper	1
6	689-8257Y-00	Cap	1
7	69A-82563-00	Trim & Tilt Switch Assembly	1
8	69A-42176-00	Stay 2	1
9	97885-06020	Screw, Pan Head	2
10	92995-06600	Washer	2
11	90151-06040	Screw, Countersunk	3
12	90465-12M56	Clamp	1
13	90446-10MH3	Hose (L350)	1

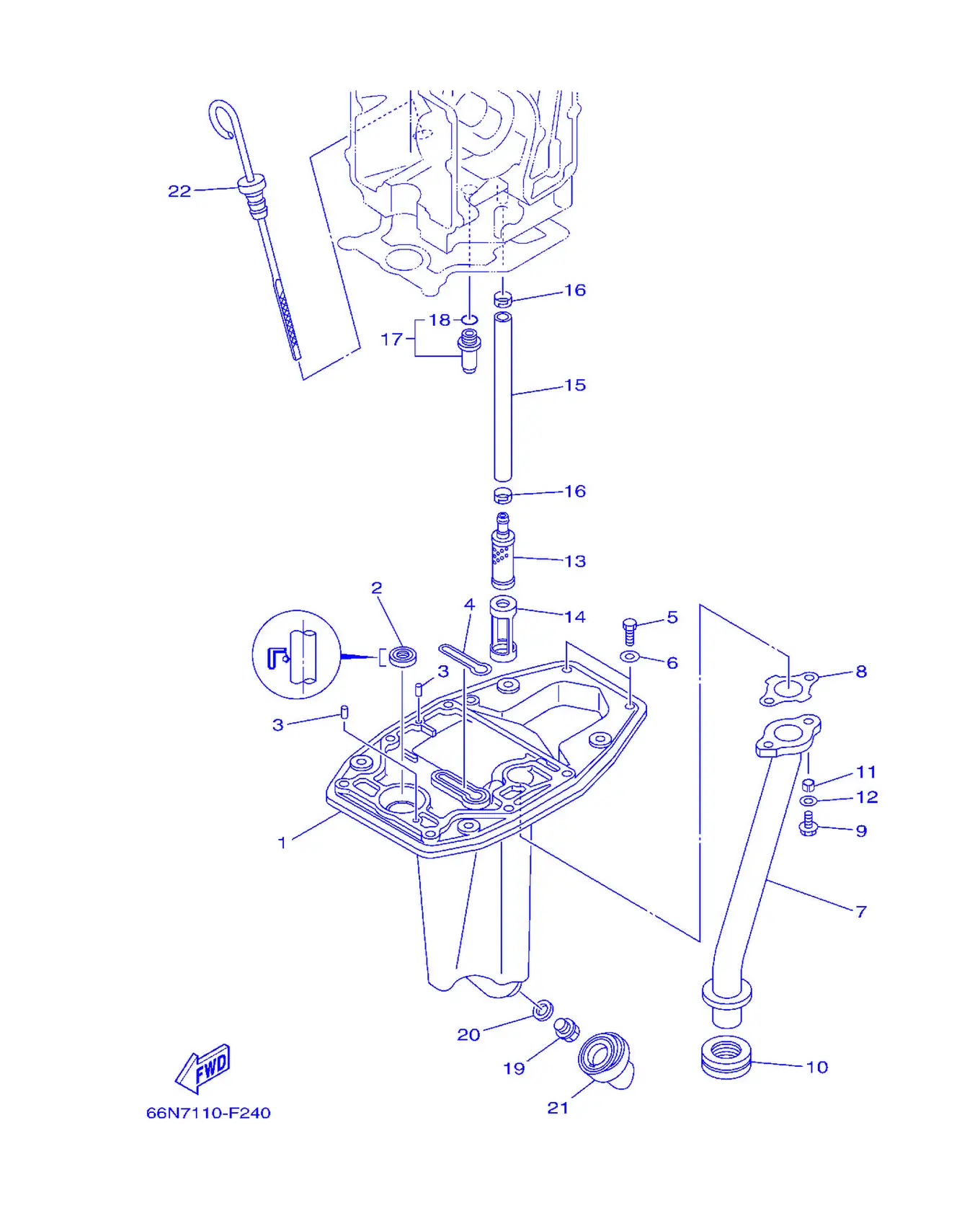

Fig. 6Oil Pan

REF	Part No.	Name	Qty
1	66M-41137-00-5B	Guide,Exhaust	1
2	93101-12M63	OilSeal	1
3	93606-12019	Pin, Dowel	2
4	66M-11355-00	Seal,Cylinder 1	1
5	97095-06020	Bolt	2
6	92995-06600	Washer	2
7	6D4-41131-00-94	Manifold,Exhaust 1	1
8	66M-41133-01	Gasket, Exhaust Manifold	1
9	90119-06090	Bolt, With Washer	2
10	6D4-41138-00	Seal, Exhaust 1	1
11	90387-05008	Color	2
12	90201-06015	Washer,Plate	2
13	66M-13421-00	Strainer 2	1
14	66M-13417-00	Cover,Strainer	1
15	66M-13416-00	Pipe,Oil 1	1
16	66M-24351-00	Band 1	2
17	6G8-11575-00	Relief Valve Assembly	1
18	93210-12M62	O-ring	1
19	90340-14M06	Plug, Straight Screw	1
20	90430-14M09	Gasket	1
21	66M-15316-00	Damper, Engine Mount 1	1
22	66M-15362-00	Plug, Oil Level	1

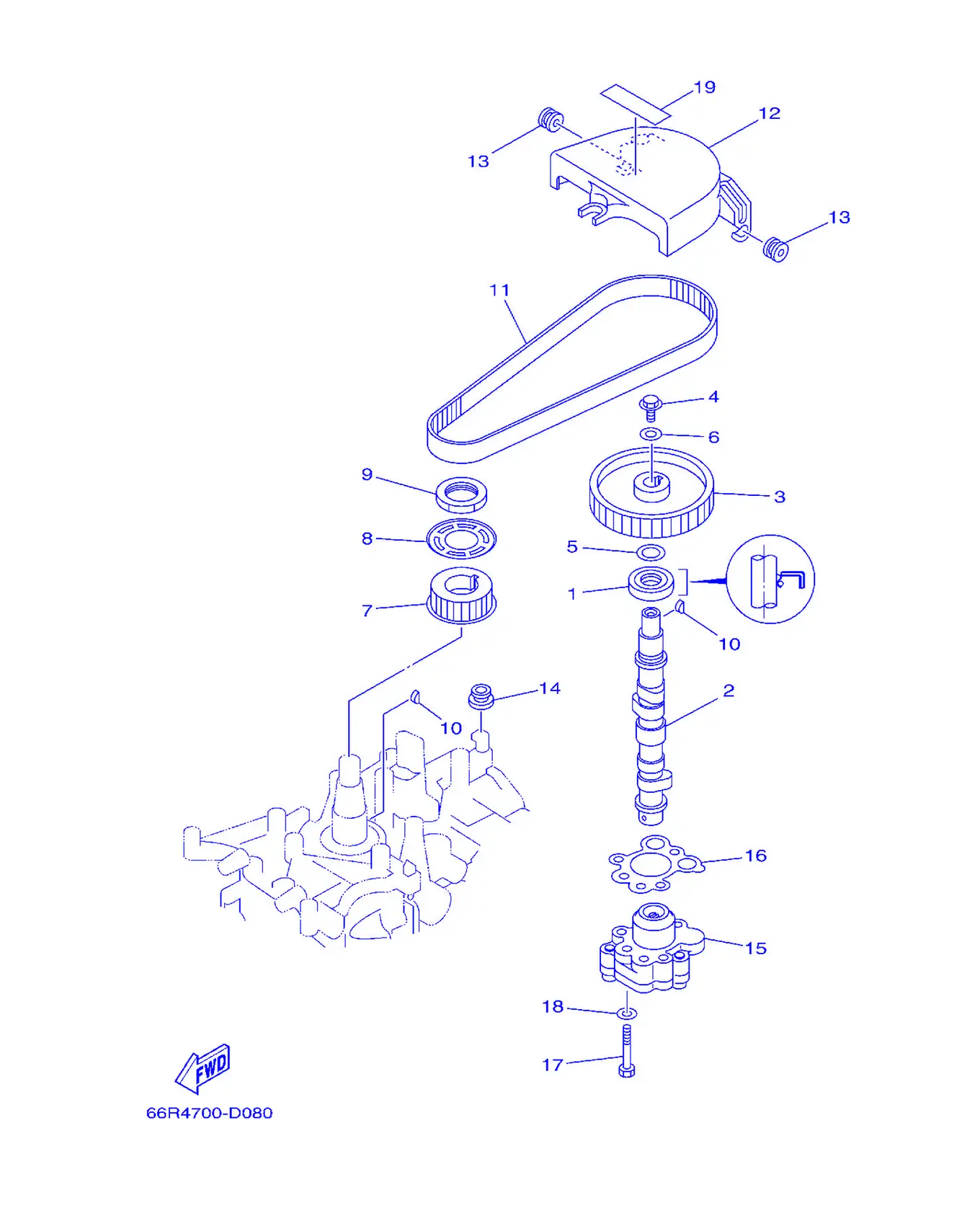

Fig. 7Oil Pump

REF	Part No.	Name	Qty
1	93102-18M21	OilSeal	1
2	66M-12171-10	CamShaft 1	1
3	66M-11537-00-94	Gear, Driven	1
4	90105-06M14	Bolt, Washer Based Head	1
5	90201-13201	Washer,Plate	1
6	90201-06M94	Washer,Plate	1
7	66M-11536-10	Gear, Drive	1
8	66M-11557-00	Washer 1	1
9	90170-28M37	Nut	1
10	90280-03M01	Key, Woodruff	2
11	66M-46241-00	V-Belt	1
12	66M-46297-00	Cover,Dust	1
13	90480-10M16	Grommet	2
14	90480-12072	Grommet	1
15	66M-13300-10	Oil PumpAssembly	1
16	66M-13329-10	Gasket,PumpCover	1
17	97095-06035	Bolt	3
18	92995-06600	Washer	3
19	6G8-13437-03	Mark, Corrosion	1

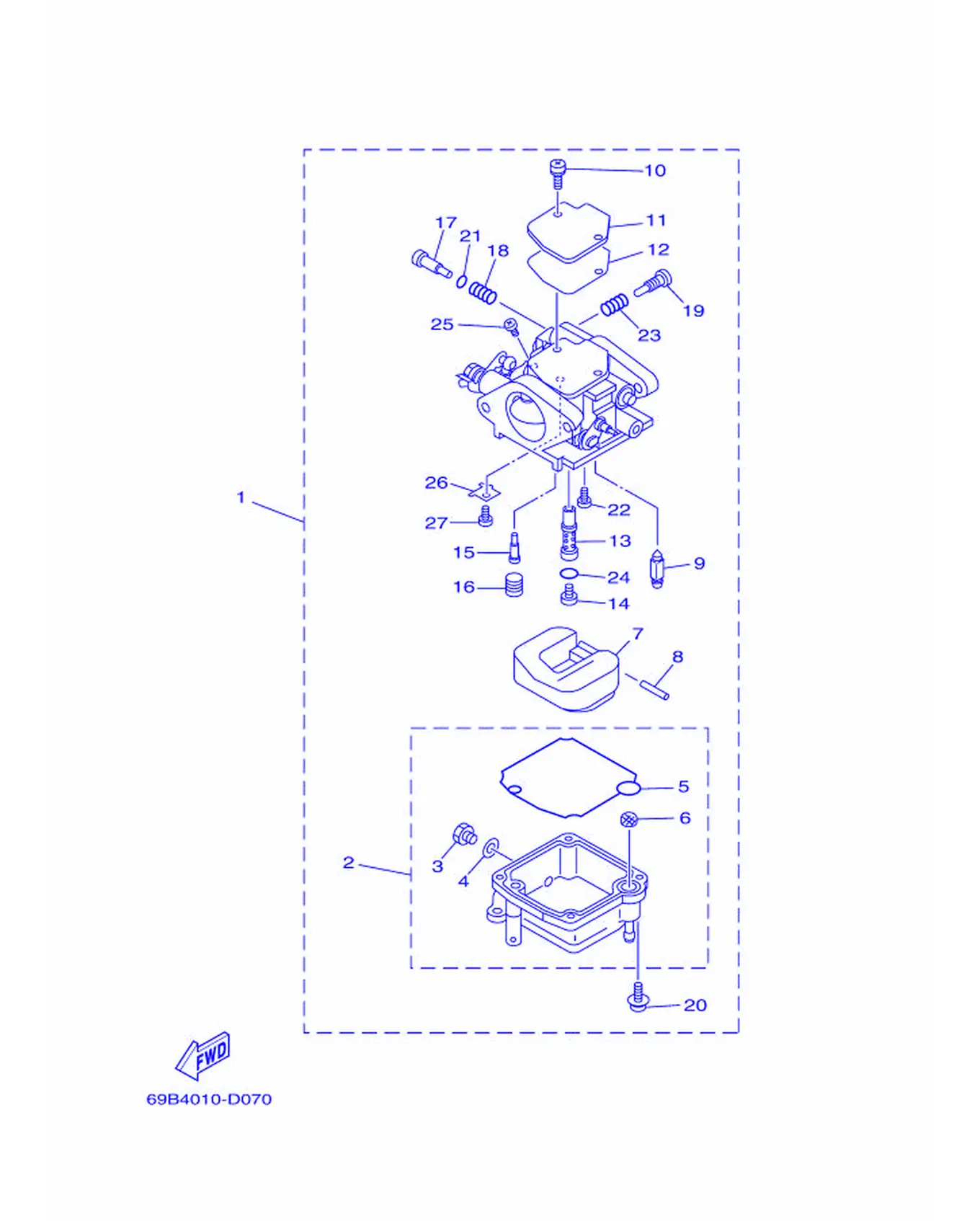

Fig. 8Carburetor

REF	Part No.	Name	Qty
1	66N-14301-00	CarburetorAssembly 1	1
2	66N-14381-00	Body, Float Chamber	1
3	62Y-14383-00	Screw, Drain	1
4	66M-14398-00	Gasket	1
5	66M-14384-00	Gasket, Float Chamber	1
6	66M-14827-00	Filter	1
7	6L2-14385-00	Float	1
8	6E5-14386-01	Pin, Float	1
9	6L2-14392-00	Valve, Needle	1
10	97980-04110	Screw, Washer	2
11	6L2-14157-00	Cover, Mixing	1
12	62Y-14399-00	Gasket	1
13	66N-14341-00	Nozzle,Main	1
14	66N-14343-34	Jet,Main (#68)	1
15	66M-14342-23	Jet,Pilot (#45)	1
16	62Y-14355-00	Plug	1
17	5H0-14323-00	Screw, Air Adjusting	1
18	30X-14334-00	Spring, Air Adjusting	1
19	62Y-14521-00	Screw, Throttle	1
20	97980-04112	Screw	4
21	62Y-14397-00	O-ring	1
22	98980-04006	Screw, Blind	1
23	646-14212-01	Spring, Pilot Adjusting	1
24	6F5-14397-00	O-ring	1
25	97890-04005	Screw, Pan Head	1
26	66M-14157-00	Plate	1
27	98580-03005	Screw, Pan Head	1

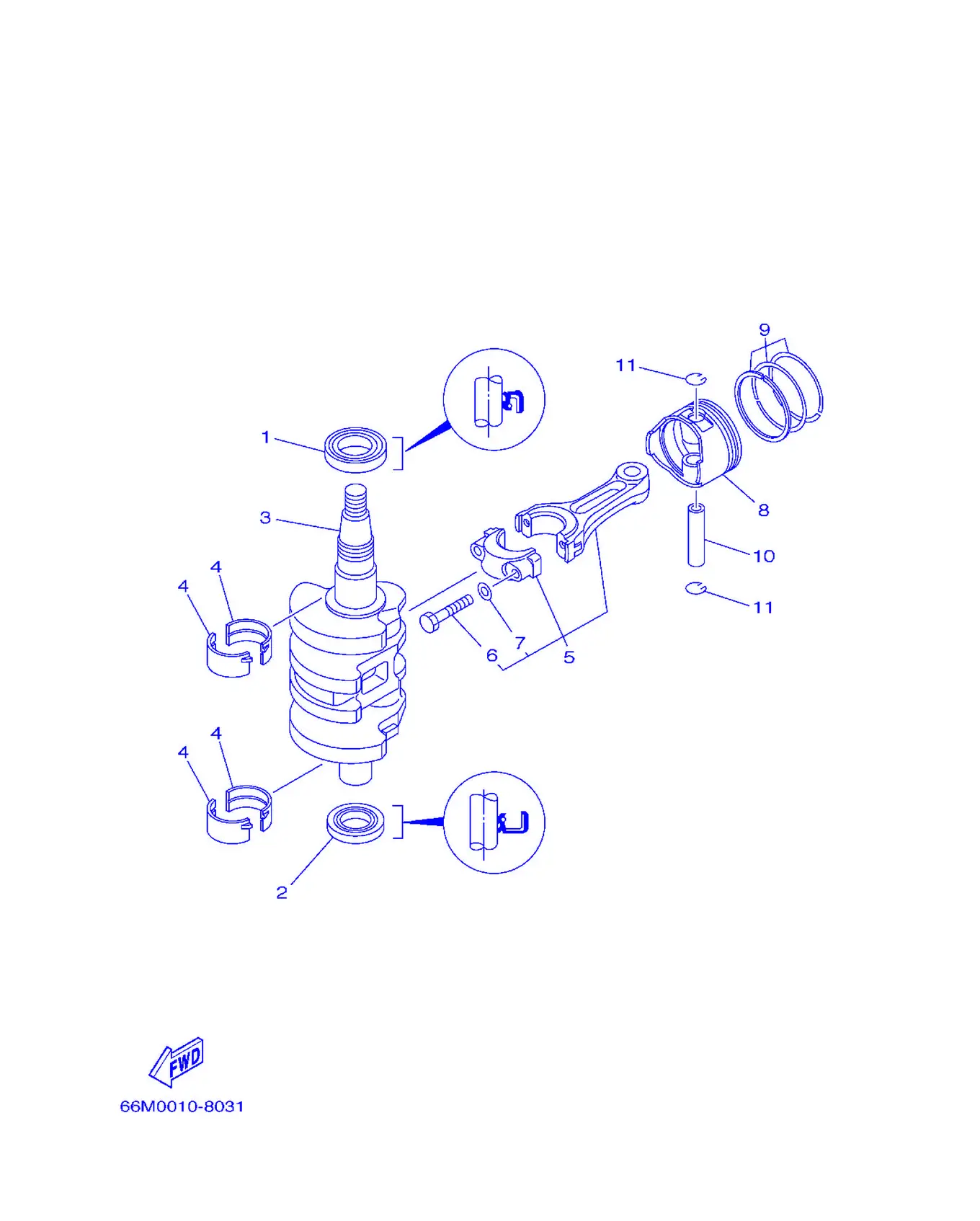

Fig. 9Crankshaft & Piston

REF	Part No.	Name	Qty
1	93102-35M51	OilSeal	1
2	93102-25M52	OilSeal	1
3	66M-11411-00	Crankshaft	1
4	66M-11416-00	Plain Bearing, Crankshaft	4
4	66M-11416-10	Plain Bearing, Crankshaft	4
4	66M-11416-20	Plain Bearing, Crankshaft	4
5	66M-11650-00	Connecting Rod Assembly	2
6	66M-11654-00	Bolt, Connecting Rod	2
7	90201-07M01	Washer, Plate	2
8	66M-11631-00-96	Piston (STD)	2
8	66M-11635-00	Piston (0.25MM O/S)	2
8	66M-11636-00	Piston (0.50MM O/S)	2
9	66N-11603-00	PistonRingSet (STD)	2
9	66N-11604-00	Piston Ring Set (0.25MM O/S)	2
9	66N-11605-00	Piston Ring Set (0.50MM O/S)	2
10	634-11633-00	Pin,Piston	2
11	93450-15023	Circlip	4

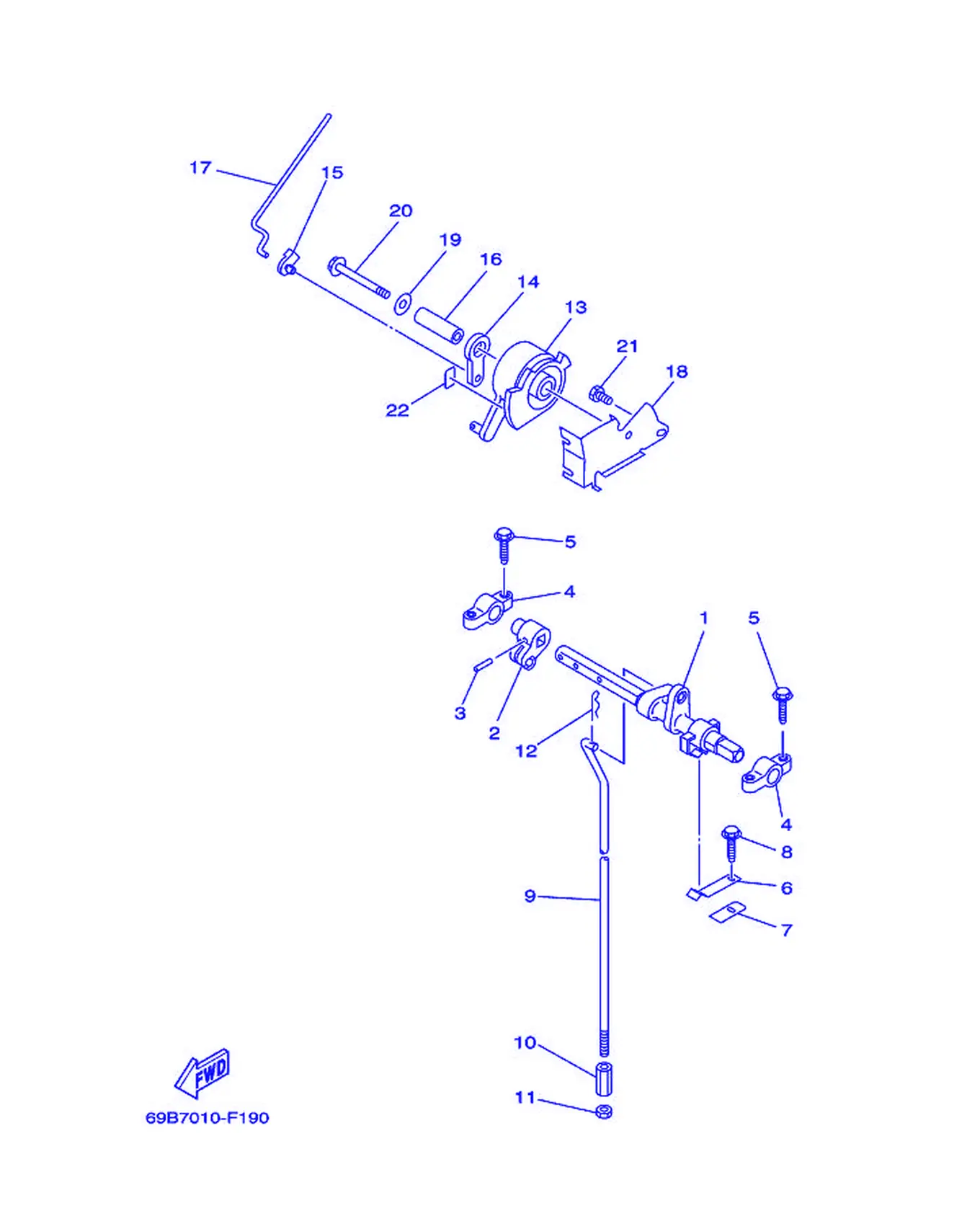

Fig. 10Control

REF	Part No.	Name	Qty
1	65W-44121-00	Lever, Shift Rod	1
2	66M-44122-00	Bushing, Shift Rod Lever	1
3	90254-03M05	Pin,Spring	1
4	6F5-41662-00	Bracket	2
5	90109-06M81	Bolt	4
6	65W-44116-00	Spring	1
7	66R-44114-00	Stopper	1
8	90109-06M86	Bolt	1
9	66M-44143-10	Rod, Shift	1
10	90170-06015	Nut	1
11	95380-06700	Nut	1
12	90468-18008	Clip	1
13	65W-41638-00	Pulley	1
14	65W-41283-00	Lever, Free Accelerator	1
15	661-41262-02	Joint, Choke Lever	1
16	90387-06064	Color	1
17	66M-41211-00	Link, Accelerator	1
18	65W-14497-01	Stay, Throttle Wire	1
19	90201-06M31	Washer,Plate	1
20	97595-06555	Bolt, With Washer	1
21	97095-06010	Bolt	1
22	6E5-42137-10	Indicator, Throttle	1

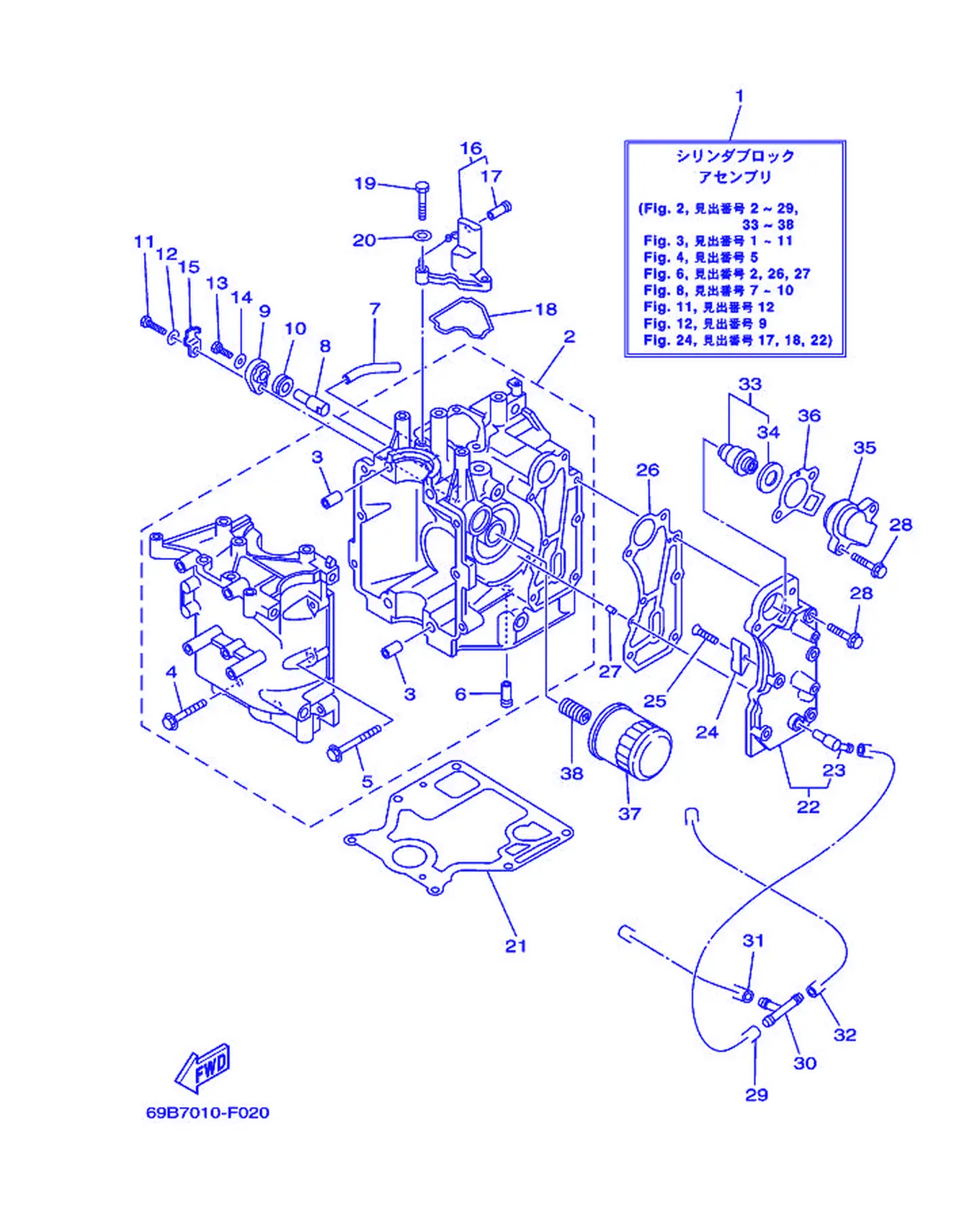

Fig. 11Cylinder & Crankcase 1

REF	Part No.	Name	Qty
1	66M-W009B-05-1S	Cylinder Block Assembly	1
2	66M-15100-03-1S	Crankcase Assembly	1
3	99510-10114	Pin, Dowel	2
4	90119-08M66	Bolt, With Washer	4
5	90119-06M14	Bolt, With Washer	6
6	6E5-24377-00	Pipe, Joint 3	1
7	90445-10M46	Hose (L65)	1
8	66M-11325-00	Anode	1
9	66M-11327-00-94	Cover, Anode	1
10	66M-11328-00	Grommet	1
11	97095-06020	Bolt	1
12	92995-06600	Washer	1
13	97095-05012	Bolt	1
14	92995-05600	Washer	1
15	66M-12535-00	Plate	1
16	66M-11168-00-1S	Cover, Breather	1
17	6E5-24377-00	Pipe, Joint 3	1
18	66M-11357-00	Seal,Cylinder 3	1
19	97095-06020	Bolt	3
20	92995-06600	Washer	3
21	66M-11351-10	Gasket,Cylinder	1
22	66M-41113-20-1S	Outer Cover, Exhaust	1
23	676-11372-00	Nipple,Hose	1
24	6E5-11325-00	Anode	1
25	98780-04015	Screw, Flat Head	1
26	66M-41114-01	Gasket, Exhaust Outer Cover	1
27	93604-12M07	Pin, Dowel	2
28	90119-06MA4	Bolt, With Washer	7
29	90445-09061	Hose	1
30	688-24378-00	Pipe,Joint	1
31	90445-09086	Hose (L170)	1
32	90445-09104	Hose (L300)	1
33	66M-12411-01	Thermostat	1
34	688-12412-00	Seal,Thermostat	1
35	6H3-12413-00-1S	Cover,Thermostat	1
36	62Y-12414-00	Gasket,Cover	1
37	5GH-13440-00	Element Assembly, Oil Cleaner	1
38	90401-20M00	Bolt, Union	1

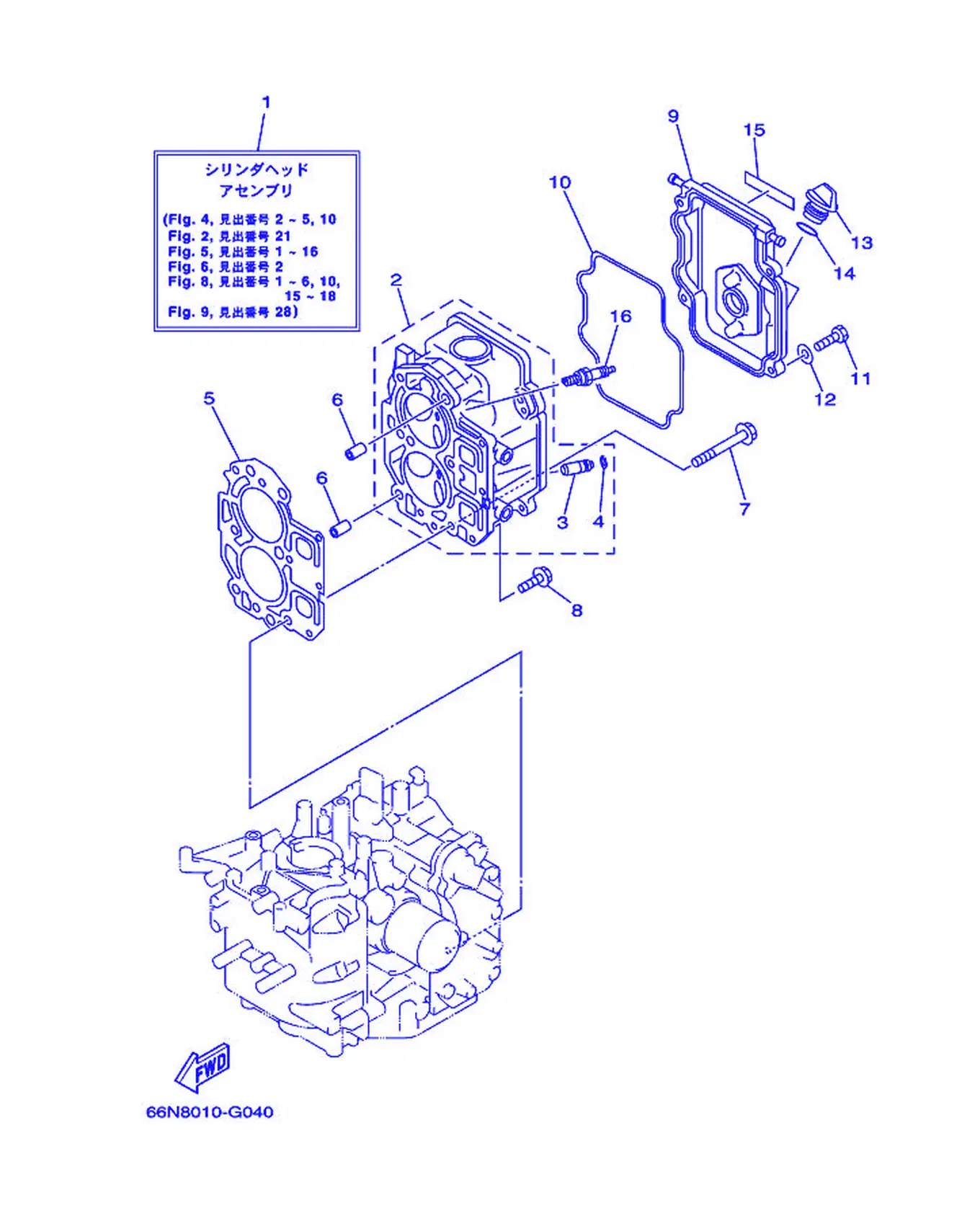

Fig. 12Cylinder & Crankcase 2

REF	Part No.	Name	Qty
1	66M-W009A-13-1S	Cylinder Head Assembly	1
2	66M-11111-01-1S	Head, Cylinder 1	1
3	66M-11133-29	Guide,Valve 1	4
4	93450-09M01	Circlip	4
5	66M-11181-10	Gasket, Cylinder Head 1	1
6	99510-10114	Pin, Dowel	2
7	90105-08M78	Bolt, Flange	6
8	90119-06MA3	Bolt, With Washer	3
9	66M-11191-00-1S	Cover, Cylinder Head 1	1
10	66M-11356-00	Seal,Cylinder 2	1
11	97095-06020	Bolt	4
12	92995-06600	Washer	4
13	6G8-15363-00	Plug,Oil	1
14	93210-24M79	O-ring	1
15	66M-12138-01	Mark, Corrosion	1
16	94703-00375	Plug, Spark (NGK DPR6EA-9)	2

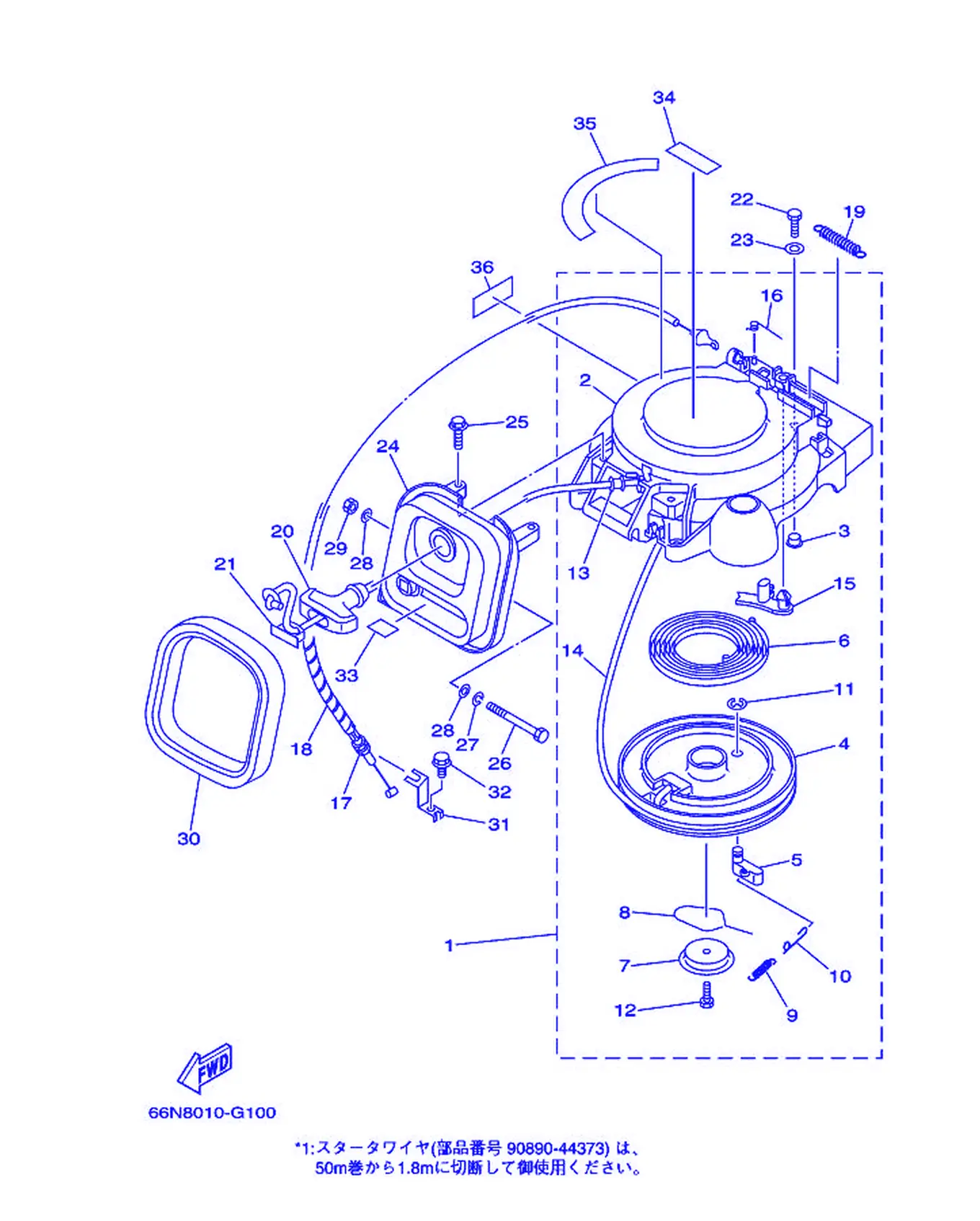

Fig. 13Starter

REF	Part No.	Name	Qty
1	66M-15710-02	StarterAssembly	1
2	66M-15711-01	Case,Starter	1
3	90387-06M05	Color	3
4	63V-15714-00	Drum, Sheave	1
5	63V-15741-00	Pawl, Drive	1
6	63V-15713-00	Spring,Starter	1
7	63V-15716-00	Plate, Drive	1
8	63V-15705-01	Spring, Drive Pole	1
9	63V-15767-01	Spring	1
10	63V-15784-01	Spring, Return	1
11	63V-15744-00	Circlip	1
12	63V-15768-00	Bolt	1
13	63V-15764-00	Collar 1	1
15	66T-15794-00	Stopper	1
16	66T-15734-00	Spring, Return	1
17	66M-15770-00	Cable Complete, Starter Stop	1
18	90446-06M90	Hose (L120)	1
19	66T-15731-00	Spring, Return	1
20	6G1-15755-00	Handle,Starter	1
21	6G1-15779-00	Cover	1
22	97095-06020	Bolt	3
23	92995-06600	Washer	3
24	66M-15758-20	Guide, Rope	1
25	90119-06M59	Bolt, With Washer	2
26	97095-06090	Bolt	1
27	92995-06100	Washer,Spring	1
28	90201-06M05	Washer,Plate	2
29	95380-06700	Nut	1
30	66M-15762-00	Seal,Rubber 2	1
31	66M-15774-00	Stay 4	1
32	90109-06M86	Bolt	1
33	66M-84342-00	Seat, Emblem	1
34	6AH-81995-00	Label, Warning	1
35	66M-14427-00	Label, Instruction	1
36	6AH-81994-00	Label, Safety	1

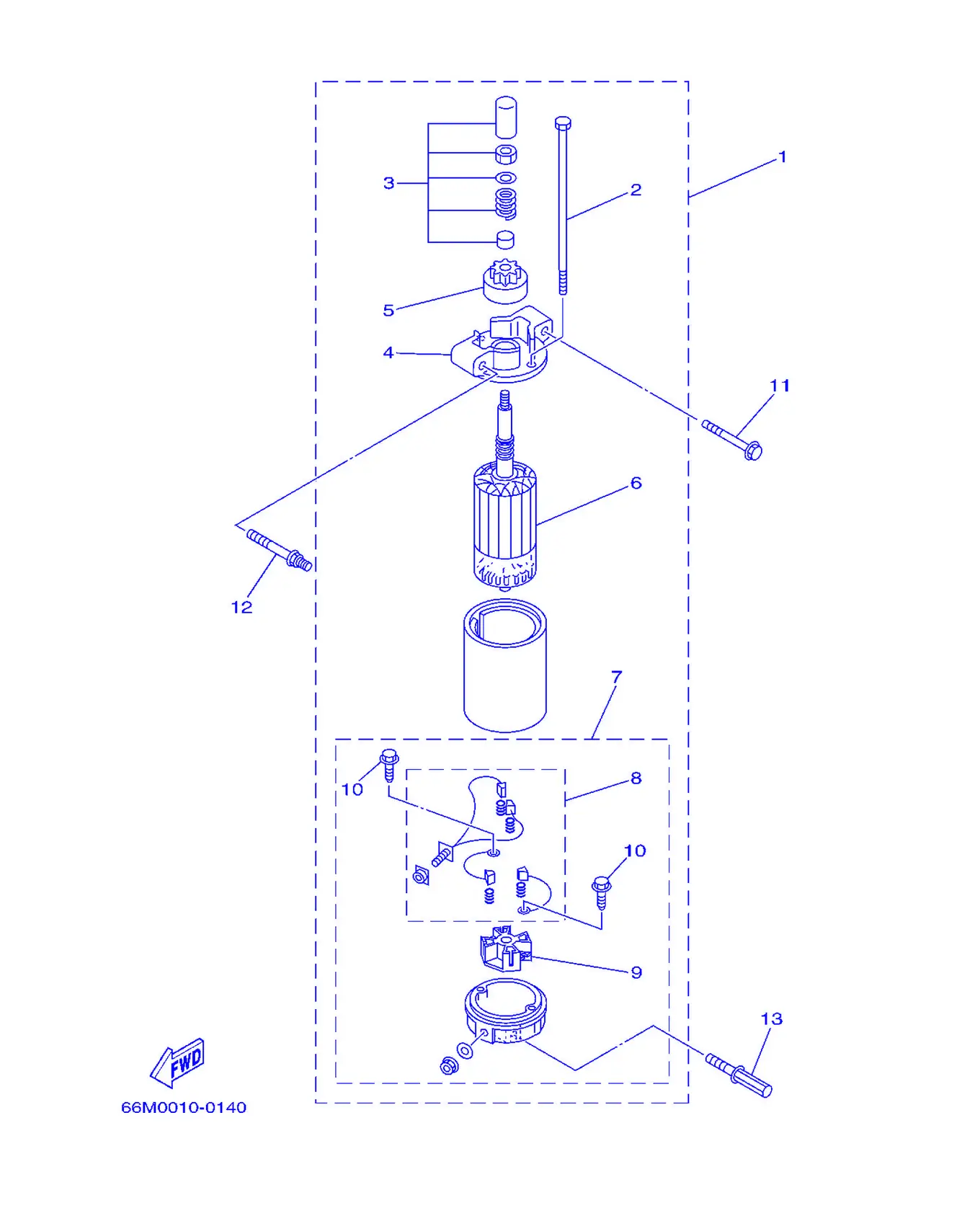

Fig. 14Starting Motor

REF	Part No.	Name	Qty
1	66M-81800-02	Starting Motor Assembly	1
2	65W-81826-00	Bolt	2
3	65W-81857-01	Retainer	1
4	66M-81830-00	FrontBracketAssembly	1
5	65W-81807-00	Gear Assembly, Starting Motor	1
6	65W-81850-01	Armature Assembly	1
7	66M-81820-00	Rear Bracket Assembly	1
8	65W-81801-00	Brush Set	1
9	65W-81840-00	Brush Holder Assembly	1
10	65W-8182S-00	Screw	2
11	90119-08M39	Bolt, With Washer	1
12	90109-08M78	Bolt	1
13	90109-08M85	Bolt	1

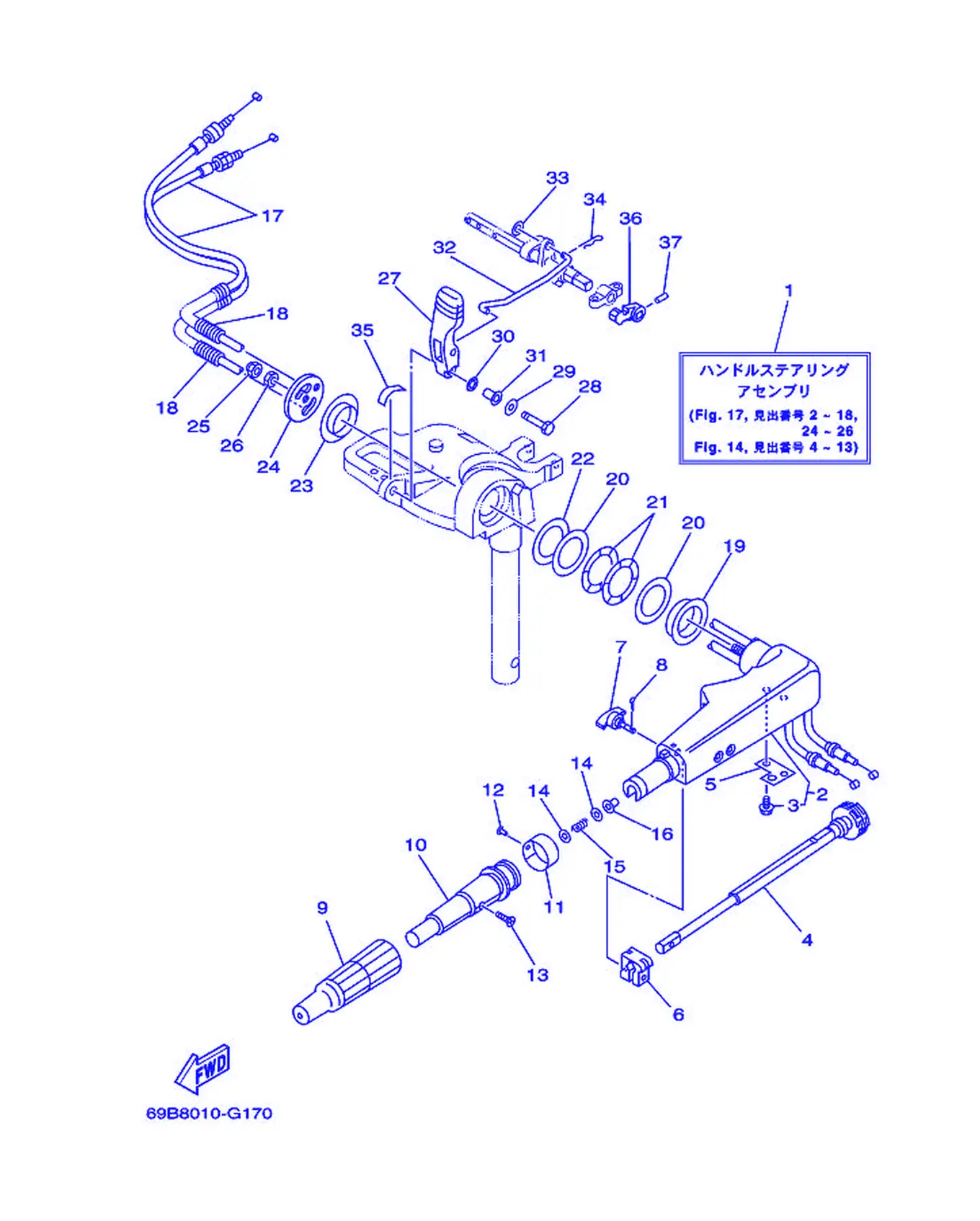

Fig. 15Steering

REF	Part No.	Name	Qty
1	69A-W0084-00-4D	HandleSteeringAssembly	1
2	69A-42101-00-4D	Handle,Steering	1
3	90109-06M86	Bolt	2
4	65W-42138-00	Lever,Throttle	1
5	69A-42159-00	Stay	1
6	6G1-42126-00	Friction, Steering Handle	1
7	65W-42125-00	Bolt, Friction Adjust	1
8	91490-16010	Pin, Cotter	1
9	66M-42177-00	Rubber,Handle	1
10	66M-42119-00	Grip,SteeringHandle	1
11	689-42137-20	Indicator, Throttle	1
12	90269-02M09	Rivet	1
13	90149-05M13	Screw	1
14	90201-10M02	Washer,Plate	2
15	90501-23215	Spring, Compression	1
16	90386-08032	Bushing	1
17	66M-26311-00	Cable,Throttle 1	2
18	90446-10M87	Hose (L75)	2
19	90386-40MA0	Bushing	1
20	90201-43M00	Washer,Plate	2
21	90206-43M22	Washer, Wave	2
22	90202-43M57	Washer,Plate	1
23	90386-40M99	Bushing	1
24	66M-42131-01	Cover,HandleSteering	1
25	95780-10300	Nut, Flange	1
26	95380-10700	Nut	1
27	66M-44111-01	Handle, Gear Shift	1
28	97095-06030	Bolt	1
29	92995-06600	Washer	1
30	90206-10M04	Washer, Wave	1
31	90387-06M78	Color	1
32	66M-44124-00	Link, Shift Rod	1
33	92990-06200	Washer, Plain	1
34	90468-18008	Clip	1
35	6E0-44191-11	Indicator, Shift	1
36	65W-44173-01	Lever, Shift Control	1
37	90254-03M05	Pin,Spring	1

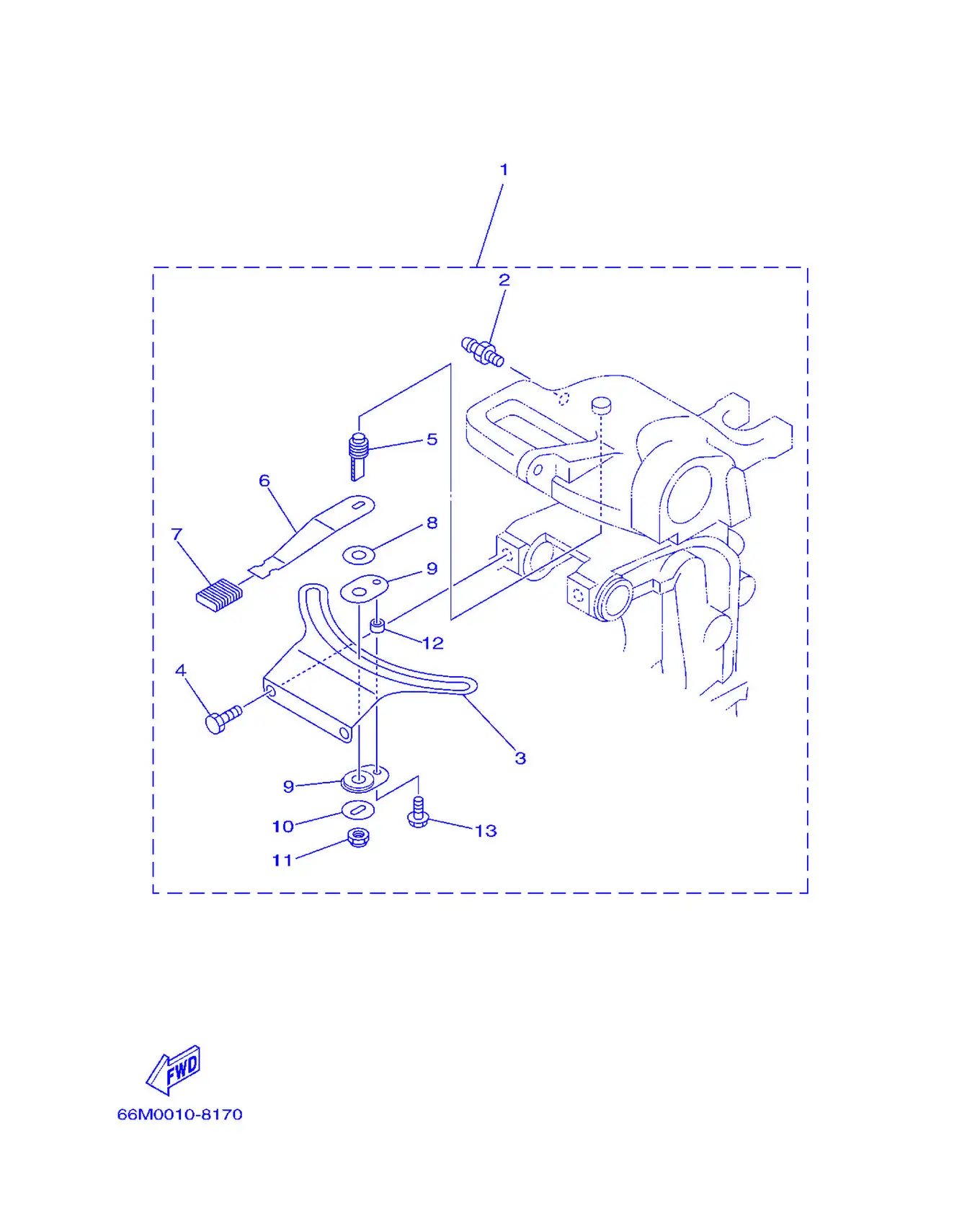

Fig. 16Steering Friction

REF	Part No.	Name	Qty
1	66M-42508-01	Steering Friction Assembly	1
2	93700-06M03	Nipple, Grease	1
3	66M-42527-00	Plate, Friction	1
4	90109-08M91	Bolt	2
5	65W-42562-00	Shaft Steering Lock Assembly	1
6	66M-42561-00	Knob	1
7	689-43633-00	Cover,TiltLever	1
8	90202-10M56	Washer, Plate	1
9	65W-42528-00	Plate, Friction	2
10	90209-10M26	Washer	1
11	90185-10M14	Nut, Self-Locking	1
12	90387-05M11	Collar	1
13	90119-05M03	Bolt, with Washer	1

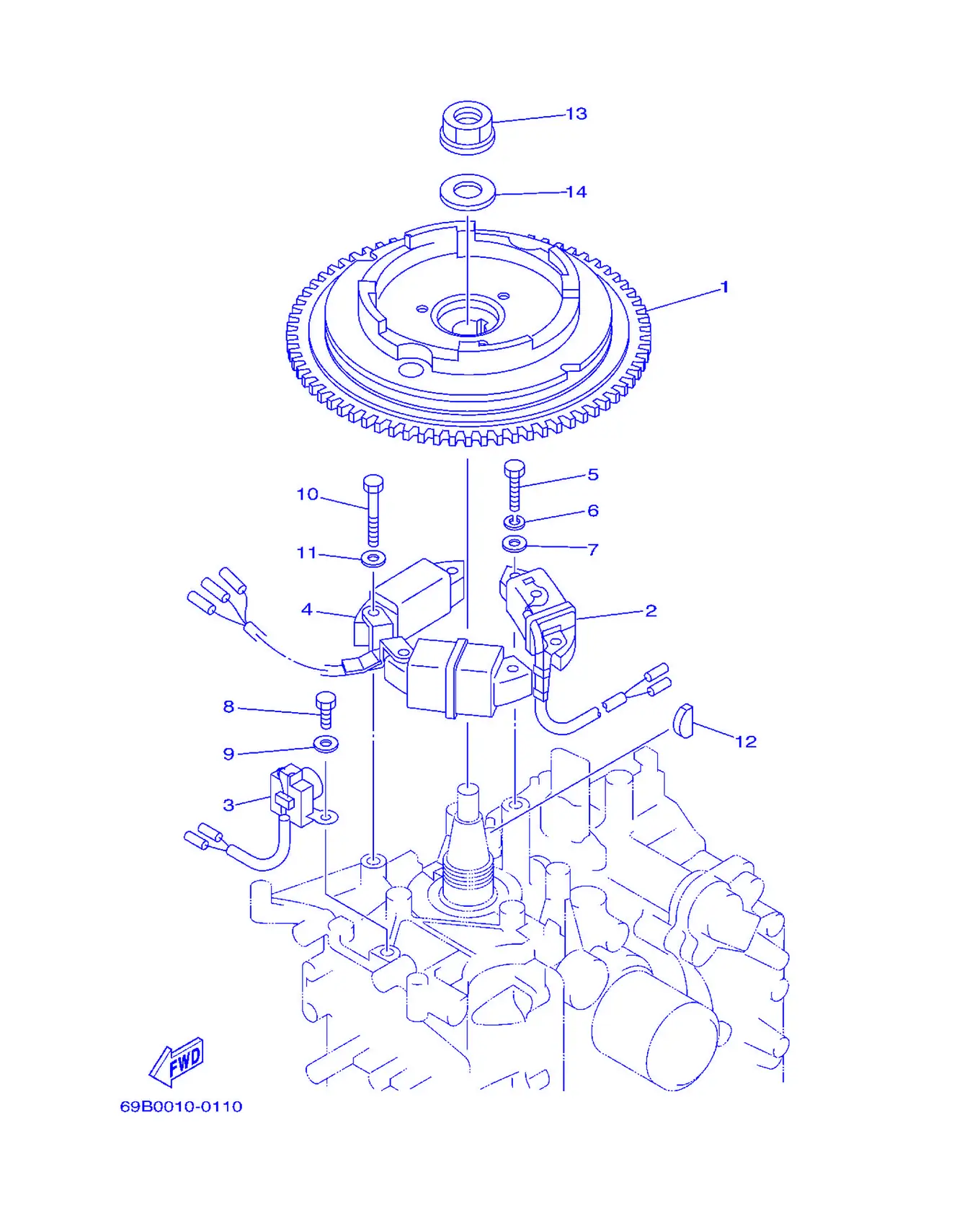

Fig. 17Generator

REF	Part No.	Name	Qty
1	66M-85550-10	Rotor Assembly	1
2	66M-85520-00	Coil, Charge	1
3	66M-85580-00	Coil, Pulser	1
4	66M-85533-10	Coil, Lighting	1
5	97095-06025	Bolt	2
6	92995-06100	Washer,Spring	2
7	92995-06600	Washer	2
8	97095-06016	Bolt	2
9	92995-06600	Washer	2
10	97095-06040	Bolt	4
11	92995-06600	Washer	4
12	90280-05013	Key, Woodruff	1
13	90179-16M05	Nut	1
14	90201-16M44	Washer,Plate	1

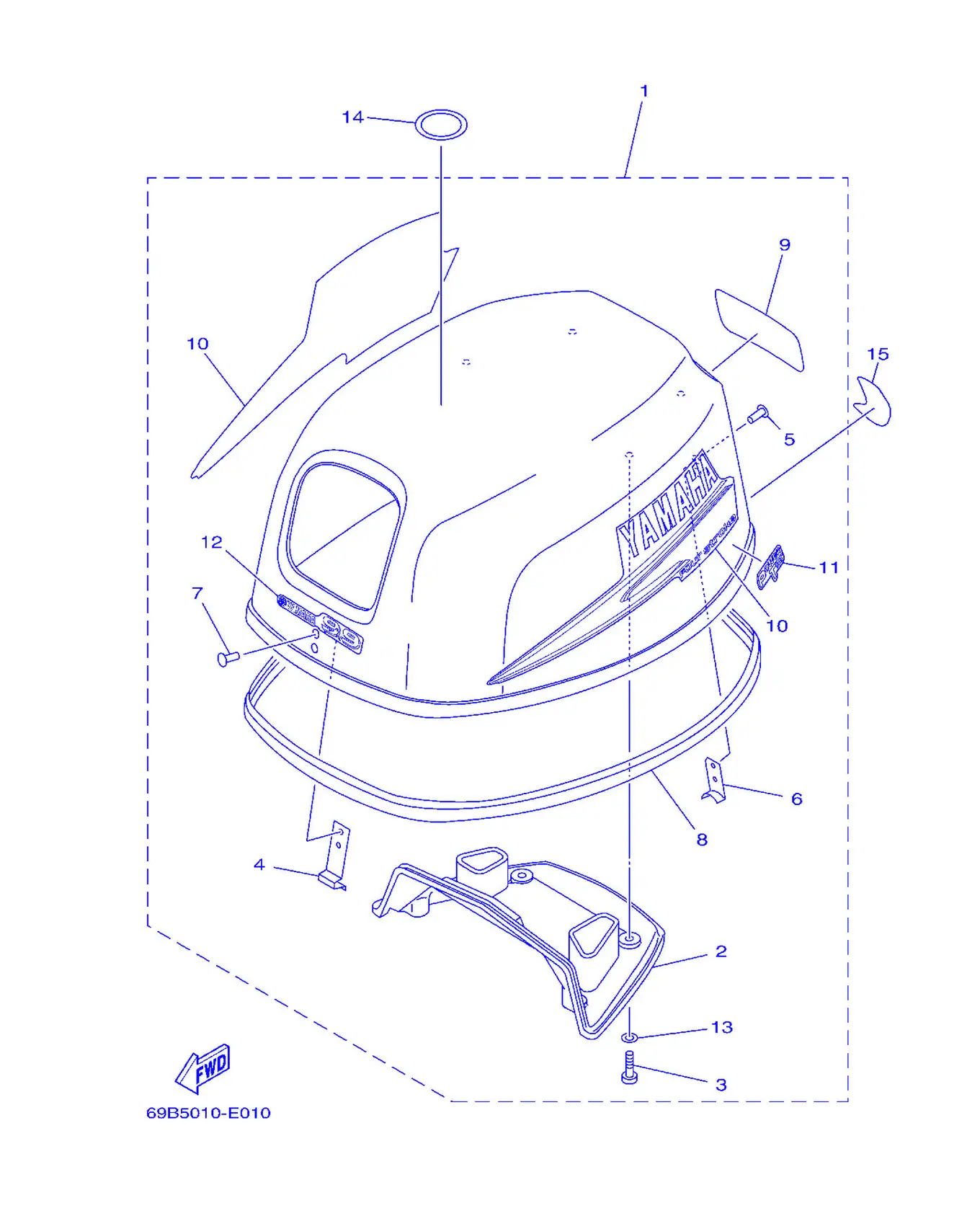

Fig. 18Top Cowling

REF	Part No.	Name	Qty
1	69B-42610-12-4D	Top Cowling Assembly	1
2	66M-42613-00	Molding, Air Duct	1
3	97780-60520	Screw, Tapping	4
4	65W-42651-01	Fook	1
5	90266-06M02	Rivet	2
6	66M-42652-00	Fook	1
7	90266-06M02	Rivet	2
8	6D4-42615-00	Seal	1
9	66N-42678-20	Graphic, Rear	1
10	66M-W0070-20	Graphic Set	1
11	69A-42675-00	Graphic, Side 1	1
12	66N-42677-00	Graphic, Front	1
13	90202-05M38	Washer,Plate	4
14	67F-13434-03	Label, Corrosion	1
15	6C5-24239-00	Mark 5	1

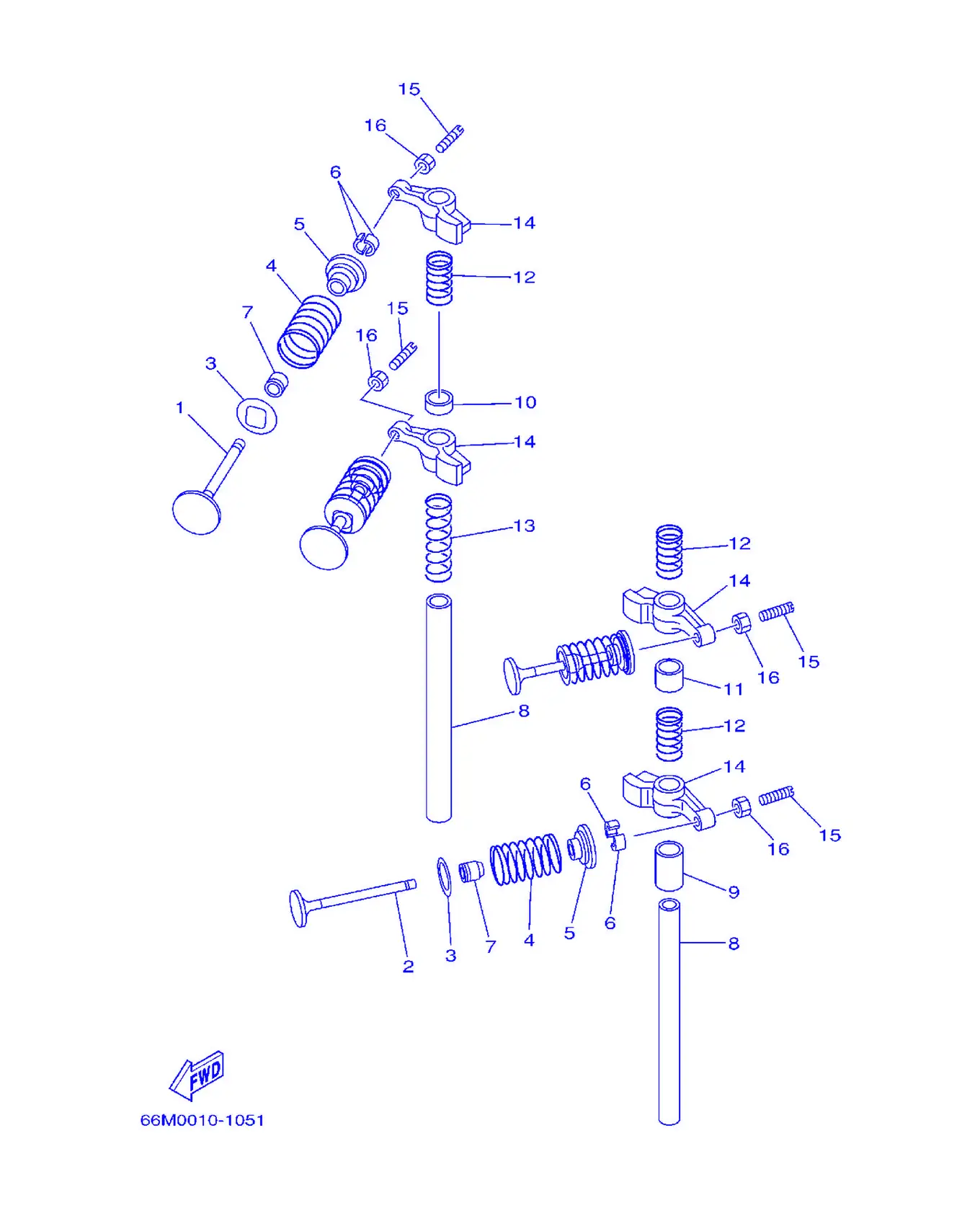

Fig. 19Valve

REF	Part No.	Name	Qty
1	66M-12111-00	Valve,Intake	2
2	66M-12121-00	Valve,Exhaust	2
3	66M-12116-00	Seat,ValveSpring	4
4	66M-12113-00	Spring, Valve Inner	4
5	30X-12117-00	Retainer,ValveSpring	4
6	30X-12118-00	Cotter, Valve	8
7	51Y-12119-00	Seal, Valve Stem	4
8	66M-12146-00	Shaft, Rocker	2
9	90387-13M56	Color	1
10	90387-13001	Color	1
11	90387-13002	Color	1
12	90501-12M40	Spring, Compression	3
13	90501-12M41	Spring, Compression	1
14	66M-12151-10	Arm, Valve Rocker	4
15	62Y-12159-00	Screw, Valve Adjusting	4
16	62Y-12158-00	Nut,Lock	4

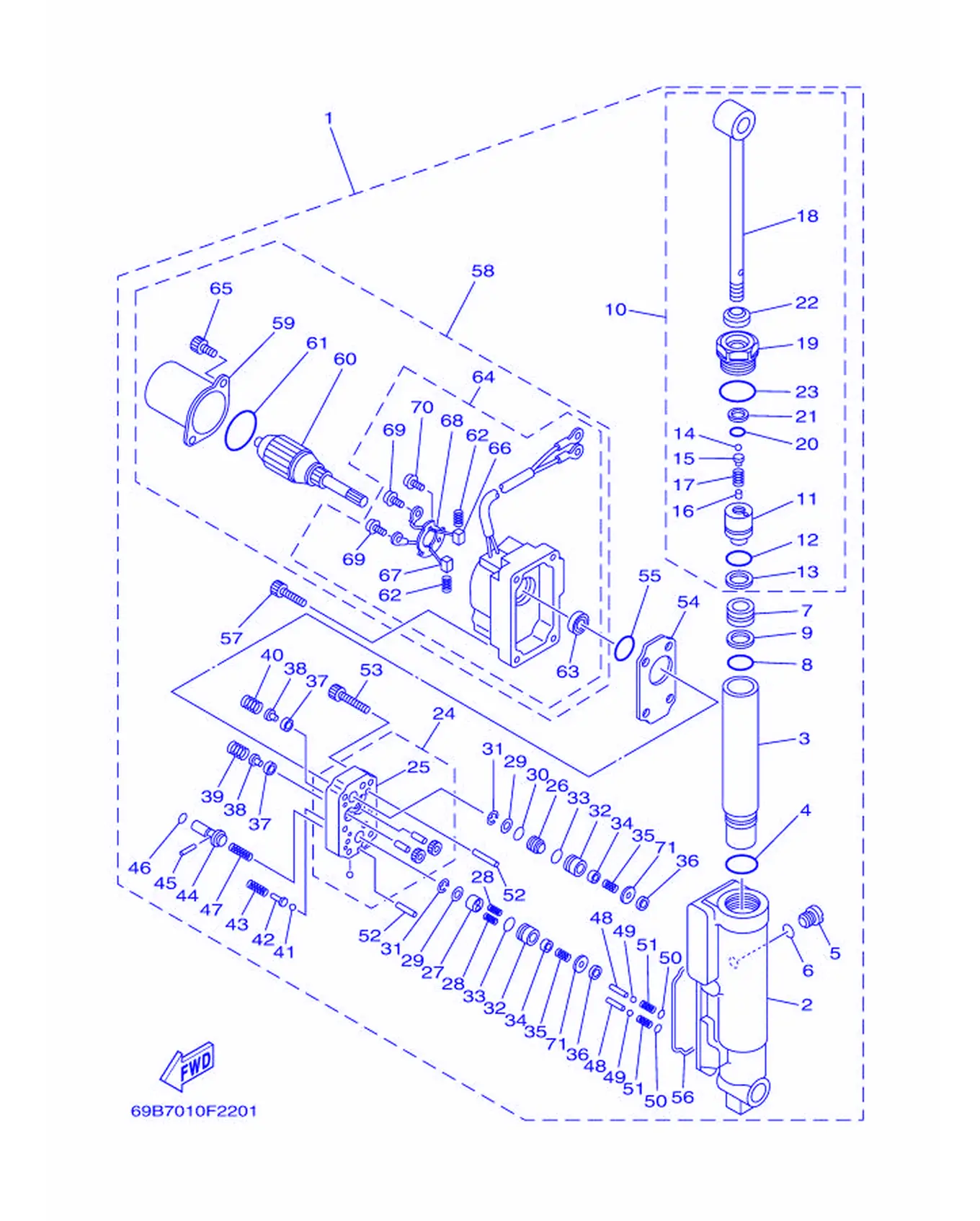

Fig. 20Power Tilt Assembly

REF	Part No.	Name	Qty
1	69A-43840-01-4D	Power TiltAssembly	1
2	69A-4380K-00	Cylinder, Tilt Sub-assembly	1
3	69A-22471-00	Case,Cylinder	1
4	93210-27666	O-ring	1
5	6H1-4388E-11	Plug, Taper Screw	1
6	93210-07003	O-ring	1
7	69A-43814-00	Piston, Free	1
8	93210-21276	O-ring	1
9	69A-43872-00	Ring, Back Up	1
10	69A-43810-00	Tilt Piston Sub-Assembly	1
11	69A-4380D-00	Piston Complete	1
12	93210-21276	O-ring	1
13	69A-43872-00	Ring, Back Up	1
14	93505-32038	Ball	1
15	65W-4386A-00	Pin, Absorber Valve	1
16	93604-06136	Pin, Dowel	1
17	69A-43857-00	Spring	1
18	69A-43801-00	Rod	1
19	69A-43811-01	Screw, Cylinder End	1
20	6H1-43866-00	O-ring	1
21	69A-43871-00	Ring, Back Up	1
22	69A-43812-00	Seal, Dust	1
23	69A-43869-00	O-ring	1
24	69A-43830-00	Gear Pump Assembly	1
25	69A-4380C-00	Gear Housing Assembly	1
26	69A-43841-00	Piston, Shuttle	1
27	69A-4384M-00	Piston, Shuttle 2	1
28	62Y-43894-00	Spring, Shuttle Return	2
29	69A-4384F-00	Seal, Main Valve	2
30	6H1-43883-00	O-ring	1
31	99002-03600	Circlip	2
32	69G-4382G-00	Valve Seat	2
33	93210-12N52	O-ring	2
34	6T4-43808-00	Seat Valve Complete 1	2
35	69G-43853-00	Spring	2
36	69J-4381C-00	Filter 3	2
37	6H1-4384G-11	Seal, Relief Valve	2
38	6H1-43844-10	Pin, Valve Support	2
39	69A-43855-00	Spring	1
40	6H1-43856-10	Spring, Down Relief	1
41	93501-08001	Ball	2
42	69A-4386A-00	Pin, Absorber Valve	2
43	69A-43824-00	Spring, Down Relief 2	2
44	69A-43848-00	Rod, Manual Release	1
45	93602-15250	Pin, Dowel	1
46	93210-06001	O-ring	1
47	69A-43854-00	Spring, Manual Release	1
48	69A-4381G-00	Pin 1	2
49	93501-08001	Ball	2
50	6H1-43883-00	O-ring	2
51	69A-4384H-00	Spring	2
52	93606-14081	Pin, Dowel	2
53	91312-05025	Bolt, Hexagon Socket Head	6
54	69A-43816-01	Filter 1	1
55	N35-43862-10	O-ring	1
56	69A-23129-00	Gasket, Drain Plug	1
57	69A-43878-00	Bolt, Socket	4
58	69A-43880-00	Motor Assembly	1
59	65W-43804-00	Stator Assembly	1
60	65W-43805-00	Armature Assembly	1
61	65W-43869-00	O-ring	1
62	65W-4386K-00	Spring, Brush	2
63	65W-43882-00	Oil Seal	1
64	69A-43881-00	Frame, End	1
65	65W-43887-00	Bolt, Through	2
66	65W-43892-00	Brush 2	1
67	65W-43891-00	Brush 1	1
68	65W-4380F-00	Plate, Brush Holder	1
69	65W-43879-00	Screw, Washer	2
70	65W-4388E-00	Bolt	1
71	69G-4388F-00	Spacer	2

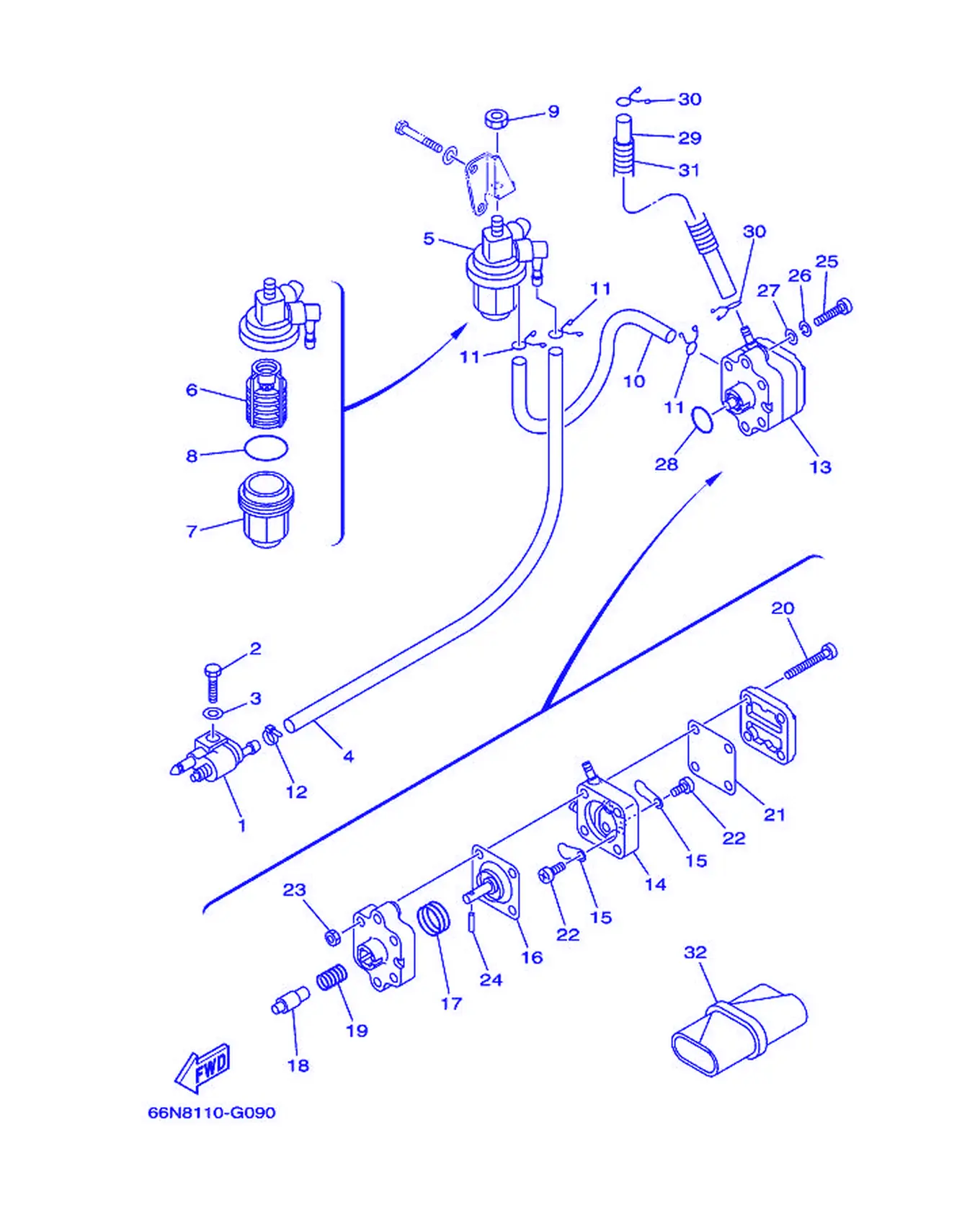

Fig. 21Fuel

REF	Part No.	Name	Qty
1	6G1-24304-02	Fuel Pipe Joint Complete	1
2	97095-06020	Bolt	1
3	92995-06600	Washer	1
4	90445-10M19	Hose (L500)	1
5	61N-24560-00	Filter Assembly	1
6	61N-24563-00	Element, Filter	1
7	61N-24521-00	Cup, Filter	1
8	93210-32738	O-ring	1
9	95380-08600	Nut	1
10	90445-10M15	Hose	1
11	90467-09M17	Clip	3
12	90465-11M10	Clamp	1
13	66M-24410-11	FuelPumpAssembly	1
14	66M-24413-01	Body 2	1
15	6A0-24421-01	Valve, Check	2
16	66M-24411-11	Diaphragm	1
17	66M-24423-00	Spring,Diaphragm	1
18	66M-13131-10	Plunger	1
19	66M-24454-00	Spring	1
20	66M-24444-00	Screw	4
21	66M-24471-01	Diaphragm	1
22	6E7-14325-00	Screw, Pan Head	2
23	95380-04600	Nut	4
24	66M-24374-00	Pin	1
25	97880-06030	Screw, Pan Head	2
26	92990-06100	Washer,Spring	2
27	92990-06600	Washer,Plate	2
28	93210-20M65	O-ring	1
29	90445-10M93	Hose (L370)	1
30	90467-09M17	Clip	2
31	90446-14M51	Hose	1
32	62Y-28100-00	ToolKit	1

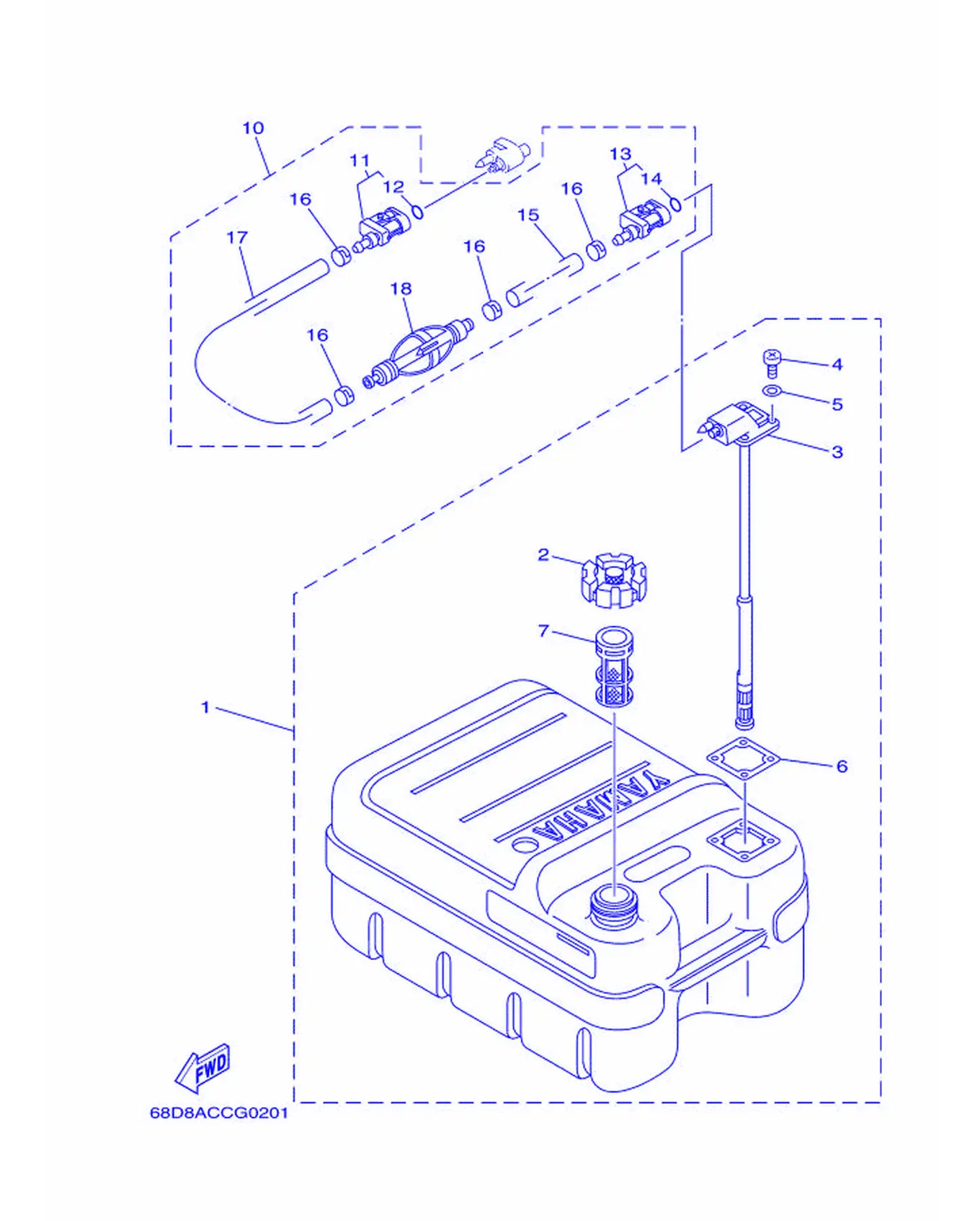

Fig. 22Fuel Tank

REF	Part No.	Name	Qty
1	6YJ-W2420-J1	FuelTankAssembly (24L)	1
2	6YJ-24610-01	Cap Assembly	1
3	6Y1-24260-12	Fuel Meter Assembly	1
4	90157-05M19	Screw, Pan Head	4
5	6Y1-24329-00	Seal	4
6	6Y1-24268-00	Gasket, Fuel Meter	1
7	6YJ-24167-00	Strainer	1
10	6Y1-24306-55	FuelPipeComplete 1	1
11	6G1-24305-05	Fuel Pipe Joint Complete	1
12	93210-08287	O-ring	1
13	6Y1-24305-06	Fuel Pipe Joint Complete	1
14	93210-08287	O-ring	1
15	90445-11M06	Hose (L:2050MM)	1
16	650-24351-51	Band 1	4
17	90445-11M05	Hose (L:850MM)	1
18	6Y1-24360-52	Primer Pump Assembly	1

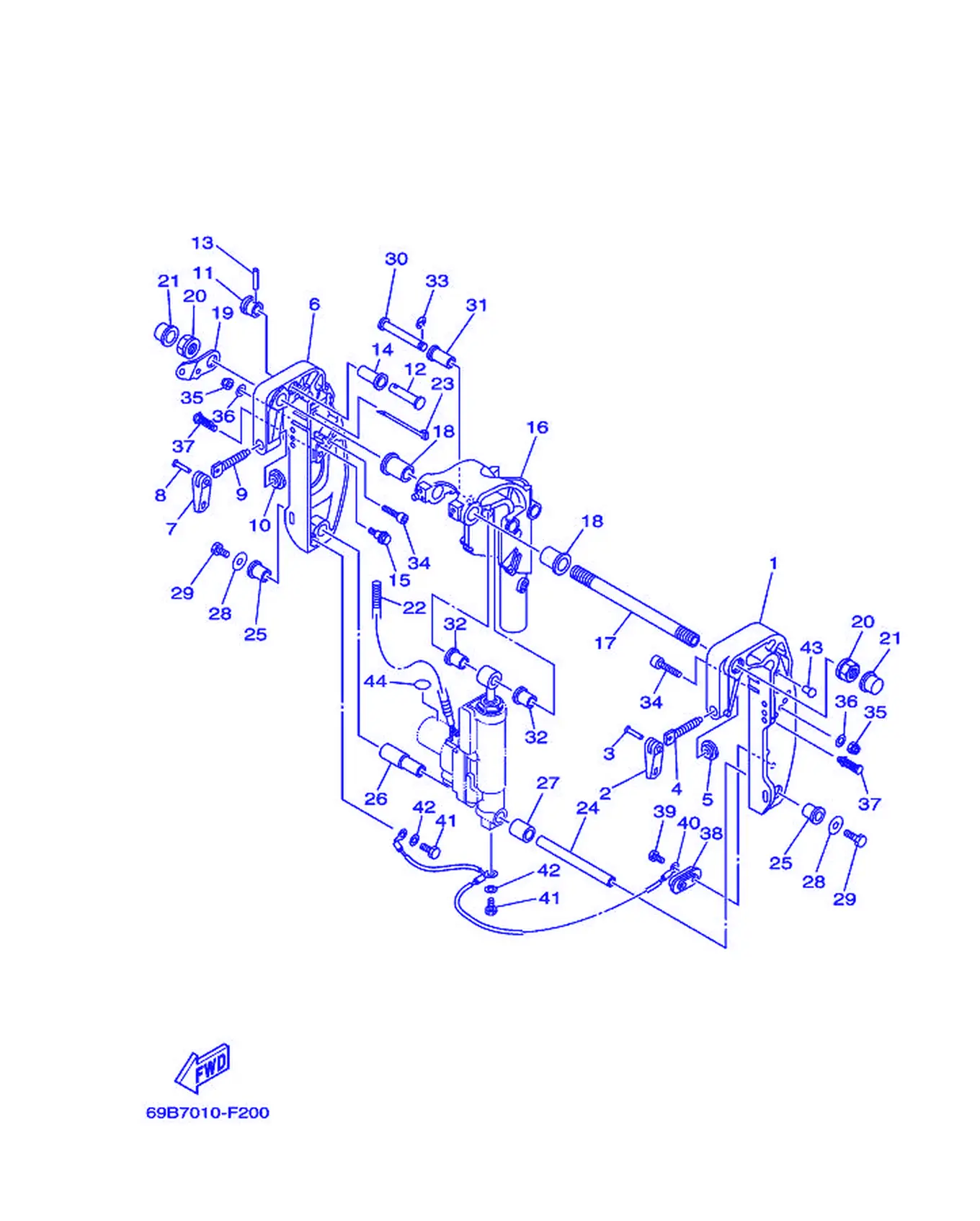

Fig. 23Bracket 1

REF	Part No.	Name	Qty
1	69A-43111-01-4D	Bracket,Clamp 1	1
2	6E0-43118-01	Handle, Transom Clamp	1
3	90243-04M01	Pin	1
4	6E7-43116-00	Screw, Transom Clamp	1
5	648-43114-01	Pad, Transom Clamp	1
6	69A-43112-01-4D	Bracket,Clamp 2	1
7	6E0-43118-01	Handle, Transom Clamp	1
8	90243-04M01	Pin	1
9	6E7-43116-00	Screw, Transom Clamp	1
10	648-43114-01	Pad, Transom Clamp	1
11	65W-43192-00	Knob, Stopper	1
12	65W-43191-00	Shaft, Stopper	1
13	91690-30018	Pin,Spring	1
14	90386-14MA1	Bushing	1
15	90109-06M04	Bolt	1
16	69A-43311-11-4D	Bracket, Swivel 1	1
17	69A-43131-00	Bolt,ClampBracket	1
18	90386-22MA4	Bushing	2
19	69A-43113-00	Plate,ClampBracket	1
20	90185-22043	Nut, Self-Locking	2
21	6G5-43145-01	Cap,ClampBracket	2
22	90446-14MH7	Hose (L560)	1
23	90465-13M97	Clamp	1
24	69G-43818-00	Pin, Lower Shock Mount	1
25	90386-16MA7	Bushing	2
26	90386-16MA8	Bushing	1
27	90387-16M02	Color	1
28	90201-08M00	Washer,Plate	2
29	97080-08016	Bolt	2
30	90249-12M36	Pin	1
31	90381-12M10	Bush, Solid	1
32	90381-12M11	Bush, Solid	2
33	93430-10M00	Circlip	1
34	90110-08M05	Bolt, Hexagon Socket Head	2
35	90185-08057	Nut, Self-Locking	2
36	92990-08600	Washer,Plate	2
37	90338-08M19	Plug	2
38	65W-45251-00	Anode	1
39	90101-06020	Bolt, Hexagon	2
40	63V-82127-00	Wire,Lead 2	1
41	97095-06010	Bolt	2
42	92995-06600	Washer	2
43	90269-02M08	Rivet	2
44	69A-43155-00	Mark 1	1

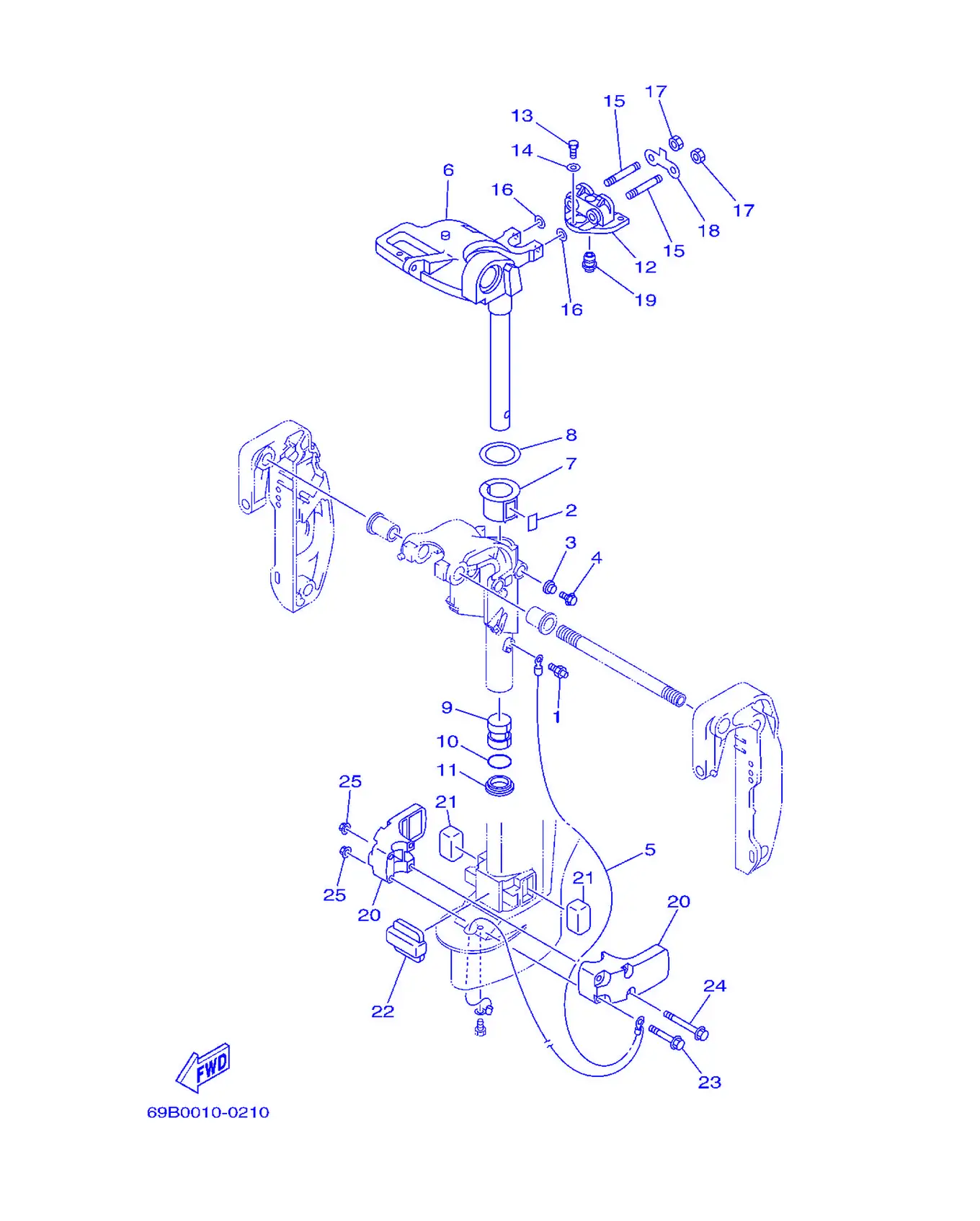

Fig. 24Bracket 2

REF	Part No.	Name	Qty
1	93700-06M03	Nipple, Grease	1
2	63V-42528-00	Plate, Friction	1
3	689-43373-01	Seal,Damper	1
4	90105-06M07	Bolt, Flange	1
5	69A-82127-00	Wire,Lead 2	1
6	66M-42511-11-4D	Bracket,Steering	1
7	63V-42537-00	Bushing, Pivot Shaft	1
8	90201-45M28	Washer,Plate	1
9	90386-30048	Bushing	1
10	93210-29M94	O-ring	1
11	90386-30M60	Bushing	1
12	66M-44514-00-4D	Mount Damper, Upper Side	1
13	97075-06025	Bolt	3
14	92995-06600	Washer	3
15	90116-08M54	Bolt, Stud	2
16	90201-08M06	Washer,Plate	2
17	95380-08600	Nut	2
18	66M-44526-00	Plate	1
19	66M-44366-00	Damper,WaterSeal	1
20	66M-44551-00-4D	Housing, Lower Mount Rubber	2
21	682-44555-30	Mount Damper, Lower Side	2
22	66M-44557-00	Mount Damper, Lower Front	1
23	90119-08M45	Bolt, With Washer	2
24	90119-08M46	Bolt, With Washer	2
25	90179-08M34	Nut	4

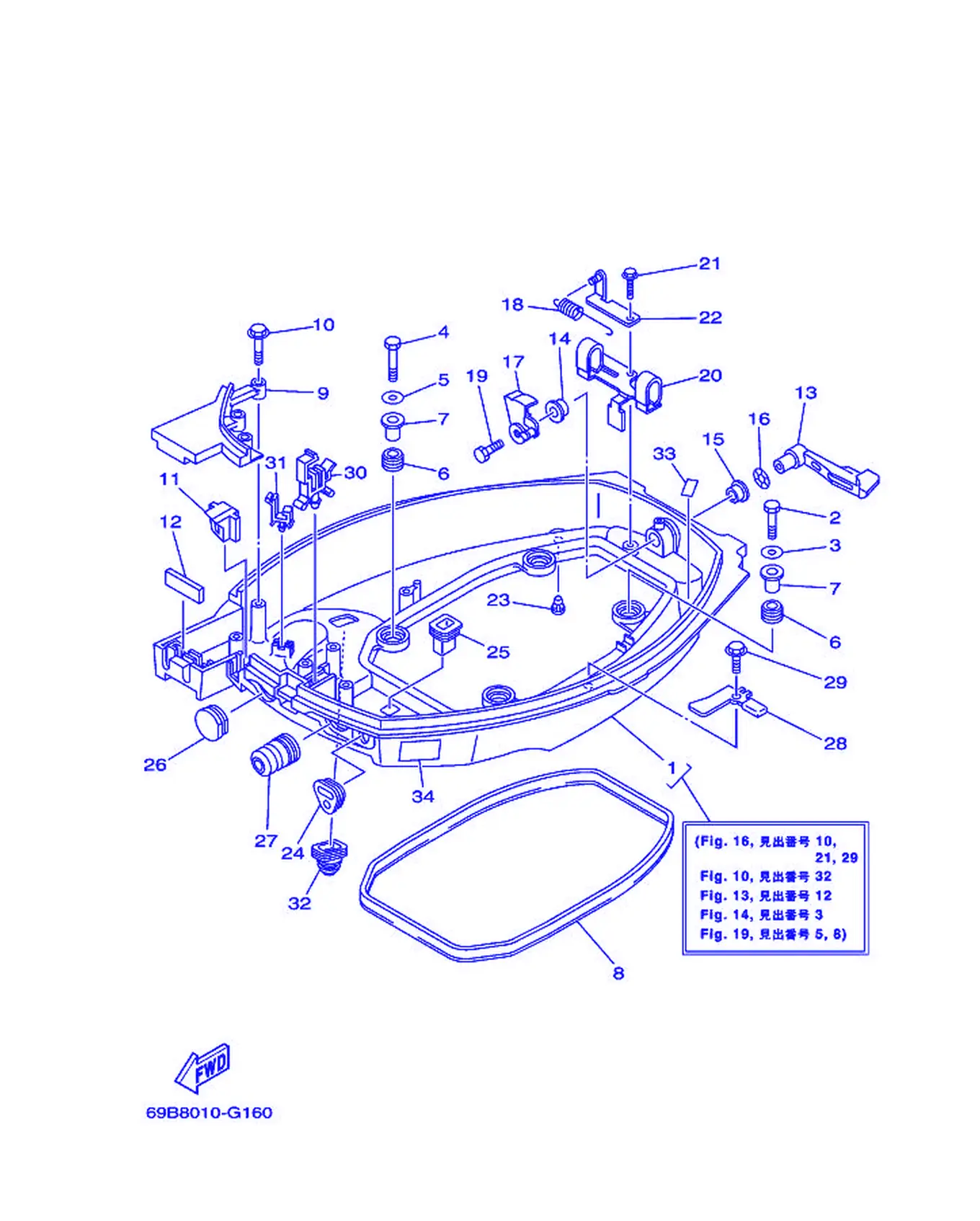

Fig. 25Bottom Cowling

REF	Part No.	Name	Qty
1	66M-42710-05-4D	Bottom Cowling Assembly	1
2	97095-06035	Bolt	2
3	92995-06600	Washer	2
4	97095-06025	Bolt	2
5	92995-06600	Washer	2
6	90480-15M31	Grommet	4
7	90387-06034	Color	4
8	66M-42716-00	Rubber,Seal 1	1
9	66M-42738-00-4D	Plate, Fitting	1
10	90109-06M82	Bolt	3
11	66M-42725-10	Grommet	1
12	65W-42727-00	Grommet	1
13	6D4-42815-00-4D	Lever,Clamp	1
14	90386-12M37	Bushing	1
15	90386-12MA2	Bushing	1
16	90206-12052	Washer, Wave	1
17	6D4-42816-00	Lever,Clamp	1
18	90506-18010	Spring, Tension	1
19	97095-06012	Bolt	1
20	6D4-42766-00	Bracket 2	1
21	90109-06M81	Bolt	1
22	6D4-43144-00	Hook,Spring	1
23	6H3-44391-01	Nipple,Hose	1
24	69A-26326-00	Grommet	1
25	682-42727-00	Grommet	1
26	682-42724-00	Grommet	1
27	65W-42726-00	Grommet	1
28	66M-42743-00	Bracket	2
29	90109-06M86	Bolt	2
30	90465-25M95	Clamp	1
31	90464-09M13	Clamp	1
32	688-42726-10	Grommet	1
33	62Y-82377-00	Label	1
34	6AH-42794-00	Label, Warning (General)	1

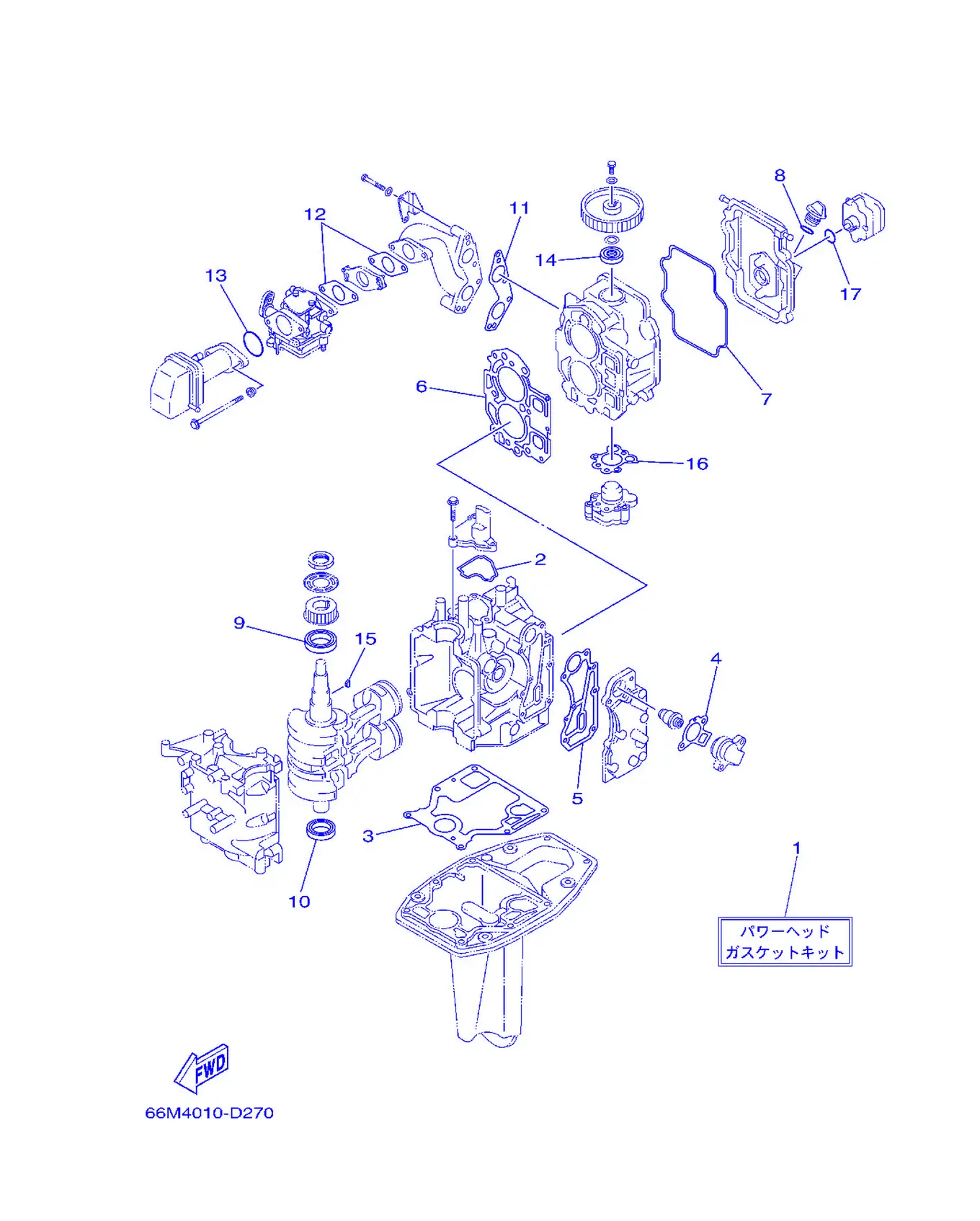

Fig. 26Repair Kit 1

REF	Part No.	Name	Qty
1	66M-W0001-02	Power Head Gasket Kit	1
2	66M-11357-00	Seal,Cylinder 3	1
3	66M-11351-10	Gasket,Cylinder	1
4	62Y-12414-00	Gasket,Cover	1
5	66M-41114-01	Gasket, Exhaust Outer Cover	1
6	66M-11181-10	Gasket, Cylinder Head 1	1
7	66M-11356-00	Seal,Cylinder 2	1
8	93210-24M79	O-ring	1
9	93102-35M51	OilSeal	1
10	93102-25M52	OilSeal	1
11	66M-13645-00	Gasket,Manifold 1	1
12	66M-13646-00	Gasket,Manifold 2	2
13	93210-35M86	O-ring	1
14	93102-18M21	OilSeal	1
15	90280-03M01	Key, Woodruff	1
16	66M-13329-10	Gasket,PumpCover	1
17	93210-20M65	O-ring	1

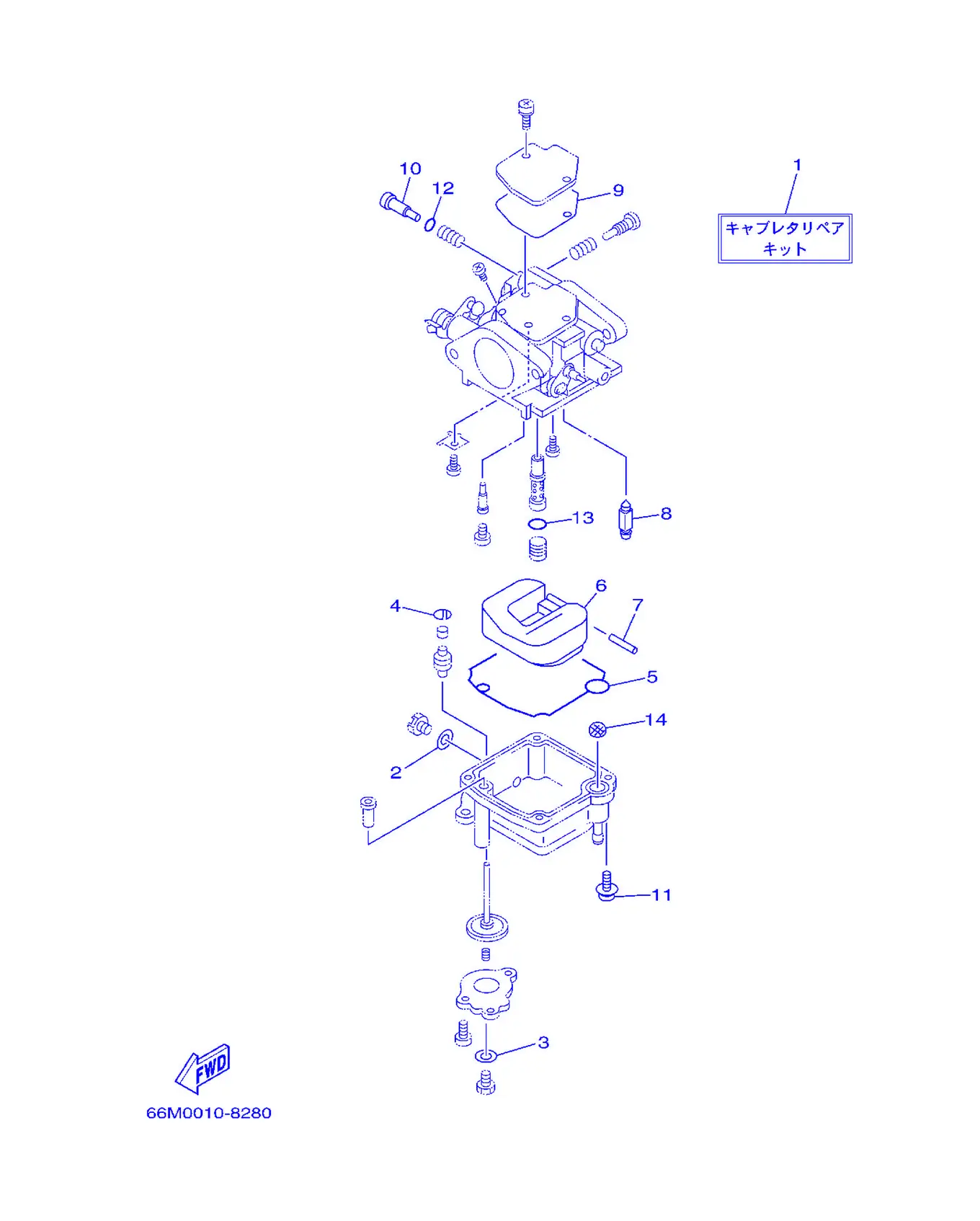

Fig. 27Repair Kit 2

REF	Part No.	Name	Qty
1	66M-W0093-01	CarburetorRepair Kit	1
2	66M-14398-00	Gasket	1
3	6L2-14398-00	Gasket	1
4	66M-14377-00	Stopper	1
5	66M-14384-00	Gasket, Float Chamber	1
6	6L2-14385-00	Float	1
7	6E5-14386-01	Pin, Float	1
8	6L2-14392-00	Valve, Needle	1
9	62Y-14399-00	Gasket	1
10	5H0-14323-00	Screw, Air Adjusting	1
11	97980-04112	Screw	4
12	62Y-14397-00	O-ring	1
13	6F5-14397-00	O-ring	1
14	66M-14827-00	Filter	1

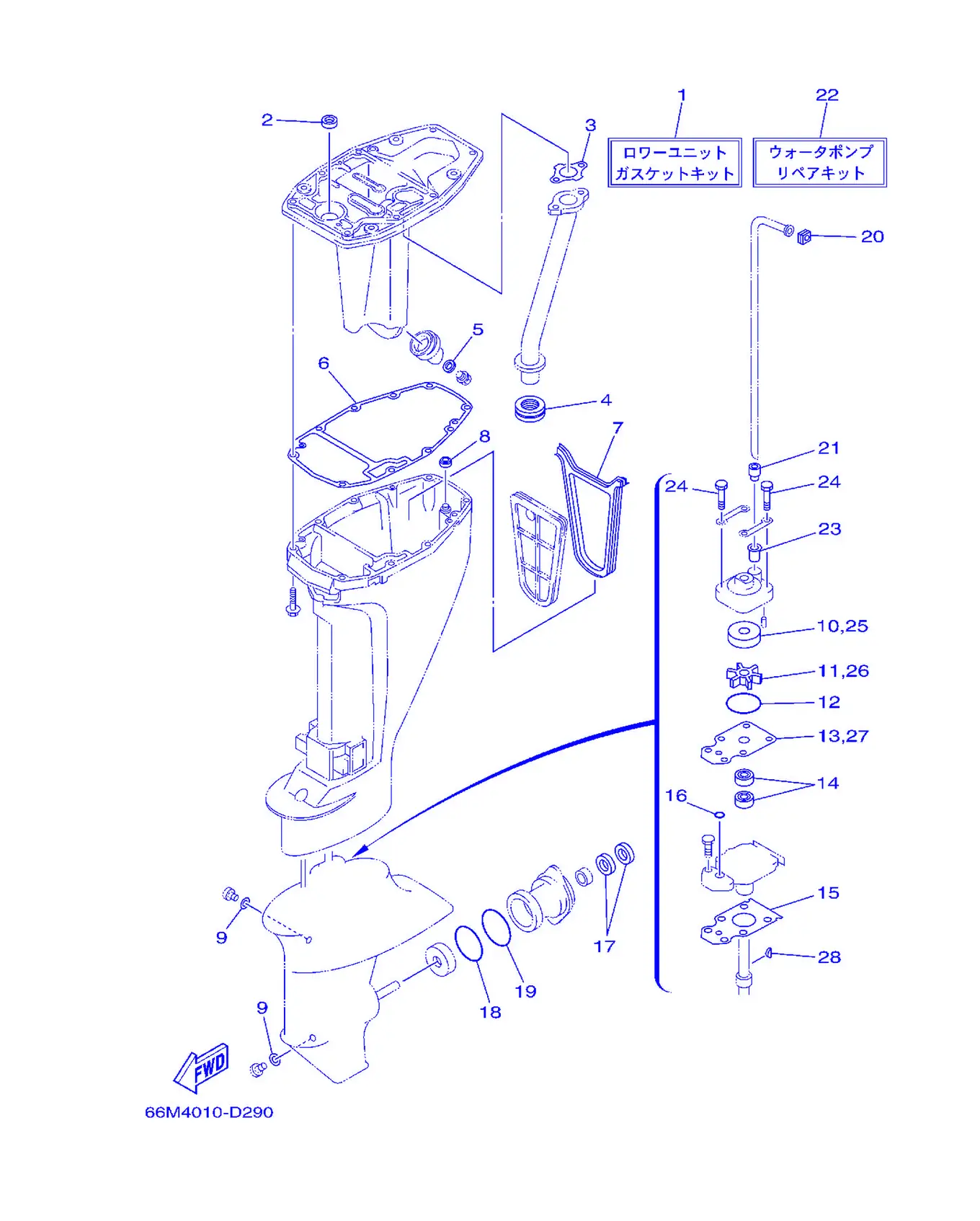

Fig. 28Repair Kit 3

REF	Part No.	Name	Qty
1	66M-W0001-21	LowerUnitGasket Kit	1
2	93101-12M63	OilSeal	1
3	66M-41133-01	Gasket, Exhaust Manifold	1
4	6D4-41138-00	Seal, Exhaust 1	1
5	90430-14M09	Gasket	1
6	66M-45113-00	Gasket,UpperCasing	1
7	66M-45115-00	Gasket,UpperCasing	1
8	66M-45128-00	Seal 2	1
9	90430-08020	Gasket	2
10	63V-44322-00	Insert, Cartridge	1
11	63V-44352-01	Impeller	1
12	93210-44398	O-ring	1
13	63V-44323-00	Outer Plate, Cartridge	1
14	93101-20001	OilSeal	2
15	63V-45315-A0	Packing, Lower Casing	1
16	93210-06ME6	O-ring	1
17	93101-17054	OilSeal	2
18	93210-57M09	O-ring	1
19	93210-56M80	O-ring	1
20	63V-44365-10	Damper,WaterSeal	1
21	63V-44368-00	Rubber,WaterSeal 4	1
22	63V-W0078-00	Water PumpRepair Kit	1
23	647-44366-00	Damper,WaterSeal	1
24	97080-08045	Bolt	4
25	63V-44322-00	Insert, Cartridge	1
26	63V-44352-01	Impeller	1
27	63V-44323-00	Outer Plate, Cartridge	1
28	664-44338-00	Key, Woodruff	1

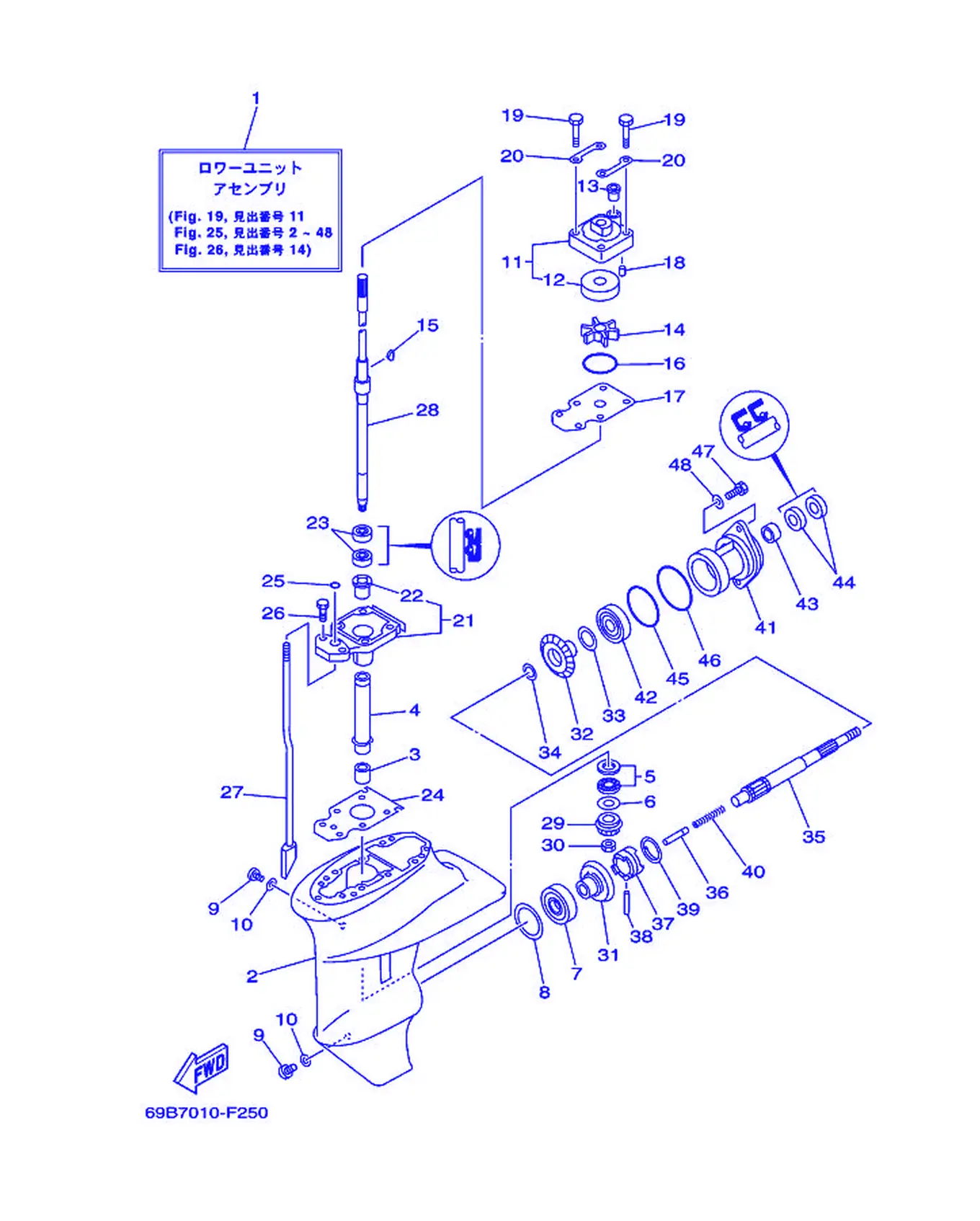

Fig. 29Lower Casing & Drive 1

REF	Part No.	Name	Qty
1	69A-45300-11-4D	LowerUnitAssembly	1
2	63V-45311-01-4D	Casing,Lower	1
3	93315-314V8	Bearing	1
4	63V-45536-00	Sleeve,Drive Shaft	1
5	93341-41414	Bearing	1
6	6E8-45587-10	Shim (T:1.13MM)	1
6	6E8-45587-30	Shim (T:1.20MM)	1
7	93332-00005	Bearing	1
8	664-45567-01	Shim (T:0.10MM)	1
8	664-45567-10	Shim (T:0.12MM)	1
8	664-45567-20	Shim (T:0.15MM)	1
8	664-45567-30	Shim (T:0.18MM)	1
8	664-45567-40	Shim (T:0.30MM)	1
8	664-45567-50	Shim (T:0.40MM)	1
8	664-45567-60	Shim (T:0.50MM)	1
9	90340-08002	Plug, Straight Screw	2
10	90430-08020	Gasket	2
11	63V-44301-00	Water Pump Housing Complete	1
12	63V-44322-00	Insert, Cartridge	1
13	647-44366-00	Damper,WaterSeal	1
14	63V-44352-01	Impeller	1
15	664-44338-00	Key, Woodruff	1
16	93210-44398	O-ring	1
17	63V-44323-00	Outer Plate, Cartridge	1
18	93604-12M07	Pin, Dowel	2
19	97080-08045	Bolt	4
20	63V-44328-00	Plate	2
21	63V-45331-00-5B	Housing,Bearing	1
22	626-45316-09	Bushing, Drive Shaft	1
23	93101-20001	OilSeal	2
24	63V-45315-A0	Packing, Lower Casing	1
25	93210-06ME6	O-ring	1
26	97080-08025	Bolt	2
27	66M-44150-10	Shift Cam Assembly	1
28	69A-45510-10	Drive ShaftAssembly	1
29	63V-45551-00	Pinion (13T)	1
30	90179-08M06	Nut	1
31	6E7-45560-01	Gear 1 (27T)	1
32	6E7-45571-00	Gear	1
33	626-45577-00	Shim (T:0.10MM)	1
33	626-45577-10	Shim (T:0.20MM)	1
33	626-45577-20	Shim (T:0.30MM)	1
33	626-45577-30	Shim (T:0.40MM)	1
33	626-45577-40	Shim (T:0.50MM)	1
34	90201-17682	Washer,Plate	1
35	683-45611-00	Shaft,Propeller	1
36	650-45635-00	Plunger, Shift	1
37	682-45631-00	Clutch, Dog	1
38	90250-05010	Pin, Straight	1
39	648-45633-00	Ring, Cross Pin	1
40	90501-14M06	Spring, Compression	1
41	683-45361-02-4D	Cap,Lower Casing	1
42	93306-00501	Bearing	1
43	93315-317U2	Bearing	1
44	93101-17054	OilSeal	2
45	93210-57M09	O-ring	1
46	93210-56M80	O-ring	1
47	97095-06020	Bolt	2
48	92995-06600	Washer	2

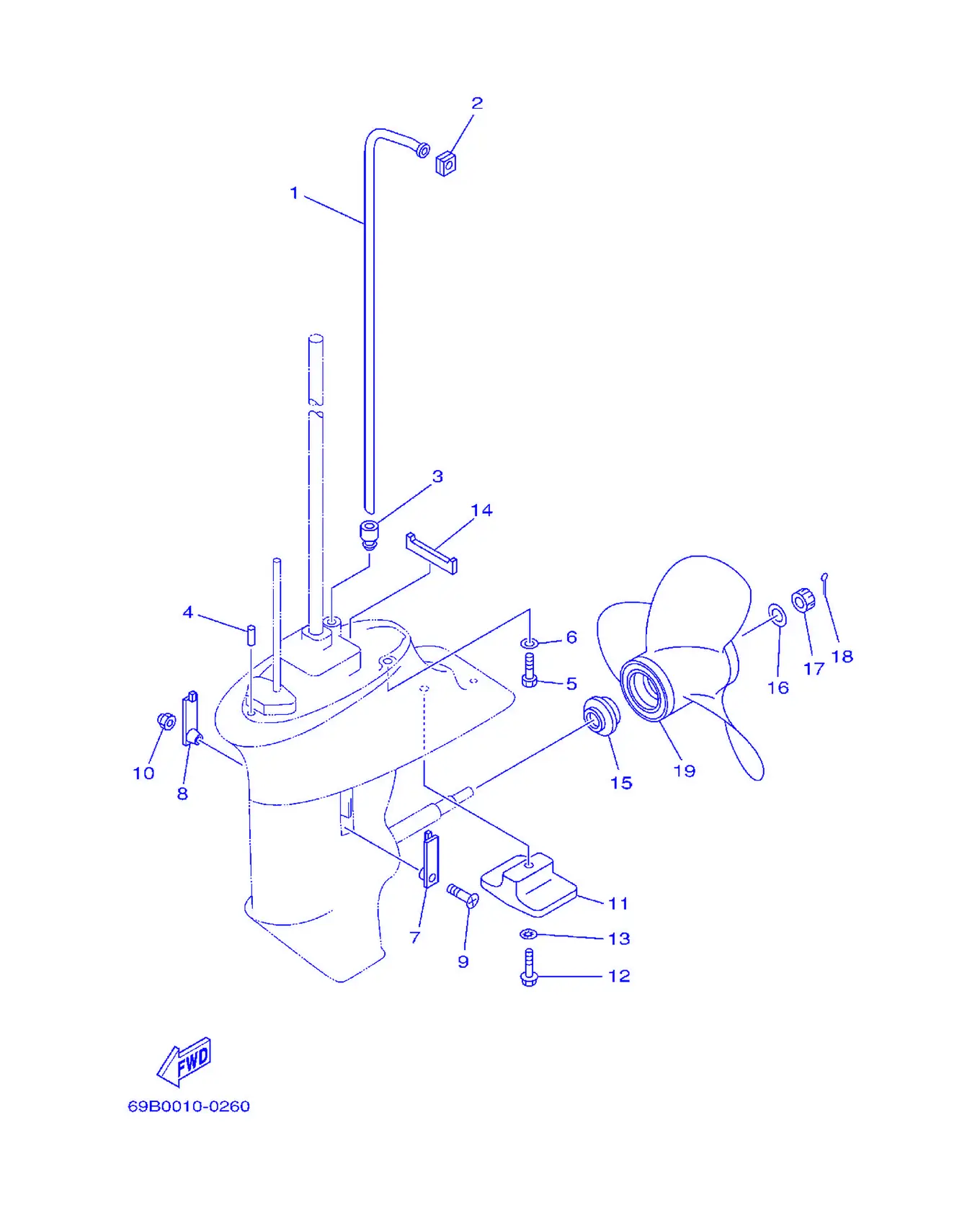

Fig. 30Lower Casing & Drive 2

REF	Part No.	Name	Qty
1	66M-44361-10	Tube, Water	1
2	63V-44365-10	Damper,WaterSeal	1
3	63V-44368-00	Rubber,WaterSeal 4	1
4	93604-12M07	Pin, Dowel	2
5	97075-08030	Bolt	4
6	92995-08600	Washer	4
7	6G1-45214-00	Cover, Water Inlet 1	1
8	63V-45215-00	Cover, Water Inlet 2	1
9	90152-05M04	Screw, Countersunk	1
10	90185-05002	Nut, Self-Locking	1
11	61N-45251-01	Anode	1
12	95895-06030	Bolt, Flange	1
13	92990-06300	Washer, Internal Tooth	1
14	63V-45375-00	Damper,Seal	1
15	6E7-45987-01	Spacer	1
16	90201-10M01	Washer,Plate	1
17	90171-10M01	Nut, Castle	1
18	91490-30020	Pin, Cotter	1
19	683-45941-00-EL	Propeller (3X9-1/4 X12 -J)	1
19	683-45943-00-EL	Propeller (3X9-1/4 X10-1/2 -J)	1
19	683-45952-00-EL	Propeller (3X9-1/4 X9-3/4 -J)	1
19	63V-45943-00-EL	Propeller (3X9-1/4X11-J)	1
19	63V-45945-00-EL	Propeller (3X9-1/4X9-J)	1
19	63V-45947-00-EL	Propeller (3X9-1/4X8-J)	1
19	63V-45952-00-EL	Propeller (3X9-1/4X10-J)	1
