Yamaha — f9.9b / f9.9mlhrl

Exploded diagrams and part specifications.

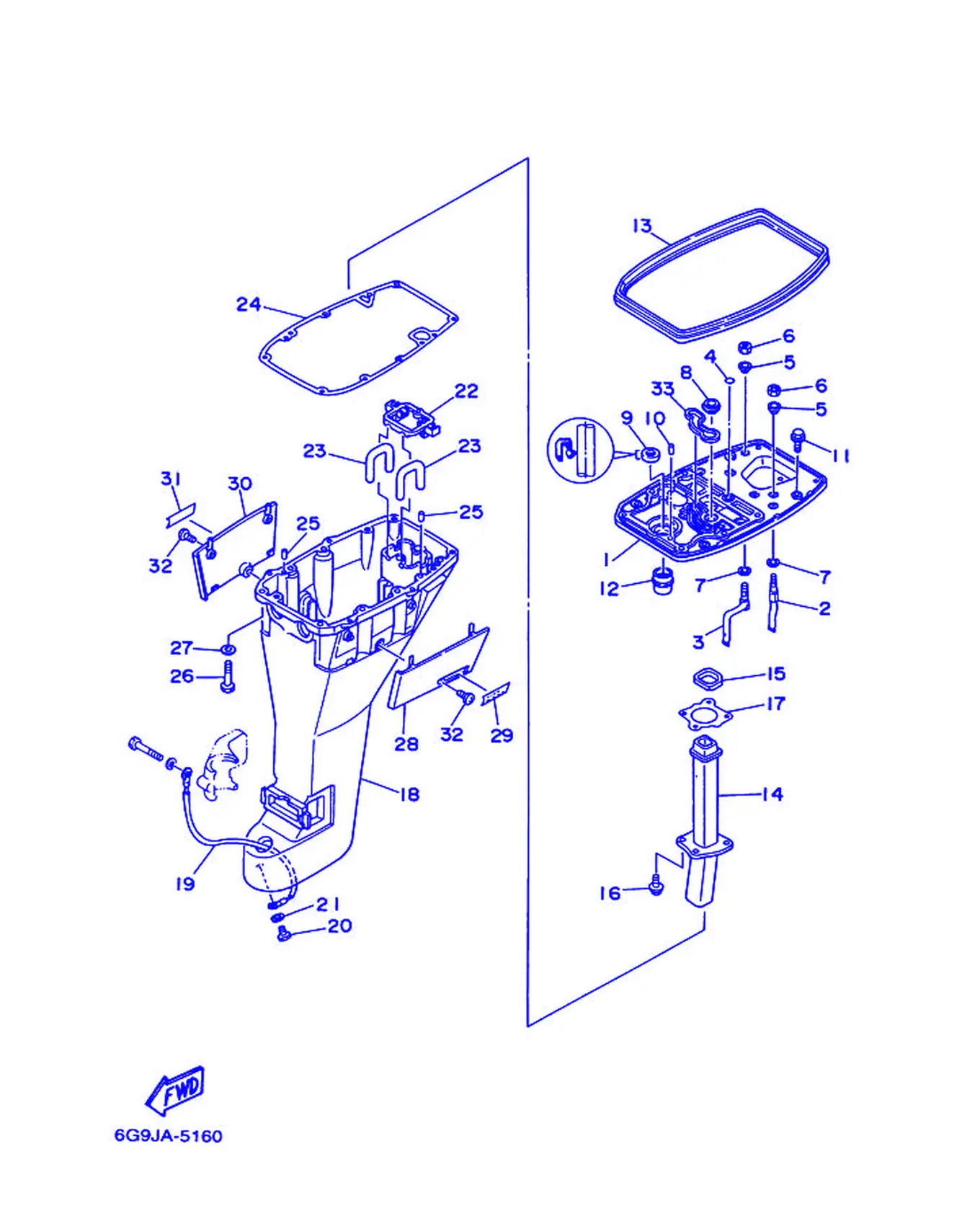

Fig. 1Upper Casing

REF	Part No.	Name	Qty
1	6G8-41137-04-94	Guide,Exhaust	1
2	6G8-12483-00	Pipe 3	1
3	6G8-12484-00	Pipe 4	1
4	93210-08M60	O-ring	1
5	90386-10M70	Bushing	2
6	95380-10700	Nut	2
7	90202-10M03	Washer,Plate	2
8	6G8-44367-00	Damper,WaterSeal	1
9	93101-13M27	OilSeal	1
10	93606-12019	Pin, Dowel	2
11	97513-06520	Bolt, With Washer	2
12	6G8-45135-00	Pipe	1
13	6G8-42716-00	Rubber,Seal 1	1
14	6G8-41131-01	Manifold,Exhaust 1	1
15	6G8-41138-00	Seal,Exhaust1	1
16	90105-06M33	Bolt, Washer Based Head	4
17	6G8-41133-A0	Gasket, Exhaust Manifold	1
18	6G8-45111-13-4D	Casing,Upper	1
19	6G8-82149-00	Wire,Lead 3	1
20	97095-06012	Bolt	1
21	92995-06600	Washer	1
22	6G8-45151-10	Cover,UpperCasing	1
23	6G8-45136-00	Pipe	2
24	6G8-45113-A1	Gasket,UpperCasing	1
25	93606-12019	Pin, Dowel	2
26	97095-08040	Bolt	6
27	92995-08600	Washer	6
28	6G8-42741-00-4D	Apron	1
29	6G8-42791-00	Mark 1	1
30	6G8-42771-00-4D	Apron	1
31	6G8-42792-00	Mark	1
32	90157-06M04	Screw, Pan Head	2
33	6G8-11355-00	Seal,Cylinder 1	1

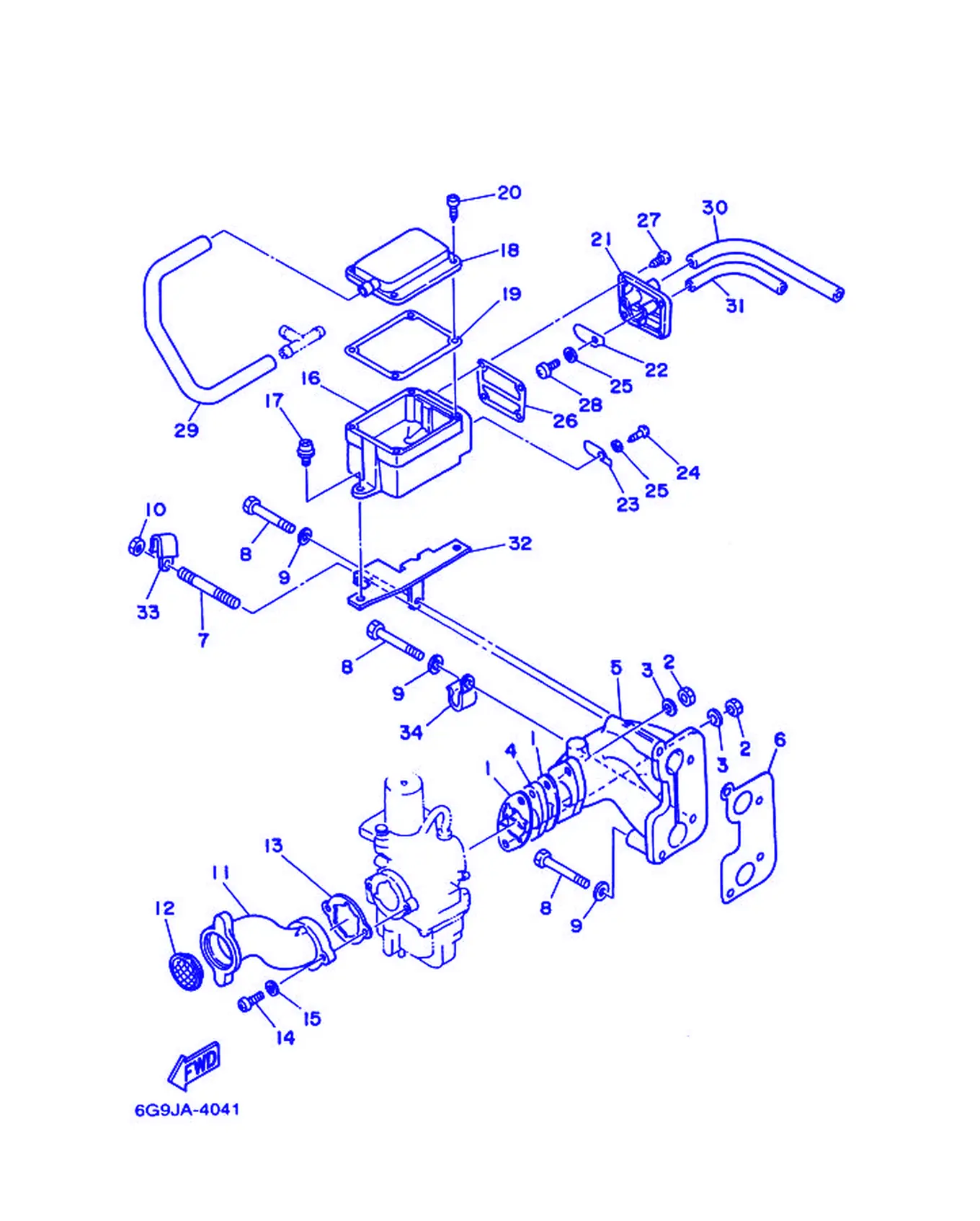

Fig. 2Intake

REF	Part No.	Name	Qty
1	6G8-13646-A0	Gasket,Manifold 2	2
2	95380-06700	Nut	2
3	92990-06600	Washer,Plate	2
4	6G8-13647-00	Gasket,Manifold 3	1
5	6G8-13641-01-94	Manifold 1	1
6	6G8-13645-00	Gasket,Manifold 1	1
7	90116-06M15	Bolt, Stud	1
8	97095-06045	Bolt	3
9	92995-06600	Washer	3
10	95380-06700	Nut	1
11	6G8-14479-02-94	Funnel	1
12	6G8-14478-00	Louver	1
13	6G8-14198-A0	Gasket	1
14	97880-05016	Screw, Pan Head	2
15	92990-05600	Washer,Plate	2
16	6G8-15358-00	Separator, Oil	1
17	90159-06M05	Screw, With Washer	2
18	6G8-15368-00-94	Separator, Oil	1
19	6G8-15369-00	Gasket,OilSealHousing	1
20	97780-40512	Screw, Tapping	4
21	6G8-15371-00-94	Breather	1
22	6G8-15346-00	Breather 1	1
23	6G8-15347-00	Breather 2	1
24	97780-40512	Screw, Tapping	1
25	92990-04200	Washer, Plain	2
26	6G8-15374-00	Gasket, Breather	1
27	97780-40512	Screw, Tapping	4
28	98507-04010	Screw, Pan Head	1
29	6G8-15393-00	Pipe, Breather 2	1
30	90445-11M52	Hose	1
31	90445-09065	Hose	1
32	6G8-15376-00	Holder,Guide	1
33	90465-08M07	Clamp	1
34	90465-08M07	Clamp	1

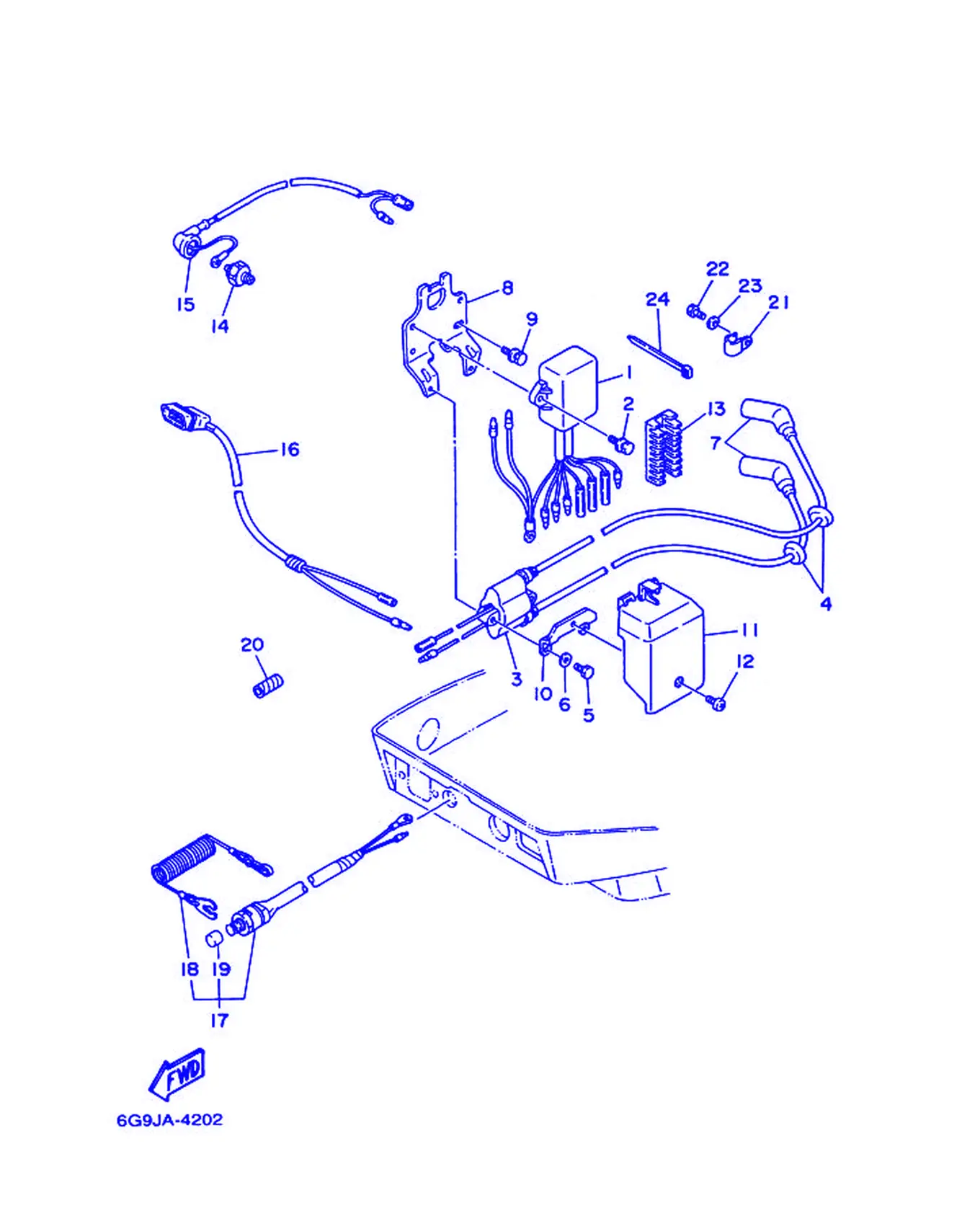

Fig. 3Electric Parts

REF	Part No.	Name	Qty
1	6G9-85540-22	C.D.I. Unit Assembly	1
2	97595-06520	Bolt, With Washer	2
3	6G8-85570-21	Ignition Coil Assembly	1
4	90480-25161	Grommet	2
5	97095-06025	Bolt	2
6	92995-06600	Washer	2
7	6G8-82370-20	PlugCapAssembly	2
8	6G8-85542-00	Bracket	1
9	97595-06520	Bolt, With Washer	2
10	6G8-85525-00	Plate	1
11	6G8-81916-00	Cover, Terminal	1
12	98980-06008	Screw, Bind	1
13	6G8-82522-00	Clamp, Coupler	1
14	6G8-82504-00	Oil Pressure Switch Assembly	1
15	6G8-82127-00	Wire,Lead 2	1
16	6G8-83582-01	Pilot Light Assembly	1
17	6G9-82575-02	Engine Stop Switch Assembly	1
18	682-82556-00	Stopper	1
19	689-8257Y-00	Cap	1
20	90446-10M02	Hose	1
21	90465-08M07	Clamp	1
22	97013-06012	Bolt	1
23	92903-06600	Washer,Plate	1
24	90465-13M11	Clamp	1

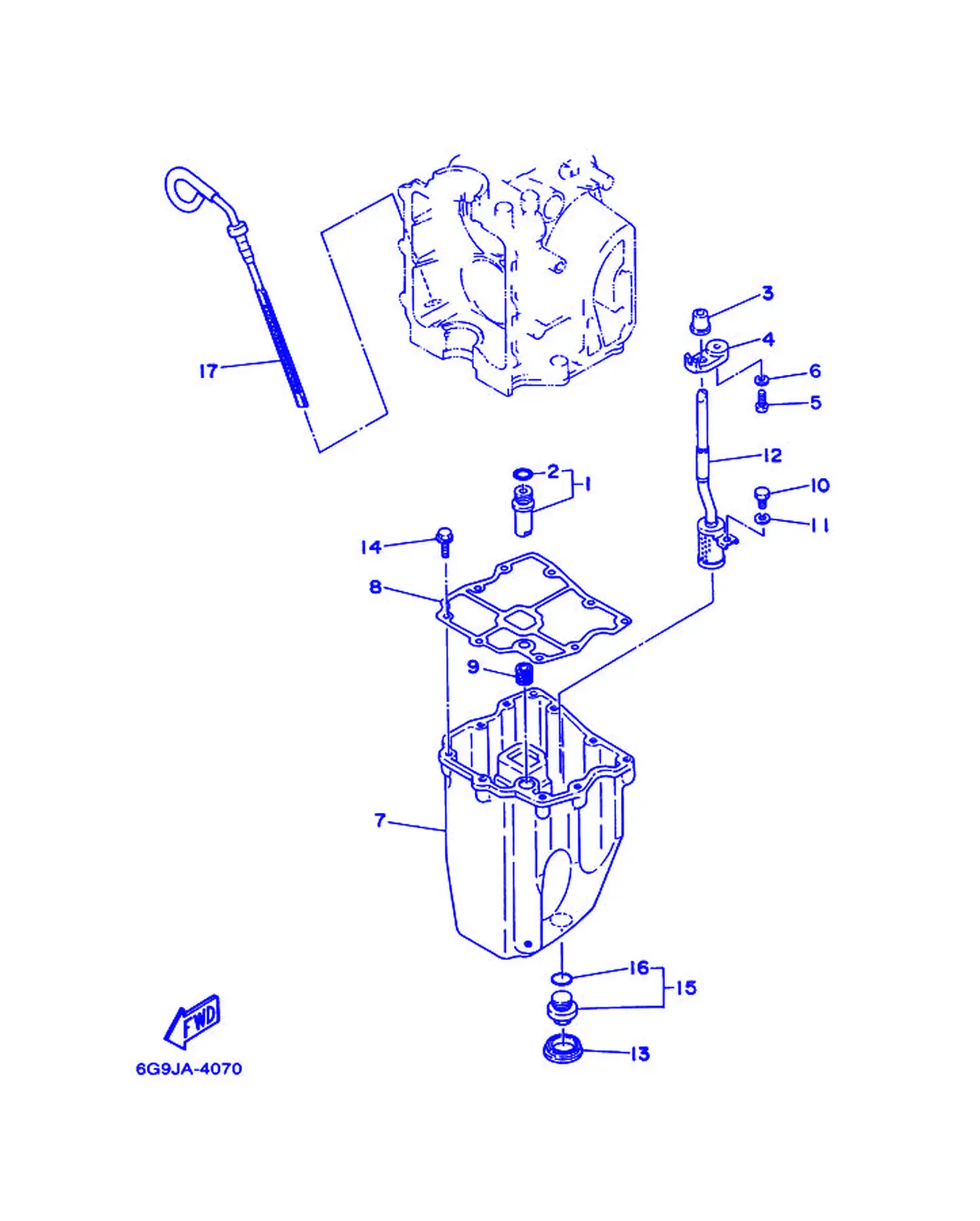

Fig. 4Oil Pan

REF	Part No.	Name	Qty
1	6G8-11575-00	Relief Valve Assembly	1
2	93210-12M62	O-ring	1
3	6G8-15379-00	Seal, Crankcase	1
4	6G8-13487-00	Guide,OilHose	1
5	97880-05012	Screw, Pan Head	1
6	92990-05600	Washer,Plate	1
7	6G8-15311-03-0D	Oil Pan	1
8	6G8-15312-A0	Gasket, Oil Pan	1
9	6G8-45127-00	Seal	1
10	97013-06010	Bolt	1
11	92903-06100	Washer,Spring	1
12	6G8-13421-00	Strainer 2	1
13	6G8-15316-00	Damper, Engine Mount 1	1
14	90105-06M33	Bolt, Washer Based Head	9
15	6G8-13471-00	Plug, Drain	1
16	93210-16M64	O-ring	1
17	6G8-15362-04	Plug, Oil Level	1

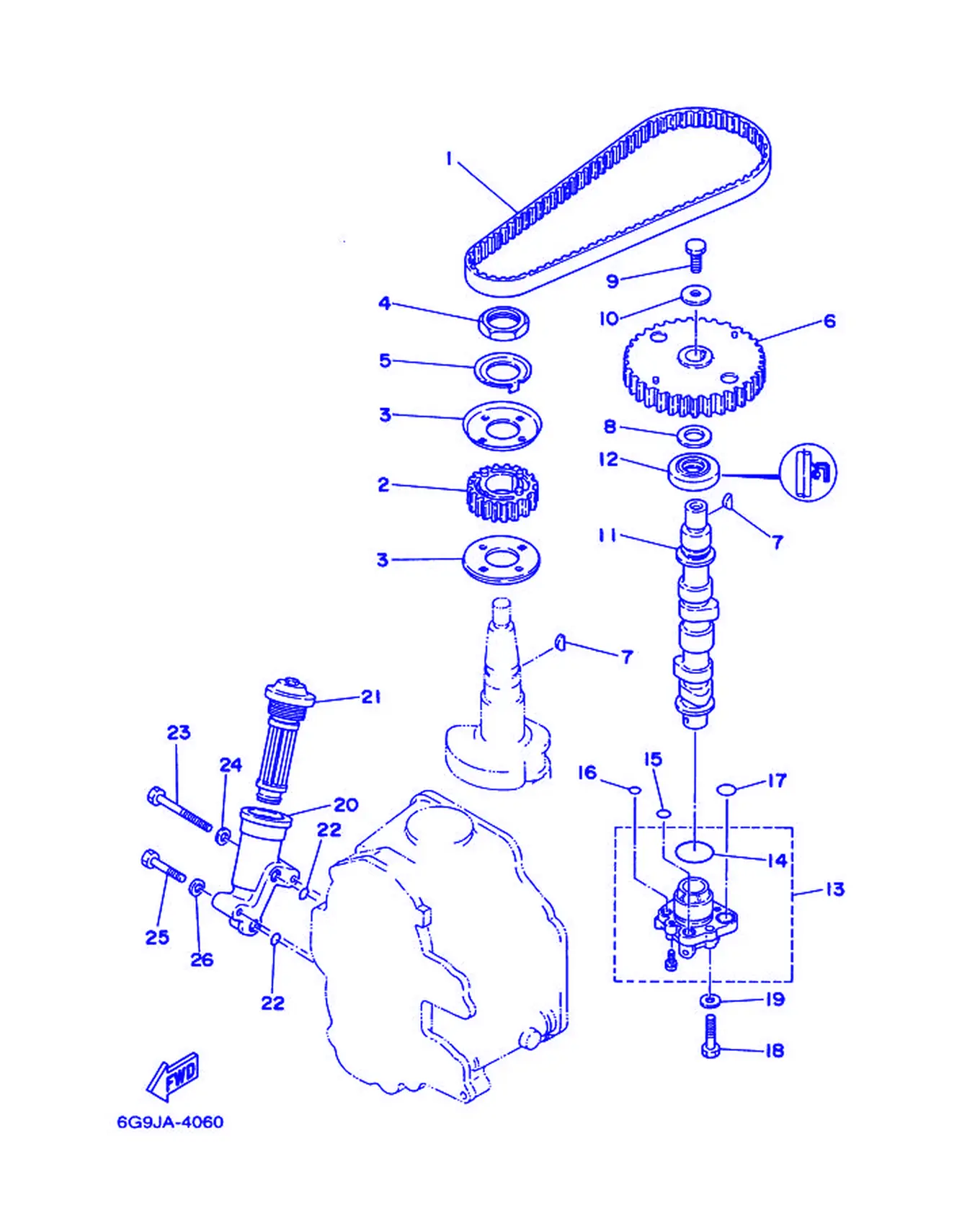

Fig. 5Oil Pump

REF	Part No.	Name	Qty
1	6G8-46241-00	V-Belt	1
2	6G8-11536-00-94	Gear, Drive	1
3	6G8-11557-00	Washer 1	2
4	90170-24M09	Nut	1
5	6G8-11587-00	Washer,Lock	1
6	6G8-11537-00-94	Gear, Driven	1
7	90280-03M01	Key, Woodruff	2
8	90201-13201	Washer,Plate	1
9	97013-06016	Bolt	1
10	90201-06M94	Washer,Plate	1
11	6G8-12171-00	CamShaft 1	1
12	93102-18M21	OilSeal	1
13	6G8-13300-02	Oil PumpAssembly	1
14	93210-27ME3	O-ring	1
15	93210-10M61	O-ring	1
16	93210-09M01	O-ring	1
17	93210-13M63	O-ring	2
18	97095-06025	Bolt	3
19	92995-06600	Washer	3
20	6G8-13442-00-94	Housing, Oil Filter	1
21	6G8-13440-00	Element Assembly, Oil Cleaner	1
22	93210-09M01	O-ring	2
23	97013-06050	Bolt	1
24	92903-06600	Washer,Plate	1
25	97013-06030	Bolt	1
26	92903-06600	Washer,Plate	1

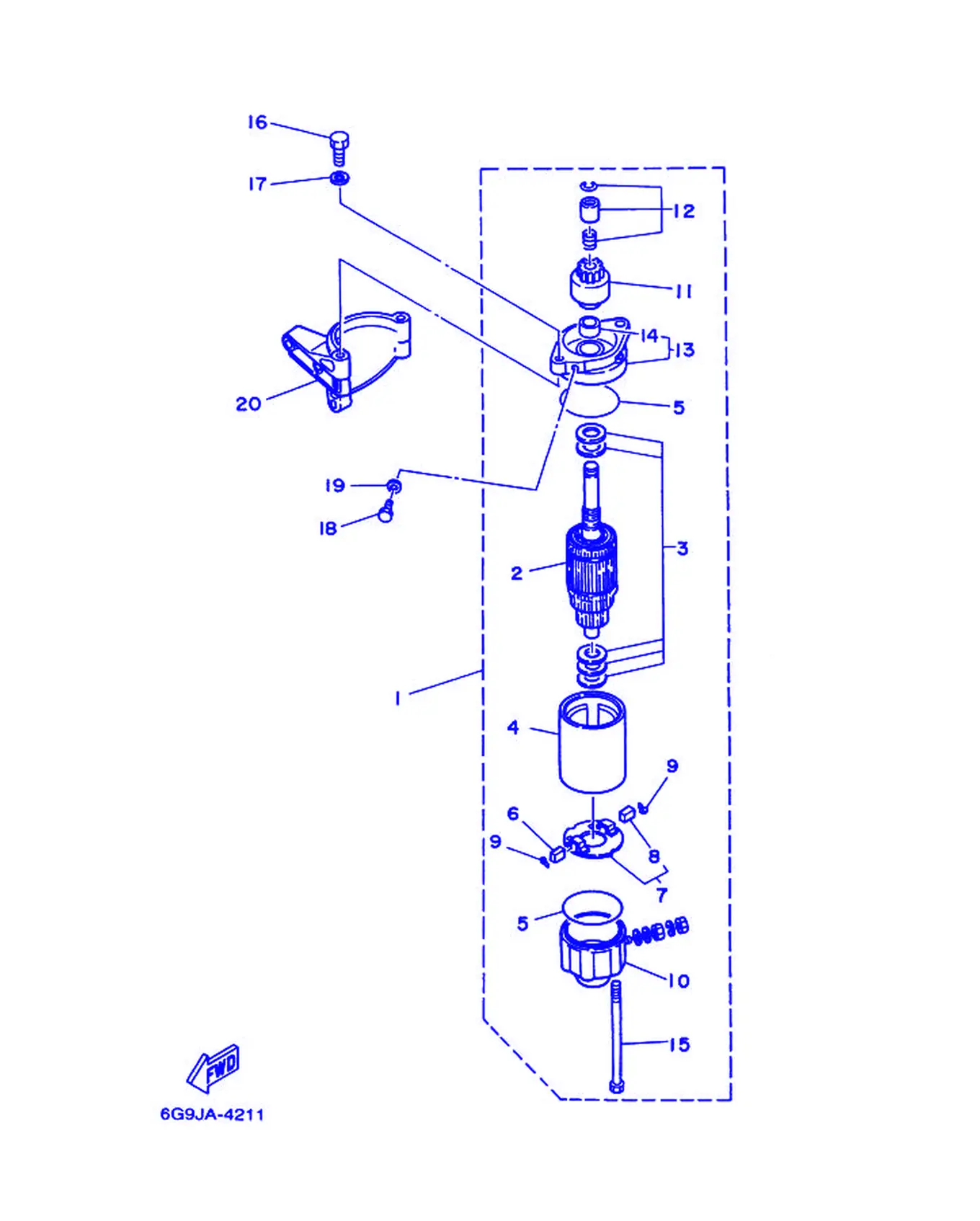

Fig. 6F9.9BEH) Alternate 1 (F9.9BEH)

替代件 1 (F9.9BEH) Alternate 1 (F9.9BEH) Fig.

REF	Part No.	Name	Qty
1	6G8-81800-11	Starting Motor Assembly	1
2	689-81850-12	Armature Assembly	1
3	689-81809-11	Washer Kit	1
4	689-81810-11	Stator Assembly	1
5	689-81847-11	O-ring	2
6	689-81811-11	Brush 1	1
7	689-81840-11	Brush Holder Assembly	1
8	689-81812-11	Brush 2	1
9	689-81813-10	Spring, Brush	2
10	689-81820-11	Rear Bracket Assembly	1
11	689-81807-12	Gear Assembly, Starting Motor	1
12	689-81857-11	Pinion Stopper Set	1
13	6F5-81830-11	FrontBracketAssembly	1
14	689-81831-00	Metal, Front	1
15	689-81826-10	Bolt	2
16	97075-08025	Bolt	2
17	92995-08600	Washer	2
18	97095-08016	Bolt	1
19	92995-08600	Washer	1
20	6G8-81822-40-94	Bracket, Starting Motor	1

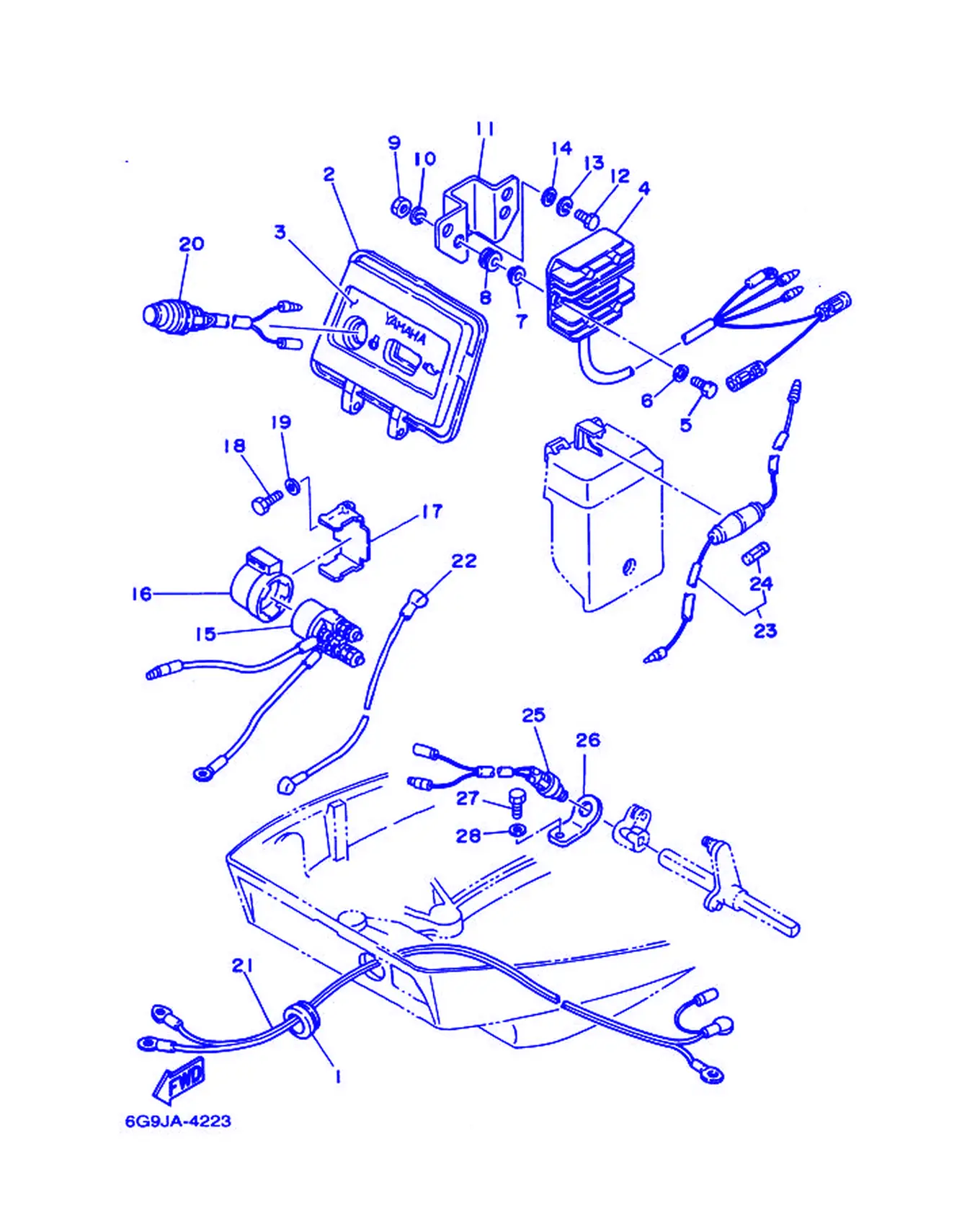

Fig. 7F9.9BEH) Alternate 2 (F9.9BEH)

替代件 2 (F9.9BEH) Alternate 2 (F9.9BEH) Fig.

REF	Part No.	Name	Qty
1	6G8-42724-40	Grommet	1
2	6G8-42614-12	Panel, Front Upper	1
3	6G8-42677-10	Graphic, Front	1
4	6G8-81960-A1	Rectifier and Regulator	1
5	97095-06025	Bolt	2
6	92995-06600	Washer	2
7	90387-06M70	Color	2
8	90480-13M24	Grommet	2
9	95380-06700	Nut	2
10	92990-06600	Washer,Plate	2
11	6G8-81948-02	Bracket	1
12	97095-06020	Bolt	1
13	92995-06100	Washer,Spring	1
14	92995-06600	Washer	1
15	6J0-81941-10	StarterRelayAssembly	1
16	6G1-81952-00	Holder, Relay	1
17	6G8-81953-00	Stay, Relay	1
18	97095-06012	Bolt	1
19	92995-06600	Washer	1
20	6G8-81870-00	Starting Switch Assembly	1
21	6G8-82105-01	WireHarness	1
22	6G8-82117-00	Wire,Lead	1
23	6G8-82150-00	FuseHolderAssembly	1
24	663-82151-00	Fuse (12V-20A)	1
25	6H3-82540-00	Neutral Switch Assembly	1
26	6G8-82554-00	Stay, Neutral Switch	1
27	97095-06012	Bolt	1
28	92995-06600	Washer	1

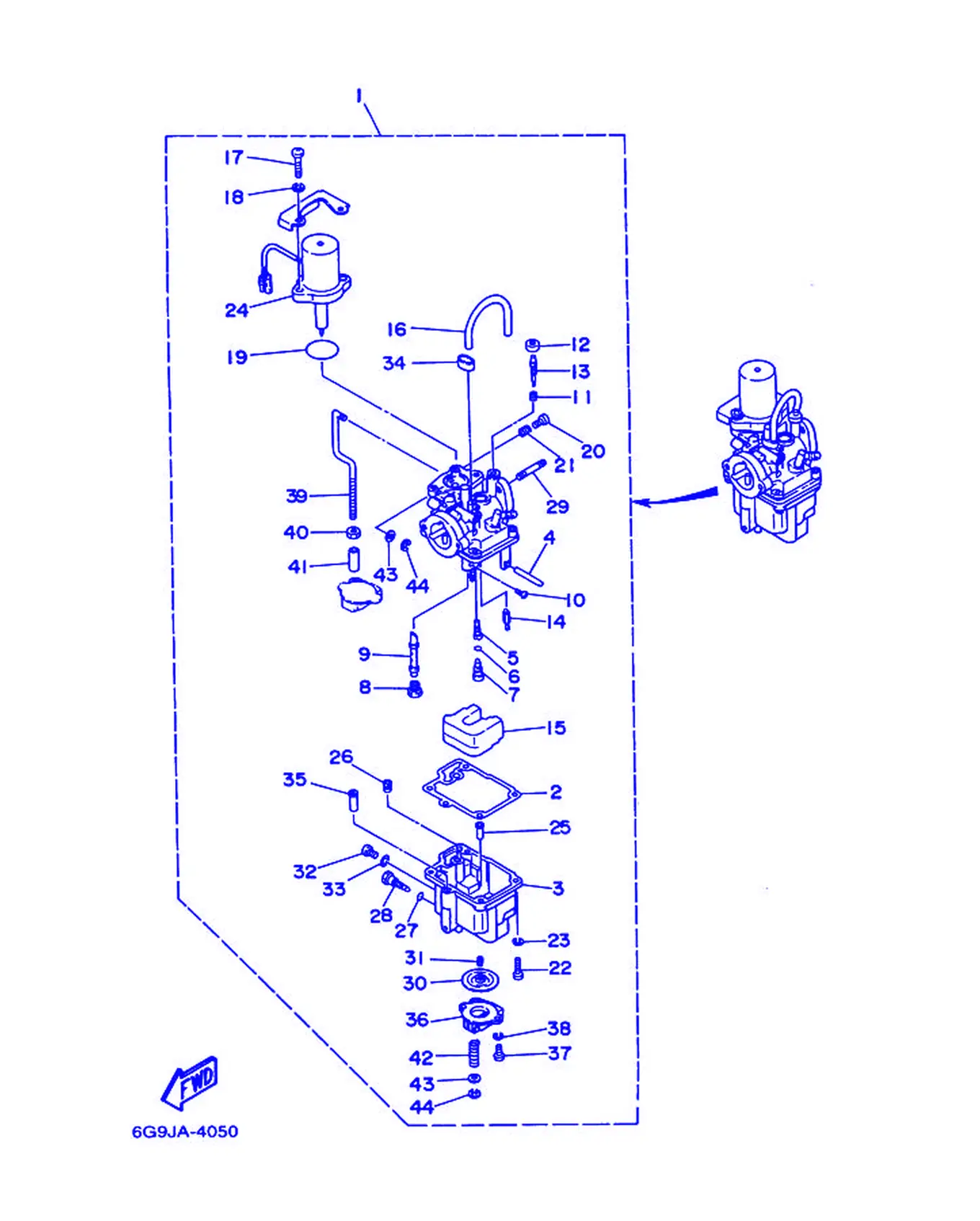

Fig. 8Carburetor

REF	Part No.	Name	Qty
1	6G9-14301-05	CarburetorAssembly 1	1
2	6G8-14384-01	Gasket, Float Chamber	1
3	6G8-14381-02	Body, Float Chamber	1
4	647-14386-00	Pin, Float	1
5	6G8-14342-24	Jet,Pilot (# 48)	1
6	654-14198-00	Gasket	1
7	6G8-14345-00	Plug,MainNozzle	1
8	648-14343-43	Jet,Main (# 86)	1
9	6G8-14341-20	Nozzle,Main	1
10	6G8-14216-00	Screw	1
11	647-14334-00	Spring	1
12	6G8-14997-00	Seal	1
13	6G8-14323-00	Screw, Air Adjusting	1
14	6G8-14392-00	Valve, Needle	1
15	6G8-14385-00	Float	1
16	6G8-14197-01	Pipe	1
17	98580-06018	Screw, Pan Head	2
18	92990-06100	Washer,Spring	2
19	1HV-14147-00	O-ring	1
20	664-14321-01	Screw, Throttle	1
21	646-14212-00	Spring, Pilot Adjusting	1
22	98580-04016	Screw, Pan Head	4
23	92990-04100	Washer, Spring	4
24	6G8-1410A-01	StarterSet	1
25	6G8-14827-00	Filter	1
26	6A4-14344-30	Jet,Starter (# 60)	1
27	5Y1-14397-00	O-ring	1
28	6G8-14383-00	Screw, Drain	1
29	90116-06M26	Bolt, Stud	2
30	6G8-14368-02	Diaphragm Assembly 1	1
31	6G8-14275-01	Spring	1
32	97890-05006	Screw, Pan Head	1
33	646-14198-01	Gasket	1
34	6G8-14349-00	Pipe	1
35	6G8-14217-00	Valve, Choke	1
36	6G8-14293-03	Cover 1	1
37	98580-04010	Screw, Pan Head	2
38	92990-04100	Washer, Spring	2
39	6G8-14379-00	Rod,Starter	1
40	98813-03100	Nut	1
41	6G8-14229-00	Shaft, Choke	1
42	6G8-14286-01	Spring	1
43	6G8-14357-00	Washer, Plain	2
44	389-14137-00	Clip	2

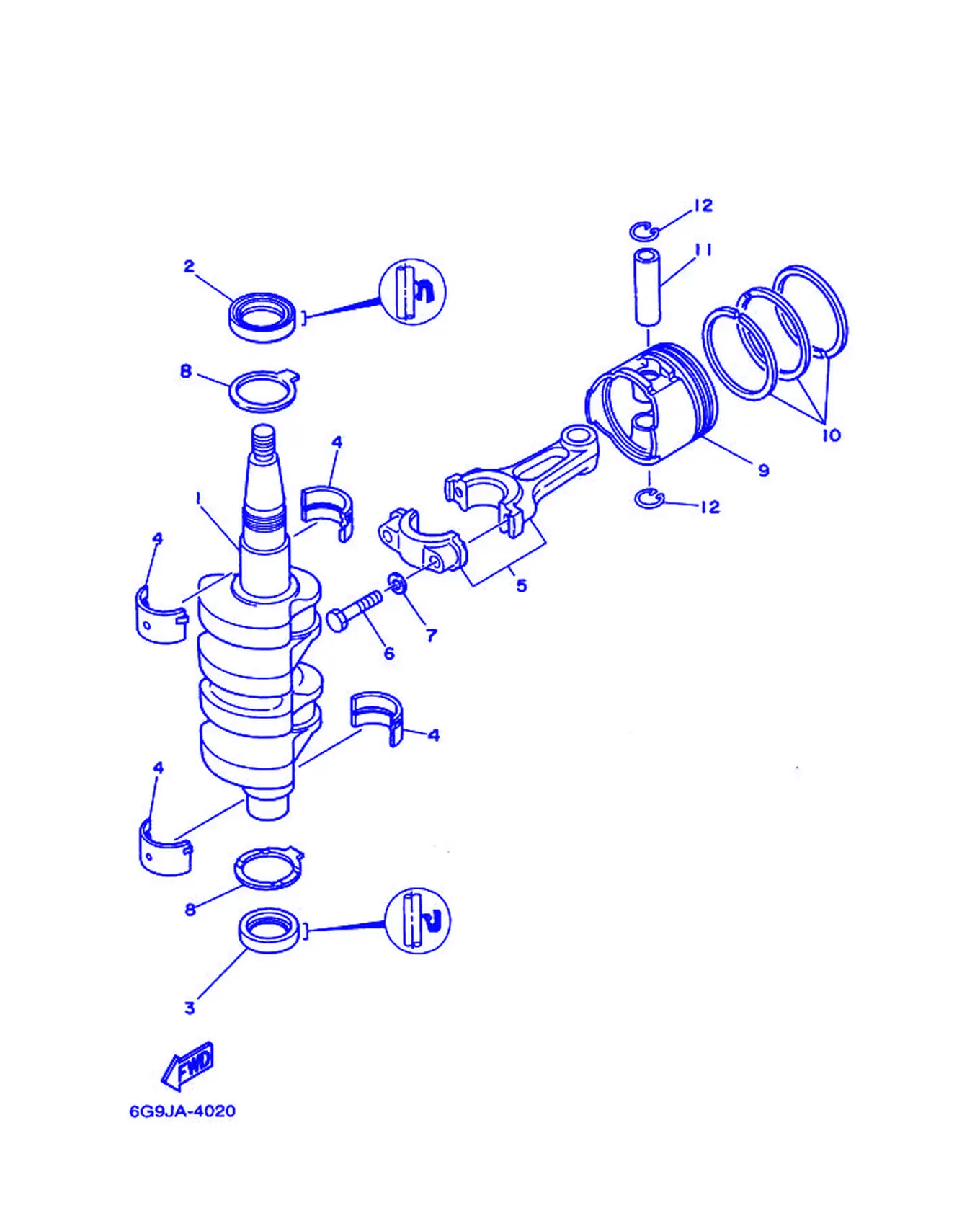

Fig. 9Crankshaft & Piston

REF	Part No.	Name	Qty
1	6G8-11411-04	Crankshaft	1
2	93102-30M22	OilSeal	1
3	93101-25M24	OilSeal	1
4	6G8-11416-00	Plain Bearing, Crankshaft	4
4	6G8-11416-10	Plain Bearing, Crankshaft	4
4	6G8-11416-20	Plain Bearing, Crankshaft	4
5	6G8-11650-03	Connecting Rod Assembly	2
6	6G8-11654-00	Bolt, Connecting Rod	4
7	90201-06M00	Washer,Plate	4
8	6G8-11426-00	Plain Bearing, Crankshaft	2
9	6G8-11631-03-96	Piston (STD)	2
9	6G8-11635-03	Piston (0.25MM O/S)	2
9	6G8-11636-03	Piston (0.50MM O/S)	2
10	6G8-11610-02	PistonRingSet (STD)	2
10	6G8-11610-12	Piston Ring Set (0.25MM O/S)	2
11	634-11633-00	Pin,Piston	2
12	93450-15023	Circlip	4

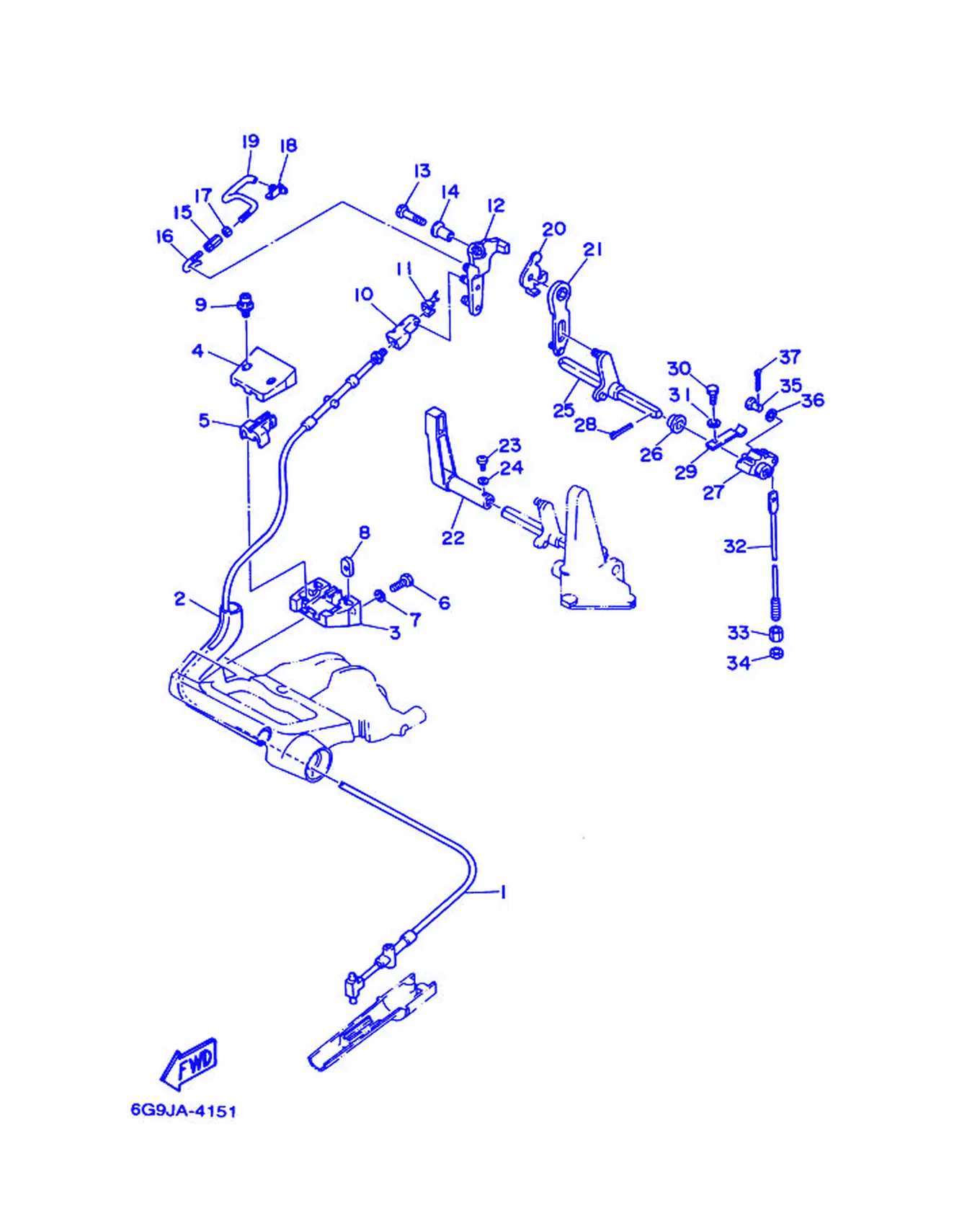

Fig. 10Control

REF	Part No.	Name	Qty
1	6G9-48311-02	Cable	1
2	90445-24M00	Hose	1
3	6G8-41661-00-98	Bracket	1
4	6G8-41662-00-98	Bracket	1
5	6G8-41663-00	Bracket 3	1
6	97095-06016	Bolt	2
7	92995-06600	Washer	2
8	6G8-41654-00	Nut	2
9	90159-05M06	Screw, With Washer	2
10	6G8-26363-00	End, Cable	1
11	6G8-26364-00	End, Cable 2	1
12	6G8-41212-00	Arm,Accelerator	1
13	97013-06030	Bolt	1
14	90387-06M58	Color	1
15	6G8-41238-01	Joint, Link	1
16	6G8-41241-01	Rod, Link	1
17	95303-04600	Nut	1
18	6G8-41237-01	Joint, Link	1
19	6G8-41242-01	Rod 2	1
20	6G8-14493-00	Stay 1	1
21	6G8-44111-00	Handle, Gear Shift	1
22	6G9-44111-00-98	Handle, Gear Shift	1
23	97880-04016	Screw, Pan Head	1
24	92990-04600	Washer,Plate	1
25	6G8-44159-00	Handle, Gear Shift	1
26	682-44132-00	Bushing	1
27	682-44121-01	Lever, Shift Rod	1
28	91490-25020	Pin, Cotter	1
29	682-44116-01	Spring	1
30	97095-06014	Bolt	1
31	92995-06600	Washer	1
32	6G8-44143-10	Rod, Shift	1
33	90170-06015	Nut	1
34	95380-06700	Nut	1
35	91790-05020	Pin, Clevis	1
36	92990-05600	Washer,Plate	1
37	91490-16010	Pin, Cotter	1

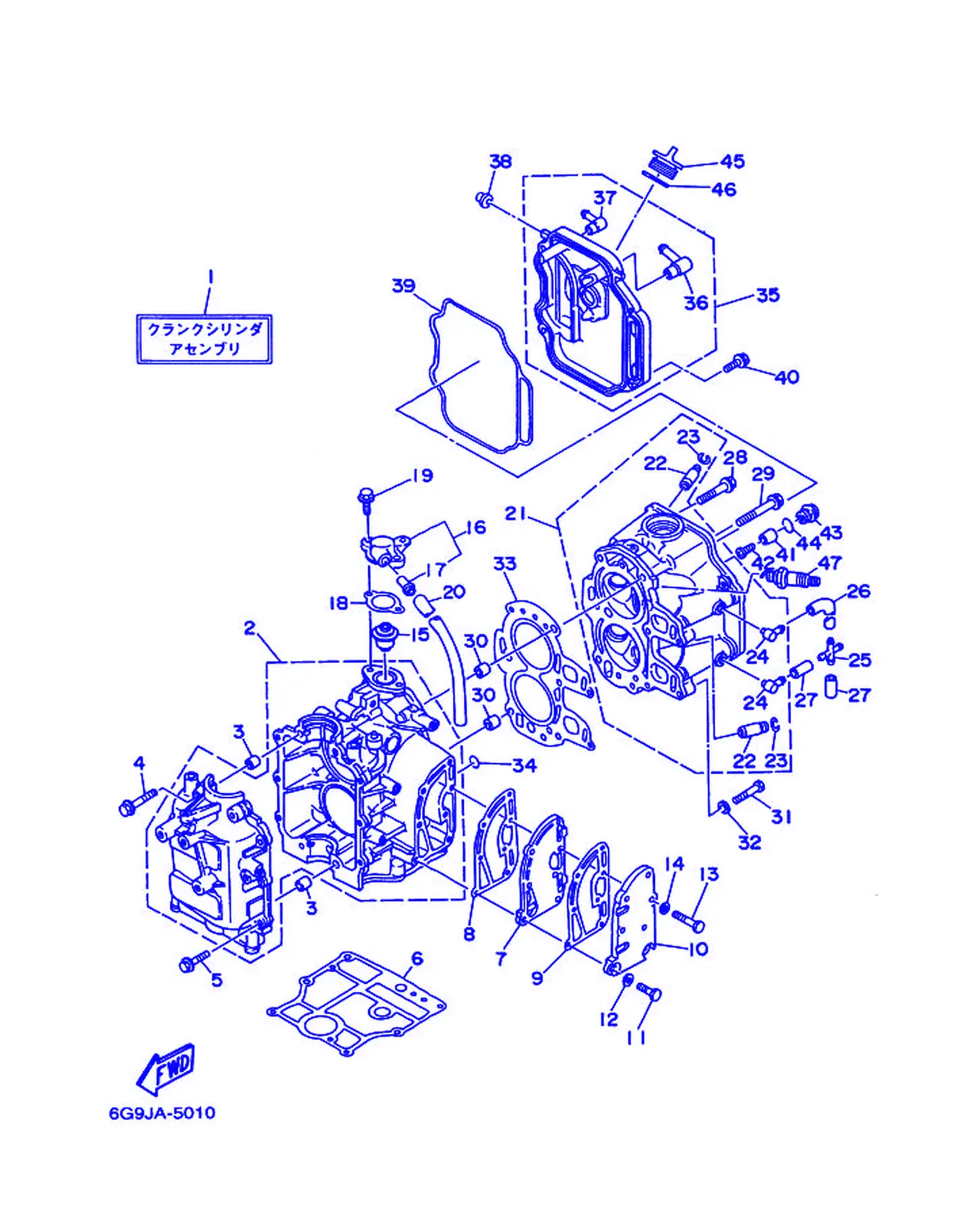

Fig. 11Cylinder & Crankcase

REF	Part No.	Name	Qty
1	6G8-W0090-33-4D	Crank Cylinder Assembly	1
2	6G8-15100-05-94	Crankcase Assembly	1
3	99510-10114	Pin, Dowel	2
4	90119-08M18	Bolt, With Washer	4
5	90119-06M12	Bolt, With Washer	6
6	6G8-11351-A0	Gasket,Cylinder	1
7	6G8-41111-02-9M	Inner Cover, Exhaust	1
8	6G8-41112-02	Gasket, Exhaust Inner Cover	1
9	6G8-41114-00	Gasket, Exhaust Outer Cover	1
10	6G8-41113-10-9M	Outer Cover, Exhaust	1
11	97013-06025	Bolt	2
12	92903-06600	Washer,Plate	2
13	97013-06030	Bolt	5
14	92903-06600	Washer,Plate	5
15	6G8-12411-02	Thermostat	1
16	6G8-12413-00-9M	Cover,Thermostat	1
17	6E5-24377-00	Pipe, Joint 3	1
18	6G8-12414-A0	Gasket,Cover	1
19	97513-06520	Bolt, With Washer	2
20	90445-11M66	Hose	1
21	6G8-11111-03-94	Head, Cylinder 1	1
22	6G8-11133-00	Guide,IntakeValve	4
23	93450-09M01	Circlip	4
24	676-11372-00	Nipple,Hose	2
25	6G9-24379-00	Pipe,Joint 4	1
26	6G8-12481-01	Pipe 1	1
27	90445-09220	Hose (L30)	2
28	90105-08M37	Bolt, Washer Based Head	3
29	90105-08M36	Bolt, Flange	3
30	99510-10114	Pin, Dowel	2
31	97013-06035	Bolt	2
32	92903-06600	Washer,Plate	2
33	6G8-11181-A1	Gasket, Cylinder Head 1	1
34	93210-11M59	O-ring	1
35	6G8-11191-01-94	Cover, Cylinder Head 1	1
36	6G8-15373-00	Pipe, Breather	1
37	676-11372-00	Nipple,Hose	1
38	6G8-81336-00	Grommet	2
39	6G8-11356-00	Seal,Cylinder 2	1
40	97513-06520	Bolt, With Washer	4
41	6G8-11325-00	Anode	1
42	97880-05025	Screw, Pan Head	1
43	6G8-11197-00	Plug, Blind	1
44	93210-13M63	O-ring	1
45	6G8-15363-00	Plug,Oil	1
46	93210-24M79	O-ring	1
47	94703-00282	Plug, Spark (NGK-CR6HS)	2

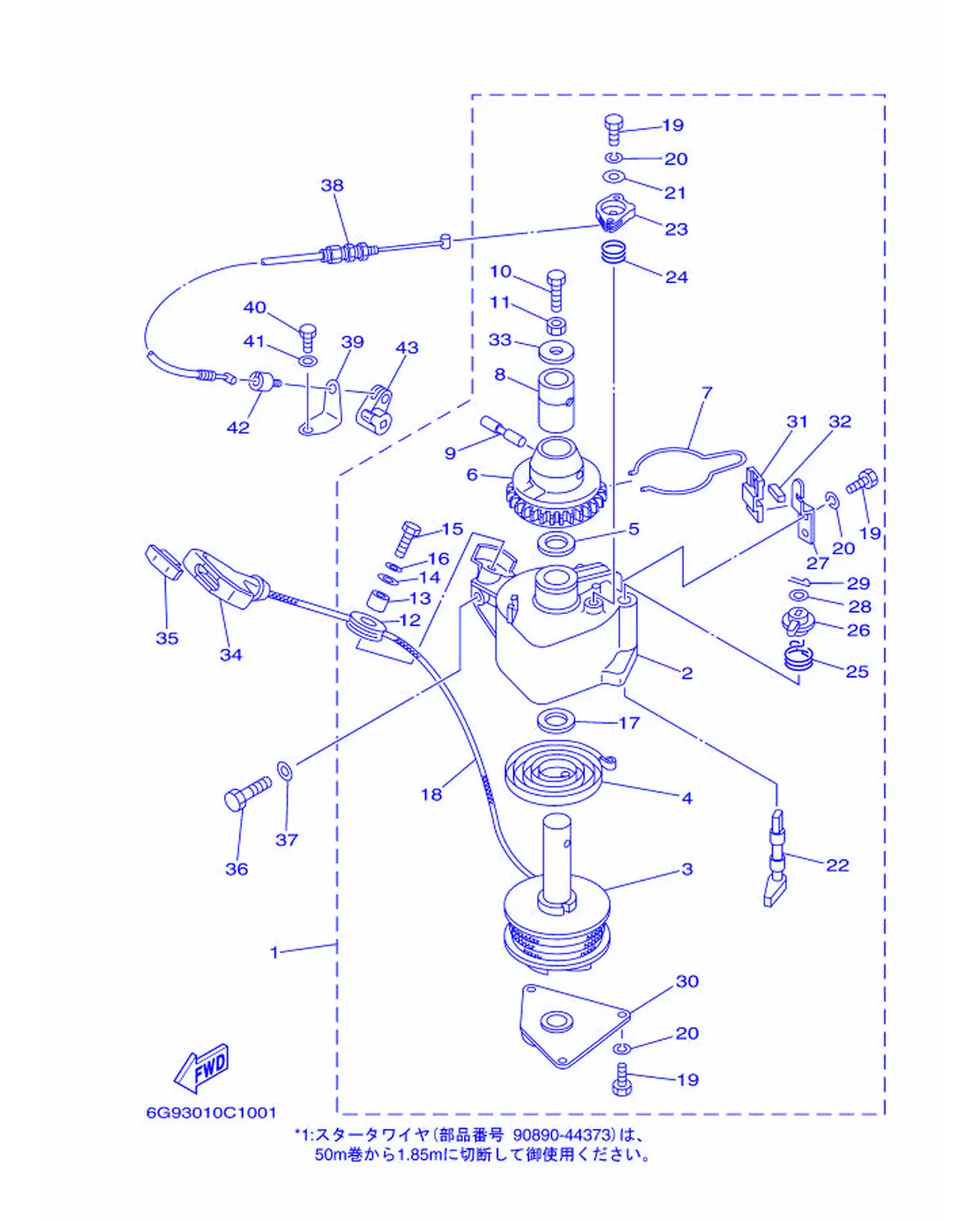

Fig. 12Starter

REF	Part No.	Name	Qty
1	6G8-15710-10	StarterAssembly	1
2	6G8-15711-00	Case,Starter	1
3	6G8-15714-00	Drum, Sheave	1
4	6G8-15713-00	Spring,Starter	1
5	6G8-15719-00	Washer, Thrust	1
6	6G8-15723-00	Pulley, Starter	1
7	6G8-15715-00	Spring, Friction	1
8	6G8-15754-00	Bushing 2	1
9	6G8-15727-00	Pin	1
10	6G8-15768-00	Bolt	1
11	95333-08700	Nut	1
12	6F5-15752-00	Roller, Wire	1
13	663-15753-00	Bushing	1
14	663-15791-00	Washer, Lock	1
15	97305-06025	Bolt	1
16	92903-06100	Washer,Spring	1
17	6G8-15739-00	Washer, Thrust	1
19	97322-05012	Bolt	6
20	92902-05100	Washer, Spring	6
21	6G8-15726-00	Washer, Flat	1
22	6G8-15794-00	Stopper	1
23	6G8-15746-00	Arm	1
24	6G8-15767-00	Spring	1
25	6G8-15734-00	Spring, Return	1
26	6G8-15747-00	Link	1
27	6G8-15716-00	Plate, Drive	1
28	92902-06200	Washer	1
29	91490-16012	Pin, Cotter	1
30	6G8-15712-00	Cover,StarterCase	1
31	6G8-15779-00	Cover	1
32	6G8-15789-00	Damper	1
33	6G8-15742-00	Washer, Drive Pole	1
34	6G1-15755-00	Handle,Starter	1
35	689-15779-01	Cover	1
36	97075-08030	Bolt	3
37	92995-08600	Washer	3
38	6G8-15770-00	Cable Complete, Starter Stop	1
39	6G8-15771-00	Stay 1	1
40	97095-06012	Bolt	1
41	92995-06600	Washer	1
42	6G8-15772-00	Stay 2	1
43	6G8-44125-00	Lever, Shift Rod	1

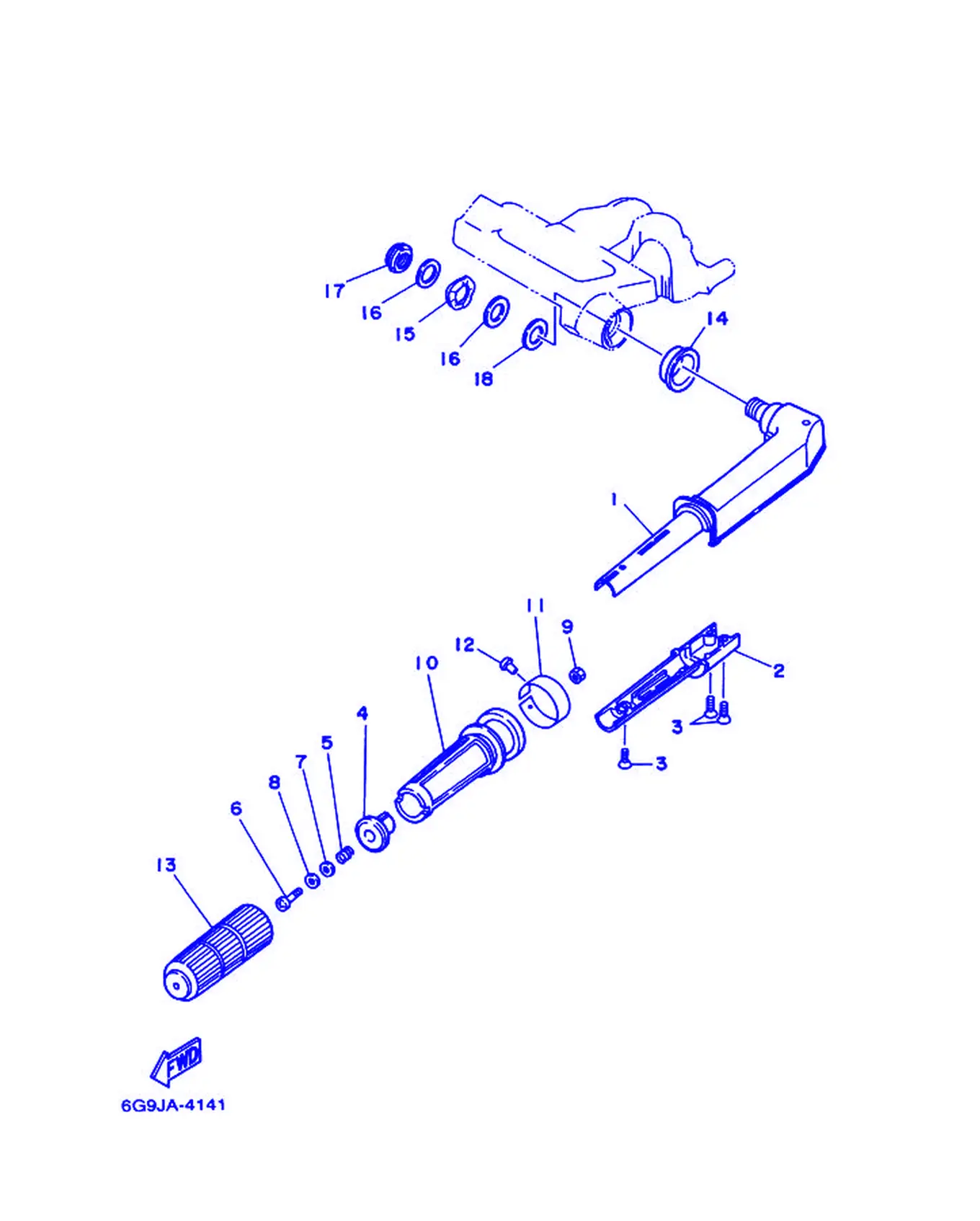

Fig. 13Steering

REF	Part No.	Name	Qty
1	6G9-42111-03-4D	Handle,Steering	1
2	6G9-42112-01-4D	Handle,Steering	1
3	98780-05016	Screw, Flat Head	3
4	6G8-42126-01-94	Friction, Steering Handle	1
5	90501-23M42	Spring, Compression	1
6	97880-06030	Screw, Pan Head	1
7	90201-06049	Washer,Plate	1
8	90202-06007	Washer,Plate	1
9	95380-06700	Nut	1
10	6G8-42119-00	Grip,SteeringHandle	1
11	6G8-42137-01	Indicator, Throttle	1
12	90269-02M09	Rivet	1
13	6G8-42177-00	Rubber,Handle	1
14	90386-33M56	Bushing	1
15	90206-20M14	Washer, Wave	1
16	90201-20M00	Washer,Plate	2
17	90185-20M03	Nut, Self-Locking	1
18	90202-20M33	Washer,Plate	1

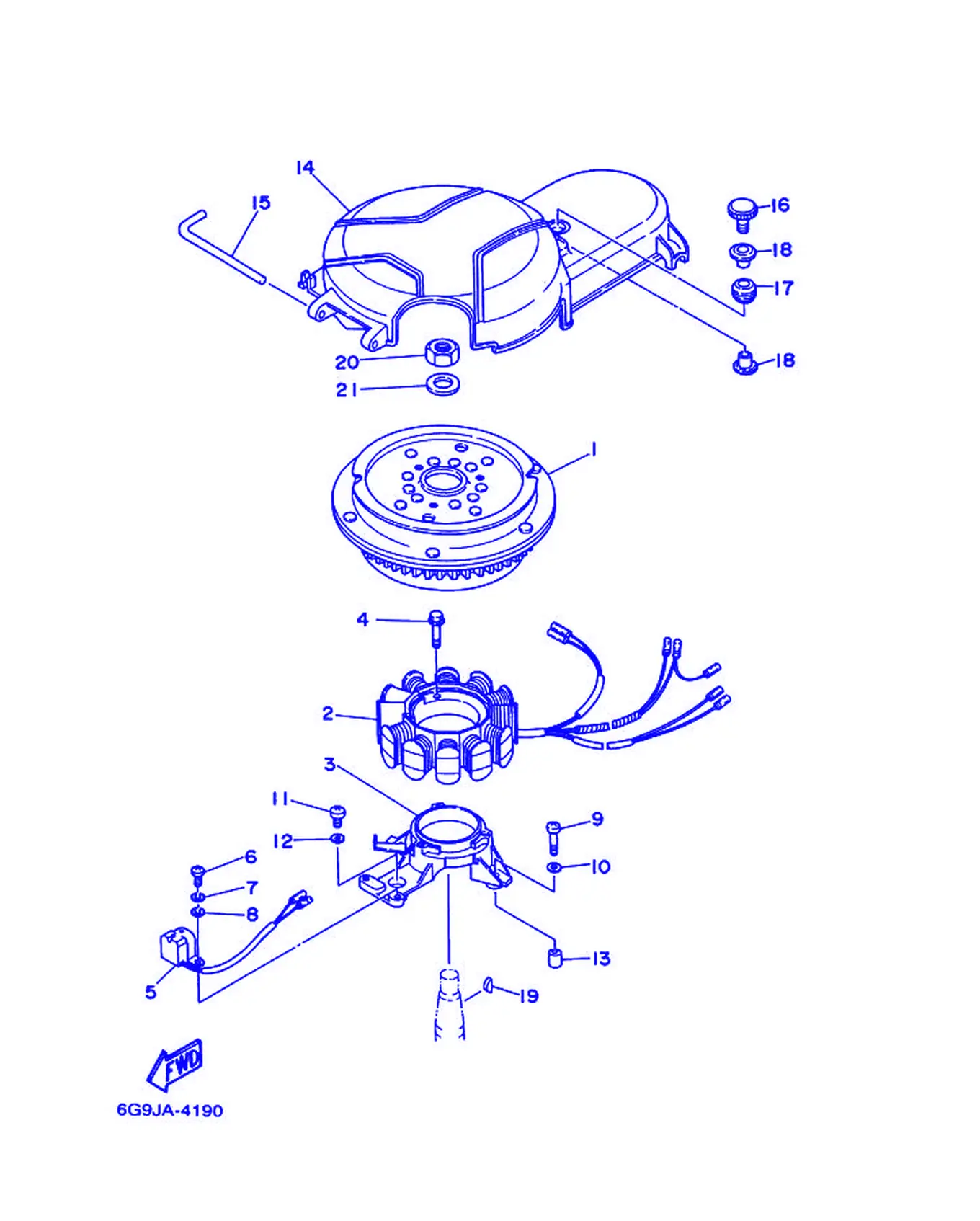

Fig. 14Generator

REF	Part No.	Name	Qty
1	6G8-85550-11	Rotor Assembly	1
1	6G8-85550-01	Rotor Assembly	1
2	6G9-85510-01	Stator Assembly	1
3	6G8-85561-00-94	Base,Magnet	1
4	95023-06025	Bolt, Flange	3
5	6G8-85580-02	Coil, Pulser	1
6	97880-05012	Screw, Pan Head	2
7	92990-05100	Washer,Spring	2
8	92990-05600	Washer,Plate	2
9	97880-06025	Screw, Pan Head	2
10	92990-06600	Washer,Plate	2
11	97880-06020	Screw, Pan Head	1
12	92990-06600	Washer,Plate	1
13	99530-08012	Pin, Dowel	2
14	6G8-81337-01	Cover,Flywheel	1
15	6G8-42752-00	Shaft	1
16	6G8-81323-00	Screw 1	1
17	90480-15M31	Grommet	1
18	90387-06M71	Color	2
19	90280-05013	Key, Woodruff	1
20	90170-12066	Nut	1
21	90201-12472	Washer,Plate	1

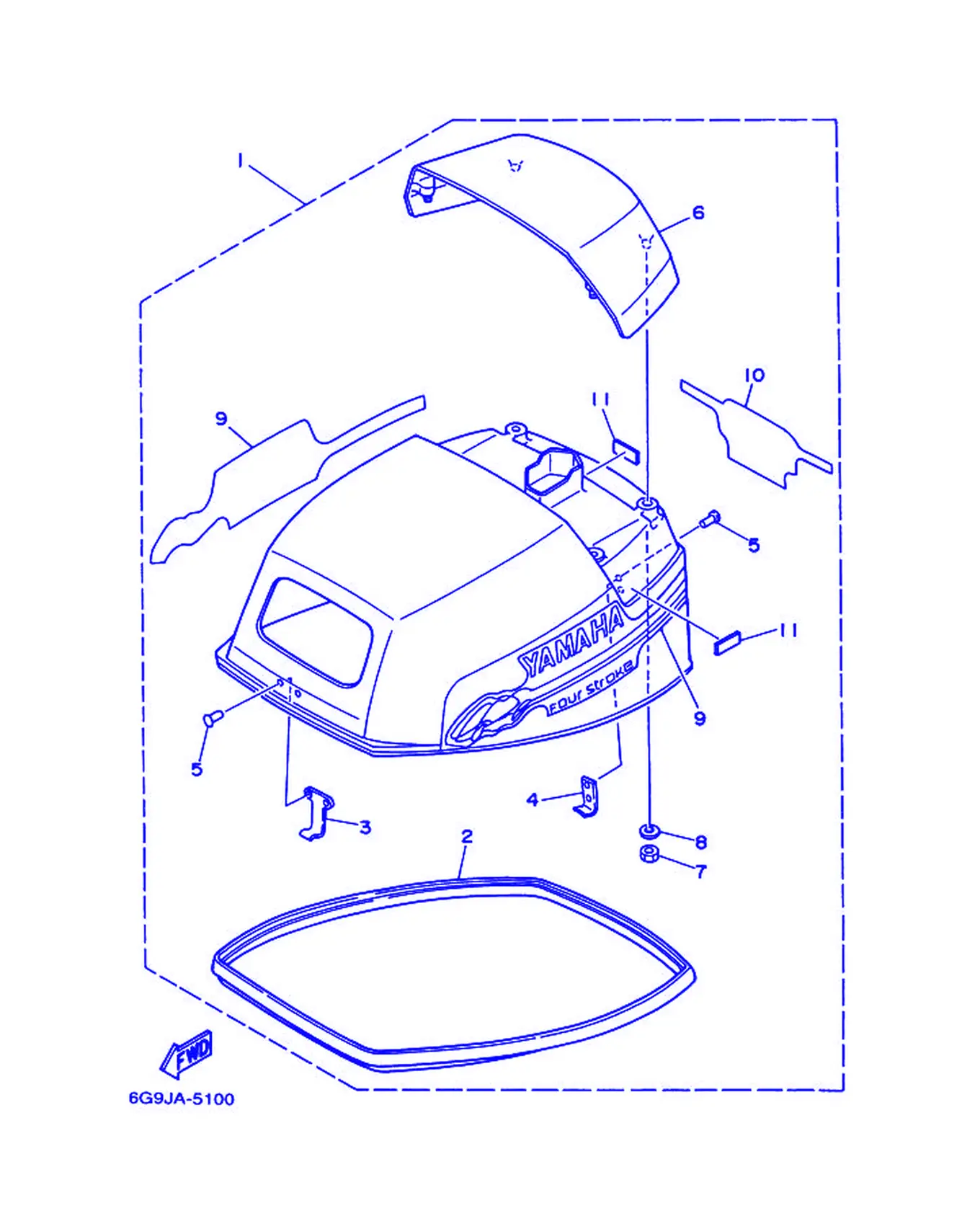

Fig. 15Top Cowling

REF	Part No.	Name	Qty
1	6G9-42610-14-4D	Top Cowling Assembly	1
2	6G8-42615-01	Seal	1
3	6G8-42651-00	Fook	1
4	6G8-42652-00	Fook	1
5	90266-04M04	Rivet	4
6	6G8-42613-01-4D	Molding, Air Duct	1
7	95303-06700	Nut	4
8	92903-06200	Washer, Plain	4
9	6G9-W0070-13	Graphic Set	1
10	6G9-42678-13	Graphic, Rear	1
11	6G8-42662-00	Damper	3

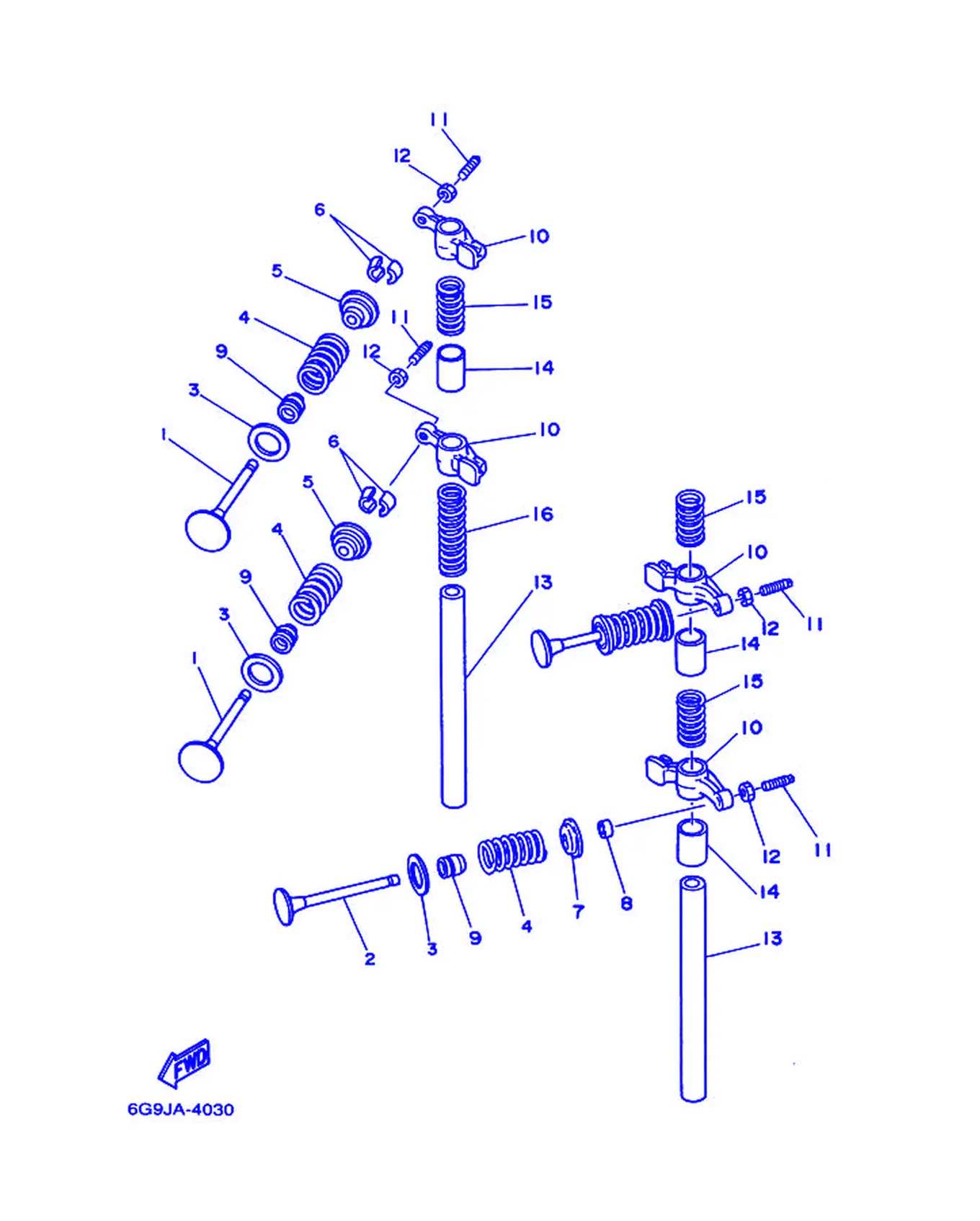

Fig. 16Valve

REF	Part No.	Name	Qty
1	6G8-12111-00	Valve,Intake	2
2	6G8-12121-01	Valve,Exhaust	2
3	6G8-12116-00	Seat,ValveSpring	4
4	6G8-12113-00	Spring, Valve Inner	4
5	6G8-12117-00	Retainer,ValveSpring	2
6	30X-12118-00	Cotter, Valve	4
7	6G8-12117-10	Retainer,ValveSpring	2
8	6G8-12153-00	Lifter, Valve	2
9	51Y-12119-00	Seal, Valve Stem	4
10	6G8-12151-00	Arm, Valve Rocker	4
11	6G8-12159-00	Screw, Valve Adjusting	4
12	6G8-12158-00	Nut,Lock	4
13	6G8-12146-00	Shaft, Rocker	2
14	90387-13M56	Color	3
15	90501-12M40	Spring, Compression	3
16	90501-12M41	Spring, Compression	1

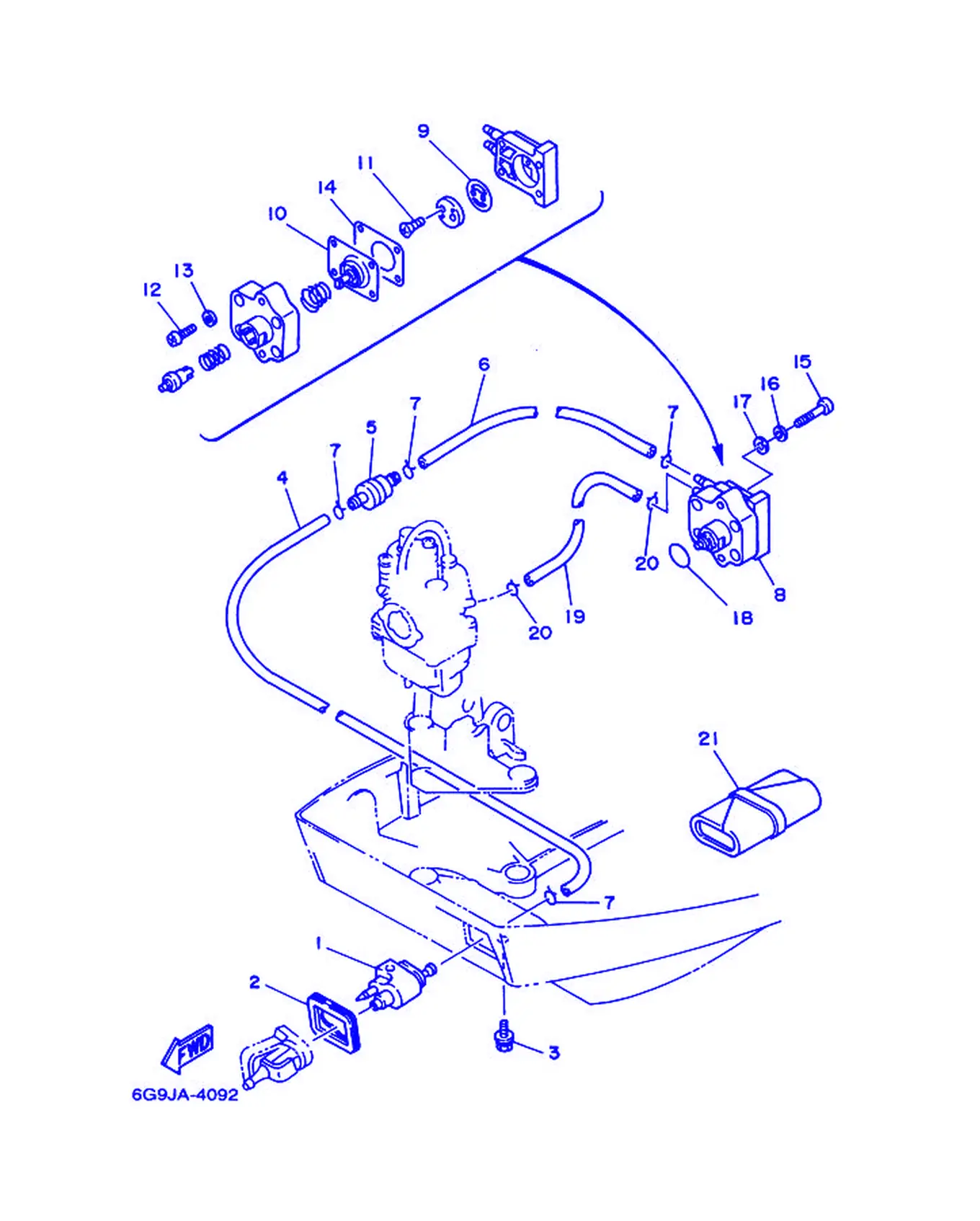

Fig. 17Fuel

REF	Part No.	Name	Qty
1	6G1-24304-02	Fuel Pipe Joint Complete	1
2	6G8-24329-00	Seal	1
3	97595-06520	Bolt, With Washer	1
4	6G8-24311-00	Pipe,Fuel 1	1
5	646-24251-02	Strainer 1	1
6	90445-09065	Hose	1
7	90467-08004	Clip	4
8	6G8-24410-03	FuelPumpAssembly	1
9	6G8-24421-00	Valve, Check	1
10	6G8-24411-02	Diaphragm	1
11	98780-03008	Screw, Flat Head	2
12	98503-04014	Screw, Pan Head	4
13	92903-04600	Washer	4
14	6G8-24471-00	Diaphragm	1
15	97880-06025	Screw, Pan Head	2
16	92990-06100	Washer,Spring	2
17	92990-06600	Washer,Plate	2
18	93210-20M65	O-ring	1
19	90445-09105	Hose	1
20	90467-08004	Clip	2
21	676-W2810-01	ToolKit	1

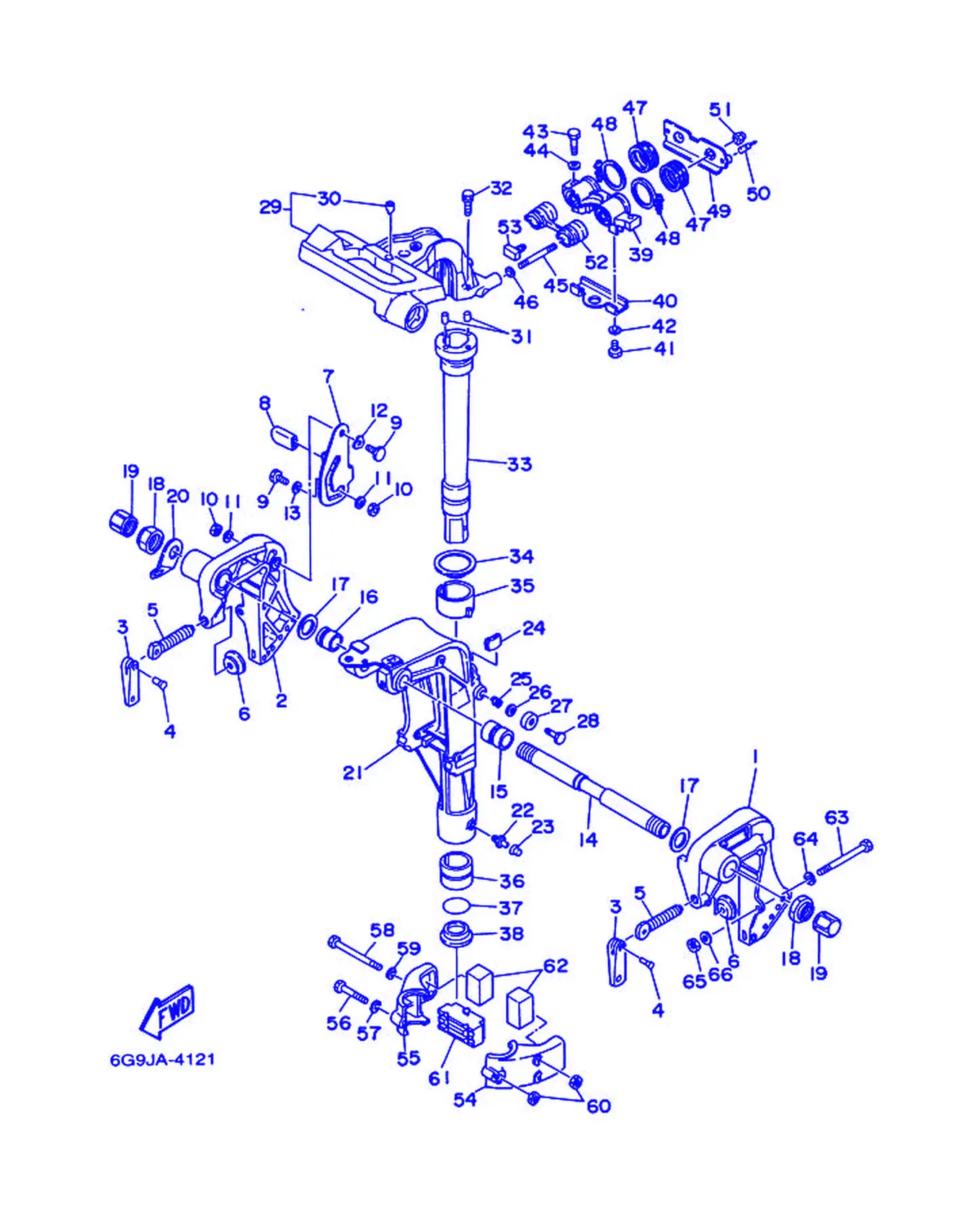

Fig. 18Bracket 1

REF	Part No.	Name	Qty
1	6G8-43111-04-4D	Bracket,Clamp	1
2	6G8-43112-04-4D	Bracket,Clamp	1
3	6E0-43118-01	Handle, Transom Clamp	2
4	90243-04M01	Pin	2
5	6E7-43116-00	Screw, Transom Clamp	2
6	648-43114-01	Pad, Transom Clamp	2
7	6G8-43181-00	Lever, Tilt Stop	1
8	682-43318-01	Cover	1
9	90109-06M25	Bolt	2
10	95680-06100	Nut,U	2
11	92990-06600	Washer,Plate	2
12	90206-10M15	Washer, Wave	1
13	682-43339-01	Washer	1
14	6G8-43131-00	Bolt,ClampBracket	1
15	90386-22M92	Bushing	1
16	90386-22M93	Bushing	1
17	90201-22M03	Washer,Plate	2
18	90185-22043	Nut, Self-Locking	2
19	6G5-43145-00	Cap,ClampBracket	2
20	6J8-43113-01	Plate,ClampBracket	1
21	6G8-43311-15-4D	Bracket, Swivel	1
22	93700-06M03	Nipple, Grease	1
23	663-45119-00	Cap, Grease Nipple	1
24	6G8-42528-00	Plate, Friction	1
25	90501-18M00	Spring, Compression	1
26	90201-06M31	Washer,Plate	1
27	6G8-43373-00	Seal,Damper	1
28	97095-06025	Bolt	1
29	6G9-42511-01-4D	Bracket,Steering	1
30	6G8-42534-00	Pin, Dowel	1
31	93605-15065	Pin, Dowel	2
32	90119-06M06	Bolt, With Washer	2
33	6G8-42521-10-94	Shaft, Steering Pivot	1
34	90209-45M09	Washer	1
35	6G8-42537-00	Bushing, Pivot Shaft	1
36	90386-37M47	Bushing	1
37	93210-37M67	O-ring	1
38	90386-37M48	Bushing	1
39	6G8-44517-00-94	Mount Rubber	1
40	6G8-44526-00	Plate	1
41	97095-06012	Bolt	2
42	92995-06600	Washer	2
43	97095-08030	Bolt	2
44	92995-08600	Washer	2
45	90116-08M28	Bolt, Stud	2
46	90201-08M12	Washer,Plate	2
47	6G8-44522-00	Seal	2
48	90460-38M06	Clamp,Hose	2
49	6G8-44518-00	BracketComplete	1
50	6G8-44533-00	Damper, Upper Mount Rubber	2
51	90185-08057	Nut, Self-Locking	2
52	6G8-44521-00	Seal	1
53	6G8-44532-00	Stopper, Upper Mount	1
54	6G8-44551-01-4D	Housing, Lower Mount Rubber	1
55	6G8-44552-02-4D	Housing, Lower Mount Rubber	1
56	97095-06045	Bolt	1
57	92995-06600	Washer	1
58	97095-06095	Bolt	2
59	92995-06600	Washer	2
60	95380-06700	Nut	3
61	6G8-44557-00	Mount Damper, Lower Front	1
62	682-44555-00	Mount Damper, Lower Side	2
63	90101-08M88	Bolt, Hexagon	2
64	92990-08600	Washer,Plate	2
65	95780-08300	Nut, Flange	2
66	90201-08MA4	Washer,Plate	2

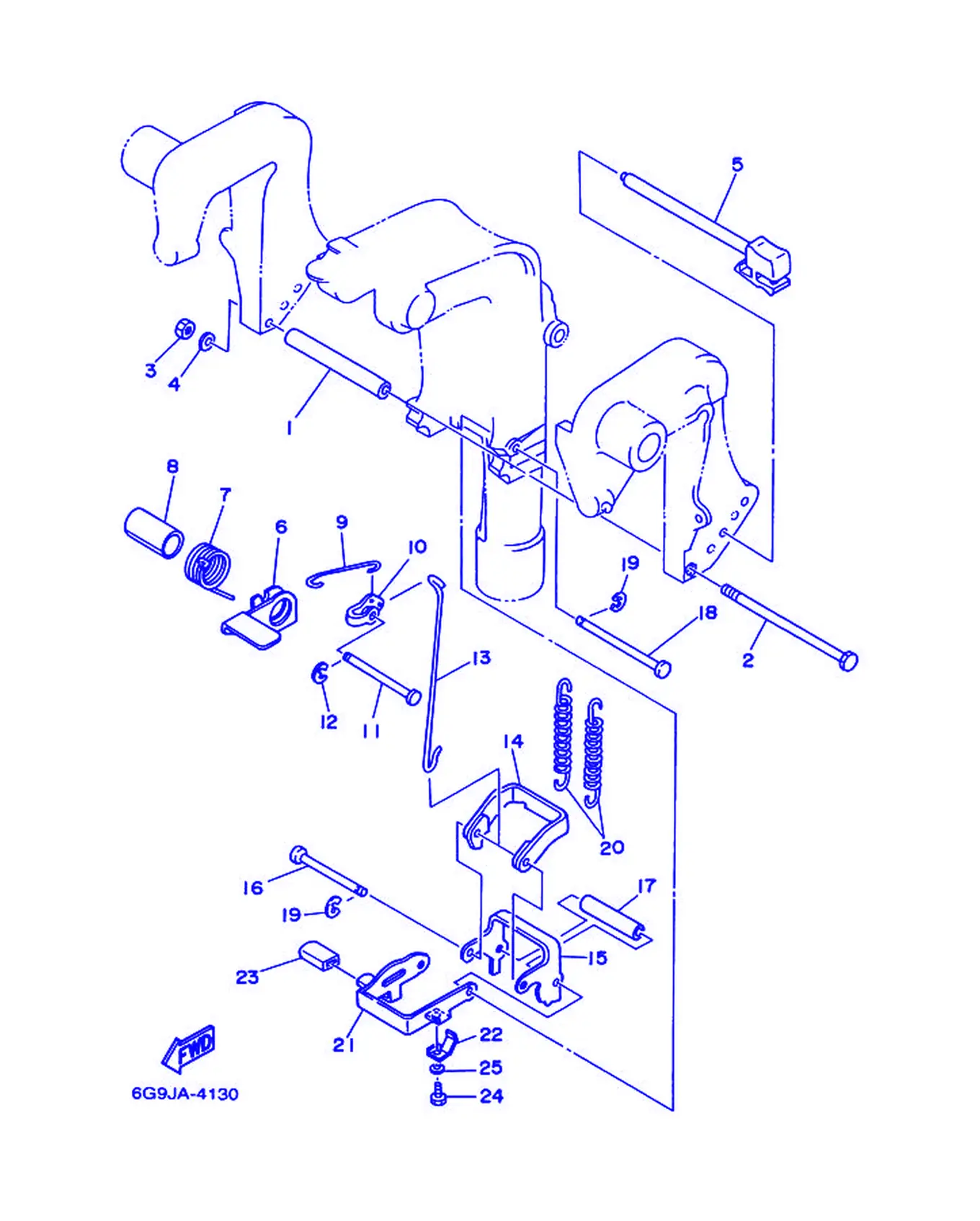

Fig. 19Bracket 2

REF	Part No.	Name	Qty
1	90387-06M09	Color	1
2	97095-06135	Bolt	1
3	95380-06700	Nut	1
4	92990-06600	Washer,Plate	1
5	6G8-43160-01	TiltRodAssembly	1
6	6G8-43631-03	Lever,Tilt	1
7	90508-18M33	Spring, Torsion	1
8	90386-20M94	Bushing	1
9	6G8-43616-00	Rod,TiltLock	1
10	682-43641-00	Lever,Tilt	1
11	90249-06M20	Pin	1
12	93430-05027	Circlip	1
13	6G8-43617-00	Rod,TiltLock	1
14	682-43614-00	Plate,TiltLock	1
15	682-43615-01	Plate,TiltLock	1
16	682-43611-01	Shaft,TiltLock	1
17	90387-06M20	Color	1
18	682-43659-00	Shaft, Reverse Lock	1
19	93430-05027	Circlip	2
20	90506-26M01	Spring, Tension	2
20	90506-26M07	Spring, Tension	2
21	6G9-43681-00	Lever, Shallow Water Drive 1	1
22	6G9-43643-00	Spring, Torsion	1
23	682-43318-01	Cover	1
24	97095-06008	Bolt	1
25	92990-06600	Washer,Plate	1

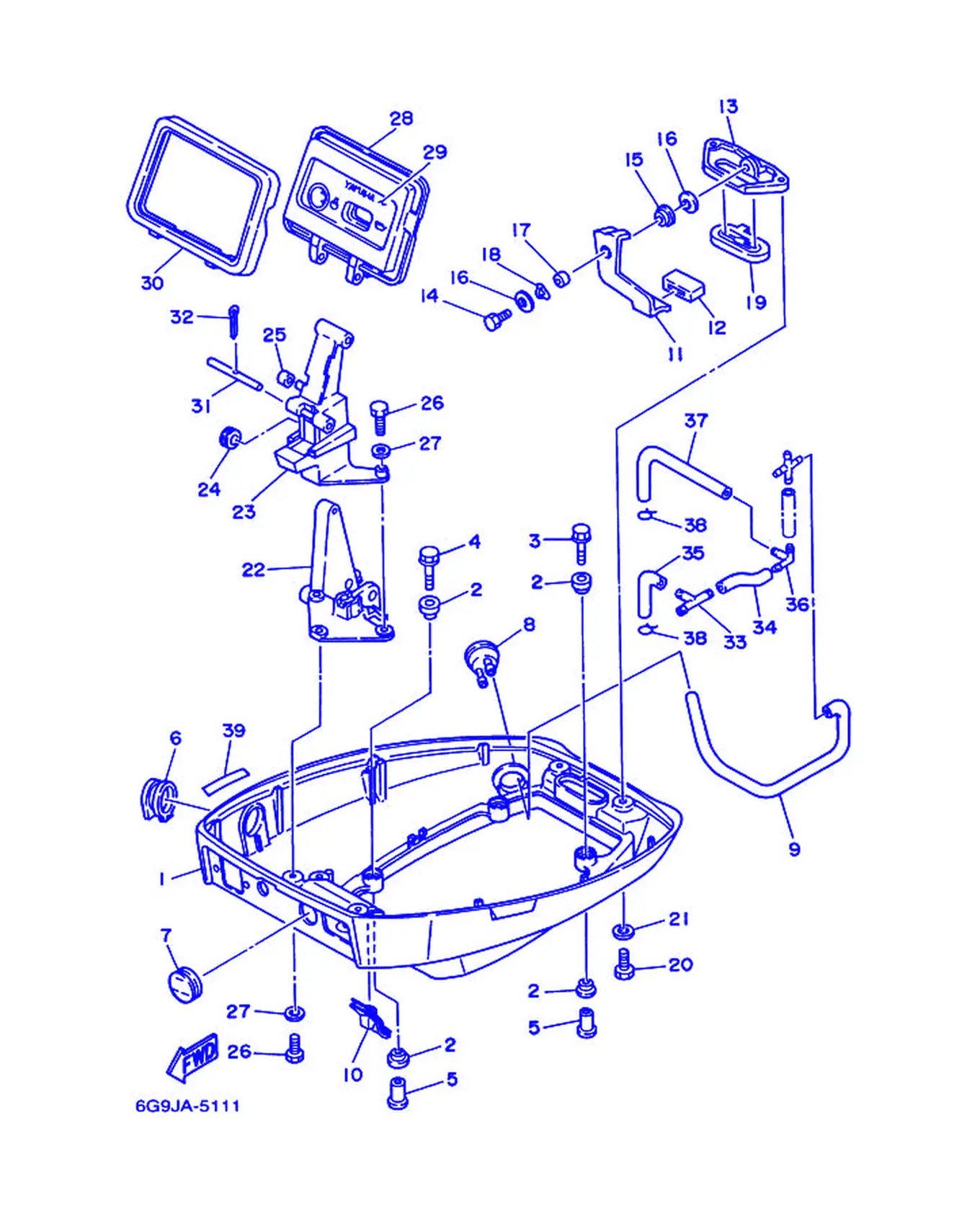

Fig. 20Bottom Cowling

REF	Part No.	Name	Qty
1	6G8-42711-02-4D	Cowling, Bottom	1
2	90480-09M35	Grommet	8
3	90119-06M56	Bolt, With Washer	2
4	90119-06M55	Bolt, With Washer	2
5	90387-06M15	Color	4
6	6G9-42724-00	Grommet	1
7	6G8-42725-10	Grommet	1
8	6G8-44391-00	Nipple,Hose	1
9	90445-09163	Hose	1
10	6G8-42727-00	Grommet	1
11	6G8-42815-00	Lever,Clamp	1
12	6G8-42831-00	Bushing	1
13	6G8-42811-00-94	Stay	1
14	97013-06016	Bolt	1
15	90386-08M49	Bushing	1
16	90201-06M31	Washer,Plate	2
17	90387-06M72	Color	1
18	90206-08M13	Washer, Wave	1
19	6G8-42748-00	Grommet	1
20	97095-06016	Bolt	2
21	92995-06600	Washer	2
22	6G8-42738-00-94	Plate, Fitting	1
23	6G8-42719-00-94	Panel, Front Lower	1
24	90480-19031	Grommet	1
25	90445-05ME6	Hose	1
26	97095-06016	Bolt	4
27	92995-06600	Washer	4
28	6G8-42614-02	Panel, Front Upper	1
29	6G8-42677-00	Graphic, Front	1
30	6G8-42629-02	Seal	1
31	6G8-42755-00	Hinge, Cowling	1
32	91490-16010	Pin, Cotter	1
33	6G8-24379-00	Pipe,Joint 4	1
34	90445-10M78	Hose	1
35	6G8-12476-00	Pipe 6	1
36	6G8-24378-01	Pipe,Joint 3	1
37	6G8-12485-00	Pipe 5	1
38	90467-10M04	Clip	2
39	6E0-44191-11	Indicator, Shift	1

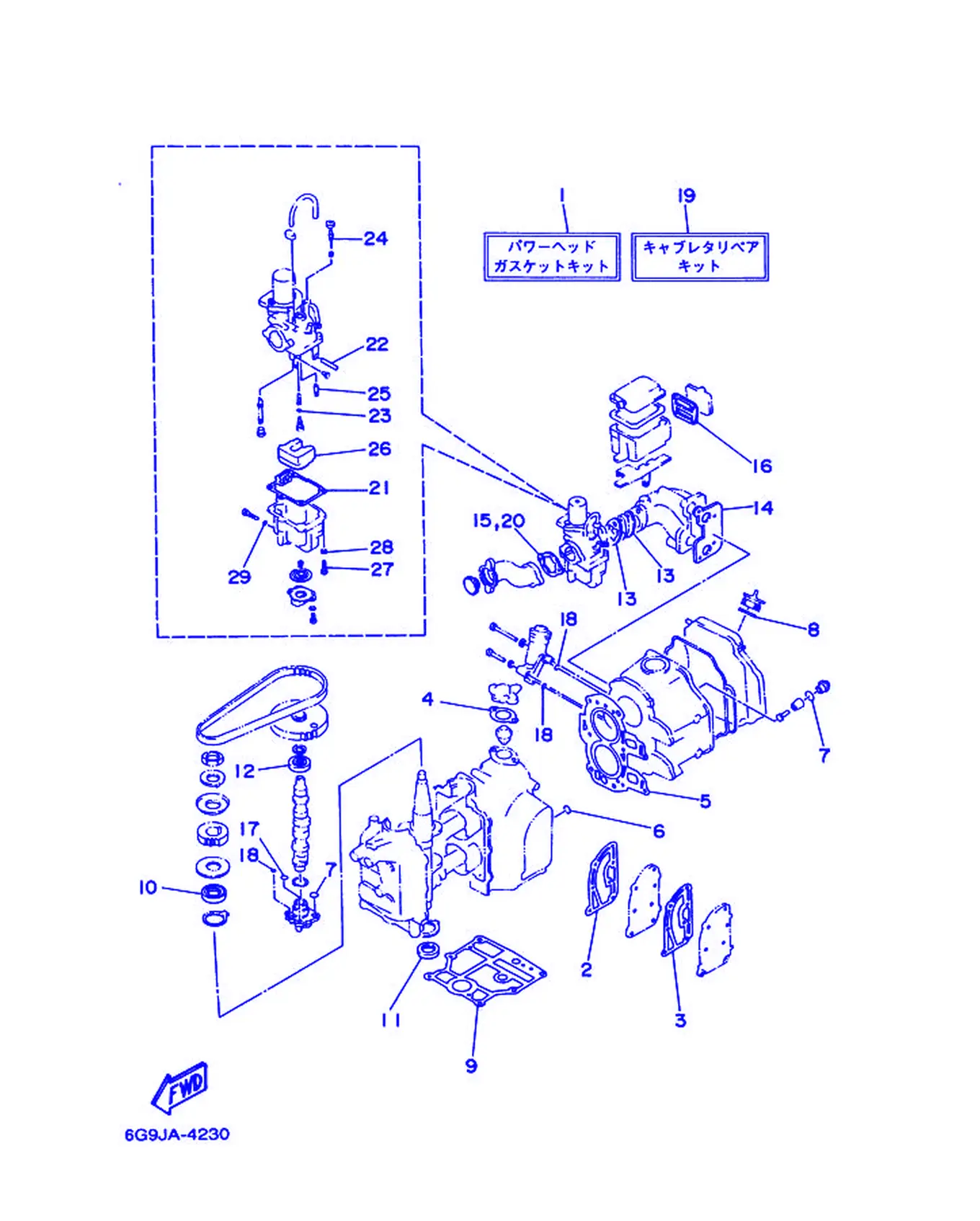

Fig. 21Repair Kit 1

REF	Part No.	Name	Qty
1	6G8-W0001-A3	Power Head Gasket Kit	1
2	6G8-41112-02	Gasket, Exhaust Inner Cover	1
3	6G8-41114-00	Gasket, Exhaust Outer Cover	1
4	6G8-12414-A0	Gasket,Cover	1
5	6G8-11181-A1	Gasket, Cylinder Head 1	1
6	93210-11M59	O-ring	1
7	93210-13M63	O-ring	3
8	93210-24M79	O-ring	1
9	6G8-11351-A0	Gasket,Cylinder	1
10	93102-30M22	OilSeal	1
11	93101-25M24	OilSeal	1
12	93102-18M21	OilSeal	1
13	6G8-13646-A0	Gasket,Manifold 2	2
14	6G8-13645-00	Gasket,Manifold 1	1
15	6G8-14198-A0	Gasket	1
16	6G8-15374-00	Gasket, Breather	1
17	93210-10M61	O-ring	1
18	93210-09M01	O-ring	3
19	6G8-W0093-03	CarburetorRepair Kit	1
20	6G8-14198-A0	Gasket	1
21	6G8-14384-01	Gasket, Float Chamber	1
22	647-14386-00	Pin, Float	1
23	654-14198-00	Gasket	1
24	6G8-14323-00	Screw, Air Adjusting	1
25	6G8-14392-00	Valve, Needle	1
26	6G8-14385-00	Float	1
27	98580-04016	Screw, Pan Head	4
28	92990-04100	Washer, Spring	4
29	5Y1-14397-00	O-ring	1

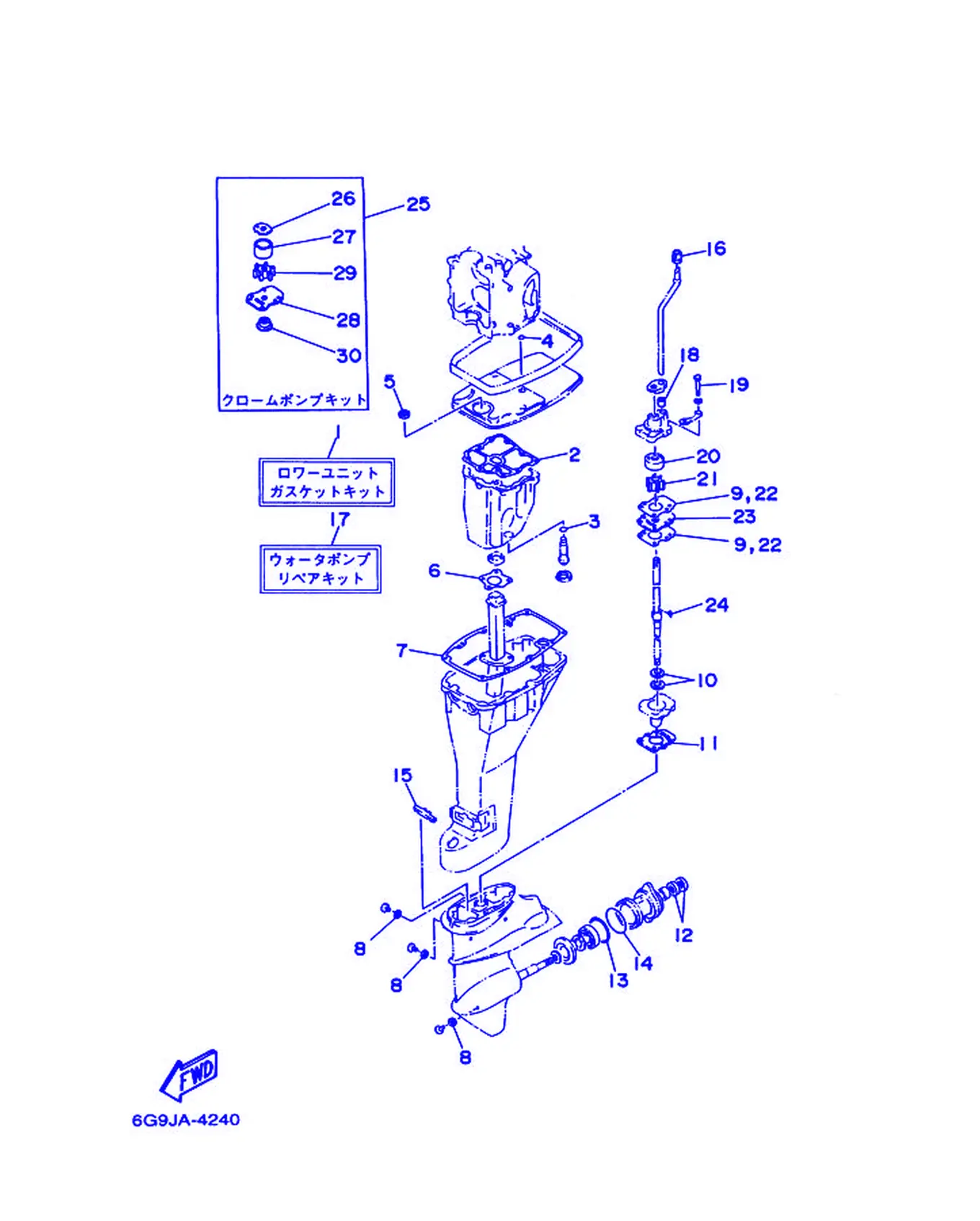

Fig. 22Repair Kit 2

REF	Part No.	Name	Qty
1	6G9-W0001-C5	LowerUnitGasket Kit	1
2	6G8-15312-A0	Gasket, Oil Pan	1
3	93210-16M64	O-ring	1
4	93210-08M60	O-ring	1
5	93101-13M27	OilSeal	1
6	6G8-41133-A0	Gasket, Exhaust Manifold	1
7	6G8-45113-A1	Gasket,UpperCasing	1
8	90430-08020	Gasket	3
9	682-44315-A0	Gasket,Water Pump	2
10	93101-20048	OilSeal	2
11	683-45315-A0	Packing, Lower Casing	1
12	93101-17054	OilSeal	2
13	93210-57M09	O-ring	1
14	93210-56M80	O-ring	1
15	682-45375-01	Damper,Seal	1
16	626-44365-01	Damper,WaterSeal	1
17	682-W0078-A2	Water PumpRepair Kit	1
18	682-44365-00	Damper, Water Seal	1
19	97095-06045	Bolt	4
20	682-44322-00	Insert, Cartridge	1
21	682-44352-01	Impeller	1
22	682-44315-A0	Gasket,Water Pump	2
23	682-44323-00	Outer Plate, Cartridge	1
24	90280-03024	Key, Woodruff	1
25	682-W0078-0A	Chrome Pump Kit	1
26	682-44321-40	Inner Plate, Cartridge	1
27	682-44322-40	Insert, Cartridge	1
28	682-44323-40	Outer Plate, Cartridge	1
29	682-44352-01	Impeller	1
30	682-45344-00	Cover, Oil Seal	1

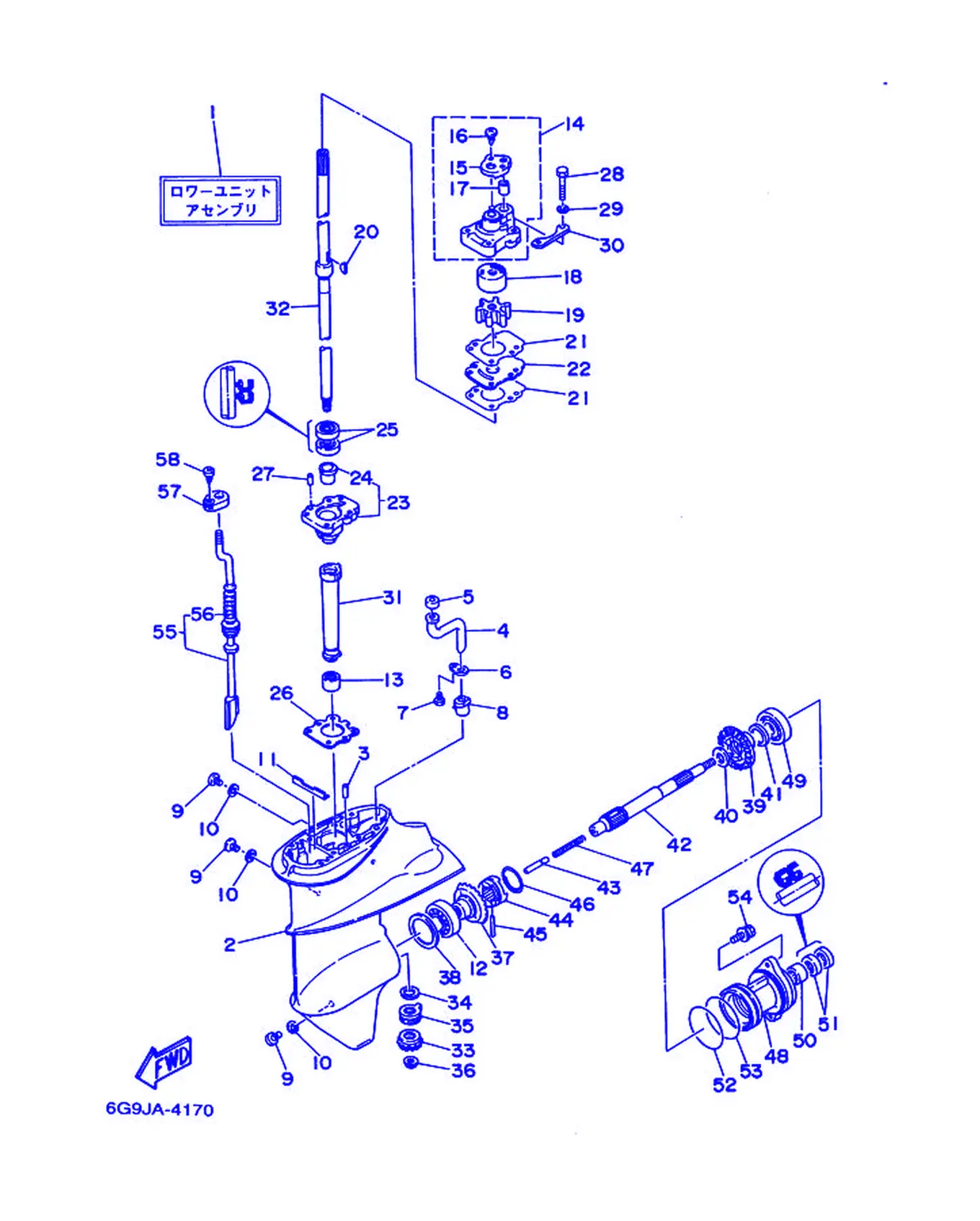

Fig. 23Lower Casing & Drive 1

REF	Part No.	Name	Qty
1	6G9-45300-16-4D	LowerUnitAssembly	1
2	6E8-45311-00-4D	Casing,Lower	1
3	93604-08062	Pin, Dowel	1
4	683-44362-01	Tube, Water	1
5	683-44365-01	Damper,WaterSeal	1
6	683-44373-00	Set Plate, Water Tube	1
7	97095-06010	Bolt	1
8	6E7-44366-00	Damper,WaterSeal	1
9	90340-08M04	Plug, Straight Screw	3
10	90430-08020	Gasket	3
11	682-45376-01	Guide,SealDamper	1
12	93332-00005	Bearing	1
13	93315-314V8	Bearing	1
14	682-44300-01	Housing Water Pump Assembly	1
15	682-44312-00	Cover, Water Pump Housing	1
16	97780-40112	Screw, Tapping	2
17	682-44365-00	Damper, Water Seal	1
18	682-44322-00	Insert, Cartridge	1
19	682-44352-01	Impeller	1
20	90280-03024	Key, Woodruff	1
21	682-44315-A0	Gasket,Water Pump	2
22	682-44323-00	Outer Plate, Cartridge	1
23	6E7-45331-00-5B	Housing,Bearing	1
24	626-45316-09	Bushing, Drive Shaft	1
25	93101-20048	OilSeal	2
26	683-45315-A0	Packing, Lower Casing	1
27	93606-12019	Pin, Dowel	2
28	97095-06045	Bolt	4
29	92995-06600	Washer	4
30	682-44328-00	Plate	2
31	6E7-45536-00	Sleeve,Drive Shaft	1
32	6G9-45501-11	Drive ShaftComplete	1
33	6E7-45551-00	Pinion	1
34	6E8-45587-00-13	Shim (T:1.13MM)	1
34	6E8-45587-00-20	Shim (T:1.20MM)	1
35	93341-414V1	Bearing, Thrust	1
36	90179-08M06	Nut	1
37	6E7-45560-00	Gear	1
38	664-45567-01-10	Shim (T:0.10MM)	1
38	664-45567-01-12	Shim (T:0.12MM)	1
38	664-45567-01-15	Shim (T:0.15MM)	1
38	664-45567-01-18	Shim (T:0.18MM)	1
38	664-45567-01-30	Shim (T:0.30MM)	1
38	664-45567-01-40	Shim (T:0.40MM)	1
38	664-45567-01-50	Shim (T:0.50MM)	1
39	6E7-45571-00	Gear	1
40	90201-17682	Washer,Plate	1
41	626-45577-00-01	Shim (0.1MM)	1
41	626-45577-00-03	Shim (0.3MM)	1
41	626-45577-00-05	Shim (0.5MM)	1
42	683-45611-00	Shaft,Propeller	1
43	650-45635-00	Plunger, Shift	1
44	682-45631-00	Clutch, Dog	1
45	90250-05010	Pin, Straight	1
46	648-45633-00	Ring, Cross Pin	1
47	90501-14M06	Spring, Compression	1
48	683-45361-02-4D	Cap,Lower Casing	1
49	93306-00501	Bearing	1
50	93315-317U2	Bearing	1
51	93101-17054	OilSeal	2
52	93210-57M09	O-ring	1
53	93210-56M80	O-ring	1
54	97595-06520	Bolt, With Washer	2
55	6G9-44150-10	Shift Cam Assembly	1
56	682-44147-00	Boot, Shift Rod	1
57	682-44176-00	Bracket	1
58	97780-50510	Screw, Tapping	1

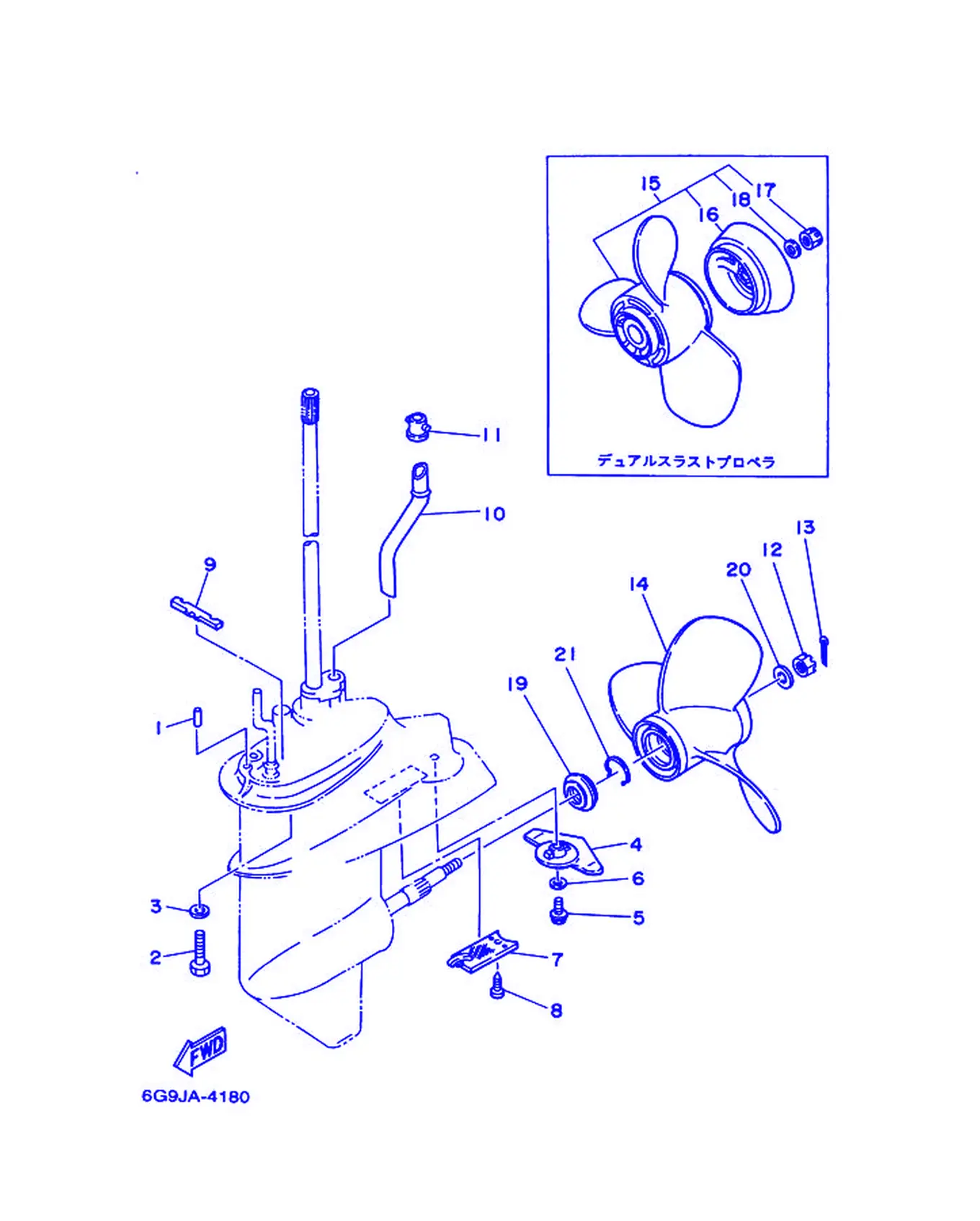

Fig. 24Lower Casing & Drive 2

REF	Part No.	Name	Qty
1	93606-12019	Pin, Dowel	2
2	97075-08035	Bolt	4
3	92995-08600	Washer	4
4	6E8-45251-02	Anode	1
5	95895-06020	Bolt, Flange	1
6	92990-06300	Washer, Internal Tooth	1
7	6E7-45214-00	Cover, Water Inlet	1
8	97880-05012	Screw, Pan Head	1
9	682-45375-01	Damper,Seal	1
10	6G8-44361-10	Tube, Water	1
11	626-44365-01	Damper,WaterSeal	1
12	90171-10M01	Nut, Castle	1
13	91490-30020	Pin, Cotter	1
13	91490-30030	Pin, Cotter	1
14	683-45949-00-EL	Propeller (3X9-1/2 X6-1/2 -J)	1
15	683-W4591-02-EL	Propeller (3X9-3/4 X8 -J)	1
15	683-W4592-02-EL	Propeller (3X9-3/4 X6-1/2 -J)	1
16	6E7-45986-00	Ring, Deflector	1
17	90171-10M07	Nut, Castle	1
18	90201-10M02	Washer,Plate	1
19	6G9-45987-00	Spacer	1
20	90201-10M01	Washer,Plate	1
21	93450-10M05	Circlip	1
